HOG® Blaster™ MOTORCYCLE DRYER
J048322009-12-22
GENERAL
Kit Number
94651-09, 94865-09
Models
All Harley-Davidson model motorcycles
Kit Contents
See Figure 1 and Table 1.
INSTALLATION
WARNING
Do not operate dryer while standing on a wet surface or operate a dryer that is wet. Electrical shock or short circuit could occur. (00592e)
  • If the dryer falls into water, unplug the dryer immediately. Do not reach into the water.
  • Do not set the dryer in water or drag the cord through water.
  • Inspect the cord before operating. Do not operate the dryer if the cord is damaged.
  • Always unplug the dryer when not in use.
WARNING
Wear eye protection when operating the dryer. Flying debris could cause serious eye injury. (00593d)
  1. Move the motorcycle to a dry area.
  2. Attach the power cord to an undamaged UL approved three conductor 16/3 extension cord.
  3. Plug the extension cord into a GFCI (ground fault circuit interrupter) electrical outlet.
  4. Install the stretch hose onto the unit and attach the neoprene nozzle or air flare tool to the end of the hose to control air flow when drying different areas of the motorcycle.
    5. NOTE
    Due to the large volume of air produced by the dryer there may be some air venting by the seams. This is normal and helps keep the unit running efficiently.
  5. Hold the dryer by the handle and start the dryer by pushing the toggle switch up to turn the dryer on.
    6. NOTE
    Periodically remove the filter from the bottom of the unit for cleaning. Replace as necessary.
SERVICE PARTS

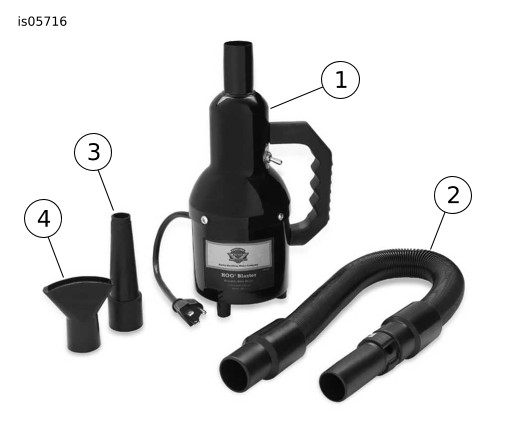

Figure 1. Service Parts: Warm Air Motorcycle Dryer
Table 1. Service Parts: Warm Air Motorcycle Dryer
Item
Description (Quantity)
Part Number
1
Warm air dryer
Not Sold Separately
2
Stretch hose
Not Sold Separately
3
Neoprene nozzle
Not Sold Separately
4
Air flare nozzle
Not Sold Separately
5
Filter kit (not shown)
94682-09
