FRONT AXLE COVER ADAPTER KIT
J063992019-05-01
GENERAL
Kit Number
43000090, 43000159
Models
For model fitment information, see the P&A retail catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
INSTALLATION REQUIREMENTS
Proper installation of this kit requires LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97).
INSTALLATION
NOTE
Based on vehicle model and kit, there may be variation in length and number of the screws.
| 1. | See Figure 3 , Table 1 and Table 2. Apply threadlocker to screw threads prior to assembly. Preassemble the right hand side of the adaptor kit by inserting the screw through the washer (3), right base (7), and thread into threaded base part (6) until snug. For Kit 43000159, the right base (7) has a notch at the top that needs to be aligned with the fork down tube.LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97) | |
| 2. | Install O-ring (5) one inch from the left end of the threaded rod as shown. | |
| 3. | See Figure 1. Insert the adaptor kit into the axle from the right hand side. | |
| 4. | See Figure 2. Apply threadlocker to threads, install the remaining screw, washer (3), and left base (4) while holding the right side secure. For Kit 43000159, the left base (4) has a notch at the top that needs to be aligned with the fork down tube. Do not use air tools for installation. Tighten. Torque: 11.3 N·m (100 in-lbs) LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97)NOTE Slight gap between left base (4) and fork slider is normal once installed. |
Table 1. Model Specific Component Requirements
KIT | MODEL | RH | LH |
|---|---|---|---|
Kit 43000090 | FXBB | Short | Short |
FXLR | Short | Short | |
FLSL | Long | Short | |
FLDE | Long | Short | |
FLSB | Long | Short | |
FXBR (S) | Long | Short | |
FLHC (S) | Long | Short | |
FLFB (S) | Long | Long | |
Kit 43000159 | FXFB | Short | Long |
FXDR | Short | Long |

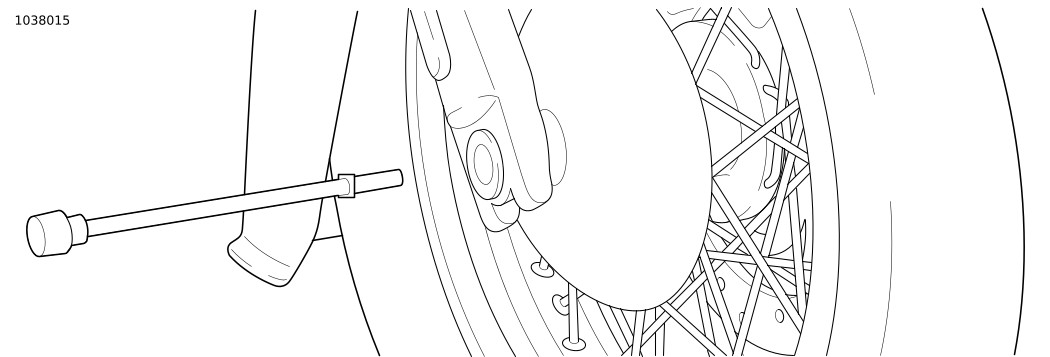

Figure 1. RH Side

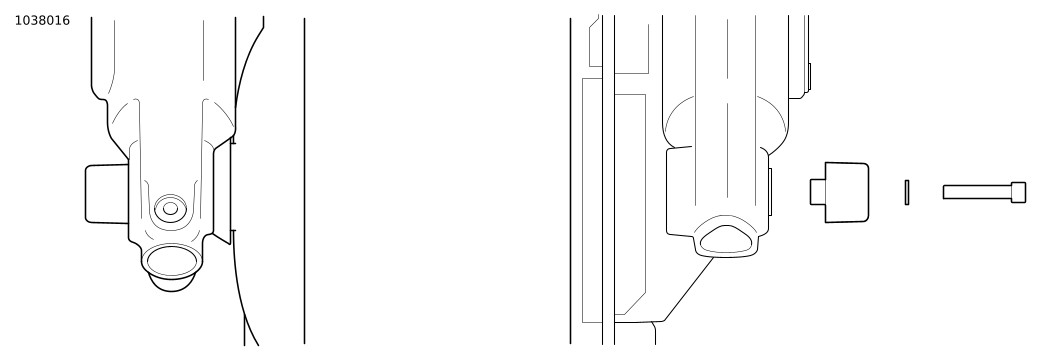

Figure 2. LH Side
SERVICE PARTS
Figure 3. Front Axle Cover Adapter Kit
Table 2. Service Parts: Front Axle Cover Adapter Kit
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Screw, long (2), Kit 43000090 Screw, long (1), Kit 43000159 | 885A |
2 | Screw, short (2), Kit 43000090 Screw, short (1), Kit 43000159 | 3601 |
3 | Washer (2) | 6099 |
4 | Left base, Kit 43000090 Left base with top notch, Kit 43000159 | Not sold separately |
5 | O-ring | 11301 |
6 | Threaded rod | Not sold separately |
7 | Right base, Kit 43000090 Right base with top notch, Kit 43000159 | Not sold separately |
