2016 HARLEY-DAVIDSON® PARTS CATALOG: DYNA MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99439-16B | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2016 DYNA MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the
United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | 4=Twin Cam 96™, 1585 cm3 air-cooled, fuel-injected M=Twin Cam 103™, 1690 cm3 air-cooled,
fuel-injected 8=Twin Cam 110™, 1802 cm3 air-cooled,
fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) J=Brazil (BRZ) L=Asia Pacific (APC) N=India (IND) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) K=Brazil (BRZ) M=Asia Pacific (APC) P=India (IND) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | G=2016 | |
8 | Assembly plant | C=Kansas City, MO U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
GN | FXDL Dyna® Low Rider® | GY | FXDF Dyna® Fat Bob® |
GP | FXDWG Dyna® Wide Glide® | GZ | FLD Dyna® Switchback® |
GS | FXDLS Dyna® Low Rider® S | VA | FXDBP Dyna® Street Bob®
(factory custom) |
GX | FXDB Dyna® Street Bob® | VD | FXDBC Dyna® Street Bob® Limited |
NOTES
ENGINE ASSEMBLY - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19255-16 | ENGINE ASSEMBLY (black) | FXDL |
| 19593-16 | ENGINE ASSEMBLY (black) | FXDWG | |
| 19804-16 | ENGINE ASSEMBLY (black) | FLD | |
| 19863-16 | ENGINE ASSEMBLY (black) | FXDB, FXDBC | |
| 20019-16 | ENGINE ASSEMBLY (black) | FXDF | |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, with 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump and cylinder studs (See Note) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 91800042 | KIT, shortblock installation, with 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains and camshaft tensioners | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
ENGINE ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19805-16 | ENGINE ASSEMBLY (black/chrome) | FXDWG 103 |
| 19806-16 | ENGINE ASSEMBLY (black) | FLD 103 | |
| 19595-16 | ENGINE ASSEMBLY (black/black wrinkle/black polished) | FXDB 103, FXDBC 103, FXDBP 103 | |
| 19597-16 | ENGINE ASSEMBLY (black/chrome/chrome) | FXDBP 103, FXDL 103 | |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, with 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump and cylinder studs (See Note) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDWG 103 |
| 3 | 91800042 | KIT, shortblock installation, with 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains and camshaft tensioners | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDWG 103 |
| Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
ENGINE ASSEMBLY - TWIN CAM 103™ HIGH OUTPUT
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200170 | ENGINE ASSEMBLY, 103 High Output | FXDL 103 |
| 16200171 | ENGINE ASSEMBLY, 103 High Output | FXDWG 103 | |
| 16200172 | ENGINE ASSEMBLY, 103 High Output | FLD 103 | |
| 16200173 | ENGINE ASSEMBLY, 103 High Output | FXDF 103 |
ENGINE ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200258 | ENGINE ASSEMBLY (black) | FXDLS |
CYLINDERS, HEADS AND VALVES - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 16465-06 | VALVE GUIDE, intake and exhaust (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 16595-99A | DOWEL PIN (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 16699-06 | SNAP RING (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 16715-83 | STUD, exhaust port (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 8 | 16775-99B | GASKET, cylinder head (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 9 | 16834-99A | STUD, cylinder (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 10 | 17052-99C | GASKET KIT, top end | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17053-99C | GASKET KIT, engine overhaul | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 11 | 17178-06A | CYLINDER HEAD, front, with guides, seats and collars (black) | FLD, FXDF, FXDL, FXDWG |
| 17179-06 | CYLINDER HEAD, rear, with guides, seats and collars (black) | FLD, FXDF, FXDL, FXDWG | |
| 16500093 | CYLINDER HEAD, front, with guides, seats and collars (black, non-highlighted) | FXDB, FXDBC, FXDF | |
| 16500095 | CYLINDER HEAD, rear, with guides, seats and collars (black, non-highlighted) | FXDB, FXDBC, FXDF | |
| 12 | 17458-07 | CYLINDER ASSEMBLY, with piston, rings, piston pin and retaining rings (black) (2) | FLD, FXDBC, FXDF, FXDL, FXDWG |
| 17558-08 | CYLINDER ASSEMBLY (black, non-highlighted) (2) | FXDB, FXDBC | |
| 13 | 18011-86 | INSERT, exhaust valve seat (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 14 | 18020-83 | INSERT, intake valve seat (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 15 | 18074-05A | INTAKE VALVE (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 16 | 18085-05B | EXHAUST VALVE (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17 | 18094-02A | SEAL, valve (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 18 | 18245-02 | VALVE SPRING (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 19 | 18258-02 | COLLAR, valve spring (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 20 | 18260-02 | KEEPER, valve (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
CYLINDERS, HEADS AND VALVES - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 16465-06 | VALVE GUIDE, intake and exhaust (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 16480-92A | SCREW, internal thread, 1-7/8 in (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 16547-99A | CYLINDER ASSEMBLY, with 16595-99A (black)(FXDBP 103-black/chrome) (2) | FLD 103, FXDBP 103, FXDL 103, FXDWG 103 |
| 6 | 16595-99A | DOWEL PIN (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 16699-06 | SNAP RING (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 16715-83 | STUD, exhaust port (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 16787-99A | GASKET, cylinder head (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 16834-99A | STUD, cylinder (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 17052-99C | GASKET KIT, top end | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17053-99C | GASKET KIT, engine overhaul | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 12 | 17460-07A | CYLINDER ASSEMBLY, with piston, rings, piston pin and retaining rings (black) (2) | FLD 103, FXDBP 103, FXDL 103, FXDWG 103 |
| 16800003A | CYLINDER ASSEMBLY, with piston, rings, piston pin and retaining rings (black, non-highlighted) (2) | FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 13 | 17729-08 | CYLINDER HEAD, rear, with guides, seats and collars (black) (FXDBP 103-black/chrome) | FLD 103, FXDBP 103, FXDL 103, FXDWG 103 |
| 16500023 | CYLINDER HEAD, front, with guides, seats and collars (black) (FXDBP 103-black/chrome) | FLD 103, FXDBP 103, FXDL 103, FXDWG 103 | |
| 16500092 | CYLINDER HEAD, front, with guides, seats and collars (black) (FXDBP 103-black/wrinkle black) | FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 16500094 | CYLINDER HEAD, rear, with guides, seats and collars (black) (FXDBP 103-black/wrinkle black) | FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 15 | 18020-83 | INSERT, intake valve seat (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 16 | 18074-05A | INTAKE VALVE (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17 | 18085-05B | EXHAUST VALVE (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 18 | 18094-02A | SEAL, valve (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 19 | 18245-02 | VALVE SPRING (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 20 | 18258-02 | COLLAR, valve spring (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 21 | 18260-02 | KEEPER, valve (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 22 | 28861-07A | SOLENOID, auto compression release, with 72009-05 and 72011-05 (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 23 | 72009-05 | HOUSING, two-way, pin (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 24 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
CYLINDERS, HEADS AND VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING KIT, cylinder-base (set of 2) | FXDLS |
| 2 | 16478-85A | SCREW, internal-thread, 3-3/16 in long (4) | FXDLS |
| 3 | 16480-92A | SCREW, internal-thread, 1-7/8 in long (4) | FXDLS |
| 4 | 16595-99A | DOWEL, pin (4) | FXDLS |
| 5 | 16699-06 | RETAINING RING (4) | FXDLS |
| 6 | 16715-83 | STUD, exhaust-port (4) | FXDLS |
| 7 | 16801-07B | GASKET, cylinder-head (2) | FXDLS |
| 8 | 16834-99A | STUD, cylinder (8) | FXDLS |
| 9 | 17251-07B | HEAD ASSEMBLY, cylinder, front, with 5, 6, 10, 14, 17, 18, 20, 21, 22, 23, 24, 25 and 28 (black) | FXDLS |
| 17252-07A | HEAD ASSEMBLY, cylinder, rear, with 5, 6, 10, 14, 17, 18,20, 21, 22, 23, 24, 25 and 28 (black) | FXDLS | |
| 10 | 17253-07B | HEAD, cylinder, front, with 18048-98A, 18161-08, 18168-08 and 18189-07 (black) | FXDLS |
| 17257-07A | HEAD, cylinder, rear, with 18048-98A, 18161-08, 18168-08 and 18189-07 (black) | FXDLS | |
| 11 | 17285-07A | CYLINDER ASSEMBLY, with 16595-99A (black) (2) | FXDLS |
| 12 | 17349-07B | GASKET KIT, top-end | FXDLS |
| 17350-07B | GASKET KIT, engine overhaul | FXDLS | |
| 13 | 18048-98A | SEAT, exhaust-valve (2) | FXDLS |
| 14 | 18067-09 | SEAL, valve (4) | FXDLS |
| 15 | 18161-08 | GUIDE, intake-valve (2) | FXDLS |
| 16 | 18168-08 | GUIDE, exhaust-valve (2) | FXDLS |
| 17 | 18183-03 | VALVE, exhaust (2) | FXDLS |
| 18 | 18187-07 | VALVE, intake (2) | FXDLS |
| 19 | 18189-07 | SEAT, intake-valve (2) | FXDLS |
| 20 | 18270-00A | COLLAR, lower, valve-spring (4) | FXDLS |
| 21 | 18271-00 | KEY, collar, valve-spring (8) | FXDLS |
| 22 | 18272-00 | SPRING SET, inner and outer, valve (4) | FXDLS |
| 23 | 18280-07 | COLLAR, upper, valve-spring (4) | FXDLS |
| 24 | 28861-07A | SOLENOID, auto compression release, with 72009-05 and 72011-05 (2) | FXDLS |
| 25 | 29517-07A | MEDALLION KIT (set of 2) | FXDLS |
| 26 | 72009-05 | HOUSING, two-way pin (2) | FXDLS |
| 27 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FXDLS |
| 28 | 25800017 | SCREW, medallion (4) | FXDLS |
ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 3692A | SCREW (6) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 3693A | SCREW (10) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 4 | 3736B | SCREW (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 4400 | BOLT (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 4741A | SCREW (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 6762B | WASHER (4) | FLD, FXDB, FXDF, FXDWG |
| 8 | 11132A | O-RING, pushrod cover (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 9 | 11145A | O-RING, pushrod cover (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 10 | 11270 | O-RING (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 11 | 11293 | O-RING (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 13 | 17025-03A | BREATHER ASSEMBLY | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 14 | 17045-99D | GASKET KIT, camshaft service | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust - includes bearings (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust - includes bearings (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 18 | 17429-91 | BEARING, rocker arm (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FXDL, FXDWG |
| 17575-99 | ROCKER COVER (polished) (2) | FLD | |
| 17620-99 | ROCKER COVER (black) (2) | FXDB, FXDBC, FXDF | |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FXDL, FXDWG |
| 17574-99A | ROCKER HOUSING (polished) (2) | FLD, FXDB, FXDBC, FXDF | |
| 21 | 17576-99 | LIFTER COVER, front (polished) | FLD, FXDB, FXDBC, FXDF |
| 17577-99 | LIFTER COVER, rear (polished) | FLD, FXDB, FXDBC, FXDF | |
| 17964-99 | LIFTER COVER, front (chrome) | FXDL, FXDWG | |
| 17966-99 | LIFTER COVER, rear (chrome) | FXDL, FXDWG | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 24 | 17922-99 | PUSHROD, exhaust - 10.536 in (black oxide finish) (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17923-99 | PUSHROD, intake - 10.418 in (plain finish) (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25 | 17939-99 | COVER, pushrod - lower (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 26 | 17945-36B | CAP, cover spring (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 27 | 17947-36 | SPRING, pushrod cover (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 28 | 17948-99 | COVER, pushrod - upper (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 33 | 26500002 | BREATHER, baffle assembly, with gaskets (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 3692A | SCREW (6) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 3693A | SCREW (10) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 3736B | SCREW (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 4400 | BOLT (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 4741A | SCREW (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 6762B | WASHER (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 11132A | O-RING, pushrod cover (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 11145A | O-RING, pushrod cover (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 11270 | O-RING (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 11293 | O-RING (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 13 | 17025-03A | BREATHER ASSEMBLY | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 14 | 17045-99D | GASKET KIT, camshaft service | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust - includes bearings (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust - includes bearings (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 18 | 17429-91 | BEARING, rocker arm (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FXDBC 103, FXDBP 103, FXDL 103, FXDWG 103 |
| 17575-99 | ROCKER COVER (polished) (2) | FLD 103 | |
| 17620-99 | ROCKER COVER (black) (2) | FXDB 103, FXDBC 103, FXDF 103 | |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FXDBP 103, FXDL 103, FXDWG 103 |
| 17574-99A | ROCKER HOUSING (polished) (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 21 | 17576-99 | LIFTER COVER, front (polished) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 |
| 17577-99 | LIFTER COVER, rear (polished) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 17964-99 | LIFTER COVER, front (chrome) | FXDBP 103, FXDL 103, FXDWG 103 | |
| 17966-99 | LIFTER COVER, rear (chrome) | FXDBP 103, FXDL 103, FXDWG 103 | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 24 | 17922-99 | PUSHROD, exhaust - 10.536 in (black oxide finish) (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17923-99 | PUSHROD, intake - 10.418 in (plain finish) (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25 | 17939-99 | COVER, pushrod - lower (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 26 | 17945-36B | CAP, cover spring (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 27 | 17947-36 | SPRING, pushrod cover (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 28 | 17948-99 | COVER, pushrod - upper (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 33 | 26500002 | BREATHER, baffle assembly, with gaskets (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FXDLS |
| 2 | 3692A | SCREW (6) | FXDLS |
| 3 | 3693A | SCREW (10) | FXDLS |
| 4 | 3736B | SCREW (8) | FXDLS |
| 5 | 4400 | BOLT (4) | FXDLS |
| 6 | 4741A | SCREW (8) | FXDLS |
| 7 | 6762B | WASHER (4) | FXDLS |
| 8 | 11132A | O-RING, push rod cover (4) | FXDLS |
| 9 | 11145A | O-RING, push rod cover (4) | FXDLS |
| 10 | 11270 | O-RING (2) | FXDLS |
| 11 | 11293 | O-RING (4) | FXDLS |
| 12 | 16719-99B | GASKET, rocker housing (2) | FXDLS |
| 13 | 17025-03A | BREATHER ASSEMBLY (2) | FXDLS |
| 14 | 17045-99D | GASKET KIT, cam service | FXDLS |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, with 17429-91 (2) | FXDLS |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, with 17429-91 (2) | FXDLS |
| 17 | 17386-99A | GASKET, rocker cover (2) | FXDLS |
| 18 | 17429-91 | BEARING, rocker arm (8) | FXDLS |
| 19 | 17594-99 | SUPPORT, rocker arm (2) | FXDLS |
| 20 | 17611-83 | SHAFT, rocker arm (4) | FXDLS |
| 21 | 17620-99 | ROCKER COVER (black) (2) | FXDLS |
| 22 | 17709-11 | ROCKER HOUSING (black) (2) | FXDLS |
| 23 | 17922-99 | PUSH ROD, exhaust, 10.536 in long (black oxide finish) (2) | FXDLS |
| 17923-99 | PUSH ROD, intake, 10.418 in long (plain finish) (2) | FXDLS | |
| 24 | 17939-99 | COVER, push rod, lower (4) | FXDLS |
| 25 | 17945-36B | CAP, cover spring (4) | FXDLS |
| 26 | 17947-36 | SPRING, push rod cover (4) | FXDLS |
| 27 | 17948-99 | COVER, push rod, upper (4) | FXDLS |
| 28 | 17964-99 | LIFTER COVER, front (chrome) | FXDLS |
| 17966-99 | LIFTER COVER, rear (chrome) | FXDLS | |
| 29 | 17968-99 | RETAINER, spring cap (4) | FXDLS |
| 30 | 18535-99 | PIN, anti-rotation (2) | FXDLS |
| 31 | 18572-13 | KIT, HYDRAULIC LIFTER (set of 4) | FXDLS |
| 32 | 18635-99B | GASKET, lifter cover (2) | FXDLS |
| 33 | 26500002 | BREATHER, baffle assembly, with gaskets (2) | FXDLS |
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 21949-07 | PISTON RING SET, standard (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 21950-07 | PISTON RING SET, 0.005 in oversize (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 21955-07 | PISTON RING SET, 0.010 in oversize (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 3 | 21959-07 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - std. (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 21960-07 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - 0.005 in oversize (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 21961-07 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings - 0.010 in oversize (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 22131-05 | PISTON PIN (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 23729-07B | FLYWHEEL ASSEMBLY KIT | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 21918-99 | PISTON RING SET, standard (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 21919-99 | PISTON RING SET, 0.005 in oversize (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 21945-99 | PISTON RING SET, 0.010 in oversize (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 3 | 21962-07 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, standard (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 21964-07 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, 0.010 in oversize (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 22131-05 | PISTON PIN (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 23729-07B | FLYWHEEL ASSEMBLY KIT | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FXDLS |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FXDLS |
| 21953-11 | PISTON RING SET, 0.010 in over-size (2) | FXDLS | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FXDLS |
| 4 | 22000001 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, standard (2) | FXDLS |
| 22000003 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, 0.010 in over-size (2) | FXDLS | |
| 5 | 24100021 | FLYWHEEL ASSEMBLY KIT | FXDLS |
CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 765 | PLUG (3) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 895 | SCREW (9) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 4 | 8972 | WASHER (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 9215 | NEEDLE BEARING, camshaft (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 11140 | O-RING (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 11273 | O-RING (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 8 | 12068 | OIL SEAL | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 9 | 16574-99A | DOWEL PIN (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 10 | 16589-99A | DOWEL PIN (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 11 | 16595-99A | DOWEL PIN (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 12 | 22307-99 | PISTON COOLING JET, with O-ring (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 13 | 24004-03B | BEARING KIT, with 8972, 24605-07 and 35114-02 | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 14 | 24009-06 | SPACER, sprocket shaft | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 15 | 24621-06B | SET OF CRANKCASES, with 1,2,3,5,6,9,10,11,12,16,18,20 and 3983 (not shown) bolts (black) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 16 | 24605-07 | BEARING, main (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17 | 26352-95A | ADAPTER, oil filter | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 18 | 35114-02 | RETAINING RING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 19 | 63731-99A | OIL FILTER (black) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 20 | 68042-99 | SCREW (4) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 765 | PLUG (3) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 895 | SCREW (9) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 8972 | WASHER (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 9215 | NEEDLE BEARING, camshaft (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 11140 | O-RING (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 11273 | O-RING (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 12068 | OIL SEAL | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 16574-99A | DOWEL PIN (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 16589-99A | DOWEL PIN (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 16595-99A | DOWEL PIN (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 22307-99 | PISTON COOLING JET, with O-ring (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 13 | 24004-03B | BEARING KIT, with 8972, 24605-07 and 35114-02 | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 14 | 24009-06 | SPACER, sprocket shaft | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 15 | 24621-06B | SET OF CRANKCASES, with 1,2,3,5,6,9,10,11,12,16,18,20 and 3983 (not shown) bolts (black) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 16 | 24605-07 | BEARING, main (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17 | 26352-95A | ADAPTER, oil filter | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 18 | 35114-02 | RETAINING RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 19 | 63731-99A | OIL FILTER (black) (FXDBP 103-black/wrinkle black) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDWG 103 |
| 63798-99A | OIL FILTER (chrome) (FXDBP 103-black/chrome) | FXDBC 103, FXDBP 103, FXDL 103 | |
| 20 | 68042-99 | SCREW (4) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
CRANKCASE, ENGINE OIL FILTER AND COOLER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FXDLS |
| 2 | 765 | PLUG (3) | FXDLS |
| 3 | 895 | SCREW (8) | FXDLS |
| 4 | 1090A | SCREW | FXDLS |
| 5 | 8972 | WASHER (2) | FXDLS |
| 6 | 9215 | NEEDLE BEARING, camshaft (left) (2) | FXDLS |
| 7 | 11140 | O-RING (2) | FXDLS |
| 8 | 11273 | O-RING (2) | FXDLS |
| 9 | 12068 | SEAL, oil | FXDLS |
| 10 | 16574-99A | DOWEL PIN (2) | FXDLS |
| 11 | 16589-99A | DOWEL PIN (2) | FXDLS |
| 12 | 16595-99A | DOWEL PIN (4) | FXDLS |
| 13 | 22307-99 | JET, cooling, piston, with 11140 (2) | FXDLS |
| 14 | 24004-03B | BEARING KIT, with 8972, 24605-07, 35114-02 and inner race | FXDLS |
| 15 | 24009-06 | SPACER, sprocket shaft | FXDLS |
| 16 | 24605-07 | BEARING, main (2) | FXDLS |
| 17 | 24758-07A | CRANKCASE SET, with 1, 2, 3, 4, 6, 10, 11, 12, 13, 16, 19 and 21 (black) | FXDLS |
| 18 | 26352-95A | ADAPTER | FXDLS |
| 19 | 35114-02 | RING, retaining, internal | FXDLS |
| 20 | 63731-99A | OIL FILTER (black) | FXDLS |
| 21 | 68042-99 | SCREW (4) | FXDLS |

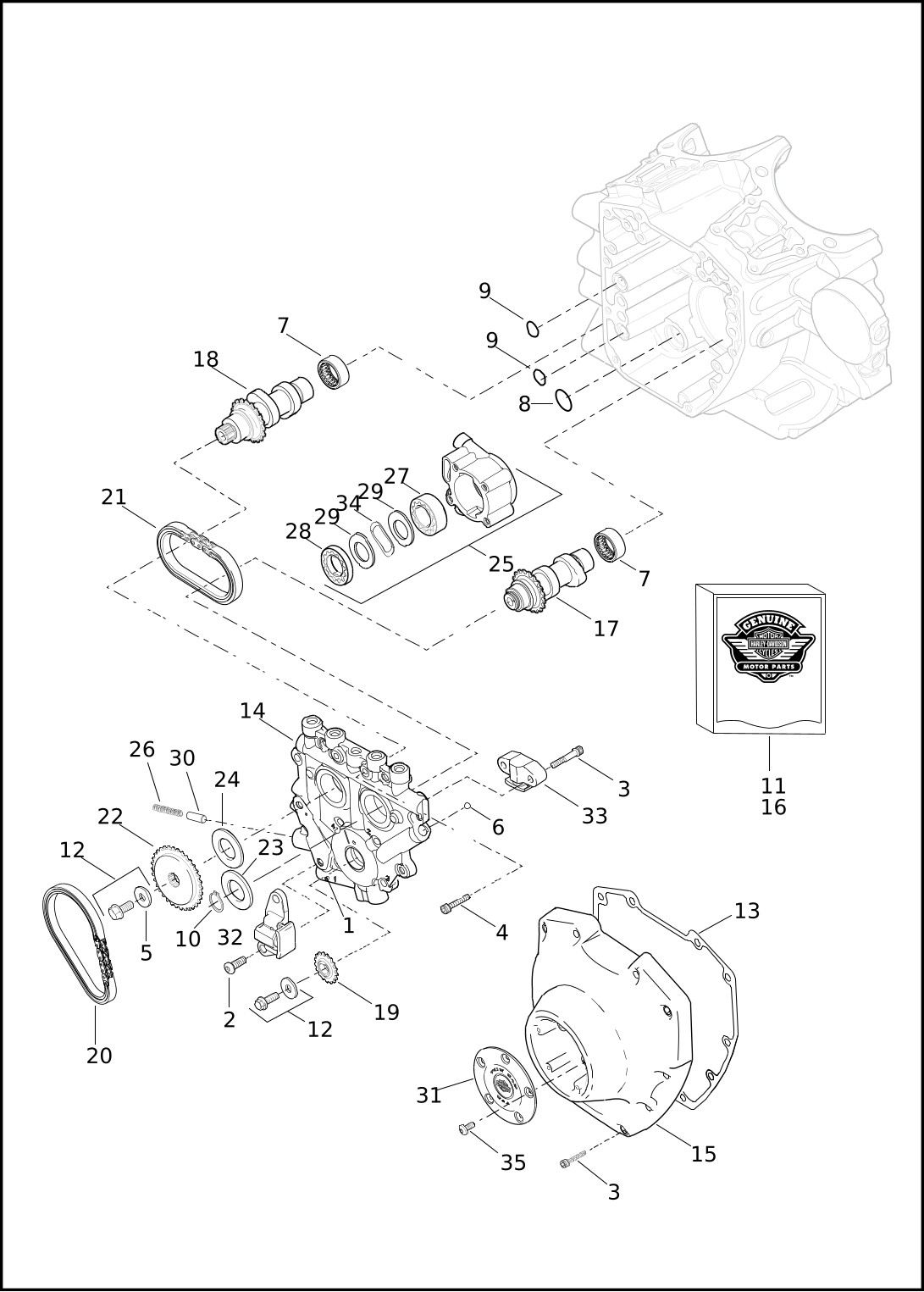

CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 96™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 942 | SCREW (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 4740A | SCREW (12) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 4 | 4741A | SCREW (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 6294 | WASHER | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 8873 | BALL (12) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 8 | 11293 | O-RING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 9 | 11301 | O-RING (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 10 | 11461 | RETAINING RING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 11 | 17045-99D | GASKET KIT, camshaft service | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, with 6294, washer and screws | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 13 | 25244-99A | GASKET, cam cover | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 14 | 25355-06A | CAM SUPPORT PLATE, with bypass valve | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 15 | 25363-01B | CAM COVER (polished) | FLD |
| 25364-01B | CAM COVER (black) | FXDB, FXDBC, FXDF, FXDWG | |
| 25369-01B | CAM COVER (chrome) | FXDL | |
| 16 | 25585-06 | CAMSHAFT CHAIN AND FASTENER KIT | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17 | 24608-07A | CAMSHAFT KIT, front | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 18 | 25590-07A | CAMSHAFT KIT, rear | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 96™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 teeth | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 20 | 25675-06 | CHAIN, primary camshaft drive | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 21 | 25683-06 | CHAIN, secondary camshaft drive | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 22 | 25728-06 | SPROCKET, camshaft drive, 34 teeth | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 23 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 24 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, with body, both gerotor assemblies and separator plate | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 26 | 26210-99 | SPRING, relief valve | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 31 | 32543-07 | COVER, ignition | FLD |
| 32543-07 | COVER, ignition (Brazil) | FXDL | |
| 32558-99 | COVER, ignition (black) | FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 32 | 39968-06 | CHAIN TENSIONER, primary camshaft drive chain | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 33 | 39969-06 | CHAIN TENSIONER, secondary camshaft drive chain | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 34 | 40323-00 | SPRING, separator | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 35 | 68042-99 | SCREW (5) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 942 | SCREW (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 4740A | SCREW (12) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 4741A | SCREW (10) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 6294 | WASHER | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 8873 | BALL (12) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 11293 | O-RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 11301 | O-RING (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 11461 | RETAINING RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 17045-99D | GASKET KIT, camshaft service | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, with 6294, washer and screws | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 13 | 25244-99A | GASKET, camshaft cover | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 14 | 25355-06A | CAM SUPPORT PLATE, with bypass valve | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 15 | 25363-01B | CAM COVER (polished) | FLD 103 |
| 25364-01B | CAM COVER (black) | FXDB 103, FXDBP 103, FXDF 103, FXDWG 103 | |
| 25369-01B | CAM COVER | FXDBC 103, FXDBP 103, FXDL 103 | |
| 16 | 25585-06 | CAMSHAFT CHAIN AND FASTENER KIT | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17 | 24608-07A | CAMSHAFT KIT, front | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 25400002 | CAMSHAFT KIT, front (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 18 | 25590-07A | CAMSHAFT KIT, rear | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 25400003 | CAMSHAFT KIT, rear (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 teeth | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 20 | 25675-06 | CHAIN, primary camshaft drive | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 21 | 25683-06 | CHAIN, secondary camshaft drive | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 22 | 25728-06 | SPROCKET, camshaft drive, 34 teeth | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 23 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 24 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, with body, both gerotor assemblies and separator plate | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 26 | 26210-99 | SPRING, relief valve | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 31 | 39968-06 | CHAIN TENSIONER, primary camshaft drive chain | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 32 | 39969-06 | CHAIN TENSIONER, secondary camshaft drive chain | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 33 | 40323-00 | SPRING, separator | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 34 | 68120-00 | SCREW (5) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 35 | 25700082 | COVER, ignition (chrome) | FLD 103, FXDBP 103 |
| 25700083 | COVER, ignition (denim black) | FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 36 | 25600012 | COVER, ignition (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FXDLS |
| 2 | 942 | SCREW, primary camshaft chain tensioner (2) | FXDLS |
| 3 | 4740A | SCREW (12) | FXDLS |
| 4 | 4741A | SCREW (10) | FXDLS |
| 5 | 6294 | WASHER | FXDLS |
| 6 | 8873 | BALL (12) | FXDLS |
| 7 | 9215 | BEARING, needle, camshaft (left) (2) | FXDLS |
| 8 | 11293 | O-RING | FXDLS |
| 9 | 11301 | O-RING (2) | FXDLS |
| 10 | 11461 | RETAINING RING | FXDLS |
| 11 | 17045-99D | GASKET KIT, camshaft service | FXDLS |
| 12 | 25244-99A | GASKET, camshaft cover | FXDLS |
| 13 | 25355-06A | CAMSHAFT SUPPORT PLATE, with bypass valve | FXDLS |
| 14 | 25364-01B | CAMSHAFT COVER (black) | FXDLS |
| 15 | 25638-07 | CAMSHAFT KIT, front and rear camshafts | FXDLS |
| 17 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with 6294, washer and screws | FXDLS |
| 18 | 25585-06 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25728-06 | FXDLS |
| 19 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FXDLS |
| 20 | 25675-06 | CHAIN, primary camshaft drive | FXDLS |
| 21 | 25683-06 | CHAIN, secondary camshaft drive | FXDLS |
| 22 | 25728-06 | SPROCKET, camshaft drive, 34 T | FXDLS |
| 23 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick | FXDLS |
| 24 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FXDLS |
| 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FXDLS | |
| 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FXDLS | |
| 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FXDLS | |
| 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FXDLS | |
| 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FXDLS | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, with 26278-06, 26281-06, 26282-06 and 40323-00 | FXDLS |
| 26 | 26210-99 | SPRING, relief valve | FXDLS |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FXDLS |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FXDLS |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FXDLS |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FXDLS |
| 31 | 39968-06 | CHAIN TENSIONER, primary camshaft drive chain | FXDLS |
| 32 | 39969-06 | CHAIN TENSIONER, secondary camshaft drive chain | FXDLS |
| 33 | 40323-00 | SPRING, separator | FXDLS |
| 34 | 68120-00 | SCREW (5) | FXDLS |
| 35 | 25600012 | COVER, timer cover | FXDLS |
| Index number 16 is not used in this illustration. | |||
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 9468 | SCREW | ALL |
| 2 | 3509 | BOLT (4) | ALL |
| 3 | 3554 | BOLT (2) | ALL |
| 4 | 4775 | SCREW (2) | ALL |
| 5 | 4721 | BOLT | ALL |
| 6 | 4748 | SCREW (4) | ALL |
| 7 | 6019 | WASHER (5) | ALL |
| 8 | 6701 | WASHER (10) | ALL |
| 9 | 7038 | LOCKWASHER (4) | ALL |
| 10 | 7601 | LOCKNUT (5) | ALL |
| 11 | 16241-90 | SPACER | ALL |
| 12 | 16258-95C | STABILIZER LINK, top | ALL |
| 13 | 16328-04A | BRACKET, engine mount | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 16400015 | BRACKET, engine mount | FXDLS | |
| 16400015 | BRACKET, engine mount (India) | FXDB, FXDF | |
| 16400026A | BRACKET ASSEMBLY, engine mount | FXDL, FXDL 103 | |
| 14 | 47226-99A | BRACKET, front engine mount | ALL |
| 15 | 47564-99 | ISOLATOR, rear | ALL |
| 16 | 47583-90B | ISOLATOR, front | ALL |
INDUCTION MODULE, FUEL - TWIN CAM 96™ AND TWIN CAM 103™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 11291 | SEAL, manifold air pressure sensor | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 26993-06 | FLANGE, mounting (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 26995-86B | SEAL, intake manifold (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 27381-06 | INTAKE AIR TEMPERATURE SENSOR KIT, with screws | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 27709-06A | INJECTOR, fuel (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 27651-06 | FUEL RAIL SERVICE KIT, with fuel rail, screws, washers, O-rings and tube | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 27655-06 | INDUCTION MODULE SERVICE KIT, with sensors, O-rings, screws, injector clips and fuel tube seal retainer | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 27658-06 | IAC MOTOR, with screws | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 27659-06 | THROTTLE POSITION SENSOR, with screws | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 27684-06 | BRACKET, cable | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 27708-06B | INDUCTION MODULE ASSEMBLY | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 32417-10 | SENSOR, manifold air pressure | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 72062-06 | HOUSING, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 72484-08 | TERMINAL, 20 AWG socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 72486-08 | WIRE SEAL, 18-20 AWG (yellow) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 74112-05GY | HOUSING, two-way socket (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 74152-98 | SECONDARY LOCK, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
INDUCTION MODULE, FUEL - TWIN CAM 96™ AND TWIN CAM 103™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 74191-98 | TERMINAL, socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 20 | 90383-98 | CAP PLUG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 20 | 90383-98 | CAP PLUG (California) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 21 | 27300014 | RESTRICTOR PLATE KIT, 35 kW (HDI) | FLD 103, FXDB 103, FXDBC 103, FXDF 103, FXDL 103, FXDWG 103 |
| 22 | 69200444 | INTAKE AIR TEMPERATURE HARNESS | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
INDUCTION MODULE, FUEL - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FXDLS |
| 2 | 4705 | SCREW (2) | FXDLS |
| 3 | 26993-06 | FLANGE, mounting (2) | FXDLS |
| 4 | 26995-86B | SEAL, intake manifold (2) | FXDLS |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, with O-ring (2) | FXDLS |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FXDLS |
| 7 | 27712-08 | BRACKET, induction module | FXDLS |
| 8 | 27721-08 | FUEL RAIL | FXDLS |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, with O-ring | FXDLS |
| 10 | 90383-98 | CAP, purge tube | FXDLS |
| 11 | 27200002 | INDUCTION MODULE KIT, with 27711-08 and 90383-98 | FXDLS |
| 12 | 61200048 | FUEL LINE KIT | FXDLS |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2405A | SCREW (Domestic, Canada) | FXDB 103, FXDBP 103 |
| 2 | 4761 | SCREW (Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDWG, FXDWG 103 |
| 4761 | SCREW (3) | FXDL 103 | |
| 3 | 8102 | SPEEDNUT | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4 | 10309 | CLIP | FXDB 103, FXDBC 103, FXDBP 103, FXDL 103 |
| 5 | 28725-10 | COVER ASSEMBLY, chrome, with 29108-08 | FXDL 103 |
| 28725-10 | COVER ASSEMBLY, chrome, with 29108-08 (Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDWG, FXDWG 103 | |
| 61300309 | COVER ASSEMBLY, gloss black, with 29108-08 | FXDF, FXDF 103 | |
| 6 | 29108-08 | LABEL, air cleaner warning (Domestic, California) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 29127-95B | LABEL, air cleaner warning (Domestic, California) | FXDB 103, FXDBP 103 | |
| 7 | 29110-08 | BRACKET, air cleaner cover (Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 8 | 29136-91 | COVER ASSEMBLY, round, chrome with 29126-90B (Domestic, Canada) | FXDB 103, FXDBP 103 |
| 9 | 61300191 | TRIM, air cleaner - 96 CUBIC INCHES, FAT BOB | FXDBC, FXDF |
| 29343-08 | TRIM, air cleaner - 96 CUBIC INCHES, STREET BOB | FXDB | |
| 29344-10 | TRIM, air cleaner - 96 CUBIC INCHES, WIDE GLIDE | FXDWG | |
| 29500001 | TRIM, air cleaner - 96 CUBIC INCHES, SWITCHBACK | FLD | |
| 61300033 | TRIM, air cleaner - 103 CUBIC INCHES | FLD 103, FXDB 103, FXDL 103, FXDWG 103 | |
| 61300192 | TRIM, air cleaner - 103 CUBIC INCHES | FXDBC 103, FXDF 103 | |
| 61300359 | TRIM, air cleaner - DYNA LOW RIDER | FXDL | |
| 10 | 29154-08 | TUBE, breather (Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 29182-08A | BACKPLATE (Australia, Canada, Domestic, England, HDI, Japan) | FLD, FLD 103 |
| 29182-08A | BACKPLATE (Australia, England, HDI, India, Japan) | FXDB, FXDB 103 | |
| 29182-08A | BACKPLATE (Australia, Brazil, Canada, Domestic, England, HDI, India, Japan) | FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 29182-08A | BACKPLATE (Brazil, India) | FXDB, FXDF | |
| 29182-08A | BACKPLATE (Japan) | FXDBC, FXDL | |
| 29182-08A | BACKPLATE (Australia, Canada, Domestic, England, HDI) | FXDL 103 | |
| 29182-08A | BACKPLATE (Australia, HDI) | FXDBC 103 | |
| 29183-08A | BACKPLATE ASSEMBLY (Asia-Pacific) | FXDB, FXDBC | |
| 29183-08A | BACKPLATE ASSEMBLY (Asia-Pacific, Brazil) | FLD, FXDB, FXDF, FXDWG | |
| 12 | 29186-08 | SEAL, air cleaner cover | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 29191-08 | FILTER ELEMENT, with 29313-95 | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 29269-83A | SCREW | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 29306-08 | TUBE, breather (Canada, Domestic) (2) | FXDB 103, FXDBP 103 |
| 16 | 29313-95 | GASKET, filter element | ALL |
| 17 | 29314-08 | ELEMENT, air filter, with 29313-95 (Canada, Domestic) | FXDB 103, FXDBP 103 |
| 18 | 29347-08 | BACKPLATE, air cleaner (Canada, Domestic) | FXDB 103, FXDBP 103 |
| 19 | 29393-08 | BRACKET, air cleaner cover (Canada, Domestic) | FXDB 103, FXDBP 103 |
| 20 | 29465-08A | BOLT, BREATHER (2) | ALL |
| 21 | 29583-01A | GASKET | ALL |
| 22 | 10200461 | SCREW (Canada, Domestic) (3) | FXDB 103, FXDBP 103 |
| 23 | 29000064 | SEAL, air cleaner cover (FXDBP 103-Domestic only) | FXDB 103, FXDBP 103 |
AIR CLEANER 103 HIGH OUTPUT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 8250 | STUD, air cleaner mounting (3) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 11934A | GASKET, air cleaner intake tube (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 28012-09 | WARNING LABEL | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 28101-10 | ADAPTER PLATE ASSEMBLY | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 28723-10 | BACKPLATE (black) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 29465-08A | BOLT, BREATHER (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 29557-05 | PLUG, breather (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 29670-09 | ELEMENT ASSEMBLY | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 29762-09 | RAINSOCK, air cleaner | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 10500053 | SCREW (6) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 25700651 | GASKET | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 13 | 29400025 | COVER, air cleaner, with 28012-09 (chrome) | FLD 103, FXDL 103, FXDWG 103 |
| 61300042 | COVER, air cleaner (black) | FXDF 103 | |
| 14 | 61300674 | INSERT, air cleaner cover | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
AIR CLEANER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (3) | FXDLS |
| 2 | 2484 | SCREW (3) | FXDLS |
| 3 | 10074 | CLAMP, wormdrive | FXDLS |
| 4 | 10925 | O-RING (4) | FXDLS |
| 5 | 11292 | O-RING (2) | FXDLS |
| 6 | 27948-08 | GASKET, backplate | FXDLS |
| 7 | 28818-09 | INTAKE TUBE (gloss black) | FXDLS |
| 8 | 28887-09 | BACKPLATE (gloss black) | FXDLS |
| 9 | 29069-09 | MOUNTING RING (gloss black) | FXDLS |
| 10 | 29465-08A | BOLT, breather (2) | FXDLS |
| 11 | 29780-08A | GASKET, backplate tube | FXDLS |
| 12 | 12100093 | PLUG, backplate (black) (2) | FXDLS |
| 13 | 14000377 | WARNING LABEL, air cleaner (Domestic, California) | FXDLS |
| 14 | 29400296 | RAINSOCK | FXDLS |
| 15 | 29400297 | FILTER, element, with 61300734 | FXDLS |
| 16 | 61300110 | COVER KIT, w/ 27948-08 & label (black) | FXDLS |
| 17 | 61300734 | END CAP, air cleaner element | FXDLS |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | ALL |
| 2 | 4740A | SCREW (2) | ALL |
| 3 | 30017-08 | STATOR | ALL |
| 4 | 30041-08A | ROTOR ASSEMBLY | ALL |
| 5 | 70464-12 | REGULATOR, caddy | ALL |
| 6 | 74631-08A | VOLTAGE REGULATOR ASSEMBLY | ALL |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4822A | SCREW (2) | ALL |
| 2 | 10177 | CABLE STRAP, spark plug wires (2) | ALL |
| 3 | 10214 | PLUG WIRE RETENTION KIT | ALL |
| 4 | 31657-12 | COIL COVER (black nylon) | ALL |
| 5 | 31696-07A | IGNITION COIL, dual | ALL |
| 6 | 31960-99A | SPARK PLUG CABLE, rear cylinder | ALL |
| 7 | 31981-99C | SPARK PLUG CABLE, front cylinder | ALL |
| 8 | 32362-04A | SPARK PLUG (2) | ALL |
| 9 | 41000006A | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FXDLS |
SENSORS AND SWITCHES, ENGINE - ALL MODELS EXCEPT FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 11289A | O-RING | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 26561-99 | SWITCH, oil pressure | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 32446-99 | SENSOR, engine temperature | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 32707-01C | SENSOR, crankshaft position, with 11289A, 72199-94, 74194-98 and pins | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72199-94 | ANCHOR | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 74194-98 | TERMINAL (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
SENSORS AND SWITCHES, ENGINE - FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FXDLS |
| 2 | 11289A | O-RING | FXDLS |
| 3 | 26561-99 | SWITCH, oil pressure | FXDLS |
| 4 | 32446-99 | SENSOR, engine temperature | FXDLS |
| 5 | 32707-01C | SENSOR, crankshaft position, with 11289A, 72199-94, 74194-98 and pins | FXDLS |
| 6 | 72199-94 | ANCHOR | FXDLS |
| 7 | 74194-98 | TERMINAL (2) | FXDLS |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | ALL |
| 2 | 27444-00Y | O-RING, starter-to-case | ALL |
| 3 | 31604-06 | SOLENOID REPAIR KIT | ALL |
| 4 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | ALL |
| 5 | 31633-07A | CLUTCH ASSEMBLY | ALL |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 856A | SCREW | ALL |
| 2 | 6497HW | WASHER | ALL |
| 3 | 6702 | WASHER (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4 | 7041 | LOCKWASHER | ALL |
| 5 | 7078 | SPACER (FXDF, FXDF 103, FXDBP 103-Middle) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 6 | 7330 | ACORN NUT (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 7 | 11150 | RETAINING RING | ALL |
| 8 | 11389 | RING, shift camshaft retaining | ALL |
| 9 | 11575 | RING, shift cam retaining | ALL |
| 10 | 33389-07 | SPRING, detent | ALL |
| 11 | 33409-06B | ARM, detent, with 33389-07 | ALL |
| 12 | 33413-06A | CAM, shift with 11389, 11575 and bearing | ALL |
| 13 | 33728-06 | SHIFTER ROD (FXDF, FXDF 103, FXDBP 103-Middle) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 14 | 33789-12 | SHIFT LEVER (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 15 | 33849-97 | LEVER, shifter rod (FXDF, FXDF 103, FXDBP 103-Middle) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 33900004 | LEVER, shifter rod (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 16 | 34064-00C | SPRING, shift lever centering | ALL |
| 17 | 34564-90B | SHIFT LEVER (chrome) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 33900147 | SHIFT LEVER (chrome) | FXDL, FXDL 103 | |
| 33900188 | SHIFT LEVER (black) | FXDLS | |
| 18 | 34611-65A | PEG, SHIFT LEVER KIT | ALL |
| 19 | 34625-90 | WASHER, SPRING (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 20 | 34621-06 | SHIFTER LEVER (FXDF, FXDF 103, FXDBP 103-Middle) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 21 | 34887-06 | SHIFT ROD (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 22 | 34987-06 | SPRING, ratchet lever | ALL |
| 23 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | ALL |
| 24 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 25 | 35186-06 | SLEEVE | ALL |
| 26 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 27 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 28 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 29 | 35222-06 | SHAFT, 5 - 6 shift fork | ALL |
| 30 | 35223-06 | SHAFT, 1 - 2 and 3 - 4 shift fork | ALL |
| 31 | 35243-06 | SLEEVE | ALL |
| 32 | 35244-06 | SCREW | ALL |
| 33 | 35246-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 8, 9, 10, 11, 12, 26, 27, 28, 29, 30, 31, 32, 34, 35, 7340, 35260-06A, input shaft, countershaft and gears (black) | ALL |
| 34 | 35249-06A | LOCK PLATE, shift cam | ALL |
| 36 | 35259-06 | SCREW (2) | ALL |
| 36 | 11000101 | OIL SEAL | ALL |
| 37 | 10200120 | SCREW | ALL |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (6) | ALL |
| 3 | 4718A | SCREW (4) | ALL |
| 4 | 4741A | SCREW (3) | ALL |
| 5 | 7340 | NUT, mainshaft and countershaft (2) | ALL |
| 6 | 8873 | BALL (3) | ALL |
| 7 | 8963 | BEARING, needle | ALL |
| 8 | 8967 | BEARING | ALL |
| 9 | 8970A | BEARING (2) | ALL |
| 10 | 9701A | BUSHING | ALL |
| 11 | 10998 | RETAINING RING | ALL |
| 12 | 11120 | O-RING | ALL |
| 13 | 11132A | O-RING, dipstick | ALL |
| 14 | 11161 | RETAINING RING | ALL |
| 15 | 11179 | O-RING | ALL |
| 16 | 11573 | O-RING | ALL |
| 17 | 12074 | SEAL | ALL |
| 18 | 16574-99A | DOWEL PIN (2) | ALL |
| 19 | 16583-00A | BUSHING, dowel (2) | ALL |
| 20 | 16708-95A | STUD (2) | ALL |
| 21 | 25604-00A | INNER RAMP | ALL |
| 22 | 25605-00A | OUTER RAMP | ALL |
| 23 | 34920-86A | COUPLING | ALL |
| 24 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 25 | 35087-99A | RETAINING RING (2) | ALL |
| 26 | 35186-06 | SLEEVE | ALL |
| 27 | 35260-06A | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00A and 35087-99A (black) | ALL |
| 28 | 35607-06 | GASKET | ALL |
| 29 | 35654-06 | GASKET, bearing housing | ALL |
| 30 | 36805-06 | GASKET, cover | ALL |
| 31 | 37065-06 | DIP STICK (chrome) | ALL |
| 32 | 37116-06 | CLUTCH RELEASE COVER (chrome) | FXDBP 103, FXDL, FXDL 103 |
| 37135-06 | CLUTCH RELEASE COVER (black wrinkle) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 | |
| 37142-07 | CLUTCH RELEASE COVER (polish) | FLD, FLD 103 | |
| 33 | 38785-08A | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-DRAG BAR OPTION) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS |
| 38788-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103 | |
| 38787-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 | FXDWG, FXDWG 103 | |
| 38789-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 37200083 | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 | FXDL, FXDL 103 | |
| 34 | 38630-88 | BOOT, clutch cable (not illustrated) | ALL |
| 35 | 62457-06 | OIL SPOUT ASSEMBLY, with 11573 (black) | ALL |
| 36 | 11000101 | OIL SEAL | ALL |
| 37 | 62700001 | DIPSTICK, assembly, with 11120 (clear) | ALL |
TRANSMISSION HOUSING AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3983 | SCREW (2) | ALL |
| 2 | 3699D | SCREW (2) | ALL |
| 3 | 4705 | SCREW | ALL |
| 4 | 4741A | SCREW (16) | ALL |
| 5 | 7792 | NUT | ALL |
| 6 | 11105 | O-RING (2) | ALL |
| 7 | 11289A | O-RING | ALL |
| 8 | 26072-99A | GASKET, oil pan | ALL |
| 9 | 26087-99A | PAN, oil (black) | ALL |
| 10 | 33083-10A | TRANSMISSION ASSEMBLY | ALL |
| 11 | 33926-06B | NEUTRAL SWITCH, with O-ring | ALL |
| 12 | 34469-06B | COVER, with 62372-09 (chrome) | FXDBP 103, FXDL, FXDL 103 |
| 34521-06B | COVER, with 62372-09 (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 | |
| 13 | 34747-06C | TRANSMISSION HOUSING (black) | ALL |
| 14 | 34917-06 | GASKET, cover | ALL |
| 15 | 45893-99 | PLUG, pipe | ALL |
| 16 | 60328-98B | PLUG ASSEMBLY, oil drain magnetic, with 11105 (2) | ALL |
| 17 | 62372-09 | VENT HOSE | ALL |
| 18 | 62826-02 | BAFFLE ASSEMBLY, with 62828-99 | ALL |
| 19 | 62828-99 | SPRING, baffle | ALL |
| 20 | 66290-06 | STUD, ground | ALL |
| 21 | 74402-05B | SPEED SENSOR, with 11289A | ALL |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042 | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11061A | RETAINING RING | ALL |
| 8 | 11081A | RING, lock (3) | ALL |
| 9 | 11082 | SECURING SEGMENT (6) | ALL |
| 10 | 11096 | RETAINING RING | ALL |
| 11 | 11201 | O-RING | ALL |
| 12 | 11207A | WASHER, internal spline | ALL |
| 13 | 11599A | SPACER, bearing | ALL |
| 14 | 12077 | OIL SEAL | ALL |
| 15 | 34091-08 | BEARING, inner race | ALL |
| 16 | 35122-06 | GEAR ASSEMBLY, driven output, with 8042, 10991A, 11201, 11599A and 12077 | ALL |
| 17 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 18 | 35126-06 | DOG RING, lugged (2) | ALL |
| 19 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 20 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 21 | 35204-06 | DOG RING, pocketed | ALL |
| 22 | 35246-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 23, 24, 25, 26, 27, 28, 29, 35260-06, shifter cam and forks (black) | ALL |
| 23 | 35467-06B | INPUT SHAFT KIT, 6-speed, with 11061A, 34091-08 and 35201-10 | ALL |
| 24 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 25 | 35801-10 | GEAR, fifth input | ALL |
| 26 | 35805-06A | GEAR, countershaft first | ALL |
| 27 | 35807-06 | GEAR, countershaft second | ALL |
| 28 | 35811-06 | GEAR, countershaft third | ALL |
| 29 | 35814-06 | GEAR, countershaft fourth | ALL |
| 30 | 37069-90A | ROD ASSEMBLY | ALL |
| 31 | 37312-75 | BEARING | ALL |
| 32 | 37313-80 | THRUST RACE BEARING (2) | ALL |
CLUTCH - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 2 | 7848W | JAMNUT | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 3 | 11096 | RETAINING RING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 4 | 37069-90A | ROD ASSEMBLY | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 5 | 37090-98A | END, clutch pushrod (left) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 6 | 37092-06 | PUSHROD, clutch release (through mainshaft) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 37312-75 | BEARING, pushrod | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 8 | 37313-80 | THRUST RACE BEARING (2) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 9 | 37496-90A | NUT, mainshaft | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 10 | 37554-11 | CLUTCH HUB, with hub, thrust washer, spring washer and retaining ring | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 11 | 37813-11 | CLUTCH ASSEMBLY, with 1, 10, 12, 13, 14, 15, 17, 18, 19, 21, 22 and 23 | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 12 | 37872-00 | SEAT, clutch spring | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 13 | 37882-06A | SPRING, clutch (blue) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 14 | 37883-98 | SEAT, damper spring | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 15 | 37884-98 | DAMPER SPRING | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 16 | 37903-90 | RELEASE PLATE | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 17 | 37904-90 | RETAINING RING, internal | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 18 | 37905-00 | RETAINING RING, internal | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 19 | 37906-11 | BEARING, ball - double row | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 20 | 37909-90 | RETAINING RING, internal | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 21 | 37912-00 | PRESSURE PLATE | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 22 | 37913-98 | PLATE CLUTCH (8) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 23 | 37932-98 | FRICTION PLATE KIT, includes all nine friction plates | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
CLUTCH - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 7848W | JAMNUT | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 11096 | RETAINING RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 37069-90A | ROD ASSEMBLY | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 37090-98A | END, clutch pushrod (left) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 37092-06 | PUSHROD, clutch release (through mainshaft) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 7 | 37312-75 | BEARING, pushrod | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 37313-80 | THRUST RACE BEARING (2) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 37496-90A | NUT, mainshaft | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 37554-11 | CLUTCH HUB, with hub, thrust washer, spring washer and retaining ring | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 37816-11 | CLUTCH ASSEMBLY, with 1, 10, 12, 13, 14, 15, 17, 18, 19, 21, 22 and 23 | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 37000072 | CLUTCH ASSEMBLY, with 1, 10, 12, 13, 14, 15, 17, 18, 19, 21, 22 and 23 (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 12 | 37871-04 | SPRING, clutch (yellow) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 37871-98A | SPRING, clutch (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 13 | 37872-00 | SEAT, clutch spring | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 14 | 37883-98 | SEAT, damper spring | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 15 | 37884-98 | DAMPER SPRING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 16 | 37903-90 | RELEASE PLATE | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 17 | 37904-90 | RETAINING RING | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 18 | 37905-00 | RETAINING RING, internal | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 19 | 37906-11 | BEARING, ball - double row | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 20 | 37909-90 | RETAINING RING, internal | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 21 | 37912-00 | PRESSURE PLATE, clutch | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 22 | 37913-98 | PLATE CLUTCH (8) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 23 | 37932-98 | FRICTION PLATE KIT, with nine friction plates | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
CLUTCH - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FXDLS |
| 2 | 7848W | JAMNUT | FXDLS |
| 3 | 11096 | RETAINING RING | FXDLS |
| 4 | 37069-90A | ROD ASSEMBLY | FXDLS |
| 5 | 37090-98A | END, clutch pushrod (left) | FXDLS |
| 6 | 37092-06 | PUSHROD, clutch release (through mainshaft) | FXDLS |
| 7 | 37312-75 | BEARING, pushrod | FXDLS |
| 8 | 37313-80 | THRUST RACE BEARING (2) | FXDLS |
| 9 | 37496-90A | NUT, mainshaft | FXDLS |
| 10 | 37554-11 | CLUTCH HUB, with hub, thrust washer, spring washer and retaining ring | FXDLS |
| 11 | 37807-03 | SPRING, clutch (pink) | FXDLS |
| 12 | 37817-11 | CLUTCH ASSEMBLY, with 1, 10, 11, 13, 14, 15, 17, 18, 19, 21, 22 and 23 | FXDLS |
| 13 | 37872-00 | SEAT, clutch spring | FXDLS |
| 14 | 37883-98 | SEAT, damper spring | FXDLS |
| 15 | 37884-98 | DAMPER SPRING | FXDLS |
| 16 | 37903-90 | RELEASE PLATE | FXDLS |
| 17 | 37904-90 | RETAINING RING | FXDLS |
| 18 | 37905-00 | RETAINING RING, internal | FXDLS |
| 19 | 37906-11 | BEARING, ball - double row | FXDLS |
| 20 | 37909-90 | RETAINING RING, internal | FXDLS |
| 21 | 37912-00 | PRESSURE PLATE, clutch | FXDLS |
| 22 | 37913-98 | PLATE CLUTCH (8) | FXDLS |
| 23 | 37932-98 | FRICTION PLATE KIT, with nine friction plates | FXDLS |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1775 | SCREW (4) | ALL |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 9231 | BEARING | ALL |
| 7 | 11105 | O-RING, magnetic drain plug | ALL |
| 8 | 12052A | OIL SEAL | ALL |
| 9 | 16583-00A | BUSHING, dowel (2) | ALL |
| 10 | 17369-06 | GASKET SERVICE KIT, 1,000 mi (1600 km), 5,000 mi (8000 km), 10,000 mi (16000 km) with 11105 and seal clutch cover | ALL |
| 11 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 12 | 34934-06 | GASKET, housing cover | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 34948-08 | GASKET, housing cover | FXDLS | |
| 13 | 34982-02A | BUSHING | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDL, FXDL 103, FXDWG 103 |
| 14 | 39929-06B | CHAIN TENSIONER | ALL |
| 15 | 60328-98B | PLUG ASSEMBLY, magnetic drain, with 11105 | ALL |
| 16 | 60547-06 | GASKET, primary cover | ALL |
| 17 | 60678-85 | RETAINING RING | ALL |
| 18 | 60790-06C | INNER COVER ASSEMBLY, with 6, 8, 9, 13, 15 and 17 (FXDF and FXDBP 103-Middle) (textured black) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDL, FXDL, FXDL 103, FXDLS |
| 60791-06C | INNER COVER ASSEMBLY, with 6, 8, 9, 15 and 17 (FXDF, FXDF 103, FXDBP 103--Forward) (textured black) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 19 | 60758-06A | OUTER COVER ASSEMBLY, with 34982-02A (middle controls) (black wrinkle) (FXDF, FXDBP 103-Middle) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDLS |
| 60764-06A | OUTER COVER ASSEMBLY (chrome)(FXDBP 103-Middle) | FXDBP 103, FXDL, FXDL 103 | |
| 20 | 60717-07A | OUTER COVER ASSEMBLY (forward controls) (black wrinkle) (FXDF, FXDF 103, FXDBP 103-Forward) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 60563-08A | OUTER COVER ASSEMBLY (forward controls) (polished) | FLD, FLD 103 | |
| 60782-06A | OUTER COVER ASSEMBLY (forward controls) (chrome) | FXDBP 103 | |
| 21 | 60766-06 | COVER, clutch (chrome) | FXDL, FXDWG |
| 60767-06 | COVER, clutch (polished) | FLD, FXDB, FXDBC, FXDF | |
| 25700020 | COVER, clutch (gloss black) | FXDLS | |
| 22 | 60813-07 | PRIMARY COVER MASS (Japan only) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 23 | 63869-06 | GASKET | ALL |
| 24 | 25700037 | COVER, clutch (chrome) | FXDBP 103, FXDWG 103 |
| 25700038 | COVER, clutch (polished) | FLD 103, FXDB 103, FXDBC 103, FXDBP 103, FXDF 103 | |
| 25700043 | COVER, clutch (black denim) | FXDL 103 | |
| 25 | 25700226 | GASKET KIT, inner primary, with 1, 7, 8, 10, 12, 11105, 27444-00Y and 37909-90 | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 25700337 | GASKET KIT, inner primary, with 1, 7, 8, 10, 12, 11105, 27444-00Y and 37909-90 | FXDLS |
BELTS, CHAINS AND SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW (5) | ALL |
| 2 | 3594 | SCREW (2) | ALL |
| 3 | 35241-06 | NUT | ALL |
| 4 | 35242-06 | LOCKPLATE, sprocket nut | ALL |
| 5 | 40036-06 | PRIMARY CHAIN | ALL |
| 6 | 40046-07 | BELT, rear, 131 teeth (except Japan) | ALL |
| 40048-07 | BELT, rear, 130 teeth (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG | |
| 7 | 40114-07 | SPROCKET, 66 teeth (black) | FXDB, FXDB 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 37814-12 | SPROCKET, 66 teeth (black) | FLD, FLD 103 | |
| 40634-07 | SPROCKET, rear, 64 teeth (black) (Japan) | FLD, FXDB, FXDWG | |
| 40653-07 | SPROCKET, rear, 64 teeth (silver) (Japan) | FXDF | |
| 8 | 40659-06 | SPROCKET, transmission, 32 teeth | ALL |
| 9 | 83936-09A | SPRING PACK | ALL |
| 10 | 10500031 | SCREW | ALL |
| 11 | 36500034A | COMPENSATOR ASSEMBLY | ALL |
| 12 | 40100041 | RETAINER, sprocket | ALL |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 10264 | CLIP (2) | ALL |
| 4 | 11143 | RETAINING RING | ALL |
| 5 | 11179 | O-RING | ALL |
| 6 | 38785-08A | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-DRAG BAR OPTION) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS |
| 38788-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103 | |
| 38787-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 | FXDWG, FXDWG 103 | |
| 38789-06C | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 37200083 | CLUTCH CABLE, with 11179, 38630-88 and 45036-88 | FXDL, FXDL 103 | |
| 7 | 38608-96 | BRACKET, hand lever | ALL |
| 8 | 38630-88 | BOOT, clutch cable | ALL |
| 9 | 40645-06 | CLIP, cable to frame | ALL |
| 10 | 45015-96 | HAND LEVER, with 45021-86, 45423-92 and 90770-79 | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 44996-07 | HAND LEVER, with 45021-86, 45423-92 and 90770-79 (black) | FXDLS | |
| 11 | 45021-86 | SPRING, anti-rattle | ALL |
| 12 | 45032-82 | PIN, hand lever pivot | ALL |
| 13 | 45036-88 | ANCHOR PIN | ALL |
| 14 | 45044-96A | CLAMP, lever bracket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 41700407 | CLAMP, handlebar control | FXDLS | |
| 15 | 45423-92 | BUSHING | ALL |
| 16 | 67829-88 | BALL RECEPTACLE (left) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 |
| 17 | 90770-79 | SCREW | ALL |
| 18 | 10200141 | SCREW | FXDL, FXDL 103 |
| 19 | 10800073 | WIREFORM, clutch cable | FXDL, FXDL 103 |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW (set of 2) (2) | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 11143 | RETAINING RING | ALL |
| 5 | 45006-96E | REPAIR KIT, master cylinder (9/16 in bore) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 45072-96D | REPAIR KIT, master cylinder (11/16 in bore) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS | |
| 6 | 45016-96 | HAND LEVER, with 45423-96 (right) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 45016-08 | HAND LEVER, with 45423-96 (right) | FXDF, FXDF 103, FXDL, FXDL 103 | |
| 44995-08 | HAND LEVER, with 45423-96 (right) (black) | FXDLS | |
| 7 | 45029-11C | MASTER CYLINDER, 9/16 in bore | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 45170-08D | MASTER CYLINDER, 11/16 in bore | FXDF, FXDF 103, FXDL, FXDL 103 | |
| 41700456 | MASTER CYLINDER, 11/16 in bore | FXDLS | |
| 8 | 45032-82 | PIN, pivot | ALL |
| 9 | 45044-96A | CLAMP, handlebar control | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 41700407 | CLAMP, handlebar control | FXDLS | |
| 10 | 45423-96 | BUSHING, lever pivot | ALL |
| 11 | 46423-05C | COVER KIT (black) | ALL |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (4) | ALL |
| 2 | 7331 | ACORN NUT (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7352 | ACORN NUT (2) | FXDLS | |
| 3 | 91909-03B | MIRROR KIT, long - right (black) (FXDBP 103-DRAG BAR OPTION) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 91910-03B | MIRROR KIT, long - left - convex (black) (FXDBP 103-DRAG BAR OPTION) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 91840-03B | MIRROR KIT, short - right - convex (chrome) (FXDBP 103-MINI APE AND PULL BACK OPTIONS) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 | |
| 91845-03B | MIRROR KIT, short - left - convex (chrome) (FXDBP 103-MINI APE AND PULL BACK OPTIONS) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 | |
| 92614-10 | MIRROR KIT, short - right - convex, with 7155 and 7352 (black) | FXDLS | |
| 92615-10 | MIRROR KIT, short - left - convex, with 7155 and 7352 (black) | FXDLS |

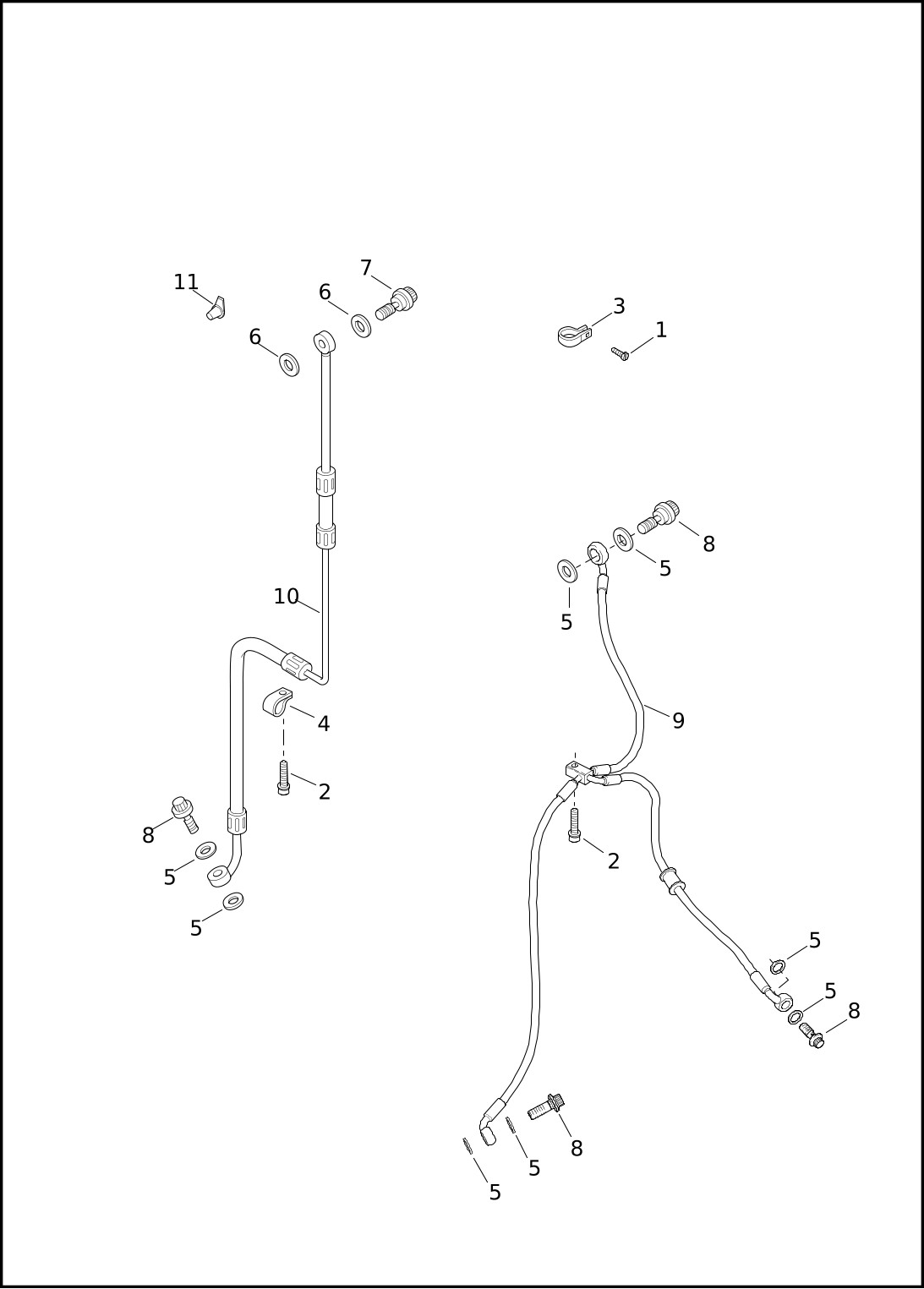

BRAKE LINES, FRONT - NON-ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200227 | SCREW | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 2 | 4741A | SCREW | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 3 | 10031 | CLAMP, brake line - upper | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 4 | 10053 | CLAMP | FXDB, FXDB 103, FXDBP 103 |
| 5 | 41731-01 | GASKET (2) | FXDB, FXDB 103, FXDBP 103 |
| 41731-01 | GASKET (6) | FXDF, FXDF 103, FXDL, FXDL 103 | |
| 6 | 41733-88 | GASKET (2) | FXDB, FXDB 103, FXDBP 103 |
| 7 | 41739-84A | BOLT, BANJO, master cylinder | FXDB, FXDB 103, FXDBP 103 |
| 8 | 41747-82A | FITTING, master cylinder (9/16 in bore) | FXDB, FXDB 103, FXDBP 103 |
| 8 | 41747-82A | FITTING, master cylinder (9/16 in bore) (3) | FXDF, FXDF 103, FXDL, FXDL 103 |
| 9 | 42163-08A | BRAKE LINE, dual disc | FXDF, FXDF 103 |
| 41800295A | BRAKE LINE, dual disc | FXDL, FXDL 103 | |
| 10 | 42728-08A | BRAKE LINE (PULL BACK OPTION) | FXDBP 103 |
| 45112-08A | BRAKE LINE (FXDBP 103- MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 41800213A | BRAKE LINE (DRAG BAR OPTION) | FXDBP 103 | |
| 11 | 44147-87A | CAP, bleeder screw | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
BRAKE CONTROL, REAR (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2579A | SCREW (2) | ALL |
| 2 | 3537 | SCREW | ALL |
| 3 | 4512A | SCREW (2) | FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4 | 4339A | SCREW | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 5 | 4997 | SCREW | FLD, FLD 103 |
| 6 | 6366 | WASHER | ALL |
| 7 | 7003 | LOCKWASHER (FXDF, FXDF 103 and FXDBP 103-Middle) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 8 | 7229W | LOCKWASHER | ALL |
| 9 | 7744 | JAMNUT | ALL |
| 10 | 8405 | JAMNUT | ALL |
| 11 | 10038A | CLAMP (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 12 | 11005 | RETAINING RING | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDL, FXDL 103, FXDLS |
| 13 | 33708-94 | BEARING SLEEVE (FXDF, FXDF 103 and FXDBP 103-Middle) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 14 | 38157-12 | BRAKE LEVER ASSEMBLY, with 42443-80A | FLD, FLD 103 |
| 15 | 38160-12 | CAP, brake lever | FLD, FLD 103 |
| 16 | 40903-87 | RETAINING RING | ALL |
| 17 | 40918-87 | RETAINING RING | ALL |
| 18 | 40920-87 | SPRING | ALL |
| 19 | 40922-87A | BOOT | ALL |
| 20 | 41731-01 | GASKET, NON-Anti-Lock Brake System (4) | ALL |
| 20 | 41731-01 | GASKET (ABS) (2) | ALL |
| 21 | 41747-82A | FITTING (NON-ABS) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 22 | 41756-08 | GASKET, brakeline (2) | ALL |
| 23 | 41803-06 | RESERVOIR ASSEMBLY (NON-ABS) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 24 | 41955-03A | PUSHROD (FXDF, FXDF 103 and FXDBP 103-Forward) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 38161-12 | PUSHROD | FLD, FLD 103 | |
| 25 | 41961-90 | PUSHROD, brake | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 26 | 42142-08C | BRAKE LINE (NON-ABS) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 27 | 46871-12A | BRAKE LINE, ABS, Hydraulic Control Unit (HCU) to master cylinder | ALL |
| 28 | 42382-87E | REPAIR KIT, master cylinder | ALL |
BRAKE CONTROL, REAR (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 42416-06 | PAD, brake pedal | FLD, FLD 103 |
| 30 | 42443-80A | BUSHING, brake lever | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 31 | 42448-87 | PUSHROD | ALL |
| 32 | 42460-80B | CLEVIS PIN | ALL |
| 33 | 42471-01A | HOUSING, cartridge | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 34 | 42474-06C | MASTER CYLINDER, with 1, 6, 16, 17, 18, 19, 23, 28, 31, 39, 42 and 43 | FLD, FLD 103 |
| 41700065A | MASTER CYLINDER, ABS, with 6, 16, 17, 18, 19, 28, 31, 33 and 42 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 | |
| 35 | 42481-03A | SUPPORT, brake lever and footrest | FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 36 | 42502-90B | BRAKE LEVER ASSEMBLY, with 33708-94, 41961-90, 42460-80B and 51938-04(FXDF, FXDF 103-Middle) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103 |
| 37 | 42532-06 | PAD, brake pedal (FXDF, FXDF 103, FXDBP 103-Forward) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 38 | 42542-06 | BRAKE PEDAL, with 42443-80A (FXDF, FXDF 103, FXDBP 103-Forward) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 39 | 42568-05A | GASKET, cover | ALL |
| 40 | 42663-03A | CLEVIS, footrest mount (FXDF, FXDF 103, FXDBP 103-Forward) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 41 | 42665-03 | PIVOT SHAFT (FXDF, FXDF 103, FXDBP 103-Forward) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 42 | 44126-87 | SPRING RETAINER | ALL |
| 43 | 46457-05B | COVER, master cylinder with 42568-05A | ALL |
| 44 | 51938-04 | COTTER CIRCLE | ALL |
| 45 | 72026-08A | BRAKE SWITCH/BANJO BOLT | ALL |
| 46 | 10800027 | CLAMP (ABS) | ALL |
| 47 | 11600001 | BOLT, BANJO (ABS) (2) | ALL |
| 48 | 41700060 | RESERVOIR, master cylinder, ABS | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 49 | 41700061 | HOSE, master cylinder (ABS) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 50 | 41700062 | CAP, reservoir (ABS) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 51 | 41700063 | GASKET KIT, reservoir (ABS) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 52 | 50600127 | BRAKE PEDAL ASSEMBLY, with 33708-94 | FXDL, FXDL 103 |
| 50600218 | BRAKE PEDAL (black) | FXDLS |
BRAKE LINES AND MODULE - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 943 | SCREW (2) | ALL |
| 2 | 3537 | SCREW | ALL |
| 3 | 5004 | SHOULDER BOLT | ALL |
| 4 | 7229W | LOCKWASHER | ALL |
| 5 | 10031 | CLAMP, brake line, upper | FXDL, FXDL 103, FXDLS |
| 6 | 41731-01 | GASKET (6) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 6 | 41731-01 | GASKET (8) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 7 | 41733-88 | GASKET (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 8 | 41739-84A | BOLT, BANJO | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 9 | 41747-82A | BOLT (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 9 | 41747-82A | BOLT (4) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 10 | 41756-08 | GASKET (8) | ALL |
| 11 | 42493-12 | BRACKET, HCU mounting | ALL |
| 12 | 42926-12A | BRAKE LINE ASSEMBLY | FLD, FLD 103 |
| 42927-12A | BRAKE LINE ASSEMBLY (FXDBP 103-PULL BACK OPTION) | FXDBP 103 | |
| 42935-12A | BRAKE LINE ASSEMBLY (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 42940-12A | BRAKE LINE ASSEMBLY | FXDWG, FXDWG 103 | |
| 41800212A | BRAKE LINE ASSEMBLY (FXDBP 103-DRAG BAR OPTION) | FXDBC, FXDBC 103, FXDBP 103 | |
| 13 | 44084-12A | BRAKE LINE ASSEMBLY, dual disc | FXDF, FXDF 103, FXDLS |
| 41800296A | BRAKE LINE ASSEMBLY, dual disc | FXDL 103 | |
| 14 | 44233-12 | BRAKE LINE, HCU, caliper to manifold | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 46926-12 | BRAKE LINE, HCU, caliper to manifold | FXDWG, FXDWG 103 | |
| 15 | 46870-12 | BRAKE LINE, HCU, master cylinder to manifold | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 42929-12 | BRAKE LINE, HCU, caliper to manifold | FXDWG, FXDWG 103 | |
| 16 | 46871-12A | BRAKE LINE, HCU to master cylinder | ALL |
| 17 | 46872-12B | BRAKE LINE, HCU to caliper | ALL |
| 18 | 48341-12 | ABS MODULE (EHCU) | ALL |
| 19 | 10200031 | SCREW (2) | ALL |
| 20 | 10200036 | SCREW (2) | ALL |
| 21 | 10200227 | SCREW | FXDF, FXDF 103, FXDLS |
| 22 | 10800027 | CLAMP | ALL |
| 23 | 10800087 | GUARD, brake line | FXDF, FXDF 103 |
| 24 | 11600001 | BOLT, BANJO (4) | ALL |
| 25 | 12500001 | CABLE STRAP | ALL |
| 26 | 41600007 | COVER, ABS module (EHCU) | ALL |
| 27 | 41600038 | BRAKE CLIP, anti-rotation | ALL |
| 28 | 47200009 | BRACKET, mounting | ALL |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4564M | BOLT, bridge (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 1 | 4564M | BOLT, bridge (4) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 2 | 44048-83A | SCREW, bleeder | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 2 | 44048-83A | SCREW, bleeder (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 3 | 44147-87A | CAP, bleeder screw | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 3 | 44147-87A | CAP, bleeder screw (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 4 | 44160-00 | BOLT, caliper mounting (lower) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 4 | 44160-00 | BOLT, caliper mounting (lower) (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 5 | 44163-00 | BOLT, caliper mounting (upper) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 5 | 44163-00 | BOLT, caliper mounting (upper) (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 6 | 44313-08A | PISTON KIT | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 6 | 44313-08A | PISTON KIT (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 7 | 44337-08 | PAD SPRING KIT (set of 4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 7 | 44337-08 | PAD SPRING KIT (set of 4) (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 8 | 44338-00 | DECAL | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 8 | 44338-00 | DECAL (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 9 | 46363-11 | PAD KIT | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 9 | 46363-11 | PAD KIT (2) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 10 | 41300001 | CALIPER ASSEMBLY (left) | ALL |
| 41300002 | CALIPER ASSEMBLY (right) (not shown) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 40908-08 | CALIPER ASSEMBLY (does not include 42143-08B) | ALL |
| 2 | 42062-08 | BRACKET, caliper assembly | ALL |
| 3 | 42143-08B | PIN, caliper slider (upper) (not part of caliper assembly) | ALL |
| 4 | 42298-08 | PAD KIT | ALL |
| 5 | 42344-08A | PISTON KIT, with seals | ALL |
| 6 | 42345-08 | PAD PIN KIT | ALL |
| 7 | 42347-08 | BRAKE SPRING KIT | ALL |
| 8 | 42348-08 | TORQUE CLIP KIT | ALL |
| 9 | 44048-83A | SCREW, bleeder | ALL |
| 10 | 44066-08A | CALIPER PIN KIT | ALL |
| 11 | 44147-87A | CAP, bleeder screw | ALL |
| 12 | 44338-00 | DECAL | ALL |
| 13 | 44351-00 | BUMPER, rubber | ALL |
WHEELS, FRONT, CAST AND SLOTTED
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | FXDF, FXDF 103 |
| 2 | 3762M | BOLT (5) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103 |
| 2 | 3762M | BOLT (10) | FXDL, FXDL 103, FXDLS |
| 3 | 6594 | WASHER | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 4 | 6966M | WASHER (5) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103 |
| 4 | 6966M | WASHER (10) | FXDL, FXDL 103, FXDLS |
| 5 | 7813A | NUT | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 6 | 9252 | BALL BEARING, with encoder (ABS) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 7 | 9276A | BEARING (ABS) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 7 | 9276A | BEARING (NON-ABS) (2) | FLD, FLD 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 8 | 10340B | CLIP | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 9 | 10850 | CLIP, wheel speed sensor | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 10 | 11804 | SPACER, axle (1-ABS, right only) | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 10 | 11804 | SPACER, axle (2-NON-ABS, right and left) | FXDBP 103, FXDL, FXDL 103 |
| 11 | 40682-12 | SENSOR, wheel speed, with 74190-98 | FLD, FLD 103, FXDF, FXDF 103 |
| 40680-12 | SENSOR, wheel speed, with 74190-98 | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS | |
| 12 | 40926-08 | SPACER, axle (left) (NON-ABS) | FXDF, FXDF 103 |
| 13 | 40927-08 | SPACER, axle (right) | FLD, FLD 103, FXDF, FXDF 103 |
| 14 | 40999-87 | VALVE STEM | FLD, FLD 103 |
| 15 | 41123-79 | CAP, valve | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 16 | 41349-07 | SLEEVE, bearing spacer | FLD, FLD 103, FXDF, FXDF 103 |
| 17 | 41547-07A | AXLE | FLD, FLD 103, FXDF, FXDF 103 |
| 18 | 41628-08 | AXLE | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 19 | 41748-08 | SLEEVE, bearing spacer | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 20 | 43157-83A | VALVE STEM ASSEMBLY, with 54321-85 | FXDF, FXDF 103, FXDLS |
| 21 | 43218-08 | TIRE, 16 in | FXDF, FXDF 103 |
| 43371-07A | TIRE, 18 in | FLD, FLD 103 | |
| 22 | 43258-07B | TIRE, 19 in | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 23 | 44553-06A | BRAKE DISC | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103 |
| 23 | 44553-06A | BRAKE DISC (2) | FXDL, FXDL 103, FXDLS |
| 24 | 46717-10 | BRAKE DISC ASSEMBLY (2) | FXDF, FXDF 103 |
| 25 | 47855-12 | WHEEL ASSEMBLY, 18 in, without spacers and bearings | FLD, FLD 103 |
| 26 | 54321-85 | NUT | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 27 | 70684-11A | BRACKET, wheel speed sensor | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 28 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 29 | 95594-84B | WEIGHT, 5 g (black) (6) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 30 | 43300202 | WHEEL ASSEMBLY, 19 in, without bearings and sleeves (black) | FXDBC, FXDBC 103, FXDBP 103 |
| 31 | 43300254 | WHEEL ASSEMBLY, 16 in, without bearings and sleeves | FXDF, FXDF 103 |
| 32 | 43300280 | WHEEL ASSEMBLY, 19 in, without bearings and sleeves (black) | FXDL, FXDL 103 |
| 43300449 | WHEEL ASSEMBLY, 19 in, without bearings and sleeves (gold) | FXDLS |
WHEEL, FRONT, LACED (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (5) | FXDWG, FXDWG 103 |
| 1 | 3655A | SCREW (10) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 2 | 6594 | WASHER | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 7813A | NUT | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 9252 | BALL BEARING, with encoder (ABS) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 9276A | BEARING (ABS) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 9276A | BEARING (NON-ABS) (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 10340B | CLIP (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 10850 | CLIP, wheel speed sensor | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 11804 | SPACER, axle (NON-ABS) (right and left) (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 8 | 11804 | SPACER, axle (ABS) (right only) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 40926-08 | SPACER, axle (left) | FXDWG, FXDWG 103 | |
| 40927-08 | SPACER, axle (right) | FXDWG, FXDWG 103 | |
| 9 | 40680-12 | SENSOR, wheel speed, with 74190-98 (FXDBP 103-DRAG BAR OPTION) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 40682-12 | SENSOR, wheel speed, with 74190-98 | FXDWG, FXDWG 103 | |
| 10 | 40761-05 | SPOKE AND NIPPLE KIT, 19 in steel rim - short (20) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 40762-05 | SPOKE AND NIPPLE KIT, 19 in steel rim - long (20) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 43239-05 | SPOKE AND NIPPLE KIT, 21 in steel rim (40) | FXDWG, FXDWG 103 | |
| 11 | 40941-12 | INNER TUBE, 21 in | FXDWG, FXDWG 103 |
| 41316-10 | INNER TUBE, 19 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 12 | 40954-12 | RIM FLAP, 21 in | FXDWG, FXDWG 103 |
| 41323-10 | RIM FLAP, 19 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 13 | 41036-12 | TIRE, 21 in | FXDWG, FXDWG 103 |
| 43258-07B | TIRE, 19 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 14 | 41123-79 | CAP, valve | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WHEEL, FRONT, LACED (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 15 | 41325-10 | WHEEL ASSEMBLY, black, 21 in, without bearings and sleeves | FXDWG, FXDWG 103 |
| 41425-09 | WHEEL ASSEMBLY, steel, 19 in, without bearings and sleeves (black) | FXDB, FXDB 103, FXDBP 103 | |
| 43105-08 | WHEEL ASSEMBLY, steel, 19 in, without bearings and sleeves | FXDBP 103, FXDL, FXDL 103 | |
| 43300138 | WHEEL ASSEMBLY, steel, 19 in, without bearings and sleeves (red) | FXDBP 103 | |
| 16 | 41349-07 | SLEEVE, bearing spacer | FXDWG, FXDWG 103 |
| 41748-08 | SLEEVE, bearing spacer | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 17 | 41426-07 | RIM, steel wheel, 19 in (black) | FXDB, FXDB 103, FXDBP 103 |
| 41687-10 | RIM, steel wheel, 21 in (black) (use 41325-10) | FXDWG, FXDWG 103 | |
| 43001-06 | RIM, steel wheel, 19 in (chrome) | FXDBP 103, FXDL, FXDL 103 | |
| 42000006 | RIM, steel wheel, 19 in (red) | FXDBP 103 | |
| 18 | 41547-07A | AXLE | FXDWG, FXDWG 103 |
| 41628-08 | AXLE | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 19 | 44447-00 | HUB CAP, wheel | FXDB, FXDB 103, FXDBP 103 |
| 20 | 46717-10 | BRAKE DISC ASSEMBLY | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| 20 | 46717-10 | BRAKE DISC ASSEMBLY (2) | FXDL, FXDL 103 |
| 21 | 54321-85 | NUT | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 22 | 70684-11A | BRACKET, wheel speed sensor | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 23 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 24 | 95594-84B | WEIGHT, 5 g (black) (6) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| 95595-84B | WEIGHT, 5 g (silver) (6) | FXDBP 103, FXDL, FXDL 103 |
WHEELS, REAR, CAST AND SLOTTED
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW (5) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 2 | 6551 | WASHER | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 3 | 8020 | NUT | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 4 | 9252 | BALL BEARING, with encoder (ABS) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 5 | 9276A | BEARING (ABS) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 5 | 9276A | BEARING (NON-ABS) (2) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 6 | 10065 | CABLE STRAP (ABS) (5) | FLD, FLD 103, FXDBP 103, FXDF, FXDF 103 |
| 7 | 37814-12 | SPROCKET, 66T (black) | FLD, FLD 103 |
| 8 | 40114-07 | SPROCKET, 66T (black) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 9 | 40634-07 | SPROCKET, 64 Teeth (black) (Japan) | FLD, FXDBC, FXDF, FXDL |
| 10 | 40947-08A | SPACER, axle - left | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 11 | 40964-08 | PLUG, rear axle nut (Australia, England, HDI, India, Japan) | FLD, FLD 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 12 | 40999-87 | VALVE STEM | FLD, FLD 103 |
| 13 | 41114-08 | AXLE | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 14 | 41123-79 | CAP, valve | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 15 | 41229-08 | RING, axle retaining | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 16 | 41242-08 | SPACER, axle - right (NON-ABS) | FXDBP 103, FXDF, FXDF 103, FXDL 103 |
| 17 | 41797-00 | BRAKE DISC | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 18 | 41929-12A | WHEEL ASSEMBLY, 17 in, without bearings and sleeves (black) | FLD, FLD 103 |
| 19 | 43157-83A | VALVE STEM ASSEMBLY, with 54321-85 | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 20 | 43228-08 | TIRE, 16 in | FXDF, FXDF 103 |
| 43200015 | TIRE, 17 in | FLD, FLD 103 | |
| 21 | 43250-07B | TIRE, 17 in | FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 22 | 43567-92 | SCREW (5) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 23 | 43905-08 | SLEEVE, spacer bearing | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 24 | 54321-85 | NUT | FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 25 | 70504-81 | CLIP (5) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 26 | 74190-98 | TERMINAL, pin 16-20 AWG (ABS) (2) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 27 | 95595-84B | WEIGHT, 5 g (silver) | FLD, FLD 103 |
| 95594-84B | WEIGHT, 5 g (black) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS | |
| 28 | 40900198 | WHEEL ASSEMBLY, 17 in, without bearings and sleeves (black) | FXDBC, FXDBC 103, FXDBP 103 |
| 29 | 40900261 | WHEEL ASSEMBLY, 16 in, without bearings and sleeves | FXDF, FXDF 103 |
| 30 | 40900289 | WHEEL ASSEMBLY, 17 in, without bearings and sleeves (black) | FXDL, FXDL 103 |
| 40900466 | WHEEL ASSEMBLY, 17 in, without bearings and sleeves (gold) | FXDLS | |
| 31 | 41100001 | SENSOR, wheel speed, with 71490-98 (ABS) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
WHEEL, REAR, LACED (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW (5) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 6551 | WASHER | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 8020 | NUT | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 9252 | BALL BEARING, with encoder (ABS) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 9276A | BEARING (ABS) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 9276A | BEARING (NON-ABS) (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 10065 | CABLE STRAP (ABS) (5) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 40114-07 | SPROCKET, 66T (black) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 40634-07 | SPROCKET, 64 Teeth (black) (Brazil, Japan) | FXDB, FXDL, FXDWG | |
| 8 | 40863-06 | RIM, wheel 17 in steel | FXDB, FXDL, FXDL 103 |
| 41431-09 | RIM, wheel 17 in steel (black) (use 41430-09A) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 | |
| 42000007 | RIM, wheel 17 in steel (red) | FXDBP 103 | |
| 9 | 40947-08A | SPACER, axle - left | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 40964-08 | PLUG, rear axle nut (Australia, England, HDI, India) | FXDB, FXDB 103, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 40979-08A | WHEEL ASSEMBLY, steel 17 in, without bearings and sleeves | FXDL, FXDL 103 |
| 41430-09A | WHEEL ASSEMBLY, steel 17 in, without bearings and sleeves (black) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 | |
| 44743-08A | WHEEL ASSEMBLY, aluminum 17 in, without bearings and sleeves | FXDBP 103 | |
| 40900138 | WHEEL ASSEMBLY, steel 17 in, without bearings and sleeves (red) | FXDBP 103 | |
| 12 | 41114-08 | AXLE | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| 13 | 41123-79 | CAP, valve | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 41229-08 | RING, axle retaining | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 41242-08 | SPACER, axle - right (NON-ABS) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
WHEEL, REAR, LACED (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 16 | 41314-10 | INNER TUBE, tire 17 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 41319-10 | RIM, strip 17 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 41797-00 | BRAKE DISC | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 19 | 43052-05A | SPOKE AND NIPPLE KIT | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 20 | 43250-07B | TIRE, 17 in | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| 43200005 | TIRE, 17 in | FXDWG, FXDWG 103 | |
| 21 | 43567-92 | SCREW (5) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 22 | 43905-08 | SLEEVE, spacer bearing | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 23 | 54321-85 | NUT | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 24 | 70504-81 | CLIP (5) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 25 | 74190-98 | TERMINAL, pin 16-20 AWG (ABS) (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 26 | 95594-84B | WEIGHT, 5 g (black) (6) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| 95595-84B | WEIGHT, 5 g (silver) (6) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 | |
| 27 | 41100001 | SENSOR, wheel speed, with 71490-98 (ABS) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
GUARDS, SAREE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2240 | SCREW (India) (2) | FXDF |
| 2 | 4512A | SCREW (India) (2) | FXDF |
| 3 | 6016 | WASHER (India) (2) | FXDF |
| 4 | 60300012 | SAREE GUARD (left) (India) | FXDF |
| 5 | 60300013 | SAREE GUARD (right) (India) | FXDF |
| NOTE: These parts are required for motorcycles sold in the India market. | |||
| 6 | 93511-10 | FIRST AID KIT (India) | FXDB, FXDF |
| 7 | 94435-10 | FOLDING TOOL (India) | FXDB, FXDF |
| NOTE: These parts are required for two-up seat motorcycles sold in the India market. | |||
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4350A | SCREW (4) | ALL |
| 2 | 45538-08 | CLAMP (upper) | FXDBP 103 |
| 46278-08 | CLAMP (upper) | FXDL, FXDL 103 | |
| 46700-08 | CLAMP (upper) | FXDWG, FXDWG 103 | |
| 48640-09 | CLAMP (upper) | FXDF, FXDF 103 | |
| 46323-12 | CLAMP (upper) | FLD, FLD 103 | |
| 45900040 | CLAMP (upper) (gloss black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 45900190 | CLAMP (upper) (black) | FXDLS | |
| 3 | 45611-86 | RING, lower clamp, retaining | ALL |
| 4 | 45670-80A | CAP, stem | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 45800081 | CAP, stem (black) | FXDLS | |
| 5 | 45727-08 | WASHER | ALL |
| 6 | 45718-60 | NUT | ALL |
| 7 | 45539-08 | FORK STEM, with 45611-86 | FXDL 103 |
| 45867-08 | FORK STEM, with 45611-86 | FXDBP 103 | |
| 46386-08 | FORK STEM, with 45611-86 | FXDWG, FXDWG 103 | |
| 48659-09 | FORK STEM, with 45611-86 | FXDF, FXDF 103 | |
| 45900025 | FORK STEM, with 45611-86 | FLD, FLD 103 | |
| 45900041 | FORK STEM, with 45611-86 (gloss black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 45900189 | FORK STEM, with 45611-86 (black) | FXDLS | |
| 8 | 48198-06 | DIRT GUARD (2) | ALL |
| 9 | 48307-06 | BEARING ADJUSTER | ALL |
| 10 | 48315-60 | BEARING CUP (2) | ALL |
| 11 | 48300-60 | BEARING, steering head with 48315-60 (2) | ALL |
| 12 | 12100048 | PLUG (chrome) | FXDL, FXDL 103 |
FORK, FRONT - ALL MODELS EXCEPT FLD AND FXDLS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4042 | SCREW (2) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 7062 | LOCKWASHER (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 10475 | COLLAR SPRING (2) | FXDWG, FXDWG 103 |
| 4 | 11689 | PISTON RING (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 45322-06 | HOLDER, fork axle (right) (polished) | FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 45104-08 | HOLDER, fork axle (right) (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103 | |
| 6 | 45947-06A | FORK ASSEMBLY (right) | FXDBP 103 |
| 48623-08A | FORK ASSEMBLY (right) | FXDF, FXDF 103 | |
| 48803-10 | FORK ASSEMBLY (right) | FXDWG, FXDWG 103 | |
| 45400034 | FORK ASSEMBLY (right) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 45400052 | FORK ASSEMBLY (right) | FXDL, FXDL 103 | |
| 7 | 45948-06B | FORK ASSEMBLY (left) | FXDBP 103 |
| 48622-08A | FORK ASSEMBLY (left) | FXDF, FXDF 103 | |
| 48802-10A | FORK ASSEMBLY (left) | FXDWG, FXDWG 103 | |
| 45400033 | FORK ASSEMBLY (left) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 45400051 | FORK ASSEMBLY (left) | FXDL, FXDL 103 | |
| 8 | 46080-01 | BUSHING (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 46508-01 | O-RING | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 46509-01 | WASHER (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 46510-01 | COLLAR SPRING (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 12 | 46512-01A | DUST SEAL | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 46513-01 | RING STOPPER | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 46514-01A | OIL SEAL | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 46515-01 | SPACER SEAL | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 46516-01 | BUSHING GUIDE | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 46517-01 | SPRING REBOUND (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 46605-06 | FORK PIPE, with 46080-01 (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103 |
| 48745-08 | FORK PIPE, with 46080-01 (2) | FXDF, FXDF 103 | |
| 48862-10 | FORK PIPE, with 46080-01 (2) | FXDWG, FXDWG 103 |
FORK, FRONT - ALL MODELS EXCEPT FLD AND FXDLS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 46606-06 | BOTTOM PIPE, with 11689 (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 46618-06 | BOTTOM PIPE, with 11689 (2) | FXDWG, FXDWG 103 | |
| 48742-08 | BOTTOM PIPE, with 11689 (2) | FXDF, FXDF 103 | |
| 45800042 | BOTTOM PIPE, with 11689 (2) | FXDL, FXDL 103 | |
| 20 | 46607-06A | SLIDER, fork - (right) | FXDBP 103, FXDWG, FXDWG 103 |
| 48739-08 | SLIDER, fork - (right) | FXDF, FXDF 103 | |
| 45500127 | SLIDER, fork (right) (gloss black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 45500230 | SLIDER, fork (right) | FXDL, FXDL 103 | |
| 21 | 46608-06B | SLIDER, fork (left) | FXDBP 103, FXDL, FXDL 103 |
| 46619-06B | SLIDER, fork (left) | FXDWG, FXDWG 103 | |
| 48740-08A | SLIDER, fork (left) | FXDF, FXDF 103 | |
| 45500126 | SLIDER, fork (left) (gloss black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 | |
| 22 | 46609-06 | OIL LOCK PIECE (left) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 46609-06 | OIL LOCK PIECE (right) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 23 | 46610-06 | SPRING (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 46620-06 | SPRING (2) | FXDWG, FXDWG 103 | |
| 48741-08 | SPRING (2) | FXDF, FXDF 103 | |
| 45500243 | SPRING (2) | FXDL, FXDL 103 | |
| 24 | 46611-06 | COVER, case (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 25 | 46612-06 | BOLT, front fork (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 26 | 46614-06 | BOLT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 45500118 | SCREW | FXDL, FXDL 103 | |
| 27 | 46615-06 | CU PACKING | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 28 | 49379-09 | FORK REBUILD KIT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 29 | 59481-00 | REFLECTOR, amber (right) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 30 | 59482-00 | REFLECTOR, amber (left) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
FORK, FRONT - FLD
| Index No. | Part No. | Description | Model(s) |
| 1 | 5003 | BOLT | FLD, FLD 103 |
| 2 | 45405-75A | SCREW, with washer, left/right (2) | FLD, FLD 103 |
| 3 | 45803-97 | OIL LOCK STOP | FLD, FLD 103 |
| 4 | 45842-77A | RETAINING RING, left/right (2) | FLD, FLD 103 |
| 5 | 45859-77A | PISTON RING, damper tube | FLD, FLD 103 |
| 6 | 45865-84 | SEAL, left/right (2) | FLD, FLD 103 |
| 7 | 45866-84 | BUSHING, left/right (2) | FLD, FLD 103 |
| 8 | 45875-84A | OIL SEAL, left/right (2) | FLD, FLD 103 |
| 9 | 45933-86 | REBOUND SPRING | FLD, FLD 103 |
| 10 | 45940-84 | BUSHING, left/right (2) | FLD, FLD 103 |
| 11 | 46236-02 | SPRING SEAT (left) | FLD, FLD 103 |
| 12 | 46237-02 | SPRINGWASHER (left) (2) | FLD, FLD 103 |
| 13 | 46238-02 | OIL LOCK (left) | FLD, FLD 103 |
| 14 | 46262-02 | LOCKNUT, damper (left) | FLD, FLD 103 |
| 15 | 45400023 | FORK ASSEMBLY (left) (polish) | FLD, FLD 103 |
| 16 | 45400024 | FORK ASSEMBLY (right) (polish) | FLD, FLD 103 |
| 17 | 45500007 | FORK SLIDER (right) | FLD, FLD 103 |
| 18 | 45500008 | FORK SLIDER (left) | FLD, FLD 103 |
| 19 | 45500058 | SEAT PIPE | FLD, FLD 103 |
| 20 | 45500059 | FORK SPRING (2) | FLD, FLD 103 |
| 21 | 45500060 | FORK PIPE, left, with 45866-84 | FLD, FLD 103 |
| 45500061 | FORK PIPE, right, with 45866-84 | FLD, FLD 103 | |
| 22 | 45500062 | CARTRIDGE | FLD, FLD 103 |
| 23 | 45500063 | BOLT | FLD, FLD 103 |
| 24 | 45500107 | FORK REBUILD KIT (2) | FLD, FLD 103 |
| 25 | 45500108 | SPRING COLLAR | FLD, FLD 103 |
| 26 | 59481-00 | REFLECTOR (right) (amber) | FLD, FLD 103 |
| 27 | 59482-00 | REFLECTOR (left) (amber) | FLD, FLD 103 |
| 28 | 10200078 | SCREW (right) | FLD, FLD 103 |
FORK, FRONT - FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4042 | SCREW (right) (2) | FXDLS |
| 2 | 7062 | LOCKWASHER (right) (2) | FXDLS |
| 3 | 45104-08 | HOLDER, fork axle (right) (black) | FXDLS |
| 4 | 46080-01 | BUSHING (2) | FXDLS |
| 5 | 46236-02 | SPRING SEAT (left) | FXDLS |
| 6 | 46237-02 | SPRINGWASHER (left) | FXDLS |
| 7 | 46262-02 | LOCKNUT, damper (left) | FXDLS |
| 8 | 49379-09 | FORK REBUILD KIT | FXDLS |
| 9 | 46508-01 | O-RING (2) | FXDLS |
| 10 | 46509-01 | WASHER (right) | FXDLS |
| 11 | 46510-07 | COLLAR SPRING (right) | FXDLS |
| 12 | 46512-01A | DUST SEAL (2) | FXDLS |
| 13 | 46513-01 | RING STOPPER (2) | FXDLS |
| 14 | 46514-01A | OIL SEAL (2) | FXDLS |
| 15 | 46515-01 | SPACER SEAL (2) | FXDLS |
| 16 | 46516-01 | BUSHING GUIDE (2) | FXDLS |
| 17 | 46517-01 | SPRING REBOUND (right) | FXDLS |
| 18 | 46605-06 | FORK PIPE, with 46080-01 (right) | FXDLS |
| 19 | 46609-06 | OIL LOCK PIECE (right) | FXDLS |
| 20 | 46612-06 | BOLT, front fork (right) | FXDLS |
| 21 | 46615-06 | CU PACKING (2) | FXDLS |
| 22 | 69861-07 | REFLECTOR, amber (right) | FXDLS |
| 23 | 69862-07 | REFLECTOR, amber (left) | FXDLS |
| 24 | 22000031 | PISTON RING (right) | FXDLS |
| 25 | 45400174 | FORK ASSEMBLY (right) (black) | FXDLS |
| 26 | 45400175 | FORK ASSEMBLY (left) (black) | FXDLS |
| 27 | 45500118 | SCREW (right) | FXDLS |
| 28 | 45500233 | OIL LOCK PIECE (left) | FXDLS |
| 29 | 45500236 | SCREW (left) | FXDLS |
| 30 | 45500269 | SLIDER, fork (left) (black) | FXDLS |
| 31 | 45500271 | SLIDER, fork (right) (black) | FXDLS |
| 32 | 45500297 | BOLT (left) | FXDLS |
| 33 | 45500390 | COVER, case (black) (2) | FXDLS |
| 34 | 45500432 | SPRING, fork (right) | FXDLS |
| 35 | 45500433 | SPRING, fork (left) | FXDLS |
| 36 | 45500434 | FORK PIPE, with 46080-01 (left) | FXDLS |
| 37 | 45800092 | BOTTOM PIPE, with 22000031 (right) | FXDLS |
| 38 | 45800093 | CARTRIDGE (left) | FXDLS |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3880 | SCREW (2) | ALL |
| 2 | 6113 | WASHER (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 2 | 6113 | WASHER (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 3 | 6792 | WASHER (2) | ALL |
| 4 | 7403 | NUT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 4 | 7403 | NUT (3) | FLD, FLD 103 |
| 5 | 7880 | NUT (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 6 | 8185 | NUT, acorn (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 7 | 54615-01 | SHOCK ABSORBER, with 54556-84 (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 54000050 | SHOCK ABSORBER, with 54556-84 (2) | FXDL, FXDL 103 | |
| 8 | 54556-84 | BUSHING (4) | ALL |
| 9 | 54666-08 | STUD, shock (2) | ALL |
| 10 | 54678-12 | SHOCK ABSORBER (2) | FLD, FLD 103 |
| 11 | 54679-12 | COVER, shock bolt (2) | FLD, FLD 103 |
| 12 | 54708-65A | COVER, shock bolt (chrome) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 54000049 | SHOCK ABSORBER (2) | FXDF, FXDF 103 |
| 14 | 54000067 | SHOCK ABSORBER, with 54556-84 (2) | FXDLS |
| 15 | 54000131 | COVER, shock bolt (black) (2) | FXDLS |
FRAME AND JIFFY STAND (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | ALL |
| 2 | 3487 | BOLT | ALL |
| 3 | 3588 | SCREW (Brazil, England, HDI) (2) | ALL |
| 4 | 3655A | SCREW | ALL |
| 5 | 6379W | WASHER | ALL |
| 6 | 7495 | NUT (2) | ALL |
| 7 | 10006 | CABLE STRAP | ALL |
| 8 | 10065 | CABLE STRAP (4) | ALL |
| 9 | 10285A | RETAINER, harness | ALL |
| 10 | 10287 | CABLE STRAP (Brazil, England, HDI) | ALL |
| 11 | 10324 | CLIP, wire retention (Brazil, England, HDI) | ALL |
| 12 | 11580 | PLUG, steering head, right | ALL |
| 12100021 | PLUG, steering head, left | ALL | |
| 13 | 11785 | FASTENER, push in (2) | ALL |
| 14 | 14130-06B | DECAL, fork lock | ALL |
| 15 | 47318-98 | ANCHOR | ALL |
| 16 | 47745-06B | FRAME, 29 degree rake, with 10257 and 48315-60 (all except India) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 16 | 47000142 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDB |
| 16 | 47760-10A | FRAME, 29 degree rake, with 10257 and 48315-60 (all except India) | FXDF, FXDF 103 |
| 16 | 47000143 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDF |
| 16 | 47000143 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDF |
| 47748-10A | FRAME, 34 degree rake, with 10257 and 48315-60 | FXDWG, FXDWG 103 | |
| 17 | 48315-60 | BEARING CUP, steering head (2) | ALL |
| 18 | 49704-90H | LEG, jiffy stand | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 50000138 | LEG, jiffy stand (black) | FXDLS | |
| 19 | 49711-08 | BRACKET, interlock sensor (Brazil, England, HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 20 | 49720-90 | PIVOT BLOCK | ALL |
| 21 | 49723-98 | THREADED SPACER | ALL |
| 22 | 50003-89B | PIN | ALL |
| 23 | 50053-90 | CATCH | ALL |
| 24 | 50054-01 | BUMPER | ALL |
| 25 | 50055-08 | TOP CAP, interlock sensor (Brazil, England, HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 26 | 50057-02 | SPRING | ALL |
| 27 | 50278-08A | SENSOR, jiffy stand, with 10287, 72169-07, 72511-07BK and 73213-07 (Brazil, England, HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 28 | 69200082 | CADDY, wire harness | ALL |
FRAME AND JIFFY STAND (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 61081-92 | COVER, key | ALL |
| 30 | 66373-06 | BATTERY, 3V CR2032 | ALL |
| 31 | 68926-07 | REMOTE CONTROL FOB, with 66373-06 | ALL |
| 32 | 69995-11 | REMOTE CONTROL FOB, with 66373-06 (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS |
| 33 | 70427-06 | SHIELD, harness | ALL |
| 34 | 70698-09 | PLUG, fork lock retainer | ALL |
| 35 | 71475-06B | FORK LOCK KIT, with 71555-06 (specify key number) | ALL |
| 36 | 71555-06 | NUT, ignition switch face | ALL |
| 37 | 72169-07 | TERMINAL, pin (Brazil, England, HDI) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 38 | 72511-07BK | HOUSING, three-way (Brazil, England, HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 39 | 73213-07 | RETAINER, anchored tree clip (Brazil, England, HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 40 | 90300043 | KEY, with 61081-92 (set of two) (specify key number) | ALL |
| 41 | 90493-83 | PLUG (4) | ALL |
| 42 | 10200036 | SCREW (2) | ALL |
| 43 | 12100002 | PLUG, press fit (NON-ABS) (2) | ALL |
| 44 | 47200009 | BRACKET, mounting | ALL |
| 45 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
FORK, REAR, DEBRIS DEFLECTOR AND BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3340 | SCREW | ALL |
| 2 | 3579A | SCREW (3) | ALL |
| 3 | 4334 | SCREW | ALL |
| 4 | 4512A | SCREW (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 5 | 5928 | SPACER (2) | ALL |
| 6 | 6702 | WASHER (2) | ALL |
| 7 | 7531 | LOCKNUT | ALL |
| 8 | 8050 | NUT, flange | ALL |
| 9 | 9208 | BEARING, pivot | ALL |
| 10 | 10992 | RETAINING RING, internal | ALL |
| 11 | 11578 | GROMMET, belt guard (2) | ALL |
| 12 | 41571-08 | BLOCK, axle adjuster (2) | ALL |
| 13 | 41585-90B | DUST SHIELD | ALL |
| 14 | 45991-06 | SCREW (2) | ALL |
| 15 | 47624-90B | BUSHING | ALL |
| 16 | 47641-06 | SCREW | ALL |
| 17 | 47820-10 | REAR FORK ASSEMBLY, with 9208, 10992, 41585-90B, 47624-90B and 47844-06 | ALL |
| 18 | 47841-06 | SPACER (right) | ALL |
| 19 | 47844-06 | SPACER (left) | ALL |
| 20 | 49216-06 | BRACKET, beltguard | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 21 | 60339-07A | BELT GUARD (black wrinkle) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 60633-08 | BELT GUARD (chrome) | FLD, FLD 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 22 | 60356-07A | DEBRIS DEFLECTOR | ALL |
| 23 | 68222-06 | PLUG, hole | ALL |
| 24 | 90493-83 | PLUG, hole (2) | FXDB, FXDB 103, FXDBP 103 |
SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2420 | SCREW (4) | FXDL, FXDL 103 |
| 2 | 3574 | SCREW | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL 103 |
| 3 | 3588 | SCREW (2) | FXDF, FXDF 103, FXDL, FXDL 103 |
| 4 | 6036 | WASHER | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL 103 |
| 5 | 6223 | WASHER (2) | FXDL, FXDL 103 |
| 6 | 7321 | NUT, seat mounting | FXDWG, FXDWG 103 |
| 7 | 7487 | WASHER GUIDE, two-up | FXDBC, FXDBC 103, FXDBP 103 |
| 8 | 7792 | NUT | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL 103 |
| 9 | 7891 | NUT | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL 103 |
| 10 | 11785 | FASTENER, push-in (4) | FXDWG, FXDWG 103 |
| 11 | 11895 | WASHER | FXDWG, FXDWG 103 |
| 12 | 51176-96C | SEAT STRAP | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 13 | 51475-09A | SEAT, with 51786-09 | FXDB, FXDB 103, FXDBP 103 |
| 14 | 51503-10 | SEAT, rider with 51786-09 | FXDWG, FXDWG 103 |
| 15 | 51504-10 | PILLION, passenger | FXDWG, FXDWG 103 |
| 16 | 51610-10 | SEAT STRAP | FXDWG, FXDWG 103 |
| 17 | 51652-97A | BRACKET, seat | FXDBC, FXDBC 103, FXDL, FXDL 103 |
| 51654-08 | BRACKET, seat | FLD, FLD 103, FXDF, FXDF 103 | |
| 51786-09 | BRACKET, seat | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 | |
| 18 | 51788-10 | SISSY BAR | FXDWG, FXDWG 103 |
| 19 | 54166-12 | SEAT, with 3574 and 51654-08 | FLD, FLD 103 |
| 20 | 67956-96 | SCREW (2) | FXDLS |
| 21 | 10200221 | SCREW | ALL |
| 22 | 12700130 | BRACKET, seat | FXDLS |
| 23 | 52000071 | SEAT, two-up, with 3574 and 51652-97A | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 24 | 52000117 | SEAT, with 3588 and 51654-08 | FXDF, FXDF 103 |
| 25 | 52000136 | SEAT ASSEMBLY, with 2420, 3588, 6223, 51652-97A, 52000154 and 52000155 | FXDL, FXDL 103 |
| 26 | 52000154 | SEAT LUMBAR PAD | FXDL, FXDL 103 |
| 27 | 52000155 | NAMEPLATE, seat | FXDL, FXDL 103 |
| 28 | 52000287 | SEAT ASSEMBLY, with 67956-96 and 12700130 | FXDLS |
FOOTBOARDS AND FOOTPEGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3214 | SCREW (4) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL 103, FXDLS |
| 2 | 4180 | SCREW (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103, FXDLS |
| 2 | 4180 | SCREW (4) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 4339A | SCREW (2) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4 | 4512A | SCREW (2) | FXDB, FXDB 103, FXDBP 103 |
| 4 | 4512A | SCREW (4) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 4512A | SCREW (8) | FLD, FLD 103 |
| 5 | 7045 | LOCKWASHER (4) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 6 | 7716 | LOCKNUT (4) | FLD, FLD 103 |
| 7 | 7667 | NUT (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103, FXDLS |
| 7 | 7667 | NUT (4) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 33032-99 | FOOTREST, rider, with 33216-99 (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103 |
| 8 | 33032-99 | FOOTREST, rider, with 33216-99 (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 33129-06 | WEAR PEG, footpeg (2) | FXDLS |
| 10 | 33216-99 | COVER, rider footrest (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103, FXDLS |
| 10 | 33216-99 | COVER, rider footrest (4) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 33693-03 | SUPPORT, highway footrest, with 33708-94 (left) (FXDBP 103, FXDF, FXDF 103-Forward) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 12 | 33708-94 | BEARING SLEEVE (FXDF, FXDF 103, FXDBP 103) (2) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103 |
| 13 | 42481-03A | SUPPORT, highway footrest (right) (FXDF, FXDF 103, FXDBP 103-Forward) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 14 | 42663-03A | CLEVIS, footrest mount | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 15 | 42665-03 | PIVOT SHAFT | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 16 | 49224-06A | SUPPORT, passenger footrest (right) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 49230-06 | SUPPORT, passenger footrest (left) | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 50614-06 | PAD, footrest | FLD, FLD 103 |
| 19 | 50621-06 | FOOTBOARD ASSEMBLY, with 50614-06 (2) | FLD, FLD 103 |
| 20 | 50667-07 | SUPPORT, rider footrest (left) (black wrinkle) (FXDF, FXDF 103-Middle India, Japan, Asia-Pacific) (FXDBP 103-Middle) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103 |
| 50500279 | SUPPORT, rider footrest (left) (chrome) | FXDL, FXDL 103 | |
| 50500625 | SUPPORT, rider footrest (left) (black) | FXDLS | |
| 21 | 50666-07 | SUPPORT, rider footrest (right) (black wrinkle) (FXDF, FXDF 103-Middle) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 50500276 | SUPPORT, rider footrest (right) (chrome) | FXDL, FXDL 103 | |
| 50500622 | SUPPORT, rider footrest (right) (black) | FXDLS |
FOOTBOARDS AND FOOTPEGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 22 | 50912-72 | SPRING WASHER, footrest (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103, FXDLS |
| 22 | 50912-72 | SPRING WASHER, footrest (4) | FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 23 | 51323-08 | FOOTPEG ASSEMBLY (right) | FXDLS |
| 24 | 51327-08 | FOOTPEG ASSEMBLY (left) | FXDLS |
| 25 | 54165-12 | SUPPORT, footboard (right) | FLD, FLD 103 |
| 26 | 54173-12 | SUPPORT, footboard (left) | FLD, FLD 103 |
| 27 | 54174-12 | SUPPORT ASSEMBLY, footboard (left) with 33708-94 | FLD, FLD 103 |
| 28 | 54172-12 | SUPPORT ASSEMBLY, footboard (right) | FLD, FLD 103 |
| 29 | 10500023 | BOLT, shoulder (4) | FLD, FLD 103 |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 4326A | SCREW (4) | FLD, FLD 103 |
| 3 | 7531 | LOCKNUT (4) | ALL |
| 4 | 59962-10 | FENDER, front (primed) | FLD, FLD 103 |
| 5 | 60139-06B | FENDER, front (primed) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS |
| 6 | 60141-06B | FENDER, front (primed) | FXDWG, FXDWG 103 |
| 7 | 60214-08 | FENDER, front (primed) | FXDF, FXDF 103 |
FENDERS, REAR - FLD AND FXDL
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 732 | PLUG | FLD, FLD 103, FXDL, FXDL 103 |
| 2 | 761 | PLUG (black) | FLD, FLD 103, FXDL, FXDL 103 |
| 3 | 4512A | SCREW (2) | FXDL, FXDL 103 |
| 4 | 6249 | SPACER (2) | FLD, FLD 103, FXDL, FXDL 103 |
| 5 | 7792 | NUT (3) | FXDL, FXDL 103 |
| 6 | 10191A | CLIP, wire holding | FXDL, FXDL 103 |
| 7 | 11576 | CUSHION, fender (4) | FLD, FLD 103, FXDL, FXDL 103 |
| 7 | 11576 | CUSHION, fender (HDI) | FLD, FLD 103 |
| 8 | 11785 | FASTENER, push-in (4) | FLD, FLD 103 |
| 9 | 57300024 | COVER (right) (chrome) | FXDL, FXDL 103 |
| 10 | 57300026 | COVER (left) (chrome) | FXDL, FXDL 103 |
| 11 | 59287-92 | REFLECTOR (right) (red) | FLD 103, FXDL 103 |
| 59289-92 | REFLECTOR (right) (amber) (HDI, Brazil) | FLD, FLD 103, FXDL, FXDL 103 | |
| 12 | 59288-92 | REFLECTOR (left) (red) | FLD 103, FXDL 103 |
| 59290-92 | REFLECTOR (left) (amber) (HDI, Brazil) | FLD, FLD 103, FXDL, FXDL 103 | |
| 13 | 59512-06B | BRACKET, mount (2) | FXDL, FXDL 103 |
| 14 | 59634-06 | FENDER (rear) (primed) | FXDL, FXDL 103 |
| 15 | 59768-97 | FENDER SEAT NUT KIT | FLD, FLD 103, FXDL, FXDL 103 |
| 16 | 60877-12 | COVER, fender support (left)(chrome) | FLD, FLD 103 |
| 17 | 60878-12 | COVER, fender support (right) (chrome) | FLD, FLD 103 |
| 18 | 67266-94 | BUSHING, fender support (right) (chrome) (2) | FLD, FLD 103 |
| 19 | 10200033 | SCREW (4) | FLD, FLD 103 |
| 20 | 10500010 | SCREW, saddlebag mount (2) | FLD, FLD 103 |
| 21 | 57300001 | BRACKET, fender mount (left) | FLD, FLD 103 |
| 22 | 57300002 | BRACKET, fender mount (right) | FLD, FLD 103 |
| 23 | 57300003 | BRACKET, doubler | FLD, FLD 103 |
| 24 | 57300004 | BRACKET, fender spacer (2) | FLD, FLD 103 |
| 25 | 60400-12 | FENDER (rear) (primed) | FLD, FLD 103 |
| 26 | 90200485 | MOUNTING SPOOL (front) | FLD, FLD 103 |
| 27 | 90200486 | MOUNTING SPOOL (rear) | FLD, FLD 103 |
| 28 | 90200512 | SPOOL, saddlebag mount (2) | FLD, FLD 103 |
FENDERS, REAR - FXDB, FXDBP, FXDBC, FXDF, FXDLS AND FXDWG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 732 | PLUG | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 2 | 761 | PLUG (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 2 | 761 | PLUG (black) (2) | FXDLS |
| 3 | 4512A | SCREW (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS, FXDWG, FXDWG 103 |
| 3 | 4512A | SCREW (4) | FXDF, FXDF 103 |
| 4 | 6249 | SPACER (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 11896 | SPACER (2) | FXDWG, FXDWG 103 | |
| 12400073 | SPACER (2) | FXDF, FXDF 103 | |
| 5 | 11576 | CUSHION, fender (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103 |
| 5 | 11576 | CUSHION, fender (6) | FXDWG, FXDWG 103 |
| 6 | 11672 | CUSHION, fender (2) | FXDB, FXDB 103, FXDBP 103, FXDLS |
| 7 | 11785 | FASTENER, push-in (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 8 | 59138-06A | COVER (right) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 9 | 59171-06A | COVER (left) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 10 | 59259-90 | REFLECTOR (red) | FXDB, FXDBP 103, FXDWG, FXDWG 103 |
| 11 | 59281-08 | COVER (left) | FXDF, FXDF 103 |
| 12 | 59287-92 | REFLECTOR (right) (red) | FXDB 103, FXDBP 103, FXDF 103, FXDLS |
| 13 | 59288-92 | REFLECTOR (left) (red) | FXDB 103, FXDBP 103, FXDF 103, FXDLS |
| 14 | 59289-92 | REFLECTOR (right) (amber) (HDI, Australia, Asia-Pacific, England, India, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDLS |
| 15 | 59290-92 | REFLECTOR (left) (amber) (HDI, Australia, Asia-Pacific, England, India, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDLS |
| 16 | 67900205 | REFLECTOR (red) (2) | FXDWG 103 |
| 67900212 | REFLECTOR (amber) (HDI) (2) | FXDWG, FXDWG 103 | |
| 17 | 59410-08 | COVER (right) | FXDF, FXDF 103 |
| 18 | 59459-10 | COVER (left) (gloss black) | FXDWG, FXDWG 103 |
| 19 | 59461-10 | COVER (right) (gloss black) | FXDWG, FXDWG 103 |
| 20 | 59512-06B | BRACKET, mount (2) | FXDB, FXDB 103, FXDBP 103, FXDLS |
| 59500126 | BRACKET, mount (Asia-Pacific, Australia, Canada, HDI, India, Japan) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS | |
| 21 | 59768-97 | FENDER SEAT NUT KIT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 22 | 60508-10 | FENDER, rear (primed) (Canada, England, HDI, Australia, Japan, Asia-Pacific) | FXDWG, FXDWG 103 |
| 23 | 60519-10 | FENDER, rear (primed)(Domestic, California) | FXDWG, FXDWG 103 |
| 24 | 60936-10 | BRACKET, mount (2) | FXDWG, FXDWG 103 |
| 25 | 69557-10 | MOUNTING BLOCK, reflector | FXDWG, FXDWG 103 |
| 26 | 72573-10 | WIRE CHANNEL (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS, FXDWG, FXDWG 103 |
| 27 | 72574-10 | WIRE GUIDE ASSEMBLY | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 69200427 | WIRE GUIDE ASSEMBLY, with 11785 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS | |
| 28 | 59500097A | FENDER, rear (primed) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 29 | 59500135 | FENDER, rear (primed) | FXDF, FXDF 103 |
FENDERS, REAR - FXDB, FXDBP, FXDBC, FXDF, FXDLS AND FXDWG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 30 | 59500140 | BRACKET, mount (2) | FXDF, FXDF 103 |
| 31 | 59600016 | SPLASHGUARD (right) (Australia) | FXDB 103, FXDBC 103, FXDLS |
| 32 | 59600017 | SPLASHGUARD (left) (Australia) | FXDB 103, FXDBC 103, FXDLS |
| 33 | 67900128 | BRACKET ASSEMBLY, with 59259-90 | FXDB 103, FXDBP 103 |
| 67900128 | BRACKET ASSEMBLY, with 59259-90 (Domestic, California) | FXDLS | |
| 34 | 67900205 | REFLECTOR (red) (HDI) (2) | FXDWG, FXDWG 103 |
| 35 | 69200594 | WIRE CHANNEL (2) | FXDF, FXDF 103 |
LICENSE PLATE BRACKETS - FLD, FXDWG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2508 | SCREW (Domestic) (3) | FXDWG, FXDWG 103 |
| 1 | 2508 | SCREW (Australia, Canada, England HDI, Asia-Pacific, Japan) (3) | FXDWG, FXDWG 103 |
| 2 | 3061 | SCREW (2) | FLD, FLD 103 |
| 3 | 4092 | SCREW (2) | FXDWG 103 |
| 4 | 5403B | BOLT | FXDWG 103 |
| 5 | 7036 | WASHER (2) | FLD, FLD 103 |
| 6 | 7716 | LOCKNUT (4) | FXDWG 103 |
| 7 | 11576 | CUSHION (2) | FLD, FLD 103 |
| 8 | 52441-95 | BULB, illuminator (2) | FXDWG 103 |
| 9 | 59259-90 | REFLECTOR, rear (red) | FXDWG, FXDWG 103 |
| 9 | 59259-90 | REFLECTOR, rear (red) (Australia, England, HDI, India) | FLD, FLD 103, FXDWG, FXDWG 103 |
| 10 | 59988-72A | REFLECTOR, red (Domestic) | FLD 103 |
| 10 | 59988-72A | REFLECTOR, red (Canada) | FXDWG, FXDWG 103 |
| 11 | 60336-10 | LICENSE PLATE ASSEMBLY | FXDWG 103 |
| 12 | 60375-10 | ILLUMINATOR, license plate | FXDWG 103 |
| 13 | 60906-09 | LICENSE PLATE BRACKET (Canada, HDI) | FXDWG, FXDWG 103 |
| 14 | 60907-09 | LICENSE PLATE BRACKET, reflector (Canada) | FXDWG, FXDWG 103 |
| 15 | 60908-09A | LICENSE PLATE BRACKET, reflector (Australia, HDI) | FXDWG, FXDWG 103 |
| 16 | 68702-07 | LICENSE PLATE BRACKET | FXDWG 103 |
| 17 | 69380-09BHP | BRACKET, license plate | FLD, FLD 103 |
| 18 | 69557-10 | MOUNTING BLOCK, reflector (GZ4/GZM-HDI) | FLD, FLD 103, FXDWG 103 |
| 19 | 73152-96BK | HOUSING, two-way socket (black) | FXDWG 103 |
| 20 | 73191-96 | TERMINAL, socket (2) | FXDWG 103 |
| 21 | 12400100 | SPACER | FLD, FLD 103 |
| 22 | 67900100 | BRACKET, reflector | FLD 103 |
LICENSE PLATE BRACKETS - FXDB, FXDBP, FXDBC, FXDF, FXDL AND FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 927A | SCREW (India) (2) | FXDB, FXDF |
| 2 | 2773 | SCREW (3) | FXDL 103 |
| 3 | 5403B | BOLT | FXDL, FXDL 103, FXDLS |
| 4 | 6703 | WASHER | FXDL, FXDL 103 |
| 4 | 6703 | WASHER (India) (4) | FXDB, FXDF |
| 5 | 7487 | WASHER GUIDE | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 6 | 7716 | LOCKNUT (4) | FXDB, FXDB 103, FXDBP 103, FXDLS |
| 7 | 7792 | NUT (India) (2) | FXDB, FXDF, FXDL 103 |
| 7 | 7792 | NUT (4) | FXDL, FXDL 103 |
| 8 | 59259-90 | REFLECTOR, rear (red) (All except India) | FXDBC 103, FXDF, FXDF 103 |
| 9 | 59768-97 | FENDER SEAT NUT KIT | FXDF, FXDF 103 |
| 10 | 59984-73 | BRACKET, license plate | FXDL, FXDL 103 |
| 11 | 59986-75 | BRACKET, license plate support | FXDL 103 |
| 12 | 59988-72A | REFLECTOR, red (GY4/GX4-India, HDI) | FXDB, FXDB 103, FXDF, FXDL, FXDL 103 |
| 59988-72A | REFLECTOR, red (Canada) | FXDB 103, FXDBP 103 | |
| 59988-72A | REFLECTOR, red (Domestic) | FXDF, FXDF 103, FXDLS | |
| 13 | 60001-55 | CLAMP, license plate | FXDL, FXDL 103 |
| 14 | 60908-09A | LICENSE PLATE BRACKET (All except India) | FXDF, FXDF 103 |
| 15 | 60188-08 | LICENSE PLATE BRACKET, with 59259-90 (Asia-Pacific, Australia, Brazil, England, HDI, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 16 | 60907-09 | LICENSE PLATE BRACKET, reflector (Domestic) | FXDF 103 |
| 60907-09 | LICENSE PLATE BRACKET, reflector (Canada, India) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDLS | |
| 17 | 68702-07 | LICENSE PLATE BRACKET (Domestic) | FXDB, FXDB 103, FXDBP 103, FXDLS |
| 18 | 72912-01BK | HOUSING, socket, two-way (black) | FXDF, FXDF 103 |
| 19 | 72914-01BK | HOUSING, socket, four-way (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 20 | 72991-01 | TERMINAL, socket, 18-22 AWG (2) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDLS |
| 21 | 10200036 | SCREW (4) | FXDF, FXDF 103 |
| 22 | 10200221 | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 23 | 10800005 | P-CLAMP, 49mm (India) (2) | FXDB, FXDF |
| 24 | 67900010 | LICENSE PLATE, front (India) | FXDB |
| 67900094 | LICENSE PLATE, front (India) | FXDF | |
| 25 | 67900093 | LICENSE PLATE, rear (India) | FXDB, FXDF |
| 27 | 67900123 | ILLUMINATOR, with 72914-01BK and 72991-01 | FXDB, FXDB 103, FXDBP 103 |
| 27 | 67900123 | ILLUMINATOR, with 72914-01BK and 72991-01 (Domestic) | FXDLS |
| 28 | 67900124 | BRACKET ASSEMBLY, license plate with 72914-01BK and 67900125 (Asia-Pacific, Australia, HDI, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 28 | 67900124 | BRACKET ASSEMBLY, license plate, with 72914-01BK and 67900125 (HDI, England, Australia, Japan) | FXDLS |
| 29 | 67900125 | BRACKET ASSEMBLY, center mount (HDI, Canada) | FXDB, FXDB 103, FXDBC 103, FXDBP 103 |
| 29 | 67900125 | BRACKET ASSEMBLY, center mount (Canada) | FXDLS |
| 30 | 67900126 | BRACKET ASSEMBLY, license plate with 72914-01BK and 67900125 (Canada) | FXDB, FXDB 103, FXDBP 103 |
| 31 | 67900161 | BRACKET ASSEMBLY, tail lamp/license plate | FXDF, FXDF 103 |
| 32 | 67900170 | ILLUMINATOR | FXDF, FXDF 103 |
| 33 | 67900172 | COVER, illuminator | FXDF, FXDF 103 |
| 34 | 67900173 | LICENSE PLATE BRACKET ASSEMBLY | FXDF, FXDF 103 |
| 35 | 67900326 | BRACKET ASSEMBLY, license plate, with 68702-07 and 67900123 (black side mount bracket) (Domestic) | FXDLS |
| 67900121 | BRACKET ASSEMBLY, license plate, with 68702-07 and 67900123 (chrome side mount bracket) (Domestic) | FXDB, FXDB 103, FXDBP 103 | |
| Index 26 is not used in this illustration. | |||
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3112A | SCREW (2) | ALL |
| 2 | 6016 | WASHER (4) | ALL |
| 3 | 7481 | ACORN NUT (2) | ALL |
| 4 | 8173 | SPEED NUT | ALL |
| 5 | 10014 | CLAMP (2) | ALL |
| 6 | 10113 | CLIP, vapor valve | ALL |
| 7 | 10177 | CABLE STRAP, vent tube | ALL |
| 8 | 10270 | CABLE STRAP | ALL |
| 9 | 10340B | CLIP, resealable | ALL |
| 10 | 11323 | O-RING | ALL |
| 11 | 11387A | O-RING | ALL |
| 12 | 27296-12 | TUBE, valve-to-common point (except California and Asia-Pacific) | ALL |
| 13 | 27389-12 | VENT LINE ASSEMBLY, tank-to-common point, with 62150-85 | ALL |
| 14 | 61109-85D | GASKET, filler cap | ALL |
| 15 | 61272-92C | FILLER CAP, with 61109-85D | ALL |
| 16 | 61100055 | FILLER CAP, with 61109-85D and 90300093 (Asia-Pacific, Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
| 17 | 61586-04B | FUEL TANK (primed) | FXDF, FXDF 103 |
| 61593-10 | FUEL TANK (primed) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 | |
| 18 | 62150-85 | VAPOR VALVE | ALL |
| 19 | 62194-04C | CHECK VALVE, output, with 11323 and 11387A | ALL |
| 20 | 62349-04F | FUEL LINE, from tank to intake, with 10038A | ALL |
| 21 | 63501-68B | HOSE, 1/4-in ID x 1/2-in OD (rubber) | ALL |
| 22 | 90300093 | KEY (set of 2) (Asia-Pacific) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
INSTRUMENTS - FXDB, FXDBP, FXDBC AND FXDWG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 2 | 3540 | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 3 | 3691 | SCREW (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 4 | 4654 | SCREW (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 5 | 6798 | WASHER (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 6 | 8173 | SPEED NUT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 7 | 14130-06B | DECAL, fork lock | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 8 | 61081-92 | COVER, key | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 9 | 66373-06 | BATTERY, 3V CR2032 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 10 | 67185-04 | TRIM, console | FXDWG, FXDWG 103 |
| 11 | 67478-12A | SPEEDOMETER, mph | FXDB 103, FXDBP 103, FXDWG 103 |
| 67479-12 | SPEEDOMETER, km/h (Asia-Pacific, Australia, Brazil, Canada, HDI, Japan, India) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 | |
| 67480-12 | SPEEDOMETER, mph/km/h (England) | FXDB 103, FXDBP 103, FXDWG 103 | |
| 12 | 67689-04 | CLAMP, AWG | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 13 | 68382-07B | BEZEL, indicator light | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 14 | 68926-07 | REMOTE CONTROL FOB, with 66373-06 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 15 | 69995-11 | REMOTE CONTROL FOB, with 66373-06 (Japan) | FXDB, FXDBC, FXDWG |
| 16 | 70027-12 | JUMPER | FXDWG, FXDWG 103 |
| 17 | 70706-08 | GASKET, speedometer | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 18 | 71430-12 | LOCK SET, with 90300043 keys, ignition switch and fork lock | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 19 | 71475-06B | FORK LOCK KIT (specify key number) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 20 | 71517-11 | IGNITION SWITCH (specify key number) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 21 | 71555-06 | NUT, face | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 22 | 71766-08 | BRACKET, ignition switch | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
INSTRUMENTS - FXDB, FXDBP, FXDBC AND FXDWG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 23 | 71989-08 | NAMEPLATE, ignition switch | FXDWG, FXDWG 103 |
| 24 | 72062-06 | HOUSING, two-way socket | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 25 | 72066-06A | HOUSING, four-way socket (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 26 | 72094-06 | TERMINAL, 18 AWG socket (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 27 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 28 | 72130-04 | HOUSING, 12-way socket (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 29 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 30 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FXDB, FXDB 103, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 31 | 72189-04 | SEAL PIN (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 32 | 72478-07BK | HOUSING, seven-way pin (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 33 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 34 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 35 | 72662-11 | TERMINAL (5) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 36 | 72669-12A | INSTRUMENT HARNESS | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 37 | 74196-04 | TERMINAL, socket, 20 AWG (5) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 38 | 74197-04 | SECONDARY LOCK, 12-way socket | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 39 | 25700159 | TRIM, console | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 40 | 61400104 | NAMEPLATE, ignition switch | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 41 | 70900050 | CONSOLE, with 67185-04 (chrome) | FXDWG, FXDWG 103 |
| 70900051 | CONSOLE, with 67185-04 (gloss black) | FXDWG, FXDWG 103 | |
| 42 | 70900209 | CONSOLE, with 25700159 and 61400104 (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 70900210 | CONSOLE, with 25700159 and 61400104 (chrome) | FXDBP 103 | |
| 43 | 90300043 | KEY, with 61081-92 (set of two) (specify key number) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
INSTRUMENTS - FLD AND FXDF (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FLD, FLD 103, FXDF, FXDF 103 |
| 2 | 3540 | SCREW | FLD, FLD 103, FXDF, FXDF 103 |
| 3 | 4654 | SCREW (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 4 | 6702 | WASHER | FLD, FLD 103, FXDF, FXDF 103 |
| 5 | 6798 | WASHER (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 6 | 7586 | JAMNUT | FLD, FLD 103 |
| 7 | 8173 | SPEED NUT (3) | FLD, FLD 103, FXDF, FXDF 103 |
| 8 | 8135B | PUSH NUT (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 9 | 14130-06B | DECAL, fork lock | FLD, FLD 103, FXDF, FXDF 103 |
| 10 | 61300038 | TRIM, leather | FLD, FLD 103 |
| 61400161 | TRIM (not shown) | FXDF, FXDF 103 | |
| 11 | 56073-83 | RETAINER, wire harness | FLD, FLD 103 |
| 12 | 61081-92 | COVER, key | FLD, FLD 103, FXDF, FXDF 103 |
| 13 | 66373-06 | BATTERY, 3V CR2032 | FLD, FLD 103, FXDF, FXDF 103 |
| 14 | 67096-12A | SPEEDOMETER, mph | FLD, FLD 103, FXDF, FXDF 103 |
| 67204-12 | SPEEDOMETER, km/h (HDI, Asia-Pacific, Australia, Brazil, Canada, India, Japan) | FLD, FLD 103, FXDF, FXDF 103 | |
| 67242-12 | SPEEDOMETER, mph/km/h (England) | FLD 103, FXDF 103 | |
| 15 | 67190-89 | SEAL, speedometer | FLD, FLD 103, FXDF, FXDF 103 |
| 16 | 67341-04B | CLAMP | FLD, FLD 103, FXDF, FXDF 103 |
| 17 | 68926-07 | REMOTE CONTROL FOB, with 66373-06 | FLD, FLD 103, FXDF, FXDF 103 |
| 69995-11 | REMOTE CONTROL FOB, with 66373-06 (Japan) | FLD, FXDF | |
| 18 | 69538-04A | BEZEL, indicator | FLD, FLD 103 |
| 68382-07B | BEZEL, indicator (not shown) | FXDF, FXDF 103 | |
| 19 | 71279-04A | TRIM, instrument panel | FLD, FLD 103 |
| 25700252 | TRIM, instrument panel | FXDF, FXDF 103 | |
| 20 | 71304-04 | NAME PLATE, ignition switch | FLD, FLD 103 |
| 14000566 | NAME PLATE, ignition switch (not shown) | FXDF, FXDF 103 | |
| 21 | 71430-12 | LOCK SET, with 90300043 keys, ignition switch and fork lock | FXDF, FXDF 103 |
| 22 | 71475-06B | FORK LOCK KIT (specify key number) | FLD, FLD 103, FXDF, FXDF 103 |
INSTRUMENTS - FLD AND FXDF (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 23 | 71517-11 | IGNITION SWITCH (specify key number) | FLD, FLD 103, FXDF, FXDF 103 |
| 24 | 71555-06 | NUT, ignition switch face | FLD, FLD 103, FXDF, FXDF 103 |
| 25 | 71766-08 | BRACKET, ignition switch | FXDF, FXDF 103 |
| 26 | 72062-06 | HOUSING, two-way socket | FLD, FLD 103, FXDF, FXDF 103 |
| 27 | 72066-06A | HOUSING, four-way socket (black) (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 28 | 72094-06 | TERMINAL, 18 AWG socket (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 29 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 30 | 72130-04 | HOUSING, 12-way socket (black) | FLD, FLD 103, FXDF, FXDF 103 |
| 31 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLD, FLD 103, FXDF, FXDF 103 |
| 32 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLD, FLD 103, FXDF, FXDF 103 |
| 33 | 72189-04 | SEAL PIN (10) | FLD, FLD 103, FXDF, FXDF 103 |
| 34 | 72478-07BK | HOUSING, seven-way pin (black) | FLD, FLD 103, FXDF, FXDF 103 |
| 35 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 36 | 72486-08 | WIRE SEAL (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 37 | 72667-12 | INSTRUMENT HARNESS | FLD, FLD 103 |
| 72669-12A | INSTRUMENT HARNESS | FXDF, FXDF 103 | |
| 38 | 74196-04 | TERMINAL, socket, 20 AWG (9) | FLD, FLD 103, FXDF, FXDF 103 |
| 39 | 74197-04 | SECONDARY LOCK, 12-way socket (2) | FLD, FLD 103, FXDF, FXDF 103 |
| 40 | 90682-93 | SADDLEBAG CAM (2) | FLD, FLD 103 |
| 41 | 70900053 | INSTRUMENT CONSOLE, with 71279-04A (chrome) | FLD, FLD 103 |
| 70900346 | INSTRUMENT CONSOLE, with 25700252 (black)(not shown) | FXDF, FXDF 103 | |
| 42 | 90300020 | LOCK SET, with 90300043 keys, ignition switch, saddlebag locks and fork lock | FLD, FLD 103 |
| 43 | 90300043 | KEY, with 61081-92 (set of two) (specify key number) | FLD, FLD 103, FXDF, FXDF 103 |

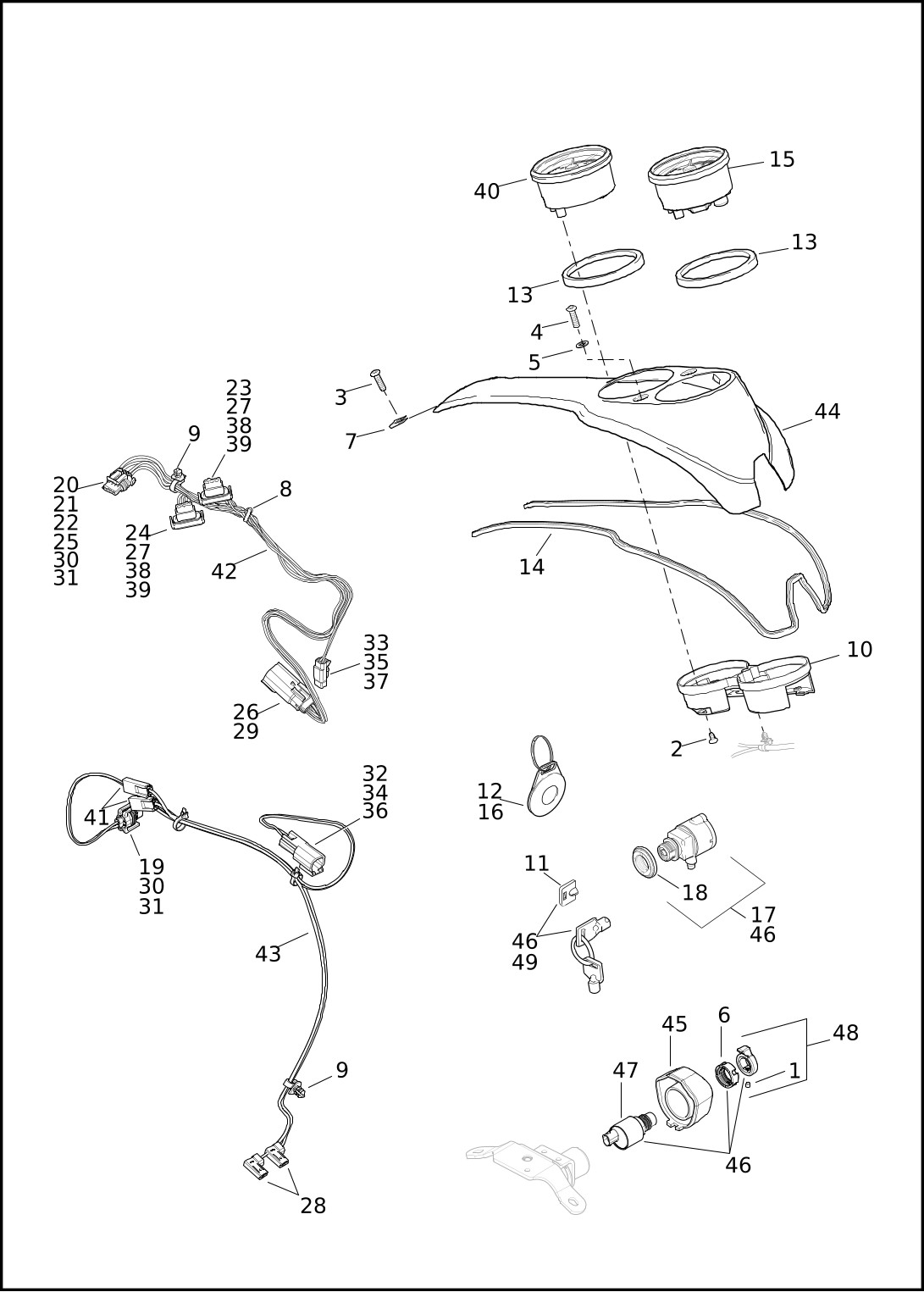

INSTRUMENTS - FXDL AND FXDLS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1565 | LOCK PIN | FXDL, FXDL 103 |
| 2 | 2361 | SCREW (4) | FXDL, FXDL 103, FXDLS |
| 3 | 3540 | SCREW | FXDL, FXDL 103, FXDLS |
| 4 | 4654 | SCREW (2) | FXDL, FXDL 103, FXDLS |
| 5 | 6798 | WASHER (2) | FXDL, FXDL 103, FXDLS |
| 6 | 7343 | NUT, face, ignition switch | FXDL, FXDL 103 |
| 7 | 8173 | SPEED NUT | FXDL, FXDL 103, FXDLS |
| 8 | 10065 | CABLE STRAP | FXDL, FXDL 103, FXDLS |
| 9 | 10177 | CABLE STRAP | FXDL, FXDL 103, FXDLS |
| 10 | 48073-04 | CLAMP, AWG | FXDL, FXDL 103, FXDLS |
| 11 | 61081-92 | COVER, key | FXDL, FXDL 103, FXDLS |
| 12 | 66373-06 | BATTERY, 3V CR2032 | FXDL, FXDL 103, FXDLS |
| 13 | 67121-95A | GASKET (2) | FXDL, FXDL 103, FXDLS |
| 14 | 67185-04 | TRIM, console | FXDL, FXDL 103, FXDLS |
| 15 | 67478-12A | SPEEDOMETER, mph (Domestic, California) | FXDL 103 |
| 67479-12 | SPEEDOMETER, km/h (Asia-Pacific, Australia, Brazil, Canada, HDI, Japan) | FXDL, FXDL 103 | |
| 67480-12 | SPEEDOMETER, mph/km/h (England) | FXDL 103 | |
| 70900669 | SPEEDOMETER, mph (Domestic, California) | FXDLS | |
| 70900670 | SPEEDOMETER, km/h (Australia, Canada, HDI, Japan) | FXDLS | |
| 70900671 | SPEEDOMETER, mph/km/h (England) | FXDLS | |
| 16 | 68926-07 | REMOTE CONTROL FOB, with 66373-06 | FXDL, FXDL 103, FXDLS |
| 69995-11 | REMOTE CONTROL FOB, with 66373-06 (Japan) | FXDL, FXDLS | |
| 17 | 71475-06B | FORK LOCK, with 71555-06 (specify key number) | FXDL, FXDL 103, FXDLS |
| 18 | 71555-06 | NUT, face | FXDL, FXDL 103, FXDLS |
| 19 | 72062-06 | HOUSING, two-way socket | FXDL, FXDL 103 |
| 20 | 72066-06A | HOUSING, four-way socket (black) | FXDL, FXDL 103, FXDLS |
| 21 | 72094-06 | TERMINAL, 18 AWG socket (2) | FXDL, FXDL 103, FXDLS |
| 22 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (2) | FXDL, FXDL 103, FXDLS |
| 23 | 72130-04 | HOUSING, 12-way socket (black) | FXDL, FXDL 103, FXDLS |
| 24 | 72131-04 | HOUSING, 12-way socket (gray) (2) | FXDL, FXDL 103, FXDLS |
| 25 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FXDL, FXDL 103, FXDLS |
| 26 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FXDL, FXDL 103, FXDLS |
| 27 | 72189-04 | SEAL PIN (15) | FXDL, FXDL 103, FXDLS |
| 28 | 72283-09 | TERMINAL, 14-16 AWG, 90-degree (2) | FXDL, FXDL 103 |
| 29 | 72478-07BK | HOUSING, seven-way pin (black) | FXDL, FXDL 103, FXDLS |
| 30 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FXDL, FXDL 103 |
| 30 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FXDLS |
| 31 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FXDL, FXDL 103 |
| 31 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FXDLS |
| 32 | 74102-05GY | HOUSING, two-way pin (gray) | FXDL, FXDL 103 |
| 33 | 74112-05GY | HOUSING, two-way socket (gray) | FXDL, FXDL 103, FXDLS |
| 34 | 74142-98 | SECONDARY LOCK, two-way pin | FXDL, FXDL 103 |
| 35 | 74152-98 | SECONDARY LOCK, two-way socket | FXDL, FXDL 103, FXDLS |
| 36 | 74190-98 | TERMINAL, pin, 16-20 AWG | FXDL, FXDL 103 |
| 37 | 74191-98 | TERMINAL, socket (2) | FXDL, FXDL 103, FXDLS |
| 38 | 74196-04 | TERMINAL, socket, 20 AWG (9) | FXDL, FXDL 103, FXDLS |
| 39 | 74197-04 | SECONDARY LOCK, 12-way socket (2) | FXDL, FXDL 103, FXDLS |
| 40 | 67000010 | TACHOMETER | FXDL, FXDL 103 |
| 67000011 | TACHOMETER | FXDLS | |
| 41 | 69200283 | TERMINAL, 14-16 AWG (2) | FXDL, FXDL 103 |
INSTRUMENTS - FXDL AND FXDLS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 42 | 69200615 | HARNESS ASSEMBLY | FXDL, FXDL 103, FXDLS |
| 43 | 69200616 | HARNESS, jumper, ignition switch and horn | FXDL, FXDL 103 |
| 44 | 70900387 | CONSOLE, with 67185-04 (black wrinkle) | FXDL, FXDL 103, FXDLS |
| 45 | 71400094 | COVER, ignition switch | FXDL, FXDL 103, FXDLS |
| 46 | 71400095A | LOCK SET, with 6, 17, 47, 48 and 49 | FXDL, FXDL 103 |
| 45600052 | LOCK SET, with 17 and 49 | FXDLS | |
| 47 | 71400113 | SWITCH ASSEMBLY, ignition (specify key number) | FXDL, FXDL 103 |
| 48 | 71400115A | KIT, KNOB, ignition switch, with 1565 | FXDL, FXDL 103 |
| 49 | 90300043 | KEY, with 61081-92 (set of two) (specify key number) | FXDL, FXDL 103, FXDLS |
FUEL PUMP, SENDER, TOP PLATE
| Index No. | Part No. | Description | Model(s) |
| 1 | 11387A | O-RING | ALL |
| 2 | 11686 | O-RING | ALL |
| 3 | 61011-04A | FUEL FILTER, with 11686 | ALL |
| 4 | 61012-04A | CLIP, filter retainer | ALL |
| 5 | 61013-04A | FILTER END CAP AND CLIP KIT, with 61012-04A | ALL |
| 6 | 61015-04A | FUEL REGULATOR KIT, with O-ring, spacer and screen | ALL |
| 7 | 61016-04B | FUEL PUMP ASSEMBLY, with 75254-04A and hose | ALL |
| 8 | 61192-96A | GASKET, fuel gauge | ALL |
| 9 | 61213-04A | CLIP, regulator | ALL |
| 10 | 72904-01BK | HOUSING, four-way pin (black) | ALL |
| 11 | 72990-01 | TERMINAL, pin, 18-22 AWG (3) | ALL |
| 12 | 75241-08 | FUEL GAUGE, with 72990-01 | ALL |
| 13 | 75217-04A | TOP PLATE | FXDF, FXDF 103 |
| 14 | 75218-04D | MODULE ASSEMBLY, fuel pump, with 1, 3, 4, 5, 6, 7, 9 and 20 (electrical harness not included) | ALL |
| 15 | 75219-09 | SENDER, fuel level | ALL |
| 16 | 75246-04A | TOP PLATE | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 75323-12 | TOP PLATE | FLD, FLD 103 | |
| 17 | 75248-04 | SEAL, top plate | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 18 | 75249-04A | SEAL, top plate | FXDF, FXDF 103 |
| 19 | 75254-04A | FUEL PUMP INLET SOCK | ALL |
| 20 | 75270-09 | ELECTRICAL HARNESS, fuel pump | ALL |
| 21 | 10200374 | SCREW (12) | ALL |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| NOTE: These parts are required for motorcycles sold in Brazil. | |||
| 1 | 4612 | SCREW (2) | ALL |
| 2 | 10039 | CABLE STRAP, vent tube (2) | ALL |
| 3 | 10340B | CLIP | ALL |
| 4 | 10177 | CABLE STRAP | ALL |
| 5 | 27189-12 | VENT LINE ASSEMBLY, common part to canister | ALL |
| 6 | 27389-12 | VENT LINE ASSEMBLY, fuel tank to common part, with 62150-85 | ALL |
| 7 | 27715-07 | SOLENOID, purge valve | ALL |
| 8 | 28814-12 | VENT LINE ASSEMBLY, to purge solenoid | ALL |
| 9 | 28819-12 | VENT LINE ASSEMBLY, canister to atmosphere | ALL |
| 10 | 28829-12 | VENT LINE ASSEMBLY, to throttle body | ALL |
| 11 | 28830-12 | VENT LINE ASSEMBLY, active purge system | ALL |
| 12 | 47207-12 | BRACKET, mounting, canister | ALL |
| 13 | 62150-85 | VAPOR VALVE | ALL |
| 14 | 60800006 | CANISTER, carbon | ALL |
FUEL TANK TRIM
| Index No. | Part No. | Description | Model(s) |
| 1 | 62445-10 | MEDALLION (left) (for vivid black, charcoal pearl, black quartz, velocity red sunglo and black denim tanks) | FXDWG, FXDWG 103 |
| 62446-10 | MEDALLION (right) (for vivid black, charcoal pearl, black quartz, velocity red sunglo and black denim tanks) | FXDWG, FXDWG 103 | |
| 2 | 14100062 | MEDALLION (left) (for vivid black, velocity red sunglo and deep jade pearl tanks) | FLD, FLD 103 |
| 14100063 | MEDALLION (right) (for vivid black, velocity red sunglo and deep jade pearl tanks) | FLD, FLD 103 | |
| 3 | 14100959 | MEDALLION (right) (for vivid black tank) | FXDLS |
| 14100960 | MEDALLION (left) (for vivid black tank) | FXDLS | |
| 4 | 61400098 | MEDALLION (left) (for vivid black, charcoal pearl, black denim, crushed ice pearl, velocity red sunglo, olive gold and 2-tone billet silver/vivid black tanks) | FXDB, FXDB 103, FXDBC, FXDBC 103 |
| 61400099 | MEDALLION (right) (for vivid black, charcoal pearl, black denim, crushed ice pearl, velocity red sunglo, olive gold and 2-tone billet silver/vivid black tanks) | FXDB, FXDB 103, FXDBC, FXDBC 103 | |
| 61400098 | MEDALLION (left) (for vivid black, charcoal pearl, superior blue, deep jade pearl, black quartz, charcoal denim, crushed ice pearl, velocity red sunglo, olive gold and 2-tone billet silver/black tanks) | FXDBP 103 | |
| 61400099 | MEDALLION (right) (for vivid black, charcoal pearl, superior blue, deep jade pearl, black quartz, charcoal denim, crushed ice pearl, velocity red sunglo, olive gold and 2-tone billet silver/black tanks) | FXDBP 103 | |
| Index 5Factory applied decal that is only sold as part of vivid black, black denim, velocity red sunglo and olive gold FXDF fuel tank assemblies.Index 6Factory applied decal that is only sold as part of vivid black, superior blue and 2-tone deep jade pearl/vivid black and billet silver/vivid black FXDL fuel tank assemblies. | |||
HEADLAMP - ALL MODELS EXCEPT FLD (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3159 | SCREW (2) | FXDF, FXDF 103 |
| 2 | 3514 | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 3 | 4420 | SCREW | FXDWG, FXDWG 103 |
| 4 | 4762 | SCREW | FXDF, FXDF 103 |
| 5 | 4722 | BOLT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 6 | 4724 | BOLT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 7 | 6701 | WASHER (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 8 | 7038 | LOCKWASHER | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS, FXDWG, FXDWG 103 |
| 9 | 7068 | LOCKWASHER | FXDL, FXDL 103 |
| 10 | 7130W | LOCKWASHER | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 11 | 7606 | LOCKNUT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 12 | 7775 | LOCKNUT | FXDF, FXDF 103 |
| 7778 | LOCKNUT | FXDWG, FXDWG 103 | |
| 13 | 7800W | NUT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 14 | 7880 | NUT | FXDL, FXDL 103 |
| 15 | 9847 | CONNECTOR, spade socket (right) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 16 | 9848 | CONNECTOR, spade socket (left) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 17 | 9898 | TERMINAL FLAG (HDI) (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 18 | 53436-97 | BULB, wedge (HDI) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 19 | 67667-05 | MEDALLION | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 20 | 67741-06 | BLOCK, mount | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| 67742-06 | BLOCK, mount | FXDWG, FXDWG 103 | |
| 21 | 67790-93A | TRIM RING (chrome) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 67700116 | TRIM RING (black) | FXDLS | |
| 22 | 67883-04A | ADAPTOR RING | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 67769-93 | ADAPTOR RING (India) | FXDB | |
| 23 | 67815-59A | WASHER | FXDL, FXDL 103 |
| 24 | 67865-89 | PLUG (chrome) | FXDL, FXDL 103 |
| 25 | 68297-05A | LAMP ASSEMBLY, 5-3/4 in, with 67667-05 and 68329-03 | FXDB 103, FXDBP 103, FXDWG 103 |
| 68297-05A | LAMP ASSEMBLY, 5-3/4 in, with 67667-05 and 68329-03 (Domestic, California, Canada) | FXDL, FXDL 103, FXDLS | |
| 26 | 68329-03 | BULB | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
HEADLAMP - ALL MODELS EXCEPT FLD (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 27 | 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England, Japan, India) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDLS, FXDWG, FXDWG 103 |
| 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England, Japan) | FXDLS | |
| 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England) | FXDL 103 | |
| 68341-05A | LAMP ASSEMBLY, 5-3/4 in, right, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Asia-Pacific, HDI, Brazil) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 68341-05A | LAMP ASSEMBLY, 5-3/4 in, right, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05(HDI) | FXDL 103, FXDLS | |
| 28 | 68380-05 | BOOT, connector | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 29 | 68653-05 | SOCKET, bulb (Asia-Pacific, Australia, Canada, England, HDI, Japan, Brazil) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 30 | 68787-10 | HEADLAMP SHELL ASSEMBLY (black) | FXDWG, FXDWG 103 |
| 69162-06A | HEADLAMP SHELL ASSEMBLY (chrome) | FXDBP 103 | |
| 69356-06A | HEADLAMP SHELL ASSEMBLY (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDLS | |
| 67700094 | HEADLAMP SHELL ASSEMBLY (India) | FXDB | |
| 31 | 68881-01 | BULB, halogen (HDI) | FXDF, FXDF 103 |
| 32 | 69609-00 | RUBBER BUMPER (India) | FXDB |
| 33 | 69774-07A | HEADLAMP SHELL ASSEMBLY (black) | FXDL, FXDL 103 |
| 34 | 69798-08 | HEADLAMP SHELL ASSEMBLY, dual (chrome)(Domestic) | FXDF 103 |
| 35 | 69800-08 | REFLECTOR ASSEMBLY, dual headlamp (chrome)(Domestic) | FXDF 103 |
| 36 | 69803-08 | HEADLAMP SHELL ASSEMBLY, dual (chrome) (Asia-Pacific, Brazil, England, HDI, India, Japan) | FXDF, FXDF 103 |
| 37 | 69804-08 | REFLECTOR ASSEMBLY, dual headlamp (chrome)(HDI) | FXDF, FXDF 103 |
| 38 | 69838-08 | BULB (Domestic) | FXDF, FXDF 103 |
| 39 | 69839-08 | BLOCK, mount | FXDF 103 |
| 40 | 69932-08 | CONNECTOR, positive (HDI) | FXDF, FXDF 103 |
| 41 | 72056-92 | HOUSING, three-way socket | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 42 | 72161-06 | SOCKET, two-way (HDI) | FXDF, FXDF 103 |
| 43 | 72298-95 | CABLE, sealed (green) (HDI) | FXDF, FXDF 103 |
| 44 | 72356-95 | TERMINAL, 18-20AWG (HDI) | FXDF, FXDF 103 |
| 45 | 73154-96BK | HOUSING, four-way socket | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 46 | 73191-96 | TERMINAL, socket, 16-20 AWG (Domestic) (3) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 46 | 73191-96 | TERMINAL, socket, 16-20 AWG (HDI) (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 47 | 61400181 | TRIM RING (black) | FXDF, FXDF 103 |
| 48 | 67700167 | HEADLAMP, dual (Domestic) | FXDF 103 |
| 49 | 67700168 | HEADLAMP, dual (Asia-Pacific, Brazil, England, HDI, India, Japan) | FXDF, FXDF 103 |
| 50 | 67700211 | GASKET | FXDF, FXDF 103 |
SPEED SCREEN - FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FXDLS |
| 2 | 3832M | SCREW (2) | FXDLS |
| 3 | 4722 | BOLT | FXDLS |
| 4 | 7130W | LOCKWASHER | FXDLS |
| 5 | 11491A | GROMMET (2) | FXDLS |
| 6 | 10100012A | CLIP NUT (2) | FXDLS |
| 7 | 10200141 | SCREW (2) | FXDLS |
| 8 | 10300035 | WASHER (2) | FXDLS |
| 9 | 57000740DH | SPEED SCREEN (black) | FXDLS |
| 10 | 57000755 | BRACKET, fairing (upper) (black) | FXDLS |
| 11 | 57000756 | BRACKET, fairing (lower) (black) | FXDLS |
| 12 | 57000758 | FAIRING, inner (black) | FXDLS |
NACELLE AND HEADLAMP - FLD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3537 | SCREW (4) | FLD, FLD 103 |
| 2 | 5210 | NUT WELL (8) | FLD, FLD 103 |
| 3 | 6400HB | WASHER (4) | FLD, FLD 103 |
| 4 | 9898 | TERMINAL FLAG (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLD, FLD 103 |
| 5 | 49420-12 | COVER ASSEMBLY (2) | FLD, FLD 103 |
| 6 | 53436-97 | BULB, wedge (Asia-Pacific, Australia, England, HDI, Japan) | FLD, FLD 103 |
| 7 | 56076-97 | RETAINER, wire harness (2) | FLD, FLD 103 |
| 8 | 67621-94 | BUSHING (4) | FLD, FLD 103 |
| 9 | 67668-05 | MEDALLION | FLD, FLD 103 |
| 10 | 67712-83B | DOOR | FLD, FLD 103 |
| 11 | 67718-60A | SCREW | FLD, FLD 103 |
| 12 | 67721-48 | SCREW (3) | FLD, FLD 103 |
| 13 | 67726-08 | RING ASSEMBLY | FLD, FLD 103 |
| 14 | 67728-02A | BUCKET ASSEMBLY | FLD, FLD 103 |
| 15 | 67732-08 | MOUNTING RING | FLD, FLD 103 |
| 16 | 67778-60A | SPRING CLIP | FLD, FLD 103 |
| 17 | 68329-03 | BULB | FLD, FLD 103 |
| 18 | 68342-05A | REFLECTOR ASSEMBLY, with 67668-05, 68329-03 and 68390-05 | FLD, FLD 103 |
| 19 | 68344-05A | REFLECTOR ASSEMBLY, left dip (Australia, England, Japan) | FLD, FLD 103 |
| 68345-05A | REFLECTOR ASSEMBLY, right dip (HDI, Asia-Pacific) | FLD, FLD 103 | |
| 20 | 68359-05 | JUMPER HARNESS, with 9898 and 72253-94 (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLD, FLD 103 |
| 21 | 68380-05 | BOOT (Asia-Pacific, Australia, England, HDI, Japan) | FLD, FLD 103 |
| 22 | 68390-05 | BOOT | FLD, FLD 103 |
| 23 | 68653-05 | SOCKET (Asia-Pacific, Australia, England, HDI, Japan) | FLD, FLD 103 |
| 24 | 70443-12 | JUMPER HARNESS | FLD, FLD 103 |
| 25 | 72253-94 | TERMINAL, 18-20 GA (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLD, FLD 103 |
| 26 | 12600024 | SPACER (4) | FLD, FLD 103 |
| 27 | 12600042 | SCREW (8) | FLD, FLD 103 |
| 28 | 12600043 | SCREW (4) | FLD, FLD 103 |
| 29 | 61400078 | NACELLE (upper) | FLD, FLD 103 |
| 30 | 61400079 | NACELLE (lower) | FLD, FLD 103 |
| 31 | AA0408.21CXZB | SCREW (4) | FLD, FLD 103 |
SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | ALL |
| 2 | 3658 | SCREW (2) | ALL |
| 3 | 5118 | SEAL PIN (Domestic) | FXDLS |
| 3 | 5118 | SEAL PIN (HDI) (2) | FXDLS |
| 4 | 7744 | JAMNUT | ALL |
| 5 | 67015-02 | SCREW LOCK (FXDBP 103-DRAG BAR OPTION) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 6 | 67019-04A | BRACKET, turn signal mount (left) (FXDBP 103-DRAG BAR OPTION) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 12700132 | BRACKET, turn signal mount (left) | FXDLS | |
| 7 | 67822-88 | BALL STUD | ALL |
| 8 | 67827-88A | CLAMP, ball stud | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 |
| 9 | 67829-88 | BALL RECEPTACLE (left) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 |
| 10 | 68168-89A | BULB, front turn signals (Domestic) (FXDBP 103-DRAG, MINI APE AND PULL BACK BAR OPTION) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDLS, FXDWG 103 |
| 68163-84 | BULB (HDI) | ALL | |
| 11 | 68904-00 | SOCKET ASSEMBLY, front (used with 68972-00) (Domestic) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL, FXDL 103, FXDWG 103 |
| 67800148 | SOCKET ASSEMBLY, front (used with 67800525) (HDI) | FXDLS | |
| 12 | 68973-00 | LENS (Domestic) (FXDBP 103-DRAG, MINI APE AND PULL BACK BAR OPTION) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 68973-00 | LENS (HDI) | ALL | |
| 13 | 68972-00 | TURN SIGNAL, front (Domestic) (FXDBP 103-DRAG, MINI APE AND PULL BACK BAR OPTION) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 68975-00 | TURN SIGNAL, front (HDI) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 67800525 | TURN SIGNAL, front (HDI) | FXDLS | |
| 14 | 72908-11 | HOUSING, four-way socket (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 15 | 72910-11 | TERMINAL, socket 20-22 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (4) | ALL |
| 16 | 72910-11 | TERMINAL, socket 20-22 AWG (3) | FXDLS |
| 17 | 72920-11 | HOUSING, left, upper (black) | ALL |
| 18 | 72922-11 | HOUSING, left, lower (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 19 | 72941-11 | BRACKET, lower switch (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 20 | 71500372 | HAND CONTROL MODULE, left, with turn signal (FXDBP 103-MINI APE AND DRAG OPTIONS)(chrome)(Domestic) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 71500373 | HAND CONTROL MODULE, left, with turn signal (FXDBP 103-MINI APE AND DRAG OPTIONS)(chrome)(Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 21 | 73191-96 | TERMINAL, socket, 16-20 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (Domestic) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 21 | 73191-96 | TERMINAL, socket, 16-20 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (HDI) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 22 | 67800147 | SOCKET ASSEMBLY, front (used with 67800523) (Domestic) | FXDLS |
| 23 | 67800523 | TURN SIGNAL, front (Domestic) | FXDLS |
| 24 | 69201179 | HOUSING, four-way socket | FXDLS |
| 25 | 71500117 | SWITCH, clutch (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 26 | 71500289 | HOUSING, left, lower (black) | FXDLS |
| 27 | 71500288 | HAND CONTROL MODULE, without turn signal (left) | FXDLS |
| 28 | 71500290 | SWITCH CAP, set/resume, with clip | FXDLS |
| 29 | 71500292 | HAND CONTROL MODULE, without turn signal (left) (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103 |
| 30 | 71500293 | SWITCH CAP, horn/trip (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 31 | 71500294 | SWITCH CAP, lights, with pins and springs (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 32 | 71500295 | SWITCH CAP, left turn (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | ALL |
| 2 | 3658 | SCREW (2) | ALL |
| 3 | 5118 | SEAL PIN (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 5118 | SEAL PIN (Domestic) (2) | FXDLS |
| 3 | 5118 | SEAL PIN (HDI) (2) | FXDLS |
| 4 | 7744 | JAMNUT | ALL |
| 5 | 67013-04A | BRACKET, right turn signal mount (FXDBP 103-DRAG BAR OPTION) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 67800630 | BRACKET, right turn signal mount (black) | FXDLS | |
| 6 | 67015-02 | SCREW LOCK (FXDBP 103-DRAG BAR OPTION) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 7 | 67822-88 | BALL STUD | ALL |
| 8 | 67827-88A | CLAMP, ball stud | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDL, FXDL 103 |
| 9 | 67831-03 | RETAINER (right) | FXDB, FXDB 103, FXDBP 103, FXDL 103 |
| 10 | 68168-89A | BULB, front turn signals (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDLS, FXDWG 103 |
| 68163-84 | BULB (HDI) | ALL | |
| 11 | 68904-00 | SOCKET ASSEMBLY, front (used with 68972-00) (Domestic) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 68972-00 | TURN SIGNAL, front (Domestic) (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 68975-00 | TURN SIGNAL, front (HDI) | ALL | |
| 13 | 68973-00 | LENS (Domestic) (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | FLD 103, FXDB 103, FXDBP 103, FXDF 103, FXDLS, FXDWG 103 |
| 68973-00 | LENS (HDI) | ALL | |
| 14 | 72906-11 | HOUSING, two-way socket (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 15 | 72908-11 | HOUSING, four-way socket (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 16 | 72910-11 | TERMINAL, socket 20-22 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 72910-11 | TERMINAL, socket 20-22 AWG (5) | FXDLS |
| 17 | 72910-11 | TERMINAL, socket 20-22 AWG (3) | FXDLS |
| 18 | 72921-11 | HOUSING, right, upper (black) | ALL |
| 19 | 72923-11 | HOUSING, right, lower (black) | ALL |
| 20 | 72940-11 | BRACKET, lower switch (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 21 | 73153-96BK | HOUSING, three-way socket right (black) (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103 |
SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 22 | 73191-96 | TERMINAL, socket, 16-20 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (Domestic) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 22 | 73191-96 | TERMINAL, socket, 16-20 AWG (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) (HDI) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 23 | 67800147 | SOCKET ASSEMBLY, front (used with 67800523) (Domestic) | FXDLS |
| 67800148 | SOCKET ASSEMBLY, front (used with 67800525) (HDI) | FXDLS | |
| 24 | 67800523 | TURN SIGNAL, front (Domestic) | FXDLS |
| 67800525 | TURN SIGNAL, front (HDI) | FXDLS | |
| 25 | 69201179 | HOUSING, four-way socket | FXDLS |
| 26 | 71500118 | SWITCH, brake (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 27 | 71500297 | HAND CONTROL MODULE, right, without turn signal (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103, FXDLS |
| 28 | 71500298 | KEY CAP, hazard (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 29 | 71500299 | KEY CAP, off/run, with pins and springs (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 30 | 71500300 | KEY CAP, right turn (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 31 | 71500360 | HAND CONTROL MODULE, right, with turn signal (chrome) (FXDBP 103-DRAG BAR AND MINI APE OPTIONS) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 71500361 | HAND CONTROL MODULE, right, with turn signal (Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) (FXDBP 103-DRAG BAR AND MINI APE OPTIONS) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WINDSHIELD
| Index No. | Part No. | Description | Model(s) |
| 1 | 2452 | SCREW (2) | FLD, FLD 103 |
| 2 | 2921 | SCREW (11) | FLD, FLD 103 |
| 3 | 6119 | WASHER (8) | FLD, FLD 103 |
| 4 | 7651A | ACORN NUT (13) | FLD, FLD 103 |
| 5 | 57671-12 | WINDSHIELD ASSEMBLY, complete (Domestic, California, Canada, Australia) | FLD, FLD 103 |
| 57400066 | WINDSHIELD ASSEMBLY, complete (Asia-Pacific, Brazil, England, HDI, Japan) | FLD, FLD 103 | |
| 6 | 38722-94 | SPRING LATCH | FLD, FLD 103 |
| 7 | 57672-12 | BRACKET (left) | FLD, FLD 103 |
| 8 | 57673-12 | BRACKET (right) | FLD, FLD 103 |
| 9 | 58416-77A | TAPE | FLD, FLD 103 |
| 10 | 57400070 | BRACE (inner) | FLD, FLD 103 |
| 11 | 57400071 | BRACE (outer) | FLD, FLD 103 |
| 12 | 57400072 | BRACKET, left, outer | FLD, FLD 103 |
| 13 | 57400073 | BRACKET, right, outer | FLD, FLD 103 |
| 14 | 57400085 | TAPE (2) | FLD, FLD 103 |
| 15 | 57400123 | WINDSHIELD (Domestic, California, Canada, Australia) | FLD, FLD 103 |
| 57400122 | WINDSHIELD (Asia-Pacific, England, HDI, Japan) | FLD, FLD 103 |
HANDLEBAR - FLD, FXDB, FXDF, FXDWG, FXDL AND FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 861A | SCREW (2) | FXDL, FXDL 103 |
| 2 | 3210A | SCREW (4) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 2 | 3210A | SCREW (8) | FXDL, FXDL 103 |
| 3 | 3471 | BOLT (2) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 4 | 7068 | LOCKWASHER (2) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 5 | 55980-10A | HANDLEBAR | FXDWG, FXDWG 103 |
| 6 | 56153-73 | SPACER (2) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 7 | 56158-73 | BUSHING, rubber (4) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 8 | 56159-73 | CUP WASHER (4) | FLD, FLD 103, FXDB, FXDB 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 9 | 56541-86A | RISER (left) (chrome) (not shown) | FXDB, FXDB 103 |
| 56542-86A | RISER (right) (chrome) | FXDB, FXDB 103 | |
| 10 | 56859-09 | CLAMP, handlebar (black) | FXDLS |
| 11 | 56891-12 | HANDLEBAR | FLD, FLD 103 |
| 12 | 56898-08 | CLAMP, handlebar and cover | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 13 | 56951-09B | HANDLEBAR | FXDB, FXDB 103 |
| 14 | 56959-08A | HANDLEBAR | FXDF, FXDF 103 |
| 15 | 59783-08 | RISER (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 16 | 70345-84 | RETAINER (4) | FLD, FLD 103 |
| 17 | 55900004 | RISER, handlebar (2) | FLD, FLD 103 |
| 18 | 55900005 | CLAMP, handlebar | FLD, FLD 103 |
| 19 | 55900025 | CLAMP, handlebar | FXDB, FXDB 103 |
| 20 | 55800233 | HANDLEBAR (chrome) | FXDL, FXDL 103 |
| 21 | 55800674 | HANDLEBAR | FXDLS |
| 22 | 55900061 | CLAMP, lower, riser pivot (chrome) | FXDL, FXDL 103 |
| 23 | 55900062 | CLAMP, handlebar (chrome) | FXDL, FXDL 103 |
| 24 | 55900063 | ISOLATER, riser assembly | FXDL, FXDL 103 |
| 25 | 55900064 | RISER ASSEMBLY (right) with 861A (chrome) | FXDL, FXDL 103 |
| 26 | 55900065 | RISER ASSEMBLY (left) with 861A (chrome) | FXDL, FXDL 103 |
| 27 | 67700192 | VISOR, headlamp (chrome) | FXDL, FXDL 103 |
HANDLEBAR - FXDBP AND FXDBC
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FXDBC, FXDBC 103, FXDBP 103 |
| 2 | 3471 | BOLT (2) | FXDBC, FXDBC 103, FXDBP 103 |
| 3 | 7068 | LOCKWASHER (2) | FXDBC, FXDBC 103, FXDBP 103 |
| 4 | 56051-06 | HANDLEBAR (PULL BACK OPTION) | FXDBP 103 |
| 5 | 56153-73 | SPACER (2) | FXDBC, FXDBC 103, FXDBP 103 |
| 6 | 56158-73 | BUSHING, rubber (4) | FXDBC, FXDBC 103, FXDBP 103 |
| 7 | 56159-73 | CUP WASHER (4) | FXDBC, FXDBC 103, FXDBP 103 |
| 8 | 56541-86A | RISER (left) (chrome) | FXDBC, FXDBP 103 |
| 9 | 56542-86A | RISER (right) (chrome) | FXDBC, FXDBP 103 |
| 10 | 56898-08 | CLAMP, handlebar and cover | FXDBC, FXDBC 103, FXDBP 103 |
| 11 | 56951-09B | HANDLEBAR (MINI APE OPTION) | FXDBC 103, FXDBP 103 |
| 12 | 56959-08A | HANDLEBAR (DRAG BAR OPTION) | FXDBC, FXDBC 103, FXDBP 103 |
| 13 | 59783-08 | RISER (2) | FXDBC, FXDBC 103, FXDBP 103 |
| 14 | 70345-84 | RETAINER (4) | FXDBP 103 |
| 15 | 55900004 | RISER, handlebar (2) | FXDBP 103 |
| 16 | 55900005 | CLAMP, handlebar | FXDBP 103 |
| 17 | 55900025 | CLAMP | FXDBC, FXDBP 103 |
THROTTLE CONTROL - ALL MODELS EXCEPT FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 11155 | RETAINING RING | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 10270 | CABLE STRAP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 11271 | RETAINING RING, idle control | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 11272 | RETAINING RING, throttle control | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 38653-01 | BOOT, throttle cable (FXDBP 103-MINI APE OPTION) (2) | FXDB, FXDB 103, FXDBC, FXDBP 103 |
| 5 | 38653-01 | BOOT, throttle cable (FXDBP 103-DRAG BAR AND PULL BACK OPTIONS) | FLD, FLD 103, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 56206-96 | GRIP (left) (FXDBP 103-MINI APE OPTION) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBP 103 |
| 7 | 56220-94A | GRIP AND SLEEVE, throttle - right | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 56666-04 | GRIP AND SLEEVE, throttle - right (FXDBP 103-PULL BACK OPTION) | FXDBP 103, FXDL, FXDL 103 | |
| 8 | 56248-08 | GRIP, 1.25 inch-black, left (FXDBP 103-DRAG BAR OPTION) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 9 | 56355-96A | CABLE, idle, with 11271 and 38653-01 (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBC, FXDBP 103 |
| 56415-06 | CABLE, idle, with 11271 (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 56634-06 | CABLE, idle, with 11271 (FXDBP 103-DRAG BAR OPTION) | FXDBC 103, FXDBP 103, FXDF, FXDF 103 | |
| 10 | 56356-96A | CABLE, throttle, with 11272 and 38653-01 (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBC, FXDBP 103 |
| 56421-06 | CABLE, throttle, with 11272 and 38653-01 (FXDBP 103-PULL BACK AND DRAG BAR OPTIONS) | FLD, FLD 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 56633-06 | CABLE, throttle, with 11272 and 38653-01 (FXDBP 103-DRAG BAR OPTION) | FXDBC 103, FXDBP 103, FXDF, FXDF 103 | |
| 11 | 56394-74 | SPRING, adjusting screw | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 56396-74A | FRICTION SPRING, throttle | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 56397-74C | ADJUSTING SCREW KIT, with 11155, 56394-74 and 56402-83A | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 56402-83A | ADJUSTING SCREW | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 56508-76 | FERRULE, control wire (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 56667-04 | GRIP (left) (FXDBP 103-PULL BACK OPTION) | FXDBP 103, FXDL, FXDL 103 |
| 17 | 70504-81 | CLIP, throttle cables (3) | ALL |
| 18 | 10200141 | SCREW | FXDL, FXDL 103 |
| 19 | 10200227 | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 20 | 10800064 | CLAMP | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 21 | 10800071 | WIREFORM, throttle cables | FXDL, FXDL 103 |
| 22 | 12500006 | CABLE STRAP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
THROTTLE CONTROL - FXDLS
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FXDLS |
| 2 | 56667-04 | GRIP (left) | FXDLS |
| 3 | 72902-01BK | HOUSING, two-way pin (black) | FXDLS |
| 4 | 72990-01 | PIN TERMINAL (2) | FXDLS |
| 5 | 32700050 | SENSOR, twist grip, with 32306-08, 72902-01BK, 72990-01, 69200307 and 69201162 | FXDLS |
| 6 | 56100075 | THROTTLE GRIP (right) | FXDLS |
| 7 | 69200307 | TERMINAL, socket, 22 AWG (6) | FXDLS |
| 8 | 69201162 | HOUSING, six-way socket (black) | FXDLS |
TAIL LAMP AND TURN SIGNALS, REAR (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 766 | PLUG | FXDWG, FXDWG 103 |
| 2 | 1001 | SCREW (3) | FXDWG, FXDWG 103 |
| 3 | 2240 | SCREW (2) | FXDF, FXDF 103 |
| 4 | 2482 | SCREW (2) | FLD, FLD 103 |
| 5 | 3022A | SCREW | FLD, FLD 103, FXDL 103 |
| 6 | 4068A | BOLT (Domestic only) (2) | FXDB, FXDB 103, FXDBP 103, FXDLS, FXDWG 103 |
| 7 | 4116 | SCREW (2) | FXDL 103 |
| 7 | 4116 | SCREW (HDI, Canada) (FXDWG, FXDWG 103 and FXDBC 103-HDI) (2) | FXDB, FXDB 103, FXDBC 103, FXDBP 103, FXDLS, FXDWG, FXDWG 103 |
| 8 | 6016 | WASHER (2) | ALL |
| 9 | 7964 | NUT | FLD, FLD 103, FXDL 103 |
| 10 | 52441-95 | BULB, backlight | FLD 103 |
| 11 | 68026-99 | SCREW (2) | FLD, FLD 103, FXDL 103 |
| 12 | 68066-99A | BASE ASSEMBLY, with 68296-99A and 68830-99A (chrome) | FXDL 103 |
| 13 | 68140-04 | LIGHT ASSEMBLY, tail lamp, with 68369-03 and 68370-03A (Domestic) | FXDL 103 |
| 68141-04 | LIGHT ASSEMBLY, tail lamp, with 68372-03 and 69187-03A (HDI) | FXDL 103 | |
| 68142-04 | LIGHT ASSEMBLY, tail lamp, with 68558-03 and 69187-03A | FLD, FLD 103 | |
| 14 | 68167-04 | BULB, tail lamp - wedge mount | FLD, FLD 103, FXDL 103 |
| 15 | 68168-89A | BULB, rear turn signal (Domestic, Canada) (2) | FXDB, FXDB 103, FXDBC, FXDBP 103, FXDLS, FXDWG 103 |
| 68163-84 | BULB, rear turn signal (2) | FXDF, FXDF 103, FXDL, FXDL 103 | |
| 68163-84 | BULB (HDI) (2) | ALL | |
| 16 | 68245-03 | LENS, tail lamp (red) with 68026-99 | FLD 103 |
| 17 | 68296-99A | BASE TAIL LIGHT, chrome | FXDL 103 |
| 18 | 68369-03 | LENS, tail lamp, with 68026-99 | FXDL 103 |
| 68372-03 | LENS, tail lamp, with 68026-99 (HDI) | FXDL 103 | |
| 68558-03 | LENS, tail lamp, with 68026-99 (HDI) | FLD, FLD 103 | |
| 19 | 68370-03A | SOCKET ASSEMBLY, tail lamp, with 68167-04, 73154-96BK and 73191-96 | FXDL 103 |
| 69187-03A | SOCKET ASSEMBLY, tail lamp, with 68167-04, 73154-96BK and 73191-96 (HDI) | FLD, FLD 103, FXDL 103 | |
| 20 | 68461-09 | TURN SIGNAL ASSEMBLY, rear (Domestic, FXDWG-103 Canada) (2) | FXDB 103, FXDBP 103, FXDWG 103 |
| 68461-09 | TURN SIGNAL ASSEMBLY, rear (Asia-Pacific, Japan) (2) | FXDB, FXDBC | |
| 68978-00 | TURN SIGNAL ASSEMBLY, rear (HDI) (2) | FXDF, FXDF 103 | |
| 68978-00 | TURN SIGNAL ASSEMBLY, rear (2) | FXDL, FXDL 103 | |
| 67800723 | TURN SIGNAL ASSEMBLY, rear (black) (Domestic, California, Canada) (2) | FXDLS | |
| 21 | 68467-09 | TURN SIGNAL ASSEMBLY, rear (HDI) (2) | FXDWG, FXDWG 103 |
| 22 | 68480-02 | SUPPORT (HDI) (2) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| 68480-02 | SUPPORT (2) | FXDBC, FXDBC 103, FXDL, FXDL 103 | |
| 68277-07 | SUPPORT (black) (Canada, HDI) (2) | FXDLS | |
| 68821-00 | SUPPORT (2) | FXDF, FXDF 103 | |
| 69438-06 | SUPPORT (2) | FXDWG 103 | |
| 69438-06 | SUPPORT (right side only) | FXDB 103, FXDBP 103 | |
| 69933-08 | SUPPORT (right side only) (satin) (Domestic, California) | FXDLS | |
| 67800184 | SUPPORT (left side only) (gloss black) (Domestic, California) | FXDLS | |
| 67800199 | SUPPORT (left side only) | FXDB 103, FXDBP 103 | |
| 23 | 68497-07 | SOCKET ASSEMBLY, rear (used with 67800723) (Domestic, California, Canada) (2) | FXDLS |
TAIL LAMP AND TURN SIGNALS, REAR (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 24 | 68559-07 | LENS (red) (Domestic, Canada) (2) | FXDB 103, FXDBP 103, FXDLS, FXDWG 103 |
| 68755-07 | LENS (HDI) (2) | FXDWG, FXDWG 103 | |
| 68973-00 | LENS (amber) (Domestic, HDI) (2) | FXDF, FXDF 103, FXDL, FXDL 103 | |
| 25 | 68572-64B | BULB, rear turn signal (2) | FLD 103 |
| 26 | 68629-05 | LIGHTBAR, turn signal | FLD 103 |
| 68550-09 | LIGHTBAR, turn signal (HDI) | FLD, FLD 103 | |
| 27 | 68770-02B | HARNESS ASSEMBLY, with adhesive fender conduit | FLD, FLD 103, FXDL 103 |
| 28 | 68785-09A | HARNESS ASSEMBLY, with adhesive fender conduit (Australia, HDI, Canada) | FXDWG, FXDWG 103 |
| 29 | 68830-99A | CIRCUIT BOARD/COVER ASSEMBLY | FLD, FLD 103, FXDL 103 |
| 30 | 68905-00 | SOCKET ASSEMBLY, turn signal (2) | FLD 103 |
| 31 | 68973-00 | LENS, amber (2) | FLD, FLD 103 |
| 32 | 68997-09 | LAMP ASSEMBLY (HDI) | FLD, FLD 103 |
| 33 | 69353-05 | LIGHT ASSEMBLY, with 52441-95 | FLD 103 |
| 34 | 69378-09 | LIGHT ASSEMBLY, with 73191-96 (HDI) | FLD, FLD 103 |
| 35 | 69598-09A | TAIL LAMP ASSEMBLY, with gasket (Asia-Pacific, Australia, England, HDI, Japan and Canada) | FXDWG, FXDWG 103 |
| 36 | 70027-12 | JUMPER | FXDWG 103 |
| 37 | 70540-02 | CONDUIT KIT | FLD, FLD 103, FXDL 103 |
| 38 | 72114-94BK | HOUSING, four-way socket (black) | FXDWG, FXDWG 103 |
| 39 | 72154-94 | SECONDARY LOCK, four-way socket | FXDWG, FXDWG 103 |
| 40 | 72191-94 | TERMINAL, socket 16-18 AWG (3) | FXDWG, FXDWG 103 |
| 41 | 72195-94 | PLUG, seal pin | FXDWG, FXDWG 103 |
| 42 | 72213-94 | TERMINAL, socket, 16-20 AWG | FXDF, FXDF 103 |
| 43 | 72230-98 | HOUSING, socket three-way | FXDF, FXDF 103 |
| 44 | 72231-98 | SECONDARY LOCK, three-way (3) | FXDF, FXDF 103 |
| 45 | 72610-08 | SEAL, 18-20 AWG (white) | FXDF, FXDF 103 |
| 46 | 72902-01BK | PIN HOUSING, two-way (black) | FXDF, FXDF 103 |
| 47 | 72904-01BK | HOUSING, four-way pin (black) (7) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 48 | 72914-01BK | HOUSING, socket, four-way (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDWG 103 |
| 48 | 72914-01BK | HOUSING, socket, four-way (black) (2) | FXDLS |
| 49 | 72990-01 | TERMINAL, pin, 18-22 AWG (24) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 50 | 72991-01 | TERMINAL, socket, 18-22 AWG (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDWG, FXDWG 103 |
| 50 | 72991-01 | TERMINAL, socket, 18-22 AWG (Domestic, California, Canada) (6) | FXDLS |
| 50 | 72991-01 | TERMINAL, socket, 18-22 AWG (HDI) (8) | FXDB, FXDB 103, FXDBC 103, FXDBP 103, FXDLS |
| 51 | 73191-96 | TERMINAL, socket, 16-20 AWG (as required) | ALL |
| 52 | 73102-96BK | HOUSING, two-way pin | FXDWG 103 |
| 53 | 73152-96BK | HOUSING, two-way socket (2) | FLD, FLD 103, FXDL, FXDL 103 |
| 54 | 73154-96BK | HOUSING, four-way socket | FLD, FLD 103, FXDL 103 |
| 55 | 73156-96BK | HOUSING, six-way socket | FLD, FLD 103, FXDL 103 |
| 56 | 73158-96BK | HOUSING, eight-way socket (4) | ALL |
| 57 | 73190-96 | TERMINAL, pin, 16-30 AWG (2) | FXDBC, FXDBC 103, FXDBP 103, FXDWG 103 |
| 58 | 73191-96 | TERMINAL, socket, 16-20 AWG (8) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 59 | 73381-12 | BASE ASSEMBLY | FLD, FLD 103 |
| 60 | 10500047 | SCREW (3) | FXDF, FXDF 103 |
| 61 | 10200030 | SCREW (2) | FLD, FLD 103 |
TAIL LAMP AND TURN SIGNALS, REAR (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 62 | 67800198 | TURN SIGNAL ASSEMBLY, rear with 72991-01 (Brazil, HDI, India) (2) | FXDB, FXDB 103 |
| 62 | 67800198 | TURN SIGNAL ASSEMBLY, rear with 72991-01 (2) | FXDBC, FXDBC 103 |
| 62 | 67800724 | TURN SIGNAL ASSEMBLY, rear with 72991-01 (black) (HDI, England, Australia and Japan) (2) | FXDLS |
| 63 | 67800240 | TAIL LIGHT | FXDF, FXDF 103 |
| 64 | 69200018 | CONDUIT, self-adhesive, bulk 50 foot length | FXDWG, FXDWG 103 |
| 65 | 69200424A | HARNESS ASSEMBLY | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDLS |
| 66 | 69200543 | JUMPER HARNESS | FXDF, FXDF 103 |
| 67 | 69201240 | TERMINAL, socket 18 AWG (4) | FXDF, FXDF 103 |

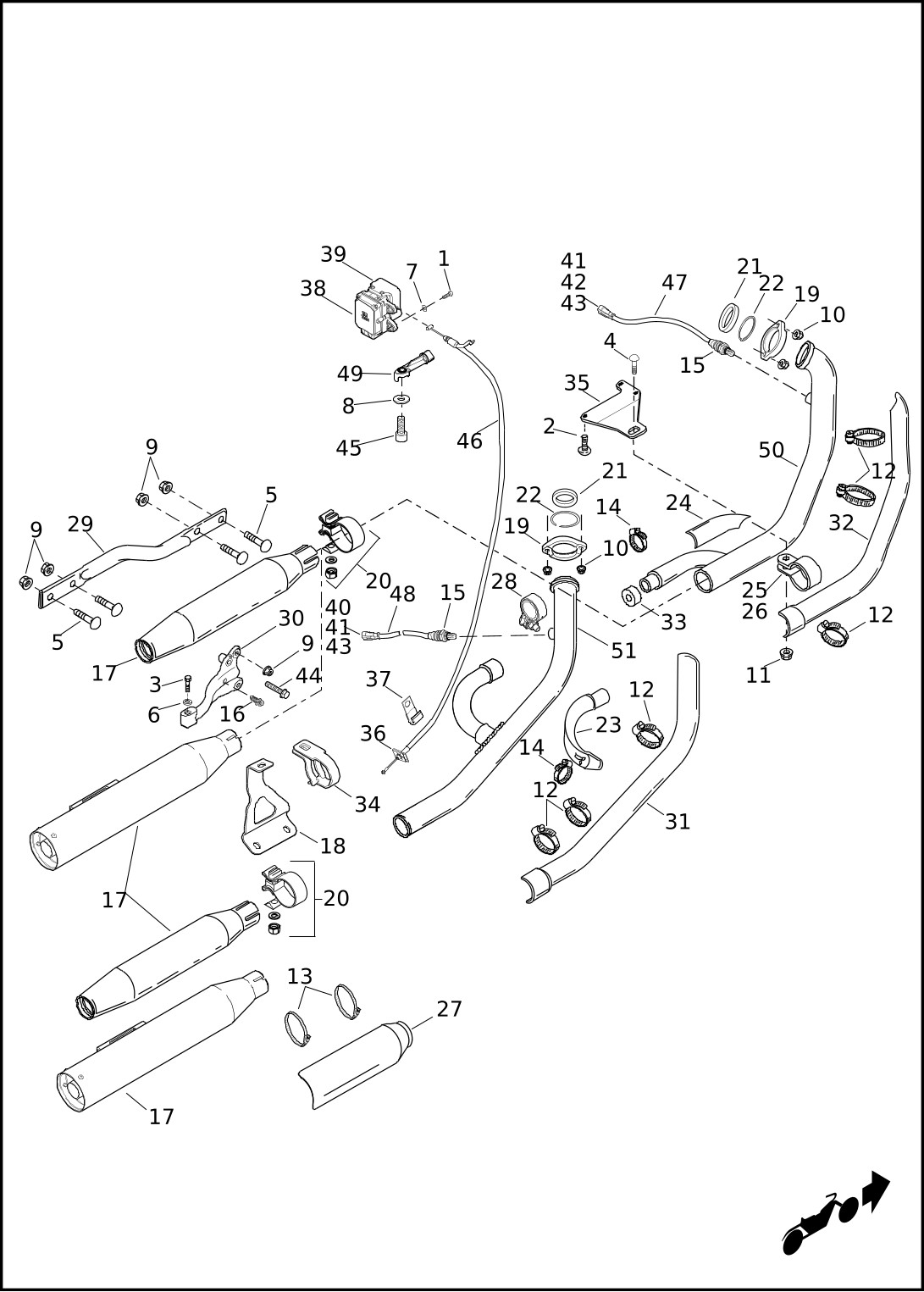

EXHAUST SYSTEM - FXDB, FXDBP AND FXDBC (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 923 | SCREW (HDI, Australia, England, India) (2) | FXDB, FXDB 103, FXDBC 103 |
| 2 | 942 | SCREW (3) | FXDB, FXDB 103, FXDBC 103, FXDBP 103 |
| 3 | 4716W | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 4 | 5414 | BOLT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 5 | 5445W | BOLT (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 6 | 6701 | WASHER | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 7 | 6703 | WASHER (HDI, Australia, Canada, England, India) (2) | FXDB, FXDB 103, FXDBC 103 |
| 8 | 6716 | WASHER (HDI, Australia, Canada, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 9 | 7531 | LOCKNUT (6) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 10 | 7593 | NUT (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 11 | 7601 | LOCKNUT | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 12 | 9955 | CLAMP (6) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 13 | 10074 | CLAMP (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 14 | 10119 | CLAMP (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 15 | 11936 | GASKET, oxygen sensor (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 16 | 18083-09 | CLAMP (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 17 | 64707-08 | MUFFLER (Domestic, California and Canada only) | FXDB 103, FXDBP 103 |
| 65868-07 | MUFFLER ASSEMBLY (front) (HDI, England, India) | FXDB, FXDB 103, FXDBC 103 | |
| 65868-07 | MUFFLER ASSEMBLY (front and rear) (Asia-Pacific, Japan, Brazil) (2) | FXDB, FXDBC | |
| 66025-07 | MUFFLER ASSEMBLY, rear (HDI, England, India) | FXDB, FXDB 103, FXDBC 103 | |
| 64900107 | MUFFLER ASSEMBLY, front (chrome) (Australia) | FXDB 103, FXDBC 103 | |
| 64900108 | MUFFLER ASSEMBLY, rear (chrome) (Australia) | FXDB 103, FXDBC 103 | |
| 18 | 65051-09A | SUPPORT, exhaust (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 19 | 65184-02 | FLANGE, pipe (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 20 | 65296-95A | CLAMP, with nut and washer (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 21 | 65324-83B | GASKET, exhaust (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 22 | 65325-83A | RETAINING RING, exhaust gasket (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 23 | 65376-95A | SHIELD, crossover - rear (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 24 | 65379-95 | SHIELD, crossover - front (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 25 | 65440-06 | CLAMP, bracket, upper pipe | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 26 | 65441-06 | CLAMP, bracket, lower pipe | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
EXHAUST SYSTEM - FXDB, FXDBP AND FXDBC (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 27 | 65463-00 | SHIELD, muffler (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 28 | 65521-10 | KIT-CLAMP, interconnect, with 65830-10 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 29 | 65674-95 | SUPPORT, muffler | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 30 | 65696-08B | BRACKET, rear exhaust | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 31 | 65701-06A | SHIELD, rear exhaust (chrome) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 32 | 65746-06 | SHIELD, front exhaust (chrome) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 65966-06 | SHIELD, front exhaust (chrome) (forward controls) | FXDBC, FXDBC 103, FXDBP 103 | |
| 33 | 65830-10 | GASKET, interconnect | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 34 | 65946-07 | CLAMP ASSEMBLY | FXDB, FXDB 103, FXDBP 103 |
| 35 | 65975-99 | BRACKET, front | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 36 | 66767-07 | RETAINER, exhaust valve (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 37 | 66798-07 | CLAMP, exhaust valve (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 38 | 70991-07 | ACTUATOR, exhaust, with 71019-07 (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 39 | 71019-07 | SHROUD, exhaust actuator (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 40 | 72177-07BK | HOUSING, four-way socket (black) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 41 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 42 | 72444-07GY | HOUSING, four-way socket (gray) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 43 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 44 | 10200016 | SCREW | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 45 | 10200109 | SCREW (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 46 | 31500002 | CABLE (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 47 | 32700005 | OXYGEN SENSOR, front, with 11936, 72344-10, 72444-07GY and 73307-10 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 48 | 32700006 | OXYGEN SENSOR, rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 49 | 64800003 | CLIP (HDI, Australia, England, India) | FXDB, FXDB 103, FXDBC 103 |
| 50 | 65600007 | EXHAUST PIPE, front | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 51 | 65600008 | EXHAUST PIPE, rear | FXDB 103, FXDBP 103 |
| 65600008 | EXHAUST PIPE, rear (Asia-Pacific, Japan) | FXDB, FXDBC | |
| 65600009A | EXHAUST PIPE, rear (HDI, Australia, Canada, England) | FXDB, FXDB 103, FXDBC 103 |
EXHAUST SYSTEM - FXDL
| Index No. | Part No. | Description | Model(s) |
| 1 | 7432M | NUT | FXDL, FXDL 103 |
| 2 | 7593 | NUT (4) | FXDL, FXDL 103 |
| 3 | 9955 | CLAMP, 24 (4) | FXDL, FXDL 103 |
| 4 | 9956 | CLAMP, 40 (2) | FXDL, FXDL 103 |
| 5 | 10006 | CABLE STRAP | FXDL, FXDL 103 |
| 6 | 11936 | GASKET, oxygen sensor | FXDL, FXDL 103 |
| 7 | 16583-00A | BUSHING, dowel (2) | FXDL, FXDL 103 |
| 8 | 64819-08 | SHIELD | FXDL, FXDL 103 |
| 9 | 65126-09 | ISOLATOR | FXDL, FXDL 103 |
| 10 | 65184-02 | FLANGE, exhaust pipe (2) | FXDL, FXDL 103 |
| 11 | 65296-95A | CLAMP | FXDL, FXDL 103 |
| 12 | 65324-83B | GASKET (2) | FXDL, FXDL 103 |
| 13 | 65325-83A | RETAINING RING (2) | FXDL, FXDL 103 |
| 14 | 65800-09 | PIN | FXDL, FXDL 103 |
| 15 | 65906-12A | MUFFLER ASSEMBLY, chrome, with 7432M and 65800-09 (Domestic, California, Canada) | FXDL, FXDL 103 |
| 65937-12 | MUFFLER ASSEMBLY, chrome, with 7432M and 65800-09 (HDI, England, Australia) | FXDL, FXDL 103 | |
| 16 | 72177-07BK | HOUSING, four-way socket (black) | FXDL, FXDL 103 |
| 17 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FXDL, FXDL 103 |
| 18 | 72444-07GY | HOUSING, four-way socket (gray) | FXDL, FXDL 103 |
| 19 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FXDL, FXDL 103 |
| 20 | 10200016 | SCREW (3) | FXDL, FXDL 103 |
| 21 | 10200026 | SCREW | FXDL, FXDL 103 |
| 22 | 32700005 | OXYGEN SENSOR, front, with 11936, 72344-10, 72444-07GY and 73307-10 | FXDL, FXDL 103 |
| 23 | 32700006 | OXYGEN SENSOR, rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FXDL, FXDL 103 |
| 24 | 64800023A | EXHAUST PIPE ASSEMBLY | FXDL, FXDL 103 |
| 25 | 65400147 | SHIELD | FXDL, FXDL 103 |
| 26 | 65400150 | SHIELD | FXDL, FXDL 103 |
| 27 | 65500032 | SUPPORT BAR, muffler, with 16583-00A and 65126-09 | FXDL, FXDL 103 |

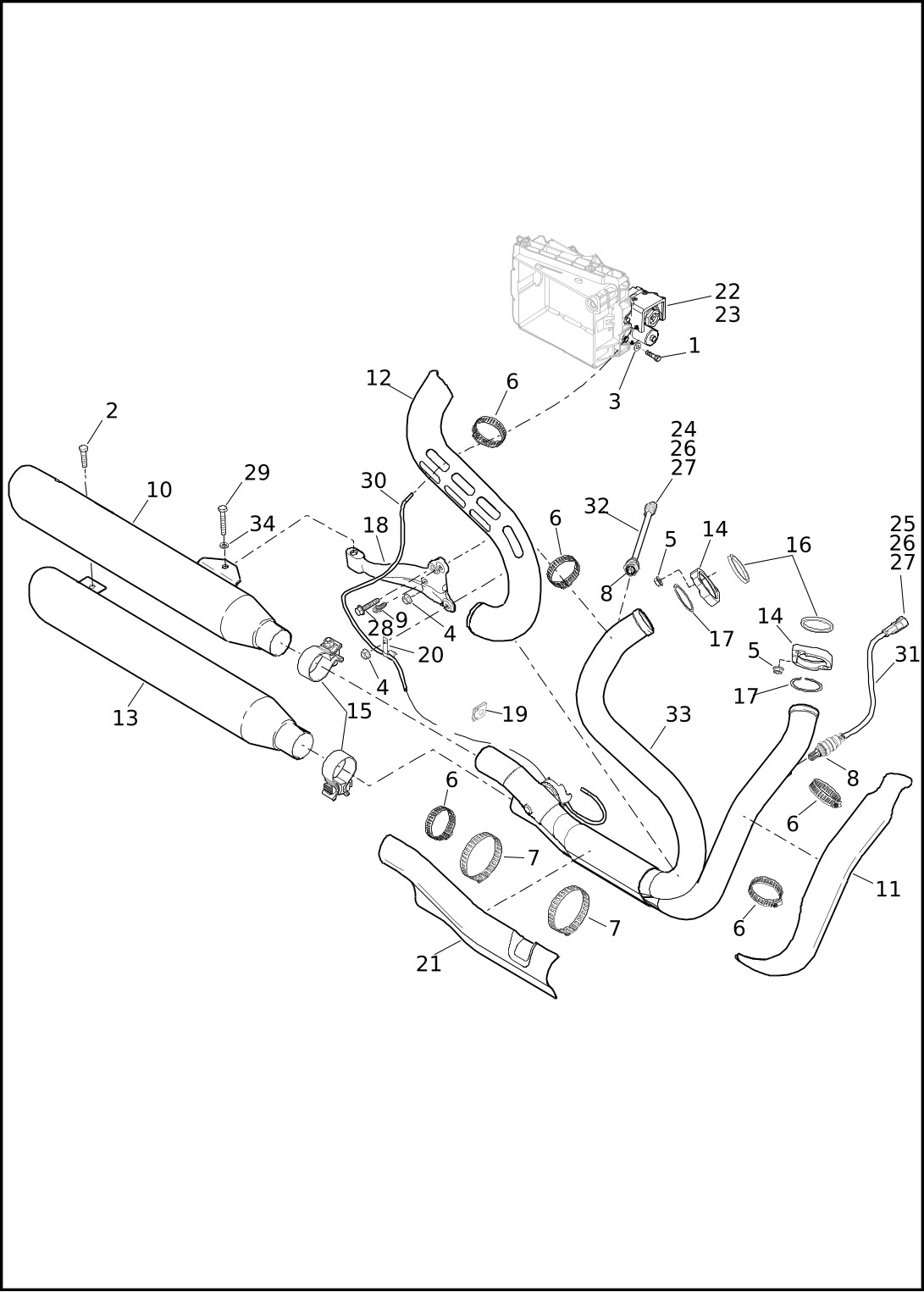

EXHAUST SYSTEM - FXDF, FXDLS AND FXDWG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 923 | SCREW (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 2 | 4269 | SCREW | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 3 | 6703 | WASHER (HDI, Australia, England, India) (2) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4 | 7531 | LOCKNUT (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 5 | 7593 | NUT (4) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 6 | 9955 | CLAMP (5) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 7 | 9956 | CLAMP (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 8 | 11936 | GASKET, oxygen sensor (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 9 | 18083-09 | CLAMP (HDI, Australia, England, India) (2) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 10 | 64705-08A | MUFFLER, rear (chrome)(Domestic, California) | FXDWG 103 |
| 64701-08 | MUFFLER, rear (chrome) (Asia-Pacific, Japan) | FXDWG | |
| 64705-08A | MUFFLER, rear (chrome) (HDI, Australia, Canada, England, India) | FXDWG 103 | |
| 64900184 | MUFFLER, rear (chrome) (Asia-Pacific, Japan, Brazil) | FXDF | |
| 64900185 | MUFFLER, rear (chrome) (Domestic, California, HDI, Australia, Canada, England, India) | FXDF, FXDF 103 | |
| 64900512 | MUFFLER, rear (black) (Domestic, California, HDI, Australia, Canada, England) | FXDLS | |
| 64900513 | MUFFLER, rear (black) (Japan) | FXDLS | |
| 11 | 64819-08 | SHIELD, front exhaust (chrome) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 65400298 | SHIELD, front exhaust (black) | FXDLS | |
| 12 | 64830-08 | SHIELD, rear exhaust (chrome) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 65400299 | SHIELD, rear exhaust (black) | FXDLS | |
| 13 | 64987-08A | MUFFLER, front (chrome) (Domestic, California, Canada) | FXDWG 103 |
| 64700-08 | MUFFLER, front (chrome) (HDI, Asia-Pacific, England, India, Japan) | FXDWG | |
| 64900136 | MUFFLER, front (Australia, England, HDI) | FXDWG 103 | |
| 64900182 | MUFFLER, front (chrome) (Domestic, California, Canada) | FXDF 103 | |
| 64900183 | MUFFLER, front (chrome) (HDI, Asia-Pacific, England, India, Japan, Australia, Brazil) | FXDF, FXDF 103 | |
| 64900510 | MUFFLER, front (black) (Domestic, California, HDI, Australia, Canada, England) | FXDLS | |
| 64900511 | MUFFLER, front (black) (Japan) | FXDLS | |
| 14 | 65184-02 | FLANGE, pipe (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 15 | 65296-95A | CLAMP, muffler (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 16 | 65324-83B | GASKET, exhaust (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 17 | 65325-83A | RETAINING RING, exhaust gasket (2) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 18 | 65696-08B | BRACKET, muffler | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 19 | 66767-07 | RETAINER, cable (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 20 | 66798-07 | CLAMP, exhaust valve (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 21 | 66840-08 | HEATSHIELD ASSEMBLY, collector (forward controls) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 66841-08 | HEATSHIELD ASSEMBLY, collector (middle controls) | FXDF | |
| 65237-09 | HEATSHIELD ASSEMBLY, collector (black) | FXDLS | |
| 22 | 70991-07 | ACTUATOR, exhaust (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 23 | 71019-07 | SHROUD, exhaust actuator (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 24 | 72177-07BK | HOUSING, four-way socket (black) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 25 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 26 | 72444-07GY | HOUSING, four-way socket (gray) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 27 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 28 | 10200016 | SCREW | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 29 | 10200016 | SCREW | FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 4716W | SCREW | FXDLS | |
| 30 | 31500001 | CABLE, exhaust valve with 66767-07 (HDI, Australia, England, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 |
EXHAUST SYSTEM - FXDF, FXDLS AND FXDWG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 31 | 32700005 | OXYGEN SENSOR, front, with 11936, 72344-10, 72444-07GY and 73307-10 | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 32 | 32700006 | OXYGEN SENSOR, rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 33 | 65600006A | EXHAUST PIPE, assembly | FXDF 103, FXDLS, FXDWG 103 |
| 65600004A | EXHAUST PIPE, assembly (Australia, England, HDI, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 65600006A | EXHAUST PIPE, assembly (Asia-Pacific, Japan, Brazil) | FXDF, FXDWG | |
| 34 | 6701 | WASHER | FXDLS |
EXHAUST SYSTEM - FLD
| Index No. | Part No. | Description | Model(s) |
| 1 | 5414 | BOLT | FLD, FLD 103 |
| 2 | 7432M | NUT | FLD, FLD 103 |
| 3 | 7593 | NUT (4) | FLD, FLD 103 |
| 4 | 7601 | LOCKNUT | FLD, FLD 103 |
| 5 | 9955 | CLAMP, 24 (5) | FLD, FLD 103 |
| 6 | 9956 | CLAMP, 40 (2) | FLD, FLD 103 |
| 7 | 10006 | CABLE STRAP | FLD, FLD 103 |
| 8 | 11936 | GASKET, oxygen sensor | FLD, FLD 103 |
| 9 | 65126-09 | ISOLATOR | FLD, FLD 103 |
| 10 | 65184-02 | FLANGE, exhaust pipe (2) | FLD, FLD 103 |
| 11 | 65296-95A | CLAMP | FLD, FLD 103 |
| 12 | 65324-83B | GASKET (2) | FLD, FLD 103 |
| 13 | 65325-83A | RETAINING RING (2) | FLD, FLD 103 |
| 14 | 65440-06 | CLAMP | FLD, FLD 103 |
| 15 | 65441-06 | CLAMP | FLD, FLD 103 |
| 16 | 65551-12 | EXHAUST PIPE ASSEMBLY | FLD, FLD 103 |
| 17 | 65556-12 | SHIELD | FLD, FLD 103 |
| 18 | 65557-12 | SHIELD | FLD, FLD 103 |
| 19 | 65800-09 | PIN | FLD, FLD 103 |
| 20 | 65906-12A | MUFFLER ASSEMBLY, chrome (Domestic, California, Canada) | FLD 103 |
| 65937-12 | MUFFLER ASSEMBLY, chrome (HDI, England, Australia, Asia-Pacific, Japan) | FLD, FLD 103 | |
| 21 | 65975-99 | BRACKET, mounting | FLD, FLD 103 |
| 22 | 65992-12 | SUPPORT BAR, muffler, with 65126-09 | FLD, FLD 103 |
| 23 | 72177-07BK | HOUSING, four-way socket (black) | FLD, FLD 103 |
| 24 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLD, FLD 103 |
| 25 | 72444-07GY | HOUSING, four-way socket (gray) | FLD, FLD 103 |
| 26 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLD, FLD 103 |
| 27 | 10200016 | SCREW (3) | FLD, FLD 103 |
| 28 | 10200026 | SCREW | FLD, FLD 103 |
| 29 | 32700005 | OXYGEN SENSOR, front, with 11936, 72344-10, 72444-07GY and 73307-10 | FLD, FLD 103 |
| 30 | 32700006 | OXYGEN SENSOR, rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLD, FLD 103 |
| 31 | 65400053 | SHIELD | FLD, FLD 103 |
WIRING HARNESS, MAIN, NON-ABS (1 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (8) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72479-07BK | HOUSING, eight-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72905-11 | HOUSING, two-way pin | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72907-11 | HOUSING, four-way pin (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72909-11 | TERMINAL, pin, 20-21 AWG (9) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 73103-96BK | HOUSING, three-way pin | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 73103-96WE | HOUSING, three-way pin | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 73104-96BK | HOUSING, four-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 73190-96 | TERMINAL, pin, 16-20 AWG (10) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, NON-ABS (2 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL RING, .25 stud, 12 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 9825 | TERMINAL RING, .25 14-18 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72175-07BK | HOUSING, four-way pin (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72512-07BK | HOUSING, three-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72519-09BK | DUST CAP, three-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72594-11 | DUST CAP, two-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72720-07 | HOUSING, two-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 73108-96BK | HOUSING, eight-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 13 | 73190-96 | TERMINAL, pin, 16-20 AWG (8) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 14 | 73213-07 | RETAINER, anchored tree clip (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, NON-ABS (3 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 9842 | TERMINAL RING, .31 10-12 AWG | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72249-94 | SHRINK TUBE (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72290-94 | TERMINAL, insulated (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72291-94 | TERMINAL, 14-16 AWG | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72295-94 | HOUSING, starter connection | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72312-04 | HOUSING, socket, three-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72335-10 | TERMINAL, socket, 20-22 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72415-07GY | HOUSING, four-way pin (gray) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 74112-98BK | HOUSING, two-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 13 | 74115-06 | DC LEAD ASSEMBLY | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 14 | 74191-98 | TERMINAL, socket (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 15 | 74152-98 | LOCK, socket, 2-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 16 | 12500002 | CABLE STRAP (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, NON-ABS (4 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72012-07 | HOUSING, five-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72014-07 | SEAL PIN | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72066-06A | HOUSING, four-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72081-11 | HOUSING, 48-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72135-06 | SECONDARY LOCK, four-way socket (gray) (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72209-11 | COVER, wire | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72222-11 | TERMINAL SOCKET, 18-20 AWG (20) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 72226-11 | TERMINAL SOCKET, 14-16 AWG | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 13 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 14 | 72256-11 | SEAL PIN, .6mm, plug (10) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (7) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (7) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 17 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 18 | 72610-08 | SEAL, cable, 18-20 AWG (white) (5) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 19 | 72664-12A | HOUSING, 18-way socket, key A | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 20 | 72665-12A | HOUSING, 18-way socket, key B | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 21 | 72666-12 | TERMINAL, socket, 18-20 AWG (silver) (34) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 22 | 12500003 | CABLE STRAP (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 23 | 69200245 | HOUSING, two-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, NON-ABS (5 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, weather, six-way pin | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 10065 | CABLE STRAP | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72064-06 | HOUSING, three-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72106-94BK | HOUSING, eight-way socket (black) (replaces gray connector) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72146-94 | PIN LOCK, sec 6 | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72190-94 | TERMINAL, pin, 16-18 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72298-95 | WIRE SEAL, 14-18 AWG (green) (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72308-97 | TERMINAL, socket, 12-14 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72314-01 | MAIN FUSE, 40 Amp, NOTE: Fuse is sold separately and is not part of the main harness. | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72330-95 | FUSE, 15 Amp (blue) (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 72350-11 | HOUSING, one-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 13 | 72356-95 | TERMINAL, socket, 18-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (7) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (7) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 16 | 72575-11 | SECONDARY LOCK | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 17 | 72582-11 | FUSE BLOCK, main fuse | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 18 | 72586-11 | COVER, fuseblock, NOTE: Cover is sold separately and is not part of the wiring harness. | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 19 | 72587-11 | SECONDARY LOCK, fuse block, main fuse | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 20 | 72595-11 | SEAL, fuse block, main fuse NOTE: Seal is sold separately and is not part of the wiring harness. | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 21 | 73304-04 | TERMINAL, .31 socket, 10 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 22 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, NON-ABS (6 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (103 High Output) (Canada, Domestic) (2) | FXDF 103, FXDL 103 |
| 1 | 10065 | CABLE STRAP | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 70976-06 | WIRE GUIDE, tps | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72007-05 | HOUSING, two-way socket (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (6) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (6) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72062-06 | HOUSING, two-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72065-06A | HOUSING, three-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72066-06A | HOUSING, four-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72098-06 | HOUSING, two-way socket (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72110-06 | TERMINAL, socket 16-18 AWG (4) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 13 | 72145-06 | SECONDARY LOCK, two-way socket (blue) (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 14 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 15 | 72230-98 | HOUSING, three-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 16 | 72231-98 | SECONDARY LOCK, three-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 17 | 72283-09 | TERMINAL, socket, 14-16 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 18 | 72486-08 | WIRE SEAL, 20 AWG (green) (11) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 19 | 72533-06 | DUST CAP, two-way (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 20 | 72610-08 | SEAL, cable, 18-20 AWG (white) (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 21 | 74102-05GY | HOUSING, two-way pin (gray) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 22 | 74112-05GY | HOUSING, two-way socket (gray) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 23 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 24 | 74191-98 | TERMINAL, socket (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 25 | 74142-98 | SECONDARY LOCK, two-way pin | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 26 | 74152-98 | LOCK, socket, 2-way | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 27 | 12500001 | CABLE STRAP | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 28 | 69200444 | HARNESS, jumper, IAT | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |

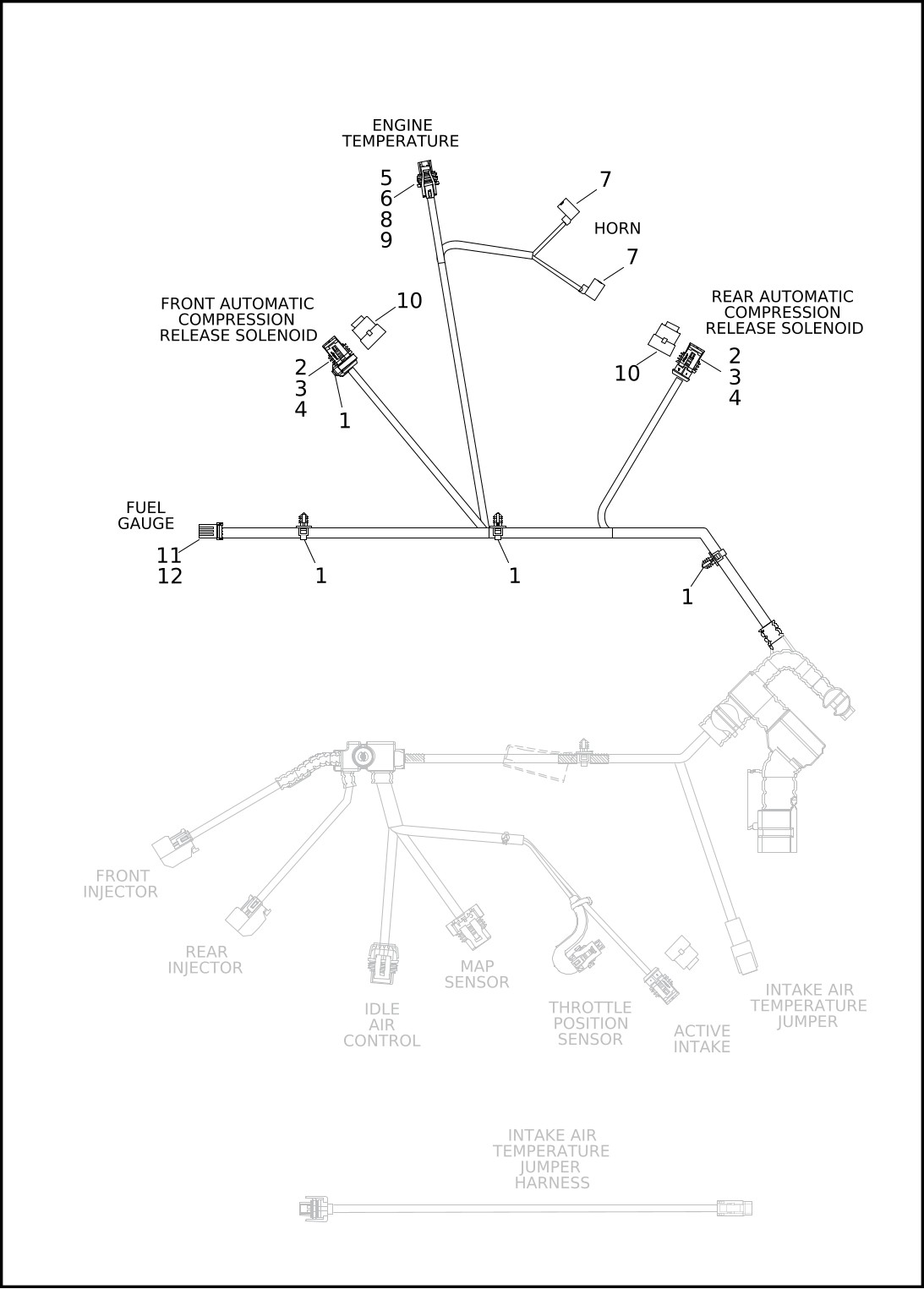

WIRING HARNESS, MAIN, NON-ABS (7 OF 7)
| Index No. | Part No. | Description | Model(s) |
| 71072-12A | WIRING HARNESS, MAIN (CONTINUED) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored tree mount (5) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 2 | 72007-05 | HOUSING, two-way socket (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 3 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (6) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 4 | 72024-08 | TERMINAL, socket, 20-22 AWG (6) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 5 | 72063-06 | HOUSING, two-way socket | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 6 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 7 | 72283-09 | TERMINAL, socket, 14-16 AWG (2) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 8 | 72484-08 | TERMINAL, socket, 20 AWG (11) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 9 | 72486-08 | WIRE SEAL, 20 AWG (green) (11) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 10 | 72533-06 | DUST CAP, two-way (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 11 | 72914-01BK | HOUSING, four-way socket (black) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
| 12 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (1 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (8) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72479-07BK | HOUSING, eight-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72905-11 | HOUSING, two-way pin | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72907-11 | HOUSING, four-way pin (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72909-11 | TERMINAL, pin, 20-21 AWG (9) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 73103-96BK | HOUSING, three-way pin | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 73103-96WE | HOUSING, three-way pin | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 73104-96BK | HOUSING, four-way | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 73190-96 | TERMINAL, pin, 16-20 AWG (10) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 74112-98BK | HOUSING, two-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 74152-98 | SECONDARY LOCK, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 74191-98 | TERMINAL, socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (2 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL RING, .25 stud, 12 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 9825 | TERMINAL RING, .25 14-18 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72175-07BK | HOUSING, four-way pin (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72512-07BK | HOUSING, three-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72519-09BK | DUST CAP, three-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72594-11 | DUST CAP, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72720-07 | HOUSING, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 73108-96BK | HOUSING, eight-way | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 73190-96 | TERMINAL, pin, 16-20 AWG (8) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 73213-07 | RETAINER, anchored tree clip (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 74112-98BK | HOUSING, two-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 74152-98 | SECONDARY LOCK, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 74191-98 | TERMINAL, socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (3 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72290-94 | TERMINAL, insulated (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72415-07GY | HOUSING, four-way pin (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 74112-98BK | HOUSING, two-way socket (black) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 74115-06 | DC LEAD ASSEMBLY | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 74152-98 | SECONDARY LOCK, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 74191-98 | TERMINAL, socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 12500002 | CABLE STRAP (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (4 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 9842 | TERMINAL RING, .31 10-12 AWG | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72249-94 | SHRINK TUBE (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72291-94 | TERMINAL, 14-16 AWG | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72295-94 | HOUSING, starter connection | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72312-04 | HOUSING, three-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72335-10 | TERMINAL, socket, 20-22 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72577-12 | SECONDARY LOCK | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72578-12 | HOUSING, 18-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72579-12 | TERMINAL, socket, 14-16 AWG (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72580-12 | TERMINAL, socket, 18-20 AWG (7) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72633-02 | SEAL, wire, 14-16 AWG (white) (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (5 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72081-11 | HOUSING, 48-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72209-11 | COVER, wire (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72222-11 | TERMINAL SOCKET, 18-20 AWG (20) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72226-11 | TERMINAL SOCKET, 14-16 AWG | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72256-11 | SEAL PIN, .6mm, plug (10) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72350-11 | HOUSING, one-way | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72575-11 | SECONDARY LOCK | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72664-12A | HOUSING, 18-way socket, key A | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72665-12A | HOUSING, 18-way socket, key B | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72666-12 | TERMINAL, socket, 18-20 AWG (silver) (34) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 73304-04 | TERMINAL, .31 socket, 10 AWG | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (6 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, weather, six-way pin | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 10065 | CABLE STRAP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72106-94BK | HOUSING, eight-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72146-94 | PIN LOCK, sec 6 | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72190-94 | TERMINAL, pin, 16-18 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72298-95 | WIRE SEAL, 14-18 AWG (green) (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72308-97 | TERMINAL, socket, 12-14 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72314-01 | MAIN FUSE, 40 AMP, NOTE: Fuse is sold separately and is not part of the main wiring harness. | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72330-95 | FUSE, 15 AMP (blue) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72356-95 | TERMINAL, socket, 18-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72582-11 | FUSE BLOCK, main fuse | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 72586-11 | COVER, fuseblock, NOTE: Cover is sold separately and is not part of the main wiring harness. | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 72587-11 | SECONDARY LOCK, fuse block, main fuse | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 72595-11 | SEAL, fuse block, main fuse, NOTE: Seal is sold separately and is not part of the main wiring harness. | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 73304-04 | TERMINAL, .31 socket, 10 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (7 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72012-07 | HOUSING, five-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72014-07 | SEAL PIN | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72064-06 | HOUSING, three-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72066-06A | HOUSING, four-way socket (black) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72484-08 | TERMINAL, socket, 20 AWG (7) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72486-08 | WIRE SEAL, 20 AWG (green) (7) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72610-08 | SEAL, cable, 18-20 AWG (white) (5) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 12500003 | CABLE STRAP (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 69200245 | HOUSING, two-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (8 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored tree mount (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72007-05 | HOUSING, two-way socket (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (6) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72024-08 | TERMINAL, socket, 20-22 AWG (6) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72063-06 | HOUSING, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72098-06 | HOUSING, two-way socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG (4) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72145-06 | SECONDARY LOCK, two-way socket (blue) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72283-09 | TERMINAL, socket, 14-16 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 72533-06 | DUST CAP, two-way (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 72914-01BK | HOUSING, four-way socket (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 16 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 17 | 12500001 | CABLE STRAP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 41600028 | CLIP, ABS line | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (9 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10065 | CABLE STRAP (103 High Output) (Canada, Domestic) (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 2 | 70976-06 | WIRE GUIDE, tps | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72007-05 | HOUSING, two-way socket (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (6) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (6) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 72065-06A | HOUSING, three-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 72066-06A | HOUSING, four-way socket (black) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 72135-06 | SECONDARY LOCK, four-way socket (gray) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 72230-98 | HOUSING, three-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 11 | 72231-98 | SECONDARY LOCK, three-way | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 12 | 72484-08 | TERMINAL, socket, 20 AWG (7) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 13 | 72486-08 | WIRE SEAL, 20 AWG (green) (7) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 14 | 72533-06 | DUST CAP, two-way | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 15 | 72610-08 | SEAL, cable, 18-20 AWG (white) (3) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (10 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 71075-12A | WIRING HARNESS, MAIN (CONTINUED) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 72062-06 | HOUSING, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 2 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 3 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 4 | 74102-05GY | HOUSING, two-way pin (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 5 | 74112-05GY | HOUSING, two-way socket (gray) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 6 | 74142-98 | SECONDARY LOCK, two-way pin | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 7 | 74152-98 | SECONDARY LOCK, two-way socket | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 8 | 74190-98 | TERMINAL, pin, 16-20 AWG | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 9 | 74191-98 | TERMINAL, socket (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 10 | 69200444 | HARNESS, jumper, IAT | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
WIRING HARNESS, MAIN, ABS - FXDLS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN | FXDLS | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN (3) | FXDLS |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (7) | FXDLS |
| 3 | 72479-07BK | HOUSING, eight-way socket (black) | FXDLS |
| 4 | 72905-11 | HOUSING, two-way pin | FXDLS |
| 5 | 72907-11 | HOUSING, four-way pin (2) | FXDLS |
| 6 | 72909-11 | TERMINAL, pin, 20-21 AWG (15) | FXDLS |
| 7 | 73104-96BK | HOUSING, four-way | FXDLS |
| 8 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FXDLS |
| 9 | 74112-98BK | HOUSING, two-way socket (black) | FXDLS |
| 10 | 74152-98 | SECONDARY LOCK, two-way socket | FXDLS |
| 11 | 74191-98 | TERMINAL, socket (2) | FXDLS |
| 12 | 69201163 | HOUSING, six-way pin | FXDLS |
| 13 | 69201164 | TERMINAL, pin, 22 AWG (6) | FXDLS |
| 14 | 69201180 | HOUSING, four-way pin (gray) | FXDLS |
WIRING HARNESS, MAIN, ABS - FXDLS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL RING, .25 stud, 12 AWG (2) | FXDLS |
| 2 | 9825 | TERMINAL RING, .25 14-18 AWG (2) | FXDLS |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FXDLS |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FXDLS |
| 5 | 72175-07BK | HOUSING, four-way pin (black) | FXDLS |
| 6 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FXDLS |
| 7 | 72512-07BK | HOUSING, three-way socket (black) | FXDLS |
| 8 | 72519-09BK | DUST CAP, three-way socket | FXDLS |
| 9 | 72720-07 | HOUSING, two-way socket | FXDLS |
| 10 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FXDLS |
| 11 | 73108-96BK | HOUSING, eight-way | FXDLS |
| 12 | 73190-96 | TERMINAL, pin, 16-20 AWG (8) | FXDLS |
| 13 | 73213-07 | RETAINER, anchored tree clip (2) | FXDLS |
| 14 | 74112-98BK | HOUSING, two-way socket (black) | FXDLS |
| 15 | 74152-98 | SECONDARY LOCK, two-way socket | FXDLS |
| 16 | 74191-98 | TERMINAL, socket (2) | FXDLS |
WIRING HARNESS, MAIN, ABS - FXDLS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| NOTE: Includes the following parts. | |||
| 1 | 9842 | TERMINAL RING, .31 10-12 AWG | FXDLS |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FXDLS |
| 3 | 72249-94 | SHRINK TUBE (black) | FXDLS |
| 4 | 72291-94 | TERMINAL, 14-16 AWG | FXDLS |
| 5 | 72295-94 | HOUSING, starter connection | FXDLS |
| 6 | 72312-04 | HOUSING, three-way socket | FXDLS |
| 7 | 72335-10 | TERMINAL, socket, 20-22 AWG (3) | FXDLS |
| 8 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FXDLS |
| 9 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FXDLS |
| 10 | 72415-07GY | HOUSING, four-way pin (gray) | FXDLS |
| 11 | 72577-12 | SECONDARY LOCK | FXDLS |
| 12 | 72578-12 | HOUSING, 18-way socket | FXDLS |
| 13 | 72579-12 | TERMINAL, socket, 14-16 AWG (4) | FXDLS |
| 14 | 72580-12 | TERMINAL, socket, 18-20 AWG (7) | FXDLS |
| 15 | 72633-02 | SEAL, wire, 14-16 AWG (white) (4) | FXDLS |
| 16 | 74112-98BK | HOUSING, two-way socket (black) | FXDLS |
| 17 | 74115-06 | DC LEAD ASSEMBLY | FXDLS |
| 18 | 74152-98 | SECONDARY LOCK, two-way socket | FXDLS |
| 19 | 74191-98 | TERMINAL, socket (2) | FXDLS |
| 20 | 12500002 | CABLE STRAP (4) | FXDLS |
| 21 | 69200238 | TERMINAL, 20 AWG (black) (2) | FXDLS |
WIRING HARNESS, MAIN, ABS - FXDLS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, weather, six-way pin | FXDLS |
| 2 | 10065 | CABLE STRAP (2) | FXDLS |
| 3 | 72066-06A | HOUSING, four-way socket (black) | FXDLS |
| 4 | 72081-11 | HOUSING, 48-way socket | FXDLS |
| 5 | 72106-94BK | HOUSING, six-way pin (black) | FXDLS |
| 6 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FXDLS |
| 7 | 72146-94 | PIN LOCK, sec 6 | FXDLS |
| 8 | 72190-94 | TERMINAL, pin, 16-18 AWG (3) | FXDLS |
| 9 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FXDLS |
| 10 | 72209-11 | COVER, wire (3) | FXDLS |
| 11 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FXDLS |
| 12 | 72222-11 | TERMINAL SOCKET, 18-20 AWG (20) | FXDLS |
| 13 | 72226-11 | TERMINAL SOCKET, 14-16 AWG | FXDLS |
| 14 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FXDLS |
| 15 | 72256-11 | SEAL PIN, .6mm, plug (10) | FXDLS |
| 16 | 72298-95 | WIRE SEAL, 14-18 AWG (green) (4) | FXDLS |
| 17 | 72308-97 | TERMINAL, socket, 12-14 AWG (2) | FXDLS |
| 18 | 72314-01 | MAIN FUSE, 40 AMP, NOTE: Fuse is sold separately and is not part of the main wiring harness. | FXDLS |
| 19 | 72330-95 | FUSE, 15 AMP (blue) (2) | FXDLS |
| 20 | 72350-11 | HOUSING, one-way | FXDLS |
| 21 | 72356-95 | TERMINAL, socket, 18-20 AWG (2) | FXDLS |
| 22 | 72484-08 | TERMINAL, socket, 20 AWG (7) | FXDLS |
| 23 | 72486-08 | WIRE SEAL, 20 AWG (green) (7) | FXDLS |
| 24 | 72575-11 | SECONDARY LOCK | FXDLS |
| 25 | 72582-11 | FUSE BLOCK, main fuse | FXDLS |
| 26 | 72586-11 | COVER, fuseblock, NOTE: Cover is sold separately and is not part of the main wiring harness. | FXDLS |
| 27 | 72587-11 | SECONDARY LOCK, fuse block, main fuse | FXDLS |
| 28 | 72595-11 | SEAL, fuse block, main fuse, NOTE: Seal is sold separately and is not part of the main wiring harness. | FXDLS |
| 29 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FXDLS |
| 30 | 72610-08 | SEAL, cable, 18-20 AWG (white) (2) | FXDLS |
| 31 | 72664-12A | HOUSING, 18-way socket, key A | FXDLS |
| 32 | 72666-12 | TERMINAL, socket, 18-20 AWG (silver) (38) | FXDLS |
| 33 | 73304-04 | TERMINAL, .31 socket, 10 AWG (3) | FXDLS |
| 34 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FXDLS |
| 35 | 12500003 | CABLE STRAP (3) | FXDLS |
| 36 | 69200212 | HARNESS, battery tender | FXDLS |
| 37 | 69200245 | HOUSING, two-way socket (black) | FXDLS |
| 38 | 69200267A | HOUSING, 18-way socket, key B | FXDLS |
| 39 | 69200268A | HOUSING, 18-way socket, key C | FXDLS |
WIRING HARNESS, MAIN, ABS - FXDLS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored tree mount (7) | FXDLS |
| 2 | 72007-05 | HOUSING, two-way socket (2) | FXDLS |
| 3 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FXDLS |
| 4 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FXDLS |
| 6 | 72063-06 | HOUSING, two-way socket | FXDLS |
| 7 | 72064-06 | HOUSING, three-way socket | FXDLS |
| 8 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FXDLS |
| 9 | 72251-07 | SECONDARY LOCK, two-way socket (2) | FXDLS |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG (2) | FXDLS |
| 11 | 72402-07 | HOUSING, two-way socket (black) (2) | FXDLS |
| 12 | 72406-07A | HOUSING, four-way socket (black) | FXDLS |
| 13 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FXDLS |
| 14 | 72408-07 | WIRE SEAL, 16-20 AWG (blue) (4) | FXDLS |
| 15 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | ALL |
| 16 | 72483-08BK | HOUSING, six-way socket (black) | FXDLS |
| 17 | 72484-08 | TERMINAL, socket, 20 AWG (5) | FXDLS |
| 18 | 72486-08 | WIRE SEAL, 20 AWG (green) (5) | FXDLS |
| 19 | 72533-06 | DUST CAP, two-way (2) | FXDLS |
| 20 | 72663-11 | TERMINAL, socket, 18-20 AWG (6) | FXDLS |
| 21 | 72914-01BK | HOUSING, four-way socket (black) | FXDLS |
| 22 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FXDLS |
| 23 | 41600028 | CLIP, ABS line | FXDLS |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 2469 | SCREW | ALL |
| 2 | 4613 | SCREW (3) | ALL |
| 3 | 4312C | SCREW (2) | ALL |
| 4 | 6702 | WASHER (3) | ALL |
| 5 | 7495 | NUT (2) | ALL |
| 6 | 66473-10 | TRIM, battery cover - WIDE GLIDE (chrome) | FXDWG, FXDWG 103 |
| 61300242 | TRIM, battery cover - LOW RIDER | FXDL, FXDL 103 | |
| 61400416 | TRIM, battery cover | FXDLS | |
| 7 | 65989-97C | BATTERY | ALL |
| 66000065 | BATTERY (Brazil) | FXDB, FXDF, FXDL | |
| 8 | 66017-01 | STRAP, battery | ALL |
| 9 | 66366-06 | COVER, battery (black) | FXDLS, FXDWG, FXDWG 103 |
| 66444-12DH | COVER, battery (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103 | |
| 61300151 | COVER, battery (chrome) | FXDBP 103, FXDL, FXDL 103 | |
| 10 | 70003-06 | COVER, battery terminal | ALL |
| 11 | 70102-06B | CABLE ASSEMBLY, battery positive, with 70584-94 | ALL |
| 12 | 70284-06A | CABLE ASSEMBLY, battery negative, with 72242-94 | ALL |
| 13 | 70379-06B | TRAY, battery | ALL |
| 14 | 70584-94 | BOOT, battery positive | ALL |
| 15 | 72242-94 | TERMINAL, negative battery | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 2882W | SCREW (2) | FXDL, FXDL 103, FXDLS |
| 2 | 3563 | SCREW (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 3 | 4512A | SCREW (India) | FXDB, FXDF |
| 4 | 6109 | WASHER | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 5 | 6532 | WASHER (India) | FXDB, FXDF |
| 6 | 6702 | WASHER | FXDL, FXDL 103, FXDLS |
| 7 | 7549A | ACORN NUT | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 8 | 7495 | NUT | ALL |
| 9 | 7601 | LOCKNUT (India) | FXDB, FXDF |
| 10 | 8108 | SPEEDNUT (2) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 11 | 10006 | CABLE STRAP (India) (2) | FXDB, FXDF |
| 12 | 10065 | CABLE STRAP (India) (3) | FXDB, FXDF |
| 13 | 10177 | CABLE STRAP (2) | FXDL, FXDL 103 |
| 14 | 69060-90H | HORN ASSEMBLY | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 15 | 69062-91A | CLAMP | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 16 | 69120-91 | BRACKET, horn | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 17 | 69123-92A | MOUNT, horn (rubber) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 18 | 72062-06 | HOUSING, two-way socket | FXDL, FXDL 103 |
| 19 | 72283-09 | TERMINAL, 14-16 AWG, 90-degree (India) (2) | FXDB, FXDF |
| 19 | 72283-09 | TERMINAL, 14-16 AWG, 90-degree (2) | FXDL, FXDL 103 |
| 20 | 72484-08 | TERMINAL, 20 AWG socket (2) | FXDL, FXDL 103 |
| 21 | 72486-08 | WIRE SEAL, 18-20 AWG (yellow) (2) | FXDL, FXDL 103 |
| 22 | 74102-05GY | HOUSING, two-way pin (gray) | FXDL, FXDL 103 |
| 23 | 74142-98 | SECONDARY LOCK, two-way pin | FXDL, FXDL 103 |
| 24 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FXDL, FXDL 103 |
| 25 | 61300478 | COVER, horn (chrome) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| 26 | 69000051 | HORN ASSEMBLY, front mount, with 7495 (India) | FXDB, FXDF |
| 27 | 69000051 | HORN ASSEMBLY, front mount, with 7495 | FXDL, FXDL 103, FXDLS |
| 28 | 69200282 | JUMPER, horn (India) | FXDB, FXDF |
| 29 | 69200283 | TERMINAL, 14-16 AWG (India) (2) | FXDB, FXDF |
| 29 | 69200283 | TERMINAL, 14-16 AWG (2) | FXDL, FXDL 103 |
| 30 | 69200616 | HARNESS, jumper, ignition switch and horn | FXDL, FXDL 103 |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4274 | SCREW | ALL |
| 2 | 4613 | SCREW (2) | ALL |
| 3 | 6702 | WASHER (2) | ALL |
| 4 | 6703 | WASHER | ALL |
| 5 | 10147 | CONNECTOR CLIP (excluding Japan) | ALL |
| 6 | 66361-12 | COVER, electrical panel (black) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 69200101 | COVER, electrical panel (chrome) | FXDBP 103, FXDL, FXDL 103 | |
| 7 | 68956-07 | MODULE, assembly (excluding Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG 103 |
| 7 | 68956-07 | MODULE, assembly | FXDLS |
| 8 | 68958-07C | SIREN (HDI, Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 |
| 9 | 69309-10 | BATTERY, siren (HDI, Japan) | ALL |
| 10 | 69992-12B | BODY CONTROL MODULE (BCM), non-security | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 69994-12B | BODY CONTROL MODULE (BCM), security (excluding Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 | |
| 11 | 69996-12B | BODY CONTROL MODULE (BCM) (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
| 12 | 70367-12 | ELECTRICAL CADDY | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 69201567 | ELECTRICAL CADDY | FXDLS | |
| 13 | 70698-09 | PLUG, fork lock retainer | ALL |
| 14 | 72026-08A | BRAKE SWITCH/BANJO BOLT | ALL |
| 15 | 72314-01 | MAIN FUSE, 40 AMP | ALL |
| 16 | 72586-11 | COVER, fuseblock, main fuse | ALL |
| 17 | 72594-11 | DUST CAP, two-way socket, non-security | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 18 | 72330-95 | FUSE, 15 AMP (blue) (2) | ALL |
| 19 | 41000006A | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 20 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FXDLS |
SADDLEBAGS - FLD
| Index No. | Part No. | Description | Model(s) |
| 1 | 2524B | SCREW | FLD, FLD 103 |
| 2 | 3592A | SCREW (8) | FLD, FLD 103 |
| 3 | 3595 | SCREW (5) | FLD, FLD 103 |
| 4 | 3612 | SCREW (2) | FLD, FLD 103 |
| 5 | 3656 | SCREW | FLD, FLD 103 |
| 6 | 7586 | JAMNUT (2) | FLD, FLD 103 |
| 7 | 7608 | NUT | FLD, FLD 103 |
| 8 | 7686 | LOCKNUT | FLD, FLD 103 |
| 9 | 53567-93 | TETHER | FLD, FLD 103 |
| 10 | 53710-93 | LOCK SET, saddlebag, with key (specify key number) | FLD, FLD 103 |
| 11 | 90682-93 | SADDLEBAG CAM (2) | FLD, FLD 103 |
| 12 | 10200032 | SCREW (5) | FLD, FLD 103 |
| 13 | 10200070 | SCREW (4) | FLD, FLD 103 |
| 14 | 10200053 | SCREW (3) | FLD, FLD 103 |
| 15 | 10400003 | NUT PLATE ASSEMBLY | FLD, FLD 103 |
| 16 | 10500009 | SCREW | FLD, FLD 103 |
| 17 | 10600010 | WASHER | FLD, FLD 103 |
| 18 | 11700004 | COMPRESSION SPRING | FLD, FLD 103 |
| 19 | 14000069 | WARNING LABEL | FLD, FLD 103 |
| 20 | 14000234 | LABEL, warning, left saddlebag | FLD, FLD 103 |
| 14000267 | LABEL, warning, right saddlebag | FLD, FLD 103 | |
| 21 | 67900040 | REFLECTOR (right) (red) | FLD, FLD 103 |
| 67900041 | REFLECTOR (left) (red) | FLD, FLD 103 | |
| 67900042 | REFLECTOR (right) (amber) (HDI) | FLD, FLD 103 | |
| 67900043 | REFLECTOR (left) (amber) (HDI) | FLD, FLD 103 | |
| 22 | 90200010BDK | COVER (right) (primed) | FLD, FLD 103 |
| 90200011BDK | COVER (left) (primed) | FLD, FLD 103 | |
| 23 | 90200018BDK | BOTTOM (right) (primed) | FLD, FLD 103 |
| 90200019BDK | BOTTOM (left) (primed) | FLD, FLD 103 | |
| 24 | 90200426 | LATCH (right) | FLD, FLD 103 |
| 90200427 | LATCH (left) | FLD, FLD 103 | |
| 25 | 90200428 | FACEPLATE (right) | FLD, FLD 103 |
| 90200429 | FACEPLATE (left) | FLD, FLD 103 | |
| 26 | 90200471 | SUPPORT BRACKET, inner, right with 14000267 | FLD, FLD 103 |
| 90200474 | SUPPORT BRACKET, inner, left with 14000234 | FLD, FLD 103 | |
| 27 | 90200476 | SUPPORT BRACKET, outer, right, with 10200070, 90200565, 90200569 | FLD, FLD 103 |
| 90200478 | SUPPORT BRACKET, outer, left, with 10200070, 90200565, 90200568 | FLD, FLD 103 | |
| 28 | 90200481 | LATCHING ARM | FLD, FLD 103 |
| 29 | 90200483 | LATCH HANDLE | FLD, FLD 103 |
| 30 | 90200484 | LATCH CAP | FLD, FLD 103 |
| 31 | 90200513 | BRACKET, saddlebag mount (right) | FLD, FLD 103 |
| 90200514 | BRACKET, saddlebag mount (left) | FLD, FLD 103 | |
| 32 | 90200515 | SPACER | FLD, FLD 103 |
| 33 | 90200568 | BRACKET, theft protection (left) | FLD, FLD 103 |
| 90200569 | BRACKET, theft protection (right) | FLD, FLD 103 | |
| 34 | 90200574 | RUB BAR SET (right) | FLD, FLD 103 |
| 90200575 | RUB BAR SET (left) | FLD, FLD 103 | |
| 35 | 90200576 | DOCKING BUSHINGS SET | FLD, FLD 103 |
| 36 | 90200647 | GASKET KIT, inner bracket | FLD, FLD 103 |
| 37 | 90200702 | GASKET | FLD, FLD 103 |
| 38 | 90700-93 | BACKING PLATE, saddlebag | FLD, FLD 103 |
| 39 | 90200487 | WEAR STAMPING | FLD, FLD 103 |

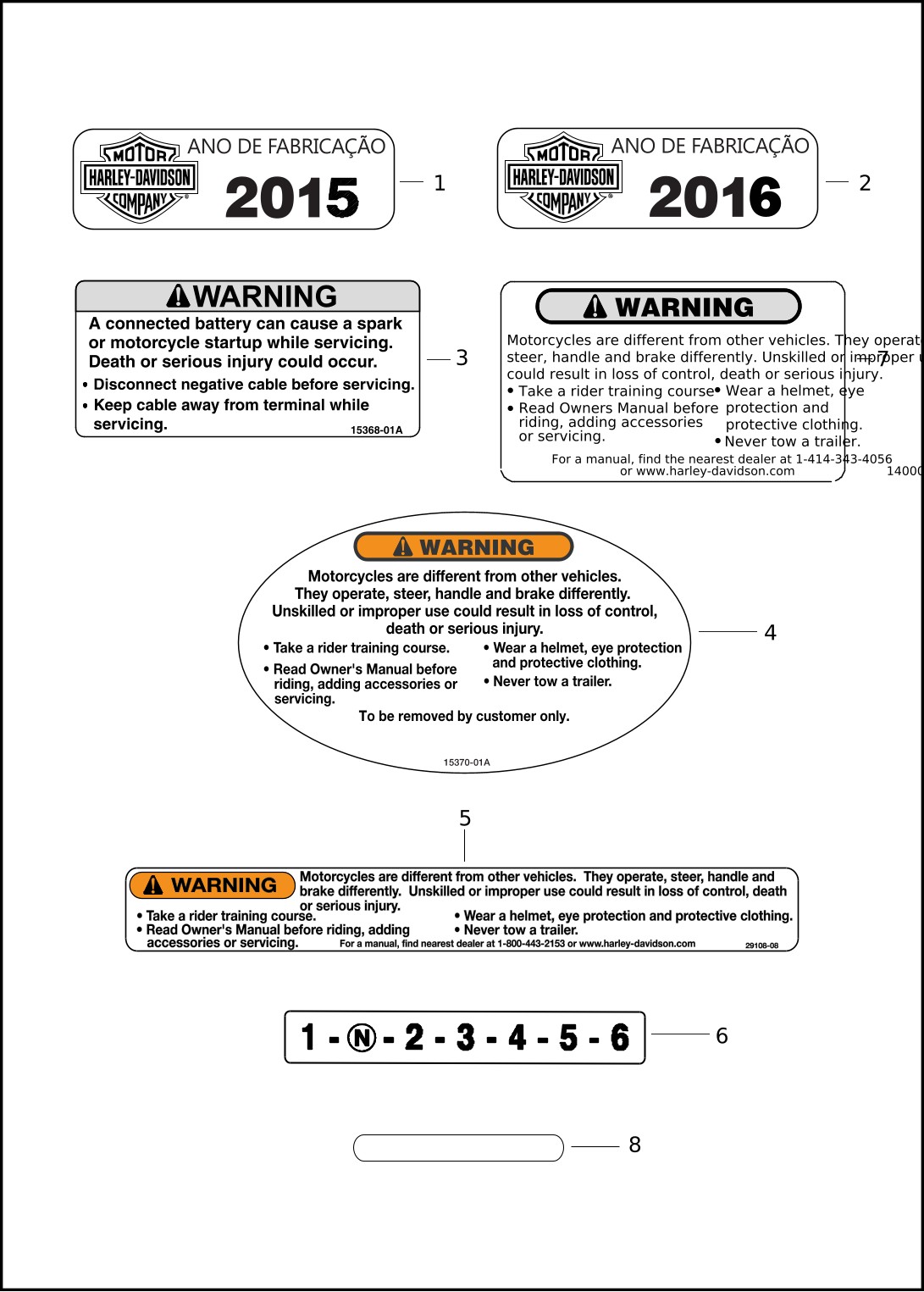

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13729-15 | YEAR OF MANUFACTURING LABEL (Brazil) | FXDB, FXDF, FXDL |
| 2 | 13729-16 | YEAR OF MANUFACTURING LABEL (Brazil) | FXDB, FXDF, FXDL |
| 3 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 4 | 15370-01A | MIRROR WARNING LABEL | ALL |
| 15385-08 | MIRROR WARNING LABEL, Portuguese (Brazil) (not shown) | FXDB, FXDF, FXDL | |
| 5 | 29108-08 | WARNING LABEL, air cleaner | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 29127-95B | WARNING LABEL, air cleaner | FXDB 103, FXDBP 103 | |
| 6 | 14272-06 | SHIFT PATTERN LABEL (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| 7 | 14000377 | WARNING LABEL, air cleaner (Domestic, California) | FXDLS |
| 8 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 68926-07 | REMOTE CONTROL FOB | FLD, FLD 103, FXDB, FXDB 103, FXDBP 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 |
| 69995-11 | REMOTE CONTROL FOB (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG | |
| 72314-01 | MAIN FUSE, 40 AMP | ALL | |
| 72586-11 | COVER, fuseblock | ALL | |
| 72595-11 | SEAL, fuse block, main fuse | ALL | |
| 99467-16B | OWNER'S MANUAL (English) | ALL | |
| 94000326 | OWNER'S KIT CONTENT (Domestic) | ALL | |
| 90300043 | KEY (set of two) (specify key number) | ALL | |
| 94000084 | ABS EDUCATIONAL DVD | ALL | |
| 57671-12 | WINDSHIELD ASSEMBLY, complete (Domestic, California, Canada, Australia) | FLD, FLD 103 | |
| 57400066 | WINDSHIELD ASSEMBLY, complete (Asia-Pacific, Brazil, England, HDI, Japan) | FLD, FLD 103 | |
| 93511-10 | FIRST AID KIT (India) | FXDB, FXDF | |
| 94435-10 | FOLDING TOOL (India) | FXDB, FXDF | |
| 91909-03B | MIRROR KIT, long - right (black) (FXDBP 103-DRAG BAR OPTION with two-up seat) | FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 29762-09 | RAINSOCK (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 14900080 | TOOL, shock spanner | FXDLS | |
| 29400296 | RAINSOCK | FXDLS | |
| ALL DYNAFLDFXDB, FXDFFXCBC, FXDBP, FXDF, FXDWGFLD, FXDF, FXDL, FXDWGFXDLS | |||
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 10100012A | CLIP NUT M6 X 1-6H |
| 10200016 | SCREW 5/16-18 X 2 hex flange head |
| 10200036 | SCREW 1/4 X 20 X 3/4 hex flange with lockpatch |
| 10200078 | SCREW M6 X 1.0 X 20 hex socket cap |
| 10200120 | SCREW 5/16 X 18 X 1.00 hex cap |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200221 | SCREW 1/4-20 X 1/2 TORX truss head (stainless) |
| 10200227 | SCREW No. 10-24 UNC TORX pan head thread rolling |
| 10300035 | WASHER 6.5mm x 15mm x 2mm |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 10500053 | SCREW 1/4-20 X 3/8 TORX button head, with lockpatch (zinc) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090A | SCREW 5/16-18 X 3-3/4 hex flange head with seal ring |
| 12600042 | SCREW 6-32 X .750 |
| 12600043 | SCREW 5/16 X 18 button head |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2240 | SCREW .312-18 UNC-2A |
| 2361 | SCREW No. 8-32 X 3/8 socket countersink head, with lockpatch |
| 2405A | SCREW 5/16-18 X 3/4 Phillips oval head (chrome) |
| 2420 | SCREW 1/4-20 X 3/4 truss head (Grade 2) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2452 | SCREW No. 12-24 X 13/16 pan head, with lockpatch |
| 2469 | SCREW 1/4-20 X 5/8 Phillips head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2508 | SCREW No. 10-32 X 1/2 socket head |
| 2524B | SCREW No. 8-32 X 5/16 TORX button head |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2882W | SCREW 5/16-18 X 5/8 hex head (Grade 5) |
| 2921 | SCREW No. 12 X 5/8 TORX pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3109 | SCREW 7/16-14 X 2-5/8 hex cap with washer, lock patch |
| 3159 | SCREW #8-32 X 1/2 flat head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3214 | SCREW 3/8-16 X 1-1/4 socket head, thread-cutting |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3471 | BOLT 1/2-13 X 2-3/4 hex head (Grade 5) |
| 3487 | BOLT 5/16-24 X 5/8 hex head, with lockpatch |
| 3509 | BOLT 3/8-16 X 2-3/4 hex head (Grade 8) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3540 | SCREW 5/16-18 X 5/8 socket button head |
| 3554 | BOLT 3/8-16 X 1-3/4 hex head |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3579A | SCREW 1/4-28 X 1/4 SEMS hex head, self-tapping (Grade 2) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3592A | SCREW No. 8-32 X 1/2 TORX truss head with dogpoint lead (stainless) |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3691 | SCREW No. 8-32 X 5/8 socket button head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3880 | SCREW 1/2-13 X 2-1/4 TORX recessed button head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 4068A | BOLT 5/16-18 X 2-1/2 hex head (Grade 5) |
| 4092 | SCREW 5/16-18 X 3/4 socket button head |
| 4116 | SCREW 5/16-18 X 3-5/8 hex head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4180 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 4269 | SCREW 5/16-18 X 3/4, flange head |
| 4274 | SCREW 1/4-20 X 2-3/4 socket head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 4334 | SCREW 5/16-18 X 1-1/4 socket button head |
| 4339A | SCREW 3/8-16 X 2-3/4 TORX head (Grade 8) |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4420 | SCREW 3/8-16 X 2.75 hex head (Grade 5) |
| 4512A | SCREW 3/8-16 X 1 TORX recessed button head (Grade 8) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 45991-06 | SCREW 3/8-16 X 0.163 (Grade 8) |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4613 | SCREW 5/16-18 X 7/8 TORX button head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4654 | SCREW button hex socket |
| 46614-06 | BOLT M14 X 1.25 X 30 socket head |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4716W | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4722 | BOLT 3/8-16 X 2-1/4 hex head (Grade 5) |
| 4724 | BOLT 3/8-24 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4748 | SCREW 3/8-16 X 1-1/8 socket head (Grade 8) |
| 4761 | SCREW 1/4-20 X 2 socket button head |
| 4762 | SCREW 3/8-24 X 4-1/2 hex head (Grade 5) |
| 47641-06 | SCREW 3/4-10 X 9-1/4 hex head (Grade 8) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4997 | SCREW 3/8-16 X 2.25 TORX button head |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 5414 | BOLT 3/8-16 X 7/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5445W | BOLT 5/16 X 1-1/4 carriage (Grade 5) |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6223 | WASHER 3/8 X 7/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6366 | WASHER 1/2 X 1-1/4 X 3/32 |
| 6379W | WASHER 3/8 X 5/8 X 3/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6551 | WASHER 1 X 1-5/8 X 1/8 hardened |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 6792 | WASHER 0.5 X 0.9 X 0.104 |
| 67956-96 | SCREW 1/4-20 X 3/4 socket flat head |
| 6798 | WASHER 5/16 X 1/2 X 1/32 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7003 | LOCKWASHER 9/16 |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7045 | LOCKWASHER 3/8 high collar |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7068 | LOCKWASHER 1/2 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7229W | LOCKWASHER 1/4 internal/external tooth |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7331 | ACORN NUT 5/16-24 |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7403 | NUT 1/2-13 X 0.302 X 3/4 |
| 7432M | NUT M8 X 1.25 flange |
| 7481 | ACORN NUT 5/16-18 X 5/8 X 1/2 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7608 | NUT No. 8-32 X 1/8 X 11/32 (Grade 2) |
| 7651A | ACORN NUT No. 12-24 (Grade 2) (chrome) |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7775 | LOCKNUT 3/8-24 X 7/16 X 9/16 |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7891 | NUT 1/4-20 special plastic |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8102 | SPEEDNUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8405 | JAMNUT .750-16UNF-2B |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 861A | SCREW 3/8-16 X 1 knurled head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 923 | SCREW 1/4-20 X 3/4 socket pan head |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 927A | SCREW 1/4-20 X 3/4 button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 943 | SCREW 1/4-20 X 5/8 socket button head |
| 9468 | SCREW 3/8-16 X 2 hex cap head |
| AA0408.21CXZB | SCREW 1/4-20 X 1 hex flange head with Scotchgrip (bright zinc) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19255-16 | ENGINE ASSEMBLY (black) | FXDL |
| 19593-16 | ENGINE ASSEMBLY (black) | FXDWG | |
| 19804-16 | ENGINE ASSEMBLY (black) | FLD | |
| 19863-16 | ENGINE ASSEMBLY (black) | FXDB, FXDBC | |
| 20019-16 | ENGINE ASSEMBLY (black) | FXDF |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19805-16 | ENGINE ASSEMBLY (black/chrome) | FXDWG 103 |
| 19806-16 | ENGINE ASSEMBLY (black) | FLD 103 | |
| 19595-16 | ENGINE ASSEMBLY (black/black wrinkle/black polished) | FXDB 103, FXDBC 103, FXDBP 103 | |
| 19597-16 | ENGINE ASSEMBLY (black/chrome/chrome) | FXDBP 103, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200170 | ENGINE ASSEMBLY, 103 High Output | FXDL 103 |
| 16200171 | ENGINE ASSEMBLY, 103 High Output | FXDWG 103 | |
| 16200172 | ENGINE ASSEMBLY, 103 High Output | FLD 103 | |
| 16200173 | ENGINE ASSEMBLY, 103 High Output | FXDF 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200258 | ENGINE ASSEMBLY (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING KIT, cylinder-base (set of 2) | FXDLS |
| 7 | 16801-07B | GASKET, cylinder-head (2) | FXDLS |
| 9 | 17251-07B | HEAD ASSEMBLY, cylinder, front, with 5, 6, 10, 14, 17, 18, 20, 21, 22, 23, 24, 25 and 28 (black) | FXDLS |
| 17252-07A | HEAD ASSEMBLY, cylinder, rear, with 5, 6, 10, 14, 17, 18,20, 21, 22, 23, 24, 25 and 28 (black) | FXDLS | |
| 10 | 17253-07B | HEAD, cylinder, front, with 18048-98A, 18161-08, 18168-08 and 18189-07 (black) | FXDLS |
| 17257-07A | HEAD, cylinder, rear, with 18048-98A, 18161-08, 18168-08 and 18189-07 (black) | FXDLS | |
| 11 | 17285-07A | CYLINDER ASSEMBLY, with 16595-99A (black) (2) | FXDLS |
| 12 | 17349-07B | GASKET KIT, top-end | FXDLS |
| 17350-07B | GASKET KIT, engine overhaul | FXDLS | |
| 13 | 18048-98A | SEAT, exhaust-valve (2) | FXDLS |
| 14 | 18067-09 | SEAL, valve (4) | FXDLS |
| 15 | 18161-08 | GUIDE, intake-valve (2) | FXDLS |
| 16 | 18168-08 | GUIDE, exhaust-valve (2) | FXDLS |
| 17 | 18183-03 | VALVE, exhaust (2) | FXDLS |
| 18 | 18187-07 | VALVE, intake (2) | FXDLS |
| 19 | 18189-07 | SEAT, intake-valve (2) | FXDLS |
| 20 | 18270-00A | COLLAR, lower, valve-spring (4) | FXDLS |
| 21 | 18271-00 | KEY, collar, valve-spring (8) | FXDLS |
| 22 | 18272-00 | SPRING SET, inner and outer, valve (4) | FXDLS |
| 23 | 18280-07 | COLLAR, upper, valve-spring (4) | FXDLS |
| 25 | 29517-07A | MEDALLION KIT (set of 2) | FXDLS |
| 28 | 25800017 | SCREW, medallion (4) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 22 | 17709-11 | ROCKER HOUSING (black) (2) | FXDLS |
| 31 | 18572-13 | KIT, HYDRAULIC LIFTER (set of 4) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FXDLS |
| 21953-11 | PISTON RING SET, 0.010 in over-size (2) | FXDLS | |
| 4 | 22000001 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, standard (2) | FXDLS |
| 22000003 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, 0.010 in over-size (2) | FXDLS | |
| 5 | 24100021 | FLYWHEEL ASSEMBLY KIT | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 4 | 1090A | SCREW | FXDLS |
| 17 | 24758-07A | CRANKCASE SET, with 1, 2, 3, 4, 6, 10, 11, 12, 13, 16, 19 and 21 (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 25369-01B | CAM COVER (chrome) | FXDL |
| Index No. | Part No. | Description | Model(s) |
| 25400002 | CAMSHAFT KIT, front (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 25400003 | CAMSHAFT KIT, rear (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 36 | 25600012 | COVER, ignition (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 15 | 25638-07 | CAMSHAFT KIT, front and rear camshafts | FXDLS |
| 35 | 25600012 | COVER, timer cover | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 16400026A | BRACKET ASSEMBLY, engine mount | FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, with O-ring (2) | FXDLS |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FXDLS |
| 7 | 27712-08 | BRACKET, induction module | FXDLS |
| 8 | 27721-08 | FUEL RAIL | FXDLS |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, with O-ring | FXDLS |
| 11 | 27200002 | INDUCTION MODULE KIT, with 27711-08 and 90383-98 | FXDLS |
| 12 | 61200048 | FUEL LINE KIT | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 61300359 | TRIM, air cleaner - DYNA LOW RIDER | FXDL | |
| 22 | 10200461 | SCREW (Canada, Domestic) (3) | FXDB 103, FXDBP 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 2 | 8250 | STUD, air cleaner mounting (3) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 3 | 11934A | GASKET, air cleaner intake tube (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 4 | 28012-09 | WARNING LABEL | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 5 | 28101-10 | ADAPTER PLATE ASSEMBLY | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 6 | 28723-10 | BACKPLATE (black) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 8 | 29557-05 | PLUG, breather (2) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 9 | 29670-09 | ELEMENT ASSEMBLY | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 10 | 29762-09 | RAINSOCK, air cleaner | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 11 | 10500053 | SCREW (6) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 12 | 25700651 | GASKET | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| 13 | 29400025 | COVER, air cleaner, with 28012-09 (chrome) | FLD 103, FXDL 103, FXDWG 103 |
| 61300042 | COVER, air cleaner (black) | FXDF 103 | |
| 14 | 61300674 | INSERT, air cleaner cover | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (3) | FXDLS |
| 2 | 2484 | SCREW (3) | FXDLS |
| 4 | 10925 | O-RING (4) | FXDLS |
| 5 | 11292 | O-RING (2) | FXDLS |
| 6 | 27948-08 | GASKET, backplate | FXDLS |
| 7 | 28818-09 | INTAKE TUBE (gloss black) | FXDLS |
| 8 | 28887-09 | BACKPLATE (gloss black) | FXDLS |
| 9 | 29069-09 | MOUNTING RING (gloss black) | FXDLS |
| 11 | 29780-08A | GASKET, backplate tube | FXDLS |
| 12 | 12100093 | PLUG, backplate (black) (2) | FXDLS |
| 13 | 14000377 | WARNING LABEL, air cleaner (Domestic, California) | FXDLS |
| 14 | 29400296 | RAINSOCK | FXDLS |
| 15 | 29400297 | FILTER, element, with 61300734 | FXDLS |
| 16 | 61300110 | COVER KIT, w/ 27948-08 & label (black) | FXDLS |
| 17 | 61300734 | END CAP, air cleaner element | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 8 | 32362-04A | SPARK PLUG (2) | ALL |
| 10 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 33900188 | SHIFT LEVER (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 37000072 | CLUTCH ASSEMBLY, with 1, 10, 12, 13, 14, 15, 17, 18, 19, 21, 22 and 23 (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 37871-98A | SPRING, clutch (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 11 | 37807-03 | SPRING, clutch (pink) | FXDLS |
| 12 | 37817-11 | CLUTCH ASSEMBLY, with 1, 10, 11, 13, 14, 15, 17, 18, 19, 21, 22 and 23 | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 34948-08 | GASKET, housing cover | FXDLS | |
| 25700020 | COVER, clutch (gloss black) | FXDLS | |
| 25700337 | GASKET KIT, inner primary, with 1, 7, 8, 10, 12, 11105, 27444-00Y and 37909-90 | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 44996-07 | HAND LEVER, with 45021-86, 45423-92 and 90770-79 (black) | FXDLS | |
| 41700407 | CLAMP, handlebar control | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW (set of 2) (2) | ALL |
| 5 | 45006-96E | REPAIR KIT, master cylinder (9/16 in bore) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDWG, FXDWG 103 |
| 45072-96D | REPAIR KIT, master cylinder (11/16 in bore) | FXDF, FXDF 103, FXDL, FXDL 103, FXDLS | |
| 41700456 | MASTER CYLINDER, 11/16 in bore | FXDLS | |
| 41700407 | CLAMP, handlebar control | FXDLS | |
| 11 | 46423-05C | COVER KIT (black) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7352 | ACORN NUT (2) | FXDLS | |
| 92614-10 | MIRROR KIT, short - right - convex, with 7155 and 7352 (black) | FXDLS | |
| 92615-10 | MIRROR KIT, short - left - convex, with 7155 and 7352 (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 9 | 42163-08A | BRAKE LINE, dual disc | FXDF, FXDF 103 |
| 41800295A | BRAKE LINE, dual disc | FXDL, FXDL 103 | |
| 10 | 42728-08A | BRAKE LINE (PULL BACK OPTION) | FXDBP 103 |
| 45112-08A | BRAKE LINE (FXDBP 103- MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 41800213A | BRAKE LINE (DRAG BAR OPTION) | FXDBP 103 |
| Index No. | Part No. | Description | Model(s) |
| 26 | 42142-08C | BRAKE LINE (NON-ABS) | FXDB, FXDB 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| 27 | 46871-12A | BRAKE LINE, ABS, Hydraulic Control Unit (HCU) to master cylinder | ALL |
| 28 | 42382-87E | REPAIR KIT, master cylinder | ALL |
| Index No. | Part No. | Description | Model(s) |
| 34 | 42474-06C | MASTER CYLINDER, with 1, 6, 16, 17, 18, 19, 23, 28, 31, 39, 42 and 43 | FLD, FLD 103 |
| 41700065A | MASTER CYLINDER, ABS, with 6, 16, 17, 18, 19, 28, 31, 33 and 42 | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG, FXDWG 103 | |
| 50600218 | BRAKE PEDAL (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 12 | 42926-12A | BRAKE LINE ASSEMBLY | FLD, FLD 103 |
| 42927-12A | BRAKE LINE ASSEMBLY (FXDBP 103-PULL BACK OPTION) | FXDBP 103 | |
| 42935-12A | BRAKE LINE ASSEMBLY (FXDBP 103-MINI APE OPTION) | FXDB, FXDB 103, FXDBP 103 | |
| 42940-12A | BRAKE LINE ASSEMBLY | FXDWG, FXDWG 103 | |
| 41800212A | BRAKE LINE ASSEMBLY (FXDBP 103-DRAG BAR OPTION) | FXDBC, FXDBC 103, FXDBP 103 | |
| 13 | 44084-12A | BRAKE LINE ASSEMBLY, dual disc | FXDF, FXDF 103, FXDLS |
| 41800296A | BRAKE LINE ASSEMBLY, dual disc | FXDL 103 | |
| 16 | 46871-12A | BRAKE LINE, HCU to master cylinder | ALL |
| 17 | 46872-12B | BRAKE LINE, HCU to caliper | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 10340B | CLIP | FLD, FLD 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS |
| 43300449 | WHEEL ASSEMBLY, 19 in, without bearings and sleeves (gold) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 6 | 10340B | CLIP (2) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 95595-84B | WEIGHT, 5 g (silver) (6) | FXDBP 103, FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 27 | 95595-84B | WEIGHT, 5 g (silver) | FLD, FLD 103 |
| 40900466 | WHEEL ASSEMBLY, 17 in, without bearings and sleeves (gold) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 41431-09 | RIM, wheel 17 in steel (black) (use 41430-09A) | FXDB, FXDB 103, FXDBP 103, FXDWG, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 95595-84B | WEIGHT, 5 g (silver) (6) | FXDB, FXDB 103, FXDBP 103, FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 45900190 | CLAMP (upper) (black) | FXDLS | |
| 45800081 | CAP, stem (black) | FXDLS | |
| 45900189 | FORK STEM, with 45611-86 (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 11 | 46510-01 | COLLAR SPRING (2) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 45500061 | FORK PIPE, right, with 45866-84 | FLD, FLD 103 |
| Index No. | Part No. | Description | Model(s) |
| 11 | 46510-07 | COLLAR SPRING (right) | FXDLS |
| 22 | 69861-07 | REFLECTOR, amber (right) | FXDLS |
| 23 | 69862-07 | REFLECTOR, amber (left) | FXDLS |
| 24 | 22000031 | PISTON RING (right) | FXDLS |
| 25 | 45400174 | FORK ASSEMBLY (right) (black) | FXDLS |
| 26 | 45400175 | FORK ASSEMBLY (left) (black) | FXDLS |
| 28 | 45500233 | OIL LOCK PIECE (left) | FXDLS |
| 29 | 45500236 | SCREW (left) | FXDLS |
| 30 | 45500269 | SLIDER, fork (left) (black) | FXDLS |
| 31 | 45500271 | SLIDER, fork (right) (black) | FXDLS |
| 32 | 45500297 | BOLT (left) | FXDLS |
| 33 | 45500390 | COVER, case (black) (2) | FXDLS |
| 34 | 45500432 | SPRING, fork (right) | FXDLS |
| 35 | 45500433 | SPRING, fork (left) | FXDLS |
| 36 | 45500434 | FORK PIPE, with 46080-01 (left) | FXDLS |
| 37 | 45800092 | BOTTOM PIPE, with 22000031 (right) | FXDLS |
| 38 | 45800093 | CARTRIDGE (left) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 14 | 54000067 | SHOCK ABSORBER, with 54556-84 (2) | FXDLS |
| 15 | 54000131 | COVER, shock bolt (black) (2) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 16 | 47000142 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDB |
| 16 | 47000143 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDF |
| 16 | 47000143 | FRAME, 29 degree rake, with 10257 and 48315-60 (India only) | FXDF |
| 50000138 | LEG, jiffy stand (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 45 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
| Index No. | Part No. | Description | Model(s) |
| 20 | 67956-96 | SCREW (2) | FXDLS |
| 22 | 12700130 | BRACKET, seat | FXDLS |
| 28 | 52000287 | SEAT ASSEMBLY, with 67956-96 and 12700130 | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 6 | 7716 | LOCKNUT (4) | FLD, FLD 103 |
| 9 | 33129-06 | WEAR PEG, footpeg (2) | FXDLS |
| 50500625 | SUPPORT, rider footrest (left) (black) | FXDLS | |
| 50500622 | SUPPORT, rider footrest (right) (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 23 | 51323-08 | FOOTPEG ASSEMBLY (right) | FXDLS |
| 24 | 51327-08 | FOOTPEG ASSEMBLY (left) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 28 | 59500097A | FENDER, rear (primed) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 7 | 11576 | CUSHION (2) | FLD, FLD 103 |
| 21 | 12400100 | SPACER | FLD, FLD 103 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 7487 | WASHER GUIDE | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| 6 | 7716 | LOCKNUT (4) | FXDB, FXDB 103, FXDBP 103, FXDLS |
| 35 | 67900326 | BRACKET ASSEMBLY, license plate, with 68702-07 and 67900123 (black side mount bracket) (Domestic) | FXDLS |
| 67900121 | BRACKET ASSEMBLY, license plate, with 68702-07 and 67900123 (chrome side mount bracket) (Domestic) | FXDB, FXDB 103, FXDBP 103 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 6016 | WASHER (4) | ALL |
| 9 | 10340B | CLIP, resealable | ALL |
| 19 | 62194-04C | CHECK VALVE, output, with 11323 and 11387A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 67478-12A | SPEEDOMETER, mph | FXDB 103, FXDBP 103, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 14 | 67096-12A | SPEEDOMETER, mph | FLD, FLD 103, FXDF, FXDF 103 |
| Index No. | Part No. | Description | Model(s) |
| 15 | 67478-12A | SPEEDOMETER, mph (Domestic, California) | FXDL 103 |
| 70900669 | SPEEDOMETER, mph (Domestic, California) | FXDLS | |
| 70900671 | SPEEDOMETER, mph/km/h (England) | FXDLS | |
| 67000011 | TACHOMETER | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 46 | 71400095A | LOCK SET, with 6, 17, 47, 48 and 49 | FXDL, FXDL 103 |
| 45600052 | LOCK SET, with 17 and 49 | FXDLS | |
| 48 | 71400115A | KIT, KNOB, ignition switch, with 1565 | FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 21 | 10200374 | SCREW (12) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 10340B | CLIP | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 14100959 | MEDALLION (right) (for vivid black tank) | FXDLS |
| 14100960 | MEDALLION (left) (for vivid black tank) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 67700116 | TRIM RING (black) | FXDLS | |
| 25 | 68297-05A | LAMP ASSEMBLY, 5-3/4 in, with 67667-05 and 68329-03 | FXDB 103, FXDBP 103, FXDWG 103 |
| 68297-05A | LAMP ASSEMBLY, 5-3/4 in, with 67667-05 and 68329-03 (Domestic, California, Canada) | FXDL, FXDL 103, FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 27 | 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England, Japan, India) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDLS, FXDWG, FXDWG 103 |
| 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England, Japan) | FXDLS | |
| 68335-05A | LAMP ASSEMBLY, 5-3/4 in, left, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Australia, England) | FXDL 103 | |
| 68341-05A | LAMP ASSEMBLY, 5-3/4 in, right, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05 (Asia-Pacific, HDI, Brazil) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDF, FXDL, FXDL 103, FXDWG, FXDWG 103 | |
| 68341-05A | LAMP ASSEMBLY, 5-3/4 in, right, with 53436-97, 67667-05, 68329-03, 68380-05 and 68653-05(HDI) | FXDL 103, FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FXDLS |
| 2 | 3832M | SCREW (2) | FXDLS |
| 5 | 11491A | GROMMET (2) | FXDLS |
| 6 | 10100012A | CLIP NUT (2) | FXDLS |
| 8 | 10300035 | WASHER (2) | FXDLS |
| 9 | 57000740DH | SPEED SCREEN (black) | FXDLS |
| 10 | 57000755 | BRACKET, fairing (upper) (black) | FXDLS |
| 11 | 57000756 | BRACKET, fairing (lower) (black) | FXDLS |
| 12 | 57000758 | FAIRING, inner (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 18 | 68342-05A | REFLECTOR ASSEMBLY, with 67668-05, 68329-03 and 68390-05 | FLD, FLD 103 |
| 19 | 68344-05A | REFLECTOR ASSEMBLY, left dip (Australia, England, Japan) | FLD, FLD 103 |
| 68345-05A | REFLECTOR ASSEMBLY, right dip (HDI, Asia-Pacific) | FLD, FLD 103 |
| Index No. | Part No. | Description | Model(s) |
| 12700132 | BRACKET, turn signal mount (left) | FXDLS | |
| 67800148 | SOCKET ASSEMBLY, front (used with 67800525) (HDI) | FXDLS | |
| 67800525 | TURN SIGNAL, front (HDI) | FXDLS | |
| 20 | 71500372 | HAND CONTROL MODULE, left, with turn signal (FXDBP 103-MINI APE AND DRAG OPTIONS)(chrome)(Domestic) | FXDB 103, FXDBP 103, FXDF 103, FXDL 103, FXDWG 103 |
| 71500373 | HAND CONTROL MODULE, left, with turn signal (FXDBP 103-MINI APE AND DRAG OPTIONS)(chrome)(Asia-Pacific, Australia, Brazil, England, HDI, India, Japan) | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 22 | 67800147 | SOCKET ASSEMBLY, front (used with 67800523) (Domestic) | FXDLS |
| 23 | 67800523 | TURN SIGNAL, front (Domestic) | FXDLS |
| 24 | 69201179 | HOUSING, four-way socket | FXDLS |
| 26 | 71500289 | HOUSING, left, lower (black) | FXDLS |
| 27 | 71500288 | HAND CONTROL MODULE, without turn signal (left) | FXDLS |
| 28 | 71500290 | SWITCH CAP, set/resume, with clip | FXDLS |
| 29 | 71500292 | HAND CONTROL MODULE, without turn signal (left) (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103 |
| 30 | 71500293 | SWITCH CAP, horn/trip (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 31 | 71500294 | SWITCH CAP, lights, with pins and springs (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 32 | 71500295 | SWITCH CAP, left turn (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 67800630 | BRACKET, right turn signal mount (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 23 | 67800147 | SOCKET ASSEMBLY, front (used with 67800523) (Domestic) | FXDLS |
| 67800148 | SOCKET ASSEMBLY, front (used with 67800525) (HDI) | FXDLS | |
| 24 | 67800523 | TURN SIGNAL, front (Domestic) | FXDLS |
| 67800525 | TURN SIGNAL, front (HDI) | FXDLS | |
| 25 | 69201179 | HOUSING, four-way socket | FXDLS |
| 27 | 71500297 | HAND CONTROL MODULE, right, without turn signal (FXDBP 103-PULL BACK OPTION) | FLD, FLD 103, FXDBP 103, FXDLS |
| 28 | 71500298 | KEY CAP, hazard (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| 29 | 71500299 | KEY CAP, off/run, with pins and springs (FXDBP 103-DRAG BAR, MINI APE AND PULL BACK OPTIONS) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 56859-09 | CLAMP, handlebar (black) | FXDLS |
| 21 | 55800674 | HANDLEBAR | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FXDLS |
| 5 | 32700050 | SENSOR, twist grip, with 32306-08, 72902-01BK, 72990-01, 69200307 and 69201162 | FXDLS |
| 6 | 56100075 | THROTTLE GRIP (right) | FXDLS |
| 7 | 69200307 | TERMINAL, socket, 22 AWG (6) | FXDLS |
| 8 | 69201162 | HOUSING, six-way socket (black) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 67800723 | TURN SIGNAL ASSEMBLY, rear (black) (Domestic, California, Canada) (2) | FXDLS | |
| 68277-07 | SUPPORT (black) (Canada, HDI) (2) | FXDLS | |
| 69933-08 | SUPPORT (right side only) (satin) (Domestic, California) | FXDLS | |
| 67800184 | SUPPORT (left side only) (gloss black) (Domestic, California) | FXDLS | |
| 23 | 68497-07 | SOCKET ASSEMBLY, rear (used with 67800723) (Domestic, California, Canada) (2) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 62 | 67800724 | TURN SIGNAL ASSEMBLY, rear with 72991-01 (black) (HDI, England, Australia and Japan) (2) | FXDLS |
| 67 | 69201240 | TERMINAL, socket 18 AWG (4) | FXDF, FXDF 103 |
| Index No. | Part No. | Description | Model(s) |
| 30 | 65696-08B | BRACKET, rear exhaust | FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103 |
| Index No. | Part No. | Description | Model(s) |
| 15 | 65906-12A | MUFFLER ASSEMBLY, chrome, with 7432M and 65800-09 (Domestic, California, Canada) | FXDL, FXDL 103 |
| 24 | 64800023A | EXHAUST PIPE ASSEMBLY | FXDL, FXDL 103 |
| Index No. | Part No. | Description | Model(s) |
| 64900512 | MUFFLER, rear (black) (Domestic, California, HDI, Australia, Canada, England) | FXDLS | |
| 64900513 | MUFFLER, rear (black) (Japan) | FXDLS | |
| 65400298 | SHIELD, front exhaust (black) | FXDLS | |
| 65400299 | SHIELD, rear exhaust (black) | FXDLS | |
| 64900510 | MUFFLER, front (black) (Domestic, California, HDI, Australia, Canada, England) | FXDLS | |
| 64900511 | MUFFLER, front (black) (Japan) | FXDLS | |
| 18 | 65696-08B | BRACKET, muffler | FXDF, FXDF 103, FXDLS, FXDWG, FXDWG 103 |
| 65237-09 | HEATSHIELD ASSEMBLY, collector (black) | FXDLS | |
| 4716W | SCREW | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 33 | 65600006A | EXHAUST PIPE, assembly | FXDF 103, FXDLS, FXDWG 103 |
| 65600004A | EXHAUST PIPE, assembly (Australia, England, HDI, India) | FXDF, FXDF 103, FXDWG, FXDWG 103 | |
| 65600006A | EXHAUST PIPE, assembly (Asia-Pacific, Japan, Brazil) | FXDF, FXDWG |
| Index No. | Part No. | Description | Model(s) |
| 20 | 65906-12A | MUFFLER ASSEMBLY, chrome (Domestic, California, Canada) | FLD 103 |
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN | FXDLS | |
| 12 | 69201163 | HOUSING, six-way pin | FXDLS |
| 13 | 69201164 | TERMINAL, pin, 22 AWG (6) | FXDLS |
| 14 | 69201180 | HOUSING, four-way pin (gray) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| 21 | 69200238 | TERMINAL, 20 AWG (black) (2) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| 36 | 69200212 | HARNESS, battery tender | FXDLS |
| 38 | 69200267A | HOUSING, 18-way socket, key B | FXDLS |
| 39 | 69200268A | HOUSING, 18-way socket, key C | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 69201569 | WIRING HARNESS, MAIN (CONTINUED) | FXDLS | |
| 9 | 72251-07 | SECONDARY LOCK, two-way socket (2) | FXDLS |
| 12 | 72406-07A | HOUSING, four-way socket (black) | FXDLS |
| 13 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FXDLS |
| 15 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | ALL |
| 16 | 72483-08BK | HOUSING, six-way socket (black) | FXDLS |
| 20 | 72663-11 | TERMINAL, socket, 18-20 AWG (6) | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 61400416 | TRIM, battery cover | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 14 | 69060-90H | HORN ASSEMBLY | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDWG, FXDWG 103 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 69992-12B | BODY CONTROL MODULE (BCM), non-security | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDWG, FXDWG 103 |
| 69994-12B | BODY CONTROL MODULE (BCM), security (excluding Japan) | FLD, FLD 103, FXDB, FXDB 103, FXDBC, FXDBC 103, FXDBP 103, FXDF, FXDF 103, FXDL, FXDL 103, FXDLS, FXDWG 103 | |
| 11 | 69996-12B | BODY CONTROL MODULE (BCM) (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDLS, FXDWG |
| 20 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital tech programming | FXDLS |
| Index No. | Part No. | Description | Model(s) |
| 22 | 90200010BDK | COVER (right) (primed) | FLD, FLD 103 |
| 90200011BDK | COVER (left) (primed) | FLD, FLD 103 | |
| 23 | 90200018BDK | BOTTOM (right) (primed) | FLD, FLD 103 |
| 90200019BDK | BOTTOM (left) (primed) | FLD, FLD 103 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 13729-16 | YEAR OF MANUFACTURING LABEL (Brazil) | FXDB, FXDF, FXDL |
| 7 | 14000377 | WARNING LABEL, air cleaner (Domestic, California) | FXDLS |
| 8 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLD, FXDB, FXDBC, FXDF, FXDL, FXDWG |
| Index No. | Part No. | Description | Model(s) |
| 99467-16B | OWNER'S MANUAL (English) | ALL | |
| 94000326 | OWNER'S KIT CONTENT (Domestic) | ALL | |
| 29762-09 | RAINSOCK (103 High Output) (Canada, Domestic) | FLD 103, FXDF 103, FXDL 103, FXDWG 103 | |
| 14900080 | TOOL, shock spanner | FXDLS | |
| 29400296 | RAINSOCK | FXDLS |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10014 | |
| 10031 | |
| 10038A | |
| 10039 | |
| 10053 | |
| 10065 | |
| 10074 | |
| 10100012A | |
| 10113 | |
| 10119 | |
| 10147 | |
| 10177 | |
| 10191A | |
| 10200016 | |
| 10200026 | |
| 10200030 | |
| 10200031 | |
| 10200032 | |
| 10200033 | |
| 10200036 | |
| 10200053 | |
| 10200070 | |
| 10200078 | |
| 10200109 | |
| 10200120 | |
| 10200141 | |
| 10200221 | |
| 10200227 | |
| 10200374 | |
| 10200461 | |
| 10214 | |
| 10264 | |
| 10270 | |
| 10285A | |
| 10287 | |
| 10300035 | |
| 10309 | |
| 10324 | |
| 10340B | |
| 1039 | |
| 10400003 | |
| 10475 | |
| 10500009 | |
| 10500010 | |
| 10500023 | |
| 10500031 | |
| 10500047 | |
| 10500053 | |
| 10600010 | |
| 1062 | |
| 10800005 | |
| 10800027 | |
| 10800064 | |
| 10800071 | |
| 10800073 | |
| 10800087 | |
| 10850 | |
| 1090A | |
| 10925 | |
| 10991A | |
| 10992 | |
| 10998 | |
| 11000101 | |
| 11005 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11096 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11155 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11289A | |
| 11291 | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11323 | |
| 11387A | |
| 11389 | |
| 11461 | |
| 11491A | |
| 11573 | |
| 11575 | |
| 11576 | |
| 11578 | |
| 11580 | |
| 11599A | |
| 11600001 | |
| 11672 | |
| 11686 | |
| 11689 | |
| 11700004 | |
| 11785 | |
| 11804 | |
| 11895 | |
| 11896 | |
| 11907 | |
| 11934A | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100002 | |
| 12100021 | |
| 12100048 | |
| 12100093 | |
| 12400073 | |
| 12400100 | |
| 12500001 | |
| 12500002 | |
| 12500003 | |
| 12500006 | |
| 12600024 | |
| 12600042 | |
| 12600043 | |
| 12700130 | |
| 12700132 | |
| 13729-15 | |
| 13729-16 | |
| 14000069 | |
| 14000234 | |
| 14000267 | |
| 14000377 | |
| 14000566 | |
| 14000827 | |
| 14100062 | |
| 14100063 | |
| 14100959 | |
| 14100960 | |
| 14130-06B | |
| 14272-06 | |
| 14900080 | |
| 15368-01A | |
| 15370-01A | |
| 15385-08 | |
| 1565 | |
| 16200068 | |
| 16200170 | |
| 16200171 | |
| 16200172 | |
| 16200173 | |
| 16200258 | |
| 16241-90 | |
| 16258-95C | |
| 16328-04A | |
| 16400015 | |
| 16400026A | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16500023 | |
| 16500092 | |
| 16500093 | |
| 16500094 | |
| 16500095 | |
| 16547-99A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16708-95A | |
| 16715-83 | |
| 16719-99B | |
| 16775-99B | |
| 16787-99A | |
| 16800003A | |
| 16801-07B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17178-06A | |
| 17179-06 | |
| 17251-07B | |
| 17252-07A | |
| 17253-07B | |
| 17257-07A | |
| 17285-07A | |
| 17349-07B | |
| 17350-07B | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17458-07 | |
| 17460-07A | |
| 17558-08 | |
| 17572-99 | |
| 17573-99A | |
| 17574-99A | |
| 17575-99 | |
| 17576-99 | |
| 17577-99 | |
| 17594-99 | |
| 17611-83 | |
| 17620-99 | |
| 17709-11 | |
| 17729-08 | |
| 1775 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18048-98A | |
| 18067-09 | |
| 18074-05A | |
| 18083-09 | |
| 18085-05B | |
| 18094-02A | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18538-99C | |
| 18572-13 | |
| 18635-99B | |
| 19255-16 | |
| 19593-16 | |
| 19595-16 | |
| 19597-16 | |
| 19804-16 | |
| 19805-16 | |
| 19806-16 | |
| 19863-16 | |
| 20019-16 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21949-07 | |
| 21950-07 | |
| 21951-11 | |
| 21953-11 | |
| 21955-07 | |
| 21959-07 | |
| 21960-07 | |
| 21961-07 | |
| 21962-07 | |
| 21964-07 | |
| 22000001 | |
| 22000003 | |
| 22000031 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 22307-99 | |
| 2240 | |
| 2261 | |
| 2361 | |
| 23729-07B | |
| 24004-03B | |
| 24009-06 | |
| 2405A | |
| 24100021 | |
| 2420 | |
| 2445 | |
| 2452 | |
| 24605-07 | |
| 24608-07A | |
| 24621-06B | |
| 2469 | |
| 24754-75A | |
| 24758-07A | |
| 2482 | |
| 2484 | |
| 2501A | |
| 2508 | |
| 25244-99A | |
| 2524B | |
| 25355-06A | |
| 25363-01B | |
| 25364-01B | |
| 25369-01B | |
| 25400002 | |
| 25400003 | |
| 25566-06 | |
| 25585-06 | |
| 25590-07A | |
| 25600012 | |
| 25604-00A | |
| 25605-00A | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700020 | |
| 25700037 | |
| 25700038 | |
| 25700043 | |
| 25700082 | |
| 25700083 | |
| 25700159 | |
| 25700226 | |
| 25700252 | |
| 25700337 | |
| 25700651 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2579A | |
| 25800017 | |
| 2590 | |
| 26037-06 | |
| 26072-99A | |
| 26087-99A | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 26500002 | |
| 26561-99 | |
| 26993-06 | |
| 26995-86B | |
| 27189-12 | |
| 27200002 | |
| 27296-12 | |
| 27300014 | |
| 27381-06 | |
| 27389-12 | |
| 27444-00Y | |
| 27609-01B | |
| 27651-06 | |
| 27655-06 | |
| 27658-06 | |
| 27659-06 | |
| 27684-06 | |
| 27708-06B | |
| 27709-06A | |
| 27711-08 | |
| 27712-08 | |
| 27715-07 | |
| 27721-08 | |
| 2773 | |
| 27948-08 | |
| 28012-09 | |
| 28101-10 | |
| 28723-10 | |
| 28725-10 | |
| 28814-12 | |
| 28818-09 | |
| 28819-12 | |
| 28829-12 | |
| 2882W | |
| 28830-12 | |
| 28861-07A | |
| 28887-09 | |
| 29000064 | |
| 29069-09 | |
| 29108-08 | |
| 29110-08 | |
| 29127-95B | |
| 29136-91 | |
| 29154-08 | |
| 29182-08A | |
| 29183-08A | |
| 29186-08 | |
| 29191-08 | |
| 2921 | |
| 29269-83A | |
| 29306-08 | |
| 29313-95 | |
| 29314-08 | |
| 29343-08 | |
| 29344-10 | |
| 29347-08 | |
| 29393-08 | |
| 29400025 | |
| 29400296 | |
| 29400297 | |
| 29465-08A | |
| 29500001 | |
| 29517-07A | |
| 29557-05 | |
| 29583-01A | |
| 29670-09 | |
| 29762-09 | |
| 29780-08A | |
| 2980 | |
| 30017-08 | |
| 30041-08A | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3061 | |
| 3109 | |
| 3112A | |
| 31500001 | |
| 31500002 | |
| 3159 | |
| 31604-06 | |
| 31618-06A | |
| 31633-07A | |
| 31657-12 | |
| 31696-07A | |
| 31960-99A | |
| 31981-99C | |
| 3210A | |
| 3214 | |
| 32306-08 | |
| 32319-07A | |
| 32362-04A | |
| 32417-10 | |
| 32446-99 | |
| 3249 | |
| 32543-07 | |
| 32558-99 | |
| 32700005 | |
| 32700006 | |
| 32700050 | |
| 32707-01C | |
| 3275 | |
| 33032-99 | |
| 33083-10A | |
| 33129-06 | |
| 33216-99 | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33413-06A | |
| 33693-03 | |
| 33708-94 | |
| 33728-06 | |
| 33789-12 | |
| 33849-97 | |
| 33900004 | |
| 33900147 | |
| 33900188 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 34469-06B | |
| 34521-06B | |
| 34564-90B | |
| 34611-65A | |
| 34621-06 | |
| 34625-90 | |
| 3471 | |
| 34747-06C | |
| 3487 | |
| 34887-06 | |
| 34917-06 | |
| 34920-86A | |
| 34934-06 | |
| 34948-08 | |
| 34982-02A | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 3509 | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35259-06 | |
| 35260-06A | |
| 3537 | |
| 3540 | |
| 35467-06B | |
| 35470-10 | |
| 3554 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 3579A | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3592A | |
| 3594 | |
| 3595 | |
| 3612 | |
| 36500034A | |
| 3655A | |
| 3656 | |
| 3658 | |
| 36805-06 | |
| 3691 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000072 | |
| 37065-06 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37116-06 | |
| 37135-06 | |
| 37142-07 | |
| 37200083 | |
| 37312-75 | |
| 37313-80 | |
| 3736B | |
| 37496-90A | |
| 37554-11 | |
| 3762M | |
| 37807-03 | |
| 37813-11 | |
| 37814-12 | |
| 37816-11 | |
| 37817-11 | |
| 37871-04 | |
| 37871-98A | |
| 37872-00 | |
| 37882-06A | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38157-12 | |
| 38160-12 | |
| 38161-12 | |
| 3832M | |
| 38608-96 | |
| 38630-88 | |
| 38653-01 | |
| 38722-94 | |
| 38785-08A | |
| 38787-06C | |
| 38788-06C | |
| 38789-06C | |
| 3880 | |
| 3983 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40036-06 | |
| 40046-07 | |
| 40048-07 | |
| 40100041 | |
| 40114-07 | |
| 40323-00 | |
| 4042 | |
| 40634-07 | |
| 40645-06 | |
| 40653-07 | |
| 40659-06 | |
| 40680-12 | |
| 40682-12 | |
| 4068A | |
| 40761-05 | |
| 40762-05 | |
| 40863-06 | |
| 40900138 | |
| 40900198 | |
| 40900261 | |
| 40900289 | |
| 40900466 | |
| 40903-87 | |
| 40908-08 | |
| 40918-87 | |
| 4092 | |
| 40920-87 | |
| 40922-87A | |
| 40926-08 | |
| 40927-08 | |
| 40941-12 | |
| 40947-08A | |
| 40954-12 | |
| 40964-08 | |
| 40979-08A | |
| 40999-87 | |
| 41000006A | |
| 41000057 | |
| 41036-12 | |
| 41100001 | |
| 41114-08 | |
| 41123-79 | |
| 4116 | |
| 41229-08 | |
| 41242-08 | |
| 41300001 | |
| 41300002 | |
| 41314-10 | |
| 41316-10 | |
| 41319-10 | |
| 4132 | |
| 41323-10 | |
| 41325-10 | |
| 41349-07 | |
| 41425-09 | |
| 41426-07 | |
| 41430-09A | |
| 41431-09 | |
| 41547-07A | |
| 41571-08 | |
| 41585-90B | |
| 41600007 | |
| 41600028 | |
| 41600038 | |
| 41628-08 | |
| 41687-10 | |
| 41700060 | |
| 41700061 | |
| 41700062 | |
| 41700063 | |
| 41700065A | |
| 41700407 | |
| 41700456 | |
| 41731-01 | |
| 41733-88 | |
| 41739-84A | |
| 41747-82A | |
| 41748-08 | |
| 41756-08 | |
| 41797-00 | |
| 4180 | |
| 41800212A | |
| 41800213A | |
| 41800295A | |
| 41800296A | |
| 41803-06 | |
| 41929-12A | |
| 41955-03A | |
| 41961-90 | |
| 42000006 | |
| 42000007 | |
| 42062-08 | |
| 42142-08C | |
| 42143-08B | |
| 42163-08A | |
| 42298-08 | |
| 42344-08A | |
| 42345-08 | |
| 42347-08 | |
| 42348-08 | |
| 42382-87E | |
| 42416-06 | |
| 42443-80A | |
| 42448-87 | |
| 42460-80B | |
| 42471-01A | |
| 42474-06C | |
| 42481-03A | |
| 42493-12 | |
| 42502-90B | |
| 42532-06 | |
| 42542-06 | |
| 42568-05A | |
| 42663-03A | |
| 42665-03 | |
| 4269 | |
| 42728-08A | |
| 4274 | |
| 42926-12A | |
| 42927-12A | |
| 42929-12 | |
| 42935-12A | |
| 42940-12A | |
| 43001-06 | |
| 43052-05A | |
| 43105-08 | |
| 4312C | |
| 43157-83A | |
| 43200005 | |
| 43200015 | |
| 43218-08 | |
| 43228-08 | |
| 43239-05 | |
| 43250-07B | |
| 43258-07B | |
| 4326A | |
| 43300138 | |
| 43300202 | |
| 43300254 | |
| 43300280 | |
| 43300449 | |
| 4334 | |
| 43371-07A | |
| 4339A | |
| 4350A | |
| 43567-92 | |
| 43905-08 | |
| 4400 | |
| 44048-83A | |
| 44066-08A | |
| 44084-12A | |
| 44126-87 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 4419 | |
| 4420 | |
| 44233-12 | |
| 44313-08A | |
| 44337-08 | |
| 44338-00 | |
| 44351-00 | |
| 44447-00 | |
| 44553-06A | |
| 44743-08A | |
| 44995-08 | |
| 44996-07 | |
| 45006-96E | |
| 45015-96 | |
| 45016-08 | |
| 45016-96 | |
| 45021-86 | |
| 45029-11C | |
| 45032-82 | |
| 45036-88 | |
| 45044-96A | |
| 45072-96D | |
| 45104-08 | |
| 45112-08A | |
| 4512A | |
| 45170-08D | |
| 45322-06 | |
| 45400023 | |
| 45400024 | |
| 45400033 | |
| 45400034 | |
| 45400051 | |
| 45400052 | |
| 45400174 | |
| 45400175 | |
| 45405-75A | |
| 45423-92 | |
| 45423-96 | |
| 45500007 | |
| 45500008 | |
| 45500058 | |
| 45500059 | |
| 45500060 | |
| 45500061 | |
| 45500062 | |
| 45500063 | |
| 45500107 | |
| 45500108 | |
| 45500118 | |
| 45500126 | |
| 45500127 | |
| 45500230 | |
| 45500233 | |
| 45500236 | |
| 45500243 | |
| 45500269 | |
| 45500271 | |
| 45500297 | |
| 45500390 | |
| 45500432 | |
| 45500433 | |
| 45500434 | |
| 45538-08 | |
| 45539-08 | |
| 45600052 | |
| 45611-86 | |
| 4564M | |
| 45670-80A | |
| 45718-60 | |
| 45727-08 | |
| 45800042 | |
| 45800081 | |
| 45800092 | |
| 45800093 | |
| 45803-97 | |
| 45842-77A | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45867-08 | |
| 45875-84A | |
| 45893-99 | |
| 45900025 | |
| 45900040 | |
| 45900041 | |
| 45900189 | |
| 45900190 | |
| 45933-86 | |
| 45940-84 | |
| 45947-06A | |
| 45948-06B | |
| 45991-06 | |
| 46080-01 | |
| 4612 | |
| 4613 | |
| 46236-02 | |
| 46237-02 | |
| 46238-02 | |
| 46262-02 | |
| 46278-08 | |
| 46323-12 | |
| 46363-11 | |
| 46386-08 | |
| 46423-05C | |
| 46457-05B | |
| 46508-01 | |
| 46509-01 | |
| 46510-01 | |
| 46510-07 | |
| 46512-01A | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 4654 | |
| 46605-06 | |
| 46606-06 | |
| 46607-06A | |
| 46608-06B | |
| 46609-06 | |
| 46610-06 | |
| 46611-06 | |
| 46612-06 | |
| 46614-06 | |
| 46615-06 | |
| 46618-06 | |
| 46619-06B | |
| 46620-06 | |
| 46700-08 | |
| 46717-10 | |
| 46870-12 | |
| 46871-12A | |
| 46872-12B | |
| 46926-12 | |
| 47000142 | |
| 47000143 | |
| 4705 | |
| 4716W | |
| 4718A | |
| 47200009 | |
| 47207-12 | |
| 4721 | |
| 4722 | |
| 47226-99A | |
| 4724 | |
| 47318-98 | |
| 4740A | |
| 4741A | |
| 4748 | |
| 47564-99 | |
| 47583-90B | |
| 4761 | |
| 4762 | |
| 47624-90B | |
| 47641-06 | |
| 47745-06B | |
| 47748-10A | |
| 4775 | |
| 47760-10A | |
| 47820-10 | |
| 47841-06 | |
| 47844-06 | |
| 47855-12 | |
| 48073-04 | |
| 4813A | |
| 48198-06 | |
| 4822A | |
| 48300-60 | |
| 48307-06 | |
| 48315-60 | |
| 48341-12 | |
| 48622-08A | |
| 48623-08A | |
| 48640-09 | |
| 48659-09 | |
| 48739-08 | |
| 48740-08A | |
| 48741-08 | |
| 48742-08 | |
| 48745-08 | |
| 48802-10A | |
| 48803-10 | |
| 48862-10 | |
| 49216-06 | |
| 49224-06A | |
| 49230-06 | |
| 49379-09 | |
| 49420-12 | |
| 49704-90H | |
| 49711-08 | |
| 49720-90 | |
| 49723-98 | |
| 4997 | |
| 50000138 | |
| 50003-89B | |
| 5003 | |
| 5004 | |
| 50053-90 | |
| 50054-01 | |
| 50055-08 | |
| 50057-02 | |
| 50278-08A | |
| 50500276 | |
| 50500279 | |
| 50500622 | |
| 50500625 | |
| 50600127 | |
| 50600218 | |
| 50614-06 | |
| 50621-06 | |
| 50666-07 | |
| 50667-07 | |
| 50912-72 | |
| 51176-96C | |
| 5118 | |
| 51323-08 | |
| 51327-08 | |
| 51475-09A | |
| 51503-10 | |
| 51504-10 | |
| 51610-10 | |
| 51652-97A | |
| 51654-08 | |
| 51786-09 | |
| 51788-10 | |
| 51938-04 | |
| 52000071 | |
| 52000117 | |
| 52000136 | |
| 52000154 | |
| 52000155 | |
| 52000287 | |
| 5210 | |
| 52441-95 | |
| 53436-97 | |
| 53567-93 | |
| 53710-93 | |
| 54000049 | |
| 54000050 | |
| 54000067 | |
| 54000131 | |
| 5403B | |
| 5414 | |
| 54165-12 | |
| 54166-12 | |
| 54172-12 | |
| 54173-12 | |
| 54174-12 | |
| 54321-85 | |
| 5445W | |
| 54556-84 | |
| 54615-01 | |
| 54666-08 | |
| 54678-12 | |
| 54679-12 | |
| 54708-65A | |
| 554A | |
| 55800233 | |
| 55800674 | |
| 55900004 | |
| 55900005 | |
| 55900025 | |
| 55900061 | |
| 55900062 | |
| 55900063 | |
| 55900064 | |
| 55900065 | |
| 55980-10A | |
| 56051-06 | |
| 56073-83 | |
| 56076-97 | |
| 56100075 | |
| 56153-73 | |
| 56158-73 | |
| 56159-73 | |
| 56206-96 | |
| 56220-94A | |
| 56248-08 | |
| 56355-96A | |
| 56356-96A | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56415-06 | |
| 56421-06 | |
| 56508-76 | |
| 56541-86A | |
| 56542-86A | |
| 56633-06 | |
| 56634-06 | |
| 56666-04 | |
| 56667-04 | |
| 56859-09 | |
| 56891-12 | |
| 56898-08 | |
| 56951-09B | |
| 56959-08A | |
| 57000740DH | |
| 57000755 | |
| 57000756 | |
| 57000758 | |
| 57300001 | |
| 57300002 | |
| 57300003 | |
| 57300004 | |
| 57300024 | |
| 57300026 | |
| 57400066 | |
| 57400070 | |
| 57400071 | |
| 57400072 | |
| 57400073 | |
| 57400085 | |
| 57400122 | |
| 57400123 | |
| 57671-12 | |
| 57672-12 | |
| 57673-12 | |
| 5837A | |
| 58416-77A | |
| 59138-06A | |
| 59171-06A | |
| 59259-90 | |
| 5928 | |
| 59281-08 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59410-08 | |
| 59459-10 | |
| 59461-10 | |
| 59481-00 | |
| 59482-00 | |
| 59500097A | |
| 59500126 | |
| 59500135 | |
| 59500140 | |
| 59512-06B | |
| 59600016 | |
| 59600017 | |
| 59634-06 | |
| 59768-97 | |
| 59783-08 | |
| 59962-10 | |
| 59984-73 | |
| 59986-75 | |
| 59988-72A | |
| 60001-55 | |
| 601 | |
| 60139-06B | |
| 60141-06B | |
| 6016 | |
| 60188-08 | |
| 6019 | |
| 60214-08 | |
| 60300012 | |
| 60300013 | |
| 60328-98B | |
| 60336-10 | |
| 60339-07A | |
| 60356-07A | |
| 6036 | |
| 60375-10 | |
| 60400-12 | |
| 60508-10 | |
| 60519-10 | |
| 60547-06 | |
| 60563-08A | |
| 60633-08 | |
| 60678-85 | |
| 60717-07A | |
| 60758-06A | |
| 60764-06A | |
| 60766-06 | |
| 60767-06 | |
| 60782-06A | |
| 60790-06C | |
| 60791-06C | |
| 60800006 | |
| 60813-07 | |
| 60877-12 | |
| 60878-12 | |
| 60906-09 | |
| 60907-09 | |
| 60908-09A | |
| 60936-10 | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61013-04A | |
| 61015-04A | |
| 61016-04B | |
| 61081-92 | |
| 6109 | |
| 61100055 | |
| 61109-85D | |
| 6113 | |
| 6119 | |
| 61192-96A | |
| 61200048 | |
| 61213-04A | |
| 61272-92C | |
| 61300033 | |
| 61300038 | |
| 61300042 | |
| 61300110 | |
| 61300151 | |
| 61300191 | |
| 61300192 | |
| 61300242 | |
| 61300309 | |
| 61300359 | |
| 61300478 | |
| 61300674 | |
| 61300734 | |
| 61400078 | |
| 61400079 | |
| 61400098 | |
| 61400099 | |
| 61400104 | |
| 61400161 | |
| 61400181 | |
| 61400416 | |
| 61586-04B | |
| 61593-10 | |
| 62150-85 | |
| 62194-04C | |
| 6223 | |
| 62349-04F | |
| 62372-09 | |
| 62445-10 | |
| 62446-10 | |
| 62457-06 | |
| 6249 | |
| 62700001 | |
| 62826-02 | |
| 62828-99 | |
| 6294 | |
| 63501-68B | |
| 6366 | |
| 63731-99A | |
| 63798-99A | |
| 6379W | |
| 63869-06 | |
| 6400HB | |
| 64700-08 | |
| 64701-08 | |
| 64705-08A | |
| 64707-08 | |
| 64800003 | |
| 64800023A | |
| 64819-08 | |
| 64830-08 | |
| 64900107 | |
| 64900108 | |
| 64900136 | |
| 64900182 | |
| 64900183 | |
| 64900184 | |
| 64900185 | |
| 64900510 | |
| 64900511 | |
| 64900512 | |
| 64900513 | |
| 6497HW | |
| 64987-08A | |
| 65051-09A | |
| 65126-09 | |
| 65184-02 | |
| 65237-09 | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65376-95A | |
| 65379-95 | |
| 65400053 | |
| 65400147 | |
| 65400150 | |
| 65400298 | |
| 65400299 | |
| 65440-06 | |
| 65441-06 | |
| 65463-00 | |
| 65500032 | |
| 6551 | |
| 65521-10 | |
| 65551-12 | |
| 65556-12 | |
| 65557-12 | |
| 65600004A | |
| 65600006A | |
| 65600007 | |
| 65600008 | |
| 65600009A | |
| 65674-95 | |
| 65696-08B | |
| 65701-06A | |
| 65746-06 | |
| 65800-09 | |
| 65830-10 | |
| 65868-07 | |
| 65906-12A | |
| 65937-12 | |
| 6594 | |
| 65946-07 | |
| 65966-06 | |
| 65975-99 | |
| 65989-97C | |
| 65992-12 | |
| 66000065 | |
| 66017-01 | |
| 66025-07 | |
| 66290-06 | |
| 66361-12 | |
| 66366-06 | |
| 66373-06 | |
| 66444-12DH | |
| 66473-10 | |
| 66767-07 | |
| 66798-07 | |
| 66840-08 | |
| 66841-08 | |
| 67000010 | |
| 67000011 | |
| 6701 | |
| 67013-04A | |
| 67015-02 | |
| 67019-04A | |
| 6702 | |
| 6703 | |
| 67096-12A | |
| 67121-95A | |
| 6716 | |
| 67185-04 | |
| 67190-89 | |
| 67204-12 | |
| 67242-12 | |
| 67266-94 | |
| 67341-04B | |
| 67478-12A | |
| 67479-12 | |
| 67480-12 | |
| 67621-94 | |
| 6762B | |
| 67667-05 | |
| 67668-05 | |
| 67689-04 | |
| 67700094 | |
| 67700116 | |
| 67700167 | |
| 67700168 | |
| 67700192 | |
| 67700211 | |
| 67712-83B | |
| 67718-60A | |
| 67721-48 | |
| 67726-08 | |
| 67728-02A | |
| 67732-08 | |
| 67741-06 | |
| 67742-06 | |
| 67769-93 | |
| 67778-60A | |
| 67790-93A | |
| 67800147 | |
| 67800148 | |
| 67800184 | |
| 67800198 | |
| 67800199 | |
| 67800240 | |
| 67800523 | |
| 67800525 | |
| 67800630 | |
| 67800723 | |
| 67800724 | |
| 67815-59A | |
| 67822-88 | |
| 67827-88A | |
| 67829-88 | |
| 67831-03 | |
| 67865-89 | |
| 67883-04A | |
| 67900010 | |
| 67900040 | |
| 67900041 | |
| 67900042 | |
| 67900043 | |
| 67900093 | |
| 67900094 | |
| 67900100 | |
| 67900121 | |
| 67900123 | |
| 67900124 | |
| 67900125 | |
| 67900126 | |
| 67900128 | |
| 67900161 | |
| 67900170 | |
| 67900172 | |
| 67900173 | |
| 67900205 | |
| 67900212 | |
| 67900326 | |
| 6792 | |
| 67956-96 | |
| 6798 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68141-04 | |
| 68142-04 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 68222-06 | |
| 68245-03 | |
| 68277-07 | |
| 68296-99A | |
| 68297-05A | |
| 68329-03 | |
| 68335-05A | |
| 68341-05A | |
| 68342-05A | |
| 68344-05A | |
| 68345-05A | |
| 68359-05 | |
| 68369-03 | |
| 68370-03A | |
| 68372-03 | |
| 68380-05 | |
| 68382-07B | |
| 68390-05 | |
| 68461-09 | |
| 68467-09 | |
| 68480-02 | |
| 68497-07 | |
| 68550-09 | |
| 68558-03 | |
| 68559-07 | |
| 68572-64B | |
| 68629-05 | |
| 68653-05 | |
| 68702-07 | |
| 68755-07 | |
| 68770-02B | |
| 68785-09A | |
| 68787-10 | |
| 68821-00 | |
| 68830-99A | |
| 68881-01 | |
| 68904-00 | |
| 68905-00 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68972-00 | |
| 68973-00 | |
| 68975-00 | |
| 68978-00 | |
| 68997-09 | |
| 69000051 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69162-06A | |
| 69187-03A | |
| 69200018 | |
| 69200082 | |
| 69200101 | |
| 69200212 | |
| 69200238 | |
| 69200245 | |
| 69200267A | |
| 69200268A | |
| 69200282 | |
| 69200283 | |
| 69200307 | |
| 69200424A | |
| 69200427 | |
| 69200444 | |
| 69200543 | |
| 69200594 | |
| 69200615 | |
| 69200616 | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201179 | |
| 69201180 | |
| 69201240 | |
| 69201567 | |
| 69201569 | |
| 69309-10 | |
| 69353-05 | |
| 69356-06A | |
| 69378-09 | |
| 69380-09BHP | |
| 69438-06 | |
| 69538-04A | |
| 69557-10 | |
| 69598-09A | |
| 69609-00 | |
| 6966M | |
| 69774-07A | |
| 69798-08 | |
| 69800-08 | |
| 69803-08 | |
| 69804-08 | |
| 69838-08 | |
| 69839-08 | |
| 69861-07 | |
| 69862-07 | |
| 6990 | |
| 69932-08 | |
| 69933-08 | |
| 69992-12B | |
| 69994-12B | |
| 69995-11 | |
| 69996-12B | |
| 70003-06 | |
| 70027-12 | |
| 7003 | |
| 70102-06B | |
| 70284-06A | |
| 70345-84 | |
| 7036 | |
| 70367-12 | |
| 70379-06B | |
| 7038 | |
| 703B | |
| 7041 | |
| 70427-06 | |
| 70443-12 | |
| 7045 | |
| 70464-12 | |
| 70504-81 | |
| 70540-02 | |
| 70584-94 | |
| 7062 | |
| 7068 | |
| 70684-11A | |
| 70698-09 | |
| 70706-08 | |
| 7078 | |
| 70900050 | |
| 70900051 | |
| 70900053 | |
| 70900209 | |
| 70900210 | |
| 70900346 | |
| 70900387 | |
| 70900669 | |
| 70900670 | |
| 70900671 | |
| 70976-06 | |
| 70991-07 | |
| 71019-07 | |
| 71072-12A | |
| 71075-12A | |
| 71279-04A | |
| 71304-04 | |
| 7130W | |
| 71400094 | |
| 71400095A | |
| 71400113 | |
| 71400115A | |
| 71430-12 | |
| 71475-06B | |
| 71500117 | |
| 71500118 | |
| 71500288 | |
| 71500289 | |
| 71500290 | |
| 71500292 | |
| 71500293 | |
| 71500294 | |
| 71500295 | |
| 71500297 | |
| 71500298 | |
| 71500299 | |
| 71500300 | |
| 71500360 | |
| 71500361 | |
| 71500372 | |
| 71500373 | |
| 71517-11 | |
| 7155 | |
| 71555-06 | |
| 71766-08 | |
| 71989-08 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72024-08 | |
| 72026-08A | |
| 72056-92 | |
| 72062-06 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72081-11 | |
| 72094-06 | |
| 72096-06 | |
| 72098-06 | |
| 72099-06 | |
| 72106-94BK | |
| 72110-06 | |
| 72111-06 | |
| 72114-94BK | |
| 72130-04 | |
| 72131-04 | |
| 72135-06 | |
| 72145-06 | |
| 72146-94 | |
| 72154-94 | |
| 72161-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72231-98 | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72253-94 | |
| 72256-11 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72298-95 | |
| 7229W | |
| 72308-97 | |
| 72312-04 | |
| 72314-01 | |
| 72330-95 | |
| 72335-10 | |
| 72343-10 | |
| 72344-10 | |
| 72350-11 | |
| 72356-95 | |
| 72402-07 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72415-07GY | |
| 72444-07GY | |
| 72478-07BK | |
| 72479-07BK | |
| 72483-08BK | |
| 72484-08 | |
| 72486-08 | |
| 72511-07BK | |
| 72512-07BK | |
| 72519-09BK | |
| 72533-06 | |
| 72573-10 | |
| 72574-10 | |
| 72575-11 | |
| 72577-12 | |
| 72578-12 | |
| 72579-12 | |
| 72580-12 | |
| 72582-11 | |
| 72586-11 | |
| 72587-11 | |
| 72594-11 | |
| 72595-11 | |
| 72609-08 | |
| 72610-08 | |
| 72633-02 | |
| 72662-11 | |
| 72663-11 | |
| 72664-12A | |
| 72665-12A | |
| 72666-12 | |
| 72667-12 | |
| 72669-12A | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72904-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72914-01BK | |
| 72920-11 | |
| 72921-11 | |
| 72922-11 | |
| 72923-11 | |
| 72940-11 | |
| 72941-11 | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73103-96BK | |
| 73103-96WE | |
| 73104-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 732 | |
| 7321 | |
| 73213-07 | |
| 7330 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 73381-12 | |
| 7340 | |
| 7343 | |
| 7352 | |
| 7403 | |
| 74102-05GY | |
| 74112-05GY | |
| 74112-98BK | |
| 74115-06 | |
| 74142-98 | |
| 74152-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 7432M | |
| 74402-05B | |
| 74631-08A | |
| 7481 | |
| 7487 | |
| 7495 | |
| 75217-04A | |
| 75218-04D | |
| 75219-09 | |
| 75241-08 | |
| 75246-04A | |
| 75248-04 | |
| 75249-04A | |
| 75254-04A | |
| 75270-09 | |
| 7531 | |
| 75323-12 | |
| 7549A | |
| 7586 | |
| 7593 | |
| 7601 | |
| 7606 | |
| 7608 | |
| 761 | |
| 765 | |
| 7651A | |
| 766 | |
| 7667 | |
| 7686 | |
| 7716 | |
| 7744 | |
| 7775 | |
| 7778 | |
| 7792 | |
| 7800W | |
| 7813A | |
| 7848W | |
| 786A | |
| 7880 | |
| 7891 | |
| 791A | |
| 7964 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8050 | |
| 8102 | |
| 8108 | |
| 8135B | |
| 8173 | |
| 8185 | |
| 8250 | |
| 83936-09A | |
| 8405 | |
| 856A | |
| 861A | |
| 8873 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90200010BDK | |
| 90200011BDK | |
| 90200018BDK | |
| 90200019BDK | |
| 90200426 | |
| 90200427 | |
| 90200428 | |
| 90200429 | |
| 90200471 | |
| 90200474 | |
| 90200476 | |
| 90200478 | |
| 90200481 | |
| 90200483 | |
| 90200484 | |
| 90200485 | |
| 90200486 | |
| 90200487 | |
| 90200512 | |
| 90200513 | |
| 90200514 | |
| 90200515 | |
| 90200568 | |
| 90200569 | |
| 90200574 | |
| 90200575 | |
| 90200576 | |
| 90200647 | |
| 90200702 | |
| 90300020 | |
| 90300043 | |
| 90300093 | |
| 90383-98 | |
| 90493-83 | |
| 90682-93 | |
| 90700-93 | |
| 90770-79 | |
| 91800042 | |
| 91840-03B | |
| 91845-03B | |
| 91909-03B | |
| 91910-03B | |
| 9208 | |
| 9215 | |
| 923 | |
| 9231 | |
| 9252 | |
| 926 | |
| 92614-10 | |
| 92615-10 | |
| 9276A | |
| 927A | |
| 93511-10 | |
| 94000084 | |
| 94000326 | |
| 942 | |
| 943 | |
| 94435-10 | |
| 9468 | |
| 95594-84B | |
| 95595-84B | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9842 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 99467-16B | |
| 9955 | |
| 9956 | |
| AA0408.21CXZB |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 10100012A | 2015 |
| 7792 | 2012 |
| 8135B | Unknown |
| 7813A | 2007 |
| 7403 | Unknown |
| 8050 | Unknown |
| 7778 | Unknown |
| 7775 | Unknown |
| 5210 | 1991 |
| 8185 | Unknown |
| 7495 | 1994 |
| 8173 | 2003 |
| 8405 | 2011 |
| 8250 | Unknown |
| 7891 | Unknown |
| 7340 | Unknown |
| 7880 | Unknown |
| 7330 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 7481 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7744 | 1943 |
| 7432M | Unknown |
| 7608 | Unknown |
| 7593 | 1991 |
| 7321 | Unknown |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3340 | Unknown |
| 1001 | Unknown |
| 46612-06 | 2006 |
| 3579A | Unknown |
| 4180 | Unknown |
| 45991-06 | 2006 |
| 3983 | 2005 |
| 4334 | 2007 |
| 3159 | Unknown |
| 3048 | 2016 |
| AA0408.21CXZB | 2008 |
| 68026-99 | 1999 |
| 2452 | Unknown |
| 10200141 | 2014 |
| 2240 | 2009 |
| 3109 | Unknown |
| 2579A | Unknown |
| 4761 | Unknown |
| 4762 | 2009 |
| 4741A | 1994 |
| 1090A | Unknown |
| 3050 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 3249 | Unknown |
| 4718A | 1994 |
| 2261 | 2011 |
| 10200374 | 2015 |
| 9468 | Unknown |
| 35259-06 | 2006 |
| 5414 | Unknown |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 2484 | 2009 |
| 4512A | 2007 |
| 3514 | Unknown |
| 2482 | Unknown |
| 2405A | Unknown |
| 4350A | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 4042 | Unknown |
| 4092 | 1982 |
| 4748 | 2009 |
| 943 | Unknown |
| 2921 | Unknown |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 46614-06 | 2006 |
| 3693A | Unknown |
| 3592A | Unknown |
| 895 | Unknown |
| 4326A | 1990 |
| 2773 | Unknown |
| 4705 | 2005 |
| 4132 | Unknown |
| 2469 | Unknown |
| 4740A | 1994 |
| 4997 | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 10200120 | 2011 |
| 3656 | Unknown |
| 4339A | Unknown |
| 2508 | Unknown |
| 4822A | 1994 |
| 68120-00 | 2000 |
| 4724 | 2009 |
| 90770-79 | 1979 |
| 47641-06 | 2006 |
| 3061 | Unknown |
| 4722 | 2009 |
| 4721 | 2009 |
| 4400 | 2011 |
| 3594 | 1992 |
| 3762M | 2000 |
| 5445W | Unknown |
| 3595 | 1993 |
| 926 | Unknown |
| 923 | Unknown |
| 861A | Unknown |
| 68042-99 | 1999 |
| 4613 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 4564M | Unknown |
| 3699D | 2006 |
| 10200461 | 2016 |
| 4420 | 2009 |
| 10200016 | 2012 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 10200109 | 2012 |
| 10200031 | 2012 |
| 10200030 | 2012 |
| 3563 | 1999 |
| 2882W | 2009 |
| 10200033 | 2012 |
| 10200032 | 2012 |
| 2501A | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 1775 | Unknown |
| 3509 | Unknown |
| 4269 | Unknown |
| 10200026 | 2012 |
| 4274 | Unknown |
| 2524B | Unknown |
| 3210A | Unknown |
| 3554 | Unknown |
| 56402-83A | 1983 |
| 2361 | Unknown |
| 10200227 | 2013 |
| 10200036 | 2012 |
| 927A | Unknown |
| 3574 | Unknown |
| 3214 | Unknown |
| 2420 | Unknown |
| 4312C | Unknown |
| 10200053 | 2012 |
| 4716W | 2009 |
| 10200221 | 2013 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 44048-83A | 1983 |
| 56397-74C | 1974 |
| 3691 | Unknown |
| 3880 | 2004 |
| 4654 | Unknown |
| 4813A | 1990 |
| 3487 | Unknown |
| 703B | Unknown |
| 67956-96 | 1996 |
| 4116 | 2009 |
| 5403B | Unknown |
| 3736B | 2010 |
| 4068A | Unknown |
| 10200070 | 2012 |
| 3540 | Unknown |
| 2590 | 2005 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 3832M | 2022 |
| 10200078 | 2012 |
| 2445 | Unknown |
| 3471 | 2009 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 7229W | Unknown |
| 6223 | Unknown |
| 6016 | 2013 |
| 46237-02 | 2002 |
| 6551 | Unknown |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6294 | 2010 |
| 46509-01 | 2001 |
| 8972 | Unknown |
| 6366 | 1987 |
| 6379W | Unknown |
| 6792 | Unknown |
| 6113 | Unknown |
| 6798 | 2012 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 67815-59A | 1959 |
| 6532 | 2000 |
| 6036 | Unknown |
| 45727-08 | 2008 |
| 7068 | Unknown |
| 10300035 | 2015 |
| 7038 | 1998 |
| 6966M | Unknown |
| 6762B | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 7045 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 10400003 | 2012 |
| 7352 | 2010 |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 10500023 | 2012 |
| 10500010 | 2012 |
| 10500009 | 2012 |
| 10500047 | 2014 |
| 10500031 | 2014 |
| 10500053 | 2015 |
| 37090-98A | 1998 |
| 108A1 - Hose Clamps | |
| 65521-10 | 2010 |
| 10053 | 2010 |
| 10038A | 1994 |
| 10031 | 2010 |
| 56898-08 | 2008 |
| 10014 | Unknown |
| 10800064 | 2013 |
| 10340B | 2015 |
| 9956 | 1972 |
| 9955 | Unknown |
| 10119 | Unknown |
| 10074 | Unknown |
| 10113 | Unknown |
| 45044-96A | 1996 |
| 65946-07 | 2007 |
| 108B1 - P Clamps | |
| 10800027 | 2012 |
| 10800005 | 2012 |
| 10800087 | 2014 |
| 10800073 | 2014 |
| 10800071 | 2014 |
| 109A1 - Studs | |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 16708-95A | 1995 |
| 54666-08 | 2008 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 34982-02A | 2011 |
| 56158-73 | 1973 |
| 8967 | 2005 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 54556-84 | 1984 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 67266-94 | 1994 |
| 33708-94 | 1994 |
| 45866-84 | 1984 |
| 9701A | 2011 |
| 42443-80A | 1980 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 12068 | Unknown |
| 12074 | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 9825 | Unknown |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 72253-94 | 1994 |
| 72990-01 | 2001 |
| 74196-04 | 2004 |
| 72110-06 | 2006 |
| 111B1 - Tape | |
| 11672 | Unknown |
| 11576 | Unknown |
| 116A1 - Banjo Bolts | |
| 41739-84A | 1984 |
| 72026-08A | 2013 |
| 11600001 | 2012 |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 11700004 | 2012 |
| 119A1 - O-Rings | |
| 10925 | Unknown |
| 11270 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11140 | 1982 |
| 11289A | Unknown |
| 46508-01 | 2001 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11387A | Unknown |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11179 | 1986 |
| 11907 | Unknown |
| 11573 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 60813-07 | 2007 |
| 24754-75A | 1975 |
| 65800-09 | 2009 |
| 51938-04 | 2004 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11491A | 2012 |
| 12100021 | 2012 |
| 11578 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 12100048 | 2014 |
| 67865-89 | 1989 |
| 11580 | Unknown |
| 12100093 | 2016 |
| 40964-08 | 2008 |
| 732 | Unknown |
| 765 | 1997 |
| 68222-06 | 2006 |
| 766 | Unknown |
| 90383-98 | 1998 |
| 761 | 1996 |
| 12100002 | 2012 |
| 122A1 - Retaining Rings | |
| 10998 | 1985 |
| 8102 | Unknown |
| 10992 | Unknown |
| 11271 | Unknown |
| 11272 | Unknown |
| 17945-36B | 1936 |
| 10264 | Unknown |
| 40645-06 | 2006 |
| 45021-86 | 1986 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 11155 | Unknown |
| 11061A | 2008 |
| 11143 | Unknown |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11389 | Unknown |
| 10324 | Unknown |
| 11096 | 2010 |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10214 | Unknown |
| 10147 | 2018 |
| 11461 | Unknown |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 34625-90 | 1990 |
| 41756-08 | 2008 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 7062 | Unknown |
| 7003 | Unknown |
| 124A1 - Spacers | |
| 5928 | Unknown |
| 12400100 | 2015 |
| 47844-06 | 2006 |
| 11895 | Unknown |
| 11896 | Unknown |
| 11804 | Unknown |
| 12400073 | 2014 |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 6249 | Unknown |
| 11599A | 2012 |
| 7078 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 12500006 | 2012 |
| 10270 | 2003 |
| 10287 | 2004 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 12500002 | 2012 |
| 12500003 | 2012 |
| 12500001 | 2012 |
| 126A1 - Miscellaneous Hardware | |
| 8041 | Unknown |
| 27711-08 | 2008 |
| 29557-05 | 2005 |
| 44126-87 | 1987 |
| 11005 | Unknown |
| 90493-83 | 1983 |
| 12600042 | 2012 |
| 12600043 | 2012 |
| 46236-02 | 2002 |
| 12600024 | 2012 |
| 56394-74 | 1974 |
| 8873 | 1984 |
| 10475 | Unknown |
| 75249-04A | 2004 |
| 46510-01 | 2001 |
| 126B1 - Rivets Fasteners | |
| 11785 | Unknown |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 93511-10 | 2010 |
| 127B1 - Generic Mounting Bracket | |
| 12700130 | 2016 |
| 12700132 | 2016 |
| 51652-97A | 1997 |
| 67742-06 | 2006 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14000566 | 2014 |
| 71304-04 | 2004 |
| 28012-09 | 2009 |
| 14000377 | 2012 |
| 15385-08 | 2008 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 14130-06B | 2006 |
| 140G2 - EPA Label | |
| 29108-08 | 2008 |
| 29127-95B | 1995 |
| 140G6 - VIN Overlay | |
| 13729-15 | 2015 |
| 13729-16 | 2016 |
| 140H1 - Label Set | |
| 14000069 | 2012 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000267 | 2012 |
| 14000827 | 2013 |
| 14000234 | 2012 |
| 141A1 - Medallion | |
| 67668-05 | 2005 |
| 67667-05 | 2005 |
| 14100960 | 2016 |
| 14100063 | 2012 |
| 14100062 | 2012 |
| 14100959 | 2016 |
| 44338-00 | 2000 |
| 149A1 - Tool | |
| 14900080 | 2015 |
| 94435-10 | 2010 |
| 162D1 - Engine Assembly | |
| 16200171 | 2016 |
| 16200172 | 2016 |
| 16200170 | 2016 |
| 19593-16 | 2016 |
| 16200173 | 2016 |
| 19255-16 | 2016 |
| 16200258 | 2016 |
| 19805-16 | 2016 |
| 19806-16 | 2016 |
| 19597-16 | 2016 |
| 19863-16 | 2016 |
| 20019-16 | 2016 |
| 16200068 | 2013 |
| 19804-16 | 2016 |
| 19595-16 | 2016 |
| 163B1 - Engine Isolator Mount | |
| 47564-99 | 1999 |
| 65126-09 | 2009 |
| 47583-90B | 1990 |
| 164A1 - Engine Mount Bracket | |
| 47226-99A | 2011 |
| 16400015 | 2012 |
| 27712-08 | 2008 |
| 16400026A | 2014 |
| 38608-96 | 1996 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7531 | 1980 |
| 46262-02 | 2002 |
| 7667 | Unknown |
| 7686 | Unknown |
| 7848W | Unknown |
| 7800W | Unknown |
| 16241-90 | 1990 |
| 164C1 - Tiebar | |
| 16258-95C | 1995 |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 17253-07B | 2007 |
| 18280-07 | 2007 |
| 18011-86 | 1986 |
| 17178-06A | 2006 |
| 17729-08 | 2008 |
| 17257-07A | 2007 |
| 17179-06 | 2006 |
| 16500023 | 2012 |
| 17251-07B | 2007 |
| 17252-07A | 2007 |
| 16500095 | 2013 |
| 16500094 | 2013 |
| 16500093 | 2013 |
| 16500092 | 2013 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 17349-07B | 2011 |
| 16775-99B | 1999 |
| 17369-06 | 2006 |
| 17350-07B | 2011 |
| 168A1 - Cylinder | |
| 16800003A | 2012 |
| 17285-07A | 2011 |
| 16547-99A | 2012 |
| 17558-08 | 2008 |
| 173A1 - Rocker Arm | |
| 17709-11 | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18572-13 | 2013 |
| 17577-99 | 1999 |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05B | 2005 |
| 181B1 - Valve Seals | |
| 18067-09 | 2009 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18189-07 | 2007 |
| 18094-02A | 2002 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18083-09 | 2009 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 21960-07 | 2007 |
| 21961-07 | 2007 |
| 17458-07 | 2007 |
| 17460-07A | 2012 |
| 21962-07 | 2007 |
| 21959-07 | 2007 |
| 21964-07 | 2007 |
| 220A1 - Piston Ring | |
| 21955-07 | 2007 |
| 11689 | Unknown |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 22000031 | 2014 |
| 21950-07 | 2007 |
| 21949-07 | 2007 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100021 | 2014 |
| 24004-03B | 2012 |
| 23729-07B | 2011 |
| 244A1 - Crankcase | |
| 24758-07A | 2011 |
| 24621-06B | 2011 |
| 244B1 - Crankcase Gasket | |
| 34934-06 | 2006 |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 26087-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 25675-06 | 2006 |
| 25400002 | 2014 |
| 25400003 | 2014 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32543-07 | 2007 |
| 25600012 | 2014 |
| 32558-99 | 1999 |
| 257A1 - Cam Cover | |
| 25364-01B | 2001 |
| 25369-01B | 2001 |
| 25363-01B | 2001 |
| 257B1 - Clutch Cover | |
| 25700043 | 2012 |
| 25700037 | 2012 |
| 25700038 | 2012 |
| 25700020 | 2011 |
| 60767-06 | 2006 |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 67121-95A | 1995 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 26072-99A | 1999 |
| 41731-01 | 2001 |
| 25700337 | 2013 |
| 17053-99C | 2011 |
| 29583-01A | 2001 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 63869-06 | 2006 |
| 70706-08 | 2008 |
| 11936 | Unknown |
| 41733-88 | 1988 |
| 25244-99A | 1999 |
| 29313-95 | 1995 |
| 34948-08 | 2008 |
| 25700252 | 2014 |
| 25700226 | 2012 |
| 25700651 | 2016 |
| 18635-99B | 1999 |
| 25700159 | 2013 |
| 17052-99C | 2011 |
| 60547-06 | 2006 |
| 34917-06 | 2006 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257G1 - Ignition Cover | |
| 25700082 | 2012 |
| 25700083 | 2012 |
| 257L1 - Primary Cover | |
| 60717-07A | 2013 |
| 60563-08A | 2013 |
| 60782-06A | 2013 |
| 25585-06 | 2006 |
| 60764-06A | 2013 |
| 60758-06A | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17575-99 | 1999 |
| 17620-99 | 1999 |
| 17574-99A | 1999 |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17576-99 | 1999 |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 37142-07 | 2007 |
| 37135-06 | 2006 |
| 37116-06 | 2006 |
| 25800017 | 2012 |
| 31657-12 | 2012 |
| 34521-06B | 2006 |
| 34469-06B | 2008 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 29306-08 | 2008 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A1 - Intake Manifold | |
| 27708-06B | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27684-06 | 2006 |
| 27300014 | 2011 |
| 273E1 - Idle Air Control Actuator | |
| 27655-06 | 2006 |
| 27658-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27651-06 | 2006 |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 27709-06A | 2006 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29347-08 | 2008 |
| 29183-08A | 2008 |
| 29182-08A | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29186-08 | 2008 |
| 29343-08 | 2008 |
| 290D1 - Airbox Seal | |
| 29000064 | 2013 |
| 292B1 - Air Duct Bezel | |
| 29344-10 | 2010 |
| 294A1 - Air Filter Element | |
| 29191-08 | 2008 |
| 29400297 | 2016 |
| 29314-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08A | 2014 |
| 294C1 - Breather Hose | |
| 29154-08 | 2008 |
| 294G1 - Air Cleaner | |
| 27948-08 | 2008 |
| 29400296 | 2016 |
| 11934A | 2016 |
| 29780-08A | 2008 |
| 29670-09 | 2009 |
| 28101-10 | 2010 |
| 28723-10 | 2010 |
| 28887-09 | 2009 |
| 28818-09 | 2009 |
| 29400025 | 2011 |
| 29069-09 | 2009 |
| 295A1 - Intake Miscellaneous Component | |
| 29393-08 | 2008 |
| 29500001 | 2012 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08A | 2013 |
| 299F1 - Stator Assembly | |
| 30017-08 | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 315C1 - Exhaust Valve Actuator Cable | |
| 31500001 | 2012 |
| 31500002 | 2012 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31960-99A | 1999 |
| 316C1 - Spark Plug | |
| 32362-04A | 2015 |
| 327A1 - Sensor | |
| 32700050 | 2016 |
| 327B1 - Chemical / Gas Sensor | |
| 32700005 | 2012 |
| 32700006 | 2012 |
| 32417-10 | 2010 |
| 327D1 - Proximity Sensor | |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 40680-12 | 2012 |
| 40682-12 | 2012 |
| 50278-08A | 2008 |
| 327E1 - Temperature Sensor | |
| 32319-07A | 2014 |
| 27381-06 | 2006 |
| 32446-99 | 1999 |
| 327F1 - Throttle Position Sensor | |
| 27659-06 | 2006 |
| 336C1 - Shift Linkage Rod End | |
| 33728-06 | 2006 |
| 34887-06 | 2006 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 34564-90B | 1990 |
| 33900004 | 2012 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339F1 - Shifter Index Lever | |
| 33900147 | 2014 |
| 33900188 | 2016 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34621-06 | 2006 |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 33789-12 | 2012 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33083-10A | 2012 |
| 347B1 - Transmission Case | |
| 34747-06C | 2012 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40036-06 | 2006 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 36500034A | 2014 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60791-06C | 2009 |
| 60790-06C | 2009 |
| 367A1 - Clutch Lever | |
| 44996-07 | 2007 |
| 45015-96 | 1996 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37312-75 | 1975 |
| 37871-98A | 1998 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 37871-04 | 2004 |
| 370A1 - Clutch Assembly | |
| 37000072 | 2014 |
| 45036-88 | 1988 |
| 37817-11 | 2011 |
| 37554-11 | 2011 |
| 37496-90A | 1990 |
| 37816-11 | 2011 |
| 37813-11 | 2011 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 37882-06A | 2011 |
| 372D1 - Clutch Cable | |
| 38787-06C | 2006 |
| 38785-08A | 2008 |
| 37200083 | 2014 |
| 38788-06C | 2006 |
| 38789-06C | 2006 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40046-07 | 2007 |
| 40048-07 | 2007 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100041 | 2014 |
| 409A1 - Rear Wheel | |
| 40900138 | 2013 |
| 40979-08A | 2012 |
| 40900198 | 2012 |
| 40900261 | 2014 |
| 41430-09A | 2012 |
| 40900466 | 2016 |
| 44743-08A | 2012 |
| 41929-12A | 2012 |
| 40900289 | 2014 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000057 | 2014 |
| 41000006A | 2012 |
| 410G1 - Security System Control Module | |
| 69992-12B | 2015 |
| 69996-12B | 2015 |
| 69994-12B | 2015 |
| 411A1 - ABS Control Unit | |
| 48341-12 | 2012 |
| 411A3 - ABS Hydraulic Control Unit | |
| 5004 | Unknown |
| 411B1 - ABS Wheel Sensor Ring | |
| 41100001 | 2012 |
| 413A1 - Brake Caliper | |
| 44066-08A | 2012 |
| 44160-00 | 2000 |
| 41300001 | 2012 |
| 41300002 | 2012 |
| 40908-08 | 2008 |
| 44163-00 | 2000 |
| 42062-08 | 2008 |
| 413C1 - Brake Caliper sub-component | |
| 44337-08 | 2008 |
| 44147-87A | 1987 |
| 42347-08 | 2008 |
| 42348-08 | 2008 |
| 48198-06 | 2006 |
| 413D1 - Brake Pad | |
| 42298-08 | 2008 |
| 46363-11 | 2011 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-08A | 2013 |
| 42344-08A | 2013 |
| 413H1 - Brake Caliper Carrier | |
| 42143-08B | 2012 |
| 415A1 - Brake Rotor Guard | |
| 46717-10 | 2010 |
| 415B1 - Brake Rotor | |
| 41797-00 | 2000 |
| 44553-06A | 2006 |
| 416A1 - Brakes Miscellaneous Component | |
| 41600028 | 2012 |
| 38161-12 | 2012 |
| 38160-12 | 2012 |
| 40918-87 | 1987 |
| 41600007 | 2012 |
| 40903-87 | 1987 |
| 40920-87 | 1987 |
| 41600038 | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 42493-12 | 2012 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700065A | 2015 |
| 45170-08D | 2015 |
| 45029-11C | 2015 |
| 41700456 | 2016 |
| 417B1 - Brake Master Cylinder | |
| 42474-06C | 2015 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87E | 2015 |
| 45072-96D | 2015 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45006-96E | 2015 |
| 42568-05A | 2011 |
| 46457-05B | 2011 |
| 42471-01A | 2001 |
| 41700063 | 2012 |
| 42448-87 | 1987 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 46423-05C | 2014 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 42345-08 | 2008 |
| 44351-00 | 2000 |
| 417E1 - Brake Master Cylinder Hose | |
| 41700061 | 2012 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41700060 | 2012 |
| 41700062 | 2012 |
| 41803-06 | 2006 |
| 417G1 - Front Brake Lever | |
| 44995-08 | 2008 |
| 38157-12 | 2012 |
| 45016-96 | 1996 |
| 45016-08 | 2008 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 41700407 | 2016 |
| 418B1 - Brake Line | |
| 42728-08A | 2015 |
| 42163-08A | 2015 |
| 42927-12A | 2015 |
| 42940-12A | 2015 |
| 46926-12 | 2012 |
| 46871-12A | 2015 |
| 41800296A | 2015 |
| 42935-12A | 2015 |
| 44233-12 | 2012 |
| 41800295A | 2015 |
| 42926-12A | 2015 |
| 41800212A | 2015 |
| 42142-08C | 2015 |
| 45112-08A | 2015 |
| 46872-12B | 2015 |
| 46870-12 | 2012 |
| 42929-12 | 2012 |
| 44084-12A | 2015 |
| 41800213A | 2015 |
| 420A1 - Wheel Rim | |
| 41426-07 | 2007 |
| 43001-06 | 2006 |
| 40863-06 | 2006 |
| 42000007 | 2013 |
| 42000006 | 2013 |
| 41431-09 | 2009 |
| 41687-10 | 2010 |
| 421A1 - Wheel Spoke with Nipple | |
| 43052-05A | 2005 |
| 43239-05 | 2005 |
| 40761-05 | 2005 |
| 40762-05 | 2005 |
| 422B1 - Wheel Sprocket | |
| 40653-07 | 2007 |
| 40114-07 | 2007 |
| 37814-12 | 2012 |
| 40634-07 | 2007 |
| 423C1 - Rim Strip | |
| 41323-10 | 2010 |
| 40954-12 | 2012 |
| 41319-10 | 2010 |
| 423D1 - Tire Inner Tube | |
| 41314-10 | 2010 |
| 40941-12 | 2012 |
| 41316-10 | 2010 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84B | 2014 |
| 95594-84B | 2014 |
| 430B1 - Rear Axle Carrier / Adjuster | |
| 41571-08 | 2008 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 41628-08 | 2008 |
| 430E1 - Rear Axle | |
| 41114-08 | 2008 |
| 45104-08 | 2008 |
| 431A1 - Front Tire | |
| 43258-07B | 2011 |
| 43371-07A | 2012 |
| 43218-08 | 2008 |
| 41036-12 | 2012 |
| 432A1 - Rear Tire | |
| 43228-08 | 2008 |
| 43200015 | 2012 |
| 43200005 | 2012 |
| 43250-07B | 2011 |
| 433A1 - Front Wheel | |
| 43300254 | 2014 |
| 43300202 | 2012 |
| 41425-09 | 2009 |
| 43300138 | 2013 |
| 43105-08 | 2008 |
| 43300449 | 2016 |
| 41325-10 | 2010 |
| 43300280 | 2014 |
| 47855-12 | 2012 |
| 433B1 - Front Wheel Bearing Spacer | |
| 40947-08A | 2008 |
| 40927-08 | 2008 |
| 41748-08 | 2008 |
| 43905-08 | 2008 |
| 41242-08 | 2008 |
| 56153-73 | 1973 |
| 41349-07 | 2007 |
| 40926-08 | 2008 |
| 433C1 - Front Wheel Hub | |
| 44447-00 | 2000 |
| 454A1 - Front Telescopic Fork | |
| 45400024 | 2012 |
| 45400023 | 2012 |
| 45400174 | 2016 |
| 48802-10A | 2012 |
| 45400175 | 2016 |
| 48803-10 | 2010 |
| 49379-09 | 2009 |
| 45400033 | 2013 |
| 45400034 | 2013 |
| 48622-08A | 2012 |
| 45947-06A | 2006 |
| 45948-06B | 2012 |
| 45400051 | 2014 |
| 45400052 | 2014 |
| 48623-08A | 2012 |
| 454B1 - Springer Fork | |
| 46610-06 | 2006 |
| 48741-08 | 2008 |
| 46620-06 | 2006 |
| 455A1 - Front Telescopic Fork Slider | |
| 46619-06B | 2012 |
| 48740-08A | 2012 |
| 46605-06 | 2006 |
| 46607-06A | 2006 |
| 48739-08 | 2008 |
| 45500269 | 2014 |
| 45500434 | 2016 |
| 45500271 | 2014 |
| 45500230 | 2014 |
| 46608-06B | 2012 |
| 48745-08 | 2008 |
| 45500008 | 2012 |
| 45500007 | 2012 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500243 | 2014 |
| 46517-01 | 2001 |
| 45500059 | 2012 |
| 45500432 | 2016 |
| 45500433 | 2016 |
| 455C1 - Front Telescopic Fork sub-component | |
| 46611-06 | 2006 |
| 48862-10 | 2010 |
| 45500108 | 2012 |
| 45500107 | 2012 |
| 45803-97 | 1997 |
| 45500236 | 2014 |
| 46238-02 | 2002 |
| 46080-01 | 2001 |
| 45322-06 | 2006 |
| 45500063 | 2012 |
| 45500062 | 2012 |
| 46512-01A | 2010 |
| 45500061 | 2012 |
| 45500060 | 2012 |
| 45865-84 | 1984 |
| 46514-01A | 2010 |
| 45940-84 | 1984 |
| 48742-08 | 2008 |
| 46516-01 | 2001 |
| 45500390 | 2016 |
| 46609-06 | 2006 |
| 45500233 | 2014 |
| 45933-86 | 1986 |
| 46618-06 | 2006 |
| 46513-01 | 2001 |
| 45500058 | 2012 |
| 5003 | 2011 |
| 45500297 | 2016 |
| 45500127 | 2013 |
| 45500126 | 2013 |
| 45500118 | 2014 |
| 46510-07 | 2007 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456Z3 - Kit,Fork Lock | |
| 45600052 | 2016 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45800093 | 2016 |
| 45800092 | 2016 |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45800042 | 2014 |
| 49420-12 | 2012 |
| 45670-80A | 1980 |
| 45800081 | 2016 |
| 46615-06 | 2006 |
| 48307-06 | 2006 |
| 46606-06 | 2006 |
| 459A1 - Upper Triple Clamp | |
| 45900190 | 2016 |
| 45538-08 | 2008 |
| 46700-08 | 2008 |
| 48640-09 | 2009 |
| 46278-08 | 2008 |
| 45900040 | 2013 |
| 46323-12 | 2012 |
| 459B1 - Lower Triple Clamp | |
| 45900025 | 2012 |
| 45539-08 | 2008 |
| 45900189 | 2016 |
| 46386-08 | 2008 |
| 45867-08 | 2008 |
| 45900041 | 2013 |
| 48659-09 | 2009 |
| 470A1 - Frame | |
| 47318-98 | 1998 |
| 47748-10A | 2012 |
| 47745-06B | 2012 |
| 47760-10A | 2012 |
| 470Z1 - Kit,Frame | |
| 47000143 | 2017 |
| 47000142 | 2017 |
| 472A1 - Frame sub-component | |
| 10600010 | 2012 |
| 7036 | Unknown |
| 7487 | Unknown |
| 472C1 - Front Fairing Support Bracket | |
| 59459-10 | 2010 |
| 59461-10 | 2010 |
| 59281-08 | 2008 |
| 59410-08 | 2008 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 47200009 | 2012 |
| 68629-05 | 2005 |
| 49216-06 | 2006 |
| 474C1 - Swingarm | |
| 47820-10 | 2010 |
| 474E1 - Swingarm Assembly sub-component | |
| 41585-90B | 1990 |
| 47624-90B | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 47841-06 | 2006 |
| 500A1 - Sidestand Assembly | |
| 50000138 | 2016 |
| 49704-90H | 2011 |
| 500B1 - Sidestand Bracket | |
| 49711-08 | 2008 |
| 500E1 - Sidestand Leg sub-component | |
| 50055-08 | 2008 |
| 50054-01 | 2001 |
| 50053-90 | 1990 |
| 50057-02 | 2002 |
| 500F1 - Sidestand Pivot Pin | |
| 49723-98 | 1998 |
| 554A | 2002 |
| 505B1 - Footpeg Mount Bracket | |
| 50666-07 | 2007 |
| 49720-90 | 1990 |
| 49230-06 | 2006 |
| 49224-06A | 2006 |
| 42481-03A | 2003 |
| 50500625 | 2016 |
| 50500622 | 2016 |
| 50500279 | 2014 |
| 50500276 | 2014 |
| 33693-03 | 2003 |
| 505C1 - Heel Guard / Pad | |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 51327-08 | 2008 |
| 33032-99 | 1999 |
| 51323-08 | 2008 |
| 50621-06 | 2006 |
| 505G1 - Rider or Common Footpeg | |
| 50667-07 | 2007 |
| 505K1 - Footpeg Wear Peg | |
| 33129-06 | 2006 |
| 33216-99 | 1999 |
| 506A1 - Brake Pedal | |
| 42532-06 | 2006 |
| 50600218 | 2016 |
| 50600127 | 2014 |
| 42502-90B | 2012 |
| 42542-06 | 2006 |
| 50912-72 | 1972 |
| 41955-03A | 2003 |
| 42416-06 | 2006 |
| 42665-03 | 2003 |
| 41961-90 | 1990 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 54172-12 | 2012 |
| 54173-12 | 2012 |
| 42663-03A | 2009 |
| 54174-12 | 2012 |
| 54165-12 | 2012 |
| 520A1 - Rider Seat or Full Seat | |
| 52000287 | 2016 |
| 52000071 | 2013 |
| 51475-09A | 2009 |
| 52000117 | 2014 |
| 52000136 | 2014 |
| 51503-10 | 2010 |
| 54166-12 | 2012 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 51786-09 | 2009 |
| 51654-08 | 2008 |
| 52000154 | 2014 |
| 52000155 | 2014 |
| 523B1 - Back Rest Pad | |
| 51788-10 | 2010 |
| 524A1 - Passenger Grab Handle | |
| 51176-96C | 2011 |
| 51610-10 | 2010 |
| 524B1 - Passenger Seat | |
| 51504-10 | 2010 |
| 530C2 - Case Latch | |
| 90682-93 | 1993 |
| 540B1 - Rear Shock | |
| 54000067 | 2015 |
| 54708-65A | 1965 |
| 54000050 | 2014 |
| 54678-12 | 2012 |
| 54000049 | 2014 |
| 54615-01 | 2001 |
| 540E1 - Rear Shock sub-component | |
| 54000131 | 2016 |
| 54679-12 | 2012 |
| 558A1 - Handlebar | |
| 56051-06 | 2006 |
| 56959-08A | 2011 |
| 56891-12 | 2012 |
| 55980-10A | 2011 |
| 55800233 | 2014 |
| 55800674 | 2016 |
| 56951-09B | 2013 |
| 559C1 - Handlebar Mount Isolator | |
| 55900063 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 56542-86A | 1986 |
| 55900005 | 2012 |
| 59783-08 | 2008 |
| 55900004 | 2012 |
| 56541-86A | 1986 |
| 56859-09 | 2009 |
| 55900061 | 2014 |
| 55900064 | 2014 |
| 55900065 | 2014 |
| 559E1 - Upper Handlebar Clamp | |
| 55900025 | 2013 |
| 55900062 | 2014 |
| 560A1 - Mirror | |
| 67831-03 | 2003 |
| 91840-03B | 2003 |
| 92615-10 | 2010 |
| 92614-10 | 2010 |
| 91845-03B | 2003 |
| 91909-03B | 2003 |
| 91910-03B | 2003 |
| 561A1 - Throttle Cable | |
| 56633-06 | 2006 |
| 56415-06 | 2006 |
| 56634-06 | 2006 |
| 56356-96A | 1996 |
| 56421-06 | 2006 |
| 56355-96A | 1996 |
| 561B1 - Left Hand Grip | |
| 56206-96 | 1996 |
| 56667-04 | 2004 |
| 561C1 - Throttle Assembly w/Grip | |
| 56666-04 | 2004 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 56100075 | 2015 |
| 56248-08 | 2008 |
| 570A1 - Front Fairing | |
| 57000740DH | 2016 |
| 57000756 | 2016 |
| 57000755 | 2016 |
| 570C1 - Inner Fairing | |
| 57000758 | 2016 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 573A1 - Bodywork Miscellaneous Component | |
| 60877-12 | 2012 |
| 60878-12 | 2012 |
| 57672-12 | 2012 |
| 38722-94 | 1994 |
| 7651A | Unknown |
| 57300026 | 2014 |
| 57300024 | 2014 |
| 57673-12 | 2012 |
| 573B1 - Bodywork Mounting Bracket | |
| 70684-11A | 2012 |
| 57300004 | 2012 |
| 57300003 | 2012 |
| 57300002 | 2012 |
| 57300001 | 2012 |
| 574B1 - Windscreen / Windshield | |
| 57400070 | 2012 |
| 57400073 | 2012 |
| 57400072 | 2012 |
| 57400071 | 2012 |
| 57400066 | 2012 |
| 57400122 | 2012 |
| 57400123 | 2012 |
| 58416-77A | 1977 |
| 57400085 | 2012 |
| 67621-94 | 1994 |
| 57671-12 | 2012 |
| 589A1 - Front Fender | |
| 59962-10 | 2010 |
| 60214-08 | 2008 |
| 60139-06B | 2006 |
| 60141-06B | 2006 |
| 595D1 - Rear Fender | |
| 59512-06B | 2006 |
| 59500097A | 2016 |
| 59634-06 | 2006 |
| 59500135 | 2014 |
| 60400-12 | 2012 |
| 60936-10 | 2010 |
| 60508-10 | 2010 |
| 60519-10 | 2010 |
| 59768-97 | 1997 |
| 595E1 - Rear Fender Support | |
| 59138-06A | 2013 |
| 59500126 | 2013 |
| 59500140 | 2014 |
| 59171-06A | 2013 |
| 596A1 - Tire Mud Flap | |
| 59600017 | 2013 |
| 59600016 | 2013 |
| 596B1 - Fender Tip | |
| 69609-00 | 2000 |
| 603B1 - Belt / Chain Guard | |
| 60633-08 | 2008 |
| 60339-07A | 2007 |
| 60300013 | 2012 |
| 60300012 | 2012 |
| 60356-07A | 2007 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 28819-12 | 2012 |
| 609A1 - Fuel Miscellaneous Component | |
| 75323-12 | 2012 |
| 3112A | Unknown |
| 6119 | 2016 |
| 75254-04A | 2004 |
| 75248-04 | 2004 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 29110-08 | 2008 |
| 47207-12 | 2012 |
| 610A1 - Fuel Tank | |
| 61593-10 | 2010 |
| 61586-04B | 2004 |
| 611B1 - Fuel Cap | |
| 61100055 | 2014 |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 28814-12 | 2012 |
| 27389-12 | 2012 |
| 27296-12 | 2012 |
| 28829-12 | 2012 |
| 63501-68B | 1968 |
| 28830-12 | 2012 |
| 27189-12 | 2012 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75219-09 | 2009 |
| 612B2 - Fuel Valve | |
| 62194-04C | 2014 |
| 61015-04A | 2004 |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 62349-04F | 2004 |
| 612F1 - Fuel Pump | |
| 61016-04B | 2004 |
| 612K1 - Fuel Pump sub-component | |
| 75246-04A | 2011 |
| 75218-04D | 2004 |
| 75217-04A | 2011 |
| 612Z2 - Kit,Fuel Line | |
| 61200048 | 2016 |
| 613A1 - Trim Panel | |
| 61300038 | 2012 |
| 613B1 - Horn Cover | |
| 61300478 | 2014 |
| 613B2 - Battery Cover | |
| 66444-12DH | 2012 |
| 66366-06 | 2006 |
| 61300151 | 2013 |
| 61300242 | 2014 |
| 613C1 - Intake / Fuel Tank Cover | |
| 28725-10 | 2010 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61300033 | 2012 |
| 61300359 | 2015 |
| 61300191 | 2014 |
| 61300192 | 2014 |
| 613J1 - Throttle Body Cover | |
| 61300110 | 2012 |
| 613K1 - Airbox Cover | |
| 61300042 | 2011 |
| 29136-91 | 1991 |
| 61300309 | 2014 |
| 613L1 - Airbox Cover sub-component | |
| 61300674 | 2016 |
| 61300734 | 2016 |
| 614A1 - Headlight Bezel | |
| 61400078 | 2012 |
| 61400079 | 2012 |
| 61400181 | 2014 |
| 614C1 - Trim | |
| 66473-10 | 2010 |
| 61400161 | 2014 |
| 71279-04A | 2011 |
| 61400099 | 2013 |
| 61400098 | 2013 |
| 61400416 | 2016 |
| 71989-08 | 2008 |
| 62445-10 | 2010 |
| 61400104 | 2013 |
| 62446-10 | 2010 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 62457-06 | 2006 |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62700001 | 2012 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 627N1 - Oil System Baffle | |
| 62828-99 | 1999 |
| 62826-02 | 2002 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 65051-09A | 2010 |
| 64800003 | 2012 |
| 64800023A | 2016 |
| 66798-07 | 2007 |
| 65551-12 | 2012 |
| 649A1 - Muffler | |
| 64900136 | 2012 |
| 64900510 | 2016 |
| 64900512 | 2016 |
| 64900511 | 2016 |
| 64900513 | 2016 |
| 64987-08A | 2012 |
| 64701-08 | 2008 |
| 64705-08A | 2012 |
| 64900108 | 2011 |
| 64900107 | 2011 |
| 65937-12 | 2012 |
| 64707-08 | 2008 |
| 64900182 | 2014 |
| 64900183 | 2014 |
| 64900184 | 2014 |
| 64900185 | 2014 |
| 65906-12A | 2015 |
| 65237-09 | 2009 |
| 64700-08 | 2008 |
| 65868-07 | 2007 |
| 66025-07 | 2007 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 61013-04A | 2004 |
| 654A1 - Exhaust Shield | |
| 65400298 | 2016 |
| 65400299 | 2016 |
| 65966-06 | 2006 |
| 65463-00 | 2000 |
| 64819-08 | 2008 |
| 65701-06A | 2006 |
| 66840-08 | 2008 |
| 65400147 | 2014 |
| 65400150 | 2014 |
| 65376-95A | 2010 |
| 64830-08 | 2008 |
| 65746-06 | 2006 |
| 66841-08 | 2008 |
| 65400053 | 2012 |
| 65379-95 | 1995 |
| 655A1 - Muffler Mount | |
| 65500032 | 2014 |
| 65992-12 | 2012 |
| 65674-95 | 1995 |
| 655C1 - Exhaust Mounting Bracket | |
| 65975-99 | 1999 |
| 65696-08B | 2016 |
| 656B1 - Exhaust Inlet | |
| 65600007 | 2012 |
| 65600008 | 2012 |
| 65600009A | 2012 |
| 656C1 - Header | |
| 65600004A | 2016 |
| 65600006A | 2016 |
| 657B1 - Header sub-component | |
| 65556-12 | 2012 |
| 65557-12 | 2012 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65441-06 | 2006 |
| 65440-06 | 2006 |
| 659B1 - Exhaust Flange | |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65830-10 | 2010 |
| 660A1 - Battery | |
| 66000065 | 2013 |
| 66373-06 | 2006 |
| 65989-97C | 1997 |
| 660C1 - Battery Pan | |
| 70379-06B | 2012 |
| 660D1 - Battery Strap | |
| 66017-01 | 2001 |
| 660F1 - Negative Battery Cable | |
| 70284-06A | 2006 |
| 660G1 - Positive Battery Cable | |
| 70102-06B | 2006 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-06 | 2006 |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 67000011 | 2016 |
| 67000010 | 2014 |
| 677A1 - Headlight | |
| 69803-08 | 2008 |
| 67883-04A | 2004 |
| 67700116 | 2012 |
| 69774-07A | 2007 |
| 67778-60A | 1960 |
| 67732-08 | 2008 |
| 69162-06A | 2006 |
| 69798-08 | 2008 |
| 67700167 | 2014 |
| 67700168 | 2014 |
| 69356-06A | 2006 |
| 69804-08 | 2008 |
| 67769-93 | 1993 |
| 67790-93A | 1993 |
| 69839-08 | 2008 |
| 67728-02A | 2002 |
| 68787-10 | 2010 |
| 69800-08 | 2008 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 68297-05A | 2014 |
| 67741-06 | 2006 |
| 68344-05A | 2015 |
| 67700192 | 2014 |
| 67700094 | 2011 |
| 68335-05A | 2014 |
| 68342-05A | 2015 |
| 68390-05 | 2005 |
| 67700211 | 2014 |
| 68345-05A | 2015 |
| 67712-83B | 2014 |
| 68341-05A | 2014 |
| 678A1 - Taillight | |
| 68245-03 | 2003 |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 73381-12 | 2012 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 67800240 | 2014 |
| 68372-03 | 2003 |
| 68296-99A | 2004 |
| 69598-09A | 2009 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68141-04 | 2004 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68975-00 | 2000 |
| 68480-02 | 2002 |
| 68550-09 | 2009 |
| 67800723 | 2016 |
| 67800724 | 2016 |
| 68978-00 | 2000 |
| 67015-02 | 2002 |
| 67019-04A | 2004 |
| 67800523 | 2016 |
| 68277-07 | 2007 |
| 67800184 | 2012 |
| 67800525 | 2016 |
| 69933-08 | 2008 |
| 67827-88A | 1988 |
| 67800199 | 2013 |
| 67800198 | 2013 |
| 69438-06 | 2006 |
| 68972-00 | 2000 |
| 68997-09 | 2009 |
| 67800630 | 2016 |
| 67829-88 | 1988 |
| 67800147 | 2012 |
| 67800148 | 2012 |
| 68497-07 | 2007 |
| 68461-09 | 2009 |
| 68467-09 | 2009 |
| 68821-00 | 2000 |
| 67013-04A | 2004 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 69378-09 | 2009 |
| 68755-07 | 2007 |
| 68559-07 | 2007 |
| 679A1 - License Plate Tray / Holder | |
| 67900010 | 2012 |
| 679B1 - Reflector | |
| 67900205 | 2015 |
| 59287-92 | 1992 |
| 60907-09 | 2009 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 69557-10 | 2010 |
| 69862-07 | 2007 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 69861-07 | 2007 |
| 59988-72A | 1972 |
| 67900040 | 2012 |
| 67900041 | 2012 |
| 67900042 | 2012 |
| 67900043 | 2012 |
| 60188-08 | 2008 |
| 67900212 | 2016 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900128 | 2013 |
| 67900100 | 2012 |
| 679D1 - License Plate Bracket | |
| 60906-09 | 2009 |
| 67900326 | 2016 |
| 69380-09BHP | 2009 |
| 67900094 | 2012 |
| 67900093 | 2011 |
| 60001-55 | 1955 |
| 59986-75 | 1975 |
| 68702-07 | 2007 |
| 67900126 | 2013 |
| 67900125 | 2013 |
| 67900124 | 2013 |
| 67900121 | 2013 |
| 59984-73 | 1973 |
| 60336-10 | 2010 |
| 60908-09A | 2014 |
| 67900161 | 2014 |
| 67900172 | 2014 |
| 67900173 | 2014 |
| 679E1 - License Plate Light | |
| 60375-10 | 2010 |
| 67900123 | 2013 |
| 67900170 | 2014 |
| 680A1 - Decorative Light | |
| 69353-05 | 2005 |
| 680C1 - Incandescent Bulb | |
| 69838-08 | 2008 |
| 68572-64B | 1964 |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 52441-95 | 1995 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69000051 | 2014 |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 16328-04A | 2012 |
| 692C1 - Electrical Miscellaneous Component | |
| 69538-04A | 2004 |
| 72062-06 | 2006 |
| 74115-06 | 2006 |
| 70464-12 | 2012 |
| 70027-12 | 2012 |
| 70427-06 | 2006 |
| 68382-07B | 2012 |
| 72189-04 | 2004 |
| 6990 | 2011 |
| 70367-12 | 2012 |
| 692C2 - Electrical Mounting Bracket | |
| 69123-92A | 1992 |
| 71019-07 | 2007 |
| 69120-91 | 1991 |
| 67689-04 | 2004 |
| 69200082 | 2012 |
| 69062-91A | 1991 |
| 48073-04 | 2004 |
| 70698-09 | 2009 |
| 67341-04B | 2004 |
| 692C3 - Electromechanical Mounting | |
| 69201567 | 2016 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72587-11 | 2011 |
| 72582-11 | 2011 |
| 692E2 - Fuse / Relay Block Cover | |
| 72586-11 | 2011 |
| 72595-11 | 2011 |
| 692F1 - Wire Harness | |
| 71072-12A | 2012 |
| 69200616 | 2014 |
| 69200615 | 2014 |
| 69200282 | 2012 |
| 68359-05 | 2005 |
| 72669-12A | 2014 |
| 68770-02B | 2010 |
| 70443-12 | 2012 |
| 68785-09A | 2009 |
| 69201569 | 2016 |
| 71075-12A | 2012 |
| 72667-12 | 2012 |
| 75270-09 | 2009 |
| 69200444 | 2012 |
| 69200424A | 2014 |
| 69200543 | 2014 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 69200018 | 2010 |
| 70540-02 | 2002 |
| 692G2 - Wire Guide | |
| 72574-10 | 2010 |
| 72298-95 | 1995 |
| 69200594 | 2014 |
| 72573-10 | 2010 |
| 69200427 | 2013 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 73152-96BK | 1996 |
| 69201179 | 2016 |
| 69200267A | 2014 |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 69201180 | 2016 |
| 73103-96WE | 1996 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200268A | 2014 |
| 72312-04 | 2004 |
| 69200212 | 2014 |
| 72161-06 | 2006 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72664-12A | 2013 |
| 72098-06 | 2006 |
| 72444-07GY | 2007 |
| 72009-05 | 2005 |
| 72007-05 | 2005 |
| 69200245 | 2012 |
| 69932-08 | 2008 |
| 72131-04 | 2004 |
| 72577-12 | 2012 |
| 72064-06 | 2006 |
| 72665-12A | 2013 |
| 72594-11 | 2011 |
| 74102-05GY | 2005 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 69201240 | 2014 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72578-12 | 2012 |
| 72227-11 | 2011 |
| 72356-95 | 1995 |
| 69200283 | 2012 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 72335-10 | 2010 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72662-11 | 2012 |
| 72024-08 | 2008 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72579-12 | 2012 |
| 72663-11 | 2011 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 73307-10 | 2010 |
| 9842 | Unknown |
| 72094-06 | 2006 |
| 69200307 | 2014 |
| 69200238 | 2011 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72580-12 | 2012 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 72912-01BK | 2001 |
| 29762-09 | 2009 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 68653-05 | 2005 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 73213-07 | 2007 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 74112-05GY | 2005 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72099-06 | 2006 |
| 72231-98 | 1998 |
| 10285A | 2011 |
| 72633-02 | 2002 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72177-07BK | 2007 |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 72904-01BK | 2001 |
| 72479-07BK | 2007 |
| 72230-98 | 1998 |
| 72145-06 | 2006 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 72251-07 | 2007 |
| 73153-96BK | 1996 |
| 73158-96BK | 1996 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 56076-97 | 1997 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 73191-96 | 1996 |
| 72065-06A | 2006 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72483-08BK | 2008 |
| 73104-96BK | 1996 |
| 73305-04 | 2004 |
| 70976-06 | 2006 |
| 72209-11 | 2011 |
| 73102-96BK | 1996 |
| 72014-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 72406-07A | 2007 |
| 74112-98BK | 1998 |
| 10309 | 2013 |
| 72012-07 | 2007 |
| 73154-96BK | 1996 |
| 10850 | 2011 |
| 10191A | Unknown |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 692M1 - Electrical Component / Wire Cover | |
| 66361-12 | 2012 |
| 69200101 | 2012 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67190-89 | 1989 |
| 67096-12A | 2015 |
| 67242-12 | 2012 |
| 70900669 | 2016 |
| 70900670 | 2016 |
| 70900671 | 2016 |
| 67480-12 | 2012 |
| 67479-12 | 2012 |
| 67478-12A | 2015 |
| 67204-12 | 2012 |
| 709B2 - Fuel Gauge | |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 70900051 | 2012 |
| 70900209 | 2013 |
| 70900053 | 2012 |
| 70900050 | 2012 |
| 70900210 | 2013 |
| 70900346 | 2014 |
| 67185-04 | 2004 |
| 70900387 | 2014 |
| 714A1 - Ignition Switch | |
| 71475-06B | 2006 |
| 71400115A | 2014 |
| 1565 | Unknown |
| 71400094 | 2014 |
| 71400095A | 2014 |
| 71400113 | 2014 |
| 7343 | 2011 |
| 71517-11 | 2011 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 71500300 | 2016 |
| 72940-11 | 2011 |
| 71500373 | 2016 |
| 71500372 | 2016 |
| 72922-11 | 2011 |
| 72920-11 | 2011 |
| 72923-11 | 2011 |
| 71500288 | 2016 |
| 71500289 | 2016 |
| 72921-11 | 2011 |
| 71766-08 | 2008 |
| 71500298 | 2016 |
| 71500299 | 2016 |
| 72941-11 | 2011 |
| 71500297 | 2016 |
| 71500294 | 2016 |
| 71500118 | 2012 |
| 71500295 | 2016 |
| 71500292 | 2016 |
| 71500117 | 2012 |
| 71500293 | 2016 |
| 71500290 | 2016 |
| 71500360 | 2016 |
| 71500361 | 2016 |
| 747A1 - Voltage Regulator | |
| 72350-11 | 2011 |
| 74631-08A | 2012 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 902B1 - Saddlebag Cover | |
| 90200011BDK | 2012 |
| 90200487 | 2012 |
| 90200010BDK | 2012 |
| 902E1 - Saddlebag Bottom | |
| 90200427 | 2012 |
| 90200428 | 2012 |
| 90200426 | 2012 |
| 90200018BDK | 2012 |
| 90200568 | 2012 |
| 90200569 | 2012 |
| 90200429 | 2012 |
| 90200647 | 2012 |
| 53567-93 | 1993 |
| 90200512 | 2012 |
| 90200515 | 2012 |
| 90200514 | 2012 |
| 90200513 | 2012 |
| 90200476 | 2012 |
| 90200478 | 2012 |
| 90200474 | 2012 |
| 90200471 | 2012 |
| 90200702 | 2012 |
| 90700-93 | 1993 |
| 90200481 | 2012 |
| 90200483 | 2012 |
| 90200484 | 2012 |
| 90200485 | 2012 |
| 90200486 | 2012 |
| 71555-06 | 2006 |
| 90200019BDK | 2012 |
| 90200574 | 2012 |
| 90200575 | 2012 |
| 90200576 | 2012 |
| 903A1 - Lockset | |
| 71430-12 | 2012 |
| 90300020 | 2012 |
| 53710-93 | 1993 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 90300093 | 2014 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 69995-11 | 2011 |
| 918B1 - Hardware Kit | |
| 91800042 | 2013 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 940A2 - Owner's Manual | |
| 99467-16B | 2016 |
| 940H1 - Electronic / Digital Media | |
| 94000084 | 2014 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | |
| 10038A | CLAMP | |
| 1062 | SCREW | |
| 11000101 | OIL SEAL | |
| 11105 | O-RING | |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 11143 | RETAINING RING | |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 11150 | RETAINING RING | |
| 11270 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 11292 | O-RING | AIR CLEANER - TWIN CAM 110™: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 11301 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 11491A | GROMMET | SPEED SCREEN - FXDLS: |
| 12052A | OIL SEAL | |
| 12074 | SEAL | |
| 16715-83 | STUD | CYLINDERS, HEADS AND VALVES - TWIN CAM 103™: CYLINDERS, HEADS AND VALVES - TWIN CAM 110™: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 17369-06 | GASKET SERVICE KIT | |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (2 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 2445 | SCREW | SPEED SCREEN - FXDLS: |
| 25244-99A | GASKET | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 25700226 | GASKET KIT | |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL - TWIN CAM 96™ AND TWIN CAM 103™ (1 OF 2): INDUCTION MODULE, FUEL - TWIN CAM 110™: |
| 27444-00Y | O-RING | |
| 3050 | SCREW | |
| 3109 | SCREW | |
| 3275 | SCREW | INDUCTION MODULE, FUEL - TWIN CAM 96™ AND TWIN CAM 103™ (1 OF 2): INDUCTION MODULE, FUEL - TWIN CAM 110™: |
| 34091-08 | BEARING | |
| 34917-06 | GASKET | |
| 34934-06 | GASKET | |
| 35654-06 | GASKET | |
| 3592A | SCREW | |
| 3595 | SCREW | |
| 3655A | SCREW | |
| 3656 | SCREW | |
| 3658 | SCREW | |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41731-01 | GASKET | |
| 41733-88 | GASKET | |
| 43567-92 | SCREW | |
| 45405-75A | SCREW | |
| 4740A | SCREW | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 48300-60 | BEARING | |
| 5210 | NUT WELL | |
| 59768-97 | FENDER SEAT NUT KIT | FENDERS, REAR - FXDB, FXDBP, FXDBC, FXDF, FXDLS AND FXDWG (1 OF 2): |
| 60547-06 | GASKET | |
| 60678-85 | RETAINING RING | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | |
| 7041 | LOCKWASHER | |
| 7586 | JAMNUT | |
| 7593 | NUT | |
| 7716 | LOCKNUT | LICENSE PLATE BRACKETS - FLD, FXDWG: |
| 786A | BOLT | |
| 856A | SCREW | |
| 9252 | BALL BEARING | |
| 9276A | BEARING | |
| 943 | SCREW | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 42298-08 | PAD KIT | |
| 45875-84A | OIL SEAL | |
| 46514-01A | OIL SEAL | FORK, FRONT - ALL MODELS EXCEPT FLD AND FXDLS (1 OF 2): FORK, FRONT - FXDLS: |
| 46615-06 | CU PACKING | FORK, FRONT - ALL MODELS EXCEPT FLD AND FXDLS (2 OF 2): FORK, FRONT - FXDLS: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR - FXDBP AND FXDBC: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN, ABS - ALL MODELS EXCEPT FXDLS (6 OF 10): WIRING HARNESS, MAIN, ABS - FXDLS (4 OF 5): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 103™ (1 OF 2): ROCKER ARM ASSEMBLY AND PUSH RODS - TWIN CAM 110™: |
| 18538-99C | HYDRAULIC LIFTER | |
| 37909-90 | RETAINING RING | CLUTCH - TWIN CAM 110™: |
| 37913-98 | PLATE CLUTCH | CLUTCH - TWIN CAM 110™: |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | PEG, SHIFT LEVER KIT |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER | |
| 65296-95A | CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT (1 OF 2): SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT (1 OF 2): |
| 68329-03 | BULB | HEADLAMP - ALL MODELS EXCEPT FLD (1 OF 2): |
| 68572-64B | BULB | TAIL LAMP AND TURN SIGNALS, REAR (2 OF 3): |
| 68973-00 | LENS | SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT (1 OF 2): SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT (1 OF 2): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63731-99A | OIL FILTER | CRANKCASE, ENGINE OIL FILTER AND COOLER - TWIN CAM 110™ : |
| 63798-99A | OIL FILTER | |
| 65989-97C | BATTERY | |
| 66373-06 | BATTERY | INSTRUMENTS - FXDB, FXDBP, FXDBC AND FXDWG (1 OF 2): |
| 95594-84B | WEIGHT | |
| 95595-84B | WEIGHT |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | INSTRUMENTS - FXDB, FXDBP, FXDBC AND FXDWG (1 OF 2): |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | |
| 43157-83A | VALVE STEM ASSEMBLY |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
