GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2016 FLHXSE MODEL
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the
United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | PX=FLHXSE CVO Street Glide® | |
4 | Engine type | N=Twin-Cooled™ 1801 cm3 High Output Twin Cam 110™,
fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) J=Brazil (BRZ) L=Asia Pacific (APC) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) K=Brazil (BRZ) M=Asia Pacific (APC) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | G=2016 | |
8 | Assembly plant | B=York, PA USA D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
NOTES
ENGINE ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19292-16 | ENGINE ASSEMBLY, complete - 110 cubic-inch (gray granite) | FLHXSE |
| 20056-16 | ENGINE ASSEMBLY, complete - 110 cubic-inch (black) | FLHXSE |
CYLINDERS, HEADS AND VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11110 | O-RING (4) | FLHXSE |
| 2 | 11290 | O-RING (4) | FLHXSE |
| 3 | 11408 | RETAINER, wire clip (4) | FLHXSE |
| 4 | 11907 | O-RING KIT, cylinder base, with crankcase dowel O-rings | FLHXSE |
| 5 | 16478-85A | SCREW, internal thread, 3-3/16 in long (4) | FLHXSE |
| 6 | 16480-92A | SCREW, internal thread, 1-7/8 in long (4) | FLHXSE |
| 7 | 16595-99A | DOWEL PIN, ring (4) | FLHXSE |
| 8 | 16699-06 | SNAP RING, wire (4) | FLHXSE |
| 9 | 16715-83 | STUD, exhaust port (4) | FLHXSE |
| 10 | 16834-99A | STUD, cylinder (8) | FLHXSE |
| 11 | 17285-07A | CYLINDER ASSEMBLY, with 16595-99A (black) (2) | FLHXSE |
| 17454-08A | CYLINDER ASSEMBLY, with 16595-99A (gray granite) (2) | FLHXSE | |
| 12 | 18048-98A | SEAT, exhaust valve (2) | FLHXSE |
| 13 | 18067-09 | VALVE SEAL (4) | FLHXSE |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHXSE |
| 15 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHXSE |
| 16 | 18183-03 | EXHAUST VALVE (2) | FLHXSE |
| 17 | 18187-07 | INTAKE VALVE (2) | FLHXSE |
| 18 | 18189-07 | SEAT, intake valve (2) | FLHXSE |
| 19 | 18270-00A | COLLAR, valve spring (lower) (4) | FLHXSE |
| 20 | 18271-00 | KEY, valve spring collar (8) | FLHXSE |
| 21 | 18272-00 | SPRING VALVE, inner and outer (4) | FLHXSE |
| 22 | 18280-07 | COLLAR, valve spring (upper) (4) | FLHXSE |
| 23 | 26064-08 | FITTING ASSEMBLY, with 11110, 11290 and 11408 (4) | FLHXSE |
| 24 | 29517-07A | MEDALLION KIT, with 2 medallions | FLHXSE |
| 25 | 72009-05 | HOUSING, two-way pin (black) | FLHXSE |
| 26 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHXSE |
| 27 | 16500139 | HEAD, cylinder, rear, with 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 and 65324-83B (gray granite) | FLHXSE |
| 16500270 | HEAD, cylinder, rear, with 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 and 65324-83B (black) | FLHXSE | |
| 16500134 | HEAD, cylinder, front, with 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 and 65324-83B (gray granite) | FLHXSE | |
| 16500269 | HEAD, cylinder, front, with 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 and 65324-83B (black) | FLHXSE | |
| 28 | 16500168 | GASKET, cylinder head (2) | FLHXSE |
| 29 | 16500227 | GASKET KIT, top end | FLHXSE |
| 16500228 | GASKET KIT, engine overhaul | FLHXSE | |
| 30 | 18400035 | SOLENOID, auto compression release, with 72009-05 and 72011-05 (2) | FLHXSE |
| 31 | 25800017 | SCREW, medallion (4) | FLHXSE |
ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHXSE |
| 2 | 3692A | SCREW (5) | FLHXSE |
| 3 | 3693A | SCREW (10) | FLHXSE |
| 4 | 3736B | SCREW (8) | FLHXSE |
| 5 | 4400 | BOLT (4) | FLHXSE |
| 6 | 4741A | SCREW (8) | FLHXSE |
| 7 | 4881 | BOLT, dual threaded (rear cylinder only) | FLHXSE |
| 8 | 6762B | WASHER (4) | FLHXSE |
| 9 | 11132A | O-RING, pushrod cover (4) | FLHXSE |
| 10 | 11145A | O-RING, pushrod cover (4) | FLHXSE |
| 11 | 11270 | O-RING (2) | FLHXSE |
| 12 | 11293 | O-RING (4) | FLHXSE |
| 13 | 16719-99B | GASKET, rocker housing (2) | FLHXSE |
| 14 | 17025-03A | BREATHER ASSEMBLY, with 4400 | FLHXSE |
| 15 | 17045-99D | GASKET KIT, cam service | FLHXSE |
| 16 | 17360-83A | ROCKER ARM, front intake, rear exhaust, with bushings (2) | FLHXSE |
| 17 | 17375-83A | ROCKER ARM, rear intake, front exhaust, with bushings (2) | FLHXSE |
| 18 | 17386-99A | GASKET, rocker cover (2) | FLHXSE |
| 19 | 17429-91 | BUSHING, rocker arm (8) | FLHXSE |
| 20 | 17572-99 | ROCKER COVER (chrome) (2) | FLHXSE |
| 17707-11 | ROCKER COVER (black) (2) | FLHXSE | |
| 21 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLHXSE |
| 17709-11 | ROCKER HOUSING (black) (2) | FLHXSE | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLHXSE |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLHXSE |
| 24 | 17922-99 | PUSHROD, exhaust, 10.536 in long (black rings) (2) | FLHXSE |
| 17923-99 | PUSHROD, intake, 10.418 in long (plain finish) (2) | FLHXSE | |
| 25 | 17939-99 | COVER, pushrod, lower (4) | FLHXSE |
| 26 | 17945-36B | CAP, cover spring (4) | FLHXSE |
| 27 | 17947-36 | SPRING, pushrod cover (4) | FLHXSE |
| 28 | 17948-99 | COVER, pushrod, upper (4) | FLHXSE |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLHXSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHXSE | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHXSE |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHXSE |
| 32 | 18572-13 | HYDRAULIC LIFTER (4) | FLHXSE |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHXSE |
| 34 | 26500002 | BREATHER, baffle assembly, with breather valve and filter (2) | FLHXSE |
COOLING SYSTEM, ENGINE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHXSE |
| 2 | 28004-01 | O-RING (8) | FLHXSE |
| 3 | 28005-01 | WASHER (4) | FLHXSE |
| 4 | 10200258 | SCREW (2) | FLHXSE |
| 5 | 16400028 | LOCKING PLATE ASSEMBLY (2) | FLHXSE |
| 6 | 26900021 | COOLANT LINE, front head inlet | FLHXSE |
| 7 | 26900022 | COOLANT LINE, front head outlet | FLHXSE |
| 8 | 26900023 | COOLANT LINE, rear head inlet | FLHXSE |
| 9 | 26900024 | COOLANT LINE, rear head outlet | FLHXSE |
| 10 | 26900027 | COMPLIANCE ASSEMBLY, with 28004-01 and 28005-01 (left) | FLHXSE |
| 11 | 26900028 | COMPLIANCE ASSEMBLY, with 28004-01 and 28005-01 (right) | FLHXSE |
| 12 | 26900029 | P-CLAMP, coolant hose | FLHXSE |
COOLANT DISTRIBUTION
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT | FLHXSE |
| 2 | 4266A | SCREW (2) | FLHXSE |
| 3 | 4741A | SCREW (2) | FLHXSE |
| 4 | 8037 | SPEED NUT (2) | FLHXSE |
| 5 | 10344 | CLAMP (5) | FLHXSE |
| 6 | 11692 | GROMMET (2) | FLHXSE |
| 7 | 10800052 | CLAMP (3) | FLHXSE |
| 8 | 25700228 | COVER, coolant pump, with 8037 and 61400132 | FLHXSE |
| 9 | 26600012 | PUMP, coolant | FLHXSE |
| 10 | 26700001A | THERMOSTAT | FLHXSE |
| 11 | 26900001 | HOSE, thermostat to pump | FLHXSE |
| 12 | 26900002 | HOSE, pump to engine | FLHXSE |
| 13 | 26900003 | TUBE ASSEMBLY, coolant down tubes | FLHXSE |
| 14 | 26900006 | HOSE, engine to thermostat | FLHXSE |
| 15 | 61400132 | TRIM | FLHXSE |
| 16 | 62800001 | BRACKET, coolant pump and thermostat | FLHXSE |
| 17 | 62800003 | ISOLATOR, coolant pump | FLHXSE |
RADIATOR, COOLANT HOSES AND BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHXSE |
| 2 | 10006 | CABLE STRAP (7) | FLHXSE |
| 3 | 10147 | CLIP, connector (2) | FLHXSE |
| 4 | 10344 | CLAMP (4) | FLHXSE |
| 5 | 26780-05A | CAP ASSEMBLY, coolant bottle | FLHXSE |
| 6 | 72063-06 | HOUSING, two-way socket (black) | FLHXSE |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLHXSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHXSE |
| 9 | 72177-07BK | HOUSING, four-way socket (black) | FLHXSE |
| 10 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHXSE |
| 12 | 72486-08 | WIRE SEAL, 20 AWG (green) (8) | FLHXSE |
| 13 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 14 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 15 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 16 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 17 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (8) | FLHXSE |
| 18 | 10800023 | CLAMP (2) | FLHXSE |
| 19 | 10800052 | CLAMP (4) | FLHXSE |
| 20 | 10800078 | CLAMP (3) | FLHXSE |
| 21 | 26700001A | THERMOSTAT | FLHXSE |
| 22 | 26800005 | CORE, radiator (right) | FLHXSE |
| 23 | 26800006 | CORE, radiator (left) | FLHXSE |
| 24 | 26800007A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (left) | FLHXSE |
| 25 | 26800019A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (right) | FLHXSE |
| 26 | 26800020A | FILL NECK, coolant | FLHXSE |
| 27 | 26800021 | CAP, pressure | FLHXSE |
| 28 | 26900007 | HOSE, thermostat to radiator | FLHXSE |
| 29 | 26900008 | HOSE, coolant, left cross tube | FLHXSE |
| 30 | 26900009 | LINE, coolant, right to left | FLHXSE |
| 31 | 26900010 | HOSE, coolant, right cross tube | FLHXSE |
| 32 | 26900011 | HOSE, radiator to thermostat | FLHXSE |
| 33 | 26900014 | BOTTLE ASSEMBLY, coolant, with 26780-05A | FLHXSE |
| 34 | 26900016 | HOSE, coolant vent | FLHXSE |
| 35 | 26900017 | HOSE, coolant overflow | FLHXSE |
| 36 | 26900018 | HOSE, coolant fill | FLHXSE |
| 37 | 32700066 | SENSOR, coolant temperature | FLHXSE |
| 38 | 62800004 | CLIP, coolant line to frame (2) | FLHXSE |
| 39 | 69200133 | WIRE HARNESS, twin cooling jumper, with 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 and 72610-08 (left) | FLHXSE |
| 40 | 69200271 | HOUSING, two-way socket (black) | FLHXSE |
| 41 | 69200311 | WIRE HARNESS, twin cooling jumper, with 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 and 69200271 (right) | FLHXSE |
PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHXSE |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FLHXSE |
| 21953-11 | PISTON RING SET, 0.010 in over-size (2) | FLHXSE | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FLHXSE |
| 4 | 22000001 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, standard (2) | FLHXSE |
| 22000003 | PISTON AND RINGS ASSEMBLY, with piston pin and lock rings, 0.010 in over-size (2) | FLHXSE | |
| 5 | 24100021 | FLYWHEEL ASSEMBLY KIT | FLHXSE |
CRANKCASE, ENGINE OIL FILTER AND COOLER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHXSE |
| 2 | 765 | PLUG (3) | FLHXSE |
| 3 | 895 | SCREW (8) | FLHXSE |
| 4 | 1090A | SCREW | FLHXSE |
| 5 | 8972 | WASHER (2) | FLHXSE |
| 6 | 11140 | O-RING (2) | FLHXSE |
| 7 | 11273 | O-RING (2) | FLHXSE |
| 8 | 12068 | SEAL, oil | FLHXSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHXSE |
| 10 | 16589-99A | DOWEL PIN (2) | FLHXSE |
| 11 | 16595-99A | DOWEL PIN (4) | FLHXSE |
| 12 | 22307-99 | JET, cooling, piston, with 11140 (2) | FLHXSE |
| 13 | 24004-03B | BEARING KIT, with 8972, 24605-07, 35114-02 and inner race | FLHXSE |
| 14 | 24009-06 | SPACER, sprocket shaft | FLHXSE |
| 15 | 24018-10 | NEEDLE BEARING, camshaft (left) (2) | FLHXSE |
| 16 | 24605-07 | BEARING, main (2) | FLHXSE |
| 17 | 24758-07A | CRANKCASE SET, with 1, 2, 3, 4, 9, 10, 11, 12, 15, 16, 19 and 21 (black) | FLHXSE |
| 24760-08A | CRANKCASE SET, with 1, 2, 3, 4, 9, 10, 11, 12, 15, 16, 19 and 21 (gray granite) | FLHXSE | |
| 18 | 26352-95A | ADAPTER | FLHXSE |
| 19 | 35114-02 | RING, retaining, internal | FLHXSE |
| 20 | 63731-99A | OIL FILTER (black) | FLHXSE |
| 21 | 68042-99 | SCREW (4) | FLHXSE |
CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHXSE |
| 2 | 942 | SCREW, primary camshaft chain tensioner (2) | FLHXSE |
| 3 | 4740A | SCREW, secondary camshaft tensioner (2) | FLHXSE |
| 4740A | SCREW, camshaft cover (10) | FLHXSE | |
| 4 | 4741A | SCREW (10) | FLHXSE |
| 5 | 6294 | WASHER | FLHXSE |
| 6 | 8873 | BALL (12) | FLHXSE |
| 7 | 24018-10 | BEARING KIT, needle, camshaft (left) (2) | FLHXSE |
| 8 | 11293 | O-RING | FLHXSE |
| 9 | 11301 | O-RING (2) | FLHXSE |
| 10 | 11461 | RETAINING RING | FLHXSE |
| 11 | 17045-99D | GASKET KIT, camshaft service | FLHXSE |
| 12 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with 6294 and screws | FLHXSE |
| 13 | 25244-99A | GASKET, camshaft cover | FLHXSE |
| 14 | 25355-06A | CAMSHAFT SUPPORT PLATE, with bypass valve | FLHXSE |
| 15 | 37198-11 | CAMSHAFT COVER (black) | FLHXSE |
| 25369-01B | CAMSHAFT COVER (chrome) | FLHXSE | |
| 16 | 25585-06 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25728-06 | FLHXSE |
| 17 | 25638-07 | CAMSHAFT KIT | FLHXSE |
| 18 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLHXSE |
| 19 | 25675-06 | CHAIN, primary camshaft drive | FLHXSE |
| 20 | 25683-06 | CHAIN, secondary camshaft drive | FLHXSE |
| 21 | 25728-06 | SPROCKET, camshaft drive, 34 T | FLHXSE |
| 22 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick | FLHXSE |
| 23 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLHXSE |
| 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLHXSE | |
| 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLHXSE | |
| 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLHXSE | |
| 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLHXSE | |
| 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLHXSE | |
| 24 | 26037-06 | OIL PUMP ASSEMBLY, with 26278-06, 26281-06, 26282-06 and 40323-00 | FLHXSE |
| 25 | 26210-99 | SPRING, relief valve | FLHXSE |
| 26 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHXSE |
| 27 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHXSE |
| 28 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHXSE |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FLHXSE |
| 30 | 32586-07 | COVER, timer cover (chrome) | FLHXSE |
| 31 | 39968-06 | CHAIN TENSIONER, primary camshaft drive chain | FLHXSE |
| 32 | 39969-06 | CHAIN TENSIONER, secondary camshaft drive chain | FLHXSE |
| 33 | 40323-00 | SPRING, separator | FLHXSE |
| 34 | 68120-00 | SCREW (5) | FLHXSE |
| 35 | 25600038 | INSERT, timer cover | FLHXSE |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | FLHXSE |
| 2 | 4688 | SCREW (3) | FLHXSE |
| 3 | 4721 | BOLT (2) | FLHXSE |
| 4 | 4838 | SCREW (2) | FLHXSE |
| 5 | 4868 | SCREW (2) | FLHXSE |
| 6 | 6127 | WASHER (5) | FLHXSE |
| 7 | 7783 | NUT (2) | FLHXSE |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | FLHXSE |
| 9 | 16219-09 | STABILIZER LINK | FLHXSE |
| 10 | 16321-08 | WELDMENT, engine strap | FLHXSE |
| 11 | 24754-75A | DOWEL, bushing (2) | FLHXSE |
| 12 | 47159-09BHP | BRACKET, front engine mount | FLHXSE |
| 13 | 16400004 | END CAP, front mount | FLHXSE |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHXSE |
| 2 | 4705 | SCREW (2) | FLHXSE |
| 3 | 16325-10 | BRACKET, induction module | FLHXSE |
| 4 | 26993-06 | FLANGE, mounting (2) | FLHXSE |
| 5 | 26995-86B | SEAL, intake manifold (2) | FLHXSE |
| 6 | 27609-01B | FUEL INJECTOR ASSEMBLY, with O-ring (2) | FLHXSE |
| 7 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHXSE |
| 8 | 27721-08 | FUEL RAIL | FLHXSE |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure with O-ring | FLHXSE |
| 10 | 61208-10 | FUEL LINE | FLHXSE |
| 11 | 90383-98 | CAP, purge tube | FLHXSE |
| 12 | 27200002 | INDUCTION MODULE KIT, with 27711-08 and 90383-98 | FLHXSE |
AIR CLEANER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLHXSE |
| 2 | 3938 | SCREW (3) | FLHXSE |
| 3 | 8250 | STUD, air cleaner (3) | FLHXSE |
| 4 | 11292 | O-RING (4) | FLHXSE |
| 5 | 29241-08 | GASKET | FLHXSE |
| 6 | 29267-08A | BOLT, breather (2) | FLHXSE |
| 7 | 29269-83A | SCREW, air cleaner | FLHXSE |
| 8 | 29670-09 | ELEMENT, air filter | FLHXSE |
| 9 | 29696-09 | BACKPLATE ASSEMBLY, air cleaner (gray granite) | FLHXSE |
| 29763-09 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHXSE | |
| 10 | 29762-09 | RAINSOCK | FLHXSE |
| 11 | 14100699 | INSERT, air cleaner cover | FLHXSE |
| 12 | 61300516 | COVER, with 3048, 14100699 and label (chrome) (for two-tone atomic red and candy apple flames, two-tone black licorice and midnight cobalt flames) | FLHXSE |
| 61300517 | COVER, with 3048, 14100699 and label (black) (for two-tone white amethyst and black licorice flames, two-tone carbon crystal and phantom flames) | FLHXSE |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLHXSE |
| 2 | 4751 | SCREW (4) | FLHXSE |
| 3 | 10039 | CABLE STRAP (3) | FLHXSE |
| 4 | 10177 | CABLE STRAP, anchored | FLHXSE |
| 5 | 6771A | WASHER (4) | FLHXSE |
| 6 | 24009-06 | SPACER, rotor shell | FLHXSE |
| 7 | 74120-08 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | FLHXSE |
| 8 | 12700077 | BRACKET | FLHXSE |
| 9 | 29900029 | STATOR ASSEMBLY, three-phase, 53 A | FLHXSE |
| 10 | 29900033 | ROTOR ASSEMBLY | FLHXSE |
| 11 | 74700021 | VOLTAGE REGULATOR ASSEMBLY, 53 A | FLHXSE |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLHXSE |
| 2 | 4826 | SCREW (2) | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored (3) | FLHXSE |
| 4 | 31696-07A | IGNITION COIL | FLHXSE |
| 5 | 32013-09A | SPARK PLUG CABLE, front cylinder, with 10177 | FLHXSE |
| 6 | 32014-09A | SPARK PLUG CABLE, rear cylinder, with 10177 | FLHXSE |
| 7 | 32362-04A | SPARK PLUG (2) | FLHXSE |
| 8 | 66200-09 | BRACKET, battery hold down | FLHXSE |
| 9 | 70681-09 | RETAINER, wire harness | FLHXSE |
| 10 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | FLHXSE |
| 11 | 69200174 | CADDY, electronic control module (ECM) | FLHXSE |
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLHXSE |
| 2 | 11289A | O-RING | FLHXSE |
| 3 | 32319-07A | SENSOR, temperature manifold absolute pressure, with O-ring | FLHXSE |
| 4 | 32446-99 | SENSOR, engine temperature | FLHXSE |
| 5 | 32707-01C | SENSOR, crankshaft position, with 11289A, 72199-94 and 74194-98 | FLHXSE |
| 6 | 72199-94 | ANCHOR, T-stud | FLHXSE |
| 7 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLHXSE |
| 8 | 74438-99A | OIL PRESSURE SENDER | FLHXSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW | FLHXSE |
| 2 | 4419 | SCREW (2) | FLHXSE |
| 3 | 7838 | NUT (2) | FLHXSE |
| 4 | 27444-00Y | O-RING, starter-to-case | FLHXSE |
| 5 | 31527-90 | BRACKET ASSEMBLY, starter cover | FLHXSE |
| 6 | 31611-08 | COVER (chrome) | FLHXSE |
| 7 | 31604-06 | SOLENOID REPAIR KIT | FLHXSE |
| 8 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | FLHXSE |
| 9 | 31633-07A | CLUTCH SUBASSEMBLY | FLHXSE |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHXSE |
| 2 | 856A | SCREW | FLHXSE |
| 3 | 3275 | SCREW (2) | FLHXSE |
| 4 | 4192 | SCREW (2) | FLHXSE |
| 5 | 4196 | SCREW (2) | FLHXSE |
| 6 | 5817 | SPACER | FLHXSE |
| 7 | 5826 | SPACER, shifter cover | FLHXSE |
| 8 | 6497HW | WASHER | FLHXSE |
| 9 | 7041 | LOCKWASHER (2) | FLHXSE |
| 10 | 7904 | ACORN NUT | FLHXSE |
| 11 | 11150 | RING, retaining, external | FLHXSE |
| 12 | 11389 | RING, shift camshaft retaining | FLHXSE |
| 13 | 11575 | RING, shift camshaft retaining | FLHXSE |
| 14 | 33389-07 | SPRING DETENT | FLHXSE |
| 15 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLHXSE |
| 16 | 33413-06A | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHXSE |
| 17 | 33709-82A | SHAFT | FLHXSE |
| 18 | 33718-82B | LEVER, gearshift (chrome) | FLHXSE |
| 19 | 33814-98A | SHIFTER LINKAGE KIT, with 4, 7, 10, 21, 22 and 23 | FLHXSE |
| 20 | 33849-97 | LEVER, shifter rod | FLHXSE |
| 21 | 33888-99 | ROD END, self-aligning (2) | FLHXSE |
| 22 | 33889-99 | NUT, rod end (2) | FLHXSE |
| 23 | 33890-99A | COVER, shifter rod | FLHXSE |
| 24 | 34064-00C | SPRING, shifter return | FLHXSE |
| 25 | 33600060 | LEVER, toe shifter (short) (chrome) | FLHXSE |
| 26 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 and 66290-06 (black) | FLHXSE |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 and 66290-06 (gray granite) | FLHXSE | |
| 27 | 34987-06 | SPRING, ratchet lever | FLHXSE |
| 28 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | FLHXSE |
| 29 | 35082-07 | CENTERING SCREW, shift lever | FLHXSE |
| 30 | 35186-06 | SLEEVE | FLHXSE |
| 31 | 35187-06 | FORK, shift 1 - 2 | FLHXSE |
| 32 | 35210-06 | FORK, shift 3 - 4 | FLHXSE |
| 33 | 35217-06 | FORK, shift 5 - 6 | FLHXSE |
| 34 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHXSE |
| 35 | 35223-06 | SHAFT, 1 - 2 and 3 - 4 shift fork | FLHXSE |
| 36 | 35243-06 | SLEEVE | FLHXSE |
| 37 | 35244-06 | SCREW, detent | FLHXSE |
| 38 | 35249-06A | LOCK PLATE, shift camshaft | FLHXSE |
| 39 | 35246-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 14, 16, 31, 32, 33, 34, 35, 36, 37, 38, 40, 7340, 35260-06A, inputshaft, countershaft (black) | FLHXSE |
| 35255-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 14, 16, 31, 32, 33, 34, 35, 36, 37, 38, 40, 7340, 35260-06A, inputshaft, countershaft (gray granite) | FLHXSE | |
| 40 | 35259-06 | SCREW, shift drum support (2) | FLHXSE |
| 41 | 11000101 | OIL SEAL | FLHXSE |
| 42 | 12400026 | SLEEVE (2) | FLHXSE |
| 43 | 33600061 | LEVER, heel shifter (long) (chrome) | FLHXSE |
| 44 | 33600056 | SHIFTER PEG, with 12400026 and screw (2) | FLHXSE |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHXSE |
| 2 | 3249 | SCREW (6) | FLHXSE |
| 3 | 3300 | SCREW (2) | FLHXSE |
| 4 | 4705 | SCREW (3) | FLHXSE |
| 5 | 4718A | SCREW (4) | FLHXSE |
| 6 | 4741A | SCREW (2) | FLHXSE |
| 7 | 8963 | BEARING, needle | FLHXSE |
| 8 | 8967 | BEARING | FLHXSE |
| 9 | 8970A | BEARING (2) | FLHXSE |
| 10 | 9701A | BUSHING | FLHXSE |
| 11 | 11132A | O-RING, dipstick | FLHXSE |
| 12 | 11161 | RETAINING RING | FLHXSE |
| 13 | 11348 | O-RING | FLHXSE |
| 14 | 12074 | SEAL | FLHXSE |
| 15 | 16583-00A | BUSHING, dowel (2) | FLHXSE |
| 16 | 35082-07 | SCREW, centering, shifter lever | FLHXSE |
| 17 | 35087-99A | RETAINING RING (2) | FLHXSE |
| 18 | 35186-06 | SLEEVE | FLHXSE |
| 19 | 35256-08A | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00A and 35087-99A (gray granite) | FLHXSE |
| 35260-06A | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00A and 35087-99A (black) | FLHXSE | |
| 20 | 35607-06 | GASKET | FLHXSE |
| 21 | 35654-06 | GASKET, bearing housing | FLHXSE |
| 22 | 36805-06 | GASKET, cover | FLHXSE |
| 23 | 37065-06 | DIPSTICK (chrome) | FLHXSE |
| 24 | 44613-02 | BLEEDER SCREW | FLHXSE |
| 25 | 11000101 | OIL SEAL | FLHXSE |
| 26 | 11900035 | O-RING | FLHXSE |
| 27 | 25700178 | INNER SIDE COVER | FLHXSE |
| 28 | 25700179 | SIDE COVER, transmission (chrome) | FLHXSE |
| 25700180 | SIDE COVER, transmission (black) | FLHXSE | |
| 29 | 37200034 | CAP, bleeder screw | FLHXSE |
| 30 | 37200023 | SECONDARY CLUTCH ACTUATOR, with 44613-02, 11900035 and 37200034 | FLHXSE |
TRANSMISSION HOUSING, TOP COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHXSE |
| 2 | 3983 | SCREW (2) | FLHXSE |
| 3 | 4705 | SCREW | FLHXSE |
| 4 | 4741A | SCREW, trans. top cover (6) | FLHXSE |
| 4741A | SCREW, oil pan (12) | FLHXSE | |
| 5 | 7792 | NUT | FLHXSE |
| 6 | 11105 | O-RING (2) | FLHXSE |
| 7 | 11120 | O-RING | FLHXSE |
| 8 | 11289A | O-RING | FLHXSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHXSE |
| 10 | 26077-99A | GASKET, oil pan | FLHXSE |
| 11 | 62489-99A | OIL PAN ASSEMBLY (black) with 45893-99 and 60328-98B | FLHXSE |
| 12 | 33203-10A | TRANSMISSION REPLACEMENT, without cable, covers and sensors (gray granite) | FLHXSE |
| 33166-10A | TRANSMISSION REPLACEMENT, without cable, covers and sensors (black) | FLHXSE | |
| 13 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHXSE |
| 14 | 34469-06B | TRANSMISSION COVER, top with 62372-09 (chrome) | FLHXSE |
| 37195-11 | TRANSMISSION COVER, top with 62372-09 (black) | FLHXSE | |
| 15 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 and 66290-06 (black) | FLHXSE |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 and 66290-06 (gray granite) | FLHXSE | |
| 16 | 34917-06 | GASKET, upper cover | FLHXSE |
| 17 | 45893-99 | PIPE PLUG | FLHXSE |
| 18 | 60328-98B | PLUG, magnetic, with 11105 (2) | FLHXSE |
| 19 | 62372-09 | VENT HOSE, transmission | FLHXSE |
| 20 | 62693-07A | DIPSTICK ASSEMBLY, with 11120 (chrome) | FLHXSE |
| 21 | 66290-06 | STUD, ground | FLHXSE |
| 22 | 74402-05B | SPEED SENSOR, with 11289A | FLHXSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHXSE |
| 2 | 7340 | NUT (2) | FLHXSE |
| 3 | 8026K | BEARING, needle (4) | FLHXSE |
| 4 | 8041 | BEARING, needle | FLHXSE |
| 5 | 8042 | BEARING, needle (2) | FLHXSE |
| 6 | 10991A | RETAINING RING (2) | FLHXSE |
| 7 | 11061A | RETAINING RING | FLHXSE |
| 8 | 11081A | RING, lock (3) | FLHXSE |
| 9 | 11082 | SECURING SEGMENT (6) | FLHXSE |
| 10 | 11201 | O-RING | FLHXSE |
| 11 | 11207A | WASHER, internal spline | FLHXSE |
| 12 | 11599A | SPACER, bearing | FLHXSE |
| 13 | 12077 | OIL SEAL | FLHXSE |
| 14 | 34091-08 | BEARING, inner race | FLHXSE |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, with 8042, 10991A, 11201, 11599A and 12077 | FLHXSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHXSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHXSE |
| 18 | 35201-10 | GUIDE HUB, dog ring | FLHXSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHXSE |
| 20 | 35204-06 | DOG RING, pocketed | FLHXSE |
| 21 | 35246-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 35256-08, shifter camshaft and forks (black) | FLHXSE |
| 35255-10A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 35256-08, shifter camshaft and forks (gray granite) | FLHXSE | |
| 22 | 35467-06B | INPUTSHAFT KIT, with 11061A, 34091-08 and 35201-10 | FLHXSE |
| 23 | 35470-10 | COUNTERSHAFT ASSEMBLY | FLHXSE |
| 24 | 35801-10 | GEAR, fifth input | FLHXSE |
| 25 | 35805-06A | GEAR, countershaft first | FLHXSE |
| 26 | 35807-06 | GEAR, countershaft second | FLHXSE |
| 27 | 35811-06 | GEAR, countershaft third | FLHXSE |
| 28 | 35814-06 | GEAR, countershaft fourth | FLHXSE |
CLUTCH - ASSIST AND SLIP
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLHXSE |
| 2 | 11143 | RETAINING RING, external | FLHXSE |
| 3 | 36706-01K | BOLT (3) | FLHXSE |
| 4 | 36731-91 | PLATE, release, with 8885 | FLHXSE |
| 5 | 37496-90A | NUT, mainshaft | FLHXSE |
| 6 | 37904-90 | RING, retaining, external | FLHXSE |
| 7 | 37905-00 | RING, retaining, internal | FLHXSE |
| 8 | 37906-11 | BEARING, ball, double-row | FLHXSE |
| 9 | 37909-90 | RING, retaining, internal | FLHXSE |
| 10 | 11700002 | COIL SPRING (3) | FLHXSE |
| 11 | 37000026 | CLUTCH ASSEMBLY, complete | FLHXSE |
| 12 | 37000032 | PRESSURE PLATE, clutch | FLHXSE |
| 13 | 37000033 | STOPPER PLATE | FLHXSE |
| 14 | 37000034 | SPRING, damper | FLHXSE |
| 15 | 37000035 | SEAT (3) | FLHXSE |
| 16 | 37000036 | SEAT, damper-spring | FLHXSE |
| 17 | 37000083 | HUB ASSEMBLY | FLHXSE |
| 18 | 37000118 | CLUTCH DISKS KIT | FLHXSE |
| 19 | 37000217 | PUSHROD, clutch release | FLHXSE |
| 20 | 37000218 | ROD, clutch release | FLHXSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHXSE |
| 2 | 791A | SCREW (2) | FLHXSE |
| 3 | 791A | SCREW (Japan) | FLHXSE |
| 4 | 1062 | SCREW (5) | FLHXSE |
| 5 | 1780 | SCREW (4) | FLHXSE |
| 6 | 4813A | SCREW (9) | FLHXSE |
| 7 | 9231 | BEARING | FLHXSE |
| 8 | 11105 | O-RING | FLHXSE |
| 9 | 12052A | SEAL | FLHXSE |
| 10 | 16583-00A | DOWEL BUSHING (2) | FLHXSE |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and seal clutch cover | FLHXSE |
| 12 | 24754-75A | DOWEL BUSHING, starter (4) | FLHXSE |
| 13 | 34901-07 | GASKET, primary cover | FLHXSE |
| 14 | 34948-08 | GASKET, primary housing to case | FLHXSE |
| 15 | 39929-06B | CHAIN TENSIONER ASSEMBLY | FLHXSE |
| 16 | 42642-00A | BUSHING (2) | FLHXSE |
| 17 | 60328-98B | PLUG, magnetic drain with 11105 | FLHXSE |
| 18 | 60432-07A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 42642-00A, 60328-98B and 60678-85 (black) | FLHXSE |
| 60850-08A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 42642-00A, 60328-98B and 60678-85 (gray granite) | FLHXSE | |
| 19 | 60678-85 | RETAINING RING | FLHXSE |
| 20 | 60818-07 | SLEEVE, dampener (Japan) | FLHXSE |
| 21 | 25700226 | GASKET KIT, inner primary | FLHXSE |
| 22 | 25700438 | COVER, primary (black) | FLHXSE |
| 25700385 | COVER, primary (chrome) | FLHXSE | |
| 24 | 25700553 | COVER ASSEMBLY, clutch, with 25800053 (chrome) | FLHXSE |
| 25 | 25800053 | INSERT, clutch cover | FLHXSE |
BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLHXSE |
| 2 | 3892 | SCREW (3) | FLHXSE |
| 3 | 9276A | BALL BEARING (2) | FLHXSE |
| 4 | 11843 | SPACER, compensator | FLHXSE |
| 5 | 35241-06 | NUT, sprocket | FLHXSE |
| 6 | 35242-06 | LOCKPLATE | FLHXSE |
| 7 | 40024-09A | REAR BELT, 140 T, 1 inch | FLHXSE |
| 8 | 40037-07 | PRIMARY CHAIN | FLHXSE |
| 9 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T, w/ 9276A & 11843 (black) | FLHXSE |
| 10 | 40278-09 | ISOLATOR, rubber | FLHXSE |
| 11 | 40659-06 | SPROCKET, transmission, 32 T | FLHXSE |
| 12 | 60386-09 | DEBRIS DEFLECTOR | FLHXSE |
| 13 | 83936-09A | SPRING PACK | FLHXSE |
| 14 | 10500031 | SCREW | FLHXSE |
| 15 | 36500034A | COMPENSATOR ASSEMBLY, w/ 10500031 | FLHXSE |
| 16 | 40100041 | RETAINER, sprocket | FLHXSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW (black) (2) | FLHXSE |
| 3089 | SCREW (chrome) (2) | FLHXSE | |
| 2 | 4132 | SCREW (black) (2) | FLHXSE |
| 4293 | SCREW (zinc) (2) | FLHXSE | |
| 3 | 6101 | WASHER (black) (2) | FLHXSE |
| 6099 | WASHER (zinc) (2) | FLHXSE | |
| 4 | 10264 | CLIP, clutch cable (2) | FLHXSE |
| 5 | 10039 | CABLE STRAP (3) | FLHXSE |
| 6 | 11143 | RING, retaining | FLHXSE |
| 7 | 38738-08 | PIVOT PIN (black) | FLHXSE |
| 45032-82 | PIVOT PIN (chrome) | FLHXSE | |
| 8 | 41750-06B | BOLT, BANJO (black) | FLHXSE |
| 42010-06A | BOLT, BANJO (chrome) | FLHXSE | |
| 9 | 41751-06A | GASKET (2) | FLHXSE |
| 10 | 42145-06 | SIGHT GLASS KIT | FLHXSE |
| 11 | 45138-08A | HALF-CLAMP (black) | FLHXSE |
| 42119-08 | HALF-CLAMP (chrome) | FLHXSE | |
| 12 | 45423-92 | BUSHING, hand lever | FLHXSE |
| 13 | 37200096A | REPAIR KIT, master cylinder, with 11143 and 41751-06A | FLHXSE |
| 14 | 46246-01 | KIT, bushing and roller | FLHXSE |
| 15 | 46322-06 | GASKET | FLHXSE |
| 16 | 46324-06 | MASTER CYLINDER COVER KIT, with 46322-06 (black) | FLHXSE |
| 36700094A | MASTER CYLINDER COVER KIT, with 3089 and gasket (chrome) | FLHXSE | |
| 17 | 12100028 | GROMMET | FLHXSE |
| 18 | 36700049B | MASTER CYLINDER, clutch (black), with 1, 7, 10, 16, 19 | FLHXSE |
| 36700048B | MASTER CYLINDER, clutch (chrome), with 1, 7, 10, 16, 19 | FLHXSE | |
| 19 | 36700051 | LEVER ASSEMBLY, with 11143, 45423-92 and 46246-01 (black) | FLHXSE |
| 36700050 | LEVER ASSEMBLY, with 11143, 45423-92 and 46246-01 (chrome) | FLHXSE | |
| 20 | 37200086 | LINE ASSEMBLY, hydraulic-clutch, with 12100028 (black) | FLHXSE |
| 37200030 | LINE ASSEMBLY, hydraulic-clutch, with 12100028 (chrome) | FLHXSE |

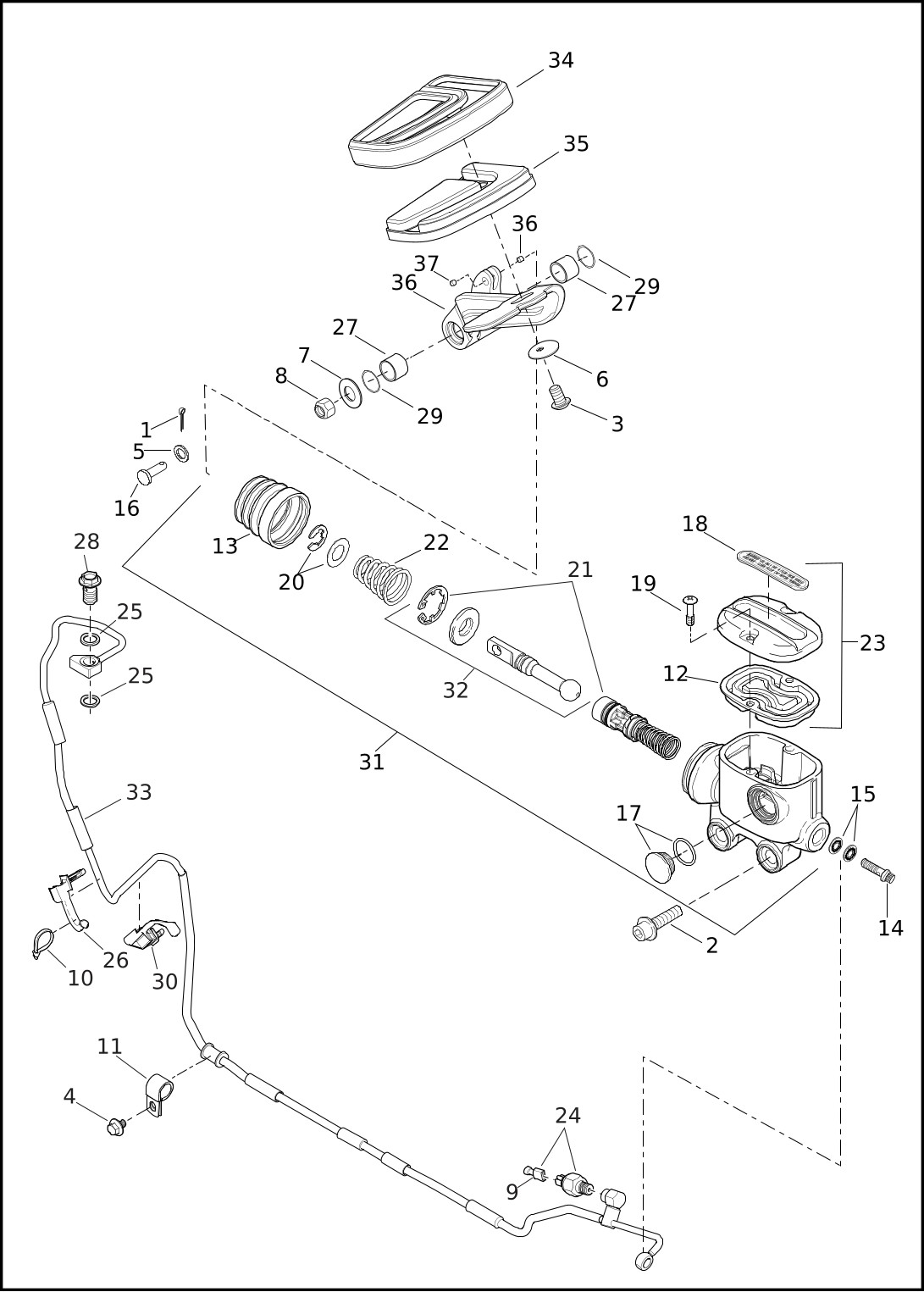

BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLHXSE |
| 4293 | SCREW (zinc) (2) | FLHXSE | |
| 2 | 6101 | WASHER (black) (2) | FLHXSE |
| 6099 | WASHER (zinc) (2) | FLHXSE | |
| 3 | 41751-06A | GASKET (2) | FLHXSE |
| 4 | 41750-06B | BOLT, BANJO, brakeline (black) | FLHXSE |
| 42010-06A | BOLT, BANJO, brakeline (chrome) | FLHXSE | |
| 5 | 44985-10C | MASTER CYLINDER ASSEMBLY, with 8, 10, 13, 14, 16 and brake lever (black) | FLHXSE |
| 42102-08D | MASTER CYLINDER ASSEMBLY, with 8, 10, 13, 14 and 16 (chrome) | FLHXSE | |
| 6 | 42105-06A | PIVOT PIN, with retaining ring | FLHXSE |
| 7 | 45138-08A | CLAMP, master cylinder and clutch (black) | FLHXSE |
| 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHXSE | |
| 8 | 42855-06C | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42858-06A (black) | FLHXSE |
| 42123-08 | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42882-06 (chrome) | FLHXSE | |
| 9 | 42276-06A | BRAKE LEVER, front, with 42105-06A (black) | FLHXSE |
| 42271-06A | BRAKE LEVER, front, with 42105-06A (chrome) | FLHXSE | |
| 10 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHXSE |
| 11 | 42856-06 | DECAL, reservoir cover | FLHXSE |
| 12 | 42857-06B | GASKET, reservoir cover | FLHXSE |
| 13 | 42861-06B | PUSHROD, master cylinder | FLHXSE |
| 14 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHXSE |
| 15 | 42858-06A | SCREW KIT, cover (black) | FLHXSE |
| 42882-06 | SCREW, cover (chrome) (2) | FLHXSE | |
| 16 | 41700367 | BUTTON, anti-bubble | FLHXSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7687 | NUT (2) | FLHXSE |
| 2 | 56000011 | MIRROR (left) | FLHXSE |
| 56000012 | MIRROR (right) (not shown) | FLHXSE | |
| 3 | 56000015 | BACKING PLATE (left) | FLHXSE |
| 56000016 | BACKING PLATE (right) (not shown) | FLHXSE |
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHXSE |
| 2 | 41750-06B | BOLT, BANJO | FLHXSE |
| 3 | 41751-06A | GASKET (10) | FLHXSE |
| 4 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLHXSE |
| 5 | 42853-06 | CAP (2) | FLHXSE |
| 6 | 10200223 | SCREW (2) | FLHXSE |
| 7 | 10600007 | GASKET (2) | FLHXSE |
| 8 | 11600001 | BOLT, BANJO (2) | FLHXSE |
| 9 | 11600009 | BOLT, BANJO | FLHXSE |
| 10 | 41600029A | BRACKET, brakeline | FLHXSE |
| 11 | 41600031 | BRACKET, brake line | FLHXSE |
| 12 | 41600032 | BRACKET, brake line | FLHXSE |
| 13 | 41800357 | BRAKE LINE, Anti-lock braking system (ABS) (right) (black) | FLHXSE |
| 41800206 | BRAKE LINE, ABS (right) (chrome) | FLHXSE | |
| 14 | 41800356 | BRAKE LINE, ABS (left) (black) | FLHXSE |
| 41800205 | BRAKE LINE, ABS (left) (chrome) | FLHXSE | |
| 15 | 41800352 | BRAKE LINE, ABS (upper) (black) | FLHXSE |
| 41800207 | BRAKE LINE, ABS (upper) (chrome) | FLHXSE |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHXSE |
| 2 | 2479 | SCREW (2) | FLHXSE |
| 3 | 3340 | SCREW | FLHXSE |
| 4 | 3563 | SCREW | FLHXSE |
| 5 | 6220W | WASHER | FLHXSE |
| 6 | 6421 | WASHER | FLHXSE |
| 7 | 6416 | WASHER | FLHXSE |
| 8 | 7825 | LOCKNUT | FLHXSE |
| 9 | 9907 | WIRE TERMINAL | FLHXSE |
| 10 | 10065 | CABLE STRAP | FLHXSE |
| 11 | 10076 | CLAMP | FLHXSE |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLHXSE |
| 13 | 12102 | DUST BOOT | FLHXSE |
| 14 | 41750-06B | BOLT, BANJO | FLHXSE |
| 15 | 41751-06A | GASKET (2) | FLHXSE |
| 16 | 42460-80B | CLEVIS PIN | FLHXSE |
| 17 | 42854-06 | KIT, SIGHT GLASS | FLHXSE |
| 18 | 42856-06 | DECAL, reservoir cover | FLHXSE |
| 19 | 42882-06 | SCREW (2) | FLHXSE |
| 20 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHXSE |
| 21 | 42932-08A | REBUILD KIT, master cylinder | FLHXSE |
| 22 | 42934-08 | SPRING, pedal return | FLHXSE |
| 23 | 46463-08 | MASTER CYLINDER COVER KIT, DOT4, with 11902, 42856-06 and 42882-06 (chrome) | FLHXSE |
| 24 | 72023-51E | KIT SWITCH, stop lamp, with 9907 | FLHXSE |
| 25 | 10600007 | GASKET, ABS (2) | FLHXSE |
| 26 | 10800028 | TUBE CLIP (lower) | FLHXSE |
| 27 | 11000050 | BUSHING, brake lever (2) | FLHXSE |
| 28 | 11600009 | BOLT, BANJO | FLHXSE |
| 29 | 11900021 | O-RING (2) | FLHXSE |
| 30 | 41600091 | TUBE CLIP (upper) | FLHXSE |
| 31 | 41700072 | MASTER CYLINDER ASSEMBLY, with 12, 13, 17, 18, 19, 20, 21, 22, 23 and 32 (chrome) | FLHXSE |
| 32 | 41700195 | PUSHROD KIT, master cylinder | FLHXSE |
| 33 | 41800012 | BRAKE LINE, master cylinder to ABS UNIT, ABS, with 10, 11, 26 and 30 | FLHXSE |
| 34 | 50600134 | BRAKE PEDAL INSERT | FLHXSE |
| 35 | 50600135 | RUBBER INSERT | FLHXSE |
| 36 | 50600142 | LEVER ASSEMBLY, foot-brake, with 42644-00, 11000050 and bushing | FLHXSE |
| 37 | 42644-00 | BUSHING, brake lever | FLHXSE |
BRAKE LINES AND MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1062 | SCREW | FLHXSE |
| 2 | 3563 | SCREW | FLHXSE |
| 3 | 10065 | CABLE STRAP | FLHXSE |
| 4 | 10076 | CLAMP | FLHXSE |
| 5 | 10340B | CLIP, brake hose (2) | FLHXSE |
| 6 | 41750-06B | BOLT, BANJO (2) | FLHXSE |
| 7 | 41751-06A | GASKET (6) | FLHXSE |
| 8 | 70631-08 | CLIP, conduit | FLHXSE |
| 9 | 10600007 | GASKET (2) | FLHXSE |
| 10 | 10800028 | TUBE CLIP (lower) | FLHXSE |
| 11 | 11600001 | BOLT, BANJO | FLHXSE |
| 12 | 11600009 | BOLT, BANJO | FLHXSE |
| 13 | 12100007 | GROMMET, ABS mounting | FLHXSE |
| 14 | 41100013A | CONTROL UNIT, ABS | FLHXSE |
| 15 | 41600078 | BRACKET, ABS brake line alignment | FLHXSE |
| 16 | 41600091 | TUBE CLIP (upper) | FLHXSE |
| 17 | 41800012 | BRAKE LINE, ABS module to master cylinder, with 3, 4, 10 and 16 | FLHXSE |
| 18 | 41800013 | BRAKE LINE, ABS module to caliper | FLHXSE |
| 19 | 69200231 | CADDY, ABS module | FLHXSE |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD AND PIN KIT, with 42849-08 (2) | FLHXSE |
| 2 | 42054-05 | COVER, caliper (chrome) (2) | FLHXSE |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHXSE |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHXSE |
| 5 | 44160-00 | BOLT, caliper mounting (lower) (4) | FLHXSE |
| 6 | 44935-06 | MEDALLION, brake caliper (2) **RESTRICTED SALES PART** | FLHXSE |
| 7 | 46368-10 | CALIPER ASSEMBLY (right) (black) | FLHXSE |
| 42938-08 | CALIPER ASSEMBLY (left) (silver) | FLHXSE | |
| 46369-10 | CALIPER ASSEMBLY (left) (black) | FLHXSE | |
| 42939-08 | CALIPER ASSEMBLY (right) (silver) | FLHXSE |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHXSE |
| 2 | 4890 | SCREW, bleeder | FLHXSE |
| 3 | 41852-08B | PAD AND PIN KIT | FLHXSE |
| 4 | 42853-06 | CAP | FLHXSE |
| 5 | 42863-06 | BUMPER | FLHXSE |
| 6 | 42865-06B | PAD PIN KIT | FLHXSE |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHXSE |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, with 4890, 41852-08B, 42853-06, 42865-06B and 42867-06A (black) | FLHXSE |
| 9 | 44089-08 | BRACKET, reaction, rear brake, with 42863-06 | FLHXSE |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SET SCREW (2) | FLHXSE |
| 2 | 3655A | SCREW (10) | FLHXSE |
| 3 | 6594 | WASHER | FLHXSE |
| 4 | 7813A | NUT | FLHXSE |
| 5 | 9252 | BALL BEARING, with encoder, ABS | FLHXSE |
| 6 | 9276A | BALL BEARING | FLHXSE |
| 7 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHXSE |
| 8 | 41148-98 | CAP, tire valve acorn, with bar and shield (set of 2) (chrome) | FLHXSE |
| 9 | 41547-07A | AXLE | FLHXSE |
| 10 | 41900-08 | SLEEVE, bearing spacer | FLHXSE |
| 11 | 43475-08 | COVER, with 3267 (chrome) (2) | FLHXSE |
| 12 | 44160-00 | BOLT (2) | FLHXSE |
| 13 | 44583-08 | SPACER | FLHXSE |
| 14 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHXSE |
| 15 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHXSE |
| 16 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 17 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 18 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 19 | 10400031 | NUT | FLHXSE |
| 20 | 11700038 | SPRING | FLHXSE |
| 21 | 32700015 | SENSOR, wheel speed, ABS, with 72607-08, 72608-08 and 72639-10 | FLHXSE |
| 22 | 32700052 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 | FLHXSE |
| 32700053 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 (Japan) | FLHXSE | |
| 23 | 32700058 | VALVE STEM, right angle (chrome) | FLHXSE |
| 24 | 41500076 | BRAKE DISC (right) | FLHXSE |
| 25 | 41500083 | BRAKE DISC (left) | FLHXSE |
| 26 | 42300001 | WEIGHT, 1/2 oz., cast wheels (black) (3) | FLHXSE |
| 95615-04 | WEIGHT, 1/2 oz., cast wheels (chrome) (3) | FLHXSE | |
| 27 | 43100013 | TIRE | FLHXSE |
| 28 | 43300321 | WHEEL KIT, cast, without bearings and sleeve (chrome) | FLHXSE |
| 43300385 | WHEEL KIT, cast, without bearings and sleeve (black) | FLHXSE |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHXSE |
| 2 | 9252 | BALL BEARING, with encoder, ABS | FLHXSE |
| 3 | 9276A | BALL BEARING (3) | FLHXSE |
| 4 | 10147 | CLIP, connector | FLHXSE |
| 5 | 11843 | SPACER, compensator | FLHXSE |
| 6 | 11848 | SPACER | FLHXSE |
| 7 | 40615-08 | SENSOR, wheel speed, ABS, with 10147, 72607-08, 72608-08, 72639-10 | FLHXSE |
| 8 | 41148-98 | CAP, tire valve acorn, with bar and shield (set of 2) (chrome) | FLHXSE |
| 9 | 41229-08 | SPRING CLIP | FLHXSE |
| 10 | 41349-07 | SLEEVE, bearing spacer | FLHXSE |
| 11 | 41810-08B | BRAKE DISC | FLHXSE |
| 12 | 41819-02 | AXLE CAM | FLHXSE |
| 13 | 43567-92 | SCREW (5) | FLHXSE |
| 14 | 44006-09 | TIRE | FLHXSE |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 18 | 10400031 | NUT | FLHXSE |
| 19 | 11700038 | SPRING | FLHXSE |
| 20 | 32700052 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 | FLHXSE |
| 32700053 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 (Japan) | FLHXSE | |
| 21 | 32700058 | VALVE STEM, right angle (chrome) | FLHXSE |
| 22 | 40900329 | WHEEL KIT, cast, without bearings and sleeve (chrome) | FLHXSE |
| 40900390 | WHEEL KIT, cast, without bearings and sleeve (black) | FLHXSE | |
| 23 | 42300001 | WEIGHT, 1/2 oz. cast wheels (black) | FLHXSE |
| 95615-04 | WEIGHT, 1/2 oz. cast wheels (chrome) | FLHXSE | |
| 24 | 43000002 | REAR AXLE | FLHXSE |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHXSE |
| 2 | 10200042 | SCREW (4) | FLHXSE |
| 3 | 10200223 | SCREW (2) | FLHXSE |
| 4 | 10500022 | SCREW (6) | FLHXSE |
| 5 | 10500036 | SCREW | FLHXSE |
| 6 | 41600029A | BRACKET, brakeline | FLHXSE |
| 7 | 45600038EAZ | COVER ASSEMBLY, fork tube (left) (Black Licorice) | FLHXSE |
| 45600038EBC | COVER ASSEMBLY, fork tube (left) (Atomic Red) | FLHXSE | |
| 45600038EBP | COVER ASSEMBLY, fork tube (left) (Carbon Crystal) | FLHXSE | |
| 8 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHXSE |
| 9 | 45700020A | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | FLHXSE |
| 10 | 45600039EAZ | COVER ASSEMBLY, fork tube (right) (Black Licorice) | FLHXSE |
| 45600039EBC | COVER ASSEMBLY, fork tube (right) (Atomic Red) | FLHXSE | |
| 45600039EBP | COVER ASSEMBLY, fork tube (right) (Carbon Crystal) | FLHXSE | |
| 11 | 45900024 | BRACKET, upper fork stem | FLHXSE |
| 12 | 45900091A | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHXSE |
| 13 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHXSE |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 46080-01 | BUSHING, slider (2) | FLHXSE |
| 2 | 46508-01 | O-RING (2) | FLHXSE |
| 3 | 46509-01 | WASHER (2) | FLHXSE |
| 4 | 46513-01 | RING, stopper (2) | FLHXSE |
| 5 | 46514-01A | OIL SEAL (2) | FLHXSE |
| 6 | 46515-01 | SPACER, seal (2) | FLHXSE |
| 7 | 46516-01 | BUSHING GUIDE (2) | FLHXSE |
| 8 | 46517-01 | SPRING, rebound (2) | FLHXSE |
| 9 | 46615-06 | PACKING SEAL (2) | FLHXSE |
| 10 | 46510-07 | COLLAR, spring (2) | FLHXSE |
| 11 | 59481-00 | REFLECTOR (right) (amber) | FLHXSE |
| 12 | 59482-00 | REFLECTOR (left) (amber) | FLHXSE |
| 13 | 22000031 | PISTON RING (2) | FLHXSE |
| 14 | 45400043 | FORK ASSEMBLY, complete (right) | FLHXSE |
| 15 | 45400044 | FORK ASSEMBLY, complete (left) | FLHXSE |
| 16 | 45500174 | SLIDER, fork (left) | FLHXSE |
| 17 | 45500114 | DAMPER TUBE, with 22000031 (2) | FLHXSE |
| 18 | 45500116 | SPRING, fork (2) | FLHXSE |
| 19 | 45500117 | BOLT, fork (2) | FLHXSE |
| 20 | 45500118 | SCREW (2) | FLHXSE |
| 21 | 45500132 | SCREW (right) | FLHXSE |
| 22 | 45500113 | FORK PIPE ASSEMBLY, with 46080-01 (2) | FLHXSE |
| 23 | 45500173 | SLIDER, fork (right) | FLHXSE |
| 24 | 45500251 | OIL LOCK PIECE (2) | FLHXSE |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 2, 4, 5, 6, 7, 9, 13 and 20 (2) | FLHXSE |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHXSE |
| 2 | 6012 | WASHER (4) | FLHXSE |
| 3 | 7068 | LOCKWASHER (4) | FLHXSE |
| 4 | 54677-10 | KNOB SERVICE KIT | FLHXSE |
| 5 | 54000081 | REAR SHOCK ABSORBER, with dial adjust (left) | FLHXSE |
| 6 | 54000082 | REAR SHOCK ABSORBER (right) | FLHXSE |
FRAME AND JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | FLHXSE |
| 2 | 3594 | SCREW (England, HDI) | FLHXSE |
| 3 | 3987 | BOLT | FLHXSE |
| 4 | 4688 | SCREW (2) | FLHXSE |
| 5 | 4924 | SCREW (2) | FLHXSE |
| 6 | 6116 | WASHER | FLHXSE |
| 7 | 6702 | WASHER | FLHXSE |
| 8 | 7041 | LOCKWASHER | FLHXSE |
| 9 | 7495 | NUT (2) | FLHXSE |
| 10 | 10177 | CABLE STRAP, anchored, jiffy stand (England, HDI) | FLHXSE |
| 11 | 10039 | CABLE STRAP (6) | FLHXSE |
| 12 | 10264 | CLIP, clutch line (2) | FLHXSE |
| 13 | 47900-14BHP | FRAME, main, with bearing cups (Also order 45700009) | FLHXSE |
| 14 | 49184-09A | ENGINE GUARD, with 2708A, 6116 and label (chrome) | FLHXSE |
| 49050-09A | ENGINE GUARD, with 2708A, 6116 and label (black) | FLHXSE | |
| 15 | 49725-07A | SPRING, jiffy stand | FLHXSE |
| 16 | 50015-74A | LEG STOP | FLHXSE |
| 17 | 50075-07A | LEG, jiffy stand | FLHXSE |
| 18 | 50096-09 | BRACKET, jiffy stand | FLHXSE |
| 19 | 50126-08A | SENSOR, jiffy stand, with 72169-07, 72511-07BK and 73213-07 (England, HDI) | FLHXSE |
| 20 | 50245-07 | BUMPER, jiffy stand | FLHXSE |
| 21 | 72169-07 | TERMINAL, pin, 16-20 AWG (England, HDI) (3) | FLHXSE |
| 22 | 72511-07BK | HOUSING, three-way pin (black) (England, HDI) | FLHXSE |
| 23 | 73213-07 | RETAINER, anchored (England, HDI) | FLHXSE |
| 24 | 90520-07 | HOLE PLUG, jiffy stand (except England, HDI) | FLHXSE |
| 25 | 10800024 | CLIP, conduit, rosebud | FLHXSE |
| 26 | 10800025 | CLIP, conduit, rosebud | FLHXSE |
| 27 | 12600067 | FASTENER, plastic (2) | FLHXSE |
| 28 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHXSE |
| 29 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHXSE |
COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3787 | BOLT (4) | FLHXSE |
| 2 | 6036 | WASHER (4) | FLHXSE |
| 3 | 8108 | SPEEDNUT (2) | FLHXSE |
| 4 | 8194 | NUT, special (2) | FLHXSE |
| 5 | 11650 | GROMMET, side cover (6) | FLHXSE |
| 6 | 48419-04 | WEAR PAD, side cover (right) (clear) | FLHXSE |
| 48420-04 | WEAR PAD, side cover (left) (clear) | FLHXSE | |
| 7 | 58167-09 | DEFLECTOR, air (right) | FLHXSE |
| 58169-09 | DEFLECTOR, air (left) | FLHXSE | |
| 8 | 66048-09A | SIDE COVER (right) (prime) | FLHXSE |
| 57200094EBF | SIDE COVER, with 48419-04 (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBI | SIDE COVER, with 48419-04 (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBH | SIDE COVER, with 48419-04 (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBP | SIDE COVER, with 48419-04 (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 66250-09 | SIDE COVER (left) (prime) | FLHXSE | |
| 57200093EBF | SIDE COVER, with 48420-04 (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBI | SIDE COVER, with 48420-04 (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBH | SIDE COVER, with 48420-04 (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBP | SIDE COVER, with 48420-04 (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 9 | 69200202 | TRAY, wire trough (main harness) | FLHXSE |
| 10 | 69200203 | COVER, wire trough (main harness) | FLHXSE |
FRAME AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (4) | FLHXSE |
| 2 | 3536 | BOLT (6) | FLHXSE |
| 3 | 6532 | WASHER (6) | FLHXSE |
| 4 | 6982 | WASHER, hex cup (2) | FLHXSE |
| 5 | 9208 | BEARING (2) | FLHXSE |
| 6 | 11779 | FASTENER, push-in (black) | FLHXSE |
| 7 | 47540-11 | SHAFT, rear fork | FLHXSE |
| 8 | 47549-09 | REAR FORK, with 9208, 11779 and 48489-02 | FLHXSE |
| 9 | 47584-09 | RUBBER MOUNT (2) | FLHXSE |
| 10 | 48079-09BHP | FRAME, rear | FLHXSE |
| 11 | 48487-02 | SPACER, outer (2) | FLHXSE |
| 12 | 48489-02 | SPACER, inner (2) | FLHXSE |
| 13 | 67875-11 | CAP (2) | FLHXSE |
| 14 | 16400005 | BRACKET, rear fork (left) | FLHXSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT CAP | FLHXSE |
| 2 | 941 | SCREW (2) | FLHXSE |
| 3 | 3633 | NUT (2) | FLHXSE |
| 4 | 6441 | WASHER | FLHXSE |
| 5 | 14628-96 | EMBLEM | FLHXSE |
| 6 | 51652-97A | BRACKET | FLHXSE |
| 7 | 51676-97A | KIT, hardware with 6441 and 14628-96 | FLHXSE |
| 8 | 52000172 | SEAT | FLHXSE |
| 9 | 52300341 | SEAT PILLION, passenger, with 1, 2, 6 | FLHXSE |
| 10 | 52400035 | SEAT STRAP | FLHXSE |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW (2) | FLHXSE |
| 2 | 4688 | SCREW (2) | FLHXSE |
| 3 | 7038 | LOCKWASHER (2) | FLHXSE |
| 4 | 7601 | LOCKNUT (2) | FLHXSE |
| 5 | 7716 | LOCKNUT (4) | FLHXSE |
| 6 | 33130-07A | WEAR PEG (2) | FLHXSE |
| 7 | 50674-05 | BOLT, footboard hinge (4) | FLHXSE |
| 8 | 50500051 | BRACKET SUPPORT, footboard, rear (left) | FLHXSE |
| 9 | 50500052A | BRACKET SUPPORT, footboard, rear (right) | FLHXSE |
| 10 | 50500055A | MOUNTING BRACKET, front footboard (2) | FLHXSE |
| 11 | 50500343 | INSERT ASSEMBLY, rider, with 12600025 (right) | FLHXSE |
| 12 | 50500347 | INSERT ASSEMBLY, rider, with 12600025 (left) | FLHXSE |
| 13 | 50500348 | BOTTOM ASSEMBLY, with hinge (right) | FLHXSE |
| 14 | 50500349 | BOTTOM ASSEMBLY, with hinge (left) | FLHXSE |
FOOTPEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | FLHXSE |
| 2 | 4916 | SCREW (2) | FLHXSE |
| 3 | 7038 | LOCKWASHER (2) | FLHXSE |
| 4 | 11304 | RING, retaining (2) | FLHXSE |
| 5 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHXSE |
| 6 | 50351-03 | MOUNT, footpeg support (2) | FLHXSE |
| 7 | 50912-72 | WASHER, spring (2) | FLHXSE |
| 8 | 10200316 | SCREW (2) | FLHXSE |
| 9 | 50500351 | FOOTPEG INSERT, rubber (right) | FLHXSE |
| 50500354 | FOOTPEG INSERT, rubber (left) | FLHXSE | |
| 10 | 50500350 | FOOTPEG BODY (right) | FLHXSE |
| 50500353 | FOOTPEG BODY (left) | FLHXSE | |
| 11 | 50500462A | BRACKET, passenger footpeg (right) | FLHXSE |
| 50500460A | BRACKET, passenger footpeg (left) (not shown) | FLHXSE | |
| 12 | 50500486 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (right) | FLHXSE |
| 50500487 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (left) | FLHXSE |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500015 | SCREW (4) | FLHXSE |
| 2 | 58900009 | FENDER, front (prime) | FLHXSE |
| 58900116EBF | FENDER, front (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBI | FENDER, front (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBH | FENDER, front (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBR | FENDER, front (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (4) | FLHXSE |
| 2 | 6703 | WASHER (2) | FLHXSE |
| 3 | 7434 | WASHER (2) | FLHXSE |
| 4 | 7499 | NUT (6) | FLHXSE |
| 5 | 7531 | LOCKNUT (2) | FLHXSE |
| 6 | 7686 | LOCKNUT | FLHXSE |
| 7 | 7880 | NUT (4) | FLHXSE |
| 8 | 10102 | CLIP (2) | FLHXSE |
| 9 | 10183 | CLIP, T-stud (Canada) | FLHXSE |
| 10 | 10184 | CLIP, T-stud (Canada) | FLHXSE |
| 11 | 11891 | SPACER (3) | FLHXSE |
| 12 | 59174-99 | STUD PLATE | FLHXSE |
| 13 | 59768-97 | FENDER SEAT NUT KIT | FLHXSE |
| 14 | 59786-01 | BOSS, fender mounting, inner (4) | FLHXSE |
| 15 | 59788-01 | WASHER (4) | FLHXSE |
| 16 | 59818-09 | STUD PLATE (2) | FLHXSE |
| 17 | 60463-09A | FENDER, rear (prime) | FLHXSE |
| 59500274EBF | FENDER, rear, with 11100024 (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBP | FENDER, rear, with 11100024 (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBH | FENDER, rear, with 11100024 (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBI | FENDER, rear, with 11100024 (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 60472-09A | FENDER, rear (prime) (Canada) | FLHXSE | |
| 59500273EBF | FENDER, rear, with 11100024 (White Amethyst and Black Licorice Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBP | FENDER, rear, with 11100024 (Carbon Crystal) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBH | FENDER, rear, with 11100024 (Atomic Red and Candy Apple Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBI | FENDER, rear, with 11100024 (Black Licorice and Midnight Cobalt Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 18 | 91140-09 | BRACKET, fender to saddlebag support | FLHXSE |
| 19 | 11100024 | PAD (2) | FLHXSE |
| 20 | 59500107 | FASCIA, rear fender (prime) | FLHXSE |
| 59500269EAY | FASCIA, rear fender (White Amethyst) | FLHXSE | |
| 59500269EAZ | FASCIA, rear fender (Black Licorice) | FLHXSE | |
| 59500269EBP | FASCIA, rear fender (Carbon Crystal) | FLHXSE | |
| 59500269EBC | FASCIA, rear fender (Atomic Red) | FLHXSE | |
| 21 | 67900185 | BRACKET, fascia support (2) | FLHXSE |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (4) | FLHXSE |
| 2 | 6119 | WASHER (2) | FLHXSE |
| 4 | 7499 | NUT | FLHXSE |
| 5 | 59840-09 | STUD PLATE | FLHXSE |
| 6 | 60916-09 | COVER | FLHXSE |
| 7 | 60920-09 | LIGHT ASSEMBLY, with 74191-98 | FLHXSE |
| 8 | 60934-10 | COVER, license plate lite (prime) | FLHXSE |
| 67900261EAZ | COVER, license plate lite (Black Licorice) | FLHXSE | |
| 67900261EBC | COVER, license plate lite (Atomic Red) | FLHXSE | |
| 67900261EBP | COVER, license plate lite (Carbon Crystal) | FLHXSE | |
| 9 | 69490-07 | REFLECTOR | FLHXSE |
| 10 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 11 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHXSE |
| 12 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 13 | 67900232 | GASKET | FLHXSE |
| 14 | 67900233 | BRACKET, license plate | FLHXSE |
| 15 | 67900243 | BRACKET | FLHXSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHXSE |
| 2 | 10039 | CABLE STRAP (2) | FLHXSE |
| 3 | 10396 | RETAINER, fuel line 3/8 (natural) | FLHXSE |
| 4 | 11323 | O-RING, check valve to tank | FLHXSE |
| 5 | 27291-09A | EVAP LINE, evaporative line, tank | FLHXSE |
| 6 | 27440-09A | TUBE, evaporative line (except California) | FLHXSE |
| 7 | 61109-85D | GASKET (Asia-Pacific) | FLHXSE |
| 8 | 61208-10 | FUEL LINE, tank to intake | FLHXSE |
| 9 | 62228-08B | CHECK VALVE, assembly with 10396 | FLHXSE |
| 10 | 63028-06 | TRIM RING (chrome) | FLHXSE |
| 75015-08 | TRIM RING (black) | FLHXSE | |
| 11 | 70901-09 | BOOT, tank bracket (left) | FLHXSE |
| 12 | 70999-09 | BOOT, tank bracket (right) | FLHXSE |
| 13 | 11900004 | O-RING, filler cap | FLHXSE |
| 14 | 61000168EBF | FUEL TANK (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 61000168EBI | FUEL TANK (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 61000168EBH | FUEL TANK (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 61000255EBR | FUEL TANK (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 15 | 61100052 | FUEL CAP ASSEMBLY, flush mount, with 11900004 (chrome) | FLHXSE |
| 63136-10A | FUEL CAP ASSEMBLY, flush mount, with 11900004 (black) | FLHXSE | |
| 16 | 61100055 | FUEL CAP ASSEMBLY, flush mount, with 61109-85D and 90300093 (Asia-Pacific) | FLHXSE |
| 17 | 90300093 | KEY, locking fuel cap (set of 2) (specify key number) (Asia-Pacific) | FLHXSE |
| 18 | 14100222 | MEDALLION (right) (for Carbon Crystal tank) **RESTRICTED SALES PART** | FLHXSE |
| 14100223 | MEDALLION (left) (for Carbon Crystal tank) (not shown) **RESTRICTED SALES PART** | FLHXSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLHXSE |
| 2 | 4194 | SCREW (4) | FLHXSE |
| 3 | 4856 | SCREW | FLHXSE |
| 4 | 8142 | NUT, speed | FLHXSE |
| 5 | 10102 | CLIP | FLHXSE |
| 6 | 62775-08 | TRIM COVER | FLHXSE |
| 7 | 67493-08 | BRACKET | FLHXSE |
| 8 | 69241-08 | DRAIN HOSE | FLHXSE |
| 9 | 71294-08 | MOLDING, rubber (2) | FLHXSE |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (12) | FLHXSE |
| 11 | 72485-07 | HOUSING, four-way socket (black) | FLHXSE |
| 12 | 72494-07 | WIRE SEAL, 16-18 AWG (yellow) (4) | FLHXSE |
| 13 | 72546-09GY | HOUSING, six-way socket (gray) | FLHXSE |
| 14 | 72557-07 | SECONDARY LOCK, four-way socket (gray) | FLHXSE |
| 15 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 16 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 17 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 18 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHXSE |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG | FLHXSE |
| 20 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 21 | 72493-07 | TERMINAL, socket, 16-18 AWG (4) | FLHXSE |
| 22 | 70900452 | INSERT CONSOLE | FLHXSE |
| 23 | 70900454EAZ | CONSOLE ASSEMBLY (Black Licorice) | FLHXSE |
| 70900454EBP | CONSOLE ASSEMBLY (Carbon Crystal) | FLHXSE | |
| 70900454BHR | CONSOLE ASSEMBLY (chrome) | FLHXSE | |
| 24 | 70900459 | LENS, insert | FLHXSE |
| 25 | 68000034 | LIGHT, with 15, 17 and 19 | FLHXSE |
| 26 | 69200919 | WIRE HARNESS, console jumper | FLHXSE |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHXSE |
| 2 | 10200147 | SCREW (3) | FLHXSE |
| 3 | 12100020 | GROMMET, instrument cluster mount (3) | FLHXSE |
| 4 | 12400034 | INSERT, instrument cluster mount (3) | FLHXSE |
| 5 | 12600067 | FASTENER, plastic (2) | FLHXSE |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (2) | FLHXSE |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (2) | FLHXSE |
| 8 | 69200912 | WIRING HARNESS, fairing | FLHXSE |
| 9 | 69200257 | BACK CLAMP, gauge (right) | FLHXSE |
| 10 | 69200258 | BACK CLAMP, gauge (left) | FLHXSE |
| 11 | 70900293B | INSTRUMENT CLUSTER, mph, with 12100020 and 12400034 | FLHXSE |
| 70900294A | INSTRUMENT CLUSTER, km/h, with 12100020 and 12400034 | FLHXSE | |
| 70900295A | INSTRUMENT CLUSTER, dual - mph/km/h, with 12100020 and 12400034 | FLHXSE | |
| 12 | 70900296 | FUEL GAUGE | FLHXSE |
| 13 | 70900297 | VOLTMETER | FLHXSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHXSE |
| 2 | 11686 | O-RING | FLHXSE |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLHXSE |
| 4 | 61012-04A | CLIP, filter retainer | FLHXSE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings and screen | FLHXSE |
| 6 | 61213-04A | CLIP, regulator retainer | FLHXSE |
| 7 | 61402-08 | GASKET, top plate | FLHXSE |
| 8 | 62229-08B | FILTER SHELL | FLHXSE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLHXSE |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, with 2, 3, 4, 5, 6, 8, 16 and 17 | FLHXSE |
| 11 | 75089-08 | RING, fuel tank | FLHXSE |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLHXSE |
| 13 | 75229-08 | HARNESS, fuel pump module | FLHXSE |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLHXSE |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump with 10396 | FLHXSE |
| 16 | 75291-08A | TOP PLATE | FLHXSE |
| 17 | 75322-09 | GROUND HARNESS | FLHXSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| NOTE: These parts are required for motorcycles sold in Brazil. | |||
| 1 | 4612 | SCREW (2) | FLHXSE |
| 2 | 27291-09A | EVAP LINE, tank | FLHXSE |
| 3 | 27297-09A | EVAP LINE, canister | FLHXSE |
| 4 | 27298-09A | EVAP LINE, purge to canister | FLHXSE |
| 5 | 27439-09A | TUBE, solenoid to induction module | FLHXSE |
| 6 | 27715-07 | SOLENOID, purge valve | FLHXSE |
| 7 | 70681-09 | RETAINER | FLHXSE |
| 8 | 60800006 | CARBON CANISTER | FLHXSE |
TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT (2) | FLHXSE |
| 2 | 5118 | SEAL PIN (Domestic) (4) | FLHXSE |
| 5118 | SEAL PIN (Asia-Pacific) (8) | FLHXSE | |
| 3 | 7992 | ACORN NUT (4) | FLHXSE |
| 4 | 72908-11 | HOUSING, four-way socket (black) (4) | FLHXSE |
| 5 | 72910-11 | TERMINAL, socket, 20-22 AWG (Domestic) (12) | FLHXSE |
| 72910-11 | TERMINAL, socket, 20-22 AWG (Asia-Pacific) (8) | FLHXSE | |
| 6 | 67800251 | LENS (smoked) (2) | FLHXSE |
| 7 | 67800257 | PUCK ASSEMBLY (amber) (2) | FLHXSE |
| 8 | 67800259 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (three-wire) (Domestic) (2) | FLHXSE |
| 69200601 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (two-wire) (Asia-Pacific) (2) | FLHXSE | |
| 9 | 67800540 | TURN SIGNAL ASSEMBLY, with 67800251, 67800257 and 67800259 (Domestic) (2) | FLHXSE |
| 67800544 | TURN SIGNAL ASSEMBLY, with 67800251, 67800257 and 69200601 (Asia-Pacific) (2) | FLHXSE | |
| 10 | 68000036 | BAR, right upright | FLHXSE |
| 68000037 | BAR, left upright (not shown) | FLHXSE |

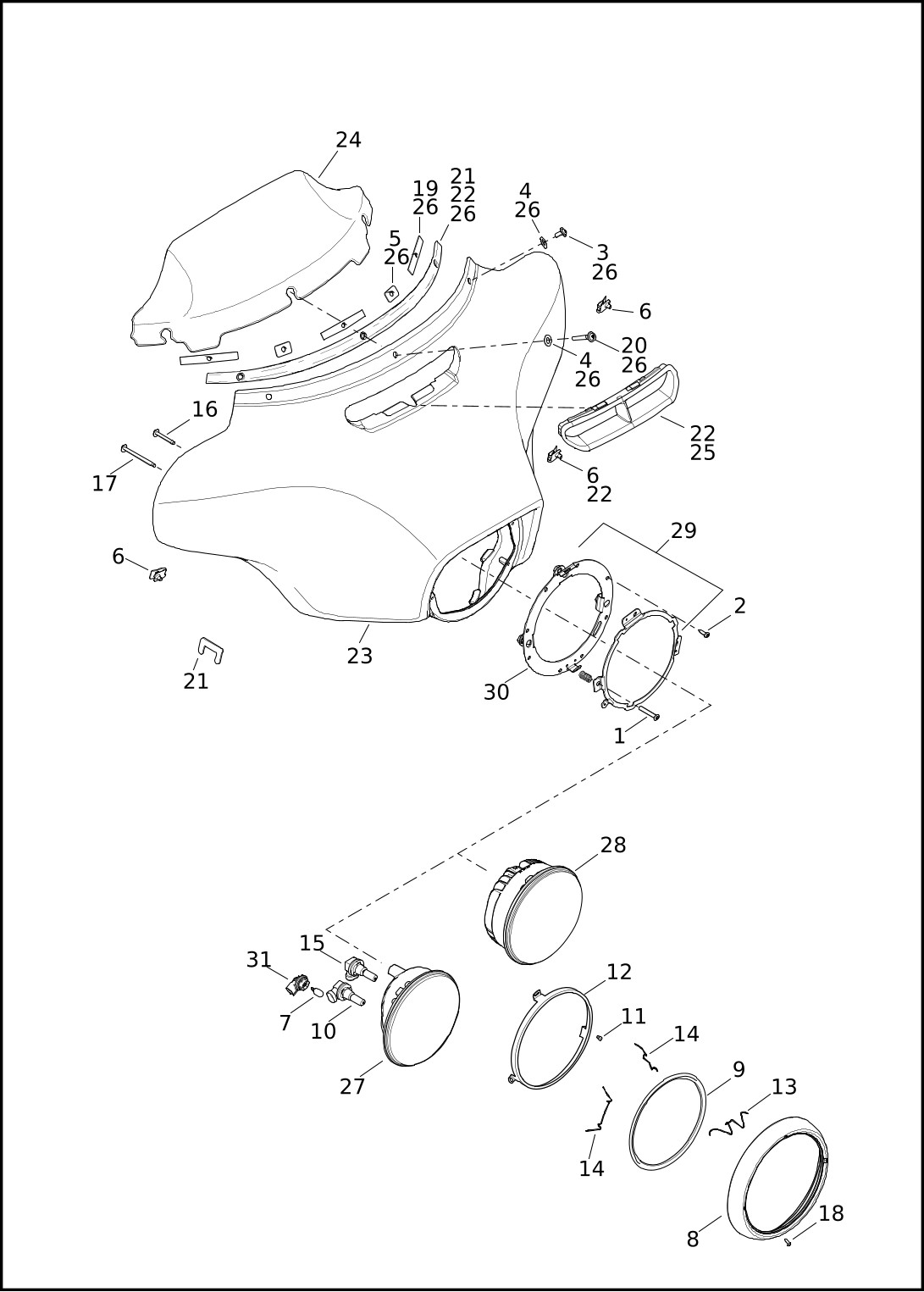

WINDSHIELD, FAIRING AND HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3088 | SCREW (3) | FLHXSE |
| 2 | 4790 | SCREW (4) | FLHXSE |
| 3 | 4976 | SCREW (2) | FLHXSE |
| 4 | 6383 | WASHER (3) | FLHXSE |
| 5 | 6549 | PAD (2) | FLHXSE |
| 6 | 7900 | CLIP NUT (4) | FLHXSE |
| 7 | 53436-97 | BULB, position lamp (Asia-Pacific) | FLHXSE |
| 8 | 67712-83B | TRIM RING, headlamp | FLHXSE |
| 9 | 67716-60C | GASKET, headlamp door | FLHXSE |
| 10 | 67717-01 | BULB, high beam halogen (Asia-Pacific) | FLHXSE |
| 11 | 67721-48 | SCREW (3) | FLHXSE |
| 12 | 67726-08 | RETAINING RING, headlamp | FLHXSE |
| 13 | 67778-60A | SPRING, trim ring, headlamp, top | FLHXSE |
| 14 | 67780-60A | SPRING, trim ring, headlamp, bottom (2) | FLHXSE |
| 15 | 68881-01 | BULB, low beam halogen (Asia-Pacific) | FLHXSE |
| 16 | 10200059 | SCREW (2) | FLHXSE |
| 17 | 10200060 | SCREW (2) | FLHXSE |
| 18 | 10200156 | SCREW | FLHXSE |
| 19 | 10300036 | PAD (3) | FLHXSE |
| 20 | 10500034 | SCREW | FLHXSE |
| 21 | 11100066 | PAD (8) | FLHXSE |
| 22 | 57000377 | HARDWARE, fairing | FLHXSE |
| 23 | 57000628EBF | FAIRING, outer, with 7900 and 61300504EAY (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 57000628EBI | FAIRING, outer, with 7900 and 61300504EAZ (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57000628EBH | FAIRING, outer, with 7900 and 61300504EBC (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57000628EBR | FAIRING, outer, with 7900 and 61300504EBA (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 24 | 57400253 | WINDSHIELD (smoked) (Domestic) | FLHXSE |
| 25 | 61300504EAY | BEZEL, air duct, outer fairing (White Amethyst) | FLHXSE |
| 61300504EAZ | BEZEL, air duct, outer fairing (Black Licorice) | FLHXSE | |
| 61300504EBC | BEZEL, air duct, outer fairing (Atomic Red) | FLHXSE | |
| 61300504EBP | BEZEL, air duct, outer fairing (Carbon Crystal) | FLHXSE | |
| 26 | 61400224 | TRIM ASSEMBLY | FLHXSE |
| 27 | 67700065 | HEADLAMP, halogen, with 7, 10, 15, 31 (Asia-Pacific) | FLHXSE |
| 28 | 67700060 | HEADLAMP, LED, with 67721-48, 67726-08 and 67700204 (Domestic) | FLHXSE |
| 29 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, with 3088 and 67700205 | FLHXSE |
| 30 | 67700205 | MOUNTING RING, headlamp | FLHXSE |
| 31 | 68000038 | CONNECTOR, position bulb (Asia-Pacific) | FLHXSE |
FAIRING, INNER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHXSE |
| 2 | 2478 | SCREW (5) | FLHXSE |
| 3 | 2563 | SCREW (7) | FLHXSE |
| 4 | 57638-08 | SNAP HINGE, air deflector (2) | FLHXSE |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (5) | FLHXSE |
| 6 | 72188-07BK | HOUSING, six-way pin (black) | FLHXSE |
| 7 | 73213-07 | RETAINER, anchored | FLHXSE |
| 8 | 10200141 | SCREW (6) | FLHXSE |
| 9 | 10900005 | STUD, double sided (4) | FLHXSE |
| 10 | 11100038 | FOAM TAPE | FLHXSE |
| 11 | 11100050 | FOAM TAPE | FLHXSE |
| 12 | 11100051 | FOAM TAPE | FLHXSE |
| 13 | 11100057 | FOAM TAPE | FLHXSE |
| 14 | 11100105 | PAD | FLHXSE |
| 15 | 12100034 | PLUG (6) | FLHXSE |
| 16 | 12200064 | CLIP, panel (10) | FLHXSE |
| 17 | 29200003 | AIR DUCT, inner fairing, with 10, 16, 18, 19, 20 and 36 | FLHXSE |
| 18 | 29200034 | DOOR, top duct | FLHXSE |
| 19 | 29200035 | BUTTON ASSEMBLY, top duct, with 76000127 | FLHXSE |
| 20 | 29200039 | BEZEL, air duct,inner fairing, with 12200064 | FLHXSE |
| 21 | 57000186 | BRACKET, support, inner fairing | FLHXSE |
| 22 | 57000417EAZ | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Black Licorice) | FLHXSE |
| 57000417EBC | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Atomic Red) | FLHXSE | |
| 57000417DXK | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Carbon Dust) | FLHXSE | |
| 23 | 57000299 | FOAM INSERT, media compartment | FLHXSE |
| 24 | 57200012 | AIR DEFLECTOR, with 57638-08 (left) | FLHXSE |
| 25 | 57200017 | AIR DEFLECTOR, with 57638-08 (right) | FLHXSE |
| 26 | 61400063 | TRIM, inner fairing (left) | FLHXSE |
| 27 | 61400064 | TRIM, inner fairing (right) | FLHXSE |
| 28 | 61400253 | TRIM | FLHXSE |
| 29 | 69200031 | WIRE HARNESS, USB jumper | FLHXSE |
| 30 | 69200170 | POWER OUTLET, fairing, with 69200171 | FLHXSE |
| 31 | 69200171 | CAP, power outlet | FLHXSE |
| 32 | 69200237 | WEATHER CAP | FLHXSE |
| 33 | 69201025 | WIRE HARNESS, audio, with 5, 6, 7 | FLHXSE |
| 34 | 76000107 | MEDIA COMPARTMENT ASSEMBLY, with 57000299, 69200031 and 76000127 | FLHXSE |
| 35 | 76000561EAZ | DOOR, media compartment, outer (Black Licorice) | FLHXSE |
| 76000561EBC | DOOR, media compartment, outer (Atomic Red) | FLHXSE | |
| 76000561DXK | DOOR, media compartment, outer (Carbon Dust) | FLHXSE | |
| 36 | 76000127 | LATCH (2) | FLHXSE |
| 37 | 76000234 | GASKET, media storage | FLHXSE |
| 38 | 76000504 | BRACKET, XM antenna | FLHXSE |
FAIRING, INNER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200134 | SCREW (6) | FLHXSE |
| 2 | 10200141 | SCREW (6) | FLHXSE |
| 3 | 10200142 | SCREW (6) | FLHXSE |
| 4 | 10200205 | SCREW (12) | FLHXSE |
| 5 | 10900005 | STUD, double sided (4) | FLHXSE |
| 6 | 12600116 | CLIP, push-in | FLHXSE |
| 7 | 14100613 | MEDALLION | FLHXSE |
| 8 | 12200063 | CLIP, antenna, garage door opener | FLHXSE |
| 9 | 57000257 | SKIRT, outer fairing (prime) | FLHXSE |
| 57000328EAZ | SKIRT, outer fairing (Black Licorice) | FLHXSE | |
| 57000328EBC | SKIRT, outer fairing (Atomic Red) | FLHXSE | |
| 57000328EBP | SKIRT, outer fairing (Carbon Crystal) | FLHXSE | |
| 10 | 57000169 | BRACKET, fairing support (left) | FLHXSE |
| 11 | 57000170 | BRACKET, fairing support (right) | FLHXSE |
| 12 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY (left) | FLHXSE |
| 13 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY (right) | FLHXSE |
| 14 | 70900138 | HOLE PLUG (2) | FLHXSE |
| 15 | 70900392EAZ | DASH PANEL, fairing (Black Licorice) | FLHXSE |
| 70900392EBC | DASH PANEL, fairing (Atomic Red) | FLHXSE | |
| 70900392DXK | DASH PANEL, fairing (Carbon Dust) | FLHXSE |
FAIRING LOWERS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (2) | FLHXSE |
| 2 | 7415A | WASHER (2) | FLHXSE |
| 3 | 7576 | NUT (2) | FLHXSE |
| 4 | 7716 | LOCKNUT (8) | FLHXSE |
| 5 | 8175 | BOLT, retainer (2) | FLHXSE |
| 6 | 11519 | MOUNT, rubber (right) | FLHXSE |
| 7 | 10200052 | SCREW (4) | FLHXSE |
| 8 | 12200025 | CLIP (10) | FLHXSE |
| 9 | 12600049 | SCREW (8) | FLHXSE |
| 10 | 26800008 | DUCT, radiator (left) | FLHXSE |
| 11 | 26800009 | DUCT, radiator (right) | FLHXSE |
| 12 | 47200275 | CLAMP (2) | FLHXSE |
| 13 | 57100099 | PANEL ASSEMBLY, glove box, with 12200025 (2) | FLHXSE |
| 14 | 57100107 | GLOVE BOX ASSEMBLY, with 12600049, 57100148, 57100164, 57100165 and 57100225 (left) | FLHXSE |
| 15 | 57100109 | GLOVE BOX ASSEMBLY, with 12600049, 57100147, 57100164, 57100165 and 57100225 (right) | FLHXSE |
| 16 | 57100111 | CAP, fairing, lower (left) (prime) | FLHXSE |
| 57100242EAY | CAP, fairing, lower (left) (White Amethyst) | FLHXSE | |
| 57100242EAZ | CAP, fairing, lower (left) (Black Licorice) | FLHXSE | |
| 57100242EBC | CAP, fairing, lower (left) (Atomic Red) | FLHXSE | |
| 57100291EBP | CAP, fairing, lower (left) (Carbon Crystal) | FLHXSE | |
| 17 | 57100112 | FAIRING, lower (left) (prime) | FLHXSE |
| 57100275EBF | FAIRING, lower (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100275EBI | FAIRING, lower (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100275EBH | FAIRING, lower (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100285EBP | FAIRING, lower (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 18 | 57100113 | CAP, fairing, lower (right) (prime) | FLHXSE |
| 57100243EAY | CAP, fairing, lower (right) (White Amethyst) | FLHXSE | |
| 57100243EAZ | CAP, fairing, lower (right) (Black Licorice) | FLHXSE | |
| 57100243EBC | CAP, fairing, lower (right) (Atomic Red) | FLHXSE | |
| 57100292EBP | CAP, fairing, lower (right) (Carbon Crystal) | FLHXSE |
FAIRING LOWERS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 57100114 | FAIRING, lower (right) (prime) | FLHXSE |
| 57100276EBF | FAIRING, lower, with 57100171 (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100276EBI | FAIRING, lower, with 57100171 (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100276EBH | FAIRING, lower, with 57100171 (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100286EBP | FAIRING, lower, with 57100171 (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 20 | 57100147 | FRAME, glove box, with 12200025 (right) | FLHXSE |
| 21 | 57100148 | FRAME, glove box, with 12200025 (left) | FLHXSE |
| 22 | 57100151 | SCREEN, radiator (left) | FLHXSE |
| 23 | 57100152 | SCREEN, radiator (right) | FLHXSE |
| 24 | 57100153 | GASKET, radiator (2) | FLHXSE |
| 25 | 57100154 | HINGE (2) | FLHXSE |
| 26 | 57100155 | DOOR, vent (2) | FLHXSE |
| 27 | 57100164 | LINK, door vent (2) | FLHXSE |
| 28 | 57100165 | KNOB, door vent (2) | FLHXSE |
| 29 | 57100170 | FASCIA ASSEMBLY, lower (left) | FLHXSE |
| 30 | 57100171 | FASCIA ASSEMBLY, lower (right) | FLHXSE |
| 31 | 57100172 | CLAMP | FLHXSE |
| 32 | 57100187 | RETAINER, U-bolt (2) | FLHXSE |
| 33 | 57100200 | PIN, door vent (2) | FLHXSE |
| 34 | 57100225 | SLIDER, door vent (2) | FLHXSE |
| 35 | 57100256 | CLAMP | FLHXSE |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 72906-11 | HOUSING, two-way socket (black) | FLHXSE |
| 3 | 72908-11 | HOUSING, four-way socket (black) (2) | FLHXSE |
| 4 | 69200305 | HOUSING, two-way socket (white) | FLHXSE |
| 5 | 69200306 | HOUSING, four-way socket (white) (2) | FLHXSE |
| 6 | 69200307 | TERMINAL, socket, 22 AWG (9) | FLHXSE |
| 7 | 69200308 | TERMINAL, socket, 22 AWG (9) | FLHXSE |
| 8 | 69200630 | WIRE HARNESS, jumper (left) | FLHXSE |
| 9 | 69200631 | WIRE HARNESS, jumper (right) | FLHXSE |
| 10 | 71500338 | COVER (left) (black) | FLHXSE |
| 71500339 | COVER (left) (chrome) | FLHXSE | |
| 11 | 71500340 | COVER (right) (black) | FLHXSE |
| 71500341 | COVER (right) (chrome) | FLHXSE | |
| 12 | 71500083B | SWITCHPACK ASSEMBLY, with 20, 21, 22, 24, 26 (right) | FLHXSE |
| 13 | 71500084A | SWITCHPACK ASSEMBLY, with 17, 18, 19, 23, 25 (left) | FLHXSE |
| 14 | 71500094 | SWITCH CAP, trigger finger | FLHXSE |
| 15 | 71500342 | COVER ASSEMBLY, with screws (left) (black) | FLHXSE |
| 71500344 | COVER ASSEMBLY, with screws (left) (chrome) | FLHXSE | |
| 16 | 71500348 | COVER ASSEMBLY, with screws (right) (black) | FLHXSE |
| 71500350 | COVER ASSEMBLY, with screws (right) (chrome) | FLHXSE | |
| 17 | 71500165 | SWITCH CAP, horn | FLHXSE |
| 18 | 71500166 | SWITCH CAP, headlamp, high/low | FLHXSE |
| 19 | 71500167 | SWITCH CAP, left turn signal | FLHXSE |
| 20 | 71500168 | SWITCH CAP, start/hazard | FLHXSE |
| 21 | 71500169 | SWITCH CAP, run/stop | FLHXSE |
| 22 | 71500170 | SWITCH CAP, right turn signal | FLHXSE |
| 23 | 71500224 | SWITCH CAP, cruise | FLHXSE |
| 24 | 71500225 | SWITCH CAP, push-to-talk (ptt) | FLHXSE |
| 25 | 71500226 | SWITCH CAP, audio | FLHXSE |
| 26 | 71500227 | SWITCH CAP, audio select | FLHXSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FLHXSE |
| 2 | 4240 | SCREW (2) | FLHXSE |
| 3 | 9853 | TAB, fastening | FLHXSE |
| 4 | 10006 | CABLE STRAP (7) | FLHXSE |
| 5 | 10138 | TAB, electrical ground | FLHXSE |
| 6 | 56159-73 | CUP WASHER (4) | FLHXSE |
| 7 | 56161-83A | BUSHING, rubber (4) | FLHXSE |
| 8 | 56163-93 | SPACER (2) | FLHXSE |
| 9 | 70345-84 | RETAINER (4) | FLHXSE |
| 10 | 72053-92 | HOUSING, one-way pin (black) | FLHXSE |
| 11 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHXSE |
| 12 | 55918-08 | CLAMP (upper) | FLHXSE |
| 13 | 57450-14 | RISER (lower) (left) | FLHXSE |
| 14 | 57451-14 | RISER (lower) (right) | FLHXSE |
| 15 | 12600032 | SCREW (2) | FLHXSE |
| 16 | 55800214 | HANDLEBAR (chrome) | FLHXSE |
| 55800308 | HANDLEBAR (black) | FLHXSE | |
| 17 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200536 | FLHXSE |
| 18 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHXSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHXSE |
| 2 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 3 | 72902-01BK | HOUSING, two-way pin (black) (2) | FLHXSE |
| 4 | 72912-01BK | HOUSING, two-way socket (black) (3) | FLHXSE |
| 5 | 72990-01 | TERMINAL, pin, 18-22 AWG (4) | FLHXSE |
| 6 | 72991-01 | TERMINAL, socket, 18-22 AWG (2) | FLHXSE |
| 7 | 32700050 | SENSOR, twist grip, with 1, 3, 5, 11 and 14 | FLHXSE |
| 8 | 56100092 | HANDGRIP ASSEMBLY, with 56100094 (right) | FLHXSE |
| 9 | 56100093 | HANDGRIP ASSEMBLY, with 56100094 (left) | FLHXSE |
| 10 | 56100094 | ENDCAP (2) | FLHXSE |
| 11 | 69200307 | TERMINAL, socket, 22 AWG (6) | FLHXSE |
| 12 | 69200338 | HARNESS, throttle jumper | FLHXSE |
| 13 | 69200859 | TERMINAL, socket, M3 (6) | FLHXSE |
| 14 | 69201162 | HOUSING, six-way socket (black) | FLHXSE |
TAIL LAMP (DOMESTIC) AND TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3152 | SCREW (6) | FLHXSE |
| 2 | 10006 | CABLE STRAP | FLHXSE |
| 3 | 10065 | CABLE STRAP (3) | FLHXSE |
| 4 | 56073-83 | CLIP RETAINER (2) | FLHXSE |
| 5 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHXSE |
| 6 | 72154-94 | SECONDARY LOCK, four-way socket (orange) (2) | FLHXSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHXSE |
| 8 | 72169-07 | TERMINAL, pin, 16-20 AWG (19) | FLHXSE |
| 9 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHXSE |
| 10 | 72199-94 | ANCHOR, T-stud | FLHXSE |
| 11 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 12 | 72473-07 | SEAL PIN | FLHXSE |
| 13 | 73213-07 | RETAINER, anchored | FLHXSE |
| 14 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 15 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 16 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 17 | 12400072 | SPACER (2) | FLHXSE |
| 18 | 67800201 | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, with 12400072 (Domestic, Canada) (2) | FLHXSE |
| 67800204 | ENVELOPE TURN SIGNAL ASSEMBLY (left) (Amber) (HDI, Japan, Asia-Pacific) | FLHXSE | |
| 67800203 | ENVELOPE TURN SIGNAL ASSEMBLY (right) (Amber) (HDI, Japan, Asia-Pacific) | FLHXSE | |
| 19 | 69200018 | CONDUIT, self-adhesive, 50 ft | FLHXSE |
| 20 | 69200984 | HOUSING, 20-way pin (black) | FLHXSE |
| 21 | 69201368 | HARNESS, rear lighting (Domestic) | FLHXSE |
| 22 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 23 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 24 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 25 | 69201379 | SEAL PIN | FLHXSE |
| 26 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 27 | 69201384 | HOUSING, 16-way socket | FLHXSE |
| 28 | 69201385 | TERMINAL, socket, 18-20 AWG (11) | FLHXSE |
| 29 | 69201387 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 30 | 69201388 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 31 | 69201389 | HOUSING, four-way socket | FLHXSE |
| 32 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 33 | 69201413 | WIRE SEAL, 18-22 AWG (blue) (4) | FLHXSE |
TAIL LAMP (CANADA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 3022A | SCREW | FLHXSE |
| 3 | 7964 | J-NUT | FLHXSE |
| 4 | 10006 | CABLE STRAP | FLHXSE |
| 5 | 10065 | CABLE STRAP (3) | FLHXSE |
| 6 | 10183 | CLIP, T-stud | FLHXSE |
| 7 | 10184 | CLIP, T-stud | FLHXSE |
| 8 | 68026-99 | SCREW, tail lamp (2) | FLHXSE |
| 9 | 68066-99A | TAIL LAMP BASE ASSEMBLY, with 68296-99A and 68830-99A | FLHXSE |
| 10 | 68296-99A | TAIL LAMP BASE (chrome) | FLHXSE |
| 11 | 68830-99A | CIRCUIT BOARD AND COVER | FLHXSE |
| 12 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHXSE |
| 13 | 72154-94 | SECONDARY LOCK, four-way socket (orange) (2) | FLHXSE |
| 14 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHXSE |
| 15 | 72169-07 | TERMINAL, pin, 16-20 AWG (19) | FLHXSE |
| 16 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHXSE |
| 17 | 72199-94 | ANCHOR, T-stud | FLHXSE |
| 18 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FLHXSE |
| 19 | 72230-98 | HOUSING, three-way socket (black) | FLHXSE |
| 20 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 21 | 72473-07 | SEAL PIN | FLHXSE |
| 22 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (3) | FLHXSE |
| 23 | 73213-07 | RETAINER, anchored | FLHXSE |
| 24 | 73154-96BK | HOUSING, four-way socket (black) | FLHXSE |
| 25 | 73156-96BK | HOUSING, six-way socket (black) | FLHXSE |
| 26 | 73191-96 | TERMINAL, socket, 16-20 AWG (7) | FLHXSE |
| 27 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 28 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 29 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 30 | 67800317 | LAMP ASSEMBLY, with 68026-99, 67800424, 69200599 | FLHXSE |
| 31 | 67800424 | LENS | FLHXSE |
| 32 | 67800428 | GASKET | FLHXSE |
| 33 | 69200018 | CONDUIT, self-adhesive, 50 ft | FLHXSE |
| 34 | 69200599 | JUMPER, harness | FLHXSE |
| 35 | 69200984 | HOUSING, 20-way pin (black) | FLHXSE |
| 36 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 37 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 38 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 39 | 69201379 | SEAL PIN | FLHXSE |
| 40 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 41 | 69201384 | HOUSING, 16-way socket | FLHXSE |
| 42 | 69201385 | TERMINAL, socket, 18-20 AWG (11) | FLHXSE |
| 43 | 69201387 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 44 | 69201388 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 45 | 69201389 | HOUSING, four-way socket | FLHXSE |
| 46 | 69201369 | HARNESS, rear lighting | FLHXSE |
| 47 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 48 | 69201413 | WIRE SEAL, 18-22 AWG (blue) (4) | FLHXSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3576 | SCREW | FLHXSE |
| 2 | 3929 | SCREW (4) | FLHXSE |
| 3 | 4705 | SCREW (2) | FLHXSE |
| 4 | 5416 | BOLT | FLHXSE |
| 5 | 7041 | LOCKWASHER (4) | FLHXSE |
| 6 | 7593 | NUT (4) | FLHXSE |
| 7 | 7601 | LOCKNUT | FLHXSE |
| 8 | 8146 | NUT CLIP (6) | FLHXSE |
| 9 | 9955 | CLAMP, worm drive #24 (7) | FLHXSE |
| 10 | 9956 | CLAMP, worm drive #40 | FLHXSE |
| 11 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHXSE |
| 12 | 27729-10 | SENSOR, oxygen (O2), front, with 11, 36, 37 and 38 | FLHXSE |
| 13 | 27809-10 | SENSOR, oxygen (O2), rear, with 11, 35, 36 and 38 | FLHXSE |
| 14 | 65296-95A | MUFFLER CLAMP (2) | FLHXSE |
| 15 | 65324-83B | GASKET, exhaust port (2) | FLHXSE |
| 16 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHXSE |
| 17 | 65328-83A | CLAMP, exhaust manifold (2) | FLHXSE |
| 18 | 65100058 | END CAP (chrome) (2) | FLHXSE |
| 65100059 | END CAP (black) (2) | FLHXSE | |
| 19 | 65634-09 | SHIELD, right exhaust pipe, front | FLHXSE |
| 20 | 65636-09 | SHIELD, left exhaust pipe, rear | FLHXSE |
| 21 | 65678-09 | BRACKET, rear exhaust mount | FLHXSE |
| 22 | 65723-85 | MOUNTING BRACKET (2) | FLHXSE |
| 23 | 65724-85 | MOUNT, rubber (2) | FLHXSE |
| 24 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | FLHXSE |
| 25 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | FLHXSE |
| 26 | 66047-05 | CLAMP, worm (6) | FLHXSE |
| 27 | 66078-06 | RING, retention (2) | FLHXSE |
| 28 | 66219-06 | HEAT SHIELD, muffler (right) | FLHXSE |
| 66220-06 | HEAT SHIELD, muffler (left) (not shown) | FLHXSE | |
| 29 | 66813-09 | GASKET, clamp | FLHXSE |
| 30 | 66849-10 | EXHAUST PIPE ASSEMBLY, catalytic (chrome) (Asia-Pacific) | FLHXSE |
| 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (chrome) | FLHXSE | |
| 31 | 66858-09 | CROSSOVER PIPE ASSEMBLY (chrome) | FLHXSE |
| 32 | 66859-09 | CLAMP, exhaust | FLHXSE |
| 33 | 66861-09A | CLAMP, exhaust pipe, hinged | FLHXSE |
| 34 | 66881-09 | BRACKET, exhaust pipe hanger | FLHXSE |
| 35 | 72177-07BK | HOUSING, four-way socket (black) | FLHXSE |
| 36 | 72344-10 | TERMINAL, socket, 22 AWG (2) | FLHXSE |
| 37 | 72444-07GY | HOUSING, four-way socket (gray) | FLHXSE |
| 38 | 73307-10 | TERMINAL, socket, 22 AWG (2) | FLHXSE |
| 39 | 64900198 | MUFFLER (left) (chrome) (Domestic, Canada, California) | FLHXSE |
| 65949-09 | MUFFLER (left) (chrome) (Japan) | FLHXSE | |
| 64768-09A | MUFFLER (left) (chrome) (HDI, England, Australia) | FLHXSE | |
| 65913-06B | MUFFLER (left) (chrome) (Asia-Pacific) | FLHXSE | |
| 40 | 64900199 | MUFFLER (right) (chrome) (Domestic, Canada, California) | FLHXSE |
| 65748-09 | MUFFLER (right) (chrome) (Japan) | FLHXSE | |
| 64769-09A | MUFFLER (right) (chrome) (HDI, England, Australia) | FLHXSE | |
| 66080-06B | MUFFLER (right) (chrome) (Asia-Pacific) | FLHXSE | |
| 41 | 10200384 | SCREW (6) | FLHXSE |
WIRING HARNESS, MAIN (1 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (5) | FLHXSE |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (13) | FLHXSE |
| 3 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 4 | 72364-06 | TERMINAL, insulated | FLHXSE |
| 5 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 6 | 72473-07 | SEAL PIN (7) | FLHXSE |
| 7 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHXSE |
| 8 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 9 | 69200201 | HOUSING, two-way socket (black) | FLHXSE |
| 10 | 69200202 | WIRE TROUGH | FLHXSE |
| 11 | 69200203 | COVER, wire trough | FLHXSE |
| 12 | 69200214 | CADDY, left steer head | FLHXSE |
| 13 | 69200294 | CABLE, AM/FM antenna | FLHXSE |
WIRING HARNESS, MAIN (2 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHXSE |
| 2 | 10065 | CABLE STRAP (5) | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored (2) | FLHXSE |
| 4 | 72066-06A | HOUSING, four-way socket (black) | FLHXSE |
| 5 | 72097-06 | SEAL PIN (2) | FLHXSE |
| 6 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHXSE |
| 7 | 72166-07BK | HOUSING, 16-way socket (black) | FLHXSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (15) | FLHXSE |
| 9 | 72169-07 | TERMINAL, pin, 16-20 AWG (23) | FLHXSE |
| 10 | 72209-11 | COVER, wire dress | FLHXSE |
| 11 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 12 | 72222-11 | TERMINAL, socket, 18-20 AWG (27) | FLHXSE |
| 13 | 72226-11 | TERMINAL, socket, 14-16 AWG (8) | FLHXSE |
| 14 | 72256-11 | SEAL PIN (13) | FLHXSE |
| 15 | 72272-07 | TERMINAL, socket, 14-16 AWG (3) | FLHXSE |
| 16 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 17 | 72473-07 | SEAL PIN (5) | FLHXSE |
| 18 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 19 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHXSE |
| 20 | 72488-07BK | HOUSING, 12-way pin (black) | FLHXSE |
| 21 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHXSE |
| 22 | 72606-08 | HOUSING, two-way socket (black) | FLHXSE |
| 23 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 24 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 25 | 73213-07 | RETAINER, anchored (2) | FLHXSE |
| 26 | 69200193 | HOUSING, 48-way socket (black) | FLHXSE |
| 27 | 69200205 | WEATHER PLUG, 12-way pin (2) | FLHXSE |
| 28 | 69200215 | CADDY, right steer head | FLHXSE |
| 29 | 69201163 | HOUSING, six-way pin (black) | FLHXSE |
| 30 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHXSE |
WIRING HARNESS, MAIN (3 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHXSE |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLHXSE |
| 3 | 72007-05 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHXSE |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLHXSE |
| 6 | 72063-06 | HOUSING, two-way socket (black) | FLHXSE |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLHXSE |
| 8 | 72251-07 | SECONDARY LOCK, two-way socket (yellow) (2) | FLHXSE |
| 9 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHXSE |
| 10 | 72402-07 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 11 | 72406-07A | HOUSING, four-way socket (black) | FLHXSE |
| 12 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 13 | 72408-07 | WIRE SEAL, 16-20 AWG (blue) (4) | FLHXSE |
| 14 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 15 | 72483-08BK | HOUSING, six-way socket (black) | FLHXSE |
| 16 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 17 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHXSE |
| 18 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) (6) | FLHXSE |
| 19 | 69200437 | RUBBER BOOT, wire connector | FLHXSE |
WIRING HARNESS, MAIN (4 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHXSE |
| 2 | 10147 | CLIP, connector | FLHXSE |
| 3 | 72066-06A | HOUSING, four-way socket (black) | FLHXSE |
| 4 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHXSE |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLHXSE |
| 7 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLHXSE |
| 8 | 72518-01 | HOUSING, two-way socket (red) | FLHXSE |
| 9 | 72533-06 | DUST CAP, two-way connector | FLHXSE |
| 10 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 11 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 12 | 72664-12A | HOUSING, 18-way socket (black) | FLHXSE |
| 13 | 72666-12 | TERMINAL, socket, 18-20 AWG (42) | FLHXSE |
| 14 | 72720-07 | HOUSING, two-way socket (black) | FLHXSE |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 16 | 69200192A | HOUSING, 18-way socket (gray) | FLHXSE |
| 17 | 69200291A | HOUSING, 18-way socket (brown) | FLHXSE |
| 18 | 69201168 | TERMINAL, socket, 22 AWG (2) | FLHXSE |
WIRING HARNESS, MAIN (5 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in ring, 12 AWG (3) | FLHXSE |
| 2 | 10065 | CABLE STRAP | FLHXSE |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (14) | FLHXSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHXSE |
| 5 | 72249-94 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHXSE |
| 6 | 72272-07 | TERMINAL, socket, 14-16 AWG (5) | FLHXSE |
| 7 | 72473-07 | SEAL PIN | FLHXSE |
| 8 | 72500-07ABK | HOUSING, 20-way socket (black) | FLHXSE |
| 9 | 72554-09GY | HOUSING, six-way pin (gray) | FLHXSE |
| 10 | 73213-07 | RETAINER, anchored | FLHXSE |
| 11 | 69200294 | CABLE, AM/FM antenna | FLHXSE |
WIRING HARNESS, MAIN (6 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLHXSE |
| 2 | 10065 | CABLE STRAP (4) | FLHXSE |
| 3 | 11779 | FASTENER, push-in (black) (2) | FLHXSE |
| 4 | 72291-94 | TERMINAL, socket, 14-16 AWG | FLHXSE |
| 5 | 72295-94 | CONNECTOR, starter housing | FLHXSE |
| 6 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLHXSE |
| 7 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 9 | 72543-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 10 | 72544-07 | SECONDARY LOCK, three-way socket (black) | FLHXSE |
| 11 | 69200175 | CADDY, fuse block, electrical panel | FLHXSE |
WIRING HARNESS, MAIN (7 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLHXSE |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLHXSE |
| 3 | 70598-99 | BOOT | FLHXSE |
| 4 | 72063-06 | HOUSING, two-way socket (black) | FLHXSE |
| 5 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLHXSE |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FLHXSE |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (10) | FLHXSE |
| 8 | 72175-07BK | HOUSING, four-way pin (black) (2) | FLHXSE |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 10 | 72232-96 | SEAL PLUG (2) | FLHXSE |
| 11 | 72343-10 | TERMINAL, pin, 16-20 AWG (4) | FLHXSE |
| 12 | 72400-99 | HOUSING, four-way socket (black) | FLHXSE |
| 13 | 72403-99 | SECONDARY LOCK, four-way socket (black) | FLHXSE |
| 14 | 72415-07GY | HOUSING, four-way pin (gray) | FLHXSE |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHXSE |
| 17 | 72512-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 18 | 72519-09BK | DUST CAP, three-way socket (black) | FLHXSE |
| 19 | 72606-08 | HOUSING, two-way socket (black) | FLHXSE |
| 20 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 21 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 22 | 73213-07 | RETAINER, anchored (5) | FLHXSE |
| 23 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 24 | 74120-08 | DC LEAD ASSEMBLY | FLHXSE |
| 25 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHXSE |
| 26 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 27 | 69200183 | HOUSING, 26-way socket | FLHXSE |
| 28 | 69200184 | COVER, 26-way socket | FLHXSE |
| 29 | 69200185 | TERMINAL, socket, 20 AWG (6) | FLHXSE |
| 30 | 69200186 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 31 | 69200187 | TERMINAL, socket, 12 AWG (2) | FLHXSE |
| 32 | 69200188 | WIRE SEAL, 20 AWG (gray) (6) | FLHXSE |
| 33 | 69200189 | WIRE SEAL, 14-16 AWG (brown) (2) | FLHXSE |
| 34 | 69200190 | WIRE SEAL, 12 AWG (blue) (2) | FLHXSE |
| 35 | 69200191 | SEAL PIN (16) | FLHXSE |
| 36 | 69200238 | TERMINAL, insulated (2) | FLHXSE |
| 37 | 69200272 | HOUSING, two-way pin (black) | FLHXSE |
WIRING HARNESS, MAIN (8 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | WEATHER PLUG, six-way pin | FLHXSE |
| 2 | 10006 | CABLE STRAP (3) | FLHXSE |
| 3 | 10065 | CABLE STRAP (2) | FLHXSE |
| 4 | 31586-07 | RELAY (2) | FLHXSE |
| 5 | 72064-06 | HOUSING, three-way socket (black) | FLHXSE |
| 6 | 72081-11 | HOUSING, 48-way socket (black) | FLHXSE |
| 7 | 72106-94BK | HOUSING, six-way pin (black) | FLHXSE |
| 8 | 72146-94 | SECONDARY LOCK, six-way pin (green) | FLHXSE |
| 9 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHXSE |
| 10 | 72188-07BK | HOUSING, six-way pin (black) | FLHXSE |
| 11 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHXSE |
| 12 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLHXSE |
| 13 | 72195-94 | SEAL PIN | FLHXSE |
| 14 | 72209-11 | COVER, wire dress | FLHXSE |
| 15 | 72222-11 | TERMINAL, socket, 18-20 AWG (22) | FLHXSE |
| 16 | 72226-11 | TERMINAL, socket, 14-16 AWG | FLHXSE |
| 17 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHXSE |
| 18 | 72256-11 | SEAL PIN (8) | FLHXSE |
| 19 | 72296-95 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 20 | 72298-95 | PLUG, cavity (2) | FLHXSE |
| 21 | 72299-95 | PLUG, cavity (2) | FLHXSE |
| 22 | 72308-97 | TERMINAL, socket, 12-14 AWG (5) | FLHXSE |
| 23 | 72331-95 | FUSE, 5 A (tan) (2) | FLHXSE |
| 24 | 72345-02 | FUSE, 20 A (yellow) (3) | FLHXSE |
| 25 | 72350-11 | HOUSING, one-way socket (black) | FLHXSE |
| 26 | 72356-95 | TERMINAL, socket, 18-20 AWG (15) | FLHXSE |
| 27 | 72371-95 | FUSE, 40 A | FLHXSE |
| 28 | 72393-06 | CAP, one-way fuse holder | FLHXSE |
| 29 | 72394-06 | HOUSING, one-way fuse holder (black) | FLHXSE |
| 30 | 72398-06 | TERMINAL, socket, 12 AWG (2) | FLHXSE |
| 31 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) (5) | FLHXSE |
| 32 | 72447-07GY | HOUSING, eight-way pin (gray) | FLHXSE |
| 33 | 72462-00 | FUSE, 10 A (red) | FLHXSE |
| 34 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 35 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 36 | 72539-06 | FUSE, 30 A (green) | FLHXSE |
| 37 | 72575-11 | SECONDARY LOCK, one-way socket (black) | FLHXSE |
| 38 | 73213-07 | RETAINER, anchored | FLHXSE |
| 39 | 73301-04 | HOUSING, two-way pin (black) | FLHXSE |
| 40 | 73303-04 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 41 | 73304-04 | TERMINAL, socket, 10 AWG | FLHXSE |
| 42 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHXSE |
| 43 | 69200137 | WIRE HARNESS, positive cable | FLHXSE |
| 44 | 69200194 | HOUSING, 24-way socket | FLHXSE |
| 45 | 69200797 | COVER, fuse block | FLHXSE |
| 46 | 69200199 | WIRE SEAL, 18-20 AWG (15) | FLHXSE |
| 47 | 69200204 | WEATHER PLUG, eight-way pin | FLHXSE |
| 48 | 69200212 | HARNESS, battery tender | FLHXSE |
| 49 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHXSE |
| 50 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLHXSE |
| 51 | 69200336 | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness | FLHXSE |
| 52 | 11100115 | CLOTH, HARNESS WRAP, 50 m (not shown) | FLHXSE |
WIRING HARNESS, FAIRING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200912 | WIRING HARNESS, fairing | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 10065 | CABLE STRAP (9) | FLHXSE |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHXSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (28) | FLHXSE |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 6 | 72225-09 | TERMINAL, pin, 14 AWG (4) | FLHXSE |
| 7 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHXSE |
| 8 | 72382-98BK | HOUSING, 23-way socket (black) | FLHXSE |
| 9 | 72397-98 | SEAL PIN (4) | FLHXSE |
| 10 | 72473-07 | SEAL PIN | FLHXSE |
| 11 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHXSE |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 13 | 72905-11 | HOUSING, two-way pin (black) | FLHXSE |
| 14 | 72907-11 | HOUSING, four-way pin (4) | FLHXSE |
| 15 | 72909-11 | TERMINAL, pin, 20-22 AWG (17) | FLHXSE |
| 16 | 72912-01BK | HOUSING, two-way socket (black) | FLHXSE |
| 17 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHXSE |
| 18 | 69200109 | CADDY, fairing harness | FLHXSE |
| 19 | 69200254 | HOUSING, four-way socket | FLHXSE |
| 20 | 69200256 | SECONDARY LOCK, four-way | FLHXSE |
| 21 | 69200272 | HOUSING, two-way pin (black) (2) | FLHXSE |
WIRING HARNESS, FAIRING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200912 | WIRING HARNESS, fairing | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLHXSE |
| 2 | 10065 | CABLE STRAP | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored (4) | FLHXSE |
| 4 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHXSE |
| 5 | 72097-06 | SEAL PIN, A (2) | FLHXSE |
| 6 | 72130-04 | HOUSING, 12-way socket (black) | FLHXSE |
| 7 | 72135-06 | SECONDARY LOCK, four-way socket (gray) (2) | FLHXSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (10) | FLHXSE |
| 9 | 72189-04 | SEAL PIN (6) | FLHXSE |
| 10 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 11 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 12 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 13 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHXSE |
| 14 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHXSE |
| 15 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 16 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 17 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 18 | 73102-96BK | HOUSING, two-way pin (black) | FLHXSE |
| 19 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 20 | 74196-04 | TERMINAL, socket, 20 AWG (6) | FLHXSE |
| 21 | 74197-04 | SECONDARY LOCK, 12-way socket (blue) | FLHXSE |
| 22 | 12500002 | CABLE STRAP (2) | FLHXSE |
| 23 | 69200271 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 24 | 69200337 | HOUSING, two-way socket (gray) | FLHXSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT | FLHXSE |
| 2 | 3634 | SCREW (6) | FLHXSE |
| 3 | 4312C | SCREW (2) | FLHXSE |
| 4 | 7792 | NUT | FLHXSE |
| 5 | 15368-01A | LABEL BATTERY WARNING | FLHXSE |
| 6 | 66010-97C | BATTERY, with 4312C (except Brazil) | FLHXSE |
| 66000066 | BATTERY, with 4312C (Brazil) | FLHXSE | |
| 7 | 66051-08 | STRAP, battery removal | FLHXSE |
| 8 | 66200-09 | BRACKET, battery hold down | FLHXSE |
| 9 | 70267-09 | CABLE ASSEMBLY, starter to ground, with 72242-94 | FLHXSE |
| 10 | 70578-89 | BOOT, battery positive | FLHXSE |
| 11 | 72242-94 | TERMINAL, ring, 10-12 AWG | FLHXSE |
| 12 | 73304-04 | TERMINAL, socket, 10 AWG | FLHXSE |
| 13 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHXSE |
| 14 | 66000010 | BATTERY TRAY | FLHXSE |
| 15 | 69200137 | CABLE ASSEMBLY, battery positive to starter, with 70578-89, 73304-04 and 73305-04 | FLHXSE |
| 16 | 69200174 | CADDY, electronic control module (ECM) | FLHXSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHXSE |
| 2 | 4775 | SCREW (2) | FLHXSE |
| 3 | 6019 | WASHER (2) | FLHXSE |
| 4 | 6109 | WASHER | FLHXSE |
| 5 | 7495 | NUT | FLHXSE |
| 6 | 7549A | ACORN NUT | FLHXSE |
| 7 | 8108 | SPEEDNUT (2) | FLHXSE |
| 8 | 10039 | CABLE STRAP | FLHXSE |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHXSE |
| 10 | 69060-90H | HORN ASSEMBLY | FLHXSE |
| 11 | 69062-91A | CLAMP | FLHXSE |
| 12 | 69120-91 | BRACKET, horn | FLHXSE |
| 13 | 69123-92A | MOUNT, horn, rubber | FLHXSE |
| 14 | 61300478 | COVER, horn (chrome) | FLHXSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHXSE |
| 2 | 6150W | WASHER (2) | FLHXSE |
| 3 | 9907 | WIRE TERMINAL (2) | FLHXSE |
| 4 | 10065 | CABLE STRAP | FLHXSE |
| 5 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHXSE |
| 6 | 66373-06 | BATTERY, 3V, CR2032 | FLHXSE |
| 7 | 68956-07 | ANTENNA MODULE, security system | FLHXSE |
| 8 | 68958-07C | SIREN (Domestic) | FLHXSE |
| 9 | 69309-10 | BATTERY REPLACE KIT, siren alarm | FLHXSE |
| 10 | 72023-51E | KIT, SWITCH, rear stop lamp, with 9907 | FLHXSE |
| 11 | 32700010 | SENSOR, ambient temperature (2) | FLHXSE |
| 12 | 41000341 | BODY CONTROL MODULE (BCM) | FLHXSE |
| 41000342 | BODY CONTROL MODULE (BCM) (Japan) | FLHXSE | |
| 13 | 71400090A | FORK LOCK (specify key number) | FLHXSE |
| 14 | 90300109 | KEY AND FOB ASSEMBLY (specify key number) (2) | FLHXSE |
| 90300110 | KEY AND FOB ASSEMBLY (specify key number) (Japan) (2) | FLHXSE | |
| 15 | 90300115A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock | FLHXSE |
| 90300116A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan) | FLHXSE |
SOUND SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (2) | FLHXSE |
| 2 | 2478 | SCREW (4) | FLHXSE |
| 3 | 7686 | LOCKNUT (2) | FLHXSE |
| 4 | 10006 | CABLE STRAP (3) | FLHXSE |
| 5 | 10065 | CABLE STRAP (2) | FLHXSE |
| 6 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 7 | 72272-07 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 8 | 72290-94 | TERMINAL, insulated (4) | FLHXSE |
| 9 | 72294-94 | TERMINAL, insulated (2) | FLHXSE |
| 10 | 72607-08 | HOUSING, two-way pin (black) (2) | FLHXSE |
| 11 | 72608-08 | TERMINAL, pin, 16-20 AWG (4) | FLHXSE |
| 12 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 13 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 14 | 73213-07 | RETAINER, anchored (2) | FLHXSE |
| 15 | 77126-10 | WIND SOCK, microphone | FLHXSE |
| 16 | 10200205 | SCREW (8) | FLHXSE |
| 17 | 11100071 | PAD (4) | FLHXSE |
| 18 | 12100052 | GROMMET (2) | FLHXSE |
| 19 | 12600070 | BOLT (4) | FLHXSE |
| 20 | 12600071 | RETAINER, bolt (4) | FLHXSE |
| 21 | 12600073 | SCREW, accessory module | FLHXSE |
| 22 | 12600087 | STUD (2) | FLHXSE |
| 23 | 69200247 | WIRE HARNESS, speaker jumper, with 5, 6, 8, 9, 14 and 25 (2) | FLHXSE |
| 24 | 69200271 | HOUSING, two-way socket (black) | FLHXSE |
| 25 | 69200272 | HOUSING, two-way pin (black) (2) | FLHXSE |
| 26 | 76000221 | ANTENNA, XM | FLHXSE |
| 76000222 | ANTENNA, GPS | FLHXSE | |
| 27 | 76000228A | RADIO, with 19, 20, 21 and 28 (navigation and XM satellite) | FLHXSE |
| 76000229A | RADIO, with 19, 20, 21 and 30 (navigation) | FLHXSE | |
| 76000232A | RADIO, with 19, 20, 21 and 30 | FLHXSE | |
| 28 | 76000233 | MODULE, XM Satellite Radio | FLHXSE |
| 29 | 76000243 | EAR PAD, foam (2) | FLHXSE |
| 30 | 76000252 | PLATE, accessory module | FLHXSE |
| 31 | 76000259 | COILED CORD, headset | FLHXSE |
| 32 | 76000277A | AMPLIFIER | FLHXSE |
| 33 | 76000349 | BRACKET, with 11100071 and 12100052 | FLHXSE |
| 34 | 76000525 | SPEAKER ASSEMBLY (2) | FLHXSE |
| 35 | 76000535 | SPEAKER ASSEMBLY, tweeter, with 10, 11, 12, 13 and 38 (right) | FLHXSE |
| 36 | 76000536 | SPEAKER ASSEMBLY, tweeter, with 10, 11, 12, 13 and 38 (left) | FLHXSE |
| 37 | 76000554 | ANTENNA (left) | FLHXSE |
| 38 | 76000562 | GASKET (left) | FLHXSE |
| 76000563 | GASKET (right) | FLHXSE | |
| 39 | 76000602 | HEADSET ASSEMBLY, with 15, 29 and 31 (2) | FLHXSE |
| 40 | 91700034 | KIT, RADIO TOUCH SCREEN PROTECTOR | FLHXSE |
| NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
SOUND SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (2) | FLHXSE |
| 2 | 72063-06 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 3 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHXSE |
| 4 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (4) | FLHXSE |
| 5 | 72111-06 | SECONDARY LOCK, two-way socket (gray) (2) | FLHXSE |
| 6 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 7 | 72381-98 | TERMINAL, socket, 16-20 AWG (20) | FLHXSE |
| 8 | 72382-98BK | HOUSING, 23-way socket (black) | FLHXSE |
| 9 | 72397-98 | SEAL PIN (3) | FLHXSE |
| 10 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 11 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 13 | 10200065 | SCREW (8) | FLHXSE |
| 14 | 10200095 | SCREW (8) | FLHXSE |
| 15 | 10200351 | SCREW (8) | FLHXSE |
| 16 | 11100071 | PAD (4) | FLHXSE |
| 17 | 12100052 | GROMMET (2) | FLHXSE |
| 18 | 12600068 | CLIP, retainer (3) | FLHXSE |
| 19 | 12600087 | STUD (2) | FLHXSE |
| 20 | 69201366 | WIRE HARNESS, rear speaker (left) | FLHXSE |
| 21 | 69201367 | WIRE HARNESS, rear speaker (right) | FLHXSE |
| 22 | 69201372 | HOUSING, 16-way pin | FLHXSE |
| 23 | 69201373 | FLANGE LOCK, 16-way | FLHXSE |
| 24 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 25 | 69201375 | TERMINAL, pin, 18-22 AWG (11) | FLHXSE |
| 26 | 69201376 | TERMINAL, pin, 14-16 AWG (4) | FLHXSE |
| 27 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 28 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 29 | 69201379 | SEAL PIN | FLHXSE |
| 30 | 69201380 | HOUSING, four-way pin | FLHXSE |
| 31 | 69201381 | FLANGE LOCK, four-way | FLHXSE |
| 32 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 33 | 69201383 | TERMINAL, pin, 18-20 AWG (4) | FLHXSE |
| 34 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 35 | 69201413 | WIRE SEAL, 18-22 AWG (blue) | FLHXSE |
| 36 | 69201418 | CONNECTOR, panel mount gasket (left) | FLHXSE |
| 37 | 69201419 | CONNECTOR, mount plate (left) | FLHXSE |
| 38 | 69201420 | CONNECTOR, panel mount gasket (right) | FLHXSE |
| 39 | 69201421 | CONNECTOR, mount plate (right) | FLHXSE |
| 40 | 76000277A | AMPLIFIER | FLHXSE |
| 41 | 76000282A | BRACKET, with 11100071 and 12100052 | FLHXSE |
| 42 | 76000333 | SPEAKER ASSEMBLY, with 76000485 (2) | FLHXSE |
| 43 | 76000417 | GRILLE ASSEMBLY (left) | FLHXSE |
| 76000418 | GRILLE ASSEMBLY (right) | FLHXSE | |
| 44 | 76000485 | GASKET (2) | FLHXSE |
| 45 | 76000502 | COVER | FLHXSE |
| NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||

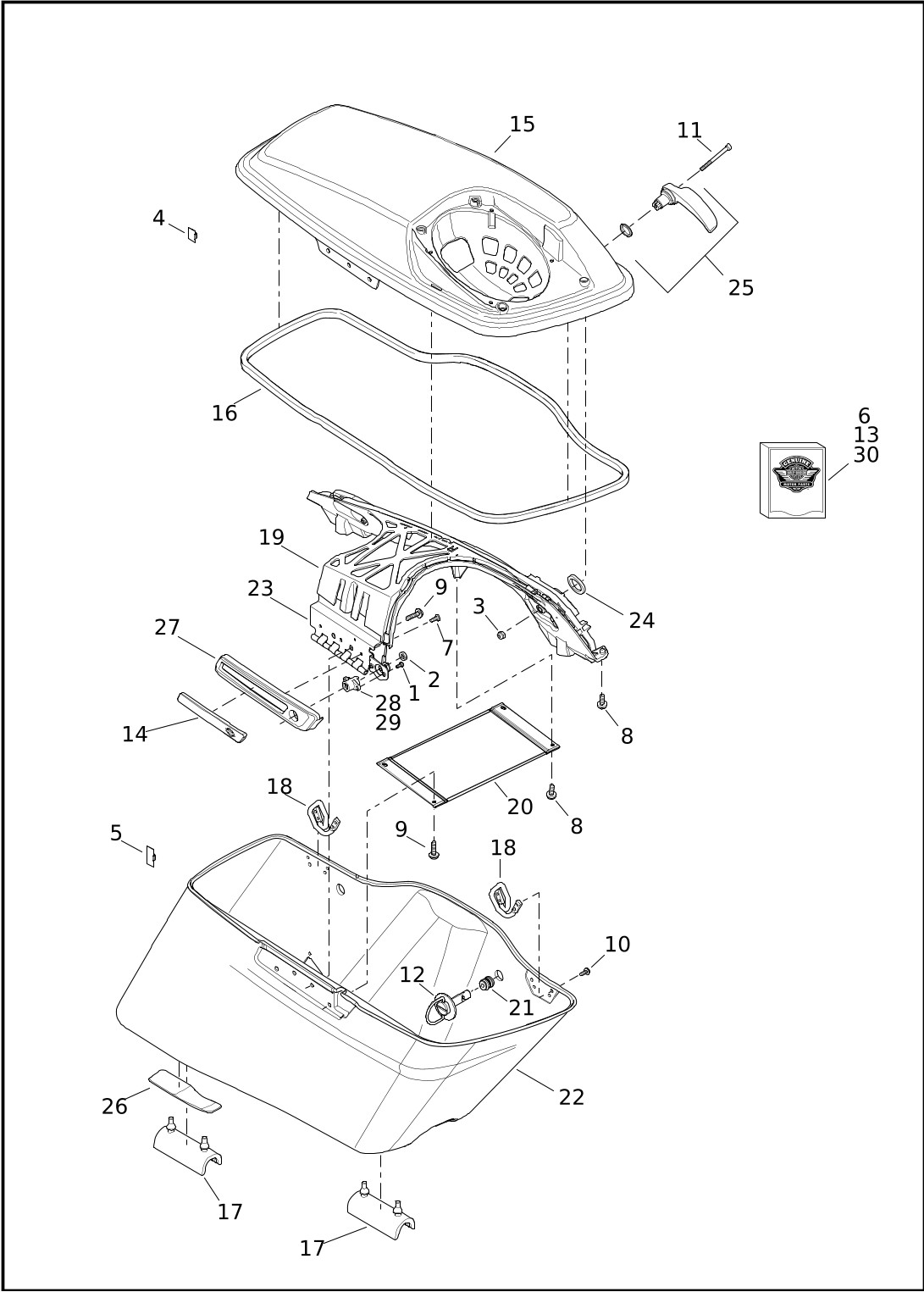

SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3656 | SCREW (4) | FLHXSE |
| 2 | 7586 | JAMNUT (2) | FLHXSE |
| 3 | 7624 | LOCKNUT (2) | FLHXSE |
| 4 | 10102 | CLIP (6) | FLHXSE |
| 5 | 10103 | CLIP, left saddlebag only | FLHXSE |
| 6 | 91885-97A | LINER, pull out, with handles (set of 2) | FLHXSE |
| 7 | 10200062 | SCREW (6) | FLHXSE |
| 8 | 10200063 | SCREW (10) | FLHXSE |
| 9 | 10200065 | SCREW (16) | FLHXSE |
| 10 | 10200103 | SCREW (16) | FLHXSE |
| 11 | 10200344 | SCREW (2) | FLHXSE |
| 12 | 10900026 | BAIL HEAD STUD (NOTE: Remove Bail for HDI sale, excluding Japan) (4) | FLHXSE |
| 13 | 14900001 | TOOL KIT | FLHXSE |
| 14 | 67900065 | REFLECTOR (left) (red) (Domestic) | FLHXSE |
| 67900066 | REFLECTOR (left) (amber) (HDI) | FLHXSE | |
| 67900067 | REFLECTOR (right) (red) (Domestic) | FLHXSE | |
| 67900068 | REFLECTOR (right) (amber) (HDI) | FLHXSE | |
| 15 | 90201143EAY | SADDLEBAG COVER, with 90200415 (right) (White Amethyst) **RESTRICTED SALES PART** | FLHXSE |
| 90201143EAZ | SADDLEBAG COVER, with 90200415 (right) (Black Licorice) | FLHXSE | |
| 90201143EBC | SADDLEBAG COVER, with 90200415 (right) (Atomic Red) | FLHXSE | |
| 90201143EBR | SADDLEBAG COVER, with 90200415 (right) (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142EAY | SADDLEBAG COVER, with 90200415 (left) (White Amethyst) | FLHXSE | |
| 90201142EAZ | SADDLEBAG COVER, with 90200415 (left) (Black Licorice) | FLHXSE | |
| 90201142EBC | SADDLEBAG COVER, with 90200415 (left) (Atomic Red) | FLHXSE | |
| 90201142EBR | SADDLEBAG COVER, with 90200415 (left) (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 16 | 90200415 | GASKET, cover (2) | FLHXSE |
| 17 | 90200467 | CUSHION, saddlebag support (4) | FLHXSE |
| 18 | 90200519 | STRIKE, saddlebag (4) | FLHXSE |
| 19 | 90200520 | LATCH ASSEMBLY, with 90200899 and 90200901 (right) | FLHXSE |
| 90200521 | LATCH ASSEMBLY, with 90200900 and 90200901 (left) | FLHXSE | |
| 20 | 90200893 | TETHER, saddlebag (2) | FLHXSE |
| 21 | 90200611 | ISOLATOR, saddlebag (4) | FLHXSE |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 22 | 90201382EBF | SADDLEBAG BOTTOM, with 90200964 and label (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 90201382EBI | SADDLEBAG BOTTOM, with 90200964 and label (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201382EBH | SADDLEBAG BOTTOM, with 90200964 and label (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201382EBP | SADDLEBAG BOTTOM, with 90200964 and label (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EBF | SADDLEBAG BOTTOM, with 90200963 and label (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EBI | SADDLEBAG BOTTOM, with 90200963 and label (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EBH | SADDLEBAG BOTTOM, with 90200963 and label (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EBP | SADDLEBAG BOTTOM, with 90200963 and label (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 23 | 90200899 | HINGE ASSEMBLY (right) | FLHXSE |
| 90200900 | HINGE ASSEMBLY (left) | FLHXSE | |
| 24 | 90200901 | SEAL (2) | FLHXSE |
| 25 | 90200979 | HANDLE KIT, saddlebag, with grommet (right) | FLHXSE |
| 90200980 | HANDLE KIT, saddlebag, with grommet (left) | FLHXSE | |
| 26 | 90200963 | WEAR STRIP (left) | FLHXSE |
| 90200964 | WEAR STRIP (right) | FLHXSE | |
| 27 | 90200983EAZ | FACEPLATE (left) (Black Licorice) | FLHXSE |
| 90200983EAY | FACEPLATE (left) (White Amethyst) | FLHXSE | |
| 90200983EBC | FACEPLATE (left) (Atomic Red) | FLHXSE | |
| 90200983EBP | FACEPLATE (left) (Carbon Crystal) | FLHXSE | |
| 90200984EAZ | FACEPLATE (right) (Black Licorice) | FLHXSE | |
| 90200984EAY | FACEPLATE (right) (White Amethyst) | FLHXSE | |
| 90200984EBC | FACEPLATE (right) (Atomic Red) | FLHXSE | |
| 90200984EBP | FACEPLATE (right) (Carbon Crystal) | FLHXSE | |
| 28 | 90300024 | LOCK, with 7586 (specify key number) (2) | FLHXSE |
| 29 | 90300115A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock | FLHXSE |
| 90300116A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan) | FLHXSE | |
| 30 | 93100031 | COVER, indoor storage | FLHXSE |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (6) | FLHXSE |
| 2 | 3901 | SCREW (2) | FLHXSE |
| 3 | 4924 | SCREW (2) | FLHXSE |
| 4 | 7531 | LOCKNUT (2) | FLHXSE |
| 5 | 7601 | LOCKNUT (4) | FLHXSE |
| 6 | 10200217 | SCREW (2) | FLHXSE |
| 7 | 10900009A | RECEPTACLE (4) | FLHXSE |
| 8 | 11100068 | CUSHION (2) | FLHXSE |
| 9 | 69200313 | CLIP (6) | FLHXSE |
| 10 | 90200543 | SCREW (2) | FLHXSE |
| 11 | 90200547 | INSERT ASSEMBLY, saddlebag support (2) | FLHXSE |
| 12 | 90200549 | SUPPORT (left) (black) | FLHXSE |
| 90200550 | SUPPORT (right) (black) | FLHXSE | |
| 13 | 90201129EAY | SUPPORT, saddlebag, with 11100068 (right) (White Amethyst) | FLHXSE |
| 90201129EAZ | SUPPORT, saddlebag, with 11100068 (right) (Black Licorice) | FLHXSE | |
| 90201129EBC | SUPPORT, saddlebag, with 11100068 (right) (Atomic Red) | FLHXSE | |
| 90201129EBP | SUPPORT, saddlebag, with 11100068 (right) (Carbon Crystal) | FLHXSE | |
| 90201127EAY | SUPPORT, saddlebag, with 11100068 (left) (White Amethyst) | FLHXSE | |
| 90201127EAZ | SUPPORT, saddlebag, with 11100068 (left) (Black Licorice) | FLHXSE | |
| 90201127EBC | SUPPORT, saddlebag, with 11100068 (left) (Atomic Red) | FLHXSE | |
| 90201127EBP | SUPPORT, saddlebag, with 11100068 (left) (Carbon Crystal) | FLHXSE |

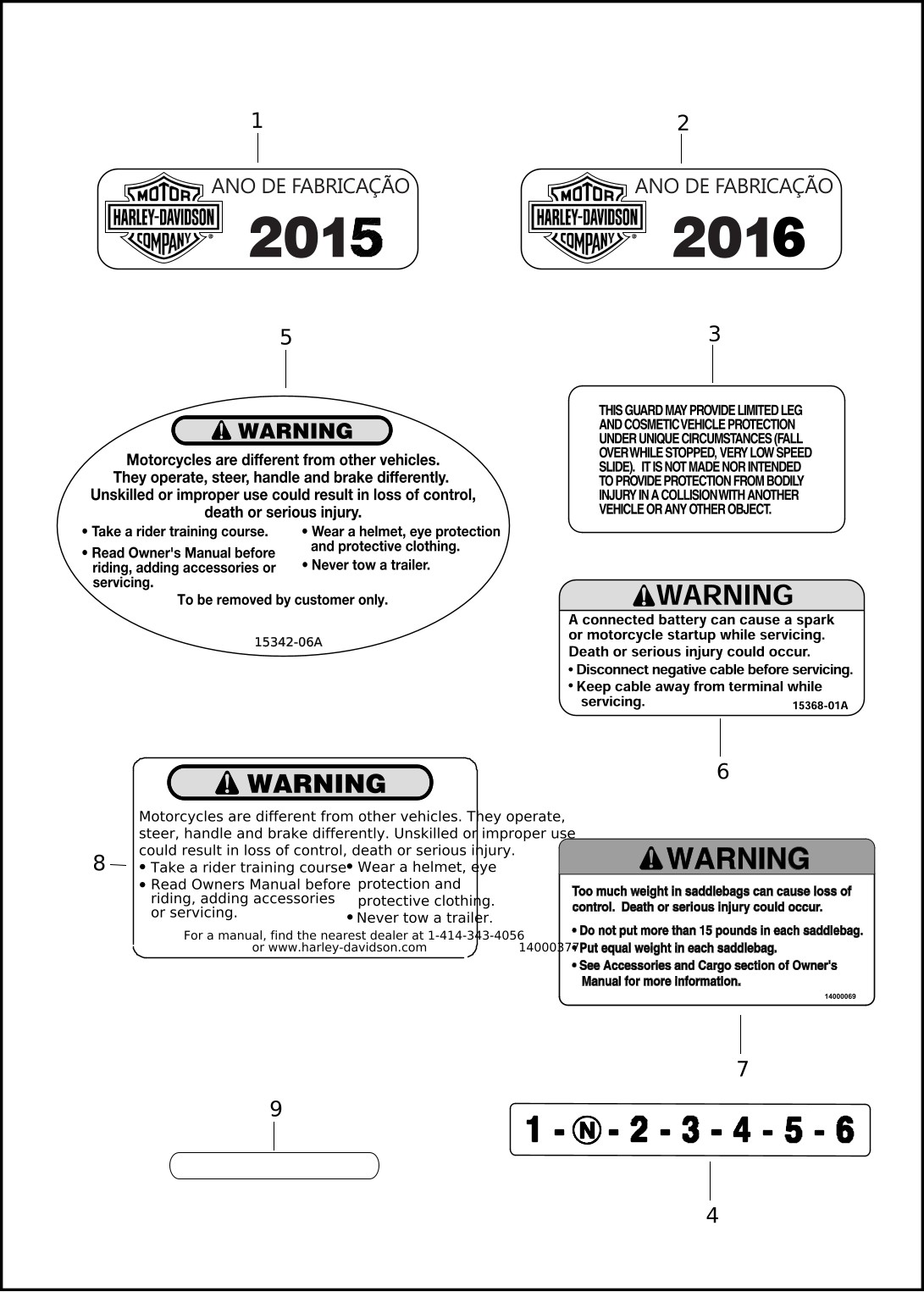

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13729-15 | YEAR OF MANUFACTURING LABEL (Brazil) | FLHXSE |
| 2 | 13729-16 | YEAR OF MANUFACTURING LABEL (Brazil) | FLHXSE |
| 3 | 14148-86 | ENGINE GUARD LABEL (chrome engine guard) | FLHXSE |
| 14151-02 | ENGINE GUARD LABEL (black engine guard) | FLHXSE | |
| 4 | 14272-06 | SHIFT PATTERN LABEL (Japan) | FLHXSE |
| 5 | 15342-06A | MIRROR WARNING LABEL (HDI) | FLHXSE |
| 15385-08 | MIRROR WARNING LABEL, Portuguese (Brazil) (not shown) | FLHXSE | |
| 6 | 15368-01A | BATTERY WARNING LABEL | FLHXSE |
| 7 | 14000069 | SADDLEBAG WARNING LABEL | FLHXSE |
| 8 | 14000377 | AIR CLEANER WARNING LABEL (black) | FLHXSE |
| 28012-09 | AIR CLEANER WARNING LABEL (chrome) | FLHXSE | |
| 9 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHXSE |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 29762-09 | RAINSOCK, air cleaner | FLHXSE |
| 94000326 | OWNERS KIT CONTENT (Domestic) | FLHXSE | |
| 91885-97A | LINER, pull out, with handles, set of 2 | FLHXSE | |
| 99461-89 | COVER, owners manual (Domestic, Canada, Australia and England) | FLHXSE | |
| 99577-16 | OWNERS MANUAL | FLHXSE | |
| 99517-16EN | BOOM OWNERS MANUAL (English) (Domestic, Canada, Australia and England) | FLHXSE | |
| 14900001 | TOOL KIT | FLHXSE | |
| 58002-09 | AIR DEFLECTOR KIT, MID-FRAME (See NOTE) | FLHXSE | |
| 57200093EBF | SIDE COVER (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBI | SIDE COVER (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBH | SIDE COVER (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBP | SIDE COVER (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 57400253 | WINDSHIELD (smoked) | FLHXSE | |
| 69200336 | MAIN FUSE, 50 A (red) | FLHXSE | |
| 76000602 | HEADSET, helmet | FLHXSE | |
| 90300109 | KEY AND FOB ASSEMBLY (specify key number) (2) | FLHXSE | |
| 90300110 | KEY AND FOB ASSEMBLY (specify key number) (Japan) (2) | FLHXSE | |
| 94000084 | ABS EDUCATIONAL DVD | FLHXSE | |
| 93100031 | COVER, indoor storage | FLHXSE | |
| 93600034 | LEATHER DRESSING | FLHXSE | |
| NOTE: Order 58002-09 only if missing complete kit. Otherwise order individual components as needed. Refer to the COVERS & AIR DEFLECTORS section in this parts manual. | |||
| Part No. | Description |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200052 | SCREW 1/4-20 X 39/64 TORX SEMS socket button head , with lockpatch |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200095 | SCREW No. 8-18 X 1-1/4 TORX button head |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200316 | SCREW 5/16-18 X 1 button head T-40 |
| 10200344 | SCREW No. 3/16-24 X 2 socket head (stainless) |
| 10200351 | SCREW No. 8-18 X 3/4 TORX button head |
| 10200384 | SCREW 1/4-20 X 1/2 hex socket head (stainless) |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090A | SCREW 5/16-18 X 3-3/4 hex flange head with seal ring |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch(Grade 5) |
| 12600049 | SCREW No. 10-24 X 3/4 pan head torx, with lockpatch (Grade 8) (zinc) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3152 | SCREW #10 X 1/2 TORX pan head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3938 | SCREW button hex socket |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4976 | SCREW 1/4-20 X 3/4 TORX socket button head, stainless steel |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6383 | WASHER 17/64 X 1/2 X 1/16 stainless steel |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7687 | NUT 3/8-16 X 25/64 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90200543 | SCREW 3/8-16 X 2-1/2 TORX button head (zinc) |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19292-16 | ENGINE ASSEMBLY, complete - 110 cubic-inch (gray granite) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 37 | 32700066 | SENSOR, coolant temperature | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 33203-10A | TRANSMISSION REPLACEMENT, without cable, covers and sensors (gray granite) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 25700438 | COVER, primary (black) | FLHXSE |
| 25700385 | COVER, primary (chrome) | FLHXSE | |
| 24 | 25700553 | COVER ASSEMBLY, clutch, with 25800053 (chrome) | FLHXSE |
| 25 | 25800053 | INSERT, clutch cover | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 40024-09A | REAR BELT, 140 T, 1 inch | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 37200096A | REPAIR KIT, master cylinder, with 11143 and 41751-06A | FLHXSE |
| 36700094A | MASTER CYLINDER COVER KIT, with 3089 and gasket (chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10340B | CLIP, brake hose (2) | FLHXSE |
| 14 | 41100013A | CONTROL UNIT, ABS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 10400031 | NUT | FLHXSE |
| 20 | 11700038 | SPRING | FLHXSE |
| 22 | 32700052 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 | FLHXSE |
| 32700053 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 (Japan) | FLHXSE | |
| 23 | 32700058 | VALVE STEM, right angle (chrome) | FLHXSE |
| 28 | 43300321 | WHEEL KIT, cast, without bearings and sleeve (chrome) | FLHXSE |
| 43300385 | WHEEL KIT, cast, without bearings and sleeve (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 10400031 | NUT | FLHXSE |
| 19 | 11700038 | SPRING | FLHXSE |
| 20 | 32700052 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 | FLHXSE |
| 32700053 | SENSOR ASSEMBLY, tire pressure, with 10400031, 11700038 and 32700058 (Japan) | FLHXSE | |
| 21 | 32700058 | VALVE STEM, right angle (chrome) | FLHXSE |
| 40900390 | WHEEL KIT, cast, without bearings and sleeve (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 45600038EAZ | COVER ASSEMBLY, fork tube (left) (Black Licorice) | FLHXSE |
| 45600038EBC | COVER ASSEMBLY, fork tube (left) (Atomic Red) | FLHXSE | |
| 45600038EBP | COVER ASSEMBLY, fork tube (left) (Carbon Crystal) | FLHXSE | |
| 10 | 45600039EAZ | COVER ASSEMBLY, fork tube (right) (Black Licorice) | FLHXSE |
| 45600039EBC | COVER ASSEMBLY, fork tube (right) (Atomic Red) | FLHXSE | |
| 45600039EBP | COVER ASSEMBLY, fork tube (right) (Carbon Crystal) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 57200094EBF | SIDE COVER, with 48419-04 (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBI | SIDE COVER, with 48419-04 (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBH | SIDE COVER, with 48419-04 (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200094EBP | SIDE COVER, with 48419-04 (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBF | SIDE COVER, with 48420-04 (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBI | SIDE COVER, with 48420-04 (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBH | SIDE COVER, with 48420-04 (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBP | SIDE COVER, with 48420-04 (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | FLHXSE |
| 2 | 4916 | SCREW (2) | FLHXSE |
| 3 | 7038 | LOCKWASHER (2) | FLHXSE |
| 11 | 50500462A | BRACKET, passenger footpeg (right) | FLHXSE |
| 50500460A | BRACKET, passenger footpeg (left) (not shown) | FLHXSE | |
| 12 | 50500486 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (right) | FLHXSE |
| 50500487 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (left) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 58900116EBF | FENDER, front (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBI | FENDER, front (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBH | FENDER, front (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EBR | FENDER, front (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 59500274EBF | FENDER, rear, with 11100024 (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBP | FENDER, rear, with 11100024 (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBH | FENDER, rear, with 11100024 (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 59500274EBI | FENDER, rear, with 11100024 (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBF | FENDER, rear, with 11100024 (White Amethyst and Black Licorice Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBP | FENDER, rear, with 11100024 (Carbon Crystal) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBH | FENDER, rear, with 11100024 (Atomic Red and Candy Apple Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500273EBI | FENDER, rear, with 11100024 (Black Licorice and Midnight Cobalt Flames) (Canada) **RESTRICTED SALES PART** | FLHXSE | |
| 59500269EAY | FASCIA, rear fender (White Amethyst) | FLHXSE | |
| 59500269EAZ | FASCIA, rear fender (Black Licorice) | FLHXSE | |
| 59500269EBP | FASCIA, rear fender (Carbon Crystal) | FLHXSE | |
| 59500269EBC | FASCIA, rear fender (Atomic Red) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 67900261EAZ | COVER, license plate lite (Black Licorice) | FLHXSE | |
| 67900261EBC | COVER, license plate lite (Atomic Red) | FLHXSE | |
| 67900261EBP | COVER, license plate lite (Carbon Crystal) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 27291-09A | EVAP LINE, evaporative line, tank | FLHXSE |
| 14 | 61000168EBF | FUEL TANK (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 61000168EBI | FUEL TANK (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 61000168EBH | FUEL TANK (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 61000255EBR | FUEL TANK (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 18 | 14100222 | MEDALLION (right) (for Carbon Crystal tank) **RESTRICTED SALES PART** | FLHXSE |
| 14100223 | MEDALLION (left) (for Carbon Crystal tank) (not shown) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 70900454EAZ | CONSOLE ASSEMBLY (Black Licorice) | FLHXSE |
| 70900454EBP | CONSOLE ASSEMBLY (Carbon Crystal) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 70900293B | INSTRUMENT CLUSTER, mph, with 12100020 and 12400034 | FLHXSE |
| 70900294A | INSTRUMENT CLUSTER, km/h, with 12100020 and 12400034 | FLHXSE | |
| 70900295A | INSTRUMENT CLUSTER, dual - mph/km/h, with 12100020 and 12400034 | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 27291-09A | EVAP LINE, tank | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 67800251 | LENS (smoked) (2) | FLHXSE |
| 7 | 67800257 | PUCK ASSEMBLY (amber) (2) | FLHXSE |
| 8 | 67800259 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (three-wire) (Domestic) (2) | FLHXSE |
| 69200601 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (two-wire) (Asia-Pacific) (2) | FLHXSE | |
| 9 | 67800540 | TURN SIGNAL ASSEMBLY, with 67800251, 67800257 and 67800259 (Domestic) (2) | FLHXSE |
| 67800544 | TURN SIGNAL ASSEMBLY, with 67800251, 67800257 and 69200601 (Asia-Pacific) (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 57000628EBF | FAIRING, outer, with 7900 and 61300504EAY (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 57000628EBI | FAIRING, outer, with 7900 and 61300504EAZ (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57000628EBH | FAIRING, outer, with 7900 and 61300504EBC (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57000628EBR | FAIRING, outer, with 7900 and 61300504EBA (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 25 | 61300504EAY | BEZEL, air duct, outer fairing (White Amethyst) | FLHXSE |
| 61300504EAZ | BEZEL, air duct, outer fairing (Black Licorice) | FLHXSE | |
| 61300504EBC | BEZEL, air duct, outer fairing (Atomic Red) | FLHXSE | |
| 61300504EBP | BEZEL, air duct, outer fairing (Carbon Crystal) | FLHXSE | |
| 28 | 67700060 | HEADLAMP, LED, with 67721-48, 67726-08 and 67700204 (Domestic) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 57000417EAZ | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Black Licorice) | FLHXSE |
| 57000417EBC | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Atomic Red) | FLHXSE | |
| 57000417DXK | INNER FAIRING ASSEMBLY, with 11, 12, 13, 14, 26, 27, 28, 32, 33 and 37 (Carbon Dust) | FLHXSE | |
| 35 | 76000561EAZ | DOOR, media compartment, outer (Black Licorice) | FLHXSE |
| 76000561EBC | DOOR, media compartment, outer (Atomic Red) | FLHXSE | |
| 76000561DXK | DOOR, media compartment, outer (Carbon Dust) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 57000257 | SKIRT, outer fairing (prime) | FLHXSE |
| 57000328EAZ | SKIRT, outer fairing (Black Licorice) | FLHXSE | |
| 57000328EBC | SKIRT, outer fairing (Atomic Red) | FLHXSE | |
| 57000328EBP | SKIRT, outer fairing (Carbon Crystal) | FLHXSE | |
| 15 | 70900392EAZ | DASH PANEL, fairing (Black Licorice) | FLHXSE |
| 70900392EBC | DASH PANEL, fairing (Atomic Red) | FLHXSE | |
| 70900392DXK | DASH PANEL, fairing (Carbon Dust) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 57100242EAY | CAP, fairing, lower (left) (White Amethyst) | FLHXSE | |
| 57100242EAZ | CAP, fairing, lower (left) (Black Licorice) | FLHXSE | |
| 57100242EBC | CAP, fairing, lower (left) (Atomic Red) | FLHXSE | |
| 57100291EBP | CAP, fairing, lower (left) (Carbon Crystal) | FLHXSE | |
| 57100275EBF | FAIRING, lower (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100275EBI | FAIRING, lower (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100275EBH | FAIRING, lower (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100285EBP | FAIRING, lower (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 57100243EAY | CAP, fairing, lower (right) (White Amethyst) | FLHXSE | |
| 57100243EAZ | CAP, fairing, lower (right) (Black Licorice) | FLHXSE | |
| 57100243EBC | CAP, fairing, lower (right) (Atomic Red) | FLHXSE | |
| 57100292EBP | CAP, fairing, lower (right) (Carbon Crystal) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 57100276EBF | FAIRING, lower, with 57100171 (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100276EBI | FAIRING, lower, with 57100171 (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100276EBH | FAIRING, lower, with 57100171 (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57100286EBP | FAIRING, lower, with 57100171 (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 71500338 | COVER (left) (black) | FLHXSE |
| 71500339 | COVER (left) (chrome) | FLHXSE | |
| 11 | 71500340 | COVER (right) (black) | FLHXSE |
| 71500341 | COVER (right) (chrome) | FLHXSE | |
| 12 | 71500083B | SWITCHPACK ASSEMBLY, with 20, 21, 22, 24, 26 (right) | FLHXSE |
| 13 | 71500084A | SWITCHPACK ASSEMBLY, with 17, 18, 19, 23, 25 (left) | FLHXSE |
| 15 | 71500342 | COVER ASSEMBLY, with screws (left) (black) | FLHXSE |
| 71500344 | COVER ASSEMBLY, with screws (left) (chrome) | FLHXSE | |
| 16 | 71500348 | COVER ASSEMBLY, with screws (right) (black) | FLHXSE |
| 71500350 | COVER ASSEMBLY, with screws (right) (chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 32700050 | SENSOR, twist grip, with 1, 3, 5, 11 and 14 | FLHXSE |
| 11 | 69200307 | TERMINAL, socket, 22 AWG (6) | FLHXSE |
| 14 | 69201162 | HOUSING, six-way socket (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 21 | 69201368 | HARNESS, rear lighting (Domestic) | FLHXSE |
| 22 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 23 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 24 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 25 | 69201379 | SEAL PIN | FLHXSE |
| 26 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 27 | 69201384 | HOUSING, 16-way socket | FLHXSE |
| 28 | 69201385 | TERMINAL, socket, 18-20 AWG (11) | FLHXSE |
| 29 | 69201387 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 30 | 69201388 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 31 | 69201389 | HOUSING, four-way socket | FLHXSE |
| 32 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 33 | 69201413 | WIRE SEAL, 18-22 AWG (blue) (4) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 36 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 37 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 38 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 39 | 69201379 | SEAL PIN | FLHXSE |
| 40 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 41 | 69201384 | HOUSING, 16-way socket | FLHXSE |
| 42 | 69201385 | TERMINAL, socket, 18-20 AWG (11) | FLHXSE |
| 43 | 69201387 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 44 | 69201388 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 45 | 69201389 | HOUSING, four-way socket | FLHXSE |
| 46 | 69201369 | HARNESS, rear lighting | FLHXSE |
| 47 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 48 | 69201413 | WIRE SEAL, 18-22 AWG (blue) (4) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201288 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 29 | 69201163 | HOUSING, six-way pin (black) | FLHXSE |
| 30 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 69201168 | TERMINAL, socket, 22 AWG (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 41000341 | BODY CONTROL MODULE (BCM) | FLHXSE |
| 41000342 | BODY CONTROL MODULE (BCM) (Japan) | FLHXSE | |
| 13 | 71400090A | FORK LOCK (specify key number) | FLHXSE |
| 14 | 90300109 | KEY AND FOB ASSEMBLY (specify key number) (2) | FLHXSE |
| 90300110 | KEY AND FOB ASSEMBLY (specify key number) (Japan) (2) | FLHXSE | |
| 15 | 90300115A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock | FLHXSE |
| 90300116A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 27 | 76000228A | RADIO, with 19, 20, 21 and 28 (navigation and XM satellite) | FLHXSE |
| 76000229A | RADIO, with 19, 20, 21 and 30 (navigation) | FLHXSE | |
| 76000232A | RADIO, with 19, 20, 21 and 30 | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 10200065 | SCREW (8) | FLHXSE |
| 20 | 69201366 | WIRE HARNESS, rear speaker (left) | FLHXSE |
| 21 | 69201367 | WIRE HARNESS, rear speaker (right) | FLHXSE |
| 22 | 69201372 | HOUSING, 16-way pin | FLHXSE |
| 23 | 69201373 | FLANGE LOCK, 16-way | FLHXSE |
| 24 | 69201374 | COVER, 90 degree, 16-way | FLHXSE |
| 25 | 69201375 | TERMINAL, pin, 18-22 AWG (11) | FLHXSE |
| 26 | 69201376 | TERMINAL, pin, 14-16 AWG (4) | FLHXSE |
| 27 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 28 | 69201378 | WIRE SEAL, 14-16 AWG (white) (4) | FLHXSE |
| 29 | 69201379 | SEAL PIN | FLHXSE |
| 30 | 69201380 | HOUSING, four-way pin | FLHXSE |
| 31 | 69201381 | FLANGE LOCK, four-way | FLHXSE |
| 32 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 33 | 69201383 | TERMINAL, pin, 18-20 AWG (4) | FLHXSE |
| 34 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (9) | FLHXSE |
| 35 | 69201413 | WIRE SEAL, 18-22 AWG (blue) | FLHXSE |
| 36 | 69201418 | CONNECTOR, panel mount gasket (left) | FLHXSE |
| 37 | 69201419 | CONNECTOR, mount plate (left) | FLHXSE |
| 38 | 69201420 | CONNECTOR, panel mount gasket (right) | FLHXSE |
| 39 | 69201421 | CONNECTOR, mount plate (right) | FLHXSE |
| 41 | 76000282A | BRACKET, with 11100071 and 12100052 | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 10900026 | BAIL HEAD STUD (NOTE: Remove Bail for HDI sale, excluding Japan) (4) | FLHXSE |
| 15 | 90201143EAY | SADDLEBAG COVER, with 90200415 (right) (White Amethyst) **RESTRICTED SALES PART** | FLHXSE |
| 90201143EAZ | SADDLEBAG COVER, with 90200415 (right) (Black Licorice) | FLHXSE | |
| 90201143EBC | SADDLEBAG COVER, with 90200415 (right) (Atomic Red) | FLHXSE | |
| 90201143EBR | SADDLEBAG COVER, with 90200415 (right) (Carbon Crystal and Phantom Flames) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 90201382EBF | SADDLEBAG BOTTOM, with 90200964 and label (right) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE |
| 90201382EBI | SADDLEBAG BOTTOM, with 90200964 and label (right) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201382EBH | SADDLEBAG BOTTOM, with 90200964 and label (right) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 90201382EBP | SADDLEBAG BOTTOM, with 90200964 and label (right) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 27 | 90200983EAZ | FACEPLATE (left) (Black Licorice) | FLHXSE |
| 90200983EAY | FACEPLATE (left) (White Amethyst) | FLHXSE | |
| 90200983EBC | FACEPLATE (left) (Atomic Red) | FLHXSE | |
| 90200983EBP | FACEPLATE (left) (Carbon Crystal) | FLHXSE | |
| 90200984EAZ | FACEPLATE (right) (Black Licorice) | FLHXSE | |
| 90200984EAY | FACEPLATE (right) (White Amethyst) | FLHXSE | |
| 90200984EBC | FACEPLATE (right) (Atomic Red) | FLHXSE | |
| 90200984EBP | FACEPLATE (right) (Carbon Crystal) | FLHXSE | |
| 29 | 90300115A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock | FLHXSE |
| 90300116A | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 10900009A | RECEPTACLE (4) | FLHXSE |
| 13 | 90201129EAY | SUPPORT, saddlebag, with 11100068 (right) (White Amethyst) | FLHXSE |
| 90201129EAZ | SUPPORT, saddlebag, with 11100068 (right) (Black Licorice) | FLHXSE | |
| 90201129EBC | SUPPORT, saddlebag, with 11100068 (right) (Atomic Red) | FLHXSE | |
| 90201129EBP | SUPPORT, saddlebag, with 11100068 (right) (Carbon Crystal) | FLHXSE | |
| 90201127EAY | SUPPORT, saddlebag, with 11100068 (left) (White Amethyst) | FLHXSE | |
| 90201127EAZ | SUPPORT, saddlebag, with 11100068 (left) (Black Licorice) | FLHXSE | |
| 90201127EBC | SUPPORT, saddlebag, with 11100068 (left) (Atomic Red) | FLHXSE | |
| 90201127EBP | SUPPORT, saddlebag, with 11100068 (left) (Carbon Crystal) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 94000326 | OWNERS KIT CONTENT (Domestic) | FLHXSE | |
| 99577-16 | OWNERS MANUAL | FLHXSE | |
| 99517-16EN | BOOM OWNERS MANUAL (English) (Domestic, Canada, Australia and England) | FLHXSE | |
| 57200093EBF | SIDE COVER (left) (White Amethyst and Black Licorice Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBI | SIDE COVER (left) (Black Licorice and Midnight Cobalt Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBH | SIDE COVER (left) (Atomic Red and Candy Apple Flames) **RESTRICTED SALES PART** | FLHXSE | |
| 57200093EBP | SIDE COVER (left) (Carbon Crystal) **RESTRICTED SALES PART** | FLHXSE | |
| 90300109 | KEY AND FOB ASSEMBLY (specify key number) (2) | FLHXSE | |
| 90300110 | KEY AND FOB ASSEMBLY (specify key number) (Japan) (2) | FLHXSE | |
| 93600034 | LEATHER DRESSING | FLHXSE |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10076 | |
| 10102 | |
| 10103 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10183 | |
| 10184 | |
| 10200042 | |
| 10200052 | |
| 10200059 | |
| 10200060 | |
| 10200062 | |
| 10200063 | |
| 10200065 | |
| 10200095 | |
| 10200103 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200156 | |
| 10200205 | |
| 10200217 | |
| 10200223 | |
| 10200258 | |
| 10200316 | |
| 10200344 | |
| 10200351 | |
| 10200384 | |
| 10264 | |
| 10300036 | |
| 10340B | |
| 10344 | |
| 1039 | |
| 10395 | |
| 10396 | |
| 10400031 | |
| 10500015 | |
| 10500022 | |
| 10500031 | |
| 10500034 | |
| 10500036 | |
| 10600007 | |
| 1062 | |
| 10800023 | |
| 10800024 | |
| 10800025 | |
| 10800028 | |
| 10800052 | |
| 10800078 | |
| 10900005 | |
| 10900009A | |
| 10900026 | |
| 1090A | |
| 10991A | |
| 11000050 | |
| 11000101 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100024 | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100057 | |
| 11100066 | |
| 11100068 | |
| 11100071 | |
| 11100105 | |
| 11100115 | |
| 11105 | |
| 11110 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11323 | |
| 11348 | |
| 11389 | |
| 11408 | |
| 11461 | |
| 11519 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11650 | |
| 11686 | |
| 11692 | |
| 11700002 | |
| 11700038 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900004 | |
| 11900021 | |
| 11900035 | |
| 11902 | |
| 11907 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100007 | |
| 12100020 | |
| 12100028 | |
| 12100034 | |
| 12100052 | |
| 12102 | |
| 12200025 | |
| 12200063 | |
| 12200064 | |
| 12400026 | |
| 12400034 | |
| 12400072 | |
| 12500002 | |
| 12600032 | |
| 12600049 | |
| 12600067 | |
| 12600068 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600087 | |
| 12600116 | |
| 12700077 | |
| 13729-15 | |
| 13729-16 | |
| 14000069 | |
| 14000377 | |
| 14000827 | |
| 14100222 | |
| 14100223 | |
| 14100613 | |
| 14100699 | |
| 14148-86 | |
| 14151-02 | |
| 14272-06 | |
| 14628-96 | |
| 14900001 | |
| 15342-06A | |
| 15368-01A | |
| 15385-08 | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16321-08 | |
| 16325-10 | |
| 16400004 | |
| 16400005 | |
| 16400028 | |
| 16478-85A | |
| 16480-92A | |
| 16500134 | |
| 16500139 | |
| 16500168 | |
| 16500227 | |
| 16500228 | |
| 16500269 | |
| 16500270 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17285-07A | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17454-08A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17707-11 | |
| 17709-11 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18048-98A | |
| 18067-09 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18400035 | |
| 18535-99 | |
| 18572-13 | |
| 18635-99B | |
| 19292-16 | |
| 20056-16 | |
| 21951-11 | |
| 21953-11 | |
| 22000001 | |
| 22000003 | |
| 22000031 | |
| 22097-99 | |
| 221 | |
| 22307-99 | |
| 24004-03B | |
| 24009-06 | |
| 24018-10 | |
| 24100021 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 24758-07A | |
| 24760-08A | |
| 2478 | |
| 2479 | |
| 25244-99A | |
| 25355-06A | |
| 25369-01B | |
| 25566-06 | |
| 25585-06 | |
| 25600038 | |
| 2563 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700178 | |
| 25700179 | |
| 25700180 | |
| 25700226 | |
| 25700228 | |
| 25700385 | |
| 25700438 | |
| 25700553 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800017 | |
| 25800053 | |
| 2590 | |
| 26037-06 | |
| 26064-08 | |
| 26077-99A | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 26600012 | |
| 26700001A | |
| 26780-05A | |
| 26800005 | |
| 26800006 | |
| 26800007A | |
| 26800008 | |
| 26800009 | |
| 26800019A | |
| 26800020A | |
| 26800021 | |
| 26900001 | |
| 26900002 | |
| 26900003 | |
| 26900006 | |
| 26900007 | |
| 26900008 | |
| 26900009 | |
| 26900010 | |
| 26900011 | |
| 26900014 | |
| 26900016 | |
| 26900017 | |
| 26900018 | |
| 26900021 | |
| 26900022 | |
| 26900023 | |
| 26900024 | |
| 26900027 | |
| 26900028 | |
| 26900029 | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27200002 | |
| 27291-09A | |
| 27297-09A | |
| 27298-09A | |
| 27439-09A | |
| 27440-09A | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 28004-01 | |
| 28005-01 | |
| 28012-09 | |
| 29200003 | |
| 29200034 | |
| 29200035 | |
| 29200039 | |
| 29241-08 | |
| 29267-08A | |
| 29269-83A | |
| 29517-07A | |
| 29670-09 | |
| 29696-09 | |
| 29762-09 | |
| 29763-09 | |
| 29900029 | |
| 29900033 | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 3089 | |
| 3143 | |
| 3152 | |
| 31527-90 | |
| 31586-07 | |
| 31604-06 | |
| 31611-08 | |
| 31618-06A | |
| 31633-07A | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 32306-08 | |
| 32319-07A | |
| 32362-04A | |
| 32446-99 | |
| 3249 | |
| 32586-07 | |
| 3267 | |
| 32700010 | |
| 32700015 | |
| 32700050 | |
| 32700052 | |
| 32700053 | |
| 32700058 | |
| 32700066 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33130-07A | |
| 33166-10A | |
| 33203-10A | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33413-06A | |
| 33600056 | |
| 33600060 | |
| 33600061 | |
| 33709-82A | |
| 33718-82B | |
| 33814-98A | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34469-06B | |
| 34719-07B | |
| 34853-08 | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35255-10A | |
| 35256-08A | |
| 35259-06 | |
| 35260-06A | |
| 3536 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3607 | |
| 3633 | |
| 3634 | |
| 36500034A | |
| 3655A | |
| 3656 | |
| 36700048B | |
| 36700049B | |
| 36700050 | |
| 36700051 | |
| 36700094A | |
| 36706-01K | |
| 36731-91 | |
| 36805-06 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000026 | |
| 37000032 | |
| 37000033 | |
| 37000034 | |
| 37000035 | |
| 37000036 | |
| 37000083 | |
| 37000118 | |
| 37000217 | |
| 37000218 | |
| 37065-06 | |
| 37195-11 | |
| 37198-11 | |
| 37200023 | |
| 37200030 | |
| 37200034 | |
| 37200086 | |
| 37200096A | |
| 3736B | |
| 37496-90A | |
| 3787 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 38738-08 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3938 | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40024-09A | |
| 40037-07 | |
| 40100041 | |
| 40217-09 | |
| 40278-09 | |
| 40323-00 | |
| 4032A | |
| 40615-08 | |
| 40659-06 | |
| 40786-08 | |
| 40900329 | |
| 40900390 | |
| 41000057 | |
| 41000341 | |
| 41000342 | |
| 41100013A | |
| 41148-98 | |
| 41229-08 | |
| 4132 | |
| 41349-07 | |
| 41500076 | |
| 41500083 | |
| 41547-07A | |
| 41600029A | |
| 41600031 | |
| 41600032 | |
| 41600078 | |
| 41600091 | |
| 41700072 | |
| 41700195 | |
| 41700367 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800012 | |
| 41800013 | |
| 41800205 | |
| 41800206 | |
| 41800207 | |
| 41800352 | |
| 41800356 | |
| 41800357 | |
| 41810-08B | |
| 41819-02 | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 4196 | |
| 42010-06A | |
| 42054-05 | |
| 42102-08D | |
| 42105-06A | |
| 42119-08 | |
| 42123-08 | |
| 42145-06 | |
| 42271-06A | |
| 42276-06A | |
| 42300001 | |
| 4240 | |
| 42460-80B | |
| 42642-00A | |
| 42644-00 | |
| 4266A | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06C | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4293 | |
| 42932-08A | |
| 42934-08 | |
| 42938-08 | |
| 42939-08 | |
| 43000002 | |
| 43100013 | |
| 4312C | |
| 4313 | |
| 43300321 | |
| 43300385 | |
| 43475-08 | |
| 43567-92 | |
| 4400 | |
| 44006-09 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44583-08 | |
| 44613-02 | |
| 44935-06 | |
| 44985-10C | |
| 45032-82 | |
| 45041-01A | |
| 45138-08A | |
| 45400043 | |
| 45400044 | |
| 45423-92 | |
| 45500113 | |
| 45500114 | |
| 45500116 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500173 | |
| 45500174 | |
| 45500251 | |
| 45600038EAZ | |
| 45600038EBC | |
| 45600038EBP | |
| 45600039EAZ | |
| 45600039EBC | |
| 45600039EBP | |
| 45700009 | |
| 45700020A | |
| 45893-99 | |
| 45900024 | |
| 45900091A | |
| 4597M | |
| 46080-01 | |
| 4612 | |
| 46246-01 | |
| 46322-06 | |
| 46324-06 | |
| 46368-10 | |
| 46369-10 | |
| 46463-08 | |
| 46508-01 | |
| 46509-01 | |
| 46510-07 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 46615-06 | |
| 4688 | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 47200275 | |
| 4721 | |
| 4740A | |
| 4741A | |
| 4751 | |
| 47540-11 | |
| 47549-09 | |
| 47584-09 | |
| 4775 | |
| 4790 | |
| 47900-14BHP | |
| 48079-09BHP | |
| 4813A | |
| 4826 | |
| 4838 | |
| 48419-04 | |
| 48420-04 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4868 | |
| 4881 | |
| 4890 | |
| 49050-09A | |
| 4916 | |
| 49184-09A | |
| 4924 | |
| 49725-07A | |
| 4976 | |
| 50015-74A | |
| 50075-07A | |
| 50096-09 | |
| 50126-08A | |
| 50245-07 | |
| 50351-03 | |
| 50500051 | |
| 50500052A | |
| 50500055A | |
| 50500343 | |
| 50500347 | |
| 50500348 | |
| 50500349 | |
| 50500350 | |
| 50500351 | |
| 50500353 | |
| 50500354 | |
| 50500460A | |
| 50500462A | |
| 50500486 | |
| 50500487 | |
| 50600134 | |
| 50600135 | |
| 50600142 | |
| 50674-05 | |
| 50912-72 | |
| 5118 | |
| 515 | |
| 51652-97A | |
| 51676-97A | |
| 52000172 | |
| 52300341 | |
| 52400035 | |
| 53436-97 | |
| 54000081 | |
| 54000082 | |
| 5416 | |
| 54677-10 | |
| 55800214 | |
| 55800308 | |
| 55918-08 | |
| 56000011 | |
| 56000012 | |
| 56000015 | |
| 56000016 | |
| 56073-83 | |
| 56100092 | |
| 56100093 | |
| 56100094 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000169 | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000186 | |
| 57000257 | |
| 57000299 | |
| 57000328EAZ | |
| 57000328EBC | |
| 57000328EBP | |
| 57000377 | |
| 57000417DXK | |
| 57000417EAZ | |
| 57000417EBC | |
| 57000628EBF | |
| 57000628EBH | |
| 57000628EBI | |
| 57000628EBR | |
| 57100099 | |
| 57100107 | |
| 57100109 | |
| 57100111 | |
| 57100112 | |
| 57100113 | |
| 57100114 | |
| 57100147 | |
| 57100148 | |
| 57100151 | |
| 57100152 | |
| 57100153 | |
| 57100154 | |
| 57100155 | |
| 57100164 | |
| 57100165 | |
| 57100170 | |
| 57100171 | |
| 57100172 | |
| 57100187 | |
| 57100200 | |
| 57100225 | |
| 57100242EAY | |
| 57100242EAZ | |
| 57100242EBC | |
| 57100243EAY | |
| 57100243EAZ | |
| 57100243EBC | |
| 57100256 | |
| 57100275EBF | |
| 57100275EBH | |
| 57100275EBI | |
| 57100276EBF | |
| 57100276EBH | |
| 57100276EBI | |
| 57100285EBP | |
| 57100286EBP | |
| 57100291EBP | |
| 57100292EBP | |
| 57200012 | |
| 57200017 | |
| 57200093EBF | |
| 57200093EBH | |
| 57200093EBI | |
| 57200093EBP | |
| 57200094EBF | |
| 57200094EBH | |
| 57200094EBI | |
| 57200094EBP | |
| 57400253 | |
| 57450-14 | |
| 57451-14 | |
| 57638-08 | |
| 58002-09 | |
| 58167-09 | |
| 58169-09 | |
| 5817 | |
| 5826 | |
| 5837A | |
| 58900009 | |
| 58900116EBF | |
| 58900116EBH | |
| 58900116EBI | |
| 58900116EBR | |
| 59174-99 | |
| 59481-00 | |
| 59482-00 | |
| 59500107 | |
| 59500269EAY | |
| 59500269EAZ | |
| 59500269EBC | |
| 59500269EBP | |
| 59500273EBF | |
| 59500273EBH | |
| 59500273EBI | |
| 59500273EBP | |
| 59500274EBF | |
| 59500274EBH | |
| 59500274EBI | |
| 59500274EBP | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59818-09 | |
| 59840-09 | |
| 601 | |
| 6012 | |
| 6019 | |
| 60328-98B | |
| 6036 | |
| 60386-09 | |
| 60432-07A | |
| 60463-09A | |
| 60472-09A | |
| 60678-85 | |
| 60800006 | |
| 60818-07 | |
| 60850-08A | |
| 60916-09 | |
| 60920-09 | |
| 60934-10 | |
| 6099 | |
| 61000168EBF | |
| 61000168EBH | |
| 61000168EBI | |
| 61000255EBR | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 6109 | |
| 61100052 | |
| 61100055 | |
| 61109-85D | |
| 6116 | |
| 6119 | |
| 61208-10 | |
| 61213-04A | |
| 6127 | |
| 61300478 | |
| 61300504EAY | |
| 61300504EAZ | |
| 61300504EBC | |
| 61300504EBP | |
| 61300516 | |
| 61300517 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400132 | |
| 61400224 | |
| 61400253 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08B | |
| 62229-08B | |
| 62372-09 | |
| 62489-99A | |
| 62693-07A | |
| 62775-08 | |
| 62800001 | |
| 62800003 | |
| 62800004 | |
| 62908-08 | |
| 6294 | |
| 63028-06 | |
| 63136-10A | |
| 63731-99A | |
| 6383 | |
| 6416 | |
| 6421 | |
| 6441 | |
| 64768-09A | |
| 64769-09A | |
| 64900198 | |
| 64900199 | |
| 6497HW | |
| 65100058 | |
| 65100059 | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 6549 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65724-85 | |
| 65748-09 | |
| 65913-06B | |
| 6594 | |
| 65949-09 | |
| 65951-09 | |
| 65952-09 | |
| 66000010 | |
| 66000066 | |
| 66010-97C | |
| 66047-05 | |
| 66048-09A | |
| 66051-08 | |
| 66078-06 | |
| 66080-06B | |
| 66200-09 | |
| 66219-06 | |
| 66220-06 | |
| 66250-09 | |
| 66290-06 | |
| 66373-06 | |
| 66813-09 | |
| 66849-10 | |
| 66855-10A | |
| 66858-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67493-08 | |
| 6762B | |
| 67700060 | |
| 67700065 | |
| 67700204 | |
| 67700205 | |
| 67712-83B | |
| 67716-60C | |
| 67717-01 | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800201 | |
| 67800203 | |
| 67800204 | |
| 67800251 | |
| 67800257 | |
| 67800259 | |
| 67800317 | |
| 67800424 | |
| 67800428 | |
| 67800540 | |
| 67800544 | |
| 67875-11 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 67900185 | |
| 67900232 | |
| 67900233 | |
| 67900243 | |
| 67900261EAZ | |
| 67900261EBC | |
| 67900261EBP | |
| 68000034 | |
| 68000036 | |
| 68000037 | |
| 68000038 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68296-99A | |
| 68830-99A | |
| 68881-01 | |
| 68956-07 | |
| 68958-07C | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200018 | |
| 69200031 | |
| 69200109 | |
| 69200133 | |
| 69200137 | |
| 69200170 | |
| 69200171 | |
| 69200174 | |
| 69200175 | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200192A | |
| 69200193 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200202 | |
| 69200203 | |
| 69200204 | |
| 69200205 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200224 | |
| 69200231 | |
| 69200237 | |
| 69200238 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200271 | |
| 69200272 | |
| 69200291A | |
| 69200293 | |
| 69200294 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200311 | |
| 69200312 | |
| 69200313 | |
| 69200336 | |
| 69200337 | |
| 69200338 | |
| 69200437 | |
| 69200536 | |
| 69200599 | |
| 69200601 | |
| 69200630 | |
| 69200631 | |
| 69200797 | |
| 69200859 | |
| 69200912 | |
| 69200919 | |
| 69200984 | |
| 69201025 | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201168 | |
| 69201240 | |
| 69201288 | |
| 69201366 | |
| 69201367 | |
| 69201368 | |
| 69201369 | |
| 69201372 | |
| 69201373 | |
| 69201374 | |
| 69201375 | |
| 69201376 | |
| 69201377 | |
| 69201378 | |
| 69201379 | |
| 69201380 | |
| 69201381 | |
| 69201382 | |
| 69201383 | |
| 69201384 | |
| 69201385 | |
| 69201387 | |
| 69201388 | |
| 69201389 | |
| 69201412 | |
| 69201413 | |
| 69201418 | |
| 69201419 | |
| 69201420 | |
| 69201421 | |
| 69241-08 | |
| 69309-10 | |
| 69490-07 | |
| 6982 | |
| 6990 | |
| 70267-09 | |
| 70345-84 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70494-08 | |
| 70578-89 | |
| 70598-99 | |
| 70631-08 | |
| 70674-08 | |
| 7068 | |
| 70681-09 | |
| 70900138 | |
| 70900293B | |
| 70900294A | |
| 70900295A | |
| 70900296 | |
| 70900297 | |
| 70900392DXK | |
| 70900392EAZ | |
| 70900392EBC | |
| 70900452 | |
| 70900454BHR | |
| 70900454EAZ | |
| 70900454EBP | |
| 70900459 | |
| 70901-09 | |
| 70999-09 | |
| 71294-08 | |
| 71400090A | |
| 71500083B | |
| 71500084A | |
| 71500094 | |
| 71500165 | |
| 71500166 | |
| 71500167 | |
| 71500168 | |
| 71500169 | |
| 71500170 | |
| 71500224 | |
| 71500225 | |
| 71500226 | |
| 71500227 | |
| 71500338 | |
| 71500339 | |
| 71500340 | |
| 71500341 | |
| 71500342 | |
| 71500344 | |
| 71500348 | |
| 71500350 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72023-51E | |
| 72024-08 | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72081-11 | |
| 72094-06 | |
| 72096-06 | |
| 72097-06 | |
| 72106-94BK | |
| 72111-06 | |
| 72114-94BK | |
| 72130-04 | |
| 72135-06 | |
| 72146-94 | |
| 72154-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72364-06 | |
| 72371-95 | |
| 72381-98 | |
| 72382-98BK | |
| 72393-06 | |
| 72394-06 | |
| 72397-98 | |
| 72398-06 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72412-97 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72447-07GY | |
| 72462-00 | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72546-09GY | |
| 72554-09GY | |
| 72557-07 | |
| 72575-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72639-10 | |
| 72663-11 | |
| 72664-12A | |
| 72666-12 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7340 | |
| 74102-98BK | |
| 74112-98BK | |
| 74120-08 | |
| 74142-98 | |
| 74152-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74438-99A | |
| 74700021 | |
| 7495 | |
| 7499 | |
| 75015-08 | |
| 75076-08B | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 76000107 | |
| 76000127 | |
| 76000221 | |
| 76000222 | |
| 76000228A | |
| 76000229A | |
| 76000232A | |
| 76000233 | |
| 76000234 | |
| 76000243 | |
| 76000252 | |
| 76000259 | |
| 76000277A | |
| 76000282A | |
| 76000333 | |
| 76000349 | |
| 76000417 | |
| 76000418 | |
| 76000485 | |
| 76000502 | |
| 76000504 | |
| 76000525 | |
| 76000535 | |
| 76000536 | |
| 76000554 | |
| 76000561DXK | |
| 76000561EAZ | |
| 76000561EBC | |
| 76000562 | |
| 76000563 | |
| 76000602 | |
| 7601 | |
| 762 | |
| 7624 | |
| 765 | |
| 7686 | |
| 7687 | |
| 77126-10 | |
| 7716 | |
| 7783 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 7838 | |
| 786A | |
| 7880 | |
| 7900 | |
| 7904 | |
| 791A | |
| 7964 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8037 | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8175 | |
| 8194 | |
| 8250 | |
| 83936-09A | |
| 856A | |
| 8873 | |
| 8885 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90200415 | |
| 90200467 | |
| 90200519 | |
| 90200520 | |
| 90200521 | |
| 90200543 | |
| 90200547 | |
| 90200549 | |
| 90200550 | |
| 90200611 | |
| 90200893 | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90200963 | |
| 90200964 | |
| 90200979 | |
| 90200980 | |
| 90200983EAY | |
| 90200983EAZ | |
| 90200983EBC | |
| 90200983EBP | |
| 90200984EAY | |
| 90200984EAZ | |
| 90200984EBC | |
| 90200984EBP | |
| 90201127EAY | |
| 90201127EAZ | |
| 90201127EBC | |
| 90201127EBP | |
| 90201129EAY | |
| 90201129EAZ | |
| 90201129EBC | |
| 90201129EBP | |
| 90201142EAY | |
| 90201142EAZ | |
| 90201142EBC | |
| 90201142EBR | |
| 90201143EAY | |
| 90201143EAZ | |
| 90201143EBC | |
| 90201143EBR | |
| 90201378EBF | |
| 90201378EBH | |
| 90201378EBI | |
| 90201378EBP | |
| 90201382EBF | |
| 90201382EBH | |
| 90201382EBI | |
| 90201382EBP | |
| 90300024 | |
| 90300093 | |
| 90300109 | |
| 90300110 | |
| 90300115A | |
| 90300116A | |
| 90383-98 | |
| 90520-07 | |
| 91140-09 | |
| 91700025A | |
| 91700034 | |
| 91885-97A | |
| 9208 | |
| 9231 | |
| 925 | |
| 9252 | |
| 926 | |
| 9276A | |
| 93100031 | |
| 93600034 | |
| 940 | |
| 94000084 | |
| 94000326 | |
| 941 | |
| 942 | |
| 95615-04 | |
| 9701A | |
| 9819 | |
| 9853 | |
| 9907 | |
| 99461-89 | |
| 99517-16EN | |
| 9955 | |
| 9956 | |
| 99577-16 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 33889-99 | 1999 |
| 8142 | Unknown |
| 7576 | 1990 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7792 | 2012 |
| 7813A | 2007 |
| 3633 | Unknown |
| 7900 | Unknown |
| 7904 | 1998 |
| 7825 | Unknown |
| 3403 | Unknown |
| 7687 | 2009 |
| 7992 | 2010 |
| 7495 | 1994 |
| 7499 | Unknown |
| 8250 | Unknown |
| 762 | 1997 |
| 7340 | Unknown |
| 7880 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3340 | Unknown |
| 3536 | Unknown |
| 4266A | Unknown |
| 3983 | 2005 |
| 3987 | Unknown |
| 42882-06 | 2006 |
| 44613-02 | 2002 |
| 3048 | 2016 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 2563 | 2009 |
| 10200141 | 2014 |
| 10200095 | 2012 |
| 10200142 | 2014 |
| 4741A | 1994 |
| 1090A | Unknown |
| 10200147 | 2014 |
| 3050 | Unknown |
| 4916 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3692A | Unknown |
| 4976 | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 2479 | Unknown |
| 2478 | 2007 |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 10200156 | 2014 |
| 4313 | Unknown |
| 4597M | Unknown |
| 941 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 940 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 895 | Unknown |
| 4751 | Unknown |
| 4890 | Unknown |
| 4705 | 2005 |
| 10200384 | 2015 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3656 | Unknown |
| 3267 | 1999 |
| 4240 | Unknown |
| 3607 | 2009 |
| 10200134 | 2014 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3089 | Unknown |
| 3594 | 1992 |
| 3088 | Unknown |
| 4856 | Unknown |
| 2708A | Unknown |
| 925 | Unknown |
| 4293 | Unknown |
| 926 | Unknown |
| 10200205 | 2014 |
| 68042-99 | 1999 |
| 3152 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 3300 | Unknown |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3563 | 1999 |
| 10200103 | 2014 |
| 3143 | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 1780 | Unknown |
| 10200042 | 2014 |
| 4868 | Unknown |
| 10200316 | 2015 |
| 8175 | 2004 |
| 10200223 | 2014 |
| 3938 | Unknown |
| 10200052 | 2014 |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 10200351 | 2015 |
| 16478-85A | 1985 |
| 10200344 | 2015 |
| 856A | 1990 |
| 1062 | Unknown |
| 10200217 | 2014 |
| 10200060 | 2014 |
| 4813A | 1990 |
| 10200062 | 2014 |
| 10200063 | 2014 |
| 703B | Unknown |
| 10200065 | 2014 |
| 10200059 | 2014 |
| 3736B | 2010 |
| 4790 | Unknown |
| 4194 | Unknown |
| 4196 | Unknown |
| 42858-06A | 2006 |
| 3892 | Unknown |
| 4192 | 1998 |
| 2590 | 2005 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 10200258 | 2014 |
| 2445 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6549 | Unknown |
| 6441 | Unknown |
| 7415A | Unknown |
| 11891 | Unknown |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 46509-01 | 2001 |
| 8972 | Unknown |
| 6116 | Unknown |
| 59788-01 | 2001 |
| 28005-01 | 2001 |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 6383 | Unknown |
| 6127 | Unknown |
| 6532 | 2000 |
| 6036 | Unknown |
| 6421 | 1996 |
| 6416 | Unknown |
| 7068 | Unknown |
| 10300036 | 2014 |
| 7038 | 1998 |
| 6762B | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 8037 | 2005 |
| 10400031 | 2016 |
| 105A1 - Custom Screws | |
| 10500022 | 2014 |
| 10500015 | 2014 |
| 10500034 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 4881 | 2011 |
| 108A1 - Hose Clamps | |
| 10800023 | 2013 |
| 10344 | Unknown |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 10800078 | 2014 |
| 10340B | 2015 |
| 10800052 | 2014 |
| 9956 | 1972 |
| 9955 | Unknown |
| 108B1 - P Clamps | |
| 10800024 | 2014 |
| 10800025 | 2014 |
| 10800028 | 2014 |
| 10076 | 2010 |
| 109A1 - Studs | |
| 59818-09 | 2009 |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 10900005 | 2014 |
| 10900026 | 2016 |
| 59840-09 | 2009 |
| 16834-99A | 1999 |
| 10900009A | 2016 |
| 110B1 - Plain Bushings | |
| 11519 | Unknown |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 11000050 | 2014 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 72264-94 | 1994 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 11100066 | 2013 |
| 111C1 - Insulating Tape | |
| 11100115 | 2014 |
| 111D1 - Isolating Tape | |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100057 | 2014 |
| 11100038 | 2014 |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 63028-06 | 2006 |
| 11100105 | 2014 |
| 11100024 | 2012 |
| 75015-08 | 2008 |
| 11100071 | 2014 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06A | 2006 |
| 11600009 | 2014 |
| 11600001 | 2012 |
| 117A1 - Coil Springs | |
| 11700038 | 2016 |
| 11700002 | 2013 |
| 119A1 - O-Rings | |
| 28004-01 | 2001 |
| 11270 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11348 | 2002 |
| 11110 | Unknown |
| 11140 | 1982 |
| 11900035 | 2013 |
| 11289A | Unknown |
| 46508-01 | 2001 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11900004 | 2011 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 11900021 | 2014 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 12100052 | 2014 |
| 11692 | Unknown |
| 12100028 | 2013 |
| 12100020 | 2014 |
| 11650 | 2010 |
| 12100007 | 2014 |
| 121B1 - Press-Fit Plugs | |
| 12100034 | 2014 |
| 72097-06 | 2006 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 17945-36B | 1936 |
| 10264 | Unknown |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 66078-06 | 2006 |
| 11061A | 2008 |
| 11408 | Unknown |
| 11143 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 9853 | Unknown |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 12200025 | 2014 |
| 11389 | Unknown |
| 11304 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 12200064 | 2014 |
| 11161 | 1984 |
| 12200063 | 2014 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 124A1 - Spacers | |
| 12400026 | 2012 |
| 12400034 | 2014 |
| 41900-08 | 2008 |
| 5826 | Unknown |
| 12400072 | 2014 |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 11599A | 2012 |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 12500002 | 2012 |
| 126A1 - Miscellaneous Hardware | |
| 8041 | Unknown |
| 27711-08 | 2008 |
| 12600073 | 2014 |
| 12600071 | 2014 |
| 12600070 | 2014 |
| 12600087 | 2014 |
| 12600068 | 2012 |
| 12600049 | 2014 |
| 56161-83A | 1983 |
| 12600032 | 2014 |
| 8873 | 1984 |
| 57638-08 | 2008 |
| 126B1 - Rivets Fasteners | |
| 12600116 | 2014 |
| 12600067 | 2014 |
| 11779 | 2008 |
| 127B1 - Generic Mounting Bracket | |
| 12700077 | 2014 |
| 51652-97A | 1997 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 28012-09 | 2009 |
| 14000377 | 2012 |
| 14151-02 | 2002 |
| 15385-08 | 2008 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 140G6 - VIN Overlay | |
| 13729-15 | 2015 |
| 13729-16 | 2016 |
| 140H1 - Label Set | |
| 14000069 | 2012 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14100699 | 2015 |
| 14628-96 | 1996 |
| 14100223 | 2012 |
| 14100222 | 2012 |
| 14100613 | 2014 |
| 42856-06 | 2006 |
| 149A1 - Tool | |
| 14900001 | 2011 |
| 162D1 - Engine Assembly | |
| 20056-16 | 2016 |
| 19292-16 | 2016 |
| 163B1 - Engine Isolator Mount | |
| 16207-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16325-10 | 2010 |
| 16400028 | 2014 |
| 16400005 | 2014 |
| 16400004 | 2014 |
| 47159-09BHP | 2009 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 165A1 - Cylinder Head | |
| 16500269 | 2014 |
| 18280-07 | 2007 |
| 16500270 | 2014 |
| 16500134 | 2014 |
| 16500139 | 2014 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500168 | 2014 |
| 17369-06 | 2006 |
| 16500227 | 2014 |
| 16500228 | 2014 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17285-07A | 2011 |
| 17454-08A | 2011 |
| 173A1 - Rocker Arm | |
| 17709-11 | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18572-13 | 2013 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18067-09 | 2009 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18189-07 | 2007 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 37198-11 | 2011 |
| 17707-11 | 2011 |
| 18400035 | 2014 |
| 220A1 - Piston Ring | |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 22000031 | 2014 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100021 | 2014 |
| 24004-03B | 2012 |
| 244A1 - Crankcase | |
| 24760-08A | 2011 |
| 24758-07A | 2011 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 24018-10 | 2010 |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 254D1 - Camshaft Support | |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32586-07 | 2007 |
| 25600038 | 2015 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 25700553 | 2016 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 42857-06B | 2013 |
| 34948-08 | 2008 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257H1 - Oil Filter Cover | |
| 25700228 | 2014 |
| 257L1 - Primary Cover | |
| 25585-06 | 2006 |
| 25700385 | 2015 |
| 60432-07A | 2008 |
| 25700180 | 2013 |
| 60850-08A | 2008 |
| 25700438 | 2015 |
| 25700179 | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800053 | 2016 |
| 25800017 | 2012 |
| 34469-06B | 2008 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 266B1 - Water Pump | |
| 26600012 | 2014 |
| 267B1 - Thermostat | |
| 26700001A | 2014 |
| 268B1 - Cooling Fan | |
| 26800007A | 2014 |
| 26800019A | 2014 |
| 268B2 - Cooling Fan Guard | |
| 26800008 | 2014 |
| 268C1 - Radiator | |
| 26800005 | 2014 |
| 26800006 | 2014 |
| 268E1 - Radiator sub-component | |
| 26800020A | 2014 |
| 268F1 - Radiator Pressure Cap | |
| 26800021 | 2014 |
| 268H1 - Radiator System Cover | |
| 26800009 | 2014 |
| 269A2 - Coolant Line | |
| 26900024 | 2014 |
| 26900023 | 2014 |
| 26900022 | 2014 |
| 26900021 | 2014 |
| 269B1 - Radiator Hose | |
| 26900018 | 2014 |
| 26900016 | 2013 |
| 26900017 | 2013 |
| 26900027 | 2014 |
| 26900028 | 2014 |
| 26900001 | 2014 |
| 26900002 | 2013 |
| 26900003 | 2014 |
| 26900010 | 2014 |
| 26900011 | 2014 |
| 26900008 | 2014 |
| 26900007 | 2014 |
| 26900006 | 2013 |
| 26900009 | 2014 |
| 269C1 - Radiator Hose Fitting | |
| 26900029 | 2014 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26900014 | 2014 |
| 270A1 - Carburetor | |
| 29241-08 | 2008 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29696-09 | 2009 |
| 292A1 - Air Duct | |
| 29200039 | 2014 |
| 29200034 | 2014 |
| 29200035 | 2014 |
| 29200003 | 2014 |
| 294G1 - Air Cleaner | |
| 29267-08A | 2011 |
| 29670-09 | 2009 |
| 29763-09 | 2009 |
| 299B1 - Charging Rotor Assembly | |
| 29900033 | 2014 |
| 299F1 - Stator Assembly | |
| 29900029 | 2014 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314G1 - Starter Motor sub-component | |
| 31527-90 | 1990 |
| 31611-08 | 2008 |
| 314H1 - Starter Solenoid | |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04A | 2015 |
| 327A1 - Sensor | |
| 32700050 | 2016 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 32700058 | 2016 |
| 32700052 | 2016 |
| 32700053 | 2016 |
| 327D1 - Proximity Sensor | |
| 32700015 | 2014 |
| 50126-08A | 2008 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32319-07A | 2014 |
| 32700066 | 2015 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 33888-99 | 1999 |
| 33814-98A | 1998 |
| 336D1 - Shift Pedal | |
| 33600061 | 2015 |
| 33600060 | 2015 |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 33600056 | 2015 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33166-10A | 2012 |
| 33203-10A | 2012 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34853-08 | 2008 |
| 34719-07B | 2007 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35255-10A | 2016 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 37195-11 | 2011 |
| 35260-06A | 2012 |
| 35256-08A | 2011 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 36500034A | 2014 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 36700051 | 2014 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700049B | 2015 |
| 36700048B | 2015 |
| 36700094A | 2015 |
| 36700050 | 2014 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 38738-08 | 2008 |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000026 | 2013 |
| 370B1 - Clutch Friction Plate | |
| 37000118 | 2013 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032 | 2013 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000035 | 2013 |
| 37000036 | 2013 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 372C1 - Clutch Bleeder Screw Cap | |
| 37200034 | 2013 |
| 372G1 - Clutch Hose | |
| 37200030 | 2014 |
| 37200086 | 2015 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200096A | 2015 |
| 37200023 | 2013 |
| 400A1 - Drive-Belt | |
| 40024-09A | 2015 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100041 | 2014 |
| 409A1 - Rear Wheel | |
| 40900390 | 2015 |
| 40900329 | 2014 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000057 | 2014 |
| 410G1 - Security System Control Module | |
| 41000342 | 2016 |
| 41000341 | 2016 |
| 411A1 - ABS Control Unit | |
| 41100013A | 2016 |
| 40786-08 | 2008 |
| 413A1 - Brake Caliper | |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 46368-10 | 2010 |
| 46369-10 | 2010 |
| 42938-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42054-05 | 2005 |
| 12102 | Unknown |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08B | 2012 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41500083 | 2014 |
| 41500076 | 2014 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42642-00A | 2011 |
| 44935-06 | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51E | 2012 |
| 44089-08 | 2008 |
| 416B1 - Brake Mounting Bracket | |
| 41600091 | 2014 |
| 41600078 | 2014 |
| 41600029A | 2015 |
| 41600032 | 2014 |
| 41600031 | 2014 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42123-08 | 2008 |
| 42102-08D | 2015 |
| 46463-08 | 2008 |
| 44985-10C | 2015 |
| 46322-06 | 2006 |
| 417B1 - Brake Master Cylinder | |
| 41700072 | 2014 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45032-82 | 1982 |
| 42862-06B | 2010 |
| 45423-92 | 1992 |
| 42855-06C | 2013 |
| 41700367 | 2015 |
| 46324-06 | 2006 |
| 417G1 - Front Brake Lever | |
| 42276-06A | 2006 |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 418B1 - Brake Line | |
| 41800357 | 2015 |
| 41800356 | 2015 |
| 41800352 | 2015 |
| 41800013 | 2014 |
| 41800012 | 2014 |
| 41800206 | 2014 |
| 41800205 | 2014 |
| 41800207 | 2014 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423K1 - Wheel Weights | |
| 42300001 | 2011 |
| 95615-04 | 2004 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08C | 2012 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 43000002 | 2014 |
| 431A1 - Front Tire | |
| 43100013 | 2014 |
| 44006-09 | 2009 |
| 433A1 - Front Wheel | |
| 43300321 | 2014 |
| 43300385 | 2015 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 45400043 | 2014 |
| 45400044 | 2014 |
| 47549-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500173 | 2014 |
| 45500174 | 2014 |
| 455B1 - Front Telescopic Fork Spring | |
| 46517-01 | 2001 |
| 45500116 | 2014 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500113 | 2014 |
| 46080-01 | 2001 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 46513-01 | 2001 |
| 45500132 | 2014 |
| 45500251 | 2014 |
| 45500118 | 2014 |
| 46510-07 | 2007 |
| 45500114 | 2014 |
| 45500117 | 2014 |
| 456A1 - Fork Protector | |
| 45600038EAZ | 2016 |
| 45600039EBP | 2015 |
| 45600039EBC | 2016 |
| 45600039EAZ | 2016 |
| 45600038EBC | 2016 |
| 45600038EBP | 2015 |
| 457D1 - Steering Stem | |
| 45700020A | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46615-06 | 2006 |
| 459B1 - Lower Triple Clamp | |
| 45900024 | 2014 |
| 45900091A | 2014 |
| 470A1 - Frame | |
| 48079-09BHP | 2009 |
| 47900-14BHP | 2014 |
| 58002-09 | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 10600007 | 2014 |
| 472C2 - Fairing Lower Support Bracket | |
| 47200275 | 2014 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 49050-09A | 2014 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 91140-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49184-09A | 2014 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50075-07A | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50500055A | 2015 |
| 50500051 | 2012 |
| 50500343 | 2015 |
| 50500349 | 2015 |
| 50500347 | 2015 |
| 50500348 | 2015 |
| 505B1 - Footpeg Mount Bracket | |
| 50500052A | 2014 |
| 50500462A | 2016 |
| 50351-03 | 2009 |
| 50500460A | 2016 |
| 505D1 - Passenger Footpeg | |
| 50500487 | 2016 |
| 50500486 | 2016 |
| 50500354 | 2015 |
| 50500350 | 2015 |
| 50500351 | 2015 |
| 50500353 | 2015 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 506A1 - Brake Pedal | |
| 50600134 | 2015 |
| 50600135 | 2015 |
| 50912-72 | 1972 |
| 50600142 | 2015 |
| 520A1 - Rider Seat or Full Seat | |
| 52000172 | 2015 |
| 51676-97A | 1997 |
| 523B1 - Back Rest Pad | |
| 52300341 | 2015 |
| 524A1 - Passenger Grab Handle | |
| 52400035 | 2012 |
| 540B1 - Rear Shock | |
| 54000082 | 2015 |
| 54000081 | 2015 |
| 540E1 - Rear Shock sub-component | |
| 54677-10 | 2010 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 55800308 | 2015 |
| 55800214 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 56000011 | 2014 |
| 56000012 | 2014 |
| 56000015 | 2014 |
| 56000016 | 2014 |
| 561B1 - Left Hand Grip | |
| 56100093 | 2015 |
| 561E1 - Throttle Grip | |
| 56100094 | 2015 |
| 56100092 | 2015 |
| 570A1 - Front Fairing | |
| 57000628EBF | 2016 |
| 57000628EBH | 2016 |
| 57000628EBI | 2016 |
| 57000628EBR | 2016 |
| 57000257 | 2014 |
| 57000328EAZ | 2016 |
| 57000328EBC | 2016 |
| 57000328EBP | 2015 |
| 57000377 | 2015 |
| 570C1 - Inner Fairing | |
| 57000299 | 2014 |
| 57000417DXK | 2015 |
| 57000175 | 2014 |
| 57000186 | 2014 |
| 57000417EAZ | 2016 |
| 57000417EBC | 2016 |
| 57000169 | 2014 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 571A1 - Fairing Lower | |
| 57100112 | 2014 |
| 57100111 | 2014 |
| 57100275EBI | 2016 |
| 57100275EBH | 2016 |
| 57100275EBF | 2016 |
| 57100285EBP | 2015 |
| 57100276EBF | 2016 |
| 57100276EBH | 2016 |
| 57100276EBI | 2016 |
| 57100286EBP | 2015 |
| 57100114 | 2014 |
| 57100113 | 2014 |
| 571B1 - Fairing Lower sub-component | |
| 57100107 | 2014 |
| 57100109 | 2014 |
| 57100225 | 2014 |
| 57100292EBP | 2015 |
| 57100187 | 2014 |
| 57100200 | 2014 |
| 57100291EBP | 2015 |
| 57100243EAY | 2016 |
| 57100243EAZ | 2016 |
| 57100172 | 2014 |
| 57100171 | 2014 |
| 57100170 | 2014 |
| 57100242EBC | 2016 |
| 57100242EAZ | 2016 |
| 57100242EAY | 2016 |
| 57100099 | 2014 |
| 57100164 | 2014 |
| 57100165 | 2014 |
| 57100243EBC | 2016 |
| 57100152 | 2014 |
| 57100151 | 2014 |
| 57100148 | 2014 |
| 57100147 | 2014 |
| 57100153 | 2014 |
| 57100154 | 2014 |
| 57100155 | 2014 |
| 57100256 | 2014 |
| 572C1 - Chin Spoiler Side | |
| 57200012 | 2014 |
| 57200017 | 2014 |
| 572D1 - Engine Shroud | |
| 58167-09 | 2009 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 66048-09A | 2012 |
| 57200094EBP | 2015 |
| 57200094EBH | 2016 |
| 57200094EBI | 2016 |
| 57200094EBF | 2016 |
| 57200093EBP | 2015 |
| 57200093EBI | 2016 |
| 57200093EBH | 2016 |
| 57200093EBF | 2016 |
| 66250-09 | 2009 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 57400253 | 2015 |
| 589A1 - Front Fender | |
| 58900009 | 2014 |
| 58900116EBF | 2016 |
| 58900116EBH | 2016 |
| 58900116EBI | 2016 |
| 58900116EBR | 2015 |
| 595A1 - Tailsection | |
| 59500107 | 2014 |
| 59500269EAY | 2016 |
| 59500269EAZ | 2016 |
| 59500269EBP | 2015 |
| 59500269EBC | 2016 |
| 595D1 - Rear Fender | |
| 59500273EBP | 2015 |
| 59500273EBI | 2016 |
| 59500273EBH | 2016 |
| 59500273EBF | 2016 |
| 60463-09A | 2009 |
| 59500274EBP | 2015 |
| 59500274EBF | 2016 |
| 59500274EBI | 2016 |
| 59500274EBH | 2016 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 60472-09A | 2009 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27439-09A | 2014 |
| 27298-09A | 2014 |
| 27291-09A | 2014 |
| 27297-09A | 2014 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 6119 | 2016 |
| 62229-08B | 2011 |
| 75076-08B | 2011 |
| 75291-08A | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000168EBI | 2016 |
| 61000168EBH | 2016 |
| 61000168EBF | 2016 |
| 61000255EBR | 2015 |
| 611B1 - Fuel Cap | |
| 63136-10A | 2012 |
| 61100052 | 2014 |
| 61100055 | 2014 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08B | 2014 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 61300504EAY | 2016 |
| 61300504EAZ | 2016 |
| 61300504EBC | 2016 |
| 61300504EBP | 2016 |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 61300478 | 2014 |
| 613K1 - Airbox Cover | |
| 61300517 | 2015 |
| 61300516 | 2015 |
| 614C1 - Trim | |
| 61400132 | 2014 |
| 61400253 | 2015 |
| 61400081 | 2014 |
| 61400080 | 2014 |
| 43475-08 | 2008 |
| 61400224 | 2014 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62693-07A | 2007 |
| 37065-06 | 2006 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 26064-08 | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800004 | 2014 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 62800003 | 2014 |
| 62800001 | 2014 |
| 648K1 - Exhaust Miscellaneous Component | |
| 66855-10A | 2011 |
| 649A1 - Muffler | |
| 65748-09 | 2009 |
| 65949-09 | 2009 |
| 64769-09A | 2011 |
| 64900199 | 2013 |
| 64900198 | 2013 |
| 64768-09A | 2011 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65100058 | 2015 |
| 65100059 | 2015 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 66220-06 | 2006 |
| 65951-09 | 2009 |
| 66219-06 | 2006 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 66849-10 | 2010 |
| 66858-09 | 2009 |
| 658A1 - Exhaust Catalyst | |
| 66080-06B | 2008 |
| 65913-06B | 2008 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66000066 | 2013 |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000010 | 2014 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 677A1 - Headlight | |
| 67778-60A | 1960 |
| 67700060 | 2014 |
| 67716-60C | 2014 |
| 67780-60A | 1960 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67717-01 | 2001 |
| 67700065 | 2014 |
| 67712-83B | 2014 |
| 69200109 | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700205 | 2014 |
| 67700204 | 2014 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 68830-99A | 1999 |
| 67800317 | 2014 |
| 68296-99A | 2004 |
| 678B1 - Taillight Housing | |
| 60934-10 | 2010 |
| 678C1 - Taillight Lens | |
| 67800428 | 2014 |
| 67800424 | 2014 |
| 678D1 - Turnsignal | |
| 67800540 | 2016 |
| 67800544 | 2016 |
| 67800203 | 2014 |
| 67800204 | 2014 |
| 67800201 | 2014 |
| 67800257 | 2014 |
| 678E1 - Turnsignal Lens | |
| 67800251 | 2014 |
| 679A1 - License Plate Tray / Holder | |
| 67900232 | 2015 |
| 679B1 - Reflector | |
| 69490-07 | 2007 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 67900065 | 2014 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900243 | 2015 |
| 679D1 - License Plate Bracket | |
| 67900233 | 2015 |
| 67900185 | 2014 |
| 60916-09 | 2009 |
| 679E1 - License Plate Light | |
| 60920-09 | 2009 |
| 67900261EAZ | 2016 |
| 67900261EBC | 2016 |
| 67900261EBP | 2015 |
| 680A1 - Decorative Light | |
| 68000034 | 2012 |
| 680C1 - Incandescent Bulb | |
| 68881-01 | 2001 |
| 53436-97 | 1997 |
| 68000038 | 2014 |
| 680D1 - Fog Light | |
| 68000037 | 2014 |
| 68000036 | 2014 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692B1 - Auxiliary Power Outlet | |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 72232-96 | 1996 |
| 72299-95 | 1995 |
| 72189-04 | 2004 |
| 69200174 | 2014 |
| 69200175 | 2014 |
| 6990 | 2011 |
| 692C2 - Electrical Mounting Bracket | |
| 66200-09 | 2009 |
| 69123-92A | 1992 |
| 69200203 | 2014 |
| 69200202 | 2014 |
| 69120-91 | 1991 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69200231 | 2014 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 72371-95 | 1995 |
| 72462-00 | 2000 |
| 72345-02 | 2002 |
| 69200336 | 2014 |
| 72331-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72394-06 | 2006 |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 72393-06 | 2006 |
| 69200797 | 2014 |
| 692F1 - Wire Harness | |
| 69201366 | 2016 |
| 69201369 | 2016 |
| 69201367 | 2016 |
| 69201368 | 2016 |
| 69200137 | 2014 |
| 69200133 | 2014 |
| 69200601 | 2016 |
| 69200912 | 2015 |
| 69200919 | 2015 |
| 69200031 | 2014 |
| 69201025 | 2015 |
| 69200294 | 2014 |
| 69200311 | 2014 |
| 69201288 | 2016 |
| 69200599 | 2014 |
| 69200247 | 2014 |
| 67800259 | 2016 |
| 69200224 | 2014 |
| 69200338 | 2014 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 69200018 | 2010 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 69201418 | 2016 |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 69201373 | 2016 |
| 72554-09GY | 2009 |
| 69201419 | 2016 |
| 69201372 | 2016 |
| 69200192A | 2014 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 69200193 | 2014 |
| 69200291A | 2014 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200212 | 2014 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72664-12A | 2013 |
| 72444-07GY | 2007 |
| 69201381 | 2016 |
| 72546-09GY | 2009 |
| 69201384 | 2016 |
| 69200256 | 2014 |
| 72009-05 | 2005 |
| 69201380 | 2016 |
| 69200984 | 2015 |
| 69200254 | 2014 |
| 72007-05 | 2005 |
| 69200306 | 2014 |
| 69200184 | 2014 |
| 72064-06 | 2006 |
| 69200183 | 2014 |
| 69201389 | 2016 |
| 69200305 | 2014 |
| 73301-04 | 2004 |
| 72518-01 | 2001 |
| 69201420 | 2016 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 69201421 | 2016 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 69200337 | 2014 |
| 72639-10 | 2010 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72296-95 | 1995 |
| 72343-10 | 2010 |
| 69201240 | 2014 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72364-06 | 2006 |
| 72227-11 | 2011 |
| 69200187 | 2014 |
| 69200186 | 2014 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 69200536 | 2014 |
| 72400-99 | 1999 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 69201168 | 2016 |
| 72213-94 | 1994 |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 69200859 | 2014 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72398-06 | 2006 |
| 72381-98 | 1998 |
| 72663-11 | 2011 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 69201383 | 2016 |
| 73307-10 | 2010 |
| 69201375 | 2016 |
| 69201376 | 2016 |
| 72294-94 | 1994 |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 69200307 | 2014 |
| 69200185 | 2014 |
| 69200237 | 2014 |
| 69201387 | 2016 |
| 69200238 | 2011 |
| 69200308 | 2014 |
| 69201388 | 2016 |
| 69201385 | 2016 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 69201413 | 2016 |
| 69201412 | 2017 |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 72912-01BK | 2001 |
| 29762-09 | 2009 |
| 69201378 | 2016 |
| 69201379 | 2016 |
| 72154-94 | 1994 |
| 69201377 | 2016 |
| 74197-04 | 2004 |
| 72225-09 | 2009 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 69200189 | 2014 |
| 72402-07 | 2007 |
| 69200188 | 2014 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 70598-99 | 1999 |
| 69200214 | 2014 |
| 72230-98 | 1998 |
| 69200205 | 2014 |
| 74120-08 | 2008 |
| 72557-07 | 2007 |
| 69200204 | 2014 |
| 72486-08 | 2008 |
| 69200201 | 2014 |
| 72408-07 | 2007 |
| 72251-07 | 2007 |
| 72397-98 | 1998 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 72720-07 | 2007 |
| 70494-08 | 2008 |
| 69200631 | 2014 |
| 69200630 | 2014 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 72053-92 | 1992 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 69200313 | 2014 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 72544-07 | 2007 |
| 72209-11 | 2011 |
| 73102-96BK | 1996 |
| 72485-07 | 2007 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 72382-98BK | 1998 |
| 692M1 - Electrical Component / Wire Cover | |
| 69201382 | 2016 |
| 69201374 | 2016 |
| 69200437 | 2014 |
| 709A1 - Dash Panel | |
| 70900138 | 2014 |
| 70900392DXK | 2015 |
| 70900392EBC | 2016 |
| 70900392EAZ | 2016 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900294A | 2016 |
| 70900295A | 2016 |
| 70900293B | 2016 |
| 709B2 - Fuel Gauge | |
| 70900297 | 2014 |
| 70900296 | 2014 |
| 709E1 - Tank Console | |
| 70900454EBP | 2015 |
| 70900452 | 2015 |
| 70900459 | 2015 |
| 70900454BHR | 2015 |
| 70900454EAZ | 2016 |
| 714A1 - Ignition Switch | |
| 71400090A | 2016 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 74438-99A | 2010 |
| 715A1 - Hand Control | |
| 71500227 | 2014 |
| 71500225 | 2014 |
| 71500226 | 2014 |
| 71500224 | 2014 |
| 71500342 | 2016 |
| 71500340 | 2016 |
| 71500341 | 2016 |
| 71500170 | 2014 |
| 71500348 | 2016 |
| 71500344 | 2016 |
| 71500168 | 2014 |
| 71500169 | 2014 |
| 71500166 | 2014 |
| 71500167 | 2014 |
| 71500165 | 2014 |
| 71500094 | 2014 |
| 71500083B | 2016 |
| 71500084A | 2016 |
| 67493-08 | 2008 |
| 71500350 | 2016 |
| 71500338 | 2016 |
| 71500339 | 2016 |
| 747A1 - Voltage Regulator | |
| 74700021 | 2014 |
| 72350-11 | 2011 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76000504 | 2014 |
| 76000554 | 2015 |
| 76000222 | 2014 |
| 76000221 | 2014 |
| 760C1 - Audio System Amplifier | |
| 76000502 | 2014 |
| 76000277A | 2015 |
| 760C2 - Audio System Speaker | |
| 76000525 | 2015 |
| 76000562 | 2015 |
| 76000563 | 2015 |
| 76000417 | 2014 |
| 76000418 | 2014 |
| 76000485 | 2015 |
| 76000333 | 2015 |
| 760C3 - Radio Receiver | |
| 76000228A | 2016 |
| 76000229A | 2016 |
| 76000232A | 2016 |
| 760C4 - Rider-Passenger Communication System | |
| 76000243 | 2013 |
| 76000259 | 2012 |
| 76000602 | 2015 |
| 77126-10 | 2010 |
| 760C5 - Speaker Enclosure | |
| 76000536 | 2015 |
| 76000535 | 2015 |
| 760C6 - Media Storage Compartment | |
| 76000561DXK | 2015 |
| 76000234 | 2014 |
| 76000561EBC | 2016 |
| 76000561EAZ | 2016 |
| 76000127 | 2014 |
| 76000107 | 2014 |
| 760C8 - Satellite Radio | |
| 76000233 | 2014 |
| 76000252 | 2014 |
| 760D1 - Infotainment Mount | |
| 76000282A | 2015 |
| 76000349 | 2014 |
| 902B1 - Saddlebag Cover | |
| 90201142EBC | 2016 |
| 90201142EAY | 2016 |
| 90201142EAZ | 2016 |
| 90201143EBR | 2015 |
| 90201143EBC | 2016 |
| 90201143EAY | 2016 |
| 90201143EAZ | 2016 |
| 90201142EBR | 2015 |
| 902E1 - Saddlebag Bottom | |
| 90201378EBP | 2016 |
| 90200983EBC | 2016 |
| 90201378EBF | 2016 |
| 90201378EBH | 2016 |
| 90201378EBI | 2016 |
| 90201382EBF | 2016 |
| 90201382EBH | 2016 |
| 90200415 | 2014 |
| 90201382EBI | 2016 |
| 90200519 | 2014 |
| 90200979 | 2014 |
| 90200521 | 2014 |
| 90200520 | 2014 |
| 90200980 | 2014 |
| 90200550 | 2014 |
| 90200549 | 2014 |
| 90200547 | 2014 |
| 90200543 | 2014 |
| 90200467 | 2014 |
| 90200964 | 2014 |
| 90200963 | 2014 |
| 90201382EBP | 2016 |
| 90200611 | 2014 |
| 90200893 | 2014 |
| 90200899 | 2014 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 90200984EBP | 2015 |
| 90200984EBC | 2016 |
| 90200984EAZ | 2016 |
| 90200984EAY | 2016 |
| 90201129EBP | 2015 |
| 90201129EBC | 2016 |
| 90201129EAY | 2016 |
| 90201129EAZ | 2016 |
| 75089-08 | 2008 |
| 90201127EAY | 2016 |
| 90201127EAZ | 2016 |
| 90201127EBC | 2016 |
| 90201127EBP | 2015 |
| 90200983EBP | 2015 |
| 90200983EAY | 2016 |
| 90200983EAZ | 2016 |
| 903A1 - Lockset | |
| 90300116A | 2016 |
| 90300115A | 2016 |
| 90300024 | 2014 |
| 903B1 - Key or Key-set | |
| 90300093 | 2014 |
| 903C1 - Key Transponder | |
| 90300109 | 2016 |
| 90300110 | 2016 |
| 917B1 - Service Program Kit | |
| 91700034 | 2014 |
| 91700025A | 2014 |
| 931A1 - Protective / Storage Cover | |
| 93100031 | 2013 |
| 933A1 - Soft Storage | |
| 91885-97A | 1997 |
| 936B1 - Cleaner | |
| 93600034 | 2012 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 99517-16EN | 2016 |
| 940A2 - Owner's Manual | |
| 99577-16 | 2016 |
| 99461-89 | 1989 |
| 940H1 - Electronic / Digital Media | |
| 94000084 | 2014 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | FENDER, REAR: CONSOLE, FUEL TANK: SADDLEBAGS (1 OF 2): |
| 1062 | SCREW | PRIMARY HOUSING: BRAKE LINES AND MODULE, REAR - ABS: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: TRANSMISSION BEARINGS AND COVERS: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER AND OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: TRANSMISSION BEARINGS AND COVERS: |
| 11143 | RETAINING RING | CLUTCH - ASSIST AND SLIP: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 11150 | RING | SHIFTER, GEAR: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 11292 | O-RING | AIR CLEANER - TWIN CAM 110™: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 11301 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 11304 | RING | FOOTPEGS: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS AND COVERS: |
| 16715-83 | STUD | CYLINDERS, HEADS AND VALVES - TWIN CAM 110™: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 2445 | SCREW | FAIRING, INNER (1 OF 2): |
| 25244-99A | GASKET | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 2563 | SCREW | INSTRUMENTS: FAIRING, INNER (1 OF 2): |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 3050 | SCREW | ALTERNATOR AND REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SHIFTER, GEAR: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER AND OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 3655A | SCREW | WHEEL, FRONT: FAIRING LOWERS (1 OF 2): |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 36805-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 4132 | SCREW | CLUTCH CONTROL: BRAKE CONTROL, FRONT: |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE LINES, FRONT - ABS: BRAKE CONTROL, REAR: BRAKE LINES AND MODULE, REAR - ABS: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 4740A | SCREW | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 110™ : |
| 59768-97 | FENDER SEAT NUT KIT | FENDER, REAR: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | FRAME AND JIFFY STAND: |
| 7041 | LOCKWASHER | SHIFTER, GEAR: FRAME AND JIFFY STAND: EXHAUST SYSTEM: |
| 7586 | JAMNUT | SADDLEBAGS (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | COOLING SYSTEM, ENGINE, TWIN-COOLED™: RADIATOR, COOLANT HOSES AND BOTTLE: FOOTBOARDS: FAIRING LOWERS (1 OF 2): |
| 786A | BOLT | PRIMARY HOUSING: |
| 8037 | SPEED NUT | COOLANT DISTRIBUTION: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9252 | BALL BEARING | WHEEL, FRONT: WHEEL, REAR: |
| 9276A | BALL BEARING | BELTS, CHAINS & SPROCKETS: WHEEL, FRONT: WHEEL, REAR: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD AND PIN KIT | BRAKE CALIPER, REAR: |
| 41854-08 | PAD AND PIN KIT | BRAKE CALIPER, FRONT: |
| 46514-01A | OIL SEAL | FORK, FRONT: |
| 46615-06 | PACKING SEAL | FORK, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME AND JIFFY STAND: |
| 50245-07 | BUMPER | FRAME AND JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR: |
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: SWITCHES: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS - TWIN CAM 110™: |
| 33709-82A | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH - ASSIST AND SLIP: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65296-95A | MUFFLER CLAMP | EXHAUST SYSTEM: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63731-99A | OIL FILTER | CRANKCASE, ENGINE OIL FILTER AND COOLER - TWIN CAM 110™ : |
| 66010-97C | BATTERY | BATTERY: |
| 66373-06 | BATTERY | SWITCHES: |
| 93600034 | LEATHER DRESSING | LOOSE PARTS: |
