2015 HARLEY-DAVIDSON® PARTS CATALOG: FLHTKSE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99428-15A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2015 FLHTKSE MODEL
VIN Model Codes

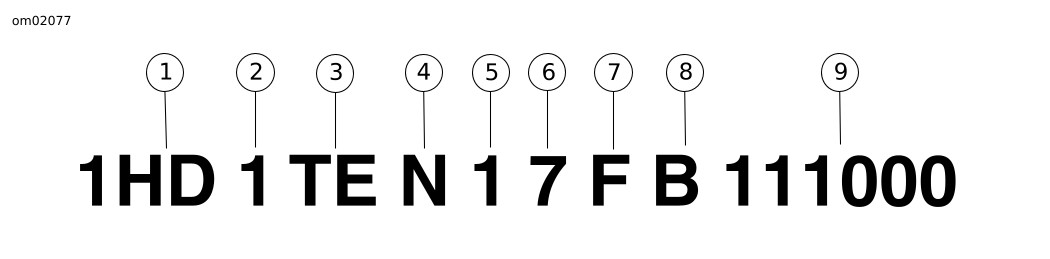

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the
United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | TE=FLHTKSE CVO® Limited | |
4 | Engine type | N=Twin-Cooled™ 1802 cm3 High Output Twin Cam 110™,
fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) J=Brazil (BRZ) L=Asia Pacific (APC) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) M=Asia Pacific (APC) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | F=2015 | |
8 | Assembly plant | B=York, PA USA D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
NOTES

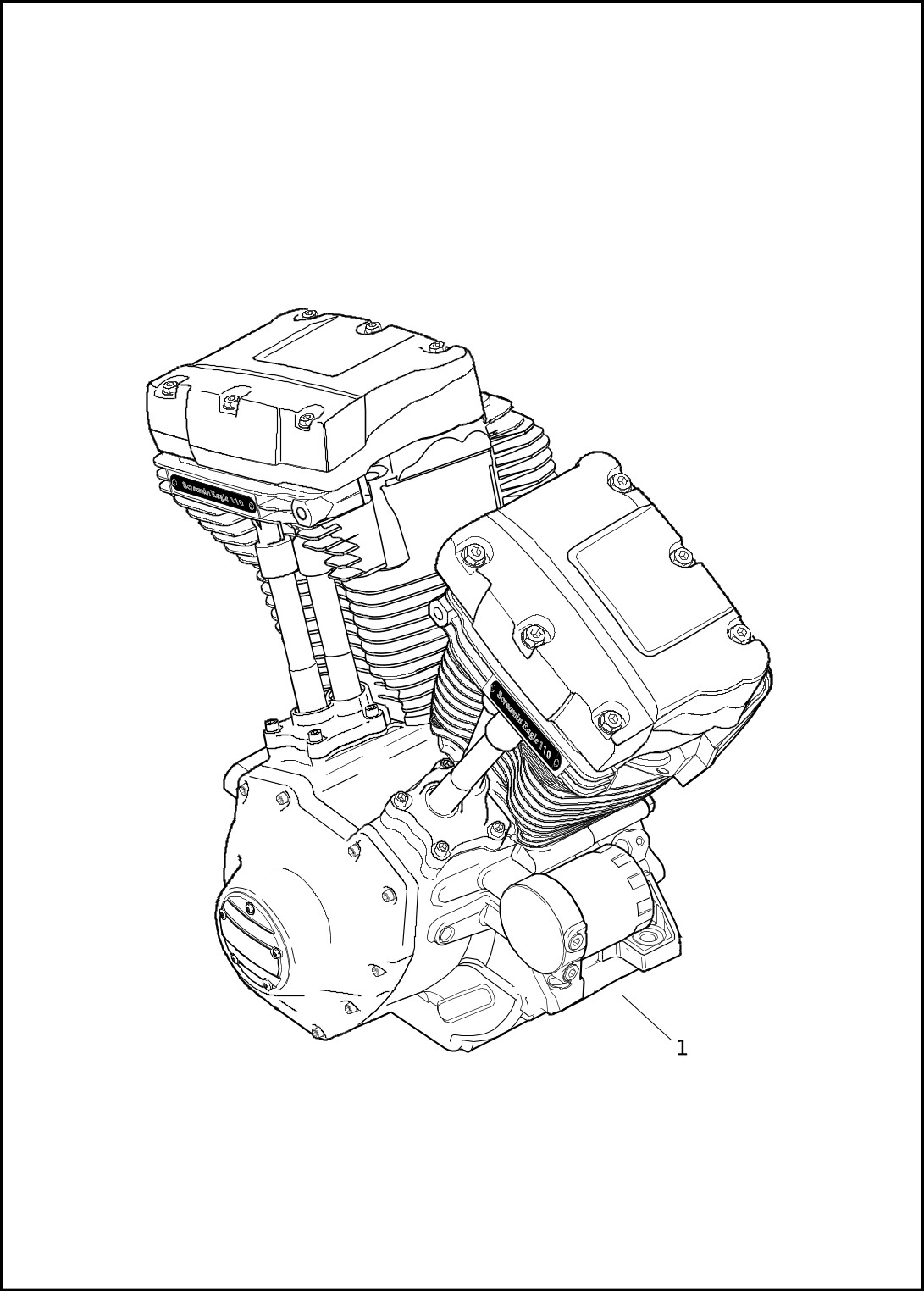

ENGINE ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19292-15 | ENGINE ASSEMBLY, complete, 110 cubic-inch (gray granite) | FLHTKSE |

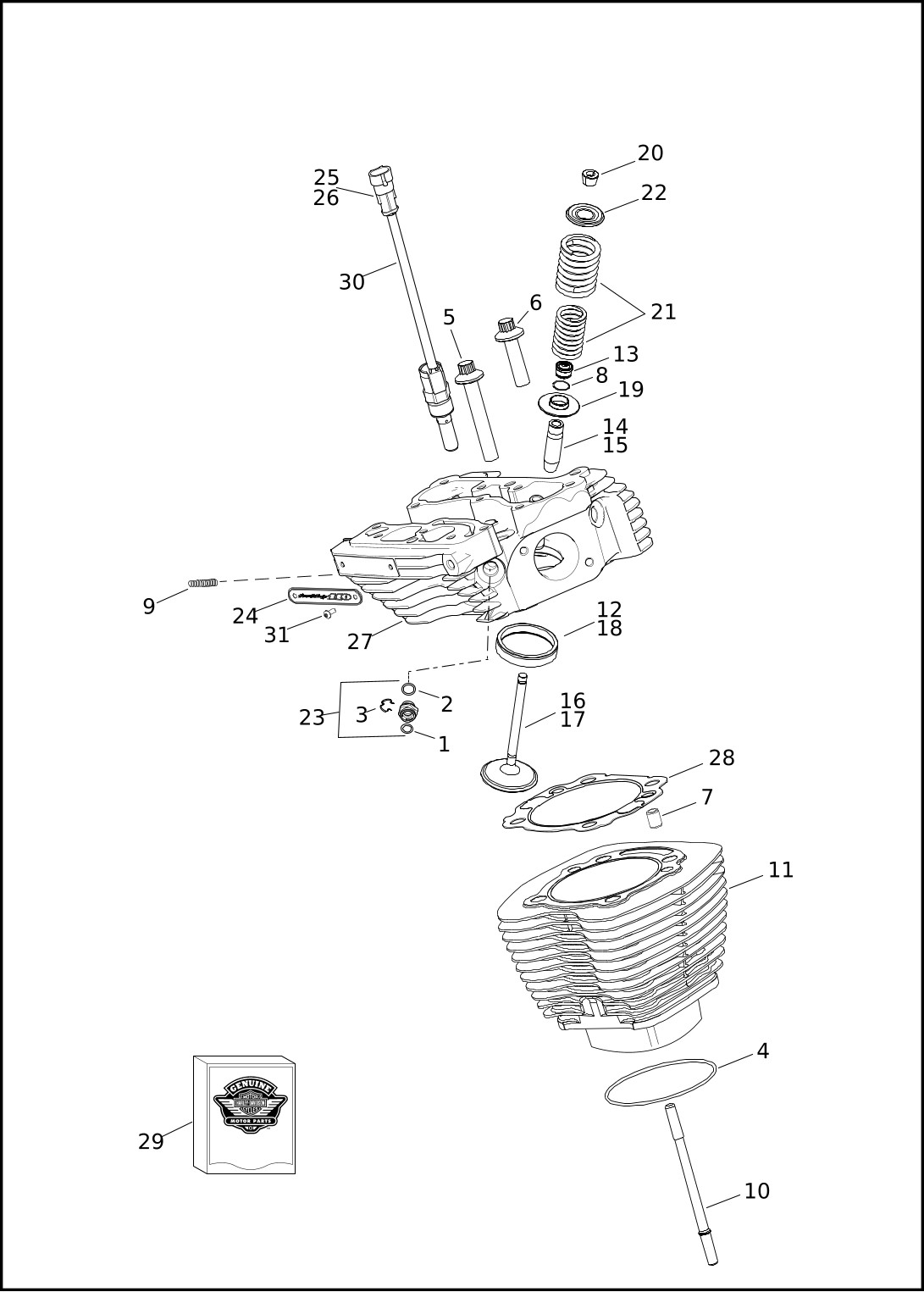

CYLINDERS, HEADS & VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11110 | O-RING (4) | FLHTKSE |
| 2 | 11290 | O-RING (4) | FLHTKSE |
| 3 | 11408 | RETAINER, wire clip (4) | FLHTKSE |
| 4 | 11907 | O-RING KIT, cylinder base, w/ crankcase dowel o-rings | FLHTKSE |
| 5 | 16478-85A | SCREW, internal thread, 3-3/16 in. long (4) | FLHTKSE |
| 6 | 16480-92A | SCREW, internal thread, 1-7/8 in. long (4) | FLHTKSE |
| 7 | 16595-99A | DOWEL PIN, ring (4) | FLHTKSE |
| 8 | 16699-06 | SNAP RING, wire (4) | FLHTKSE |
| 9 | 16715-83 | STUD, exhaust port (4) | FLHTKSE |
| 10 | 16834-99A | STUD, cylinder (8) | FLHTKSE |
| 11 | 17454-08A | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLHTKSE |
| 12 | 18048-98A | SEAT, exhaust valve (2) | FLHTKSE |
| 13 | 18067-09 | VALVE SEAL (4) | FLHTKSE |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHTKSE |
| 15 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHTKSE |
| 16 | 18183-03 | EXHAUST VALVE (2) | FLHTKSE |
| 17 | 18187-07 | INTAKE VALVE (2) | FLHTKSE |
| 18 | 18189-07 | SEAT, intake valve (2) | FLHTKSE |
| 19 | 18270-00A | COLLAR, valve spring lower (4) | FLHTKSE |
| 20 | 18271-00 | KEY, valve spring collar (8) | FLHTKSE |
| 21 | 18272-00 | SPRING VALVE, inner & outer (4) | FLHTKSE |
| 22 | 18280-07 | COLLAR, valve spring upper (4) | FLHTKSE |
| 23 | 26064-08 | FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (4) | FLHTKSE |
| 24 | 29517-07A | MEDALLION KIT, w/ 2 medallions | FLHTKSE |
| 25 | 72009-05 | HOUSING, 2-way, pin | FLHTKSE |
| 26 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHTKSE |
| 27 | 16500139 | HEAD, cylinder, rear, w/ 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 & 65324-83B (gray granite) | FLHTKSE |
| 16500134 | HEAD, cylinder, front, w/ 8, 9, 13, 16, 17, 19, 20, 21, 22, 23, 30, 31 & 65324-83B (gray granite) | FLHTKSE | |
| 28 | 16500168 | GASKET, cylinder head (2) | FLHTKSE |
| 29 | 16500227 | GASKET KIT, top end | FLHTKSE |
| 16500228 | GASKET KIT, engine overhaul | FLHTKSE | |
| 30 | 18400035 | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLHTKSE |
| 31 | 25800017 | SCREW, medallion (4) | FLHTKSE |
ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHTKSE |
| 2 | 3692A | SCREW (5) | FLHTKSE |
| 3 | 3693A | SCREW (10) | FLHTKSE |
| 4 | 3736B | SCREW (8) | FLHTKSE |
| 5 | 4400 | BOLT (4) | FLHTKSE |
| 6 | 4741A | SCREW (8) | FLHTKSE |
| 7 | 4881 | BOLT, dual threaded (rear cylinder only) | FLHTKSE |
| 8 | 6762B | WASHER (4) | FLHTKSE |
| 9 | 11132A | O-RING, pushrod cover (4) | FLHTKSE |
| 10 | 11145A | O-RING, pushrod cover (4) | FLHTKSE |
| 11 | 11270 | O-RING (2) | FLHTKSE |
| 12 | 11293 | O-RING (4) | FLHTKSE |
| 13 | 16719-99B | GASKET, rocker housing (2) | FLHTKSE |
| 14 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 | FLHTKSE |
| 15 | 17045-99D | GASKET KIT, cam service | FLHTKSE |
| 16 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHTKSE |
| 17 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHTKSE |
| 18 | 17386-99A | GASKET, rocker cover (2) | FLHTKSE |
| 19 | 17429-91 | BUSHING, rocker arm (8) | FLHTKSE |
| 20 | 17572-99 | ROCKER COVER (chrome) (2) | FLHTKSE |
| 21 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLHTKSE |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLHTKSE |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLHTKSE |
| 24 | 17922-99 | PUSHROD, exhaust, 10.536 in. long (black rings) (2) | FLHTKSE |
| 17923-99 | PUSHROD, intake, 10.418 in. long (plain finish) (2) | FLHTKSE | |
| 25 | 17939-99 | COVER, pushrod, lower (4) | FLHTKSE |
| 26 | 17945-36B | CAP, cover spring (4) | FLHTKSE |
| 27 | 17947-36 | SPRING, pushrod cover (4) | FLHTKSE |
| 28 | 17948-99 | COVER, pushrod, upper (4) | FLHTKSE |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLHTKSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHTKSE | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHTKSE |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHTKSE |
| 32 | 18572-13 | HYDRAULIC LIFTER (4) | FLHTKSE |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHTKSE |
| 34 | 26500002 | BREATHER, baffle assembly, w/ breather valve & filter (2) | FLHTKSE |

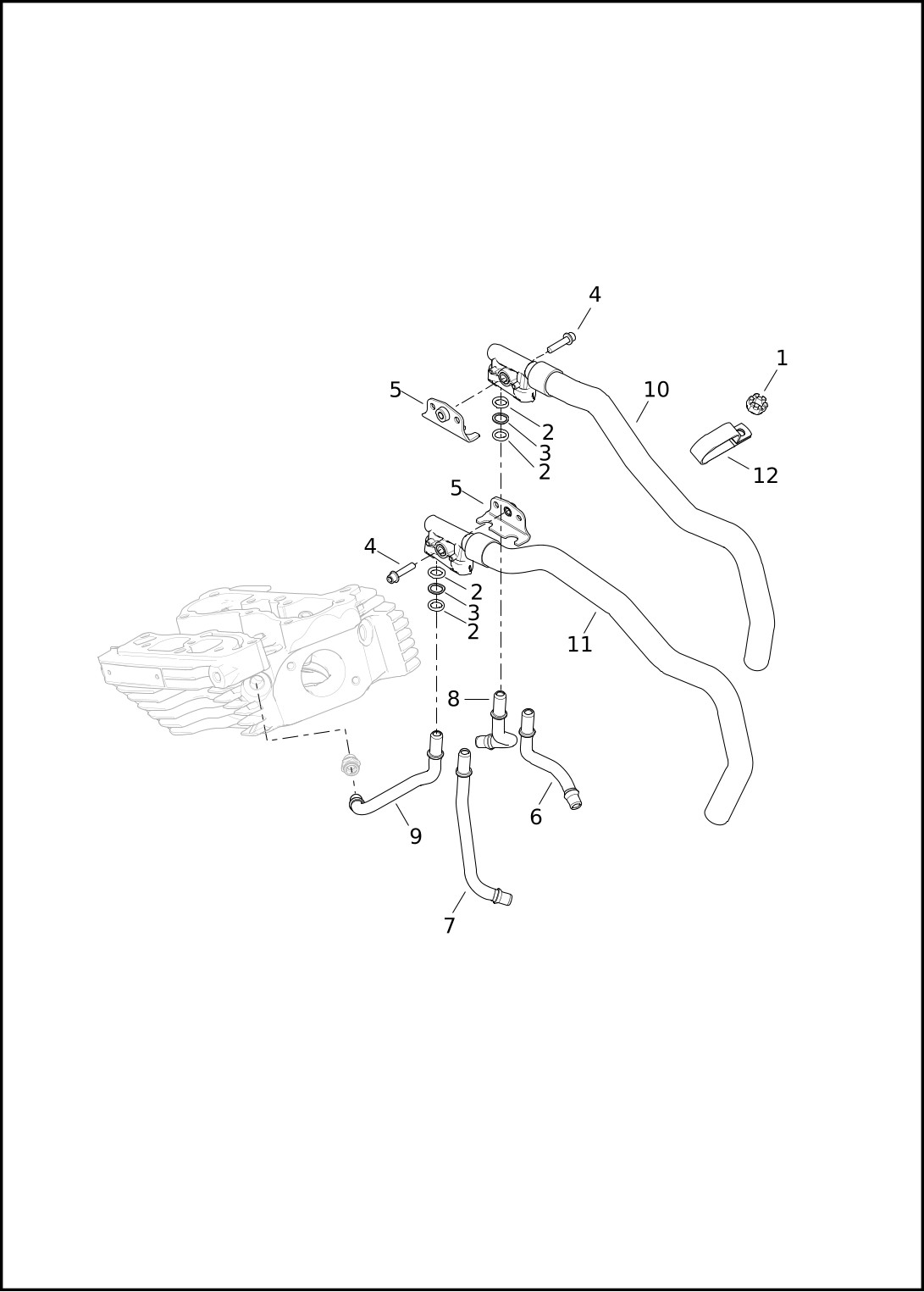

COOLING SYSTEM, ENGINE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTKSE |
| 2 | 28004-01 | O-RING (8) | FLHTKSE |
| 3 | 28005-01 | WASHER (4) | FLHTKSE |
| 4 | 10200258 | SCREW (2) | FLHTKSE |
| 5 | 16400028 | LOCKING PLATE ASSEMBLY (2) | FLHTKSE |
| 6 | 26900021 | COOLANT LINE, front head inlet | FLHTKSE |
| 7 | 26900022 | COOLANT LINE, front head outlet | FLHTKSE |
| 8 | 26900023 | COOLANT LINE, rear head inlet | FLHTKSE |
| 9 | 26900024 | COOLANT LINE, rear head outlet | FLHTKSE |
| 10 | 26900027 | COMPLIANCE ASSEMBLY, left hand side, w/ 28004-01 & 28005-01 | FLHTKSE |
| 11 | 26900028 | COMPLIANCE ASSEMBLY, right hand side, w/ 28004-01 & 28005-01 | FLHTKSE |
| 12 | 26900029 | P-CLAMP, coolant hose | FLHTKSE |

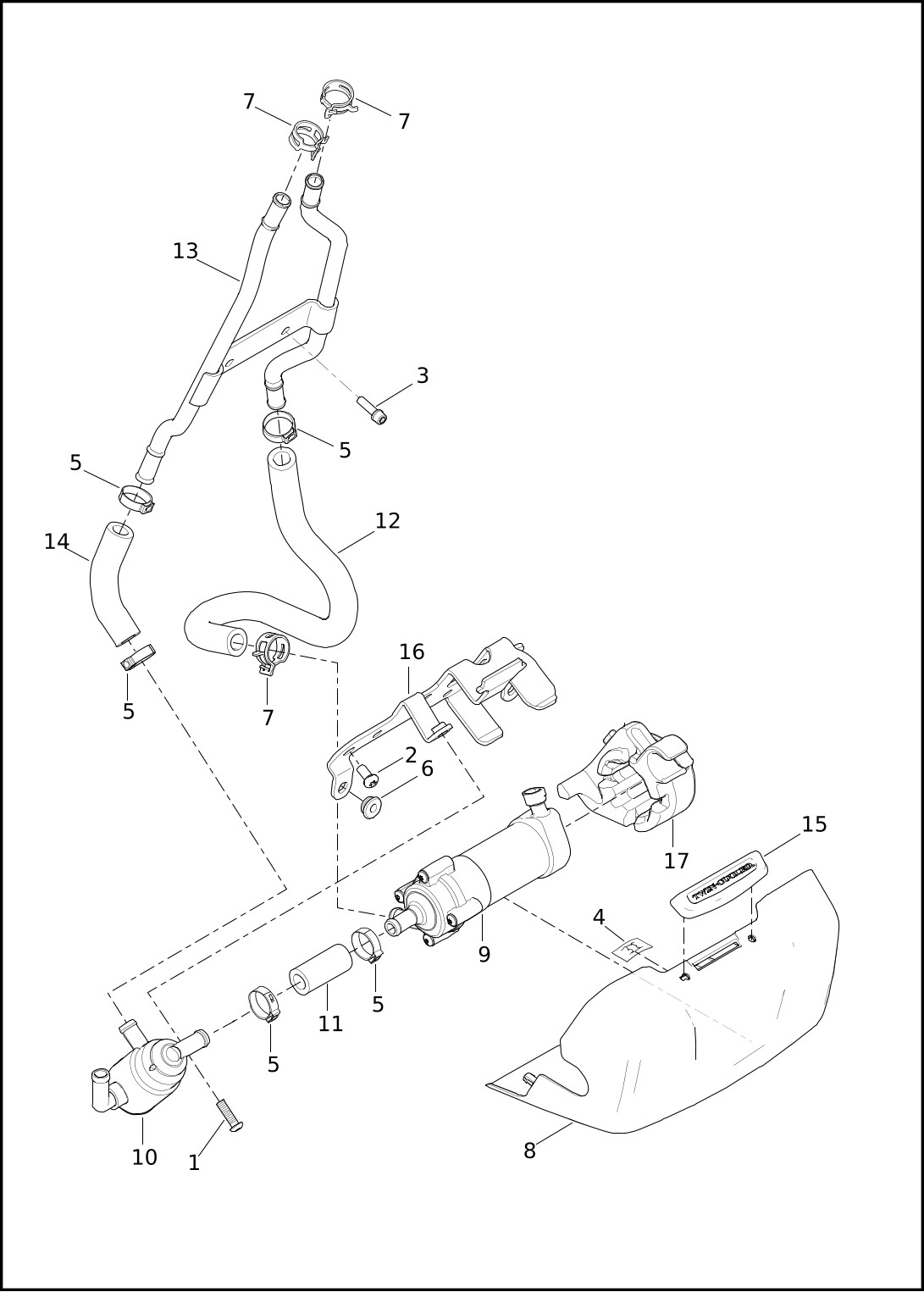

COOLANT DISTRIBUTION
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT | FLHTKSE |
| 2 | 4266A | SCREW (2) | FLHTKSE |
| 3 | 4741A | SCREW (2) | FLHTKSE |
| 4 | 8037 | SPEED NUT (2) | FLHTKSE |
| 5 | 10344 | CLAMP (5) | FLHTKSE |
| 6 | 11692 | GROMMET (2) | FLHTKSE |
| 7 | 10800052 | CLAMP (3) | FLHTKSE |
| 8 | 25700228 | COVER, coolant pump, w/ 8037 & 61400132 | FLHTKSE |
| 9 | 26600012 | PUMP, coolant | FLHTKSE |
| 10 | 26700001A | THERMOSTAT | FLHTKSE |
| 11 | 26900001 | HOSE, thermostat to pump | FLHTKSE |
| 12 | 26900002 | HOSE, pump to engine | FLHTKSE |
| 13 | 26900003 | TUBE ASSEMBLY, coolant downtubes | FLHTKSE |
| 14 | 26900006 | HOSE, engine to thermostat | FLHTKSE |
| 15 | 61400132 | TRIM | FLHTKSE |
| 16 | 62800001 | BRACKET, coolant pump & thermostat | FLHTKSE |
| 17 | 62800003 | ISOLATOR, coolant pump | FLHTKSE |

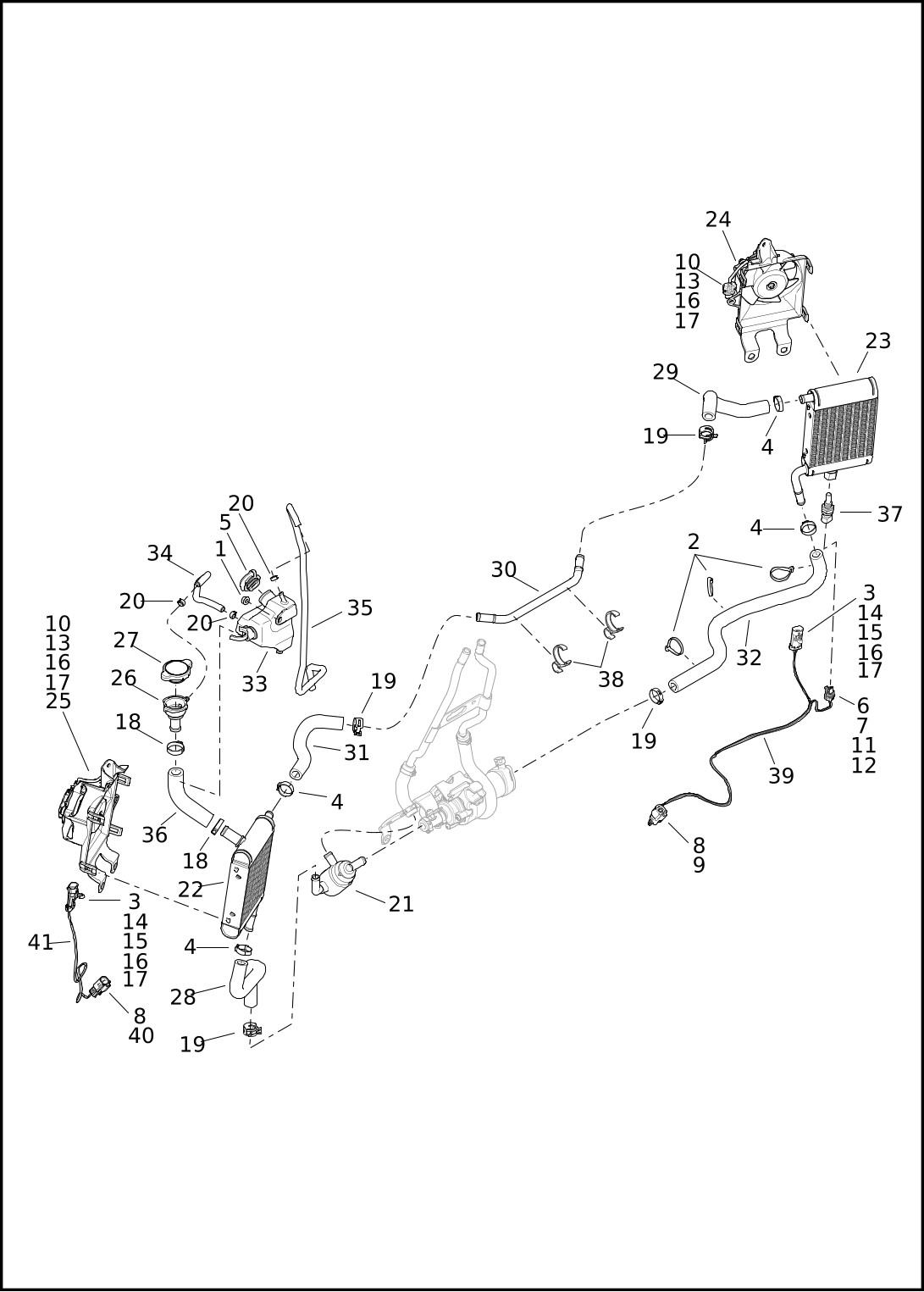

RADIATOR, COOLANT HOSES & BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTKSE |
| 2 | 10006 | CABLE STRAP (7) | FLHTKSE |
| 3 | 10147 | CLIP, connector (2) | FLHTKSE |
| 4 | 10344 | CLAMP (4) | FLHTKSE |
| 5 | 26780-05A | CAP ASSEMBLY, coolant bottle | FLHTKSE |
| 6 | 72063-06 | HOUSING, 2-way | FLHTKSE |
| 7 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHTKSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTKSE |
| 9 | 72177-07BK | HOUSING, 4-way, socket (black) | FLHTKSE |
| 10 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (4) | FLHTKSE |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTKSE |
| 12 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTKSE |
| 13 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHTKSE |
| 14 | 72607-08 | HOUSING, 2 way pin | FLHTKSE |
| 15 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTKSE |
| 16 | 72609-08 | SECONDARY LOCK, 2-way (black) (2) | FLHTKSE |
| 17 | 72610-08 | SEAL, 18-20 awg (white) (8) | FLHTKSE |
| 18 | 10800023 | CLAMP (2) | FLHTKSE |
| 19 | 10800052 | CLAMP (4) | FLHTKSE |
| 20 | 10800078 | CLAMP (3) | FLHTKSE |
| 21 | 26700001A | THERMOSTAT | FLHTKSE |
| 22 | 26800005 | CORE, radiator, right | FLHTKSE |
| 23 | 26800006 | CORE, radiator, left | FLHTKSE |
| 24 | 26800007A | FAN ASSEMBLY, left, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTKSE |
| 25 | 26800019A | FAN ASSEMBLY, right, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTKSE |
| 26 | 26800020A | FILL NECK, coolant | FLHTKSE |
| 27 | 26800021 | CAP, pressure | FLHTKSE |
| 28 | 26900007 | HOSE, thermostat to radiator | FLHTKSE |
| 29 | 26900008 | HOSE, coolant, left cross tube | FLHTKSE |
| 30 | 26900009 | LINE, coolant, right to left | FLHTKSE |
| 31 | 26900010 | HOSE, coolant, right cross tube | FLHTKSE |
| 32 | 26900011 | HOSE, radiator to thermostat | FLHTKSE |
| 33 | 26900014 | BOTTLE ASSEMBLY, coolant, w/ 26780-05A | FLHTKSE |
| 34 | 26900016 | HOSE, coolant vent | FLHTKSE |
| 35 | 26900017 | HOSE, coolant overflow | FLHTKSE |
| 36 | 26900018 | HOSE, coolant fill | FLHTKSE |
| 37 | 32700028 | SENSOR, coolant temperature | FLHTKSE |
| 38 | 62800004 | CLIP, coolant line to frame (2) | FLHTKSE |
| 39 | 69200133 | WIRE HARNESS, twin cooling jumper, left, w/ 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 & 72610-08 | FLHTKSE |
| 40 | 69200271 | SOCKET HOUSING, 2-way | FLHTKSE |
| 41 | 69200311 | WIRE HARNESS, twin cooling jumper, right, w/ 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 & 69200271 | FLHTKSE |

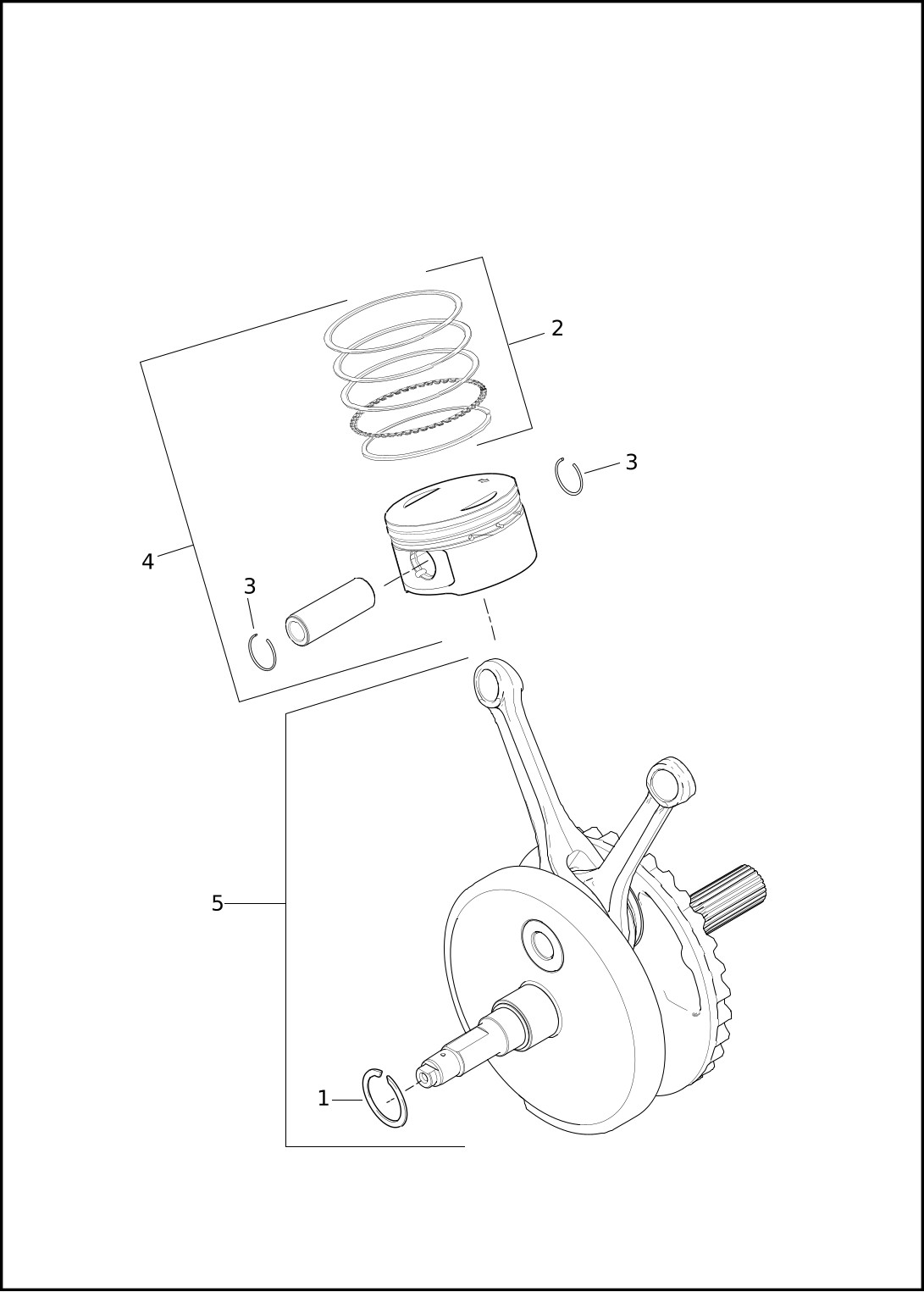

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHTKSE |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FLHTKSE |
| 21953-11 | PISTON RING SET, 0.010 in. O.S. (2) | FLHTKSE | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FLHTKSE |
| 4 | 22000001 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHTKSE |
| 22000003 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHTKSE | |
| 5 | 24100021 | FLYWHEEL ASSEMBLY KIT | FLHTKSE |

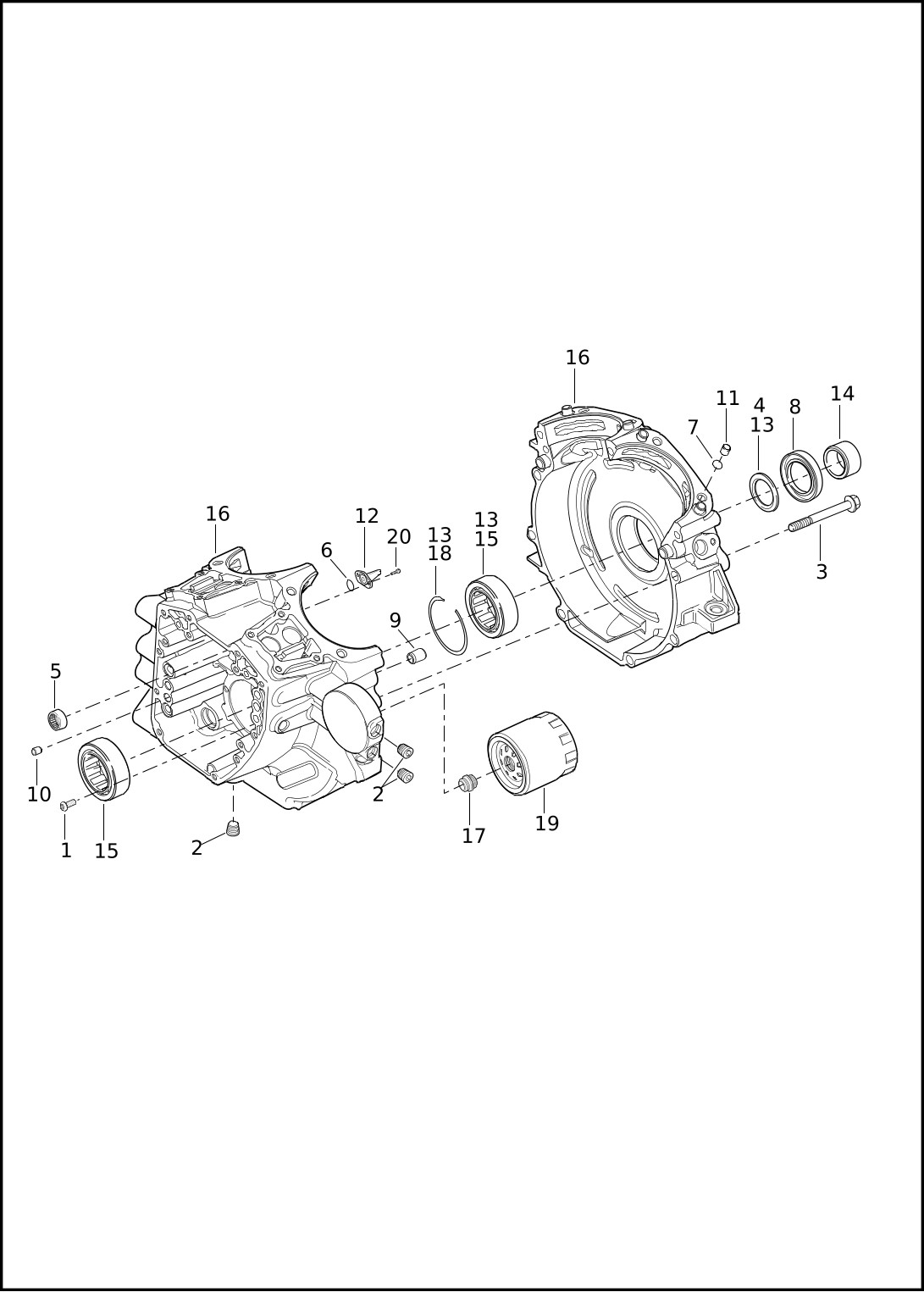

CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHTKSE |
| 2 | 765 | PLUG (3) | FLHTKSE |
| 3 | 895 | SCREW (9) | FLHTKSE |
| 4 | 8972 | WASHER (2) | FLHTKSE |
| 5 | 24018-10 | NEEDLE BEARING, left side, camshaft (2) | FLHTKSE |
| 6 | 11140 | O-RING (2) | FLHTKSE |
| 7 | 11907 | O-RING KIT, w/ cylinder base o-rings (2) | FLHTKSE |
| 8 | 12068 | SEAL, oil | FLHTKSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHTKSE |
| 10 | 16589-99A | DOWEL PIN (2) | FLHTKSE |
| 11 | 16595-99A | DOWEL PIN (4) | FLHTKSE |
| 12 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLHTKSE |
| 13 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race | FLHTKSE |
| 14 | 24009-06 | SPACER, sprocket shaft | FLHTKSE |
| 15 | 24605-07 | BEARING, main (2) | FLHTKSE |
| 16 | 24760-08A | CRANKCASE SET, w/ 1, 2, 3, 5, 6, 9, 10, 11, 12, 15, 18, 20 & 3983 (not shown) bolts (gray granite) | FLHTKSE |
| 17 | 26352-95A | ADAPTER | FLHTKSE |
| 18 | 35114-02 | RING, retaining, internal | FLHTKSE |
| 19 | 63731-99A | OIL FILTER (chrome) | FLHTKSE |
| 20 | 68042-99 | SCREW (4) | FLHTKSE |

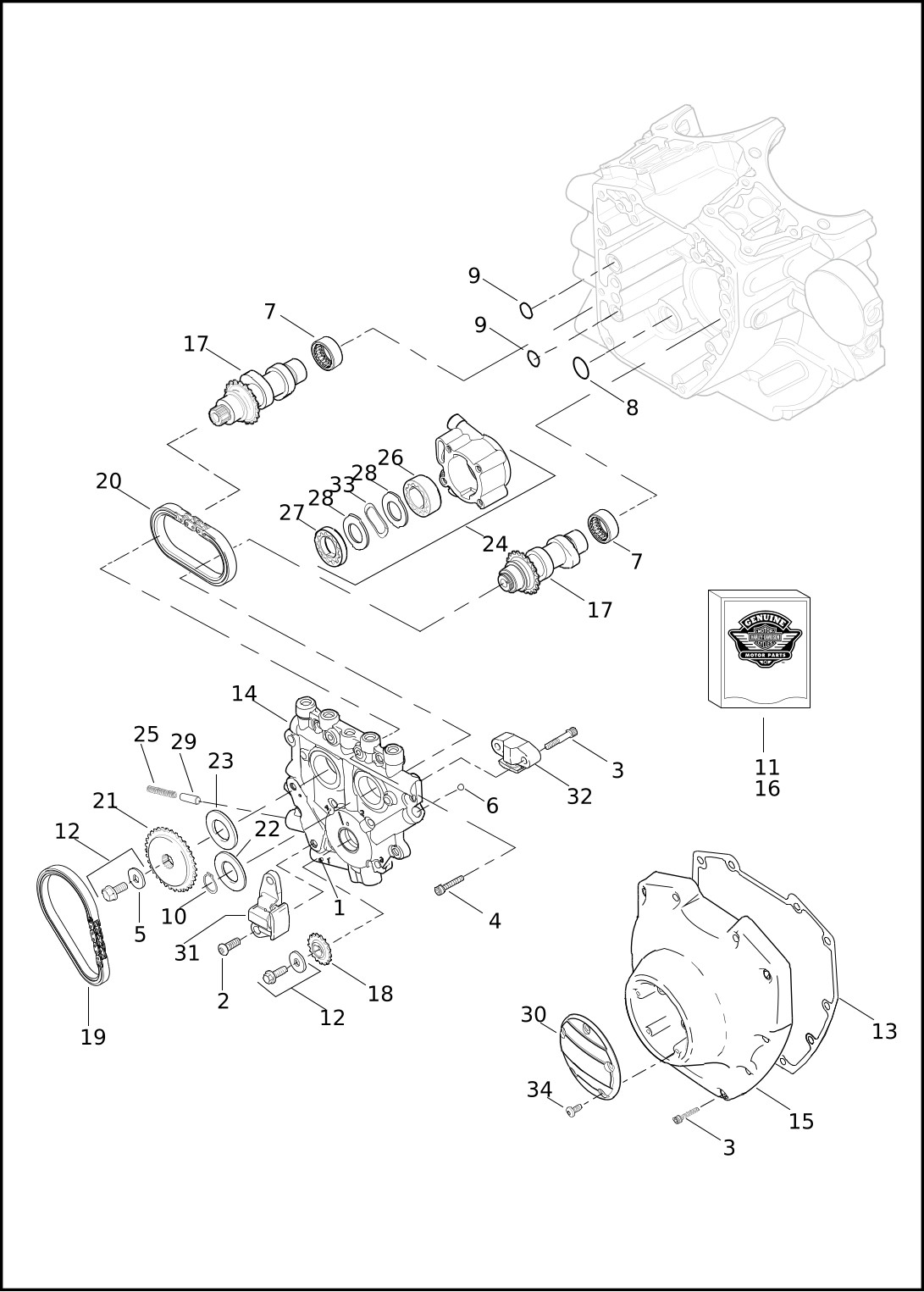

CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHTKSE |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHTKSE |
| 3 | 4740A | SCREW, secondary cam tensioner (2) | FLHTKSE |
| 4740A | SCREW, cam cover (10) | FLHTKSE | |
| 4 | 4741A | SCREW (10) | FLHTKSE |
| 5 | 6294 | WASHER | FLHTKSE |
| 6 | 8873 | BALL (12) | FLHTKSE |
| 7 | 24018-10 | BEARING KIT, needle, left side, camshaft (2) | FLHTKSE |
| 8 | 11293 | O-RING | FLHTKSE |
| 9 | 11301 | O-RING (2) | FLHTKSE |
| 10 | 11461 | RETAINING RING | FLHTKSE |
| 11 | 17045-99D | GASKET KIT, cam service | FLHTKSE |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws | FLHTKSE |
| 13 | 25244-99A | GASKET, cam cover | FLHTKSE |
| 14 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLHTKSE |
| 15 | 25369-01B | CAM COVER (chrome) | FLHTKSE |
| 16 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT, w/ 25566-06, 25673-06, 25675-06 & 25728-06 | FLHTKSE |
| 17 | 25638-07 | CAMSHAFT KIT | FLHTKSE |
| 18 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHTKSE |
| 19 | 25675-06 | CHAIN, primary cam drive | FLHTKSE |
| 20 | 25683-06 | CHAIN, secondary cam drive | FLHTKSE |
| 21 | 25728-06 | SPROCKET, cam drive, 34 T | FLHTKSE |
| 22 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLHTKSE |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHTKSE |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHTKSE | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHTKSE | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHTKSE | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHTKSE | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHTKSE | |
| 24 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06 & 40323-00 | FLHTKSE |
| 25 | 26210-99 | SPRING, relief valve | FLHTKSE |
| 26 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHTKSE |
| 27 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHTKSE |
| 28 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHTKSE |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FLHTKSE |
| 30 | 32578-07 | COVER | FLHTKSE |
| 31 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHTKSE |
| 32 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHTKSE |
| 33 | 40323-00 | SPRING, separator | FLHTKSE |
| 34 | 68120-00 | SCREW (5) | FLHTKSE |

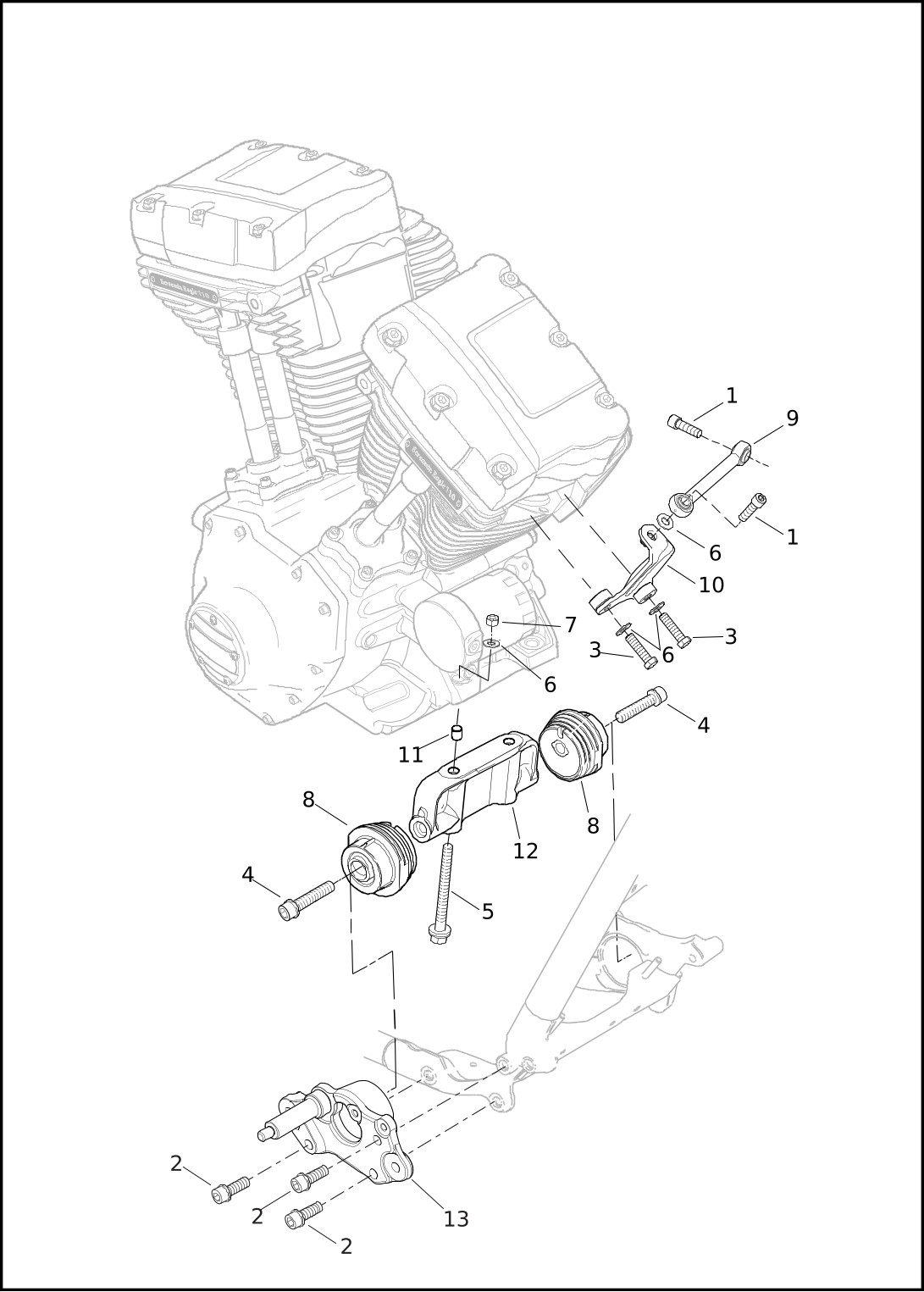

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | FLHTKSE |
| 2 | 4688 | SCREW (3) | FLHTKSE |
| 3 | 4721 | BOLT (2) | FLHTKSE |
| 4 | 4838 | SCREW (2) | FLHTKSE |
| 5 | 4868 | SCREW (2) | FLHTKSE |
| 6 | 6127 | WASHER (5) | FLHTKSE |
| 7 | 7783 | NUT (2) | FLHTKSE |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | FLHTKSE |
| 9 | 16219-09 | STABLIZER LINK | FLHTKSE |
| 10 | 16321-08 | WELDMENT, engine strap | FLHTKSE |
| 11 | 24754-75A | DOWEL BUSHING (2) | FLHTKSE |
| 12 | 47159-09BHP | BRACKET, front engine mount | FLHTKSE |
| 13 | 16400004 | END CAP, front mount | FLHTKSE |

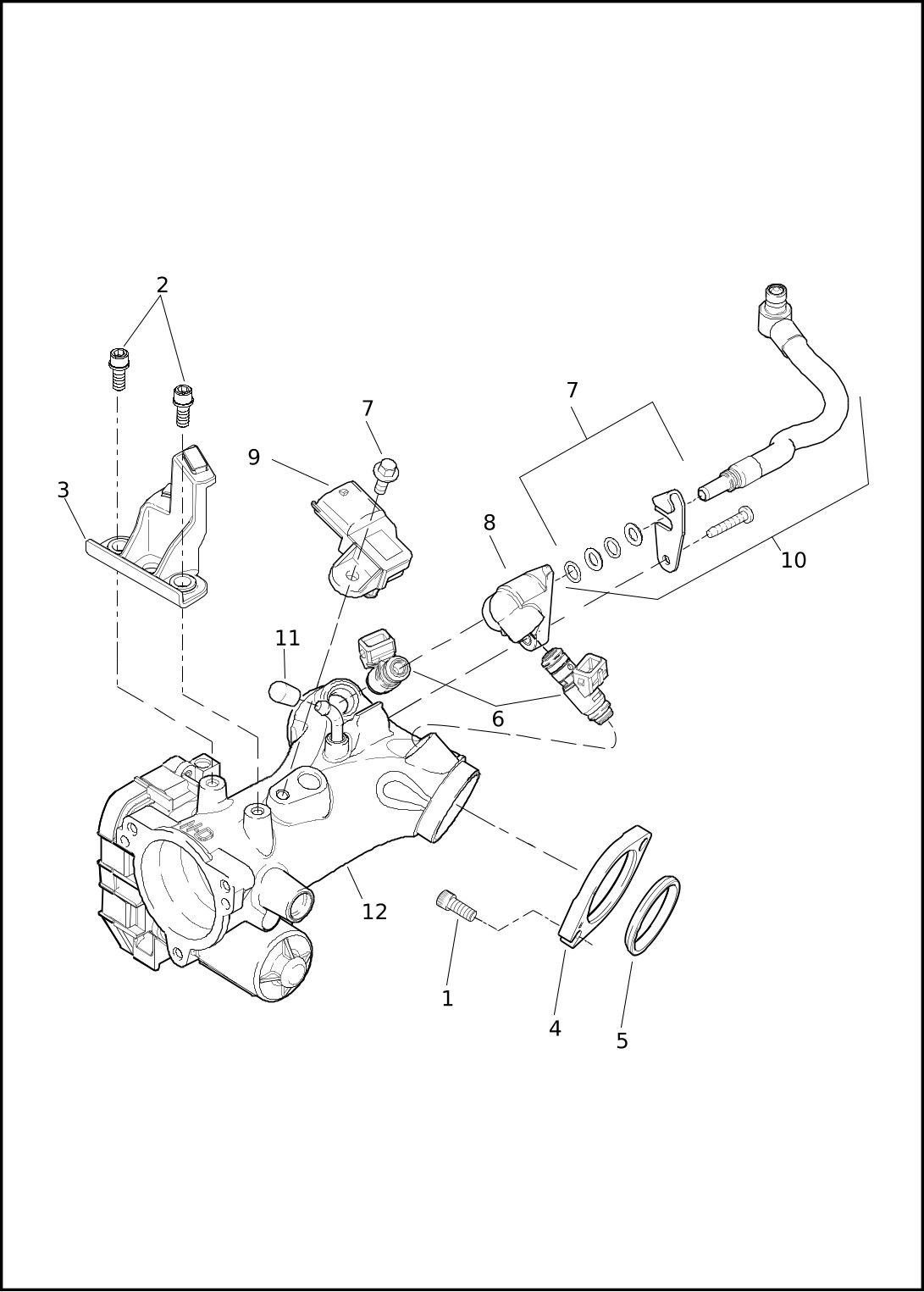

INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHTKSE |
| 2 | 4705 | SCREW (2) | FLHTKSE |
| 3 | 16325-10 | BRACKET, ACR mount | FLHTKSE |
| 4 | 26993-06 | FLANGE, mounting (2) | FLHTKSE |
| 5 | 26995-86B | SEAL, intake manifold (2) | FLHTKSE |
| 6 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHTKSE |
| 7 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHTKSE |
| 8 | 27721-08 | FUEL RAIL | FLHTKSE |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTKSE |
| 10 | 61208-10 | FUEL LINE | FLHTKSE |
| 11 | 90383-98 | CAP, purge tube | FLHTKSE |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | FLHTKSE |

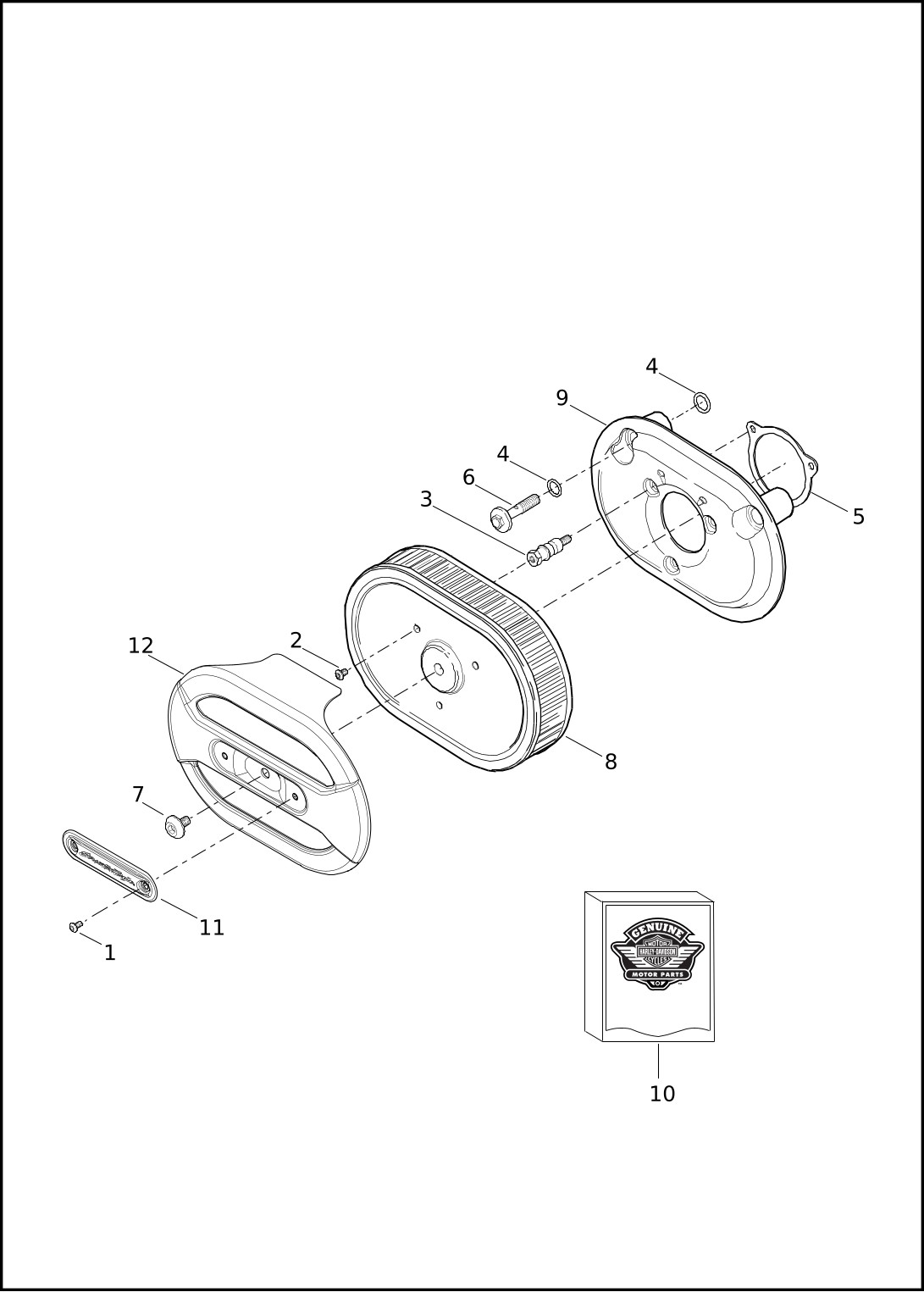

AIR CLEANER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLHTKSE |
| 2 | 3938 | SCREW (3) | FLHTKSE |
| 3 | 8250 | STUD, air cleaner (3) | FLHTKSE |
| 4 | 11292 | O-RING (4) | FLHTKSE |
| 5 | 29241-08 | GASKET | FLHTKSE |
| 6 | 29267-08A | BOLT, breather (2) | FLHTKSE |
| 7 | 29269-83A | SCREW, air cleaner | FLHTKSE |
| 8 | 29670-09 | ELEMENT, air filter | FLHTKSE |
| 9 | 29696-09 | BACKPLATE ASSEMBLY, air cleaner (gray granite) | FLHTKSE |
| 10 | 29762-09 | RAINSOCK | FLHTKSE |
| 11 | 14100699 | INSERT, air cleaner cover | FLHTKSE |
| 12 | 61300516 | COVER, air cleaner (chrome), w/ 3048 & label | FLHTKSE |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLHTKSE |
| 2 | 4751 | SCREW (4) | FLHTKSE |
| 3 | 10039 | CABLE STRAP (3) | FLHTKSE |
| 4 | 10177 | CABLE STRAP, tree mount | FLHTKSE |
| 5 | 6771A | WASHER (4) | FLHTKSE |
| 6 | 24009-06 | SPACER, rotor shell | FLHTKSE |
| 7 | 74120-08 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | FLHTKSE |
| 8 | 12700077 | BRACKET | FLHTKSE |
| 9 | 29900029 | STATOR ASSEMBLY, 3-phase, 53 AMP | FLHTKSE |
| 10 | 29900033 | ROTOR ASSEMBLY | FLHTKSE |
| 11 | 74700021 | VOLTAGE REGULATOR ASSEMBLY, 53 AMP | FLHTKSE |

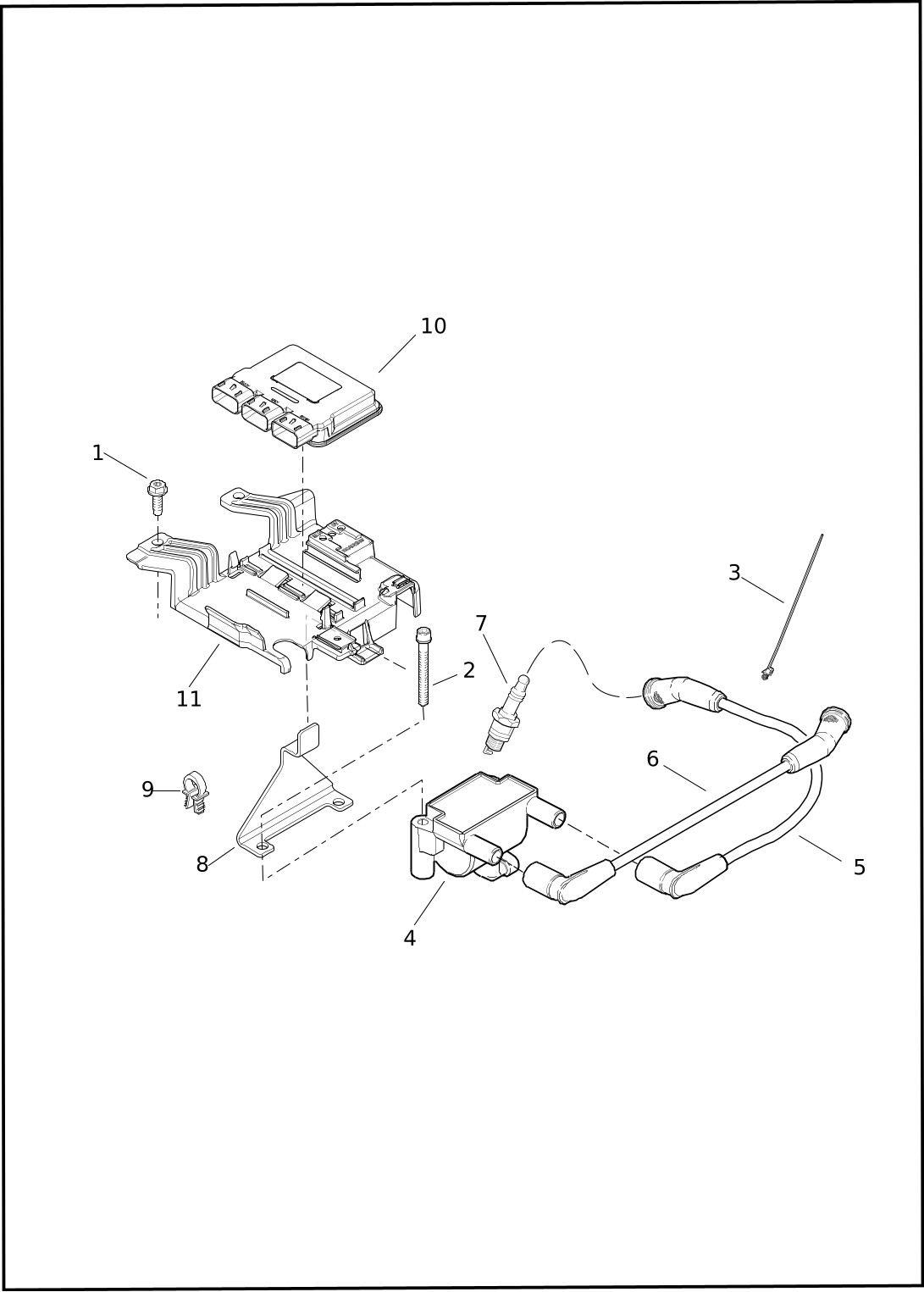

ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLHTKSE |
| 2 | 4826 | SCREW (2) | FLHTKSE |
| 3 | 10177 | CABLE STRAP, tree mount (3) | FLHTKSE |
| 4 | 31696-07A | IGNITION COIL | FLHTKSE |
| 5 | 32013-09A | SPARK PLUG CABLE, front cylinder, w/ 10177 | FLHTKSE |
| 6 | 32014-09A | SPARK PLUG CABLE, rear cylinder, w/ 10177 | FLHTKSE |
| 7 | 32362-04A | SPARK PLUG, 6R12 (2) | FLHTKSE |
| 8 | 66200-09 | BRACKET, battery hold down | FLHTKSE |
| 9 | 70681-09 | RETAINER, wire harness | FLHTKSE |
| 10 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | FLHTKSE |
| 11 | 69200174 | CADDY, electronic control module (ECM) | FLHTKSE |

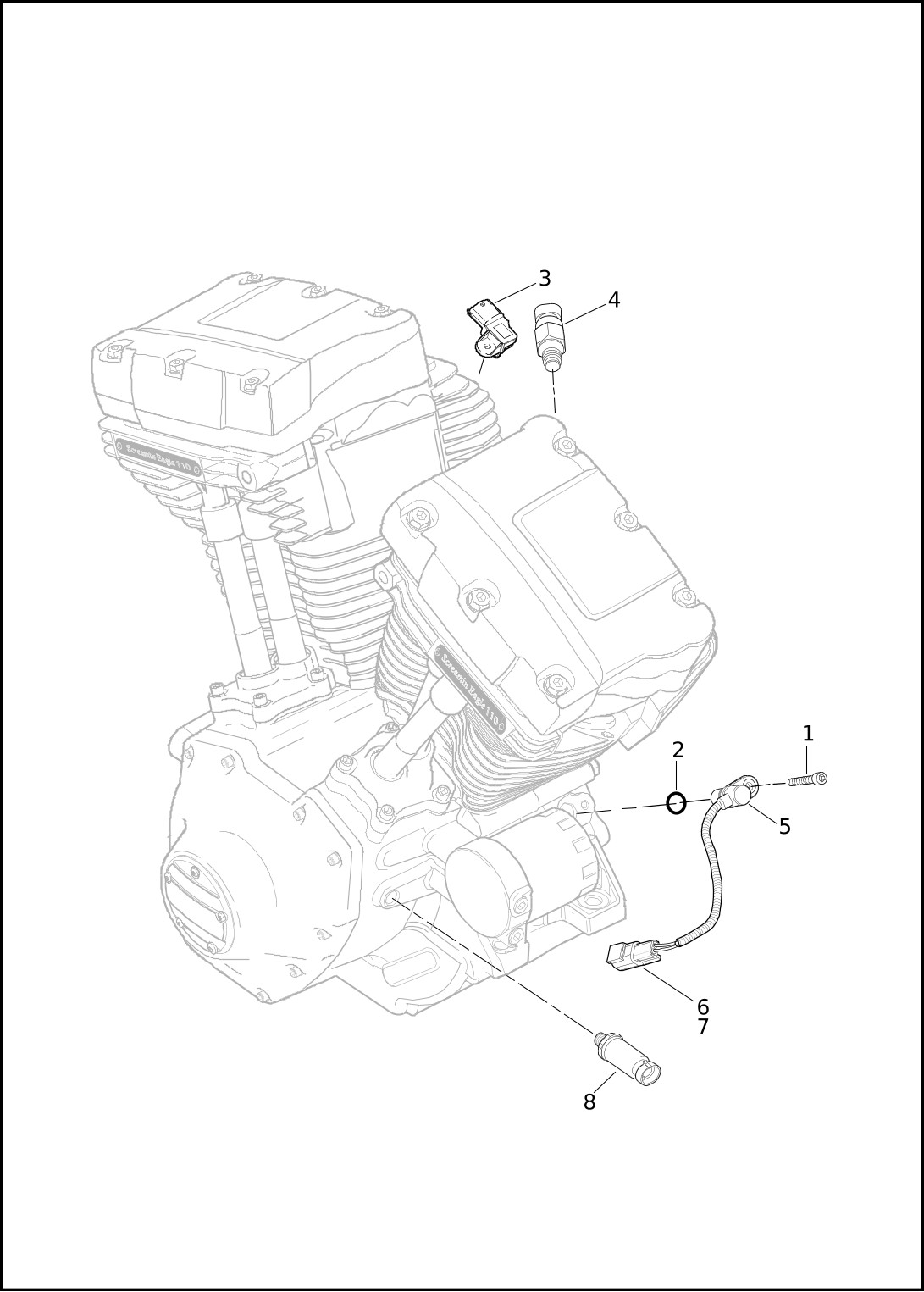

SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLHTKSE |
| 2 | 11289A | O-RING | FLHTKSE |
| 3 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTKSE |
| 4 | 32446-99 | SENSOR, engine temperature | FLHTKSE |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94 & 74194-98 | FLHTKSE |
| 6 | 72199-94 | CONNECTOR | FLHTKSE |
| 7 | 74194-98 | PIN TERMINAL (2) | FLHTKSE |
| 8 | 74438-99A | OIL PRESSURE SENDER | FLHTKSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW | FLHTKSE |
| 2 | 4419 | SCREW (2) | FLHTKSE |
| 3 | 7838 | NUT (2) | FLHTKSE |
| 4 | 27444-00Y | O-RING, starter-to-case | FLHTKSE |
| 5 | 31527-90 | BRACKET ASSEMBLY, starter cover | FLHTKSE |
| 6 | 31611-08 | COVER (chrome) | FLHTKSE |
| 7 | 31604-06 | SOLENOID REPAIR KIT | FLHTKSE |
| 8 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | FLHTKSE |
| 9 | 31633-07A | CLUTCH SUBASSEMBLY | FLHTKSE |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHTKSE |
| 2 | 856A | SCREW | FLHTKSE |
| 3 | 3275 | SCREW (2) | FLHTKSE |
| 4 | 4192 | SCREW (2) | FLHTKSE |
| 5 | 4196 | SCREW (2) | FLHTKSE |
| 6 | 5817 | SPACER | FLHTKSE |
| 7 | 5826 | SPACER, shifter cover | FLHTKSE |
| 8 | 6497HW | WASHER | FLHTKSE |
| 9 | 7041 | LOCKWASHER (2) | FLHTKSE |
| 10 | 7904 | ACORN NUT | FLHTKSE |
| 11 | 11150 | RING, retaining, external | FLHTKSE |
| 12 | 11389 | RING, shift cam retaining | FLHTKSE |
| 13 | 11575 | RING, shift cam retaining | FLHTKSE |
| 14 | 33389-07 | SPRING DETENT | FLHTKSE |
| 15 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLHTKSE |
| 16 | 33413-06A | SHIFTER CAM ASSEMBLY, w/ 11389, 11575 & bearing | FLHTKSE |
| 17 | 33709-82A | SHAFT | FLHTKSE |
| 18 | 33718-82B | LEVER, gearshift (chrome) | FLHTKSE |
| 19 | 33814-98A | SHIFTER LINKAGE KIT, w/ 4, 7, 10, 21, 22 & 23 | FLHTKSE |
| 20 | 33849-97 | LEVER, shifter rod | FLHTKSE |
| 21 | 33888-99 | ROD END, self-aligning (2) | FLHTKSE |
| 22 | 33889-99 | NUT, rod-end (2) | FLHTKSE |
| 23 | 33890-99A | COVER, shifter rod | FLHTKSE |
| 24 | 34064-00C | SPRING, shifter return | FLHTKSE |
| 25 | 33600060 | LEVER, shifter toe (short) (chrome) | FLHTKSE |
| 26 | 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (gray granite) | FLHTKSE |
| 27 | 34987-06 | SPRING, ratchet lever | FLHTKSE |
| 28 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | FLHTKSE |
| 29 | 35082-07 | CENTERING SCREW, shift lever | FLHTKSE |
| 30 | 35186-06 | SLEEVE | FLHTKSE |
| 31 | 35187-06 | FORK, shift 1 - 2 | FLHTKSE |
| 32 | 35210-06 | FORK, shift 3 - 4 | FLHTKSE |
| 33 | 35217-06 | FORK, shift 5 - 6 | FLHTKSE |
| 34 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHTKSE |
| 35 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLHTKSE |
| 36 | 35243-06 | SLEEVE | FLHTKSE |
| 37 | 35244-06 | SCREW, detent | FLHTKSE |
| 38 | 35249-06A | LOCK PLATE, shift cam | FLHTKSE |
| 39 | 35255-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 14, 16, 31, 32, 33, 34, 35, 36, 37, 38, 40, 7340, 35260-06A, input shaft, counter shaft (gray granite) | FLHTKSE |
| 40 | 35259-06 | SCREW, shift drum support (2) | FLHTKSE |
| 41 | 11000101 | OIL SEAL | FLHTKSE |
| 42 | 12400026 | SLEEVE (2) | FLHTKSE |
| 43 | 33600061 | LEVER, shifter heel (long) (chrome) | FLHTKSE |
| 44 | 33600056 | SHIFTER PEG, w/ 12400026 & screw (2) | FLHTKSE |
TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHTKSE |
| 2 | 3249 | SCREW (6) | FLHTKSE |
| 3 | 3300 | SCREW (2) | FLHTKSE |
| 4 | 4705 | SCREW (3) | FLHTKSE |
| 5 | 4718A | SCREW (4) | FLHTKSE |
| 6 | 4741A | SCREW (2) | FLHTKSE |
| 7 | 8963 | BEARING, needle | FLHTKSE |
| 8 | 8967 | BEARING | FLHTKSE |
| 9 | 8970A | BEARING (2) | FLHTKSE |
| 10 | 9701A | BUSHING | FLHTKSE |
| 11 | 11132A | O-RING, dipstick | FLHTKSE |
| 12 | 11161 | RETAINING RING | FLHTKSE |
| 13 | 12074 | SEAL | FLHTKSE |
| 14 | 16583-00A | BUSHING, dowel (2) | FLHTKSE |
| 15 | 35082-07 | CENTERING SCREW, shifter lever | FLHTKSE |
| 16 | 35087-99A | RETAINING RING (2) | FLHTKSE |
| 17 | 35186-06 | SLEEVE | FLHTKSE |
| 18 | 35256-08A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (gray granite) | FLHTKSE |
| 19 | 35607-06 | GASKET | FLHTKSE |
| 20 | 35654-06 | GASKET, bearing housing | FLHTKSE |
| 21 | 36805-06 | GASKET, cover | FLHTKSE |
| 22 | 37065-06 | DIPSTICK (chrome) | FLHTKSE |
| 23 | 11000101 | OIL SEAL | FLHTKSE |
| 24 | 44613-02 | BLEEDER SCREW | FLHTKSE |
| 25 | 11900035 | O-RING | FLHTKSE |
| 26 | 25700178 | INNER SIDE COVER | FLHTKSE |
| 27 | 25700179 | SIDE COVER, transmission (chrome) | FLHTKSE |
| 28 | 37200023 | SECONDARY CLUTCH ACTUATOR, w/ 44613-02, 11900035, 37200034 | FLHTKSE |
| 29 | 37200034 | CAP, bleeder screw | FLHTKSE |

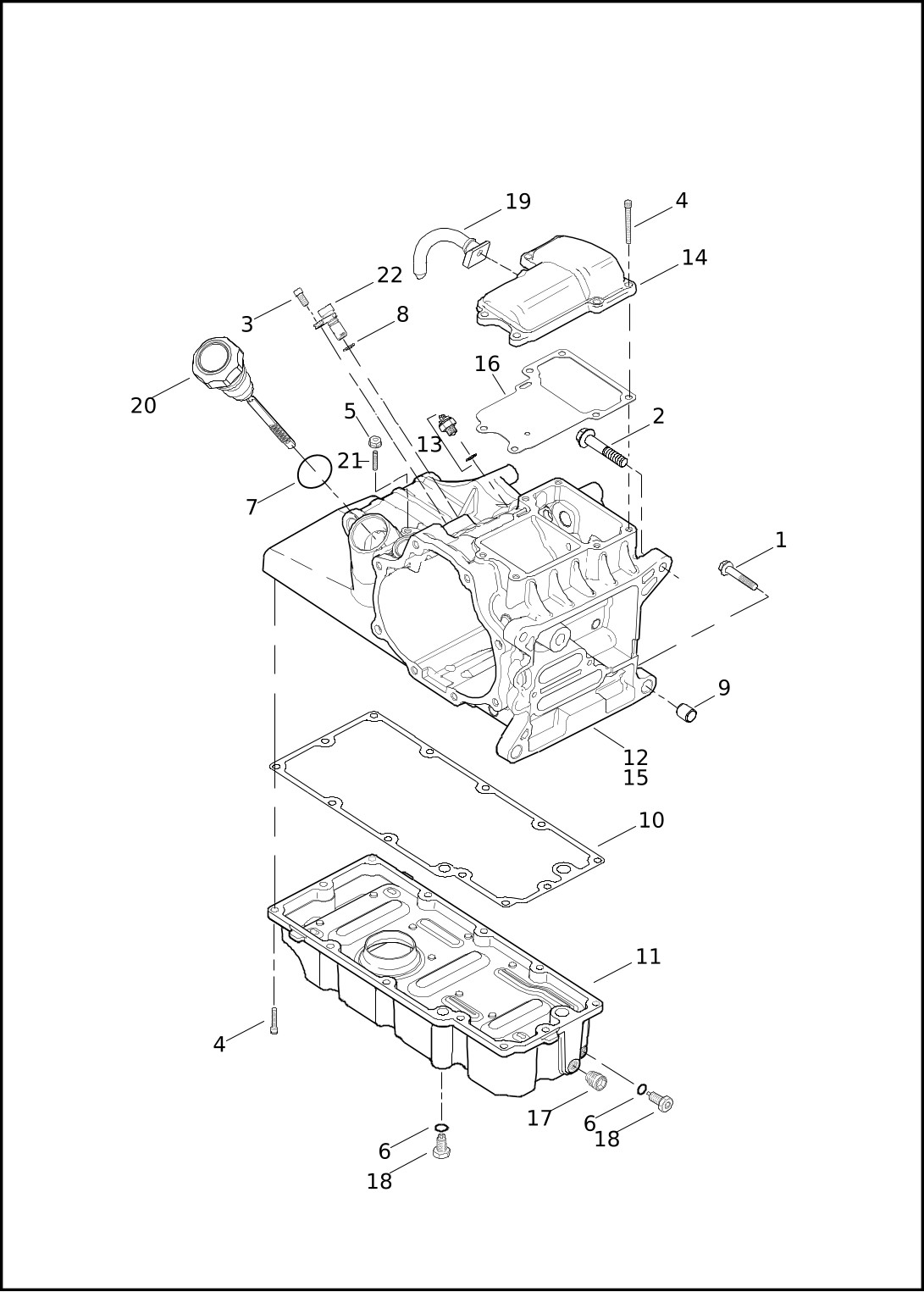

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHTKSE |
| 2 | 3983 | SCREW (2) | FLHTKSE |
| 3 | 4705 | SCREW | FLHTKSE |
| 4 | 4741A | SCREW (18) | FLHTKSE |
| 5 | 7792 | NUT | FLHTKSE |
| 6 | 11105 | O-RING (2) | FLHTKSE |
| 7 | 11120 | O-RING | FLHTKSE |
| 8 | 11289A | O-RING | FLHTKSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHTKSE |
| 10 | 26077-99A | GASKET, oil pan | FLHTKSE |
| 11 | 62489-99A | OIL PAN ASSEMBLY, w/ 45893-99 & 60328-98B (black) | FLHTKSE |
| 12 | 33203-14 | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (gray granite) | FLHTKSE |
| 13 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTKSE |
| 14 | 34469-06B | TRANSMISSION COVER, top (chrome) | FLHTKSE |
| 15 | 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (gray granite) | FLHTKSE |
| 16 | 34917-06 | GASKET, upper cover | FLHTKSE |
| 17 | 45893-99 | PIPE PLUG | FLHTKSE |
| 18 | 60328-98B | PLUG, magnetic, w/ 11105 (2) | FLHTKSE |
| 19 | 62372-09 | VENT HOSE, transmission | FLHTKSE |
| 20 | 62693-07A | DIPSTICK ASSEMBLY, w/ 11120 (chrome) | FLHTKSE |
| 21 | 66290-06 | STUD, ground | FLHTKSE |
| 22 | 74402-05B | SPEED SENSOR, w/ 11289A | FLHTKSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHTKSE |
| 2 | 7340 | NUT (2) | FLHTKSE |
| 3 | 8026K | BEARING, needle (4) | FLHTKSE |
| 4 | 8041 | BEARING, needle | FLHTKSE |
| 5 | 8042 | BEARING, needle (2) | FLHTKSE |
| 6 | 10991A | RETAINING RING (2) | FLHTKSE |
| 7 | 11061A | RETAINING RING | FLHTKSE |
| 8 | 11081A | RING, lock (3) | FLHTKSE |
| 9 | 11082 | SECURING SEGMENT (6) | FLHTKSE |
| 10 | 11201 | O-RING | FLHTKSE |
| 11 | 11207A | WASHER, internal spline | FLHTKSE |
| 12 | 11599A | SPACER, bearing | FLHTKSE |
| 13 | 12077 | OIL SEAL | FLHTKSE |
| 14 | 34091-08 | BEARING, inner race | FLHTKSE |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599A & 12077 | FLHTKSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHTKSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHTKSE |
| 18 | 35201-10 | GUIDE HUB, dog ring | FLHTKSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHTKSE |
| 20 | 35204-06 | DOG RING, pocketed | FLHTKSE |
| 21 | 35255-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 35256-08, shifter cam & forks (gray granite) | FLHTKSE |
| 22 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | FLHTKSE |
| 23 | 35470-10 | COUNTER SHAFT ASSEMBLY | FLHTKSE |
| 24 | 35801-10 | GEAR, fifth input | FLHTKSE |
| 25 | 35805-06A | GEAR, countershaft-first | FLHTKSE |
| 26 | 35807-06 | GEAR, countershaft-second | FLHTKSE |
| 27 | 35811-06 | GEAR, countershaft-third | FLHTKSE |
| 28 | 35814-06 | GEAR, countershaft-fourth | FLHTKSE |

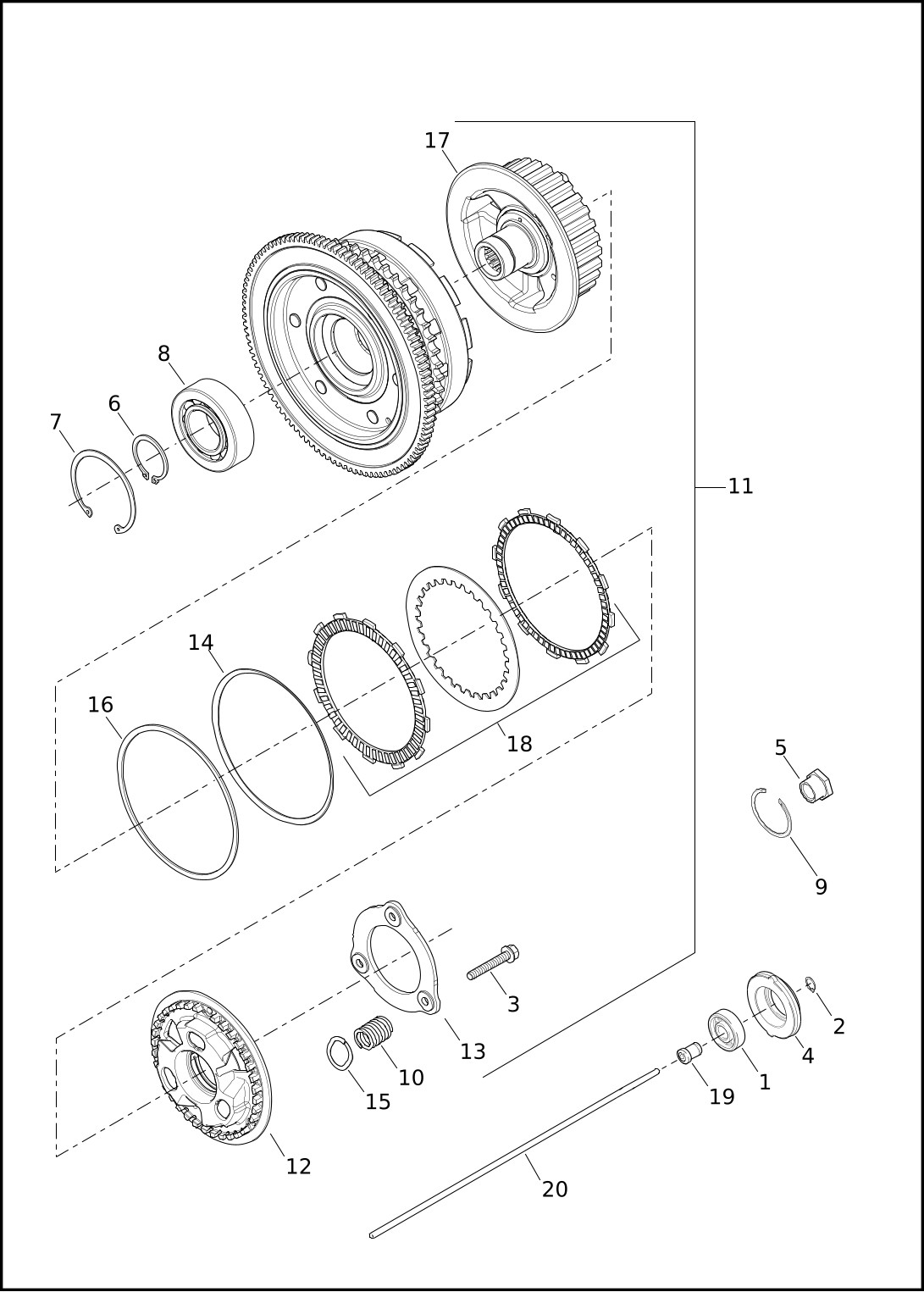

CLUTCH - ASSIST & SLIP
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLHTKSE |
| 2 | 11143 | RETAINING RING, external | FLHTKSE |
| 3 | 36706-01K | BOLT (3) | FLHTKSE |
| 4 | 36731-91 | PLATE, release, w/ 8885 | FLHTKSE |
| 5 | 37496-90A | NUT, mainshaft | FLHTKSE |
| 6 | 37904-90 | RING, retaining, external | FLHTKSE |
| 7 | 37905-00 | RING, retaining, internal | FLHTKSE |
| 8 | 37906-11 | BEARING, ball, double-row | FLHTKSE |
| 9 | 37909-90 | RING, retaining, internal | FLHTKSE |
| 10 | 11700002 | COIL SPRING (3) | FLHTKSE |
| 11 | 37000026 | CLUTCH ASSEMBLY, complete | FLHTKSE |
| 12 | 37000032 | PRESSURE PLATE, clutch | FLHTKSE |
| 13 | 37000033 | STOPPER PLATE | FLHTKSE |
| 14 | 37000034 | SPRING, damper | FLHTKSE |
| 15 | 37000035 | SEAT (3) | FLHTKSE |
| 16 | 37000036 | SEAT, damper-spring | FLHTKSE |
| 17 | 37000083 | HUB ASSEMBLY | FLHTKSE |
| 18 | 37000118 | CLUTCH DISKS KIT | FLHTKSE |
| 19 | 37000217 | PUSHROD, clutch release plate | FLHTKSE |
| 20 | 37000218 | ROD, clutch release | FLHTKSE |

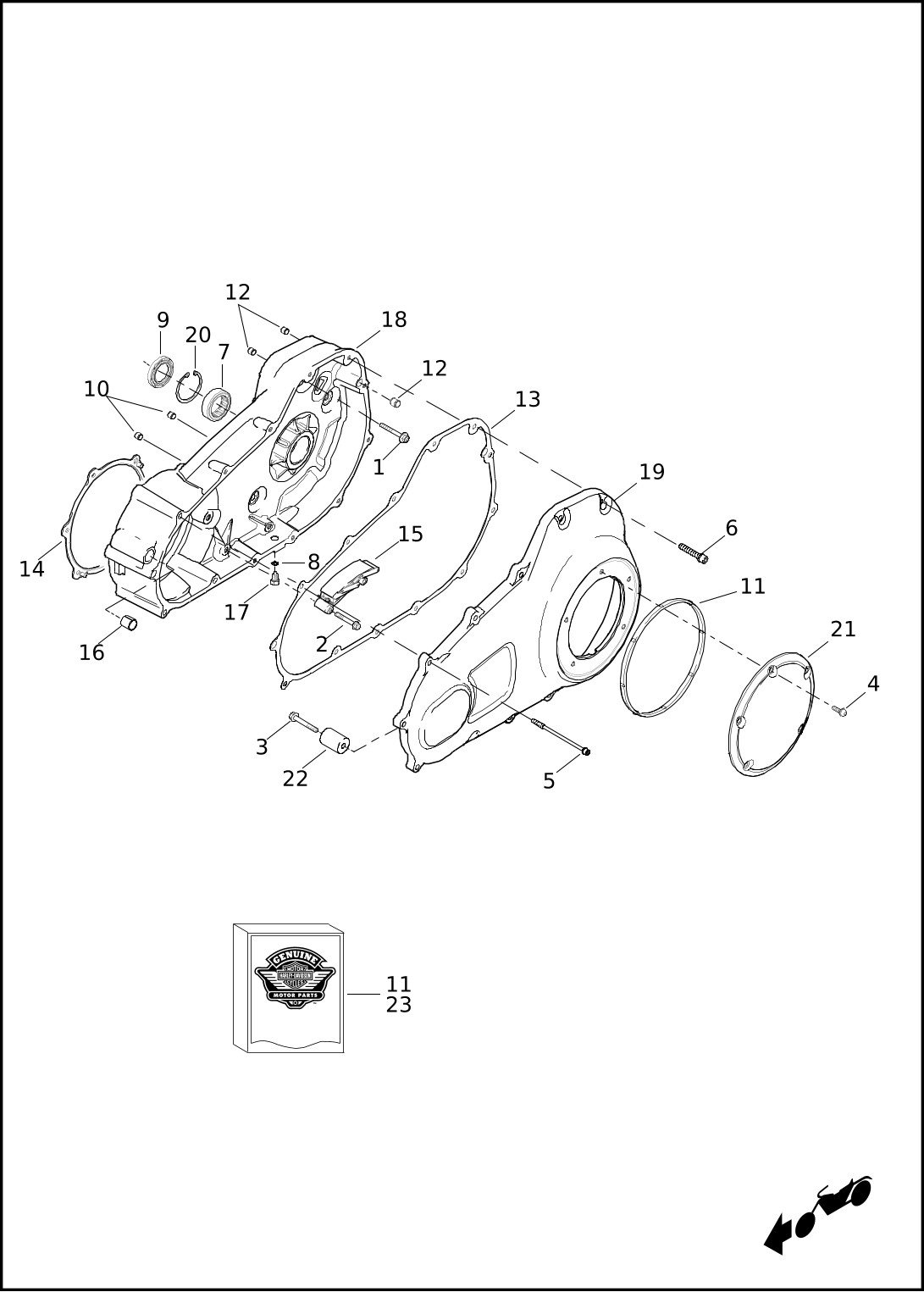

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHTKSE |
| 2 | 791A | SCREW (2) | FLHTKSE |
| 3 | 791A | SCREW (Japan) | FLHTKSE |
| 4 | 1062 | SCREW (5) | FLHTKSE |
| 5 | 1780 | SCREW (4) | FLHTKSE |
| 6 | 4813A | SCREW (9) | FLHTKSE |
| 7 | 9231 | BEARING | FLHTKSE |
| 8 | 11105 | O-RING | FLHTKSE |
| 9 | 12052A | SEAL | FLHTKSE |
| 10 | 16583-00A | BUSHING (2) | FLHTKSE |
| 11 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | FLHTKSE |
| 12 | 24754-75A | DOWEL BUSHING, starter (4) | FLHTKSE |
| 13 | 34901-07 | GASKET, primary cover | FLHTKSE |
| 14 | 34948-08 | GASKET, primary housing to case | FLHTKSE |
| 15 | 39929-06B | CHAIN TENSIONER ASSEMBLY | FLHTKSE |
| 16 | 42642-00A | BUSHING (2) | FLHTKSE |
| 17 | 60328-98B | PLUG, magnetic drain w/ 11105 | FLHTKSE |
| 18 | 60850-08A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (gray granite) | FLHTKSE |
| 19 | 60553-07A | COVER, primary (chrome) | FLHTKSE |
| 20 | 60678-85 | RETAINING RING | FLHTKSE |
| 21 | 60766-06 | COVER, clutch (chrome) | FLHTKSE |
| 22 | 60818-07 | SLEEVE, dampener (Japan) | FLHTKSE |
| 23 | 25700226 | GASKET KIT, inner primary | FLHTKSE |

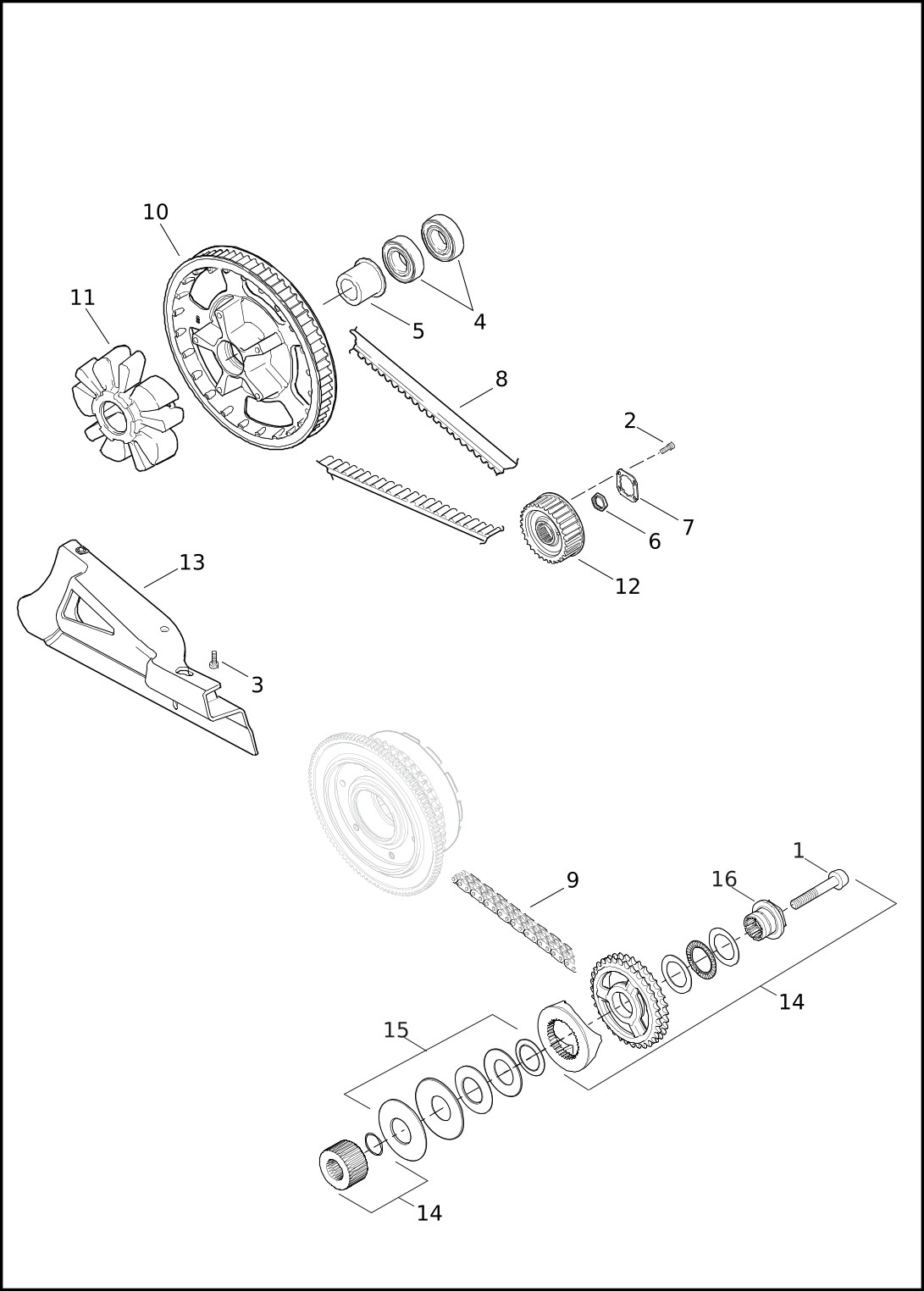

BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500031 | SCREW | FLHTKSE |
| 2 | 3594 | SCREW (2) | FLHTKSE |
| 3 | 3892 | SCREW (3) | FLHTKSE |
| 4 | 9276A | BALL BEARING (2) | FLHTKSE |
| 5 | 11843 | SPACER, compensator | FLHTKSE |
| 6 | 35241-06 | NUT, sprocket | FLHTKSE |
| 7 | 35242-06 | LOCKPLATE | FLHTKSE |
| 8 | 40024-09 | REAR BELT, 140 T, 1 inch | FLHTKSE |
| 9 | 40037-07 | PRIMARY CHAIN | FLHTKSE |
| 10 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T, w/ 9276A & 11843 (black) | FLHTKSE |
| 11 | 40278-09 | ISOLATOR, rubber | FLHTKSE |
| 12 | 40659-06 | SPROCKET, transmission, 32 T | FLHTKSE |
| 13 | 60386-09 | DEBRIS DEFLECTOR | FLHTKSE |
| 14 | 36500034A | COMPENSATOR ASSEMBLY, w/ 10500031 | FLHTKSE |
| 15 | 83936-09A | SPRING PACK | FLHTKSE |
| 16 | 40100041 | RETAINER, sprocket | FLHTKSE |

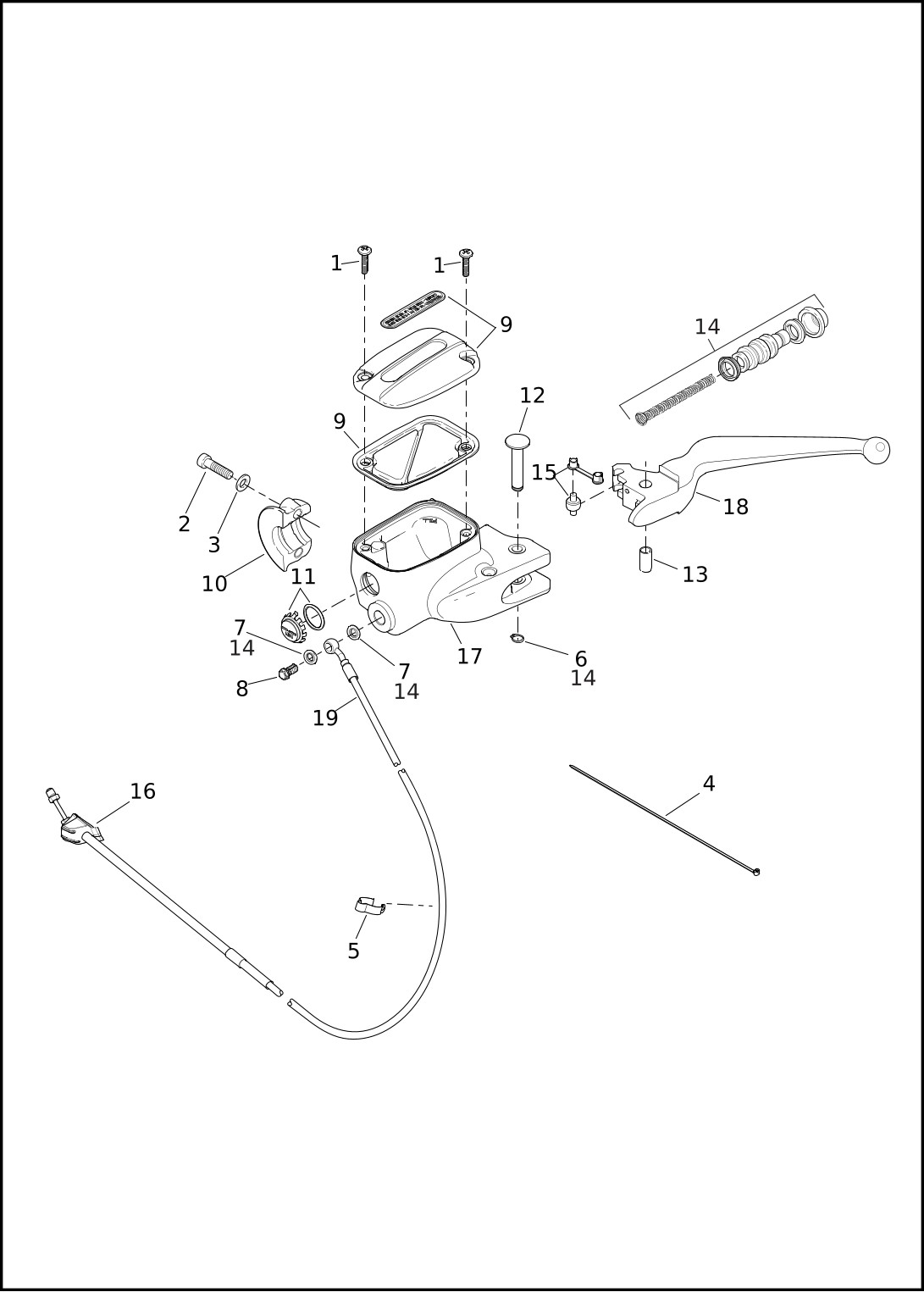

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3089 | SCREW (2) | FLHTKSE |
| 2 | 4293 | SCREW (2) | FLHTKSE |
| 3 | 6099 | WASHER (2) | FLHTKSE |
| 4 | 10039 | CABLE STRAP (3) | FLHTKSE |
| 5 | 10264 | CLIP, clutch line (2) | FLHTKSE |
| 6 | 11143 | RING, retaining | FLHTKSE |
| 7 | 41751-06A | GASKET, banjo-bolt (2) | FLHTKSE |
| 8 | 42010-06A | BOLT, banjo | FLHTKSE |
| 9 | 36700094 | MASTER CYLINDER COVER KIT, w/ 3089 & gasket | FLHTKSE |
| 10 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHTKSE |
| 11 | 42145-06 | SIGHT GLASS KIT | FLHTKSE |
| 12 | 45032-82 | PIVOT PIN | FLHTKSE |
| 13 | 45423-92 | BUSHING, hand lever | FLHTKSE |
| 14 | 37200096 | REPAIR KIT, master cylinder, w/ 11143 & 41751-06A | FLHTKSE |
| 15 | 46246-01 | KIT, bushing & roller | FLHTKSE |
| 16 | 12100028 | GROMMET | FLHTKSE |
| 17 | 36700048B | MASTER CYLINDER ASSEMBLY, clutch (chrome), w/ 9, 11, 12, 14 & 18 | FLHTKSE |
| 18 | 36700050 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (chrome) | FLHTKSE |
| 19 | 37200030 | LINE ASSEMBLY, hydraulic-clutch, w/ 12100028 | FLHTKSE |

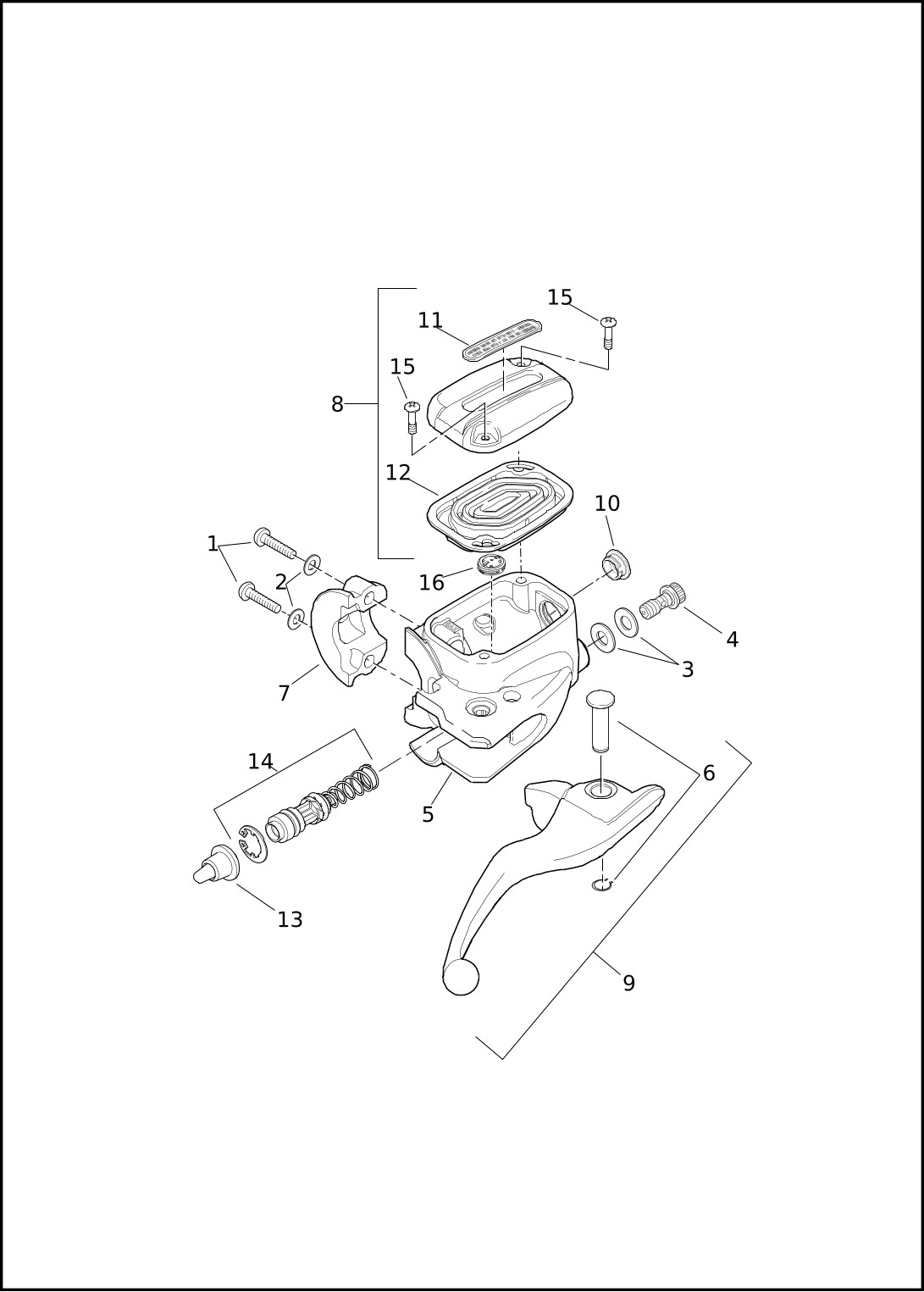

BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTKSE |
| 2 | 6099 | WASHER (2) | FLHTKSE |
| 3 | 41751-06A | GASKET (2) | FLHTKSE |
| 4 | 42010-06A | BOLT, banjo, brakeline | FLHTKSE |
| 5 | 42102-08D | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14, 15 & 16 | FLHTKSE |
| 6 | 42105-06A | PIVOT PIN, w/ retaining ring | FLHTKSE |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHTKSE |
| 8 | 42123-08 | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06B & 42882-06 | FLHTKSE |
| 9 | 42271-06A | BRAKE LEVER ASSEMBLY, front, w/ 42105-06A | FLHTKSE |
| 10 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHTKSE |
| 11 | 42856-06 | DECAL, reservoir cover | FLHTKSE |
| 12 | 42857-06B | GASKET, reservoir cover | FLHTKSE |
| 13 | 42861-06B | PUSHROD, master cylinder | FLHTKSE |
| 14 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHTKSE |
| 15 | 42882-06 | SCREW (2) | FLHTKSE |
| 16 | 41700367 | BUTTON, anti-bubble | FLHTKSE |

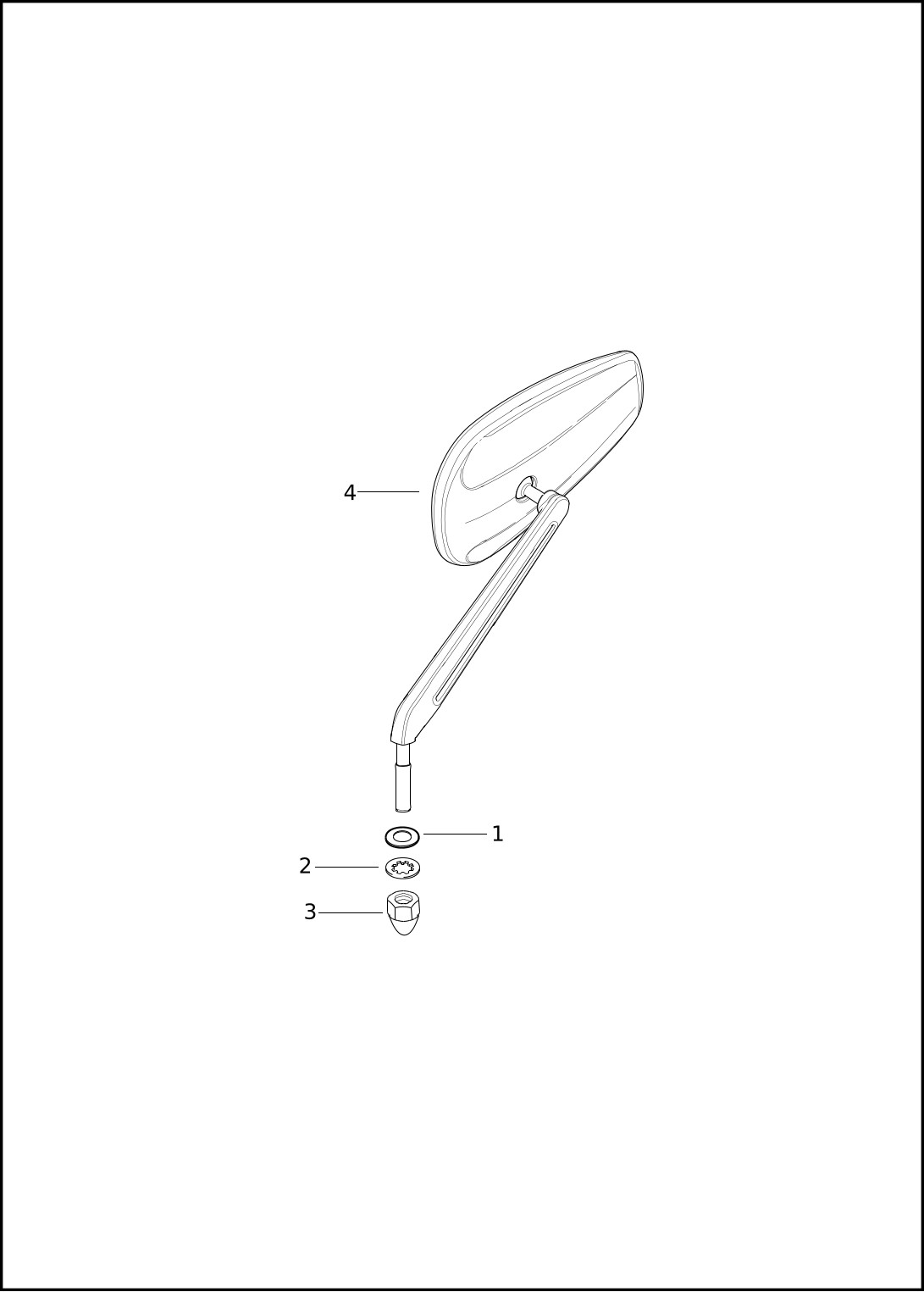

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLHTKSE |
| 2 | 7155 | LOCKWASHER (2) | FLHTKSE |
| 3 | 7331 | ACORN NUT (2) | FLHTKSE |
| 4 | 92448-11 | MIRROR, right | FLHTKSE |
| 92447-11 | MIRROR, left | FLHTKSE |

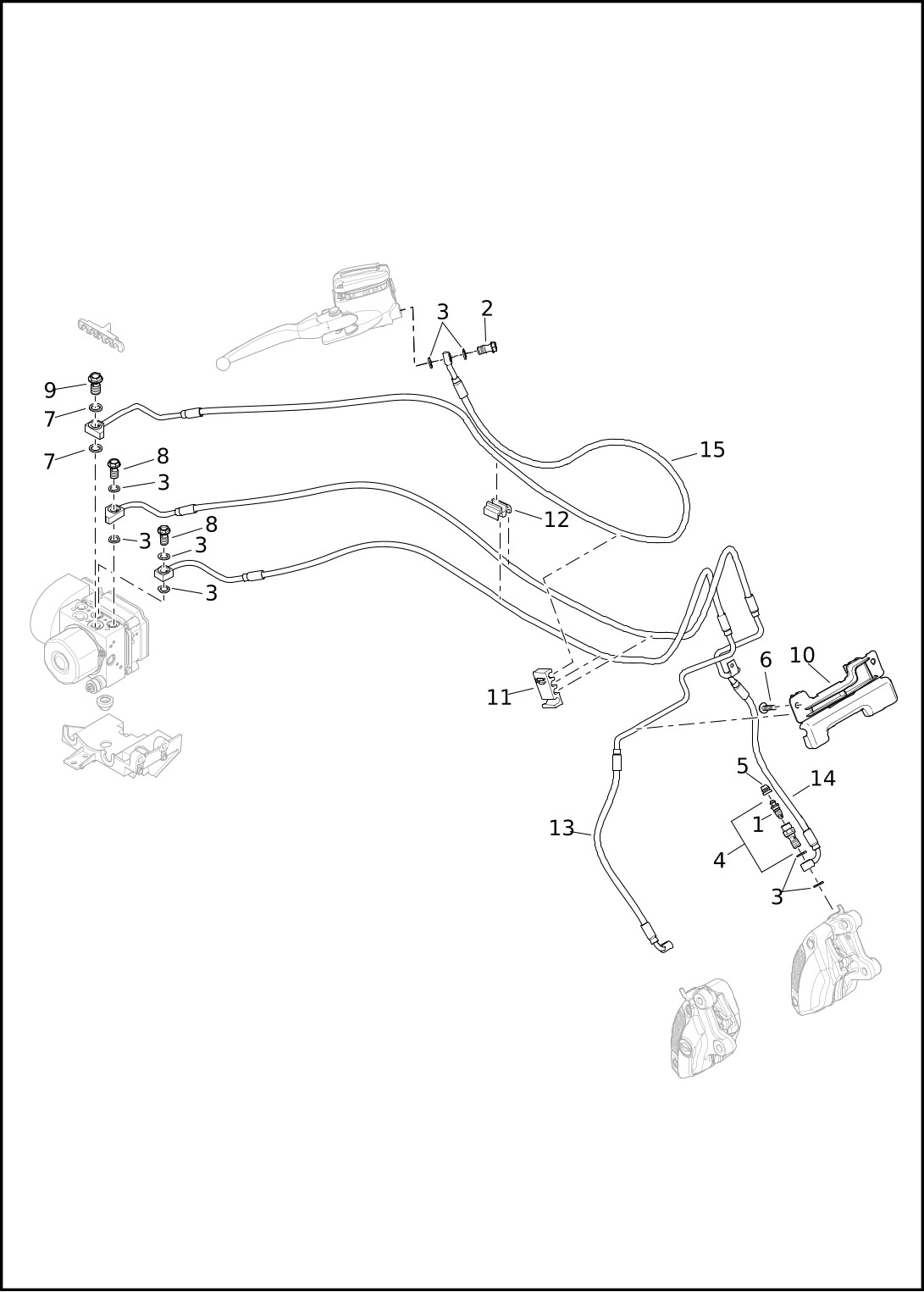

BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHTKSE |
| 2 | 41750-06B | BOLT, BANJO, brake line | FLHTKSE |
| 3 | 41751-06A | GASKET (10) | FLHTKSE |
| 4 | 41783-08 | BOLT, BANJO, bleeder assembly, w/ 4890 (2) | FLHTKSE |
| 5 | 42853-06 | CAP, bleeder screw (2) | FLHTKSE |
| 6 | 10200223 | SCREW (2) | FLHTKSE |
| 7 | 10600007 | GASKET (2) | FLHTKSE |
| 8 | 11600001 | BOLT, BANJO, brake line (2) | FLHTKSE |
| 9 | 11600009 | BOLT, BANJO, brake line | FLHTKSE |
| 10 | 41600029 | BRACKET, brakeline, front | FLHTKSE |
| 11 | 41600031 | BRACKET, brake line | FLHTKSE |
| 12 | 41600032 | BRACKET, brake line | FLHTKSE |
| 13 | 41800206 | BRAKE LINE, front, right, ABS | FLHTKSE |
| 14 | 41800205 | BRAKE LINE, front, left, ABS | FLHTKSE |
| 15 | 41800207 | BRAKE LINE, front, upper, ABS | FLHTKSE |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHTKSE |
| 2 | 2479 | SCREW (2) | FLHTKSE |
| 3 | 3340 | SCREW | FLHTKSE |
| 4 | 3563 | SCREW | FLHTKSE |
| 5 | 6220W | WASHER | FLHTKSE |
| 6 | 6421 | WASHER | FLHTKSE |
| 7 | 6416 | WASHER | FLHTKSE |
| 8 | 7825 | LOCKNUT | FLHTKSE |
| 9 | 9907 | WIRE TERMINAL | FLHTKSE |
| 10 | 10065 | CABLE STRAP | FLHTKSE |
| 11 | 10076 | CLAMP | FLHTKSE |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLHTKSE |
| 13 | 12102 | DUST BOOT | FLHTKSE |
| 14 | 41750-06B | BOLT, BANJO, brakeline | FLHTKSE |
| 15 | 41751-06A | GASKET (2) | FLHTKSE |
| 16 | 42460-80B | CLEVIS PIN | FLHTKSE |
| 17 | 42854-06 | KIT, SIGHT GLASS | FLHTKSE |
| 18 | 42856-06 | DECAL, reservoir cover | FLHTKSE |
| 19 | 42882-06 | SCREW (2) | FLHTKSE |
| 20 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHTKSE |
| 21 | 42932-08A | REBUILD KIT, master cylinder | FLHTKSE |
| 22 | 42934-08 | SPRING, pedal return | FLHTKSE |
| 23 | 46463-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | FLHTKSE |
| 24 | 72023-51E | KIT SWITCH, rear stop lamp, w/ 9907 | FLHTKSE |
| 25 | 10600007 | GASKET, ABS (2) | FLHTKSE |
| 26 | 10800028 | TUBE CLIP, lower | FLHTKSE |
| 27 | 11000050 | BUSHING, brake lever (2) | FLHTKSE |
| 28 | 11600009 | BOLT, BANJO, brake line, ABS | FLHTKSE |
| 29 | 11900021 | O-RING (2) | FLHTKSE |
| 30 | 41600091 | TUBE CLIP, upper | FLHTKSE |
| 31 | 41700072 | MASTER CYLINDER ASSEMBLY, w/ 12, 13, 17, 18, 19, 20, 21, 22, 23 & 32 (chrome) | FLHTKSE |
| 32 | 41700195 | PUSHROD KIT, master cylinder | FLHTKSE |
| 33 | 41800012 | BRAKE LINE, right-rear, master cylinder to ABS UNIT, ABS, w/ 10, 11, 26 & 30 | FLHTKSE |
| 34 | 50600134 | BRAKE PEDAL INSERT | FLHTKSE |
| 35 | 50600135 | RUBBER INSERT | FLHTKSE |
| 36 | 50600142 | LEVER ASSEMBLY, foot-brake, w/ 42644-00, 11000050 & bushing | FLHTKSE |
| 37 | 42644-00 | BUSHING, brake lever | FLHTKSE |

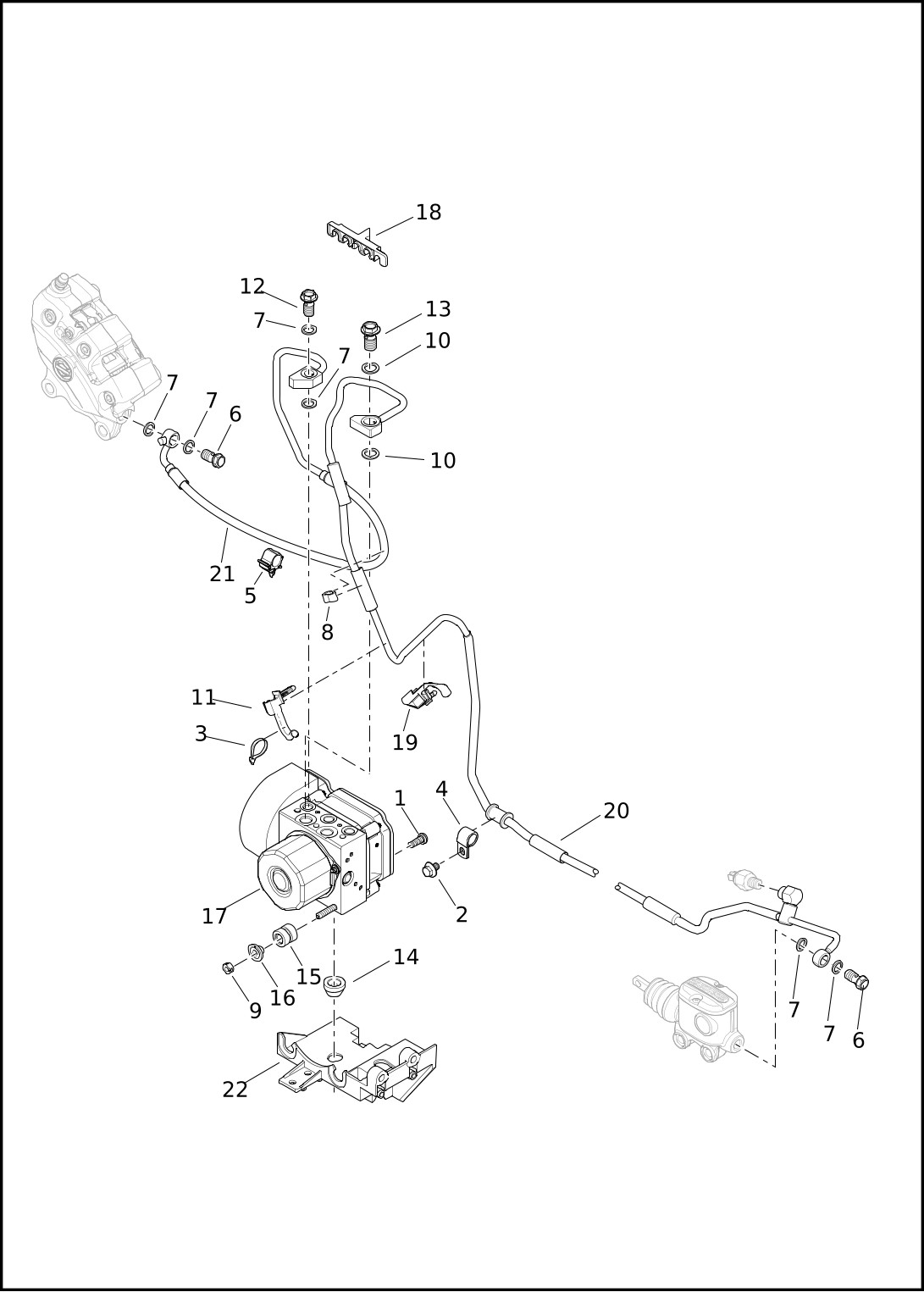

BRAKE LINES & MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1062 | SCREW | FLHTKSE |
| 2 | 3563 | SCREW | FLHTKSE |
| 3 | 10065 | CABLE STRAP | FLHTKSE |
| 4 | 10076 | CLAMP | FLHTKSE |
| 5 | 10340A | CLIP, brake hose (2) | FLHTKSE |
| 6 | 41750-06B | BOLT, BANJO, brake line, ABS (2) | FLHTKSE |
| 7 | 41751-06A | GASKET (6) | FLHTKSE |
| 8 | 70631-08 | CLIP, conduit | FLHTKSE |
| 9 | 10100049 | LOCKNUT (2) | FLHTKSE |
| 10 | 10600007 | GASKET (2) | FLHTKSE |
| 11 | 10800028 | TUBE CLIP, lower | FLHTKSE |
| 12 | 11600001 | BOLT, BANJO, brake line | FLHTKSE |
| 13 | 11600009 | BOLT, BANJO, brake line | FLHTKSE |
| 14 | 12100007 | GROMMET, ABS mounting | FLHTKSE |
| 15 | 12100060 | DAMPER, rubber (2) | FLHTKSE |
| 16 | 12400077 | SLEEVE, guide (2) | FLHTKSE |
| 17 | 41100013 | CONTROL UNIT, ABS, w/ 10100049, 12100060 & 12400077 | FLHTKSE |
| 18 | 41600078 | BRACKET, ABS brake line alignment | FLHTKSE |
| 19 | 41600091 | TUBE CLIP, upper | FLHTKSE |
| 20 | 41800012 | BRAKE LINE, ABS module to master cylinder, w/ 10065, 10076, 10800028 & 41600091 | FLHTKSE |
| 21 | 41800013 | BRAKE LINE, ABS module to caliper | FLHTKSE |
| 22 | 69200231 | CADDY, ABS module | FLHTKSE |

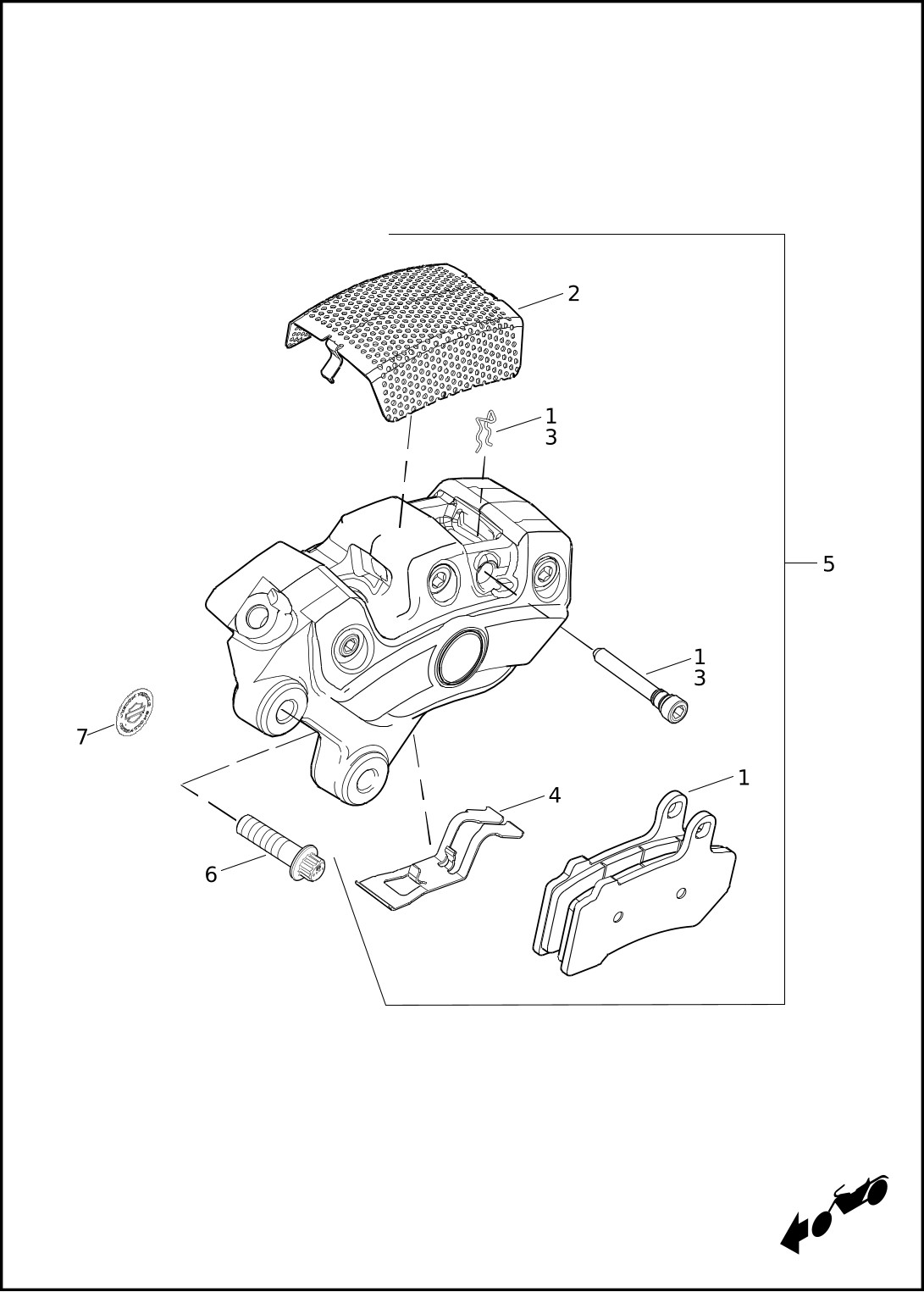

BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHTKSE |
| 2 | 42054-05 | COVER, caliper (chrome) (2) | FLHTKSE |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHTKSE |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHTKSE |
| 5 | 42938-08 | CALIPER ASSEMBLY, left (silver) | FLHTKSE |
| 42939-08 | CALIPER ASSEMBLY, right (silver) | FLHTKSE | |
| 6 | 44160-00 | BOLT, caliper mounting (4) | FLHTKSE |
| 7 | 44935-06 | MEDALLION, brake caliper (2) **RESTRICTED SALES PART** | FLHTKSE |

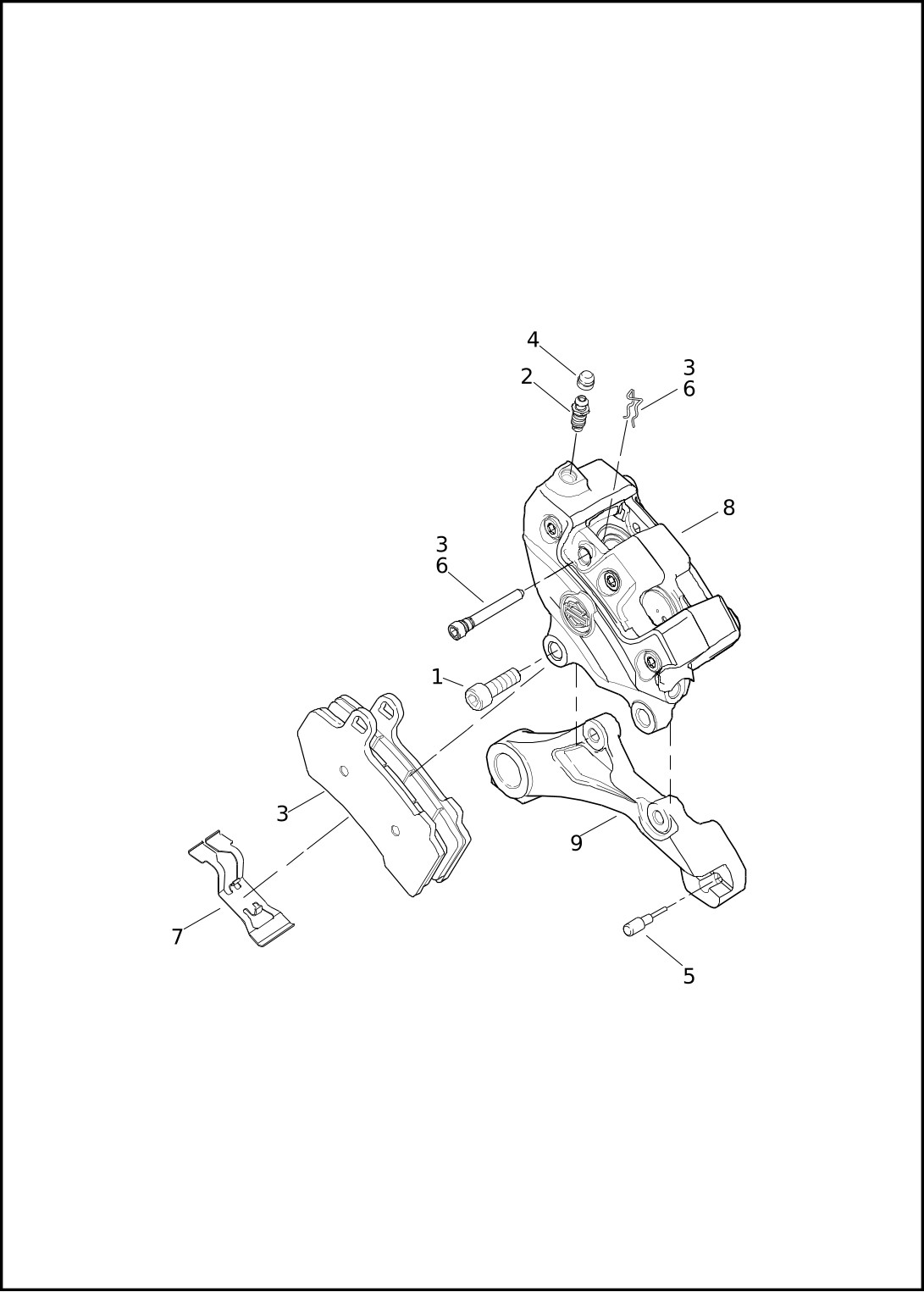

BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHTKSE |
| 2 | 4890 | SCREW, bleeder | FLHTKSE |
| 3 | 41852-08B | PAD & PIN KIT | FLHTKSE |
| 4 | 42853-06 | CAP, bleeder screw | FLHTKSE |
| 5 | 42863-06 | BUMPER | FLHTKSE |
| 6 | 42865-06B | PAD PIN KIT | FLHTKSE |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHTKSE |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, w/ 4890, 41852-08B, 42853-06, 42865-06B & 42867-06A (black) | FLHTKSE |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHTKSE |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SCREW, set (2) | FLHTKSE |
| 2 | 3762M | BOLT (14) | FLHTKSE |
| 3 | 6594 | WASHER | FLHTKSE |
| 4 | 6966M | WASHER (14) | FLHTKSE |
| 5 | 7813A | NUT | FLHTKSE |
| 6 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTKSE |
| 7 | 9276A | BALL BEARING | FLHTKSE |
| 8 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHTKSE |
| 9 | 41547-07A | AXLE | FLHTKSE |
| 10 | 41900-08 | SLEEVE, bearing spacer | FLHTKSE |
| 11 | 43109-09A | TIRE | FLHTKSE |
| 12 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) (2) | FLHTKSE |
| 13 | 44160-00 | BOLT (2) | FLHTKSE |
| 14 | 44583-08 | SPACER | FLHTKSE |
| 15 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHTKSE |
| 16 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHTKSE |
| 17 | 72607-08 | HOUSING, pin, 2-way | FLHTKSE |
| 18 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTKSE |
| 19 | 72639-10 | SECONDARY LOCK, socket, 2-way | FLHTKSE |
| 20 | 10400022 | NUT | FLHTKSE |
| 21 | 32700015 | SENSOR, wheel speed, ABS, w/ 72607-08, 72608-08 & 72639-10 | FLHTKSE |
| 22 | 41300019 | BRAKE DISC, front (2) | FLHTKSE |
| 23 | 42300006 | WEIGHT, 1/2 oz., cast wheels (chrome) (6) | FLHTKSE |
| 24 | 42300046 | VALVE STEM | FLHTKSE |
| 25 | 42300049 | CAP | FLHTKSE |
| 26 | 43300388 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHTKSE |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHTKSE |
| 2 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTKSE |
| 3 | 9276A | BALL BEARING (3) | FLHTKSE |
| 4 | 10147 | CLIP, connector | FLHTKSE |
| 5 | 11843 | SPACER, compensator | FLHTKSE |
| 6 | 11848 | SPACER | FLHTKSE |
| 7 | 40615-08 | SENSOR, wheel speed, ABS, w/ 4, 14, 15 & 16 | FLHTKSE |
| 8 | 41229-08 | SPRING CLIP | FLHTKSE |
| 9 | 41349-07 | SLEEVE, bearing spacer | FLHTKSE |
| 10 | 41810-08B | BRAKE DISC | FLHTKSE |
| 11 | 41819-02 | AXLE CAM | FLHTKSE |
| 12 | 43200027 | TIRE | FLHTKSE |
| 13 | 43567-92 | SCREW (5) | FLHTKSE |
| 14 | 72607-08 | HOUSING, 2 way pin | FLHTKSE |
| 15 | 72608-08 | TERMINAL PIN, 16-20 AWG (2) | FLHTKSE |
| 16 | 72639-10 | SECONDARY LOCK, 2-way (black) | FLHTKSE |
| 17 | 10400022 | NUT | FLHTKSE |
| 18 | 40900332 | WHEEL, cast, w/o bearings & sleeve (chrome) | FLHTKSE |
| 19 | 42300006 | WEIGHT, 1/2 oz. cast wheels (chrome) | FLHTKSE |
| 20 | 42300046 | VALVE STEM | FLHTKSE |
| 21 | 42300049 | CAP | FLHTKSE |
| 22 | 43000002 | REAR AXLE | FLHTKSE |

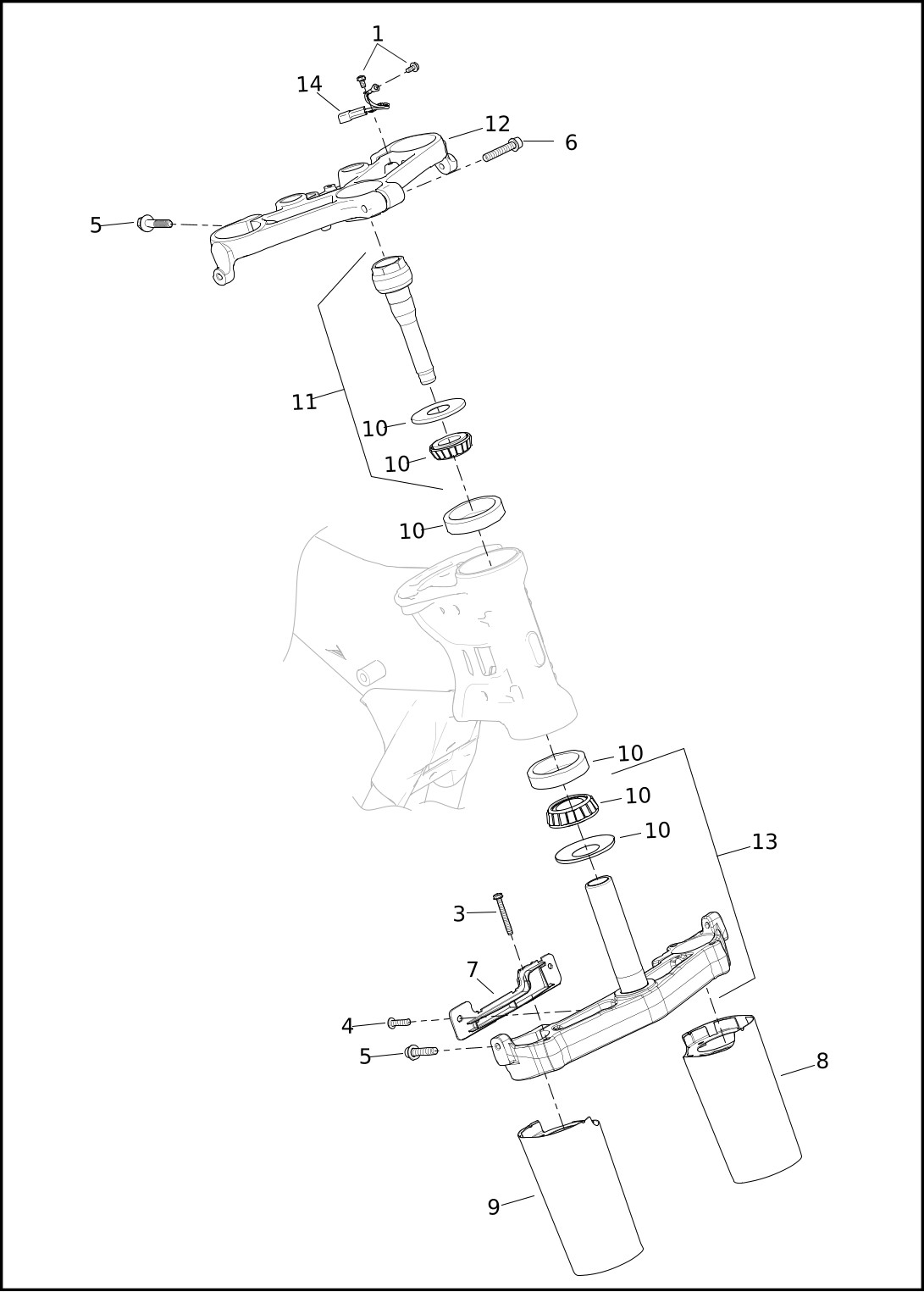

FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHTKSE |
| 3 | 10200042 | SCREW (4) | FLHTKSE |
| 4 | 10200223 | SCREW (2) | FLHTKSE |
| 5 | 10500022 | SCREW (6) | FLHTKSE |
| 6 | 10500036 | SCREW | FLHTKSE |
| 7 | 41600029 | BRACKET, brakeline, front | FLHTKSE |
| 8 | 45600018 | COVER ASSEMBLY, fork tube, left | FLHTKSE |
| 9 | 45600017 | COVER ASSEMBLY, fork tube, right | FLHTKSE |
| 10 | 45700009 | BEARING KIT, steering head, w/ bearing cups, bearing cones & dirt guards | FLHTKSE |
| 11 | 45700020A | STEM ASSEMBLY, upper steering, w/ bearing cone & dirt guard | FLHTKSE |
| 12 | 45900024 | BRACKET, upper fork stem | FLHTKSE |
| 13 | 45900091A | BRACKET ASSEMBLY, lower fork, w/ bearing cone & dirt guard | FLHTKSE |
| 14 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHTKSE |

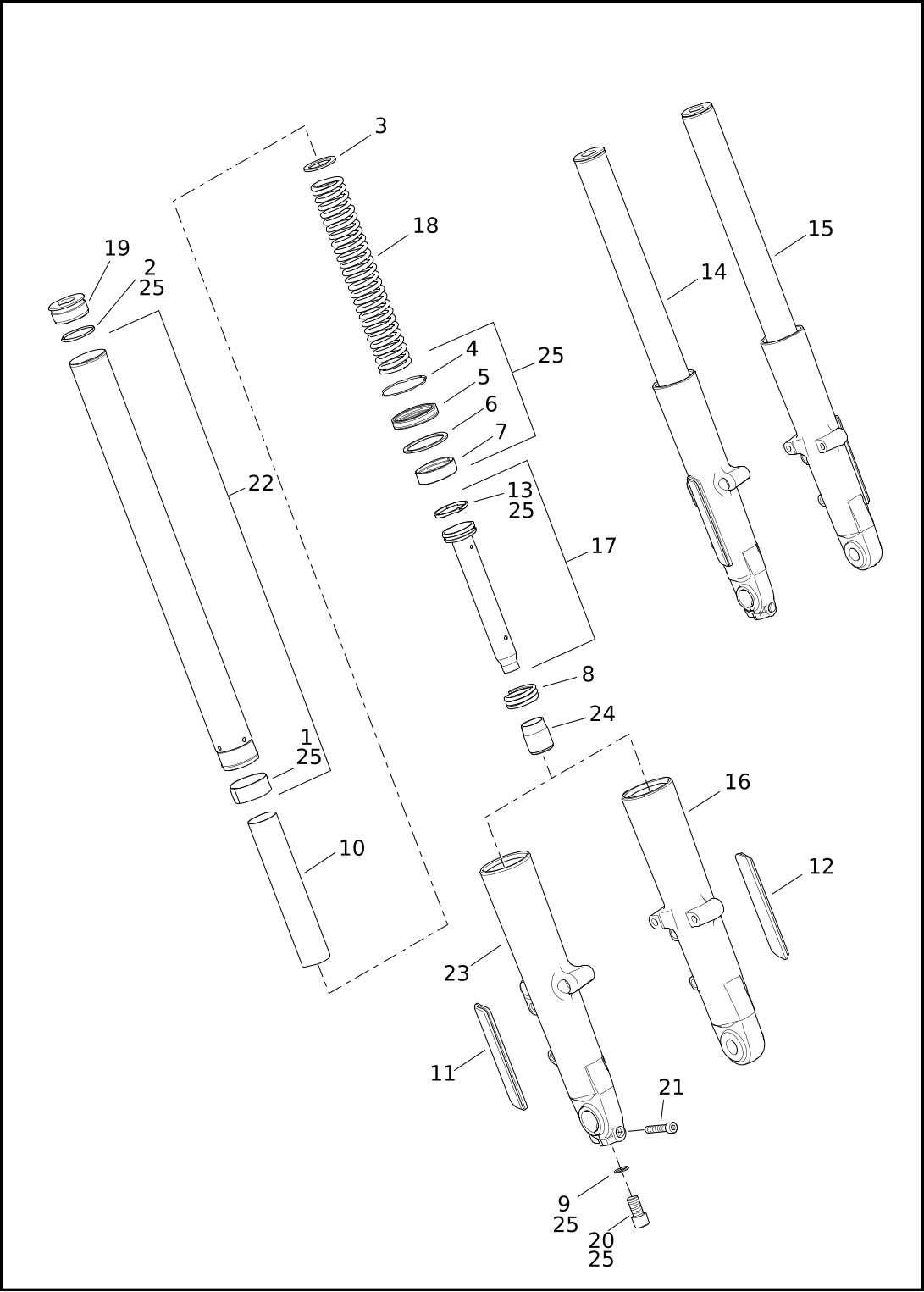

FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 46080-01 | BUSHING, slider (2) | FLHTKSE |
| 2 | 46508-01 | O-RING (2) | FLHTKSE |
| 3 | 46509-01 | WASHER (2) | FLHTKSE |
| 4 | 46513-01 | RING, stopper (2) | FLHTKSE |
| 5 | 46514-01A | OIL SEAL (2) | FLHTKSE |
| 6 | 46515-01 | SPACER, seal (2) | FLHTKSE |
| 7 | 46516-01 | BUSHING GUIDE (2) | FLHTKSE |
| 8 | 46517-01 | SPRING, rebound (2) | FLHTKSE |
| 9 | 46615-06 | PACKING SEAL (2) | FLHTKSE |
| 10 | 46510-07 | COLLAR, spring (2) | FLHTKSE |
| 11 | 59481-00 | REFLECTOR (right) (amber) | FLHTKSE |
| 12 | 59482-00 | REFLECTOR (left) (amber) | FLHTKSE |
| 13 | 22000031 | PISTON RING (2) | FLHTKSE |
| 14 | 45400043 | FORK ASSEMBLY, complete (right) | FLHTKSE |
| 15 | 45400044 | FORK ASSEMBLY, complete (left) | FLHTKSE |
| 16 | 45500174 | SLIDER, fork (left) | FLHTKSE |
| 17 | 45500114 | DAMPER TUBE, w/ 22000031 (2) | FLHTKSE |
| 18 | 45500116 | SPRING, fork (2) | FLHTKSE |
| 19 | 45500117 | BOLT, fork (2) | FLHTKSE |
| 20 | 45500118 | SCREW (2) | FLHTKSE |
| 21 | 45500132 | SCREW (right) | FLHTKSE |
| 22 | 45500113 | FORK PIPE ASSEMBLY, w/ 46080-01 (2) | FLHTKSE |
| 23 | 45500173 | SLIDER, fork (right) | FLHTKSE |
| 24 | 45500251 | OIL LOCK PIECE (2) | FLHTKSE |
| 25 | 91700025A | FORK REBUILD KIT, w/ 1, 2, 4, 5, 6, 7, 9, 13 & 20 (2) | FLHTKSE |

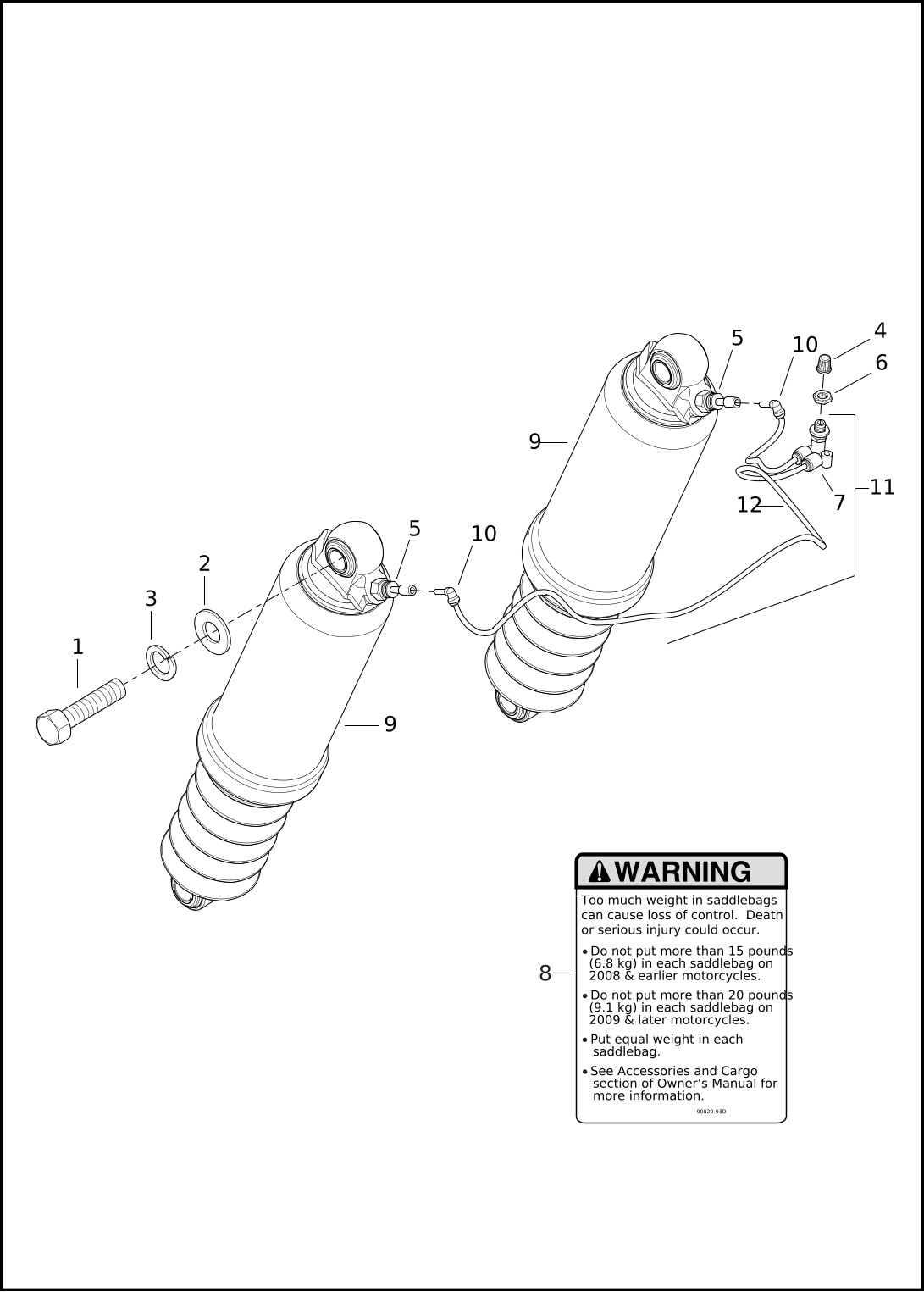

SHOCK ABSORBERS, REAR & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHTKSE |
| 2 | 6012 | WASHER (4) | FLHTKSE |
| 3 | 7068 | LOCKWASHER (4) | FLHTKSE |
| 4 | 41123-79 | VALVE CAP | FLHTKSE |
| 5 | 54320-97A | FITTING, 5/32 in. push-in (2) | FLHTKSE |
| 6 | 54321-85 | NUT | FLHTKSE |
| 7 | 54357-03 | UNION FITTING, 5/32 in. push-in | FLHTKSE |
| 8 | 90820-93D | LABEL, saddlebag load limits, inside right saddlebag | FLHTKSE |
| 9 | 54000036 | REAR SHOCK ABSORBER, w/ 54320-97A (2) | FLHTKSE |
| 10 | 54000038 | UNION FITTING, 5/32 in. push-in, 90 degree (2) | FLHTKSE |
| 11 | 54000039 | VALVE ASSEMBLY, w/ 54354-94A, 54357-03 & 54000038 | FLHTKSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 12 | 54354-94A | HOSE, 5/32 inch O.D. (25-foot length) (black) | FLHTKSE |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | FLHTKSE |
| 2 | 3594 | SCREW (England, HDI) | FLHTKSE |
| 3 | 3987 | BOLT | FLHTKSE |
| 4 | 4688 | SCREW (2) | FLHTKSE |
| 5 | 4924 | SCREW (2) | FLHTKSE |
| 6 | 6116 | WASHER | FLHTKSE |
| 7 | 6702 | WASHER | FLHTKSE |
| 8 | 7041 | LOCKWASHER | FLHTKSE |
| 9 | 7495 | NUT (2) | FLHTKSE |
| 10 | 10177 | CABLE STRAP, tree mount, jiffy stand (England, HDI) | FLHTKSE |
| 11 | 10039 | CABLE STRAP (6) | FLHTKSE |
| 12 | 10264 | CLIP, clutch line (2) | FLHTKSE |
| 13 | 47900-14BHP | FRAME, main, w/ bearing cups (Also order 45700009) | FLHTKSE |
| 14 | 49184-09A | ENGINE GUARD, w/ 2708A, 6116 & label (chrome) | FLHTKSE |
| 49050-09A | ENGINE GUARD, w/ 2708A, 6116 & label (black) | FLHTKSE | |
| 15 | 49725-07A | SPRING, jiffy stand | FLHTKSE |
| 16 | 50015-74A | LEG STOP | FLHTKSE |
| 17 | 50075-07A | LEG, jiffy stand | FLHTKSE |
| 18 | 50096-09 | BRACKET, jiffy stand | FLHTKSE |
| 19 | 50126-08A | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) | FLHTKSE |
| 20 | 50245-07 | BUMPER, jiffy stand | FLHTKSE |
| 21 | 72169-07 | TERMINAL, pin, 16-20 AWG (England, HDI) (3) | FLHTKSE |
| 22 | 72511-07BK | HOUSING, pin, 3-way (black) (England, HDI) | FLHTKSE |
| 23 | 73213-07 | RETAINER, xmas tree clip (England, HDI) | FLHTKSE |
| 24 | 90520-07 | HOLE PLUG, jiffy stand (except England, HDI) | FLHTKSE |
| 25 | 10800024 | CLIP, conduit, rosebud mount | FLHTKSE |
| 26 | 10800025 | CLIP, conduit, rosebud mount | FLHTKSE |
| 27 | 12600067 | FASTENER, plastic (2) | FLHTKSE |
| 28 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTKSE |
| 29 | 45700009 | BEARING KIT, steering head, w/ bearing cups, bearing cones & dirt guards | FLHTKSE |

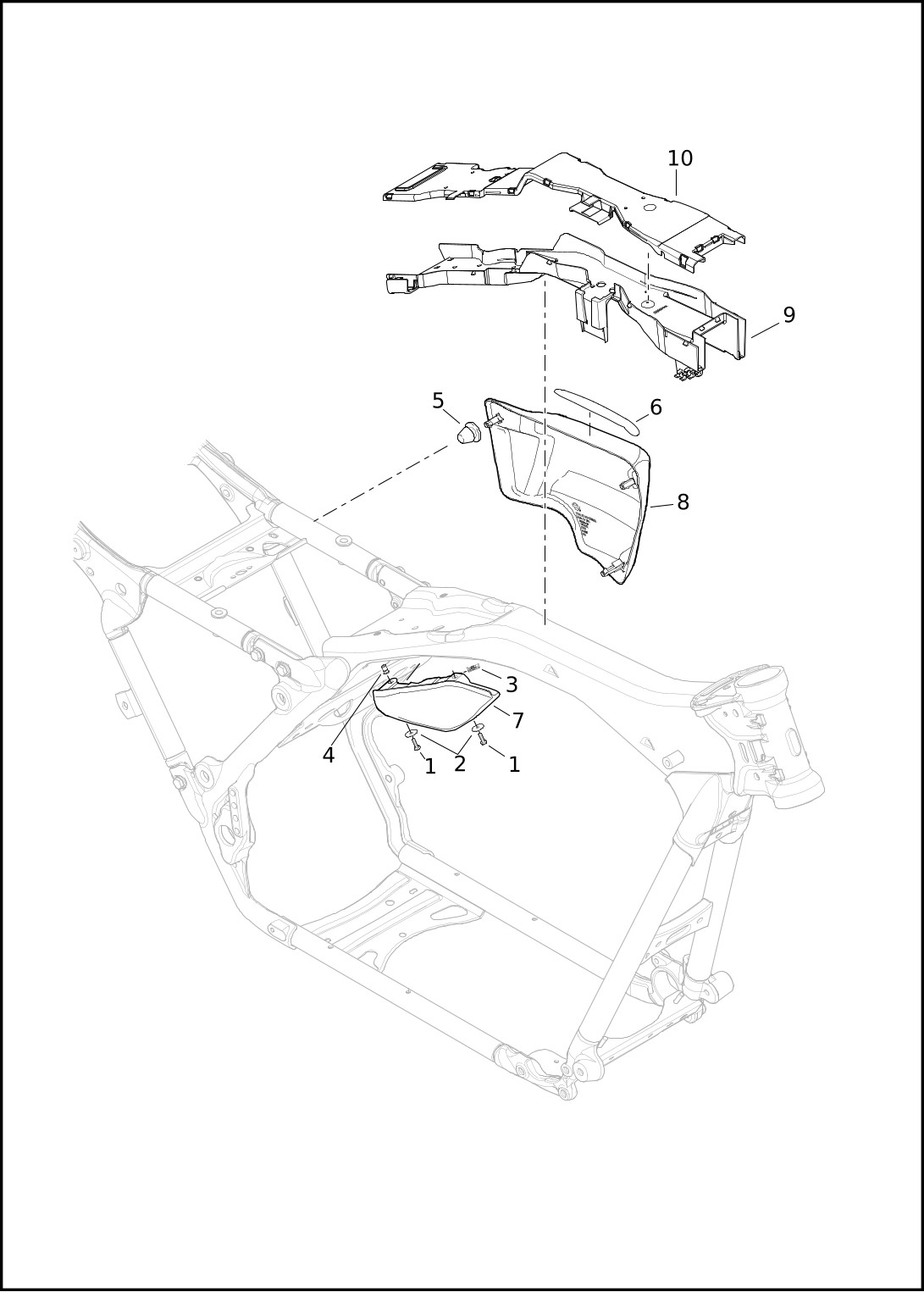

COVERS & AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3787 | BOLT (4) | FLHTKSE |
| 2 | 6036 | WASHER (4) | FLHTKSE |
| 3 | 8108 | SPEEDNUT (2) | FLHTKSE |
| 4 | 8194 | NUT, special (2) | FLHTKSE |
| 5 | 11650 | GROMMET, side cover (6) | FLHTKSE |
| 6 | 48419-04 | WEAR PAD, side cover, right (clear) | FLHTKSE |
| 48420-04 | WEAR PAD, side cover, left (clear) | FLHTKSE | |
| 7 | 58167-09 | DEFLECTOR, air, right | FLHTKSE |
| 58169-09 | DEFLECTOR, air, left | FLHTKSE | |
| 8 | 66048-09A | SIDE COVER, right (prime) | FLHTKSE |
| 57200094DXT | SIDE COVER, right (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200094DXU | SIDE COVER, right (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200094DXV | SIDE COVER, right (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 66250-09 | SIDE COVER, left (prime) | FLHTKSE | |
| 57200093DXT | SIDE COVER, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXU | SIDE COVER, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXV | SIDE COVER, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 9 | 69200202 | TRAY, wire trough (main harness) | FLHTKSE |
| 10 | 69200203 | COVER, wire trough (main harness) | FLHTKSE |

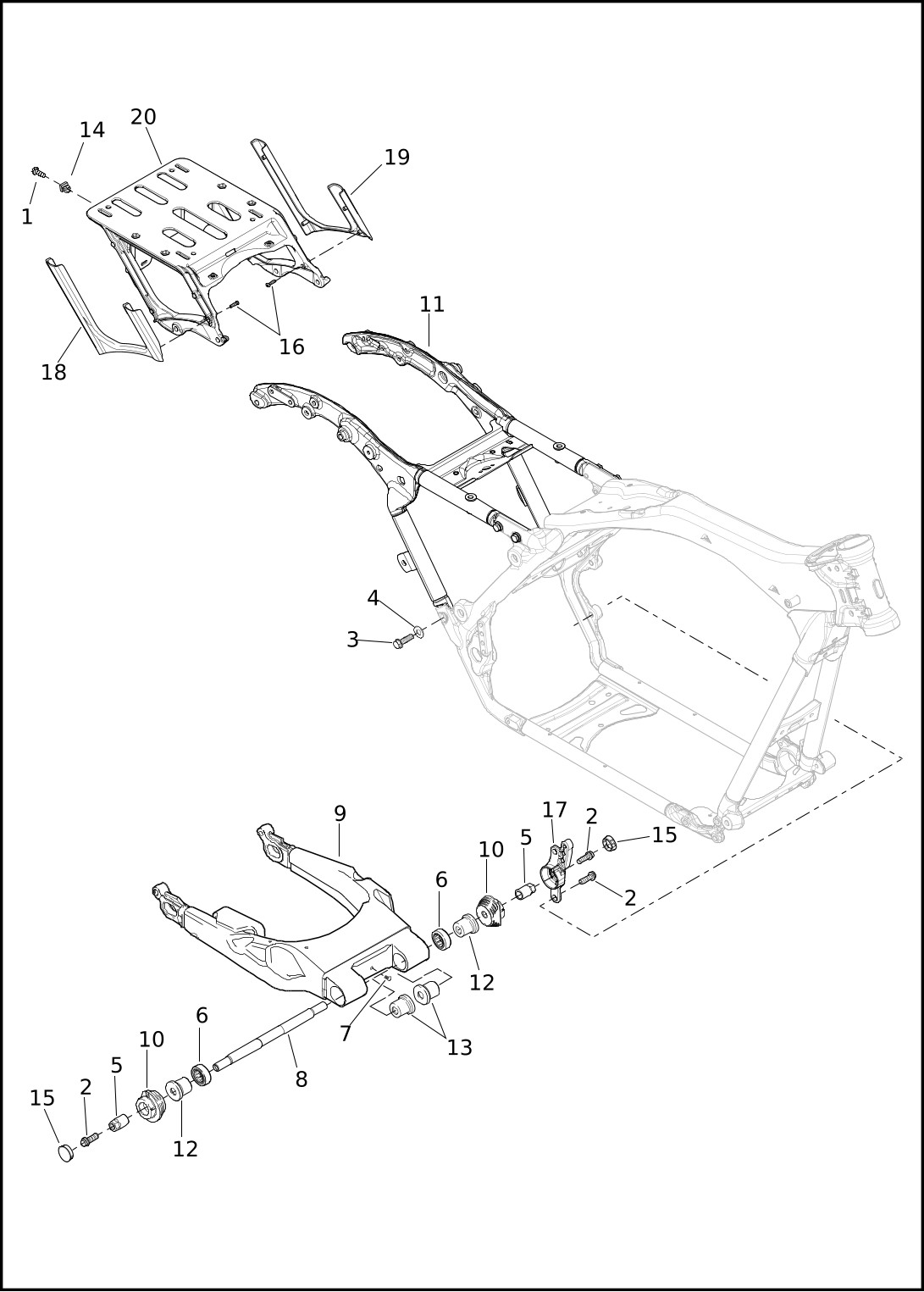

FRAME & FORK, REAR & TOUR-PAK SUPPORT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2731W | SCREW (2) | FLHTKSE |
| 2 | 3057 | SCREW (4) | FLHTKSE |
| 3 | 3536 | BOLT (6) | FLHTKSE |
| 4 | 6532 | WASHER (6) | FLHTKSE |
| 5 | 6982 | WASHER, hex cup (2) | FLHTKSE |
| 6 | 9208 | BEARING (2) | FLHTKSE |
| 7 | 11779 | FASTENER, push-in (black) | FLHTKSE |
| 8 | 47540-11 | SHAFT, rear fork | FLHTKSE |
| 9 | 47549-09 | REAR FORK, w/ 9208, 11779 & 48489-02 | FLHTKSE |
| 10 | 47584-09 | RUBBER MOUNT (2) | FLHTKSE |
| 11 | 48079-09BHP | FRAME, rear | FLHTKSE |
| 12 | 48487-02 | SPACER, outer (2) | FLHTKSE |
| 13 | 48489-02 | SPACER, inner (2) | FLHTKSE |
| 14 | 59292-94 | NUT, plastic (2) | FLHTKSE |
| 15 | 67875-11 | CAP (2) | FLHTKSE |
| 16 | 10200155 | SCREW (8) | FLHTKSE |
| 17 | 16400005 | BRACKET, rear fork, left | FLHTKSE |
| 18 | 47200080 | COVER, Tour-Pak support, right (chrome) | FLHTKSE |
| 19 | 47200081 | COVER, Tour-Pak support, left (chrome) | FLHTKSE |
| 20 | 53000125 | TOUR-PAK SUPPORT (black) | FLHTKSE |
SEAT & BACKREST
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW (3) | FLHTKSE |
| 2 | 3540 | SCREW, adjuster | FLHTKSE |
| 3 | 3546 | BOLT | FLHTKSE |
| 4 | 3574 | SCREW (3) | FLHTKSE |
| 5 | 3901 | SCREW (2) | FLHTKSE |
| 6 | 6026 | WASHER (3) | FLHTKSE |
| 7 | 6703 | WASHER (2) | FLHTKSE |
| 8 | 7434 | WASHER, nylon (2) | FLHTKSE |
| 9 | 7531 | LOCKNUT (4) | FLHTKSE |
| 10 | 7716 | LOCKNUT (3) | FLHTKSE |
| 11 | 10406 | SPRING | FLHTKSE |
| 12 | 51652-97A | BRACKET | FLHTKSE |
| 13 | 52000083 | SEAT, w/ 51652-97A | FLHTKSE |
| 52000141 | SEAT, w/ 51652-97A (Asia-Pacific) | FLHTKSE | |
| 14 | 52300225 | BACKREST ASSEMBLY, w/ 6026, 7531, 52300121, 52300122, 52300123 & 52300127 | FLHTKSE |
| 15 | 52300121 | SUPPORT BRACKET, center | FLHTKSE |
| 16 | 52300122 | SUPPORT BRACKET, right | FLHTKSE |
| 17 | 52300123 | SUPPORT BRACKET, left | FLHTKSE |
| 18 | 52300127 | KIT, BACKREST ISOLATION, passenger backrest (3) | FLHTKSE |
| 19 | 52300224 | RIDER BACKREST, w/ 3540 & 10406 | FLHTKSE |
| 20 | 52400015 | PASSENGER STRAP | FLHTKSE |
| 21 | 52400016 | BRACKET, passenger strap, right | FLHTKSE |
| 22 | 52400021 | BRACKET, passenger strap, left | FLHTKSE |
| 23 | 52567-93D | MOUNTING BRACKET, rider backrest | FLHTKSE |
| 24 | 52585-09 | BRACKET, backrest mount | FLHTKSE |
| 25 | 52589-09A | MOUNTING HARDWARE KIT, seat, w/ 3546, 3574, 7531, 7716, 52567-93D, 52585-09 & 52590-09 | FLHTKSE |
| 26 | 52590-09 | MOUNTING BRACKET, rider backrest | FLHTKSE |
| 27 | 59768-97 | SEAT NUT KIT, w/ nut & retention washer | FLHTKSE |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | FLHTKSE |
| 2 | 4032A | SCREW (2) | FLHTKSE |
| 3 | 4631 | SCREW (4) | FLHTKSE |
| 4 | 4688 | SCREW (2) | FLHTKSE |
| 5 | 4916 | SCREW (2) | FLHTKSE |
| 6 | 7038 | LOCKWASHER (4) | FLHTKSE |
| 7 | 7601 | LOCKNUT (2) | FLHTKSE |
| 8 | 7716 | LOCKNUT (4) | FLHTKSE |
| 9 | 8861 | BALL (2) | FLHTKSE |
| 10 | 33130-07A | WEAR PEG (2) | FLHTKSE |
| 11 | 44430-04 | PAD, rubber (HDI) (2) | FLHTKSE |
| 12 | 50635-82A | BOLT, footboard hinge (4) | FLHTKSE |
| 13 | 50674-05 | PIVOT PIN (4) | FLHTKSE |
| 14 | 50998-07 | ARM, rotating, right | FLHTKSE |
| 51006-07 | ARM, rotating, left (not shown) | FLHTKSE | |
| 15 | 51007-07 | SUPPORT, footboard (2) | FLHTKSE |
| 16 | 51023-07 | WAVE SPRING (4) | FLHTKSE |
| 17 | 51501-07 | SPRING (2) | FLHTKSE |
| 18 | 50500051 | BRACKET, support footboard, rear left | FLHTKSE |
| 19 | 50500052A | BRACKET, support footboard, rear right | FLHTKSE |
| 20 | 50500055A | MOUNTING BRACKET, front footboard (2) | FLHTKSE |
| 21 | 50500343 | INSERT ASSEMBLY, right, rider | FLHTKSE |
| 22 | 50500348 | BOTTOM ASSEMBLY, right, w/ hinge | FLHTKSE |
| 23 | 50500349 | BOTTOM ASSEMBLY, left, w/ hinge | FLHTKSE |
| 24 | 50500377 | HOUSING, right, passenger | FLHTKSE |
| 50500383 | HOUSING, left, passenger (not shown) | FLHTKSE | |
| 25 | 50500378 | FOOTBOARD INSERT, passenger, right | FLHTKSE |
| 50500384 | FOOTBOARD INSERT, passenger, left (not shown) | FLHTKSE | |
| 26 | 50500397 | ARM, main mounting assembly (2) | FLHTKSE |
| 27 | 50500347 | INSERT ASSEMBLY, left, rider | FLHTKSE |
HIGHWAY PEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4617 | SCREW (4) | FLHTKSE |
| 2 | 4626 | SCREW (2) | FLHTKSE |
| 3 | 6462 | WASHER (2) | FLHTKSE |
| 4 | 8075 | NUT, decorative (2) | FLHTKSE |
| 5 | 50351-03 | MOUNT, footpeg support (2) | FLHTKSE |
| 6 | 50912-72 | SPRING WASHER (2) | FLHTKSE |
| 7 | 50988-02A | MOUNT, footpeg (2) | FLHTKSE |
| 8 | 51009-02A | MOUNT, footpeg (2) | FLHTKSE |
| 9 | 10200316 | SCREW (2) | FLHTKSE |
| 10 | 12400018 | SPACER (2) | FLHTKSE |
| 11 | 50500351 | FOOTPEG INSERT, right | FLHTKSE |
| 50500354 | FOOTPEG INSERT, left | FLHTKSE | |
| 12 | 50500350 | FOOTPEG BODY, right | FLHTKSE |
| 50500353 | FOOTPEG BODY, left | FLHTKSE | |
| NOTE: These parts are not sold in the Australian and Asia-Pacific markets. | |||
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2531 | SCREW (HDI) (6) | FLHTKSE |
| 2 | 3560WA | BOLT (HDI) (2) | FLHTKSE |
| 3 | 3561WC | BOLT (HDI) (2) | FLHTKSE |
| 4 | 7600 | NUT (HDI) (6) | FLHTKSE |
| 5 | 7624 | LOCKNUT (HDI) (4) | FLHTKSE |
| 6 | 7629 | NUT (HDI) (2) | FLHTKSE |
| 7 | 10065 | CABLE STRAP (HDI) | FLHTKSE |
| 8 | 11437 | GROMMET, wiring harness (HDI) | FLHTKSE |
| 9 | 59211-74A | TRIM, front fender (HDI) (2) | FLHTKSE |
| 10 | 73152-96BK | SOCKET HOUSING, 2-place (HDI) | FLHTKSE |
| 11 | 73191-96 | TERMINAL, socket, 16-20 gauge (2) | FLHTKSE |
| 12 | 10500015 | SCREW (4) | FLHTKSE |
| 13 | 12200092 | RETAINING CLIP (HDI) (6) | FLHTKSE |
| 14 | 14100371 | NAMEPLATE (HDI) | FLHTKSE |
| 15 | 58900009 | FENDER (prime) | FLHTKSE |
| 58900116DXT | FENDER (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900116DXU | FENDER (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900116DXV | FENDER (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900032 | FENDER (prime) (HDI) | FLHTKSE | |
| 58900138DXT | FENDER (Gold Rush/Carbon Dust) (HDI) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900138DXU | FENDER (Palladium Silver/Typhoon Maroon) (HDI) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900138DXV | FENDER (Carbon Dust/Charcoal Slate) (HDI) **RESTRICTED SALES PART** | FLHTKSE | |
| 16 | 59600006 | FENDER LIGHT ASSEMBLY, w/ 73191-96 (white) (HDI) | FLHTKSE |
| 17 | 61400057 | TRIM SKIRT, front fender, lower (HDI) | FLHTKSE |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (6) | FLHTKSE |
| 2 | 6703 | WASHER | FLHTKSE |
| 3 | 7434 | WASHER (2) | FLHTKSE |
| 4 | 7499 | NUT (2) | FLHTKSE |
| 5 | 7531 | LOCKNUT (2) | FLHTKSE |
| 6 | 7686 | LOCKNUT | FLHTKSE |
| 7 | 7880 | NUT (4) | FLHTKSE |
| 8 | 10053 | CLAMP (Domestic) | FLHTKSE |
| 9 | 10183 | CLIP, t-stud | FLHTKSE |
| 10 | 10184 | CLIP, t-stud (2) | FLHTKSE |
| 11 | 48421-04 | TAPE | FLHTKSE |
| 12 | 58702-09 | FENDER, rear (prime) | FLHTKSE |
| 59500293DXK | FENDER, rear, w/ 48421-04, nut & washer (Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 59500293DXM | FENDER, rear, w/ 48421-04, nut & washer (Palladium Silver) **RESTRICTED SALES PART** | FLHTKSE | |
| 59500293DXN | FENDER, rear, w/ 48421-04, nut & washer (Gold Rush) **RESTRICTED SALES PART** | FLHTKSE | |
| 13 | 59174-99 | PLATE, stud | FLHTKSE |
| 14 | 59424-10 | MEDALLION, rear fender (Domestic) **RESTRICTED SALES PART** | FLHTKSE |
| 15 | 59581-05 | BUMPER, rear fender (black) (HDI) | FLHTKSE |
| 16 | 59786-01 | BOSS, fender mounting, inner (4) | FLHTKSE |
| 17 | 59788-01 | WASHER (4) | FLHTKSE |
| 18 | 67266-94 | GROMMET, 1/2 in. I.D. (nylon) (2) | FLHTKSE |
| 19 | 91140-09 | BRACKET, fender to saddlebag support | FLHTKSE |
LICENSE PLATE BRACKET & TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2446 | SCREW (HDI) (2) | FLHTKSE |
| 2 | 2482 | SCREW (HDI) (2) | FLHTKSE |
| 3 | 3728 | SCREW (2) | FLHTKSE |
| 4 | 3576 | SCREW (2) | FLHTKSE |
| 5 | 7036 | WASHER (2) | FLHTKSE |
| 6 | 57659-09 | BRACKET | FLHTKSE |
| 7 | 59988-72A | REFLECTOR (HDI) | FLHTKSE |
| 8 | 59359-06 | REFLECTOR | FLHTKSE |
| 9 | 60918-10A | LICENSE PLATE BRACKET (HDI) | FLHTKSE |
| 10 | 67266-94 | GROMMET, 1/2 in. I.D. (nylon) (2) | FLHTKSE |
| 11 | 68163-84 | BULB (HDI) (2) | FLHTKSE |
| 12 | 68550-09 | BRACKET (HDI) | FLHTKSE |
| 13 | 68629-05 | BRACKET | FLHTKSE |
| 14 | 68973-00 | LENS (HDI) (2) | FLHTKSE |
| 15 | 68997-09 | LAMP ASSEMBLY, rear turn signal, w/ 2482, 68163-84, 68550-09, 68973-00, 69378-09, 73152-96BK & 73191-96 (HDI) | FLHTKSE |
| 16 | 69378-09 | LIGHT ASSEMBLY, w/ 73191-96 & lens (HDI) | FLHTKSE |
| 17 | 69824-09 | LIGHT BAR ASSEMBLY, rear turn signal, w/ 3728, 7036, 57659-09, 68629-05, 68905-00, 69325-02, 69330-02, 73152-96BK & 73191-96 | FLHTKSE |
| 18 | 68905-00 | SOCKET ASSEMBLY (2) | FLHTKSE |
| 19 | 69325-02 | LENS (2) | FLHTKSE |
| 20 | 69330-02 | BULB (2) | FLHTKSE |
| 21 | 73152-96BK | SOCKET HOUSING, 2-way (black) (2) | FLHTKSE |
| 22 | 73191-96 | SOCKET TERMINAL, socket, 16-20 gauge (Domestic) (4) | FLHTKSE |
| 23 | 73191-96 | SOCKET TERMINAL, socket, 16-20 gauge (HDI) (6) | FLHTKSE |
| 24 | 73255-10 | BRACKET (black) (HDI) | FLHTKSE |
| 25 | 12400100 | SPACER | FLHTKSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTKSE |
| 2 | 10039 | CABLE STRAP (2) | FLHTKSE |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTKSE |
| 4 | 27291-09 | TUBE, tank to canister | FLHTKSE |
| 5 | 27440-09A | TUBE, evaporative line (except California) | FLHTKSE |
| 6 | 61208-10 | FUEL LINE, tank to intake | FLHTKSE |
| 7 | 61356-08 | FUEL TANK (prime) | FLHTKSE |
| 61000188DXT | FUEL TANK, w/ medallions (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 61000188DXU | FUEL TANK, w/ medallions (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 61000188DXV | FUEL TANK, w/ medallions (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 8 | 62228-08B | CHECK VALVE, assembly, w/ 10396 | FLHTKSE |
| 9 | 70901-09 | COVER, tank bracket, right | FLHTKSE |
| 10 | 70999-09 | COVER, tank bracket, left | FLHTKSE |
| 11 | 14100705 | MEDALLION, right | FLHTKSE |
| 14100704 | MEDALLION, left (not shown) | FLHTKSE | |
| 12 | 11323 | O-RING, check valve to tank | FLHTKSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3529 | SCREW (2) | FLHTKSE |
| 2 | 3588 | SCREW | FLHTKSE |
| 3 | 4194 | SCREW (5) | FLHTKSE |
| 4 | 4856 | SCREW | FLHTKSE |
| 5 | 8142 | NUT, speed | FLHTKSE |
| 6 | 10103 | CLIP, adhesive backed (3) | FLHTKSE |
| 7 | 10334 | CLIP, hinge mounting | FLHTKSE |
| 8 | 53919-04A | PUSH BUTTON KIT, fuel tank, w/ 10334 & 84850-92 | FLHTKSE |
| 9 | 61007-10 | MEDALLION **RESTRICTED SALES PART** | FLHTKSE |
| 10 | 61029-92A | LOCK, door, w/ 84850-92 (Asia-Pacific) | FLHTKSE |
| 11 | 61109-85D | GASKET, filler cap | FLHTKSE |
| 12 | 61112-08 | BOOT | FLHTKSE |
| 13 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | FLHTKSE |
| 14 | 61274-92 | FUEL FILLER CAP, vacuum vented, w/ 61109-85D | FLHTKSE |
| 15 | 61293-08 | DOOR, console | FLHTKSE |
| 16 | 61313-88 | BUMPER, cover (2) | FLHTKSE |
| 17 | 62775-08 | TRIM COVER, fuel tank | FLHTKSE |
| 18 | 67493-08 | BRACKET, console mount | FLHTKSE |
| 19 | 69241-08 | DRAIN HOSE, console | FLHTKSE |
| 20 | 71294-08 | MOLDING, rubber (2) | FLHTKSE |
| 21 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTKSE |
| 22 | 72444-07GY | HOUSING, 4-way, socket (gray) | FLHTKSE |
| 23 | 72485-07 | SOCKET HOUSING, 4-way | FLHTKSE |
| 24 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTKSE |
| 25 | 72494-07 | WIRE SEAL, socket, 16-18 AWG (4) | FLHTKSE |
| 26 | 72557-07 | SECONDARY LOCK, socket, 4-way | FLHTKSE |
| 27 | 77177-08 | BRACKET, retainer, rear, console pod | FLHTKSE |
| 28 | 77188-08 | BRACKET, retainer, front, console pod (2) | FLHTKSE |
| 29 | 84850-92 | NUT | FLHTKSE |
| 30 | 69200125 | HARNESS, console, w/ 21, 22, 23, 24, 25 & 26 | FLHTKSE |
| 31 | 76537-08 | KEY & FOB ASSEMBLY, power lock (specify key number) (2) | FLHTKSE |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHTKSE |
| 2 | 10200147 | SCREW (3) | FLHTKSE |
| 3 | 12100020 | GROMMET, instrument cluster mount (3) | FLHTKSE |
| 4 | 12400034 | INSERT, instrument cluster mount (3) | FLHTKSE |
| 5 | 12600067 | FASTENER, plastic (2) | FLHTKSE |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (2) | FLHTKSE |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (2) | FLHTKSE |
| 8 | 69200121 | WIRING HARNESS, fairing | FLHTKSE |
| 9 | 69200257 | BACK CLAMP, gauge, right | FLHTKSE |
| 10 | 69200258 | BACK CLAMP, gauge, left | FLHTKSE |
| 11 | 70900293A | INSTRUMENT CLUSTER, mph, w/ 12100020 & 12400034 (Domestic, California) | FLHTKSE |
| 70900294 | INSTRUMENT CLUSTER, kph, w/ 12100020 & 12400034 (Brazil, Canada, HDI, Japan, Asia-Pacific) | FLHTKSE | |
| 70900295 | INSTRUMENT CLUSTER, dual - mph/kph, w/ 12100020 & 12400034 (England) | FLHTKSE | |
| 12 | 70900296 | FUEL GAUGE | FLHTKSE |
| 13 | 70900297 | VOLTMETER | FLHTKSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHTKSE |
| 2 | 11686 | O-RING | FLHTKSE |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHTKSE |
| 4 | 61012-04A | CLIP, filter retainer | FLHTKSE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHTKSE |
| 6 | 61213-04A | CLIP, regulator retainer | FLHTKSE |
| 7 | 61402-08 | GASKET, top plate | FLHTKSE |
| 8 | 62229-08B | FILTER SHELL | FLHTKSE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHTKSE |
| 10 | 70369-08 | HARNESS, fuel tank w/ 11, 12, 13, 14, 15 & 16 | FLHTKSE |
| 11 | 72485-07 | SOCKET HOUSING, 4-way (black) | FLHTKSE |
| 12 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTKSE |
| 13 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTKSE |
| 14 | 72557-07 | SECONDARY LOCK, 4-way | FLHTKSE |
| 15 | 73154-96BK | SOCKET HOUSING, 4-way (black) | FLHTKSE |
| 16 | 73191-96 | SOCKET TERMINAL, 16-20 gauge (4) | FLHTKSE |
| 17 | 75069-08C | TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 19 & 24 | FLHTKSE |
| 18 | 75089-08 | RING, fuel tank, cam | FLHTKSE |
| 19 | 75147-08B | TOP PLATE | FLHTKSE |
| 20 | 75205-08A | FUEL LEVEL SENDER | FLHTKSE |
| 21 | 75229-08 | HARNESS, fuel pump module | FLHTKSE |
| 22 | 75254-04A | STRAINER, fuel pump inlet | FLHTKSE |
| 23 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTKSE |
| 24 | 75322-09 | HARNESS, ground, fuel pump module | FLHTKSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| 1 | 4612 | SCREW (2) | FLHTKSE |
| 2 | 27291-09 | TUBE, tank to canister | FLHTKSE |
| 3 | 27297-09A | EVAP LINE, canister | FLHTKSE |
| 4 | 27298-09A | EVAP LINE, purge to canister | FLHTKSE |
| 5 | 60800006 | CARBON CANISTER | FLHTKSE |
| 6 | 27439-09A | TUBE, solenoid to induction module | FLHTKSE |
| 7 | 27715-07 | SOLENOID, purge valve | FLHTKSE |
| 8 | 70681-09 | RETAINER | FLHTKSE |
AUXILIARY / FOG LAMPS & TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 1332 | SCREW (2) | FLHTKSE |
| 2 | 3514 | SCREW (2) | FLHTKSE |
| 3 | 5118 | SEAL PIN (HDI) (2) | FLHTKSE |
| 4 | 7041 | LOCKWASHER (2) | FLHTKSE |
| 5 | 7130W | LOCKWASHER (2) | FLHTKSE |
| 6 | 7606 | LOCKNUT (2) | FLHTKSE |
| 7 | 7667 | NUT (2) | FLHTKSE |
| 8 | 7992 | ACORN NUT (4) | FLHTKSE |
| 9 | 40901-05 | ISOLATOR, rubber (2) | FLHTKSE |
| 10 | 69331-02 | BULB, turn signal (Domestic) (2) | FLHTKSE |
| 11 | 68163-84 | BULB, turn signal (2) (HDI) | FLHTKSE |
| 12 | 68331-02 | RING, auxiliary lamps (2) | FLHTKSE |
| 13 | 68725-62A | BEZEL RING, auxiliary/fog lamps (2) | FLHTKSE |
| 14 | 68821-00 | STAND-OFF, directional (2) | FLHTKSE |
| 15 | 68904-00 | SOCKET ASSEMBLY, turn signal (Domestic) (2) | FLHTKSE |
| 16 | 68973-00 | LENS (HDI) (2) | FLHTKSE |
| 17 | 69325-02 | LENS (Domestic) (2) | FLHTKSE |
| 18 | 69563-06 | CLAMP BLOCK, auxiliary/fog lamps (2) | FLHTKSE |
| 19 | 72298-95 | TERMINAL SEAL (green) (2) | FLHTKSE |
| 20 | 72356-95 | SOCKET TERMINAL, 18-20 AWG (4) | FLHTKSE |
| 21 | 72908-11 | SOCKET HOUSING, 4-place (2) | FLHTKSE |
| 22 | 72910-11 | SOCKET TERMINAL, 20-22 AWG (Domestic) (8) | FLHTKSE |
| 22 | 72910-11 | SOCKET TERMINAL, 20-22 AWG (HDI) (6) | FLHTKSE |
| 23 | 67800415 | TURN SIGNAL ASSEMBLY, w/ 69331-02, 68904-00, 69325-02 & 67800109 (Domestic) (2) | FLHTKSE |
| 24 | 67800104 | TURN SIGNAL ASSEMBLY, w/ 68163-84, 68973-00, 67800109 & socket assembly (HDI) (2) | FLHTKSE |
| 25 | 67800109 | HOUSING, turn signal (chrome) (2) | FLHTKSE |
| 26 | 67800254 | HOUSING, auxiliary/fog lamp, w/ 72298-95, 72356-95, 72910-11, 69200199 & 69200529 (2) | FLHTKSE |
| 27 | 68000020 | AUXILIARY/FOG LAMP, LED (2) | FLHTKSE |
| 28 | 68000021 | BRACKET, auxiliary/fog lamp, left | FLHTKSE |
| 29 | 68000022 | BRACKET, auxiliary/fog lamp, right | FLHTKSE |
| 30 | 69200199 | WIRE SEAL, purple (2) | FLHTKSE |
| 31 | 69200529 | SOCKET HOUSING, 2-way (2) | FLHTKSE |
WINDSHIELD, FAIRING & HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3088 | SCREW (3) | FLHTKSE |
| 2 | 4790 | SCREW (4) | FLHTKSE |
| 3 | 4976 | SCREW (2) | FLHTKSE |
| 4 | 6383 | WASHER (3) | FLHTKSE |
| 5 | 6549 | PAD (2) | FLHTKSE |
| 6 | 7900 | CLIP NUT (4) | FLHTKSE |
| 7 | 67712-83B | TRIM RING, headlamp | FLHTKSE |
| 8 | 67716-60C | GASKET, headlamp door | FLHTKSE |
| 9 | 67721-48 | SCREW (3) | FLHTKSE |
| 10 | 67726-08 | RETAINING RING, headlamp | FLHTKSE |
| 11 | 67778-60A | SPRING, trim ring, headlamp, top | FLHTKSE |
| 12 | 67780-60A | SPRING, trim ring, headlamp, bottom (2) | FLHTKSE |
| 13 | 10200059 | SCREW (2) | FLHTKSE |
| 14 | 10200060 | SCREW (2) | FLHTKSE |
| 15 | 10200156 | SCREW | FLHTKSE |
| 16 | 10300036 | PAD (3) | FLHTKSE |
| 17 | 10500034 | SCREW | FLHTKSE |
| 18 | 11100055 | TAPE, windshield mounting | FLHTKSE |
| 19 | 29200007 | BEZEL, air duct, outer fairing | FLHTKSE |
| 20 | 57000416DXT | FAIRING, outer, w/ 7900, 11100055, 29200007 (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE |
| 57000416DXU | FAIRING, outer, w/ 7900, 11100055, 29200007 (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57000416DXV | FAIRING, outer, w/ 7900, 11100055, 29200007 (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 21 | 57400001 | WINDSHIELD (clear) (Australia) | FLHTKSE |
| 57400002 | WINDSHIELD (clear) (HDI, England, Japan) | FLHTKSE | |
| 57400165 | WINDSHIELD (smoked) (Domestic, Brazil) | FLHTKSE | |
| 22 | 57400058 | WIND DEFLECTOR (clear) (Asia-Pacific) | FLHTKSE |
| 23 | 61400224 | TRIM ASSEMBLY | FLHTKSE |
| 24 | 67700060 | HEADLAMP, LED, with 67721-48, 67726-08 and 67700204 | FLHTKSE |
| 25 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, w/ 3088 & 67700205 | FLHTKSE |
| 26 | 67700205 | MOUNTING RING, headlamp | FLHTKSE |
FAIRING, INNER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTKSE |
| 2 | 2478 | SCREW (5) | FLHTKSE |
| 3 | 2563 | SCREW (7) | FLHTKSE |
| 4 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTKSE |
| 5 | 10200141 | SCREW (6) | FLHTKSE |
| 6 | 10900005 | STUD, double sided (4) | FLHTKSE |
| 7 | 11100038 | FOAM TAPE | FLHTKSE |
| 8 | 11100050 | FOAM TAPE | FLHTKSE |
| 9 | 11100051 | FOAM TAPE | FLHTKSE |
| 10 | 11100057 | FOAM TAPE | FLHTKSE |
| 11 | 11100105 | PAD | FLHTKSE |
| 12 | 12200064 | CLIP, panel (10) | FLHTKSE |
| 13 | 29200003 | AIR DUCT, inner fairing, w/ 7, 12, 14, 15, 16 & 30 | FLHTKSE |
| 14 | 29200034 | DOOR, inner duct | FLHTKSE |
| 15 | 29200035 | BUTTON ASSEMBLY, inner duct, w/ 76000127 | FLHTKSE |
| 16 | 29200039 | BEZEL, air duct,inner fairing, w/ 12200064 | FLHTKSE |
| 17 | 57000186 | BRACKET, support, inner fairing | FLHTKSE |
| 18 | 57000426DXK | INNER FAIRING ASSEMBLY, w/ 8, 9, 10, 11, 22, 23, 24 & 31 (Carbon Dust) | FLHTKSE |
| 57000426DXM | INNER FAIRING ASSEMBLY, w/ 8, 9, 10, 11, 22, 23, 24 & 31 (Palladium Silver) | FLHTKSE | |
| 57000426DXN | INNER FAIRING ASSEMBLY, w/ 8, 9, 10, 11, 22, 23, 24 & 31 (Gold Rush) | FLHTKSE | |
| 19 | 57000299 | FOAM INSERT, media compartment | FLHTKSE |
| 20 | 57200012 | AIR DEFLECTOR, left, w/ 57638-08 | FLHTKSE |
| 21 | 57200017 | AIR DEFLECTOR, right, w/ 57638-08 | FLHTKSE |
| 22 | 61400063 | TRIM, inner fairing, left | FLHTKSE |
| 23 | 61400064 | TRIM, inner fairing, right | FLHTKSE |
| 24 | 61400253 | TRIM | FLHTKSE |
| 25 | 69200031 | WIRE HARNESS, USB jumper | FLHTKSE |
| 26 | 69200170 | POWER OUTLET, fairing, w/ 69200171 | FLHTKSE |
| 27 | 69200171 | CAP, power outlet | FLHTKSE |
| 28 | 76000107 | MEDIA COMPARTMENT ASSEMBLY, w/ 19, 25 & 30 | FLHTKSE |
| 29 | 76000561DXK | DOOR, media compartment, outer (Carbon Dust) | FLHTKSE |
| 76000561DXM | DOOR, media compartment, outer (Palladium Silver) | FLHTKSE | |
| 76000561DXN | DOOR, media compartment, outer (Gold Rush) | FLHTKSE | |
| 30 | 76000127 | LATCH (2) | FLHTKSE |
| 31 | 76000234 | GASKET, media storage | FLHTKSE |
| 32 | 76000504 | BRACKET, XM antenna | FLHTKSE |
FAIRING, INNER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200134 | SCREW (6) | FLHTKSE |
| 2 | 10200141 | SCREW (6) | FLHTKSE |
| 3 | 10200142 | SCREW (6) | FLHTKSE |
| 4 | 10200205 | SCREW (12) | FLHTKSE |
| 5 | 10900005 | STUD, double sided (4) | FLHTKSE |
| 6 | 12200063 | CLIP, antenna, garage door opener | FLHTKSE |
| 7 | 12600116 | CLIP, push-in | FLHTKSE |
| 8 | 14100613 | MEDALLION | FLHTKSE |
| 9 | 57000017 | SKIRT, outer fairing (chrome) | FLHTKSE |
| 10 | 57000169 | BRACKET, fairing support, left | FLHTKSE |
| 11 | 57000170 | BRACKET, fairing support, right | FLHTKSE |
| 12 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY, left | FLHTKSE |
| 13 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY, right | FLHTKSE |
| 14 | 70900392DXK | DASH PANEL, fairing (Carbon Dust) | FLHTKSE |
| 70900392DXM | DASH PANEL, fairing (Palladium Silver) | FLHTKSE | |
| 70900392DXN | DASH PANEL, fairing (Gold Rush) | FLHTKSE | |
| 15 | 71400031 | SWITCH BUTTON, blank (2) | FLHTKSE |
| 16 | 71400032 | SWITCH ASSEMBLY, fog, w/ 71400031, 71400034 & 71400037 | FLHTKSE |
| 17 | 71400033 | SWITCH ASSEMBLY, lock/unlock, w/ 71400031, 71400035, 71400036 & 71400037 | FLHTKSE |
| 18 | 71400034 | SWITCH BUTTON, fog | FLHTKSE |
| 19 | 71400035 | SWITCH BUTTON, lock | FLHTKSE |
| 20 | 71400036 | SWITCH BUTTON, unlock | FLHTKSE |
| 21 | 71400037 | SWITCH, base (2) | FLHTKSE |
FAIRING LOWERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (2) | FLHTKSE |
| 2 | 7415A | WASHER (2) | FLHTKSE |
| 3 | 7576 | NUT (2) | FLHTKSE |
| 4 | 7716 | LOCKNUT (8) | FLHTKSE |
| 5 | 8175 | BOLT, retainer (2) | FLHTKSE |
| 6 | 11519 | MOUNT, rubber, right | FLHTKSE |
| 7 | 10200052 | SCREW (4) | FLHTKSE |
| 8 | 12200025 | CLIP (10) | FLHTKSE |
| 9 | 12600049 | SCREW (8) | FLHTKSE |
| 10 | 26800008 | DUCT, radiator, left | FLHTKSE |
| 11 | 26800009 | DUCT, radiator, right | FLHTKSE |
| 12 | 47200275 | CLAMP (2) | FLHTKSE |
| 13 | 57100099 | PANEL ASSEMBLY, glove box, w/ 12200025 (2) | FLHTKSE |
| 14 | 57100107 | GLOVE BOX ASSEMBLY, left, w/ 9, 21, 27, 28 & 34 | FLHTKSE |
| 15 | 57100109 | GLOVE BOX ASSEMBLY, right, w/ 9, 21, 27, 28 & 34 | FLHTKSE |
| 16 | 57100111 | CAP, fairing, lower, left (prime) | FLHTKSE |
| 57100242BYZ | CAP, fairing, lower, left (Charcoal Slate) | FLHTKSE | |
| 57100242DXK | CAP, fairing, lower, left (Carbon Dust) | FLHTKSE | |
| 57100291DAB | CAP, fairing, lower, left (Typhoon Maroon) | FLHTKSE | |
| 17 | 57100112 | FAIRING, lower, left (prime) | FLHTKSE |
| 57100275BYZ | FAIRING, lower, left, w/ 57100170 (Charcoal Slate) | FLHTKSE | |
| 57100275DXK | FAIRING, lower, left, w/ 57100170 (Carbon Dust) | FLHTKSE | |
| 57100285DAB | FAIRING, lower, left, w/ 57100170 (Typhoon Maroon) | FLHTKSE | |
| 18 | 57100113 | CAP, fairing, lower, right (prime) | FLHTKSE |
| 57100243BYZ | CAP, fairing, lower, right (Charcoal Slate) | FLHTKSE | |
| 57100243DXK | CAP, fairing, lower, right (Carbon Dust) | FLHTKSE | |
| 57100292DAB | CAP, fairing, lower, right (Typhoon Maroon) | FLHTKSE | |
| 19 | 57100114 | FAIRING, lower, right (prime) | FLHTKSE |
| 57100276BYZ | FAIRING, lower, right, w/ 57100171 (Charcoal Slate) | FLHTKSE | |
| 57100276DXK | FAIRING, lower, right, w/ 57100171 (Carbon Dust) | FLHTKSE | |
| 57100286DAB | FAIRING, lower, right, w/ 57100171 (Typhoon Maroon) | FLHTKSE | |
| 20 | 57100147 | FRAME, glove box, right, w/ 12200025 | FLHTKSE |
| 21 | 57100148 | FRAME, glove box, left, w/ 12200025 | FLHTKSE |
| 22 | 57100151 | SCREEN, radiator, left | FLHTKSE |
| 23 | 57100152 | SCREEN, radiator, right | FLHTKSE |
| 24 | 57100153 | GASKET, radiator (2) | FLHTKSE |
| 25 | 57100154 | HINGE (2) | FLHTKSE |
| 26 | 57100155 | DOOR, vent (2) | FLHTKSE |
| 27 | 57100164 | LINK, door vent (2) | FLHTKSE |
| 28 | 57100165 | KNOB, door vent (2) | FLHTKSE |
| 29 | 57100170 | FASCIA ASSEMBLY, lower, left | FLHTKSE |
| 30 | 57100171 | FASCIA ASSEMBLY, lower, right | FLHTKSE |
| 31 | 57100172 | CLAMP, lower fairing | FLHTKSE |
| 32 | 57100187 | RETAINER, u-bolt (2) | FLHTKSE |
| 33 | 57100200 | PIN, vent door (2) | FLHTKSE |
| 34 | 57100225 | SLIDER, vent door (2) | FLHTKSE |
| 35 | 57100256 | CLAMP, lower fairing | FLHTKSE |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN, 2-way socket | FLHTKSE |
| 2 | 72906-11 | HOUSING, 2-way socket | FLHTKSE |
| 3 | 72908-11 | HOUSING, 4-way socket (2) | FLHTKSE |
| 4 | 69200305 | HOUSING, 2-way socket | FLHTKSE |
| 5 | 69200306 | HOUSING, 4-way socket (2) | FLHTKSE |
| 6 | 69200307 | TERMINAL, socket, 22 AWG (9) | FLHTKSE |
| 7 | 69200308 | TERMINAL, socket, 22 AWG (9) | FLHTKSE |
| 8 | 69200630 | WIRE HARNESS, jumper, left | FLHTKSE |
| 9 | 69200631 | WIRE HARNESS, jumper, right | FLHTKSE |
| 10 | 71500064 | COVER, left | FLHTKSE |
| 11 | 71500066 | COVER, right | FLHTKSE |
| 12 | 71500083A | SWITCHPACK ASSEMBLY, right, w/ 20, 21, 22, 24 & 26 | FLHTKSE |
| 13 | 71500084 | SWITCHPACK ASSEMBLY, left, w/ 20, 21, 22, 24 & 26 | FLHTKSE |
| 14 | 71500094 | KEY CAP, trigger finger | FLHTKSE |
| 15 | 71500159 | COVER ASSEMBLY, left, w/ screws | FLHTKSE |
| 16 | 71500160A | COVER ASSEMBLY, right, w/ screws | FLHTKSE |
| 17 | 71500165 | KEY CAP, horn | FLHTKSE |
| 18 | 71500166 | KEY CAP, headlamp, high/low | FLHTKSE |
| 19 | 71500167 | KEY CAP, left turn signal | FLHTKSE |
| 20 | 71500168 | KEY CAP, start/hazard | FLHTKSE |
| 21 | 71500169 | KEY CAP, run/stop | FLHTKSE |
| 22 | 71500170 | KEY CAP, right turn signal | FLHTKSE |
| 23 | 71500224 | KEY CAP, cruise | FLHTKSE |
| 24 | 71500225 | KEY CAP, ptt | FLHTKSE |
| 25 | 71500226 | KEY CAP, audio | FLHTKSE |
| 26 | 71500227 | KEY CAP, audio select | FLHTKSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FLHTKSE |
| 2 | 4240 | SCREW (2) | FLHTKSE |
| 3 | 9853 | TAB, fastening | FLHTKSE |
| 4 | 10006 | CABLE STRAP (7) | FLHTKSE |
| 5 | 10138 | TAB, electrical ground | FLHTKSE |
| 6 | 56159-73 | CUP WASHER (4) | FLHTKSE |
| 7 | 56161-83A | BUSHING, rubber (4) | FLHTKSE |
| 8 | 56163-93 | SPACER (2) | FLHTKSE |
| 9 | 70345-84 | RETAINER (4) | FLHTKSE |
| 10 | 72053-92 | PIN HOUSING, 1-way | FLHTKSE |
| 11 | 72241-94A | TERMINAL, 10 ring, 14-18 gauge | FLHTKSE |
| 12 | 55918-08 | CLAMP, upper | FLHTKSE |
| 13 | 57450-14 | RISER, lower, left | FLHTKSE |
| 14 | 57451-14 | RISER, lower, right | FLHTKSE |
| 15 | 12600032 | SCREW (2) | FLHTKSE |
| 16 | 55800214 | HANDLEBAR (chrome) | FLHTKSE |
| 17 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, w/ 9853, 72053-92, 72241-94A & 69200536 | FLHTKSE |
| 18 | 69200536 | TERMINAL, ring, 12-14 gauge | FLHTKSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32305-08A | SENSOR, twist grip, w/ 32306-08, 72902-01BK & 72990-01 | FLHTKSE |
| 2 | 32306-08 | SEAL CAP, throttle sensor | FLHTKSE |
| 3 | 72168-07 | TERMINAL, pin, 18-20 AWG (6) | FLHTKSE |
| 4 | 72414-07BK | PIN HOUSING, 6-way (black) | FLHTKSE |
| 5 | 72902-01BK | PIN HOUSING, 2-way (black) (3) | FLHTKSE |
| 6 | 72912-01BK | SOCKET HOUSING, 2-way (black) (2) | FLHTKSE |
| 7 | 72990-01 | PIN TERMINAL (4) | FLHTKSE |
| 8 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | FLHTKSE |
| 9 | 56100096 | HANDGRIP ASSEMBLY, right | FLHTKSE |
| 10 | 56100094 | ENDCAP (2) | FLHTKSE |
| 11 | 56100097 | HANDGRIP ASSEMBLY, left, w/ 5, 6, 7 & 8 | FLHTKSE |
| 12 | 69200338 | HARNESS, throttle, jumper | FLHTKSE |
TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FLHTKSE |
| 2 | 5118 | SEAL PIN | FLHTKSE |
| 3 | 7964 | J-NUT | FLHTKSE |
| 4 | 10006 | CABLE STRAP | FLHTKSE |
| 5 | 10183 | CLIP, t-stud | FLHTKSE |
| 6 | 10184 | CLIP, t-stud | FLHTKSE |
| 7 | 68026-99 | SCREW (2) | FLHTKSE |
| 8 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A | FLHTKSE |
| 9 | 68142-04 | LAMP ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (HDI) | FLHTKSE |
| 10 | 68167-04 | BULB, tail lamp, wedge mount (HDI) | FLHTKSE |
| 11 | 68296-99A | TAIL LIGHT BASE (chrome) | FLHTKSE |
| 12 | 68558-03 | LENS, tail lamp, w/ 68026-99 (HDI) | FLHTKSE |
| 13 | 68830-99A | CIRCUIT BOARD & COVER | FLHTKSE |
| 14 | 69187-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK, & 73191-96 (HDI) | FLHTKSE |
| 15 | 70522-06B | CONDUIT, self-adhesive | FLHTKSE |
| 16 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTKSE |
| 17 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FLHTKSE |
| 18 | 72230-98 | HOUSING, socket, 3-way, sealed | FLHTKSE |
| 19 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTKSE |
| 20 | 72610-08 | SEAL, 18-20 AWG (white) (3) | FLHTKSE |
| 21 | 73154-96BK | SOCKET HOUSING, 4-place | FLHTKSE |
| 22 | 73156-96BK | SOCKET HOUSING, 6-place | FLHTKSE |
| 23 | 73191-96 | TERMINAL, socket, 16-20 gauge (9) | FLHTKSE |
| 24 | 67800205 | LAMP ASSEMBLY, w/ 68026-99, 67800421, 69200599 (Domestic, Canada) | FLHTKSE |
| 25 | 67800421 | LENS (Domestic, Canada) | FLHTKSE |
| 26 | 67800428 | GASKET (Domestic, Canada) | FLHTKSE |
| 27 | 69200128 | HARNESS, rear lamps, w/ 10006, 70522-06B, 73156-96BK, 73191-96, 72168-07 & 72414-07BK | FLHTKSE |
| 28 | 69200599 | JUMPER, harness, w/ 2, 17, 18, 20, 21 & 23 | FLHTKSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 2225 | SCREW (6) | FLHTKSE |
| 2 | 3576 | SCREW | FLHTKSE |
| 3 | 3929 | SCREW (4) | FLHTKSE |
| 4 | 4705 | SCREW (2) | FLHTKSE |
| 5 | 5416 | BOLT | FLHTKSE |
| 6 | 7041 | LOCKWASHER (4) | FLHTKSE |
| 7 | 7593 | NUT (4) | FLHTKSE |
| 8 | 7601 | LOCKNUT | FLHTKSE |
| 9 | 8146 | NUTCLIP (6) | FLHTKSE |
| 10 | 9955 | CLAMP, worm drive #24 (7) | FLHTKSE |
| 11 | 9956 | CLAMP, worm drive #40 | FLHTKSE |
| 12 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHTKSE |
| 13 | 27729-10 | SENSOR, oxygen (O2), front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLHTKSE |
| 14 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLHTKSE |
| 15 | 65328-83A | FLANGE, exhaust manifold (2) | FLHTKSE |
| 16 | 65296-95A | MUFFLER CLAMP (2) | FLHTKSE |
| 17 | 65324-83B | GASKET, exhaust port (2) | FLHTKSE |
| 18 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHTKSE |
| 19 | 64800039 | END CAP (2) | FLHTKSE |
| 20 | 65634-09 | SHIELD, right exhaust pipe, front | FLHTKSE |
| 21 | 65636-09 | SHIELD, left exhaust pipe, rear | FLHTKSE |
| 22 | 65678-09 | BRACKET, rear exhaust mount | FLHTKSE |
| 23 | 65723-85 | MOUNTING BRACKET (2) | FLHTKSE |
| 24 | 65724-85 | MOUNT, rubber (2) | FLHTKSE |
| 25 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | FLHTKSE |
| 26 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | FLHTKSE |
| 27 | 66047-05 | CLAMP, worm (6) | FLHTKSE |
| 28 | 66078-06 | RING, retention (2) | FLHTKSE |
| 29 | 66219-06 | HEAT SHIELD, muffler, right (not shown) | FLHTKSE |
| 66220-06 | HEAT SHIELD, muffler, left | FLHTKSE | |
| 30 | 66813-09 | GASKET, clamp | FLHTKSE |
| 31 | 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (chrome) | FLHTKSE |
| 66849-10 | EXHAUST PIPE ASSEMBLY, catalytic (chrome) (Asia-Pacific) | FLHTKSE | |
| 32 | 66858-09 | CROSSOVER PIPE ASSEMBLY (chrome) | FLHTKSE |
| 33 | 66859-09 | CLAMP, exhaust | FLHTKSE |
| 34 | 66861-09A | CLAMP, exhaust pipe, hinged | FLHTKSE |
| 35 | 66881-09 | BRACKET, exhaust pipe hanger | FLHTKSE |
| 36 | 72177-07BK | HOUSING, 4-way, socket (black) | FLHTKSE |
| 37 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLHTKSE |
| 38 | 72444-07GY | HOUSING, 4-way, socket (gray) | FLHTKSE |
| 39 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHTKSE |
| 40 | 64900198 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLHTKSE |
| 64768-09A | MUFFLER, left (chrome) (HDI) | FLHTKSE | |
| 65913-06B | MUFFLER, left (chrome) (Brazil, Asia-Pacific) | FLHTKSE | |
| 65949-09 | MUFFLER, left (chrome) (Japan) | FLHTKSE | |
| 41 | 64900199 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLHTKSE |
| 64769-09A | MUFFLER, right (chrome) (HDI) | FLHTKSE | |
| 65748-09 | MUFFLER, right (chrome) (Japan) | FLHTKSE | |
| 66080-06B | MUFFLER, right (chrome) (Brazil, Asia-Pacific) | FLHTKSE |
WIRING HARNESS, MAIN (1 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLHTKSE |
| 2 | 72168-07 | TERMINAL, socket, 18-20 gauge (13) | FLHTKSE |
| 3 | 72272-07 | TERMINAL, socket, 14-16 gauge (6) | FLHTKSE |
| 4 | 72364-06 | TERMINAL, 10-14 gauge, female | FLHTKSE |
| 5 | 72414-07BK | HOUSING, 6-way socket (3) | FLHTKSE |
| 6 | 72473-07 | SEAL PIN | FLHTKSE |
| 7 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTKSE |
| 8 | 72721-07 | TERMINAL, socket, 18-20 gauge (2) | FLHTKSE |
| 9 | 69200032 | WIRE HARNESS, AM/FM antenna | FLHTKSE |
| 10 | 69200136 | WIRE HARNESS, CB antenna | FLHTKSE |
| 11 | 69200201 | HOUSING, 2-way socket | FLHTKSE |
| 12 | 69200202 | WIRE TROUGH | FLHTKSE |
| 13 | 69200203 | COVER, wire trough | FLHTKSE |
| 14 | 69200214 | CADDY, left steer hd | FLHTKSE |
WIRING HARNESS, MAIN (2 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHTKSE |
| 2 | 10065 | CABLE STRAP (5) | FLHTKSE |
| 3 | 10177 | CABLE STRAP, tree mount | FLHTKSE |
| 4 | 72066-06A | HOUSING, 4-way socket, female (black) | FLHTKSE |
| 5 | 72135-06 | SECONDARY LOCK, 4-way socket, female | FLHTKSE |
| 6 | 72138-94GY | HOUSING, 8-way socket | FLHTKSE |
| 7 | 72158-94 | SECONDARY LOCK, 8-way socket | FLHTKSE |
| 8 | 72166-07BK | HOUSING, 16-way socket, 18-20 gauge (black) | FLHTKSE |
| 9 | 72168-07 | TERMINAL, socket, 18-20 gauge (18) | FLHTKSE |
| 10 | 72169-07 | TERMINAL, pin, 16-20 gauge (29) | FLHTKSE |
| 11 | 72188-07BK | HOUSING, 6-way pin (black) (2) | FLHTKSE |
| 12 | 72191-94 | TERMINAL, socket (5) | FLHTKSE |
| 13 | 72195-94 | SEAL PIN (3) | FLHTKSE |
| 14 | 72209-11 | COVER, wire dress | FLHTKSE |
| 15 | 72213-94 | TERMINAL, socket, female, 16-20 gauge (2) | FLHTKSE |
| 16 | 72222-11 | TERMINAL, socket, 18-20 gauge (28) | FLHTKSE |
| 17 | 72226-11 | TERMINAL, socket, 14-16 gauge (8) | FLHTKSE |
| 18 | 72256-11 | SEAL PIN (12) | FLHTKSE |
| 19 | 72272-07 | TERMINAL, socket, 14-16 gauge (3) | FLHTKSE |
| 20 | 72414-07BK | HOUSING, 6-way socket | FLHTKSE |
| 21 | 72473-07 | SEAL PIN (2) | FLHTKSE |
| 22 | 72484-08 | TERMINAL, socket, 20 gauge (4) | FLHTKSE |
| 23 | 72486-08 | WIRE SEAL, 20 gauge (green) (4) | FLHTKSE |
| 24 | 72488-07BK | HOUSING, 12-way pin (black) | FLHTKSE |
| 25 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTKSE |
| 26 | 72606-08 | HOUSING, 2-way socket | FLHTKSE |
| 27 | 72610-08 | SEAL, 18-20 gauge (white) (2) | FLHTKSE |
| 28 | 72639-10 | SECONDARY LOCK, 2-way socket | FLHTKSE |
| 29 | 73213-07 | RETAINER, x-mas tree clip (3) | FLHTKSE |
| 30 | 69200193 | HOUSING, 48-way socket | FLHTKSE |
| 31 | 69200205 | WEATHER PLUG, 12-way pin (2) | FLHTKSE |
| 32 | 69200215 | CADDY, right steer hd | FLHTKSE |
WIRING HARNESS, MAIN (3 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTKSE |
| 2 | 10177 | CABLE STRAP, tree mount (2) | FLHTKSE |
| 3 | 72007-05 | HOUSING, 2-way socket (2) | FLHTKSE |
| 4 | 72010-05 | WIRE SEAL, 22-26 gauge (green) (4) | FLHTKSE |
| 5 | 72024-08 | TERMINAL, socket, 20-22 gauge (4) | FLHTKSE |
| 6 | 72063-06 | HOUSING, 2-way socket | FLHTKSE |
| 7 | 72111-06 | SECONDARY LOCK, 2-way socket, female (gray) | FLHTKSE |
| 8 | 72251-07 | SECONDARY LOCK, 2-way socket (yellow) (2) | FLHTKSE |
| 9 | 72283-09 | TERMINAL, female, 14-16 gauge, 90 degree (2) | FLHTKSE |
| 10 | 72402-07 | HOUSING, 2-way socket (2) | FLHTKSE |
| 11 | 72406-07A | HOUSING, 4-way socket | FLHTKSE |
| 12 | 72407-07 | TERMINAL, socket, 16-20 gauge (4) | FLHTKSE |
| 13 | 72408-07 | WIRE SEAL, 16-20 gauge (blue) (4) | FLHTKSE |
| 14 | 72413-07 | TERMINAL, socket, 18-20 gauge (4) | FLHTKSE |
| 15 | 72483-08BK | HOUSING, 6-way socket | FLHTKSE |
| 16 | 72484-08 | TERMINAL, socket, 20 gauge (2) | FLHTKSE |
| 17 | 72486-08 | WIRE SEAL, 20 gauge (green) (2) | FLHTKSE |
| 18 | 72663-11 | TERMINAL, socket, 18-20 gauge (silver) (6) | FLHTKSE |
| 19 | 69200437 | RUBBER BOOT, wire connector | FLHTKSE |
WIRING HARNESS, MAIN (4 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTKSE |
| 2 | 10147 | CLIP, connector | FLHTKSE |
| 3 | 72066-06A | HOUSING, 4-way socket, female (black) | FLHTKSE |
| 4 | 72124-94GY | HOUSING, 4-way pin (gray) | FLHTKSE |
| 5 | 72135-06 | SECONDARY LOCK, 4-way socket, female | FLHTKSE |
| 6 | 72144-94 | SECONDARY LOCK, 4-way pin | FLHTKSE |
| 7 | 72190-94 | TERMINAL, pin, 16-18 gauge (2) | FLHTKSE |
| 8 | 72195-94 | SEAL PIN (2) | FLHTKSE |
| 9 | 72213-94 | TERMINAL, socket, female, 16-20 gauge (2) | FLHTKSE |
| 10 | 72484-08 | TERMINAL, socket, 20 gauge (4) | FLHTKSE |
| 11 | 72486-08 | WIRE SEAL, 20 gauge (green) (4) | FLHTKSE |
| 12 | 72518-01 | HOUSING, 2-way socket (red) | FLHTKSE |
| 13 | 72533-06 | DUST CAP, 2-pin connector | FLHTKSE |
| 14 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLHTKSE |
| 15 | 72610-08 | SEAL, 18-20 gauge (white) (2) | FLHTKSE |
| 16 | 72664-12A | HOUSING, 18-way socket (black) | FLHTKSE |
| 17 | 72666-12 | TERMINAL, socket, 18-20 gauge (silver) (44) | FLHTKSE |
| 18 | 72720-07 | HOUSING, 2-way socket | FLHTKSE |
| 19 | 72721-07 | TERMINAL, socket, 18-20 gauge (2) | FLHTKSE |
| 20 | 69200192A | HOUSING, 18-way socket (brown) | FLHTKSE |
| 21 | 69200291A | HOUSING, 18-way socket (gray) | FLHTKSE |
WIRING HARNESS, MAIN (5 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 gauge (3) | FLHTKSE |
| 2 | 10006 | CABLE STRAP | FLHTKSE |
| 3 | 10065 | CABLE STRAP (2) | FLHTKSE |
| 4 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTKSE |
| 5 | 72168-07 | TERMINAL, socket, 18-20 gauge (9) | FLHTKSE |
| 6 | 72169-07 | TERMINAL, pin, 16-20 gauge (23) | FLHTKSE |
| 7 | 72188-07BK | HOUSING, 6-way pin (black) | FLHTKSE |
| 8 | 72249-94 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHTKSE |
| 9 | 72414-07BK | HOUSING, 6-way socket | FLHTKSE |
| 10 | 72415-07GY | HOUSING, 4-way pin (gray) | FLHTKSE |
| 11 | 72473-07 | SEAL PIN (3) | FLHTKSE |
| 12 | 72512-07BK | HOUSING, 3-way socket (black) | FLHTKSE |
| 13 | 73213-07 | RETAINER, x-mas tree clip (3) | FLHTKSE |
| 14 | 74102-98BK | HOUSING, 2-way pin (black) (2) | FLHTKSE |
| 15 | 74142-98 | SECONDARY LOCK, 2-way pin (2) | FLHTKSE |
| 16 | 74190-98 | TERMINAL, pin, 16-20 gauge (4) | FLHTKSE |
| 17 | 69200032 | WIRE HARNESS, AM/FM antenna | FLHTKSE |
| 18 | 69200136 | WIRE HARNESS, CB antenna | FLHTKSE |
WIRING HARNESS, MAIN (6 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 3018A | SCREW (2) | FLHTKSE |
| 2 | 6150W | WASHER (2) | FLHTKSE |
| 3 | 10006 | CABLE STRAP | FLHTKSE |
| 4 | 10065 | CABLE STRAP (4) | FLHTKSE |
| 5 | 11779 | FASTENER, push-in (black) (2) | FLHTKSE |
| 6 | 72291-94 | TERMINAL, 14-16 gauge | FLHTKSE |
| 7 | 72295-94 | CONNECTOR, starter housing | FLHTKSE |
| 8 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHTKSE |
| 9 | 72484-08 | TERMINAL, socket, 20 gauge (3) | FLHTKSE |
| 10 | 72486-08 | WIRE SEAL, 20 gauge (green) (3) | FLHTKSE |
| 11 | 72543-07BK | HOUSING, 3-way socket (black) | FLHTKSE |
| 12 | 72544-07 | SECONDARY LOCK, 3-way socket, female | FLHTKSE |
| 13 | 12600116 | CLIP, push-in, x-mas tree (2) | FLHTKSE |
| 14 | 69200175 | CADDY, fuse block, electrical panel | FLHTKSE |
| 15 | 69200611 | BRACKET, relay | FLHTKSE |
WIRING HARNESS, MAIN (7 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9937 | TERMINAL, female spade, 14-18 gauge (6) | FLHTKSE |
| 2 | 10065 | CABLE STRAP (2) | FLHTKSE |
| 3 | 10177 | CABLE STRAP, tree mount (2) | FLHTKSE |
| 4 | 70598-99 | BOOT, engine temperature sensor | FLHTKSE |
| 5 | 72063-06 | HOUSING, 2-way socket | FLHTKSE |
| 6 | 72111-06 | SECONDARY LOCK, 2-way socket, female (gray) (2) | FLHTKSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 gauge (3) | FLHTKSE |
| 8 | 72169-07 | TERMINAL, pin, 16-20 gauge (10) | FLHTKSE |
| 9 | 72175-07BK | HOUSING, 4-way pin (black) (2) | FLHTKSE |
| 10 | 72213-94 | TERMINAL, socket, female, 16-20 gauge (4) | FLHTKSE |
| 11 | 72232-96 | SEAL PLUG (2) | FLHTKSE |
| 12 | 72343-10 | TERMINAL, pin, 16-20 gauge (gold) (4) | FLHTKSE |
| 13 | 72400-99 | CONNECTOR, 4-way | FLHTKSE |
| 14 | 72403-99 | SECONDARY LOCK, 4-way | FLHTKSE |
| 15 | 72415-07GY | HOUSING, 4-way pin (gray) | FLHTKSE |
| 16 | 72427-00 | TERMINAL, fast-on, 16-20 gauge (8) | FLHTKSE |
| 17 | 72484-08 | TERMINAL, socket, 20 gauge (2) | FLHTKSE |
| 18 | 72486-08 | WIRE SEAL, 20 gauge (green) (2) | FLHTKSE |
| 19 | 72512-07BK | HOUSING, 3-way socket (black) | FLHTKSE |
| 20 | 72519-09BK | DUST CAP, 3-way socket (black) | FLHTKSE |
| 21 | 72606-08 | HOUSING, 2-way socket | FLHTKSE |
| 22 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLHTKSE |
| 23 | 72610-08 | SEAL, 18-20 gauge (white) (4) | FLHTKSE |
| 24 | 73213-07 | RETAINER, x-mas tree clip (5) | FLHTKSE |
| 25 | 74112-98BK | HOUSING, 2-way socket (black) | FLHTKSE |
| 26 | 74120-08 | DC LEAD ASSEMBLY | FLHTKSE |
| 27 | 74152-98 | SECONDARY LOCK, 2-way socket | FLHTKSE |
| 28 | 74191-98 | TERMINAL, socket (2) | FLHTKSE |
| 29 | 69200183 | HOUSING, 26-way socket | FLHTKSE |
| 30 | 69200184 | COVER, 26-way socket | FLHTKSE |
| 31 | 69200185 | TERMINAL, socket, 20 gauge (6) | FLHTKSE |
| 32 | 69200186 | TERMINAL, socket, 14-16 gauge (2) | FLHTKSE |
| 33 | 69200187 | TERMINAL, socket, 12 gauge (2) | FLHTKSE |
| 34 | 69200188 | WIRE SEAL, 20 gauge (6) | FLHTKSE |
| 35 | 69200189 | WIRE SEAL, 14-16 gauge (2) | FLHTKSE |
| 36 | 69200190 | WIRE SEAL, 12 gauge (2) | FLHTKSE |
| 37 | 69200191 | SEAL PIN (16) | FLHTKSE |
| 38 | 69200238 | TERMINAL, 20 gauge (black) (2) | FLHTKSE |
| 39 | 69200272 | HOUSING, 2-way pin | FLHTKSE |
| 40 | 69200600 | FUSE BLOCK, 5-way relay socket (3) | FLHTKSE |
| 41 | 71400100 | RELAY, 5-way relay socket (3) | FLHTKSE |
| 11100115 | CLOTH, harness wrap, 50m (not shown) | FLHTKSE | |
WIRING HARNESS, MAIN (8 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200432 | MAIN WIRING HARNESS (continued) | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, 6-way pin, weather | FLHTKSE |
| 2 | 10006 | CABLE STRAP (2) | FLHTKSE |
| 3 | 10065 | CABLE STRAP (3) | FLHTKSE |
| 4 | 31586-07 | RELAY (2) | FLHTKSE |
| 5 | 72064-06 | HOUSING, 3-way socket, female | FLHTKSE |
| 6 | 72081-11 | HOUSING, 48-way socket | FLHTKSE |
| 7 | 72106-94BK | HOUSING, 6-pin (black) (replaces gray connector) | FLHTKSE |
| 8 | 72146-94 | SECONDARY LOCK, 6-way pin | FLHTKSE |
| 9 | 72169-07 | TERMINAL, pin, 16-20 gauge (16) | FLHTKSE |
| 10 | 72175-07BK | HOUSING, 4-way pin (black) | FLHTKSE |
| 11 | 72188-07BK | HOUSING, 6-way pin (black) | FLHTKSE |
| 12 | 72190-94 | TERMINAL, pin, 16-18 gauge (2) | FLHTKSE |
| 13 | 72194-94 | TERMINAL, pin, 20 gauge (3) | FLHTKSE |
| 14 | 72195-94 | SEAL PIN | FLHTKSE |
| 15 | 72209-11 | COVER, wire dress | FLHTKSE |
| 16 | 72222-11 | TERMINAL, socket, 18-20 gauge (26) | FLHTKSE |
| 17 | 72226-11 | TERMINAL, socket, 14-16 gauge | FLHTKSE |
| 18 | 72227-11 | TERMINAL, socket, 18-20 gauge (5) | FLHTKSE |
| 19 | 72256-11 | SEAL PIN (4) | FLHTKSE |
| 20 | 72296-95 | TERMINAL, female, sealed (2) | FLHTKSE |
| 21 | 72298-95 | PLUG, cavity (2) | FLHTKSE |
| 22 | 72299-95 | PLUG, cavity (2) | FLHTKSE |
| 23 | 72308-97 | TERMINAL, female, 12-14 gauge (5) | FLHTKSE |
| 24 | 72331-95 | FUSE, 5-amp, mini (tan) (2) | FLHTKSE |
| 25 | 72345-02 | FUSE, 20-amp, mini (yellow) (2) | FLHTKSE |
| 26 | 72350-11 | HOUSING, 1-way socket | FLHTKSE |
| 27 | 72356-95 | TERMINAL, socket, 18-20 gauge (15) | FLHTKSE |
| 28 | 72412-97 | SEAL, cable, 12-14 gauge (5) | FLHTKSE |
| 29 | 72447-07GY | HOUSING, 8-way pin (gray) | FLHTKSE |
| 30 | 72462-00 | FUSE, 10 amp, mini | FLHTKSE |
| 31 | 72473-07 | SEAL PIN (2) | FLHTKSE |
| 32 | 72484-08 | TERMINAL, socket, 20 gauge (3) | FLHTKSE |
| 33 | 72486-08 | WIRE SEAL, 20 gauge (green) (3) | FLHTKSE |
| 34 | 72539-06 | FUSE, 30 amp, mini (green) | FLHTKSE |
| 35 | 72575-11 | SECONDARY LOCK | FLHTKSE |
| 36 | 72632-10 | WEATHER PLUG, 4-way pin | FLHTKSE |
| 37 | 73213-07 | RETAINER, x-mas tree clip | FLHTKSE |
| 38 | 73301-04 | HOUSING, 2-way pin | FLHTKSE |
| 39 | 73303-04 | SECONDARY LOCK, 2-way socket, female | FLHTKSE |
| 40 | 73304-04 | TERMINAL, female, 10 gauge (2) | FLHTKSE |
| 41 | 73305-04 | SEAL WIRE, 10 gauge (blue) (2) | FLHTKSE |
| 42 | 69200137 | WIRE HARNESS, positive cable | FLHTKSE |
| 43 | 69200194 | HOUSING, 24-way fuse block | FLHTKSE |
| 44 | 69200199 | COVER, fuse block (15) | FLHTKSE |
| 45 | 69200204 | WEATHER PLUG, 8-way pin | FLHTKSE |
| 46 | 69200212 | HOUSING, 2-way | FLHTKSE |
| 47 | 69200293 | FUSE, 7.5-amp, mini (brown) (2) | FLHTKSE |
| 48 | 69200312 | SECONDARY LOCK, 24-way fuse block (3) | FLHTKSE |
| 49 | 69200336 | MAIN FUSE, 50 amp (red), NOTE: Fuse is sold separately and is not part of main harness | FLHTKSE |
| 50 | 69200797 | COVER, fuse block | FLHTKSE |
WIRING HARNESS, TOUR-PAK
| Index No. | Part No. | Description | Model(s) |
| 69200434 | WIRING HARNESS - TOUR-PAK | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHTKSE |
| 2 | 72169-07 | TERMINAL, pin, 16-20 gauge (9) | FLHTKSE |
| 3 | 72188-07BK | HOUSING, 6-way pin (black) | FLHTKSE |
| 4 | 72213-94 | TERMINAL, socket, 16-20 gauge (5) | FLHTKSE |
| 5 | 72511-07BK | HOUSING, 3-way pin (black) | FLHTKSE |
| 6 | 72610-08 | CABLE SEAL, 18-20 gauge (white) (5) | FLHTKSE |
| 7 | 73102-96BK | HOUSING, 2-way pin (black) (5) | FLHTKSE |
| 8 | 73152-96WE | HOUSING, 2-way socket (white) | FLHTKSE |
| 9 | 73190-96 | TERMINAL, pin, 16-20 gauge (10) | FLHTKSE |
| 10 | 73191-96 | TERMINAL, socket, 16-20 gauge (2) | FLHTKSE |
| 11 | 74102-98BK | HOUSING, 2-way pin (black) | FLHTKSE |
| 12 | 74142-98 | SECONDARY LOCK, 2-way pin | FLHTKSE |
| 13 | 74190-98 | TERMINAL, pin, 16-20 gauge (2) | FLHTKSE |
| 14 | 69200210 | CABLE, AM/FM antenna | FLHTKSE |
| 15 | 69200211 | CABLE, CB antenna | FLHTKSE |
| 16 | 69200225 | HOUSING, 5-way socket | FLHTKSE |
| 17 | 69200226 | SECONDARY LOCK, 5-way | FLHTKSE |
WIRING HARNESS, FAIRING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200433 | WIRING HARNESS - FAIRING | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHTKSE |
| 2 | 10065 | CABLE STRAP (9) | FLHTKSE |
| 3 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTKSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 gauge (26) | FLHTKSE |
| 5 | 72213-94 | TERMINAL, socket, female, 16-20 gauge (4) | FLHTKSE |
| 6 | 72225-09 | TERMINAL, pin, 14 gauge | FLHTKSE |
| 7 | 72381-98 | TERMINAL, socket (19) | FLHTKSE |
| 8 | 72382-98BK | HOUSING, 23-way socket (black) | FLHTKSE |
| 9 | 72397-98 | SEAL PIN (4) | FLHTKSE |
| 10 | 72473-07 | SEAL PIN | FLHTKSE |
| 11 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTKSE |
| 12 | 72610-08 | CABLE SEAL, 18-20 gauge (white) (4) | FLHTKSE |
| 13 | 72905-11 | HOUSING, 2-way pin (black) | FLHTKSE |
| 14 | 72907-11 | HOUSING, 4-way pin (black) (4) | FLHTKSE |
| 15 | 72909-11 | TERMINAL, pin, 20-22 gauge (17) | FLHTKSE |
| 16 | 72912-01BK | HOUSING, 2-way socket (black) | FLHTKSE |
| 17 | 72991-01 | TERMINAL, socket, 18-22 gauge (2) | FLHTKSE |
| 18 | 69200109 | CADDY, fairing harness | FLHTKSE |
| 19 | 69200254 | HOUSING, 4-way socket | FLHTKSE |
| 20 | 69200256 | SECONDARY LOCK, 4-way | FLHTKSE |
WIRING HARNESS, FAIRING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200433 | WIRING HARNESS - FAIRING | FLHTKSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, tree mount (4) | FLHTKSE |
| 2 | 72066-06A | HOUSING, 4-way female, socket (black) (2) | FLHTKSE |
| 3 | 72097-06 | CAVITY PLUG, oval (orange) (2) | FLHTKSE |
| 4 | 72130-04 | HOUSING, 12-way socket (black) | FLHTKSE |
| 5 | 72135-06 | SECONDARY LOCK, 4-way female (2) | FLHTKSE |
| 6 | 72168-07 | TERMINAL, socket, 18-20 gauge (4) | FLHTKSE |
| 7 | 72189-04 | SEAL PIN (4) | FLHTKSE |
| 8 | 72264-94 | TERMINAL, socket, 18-20 gauge (2) | FLHTKSE |
| 9 | 72484-08 | TERMINAL, socket, 20 gauge (6) | FLHTKSE |
| 10 | 72486-08 | SEAL WIRE, 20 gauge (green) (6) | FLHTKSE |
| 11 | 73101-96BK | HOUSING, 2-way pin, w/ panel mount (black) | FLHTKSE |
| 12 | 73102-96BK | HOUSING, 2-way pin (black) | FLHTKSE |
| 13 | 73190-96 | TERMINAL, pin, 16-20 gauge (4) | FLHTKSE |
| 14 | 74104-98BK | HOUSING, 4-way pin (black) | FLHTKSE |
| 15 | 74144-98 | SECONDARY LOCK, 4-way pin | FLHTKSE |
| 16 | 74190-98 | TERMINAL, pin, 16-20 gauge (3) | FLHTKSE |
| 17 | 74195-98 | SEAL PIN | FLHTKSE |
| 18 | 74196-04 | TERMINAL, socket (8) | FLHTKSE |
| 19 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHTKSE |
| 20 | 12500002 | CABLE STRAP (2) | FLHTKSE |
| 21 | 69200271 | HOUSING, 2-way socket (2) | FLHTKSE |
| 22 | 69200337 | HOUSING, 2-way socket | FLHTKSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3018A | SCREW (2) | FLHTKSE |
| 2 | 3403 | LOCKNUT | FLHTKSE |
| 3 | 3634 | SCREW (6) | FLHTKSE |
| 4 | 4312C | SCREW (2) | FLHTKSE |
| 5 | 6150W | WASHER (2) | FLHTKSE |
| 6 | 7792 | NUT | FLHTKSE |
| 7 | 15368-01A | LABEL BATTERY WARNING | FLHTKSE |
| 8 | 66010-97C | BATTERY, w/ 4312C | FLHTKSE |
| 66000066 | BATTERY, w/ 4312C (Brazil) | FLHTKSE | |
| 9 | 66051-08 | STRAP, battery removal | FLHTKSE |
| 10 | 66200-09 | BRACKET, battery hold down | FLHTKSE |
| 11 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHTKSE |
| 12 | 70578-89 | BOOT, battery positive | FLHTKSE |
| 13 | 72242-94 | TERMINAL, ring | FLHTKSE |
| 14 | 73304-04 | TERMINAL, female, 10 AWG | FLHTKSE |
| 15 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHTKSE |
| 16 | 12600116 | CLIP, push-in, x-mas tree (2) | FLHTKSE |
| 17 | 66000010 | BATTERY TRAY | FLHTKSE |
| 18 | 69200137 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHTKSE |
| 19 | 69200174 | CADDY, electronic control module (ECM) | FLHTKSE |
| 20 | 69200611 | BRACKET, relay | FLHTKSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHTKSE |
| 2 | 4775 | SCREW (2) | FLHTKSE |
| 3 | 6019 | WASHER (2) | FLHTKSE |
| 4 | 6109 | WASHER | FLHTKSE |
| 5 | 7495 | NUT | FLHTKSE |
| 6 | 7549A | ACORN NUT | FLHTKSE |
| 7 | 8108 | SPEEDNUT (2) | FLHTKSE |
| 8 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHTKSE |
| 9 | 69060-90H | HORN ASSEMBLY | FLHTKSE |
| 10 | 69062-91A | CLAMP | FLHTKSE |
| 11 | 69120-91 | BRACKET, horn | FLHTKSE |
| 12 | 69123-92A | MOUNT, horn, rubber | FLHTKSE |
| 13 | 61300478 | COVER, horn (chrome) | FLHTKSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHTKSE |
| 2 | 6150W | WASHER (2) | FLHTKSE |
| 3 | 6703 | WASHER | FLHTKSE |
| 4 | 7686 | LOCKNUT | FLHTKSE |
| 5 | 9907 | WIRE TERMINAL (2) | FLHTKSE |
| 6 | 10065 | CABLE STRAP | FLHTKSE |
| 7 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTKSE |
| 8 | 61081-92 | COVER, key head, set (Japan) | FLHTKSE |
| 9 | 66373-06 | BATTERY, 3V, CR2032 | FLHTKSE |
| 10 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (2) | FLHTKSE |
| 69995-11 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) (2) | FLHTKSE | |
| 11 | 68956-07 | ANTENNA MODULE, security system | FLHTKSE |
| 12 | 68958-07C | SIREN (Domestic) | FLHTKSE |
| 13 | 69309-10 | BATTERY REPLACE KIT, siren alarm | FLHTKSE |
| 14 | 71031-04 | KEY, CVO (specify key number) (Except Asia-Pacific) **RESTRICTED SALES PART** | FLHTKSE |
| 15 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) (Japan) | FLHTKSE |
| 16 | 72023-51E | KIT, SWITCH, rear stop lamp, w/ 9907 | FLHTKSE |
| 17 | 76537-08 | KEY & FOB ASSEMBLY, power lock (specify key number) (Except Japan) (2) | FLHTKSE |
| 18 | 32700010 | SENSOR, ambient temperature (2) | FLHTKSE |
| 19 | 69994-12B | BODY CONTROL MODULE (BCM) | FLHTKSE |
| 41000169 | BODY CONTROL MODULE (BCM) (Japan) | FLHTKSE | |
| 20 | 71400090 | FORK LOCK (specify key number) | FLHTKSE |
| 21 | 76000345 | MODULE ASSEMBLY, power lock | FLHTKSE |
| 22 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE |
SOUND SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (2) | FLHTKSE |
| 2 | 72169-07 | TERMINAL PIN, 16-20 AWG (2) | FLHTKSE |
| 3 | 72290-94 | TERMINAL, female 1/4 in. (black) (4) | FLHTKSE |
| 4 | 72294-94 | TERMINAL, female 16-20 gauge (white) (2) | FLHTKSE |
| 5 | 73213-07 | RETAINER, xmas tree clip (2) | FLHTKSE |
| 6 | 76250-09 | ANTENNA, CB | FLHTKSE |
| 7 | 76503-08 | ANTENNA, AM/FM | FLHTKSE |
| 8 | 10200205 | SCREW (8) | FLHTKSE |
| 9 | 10500017 | SCREW (6) | FLHTKSE |
| 10 | 12600070 | BOLT (4) | FLHTKSE |
| 11 | 12600071 | RETAINER, bolt (4) | FLHTKSE |
| 12 | 12600073 | SCREW, accessory module (2) | FLHTKSE |
| 13 | 69200272 | HOUSING, pin, 2-way (2) | FLHTKSE |
| 14 | 69200247 | WIRE HARNESS, speaker jumper, w/ 1, 2, 3, 4, 5 & 13 (2) | FLHTKSE |
| 15 | 76000228 | RADIO, w/ navigation, w/ 10, 11, 12 & 16 (Domestic) | FLHTKSE |
| 76000229 | RADIO, w/ navigation, w/ 10, 11, 12 & 16 (HDI) | FLHTKSE | |
| 76000232 | RADIO, w/o navigation, w/ 10, 11, 12 & 17 (Japan, Asia-Pacific) | FLHTKSE | |
| 16 | 76000233 | MODULE, XM Satellite Radio | FLHTKSE |
| 17 | 76000252 | PLATE, accessory module | FLHTKSE |
| 18 | 76000320 | WOOFER ASSEMBLY, 6-1/2 in. (2) | FLHTKSE |
| 19 | 76000321 | WOOFER GRILLE, right | FLHTKSE |
| 20 | 76000322 | WOOFER GRILLE, left | FLHTKSE |
| 21 | 91700034 | KIT, RADIO TOUCH SCREEN PROTECTOR | FLHTKSE |
| NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
SOUND SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (2) | FLHTKSE |
| 2 | 2478 | SCREW (7) | FLHTKSE |
| 3 | 6703 | WASHER | FLHTKSE |
| 4 | 7686 | LOCKNUT (3) | FLHTKSE |
| 5 | 10006 | CABLE STRAP (3) | FLHTKSE |
| 6 | 72168-07 | TERMINAL, socket 18-20 AWG (8) | FLHTKSE |
| 7 | 72473-07 | SEAL PIN (4) | FLHTKSE |
| 8 | 72487-07BK | HOUSING, socket, 12-way (black) | FLHTKSE |
| 9 | 76000243 | EAR PAD, foam (4) | FLHTKSE |
| 10 | 77117-10 | HEADSET ASSEMBLY, w/ 9, 11 & 12 (2) | FLHTKSE |
| 11 | 77126-10 | WIND SOCK, microphone (2) | FLHTKSE |
| 12 | 77148-10 | COILED CORD, headset (2) | FLHTKSE |
| 13 | 11100071 | PAD (4) | FLHTKSE |
| 14 | 12100052 | GROMMET (2) | FLHTKSE |
| 15 | 12600087 | STUD (2) | FLHTKSE |
| 16 | 57000247 | MOUNTING BRACKET, CB module (Domestic, California, Canada, Brazil, HDI, England) | FLHTKSE |
| 17 | 76000188 | CB MODULE, w/ 6, 7, 8 (Domestic, California, Canada, Brazil, HDI, England) | FLHTKSE |
| 18 | 76000221 | ANTENNA, XM | FLHTKSE |
| 76000222 | ANTENNA, GPS | FLHTKSE | |
| 19 | 76000345 | MODULE ASSEMBLY, power lock | FLHTKSE |
| 20 | 76000277A | AMPLIFIER | FLHTKSE |
| 21 | 76000349 | BRACKET, w/ 11100071 & 12100052 | FLHTKSE |
| NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
GARAGE DOOR TRANSMITTER & RECEIVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 74114-98BK | HOUSING, 4-way socket (black) | FLHTKSE |
| 2 | 74154-98 | SECONDARY LOCK, 4-way socket | FLHTKSE |
| 3 | 74191-98 | SOCKET, terminal (4) | FLHTKSE |
| 4 | 74195-98 | SEAL PIN | FLHTKSE |
| 5 | 91560-01 | RECEIVER ASSEMBLY | FLHTKSE |
| 6 | 92600009 | TRANSMITTER ASSEMBLY | FLHTKSE |
CB & INTERCOM CONTROL POD
| Index No. | Part No. | Description | Model(s) |
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTKSE |
| 2 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTKSE |
| 3 | 76266-98A | CAP ASSEMBLY, weather | FLHTKSE |
| 4 | 14100706 | INSERT | FLHTKSE |
| 5 | 69200127 | HARNESS, console audio, DIN, w/ 72168-07 & 72414-07BK | FLHTKSE |
| 6 | 77153-08 | HOUSING, pod | FLHTKSE |
TOUR-PAK (BOTTOM) (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW (2) | FLHTKSE |
| 2 | 2968 | SCREW (4) | FLHTKSE |
| 3 | 3767B | BOLT (Asia-Pacific) (4) | FLHTKSE |
| 4 | 3910 | SCREW (6) | FLHTKSE |
| 5 | 6703 | WASHER (6) | FLHTKSE |
| 6 | 6703 | WASHER (Asia-Pacific) (4) | FLHTKSE |
| 7 | 7586 | JAMNUT | FLHTKSE |
| 8 | 7676 | NUT (4) | FLHTKSE |
| 9 | 7716 | LOCKNUT (4) | FLHTKSE |
| 10 | 10102 | CLIP (4) | FLHTKSE |
| 11 | 53629-10 | LINER, Tour-Pak **RESTRICTED SALES PART** | FLHTKSE |
| 12 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (HDI) | FLHTKSE |
| 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (HDI) | FLHTKSE | |
| 13 | 54353-09 | LIGHT, right-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73191-96 (Domestic) | FLHTKSE |
| 54355-09 | LIGHT, left-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73191-96 (Domestic) | FLHTKSE | |
| 14 | 57978-00 | GROMMET (Domestic) (2) | FLHTKSE |
| 15 | 72560-07 | TERMINAL (4) | FLHTKSE |
| 16 | 73152-96BK | SOCKET HOUSING, 2-place (Domestic) (4) | FLHTKSE |
| 17 | 73191-96 | TERMINAL, socket, 16-20 gauge (Domestic) (4) | FLHTKSE |
| 18 | 74112-98BK | HOUSING, socket, 2-way (black) | FLHTKSE |
| 19 | 74152-98 | SECONDARY LOCK, 2-way socket | FLHTKSE |
| 20 | 74191-98 | TERMINAL, socket (2) | FLHTKSE |
| 21 | 90844-80 | ACORN NUT (2) | FLHTKSE |
| 22 | 10200061 | SCREW (8) | FLHTKSE |
| 23 | 10200062 | SCREW (2) | FLHTKSE |
| 24 | 10200064 | SCREW (4) | FLHTKSE |
| 25 | 10200220 | SCREW (4) | FLHTKSE |
TOUR-PAK (BOTTOM) (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 10200225 | SCREW | FLHTKSE |
| 27 | 10300047 | WASHER | FLHTKSE |
| 28 | 11100089 | VELCRO PAD (7) | FLHTKSE |
| 29 | 53000091 | PLATE, Tour-Pak reinforcing | FLHTKSE |
| 30 | 53000132 | GROMMET | FLHTKSE |
| 31 | 53000138 | HASP ASSEMBLY, bottom | FLHTKSE |
| 32 | 53000139 | HINGE ASSEMBLY, rear | FLHTKSE |
| 33 | 53000140 | HINGE ASSEMBLY, front | FLHTKSE |
| 34 | 53000308 | COVER, TOUR-PAK wiring | FLHTKSE |
| 35 | 53000311 | ADAPTER PLATE, TOUR-PAK (Asia-Pacific) | FLHTKSE |
| 36 | 53000312 | COVER, latch lock | FLHTKSE |
| 37 | 53000346 | BOTTOM, Tour-Pak (prime) | FLHTKSE |
| 53000418DXT | BOTTOM, Tour-Pak (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000418DXV | BOTTOM, Tour-Pak (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000418DXU | BOTTOM, Tour-Pak (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 38 | 68000066 | LIGHT, w/ 73152-96BK, 72560-07 (2) | FLHTKSE |
| 39 | 76000172 | MOUNTING BRACKET, speaker, left | FLHTKSE |
| 40 | 76000173 | MOUNTING BRACKET, speaker, right | FLHTKSE |
| 41 | 76000174 | GASKET, speaker pod (2) | FLHTKSE |
| 42 | 91800039 | ACTUATOR ASSEMBLY, w/ 10200220 | FLHTKSE |
| 43 | 93300049 | LINER, molded, w/ pouch | FLHTKSE |
| 44 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE | |
| 45 | 90300081 | CAM LOCK | FLHTKSE |
TOUR-PAK (COVER)
| Index No. | Part No. | Description | Model(s) |
| 1 | 923 | SCREW (3) | FLHTKSE |
| 2 | 4860 | SCREW | FLHTKSE |
| 3 | 6235 | WASHER | FLHTKSE |
| 4 | 6703 | WASHER (3) | FLHTKSE |
| 5 | 10102 | CLIP (2) | FLHTKSE |
| 6 | 72560-07 | TERMINAL, 22 AWG (2) | FLHTKSE |
| 7 | 73152-96BK | HOUSING, socket, 2-way (black) | FLHTKSE |
| 8 | 79179-08 | LUGGAGE RACK, Tour-Pak, w/ 2, 3, 4 & 10 (chrome) | FLHTKSE |
| 9 | 90821-74C | LABEL, TOUR-PAK, load limit | FLHTKSE |
| 10 | 90875-08 | MOUNTING PAD & WASHER SET, luggage rack | FLHTKSE |
| 11 | 10200061 | SCREW (4) | FLHTKSE |
| 12 | 10200062 | SCREW (8) | FLHTKSE |
| 13 | 10200154 | SCREW (5) | FLHTKSE |
| 14 | 10300048 | WASHER | FLHTKSE |
| 15 | 11100089 | VELCRO PAD (9) | FLHTKSE |
| 16 | 53000090 | GASKET, cover | FLHTKSE |
| 17 | 53000137 | HASP, Tour-Pak lid | FLHTKSE |
| 18 | 53000139 | HINGE ASSEMBLY, rear | FLHTKSE |
| 19 | 53000140 | HINGE ASSEMBLY, front | FLHTKSE |
| 20 | 53000141 | TETHER, retractable | FLHTKSE |
| 21 | 53000370 | COVER, Tour-Pak (unpainted) | FLHTKSE |
| 53000429DXK | COVER, Tour-Pak, w/ 53000090 & label (Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000429DXM | COVER, Tour-Pak, w/ 53000090 & label (Palladium Silver) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000429DXN | COVER, Tour-Pak, w/ 53000090 & label (Gold Rush) **RESTRICTED SALES PART** | FLHTKSE | |
| 22 | 68000065 | LED LIGHT, w/ 73152-96BK, 72560-07 | FLHTKSE |
| 23 | 93300050 | LINER, top | FLHTKSE |
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (2) | FLHTKSE |
| 2 | 5210 | WELL NUT (8) | FLHTKSE |
| 3 | 5211 | CRIMP NUT (6) | FLHTKSE |
| 4 | 6113 | WASHER | FLHTKSE |
| 5 | 6220W | WASHER | FLHTKSE |
| 6 | 7492 | NUT, w/ lockwasher | FLHTKSE |
| 7 | 10006 | CABLE STRAP | FLHTKSE |
| 8 | 10065 | CABLE STRAP (3) | FLHTKSE |
| 9 | 72166-07BK | SOCKET HOUSING, 12-way (black) | FLHTKSE |
| 10 | 72168-07 | SOCKET TERMINAL, 18-20 AWG (13) | FLHTKSE |
| 11 | 72290-94 | TERMINAL, female 1/4 in. (3) | FLHTKSE |
| 12 | 72294-94 | TERMINAL, female 16-20 gauge (2) | FLHTKSE |
| 13 | 72473-07 | SEAL PIN (3) | FLHTKSE |
| 14 | 73102-96BK | PIN HOUSING, 2-place (2) | FLHTKSE |
| 15 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTKSE |
| 16 | 76353-00 | NUT | FLHTKSE |
| 17 | 10200105 | SCREW (8) | FLHTKSE |
| 18 | 10200133 | SCREW (8) | FLHTKSE |
| 19 | 12100017 | GROMMET, speaker, right | FLHTKSE |
| 20 | 12100018 | GROMMET, speaker, left | FLHTKSE |
| 21 | 67800368 | LAMP, Tour-Pak, w/ 31, 32, 35 & 36 (Domestic) | FLHTKSE |
| 67800101 | LAMP, Tour-Pak, w/ 31, 32, 35 & 36 (HDI) | FLHTKSE | |
| 67800102 | LAMP, Tour-Pak, w/ 31, 32, 35 & 36 (Japan) | FLHTKSE | |
| 22 | 69200135 | WIRING HARNESS, AM/FM ground jumper, w/ 72290-94 | FLHTKSE |
| 23 | 69200138 | WIRING HARNESS, speaker, left, w/ 8, 10, 11 & 12 | FLHTKSE |
| 24 | 69200139 | WIRING HARNESS, speaker, right, w/ 8, 10, 11, 12 & 28 | FLHTKSE |
| 25 | 69200237 | WEATHER CAP ASSEMBLY | FLHTKSE |
| 26 | 69200826 | KIT, AUXILIARY POWER OUTLET, Tour-Pak, w/ 73102-96BK & 73190-96 | FLHTKSE |
| 27 | 71400005 | SWITCH ASSEMBLY, rear speaker, w/ 71400006 & 71400007 | FLHTKSE |
| 28 | 71400006 | KNOB, ptt vol-/vol+ rear control switch | FLHTKSE |
| 29 | 71400007 | KNOB, mode select up/down rear control switch | FLHTKSE |
| 30 | 76000164 | STUD, antenna, female | FLHTKSE |
| 31 | 76000165 | SET SCREW, antenna, M5 X 43mm | FLHTKSE |
| 32 | 76000166 | SET SCREW, antenna, M6 X 20mm, (w/ CB radio) | FLHTKSE |
| 33 | 76000177 | BEZEL, speaker switch | FLHTKSE |
| 34 | 76000186 | STUD, antenna | FLHTKSE |
| 35 | 76000208 | PLUG ASSEMBLY, antenna | FLHTKSE |
| 36 | 76000268 | SPEAKER BOX ENCLOSURE, right rear | FLHTKSE |
| 37 | 76000270 | SPEAKER BOX ENCLOSURE, left rear | FLHTKSE |
| 38 | 76000320 | WOOFER, 6.5 inch (2) | FLHTKSE |
| 39 | 76000324 | GRILLE, woofer (2) | FLHTKSE |
SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3656 | SCREW (4) | FLHTKSE |
| 2 | 6229W | WASHER (4) | FLHTKSE |
| 3 | 10300049 | WASHER, retention (2) | FLHTKSE |
| 4 | 10102 | CLIP (8) | FLHTKSE |
| 5 | 74112-98BK | HOUSING, socket, 2-way (black) (2) | FLHTKSE |
| 6 | 74152-98 | SECONDARY LOCK, 2-way, socket (2) | FLHTKSE |
| 7 | 90834-95B | BAIL HEAD STUD (NOTE: Remove Bail for HDI sale, excluding Japan) (4) | FLHTKSE |
| 8 | 10200062 | SCREW (6) | FLHTKSE |
| 9 | 10200063 | SCREW (12) | FLHTKSE |
| 10 | 10200064 | SCREW (2) | FLHTKSE |
| 11 | 10200065 | SCREW (8) | FLHTKSE |
| 12 | 10200103 | SCREW (16) | FLHTKSE |
| 13 | 10200219 | SCREW (6) | FLHTKSE |
| 14 | 10200220 | SCREW (6) | FLHTKSE |
| 15 | 11100089 | VELCRO PAD (14) | FLHTKSE |
| 16 | 12100038 | GROMMET (2) | FLHTKSE |
| 17 | 14900001 | TOOL KIT | FLHTKSE |
| 18 | 67900065 | REFLECTOR, left (red) (Domestic) | FLHTKSE |
| 67900066 | REFLECTOR, left (amber) (HDI) | FLHTKSE | |
| 67900067 | REFLECTOR, right (red) (Domestic) | FLHTKSE | |
| 67900068 | REFLECTOR, right (amber) (HDI) | FLHTKSE | |
| 19 | 69200580 | ACTUATOR ASSEMBLY, right, w/ 5, 6, 14 & 16 | FLHTKSE |
| 69200592 | ACTUATOR ASSEMBLY, left, w/ 5, 6, 14 & 16 | FLHTKSE | |
| 20 | 90200411 | SADDLEBAG COVER, right (prime) | FLHTKSE |
| 90201181DXK | SADDLEBAG COVER, right, w/ 90200415 (Carbon Dust) | FLHTKSE | |
| 90201181DXM | SADDLEBAG COVER, right, w/ 90200415 (Palladium Silver) | FLHTKSE | |
| 90201181DXN | SADDLEBAG COVER, right, w/ 90200415 (Gold Rush) | FLHTKSE | |
| 90200413 | SADDLEBAG COVER, left (prime) | FLHTKSE | |
| 90201180DXK | SADDLEBAG COVER, left, w/ 90200415 (Carbon Dust) | FLHTKSE | |
| 90201180DXM | SADDLEBAG COVER, left, w/ 90200415 (Palladium Silver) | FLHTKSE | |
| 90201180DXN | SADDLEBAG COVER, left, w/ 90200415 (Gold Rush) | FLHTKSE | |
| 21 | 90200415 | GASKET, cover (2) | FLHTKSE |
| 22 | 90200467 | CUSHION, saddlebag support (4) | FLHTKSE |
| 23 | 90200519 | STRIKE, saddlebag (4) | FLHTKSE |
| 24 | 90200611 | ISOLATOR, saddlebag (4) | FLHTKSE |
| 25 | 90200752 | LINER, pull out, w/ handles (2) | FLHTKSE |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 90201133DXT | SADDLEBAG BOTTOM, right (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE |
| 90201133DXU | SADDLEBAG BOTTOM, right (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201133DXV | SADDLEBAG BOTTOM, right (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXT | SADDLEBAG BOTTOM, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXU | SADDLEBAG BOTTOM, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXV | SADDLEBAG BOTTOM, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 27 | 90200893 | TETHER, saddlebag (2) | FLHTKSE |
| 28 | 90200896 | LATCH ASSEMBLY, right, w/ 90200899 & 90200901 | FLHTKSE |
| 90200897 | LATCH ASSEMBLY, left, w/ 90200900 & 90200901 | FLHTKSE | |
| 29 | 90200899 | HINGE ASSEMBLY, right | FLHTKSE |
| 90200900 | HINGE ASSEMBLY, left | FLHTKSE | |
| 30 | 90200901 | SEAL (2) | FLHTKSE |
| 31 | 90200902 | HANDLE KIT, saddlebag, w/ 10200064 & grommet, right | FLHTKSE |
| 90200903 | HANDLE KIT, saddlebag, w/ 10200064 & grommet, left | FLHTKSE | |
| 32 | 90201295 | FACE PLATE, left | FLHTKSE |
| 90201296 | FACE PLATE, right | FLHTKSE | |
| 33 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE | |
| 34 | 90300092 | LOCK (specify key number) (2) | FLHTKSE |
| 35 | 93100031 | COVER, indoor storage | FLHTKSE |
| 36 | 93300052 | LINER, right | FLHTKSE |
| 93300051 | LINER, left | FLHTKSE |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (4) | FLHTKSE |
| 2 | 3601 | SCREW (2) | FLHTKSE |
| 3 | 3684 | SCREW (6) | FLHTKSE |
| 4 | 4924 | SCREW (4) | FLHTKSE |
| 5 | 6703 | WASHER (4) | FLHTKSE |
| 6 | 7531 | LOCKNUT (2) | FLHTKSE |
| 7 | 7601 | LOCKNUT (4) | FLHTKSE |
| 8 | 7686 | LOCKNUT (2) | FLHTKSE |
| 9 | 10200217 | SCREW (2) | FLHTKSE |
| 10 | 10900009 | RECEPTACLE (4) | FLHTKSE |
| 11 | 11100068 | CUSHION (2) | FLHTKSE |
| 12 | 90200499 | SUPPORT, saddlebag, right, w/ 11100068 (chrome) | FLHTKSE |
| 90200501 | SUPPORT, saddlebag, left, w/ 11100068 (chrome) | FLHTKSE | |
| 13 | 90200504 | SUPPORT, saddlebag, right (black) | FLHTKSE |
| 90200505 | SUPPORT, saddlebag, left (black) | FLHTKSE | |
| 14 | 90200506 | GUARD, left (chrome) | FLHTKSE |
| 90200507 | GUARD, right (chrome) | FLHTKSE | |
| 15 | 90200543 | SCREW (2) | FLHTKSE |
| 16 | 90200763DXK | FILLER STRIP, left (Carbon Dust) | FLHTKSE |
| 90200763DXM | FILLER STRIP, left (Palladium Silver) | FLHTKSE | |
| 90200763DXN | FILLER STRIP, left (Gold Rush) | FLHTKSE | |
| 90200764DXK | FILLER STRIP, right (Carbon Dust) | FLHTKSE | |
| 90200764DXM | FILLER STRIP, right (Palladium Silver) | FLHTKSE | |
| 90200764DXN | FILLER STRIP, right (Gold Rush) | FLHTKSE |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | ENGINE GUARD LABEL | FLHTKSE |
| 2 | 15370-01A | MIRROR WARNING LABEL | FLHTKSE |
| 3 | 15368-01A | LABEL BATTERY WARNING | FLHTKSE |
| 4 | 14272-06 | LABEL, shift pattern (Japan) | FLHTKSE |
| 5 | 28012-09 | AIR CLEANER WARNING LABEL (Domestic, California) | FLHTKSE |
| 6 | 90820-93D | LABEL, saddlebag load limits (2) | FLHTKSE |
| 7 | 90821-74C | LABEL, Tour-Pak load limits | FLHTKSE |
| 8 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTKSE |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 29762-09 | RAINSOCK, air cleaner | FLHTKSE |
| 53629-10 | LINER, Tour-Pak, removable | FLHTKSE | |
| 58002-09 | MID-FRAME AIR DEFLECTOR KIT | FLHTKSE | |
| 68926-07 | REMOTE CONTROL FOB (except Japan) (2) | FLHTKSE | |
| 69995-11 | REMOTE CONTROL FOB (Japan) (2) | FLHTKSE | |
| 76250-09 | ANTENNA, CB | FLHTKSE | |
| 76503-08 | ANTENNA, AM/FM | FLHTKSE | |
| 77117-10 | HEADSET, helmet (2) | FLHTKSE | |
| 88002-15D | OWNERS KIT CONTENT (Domestic) | FLHTKSE | |
| 91560-01 | RECEIVER, garage door opener (Domestic & Canada) | FLHTKSE | |
| 99461-89 | COVER, owners manual (Domestic, Canada, Australia & England) | FLHTKSE | |
| 99473-15 | OWNERS MANUAL | FLHTKSE | |
| 99517-15EN | BOOM OWNERS MANUAL (English) (Domestic, Canada, Australia & England) | FLHTKSE | |
| 14900001 | TOOL KIT | FLHTKSE | |
| 52300224 | BACKREST, rider | FLHTKSE | |
| 52300225 | BACKREST, passenger | FLHTKSE | |
| 57200093DXT | SIDE COVER, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXU | SIDE COVER, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXV | SIDE COVER, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 57400001 | WINDSHIELD (clear) (Australia) | FLHTKSE | |
| 57400002 | WINDSHIELD (clear) (HDI, England & Japan) | FLHTKSE | |
| 57400058 | WIND DEFLECTOR (clear) (Asia-Pacific) | FLHTKSE | |
| 57400165 | WINDSHIELD (smoked) (Domestic, California, Canada & Brazil) | FLHTKSE | |
| 69200336 | MAIN FUSE, 50 amp (red) | FLHTKSE | |
| 90200752 | LINER, saddlebag, removable (2) | FLHTKSE | |
| 71031-04 | KEY, CVO (specify key number) (Except Asia-Pacific) **RESTRICTED SALES PART** | FLHTKSE | |
| 90300043 | KEY (set of 2) (specify key number) (Japan) | FLHTKSE | |
| 76537-08 | KEY & FOB ASSEMBLY, power lock (specify key number) (Except Japan) (2) | FLHTKSE | |
| 94000084 | ABS EDUCATIONAL DVD | FLHTKSE | |
| 93100031 | COVER, indoor storage | FLHTKSE | |
| J00761 | CB RADIO GUIDE: I-SHEET (Domestic) | FLHTKSE |
LOOSE PARTS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 4617 | SCREW (4) | FLHTKSE | |
| 4626 | SCREW (2) | FLHTKSE | |
| 6462 | WASHER (2) | FLHTKSE | |
| 8075 | NUT, decorative (2) | FLHTKSE | |
| 50351-03 | MOUNT, footpeg support (2) | FLHTKSE | |
| 50912-72 | SPRING WASHER (2) | FLHTKSE | |
| 50988-02A | MOUNT, footpeg (2) | FLHTKSE | |
| 51009-02A | MOUNT, footpeg (2) | FLHTKSE | |
| 10200316 | SCREW (2) | FLHTKSE | |
| 12400018 | SPACER (2) | FLHTKSE | |
| 50500351 | FOOTPEG INSERT, right | FLHTKSE | |
| 50500354 | FOOTPEG INSERT, left | FLHTKSE | |
| 50500350 | FOOTPEG BODY, right | FLHTKSE | |
| 50500353 | FOOTPEG BODY, left | FLHTKSE | |
| 3767B | BOLT (4) | FLHTKSE | |
| 6703 | WASHER (4) | FLHTKSE | |
| 53000311 | ADAPTER PLATE, Tour-Pak | FLHTKSE | |
| 2731W | SCREW (2) | FLHTKSE | |
| 59292-94 | NUT, plastic (2) | FLHTKSE | |
| HIGHWAY PEG KIT (Except Australia and Asia-Pacific)TOUR-PAK ADAPTER KIT (Asia-Pacific)LICENSE PLATE MOUNTING KIT HARDWARE | |||
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 10100049 | LOCKNUT hex, M6 X 1-6H X 5.2mm (Grade 9) |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200052 | SCREW 1/4-20 X 39/64 TORX SEMS socket button head , with lockpatch |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200061 | SCREW No. 8-32 X 1/2 TORX SEMS pan head (zinc) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200064 | SCREW No. 8-32 X 1 TORX pan head (zinc) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200105 | SCREW No. 6-32 X 3/4 TORX pan head (black zinc) |
| 10200133 | SCREW No. 8-16 X 9/16 TORX pan head (zinc) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200154 | SCREW No. 8 X 3/4 TORX SEMS pan head (stainless) |
| 10200155 | SCREW No. 8-16 X 1 TORX pan head (zinc) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200316 | SCREW 5/16-18 X 1 button head T-40 |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500017 | SCREW No. 10 X 3/8 pan head, TORX, plastite, hardened (zinc) |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch(Grade 5) |
| 12600049 | SCREW No. 10-24 X 3/4 pan head torx, with lockpatch (Grade 8) (zinc) |
| 1332 | SCREW No. 5/16 X 2-1/4 socket button head with lock patch (Grade 8) |
| 2225 | SCREW 1/4-20 X 5/8 socket flat countersink head |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 2731W | SCREW No. 10 X 3/8 Phillips truss head, self-tapping |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 3018A | SCREW 10-24 X 3/8 TORX head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3540 | SCREW 5/16-18 X 5/8 socket button head |
| 3546 | BOLT 5/16-18 X 5/8 hex flange head, with lockpatch |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3601 | SCREW 1/4-20 X 1-1/4 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3728 | SCREW 1/4-20 X 1/2 hex head |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3767B | BOLT 1/4-20 X 5/8 hex head (Grade 5) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3910 | SCREW 1/2-20 X 2-1/4 hex head full thread (Grade 5) (zinc) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3938 | SCREW button hex socket |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4617 | SCREW 1/4-20 X 5/8 hex socket head full thread (Grade 8) |
| 4626 | SCREW 5/16-18 X 1.5 button socket head, with lockpatch (Grade 8) |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4860 | SCREW 5/16-18 X 3/4 hex head, hollow with lockpatch |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4976 | SCREW 1/4-20 X 3/4 TORX socket button head, stainless steel |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6026 | WASHER 3/8 X 7/8 X 7/64 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6383 | WASHER 17/64 X 1/2 X 1/16 stainless steel |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6462 | WASHER 13/32 X 5/8 X 1/8 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7331 | ACORN NUT 5/16-24 |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7676 | NUT 1/4-28 X 7/32 X 7/16 (Grade 2) |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90200543 | SCREW 3/8-16 X 2-1/2 TORX button head (zinc) |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 923 | SCREW 1/4-20 X 3/4 socket pan head |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 10 | 26700001A | THERMOSTAT | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 21 | 26700001A | THERMOSTAT | FLHTKSE |
| 24 | 26800007A | FAN ASSEMBLY, left, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTKSE |
| 25 | 26800019A | FAN ASSEMBLY, right, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTKSE |
| 26 | 26800020A | FILL NECK, coolant | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 63731-99A | OIL FILTER (chrome) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 14100699 | INSERT, air cleaner cover | FLHTKSE |
| 12 | 61300516 | COVER, air cleaner (chrome), w/ 3048 & label | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 44 | 33600056 | SHIFTER PEG, w/ 12400026 & screw (2) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 11000101 | OIL SEAL | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 33203-14 | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (gray granite) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 37000217 | PUSHROD, clutch release plate | FLHTKSE |
| 20 | 37000218 | ROD, clutch release | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 36700094 | MASTER CYLINDER COVER KIT, w/ 3089 & gasket | FLHTKSE |
| 14 | 37200096 | REPAIR KIT, master cylinder, w/ 11143 & 41751-06A | FLHTKSE |
| 17 | 36700048B | MASTER CYLINDER ASSEMBLY, clutch (chrome), w/ 9, 11, 12, 14 & 18 | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 42102-08D | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14, 15 & 16 | FLHTKSE |
| 16 | 41700367 | BUTTON, anti-bubble | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 34 | 50600134 | BRAKE PEDAL INSERT | FLHTKSE |
| 35 | 50600135 | RUBBER INSERT | FLHTKSE |
| 36 | 50600142 | LEVER ASSEMBLY, foot-brake, w/ 42644-00, 11000050 & bushing | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 10100049 | LOCKNUT (2) | FLHTKSE |
| 15 | 12100060 | DAMPER, rubber (2) | FLHTKSE |
| 16 | 12400077 | SLEEVE, guide (2) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 10400022 | NUT | FLHTKSE |
| 24 | 42300046 | VALVE STEM | FLHTKSE |
| 25 | 42300049 | CAP | FLHTKSE |
| 26 | 43300388 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 10400022 | NUT | FLHTKSE |
| 18 | 40900332 | WHEEL, cast, w/o bearings & sleeve (chrome) | FLHTKSE |
| 20 | 42300046 | VALVE STEM | FLHTKSE |
| 21 | 42300049 | CAP | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 45700020A | STEM ASSEMBLY, upper steering, w/ bearing cone & dirt guard | FLHTKSE |
| 13 | 45900091A | BRACKET ASSEMBLY, lower fork, w/ bearing cone & dirt guard | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 46510-07 | COLLAR, spring (2) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 57200094DXT | SIDE COVER, right (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200094DXU | SIDE COVER, right (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200094DXV | SIDE COVER, right (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXT | SIDE COVER, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXU | SIDE COVER, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXV | SIDE COVER, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 50500055A | MOUNTING BRACKET, front footboard (2) | FLHTKSE |
| 21 | 50500343 | INSERT ASSEMBLY, right, rider | FLHTKSE |
| 22 | 50500348 | BOTTOM ASSEMBLY, right, w/ hinge | FLHTKSE |
| 23 | 50500349 | BOTTOM ASSEMBLY, left, w/ hinge | FLHTKSE |
| 24 | 50500377 | HOUSING, right, passenger | FLHTKSE |
| 50500383 | HOUSING, left, passenger (not shown) | FLHTKSE | |
| 50500384 | FOOTBOARD INSERT, passenger, left (not shown) | FLHTKSE | |
| 26 | 50500397 | ARM, main mounting assembly (2) | FLHTKSE |
| 27 | 50500347 | INSERT ASSEMBLY, left, rider | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 10200316 | SCREW (2) | FLHTKSE |
| 11 | 50500351 | FOOTPEG INSERT, right | FLHTKSE |
| 50500354 | FOOTPEG INSERT, left | FLHTKSE | |
| 12 | 50500350 | FOOTPEG BODY, right | FLHTKSE |
| 50500353 | FOOTPEG BODY, left | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 58900116DXT | FENDER (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900116DXU | FENDER (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900116DXV | FENDER (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900138DXT | FENDER (Gold Rush/Carbon Dust) (HDI) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900138DXU | FENDER (Palladium Silver/Typhoon Maroon) (HDI) **RESTRICTED SALES PART** | FLHTKSE | |
| 58900138DXV | FENDER (Carbon Dust/Charcoal Slate) (HDI) **RESTRICTED SALES PART** | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 59500293DXK | FENDER, rear, w/ 48421-04, nut & washer (Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 59500293DXM | FENDER, rear, w/ 48421-04, nut & washer (Palladium Silver) **RESTRICTED SALES PART** | FLHTKSE | |
| 59500293DXN | FENDER, rear, w/ 48421-04, nut & washer (Gold Rush) **RESTRICTED SALES PART** | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 59988-72A | REFLECTOR (HDI) | FLHTKSE |
| 9 | 60918-10A | LICENSE PLATE BRACKET (HDI) | FLHTKSE |
| 25 | 12400100 | SPACER | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 61000188DXT | FUEL TANK, w/ medallions (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 61000188DXU | FUEL TANK, w/ medallions (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 61000188DXV | FUEL TANK, w/ medallions (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 11 | 14100705 | MEDALLION, right | FLHTKSE |
| 14100704 | MEDALLION, left (not shown) | FLHTKSE | |
| 12 | 11323 | O-RING, check valve to tank | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 70900293A | INSTRUMENT CLUSTER, mph, w/ 12100020 & 12400034 (Domestic, California) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 57000416DXT | FAIRING, outer, w/ 7900, 11100055, 29200007 (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE |
| 57000416DXU | FAIRING, outer, w/ 7900, 11100055, 29200007 (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57000416DXV | FAIRING, outer, w/ 7900, 11100055, 29200007 (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 24 | 67700060 | HEADLAMP, LED, with 67721-48, 67726-08 and 67700204 | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 24 | 61400253 | TRIM | FLHTKSE |
| 29 | 76000561DXK | DOOR, media compartment, outer (Carbon Dust) | FLHTKSE |
| 76000561DXM | DOOR, media compartment, outer (Palladium Silver) | FLHTKSE | |
| 76000561DXN | DOOR, media compartment, outer (Gold Rush) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 70900392DXK | DASH PANEL, fairing (Carbon Dust) | FLHTKSE |
| 70900392DXM | DASH PANEL, fairing (Palladium Silver) | FLHTKSE | |
| 70900392DXN | DASH PANEL, fairing (Gold Rush) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 57100242BYZ | CAP, fairing, lower, left (Charcoal Slate) | FLHTKSE | |
| 57100242DXK | CAP, fairing, lower, left (Carbon Dust) | FLHTKSE | |
| 57100291DAB | CAP, fairing, lower, left (Typhoon Maroon) | FLHTKSE | |
| 57100275BYZ | FAIRING, lower, left, w/ 57100170 (Charcoal Slate) | FLHTKSE | |
| 57100275DXK | FAIRING, lower, left, w/ 57100170 (Carbon Dust) | FLHTKSE | |
| 57100285DAB | FAIRING, lower, left, w/ 57100170 (Typhoon Maroon) | FLHTKSE | |
| 57100243BYZ | CAP, fairing, lower, right (Charcoal Slate) | FLHTKSE | |
| 57100243DXK | CAP, fairing, lower, right (Carbon Dust) | FLHTKSE | |
| 57100292DAB | CAP, fairing, lower, right (Typhoon Maroon) | FLHTKSE | |
| 57100276BYZ | FAIRING, lower, right, w/ 57100171 (Charcoal Slate) | FLHTKSE | |
| 57100276DXK | FAIRING, lower, right, w/ 57100171 (Carbon Dust) | FLHTKSE | |
| 57100286DAB | FAIRING, lower, right, w/ 57100171 (Typhoon Maroon) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 71500083A | SWITCHPACK ASSEMBLY, right, w/ 20, 21, 22, 24 & 26 | FLHTKSE |
| 16 | 71500160A | COVER ASSEMBLY, right, w/ screws | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 56100096 | HANDGRIP ASSEMBLY, right | FLHTKSE |
| 10 | 56100094 | ENDCAP (2) | FLHTKSE |
| 11 | 56100097 | HANDGRIP ASSEMBLY, left, w/ 5, 6, 7 & 8 | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 64800039 | END CAP (2) | FLHTKSE |
| 65913-06B | MUFFLER, left (chrome) (Brazil, Asia-Pacific) | FLHTKSE | |
| 66080-06B | MUFFLER, right (chrome) (Brazil, Asia-Pacific) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 35 | 72575-11 | SECONDARY LOCK | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 66000066 | BATTERY, w/ 4312C (Brazil) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 69060-90H | HORN ASSEMBLY | FLHTKSE |
| 13 | 61300478 | COVER, horn (chrome) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) (Japan) | FLHTKSE |
| 22 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 76000243 | EAR PAD, foam (4) | FLHTKSE |
| 20 | 76000277A | AMPLIFIER | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 14100706 | INSERT | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 53629-10 | LINER, Tour-Pak **RESTRICTED SALES PART** | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 53000418DXT | BOTTOM, Tour-Pak (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000418DXV | BOTTOM, Tour-Pak (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000418DXU | BOTTOM, Tour-Pak (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 44 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 53000429DXK | COVER, Tour-Pak, w/ 53000090 & label (Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000429DXM | COVER, Tour-Pak, w/ 53000090 & label (Palladium Silver) **RESTRICTED SALES PART** | FLHTKSE | |
| 53000429DXN | COVER, Tour-Pak, w/ 53000090 & label (Gold Rush) **RESTRICTED SALES PART** | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 90201181DXK | SADDLEBAG COVER, right, w/ 90200415 (Carbon Dust) | FLHTKSE | |
| 90201181DXM | SADDLEBAG COVER, right, w/ 90200415 (Palladium Silver) | FLHTKSE | |
| 90201181DXN | SADDLEBAG COVER, right, w/ 90200415 (Gold Rush) | FLHTKSE | |
| 90201180DXK | SADDLEBAG COVER, left, w/ 90200415 (Carbon Dust) | FLHTKSE | |
| 90201180DXM | SADDLEBAG COVER, left, w/ 90200415 (Palladium Silver) | FLHTKSE | |
| 90201180DXN | SADDLEBAG COVER, left, w/ 90200415 (Gold Rush) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 26 | 90201133DXT | SADDLEBAG BOTTOM, right (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE |
| 90201133DXU | SADDLEBAG BOTTOM, right (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201133DXV | SADDLEBAG BOTTOM, right (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXT | SADDLEBAG BOTTOM, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXU | SADDLEBAG BOTTOM, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 90201132DXV | SADDLEBAG BOTTOM, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 33 | 90300097 | LOCKSET, complete, w/ key & fob assembly, fork lock, Tour-Pak & saddlebag lock | FLHTKSE |
| 90300078 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Asia-Pacific) | FLHTKSE | |
| 90300098 | LOCKSET, complete, w/ key, fork lock, Tour-Pak & saddlebag lock (Japan) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 90200763DXK | FILLER STRIP, left (Carbon Dust) | FLHTKSE |
| 90200763DXM | FILLER STRIP, left (Palladium Silver) | FLHTKSE | |
| 90200763DXN | FILLER STRIP, left (Gold Rush) | FLHTKSE | |
| 90200764DXK | FILLER STRIP, right (Carbon Dust) | FLHTKSE | |
| 90200764DXM | FILLER STRIP, right (Palladium Silver) | FLHTKSE | |
| 90200764DXN | FILLER STRIP, right (Gold Rush) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 15370-01A | MIRROR WARNING LABEL | FLHTKSE |
| 8 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTKSE |
| Index No. | Part No. | Description | Model(s) |
| 77117-10 | HEADSET, helmet (2) | FLHTKSE | |
| 99473-15 | OWNERS MANUAL | FLHTKSE | |
| 57200093DXT | SIDE COVER, left (Gold Rush/Carbon Dust) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXU | SIDE COVER, left (Palladium Silver/Typhoon Maroon) **RESTRICTED SALES PART** | FLHTKSE | |
| 57200093DXV | SIDE COVER, left (Carbon Dust/Charcoal Slate) **RESTRICTED SALES PART** | FLHTKSE | |
| 90300043 | KEY (set of 2) (specify key number) (Japan) | FLHTKSE | |
| 94000084 | ABS EDUCATIONAL DVD | FLHTKSE |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10039 | |
| 10053 | |
| 10065 | |
| 10076 | |
| 10100049 | |
| 10102 | |
| 10103 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10183 | |
| 10184 | |
| 10200042 | |
| 10200052 | |
| 10200059 | |
| 10200060 | |
| 10200061 | |
| 10200062 | |
| 10200063 | |
| 10200064 | |
| 10200065 | |
| 10200103 | |
| 10200105 | |
| 10200133 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200154 | |
| 10200155 | |
| 10200156 | |
| 10200205 | |
| 10200217 | |
| 10200219 | |
| 10200220 | |
| 10200223 | |
| 10200225 | |
| 10200258 | |
| 10200316 | |
| 10264 | |
| 10300036 | |
| 10300047 | |
| 10300048 | |
| 10300049 | |
| 10334 | |
| 10340A | |
| 10344 | |
| 1039 | |
| 10395 | |
| 10396 | |
| 10400022 | |
| 10406 | |
| 10500015 | |
| 10500017 | |
| 10500022 | |
| 10500031 | |
| 10500034 | |
| 10500036 | |
| 10600007 | |
| 1062 | |
| 10800023 | |
| 10800024 | |
| 10800025 | |
| 10800028 | |
| 10800052 | |
| 10800078 | |
| 10900005 | |
| 10900009 | |
| 10991A | |
| 11000050 | |
| 11000101 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100055 | |
| 11100057 | |
| 11100068 | |
| 11100071 | |
| 11100089 | |
| 11100105 | |
| 11100115 | |
| 11105 | |
| 11110 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11270 | |
| 11289A | |
| 11290 | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11323 | |
| 11389 | |
| 11408 | |
| 11437 | |
| 11461 | |
| 11519 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11650 | |
| 11686 | |
| 11692 | |
| 11700002 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11900021 | |
| 11900035 | |
| 11902 | |
| 11907 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100007 | |
| 12100017 | |
| 12100018 | |
| 12100020 | |
| 12100028 | |
| 12100038 | |
| 12100052 | |
| 12100060 | |
| 12102 | |
| 12200025 | |
| 12200063 | |
| 12200064 | |
| 12200092 | |
| 12400018 | |
| 12400026 | |
| 12400034 | |
| 12400077 | |
| 12400100 | |
| 12500002 | |
| 12600032 | |
| 12600049 | |
| 12600067 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600087 | |
| 12600116 | |
| 12700077 | |
| 1332 | |
| 14000827 | |
| 14100371 | |
| 14100613 | |
| 14100699 | |
| 14100704 | |
| 14100705 | |
| 14100706 | |
| 14148-86 | |
| 14272-06 | |
| 14900001 | |
| 15368-01A | |
| 15370-01A | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16321-08 | |
| 16325-10 | |
| 16400004 | |
| 16400005 | |
| 16400028 | |
| 16478-85A | |
| 16480-92A | |
| 16500134 | |
| 16500139 | |
| 16500168 | |
| 16500227 | |
| 16500228 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17454-08A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18048-98A | |
| 18067-09 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18400035 | |
| 18535-99 | |
| 18572-13 | |
| 18635-99B | |
| 19292-15 | |
| 21951-11 | |
| 21953-11 | |
| 22000001 | |
| 22000003 | |
| 22000031 | |
| 22097-99 | |
| 221 | |
| 2225 | |
| 22307-99 | |
| 24004-03B | |
| 24009-06 | |
| 24018-10 | |
| 24100021 | |
| 2445 | |
| 2446 | |
| 24605-07 | |
| 24754-75A | |
| 24760-08A | |
| 2478 | |
| 2479 | |
| 2482 | |
| 25244-99A | |
| 2531 | |
| 25355-06A | |
| 25369-01B | |
| 25566-06 | |
| 25585-06 | |
| 2563 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700178 | |
| 25700179 | |
| 25700226 | |
| 25700228 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800017 | |
| 26037-06 | |
| 26064-08 | |
| 26077-99A | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 26600012 | |
| 26700001A | |
| 26780-05A | |
| 26800005 | |
| 26800006 | |
| 26800007A | |
| 26800008 | |
| 26800009 | |
| 26800019A | |
| 26800020A | |
| 26800021 | |
| 26900001 | |
| 26900002 | |
| 26900003 | |
| 26900006 | |
| 26900007 | |
| 26900008 | |
| 26900009 | |
| 26900010 | |
| 26900011 | |
| 26900014 | |
| 26900016 | |
| 26900017 | |
| 26900018 | |
| 26900021 | |
| 26900022 | |
| 26900023 | |
| 26900024 | |
| 26900027 | |
| 26900028 | |
| 26900029 | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27200002 | |
| 2724 | |
| 27291-09 | |
| 27297-09A | |
| 27298-09A | |
| 2731W | |
| 27439-09A | |
| 27440-09A | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 28004-01 | |
| 28005-01 | |
| 28012-09 | |
| 29200003 | |
| 29200007 | |
| 29200034 | |
| 29200035 | |
| 29200039 | |
| 29241-08 | |
| 29267-08A | |
| 29269-83A | |
| 29517-07A | |
| 2952A | |
| 29670-09 | |
| 2968 | |
| 29696-09 | |
| 29762-09 | |
| 29900029 | |
| 29900033 | |
| 3018A | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 3089 | |
| 3143 | |
| 31527-90 | |
| 31586-07 | |
| 31604-06 | |
| 31611-08 | |
| 31618-06A | |
| 31633-07A | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 32305-08A | |
| 32306-08 | |
| 32319-07A | |
| 32362-04A | |
| 32446-99 | |
| 3249 | |
| 32578-07 | |
| 3267 | |
| 32700010 | |
| 32700015 | |
| 32700028 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33130-07A | |
| 33203-14 | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33413-06A | |
| 33600056 | |
| 33600060 | |
| 33600061 | |
| 33709-82A | |
| 33718-82B | |
| 33814-98A | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34469-06B | |
| 34853-08 | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06A | |
| 35255-10A | |
| 35256-08A | |
| 35259-06 | |
| 3529 | |
| 3536 | |
| 3540 | |
| 3546 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3601 | |
| 3607 | |
| 3612 | |
| 3634 | |
| 36500034A | |
| 3655A | |
| 3656 | |
| 36700048B | |
| 36700050 | |
| 36700094 | |
| 36706-01K | |
| 36731-91 | |
| 36805-06 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000026 | |
| 37000032 | |
| 37000033 | |
| 37000034 | |
| 37000035 | |
| 37000036 | |
| 37000083 | |
| 37000118 | |
| 37000217 | |
| 37000218 | |
| 37065-06 | |
| 37200023 | |
| 37200030 | |
| 37200034 | |
| 37200096 | |
| 3728 | |
| 3736B | |
| 37496-90A | |
| 3762M | |
| 3767B | |
| 3787 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 3892 | |
| 3901 | |
| 3910 | |
| 3929 | |
| 3938 | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40024-09 | |
| 40037-07 | |
| 40100041 | |
| 40217-09 | |
| 40278-09 | |
| 40323-00 | |
| 4032A | |
| 40615-08 | |
| 40659-06 | |
| 40786-08 | |
| 40900332 | |
| 40901-05 | |
| 41000057 | |
| 41000169 | |
| 41100013 | |
| 41123-79 | |
| 41229-08 | |
| 41300019 | |
| 41349-07 | |
| 41547-07A | |
| 41600029 | |
| 41600031 | |
| 41600032 | |
| 41600078 | |
| 41600091 | |
| 41700072 | |
| 41700195 | |
| 41700367 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800012 | |
| 41800013 | |
| 41800205 | |
| 41800206 | |
| 41800207 | |
| 41810-08B | |
| 41819-02 | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 4196 | |
| 42010-06A | |
| 42054-05 | |
| 42102-08D | |
| 42105-06A | |
| 42119-08 | |
| 42123-08 | |
| 42145-06 | |
| 42271-06A | |
| 42300006 | |
| 42300046 | |
| 42300049 | |
| 4240 | |
| 42460-80B | |
| 42642-00A | |
| 42644-00 | |
| 4266A | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42857-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4293 | |
| 42932-08A | |
| 42934-08 | |
| 42938-08 | |
| 42939-08 | |
| 43000002 | |
| 43109-09A | |
| 4312C | |
| 4313 | |
| 43200027 | |
| 43300388 | |
| 43475-08 | |
| 43567-92 | |
| 4400 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44430-04 | |
| 44583-08 | |
| 44613-02 | |
| 44935-06 | |
| 45032-82 | |
| 45400043 | |
| 45400044 | |
| 45423-92 | |
| 45500113 | |
| 45500114 | |
| 45500116 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500173 | |
| 45500174 | |
| 45500251 | |
| 45600017 | |
| 45600018 | |
| 45700009 | |
| 45700020A | |
| 45893-99 | |
| 45900024 | |
| 45900091A | |
| 4597M | |
| 46080-01 | |
| 4612 | |
| 4617 | |
| 46246-01 | |
| 4626 | |
| 4631 | |
| 46463-08 | |
| 46508-01 | |
| 46509-01 | |
| 46510-07 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 46615-06 | |
| 4688 | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 47200080 | |
| 47200081 | |
| 47200275 | |
| 4721 | |
| 4740A | |
| 4741A | |
| 4751 | |
| 47540-11 | |
| 47549-09 | |
| 47584-09 | |
| 4775 | |
| 4790 | |
| 47900-14BHP | |
| 48079-09BHP | |
| 4813A | |
| 4826 | |
| 4838 | |
| 48419-04 | |
| 48420-04 | |
| 48421-04 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4860 | |
| 4868 | |
| 4881 | |
| 4890 | |
| 49050-09A | |
| 4916 | |
| 49184-09A | |
| 4924 | |
| 49725-07A | |
| 4976 | |
| 50015-74A | |
| 50075-07A | |
| 50096-09 | |
| 50126-08A | |
| 50245-07 | |
| 50351-03 | |
| 50500051 | |
| 50500052A | |
| 50500055A | |
| 50500343 | |
| 50500347 | |
| 50500348 | |
| 50500349 | |
| 50500350 | |
| 50500351 | |
| 50500353 | |
| 50500354 | |
| 50500377 | |
| 50500378 | |
| 50500383 | |
| 50500384 | |
| 50500397 | |
| 50600134 | |
| 50600135 | |
| 50600142 | |
| 50635-82A | |
| 50674-05 | |
| 50912-72 | |
| 50988-02A | |
| 50998-07 | |
| 51006-07 | |
| 51007-07 | |
| 51009-02A | |
| 51023-07 | |
| 5118 | |
| 515 | |
| 51501-07 | |
| 51652-97A | |
| 52000083 | |
| 52000141 | |
| 5210 | |
| 5211 | |
| 52300121 | |
| 52300122 | |
| 52300123 | |
| 52300127 | |
| 52300224 | |
| 52300225 | |
| 52400015 | |
| 52400016 | |
| 52400021 | |
| 52567-93D | |
| 52585-09 | |
| 52589-09A | |
| 52590-09 | |
| 53000090 | |
| 53000091 | |
| 53000125 | |
| 53000132 | |
| 53000137 | |
| 53000138 | |
| 53000139 | |
| 53000140 | |
| 53000141 | |
| 53000308 | |
| 53000311 | |
| 53000312 | |
| 53000346 | |
| 53000370 | |
| 53000418DXT | |
| 53000418DXU | |
| 53000418DXV | |
| 53000429DXK | |
| 53000429DXM | |
| 53000429DXN | |
| 53629-10 | |
| 53734-06 | |
| 53735-06 | |
| 53919-04A | |
| 54000036 | |
| 54000038 | |
| 54000039 | |
| 5416 | |
| 54320-97A | |
| 54321-85 | |
| 54353-09 | |
| 54354-94A | |
| 54355-09 | |
| 54357-03 | |
| 55800214 | |
| 55918-08 | |
| 56100094 | |
| 56100096 | |
| 56100097 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000017 | |
| 57000169 | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000186 | |
| 57000247 | |
| 57000299 | |
| 57000416DXT | |
| 57000416DXU | |
| 57000416DXV | |
| 57000426DXK | |
| 57000426DXM | |
| 57000426DXN | |
| 57100099 | |
| 57100107 | |
| 57100109 | |
| 57100111 | |
| 57100112 | |
| 57100113 | |
| 57100114 | |
| 57100147 | |
| 57100148 | |
| 57100151 | |
| 57100152 | |
| 57100153 | |
| 57100154 | |
| 57100155 | |
| 57100164 | |
| 57100165 | |
| 57100170 | |
| 57100171 | |
| 57100172 | |
| 57100187 | |
| 57100200 | |
| 57100225 | |
| 57100242BYZ | |
| 57100242DXK | |
| 57100243BYZ | |
| 57100243DXK | |
| 57100256 | |
| 57100275BYZ | |
| 57100275DXK | |
| 57100276BYZ | |
| 57100276DXK | |
| 57100285DAB | |
| 57100286DAB | |
| 57100291DAB | |
| 57100292DAB | |
| 57200012 | |
| 57200017 | |
| 57200093DXT | |
| 57200093DXU | |
| 57200093DXV | |
| 57200094DXT | |
| 57200094DXU | |
| 57200094DXV | |
| 57400001 | |
| 57400002 | |
| 57400058 | |
| 57400165 | |
| 57450-14 | |
| 57451-14 | |
| 57638-08 | |
| 57659-09 | |
| 57978-00 | |
| 58002-09 | |
| 58167-09 | |
| 58169-09 | |
| 5817 | |
| 5826 | |
| 5837A | |
| 58702-09 | |
| 58900009 | |
| 58900032 | |
| 58900116DXT | |
| 58900116DXU | |
| 58900116DXV | |
| 58900138DXT | |
| 58900138DXU | |
| 58900138DXV | |
| 59174-99 | |
| 59211-74A | |
| 59292-94 | |
| 59359-06 | |
| 59424-10 | |
| 59481-00 | |
| 59482-00 | |
| 59500293DXK | |
| 59500293DXM | |
| 59500293DXN | |
| 59581-05 | |
| 59600006 | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59988-72A | |
| 601 | |
| 6012 | |
| 6019 | |
| 6026 | |
| 60328-98B | |
| 6036 | |
| 60386-09 | |
| 60553-07A | |
| 60678-85 | |
| 60766-06 | |
| 60800006 | |
| 60818-07 | |
| 60850-08A | |
| 60918-10A | |
| 6099 | |
| 61000188DXT | |
| 61000188DXU | |
| 61000188DXV | |
| 61007-10 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6113 | |
| 6116 | |
| 61208-10 | |
| 61213-04A | |
| 6127 | |
| 61270-08 | |
| 61274-92 | |
| 61293-08 | |
| 61300478 | |
| 61300516 | |
| 61313-88 | |
| 61356-08 | |
| 61400057 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400132 | |
| 61400224 | |
| 61400253 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08B | |
| 62229-08B | |
| 6229W | |
| 6235 | |
| 62372-09 | |
| 62489-99A | |
| 62693-07A | |
| 62775-08 | |
| 62800001 | |
| 62800003 | |
| 62800004 | |
| 62908-08 | |
| 6294 | |
| 63731-99A | |
| 6383 | |
| 6416 | |
| 6421 | |
| 6462 | |
| 64768-09A | |
| 64769-09A | |
| 64800039 | |
| 64900198 | |
| 64900199 | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 6549 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65724-85 | |
| 65748-09 | |
| 65913-06B | |
| 6594 | |
| 65949-09 | |
| 65951-09 | |
| 65952-09 | |
| 66000010 | |
| 66000066 | |
| 66010-97C | |
| 66047-05 | |
| 66048-09A | |
| 66051-08 | |
| 66078-06 | |
| 66080-06B | |
| 66200-09 | |
| 66219-06 | |
| 66220-06 | |
| 66250-09 | |
| 66290-06 | |
| 66373-06 | |
| 66813-09 | |
| 66849-10 | |
| 66855-10A | |
| 66858-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67266-94 | |
| 67493-08 | |
| 6762B | |
| 67700060 | |
| 67700204 | |
| 67700205 | |
| 67712-83B | |
| 67716-60C | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800101 | |
| 67800102 | |
| 67800104 | |
| 67800109 | |
| 67800205 | |
| 67800254 | |
| 67800368 | |
| 67800415 | |
| 67800421 | |
| 67800428 | |
| 67875-11 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 68000020 | |
| 68000021 | |
| 68000022 | |
| 68000065 | |
| 68000066 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68142-04 | |
| 68163-84 | |
| 68167-04 | |
| 68296-99A | |
| 68331-02 | |
| 68550-09 | |
| 68558-03 | |
| 68629-05 | |
| 68725-62A | |
| 68821-00 | |
| 68830-99A | |
| 68904-00 | |
| 68905-00 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68973-00 | |
| 68997-09 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69187-03A | |
| 69200031 | |
| 69200032 | |
| 69200109 | |
| 69200121 | |
| 69200125 | |
| 69200127 | |
| 69200128 | |
| 69200133 | |
| 69200135 | |
| 69200136 | |
| 69200137 | |
| 69200138 | |
| 69200139 | |
| 69200170 | |
| 69200171 | |
| 69200174 | |
| 69200175 | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200192A | |
| 69200193 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200202 | |
| 69200203 | |
| 69200204 | |
| 69200205 | |
| 69200210 | |
| 69200211 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200224 | |
| 69200225 | |
| 69200226 | |
| 69200231 | |
| 69200237 | |
| 69200238 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200271 | |
| 69200272 | |
| 69200291A | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200311 | |
| 69200312 | |
| 69200336 | |
| 69200337 | |
| 69200338 | |
| 69200432 | |
| 69200433 | |
| 69200434 | |
| 69200437 | |
| 69200529 | |
| 69200536 | |
| 69200580 | |
| 69200592 | |
| 69200599 | |
| 69200600 | |
| 69200611 | |
| 69200630 | |
| 69200631 | |
| 69200797 | |
| 69200826 | |
| 69241-08 | |
| 69309-10 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69378-09 | |
| 69563-06 | |
| 6966M | |
| 6982 | |
| 69824-09 | |
| 6990 | |
| 69994-12B | |
| 69995-11 | |
| 70267-09 | |
| 70345-84 | |
| 7036 | |
| 70369-08 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70494-08 | |
| 70522-06B | |
| 70578-89 | |
| 70598-99 | |
| 70631-08 | |
| 70674-08 | |
| 7068 | |
| 70681-09 | |
| 70900293A | |
| 70900294 | |
| 70900295 | |
| 70900296 | |
| 70900297 | |
| 70900392DXK | |
| 70900392DXM | |
| 70900392DXN | |
| 70901-09 | |
| 70999-09 | |
| 71031-04 | |
| 71294-08 | |
| 7130W | |
| 71400005 | |
| 71400006 | |
| 71400007 | |
| 71400031 | |
| 71400032 | |
| 71400033 | |
| 71400034 | |
| 71400035 | |
| 71400036 | |
| 71400037 | |
| 71400090 | |
| 71400100 | |
| 71500064 | |
| 71500066 | |
| 71500083A | |
| 71500084 | |
| 71500094 | |
| 71500159 | |
| 71500160A | |
| 71500165 | |
| 71500166 | |
| 71500167 | |
| 71500168 | |
| 71500169 | |
| 71500170 | |
| 71500224 | |
| 71500225 | |
| 71500226 | |
| 71500227 | |
| 7155 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72023-51E | |
| 72024-08 | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72081-11 | |
| 72097-06 | |
| 72106-94BK | |
| 72111-06 | |
| 72124-94GY | |
| 72130-04 | |
| 72135-06 | |
| 72138-94GY | |
| 72144-94 | |
| 72146-94 | |
| 72158-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72397-98 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72412-97 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72427-00 | |
| 72444-07GY | |
| 72447-07GY | |
| 72462-00 | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72557-07 | |
| 72560-07 | |
| 72575-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72663-11 | |
| 72664-12A | |
| 72666-12 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73101-96BK | |
| 73102-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73255-10 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 74102-98BK | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74120-08 | |
| 74142-98 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74438-99A | |
| 74700021 | |
| 7492 | |
| 7495 | |
| 7499 | |
| 75069-08C | |
| 75089-08 | |
| 75147-08B | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 7600 | |
| 76000107 | |
| 76000127 | |
| 76000164 | |
| 76000165 | |
| 76000166 | |
| 76000172 | |
| 76000173 | |
| 76000174 | |
| 76000177 | |
| 76000186 | |
| 76000188 | |
| 76000208 | |
| 76000221 | |
| 76000222 | |
| 76000228 | |
| 76000229 | |
| 76000232 | |
| 76000233 | |
| 76000234 | |
| 76000243 | |
| 76000252 | |
| 76000268 | |
| 76000270 | |
| 76000277A | |
| 76000320 | |
| 76000321 | |
| 76000322 | |
| 76000324 | |
| 76000345 | |
| 76000349 | |
| 76000504 | |
| 76000561DXK | |
| 76000561DXM | |
| 76000561DXN | |
| 7601 | |
| 7606 | |
| 7624 | |
| 76250-09 | |
| 76266-98A | |
| 7629 | |
| 76353-00 | |
| 765 | |
| 76503-08 | |
| 76537-08 | |
| 7667 | |
| 7676 | |
| 7686 | |
| 77117-10 | |
| 77126-10 | |
| 77148-10 | |
| 77153-08 | |
| 7716 | |
| 77177-08 | |
| 77188-08 | |
| 7783 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 7838 | |
| 786A | |
| 7880 | |
| 7900 | |
| 7904 | |
| 79179-08 | |
| 791A | |
| 7964 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8037 | |
| 8041 | |
| 8042 | |
| 8075 | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8175 | |
| 8194 | |
| 8250 | |
| 83936-09A | |
| 84850-92 | |
| 856A | |
| 88002-15D | |
| 8861 | |
| 8873 | |
| 8885 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90200411 | |
| 90200413 | |
| 90200415 | |
| 90200467 | |
| 90200499 | |
| 90200501 | |
| 90200504 | |
| 90200505 | |
| 90200506 | |
| 90200507 | |
| 90200519 | |
| 90200543 | |
| 90200611 | |
| 90200752 | |
| 90200763DXK | |
| 90200763DXM | |
| 90200763DXN | |
| 90200764DXK | |
| 90200764DXM | |
| 90200764DXN | |
| 90200893 | |
| 90200896 | |
| 90200897 | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90200902 | |
| 90200903 | |
| 90201132DXT | |
| 90201132DXU | |
| 90201132DXV | |
| 90201133DXT | |
| 90201133DXU | |
| 90201133DXV | |
| 90201180DXK | |
| 90201180DXM | |
| 90201180DXN | |
| 90201181DXK | |
| 90201181DXM | |
| 90201181DXN | |
| 90201295 | |
| 90201296 | |
| 90300043 | |
| 90300078 | |
| 90300081 | |
| 90300092 | |
| 90300097 | |
| 90300098 | |
| 90383-98 | |
| 90520-07 | |
| 90820-93D | |
| 90821-74C | |
| 90834-95B | |
| 90844-80 | |
| 90875-08 | |
| 91140-09 | |
| 91560-01 | |
| 91700025A | |
| 91700034 | |
| 91800039 | |
| 9208 | |
| 923 | |
| 9231 | |
| 92447-11 | |
| 92448-11 | |
| 925 | |
| 9252 | |
| 926 | |
| 92600009 | |
| 9276A | |
| 93100031 | |
| 93300049 | |
| 93300050 | |
| 93300051 | |
| 93300052 | |
| 94000084 | |
| 942 | |
| 9701A | |
| 9819 | |
| 9853 | |
| 9907 | |
| 9937 | |
| 99461-89 | |
| 99473-15 | |
| 99517-15EN | |
| 9955 | |
| 9956 | |
| J00761 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 33889-99 | 1999 |
| 8142 | Unknown |
| 7576 | 1990 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7813A | 2007 |
| 8075 | Unknown |
| 7676 | 2006 |
| 7900 | Unknown |
| 7904 | 1998 |
| 7825 | Unknown |
| 3403 | Unknown |
| 5210 | 1991 |
| 5211 | Unknown |
| 84850-92 | 1992 |
| 7992 | 2010 |
| 7495 | 1994 |
| 7499 | Unknown |
| 8250 | Unknown |
| 7492 | 1993 |
| 7340 | Unknown |
| 7880 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 90844-80 | 1980 |
| 8020 | 2002 |
| 8108 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3340 | Unknown |
| 3536 | Unknown |
| 4266A | Unknown |
| 1001 | Unknown |
| 2225 | Unknown |
| 3983 | 2005 |
| 3987 | Unknown |
| 42882-06 | 2006 |
| 44613-02 | 2002 |
| 3048 | 2016 |
| 3546 | 2013 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 2563 | 2009 |
| 10200141 | 2014 |
| 3018A | 2010 |
| 10200142 | 2014 |
| 4741A | 1994 |
| 10200147 | 2014 |
| 3050 | Unknown |
| 4916 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3692A | Unknown |
| 4976 | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 2479 | Unknown |
| 2478 | 2007 |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 10200156 | 2014 |
| 10200155 | 2014 |
| 3514 | Unknown |
| 10200154 | 2014 |
| 2482 | Unknown |
| 4313 | Unknown |
| 4597M | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 3561WC | Unknown |
| 3612 | 2012 |
| 3275 | 2002 |
| 3693A | Unknown |
| 895 | Unknown |
| 4751 | Unknown |
| 4890 | Unknown |
| 4705 | 2005 |
| 4740A | 1994 |
| 3656 | Unknown |
| 3267 | 1999 |
| 3529 | Unknown |
| 4240 | Unknown |
| 3607 | 2009 |
| 2731W | Unknown |
| 2952A | 2003 |
| 10200134 | 2014 |
| 3560WA | Unknown |
| 2968 | Unknown |
| 3601 | Unknown |
| 10200133 | 2014 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3089 | Unknown |
| 3594 | 1992 |
| 3762M | 2000 |
| 3088 | Unknown |
| 4856 | Unknown |
| 2708A | Unknown |
| 925 | Unknown |
| 4293 | Unknown |
| 926 | Unknown |
| 923 | Unknown |
| 10200205 | 2014 |
| 68042-99 | 1999 |
| 3728 | 2014 |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 2724 | Unknown |
| 3300 | Unknown |
| 4617 | Unknown |
| 4860 | Unknown |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3563 | 1999 |
| 10200103 | 2014 |
| 3143 | Unknown |
| 10200105 | 2014 |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 3910 | 2014 |
| 4631 | Unknown |
| 1780 | Unknown |
| 2531 | Unknown |
| 50635-82A | 1982 |
| 10200042 | 2014 |
| 4868 | Unknown |
| 10200316 | 2015 |
| 8175 | 2004 |
| 10200223 | 2014 |
| 3767B | 2009 |
| 10200225 | 2014 |
| 3574 | Unknown |
| 3938 | Unknown |
| 10200052 | 2014 |
| 4626 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 10200220 | 2014 |
| 10200219 | 2014 |
| 10200217 | 2014 |
| 10200060 | 2014 |
| 10200061 | 2014 |
| 4813A | 1990 |
| 10200062 | 2014 |
| 10200063 | 2014 |
| 703B | Unknown |
| 10200064 | 2014 |
| 10200065 | 2014 |
| 10200059 | 2014 |
| 3736B | 2010 |
| 4790 | Unknown |
| 1332 | 2010 |
| 4194 | Unknown |
| 4196 | Unknown |
| 3540 | Unknown |
| 3892 | Unknown |
| 4192 | 1998 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 10200258 | 2014 |
| 2445 | Unknown |
| 103A1 - Generic Washers | |
| 10300049 | 2014 |
| 10300048 | 2014 |
| 6019 | Unknown |
| 6549 | Unknown |
| 6026 | Unknown |
| 7415A | Unknown |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 46509-01 | 2001 |
| 8972 | Unknown |
| 6116 | Unknown |
| 59788-01 | 2001 |
| 6113 | Unknown |
| 28005-01 | 2001 |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6594 | Unknown |
| 6383 | Unknown |
| 6127 | Unknown |
| 10300047 | 2014 |
| 6532 | 2000 |
| 6036 | Unknown |
| 6421 | 1996 |
| 6416 | Unknown |
| 7068 | Unknown |
| 10300036 | 2014 |
| 90875-08 | 2008 |
| 7038 | 1998 |
| 6966M | Unknown |
| 6762B | Unknown |
| 6229W | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 6235 | Unknown |
| 6462 | Unknown |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 8037 | 2005 |
| 10400022 | 2015 |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 10500022 | 2014 |
| 10500017 | 2014 |
| 10500015 | 2014 |
| 10500034 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 4881 | 2011 |
| 108A1 - Hose Clamps | |
| 10053 | 2010 |
| 10800023 | 2013 |
| 10344 | Unknown |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 10800078 | 2014 |
| 69563-06 | 2006 |
| 10340A | Unknown |
| 10800052 | 2014 |
| 9956 | 1972 |
| 9955 | Unknown |
| 108B1 - P Clamps | |
| 10800024 | 2014 |
| 10800025 | 2014 |
| 10800028 | 2014 |
| 51009-02A | 2002 |
| 10076 | 2010 |
| 109A1 - Studs | |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 90834-95B | 1995 |
| 10900009 | 2014 |
| 10900005 | 2014 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 11519 | Unknown |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 11000050 | 2014 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 67266-94 | 1994 |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 72560-07 | 2007 |
| 72264-94 | 1994 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111C1 - Insulating Tape | |
| 11100115 | 2014 |
| 111D1 - Isolating Tape | |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100055 | 2014 |
| 11100057 | 2014 |
| 11100038 | 2014 |
| 44430-04 | 2004 |
| 111E1 - Mounting Tape | |
| 11100089 | 2014 |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 11100105 | 2014 |
| 48421-04 | 2004 |
| 11100071 | 2014 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06A | 2006 |
| 11600009 | 2014 |
| 11600001 | 2012 |
| 117A1 - Coil Springs | |
| 51501-07 | 2007 |
| 10406 | Unknown |
| 11700002 | 2013 |
| 119A1 - O-Rings | |
| 28004-01 | 2001 |
| 11270 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11110 | Unknown |
| 11140 | 1982 |
| 11900035 | 2013 |
| 11289A | Unknown |
| 46508-01 | 2001 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11301 | Unknown |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 11900021 | 2014 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 12100052 | 2014 |
| 11692 | Unknown |
| 11437 | Unknown |
| 12100038 | 2014 |
| 12100028 | 2013 |
| 12100020 | 2014 |
| 12100018 | 2014 |
| 12100017 | 2014 |
| 57978-00 | 2000 |
| 11650 | 2010 |
| 12100007 | 2014 |
| 121B1 - Press-Fit Plugs | |
| 72097-06 | 2006 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 17945-36B | 1936 |
| 10264 | Unknown |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 12200092 | 2014 |
| 66078-06 | 2006 |
| 11061A | 2008 |
| 11408 | Unknown |
| 11143 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 9853 | Unknown |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 12200025 | 2014 |
| 11389 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 12200064 | 2014 |
| 11161 | 1984 |
| 12200063 | 2014 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 12400100 | 2015 |
| 12400026 | 2012 |
| 12400034 | 2014 |
| 12400018 | 2012 |
| 41900-08 | 2008 |
| 5826 | Unknown |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 11599A | 2012 |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 12500002 | 2012 |
| 126A1 - Miscellaneous Hardware | |
| 8861 | Unknown |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 27711-08 | 2008 |
| 59292-94 | 1994 |
| 12600073 | 2014 |
| 12600071 | 2014 |
| 12600070 | 2014 |
| 12600087 | 2014 |
| 12600049 | 2014 |
| 56161-83A | 1983 |
| 12600032 | 2014 |
| 8873 | 1984 |
| 57638-08 | 2008 |
| 126B1 - Rivets Fasteners | |
| 12600116 | 2014 |
| 12600067 | 2014 |
| 11779 | 2008 |
| 127B1 - Generic Mounting Bracket | |
| 12700077 | 2014 |
| 51652-97A | 1997 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 90821-74C | 1974 |
| 28012-09 | 2009 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 90820-93D | 1993 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14100371 | 2014 |
| 14100699 | 2015 |
| 61007-10 | 2010 |
| 59424-10 | 2010 |
| 14100613 | 2014 |
| 42856-06 | 2006 |
| 14100704 | 2015 |
| 14100706 | 2015 |
| 14100705 | 2015 |
| 149A1 - Tool | |
| 14900001 | 2011 |
| 162D1 - Engine Assembly | |
| 19292-15 | 2015 |
| 163B1 - Engine Isolator Mount | |
| 16207-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16325-10 | 2010 |
| 16400028 | 2014 |
| 16400005 | 2014 |
| 16400004 | 2014 |
| 47159-09BHP | 2009 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7600 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 16500134 | 2014 |
| 16500139 | 2014 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500168 | 2014 |
| 17369-06 | 2006 |
| 16500227 | 2014 |
| 16500228 | 2014 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17454-08A | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18572-13 | 2013 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18067-09 | 2009 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18189-07 | 2007 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400035 | 2014 |
| 220A1 - Piston Ring | |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 22000031 | 2014 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100021 | 2014 |
| 24004-03B | 2012 |
| 244A1 - Crankcase | |
| 24760-08A | 2011 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 24018-10 | 2010 |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 254D1 - Camshaft Support | |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60766-06 | 2006 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 42857-06B | 2013 |
| 34948-08 | 2008 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257G1 - Ignition Cover | |
| 32578-07 | 2007 |
| 257H1 - Oil Filter Cover | |
| 25700228 | 2014 |
| 257L1 - Primary Cover | |
| 25585-06 | 2006 |
| 60553-07A | 2013 |
| 60850-08A | 2008 |
| 25700179 | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800017 | 2012 |
| 34469-06B | 2008 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 266B1 - Water Pump | |
| 26600012 | 2014 |
| 267B1 - Thermostat | |
| 26700001A | 2014 |
| 268B1 - Cooling Fan | |
| 26800007A | 2014 |
| 26800019A | 2014 |
| 268B2 - Cooling Fan Guard | |
| 26800008 | 2014 |
| 268C1 - Radiator | |
| 26800005 | 2014 |
| 26800006 | 2014 |
| 268E1 - Radiator sub-component | |
| 26800020A | 2014 |
| 268F1 - Radiator Pressure Cap | |
| 26800021 | 2014 |
| 268H1 - Radiator System Cover | |
| 26800009 | 2014 |
| 269A2 - Coolant Line | |
| 26900024 | 2014 |
| 26900023 | 2014 |
| 26900022 | 2014 |
| 26900021 | 2014 |
| 269B1 - Radiator Hose | |
| 26900018 | 2014 |
| 26900016 | 2013 |
| 26900017 | 2013 |
| 26900027 | 2014 |
| 26900028 | 2014 |
| 26900001 | 2014 |
| 26900002 | 2013 |
| 26900003 | 2014 |
| 26900010 | 2014 |
| 26900011 | 2014 |
| 26900008 | 2014 |
| 26900007 | 2014 |
| 26900006 | 2013 |
| 26900009 | 2014 |
| 269C1 - Radiator Hose Fitting | |
| 26900029 | 2014 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26900014 | 2014 |
| 270A1 - Carburetor | |
| 29241-08 | 2008 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29696-09 | 2009 |
| 292A1 - Air Duct | |
| 29200039 | 2014 |
| 29200034 | 2014 |
| 29200035 | 2014 |
| 29200003 | 2014 |
| 292B1 - Air Duct Bezel | |
| 29200007 | 2014 |
| 294G1 - Air Cleaner | |
| 29267-08A | 2011 |
| 29670-09 | 2009 |
| 299B1 - Charging Rotor Assembly | |
| 29900033 | 2014 |
| 299F1 - Stator Assembly | |
| 29900029 | 2014 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314G1 - Starter Motor sub-component | |
| 31527-90 | 1990 |
| 31611-08 | 2008 |
| 314H1 - Starter Solenoid | |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04A | 2015 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 32305-08A | 2008 |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700015 | 2014 |
| 50126-08A | 2008 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32319-07A | 2014 |
| 32700028 | 2006 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 33888-99 | 1999 |
| 33814-98A | 1998 |
| 336D1 - Shift Pedal | |
| 33600061 | 2015 |
| 33600060 | 2015 |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 33600056 | 2015 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33203-14 | 2014 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34853-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35255-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40901-05 | 2005 |
| 35256-08A | 2011 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 36500034A | 2014 |
| 40323-00 | 2000 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700094 | 2014 |
| 36700048B | 2015 |
| 36700050 | 2014 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000026 | 2013 |
| 370B1 - Clutch Friction Plate | |
| 37000118 | 2013 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032 | 2013 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000035 | 2013 |
| 37000036 | 2013 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 372C1 - Clutch Bleeder Screw Cap | |
| 37200034 | 2013 |
| 372G1 - Clutch Hose | |
| 37200030 | 2014 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200096 | 2014 |
| 37200023 | 2013 |
| 400A1 - Drive-Belt | |
| 40024-09 | 2009 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100041 | 2014 |
| 409A1 - Rear Wheel | |
| 40900332 | 2015 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000057 | 2014 |
| 410G1 - Security System Control Module | |
| 41000169 | 2014 |
| 69994-12B | 2015 |
| 411A1 - ABS Control Unit | |
| 40786-08 | 2008 |
| 41100013 | 2014 |
| 413A1 - Brake Caliper | |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 42938-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42054-05 | 2005 |
| 12102 | Unknown |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08B | 2012 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41300019 | 2012 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42642-00A | 2011 |
| 44935-06 | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51E | 2012 |
| 44089-08 | 2008 |
| 416B1 - Brake Mounting Bracket | |
| 41600029 | 2014 |
| 41600091 | 2014 |
| 41600078 | 2014 |
| 41600032 | 2014 |
| 41600031 | 2014 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42123-08 | 2008 |
| 42102-08D | 2015 |
| 46463-08 | 2008 |
| 417B1 - Brake Master Cylinder | |
| 41700072 | 2014 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45032-82 | 1982 |
| 42862-06B | 2010 |
| 45423-92 | 1992 |
| 41700367 | 2015 |
| 417G1 - Front Brake Lever | |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 418B1 - Brake Line | |
| 41800013 | 2014 |
| 41800012 | 2014 |
| 41800206 | 2014 |
| 41800205 | 2014 |
| 41800207 | 2014 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423G1 - Valve Stem | |
| 42300046 | 2015 |
| 423H1 - Valve Stem Cap | |
| 42300049 | 2015 |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 42300006 | 2011 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08C | 2012 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 43000002 | 2014 |
| 431A1 - Front Tire | |
| 43109-09A | 2009 |
| 432A1 - Rear Tire | |
| 43200027 | 2014 |
| 433A1 - Front Wheel | |
| 43300388 | 2015 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 45400043 | 2014 |
| 45400044 | 2014 |
| 47549-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500173 | 2014 |
| 45500174 | 2014 |
| 455B1 - Front Telescopic Fork Spring | |
| 46517-01 | 2001 |
| 45500116 | 2014 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500113 | 2014 |
| 46080-01 | 2001 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 46513-01 | 2001 |
| 45500132 | 2014 |
| 45500251 | 2014 |
| 45500118 | 2014 |
| 46510-07 | 2007 |
| 45500114 | 2014 |
| 45500117 | 2014 |
| 456A1 - Fork Protector | |
| 45600017 | 2014 |
| 45600018 | 2014 |
| 457D1 - Steering Stem | |
| 45700020A | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46615-06 | 2006 |
| 459B1 - Lower Triple Clamp | |
| 45900024 | 2014 |
| 45900091A | 2014 |
| 470A1 - Frame | |
| 48079-09BHP | 2009 |
| 47900-14BHP | 2014 |
| 58002-09 | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 10600007 | 2014 |
| 7036 | Unknown |
| 472C2 - Fairing Lower Support Bracket | |
| 47200275 | 2014 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 51023-07 | 2007 |
| 49050-09A | 2014 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 68629-05 | 2005 |
| 57659-09 | 2009 |
| 91140-09 | 2009 |
| 472E1 - Frame Cover | |
| 47200080 | 2014 |
| 47200081 | 2014 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49184-09A | 2014 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50075-07A | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50500377 | 2015 |
| 50500378 | 2015 |
| 50500384 | 2015 |
| 50500383 | 2015 |
| 50500055A | 2015 |
| 50500051 | 2012 |
| 51007-07 | 2007 |
| 50500343 | 2015 |
| 50500349 | 2015 |
| 50500347 | 2015 |
| 50500348 | 2015 |
| 51006-07 | 2007 |
| 50998-07 | 2007 |
| 505B1 - Footpeg Mount Bracket | |
| 50988-02A | 2002 |
| 50500052A | 2014 |
| 50351-03 | 2009 |
| 50500397 | 2015 |
| 505D1 - Passenger Footpeg | |
| 50500354 | 2015 |
| 50500350 | 2015 |
| 50500351 | 2015 |
| 50500353 | 2015 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 506A1 - Brake Pedal | |
| 50600134 | 2015 |
| 50600135 | 2015 |
| 50912-72 | 1972 |
| 50600142 | 2015 |
| 520A1 - Rider Seat or Full Seat | |
| 52000083 | 2014 |
| 52000141 | 2014 |
| 523B1 - Back Rest Pad | |
| 52300225 | 2014 |
| 523C1 - Back Rest Support Structure | |
| 52300127 | 2014 |
| 52589-09A | 2010 |
| 52585-09 | 2009 |
| 52590-09 | 2009 |
| 52567-93D | 2010 |
| 52300122 | 2014 |
| 52300121 | 2014 |
| 52300224 | 2014 |
| 52300123 | 2014 |
| 524A1 - Passenger Grab Handle | |
| 52400021 | 2014 |
| 52400015 | 2014 |
| 52400016 | 2014 |
| 530A1 - Tour Pak | |
| 53000429DXM | 2015 |
| 53000429DXN | 2015 |
| 53000429DXK | 2015 |
| 530B1 - Tour Pak sub-component | |
| 53000311 | 2014 |
| 53000132 | 2014 |
| 53000346 | 2014 |
| 53629-10 | 2010 |
| 53000308 | 2014 |
| 53000141 | 2014 |
| 53000091 | 2014 |
| 53000090 | 2014 |
| 53000418DXT | 2015 |
| 53000418DXU | 2015 |
| 53000418DXV | 2015 |
| 53000370 | 2014 |
| 530C2 - Case Latch | |
| 53000312 | 2014 |
| 53000140 | 2014 |
| 53000137 | 2014 |
| 53000139 | 2014 |
| 53000138 | 2014 |
| 530E1 - Tour-Pak Luggage Rack | |
| 53000125 | 2014 |
| 79179-08 | 2008 |
| 540B1 - Rear Shock | |
| 54000036 | 2014 |
| 540E1 - Rear Shock sub-component | |
| 54320-97A | 2014 |
| 54357-03 | 2003 |
| 54000039 | 2014 |
| 540H1 - Rear Suspension Miscellaneous Component | |
| 54000038 | 2014 |
| 558A1 - Handlebar | |
| 55800214 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 92447-11 | 2011 |
| 92448-11 | 2011 |
| 561B1 - Left Hand Grip | |
| 56100097 | 2015 |
| 561E1 - Throttle Grip | |
| 56100096 | 2015 |
| 56100094 | 2015 |
| 570A1 - Front Fairing | |
| 57000017 | 2014 |
| 57000416DXV | 2015 |
| 57000416DXU | 2015 |
| 57000416DXT | 2015 |
| 570C1 - Inner Fairing | |
| 57000299 | 2014 |
| 57000247 | 2014 |
| 57000426DXK | 2015 |
| 57000426DXM | 2015 |
| 57000426DXN | 2015 |
| 57000175 | 2014 |
| 57000186 | 2014 |
| 57000169 | 2014 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 571A1 - Fairing Lower | |
| 57100112 | 2014 |
| 57100111 | 2014 |
| 57100275DXK | 2015 |
| 57100275BYZ | 2015 |
| 57100276BYZ | 2015 |
| 57100276DXK | 2015 |
| 57100285DAB | 2015 |
| 57100286DAB | 2015 |
| 57100114 | 2014 |
| 57100113 | 2014 |
| 571B1 - Fairing Lower sub-component | |
| 57100292DAB | 2015 |
| 57100107 | 2014 |
| 57100109 | 2014 |
| 57100225 | 2014 |
| 57100187 | 2014 |
| 57100200 | 2014 |
| 57100242DXK | 2015 |
| 57100172 | 2014 |
| 57100171 | 2014 |
| 57100170 | 2014 |
| 57100291DAB | 2015 |
| 57100099 | 2014 |
| 57100164 | 2014 |
| 57100165 | 2014 |
| 57100243DXK | 2015 |
| 57100152 | 2014 |
| 57100151 | 2014 |
| 57100243BYZ | 2015 |
| 57100148 | 2014 |
| 57100147 | 2014 |
| 57100153 | 2014 |
| 57100154 | 2014 |
| 57100155 | 2014 |
| 57100256 | 2014 |
| 57100242BYZ | 2015 |
| 572C1 - Chin Spoiler Side | |
| 57200012 | 2014 |
| 57200017 | 2014 |
| 572D1 - Engine Shroud | |
| 58167-09 | 2009 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 57200094DXT | 2015 |
| 57200094DXV | 2015 |
| 57200094DXU | 2015 |
| 32306-08 | 2008 |
| 57200093DXV | 2015 |
| 57200093DXU | 2015 |
| 57200093DXT | 2015 |
| 66048-09A | 2012 |
| 66250-09 | 2009 |
| 573A1 - Bodywork Miscellaneous Component | |
| 53919-04A | 2004 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 57400165 | 2014 |
| 57400058 | 2014 |
| 57400001 | 2014 |
| 57400002 | 2014 |
| 589A1 - Front Fender | |
| 58900009 | 2014 |
| 58900138DXU | 2015 |
| 58900138DXT | 2015 |
| 58900138DXV | 2015 |
| 58900032 | 2014 |
| 58900116DXV | 2015 |
| 58900116DXT | 2015 |
| 58900116DXU | 2015 |
| 595D1 - Rear Fender | |
| 59500293DXK | 2015 |
| 59500293DXM | 2015 |
| 59500293DXN | 2015 |
| 58702-09 | 2009 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 596B1 - Fender Tip | |
| 59600006 | 2014 |
| 59581-05 | 2005 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27439-09A | 2014 |
| 27298-09A | 2014 |
| 27291-09 | 2009 |
| 27297-09A | 2014 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 61112-08 | 2008 |
| 62229-08B | 2011 |
| 75069-08C | 2011 |
| 75147-08B | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000188DXT | 2015 |
| 61000188DXU | 2015 |
| 61000188DXV | 2015 |
| 61356-08 | 2008 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 10334 | 2014 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08B | 2014 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 61300478 | 2014 |
| 613C1 - Intake / Fuel Tank Cover | |
| 61293-08 | 2008 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 613K1 - Airbox Cover | |
| 61300516 | 2015 |
| 614C1 - Trim | |
| 61400132 | 2014 |
| 61400253 | 2015 |
| 61400081 | 2014 |
| 61400080 | 2014 |
| 43475-08 | 2008 |
| 61400224 | 2014 |
| 61400057 | 2014 |
| 59211-74A | 1974 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 53735-06 | 2006 |
| 53734-06 | 2006 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62693-07A | 2007 |
| 37065-06 | 2006 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 26064-08 | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800004 | 2014 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 62800003 | 2014 |
| 62800001 | 2014 |
| 648K1 - Exhaust Miscellaneous Component | |
| 66855-10A | 2011 |
| 64800039 | 2015 |
| 649A1 - Muffler | |
| 65748-09 | 2009 |
| 65949-09 | 2009 |
| 64769-09A | 2011 |
| 64900199 | 2013 |
| 64900198 | 2013 |
| 64768-09A | 2011 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 66220-06 | 2006 |
| 65951-09 | 2009 |
| 66219-06 | 2006 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 66849-10 | 2010 |
| 66858-09 | 2009 |
| 658A1 - Exhaust Catalyst | |
| 66080-06B | 2008 |
| 65913-06B | 2008 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66000066 | 2013 |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000010 | 2014 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67778-60A | 1960 |
| 67700060 | 2014 |
| 69330-02 | 2002 |
| 69325-02 | 2002 |
| 67716-60C | 2014 |
| 68725-62A | 1962 |
| 67780-60A | 1960 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67712-83B | 2014 |
| 69200109 | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700205 | 2014 |
| 67700204 | 2014 |
| 678A1 - Taillight | |
| 67800102 | 2014 |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 54355-09 | 2009 |
| 68296-99A | 2004 |
| 67800205 | 2014 |
| 67800368 | 2014 |
| 67800101 | 2014 |
| 678B1 - Taillight Housing | |
| 67800109 | 2014 |
| 54353-09 | 2009 |
| 678C1 - Taillight Lens | |
| 67800428 | 2014 |
| 67800421 | 2014 |
| 678D1 - Turnsignal | |
| 68550-09 | 2009 |
| 67800415 | 2014 |
| 68997-09 | 2009 |
| 69824-09 | 2009 |
| 67800254 | 2014 |
| 68821-00 | 2000 |
| 67800104 | 2014 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 69378-09 | 2009 |
| 679B1 - Reflector | |
| 59359-06 | 2006 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59988-72A | 1972 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 67900065 | 2014 |
| 679D1 - License Plate Bracket | |
| 73255-10 | 2010 |
| 60918-10A | 2015 |
| 680A1 - Decorative Light | |
| 68000066 | 2014 |
| 68000065 | 2014 |
| 680C1 - Incandescent Bulb | |
| 68163-84 | 1984 |
| 68167-04 | 2004 |
| 680D1 - Fog Light | |
| 68000021 | 2014 |
| 68000020 | 2014 |
| 68000022 | 2014 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692B1 - Auxiliary Power Outlet | |
| 69200826 | 2014 |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200580 | 2014 |
| 72232-96 | 1996 |
| 69200611 | 2014 |
| 72299-95 | 1995 |
| 72189-04 | 2004 |
| 69200174 | 2014 |
| 69200175 | 2014 |
| 69200592 | 2014 |
| 6990 | 2011 |
| 692C2 - Electrical Mounting Bracket | |
| 66200-09 | 2009 |
| 69123-92A | 1992 |
| 69200203 | 2014 |
| 69200202 | 2014 |
| 69120-91 | 1991 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69200231 | 2014 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 72462-00 | 2000 |
| 72345-02 | 2002 |
| 69200336 | 2014 |
| 72331-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200600 | 2014 |
| 69200312 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69200797 | 2014 |
| 692F1 - Wire Harness | |
| 69200128 | 2014 |
| 69200127 | 2014 |
| 69200125 | 2014 |
| 69200121 | 2014 |
| 69200139 | 2013 |
| 69200135 | 2014 |
| 69200136 | 2014 |
| 69200137 | 2014 |
| 69200138 | 2013 |
| 69200133 | 2014 |
| 69200032 | 2014 |
| 69200031 | 2014 |
| 69200211 | 2014 |
| 69200311 | 2014 |
| 69200599 | 2014 |
| 69200247 | 2014 |
| 70369-08 | 2008 |
| 69200432 | 2014 |
| 69200433 | 2014 |
| 69200434 | 2014 |
| 69200224 | 2014 |
| 69200338 | 2014 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 72249-94 | 1994 |
| 70522-06B | 2011 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 76266-98A | 2012 |
| 73152-96BK | 1996 |
| 72632-10 | 2010 |
| 72519-09BK | 2009 |
| 69200192A | 2014 |
| 74104-98BK | 1998 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 69200193 | 2014 |
| 72144-94 | 1994 |
| 69200291A | 2014 |
| 69200529 | 2012 |
| 72138-94GY | 1994 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200212 | 2014 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72124-94GY | 1994 |
| 72664-12A | 2013 |
| 72444-07GY | 2007 |
| 69200256 | 2014 |
| 72009-05 | 2005 |
| 69200254 | 2014 |
| 72007-05 | 2005 |
| 69200306 | 2014 |
| 69200184 | 2014 |
| 72064-06 | 2006 |
| 69200183 | 2014 |
| 69200305 | 2014 |
| 73301-04 | 2004 |
| 69200226 | 2014 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 69200225 | 2014 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 69200337 | 2014 |
| 72639-10 | 2010 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72296-95 | 1995 |
| 72343-10 | 2010 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72364-06 | 2006 |
| 72227-11 | 2011 |
| 69200187 | 2014 |
| 69200186 | 2014 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 69200536 | 2014 |
| 72400-99 | 1999 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72427-00 | 2000 |
| 72381-98 | 1998 |
| 72663-11 | 2011 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 73307-10 | 2010 |
| 9937 | Unknown |
| 72294-94 | 1994 |
| 72241-94A | 1994 |
| 69200307 | 2014 |
| 69200185 | 2014 |
| 69200237 | 2014 |
| 69200238 | 2011 |
| 69200308 | 2014 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 74144-98 | 1998 |
| 72912-01BK | 2001 |
| 29762-09 | 2009 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 72225-09 | 2009 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 69200189 | 2014 |
| 72402-07 | 2007 |
| 69200188 | 2014 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73101-96BK | 1996 |
| 73156-96BK | 1996 |
| 70598-99 | 1999 |
| 73152-96WE | 1996 |
| 69200214 | 2014 |
| 69200210 | 2014 |
| 72230-98 | 1998 |
| 69200205 | 2014 |
| 74120-08 | 2008 |
| 72557-07 | 2007 |
| 69200204 | 2014 |
| 72486-08 | 2008 |
| 69200201 | 2014 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 72397-98 | 1998 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 72720-07 | 2007 |
| 70494-08 | 2008 |
| 69200631 | 2014 |
| 69200630 | 2014 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 72053-92 | 1992 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 72544-07 | 2007 |
| 72209-11 | 2011 |
| 74154-98 | 1998 |
| 73102-96BK | 1996 |
| 72485-07 | 2007 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 72158-94 | 1994 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 72382-98BK | 1998 |
| 692M1 - Electrical Component / Wire Cover | |
| 69200437 | 2014 |
| 709A1 - Dash Panel | |
| 70900392DXM | 2015 |
| 70900392DXN | 2015 |
| 70900392DXK | 2015 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900294 | 2014 |
| 70900295 | 2014 |
| 70900293A | 2015 |
| 709B2 - Fuel Gauge | |
| 70900297 | 2014 |
| 70900296 | 2014 |
| 709E1 - Tank Console | |
| 61270-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71400090 | 2014 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 71400033 | 2014 |
| 71400034 | 2014 |
| 71400031 | 2014 |
| 71400032 | 2014 |
| 71400037 | 2014 |
| 71400035 | 2014 |
| 71400036 | 2014 |
| 71400005 | 2014 |
| 71400006 | 2014 |
| 71400007 | 2014 |
| 714C1 - Pressure Switch | |
| 74438-99A | 2010 |
| 714D1 - Relay | |
| 71400100 | 2014 |
| 715A1 - Hand Control | |
| 71500227 | 2014 |
| 71500225 | 2014 |
| 71500226 | 2014 |
| 71500224 | 2014 |
| 71500170 | 2014 |
| 71500168 | 2014 |
| 71500169 | 2014 |
| 71500166 | 2014 |
| 71500167 | 2014 |
| 71500165 | 2014 |
| 71500159 | 2014 |
| 71500160A | 2015 |
| 71500094 | 2014 |
| 71500083A | 2014 |
| 71500066 | 2014 |
| 71500064 | 2014 |
| 67493-08 | 2008 |
| 71500084 | 2014 |
| 747A1 - Voltage Regulator | |
| 74700021 | 2014 |
| 72350-11 | 2011 |
| 760B1 - Antenna | |
| 76503-08 | 2008 |
| 68956-07 | 2007 |
| 76000504 | 2014 |
| 76000186 | 2014 |
| 76000166 | 2014 |
| 76000164 | 2014 |
| 76000165 | 2014 |
| 76353-00 | 2000 |
| 76000208 | 2014 |
| 76250-09 | 2009 |
| 76000222 | 2014 |
| 76000221 | 2014 |
| 760C1 - Audio System Amplifier | |
| 76000277A | 2015 |
| 760C2 - Audio System Speaker | |
| 76000324 | 2014 |
| 76000320 | 2014 |
| 76000321 | 2014 |
| 76000322 | 2014 |
| 760C3 - Radio Receiver | |
| 76000232 | 2014 |
| 91560-01 | 2001 |
| 76000229 | 2014 |
| 76000228 | 2014 |
| 760C4 - Rider-Passenger Communication System | |
| 76000188 | 2014 |
| 77117-10 | 2010 |
| 77153-08 | 2008 |
| 76000243 | 2013 |
| 77148-10 | 2010 |
| 77126-10 | 2010 |
| 760C5 - Speaker Enclosure | |
| 76000270 | 2014 |
| 76000268 | 2014 |
| 760C6 - Media Storage Compartment | |
| 76000561DXK | 2015 |
| 76000561DXM | 2015 |
| 76000561DXN | 2015 |
| 76000234 | 2014 |
| 76000127 | 2014 |
| 76000107 | 2014 |
| 760C8 - Satellite Radio | |
| 76000233 | 2014 |
| 76000252 | 2014 |
| 760D1 - Infotainment Mount | |
| 77188-08 | 2008 |
| 77177-08 | 2008 |
| 76000349 | 2014 |
| 760D2 - Infotainment Mount sub-component | |
| 76000177 | 2014 |
| 76000173 | 2014 |
| 76000174 | 2014 |
| 76000172 | 2014 |
| 76000345 | 2014 |
| 902A1 - Saddlebag | |
| 90201132DXT | 2015 |
| 90201132DXU | 2015 |
| 90201132DXV | 2015 |
| 90201133DXV | 2015 |
| 90201133DXU | 2015 |
| 90201133DXT | 2015 |
| 902B1 - Saddlebag Cover | |
| 90200411 | 2014 |
| 90200413 | 2014 |
| 90201180DXM | 2015 |
| 90201180DXN | 2015 |
| 90201180DXK | 2015 |
| 90201181DXN | 2015 |
| 90201181DXM | 2015 |
| 90201181DXK | 2015 |
| 902E1 - Saddlebag Bottom | |
| 90200415 | 2014 |
| 90200519 | 2014 |
| 90200752 | 2014 |
| 90200543 | 2014 |
| 90200467 | 2014 |
| 90200611 | 2014 |
| 90200501 | 2014 |
| 90200505 | 2014 |
| 90200504 | 2014 |
| 90200893 | 2014 |
| 90200897 | 2014 |
| 90200896 | 2014 |
| 90200899 | 2014 |
| 90201296 | 2015 |
| 90201295 | 2015 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 90200499 | 2014 |
| 90200903 | 2014 |
| 90200902 | 2014 |
| 75089-08 | 2008 |
| 902F1 - Saddlebag Guard | |
| 90200506 | 2014 |
| 90200507 | 2014 |
| 902G1 - Saddlebag Filler Strip | |
| 90200763DXK | 2015 |
| 90200763DXM | 2015 |
| 90200763DXN | 2015 |
| 90200764DXN | 2015 |
| 90200764DXM | 2015 |
| 90200764DXK | 2015 |
| 903A1 - Lockset | |
| 61029-92A | 1992 |
| 90300097 | 2015 |
| 90300098 | 2015 |
| 90300092 | 2014 |
| 90300078 | 2014 |
| 90300081 | 2014 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 76537-08 | 2008 |
| 69995-11 | 2011 |
| 917B1 - Service Program Kit | |
| 91700034 | 2014 |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800039 | 2014 |
| 926A1 - Vehicle Completion Kit | |
| 92600009 | 2014 |
| 931A1 - Protective / Storage Cover | |
| 93100031 | 2013 |
| 933A1 - Soft Storage | |
| 93300049 | 2014 |
| 93300052 | 2014 |
| 93300051 | 2014 |
| 93300050 | 2014 |
| 940A1 - Owner's Kit | |
| 88002-15D | 2015 |
| 99517-15EN | 2015 |
| 940A2 - Owner's Manual | |
| 99473-15 | 2015 |
| 99461-89 | 1989 |
| 940H1 - Electronic / Digital Media | |
| 94000084 | 2014 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | TOUR-PAK (BOTTOM) (1 OF 2): TOUR-PAK (COVER): SADDLEBAGS (1 OF 2): |
| 1062 | SCREW | PRIMARY HOUSING: BRAKE LINES & MODULE, REAR - ABS: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: TRANSMISSION BEARINGS & COVERS: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER & OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: TRANSMISSION BEARINGS & COVERS: |
| 11143 | RETAINING RING | CLUTCH - ASSIST & SLIP: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 11150 | RING | SHIFTER, GEAR: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 11292 | O-RING | AIR CLEANER - TWIN CAM 110™: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 11301 | O-RING | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS & COVERS: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 110™: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 2445 | SCREW | FAIRING, INNER (1 OF 2): |
| 2446 | SCREW | LICENSE PLATE BRACKET & TURN SIGNALS, REAR: |
| 25244-99A | GASKET | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 2531 | SCREW | FENDER, FRONT: |
| 2563 | SCREW | INSTRUMENTS: FAIRING, INNER (1 OF 2): |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | SEAT & BACKREST: |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SHIFTER, GEAR: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER & OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 3655A | SCREW | FAIRING LOWERS: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 36805-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE LINES, FRONT - ABS: BRAKE CONTROL, REAR: BRAKE LINES & MODULE, REAR - ABS: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 4740A | SCREW | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 5210 | WELL NUT | LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK: |
| 59768-97 | SEAT NUT KIT | SEAT & BACKREST: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6229W | WASHER | SADDLEBAGS (1 OF 2): |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | FRAME & JIFFY STAND: |
| 7041 | LOCKWASHER | SHIFTER, GEAR: FRAME & JIFFY STAND: AUXILIARY / FOG LAMPS & TURN SIGNALS, FRONT: EXHAUST SYSTEM: |
| 7586 | JAMNUT | TOUR-PAK (BOTTOM) (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7600 | NUT | FENDER, FRONT: |
| 7716 | LOCKNUT | COOLING SYSTEM, ENGINE, TWIN-COOLED™: RADIATOR, COOLANT HOSES & BOTTLE: SEAT & BACKREST: FOOTBOARDS: FAIRING LOWERS: TOUR-PAK (BOTTOM) (1 OF 2): |
| 786A | BOLT | PRIMARY HOUSING: |
| 8037 | SPEED NUT | COOLANT DISTRIBUTION: |
| 856A | SCREW | SHIFTER, GEAR: |
| 90834-95B | BAIL HEAD STUD | SADDLEBAGS (1 OF 2): |
| 9252 | BALL BEARING | WHEEL, FRONT: WHEEL, REAR: |
| 9276A | BALL BEARING | BELT, CHAINS & SPROCKETS: WHEEL, FRONT: WHEEL, REAR: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD & PIN KIT | BRAKE CALIPER, REAR: |
| 41854-08 | PAD & PIN KIT | BRAKE CALIPER, FRONT: |
| 46514-01A | OIL SEAL | FORK, FRONT: |
| 46615-06 | PACKING SEAL | FORK, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME & JIFFY STAND: |
| 50245-07 | BUMPER | FRAME & JIFFY STAND: |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | CONSOLE, FUEL TANK: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR: |
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: SWITCHES: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™: |
| 33709-82A | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH - ASSIST & SLIP: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65296-95A | MUFFLER CLAMP | EXHAUST SYSTEM: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68973-00 | LENS | LICENSE PLATE BRACKET & TURN SIGNALS, REAR: AUXILIARY / FOG LAMPS & TURN SIGNALS, FRONT: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63731-99A | OIL FILTER | CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 110™: |
| 66010-97C | BATTERY | BATTERY: |
| 66373-06 | BATTERY | SWITCHES: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES: LOOSE PARTS (1 OF 2): |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43109-09A | TIRE | WHEEL, FRONT: |
| 43200027 | TIRE | WHEEL, REAR: |
