2015 HARLEY-DAVIDSON® PARTS CATALOG: FLSTNSE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99431-15 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2015 FLSTNSE MODEL
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale in the
United States 5HD=Originally manufactured in the United States for sale outside of
the United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | TF=FLSTNSE CVO™ Softail® Deluxe | |
4 | Engine type | 9=Twin Cam 110B™ (1802 cm3) air-cooled,
fuel-injected, balanced | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) L=Asia Pacific (APC) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) |
6 | V.I.N. check digit | Can be 0-9 or X | |
7 | Model year | F=2015 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
NOTES

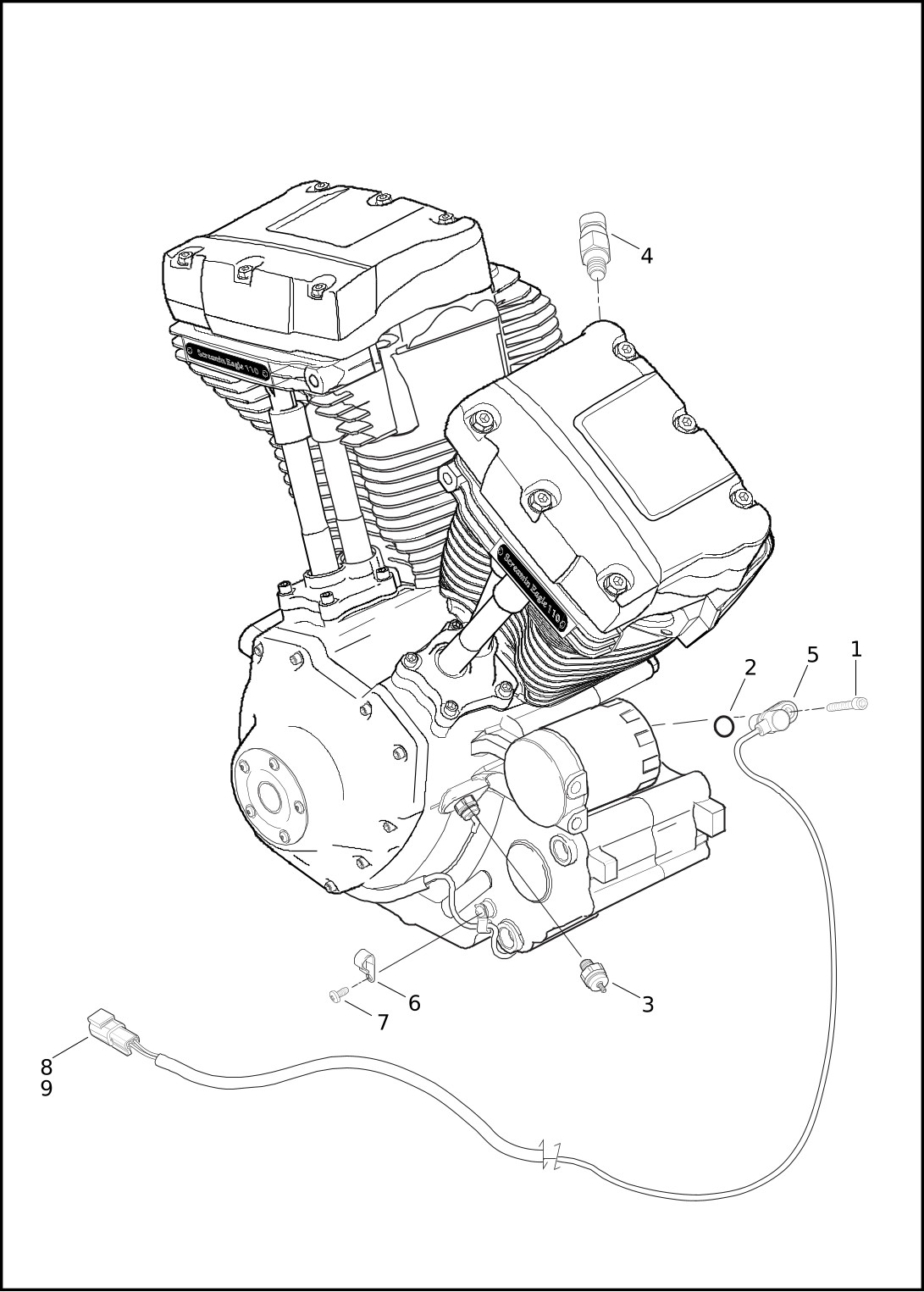

ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19840-15 | ENGINE ASSEMBLY (granite/chrome) | FLSTNSE |

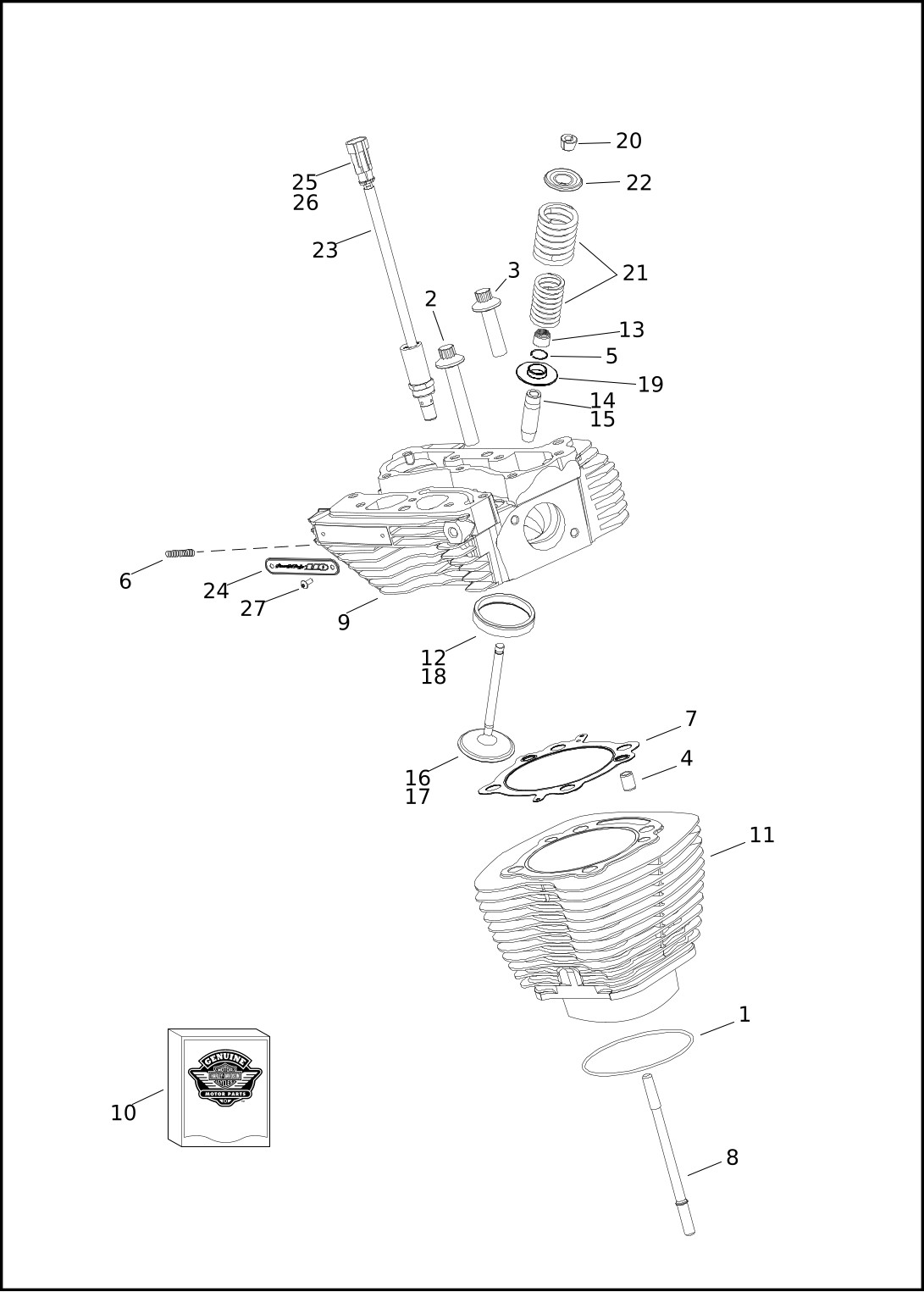

CYLINDERS, HEADS & VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING KIT, cylinder-base | FLSTNSE |
| 2 | 16478-85A | SCREW, internal-thread, 3-3/16 in. long (4) | FLSTNSE |
| 3 | 16480-92A | SCREW, internal-thread, 1-7/8 in. long (4) | FLSTNSE |
| 4 | 16595-99A | DOWEL, pin (4) | FLSTNSE |
| 5 | 16699-06 | RETAINING RING (4) | FLSTNSE |
| 6 | 16715-83 | STUD, exhaust-port (4) | FLSTNSE |
| 7 | 16801-07B | GASKET, cylinder-head (2) | FLSTNSE |
| 8 | 16834-99A | STUD, cylinder (8) | FLSTNSE |
| 9 | 17328-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLSTNSE |
| 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLSTNSE | |
| 10 | 17349-07B | GASKET KIT, top-end | FLSTNSE |
| 17350-07B | GASKET KIT, engine overhaul | FLSTNSE | |
| 11 | 17454-08A | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLSTNSE |
| 12 | 18048-98A | SEAT, exhaust-valve (2) | FLSTNSE |
| 13 | 18067-09 | SEAL, valve (4) | FLSTNSE |
| 14 | 18161-08 | GUIDE, intake-valve (2) | FLSTNSE |
| 15 | 18168-08 | GUIDE, exhaust-valve (2) | FLSTNSE |
| 16 | 18183-03 | VALVE, exhaust (2) | FLSTNSE |
| 17 | 18187-07 | VALVE, intake (2) | FLSTNSE |
| 18 | 18189-07 | SEAT, intake-valve (2) | FLSTNSE |
| 19 | 18270-00A | COLLAR, lower, valve-spring (4) | FLSTNSE |
| 20 | 18271-00 | KEY, collar, valve-spring (8) | FLSTNSE |
| 21 | 18272-00 | SPRING SET, inner & outer, valve (4) | FLSTNSE |
| 22 | 18280-07 | COLLAR, upper, valve-spring (4) | FLSTNSE |
| 23 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLSTNSE |
| 24 | 29517-07A | MEDALLION KIT | FLSTNSE |
| 25 | 72009-05 | HOUSING, 2-way pin (2) | FLSTNSE |
| 26 | 72011-05 | WIRE SEAL, #16-20 AWG (yellow) (4) | FLSTNSE |
| 27 | 25800017 | SCREW, medallion (4) | FLSTNSE |
ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLSTNSE |
| 2 | 3692A | SCREW (6) | FLSTNSE |
| 3 | 3693A | SCREW (10) | FLSTNSE |
| 4 | 3736B | SCREW (8) | FLSTNSE |
| 5 | 4400 | BOLT (4) | FLSTNSE |
| 6 | 4741A | SCREW (8) | FLSTNSE |
| 7 | 6762B | WASHER (4) | FLSTNSE |
| 8 | 11132A | O-RING, push rod cover (4) | FLSTNSE |
| 9 | 11145A | O-RING, push rod cover (4) | FLSTNSE |
| 10 | 11270 | O-RING (2) | FLSTNSE |
| 11 | 11293 | O-RING (4) | FLSTNSE |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLSTNSE |
| 13 | 17025-03A | BREATHER ASSEMBLY (2) | FLSTNSE |
| 14 | 17045-99D | GASKET KIT, cam service | FLSTNSE |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLSTNSE |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLSTNSE |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLSTNSE |
| 18 | 17429-91 | BEARING, rocker arm (8) | FLSTNSE |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLSTNSE |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLSTNSE |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | FLSTNSE |
| 22 | 17611-83 | SHAFT, rocker arm (4) | FLSTNSE |
| 23 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLSTNSE |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLSTNSE | |
| 24 | 17939-99 | COVER, push rod, lower (4) | FLSTNSE |
| 25 | 17945-36B | CAP, cover spring (4) | FLSTNSE |
| 26 | 17947-36 | SPRING, push rod cover (4) | FLSTNSE |
| 27 | 17948-99 | COVER, push rod, upper (4) | FLSTNSE |
| 28 | 17964-99 | LIFTER COVER, front (chrome) | FLSTNSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FLSTNSE | |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLSTNSE |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLSTNSE |
| 31 | 18572-13 | KIT-TAPPET | FLSTNSE |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLSTNSE |
| 33 | 26500002 | BREATHER, baffle assembly, w/ gaskets (2) | FLSTNSE |

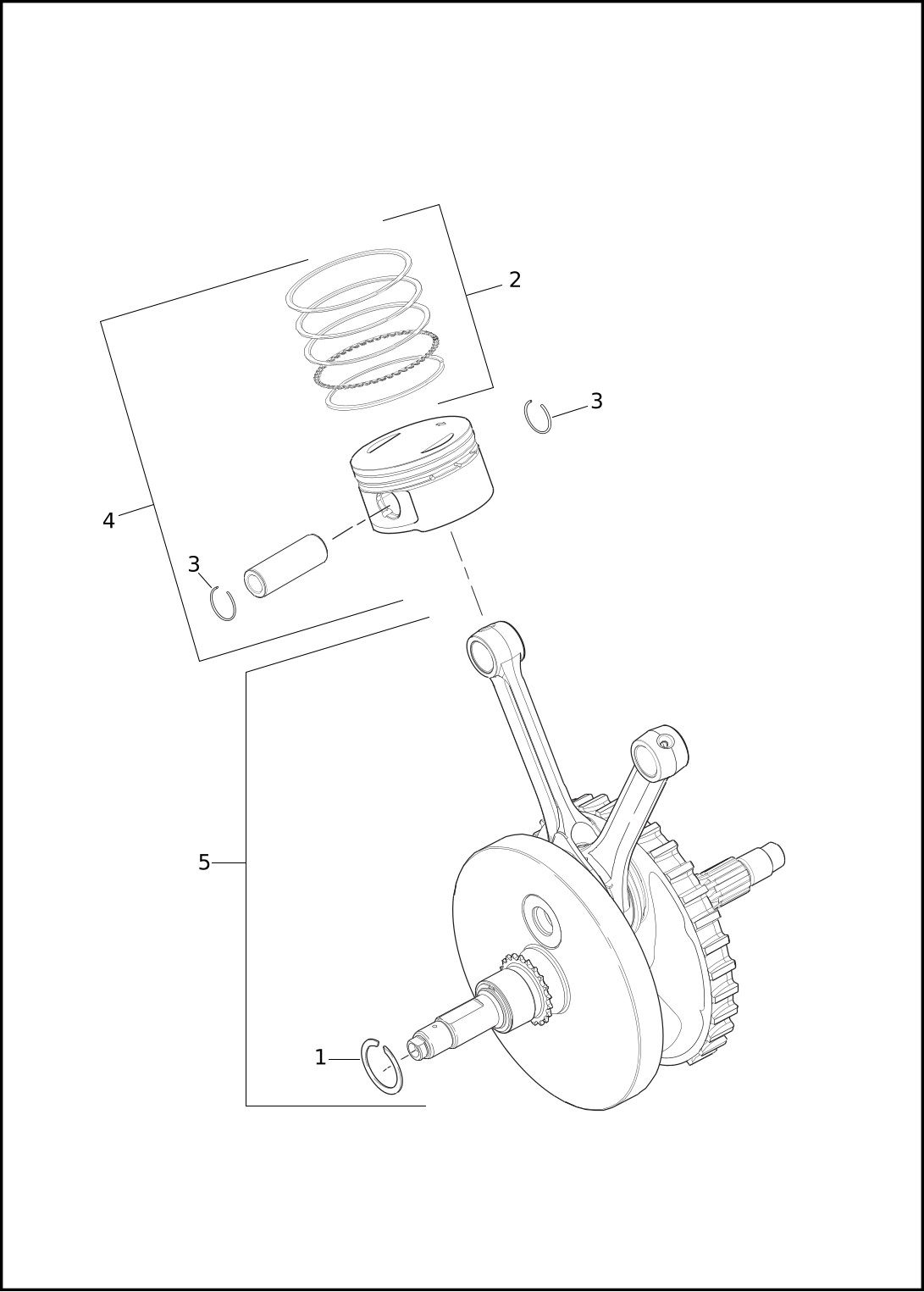

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLSTNSE |
| 2 | 21951-11 | KIT PISTON RING SET, standard (2) | FLSTNSE |
| 21953-11 | KIT PISTON RING SET, 0.010 in. O.S. (2) | FLSTNSE | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FLSTNSE |
| 4 | 22000001 | KIT PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - standard (2) | FLSTNSE |
| 22000003 | KIT PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLSTNSE | |
| 5 | 24100022 | FLYWHEEL, w/ 11177A, thrust washer, plugs, inner race, connecting rods, flywheels, bearings, crankpin & ring | FLSTNSE |
CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (4) | FLSTNSE |
| 2 | 765 | PLUG (4) | FLSTNSE |
| 3 | 895 | SCREW (11) | FLSTNSE |
| 4 | 1090A | SCREW | FLSTNSE |
| 5 | 8972 | WASHER (2) | FLSTNSE |
| 6 | 8992A | BEARING (2) | FLSTNSE |
| 7 | 24018-10 | NEEDLE BEARING, left side of camshafts (2) | FLSTNSE |
| 8 | 11140 | O-RING (2) | FLSTNSE |
| 9 | 11907 | O-RING KIT, w/ cylinder base O-ring (2) | FLSTNSE |
| 10 | 12068 | OIL SEAL | FLSTNSE |
| 11 | 16574-99A | DOWEL RING (2) | FLSTNSE |
| 12 | 16589-99A | DOWEL RING (2) | FLSTNSE |
| 13 | 16595-99A | DOWEL, pin (4) | FLSTNSE |
| 14 | 22307-99 | PISTON COOLING JET, w/ 11140 (2) | FLSTNSE |
| 15 | 24004-03B | BEARING ASSEMBLY, w/ 8972, 24605-07, 35114-02 | FLSTNSE |
| 16 | 24009-06 | SPACER, sprocket shaft | FLSTNSE |
| 17 | 24603-00 | SPACER (4) | FLSTNSE |
| 18 | 24605-07 | BEARING (2) | FLSTNSE |
| 19 | 24759-08A | SET OF CRANKCASES (granite) | FLSTNSE |
| 20 | 26352-95A | ADAPTER, oil filter | FLSTNSE |
| 21 | 35114-02 | RETAINING RING | FLSTNSE |
| 22 | 63798-99A | OIL FILTER (chrome) | FLSTNSE |
| 23 | 68042-99 | SCREW (4) | FLSTNSE |
ENGINE BALANCER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLSTNSE |
| 2 | 956 | SCREW (6) | FLSTNSE |
| 3 | 3110 | BOLT (2) | FLSTNSE |
| 4 | 6456 | WASHER (2) | FLSTNSE |
| 5 | 8959 | BEARING, shell | FLSTNSE |
| 6 | 8992A | BEARING | FLSTNSE |
| 7 | 14728-07 | SUPPORT ASSEMBLY, chain guide, includes tensioner pistons | FLSTNSE |
| 8 | 14761-00 | GUIDE KIT, chain tensioner, includes lower, front & rear guides | FLSTNSE |
| 9 | 14762-00 | CHAIN DRIVE KIT, w/ 14769-00, front & rear sprockets | FLSTNSE |
| 10 | 14764-00 | PISTON ASSEMBLY KIT, chain tensioner (2) | FLSTNSE |
| 11 | 14769-00 | CHAIN, balancer drive | FLSTNSE |
| 12 | 14784-07 | SPACER, .039 in. thick | FLSTNSE |
| 13 | 14789-07 | BALANCE SHAFT KIT, w/ 8959, 8992A & balance shaft (2) | FLSTNSE |
| 14 | 16583-00A | BUSHING, dowel (2) | FLSTNSE |
| 15 | 35240-07 | RETAINING RING, balancer shift bearing | FLSTNSE |
| 16 | 45359-00 | SEAL, oil interconnect | FLSTNSE |

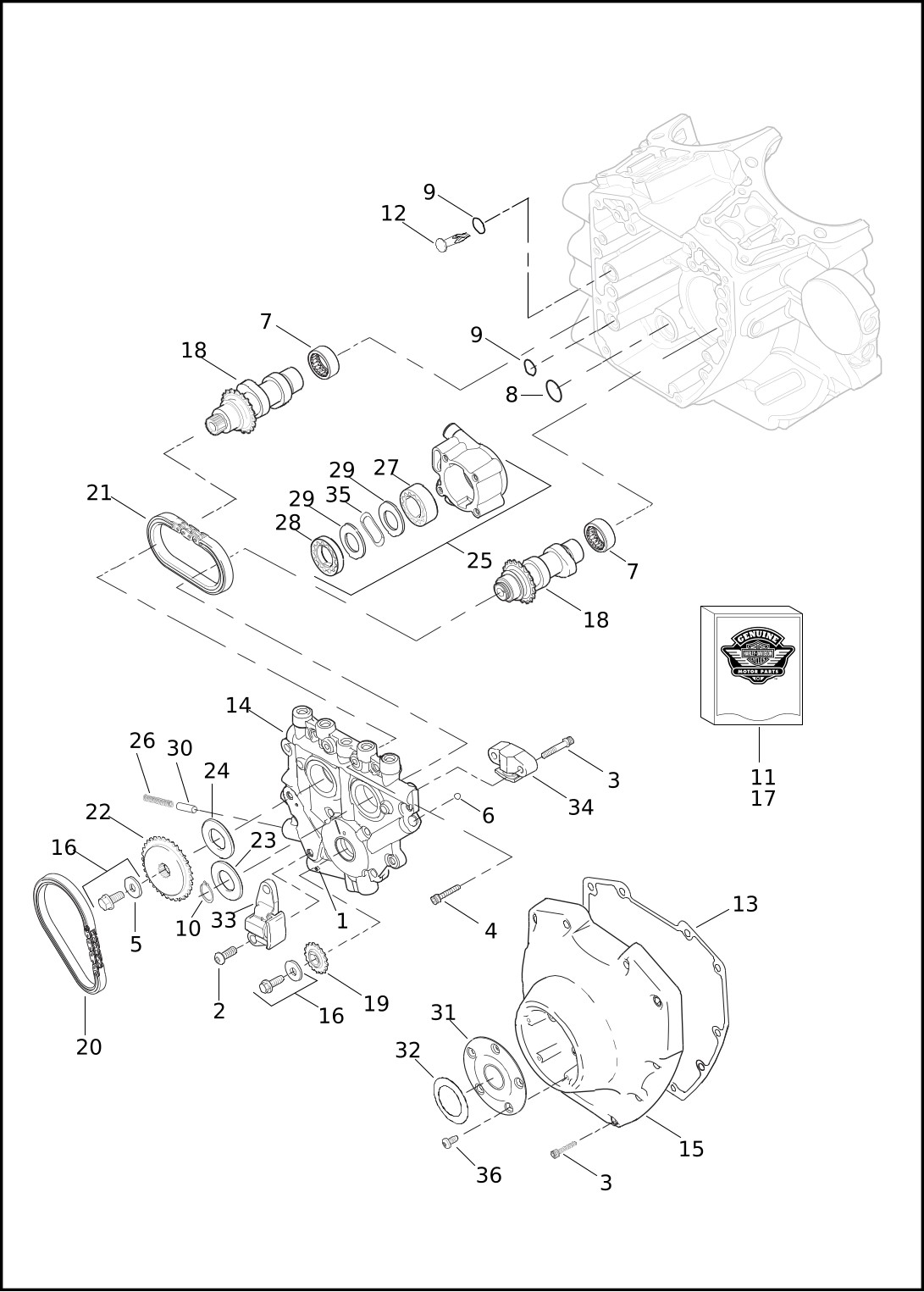

CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLSTNSE |
| 2 | 942 | SCREW (2) | FLSTNSE |
| 3 | 4740A | SCREW (12) | FLSTNSE |
| 4 | 4741A | SCREW (10) | FLSTNSE |
| 5 | 6294 | WASHER | FLSTNSE |
| 6 | 8873 | BALL (12) | FLSTNSE |
| 7 | 24018-10 | NEEDLE BEARING, camshaft | FLSTNSE |
| 8 | 11293 | O-RING | FLSTNSE |
| 9 | 11301 | O-RING (2) | FLSTNSE |
| 10 | 11461 | RETAINING RING | FLSTNSE |
| 11 | 17045-99D | GASKET KIT, cam service | FLSTNSE |
| 12 | 24983-00 | SCREEN, oil | FLSTNSE |
| 13 | 25244-99A | GASKET, cam cover | FLSTNSE |
| 14 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLSTNSE |
| 15 | 25369-01B | CAM COVER, chrome | FLSTNSE |
| 16 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ screws & washers | FLSTNSE |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLSTNSE |
| 18 | 25638-07 | CAMSHAFT KIT | FLSTNSE |
| 19 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLSTNSE |
| 20 | 25675-06 | CHAIN, primary cam drive | FLSTNSE |
| 21 | 25683-06 | CHAIN, secondary cam drive | FLSTNSE |
| 22 | 25728-06 | SPROCKET, cam drive, 34 T | FLSTNSE |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLSTNSE |
| 24 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLSTNSE |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLSTNSE | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLSTNSE | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLSTNSE | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLSTNSE | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLSTNSE | |
| 25 | 26037-06 | OIL PUMP, w/ body & internal parts | FLSTNSE |
| 26 | 26210-99 | SPRING, relief valve | FLSTNSE |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLSTNSE |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLSTNSE |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLSTNSE |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLSTNSE |
| 31 | 32586-07 | TIMER COVER (chrome) | FLSTNSE |
| 32 | 32614-11 | INSERT, timer cover | FLSTNSE |
| 33 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLSTNSE |
| 34 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLSTNSE |
| 35 | 40323-00 | SPRING, separator | FLSTNSE |
| 36 | 68120-00 | SCREW (5) | FLSTNSE |
ENGINE MOUNTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4729 | BOLT | FLSTNSE |
| 2 | 4775 | SCREW (2) | FLSTNSE |
| 3 | 6019 | WASHER (2) | FLSTNSE |
| 4 | 6516HW | WASHER | FLSTNSE |
| 5 | 6530 | WASHER (4) | FLSTNSE |
| 6 | 7601 | LOCKNUT (3) | FLSTNSE |
| 7 | 7879 | NUT (2) | FLSTNSE |
| 8 | 10177 | CABLE STRAP (2) | FLSTNSE |
| 9 | 16247-06 | BRACKET, top engine mount | FLSTNSE |
| 10 | 24603-00 | SPACER (4) | FLSTNSE |
| 11 | 48054-00 | BOLT | FLSTNSE |
| 12 | 48093-00 | BOLT | FLSTNSE |
| 13 | 48094-00 | SPACER, engine mount (3) | FLSTNSE |
| 14 | 69046-06A | BRACKET, top engine mount | FLSTNSE |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLSTNSE |
| 2 | 4705 | SCREW (2) | FLSTNSE |
| 3 | 26993-06 | FLANGE, mounting (2) | FLSTNSE |
| 4 | 26995-86B | SEAL, intake manifold (2) | FLSTNSE |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ O-ring (2) | FLSTNSE |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLSTNSE |
| 7 | 27712-08 | BRACKET, induction module | FLSTNSE |
| 8 | 27721-08 | FUEL RAIL | FLSTNSE |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure, w/ O-ring | FLSTNSE |
| 10 | 61208-10 | FUEL LINE KIT | FLSTNSE |
| 11 | 90383-98 | CAP, purge tube | FLSTNSE |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | FLSTNSE |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLSTNSE |
| 2 | 3938 | SCREW (3) | FLSTNSE |
| 3 | 8250 | STUD, air cleaner (3) | FLSTNSE |
| 4 | 11292 | O-RING (4) | FLSTNSE |
| 5 | 29241-08 | GASKET | FLSTNSE |
| 6 | 29267-08A | BOLT, breather (2) | FLSTNSE |
| 7 | 29269-83A | SCREW, air cleaner | FLSTNSE |
| 8 | 29670-09 | ELEMENT, air filter | FLSTNSE |
| 9 | 29696-09 | BACKPLATE ASSEMBLY, air cleaner (granite) | FLSTNSE |
| 10 | 29400025 | COVER, air cleaner (chrome), w/ label | FLSTNSE |
| 11 | 29762-09 | RAINSOCK | FLSTNSE |
| 12 | 61300271 | INSERT, air cleaner cover | FLSTNSE |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2941 | SCREW (2) | FLSTNSE |
| 2 | 3050 | SCREW (4) | FLSTNSE |
| 3 | 4814A | SCREW (2) | FLSTNSE |
| 4 | 10006 | CABLE STRAP (4) | FLSTNSE |
| 5 | 10102 | CLIP | FLSTNSE |
| 6 | 30017-08 | STATOR | FLSTNSE |
| 7 | 30041-08A | ROTOR/SPRING COVER | FLSTNSE |
| 8 | 74567-11 | VOLTAGE REGULATOR | FLSTNSE |
| 9 | 69200052 | BRACKET, regulator mounting | FLSTNSE |

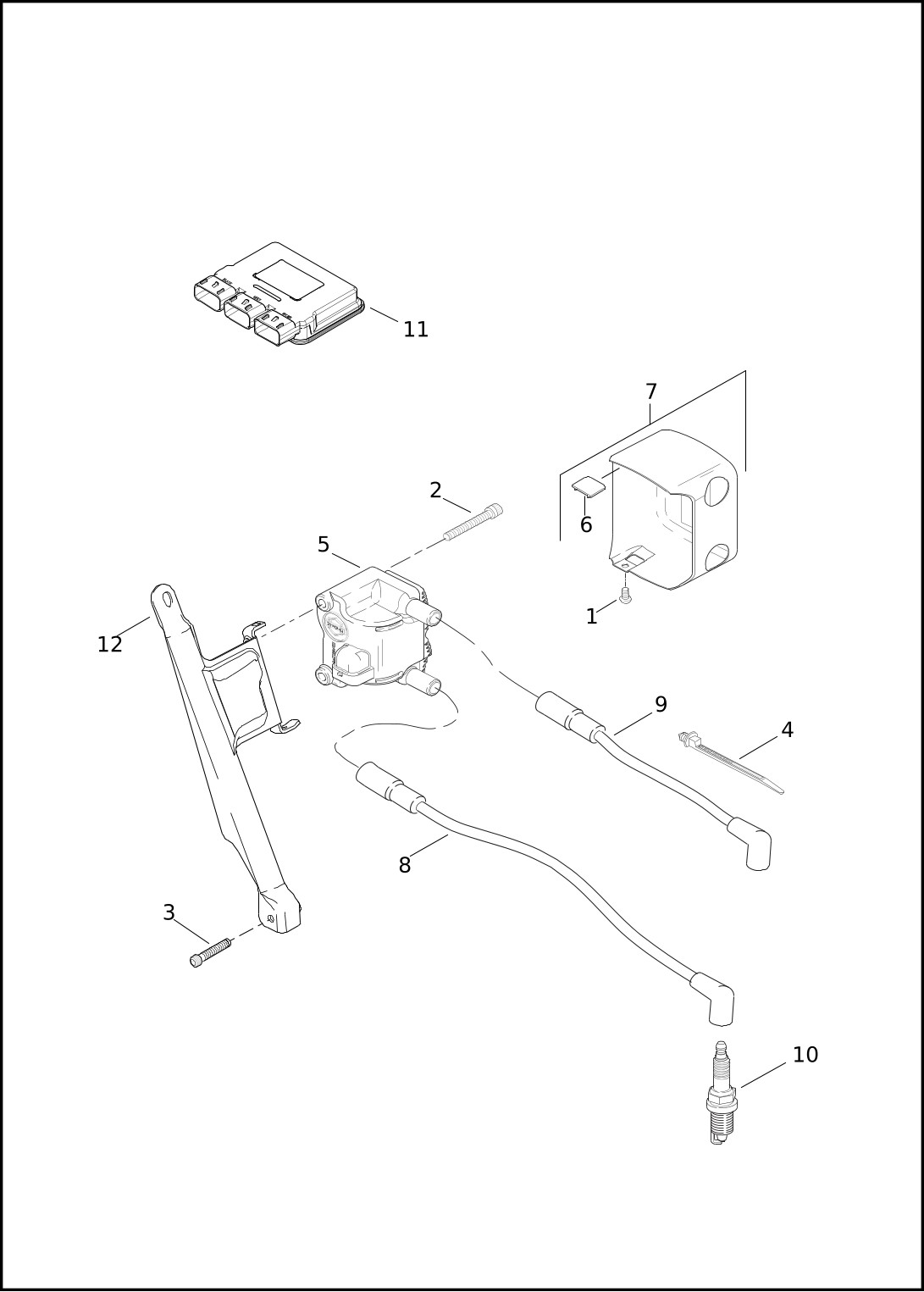

ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3144 | SCREW | FLSTNSE |
| 2 | 4717A | SCREW (2) | FLSTNSE |
| 3 | 4813A | SCREW | FLSTNSE |
| 4 | 10177 | CABLE STRAP, w/ plug-in retainer (2) | FLSTNSE |
| 5 | 31696-07A | IGNITION COIL, dual | FLSTNSE |
| 6 | 31742-00 | PAD, coil cover | FLSTNSE |
| 7 | 31772-07 | COIL COVER ASSEMBLY, w/ 31742-00 (chrome) | FLSTNSE |
| 8 | 31981-99C | SPARK PLUG CABLE, front cylinder | FLSTNSE |
| 9 | 31960-99A | SPARK PLUG CABLE, rear cylinder | FLSTNSE |
| 10 | 32362-04A | SPARK PLUG, 6R12 (2) | FLSTNSE |
| 11 | 41000057 | ELECTRONIC CONTROL MODULE, base level, Requires digital tech programming. | FLSTNSE |
| 12 | 48885-10 | POST ASSEMBLY, seat (granite) | FLSTNSE |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLSTNSE |
| 2 | 11289A | O-RING | FLSTNSE |
| 3 | 26561-99 | OIL PRESSURE SWITCH | FLSTNSE |
| 4 | 32446-99 | SENSOR, engine temperature | FLSTNSE |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94 & 74194-98 | FLSTNSE |
| 6 | 38769-07A | CLAMP | FLSTNSE |
| 7 | 68120-00 | SCREW | FLSTNSE |
| 8 | 72199-94 | CONNECTOR ANCHOR | FLSTNSE |
| 9 | 74194-98 | TERMINAL PIN, solid (2) | FLSTNSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLSTNSE |
| 2 | 27444-00Y | O-RING, starter-to-case | FLSTNSE |
| 3 | 31604-06 | SOLENOID REPAIR KIT | FLSTNSE |
| 4 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | FLSTNSE |
| 5 | 31633-07A | CLUTCH SUBASSEMBLY | FLSTNSE |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 856A | SCREW | FLSTNSE |
| 2 | 3275 | SCREW (2) | FLSTNSE |
| 3 | 4192 | SCREW (2) | FLSTNSE |
| 4 | 4196 | SCREW (2) | FLSTNSE |
| 5 | 5826 | SPACER, shift cover (2) | FLSTNSE |
| 6 | 6057 | WASHER | FLSTNSE |
| 7 | 6497HW | WASHER | FLSTNSE |
| 8 | 7041 | LOCKWASHER (2) | FLSTNSE |
| 9 | 7904 | ACORN NUT | FLSTNSE |
| 10 | 11150 | RETAINING RING | FLSTNSE |
| 11 | 11191 | O-RING (2) | FLSTNSE |
| 12 | 11389 | RING, shift cam retaining | FLSTNSE |
| 13 | 11575 | RING, shift cam retaining | FLSTNSE |
| 14 | 33389-07 | SPRING, detent | FLSTNSE |
| 15 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLSTNSE |
| 16 | 33413-06A | CAM, shifter, assembly, w/ 11389, 11575 and bearing | FLSTNSE |
| 17 | 33668-07 | SHIFTER LEVER | FLSTNSE |
| 18 | 33814-98A | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904 & 33890-99A | FLSTNSE |
| 19 | 33849-97 | LEVER, shifter rod | FLSTNSE |
| 20 | 33888-99 | ROD END, shifter rod (2) | FLSTNSE |
| 21 | 33889-99 | NUT, rod end (2) | FLSTNSE |
| 22 | 33890-99A | COVER, shifter rod | FLSTNSE |
| 23 | 34064-00C | SPRING, shift lever centering | FLSTNSE |
| 24 | 34532-00B | LEVER, shifter heel (chrome) | FLSTNSE |
| 25 | 34568-00B | LEVER, shifter toe (chrome) | FLSTNSE |
| 26 | 34987-06 | SPRING, ratchet lever | FLSTNSE |
| 27 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | FLSTNSE |
| 28 | 35082-07 | CENTERING SCREW, shift lever | FLSTNSE |
| 29 | 35186-06 | SLEEVE | FLSTNSE |
| 30 | 35187-06 | FORK, shift 1 - 2 | FLSTNSE |
| 31 | 35210-06 | FORK, shift 3 - 4 | FLSTNSE |
| 32 | 35217-06 | FORK, shift 5 - 6 | FLSTNSE |
| 33 | 35222-06 | SHAFT, 5 - 6 shift fork | FLSTNSE |
| 34 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLSTNSE |
| 35 | 35243-06 | SLEEVE | FLSTNSE |
| 36 | 35244-06 | SCREW | FLSTNSE |
| 37 | 35249-06A | LOCK PLATE, shift cam | FLSTNSE |
| 38 | 35255-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 12, 13, 15, 16, 30, 31, 32, 33, 34, 35, 36, 37, 39, 7340, 35256-08A, input shaft, countershaft & gears (granite) | FLSTNSE |
| 39 | 35259-06 | SCREW (2) | FLSTNSE |
| 40 | 11000101 | OIL SEAL | FLSTNSE |
| 41 | 12400026 | SPACER TUBE | FLSTNSE |
| 42 | 33600008 | SHIFT PEG KIT | FLSTNSE |

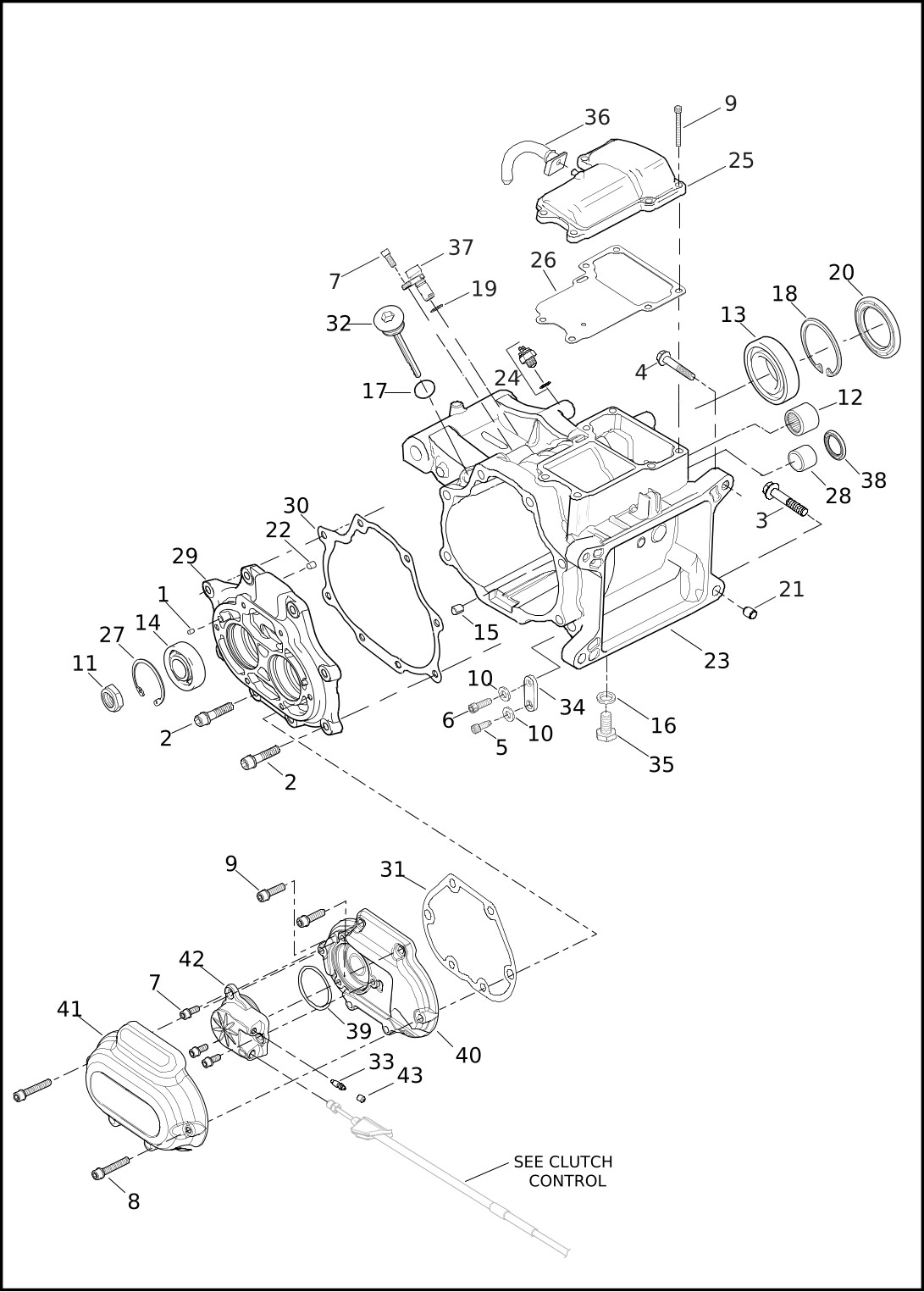

TRANSMISSION HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLSTNSE |
| 2 | 3249 | SCREW (6) | FLSTNSE |
| 3 | 3699D | SCREW (2) | FLSTNSE |
| 4 | 3983 | SCREW (2) | FLSTNSE |
| 5 | 4168A | SCREW | FLSTNSE |
| 6 | 4313 | SCREW | FLSTNSE |
| 7 | 4705 | SCREW (4) | FLSTNSE |
| 8 | 4718A | SCREW (2) | FLSTNSE |
| 9 | 4741A | SCREW (8) | FLSTNSE |
| 10 | 6532 | WASHER (2) | FLSTNSE |
| 11 | 7340 | NUT, mainshaft & countershaft (2) | FLSTNSE |
| 12 | 8963 | NEEDLE BEARING | FLSTNSE |
| 13 | 8967 | BALL BEARING | FLSTNSE |
| 14 | 8970A | BALL BEARING (2) | FLSTNSE |
| 15 | 9701A | BUSHING | FLSTNSE |
| 16 | 11105 | O-RING, drain plug | FLSTNSE |
| 17 | 11132A | O-RING, filler plug | FLSTNSE |
| 18 | 11161 | RETAINING RING, ball bearing | FLSTNSE |
| 19 | 11289A | O-RING | FLSTNSE |
| 20 | 12074 | OIL SEAL | FLSTNSE |
| 21 | 16574-99A | DOWEL RING (2) | FLSTNSE |
| 22 | 16583-00A | BUSHING, dowel (2) | FLSTNSE |
| 23 | 32200-10A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (granite) | FLSTNSE |
| 24 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | FLSTNSE |
| 25 | 34469-06B | COVER, upper (chrome) | FLSTNSE |
| 34857-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701A, 11161, 12074, 16574-99A, 35122-06, 35186-06, 35241-06, 35242-061, 40659-06, 60328-98B, 11000101 & shift lever centering screw (granite) | FLSTNSE | |
| 26 | 34917-06 | GASKET, upper cover | FLSTNSE |
| 27 | 35087-99A | RETAINING RING, bearing (2) | FLSTNSE |
| 28 | 35186-06 | SLEEVE | FLSTNSE |
| 29 | 35256-08A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A | FLSTNSE |
| 30 | 35654-06 | GASKET, bearing housing | FLSTNSE |
| 31 | 36805-06 | GASKET, right side cover | FLSTNSE |
| 32 | 37065-06 | FILLER PLUG (chrome) | FLSTNSE |
| 33 | 44613-02 | BLEEDER SCREW | FLSTNSE |
| 34 | 48052-07 | BRACKET, transmission mounting, right | FLSTNSE |
| 35 | 60328-98B | PLUG ASSEMBLY, magnetic, w/ 11105 | FLSTNSE |
| 36 | 62372-09 | VENT HOSE | FLSTNSE |
| 37 | 74402-05B | SENSOR, speedometer | FLSTNSE |
| 38 | 11000101 | OIL SEAL | FLSTNSE |
| 39 | 11900035 | O-RING | FLSTNSE |
| 40 | 25700178 | INNER SIDE COVER | FLSTNSE |
| 41 | 25700179 | SIDE COVER | FLSTNSE |
| 42 | 37200023 | SECONDARY CLUTCH ACTUATOR, w/ 44613-02, 11900035 & 37200034 | FLSTNSE |
| 43 | 37200034 | CAP, bleeder screw | FLSTNSE |

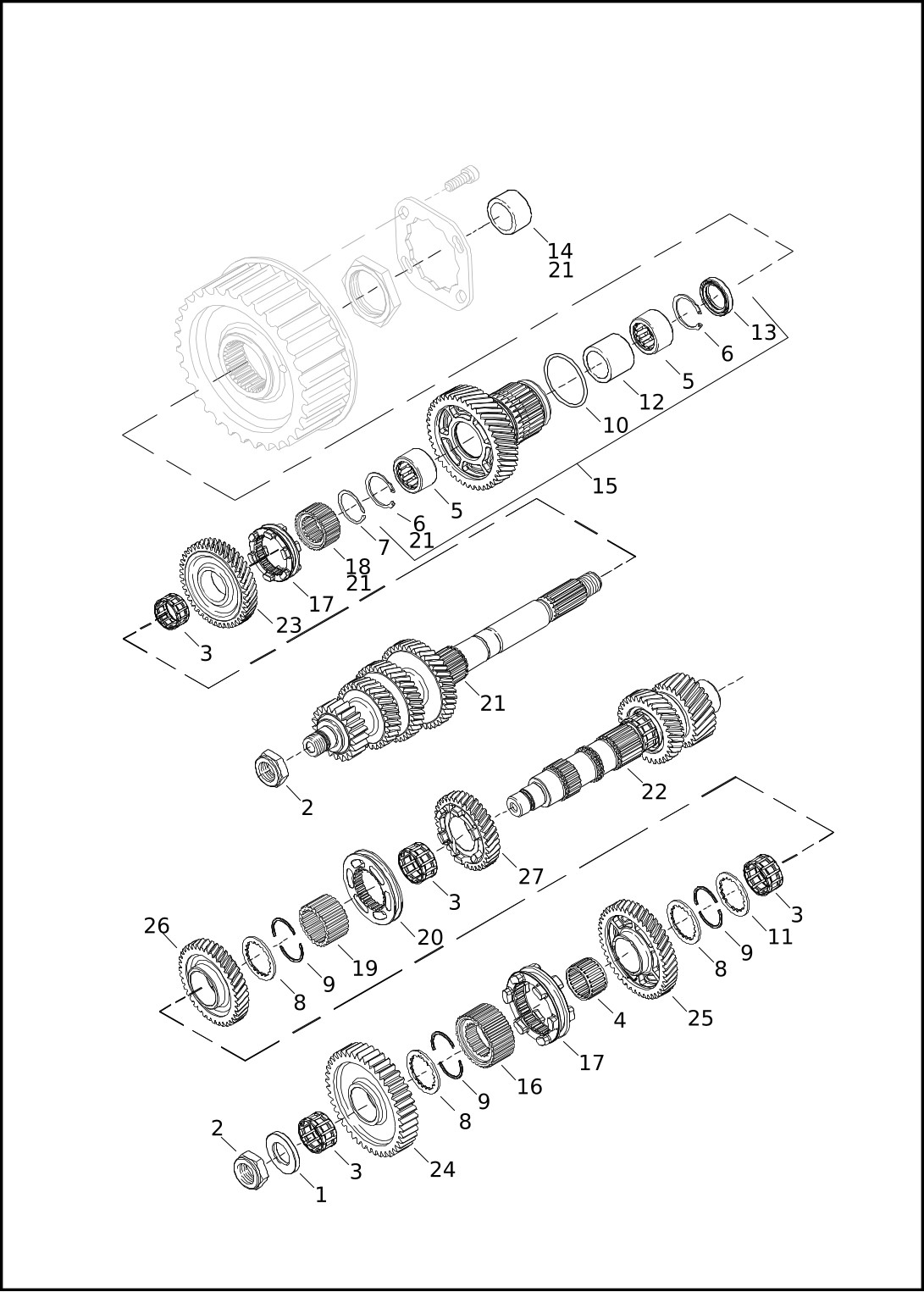

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLSTNSE |
| 2 | 7340 | NUT (2) | FLSTNSE |
| 3 | 8026K | BEARING, needle (4) | FLSTNSE |
| 4 | 8041 | BEARING, needle | FLSTNSE |
| 5 | 8042 | BEARING, needle (2) | FLSTNSE |
| 6 | 10991A | RETAINING RING (2) | FLSTNSE |
| 7 | 11061A | RETAINING RING | FLSTNSE |
| 8 | 11081A | RING, lock (3) | FLSTNSE |
| 9 | 11082 | SECURING SEGMENT (6) | FLSTNSE |
| 10 | 11201 | O-RING | FLSTNSE |
| 11 | 11207A | WASHER, internal spline | FLSTNSE |
| 12 | 11599A | SPACER, bearing | FLSTNSE |
| 13 | 12077 | OIL SEAL | FLSTNSE |
| 14 | 34091-08 | BEARING, inner race | FLSTNSE |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599A & 12077 | FLSTNSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLSTNSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLSTNSE |
| 18 | 35201-10 | GUIDE HUB, dog ring | FLSTNSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLSTNSE |
| 20 | 35204-06 | DOG RING, pocketed | FLSTNSE |
| 35255-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 7340, 35256-08A, shifter cam and forks (granite) | FLSTNSE | |
| 21 | 35467-06B | INPUT SHAFT | FLSTNSE |
| 22 | 35470-10 | COUNTER SHAFT ASSEMBLY | FLSTNSE |
| 23 | 35801-10 | GEAR, fifth input | FLSTNSE |
| 24 | 35805-06A | GEAR, countershaft-first | FLSTNSE |
| 25 | 35807-06 | GEAR, countershaft-second | FLSTNSE |
| 26 | 35811-06 | GEAR, countershaft-third | FLSTNSE |
| 27 | 35814-06 | GEAR, countershaft-fourth | FLSTNSE |

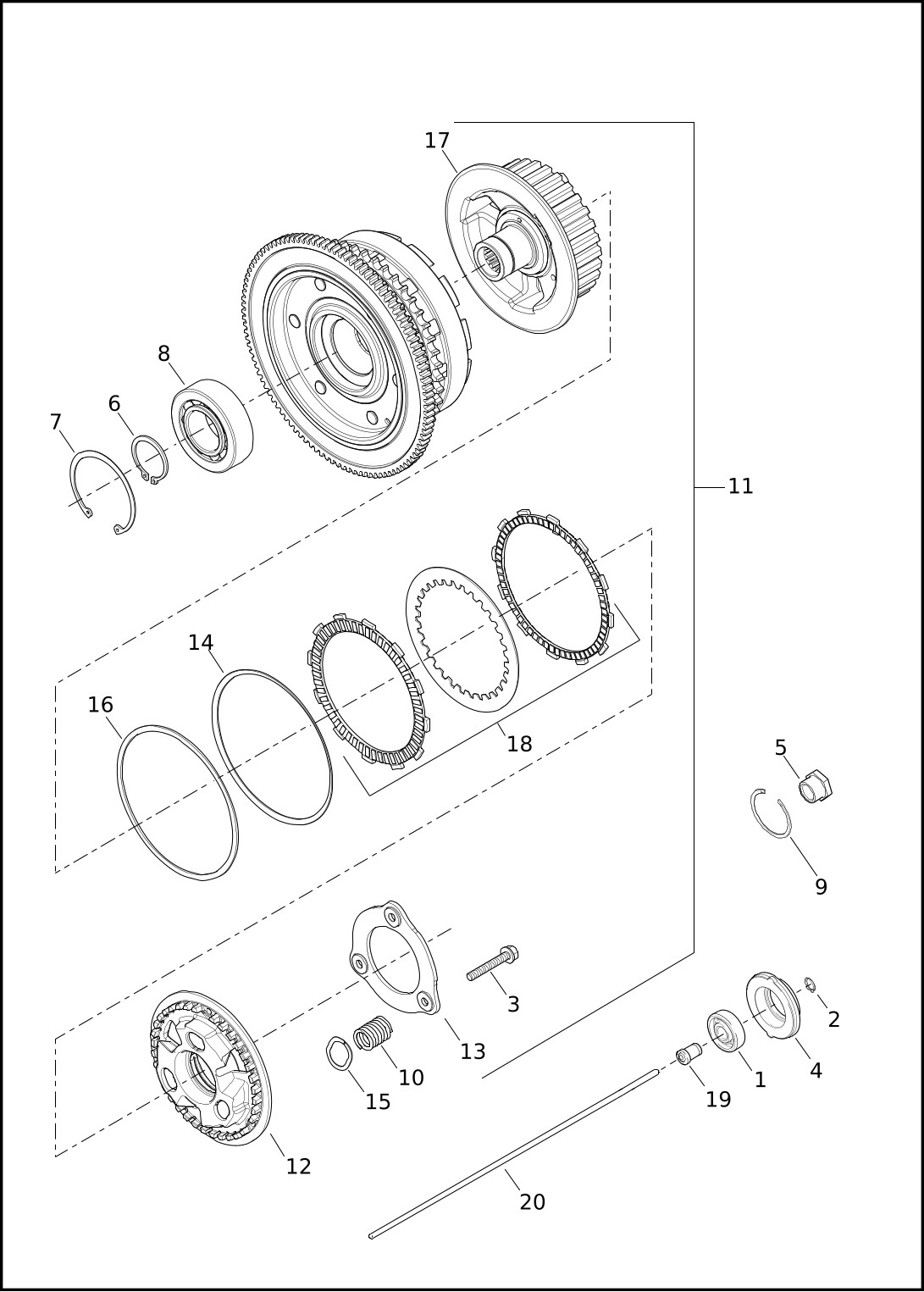

CLUTCH - TWIN CAM 110™, Assist & Slip
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLSTNSE |
| 2 | 11143 | RETAINING RING, external | FLSTNSE |
| 3 | 36706-08K | BOLT (3) | FLSTNSE |
| 4 | 36731-91 | PLATE, release w/ 8885 | FLSTNSE |
| 5 | 37496-90A | NUT, mainshaft | FLSTNSE |
| 6 | 37904-90 | RING, retaining, external | FLSTNSE |
| 7 | 37905-00 | RING, retaining, internal | FLSTNSE |
| 8 | 37906-11 | BEARING, ball, double-row | FLSTNSE |
| 9 | 37909-90 | RING, retaining, internal | FLSTNSE |
| 10 | 11700002 | COIL SPRING (3) | FLSTNSE |
| 11 | 37000026 | CLUTCH ASSEMBLY, complete | FLSTNSE |
| 12 | 37000032 | PRESSURE PLATE, clutch | FLSTNSE |
| 13 | 37000033 | STOPPER PLATE | FLSTNSE |
| 14 | 37000034 | SPRING, damper | FLSTNSE |
| 15 | 37000035 | SEAT (3) | FLSTNSE |
| 16 | 37000036 | SEAT, damper-spring | FLSTNSE |
| 17 | 37000083 | HUB ASSEMBLY | FLSTNSE |
| 18 | 37000118 | CLUTCH DISCS KIT | FLSTNSE |
| 19 | 37000217 | PUSHROD, clutch release plate | FLSTNSE |
| 20 | 37000218 | ROD END | FLSTNSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLSTNSE |
| 2 | 791A | SCREW (2) | FLSTNSE |
| 3 | 1062 | SCREW (5) | FLSTNSE |
| 4 | 1775 | SCREW (4) | FLSTNSE |
| 5 | 4813A | SCREW (9) | FLSTNSE |
| 6 | 9231 | BEARING | FLSTNSE |
| 7 | 11105 | O-RING | FLSTNSE |
| 8 | 12052A | OIL SEAL | FLSTNSE |
| 9 | 16583-00A | BUSHING, dowel (2) | FLSTNSE |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | FLSTNSE |
| 11 | 24754-75A | DOWEL BUSHING (4) | FLSTNSE |
| 12 | 25940-11 | INSERT, cover | FLSTNSE |
| 13 | 34948-08 | GASKET, primary housing | FLSTNSE |
| 14 | 39929-06B | CHAIN TENSIONER | FLSTNSE |
| 15 | 60328-98B | PLUG ASSEMBLY, magnetic drain, w/ 11105 | FLSTNSE |
| 16 | 60547-06 | GASKET, primary cover | FLSTNSE |
| 17 | 60678-85 | RETAINING RING | FLSTNSE |
| 18 | 60709-07A | COVER, clutch (chrome) | FLSTNSE |
| 19 | 60782-06A | COVER ASSEMBLY, primary (chrome) | FLSTNSE |
| 20 | 60813-07 | SCREW, primary cover | FLSTNSE |
| 21 | 60854-08B | INNER PRIMARY HOUSING, wide, w/ 9231, 12052A, 60678-85 & 16583-00A (granite) | FLSTNSE |

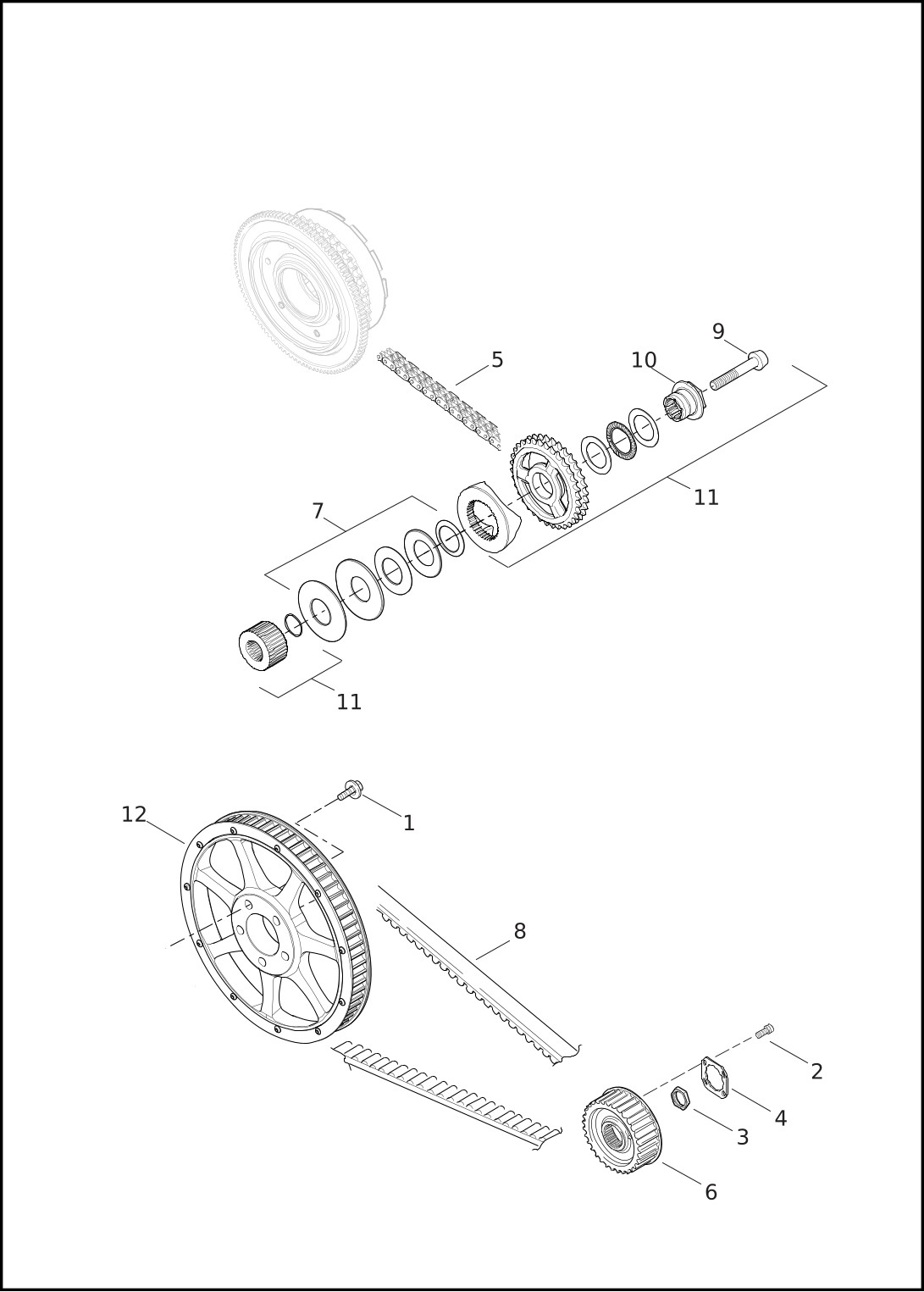

BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW (5) | FLSTNSE |
| 2 | 3594 | SCREW (2) | FLSTNSE |
| 3 | 35241-06 | NUT | FLSTNSE |
| 4 | 35242-06 | LOCKPLATE, sprocket nut | FLSTNSE |
| 5 | 40036-06 | PRIMARY CHAIN | FLSTNSE |
| 6 | 40659-06 | SPROCKET, transmission, 32 T | FLSTNSE |
| 7 | 83936-09A | SPRING PACK ASSEMBLY | FLSTNSE |
| 8 | 40000001 | REAR BELT, 133 T, 24mm wide | FLSTNSE |
| 9 | 10500031 | SCREW, compensator | FLSTNSE |
| 10 | 40100041 | RETAINER, sprocket | FLSTNSE |
| 11 | 36500034A | COMPENSATOR ASSEMBLY | FLSTNSE |
| 12 | 42200007 | KIT SPROCKET ASSEMBLY, rear, 66 T | FLSTNSE |
REAR BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT | FLSTNSE |
| 2 | 4407 | SCREW | FLSTNSE |
| 3 | 6702 | WASHER | FLSTNSE |
| 4 | 7549A | ACORN NUT | FLSTNSE |
| 5 | 7669 | NUT | FLSTNSE |
| 6 | 8201 | BOLT, acorn (2) | FLSTNSE |
| 7 | 11413 | GROMMET | FLSTNSE |
| 8 | 60655-07A | DEBRIS DEFLECTOR, w/ 6702 (chrome) | FLSTNSE |
| 9 | 60867-08 | BELT GUARD, w/ label (chrome) | FLSTNSE |

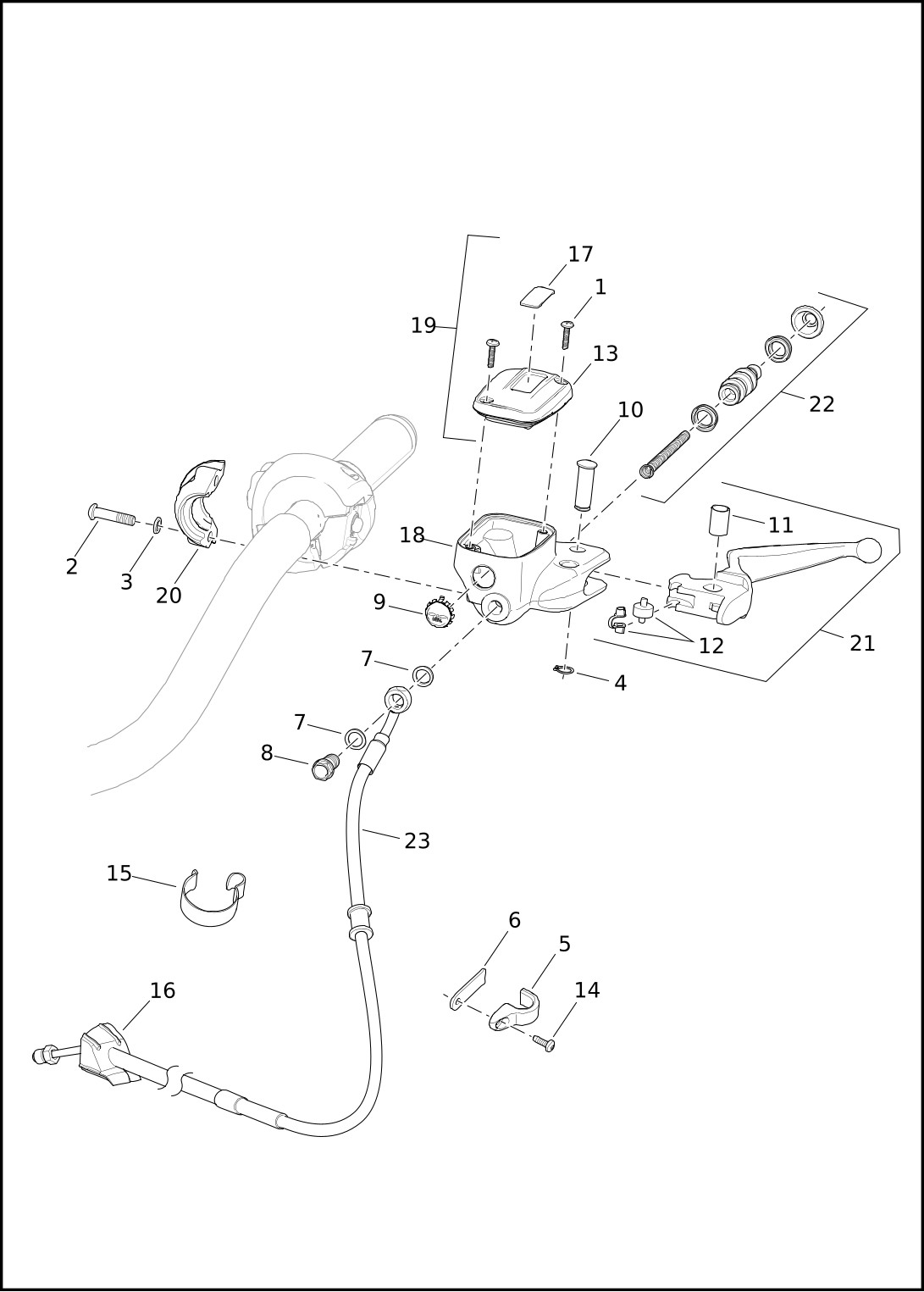

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3089 | SCREW (2) | FLSTNSE |
| 2 | 4293 | SCREW (2) | FLSTNSE |
| 3 | 6099 | WASHER (2) | FLSTNSE |
| 4 | 11143 | RETAINING RING | FLSTNSE |
| 5 | 38814-07 | CLAMP | FLSTNSE |
| 6 | 38815-07 | BACKPLATE | FLSTNSE |
| 7 | 41751-06A | GASKET, banjo-bolt (2) | FLSTNSE |
| 8 | 42010-06A | BANJO BOLT, brakeline | FLSTNSE |
| 9 | 42145-06 | SIGHT GLASS KIT | FLSTNSE |
| 10 | 45032-82 | PIVOT PIN | FLSTNSE |
| 11 | 45423-92 | BUSHING, hand-lever | FLSTNSE |
| 12 | 46246-01 | BUSHING & ROLLER KIT | FLSTNSE |
| 13 | 46322-06 | GASKET | FLSTNSE |
| 14 | 68042-99 | SCREW | FLSTNSE |
| 15 | 10800060 | CLAMP | FLSTNSE |
| 16 | 12100028 | GROMMET | FLSTNSE |
| 17 | 14100605 | DECAL, maser cylinder cover | FLSTNSE |
| 18 | 36700076 | CLUTCH MASTER CYLINDER ASSEMBLY, w/ 45032-82, 42145-06, 36700077, 36700109 (chrome) | FLSTNSE |
| 19 | 36700077 | COVER, reservoir (chrome), w/ 3089, 46322-06 & 14100605 | FLSTNSE |
| 20 | 36700103 | CLAMP, master-cylinder (chrome) | FLSTNSE |
| 21 | 36700109 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (chrome) | FLSTNSE |
| 22 | 37200096 | REPAIR KIT, master-cylinder, w/ 11143 & 41751-06A | FLSTNSE |
| 23 | 37200098 | LINE ASSEMBLY, hydraulic-clutch, w/ 12100028 | FLSTNSE |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW | FLSTNSE |
| 2 | 3798M | SCREW (2) | FLSTNSE |
| 3 | 4293 | SCREW (2) | FLSTNSE |
| 4 | 5001 | BANJO BOLT, brake line | FLSTNSE |
| 5 | 5002 | BANJO BOLT, brake line | FLSTNSE |
| 6 | 6099 | WASHER (2) | FLSTNSE |
| 7 | 6119 | WASHER | FLSTNSE |
| 8 | 7081 | LOCKWASHER | FLSTNSE |
| 9 | 10870 | CLAMP, handlebar control | FLSTNSE |
| 10 | 11142 | RETAINING RING | FLSTNSE |
| 11 | 11379 | RETAINING RING | FLSTNSE |
| 12 | 38113-11 | BRACKET, front HCU | FLSTNSE |
| 13 | 38902-08 | CLAMP | FLSTNSE |
| 14 | 41731-01 | GASKET, brake line (2) | FLSTNSE |
| 15 | 41733-88 | GASKET, banjo (2) | FLSTNSE |
| 16 | 41756-08 | GASKET, banjo (4) | FLSTNSE |
| 17 | 42807-04 | PIVOT PIN | FLSTNSE |
| 18 | 42820-04 | GREASE, brake, master cylinder/caliper | FLSTNSE |
| 19 | 42830-05 | GREASE, brake, caliper | FLSTNSE |
| 20 | 70631-08 | CONDUIT CLIP (3) | FLSTNSE |
| 21 | 10500056 | SCREW (2) | FLSTNSE |
| 22 | 11600001 | BANJO BOLT, brakeline (2) | FLSTNSE |
| 23 | 14100605 | DECAL, master cylinder cover | FLSTNSE |
| 24 | 41100037 | ABS HYDRAULIC CONTROL UNIT (HCU) | FLSTNSE |
| 25 | 41700087 | REPAIR KIT, master cylinder, w/ 11142, 42820-04, 42830-05 | FLSTNSE |
| 26 | 41700238 | GASKET KIT, master cylinder | FLSTNSE |
| 27 | 41700293 | MASTER CYLINDER, front | FLSTNSE |
| 28 | 41700294 | COVER, reservoir (chrome) | FLSTNSE |
| 29 | 41700295 | HAND LEVER, front brake control | FLSTNSE |
| 30 | 41800358 | BRAKE LINE, front, HCU to master cylinder | FLSTNSE |
| 31 | 41800359 | BRAKE LINE, front, HCU to caliper | FLSTNSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLSTNSE |
| 2 | 7127 | LOCKWASHER (2) | FLSTNSE |
| 3 | 7331 | ACORN NUT (2) | FLSTNSE |
| 4 | 91845-03B | MIRROR ASSEMBLY, left (chrome) (Asia-Pacific) | FLSTNSE |
| 92447-11 | MIRROR ASSEMBLY, left (chrome) (HDI) (shown) | FLSTNSE | |
| 56000062 | MIRROR ASSEMBLY, left (chrome) | FLSTNSE | |
| 5 | 91840-03B | MIRROR ASSEMBLY, right (chrome) (Asia-Pacific) | FLSTNSE |
| 92448-11 | MIRROR ASSEMBLY, right (chrome) (HDI) | FLSTNSE | |
| 56000063 | MIRROR ASSEMBLY, right (chrome) (shown) | FLSTNSE |

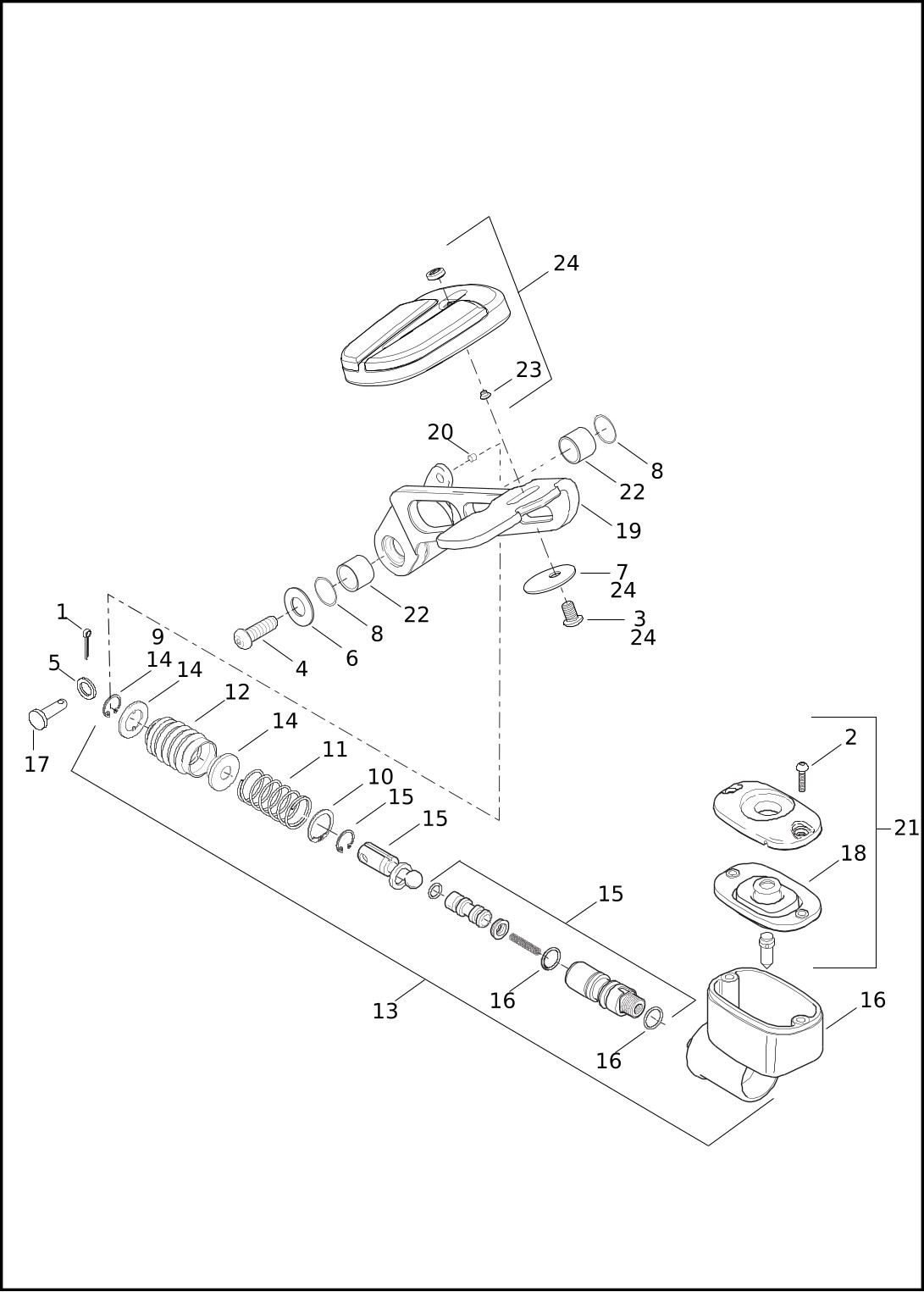

BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLSTNSE |
| 2 | 2573 | SCREW (2) | FLSTNSE |
| 3 | 3340 | SCREW | FLSTNSE |
| 4 | 3655A | SCREW | FLSTNSE |
| 5 | 6099 | WASHER | FLSTNSE |
| 6 | 6237 | WASHER | FLSTNSE |
| 7 | 6421 | WASHER, offset | FLSTNSE |
| 8 | 11364 | O-RING (2) | FLSTNSE |
| 9 | 11688 | RETAINING RING | FLSTNSE |
| 10 | 40918-87 | RETAINING RING | FLSTNSE |
| 11 | 40920-87 | SPRING, brake return | FLSTNSE |
| 12 | 40922-87A | BOOT, push rod | FLSTNSE |
| 13 | 41782-05C | MASTER CYLINDER ASSEMBLY | FLSTNSE |
| 14 | 41957-97A | PUSH ROD KIT | FLSTNSE |
| 15 | 42382-87E | REBUILD KIT, master cylinder | FLSTNSE |
| 16 | 42454-99A | RESERVOIR, master cylinder, w/ O-rings | FLSTNSE |
| 17 | 42460-80B | CLEVIS PIN | FLSTNSE |
| 18 | 42568-05A | GASKET, master cylinder reservoir | FLSTNSE |
| 19 | 42640-03 | BRAKE LEVER KIT, w/ 515, 11364, 42644-00 & 57217-02A (chrome) | FLSTNSE |
| 20 | 42644-00 | BEARING, .25 x .177 | FLSTNSE |
| 21 | 46425-05A | COVER KIT, reservoir, w/ 2573 | FLSTNSE |
| 22 | 57217-02A | BUSHING, brake lever (2) | FLSTNSE |
| 23 | 12600025 | SCREW | FLSTNSE |
| 24 | 50600040 | PAD KIT, brake pedal, w/ 3340 & 12600025 | FLSTNSE |
BRAKE LINE & MODULE, REAR, ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3061 | SCREW | FLSTNSE |
| 2 | 4168A | SCREW | FLSTNSE |
| 3 | 4751 | SCREW (2) | FLSTNSE |
| 4 | 5001 | BOLT, banjo, brake line | FLSTNSE |
| 5 | 5002 | BOLT, banjo, brake line | FLSTNSE |
| 6 | 6532 | WASHER (2) | FLSTNSE |
| 7 | 6703 | WASHER (2) | FLSTNSE |
| 8 | 8405 | JAMNUT | FLSTNSE |
| 9 | 9907 | TERMINAL, #14-16 AWG (2) | FLSTNSE |
| 10 | 10006 | CABLE STRAP | FLSTNSE |
| 11 | 10065 | CABLE STRAP (4) | FLSTNSE |
| 12 | 10851 | CLAMP, rear HCU | FLSTNSE |
| 13 | 41731-01 | GASKET (6) | FLSTNSE |
| 14 | 41733-88 | GASKET (2) | FLSTNSE |
| 15 | 41747-82A | BANJO BOLT, brake line (2) | FLSTNSE |
| 16 | 43373-11A | BRAKE LINE ASSEMBLY, rear, ABS, HCU to master cylinder | FLSTNSE |
| 17 | 43384-11A | BRAKE LINE ASSEMBLY, rear, ABS, HCU to caliper | FLSTNSE |
| 18 | 46677-11 | BRACKET, rear HCU | FLSTNSE |
| 19 | 70635-08 | CONDUIT CLIP (2) | FLSTNSE |
| 20 | 72023-51E | STOPLAMP SWITCH, rear, w/ 9907 | FLSTNSE |
| 21 | 41100037 | ABS HYDRAULIC CONTROL UNIT (HCU) | FLSTNSE |
| 22 | 41600017 | BRAKE LINE GUIDE, anti-rotation | FLSTNSE |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 42820-04 | GREASE | FLSTNSE |
| 2 | 42827-04 | SCREW, bleeder | FLSTNSE |
| 3 | 42828-04 | CAP, bleeder | FLSTNSE |
| 4 | 44160-00 | BOLT, caliper mounting, lower (2) | FLSTNSE |
| 5 | 14100719 | DECAL | FLSTNSE |
| 6 | 41300102 | PAD KIT | FLSTNSE |
| 7 | 41300103 | PISTON KIT, w/ 42820-04 | FLSTNSE |
| 8 | 41300104 | BOLT KIT, brake caliper | FLSTNSE |
| 9 | 41300138 | CALIPER ASSEMBLY | FLSTNSE |

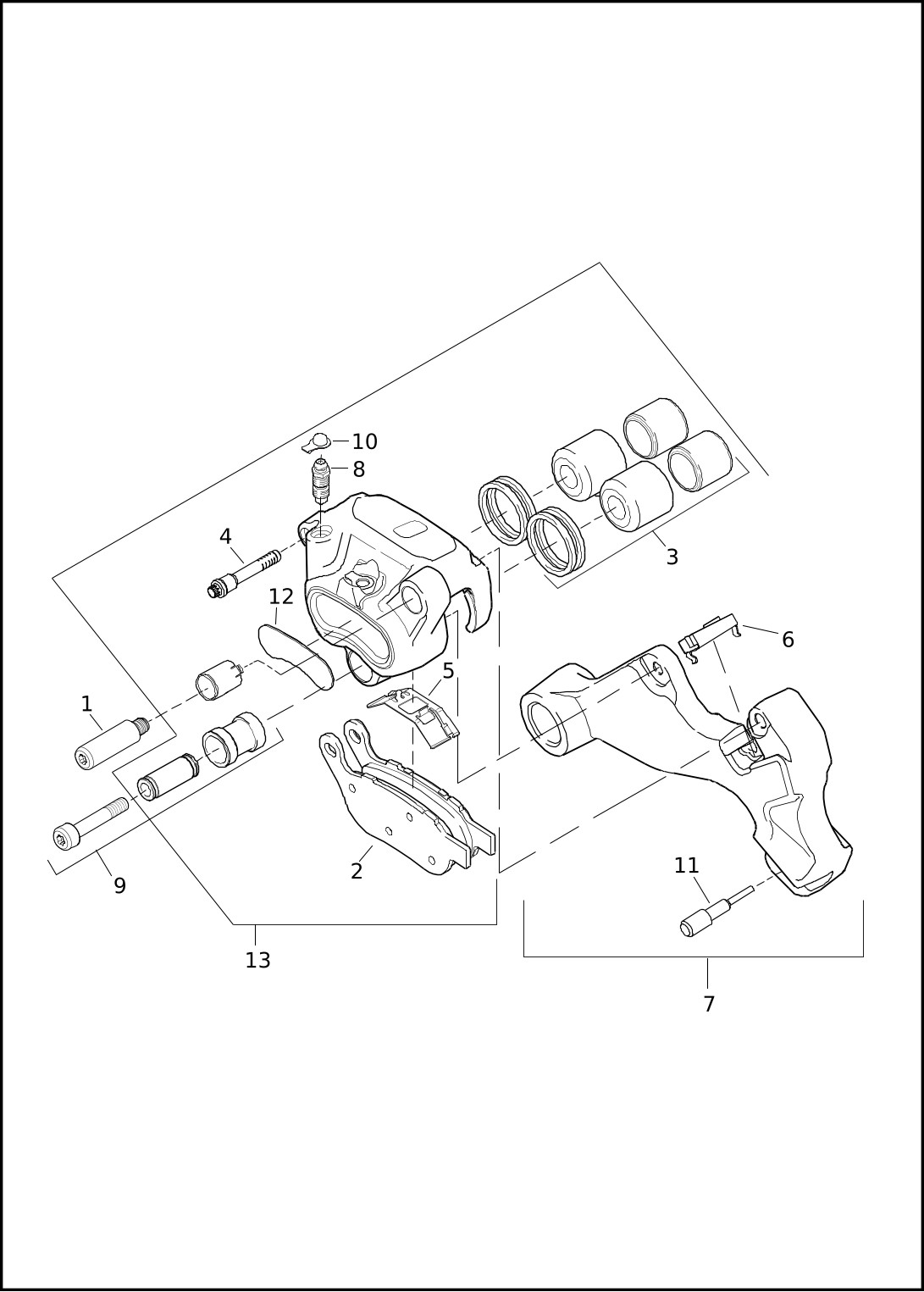

BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 42143-08B | BOLT, lower | FLSTNSE |
| 2 | 42298-08 | PAD KIT | FLSTNSE |
| 3 | 42344-08A | PISTON KIT | FLSTNSE |
| 4 | 42345-08 | PAD PIN KIT | FLSTNSE |
| 5 | 42347-08 | BRAKE SPRING KIT | FLSTNSE |
| 6 | 42348-08 | TORQUE CLIP KIT | FLSTNSE |
| 7 | 42895-08A | MOUNTING BRACKET, rear | FLSTNSE |
| 8 | 44048-83A | SCREW, bleeder | FLSTNSE |
| 9 | 44066-08A | CALIPER PIN KIT | FLSTNSE |
| 10 | 44147-87A | CAP, bleeder screw | FLSTNSE |
| 11 | 44351-00 | BUMPER | FLSTNSE |
| 12 | 14100719 | DECAL | FLSTNSE |
| 13 | 41300139 | CALIPER ASSEMBLY, rear brake | FLSTNSE |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | FLSTNSE |
| 2 | 6594 | WASHER | FLSTNSE |
| 3 | 7813A | NUT | FLSTNSE |
| 4 | 9252 | BALL BEARING, 25 mm, w/ encoder, ABS | FLSTNSE |
| 5 | 9276A | BALL BEARING, 25 mm | FLSTNSE |
| 6 | 10147 | CLIP, connector | FLSTNSE |
| 7 | 11924 | SPACER, right side of wheel | FLSTNSE |
| 8 | 40982-11 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08 & 72639-10 | FLSTNSE |
| 9 | 41148-98 | KIT, VALVE STEM CAPS, bar & shield (set of 2) | FLSTNSE |
| 10 | 41349-07 | SLEEVE, spacer | FLSTNSE |
| 11 | 41545-07A | AXLE, front | FLSTNSE |
| 12 | 41880-07 | WHEEL ASSEMBLY, front, 16 in., w/o bearings & sleeve | FLSTNSE |
| 13 | 42106-11 | COVER, wheel speed sensor | FLSTNSE |
| 14 | 43118-92A | TIRE, 16 in., wide, white | FLSTNSE |
| 15 | 43157-83A | VALVE STEM ASSEMBLY | FLSTNSE |
| 16 | 44117-07A | KIT, COVER, axle nut, w/ screws (set of 2) | FLSTNSE |
| 17 | 54321-85 | NUT (2) | FLSTNSE |
| 18 | 72607-08 | HOUSING, 2-way pin | FLSTNSE |
| 19 | 72608-08 | TERMINAL, pin, #16-20 AWG (2) | FLSTNSE |
| 20 | 72639-10 | SECONDARY LOCK, 2-way | FLSTNSE |
| 21 | 11100019 | ADHESIVE TAPE, wheel speed sensor | FLSTNSE |
| 22 | 32700024 | BRACKET ASSEMBLY, wheel speed sensor, w/ tape | FLSTNSE |
| 23 | 41500088 | DISC ASSEMBLY, floating, front | FLSTNSE |
| 24 | 42300006 | WEIGHT, wheel, 1/2 oz., bar & shield (chrome) | FLSTNSE |
| 25 | 42500008 | HUB CAP (chrome) | FLSTNSE |

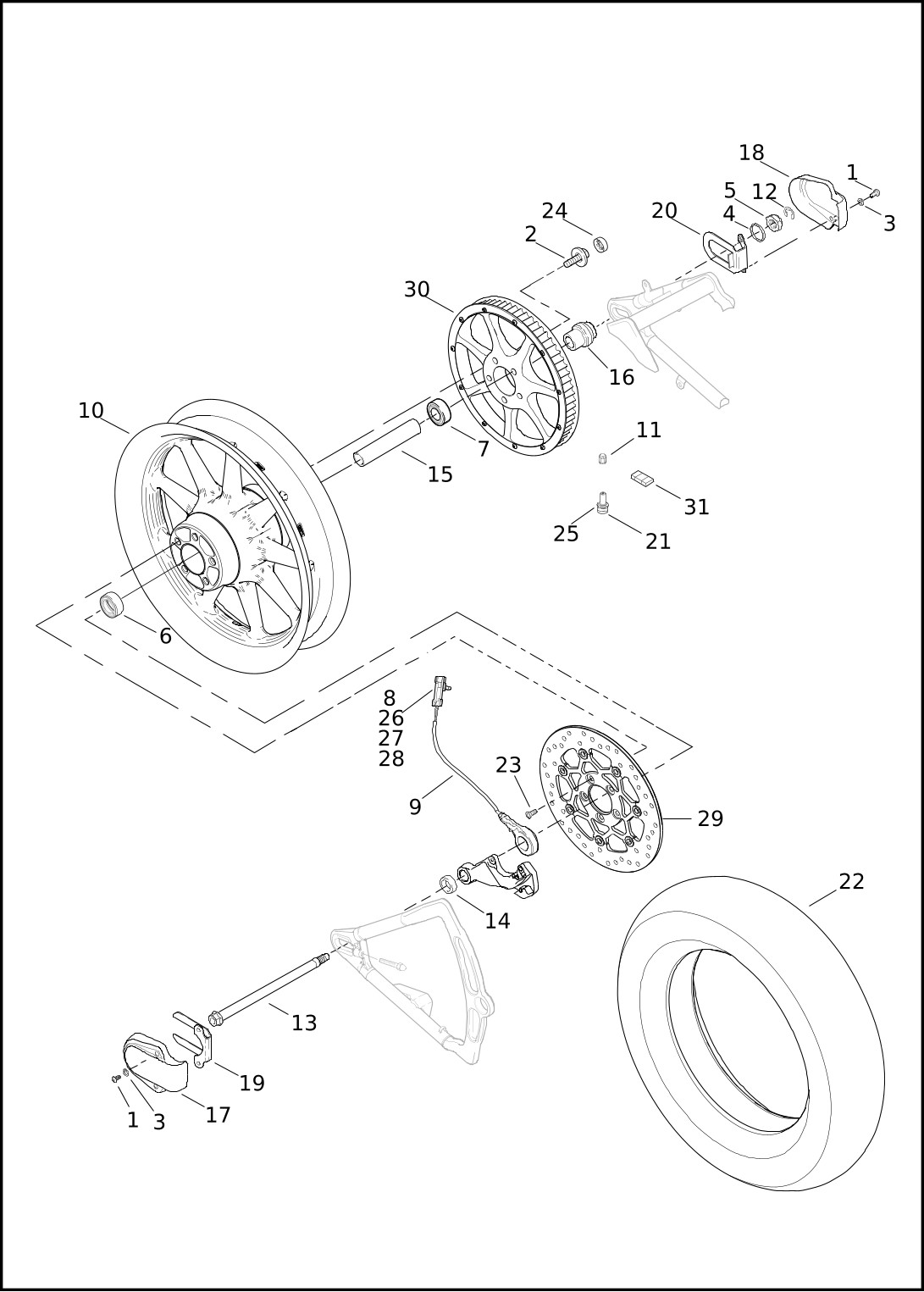

WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3007 | SCREW (4) | FLSTNSE |
| 2 | 3109 | SCREW, w/ washer (5) | FLSTNSE |
| 3 | 6150W | WASHER (4) | FLSTNSE |
| 4 | 6553 | WASHER | FLSTNSE |
| 5 | 8020 | NUT | FLSTNSE |
| 6 | 9252 | BALL BEARING, 25 mm, w/ encoder, ABS | FLSTNSE |
| 7 | 9276A | BALL BEARING, 25 mm | FLSTNSE |
| 8 | 10147 | CLIP, connector, ABS | FLSTNSE |
| 9 | 40615-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08 & 72639-10 | FLSTNSE |
| 10 | 40789-08 | WHEEL KIT, 16 in. | FLSTNSE |
| 11 | 41148-98 | KIT, VALVE STEM CAPS, bar & shield (set of 2) | FLSTNSE |
| 12 | 41229-08 | C-CLIP, axle | FLSTNSE |
| 13 | 41641-08 | AXLE ASSEMBLY | FLSTNSE |
| 14 | 41694-08 | SPACER, axle adjuster | FLSTNSE |
| 15 | 41696-08 | SLEEVE | FLSTNSE |
| 16 | 41841-08 | SPACER, wheel, left | FLSTNSE |
| 17 | 42025-08 | COVER, axle, right | FLSTNSE |
| 18 | 42026-08 | COVER, axle, left | FLSTNSE |
| 19 | 42027-08 | BRACKET, axle cover, right | FLSTNSE |
| 20 | 42033-08 | BRACKET, axle cover, left | FLSTNSE |
| 21 | 43157-83A | VALVE STEM ASSEMBLY | FLSTNSE |
| 22 | 43353-03 | TIRE, rear, 16 in., wide white wall | FLSTNSE |
| 23 | 43567-92 | SCREW (5) | FLSTNSE |
| 24 | 43991-04B | COVER, bolts (5) | FLSTNSE |
| 25 | 54321-85 | NUT | FLSTNSE |
| 26 | 72607-08 | HOUSING, 2-way pin | FLSTNSE |
| 27 | 72608-08 | TERMINAL, pin, #16-20 AWG (2) | FLSTNSE |
| 28 | 72639-10 | SECONDARY LOCK, 2-way socket | FLSTNSE |
| 29 | 41500089 | BRAKE DISC KIT, rear | FLSTNSE |
| 30 | 42200007 | KIT SPROCKET ASSEMBLY, rear, 66T | FLSTNSE |
| 31 | 42300006 | WEIGHT, wheel 1/2 oz., bar & shield (chrome) | FLSTNSE |

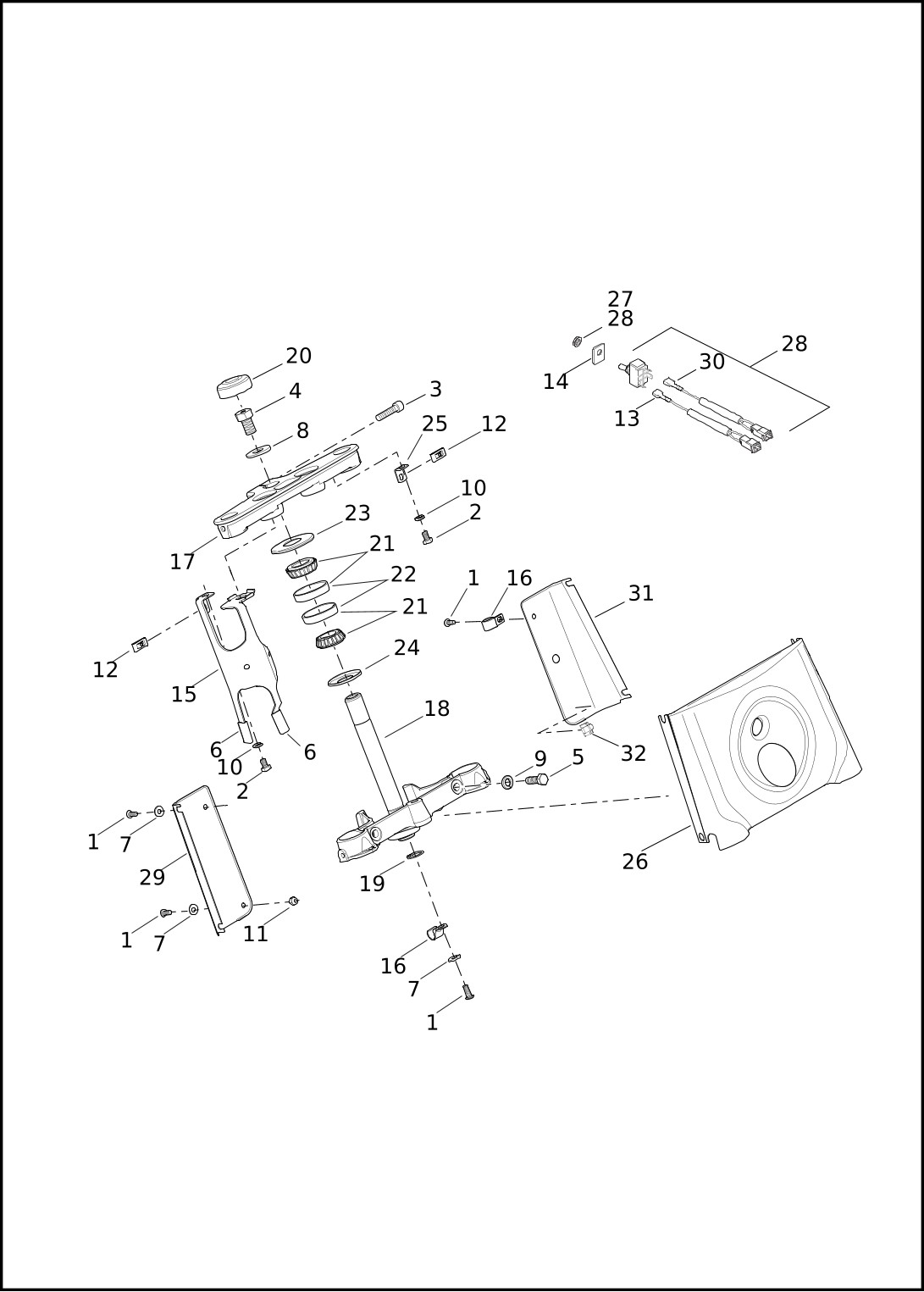

FORK BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (4) | FLSTNSE |
| 2 | 3953W | BOLT (2) | FLSTNSE |
| 3 | 4350A | SCREW | FLSTNSE |
| 4 | 4453 | BOLT | FLSTNSE |
| 5 | 4945 | SCREW (2) | FLSTNSE |
| 6 | 5302 | CAP, protective (2) | FLSTNSE |
| 7 | 6119 | WASHER (3) | FLSTNSE |
| 8 | 6655 | WASHER | FLSTNSE |
| 9 | 7039 | LOCKWASHER (2) | FLSTNSE |
| 10 | 7041 | LOCKWASHER (2) | FLSTNSE |
| 11 | 7792 | NUT | FLSTNSE |
| 12 | 8108 | SPEEDNUT (2) | FLSTNSE |
| 13 | 9897 | TERMINAL WIRE | FLSTNSE |
| 14 | 15346-98A | LABEL | FLSTNSE |
| 15 | 38113-11 | BRACKET, front HCU, w/ 5302 | FLSTNSE |
| 16 | 38902-08 | CLAMP (2) | FLSTNSE |
| 17 | 45456-86B | BRACKET, upper | FLSTNSE |
| 18 | 45605-00A | STEM & BRACKET ASSEMBLY, including lower bearing cone | FLSTNSE |
| 19 | 45611-86 | RETAINING RING, fork stem | FLSTNSE |
| 20 | 45670-80A | CAP, fork stem | FLSTNSE |
| 21 | 48300-60 | ROLLER BEARING, w/ cup (2) | FLSTNSE |
| 22 | 48315-60 | BEARING CUP (2) | FLSTNSE |
| 23 | 48361-80 | DUST SHIELD, bearing, upper | FLSTNSE |
| 24 | 48365-48A | DUST SHIELD, bearing, lower | FLSTNSE |
| 25 | 50991-86 | BRACKET, front panel | FLSTNSE |
| 26 | 67605-05 | FRONT PANEL (chrome) | FLSTNSE |
| 27 | 67846-70 | NUT | FLSTNSE |
| 28 | 67873-08A | TOGGLE SWITCH | FLSTNSE |
| 29 | 67887-91A | BACK PANEL, right rear (chrome) | FLSTNSE |
| 30 | 72290-94 | TERMINAL | FLSTNSE |
| 31 | 45900096 | BACK PANEL, left rear w/ switch hole (chrome) | FLSTNSE |
| 32 | 10120 | CLIP | FLSTNSE |

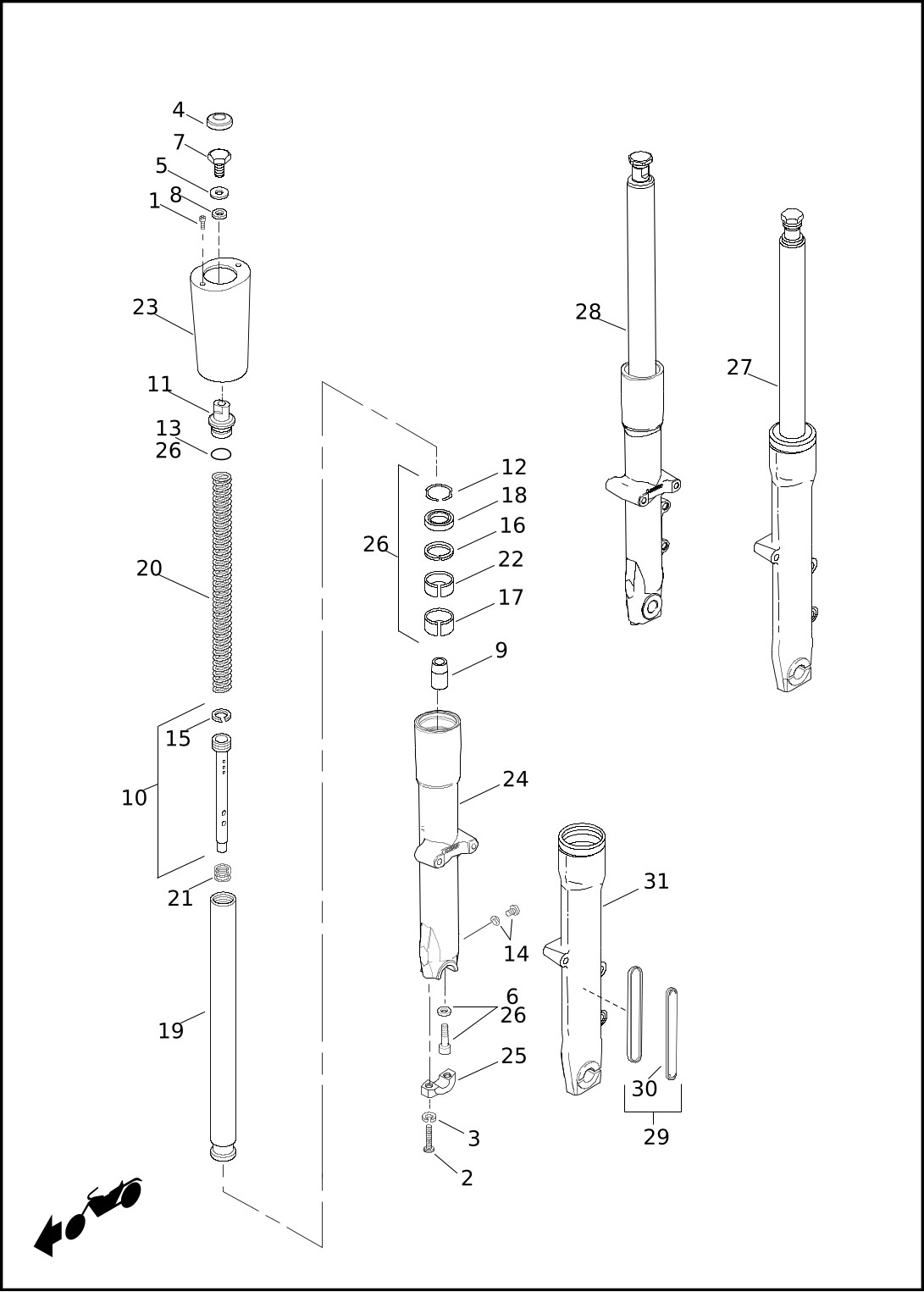

FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3537 | SCREW (4) | FLSTNSE |
| 2 | 4042 | SCREW (2) | FLSTNSE |
| 3 | 7062 | LOCKWASHER (2) | FLSTNSE |
| 4 | 44503-03 | COVER, fork bolt (chrome) (2) | FLSTNSE |
| 5 | 44504-03 | WASHER, fork bolt (2) | FLSTNSE |
| 6 | 45405-75A | SCREW (2) | FLSTNSE |
| 7 | 45419-80 | BOLT, top, fork upper bracket (2) | FLSTNSE |
| 8 | 45733-48 | OIL SEAL, fork tube plug (2) | FLSTNSE |
| 9 | 45803-97 | STOP OIL LOCK PIECE (2) | FLSTNSE |
| 10 | 45837-07 | DAMPER TUBE, w/ piston ring (2) | FLSTNSE |
| 11 | 45838-77 | PLUG, fork tube (2) | FLSTNSE |
| 12 | 45842-77A | RETAINING RING, oil seal | FLSTNSE |
| 13 | 45845-77 | O-RING | FLSTNSE |
| 14 | 45858-77 | SCREW (2) | FLSTNSE |
| 15 | 45859-77A | PISTON RING, damper tube | FLSTNSE |
| 16 | 45865-84 | SPACER, seal | FLSTNSE |
| 17 | 45866-84 | BUSHING, slider | FLSTNSE |
| 18 | 45875-84A | OIL SEAL | FLSTNSE |
| 19 | 45930-00 | STANCHION TUBE, w/ bushing (2) | FLSTNSE |
| 20 | 45931-00 | SPRING (2) | FLSTNSE |
| 21 | 45933-86 | SPRING, damper tube (2) | FLSTNSE |
| 22 | 45940-84 | BUSHING | FLSTNSE |
| 23 | 45963-97 | COVER KIT, sliders | FLSTNSE |
| 24 | 46484-08A | SLIDER ASSEMBLY, right | FLSTNSE |
| 25 | 46658-07 | AXLE CAP, right slider | FLSTNSE |
| 26 | 49377-09A | FORK REBUILD KIT | FLSTNSE |
| 27 | 49386-10A | FORK SLIDER & TUBE ASSEMBLY, left | FLSTNSE |
| 28 | 49387-10A | FORK SLIDER & TUBE ASSEMBLY, right | FLSTNSE |
| 29 | 60253-07 | BRACKET ASSEMBLY, reflector (2) | FLSTNSE |
| 30 | 60254-07 | REFLECTOR, amber (2) | FLSTNSE |
| 31 | 45500016 | SLIDER ASSEMBLY, left | FLSTNSE |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 939 | SCREW (2) | FLSTNSE |
| 2 | 520W | COTTER PIN | FLSTNSE |
| 3 | 3233 | SCREW | FLSTNSE |
| 4 | 3594 | SCREW (HDI, England) | FLSTNSE |
| 5 | 4512A | SCREW (3) | FLSTNSE |
| 6 | 4813A | SCREW | FLSTNSE |
| 7 | 4924 | SCREW | FLSTNSE |
| 8 | 5818A | BUSHING | FLSTNSE |
| 9 | 7992 | ACORN NUT | FLSTNSE |
| 10 | 10193 | WIRE CLAMP | FLSTNSE |
| 11 | 33670-07 | BRACKET ASSEMBLY, jiffy stand, shift lever & footrest (chrome) w/ 33708-94 | FLSTNSE |
| 12 | 33708-94 | BEARING, sleeve (2) | FLSTNSE |
| 13 | 45680-90 | FORK LOCK (specify key number) | FLSTNSE |
| 14 | 47173-08CRP | FRAME, w/ 48315-60 & 50972-75 (black diamond) **RESTRICTED SALES PART** | FLSTNSE |
| 47000076DYL | FRAME, w/ 48315-60 & 50972-75 (bermuda blue) **RESTRICTED SALES PART** | FLSTNSE | |
| 15 | 48315-60 | BEARING CUP (2) | FLSTNSE |
| 16 | 48885-10 | POST ASSEMBLY, seat (granite) | FLSTNSE |
| 17 | 49716-08A | JIFFY STAND SENSOR, w/ 72169-07, 72511-07BK & 73213-07 (HDI, England) | FLSTNSE |
| 18 | 49725-07A | SPRING, jiffy stand leg | FLSTNSE |
| 19 | 50003-89B | CLEVIS PIN | FLSTNSE |
| 20 | 50103-07B | LEG, jiffy stand | FLSTNSE |
| 21 | 50972-75 | FITTING, lubrication | FLSTNSE |
| 22 | 53176-08 | BUSHING (2) | FLSTNSE |
| 23 | 61081-92 | COVER, key head set (2) | FLSTNSE |
| 24 | 62123-07 | BUMPER | FLSTNSE |
| 25 | 62881-00 | GROMMET | FLSTNSE |
| 26 | 68446-00 | PLUG, button (2) | FLSTNSE |
| 27 | 72169-07 | TERMINAL, pin, #16-20 AWG (HDI, England) (3) | FLSTNSE |
| 28 | 72511-07BK | HOUSING, 3-way, pin (HDI, England) | FLSTNSE |
| 29 | 73213-07 | RETAINER, X-mas tree clip (HDI, England) | FLSTNSE |
| 30 | 94090-91T | PLUG | FLSTNSE |
| 31 | 49000045 | ENGINE GUARD ASSEMBLY | FLSTNSE |
| 32 | 49000064 | BRACKET, upper engine guard | FLSTNSE |
| 33 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | FLSTNSE |
| 71031-04 | KEY, CVO (specify key number) (except Asia-Pacific) **RESTRICTED SALES PART** | FLSTNSE | |
| 34 | 90300085 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) (Asia-Pacific) | FLSTNSE |
| 90300099 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) | FLSTNSE | |
| 35 | 93100031 | COVER KIT, motorcycle, w/ CVO logo | FLSTNSE |
| 36 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLSTNSE |
FORK, REAR & SHOCK ABSORBERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4074A | BOLT (2) | FLSTNSE |
| 2 | 4433 | ADJUSTER SCREW, right side | FLSTNSE |
| 8195 | ADJUSTER SCREW, left side | FLSTNSE | |
| 3 | 4867 | SCREW | FLSTNSE |
| 4 | 4967 | SET SCREW (2) | FLSTNSE |
| 5 | 6534 | WASHER | FLSTNSE |
| 6 | 6535 | WASHER | FLSTNSE |
| 7 | 6724 | WASHER (2) | FLSTNSE |
| 8 | 7479 | NUT | FLSTNSE |
| 9 | 9270A | BEARING, rear fork pivot (2) | FLSTNSE |
| 10 | 11282 | RETAINING RING, fork bearing (2) | FLSTNSE |
| 11 | 11514 | BUMPER, rear fork | FLSTNSE |
| 12 | 41694-08 | SPACER, rear axle adjuster | FLSTNSE |
| 13 | 45764-00 | LOCKNUT, flange (2) | FLSTNSE |
| 14 | 47610-08 | PIVOT SHAFT | FLSTNSE |
| 15 | 48048-00A | BUSHING, rear fork (2) | FLSTNSE |
| 16 | 48076-08 | SPACER, rear fork, left | FLSTNSE |
| 48619-07A | SPACER, rear fork, right | FLSTNSE | |
| 17 | 48211-08 | KIT-INSERTS | FLSTNSE |
| 18 | 48848-09 | COVER, pivot (2) | FLSTNSE |
| 19 | 47400055DYL | REAR FORK, w/ 11282 & 9270A (bermuda blue) | FLSTNSE |
| 47400055CRP | REAR FORK, w/ 11282 & 9270A (black diamond) | FLSTNSE | |
| 20 | 54549-04 | SHOCK ABSORBER, w/ 45764-00, 56182-00A & 56183-00 (2) | FLSTNSE |
| 21 | 56182-00A | BUSHING (2) | FLSTNSE |
| 22 | 56183-00 | WASHER, w/ grommet (2) | FLSTNSE |
| 23 | 60363-11 | SPLASH GUARD | FLSTNSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT, cap (2) | FLSTNSE |
| 2 | 1602 | SCREW | FLSTNSE |
| 3 | 3574 | SCREW (2) | FLSTNSE |
| 4 | 3633 | NUT, seat mounting (2) | FLSTNSE |
| 5 | 6441 | WASHER | FLSTNSE |
| 6 | 6827 | WASHER (2) | FLSTNSE |
| 7 | 6828 | WASHER (2) | FLSTNSE |
| 8 | 13883-00 | EMBLEM | FLSTNSE |
| 9 | 14448-94 | EMBLEM | FLSTNSE |
| 10 | 14628-96 | EMBLEM | FLSTNSE |
| 11 | 51652-97A | BRACKET, seat mounting | FLSTNSE |
| 12 | 51676-97A | KIT, hardware w/ 14628-96 & 6441 | FLSTNSE |
| 13 | 53508-95 | LATCH ASSEMBLY, right | FLSTNSE |
| 53509-95 | LATCH ASSEMBLY, left | FLSTNSE | |
| 14 | 53602-95 | COMPRESSION SPRING, left (2) | FLSTNSE |
| 15 | 53810-00B | SIDEPLATE KIT | FLSTNSE |
| 16 | 94593-98 | SCREW (4) | FLSTNSE |
| 17 | 14100570 | MEDALLION, seat pillion | FLSTNSE |
| 18 | 50300098 | KIT-LUGGAGE RACK | FLSTNSE |
| 19 | 50300107 | LIGHT FILLER | FLSTNSE |
| 20 | 52000178 | SEAT ASSEMBLY (black) | FLSTNSE |
| 21 | 52300022 | KIT-UPRIGHT | FLSTNSE |
| 22 | 52300357 | BACKREST PAD (black) | FLSTNSE |
| 23 | 52400026 | PASSENGER STRAP (black/gray) | FLSTNSE |
| 24 | 52400110 | PILLION ASSEMBLY (black) | FLSTNSE |

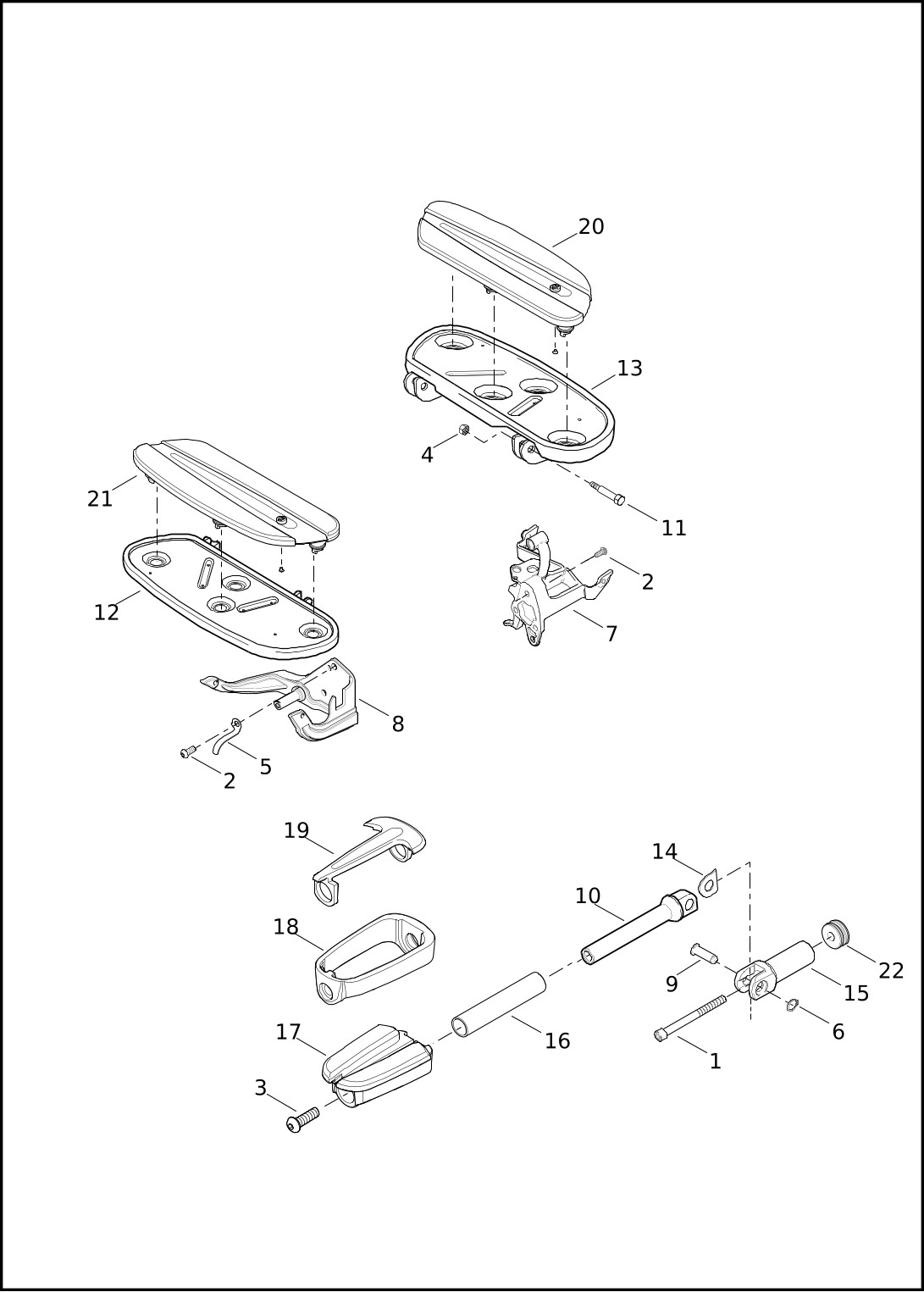

FOOTPEGS & FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4314 | SCREW (2) | FLSTNSE |
| 2 | 4512A | SCREW (6) | FLSTNSE |
| 3 | 4625 | SCREW (2) | FLSTNSE |
| 4 | 7716 | LOCKNUT (4) | FLSTNSE |
| 5 | 10866 | CLIP, master cylinder retention | FLSTNSE |
| 6 | 11304 | RETAINING RING (2) | FLSTNSE |
| 7 | 33670-07 | BRACKET ASSEMBLY, left | FLSTNSE |
| 8 | 38115-11 | FOOTBOARD MOUNT, right | FLSTNSE |
| 9 | 45041-01A | PIN, clevis (2) | FLSTNSE |
| 10 | 50351-03 | MOUNT, footpeg (2) | FLSTNSE |
| 11 | 50635-82A | BOLT (4) | FLSTNSE |
| 12 | 50683-04 | BOTTOM ASSEMBLY, right footboard | FLSTNSE |
| 13 | 50688-04 | BOTTOM ASSEMBLY, left footboard | FLSTNSE |
| 14 | 50912-72 | SPRING WASHER (2) | FLSTNSE |
| 15 | 51050-05A | SUPPORT, passenger footrest (2) | FLSTNSE |
| 16 | 12400018 | SPACER, footpeg (2) | FLSTNSE |
| 17 | 50500069 | INSERT, footpeg (2) | FLSTNSE |
| 18 | 50500070 | FOOTPEG BODY (2) | FLSTNSE |
| 19 | 50500116 | FOOTPEG TOP (2) | FLSTNSE |
| 20 | 50500058 | INSERT, footboard assembly, left, w/ 12600025 | FLSTNSE |
| 21 | 50500059 | INSERT, footboard assembly, right, w/ 12600025 | FLSTNSE |
| 22 | 52300337 | DOCKING BRACKET, saddlebag (2) | FLSTNSE |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3485A | SCREW (4) | FLSTNSE |
| 2 | 7531 | LOCKNUT (4) | FLSTNSE |
| 3 | 14100618 | MEDALLION | FLSTNSE |
| 4 | 58900135DYJ | FENDER (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 58900135DYK | FENDER (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3056 | SCREW (4) | FLSTNSE |
| 2 | 3576 | SCREW (2) | FLSTNSE |
| 3 | 4266A | SCREW (2) | FLSTNSE |
| 4 | 4267 | SCREW (2) | FLSTNSE |
| 5 | 4997 | SCREW (4) | FLSTNSE |
| 6 | 6400HB | WASHER (4) | FLSTNSE |
| 7 | 6609 | WASHER, retention | FLSTNSE |
| 8 | 6701 | WASHER (4) | FLSTNSE |
| 9 | 7434 | WASHER (2) | FLSTNSE |
| 10 | 10226 | FASTENER, nylon | FLSTNSE |
| 11 | 47798-08BHP | SUPPORT, left | FLSTNSE |
| 47807-08BHP | SUPPORT, right | FLSTNSE | |
| 12 | 53684-96A | DOCKING POINT, rear (2) | FLSTNSE |
| 13 | 53830-00 | PLUG (2) | FLSTNSE |
| 14 | 59050-03 | BRACKET FENDER MOUNT, front (2) | FLSTNSE |
| 15 | 59119-03 | BRACKET FENDER MOUNT, rear (2) | FLSTNSE |
| 16 | 59174-99 | STUD PLATE | FLSTNSE |
| 17 | 59572-05 | PROTECTIVE TAPE | FLSTNSE |
| 18 | 59954-08 | COVER, left (chrome) | FLSTNSE |
| 59955-08 | COVER, right (chrome) | FLSTNSE | |
| 19 | 60254-07 | REFLECTOR, amber (HDI, Australia, England, Japan) (2) | FLSTNSE |
| 69490-07 | REFLECTOR, red (2) | FLSTNSE | |
| 20 | 60833-07 | INNER FENDER DAMPING KIT | FLSTNSE |
| 21 | 68446-00 | PLUG, button (2) | FLSTNSE |
| 22 | 12100051 | GROMMET, turn signal (2) | FLSTNSE |
| 23 | 52300338 | DOCKING POINT, mini (4) | FLSTNSE |
| 24 | 52300339 | DOCKING POINT, front (2) | FLSTNSE |
| 25 | 59500310DYJ | FENDER ASSEMBLY (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 59500311DYJ | FENDER ASSEMBLY (stardust silver/bermuda blue) (Canada) **RESTRICTED SALES PART** | FLSTNSE | |
| 59500310DYK | FENDER ASSEMBLY (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE | |
| 59500311DYK | FENDER ASSEMBLY (dark tungsten/black crystal) (Canada) **RESTRICTED SALES PART** | FLSTNSE | |
| 26 | 69200626 | CADDY, ECM | FLSTNSE |
| 27 | 69200750 | BRACKET, connector | FLSTNSE |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 2446 | SCREW (2) | FLSTNSE |
| 2 | 2773 | SCREW (3) | FLSTNSE |
| 3 | 5403B | BOLT | FLSTNSE |
| 4 | 6110 | WASHER | FLSTNSE |
| 5 | 7036 | WASHER (2) | FLSTNSE |
| 6 | 7792 | NUT (3) | FLSTNSE |
| 7 | 11576 | CUSHION | FLSTNSE |
| 8 | 59259-90 | REFLECTOR, red | FLSTNSE |
| 9 | 59984-73 | BRACKET, license plate | FLSTNSE |
| 10 | 59986-75 | SUPPORT, license plate | FLSTNSE |
| 11 | 59988-72A | REFLECTOR (red) | FLSTNSE |
| 12 | 60001-55 | CLAMP | FLSTNSE |
| 13 | 60909-09 | BUMPER, license plate (HDI) | FLSTNSE |
| 14 | 73255-10 | BRACKET, license plate | FLSTNSE |
| 15 | 67900213A | BRACKET, reflector | FLSTNSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4197 | BOLT | FLSTNSE |
| 2 | 4763 | SCREW | FLSTNSE |
| 3 | 5818A | BUSHING, front tank mount (2) | FLSTNSE |
| 4 | 11805 | SPACER, left side | FLSTNSE |
| 5 | 11806 | SPACER, right side | FLSTNSE |
| 6 | 6702 | WASHER | FLSTNSE |
| 7 | 7862 | ACORN NUT | FLSTNSE |
| 8 | 7965 | TEE NUT | FLSTNSE |
| 9 | 10006 | CABLE STRAP (2) | FLSTNSE |
| 10 | 10038A | CLAMP, fuel crossover hose (2) | FLSTNSE |
| 11 | 10102 | CLIP | FLSTNSE |
| 12 | 11323 | O-RING | FLSTNSE |
| 13 | 11387A | O-RING | FLSTNSE |
| 14 | 11529 | RUBBER TRIM, fuel tank, w/ 11533 | FLSTNSE |
| 15 | 11533 | RETAINING RING (2) | FLSTNSE |
| 16 | 61109-85D | GASKET | FLSTNSE |
| 17 | 62189-08A | CHECK VALVE, out, w/ 11323 & 11387A | FLSTNSE |
| 18 | 62543-11 | FUEL CAP, w/ 61109-85D | FLSTNSE |
| 19 | 62555-95 | INSULATOR, 5/8 in. I.D. (nylon) (8 ft. length) | FLSTNSE |
| 20 | 62880-00 | GROMMET, fuel tank, upper rear | FLSTNSE |
| 21 | 62881-00 | GROMMET, fuel tank, lower rear & front (3) | FLSTNSE |
| 22 | 63521-95A | HOSE, 5/16 in. I.D. x 5/8 in. O.D. (rubber) (25 ft. length) | FLSTNSE |
| 23 | 12600067 | FASTENER, nylon | FLSTNSE |
| 24 | 14100565 | MEDALLION, left side (not shown) | FLSTNSE |
| 14100566 | MEDALLION, right side | FLSTNSE | |
| 25 | 61000205DYJ | FUEL TANK, 5 gallon, w/ 14100565 & 14100566 (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 61000205DYK | FUEL TANK, 5 gallon, w/ 14100565 & 14100566 (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE | |
| 26 | 61100001 | VENT LINE ASSEMBLY, fuel tank | FLSTNSE |
| 27 | 61100003 | VENT HOSE, short | FLSTNSE |
| 28 | 61100055 | FUEL CAP, locking, w keys (Asia-Pacific, Japan) | FLSTNSE |
| 29 | 69200692 | WIRING HARNESS, fuel pump sender | FLSTNSE |
| 30 | 90300093 | KEY, locking fuel cap (set of 2) (specify key number) (Asia-Pacific, Japan) | FLSTNSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3017 | SCREW | FLSTNSE |
| 2 | 3048 | SCREW | FLSTNSE |
| 3 | 4194 | SCREW (4) | FLSTNSE |
| 4 | 5471 | BOLT, carriage | FLSTNSE |
| 5 | 6716 | WASHER | FLSTNSE |
| 6 | 7576 | NUT | FLSTNSE |
| 7 | 10102 | CLIP, adhesive (2) | FLSTNSE |
| 8 | 74142-98 | SECONDARY LOCK, 2-way pin | FLSTNSE |
| 9 | 74102-98BK | HOUSING, 2-way pin (black) | FLSTNSE |
| 10 | 74190-98 | TERMINAL, pin, #16-20 AWG (2) | FLSTNSE |
| 11 | 12700081 | BRACKET | FLSTNSE |
| 12 | 68000088 | LED LIGHT | FLSTNSE |
| 13 | 70900359 | CONSOLE | FLSTNSE |
| 14 | 70900361 | GASKET | FLSTNSE |
| 15 | 70900362 | INSERT, console | FLSTNSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 7576 | NUT | FLSTNSE |
| 2 | 10065 | CABLE STRAP | FLSTNSE |
| 3 | 10871 | CLAMP (2) | FLSTNSE |
| 4 | 11387A | O-RING | FLSTNSE |
| 5 | 61011-04A | FILTER, fuel w/ O-ring | FLSTNSE |
| 6 | 61015-04A | FUEL REGULATOR KIT, w/ O-rings, spacer & screen | FLSTNSE |
| 7 | 61381-02A | GASKET, top plate | FLSTNSE |
| 8 | 62143-11 | TUBE, roll over valve to top plate | FLSTNSE |
| 9 | 62155-11 | VALVE, roll over | FLSTNSE |
| 10 | 62158-11 | BRACKET, roll over valve | FLSTNSE |
| 11 | 75252-11A | TOP PLATE ASSEMBLY, w/ 61381-02 & 75282-08A | FLSTNSE |
| 12 | 75276-08A | SENDER, fuel level | FLSTNSE |
| 13 | 75282-08A | FILTER MODULE ASSEMBLY | FLSTNSE |
| 14 | 75284-08A | MODULE ASSEMBLY, fuel pump, w/ 75289-08 & 75290-08 | FLSTNSE |
| 15 | 75289-08 | KIT-HARNESS ASSEMBLY, fuel pump | FLSTNSE |
| 16 | 75290-08 | STRAINER, fuel pump | FLSTNSE |
| 17 | 91072-11 | BUMPER, rubber | FLSTNSE |
| 18 | 10200374 | SCREW (10) | FLSTNSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| 1 | 940 | SCREW (3) | FLSTNSE |
| 2 | 27050-11 | CARBON CANISTER ASSEMBLY | FLSTNSE |
| 3 | 27246-11 | EVAPORATIVE LINE, tank to canister | FLSTNSE |
| 4 | 27715-07 | PURGE SOLENOID | FLSTNSE |
| 5 | 28840-11 | VENTLINE ASSEMBLY, w/ 28841-11 | FLSTNSE |
| 6 | 28841-11 | HOSE | FLSTNSE |
| 7 | 28860-11 | HOSE, canister to purge | FLSTNSE |
| 8 | 28864-11 | VENTLINE ASSEMBLY, lower, w/ 27426-11 & 28860-11 | FLSTNSE |
| 9 | 26500001 | EVAPORATIVE SYSTEM ASSEMBLY, upper, w/ 28840-11 & 61100001 (2) | FLSTNSE |
| 10 | 61100001 | VENT LINE ASSEMBLY, tank | FLSTNSE |
OIL TANK & LINES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4216 | SCREW (3) | FLSTNSE |
| 2 | 4217 | SCREW (2) | FLSTNSE |
| 3 | 5775 | WASHER (3) | FLSTNSE |
| 4 | 8144 | LOCKNUT (2) | FLSTNSE |
| 5 | 10208 | CLAMP (4) | FLSTNSE |
| 6 | 10216 | CLIP, oil lines | FLSTNSE |
| 7 | 11105 | O-RING | FLSTNSE |
| 8 | 11326 | O-RING (3) | FLSTNSE |
| 9 | 11447 | GROMMET (3) | FLSTNSE |
| 10 | 33525-07 | OIL LINE, feed | FLSTNSE |
| 11 | 33531-07 | OIL LINE, return | FLSTNSE |
| 12 | 45468-00 | CONNECTOR ASSEMBLY, vent, w/ 11326 & 63783-00 | FLSTNSE |
| 13 | 45806-07 | OIL LINE, vent | FLSTNSE |
| 14 | 60328-98B | PLUG ASSEMBLY, magnetic drain, w/ 11105 | FLSTNSE |
| 15 | 62498-01A | OIL TANK (chrome) | FLSTNSE |
| 16 | 62769-00A | BRACKET, oil tank top | FLSTNSE |
| 17 | 62845-00A | FILLER CAP, w/ dipstick | FLSTNSE |
| 18 | 63553-00B | HOSE, oil tank drain | FLSTNSE |
| 19 | 63601-00 | CONNECTOR ASSEMBLY, oil line, w/ 11326 & 63632-00 (2) | FLSTNSE |
| 20 | 63632-00 | OIL LINE RETAINER ASSEMBLY (4) | FLSTNSE |
| 21 | 63783-00 | OIL LINE RETAINER ASSEMBLY (3) | FLSTNSE |
| 22 | 63611-00 | HOSE, oil feed | FLSTNSE |
HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3615 | SCREW | FLSTNSE |
| 2 | 4411 | BOLT | FLSTNSE |
| 3 | 6400HB | WASHER (2) | FLSTNSE |
| 4 | 7038 | LOCKWASHER | FLSTNSE |
| 5 | 7800W | NUT | FLSTNSE |
| 6 | 53436-97 | BULB, wedge (Australia, England, HDI, Japan) | FLSTNSE |
| 7 | 67717-01 | BULB, high beam halogen (Australia, England, HDI, Japan) | FLSTNSE |
| 8 | 67721-48 | SCREW (3) | FLSTNSE |
| 9 | 67768-97 | MOUNTING BLOCK, headlamp | FLSTNSE |
| 10 | 68050-93A | RETAINING RING | FLSTNSE |
| 11 | 68051-08 | BEZEL, headlamp (Australia, England, HDI, Japan) | FLSTNSE |
| 12 | 68881-01 | BULB, low beam halogen (Australia, England, HDI, Japan) | FLSTNSE |
| 13 | 69969-08 | SLEEVE (2) | FLSTNSE |
| 14 | 72213-94 | TERMINAL, socket #16-20 AWG (3) | FLSTNSE |
| 15 | 72232-96 | SEAL PLUG | FLSTNSE |
| 16 | 72449-01 | HOUSING, 2-way, socket (black) (Australia, England, HDI, Japan) | FLSTNSE |
| 17 | 72450-01 | HOUSING, 2-way, socket (gray) (Australia, England, HDI, Japan) | FLSTNSE |
| 18 | 72527-01 | TERMINAL, socket #18-20 AWG (Australia, England, HDI, Japan) (4) | FLSTNSE |
| 19 | 72610-08 | SEAL, cable, #18-20 AWG (white) (3) | FLSTNSE |
| 20 | 72633-02 | SEAL, wire, #14-16 AWG (white) (Australia, England, HDI, Japan) (4) | FLSTNSE |
| 21 | 74114-98BK | HOUSING, 4-way socket (black) | FLSTNSE |
| 22 | 74154-98 | SECONDARY LOCK, 4-way socket (Australia, England, HDI, Japan) | FLSTNSE |
| 23 | 74191-98 | SOCKET TERMINAL | FLSTNSE |
| 24 | 74195-98 | SEAL PIN | FLSTNSE |
| 25 | 61400242 | BEZEL, visor | FLSTNSE |
| 26 | 67700065 | HEADLAMP ASSEMBLY, halogen, w/ 54346-97, 67717-01, 68881-01 & 68000038 (Australia, England, HDI, Japan) | FLSTNSE |
| 27 | 67700066 | HEADLAMP, LED | FLSTNSE |
| 28 | 67700212 | SHELL ASSEMBLY, 7 in. | FLSTNSE |
| 29 | 67700223 | SHELL ASSEMBLY, 7 in. (Australia, England, HDI, Japan) | FLSTNSE |
| 30 | 68000038 | CONNECTOR, position bulb (Australia, England, HDI, Japan) | FLSTNSE |
| 31 | 69200220 | CONNECTOR, 2-way, socket (Australia, England, HDI, Japan) | FLSTNSE |
| 32 | 69200221 | TERMINAL, socket #16-18 AWG (Australia, England, HDI, Japan) (2) | FLSTNSE |
| 33 | 69200222 | SEAL, wire, #16 AWG (Australia, England, HDI, Japan) (2) | FLSTNSE |
| 34 | 69200254 | CONNECTOR, 4-way, socket | FLSTNSE |
| 35 | 69200256 | SECONDARY LOCK, 4-way | FLSTNSE |
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3383 | SCREW (2) | FLSTNSE |
| 2 | 4343 | SCREW (2) | FLSTNSE |
| 3 | 4482 | SCREW (2) | FLSTNSE |
| 4 | 6235 | WASHER (8) | FLSTNSE |
| 5 | 7137 | NUT (2) | FLSTNSE |
| 6 | 7606 | LOCKNUT (2) | FLSTNSE |
| 7 | 10065 | CABLE STRAP (2) | FLSTNSE |
| 8 | 58092-05 | LIGHT BAR | FLSTNSE |
| 9 | 67621-94 | BUSHING (4) | FLSTNSE |
| 10 | 68163-84 | BULB, turn signal (HDI) (2) | FLSTNSE |
| 11 | 68168-89A | BULB, turn signal (2) | FLSTNSE |
| 12 | 68331-02 | RING, auxiliary/fog lamps (2) | FLSTNSE |
| 13 | 68722-06 | HOUSING, auxiliary/fog lamps, w/ 72298-95 & 72356-95 (2) | FLSTNSE |
| 14 | 68725-62A | BEZEL RING, auxiliary/fog lamps (HDI) (2) | FLSTNSE |
| 15 | 68840-05 | SUPPORT (2) | FLSTNSE |
| 16 | 68847-09 | BULB UNIT, auxiliary/fog lamps, w/ 68000056 (HDI) (2) | FLSTNSE |
| 17 | 68973-00 | LENS, turn signal (2) | FLSTNSE |
| 18 | 69678-00 | RUBBER STRIP, foam (2) | FLSTNSE |
| 19 | 72161-06 | HOUSING, socket, 2-way (2) | FLSTNSE |
| 20 | 72298-95 | WIRE SEAL, green (4) | FLSTNSE |
| 21 | 72356-95 | TERMINAL, socket, #18-20 AWG (4) | FLSTNSE |
| 22 | 73156-96BK | HOUSING, 6-place socket | FLSTNSE |
| 23 | 73191-96 | TERMINAL, socket, #16-20 AWG (8) | FLSTNSE |
| 24 | 10500040 | SCREW, mounting (2) | FLSTNSE |
| 25 | 61400228 | BEZEL ASSEMBLY, 4 in., w/ 69678-00 (2) | FLSTNSE |
| 26 | 67800347 | TURN SIGNAL ASSEMBLY, left & right, w/ 68168-89A & 68973-00 | FLSTNSE |
| 67800348 | TURN SIGNAL ASSEMBLY, left & right, w/ 68163-84 & 68973-00 (HDI) | FLSTNSE | |
| 27 | 68000020 | FOG LAMP, LED (2) | FLSTNSE |
| 28 | 68000056 | BULB, incandescent (2) | FLSTNSE |
| 29 | 69200529 | HOUSING, socket, 2-way (2) | FLSTNSE |
SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | FLSTNSE |
| 2 | 4292 | SCREW (2) | FLSTNSE |
| 3 | 71748-11 | HOUSING, left, upper (chrome) | FLSTNSE |
| 4 | 72908-11 | HOUSING, 4-way socket | FLSTNSE |
| 5 | 72910-11 | TERMINAL, socket, #20-22 AWG (4) | FLSTNSE |
| 6 | 72933-11 | KEY CAP, left turn | FLSTNSE |
| 7 | 72941-11 | BRACKET, lower switch | FLSTNSE |
| 8 | 71500028 | KEY CAP, horn/trip | FLSTNSE |
| 9 | 71500029 | KEY CAP, lights w/ pins/springs | FLSTNSE |
| 10 | 71500108 | SWITCH MODULE, left | FLSTNSE |
| 11 | 71500114 | SWITCH, clutch, hydraulic | FLSTNSE |
| 12 | 71500147 | HOUSING, left, lower | FLSTNSE |
SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | FLSTNSE |
| 2 | 4292 | SCREW (2) | FLSTNSE |
| 3 | 5118 | SEAL PIN | FLSTNSE |
| 4 | 71750-11 | HOUSING, right, upper (chrome) | FLSTNSE |
| 5 | 72906-11 | HOUSING, 2-way socket | FLSTNSE |
| 6 | 72908-11 | HOUSING, 4-way socket | FLSTNSE |
| 7 | 72910-11 | TERMINAL, socket, #20-22 AWG (5) | FLSTNSE |
| 8 | 72932-11 | HOUSING, right, lower (chrome) | FLSTNSE |
| 9 | 72934-11 | KEY CAP, right turn | FLSTNSE |
| 10 | 72937-11 | KEY CAP, off/run, w/ pins & springs | FLSTNSE |
| 11 | 72939-11 | KEY CAP, cruise | FLSTNSE |
| 12 | 72940-11 | BRACKET, lower switch | FLSTNSE |
| 13 | 71500030 | KEY CAP, start/hazard | FLSTNSE |
| 14 | 71500109 | SWITCH MODULE, right | FLSTNSE |
| 15 | 71500118 | SWITCH, brake | FLSTNSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2249 | BOLT (2) | FLSTNSE |
| 2 | 2708A | SCREW (4) | FLSTNSE |
| 3 | 3656 | SCREW (2) | FLSTNSE |
| 4 | 5302 | CAP, protective (2) | FLSTNSE |
| 5 | 7068 | LOCKWASHER (2) | FLSTNSE |
| 6 | 11403A | GROMMET, handlebar | FLSTNSE |
| 7 | 11642 | GROMMET, handlebar | FLSTNSE |
| 8 | 38113-11 | BRACKET, front HCU, w/ 5302 | FLSTNSE |
| 9 | 53156-86 | BUSHING (rubber) (4) | FLSTNSE |
| 10 | 56153-73 | SPACER (2) | FLSTNSE |
| 11 | 56159-73 | CUP WASHER (3) | FLSTNSE |
| 12 | 67121-95A | GASKET | FLSTNSE |
| 13 | 55800283 | HANDLEBAR, w/ 11403A & 11642 | FLSTNSE |
| 14 | 55900027 | CLAMP, upper | FLSTNSE |
| 15 | 55900059 | CLAMP, lower | FLSTNSE |
| 16 | 70900275B | SPEEDOMETER (Asia-Pacific, Australia, Canada, England, HDI, Japan) | FLSTNSE |
| 70900475 | SPEEDOMETER (Domestic) | FLSTNSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP | FLSTNSE |
| 2 | 32306-08 | SEAL CAP | FLSTNSE |
| 3 | 32310-08 | SENSOR, twist grip | FLSTNSE |
| 4 | 56756-04 | ENDCAP, grip (2) | FLSTNSE |
| 5 | 72102-94BK | HOUSING, pin, 2 pin | FLSTNSE |
| 6 | 72112-94BK | HOUSING, socket | FLSTNSE |
| 7 | 72142-94 | PIN LOCK | FLSTNSE |
| 8 | 72152-94 | SECONDARY LOCK, 2-way socket | FLSTNSE |
| 9 | 72188-07BK | HOUSING, 6-way pin (black) | FLSTNSE |
| 10 | 72194-94 | TERMINAL, pin, 20 AWG (2) | FLSTNSE |
| 11 | 72195-94 | SEAL PIN, 4-way receptacle (2) | FLSTNSE |
| 12 | 72549-07 | TERMINAL, pin, 22 AWG (6) | FLSTNSE |
| 13 | 73212-07 | CONNECTOR ANCHOR, T-stud | FLSTNSE |
| 14 | 56100060 | GRIP, throttle - right, w/ 56756-04 | FLSTNSE |
| 15 | 56100061 | GRIP, left, w/ 56756-04 | FLSTNSE |
WINDSHIELD & ZUMO 660 GPS
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW | FLSTNSE |
| 2 | 3164M | SCREW (4) | FLSTNSE |
| 3 | 4667 | SCREW (2) | FLSTNSE |
| 4 | 7118 | LOCKWASHER (2) | FLSTNSE |
| 5 | 12900 | PLUG, adapter (Domestic) | FLSTNSE |
| 12901 | PLUG, adapter (HDI) | FLSTNSE | |
| 92492-10 | PLUG, adapter (Australia) | FLSTNSE | |
| 6 | 57146-05 | BRACKET, mounting, right | FLSTNSE |
| 7 | 57147-05 | BRACKET, mounting, left | FLSTNSE |
| 8 | 57151-05 | GASKET, inner brace | FLSTNSE |
| 9 | 57964-97 | WASHER (2) | FLSTNSE |
| 10 | 74112-98BK | HOUSING, 2-way socket (black) | FLSTNSE |
| 11 | 74191-98 | SOCKET TERMINAL (2) | FLSTNSE |
| 12 | 92288-09 | COVER, cradle, GPS | FLSTNSE |
| 13 | 10200332 | SCREW (6) | FLSTNSE |
| 14 | 14100573 | MEDALLION, windshield | FLSTNSE |
| 15 | 57400197 | COVER, inner left bracket | FLSTNSE |
| 16 | 57400198 | COVER, inner right bracket | FLSTNSE |
| 17 | 57400199 | BRACKET, front windshield | FLSTNSE |
| 18 | 57400200 | WINDSHIELD | FLSTNSE |
| 57400257 | WINDSHIELD (Asia-Pacific) | FLSTNSE | |
| 19 | 57400211 | GASKET, windshield | FLSTNSE |
| 20 | 57400217 | BRACE, inner windshield | FLSTNSE |
| 21 | 76000198 | BRACKET, inner mounting | FLSTNSE |
| 22 | 76000199 | PIN, inner mounting bracket | FLSTNSE |
| 23 | 76000367 | MOUNT, GPS, windshield | FLSTNSE |
| 24 | 76000392 | GPS DOCKING/HARNESS, ZUMO 660 | FLSTNSE |
| Index 25See a Harley-Davidson dealer.These parts are serviced through www.garmin.com and are only available through Garmin International, Inc. For additional accessories, documentation and customer support for the GPS unit, contact Garmin International, Inc. at 1-800-408-7419 or see www.garmin.com. | |||
TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (2) | FLSTNSE |
| 2 | 3022A | SCREW (Canada) | FLSTNSE |
| 3 | 3576 | SCREW (2) | FLSTNSE |
| 4 | 5118 | SEAL PIN | FLSTNSE |
| 5 | 7964 | NUT (Canada) | FLSTNSE |
| 6 | 10115 | CABLE STRAP, rosebud, w/ wings (3) | FLSTNSE |
| 7 | 68026-99 | SCREW (Canada) (2) | FLSTNSE |
| 8 | 68066-99A | BASE ASSEMBLY, tail light, chrome, w/ 68296-99A & 68830-99A (Canada) | FLSTNSE |
| 9 | 68140-04 | ENVELOPE ASSEMBLY, w/ 68026-99 & 69200599 (Canada) | FLSTNSE |
| 10 | 68163-84 | BULB, turn signal (Canada) (2) | FLSTNSE |
| 11 | 68167-04 | BULB, wedge base (Canada) (2) | FLSTNSE |
| 12 | 68168-89A | BULB (2) | FLSTNSE |
| 13 | 68296-99A | BASE, tail light | FLSTNSE |
| 14 | 68369-03 | ENVELOPE, w/ 68026-99 (Canada) | FLSTNSE |
| 15 | 68370-03A | SOCKET ASSEMBLY, w/ 68167-04 (Canada) | FLSTNSE |
| 16 | 68497-07 | SOCKET ASSEMBLY (2) | FLSTNSE |
| 17 | 68550-09 | LIGHTBAR, license & turnsignal (Canada) | FLSTNSE |
| 73309-10 | LIGHTBAR, license & turnsignal (Domestic) | FLSTNSE | |
| 18 | 68559-07 | LENS (red) (2) | FLSTNSE |
| 19 | 68830-99A | CIRCUIT BOARD, cover assembly | FLSTNSE |
| 20 | 68973-00 | LENS, turn signal (2) | FLSTNSE |
| 21 | 70523-06 | CONDUIT, adhesive | FLSTNSE |
| 22 | 72169-07 | TERMINAL, pin, #16-20 AWG (12) | FLSTNSE |
| 23 | 72473-07 | SEAL PIN | FLSTNSE |
| 24 | 72488-07BK | HOUSING, pin, 12-way (black) | FLSTNSE |
| 25 | 72905-11 | HOUSING, 2-way pin | FLSTNSE |
| 26 | 72906-11 | HOUSING, 2-way socket | FLSTNSE |
| 27 | 72907-11 | HOUSING, 4-way pin | FLSTNSE |
| 28 | 72908-11 | HOUSING, 4-way socket | FLSTNSE |
| 29 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FLSTNSE |
| 30 | 72910-11 | TERMINAL, socket, #20-22 AWG (5) | FLSTNSE |
| 31 | 73152-96BK | HOUSING, 2-place socket (Canada) | FLSTNSE |
| 32 | 73154-96BK | HOUSING, 4-way socket | FLSTNSE |
| 33 | 73156-96BK | HOUSING, 6-way socket | FLSTNSE |
| 34 | 73191-96 | TERMINAL, socket, #16-20 AWG (Canada) (15) | FLSTNSE |
| 35 | 12100051 | GROMMET (2) | FLSTNSE |
| 36 | 67800470 | LIGHT BAR ASSEMBLY, w/ 2482 (HDI) | FLSTNSE |
| 37 | 67900194 | LIGHT ASSEMBLY, license plate | FLSTNSE |
| 67900170 | LIGHT ASSEMBLY, license plate (HDI) | FLSTNSE | |
| 38 | 69200707 | WIRING HARNESS, lighting | FLSTNSE |
| 39 | 69200709 | WIRING HARNESS, lighting (Canada) | FLSTNSE |
SADDLEBAGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4359 | SCREW (4) | FLSTNSE |
| 2 | 7041 | LOCKWASHER (4) | FLSTNSE |
| 3 | 7128 | LOCKWASHER (2) | FLSTNSE |
| 4 | 7586 | JAMNUT (2) | FLSTNSE |
| 5 | 61081-92 | COVER, key head set (2) | FLSTNSE |
| 6 | 84850-92 | NUT (2) | FLSTNSE |
| 7 | 90491-11 | MOUNTING BAR, right side (not shown) | FLSTNSE |
| 90611-11 | MOUNTING BAR, left side | FLSTNSE | |
| 8 | 90671-11 | CAM LOCK (2) | FLSTNSE |
| 9 | 90694-11 | PLATE, tether (2) | FLSTNSE |
| 10 | 10200139 | SET SCREW (2) | FLSTNSE |
| 11 | 11100052 | ADHESIVE, double-sided, left (2) | FLSTNSE |
| 12 | 11900006 | O-RING (2) | FLSTNSE |
| 13 | 11900007 | O-RING, square (2) | FLSTNSE |
| 14 | 14100567 | MEDALLION, left | FLSTNSE |
| 14100568 | MEDALLION, right | FLSTNSE | |
| 15 | 67900183 | BASE, reflector, right | FLSTNSE |
| 67900184 | BASE, reflector, left | FLSTNSE | |
| 16 | 67900205 | REFLECTOR, assembly (red) (2) | FLSTNSE |
| 67900212 | REFLECTOR, assembly (amber) (HDI) (2) | FLSTNSE | |
| 17 | 90200300 | PLATE, mounting, left side (shown) | FLSTNSE |
| 90997-11 | PLATE, mounting, right side (not shown) | FLSTNSE | |
| 18 | 90200406 | LOCK ASSEMBLY, left side saddlebag, keyed to match | FLSTNSE |
| 90200407 | LOCK ASSEMBLY, right side saddlebag, keyed to match | FLSTNSE | |
| 19 | 90201175 | SADDLEBAG ASSEMBLY, left side (black) | FLSTNSE |
| 90201174 | SADDLEBAG ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 20 | 90201177 | LID ASSEMBLY, left side (black) | FLSTNSE |
| 90201176 | LID ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 21 | 90201179 | TUB ASSEMBLY, left side (black) | FLSTNSE |
| 90201178 | TUB ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 22 | 90200949 | GASKET, right side (not shown) | FLSTNSE |
| 90200950 | GASKET, left side | FLSTNSE | |
| 23 | 90200960 | LOCK HARDWARE KIT, right side, w/ 10200139, 11900007, 90201027 | FLSTNSE |
| 90200972 | LOCK HARDWARE KIT, left side, w/ 10200139, 11900007, 90201027 | FLSTNSE | |
| 24 | 90200982 | LATCH, saddlebag (4) | FLSTNSE |
| 25 | 90201027 | SPACER, saddlebag (2) | FLSTNSE |
| 26 | 90201051 | TETHER, right | FLSTNSE |
| 90201071 | TETHER, left | FLSTNSE | |
| 27 | 90300019 | LOCK STOP (2) | FLSTNSE |
| 28 | 90300085 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) (Asia-Pacific) | FLSTNSE |
| 90300099 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) | FLSTNSE | |
| 29 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | FLSTNSE |
| 71031-04 | KEY, CVO (specify key number) (except Asia-Pacific) **RESTRICTED SALES PART** | FLSTNSE | |
| 30 | 91800006 | SCREW, short (8) | FLSTNSE |
| 31 | 91800007 | SCREW, long (6) | FLSTNSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3391 | SCREW (4) | FLSTNSE |
| 2 | 7593 | NUT (4) | FLSTNSE |
| 3 | 7601 | LOCKNUT (2) | FLSTNSE |
| 4 | 9955 | CLAMP, shield (5) | FLSTNSE |
| 5 | 10074 | CLAMP, shield (4) | FLSTNSE |
| 6 | 10147 | CLIP, connector oxygen sensor (2) | FLSTNSE |
| 7 | 11860 | STUD, spacer (2) | FLSTNSE |
| 8 | 11936 | GASKET, oxygen sensor (2) | FLSTNSE |
| 9 | 65184-02 | FLANGE, exhaust pipe (2) | FLSTNSE |
| 10 | 65296-95A | CLAMP, muffler (2) | FLSTNSE |
| 11 | 65324-83B | GASKET, exhaust port (2) | FLSTNSE |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLSTNSE |
| 13 | 65521-10 | KIT-CLAMP, interconnect, w/ 65830-10 (2) | FLSTNSE |
| 14 | 65702-00A | SHIELD, rear exhaust | FLSTNSE |
| 15 | 65715-10 | SHIELD, front exhaust | FLSTNSE |
| 16 | 65830-10 | GASKET, exhaust interconnect (2) | FLSTNSE |
| 17 | 65872-09 | MUFFLER ASSEMBLY, front/rear (California, Canada, Domestic) (2) | FLSTNSE |
| 65682-07 | MUFFLER ASSEMBLY, front/rear (Asia-Pacific, Japan) (2) | FLSTNSE | |
| 64900121 | MUFFLER ASSEMBLY, front/rear (Australia, HDI & England) (2) | FLSTNSE | |
| 18 | 66737-10A | TUBE ASSEMBLY, interconnect (black) | FLSTNSE |
| 19 | 66846-10 | SHIELD, muffler, front | FLSTNSE |
| 20 | 66876-09 | SHIELD, muffler, rear | FLSTNSE |
| 65463-00 | SHIELD, muffler, front/rear (Asia-Pacific, Japan) (2) | FLSTNSE | |
| 21 | 72177-07BK | HOUSING, 4-way, socket (black) | FLSTNSE |
| 22 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLSTNSE |
| 23 | 72444-07GY | HOUSING, 4-way, socket (gray) | FLSTNSE |
| 24 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLSTNSE |
| 25 | 32700005 | SENSOR, oxygen, front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLSTNSE |
| 26 | 32700006 | SENSOR, oxygen, rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLSTNSE |
| 27 | 65600031 | EXHAUST PIPE ASSEMBLY, front | FLSTNSE |
| 28 | 65600035A | EXHAUST PIPE ASSEMBLY, rear | FLSTNSE |
WIRING HARNESS, MAIN (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200625 | MAIN WIRING HARNESS | FLSTNSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLSTNSE |
| 2 | 10065 | CABLE STRAP (6) | FLSTNSE |
| 3 | 10177 | CABLE STRAP (2) | FLSTNSE |
| 4 | 71044-11 | WIRE TROUGH (2) | FLSTNSE |
| 5 | 72007-05 | HOUSING, 2-way socket (2) | FLSTNSE |
| 6 | 72010-05 | WIRE SEAL, 22-26 gauge (green) (4) | FLSTNSE |
| 7 | 72024-08 | TERMINAL, socket, 20-22 gauge (4) | FLSTNSE |
| 8 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLSTNSE |
| 9 | 72094-06 | TERMINAL, socket, female 18 gauge (4) | FLSTNSE |
| 10 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (4) | FLSTNSE |
| 11 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLSTNSE |
| 12 | 72168-07 | TERMINAL, socket, 18-20 gauge (6) | FLSTNSE |
| 13 | 72169-07 | TERMINAL, pin, 16-20 gauge (5) | FLSTNSE |
| 14 | 72213-94 | TERMINAL, socket, 16-20 gauge (2) | FLSTNSE |
| 15 | 72251-07 | SECONDARY LOCK, 2-way socket (yellow) | FLSTNSE |
| 16 | 72290-94 | TERMINAL, .250F, insulated (2) | FLSTNSE |
| 17 | 72402-07 | HOUSING, 2-way socket (black) | FLSTNSE |
| 18 | 72413-07 | TERMINAL, socket, 18-20 gauge (2) | FLSTNSE |
| 19 | 72414-07BK | HOUSING, 6-way socket (black) | FLSTNSE |
| 20 | 72473-07 | SEAL PIN | FLSTNSE |
| 21 | 72554-09GY | HOUSING, 6-way pin (gray) | FLSTNSE |
| 22 | 72596-11 | BRACKET, electrical connectors, right | FLSTNSE |
| 23 | 72606-08 | HOUSING, 2-way socket | FLSTNSE |
| 24 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLSTNSE |
| 25 | 72610-08 | SEAL, cable, 18-20 gauge (white) (2) | FLSTNSE |
| 26 | 72905-11 | HOUSING, 2-way pin | FLSTNSE |
| 27 | 72907-11 | HOUSING, 4-way pin (2) | FLSTNSE |
| 28 | 72909-11 | TERMINAL, pin, 20-21 gauge (9) | FLSTNSE |
| 29 | 73106-96BK | HOUSING, 6-way pin | FLSTNSE |
| 30 | 73190-96 | TERMINAL, 20-16 gauge (6) | FLSTNSE |
| 31 | 73198-96 | CONNECTOR ANCHOR | FLSTNSE |
| 32 | 73213-07 | RETAINER, x-mas tree clip | FLSTNSE |
| 33 | 74102-98BK | HOUSING, 2-way pin (black) | FLSTNSE |
| 34 | 74104-98BK | HOUSING, 4-way pin (black) | FLSTNSE |
| 35 | 74142-98 | SECONDARY LOCK, 2-way pin | FLSTNSE |
| 36 | 74144-98 | SECONDARY LOCK, 4-way pin | FLSTNSE |
| 37 | 74190-98 | TERMINAL, pin, 16-20 gauge (6) | FLSTNSE |
| 38 | 69200027 | WEATHER PLUG, 2-pin housing, Deutsch DT | FLSTNSE |
| 39 | 69200283 | TERMINAL, inline, male, 14-16 gauge (PO) | FLSTNSE |
| 40 | 69200785 | BRACKET, electrical connectors, left | FLSTNSE |
WIRING HARNESS, MAIN (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200625 | MAIN WIRING HARNESS (CONTINUED) | FLSTNSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP | FLSTNSE |
| 2 | 72063-06 | HOUSING, 2-way socket | FLSTNSE |
| 3 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FLSTNSE |
| 4 | 72251-07 | SECONDARY LOCK, 2-way socket (yellow) | FLSTNSE |
| 5 | 72283-09 | TERMINAL, female, 14-16 gauge (2) | FLSTNSE |
| 6 | 72402-07 | HOUSING, 2-way socket (black) | FLSTNSE |
| 7 | 72406-07A | HOUSING, 4-way socket | FLSTNSE |
| 8 | 72407-07 | TERMINAL, socket, 16-20 gauge (4) | FLSTNSE |
| 9 | 72408-07 | WIRE SEAL, 16-20 gauge (blue) (4) | FLSTNSE |
| 10 | 72413-07 | TERMINAL, socket, 18-20 gauge (2) | FLSTNSE |
| 11 | 72483-08BK | HOUSING, 6-way, socket (black) | FLSTNSE |
| 12 | 72484-08 | TERMINAL, socket, 20 gauge (2) | FLSTNSE |
| 13 | 72486-08 | WIRE SEAL, 20 gauge (green) (2) | FLSTNSE |
| 14 | 72663-11 | TERMINAL, socket, 18-20 gauge (silver) (6) | FLSTNSE |
WIRING HARNESS, MAIN (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200625 | MAIN WIRING HARNESS (CONTINUED) | FLSTNSE | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, weather, 6-way pin | FLSTNSE |
| 3 | 9819 | TERMINAL RING, .25 stud, 12 gauge X2 | FLSTNSE |
| 3 | 10065 | CABLE STRAP (12) | FLSTNSE |
| 4 | 70974-08A | LOOM SHIELD (2) | FLSTNSE |
| 5 | 70982-08 | WIRE SHIELD | FLSTNSE |
| 6 | 72066-06A | HOUSING, 4-way socket (black) | FLSTNSE |
| 7 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLSTNSE |
| 8 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLSTNSE |
| 9 | 72146-94 | PIN LOCK, sec 6 | FLSTNSE |
| 10 | 72168-07 | TERMINAL, socket, 18-20 gauge (15) | FLSTNSE |
| 11 | 72169-07 | TERMINAL, pin, 16-20 gauge (2) | FLSTNSE |
| 12 | 72175-07BK | HOUSING, 4-way pin (black) | FLSTNSE |
| 13 | 72190-94 | TERMINAL, pin, 16-18 gauge (3) | FLSTNSE |
| 14 | 72194-94 | TERMINAL, pin, 20 gauge (3) | FLSTNSE |
| 15 | 72242-94 | TERMINAL, 1/4 ring | FLSTNSE |
| 16 | 72249-94 | SHRINK TUBE (black) (3) | FLSTNSE |
| 17 | 72254-94 | TERMINAL RING, .25 stud, 14-16 gauge | FLSTNSE |
| 18 | 72298-95 | WIRE SEA (green) (4) | FLSTNSE |
| 18 | 72308-97 | TERMINAL, female, 12-14 gauge (2) | FLSTNSE |
| 20 | 72314-01 | MAIN FUSE, 40 AMP | FLSTNSE |
| 21 | 72330-95 | FUSE, 15 AMP (blue) (4) | FLSTNSE |
| 22 | 72343-10 | TERMINAL, pin, 16-20 gauge (gold) (2) | FLSTNSE |
| 23 | 72356-95 | TERMINAL, socket, 18-20 gauge (2) | FLSTNSE |
| 24 | 72484-08 | TERMINAL, socket, 20 gauge (4) | FLSTNSE |
| 25 | 72486-08 | WIRE SEAL, 20 gauge (4) | FLSTNSE |
| 26 | 72487-07BK | HOUSING, 12-way socket | FLSTNSE |
| 27 | 72514-07GY | HOUSING, 3-way socket (gray) | FLSTNSE |
| 28 | 72582-11 | FUSE BLOCK, main/mini | FLSTNSE |
| 29 | 72586-11 | COVER, fuse block, main/mini | FLSTNSE |
| 30 | 72587-11 | SECONDARY LOCK, fuse block, main/mini | FLSTNSE |
| 31 | 72595-11 | SEAL, fuse block, main/mini | FLSTNSE |
| 32 | 72664-12A | HOUSING, 18-way socket, key A (black) | FLSTNSE |
| 33 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) (38) | FLSTNSE |
| 34 | 72677-11 | RESISTOR ASSEMBLY, fuel sender | FLSTNSE |
| 35 | 72720-07 | HOUSING, 2-way socket | FLSTNSE |
| 36 | 72721-07 | TERMINAL, socket, 18-20 gauge (2) | FLSTNSE |
| 37 | 73156-96BK | HOUSING, 6-way socket | FLSTNSE |
| 38 | 73191-96 | TERMINAL, socket, 16-20 gauge | FLSTNSE |
| 39 | 73304-04 | TERMINAL, .31 socket, 10 gauge (3) | FLSTNSE |
| 40 | 73305-04 | SEAL WIRE, 10 gauge (blue) (3) | FLSTNSE |
| 41 | 69200267A | HOUSING, 18-way socket, key B (gray) | FLSTNSE |
| 42 | 69200268A | HOUSING, 18-way socket, key C (brown) | FLSTNSE |
WIRING HARNESS, MAIN (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200625 | MAIN WIRING HARNESS (CONTINUED) | FLSTNSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9842 | TERMINAL RING, .31 10-12 gauge | FLSTNSE |
| 2 | 10006 | CABLE STRAP | FLSTNSE |
| 3 | 10065 | CABLE STRAP (3) | FLSTNSE |
| 4 | 72064-06 | HOUSING, 3-way socket | FLSTNSE |
| 5 | 72066-06A | HOUSING, 4-way socket (black) | FLSTNSE |
| 6 | 72081-11 | HOUSING, 48-way socket | FLSTNSE |
| 7 | 72094-06 | TERMINAL, socket, female 18 gauge (4) | FLSTNSE |
| 8 | 72096-06 | WIRE SEAL, 18 gauge (yellow) (4) | FLSTNSE |
| 9 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) | FLSTNSE |
| 10 | 72168-07 | TERMINAL, socket, 18-20 gauge (12) | FLSTNSE |
| 11 | 72213-94 | TERMINAL, socket, 16-20 gauge (4) | FLSTNSE |
| 12 | 72222-11 | TERMINAL, socket, 18-20 gauge (20) | FLSTNSE |
| 13 | 72226-11 | TERMINAL, socket, 14-16 gauge | FLSTNSE |
| 14 | 72227-11 | TERMINAL, socket, 18-20 gauge (5) | FLSTNSE |
| 15 | 72256-11 | SEAL PIN, .6mm plug (10) | FLSTNSE |
| 16 | 72295-94 | HOUSING, starter connection | FLSTNSE |
| 17 | 72350-11 | HOUSING, one-way | FLSTNSE |
| 18 | 72405-98BK | CONNECTOR, push on 90 degree (3) | FLSTNSE |
| 19 | 72473-07 | SEAL PIN (5) | FLSTNSE |
| 20 | 72484-08 | TERMINAL, socket, 20 gauge (6) | FLSTNSE |
| 21 | 72486-08 | WIRE SEAL, 20 gauge (green) (6) | FLSTNSE |
| 22 | 72500-07ABK | HOUSING, 20-way socket (black) | FLSTNSE |
| 23 | 72518-01 | HOUSING, socket, 2-way (red) | FLSTNSE |
| 24 | 72543-07BK | HOUSING, 3-way socket (black) | FLSTNSE |
| 25 | 72544-07 | SECONDARY LOCK, 3-way female | FLSTNSE |
| 26 | 72575-11 | SECONDARY LOCK | FLSTNSE |
| 27 | 72593-11 | TERMINAL, socket, 14-16 gauge (gold) (3) | FLSTNSE |
| 28 | 72606-08 | HOUSING, 2-way socket | FLSTNSE |
| 29 | 72609-08 | SECONDARY LOCK, 2-way socket (black) (2) | FLSTNSE |
| 30 | 72610-08 | SEAL, cable, 18-20 gauge (white) (4) | FLSTNSE |
| 31 | 73304-04 | TERMINAL, .31 socket, 10 gauge | FLSTNSE |
| 32 | 73305-04 | SEAL WIRE, 10 gauge (blue) | FLSTNSE |
WIRING HARNESS, MAIN (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200625 | MAIN WIRING HARNESS (CONTINUED) | FLSTNSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLSTNSE |
| 2 | 10147 | CLIP, connector | FLSTNSE |
| 3 | 11785 | FASTENER, push-in (2) | FLSTNSE |
| 4 | 72168-07 | TERMINAL, socket, 18-20 gauge (3) | FLSTNSE |
| 5 | 72169-07 | TERMINAL, pin, 16-20 gauge (2) | FLSTNSE |
| 6 | 72343-10 | TERMINAL, pin, 16-20 gauge (gold) (2) | FLSTNSE |
| 7 | 72369-08A | BRACKET, mounting | FLSTNSE |
| 8 | 72405-98BK | CONNECTOR, push on 90 degree | FLSTNSE |
| 9 | 72415-07GY | HOUSING, 4-way pin (gray) | FLSTNSE |
| 10 | 72512-07BK | HOUSING, 3-way socket | FLSTNSE |
| 11 | 72519-09BK | DUST CAP | FLSTNSE |
| 12 | 73213-07 | RETAINER, x-mas tree clip (2) | FLSTNSE |
| 13 | 74112-98BK | HOUSING, 2-way socket (black) | FLSTNSE |
| 14 | 74120-08 | DC LEAD ASSEMBLY | FLSTNSE |
| 15 | 74152-98 | SECONDARY LOCK, 2-way socket | FLSTNSE |
| 16 | 74191-98 | SOCKET TERMINAL (2) | FLSTNSE |
| 17 | 69200238 | TERMINAL, .25, female, 20 gauge | FLSTNSE |
| 18 | 12200044 | CLIP, maxi-fuse | FLSTNSE |
WIRING HARNESS, CONSOLE OVERLAY
| Index No. | Part No. | Description | Model(s) |
| 1 | 72130-04 | HOUSING, 12-way socket (black) | FLSTNSE |
| 2 | 72168-07 | TERMINAL, socket, #18-20 AWG (8) | FLSTNSE |
| 3 | 72189-04 | SEAL PIN (2) | FLSTNSE |
| 4 | 72473-07 | SEAL PIN | FLSTNSE |
| 5 | 72546-09GY | HOUSING, 6-way socket (gray) | FLSTNSE |
| 6 | 72662-11 | TERMINAL, socket, #22 AWG (5) | FLSTNSE |
| 7 | 74196-04 | TERMINAL, socket, #20 AWG (10) | FLSTNSE |
| 8 | 74197-04 | SECONDARY LOCK, 12-way socket | FLSTNSE |
| 9 | 69200425 | INDICATOR LAMP ASSEMBLY, w/ 72662-11 | FLSTNSE |
| 10 | 69200530 | WIRING HARNESS, console overlay | FLSTNSE |
WIRING HARNESS, FUEL PUMP SENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 72066-06A | HOUSING, 4-way socket | FLSTNSE |
| 2 | 72135-06 | SECONDARY LOCK, 4-way (gray) | FLSTNSE |
| 3 | 72484-08 | TERMINAL, socket, #20 AWG (4) | FLSTNSE |
| 4 | 72486-08 | WIRE SEAL, #20 AWG (green) (4) | FLSTNSE |
| 5 | 73106-96BK | HOUSING, pin, 6-place, single row | FLSTNSE |
| 6 | 73190-96 | TERMINAL, pin, #16-20 AWG (9) | FLSTNSE |
| 7 | 73196-96 | ANCHOR T-STUD | FLSTNSE |
| 8 | 74112-98BK | HOUSING, 2-way socket (black) | FLSTNSE |
| 9 | 74152-98 | SECONDARY LOCK, 2-way socket | FLSTNSE |
| 10 | 74191-98 | SOCKET TERMINAL (2) | FLSTNSE |
| 11 | 69200692 | WIRING HARNESS, fuel pump sender | FLSTNSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FLSTNSE |
| 2 | 65989-97C | BATTERY, sealed, w/ 4312C | FLSTNSE |
| 3 | 66415-08A | COVER, battery terminal | FLSTNSE |
| 4 | 70060-08A | CABLE ASSEMBLY, battery negative | FLSTNSE |
| 5 | 70078-08A | CABLE ASSEMBLY, battery positive, w/ 70593-08 | FLSTNSE |
| 6 | 70111-07 | CADDY | FLSTNSE |
| 7 | 70593-08 | BOOT | FLSTNSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLSTNSE |
| 2 | 6109 | WASHER | FLSTNSE |
| 3 | 7495 | NUT | FLSTNSE |
| 4 | 7549A | ACORN NUT | FLSTNSE |
| 5 | 8108 | SPEEDNUT (2) | FLSTNSE |
| 6 | 69048-08 | COVER, horn (chrome) | FLSTNSE |
| 7 | 69060-90H | HORN ASSEMBLY, w/ 7495 nut | FLSTNSE |
| 8 | 69062-91A | CLAMP | FLSTNSE |
| 9 | 69120-91 | BRACKET, horn | FLSTNSE |
| 10 | 69123-92A | MOUNT, horn (rubber) | FLSTNSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4867 | SCREW (3) | FLSTNSE |
| 2 | 27715-07 | PURGE SOLENOID (Asia-Pacific, California) | FLSTNSE |
| 3 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | FLSTNSE |
| 4 | 41100036 | ELECTRONIC CONTROL UNIT (ECU), ABS, Requires digital tech programming. | FLSTNSE |
| 5 | 66373-06 | BATTERY | FLSTNSE |
| 6 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (2) | FLSTNSE |
| 69995-11 | REMOTE CONTROL FOB (Japan) (2) | FLSTNSE | |
| 7 | 68956-07 | ANTENNA MODULE, security system | FLSTNSE |
| 8 | 68958-07C | SIREN, w/ 69309-10 | FLSTNSE |
| 9 | 69309-10 | BATTERY, siren alarm | FLSTNSE |
| 10 | 69993-11C | BODY CONTROL MODULE (BCM), 434 MHZ | FLSTNSE |
| 69997-11C | BODY CONTROL MODULE (BCM), 315 MHZ (Japan) | FLSTNSE | |
| 11 | 72023-51E | STOPLAMP SWITCH, rear | FLSTNSE |
| 12 | 72314-01 | MAIN FUSE, 40-AMP | FLSTNSE |
| 13 | 72330-95 | FUSE, 15-AMP | FLSTNSE |
| 14 | 72596-11 | BRACKET, electrical connectors, right (located behind steering head) | FLSTNSE |
| 69200785 | BRACKET, electrical connectors, left (located behind steering head) | FLSTNSE | |
| 15 | 12600015 | FASTENER, push-in | FLSTNSE |
| 16 | 70354-11 | CADDY, electrical | FLSTNSE |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | LABEL, warning, engine guard | FLSTNSE |
| 2 | 14272-06 | LABEL, shift pattern (Japan) | FLSTNSE |
| 3 | 15368-01A | LABEL, battery | FLSTNSE |
| 4 | 15370-01A | LABEL, mirror warning | FLSTNSE |
| 5 | 28012-09 | LABEL, warning | FLSTNSE |
| 6 | 29127-95B | LABEL, warning (belt guard) | FLSTNSE |
| 7 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLSTNSE |
| NOTE: When ordering any VIN, Emissions, or Noise Labels you must contact your local dealer with the VIN number and model year of your motorcycle and the label type needed. Replacement VIN and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 29762-09 | RAINSOCK | FLSTNSE |
| 68926-07 | REMOTE CONTROL FOB (except Japan) (2) | FLSTNSE | |
| 69995-11 | REMOTE CONTROL FOB (Japan) (2) | FLSTNSE | |
| 71031-04 | KEY, CVO (specify key number) (except Asia-Pacific) **RESTRICTED SALES PART** | FLSTNSE | |
| 72314-01 | MAIN FUSE, 40 AMP | FLSTNSE | |
| 88002-15D | OWNER'S KIT CONTENT (Domestic) | FLSTNSE | |
| 98261-91V | LEATHER DRESSING | FLSTNSE | |
| 99659-15 | OWNER'S MANUAL (Australia, Domestic, England) | FLSTNSE | |
| 57400201 | WINDSHIELD ASSEMBLY | FLSTNSE | |
| 57400258 | WINDSHIELD ASSEMBLY (Asia-Pacific) | FLSTNSE | |
| 90300043 | KEY (set of 2) (specify key number) | FLSTNSE | |
| 93100031 | COVER KIT, motorcycle, w/ CVO logo | FLSTNSE | |
| 94000084 | ABS EDUCATIONAL DVD | FLSTNSE | |
| For GPS ZUMO 660 KIT contact Dealer Services. | |||
| Part No. | Description |
| 10200139 | SET SCREW No. 10-24 X 1/4 hex head (stainless) |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090A | SCREW 5/16-18 X 3-3/4 hex flange head with seal ring |
| 1602 | SCREW 1/4-20 X 3/4 flat head (Grade 2) |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2573 | SCREW No. 8-32 X 5/8 pan head |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 3007 | SCREW No. 10-32 X 3/8 socket head |
| 3017 | SCREW No. 10-24 X 0.44 TORX pan head, self-tapping |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3056 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 3109 | SCREW 7/16-14 X 2-5/8 hex cap with washer, lock patch |
| 3110 | BOLT 3/8-16 X 1-3/4 hex head |
| 3164M | SCREW M4 X 10 socket button head |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3383 | SCREW No. 8-32 X 1-1/4 fillister head (Grade 2) |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3485A | SCREW 5/16-18 X 1-3/4 knurled head (Grade 8) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-08K | BOLT M6 X 1.0 X 40 hex flange head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3798M | SCREW M5 X 0.8 X 12 socket head |
| 3938 | SCREW button hex socket |
| 3953W | BOLT 5/16-24 X 1/2 hex head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 4074A | BOLT 1/2-13 X 2 hex head, shoulder |
| 4168A | SCREW 3/8-16 X 1 self-tapping |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4197 | BOLT 3/8-16 X 3-3/4 hex head (Grade 5) |
| 4216 | SCREW 5/16-18 X 7/8 hex flange head (Grade 5) |
| 4217 | SCREW 5/16-18 X 1.0 hex flange head (Grade 5) |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4267 | SCREW 3/8-16 X 1-1/4 button head (Grade 5) |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4314 | SCREW 3/4-16 X 3 TORX head (Grade 8) |
| 4343 | SCREW 5/16-24 X 1-3/4 socket button head, with adhesive |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4359 | SCREW 5/16-18 X 7/8 socket button head |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4407 | SCREW 5/16-18 X 5/8 hex head, with washer |
| 4411 | BOLT 3/8-24 X 1-3/4 hex head (Grade 5) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4453 | BOLT 1/4-20 X 7/8 hex head SPECIAL WITH TAPPED HOLE |
| 4482 | SCREW 5/16-24 X 1-3/8 socket button head, with lockptach (Grade 8) |
| 4512A | SCREW 3/8-16 X 1 TORX recessed button head (Grade 8) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4625 | SCREW 5/16-18 X 1.0 button socket head, with lockpatch (Grade 8) |
| 4667 | SCREW 10-24 X 3/4 hex socket head |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4729 | BOLT 7/16-20 X 1-1/4 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4763 | SCREW 5/16-18 X 1-1/4 TORX button head (Grade 5) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 4867 | SCREW hex head, socket |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4945 | SCREW 7/16-20 UNRF X 1-1/4 hex head (zinc plate) |
| 4997 | SCREW 3/8-16 X 2.25 TORX button head |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5471 | BOLT 5/16-18 X 5/8 round head carriage |
| 5775 | WASHER 11/32 X 1/2 X 31/64 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6057 | WASHER 1/2 X 7/8 X 3/16, nylon |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6110 | WASHER 9/32 X 5/8 X 1/16 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6456 | WASHER 13/32 X 1-3/16 X 9/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6530 | WASHER 1/2 X 1 X 3/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6534 | WASHER 3/8 X 1-3/4 X 3/32 hardened |
| 6535 | WASHER 5/16 X 1-1/4 X 3/32 hardened |
| 6553 | WASHER 1 X 1-1/2 X 5/16 hardened |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6724 | WASHER 21/32 X 1-1/16 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6827 | WASHER 13/16 X 1/2 X 1/32 |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7068 | LOCKWASHER 1/2 |
| 7081 | LOCKWASHER M5 stainless steel |
| 7118 | LOCKWASHER 3/16 internal tooth |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7137 | NUT keps 5/16-18 (Grade 5) |
| 7331 | ACORN NUT 5/16-24 |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7479 | NUT 5/8-11 flange (Grade 6) |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7669 | NUT 5/16-18 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7879 | NUT 1/2-13 X 1/2 X 3/4 flange (Grade 6) |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 8144 | NUT CLIP 5/16-18 |
| 8405 | JAMNUT .750-16UNF-2B |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 939 | SCREW 1/4-20 X 1 self-tapping, with washer (Grade 2) |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 956 | SCREW 5/16-18 X 3-1/4 button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19840-15 | ENGINE ASSEMBLY (granite/chrome) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 4705 | SCREW (2) | FLSTNSE |
| 7 | 27712-08 | BRACKET, induction module | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 31960-99A | SPARK PLUG CABLE, rear cylinder | FLSTNSE |
| 10 | 32362-04A | SPARK PLUG, 6R12 (2) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 37000217 | PUSHROD, clutch release plate | FLSTNSE |
| 20 | 37000218 | ROD END | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 1775 | SCREW (4) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 36500034A | COMPENSATOR ASSEMBLY | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3089 | SCREW (2) | FLSTNSE |
| 7 | 41751-06A | GASKET, banjo-bolt (2) | FLSTNSE |
| 8 | 42010-06A | BANJO BOLT, brakeline | FLSTNSE |
| 9 | 42145-06 | SIGHT GLASS KIT | FLSTNSE |
| 17 | 14100605 | DECAL, maser cylinder cover | FLSTNSE |
| 19 | 36700077 | COVER, reservoir (chrome), w/ 3089, 46322-06 & 14100605 | FLSTNSE |
| 21 | 36700109 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (chrome) | FLSTNSE |
| 23 | 37200098 | LINE ASSEMBLY, hydraulic-clutch, w/ 12100028 | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11142 | RETAINING RING | FLSTNSE |
| 11 | 11379 | RETAINING RING | FLSTNSE |
| 16 | 41756-08 | GASKET, banjo (4) | FLSTNSE |
| 17 | 42807-04 | PIVOT PIN | FLSTNSE |
| 18 | 42820-04 | GREASE, brake, master cylinder/caliper | FLSTNSE |
| 19 | 42830-05 | GREASE, brake, caliper | FLSTNSE |
| 21 | 10500056 | SCREW (2) | FLSTNSE |
| 22 | 11600001 | BANJO BOLT, brakeline (2) | FLSTNSE |
| 23 | 14100605 | DECAL, master cylinder cover | FLSTNSE |
| 24 | 41100037 | ABS HYDRAULIC CONTROL UNIT (HCU) | FLSTNSE |
| 25 | 41700087 | REPAIR KIT, master cylinder, w/ 11142, 42820-04, 42830-05 | FLSTNSE |
| 26 | 41700238 | GASKET KIT, master cylinder | FLSTNSE |
| 27 | 41700293 | MASTER CYLINDER, front | FLSTNSE |
| 28 | 41700294 | COVER, reservoir (chrome) | FLSTNSE |
| 29 | 41700295 | HAND LEVER, front brake control | FLSTNSE |
| 30 | 41800358 | BRAKE LINE, front, HCU to master cylinder | FLSTNSE |
| 31 | 41800359 | BRAKE LINE, front, HCU to caliper | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 7331 | ACORN NUT (2) | FLSTNSE |
| 4 | 91845-03B | MIRROR ASSEMBLY, left (chrome) (Asia-Pacific) | FLSTNSE |
| 5 | 91840-03B | MIRROR ASSEMBLY, right (chrome) (Asia-Pacific) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 41782-05C | MASTER CYLINDER ASSEMBLY | FLSTNSE |
| 15 | 42382-87E | REBUILD KIT, master cylinder | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 43373-11A | BRAKE LINE ASSEMBLY, rear, ABS, HCU to master cylinder | FLSTNSE |
| 17 | 43384-11A | BRAKE LINE ASSEMBLY, rear, ABS, HCU to caliper | FLSTNSE |
| 21 | 41100037 | ABS HYDRAULIC CONTROL UNIT (HCU) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 42820-04 | GREASE | FLSTNSE |
| 2 | 42827-04 | SCREW, bleeder | FLSTNSE |
| 3 | 42828-04 | CAP, bleeder | FLSTNSE |
| 5 | 14100719 | DECAL | FLSTNSE |
| 6 | 41300102 | PAD KIT | FLSTNSE |
| 7 | 41300103 | PISTON KIT, w/ 42820-04 | FLSTNSE |
| 8 | 41300104 | BOLT KIT, brake caliper | FLSTNSE |
| 9 | 41300138 | CALIPER ASSEMBLY | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 14100719 | DECAL | FLSTNSE |
| 13 | 41300139 | CALIPER ASSEMBLY, rear brake | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 41500088 | DISC ASSEMBLY, floating, front | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 40615-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08 & 72639-10 | FLSTNSE |
| 29 | 41500089 | BRAKE DISC KIT, rear | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 15346-98A | LABEL | FLSTNSE |
| 32 | 10120 | CLIP | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 47000076DYL | FRAME, w/ 48315-60 & 50972-75 (bermuda blue) **RESTRICTED SALES PART** | FLSTNSE | |
| 20 | 50103-07B | LEG, jiffy stand | FLSTNSE |
| 90300099 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) | FLSTNSE | |
| 36 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 47400055DYL | REAR FORK, w/ 11282 & 9270A (bermuda blue) | FLSTNSE |
| 47400055CRP | REAR FORK, w/ 11282 & 9270A (black diamond) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 50300098 | KIT-LUGGAGE RACK | FLSTNSE |
| 20 | 52000178 | SEAT ASSEMBLY (black) | FLSTNSE |
| 22 | 52300357 | BACKREST PAD (black) | FLSTNSE |
| 23 | 52400026 | PASSENGER STRAP (black/gray) | FLSTNSE |
| 24 | 52400110 | PILLION ASSEMBLY (black) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 58900135DYJ | FENDER (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 58900135DYK | FENDER (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3576 | SCREW (2) | FLSTNSE |
| 25 | 59500310DYJ | FENDER ASSEMBLY (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 59500311DYJ | FENDER ASSEMBLY (stardust silver/bermuda blue) (Canada) **RESTRICTED SALES PART** | FLSTNSE | |
| 59500310DYK | FENDER ASSEMBLY (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE | |
| 59500311DYK | FENDER ASSEMBLY (dark tungsten/black crystal) (Canada) **RESTRICTED SALES PART** | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 60909-09 | BUMPER, license plate (HDI) | FLSTNSE |
| 15 | 67900213A | BRACKET, reflector | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 62189-08A | CHECK VALVE, out, w/ 11323 & 11387A | FLSTNSE |
| 23 | 12600067 | FASTENER, nylon | FLSTNSE |
| 25 | 61000205DYJ | FUEL TANK, 5 gallon, w/ 14100565 & 14100566 (stardust silver/bermuda blue) **RESTRICTED SALES PART** | FLSTNSE |
| 61000205DYK | FUEL TANK, 5 gallon, w/ 14100565 & 14100566 (dark tungsten/black crystal) **RESTRICTED SALES PART** | FLSTNSE | |
| 28 | 61100055 | FUEL CAP, locking, w keys (Asia-Pacific, Japan) | FLSTNSE |
| 30 | 90300093 | KEY, locking fuel cap (set of 2) (specify key number) (Asia-Pacific, Japan) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 61381-02A | GASKET, top plate | FLSTNSE |
| 11 | 75252-11A | TOP PLATE ASSEMBLY, w/ 61381-02 & 75282-08A | FLSTNSE |
| 18 | 10200374 | SCREW (10) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 70900275B | SPEEDOMETER (Asia-Pacific, Australia, Canada, England, HDI, Japan) | FLSTNSE |
| 70900475 | SPEEDOMETER (Domestic) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 56756-04 | ENDCAP, grip (2) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 10200332 | SCREW (6) | FLSTNSE |
| 18 | 57400200 | WINDSHIELD | FLSTNSE |
| 57400257 | WINDSHIELD (Asia-Pacific) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3576 | SCREW (2) | FLSTNSE |
| 9 | 68140-04 | ENVELOPE ASSEMBLY, w/ 68026-99 & 69200599 (Canada) | FLSTNSE |
| 36 | 67800470 | LIGHT BAR ASSEMBLY, w/ 2482 (HDI) | FLSTNSE |
| 37 | 67900194 | LIGHT ASSEMBLY, license plate | FLSTNSE |
| 67900170 | LIGHT ASSEMBLY, license plate (HDI) | FLSTNSE | |
| 38 | 69200707 | WIRING HARNESS, lighting | FLSTNSE |
| 39 | 69200709 | WIRING HARNESS, lighting (Canada) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 67900205 | REFLECTOR, assembly (red) (2) | FLSTNSE |
| 67900212 | REFLECTOR, assembly (amber) (HDI) (2) | FLSTNSE | |
| 19 | 90201175 | SADDLEBAG ASSEMBLY, left side (black) | FLSTNSE |
| 90201174 | SADDLEBAG ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 20 | 90201177 | LID ASSEMBLY, left side (black) | FLSTNSE |
| 90201176 | LID ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 21 | 90201179 | TUB ASSEMBLY, left side (black) | FLSTNSE |
| 90201178 | TUB ASSEMBLY, right side (black) (not shown) | FLSTNSE | |
| 90300099 | LOCK SET, complete, w/ keys, key covers & fork lock (specify key number) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 65715-10 | SHIELD, front exhaust | FLSTNSE |
| 18 | 66737-10A | TUBE ASSEMBLY, interconnect (black) | FLSTNSE |
| 28 | 65600035A | EXHAUST PIPE ASSEMBLY, rear | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 69060-90H | HORN ASSEMBLY, w/ 7495 nut | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 41100036 | ELECTRONIC CONTROL UNIT (ECU), ABS, Requires digital tech programming. | FLSTNSE |
| 10 | 69993-11C | BODY CONTROL MODULE (BCM), 434 MHZ | FLSTNSE |
| 69997-11C | BODY CONTROL MODULE (BCM), 315 MHZ (Japan) | FLSTNSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLSTNSE |
| Part No. | Description |
| 10006 | |
| 10038A | |
| 10065 | |
| 10074 | |
| 10102 | |
| 10115 | |
| 10120 | |
| 10147 | |
| 10177 | |
| 10193 | |
| 10200139 | |
| 10200332 | |
| 10200374 | |
| 10208 | |
| 10216 | |
| 10226 | |
| 1039 | |
| 10500031 | |
| 10500040 | |
| 10500056 | |
| 1062 | |
| 10800060 | |
| 10851 | |
| 10866 | |
| 10870 | |
| 10871 | |
| 1090A | |
| 10991A | |
| 11000101 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100019 | |
| 11100052 | |
| 11105 | |
| 11132A | |
| 11140 | |
| 11142 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11191 | |
| 11201 | |
| 11207A | |
| 11270 | |
| 11282 | |
| 11289A | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11323 | |
| 11326 | |
| 11364 | |
| 11379 | |
| 11387A | |
| 11389 | |
| 11403A | |
| 11413 | |
| 11447 | |
| 11461 | |
| 11514 | |
| 11529 | |
| 11533 | |
| 11575 | |
| 11576 | |
| 11599A | |
| 11600001 | |
| 11642 | |
| 11688 | |
| 11700002 | |
| 11785 | |
| 11805 | |
| 11806 | |
| 11860 | |
| 11900006 | |
| 11900007 | |
| 11900035 | |
| 11907 | |
| 11924 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100028 | |
| 12100051 | |
| 12200044 | |
| 12400018 | |
| 12400026 | |
| 12600015 | |
| 12600025 | |
| 12600067 | |
| 12700081 | |
| 12900 | |
| 12901 | |
| 13883-00 | |
| 14000827 | |
| 14100565 | |
| 14100566 | |
| 14100567 | |
| 14100568 | |
| 14100570 | |
| 14100573 | |
| 14100605 | |
| 14100618 | |
| 14100719 | |
| 14148-86 | |
| 14272-06 | |
| 14448-94 | |
| 14628-96 | |
| 14728-07 | |
| 14761-00 | |
| 14762-00 | |
| 14764-00 | |
| 14769-00 | |
| 14784-07 | |
| 14789-07 | |
| 15346-98A | |
| 15368-01A | |
| 15370-01A | |
| 1602 | |
| 16247-06 | |
| 16478-85A | |
| 16480-92A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16801-07B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17328-08A | |
| 17331-08A | |
| 17349-07B | |
| 17350-07B | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17454-08A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 1775 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18048-98A | |
| 18067-09 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18572-13 | |
| 18635-99B | |
| 19840-15 | |
| 21951-11 | |
| 21953-11 | |
| 22000001 | |
| 22000003 | |
| 22097-99 | |
| 221 | |
| 22307-99 | |
| 2249 | |
| 2261 | |
| 24004-03B | |
| 24009-06 | |
| 24018-10 | |
| 24100022 | |
| 2446 | |
| 24603-00 | |
| 24605-07 | |
| 24754-75A | |
| 24759-08A | |
| 2482 | |
| 24983-00 | |
| 25244-99A | |
| 25355-06A | |
| 25369-01B | |
| 25566-06 | |
| 25585-06 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700178 | |
| 25700179 | |
| 25728-06 | |
| 25729-06 | |
| 2573 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800017 | |
| 25940-11 | |
| 26037-06 | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 26500001 | |
| 26500002 | |
| 26561-99 | |
| 26993-06 | |
| 26995-86B | |
| 27050-11 | |
| 2708A | |
| 27200002 | |
| 27246-11 | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27712-08 | |
| 27715-07 | |
| 27721-08 | |
| 2773 | |
| 28012-09 | |
| 28840-11 | |
| 28841-11 | |
| 28860-11 | |
| 28861-07A | |
| 28864-11 | |
| 29127-95B | |
| 29241-08 | |
| 29267-08A | |
| 29269-83A | |
| 29400025 | |
| 2941 | |
| 29517-07A | |
| 29670-09 | |
| 29696-09 | |
| 29762-09 | |
| 30017-08 | |
| 30041-08A | |
| 3007 | |
| 3017 | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3056 | |
| 3061 | |
| 3089 | |
| 3109 | |
| 3110 | |
| 3144 | |
| 31604-06 | |
| 31618-06A | |
| 31633-07A | |
| 3164M | |
| 31696-07A | |
| 31742-00 | |
| 31772-07 | |
| 31960-99A | |
| 31981-99C | |
| 32200-10A | |
| 32306-08 | |
| 32310-08 | |
| 32319-07 | |
| 3233 | |
| 32362-04A | |
| 32446-99 | |
| 3249 | |
| 32586-07 | |
| 32614-11 | |
| 32700005 | |
| 32700006 | |
| 32700024 | |
| 32707-01C | |
| 3275 | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33413-06A | |
| 33525-07 | |
| 33531-07 | |
| 33600008 | |
| 33668-07 | |
| 33670-07 | |
| 33708-94 | |
| 33814-98A | |
| 3383 | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 3391 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 34469-06B | |
| 34532-00B | |
| 34568-00B | |
| 34857-08 | |
| 3485A | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35240-07 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06A | |
| 35255-10A | |
| 35256-08A | |
| 35259-06 | |
| 3537 | |
| 35467-06B | |
| 35470-10 | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3594 | |
| 3615 | |
| 3633 | |
| 36500034A | |
| 3655A | |
| 3656 | |
| 36700076 | |
| 36700077 | |
| 36700103 | |
| 36700109 | |
| 36706-08K | |
| 36731-91 | |
| 36805-06 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000026 | |
| 37000032 | |
| 37000033 | |
| 37000034 | |
| 37000035 | |
| 37000036 | |
| 37000083 | |
| 37000118 | |
| 37000217 | |
| 37000218 | |
| 37065-06 | |
| 37200023 | |
| 37200034 | |
| 37200096 | |
| 37200098 | |
| 3736B | |
| 37496-90A | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 3798M | |
| 38113-11 | |
| 38115-11 | |
| 38769-07A | |
| 38814-07 | |
| 38815-07 | |
| 38902-08 | |
| 3938 | |
| 3953W | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40000001 | |
| 40036-06 | |
| 40100041 | |
| 40323-00 | |
| 4042 | |
| 40615-08 | |
| 40659-06 | |
| 4074A | |
| 40789-08 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 40982-11 | |
| 41000057 | |
| 41100036 | |
| 41100037 | |
| 41148-98 | |
| 41229-08 | |
| 41300102 | |
| 41300103 | |
| 41300104 | |
| 41300138 | |
| 41300139 | |
| 41349-07 | |
| 41500088 | |
| 41500089 | |
| 41545-07A | |
| 41600017 | |
| 41641-08 | |
| 4168A | |
| 41694-08 | |
| 41696-08 | |
| 41700087 | |
| 41700238 | |
| 41700293 | |
| 41700294 | |
| 41700295 | |
| 41731-01 | |
| 41733-88 | |
| 41747-82A | |
| 41751-06A | |
| 41756-08 | |
| 41782-05C | |
| 41800358 | |
| 41800359 | |
| 41841-08 | |
| 41880-07 | |
| 4192 | |
| 4194 | |
| 41957-97A | |
| 4196 | |
| 4197 | |
| 42010-06A | |
| 42025-08 | |
| 42026-08 | |
| 42027-08 | |
| 42033-08 | |
| 42106-11 | |
| 42143-08B | |
| 42145-06 | |
| 4216 | |
| 4217 | |
| 42200007 | |
| 42298-08 | |
| 42300006 | |
| 42344-08A | |
| 42345-08 | |
| 42347-08 | |
| 42348-08 | |
| 42382-87E | |
| 42454-99A | |
| 42460-80B | |
| 42500008 | |
| 42568-05A | |
| 42640-03 | |
| 42644-00 | |
| 4266A | |
| 4267 | |
| 42807-04 | |
| 42820-04 | |
| 42827-04 | |
| 42828-04 | |
| 42830-05 | |
| 42895-08A | |
| 4292 | |
| 4293 | |
| 43118-92A | |
| 4312C | |
| 4313 | |
| 4314 | |
| 43157-83A | |
| 43353-03 | |
| 43373-11A | |
| 43384-11A | |
| 4343 | |
| 4350A | |
| 43567-92 | |
| 4359 | |
| 43991-04B | |
| 4400 | |
| 44048-83A | |
| 44066-08A | |
| 4407 | |
| 4411 | |
| 44117-07A | |
| 44147-87A | |
| 44160-00 | |
| 4419 | |
| 4433 | |
| 44351-00 | |
| 44503-03 | |
| 44504-03 | |
| 4453 | |
| 44613-02 | |
| 4482 | |
| 45032-82 | |
| 45041-01A | |
| 4512A | |
| 45359-00 | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45456-86B | |
| 45468-00 | |
| 45500016 | |
| 45605-00A | |
| 45611-86 | |
| 45670-80A | |
| 45680-90 | |
| 45733-48 | |
| 45764-00 | |
| 45803-97 | |
| 45806-07 | |
| 45837-07 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45900096 | |
| 45930-00 | |
| 45931-00 | |
| 45933-86 | |
| 45940-84 | |
| 45963-97 | |
| 46246-01 | |
| 4625 | |
| 46322-06 | |
| 46425-05A | |
| 46484-08A | |
| 46658-07 | |
| 4667 | |
| 46677-11 | |
| 47000076DYL | |
| 4705 | |
| 47173-08CRP | |
| 4717A | |
| 4718A | |
| 4729 | |
| 47400055CRP | |
| 47400055DYL | |
| 4740A | |
| 4741A | |
| 4751 | |
| 47610-08 | |
| 4763 | |
| 4775 | |
| 47798-08BHP | |
| 47807-08BHP | |
| 48048-00A | |
| 48052-07 | |
| 48054-00 | |
| 48076-08 | |
| 48093-00 | |
| 48094-00 | |
| 4813A | |
| 4814A | |
| 48211-08 | |
| 48300-60 | |
| 48315-60 | |
| 48361-80 | |
| 48365-48A | |
| 48619-07A | |
| 4867 | |
| 48848-09 | |
| 48885-10 | |
| 49000045 | |
| 49000064 | |
| 4924 | |
| 49377-09A | |
| 49386-10A | |
| 49387-10A | |
| 4945 | |
| 4967 | |
| 49716-08A | |
| 49725-07A | |
| 4997 | |
| 50003-89B | |
| 5001 | |
| 5002 | |
| 50103-07B | |
| 50300098 | |
| 50300107 | |
| 50351-03 | |
| 50500058 | |
| 50500059 | |
| 50500069 | |
| 50500070 | |
| 50500116 | |
| 50600040 | |
| 50635-82A | |
| 50683-04 | |
| 50688-04 | |
| 50912-72 | |
| 50972-75 | |
| 50991-86 | |
| 51050-05A | |
| 5118 | |
| 515 | |
| 51652-97A | |
| 51676-97A | |
| 52000178 | |
| 520W | |
| 52300022 | |
| 52300337 | |
| 52300338 | |
| 52300339 | |
| 52300357 | |
| 52400026 | |
| 52400110 | |
| 5302 | |
| 53156-86 | |
| 53176-08 | |
| 53436-97 | |
| 53508-95 | |
| 53509-95 | |
| 53602-95 | |
| 53684-96A | |
| 53810-00B | |
| 53830-00 | |
| 5403B | |
| 54321-85 | |
| 54549-04 | |
| 5471 | |
| 55800283 | |
| 55900027 | |
| 55900059 | |
| 56000062 | |
| 56000063 | |
| 56100060 | |
| 56100061 | |
| 56153-73 | |
| 56159-73 | |
| 56182-00A | |
| 56183-00 | |
| 56756-04 | |
| 57146-05 | |
| 57147-05 | |
| 57151-05 | |
| 57217-02A | |
| 57400197 | |
| 57400198 | |
| 57400199 | |
| 57400200 | |
| 57400201 | |
| 57400211 | |
| 57400217 | |
| 57400257 | |
| 57400258 | |
| 5775 | |
| 57964-97 | |
| 58092-05 | |
| 5818A | |
| 5826 | |
| 5837A | |
| 58900135DYJ | |
| 58900135DYK | |
| 59050-03 | |
| 59119-03 | |
| 59174-99 | |
| 59259-90 | |
| 59500310DYJ | |
| 59500310DYK | |
| 59500311DYJ | |
| 59500311DYK | |
| 59572-05 | |
| 59954-08 | |
| 59955-08 | |
| 59984-73 | |
| 59986-75 | |
| 59988-72A | |
| 60001-55 | |
| 601 | |
| 6019 | |
| 60253-07 | |
| 60254-07 | |
| 60328-98B | |
| 60363-11 | |
| 60547-06 | |
| 6057 | |
| 60655-07A | |
| 60678-85 | |
| 60709-07A | |
| 60782-06A | |
| 60813-07 | |
| 60833-07 | |
| 60854-08B | |
| 60867-08 | |
| 60909-09 | |
| 6099 | |
| 61000205DYJ | |
| 61000205DYK | |
| 61011-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 6110 | |
| 61100001 | |
| 61100003 | |
| 61100055 | |
| 61109-85D | |
| 6119 | |
| 61208-10 | |
| 61300271 | |
| 61381-02A | |
| 61400228 | |
| 61400242 | |
| 6150W | |
| 62123-07 | |
| 62143-11 | |
| 62155-11 | |
| 62158-11 | |
| 62189-08A | |
| 6235 | |
| 6237 | |
| 62372-09 | |
| 62498-01A | |
| 62543-11 | |
| 62555-95 | |
| 62769-00A | |
| 62845-00A | |
| 62880-00 | |
| 62881-00 | |
| 6294 | |
| 63521-95A | |
| 63553-00B | |
| 63601-00 | |
| 63611-00 | |
| 63632-00 | |
| 63783-00 | |
| 63798-99A | |
| 6400HB | |
| 6421 | |
| 6441 | |
| 6456 | |
| 64900121 | |
| 6497HW | |
| 6516HW | |
| 65184-02 | |
| 65296-95A | |
| 6530 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 6534 | |
| 6535 | |
| 65463-00 | |
| 65521-10 | |
| 6553 | |
| 65600031 | |
| 65600035A | |
| 65682-07 | |
| 65702-00A | |
| 65715-10 | |
| 65830-10 | |
| 65872-09 | |
| 6594 | |
| 65989-97C | |
| 6609 | |
| 66373-06 | |
| 66415-08A | |
| 6655 | |
| 66737-10A | |
| 66846-10 | |
| 66876-09 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 67121-95A | |
| 6716 | |
| 6724 | |
| 67605-05 | |
| 67621-94 | |
| 6762B | |
| 67700065 | |
| 67700066 | |
| 67700212 | |
| 67700223 | |
| 67717-01 | |
| 6771A | |
| 67721-48 | |
| 67768-97 | |
| 67800347 | |
| 67800348 | |
| 67800470 | |
| 67846-70 | |
| 67873-08A | |
| 67887-91A | |
| 67900170 | |
| 67900183 | |
| 67900184 | |
| 67900194 | |
| 67900205 | |
| 67900212 | |
| 67900213A | |
| 68000020 | |
| 68000038 | |
| 68000056 | |
| 68000088 | |
| 68026-99 | |
| 68042-99 | |
| 68050-93A | |
| 68051-08 | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 6827 | |
| 6828 | |
| 68296-99A | |
| 68331-02 | |
| 68369-03 | |
| 68370-03A | |
| 68446-00 | |
| 68497-07 | |
| 68550-09 | |
| 68559-07 | |
| 68722-06 | |
| 68725-62A | |
| 68830-99A | |
| 68840-05 | |
| 68847-09 | |
| 68881-01 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68973-00 | |
| 69046-06A | |
| 69048-08 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200027 | |
| 69200052 | |
| 69200220 | |
| 69200221 | |
| 69200222 | |
| 69200238 | |
| 69200254 | |
| 69200256 | |
| 69200267A | |
| 69200268A | |
| 69200283 | |
| 69200425 | |
| 69200529 | |
| 69200530 | |
| 69200625 | |
| 69200626 | |
| 69200692 | |
| 69200707 | |
| 69200709 | |
| 69200750 | |
| 69200785 | |
| 69309-10 | |
| 69490-07 | |
| 69678-00 | |
| 6990 | |
| 69969-08 | |
| 69993-11C | |
| 69995-11 | |
| 69997-11C | |
| 70060-08A | |
| 70078-08A | |
| 70111-07 | |
| 70354-11 | |
| 7036 | |
| 7038 | |
| 7039 | |
| 703B | |
| 7041 | |
| 70523-06 | |
| 70593-08 | |
| 7062 | |
| 70631-08 | |
| 70635-08 | |
| 7068 | |
| 7081 | |
| 70900275B | |
| 70900359 | |
| 70900361 | |
| 70900362 | |
| 70900475 | |
| 70974-08A | |
| 70982-08 | |
| 71031-04 | |
| 71044-11 | |
| 7118 | |
| 7127 | |
| 7128 | |
| 7137 | |
| 71500028 | |
| 71500029 | |
| 71500030 | |
| 71500108 | |
| 71500109 | |
| 71500114 | |
| 71500118 | |
| 71500147 | |
| 71748-11 | |
| 71750-11 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72023-51E | |
| 72024-08 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72081-11 | |
| 72094-06 | |
| 72096-06 | |
| 72102-94BK | |
| 72111-06 | |
| 72112-94BK | |
| 72126-94GY | |
| 72130-04 | |
| 72135-06 | |
| 72142-94 | |
| 72146-94 | |
| 72152-94 | |
| 72161-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72213-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72232-96 | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72254-94 | |
| 72256-11 | |
| 72283-09 | |
| 72290-94 | |
| 72295-94 | |
| 72298-95 | |
| 72308-97 | |
| 72314-01 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72350-11 | |
| 72356-95 | |
| 72369-08A | |
| 72402-07 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72449-01 | |
| 72450-01 | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72514-07GY | |
| 72518-01 | |
| 72519-09BK | |
| 72527-01 | |
| 72543-07BK | |
| 72544-07 | |
| 72546-09GY | |
| 72549-07 | |
| 72554-09GY | |
| 72575-11 | |
| 72582-11 | |
| 72586-11 | |
| 72587-11 | |
| 72593-11 | |
| 72595-11 | |
| 72596-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72633-02 | |
| 72639-10 | |
| 72662-11 | |
| 72663-11 | |
| 72664-12A | |
| 72666-12 | |
| 72677-11 | |
| 72720-07 | |
| 72721-07 | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72932-11 | |
| 72933-11 | |
| 72934-11 | |
| 72937-11 | |
| 72939-11 | |
| 72940-11 | |
| 72941-11 | |
| 73106-96BK | |
| 73152-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 73255-10 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 73309-10 | |
| 7331 | |
| 7340 | |
| 74102-98BK | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74120-08 | |
| 74142-98 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74567-11 | |
| 7479 | |
| 7495 | |
| 75252-11A | |
| 75276-08A | |
| 75282-08A | |
| 75284-08A | |
| 75289-08 | |
| 75290-08 | |
| 7531 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 76000198 | |
| 76000199 | |
| 76000367 | |
| 76000392 | |
| 7601 | |
| 7606 | |
| 762 | |
| 765 | |
| 7669 | |
| 7716 | |
| 7792 | |
| 7800W | |
| 7813A | |
| 7862 | |
| 786A | |
| 7879 | |
| 7904 | |
| 791A | |
| 7964 | |
| 7965 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8144 | |
| 8195 | |
| 8201 | |
| 8250 | |
| 83936-09A | |
| 8405 | |
| 84850-92 | |
| 856A | |
| 88002-15D | |
| 8873 | |
| 8885 | |
| 895 | |
| 8959 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 8992A | |
| 90200300 | |
| 90200406 | |
| 90200407 | |
| 90200949 | |
| 90200950 | |
| 90200960 | |
| 90200972 | |
| 90200982 | |
| 90201027 | |
| 90201051 | |
| 90201071 | |
| 90201174 | |
| 90201175 | |
| 90201176 | |
| 90201177 | |
| 90201178 | |
| 90201179 | |
| 90300019 | |
| 90300043 | |
| 90300085 | |
| 90300093 | |
| 90300099 | |
| 90383-98 | |
| 90491-11 | |
| 90611-11 | |
| 90671-11 | |
| 90694-11 | |
| 90997-11 | |
| 91072-11 | |
| 91800006 | |
| 91800007 | |
| 91840-03B | |
| 91845-03B | |
| 92288-09 | |
| 9231 | |
| 92447-11 | |
| 92448-11 | |
| 92492-10 | |
| 9252 | |
| 9270A | |
| 9276A | |
| 93100031 | |
| 939 | |
| 940 | |
| 94000084 | |
| 94090-91T | |
| 941 | |
| 942 | |
| 94593-98 | |
| 956 | |
| 9701A | |
| 9819 | |
| 98261-91V | |
| 9842 | |
| 9897 | |
| 9907 | |
| 9955 | |
| 99659-15 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 8144 | Unknown |
| 33889-99 | 1999 |
| 7576 | 1990 |
| 7792 | 2012 |
| 7813A | 2007 |
| 3633 | Unknown |
| 7862 | Unknown |
| 7479 | 2000 |
| 7904 | 1998 |
| 8195 | Unknown |
| 84850-92 | 1992 |
| 67846-70 | 1970 |
| 7992 | 2010 |
| 7495 | 1994 |
| 8405 | 2011 |
| 8250 | Unknown |
| 762 | 1997 |
| 7340 | Unknown |
| 7879 | 2000 |
| 7331 | Unknown |
| 7964 | Unknown |
| 7965 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 45764-00 | 2000 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3340 | Unknown |
| 4266A | Unknown |
| 4763 | Unknown |
| 3017 | 2000 |
| 3983 | 2005 |
| 4967 | 2000 |
| 3987 | Unknown |
| 3110 | Unknown |
| 2573 | Unknown |
| 44613-02 | 2002 |
| 3048 | 2016 |
| 4217 | 1999 |
| 10200139 | 2012 |
| 68026-99 | 1999 |
| 4667 | Unknown |
| 4216 | 1999 |
| 3109 | Unknown |
| 2249 | 2011 |
| 4741A | 1994 |
| 1090A | Unknown |
| 3050 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3056 | 2011 |
| 3692A | Unknown |
| 3249 | Unknown |
| 4718A | 1994 |
| 2261 | 2011 |
| 3953W | 2009 |
| 3485A | Unknown |
| 10200374 | 2015 |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 43991-04B | 2004 |
| 4512A | 2007 |
| 4314 | Unknown |
| 2482 | Unknown |
| 4313 | Unknown |
| 941 | Unknown |
| 2941 | Unknown |
| 4350A | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 4042 | Unknown |
| 42827-04 | 2004 |
| 940 | Unknown |
| 94593-98 | 1998 |
| 3275 | 2002 |
| 3693A | Unknown |
| 3615 | Unknown |
| 895 | Unknown |
| 2773 | Unknown |
| 4751 | Unknown |
| 4705 | 2005 |
| 4740A | 1994 |
| 4997 | Unknown |
| 45405-75A | 1975 |
| 3656 | Unknown |
| 956 | Unknown |
| 939 | 1991 |
| 3798M | Unknown |
| 4729 | Unknown |
| 68120-00 | 2000 |
| 4407 | Unknown |
| 3061 | Unknown |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3089 | Unknown |
| 3594 | 1992 |
| 45838-77 | 1977 |
| 3164M | Unknown |
| 4292 | Unknown |
| 2708A | Unknown |
| 4293 | Unknown |
| 68042-99 | 1999 |
| 10200332 | 2014 |
| 4419 | Unknown |
| 1039 | Unknown |
| 3699D | 2006 |
| 4168A | 2011 |
| 4411 | 2009 |
| 4267 | Unknown |
| 45858-77 | 1977 |
| 35244-06 | 2014 |
| 3563 | 1999 |
| 3144 | Unknown |
| 3383 | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 1775 | Unknown |
| 4945 | Unknown |
| 3233 | Unknown |
| 50635-82A | 1982 |
| 4867 | Unknown |
| 3391 | Unknown |
| 4433 | Unknown |
| 4717A | Unknown |
| 1602 | Unknown |
| 3574 | Unknown |
| 4625 | 2007 |
| 3938 | Unknown |
| 4312C | Unknown |
| 3007 | Unknown |
| 48093-00 | 2000 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 44048-83A | 1983 |
| 5471 | 2011 |
| 4359 | Unknown |
| 4813A | 1990 |
| 703B | Unknown |
| 5403B | Unknown |
| 3736B | 2010 |
| 4194 | Unknown |
| 4197 | Unknown |
| 4196 | Unknown |
| 4453 | 1986 |
| 4192 | 1998 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 4343 | Unknown |
| 4814A | Unknown |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6456 | Unknown |
| 6441 | Unknown |
| 6553 | Unknown |
| 6609 | 2009 |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 11806 | Unknown |
| 6294 | 2010 |
| 11805 | Unknown |
| 8972 | Unknown |
| 11924 | Unknown |
| 57964-97 | 1997 |
| 6110 | Unknown |
| 7118 | Unknown |
| 6057 | 1991 |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6594 | Unknown |
| 7128 | Unknown |
| 6534 | 2000 |
| 6535 | 2000 |
| 6516HW | Unknown |
| 6530 | Unknown |
| 6532 | 2000 |
| 44504-03 | 2003 |
| 6421 | 1996 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6724 | 1984 |
| 6827 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 56183-00 | 2000 |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6235 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 4482 | Unknown |
| 10500040 | 2014 |
| 10500031 | 2014 |
| 10500056 | 2015 |
| 4074A | 2006 |
| 48054-00 | 2000 |
| 108A1 - Hose Clamps | |
| 38814-07 | 2007 |
| 65521-10 | 2010 |
| 10038A | 1994 |
| 38902-08 | 2008 |
| 10208 | Unknown |
| 38769-07A | 2007 |
| 10871 | 2011 |
| 9955 | Unknown |
| 10074 | Unknown |
| 108B1 - P Clamps | |
| 10800060 | 2013 |
| 109A1 - Studs | |
| 16715-83 | 1983 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 5818A | Unknown |
| 8959 | Unknown |
| 62881-00 | 2000 |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 9270A | Unknown |
| 8992A | Unknown |
| 53156-86 | 1986 |
| 12077 | Unknown |
| 48076-08 | 2008 |
| 37906-11 | 2011 |
| 57217-02A | 2013 |
| 56182-00A | 2000 |
| 53176-08 | 2008 |
| 33708-94 | 1994 |
| 48048-00A | 2000 |
| 45866-84 | 1984 |
| 8885 | Unknown |
| 9701A | 2011 |
| 110C1 - Radial Shaft Seals | |
| 45359-00 | 2000 |
| 11000101 | 2013 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 9907 | Unknown |
| 72527-01 | 2001 |
| 11100052 | 2012 |
| 11100019 | 2011 |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 11576 | Unknown |
| 111F1 - Protective Tape | |
| 59572-05 | 2005 |
| 113A1 - Grease | |
| 42830-05 | 2005 |
| 116A1 - Banjo Bolts | |
| 42010-06A | 2006 |
| 11600001 | 2012 |
| 5002 | 2009 |
| 5001 | 2011 |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 53602-95 | 1995 |
| 11700002 | 2013 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11323 | 2004 |
| 11326 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11140 | 1982 |
| 11900035 | 2013 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11201 | Unknown |
| 11132A | 2007 |
| 11191 | 1989 |
| 11293 | 1996 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11387A | Unknown |
| 11900007 | 2011 |
| 11900006 | 2011 |
| 11364 | 2002 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 520W | 2010 |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 60813-07 | 2007 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 12100051 | 2014 |
| 11447 | 1984 |
| 62880-00 | 2000 |
| 11403A | Unknown |
| 94090-91T | 1991 |
| 11413 | Unknown |
| 12100028 | 2013 |
| 121B1 - Press-Fit Plugs | |
| 68446-00 | 2000 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 121C1 - Threaded Plugs | |
| 12901 | 2010 |
| 12900 | 2010 |
| 122A1 - Retaining Rings | |
| 10120 | 1992 |
| 17945-36B | 1936 |
| 12200044 | 2012 |
| 35114-02 | 2002 |
| 11688 | Unknown |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 11150 | 1984 |
| 10193 | Unknown |
| 11533 | 2014 |
| 11142 | Unknown |
| 11061A | 2008 |
| 11143 | Unknown |
| 35240-07 | 2007 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11304 | Unknown |
| 11282 | Unknown |
| 11379 | 2002 |
| 10226 | 2000 |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 10216 | 2013 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41756-08 | 2008 |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7081 | Unknown |
| 7127 | Unknown |
| 7137 | Unknown |
| 7062 | Unknown |
| 124A1 - Spacers | |
| 12400026 | 2012 |
| 24603-00 | 2000 |
| 12400018 | 2012 |
| 14784-07 | 2007 |
| 5775 | 1984 |
| 5826 | Unknown |
| 11860 | Unknown |
| 5837A | Unknown |
| 11599A | 2012 |
| 48094-00 | 2000 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10177 | 1996 |
| 10006 | 1960 |
| 10115 | 2003 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 27711-08 | 2008 |
| 11514 | 1998 |
| 11529 | Unknown |
| 12600025 | 2012 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 12600067 | 2014 |
| 11642 | Unknown |
| 12600015 | 2011 |
| 11785 | Unknown |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 92288-09 | 2009 |
| 127B1 - Generic Mounting Bracket | |
| 57146-05 | 2005 |
| 57147-05 | 2005 |
| 12700081 | 2014 |
| 51652-97A | 1997 |
| 140A1 - Battery Warning Label | |
| 13883-00 | 2000 |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 28012-09 | 2009 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 15346-98A | 1998 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14100570 | 2014 |
| 14100573 | 2014 |
| 14100566 | 2014 |
| 14100565 | 2014 |
| 14100568 | 2014 |
| 14100567 | 2014 |
| 14628-96 | 1996 |
| 14448-94 | 1994 |
| 14100618 | 2014 |
| 14100605 | 2015 |
| 14100719 | 2015 |
| 162D1 - Engine Assembly | |
| 19840-15 | 2015 |
| 164A1 - Engine Mount Bracket | |
| 27712-08 | 2008 |
| 16247-06 | 2006 |
| 69046-06A | 2006 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7531 | 1980 |
| 7669 | Unknown |
| 7800W | Unknown |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 17328-08A | 2008 |
| 17331-08A | 2008 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 17349-07B | 2011 |
| 17369-06 | 2006 |
| 17350-07B | 2011 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17454-08A | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18572-13 | 2013 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18067-09 | 2009 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18189-07 | 2007 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 220A1 - Piston Ring | |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100022 | 2014 |
| 24004-03B | 2012 |
| 14789-07 | 2007 |
| 244A1 - Crankcase | |
| 24759-08A | 2011 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 245A1 - PT Cases Miscellaneous Component | |
| 24983-00 | 2000 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 24018-10 | 2010 |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 14764-00 | 2000 |
| 256A1 - Timer Cover | |
| 32586-07 | 2007 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60709-07A | 2007 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 67121-95A | 1995 |
| 33890-99A | 1999 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 41731-01 | 2001 |
| 61381-02A | 2015 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 11936 | Unknown |
| 41733-88 | 1988 |
| 25244-99A | 1999 |
| 34948-08 | 2008 |
| 45733-48 | 1948 |
| 18635-99B | 1999 |
| 60547-06 | 2006 |
| 34917-06 | 2006 |
| 17386-99A | 1999 |
| 257L1 - Primary Cover | |
| 60782-06A | 2013 |
| 25585-06 | 2006 |
| 25700179 | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25940-11 | 2011 |
| 25800017 | 2012 |
| 34469-06B | 2008 |
| 32614-11 | 2011 |
| 265A1 - Vent / Breather Line | |
| 28840-11 | 2011 |
| 17025-03A | 2011 |
| 28841-11 | 2011 |
| 26500002 | 2011 |
| 26500001 | 2011 |
| 270A1 - Carburetor | |
| 29241-08 | 2008 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29696-09 | 2009 |
| 294G1 - Air Cleaner | |
| 29267-08A | 2011 |
| 29670-09 | 2009 |
| 29400025 | 2011 |
| 295A1 - Intake Miscellaneous Component | |
| 28864-11 | 2011 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08A | 2013 |
| 299F1 - Stator Assembly | |
| 30017-08 | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31960-99A | 1999 |
| 316C1 - Spark Plug | |
| 32362-04A | 2015 |
| 327B1 - Chemical / Gas Sensor | |
| 32700005 | 2012 |
| 32700006 | 2012 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700024 | 2013 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 42106-11 | 2011 |
| 49716-08A | 2008 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33888-99 | 1999 |
| 33814-98A | 1998 |
| 336D1 - Shift Pedal | |
| 33600008 | 2012 |
| 33849-97 | 1997 |
| 34532-00B | 2000 |
| 339A1 - Shift Lever | |
| 34568-00B | 2000 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 32200-10A | 2012 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34857-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35255-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 352B1 - Engine Balancer sub-component | |
| 14728-07 | 2007 |
| 14769-00 | 2000 |
| 14762-00 | 2000 |
| 14761-00 | 2000 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35256-08A | 2011 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40036-06 | 2006 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 36500034A | 2014 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60854-08B | 2009 |
| 367A1 - Clutch Lever | |
| 36700109 | 2015 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700076 | 2015 |
| 36700077 | 2015 |
| 367E1 - Clutch Lever Mount Clamp | |
| 36700103 | 2015 |
| 10870 | 2011 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-08K | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000026 | 2013 |
| 370B1 - Clutch Friction Plate | |
| 37000118 | 2013 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370D1 - Clutch Hub Backing Plate | |
| 38815-07 | 2007 |
| 370F1 - Clutch Pressure Plate | |
| 37000032 | 2013 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000035 | 2013 |
| 37000036 | 2013 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 372C1 - Clutch Bleeder Screw Cap | |
| 37200034 | 2013 |
| 372G1 - Clutch Hose | |
| 37200098 | 2015 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200096 | 2014 |
| 37200023 | 2013 |
| 400A1 - Drive-Belt | |
| 40000001 | 2012 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100041 | 2014 |
| 409A1 - Rear Wheel | |
| 40789-08 | 2008 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000057 | 2014 |
| 410G1 - Security System Control Module | |
| 69993-11C | 2015 |
| 69997-11C | 2015 |
| 411A2 - ABS Electrical Control Unit | |
| 41100036 | 2015 |
| 411A3 - ABS Hydraulic Control Unit | |
| 41100037 | 2015 |
| 46677-11 | 2011 |
| 10851 | 2011 |
| 413A1 - Brake Caliper | |
| 44066-08A | 2012 |
| 41300138 | 2015 |
| 41300139 | 2015 |
| 44160-00 | 2000 |
| 42895-08A | 2008 |
| 413C1 - Brake Caliper sub-component | |
| 44147-87A | 1987 |
| 41300104 | 2015 |
| 42347-08 | 2008 |
| 42348-08 | 2008 |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42298-08 | 2008 |
| 41300102 | 2015 |
| 413G1 - Brake Caliper Piston Set | |
| 41300103 | 2015 |
| 42344-08A | 2013 |
| 413H1 - Brake Caliper Carrier | |
| 42143-08B | 2012 |
| 415B1 - Brake Rotor | |
| 41500088 | 2015 |
| 41500089 | 2015 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 38113-11 | 2011 |
| 5302 | 2011 |
| 40920-87 | 1987 |
| 72023-51E | 2012 |
| 42807-04 | 2004 |
| 41600017 | 2011 |
| 416B1 - Brake Mounting Bracket | |
| 38115-11 | 2011 |
| 417A1 - Brake Master Cylinder Assembly | |
| 46425-05A | 2005 |
| 46322-06 | 2006 |
| 41700293 | 2015 |
| 42820-04 | 2004 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700087 | 2014 |
| 42382-87E | 2015 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 10866 | 2011 |
| 41700238 | 2015 |
| 42568-05A | 2011 |
| 41782-05C | 2015 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 41700294 | 2015 |
| 42345-08 | 2008 |
| 42828-04 | 2004 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417G1 - Front Brake Lever | |
| 42640-03 | 2003 |
| 41700295 | 2015 |
| 418B1 - Brake Line | |
| 43384-11A | 2015 |
| 41800359 | 2015 |
| 41800358 | 2015 |
| 43373-11A | 2015 |
| 422B1 - Wheel Sprocket | |
| 42200007 | 2013 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423K1 - Wheel Weights | |
| 42300006 | 2011 |
| 425A1 - Wheel sub-component | |
| 42025-08 | 2008 |
| 42500008 | 2014 |
| 430D1 - Front Axle | |
| 41545-07A | 2007 |
| 44117-07A | 2007 |
| 42033-08 | 2008 |
| 42027-08 | 2008 |
| 430E1 - Rear Axle | |
| 41641-08 | 2008 |
| 431A1 - Front Tire | |
| 43118-92A | 1992 |
| 432A1 - Rear Tire | |
| 43353-03 | 2003 |
| 433A1 - Front Wheel | |
| 41880-07 | 2007 |
| 433B1 - Front Wheel Bearing Spacer | |
| 41694-08 | 2008 |
| 41841-08 | 2008 |
| 48619-07A | 2007 |
| 41696-08 | 2008 |
| 56153-73 | 1973 |
| 41349-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 46484-08A | 2008 |
| 49386-10A | 2011 |
| 45963-97 | 1997 |
| 49387-10A | 2011 |
| 455A1 - Front Telescopic Fork Slider | |
| 45837-07 | 2007 |
| 45500016 | 2011 |
| 455B1 - Front Telescopic Fork Spring | |
| 45931-00 | 2000 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 44503-03 | 2003 |
| 46658-07 | 2007 |
| 49377-09A | 2011 |
| 45930-00 | 2000 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45933-86 | 1986 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 45680-90 | 1990 |
| 457D1 - Steering Stem | |
| 45605-00A | 2000 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45670-80A | 1980 |
| 459A1 - Upper Triple Clamp | |
| 45456-86B | 1986 |
| 45900096 | 2014 |
| 67887-91A | 1991 |
| 459B1 - Lower Triple Clamp | |
| 50991-86 | 1986 |
| 470A1 - Frame | |
| 47000076DYL | 2015 |
| 47173-08CRP | 2008 |
| 472A1 - Frame sub-component | |
| 42026-08 | 2008 |
| 7036 | Unknown |
| 6828 | Unknown |
| 472B2 - Structural Tailsection sub-component | |
| 91072-11 | 2011 |
| 472C1 - Front Fairing Support Bracket | |
| 59954-08 | 2008 |
| 59955-08 | 2008 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 48052-07 | 2007 |
| 62769-00A | 2000 |
| 474C1 - Swingarm | |
| 47400055CRP | 2015 |
| 47400055DYL | 2015 |
| 474E1 - Swingarm Assembly sub-component | |
| 48848-09 | 2009 |
| 475B1 - Swingarm Pivot Shaft | |
| 47610-08 | 2008 |
| 490C1 - Engine Guard | |
| 49000045 | 2014 |
| 49000064 | 2014 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50103-07B | 2015 |
| 500E1 - Sidestand Leg sub-component | |
| 62123-07 | 2007 |
| 503A1 - Tail Rack | |
| 50300098 | 2014 |
| 50300107 | 2014 |
| 505A1 - Footboard | |
| 51050-05A | 2005 |
| 50500059 | 2012 |
| 50500058 | 2012 |
| 50688-04 | 2004 |
| 50683-04 | 2004 |
| 505B1 - Footpeg Mount Bracket | |
| 33670-07 | 2007 |
| 50351-03 | 2009 |
| 505D1 - Passenger Footpeg | |
| 50500070 | 2012 |
| 33668-07 | 2007 |
| 505G1 - Rider or Common Footpeg | |
| 50500116 | 2012 |
| 505H1 - Footpeg Insert | |
| 50500069 | 2012 |
| 506A1 - Brake Pedal | |
| 41957-97A | 1997 |
| 50912-72 | 1972 |
| 50600040 | 2012 |
| 520A1 - Rider Seat or Full Seat | |
| 52000178 | 2015 |
| 51676-97A | 1997 |
| 521A1 - Seat Support Structure | |
| 48885-10 | 2010 |
| 53830-00 | 2000 |
| 521C1 - Seat Suspension Damper | |
| 60833-07 | 2007 |
| 523B1 - Back Rest Pad | |
| 52300357 | 2015 |
| 523C1 - Back Rest Support Structure | |
| 52300022 | 2011 |
| 523D2 - Docking Hardware | |
| 52300338 | 2014 |
| 52300339 | 2014 |
| 52300337 | 2014 |
| 53684-96A | 1996 |
| 524A1 - Passenger Grab Handle | |
| 52400026 | 2012 |
| 524B1 - Passenger Seat | |
| 52400110 | 2015 |
| 540B1 - Rear Shock | |
| 54549-04 | 2004 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 55800283 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 55900059 | 2014 |
| 559E1 - Upper Handlebar Clamp | |
| 55900027 | 2013 |
| 560A1 - Mirror | |
| 92447-11 | 2011 |
| 92448-11 | 2011 |
| 91840-03B | 2003 |
| 56000062 | 2013 |
| 56000063 | 2013 |
| 91845-03B | 2003 |
| 561B1 - Left Hand Grip | |
| 56100061 | 2014 |
| 561E1 - Throttle Grip | |
| 56756-04 | 2004 |
| 56100060 | 2014 |
| 561F1 - Grip Kit | |
| 32310-08 | 2008 |
| 571D1 - Debris Deflector | |
| 60655-07A | 2007 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57151-05 | 2005 |
| 53810-00B | 2000 |
| 53509-95 | 1995 |
| 53508-95 | 1995 |
| 573B1 - Bodywork Mounting Bracket | |
| 47807-08BHP | 2008 |
| 47798-08BHP | 2008 |
| 574B1 - Windscreen / Windshield | |
| 57400211 | 2014 |
| 57400199 | 2014 |
| 57400198 | 2014 |
| 57400197 | 2014 |
| 57400258 | 2015 |
| 57400257 | 2015 |
| 67621-94 | 1994 |
| 57400200 | 2014 |
| 57400201 | 2014 |
| 57400217 | 2014 |
| 589A1 - Front Fender | |
| 58900135DYK | 2015 |
| 58900135DYJ | 2015 |
| 59050-03 | 2003 |
| 595D1 - Rear Fender | |
| 59500310DYJ | 2015 |
| 59500310DYK | 2015 |
| 59119-03 | 2003 |
| 59500311DYK | 2015 |
| 59500311DYJ | 2015 |
| 59174-99 | 1999 |
| 596A1 - Tire Mud Flap | |
| 60363-11 | 2011 |
| 603B1 - Belt / Chain Guard | |
| 8201 | Unknown |
| 60867-08 | 2008 |
| 608A1 - Carbon Canister | |
| 27050-11 | 2011 |
| 608B1 - Carbon Canister Hose | |
| 27246-11 | 2011 |
| 28860-11 | 2011 |
| 609A1 - Fuel Miscellaneous Component | |
| 62158-11 | 2011 |
| 6119 | 2016 |
| 75290-08 | 2008 |
| 610A1 - Fuel Tank | |
| 75252-11A | 2015 |
| 61000205DYJ | 2015 |
| 61000205DYK | 2015 |
| 611B1 - Fuel Cap | |
| 61100055 | 2014 |
| 62543-11 | 2011 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 62143-11 | 2011 |
| 62555-95 | 1995 |
| 61100003 | 2011 |
| 61100001 | 2011 |
| 612A1 - Fuel Filter | |
| 75282-08A | 2008 |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75276-08A | 2008 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62189-08A | 2014 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 63521-95A | 1995 |
| 612F1 - Fuel Pump | |
| 75284-08A | 2012 |
| 612G1 - Fuel Pump Anti-Slosh Cover | |
| 62155-11 | 2011 |
| 613B1 - Horn Cover | |
| 69048-08 | 2008 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 48211-08 | 2008 |
| 61300271 | 2014 |
| 614A1 - Headlight Bezel | |
| 61400242 | 2014 |
| 614C1 - Trim | |
| 61400228 | 2014 |
| 67605-05 | 2005 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 625B1 - Oil Tank | |
| 62498-01A | 2007 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62845-00A | 2000 |
| 627E2 - Sight Glass | |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 33531-07 | 2007 |
| 63601-00 | 2000 |
| 33525-07 | 2007 |
| 63783-00 | 2000 |
| 63611-00 | 2000 |
| 45806-07 | 2007 |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 45468-00 | 2000 |
| 63632-00 | 2000 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63553-00B | 2010 |
| 649A1 - Muffler | |
| 65872-09 | 2009 |
| 64900121 | 2012 |
| 65682-07 | 2007 |
| 654A1 - Exhaust Shield | |
| 65715-10 | 2010 |
| 65463-00 | 2000 |
| 65702-00A | 2000 |
| 66846-10 | 2010 |
| 66876-09 | 2009 |
| 655C1 - Exhaust Mounting Bracket | |
| 66737-10A | 2015 |
| 656E1 - Header Pipe | |
| 65600035A | 2015 |
| 65600031 | 2012 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 659B1 - Exhaust Flange | |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65830-10 | 2010 |
| 660A1 - Battery | |
| 66373-06 | 2006 |
| 65989-97C | 1997 |
| 660F1 - Negative Battery Cable | |
| 70060-08A | 2008 |
| 660G1 - Positive Battery Cable | |
| 70078-08A | 2008 |
| 660H1 - Positive Battery Cable Boot | |
| 66415-08A | 2008 |
| 670A1 - Tachometer | |
| 40982-11 | 2011 |
| 677A1 - Headlight | |
| 68051-08 | 2008 |
| 67700066 | 2014 |
| 68725-62A | 1962 |
| 68050-93A | 1993 |
| 67768-97 | 1997 |
| 69969-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67717-01 | 2001 |
| 67700065 | 2014 |
| 68840-05 | 2005 |
| 67700212 | 2014 |
| 67700223 | 2014 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 68369-03 | 2003 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 67800470 | 2015 |
| 678B1 - Taillight Housing | |
| 68722-06 | 2006 |
| 678D1 - Turnsignal | |
| 68550-09 | 2009 |
| 67800347 | 2014 |
| 68497-07 | 2007 |
| 67800348 | 2014 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 68559-07 | 2007 |
| 679B1 - Reflector | |
| 67900205 | 2015 |
| 69490-07 | 2007 |
| 60253-07 | 2007 |
| 59259-90 | 1990 |
| 60254-07 | 2007 |
| 67900183 | 2014 |
| 67900184 | 2014 |
| 59988-72A | 1972 |
| 67900212 | 2016 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 58092-05 | 2005 |
| 679D1 - License Plate Bracket | |
| 73255-10 | 2010 |
| 67900213A | 2015 |
| 60909-09 | 2009 |
| 60001-55 | 1955 |
| 59986-75 | 1975 |
| 59984-73 | 1973 |
| 679E1 - License Plate Light | |
| 67900194 | 2014 |
| 67900170 | 2014 |
| 680A1 - Decorative Light | |
| 68000088 | 2014 |
| 73309-10 | 2010 |
| 69678-00 | 2000 |
| 680C1 - Incandescent Bulb | |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68000056 | 2012 |
| 68847-09 | 2009 |
| 68163-84 | 1984 |
| 68000038 | 2014 |
| 68167-04 | 2004 |
| 680D1 - Fog Light | |
| 68000020 | 2014 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 72232-96 | 1996 |
| 72596-11 | 2011 |
| 70982-08 | 2008 |
| 72189-04 | 2004 |
| 71044-11 | 2011 |
| 6990 | 2011 |
| 692C2 - Electrical Mounting Bracket | |
| 70111-07 | 2007 |
| 31772-07 | 2007 |
| 72369-08A | 2012 |
| 69123-92A | 1992 |
| 69200052 | 2012 |
| 69200750 | 2014 |
| 69120-91 | 1991 |
| 70354-11 | 2011 |
| 31742-00 | 2000 |
| 69200626 | 2014 |
| 69200785 | 2014 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72587-11 | 2011 |
| 72582-11 | 2011 |
| 692E2 - Fuse / Relay Block Cover | |
| 72586-11 | 2011 |
| 72595-11 | 2011 |
| 692F1 - Wire Harness | |
| 69200707 | 2014 |
| 69200530 | 2013 |
| 69200709 | 2014 |
| 75289-08 | 2008 |
| 72152-94 | 1994 |
| 69200625 | 2014 |
| 69200692 | 2014 |
| 69200425 | 2013 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 70523-06 | 2006 |
| 692G2 - Wire Guide | |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 73152-96BK | 1996 |
| 69200267A | 2014 |
| 72519-09BK | 2009 |
| 72554-09GY | 2009 |
| 74104-98BK | 1998 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 69200529 | 2012 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200268A | 2014 |
| 72161-06 | 2006 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72664-12A | 2013 |
| 72444-07GY | 2007 |
| 72546-09GY | 2009 |
| 72102-94BK | 1994 |
| 69200256 | 2014 |
| 72009-05 | 2005 |
| 69200254 | 2014 |
| 72007-05 | 2005 |
| 72126-94GY | 1994 |
| 72064-06 | 2006 |
| 73198-96 | 1996 |
| 69200220 | 2014 |
| 72518-01 | 2001 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72639-10 | 2010 |
| 70593-08 | 2008 |
| 72907-11 | 2011 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72227-11 | 2011 |
| 72356-95 | 1995 |
| 72549-07 | 2007 |
| 69200283 | 2012 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72593-11 | 2011 |
| 72213-94 | 1994 |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72662-11 | 2012 |
| 72024-08 | 2008 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72254-94 | 1994 |
| 72663-11 | 2011 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 73307-10 | 2010 |
| 9842 | Unknown |
| 72094-06 | 2006 |
| 69200238 | 2011 |
| 69200221 | 2014 |
| 72666-12 | 2012 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 72142-94 | 1994 |
| 69200027 | 2011 |
| 74144-98 | 1998 |
| 72112-94BK | 1994 |
| 29762-09 | 2009 |
| 72449-01 | 2001 |
| 74197-04 | 2004 |
| 72450-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 70974-08A | 2008 |
| 72487-07BK | 2007 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72633-02 | 2002 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 9897 | Unknown |
| 73156-96BK | 1996 |
| 72677-11 | 2011 |
| 73106-96BK | 1996 |
| 74120-08 | 2008 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 74102-98BK | 1998 |
| 72720-07 | 2007 |
| 72011-05 | 2005 |
| 72514-07GY | 2007 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73196-96 | 1996 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 70635-08 | 2008 |
| 72544-07 | 2007 |
| 74154-98 | 1998 |
| 69200222 | 2014 |
| 72295-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900475 | 2015 |
| 70900275B | 2014 |
| 709E1 - Tank Console | |
| 70900359 | 2014 |
| 70900362 | 2014 |
| 70900361 | 2014 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 67873-08A | 2008 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 71500030 | 2012 |
| 72940-11 | 2011 |
| 71748-11 | 2011 |
| 71750-11 | 2011 |
| 72932-11 | 2011 |
| 71500147 | 2013 |
| 72934-11 | 2011 |
| 71500114 | 2012 |
| 72941-11 | 2011 |
| 71500118 | 2012 |
| 72937-11 | 2011 |
| 71500109 | 2012 |
| 71500108 | 2012 |
| 72933-11 | 2011 |
| 72939-11 | 2011 |
| 71500029 | 2012 |
| 71500028 | 2012 |
| 747A1 - Voltage Regulator | |
| 74567-11 | 2011 |
| 72350-11 | 2011 |
| 760A1 - GPS Unit | |
| 76000199 | 2012 |
| 76000198 | 2012 |
| 92492-10 | 2010 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 760D1 - Infotainment Mount | |
| 76000367 | 2014 |
| 76000392 | 2014 |
| 902A1 - Saddlebag | |
| 90201175 | 2015 |
| 90201174 | 2015 |
| 902B1 - Saddlebag Cover | |
| 90201177 | 2015 |
| 90201176 | 2015 |
| 902E1 - Saddlebag Bottom | |
| 90997-11 | 2011 |
| 90694-11 | 2011 |
| 90611-11 | 2011 |
| 90200949 | 2014 |
| 90200950 | 2014 |
| 90200406 | 2011 |
| 90201051 | 2014 |
| 90200407 | 2011 |
| 90200982 | 2014 |
| 90491-11 | 2011 |
| 90201179 | 2015 |
| 90200960 | 2014 |
| 90201178 | 2015 |
| 90200972 | 2014 |
| 90200300 | 2011 |
| 90201027 | 2014 |
| 90201071 | 2014 |
| 903A1 - Lockset | |
| 90300019 | 2011 |
| 90300099 | 2015 |
| 90300085 | 2014 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 90300093 | 2014 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 69995-11 | 2011 |
| 918B1 - Hardware Kit | |
| 91800006 | 2011 |
| 91800007 | 2011 |
| 928A1 - Mechanical Security | |
| 90671-11 | 2011 |
| 931A1 - Protective / Storage Cover | |
| 93100031 | 2013 |
| 936B1 - Cleaner | |
| 98261-91V | 1991 |
| 940A1 - Owner's Kit | |
| 88002-15D | 2015 |
| 940A2 - Owner's Manual | |
| 99659-15 | 2015 |
| 940H1 - Electronic / Digital Media | |
| 94000084 | 2014 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | FUEL TANK: |
| 10102 | CLIP | ALTERNATOR & REGULATOR: FUEL TANK: CONSOLE, FUEL TANK: |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: TRANSMISSION HOUSING: |
| 11105 | O-RING | TRANSMISSION HOUSING: PRIMARY HOUSING: OIL TANK & LINES: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: TRANSMISSION HOUSING: |
| 11143 | RETAINING RING | CLUTCH - TWIN CAM 110™, Assist & Slip: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 11150 | RETAINING RING | SHIFTER, GEAR: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 11292 | O-RING | AIR CLEANER: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 11301 | O-RING | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 11304 | RETAINING RING | FOOTPEGS & FOOTBOARDS: |
| 11379 | RETAINING RING | BRAKE CONTROL, FRONT : |
| 11447 | GROMMET | OIL TANK & LINES: |
| 12052A | OIL SEAL | PRIMARY HOUSING: |
| 12074 | OIL SEAL | TRANSMISSION HOUSING: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 110™: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 2446 | SCREW | LICENSE PLATE BRACKET: |
| 25244-99A | GASKET | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3109 | SCREW | BELT, CHAINS & SPROCKETS: WHEEL, REAR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SHIFTER, GEAR: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34917-06 | GASKET | TRANSMISSION HOUSING: |
| 35654-06 | GASKET | TRANSMISSION HOUSING: |
| 3655A | SCREW | BRAKE CONTROL, REAR: WHEEL, FRONT : |
| 3656 | SCREW | HANDLEBAR: |
| 36805-06 | GASKET | TRANSMISSION HOUSING: |
| 41731-01 | GASKET | BRAKE CONTROL, FRONT : BRAKE LINE & MODULE, REAR, ABS: |
| 41733-88 | GASKET | BRAKE CONTROL, FRONT : BRAKE LINE & MODULE, REAR, ABS: |
| 41751-06A | GASKET | CLUTCH CONTROL: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 45405-75A | SCREW | FORK, FRONT: |
| 45733-48 | OIL SEAL | FORK, FRONT: |
| 45845-77 | O-RING | FORK, FRONT: |
| 45858-77 | SCREW | FORK, FRONT: |
| 4740A | SCREW | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™: |
| 48300-60 | ROLLER BEARING | FORK BRACKET: |
| 53156-86 | BUSHING | HANDLEBAR: |
| 60547-06 | GASKET | PRIMARY HOUSING: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6516HW | WASHER | ENGINE MOUNTS: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | REAR BELT GUARD: FUEL TANK: |
| 7041 | LOCKWASHER | SHIFTER, GEAR: FORK BRACKET: SADDLEBAGS: |
| 7586 | JAMNUT | SADDLEBAGS: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | FOOTPEGS & FOOTBOARDS: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9252 | BALL BEARING | WHEEL, FRONT : WHEEL, REAR: |
| 9276A | BALL BEARING | WHEEL, FRONT : WHEEL, REAR: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 42298-08 | PAD KIT | BRAKE CALIPER, REAR: |
| 45875-84A | OIL SEAL | FORK, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME & JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | STOPLAMP SWITCH | BRAKE LINE & MODULE, REAR, ABS: SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (3 OF 5): SWITCHES: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™: |
| 37909-90 | RING | CLUTCH - TWIN CAM 110™, Assist & Slip: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FILTER | FUEL PUMP: |
| 65296-95A | CLAMP | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68000056 | BULB | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT: |
| 68168-89A | BULB | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT: TURN SIGNALS, REAR: |
| 68973-00 | LENS | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT: TURN SIGNALS, REAR: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63798-99A | OIL FILTER | CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™: |
| 65989-97C | BATTERY | BATTERY: |
| 66373-06 | BATTERY | SWITCHES: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES: LOOSE PARTS: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43118-92A | TIRE | WHEEL, FRONT : |
| 43157-83A | VALVE STEM ASSEMBLY | WHEEL, FRONT : WHEEL, REAR: |
| 43353-03 | TIRE | WHEEL, REAR: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT: |
