2015 HARLEY-DAVIDSON® PARTS CATALOG: VRSC MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99457-15 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2015 V-ROD MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the
United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | H=Revolution®, 1247 cm3 liquid-cooled, fuel
injected J=Revolution®, 1247 cm3 liquid-cooled, fuel
injected 105 HP HDI only | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) J=Brazil (BRZ) L=Asia Pacific (APC) N=India (IND) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) K=Brazil (BRZ) M=Asia Pacific (APC) P=India (IND) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | F=2015 | |
8 | Assembly plant | C=Kansas City, MO USA D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
HH | VRSCDX Night Rod® Special | HP | VRSCF V-Rod Muscle® |
NOTES
ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19973-15K | ENGINE ASSEMBLY (black/gloss black) | VRSCDX |
| 19974-15K | ENGINE ASSEMBLY (polished/platinum) | VRSCF |
CYLINDER HEADS, CAMSHAFTS & VALVES (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 769MA | PLUG (4) | ALL |
| 2 | 966M | SCREW (2) | ALL |
| 3 | 984M | BOLT (8) | ALL |
| 4 | 1014M | SCREW (16) | ALL |
| 5 | 1017M | SCREW (4) | ALL |
| 6 | 1031M | SCREW (8) | ALL |
| 7 | 1043MA | SCREW (2) | ALL |
| 8 | 11391K | O-RING | ALL |
| 9 | 16448-01KA | STUD (4) | ALL |
| 10 | 17147-08KB | CYLINDER HEAD ASSEMBLY, front (black) | VRSCDX |
| 17148-08KB | CYLINDER HEAD ASSEMBLY, rear (not shown) (black) | VRSCDX | |
| 17242-09KA | CYLINDER HEAD ASSEMBLY, front (platinum) | VRSCF | |
| 17246-09KA | CYLINDER HEAD ASSEMBLY, rear (not shown) (platinum) | VRSCF | |
| 11 | 17431-05K | CAMSHAFT ASSEMBLY, intake (2) | ALL |
| 12 | 17421-08K | CAMSHAFT ASSEMBLY, exhaust (2) | ALL |
| 13 | 17423-01K | SPROCKET, camshaft (4) | ALL |
| 14 | 17691-08K | GASKET, cylinder head - front | ALL |
| 17692-08K | GASKET, cylinder head - rear (not shown) | ALL | |
| 15 | 18052-01K | VALVE SPRING, inner valve (8) | ALL |
| 16 | 18055-01K | VALVE SPRING, outer valve (8) | ALL |
| 17 | 18057-01K | COLLET, valve (8) | ALL |
| 18 | 18181-01K | TAPPET (8) | ALL |
| 19 | 18661-01K | COLLAR, valve spring - lower (8) | ALL |
| 20 | 18662-01K | COLLAR, valve spring - upper (8) | ALL |
| 21 | 18663-01K | EXHAUST VALVE (4) | ALL |
| 22 | 18688-06K | INTAKE VALVE (4) | ALL |
| 23 | 18665-01K | VALVE GUIDE (8) | ALL |
| 24 | 18687-01K | SEAL, valve (8) | ALL |
| 25 | 29601-05K | TUBE ASSEMBLY, front breather, w/ 11391K | ALL |
| 26 | 18696-01K | SHIM, 1.825 mm | ALL |
| 18697-01K | SHIM, 1.850 mm | ALL | |
| 18698-01K | SHIM, 1.875 mm | ALL | |
| 18699-01K | SHIM, 1.900 mm | ALL | |
| 18700-01K | SHIM, 1.925 mm | ALL | |
| 18701-01K | SHIM, 1.950 mm | ALL | |
| 18702-01K | SHIM, 1.975 mm | ALL | |
| 18666-01K | SHIM, 2.000 mm | ALL | |
| 18624-01K | SHIM, 2.025 mm | ALL | |
| 18667-01K | SHIM, 2.050 mm | ALL | |
| SHIMS 1.825 mm - 2.050 mm LISTED BELOW | |||
CYLINDER HEADS, CAMSHAFTS & VALVES (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 18625-01K | SHIM, 2.075 mm | ALL |
| 18668-01K | SHIM, 2.100 mm | ALL | |
| 18626-01K | SHIM, 2.125 mm | ALL | |
| 18669-01K | SHIM, 2.150 mm | ALL | |
| 18627-01K | SHIM, 2.175 mm | ALL | |
| 18670-01K | SHIM, 2.200 mm | ALL | |
| 18628-01K | SHIM, 2.225 mm | ALL | |
| 18671-01K | SHIM, 2.250 mm | ALL | |
| 18629-01K | SHIM, 2.275 mm | ALL | |
| 18672-01K | SHIM, 2.300 mm | ALL | |
| 18630-01K | SHIM, 2.325 mm | ALL | |
| 18673-01K | SHIM, 2.350 mm | ALL | |
| 18631-01K | SHIM, 2.375 mm | ALL | |
| 18674-01K | SHIM, 2.400 mm | ALL | |
| 18632-01K | SHIM, 2.425 mm | ALL | |
| 18675-01K | SHIM, 2.450 mm | ALL | |
| 18638-01K | SHIM, 2.475 mm | ALL | |
| 18676-01K | SHIM, 2.500 mm | ALL | |
| 18639-01K | SHIM, 2.525 mm | ALL | |
| 18677-01K | SHIM, 2.550 mm | ALL | |
| 18655-01K | SHIM, 2.575 mm | ALL | |
| 18678-01K | SHIM, 2.600 mm | ALL | |
| 18656-01K | SHIM, 2.625 mm | ALL | |
| 18679-01K | SHIM, 2.650 mm | ALL | |
| 18657-01K | SHIM, 2.675 mm | ALL | |
| 18680-01K | SHIM, 2.700 mm | ALL | |
| 18658-01K | SHIM, 2.725 mm | ALL | |
| 18681-01K | SHIM, 2.750 mm | ALL | |
| 18659-01K | SHIM, 2.775 mm | ALL | |
| 18682-01K | SHIM, 2.800 mm | ALL | |
| 18692-01K | SHIM, 2.825 mm | ALL | |
| 18683-01K | SHIM, 2.850 mm | ALL | |
| 18693-01K | SHIM, 2.875 mm | ALL | |
| 18684-01K | SHIM, 2.900 mm | ALL | |
| 18694-01K | SHIM, 2.925 mm | ALL | |
| 18685-01K | SHIM, 2.950 mm | ALL | |
| 18695-01K | SHIM, 2.975 mm | ALL | |
| 18686-01K | SHIM, 3.000 mm | ALL | |
| SHIMS 2.075 mm - 3.500 mm LISTED BELOW | |||
PISTONS & CRANKSHAFTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 983M | BOLT (6) | ALL |
| 2 | 11314K | O-RING (4) | ALL |
| 3 | 11329K | KEY (2) | ALL |
| 4 | 21910-06K | PISTON RING SET KIT | VRSCDX |
| 22919-05K | PISTON RING SET KIT | VRSCF | |
| 5 | 22953-08K | PISTON PIN (2) | ALL |
| 6 | 22121-01K | RETAINING RING (4) | ALL |
| 7 | 22928-05KA | PISTON/LINER ASSEMBLY, w/ 2, 5 & 6 (2) | ALL |
| 8 | 22934-08K | PISTON ASSEMBLY KIT, w/ pistons, rings, & pins (2) | ALL |
| 9 | 23712-01K | PRIMARY CRANK GEAR | ALL |
| 10 | 23725-01K | CRANK ASSEMBLY, w/ 11329K | ALL |
| 11 | 24307-01K | CONNECTING ROD ASSEMBLY, w/ 24311-01K (2) | ALL |
| 12 | 24311-01K | BOLT, connecting rod (4) | ALL |
| 13 | 24312-01K | BEARING, thrust (2) | ALL |
| 14 | 24409-01K | MAIN BEARING SHELL (red) (2) | ALL |
| 24410-01K | MAIN BEARING SHELL (green) (2) | ALL | |
| 24411-01K | MAIN BEARING SHELL (blue) (2) | ALL | |
| 15 | 24412-01K | ROD BEARING SHELL (red) (2) | ALL |
| 24413-01K | ROD BEARING SHELL (blue) (2) | ALL |
CRANKCASE, UPPER & LOWER
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | ALL |
| 2 | 482K | DOWEL (4) | ALL |
| 3 | 485K | PIN | ALL |
| 4 | 486K | PIN | ALL |
| 5 | 487K | PIN (4) | ALL |
| 6 | 488K | DOWEL RING (2) | ALL |
| 7 | 965M | SCREW | ALL |
| 8 | 968M | SCREW (4) | ALL |
| 9 | 970M | SCREW (7) | ALL |
| 10 | 972M | SCREW | ALL |
| 11 | 973M | SCREW (3) | ALL |
| 12 | 1025M | SCREW (4) | ALL |
| 13 | 6137K | WASHER | ALL |
| 14 | 24457-09K | CRANKCASE SET KIT (not shown) (no dipstick) (platinum) | VRSCF |
| 24467-09K | CRANKCASE SET KIT (black) | VRSCDX | |
| 15 | 27798-08 | STUD, bracket O2 sensor | ALL |
CAMSHAFT COVERS - FRONT SHOWN
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (6) | ALL |
| 2 | 1004M | SCREW (16) | ALL |
| 3 | 3716M | SCREW (4) | ALL |
| 4 | 11392K | O-RING | ALL |
| 5 | 17010-01K | GASKET KIT, cam cover | ALL |
| 6 | 17416-01KA | CAM COVER GASKET, outer (2) | ALL |
| 7 | 17418-01K | CAM COVER GASKET, inner (2) | ALL |
| 8 | 17641-01K | SECONDARY TOP GUIDE (2) | ALL |
| 9 | 17679-04K | CAM COVER, lower front (polished) | VRSCF |
| 25700075 | CAM COVER, lower front (denim black) | VRSCDX | |
| 10 | 17680-04K | CAM COVER, upper (polished) (2) | VRSCF |
| 25700079 | CAM COVER, upper (denim black) (2) | VRSCDX | |
| 11 | 17666-01K | CAM COVER GASKET, upper (2) | ALL |
| 12 | 17689-04K | CAM COVER, lower rear (polished) | VRSCF |
| 25700077 | CAM COVER, lower rear (denim black) | VRSCDX | |
| 13 | 63654-04K | FITTING ASSEMBLY, breather, w/ 11392K | ALL |
CAMSHAFT DRIVE SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | ALL |
| 2 | 485K | PIN | ALL |
| 3 | 489K | DOWEL | ALL |
| 4 | 966M | SCREW (2) | ALL |
| 5 | 1007M | SCREW | ALL |
| 6 | 17406-01KA | CHAIN, primary cam drive | ALL |
| 7 | 17407-01KA | CHAIN, secondary cam drive (2) | ALL |
| 8 | 17629-01K | TENSIONER ASSEMBLY, primary, w/ 489K, guide, shaft, rings & housing | ALL |
| 9 | 17632-01K | TENSIONER ASSEMBLY, secondary (2) | ALL |
| 10 | 17637-01K | GUIDE TENSIONER, primary - front | ALL |
| 11 | 17638-01K | GUIDE TENSIONER, secondary - front | ALL |
| 12 | 17639-01K | GUIDE TENSIONER, secondary - rear | ALL |
| 13 | 17640-01K | GUIDE TENSIONER, secondary (2) | ALL |
| 14 | 25800-01K | SPROCKET, triple | ALL |
| 15 | 40095-01K | SHIM, tensioner | ALL |
ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1033M | BOLT | ALL |
| 2 | 11335K | E-CLIP (3) | ALL |
| 3 | 14794-01K | BEARING, left | ALL |
| 4 | 14795-01K | BEARING, right | ALL |
| 5 | 14791-01KA | BALANCE SHAFT | ALL |
| 6 | 14758-01K | GEAR, balance shaft | ALL |
WATER PUMP & THERMOSTAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (7) | ALL |
| 2 | 1030M | SCREW (2) | ALL |
| 3 | 1023M | SCREW | ALL |
| 4 | 11312K | O-RING (4) | ALL |
| 5 | 25911-01K | WASHER | ALL |
| 6 | 26582-01KA | SHAFT, intermediate | ALL |
| 7 | 26737-01K | TUBE, thermostat (2) | ALL |
| 8 | 26740-01K | THERMOSTAT ASSEMBLY (platinum) | VRSCF |
| 26769-04K | THERMOSTAT ASSEMBLY (black) | VRSCDX | |
| 9 | 25295-04K | COVER, water pump (polished) | VRSCF |
| 26821-07KA | COVER, water pump (gloss black) | VRSCDX | |
| 10 | 26749-01K | GASKET OUTER, water pump | ALL |
| 11 | 26750-01KA | HOUSING, water pump assembly, w/ 11900003 (platinum) | VRSCF |
| 26759-04KA | HOUSING, water pump assembly, w/ 11900003 (black) | VRSCDX | |
| 12 | 26752-01K | GASKET, water pump | ALL |
| 13 | 26765-01K | GASKET, thermostat | ALL |
| 14 | 11900003 | O-RING (2) | ALL |
| 15 | 32700028 | SENSOR, engine coolant temperature | ALL |
OIL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (3) | ALL |
| 2 | 11312K | O-RING | ALL |
| 3 | 11331K | O-RING | ALL |
| 4 | 26575-01KB | OIL PUMP ASSEMBLY (978M not part of assembly) | ALL |
ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3701M | SCREW (6) | ALL |
| 2 | 3703M | SCREW | ALL |
| 3 | 3704M | STUD (2) | ALL |
| 4 | 3966M | SCREW | ALL |
| 5 | 3919M | SCREW (2) | ALL |
| 6 | 3920M | SCREW | ALL |
| 7 | 6839M | WASHER (8) | ALL |
| 8 | 7427M | NUT (4) | ALL |
| 9 | 16298-05A | ENGINE MOUNT (2) | ALL |
| 10 | 16299-01 | BRACKET, engine mount rear | ALL |
| 11 | 16306-04A | STABLILIZER LINK | ALL |
| 12 | 16307-05 | ENGINE MOUNT | ALL |
| 13 | 16308-01 | BRACKET, engine mount front | ALL |
| 14 | 16311-05 | BRACKET, mount front | ALL |
| 15 | 16312-04A | SPACER | ALL |
| 16 | 94756-01 | WASHER | ALL |

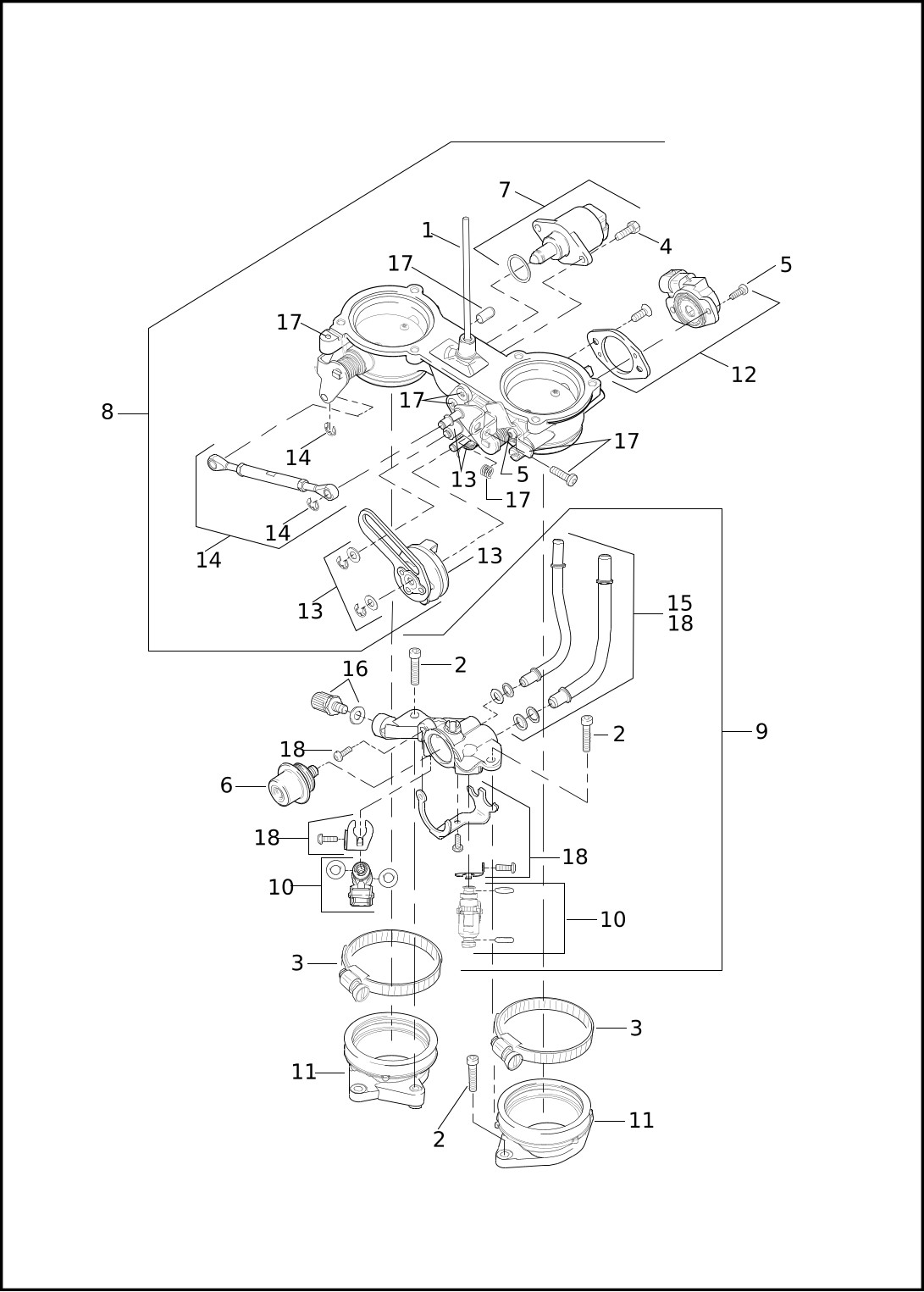

THROTTLE BODY
| Index No. | Part No. | Description | Model(s) |
| 1 | 964 | STUD | ALL |
| 2 | 1114M | SCREW (6) | ALL |
| 3 | 10232K | HOSE CLAMP (2) | ALL |
| 4 | 27216-95 | SCREW (2) | ALL |
| 5 | 27225-01 | SCREW (3) | ALL |
| 6 | 27408-01 | FUEL PRESSURE REGULATOR | ALL |
| 7 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ 27216-95, o-ring, & motor | ALL |
| 8 | 27657-01 | THROTTLE BODY ASSEMBLY, w/ 7, 12, 13, 14 & 17 | ALL |
| 9 | 27662-01B | FUEL RAIL ASSEMBLY, w/ 6, 10 & 16 | ALL |
| 10 | 27665-01A | INJECTOR, w/ o-rings | ALL |
| 11 | 27669-01K | RUBBER BOOT (2) | ALL |
| 12 | 27975-01 | THROTTLE POSITION SENSOR KIT, w/ 27225-01, screws for sensor, plate t.p.s. & throttle position sensor | ALL |
| 13 | 27977-01 | CAM LEVER KIT, w/ bushing, clip, spring cam, shim roller, cam roller assembly & cam lever | ALL |
| 14 | 27982-01 | LINKAGE ROD KIT, w/ bushing, clip, linkage rod assembly, nut & rod end | ALL |
| 15 | 27990-01 | FUEL TUBE KIT | ALL |
| 16 | 27993-01 | CHECK VALVE BODY ASSEMBLY, w/ washers | ALL |
| 17 | 27995-01 | HARDWARE KIT, throttle body, w/ 27216-95, 27225-01, shim, cable bracket, washer shaft purge tube cap, clip, spring, screws & o-ring | ALL |
| 18 | 28002-01 | FUEL RAIL HARDWARE KIT, w/ o-rings, washer & pressure regulator plate | ALL |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW (6) | ALL |
| 2 | 9998 | CLAMP | ALL |
| 3 | 11361 | O-RING | ALL |
| 4 | 24927-01 | PLUG | ALL |
| 5 | 27388-01 | SENSOR, intake air temperature, w/11361 | ALL |
| 6 | 28862-01 | O-RING (2) | ALL |
| 7 | 28863-01 | CAP | ALL |
| 8 | 29434-03A | COVER, w/ 29647-01 | ALL |
| 9 | 29435-05A | BOTTOM, w/ 29504-05B & 29505-05A | ALL |
| 10 | 29436-01 | GASKET | ALL |
| 11 | 29437-01A | FILTER ELEMENT | ALL |
| 12 | 29438-01 | VELOCITY STACK, front - 115 H.P. (Domestic, California, Canada, HDI, Australia, England, Japan, Brazil) | ALL |
| 29566-06 | VELOCITY STACK, front - 105 H.P. (HDI) | ALL | |
| 13 | 29439-01 | GASKET, throttle body | ALL |
| 14 | 29519-01 | CLIP (7) | ALL |
| 15 | 29521-01 | VELOCITY STACK, rear - 115 H.P. (Domestic, California, Canada, HDI, Australia, England, Japan, Brazil) | ALL |
| 29568-06 | VELOCITY STACK, rear - 105 H.P. (HDI) | ALL | |
| 16 | 29522-01 | WING NUT | ALL |
| 17 | 29504-05B | BREATHER TUBE, front | ALL |
| 18 | 29505-05A | BREATHER TUBE, rear | ALL |
| 19 | 29647-01 | CLIP | ALL |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 966M | SCREW (2) | ALL |
| 3 | 978M | SCREW (3) | ALL |
| 4 | 1035M | SCREW | ALL |
| 5 | 1027M | SCREW | ALL |
| 6 | 6176MA | WASHER | ALL |
| 7 | 8002K | NEEDLE ROLLER & CAGE ASSEMBLY | ALL |
| 8 | 10006 | CABLE STRAP | ALL |
| 9 | 10108 | CLIP | ALL |
| 10 | 11328M | RETAINING CLIP | ALL |
| 11 | 25311-04K | ALTERNATOR COVER (polished) | VRSCF |
| 25899-07KA | ALTERNATOR COVER (gloss black) | VRSCDX | |
| 12 | 30731-01K | ROTOR ASSEMBLY, w/ ball catch assembly | ALL |
| 13 | 30734-08KA | STATOR ASSEMBLY, w/ plug assembly stator | ALL |
| 14 | 31301-01K | GEAR, ball clutch | ALL |
| 15 | 31303-01K | LIMITER ASSEMBLY | ALL |
| 16 | 74440-08 | VOLTAGE REGULATOR | ALL |
ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1024M | SCREW (2) | ALL |
| 2 | 32335-04 | SPARK PLUGS (2) | ALL |
| 3 | 32477-01A | COIL ASSEMBLY (2) | ALL |
| 4 | 32534-11 | ECM, Requires digital tech programing | ALL |
| 5 | 70394-07A | ELECTRICAL CADDY | ALL |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 1009M | SCREW (2) | ALL |
| 3 | 3701M | SCREW (2) | ALL |
| 4 | 6298M | WASHER | ALL |
| 5 | 6839M | WASHER (2) | ALL |
| 6 | 11289A | O-RING (2) | ALL |
| 7 | 11290 | O-RING | ALL |
| 8 | 11291 | SEAL | ALL |
| 9 | 11362K | O-RING | ALL |
| 10 | 24986-01K | THROTTLE PLUG ASSEMBLY, w/ 11362K | ALL |
| 11 | 26561-99 | SWITCH, oil pressure | ALL |
| 12 | 27667-01K | BRACKET | ALL |
| 13 | 32313-01A | SENSOR, crankshaft position, w/ 11289A & 74194-98 | ALL |
| 14 | 32417-10 | MAP SENSOR, w/11291 | ALL |
| 15 | 33902-98A | SWITCH, neutral gear, w/11290 | ALL |
| 16 | 74194-98 | TERMINAL (2) | ALL |
| 17 | 74402-05B | SPEED SENSOR, w/ 11289A | ALL |
STARTER MOTOR & SOLENOID
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | ALL |
| 2 | 7495 | NUT (3) | ALL |
| 3 | 10110 | CLIP | ALL |
| 4 | 11346K | O-RING | ALL |
| 5 | 31717-01K | STARTER MOTOR ASSEMBLY, w/11346K (silver) | VRSCF |
| 31718-07K | STARTER MOTOR ASSEMBLY, w/11346K (black) | VRSCDX | |
| 6 | 70018-07 | BOOT | ALL |
| 7 | 70106-07A | CABLE, solenoid to battery w/10065 &70003-04 | ALL |
| 8 | 70108-07A | CABLE ASSEMBLY, solenoid to starter, w/ 70578-89 | ALL |
| 9 | 70578-89 | BOOT | ALL |
| 10 | 71474-07 | SOLENOID, w/ 73152-96BK & 73191-96 | ALL |
| 11 | 73152-96BK | HOUSING RECEPTACLE, 2-way | ALL |
| 12 | 73191-96 | RECEPTACLE CONTACT (2) | ALL |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | ALL |
| 2 | 4793M | SCREW (2) | ALL |
| 3 | 11356K | SNAP RING - silver | ALL |
| 4 | 11355K | SNAP RING - black | ALL |
| 5 | 12071K | SEAL | ALL |
| 6 | 33757-01A | SHIFTER LEVER ASSEMBLY, w/ 42569-03 | ALL |
| 7 | 33738-04 | SHIFTER ROD, long (ALL HP) (HH Japan) | VRSCF |
| 33758-01 | SHIFTER ROD, short (ALL HH - except Japan) | VRSCDX | |
| 8 | 34567-01 | LEVER, shift rod | ALL |
| 9 | 34611-65A | SHIFTER KIT, w/ peg & rubber | VRSCDX |
| 10 | 34647-04 | SPACER, peg assembly (ALL HP) (HH Japan) | VRSCF |
| 11 | 34696-04 | PEG, shift lever (ALL HP) (HH Japan) | VRSCF |
| 12 | 35017-01K | SHIFT ACTUATOR KIT | ALL |
| 13 | 35420-01K | BUSHING | ALL |
| 14 | 35428-01KA | SHIFTER FORK, 1st & 3rd gears | ALL |
| 15 | 35429-01KA | SHIFTER FORK, 2nd gear | ALL |
| 16 | 35430-01KA | SHIFTER FORK, 4th & 5th gears | ALL |
| 17 | 35432-01K | SHIFT SHAFT | ALL |
| 18 | 35434-01K | SHIFTER FORK | ALL |
| 19 | 35441-01K | SHIFT DRUM AXIS | ALL |
| 20 | 35442-01K | BUSHING | ALL |
| 21 | 35443-01K | SPRING | ALL |
| 22 | 35445-01K | SPRING | ALL |
| 23 | 42569-03 | BUSHING | ALL |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1021M | SCREW (8) | ALL |
| 2 | 7910M | NUT | ALL |
| 3 | 8026K | BEARING (5) | ALL |
| 4 | 8027K | BEARING (2) | ALL |
| 5 | 8028K | BEARING | ALL |
| 6 | 8029K | BEARING | ALL |
| 7 | 11200K | RING (2) | ALL |
| 8 | 11353K | O-RING | ALL |
| 9 | 11354K | SEAL | ALL |
| 10 | 12072K | SEAL | ALL |
| 11 | 34007-01K | CAP | ALL |
| 12 | 35001-01K | BEARING RETAINER, upper - outer | ALL |
| 13 | 35002-01K | BEARING RETAINER, upper - inner | ALL |
| 14 | 35003-01K | BEARING RETAINER, lower - outer | ALL |
| 15 | 35004-01K | BEARING RETAINER, lower - inner | ALL |
| 16 | 35423-04K | FLANGE OUTPUT | ALL |
| 17 | 35433-01K | SEAL CARRIER ASSEMBLY, w/ 11353K & 12072K | ALL |
| 18 | 35451-01K | LOCKING PLATE | ALL |
| 19 | 35454-01KA | INPUT SHAFT ASSEMBLY | ALL |
| 20 | 35455-01KA | OUTPUT SHAFT ASSEMBLY KIT | ALL |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (3) | ALL |
| 2 | 8008M | NUT | ALL |
| 3 | 8885 | BEARING | ALL |
| 4 | 11347K | O-RING | ALL |
| 5 | 11363K | RETAINING RING | ALL |
| 6 | 36699-01KB | CLUTCH SHELL | ALL |
| 7 | 36701-08KA | CLUTCH HUB | ALL |
| 8 | 36702-08K | CLUTCH PLATE (7) | ALL |
| 9 | 36704-08KA | CLUTCH PRESSURE PLATE | ALL |
| 10 | 36705-08K | SPRING (4) | ALL |
| 11 | 36706-08K | BOLT (4) | ALL |
| 12 | 36707-01K | COLLAR | ALL |
| 13 | 36709-01K | THRUST WASHER | ALL |
| 14 | 36710-08K | LIFTER PLATE | ALL |
| 15 | 36711-08K | SEAT | ALL |
| 16 | 36712-08K | SPRING | ALL |
| 17 | 36713-01K | FRICTION CLUTCH (2) | ALL |
| 18 | 36720-08K | FRICTION CLUTCH (7) | ALL |
| 19 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | ALL |
| 20 | 36757-05K | BLEEDER SCREW, w/ o-ring | ALL |
| 21 | 36779-05K | SECONDARY CLUTCH ACTUATOR | ALL |
| 36781-01K | SECONDARY CLUTCH ACTUATOR, repair kit (chrome) w/ 36779-05K, & cover | VRSCF | |
| 22 | 36780-01K | CONTACT BUTTON | ALL |
| 23 | 37909-90 | RETAINING RING | ALL |
| 24 | 37938-08KA | CLUTCH KIT | ALL |
| 25 | 38841-08K | CLUTCH PLATE | ALL |
| 26 | 38842-08K | SEAT, spring (4) | ALL |
OIL PAN, FILTER & PICKUP COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (48) | ALL |
| 2 | 1009M | SCREW (5) | ALL |
| 3 | 3729M | SCREW (3) | ALL |
| 4 | 7124 | LOCKWASHER | ALL |
| 5 | 10994K | O-RING (2) | ALL |
| 6 | 11130K | O-RING | ALL |
| 7 | 11140 | O-RING (2) | ALL |
| 8 | 11312K | O-RING (2) | ALL |
| 9 | 11341K | O-RING | ALL |
| 10 | 11347K | O-RING | ALL |
| 11 | 11384K | RETAINER WIRE CLIP (2) | ALL |
| 12 | 17011-01KB | GASKET KIT, ENGINE COMPLETE W/O HEAD GASKETS | ALL |
| 13 | 25080-01K | GASKET, cover alternator | ALL |
| 14 | 25292-09K | COVER, clutch (not shown) (polished) | VRSCF |
| 25894-07KA | COVER, clutch (gloss black) | VRSCDX | |
| 15 | 25311-04K | ALTERNATOR COVER (polished) | VRSCF |
| 25899-07KA | ALTERNATOR COVER (gloss black) | VRSCDX | |
| 16 | 25891-01K | GASKET, clutch cover | ALL |
| 17 | 25943-08K | COVER, derby (polished) | ALL |
| 18 | 26034-01K | GASKET, baffle plate | ALL |
| 19 | 26103-01K | OIL PAN (platinum) | VRSCF |
| 26107-04K | OIL PAN (black) | VRSCDX | |
| 20 | 26393-01K | OIL PICKUP ASSEMBLY, w/ 11312K & oil pickup | ALL |
| 21 | 26399-01K | OIL FILTER ADAPER | ALL |
| 22 | 26539-01K | OIL FILTER MOUNT (platinum) | VRSCF |
| 26762-04K | OIL FILTER MOUNT (black) | VRSCDX | |
| 23 | 26541-01K | OIL FILL PLUG ASSEMBLY, w/ 11341K & dipstick | VRSCF |
| 26778-04K | OIL FILL PLUG ASSEMBLY, w/ 11341K & dipstick | VRSCDX | |
| 24 | 26542-01K | PLUG, oil drain, w/ magnet | ALL |
| 25 | 34877-07 | EMBLEM, cover secondary clutch actuator | VRSCDX |
| 34918-08 | EMBLEM, cover secondary clutch actuator | VRSCF | |
| 26 | 34878-07A | COVER, secondary clutch actuator (gloss black) | VRSCDX |
| 34927-05A | COVER, secondary clutch actuator (polished) | VRSCF | |
| 27 | 36757-05K | BLEEDER SCREW | ALL |
| 28 | 36779-05K | SECONDARY CLUTCH ACTUATOR, w/ 11347K, & 36757-05K | ALL |
| 36781-01K | SECONDARY CLUTCH ACTUATOR, repair kit (chrome) w/36779-05K, & cover | VRSCF | |
| 29 | 63650-04K | CONNECTOR ASSEMBLY, w/ 10994K, 11140, 11384K, & fitting (2) | ALL |
| 30 | 63793-01K | ENGINE OIL FILTER | ALL |
| 31 | 70441-01A | CABLE, engine ground to chassis, w/ 70578-89 | ALL |
| 32 | 70578-89 | BOOT | ALL |
BELT & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 966M | SCREW (3) | ALL |
| 2 | 4543 | SCREW (3) | ALL |
| 3 | 6110 | WASHER (3) | ALL |
| 4 | 6859M | WASHER (3) | ALL |
| 5 | 7910M | NUT | ALL |
| 6 | 9254 | BEARING | ALL |
| 7 | 11354K | SEAL | ALL |
| 8 | 11542 | BUSHING (6) | ALL |
| 9 | 26812-07 | SPACER (3) | ALL |
| 10 | 34007-01K | CAP | ALL |
| 11 | 37124-08 | COVER ASSEMBLY, sprocket, w/ 4543, 6110, 76231-08 & cover (polished) | VRSCF |
| 34800001 | COVER ASSEMBLY, sprocket, w/ 4543, 6110, cover & insert (denim black) | VRSCDX | |
| 12 | 35423-04K | FLANGE OUTPUT | ALL |
| 13 | 35451-01K | LOCKING PLATE | ALL |
| 14 | 40144-07 | REAR BELT - 151T (Domestic, California, Canada) | ALL |
| 40145-07 | REAR BELT - 152T (HDI, Australia, England, Japan, H105, Brazil) | ALL | |
| 15 | 40656-06B | SPROCKET, transmission 28T (Domestic, California, Canada) | ALL |
| 40657-06B | SPROCKET, transmission 30T (HDI, Australia, England, Japan, H105, Brazil) | ALL | |
| 16 | 40399-01M | SCREW (3) | ALL |
| 17 | 40590-07 | SPROCKET ASSEMBLY - 72T, w/ sprocket (black) | ALL |
| 18 | 76231-08 | INSERT | VRSCF |
RADIATOR & OIL COOLER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3725M | NUT (2) | ALL |
| 2 | 5235 | PLUG | ALL |
| 3 | 5236M | SCREW (2) | ALL |
| 4 | 5237M | SCREW (8) | ALL |
| 5 | 5238M | LOCKNUT (4) | ALL |
| 6 | 6838M | WASHER (2) | ALL |
| 7 | 11101 | O-RING (2) | ALL |
| 8 | 11568 | BUSHING (2) | ALL |
| 26721-01C | RADIATOR/OIL COOLER ASSEMBLY KIT | ALL | |
| 9 | 26724-04 | FAN ASSEMBLY | ALL |
| 10 | 26757-01 | GROMMET (4) | ALL |
| 11 | 26758-01 | SPACER (2) | ALL |
| 12 | 26772-04 | BRACKET | ALL |
| 13 | 62909-04 | CAP | ALL |
| 14 | 62940-04A | OIL LINE, oil cooler - inlet | ALL |
| 15 | 62941-04A | OIL LINE, oil cooler - outlet | ALL |
| 16 | 73152-96BK | HOUSING RECEPTACLE, 2-place (2) | ALL |
| 17 | 73191-96 | RECEPTACLE CONTACT (4) | ALL |
| 18 | 62700054 | OIL COOLER ASSEMBLY | ALL |
| 19 | 26800027 | RADIATOR | ALL |
| 20 | 26800028 | RADIATOR BRACKET, left | ALL |
| 21 | 26800029 | RADIATOR BRACKET, right | ALL |
COOLANT HOSES & BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | ALL |
| 2 | 5234 | PLUG ASSEMBLY | ALL |
| 3 | 7036 | WASHER | ALL |
| 4 | 9830 | CLAMP | ALL |
| 5 | 10006 | CABLE STRAP (2) | ALL |
| 6 | 10014 | CLAMP | ALL |
| 7 | 11519 | BUSHING (2) | ALL |
| 8 | 26730-01 | CLAMP (3) | ALL |
| 9 | 26733-01 | CAP, pressure | ALL |
| 10 | 26753-01 | HOSE COOLANT, engine out front | ALL |
| 11 | 26754-01 | HOSE COOLANT, engine out rear | ALL |
| 12 | 26755-01 | HOSE COOLANT, engine in front | ALL |
| 13 | 26756-01 | HOSE COOLANT, engine in rear | ALL |
| 14 | 26767-01 | PIPE COOLANT, engine out | ALL |
| 15 | 26768-01A | PIPE COOLANT, engine in | ALL |
| 16 | 26770-01 | CLAMP, shrink (4) | ALL |
| 17 | 26777-01 | CLAMP | ALL |
| 18 | 26780-05A | CAP | ALL |
| 19 | 26810-06A | COVER, hose (satin black) | VRSCF |
| 66306-07DH | COVER, hose (vivid black) | VRSCDX | |
| 20 | 26790-01 | CLAMP (black) (3) | ALL |
| 21 | 26803-07A | COOLANT BOTTLE & CAP ASSEMBLY, w/ 26780-05A & bottle | ALL |
| 22 | 26834-08 | HOSE, drain | ALL |
| 23 | 26835-08 | SLEEVE, hose | ALL |
| 24 | 62943-01 | CLAMP, drain hose (2) | ALL |
| 25 | 62953-09 | HOSE, drain coolant bottle to ground | ALL |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 10006 | CABLE STRAP | ALL |
| 5 | 10177 | CABLE STRAP | ALL |
| 6 | 11143 | RETAINING RING (2) | ALL |
| 7 | 38744-09A | MASTER CYLINDER ASSEMBLY (black) | ALL |
| 8 | 38658-01B | LINE ASSEMBLY, clutch (silver) | VRSCF |
| 38692-04C | LINE ASSEMBLY, clutch (black) | VRSCDX | |
| 9 | 41750-06B | BANJO BOLT | ALL |
| 10 | 41756-08 | GASKET (2) | ALL |
| 11 | 42145-06 | SIGHT GLASS KIT | ALL |
| 12 | 42876-06A | CLUTCH LEVER KIT, w/ 11143 | ALL |
| 13 | 45050-06 | PIVOT PIN KIT, w/ 38738-08 | ALL |
| 14 | 45138-08A | HALF-CLAMP, master cylinder (black) | ALL |
| 15 | 37200096 | REPAIR KIT, master cylinder | ALL |
| 16 | 46322-06 | GASKET COVER | ALL |
| 17 | 46324-06 | COVER MASTER CYLINDER ASSEMBLY, w/ 46322-06 | ALL |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 4890 | BLEEDER SCREW (2) | ALL |
| 4 | 6101 | WASHER (2) | ALL |
| 5 | 41750-06B | BANJO BOLT | ALL |
| 6 | 41751-06A | GASKET (4) | ALL |
| 7 | 41756-08 | GASKET (2) | ALL |
| 8 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 9 | 42853-06 | CAP (2) | ALL |
| 10 | 42854-06 | SIGHT GLASS KIT | ALL |
| 11 | 42855-06C | COVER KIT, w/ 42856-06, 42857-06B & 42858-06A (black) | ALL |
| 12 | 42856-06 | DECAL | ALL |
| 13 | 42857-06B | GASKET | ALL |
| 14 | 42858-06A | SCREW (2) | ALL |
| 15 | 42859-06B | HAND LEVER, w/ 42860-06B | ALL |
| 16 | 42860-06B | PIVOT PIN | ALL |
| 17 | 42861-06B | PUSHROD KIT | ALL |
| 18 | 42862-06B | REPAIR KIT, master cylinder (11/16 inch diameter) | ALL |
| 19 | 44551-08E | MASTER CYLINDER ASSEMBLY (black) | ALL |
| 20 | 42020-09 | BRAKE LINE, non ABS | VRSCF |
| 41800134 | BRAKE LINE, non ABS | VRSCDX | |
| 21 | 45138-08A | HALF-CLAMP, master cylinder (black) | ALL |
| 22 | 41700367 | BUTTON, anti-bubble | ALL |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4974M | SCREW (2) | VRSCF |
| 2 | 7432M | NUT (2) | VRSCF |
| 3 | 7155 | LOCKWASHER (4) | ALL |
| 4 | 91909-03B | MIRROR KIT, right | VRSCDX |
| 5 | 91910-03B | MIRROR KIT, left | VRSCDX |
| 6 | 92094-09 | MIRROR, right | VRSCF |
| 7 | 92095-09 | MIRROR, left | VRSCF |
BRAKE LINES, ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2228 | SCREW | ALL |
| 2 | 3707M | SCREW (5) | ALL |
| 3 | 3731M | SCREW | ALL |
| 4 | 4240 | SCREW (5) | ALL |
| 5 | 4741A | SCREW | ALL |
| 6 | 4890 | BLEEDER SCREW (2) | ALL |
| 7 | 6859M | WASHER | ALL |
| 8 | 7495 | NUT | ALL |
| 9 | 9907 | WIRE TERMINAL (2) | ALL |
| 10 | 10006 | CABLE STRAP (2) | ALL |
| 11 | 10231 | CLAMP (5) | ALL |
| 12 | 10390 | J-CLIP | ALL |
| 13 | 10289A | CLIP (2) | ALL |
| 14 | 10867 | CLAMP | ALL |
| 15 | 11904 | GASKET | ALL |
| 16 | 41750-06B | BANJO BOLT (6) | ALL |
| 17 | 41751-06A | GASKET (11) | ALL |
| 18 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 19 | 41855-08 | BRACKET, ABS mount - top | ALL |
| 20 | 41861-08 | BRACKET, ABS mount - left | ALL |
| 21 | 42021-09 | BRAKE LINE, front master cylinder to ABS module | VRSCF |
| 41800136 | BRAKE LINE, front master cylinder to ABS module | VRSCDX | |
| 22 | 42022-09A | BRAKE LINE, ABS module to front brake caliper | VRSCF |
| 41800135 | BRAKE LINE, ABS module to front brake caliper | VRSCDX | |
| 23 | 44724-08A | BRAKE LINE, ABS module to rear master cylinder | ALL |
| 24 | 44725-08A | BRAKE LINE, ABS module to rear brake caliper | ALL |
| 25 | 42853-06 | CAP (2) | ALL |
| 26 | 48344-09 | HYDRAULIC CONTROL UNIT | ALL |
| 27 | 40649-08 | ELECTRONIC CONTROL UNIT, w/ 11904 | ALL |
| 28 | 66208-08 | COVER, ABS module | ALL |
| 29 | 66494-01 | PAD | ALL |
| 30 | 70631-08 | CLIP, front (3) | ALL |
| 70635-08 | CLIP, rear (4) | ALL | |
| 31 | 72023-51E | STOPLIGHT SWITCH, rear w/ 9907 | ALL |
| 72547-08 | DIODE ASSEMBLY ABS, is part of the ABS wire harness | ALL |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 3731M | SCREW | ALL |
| 3 | 4240 | SCREW (5) | ALL |
| 4 | 7951 | JAMNUT | ALL |
| 5 | 10006 | CABLE STRAP (2) | ALL |
| 6 | 10231 | CLAMP (5) | ALL |
| 7 | 10289A | CLIP, brakeline (2) | ALL |
| 8 | 11608 | CLAMP (2) | ALL |
| 9 | 41751-06A | GASKET (4) | ALL |
| 10 | 41750-06B | BANJO BOLT (2) | ALL |
| 11 | 41967-07B | BRAKE LINE ASSEMBLY, non ABS | ALL |
| 12 | 42375-87 | SCREW (2) | ALL |
| 13 | 42460-80B | CLEVIS PIN | ALL |
| 14 | 42569-03 | BUSHING | ALL |
| 15 | 42883-06A | MASTER CYLINDER REPAIR KIT | ALL |
| 16 | 42884-06A | MASTER CYLINDER PUSHROD KIT | ALL |
| 17 | 42885-06 | BOOT | ALL |
| 18 | 42886-06 | SPRING | ALL |
| 19 | 42887-06 | RESERVOIR PORT KIT | ALL |
| 20 | 42888-06 | HOSE | ALL |
| 21 | 42889-06 | SPRING RETENTION KIT | ALL |
| 22 | 43914-06 | RESERVOIR BODY | ALL |
| 23 | 43915-06 | COVER | ALL |
| 24 | 43917-01 | GASKET | ALL |
| 25 | 44738-06 | BRAKE PEDAL ASSEMBLY, w/ 42569-03 (Domestic, HDI, England, Australia, Japan, H105, Brazil) | ALL |
| 26 | 44740-06A | MASTER CYLINDER ASSEMBLY | ALL |
| 27 | 72023-51E | STOPLIGHT SWITCH | ALL |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | ALL |
| 2 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 3 | 42849-08 | PIN BRAKE PAD, w/ clip (2) | ALL |
| 4 | 42897-08 | BRAKE PAD KIT, w/ 42849-08 (2) | ALL |
| 5 | 42851-06 | COVER (2) | ALL |
| 6 | 42852-06A | SPRING PAD (2) | ALL |
| 7 | 44160-00 | BOLT, caliper mounting (4) | ALL |
| 8 | 44731-08 | CALIPER ASSEMBLY, right - not shown (black) | ALL |
| 44732-08 | CALIPER ASSEMBLY, left (black) | ALL | |
| 9 | 70505-09 | BRACKET - ABS, wire clip speed sensor | ALL |
| 10 | 70494-08 | WIRE CLIP - ABS, speed sensor | ALL |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW | ALL |
| 2 | 4597M | SCREW (2) | ALL |
| 3 | 42850-06B | BRAKE PAD KIT, w/ 42865-06B | ALL |
| 4 | 42853-06 | CAP | ALL |
| 5 | 42863-06 | BUMPER | ALL |
| 6 | 42865-06B | PIN BRAKE PAD, w/ clip | ALL |
| 7 | 42866-06 | COVER | ALL |
| 8 | 42867-06A | SPRING PAD KIT | ALL |
| 9 | 43050-08 | CALIPER ASSEMBLY (black) | ALL |
| 10 | 44089-08 | BRACKET, caliper w/42863-06 (black) | ALL |
WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3762M | BOLT (10) | ALL |
| 2 | 6655 | WASHER | ALL |
| 3 | 6966M | WASHER (10) | ALL |
| 4 | 7813A | NUT | ALL |
| 5 | 9252 | BEARING, ABS - left | ALL |
| 6 | 9276A | BEARING, ABS - right (1) | ALL |
| 6 | 9276A | BEARING, Non ABS - right & left (2) | ALL |
| 7 | 10147 | CLIP, connector - ABS | ALL |
| 8 | 11804 | SPACER, ABS - right (1) | ALL |
| 8 | 11804 | SPACER, non ABS (2) | ALL |
| 9 | 40648-08 | SENSOR, wheel - ABS w/ 10147, 72607-08, 72608-08 & 72639-10 | ALL |
| 10 | 40999-87 | VALVE STEM | VRSCDX |
| 11 | 41123-79 | VALVE CAP | ALL |
| 12 | 41628-08 | AXLE | ALL |
| 13 | 41670-09 | WHEEL ASSEMBLY, w/o bearings & sleeve | VRSCF |
| 14 | 41748-08 | SLEEVE | ALL |
| 15 | 43213-11 | TIRE | ALL |
| 16 | 44553-06A | BRAKE DISC (2) | ALL |
| 17 | 54321-85 | NUT | VRSCF |
| 18 | 70631-08 | CLIP, conduit - ABS (3) | ALL |
| 19 | 72607-08 | PIN HOUSING, 2-way - ABS | ALL |
| 20 | 72608-08 | TERMINAL, pin 16-20 awg - ABS (2) | ALL |
| 21 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 22 | 95595-84A | WEIGHT, 5 grams (silver) (4) | VRSCF |
| 95594-84B | WEIGHT, 5 grams (black) (4) | VRSCDX | |
| 23 | 43300072 | WHEEL ASSEMBLY, 5 spoke w/o bearings & sleeve (black w/ orange pin stripe) | VRSCDX |
| 43300194 | WHEEL ASSEMBLY, 5 spoke w/o bearings & sleeve (black) | VRSCDX |
WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4552 | SCREW (5) | ALL |
| 2 | 7039 | LOCKWASHER (5) | ALL |
| 3 | 8020 | NUT | ALL |
| 4 | 9252 | BEARING, ABS - right | ALL |
| 5 | 9254 | BEARING | ALL |
| 6 | 9276A | BEARING, ABS - left (1) | ALL |
| 6 | 9276A | BEARING, Non ABS - right & left (2) | ALL |
| 7 | 10147 | CLIP, connector - ABS | ALL |
| 8 | 40434-01 | CUSHION, compensator | ALL |
| 9 | 40590-07 | SPROCKET ASSEMBLY - 72T, w/ sprocket (black) | ALL |
| 10 | 40652-08 | SENSOR, wheel - ABS w/ 10147, 72607-08, 72608-08 & 72639-10 | ALL |
| 11 | 40668-07 | SPACER | ALL |
| 12 | 40669-07 | COMPENSATOR BOWL | ALL |
| 13 | 40999-87 | VALVE STEM | VRSCDX |
| 14 | 41123-79 | VALVE CAP | ALL |
| 15 | 41139-02 | E-CLIP | ALL |
| 16 | 41242-08 | SPACER, wheel bearing - non ABS | ALL |
| 17 | 41544-08 | AXLE, rear | ALL |
| 18 | 41550-08 | SPACER, left | ALL |
| 19 | 41667-06 | DISC, brake | VRSCDX |
| 48952-09 | DISC, brake (not shown) | VRSCF | |
| 20 | 43189-11 | TIRE | ALL |
| 21 | 41714-05 | REAR AXLE ADJUSTER | ALL |
| 22 | 43567-92 | SCREW (5) | ALL |
| 23 | 43704-08 | SLEEVE BEARING | ALL |
| 24 | 54321-85 | NUT | VRSCF |
| 25 | 70635-08 | CLIP, conduit - ABS (4) | ALL |
| 26 | 72607-08 | PIN HOUSING, 2-way - ABS | ALL |
| 27 | 72608-08 | TERMINAL, pin 16-20 awg - ABS (2) | ALL |
| 28 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 29 | 95594-84B | WEIGHT, 5 grams (black) (4) | VRSCDX |
| 95595-84A | WEIGHT, 5 grams (silver) (4) | VRSCF | |
| 30 | 40900079A | WHEEL ASSEMBLY, 5 spoke w/o bearings & sleeve (black w/ orange stripe) | VRSCDX |
| 40900192 | WHEEL ASSEMBLY, 5 spoke w/o bearings & sleeve (black) | VRSCDX | |
| 31 | 40900169 | WHEEL ASSEMBLY, 5 spoke w/o bearings & sleeve (black) | VRSCF |
FORK, FRONT BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 4534M | SCREW (7) | ALL |
| 2 | 4870M | BOLT | VRSCF |
| 4892M | BOLT | VRSCDX | |
| 3 | 6513 | STEERING WASHER | VRSCDX |
| 6514 | STEERING WASHER | VRSCF | |
| 4 | 46891-09C | BRACKET UPPER (silver) | VRSCF |
| 45900017 | BRACKET UPPER (black) | VRSCDX | |
| 5 | 46892-09B | STEM & BRACKET, w/ bearing & shield (silver) | VRSCF |
| 45900019 | STEM & BRACKET, w/ bearing & shield (black) | VRSCDX | |
| 6 | 48184-01 | SEAL (2) | ALL |
| 7 | 48300-60 | ROLLER BEARING, w/ cup | ALL |
| 8 | 48315-60 | BEARING CUP (2) | ALL |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4499M | BOLT, right | ALL |
| 2 | 4575 | BOLT, inner fork - right | ALL |
| 3 | 5925 | WASHER, right | ALL |
| 4 | 7468M | NUT, right | ALL |
| 5 | 8199M | NUT, left | ALL |
| 6 | 45405-75A | SCREW, left | ALL |
| 7 | 45842-77A | RETAINING RING, left/right (2) | ALL |
| 8 | 46329-06 | O-RING, left/right (2) | ALL |
| 9 | 46343-06 | GUIDE BUSHING, left/right (2) | ALL |
| 10 | 46344-06 | COVER, slider - left/right (2) | ALL |
| 11 | 46346-06 | SEAL, left/right (2) | ALL |
| 12 | 46348-06 | BUSHING, left/right (2) | ALL |
| 13 | 46350-06 | CAP, left/right (2) | VRSCF |
| 4574 | CAP, left/right (2) | VRSCDX | |
| 14 | 46352-06 | SPRING SEAT, left | ALL |
| 15 | 46353-06 | CENTERING PLATE, left | ALL |
| 16 | 48700-09 | FORK ASSEMBLY, left (silver) | VRSCF |
| 45400003 | FORK ASSEMBLY, left (black) | VRSCDX | |
| 17 | 48701-09 | FORK ASSEMBLY, right (silver) | VRSCF |
| 45400004 | FORK ASSEMBLY, right (black) | VRSCDX | |
| 18 | 48702-09 | SLIDER, left (silver) | VRSCF |
| 45500012 | SLIDER, left (black) | VRSCDX | |
| 19 | 48703-09 | SLIDER, right (silver) | VRSCF |
| 45500013 | SLIDER, right (black) | VRSCDX | |
| 20 | 48704-09 | SPRING, left/right (2) | ALL |
| 21 | 48705-09 | OUTER TUBE, left/right (2) | VRSCF |
| 45500011 | OUTER TUBE, left/right (2) | VRSCDX | |
| 22 | 48708-09 | SPRING COLLAR, right | ALL |
| 23 | 48777-09 | JOINT ROD, right | ALL |
| 24 | 48779-09 | DAMPER COMP, left | ALL |
| 25 | 49380-09 | FORK REBUILD KIT | ALL |
| 26 | 59481-00 | REFLECTOR, amber w/silver base - right | VRSCF |
| 69861-07 | REFLECTOR, amber w/black base - right | VRSCDX | |
| 27 | 59482-00 | REFLECTOR, amber w/silver base - left | VRSCF |
| 69862-07 | REFLECTOR, amber w/black base - left | VRSCDX | |
| 28 | J0117.3A8 | SPRING JOINT, left | ALL |
| 29 | J8127.3A8 | OIL SEAL, left/right (2) | VRSCF |
| 12085 | OIL SEAL, left/right (2) | VRSCDX | |
| 30 | J8130.3A8 | DUST SEAL, left/right (2) | ALL |
| 31 | J8135.1AE | SPRING COLLAR, left | ALL |
| 32 | J8146.1AS | STOPPER, rubber - left/right (2) | ALL |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3074M | SCREW (3) | ALL |
| 2 | 4603M | SCREW | ALL |
| 3 | 7433M | LOCKNUT | ALL |
| 4 | 54556-84 | BUSHING (2) | VRSCDX |
| 5 | 54617-09 | SHOCK ASSEMBLY, rear (2) | VRSCF |
| 54000012 | SHOCK ASSEMBLY, rear, w/ 54473-79, 54474-79, 54475-79 & 54556-84 (2) | VRSCDX | |
| 6 | 59018-98 | WASHER (2) | ALL |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | ALL |
| 2 | 755 | PLUG (3) | VRSCDX |
| 3 | 3292MA | SCREW (2) | ALL |
| 4 | 3731M | SCREW (HDI, England, H105, Brazil) | ALL |
| 5 | 3755M | SCREW (2) | ALL |
| 6 | 3718M | ANCHOR | ALL |
| 7 | 4530M | SCREW (8) | ALL |
| 8 | 6302 | WASHER (2) | ALL |
| 9 | 6876M | WASHER (2) | ALL |
| 10 | 10040 | CLIP (Canada, HDI) (4) | VRSCF |
| 11 | 10065 | CABLE STRAP | ALL |
| 12 | 45804-01A | FORK LOCK, w/ o-ring, bearing & 71578-01A (specify key number - for key numbers 5000 &up) | ALL |
| 13 | 47764-08 | FRAME ASSEMBLY UPPER, w/ 48315-60 (black) | ALL |
| 14 | 47987-12BK | FRAME LOWER, left (black) | ALL |
| 15 | 47988-12BK | FRAME LOWER, right (black) | ALL |
| 16 | 48086-01 | CROSS MEMBER, front | ALL |
| 17 | 48315-60 | BEARING CUP, steering head (2) | ALL |
| 18 | 48486-07 | NUT, shock mount (2) | ALL |
| 19 | 48527-09 | SEAT PAN | VRSCF |
| 47000001 | SEAT PAN (not shown) | VRSCDX | |
| 20 | 49733-07BK | LEG, jiffy stand (black) | VRSCDX |
| 49755-09BK | LEG, jiffy stand (black) | VRSCF | |
| 21 | 50003-89B | PIN | ALL |
| 22 | 50005-85A | SPRING | ALL |
| 23 | 53176-08 | BUSHING, jiffy stand (2) | ALL |
| 24 | 50277-08A | SENSOR, jiffy stand w/ 72169-07 & 72511-07BK (HDI, England, H105, Brazil) | ALL |
| 25 | 59440-09 | REFLECTOR, rear w/ 59407-01 (red) (Domestic, Canada) (2) | VRSCF |
| 26 | 62107-01 | BUMPER | ALL |
| 27 | 71578-01A | PLUNGER FORK LOCK | ALL |
| 28 | 72169-07 | TERMINAL PIN (HDI, England, H105, Brazil) (3) | ALL |
| 29 | 72511-07BK | HOUSING, 3-way (HDI, England, H105, Brazil) | ALL |
| 30 | 90520-07 | PLUG (Domestic, California, Canada, Australia, Japan) | ALL |
| 31 | 90300043 | KEY SET, w/ key, 10065 & 61081-92 (specify key number - for key numbers 5000 & up) (2) | ALL |
| 61081-92 | COVER, key head set (not illustrated) (2) | ALL | |
| 71400075 | IGNITION SWITCH & FORK LOCK SET, w/ 45804-01A, 90300043 & ignition switch (specify key number - for key numbers 5000 & up | ALL |
FORK REAR, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | ALL |
| 2 | 3755M | SCREW (3) | ALL |
| 3 | 6703 | WASHER | ALL |
| 4 | 6838M | WASHER (3) | ALL |
| 5 | 6864A | PLUG (8) | ALL |
| 6 | 10040 | CLIP (2) | ALL |
| 7 | 7460M | LOCKNUT | ALL |
| 8 | 9208 | BEARING | ALL |
| 9 | 10950 | RETAINING RING | ALL |
| 10 | 48606-07A | REAR FORK ASSEMBLY, w/ 48389-01, 48712-07 & pin axle adjuster (polished) | VRSCF |
| 48612-07A | REAR FORK ASSEMBLY, w/ 48389-01, 48712-07 & pin axle adjuster (black) | VRSCDX | |
| 11 | 48386-05A | SPACER, left | ALL |
| 12 | 48389-01 | BUSHING, pivot - right | ALL |
| 13 | 48392-05 | PIVOT SHAFT ASSEMBLY | ALL |
| 14 | 48712-07 | BEARING KIT, w/ 10950 & 9208 | ALL |
| 15 | 60473-07A | DEBRIS DEFLECTOR | ALL |
| 16 | 67621-94 | BUSHING (3) | ALL |
| 17 | 60300003 | BELT GUARD | ALL |
SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3108M | SCREW (2) | ALL |
| 2 | 6838M | WASHER (2) | ALL |
| 3 | 6859M | WASHER | ALL |
| 4 | 7495 | NUT | ALL |
| 5 | 11651 | GROMMET | ALL |
| 6 | 52041-82 | SLEEVE | ALL |
| 7 | 52386-07B | STRAP | ALL |
| 8 | 52402-01 | LANYARD | ALL |
| 9 | 52410-07 | SEAT POST | ALL |
| 10 | 52433-09 | SEAT, rider | VRSCF |
| 11 | 52438-09 | SEAT, passenger | VRSCF |
| 12 | 52000005 | SEAT, rider | VRSCDX |
| 13 | 52400003 | SEAT, passenger | VRSCDX |
FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3163M | SCREW (2) | ALL |
| 2 | 3703M | SCREW (4) | VRSCDX |
| 3 | 7432M | NUT (4) | VRSCF |
| 4 | 11304 | RETAINING RING (4) | ALL |
| 5 | 33129-06 | WEAR PEG (2) | ALL |
| 6 | 33133-06 | COVER (4) | ALL |
| 7 | 33134-07CAZ | FOOTPEG ASSEMBLY, right, w/ 33133-06 (black) (2) | ALL |
| 8 | 33135-07CAZ | FOOTPEG ASSEMBLY, left, w/ 33133-06 (black) (2) | ALL |
| 9 | 43097-12 | PIVOT SHAFT (2) | ALL |
| 10 | 45041-01A | PIN, clevis (4) | ALL |
| 11 | 50822-09 | FOOTREST SUPPORT PASSENGER, left (not shown) | VRSCF |
| 12 | 50826-09 | FOOTREST SUPPORT PASSENGER, right | VRSCF |
| 13 | 50912-72 | SPRING WASHER (4) | ALL |
| 14 | 51723-07 | FOOTREST SUPPORT PASSENGER, left | VRSCDX |
| 15 | 51722-07 | FOOTREST SUPPORT PASSENGER, right | VRSCDX |
| 16 | 54046-12 | CLEVIS (black) (2) | ALL |
| 17 | 65786-09 | STUD PLATE (2) | VRSCF |
| 18 | 90520-07 | PLUG (4) | ALL |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2243M | SCREW (4) | VRSCF |
| 2 | 4250M | SCREW (4) | ALL |
| 3 | 3731M | SCREW (4) | VRSCDX |
| 4 | 7495 | NUT (4) | VRSCDX |
| 5 | 59022-07BDK | FENDER (prime) | VRSCDX |
| 6 | 59024-09 | FENDER | VRSCF |
| 7 | 59026-09A | BRACKET FENDER, left (satin black) | VRSCF |
| 8 | 59130-09A | BRACKET FENDER, right (satin black) | VRSCF |
| 9 | 59403-08 | BRACKET FENDER (satin black) | VRSCDX |
| NOTE: For fender color part numbers see Service Section of h-dnet.com | |||
FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3108M | SCREW (2) | ALL |
| 2 | 4250M | SCREW (2) | ALL |
| 3 | 6838M | WASHER (4) | ALL |
| 4 | 59287-92 | REFLECTOR, left (red)(Domestic) | VRSCDX |
| 59288-92 | REFLECTOR, right (red)(Domestic) | VRSCDX | |
| 59289-92 | REFLECTOR, left (amber)(HDI) | VRSCDX | |
| 59290-92 | REFLECTOR, right (amber)(HDI) | VRSCDX | |
| 5 | 59690-07 | MUDFLAP | ALL |
| 6 | 67900036 | REFLECTOR ASSEMBLY, w/ 59288-92 right (red)(Domestic) | VRSCDX |
| 67900037 | REFLECTOR ASSEMBLY, w/ 59287-92 left (red)(Domestic) | VRSCDX | |
| 67900060 | REFLECTOR ASSEMBLY, w/ 59290-92 right (amber)(HDI) | VRSCDX | |
| 67900061 | REFLECTOR ASSEMBLY, w/ 59289-92 left (amber)(HDI) | VRSCDX | |
| NOTE: For fender color part numbers see Service Section of h-dnet.comNOTE: Rear fender prime level not sold or supplied, see fender color part numbers | |||
FUEL TANK & FUEL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3700MA | SCREW (2) | ALL |
| 2 | 4484M | SCREW (6) | ALL |
| 3 | 6856M | WASHER (2) | ALL |
| 4 | 10224 | CLIP | ALL |
| 5 | 10297 | CLAMP (2) | ALL |
| 6 | 11570 | O-RING | ALL |
| 7 | 11630 | O-RING (2) | ALL |
| 8 | 11632 | SNAP RING | ALL |
| 9 | 27431-07C | TUBE ASSEMBLY, tank to atmosphere | ALL |
| 10 | 60970-07 | BRACKET | ALL |
| 11 | 61109-85D | GASKET | ALL |
| 12 | 61274-92 | FILLER CAP, w/ 61109-85D | ALL |
| 13 | 61284-06 | CLAMP RING | ALL |
| 14 | 61285-06 | PAD | ALL |
| 15 | 61504-07 | FUEL LINE, pressure | ALL |
| 16 | 61505-07 | FUEL LINE, return | ALL |
| 17 | 62109-07 | FUEL PUMP, w/ 75254-04A | ALL |
| 18 | 62113-07 | HOSE, filter to fuel | ALL |
| 19 | 62921-07A | FUEL TANK ASSEMBLY, w/ 61285-06 | ALL |
| 20 | 72169-07 | TERMINAL PIN (3) | ALL |
| 21 | 72506-07 | CONNECTOR, 4-way | ALL |
| 22 | 72541-07BN | HOUSING, 3-way (brown) | ALL |
| 23 | 75169-07 | FILTER, pressure side | ALL |
| 24 | 75210-09 | SENSOR, fuel level w/ 11630, 72169-07 & 72541-07BN | ALL |
| 25 | 75254-04A | STRAINER | ALL |
| 26 | 75272-07 | FLANGE, w/ 72506-07 | ALL |
| 27 | 75274-07 | ELECTRICAL HARNESS | ALL |
| 28 | 75310-07 | FUEL MODULE ASSEMBLY | ALL |
INSTRUMENTS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3386 | SCREW (4) | VRSCDX |
| 2 | 3716M | SCREW (6) | VRSCF |
| 3 | 3798M | SCREW (2) | VRSCDX |
| 4 | 46383-06 | INSTRUMENT HOUSING (gloss black) | VRSCDX |
| 5 | 67308-09 | INSTRUMENT CLUSTER, kph, w/ 67854-98 & 67880-94 (Canada, HDI, Australia, Japan, H105, Brazil) | VRSCDX |
| 67394-09 | INSTRUMENT CLUSTER, dual mph/kph, w/ 67854-98 & 67880-94 (England) | VRSCDX | |
| 67453-09A | INSTRUMENT CLUSTER, mph, w/ 67854-98 & 67880-94 (Domestic, California) | VRSCDX | |
| 6 | 71963-09 | INSTRUMENT CLUSTER, kph, w/ 67854-98 (Canada, HDI, Australia, Japan, H105, Brazil) | VRSCF |
| 71962-09A | INSTRUMENT CLUSTER, mph, w/ 67854-98 (Domestic, California) | VRSCF | |
| 71964-09 | INSTRUMENT CLUSTER, dual mph/kph, w/ 67854-98 (England) | VRSCF | |
| 7 | 67854-98 | SWITCH, reset, w/ 70585-93 | ALL |
| 8 | 67880-94 | BOOT, reset switch | ALL |
| 9 | 70585-93 | CONNECTOR (2) | ALL |
| 10 | 71352-07 | BEZEL, instrument housing (black) | VRSCDX |
| 11 | 71958-09 | BEZEL, instrument housing | VRSCF |
| 12 | 71959-09 | INSTRUMENT HOUSING | VRSCF |
| 13 | 74191-98 | SOCKET TERMINAL (2) | ALL |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 3123 | SCREW (2) | ALL |
| 2 | 10006 | CABLE STRAP, throttle body hose | ALL |
| 3 | 27378-08B | TUBE ASSEMBLY, tank to canister | ALL |
| 4 | 27382-08B | TUBE ASSEMBLY, canister to solenoid | ALL |
| 5 | 27391-07C | TUBE ASSEMBLY, solenoid to throttle body | ALL |
| 6 | 27715-07 | VALVE SOLENOID, purge | ALL |
| 7 | 60800006 | CARBON CANISTER ASSEMBLY | ALL |
HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (2) | VRSCF |
| 2 | 3753M | SCREW (2) | ALL |
| 3 | 3832M | SCREW (2) | ALL |
| 4 | 3853M | SCREW (6) | ALL |
| 5 | 10065 | CABLE STRAP | ALL |
| 6 | 53436-97 | BULB, position lamp (HDI) | ALL |
| 7 | 67657-05 | HARNESS HEADLAMP | ALL |
| 67658-05 | HARNESS HEADLAMP (HDI) | ALL | |
| 8 | 67717-01 | BULB, high beam | ALL |
| 9 | 68228-09 | BRACKET, headlamp mounting | VRSCF |
| 10 | 68254-01 | REFLECTOR ASSEMBLY, headlamp, w/ 3853M & 68807-01 (49St, California, Canada) | ALL |
| 68255-01 | REFLECTOR ASSEMBLY, headlamp - right dip (HDI, H105, Brazil) | ALL | |
| 68256-01 | REFLECTOR ASSEMBLY, headlamp - left dip (England, Australia, Japan) | ALL | |
| 11 | 68807-01 | BRACKET, reflector mounting (2) | ALL |
| 12 | 69873-07A | HEADLAMP ASSEMBLY (49St, California, Canada) (satin black) | ALL |
| 69875-07A | HEADLAMP ASSEMBLY - left dip (England, Australia, Japan) (black) | ALL | |
| 69874-07A | HEADLAMP ASSEMBLY - right dip (HDI, H105, Brazil) (black) | ALL | |
| 13 | 68881-01 | BULB, low beam | ALL |
| 14 | 72449-01 | HOUSING SOCKET, 2-way (black) | ALL |
| 15 | 72450-01 | HOUSING SOCKET, 2-way (gray) | ALL |
| 16 | 72527-01 | TERMINAL SOCKET, #18-20 AWG. (4) | ALL |
| 17 | 72633-02 | SEAL WIRE, 14-16 AWG. (white) (4) | ALL |
| 18 | 73154-96BK | HOUSING RECEPTACLE, 4-way | ALL |
| 19 | 73191-96 | RECEPTACLE CONTACT, 20-16 gauge (as required) | ALL |
| 20 | 10200078 | SCREW (2) | VRSCDX |
| For BRACKET HEADLAMP MOUNTING color part numbers see Service Section of h-dnet.com | |||
TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (4) | ALL |
| 2 | 7432M | NUT (2) | VRSCF |
| 3 | 7744 | JAMNUT (2) | VRSCDX |
| 4 | 11524A | RUBBER MOUNT | VRSCF |
| 5 | 67822-88 | BALL STUD (2) | VRSCDX |
| 6 | 67827-88A | CLAMP, ball stud (2) | VRSCDX |
| 7 | 67831-03 | RETAINER (2) | VRSCDX |
| 8 | 69331-02 | BULB (amber) (Domestic) (2) | VRSCDX |
| 68163-84 | BULB, P21W (HDI, Australia, England, Japan, H-105, Brazil) (2) | VRSCDX | |
| 9 | 68904-00 | SOCKET ASSEMBLY (Domestic) (2) | VRSCDX |
| 10 | 69587-07 | TURN SIGNAL SUBASSEMBLY (black)(Domestic) (2) | VRSCDX |
| 68838-06 | TURN SIGNAL SUBASSEMBLY (HDI, Australia, England, Japan, H-105, Brazil) (black) (2) | VRSCDX | |
| 11 | 69325-02 | LENS (gray) (Domestic) (2) | VRSCDX |
| 68976-00 | LENS (HDI, Australia, England, Japan, H-105, Brazil) (2) | VRSCDX | |
| 12 | 69395-09A | TURN SIGNAL ASSEMBLY - right, w/74191-98 (49St, California, Canada) | VRSCF |
| 69402-09A | TURN SIGNAL ASSEMBLY - right, w/74191-98 (HDI, Australia, England, Japan, H-105, Brazil) | VRSCF | |
| 13 | 69396-09A | TURN SIGNAL ASSEMBLY - left, w/74191-98 (49St, California, Canada) | VRSCF |
| 69403-09A | TURN SIGNAL ASSEMBLY - left, w/74191-98 (HDI, Australia, England, Japan, H-105, Brazil) | VRSCF | |
| 14 | 69457-09 | TURN SIGNAL MODULE, w/73156-96BK, 73191-96, 74104-98BK, 74144-98 & 74190-98 (49St, California, Canada) | VRSCF |
| 69529-09 | TURN SIGNAL MODULE, w/73156-96BK, 73191-96, 74104-98BK, 74144-98 & 74190-98 (HDI, Australia, England, Japan, H-105, Brazil) | VRSCF | |
| 15 | 72168-07 | TERMINAL SOCKET (6) | VRSCDX |
| 16 | 73156-96BK | HOUSING RECEPTACLE, 6-place | ALL |
| 17 | 73191-96 | RECEPTACLE CONTACT, 16-20 gauge (6) | ALL |
| 18 | 74104-98BK | SOCKET HOUSING (black) | VRSCF |
| 19 | 74114-98BK | SOCKET HOUSING (black) | VRSCF |
| 20 | 74144-98 | SECONDARY LOCK, 4-way | VRSCF |
| 21 | 74154-98 | SECONDARY LOCK, 4-WAY | VRSCF |
| 22 | 74190-98 | TERMINAL, pin (4) | VRSCF |
| 23 | 74191-98 | TERMINAL, socket (4) | VRSCF |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | ALL |
| 2 | 3658 | SCREW (4) | ALL |
| 3 | 10181 | CABLE STRAP (as required) | ALL |
| 4 | 11402 | GROMMET | VRSCF |
| 5 | 70345-84 | RETAINER (2) | VRSCDX |
| 6 | 71587-04 | CLIP | ALL |
| 7 | 71684-06A | SWITCH ASSEMBLY, engine stop/start, w/ 10181 & 72266-94 | ALL |
| 8 | 71621-08 | STOPLAMP & CLUTCH SWITCH w/10181 & 72266-94 (2) | ALL |
| 9 | 71683-06A | SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94 | ALL |
| 10 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn, w/ 10181 & 72266-94 | ALL |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal, w/ 10181 | ALL |
| 12 | 71568-96A | HOUSING, lower - left (black) | VRSCDX |
| 71571-06A | HOUSING, lower - left, w/ hole (black) | VRSCF | |
| 13 | 71567-96 | HOUSING, upper - left (black) | ALL |
| 14 | 71563-96 | HOUSING, lower - right (black) | VRSCDX |
| 71569-06 | HOUSING, lower - right, w/ hole (black) | VRSCF | |
| 15 | 71564-96 | HOUSING, upper - right (black) | ALL |
| 16 | 72188-07BK | HOUSING, 6-way - right (black) | ALL |
| 17 | 72447-07GY | HOUSING, 8-way - left (gray) | ALL |
| 18 | 72169-07 | TERMINAL PIN (14) | ALL |
| 19 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 in. (as required) | ALL |
HANDLEBAR & THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3385M | SCREW (4) | VRSCDX |
| 2 | 3726M | SCREW (2) | ALL |
| 3 | 4889M | SCREW (2) | VRSCF |
| 4 | 11155 | SNAP RING | ALL |
| 5 | 11271 | RETAINING RING, idle control | ALL |
| 6 | 11272 | RETAINING RING, throttle control | ALL |
| 7 | 38653-01 | BOOT, throttle cable | ALL |
| 8 | 56012-09 | HANDLEBAR | VRSCF |
| 9 | 56220-94A | GRIP & SLEEVE, throttle - right | VRSCF |
| 10 | 56248-08 | GRIP, left | VRSCF |
| 11 | 56284-06 | CLAMP HANDLEBAR (black) | VRSCDX |
| 12 | 56365-01 | THROTTLE CONTROL ASM, w/ 11272, 38653-01 & 56508-76 | ALL |
| 13 | 56367-01 | IDLE CONTROL ASSEMBLY, w/ 11271 & 56508-76 | ALL |
| 14 | 56394-74 | SPRING, adjusting screw | ALL |
| 15 | 56396-74A | FRICTION SPRING, throttle | ALL |
| 16 | 56402-83A | ADJUSTING SCREW | ALL |
| 17 | 56508-76 | FERRULE, control wire (2) | ALL |
| 18 | 56666-04 | GRIP & SLEEVE, throttle - right | VRSCDX |
| 19 | 56667-04 | GRIP, left | VRSCDX |
| 20 | 70504-81 | CLIP, throttle cables | ALL |
| 21 | 55800027 | HANDLEBAR (satin black) | VRSCDX |
| 22 | 55900002 | RISER HANDLEBAR (black) | VRSCDX |
TAIL LAMP, TURN SIGNALS REAR & LICENSE PLATE BRACKET - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4091 | SCREW (2) | VRSCDX |
| 2 | 4863M | SCREW (2) | VRSCDX |
| 3 | 10006 | CABLE STRAP (3) | VRSCDX |
| 4 | 10177 | CABLE STRAP | VRSCDX |
| 5 | 53436-97 | BULB, license plate illumination (2) | VRSCDX |
| 6 | 59259-90 | REFLECTOR (HDI, England, Japan, H105) | VRSCDX |
| 7 | 59988-72A | REFLECTOR (Domestic, California, Canada, Australia) | VRSCDX |
| 8 | 60908-09A | BRACKET, w/ 59259-90 (HDI, England, Japan, H105, Brazil) | VRSCDX |
| 9 | 60907-09 | BRACKET (Domestic, California, Canada, Australia) | VRSCDX |
| 10 | 68168-89A | BULB, turn signal (2) | VRSCDX |
| 68163-84 | BULB, turn signal (HDI) (2) | VRSCDX | |
| 11 | 68559-07 | LENS (red) (Domestic) (2) | VRSCDX |
| 68755-07 | LENS (amber) (HDI) (2) | VRSCDX | |
| 12 | 68497-07 | SOCKET ASSEMBLY (Domestic) (2) | VRSCDX |
| 13 | 73104-96BK | PIN HOUSING, 4-way | VRSCDX |
| 14 | 73108-96BK | PIN HOUSING, 8-way | VRSCDX |
| 15 | 73154-96BK | HOUSING RECEPTACLE, 4-way (black) (2) | VRSCDX |
| 16 | 73156-96BK | HOUSING RECEPTACLE, 6-way (2) | VRSCDX |
| 17 | 73158-96BK | HOUSING RECEPTACLE, 8-way (2) | VRSCDX |
| 18 | 73190-96 | TERMINAL PIN (9) | VRSCDX |
| 19 | 73191-96 | RECEPTACLE CONTACT (as required) | VRSCDX |
| 20 | 10100048 | NUT (4) | VRSCDX |
| 21 | 41000062 | MODULE, stop/ turn/ tail | VRSCDX |
| 22 | 59600001 | SPLASH GUARD, right (Australia only) | VRSCDX |
| 23 | 59600002 | SPLASH GUARD, left (Australia only) | VRSCDX |
| 24 | 67800051 | TURN SIGNAL ASSEMBLY (2) | VRSCDX |
| 67800052 | TURN SIGNAL ASSEMBLY (HDI) (2) | VRSCDX | |
| 25 | 67800054 | TAILLIGHT ASSEMBLY, w/ 10006, 10177, 73154-96BK, 73191-96 (Domestic, HDI) | VRSCDX |
| 26 | 67900032 | BRACKET ASSEMBLY (Domestic) | VRSCDX |
| 67900033 | BRACKET ASSEMBLY (HDI) | VRSCDX | |
| 27 | 67900044 | BRACKET (Domestic, HDI) | VRSCDX |
| 28 | 67900048 | LIGHT, license plate illumination w/ 73191-96 | VRSCDX |
TAIL LAMP, TURN SIGNALS REAR, & LICENSE PLATE BRACKET - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3711M | SCREW (Canada, HDI, Australia, England, Japan, H105, Brazil) (2) | VRSCF |
| 2 | 4863M | SCREW (4) | VRSCF |
| 3 | 4873M | SCREW (49St, California) (2) | VRSCF |
| 4 | 5403B | BOLT | VRSCF |
| 5 | 6859M | WASHER (Canada, HDI, Australia, England, Japan, H105, Brazil) (2) | VRSCF |
| 6 | 7495 | NUT (Canada, HDI, Australia, England, Japan, H105, Brazil) (6) | VRSCF |
| 7 | 7716 | LOCKNUT | VRSCF |
| 8 | 10177 | CABLE STRAP | VRSCF |
| 9 | 59472-09 | STUD PLATE (Canada, HDI, Australia, England, Japan, H105, Brazil) (2) | VRSCF |
| 10 | 60254-07 | REFLECTOR (HDI, Australia, England, Japan, H105, Brazil) (amber) (2) | VRSCF |
| 69490-07 | REFLECTOR (Canada) (red) (2) | VRSCF | |
| 11 | 60924-09 | BRACKET (HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
| 12 | 68702-07 | BRACKET ADJUST | VRSCF |
| 13 | 69390-09 | LICENSE PLATE BRACKET, w/ 5403B, 7716, 10177, 69420-09 & 68702-07 (49St, California) | VRSCF |
| 14 | 69391-09 | TAILLAMP, w/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96 & 73191-96 (Domestic) | VRSCF |
| 69392-09 | TAILLAMP, w/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96 & 73191-96 (HDI, Australia, England, Japan, H105) | VRSCF | |
| 15 | 69394-09 | LICENSE PLATE BRACKET, w/ 60254-07, 69424-09, 69523-09 & 69585-09 (HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
| 67900108 | LICENSE PLATE BRACKET, w/ 69490-07, 69424-09, 69523-09 & 69585-09 (Canada) | VRSCF | |
| 16 | 69420-09 | ILLUMINATOR, license plate w/ 75152-96BK & 73191-96 | VRSCF |
| 17 | 69424-09 | LAMP ASSEMBLY, w/ 73152-96BK, & 73191-96 (Canada, HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
| 18 | 69523-09 | LICENSE PLATE BRACKET, w/ 60924-09 (Canada, HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
| 19 | 69585-09 | COVER, license plate (Canada, HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
| 20 | 73102-96BK | PIN HOUSING, 2-way (black) | VRSCF |
| 21 | 73152-96BK | HOUSING RECEPTACLE, 2-way (2) | VRSCF |
| 22 | 73154-96BK | HOUSING RECEPTACLE, 4-way (black) | VRSCF |
| 23 | 73156-96BK | HOUSING RECEPTACLE, 6-way (black) | VRSCF |
| 24 | 73190-96 | TERMINAL PIN, 20-16 gauge (26) | VRSCF |
| 25 | 73191-96 | RECEPTACLE CONTACT (as required) | VRSCF |
EXHAUST SYSTEM - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (6) | VRSCF |
| 2 | 4561M | SCREW (8) | VRSCF |
| 3 | 6302 | WASHER (6) | VRSCF |
| 4 | 6454 | WASHER (8) | VRSCF |
| 5 | 7081 | LOCKWASHER (8) | VRSCF |
| 6 | 7432M | NUT (5) | VRSCF |
| 7 | 7495 | NUT | VRSCF |
| 8 | 9955 | CLAMP (8) | VRSCF |
| 9 | 10119 | CLAMP (2) | VRSCF |
| 10 | 11936 | GASKET (2) | VRSCF |
| 11 | 64959-10 | ENDCAP (HDI, Australia, England, Japan, Canada, H105, Brazil) (black) (2) | VRSCF |
| 12 | 64971-09 | SEAL (2) | VRSCF |
| 13 | 65045-01 | RETAINING RING (2) | VRSCF |
| 14 | 65102-01 | FLANGE (2) | VRSCF |
| 15 | 65126-09 | ISOLATOR (2) | VRSCF |
| 16 | 65296-95A | CLAMP (2) | VRSCF |
| 17 | 65268-09 | MUFFLER, left & right w/ 7432M & 65800-09 (49St, California, Canada, HDI, Australia, England, H105, Brazil) (2) | VRSCF |
| 65285-09 | MUFFLER, w/ 7432M & 65800-09, left & right (Japan) (2) | VRSCF | |
| 18 | 65286-09 | SUPPORT EXHAUST, right w/ 65126-09 | VRSCF |
| 65616-09 | SUPPORT EXHAUST, left - (not shown) | VRSCF | |
| 19 | 66813-09 | SEAL | VRSCF |
| 20 | 65786-09 | STUD PLATE (2) | VRSCF |
| 21 | 65787-09 | SHIELD, upper, right | VRSCF |
| 22 | 65799-09 | SHIELD, lower, right | VRSCF |
| 23 | 65800-09 | PIN (2) | VRSCF |
| 24 | 66253-09 | ENDCAP, outer (49St, California) (2) | VRSCF |
| 25 | 66254-10 | ENDCAP, inner (49St, California) (2) | VRSCF |
| 26 | 66255-10 | SHIELD, cross over | VRSCF |
| 27 | 66277-09 | CLAMP | VRSCF |
| 28 | 70580-08 | BRACKET, oxygen sensor - rear | VRSCF |
| 29 | 72177-07BK | SOCKET HOUSING, 4-way (black) | VRSCF |
| 30 | 72444-07GY | HOUSING, 8-way (gray) (4) | VRSCF |
| 31 | 72344-10 | TERMINAL SOCKET (4) | VRSCF |
| 32 | 73307-10 | TERMINAL SOCKET (4) | VRSCF |
| 33 | 32700005 | OXYGEN SENSOR, front w/ 11936, 72344-10, 72444-07GY & 73307-10 | VRSCF |
| 32700006 | OXYGEN SENSOR, rear w/ 11936, 72177-07BK, 72344-10 & 73307-10 | VRSCF | |
| 34 | 65400012 | SHIELD, front | VRSCF |
| 35 | 65600069 | EXHAUST PIPE, front (49St, California, Canada) (chrome) | VRSCF |
| 65600073 | EXHAUST PIPE, front (HDI, Australia, England, Japan, H105, Brazil) | VRSCF | |
| 36 | 65600071 | EXHAUST PIPE, rear w/ 66277-09 (49St, California, Canada) (chrome) | VRSCF |
| 65600074 | EXHAUST PIPE, rear (HDI, Australia, England, Japan, H105, Brazil) | VRSCF |
EXHAUST SYSTEM - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (5) | VRSCDX |
| 2 | 4485M | SCREW (2) | VRSCDX |
| 3 | 4560M | SCREW (4) | VRSCDX |
| 4 | 4561M | SCREW (6) | VRSCDX |
| 5 | 4608MA | SCREW (6) | VRSCDX |
| 6 | 6302 | WASHER (7) | VRSCDX |
| 7 | 6454 | WASHER (6) | VRSCDX |
| 8 | 6917M | WASHER (6) | VRSCDX |
| 9 | 7081 | LOCKWASHER (6) | VRSCDX |
| 10 | 7432M | NUT (5) | VRSCDX |
| 11 | 7495 | NUT | VRSCDX |
| 12 | 8006 | NUT (4) | VRSCDX |
| 13 | 8070MA | NUT (6) | VRSCDX |
| 14 | 9954 | CLAMP (2) | VRSCDX |
| 15 | 9955 | CLAMP (4) | VRSCDX |
| 16 | 11936 | GASKET (2) | VRSCDX |
| 17 | 64801-10 | SHIELD EXHAUST ASSEMBLY, rear (black) | VRSCDX |
| 18 | 64802-10 | SHIELD EXHAUST ASSEMBLY, front (black) | VRSCDX |
| 19 | 64803-10 | SHIELD, lower exhaust (black) | VRSCDX |
| 20 | 64810-10 | SHIELD, upper exhaust (black) | VRSCDX |
| 21 | 64832-09 | CLAMP | VRSCDX |
| 22 | 64971-09 | SEAL (2) | VRSCDX |
| 23 | 65045-01 | RETAINING RING (2) | VRSCDX |
| 24 | 65089-05A | MUFFLER, top (49St, California, Canada, HDI, Australia, England, H105, Brazil) | VRSCDX |
| 64817-07A | MUFFLER, top (Japan) | VRSCDX | |
| 25 | 65096-05A | MUFFLER, bottom (49St, California, Canada, HDI, Australia, England, H105, Brazil) | VRSCDX |
| 64816-07A | MUFFLER, bottom (Japan) | VRSCDX | |
| 26 | 65102-01 | FLANGE (2) | VRSCDX |
| 27 | 65108-01 | CLAMP (2) | VRSCDX |
| 28 | 65341-10 | ENDCAP, muffler inlet (black) (2) | VRSCDX |
| 29 | 65342-10 | ENDCAP, muffler outlet (black) (2) | VRSCDX |
| 30 | 66777-07A | SUPPORT ASSEMBLY EXHAUST | VRSCDX |
| 31 | 70580-08 | BRACKET, oxygen sensor - rear | VRSCDX |
| 32 | 72177-07BK | SOCKET HOUSING, 4-way (black) | VRSCDX |
| 33 | 72444-07GY | HOUSING, 8-way (gray) (4) | VRSCDX |
| 34 | 72344-10 | TERMINAL SOCKET (4) | VRSCDX |
| 35 | 73307-10 | TERMINAL SOCKET (4) | VRSCDX |
| 36 | 32700005 | OXYGEN SENSOR, front w/ 11936, 72344-10, 72444-07GY & 73307-10 | VRSCDX |
| 32700006 | OXYGEN SENSOR, rear w/ 11936, 72177-07BK, 72344-10 & 73307-10 | VRSCDX | |
| 37 | 64900014 | AUXILIARY VOLUME (49St, California, Canada) (chrome) | VRSCDX |
| 64900015 | AUXILIARY VOLUME (HDI, Australia, England, Japan, H105, Brazil) (chrome) | VRSCDX | |
| 38 | 65600064 | EXHAUST PIPE, rear (chrome) | VRSCDX |
WIRING HARNESS, MAIN - NON ABS (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200094 | WIRING HARNESS, MAIN | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 31586-07 | RELAY (2) | ALL |
| 2 | 72094-06 | TERMINAL, female (3) | ALL |
| 3 | 72096-06 | WIRE SEAL (3) | ALL |
| 4 | 72168-07 | TERMINAL SOCKET (17) | ALL |
| 5 | 72169-07 | TERMINAL PIN (4) | ALL |
| 6 | 72272-07 | TERMINAL SOCKET (14) | ALL |
| 7 | 72326-95 | TERMINAL (2) | ALL |
| 8 | 72330-95 | FUSE, 15 amp (3) | ALL |
| 9 | 72343-10 | TERMINAL PIN (gold) (2) | ALL |
| 10 | 72414-07BK | HOUSING, 6-way (black) | ALL |
| 11 | 72415-07GY | HOUSING PIN, 4-way (gray) | ALL |
| 12 | 72430-00 | FUSE BLOCK | ALL |
| 13 | 72434-00 | TERMINAL (5) | ALL |
| 14 | 72469-07GY | HOUSING SOCKET, 8-way (gray) | ALL |
| 15 | 72519-09BK | HOUSING, pin 3-way (black) | ALL |
| 16 | 72512-07BK | HOUSING, socket 3-way (black) | ALL |
| 17 | 72525-01 | TERMINAL, ring | ALL |
| 18 | 72526-01 | HOUSING SOCKET, 2-way | ALL |
| 19 | 72527-01 | TERMINAL SOCKET (2) | ALL |
| 20 | 72528-01 | SEAL WIRE (2) | ALL |
| 21 | 72543-07BK | HOUSING SOCKET, 3-way (black) (3) | ALL |
| 22 | 72544-07 | SECONDARY LOCK, 3-way | ALL |
| 23 | 73101-96BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 24 | 73102-96BK | PIN HOUSING, 2-way (black) | ALL |
| 25 | 73104-96BK | PIN HOUSING, 4-way (black) | ALL |
| 26 | 73106-96BK | PIN HOUSING, 6-way (black) | ALL |
| 27 | 73190-96 | TERMINAL PIN, 20-16 gauge (14) | ALL |
| 28 | 74112-98BK | HOUSING SOCKET, 2-way (black) | ALL |
| 29 | 74119-98BK | HOUSING SOCKET, 12-way (black) | ALL |
| 30 | 74152-98 | SECONDARY LOCK, socket - 2-way | ALL |
| 31 | 74159-98 | SECONDARY LOCK, socket - 12-way | ALL |
| 32 | 74191-98 | TERMINAL SOCKET (13) | ALL |
| 33 | 74195-98 | SEAL PIN, plug | ALL |
WIRING HARNESS, MAIN - NON ABS (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200094 | WIRING HARNESS, MAIN | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 9838 | TERMINAL RING, #10-12 AWG | ALL |
| 2 | 9898 | TERMINAL RING (2) | ALL |
| 3 | 10247 | CLIP | ALL |
| 4 | 10279 | CLIP | ALL |
| 5 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| 6 | 72094-06 | TERMINAL, female (13) | ALL |
| 7 | 72096-06 | WIRE SEAL (13) | ALL |
| 8 | 72124-94GY | PIN HOUSING, 4-way (gray) | ALL |
| 9 | 72135-06 | SECONDARY LOCK, 4-way | ALL |
| 10 | 72144-94 | SECONDARY LOCK, 4-way | ALL |
| 11 | 72164-94A | PLUG, 4-way | ALL |
| 12 | 72168-07 | TERMINAL SOCKET (3) | ALL |
| 13 | 72169-07 | TERMINAL PIN (12) | ALL |
| 14 | 72175-07BK | PIN HOUSING, 4-way (black) | ALL |
| 15 | 72190-94 | TERMINAL PIN (3) | ALL |
| 16 | 72195-94 | SEAL PIN | ALL |
| 17 | 72290-94 | TERMINAL (2) | ALL |
| 18 | 72303-08 | TERMINAL | ALL |
| 19 | 72304-08 | TERMINAL (3) | ALL |
| 20 | 72314-01 | MAIN FUSE, 40 amp | ALL |
| 21 | 72327-03A | CONNECTOR, 3-way | ALL |
| 22 | 72343-10 | TERMINAL PIN (gold) (2) | ALL |
| 23 | 72405-98BK | TERMINAL, right angle (2) | ALL |
| 24 | 72478-07BK | PIN HOUSING, 8-way (black) | ALL |
| 25 | 72485-07 | HOUSING SOCKET, 4-way | ALL |
| 26 | 72493-07 | TERMINAL, socket (2) | ALL |
| 27 | 72494-07 | WIRE SEAL (2) | ALL |
| 28 | 72521-01 | FUSE HOLDER, 1-way | ALL |
| 29 | 72522-01 | TERMINAL FEMALE MAINFUSE (2) | ALL |
| 30 | 72524-01 | SECONDARY LOCK, maxifuse | ALL |
| 31 | 72525-01 | TERMINAL, ring | ALL |
| 32 | 72542-07BN | HOUSING SOCKET, 3-way (brown) | ALL |
| 33 | 72543-07BK | HOUSING SOCKET, 3-way (black) (2) | ALL |
| 34 | 72544-07 | SECONDARY LOCK, 3-way (3) | ALL |
| 35 | 72557-07 | SECONDARY LOCK, 4-way | ALL |
| 36 | 72558-07 | SEAL PIN, plug (2) | ALL |
| 37 | 74120-08 | DC LEAD ASSEMBLY | ALL |
WIRING HARNESS, MAIN - NON ABS (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200094 | WIRING HARNESS, MAIN | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | ALL |
| 2 | 31586-07 | RELAY | ALL |
| 3 | 72064-06 | SOCKET HOUSING, 3-way | ALL |
| 4 | 72076-00 | SOCKET TERMINAL, 18 gauge (30) | ALL |
| 5 | 72077-00 | SEAL PIN (7) | ALL |
| 6 | 72078-00 | CONNECTOR KIT, 36-position | ALL |
| 7 | 72094-06 | TERMINAL, female (3) | ALL |
| 8 | 72096-06 | WIRE SEAL (19) | ALL |
| 9 | 72100-04 | HOUSING, 1-way | ALL |
| 10 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | ALL |
| 11 | 72159-94 | SECONDARY LOCK, 12-way | ALL |
| 12 | 72191-94 | TERMINAL SOCKET (12) | ALL |
| 13 | 72213-94 | TERMINAL, female 18-20 gauge (2) | ALL |
| 14 | 72214-94 | CABLE SEAL, 14-16 gauge (2) | ALL |
| 15 | 72260-04 | HOUSING, 1-way | ALL |
| 16 | 72289-04 | TERMINAL | ALL |
| 17 | 72326-95 | TERMINAL (2) | ALL |
| 18 | 72330-95 | FUSE, 15 amp (6) | ALL |
| 19 | 72430-00 | FUSE BLOCK | ALL |
| 20 | 72434-00 | TERMINAL (6) | ALL |
| 21 | 72516-01 | DUST CAP | ALL |
| 22 | 72518-01 | HOUSING, socket 2-way (red) | ALL |
| 23 | 72520-01 | SECONDARY LOCK, 2-way (blue) | ALL |
| 24 | 73104-96BK | PIN HOUSING, 4-way (black) | ALL |
| 25 | 73106-96BK | PIN HOUSING, 6-way (black) | ALL |
| 26 | 73190-96 | TERMINAL PIN, 20-16 gauge (10) | ALL |
| 27 | 73215-07 | COVER, fuse block (not illustrated) | ALL |
WIRING HARNESS, MAIN - ABS (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200093 | WIRING HARNESS, MAIN - ABS | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 31586-07 | RELAY (2) | ALL |
| 2 | 72094-06 | TERMINAL FEMALE (3) | ALL |
| 3 | 72096-06 | WIRE SEAL (3) | ALL |
| 4 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | ALL |
| 5 | 72154-94 | SECONDARY LOCK, 4-way | ALL |
| 6 | 72168-07 | TERMINAL SOCKET (29) | ALL |
| 7 | 72169-07 | TERMINAL PIN (12) | ALL |
| 8 | 72191-94 | TERMINAL SOCKET (4) | ALL |
| 9 | 72213-94 | TERMINAL, female 18-20 gauge (2) | ALL |
| 10 | 72272-07 | TERMINAL SOCKET (14) | ALL |
| 11 | 72326-95 | TERMINAL (8) | ALL |
| 12 | 72330-95 | FUSE, 15 amp (3) | ALL |
| 13 | 72343-10 | TERMINAL PIN (gold) (2) | ALL |
| 14 | 72414-07BK | HOUSING, 6-way (black) | ALL |
| 15 | 72415-07GY | HOUSING PIN, 4-way (gray) | ALL |
| 16 | 72430-00 | FUSE BLOCK | ALL |
| 17 | 72434-00 | TERMINAL (6) | ALL |
| 18 | 72469-07GY | HOUSING SOCKET, 8-way (gray) | ALL |
| 19 | 72473-07 | SEAL PIN (8) | ALL |
| 20 | 72500-07ABK | HOUSING SOCKET, 20-way (black) | ALL |
| 21 | 72519-09BK | HOUSING, pin 3-way (black) | ALL |
| 22 | 72512-07BK | HOUSING, socket 3-way (black) | ALL |
| 23 | 72525-01 | TERMINAL, ring | ALL |
| 24 | 72526-01 | HOUSING SOCKET, 2-way | ALL |
| 25 | 72527-01 | TERMINAL SOCKET (2) | ALL |
| 26 | 72528-01 | SEAL WIRE (2) | ALL |
| 27 | 72539-06 | FUSE, mini type 30 amp (green) | ALL |
| 28 | 72544-07 | SECONDARY LOCK, 3-way | ALL |
| 29 | 72547-08 | DIODE ASSEMBLY ABS | ALL |
| 30 | 72606-08 | HOUSING SOCKET, 2-way | ALL |
| 31 | 72609-08 | SECONDARY LOCK, 2-way | ALL |
| 32 | 72610-08 | SEAL, 18-20 awg (white) (2) | ALL |
| 33 | 73101-96BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 34 | 73102-96BK | PIN HOUSING, 2-way (black) | ALL |
| 35 | 73104-96BK | PIN HOUSING, 4-way (black) (2) | ALL |
| 36 | 73106-96BK | PIN HOUSING, 6-way (black) (2) | ALL |
| 37 | 73190-96 | TERMINAL PIN, 20-16 gauge (14) | ALL |
| 38 | 74112-98BK | HOUSING SOCKET, 2-way (black) | ALL |
| 39 | 74119-98BK | HOUSING SOCKET, 12-way (black) | ALL |
| 40 | 74152-98 | SECONDARY LOCK, socket - 2-way | ALL |
| 41 | 74159-98 | SECONDARY LOCK, socket - 12-way | ALL |
| 42 | 74191-98 | TERMINAL, socket (13) | ALL |
| 43 | 74195-98 | SEAL PIN, plug | ALL |
| 44 | 69200690 | HOUSING SOCKET, 3-way (black) | ALL |
WIRING HARNESS, MAIN - ABS (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200093 | WIRING HARNESS, MAIN - ABS | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 9838 | TERMINAL RING, #10-12 AWG | ALL |
| 2 | 9898 | TERMINAL RING (2) | ALL |
| 3 | 10247 | CLIP | ALL |
| 4 | 10279 | CLIP | ALL |
| 5 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| 6 | 72094-06 | TERMINAL FEMALE (13) | ALL |
| 7 | 72096-06 | WIRE SEAL (19) | ALL |
| 8 | 72124-94GY | PIN HOUSING, 4-way (gray) | ALL |
| 9 | 72135-06 | SECONDARY LOCK, 4-way | ALL |
| 10 | 72144-94 | SECONDARY LOCK, 4-way | ALL |
| 11 | 72164-94A | PLUG, 4-way | ALL |
| 12 | 72168-07 | TERMINAL SOCKET (3) | ALL |
| 13 | 72169-07 | TERMINAL PIN (12) | ALL |
| 14 | 72175-07BK | PIN HOUSING, 4-way (black) | ALL |
| 15 | 72190-94 | TERMINAL PIN (3) | ALL |
| 16 | 72195-94 | SEAL PIN | ALL |
| 17 | 72213-94 | TERMINAL, female 18-20 gauge (2) | ALL |
| 18 | 72290-94 | TERMINAL (2) | ALL |
| 19 | 72303-08 | TERMINAL | ALL |
| 20 | 72304-08 | TERMINAL (2) | ALL |
| 21 | 72314-01 | MAIN FUSE, 40 amp | ALL |
| 22 | 72327-03A | CONNECTOR, 3-way | ALL |
| 23 | 72343-10 | TERMINAL PIN (gold) (4) | ALL |
| 24 | 72405-98BK | TERMINAL, right angle (2) | ALL |
| 25 | 72478-07BK | PIN HOUSING, 8-way (black) | ALL |
| 26 | 72485-07 | HOUSING SOCKET, 4-way | ALL |
| 27 | 72493-07 | TERMINAL, socket (2) | ALL |
| 28 | 72494-07 | WIRE SEAL (2) | ALL |
| 29 | 72521-01 | FUSE HOLDER, 1-way | ALL |
| 30 | 72522-01 | TERMINAL FEMALE MAXIFUSE (2) | ALL |
| 31 | 72524-01 | SECONDARY LOCK, maxifuse | ALL |
| 32 | 72525-01 | TERMINAL, ring | ALL |
| 33 | 72542-07BN | HOUSING SOCKET, 3-way (brown) | ALL |
| 34 | 72543-07BK | HOUSING SOCKET, 3-way (black) (4) | ALL |
| 35 | 72544-07 | SECONDARY LOCK, 3-way (3) | ALL |
| 36 | 72557-07 | SECONDARY LOCK, 4-way | ALL |
| 37 | 72558-07 | SEAL PIN, plug (2) | ALL |
| 38 | 72606-08 | HOUSING SOCKET, 2-way | ALL |
| 39 | 72609-08 | SECONDARY LOCK, 2-way | ALL |
| 40 | 72610-08 | SEAL, 18-20 awg (white) (2) | ALL |
| 41 | 74120-08 | DC LEAD ASSEMBLY | ALL |
| 42 | 69200690 | HOUSING SOCKET, 3-way (black) | ALL |
WIRING HARNESS, MAIN - ABS (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200093 | WIRING HARNESS, MAIN - ABS | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | ALL |
| 2 | 31586-07 | RELAY | ALL |
| 3 | 72064-06 | SOCKET HOUSING, 3-way | ALL |
| 4 | 72076-00 | SOCKET TERMINAL, 18 gauge (30) | ALL |
| 5 | 72077-00 | SEAL PIN (7) | ALL |
| 6 | 72078-00 | CONNECTOR KIT, 36-position | ALL |
| 7 | 72094-06 | TERMINAL FEMALE (3) | ALL |
| 8 | 72096-06 | WIRE SEAL (19) | ALL |
| 9 | 72100-04 | HOUSING, 1-way | ALL |
| 10 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | ALL |
| 11 | 72159-94 | SECONDARY LOCK, 12-way | ALL |
| 12 | 72191-94 | TERMINAL SOCKET (12) | ALL |
| 13 | 72213-94 | TERMINAL, female 18-20 gauge (2) | ALL |
| 14 | 72214-94 | CABLE SEAL, 14-16 gauge (2) | ALL |
| 15 | 72260-04 | HOUSING, 1-way | ALL |
| 16 | 72289-04 | TERMINAL | ALL |
| 17 | 72326-95 | TERMINAL (12) | ALL |
| 18 | 72330-95 | FUSE, 15 amp (6) | ALL |
| 19 | 72430-00 | FUSE BLOCK | ALL |
| 20 | 72434-00 | TERMINAL (7) | ALL |
| 21 | 72516-01 | DUST CAP | ALL |
| 22 | 72518-01 | HOUSING, socket 2-way (red) | ALL |
| 23 | 72520-01 | SECONDARY LOCK, 2-way | ALL |
| 24 | 73104-96BK | PIN HOUSING, 4-way (black) (2) | ALL |
| 25 | 73106-96BK | PIN HOUSING, 6-way (black) (2) | ALL |
| 26 | 73190-96 | TERMINAL PIN, 20-16 gauge (12) | ALL |
| 27 | 73215-07 | COVER, fuse block 2-way (black) | ALL |
WIRING HARNESS, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 70155-07 | WIRING HARNESS, ENGINE | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 72063-06 | HOUSING, 2-way | ALL |
| 2 | 72094-06 | TERMINAL, female (2) | ALL |
| 3 | 72096-06 | WIRE SEAL (2) | ALL |
| 4 | 72111-06 | SECONDARY LOCK, 2-way | ALL |
| 5 | 72168-07 | TERMINAL SOCKET (8) | ALL |
| 6 | 72213-94 | TERMINAL, female, 18-21 gauge (3) | ALL |
| 7 | 72214-94 | CABLE SEAL (3) | ALL |
| 8 | 72230-98 | SOCKET HOUSING, 3-way | ALL |
| 9 | 72231-98 | SOCKET LOCK, secondary 3-way | ALL |
| 10 | 72244-95 | SOCKET HOUSING, 2-way (2) | ALL |
| 11 | 72245-95 | TERMINAL, socket (4) | ALL |
| 12 | 72405-98GN | TERMINAL, push on #18 AWG | ALL |
| 13 | 72479-07BK | SOCKET HOUSING, 8-way (black) | ALL |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13694-07 | LABEL FUSE BLOCK, non ABS | ALL |
| 13725-08 | LABEL FUSE BLOCK, ABS | ALL | |
| 2 | 13729-15 | YEAR OF MANUFACTURING LABEL (Brazil) | ALL |
| 3 | 14270-92 | LABEL SHIFT PATTERN (silver or black) (Japan) | ALL |
| 4 | 15368-01A | BATTERY WARNING LABEL (silver or black) | ALL |
| 5 | 15370-01A | MIRROR LABEL (silver or black)(Domestic, California, Canada, HDI, Australia, England, Japan, H105,) | ALL |
| 15385-08 | MIRROR LABEL (Brazil)(not shown) | ALL | |
| 6 | 14000384 | WARNING LABEL | ALL |
| NOTE: When ordering any V.I.N., Emissions, Anti Tampering, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 4312C | SCREW (2) | ALL |
| 3 | 4576M | SCREW | ALL |
| 4 | 7495 | NUT (4) | ALL |
| 5 | 65989-97C | BATTERY (Domestic, California, Canada, England, HDI, Australia, Japan) | ALL |
| 66000065 | BATTERY (Brazil) | ALL | |
| 6 | 66017-01 | BATTERY STRAP | ALL |
| 7 | 66056-00 | ADAPTER KIT, w/ 7495 | ALL |
| 8 | 66494-01 | PAD (1) | ALL |
| 9 | 70003-04 | COVER | ALL |
| 10 | 70106-07A | CABLE, battery to solenoid w/ 10065 & 70003-04 | ALL |
| 11 | 70393-07 | BATTERY TRAY | ALL |
| 12 | 70110-07A | CABLE ASSEMBLY, battery - negative to engine | ALL |
| 13 | 70441-01A | CABLE, engine to chassis guard, w/ 70578-89 | ALL |
| 14 | 70473-07 | BATTERY CADDY, left | ALL |
| 15 | 70475-07 | BATTERY CADDY, right | ALL |
| 16 | 70578-89 | BOOT | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3711M | SCREW (2) | ALL |
| 2 | 3724M | ACORN NUT | ALL |
| 3 | 7435M | LOCKNUT | ALL |
| 4 | 7495 | NUT | ALL |
| 5 | 7999M | NUT (2) | ALL |
| 6 | 69053-09 | HORN COVER (satin chrome) | VRSCF |
| 69537-07 | HORN COVER (gloss black) | VRSCDX | |
| 7 | 69060-90H | HORN KIT, w/ 69152-01A | ALL |
| 8 | 69143-01 | MOUNT (rubber) | ALL |
| 9 | 69152-01A | BRACKET, horn mount | ALL |
| 10 | 70480-07A | BRACKET, harness mount | ALL |
TURN SIGNAL MODULE & IGNITION SWITCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 3556B | SCREW (4) | ALL |
| 2 | 3815M | SCREW (2) | ALL |
| 3 | 10065 | CABLE STRAP | ALL |
| 4 | 45804-01A | FORK LOCK, w/ o-ring, bearing & 71578-01A (specify key number - for key numbers 5000 &up) | ALL |
| 5 | 68921-07 | MODULE, turn signal canceller (Domestic, HDI) | ALL |
| 69976-08 | MODULE, security system (Domestic, HDI) | ALL | |
| 6 | 68926-07 | REMOTE CONTROL FOB (Domestic, HDI) (2) | ALL |
| 7 | 68956-07 | ANTENNA MODULE, security system (Domestic, HDI) | ALL |
| 8 | 68958-07C | SIREN, w/ 68959-00 (HDI, Australia, England, Japan, H105, Brazil) | ALL |
| 9 | 69309-10 | SIREN ALARM, battery replacement (HDI, Australia, England, Japan, H105, Brazil) | ALL |
| 10 | 70020-05 | IGNITION SWITCH KIT, w/ key & ignition switch (specify key number) | ALL |
| 11 | 70406-06 | BRACKET, ignition switch | ALL |
| 12 | 70432-06 | NAMEPLATE | ALL |
| 13 | 70433-06 | COVER ASSEMBLY, ignition, w/ 70432-06 | ALL |
| 14 | 70620-07 | HARNESS, hands free (Domestic, HDI) | ALL |
| 15 | 71578-01A | PLUNGER FORK LOCK | ALL |
| 16 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | ALL |
| 17 | 72154-94 | SECONDARY LOCK, 4-way | ALL |
| 18 | 72191-94 | TERMINAL SOCKET (3) | ALL |
| 19 | 72195-94 | SEAL PIN | ALL |
| 20 | 72720-07 | SOCKET HOUSING, 2-way | ALL |
| 21 | 72721-07 | SOCKET TERMINAL (2) | ALL |
| 22 | 71400075 | IGNITION SWITCH & FORK LOCK SET, w/ 45804-01A, 90300043 & ignition switch (specify key number - for key numbers 5000 & up) | ALL |
| 23 | 90300043 | KEY SET, w/ key, 10065 & 61081-92 (specify key numbers - for key numbers 5000 & up) (2) | ALL |
| 61081-92 | COVER, key head set (not illustrated) (2) | ALL |
COSMETIC COVERS - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (4) | VRSCDX |
| 2 | 3707M | SCREW, non-ABS (2) | VRSCDX |
| 3 | 3716M | SCREW (4) | VRSCDX |
| 4 | 3729M | SCREW (2) | VRSCDX |
| 5 | 3731M | SCREW (2) | VRSCDX |
| 6 | 6837M | WASHER (4) | VRSCDX |
| 7 | 6872M | WASHER (2) | VRSCDX |
| 8 | 8130 | SPEED NUT (6) | VRSCDX |
| 9 | 8235 | RIVET (2) | VRSCDX |
| 10 | 11519 | BUSHING, non ABS (4) | VRSCDX |
| 10 | 11519 | BUSHING, ABS (2) | VRSCDX |
| 11 | 11523 | WASHER | VRSCDX |
| 12 | 11524A | RUBBER MOUNT (4) | VRSCDX |
| 13 | 11558 | BUMPER, air box (4) | VRSCDX |
| 14 | 26813-08A | COVER ASSEMBLY, radiator w/ 3612, 8130, 26788-08A, 26814-07 & 26815-07 (black) | VRSCDX |
| 15 | 26788-08A | COVER ASSEMBLY, radiator molded | VRSCDX |
| 16 | 66154-07BEO | COVER, air box (prime) | VRSCDX |
| 17 | 26814-07 | BEZEL INLET, radiator - left | VRSCDX |
| 26815-07 | BEZEL INLET, radiator - right | VRSCDX | |
| 18 | 66209-08 | COVER, non ABS | VRSCDX |
| 19 | 66221-08 | BRACKET, cover - non ABS | VRSCDX |
| 20 | 66157-07BDK | RADIATOR, trim cover - left (prime) | VRSCDX |
| 66158-07BDK | RADIATOR, trim cover - right (prime) | VRSCDX | |
| 21 | 66712-01 | S-SPRING | VRSCDX |
| 22 | 66713-01 | STUD BAIL HEAD | VRSCDX |
| NOTE: For part numbers for RADIATOR, trim cover (left/right) and all color part numbers see service section of h-dnet.com | |||
COSMETIC COVERS - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3707M | SCREW, non ABS (2) | VRSCF |
| 2 | 3716M | SCREW (4) | VRSCF |
| 3 | 3731M | SCREW (4) | VRSCF |
| 4 | 4965M | SCREW (10) | VRSCF |
| 5 | 6837M | WASHER (4) | VRSCF |
| 6 | 8235 | RIVET (2) | VRSCF |
| 7 | 11519 | BUSHING, non ABS (4) | VRSCF |
| 7 | 11519 | BUSHING, ABS (2) | VRSCF |
| 8 | 11523 | WASHER | VRSCF |
| 9 | 11524A | RUBBER MOUNT (2) | VRSCF |
| 10 | 26826-09 | COVER ASSEMBLY | VRSCF |
| 11 | 62272-09 | MEDALLION (2) | VRSCF |
| 12 | 66209-08 | COVER, non ABS | VRSCF |
| 13 | 66221-08 | BRACKET, cover - non ABS | VRSCF |
| 14 | 66385-09 | BRACKET, airbox | VRSCF |
| 15 | 66390-09 | COVER ASSEMBLY, air box w/ 3731M & 66385-09 (prime) | VRSCF |
| 16 | 66547-09 | SIDECOVER, front - left, w/ 62272-09 & 67718-60A (prime) | VRSCF |
| 17 | 66548-09 | SIDECOVER, front - right, w/ 62272-09 & 67718-60A (prime) | VRSCF |
| 18 | 26836-09 | RADIATOR, trim cover - right (prime) | VRSCF |
| 26837-09 | RADIATOR, trim cover - left (prime) | VRSCF | |
| 19 | 66712-01 | S-SPRING | VRSCF |
| 20 | 66713-01 | STUD BAIL HEAD | VRSCF |
| 21 | 67718-60A | SCREW (12) | VRSCF |
| NOTE: For part numbers for RADIATOR, trim cover (left/right) and all color part numbers see service section of h-dnet.com | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 60908-09A | LICENSE PLATE BRACKET/REFLECTOR, w/ 59259-90 (HDI) | VRSCDX |
| 68926-07 | REMOTE CONTROL FOB (2) | ALL | |
| 71452-91A | KEYS (key number 3000-4999) | ALL | |
| 72314-01 | MAIN FUSE | ALL | |
| 88002-15D | OWNERS MANUAL CONTENT (Domestic) | ALL | |
| 99736-15 | OWNERS MANUAL (Domestic, Australia, England) | ALL | |
| 90300043 | KEYS (key numbers 5000 up) | ALL | |
| 94000084 | ABS DVD | ALL |
| Part No. | Description |
| 1004M | SCREW M6 X 1.0 X 27 socket head |
| 1007M | SCREW M6 X 1.0 X 12 socket head |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 1014M | SCREW M6 X 1.0 X 40 hex flange head |
| 1017M | SCREW M6 X 1.0 X 95 socket head |
| 10200078 | SCREW M6 X 1.0 X 20 hex socket cap |
| 1021M | SCREW M8 X 29 TORX head |
| 1023M | SCREW M8 X 1.25 X 55 hex flange head |
| 1024M | SCREW M6 X 1.0 X 60 socket head |
| 1025M | SCREW M8 X 1.25 X 90 hex flange head |
| 1027M | SCREW M10 X 1.5 X 60 hex flange head |
| 1030M | SCREW M6 X 1.0 X 50 socket head |
| 1031M | SCREW M8 X 1.0 X 18 hex head |
| 1035M | SCREW M14 X 1.5 X 70 hex flange head |
| 1043MA | SCREW M5 X 0.8 X 10 socket head |
| 1114M | SCREW M6 X 1 X 20 socket head |
| 2228 | SCREW M5 X 0.8 X 20.7 TORX pan head (Grade 9.8) |
| 2243M | SCREW M6 X 1.0 hex button head with washer & lock patch (black) |
| 24311-01K | BOLT M10 X 1.0 X 55 |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 25911-01K | WASHER 8.2 X 28 X 5.0 |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 3074M | SCREW M12 X 1.75 X 70 TORX recessed button head |
| 3108M | SCREW M8 X 1.25 X 20 hex head |
| 3123 | SCREW 10-14 X 1.0 torx pan head |
| 3163M | SCREW M10 X 1.5 X 90 hex socket cap |
| 3292MA | SCREW M12 X 1.75 X 20 hex head |
| 3385M | SCREW M8 X 1.25 X 35 socket head |
| 3386 | SCREW No. 8-32 X 3/8 socket head |
| 3556B | SCREW No. 8-32 X 3/8 hex socket head cap |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 36706-08K | BOLT M6 X 1.0 X 40 hex flange head |
| 3700MA | SCREW M10 X 1.5 X 30 socket button head |
| 3701M | SCREW M10 X 1.5 X 25 socket head |
| 3703M | SCREW M10 X 1.5 X 30 socket head |
| 3707M | SCREW M6 X 1.0 X 10 socket head |
| 3708M | SCREW M6 X 1.0 X30 hex head |
| 3709M | SCREW M8 X 1.25 X 20 socket head |
| 3711M | SCREW M6 X 1.0 X 16 hex head |
| 3716M | SCREW M6 X 1.0 X 12 button socket head |
| 3724M | ACORN NUT M8 X 1.25 |
| 3725M | NUT M8 X 1.25 hex flange head, with lockpatch |
| 3726M | SCREW M10 X 1.5 X 50 hex flange head |
| 3729M | SCREW M6 X 1.0 X 16 socket head |
| 3731M | SCREW M6 X 1.0 X 12 socket button head, with lockpatch |
| 3753M | SCREW M3 X 1.06 cross recesss pan head |
| 3755M | SCREW M8 X 1.25 X 16 hex head |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3798M | SCREW M5 X 0.8 X 12 socket head |
| 3815M | SCREW M6 X 1.0 X 10 socket button head |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3853M | SCREW M5 X 1.59 X1.30 hex flat head, self-tapping |
| 3919M | SCREW M10 X 1.5 X 40 socket head |
| 3920M | SCREW M10 X 1.5 X 60 flat socket head |
| 3966M | SCREW M10 X 1.5 X 65 socket head |
| 40399-01M | SCREW M12 X 1.75 X 25 hex flange head, with lockpatch |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4250M | SCREW M8 X 1.25 X 25 hex socket head cap |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4484M | SCREW M5 X 0.8 X 16 SEMS hex head |
| 4485M | SCREW M8 X 1.25 X 45 socket head |
| 4499M | BOLT M10 X 1.25 X 35 socket head |
| 4534M | SCREW M10 X 1.5 x 30 socket head |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4543 | SCREW 8-32 X .31 SEMS TORX recessed, self tapping |
| 4552 | SCREW 3/8-14 X 2-3/8 12 pt. FLG, with lockpatch |
| 4560M | SCREW M4 X .7 filister head |
| 4561M | SCREW M5 X .8 X 10 hex socket head cap |
| 4576M | SCREW M6 X 1 X 12 hex head |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4603M | SCREW M12 X 1.75 X 60 TORX recessed button head |
| 4608MA | SCREW 6 X 1 X 8.0 TORX button head (T25 TORX) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4793M | SCREW M8 X 1.25 X 25 hex button head |
| 4863M | SCREW M5 X .8 X 10 button head |
| 4870M | BOLT M12 X 1.75X 30 M8 drive |
| 4873M | SCREW M10 X 1.5 X 15 button head |
| 4889M | SCREW M6 X 1.0 X12 #4 hex flange head |
| 4892M | BOLT M12 X 1.75X 35 M8 drive |
| 4974M | SCREW M6 X 1.0 X 10 hex socket head cap with lock patch |
| 5236M | SCREW M6 X 1.0 X 20 hex flange head |
| 5237M | SCREW M6, X 1.0 X 16 hex flange head |
| 5238M | LOCKNUT M6 flange |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 59018-98 | WASHER 17/32 X 1-1/4 X 1/8 |
| 5925 | WASHER 29 X 39 X 2-19/64 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6110 | WASHER 9/32 X 5/8 X 1/16 |
| 6137K | WASHER 6.35 X 9.80 X 1.0 |
| 6176MA | WASHER 37 X 47 X 2.5 |
| 6298M | WASHER 12.45 X 15.3 X 1.5 |
| 6302 | WASHER 5/16 X 11/16 X 19/32 |
| 6454 | WASHER 5.3 X 9.9 X 1.0 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 6837M | WASHER M6 regular |
| 6838M | WASHER M8 regular |
| 6839M | WASHER M10 narrow |
| 6856M | WASHER M10 |
| 6859M | WASHER M6 special |
| 6872M | WASHER M6 special |
| 6876M | WASHER M12 |
| 6917M | WASHER M6 |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7039 | LOCKWASHER 7/16 |
| 7081 | LOCKWASHER M5 stainless steel |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7427M | NUT M10 X 1.5 flange |
| 7432M | NUT M8 X 1.25 flange |
| 7433M | LOCKNUT M12 X 1.75 flexlock height |
| 7435M | LOCKNUT M8 X 1.25 flange |
| 7460M | LOCKNUT M20 X 2.5 flange |
| 7468M | NUT M10 X 1 X 6 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7999M | NUT M6 X 1.0 |
| 8006 | NUT M4 X .7 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8070MA | NUT M6 X 1 square |
| 8199M | NUT M10 X 1.0 |
| 965M | SCREW M6 X 1.0 X 12 socket head |
| 966M | SCREW M6 X 1.0 X 35 socket head |
| 968M | SCREW M10 X 1.5 X 150 hex flange head |
| 970M | SCREW M8 X 1.25 X 40 hex head |
| 972M | SCREW M8 X 1.25 X 150 hex flange head |
| 973M | SCREW M8 X 1.25 X 120 hex flange head |
| 978M | SCREW M6 X 1.0 X 40 socket head |
| 983M | BOLT M10 X 1.0 X 33 - 12 point flange head |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19973-15K | ENGINE ASSEMBLY (black/gloss black) | VRSCDX |
| 19974-15K | ENGINE ASSEMBLY (polished/platinum) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 9 | 29435-05A | BOTTOM, w/ 29504-05B & 29505-05A | ALL |
| 17 | 29504-05B | BREATHER TUBE, front | ALL |
| 18 | 29505-05A | BREATHER TUBE, rear | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 38744-09A | MASTER CYLINDER ASSEMBLY (black) | ALL |
| 15 | 37200096 | REPAIR KIT, master cylinder | ALL |
| Index No. | Part No. | Description | Model(s) |
| 19 | 44551-08E | MASTER CYLINDER ASSEMBLY (black) | ALL |
| 22 | 41700367 | BUTTON, anti-bubble | ALL |
| Index No. | Part No. | Description | Model(s) |
| 95594-84B | WEIGHT, 5 grams (black) (4) | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 29 | 95594-84B | WEIGHT, 5 grams (black) (4) | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 9 | 27431-07C | TUBE ASSEMBLY, tank to atmosphere | ALL |
| Index No. | Part No. | Description | Model(s) |
| 67453-09A | INSTRUMENT CLUSTER, mph, w/ 67854-98 & 67880-94 (Domestic, California) | VRSCDX | |
| 71962-09A | INSTRUMENT CLUSTER, mph, w/ 67854-98 (Domestic, California) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 3 | 27378-08B | TUBE ASSEMBLY, tank to canister | ALL |
| 4 | 27382-08B | TUBE ASSEMBLY, canister to solenoid | ALL |
| 5 | 27391-07C | TUBE ASSEMBLY, solenoid to throttle body | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 60908-09A | BRACKET, w/ 59259-90 (HDI, England, Japan, H105, Brazil) | VRSCDX |
| 20 | 10100048 | NUT (4) | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 2 | 13729-15 | YEAR OF MANUFACTURING LABEL (Brazil) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 69060-90H | HORN KIT, w/ 69152-01A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 88002-15D | OWNERS MANUAL CONTENT (Domestic) | ALL | |
| 99736-15 | OWNERS MANUAL (Domestic, Australia, England) | ALL |
| Part No. | Description |
| 10006 | |
| 10014 | |
| 10040 | |
| 1004M | |
| 10065 | |
| 1007M | |
| 1009M | |
| 10100048 | |
| 10108 | |
| 10110 | |
| 10119 | |
| 10147 | |
| 1014M | |
| 10177 | |
| 1017M | |
| 10181 | |
| 10200078 | |
| 1021M | |
| 10224 | |
| 10231 | |
| 10232K | |
| 1023M | |
| 10247 | |
| 1024M | |
| 1025M | |
| 10279 | |
| 1027M | |
| 10289A | |
| 10297 | |
| 1030M | |
| 1031M | |
| 1033M | |
| 1035M | |
| 10390 | |
| 1043MA | |
| 10867 | |
| 10950 | |
| 10994K | |
| 11101 | |
| 11130K | |
| 11140 | |
| 11143 | |
| 1114M | |
| 11155 | |
| 11200K | |
| 11271 | |
| 11272 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11304 | |
| 11312K | |
| 11314K | |
| 11328M | |
| 11329K | |
| 11331K | |
| 11335K | |
| 11341K | |
| 11346K | |
| 11347K | |
| 11353K | |
| 11354K | |
| 11355K | |
| 11356K | |
| 11361 | |
| 11362K | |
| 11363K | |
| 11384K | |
| 11391K | |
| 11392K | |
| 11402 | |
| 11519 | |
| 11523 | |
| 11524A | |
| 11542 | |
| 11558 | |
| 11568 | |
| 11570 | |
| 11608 | |
| 11630 | |
| 11632 | |
| 11651 | |
| 11804 | |
| 11900003 | |
| 11904 | |
| 11936 | |
| 12071K | |
| 12072K | |
| 12085 | |
| 13694-07 | |
| 13725-08 | |
| 13729-15 | |
| 14000384 | |
| 14270-92 | |
| 14758-01K | |
| 14791-01KA | |
| 14794-01K | |
| 14795-01K | |
| 15368-01A | |
| 15370-01A | |
| 15385-08 | |
| 16298-05A | |
| 16299-01 | |
| 16306-04A | |
| 16307-05 | |
| 16308-01 | |
| 16311-05 | |
| 16312-04A | |
| 16448-01KA | |
| 17010-01K | |
| 17011-01KB | |
| 17147-08KB | |
| 17148-08KB | |
| 17242-09KA | |
| 17246-09KA | |
| 17406-01KA | |
| 17407-01KA | |
| 17416-01KA | |
| 17418-01K | |
| 17421-08K | |
| 17423-01K | |
| 17431-05K | |
| 17629-01K | |
| 17632-01K | |
| 17637-01K | |
| 17638-01K | |
| 17639-01K | |
| 17640-01K | |
| 17641-01K | |
| 17666-01K | |
| 17679-04K | |
| 17680-04K | |
| 17689-04K | |
| 17691-08K | |
| 17692-08K | |
| 18052-01K | |
| 18055-01K | |
| 18057-01K | |
| 18181-01K | |
| 18624-01K | |
| 18625-01K | |
| 18626-01K | |
| 18627-01K | |
| 18628-01K | |
| 18629-01K | |
| 18630-01K | |
| 18631-01K | |
| 18632-01K | |
| 18638-01K | |
| 18639-01K | |
| 18655-01K | |
| 18656-01K | |
| 18657-01K | |
| 18658-01K | |
| 18659-01K | |
| 18661-01K | |
| 18662-01K | |
| 18663-01K | |
| 18665-01K | |
| 18666-01K | |
| 18667-01K | |
| 18668-01K | |
| 18669-01K | |
| 18670-01K | |
| 18671-01K | |
| 18672-01K | |
| 18673-01K | |
| 18674-01K | |
| 18675-01K | |
| 18676-01K | |
| 18677-01K | |
| 18678-01K | |
| 18679-01K | |
| 18680-01K | |
| 18681-01K | |
| 18682-01K | |
| 18683-01K | |
| 18684-01K | |
| 18685-01K | |
| 18686-01K | |
| 18687-01K | |
| 18688-06K | |
| 18692-01K | |
| 18693-01K | |
| 18694-01K | |
| 18695-01K | |
| 18696-01K | |
| 18697-01K | |
| 18698-01K | |
| 18699-01K | |
| 18700-01K | |
| 18701-01K | |
| 18702-01K | |
| 19973-15K | |
| 19974-15K | |
| 21910-06K | |
| 22121-01K | |
| 2228 | |
| 2243M | |
| 22919-05K | |
| 22928-05KA | |
| 22934-08K | |
| 22953-08K | |
| 23712-01K | |
| 23725-01K | |
| 24307-01K | |
| 24311-01K | |
| 24312-01K | |
| 24409-01K | |
| 24410-01K | |
| 24411-01K | |
| 24412-01K | |
| 24413-01K | |
| 24457-09K | |
| 24467-09K | |
| 24927-01 | |
| 24986-01K | |
| 25080-01K | |
| 25292-09K | |
| 25295-04K | |
| 25311-04K | |
| 25700075 | |
| 25700077 | |
| 25700079 | |
| 25800-01K | |
| 25891-01K | |
| 25894-07KA | |
| 25899-07KA | |
| 2590 | |
| 25911-01K | |
| 25943-08K | |
| 26034-01K | |
| 26103-01K | |
| 26107-04K | |
| 26393-01K | |
| 26399-01K | |
| 26539-01K | |
| 26541-01K | |
| 26542-01K | |
| 26561-99 | |
| 26575-01KB | |
| 26582-01KA | |
| 26721-01C | |
| 26724-04 | |
| 26730-01 | |
| 26733-01 | |
| 26737-01K | |
| 26740-01K | |
| 26749-01K | |
| 26750-01KA | |
| 26752-01K | |
| 26753-01 | |
| 26754-01 | |
| 26755-01 | |
| 26756-01 | |
| 26757-01 | |
| 26758-01 | |
| 26759-04KA | |
| 26762-04K | |
| 26765-01K | |
| 26767-01 | |
| 26768-01A | |
| 26769-04K | |
| 26770-01 | |
| 26772-04 | |
| 26777-01 | |
| 26778-04K | |
| 26780-05A | |
| 26788-08A | |
| 26790-01 | |
| 26800027 | |
| 26800028 | |
| 26800029 | |
| 26803-07A | |
| 26810-06A | |
| 26812-07 | |
| 26813-08A | |
| 26814-07 | |
| 26815-07 | |
| 26821-07KA | |
| 26826-09 | |
| 26834-08 | |
| 26835-08 | |
| 26836-09 | |
| 26837-09 | |
| 27216-95 | |
| 27225-01 | |
| 27378-08B | |
| 27382-08B | |
| 27388-01 | |
| 27391-07C | |
| 27408-01 | |
| 27431-07C | |
| 27628-01A | |
| 27657-01 | |
| 27662-01B | |
| 27665-01A | |
| 27667-01K | |
| 27669-01K | |
| 27715-07 | |
| 27798-08 | |
| 27975-01 | |
| 27977-01 | |
| 27982-01 | |
| 27990-01 | |
| 27993-01 | |
| 27995-01 | |
| 28002-01 | |
| 28862-01 | |
| 28863-01 | |
| 29434-03A | |
| 29435-05A | |
| 29436-01 | |
| 29437-01A | |
| 29438-01 | |
| 29439-01 | |
| 29504-05B | |
| 29505-05A | |
| 29519-01 | |
| 29521-01 | |
| 29522-01 | |
| 2955 | |
| 29566-06 | |
| 29568-06 | |
| 29601-05K | |
| 29647-01 | |
| 30731-01K | |
| 30734-08KA | |
| 3074M | |
| 3108M | |
| 3123 | |
| 31301-01K | |
| 31303-01K | |
| 31586-07 | |
| 3163M | |
| 31717-01K | |
| 31718-07K | |
| 32313-01A | |
| 32335-04 | |
| 32417-10 | |
| 32477-01A | |
| 32534-11 | |
| 32700005 | |
| 32700006 | |
| 32700028 | |
| 3292MA | |
| 33129-06 | |
| 33133-06 | |
| 33134-07CAZ | |
| 33135-07CAZ | |
| 33738-04 | |
| 33757-01A | |
| 33758-01 | |
| 3385M | |
| 3386 | |
| 33902-98A | |
| 34007-01K | |
| 34567-01 | |
| 34611-65A | |
| 34647-04 | |
| 34696-04 | |
| 34800001 | |
| 34877-07 | |
| 34878-07A | |
| 34918-08 | |
| 34927-05A | |
| 35001-01K | |
| 35002-01K | |
| 35003-01K | |
| 35004-01K | |
| 35017-01K | |
| 35420-01K | |
| 35423-04K | |
| 35428-01KA | |
| 35429-01KA | |
| 35430-01KA | |
| 35432-01K | |
| 35433-01K | |
| 35434-01K | |
| 35441-01K | |
| 35442-01K | |
| 35443-01K | |
| 35445-01K | |
| 35451-01K | |
| 35454-01KA | |
| 35455-01KA | |
| 3556B | |
| 3612 | |
| 3658 | |
| 36699-01KB | |
| 36701-08KA | |
| 36702-08K | |
| 36704-08KA | |
| 36705-08K | |
| 36706-08K | |
| 36707-01K | |
| 36709-01K | |
| 36710-08K | |
| 36711-08K | |
| 36712-08K | |
| 36713-01K | |
| 36720-08K | |
| 36731-91 | |
| 36757-05K | |
| 36779-05K | |
| 36780-01K | |
| 36781-01K | |
| 3700MA | |
| 3701M | |
| 3703M | |
| 3704M | |
| 3707M | |
| 3708M | |
| 3709M | |
| 3711M | |
| 37124-08 | |
| 3716M | |
| 3718M | |
| 37200096 | |
| 3724M | |
| 3725M | |
| 3726M | |
| 3729M | |
| 3731M | |
| 3753M | |
| 3755M | |
| 3762M | |
| 37909-90 | |
| 37938-08KA | |
| 3798M | |
| 3815M | |
| 3832M | |
| 3853M | |
| 38653-01 | |
| 38658-01B | |
| 38692-04C | |
| 38744-09A | |
| 38841-08K | |
| 38842-08K | |
| 3919M | |
| 3920M | |
| 3966M | |
| 40095-01K | |
| 40144-07 | |
| 40145-07 | |
| 40399-01M | |
| 40434-01 | |
| 40590-07 | |
| 40648-08 | |
| 40649-08 | |
| 40652-08 | |
| 40656-06B | |
| 40657-06B | |
| 40668-07 | |
| 40669-07 | |
| 40900079A | |
| 40900169 | |
| 40900192 | |
| 4091 | |
| 40999-87 | |
| 409K | |
| 41000062 | |
| 41123-79 | |
| 41139-02 | |
| 41242-08 | |
| 4132 | |
| 41544-08 | |
| 41550-08 | |
| 41628-08 | |
| 41667-06 | |
| 41670-09 | |
| 41700367 | |
| 41714-05 | |
| 41748-08 | |
| 41750-06B | |
| 41751-06A | |
| 41756-08 | |
| 41783-08 | |
| 41800134 | |
| 41800135 | |
| 41800136 | |
| 41855-08 | |
| 41861-08 | |
| 41967-07B | |
| 42020-09 | |
| 42021-09 | |
| 42022-09A | |
| 42145-06 | |
| 42375-87 | |
| 4240 | |
| 42460-80B | |
| 4250M | |
| 42569-03 | |
| 42849-08 | |
| 42850-06B | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06C | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42859-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42866-06 | |
| 42867-06A | |
| 42876-06A | |
| 42883-06A | |
| 42884-06A | |
| 42885-06 | |
| 42886-06 | |
| 42887-06 | |
| 42888-06 | |
| 42889-06 | |
| 42897-08 | |
| 43050-08 | |
| 43097-12 | |
| 4312C | |
| 43189-11 | |
| 43213-11 | |
| 43300072 | |
| 43300194 | |
| 43567-92 | |
| 43704-08 | |
| 43914-06 | |
| 43915-06 | |
| 43917-01 | |
| 44089-08 | |
| 44160-00 | |
| 44551-08E | |
| 44553-06A | |
| 44724-08A | |
| 44725-08A | |
| 44731-08 | |
| 44732-08 | |
| 44738-06 | |
| 44740-06A | |
| 4484M | |
| 4485M | |
| 4499M | |
| 45041-01A | |
| 45050-06 | |
| 45138-08A | |
| 4530M | |
| 4534M | |
| 45400003 | |
| 45400004 | |
| 45405-75A | |
| 4543 | |
| 45500011 | |
| 45500012 | |
| 45500013 | |
| 4552 | |
| 4560M | |
| 4561M | |
| 4574 | |
| 4575 | |
| 4576M | |
| 45804-01A | |
| 45842-77A | |
| 45900017 | |
| 45900019 | |
| 4597M | |
| 4603M | |
| 4608MA | |
| 46322-06 | |
| 46324-06 | |
| 46329-06 | |
| 46343-06 | |
| 46344-06 | |
| 46346-06 | |
| 46348-06 | |
| 46350-06 | |
| 46352-06 | |
| 46353-06 | |
| 46383-06 | |
| 46891-09C | |
| 46892-09B | |
| 47000001 | |
| 4741A | |
| 47764-08 | |
| 4793M | |
| 47987-12BK | |
| 47988-12BK | |
| 48086-01 | |
| 48184-01 | |
| 482K | |
| 48300-60 | |
| 48315-60 | |
| 48344-09 | |
| 48386-05A | |
| 48389-01 | |
| 48392-05 | |
| 48486-07 | |
| 48527-09 | |
| 485K | |
| 48606-07A | |
| 48612-07A | |
| 4863M | |
| 486K | |
| 48700-09 | |
| 48701-09 | |
| 48702-09 | |
| 48703-09 | |
| 48704-09 | |
| 48705-09 | |
| 48708-09 | |
| 4870M | |
| 48712-07 | |
| 4873M | |
| 48777-09 | |
| 48779-09 | |
| 487K | |
| 4889M | |
| 488K | |
| 4890 | |
| 4892M | |
| 48952-09 | |
| 489K | |
| 49380-09 | |
| 4965M | |
| 49733-07BK | |
| 4974M | |
| 49755-09BK | |
| 50003-89B | |
| 50005-85A | |
| 50277-08A | |
| 50822-09 | |
| 50826-09 | |
| 50912-72 | |
| 515 | |
| 51722-07 | |
| 51723-07 | |
| 52000005 | |
| 52041-82 | |
| 5234 | |
| 5235 | |
| 5236M | |
| 5237M | |
| 52386-07B | |
| 5238M | |
| 52400003 | |
| 52402-01 | |
| 52410-07 | |
| 52433-09 | |
| 52438-09 | |
| 53176-08 | |
| 53436-97 | |
| 54000012 | |
| 5403B | |
| 54046-12 | |
| 54321-85 | |
| 54556-84 | |
| 54617-09 | |
| 554A | |
| 55800027 | |
| 55900002 | |
| 56012-09 | |
| 56220-94A | |
| 56248-08 | |
| 56284-06 | |
| 56365-01 | |
| 56367-01 | |
| 56394-74 | |
| 56396-74A | |
| 56402-83A | |
| 56508-76 | |
| 56666-04 | |
| 56667-04 | |
| 59018-98 | |
| 59022-07BDK | |
| 59024-09 | |
| 59026-09A | |
| 59130-09A | |
| 5925 | |
| 59259-90 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59403-08 | |
| 59440-09 | |
| 59472-09 | |
| 59481-00 | |
| 59482-00 | |
| 59600001 | |
| 59600002 | |
| 59690-07 | |
| 59988-72A | |
| 60254-07 | |
| 60300003 | |
| 60473-07A | |
| 60800006 | |
| 60907-09 | |
| 60908-09A | |
| 60924-09 | |
| 60970-07 | |
| 6101 | |
| 61081-92 | |
| 6110 | |
| 61109-85D | |
| 61274-92 | |
| 61284-06 | |
| 61285-06 | |
| 6137K | |
| 61504-07 | |
| 61505-07 | |
| 6176MA | |
| 62107-01 | |
| 62109-07 | |
| 62113-07 | |
| 62272-09 | |
| 62700054 | |
| 62909-04 | |
| 62921-07A | |
| 62940-04A | |
| 62941-04A | |
| 62943-01 | |
| 62953-09 | |
| 6298M | |
| 6302 | |
| 63650-04K | |
| 63654-04K | |
| 63793-01K | |
| 6454 | |
| 64801-10 | |
| 64802-10 | |
| 64803-10 | |
| 64810-10 | |
| 64816-07A | |
| 64817-07A | |
| 64832-09 | |
| 64900014 | |
| 64900015 | |
| 64959-10 | |
| 64971-09 | |
| 65045-01 | |
| 65089-05A | |
| 65096-05A | |
| 65102-01 | |
| 65108-01 | |
| 65126-09 | |
| 6513 | |
| 6514 | |
| 65268-09 | |
| 65285-09 | |
| 65286-09 | |
| 65296-95A | |
| 65341-10 | |
| 65342-10 | |
| 65400012 | |
| 65600064 | |
| 65600069 | |
| 65600071 | |
| 65600073 | |
| 65600074 | |
| 65616-09 | |
| 65786-09 | |
| 65787-09 | |
| 65799-09 | |
| 65800-09 | |
| 65989-97C | |
| 66000065 | |
| 66017-01 | |
| 66056-00 | |
| 66154-07BEO | |
| 66157-07BDK | |
| 66158-07BDK | |
| 66208-08 | |
| 66209-08 | |
| 66221-08 | |
| 66253-09 | |
| 66254-10 | |
| 66255-10 | |
| 66277-09 | |
| 66306-07DH | |
| 66385-09 | |
| 66390-09 | |
| 66494-01 | |
| 66547-09 | |
| 66548-09 | |
| 6655 | |
| 66712-01 | |
| 66713-01 | |
| 66777-07A | |
| 66813-09 | |
| 6703 | |
| 67308-09 | |
| 67394-09 | |
| 67453-09A | |
| 67621-94 | |
| 67657-05 | |
| 67658-05 | |
| 67717-01 | |
| 67718-60A | |
| 67800051 | |
| 67800052 | |
| 67800054 | |
| 67822-88 | |
| 67827-88A | |
| 67831-03 | |
| 67854-98 | |
| 67880-94 | |
| 67900032 | |
| 67900033 | |
| 67900036 | |
| 67900037 | |
| 67900044 | |
| 67900048 | |
| 67900060 | |
| 67900061 | |
| 67900108 | |
| 68163-84 | |
| 68168-89A | |
| 68228-09 | |
| 68254-01 | |
| 68255-01 | |
| 68256-01 | |
| 6837M | |
| 6838M | |
| 6839M | |
| 68497-07 | |
| 68559-07 | |
| 6856M | |
| 6859M | |
| 6864A | |
| 68702-07 | |
| 6872M | |
| 68755-07 | |
| 6876M | |
| 68807-01 | |
| 68838-06 | |
| 68881-01 | |
| 68904-00 | |
| 68921-07 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68976-00 | |
| 69053-09 | |
| 69060-90H | |
| 69143-01 | |
| 69152-01A | |
| 6917M | |
| 69200093 | |
| 69200094 | |
| 69200690 | |
| 69309-10 | |
| 69325-02 | |
| 69331-02 | |
| 69390-09 | |
| 69391-09 | |
| 69392-09 | |
| 69394-09 | |
| 69395-09A | |
| 69396-09A | |
| 69402-09A | |
| 69403-09A | |
| 69420-09 | |
| 69424-09 | |
| 69457-09 | |
| 69490-07 | |
| 69523-09 | |
| 69529-09 | |
| 69537-07 | |
| 69585-09 | |
| 69587-07 | |
| 6966M | |
| 69861-07 | |
| 69862-07 | |
| 69873-07A | |
| 69874-07A | |
| 69875-07A | |
| 69976-08 | |
| 70003-04 | |
| 70018-07 | |
| 70020-05 | |
| 70106-07A | |
| 70108-07A | |
| 70110-07A | |
| 70155-07 | |
| 70345-84 | |
| 7036 | |
| 7039 | |
| 70393-07 | |
| 70394-07A | |
| 70406-06 | |
| 70432-06 | |
| 70433-06 | |
| 70441-01A | |
| 70473-07 | |
| 70475-07 | |
| 70480-07A | |
| 70494-08 | |
| 70504-81 | |
| 70505-09 | |
| 70578-89 | |
| 70580-08 | |
| 70585-93 | |
| 70620-07 | |
| 70631-08 | |
| 70635-08 | |
| 7081 | |
| 7124 | |
| 71352-07 | |
| 71400075 | |
| 71452-91A | |
| 71474-07 | |
| 7155 | |
| 71563-96 | |
| 71564-96 | |
| 71567-96 | |
| 71568-96A | |
| 71569-06 | |
| 71571-06A | |
| 71578-01A | |
| 71587-04 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71958-09 | |
| 71959-09 | |
| 71962-09A | |
| 71963-09 | |
| 71964-09 | |
| 72023-51E | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72076-00 | |
| 72077-00 | |
| 72078-00 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72111-06 | |
| 72124-94GY | |
| 72134-94GY | |
| 72135-06 | |
| 72139-94GY | |
| 72144-94 | |
| 72154-94 | |
| 72159-94 | |
| 72164-94A | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72244-95 | |
| 72245-95 | |
| 72260-04 | |
| 72266-94 | |
| 72272-07 | |
| 72289-04 | |
| 72290-94 | |
| 72303-08 | |
| 72304-08 | |
| 72314-01 | |
| 72326-95 | |
| 72327-03A | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72405-98BK | |
| 72405-98GN | |
| 72414-07BK | |
| 72415-07GY | |
| 72430-00 | |
| 72434-00 | |
| 72444-07GY | |
| 72447-07GY | |
| 72449-01 | |
| 72450-01 | |
| 72469-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72485-07 | |
| 72493-07 | |
| 72494-07 | |
| 72500-07ABK | |
| 72506-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72516-01 | |
| 72518-01 | |
| 72519-09BK | |
| 72520-01 | |
| 72521-01 | |
| 72522-01 | |
| 72524-01 | |
| 72525-01 | |
| 72526-01 | |
| 72527-01 | |
| 72528-01 | |
| 72539-06 | |
| 72541-07BN | |
| 72542-07BN | |
| 72543-07BK | |
| 72544-07 | |
| 72547-08 | |
| 72557-07 | |
| 72558-07 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72633-02 | |
| 72639-10 | |
| 72720-07 | |
| 72721-07 | |
| 73101-96BK | |
| 73102-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73215-07 | |
| 73307-10 | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74119-98BK | |
| 74120-08 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 7427M | |
| 7432M | |
| 7433M | |
| 7435M | |
| 74402-05B | |
| 74440-08 | |
| 7460M | |
| 7468M | |
| 7495 | |
| 75169-07 | |
| 75210-09 | |
| 75254-04A | |
| 75272-07 | |
| 75274-07 | |
| 75310-07 | |
| 755 | |
| 76231-08 | |
| 769MA | |
| 7716 | |
| 7744 | |
| 7813A | |
| 7910M | |
| 7951 | |
| 7999M | |
| 8002K | |
| 8006 | |
| 8008M | |
| 8020 | |
| 8026K | |
| 8027K | |
| 8028K | |
| 8029K | |
| 8070MA | |
| 8130 | |
| 8199M | |
| 8235 | |
| 88002-15D | |
| 8885 | |
| 90300043 | |
| 90520-07 | |
| 91909-03B | |
| 91910-03B | |
| 9208 | |
| 92094-09 | |
| 92095-09 | |
| 9252 | |
| 9254 | |
| 9276A | |
| 94000084 | |
| 94756-01 | |
| 95594-84B | |
| 95595-84A | |
| 964 | |
| 965M | |
| 966M | |
| 968M | |
| 970M | |
| 972M | |
| 973M | |
| 978M | |
| 9830 | |
| 9838 | |
| 983M | |
| 984M | |
| 9898 | |
| 9907 | |
| 9954 | |
| 9955 | |
| 99736-15 | |
| 9998 | |
| J0117.3A8 | |
| J8127.3A8 | |
| J8130.3A8 | |
| J8135.1AE | |
| J8146.1AS |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7433M | Unknown |
| 7951 | Unknown |
| 3724M | Unknown |
| 7427M | Unknown |
| 7813A | 2007 |
| 8130 | Unknown |
| 8070MA | Unknown |
| 7999M | 2002 |
| 8199M | Unknown |
| 7910M | Unknown |
| 7495 | 1994 |
| 29522-01 | 2001 |
| 7435M | Unknown |
| 10100048 | 2014 |
| 7468M | 2006 |
| 8006 | Unknown |
| 8020 | 2002 |
| 7744 | 1943 |
| 7432M | Unknown |
| 3725M | Unknown |
| 102A1 - Generic Screws | |
| 1023M | Unknown |
| 40399-01M | 2001 |
| 4561M | Unknown |
| 4250M | Unknown |
| 4608MA | Unknown |
| 1014M | Unknown |
| 2228 | Unknown |
| 4560M | Unknown |
| 42375-87 | 1987 |
| 1004M | Unknown |
| 978M | Unknown |
| 4741A | 1994 |
| 1025M | Unknown |
| 67718-60A | 2009 |
| 4530M | Unknown |
| 3731M | Unknown |
| 2955 | 1996 |
| 1027M | Unknown |
| 1035M | Unknown |
| 43567-92 | 1992 |
| 4597M | Unknown |
| 4499M | Unknown |
| 1024M | Unknown |
| 1017M | Unknown |
| 4552 | Unknown |
| 4091 | Unknown |
| 3612 | 2012 |
| 4543 | Unknown |
| 3753M | Unknown |
| 4890 | Unknown |
| 4132 | Unknown |
| 1114M | Unknown |
| 968M | Unknown |
| 4576M | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 3853M | 2001 |
| 4240 | Unknown |
| 4485M | Unknown |
| 3798M | Unknown |
| 3755M | Unknown |
| 3815M | Unknown |
| 4870M | Unknown |
| 3762M | 2000 |
| 4484M | Unknown |
| 3703M | Unknown |
| 3919M | Unknown |
| 3708M | 2011 |
| 4889M | Unknown |
| 3700MA | Unknown |
| 3707M | Unknown |
| 984M | Unknown |
| 970M | Unknown |
| 1033M | Unknown |
| 3386 | Unknown |
| 3163M | 2012 |
| 3108M | Unknown |
| 3729M | Unknown |
| 3711M | Unknown |
| 3704M | Unknown |
| 983M | Unknown |
| 27225-01 | 2001 |
| 972M | Unknown |
| 4873M | Unknown |
| 973M | Unknown |
| 56402-83A | 1983 |
| 3701M | Unknown |
| 4974M | Unknown |
| 1031M | Unknown |
| 3556B | 2007 |
| 3074M | Unknown |
| 4603M | Unknown |
| 4575 | Unknown |
| 4863M | Unknown |
| 4793M | Unknown |
| 1009M | Unknown |
| 1021M | Unknown |
| 4312C | Unknown |
| 5236M | 2004 |
| 3123 | Unknown |
| 1030M | Unknown |
| 3920M | Unknown |
| 2243M | Unknown |
| 3966M | Unknown |
| 966M | Unknown |
| 4534M | 2010 |
| 3716M | Unknown |
| 5403B | Unknown |
| 3726M | Unknown |
| 1007M | Unknown |
| 4965M | Unknown |
| 42858-06A | 2006 |
| 27216-95 | 1995 |
| 2590 | 2005 |
| 3709M | Unknown |
| 965M | Unknown |
| 3832M | 2022 |
| 3385M | Unknown |
| 10200078 | 2012 |
| 4892M | Unknown |
| 103A1 - Generic Washers | |
| 6454 | Unknown |
| 59018-98 | 1998 |
| 6302 | Unknown |
| 6876M | Unknown |
| 6872M | Unknown |
| 6837M | Unknown |
| 6859M | Unknown |
| 6514 | Unknown |
| 6513 | Unknown |
| 6110 | Unknown |
| 6917M | Unknown |
| 6838M | Unknown |
| 6137K | Unknown |
| 6101 | 2011 |
| 11523 | Unknown |
| 6839M | Unknown |
| 7039 | Unknown |
| 6966M | Unknown |
| 94756-01 | 2001 |
| 6856M | Unknown |
| 6655 | 1979 |
| 6703 | 1970 |
| 104A1 - Custom Nuts | |
| 5238M | 2004 |
| 48486-07 | 2007 |
| 54321-85 | 1985 |
| 8008M | Unknown |
| 105A1 - Custom Screws | |
| 1043MA | Unknown |
| 3292MA | Unknown |
| 5237M | 2004 |
| 106A1 - Custom Washers | |
| 25911-01K | 2001 |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 10231 | Unknown |
| 9954 | Unknown |
| 26770-01 | 2001 |
| 9830 | Unknown |
| 62943-01 | 2001 |
| 61284-06 | 2006 |
| 9998 | Unknown |
| 11608 | Unknown |
| 10232K | Unknown |
| 10390 | Unknown |
| 10014 | Unknown |
| 26730-01 | 2001 |
| 56284-06 | 2006 |
| 26777-01 | 2001 |
| 9955 | Unknown |
| 10297 | 2007 |
| 10119 | Unknown |
| 26790-01 | 2001 |
| 108B1 - P Clamps | |
| 10110 | Unknown |
| 109A1 - Studs | |
| 16448-01KA | 2001 |
| 65786-09 | 2009 |
| 27798-08 | 2008 |
| 964 | Unknown |
| 10224 | Unknown |
| 66713-01 | 2001 |
| 110B1 - Plain Bushings | |
| 8029K | Unknown |
| 11568 | 2004 |
| 8028K | Unknown |
| 11519 | Unknown |
| 35420-01K | 2001 |
| 9252 | 2019 |
| 9254 | 2006 |
| 54556-84 | 1984 |
| 42569-03 | 2003 |
| 53176-08 | 2008 |
| 8027K | Unknown |
| 48389-01 | 2001 |
| 11542 | Unknown |
| 8885 | Unknown |
| 46348-06 | 2006 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 12072K | Unknown |
| 12071K | Unknown |
| 6298M | Unknown |
| 11291 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 14794-01K | 2001 |
| 14795-01K | 2001 |
| 6176MA | Unknown |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 72525-01 | 2001 |
| 72524-01 | 2001 |
| 9907 | Unknown |
| 72527-01 | 2001 |
| 72522-01 | 2001 |
| 9838 | Unknown |
| 111F1 - Protective Tape | |
| 61285-06 | 2006 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11570 | Unknown |
| 11347K | Unknown |
| 28862-01 | 2001 |
| 11341K | Unknown |
| 11130K | Unknown |
| 46329-06 | 2002 |
| 11630 | Unknown |
| 27669-01K | 2001 |
| 11353K | Unknown |
| 11362K | Unknown |
| 11101 | 1949 |
| 11391K | Unknown |
| 11392K | Unknown |
| 11140 | 1982 |
| 11289A | Unknown |
| 11354K | Unknown |
| 11290 | 1998 |
| 11331K | Unknown |
| 11312K | 2011 |
| 10994K | Unknown |
| 11900003 | 2012 |
| 11361 | Unknown |
| 11314K | Unknown |
| 11346K | Unknown |
| 120A1 - Pins | |
| 482K | Unknown |
| 409K | Unknown |
| 488K | Unknown |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 485K | Unknown |
| 487K | Unknown |
| 515 | Unknown |
| 45041-01A | 2001 |
| 486K | Unknown |
| 65800-09 | 2009 |
| 121A1 - Grommets | |
| 26757-01 | 2001 |
| 11402 | 2005 |
| 26758-01 | 2001 |
| 121B1 - Press-Fit Plugs | |
| 5234 | Unknown |
| 769MA | Unknown |
| 72164-94A | 1994 |
| 6864A | 2010 |
| 755 | 2018 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 11271 | Unknown |
| 11272 | Unknown |
| 65045-01 | 2001 |
| 11632 | Unknown |
| 10279 | Unknown |
| 11363K | Unknown |
| 10040 | 1982 |
| 489K | Unknown |
| 10950 | Unknown |
| 10108 | Unknown |
| 11155 | Unknown |
| 22121-01K | 2001 |
| 11355K | Unknown |
| 41139-02 | 2002 |
| 11143 | Unknown |
| 11356K | Unknown |
| 11328M | Unknown |
| 11335K | Unknown |
| 11304 | Unknown |
| 11200K | Unknown |
| 10147 | 2018 |
| 11384K | Unknown |
| 10247 | 2006 |
| 29519-01 | 2001 |
| 123A1 - Sealing Washers | |
| 41756-08 | 2008 |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7081 | Unknown |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 5925 | 2006 |
| 16312-04A | 2004 |
| 11804 | Unknown |
| 46346-06 | 2002 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 126A1 - Miscellaneous Hardware | |
| 66712-01 | 2001 |
| 11524A | Unknown |
| 40434-01 | 2001 |
| 11329K | Unknown |
| 11558 | Unknown |
| 27995-01 | 2001 |
| 48708-09 | 2009 |
| 56394-74 | 1974 |
| 126B1 - Rivets Fasteners | |
| 8235 | Unknown |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 15385-08 | 2008 |
| 140A3 - Other Special Warning Label | |
| 13725-08 | 2008 |
| 15370-01A | 2001 |
| 140D3 - Fuse Block Label | |
| 13694-07 | 2007 |
| 140G6 - VIN Overlay | |
| 13729-15 | 2015 |
| 140H1 - Label Set | |
| 14000384 | 2012 |
| 141A1 - Medallion | |
| 14270-92 | 1992 |
| 34918-08 | 2008 |
| 34877-07 | 2007 |
| 70432-06 | 2006 |
| 42856-06 | 2006 |
| 161A1 - Powertrain Assembly | |
| 19974-15K | 2015 |
| 162D1 - Engine Assembly | |
| 19973-15K | 2015 |
| 163B1 - Engine Isolator Mount | |
| 16307-05 | 2005 |
| 16311-05 | 2005 |
| 65126-09 | 2009 |
| 16298-05A | 2005 |
| 16308-01 | 2001 |
| 164A1 - Engine Mount Bracket | |
| 16299-01 | 2001 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7460M | Unknown |
| 27667-01K | 2001 |
| 164C1 - Tiebar | |
| 16306-04A | 2004 |
| 165A1 - Cylinder Head | |
| 17242-09KA | 2010 |
| 17246-09KA | 2010 |
| 17692-08K | 2008 |
| 17148-08KB | 2010 |
| 17147-08KB | 2010 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17691-08K | 2008 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168B1 - Cylinder Liner | |
| 22928-05KA | 2005 |
| 179A1 - Lifters | |
| 18181-01K | 2001 |
| 180A1 - Valves | |
| 18057-01K | 2001 |
| 18665-01K | 2001 |
| 18688-06K | 2006 |
| 181B1 - Valve Seals | |
| 17638-01K | 2001 |
| 17640-01K | 2001 |
| 17637-01K | 2001 |
| 18687-01K | 2001 |
| 17639-01K | 2001 |
| 181C1 - Valve Collars | |
| 35004-01K | 2001 |
| 35002-01K | 2001 |
| 35003-01K | 2001 |
| 35001-01K | 2001 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18055-01K | 2001 |
| 18661-01K | 2001 |
| 18662-01K | 2001 |
| 17641-01K | 2001 |
| 18052-01K | 2001 |
| 219A1 - Piston | |
| 22934-08K | 2008 |
| 220A1 - Piston Ring | |
| 21910-06K | 2006 |
| 22919-05K | 2005 |
| 221A1 - Piston Pin | |
| 22953-08K | 2008 |
| 237A1 - Connecting Rod | |
| 24307-01K | 2001 |
| 237B1 - Connecting Rod sub-component | |
| 27982-01 | 2001 |
| 24311-01K | 2001 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 25800-01K | 2001 |
| 35445-01K | 2001 |
| 8002K | Unknown |
| 14791-01KA | 2001 |
| 35443-01K | 2001 |
| 35441-01K | 2001 |
| 8026K | Unknown |
| 35423-04K | 2004 |
| 35433-01K | 2001 |
| 241A1 - Flywheel | |
| 23712-01K | 2001 |
| 23725-01K | 2001 |
| 24312-01K | 2001 |
| 244A1 - Crankcase | |
| 24457-09K | 2009 |
| 24467-09K | 2009 |
| 244D1 - Crankcase sub-component | |
| 24411-01K | 2001 |
| 24412-01K | 2001 |
| 24409-01K | 2001 |
| 24410-01K | 2001 |
| 24413-01K | 2001 |
| 32313-01A | 2001 |
| 244F1 - Oil Pan | |
| 26107-04K | 2004 |
| 254B1 - Camshaft | |
| 17431-05K | 2005 |
| 17421-08K | 2008 |
| 254C1 - Camshaft Sprocket | |
| 17423-01K | 2001 |
| 40590-07 | 2007 |
| 254D1 - Camshaft Support | |
| 41714-05 | 2005 |
| 255A1 - Camdrive Chain | |
| 17407-01KA | 2001 |
| 17406-01KA | 2001 |
| 255C1 - Camdrive Chain Tensioner | |
| 17632-01K | 2001 |
| 17629-01K | 2001 |
| 257A1 - Cam Cover | |
| 17680-04K | 2004 |
| 17689-04K | 2004 |
| 25700079 | 2012 |
| 25700077 | 2012 |
| 25700075 | 2012 |
| 17679-04K | 2004 |
| 257B1 - Clutch Cover | |
| 25292-09K | 2009 |
| 25943-08K | 2008 |
| 25894-07KA | 2012 |
| 257E1 - Cover Gaskets | |
| 17418-01K | 2001 |
| 17416-01KA | 2001 |
| 17010-01K | 2001 |
| 61109-85D | 1985 |
| 11936 | Unknown |
| 17011-01KB | 2001 |
| 42857-06B | 2013 |
| 17666-01K | 2001 |
| 12085 | Unknown |
| 64971-09 | 2009 |
| 25891-01K | 2001 |
| 25080-01K | 2001 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34878-07A | 2009 |
| 25899-07KA | 2012 |
| 34927-05A | 2005 |
| 266E1 - Water Pump Housing | |
| 26750-01KA | 2012 |
| 26821-07KA | 2012 |
| 26759-04KA | 2012 |
| 25295-04K | 2004 |
| 266F1 - Water Pump Housing Gasket | |
| 26749-01K | 2001 |
| 26752-01K | 2001 |
| 267A1 - Thermostat Housing Gasket | |
| 26765-01K | 2001 |
| 268C1 - Radiator | |
| 26800027 | 2013 |
| 268D1 - Radiator Bleeder Valve | |
| 5235 | 2004 |
| 268E1 - Radiator sub-component | |
| 26800028 | 2013 |
| 26800029 | 2013 |
| 268F1 - Radiator Pressure Cap | |
| 62909-04 | 2004 |
| 26733-01 | 2001 |
| 268H1 - Radiator System Cover | |
| 26813-08A | 2008 |
| 26814-07 | 2007 |
| 66157-07BDK | 2007 |
| 66158-07BDK | 2007 |
| 26788-08A | 2008 |
| 268J1 - Cooling System Module | |
| 26721-01C | 2001 |
| 269B1 - Radiator Hose | |
| 26767-01 | 2001 |
| 26754-01 | 2001 |
| 62953-09 | 2009 |
| 26768-01A | 2001 |
| 26753-01 | 2001 |
| 26834-08 | 2008 |
| 26756-01 | 2001 |
| 26835-08 | 2008 |
| 26755-01 | 2001 |
| 26737-01K | 2001 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26803-07A | 2007 |
| 270A1 - Carburetor | |
| 27990-01 | 2001 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27657-01 | 2001 |
| 272D1 - Throttle Body to Airbox Baseplate Seal | |
| 27977-01 | 2001 |
| 272E1 - Velocity Stack | |
| 29521-01 | 2001 |
| 29438-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 24986-01K | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27662-01B | 2001 |
| 27408-01 | 2001 |
| 28002-01 | 2001 |
| 274C1 - Fuel Injector | |
| 27665-01A | 2001 |
| 290C1 - Airbox Baseplate sub-component | |
| 29435-05A | 2015 |
| 290D1 - Airbox Seal | |
| 29439-01 | 2001 |
| 29436-01 | 2001 |
| 290E1 - Airbox Helmholtz Chamber | |
| 29647-01 | 2001 |
| 294A1 - Air Filter Element | |
| 29437-01A | 2011 |
| 294C1 - Breather Hose | |
| 29601-05K | 2005 |
| 29505-05A | 2015 |
| 29504-05B | 2015 |
| 295A1 - Intake Miscellaneous Component | |
| 26724-04 | 2004 |
| 29566-06 | 2006 |
| 29568-06 | 2006 |
| 28863-01 | 2001 |
| 299A1 - Alternator | |
| 25311-04K | 2004 |
| 299C1 - Charging Rotor | |
| 30731-01K | 2001 |
| 299F1 - Stator Assembly | |
| 30734-08KA | 2012 |
| 314F1 - Starter Motor | |
| 31717-01K | 2001 |
| 31718-07K | 2007 |
| 314H1 - Starter Solenoid | |
| 71474-07 | 2007 |
| 27715-07 | 2007 |
| 315A1 - Quick Shift Actuator | |
| 35017-01K | 2001 |
| 315B1 - Exhaust Valve Actuator | |
| 18663-01K | 2001 |
| 316A1 - Ignition Coil | |
| 32477-01A | 2011 |
| 316C1 - Spark Plug | |
| 32335-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 32700005 | 2012 |
| 32700006 | 2012 |
| 32417-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 40652-08 | 2008 |
| 40648-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 74402-05B | 2012 |
| 50277-08A | 2008 |
| 327E1 - Temperature Sensor | |
| 27388-01 | 2001 |
| 32700028 | 2006 |
| 327F1 - Throttle Position Sensor | |
| 27975-01 | 2001 |
| 336A1 - Shift Linkage Rod Assembly | |
| 34696-04 | 2004 |
| 336C1 - Shift Linkage Rod End | |
| 33738-04 | 2004 |
| 35434-01K | 2001 |
| 33758-01 | 2001 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 336G1 - Toepeg Rubber | |
| 33133-06 | 2006 |
| 339A1 - Shift Lever | |
| 33757-01A | 2001 |
| 339D1 - Shifter Fork | |
| 35428-01KA | 2001 |
| 35430-01KA | 2001 |
| 35429-01KA | 2001 |
| 339E1 - Shifter Fork Shaft | |
| 26582-01KA | 2001 |
| 35432-01K | 2001 |
| 339F1 - Shifter Index Lever | |
| 34567-01 | 2001 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 35442-01K | 2001 |
| 34007-01K | 2001 |
| 35451-01K | 2001 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34800001 | 2012 |
| 37124-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40657-06B | 2009 |
| 40656-06B | 2009 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40669-07 | 2007 |
| 350F1 - Transmission Mainshaft | |
| 35454-01KA | 2001 |
| 350G1 - Transmission Shim / Spacer | |
| 18628-01K | 2001 |
| 18678-01K | 2001 |
| 18629-01K | 2001 |
| 40095-01K | 2001 |
| 18698-01K | 2001 |
| 18632-01K | 2001 |
| 18630-01K | 2001 |
| 18656-01K | 2001 |
| 18667-01K | 2001 |
| 18673-01K | 2001 |
| 18683-01K | 2001 |
| 18700-01K | 2001 |
| 18676-01K | 2001 |
| 18666-01K | 2001 |
| 18655-01K | 2001 |
| 18686-01K | 2001 |
| 18627-01K | 2001 |
| 18693-01K | 2001 |
| 18680-01K | 2001 |
| 18695-01K | 2001 |
| 18696-01K | 2001 |
| 18659-01K | 2001 |
| 18699-01K | 2001 |
| 18701-01K | 2001 |
| 18679-01K | 2001 |
| 18669-01K | 2001 |
| 18675-01K | 2001 |
| 18624-01K | 2001 |
| 18685-01K | 2001 |
| 18684-01K | 2001 |
| 18626-01K | 2001 |
| 18697-01K | 2001 |
| 18670-01K | 2001 |
| 18639-01K | 2001 |
| 18674-01K | 2001 |
| 18702-01K | 2001 |
| 18672-01K | 2001 |
| 18671-01K | 2001 |
| 18682-01K | 2001 |
| 18658-01K | 2001 |
| 18681-01K | 2001 |
| 18677-01K | 2001 |
| 18668-01K | 2001 |
| 18692-01K | 2001 |
| 18657-01K | 2001 |
| 18631-01K | 2001 |
| 18625-01K | 2001 |
| 18694-01K | 2001 |
| 18638-01K | 2001 |
| 352B1 - Engine Balancer sub-component | |
| 14758-01K | 2001 |
| 356A1 - Transmission Countershaft | |
| 35455-01KA | 2001 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 26103-01K | 2001 |
| 76231-08 | 2008 |
| 367A1 - Clutch Lever | |
| 42876-06A | 2006 |
| 367B1 - Clutch Lever Master Cylinder | |
| 38744-09A | 2014 |
| 44740-06A | 2006 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36757-05K | 2005 |
| 36706-08K | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 36709-01K | 2001 |
| 36705-08K | 2008 |
| 36711-08K | 2008 |
| 36712-08K | 2008 |
| 38842-08K | 2008 |
| 37909-90 | 1990 |
| 31301-01K | 2001 |
| 370A1 - Clutch Assembly | |
| 37938-08KA | 2008 |
| 370B1 - Clutch Friction Plate | |
| 36713-01K | 2001 |
| 36707-01K | 2001 |
| 36720-08K | 2008 |
| 370C1 - Clutch Hub | |
| 36701-08KA | 2008 |
| 370E1 - Clutch Metal Plate | |
| 36780-01K | 2001 |
| 370F1 - Clutch Pressure Plate | |
| 36704-08KA | 2008 |
| 36710-08K | 2008 |
| 38841-08K | 2008 |
| 36702-08K | 2008 |
| 370G1 - Clutch Shell | |
| 36699-01KB | 2005 |
| 370H1 - Clutch Sprocket | |
| 36781-01K | 2001 |
| 36779-05K | 2005 |
| 372D1 - Clutch Cable | |
| 38658-01B | 2001 |
| 38692-04C | 2004 |
| 372F1 - Clutch Diaphragm Plate | |
| 31303-01K | 2001 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200096 | 2014 |
| 400A1 - Drive-Belt | |
| 40144-07 | 2007 |
| 40145-07 | 2007 |
| 409A1 - Rear Wheel | |
| 40900192 | 2013 |
| 40900169 | 2012 |
| 40900079A | 2012 |
| 410D1 - Electronic Control Module (ECM) | |
| 68921-07 | 2007 |
| 69529-09 | 2009 |
| 32534-11 | 2011 |
| 69457-09 | 2009 |
| 410E1 - Lighting / Siren Control Module | |
| 41000062 | 2012 |
| 410G1 - Security System Control Module | |
| 69976-08 | 2008 |
| 411A1 - ABS Control Unit | |
| 66208-08 | 2008 |
| 41861-08 | 2008 |
| 41855-08 | 2008 |
| 411A2 - ABS Electrical Control Unit | |
| 40649-08 | 2008 |
| 411A3 - ABS Hydraulic Control Unit | |
| 48344-09 | 2009 |
| 413A1 - Brake Caliper | |
| 44731-08 | 2008 |
| 44732-08 | 2008 |
| 44160-00 | 2000 |
| 43050-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42866-06 | 2006 |
| 42851-06 | 2006 |
| 413D1 - Brake Pad | |
| 42850-06B | 2006 |
| 42867-06A | 2006 |
| 42897-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41667-06 | 2006 |
| 48952-09 | 2009 |
| 44553-06A | 2006 |
| 416A1 - Brakes Miscellaneous Component | |
| 10867 | 2010 |
| 43097-12 | 2012 |
| 42860-06B | 2006 |
| 42886-06 | 2006 |
| 42852-06A | 2006 |
| 42863-06 | 2006 |
| 72023-51E | 2012 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 44551-08E | 2015 |
| 46322-06 | 2006 |
| 417B1 - Brake Master Cylinder | |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 42884-06A | 2006 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 43915-06 | 2006 |
| 42887-06 | 2006 |
| 42862-06B | 2010 |
| 42855-06C | 2013 |
| 41700367 | 2015 |
| 43914-06 | 2006 |
| 45050-06 | 2006 |
| 46324-06 | 2006 |
| 43917-01 | 2001 |
| 42883-06A | 2006 |
| 42885-06 | 2006 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 42859-06B | 2006 |
| 418B1 - Brake Line | |
| 42020-09 | 2009 |
| 44724-08A | 2008 |
| 41967-07B | 2007 |
| 44725-08A | 2008 |
| 42888-06 | 2006 |
| 42021-09 | 2009 |
| 42022-09A | 2012 |
| 41800136 | 2012 |
| 41800135 | 2012 |
| 41800134 | 2012 |
| 422A1 - Wheel Sprocket Cover | |
| 26812-07 | 2007 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84B | 2014 |
| 430D1 - Front Axle | |
| 41628-08 | 2008 |
| 430E1 - Rear Axle | |
| 41544-08 | 2008 |
| 431A1 - Front Tire | |
| 43213-11 | 2011 |
| 432A1 - Rear Tire | |
| 43189-11 | 2011 |
| 433A1 - Front Wheel | |
| 43300194 | 2013 |
| 43300072 | 2012 |
| 41670-09 | 2009 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43704-08 | 2008 |
| 34647-04 | 2004 |
| 40668-07 | 2007 |
| 41748-08 | 2008 |
| 41550-08 | 2008 |
| 41242-08 | 2008 |
| 454A1 - Front Telescopic Fork | |
| 48705-09 | 2009 |
| 48700-09 | 2009 |
| 49380-09 | 2009 |
| 48701-09 | 2009 |
| 45400003 | 2012 |
| 45400004 | 2012 |
| 454B1 - Springer Fork | |
| 48704-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 48703-09 | 2009 |
| 48702-09 | 2009 |
| 45500013 | 2012 |
| 45500012 | 2012 |
| 455C1 - Front Telescopic Fork sub-component | |
| 48777-09 | 2009 |
| J8135.1AE | 2003 |
| 46343-06 | 2002 |
| J8127.3A8 | 2005 |
| 46353-06 | 2006 |
| 46344-06 | 2006 |
| J8146.1AS | 2007 |
| J0117.3A8 | 2005 |
| 45500011 | 2012 |
| 46352-06 | 2006 |
| J8130.3A8 | 2005 |
| 456C1 - Fork Lock | |
| 45804-01A | 2001 |
| 457D1 - Steering Stem | |
| 46350-06 | 2006 |
| 4574 | 2008 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45842-77A | 1977 |
| 48184-01 | 2001 |
| 459A1 - Upper Triple Clamp | |
| 46891-09C | 2011 |
| 45900017 | 2012 |
| 459B1 - Lower Triple Clamp | |
| 45900019 | 2012 |
| 46892-09B | 2009 |
| 470A1 - Frame | |
| 47000001 | 2012 |
| 47764-08 | 2008 |
| 472A1 - Frame sub-component | |
| 47988-12BK | 2012 |
| 47987-12BK | 2012 |
| 48086-01 | 2001 |
| 7036 | Unknown |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70406-06 | 2006 |
| 68807-01 | 2001 |
| 474C1 - Swingarm | |
| 48612-07A | 2008 |
| 48606-07A | 2008 |
| 474F1 - Swingarm Bearing Spacer | |
| 48712-07 | 2007 |
| 48386-05A | 2005 |
| 475B1 - Swingarm Pivot Shaft | |
| 48392-05 | 2005 |
| 500D1 - Sidestand Leg | |
| 49733-07BK | 2007 |
| 49755-09BK | 2009 |
| 500E1 - Sidestand Leg sub-component | |
| 50005-85A | 1985 |
| 3718M | Unknown |
| 62107-01 | 2001 |
| 500F1 - Sidestand Pivot Pin | |
| 554A | 2002 |
| 505B1 - Footpeg Mount Bracket | |
| 50822-09 | 2009 |
| 51723-07 | 2007 |
| 50826-09 | 2009 |
| 51722-07 | 2007 |
| 505D1 - Passenger Footpeg | |
| 33134-07CAZ | 2007 |
| 33135-07CAZ | 2007 |
| 505K1 - Footpeg Wear Peg | |
| 33129-06 | 2006 |
| 506A1 - Brake Pedal | |
| 50912-72 | 1972 |
| 44738-06 | 2006 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 54046-12 | 2012 |
| 520A1 - Rider Seat or Full Seat | |
| 52000005 | 2012 |
| 52433-09 | 2009 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52402-01 | 2001 |
| 52041-82 | 1982 |
| 521A1 - Seat Support Structure | |
| 52410-07 | 2007 |
| 48527-09 | 2009 |
| 11651 | 2010 |
| 521C1 - Seat Suspension Damper | |
| 48779-09 | 2009 |
| 524A1 - Passenger Grab Handle | |
| 52386-07B | 2011 |
| 524B1 - Passenger Seat | |
| 52438-09 | 2009 |
| 52400003 | 2012 |
| 540B1 - Rear Shock | |
| 54000012 | 2012 |
| 54617-09 | 2009 |
| 558A1 - Handlebar | |
| 56012-09 | 2009 |
| 55800027 | 2012 |
| 559D1 - Lower Handlebar Clamp | |
| 55900002 | 2012 |
| 560A1 - Mirror | |
| 92094-09 | 2009 |
| 67831-03 | 2003 |
| 92095-09 | 2009 |
| 91909-03B | 2003 |
| 91910-03B | 2003 |
| 561A1 - Throttle Cable | |
| 56367-01 | 2001 |
| 56365-01 | 2001 |
| 561B1 - Left Hand Grip | |
| 56667-04 | 2004 |
| 561C1 - Throttle Assembly w/Grip | |
| 56666-04 | 2004 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 56248-08 | 2008 |
| 572E1 - Side Cover | |
| 26837-09 | 2009 |
| 66548-09 | 2009 |
| 66547-09 | 2009 |
| 573B1 - Bodywork Mounting Bracket | |
| 59403-08 | 2008 |
| 574B1 - Windscreen / Windshield | |
| 67621-94 | 1994 |
| 589A1 - Front Fender | |
| 59022-07BDK | 2007 |
| 59026-09A | 2010 |
| 59130-09A | 2010 |
| 59024-09 | 2009 |
| 596A1 - Tire Mud Flap | |
| 59690-07 | 2007 |
| 59600001 | 2012 |
| 59600002 | 2012 |
| 603B1 - Belt / Chain Guard | |
| 60300003 | 2012 |
| 60473-07A | 2007 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27431-07C | 2014 |
| 27378-08B | 2014 |
| 27382-08B | 2014 |
| 27391-07C | 2014 |
| 609A1 - Fuel Miscellaneous Component | |
| 75254-04A | 2004 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 60970-07 | 2007 |
| 610A1 - Fuel Tank | |
| 62921-07A | 2007 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 612A1 - Fuel Filter | |
| 75169-07 | 2007 |
| 62113-07 | 2007 |
| 612B1 - Fuel Level Sensor | |
| 75210-09 | 2009 |
| 612C1 - Fuel Line | |
| 61505-07 | 2007 |
| 61504-07 | 2007 |
| 612F1 - Fuel Pump | |
| 75310-07 | 2007 |
| 62109-07 | 2007 |
| 75272-07 | 2007 |
| 613B1 - Horn Cover | |
| 69053-09 | 2009 |
| 69537-07 | 2007 |
| 66306-07DH | 2007 |
| 613H1 - Radiator Mud Guard | |
| 26826-09 | 2009 |
| 26815-07 | 2007 |
| 26836-09 | 2009 |
| 613K1 - Airbox Cover | |
| 29434-03A | 2003 |
| 66154-07BEO | 2007 |
| 66390-09 | 2009 |
| 613L1 - Airbox Cover sub-component | |
| 66385-09 | 2009 |
| 614C1 - Trim | |
| 71958-09 | 2009 |
| 71352-07 | 2007 |
| 62272-09 | 2009 |
| 624A1 - Oil Pump Assembly | |
| 26575-01KB | 2001 |
| 624B1 - Oil Pump Assembly sub-component | |
| 27993-01 | 2001 |
| 26539-01K | 2001 |
| 627A1 - Oil Cooler | |
| 62700054 | 2013 |
| 627B1 - Oil Drain Plug | |
| 26542-01K | 2001 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 26778-04K | 2004 |
| 26541-01K | 2001 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63793-01K | 2001 |
| 627H1 - Oil Line | |
| 62940-04A | 2004 |
| 62941-04A | 2004 |
| 26772-04 | 2004 |
| 627K1 - Oil Line Fitting | |
| 63654-04K | 2004 |
| 26399-01K | 2001 |
| 63650-04K | 2004 |
| 627K2 - Oil Line Fitting Cover | |
| 26810-06A | 2006 |
| 627N1 - Oil System Baffle | |
| 26034-01K | 2001 |
| 627P1 - Oil Thermostat | |
| 26740-01K | 2001 |
| 26769-04K | 2004 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 26393-01K | 2001 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 26762-04K | 2004 |
| 649A1 - Muffler | |
| 64816-07A | 2007 |
| 65268-09 | 2009 |
| 65089-05A | 2005 |
| 64900015 | 2012 |
| 64900014 | 2012 |
| 65285-09 | 2009 |
| 64817-07A | 2007 |
| 65096-05A | 2005 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65342-10 | 2010 |
| 64959-10 | 2010 |
| 66253-09 | 2009 |
| 65341-10 | 2010 |
| 653A1 - Muffler sub-component | |
| 66254-10 | 2010 |
| 654A1 - Exhaust Shield | |
| 65799-09 | 2009 |
| 64803-10 | 2010 |
| 66255-10 | 2010 |
| 65400012 | 2012 |
| 64810-10 | 2010 |
| 64802-10 | 2010 |
| 66277-09 | 2009 |
| 65787-09 | 2009 |
| 64801-10 | 2010 |
| 655C1 - Exhaust Mounting Bracket | |
| 65286-09 | 2009 |
| 65616-09 | 2009 |
| 66777-07A | 2007 |
| 656E1 - Header Pipe | |
| 65600069 | 2012 |
| 65600064 | 2012 |
| 65600071 | 2012 |
| 65600074 | 2012 |
| 65600073 | 2012 |
| 659A1 - Exhaust Clamp | |
| 64832-09 | 2009 |
| 65108-01 | 2001 |
| 65296-95A | 1995 |
| 659B1 - Exhaust Flange | |
| 65102-01 | 2001 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66000065 | 2013 |
| 65989-97C | 1997 |
| 660B1 - Battery Pad | |
| 66494-01 | 2001 |
| 660C1 - Battery Pan | |
| 70393-07 | 2007 |
| 660D1 - Battery Strap | |
| 66017-01 | 2001 |
| 660E1 - Ground Strap | |
| 70441-01A | 2001 |
| 660F1 - Negative Battery Cable | |
| 70110-07A | 2007 |
| 660G1 - Positive Battery Cable | |
| 70108-07A | 2007 |
| 70106-07A | 2007 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-04 | 2004 |
| 70018-07 | 2007 |
| 660J1 - Battery Charger | |
| 66056-00 | 2000 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 69873-07A | 2007 |
| 69874-07A | 2007 |
| 69875-07A | 2007 |
| 68228-09 | 2009 |
| 69325-02 | 2002 |
| 677B1 - Headlight sub-component | |
| 68255-01 | 2001 |
| 68256-01 | 2001 |
| 67717-01 | 2001 |
| 67880-94 | 1994 |
| 68254-01 | 2001 |
| 678A1 - Taillight | |
| 67800054 | 2012 |
| 69391-09 | 2009 |
| 69392-09 | 2009 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 69587-07 | 2007 |
| 69402-09A | 2011 |
| 67800052 | 2012 |
| 67800051 | 2012 |
| 69403-09A | 2011 |
| 69396-09A | 2011 |
| 67827-88A | 1988 |
| 68838-06 | 2006 |
| 69395-09A | 2011 |
| 68497-07 | 2007 |
| 678E1 - Turnsignal Lens | |
| 68755-07 | 2007 |
| 68559-07 | 2007 |
| 68976-00 | 2000 |
| 679B1 - Reflector | |
| 69490-07 | 2007 |
| 67900036 | 2012 |
| 67900037 | 2012 |
| 59287-92 | 1992 |
| 60907-09 | 2009 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 60254-07 | 2007 |
| 69862-07 | 2007 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 59440-09 | 2009 |
| 69861-07 | 2007 |
| 59988-72A | 1972 |
| 67900060 | 2012 |
| 67900061 | 2012 |
| 679D1 - License Plate Bracket | |
| 67900032 | 2012 |
| 69585-09 | 2009 |
| 67900033 | 2012 |
| 69523-09 | 2009 |
| 59472-09 | 2009 |
| 68702-07 | 2007 |
| 69424-09 | 2009 |
| 67900044 | 2012 |
| 69390-09 | 2009 |
| 60924-09 | 2009 |
| 67900108 | 2011 |
| 60908-09A | 2014 |
| 69394-09 | 2009 |
| 679E1 - License Plate Light | |
| 67900048 | 2012 |
| 69420-09 | 2009 |
| 680C1 - Incandescent Bulb | |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 70475-07 | 2007 |
| 72547-08 | 2008 |
| 70394-07A | 2011 |
| 70473-07 | 2007 |
| 70480-07A | 2007 |
| 10289A | Unknown |
| 11904 | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 70433-06 | 2006 |
| 70505-09 | 2009 |
| 69143-01 | 2001 |
| 69152-01A | 2001 |
| 66209-08 | 2008 |
| 66221-08 | 2008 |
| 70580-08 | 2008 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72521-01 | 2001 |
| 72430-00 | 2000 |
| 692E2 - Fuse / Relay Block Cover | |
| 73215-07 | 2007 |
| 692F1 - Wire Harness | |
| 69200093 | 2012 |
| 69200094 | 2012 |
| 67657-05 | 2005 |
| 70620-07 | 2007 |
| 67658-05 | 2005 |
| 70155-07 | 2007 |
| 75274-07 | 2007 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72266-94 | 1994 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 72506-07 | 2007 |
| 72519-09BK | 2009 |
| 74104-98BK | 1998 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72111-06 | 2006 |
| 72526-01 | 2001 |
| 72124-94GY | 1994 |
| 72444-07GY | 2007 |
| 72260-04 | 2004 |
| 72139-94GY | 1994 |
| 72064-06 | 2006 |
| 72078-00 | 2000 |
| 72518-01 | 2001 |
| 72516-01 | 2001 |
| 72639-10 | 2010 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72304-08 | 2008 |
| 72272-07 | 2007 |
| 72289-04 | 2004 |
| 72608-08 | 2008 |
| 72303-08 | 2008 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72493-07 | 2007 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72169-07 | 2007 |
| 72168-07 | 2007 |
| 73307-10 | 2010 |
| 72326-95 | 1995 |
| 72094-06 | 2006 |
| 72434-00 | 2000 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 74144-98 | 1998 |
| 72134-94GY | 1994 |
| 72449-01 | 2001 |
| 72520-01 | 2001 |
| 72154-94 | 1994 |
| 72450-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72541-07BN | 2007 |
| 72558-07 | 2007 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72231-98 | 1998 |
| 72633-02 | 2002 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72177-07BK | 2007 |
| 73101-96BK | 1996 |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72542-07BN | 2007 |
| 72479-07BK | 2007 |
| 72230-98 | 1998 |
| 74120-08 | 2008 |
| 72557-07 | 2007 |
| 74195-98 | 1998 |
| 73158-96BK | 1996 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72528-01 | 2001 |
| 70494-08 | 2008 |
| 72244-95 | 1995 |
| 72327-03A | 2003 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 24927-01 | 2001 |
| 74159-98 | 1998 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72543-07BK | 2007 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 72469-07GY | 2007 |
| 72607-08 | 2008 |
| 70635-08 | 2008 |
| 72544-07 | 2007 |
| 74154-98 | 1998 |
| 72405-98GN | 1998 |
| 73102-96BK | 1996 |
| 72485-07 | 2007 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 73154-96BK | 1996 |
| 69200690 | 2013 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 709A1 - Dash Panel | |
| 46383-06 | 2006 |
| 71959-09 | 2009 |
| 709B1 - Instrument Cluster or Speedometer | |
| 71962-09A | 2015 |
| 67308-09 | 2009 |
| 71964-09 | 2009 |
| 67453-09A | 2015 |
| 71963-09 | 2009 |
| 67394-09 | 2009 |
| 714A1 - Ignition Switch | |
| 71578-01A | 2001 |
| 70020-05 | 2005 |
| 71400075 | 2012 |
| 714B1 - Mechanical Switch | |
| 33902-98A | 1998 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 71569-06 | 2006 |
| 71587-04 | 2004 |
| 71571-06A | 2006 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71563-96 | 1996 |
| 71568-96A | 1996 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74440-08 | 2008 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 940A1 - Owner's Kit | |
| 88002-15D | 2015 |
| 940A2 - Owner's Manual | |
| 99736-15 | 2015 |
| 940H1 - Electronic / Digital Media | |
| 94000084 | 2014 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | |
| 11143 | RETAINING RING | |
| 11304 | RETAINING RING | |
| 3658 | SCREW | |
| 4132 | SCREW | |
| 41751-06A | GASKET | |
| 43567-92 | SCREW | |
| 45405-75A | SCREW | |
| 48300-60 | ROLLER BEARING | |
| 7716 | LOCKNUT | TAIL LAMP, TURN SIGNALS REAR, & LICENSE PLATE BRACKET - VRSCF: |
| 9252 | BEARING | |
| 9276A | BEARING | |
| 9955 | CLAMP | EXHAUST SYSTEM - VRSCF: EXHAUST SYSTEM - VRSCDX: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FILLER CAP |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | SWITCHES, HANDLEBAR: |
| 71621-08 | STOPLAMP & CLUTCH SWITCH w/10181 & 72266-94 | |
| 72023-51E | STOPLIGHT SWITCH | |
| 72330-95 | FUSE |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 37909-90 | RETAINING RING |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | SHIFTER KIT | SHIFTER, GEAR: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 65296-95A | CLAMP | EXHAUST SYSTEM - VRSCF: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP, TURN SIGNALS REAR & LICENSE PLATE BRACKET - VRSCDX: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32335-04 | SPARK PLUGS | |
| 63793-01K | ENGINE OIL FILTER | |
| 65989-97C | BATTERY | |
| 95594-84B | WEIGHT | WHEELS, FRONT: WHEELS, REAR: |
| 95595-84A | WEIGHT | WHEELS, FRONT: WHEELS, REAR: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | WHEELS, FRONT: WHEELS, REAR: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
