2015 HARLEY-DAVIDSON® PARTS CATALOG: TRIKE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99602-15 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2015 TRIKE MODELS
VIN Model Codes

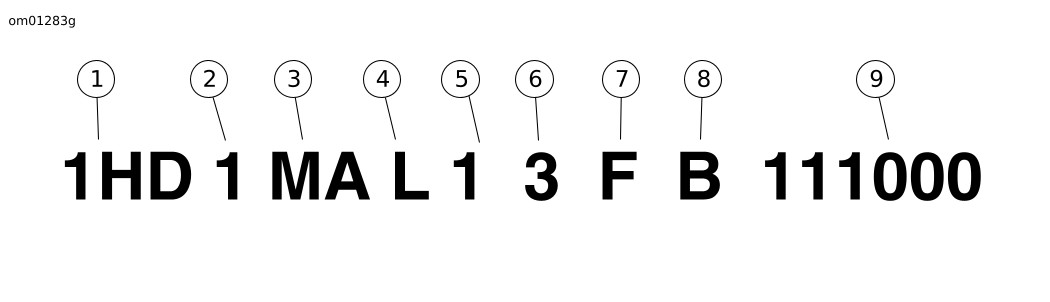

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | MA=FLHTCUTG Tri Glide™ Ultra MC=FLRT Freewheeler™ | |
4 | Engine type | L=Twin-Cooled™ 1690 cm3 High Output Twin Cam 103™, fuel-injected M=Air-Cooled 1690 cm3 High Output Twin Cam 103™, fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | F=2015 | |
8 | Assembly plant | B=York, PA U.S.A. | |
9 | Sequential number | Varies | |
NOTES

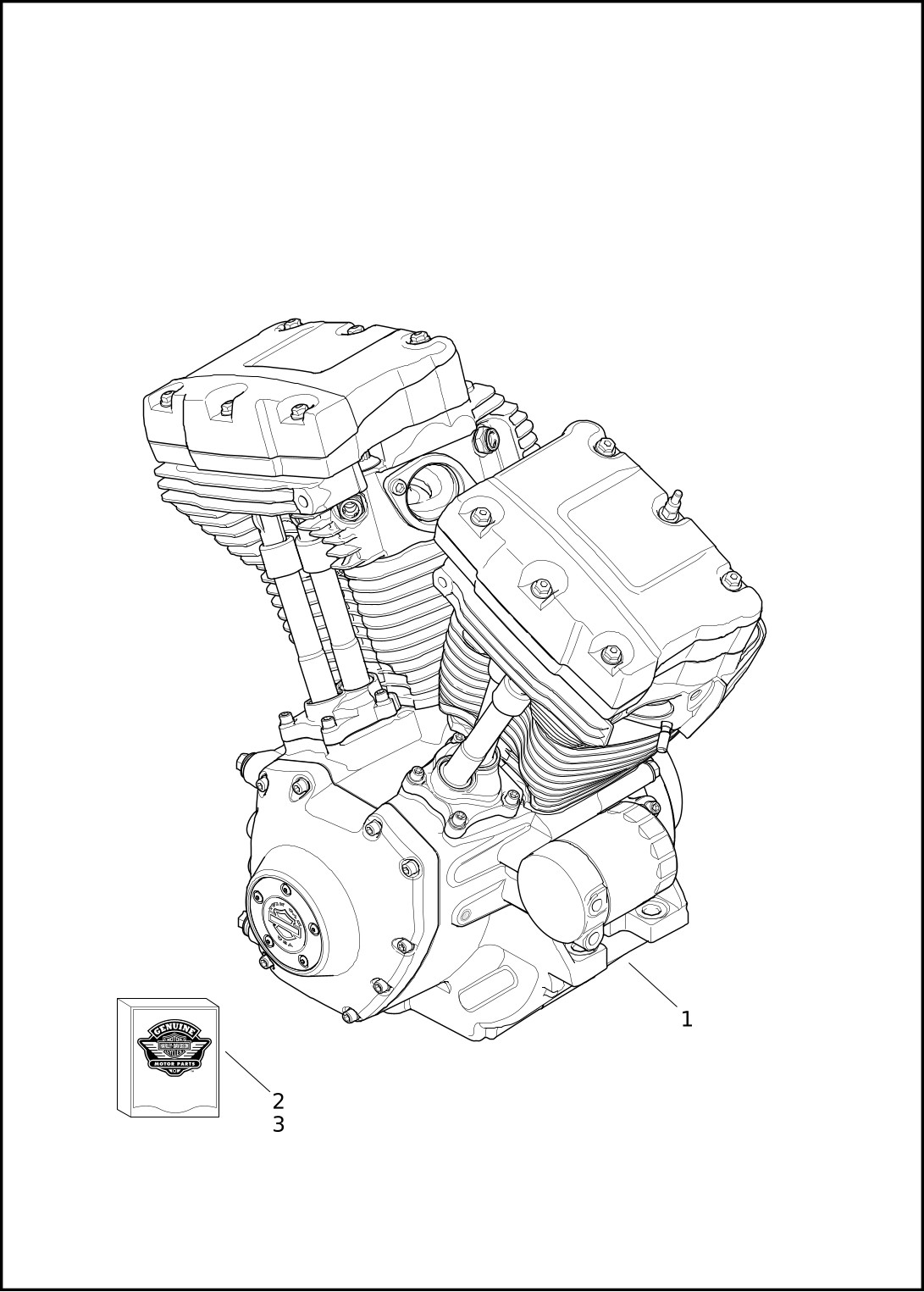

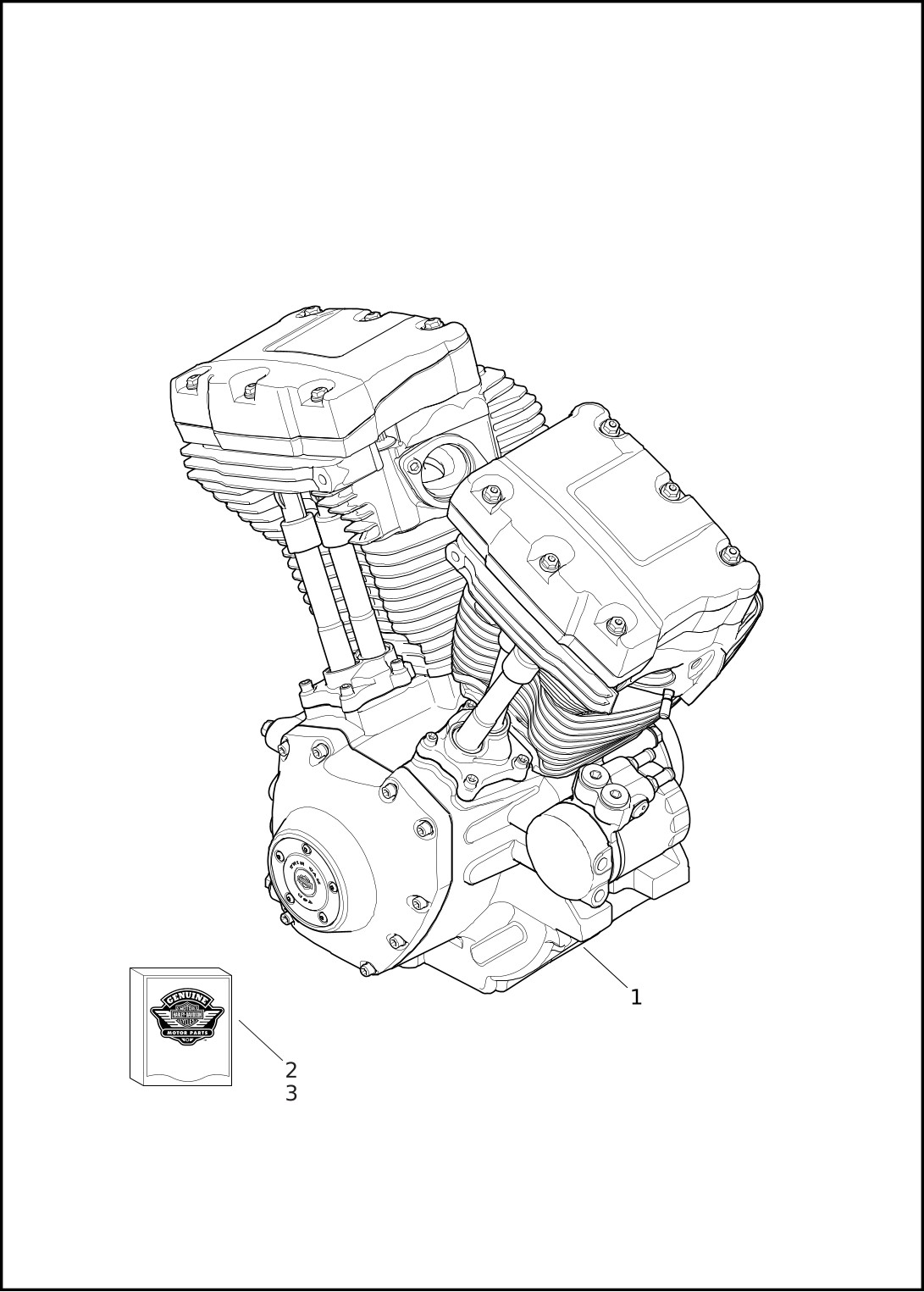

ENGINE ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-15 | ENGINE ASSEMBLY, complete | FLRT |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump & cylinder studs (See Note) | FLRT |
| 3 | 91800042 | KIT, shortblock installation, w/ 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains & camshaft tensioners | FLRT |
| Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
ENGINE ASSEMBLY, TWIN-COOLED™ - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19291-14 | ENGINE ASSEMBLY, complete | FLHTCUTG |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump & cylinder studs (See Note) | FLHTCUTG |
| 3 | 91800042 | KIT, shortblock installation, w/ 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains & camshaft tensioners | FLHTCUTG |
| Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||

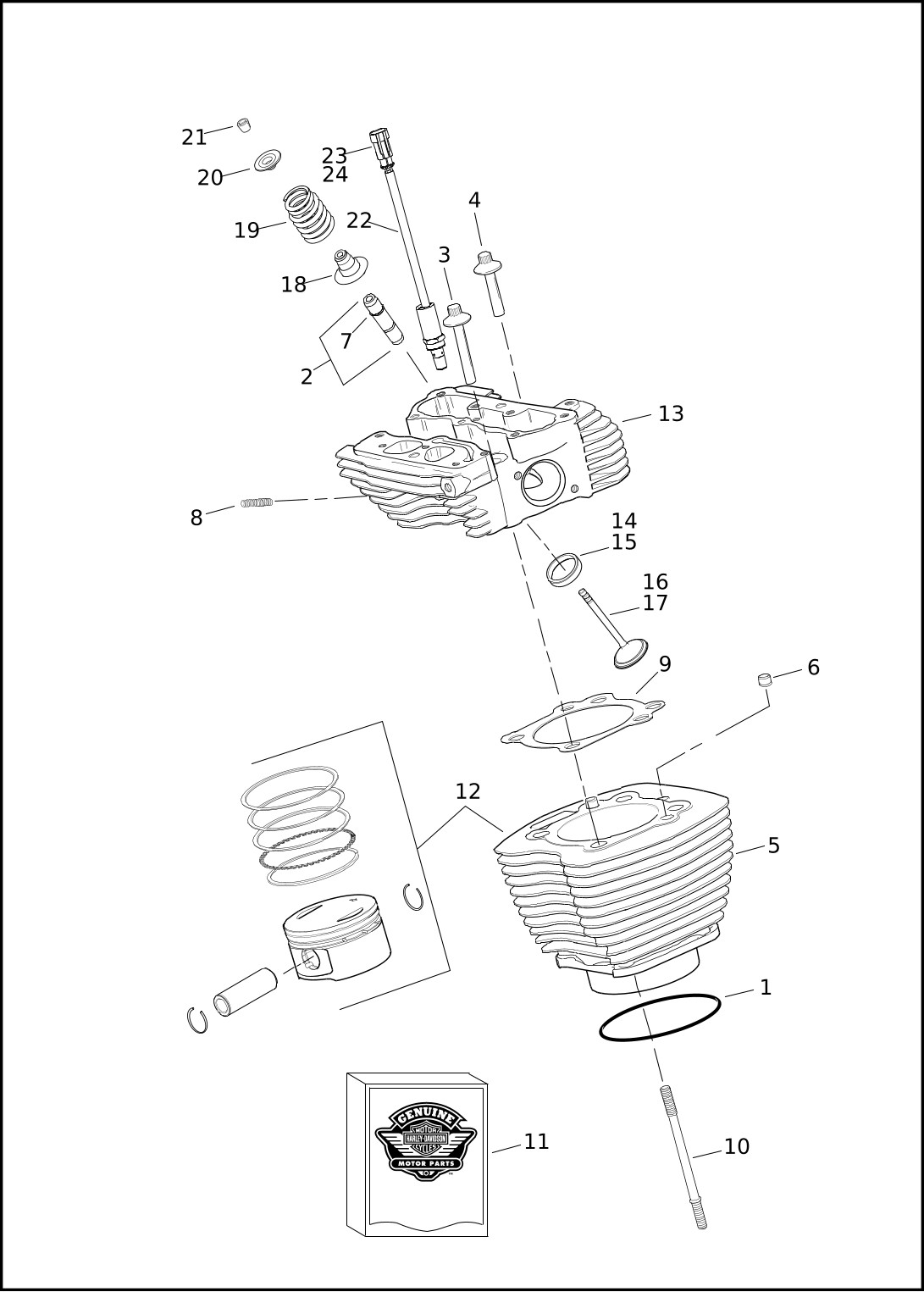

CYLINDERS, HEADS & VALVES - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLRT |
| 2 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust, w/ 16699-06 (4) | FLRT |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLRT |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLRT |
| 5 | 16547-99A | CYLINDER ASSEMBLY, w/ 16595-99A (black) (2) | FLRT |
| 6 | 16595-99A | DOWEL, pin (4) | FLRT |
| 7 | 16699-06 | SNAP RING (4) | FLRT |
| 8 | 16715-83 | STUD, exhaust port (4) | FLRT |
| 9 | 16787-99A | GASKET, cylinder head (2) | FLRT |
| 10 | 16834-99A | STUD, cylinder (8) | FLRT |
| 11 | 17052-99C | GASKET KIT, top end | FLRT |
| 17053-99C | GASKET KIT, engine overhaul | FLRT | |
| 12 | 17460-07A | CYLINDER ASSEMBLY, w/ piston, rings, piston pin & retaining rings (black) (2) | FLRT |
| 13 | 17728-08 | CYLINDER HEAD, front, w/ 16465-06, 18011-86 & 18020-83 (black) | FLRT |
| 17729-08 | CYLINDER HEAD, rear, w/ 16465-06, 18011-86 & 18020-83 (black) | FLRT | |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | FLRT |
| 15 | 18020-83 | INSERT, intake valve seat (2) | FLRT |
| 16 | 18074-05A | INTAKE VALVE (2) | FLRT |
| 17 | 18085-05B | EXHAUST VALVE (2) | FLRT |
| 18 | 18094-02A | SEAL KIT, valve | FLRT |
| 19 | 18245-02 | VALVE SPRING (4) | FLRT |
| 20 | 18258-02 | COLLAR, valve spring (4) | FLRT |
| 21 | 18260-02 | KEEPER, valve (8) | FLRT |
| 22 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLRT |
| 23 | 72009-05 | HOUSING, 2-way, pin (2) | FLRT |
| 24 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLRT |

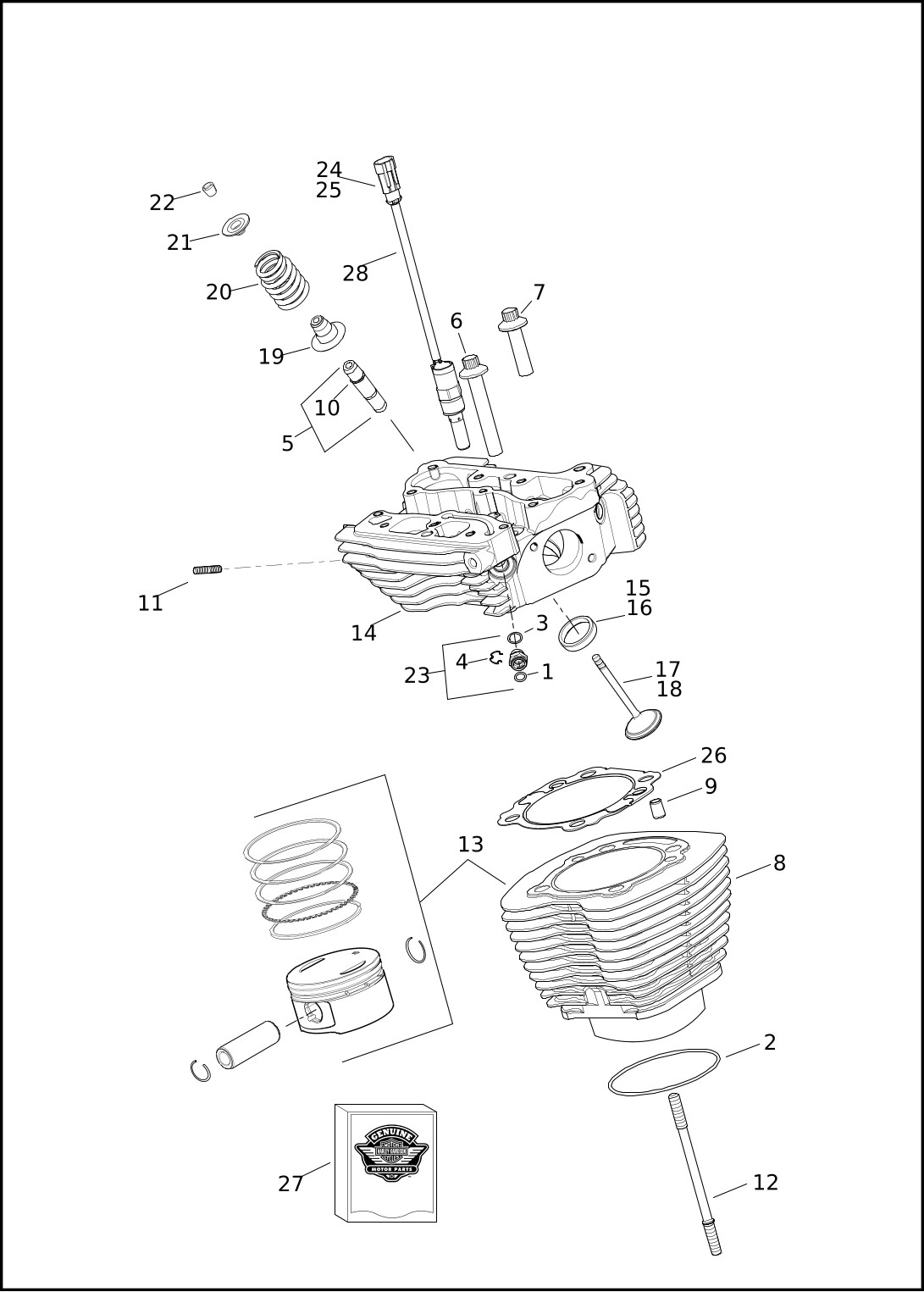

CYLINDERS, HEADS & VALVES, TWIN-COOLED™ - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11110 | O-RING (4) | FLHTCUTG |
| 2 | 11256 | O-RING, cylinder base (2) | FLHTCUTG |
| 3 | 11290 | O-RING (4) | FLHTCUTG |
| 4 | 11408 | RETAINER, wire clip (4) | FLHTCUTG |
| 5 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust, w/ 16699-06 (4) | FLHTCUTG |
| 6 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLHTCUTG |
| 7 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLHTCUTG |
| 8 | 16547-99A | CYLINDER ASSEMBLY, w/ 16595-99A (black) (2) | FLHTCUTG |
| 9 | 16595-99A | DOWEL, pin (4) | FLHTCUTG |
| 10 | 16699-06 | SNAP RING (4) | FLHTCUTG |
| 11 | 16715-83 | STUD, exhaust port (4) | FLHTCUTG |
| 12 | 16834-99A | STUD, cylinder (8) | FLHTCUTG |
| 13 | 17460-07A | CYLINDER ASSEMBLY, w/ piston, rings, piston pin & retaining rings (black) (2) | FLHTCUTG |
| 14 | 17732-14 | CYLINDER HEAD ASSEMBLY, complete, front, w/ 5, 11, 15 - 23, 28 & 65324-83B (black) | FLHTCUTG |
| 17733-14 | CYLINDER HEAD ASSEMBLY, complete, rear, w/ 5, 11, 15 - 23, 28 & 65324-83B (black) | FLHTCUTG | |
| 15 | 18011-86 | INSERT, exhaust valve seat (2) | FLHTCUTG |
| 16 | 18020-83 | INSERT, intake valve seat (2) | FLHTCUTG |
| 17 | 18074-05A | INTAKE VALVE (2) | FLHTCUTG |
| 18 | 18085-05B | EXHAUST VALVE (2) | FLHTCUTG |
| 19 | 18094-02A | SEAL KIT, valve | FLHTCUTG |
| 20 | 18245-02 | VALVE SPRING (4) | FLHTCUTG |
| 21 | 18258-02 | COLLAR, valve spring (4) | FLHTCUTG |
| 22 | 18260-02 | KEEPER, valve (8) | FLHTCUTG |
| 23 | 26064-08 | FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (4) | FLHTCUTG |
| 24 | 72009-05 | HOUSING, 2-way, pin (2) | FLHTCUTG |
| 25 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLHTCUTG |
| 26 | 16500066 | GASKET, cylinder head (2) | FLHTCUTG |
| 27 | 16500244 | GASKET KIT, top end | FLHTCUTG |
| 16500245 | GASKET KIT, engine overhaul | FLHTCUTG | |
| 28 | 18400035 | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLHTCUTG |

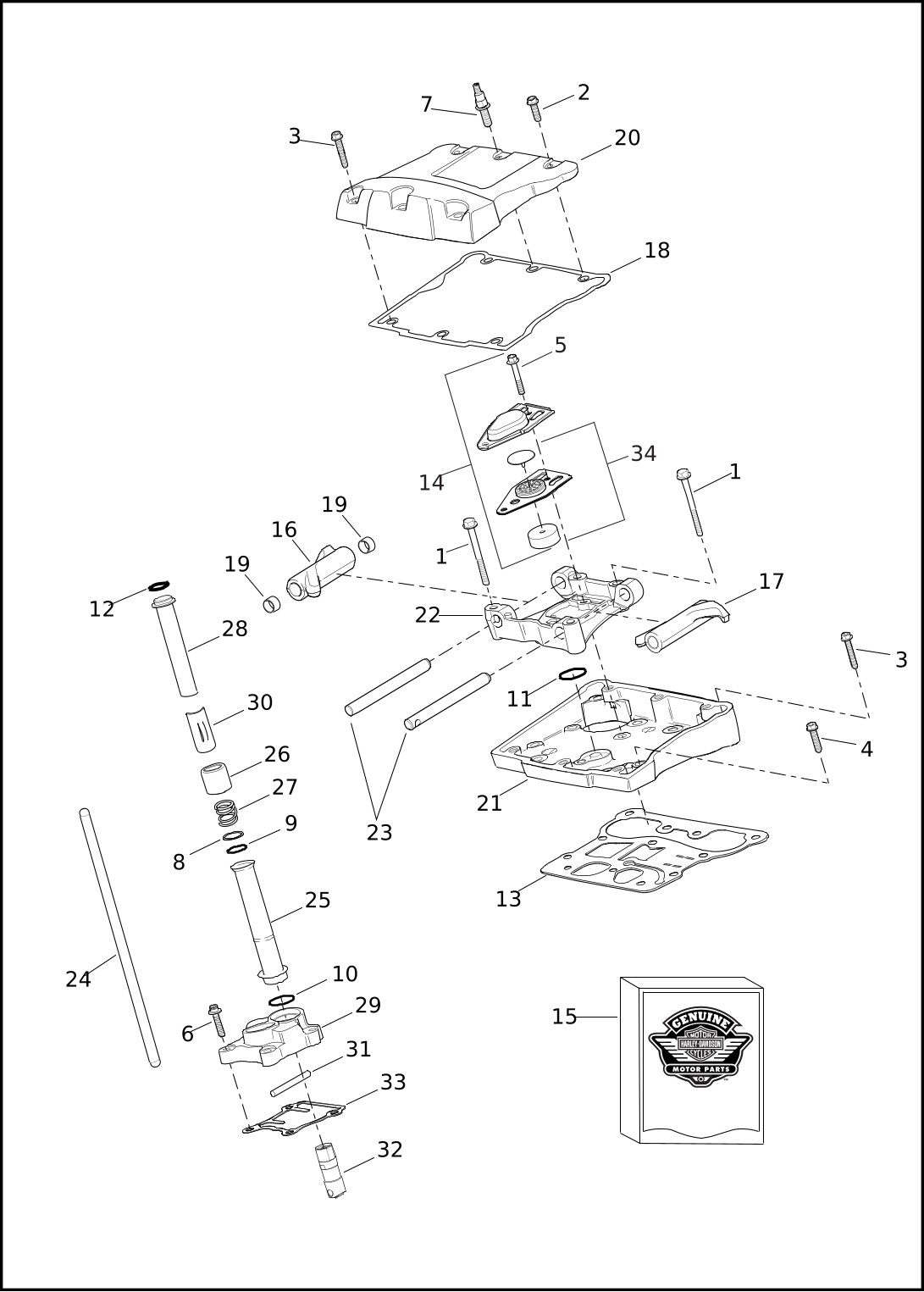

ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | ALL |
| 2 | 3692A | SCREW (6) | FLRT |
| 2 | 3692A | SCREW (5) | FLHTCUTG |
| 3 | 3693A | SCREW (10) | ALL |
| 4 | 3736B | SCREW (8) | ALL |
| 5 | 4400 | BOLT (4) | ALL |
| 6 | 4741A | SCREW (8) | ALL |
| 7 | 4881 | BOLT, dual threaded (rear cylinder only) | FLHTCUTG |
| 8 | 6762B | WASHER (4) | ALL |
| 9 | 11132A | O-RING, pushrod cover (4) | ALL |
| 10 | 11145A | O-RING, pushrod cover (4) | ALL |
| 11 | 11270 | O-RING (2) | ALL |
| 12 | 11293 | O-RING (4) | ALL |
| 13 | 16719-99B | GASKET, rocker housing (2) | ALL |
| 14 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | ALL |
| 15 | 17045-99D | GASKET KIT, cam service | ALL |
| 16 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ 17429-91 (2) | ALL |
| 17 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ 17429-91 (2) | ALL |
| 18 | 17386-99A | GASKET, rocker cover (2) | ALL |
| 19 | 17429-91 | BEARING, rocker arm (8) | ALL |
| 20 | 17572-99 | ROCKER COVER (chrome) (2) | ALL |
| 21 | 17573-99A | ROCKER HOUSING (chrome) (2) | ALL |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | ALL |
| 23 | 17611-83 | SHAFT, rocker arm (4) | ALL |
| 24 | 17922-99 | PUSHROD, exhaust, 10.536 in. long (black rings) (2) | ALL |
| 17923-99 | PUSHROD, intake, 10.418 in. long (plain finish) (2) | ALL | |
| 25 | 17939-99 | COVER, pushrod, lower (4) | ALL |
| 26 | 17945-36B | CAP, cover spring (4) | ALL |
| 27 | 17947-36 | SPRING, pushrod cover (4) | ALL |
| 28 | 17948-99 | COVER, pushrod, upper (4) | ALL |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | ALL |
| 17966-99 | LIFTER COVER, rear (chrome) | ALL | |
| 30 | 17968-99 | RETAINER, spring cap (4) | ALL |
| 31 | 18535-99 | PIN, anti-rotation (2) | ALL |
| 32 | 18538-99C | HYDRAULIC LIFTER (4) | ALL |
| 33 | 18635-99B | GASKET, lifter cover (2) | ALL |
| 34 | 26500002 | BREATHER, baffle assembly, w/ breather valve & filter (2) | FLHTCUTG |

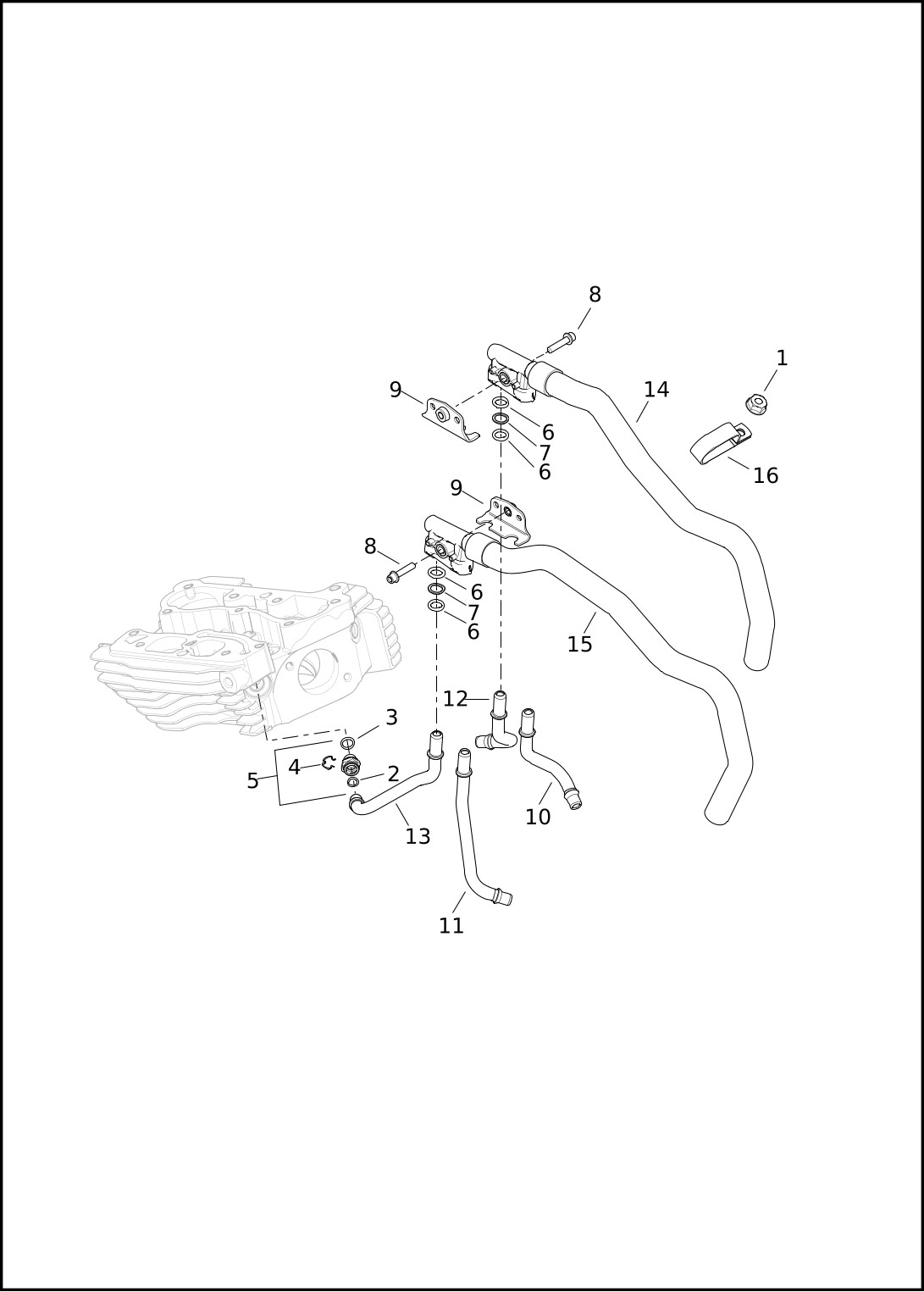

COOLING SYSTEM, ENGINE, TWIN-COOLED™ - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTCUTG |
| 2 | 11110 | O-RING (4) | FLHTCUTG |
| 3 | 11290 | O-RING (4) | FLHTCUTG |
| 4 | 11408 | RETAINER, wire clip (4) | FLHTCUTG |
| 5 | 26064-08 | FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (4) | FLHTCUTG |
| 6 | 28004-01 | O-RING (8) | FLHTCUTG |
| 7 | 28005-01 | WASHER (4) | FLHTCUTG |
| 8 | 10200258 | SCREW (2) | FLHTCUTG |
| 9 | 16400028 | LOCKING PLATE ASSEMBLY (2) | FLHTCUTG |
| 10 | 26900021 | COOLANT LINE, front head inlet | FLHTCUTG |
| 11 | 26900022 | COOLANT LINE, front head outlet | FLHTCUTG |
| 12 | 26900023 | COOLANT LINE, rear head inlet | FLHTCUTG |
| 13 | 26900024 | COOLANT LINE, rear head outlet | FLHTCUTG |
| 14 | 26900027 | COMPLIANCE ASSEMBLY, left hand side, w/ w/ 28004-01 & 28005-01 | FLHTCUTG |
| 15 | 26900028 | COMPLIANCE ASSEMBLY, right hand side, w/ 28004-01 & 28005-01 | FLHTCUTG |
| 16 | 26900029 | P-CLAMP, coolant hose | FLHTCUTG |

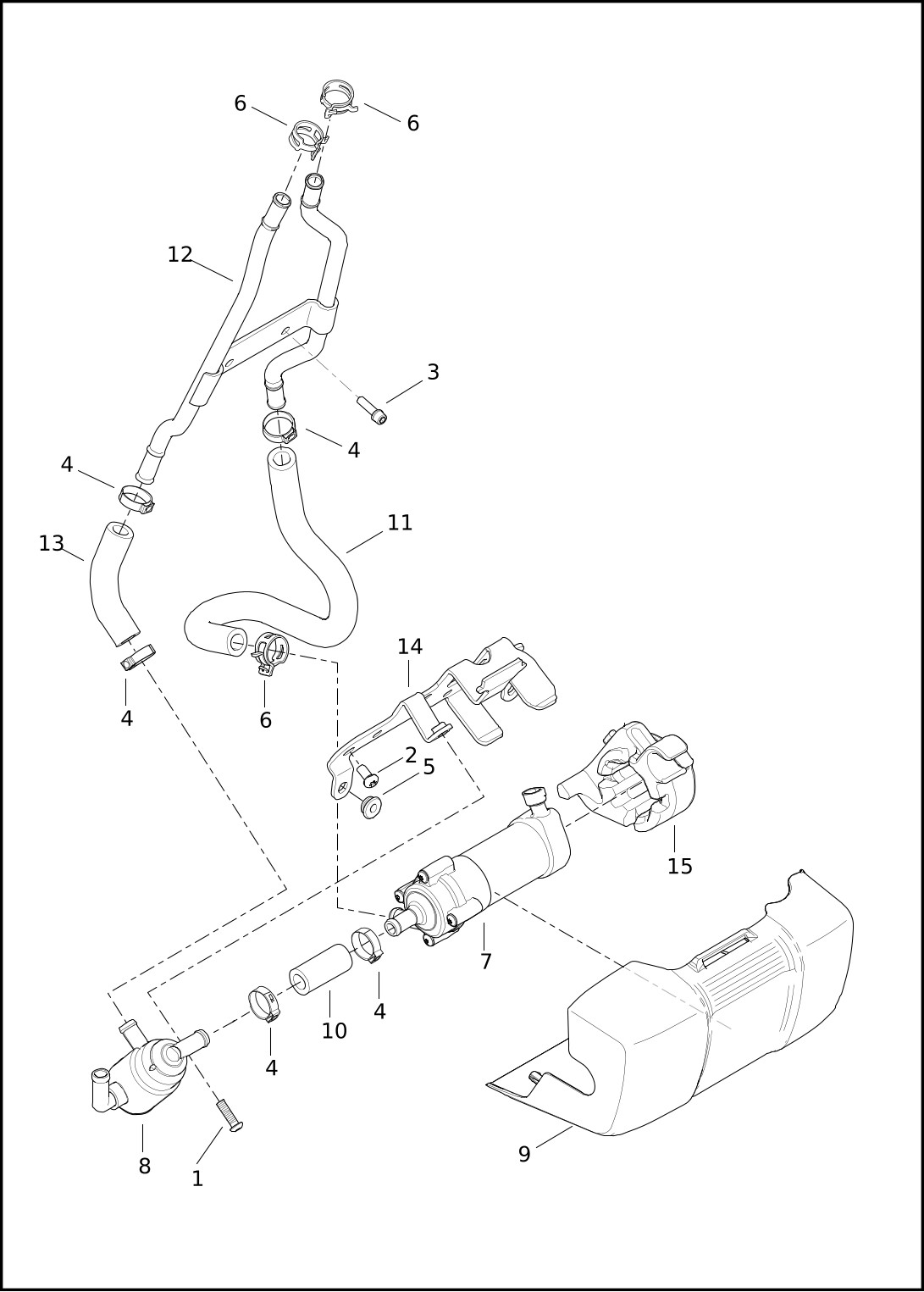

COOLANT DISTRIBUTION
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT | FLHTCUTG |
| 2 | 4266A | SCREW (2) | FLHTCUTG |
| 3 | 4741A | SCREW (2) | FLHTCUTG |
| 4 | 10344 | CLAMP (5) | FLHTCUTG |
| 5 | 11692 | GROMMET (2) | FLHTCUTG |
| 6 | 10800052 | CLAMP (3) | FLHTCUTG |
| 7 | 26600012 | PUMP, coolant | FLHTCUTG |
| 8 | 26700001A | THERMOSTAT | FLHTCUTG |
| 9 | 26800002 | COVER, coolant pump | FLHTCUTG |
| 10 | 26900001 | HOSE, thermostat to pump | FLHTCUTG |
| 11 | 26900002 | HOSE, pump to engine | FLHTCUTG |
| 12 | 26900003 | TUBE ASSEMBLY, coolant downtubes | FLHTCUTG |
| 13 | 26900006 | HOSE, engine to thermostat | FLHTCUTG |
| 14 | 62800001 | BRACKET, coolant pump & thermostat | FLHTCUTG |
| 15 | 62800003 | ISOLATOR, coolant pump | FLHTCUTG |

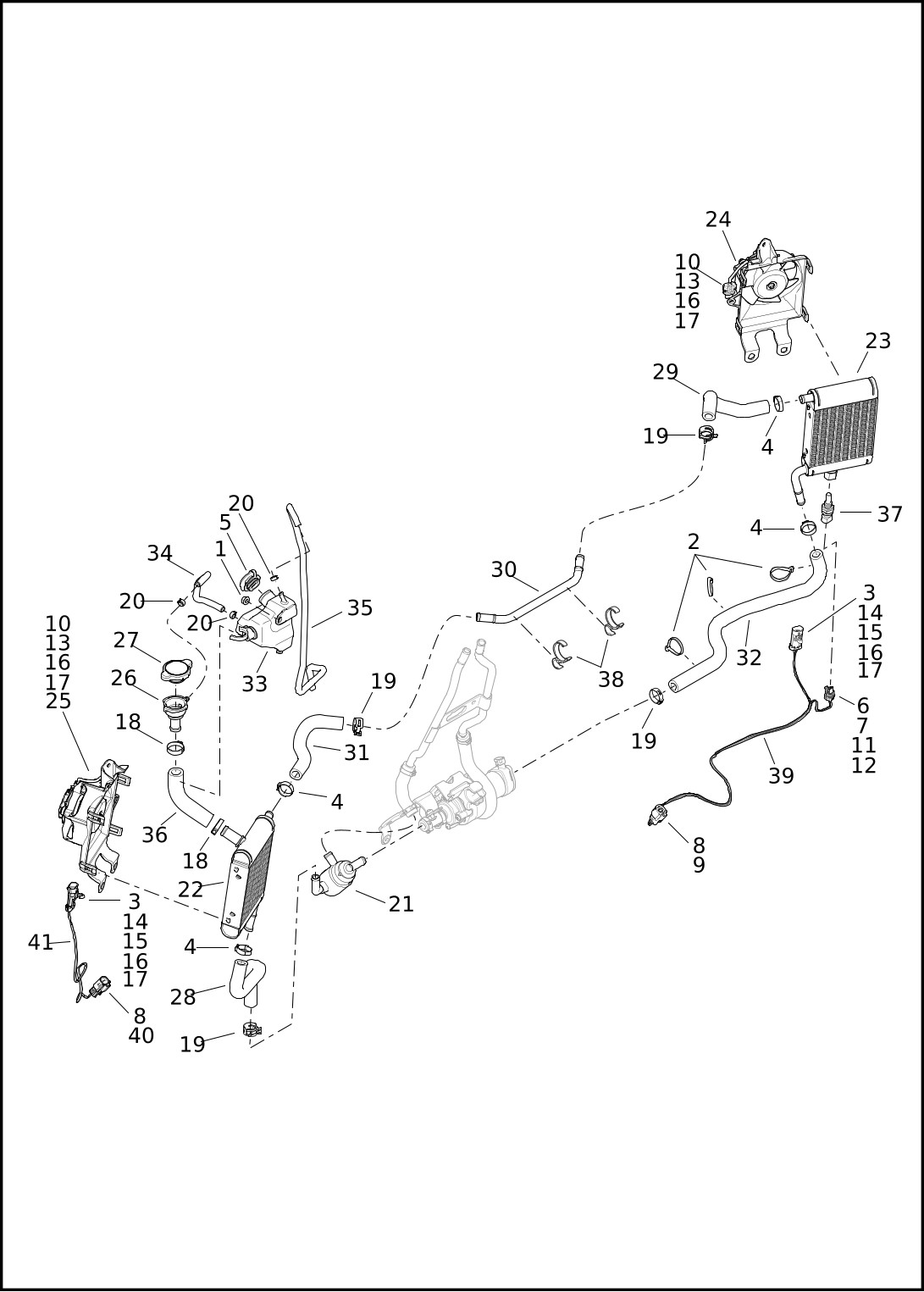

RADIATOR, COOLANT HOSES & BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTCUTG |
| 2 | 10006 | CABLE STRAP (7) | FLHTCUTG |
| 3 | 10147 | CLIP, connector (2) | FLHTCUTG |
| 4 | 10344 | CLAMP (4) | FLHTCUTG |
| 5 | 26780-05A | CAP ASSEMBLY, coolant bottle | FLHTCUTG |
| 6 | 72063-06 | HOUSING, 2-way | FLHTCUTG |
| 7 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHTCUTG |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 9 | 72177-07BK | HOUSING, 4-way, socket (black) | FLHTCUTG |
| 10 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (4) | FLHTCUTG |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTCUTG |
| 12 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTCUTG |
| 13 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHTCUTG |
| 14 | 72607-08 | HOUSING, 2 way pin (2) | FLHTCUTG |
| 15 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTCUTG |
| 16 | 72609-08 | SECONDARY LOCK, 2-way (black) (2) | FLHTCUTG |
| 17 | 72610-08 | SEAL, 18-20 awg (white) (8) | FLHTCUTG |
| 18 | 10800023 | CLAMP (2) | FLHTCUTG |
| 19 | 10800052 | CLAMP (4) | FLHTCUTG |
| 20 | 10800078 | CLAMP (3) | FLHTCUTG |
| 21 | 26700001A | THERMOSTAT | FLHTCUTG |
| 22 | 26800005 | CORE, radiator, right | FLHTCUTG |
| 23 | 26800006 | CORE, radiator, left | FLHTCUTG |
| 24 | 26800007A | FAN ASSEMBLY, left, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTCUTG |
| 25 | 26800019A | FAN ASSEMBLY, right, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTCUTG |
| 26 | 26800020A | FILL NECK, coolant | FLHTCUTG |
| 27 | 26800021 | CAP, pressure | FLHTCUTG |
| 28 | 26900007 | HOSE, thermostat to radiator | FLHTCUTG |
| 29 | 26900008 | HOSE, coolant, left cross tube | FLHTCUTG |
| 30 | 26900009 | LINE, coolant, right to left | FLHTCUTG |
| 31 | 26900010 | HOSE, coolant, right cross tube | FLHTCUTG |
| 32 | 26900011 | HOSE, radiator to thermostat | FLHTCUTG |
| 33 | 26900014 | BOTTLE ASSEMBLY, coolant, w/ 26780-05A | FLHTCUTG |
| 34 | 26900016 | HOSE, coolant vent | FLHTCUTG |
| 35 | 26900017 | HOSE, coolant overflow | FLHTCUTG |
| 36 | 26900018 | HOSE, coolant fill | FLHTCUTG |
| 37 | 32700028 | SENSOR, coolant temperature | FLHTCUTG |
| 38 | 62800004 | CLIP, coolant line to frame (2) | FLHTCUTG |
| 39 | 69200133 | WIRE HARNESS, twin cooling jumper, left, w/ 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 & 72610-08 | FLHTCUTG |
| 40 | 69200271 | SOCKET HOUSING, 2-way | FLHTCUTG |
| 41 | 69200311 | WIRE HARNESS, twin cooling jumper, right, w/ 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 & 69200271 | FLHTCUTG |

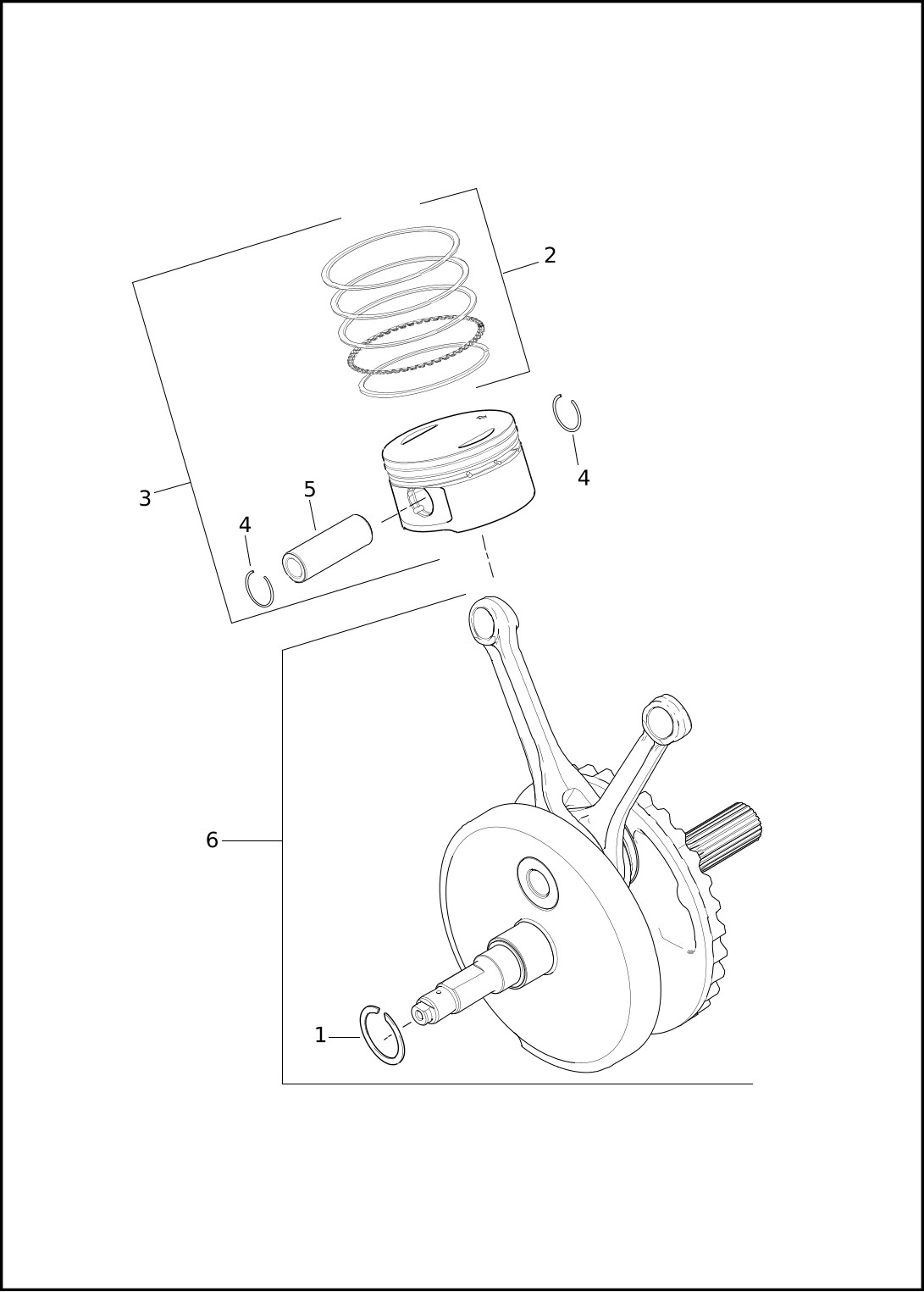

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | ALL |
| 2 | 21918-99 | PISTON RING SET, standard (2) | ALL |
| 21919-99 | PISTON RING SET, 0.005 in. O.S. (2) | ALL | |
| 21945-99 | PISTON RING SET, 0.010 in. O.S. (2) | ALL | |
| 3 | 21962-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | ALL |
| 21964-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | ALL | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | ALL |
| 5 | 22131-05 | PISTON PIN (2) | ALL |
| 6 | 23729-07B | FLYWHEEL ASSEMBLY KIT | ALL |

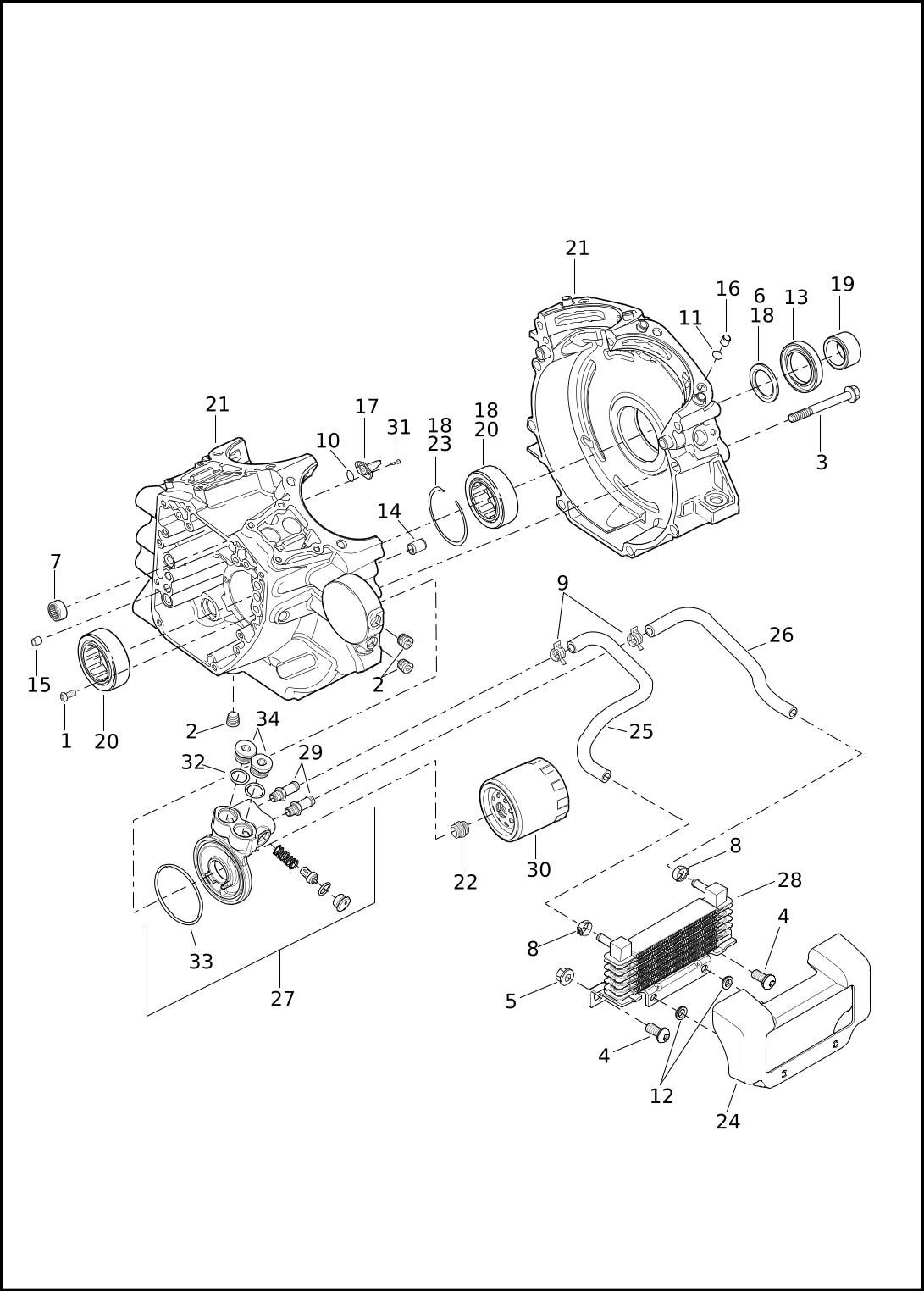

CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLRT |
| 2 | 765 | PLUG (3) | FLRT |
| 3 | 895 | SCREW (9) | FLRT |
| 4 | 4266A | SCREW (2) | FLRT |
| 5 | 7601 | LOCKNUT (2) | FLRT |
| 6 | 8972 | WASHER (2) | FLRT |
| 7 | 9215 | NEEDLE BEARING, left side, camshaft (2) | FLRT |
| 8 | 10198 | CLAMP (2) | FLRT |
| 9 | 10354 | CLAMP (2) | FLRT |
| 10 | 11140 | O-RING (2) | FLRT |
| 11 | 11273 | O-RING (2) | FLRT |
| 12 | 11692 | GROMMET, oil cooler cover (2) | FLRT |
| 13 | 12068 | SEAL, oil | FLRT |
| 14 | 16574-99A | DOWEL PIN (2) | FLRT |
| 15 | 16589-99A | DOWEL PIN (2) | FLRT |
| 16 | 16595-99A | DOWEL PIN (4) | FLRT |
| 17 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLRT |
| 18 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race | FLRT |
| 19 | 24009-06 | SPACER, sprocket shaft | FLRT |
| 20 | 24605-07 | BEARING, main (2) | FLRT |
| 21 | 24621-06B | CRANKCASE SET, w/ 1, 2, 3, 7, 10, 14, 15, 16, 17, 20, 23, 31 & 3983 (not shown) bolts (black) | FLRT |
| 22 | 26041-05A | ADAPTER | FLRT |
| 23 | 35114-02 | RING, retaining, internal | FLRT |
| 24 | 62533-11 | COVER, oil-cooler | FLRT |
| 25 | 62629-11 | HOSE, oil cooler, right | FLRT |
| 26 | 62641-11 | HOSE, oil cooler, left | FLRT |
| 27 | 63059-09A | ADAPTER ASSEMBLY, oil cooler w/ 63533-41A, 11900010, 11900039 & 62800013 | FLRT |
| 28 | 63083-11A | OIL COOLER CORE, w/ mounting bracket | FLRT |
| 29 | 63533-41A | FITTING (2) | FLRT |
| 30 | 63731-99A | OIL FILTER (black) | FLRT |
| 31 | 68042-99 | SCREW (4) | FLRT |
| 32 | 11900010 | O-RING (2) | FLRT |
| 33 | 11900039 | O-RING | FLRT |
| 34 | 62800013 | PLUG ASSEMBLY, w/ 11900010 (2) | FLRT |

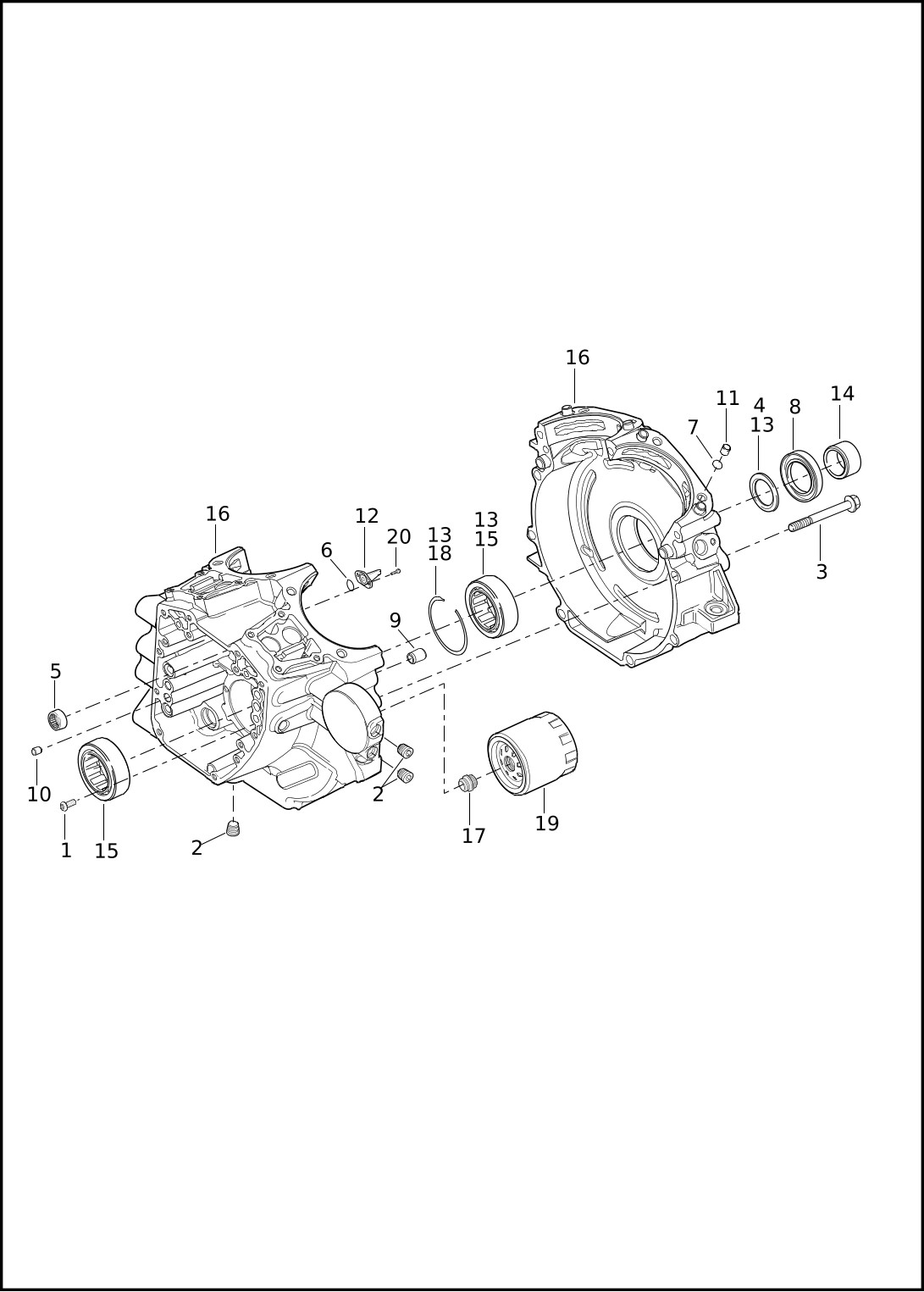

CRANKCASE & ENGINE OIL FILTER - TWIN-COOLED™ TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHTCUTG |
| 2 | 765 | PLUG (3) | FLHTCUTG |
| 3 | 895 | SCREW (9) | FLHTCUTG |
| 4 | 8972 | WASHER (2) | FLHTCUTG |
| 5 | 9215 | NEEDLE BEARING, left side, camshaft (2) | FLHTCUTG |
| 6 | 11140 | O-RING (2) | FLHTCUTG |
| 7 | 11273 | O-RING (2) | FLHTCUTG |
| 8 | 12068 | SEAL, oil | FLHTCUTG |
| 9 | 16574-99A | DOWEL PIN (2) | FLHTCUTG |
| 10 | 16589-99A | DOWEL PIN (2) | FLHTCUTG |
| 11 | 16595-99A | DOWEL PIN (4) | FLHTCUTG |
| 12 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLHTCUTG |
| 13 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race | FLHTCUTG |
| 14 | 24009-06 | SPACER, sprocket shaft | FLHTCUTG |
| 15 | 24605-07 | BEARING, main (2) | FLHTCUTG |
| 16 | 24621-06B | CRANKCASE SET, w/ 1, 2, 3, 5, 6, 9, 10, 11, 12, 15, 18, 20 & 3983 (not shown) bolts (black) | FLHTCUTG |
| 17 | 26352-95A | ADAPTER | FLHTCUTG |
| 18 | 35114-02 | RING, retaining, internal | FLHTCUTG |
| 19 | 63731-99A | OIL FILTER (black) | FLHTCUTG |
| 20 | 68042-99 | SCREW (4) | FLHTCUTG |

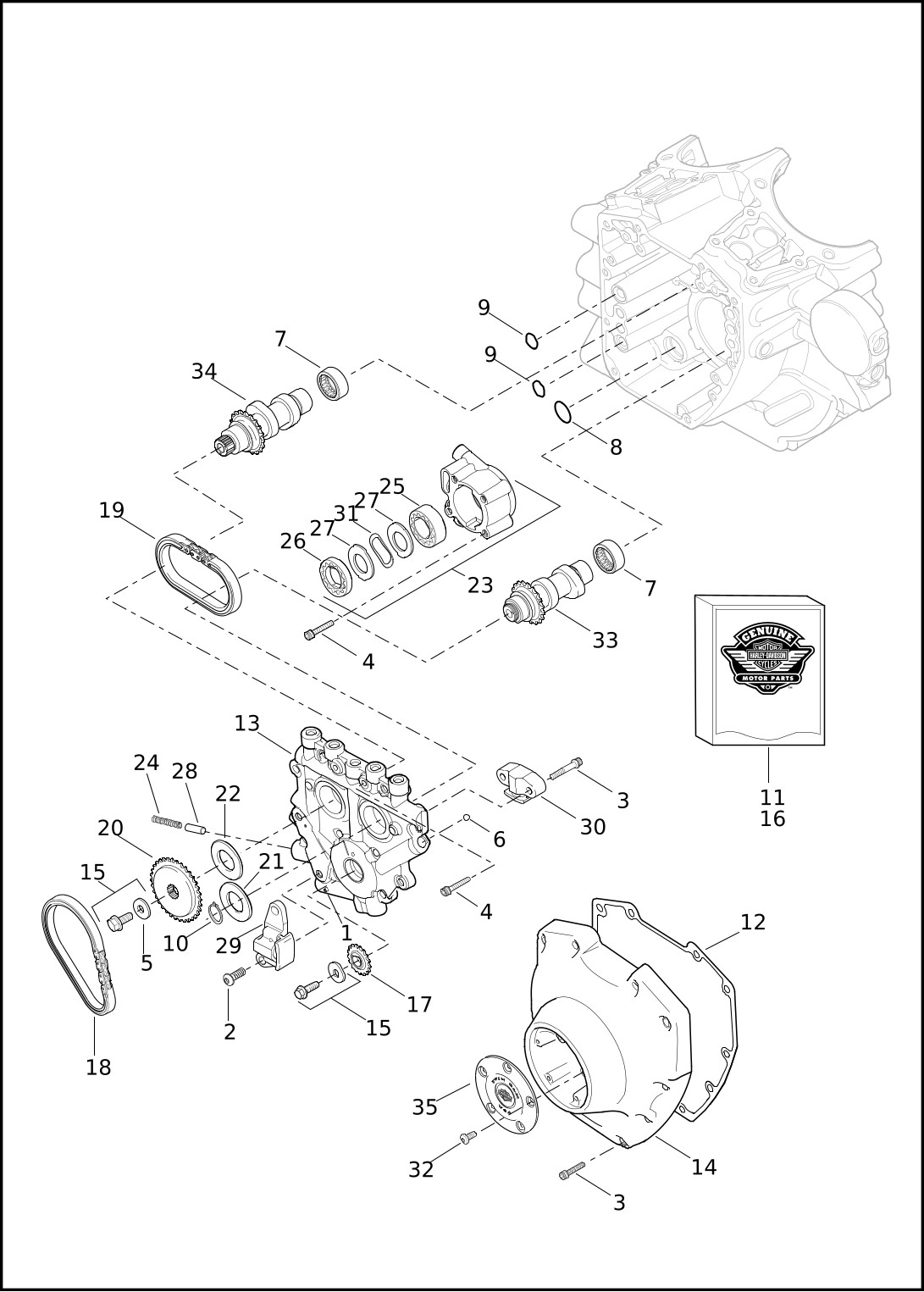

CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | ALL |
| 2 | 942 | SCREW (2) | ALL |
| 3 | 4740A | SCREW (12) | ALL |
| 4 | 4741A | SCREW (10) | ALL |
| 5 | 6294 | WASHER | ALL |
| 6 | 8873 | BALL (12) | ALL |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | ALL |
| 8 | 11293 | O-RING | ALL |
| 9 | 11301 | O-RING (2) | ALL |
| 10 | 11461 | RETAINING RING | ALL |
| 11 | 17045-99D | GASKET KIT, cam service | ALL |
| 12 | 25244-99A | GASKET, cam cover | ALL |
| 13 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | ALL |
| 14 | 25369-01B | CAM COVER (chrome) | ALL |
| 15 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294, screws & washer | ALL |
| 16 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT, w/ 25573-06, 25673-06, 25675-06 & 25728-06 | ALL |
| 17 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | ALL |
| 18 | 25675-06 | CHAIN, primary cam drive | ALL |
| 19 | 25683-06 | CHAIN, secondary cam drive | ALL |
| 20 | 25728-06 | SPROCKET, cam drive, 34 T | ALL |
| 21 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | ALL |
| 22 | 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | ALL |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | ALL | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | ALL | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | ALL | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | ALL | |
| 23 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06, 40323-00 & body | ALL |
| 24 | 26210-99 | SPRING, relief valve | ALL |
| 25 | 26278-06 | GEROTOR ASSEMBLY, scavenge | ALL |
| 26 | 26281-06 | GEROTOR ASSEMBLY, pressure | ALL |
| 27 | 26282-06 | SEPARATOR PLATE, gerotor (2) | ALL |
| 28 | 26400-82B | RELIEF VALVE, oil pump | ALL |
| 29 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | ALL |
| 30 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | ALL |
| 31 | 40323-00 | SPRING, separator | ALL |
| 32 | 68120-00 | SCREW (5) | ALL |
| 33 | 25400002 | CAMSHAFT, front | ALL |
| 34 | 25400003 | CAMSHAFT, rear | ALL |
| 35 | 25600012 | COVER, timer cover | ALL |

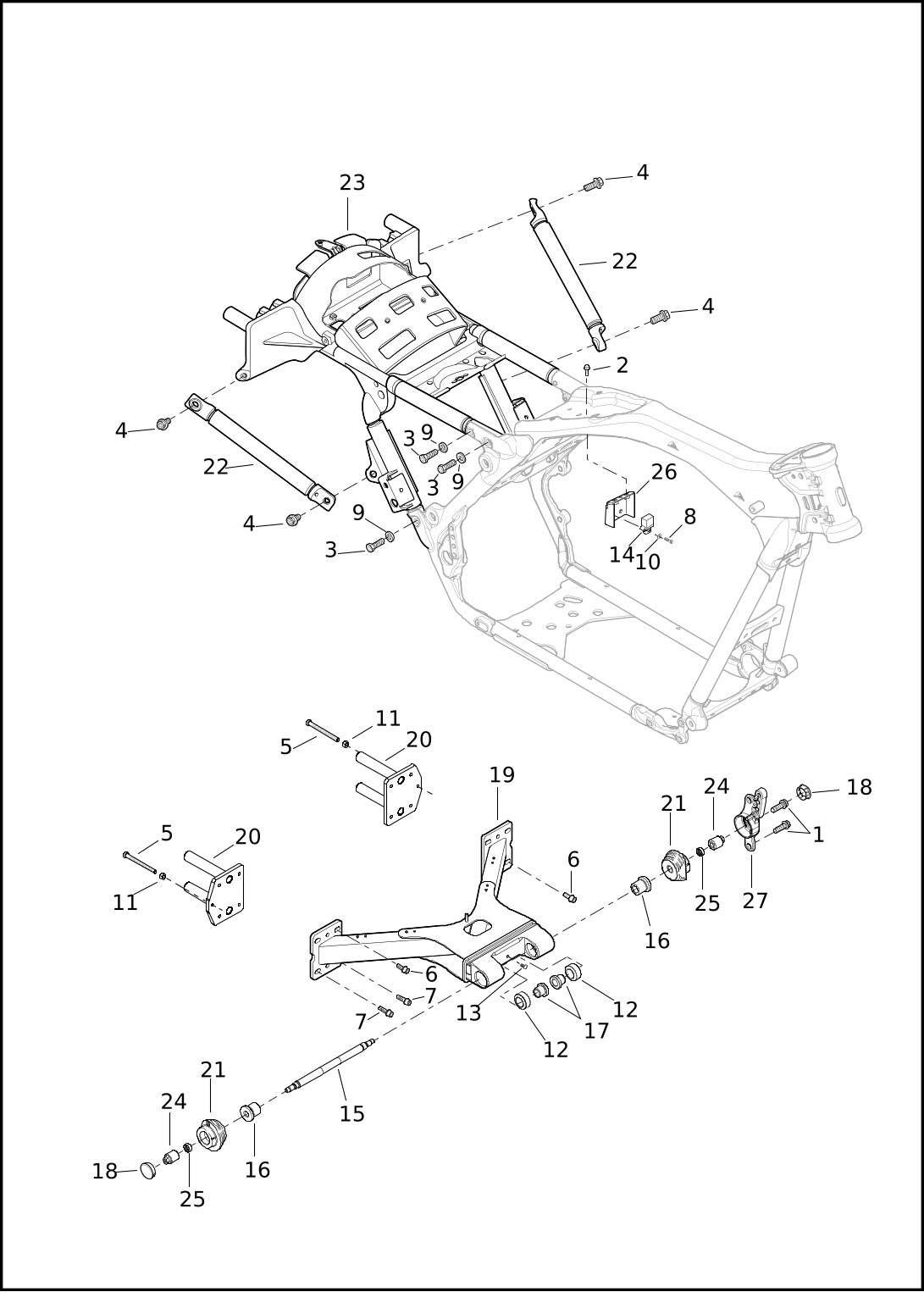

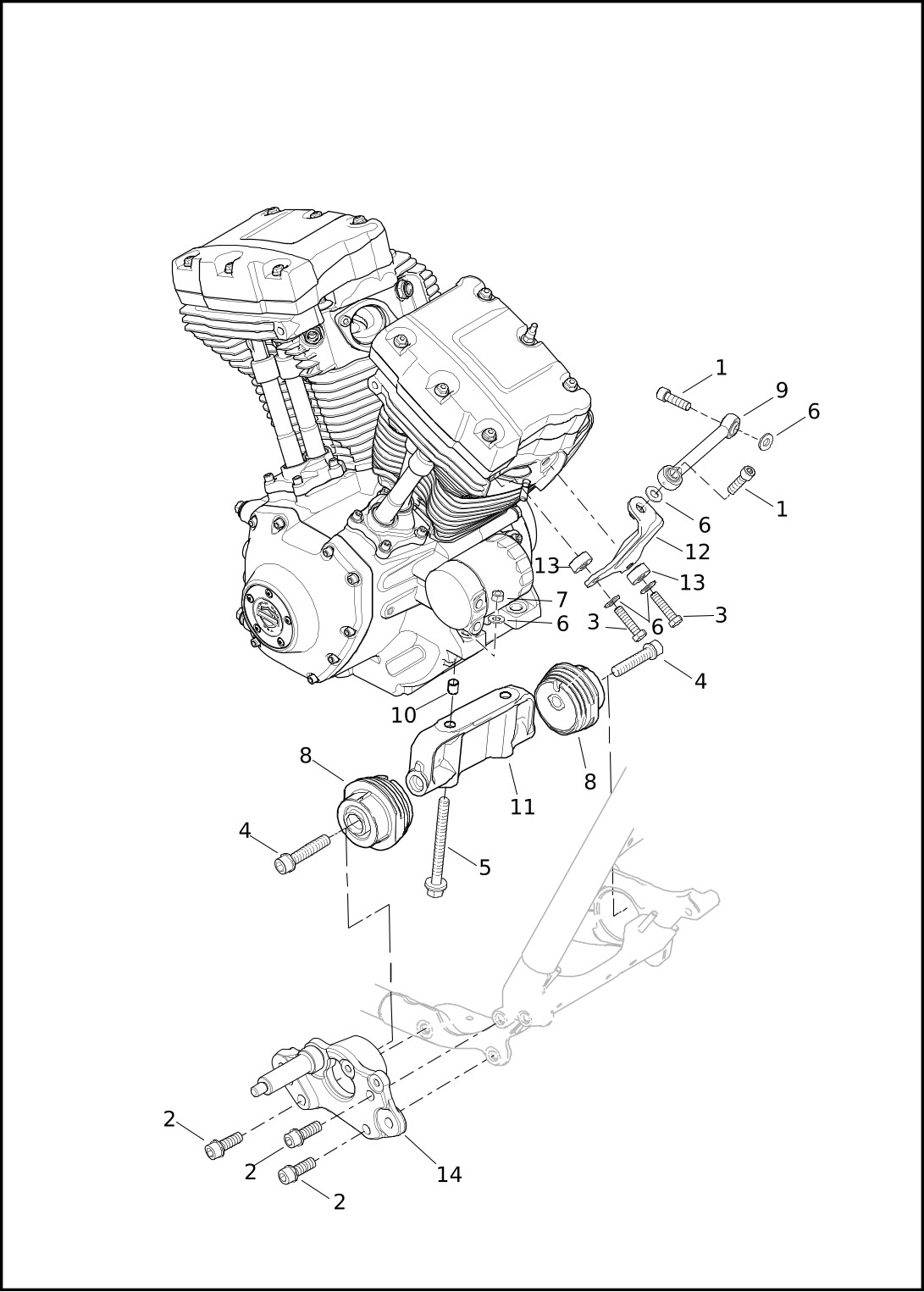

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | ALL |
| 2 | 4688 | SCREW (3) | ALL |
| 3 | 4721 | BOLT (2) | ALL |
| 4 | 4838 | SCREW (2) | ALL |
| 5 | 4868 | SCREW (2) | ALL |
| 6 | 6127 | WASHER (6) | ALL |
| 7 | 7783 | NUT (2) | ALL |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | ALL |
| 9 | 16219-09 | STABLIZER LINK | ALL |
| 10 | 24754-75A | DOWEL BUSHING (2) | ALL |
| 11 | 47159-09BHP | BRACKET, front engine mount | ALL |
| 12 | 83874-09 | BRACKET, tie link | ALL |
| 13 | 83875-09 | SPACER, bracket, tie link (2) | ALL |
| 14 | 16400004 | END CAP, front mount | ALL |

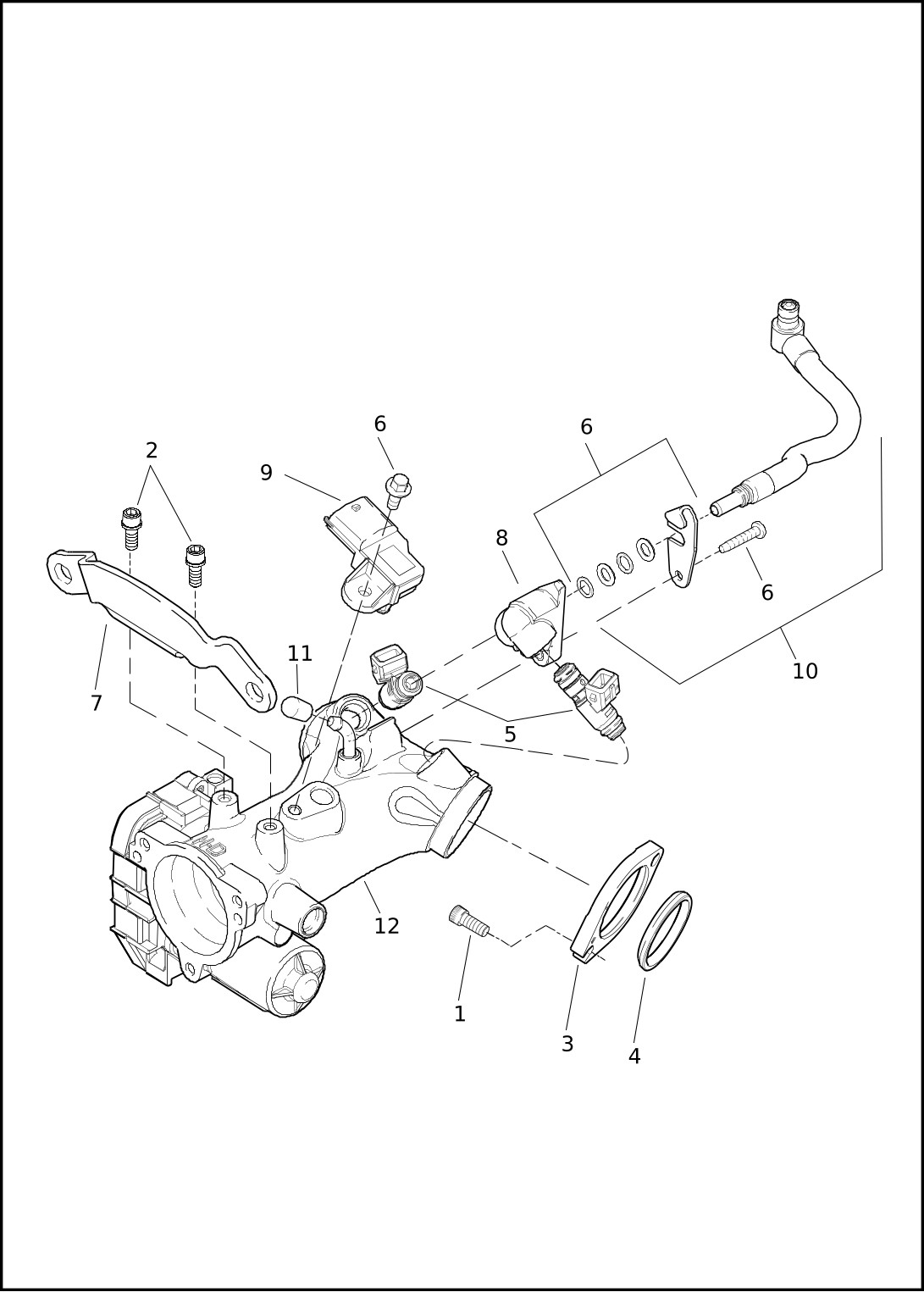

INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 4705 | SCREW (2) | ALL |
| 3 | 26993-06 | FLANGE, mounting (2) | ALL |
| 4 | 26995-86B | SEAL, intake manifold (2) | ALL |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ O-ring (2) | ALL |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | ALL |
| 7 | 27712-08 | BRACKET, induction module | ALL |
| 8 | 27721-08 | FUEL RAIL | ALL |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ O-ring | ALL |
| 10 | 61208-10 | FUEL LINE KIT | ALL |
| 11 | 90383-98 | CAP, purge tube | ALL |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | ALL |

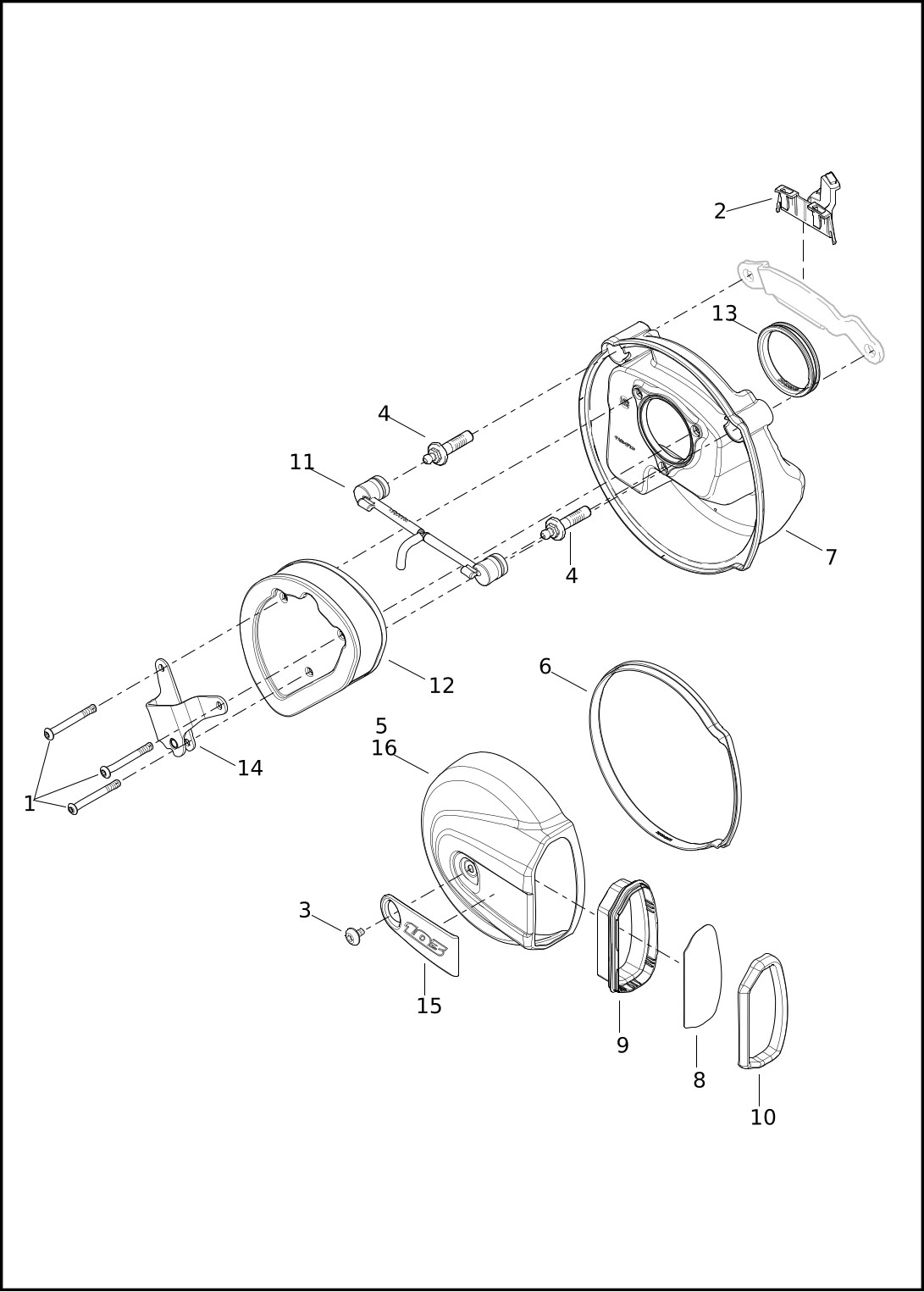

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | ALL |
| 2 | 10398 | CLIP, ACR connector retention | ALL |
| 3 | 29269-83A | SCREW | ALL |
| 4 | 29465-08A | BREATHER BOLT (2) | ALL |
| 5 | 14000396 | WARNING LABEL, air cleaner (chrome) (Domestic, California) | ALL |
| 6 | 29000026 | SEAL, air cleaner cover | ALL |
| 7 | 29000033 | BACKPLATE ASSEMBLY | ALL |
| 8 | 29200014 | SCREEN, air cleaner | ALL |
| 9 | 29200015 | SNORKEL, air cleaner cover (Domestic, California, Canada) | ALL |
| 29200018 | SNORKEL, air cleaner cover (HDI, England, Japan) | FLHTCUTG | |
| 10 | 29200017 | BEZEL, air cleaner | ALL |
| 11 | 29400043 | BREATHER HOSE | ALL |
| 12 | 29400045 | FILTER ELEMENT | ALL |
| 13 | 29400046 | GASKET, induction module to backplate | ALL |
| 14 | 60900005 | BRACKET ASSEMBLY, air cleaner cover | ALL |
| 15 | 61300063 | INSERT, air cleaner cover | ALL |
| 16 | 61300274 | COVER KIT, air cleaner, w/ 14000396 | ALL |

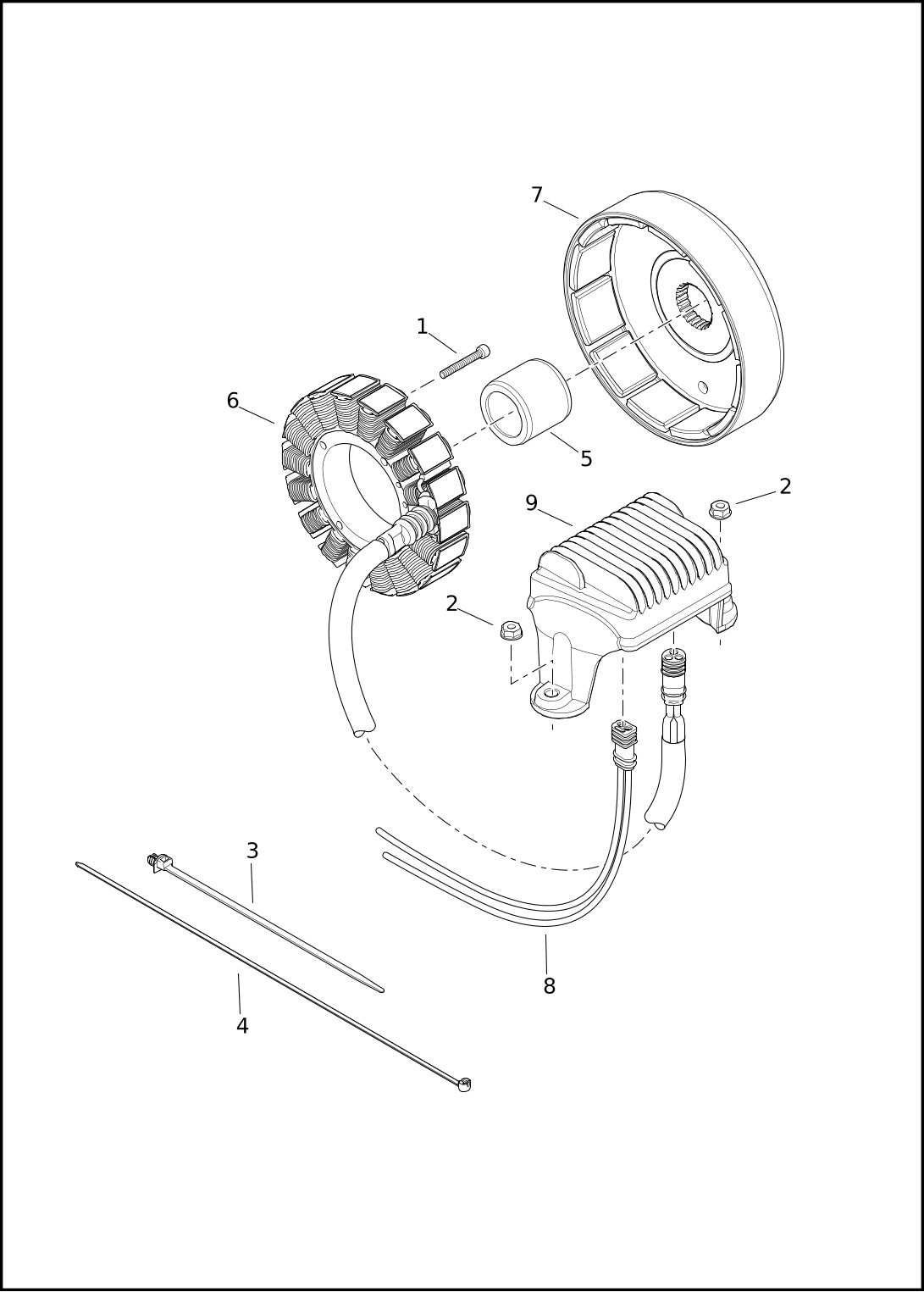

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | ALL |
| 2 | 7716 | LOCKNUT (2) | ALL |
| 3 | 10039 | CABLE STRAP (3) | ALL |
| 4 | 10177 | CABLE STRAP, tree mount | ALL |
| 5 | 24009-06 | SPACER | ALL |
| 6 | 29987-06D | STATOR ASSEMBLY, 3-phase, 50 AMP | ALL |
| 7 | 30041-08A | ROTOR ASSEMBLY | ALL |
| 8 | 74120-08 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | ALL |
| 9 | 74505-09A | VOLTAGE REGULATOR ASSEMBLY | ALL |

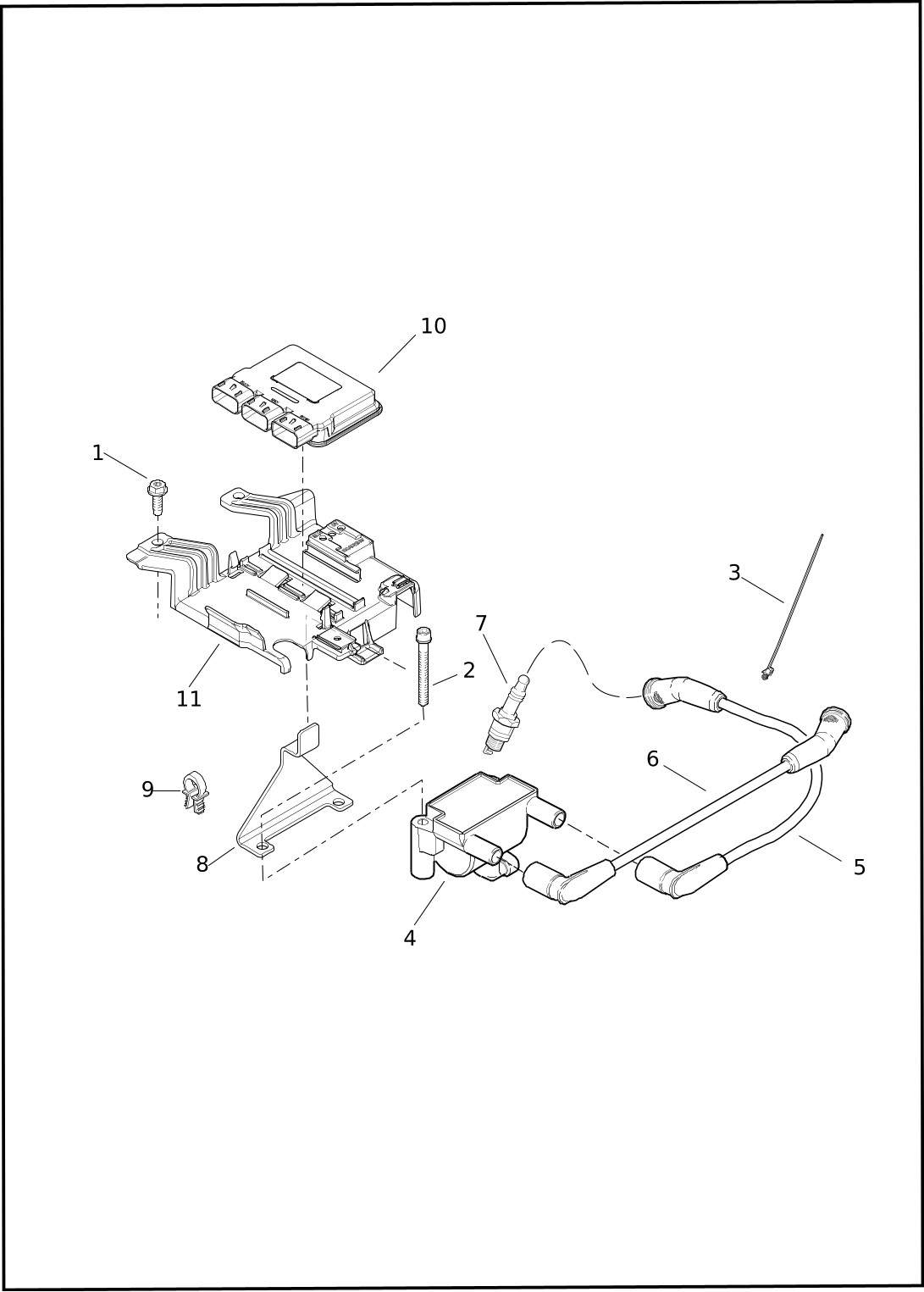

ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | ALL |
| 2 | 4826 | SCREW (2) | ALL |
| 3 | 10177 | CABLE STRAP, tree mount (3) | ALL |
| 4 | 31696-07A | IGNITION COIL | ALL |
| 5 | 32013-09A | SPARK PLUG CABLE, front cylinder, w/ 10177 | ALL |
| 6 | 32014-09A | SPARK PLUG CABLE, rear cylinder, w/ 10177 | ALL |
| 7 | 32362-04A | SPARK PLUG, 6R12 (2) | ALL |
| 8 | 66200-09 | BRACKET, battery hold down | ALL |
| 9 | 70681-09 | RETAINER, wire harness | ALL |
| 10 | 41000057 | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | ALL |
| 11 | 69200174 | CADDY, electronic control module (ECM) | ALL |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | ALL |
| 2 | 11289A | O-RING, crankshaft position sensor | ALL |
| 3 | 26561-99 | OIL PRESSURE SWITCH | FLRT |
| 4 | 32319-07A | SENSOR, temperature manifold absolute pressure (TMAP), w/ O-ring | ALL |
| 5 | 32446-99 | SENSOR, engine temperature | ALL |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94 & 74194-98 | ALL |
| 7 | 72199-94 | CONNECTOR ANCHOR | ALL |
| 8 | 74194-98 | TERMINAL PIN, DTM #20-24 (2) | ALL |
| 9 | 74438-99A | OIL PRESSURE SENDER | FLHTCUTG |

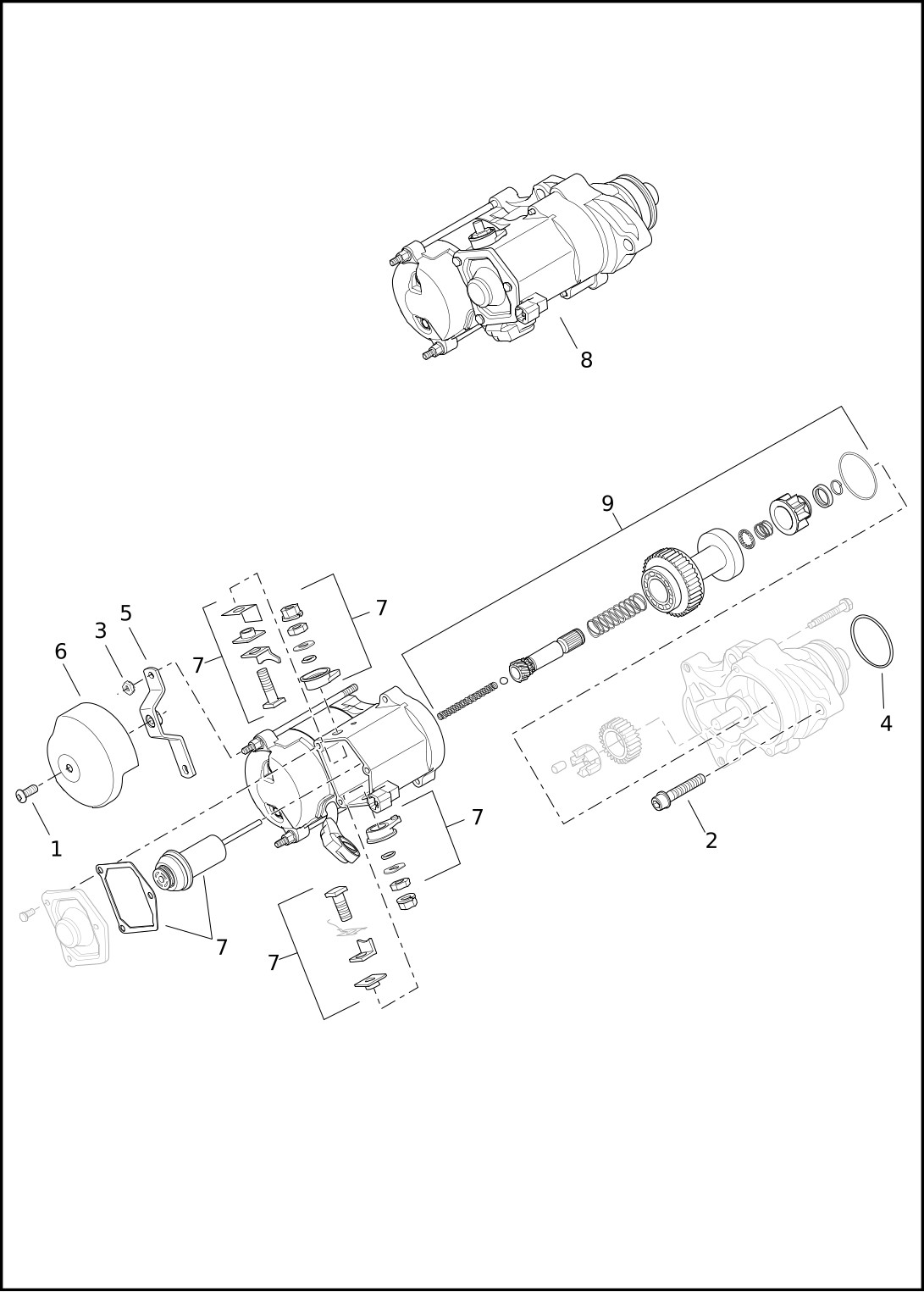

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW | ALL |
| 2 | 4419 | SCREW (2) | ALL |
| 3 | 7838 | NUT (2) | ALL |
| 4 | 27444-00Y | O-RING, starter-to-case | ALL |
| 5 | 31527-90 | BRACKET ASSEMBLY, starter cover | ALL |
| 6 | 31611-08 | COVER (chrome) | ALL |
| 7 | 31604-06 | SOLENOID REPAIR KIT | ALL |
| 8 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | ALL |
| 9 | 31633-07A | CLUTCH SUBASSEMBLY | ALL |

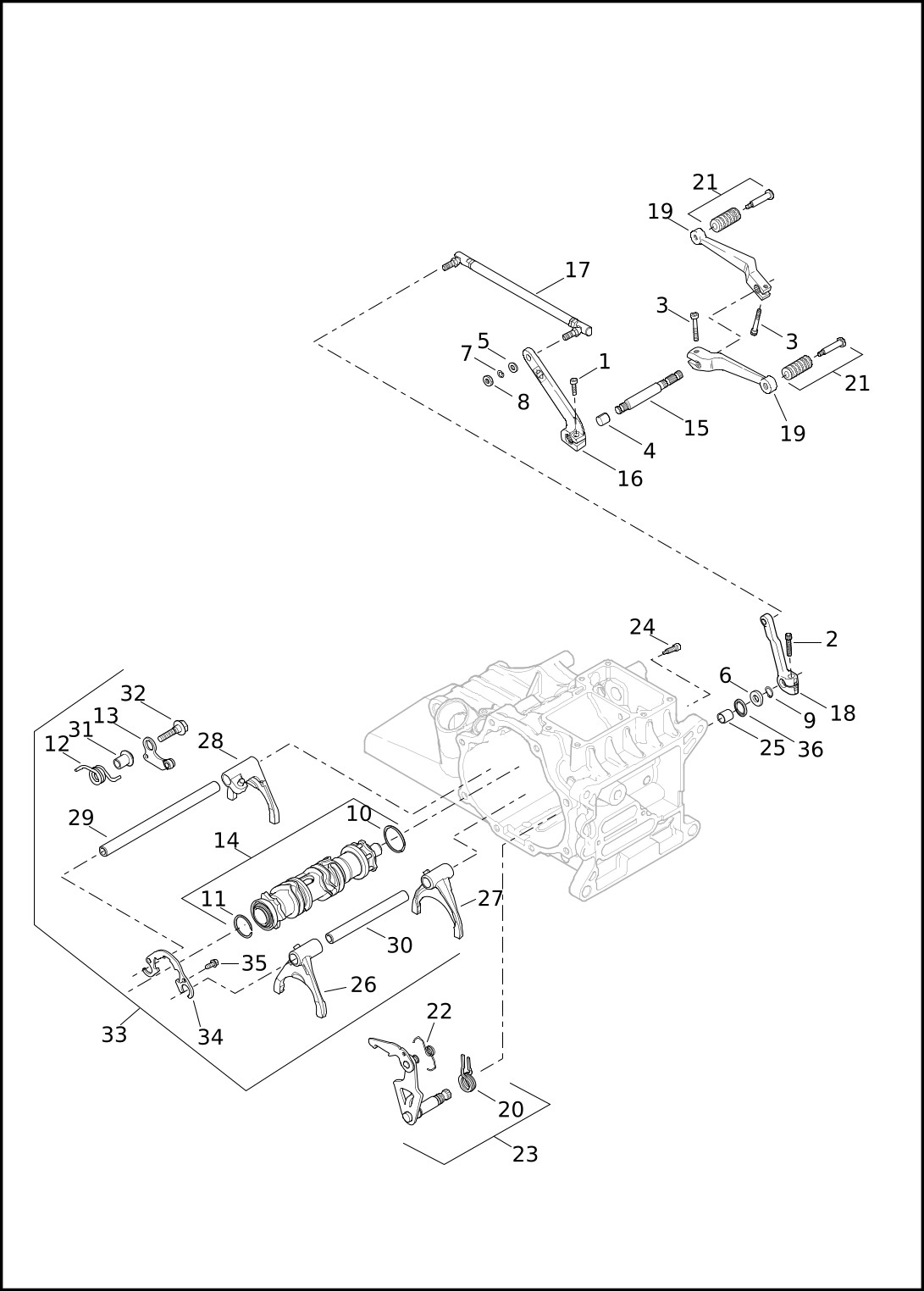

SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | ALL |
| 2 | 856A | SCREW | ALL |
| 3 | 3275 | SCREW (2) | ALL |
| 4 | 5817 | SPACER | ALL |
| 5 | 6016 | WASHER | ALL |
| 6 | 6497HW | WASHER | ALL |
| 7 | 7041 | LOCKWASHER | ALL |
| 8 | 7744 | JAMNUT | ALL |
| 9 | 11150 | RETAINING RING | ALL |
| 10 | 11389 | RING, shift cam retaining | ALL |
| 11 | 11575 | RING, shift cam retaining | ALL |
| 12 | 33389-07 | SPRING, detent | ALL |
| 13 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | ALL |
| 14 | 33413-06A | CAM, shifter, w/ 11389, 11575 & bearing | ALL |
| 15 | 33709-82A | SHAFT | ALL |
| 16 | 33718-82B | LEVER | ALL |
| 17 | 33759-99B | SHIFTER ROD | ALL |
| 18 | 33849-97 | LEVER, shifter rod | ALL |
| 19 | 33895-82D | SHIFT LEVER KIT, w/ 3275 & shifter lever (2) | ALL |
| 20 | 34064-00C | SPRING, shift lever centering | ALL |
| 21 | 34611-65A | PEG, shift lever (2) | ALL |
| 22 | 34987-06 | SPRING, ratchet lever | ALL |
| 23 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | ALL |
| 24 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 25 | 35186-06 | SLEEVE | ALL |
| 26 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 27 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 28 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 29 | 35222-06 | SHAFT, 5 - 6 shift fork | ALL |
| 30 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | ALL |
| 31 | 35243-06 | SLEEVE | ALL |
| 32 | 35244-06 | SCREW | ALL |
| 33 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 10, 11, 12, 13, 14, 26, 27, 28, 29, 30, 31, 32, 34, 35, 7340, 35260-06, input shaft, countershaft & gears (black) | ALL |
| 34 | 35249-06A | LOCK PLATE, shift cam | ALL |
| 35 | 35259-06 | SCREW (2) | ALL |
| 36 | 11000101 | OIL SEAL | ALL |

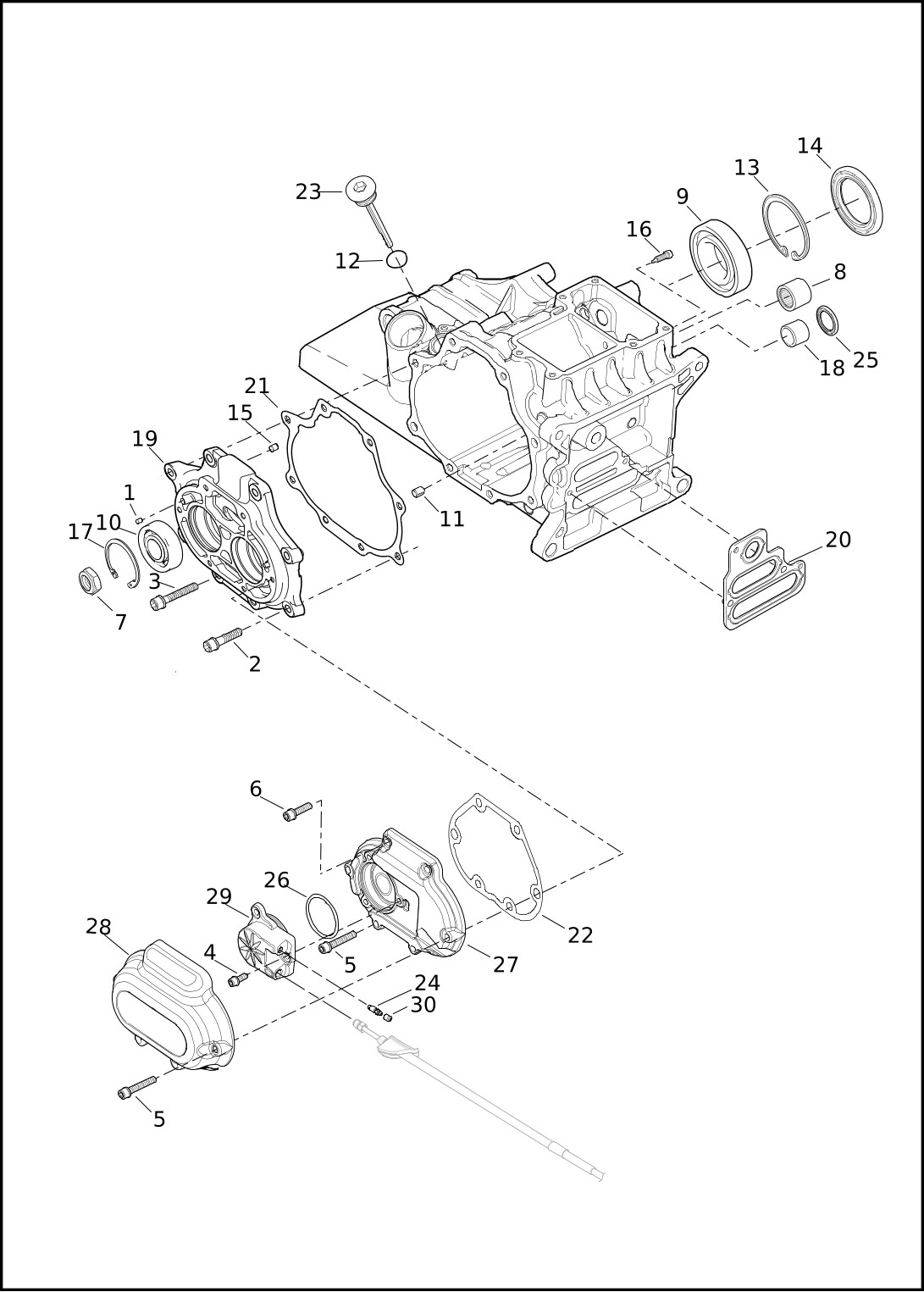

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (6) | ALL |
| 3 | 3300 | SCREW (2) | ALL |
| 4 | 4705 | SCREW (3) | ALL |
| 5 | 4718A | SCREW (4) | ALL |
| 6 | 4741A | SCREW (2) | ALL |
| 7 | 7340 | NUT, mainshaft & countershaft (2) | ALL |
| 8 | 8963 | BEARING, needle | ALL |
| 9 | 8967 | BEARING | ALL |
| 10 | 8970A | BEARING (2) | ALL |
| 11 | 9701A | BUSHING | ALL |
| 12 | 11132A | O-RING, dipstick | ALL |
| 13 | 11161 | RETAINING RING | ALL |
| 14 | 12074 | SEAL | ALL |
| 15 | 16583-00A | BUSHING, dowel (2) | ALL |
| 16 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 17 | 35087-99A | RETAINING RING (2) | ALL |
| 18 | 35186-06 | SLEEVE | ALL |
| 19 | 35260-06A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (black) | ALL |
| 20 | 35607-06 | GASKET | ALL |
| 21 | 35654-06 | GASKET, bearing housing | ALL |
| 22 | 36805-06 | GASKET, cover | ALL |
| 23 | 37065-06 | DIPSTICK (chrome) | ALL |
| 24 | 44613-02 | BLEEDER SCREW | ALL |
| 25 | 11000101 | OIL SEAL | ALL |
| 26 | 11900035 | O-RING | ALL |
| 27 | 25700178 | INNER SIDE COVER, transmission | ALL |
| 28 | 25700179 | SIDE COVER, transmission (chrome) | ALL |
| 29 | 37200023 | SECONDARY CLUTCH ACTUATOR, w/ 44613-02, 11900035 & 37200034 | ALL |
| 30 | 37200034 | CAP, bleeder screw | ALL |

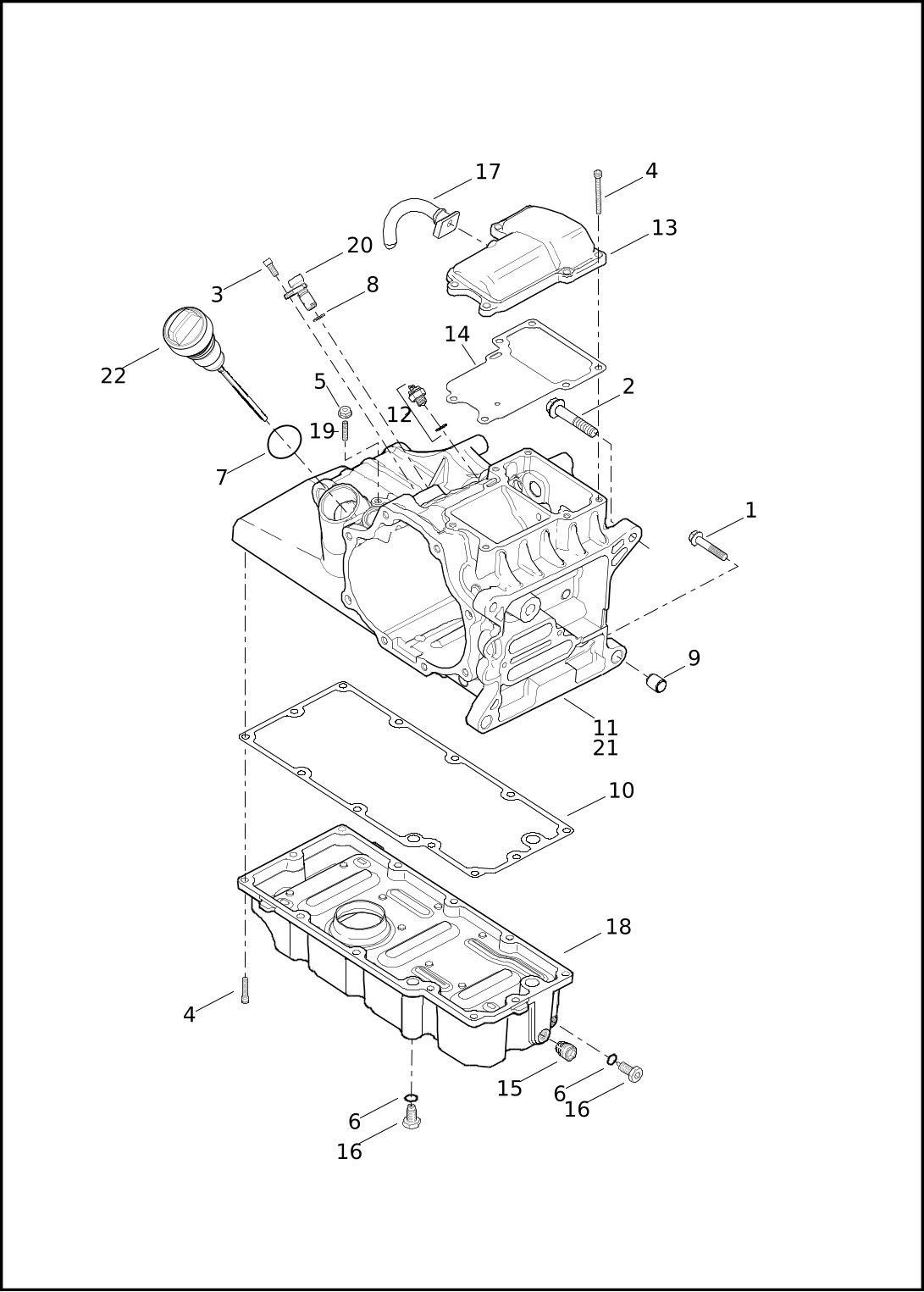

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | ALL |
| 2 | 3983 | SCREW (2) | ALL |
| 3 | 4705 | SCREW | ALL |
| 4 | 4741A | SCREW (18) | ALL |
| 5 | 7792 | NUT | ALL |
| 6 | 11105 | O-RING (2) | ALL |
| 7 | 11120 | O-RING | ALL |
| 8 | 11289A | O-RING | ALL |
| 9 | 16574-99A | DOWEL RING (2) | ALL |
| 10 | 26077-99A | GASKET, oil pan | ALL |
| 11 | 33165-11A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (chrome & black) | ALL |
| 12 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | ALL |
| 13 | 34469-06B | TRANSMISSION COVER, top (chrome) | ALL |
| 14 | 34917-06 | GASKET, upper cover | ALL |
| 15 | 45893-99 | PIPE PLUG | ALL |
| 16 | 60328-98B | PLUG, magnetic, w/ 11105 (2) | ALL |
| 17 | 62372-09 | VENT HOSE, transmission | ALL |
| 18 | 62489-99A | OIL PAN ASSEMBLY, w/ 45893-99 & 60328-98B (black) | ALL |
| 19 | 66290-06 | STUD, ground | ALL |
| 20 | 74402-05B | SPEED SENSOR, w/ 11289A | ALL |
| 21 | 83978-11 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 66290-06 & 83595-11 (black) | ALL |
| 22 | 62700026 | DIPSTICK ASSEMBLY, w/ 11120 (black cap) | ALL |

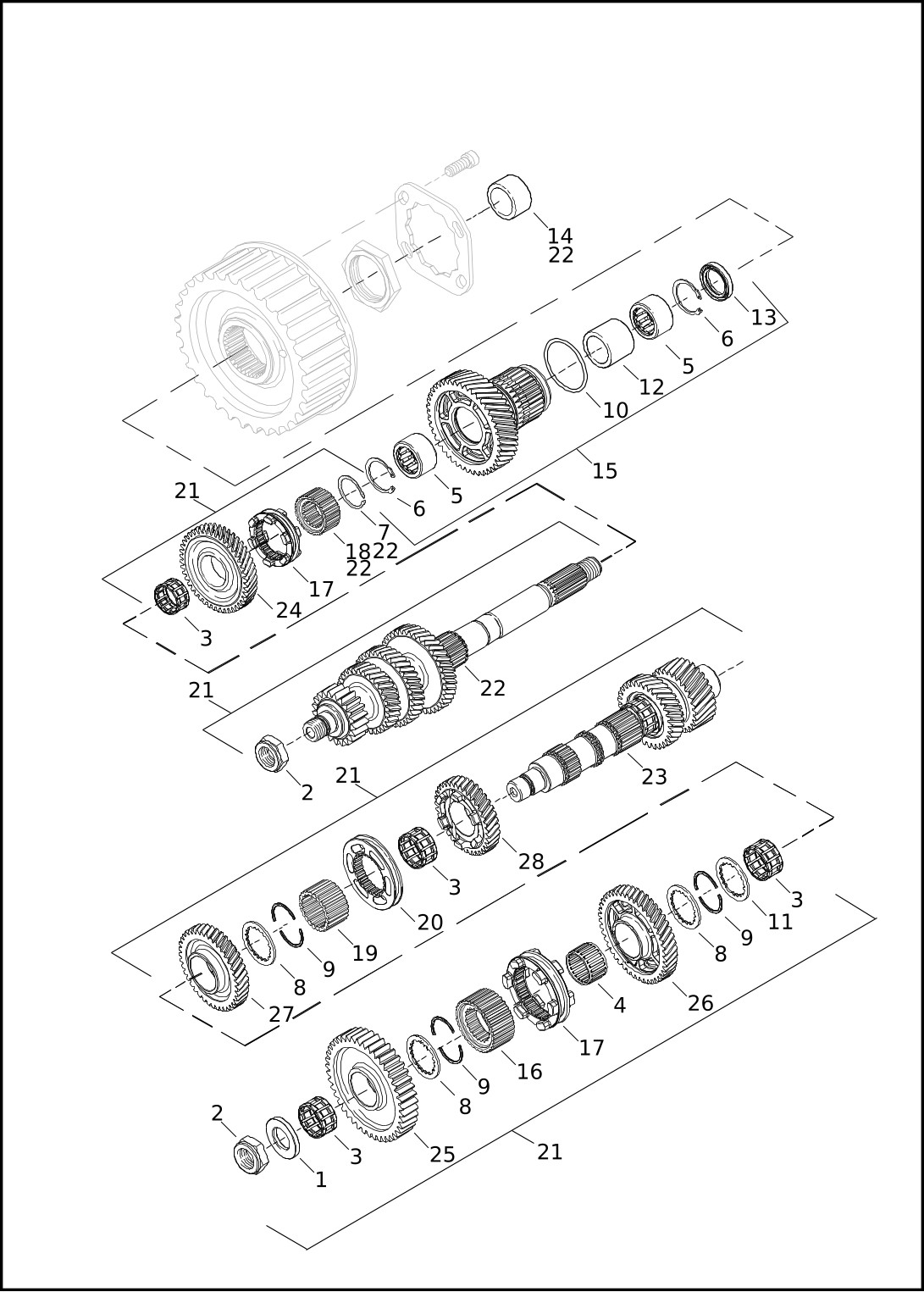

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042 | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11061A | RETAINING RING | ALL |
| 8 | 11081A | RING, lock (3) | ALL |
| 9 | 11082 | SECURING SEGMENT (6) | ALL |
| 10 | 11201 | O-RING | ALL |
| 11 | 11207A | WASHER, internal spline | ALL |
| 12 | 11599A | SPACER, bearing | ALL |
| 13 | 12077 | OIL SEAL | ALL |
| 14 | 34091-08 | BEARING, inner race | ALL |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599A & 12077 | ALL |
| 16 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 17 | 35126-06 | DOG RING, lugged (2) | ALL |
| 18 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 19 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 20 | 35204-06 | DOG RING, pocketed | ALL |
| 21 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 35260-06A, shifter cam & forks (black) | ALL |
| 22 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | ALL |
| 23 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 24 | 35801-10 | GEAR, fifth input | ALL |
| 25 | 35805-06A | GEAR, countershaft-first | ALL |
| 26 | 35807-06 | GEAR, countershaft-second | ALL |
| 27 | 35811-06 | GEAR, countershaft-third | ALL |
| 28 | 35814-06 | GEAR, countershaft-fourth | ALL |

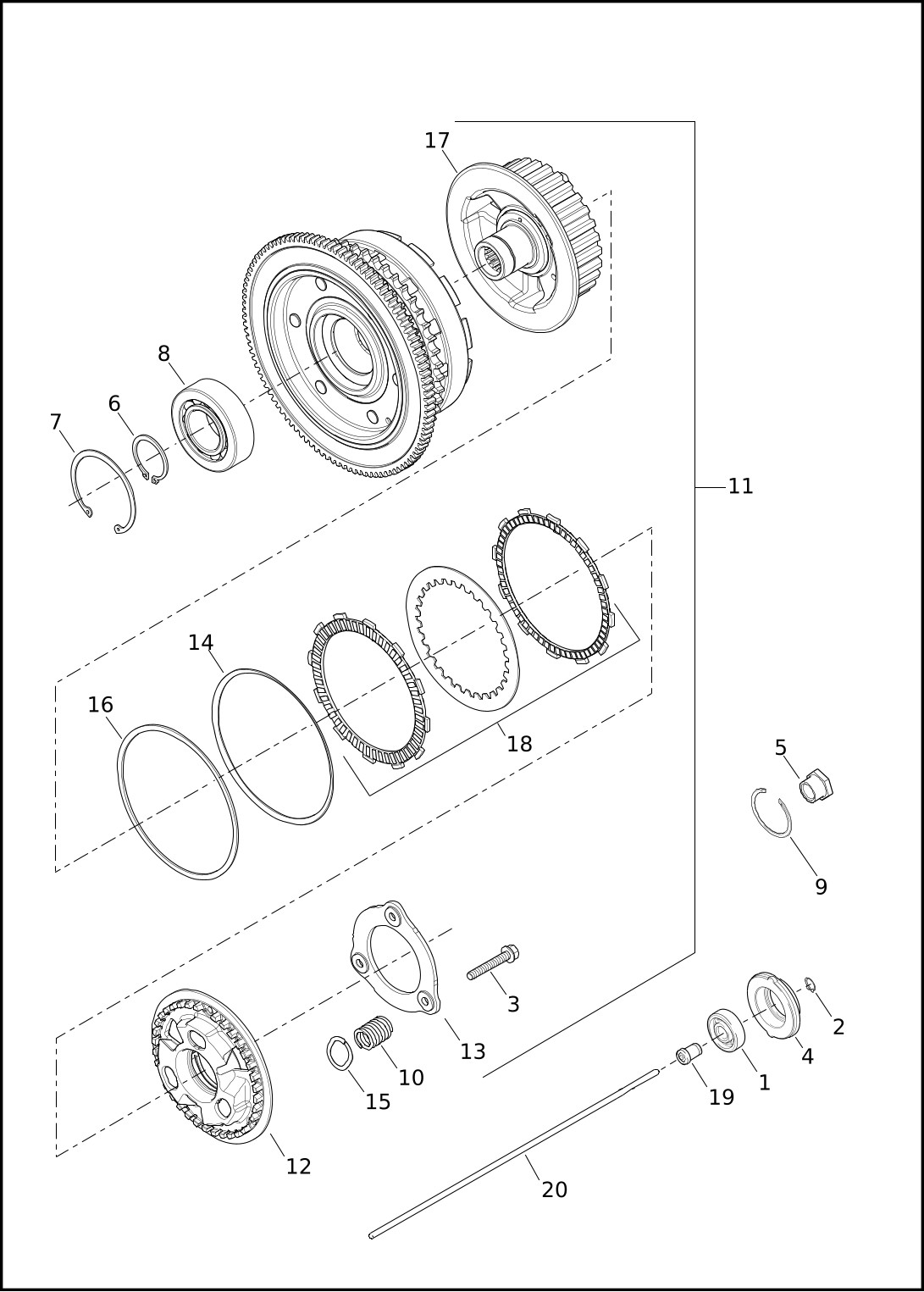

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | ALL |
| 2 | 11143 | RETAINING RING, external | ALL |
| 3 | 36706-01K | BOLT (3) | ALL |
| 4 | 36731-91 | PLATE, release w/ 8885 | ALL |
| 5 | 37496-90A | NUT, mainshaft | ALL |
| 6 | 37904-90 | RING, retaining, external | ALL |
| 7 | 37905-00 | RING, retaining, internal | ALL |
| 8 | 37906-11 | BEARING, ball, double-row | ALL |
| 9 | 37909-90 | RING, retaining, internal | ALL |
| 10 | 11700002 | COIL SPRING (3) | ALL |
| 11 | 37000026 | CLUTCH ASSEMBLY, complete, w/ 3, 6, 7, 8, 10, 12, 13, 14, 15, 16, 17 & 18 | ALL |
| 12 | 37000032 | PRESSURE PLATE, clutch | ALL |
| 13 | 37000033 | STOPPER PLATE | ALL |
| 14 | 37000034 | SPRING, damper | ALL |
| 15 | 37000035 | SEAT (3) | ALL |
| 16 | 37000036 | SEAT, damper-spring | ALL |
| 17 | 37000083 | HUB ASSEMBLY | ALL |
| 18 | 37000118 | CLUTCH DISKS KIT | ALL |
| 19 | 37000217 | RELEASE ROD, clutch | ALL |
| 20 | 37000218 | PUSHROD, clutch release | ALL |

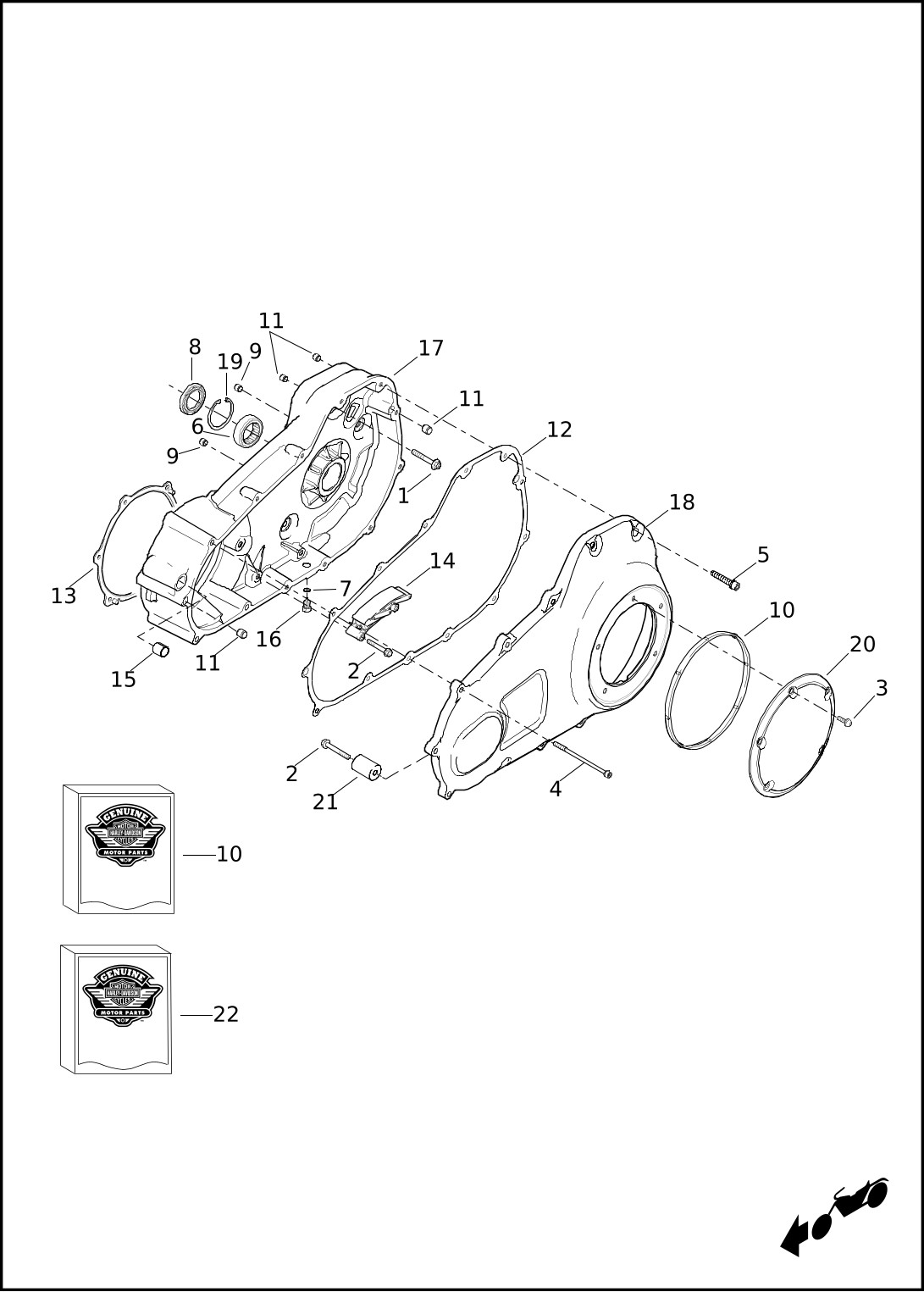

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 2 | 791A | SCREW (Japan) (3) | FLHTCUTG |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1780 | SCREW (4) | ALL |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 9231 | BEARING | ALL |
| 7 | 11105 | O-RING | ALL |
| 8 | 12052A | SEAL | ALL |
| 9 | 16583-00A | DOWEL BUSHING (2) | ALL |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) w/ 11105 & seal clutch cover | ALL |
| 11 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 12 | 34901-07 | GASKET, primary cover | ALL |
| 13 | 34934-06 | GASKET, primary housing to case | ALL |
| 14 | 39929-06B | CHAIN TENSIONER ASSEMBLY | ALL |
| 15 | 42642-00A | BUSHING (2) | ALL |
| 16 | 60328-98B | PLUG, magnetic drain, w/ 11105 | ALL |
| 17 | 60432-07A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (black) | ALL |
| 18 | 60553-07A | COVER, primary (chrome) | ALL |
| 19 | 60678-85 | RETAINING RING | ALL |
| 20 | 60766-06 | COVER, clutch (chrome) | ALL |
| 21 | 60818-07 | SLEEVE, dampener (Japan) | FLHTCUTG |
| 22 | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y & 37909-90 | ALL |

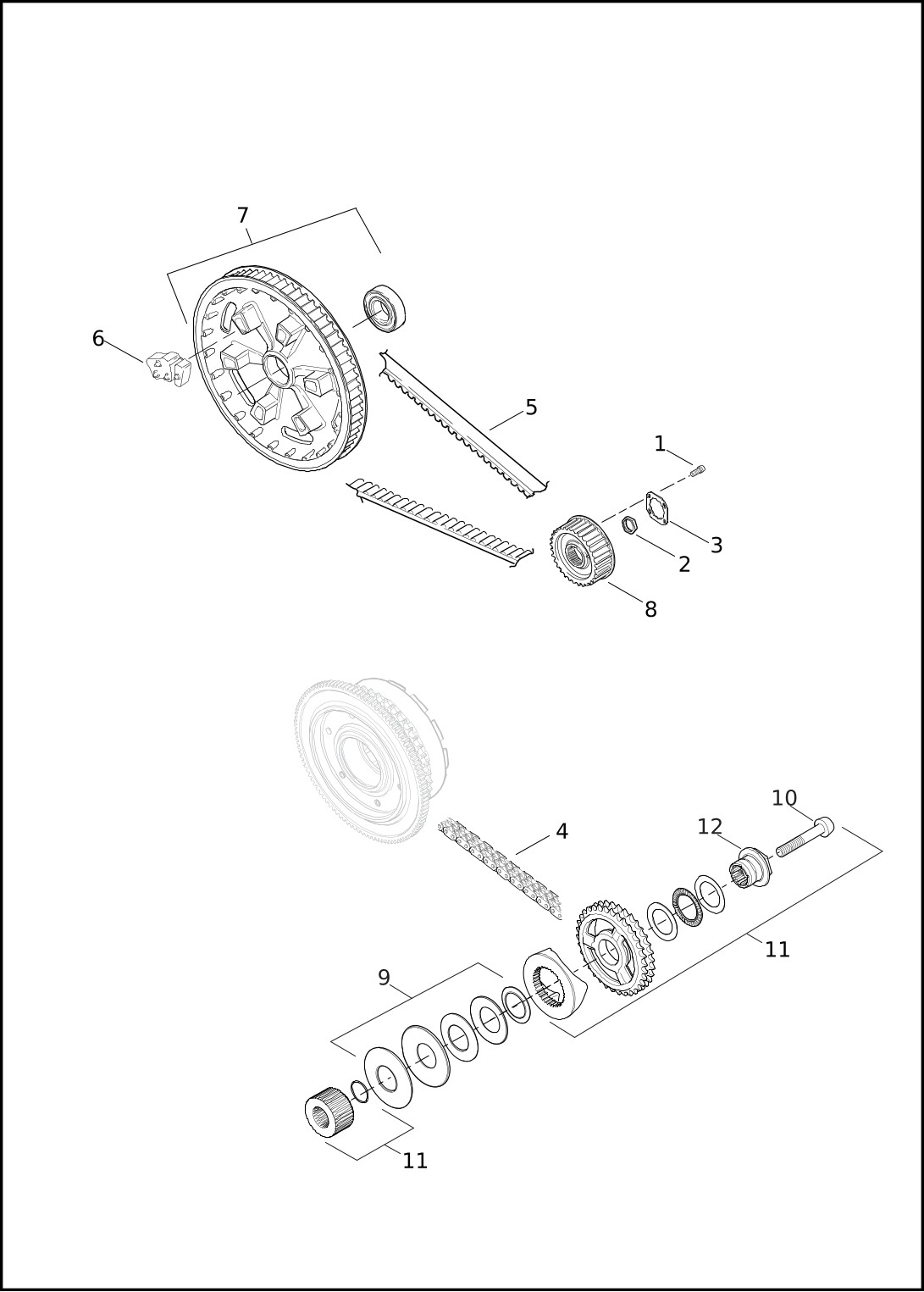

BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | ALL |
| 2 | 35241-06 | NUT | ALL |
| 3 | 35242-06 | LOCKPLATE | ALL |
| 4 | 40037-07 | PRIMARY CHAIN | ALL |
| 5 | 40040-05 | REAR BELT, 139 T, 1-1/8 inch | ALL |
| 6 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 7 | 83424-09 | SPROCKET ASSEMBLY, rear, 70 T, w/ bearing (chrome) | ALL |
| 8 | 83595-11 | SPROCKET, transmission, 30 T | ALL |
| 9 | 83936-09A | SPRING PACK | ALL |
| 10 | 10500031 | SCREW, compensator | ALL |
| 11 | 36500034A | COMPENSATOR ASSEMBLY | ALL |
| 12 | 40100041 | RETAINER, sprocket | ALL |

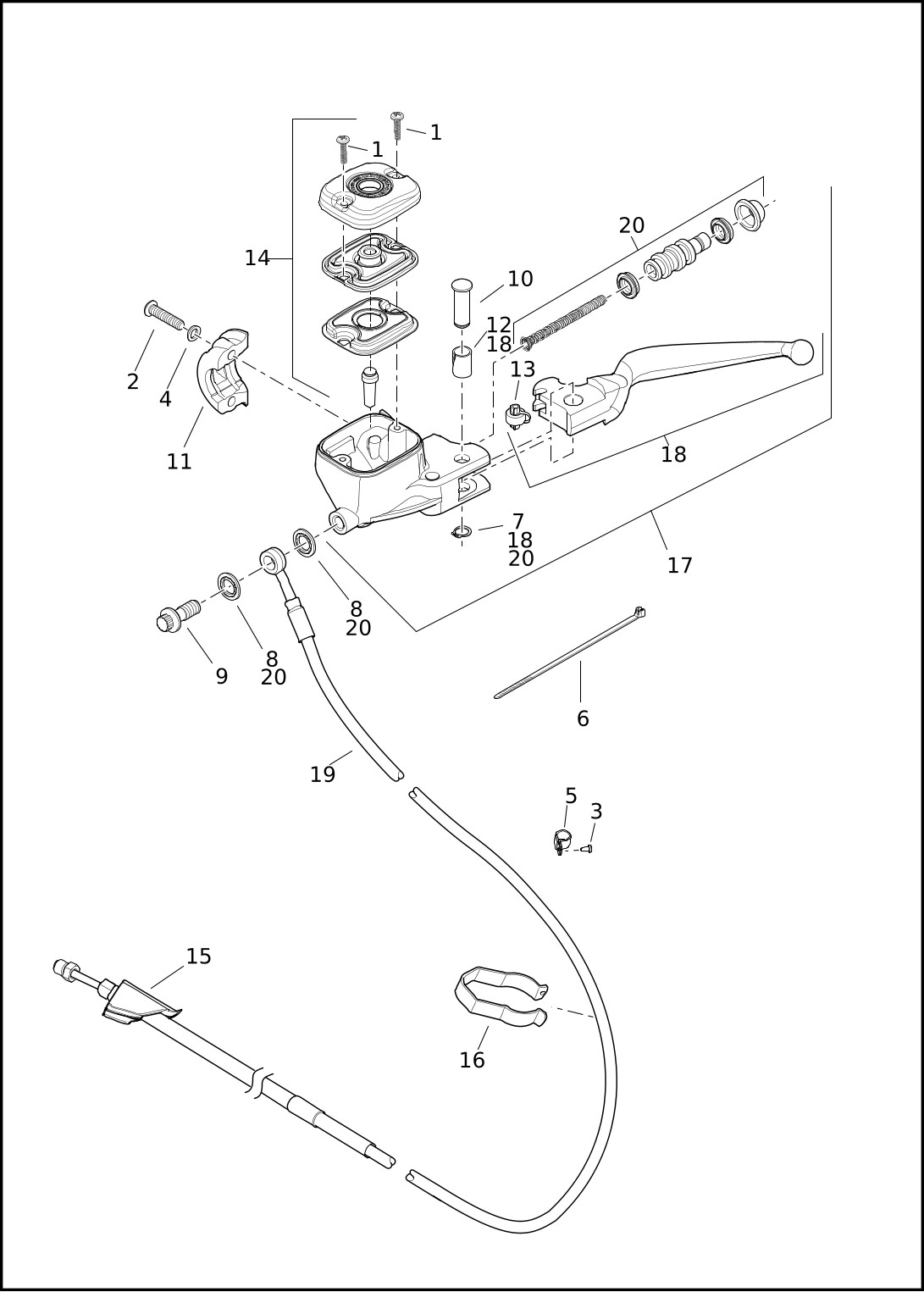

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW (set of 2) | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 4134 | SCREW (2) | FLRT |
| 4 | 6101 | WASHER (2) | ALL |
| 5 | 10031 | CLAMP (2) | FLRT |
| 6 | 10039 | CABLE STRAP (3) | FLHTCUTG |
| 10039 | CABLE STRAP (2) | FLRT | |
| 7 | 11143 | RING, retaining | ALL |
| 8 | 41731-01 | GASKET, banjo-bolt (2) | ALL |
| 9 | 41747-82A | BOLT, banjo | ALL |
| 10 | 45032-82 | PIVOT PIN | ALL |
| 11 | 45044-96A | HALF-CLAMP, master cylinder and clutch (black) | ALL |
| 12 | 45423-92 | BUSHING, hand lever | ALL |
| 13 | 46246-01 | BUSHING & ROLLER KIT | ALL |
| 14 | 46423-05C | MASTER CYLINDER COVER KIT, w/ 2590, baffle plate & gasket | ALL |
| 15 | 12100028 | GROMMET | ALL |
| 16 | 12200075 | CLIP, clutch line (2) | FLHTCUTG |
| 17 | 36700024B | MASTER CYLINDER ASSEMBLY, clutch, w/ 2579A, 45032-82, 46244-01, 46456-05C & 36700037 (black) | ALL |
| 18 | 36700037 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (polished) | ALL |
| 19 | 37200024 | LINE ASSEMBLY, hydraulic clutch, w/ 12100028 | FLHTCUTG |
| 37200084 | LINE ASSEMBLY, hydraulic clutch, w/ 12100028 | FLRT | |
| 20 | 37200096 | REPAIR KIT, master cylinder, w/ 11143 & 41731-01 | ALL |

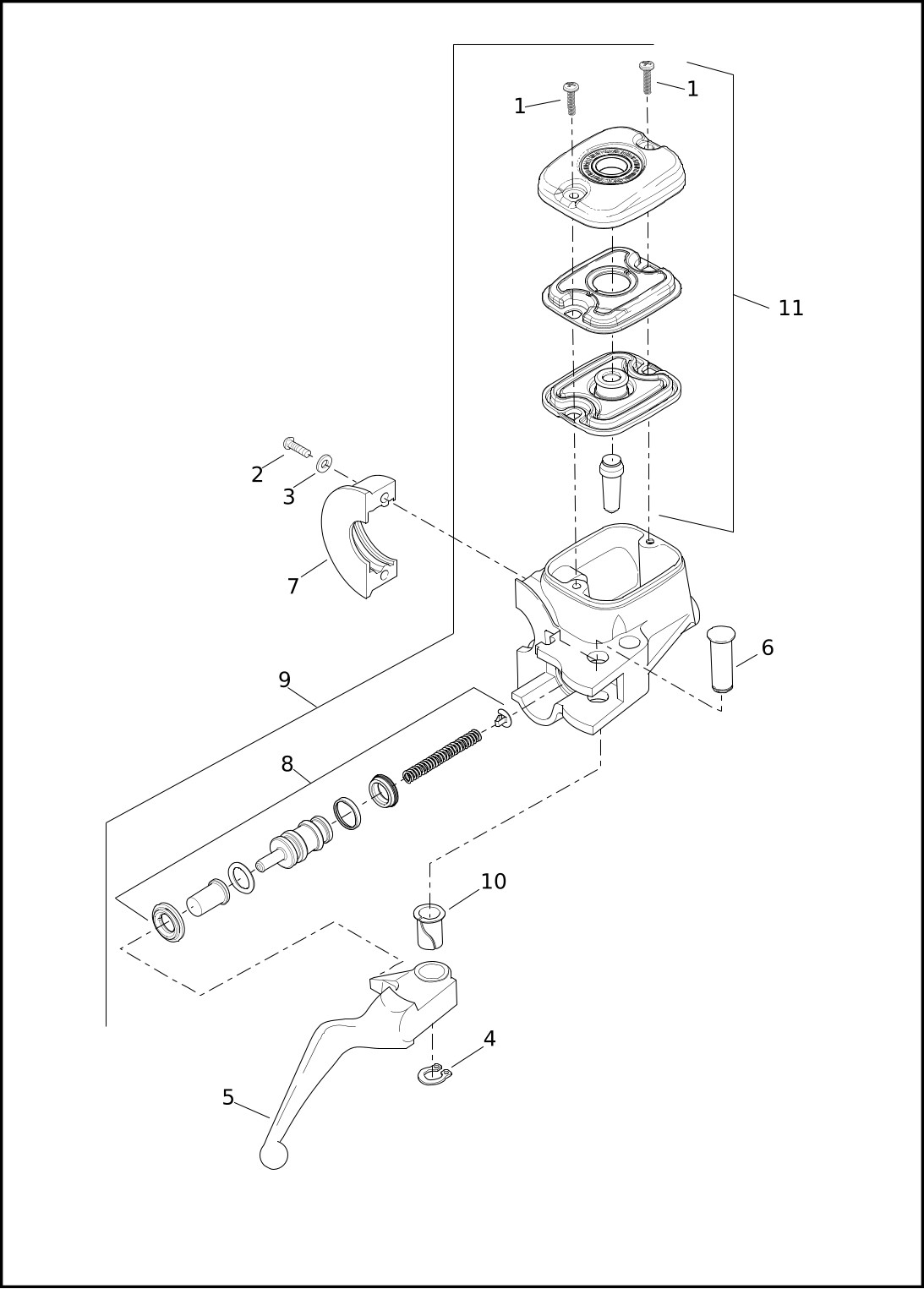

BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW (set of 2) | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 11143 | RETAINING RING | ALL |
| 5 | 45016-08 | HAND LEVER, right, w/ 45423-96 | ALL |
| 6 | 45032-82 | PIN, pivot | ALL |
| 7 | 45044-96A | CLAMP, handlebar control | ALL |
| 8 | 45072-96D | REPAIR KIT, master cylinder (11/16 in. bore) | ALL |
| 9 | 45170-08D | MASTER CYLINDER, 11/16 in. bore | ALL |
| 10 | 45423-96 | BUSHING, lever pivot | ALL |
| 11 | 46423-05C | MASTER CYLINDER COVER KIT, w/ 2590, baffle plate & gasket | ALL |

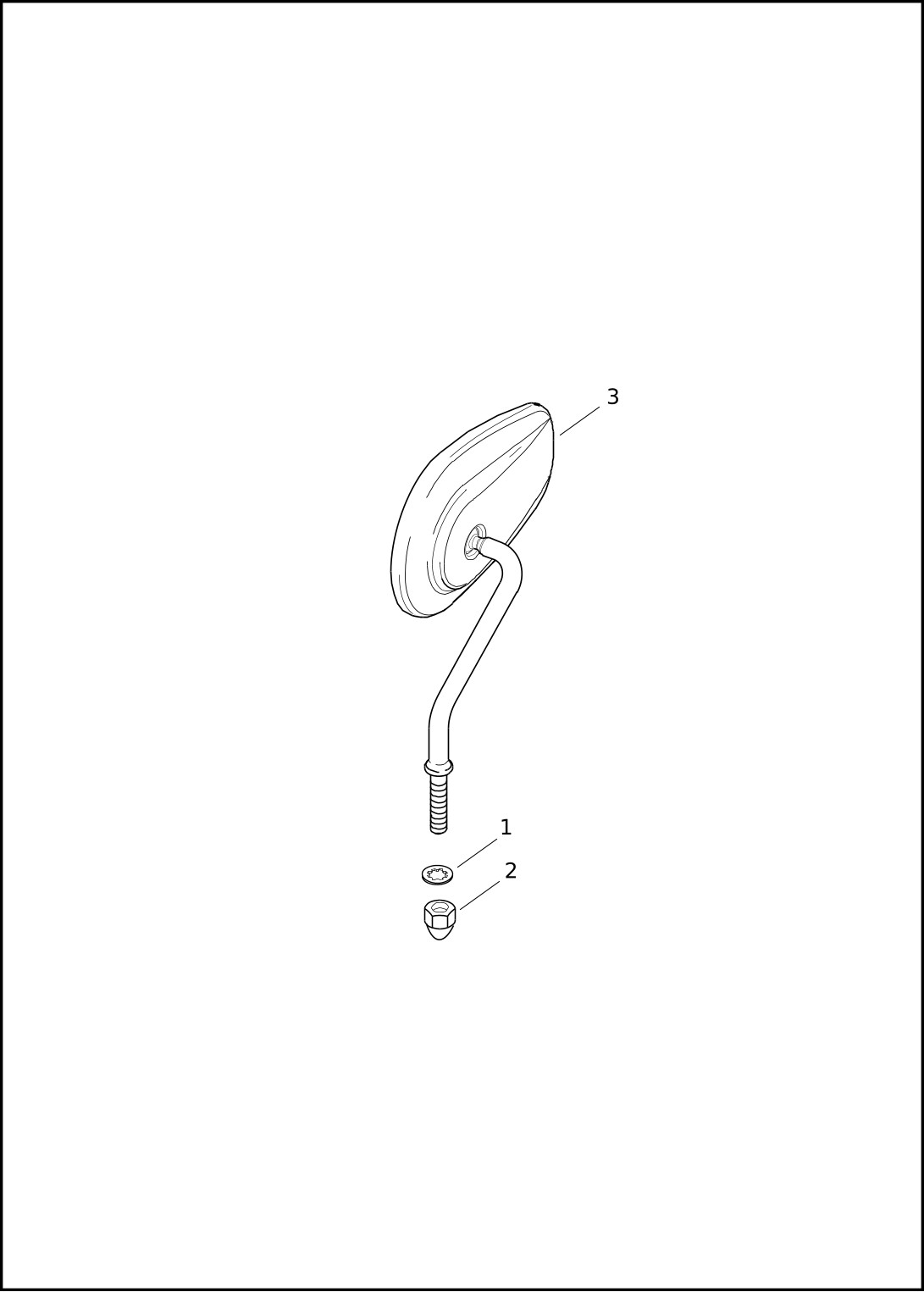

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | ALL |
| 2 | 7331 | ACORN NUT (2) | ALL |
| 3 | 91840-03B | MIRROR KIT, short, convex, right, w/ 7155 & 7331 | ALL |
| 91845-03B | MIRROR KIT, short, convex, left, w/ 7155 & 7331 | ALL |

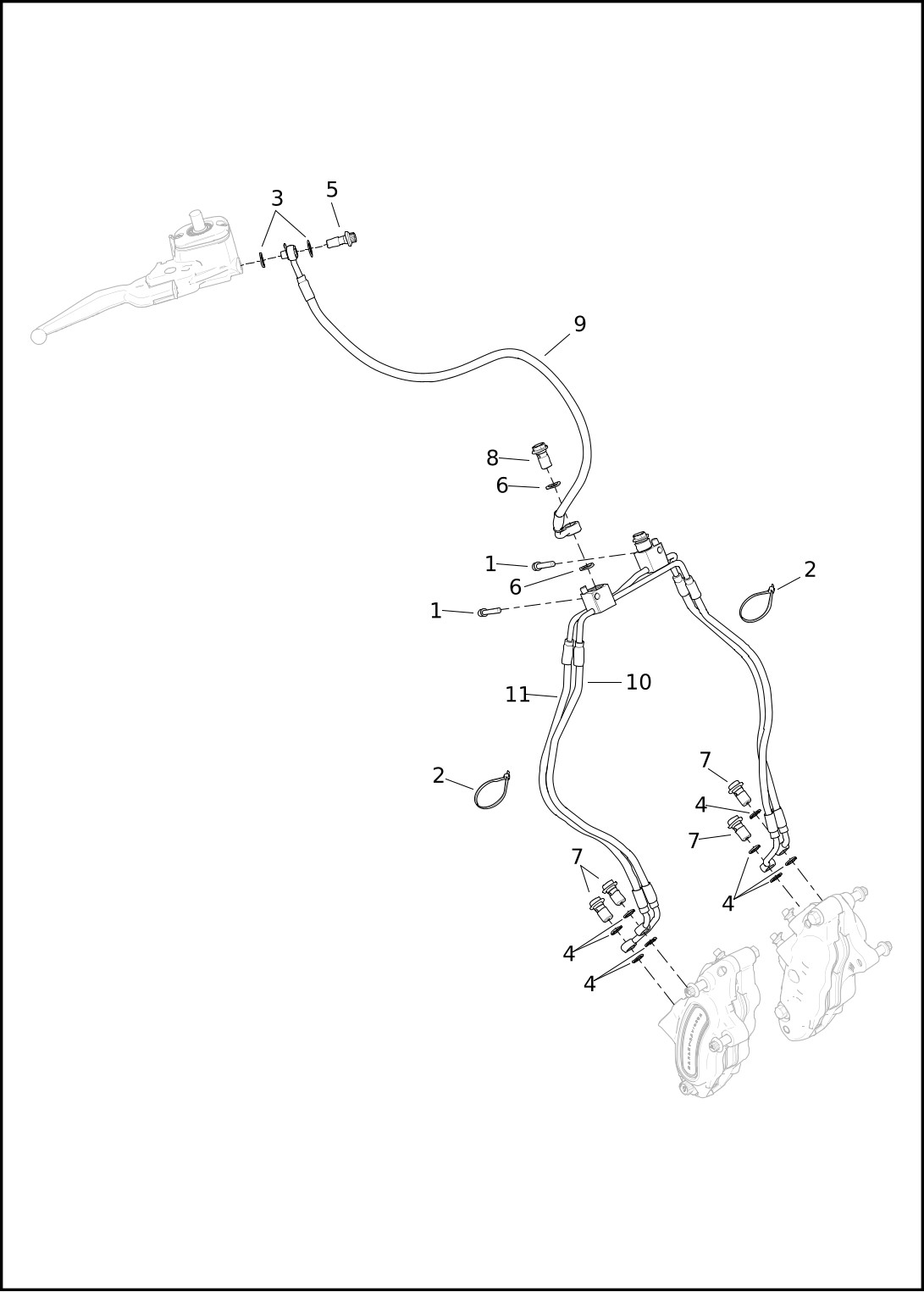

BRAKE LINE, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4813A | SCREW (2) | ALL |
| 2 | 10065 | CABLE STRAP (6) | ALL |
| 3 | 41731-01 | GASKET (2) | ALL |
| 4 | 41756-08 | GASKET (8) | ALL |
| 5 | 41747-82A | BOLT, BANJO, brake line | ALL |
| 6 | 10600007 | SEALING WASHER (2) | ALL |
| 7 | 11600001 | BOLT, BANJO, bleeder assembly (4) | ALL |
| 8 | 11600009 | BOLT, BANJO, brake line | ALL |
| 9 | 41800183 | BRAKE LINE, front | FLHTCUTG |
| 41800343 | BRAKE LINE, front | FLRT | |
| 10 | 41800184 | BRAKE LINE, front, w/ front circuit manifold | ALL |
| 11 | 41800187 | BRAKE LINE, front, w/ rear circuit manifold | ALL |

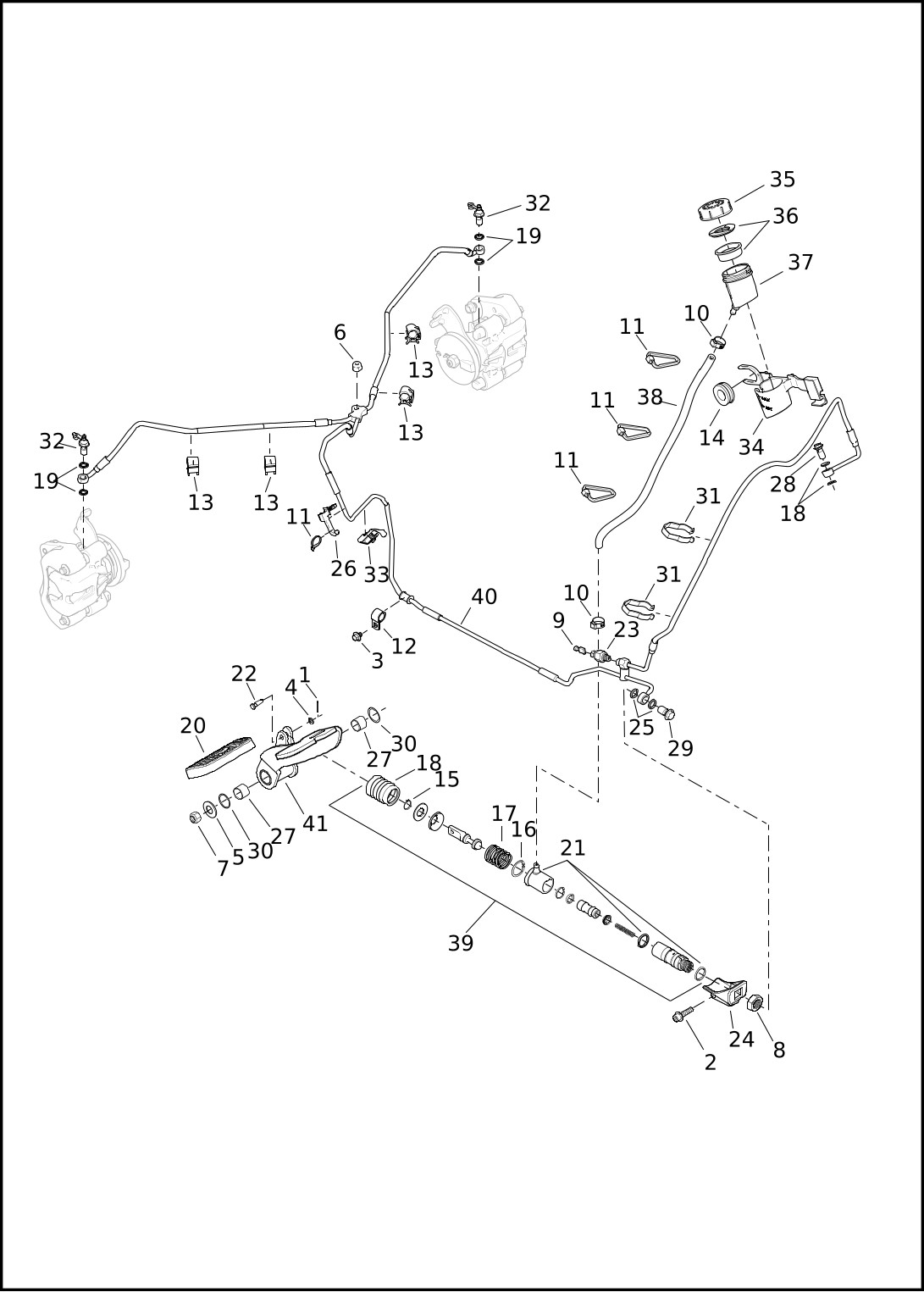

BRAKE CONTROL, REAR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHTCUTG |
| 2 | 2479 | SCREW (2) | FLHTCUTG |
| 3 | 3563 | SCREW | FLHTCUTG |
| 4 | 6220W | WASHER | FLHTCUTG |
| 5 | 6416 | WASHER | FLHTCUTG |
| 6 | 7686 | LOCKNUT | FLHTCUTG |
| 7 | 7825 | LOCKNUT | FLHTCUTG |
| 8 | 8405 | JAMNUT | FLHTCUTG |
| 9 | 9907 | WIRE TERMINAL (2) | FLHTCUTG |
| 10 | 10038A | CLAMP (2) | FLHTCUTG |
| 11 | 10065 | CABLE STRAP (4) | FLHTCUTG |
| 12 | 10076 | CLAMP | FLHTCUTG |
| 13 | 10149 | CLIP, t-stud (4) | FLHTCUTG |
| 14 | 11445 | GROMMET | FLHTCUTG |
| 15 | 11688 | RETAINING RING | FLHTCUTG |
| 16 | 40918-87 | RETAINING RING | FLHTCUTG |
| 17 | 40920-87 | COMPRESSION SPRING | FLHTCUTG |
| 18 | 40922-87A | DUST BOOT | FLHTCUTG |
| 19 | 41756-08 | GASKET, brakeline (6) | FLHTCUTG |
| 20 | 42416-06 | PAD, brake pedal | FLHTCUTG |
| 21 | 42452-87 | RESERVOIR ADAPTER KIT, master cylinder, w/ O-rings | FLHTCUTG |
| 22 | 42460-80B | CLEVIS PIN | FLHTCUTG |
| 23 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | FLHTCUTG |
| 24 | 83431-09 | BRACKET, mounting, rear master cylinder | FLHTCUTG |
| 25 | 10600007 | GASKET (2) | FLHTCUTG |
| 26 | 10800028 | TUBE CLIP, lower | FLHTCUTG |
| 27 | 11000050 | BUSHING, brake lever (2) | FLHTCUTG |
| 28 | 11600001 | BOLT, BANJO, bleeder assembly | FLHTCUTG |
| 29 | 11600009 | BOLT, BANJO, brake line | FLHTCUTG |
| 30 | 11900021 | O-RING (2) | FLHTCUTG |
| 31 | 12200075 | CLIP, clutch cable (2) | FLHTCUTG |
| 32 | 41300037 | BOLT, BANJO, w/ bleeder assembly (2) | FLHTCUTG |
| 33 | 41600091 | TUBE CLIP, upper | FLHTCUTG |
| 34 | 41600110 | BRACKET, reservoir mount | FLHTCUTG |
| 35 | 41700062 | CAP, reservoir | FLHTCUTG |
| 36 | 41700063 | GASKET KIT, reservoir | FLHTCUTG |
| 37 | 41700249 | RESERVOIR, brake master cylinder | FLHTCUTG |
| 38 | 41700250 | HOSE, brake master cylinder reservoir | FLHTCUTG |
| 39 | 41700251 | MASTER CYLINDER ASSEMBLY | FLHTCUTG |
| 40 | 41800185 | BRAKE LINE, right-rear, master cylinder to rear caliper, w/ 10065, 10076, 10800028 & 41600091 | FLHTCUTG |
| 41 | 50600067 | LEVER ASSEMBLY, foot-brake, w/ 11000050 | FLHTCUTG |

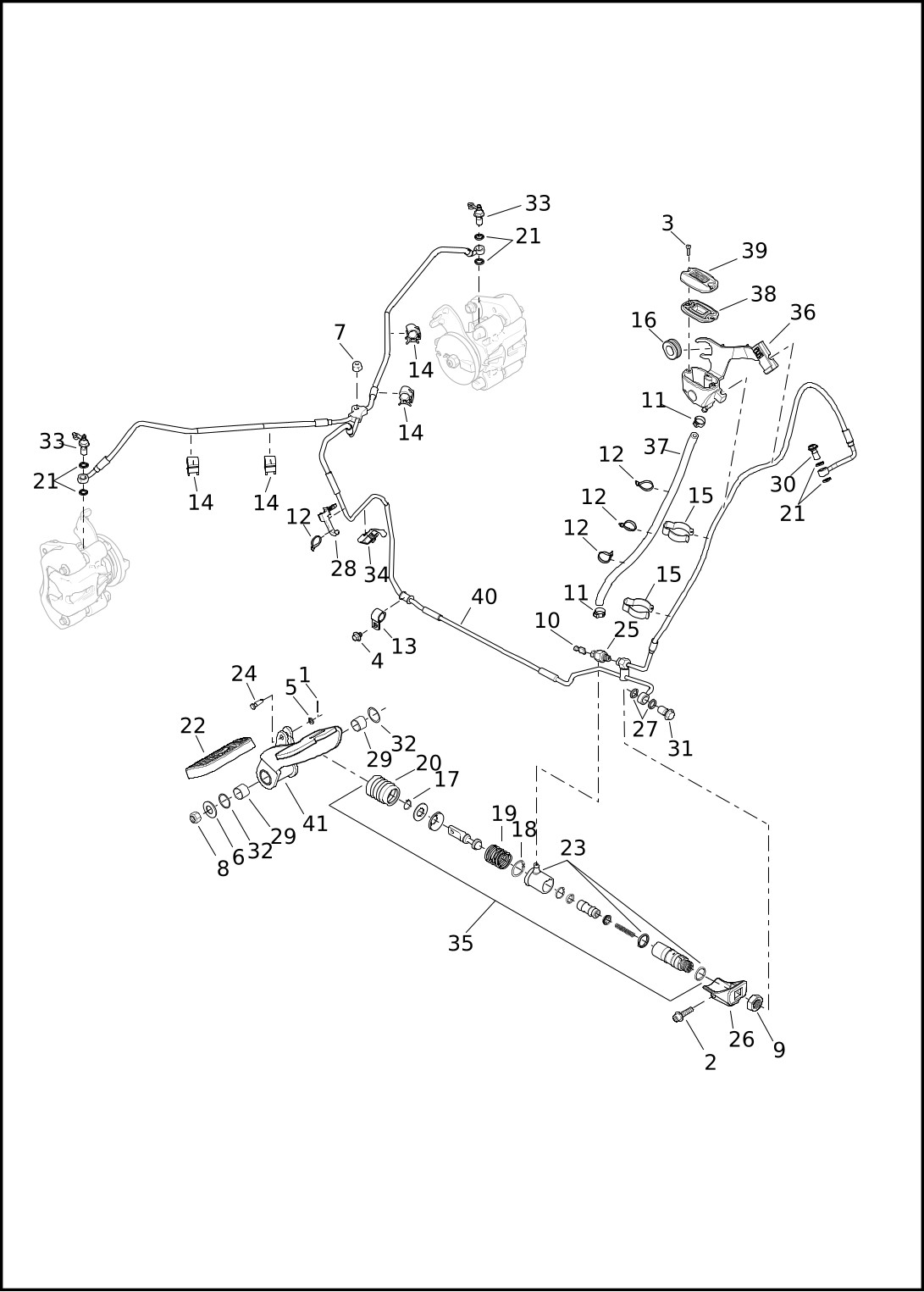

BRAKE CONTROL, REAR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLRT |
| 2 | 2479 | SCREW (2) | FLRT |
| 3 | 2590 | SCREW, kit, w/ 2 screws | FLRT |
| 4 | 3563 | SCREW | FLRT |
| 5 | 6220W | WASHER | FLRT |
| 6 | 6416 | WASHER | FLRT |
| 7 | 7686 | LOCKNUT | FLRT |
| 8 | 7825 | LOCKNUT | FLRT |
| 9 | 8405 | JAMNUT | FLRT |
| 10 | 9907 | WIRE TERMINAL (2) | FLRT |
| 11 | 10038A | CLAMP (2) | FLRT |
| 12 | 10065 | CABLE STRAP (4) | FLRT |
| 13 | 10076 | CLAMP | FLRT |
| 14 | 10149 | CLIP, t-stud (4) | FLRT |
| 15 | 10289A | CLIP, brake line (2) | FLRT |
| 16 | 11445 | GROMMET | FLRT |
| 17 | 11688 | RETAINING RING | FLRT |
| 18 | 40918-87 | RETAINING RING | FLRT |
| 19 | 40920-87 | COMPRESSION SPRING | FLRT |
| 20 | 40922-87A | DUST BOOT | FLRT |
| 21 | 41756-08 | GASKET, brakeline (6) | FLRT |
| 22 | 42416-06 | PAD, brake pedal | FLRT |
| 23 | 42452-87 | RESERVOIR ADAPTER KIT, master cylinder, w/ O-rings | FLRT |
| 24 | 42460-80B | CLEVIS PIN | FLRT |
| 25 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | FLRT |
| 26 | 83431-09 | BRACKET, mounting, rear master cylinder | FLRT |
| 27 | 10600007 | GASKET (2) | FLRT |
| 28 | 10800028 | TUBE CLIP, lower | FLRT |
| 29 | 11000050 | BUSHING, brake lever (2) | FLRT |
| 30 | 11600001 | BOLT, BANJO, bleeder assembly | FLRT |
| 31 | 11600009 | BOLT, BANJO, brake line | FLRT |
| 32 | 11900021 | O-RING (2) | FLRT |
| 33 | 41300037 | BOLT, BANJO, w/ bleeder assembly (2) | FLRT |
| 34 | 41600091 | TUBE CLIP, upper | FLRT |
| 35 | 41700251 | MASTER CYLINDER ASSEMBLY | FLRT |
| 36 | 41700265 | RESERVOIR, brake master cylinder | FLRT |
| 37 | 41700266 | HOSE, brake master cylinder reservoir | FLRT |
| 38 | 41700267 | GASKET, reservoir | FLRT |
| 39 | 41700268 | CAP, reservoir | FLRT |
| 40 | 41800344 | BRAKE LINE, right-rear, master cylinder to rear caliper, w/ 10065, 10076, 10800028 & 41600091 | FLRT |
| 41 | 50600067 | LEVER ASSEMBLY, foot-brake, w/ 11000050 | FLRT |

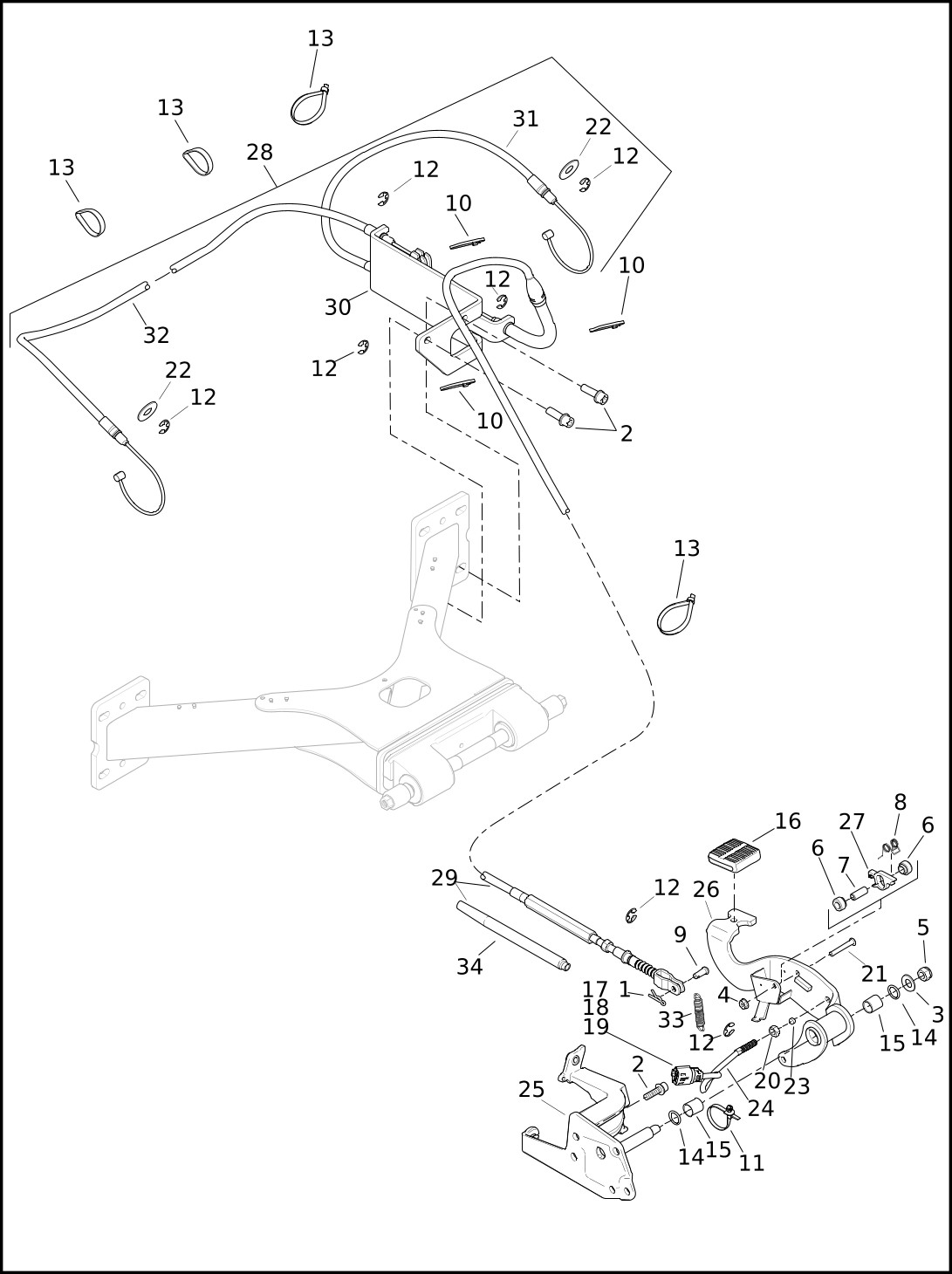

PARKING BRAKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 509 | COTTER PIN, parking brake | ALL |
| 2 | 4688 | SCREW (5) | ALL |
| 3 | 6334 | WASHER | ALL |
| 4 | 7716 | LOCKNUT | ALL |
| 5 | 7825 | LOCKNUT | ALL |
| 6 | 8351 | SPACER, pawl (2) | ALL |
| 7 | 8353 | BUSHING, pawl | ALL |
| 8 | 8357 | SPRING, pawl return | ALL |
| 9 | 8368 | CLEVIS PIN | ALL |
| 10 | 10039 | CABLE STRAP (3) | ALL |
| 11 | 10177 | CABLE STRAP | ALL |
| 12 | 11012 | RETAINING RING (6) | ALL |
| 13 | 11321 | CABLE STRAP (4) | FLHTCUTG |
| 13 | 11321 | CABLE STRAP (3) | FLRT |
| 14 | 11364 | O-RING (2) | ALL |
| 15 | 57217-02A | BUSHING, brake lever (2) | ALL |
| 16 | 42532-06 | PAD, brake pedal | ALL |
| 17 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | ALL |
| 18 | 72473-07 | SEAL PIN | ALL |
| 19 | 72512-07BK | HOUSING, 3-way socket (black) | ALL |
| 20 | 10100006 | NUT | ALL |
| 21 | 10200001 | SCREW | ALL |
| 22 | 10300003 | WASHER (2) | ALL |
| 23 | 12700032 | MAGNET, sensor | ALL |
| 24 | 32700011 | SENSOR ASSEMBLY, proximity, w/ 72168-07, 72473-07 & 72512-07BK | ALL |
| 25 | 83000012 | BRACKET ASSEMBLY, frame mount (black) | ALL |
| 26 | 83000014 | PEDAL ASSEMBLY, parking brake, w/ 57217-02A & 12700032 (black) | ALL |
| 27 | 83000018 | PAWL, parking brake | ALL |
| 28 | 83000024A | EQUALIZER ASSEMBLY, parking brake, w/ 11012, 83000025, 83000026, 83000027A, 83000028A & 83000068 | ALL |
| 29 | 83000025 | CABLE ASSEMBLY, parking brake | ALL |
| 30 | 83000026 | BRACKET, parking brake | ALL |
| 31 | 83000027A | CABLE ASSEMBLY, parking brake, left rear | ALL |
| 32 | 83000028A | CABLE ASSEMBLY, parking brake, right rear | ALL |
| 33 | 83000030 | SPRING, brake pedal return | ALL |
| 34 | 83000068 | BOOT, cable | ALL |

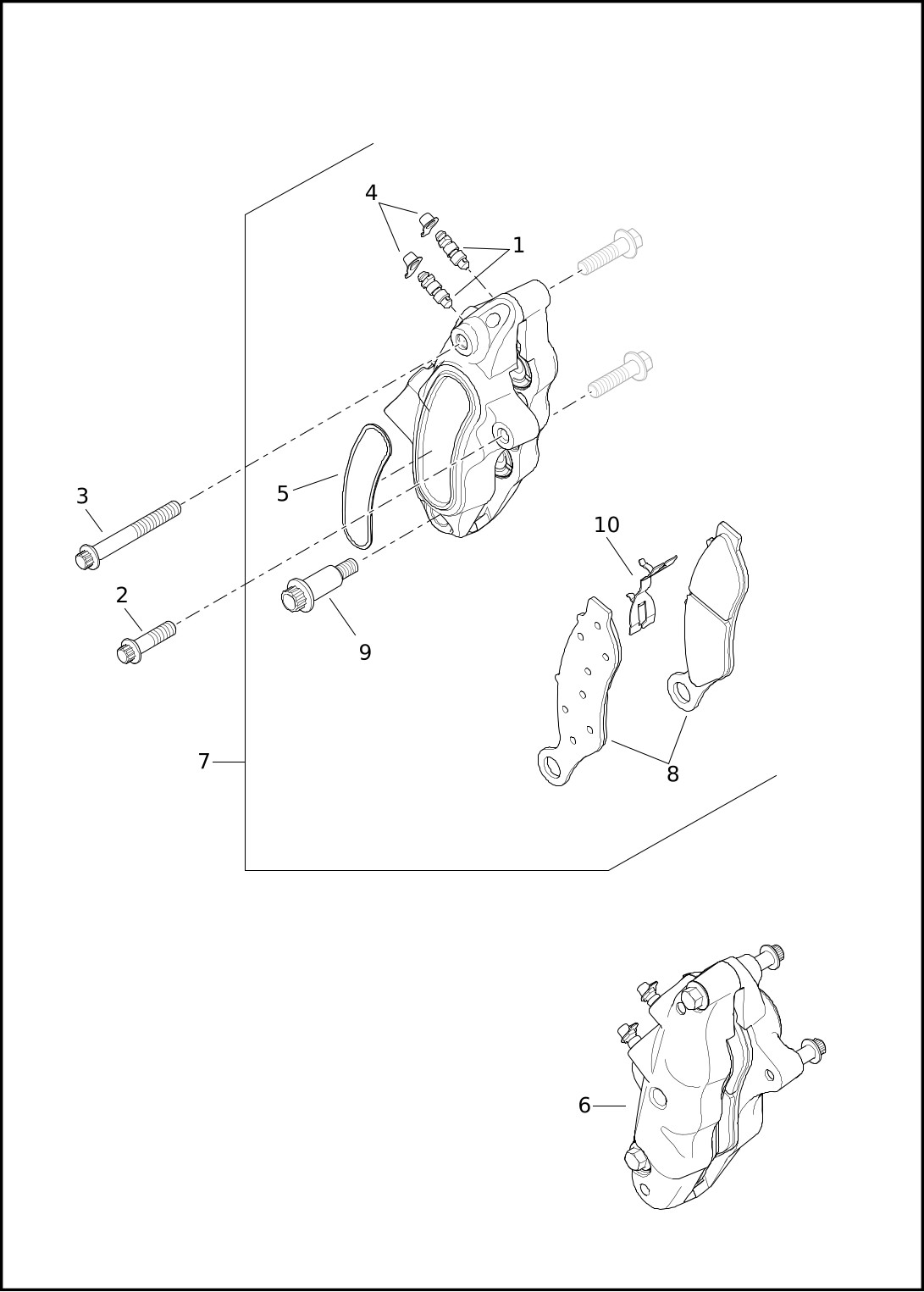

BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | BLEEDER SCREW (2) | ALL |
| 2 | 44160-00 | BOLT, caliper mounting, lower (2) | ALL |
| 3 | 44163-00 | BOLT, caliper mounting, upper (2) | ALL |
| 4 | 44147-87A | CAP, bleeder screw (2) | ALL |
| 5 | 14100252 | DECAL, brake caliper (2) | ALL |
| 6 | 41300023 | CALIPER ASSEMBLY, left (black) | ALL |
| 7 | 41300024 | CALIPER ASSEMBLY, right (black) | ALL |
| 8 | 41300027 | PAD KIT (2) | ALL |
| 9 | 41300041 | SCREW, M10, custom 12pt (2) | ALL |
| 10 | 41300042 | SPRING, anti-rattle (2) | ALL |

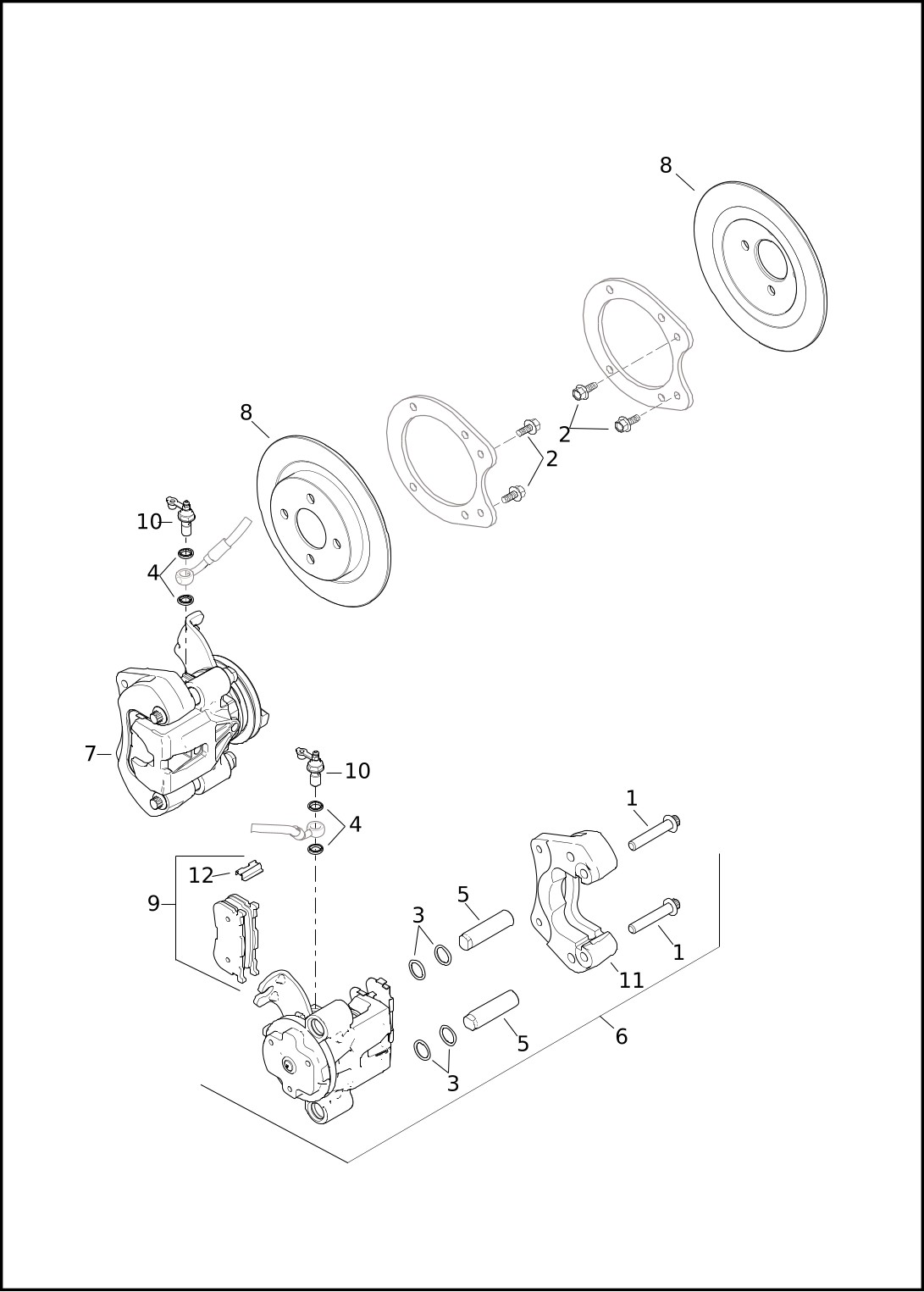

BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4564M | BOLT, bridge (2) | ALL |
| 2 | 8314 | SCREW (4) | ALL |
| 3 | 8330 | O-RING (8) | ALL |
| 4 | 41756-08 | GASKET (4) | ALL |
| 5 | 11000052 | BUSHING (4) | ALL |
| 6 | 41300025 | CALIPER ASSEMBLY, rear, left, w/ 1, 3, 5, 9, 11 & 12 | ALL |
| 7 | 41300026 | CALIPER ASSEMBLY, rear, right, w/ 1, 3, 5, 9, 11 & 12 | ALL |
| 8 | 41500031 | BRAKE ROTOR, rear (2) | ALL |
| 9 | 41300033 | KIT, brake pads, w/ 41300046 (set of 4) | ALL |
| 10 | 41300037 | BLEEDER BOLT ASSEMBLY, BANJO (2) | ALL |
| 11 | 41300045 | BRACKET, mounting (2) | ALL |
| 12 | 41300046 | SPRING, pad (2) | ALL |

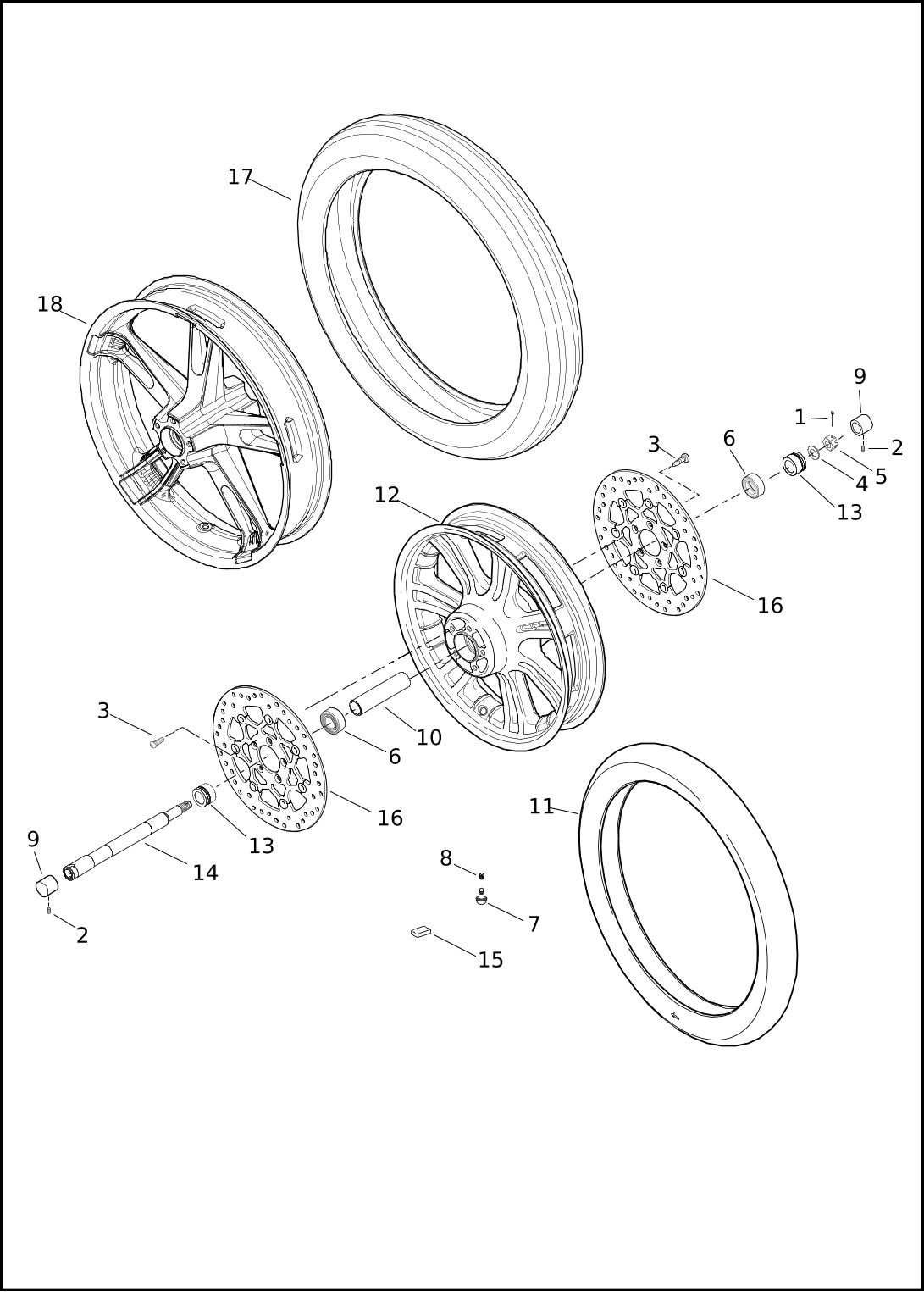

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 520W | COTTER PIN | ALL |
| 2 | 3267 | SCREW, set (HDI) (2) | FLHTCUTG |
| 3 | 3655A | SCREW (10) | ALL |
| 4 | 6594 | WASHER | ALL |
| 5 | 7823 | NUT | ALL |
| 6 | 9276A | BALL BEARING (2) | ALL |
| 7 | 40999-87 | VALVE STEM, for cast wheels | ALL |
| 8 | 41123-79 | VALVE CAP | ALL |
| 9 | 43475-08 | COVER, axle nut, left & right, w/ 3267 (HDI) (chrome) (2) | FLHTCUTG |
| 10 | 41900-08 | SLEEVE, bearing spacer | ALL |
| 11 | 43022-91A | TIRE, 16 in. | FLHTCUTG |
| 12 | 83326-09 | WHEEL, cast, 16 in., 7 spoke, w/o bearings & sleeve (black) | FLHTCUTG |
| 13 | 83888-09 | SPACER (2) | ALL |
| 14 | 83889-09 | AXLE | ALL |
| 15 | 95594-84A | WEIGHT, 5 grams, cast wheels (black) (6) | FLRT |
| 95595-84B | WEIGHT, 5 grams, cast wheels (silver) (6) | FLHTCUTG | |
| 16 | 41500068 | BRAKE DISC (2) | ALL |
| 17 | 43100013 | TIRE, 19 in. | FLRT |
| 18 | 43300283 | WHEEL, Enforcer cast aluminum, 19 in., 5 spoke, w/o bearings & sleeve (black) | FLRT |

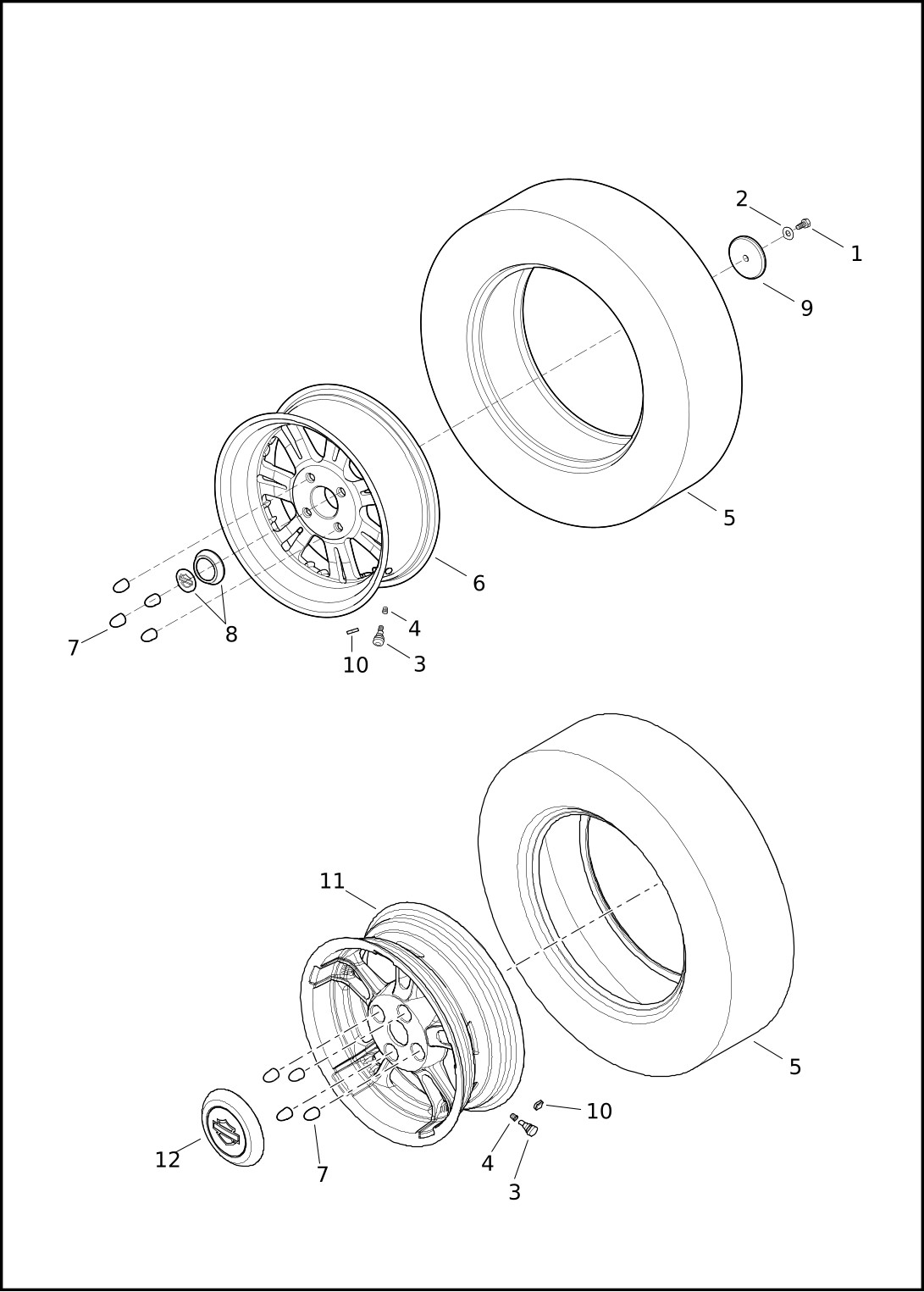

WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4751 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 40999-87 | VALVE STEM, cast wheels (2) | ALL |
| 4 | 41123-79 | VALVE CAP (2) | ALL |
| 5 | 83324-09A | TIRE (2) | ALL |
| 6 | 83327-09 | WHEEL, rear, 7 spoke, 15 inch (black) (2) | FLHTCUTG |
| 7 | 83328-09 | LUG NUT, rear wheel (chrome) (8) | ALL |
| 8 | 83383-09 | CENTER CAP ASSEMBLY, rear wheel (2) | FLHTCUTG |
| 9 | 83385-09 | CLAMP, center cap (2) | FLHTCUTG |
| 10 | 95594-84A | WEIGHT, 5 grams, cast wheels (black) (12) | FLRT |
| 95595-84B | WEIGHT, 5 grams, cast wheels (silver) (12) | FLHTCUTG | |
| 11 | 40900292 | WHEEL, rear, 5 spoke, Enforcer cast aluminum, 15 inch (black) (2) | FLRT |
| 12 | 42500007 | HUB CAP ASSEMBLY, rear wheel (2) | FLRT |

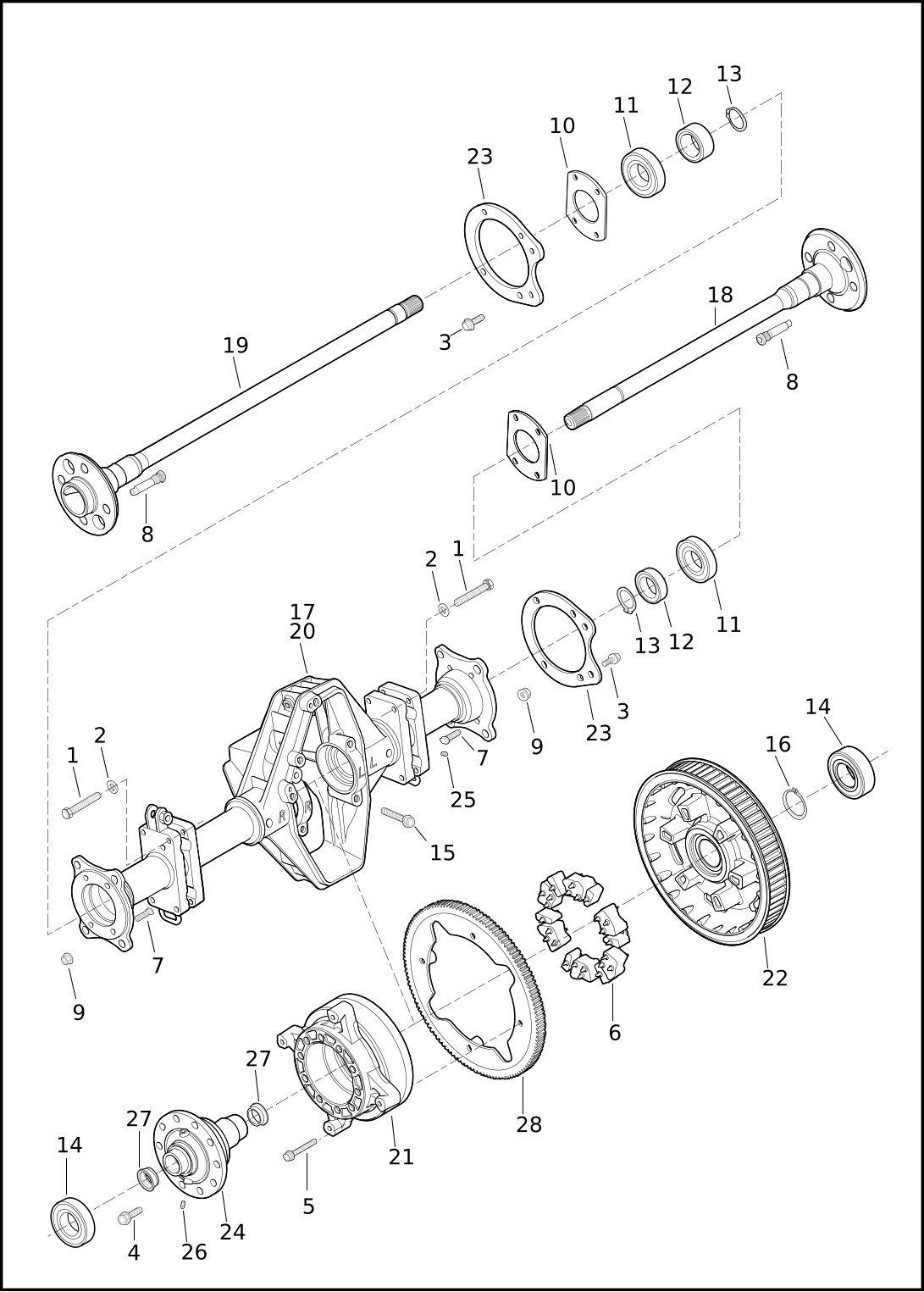

AXLE ASSEMBLY, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4795 | SCREW (8) | ALL |
| 2 | 6701 | WASHER (8) | ALL |
| 3 | 8308 | SCREW (8) | ALL |
| 4 | 8313 | SCREW (10) | ALL |
| 5 | 8319 | SCREW (4) | ALL |
| 6 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 7 | 83310-09 | T-BOLT, bearing retainer (8) | ALL |
| 8 | 83311-09 | STUD, wheel (8) | ALL |
| 9 | 83312-09 | NUT (8) | ALL |
| 10 | 83313-09 | RETAINER, bearing (2) | ALL |
| 11 | 83314-09 | BEARING, wheel (2) | ALL |
| 12 | 83315-09 | RETAINER, axle shaft (2) | ALL |
| 13 | 83316-09 | RETAINER, snap ring (2) | ALL |
| 14 | 83317-09 | BEARING, case (2) | ALL |
| 15 | 83323-09 | BOLT (4) | ALL |
| 16 | 83331-09 | SNAP RING, sprocket bearing | ALL |
| 17 | 83371-09B | AXLE ASSEMBLY, rear, w/ reverse, w/ 3, 4, 5, 6, 14, 15, 16, 18, 19, 20, 21, 22, 23, 24, 25 & 28 | ALL |
| 18 | 83402-09A | SHAFT ASSEMBLY, axle, left, w/ 8, 10, 11, 12 & 13 | ALL |
| 19 | 83403-09A | SHAFT ASSEMBLY, axle, right, w/ 8, 10, 11, 12 & 13 | ALL |
| 20 | 83408-09A | HOUSING, axle, rear | ALL |
| 21 | 83850-09 | KIT, COMPENSATOR BOWL, w/ 8313 | ALL |
| 22 | 83424-09 | SPROCKET ASSEMBLY, 70T | ALL |
| 23 | 83429-09 | BRACKET, caliper reaction (2) | ALL |
| 24 | 83450-09 | DIFFERENTIAL ASSEMBLY, rear, w/ 26 & 27 | ALL |
| 25 | 83456-09 | DOWEL PIN (2) | ALL |
| 26 | 83460-09 | PLUG, grease | ALL |
| 27 | 83848-09 | BEARING SEAL (2) | ALL |
| 28 | 83849-09A | RING GEAR, reverse | ALL |

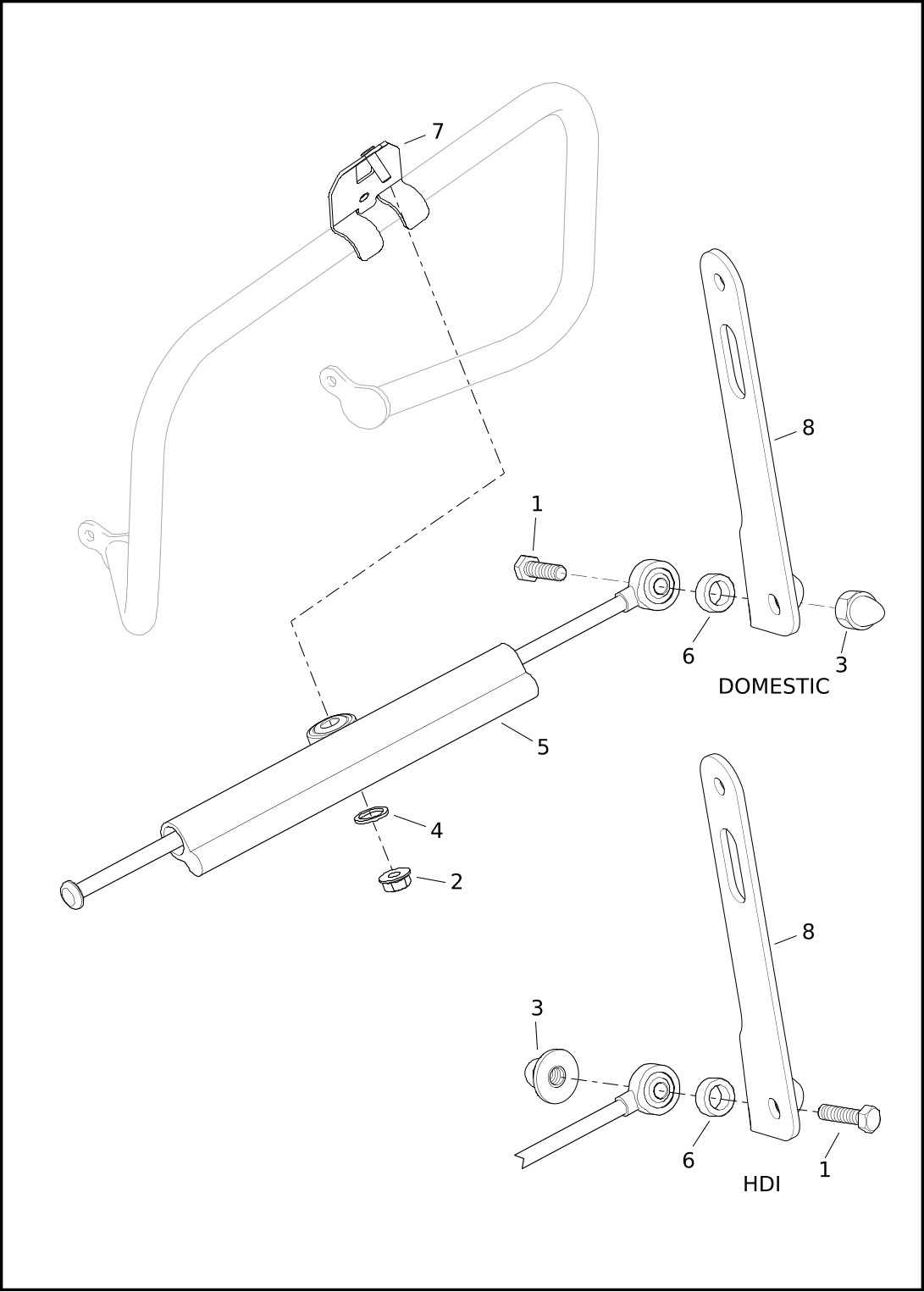

STEERING DAMPER - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FLHTCUTG |
| 2 | 7531 | LOCKNUT | FLHTCUTG |
| 3 | 7992 | ACORN NUT | FLHTCUTG |
| 4 | 8324 | WASHER | FLHTCUTG |
| 5 | 83808-09A | STEERING DAMPER | FLHTCUTG |
| 6 | 83864-09 | SPACER, damper rod side bracket | FLHTCUTG |
| 7 | 83865-09 | BRACKET, steering damper | FLHTCUTG |
| 8 | 50000031 | BRACKET, damper mount | FLHTCUTG |

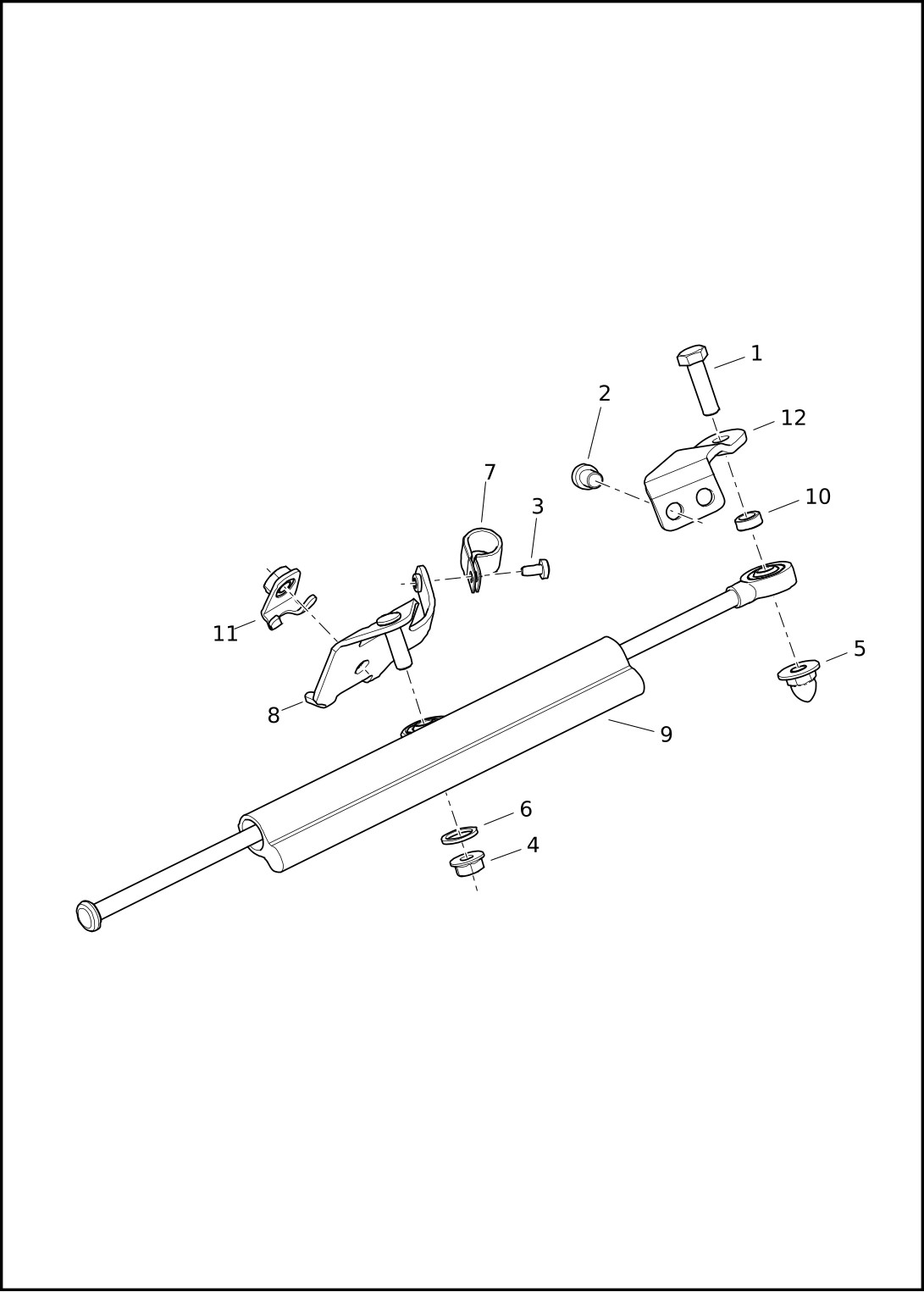

STEERING DAMPER - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FLRT |
| 2 | 3647 | SCREW (2) | FLRT |
| 3 | 4134 | SCREW | FLRT |
| 4 | 7531 | LOCKNUT | FLRT |
| 5 | 7992 | ACORN NUT | FLRT |
| 6 | 8324 | WASHER | FLRT |
| 7 | 10031 | CLAMP | FLRT |
| 8 | 83441-10A | BRACKET, steering damper | FLRT |
| 9 | 83808-09A | STEERING DAMPER | FLRT |
| 10 | 83864-09 | SPACER, damper rod side bracket | FLRT |
| 11 | 45700021 | BRACKET, mount, frame | FLRT |
| 12 | 50000066 | BRACKET, damper mount | FLRT |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | ALL |
| 2 | 10200042 | SCREW (4) | ALL |
| 3 | 10500022 | SCREW (6) | ALL |
| 4 | 10500036 | SCREW | ALL |
| 5 | 45600003 | COVER ASSEMBLY, fork tube, left | ALL |
| 6 | 45700009 | BEARING KIT, steering head, w/ bearing cups, bearing cones & dirt guards | ALL |
| 7 | 45700020A | STEM ASSEMBLY, upper steering, w/ bearing cone & dirt guard | ALL |
| 8 | 45800023 | COVER ASSEMBLY, fork tube, right | ALL |
| 9 | 45900027 | BRACKET, upper fork stem | FLHTCUTG |
| 9 | 45900080 | BRACKET, upper fork stem | FLRT |
| 10 | 45900092A | BRACKET ASSEMBLY, lower fork, w/ bearing cone & dirt guard | FLHTCUTG |
| 45800046 | BRACKET ASSEMBLY, lower fork, w/ bearing cone & dirt guard | FLRT | |
| 11 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | ALL |
FORK, FRONT, LEFT & RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 46080-01 | BUSHING, slider (2) | ALL |
| 2 | 46508-01 | O-RING (2) | ALL |
| 3 | 46509-01 | WASHER (2) | ALL |
| 4 | 46510-07 | COLLAR, spring (2) | ALL |
| 5 | 46513-01 | RING, stopper (2) | ALL |
| 6 | 46514-01A | OIL SEAL (2) | ALL |
| 7 | 46515-01 | SPACER, seal (2) | ALL |
| 8 | 46516-01 | BUSHING GUIDE (2) | ALL |
| 9 | 46517-01 | SPRING, rebound (2) | ALL |
| 10 | 46615-06 | PACKING SEAL (2) | ALL |
| 11 | 60253-07 | BRACKET ASSEMBLY, reflector, w/ 60254-07 (amber) (2) | ALL |
| 12 | 60254-07 | REFLECTOR (amber) (2) | ALL |
| 13 | 22000031 | PISTON RING (2) | ALL |
| 14 | 45500089 | FORK ASSEMBLY, complete (right) | ALL |
| 15 | 45500090 | FORK ASSEMBLY, complete (left) | ALL |
| 16 | 45500114 | DAMPER TUBE, w/ 22000031 (2) | ALL |
| 17 | 45500117 | BOLT, fork (2) | ALL |
| 18 | 45500118 | SCREW (2) | ALL |
| 19 | 45500119 | SLIDER, fork (left) | ALL |
| 20 | 45500121 | SLIDER, fork (right) | ALL |
| 21 | 45500123 | FORK PIPE ASSEMBLY, w/ 46080-01 (2) | ALL |
| 22 | 45500124 | SPRING, fork (2) | ALL |
| 23 | 45500132 | SCREW (right) | ALL |
| 24 | 45500251 | OIL LOCK PIECE (2) | ALL |
| 25 | 91700025A | FORK REBUILD KIT, w/ 1, 2, 5, 6, 7, 8, 10, 13 & 18 (2) | ALL |
SHOCK ABSORBERS, REAR & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 4622 | SCREW (4) | ALL |
| 2 | 4795 | SCREW (6) | ALL |
| 3 | 6701 | WASHER (6) | ALL |
| 4 | 10039 | CABLE STRAP (3) | ALL |
| 5 | 54320-97 | FITTING, push-in, shock absorber (2) | ALL |
| 6 | 54321-85 | NUT | ALL |
| 7 | 54323-85A | CAP VALVE | ALL |
| 8 | 54357-03 | DUAL FITTING, air inlet | ALL |
| 9 | 83480-09 | SHOCK ABSORBER, rear, w/ 54320-97 (2) | ALL |
| 10 | 83497-09 | VALVE & AIRLINE ASSEMBLY, rear shock, w/ 54321-85, 54354-94A & 54357-03 | ALL |
| 11 | 83860-09 | BRACKET ASSEMBLY, shock mounting, left, lower | ALL |
| 12 | 83861-09 | BRACKET ASSEMBLY, shock mounting, right, lower | ALL |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 13 | 54354-94A | HOSE, 5/32 inch O.D. (25-foot length) (black) | ALL |
FRAME, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | ALL |
| 2 | 3787 | BOLT (4) | FLHTCUTG |
| 3 | 4924 | SCREW (2) | FLHTCUTG |
| 4 | 6036 | WASHER (4) | FLHTCUTG |
| 5 | 6116 | WASHER | ALL |
| 6 | 7495 | NUT (2) | ALL |
| 7 | 8108 | SPEEDNUT (2) | FLHTCUTG |
| 8 | 8194 | NUT, special (2) | FLHTCUTG |
| 9 | 10039 | CABLE STRAP (3) | ALL |
| 10 | 10039 | CABLE STRAP | FLRT |
| 11 | 10040 | CLIP, xmas tree | FLRT |
| 12 | 10289A | CLIP, brake line (2) | FLRT |
| 13 | 11650 | GROMMET, side cover (6) | ALL |
| 14 | 14148-86 | ENGINE GUARD LABEL | ALL |
| 15 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 16 | 49184-09A | ENGINE GUARD, w/ 2708A, 6116 & 14148-86 | FLHTCUTG |
| 17 | 58167-09 | DEFLECTOR, air, right | FLHTCUTG |
| 58169-09 | DEFLECTOR, air, left | FLHTCUTG | |
| 18 | 83411-14BHP | FRAME, main, w/ bearing cups (also order 45700009) | ALL |
| 19 | 83441-10A | BRACKET, steering damper | FLRT |
| 20 | 83865-09 | BRACKET, steering damper | FLHTCUTG |
| 21 | 10800024 | CLIP, conduit, rosebud mount | ALL |
| 22 | 10800025 | CLIP, conduit, rosebud mount | ALL |
| 23 | 12200075 | CLIP, clutch line (2) | FLHTCUTG |
| 24 | 12600067 | FASTENER, plastic (2) | ALL |
| 25 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTG |
| 26 | 45700009 | BEARING KIT, steering head, w/ bearing cups, bearing cones & dirt guards | ALL |
| 27 | 45700021 | BRACKET, mount, frame | FLRT |
| 28 | 69200202 | COVER, wire trough (main harness), w/ 15368-01A | ALL |
| 29 | 69200203 | TRAY, wire trough (main harness) | ALL |
FRAME, INTERMEDIATE & FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (2) | ALL |
| 2 | 3391 | SCREW (2) | ALL |
| 3 | 3536 | BOLT (6) | ALL |
| 4 | 4685 | SCREW (4) | ALL |
| 5 | 4686 | SCREW, hex (2) | ALL |
| 6 | 4687 | SCREW (6) | ALL |
| 7 | 4688 | SCREW (2) | ALL |
| 8 | 4930 | SCREW | ALL |
| 9 | 6532 | WASHER (6) | ALL |
| 10 | 7069 | LOCKWASHER | ALL |
| 11 | 7783 | NUT (2) | ALL |
| 12 | 9208 | BEARING (2) | ALL |
| 13 | 11779 | FASTENER, push-in (black) | ALL |
| 14 | 32495-98A | SWITCH, bank angle | ALL |
| 15 | 47505-02 | SHAFT, rear fork | ALL |
| 16 | 48487-02 | SPACER, outer (2) | ALL |
| 17 | 48489-02 | SPACER, inner (2) | ALL |
| 18 | 67875-11 | HOLE PLUG (black) (2) | ALL |
| 19 | 83366-09 | REAR FORK, w/ 9208 & 48489-02 | ALL |
| 20 | 83373-09A | ADAPTER PLATE, rear fork (2) | ALL |
| 21 | 83382-09 | RUBBER MOUNT (2) | ALL |
| 22 | 83407-09 | BRACE ASSEMBLY (2) | ALL |
| 23 | 83466-11BHP | FRAME, intermediate | ALL |
| 24 | 83496-09 | NUT, pivot, rear (2) | ALL |
| 25 | 83886-09 | WASHER (2) | ALL |
| 26 | 83943-09 | BRACKET, switch, bank angle | ALL |
| 27 | 16400005 | BRACKET, rear fork, left | ALL |
FRAME, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4678 | SCREW | ALL |
| 2 | 4685 | SCREW (8) | ALL |
| 3 | 6408HB | WASHER (8) | ALL |
| 4 | 6645 | WASHER (4) | ALL |
| 5 | 6718 | WASHER (2) | ALL |
| 6 | 7768W | LOCKNUT | ALL |
| 7 | 8328 | WASHER, rod end (2) | ALL |
| 8 | 8369 | BOLT (4) | ALL |
| 9 | 76259-86 | NUT (2) | ALL |
| 10 | 83823-09 | PANHARD ROD ASSEMBLY, w/ 76259-86 | ALL |
| 11 | 47000004B | SUB-FRAME ASSEMBLY, rear, with 12, 13, 14 | ALL |
| 12 | 47200096 | BAR | ALL |
| 13 | 6109 | WASHER (2) | ALL |
| 14 | 8343 | SCREW (2) | ALL |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHTCUTG |
| 2 | 2952A | SCREW | ALL |
| 3 | 6026 | WASHER (3) | FLHTCUTG |
| 4 | 7531 | LOCKNUT (3) | FLHTCUTG |
| 5 | 11100094 | TAPE, protective | FLHTCUTG |
| 6 | 52000033 | SEAT | FLHTCUTG |
| 7 | 52000157 | SEAT | FLRT |
| 8 | 52300053 | BACKREST ASSEMBLY, w/ 6026, 7531, 52300121, 52300122, 52300123 & 52300127 (black) | FLHTCUTG |
| 9 | 52300121 | SUPPORT BRACKET, center | FLHTCUTG |
| 10 | 52300122 | SUPPORT BRACKET, right | FLHTCUTG |
| 11 | 52300123 | SUPPORT BRACKET, left | FLHTCUTG |
| 12 | 52300127 | KIT, BACKREST ISOLATION, passenger backrest (3) | FLHTCUTG |
| 13 | 52400090 | HANDRAIL ASSEMBLY, passenger, w/ 11100094 (chrome) | FLHTCUTG |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | ALL |
| 2 | 4032A | SCREW (2) | ALL |
| 3 | 4688 | SCREW (4) | ALL |
| 4 | 4916 | SCREW (2) | ALL |
| 5 | 7038 | LOCKWASHER (4) | ALL |
| 6 | 7601 | LOCKNUT (2) | ALL |
| 7 | 7716 | LOCKNUT (4) | ALL |
| 8 | 8860 | BALL (2) | ALL |
| 9 | 33085-74 | SPRING (2) | ALL |
| 10 | 47365-09 | BRACKET, front footboard (2) | ALL |
| 11 | 50518-09 | BRACKET, right rear | ALL |
| 12 | 50606-06 | PAD, passenger footboard (2) | ALL |
| 13 | 50613-91A | FOOTREST, passenger (Domestic) (2) | ALL |
| 50899-99A | FOOTREST, passenger (HDI) (2) | FLHTCUTG | |
| 14 | 50614-06 | PAD, footboard (2) | ALL |
| 15 | 50621-06 | FOOTBOARD ASSEMBLY, operator, w/ 50614-06 (2) | ALL |
| 16 | 50674-05 | SHOULDER BOLT, footboard (4) | ALL |
| 17 | 50933-86A | PIVOT PIN (4) | ALL |
| 18 | 52719-10 | SUPPORT, footboard (2) | ALL |
| 19 | 83000012 | BRACKET ASSEMBLY | ALL |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 755 | HOLE PLUG (HDI) | FLHTCUTG |
| 2 | 2531 | SCREW (6) | FLHTCUTG |
| 3 | 3560WA | BOLT (2) | FLHTCUTG |
| 4 | 3561WC | BOLT (2) | FLHTCUTG |
| 5 | 3612 | SCREW (HDI) (2) | FLHTCUTG |
| 6 | 7600 | NUT (6) | FLHTCUTG |
| 7 | 7624 | LOCKNUT (4) | FLHTCUTG |
| 8 | 7629 | NUT (2) | FLHTCUTG |
| 9 | 10065 | CABLE STRAP (Domestic) (3) | FLHTCUTG |
| 10 | 11437 | GROMMET, wiring harness (Domestic) | FLHTCUTG |
| 11 | 59211-74A | TRIM, front fender (Domestic) (2) | FLHTCUTG |
| 12 | 73191-96 | TERMINAL, socket, 16-20 gauge (Domestic) (2) | FLHTCUTG |
| 13 | 73152-96BK | SOCKET HOUSING, 2-place (Domestic, California, Canada) (black) | FLHTCUTG |
| 73152-96WE | SOCKET HOUSING, 2-place (w/o fender tip light) (HDI, England, Japan) (white) | FLHTCUTG | |
| 14 | 84027-11 | NAMEPLATE, Tri Glide (2) | FLHTCUTG |
| 15 | 10500015 | SCREW (4) | ALL |
| 16 | 12200092 | CLIP, retaining (6) | FLHTCUTG |
| 17 | 58900032 | FENDER (unpainted) | FLHTCUTG |
| 58900077BHY | FENDER (vivid black) | FLHTCUTG | |
| 58900077DSX | FENDER (mysterious red sunglo) | FLHTCUTG | |
| 58900077DTI | FENDER (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 58900077DWW | FENDER (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 18 | 58900082 | FENDER (primed) | FLRT |
| 58900081DH | FENDER (vivid black) | FLRT | |
| 58900081DST | FENDER (amber whiskey) | FLRT | |
| 58900081DWC | FENDER (superior blue) | FLRT | |
| 19 | 59600003 | FENDER LIGHT ASSEMBLY, w/ 73191-96 (Domestic) (amber) | FLHTCUTG |
| 20 | 59600011 | FRONT FENDER TIP (HDI) | FLHTCUTG |
| 21 | 61400057 | TRIM SKIRT, front fender, lower | FLHTCUTG |
FENDERS, REAR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 8360 | SCREW (12) | FLHTCUTG |
| 4 | 10102 | CLIP, small (4) | FLHTCUTG |
| 5 | 10103 | CLIP, large (2) | FLHTCUTG |
| 6 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (4) | FLHTCUTG |
| 7 | 83811-09 | FOAM TAPE (4) | FLHTCUTG |
| 8 | 67900076 | REFLECTOR, w/ 67900205 (HDI) (2) | FLHTCUTG |
| 9 | 67900205 | REFLECTOR (red) (Domestic) (2) | FLHTCUTG |
| 67900212 | REFLECTOR (amber) (HDI) (2) | FLHTCUTG | |
| 10 | 67900205 | REFLECTOR (red) (HDI) (2) | FLHTCUTG |
| 11 | 83000054BHY | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (vivid black) | FLHTCUTG |
| 83000054DSX | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (mysterious red sunglo) | FLHTCUTG | |
| 83000054DTI | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 83000054DWW | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 12 | 83000056BHY | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (vivid black) | FLHTCUTG |
| 83000056DSX | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (mysterious red sunglo) | FLHTCUTG | |
| 83000056DTI | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 83000056DWW | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
FENDERS, REAR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 8360 | SCREW (10) | FLRT |
| 2 | 10102 | CLIP, small (4) | FLRT |
| 3 | 83811-09 | FOAM TAPE (4) | FLRT |
| 4 | 12600106 | SCREW (8) | FLRT |
| 5 | 59500176DH | FENDER ASSEMBLY, right, rear, w/ 4 (vivid black) | FLRT |
| 59500176DST | FENDER ASSEMBLY, right, rear, w/ 4 (amber whiskey) | FLRT | |
| 59500176DWC | FENDER ASSEMBLY, right, rear, w/ 4 (superior blue) | FLRT | |
| 6 | 59500178DH | FENDER ASSEMBLY, left, rear, w/ 4 (vivid black) | FLRT |
| 59500178DST | FENDER ASSEMBLY, left, rear, w/ 4 (amber whiskey) | FLRT | |
| 59500178DWC | FENDER ASSEMBLY, left, rear, w/ 4 (superior blue) | FLRT | |
| 7 | 67800332 | BRACKET, tail lamp | FLRT |
| 8 | 67900187 | BRACKET, tail lamp & license plate | FLRT |
| 9 | 67900205 | REFLECTOR (red) (2) | FLRT |
FUEL TANK - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTCUTG |
| 2 | 10039 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTCUTG |
| 4 | 27291-09A | TUBE, evaporative line, tank | FLHTCUTG |
| 5 | 27440-09A | TUBE, evaporative line (except California & Asia-Pacific) | FLHTCUTG |
| 6 | 61208-10 | FUEL LINE KIT, tank to intake | FLHTCUTG |
| 7 | 61356-08 | FUEL TANK (prime) | FLHTCUTG |
| 61000016BHY | FUEL TANK, w/ 14100073 & 14100074 (vivid black) | FLHTCUTG | |
| 61000016DSX | FUEL TANK, w/ 14100073 & 14100074 (mysterious red sunglo) | FLHTCUTG | |
| 61000016DTI | FUEL TANK, w/ 14100073 & 14100074 (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 61000016DWW | FUEL TANK, w/ 14100073 & 14100074 (2 tone white hot pearl /blue hot pearl) | FLHTCUTG | |
| 8 | 62228-08B | CHECK VALVE, assembly, w/ 10396 & 11323 | FLHTCUTG |
| 9 | 14100073 | MEDALLION, right (for vivid black, mysterious red sunglo, 2 tone white hot pearl /blue hot pearl, 2 tone mysterious red sunglo/blackened cayenne sunglo tanks) | FLHTCUTG |
| 14100074 | MEDALLION, left (for vivid black, mysterious red sunglo, 2 tone white hot pearl /blue hot pearl, 2 tone mysterious red sunglo/blackened cayenne sunglo tanks) | FLHTCUTG | |
| 10 | 70901-09 | BOOT, tank bracket, right | FLHTCUTG |
| 11 | 70999-09 | BOOT, tank bracket, left | FLHTCUTG |
| 12 | 11323 | O-RING, check valve to tank | FLHTCUTG |
FUEL TANK - FLRT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3634 | SCREW (4) | FLRT |
| 2 | 10039 | CABLE STRAP (2) | FLRT |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLRT |
| 4 | 27291-09A | TUBE, evaporative line, tank | FLRT |
| 5 | 27440-09A | TUBE, evaporative line (except California) | FLRT |
| 6 | 61109-85D | GASKET, filler cap | FLRT |
| 7 | 61208-10 | FUEL LINE KIT, tank to intake | FLRT |
| 8 | 61268-08 | FUEL TANK (prime) | FLRT |
| 61000129DH | FUEL TANK, w/ 14100702 & 14100703 (vivid black) | FLRT | |
| 61000129DST | FUEL TANK, w/ 14100702 & 14100703 (amber whiskey) | FLRT | |
| 61000129DWC | FUEL TANK, w/ 14100702 & 14100703 (superior blue) | FLRT | |
| 9 | 61272-92C | FILLER CAP ASSEMBLY, w/ 61109-85D | FLRT |
| 10 | 62228-08B | CHECK VALVE, assembly, w/ 10396 & 11323 | FLRT |
| 11 | 70901-09 | BOOT, tank bracket, right | FLRT |
| 12 | 70999-09 | BOOT, tank bracket, left | FLRT |
| 13 | 14100702 | MEDALLION, left (for vivid black, amber whiskey, superior blue tanks) | FLRT |
| 14100703 | MEDALLION, right (for vivid black, amber whiskey, superior blue tanks) | FLRT | |
| 14 | 11323 | O-RING, check valve to tank | FLHTCUTG |
CONSOLE, FUEL TANK - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3529 | SCREW (2) | FLHTCUTG |
| 2 | 3588 | SCREW | FLHTCUTG |
| 3 | 4194 | SCREW (2) | FLHTCUTG |
| 4 | 4856 | SCREW | FLHTCUTG |
| 5 | 8142 | NUT, speed | FLHTCUTG |
| 6 | 10065 | CABLE STRAP | FLHTCUTG |
| 7 | 10103 | CLIP, adhesive backed (2) | FLHTCUTG |
| 8 | 10334 | CLIP, hinge mounting | FLHTCUTG |
| 9 | 15341-08 | HOUSING, pod | FLHTCUTG |
| 10 | 53919-04A | PUSH BUTTON KIT, fuel tank, w/ 84850-92 (Domestic) | FLHTCUTG |
| 11 | 61029-92A | LOCK, fuel tank, w/ 84850-92 (HDI) | FLHTCUTG |
| 12 | 61081-92 | COVER, key-head (set of 2) (HDI) | FLHTCUTG |
| 13 | 61109-85D | GASKET, filler cap | FLHTCUTG |
| 14 | 61112-08 | BOOT | FLHTCUTG |
| 15 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | FLHTCUTG |
| 16 | 61274-92 | FUEL FILLER CAP, vacuum vented, w/ 61109-85D | FLHTCUTG |
| 17 | 61278-08 | DOOR, console | FLHTCUTG |
| 18 | 61313-88 | BUMPER, cover (2) | FLHTCUTG |
| 19 | 62775-08 | TRIM COVER, fuel tank | FLHTCUTG |
| 20 | 67493-08 | BRACKET, console mount | FLHTCUTG |
| 21 | 69241-08 | DRAIN HOSE, console | FLHTCUTG |
| 22 | 71294-08 | MOLDING, rubber (2) | FLHTCUTG |
| 23 | 72168-07 | TERMINAL, socket, 18-20 AWG (10) | FLHTCUTG |
| 24 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTCUTG |
| 25 | 72444-07GY | HOUSING, 4-way, socket (gray) | FLHTCUTG |
| 26 | 72485-07 | SOCKET HOUSING, 4-way | FLHTCUTG |
| 27 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTG |
| 28 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTG |
| 29 | 72557-07 | SECONDARY LOCK, 4-way socket | FLHTCUTG |
| 30 | 76266-98A | CAP ASSEMBLY, weather | FLHTCUTG |
| 31 | 84850-92 | NUT | FLHTCUTG |
| 32 | 14100083 | INSERT, console pod | FLHTCUTG |
| 33 | 69200125 | WIRE HARNESS, console, w/ 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 & 72557-07 | FLHTCUTG |
| 34 | 69200127 | HARNESS, console audio, DIN, w/ 72168-07 & 72414-07BK | FLHTCUTG |
| 35 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) (HDI) | FLHTCUTG |
INSTRUMENTS, FUEL TANK - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3622 | SCREW (4) | FLRT |
| 2 | 3588 | SCREW | FLRT |
| 3 | 4194 | SCREW (2) | FLRT |
| 4 | 4856 | SCREW | FLRT |
| 5 | 8142 | NUT, speed | FLRT |
| 6 | 10065 | CABLE STRAP (2) | FLRT |
| 7 | 10102 | CLIP, under instrument panel | FLRT |
| 8 | 10103 | CLIP, under instrument panel | FLRT |
| 9 | 61081-92 | COVER, key-head (set of 2) | FLRT |
| 10 | 61192-96A | GASKET, fuel gauge | FLRT |
| 11 | 62519-03 | HOSE, shield 1/4 in. I.D., 5.00 in. long, fuel gauge wires | FLRT |
| 12 | 62775-08 | TRIM COVER, fuel tank | FLRT |
| 13 | 67208-08 | SEAL, speedometer | FLRT |
| 14 | 67341-04B | BACK CLAMP, 5-speedo (red) | FLRT |
| 15 | 67493-08 | BRACKET, console mount | FLRT |
| 16 | 68893-00A | INDICATOR BEZEL | FLRT |
| 17 | 71294-08 | TRIM (2) | FLRT |
| 18 | 71517-11 | IGNITION SWITCH (keyed-to-match) | FLRT |
| 19 | 72904-01BK | HOUSING, pin, 4-way | FLRT |
| 20 | 72990-01 | PIN TERMINAL (3) | FLRT |
| 21 | 75241-08 | FUEL GAUGE, w/o LED, w/ 72990-01 | FLRT |
| 22 | 14100595 | INSERT, console | FLRT |
| 23 | 69200740 | WIRE HARNESS, console | FLRT |
| 24 | 70900298A | INSTRUMENT PANEL (chrome) | FLRT |
| 25 | 70900379 | SPEEDOMETER, mph (Domestic, California) | FLRT |
| 70900421 | SPEEDOMETER, kph (Canada) | FLRT | |
| 26 | 71400098 | LOCKSET, complete w/ keys, ignition switch, key cover, fork lock & trunk lock | FLRT |
| 27 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | FLRT |
INSTRUMENTS - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHTCUTG |
| 2 | 10200147 | SCREW (3) | FLHTCUTG |
| 3 | 12100020 | GROMMET, instrument cluster mount (3) | FLHTCUTG |
| 4 | 12400034 | INSERT, instrument cluster mount (3) | FLHTCUTG |
| 5 | 12600067 | FASTENER, plastic (2) | FLHTCUTG |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (2) | FLHTCUTG |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (2) | FLHTCUTG |
| 8 | 69200121 | WIRING HARNESS, fairing (Domestic, Japan) | FLHTCUTG |
| 69200265 | WIRING HARNESS, fairing (HDI except Japan) | FLHTCUTG | |
| 9 | 69200257 | BACK CLAMP, gauge, right | FLHTCUTG |
| 10 | 69200258 | BACK CLAMP, gauge, left | FLHTCUTG |
| 11 | 70900121A | INSTRUMENT CLUSTER, mph, w/ 12100020 & 12400034 (Domestic, California) (black) | FLHTCUTG |
| 70900122 | INSTRUMENT CLUSTER, kph, w/ 12100020 & 12400034 (Canada, HDI, Japan) (black) | FLHTCUTG | |
| 70900123 | INSTRUMENT CLUSTER, dual, mph/kph, w/ 12100020 & 12400034 (England) (black) | FLHTCUTG | |
| 12 | 70900162 | FUEL GAUGE (black) | FLHTCUTG |
| 13 | 70900165 | VOLTMETER (black) | FLHTCUTG |
FUEL PUMP - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHTCUTG |
| 2 | 11686 | O-RING | FLHTCUTG |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHTCUTG |
| 4 | 61012-04A | CLIP, filter retainer | FLHTCUTG |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings, spacer & screen | FLHTCUTG |
| 6 | 61213-04A | CLIP, regulator retainer | FLHTCUTG |
| 7 | 61402-08 | GASKET, top plate | FLHTCUTG |
| 8 | 62229-08B | FILTER SHELL | FLHTCUTG |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHTCUTG |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTG |
| 11 | 72444-07GY | HOUSING, 4-way, socket (gray) | FLHTCUTG |
| 12 | 72485-07 | SOCKET HOUSING, 4-way | FLHTCUTG |
| 13 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTG |
| 14 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTG |
| 15 | 72557-07 | SECONDARY LOCK, 4-way socket | FLHTCUTG |
| 16 | 75069-08C | TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 18 & 23 | FLHTCUTG |
| 17 | 75089-08 | RING, fuel tank, cam | FLHTCUTG |
| 18 | 75147-08B | TOP PLATE | FLHTCUTG |
| 19 | 75205-08A | FUEL LEVEL SENDER | FLHTCUTG |
| 20 | 75229-08 | HARNESS, fuel pump module | FLHTCUTG |
| 21 | 75254-04A | STRAINER, fuel pump inlet | FLHTCUTG |
| 22 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTCUTG |
| 23 | 75322-09 | GROUND HARNESS | FLHTCUTG |
| 24 | 69200125 | WIRE HARNESS, console, w/ 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 & 72557-07 | FLHTCUTG |
FUEL PUMP - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLRT |
| 2 | 11686 | O-RING | FLRT |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLRT |
| 4 | 61012-04A | CLIP, filter retainer | FLRT |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings, spacer & screen | FLRT |
| 6 | 61213-04A | CLIP, regulator retainer | FLRT |
| 7 | 61402-08 | GASKET, top plate | FLRT |
| 8 | 62229-08B | FILTER SHELL | FLRT |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLRT |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 16 & 17 | FLRT |
| 11 | 75089-08 | RING, fuel tank, cam | FLRT |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLRT |
| 13 | 75229-08 | HARNESS, fuel pump module | FLRT |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLRT |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump | FLRT |
| 16 | 75291-08A | TOP PLATE | FLRT |
| 17 | 75322-09 | GROUND HARNESS | FLRT |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | ALL |
| 2 | 27291-09A | EVAP LINE, tank | ALL |
| 3 | 27297-09A | EVAP LINE, canister | ALL |
| 4 | 27298-09A | EVAP LINE, purge to canister | ALL |
| 5 | 27439-09A | TUBE, solenoid to induction module | ALL |
| 6 | 27715-07 | SOLENOID, purge valve | ALL |
| 7 | 70681-09 | RETAINER | ALL |
| 8 | 60800006 | CARBON CANISTER | ALL |
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - DOMESTIC - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 1332 | SCREW (2) | FLHTCUTG |
| 2 | 3514 | SCREW (2) | FLHTCUTG |
| 3 | 7041 | LOCKWASHER (2) | FLHTCUTG |
| 4 | 7130W | LOCKWASHER (2) | FLHTCUTG |
| 5 | 7606 | LOCKNUT (2) | FLHTCUTG |
| 6 | 7667 | NUT (2) | FLHTCUTG |
| 7 | 7992 | ACORN NUT (4) | FLHTCUTG |
| 8 | 40901-05 | ISOLATOR, rubber (2) | FLHTCUTG |
| 9 | 68168-89A | BULB, turn signal (2) | FLHTCUTG |
| 10 | 68331-02 | RING, auxiliary lamps (2) | FLHTCUTG |
| 11 | 68725-62A | BEZEL RING, auxiliary/fog lamps (2) | FLHTCUTG |
| 12 | 68821-00 | STAND-OFF, directional (2) | FLHTCUTG |
| 13 | 68904-00 | SOCKET ASSEMBLY, turn signal (2) | FLHTCUTG |
| 14 | 68973-00 | LENS (2) | FLHTCUTG |
| 15 | 69563-06 | CLAMP BLOCK, auxiliary/fog lamps (2) | FLHTCUTG |
| 16 | 72298-95 | TERMINAL SEAL (green) (2) | FLHTCUTG |
| 17 | 72356-95 | SOCKET TERMINAL, 18-20 AWG (4) | FLHTCUTG |
| 18 | 72908-11 | SOCKET HOUSING, 4-place (2) | FLHTCUTG |
| 19 | 72910-11 | SOCKET TERMINAL, 20-22 AWG (8) | FLHTCUTG |
| 20 | 67800103 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68904-00, 68973-00 & 67800109 (2) | FLHTCUTG |
| 21 | 67800109 | HOUSING, turn signal (chrome) (2) | FLHTCUTG |
| 22 | 67800254 | HOUSING, auxiliary/fog lamp, w/ 72298-95, 72356-95, 72910-11, 69200199 & 69200529 (2) | FLHTCUTG |
| 23 | 68000020 | AUXILIARY/FOG LAMP, LED (2) | FLHTCUTG |
| 24 | 68000021 | BRACKET, auxiliary/fog lamp, left | FLHTCUTG |
| 25 | 68000022 | BRACKET, auxiliary/fog lamp, right | FLHTCUTG |
| 26 | 69200199 | WIRE SEAL, purple (2) | FLHTCUTG |
| 27 | 69200529 | SOCKET HOUSING, 2-way (2) | FLHTCUTG |
HEADLAMPS & TURN SIGNALS, FRONT - HDI, JAPAN - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW (2) | FLHTCUTG |
| 2 | 5118 | SEAL PIN (Japan) (2) | FLHTCUTG |
| 3 | 7068 | LOCKWASHER (2) | FLHTCUTG |
| 4 | 7606 | LOCKNUT (2) | FLHTCUTG |
| 5 | 7880 | NUT (2) | FLHTCUTG |
| 6 | 7992 | ACORN NUT (4) | FLHTCUTG |
| 7 | 67815-59A | WASHER (2) | FLHTCUTG |
| 8 | 72113-94BK | HOUSING, socket, sealed (2) | FLHTCUTG |
| 9 | 72153-94 | SECONDARY LOCK, 3-way (2) | FLHTCUTG |
| 10 | 72191-94 | TERMINAL, socket, 16-18 AWG (6) | FLHTCUTG |
| 11 | 72906-11 | HOUSING, 2-way socket (2) | FLHTCUTG |
| 12 | 72908-11 | HOUSING, 4-way socket (2) | FLHTCUTG |
| 13 | 72910-11 | TERMINAL, socket, 20-22 AWG (HDI) (12) | FLHTCUTG |
| 13 | 72910-11 | TERMINAL, socket, 20-22 AWG (Japan) (6) | FLHTCUTG |
| 14 | 10200142 | SCREW (2) | FLHTCUTG |
| 15 | 67700056 | BRACKET, headlamp, left (HDI) | FLHTCUTG |
| 16 | 67700057 | BRACKET, headlamp, right (HDI) | FLHTCUTG |
| 17 | 67700058 | HEADLAMP ASSEMBLY, w/ 1, 8, 9, 10, 13, 18, 19, 20 & 21 (HDI) (2) | FLHTCUTG |
| 18 | 67700069 | HOUSING, headlamp (2) | FLHTCUTG |
| 19 | 67700070 | BEZEL, headlamp (2) | FLHTCUTG |
| 20 | 67700071 | RING NEST, headlamp (2) | FLHTCUTG |
| 21 | 67700077 | HEADLAMP (2) | FLHTCUTG |
| 22 | 67700239 | BRACKET, headlamp, right (Japan) | FLHTCUTG |
| 23 | 67700240 | BRACKET, headlamp, left (Japan) | FLHTCUTG |
| 24 | 67800131 | TURN SIGNAL ASSEMBLY, front, w/ 72910-11 (2) | FLHTCUTG |
NACELLE & HEADLAMP - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLRT |
| 2 | 2933 | SCREW (2) | FLRT |
| 3 | 3061 | SCREW (2) | FLRT |
| 4 | 3265A | STUD (4) | FLRT |
| 5 | 3615 | SCREW | FLRT |
| 6 | 4134 | SCREW | FLRT |
| 7 | 4350A | SCREW | FLRT |
| 8 | 4411 | BOLT | FLRT |
| 9 | 6150W | WASHER (2) | FLRT |
| 10 | 6400HB | WASHER (2) | FLRT |
| 11 | 7038 | LOCKWASHER | FLRT |
| 12 | 7130W | LOCKWASHER | FLRT |
| 13 | 7800W | NUT | FLRT |
| 14 | 7992 | ACORN NUT (4) | FLRT |
| 15 | 9847 | WIRE TERMINAL, female spade, right hand | FLRT |
| 16 | 9848 | WIRE TERMINAL, female spade, left hand (2) | FLRT |
| 17 | 10031 | CLAMP | FLRT |
| 18 | 61081-92 | COVER, key-head (set of 2) | FLRT |
| 19 | 67621-94 | BUSHING (4) | FLRT |
| 20 | 67668-05 | MEDALLION, lens | FLRT |
| 21 | 67721-48 | SCREW (3) | FLRT |
| 22 | 68050-93A | RETAINING RING | FLRT |
| 23 | 68051-93A | TRIM RING (chrome) | FLRT |
| 24 | 68329-03 | BULB, HB2/H4 | FLRT |
| 25 | 68342-05A | LENS ASSEMBLY, 7 in., w/ 67668-05, 68329-03 & 68390-05 | FLRT |
| 26 | 68390-05 | BOOT | FLRT |
| 27 | 69969-08 | SLEEVE (2) | FLRT |
| 28 | 71455-11 | HOLE PLUG (black) (2) | FLRT |
| 29 | 72056-92 | INSULATOR, spade terminal, 3-way | FLRT |
| 30 | 73154-96BK | HOUSING, 4-place socket | FLRT |
| 31 | 73191-96 | TERMINAL, socket, #16-20 AWG (3) | FLRT |
| 32 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 33 | 61300233 | COVER, nacelle, rear, right (chrome) | FLRT |
| 34 | 61300234 | COVER, nacelle, rear, left (chrome) | FLRT |
| 35 | 61300235 | COVER, nacelle, side, right (chrome) | FLRT |
| 36 | 61300236 | COVER, nacelle, side, left (chrome) | FLRT |
| 37 | 61300251 | FRONT COVER ASSEMBLY, nacelle, w/ 61400209 (chrome) | FLRT |
| 38 | 61300260 | TOP COVER, nacelle (chrome) | FLRT |
| 39 | 61300278 | RISER COVER, nacelle (chrome) | FLRT |
| 40 | 61400209 | NAMEPLATE, cover, nacelle | FLRT |
| 41 | 61400213 | TRIM INSERT ASSEMBLY, nacelle | FLRT |
| 42 | 67700184 | SHELL ASSEMBLY, 7.0 in., w/ 9847, 9848, 72056-92, 73154-96BK & 73191-96 | FLRT |
| 43 | 67700187 | MOUNTING BLOCK | FLRT |
| 44 | 71400098 | LOCKSET, complete, w/ keys, ignition switch, fork lock & trunk lock | FLRT |
| 45 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | FLRT |
TURN SIGNALS, FRONT - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4549 | SCREW (2) | FLRT |
| 2 | 6771A | WASHER (2) | FLRT |
| 3 | 68168-89A | BULB, turn signal (2) | FLRT |
| 4 | 68904-00 | SOCKET ASSEMBLY, turn signal (Domestic) (2) | FLRT |
| 5 | 68973-00 | LENS (2) | FLRT |
| 6 | 69292-06 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68904-00 & 68973-00 (2) | FLRT |
| 7 | 69438-06 | STANDOFF, directional (2) | FLRT |
| 8 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTG |
| 9 | 73153-96BK | SOCKET HOUSING, 3-way (black) | FLRT |
| 10 | 73156-96BK | SOCKET HOUSING, 6-place (black) | FLRT |
WINDSHIELD, FAIRING & HEADLAMP - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUTG |
| 2 | 3088 | SCREW (3) | FLHTCUTG |
| 3 | 4790 | SCREW (4) | FLHTCUTG |
| 4 | 7900 | CLIP NUT (4) | FLHTCUTG |
| 5 | 67712-83B | TRIM RING, headlamp (Domestic, Japan) | FLHTCUTG |
| 6 | 67716-60C | GASKET, headlamp door (Domestic, Japan) | FLHTCUTG |
| 7 | 67721-48 | SCREW (Domestic, Japan) (3) | FLHTCUTG |
| 8 | 67726-08 | RETAINING RING, headlamp (Domestic, Japan) | FLHTCUTG |
| 9 | 67778-60A | SPRING, trim ring, headlamp, top | FLHTCUTG |
| 10 | 67780-60A | SPRING, trim ring, headlamp, bottom (Domestic, Japan) (2) | FLHTCUTG |
| 11 | 10200059 | SCREW (2) | FLHTCUTG |
| 12 | 10200060 | SCREW (2) | FLHTCUTG |
| 13 | 10200112 | SCREW | FLHTCUTG |
| 14 | 10200156 | SCREW | FLHTCUTG |
| 15 | 11100055 | TAPE, windshield mounting | FLHTCUTG |
| 16 | 29200007 | BEZEL, air duct, outer fairing | FLHTCUTG |
| 17 | 57000377 | KIT, HARDWARE, fairing, w/ 7900, 11100055 & 29200007 | FLHTCUTG |
| 18 | 57000383 | FAIRING KIT, outer, w/ 57000377 (unpainted) | FLHTCUTG |
| 57000379BHY | FAIRING KIT, outer, w/ 57000377 (vivid black) | FLHTCUTG | |
| 57000379DSX | FAIRING KIT, outer, w/ 57000377 (mysterious red sunglo) | FLHTCUTG | |
| 57000379DTI | FAIRING KIT, outer, w/ 57000377 (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 57000379DWW | FAIRING KIT, outer, w/ 57000377 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 19 | 57400001 | WINDSHIELD (clear) (Domestic) | FLHTCUTG |
| 57400002 | WINDSHIELD (clear) (HDI, England, Japan) | FLHTCUTG | |
| 20 | 61300089 | HEADLIGHT COVER (HDI except Japan) | FLHTCUTG |
| 21 | 61400135 | TRIM, headlamp | FLHTCUTG |
| 22 | 61400192 | TRIM, headlight cover (HDI except Japan) | FLHTCUTG |
| 23 | 67700066 | HEADLAMP, LED (Domestic, Japan) | FLHTCUTG |
| 24 | 67700124 | BRACKET, headlight cover (HDI except Japan) | FLHTCUTG |
| 25 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, w/ 3088 & 67700205 (Domestic, Japan) | FLHTCUTG |
| 26 | 67700205 | MOUNTING RING, headlamp (Domestic, Japan) | FLHTCUTG |
FAIRING, INNER - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUTG |
| 2 | 2478 | SCREW (5) | FLHTCUTG |
| 3 | 2563 | SCREW (7) | FLHTCUTG |
| 4 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTCUTG |
| 5 | 10200134 | SCREW (6) | FLHTCUTG |
| 6 | 10200141 | SCREW (6) | FLHTCUTG |
| 7 | 10200142 | SCREW (6) | FLHTCUTG |
| 8 | 10200205 | SCREW (12) | FLHTCUTG |
| 9 | 10900005 | STUD, double sided (Domestic, Japan) (4) | FLHTCUTG |
| 9 | 10900006 | STUD, double sided (HDI except Japan) (4) | FLHTCUTG |
| 10 | 11100038 | FOAM TAPE | FLHTCUTG |
| 11 | 11100050 | FOAM TAPE | FLHTCUTG |
| 12 | 11100051 | FOAM TAPE | FLHTCUTG |
| 13 | 11100057 | FOAM TAPE | FLHTCUTG |
| 14 | 12200064 | CLIP, panel (10) | FLHTCUTG |
| 15 | 29200003 | AIR DUCT, inner fairing, w/ 10, 14, 16, 17, 18 & 41 | FLHTCUTG |
| 16 | 29200034 | DOOR, inner duct | FLHTCUTG |
| 17 | 29200035 | BUTTON ASSEMBLY, inner duct, w/ 76000127 | FLHTCUTG |
| 18 | 29200039 | BEZEL, air duct,inner fairing, w/ 12200064 | FLHTCUTG |
| 19 | 57000182 | SKIRT, outer fairing | FLHTCUTG |
| 20 | 57000193BYM | INNER FAIRING ASSEMBLY, w/ 11100050, 11100051, 11100057, 61400063, 61400064 & 76000234 | FLHTCUTG |
| 21 | 57000169 | BRACKET, fairing support, left | FLHTCUTG |
| 22 | 57000170 | BRACKET, fairing support, right | FLHTCUTG |
| 23 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY, left | FLHTCUTG |
| 24 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY, right | FLHTCUTG |
| 25 | 57000186 | BRACKET, support, inner fairing | FLHTCUTG |
| 26 | 57000299 | FOAM INSERT, media compartment | FLHTCUTG |
| 27 | 57200012 | AIR DEFLECTOR, left, w/ 57638-08 | FLHTCUTG |
| 28 | 57200017 | AIR DEFLECTOR, right, w/ 57638-08 | FLHTCUTG |
| 29 | 61400063 | TRIM, inner fairing, left | FLHTCUTG |
| 30 | 61400064 | TRIM, inner fairing, right | FLHTCUTG |
| 31 | 69200031 | WIRE HARNESS, USB jumper | FLHTCUTG |
| 32 | 69200170 | POWER OUTLET, fairing, w/ 69200171 | FLHTCUTG |
| 33 | 69200171 | CAP, power outlet | FLHTCUTG |
| 34 | 69200172 | SWITCH ASSEMBLY, auxiliary/fog lamps, w/ 69200173, 71400031 & 71400044 (Domestic) | FLHTCUTG |
| 35 | 69200173 | SWITCH (Domestic) | FLHTCUTG |
| 36 | 70900138 | HOLE PLUG, fairing cap (Domestic) | FLHTCUTG |
| 36 | 70900138 | HOLE PLUG, fairing cap (HDI) (2) | FLHTCUTG |
| 37 | 70900392BYM | DASH PANEL, fairing | FLHTCUTG |
| 38 | 71400031 | SWITCH BUTTON, blank (Domestic) (2) | FLHTCUTG |
| 39 | 71400044 | SWITCH, auxiliary/fog lamps (Domestic) | FLHTCUTG |
| 40 | 76000107 | MEDIA COMPARTMENT ASSEMBLY, w/ 57000299, 69200031 & 76000127 | FLHTCUTG |
| 41 | 76000127 | LATCH (2) | FLHTCUTG |
| 42 | 76000234 | GASKET, media storage | FLHTCUTG |
| 43 | 76000409BYM | DOOR, media compartment, outer | FLHTCUTG |
FAIRING LOWERS - ULTRA - TWIN-COOLED™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (2) | FLHTCUTG |
| 2 | 6235 | WASHER (2) | FLHTCUTG |
| 3 | 7415A | WASHER (2) | FLHTCUTG |
| 4 | 7576 | NUT (2) | FLHTCUTG |
| 5 | 7716 | LOCKNUT (8) | FLHTCUTG |
| 6 | 8175 | BOLT, retainer (2) | FLHTCUTG |
| 7 | 11519 | MOUNT, rubber, right | FLHTCUTG |
| 8 | 10200052 | SCREW (4) | FLHTCUTG |
| 9 | 12200025 | CLIP (10) | FLHTCUTG |
| 10 | 12600049 | SCREW (8) | FLHTCUTG |
| 11 | 26800008 | DUCT, radiator, left | FLHTCUTG |
| 12 | 26800009 | DUCT, radiator, right | FLHTCUTG |
| 13 | 47200275 | CLAMP (2) | FLHTCUTG |
| 14 | 57100099 | PANEL ASSEMBLY, w/ 12200025 (2) | FLHTCUTG |
| 15 | 57100107 | GLOVE BOX ASSEMBLY, left, w/ 12600049, 57100148, 57100164, 57100165 & 57100225 | FLHTCUTG |
| 16 | 57100109 | GLOVE BOX ASSEMBLY, right, w/ 12600049, 57100147, 57100164, 57100165 & 57100225 | FLHTCUTG |
| 17 | 57100111 | CAP, fairing, lower, left (unpainted) | FLHTCUTG |
| 57100242DH | CAP, fairing, lower, left (vivid black) | FLHTCUTG | |
| 57100242DJI | CAP, fairing, lower, left (white hot pearl) | FLHTCUTG | |
| 57100242DSW | CAP, fairing, lower, left (mysterious red sunglo) | FLHTCUTG | |
| 18 | 57100112 | FAIRING, lower, left (unpainted) | FLHTCUTG |
| 57100168DH | FAIRING, lower, left, w/ 57100170 (vivid black) | FLHTCUTG | |
| 57100168DJI | FAIRING, lower, left, w/ 57100170 (white hot pearl) | FLHTCUTG | |
| 57100168DSW | FAIRING, lower, left, w/ 57100170 (mysterious red sunglo) | FLHTCUTG | |
| 19 | 57100113 | CAP, fairing, lower, right (unpainted) | FLHTCUTG |
| 57100243DH | CAP, fairing, lower, right (vivid black) | FLHTCUTG | |
| 57100243DJI | CAP, fairing, lower, right (white hot pearl) | FLHTCUTG | |
| 57100243DSW | CAP, fairing, lower, right (mysterious red sunglo) | FLHTCUTG | |
| 20 | 57100114 | FAIRING, lower, right (unpainted) | FLHTCUTG |
| 57100169DH | FAIRING, lower,right, w/ 57100171 (vivid black) | FLHTCUTG | |
| 57100169DJI | FAIRING, lower, right, w/ 57100171 (white hot pearl) | FLHTCUTG | |
| 57100169DSW | FAIRING, lower, right, w/ 57100171 (mysterious red sunglo) | FLHTCUTG | |
| 21 | 57100147 | FRAME, glove box, right, w/ 12200025 | FLHTCUTG |
| 22 | 57100148 | FRAME, glove box, left, w/ 12200025 | FLHTCUTG |
| 23 | 57100151 | SCREEN, radiator, left | FLHTCUTG |
| 24 | 57100152 | SCREEN, radiator, right | FLHTCUTG |
| 25 | 57100153 | GASKET, radiator (2) | FLHTCUTG |
| 26 | 57100154 | HINGE (2) | FLHTCUTG |
FAIRING LOWERS - ULTRA - TWIN-COOLED™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 27 | 57100155 | DOOR, vent (2) | FLHTCUTG |
| 28 | 57100164 | LINK, door vent (2) | FLHTCUTG |
| 29 | 57100165 | KNOB, door vent (2) | FLHTCUTG |
| 30 | 57100170 | FASCIA ASSEMBLY, lower, left | FLHTCUTG |
| 31 | 57100171 | FASCIA ASSEMBLY, lower, right | FLHTCUTG |
| 32 | 57100172 | CLAMP, lower fairing | FLHTCUTG |
| 33 | 57100187 | RETAINER, u-bolt (2) | FLHTCUTG |
| 34 | 57100200 | PIN, vent door (2) | FLHTCUTG |
| 35 | 57100225 | SLIDER, vent door (2) | FLHTCUTG |
| 36 | 57100256 | CLAMP, lower fairing | FLHTCUTG |
SWITCHES, HANDLEBAR, LEFT
| Index No. | Part No. | Description | Model(s) |
| 1 | 72908-11 | SOCKET HOUSING, 4-place | ALL |
| 2 | 69200178 | WIRE HARNESS, left hand control jumper, w/ 72908-11, 69200306, 69200307 & 69200308 | ALL |
| 3 | 69200306 | SOCKET HOUSING, 4-way | ALL |
| 4 | 69200307 | TERMINAL, socket, 22 AWG (4) | ALL |
| 5 | 69200308 | TERMINAL, socket, 22 AWG (4) | ALL |
| 6 | 71500044 | KEY CAP, cruise | ALL |
| 7 | 71500045 | KEY CAP, audio home | FLHTCUTG |
| 8 | 71500048 | KEY CAP, lights, high beam, low beam & flash to pass | ALL |
| 9 | 71500053 | KEY CAP, left turn signal | FLRT |
| 10 | 71500054 | COVER, rear, left hand control, w/ screws | ALL |
| 11 | 71500055 | KEY CAP, left turn signal & voice recognition | FLHTCUTG |
| 12 | 71500094 | KEY CAP, trigger switch | ALL |
| 13 | 71500119 | COVER, front, left hand control | ALL |
| 14 | 71500135 | SWITCH PACK, left hand control, w/ 71500044, 71500045, 71500048, 71500055 & 71500144 | FLHTCUTG |
| 15 | 71500144 | KEY CAP, horn & reverse | ALL |
| 16 | 71500236 | SWITCH PACK, left hand control, w/ 71500044, 71500048, 71500053 & 71500144 | FLRT |
SWITCHES, HANDLEBAR, RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | ALL |
| 2 | 72906-11 | SOCKET HOUSING, 2-place | ALL |
| 3 | 72908-11 | SOCKET HOUSING, 4-place | ALL |
| 4 | 69200179 | WIRE HARNESS, right hand control jumper, w/ 5118, 72906-11, 72908-11, 69200305, 69200306, 69200307 & 69200308 | ALL |
| 5 | 69200305 | SOCKET HOUSING, 2-way | ALL |
| 6 | 69200306 | SOCKET HOUSING, 4-way | ALL |
| 7 | 69200307 | TERMINAL, socket, 22 AWG (5) | ALL |
| 8 | 69200308 | TERMINAL, socket, 22 AWG (5) | ALL |
| 9 | 71500046 | KEY CAP, audio select | FLHTCUTG |
| 10 | 71500049 | KEY CAP, start/hazard | ALL |
| 11 | 71500050 | KEY CAP, stop & run | ALL |
| 12 | 71500056 | COVER, rear, right hand control, w/ screws | ALL |
| 13 | 71500057 | KEY CAP, right turn signal | FLRT |
| 14 | 71500063 | KEY CAP, right turn signal & info | FLHTCUTG |
| 15 | 71500121 | COVER, front, right hand control | ALL |
| 16 | 71500127A | SWITCH PACK, right hand control, w/ 71500049, 71500050 & 71500057 | FLRT |
| 17 | 71500129A | SWITCH PACK, right hand control, w/ 71500046, 71500049, 71500050 & 71500063 | FLHTCUTG |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | ALL |
| 2 | 4240 | SCREW (2) | ALL |
| 3 | 9853 | TAB, fastening | ALL |
| 4 | 10006 | CABLE STRAP (6) | FLHTCUTG |
| 4 | 10006 | CABLE STRAP | FLRT |
| 5 | 55918-08 | CLAMP, upper | ALL |
| 6 | 55924-14 | HANDLEBAR | FLHTCUTG |
| 7 | 56159-73 | CUP WASHER (4) | ALL |
| 8 | 56161-83A | BUSHING, rubber (4) | ALL |
| 9 | 56163-93 | SPACER (2) | ALL |
| 10 | 57450-14 | RISER, lower, left | ALL |
| 11 | 57451-14 | RISER, lower, right | ALL |
| 12 | 72053-92 | PIN HOUSING, 1-way | ALL |
| 13 | 72241-94A | TERMINAL, 10 ring, 14-18 gauge | ALL |
| 14 | 12600032 | SCREW (2) | ALL |
| 15 | 55800247 | HANDLEBAR | FLRT |
| 16 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, w/ 9853, 72053-92, 72241-94A & 69200356 | ALL |
| 17 | 69200536 | TERMINAL, ring, 12-14 gauge | ALL |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32305-08A | SENSOR, twist grip, w/ 32306-08, 72902-01BK & 72990-01 | ALL |
| 2 | 32306-08 | SEAL CAP, throttle sensor | ALL |
| 3 | 56248-08 | GRIP, left | ALL |
| 4 | 56304-08 | GRIP & SLEEVE, throttle, right | ALL |
| 5 | 72414-07BK | SOCKET HOUSING, 6-way (black) | ALL |
| 6 | 72902-01BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 7 | 72912-01BK | SOCKET HOUSING, 2-way (black) | ALL |
| 8 | 72990-01 | PIN TERMINAL (4) | ALL |
| 9 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | ALL |
| 10 | 69200338 | HARNESS, throttle, jumper | ALL |
| 11 | 69200859 | TERMINAL, socket, M3 (6) | ALL |
TAIL LAMP & TURN SIGNALS, REAR - DOMESTIC - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 68026-99 | SCREW (4) | FLHTCUTG |
| 4 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A (2) | FLHTCUTG |
| 5 | 68167-04 | BULB, tail lamp, wedge mount (2) | FLHTCUTG |
| 6 | 68245-03 | LENS, tail lamp, w/ 68026-99 (2) | FLHTCUTG |
| 7 | 68296-99A | TAIL LIGHT BASE (chrome) (2) | FLHTCUTG |
| 8 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK & 73191-96 (2) | FLHTCUTG |
| 9 | 68830-99A | CIRCUIT BOARD & COVER (2) | FLHTCUTG |
| 10 | 73154-96BK | SOCKET HOUSING, 4-way (2) | FLHTCUTG |
| 11 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTG |
TAIL LAMP & TURN SIGNALS, REAR - HDI - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 68026-99 | SCREW (4) | FLHTCUTG |
| 4 | 67800086 | TAIL LAMP ASSEMBLY, left | FLHTCUTG |
| 67800099 | TAIL LAMP ASSEMBLY, right | FLHTCUTG | |
| 5 | 67800165 | BRACKET, tail lamp (2) | FLHTCUTG |
TAIL LAMP & TURN SIGNALS, REAR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 68026-99 | SCREW (4) | FLRT |
| 2 | 68140-04 | TAIL LAMP ENVELOPE ASSEMBLY, left, w/ 68369-03 & 68370-03A | FLRT |
| 3 | 68167-04 | BULB, tail lamp, wedge mount (2) | FLRT |
| 4 | 68245-03 | LENS, tail lamp, right, w/ 68026-99 | FLRT |
| 68369-03 | LENS, tail lamp, left, w/ 68026-99 | FLRT | |
| 5 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK & 73191-96 (2) | FLRT |
| 6 | 68830-99A | CIRCUIT BOARD & COVER (2) | FLRT |
| 7 | 73154-96BK | SOCKET HOUSING, 4-way (2) | FLRT |
| 8 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLRT |
WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - DOMESTIC - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10102 | CLIP, small (4) | FLHTCUTG |
| 3 | 10103 | CLIP, large (2) | FLHTCUTG |
| 4 | 10270 | CABLE STRAP | FLHTCUTG |
| 5 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 6 | 72469-07GY | HOUSING, 8-way socket (gray) | FLHTCUTG |
| 7 | 72473-07 | SEAL PIN (2) | FLHTCUTG |
| 8 | 73102-96BK | HOUSING, 2-way pin (2) | FLHTCUTG |
| 9 | 73103-96BK | HOUSING, 3-way pin | FLHTCUTG |
| 10 | 73152-96BK | DUST CAP | FLHTCUTG |
| 11 | 73156-96BK | SOCKET HOUSING, 6-place (black) (2) | FLHTCUTG |
| 12 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 13 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTG |
| 14 | 83439-09 | GROMMET | FLHTCUTG |
| 15 | 69200140 | HARNESS, rear lights, w/ 72168-07, 72469-07GY, 72473-07, 73102-96BK, 73103-96BK, 73152-96BK, 73156-96BK, 73190-96 & 73191-96 | FLHTCUTG |
WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - HDI - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10102 | CLIP, small (4) | FLHTCUTG |
| 3 | 10103 | CLIP, large (2) | FLHTCUTG |
| 4 | 10270 | CABLE STRAP | FLHTCUTG |
| 5 | 72114-94BK | HOUSING, 4-way socket (black) | FLHTCUTG |
| 6 | 72154-94 | SECONDARY LOCK, 4-way socket | FLHTCUTG |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTG |
| 8 | 72191-94 | TERMINAL, socket, 16-18 AWG (4) | FLHTCUTG |
| 9 | 72469-07GY | HOUSING, 8-way socket (gray) | FLHTCUTG |
| 10 | 72473-07 | SEAL PIN | FLHTCUTG |
| 11 | 73102-96BK | HOUSING, 2-way pin | FLHTCUTG |
| 12 | 73103-96BK | HOUSING, 3-way pin | FLHTCUTG |
| 13 | 73152-96BK | DUST CAP | FLHTCUTG |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 15 | 74104-98BK | HOUSING, 4-way pin (black) (2) | FLHTCUTG |
| 16 | 74114-98BK | HOUSING, 4-way socket (black) | FLHTCUTG |
| 17 | 74144-98 | SECONDARY LOCK, 4-way pin (2) | FLHTCUTG |
| 18 | 74154-98 | SECONDARY LOCK, 4-way socket | FLHTCUTG |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG (8) | FLHTCUTG |
| 20 | 74191-98 | TERMINAL, socket (4) | FLHTCUTG |
| 21 | 83439-09 | GROMMET | FLHTCUTG |
| 22 | 69200266 | HARNESS, rear lights, w/ 7, 9, 10, 11, 12, 13, 14, 15, 17 & 19 | FLHTCUTG |
| 23 | 69200410 | HARNESS, jumper, w/ 5, 6, 8, 16, 18 & 20 (2) | FLHTCUTG |
WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - DOMESTIC - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (2) | FLRT |
| 2 | 10102 | CLIP, small (7) | FLRT |
| 3 | 10103 | CLIP, large (4) | FLRT |
| 4 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLRT |
| 5 | 72469-07GY | HOUSING, 8-way socket (gray) | FLRT |
| 6 | 72473-07 | SEAL PIN (4) | FLRT |
| 7 | 73156-96BK | SOCKET HOUSING, 6-place (black) (2) | FLRT |
| 8 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLRT |
| 9 | 69200711 | HARNESS, rear lights, w/ 72168-07, 72469-07GY, 72473-07, 73156-96BK & 73191-96 | FLRT |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3576 | SCREW | ALL |
| 2 | 3929 | SCREW (4) | ALL |
| 3 | 4705 | SCREW (2) | ALL |
| 4 | 5416 | BOLT | ALL |
| 5 | 7041 | LOCKWASHER (4) | ALL |
| 6 | 7593 | NUT (4) | ALL |
| 7 | 7601 | LOCKNUT | ALL |
| 8 | 9955 | CLAMP, worm drive #24 (7) | ALL |
| 9 | 9956 | CLAMP, worm drive #40 | ALL |
| 10 | 10039 | CABLE STRAP (2) | ALL |
| 11 | 11936 | GASKET, oxygen (O2) sensor (2) | ALL |
| 12 | 27729-10 | SENSOR, oxygen (O2), front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | ALL |
| 13 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | ALL |
| 14 | 65296-95A | MUFFLER CLAMP (3) | ALL |
| 15 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 16 | 65325-83A | RETAINING RING, exhaust gasket (2) | ALL |
| 17 | 65328-83A | FLANGE, exhaust pipe (2) | ALL |
| 18 | 65538-09 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLHTCUTG |
| 64900149 | MUFFLER, left, (chrome) (HDI, Japan) | FLHTCUTG | |
| 64900201 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLRT | |
| 19 | 65634-09 | SHIELD, right exhaust pipe, front | ALL |
| 20 | 65636-09 | SHIELD, left exhaust pipe, rear | ALL |
| 21 | 65678-09 | BRACKET, rear exhaust mount | ALL |
| 22 | 65723-85 | MOUNTING BRACKET (2) | ALL |
| 23 | 65846-10A | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLHTCUTG |
| 64900149 | MUFFLER, right, (chrome) (Japan) | FLHTCUTG | |
| 64900150 | MUFFLER, right, (chrome) (HDI) | FLHTCUTG | |
| 64900201 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLRT | |
| 24 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | ALL |
| 25 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | ALL |
| 26 | 66813-09 | GASKET, clamp | ALL |
| 27 | 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (Domestic, Canada, California, Japan) (chrome) | ALL |
| 65600102 | EXHAUST PIPE ASSEMBLY, catalytic (HDI) (chrome) | FLHTCUTG | |
| 28 | 66859-09 | CLAMP, exhaust | ALL |
| 29 | 66861-09A | CLAMP, exhaust pipe, hinged | ALL |
| 30 | 66881-09 | BRACKET, exhaust pipe hanger | ALL |
| 31 | 72177-07BK | HOUSING, 4-way, socket (black) | ALL |
| 32 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | ALL |
| 33 | 72444-07GY | HOUSING, 4-way, socket (gray) | ALL |
| 34 | 73307-10 | TERMINAL, socket, 22 AWG (4) | ALL |
| 35 | 83448-09 | CROSSOVER PIPE ASSEMBLY (chrome) | ALL |
| 36 | 84021-10 | MOUNT, rubber (2) | ALL |
| 37 | 65600103 | PIPE, connector | ALL |
ACTIVE EXHAUST
| Index No. | Part No. | Description | Model(s) |
| 1 | 3993 | BOLT (HDI except Japan) (2) | FLHTCUTG |
| 2 | 6119 | WASHER (HDI except Japan) (2) | FLHTCUTG |
| 3 | 10006 | CABLE STRAP (HDI except Japan) | FLHTCUTG |
| 4 | 66767-07 | RETAINER CABLE (HDI except Japan) | FLHTCUTG |
| 5 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI except Japan) | FLHTCUTG |
| 6 | 71019-07 | SHROUD, exhaust actuator, (HDI except Japan) | FLHTCUTG |
| 7 | 10800028 | TUBE CLIP, exhaust cable (HDI except Japan) | FLHTCUTG |
| 8 | 31500009 | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (1 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (4) | FLHTCUTG |
| 2 | 10177 | CABLE STRAP, tree mount | FLHTCUTG |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 5 | 72364-06 | TERMINAL, 10-14 AWG, female | FLHTCUTG |
| 6 | 72414-07BK | HOUSING, 6-way socket (black) | FLHTCUTG |
| 7 | 72473-07 | SEAL PIN (6) | FLHTCUTG |
| 8 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTCUTG |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 10 | 69200201 | HOUSING, 2-way socket | FLHTCUTG |
| 11 | 69200202 | WIRE TROUGH | FLHTCUTG |
| 12 | 69200203 | COVER, wire trough | FLHTCUTG |
| 13 | 69200214 | CADDY, left steer hd | FLHTCUTG |
| 14 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTG |
| 15 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (2 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (4) | FLHTCUTG |
| 3 | 10177 | CABLE STRAP, tree mount | FLHTCUTG |
| 4 | 72062-06 | HOUSING, 2-way socket | FLHTCUTG |
| 5 | 72166-07BK | HOUSING, 16-way socket, 18-20 AWG (black) | FLHTCUTG |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (17) | FLHTCUTG |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (29) | FLHTCUTG |
| 8 | 72188-07BK | HOUSING, 6-way pin (black) | FLHTCUTG |
| 9 | 72209-11 | COVER, wire dress | FLHTCUTG |
| 10 | 72222-11 | TERMINAL, socket, 18-20 AWG (28) | FLHTCUTG |
| 11 | 72226-11 | TERMINAL, socket, 14-16 AWG (8) | FLHTCUTG |
| 12 | 72256-11 | SEAL PIN (12) | FLHTCUTG |
| 13 | 72414-07BK | HOUSING, 6-way socket (black) | FLHTCUTG |
| 14 | 72473-07 | SEAL PIN (6) | FLHTCUTG |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTG |
| 17 | 72488-07BK | HOUSING, 12-way pin (black) | FLHTCUTG |
| 18 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTG |
| 19 | 73213-07 | RETAINER, x-mas tree clip (3) | FLHTCUTG |
| 20 | 69200193 | HOUSING, 48-way socket | FLHTCUTG |
| 21 | 69200205 | WEATHER PLUG, 12-way pin (2) | FLHTCUTG |
| 22 | 69200215 | CADDY, right steer hd | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (3 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTCUTG |
| 2 | 10177 | CABLE STRAP, tree mount (2) | FLHTCUTG |
| 3 | 72007-05 | HOUSING, 2-way socket (2) | FLHTCUTG |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHTCUTG |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLHTCUTG |
| 6 | 72063-06 | HOUSING, 2-way socket | FLHTCUTG |
| 7 | 72111-06 | SECONDARY LOCK, 2-way socket, female (gray) | FLHTCUTG |
| 8 | 72251-07 | SECONDARY LOCK, 2-way socket (yellow) (2) | FLHTCUTG |
| 9 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHTCUTG |
| 10 | 72402-07 | HOUSING, 2-way socket (2) | FLHTCUTG |
| 11 | 72406-07A | HOUSING, 4-way socket | FLHTCUTG |
| 12 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUTG |
| 13 | 72408-07 | WIRE SEAL, 16-20 AWG (blue) (4) | FLHTCUTG |
| 14 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTG |
| 15 | 72483-08BK | HOUSING, 6-way socket | FLHTCUTG |
| 16 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 17 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTG |
| 18 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) (6) | FLHTCUTG |
| 19 | 69200437 | RUBBER BOOT, wire connector | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (4 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTCUTG |
| 2 | 10147 | CLIP, connector | FLHTCUTG |
| 3 | 72066-06A | HOUSING, 4-way socket, female (black) | FLHTCUTG |
| 4 | 72135-06 | SECONDARY LOCK, 4-way socket, female | FLHTCUTG |
| 5 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (2) | FLHTCUTG |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLHTCUTG |
| 7 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLHTCUTG |
| 8 | 72518-01 | HOUSING, 2-way socket (red) | FLHTCUTG |
| 9 | 72533-06 | DUST CAP, 2-pin connector | FLHTCUTG |
| 10 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLHTCUTG |
| 11 | 72610-08 | SEAL, 18-20 AWG (white) (2) | FLHTCUTG |
| 12 | 72664-12A | HOUSING, 18-way socket (black) | FLHTCUTG |
| 13 | 72666-12 | TERMINAL, socket, 18-20 AWG (silver) (44) | FLHTCUTG |
| 14 | 72720-07 | HOUSING, 2-way socket | FLHTCUTG |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 16 | 69200192A | HOUSING, 18-way socket (brown) | FLHTCUTG |
| 17 | 69200291A | HOUSING, 18-way socket (gray) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (5 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (3) | FLHTCUTG |
| 2 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTCUTG |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (30) | FLHTCUTG |
| 5 | 72188-07BK | HOUSING, 6-way pin (black) | FLHTCUTG |
| 6 | 72249-94 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHTCUTG |
| 7 | 72414-07BK | HOUSING, 6-way socket (black) | FLHTCUTG |
| 8 | 72415-07GY | HOUSING, 4-way pin (gray) | FLHTCUTG |
| 9 | 72447-07GY | HOUSING, 8-way pin (gray) | FLHTCUTG |
| 10 | 72473-07 | SEAL PIN (4) | FLHTCUTG |
| 11 | 73213-07 | RETAINER, x-mas tree clip (4) | FLHTCUTG |
| 12 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTG |
| 13 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (6 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (4) | FLHTCUTG |
| 3 | 11779 | FASTENER, push-in (black) (2) | FLHTCUTG |
| 4 | 72291-94 | TERMINAL, 14-16 AWG | FLHTCUTG |
| 5 | 72295-94 | CONNECTOR, starter housing | FLHTCUTG |
| 6 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHTCUTG |
| 7 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHTCUTG |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHTCUTG |
| 9 | 72543-07BK | HOUSING, 3-way socket (black) | FLHTCUTG |
| 10 | 72544-07 | SECONDARY LOCK, 3-way socket, female | FLHTCUTG |
| 11 | 69200175 | CADDY, fuse block, electrical panel | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (7 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 8339 | SEAL PIN | FLHTCUTG |
| 2 | 10065 | CABLE STRAP | FLHTCUTG |
| 3 | 10177 | CABLE STRAP, tree mount (2) | FLHTCUTG |
| 4 | 70598-99 | BOOT, engine temperature sensor | FLHTCUTG |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHTCUTG |
| 6 | 72012-07 | HOUSING, 5-way socket | FLHTCUTG |
| 7 | 72014-07 | SEAL PIN | FLHTCUTG |
| 8 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLHTCUTG |
| 9 | 72063-06 | HOUSING, 2-way socket | FLHTCUTG |
| 10 | 72111-06 | SECONDARY LOCK, 2-way socket, female (gray) | FLHTCUTG |
| 11 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHTCUTG |
| 12 | 72175-07BK | HOUSING, 4-way pin (black) (2) | FLHTCUTG |
| 13 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (2) | FLHTCUTG |
| 14 | 72232-96 | SEAL PLUG (2) | FLHTCUTG |
| 15 | 72343-10 | TERMINAL, pin, 16-20 AWG (gold) (4) | FLHTCUTG |
| 16 | 72400-99 | CONNECTOR, 4-way | FLHTCUTG |
| 17 | 72403-99 | SECONDARY LOCK, 4-way | FLHTCUTG |
| 18 | 72415-07GY | HOUSING, 4-way pin (gray) | FLHTCUTG |
| 19 | 72473-07 | SEAL PIN | FLHTCUTG |
| 20 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 21 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTG |
| 22 | 72511-07BK | HOUSING, 3-way pin (black) | FLHTCUTG |
| 23 | 72610-08 | SEAL, 18-20 AWG (white) (2) | FLHTCUTG |
| 24 | 73102-96BK | HOUSING, 2-way pin | FLHTCUTG |
| 25 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTG |
| 26 | 73213-07 | RETAINER, x-mas tree clip (5) | FLHTCUTG |
| 27 | 74112-98BK | HOUSING, 2-way socket (black) | FLHTCUTG |
| 28 | 74120-08 | DC LEAD ASSEMBLY | FLHTCUTG |
| 29 | 74152-98 | SECONDARY LOCK, 2-way socket | FLHTCUTG |
| 30 | 74191-98 | TERMINAL, socket (2) | FLHTCUTG |
| 31 | 83944-09 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTG |
| 32 | 69200238 | TERMINAL, 20 AWG (black) (2) | FLHTCUTG |
| 33 | 69200272 | HOUSING, 2-way pin | FLHTCUTG |
| 34 | 69200461 | HOUSING, 8-way socket | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (8 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200141 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, 6-way pin, weather | FLHTCUTG |
| 2 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 10065 | CABLE STRAP (2) | FLHTCUTG |
| 4 | 31586-07 | RELAY | FLHTCUTG |
| 5 | 72064-06 | HOUSING, 3-way socket, female | FLHTCUTG |
| 6 | 72081-11 | HOUSING, 48-way socket | FLHTCUTG |
| 7 | 72106-94BK | HOUSING, 6-pin (black) (replaces gray connector) | FLHTCUTG |
| 8 | 72146-94 | SECONDARY LOCK, 6-way pin | FLHTCUTG |
| 9 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FLHTCUTG |
| 10 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHTCUTG |
| 11 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLHTCUTG |
| 12 | 72195-94 | SEAL PIN | FLHTCUTG |
| 13 | 72209-11 | COVER, wire dress | FLHTCUTG |
| 14 | 72222-11 | TERMINAL, socket, 18-20 AWG (24) | FLHTCUTG |
| 15 | 72226-11 | TERMINAL, socket, 14-16 AWG | FLHTCUTG |
| 16 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHTCUTG |
| 17 | 72256-11 | SEAL PIN (6) | FLHTCUTG |
| 18 | 72296-95 | TERMINAL, female, sealed (2) | FLHTCUTG |
| 19 | 72298-95 | PLUG, cavity (2) | FLHTCUTG |
| 20 | 72299-95 | PLUG, cavity (2) | FLHTCUTG |
| 21 | 72308-97 | TERMINAL, female, 12-14 AWG (5) | FLHTCUTG |
| 22 | 72331-95 | FUSE, 5-amp, mini (tan) (2) | FLHTCUTG |
| 23 | 72345-02 | FUSE, 20-amp, mini (yellow) | FLHTCUTG |
| 24 | 72350-11 | HOUSING, 1-way socket | FLHTCUTG |
| 25 | 72356-95 | TERMINAL, socket, 18-20 AWG (15) | FLHTCUTG |
| 26 | 72412-97 | SEAL, cable, 12-14 AWG (5) | FLHTCUTG |
| 27 | 72447-07GY | HOUSING, 8-way pin (gray) | FLHTCUTG |
| 28 | 72462-00 | FUSE, 10 amp, mini | FLHTCUTG |
| 29 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTCUTG |
| 30 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTG |
| 31 | 72544-07 | SECONDARY LOCK, 3-way socket, female | FLHTCUTG |
| 32 | 72575-11 | SECONDARY LOCK | FLHTCUTG |
| 33 | 72589-09 | HOUSING, 3-way socket, female | FLHTCUTG |
| 34 | 73301-04 | HOUSING, 2-way pin | FLHTCUTG |
| 35 | 73303-04 | SECONDARY LOCK, 2-way socket, female | FLHTCUTG |
| 36 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHTCUTG |
| 37 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHTCUTG |
| 38 | 69200194 | HOUSING, 24-way fuse block | FLHTCUTG |
| 39 | 69200195 | COVER, fuse block | FLHTCUTG |
| 40 | 69200199 | COVER, fuse block (15) | FLHTCUTG |
| 41 | 69200204 | WEATHER PLUG, 8-way pin | FLHTCUTG |
| 42 | 69200212 | HOUSING, 2-way | FLHTCUTG |
| 43 | 69200293 | FUSE, 7.5-amp, mini (brown) (2) | FLHTCUTG |
| 44 | 69200312 | SECONDARY LOCK, 24-way fuse block (3) | FLHTCUTG |
| 45 | 69200336 | MAIN FUSE, 50 amp (red), NOTE: Fuse is sold separately and is not part of main harness | FLHTCUTG |
| 46 | 69200406 | WIRE HARNESS, positive cable | FLHTCUTG |
| 47 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLHTCUTG |
WIRING HARNESS, MAIN - FLRT (1 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLRT |
| 2 | 70291-89 | HOUSING, 4-way pin | FLRT |
| 3 | 72039-71A | TERMINAL, pin (3) | FLRT |
| 4 | 72169-07 | TERMINAL, pin, 16-20 gauge (6) | FLRT |
| 5 | 72188-07BK | HOUSING, 6-way pin (black) | FLRT |
| 6 | 72364-06 | TERMINAL, 10-14 gauge, female | FLRT |
| 7 | 72907-11 | HOUSING, 4-way pin | FLRT |
| 8 | 72909-11 | TERMINAL, pin, 20-22 gauge | FLRT |
| 9 | 72914-01BK | HOUSING, 4-way socket (black) | FLRT |
| 10 | 72991-01 | SOCKET TERMINAL, 18-22 gauge (3) | FLRT |
| 11 | 73104-96BK | HOUSING, 4-way pin | FLRT |
| 12 | 73106-96BK | HOUSING, 6-way pin, single row | FLRT |
| 13 | 73190-96 | TERMINAL, pin, 16-20 gauge (9) | FLRT |
| 14 | 69200202 | WIRE TROUGH | FLRT |
| 15 | 69200203 | COVER, wire trough | FLRT |
| 16 | 69200284 | CADDY, left steer hd | FLRT |
| 17 | 69200823 | ADAPTER, harness caddy | FLRT |
WIRING HARNESS, MAIN - FLRT (2 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLRT |
| 2 | 10065 | CABLE STRAP (3) | FLRT |
| 3 | 70291-89 | HOUSING, 4-way pin | FLRT |
| 4 | 72039-71A | TERMINAL, pin (2) | FLRT |
| 5 | 72905-11 | HOUSING, 2-way pin (black) | FLRT |
| 6 | 72907-11 | HOUSING, 4-way pin | FLRT |
| 7 | 72909-11 | TERMINAL, pin, 20-22 gauge (5) | FLRT |
| 8 | 73103-96BK | HOUSING, 3-way pin | FLRT |
| 9 | 73190-96 | TERMINAL, pin, 16-20 AWG (3) | FLRT |
| 10 | 69200285 | CADDY, right steer hd | FLRT |
WIRING HARNESS, MAIN - FLRT (3 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLRT |
| 2 | 10177 | CABLE STRAP, tree mount (2) | FLRT |
| 3 | 72007-05 | HOUSING, 2-way socket (2) | FLRT |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLRT |
| 5 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLRT |
| 6 | 72063-06 | HOUSING, 2-way socket | FLRT |
| 7 | 72111-06 | SECONDARY LOCK, 2-way socket, female (gray) | FLRT |
| 8 | 72251-07 | SECONDARY LOCK, 2-way socket (yellow) (2) | FLRT |
| 9 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLRT |
| 10 | 72402-07 | HOUSING, 2-way socket (2) | FLRT |
| 11 | 72406-07A | HOUSING, 4-way socket | FLRT |
| 12 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLRT |
| 13 | 72408-07 | WIRE SEAL, 16-20 AWG (blue) (4) | FLRT |
| 14 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLRT |
| 15 | 72483-08BK | HOUSING, 6-way socket | FLRT |
| 16 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLRT |
| 17 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLRT |
| 18 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) (6) | FLRT |
| 19 | 69200437 | RUBBER BOOT, wire connector | FLRT |
WIRING HARNESS, MAIN - FLRT (4 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLRT |
| 2 | 10147 | CLIP, connector | FLRT |
| 3 | 72066-06A | HOUSING, 4-way socket, female (black) | FLRT |
| 4 | 72135-06 | SECONDARY LOCK, 4-way socket, female | FLRT |
| 5 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (2) | FLRT |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLRT |
| 7 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLRT |
| 8 | 72518-01 | HOUSING, 2-way socket (red) | FLRT |
| 9 | 72533-06 | DUST CAP, 2-pin connector | FLRT |
| 10 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLRT |
| 11 | 72610-08 | SEAL, 18-20 AWG (white) (2) | FLRT |
| 12 | 72664-12A | HOUSING, 18-way socket (black) | FLRT |
| 13 | 72666-12 | TERMINAL, socket, 18-20 AWG (silver) (43) | FLRT |
| 14 | 72720-07 | HOUSING, 2-way socket | FLRT |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLRT |
| 16 | 69200192A | HOUSING, 18-way socket (brown) | FLRT |
| 17 | 69200267A | HOUSING, 18-way socket (gray) | FLRT |
WIRING HARNESS, MAIN - FLRT (5 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (3) | FLRT |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (5) | FLRT |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (25) | FLRT |
| 4 | 72249-94 | HEAT SHRINK TUBE, .415 x 1 (black) | FLRT |
| 5 | 72447-07GY | HOUSING, 8-way pin (gray) | FLRT |
| 6 | 72473-07 | SEAL PIN (10) | FLRT |
| 7 | 72478-07BK | HOUSING, 8-way pin (black) | FLRT |
| 8 | 72487-07BK | HOUSING, 12-way socket (black) | FLRT |
| 9 | 72488-07BK | HOUSING, 12-way pin (black) | FLRT |
| 10 | 73213-07 | RETAINER, x-mas tree clip (3) | FLRT |
WIRING HARNESS, MAIN - FLRT (6 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLRT |
| 2 | 10065 | CABLE STRAP (4) | FLRT |
| 3 | 11779 | FASTENER, push-in (black) (2) | FLRT |
| 4 | 72291-94 | TERMINAL, 14-16 AWG | FLRT |
| 5 | 72295-94 | CONNECTOR, starter housing | FLRT |
| 6 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLRT |
| 7 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLRT |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLRT |
| 9 | 72543-07BK | HOUSING, 3-way socket (black) | FLRT |
| 10 | 72544-07 | SECONDARY LOCK, 3-way socket, female | FLRT |
| 11 | 69200175 | CADDY, fuse block, electrical panel | FLRT |
WIRING HARNESS, MAIN - FLRT (7 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 8339 | SEAL PIN | FLRT |
| 2 | 10065 | CABLE STRAP | FLRT |
| 3 | 10177 | CABLE STRAP, tree mount | FLRT |
| 4 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLRT |
| 5 | 72012-07 | HOUSING, 5-way socket | FLRT |
| 6 | 72014-07 | SEAL PIN | FLRT |
| 7 | 72024-08 | TERMINAL, socket, 20-22 AWG (4) | FLRT |
| 8 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLRT |
| 9 | 72175-07BK | HOUSING, 4-way pin (black) | FLRT |
| 10 | 72343-10 | TERMINAL, pin, 16-20 AWG (gold) (4) | FLRT |
| 11 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length | FLRT |
| 12 | 72415-07GY | HOUSING, 4-way pin (gray) | FLRT |
| 13 | 72473-07 | SEAL PIN | FLRT |
| 14 | 72511-07BK | HOUSING, 3-way pin (black) | FLRT |
| 15 | 73102-96BK | HOUSING, 2-way pin | FLRT |
| 16 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLRT |
| 17 | 73213-07 | RETAINER, x-mas tree clip (3) | FLRT |
| 18 | 74112-98BK | HOUSING, 2-way socket (black) | FLRT |
| 19 | 74120-08 | DC LEAD ASSEMBLY | FLRT |
| 20 | 74152-98 | SECONDARY LOCK, 2-way socket | FLRT |
| 21 | 74191-98 | TERMINAL, socket (2) | FLRT |
| 22 | 83944-09 | TERMINAL, socket, 18-20 AWG (7) | FLRT |
| 23 | 69200238 | TERMINAL, 20 AWG (black) (2) | FLRT |
| 24 | 69200461 | HOUSING, 8-way socket | FLRT |
WIRING HARNESS, MAIN - FLRT (8 OF 8)
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, 6-way pin, weather | FLRT |
| 2 | 10006 | CABLE STRAP (2) | FLRT |
| 3 | 10065 | CABLE STRAP (2) | FLRT |
| 4 | 31586-07 | RELAY | FLRT |
| 5 | 72064-06 | HOUSING, 3-way socket, female | FLRT |
| 6 | 72081-11 | HOUSING, 48-way socket | FLRT |
| 7 | 72106-94BK | HOUSING, 6-pin (black) (replaces gray connector) | FLRT |
| 8 | 72146-94 | SECONDARY LOCK, 6-way pin | FLRT |
| 9 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLRT |
| 10 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLRT |
| 11 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLRT |
| 12 | 72195-94 | SEAL PIN | FLRT |
| 13 | 72209-11 | COVER, wire dress | FLRT |
| 14 | 72222-11 | TERMINAL, socket, 18-20 AWG (25) | FLRT |
| 15 | 72226-11 | TERMINAL, socket, 14-16 AWG (3) | FLRT |
| 16 | 72227-11 | TERMINAL, socket, 18-20 AWG (3) | FLRT |
| 17 | 72256-11 | SEAL PIN (5) | FLRT |
| 18 | 72296-95 | TERMINAL, female, sealed (2) | FLRT |
| 19 | 72298-95 | PLUG, cavity (2) | FLRT |
| 20 | 72299-95 | PLUG, cavity (10) | FLRT |
| 21 | 72308-97 | TERMINAL, female, 12-14 AWG (2) | FLRT |
| 22 | 72331-95 | FUSE, 5-amp, mini (tan) (2) | FLRT |
| 23 | 72345-02 | FUSE, 20-amp, mini (yellow) | FLRT |
| 24 | 72350-11 | HOUSING, 1-way socket | FLRT |
| 25 | 72356-95 | TERMINAL, socket, 18-20 AWG (10) | FLRT |
| 26 | 72412-97 | SEAL, cable, 12-14 AWG (2) | FLRT |
| 27 | 72447-07GY | HOUSING, 8-way pin (gray) | FLRT |
| 28 | 72473-07 | SEAL PIN (4) | FLRT |
| 29 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLRT |
| 30 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLRT |
| 31 | 72544-07 | SECONDARY LOCK, 3-way socket, female | FLRT |
| 32 | 72575-11 | SECONDARY LOCK | FLRT |
| 33 | 72589-09 | HOUSING, 3-way socket, female | FLRT |
| 34 | 73301-04 | HOUSING, 2-way pin | FLRT |
| 35 | 73303-04 | SECONDARY LOCK, 2-way socket, female | FLRT |
| 36 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLRT |
| 37 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLRT |
| 38 | 69200194 | HOUSING, 24-way fuse block | FLRT |
| 39 | 69200195 | COVER, fuse block | FLRT |
| 40 | 69200199 | COVER, fuse block (10) | FLRT |
| 41 | 69200204 | WEATHER PLUG, 8-way pin | FLRT |
| 42 | 69200212 | HOUSING, 2-way | FLRT |
| 43 | 69200293 | FUSE, 7.5-amp, mini (brown) (2) | FLRT |
| 44 | 69200312 | SECONDARY LOCK, 24-way fuse block (3) | FLRT |
| 45 | 69200336 | MAIN FUSE, 50 amp (red), NOTE: Fuse is sold separately and is not part of main harness | FLRT |
| 46 | 69200406 | WIRE HARNESS, positive cable | FLRT |
| 47 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLRT |
WIRING HARNESS, FAIRING - FLHTCUTG - DOMESTIC, JAPAN (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200121 | WIRING HARNESS, fairing (Domestic, Japan) | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (8) | FLHTCUTG |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHTCUTG |
| 4 | 72169-07 | TERMINAL, pin, 16-20 gauge (19) | FLHTCUTG |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUTG |
| 6 | 72473-07 | SEAL PIN (9) | FLHTCUTG |
| 7 | 72490-07GY | PIN HOUSING, 12-way (gray) | FLHTCUTG |
| 8 | 72610-08 | CABLE SEAL, 18-20 AWG (white) (4) | FLHTCUTG |
| 9 | 72902-01BK | PIN HOUSING, 2-way (black) | FLHTCUTG |
| 10 | 72905-11 | HOUSING, 2-way pin (black) | FLHTCUTG |
| 11 | 72907-11 | HOUSING, 4-way pin (4) | FLHTCUTG |
| 12 | 72909-11 | TERMINAL, pin, 20-22 gauge (17) | FLHTCUTG |
| 13 | 72912-01BK | HOUSING SOCKET, 2-way (black) | FLHTCUTG |
| 14 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTG |
| 15 | 69200109 | CADDY, fairing harness | FLHTCUTG |
| 16 | 69200254 | SOCKET HOUSING, 4-way | FLHTCUTG |
| 17 | 69200256 | LOCK, secondary, 4-way | FLHTCUTG |
WIRING HARNESS, FAIRING - FLHTCUTG - DOMESTIC, JAPAN (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200121 | WIRING HARNESS, fairing (Domestic, Japan) | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, tree mount (4) | FLHTCUTG |
| 2 | 72066-06A | SOCKET HOUSING, 4-way female (black) (2) | FLHTCUTG |
| 3 | 72097-06 | CAVITY PLUG, oval (orange) (2) | FLHTCUTG |
| 4 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTCUTG |
| 5 | 72135-06 | LOCK, secondary, 4-way female (2) | FLHTCUTG |
| 6 | 72189-04 | SEAL PIN (5) | FLHTCUTG |
| 7 | 72264-94 | TERMINAL, socket, 18-20 gauge (2) | FLHTCUTG |
| 8 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 9 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTG |
| 10 | 72486-08 | SEAL WIRE, 20 AWG (green) (6) | FLHTCUTG |
| 11 | 73101-96BK | PIN HOUSING, 2-way, w/ panel mount (black) | FLHTCUTG |
| 12 | 73102-96BK | PIN HOUSING, 2-way (black) | FLHTCUTG |
| 13 | 73152-96BK | SOCKET HOUSING, 2-way (black) | FLHTCUTG |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 15 | 74196-04 | TERMINAL, socket (7) | FLHTCUTG |
| 16 | 74197-04 | SOCKET LOCK, secondary 12-way | FLHTCUTG |
| 17 | 12500002 | CABLE STRAP (2) | FLHTCUTG |
| 18 | 69200271 | SOCKET HOUSING, 2-way (2) | FLHTCUTG |
| 19 | 69200337 | SOCKET HOUSING, 2-way | FLHTCUTG |
WIRING HARNESS, FAIRING - HDI EXCEPT JAPAN (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200265 | WIRING HARNESS, fairing (HDI except Japan) | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (7) | FLHTCUTG |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHTCUTG |
| 4 | 72169-07 | TERMINAL, pin, 16-20 gauge (18) | FLHTCUTG |
| 5 | 72473-07 | SEAL PIN (10) | FLHTCUTG |
| 6 | 72490-07GY | PIN HOUSING, 12-way (gray) | FLHTCUTG |
| 7 | 72902-01BK | PIN HOUSING, 2-way (black) | FLHTCUTG |
| 8 | 72905-11 | HOUSING, 2-way pin (black) (3) | FLHTCUTG |
| 9 | 72907-11 | HOUSING, 4-way pin (black) (4) | FLHTCUTG |
| 10 | 72909-11 | TERMINAL, pin, 20-22 gauge (19) | FLHTCUTG |
| 11 | 72912-01BK | HOUSING SOCKET, 2-way (black) | FLHTCUTG |
| 12 | 6921240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTG |
| 13 | 69200109 | CADDY, fairing harness | FLHTCUTG |
WIRING HARNESS, FAIRING - HDI EXCEPT JAPAN (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200265 | WIRING HARNESS, fairing (HDI except Japan) | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, tree mount (4) | FLHTCUTG |
| 2 | 72066-06A | SOCKET HOUSING, 4-way female (black) (2) | FLHTCUTG |
| 3 | 72097-06 | CAVITY PLUG, oval (orange) (2) | FLHTCUTG |
| 4 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTCUTG |
| 5 | 72135-06 | LOCK, secondary, 4-way female (2) | FLHTCUTG |
| 6 | 72189-04 | SEAL PIN (5) | FLHTCUTG |
| 7 | 72264-94 | TERMINAL, socket, 18-20 gauge (2) | FLHTCUTG |
| 8 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 9 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTG |
| 10 | 72486-08 | SEAL WIRE, 20 AWG (green) (6) | FLHTCUTG |
| 11 | 73101-96BK | PIN HOUSING, 2-way, w/ panel mount (black) | FLHTCUTG |
| 12 | 73102-96BK | PIN HOUSING, 2-way (black) | FLHTCUTG |
| 13 | 73152-96BK | SOCKET HOUSING, 2-way (black) | FLHTCUTG |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 15 | 74196-04 | TERMINAL, socket (7) | FLHTCUTG |
| 16 | 74197-04 | SOCKET LOCK, secondary 12-way | FLHTCUTG |
| 17 | 12500002 | CABLE STRAP (2) | FLHTCUTG |
| 18 | 69200271 | SOCKET HOUSING, 2-way (2) | FLHTCUTG |
| 19 | 69200337 | SOCKET HOUSING, 2-way | FLHTCUTG |
WIRING HARNESS, CONSOLE - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 72062-06 | SOCKET HOUSING, 2-way | FLRT |
| 2 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLRT |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (8) | FLRT |
| 4 | 72189-04 | SEAL PIN (2) | FLRT |
| 5 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLRT |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLRT |
| 7 | 72485-07 | SOCKET HOUSING, 4-way | FLRT |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLRT |
| 9 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLRT |
| 10 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLRT |
| 11 | 72557-07 | SECONDARY LOCK, 4-way socket | FLRT |
| 12 | 72662-11 | TERMINAL, socket, 22 AWG (5) | FLRT |
| 13 | 74196-04 | TERMINAL, socket, 20 AWG (5) | FLRT |
| 14 | 74197-04 | SOCKET LOCK, secondary 12-way | FLRT |
| 15 | 69200740 | HARNESS ASSEMBLY, console | FLRT |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT | ALL |
| 2 | 3634 | SCREW (6) | ALL |
| 3 | 4312C | SCREW (2) | ALL |
| 4 | 7792 | NUT | ALL |
| 5 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 6 | 66010-97C | BATTERY, w/ 4312C | ALL |
| 7 | 66051-08 | STRAP, battery removal | ALL |
| 8 | 66200-09 | BRACKET, battery hold down | ALL |
| 9 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | ALL |
| 10 | 72242-94 | TERMINAL, ring | ALL |
| 11 | 73304-04 | TERMINAL, female, 10 AWG | ALL |
| 12 | 73305-04 | SEAL WIRE, 10 AWG (blue) | ALL |
| 13 | 66000008 | BOOT, battery positive | ALL |
| 14 | 66000010 | BATTERY TRAY | ALL |
| 15 | 69200174 | CADDY, electronic control module (ECM) | ALL |
| 16 | 69200406 | CABLE ASSEMBLY, battery positive to starter, w/ 73304-04, 73305-04 & 66000008 | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | ALL |
| 2 | 4775 | SCREW (2) | ALL |
| 3 | 6019 | WASHER (2) | ALL |
| 4 | 6109 | WASHER | ALL |
| 5 | 7495 | NUT | ALL |
| 6 | 7549A | ACORN NUT | ALL |
| 7 | 8108 | SPEEDNUT (2) | ALL |
| 8 | 16316-08 | BRACKET ASSEMBLY, horn mount | ALL |
| 9 | 69060-90H | HORN ASSEMBLY | ALL |
| 10 | 69062-91A | CLAMP | ALL |
| 11 | 69120-91 | BRACKET, horn | ALL |
| 12 | 69123-92A | MOUNT, horn, rubber | ALL |
| 13 | 61300478 | COVER, horn (chrome) | ALL |
REVERSE MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8313 | SCREW (5) | ALL |
| 2 | 8335 | LOCKWASHER | ALL |
| 3 | 83388-09A | MOTOR, reverse, w/ 83857-09 | ALL |
| 4 | 83389-09A | BRACKET, adapter | ALL |
| 5 | 83857-09 | SOLENOID | ALL |
REVERSE CONTROL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | ALL |
| 2 | 1062 | SCREW | ALL |
| 3 | 4705 | SCREW (2) | ALL |
| 4 | 7358 | NUT (2) | ALL |
| 5 | 7683 | LOCKNUT (4) | ALL |
| 6 | 8339 | SEAL, pin | ALL |
| 7 | 8348 | BOOT, rubber | ALL |
| 8 | 8370 | TERMINAL, male, 18-20 AWG (7) | ALL |
| 9 | 9825 | TERMINAL RING, 14-18 AWG (4) | ALL |
| 10 | 10006 | CABLE STRAP | ALL |
| 11 | 10039 | CABLE STRAP (3) | ALL |
| 12 | 70018-07 | BOOT, solenoid cover | ALL |
| 13 | 70578-89 | BOOT, rubber (3) | ALL |
| 14 | 71474-07 | SOLENOID, starter, reverse control module, w/ 73152-96BK & 73191-96 | ALL |
| 15 | 73152-96BK | SOCKET HOUSING, 2-way, (black) | ALL |
| 16 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | ALL |
| 17 | 83869-09 | CIRCUIT BREAKER, 150A | ALL |
| 18 | 83876-09 | JUMPER, 14 AWG, w/ 9825 | ALL |
| 19 | 83898-09 | JUMPER, reverse motor ground, 6 AWG | ALL |
| 20 | 69200407 | CABLE, starter positive to circuit breaker, w/ 70578-89 | ALL |
| 21 | 69200408 | CABLE, circuit breaker to reverse motor, w/ 8348 & 70578-89 | ALL |
| 22 | 69200409 | CABLE, reverse control solenoid to reverse motor, w/ 9825 & 70578-89 | ALL |
| 23 | 69200411 | CADDY, electric reverse | ALL |
| 24 | 69200421 | MODULE, reverse, w/ 8339, 8370 & 69200462 | ALL |
| 25 | 69200462 | HOUSING, 8-way pin | ALL |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | ALL |
| 2 | 6150W | WASHER (2) | ALL |
| 3 | 9907 | WIRE TERMINAL (2) | ALL |
| 4 | 10065 | CABLE STRAP (2) | ALL |
| 5 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | ALL |
| 6 | 61081-92 | COVER, key head (set of 2) | ALL |
| 7 | 66373-06 | BATTERY, 3V, CR2032 | ALL |
| 8 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (Domestic, HDI) (2) | ALL |
| 69995-11 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) (2) | FLHTCUTG | |
| 9 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 10 | 68958-07C | SIREN ALARM (HDI & Japan) | FLHTCUTG |
| 11 | 69309-10 | BATTERY, siren alarm (HDI & Japan) | FLHTCUTG |
| 12 | 69992-12B | BODY CONTROL MODULE (BCM) w/o security | FLRT |
| 69994-12B | BODY CONTROL MODULE (BCM) w/ security (Domestic, HDI) | ALL | |
| 69996-12B | BODY CONTROL MODULE (BCM) w/ security (Japan) | FLHTCUTG | |
| 13 | 71660-03 | NUT, ignition switch | FLHTCUTG |
| 14 | 72023-51E | KIT, SWITCH, rear brakelite, w/ 9907 | ALL |
| 15 | 72594-11 | DUST CAP, 2-way socket (w/o security) | FLRT |
| 16 | 14100158 | DECAL, ignition switch knob | FLHTCUTG |
| 17 | 32700010 | SENSOR, ambient temperature | FLHTCUTG |
| 18 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 19 | 71400020 | HOUSING, ignition switch, w/ 71660-03 & 71400081 (Domestic) | FLHTCUTG |
| 71400021 | HOUSING, ignition switch, w/ 71660-03 & 71400081 (HDI, Japan) | FLHTCUTG | |
| 20 | 71400022 | LOCKSET, complete, w/ keys, ignition knob, trunk & Tour-Pak locks | FLHTCUTG |
| 21 | 71400017 | KNOB, ignition switch, w/ 14100158 (specify key number) | FLHTCUTG |
| 22 | 71400073 | SPRING, ignition knob | FLHTCUTG |
| 23 | 71400081 | COLLAR, ignition switch, top | FLHTCUTG |
| 24 | 71400098 | LOCKSET, complete w/ keys, ignition switch, key cover, fork lock & trunk lock | FLRT |
| 25 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | ALL |
| NOTE: For additional fuse and relay part number information see wiring harness pages. | |||
SOUND SYSTEM - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 76000243 | EAR PAD, foam (Domestic) (2) | FLHTCUTG |
| 3 | 76000243 | EAR PAD, foam (HDI) (4) | FLHTCUTG |
| 4 | 77117-10 | HEADSET ASSEMBLY, w/ 77126-10, 77148-10 & 76000243 (Domestic) | FLHTCUTG |
| 4 | 77117-10 | HEADSET ASSEMBLY, w/ 77126-10, 77148-10 & 76000243 (HDI, England, Japan) (2) | FLHTCUTG |
| 5 | 77126-10 | WIND SOCK, microphone (Domestic) | FLHTCUTG |
| 5 | 77126-10 | WIND SOCK, microphone (HDI) (2) | FLHTCUTG |
| 6 | 77148-10 | COILED CORD, headset (Domestic) | FLHTCUTG |
| 6 | 77148-10 | COILED CORD, headset (HDI) (2) | FLHTCUTG |
| 7 | 72169-07 | TERMINAL PIN, 16-20 AWG (2) | FLHTCUTG |
| 8 | 72290-94 | TERMINAL, female 1/4 in. (black) (4) | FLHTCUTG |
| 9 | 72294-94 | TERMINAL, female 16-20 gauge (white) (2) | FLHTCUTG |
| 10 | 73213-07 | RETAINER, xmas tree clip (2) | FLHTCUTG |
| 11 | 10200205 | SCREW (8) | FLHTCUTG |
| 12 | 10500017 | SCREW (6) | FLHTCUTG |
| 13 | 12600070 | BOLT (4) | FLHTCUTG |
| 14 | 12600071 | RETAINER, bolt (4) | FLHTCUTG |
| 15 | 12600073 | SCREW, accessory module (2) | FLHTCUTG |
| 16 | 69200391 | CABLE, AM/FM antenna | FLHTCUTG |
| 17 | 69200272 | HOUSING, pin, 2-way (2) | FLHTCUTG |
| 18 | 69200247 | WIRE HARNESS, speaker jumper, w/ 10065, 72169-07, 72290-94, 72294-94, 73213-07 & 69200272 (2) | FLHTCUTG |
| 19 | 76000055 | SPEAKER ADAPTOR & GRILLE (2) | FLHTCUTG |
| 20 | 76000076 | RADIO, premium,w/ navigation,w/ 12600070, 12600071, 12600073 & 76000252 (Domestic,California,Canada)(See NOTE 1) | FLHTCUTG |
| 76000231 | RADIO, premium, w/ navigation, w/ 12600070, 12600071, 12600073 & 76000252 (HDI, England) (See NOTE 2) | FLHTCUTG | |
| 76000232 | RADIO, premium, w/ 12600070, 12600071, 12600073 & 76000252 (Japan) (See NOTE 3) | FLHTCUTG | |
| 21 | 76000096 | SPEAKER, 5-1/4 in. (2) | FLHTCUTG |
| 22 | 76000222 | ANTENNA, GPS (HDI, Canada, England) | FLHTCUTG |
| 23 | 76000252 | PLATE, accessory module | FLHTCUTG |
| 24 | 91700034 | KIT, RADIO TOUCH SCREEN PROTECTOR | FLHTCUTG |
| NOTE 1: 76000076 radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Mexico, Puerto Rico & United States.NOTE 2: 76000231 radio with the European mapset is used in these countries/regions: Albania, Andorra, Austria, Belarus, Belgium, Bosnia, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibralter, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom & Vatican City.NOTE 3: 76000232 radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Bahrain, Bolivia, Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, Hong Kong, India, Indonesia, Jordan, Kenya, Kuwait, Lebanon, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Peru, Qatar, Reunion, Russia, Saudi Arabia, Singapore, South Africa, Thailand, Turkey, United Arab Emirates, Uraguay, Venezuela & the Rest Of the World.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
BODY ASSEMBLY & SIDE COVERS - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLHTCUTG |
| 2 | 3445 | BOLT | FLHTCUTG |
| 3 | 6116 | WASHER (2) | FLHTCUTG |
| 4 | 6645 | WASHER (6) | FLHTCUTG |
| 5 | 6702 | WASHER (3) | FLHTCUTG |
| 6 | 7739 | LOCKNUT (2) | FLHTCUTG |
| 7 | 8369 | BOLT (4) | FLHTCUTG |
| 8 | 10102 | CLIP, small (17) | FLHTCUTG |
| 9 | 10103 | CLIP, large (3) | FLHTCUTG |
| 10 | 11650 | GROMMET, side cover, left / right (6) | FLHTCUTG |
| 11 | 70186-82 | GROUND STRAP | FLHTCUTG |
| 12 | 83563-10 | LABEL, tire warning | FLHTCUTG |
| 13 | 83777-11 | INSERT, fender mount, press-in, 5/16-18 (12) | FLHTCUTG |
| 14 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTG |
| 15 | 83782-11 | INSERT, press-in, 1/4-20 (4) | FLHTCUTG |
| 16 | 83798-11 | INSERT, TOP HAT, spacer (2) | FLHTCUTG |
| 17 | 83811-09 | FOAM TAPE (4) | FLHTCUTG |
| 18 | 83822-09 | STUD | FLHTCUTG |
| 19 | 83991-11 | SEAL, trunk door (cut to fit) | FLHTCUTG |
| 20 | 94435-10 | TOOL KIT (Domestic, Cailfornia, Canada, HDI, England, Japan) | FLHTCUTG |
| 21 | 12300002 | SEALING WASHER, trunk lock | FLHTCUTG |
| 22 | 57200081DH | SIDE COVER ASSEMBLY, right, w/ 83563-10 (vivid black) | FLHTCUTG |
| 57200081DJI | SIDE COVER ASSEMBLY, right, w/ 83563-10 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 57200081DSW | SIDE COVER ASSEMBLY, right, w/ 83563-10 (mysterious red sunglo, 2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 23 | 57200083DH | SIDE COVER ASSEMBLY, left (vivid black) | FLHTCUTG |
| 57200083DJI | SIDE COVER ASSEMBLY, left (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 57200083DSW | SIDE COVER ASSEMBLY, left (mysterious red sunglo, 2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 24 | 83000051DH | MIDSECTION ASSEMBLY, w/ 8, 9, 13, 14, 15, 16, 17, 19 & 21 (vivid black) | FLHTCUTG |
| 83000051DJI | MIDSECTION ASSEMBLY, w/ 8, 9, 13, 14, 15, 16, 17, 19 & 21 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 83000051DSW | MIDSECTION ASSEMBLY, w/ 8, 9, 13, 14, 15, 16, 17, 19 & 21 (mysterious red sunglo, 2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG |
BODY ASSEMBLY & SIDE COVERS - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLRT |
| 2 | 3445 | BOLT (2) | FLRT |
| 3 | 6116 | WASHER (2) | FLRT |
| 4 | 6645 | WASHER (6) | FLRT |
| 5 | 7624 | LOCKNUT | FLRT |
| 6 | 8369 | BOLT (4) | FLRT |
| 7 | 10102 | CLIP, small (7) | FLRT |
| 8 | 10103 | CLIP, large (4) | FLRT |
| 9 | 11650 | GROMMET, side cover, left / right (6) | FLRT |
| 10 | 69490-07 | REFLECTOR (red) (Domestic, California) | FLRT |
| 11 | 83777-11 | INSERT, fender mount, press-in, 5/16-18 (10) | FLRT |
| 12 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLRT |
| 13 | 83798-11 | INSERT, TOP HAT, spacer (2) | FLRT |
| 14 | 83811-09 | FOAM TAPE (4) | FLRT |
| 15 | 94435-10 | TOOL KIT | FLRT |
| 16 | 10200220 | SCREW (3) | FLRT |
| 17 | 10200338 | SCREW (3) | FLRT |
| 18 | 12200102 | RETAINING RING | FLRT |
| 19 | 12300031 | WASHER, sealing | FLRT |
| 20 | 12600105 | SCREW (4) | FLRT |
| 21 | 12600106 | SCREW (4) | FLRT |
| 22 | 14000781 | LABEL, tire warning | FLRT |
| 23 | 14100596 | MEDALLION, body, rear | FLRT |
| 24 | 14100612 | DECAL, handle (2) | FLRT |
| 25 | 25700155 | GASKET, plug | FLRT |
| 26 | 52400092 | HANDLE ASSEMBLY, passenger grab, w/ 14100612 (2) | FLRT |
| 27 | 53000339 | LOCK ASSEMBLY, w/ 12300031, 90300103 & 90300104 (specify key number) | FLRT |
| 28 | 53000340 | COVER, lock | FLRT |
| 29 | 53000356 | CABLE LATCH ASSEMBLY, w/ 7624, 10200220, 12200102, 53000340 & 53000457 | FLRT |
| 30 | 53000391 | COVER, trunk bulkhead | FLRT |
| 31 | 53000457 | COVER, latch | FLRT |
| 32 | 57200083DH | SIDE COVER ASSEMBLY, left (vivid black) | FLRT |
| 57200083DST | SIDE COVER ASSEMBLY, left (amber whiskey) | FLRT | |
| 57200083DWC | SIDE COVER ASSEMBLY, left (superior blue) | FLRT | |
| 33 | 61300315 | COVER, trim (2) | FLRT |
| 34 | 61300331DH | SIDE COVER ASSEMBLY, right, w/ 14000781 (vivid black) | FLRT |
| 61300331DST | SIDE COVER ASSEMBLY, right, w/ 14000781 (amber whiskey) | FLRT | |
| 61300331DWC | SIDE COVER ASSEMBLY, right, w/ 14000781 (superior blue) | FLRT | |
| 35 | 67900198 | REFLECTOR ASSEMBLY, w/ 69490-07 (Domestic, California) | FLRT |
| 36 | 83000080DH | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (vivid black) | FLRT |
| 83000080DST | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (amber whiskey) | FLRT | |
| 83000080DWC | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (superior blue) | FLRT | |
| 37 | 90300103 | NUT | FLRT |
| 38 | 90300104 | WASHER, tabbed | FLRT |
| 39 | 10006 | CABLE STRAP (2) | FLRT |
TRUNK DOOR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (Domestic) (2) | FLHTCUTG |
| 1 | 2482 | SCREW (HDI) (4) | FLHTCUTG |
| 2 | 4365 | SCREW (2) | FLHTCUTG |
| 3 | 4697 | SCREW (6) | FLHTCUTG |
| 4 | 4699 | SCREW (3) | FLHTCUTG |
| 5 | 6703 | WASHER (6) | FLHTCUTG |
| 6 | 7686 | LOCKNUT (6) | FLHTCUTG |
| 7 | 7763W | JAMNUT | FLHTCUTG |
| 8 | 8359 | SCREW, SHOULDER (4) | FLHTCUTG |
| 9 | 10102 | CLIP, adhesive backed (2) | FLHTCUTG |
| 10 | 10968 | O-RING (2) | FLHTCUTG |
| 11 | 52441-95 | BULB (Domestic) (2) | FLHTCUTG |
| 11 | 52441-95 | BULB (HDI) (4) | FLHTCUTG |
| 12 | 59988-72A | REFLECTOR, reflex (red) (Domestic) | FLHTCUTG |
| 13 | 73153-96BK | SOCKET HOUSING, 3-way (black) | FLHTCUTG |
| 14 | 73191-96 | TERMINAL, socket, 16-20 gauge (2) | FLHTCUTG |
| 15 | 83337-09A | HINGE, left trunk door | FLHTCUTG |
| 16 | 83339-09A | HINGE, right trunk door | FLHTCUTG |
| 17 | 83344-11 | LANYARD ASSEMBLY (2) | FLHTCUTG |
| 18 | 83395-09A | BRACKET, license plate, top (Domestic) | FLHTCUTG |
| 19 | 83396-09A | BRACKET, license plate, bottom (Domestic) | FLHTCUTG |
| 20 | 83398-09 | COVER, light, license plate (Domestic) | FLHTCUTG |
| 21 | 83418-09 | INSERT, square (2) | FLHTCUTG |
| 22 | 83419-09 | RUBBER BUMPER (Domestic) | FLHTCUTG |
| 23 | 83420-09 | CONTACT PAD, rubber (Domestic) | FLHTCUTG |
| 24 | 83434-11 | COVER, trunk door, w/ 83446-09 | FLHTCUTG |
| 25 | 83446-09 | WARNING LABEL, trunk door | FLHTCUTG |
| 26 | 83538-11 | LATCH PIN ASSEMBLY, w/ 7763W & 83781-11 | FLHTCUTG |
| 27 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTG |
| 28 | 83781-11 | LATCH PIN | FLHTCUTG |
| 29 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (3) | FLHTCUTG |
| 30 | 83799-10 | LIGHT ASSEMBLY, w/ lens, 52441-95 & 73191-96 (Domestic) | FLHTCUTG |
| 31 | 10200004 | SCREW (7) | FLHTCUTG |
| 32 | 14100157 | NAMEPLATE, rear body (Domestic) | FLHTCUTG |
| 33 | 67900009 | BUMPER, license plate bracket (HDI) (2) | FLHTCUTG |
| 34 | 67900064 | BRACKET, w/ 83420-09 (HDI) | FLHTCUTG |
| 35 | 67900074 | LIGHT ASSEMBLY, license plate, w/ 2482, 67900075 & 67900111 (HDI) | FLHTCUTG |
| 36 | 67900075 | COVER, license plate light (HDI) | FLHTCUTG |
| 37 | 67900101 | BRACKET, large license plate, w/ 67900009 (HDI) | FLHTCUTG |
| 38 | 67900111 | LIGHT, license plate, w/ 52441-95 & 73191-96 (HDI) | FLHTCUTG |
| 39 | 83000042DH | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (vivid black) | FLHTCUTG |
| 83000042DJI | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 83000042DSW | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (mysterious red sunglo, 2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG |
TRUNK DOOR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 7601 | LOCKNUT | FLRT |
| 2 | 83446-09 | WARNING LABEL, trunk door | FLRT |
| 3 | 99461-89 | COVER, owner manual (Domestic, California, Canada, HDI, England, Japan) | FLHTCUTG |
| 4 | 10200061 | SCREW (4) | FLRT |
| 5 | 10200154 | SCREW (2) | FLRT |
| 6 | 10200375 | SCREW (2) | FLRT |
| 7 | 12600106 | SCREW (15) | FLRT |
| 8 | 53000333 | HINGE ASSEMBLY, trunk, w/ 10200061, 53000334 & 53000335 | FLRT |
| 9 | 53000334 | COVER, trunk hinge, front | FLRT |
| 10 | 53000335 | COVER, trunk hinge, rear | FLRT |
| 11 | 53000336 | TETHER, retractable | FLRT |
| 12 | 53000337 | STRIKER, latch | FLRT |
| 13 | 53000355 | SEAL, trunk door | FLRT |
| 14 | 53000369 | STRIKER ASSEMBLY, latch, w/ 7601 & 53000337 | FLRT |
| 15 | 83000062DH | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (vivid black) | FLRT |
| 83000062DST | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (amber whiskey) | FLRT | |
| 83000062DWC | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (superior blue) | FLRT |
LATCH ASSEMBLY, TRUNK DOOR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4239 | SCREW (2) | FLHTCUTG |
| 2 | 8364 | NUT (2) | FLHTCUTG |
| 3 | 8365 | SCREW (3) | FLHTCUTG |
| 4 | 8366 | SCREW (2) | FLHTCUTG |
| 5 | 8367 | O-RING | FLHTCUTG |
| 6 | 10927 | O-RING | FLHTCUTG |
| 7 | 53868-06 | U-CLIP, lock | FLHTCUTG |
| 8 | 83296-11 | LATCH COVER | FLHTCUTG |
| 9 | 83346-11A | LATCH HOUSING ASSEMBLY, trunk door, w/ 2, 3, 4, 8, 10 & 14 | FLHTCUTG |
| 10 | 83352-11A | LOCK MECHANISM | FLHTCUTG |
| 11 | 83987-09 | LOCK BEZEL, w/ 10927 | FLHTCUTG |
| 12 | 10200004 | SCREW (4) | FLHTCUTG |
| 13 | 12300002 | WASHER, sealing | FLHTCUTG |
| 14 | 53000077 | LATCH LEVER KIT | FLHTCUTG |
| 15 | 90300051 | LOCKSET, trunk, w/ 53868-06 (specify key number) | FLHTCUTG |
TRUNK LINER - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 83457-11 | TRUNK LINER, vertical side | FLHTCUTG |
| 2 | 83458-11 | TRUNK LINER, bottom | FLHTCUTG |
TRUNK LINER - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000360 | TRUNK LINER, wrap | FLRT |
| 2 | 53000361 | TRUNK LINER, bottom | FLRT |
| 3 | 53000362 | TRUNK LINER, vertical | FLRT |
TOUR-PAK (BOTTOM) - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW (2) | FLHTCUTG |
| 2 | 2968 | SCREW (4) | FLHTCUTG |
| 3 | 3910 | SCREW (6) | FLHTCUTG |
| 4 | 6703 | WASHER (6) | FLHTCUTG |
| 5 | 7586 | JAMNUT | FLHTCUTG |
| 6 | 7716 | LOCKNUT (10) | FLHTCUTG |
| 7 | 53598-88A | LINER, removable | FLHTCUTG |
| 8 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (HDI, Japan) | FLHTCUTG |
| 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (HDI, Japan) | FLHTCUTG | |
| 9 | 53788-06 | LIGHT, right-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73191-96 (Domestic) | FLHTCUTG |
| 53789-06 | LIGHT, left-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73191-96 (Domestic) | FLHTCUTG | |
| 10 | 57978-00 | GROMMET (2) | FLHTCUTG |
| 11 | 61081-92 | COVER, key-head (set of 2) | FLHTCUTG |
| 12 | 73152-96BK | SOCKET HOUSING, 2-place (Domestic) (2) | FLHTCUTG |
| 13 | 73191-96 | TERMINAL, socket, 16-20 gauge (Domestic) (4) | FLHTCUTG |
| 14 | 90844-80 | ACORN NUT (2) | FLHTCUTG |
| 15 | 99461-89 | COVER, owner manual (Domestic, California, Canada, HDI, England, Japan) | FLHTCUTG |
| 16 | 10200061 | SCREW (12) | FLHTCUTG |
| 17 | 10200062 | SCREW (2) | FLHTCUTG |
| 18 | 53000091 | PLATE, Tour-Pak reinforcing | FLHTCUTG |
| 19 | 53000123 | LINER, molded, w/ pouch | FLHTCUTG |
| 20 | 53000132 | GROMMET | FLHTCUTG |
| 21 | 53000138 | HASP ASSEMBLY, bottom | FLHTCUTG |
| 22 | 53000139 | HINGE ASSEMBLY, rear | FLHTCUTG |
| 23 | 53000140 | HINGE ASSEMBLY, front | FLHTCUTG |
| 24 | 53000308 | COVER, TOUR-PAK wiring | FLHTCUTG |
| 25 | 53000346 | BOTTOM, Tour-Pak (unpainted) | FLHTCUTG |
| 53000085BHY | BOTTOM, Tour-Pak (vivid black) | FLHTCUTG | |
| 53000085DSX | BOTTOM, Tour-Pak (mysterious red sunglo) | FLHTCUTG | |
| 53000085DTI | BOTTOM, Tour-Pak (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 53000085DWW | BOTTOM, Tour-Pak (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 26 | 76000172 | MOUNTING BRACKET, speaker, left | FLHTCUTG |
| 27 | 76000173 | MOUNTING BRACKET, speaker, right | FLHTCUTG |
| 28 | 76000174 | GASKET, speaker pod (2) | FLHTCUTG |
| 29 | 90300030 | LOCK, w/ 7586 (specify key number) | FLHTCUTG |
| 30 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key number) | FLHTCUTG |
| 31 | 93300035 | MOUNTING BRACKET, Tour-Pak | FLHTCUTG |
TOUR-PAK (COVER) - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 90821-74C | LABEL, TOUR-PAK, load limit | FLHTCUTG |
| 2 | 10200061 | SCREW (4) | FLHTCUTG |
| 3 | 10200062 | SCREW (8) | FLHTCUTG |
| 4 | 10200154 | SCREW (5) | FLHTCUTG |
| 5 | 53000090 | GASKET, cover | FLHTCUTG |
| 6 | 53000137 | HASP, Tour-Pak lid | FLHTCUTG |
| 7 | 53000139 | HINGE ASSEMBLY, rear | FLHTCUTG |
| 8 | 53000140 | HINGE ASSEMBLY, front | FLHTCUTG |
| 9 | 53000141 | TETHER, retractable | FLHTCUTG |
| 10 | 53000347 | COVER, Tour-Pak (unpainted) | FLHTCUTG |
| 53000371BHY | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (vivid black) | FLHTCUTG | |
| 53000371DSX | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (mysterious red sunglo) | FLHTCUTG | |
| 53000371DTI | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 53000371DWW | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (2) | FLHTCUTG |
| 2 | 5210 | WELL NUT (8) | FLHTCUTG |
| 3 | 5211 | CRIMP NUT (6) | FLHTCUTG |
| 4 | 6113 | WASHER | FLHTCUTG |
| 5 | 6220W | WASHER | FLHTCUTG |
| 6 | 7492 | NUT, w/ lockwasher | FLHTCUTG |
| 7 | 10006 | CABLE STRAP | FLHTCUTG |
| 8 | 10065 | CABLE STRAP (3) | FLHTCUTG |
| 9 | 72166-07BK | SOCKET HOUSING, 16-way socket (black) | FLHTCUTG |
| 10 | 72168-07 | SOCKET TERMINAL, 18-20 AWG (13) | FLHTCUTG |
| 11 | 72169-07 | TERMINAL PIN, 16-20 AWG (6) | FLHTCUTG |
| 12 | 72188-07BK | PIN HOUSING, 6-way (black) | FLHTCUTG |
| 13 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (5) | FLHTCUTG |
| 14 | 72290-94 | TERMINAL, female 1/4 in. (3) | FLHTCUTG |
| 15 | 72294-94 | TERMINAL, female 16-20 gauge (2) | FLHTCUTG |
| 16 | 72473-07 | SEAL PIN (3) | FLHTCUTG |
| 17 | 72610-08 | SEAL, 18-20 awg (white) (5) | FLHTCUTG |
| 18 | 73102-96BK | PIN HOUSING, 2-place (2) | FLHTCUTG |
| 19 | 73152-96WE | SOCKET HOUSING, 2-place (white) | FLHTCUTG |
| 20 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 21 | 73191-96 | TERMINAL, socket, 16-20 gauge (2) | FLHTCUTG |
| 22 | 73213-07 | RETAINER, xmas tree clip | FLHTCUTG |
| 23 | 76353-00 | NUT | FLHTCUTG |
| 24 | 76503-08 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTG |
| 25 | 10200105 | SCREW (8) | FLHTCUTG |
| 26 | 10200133 | SCREW (8) | FLHTCUTG |
| 27 | 12100017 | GROMMET, speaker, right | FLHTCUTG |
| 28 | 12100018 | GROMMET, speaker, left | FLHTCUTG |
| 29 | 12100023 | PLUG | FLHTCUTG |
| 30 | 67800093 | LAMP, Tour-Pak, w/ 76000164, 76000165, 76000186 & 76000208 (Domestic) | FLHTCUTG |
| 67800432 | LAMP, Tour-Pak, w/ 76000164, 76000165, 76000186 & 76000208 (HDI, Japan) | FLHTCUTG | |
| 31 | 69200131 | WIRING HARNESS, Tour-Pak, w/ 10065, 72169-07, 72188-07BK, 72213-94, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-96, 69200210, 69200211, 69200225 & 69200226 | FLHTCUTG |
| 32 | 69200135 | WIRING HARNESS, AM/FM ground jumper, w/ 72290-94 | FLHTCUTG |
| 33 | 69200138 | WIRING HARNESS, speaker, left, w/ 10065, 72168-07, 72290-94 & 72294-94 | FLHTCUTG |
| 34 | 69200139 | WIRING HARNESS, speaker, right, w/ 10065, 72168-07, 72290-94, 72294-94 & 71400005 | FLHTCUTG |
| 35 | 69200210 | CABLE EXTENSION, AM/FM antenna | FLHTCUTG |
| 36 | 69200211 | CABLE EXTENSION, CB antenna | FLHTCUTG |
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 37 | 69200225 | SOCKET CONNECTOR, 5-way (black) | FLHTCUTG |
| 38 | 69200226 | SECONDARY LOCK, 5-way (black) | FLHTCUTG |
| 39 | 69200237 | WEATHER CAP ASSEMBLY | FLHTCUTG |
| 40 | 71400005 | SWITCH ASSEMBLY, rear speaker, w/ 71400006 & 71400007 | FLHTCUTG |
| 41 | 71400006 | KNOB, ptt vol-/vol+ rear control switch | FLHTCUTG |
| 42 | 71400007 | KNOB, mode select up/down rear control switch | FLHTCUTG |
| 43 | 76000092 | GRILLE, rear speaker (2) | FLHTCUTG |
| 44 | 76000096 | SPEAKER, 5.25 inch (2) | FLHTCUTG |
| 45 | 76000160 | SPEAKER BOX ENCLOSURE, right rear | FLHTCUTG |
| 46 | 76000161 | SPEAKER BOX ENCLOSURE, left rear | FLHTCUTG |
| 47 | 76000164 | STUD, antenna, female | FLHTCUTG |
| 48 | 76000165 | SET SCREW, antenna, M5 X 43mm | FLHTCUTG |
| 49 | 76000177 | BEZEL, speaker switch | FLHTCUTG |
| 50 | 76000186 | STUD, antenna | FLHTCUTG |
| 51 | 76000208 | PLUG ASSEMBLY, antenna | FLHTCUTG |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | ENGINE GUARD LABEL | FLHTCUTG |
| 2 | 14272-06 | SHIFT PATTERN LABEL (Japan) | FLHTCUTG |
| 3 | 15368-01A | BATTERY DISCONNECT LABEL | ALL |
| 4 | 83446-09 | LABEL, trunk, load limit | ALL |
| 5 | 83563-10 | LABEL, tire warning | FLHTCUTG |
| 6 | 83890-09A | MIRROR WARNING LABEL | ALL |
| 7 | 90821-74C | LABEL, Tour Pak, load limit | FLHTCUTG |
| 8 | 14000396 | AIR CLEANER WARNING LABEL (Domestic, California) (chrome) | ALL |
| 9 | 14000781 | LABEL, tire warning | FLRT |
| 10 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTG |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 53598-88A | LINER, Tour-Pak, removable | FLHTCUTG |
| 58002-09 | MID-FRAME AIR DEFLECTOR KIT | ALL | |
| 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (Domestic, HDI) (2) | ALL | |
| 69995-11 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) (2) | FLHTCUTG | |
| 76503-08 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTG | |
| 77117-10 | HEADSET ASSEMBLY (Domestic) | FLHTCUTG | |
| 77117-10 | HEADSET ASSEMBLY (HDI, England, Japan) (2) | FLHTCUTG | |
| 83390-15 | OWNER'S MANUAL (Domestic, Australia, England) | ALL | |
| 83913-14 | PRODUCT ORIENTATION VIDEO | ALL | |
| 88002-15D | OWNER'S KIT CONTENT (Domestic) | ALL | |
| 94435-10 | TOOL KIT (Domestic, Cailfornia, Canada, HDI, England, Japan) | ALL | |
| 99461-89 | COVER, owner manual (Domestic, California, Canada, HDI, England, Japan) | ALL | |
| 99517-15EN | BOOM! OWNER'S MANUAL KIT, English (Domestic, Australia, England) | FLHTCUTG | |
| 52300053 | BACKREST ASSEMBLY, passenger (black) | FLHTCUTG | |
| 57200083DH | SIDE COVER ASSEMBLY, left (vivid black) | FLHTCUTG | |
| 57200083DJI | SIDE COVER ASSEMBLY, left (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 57200083DSW | SIDE COVER ASSEMBLY, left (mysterious red sunglo, 2 tone mysterious red sunglo/blackened cayenne sunglo) | FLHTCUTG | |
| 57200083DH | SIDE COVER ASSEMBLY, left (vivid black) | FLRT | |
| 57200083DST | SIDE COVER ASSEMBLY, left (amber whiskey) | FLRT | |
| 57200083DWC | SIDE COVER ASSEMBLY, left (superior blue) | FLRT | |
| 57400001 | WINDSHIELD (clear) (Domestic) | FLHTCUTG | |
| 57400002 | WINDSHIELD (clear) (HDI, England, Japan) | FLHTCUTG | |
| 67900101 | BRACKET, large license plate (HDI) | FLHTCUTG | |
| 69200336 | MAIN FUSE, 50 amp (red) | ALL | |
| 90300043 | KEY (set of 2) (specify key number) | ALL |
| Part No. | Description |
| 10200004 | SCREW 1/4-20 X 1/2 TORX SEMS socket button head |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200052 | SCREW 1/4-20 X 39/64 TORX SEMS socket button head , with lockpatch |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200061 | SCREW No. 8-32 X 1/2 TORX SEMS pan head (zinc) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200105 | SCREW No. 6-32 X 3/4 TORX pan head (black zinc) |
| 10200112 | SCREW 1/4-20 X 2 TORX button head SEMS (Grade 5) (black) |
| 10200133 | SCREW No. 8-16 X 9/16 TORX pan head (zinc) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200154 | SCREW No. 8 X 3/4 TORX SEMS pan head (stainless) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200338 | SCREW 1/4-20 X 1 flat head hex drive, full thread (Grade 8) (zinc) |
| 10200375 | SCREW 1/4-20 X 1 hex socket, SEMS/Lock |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500017 | SCREW No. 10 X 3/8 pan head, TORX, plastite, hardened (zinc) |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch(Grade 5) |
| 12600049 | SCREW No. 10-24 X 3/4 pan head torx, with lockpatch (Grade 8) (zinc) |
| 12600105 | SCREW 1/4-20 X 1 TORX button head, with washer & lock patch (Grade 8) (zinc) |
| 12600106 | SCREW 1/4-20 X 1/2 SEMS socket head, with lockpatch (Grade 5) (zinc) |
| 1332 | SCREW No. 5/16 X 2-1/4 socket button head with lock patch (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3647 | SCREW 5/16-18 X 5/8 socket head, with lockpatch (zinc plate) (Grade 8) |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3910 | SCREW 1/2-20 X 2-1/4 hex head full thread (Grade 5) (zinc) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3993 | BOLT 1/4-20 X 1-1/4 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4134 | SCREW No. 10-24 X 3/8 TORX pan head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4239 | SCREW No. 10-24 X 1, socket flat countersink head (stainless) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 4365 | SCREW 1/4-20 X 1/2 socket button head (Grade 8) |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4411 | BOLT 3/8-24 X 1-3/4 hex head (Grade 5) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4549 | SCREW 5/16-18 X 1-3/4 TORX button head (Grade 5) |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4622 | SCREW 1/2-13 X 2-1/4 hex flange with lockpatch |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4678 | SCREW 1/2-13 X 1-3/4 hex flange |
| 4685 | SCREW 3/8-16 X 1 hex flange |
| 4686 | SCREW 3/8-16 X 4 hex |
| 4687 | SCREW 3/8-16 X 1 hex socket, SEMS |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4696 | SCREW machine, pan lock |
| 4697 | SCREW machine, flat / lock |
| 4699 | SCREW button, TORX / lock |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4795 | SCREW hex / lock |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4930 | SCREW No. 10-24 X 3/4 hex head (zinc plate) (Grade 2) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6026 | WASHER 3/8 X 7/8 X 7/64 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6408HB | WASHER 25/64 X 1.0 X 7/64 |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6645 | WASHER 11/32 X 1-1/32 X 1/8 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7069 | LOCKWASHER No. 10 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7331 | ACORN NUT 5/16-24 |
| 7358 | NUT M6 X 1 flange |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 76259-86 | NUT 1/2-20 hex jam |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7739 | LOCKNUT 5/16-18 X 11/32 X 1/2 |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7763W | JAMNUT 5/16-18 X 3/16 X 1/2 |
| 7768W | LOCKNUT 1/2-13 X 19/32 X 3/4 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7823 | NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8308 | SCREW hex, SEMS / lock |
| 8313 | SCREW hex, SEMS / lock |
| 8314 | SCREW hex flange |
| 8319 | SCREW hex flange / lock |
| 83312-09 | NUT bearing retainer |
| 83323-09 | BOLT bearing cap |
| 8335 | LOCKWASHER ext. tooth |
| 8359 | SCREW, SHOULDER 1/4-20, stainless steel |
| 8360 | SCREW 5/16-18 X 7/8 TORX button head SEMS, with lockpatch |
| 8364 | NUT No. 6-32, with tooth washer (stainless) |
| 8365 | SCREW No. 6-32 X 1/4, socket head, with lockpatch (stainless) |
| 8366 | SCREW No. 6-32 X 1/2, socket flat countersink head (stainless) |
| 8369 | BOLT 5/16-18 X 1-1/2 hex head, with lockpatch (Grade 5) |
| 8405 | JAMNUT .750-16UNF-2B |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90300103 | NUT 1-12 UNF flat (zinc) (chrome) |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-15 | ENGINE ASSEMBLY, complete | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | FLRT |
| 15 | 18020-83 | INSERT, intake valve seat (2) | FLRT |
| 22 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 8 | 26700001A | THERMOSTAT | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 21 | 26700001A | THERMOSTAT | FLHTCUTG |
| 24 | 26800007A | FAN ASSEMBLY, left, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTCUTG |
| 25 | 26800019A | FAN ASSEMBLY, right, w/ 72213-94, 72606-08, 72609-08 & 72610-08 | FLHTCUTG |
| 26 | 26800020A | FILL NECK, coolant | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 8 | 10198 | CLAMP (2) | FLRT |
| 9 | 10354 | CLAMP (2) | FLRT |
| 12 | 11692 | GROMMET, oil cooler cover (2) | FLRT |
| 22 | 26041-05A | ADAPTER | FLRT |
| 24 | 62533-11 | COVER, oil-cooler | FLRT |
| 25 | 62629-11 | HOSE, oil cooler, right | FLRT |
| 26 | 62641-11 | HOSE, oil cooler, left | FLRT |
| 28 | 63083-11A | OIL COOLER CORE, w/ mounting bracket | FLRT |
| 29 | 63533-41A | FITTING (2) | FLRT |
| 32 | 11900010 | O-RING (2) | FLRT |
| 33 | 11900039 | O-RING | FLRT |
| 34 | 62800013 | PLUG ASSEMBLY, w/ 11900010 (2) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 9 | 32319-07A | SENSOR, temperature manifold absolute pressure, w/ O-ring | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 32362-04A | SPARK PLUG, 6R12 (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 32319-07A | SENSOR, temperature manifold absolute pressure (TMAP), w/ O-ring | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 36706-01K | BOLT (3) | ALL |
| 19 | 37000217 | RELEASE ROD, clutch | ALL |
| 20 | 37000218 | PUSHROD, clutch release | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 36500034A | COMPENSATOR ASSEMBLY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 4134 | SCREW (2) | FLRT |
| 5 | 10031 | CLAMP (2) | FLRT |
| 14 | 46423-05C | MASTER CYLINDER COVER KIT, w/ 2590, baffle plate & gasket | ALL |
| 17 | 36700024B | MASTER CYLINDER ASSEMBLY, clutch, w/ 2579A, 45032-82, 46244-01, 46456-05C & 36700037 (black) | ALL |
| 37200084 | LINE ASSEMBLY, hydraulic clutch, w/ 12100028 | FLRT | |
| 20 | 37200096 | REPAIR KIT, master cylinder, w/ 11143 & 41731-01 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 45072-96D | REPAIR KIT, master cylinder (11/16 in. bore) | ALL |
| 9 | 45170-08D | MASTER CYLINDER, 11/16 in. bore | ALL |
| 11 | 46423-05C | MASTER CYLINDER COVER KIT, w/ 2590, baffle plate & gasket | ALL |
| Index No. | Part No. | Description | Model(s) |
| 41800343 | BRAKE LINE, front | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 16 | 40918-87 | RETAINING RING | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 3 | 2590 | SCREW, kit, w/ 2 screws | FLRT |
| 15 | 10289A | CLIP, brake line (2) | FLRT |
| 18 | 40918-87 | RETAINING RING | FLRT |
| 36 | 41700265 | RESERVOIR, brake master cylinder | FLRT |
| 37 | 41700266 | HOSE, brake master cylinder reservoir | FLRT |
| 38 | 41700267 | GASKET, reservoir | FLRT |
| 39 | 41700268 | CAP, reservoir | FLRT |
| 40 | 41800344 | BRAKE LINE, right-rear, master cylinder to rear caliper, w/ 10065, 10076, 10800028 & 41600091 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 28 | 83000024A | EQUALIZER ASSEMBLY, parking brake, w/ 11012, 83000025, 83000026, 83000027A, 83000028A & 83000068 | ALL |
| 31 | 83000027A | CABLE ASSEMBLY, parking brake, left rear | ALL |
| 32 | 83000028A | CABLE ASSEMBLY, parking brake, right rear | ALL |
| Index No. | Part No. | Description | Model(s) |
| 15 | 95594-84A | WEIGHT, 5 grams, cast wheels (black) (6) | FLRT |
| 95595-84B | WEIGHT, 5 grams, cast wheels (silver) (6) | FLHTCUTG | |
| 17 | 43100013 | TIRE, 19 in. | FLRT |
| 18 | 43300283 | WHEEL, Enforcer cast aluminum, 19 in., 5 spoke, w/o bearings & sleeve (black) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 10 | 95594-84A | WEIGHT, 5 grams, cast wheels (black) (12) | FLRT |
| 95595-84B | WEIGHT, 5 grams, cast wheels (silver) (12) | FLHTCUTG | |
| 11 | 40900292 | WHEEL, rear, 5 spoke, Enforcer cast aluminum, 15 inch (black) (2) | FLRT |
| 12 | 42500007 | HUB CAP ASSEMBLY, rear wheel (2) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3647 | SCREW (2) | FLRT |
| 3 | 4134 | SCREW | FLRT |
| 7 | 10031 | CLAMP | FLRT |
| 8 | 83441-10A | BRACKET, steering damper | FLRT |
| 11 | 45700021 | BRACKET, mount, frame | FLRT |
| 12 | 50000066 | BRACKET, damper mount | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 7 | 45700020A | STEM ASSEMBLY, upper steering, w/ bearing cone & dirt guard | ALL |
| 9 | 45900080 | BRACKET, upper fork stem | FLRT |
| 10 | 45900092A | BRACKET ASSEMBLY, lower fork, w/ bearing cone & dirt guard | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 25 | 91700025A | FORK REBUILD KIT, w/ 1, 2, 5, 6, 7, 8, 10, 13 & 18 (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 10040 | CLIP, xmas tree | FLRT |
| 12 | 10289A | CLIP, brake line (2) | FLRT |
| 19 | 83441-10A | BRACKET, steering damper | FLRT |
| 25 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTG |
| 27 | 45700021 | BRACKET, mount, frame | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 14 | 32495-98A | SWITCH, bank angle | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 47200096 | BAR | ALL |
| 13 | 6109 | WASHER (2) | ALL |
| 14 | 8343 | SCREW (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 52000157 | SEAT | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 16 | 12200092 | CLIP, retaining (6) | FLHTCUTG |
| 58900077DSX | FENDER (mysterious red sunglo) | FLHTCUTG | |
| 58900077DWW | FENDER (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 18 | 58900082 | FENDER (primed) | FLRT |
| 58900081DH | FENDER (vivid black) | FLRT | |
| 58900081DST | FENDER (amber whiskey) | FLRT | |
| 58900081DWC | FENDER (superior blue) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 9 | 67900205 | REFLECTOR (red) (Domestic) (2) | FLHTCUTG |
| 67900212 | REFLECTOR (amber) (HDI) (2) | FLHTCUTG | |
| 10 | 67900205 | REFLECTOR (red) (HDI) (2) | FLHTCUTG |
| 11 | 83000054BHY | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (vivid black) | FLHTCUTG |
| 83000054DSX | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (mysterious red sunglo) | FLHTCUTG | |
| 83000054DWW | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 6 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 83000056DSX | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (mysterious red sunglo) | FLHTCUTG | |
| 83000056DWW | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 6 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 4 | 12600106 | SCREW (8) | FLRT |
| 5 | 59500176DH | FENDER ASSEMBLY, right, rear, w/ 4 (vivid black) | FLRT |
| 59500176DST | FENDER ASSEMBLY, right, rear, w/ 4 (amber whiskey) | FLRT | |
| 59500176DWC | FENDER ASSEMBLY, right, rear, w/ 4 (superior blue) | FLRT | |
| 6 | 59500178DH | FENDER ASSEMBLY, left, rear, w/ 4 (vivid black) | FLRT |
| 59500178DST | FENDER ASSEMBLY, left, rear, w/ 4 (amber whiskey) | FLRT | |
| 59500178DWC | FENDER ASSEMBLY, left, rear, w/ 4 (superior blue) | FLRT | |
| 7 | 67800332 | BRACKET, tail lamp | FLRT |
| 8 | 67900187 | BRACKET, tail lamp & license plate | FLRT |
| 9 | 67900205 | REFLECTOR (red) (2) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 4 | 27291-09A | TUBE, evaporative line, tank | FLHTCUTG |
| 5 | 27440-09A | TUBE, evaporative line (except California & Asia-Pacific) | FLHTCUTG |
| 61000016DSX | FUEL TANK, w/ 14100073 & 14100074 (mysterious red sunglo) | FLHTCUTG | |
| 61000016DWW | FUEL TANK, w/ 14100073 & 14100074 (2 tone white hot pearl /blue hot pearl) | FLHTCUTG | |
| 8 | 62228-08B | CHECK VALVE, assembly, w/ 10396 & 11323 | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 4 | 27291-09A | TUBE, evaporative line, tank | FLRT |
| 5 | 27440-09A | TUBE, evaporative line (except California) | FLRT |
| 61000129DH | FUEL TANK, w/ 14100702 & 14100703 (vivid black) | FLRT | |
| 61000129DST | FUEL TANK, w/ 14100702 & 14100703 (amber whiskey) | FLRT | |
| 61000129DWC | FUEL TANK, w/ 14100702 & 14100703 (superior blue) | FLRT | |
| 10 | 62228-08B | CHECK VALVE, assembly, w/ 10396 & 11323 | FLRT |
| 13 | 14100702 | MEDALLION, left (for vivid black, amber whiskey, superior blue tanks) | FLRT |
| 14100703 | MEDALLION, right (for vivid black, amber whiskey, superior blue tanks) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 16 | 68893-00A | INDICATOR BEZEL | FLRT |
| 22 | 14100595 | INSERT, console | FLRT |
| 23 | 69200740 | WIRE HARNESS, console | FLRT |
| 24 | 70900298A | INSTRUMENT PANEL (chrome) | FLRT |
| 25 | 70900379 | SPEEDOMETER, mph (Domestic, California) | FLRT |
| 70900421 | SPEEDOMETER, kph (Canada) | FLRT | |
| 26 | 71400098 | LOCKSET, complete w/ keys, ignition switch, key cover, fork lock & trunk lock | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 11 | 70900121A | INSTRUMENT CLUSTER, mph, w/ 12100020 & 12400034 (Domestic, California) (black) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 2 | 27291-09A | EVAP LINE, tank | ALL |
| 3 | 27297-09A | EVAP LINE, canister | ALL |
| 4 | 27298-09A | EVAP LINE, purge to canister | ALL |
| 5 | 27439-09A | TUBE, solenoid to induction module | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3061 | SCREW (2) | FLRT |
| 6 | 4134 | SCREW | FLRT |
| 7 | 4350A | SCREW | FLRT |
| 17 | 10031 | CLAMP | FLRT |
| 19 | 67621-94 | BUSHING (4) | FLRT |
| 25 | 68342-05A | LENS ASSEMBLY, 7 in., w/ 67668-05, 68329-03 & 68390-05 | FLRT |
| 28 | 71455-11 | HOLE PLUG (black) (2) | FLRT |
| 32 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 33 | 61300233 | COVER, nacelle, rear, right (chrome) | FLRT |
| 34 | 61300234 | COVER, nacelle, rear, left (chrome) | FLRT |
| 35 | 61300235 | COVER, nacelle, side, right (chrome) | FLRT |
| 36 | 61300236 | COVER, nacelle, side, left (chrome) | FLRT |
| 37 | 61300251 | FRONT COVER ASSEMBLY, nacelle, w/ 61400209 (chrome) | FLRT |
| 38 | 61300260 | TOP COVER, nacelle (chrome) | FLRT |
| 39 | 61300278 | RISER COVER, nacelle (chrome) | FLRT |
| 40 | 61400209 | NAMEPLATE, cover, nacelle | FLRT |
| 41 | 61400213 | TRIM INSERT ASSEMBLY, nacelle | FLRT |
| 42 | 67700184 | SHELL ASSEMBLY, 7.0 in., w/ 9847, 9848, 72056-92, 73154-96BK & 73191-96 | FLRT |
| 43 | 67700187 | MOUNTING BLOCK | FLRT |
| 44 | 71400098 | LOCKSET, complete, w/ keys, ignition switch, fork lock & trunk lock | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4549 | SCREW (2) | FLRT |
| 2 | 6771A | WASHER (2) | FLRT |
| 7 | 69438-06 | STANDOFF, directional (2) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 57000379DSX | FAIRING KIT, outer, w/ 57000377 (mysterious red sunglo) | FLHTCUTG | |
| 57000379DWW | FAIRING KIT, outer, w/ 57000377 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 2 | 6235 | WASHER (2) | FLHTCUTG |
| 57100242DJI | CAP, fairing, lower, left (white hot pearl) | FLHTCUTG | |
| 57100168DJI | FAIRING, lower, left, w/ 57100170 (white hot pearl) | FLHTCUTG | |
| 57100243DJI | CAP, fairing, lower, right (white hot pearl) | FLHTCUTG | |
| 57100169DJI | FAIRING, lower, right, w/ 57100171 (white hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 9 | 71500053 | KEY CAP, left turn signal | FLRT |
| 16 | 71500236 | SWITCH PACK, left hand control, w/ 71500044, 71500048, 71500053 & 71500144 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 13 | 71500057 | KEY CAP, right turn signal | FLRT |
| 16 | 71500127A | SWITCH PACK, right hand control, w/ 71500049, 71500050 & 71500057 | FLRT |
| 17 | 71500129A | SWITCH PACK, right hand control, w/ 71500046, 71500049, 71500050 & 71500063 | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 15 | 55800247 | HANDLEBAR | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 2 | 68140-04 | TAIL LAMP ENVELOPE ASSEMBLY, left, w/ 68369-03 & 68370-03A | FLRT |
| 68369-03 | LENS, tail lamp, left, w/ 68026-99 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 15 | 69200140 | HARNESS, rear lights, w/ 72168-07, 72469-07GY, 72473-07, 73102-96BK, 73103-96BK, 73152-96BK, 73156-96BK, 73190-96 & 73191-96 | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 9 | 69200711 | HARNESS, rear lights, w/ 72168-07, 72469-07GY, 72473-07, 73156-96BK & 73191-96 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 64900201 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLRT | |
| 64900201 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 32 | 72575-11 | SECONDARY LOCK | FLHTCUTG |
| 47 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| 2 | 70291-89 | HOUSING, 4-way pin | FLRT |
| 3 | 72039-71A | TERMINAL, pin (3) | FLRT |
| 9 | 72914-01BK | HOUSING, 4-way socket (black) | FLRT |
| 11 | 73104-96BK | HOUSING, 4-way pin | FLRT |
| 12 | 73106-96BK | HOUSING, 6-way pin, single row | FLRT |
| 16 | 69200284 | CADDY, left steer hd | FLRT |
| 17 | 69200823 | ADAPTER, harness caddy | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| 3 | 70291-89 | HOUSING, 4-way pin | FLRT |
| 4 | 72039-71A | TERMINAL, pin (2) | FLRT |
| 10 | 69200285 | CADDY, right steer hd | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| 8 | 72487-07BK | HOUSING, 12-way socket (black) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69200699 | MAIN WIRING HARNESS | FLRT | |
| 32 | 72575-11 | SECONDARY LOCK | FLRT |
| 47 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 14 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 12 | 6921240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 5 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLRT |
| 12 | 72662-11 | TERMINAL, socket, 22 AWG (5) | FLRT |
| 15 | 69200740 | HARNESS ASSEMBLY, console | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 9 | 69060-90H | HORN ASSEMBLY | ALL |
| 13 | 61300478 | COVER, horn (chrome) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 69992-12B | BODY CONTROL MODULE (BCM) w/o security | FLRT |
| 69994-12B | BODY CONTROL MODULE (BCM) w/ security (Domestic, HDI) | ALL | |
| 69996-12B | BODY CONTROL MODULE (BCM) w/ security (Japan) | FLHTCUTG | |
| 15 | 72594-11 | DUST CAP, 2-way socket (w/o security) | FLRT |
| 18 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 24 | 71400098 | LOCKSET, complete w/ keys, ignition switch, key cover, fork lock & trunk lock | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 57200081DJI | SIDE COVER ASSEMBLY, right, w/ 83563-10 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 57200083DJI | SIDE COVER ASSEMBLY, left (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 83000051DJI | MIDSECTION ASSEMBLY, w/ 8, 9, 13, 14, 15, 16, 17, 19 & 21 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 10 | 69490-07 | REFLECTOR (red) (Domestic, California) | FLRT |
| 16 | 10200220 | SCREW (3) | FLRT |
| 17 | 10200338 | SCREW (3) | FLRT |
| 18 | 12200102 | RETAINING RING | FLRT |
| 19 | 12300031 | WASHER, sealing | FLRT |
| 20 | 12600105 | SCREW (4) | FLRT |
| 21 | 12600106 | SCREW (4) | FLRT |
| 22 | 14000781 | LABEL, tire warning | FLRT |
| 23 | 14100596 | MEDALLION, body, rear | FLRT |
| 24 | 14100612 | DECAL, handle (2) | FLRT |
| 25 | 25700155 | GASKET, plug | FLRT |
| 26 | 52400092 | HANDLE ASSEMBLY, passenger grab, w/ 14100612 (2) | FLRT |
| 27 | 53000339 | LOCK ASSEMBLY, w/ 12300031, 90300103 & 90300104 (specify key number) | FLRT |
| 28 | 53000340 | COVER, lock | FLRT |
| 29 | 53000356 | CABLE LATCH ASSEMBLY, w/ 7624, 10200220, 12200102, 53000340 & 53000457 | FLRT |
| 30 | 53000391 | COVER, trunk bulkhead | FLRT |
| 31 | 53000457 | COVER, latch | FLRT |
| 57200083DST | SIDE COVER ASSEMBLY, left (amber whiskey) | FLRT | |
| 57200083DWC | SIDE COVER ASSEMBLY, left (superior blue) | FLRT | |
| 33 | 61300315 | COVER, trim (2) | FLRT |
| 34 | 61300331DH | SIDE COVER ASSEMBLY, right, w/ 14000781 (vivid black) | FLRT |
| 61300331DST | SIDE COVER ASSEMBLY, right, w/ 14000781 (amber whiskey) | FLRT | |
| 61300331DWC | SIDE COVER ASSEMBLY, right, w/ 14000781 (superior blue) | FLRT | |
| 35 | 67900198 | REFLECTOR ASSEMBLY, w/ 69490-07 (Domestic, California) | FLRT |
| 36 | 83000080DH | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (vivid black) | FLRT |
| 83000080DST | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (amber whiskey) | FLRT | |
| 83000080DWC | MIDSECTION ASSEMBLY, w/ 7, 8, 11, 12, 13, 14, 21, 23, 25, 30 & 33 (superior blue) | FLRT | |
| 37 | 90300103 | NUT | FLRT |
| 38 | 90300104 | WASHER, tabbed | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 83000042DJI | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 6 | 10200375 | SCREW (2) | FLRT |
| 7 | 12600106 | SCREW (15) | FLRT |
| 8 | 53000333 | HINGE ASSEMBLY, trunk, w/ 10200061, 53000334 & 53000335 | FLRT |
| 9 | 53000334 | COVER, trunk hinge, front | FLRT |
| 10 | 53000335 | COVER, trunk hinge, rear | FLRT |
| 11 | 53000336 | TETHER, retractable | FLRT |
| 12 | 53000337 | STRIKER, latch | FLRT |
| 13 | 53000355 | SEAL, trunk door | FLRT |
| 14 | 53000369 | STRIKER ASSEMBLY, latch, w/ 7601 & 53000337 | FLRT |
| 15 | 83000062DH | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (vivid black) | FLRT |
| 83000062DST | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (amber whiskey) | FLRT | |
| 83000062DWC | TRUNK DOOR, w/ 83446-09, 12600106, 53000355 & 53000369 (superior blue) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 9 | 83346-11A | LATCH HOUSING ASSEMBLY, trunk door, w/ 2, 3, 4, 8, 10 & 14 | FLHTCUTG |
| 10 | 83352-11A | LOCK MECHANISM | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000360 | TRUNK LINER, wrap | FLRT |
| 2 | 53000361 | TRUNK LINER, bottom | FLRT |
| 3 | 53000362 | TRUNK LINER, vertical | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 53000085DSX | BOTTOM, Tour-Pak (mysterious red sunglo) | FLHTCUTG | |
| 53000085DWW | BOTTOM, Tour-Pak (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 53000371DSX | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (mysterious red sunglo) | FLHTCUTG | |
| 53000371DWW | COVER KIT, Tour-Pak, w/ 90821-74C & 53000090 (2 tone white hot pearl/blue hot pearl) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 9 | 14000781 | LABEL, tire warning | FLRT |
| 10 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 58002-09 | MID-FRAME AIR DEFLECTOR KIT | ALL | |
| 83913-14 | PRODUCT ORIENTATION VIDEO | ALL | |
| 57200083DJI | SIDE COVER ASSEMBLY, left (2 tone white hot pearl/blue hot pearl) | FLHTCUTG | |
| 57200083DST | SIDE COVER ASSEMBLY, left (amber whiskey) | FLRT | |
| 57200083DWC | SIDE COVER ASSEMBLY, left (superior blue) | FLRT |
| Part No. | Description |
| 10006 | |
| 10031 | |
| 10038A | |
| 10039 | |
| 10040 | |
| 10065 | |
| 10076 | |
| 10100006 | |
| 10102 | |
| 10103 | |
| 10147 | |
| 10149 | |
| 10177 | |
| 10198 | |
| 10200001 | |
| 10200004 | |
| 10200042 | |
| 10200052 | |
| 10200059 | |
| 10200060 | |
| 10200061 | |
| 10200062 | |
| 10200105 | |
| 10200112 | |
| 10200133 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200154 | |
| 10200156 | |
| 10200205 | |
| 10200220 | |
| 10200258 | |
| 10200338 | |
| 10200375 | |
| 10270 | |
| 10289A | |
| 10300003 | |
| 10334 | |
| 10344 | |
| 10354 | |
| 1039 | |
| 10395 | |
| 10396 | |
| 10398 | |
| 10500015 | |
| 10500017 | |
| 10500022 | |
| 10500031 | |
| 10500036 | |
| 10600007 | |
| 1062 | |
| 10800023 | |
| 10800024 | |
| 10800025 | |
| 10800028 | |
| 10800052 | |
| 10800078 | |
| 10900005 | |
| 10900006 | |
| 10927 | |
| 10968 | |
| 10991A | |
| 11000050 | |
| 11000052 | |
| 11000101 | |
| 11012 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100055 | |
| 11100057 | |
| 11100094 | |
| 11100115 | |
| 11105 | |
| 11110 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11256 | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11293 | |
| 11301 | |
| 11321 | |
| 11323 | |
| 11364 | |
| 11389 | |
| 11408 | |
| 11437 | |
| 11445 | |
| 11461 | |
| 11519 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11650 | |
| 11686 | |
| 11688 | |
| 11692 | |
| 11700002 | |
| 11779 | |
| 11900010 | |
| 11900021 | |
| 11900035 | |
| 11900039 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100017 | |
| 12100018 | |
| 12100020 | |
| 12100023 | |
| 12100028 | |
| 12200025 | |
| 12200064 | |
| 12200075 | |
| 12200092 | |
| 12200102 | |
| 12300002 | |
| 12300031 | |
| 12400034 | |
| 12500002 | |
| 12600032 | |
| 12600049 | |
| 12600067 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600105 | |
| 12600106 | |
| 12700032 | |
| 1332 | |
| 14000396 | |
| 14000781 | |
| 14000827 | |
| 14100073 | |
| 14100074 | |
| 14100083 | |
| 14100157 | |
| 14100158 | |
| 14100252 | |
| 14100595 | |
| 14100596 | |
| 14100612 | |
| 14100702 | |
| 14100703 | |
| 14148-86 | |
| 14272-06 | |
| 15341-08 | |
| 15368-01A | |
| 16200068 | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16400004 | |
| 16400005 | |
| 16400028 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16500066 | |
| 16500244 | |
| 16500245 | |
| 16547-99A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16787-99A | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17460-07A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17728-08 | |
| 17729-08 | |
| 17732-14 | |
| 17733-14 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18074-05A | |
| 18085-05B | |
| 18094-02A | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18400035 | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 19291-14 | |
| 19678-15 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21962-07 | |
| 21964-07 | |
| 22000031 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 22307-99 | |
| 23729-07B | |
| 24004-03B | |
| 24009-06 | |
| 2445 | |
| 24605-07 | |
| 24621-06B | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 2482 | |
| 25244-99A | |
| 2531 | |
| 25355-06A | |
| 25369-01B | |
| 25400002 | |
| 25400003 | |
| 25566-06 | |
| 25585-06 | |
| 25600012 | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700155 | |
| 25700178 | |
| 25700179 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2590 | |
| 26037-06 | |
| 26041-05A | |
| 26064-08 | |
| 26077-99A | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 26561-99 | |
| 26600012 | |
| 26700001A | |
| 26780-05A | |
| 26800002 | |
| 26800005 | |
| 26800006 | |
| 26800007A | |
| 26800008 | |
| 26800009 | |
| 26800019A | |
| 26800020A | |
| 26800021 | |
| 26900001 | |
| 26900002 | |
| 26900003 | |
| 26900006 | |
| 26900007 | |
| 26900008 | |
| 26900009 | |
| 26900010 | |
| 26900011 | |
| 26900014 | |
| 26900016 | |
| 26900017 | |
| 26900018 | |
| 26900021 | |
| 26900022 | |
| 26900023 | |
| 26900024 | |
| 26900027 | |
| 26900028 | |
| 26900029 | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27200002 | |
| 2724 | |
| 27291-09A | |
| 27297-09A | |
| 27298-09A | |
| 27439-09A | |
| 27440-09A | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27712-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 28004-01 | |
| 28005-01 | |
| 28861-07A | |
| 29000026 | |
| 29000033 | |
| 29200003 | |
| 29200007 | |
| 29200014 | |
| 29200015 | |
| 29200017 | |
| 29200018 | |
| 29200034 | |
| 29200035 | |
| 29200039 | |
| 29269-83A | |
| 2933 | |
| 29400043 | |
| 29400045 | |
| 29400046 | |
| 29465-08A | |
| 2952A | |
| 2968 | |
| 2998 | |
| 29987-06D | |
| 30041-08A | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3088 | |
| 3143 | |
| 31500009 | |
| 31527-90 | |
| 31586-07 | |
| 31604-06 | |
| 31611-08 | |
| 31618-06A | |
| 31633-07A | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 32305-08A | |
| 32306-08 | |
| 32319-07A | |
| 32362-04A | |
| 32446-99 | |
| 3249 | |
| 32495-98A | |
| 3265A | |
| 3267 | |
| 32700010 | |
| 32700011 | |
| 32700028 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33085-74 | |
| 33165-11A | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 33709-82A | |
| 33718-82B | |
| 33759-99B | |
| 33849-97 | |
| 33895-82D | |
| 3391 | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34469-06B | |
| 34611-65A | |
| 34901-07 | |
| 34917-06 | |
| 34934-06 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35259-06 | |
| 35260-06A | |
| 3529 | |
| 3536 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3612 | |
| 3615 | |
| 3622 | |
| 3634 | |
| 3647 | |
| 36500034A | |
| 3655A | |
| 36700024B | |
| 36700037 | |
| 36706-01K | |
| 36731-91 | |
| 36805-06 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000026 | |
| 37000032 | |
| 37000033 | |
| 37000034 | |
| 37000035 | |
| 37000036 | |
| 37000083 | |
| 37000118 | |
| 37000217 | |
| 37000218 | |
| 37065-06 | |
| 37200023 | |
| 37200024 | |
| 37200034 | |
| 37200084 | |
| 37200096 | |
| 3736B | |
| 37496-90A | |
| 3787 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 3910 | |
| 3929 | |
| 3983 | |
| 39929-06B | |
| 3993 | |
| 39968-06 | |
| 39969-06 | |
| 40037-07 | |
| 40040-05 | |
| 40100041 | |
| 40278-08 | |
| 40323-00 | |
| 4032A | |
| 40900292 | |
| 40901-05 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 40999-87 | |
| 41000057 | |
| 41123-79 | |
| 41300023 | |
| 41300024 | |
| 41300025 | |
| 41300026 | |
| 41300027 | |
| 41300033 | |
| 41300037 | |
| 41300041 | |
| 41300042 | |
| 41300045 | |
| 41300046 | |
| 4132 | |
| 4134 | |
| 41500031 | |
| 41500068 | |
| 41600091 | |
| 41600110 | |
| 41700062 | |
| 41700063 | |
| 41700249 | |
| 41700250 | |
| 41700251 | |
| 41700265 | |
| 41700266 | |
| 41700267 | |
| 41700268 | |
| 41731-01 | |
| 41747-82A | |
| 41756-08 | |
| 41800183 | |
| 41800184 | |
| 41800185 | |
| 41800187 | |
| 41800343 | |
| 41800344 | |
| 41900-08 | |
| 4194 | |
| 4239 | |
| 4240 | |
| 42416-06 | |
| 42452-87 | |
| 42460-80B | |
| 42500007 | |
| 42532-06 | |
| 42642-00A | |
| 4266A | |
| 43022-91A | |
| 43100013 | |
| 4312C | |
| 4313 | |
| 43300283 | |
| 43475-08 | |
| 4350A | |
| 4365 | |
| 4400 | |
| 44048-83 | |
| 4411 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 4419 | |
| 44613-02 | |
| 45016-08 | |
| 45032-82 | |
| 45044-96A | |
| 45072-96D | |
| 45170-08D | |
| 45423-92 | |
| 45423-96 | |
| 4549 | |
| 45500089 | |
| 45500090 | |
| 45500114 | |
| 45500117 | |
| 45500118 | |
| 45500119 | |
| 45500121 | |
| 45500123 | |
| 45500124 | |
| 45500132 | |
| 45500251 | |
| 45600003 | |
| 45600037 | |
| 4564M | |
| 45700009 | |
| 45700020A | |
| 45700021 | |
| 45800023 | |
| 45800046 | |
| 45893-99 | |
| 45900027 | |
| 45900080 | |
| 45900092A | |
| 46080-01 | |
| 4612 | |
| 4622 | |
| 46246-01 | |
| 46423-05C | |
| 46508-01 | |
| 46509-01 | |
| 46510-07 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 46615-06 | |
| 4678 | |
| 4685 | |
| 4686 | |
| 4687 | |
| 4688 | |
| 4696 | |
| 4697 | |
| 4699 | |
| 47000004B | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 47200096 | |
| 47200275 | |
| 4721 | |
| 47365-09 | |
| 4740A | |
| 4741A | |
| 47505-02 | |
| 4751 | |
| 4775 | |
| 4790 | |
| 4795 | |
| 4813A | |
| 4826 | |
| 4838 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4868 | |
| 4881 | |
| 4916 | |
| 49184-09A | |
| 4924 | |
| 4930 | |
| 50000031 | |
| 50000066 | |
| 50518-09 | |
| 50600067 | |
| 50606-06 | |
| 50613-91A | |
| 50614-06 | |
| 50621-06 | |
| 50674-05 | |
| 50899-99A | |
| 509 | |
| 50933-86A | |
| 5118 | |
| 515 | |
| 52000033 | |
| 52000157 | |
| 520W | |
| 5210 | |
| 5211 | |
| 52300053 | |
| 52300121 | |
| 52300122 | |
| 52300123 | |
| 52300127 | |
| 52400090 | |
| 52400092 | |
| 52441-95 | |
| 52719-10 | |
| 53000077 | |
| 53000085BHY | |
| 53000085DSX | |
| 53000085DTI | |
| 53000085DWW | |
| 53000090 | |
| 53000091 | |
| 53000123 | |
| 53000132 | |
| 53000137 | |
| 53000138 | |
| 53000139 | |
| 53000140 | |
| 53000141 | |
| 53000308 | |
| 53000333 | |
| 53000334 | |
| 53000335 | |
| 53000336 | |
| 53000337 | |
| 53000339 | |
| 53000340 | |
| 53000346 | |
| 53000347 | |
| 53000355 | |
| 53000356 | |
| 53000360 | |
| 53000361 | |
| 53000362 | |
| 53000369 | |
| 53000371BHY | |
| 53000371DSX | |
| 53000371DTI | |
| 53000371DWW | |
| 53000391 | |
| 53000457 | |
| 53598-88A | |
| 53734-06 | |
| 53735-06 | |
| 53788-06 | |
| 53789-06 | |
| 53868-06 | |
| 53919-04A | |
| 5416 | |
| 54320-97 | |
| 54321-85 | |
| 54323-85A | |
| 54354-94A | |
| 54357-03 | |
| 55800247 | |
| 55918-08 | |
| 55924-14 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56248-08 | |
| 56304-08 | |
| 57000169 | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000182 | |
| 57000186 | |
| 57000193BYM | |
| 57000299 | |
| 57000377 | |
| 57000379BHY | |
| 57000379DSX | |
| 57000379DTI | |
| 57000379DWW | |
| 57000383 | |
| 57100099 | |
| 57100107 | |
| 57100109 | |
| 57100111 | |
| 57100112 | |
| 57100113 | |
| 57100114 | |
| 57100147 | |
| 57100148 | |
| 57100151 | |
| 57100152 | |
| 57100153 | |
| 57100154 | |
| 57100155 | |
| 57100164 | |
| 57100165 | |
| 57100168DH | |
| 57100168DJI | |
| 57100168DSW | |
| 57100169DH | |
| 57100169DJI | |
| 57100169DSW | |
| 57100170 | |
| 57100171 | |
| 57100172 | |
| 57100187 | |
| 57100200 | |
| 57100225 | |
| 57100242DH | |
| 57100242DJI | |
| 57100242DSW | |
| 57100243DH | |
| 57100243DJI | |
| 57100243DSW | |
| 57100256 | |
| 57200012 | |
| 57200017 | |
| 57200081DH | |
| 57200081DJI | |
| 57200081DSW | |
| 57200083DH | |
| 57200083DJI | |
| 57200083DST | |
| 57200083DSW | |
| 57200083DWC | |
| 57217-02A | |
| 57400001 | |
| 57400002 | |
| 57450-14 | |
| 57451-14 | |
| 57638-08 | |
| 57978-00 | |
| 58002-09 | |
| 58167-09 | |
| 58169-09 | |
| 5817 | |
| 5837A | |
| 58900032 | |
| 58900077BHY | |
| 58900077DSX | |
| 58900077DTI | |
| 58900077DWW | |
| 58900081DH | |
| 58900081DST | |
| 58900081DWC | |
| 58900082 | |
| 59211-74A | |
| 59500176DH | |
| 59500176DST | |
| 59500176DWC | |
| 59500178DH | |
| 59500178DST | |
| 59500178DWC | |
| 59600003 | |
| 59600011 | |
| 59988-72A | |
| 601 | |
| 6016 | |
| 6019 | |
| 60253-07 | |
| 60254-07 | |
| 6026 | |
| 60328-98B | |
| 6036 | |
| 60432-07A | |
| 60553-07A | |
| 60678-85 | |
| 60766-06 | |
| 60800006 | |
| 60818-07 | |
| 60900005 | |
| 61000016BHY | |
| 61000016DSX | |
| 61000016DTI | |
| 61000016DWW | |
| 61000129DH | |
| 61000129DST | |
| 61000129DWC | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6113 | |
| 6116 | |
| 6119 | |
| 61192-96A | |
| 61208-10 | |
| 61213-04A | |
| 61268-08 | |
| 6127 | |
| 61270-08 | |
| 61272-92C | |
| 61274-92 | |
| 61278-08 | |
| 61300063 | |
| 61300089 | |
| 61300233 | |
| 61300234 | |
| 61300235 | |
| 61300236 | |
| 61300251 | |
| 61300260 | |
| 61300274 | |
| 61300278 | |
| 61300315 | |
| 61300331DH | |
| 61300331DST | |
| 61300331DWC | |
| 61300478 | |
| 61313-88 | |
| 61356-08 | |
| 61400057 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400135 | |
| 61400192 | |
| 61400209 | |
| 61400213 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08B | |
| 62229-08B | |
| 6235 | |
| 62372-09 | |
| 62489-99A | |
| 62519-03 | |
| 62533-11 | |
| 62629-11 | |
| 62641-11 | |
| 62700026 | |
| 62775-08 | |
| 62800001 | |
| 62800003 | |
| 62800004 | |
| 62800013 | |
| 62908-08 | |
| 6294 | |
| 63059-09A | |
| 63083-11A | |
| 6334 | |
| 63533-41A | |
| 63731-99A | |
| 6400HB | |
| 6408HB | |
| 6416 | |
| 64900149 | |
| 64900150 | |
| 64900201 | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65538-09 | |
| 65600102 | |
| 65600103 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65846-10A | |
| 6594 | |
| 65951-09 | |
| 65952-09 | |
| 66000008 | |
| 66000010 | |
| 66010-97C | |
| 66051-08 | |
| 66200-09 | |
| 66290-06 | |
| 66373-06 | |
| 6645 | |
| 66767-07 | |
| 66813-09 | |
| 66855-10A | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 6718 | |
| 67208-08 | |
| 67341-04B | |
| 67493-08 | |
| 67621-94 | |
| 6762B | |
| 67668-05 | |
| 67700056 | |
| 67700057 | |
| 67700058 | |
| 67700066 | |
| 67700069 | |
| 67700070 | |
| 67700071 | |
| 67700077 | |
| 67700124 | |
| 67700184 | |
| 67700187 | |
| 67700204 | |
| 67700205 | |
| 67700239 | |
| 67700240 | |
| 67712-83B | |
| 67716-60C | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800086 | |
| 67800093 | |
| 67800099 | |
| 67800103 | |
| 67800109 | |
| 67800131 | |
| 67800165 | |
| 67800254 | |
| 67800332 | |
| 67800432 | |
| 67815-59A | |
| 67875-11 | |
| 67900009 | |
| 67900064 | |
| 67900074 | |
| 67900075 | |
| 67900076 | |
| 67900101 | |
| 67900111 | |
| 67900187 | |
| 67900198 | |
| 67900205 | |
| 67900212 | |
| 68000020 | |
| 68000021 | |
| 68000022 | |
| 68026-99 | |
| 68042-99 | |
| 68050-93A | |
| 68051-93A | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68167-04 | |
| 68168-89A | |
| 68245-03 | |
| 68296-99A | |
| 68329-03 | |
| 68331-02 | |
| 68342-05A | |
| 68369-03 | |
| 68370-03A | |
| 68390-05 | |
| 68725-62A | |
| 68821-00 | |
| 68830-99A | |
| 68893-00A | |
| 68904-00 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68973-00 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200031 | |
| 69200109 | |
| 69200121 | |
| 69200125 | |
| 69200127 | |
| 69200131 | |
| 69200133 | |
| 69200135 | |
| 69200138 | |
| 69200139 | |
| 69200140 | |
| 69200141 | |
| 69200170 | |
| 69200171 | |
| 69200172 | |
| 69200173 | |
| 69200174 | |
| 69200175 | |
| 69200178 | |
| 69200179 | |
| 69200192A | |
| 69200193 | |
| 69200194 | |
| 69200195 | |
| 69200199 | |
| 69200201 | |
| 69200202 | |
| 69200203 | |
| 69200204 | |
| 69200205 | |
| 69200210 | |
| 69200211 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200224 | |
| 69200225 | |
| 69200226 | |
| 69200237 | |
| 69200238 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200265 | |
| 69200266 | |
| 69200267A | |
| 69200271 | |
| 69200272 | |
| 69200284 | |
| 69200285 | |
| 69200291A | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200311 | |
| 69200312 | |
| 69200336 | |
| 69200337 | |
| 69200338 | |
| 69200391 | |
| 69200394 | |
| 69200406 | |
| 69200407 | |
| 69200408 | |
| 69200409 | |
| 69200410 | |
| 69200411 | |
| 69200421 | |
| 69200437 | |
| 69200461 | |
| 69200462 | |
| 69200529 | |
| 69200536 | |
| 69200699 | |
| 69200711 | |
| 69200740 | |
| 69200823 | |
| 69200859 | |
| 69201240 | |
| 6921240 | |
| 69241-08 | |
| 69292-06 | |
| 69309-10 | |
| 69438-06 | |
| 69490-07 | |
| 69563-06 | |
| 6990 | |
| 69969-08 | |
| 69992-12B | |
| 69994-12B | |
| 69995-11 | |
| 69996-12B | |
| 70018-07 | |
| 70186-82 | |
| 70267-09 | |
| 70291-89 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70578-89 | |
| 70598-99 | |
| 7068 | |
| 70681-09 | |
| 7069 | |
| 70900121A | |
| 70900122 | |
| 70900123 | |
| 70900138 | |
| 70900162 | |
| 70900165 | |
| 70900298A | |
| 70900379 | |
| 70900392BYM | |
| 70900421 | |
| 70901-09 | |
| 70991-07 | |
| 70999-09 | |
| 71019-07 | |
| 71294-08 | |
| 7130W | |
| 71400005 | |
| 71400006 | |
| 71400007 | |
| 71400017 | |
| 71400020 | |
| 71400021 | |
| 71400022 | |
| 71400031 | |
| 71400044 | |
| 71400073 | |
| 71400081 | |
| 71400098 | |
| 71455-11 | |
| 71474-07 | |
| 71500044 | |
| 71500045 | |
| 71500046 | |
| 71500048 | |
| 71500049 | |
| 71500050 | |
| 71500053 | |
| 71500054 | |
| 71500055 | |
| 71500056 | |
| 71500057 | |
| 71500063 | |
| 71500094 | |
| 71500119 | |
| 71500121 | |
| 71500127A | |
| 71500129A | |
| 71500135 | |
| 71500144 | |
| 71500236 | |
| 71517-11 | |
| 7155 | |
| 71660-03 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72023-51E | |
| 72024-08 | |
| 72039-71A | |
| 72053-92 | |
| 72056-92 | |
| 72062-06 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72081-11 | |
| 72097-06 | |
| 72106-94BK | |
| 72111-06 | |
| 72113-94BK | |
| 72114-94BK | |
| 72130-04 | |
| 72135-06 | |
| 72146-94 | |
| 72153-94 | |
| 72154-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72364-06 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72412-97 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72447-07GY | |
| 72462-00 | |
| 72469-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72533-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72557-07 | |
| 72575-11 | |
| 72589-09 | |
| 72594-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72662-11 | |
| 72663-11 | |
| 72664-12A | |
| 72666-12 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72904-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73101-96BK | |
| 73102-96BK | |
| 73103-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 7358 | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74120-08 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 74402-05B | |
| 74438-99A | |
| 74505-09A | |
| 7492 | |
| 7495 | |
| 75069-08C | |
| 75076-08B | |
| 75089-08 | |
| 75147-08B | |
| 75205-08A | |
| 75229-08 | |
| 75241-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 755 | |
| 7576 | |
| 7586 | |
| 7593 | |
| 7600 | |
| 76000055 | |
| 76000076 | |
| 76000092 | |
| 76000096 | |
| 76000107 | |
| 76000127 | |
| 76000160 | |
| 76000161 | |
| 76000164 | |
| 76000165 | |
| 76000172 | |
| 76000173 | |
| 76000174 | |
| 76000177 | |
| 76000186 | |
| 76000208 | |
| 76000222 | |
| 76000231 | |
| 76000232 | |
| 76000234 | |
| 76000243 | |
| 76000252 | |
| 76000409BYM | |
| 7601 | |
| 7606 | |
| 7624 | |
| 76259-86 | |
| 76266-98A | |
| 7629 | |
| 76353-00 | |
| 765 | |
| 76503-08 | |
| 7667 | |
| 7683 | |
| 7686 | |
| 77117-10 | |
| 77126-10 | |
| 77148-10 | |
| 7716 | |
| 7739 | |
| 7744 | |
| 7763W | |
| 7768W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7800W | |
| 7823 | |
| 7825 | |
| 7838 | |
| 786A | |
| 7880 | |
| 7900 | |
| 791A | |
| 7992 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8142 | |
| 8175 | |
| 8194 | |
| 83000012 | |
| 83000014 | |
| 83000018 | |
| 83000024A | |
| 83000025 | |
| 83000026 | |
| 83000027A | |
| 83000028A | |
| 83000030 | |
| 83000042DH | |
| 83000042DJI | |
| 83000042DSW | |
| 83000051DH | |
| 83000051DJI | |
| 83000051DSW | |
| 83000054BHY | |
| 83000054DSX | |
| 83000054DTI | |
| 83000054DWW | |
| 83000056BHY | |
| 83000056DSX | |
| 83000056DTI | |
| 83000056DWW | |
| 83000062DH | |
| 83000062DST | |
| 83000062DWC | |
| 83000068 | |
| 83000080DH | |
| 83000080DST | |
| 83000080DWC | |
| 8308 | |
| 8313 | |
| 8314 | |
| 8319 | |
| 8324 | |
| 8328 | |
| 83296-11 | |
| 8330 | |
| 83310-09 | |
| 83311-09 | |
| 83312-09 | |
| 83313-09 | |
| 83314-09 | |
| 83315-09 | |
| 83316-09 | |
| 83317-09 | |
| 83323-09 | |
| 83324-09A | |
| 83326-09 | |
| 83327-09 | |
| 83328-09 | |
| 83331-09 | |
| 83337-09A | |
| 83339-09A | |
| 83344-11 | |
| 83346-11A | |
| 8335 | |
| 83352-11A | |
| 83366-09 | |
| 83371-09B | |
| 83373-09A | |
| 83382-09 | |
| 83383-09 | |
| 83385-09 | |
| 83388-09A | |
| 83389-09A | |
| 8339 | |
| 83390-15 | |
| 83395-09A | |
| 83396-09A | |
| 83398-09 | |
| 83402-09A | |
| 83403-09A | |
| 83407-09 | |
| 83408-09A | |
| 83411-14BHP | |
| 83418-09 | |
| 83419-09 | |
| 83420-09 | |
| 83424-09 | |
| 83429-09 | |
| 8343 | |
| 83431-09 | |
| 83434-11 | |
| 83439-09 | |
| 83441-10A | |
| 83446-09 | |
| 83448-09 | |
| 83450-09 | |
| 83456-09 | |
| 83457-11 | |
| 83458-11 | |
| 83460-09 | |
| 83466-11BHP | |
| 8348 | |
| 83480-09 | |
| 83496-09 | |
| 83497-09 | |
| 8351 | |
| 8353 | |
| 83538-11 | |
| 83563-10 | |
| 8357 | |
| 8359 | |
| 83595-11 | |
| 8360 | |
| 8364 | |
| 8365 | |
| 8366 | |
| 8367 | |
| 8368 | |
| 8369 | |
| 8370 | |
| 83777-11 | |
| 83778-11 | |
| 83781-11 | |
| 83782-11 | |
| 83783-11 | |
| 83798-11 | |
| 83799-10 | |
| 83808-09A | |
| 83811-09 | |
| 83822-09 | |
| 83823-09 | |
| 83848-09 | |
| 83849-09A | |
| 83850-09 | |
| 83857-09 | |
| 83860-09 | |
| 83861-09 | |
| 83864-09 | |
| 83865-09 | |
| 83869-09 | |
| 83874-09 | |
| 83875-09 | |
| 83876-09 | |
| 83886-09 | |
| 83888-09 | |
| 83889-09 | |
| 83890-09A | |
| 83898-09 | |
| 83913-14 | |
| 83936-09A | |
| 83943-09 | |
| 83944-09 | |
| 83978-11 | |
| 83987-09 | |
| 83991-11 | |
| 84021-10 | |
| 84027-11 | |
| 8405 | |
| 84850-92 | |
| 856A | |
| 88002-15D | |
| 882 | |
| 8860 | |
| 8873 | |
| 8885 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90300030 | |
| 90300043 | |
| 90300051 | |
| 90300103 | |
| 90300104 | |
| 90383-98 | |
| 90821-74C | |
| 90844-80 | |
| 91700025A | |
| 91700034 | |
| 91800042 | |
| 91840-03B | |
| 91845-03B | |
| 9208 | |
| 9215 | |
| 9231 | |
| 925 | |
| 926 | |
| 9276A | |
| 93300035 | |
| 942 | |
| 94435-10 | |
| 946 | |
| 95594-84A | |
| 95595-84B | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9847 | |
| 9848 | |
| 9853 | |
| 9907 | |
| 99461-89 | |
| 99517-15EN | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7739 | Unknown |
| 7586 | Unknown |
| 8142 | Unknown |
| 7576 | 1990 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 10100006 | 2014 |
| 76259-86 | 1986 |
| 7763W | Unknown |
| 7900 | Unknown |
| 7823 | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 5210 | 1991 |
| 5211 | Unknown |
| 84850-92 | 1992 |
| 7768W | Unknown |
| 7992 | 2010 |
| 83496-09 | 2009 |
| 7495 | 1994 |
| 8405 | 2011 |
| 8364 | 2011 |
| 83328-09 | 2009 |
| 7492 | 1993 |
| 7340 | Unknown |
| 83312-09 | 2009 |
| 7880 | Unknown |
| 71660-03 | 2003 |
| 7331 | Unknown |
| 90844-80 | 1980 |
| 8108 | Unknown |
| 7744 | 1943 |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3536 | Unknown |
| 4678 | Unknown |
| 4266A | Unknown |
| 3983 | 2005 |
| 882 | 2000 |
| 44613-02 | 2002 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 2563 | 2009 |
| 10200141 | 2014 |
| 4697 | Unknown |
| 4699 | Unknown |
| 10200142 | 2014 |
| 3622 | Unknown |
| 4741A | 1994 |
| 10200147 | 2014 |
| 3050 | Unknown |
| 4916 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 4687 | 2006 |
| 2479 | Unknown |
| 4686 | 2006 |
| 10200375 | 2015 |
| 2933 | Unknown |
| 2478 | 2007 |
| 35259-06 | 2006 |
| 10200156 | 2014 |
| 3514 | Unknown |
| 10200154 | 2014 |
| 2482 | Unknown |
| 4696 | Unknown |
| 4313 | Unknown |
| 4350A | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 3561WC | Unknown |
| 3647 | 2003 |
| 4239 | 2006 |
| 3612 | 2012 |
| 3275 | 2002 |
| 3693A | Unknown |
| 3615 | Unknown |
| 895 | Unknown |
| 4134 | 1994 |
| 4549 | Unknown |
| 4751 | Unknown |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3267 | 1999 |
| 3529 | Unknown |
| 4240 | Unknown |
| 2952A | 2003 |
| 10200134 | 2014 |
| 3560WA | Unknown |
| 2968 | Unknown |
| 10200133 | 2014 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 10200001 | 2011 |
| 3061 | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3594 | 1992 |
| 8319 | 2009 |
| 3088 | Unknown |
| 4856 | Unknown |
| 10200112 | 2014 |
| 2708A | Unknown |
| 925 | Unknown |
| 2998 | Unknown |
| 926 | Unknown |
| 8308 | 2009 |
| 10200205 | 2014 |
| 68042-99 | 1999 |
| 3993 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 4564M | Unknown |
| 8314 | 2009 |
| 10200004 | 2011 |
| 3699D | 2006 |
| 8313 | 2009 |
| 3929 | 2009 |
| 2724 | Unknown |
| 3300 | Unknown |
| 4411 | 2009 |
| 4930 | 2008 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3563 | 1999 |
| 3143 | Unknown |
| 10200105 | 2014 |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 3910 | 2014 |
| 1780 | Unknown |
| 2531 | Unknown |
| 83323-09 | 2009 |
| 10200042 | 2014 |
| 3391 | Unknown |
| 4868 | Unknown |
| 8175 | 2004 |
| 8360 | 2011 |
| 4622 | Unknown |
| 8366 | 2011 |
| 8365 | 2011 |
| 946 | Unknown |
| 8369 | 2011 |
| 4365 | Unknown |
| 10200052 | 2014 |
| 4312C | Unknown |
| 3787 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 10200220 | 2014 |
| 8359 | 2011 |
| 3445 | Unknown |
| 10200060 | 2014 |
| 10200061 | 2014 |
| 4813A | 1990 |
| 10200062 | 2014 |
| 703B | Unknown |
| 10200059 | 2014 |
| 8343 | 2010 |
| 3736B | 2010 |
| 4790 | Unknown |
| 1332 | 2010 |
| 4194 | Unknown |
| 4795 | 2006 |
| 10200338 | 2015 |
| 4685 | 2007 |
| 2590 | 2005 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 10200258 | 2014 |
| 2445 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6718 | Unknown |
| 6026 | Unknown |
| 7415A | Unknown |
| 6016 | 2013 |
| 6408HB | 1970 |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6771A | Unknown |
| 6220W | Unknown |
| 6294 | 2010 |
| 46509-01 | 2001 |
| 8972 | Unknown |
| 6116 | Unknown |
| 6113 | Unknown |
| 28005-01 | 2001 |
| 6334 | Unknown |
| 6150W | Unknown |
| 8324 | 2009 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 67815-59A | 1959 |
| 6127 | Unknown |
| 10300003 | 2014 |
| 6532 | 2000 |
| 6036 | Unknown |
| 6416 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 6762B | Unknown |
| 83886-09 | 2009 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 8328 | 2009 |
| 6702 | Unknown |
| 6235 | Unknown |
| 6645 | Unknown |
| 8335 | Unknown |
| 6400HB | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 10500022 | 2014 |
| 10500017 | 2014 |
| 10500015 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 4881 | 2011 |
| 108A1 - Hose Clamps | |
| 10800023 | 2013 |
| 10038A | 1994 |
| 10031 | 2010 |
| 10354 | Unknown |
| 10198 | Unknown |
| 10344 | Unknown |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 10800078 | 2014 |
| 69563-06 | 2006 |
| 10800052 | 2014 |
| 9956 | 1972 |
| 9955 | Unknown |
| 45044-96A | 1996 |
| 108B1 - P Clamps | |
| 10800024 | 2014 |
| 10800025 | 2014 |
| 10800028 | 2014 |
| 10076 | 2010 |
| 109A1 - Studs | |
| 3265A | Unknown |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 10900006 | 2014 |
| 10900005 | 2014 |
| 83311-09 | 2009 |
| 83822-09 | 2009 |
| 16834-99A | 1999 |
| 110A1 - Bearing Dust Seals | |
| 83848-09 | 2009 |
| 110B1 - Plain Bushings | |
| 83317-09 | 2009 |
| 11519 | Unknown |
| 83314-09 | 2009 |
| 8967 | 2005 |
| 11000052 | 2014 |
| 11000050 | 2014 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 57217-02A | 2013 |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8860 | Unknown |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 9825 | Unknown |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 72264-94 | 1994 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 11100094 | 2014 |
| 111C1 - Insulating Tape | |
| 83811-09 | 2009 |
| 11100115 | 2014 |
| 111D1 - Isolating Tape | |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100055 | 2014 |
| 11100057 | 2014 |
| 11100038 | 2014 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 11600009 | 2014 |
| 11600001 | 2012 |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 33085-74 | 1974 |
| 11700002 | 2013 |
| 119A1 - O-Rings | |
| 28004-01 | 2001 |
| 11270 | Unknown |
| 11900010 | 2013 |
| 10927 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11110 | Unknown |
| 11140 | 1982 |
| 10968 | Unknown |
| 11900035 | 2013 |
| 11289A | Unknown |
| 11900039 | 2013 |
| 46508-01 | 2001 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11301 | Unknown |
| 8367 | 2011 |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11900021 | 2014 |
| 8330 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 520W | 2010 |
| 50933-86A | 1986 |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 509 | Unknown |
| 515 | Unknown |
| 24754-75A | 1975 |
| 8368 | 2011 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11445 | Unknown |
| 11692 | Unknown |
| 11437 | Unknown |
| 83439-09 | 2009 |
| 12100028 | 2013 |
| 12100020 | 2014 |
| 12100018 | 2014 |
| 12100017 | 2014 |
| 57978-00 | 2000 |
| 11650 | 2010 |
| 83460-09 | 2009 |
| 121B1 - Press-Fit Plugs | |
| 72097-06 | 2006 |
| 12100023 | 2014 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 755 | 2018 |
| 122A1 - Retaining Rings | |
| 17945-36B | 1936 |
| 12200102 | 2015 |
| 11012 | 2011 |
| 10040 | 1982 |
| 35114-02 | 2002 |
| 11688 | Unknown |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 12200092 | 2014 |
| 83313-09 | 2009 |
| 53868-06 | 2006 |
| 11061A | 2008 |
| 11408 | Unknown |
| 11143 | Unknown |
| 10398 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 9853 | Unknown |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 83315-09 | 2009 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 83316-09 | 2009 |
| 12200025 | 2014 |
| 11389 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 12200075 | 2014 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10149 | Unknown |
| 10147 | 2018 |
| 11461 | Unknown |
| 83331-09 | 2009 |
| 11575 | Unknown |
| 12200064 | 2014 |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41756-08 | 2008 |
| 12300031 | 2015 |
| 12300002 | 2011 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 7069 | Unknown |
| 124A1 - Spacers | |
| 12400034 | 2014 |
| 41900-08 | 2008 |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 11599A | 2012 |
| 83864-09 | 2009 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10270 | 2003 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 12500002 | 2012 |
| 126A1 - Miscellaneous Hardware | |
| 83339-09A | 2012 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 27711-08 | 2008 |
| 12600073 | 2014 |
| 12600071 | 2014 |
| 12600070 | 2014 |
| 54320-97 | 1997 |
| 12600105 | 2015 |
| 12600106 | 2015 |
| 83337-09A | 2012 |
| 12600049 | 2014 |
| 56161-83A | 1983 |
| 12600032 | 2014 |
| 83987-09 | 2009 |
| 26041-05A | 2005 |
| 83310-09 | 2009 |
| 8873 | 1984 |
| 57638-08 | 2008 |
| 126B1 - Rivets Fasteners | |
| 70291-89 | 1989 |
| 12600067 | 2014 |
| 11779 | 2008 |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 12700032 | 2014 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 90821-74C | 1974 |
| 83890-09A | 2010 |
| 83563-10 | 2010 |
| 14000396 | 2014 |
| 14000781 | 2015 |
| 140A3 - Other Special Warning Label | |
| 83446-09 | 2009 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14100157 | 2014 |
| 67668-05 | 2005 |
| 84027-11 | 2011 |
| 14100158 | 2014 |
| 14100074 | 2014 |
| 14100073 | 2014 |
| 14100083 | 2014 |
| 14100612 | 2015 |
| 14100252 | 2014 |
| 14100595 | 2015 |
| 14100596 | 2015 |
| 14100703 | 2015 |
| 14100702 | 2015 |
| 149A1 - Tool | |
| 94435-10 | 2010 |
| 162D1 - Engine Assembly | |
| 19291-14 | 2014 |
| 19678-15 | 2015 |
| 16200068 | 2013 |
| 163B1 - Engine Isolator Mount | |
| 16207-09 | 2009 |
| 83382-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16400028 | 2014 |
| 27712-08 | 2008 |
| 16400005 | 2014 |
| 16400004 | 2014 |
| 47159-09BHP | 2009 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7600 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 7358 | Unknown |
| 7800W | Unknown |
| 164D1 - Tiebar Mount | |
| 83874-09 | 2009 |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 17728-08 | 2008 |
| 18011-86 | 1986 |
| 17729-08 | 2008 |
| 17733-14 | 2014 |
| 17732-14 | 2014 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500066 | 2014 |
| 17369-06 | 2006 |
| 16500244 | 2014 |
| 16500245 | 2014 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 16547-99A | 2012 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05B | 2005 |
| 181B1 - Valve Seals | |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18094-02A | 2002 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 18400035 | 2014 |
| 219A1 - Piston | |
| 17460-07A | 2012 |
| 21962-07 | 2007 |
| 21964-07 | 2007 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03B | 2012 |
| 23729-07B | 2011 |
| 244A1 - Crankcase | |
| 24621-06B | 2011 |
| 244B1 - Crankcase Gasket | |
| 34934-06 | 2006 |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 83456-09 | 2009 |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25675-06 | 2006 |
| 25400002 | 2014 |
| 25400003 | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 25600012 | 2014 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60766-06 | 2006 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 65324-83B | 2009 |
| 67208-08 | 2008 |
| 35654-06 | 2006 |
| 41731-01 | 2001 |
| 71294-08 | 2008 |
| 17053-99C | 2011 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 25700155 | 2012 |
| 17052-99C | 2011 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257L1 - Primary Cover | |
| 25585-06 | 2006 |
| 60553-07A | 2013 |
| 60432-07A | 2008 |
| 25700179 | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34469-06B | 2008 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 266B1 - Water Pump | |
| 26600012 | 2014 |
| 267B1 - Thermostat | |
| 26700001A | 2014 |
| 268B1 - Cooling Fan | |
| 26800007A | 2014 |
| 26800019A | 2014 |
| 268B2 - Cooling Fan Guard | |
| 26800008 | 2014 |
| 268C1 - Radiator | |
| 26800005 | 2014 |
| 26800006 | 2014 |
| 268E1 - Radiator sub-component | |
| 26800020A | 2014 |
| 268F1 - Radiator Pressure Cap | |
| 26800021 | 2014 |
| 268H1 - Radiator System Cover | |
| 26800002 | 2014 |
| 26800009 | 2014 |
| 269A2 - Coolant Line | |
| 26900024 | 2014 |
| 26900023 | 2014 |
| 26900022 | 2014 |
| 26900021 | 2014 |
| 269B1 - Radiator Hose | |
| 26900018 | 2014 |
| 26900016 | 2013 |
| 26900017 | 2013 |
| 26900027 | 2014 |
| 26900028 | 2014 |
| 26900001 | 2014 |
| 26900002 | 2013 |
| 26900003 | 2014 |
| 26900010 | 2014 |
| 26900011 | 2014 |
| 26900008 | 2014 |
| 26900007 | 2014 |
| 26900006 | 2013 |
| 26900009 | 2014 |
| 269C1 - Radiator Hose Fitting | |
| 26900029 | 2014 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26900014 | 2014 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29000033 | 2014 |
| 290D1 - Airbox Seal | |
| 29000026 | 2014 |
| 292A1 - Air Duct | |
| 29200039 | 2014 |
| 29200034 | 2014 |
| 29200035 | 2014 |
| 29200003 | 2014 |
| 292B1 - Air Duct Bezel | |
| 29200017 | 2014 |
| 29200007 | 2014 |
| 292C1 - Vent Screen | |
| 29200014 | 2014 |
| 292D1 - Intake Snorkel | |
| 29200018 | 2014 |
| 29200015 | 2014 |
| 294A1 - Air Filter Element | |
| 29400045 | 2014 |
| 294B1 - Breather Bolt | |
| 29465-08A | 2014 |
| 294C1 - Breather Hose | |
| 29400043 | 2014 |
| 294E1 - Breather Hose Filter Gasket | |
| 29400046 | 2014 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08A | 2013 |
| 299F1 - Stator Assembly | |
| 29987-06D | 2014 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314G1 - Starter Motor sub-component | |
| 31527-90 | 1990 |
| 31611-08 | 2008 |
| 314H1 - Starter Solenoid | |
| 83857-09 | 2009 |
| 28861-07A | 2007 |
| 71474-07 | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 314M1 - Reverse Motor | |
| 83388-09A | 2012 |
| 315C1 - Exhaust Valve Actuator Cable | |
| 31500009 | 2014 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04A | 2015 |
| 327A1 - Sensor | |
| 32495-98A | 2015 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 32305-08A | 2008 |
| 327D1 - Proximity Sensor | |
| 32700011 | 2014 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32319-07A | 2014 |
| 32700028 | 2006 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33895-82D | 2010 |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33759-99B | 1999 |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 83389-09A | 2010 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 83978-11 | 2011 |
| 33165-11A | 2012 |
| 350A1 - Transmission Output Sprocket | |
| 83595-11 | 2011 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 83850-09 | 2009 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40901-05 | 2005 |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 36500034A | 2014 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 36700037 | 2014 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700024B | 2015 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000026 | 2013 |
| 370B1 - Clutch Friction Plate | |
| 37000118 | 2013 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032 | 2013 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000035 | 2013 |
| 37000036 | 2013 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 372C1 - Clutch Bleeder Screw Cap | |
| 37200034 | 2013 |
| 372G1 - Clutch Hose | |
| 37200084 | 2015 |
| 37200024 | 2014 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200096 | 2014 |
| 37200023 | 2013 |
| 400A1 - Drive-Belt | |
| 40040-05 | 2005 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100041 | 2014 |
| 409A1 - Rear Wheel | |
| 83327-09 | 2009 |
| 40900292 | 2015 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000057 | 2014 |
| 410G1 - Security System Control Module | |
| 69992-12B | 2015 |
| 69996-12B | 2015 |
| 69994-12B | 2015 |
| 413A1 - Brake Caliper | |
| 41300026 | 2014 |
| 41300025 | 2014 |
| 41300024 | 2014 |
| 41300023 | 2014 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 41300037 | 2014 |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44147-87A | 1987 |
| 413D1 - Brake Pad | |
| 41300033 | 2014 |
| 41300027 | 2014 |
| 413E1 - Brake Pad Pin | |
| 41300041 | 2014 |
| 413F1 - Brake Pad Retaining Spring | |
| 41300042 | 2014 |
| 41300046 | 2014 |
| 413H1 - Brake Caliper Carrier | |
| 41300045 | 2014 |
| 415B1 - Brake Rotor | |
| 41500068 | 2014 |
| 41500031 | 2014 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 42642-00A | 2011 |
| 40920-87 | 1987 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600110 | 2014 |
| 41600091 | 2014 |
| 83431-09 | 2009 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45170-08D | 2015 |
| 41700251 | 2014 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 45072-96D | 2015 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700063 | 2012 |
| 41700267 | 2015 |
| 41700268 | 2015 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 46423-05C | 2014 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 417E1 - Brake Master Cylinder Hose | |
| 41700266 | 2015 |
| 41700250 | 2014 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41700062 | 2012 |
| 42452-87 | 1987 |
| 41700265 | 2015 |
| 41700249 | 2014 |
| 417G1 - Front Brake Lever | |
| 45016-08 | 2008 |
| 418B1 - Brake Line | |
| 41800187 | 2014 |
| 41800185 | 2014 |
| 41800184 | 2014 |
| 41800183 | 2014 |
| 41800343 | 2015 |
| 41800344 | 2015 |
| 422B1 - Wheel Sprocket | |
| 83424-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 54323-85A | 1985 |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84B | 2014 |
| 95594-84A | 2010 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 83849-09A | 2011 |
| 425A1 - Wheel sub-component | |
| 42500007 | 2015 |
| 430C1 - Axle Nut | |
| 83402-09A | 2011 |
| 83889-09 | 2009 |
| 83403-09A | 2011 |
| 430E1 - Rear Axle | |
| 83371-09B | 2011 |
| 430F1 - Sidecar Axle | |
| 83450-09 | 2009 |
| 431A1 - Front Tire | |
| 43022-91A | 1991 |
| 43100013 | 2014 |
| 432A1 - Rear Tire | |
| 83324-09A | 2013 |
| 433A1 - Front Wheel | |
| 83326-09 | 2009 |
| 43300283 | 2015 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 83888-09 | 2009 |
| 83875-09 | 2009 |
| 48489-02 | 2002 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500089 | 2014 |
| 45500090 | 2014 |
| 45500121 | 2014 |
| 45500119 | 2014 |
| 455B1 - Front Telescopic Fork Spring | |
| 46517-01 | 2001 |
| 45500124 | 2014 |
| 455C1 - Front Telescopic Fork sub-component | |
| 46080-01 | 2001 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 46513-01 | 2001 |
| 45500132 | 2014 |
| 45500251 | 2014 |
| 45500123 | 2014 |
| 45500118 | 2014 |
| 46510-07 | 2007 |
| 45500114 | 2014 |
| 45500117 | 2014 |
| 456A1 - Fork Protector | |
| 45600003 | 2014 |
| 456C1 - Fork Lock | |
| 45600037 | 2015 |
| 457B1 - Steering Damper | |
| 83808-09A | 2010 |
| 457C1 - Steering Damper Mount | |
| 45700021 | 2015 |
| 83441-10A | 2015 |
| 457D1 - Steering Stem | |
| 45700020A | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45800023 | 2014 |
| 46615-06 | 2006 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 45800046 | 2015 |
| 459A1 - Upper Triple Clamp | |
| 45900027 | 2014 |
| 45900080 | 2015 |
| 459B1 - Lower Triple Clamp | |
| 45900092A | 2014 |
| 470A1 - Frame | |
| 83411-14BHP | 2014 |
| 83466-11BHP | 2011 |
| 47000004B | 2015 |
| 58002-09 | 2009 |
| 472A1 - Frame sub-component | |
| 10600007 | 2014 |
| 47200096 | 2011 |
| 472C2 - Fairing Lower Support Bracket | |
| 47200275 | 2014 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 83407-09 | 2009 |
| 83408-09A | 2009 |
| 83860-09 | 2009 |
| 83429-09 | 2009 |
| 47365-09 | 2009 |
| 83861-09 | 2009 |
| 474C1 - Swingarm | |
| 83366-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 83373-09A | 2010 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49184-09A | 2014 |
| 500B1 - Sidestand Bracket | |
| 50000031 | 2014 |
| 50000066 | 2015 |
| 505A1 - Footboard | |
| 52719-10 | 2010 |
| 50613-91A | 1991 |
| 50899-99A | 1999 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 505C1 - Heel Guard / Pad | |
| 50606-06 | 2006 |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 50621-06 | 2006 |
| 506A1 - Brake Pedal | |
| 42532-06 | 2006 |
| 50600067 | 2014 |
| 42416-06 | 2006 |
| 520A1 - Rider Seat or Full Seat | |
| 52000033 | 2014 |
| 52000157 | 2015 |
| 523B1 - Back Rest Pad | |
| 52300053 | 2014 |
| 523C1 - Back Rest Support Structure | |
| 52300127 | 2014 |
| 52300122 | 2014 |
| 52300121 | 2014 |
| 52300123 | 2014 |
| 524A1 - Passenger Grab Handle | |
| 52400092 | 2015 |
| 52400090 | 2014 |
| 530A1 - Tour Pak | |
| 53000371BHY | 2014 |
| 53000123 | 2014 |
| 53000371DWW | 2015 |
| 53000371DTI | 2014 |
| 530B1 - Tour Pak sub-component | |
| 53000085BHY | 2014 |
| 53000085DWW | 2015 |
| 53000085DSX | 2015 |
| 53000132 | 2014 |
| 53000085DTI | 2014 |
| 53000347 | 2014 |
| 53000346 | 2014 |
| 53000308 | 2014 |
| 53000141 | 2014 |
| 53598-88A | 1988 |
| 53000091 | 2014 |
| 53000090 | 2014 |
| 53000371DSX | 2014 |
| 530C2 - Case Latch | |
| 83352-11A | 2014 |
| 53000337 | 2015 |
| 53000140 | 2014 |
| 53000137 | 2014 |
| 53000139 | 2014 |
| 53000457 | 2015 |
| 53000138 | 2014 |
| 53000356 | 2015 |
| 53000369 | 2015 |
| 530D1 - Trunk Pan sub-component | |
| 83782-11 | 2011 |
| 83434-11 | 2011 |
| 53000391 | 2015 |
| 53000077 | 2011 |
| 83781-11 | 2011 |
| 83346-11A | 2014 |
| 83783-11 | 2011 |
| 53000340 | 2015 |
| 83296-11 | 2011 |
| 53000336 | 2015 |
| 53000339 | 2015 |
| 53000333 | 2015 |
| 53000335 | 2015 |
| 53000334 | 2015 |
| 83778-11 | 2011 |
| 83457-11 | 2011 |
| 83991-11 | 2011 |
| 83458-11 | 2011 |
| 53000355 | 2015 |
| 83777-11 | 2011 |
| 83538-11 | 2011 |
| 53000362 | 2015 |
| 53000361 | 2015 |
| 53000360 | 2015 |
| 83798-11 | 2011 |
| 540B1 - Rear Shock | |
| 83480-09 | 2009 |
| 540E1 - Rear Shock sub-component | |
| 83497-09 | 2009 |
| 54357-03 | 2003 |
| 540H1 - Rear Suspension Miscellaneous Component | |
| 83823-09 | 2009 |
| 540L1 - Shock-Mount Bracket | |
| 83865-09 | 2009 |
| 558A1 - Handlebar | |
| 55800247 | 2015 |
| 55924-14 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 91840-03B | 2003 |
| 91845-03B | 2003 |
| 561E1 - Throttle Grip | |
| 56304-08 | 2008 |
| 56248-08 | 2008 |
| 570A1 - Front Fairing | |
| 57000379DWW | 2015 |
| 57000379DTI | 2014 |
| 57000182 | 2014 |
| 57000379DSX | 2015 |
| 57000383 | 2014 |
| 57000377 | 2015 |
| 57000379BHY | 2014 |
| 570C1 - Inner Fairing | |
| 57000299 | 2014 |
| 57000193BYM | 2014 |
| 57000175 | 2014 |
| 57000186 | 2014 |
| 57000169 | 2014 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 571A1 - Fairing Lower | |
| 57100112 | 2014 |
| 57100111 | 2014 |
| 57100169DJI | 2015 |
| 57100168DJI | 2015 |
| 57100114 | 2014 |
| 57100113 | 2014 |
| 571B1 - Fairing Lower sub-component | |
| 57100169DH | 2014 |
| 57100107 | 2014 |
| 57100109 | 2014 |
| 57100225 | 2014 |
| 57100168DH | 2014 |
| 57100243DSW | 2014 |
| 57100187 | 2014 |
| 57100200 | 2014 |
| 57100242DH | 2014 |
| 57100172 | 2014 |
| 57100171 | 2014 |
| 57100170 | 2014 |
| 57100099 | 2014 |
| 57100169DSW | 2014 |
| 57100164 | 2014 |
| 57100165 | 2014 |
| 57100242DJI | 2015 |
| 57100152 | 2014 |
| 57100151 | 2014 |
| 57100242DSW | 2014 |
| 57100148 | 2014 |
| 57100147 | 2014 |
| 57100243DH | 2014 |
| 57100153 | 2014 |
| 57100154 | 2014 |
| 57100155 | 2014 |
| 57100256 | 2014 |
| 57100168DSW | 2014 |
| 57100243DJI | 2015 |
| 572C1 - Chin Spoiler Side | |
| 57200012 | 2014 |
| 57200017 | 2014 |
| 572D1 - Engine Shroud | |
| 58167-09 | 2009 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 57200081DH | 2014 |
| 57200083DJI | 2015 |
| 57200081DJI | 2015 |
| 32306-08 | 2008 |
| 57200081DSW | 2014 |
| 57200083DST | 2015 |
| 57200083DSW | 2014 |
| 57200083DWC | 2015 |
| 57200083DH | 2014 |
| 573A1 - Bodywork Miscellaneous Component | |
| 83344-11 | 2011 |
| 53919-04A | 2004 |
| 574B1 - Windscreen / Windshield | |
| 57400001 | 2014 |
| 57400002 | 2014 |
| 67621-94 | 1994 |
| 589A1 - Front Fender | |
| 58900077DWW | 2015 |
| 58900081DST | 2015 |
| 58900082 | 2015 |
| 58900077BHY | 2014 |
| 58900077DTI | 2014 |
| 58900081DH | 2015 |
| 58900077DSX | 2015 |
| 58900081DWC | 2015 |
| 58900032 | 2014 |
| 595D1 - Rear Fender | |
| 59500176DST | 2015 |
| 59500176DWC | 2015 |
| 59500178DST | 2015 |
| 59500178DH | 2015 |
| 59500176DH | 2015 |
| 59500178DWC | 2015 |
| 596B1 - Fender Tip | |
| 59600003 | 2014 |
| 59600011 | 2014 |
| 83419-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27439-09A | 2014 |
| 27298-09A | 2014 |
| 27291-09A | 2014 |
| 27297-09A | 2014 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 6119 | 2016 |
| 61112-08 | 2008 |
| 62229-08B | 2011 |
| 75069-08C | 2011 |
| 75076-08B | 2011 |
| 75147-08B | 2011 |
| 75291-08A | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 60900005 | 2014 |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000129DWC | 2015 |
| 61000016BHY | 2014 |
| 61356-08 | 2008 |
| 61000129DST | 2015 |
| 61000129DH | 2015 |
| 61000016DWW | 2015 |
| 61268-08 | 2008 |
| 61000016DSX | 2015 |
| 61000016DTI | 2014 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 10334 | 2014 |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08B | 2014 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 61300331DWC | 2015 |
| 61300331DST | 2015 |
| 62775-08 | 2008 |
| 61300331DH | 2015 |
| 61300315 | 2015 |
| 613B1 - Horn Cover | |
| 61300478 | 2014 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 61300063 | 2014 |
| 613K1 - Airbox Cover | |
| 61300274 | 2014 |
| 613M1 - Headlight Cover | |
| 61300260 | 2015 |
| 61300278 | 2015 |
| 61300089 | 2014 |
| 61300233 | 2015 |
| 61300234 | 2015 |
| 61300235 | 2015 |
| 61300236 | 2015 |
| 61300251 | 2015 |
| 614C1 - Trim | |
| 61400135 | 2014 |
| 15341-08 | 2008 |
| 61400213 | 2015 |
| 61400081 | 2014 |
| 61400209 | 2015 |
| 61400080 | 2014 |
| 43475-08 | 2008 |
| 61400057 | 2014 |
| 59211-74A | 1974 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 53735-06 | 2006 |
| 61400192 | 2014 |
| 53734-06 | 2006 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627A1 - Oil Cooler | |
| 63083-11A | 2015 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627D1 - Oil Duct Cover | |
| 62533-11 | 2011 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62700026 | 2012 |
| 627F1 - Oil Filter | |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 62641-11 | 2011 |
| 62629-11 | 2011 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 26064-08 | 2008 |
| 63533-41A | 1941 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63059-09A | 2013 |
| 62800013 | 2013 |
| 62800004 | 2014 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 62800003 | 2014 |
| 62800001 | 2014 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 66855-10A | 2011 |
| 649A1 - Muffler | |
| 64900149 | 2014 |
| 64900150 | 2014 |
| 65846-10A | 2011 |
| 83448-09 | 2009 |
| 64900201 | 2015 |
| 84021-10 | 2010 |
| 65538-09 | 2009 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 65951-09 | 2009 |
| 62519-03 | 2003 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600102 | 2014 |
| 65600103 | 2014 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000010 | 2014 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 70186-82 | 1982 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 660H1 - Positive Battery Cable Boot | |
| 66000008 | 2011 |
| 70018-07 | 2007 |
| 8348 | Unknown |
| 677A1 - Headlight | |
| 67778-60A | 1960 |
| 67700058 | 2014 |
| 67700187 | 2015 |
| 68051-93A | 1993 |
| 67700077 | 2014 |
| 67700066 | 2014 |
| 67716-60C | 2014 |
| 68725-62A | 1962 |
| 67780-60A | 1960 |
| 68050-93A | 1993 |
| 69969-08 | 2008 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67700184 | 2015 |
| 68342-05A | 2015 |
| 67700070 | 2014 |
| 67700071 | 2014 |
| 67700069 | 2014 |
| 68390-05 | 2005 |
| 67712-83B | 2014 |
| 69200109 | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700124 | 2014 |
| 67700057 | 2014 |
| 67700056 | 2014 |
| 67700240 | 2014 |
| 67700239 | 2014 |
| 67700205 | 2014 |
| 67700204 | 2014 |
| 678A1 - Taillight | |
| 67800086 | 2014 |
| 68245-03 | 2003 |
| 68066-99A | 2004 |
| 67800432 | 2014 |
| 68369-03 | 2003 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 67800332 | 2015 |
| 68370-03A | 2003 |
| 67800099 | 2014 |
| 67800093 | 2014 |
| 67800165 | 2014 |
| 678B1 - Taillight Housing | |
| 67800109 | 2014 |
| 678D1 - Turnsignal | |
| 67800103 | 2014 |
| 69292-06 | 2006 |
| 69438-06 | 2006 |
| 67800131 | 2014 |
| 67800254 | 2014 |
| 68821-00 | 2000 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 679A1 - License Plate Tray / Holder | |
| 83398-09 | 2009 |
| 679B1 - Reflector | |
| 67900205 | 2015 |
| 69490-07 | 2007 |
| 60253-07 | 2007 |
| 60254-07 | 2007 |
| 59988-72A | 1972 |
| 67900198 | 2015 |
| 67900212 | 2016 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900076 | 2014 |
| 679D1 - License Plate Bracket | |
| 67900009 | 2012 |
| 83395-09A | 2011 |
| 83396-09A | 2011 |
| 83420-09 | 2009 |
| 67900187 | 2015 |
| 67900101 | 2014 |
| 67900064 | 2014 |
| 679E1 - License Plate Light | |
| 83799-10 | 2010 |
| 67900075 | 2014 |
| 67900074 | 2014 |
| 67900111 | 2014 |
| 680A1 - Decorative Light | |
| 53789-06 | 2006 |
| 53788-06 | 2006 |
| 680C1 - Incandescent Bulb | |
| 68168-89A | 1989 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 52441-95 | 1995 |
| 680D1 - Fog Light | |
| 68000021 | 2014 |
| 68000020 | 2014 |
| 68000022 | 2014 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692B1 - Auxiliary Power Outlet | |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200421 | 2014 |
| 72232-96 | 1996 |
| 72299-95 | 1995 |
| 69200284 | 2014 |
| 83869-09 | 2009 |
| 69200285 | 2014 |
| 72062-06 | 2006 |
| 69200823 | 2015 |
| 72189-04 | 2004 |
| 69200172 | 2014 |
| 69200174 | 2014 |
| 69200175 | 2014 |
| 6990 | 2011 |
| 10289A | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 69200411 | 2014 |
| 66200-09 | 2009 |
| 83943-09 | 2009 |
| 71455-11 | 2011 |
| 69123-92A | 1992 |
| 71019-07 | 2007 |
| 69200203 | 2014 |
| 69200202 | 2014 |
| 69120-91 | 1991 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69062-91A | 1991 |
| 67341-04B | 2004 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 72462-00 | 2000 |
| 72345-02 | 2002 |
| 69200336 | 2014 |
| 72331-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69200195 | 2014 |
| 692F1 - Wire Harness | |
| 69200410 | 2014 |
| 69200711 | 2015 |
| 69200127 | 2014 |
| 69200125 | 2014 |
| 69200265 | 2014 |
| 69200266 | 2014 |
| 69200121 | 2014 |
| 69200408 | 2014 |
| 69200407 | 2014 |
| 69200139 | 2013 |
| 69200409 | 2014 |
| 69200135 | 2014 |
| 69200391 | 2014 |
| 69200394 | 2014 |
| 69200138 | 2013 |
| 69200131 | 2014 |
| 69200133 | 2014 |
| 69200141 | 2014 |
| 69200140 | 2014 |
| 69200031 | 2014 |
| 69200211 | 2014 |
| 69200740 | 2015 |
| 69200311 | 2014 |
| 69200247 | 2014 |
| 69200178 | 2014 |
| 69200179 | 2014 |
| 69200699 | 2015 |
| 69200224 | 2014 |
| 69200338 | 2014 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 72249-94 | 1994 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 76266-98A | 2012 |
| 73152-96BK | 1996 |
| 69200267A | 2014 |
| 72114-94BK | 1994 |
| 83876-09 | 2009 |
| 69200192A | 2014 |
| 74104-98BK | 1998 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 69200193 | 2014 |
| 69200291A | 2014 |
| 69200529 | 2012 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200212 | 2014 |
| 72111-06 | 2006 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72664-12A | 2013 |
| 72444-07GY | 2007 |
| 72113-94BK | 1994 |
| 69200462 | 2014 |
| 69200256 | 2014 |
| 72009-05 | 2005 |
| 69200254 | 2014 |
| 72007-05 | 2005 |
| 69200306 | 2014 |
| 72064-06 | 2006 |
| 69200305 | 2014 |
| 73301-04 | 2004 |
| 72594-11 | 2011 |
| 69200226 | 2014 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 69200225 | 2014 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 69200337 | 2014 |
| 72153-94 | 1994 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72296-95 | 1995 |
| 72343-10 | 2010 |
| 69201240 | 2014 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72364-06 | 2006 |
| 72227-11 | 2011 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 69200536 | 2014 |
| 72400-99 | 1999 |
| 72909-11 | 2011 |
| 83944-09 | 2009 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72662-11 | 2012 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 69200859 | 2014 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 8370 | 2011 |
| 72663-11 | 2011 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 73307-10 | 2010 |
| 72294-94 | 1994 |
| 72241-94A | 1994 |
| 69200307 | 2014 |
| 69200237 | 2014 |
| 69200238 | 2011 |
| 69200308 | 2014 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 74144-98 | 1998 |
| 72912-01BK | 2001 |
| 72039-71A | 1971 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 69200406 | 2014 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 69200199 | 2014 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 73101-96BK | 1996 |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 72479-07BK | 2007 |
| 73152-96WE | 1996 |
| 69200214 | 2014 |
| 69200210 | 2014 |
| 69200205 | 2014 |
| 74120-08 | 2008 |
| 72557-07 | 2007 |
| 69200204 | 2014 |
| 72486-08 | 2008 |
| 69200201 | 2014 |
| 72408-07 | 2007 |
| 72251-07 | 2007 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72589-09 | 2009 |
| 69200461 | 2014 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 72053-92 | 1992 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 83898-09 | 2009 |
| 73104-96BK | 1996 |
| 72469-07GY | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 72544-07 | 2007 |
| 72209-11 | 2011 |
| 74154-98 | 1998 |
| 73102-96BK | 1996 |
| 72014-07 | 2007 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 8339 | 2009 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 72012-07 | 2007 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 692M1 - Electrical Component / Wire Cover | |
| 69200437 | 2014 |
| 692N1 - Engine Harness Support | |
| 69200173 | 2014 |
| 709A1 - Dash Panel | |
| 70900138 | 2014 |
| 70900392BYM | 2014 |
| 709B1 - Instrument Cluster or Speedometer | |
| 68893-00A | 2000 |
| 70900121A | 2015 |
| 70900122 | 2014 |
| 70900123 | 2014 |
| 70900421 | 2015 |
| 70900379 | 2015 |
| 709B2 - Fuel Gauge | |
| 70900162 | 2014 |
| 70900165 | 2014 |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 61270-08 | 2008 |
| 70900298A | 2015 |
| 61278-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71400017 | 2014 |
| 71400073 | 2012 |
| 71400081 | 2014 |
| 71400098 | 2015 |
| 71400020 | 2014 |
| 71400021 | 2014 |
| 71400022 | 2014 |
| 71517-11 | 2011 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 71400031 | 2014 |
| 71400044 | 2014 |
| 71400005 | 2014 |
| 71400006 | 2014 |
| 71400007 | 2014 |
| 714C1 - Pressure Switch | |
| 74438-99A | 2010 |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 71500045 | 2014 |
| 71500046 | 2014 |
| 71500044 | 2014 |
| 71500049 | 2014 |
| 71500048 | 2014 |
| 71500236 | 2015 |
| 71500144 | 2014 |
| 71500094 | 2014 |
| 71500135 | 2014 |
| 71500121 | 2014 |
| 71500129A | 2014 |
| 71500119 | 2014 |
| 71500063 | 2014 |
| 67493-08 | 2008 |
| 71500057 | 2014 |
| 71500056 | 2014 |
| 71500055 | 2014 |
| 71500054 | 2014 |
| 71500053 | 2014 |
| 71500050 | 2014 |
| 71500127A | 2014 |
| 747A1 - Voltage Regulator | |
| 72350-11 | 2011 |
| 74505-09A | 2014 |
| 760B1 - Antenna | |
| 76503-08 | 2008 |
| 68956-07 | 2007 |
| 76000186 | 2014 |
| 76000164 | 2014 |
| 76000165 | 2014 |
| 76353-00 | 2000 |
| 76000208 | 2014 |
| 76000222 | 2014 |
| 760C2 - Audio System Speaker | |
| 76000055 | 2014 |
| 76000096 | 2014 |
| 76000092 | 2014 |
| 760C3 - Radio Receiver | |
| 76000232 | 2014 |
| 76000076 | 2014 |
| 76000231 | 2014 |
| 760C4 - Rider-Passenger Communication System | |
| 77117-10 | 2010 |
| 76000243 | 2013 |
| 77148-10 | 2010 |
| 77126-10 | 2010 |
| 760C5 - Speaker Enclosure | |
| 76000160 | 2014 |
| 76000161 | 2014 |
| 760C6 - Media Storage Compartment | |
| 76000234 | 2014 |
| 76000127 | 2014 |
| 76000409BYM | 2014 |
| 76000107 | 2014 |
| 760C8 - Satellite Radio | |
| 76000252 | 2014 |
| 760D2 - Infotainment Mount sub-component | |
| 76000177 | 2014 |
| 76000173 | 2014 |
| 76000174 | 2014 |
| 76000172 | 2014 |
| 830A1 - Trike Body | |
| 83000062DWC | 2015 |
| 83000080DST | 2015 |
| 83000080DH | 2015 |
| 83000062DH | 2015 |
| 83000056DSX | 2015 |
| 83000012 | 2014 |
| 83000056DTI | 2014 |
| 83000051DH | 2014 |
| 83000056DWW | 2015 |
| 83000051DSW | 2014 |
| 83000054BHY | 2014 |
| 83000056BHY | 2014 |
| 83000042DH | 2014 |
| 83000054DWW | 2015 |
| 83000051DJI | 2015 |
| 83000042DJI | 2015 |
| 83000042DSW | 2014 |
| 83000080DWC | 2015 |
| 83000054DSX | 2015 |
| 83000054DTI | 2014 |
| 83000062DST | 2015 |
| 830C1 - Parking Brake | |
| 83000027A | 2015 |
| 83000068 | 2014 |
| 83000028A | 2015 |
| 83000014 | 2014 |
| 83000026 | 2014 |
| 83000025 | 2014 |
| 83000018 | 2014 |
| 83000024A | 2015 |
| 8351 | 2011 |
| 8353 | 2011 |
| 8357 | 2011 |
| 83000030 | 2014 |
| 902E1 - Saddlebag Bottom | |
| 75089-08 | 2008 |
| 903A1 - Lockset | |
| 90300051 | 2014 |
| 61029-92A | 1992 |
| 90300030 | 2014 |
| 90300104 | 2015 |
| 90300103 | 2015 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 69995-11 | 2011 |
| 917B1 - Service Program Kit | |
| 91700034 | 2014 |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800042 | 2013 |
| 931A1 - Protective / Storage Cover | |
| 83418-09 | 2009 |
| 933B1 - Hard Storage | |
| 83383-09 | 2009 |
| 83385-09 | 2009 |
| 93300035 | 2014 |
| 940A1 - Owner's Kit | |
| 88002-15D | 2015 |
| 99517-15EN | 2015 |
| 940A2 - Owner's Manual | |
| 83390-15 | 2015 |
| 99461-89 | 1989 |
| 940L1 - Miscellaneous Technical Document | |
| 83913-14 | 2014 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | BRAKE CONTROL, REAR - FLHTCUTG: BRAKE CONTROL, REAR - FLRT: |
| 10102 | CLIP | FENDERS, REAR - FLHTCUTG: FENDERS, REAR - FLRT: INSTRUMENTS, FUEL TANK - FLRT : WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - DOMESTIC - FLHTCUTG: WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - HDI - FLHTCUTG: WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR - DOMESTIC - FLRT: BODY ASSEMBLY & SIDE COVERS - FLHTCUTG: BODY ASSEMBLY & SIDE COVERS - FLRT: TRUNK DOOR - FLHTCUTG: |
| 1062 | SCREW | |
| 11000101 | OIL SEAL | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11143 | RETAINING RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11270 | O-RING | |
| 11293 | O-RING | |
| 11301 | O-RING | |
| 12052A | SEAL | |
| 12074 | SEAL | |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 103™: CYLINDERS, HEADS & VALVES, TWIN-COOLED™ - TWIN CAM 103™: |
| 16719-99B | GASKET | |
| 17045-99D | GASKET KIT | |
| 17369-06 | GASKET SERVICE KIT | |
| 17386-99A | GASKET | |
| 18635-99B | GASKET | |
| 2445 | SCREW | WINDSHIELD, FAIRING & HEADLAMP - FLHTCUTG: FAIRING, INNER - FLHTCUTG: |
| 25244-99A | GASKET | |
| 2531 | SCREW | FENDERS, FRONT: |
| 2563 | SCREW | INSTRUMENTS - FLHTCUTG: FAIRING, INNER - FLHTCUTG: |
| 25700226 | GASKET KIT | |
| 26995-86B | SEAL | |
| 27444-00Y | O-RING | |
| 2952A | SCREW | |
| 3050 | SCREW | |
| 3275 | SCREW | |
| 34091-08 | BEARING | |
| 34901-07 | GASKET | |
| 34917-06 | GASKET | |
| 34934-06 | GASKET | |
| 35654-06 | GASKET | |
| 3655A | SCREW | FAIRING LOWERS - ULTRA - TWIN-COOLED™ (1 OF 2): |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41731-01 | GASKET | |
| 4740A | SCREW | |
| 5210 | WELL NUT | LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (1 OF 2): |
| 60678-85 | RETAINING RING | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | BODY ASSEMBLY & SIDE COVERS - FLHTCUTG: |
| 7041 | LOCKWASHER | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - DOMESTIC - FLHTCUTG: |
| 7586 | JAMNUT | TOUR-PAK (BOTTOM) - FLHTCUTG: |
| 7593 | NUT | |
| 7600 | NUT | FENDERS, FRONT: |
| 7716 | LOCKNUT | COOLING SYSTEM, ENGINE, TWIN-COOLED™ - TWIN CAM 103™: RADIATOR, COOLANT HOSES & BOTTLE: FAIRING LOWERS - ULTRA - TWIN-COOLED™ (1 OF 2): TOUR-PAK (BOTTOM) - FLHTCUTG: |
| 786A | BOLT | |
| 856A | SCREW | |
| 9276A | BALL BEARING | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 46514-01A | OIL SEAL | |
| 46615-06 | PACKING SEAL |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | CONSOLE, FUEL TANK - FLHTCUTG: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29987-06D | STATOR ASSEMBLY | |
| 72023-51E | SWITCH KIT | BRAKE CONTROL, REAR - FLHTCUTG: BRAKE CONTROL, REAR - FLRT: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | |
| 18538-99C | HYDRAULIC LIFTER | |
| 33709-82A | SHAFT | |
| 37909-90 | RING |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33895-82D | SHIFT LEVER KIT | |
| 34611-65A | PEG |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP - FLHTCUTG: FUEL PUMP - FLRT: |
| 65296-95A | MUFFLER CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - DOMESTIC - FLHTCUTG: TURN SIGNALS, FRONT - FLRT: |
| 68329-03 | BULB | NACELLE & HEADLAMP - FLRT: |
| 68973-00 | LENS | AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - DOMESTIC - FLHTCUTG: TURN SIGNALS, FRONT - FLRT: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63731-99A | OIL FILTER | CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™: CRANKCASE & ENGINE OIL FILTER - TWIN-COOLED™ TWIN CAM 103™: |
| 66010-97C | BATTERY | |
| 66373-06 | BATTERY | |
| 95594-84A | WEIGHT | WHEELS, FRONT: WHEELS, REAR: |
| 95595-84B | WEIGHT | WHEELS, FRONT: WHEELS, REAR: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | |
| 43022-91A | TIRE | WHEELS, FRONT: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | NACELLE & HEADLAMP - FLRT: |
