2013 HARLEY-DAVIDSON® PARTS CATALOG: FLHRSE5 MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99433-13 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2013 FLHRSE5 MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale within the
United States 5HD=Originally manufactured for sale outside of the
United States 932=Originally manufactured in and for sale only in Brazil market MEG=Originally manufactured in and for sale only in India market | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | PG=FLHRSE5 CVO Road King® PG=FLHRSE5 ANV CVO Road King® 110th Anniversary Edition | |
4 | Engine type | 8=Twin Cam 110™ (1802 cm3) air-cooled, fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) C=HDI E=Japan (JPN) G=Australia (AUS) J=Brazil (BRZ) L=Asia Pacific (APC) N=India (IND) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) D=HDI F=Japan (JPN) H=Australia (AUS) K=Brazil (BRZ) M=Asia Pacific (APC) P=India (IND) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | D=2013 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
NOTES

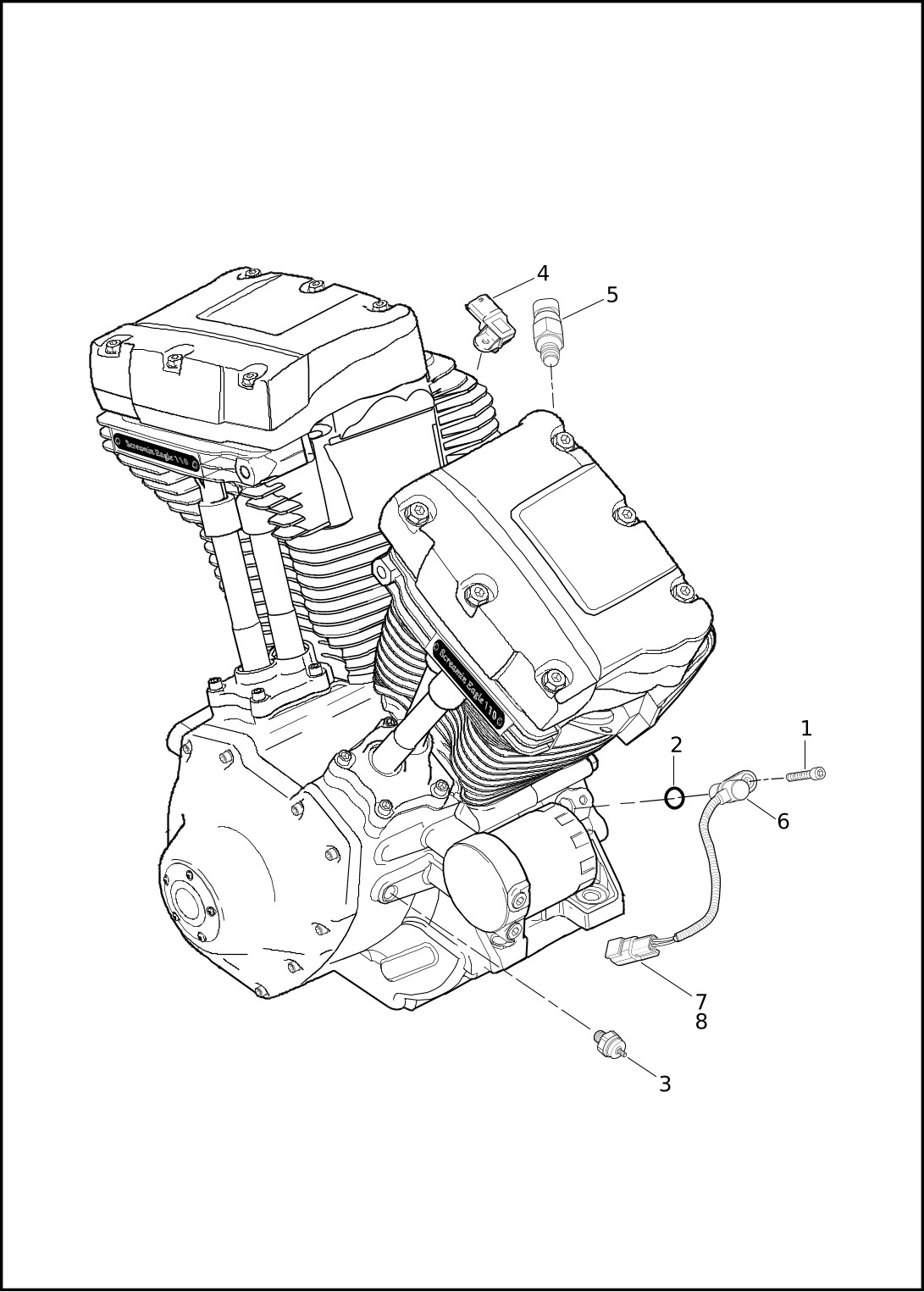

ENGINE ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19792-13 | ENGINE ASSEMBLY, complete - 110 cubic-inch (black) | FLHRSE5 ANV |
| 19838-13 | ENGINE ASSEMBLY, complete - 110 cubic-inch (granite) | FLHRSE5 |
CYLINDERS, HEADS & VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING KIT, cylinder base, w/ crankcase dowel o-rings | FLHRSE5, FLHRSE5 ANV |
| 2 | 16478-85A | SCREW, internal thread, 3-3/16 in. long (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 16480-92A | SCREW, internal thread, 1-7/8 in. long (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 16595-99A | DOWEL PIN, ring (4) | FLHRSE5, FLHRSE5 ANV |
| 5 | 16699-06 | SNAP RING, wire (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 16715-83 | STUD, exhaust port (4) | FLHRSE5, FLHRSE5 ANV |
| 7 | 16801-07B | GASKET, cylinder head (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 16834-99A | STUD, cylinder (8) | FLHRSE5, FLHRSE5 ANV |
| 9 | 17257-07A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (black) | FLHRSE5 ANV |
| 17293-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (black) | FLHRSE5 ANV | |
| 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE5 | |
| 17337-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE5 | |
| 10 | 17349-07B | GASKET KIT, top-end | FLHRSE5, FLHRSE5 ANV |
| 17350-07B | GASKET KIT, engine overhaul | FLHRSE5, FLHRSE5 ANV | |
| 11 | 17285-07A | CYLINDER ASSEMBLY, w/ 16595-99A (black) (2) | FLHRSE5 ANV |
| 17454-08A | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLHRSE5 | |
| 12 | 18067-09 | VALVE SEAL (4) | FLHRSE5, FLHRSE5 ANV |
| 13 | 18048-98A | SEAT, exhaust valve (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHRSE5, FLHRSE5 ANV |
| 18154-05 | VALVE GUIDE, intake, .001 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 18156-05 | VALVE GUIDE, intake, .002 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 18158-05 | VALVE GUIDE, intake, .003 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 15 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHRSE5, FLHRSE5 ANV |
| 18153-05 | VALVE GUIDE, exhaust, .001 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 18155-05 | VALVE GUIDE, exhaust, .002 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 18157-05 | VALVE GUIDE, exhaust, .003 OS (2) | FLHRSE5, FLHRSE5 ANV | |
| 16 | 18183-03 | EXHAUST VALVE (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 18187-07 | INTAKE VALVE (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 18189-07 | SEAT, intake valve (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 18270-00A | COLLAR, valve spring lower (4) | FLHRSE5, FLHRSE5 ANV |
| 20 | 18271-00 | KEY, valve spring collar (8) | FLHRSE5, FLHRSE5 ANV |
| 21 | 18272-00 | SPRING VALVE, inner & outer (4) | FLHRSE5, FLHRSE5 ANV |
| 22 | 18280-07 | COLLAR, valve spring upper (4) | FLHRSE5, FLHRSE5 ANV |
| 23 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 29517-07A | MEDALLION KIT, w/ 2 medallions | FLHRSE5, FLHRSE5 ANV |
| 25 | 72009-05 | HOUSING, 2-way, pin | FLHRSE5, FLHRSE5 ANV |
| 26 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHRSE5, FLHRSE5 ANV |
| 27 | 25800017 | SCREW, medallion (4) | FLHRSE5, FLHRSE5 ANV |
ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3692A | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3693A | SCREW (10) | FLHRSE5, FLHRSE5 ANV |
| 4 | 3736A | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 5 | 4400 | BOLT (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 4741A | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 7 | 6762B | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 8 | 11132A | O-RING, pushrod cover (4) | FLHRSE5, FLHRSE5 ANV |
| 9 | 11145A | O-RING, pushrod cover (4) | FLHRSE5, FLHRSE5 ANV |
| 10 | 11270 | O-RING (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 11293 | O-RING (4) | FLHRSE5, FLHRSE5 ANV |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 17045-99D | GASKET KIT, cam service | FLHRSE5, FLHRSE5 ANV |
| 14 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHRSE5, FLHRSE5 ANV |
| 15 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHRSE5, FLHRSE5 ANV |
| 16 | 17386-99A | GASKET, rocker cover (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 17429-91 | BUSHING, rocker arm (8) | FLHRSE5, FLHRSE5 ANV |
| 18 | 17707-11 | ROCKER COVER (black) (2) | FLHRSE5 ANV |
| 17572-99 | ROCKER COVER (chrome) (2) | FLHRSE5 | |
| 19 | 17709-11 | ROCKER HOUSING (black) (2) | FLHRSE5 ANV |
| 17573-99A | ROCKER HOUSING (chrome) (2) | FLHRSE5 | |
| 20 | 17594-99 | SUPPORT, rocker arm (2) | FLHRSE5, FLHRSE5 ANV |
| 21 | 17611-83 | SHAFT, rocker arm (4) | FLHRSE5, FLHRSE5 ANV |
| 22 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | FLHRSE5, FLHRSE5 ANV |
| 23 | 17922-99 | PUSHROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLHRSE5, FLHRSE5 ANV |
| 17923-99 | PUSHROD, intake, 10.418 in. long (plain finish) (2) | FLHRSE5, FLHRSE5 ANV | |
| 24 | 17939-99 | COVER, pushrod, lower (4) | FLHRSE5, FLHRSE5 ANV |
| 25 | 17945-36B | CAP, cover spring (4) | FLHRSE5, FLHRSE5 ANV |
| 26 | 17947-36 | SPRING, pushrod cover (4) | FLHRSE5, FLHRSE5 ANV |
| 27 | 17948-99 | COVER, pushrod, upper (4) | FLHRSE5, FLHRSE5 ANV |
| 28 | 17964-99 | LIFTER COVER, front (chrome) | FLHRSE5, FLHRSE5 ANV |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHRSE5, FLHRSE5 ANV | |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLHRSE5, FLHRSE5 ANV |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLHRSE5, FLHRSE5 ANV |
| 31 | 18635-99B | GASKET, lifter cover (2) | FLHRSE5, FLHRSE5 ANV |
| 32 | 18572-13 | HYDRAULIC LIFTER (4) | FLHRSE5, FLHRSE5 ANV |
| 33 | 26500002 | BREATHER, baffle assembly, w/ breather valve & filter (2) | FLHRSE5, FLHRSE5 ANV |
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FLHRSE5, FLHRSE5 ANV |
| 21953-11 | PISTON RING SET, 0.010 in. O.S. (2) | FLHRSE5, FLHRSE5 ANV | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 23729-07B | FLYWHEEL ASSEMBLY KIT | FLHRSE5, FLHRSE5 ANV |
| 5 | 22000001 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHRSE5, FLHRSE5 ANV |
| 22000003 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHRSE5, FLHRSE5 ANV |
CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 765 | PLUG (3) | FLHRSE5, FLHRSE5 ANV |
| 3 | 895 | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 4 | 924 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 1090A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 6 | 4266A | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 7601 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 8972 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 24018-10 | BEARING KIT, needle, left side, camshaft (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 10198 | CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 10354 | CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 11140 | O-RING (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 11290 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 14 | 11692 | GROMMET (2) | FLHRSE5, FLHRSE5 ANV |
| 15 | 11907 | O-RING KIT, w/ cylinder base o-rings | FLHRSE5, FLHRSE5 ANV |
| 16 | 12068 | SEAL, oil | FLHRSE5, FLHRSE5 ANV |
| 17 | 16574-99A | DOWEL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 16589-99A | DOWEL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 16595-99A | DOWEL PIN (4) | FLHRSE5, FLHRSE5 ANV |
| 20 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLHRSE5, FLHRSE5 ANV |
| 21 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | FLHRSE5, FLHRSE5 ANV |
| 22 | 24009-06 | SPACER, sprocket shaft | FLHRSE5, FLHRSE5 ANV |
| 23 | 24605-07 | BEARING, main (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 24758-07A | CRANKCASE SET, w/ 765, 895, 1090A, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24605-07, 35114-02 & 68042-99 (black) | FLHRSE5 ANV |
| 24760-08A | CRANKCASE SET, w/ 765, 895, 1090A, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24605-07, 35114-02 & 68042-99 (granite) | FLHRSE5 | |
| 25 | 26041-05A | ADAPTER | FLHRSE5, FLHRSE5 ANV |
| 26 | 35114-02 | RING, retaining, internal | FLHRSE5, FLHRSE5 ANV |
| 27 | 62629-11 | HOSE, oil cooler, right | FLHRSE5, FLHRSE5 ANV |
| 28 | 62641-11 | HOSE, oil cooler, left | FLHRSE5, FLHRSE5 ANV |
| 29 | 63059-09 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover (black) | FLHRSE5 ANV |
| 63076-09 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover (granite) | FLHRSE5 | |
| 30 | 63066-07 | GASKET | FLHRSE5, FLHRSE5 ANV |
| 31 | 63083-11 | OIL COOLER CORE | FLHRSE5, FLHRSE5 ANV |
| 32 | 63084-07 | GASKET | FLHRSE5, FLHRSE5 ANV |
| 33 | 63533-41A | FITTING (2) | FLHRSE5, FLHRSE5 ANV |
| 34 | 63798-99A | FILTER, oil (chrome) | FLHRSE5, FLHRSE5 ANV |
| 35 | 68042-99 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 36 | 63121-11A | COVER ASSEMBLY, oil cooler (chrome) | FLHRSE5, FLHRSE5 ANV |
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHRSE5, FLHRSE5 ANV |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4740A | SCREW, secondary cam tensioner (2) | FLHRSE5, FLHRSE5 ANV |
| 4740A | SCREW, cam cover (10) | FLHRSE5, FLHRSE5 ANV | |
| 4 | 4741A | SCREW (10) | FLHRSE5, FLHRSE5 ANV |
| 5 | 6294 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 6 | 8873 | BALL (12) | FLHRSE5, FLHRSE5 ANV |
| 7 | 24018-10 | BEARING KIT, needle, left side, camshaft (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 11293 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 9 | 11301 | O-RING (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 11461 | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 11 | 17045-99D | GASKET KIT, cam service | FLHRSE5, FLHRSE5 ANV |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws | FLHRSE5, FLHRSE5 ANV |
| 13 | 25244-99A | GASKET, cam cover | FLHRSE5, FLHRSE5 ANV |
| 14 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLHRSE5, FLHRSE5 ANV |
| 15 | 37198-11 | CAM COVER (black) | FLHRSE5 ANV |
| 25369-01B | CAM COVER (chrome) | FLHRSE5 | |
| 16 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT, w/ 25566-06, 25673-06, 25675-06 & 25728-06 | FLHRSE5, FLHRSE5 ANV |
| 17 | 25638-07 | CAMSHAFT KIT | FLHRSE5, FLHRSE5 ANV |
| 18 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHRSE5, FLHRSE5 ANV |
| 19 | 25675-06 | CHAIN, primary cam drive | FLHRSE5, FLHRSE5 ANV |
| 20 | 25683-06 | CHAIN, secondary cam drive | FLHRSE5, FLHRSE5 ANV |
| 21 | 25728-06 | SPROCKET, cam drive, 34 T | FLHRSE5, FLHRSE5 ANV |
| 22 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLHRSE5, FLHRSE5 ANV |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHRSE5, FLHRSE5 ANV | |
| 24 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06 & 40323-00 | FLHRSE5, FLHRSE5 ANV |
| 25 | 26210-99 | SPRING, relief valve | FLHRSE5, FLHRSE5 ANV |
| 26 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHRSE5, FLHRSE5 ANV |
| 27 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHRSE5, FLHRSE5 ANV |
| 28 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHRSE5, FLHRSE5 ANV |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FLHRSE5, FLHRSE5 ANV |
| 30 | 32586-07 | COVER, timer cover (chrome) | FLHRSE5, FLHRSE5 ANV |
| 31 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHRSE5, FLHRSE5 ANV |
| 32 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHRSE5, FLHRSE5 ANV |
| 33 | 40323-00 | SPRING, separator | FLHRSE5, FLHRSE5 ANV |
| 34 | 68120-00 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 35 | 14100391 | INSERT, timer cover | FLHRSE5, FLHRSE5 ANV |
ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4688 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4721 | BOLT (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 4838 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 4868 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 6127 | WASHER (5) | FLHRSE5, FLHRSE5 ANV |
| 7 | 7783 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 16219-09 | STABLIZER LINK | FLHRSE5, FLHRSE5 ANV |
| 10 | 16321-08 | WELDMENT, engine strap | FLHRSE5, FLHRSE5 ANV |
| 11 | 24754-75A | DOWEL, bushing (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 47159-09BHP | BRACKET, front engine mount | FLHRSE5, FLHRSE5 ANV |
| 13 | 47460-09BHP | END CAP, front mount | FLHRSE5, FLHRSE5 ANV |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4705 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 16325-10 | BRACKET, induction module | FLHRSE5, FLHRSE5 ANV |
| 4 | 26993-06 | FLANGE, mounting (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 26995-86B | SEAL, intake manifold (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHRSE5, FLHRSE5 ANV |
| 8 | 27721-08 | FUEL RAIL | FLHRSE5, FLHRSE5 ANV |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLHRSE5, FLHRSE5 ANV |
| 10 | 61208-10 | FUEL LINE | FLHRSE5, FLHRSE5 ANV |
| 11 | 90383-98 | CAP, purge tube | FLHRSE5, FLHRSE5 ANV |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | FLHRSE5, FLHRSE5 ANV |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3048 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3938 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 3 | 8250 | STUD, air cleaner (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 11292 | O-RING (4) | FLHRSE5, FLHRSE5 ANV |
| 5 | 29241-08 | GASKET | FLHRSE5, FLHRSE5 ANV |
| 6 | 29267-08A | BOLT, breather (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 29269-83A | SCREW, air cleaner | FLHRSE5, FLHRSE5 ANV |
| 8 | 29670-09 | ELEMENT, air filter | FLHRSE5, FLHRSE5 ANV |
| 9 | 29400025 | COVER, air cleaner (chrome), w/ label | FLHRSE5, FLHRSE5 ANV |
| 10 | 29696-09 | BACKPLATE ASSEMBLY, air cleaner (granite) | FLHRSE5 |
| 29763-09 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHRSE5 ANV | |
| 11 | 29762-09 | RAINSOCK | FLHRSE5, FLHRSE5 ANV |
| 12 | 14100310 | INSERT, air cleaner cover | FLHRSE5, FLHRSE5 ANV |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 7716 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 10039 | CABLE STRAP (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 24009-06 | SPACER, sprocket shaft | FLHRSE5, FLHRSE5 ANV |
| 5 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLHRSE5, FLHRSE5 ANV |
| 6 | 30041-08 | ROTOR ASSEMBLY, 3-phase | FLHRSE5, FLHRSE5 ANV |
| 7 | 74115-06 | DC LEAD ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 8 | 74622-09 | VOLTAGE REGULATOR KIT, 45 AMP (chrome) | FLHRSE5, FLHRSE5 ANV |
| 9 | 89584-07 | PROTECTOR CAP (2) | FLHRSE5, FLHRSE5 ANV |
ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4826 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 10177 | CABLE STRAP, tree mount (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 31696-07A | IGNITION COIL | FLHRSE5, FLHRSE5 ANV |
| 5 | 32013-09A | SPARK PLUG CABLE, front cylinder, w/ 10177 | FLHRSE5, FLHRSE5 ANV |
| 6 | 32014-09A | SPARK PLUG CABLE, rear cylinder, w/ 10177 | FLHRSE5, FLHRSE5 ANV |
| 7 | 32362-04 | SPARK PLUG, 6R12 (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 34246-08B | ELECTRONIC CONTROL MODULE (ECM), base level, requires digital programming. | FLHRSE5, FLHRSE5 ANV |
| 9 | 66200-09 | BRACKET, battery hold down | FLHRSE5, FLHRSE5 ANV |
| 10 | 70344-09 | CADDY, electronic control module (ECM) | FLHRSE5, FLHRSE5 ANV |
| 11 | 70681-09 | RETAINER, wire harness | FLHRSE5, FLHRSE5 ANV |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 11289A | O-RING | FLHRSE5, FLHRSE5 ANV |
| 3 | 26561-99 | OIL PRESSURE SENDER | FLHRSE5, FLHRSE5 ANV |
| 4 | 32319-07 | SENSOR, temperature manifold absolute pressure (MAP), w/ o-ring | FLHRSE5, FLHRSE5 ANV |
| 5 | 32446-99 | SENSOR, engine temperature | FLHRSE5, FLHRSE5 ANV |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 73198-96, & 74194-98 | FLHRSE5, FLHRSE5 ANV |
| 7 | 73198-96 | CONNECTOR ANCHOR | FLHRSE5, FLHRSE5 ANV |
| 8 | 74194-98 | PIN TERMINAL (2) | FLHRSE5, FLHRSE5 ANV |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW, starter mount (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 27444-00Y | O-RING, starter-to-case | FLHRSE5, FLHRSE5 ANV |
| 3 | 31604-06 | SOLENOID REPAIR KIT | FLHRSE5, FLHRSE5 ANV |
| 4 | 31619-06A | STARTER ASSEMBLY COMPLETE (black) | FLHRSE5, FLHRSE5 ANV |
| 5 | 31633-07A | CLUTCH SUBASSEMBLY, w/ 10957 | FLHRSE5, FLHRSE5 ANV |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 856A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 3275 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 4192 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 4196 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 6 | 5817 | SPACER | FLHRSE5, FLHRSE5 ANV |
| 7 | 5826 | SPACER, shifter cover | FLHRSE5, FLHRSE5 ANV |
| 8 | 6497HW | WASHER | FLHRSE5, FLHRSE5 ANV |
| 9 | 7041 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 7326 | NUT, rod-end (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 7904 | ACORN NUT (polished stainless steel) | FLHRSE5, FLHRSE5 ANV |
| 12 | 11150 | RING, retaining, external | FLHRSE5, FLHRSE5 ANV |
| 13 | 11389 | RING, shift cam retaining | FLHRSE5, FLHRSE5 ANV |
| 14 | 11575 | RING, shift cam retaining | FLHRSE5, FLHRSE5 ANV |
| 15 | 33389-07 | SPRING DETENT | FLHRSE5, FLHRSE5 ANV |
| 16 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLHRSE5, FLHRSE5 ANV |
| 17 | 33413-06A | SHIFTER CAM ASSEMBLY, w/ 11389, 11575 & bearing | FLHRSE5, FLHRSE5 ANV |
| 18 | 33709-82A | SHAFT | FLHRSE5, FLHRSE5 ANV |
| 19 | 33718-82B | LEVER, gearshift (chrome) | FLHRSE5, FLHRSE5 ANV |
| 20 | 33760-09 | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7326, 7904, 33899-08 & 33890-99A | FLHRSE5, FLHRSE5 ANV |
| 21 | 33849-97 | LEVER, shifter rod | FLHRSE5, FLHRSE5 ANV |
| 22 | 33890-99A | COVER, shifter rod | FLHRSE5, FLHRSE5 ANV |
| 23 | 33899-08 | ROD END, self-aligning (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 34064-00C | SPRING, shifter return | FLHRSE5, FLHRSE5 ANV |
| 25 | 34568-00B | LEVER, shifter toe (short) (chrome) | FLHRSE5, FLHRSE5 ANV |
| 26 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | FLHRSE5 ANV |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (granite) | FLHRSE5 | |
| 27 | 34987-06 | SPRING, ratchet lever | FLHRSE5, FLHRSE5 ANV |
| 28 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C, & 34987-06 | FLHRSE5, FLHRSE5 ANV |
| 29 | 35082-07 | CENTERING SCREW, shift lever | FLHRSE5, FLHRSE5 ANV |
| 30 | 35186-06 | SLEEVE | FLHRSE5, FLHRSE5 ANV |
| 31 | 35187-06 | FORK, shift 1 - 2 | FLHRSE5, FLHRSE5 ANV |
| 32 | 35210-06 | FORK, shift 3 - 4 | FLHRSE5, FLHRSE5 ANV |
| 33 | 35217-06 | FORK, shift 5 - 6 | FLHRSE5, FLHRSE5 ANV |
| 34 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHRSE5, FLHRSE5 ANV |
| 35 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLHRSE5, FLHRSE5 ANV |
| 36 | 35243-06 | SLEEVE | FLHRSE5, FLHRSE5 ANV |
| 37 | 35244-06 | SCREW, detent | FLHRSE5, FLHRSE5 ANV |
| 38 | 35249-06A | LOCK PLATE, shift cam | FLHRSE5, FLHRSE5 ANV |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 15, 17, 31, 32, 33, 34, 35, 36, 37, 38, 39, 7340, 35260-06, input shaft, counter shaft (black) | FLHRSE5 ANV | |
| 35255-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 15, 17, 31, 32, 33, 34, 35, 36, 37, 38, 39, 7340, 35260-06, input shaft, counter shaft (granite) | FLHRSE5 | |
| 39 | 35259-06 | SCREW, shift drum support (2) | FLHRSE5, FLHRSE5 ANV |
| 40 | 37101-84B | OIL SEAL | FLHRSE5, FLHRSE5 ANV |
| 41 | 12400026 | SLEEVE (2) | FLHRSE5, FLHRSE5 ANV |
| 42 | 33600003 | LEVER, shifter heel (long) (chrome) | FLHRSE5, FLHRSE5 ANV |
| 43 | 33600007 | SHIFTER PEG, w/ 12400026 & screw (2) | FLHRSE5, FLHRSE5 ANV |
TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3249 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3300 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 4705 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 5 | 4718A | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 4741A | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 8963 | BEARING, needle | FLHRSE5, FLHRSE5 ANV |
| 8 | 8967 | BEARING | FLHRSE5, FLHRSE5 ANV |
| 9 | 8970A | BEARING (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 9701A | BUSHING | FLHRSE5, FLHRSE5 ANV |
| 11 | 11132A | O-RING, dipstick | FLHRSE5, FLHRSE5 ANV |
| 12 | 11161 | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 14 | 12074 | SEAL | FLHRSE5, FLHRSE5 ANV |
| 15 | 16583-00A | BUSHING, dowel (2) | FLHRSE5, FLHRSE5 ANV |
| 33166-10A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (black) | FLHRSE5, FLHRSE5 ANV | |
| 16 | 35082-07 | SCREW, centering, shifter lever | FLHRSE5, FLHRSE5 ANV |
| 17 | 35087-99A | RETAINING RING (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 35186-06 | SLEEVE | FLHRSE5, FLHRSE5 ANV |
| 19 | 35260-06A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (black) | FLHRSE5, FLHRSE5 ANV |
| 20 | 35607-06 | GASKET | FLHRSE5, FLHRSE5 ANV |
| 21 | 35654-06 | GASKET, bearing housing | FLHRSE5, FLHRSE5 ANV |
| 22 | 36805-06 | GASKET, cover | FLHRSE5, FLHRSE5 ANV |
| 23 | 36822-04 | SLAVE CYLINDER KIT | FLHRSE5, FLHRSE5 ANV |
| 24 | 37065-06 | DIPSTICK (chrome) | FLHRSE5, FLHRSE5 ANV |
| 25 | 37101-84B | OIL SEAL | FLHRSE5, FLHRSE5 ANV |
| 26 | 25700180 | SIDE COVER, transmission (black) | FLHRSE5 ANV |
| 25700179 | SIDE COVER, transmission (chrome) | FLHRSE5 | |
| 27 | 37200034 | CAP, bleeder screw | FLHRSE5, FLHRSE5 ANV |
| 28 | 44613-02 | BLEEDER SCREW | FLHRSE5, FLHRSE5 ANV |
| 29 | 11900035 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 30 | 25700178 | INNER SIDE COVER | FLHRSE5, FLHRSE5 ANV |
| 31 | 37200023 | SECONDARY CLUTCH ACTUATOR, w/ 43817-02, 44613-02, 11900035 | FLHRSE5, FLHRSE5 ANV |
| Index number 13 is not used in this illustration. | |||
TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3983 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4705 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 4 | 4741A | SCREW, trans. top cover (6) | FLHRSE5, FLHRSE5 ANV |
| 4741A | SCREW, oil pan (12) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 7792 | NUT | FLHRSE5, FLHRSE5 ANV |
| 6 | 11105 | O-RING (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 11120 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 8 | 11289A | O-RING | FLHRSE5, FLHRSE5 ANV |
| 9 | 16574-99A | DOWEL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 26077-99A | GASKET, oil pan | FLHRSE5, FLHRSE5 ANV |
| 11 | 62489-99A | OIL PAN ASSEMBLY (black) w/ 45893-99 & 60328-98B | FLHRSE5 ANV |
| 26166-08A | OIL PAN ASSEMBLY (granite) w/ 45893-99 & 60328-98B | FLHRSE5 | |
| 12 | 33166-10A | TRANSMISSION REPLACEMENT, w/o cable, covers, & sensors (black) | FLHRSE5, FLHRSE5 ANV |
| 13 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHRSE5, FLHRSE5 ANV |
| 14 | 34469-06B | TRANSMISSION COVER, top w/ 62372-09 (chrome) | FLHRSE5 |
| 37195-11 | TRANSMISSION COVER, top w/ 62372-09 (black) | FLHRSE5 ANV | |
| 15 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | FLHRSE5 ANV |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (granite) | FLHRSE5 | |
| 16 | 34917-06 | GASKET, upper cover | FLHRSE5, FLHRSE5 ANV |
| 17 | 45893-99 | PIPE PLUG | FLHRSE5, FLHRSE5 ANV |
| 18 | 60328-98B | PLUG, magnetic w/ 11105 (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 62372-09 | VENT HOSE, transmission | FLHRSE5, FLHRSE5 ANV |
| 20 | 62693-07A | DIPSTICK ASSEMBLY, w/ 11120 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 21 | 66290-06 | STUD, ground | FLHRSE5, FLHRSE5 ANV |
| 22 | 74402-05B | SPEED SENSOR, w/ 11289A | FLHRSE5, FLHRSE5 ANV |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHRSE5, FLHRSE5 ANV |
| 2 | 7340 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 8026K | BEARING, needle (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 8041 | BEARING, needle | FLHRSE5, FLHRSE5 ANV |
| 5 | 8042 | BEARING, needle (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 10991A | RETAINING RING (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 11061A | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 8 | 11081A | RING, lock (3) | FLHRSE5, FLHRSE5 ANV |
| 9 | 11082 | SECURING SEGMENT (6) | FLHRSE5, FLHRSE5 ANV |
| 10 | 11201 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 11 | 11207A | WASHER, internal spline | FLHRSE5, FLHRSE5 ANV |
| 12 | 11599A | SPACER, bearing | FLHRSE5, FLHRSE5 ANV |
| 13 | 12077 | OIL SEAL | FLHRSE5, FLHRSE5 ANV |
| 14 | 34091-08 | BEARING, inner race | FLHRSE5, FLHRSE5 ANV |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599 & 12077 | FLHRSE5, FLHRSE5 ANV |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHRSE5, FLHRSE5 ANV |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 35201-10 | GUIDE HUB, dog ring | FLHRSE5, FLHRSE5 ANV |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHRSE5, FLHRSE5 ANV |
| 20 | 35204-06 | DOG RING, pocketed | FLHRSE5, FLHRSE5 ANV |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ shifter cam & forks (black) | FLHRSE5 ANV | |
| 35255-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ shifter cam & forks (granite) | FLHRSE5 | |
| 21 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08, & 35201-10 | FLHRSE5, FLHRSE5 ANV |
| 22 | 35470-10 | COUNTER SHAFT ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 23 | 35801-10 | GEAR, fifth input | FLHRSE5, FLHRSE5 ANV |
| 24 | 35805-06A | GEAR, countershaft-first | FLHRSE5, FLHRSE5 ANV |
| 25 | 35807-06 | GEAR, countershaft-second | FLHRSE5, FLHRSE5 ANV |
| 26 | 35811-06 | GEAR, countershaft-third | FLHRSE5, FLHRSE5 ANV |
| 27 | 35814-06 | GEAR, countershaft-fourth | FLHRSE5, FLHRSE5 ANV |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLHRSE5, FLHRSE5 ANV |
| 2 | 11143 | RING, retaining, external | FLHRSE5, FLHRSE5 ANV |
| 3 | 36706-08K | BOLT (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | FLHRSE5, FLHRSE5 ANV |
| 5 | 36819-07 | PUSHROD, hydraulic-clutch | FLHRSE5, FLHRSE5 ANV |
| 6 | 37496-90A | NUT, mainshaft | FLHRSE5, FLHRSE5 ANV |
| 7 | 37904-90 | RING, retaining, external | FLHRSE5, FLHRSE5 ANV |
| 8 | 37905-00 | RING, retaining, internal | FLHRSE5, FLHRSE5 ANV |
| 9 | 37906-11 | BEARING, ball, double-row | FLHRSE5, FLHRSE5 ANV |
| 10 | 37909-90 | RING, retaining, internal | FLHRSE5, FLHRSE5 ANV |
| 11 | 11700002 | COILSPRING (3) | FLHRSE5, FLHRSE5 ANV |
| 12 | 37000026 | CLUTCH ASSEMBLY, complete | FLHRSE5, FLHRSE5 ANV |
| 13 | 37000032 | PRESSURE PLATE, clutch | FLHRSE5, FLHRSE5 ANV |
| 14 | 37000033 | STOPPER PLATE | FLHRSE5, FLHRSE5 ANV |
| 15 | 37000034 | SPRING, damper | FLHRSE5, FLHRSE5 ANV |
| 16 | 37000035 | SEAT (3) | FLHRSE5, FLHRSE5 ANV |
| 17 | 37000036 | SEAT, damper-spring | FLHRSE5, FLHRSE5 ANV |
| 18 | 37000118 | KIT, clutch disks | FLHRSE5, FLHRSE5 ANV |
| 19 | 37000083 | HUB ASSEMBLY, clutch, w/ thrust washer & spring washer | FLHRSE5, FLHRSE5 ANV |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHRSE5, FLHRSE5 ANV |
| 2 | 791A | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 791A | SCREW (Japan only) | FLHRSE5, FLHRSE5 ANV |
| 4 | 1062 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 5 | 1780 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 4813A | SCREW (9) | FLHRSE5, FLHRSE5 ANV |
| 7 | 9231 | BEARING | FLHRSE5, FLHRSE5 ANV |
| 8 | 11105 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 9 | 12052A | SEAL | FLHRSE5, FLHRSE5 ANV |
| 10 | 16583-00A | DOWEL BUSHING (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | FLHRSE5, FLHRSE5 ANV |
| 12 | 24754-75A | DOWEL BUSHING, starter (4) | FLHRSE5, FLHRSE5 ANV |
| 13 | 34901-07 | GASKET, primary cover | FLHRSE5, FLHRSE5 ANV |
| 14 | 34948-08 | GASKET, primary housing to case | FLHRSE5, FLHRSE5 ANV |
| 15 | 39929-06B | CHAIN TENSIONER ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 16 | 42642-00A | BUSHING (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 60328-98B | PLUG, magnetic drain w/ 11105 | FLHRSE5, FLHRSE5 ANV |
| 18 | 60432-07A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (black) | FLHRSE5 ANV |
| 60850-08A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (granite) | FLHRSE5 | |
| 19 | 60678-85 | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 20 | 60709-07A | COVER, clutch (chrome) | FLHRSE5, FLHRSE5 ANV |
| 21 | 60818-07 | SLEEVE, dampener (Japan only) | FLHRSE5, FLHRSE5 ANV |
| 22 | 60886-11 | COVER, primary (black) | FLHRSE5 ANV |
| 60553-07 | COVER, primary (chrome) | FLHRSE5 | |
| 23 | 14100390 | INSERT, clutch cover | FLHRSE5, FLHRSE5 ANV |
| 24 | 25700226 | GASKET KIT, inner primary | FLHRSE5, FLHRSE5 ANV |
BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3368 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 3594 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3892 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6557 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 5 | 9276A | BALL BEARING (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 11843 | SPACER, compensator | FLHRSE5, FLHRSE5 ANV |
| 7 | 35241-06 | NUT, sprocket | FLHRSE5, FLHRSE5 ANV |
| 8 | 35242-06 | LOCKPLATE | FLHRSE5, FLHRSE5 ANV |
| 9 | 40024-09 | REAR BELT, 140 T, 1 inch | FLHRSE5, FLHRSE5 ANV |
| 10 | 40037-07 | PRIMARY CHAIN | FLHRSE5, FLHRSE5 ANV |
| 11 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T, w/ 9276A & 11843 (black) | FLHRSE5, FLHRSE5 ANV |
| 12 | 40278-09 | ISOLATOR, rubber | FLHRSE5, FLHRSE5 ANV |
| 13 | 40659-06 | SPROCKET, transmission, 32 T | FLHRSE5, FLHRSE5 ANV |
| 14 | 60386-09 | DEBRIS DEFLECTOR | FLHRSE5, FLHRSE5 ANV |
| 15 | 83935-09A | COMPENSATOR ASSEMBLY, w/ 6557 & 40100009 | FLHRSE5, FLHRSE5 ANV |
| 16 | 83936-09A | SPRING PACK | FLHRSE5, FLHRSE5 ANV |
| 17 | 40100009 | RETAINER, sprocket | FLHRSE5, FLHRSE5 ANV |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3089 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4293 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6099 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 6703 | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 7688 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 11143 | RING, retaining | FLHRSE5, FLHRSE5 ANV |
| 9 | 38938-09 | RETAINER, clutch line, lower | FLHRSE5, FLHRSE5 ANV |
| 10 | 38969-10 | RETAINER, clutch line, upper | FLHRSE5, FLHRSE5 ANV |
| 11 | 41751-06A | GASKET, banjo-bolt (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 42010-06A | BOLT, banjo | FLHRSE5, FLHRSE5 ANV |
| 13 | 42115-06 | MASTER CYLINDER COVER KIT, w/ 3089 & gasket | FLHRSE5, FLHRSE5 ANV |
| 14 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHRSE5, FLHRSE5 ANV |
| 15 | 42145-06 | SIGHT GLASS KIT | FLHRSE5, FLHRSE5 ANV |
| 16 | 45032-82 | PIVOT PIN | FLHRSE5, FLHRSE5 ANV |
| 17 | 45423-92 | BUSHING, hand lever | FLHRSE5, FLHRSE5 ANV |
| 18 | 46244-01 | REPAIR KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 19 | 46246-01 | KIT, bushing & roller | FLHRSE5, FLHRSE5 ANV |
| 20 | 12100028 | GROMMET | FLHRSE5, FLHRSE5 ANV |
| 21 | 36700025 | MASTER CYLINDER ASSEMBLY, clutch (chrome), w/ 42145-06, 42115-06, 45032-82, 46244-01, 36700038 | FLHRSE5, FLHRSE5 ANV |
| 22 | 36700038 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 23 | 37200019 | LINE ASSEMBLY, hydraulic-clutch, w/ 12100028 | FLHRSE5, FLHRSE5 ANV |
| Index number 8 is not used in this illustration. | |||
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 6099 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 41751-06A | GASKET (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 42010-06A | BOLT, banjo, brakeline | FLHRSE5, FLHRSE5 ANV |
| 5 | 42102-08B | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14 & 15 | FLHRSE5, FLHRSE5 ANV |
| 6 | 42105-06A | PIVOT PIN, w/ retaining ring | FLHRSE5, FLHRSE5 ANV |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHRSE5, FLHRSE5 ANV |
| 8 | 42123-08 | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06A & 42882-06 | FLHRSE5, FLHRSE5 ANV |
| 9 | 42271-06A | BRAKE LEVER ASSEMBLY, front, w/ 42105-06A | FLHRSE5, FLHRSE5 ANV |
| 10 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHRSE5, FLHRSE5 ANV |
| 11 | 42856-06 | DECAL, reservoir cover | FLHRSE5, FLHRSE5 ANV |
| 12 | 42857-06A | GASKET, reservoir cover | FLHRSE5, FLHRSE5 ANV |
| 13 | 42861-06B | PUSHROD, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 14 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 15 | 42882-06 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |

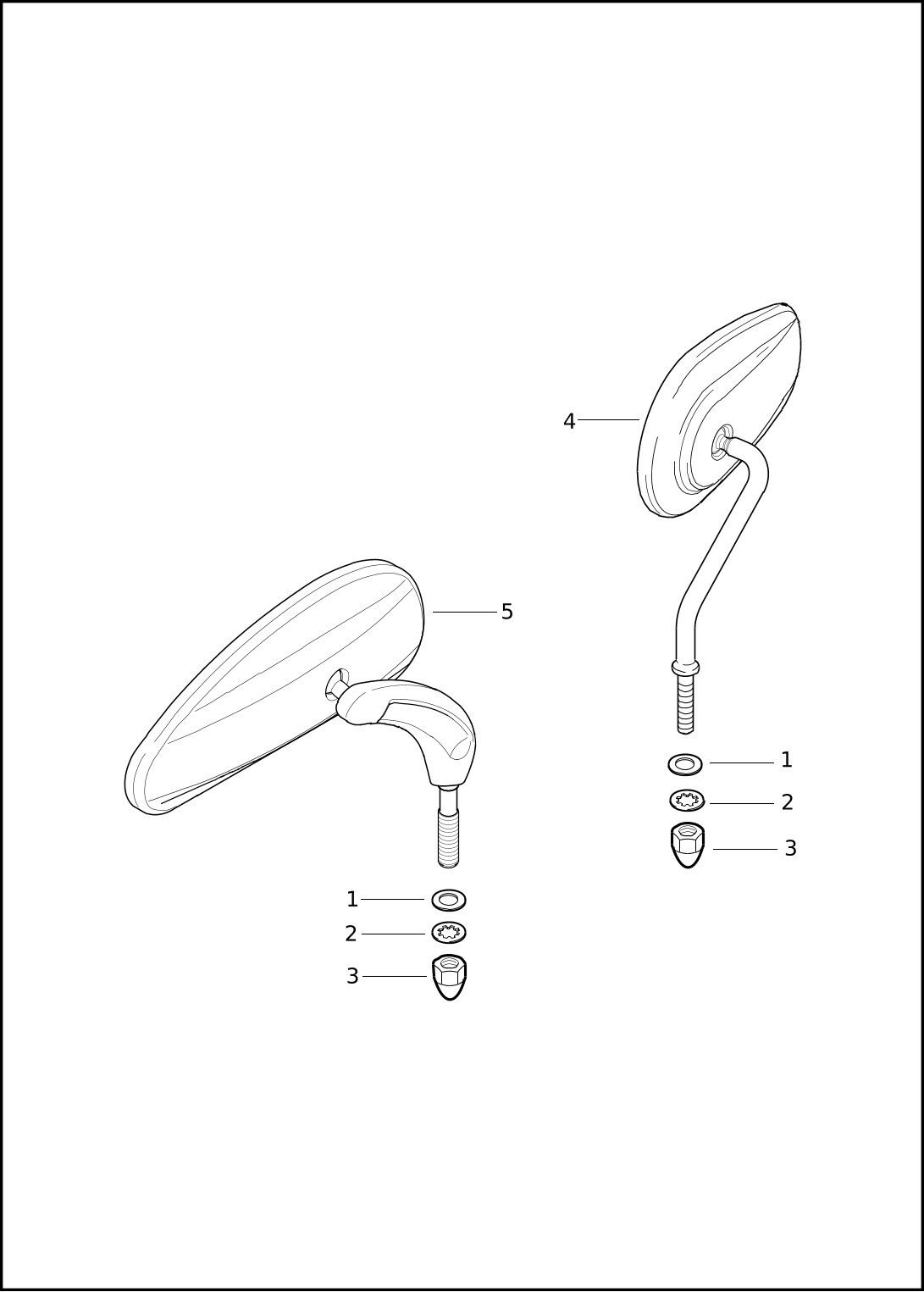

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 7155 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7331 | ACORN NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 91840-03B | MIRROR KIT, right (chrome), w/ 7155 & 7331 (HDI) (not shown) | FLHRSE5, FLHRSE5 ANV |
| 91845-03B | MIRROR KIT, left (chrome), w/ 7155 & 7331 (HDI) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 56000063 | MIRROR, right (chrome) (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 56000062 | MIRROR, left (chrome) (Domestic) (not shown) | FLHRSE5, FLHRSE5 ANV |
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 3643 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 4890 | BLEEDER SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6702 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 5 | 10860A | CLIP, brakeline | FLHRSE5, FLHRSE5 ANV |
| 6 | 11663 | RIVNUT | FLHRSE5, FLHRSE5 ANV |
| 7 | 38937-09 | BRAKELINE, front, upper, ABS | FLHRSE5, FLHRSE5 ANV |
| 8 | 41750-06B | BOLT, BANJO, brakeline (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 41751-06A | GASKET (10) | FLHRSE5, FLHRSE5 ANV |
| 10 | 41783-08 | BOLT, BANJO, bleeder assembly, w/ 42853-06 (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 42010-06A | BOLT, banjo, brakeline | FLHRSE5, FLHRSE5 ANV |
| 12 | 42388-09 | BRAKELINE, front, lower, ABS | FLHRSE5, FLHRSE5 ANV |
| 13 | 42853-06 | CAP, bleeder screw (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 70631-08 | CLIP, conduit (3) | FLHRSE5, FLHRSE5 ANV |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHRSE5, FLHRSE5 ANV |
| 2 | 2479 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3340 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 4 | 3563 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 5 | 6220W | WASHER | FLHRSE5, FLHRSE5 ANV |
| 6 | 6333 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 7 | 6334 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 8 | 7825 | LOCKNUT | FLHRSE5, FLHRSE5 ANV |
| 9 | 9907 | WIRE TERMINAL | FLHRSE5, FLHRSE5 ANV |
| 10 | 10340A | CLIP, brake hose (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 11364 | O-RING (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLHRSE5, FLHRSE5 ANV |
| 13 | 12102 | DUST BOOT | FLHRSE5, FLHRSE5 ANV |
| 14 | 40611-09 | BRAKELINE, right-rear, master cylinder to ABS module | FLHRSE5, FLHRSE5 ANV |
| 15 | 41750-06B | BOLT, BANJO, brakeline (2) | FLHRSE5, FLHRSE5 ANV |
| 16 | 41751-06A | GASKET (4) | FLHRSE5, FLHRSE5 ANV |
| 17 | 42460-80B | CLEVIS PIN | FLHRSE5, FLHRSE5 ANV |
| 18 | 42638-08A | LEVER ASSEMBLY, foot-brake, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLHRSE5, FLHRSE5 ANV |
| 19 | 42644-00 | BEARING, .25 x .177 (2) | FLHRSE5, FLHRSE5 ANV |
| 20 | 42854-06 | KIT, SIGHT GLASS | FLHRSE5, FLHRSE5 ANV |
| 21 | 42856-06 | DECAL, reservoir cover | FLHRSE5, FLHRSE5 ANV |
| 22 | 42882-06 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 23 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 24 | 42932-08A | REBUILD KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 25 | 42933-08A | PUSHROD KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 26 | 42934-08 | SPRING, pedal return | FLHRSE5, FLHRSE5 ANV |
| 27 | 46459-08B | MASTER CYLINDER ASSEMBLY, w/ 12, 13, 20, 21, 22, 23, 24, 25, 26 & 28 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 28 | 46463-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | FLHRSE5, FLHRSE5 ANV |
| 29 | 57217-02 | BUSHING, brake lever (2) | FLHRSE5, FLHRSE5 ANV |
| 30 | 72023-51E | KIT SWITCH, rear stop lamp, w/ 9907 | FLHRSE5, FLHRSE5 ANV |
| 31 | 12600025 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 32 | 50600040 | KIT, brake pedal pad, w/ 3, 6, 31 & medallion | FLHRSE5, FLHRSE5 ANV |
BRAKE LINES & MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1095M | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2228 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 11904 | GASKET, ABS module | FLHRSE5, FLHRSE5 ANV |
| 4 | 40603-08 | GROMMET (3) | FLHRSE5, FLHRSE5 ANV |
| 5 | 40610-09 | BRAKELINE, ABS module to caliper | FLHRSE5, FLHRSE5 ANV |
| 6 | 40611-09 | BRAKELINE, ABS module to master cylinder | FLHRSE5, FLHRSE5 ANV |
| 7 | 40628-08 | BUSHING, ABS (6) | FLHRSE5, FLHRSE5 ANV |
| 8 | 40649-08 | CONTROLLER, electronic, ABS unit, w/ 11904 | FLHRSE5, FLHRSE5 ANV |
| 9 | 41750-06B | BOLT, BANJO, brakeline (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 41751-06A | GASKET (4) | FLHRSE5, FLHRSE5 ANV |
| 11 | 48343-09 | MODULATOR ASSEMBLY, hydraulic, ABS unit | FLHRSE5, FLHRSE5 ANV |
| 12 | 70631-08 | CLIP, conduit | FLHRSE5, FLHRSE5 ANV |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 42054-05 | COVER, caliper (chrome) (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 44160-00 | BOLT, caliper mounting, lower (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 44935-06 | MEDALLION, brake caliper (2) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 7 | 46368-10 | CALIPER ASSEMBLY, right (black) | FLHRSE5, FLHRSE5 ANV |
| 46369-10 | CALIPER ASSEMBLY, left (black) | FLHRSE5, FLHRSE5 ANV |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4890 | SCREW, bleeder | FLHRSE5, FLHRSE5 ANV |
| 3 | 41852-08B | PAD & PIN KIT | FLHRSE5, FLHRSE5 ANV |
| 4 | 42853-06 | CAP, bleeder screw | FLHRSE5, FLHRSE5 ANV |
| 5 | 42863-06 | BUMPER | FLHRSE5, FLHRSE5 ANV |
| 6 | 42865-06B | PAD PIN KIT | FLHRSE5, FLHRSE5 ANV |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHRSE5, FLHRSE5 ANV |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, w/ 4890, 41852-08A, 42853-06, 42865-06B & 42867-06A (black) | FLHRSE5, FLHRSE5 ANV |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHRSE5, FLHRSE5 ANV |
| 10 | 44313-01 | PISTON KIT, caliper brake | FLHRSE5, FLHRSE5 ANV |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SCREW, set (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3655A | SCREW (14) | FLHRSE5, FLHRSE5 ANV |
| 3 | 6594 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 4 | 7813A | NUT | FLHRSE5, FLHRSE5 ANV |
| 5 | 9252 | BALL BEARING, w/ encoder, ABS | FLHRSE5, FLHRSE5 ANV |
| 6 | 9276A | BALL BEARING | FLHRSE5, FLHRSE5 ANV |
| 7 | 10147 | CLIP, connector | FLHRSE5, FLHRSE5 ANV |
| 8 | 40614-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72609-08, 72608-08 & 72610-08 | FLHRSE5, FLHRSE5 ANV |
| 9 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHRSE5, FLHRSE5 ANV |
| 10 | 41148-98 | CAP, tire valve acorn, w/ bar & shield, set of 2 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 11 | 41547-07A | AXLE | FLHRSE5, FLHRSE5 ANV |
| 12 | 41900-08 | SLEEVE, bearing spacer | FLHRSE5, FLHRSE5 ANV |
| 13 | 43157-83A | VALVE STEM, tire valve w/ 54321-85 | FLHRSE5, FLHRSE5 ANV |
| 14 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) (2) | FLHRSE5, FLHRSE5 ANV |
| 15 | 44583-08 | SPACER | FLHRSE5, FLHRSE5 ANV |
| 16 | 54321-85 | NUT, valve stem | FLHRSE5, FLHRSE5 ANV |
| 17 | 55055-11 | TIRE | FLHRSE5, FLHRSE5 ANV |
| 18 | 55071-11 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHRSE5, FLHRSE5 ANV |
| 19 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHRSE5, FLHRSE5 ANV |
| 20 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHRSE5, FLHRSE5 ANV |
| 21 | 72607-08 | HOUSING, 2 way pin | FLHRSE5, FLHRSE5 ANV |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72609-08 | SECONDARY LOCK, secondary, 2-way (black) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 41500002 | BRAKE DISC, front - left | FLHRSE5, FLHRSE5 ANV |
| 26 | 41500004 | BRAKE DISC, front - right | FLHRSE5, FLHRSE5 ANV |
| 27 | 42300006 | WEIGHT, 1/2 oz., cast wheels (chrome) (6) | FLHRSE5, FLHRSE5 ANV |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHRSE5, FLHRSE5 ANV |
| 2 | 9252 | BALL BEARING, w/ encoder, ABS | FLHRSE5, FLHRSE5 ANV |
| 3 | 9276A | BALL BEARING (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 10147 | CLIP, connector | FLHRSE5, FLHRSE5 ANV |
| 5 | 11843 | SPACER, compensator | FLHRSE5, FLHRSE5 ANV |
| 6 | 11848 | SPACER | FLHRSE5, FLHRSE5 ANV |
| 7 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T w/ 9276A & 11843 (black) | FLHRSE5, FLHRSE5 ANV |
| 8 | 40278-09 | ISOLATOR, rubber | FLHRSE5, FLHRSE5 ANV |
| 9 | 40615-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08 | FLHRSE5, FLHRSE5 ANV |
| 10 | 41056-09 | REAR AXLE | FLHRSE5, FLHRSE5 ANV |
| 11 | 41139-02 | SPRING CLIP | FLHRSE5, FLHRSE5 ANV |
| 12 | 41148-98 | CAP, tire valve acorn, w/ bar & shield, set of 2 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 13 | 41349-07 | SLEEVE, bearing spacer | FLHRSE5, FLHRSE5 ANV |
| 14 | 41810-08B | BRAKE DISC | FLHRSE5, FLHRSE5 ANV |
| 15 | 41819-02 | AXLE CAM | FLHRSE5, FLHRSE5 ANV |
| 16 | 43157-83A | VALVE STEM, cast wheels, w/ 54321-85 | FLHRSE5, FLHRSE5 ANV |
| 17 | 43567-92 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 18 | 44006-09 | TIRE | FLHRSE5, FLHRSE5 ANV |
| 19 | 47951-10 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHRSE5, FLHRSE5 ANV |
| 20 | 54321-85 | NUT | FLHRSE5, FLHRSE5 ANV |
| 21 | 72607-08 | HOUSING, 2 way pin | FLHRSE5, FLHRSE5 ANV |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72609-08 | SECONDARY LOCK, secondary, 2-way (black) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 42300006 | WEIGHT, 1/2 oz. cast wheels (chrome) | FLHRSE5, FLHRSE5 ANV |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | PIN, roll | FLHRSE5, FLHRSE5 ANV |
| 2 | 3331 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 3537 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 3892 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 4240 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 6 | 4855 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 6703 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 7039 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 10138 | TAB, electrical ground | FLHRSE5, FLHRSE5 ANV |
| 10 | 45435-10 | BRACKET, upper fork | FLHRSE5, FLHRSE5 ANV |
| 11 | 45442-86 | GUIDE BUSHING | FLHRSE5, FLHRSE5 ANV |
| 12 | 45446-09 | BRACKET ASSEMBLY, fork stem, w/ 48365-48A & bearing cone | FLHRSE5, FLHRSE5 ANV |
| 13 | 45718-60 | NUT, fork stem | FLHRSE5, FLHRSE5 ANV |
| 14 | 45780-03 | COVER, fork bracket (chrome) | FLHRSE5, FLHRSE5 ANV |
| 15 | 45727-08 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 16 | 45963-97 | FORK SLIDER COVERS, pair | FLHRSE5, FLHRSE5 ANV |
| 17 | 48300-60 | BEARING KIT, roller, w/ 48315-60 (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 48315-60 | BEARING CUP (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 48333-80 | ADJUSTER, bearing | FLHRSE5, FLHRSE5 ANV |
| 20 | 48361-80 | SHIELD, dust, upper bearing | FLHRSE5, FLHRSE5 ANV |
| 21 | 48365-48A | SHIELD, dust, lower bearing | FLHRSE5, FLHRSE5 ANV |
| 22 | 72332-09 | BRACKET | FLHRSE5, FLHRSE5 ANV |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (right-hand) (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 7041 | LOCKWASHER (right-hand) (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7748W | NUT (right-hand) (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 45419-80 | BOLT, fork (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 45733-48 | OIL SEAL (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 45803-97 | STOP, oil lock piece (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 45838-77 | BOLT, front fork (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 45858-77 | SCREW, drain, w/ washer (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 45933-86 | REBOUND SPRING (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 45972-09 | STANCHION TUBE ASSEMBLY, w/ slider bushing (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 45998-73 | STUD (right-hand) (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 46209-06 | DAMPING VALVE (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 46422-09 | DAMPER TUBE, w/ piston ring (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 46473-00B | SLIDER, fork (left-hand) | FLHRSE5, FLHRSE5 ANV |
| 15 | 46474-00C | SLIDER, fork (right-hand), w/ 45998-73 | FLHRSE5, FLHRSE5 ANV |
| 16 | 46658-07 | HOLDER, axle (right-hand) | FLHRSE5, FLHRSE5 ANV |
| 17 | 48787-09 | SPRING (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 48789-09 | FORK ASSEMBLY, complete (left-hand) (chrome) | FLHRSE5, FLHRSE5 ANV |
| 19 | 48790-09 | FORK ASSEMBLY, complete (right-hand) (chrome) | FLHRSE5, FLHRSE5 ANV |
| 20 | 49377-09A | FORK REBUILT KIT | FLHRSE5, FLHRSE5 ANV |
| 21 | 59481-00 | REFLECTOR (right-hand) (amber) | FLHRSE5, FLHRSE5 ANV |
| 22 | 59482-00 | REFLECTOR (left-hand) (amber) | FLHRSE5, FLHRSE5 ANV |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 6012 | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7068 | LOCKWASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 54674-10 | REAR SHOCK ABSORBER LOW, left | FLHRSE5, FLHRSE5 ANV |
| 5 | 54675-10 | REAR SHOCK ABSORBER LOW, right | FLHRSE5, FLHRSE5 ANV |
| 6 | 54677-10 | KNOB SERVICE KIT | FLHRSE5, FLHRSE5 ANV |
FRAME & JIFFY STAND (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2708A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 3594 | SCREW, jiffy stand (England, HDI) | FLHRSE5, FLHRSE5 ANV |
| 4 | 3987 | BOLT | FLHRSE5, FLHRSE5 ANV |
| 5 | 4688 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 4924 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 6116 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 8 | 6702 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 6703 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 7041 | LOCKWASHER | FLHRSE5, FLHRSE5 ANV |
| 11 | 7495 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 7688 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 8483A | RIVET, blind (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 10039 | CABLE STRAP (6) | FLHRSE5, FLHRSE5 ANV |
| 15 | 10177 | CABLE STRAP, tree mount, jiffy stand (England, HDI) | FLHRSE5, FLHRSE5 ANV |
| 16 | 10336 | CLIP, conduit, rosebud mount | FLHRSE5, FLHRSE5 ANV |
| 17 | 10394 | CLIP, conduit, rosebud mount | FLHRSE5, FLHRSE5 ANV |
| 18 | 11650 | GROMMET, side cover (6) | FLHRSE5, FLHRSE5 ANV |
| 19 | 11663 | RIVNUT, flathead, with ABS | FLHRSE5, FLHRSE5 ANV |
| 20 | 38969-10 | RETAINER, cable, upper | FLHRSE5, FLHRSE5 ANV |
| 21 | 38938-09 | RETAINER, clutch line | FLHRSE5, FLHRSE5 ANV |
| 22 | 47900-11BHP | FRAME, main, w/ 48315-60 & 50972-75 | FLHRSE5, FLHRSE5 ANV |
| 23 | 48315-60 | BEARING CUP (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 48419-04 | WEAR PAD, side cover - right (clear) | FLHRSE5, FLHRSE5 ANV |
| 48420-04 | WEAR PAD, side cover - left (clear) | FLHRSE5, FLHRSE5 ANV | |
| 25 | 49184-09 | ENGINE GUARD KIT, w/ 2, 7 & label | FLHRSE5, FLHRSE5 ANV |
| 26 | 49725-07A | SPRING, jiffy stand | FLHRSE5, FLHRSE5 ANV |
| 27 | 50015-74A | LEG STOP | FLHRSE5, FLHRSE5 ANV |
| 28 | 50075-07A | LEG, jiffy stand | FLHRSE5, FLHRSE5 ANV |
| 29 | 50096-09 | BRACKET, jiffy stand leg | FLHRSE5, FLHRSE5 ANV |
| 30 | 50126-08A | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) | FLHRSE5, FLHRSE5 ANV |
| 31 | 50245-07 | BUMPER, jiffy stand leg | FLHRSE5, FLHRSE5 ANV |
| 32 | 50972-75 | FITTING, lubrication | FLHRSE5, FLHRSE5 ANV |
FRAME & JIFFY STAND (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 33 | 66048-09A | SIDE COVER, right (prime) | FLHRSE5, FLHRSE5 ANV |
| 66250-09 | SIDE COVER, left (prime) | FLHRSE5, FLHRSE5 ANV | |
| 57200001DQW | SIDE COVER, left (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200001DQY | SIDE COVER, left (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200001DRI | SIDE COVER, left (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200002DQW | SIDE COVER, right (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200002DQY | SIDE COVER, right (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200002DRI | SIDE COVER, right (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 34 | 66055-09 | WEAR PAD (clear) (2) | FLHRSE5, FLHRSE5 ANV |
| 35 | 69318-02 | CLAMP | FLHRSE5, FLHRSE5 ANV |
| 36 | 69336-03 | CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 37 | 70980-09 | TRAY, wire trough (main harness) | FLHRSE5, FLHRSE5 ANV |
| 38 | 70981-09 | COVER, wire trough w/ 15368-01A (main harness) | FLHRSE5, FLHRSE5 ANV |
| 39 | 72169-07 | TERMINAL, pin, 16-20 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 40 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHRSE5, FLHRSE5 ANV |
| 41 | 73213-07 | RETAINER, xmas tree clip | FLHRSE5, FLHRSE5 ANV |
| 42 | 90329-98 | PLUG (2) | FLHRSE5, FLHRSE5 ANV |
| 43 | 90469-94 | HOLE PLUG (3) | FLHRSE5, FLHRSE5 ANV |
| 44 | 90520-07 | HOLE PLUG, jiffy stand | FLHRSE5, FLHRSE5 ANV |
| 45 | 12200004 | CLIP | FLHRSE5, FLHRSE5 ANV |
FRAME & FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3536 | BOLT (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3684 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6532 | WASHER (6) | FLHRSE5, FLHRSE5 ANV |
| 5 | 6982 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 9208 | BEARING (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 11779 | PUSH-IN FASTENER | FLHRSE5, FLHRSE5 ANV |
| 8 | 47502-09BDK | COVER, left (prime) | FLHRSE5, FLHRSE5 ANV |
| 47504-09BDK | COVER, right (prime) | FLHRSE5, FLHRSE5 ANV | |
| 47200139DQX | COVER, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 47200139DLE | COVER, right (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 47200139DQZ | COVER, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 47200138DQX | COVER, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 47200138DLE | COVER, left (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 47200138DQZ | COVER, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 9 | 47540-11 | SHAFT, rear fork | FLHRSE5, FLHRSE5 ANV |
| 10 | 47549-09 | REAR FORK, w/ 9208, 11779 & 48489-02 | FLHRSE5, FLHRSE5 ANV |
| 11 | 47584-09 | RUBBER MOUNT (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 48079-09BHP | FRAME, rear | FLHRSE5, FLHRSE5 ANV |
| 13 | 48487-02 | SPACER, outer (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 48489-02 | SPACER, inner (2) | FLHRSE5, FLHRSE5 ANV |
| 15 | 50588-09A | BRACKET, rear fork, left | FLHRSE5, FLHRSE5 ANV |
| 16 | 67875-11 | CAP (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 90493-83 | HOLE PLUG (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 11100020 | PROTECTIVE PAD | FLHRSE5, FLHRSE5 ANV |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT CAP | FLHRSE5, FLHRSE5 ANV |
| 2 | 941 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3633 | NUT | FLHRSE5, FLHRSE5 ANV |
| 4 | 6441 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 5 | 14628-96 | EMBLEM | FLHRSE5, FLHRSE5 ANV |
| 6 | 51652-97A | BRACKET | FLHRSE5, FLHRSE5 ANV |
| 7 | 51676-97A | KIT, hardware w/ 4 & 5 | FLHRSE5, FLHRSE5 ANV |
| 8 | 52000076 | SEAT | FLHRSE5 |
| 52000110 | SEAT | FLHRSE5 ANV | |
| 9 | 52300209 | SEAT PILLION, passenger | FLHRSE5 |
| 52300236 | SEAT PILLION, passenger | FLHRSE5 ANV | |
| 10 | 52400035 | SEAT STRAP | FLHRSE5 |
| 52400026 | SEAT STRAP | FLHRSE5 ANV |
BACKREST, PASSENGER
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2246 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3148 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6702 | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 5 | 6703 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 52605-04 | INSERT, passenger backrest | FLHRSE5, FLHRSE5 ANV |
| 7 | 52610-09 | UPRIGHT KIT, detach, short (chrome) | FLHRSE5, FLHRSE5 ANV |
| 8 | 52682-09 | BUSHING, front (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 52825-05 | BACKREST PLATE KIT, w/ 52605-04 & screw | FLHRSE5, FLHRSE5 ANV |
| 10 | 53684-96A | BUSHING (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 54040-09 | BRACKET, left | FLHRSE5, FLHRSE5 ANV |
| 12 | 54042-09 | BRACKET, right | FLHRSE5, FLHRSE5 ANV |
| 13 | 94067-90T | FLATWASHER (chrome) | FLHRSE5, FLHRSE5 ANV |
| 14 | 52300219 | PAD, backrest | FLHRSE5 |
| 52300238 | PAD, backrest | FLHRSE5 ANV |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4688 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7038 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 7601 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 7716 | LOCKNUT (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 50635-82A | BOLT, footboard hinge (4) | FLHRSE5, FLHRSE5 ANV |
| 7 | 50683-04 | BOTTOM ASSEMBLY, right, w/ hinge | FLHRSE5, FLHRSE5 ANV |
| 8 | 50688-04 | BOTTOM ASSEMBLY, left, w/ hinge | FLHRSE5, FLHRSE5 ANV |
| 9 | 12600025 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 50500051 | BRACKET SUPPORT, footboard, rear left | FLHRSE5, FLHRSE5 ANV |
| 11 | 50500052 | BRACKET SUPPORT, footboard, rear right | FLHRSE5, FLHRSE5 ANV |
| 12 | 50500055 | MOUNTING BRACKET, front footboard (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 50500058 | INSERT ASSEMBLY, left, rider, w/ 12600025 | FLHRSE5, FLHRSE5 ANV |
| 14 | 50500059 | INSERT ASSEMBLY, right, rider, w/ 12600025 | FLHRSE5, FLHRSE5 ANV |
FOOTPEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4625 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4688 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7038 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 11304 | RING, retaining (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 49015-04A | BRACKET, right passenger footpeg | FLHRSE5, FLHRSE5 ANV |
| 49036-04A | BRACKET, left passenger footpeg (not shown) | FLHRSE5, FLHRSE5 ANV | |
| 7 | 50351-03 | MOUNT, footpeg support (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 50912-72 | SPRING WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 12400018 | SPACER (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 50500069 | FOOTPEG INSERT, rubber (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 50500070 | FOOTPEG BODY (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 50500116 | FOOTPEG, top (2) | FLHRSE5, FLHRSE5 ANV |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3462 | BOLT (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 45279-00 | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 59166-80 | PLATE, lock (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 60819-10 | FENDER, front (prime) | FLHRSE5, FLHRSE5 ANV |
| 58900004DQW | FENDER, front (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 58900004DQY | FENDER, front (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 58900004DRI | FENDER, front (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 3684 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 6703 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 7434 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 7499 | NUT (6) | FLHRSE5, FLHRSE5 ANV |
| 6 | 7531 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 7686 | LOCKNUT | FLHRSE5, FLHRSE5 ANV |
| 8 | 7716 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 7880 | NUT (4) | FLHRSE5, FLHRSE5 ANV |
| 10 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 10183 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 12 | 10184 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 13 | 11891 | SPACER (3) | FLHRSE5, FLHRSE5 ANV |
| 14 | 59174-99 | STUD PLATE | FLHRSE5, FLHRSE5 ANV |
| 15 | 59768-97 | FENDER SEAT NUT KIT | FLHRSE5, FLHRSE5 ANV |
| 16 | 59786-01 | BOSS, fender mounting, inner (4) | FLHRSE5, FLHRSE5 ANV |
| 17 | 59788-01 | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 18 | 59818-09 | STUD PLATE (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 60463-09A | FENDER, rear (prime) | FLHRSE5, FLHRSE5 ANV |
| 59500086DLE | FENDER, rear, w/ 11100024 (Diamond Dust) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500086DQW | FENDER, rear, w/ 11100024 (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500086DQY | FENDER, rear, w/ 11100024 (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 60472-09A | FENDER, rear (prime) (Australia, Canada, HDI, England, Japan) | FLHRSE5, FLHRSE5 ANV | |
| 59500087DLE | FENDER, rear, w/ 11100024 (Diamond Dust) (Australia, Canada, HDI, England, Japan) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500087DQW | FENDER, rear, w/ 11100024 (Burgundy Blaze w/ Hot Fusion Graphics) (Australia, Canada, HDI, England, Japan) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500087DQY | FENDER, rear, w/ 11100024 (Crushed Sapphire w/ Cold Fusion Graphics) (Australia, Canada, HDI, England, Japan) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 20 | 60465-09 | FASCIA, rear fender (prime) | FLHRSE5, FLHRSE5 ANV |
| 57300010DQX | FASCIA, rear fender (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57300010DLE | FASCIA, rear fender (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 57300010DQZ | FASCIA, rear fender (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 21 | 60919-09 | PLATE, stiffner (2) | FLHRSE5, FLHRSE5 ANV |
| 22 | 91140-09 | BRACKET, fender to saddlebag support | FLHRSE5, FLHRSE5 ANV |
| 23 | 11100024 | PAD (2) | FLHRSE5, FLHRSE5 ANV |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 6119 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 6549 | PAD (HDI) | FLHRSE5, FLHRSE5 ANV |
| 4 | 7499 | NUT | FLHRSE5, FLHRSE5 ANV |
| 5 | 57637-09 | GASKET | FLHRSE5, FLHRSE5 ANV |
| 6 | 59259-90 | REFLECTOR (HDI) | FLHRSE5, FLHRSE5 ANV |
| 7 | 59359-06 | REFLECTOR (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 8 | 59840-09 | STUD PLATE | FLHRSE5, FLHRSE5 ANV |
| 9 | 60915-09A | BRACKET, license plate | FLHRSE5, FLHRSE5 ANV |
| 10 | 60916-09 | COVER | FLHRSE5, FLHRSE5 ANV |
| 11 | 60920-09 | LITE ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 12 | 60921-09 | BRACKET, reflector (HDI) | FLHRSE5, FLHRSE5 ANV |
| 13 | 60922-09 | BRACKET, reflector (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 14 | 60934-10 | COVER, license plate lite (prime) | FLHRSE5, FLHRSE5 ANV |
| 67900096DQX | COVER, license plate lite (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 67900096DLE | COVER, license plate lite (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 67900096DQZ | COVER, license plate lite (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 15 | 74112-98BK | SOCKET HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 16 | 74152-98 | SECONDARY LOCK, 2-way | FLHRSE5, FLHRSE5 ANV |
| 17 | 74191-98 | SOCKET TERMINAL (2) | FLHRSE5, FLHRSE5 ANV |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 10039 | CABLE STRAP (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 10396 | RETAINER, fuel line 3/8(natural) | FLHRSE5, FLHRSE5 ANV |
| 4 | 11323 | O-RING, check valve-to-tank | FLHRSE5, FLHRSE5 ANV |
| 5 | 27291-09 | EVAP LINE, evaporative line, tank | FLHRSE5, FLHRSE5 ANV |
| 6 | 27440-09 | TUBE, evaporative line (except California) | FLHRSE5, FLHRSE5 ANV |
| 7 | 61268-08 | FUEL TANK (prime) | FLHRSE5, FLHRSE5 ANV |
| 61000006DQW | FUEL TANK, w/ medallions (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61000006DQY | FUEL TANK, w/ medallions (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61000057DRI | FUEL TANK, w/ medallions (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 8 | 62228-08A | CHECK VALVE, assembly w/ 10396 | FLHRSE5, FLHRSE5 ANV |
| 9 | 61208-10 | FUEL LINE, tank to intake | FLHRSE5, FLHRSE5 ANV |
| 10 | 63028-06 | TRIM RING (chrome) | FLHRSE5, FLHRSE5 ANV |
| 11 | 63038-06 | HOUSING ASSEMBLY (chrome) | FLHRSE5, FLHRSE5 ANV |
| 12 | 70901-09 | BOOT, tank bracket, left | FLHRSE5, FLHRSE5 ANV |
| 13 | 70999-09 | BOOT, tank bracket, right | FLHRSE5, FLHRSE5 ANV |
| 14 | 72904-01BK | HOUSING, pin, 4-way (black) | FLHRSE5, FLHRSE5 ANV |
| 15 | 72990-01 | TERMINAL, pin, 18-22 gauge | FLHRSE5, FLHRSE5 ANV |
| 16 | 11900004 | O-RING, filler cap | FLHRSE5, FLHRSE5 ANV |
| 17 | 14100302 | MEDALLION, right (for Burgundy Blaze tanks) | FLHRSE5 |
| 14100303 | MEDALLION, left (for Burgundy Blaze tanks) | FLHRSE5 | |
| 14100386 | MEDALLION, right (for Crushed Sapphire tanks) | FLHRSE5 | |
| 14100387 | MEDALLION, left (for Crushed Sapphire tanks) | FLHRSE5 | |
| 18 | 14100305 | MEDALLION, right, w/ 14100372 (for Diamond Dust/Obsidian tanks) **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 14100307 | MEDALLION, left, w/ 14100372 (for Diamond Dust/Obsidian tanks) **RESTRICTED SALES PART** | FLHRSE5 ANV | |
| 19 | 14100372 | MEDALLION (for Diamond Dust/Obsidian tanks) (2) **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 20 | 61100004 | FUEL CAP ASSEMBLY, flush mount (chrome), w/ 11900004 | FLHRSE5, FLHRSE5 ANV |
| 21 | 69200096 | WIRE HARNESS | FLHRSE5, FLHRSE5 ANV |
| 22 | 70900364 | FUEL GAUGE, w/ 72990-01 (chrome) | FLHRSE5, FLHRSE5 ANV |
INSTRUMENTS, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 3622 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4194 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 4856 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 5 | 8142 | NUT, speed | FLHRSE5, FLHRSE5 ANV |
| 6 | 10065 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 7 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 10103 | CLIP | FLHRSE5, FLHRSE5 ANV |
| 9 | 61081-92 | COVER, key-head, set of 2 | FLHRSE5, FLHRSE5 ANV |
| 10 | 62519-03 | HOSE, shield 1/4 in. I.D., 5.00 in. long, fuel gauge wires | FLHRSE5, FLHRSE5 ANV |
| 11 | 62775-08 | TRIM COVER, fuel tank | FLHRSE5, FLHRSE5 ANV |
| 12 | 67208-08 | SEAL, speedometer | FLHRSE5, FLHRSE5 ANV |
| 13 | 67341-04B | BACKCLAMP, 5-speedo (red) | FLHRSE5, FLHRSE5 ANV |
| 14 | 67488-04 | SWITCH, odometer reset w/ connector | FLHRSE5, FLHRSE5 ANV |
| 15 | 67493-08 | BRACKET, console mount | FLHRSE5, FLHRSE5 ANV |
| 16 | 67880-94 | BOOT, odometer reset switch | FLHRSE5, FLHRSE5 ANV |
| 17 | 68892-00A | HOUSING ASSEMBLY, w/ LED lights, 74118-98BK, 74158-98, 74193-98 & 74195-98 | FLHRSE5, FLHRSE5 ANV |
| 18 | 68893-00A | INDICATOR BEZEL | FLHRSE5, FLHRSE5 ANV |
| 19 | 71294-08 | TRIM (2) | FLHRSE5, FLHRSE5 ANV |
| 20 | 71313-96A | IGNITION SWITCH (keyed-to-match), w/ 72327-03A | FLHRSE5, FLHRSE5 ANV |
| 21 | 72130-04 | HOUSING, socket, 12-way (black) | FLHRSE5, FLHRSE5 ANV |
| 22 | 72114-94BK | HOUSING, socket, 4-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72154-94 | SECONDARY LOCK, 4-way | FLHRSE5, FLHRSE5 ANV |
| 24 | 72189-04 | SEAL PIN (9) | FLHRSE5, FLHRSE5 ANV |
| 25 | 72327-03A | CONNECTOR, 3-way | FLHRSE5, FLHRSE5 ANV |
| 26 | 74118-98BK | SOCKET HOUSING, 8-way, (black) | FLHRSE5, FLHRSE5 ANV |
| 27 | 74158-98 | SECONDARY LOCK, 8-way socket housing | FLHRSE5, FLHRSE5 ANV |
| 28 | 74193-98 | SOCKET TERMINAL SOLID (10) | FLHRSE5, FLHRSE5 ANV |
| 29 | 74195-98 | SEAL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 30 | 74196-04 | TERMINAL, socket, 20 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 31 | 74197-04 | SECONDARY LOCK, socket, 12-way | FLHRSE5, FLHRSE5 ANV |
| 32 | 14100301 | INSERT, console **RESTRICTED SALES PART** | FLHRSE5 |
| 33 | 14100393 | INSERT, console, serialized **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 34 | 14100407 | MEDALLION **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 35 | 14100410 | DECAL | FLHRSE5 ANV |
| 14100413 | DECAL, serial **RESTRICTED SALES PART** | FLHRSE5 ANV | |
| 36 | 69200176 | WIRE HARNESS | FLHRSE5, FLHRSE5 ANV |
| 37 | 70900070A | SPEEDOMETER, mph, w/ 69200176 (Domestic, California) | FLHRSE5, FLHRSE5 ANV |
| 70900071A | SPEEDOMETER, kph, w/ 69200176 (Australia, Canada, HDI & Japan) | FLHRSE5, FLHRSE5 ANV | |
| 70900072A | SPEEDOMETER, dual, mph/kph, w/ 69200176 (England) | FLHRSE5, FLHRSE5 ANV | |
| 38 | 70900256 | INSTRUMENT PANEL (chrome) | FLHRSE5, FLHRSE5 ANV |
| 39 | 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV |
| 40 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHRSE5, FLHRSE5 ANV |
| 2 | 11686 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHRSE5, FLHRSE5 ANV |
| 4 | 61012-04A | CLIP, filter retainer | FLHRSE5, FLHRSE5 ANV |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHRSE5, FLHRSE5 ANV |
| 6 | 61213-04A | CLIP, regulator retainer | FLHRSE5, FLHRSE5 ANV |
| 7 | 61402-08 | GASKET, top plate | FLHRSE5, FLHRSE5 ANV |
| 8 | 62229-08B | FILTER SHELL | FLHRSE5, FLHRSE5 ANV |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHRSE5, FLHRSE5 ANV |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 16 & 17 | FLHRSE5, FLHRSE5 ANV |
| 11 | 75089-08 | RING, fuel tank, cam | FLHRSE5, FLHRSE5 ANV |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLHRSE5, FLHRSE5 ANV |
| 13 | 75229-08 | HARNESS, fuel pump module | FLHRSE5, FLHRSE5 ANV |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLHRSE5, FLHRSE5 ANV |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump w/ 10396 | FLHRSE5, FLHRSE5 ANV |
| 16 | 75291-08A | TOP PLATE | FLHRSE5, FLHRSE5 ANV |
| 17 | 75322-09 | GROUND HARNESS | FLHRSE5, FLHRSE5 ANV |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 27291-09 | EVAP LINE, tank | FLHRSE5, FLHRSE5 ANV |
| 3 | 27297-09 | EVAP LINE, canister | FLHRSE5, FLHRSE5 ANV |
| 4 | 27298-09 | EVAP LINE, purge to canister | FLHRSE5, FLHRSE5 ANV |
| 5 | 60800006 | CARBON CANISTER | FLHRSE5, FLHRSE5 ANV |
| 6 | 27439-09 | TUBE, solenoid to induction module | FLHRSE5, FLHRSE5 ANV |
| 7 | 27715-07 | SOLENOID, purge valve | FLHRSE5, FLHRSE5 ANV |
| 8 | 70681-09 | RETAINER (2) | FLHRSE5, FLHRSE5 ANV |
NACELLE & HEADLAMP (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 787 | SCREW (7) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2647B | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2934 | SCREW (HDI) (2) | FLHRSE5, FLHRSE5 ANV | |
| 3 | 2806 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 4 | 2933 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2935A | SCREW (HDI) (2) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 3088 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 6 | 5210 | WELL NUT (7) | FLHRSE5, FLHRSE5 ANV |
| 7 | 6150W | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 6717 | WASHER (8) | FLHRSE5, FLHRSE5 ANV |
| 9 | 6789 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 10 | 7889 | NUT | FLHRSE5, FLHRSE5 ANV |
| 11 | 7888A | NUT | FLHRSE5, FLHRSE5 ANV |
| 12 | 9898 | TERMINAL FLAG, 18-20 ga, (Australia, England, HDI, Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 10006 | CABLE STRAP (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 10065 | CABLE STRAP (3) | FLHRSE5, FLHRSE5 ANV |
| 15 | 11489 | TRIM (2) | FLHRSE5, FLHRSE5 ANV |
| 16 | 14019-83A | LABEL ON/OFF SWITCH (Domestic) (2) | FLHRSE5, FLHRSE5 ANV |
| 14019-83A | LABEL ON/OFF SWITCH, left (HDI) | FLHRSE5, FLHRSE5 ANV | |
| 15346-98A | LABEL, spotlamp, right (HDI) | FLHRSE5, FLHRSE5 ANV | |
| 17 | 53436-97 | BULB, position lamp (Australia, England, HDI, Japan) | FLHRSE5, FLHRSE5 ANV |
| 18 | 61081-92 | COVER, key head set (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 69604-03 | TRIM RING, headlamp | FLHRSE5, FLHRSE5 ANV |
| 20 | 67668-05 | MEDALLION, 7 inch bulb | FLHRSE5, FLHRSE5 ANV |
| 21 | 67674-03B | NACELLE, right | FLHRSE5, FLHRSE5 ANV |
| 67682-03B | NACELLE, left | FLHRSE5, FLHRSE5 ANV | |
| 22 | 67717-01 | BULB, high beam halogen | FLHRSE5, FLHRSE5 ANV |
| 23 | 67718-60A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 24 | 67720-03A | SPRING, trim ring, headlamp | FLHRSE5, FLHRSE5 ANV |
| 25 | 67721-48 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 26 | 67724-71 | ADJUSTING SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 27 | 67726-08 | RETAINING RING | FLHRSE5, FLHRSE5 ANV |
| 28 | 67728-02A | BUCKET ASSEMBLY, w/ 67724-71 & 67782-60A | FLHRSE5, FLHRSE5 ANV |
| 29 | 67732-08 | MOUNTING RING | FLHRSE5, FLHRSE5 ANV |
| 30 | 67782-60A | BRACKET, trim ring | FLHRSE5, FLHRSE5 ANV |
| 31 | 67866-08A | COVER, handlebar (chrome) | FLHRSE5, FLHRSE5 ANV |
| 32 | 67868-03 | TRIM, nacelle | FLHRSE5, FLHRSE5 ANV |
| 33 | 68124-04B | MOUNTING RING ASSEMBLY, w/ 3088 | FLHRSE5, FLHRSE5 ANV |
| 34 | 68329-03 | BULB | FLHRSE5, FLHRSE5 ANV |
| 35 | 68344-05 | HEADLAMP ASSEMBLY, left dip (Australia, England, Japan) | FLHRSE5, FLHRSE5 ANV |
| 68345-05 | HEADLAMP ASSEMBLY, right dip (HDI) | FLHRSE5, FLHRSE5 ANV | |
| 36 | 68359-05 | JUMPER HARNESS, position bulb, w/ 9898 & 72253-94 (Australia, England, HDI, Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| 37 | 68380-05 | BOOT, bulb (Australia, England, HDI, Japan) | FLHRSE5, FLHRSE5 ANV |
| 38 | 68653-05 | SOCKET, position lamp (Australia, England, HDI, Japan) | FLHRSE5, FLHRSE5 ANV |
| 39 | 68881-01 | BULB, low beam halogen | FLHRSE5, FLHRSE5 ANV |
| 40 | 70291-89 | HOUSING, pin, 4-way (Japan) | FLHRSE5, FLHRSE5 ANV |
| 41 | 70292-89 | SOCKET HOUSING, 4-place (2) | FLHRSE5, FLHRSE5 ANV |
NACELLE & HEADLAMP (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 42 | 71522-08 | SWITCH, auxiliary/fog lamp & accessories, w/ 70292-89 & 72038-71A (2) | FLHRSE5, FLHRSE5 ANV |
| 71565-08 | SWITCH, illuminated (Japan), w/ 70292-89 & 72038-71A (2) | FLHRSE5, FLHRSE5 ANV | |
| 43 | 71540-94A | FORK LOCK | FLHRSE5, FLHRSE5 ANV |
| 44 | 72038-71A | TERMINAL SOCKET (8) | FLHRSE5, FLHRSE5 ANV |
| 45 | 72039-71A | TERMINAL, pin | FLHRSE5, FLHRSE5 ANV |
| 46 | 72253-94 | TERMINAL, 18-20 ga (Australia, England, HDI, Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| 47 | 72449-01 | HOUSING, 2-way socket (black) | FLHRSE5, FLHRSE5 ANV |
| 48 | 72450-01 | HOUSING, 2-way socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 49 | 72527-01 | SOCKET TERMINAL, 18-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 50 | 72633-02 | SEAL, 14-16 AWG (white) (4) | FLHRSE5, FLHRSE5 ANV |
| 51 | 73271-11 | HEADLAMP, w/ 67717-01, 68881-01 | FLHRSE5, FLHRSE5 ANV |
| 52 | 73272-11 | WIRE HARNESS, interconnect, w/ 14, 47, 48, 49, 50 | FLHRSE5, FLHRSE5 ANV |
| 53 | 74408-08A | DRESS NUT (chrome) (2) | FLHRSE5, FLHRSE5 ANV |
| 54 | 14100389 | INSERT, handlebar cover **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 55 | 14100396 | TRIM ASSEMBLY, fork lock | FLHRSE5, FLHRSE5 ANV |
| 56 | 67700032 | KIT, headlamp, w/ 8, 13, 33, 51, 52 | FLHRSE5, FLHRSE5 ANV |
| 57 | 69200262 | WIRE HARNESS, jumper (Japan) | FLHRSE5, FLHRSE5 ANV |
| 58 | 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV |
| 59 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 7744 | JAMNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 67015-02 | SET SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 67316-03B | BRACKET MOUNTING, right turn signal | FLHRSE5, FLHRSE5 ANV |
| 4 | 67355-04A | BRACKET MOUNTING, left turn signal | FLHRSE5, FLHRSE5 ANV |
| 5 | 67822-88 | BALL STUD (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 68614-03 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02, 69331-02, & 68904-00 (2) | FLHRSE5, FLHRSE5 ANV |
| 68975-00 | TURN SIGNAL ASSEMBLY, front, w/ 68163-84, 68976-00, & 68906-00 (HDI, England, Australia, Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 7 | 68904-00 | SOCKET ASSEMBLY, front (Domestic only) (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 69325-02 | LENS, turn signal (2) | FLHRSE5, FLHRSE5 ANV |
| 68976-00 | LENS (HDI, England, Australia, Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 9 | 69331-02 | BULB, turn signal (2) | FLHRSE5, FLHRSE5 ANV |
| 68163-84 | BULB, turn signal (HDI, England, Australia, Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 10 | 73156-96BK | SOCKET HOUSING, 6-place | FLHRSE5, FLHRSE5 ANV |
| 11 | 73191-96 | SOCKET TERMINAL (6) | FLHRSE5, FLHRSE5 ANV |
WINDSHIELD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3265A | STUD (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 7154M | ACORN NUT (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 7992 | ACORN NUT (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 11564 | GROMMET (6) | FLHRSE5, FLHRSE5 ANV |
| 5 | 67621-94 | BUSHING (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 10200204 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 7 | 10200218 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 8 | 12700065 | BRACKET, right | FLHRSE5, FLHRSE5 ANV |
| 9 | 12700066 | BRACKET, left | FLHRSE5, FLHRSE5 ANV |
| 10 | 29200027 | VENT, air duct | FLHRSE5, FLHRSE5 ANV |
| 11 | 29200028 | SHROUD, air duct | FLHRSE5, FLHRSE5 ANV |
| 12 | 29200029 | VANE, air duct | FLHRSE5, FLHRSE5 ANV |
| 13 | 57400175 | TAPE | FLHRSE5, FLHRSE5 ANV |
| 14 | 57400176 | WINDSHIELD KIT, w/ brackets | FLHRSE5, FLHRSE5 ANV |
| 15 | 57400178 | MOUNT (6) | FLHRSE5, FLHRSE5 ANV |
| 16 | 57400196 | WINDSHIELD | FLHRSE5, FLHRSE5 ANV |
FAIRING LOWERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2995 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3655A | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 5429 | BOLT (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6235 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 7415A | WASHER, rubber (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 7576 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 7686 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 7716 | LOCKNUT (4) | FLHRSE5, FLHRSE5 ANV |
| 9 | 8175 | CLIP (4) | FLHRSE5, FLHRSE5 ANV |
| 10 | 27048-84 | CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 58104-05 | COMPRESSION SPRING (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 58105-05 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 58173-05 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 58491-10 | CAP, lower fairing, left (prime) | FLHRSE5, FLHRSE5 ANV |
| 57100095DQX | CAP, lower fairing, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100095DQZ | CAP, lower fairing, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100095DRJ | CAP, lower fairing, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 58492-10 | CAP, lower fairing, right (prime) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DQX | CAP, lower fairing, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DQZ | CAP, lower fairing, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DRJ | CAP, lower fairing, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 15 | 58817-05A | LOWER FAIRING, right (prime) | FLHRSE5, FLHRSE5 ANV |
| 57100222DQX | LOWER FAIRING, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100222DQZ | LOWER FAIRING, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100222DRJ | LOWER FAIRING, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 58816-05A | LOWER FAIRING, left (prime) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DQX | LOWER FAIRING, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DQZ | LOWER FAIRING, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DRJ | LOWER FAIRING, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 16 | 58889-05 | VENT, right | FLHRSE5, FLHRSE5 ANV |
| 58890-05 | VENT, left | FLHRSE5, FLHRSE5 ANV | |
| 17 | 57419-11 | SPEAKERBOX, right (prime) | FLHRSE5, FLHRSE5 ANV |
| 57100220DQX | SPEAKERBOX, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100220DQZ | SPEAKERBOX, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100220DRJ | SPEAKERBOX, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57410-11 | SPEAKERBOX, left (prime) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DQX | SPEAKERBOX, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DQZ | SPEAKERBOX, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DRJ | SPEAKERBOX, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 18 | 72009-05 | HOUSING, 2-way pin | FLHRSE5, FLHRSE5 ANV |
| 19 | 72011-05 | WIRE SEAL (yellow) | FLHRSE5, FLHRSE5 ANV |
| 20 | 72063-06 | HOUSING, 2-way, female | FLHRSE5, FLHRSE5 ANV |
| 21 | 72094-06 | TERMINAL, 18-gauge (2) | FLHRSE5, FLHRSE5 ANV |
| 22 | 72096-06 | WIRE SEAL, 18-gauge (yellow) (2) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72111-06 | SECONDARY LOCK, 2-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72533-06 | DUST CAP, 2-pin connector (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 72676-11 | JUMPER, speaker (2) | FLHRSE5, FLHRSE5 ANV |
| 26 | 25700015 | PLUG (4) | FLHRSE5, FLHRSE5 ANV |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2955 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4292 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 10006 | CABLE STRAP (4) | FLHRSE5, FLHRSE5 ANV |
| 10181 | CABLE STRAP (17) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 55928-08 | PLUG (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 70373-96 | BRACKET, switch, lower left | FLHRSE5, FLHRSE5 ANV |
| 7 | 70375-96 | BRACKET, switch, lower right | FLHRSE5, FLHRSE5 ANV |
| 8 | 71587-04 | V-CLIP | FLHRSE5, FLHRSE5 ANV |
| 9 | 71621-08 | SWITCH KIT, stop lamp, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 10 | 71642-08 | SWITCH KIT, volume, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 11 | 71614-96 | HOUSING, upper right, (chrome) | FLHRSE5, FLHRSE5 ANV |
| 12 | 71615-96 | HOUSING, upper left, (chrome) | FLHRSE5, FLHRSE5 ANV |
| 13 | 71787-08 | SWITCH KIT, mode select, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 14 | 71682-06A | SWITCH KIT, headlamp high/low & horn, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 15 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 16 | 71684-06A | SWITCH KIT, engine start/off/run, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 17 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 18 | 71699-07 | SWITCH, clutch, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 19 | 71707-02 | HOUSING, lower right (chrome) | FLHRSE5, FLHRSE5 ANV |
| 20 | 71752-08 | SWITCH KIT, cruise | FLHRSE5, FLHRSE5 ANV |
| 21 | 71820-98 | KNOB, +/- audio | FLHRSE5, FLHRSE5 ANV |
| 22 | 71822-98 | KNOB, mode select, up/down | FLHRSE5, FLHRSE5 ANV |
| 23 | 71825-96A | KNOB, cruise control, set/resume | FLHRSE5, FLHRSE5 ANV |
| 24 | 71828-02 | KNOB, cruise | FLHRSE5, FLHRSE5 ANV |
| 25 | 72169-07 | TERMINAL, pin, #16-20 AWG (26) | FLHRSE5, FLHRSE5 ANV |
| 26 | 72266-94 | TUBE, heat shrink, dual wall, 0.3 x 2 inch (black) (9) | FLHRSE5, FLHRSE5 ANV |
| 27 | 72473-07 | SEAL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 28 | 72488-07BK | HOUSING, pin, 12-way | FLHRSE5, FLHRSE5 ANV |
| 29 | 72492-07GY | HOUSING, pin, 16-way | FLHRSE5, FLHRSE5 ANV |
| 30 | 73212-07 | CONNECTOR ANCHOR, t-stud (2) | FLHRSE5, FLHRSE5 ANV |
| 31 | 71788-08 | SWITCH KIT, cruise control, set/resume, w/ 10181 & 72266-94 | FLHRSE5, FLHRSE5 ANV |
| 32 | 71500157 | HOUSING, lower left (chrome) | FLHRSE5, FLHRSE5 ANV |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3605 | BOLT (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 11642 | GROMMET | FLHRSE5, FLHRSE5 ANV |
| 3 | 11698 | GROMMET | FLHRSE5, FLHRSE5 ANV |
| 4 | 56159-73 | WASHER, cup (4) | FLHRSE5, FLHRSE5 ANV |
| 5 | 56161-83A | BUSHING (rubber) (4) | FLHRSE5, FLHRSE5 ANV |
| 6 | 56163-93 | SPACER (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 56380-02 | RISER (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 70142-94 | CABLE, ground w/ 72241-94A | FLHRSE5, FLHRSE5 ANV |
| 9 | 72241-94A | RING TERMINAL, 10 ring, 14-18 gauge | FLHRSE5, FLHRSE5 ANV |
| 10 | 12600003 | SCREW, torx head (4) | FLHRSE5, FLHRSE5 ANV |
| 11 | 55800218 | HANDLEBAR KIT, w/ 11698 & 11642 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 12 | 55900017 | CLAMP, upper | FLHRSE5, FLHRSE5 ANV |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHRSE5, FLHRSE5 ANV |
| 2 | 32310-08 | SENSOR, twist grip, w/ 10006, 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72194-94, 72195-94, 72549-07 & 73212-07 (72195-94 SEAL PIN not used w/ heated grips) | FLHRSE5, FLHRSE5 ANV |
| 3 | 72102-94BK | PIN HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 4 | 72112-94BK | SOCKET HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 5 | 72142-94 | LOCK, secondary, 2-way | FLHRSE5, FLHRSE5 ANV |
| 6 | 72152-94 | SEAL, front, 2-way | FLHRSE5, FLHRSE5 ANV |
| 7 | 72188-07BK | PIN HOUSING, 6-way | FLHRSE5, FLHRSE5 ANV |
| 8 | 72194-94 | TERMINAL, pin, #20 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 9 | 72549-07 | TERMINAL, pin, #22 AWG (6) | FLHRSE5, FLHRSE5 ANV |
| 10 | 73212-07 | CONNECTOR ANCHOR, t-stud (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 56100021 | HANDGRIP ASSEMBLY, right, w/ 56100024 | FLHRSE5, FLHRSE5 ANV |
| 12 | 56100023 | HANDGRIP ASSEMBLY, left, w/ 56100024 | FLHRSE5, FLHRSE5 ANV |
| 13 | 56100024 | ENDCAP (2) | FLHRSE5, FLHRSE5 ANV |
TAIL LAMP (DOMESTIC) & TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3152 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 2 | 10006 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 3 | 56073-83 | CLIP RETAINER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 69383-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, left (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 69407-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, right (Domestic) | FLHRSE5, FLHRSE5 ANV | |
| 69496-09B | ENVELOPE TURN SIGNAL ASSEMBLY, left (Amber) (Canada, HDI, England, Japan, Australia) | FLHRSE5, FLHRSE5 ANV | |
| 69518-09B | ENVELOPE TURN SIGNAL ASSEMBLY, right (Amber) (Canada, HDI, England, Japan, Australia) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 70338-09 | HARNESS, rear lighting w/ 2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 & 17 (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 6 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLHRSE5, FLHRSE5 ANV |
| 7 | 72154-94 | SECONDARY LOCK, 4-way socket (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 72168-07 | TERMINAL, socket 16-20GA (4) | FLHRSE5, FLHRSE5 ANV |
| 9 | 72191-94 | TERMINAL, socket (8) | FLHRSE5, FLHRSE5 ANV |
| 10 | 72199-94 | ANCHOR, t-stud | FLHRSE5, FLHRSE5 ANV |
| 11 | 72272-07 | TERMINAL, socket 14-16GA (8) | FLHRSE5, FLHRSE5 ANV |
| 12 | 72473-07 | SEAL PIN, pin (3) | FLHRSE5, FLHRSE5 ANV |
| 13 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLHRSE5, FLHRSE5 ANV |
| 14 | 74102-98BK | PIN HOUSING, 2-way (black) | FLHRSE5, FLHRSE5 ANV |
| 15 | 74142-98 | SECONDARY LOCK, 2-way pin | FLHRSE5, FLHRSE5 ANV |
| 16 | 74190-98 | TERMINAL, pin 16-20AWG (8) | FLHRSE5, FLHRSE5 ANV |
| 17 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLHRSE5, FLHRSE5 ANV |
TAIL LAMP (CANADA, HDI, ENGLAND, JAPAN & AUSTRALIA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FLHRSE5, FLHRSE5 ANV |
| 2 | 7964 | J-NUT | FLHRSE5, FLHRSE5 ANV |
| 3 | 10006 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 4 | 10183 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 5 | 10184 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 6 | 56073-83 | CLIP RETAINER (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 68026-99 | SCREW, tail lamp (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A | FLHRSE5, FLHRSE5 ANV |
| 9 | 68142-04 | LIGHT ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (HDI, England, Japan, Australia) | FLHRSE5, FLHRSE5 ANV |
| 10 | 68167-04 | BULB, tail light, wedge mount | FLHRSE5, FLHRSE5 ANV |
| 11 | 68296-99A | TAIL LAMP BASE (chrome) | FLHRSE5, FLHRSE5 ANV |
| 12 | 68558-03 | LENS, tail lamp, w/ 68026-99 (HDI, England, Japan, Australia) | FLHRSE5, FLHRSE5 ANV |
| 68245-03 | LENS, tail lamp, w/ 68026-99 (Canada) | FLHRSE5, FLHRSE5 ANV | |
| 13 | 68830-99A | CIRCUIT BOARD & COVER | FLHRSE5, FLHRSE5 ANV |
| 14 | 69187-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK, & 73191-96 (HDI, England, Japan, Australia) | FLHRSE5, FLHRSE5 ANV |
| 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK, & 73191-96 (Canada) | FLHRSE5, FLHRSE5 ANV | |
| 15 | 70450-09 | HARNESS, rear lighting | FLHRSE5, FLHRSE5 ANV |
| 16 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLHRSE5, FLHRSE5 ANV |
| 17 | 72154-94 | SECONDARY LOCK, 4-way socket (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 72168-07 | TERMINAL, socket 16-20GA (5) | FLHRSE5, FLHRSE5 ANV |
| 19 | 72191-94 | TERMINAL, socket (4) | FLHRSE5, FLHRSE5 ANV |
| 20 | 72195-94 | SEAL PIN (4) | FLHRSE5, FLHRSE5 ANV |
| 21 | 72199-94 | ANCHOR, t-stud | FLHRSE5, FLHRSE5 ANV |
| 22 | 72272-07 | TERMINAL, socket 14-16GA | FLHRSE5, FLHRSE5 ANV |
| 23 | 72473-07 | SEAL PIN, pin (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLHRSE5, FLHRSE5 ANV |
| 25 | 73154-96BK | SOCKET HOUSING, 4-place | FLHRSE5, FLHRSE5 ANV |
| 26 | 73156-96BK | SOCKET HOUSING, 6-place | FLHRSE5, FLHRSE5 ANV |
| 27 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (9) | FLHRSE5, FLHRSE5 ANV |
| 28 | 74102-98BK | PIN HOUSING, 2-way (black) | FLHRSE5, FLHRSE5 ANV |
| 29 | 74142-98 | SECONDARY LOCK, 2-way pin | FLHRSE5, FLHRSE5 ANV |
| 30 | 74190-98 | TERMINAL, pin 16-20AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 31 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLHRSE5, FLHRSE5 ANV |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 2225 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3576 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 3929 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 4705 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 5416 | BOLT | FLHRSE5, FLHRSE5 ANV |
| 6 | 7041 | LOCKWASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 7 | 7593 | NUT (4) | FLHRSE5, FLHRSE5 ANV |
| 8 | 7601 | LOCKNUT | FLHRSE5, FLHRSE5 ANV |
| 9 | 8146 | NUT CLIP (6) | FLHRSE5, FLHRSE5 ANV |
| 10 | 9955 | CLAMP, worm drive #24 (7) | FLHRSE5, FLHRSE5 ANV |
| 11 | 9956 | CLAMP, worm drive #40 | FLHRSE5, FLHRSE5 ANV |
| 12 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 27729-10 | SENSOR, oxygen (O2), front, w/ 12, 37, 38 & 39 | FLHRSE5, FLHRSE5 ANV |
| 14 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 12, 37, 38 & 39 | FLHRSE5, FLHRSE5 ANV |
| 15 | 65296-95A | MUFFLER CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 16 | 65324-83B | GASKET, exhaust port (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHRSE5, FLHRSE5 ANV |
| 18 | 65328-83A | CLAMP, exhaust manifold (2) | FLHRSE5, FLHRSE5 ANV |
| 19 | 65586-11 | END CAP (chrome w/ black grooves) (2) | FLHRSE5, FLHRSE5 ANV |
| 20 | 65634-09 | SHIELD, right exhaust pipe, front | FLHRSE5, FLHRSE5 ANV |
| 21 | 65636-09 | SHIELD, left exhaust pipe, rear | FLHRSE5, FLHRSE5 ANV |
| 22 | 65678-09 | BRACKET, rear exhaust mount | FLHRSE5, FLHRSE5 ANV |
| 23 | 65723-85 | MOUNTING BRACKET (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 65724-85 | MOUNT, rubber (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | FLHRSE5, FLHRSE5 ANV |
| 26 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | FLHRSE5, FLHRSE5 ANV |
| 27 | 66047-05 | CLAMP, worm (6) | FLHRSE5, FLHRSE5 ANV |
| 28 | 66078-06 | RING, retention (2) | FLHRSE5, FLHRSE5 ANV |
| 29 | 66219-06 | HEAT SHIELD, muffler, right | FLHRSE5, FLHRSE5 ANV |
| 66220-06 | HEAT SHIELD, muffler, left | FLHRSE5, FLHRSE5 ANV | |
| 30 | 66813-09 | GASKET, clamp | FLHRSE5, FLHRSE5 ANV |
| 31 | 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (chrome) | FLHRSE5, FLHRSE5 ANV |
| 32 | 66858-09 | CROSSOVER PIPE ASSEMBLY (chrome) | FLHRSE5, FLHRSE5 ANV |
| 33 | 66859-09 | CLAMP, exhaust | FLHRSE5, FLHRSE5 ANV |
| 34 | 66861-09A | CLAMP, exhaust pipe, hinged | FLHRSE5, FLHRSE5 ANV |
| 35 | 66881-09 | BRACKET, exhaust pipe hanger | FLHRSE5, FLHRSE5 ANV |
| 36 | 72177-07BK | HOUSING, 4-way (black) | FLHRSE5, FLHRSE5 ANV |
| 37 | 72344-10 | TERMINAL, socket, 22AWG (gold) (2) | FLHRSE5, FLHRSE5 ANV |
| 38 | 72444-07GY | HOUSING, 4-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 39 | 73307-10 | TERMINAL, socket, 22AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 40 | 64900198 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLHRSE5, FLHRSE5 ANV |
| 65949-09 | MUFFLER, left (chrome) (Japan) | FLHRSE5, FLHRSE5 ANV | |
| 64768-09A | MUFFLER, left (chrome) (HDI, England, Australia) | FLHRSE5, FLHRSE5 ANV | |
| 41 | 64900199 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLHRSE5, FLHRSE5 ANV |
| 65748-09 | MUFFLER, right (chrome) (Japan) | FLHRSE5, FLHRSE5 ANV | |
| 64769-09A | MUFFLER, right (chrome) (HDI, England, Australia) | FLHRSE5, FLHRSE5 ANV |
ACTIVE INTAKE & EXHAUST
| Index No. | Part No. | Description | Model(s) |
| 1 | 3993 | BOLT (HDI except Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 6119 | WASHER (HDI except Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 18083-09 | RETAINER, exhaust cable (HDI except Japan) | FLHRSE5, FLHRSE5 ANV |
| 4 | 66761-09A | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHRSE5, FLHRSE5 ANV |
| 5 | 66767-07 | RETAINER CABLE (HDI except Japan) | FLHRSE5, FLHRSE5 ANV |
| 6 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI except Japan) | FLHRSE5, FLHRSE5 ANV |
| 7 | 71019-07 | SHROUD, exhaust actuator, (HDI except Japan) | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, MAIN (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG | FLHRSE5, FLHRSE5 ANV |
| 2 | 9825 | TERMINAL, 14-18 AWG | FLHRSE5, FLHRSE5 ANV |
| 3 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHRSE5, FLHRSE5 ANV |
| 4 | 9847 | CONNECTOR, female spade, right | FLHRSE5, FLHRSE5 ANV |
| 5 | 9848 | CONNECTOR, female spade, left (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 9898 | TERMINAL, instulated (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 10039 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 8 | 10065 | CABLE STRAP (18) | FLHRSE5, FLHRSE5 ANV |
| 9 | 10147 | CLIP, connector | FLHRSE5, FLHRSE5 ANV |
| 10 | 10177 | CABLE STRAP, tree mount (3) | FLHRSE5, FLHRSE5 ANV |
| 11 | 11321 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 12 | 11779 | PUSH-IN FASTENER, push-in (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 31586-07 | RELAY (3) | FLHRSE5, FLHRSE5 ANV |
| 14 | 31595-09 | RELAY | FLHRSE5, FLHRSE5 ANV |
| 15 | 70291-89 | HOUSING, 4-place (2) | FLHRSE5, FLHRSE5 ANV |
| 16 | 70348-09 | CADDY, fuse block | FLHRSE5, FLHRSE5 ANV |
| 17 | 70377-09 | CABLE, battery, positive, w/ 70578-09, 73304-04, 73305-04 | FLHRSE5, FLHRSE5 ANV |
| 18 | 70578-89 | RUBBER BOOT | FLHRSE5, FLHRSE5 ANV |
| 19 | 70598-99 | BOOT, engine temperature sensor | FLHRSE5, FLHRSE5 ANV |
| 20 | 70980-08 | COVER, wire trough | FLHRSE5, FLHRSE5 ANV |
| 21 | 70981-08 | TRAY, wire trough | FLHRSE5, FLHRSE5 ANV |
| 22 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (8) | FLHRSE5, FLHRSE5 ANV |
| 25 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (4) | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, MAIN (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 26 | 72039-71A | PIN, terminal (5) | FLHRSE5, FLHRSE5 ANV |
| 27 | 72056-92 | HOUSING, terminal, 3-way, female | FLHRSE5, FLHRSE5 ANV |
| 28 | 72063-06 | HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 29 | 72066-06A | SOCKET HOUSING, 4-way female (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 30 | 72079-08 | SOCKET HOUSING, 73-way | FLHRSE5, FLHRSE5 ANV |
| 31 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 32 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHRSE5, FLHRSE5 ANV |
| 33 | 72100-04 | HOUSING, 1-way, male (gray) | FLHRSE5, FLHRSE5 ANV |
| 34 | 72104-94BK | HOUSING, 4 pin | FLHRSE5, FLHRSE5 ANV |
| 35 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHRSE5, FLHRSE5 ANV |
| 36 | 72115-08 | COVER, 73-way socket housing | FLHRSE5, FLHRSE5 ANV |
| 37 | 72116-94BK | HOUSING, 6-way, socket, sealed | FLHRSE5, FLHRSE5 ANV |
| 38 | 72124-94GY | HOUSING, 4-pin w 72179-94 (gray) | FLHRSE5, FLHRSE5 ANV |
| 39 | 72114-94BK | SOCKET HOUSING, 4-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 40 | 72135-06 | LOCK, secondary, 4-way socket, female | FLHRSE5, FLHRSE5 ANV |
| 41 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) (2) | FLHRSE5, FLHRSE5 ANV |
| 42 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHRSE5, FLHRSE5 ANV |
| 43 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHRSE5, FLHRSE5 ANV |
| 44 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHRSE5, FLHRSE5 ANV |
| 45 | 72156-94 | SECONDARY LOCK, 6-way, socket | FLHRSE5, FLHRSE5 ANV |
| 46 | 72157-08 | PLR, GT280 | FLHRSE5, FLHRSE5 ANV |
| 47 | 72159-94 | SOCKET LOCK, secondary, 12-way (2) | FLHRSE5, FLHRSE5 ANV |
| 48 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHRSE5, FLHRSE5 ANV |
| 49 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHRSE5, FLHRSE5 ANV |
| 50 | 72168-07 | TERMINAL, socket, 16-18 AWG (46) | FLHRSE5, FLHRSE5 ANV |
| 51 | 72169-07 | TERMINAL, pin, 16-20 AWG (10) | FLHRSE5, FLHRSE5 ANV |
| 52 | 72175-07BK | HOUSING, 4-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 53 | 72179-94 | SEAL (2) | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, MAIN (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 54 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHRSE5, FLHRSE5 ANV |
| 55 | 72191-94 | TERMINAL, socket, 16-18 AWG (30) | FLHRSE5, FLHRSE5 ANV |
| 56 | 72195-94 | SEAL PIN (5) | FLHRSE5, FLHRSE5 ANV |
| 57 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHRSE5, FLHRSE5 ANV |
| 58 | 72206-94 | CONNECTOR, 4-position, female | FLHRSE5, FLHRSE5 ANV |
| 59 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (6) | FLHRSE5, FLHRSE5 ANV |
| 60 | 72214-94 | CABLE SEAL (2) | FLHRSE5, FLHRSE5 ANV |
| 61 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHRSE5, FLHRSE5 ANV |
| 62 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHRSE5, FLHRSE5 ANV |
| 63 | 72260-04 | HOUSING, female (gray) | FLHRSE5, FLHRSE5 ANV |
| 64 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLHRSE5, FLHRSE5 ANV |
| 65 | 72272-07 | TERMINAL, socket, 14-16 AWG (13) | FLHRSE5, FLHRSE5 ANV |
| 66 | 72279-04 | TERMINAL, female, 14-16 AWG (17) | FLHRSE5, FLHRSE5 ANV |
| 67 | 72282-09 | SECONDARY LOCK (8) | FLHRSE5, FLHRSE5 ANV |
| 68 | 72283-09 | TERMINAL, 14-16 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 69 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (12) | FLHRSE5, FLHRSE5 ANV |
| 70 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHRSE5, FLHRSE5 ANV |
| 71 | 72290-94 | TERMINAL, 1/4 inch insulated (3) | FLHRSE5, FLHRSE5 ANV |
| 72 | 72291-94 | TERMINAL, 14-16 AWG | FLHRSE5, FLHRSE5 ANV |
| 73 | 72295-94 | CONNECTOR, starter housing | FLHRSE5, FLHRSE5 ANV |
| 74 | 72309-04 | TERMINAL, 16-18 AWG (9) | FLHRSE5, FLHRSE5 ANV |
| 75 | 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHRSE5, FLHRSE5 ANV |
| 76 | 72330-95 | FUSE, 15 AMP (blue) (12) | FLHRSE5, FLHRSE5 ANV |
| 77 | 72343-10 | TERMINAL, pin, 16-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 78 | 72359-05 | TERMINAL, female, 10-12 AWG (5) | FLHRSE5, FLHRSE5 ANV |
| 79 | 72395-97 | TERMINAL, female, 10-12 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 80 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHRSE5, FLHRSE5 ANV |
| 81 | 72405-98BK | PUSH ON WIRE ASSEMBLY, right angle molded, w/ 60 in. wire lead (black) | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, MAIN (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 82 | 72406-07A | SOCKET HOUSING, 4-way | FLHRSE5, FLHRSE5 ANV |
| 83 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 84 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHRSE5, FLHRSE5 ANV |
| 85 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 86 | 72414-07BK | SOCKET HOUSING, 6-way (black) | FLHRSE5, FLHRSE5 ANV |
| 87 | 72415-07GY | HOUSING, 4-way, pin (gray) | FLHRSE5, FLHRSE5 ANV |
| 88 | 72440-08 | SEAL PIN, plug (16) | FLHRSE5, FLHRSE5 ANV |
| 89 | 72473-07 | SEAL PIN (14) | FLHRSE5, FLHRSE5 ANV |
| 90 | 72478-07BK | HOUSING, 8-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 91 | 72483-08BK | SOCKET HOUSING, 6-way | FLHRSE5, FLHRSE5 ANV |
| 92 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHRSE5, FLHRSE5 ANV |
| 93 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHRSE5, FLHRSE5 ANV |
| 94 | 72487-07BK | HOUSING, 12-way, socket (black) | FLHRSE5, FLHRSE5 ANV |
| 95 | 72491-07GY | HOUSING, 16-way, socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 96 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHRSE5, FLHRSE5 ANV |
| 97 | 72500-07ABK | SOCKET HOUSING, 20-way (black) | FLHRSE5, FLHRSE5 ANV |
| 98 | 72512-07BK | SOCKET HOUSING, 3-way (black) | FLHRSE5, FLHRSE5 ANV |
| 99 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHRSE5, FLHRSE5 ANV |
| 100 | 72519-09BK | DUSTCAP, 3-way socket | FLHRSE5, FLHRSE5 ANV |
| 101 | 72533-06 | DUST CAP, 2-pin connector | FLHRSE5, FLHRSE5 ANV |
| 102 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLHRSE5, FLHRSE5 ANV |
| 103 | 72543-07BK | HOUSING, 3-way, socket (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 104 | 72544-07 | SECONDARY LOCK, 3-way (2) | FLHRSE5, FLHRSE5 ANV |
| 105 | 72547-08 | DIODE PACK | FLHRSE5, FLHRSE5 ANV |
| 106 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHRSE5, FLHRSE5 ANV |
| 107 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHRSE5, FLHRSE5 ANV |
| 108 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (40) | FLHRSE5, FLHRSE5 ANV |
| 109 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, MAIN (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 110 | 72609-08 | SECONDARY LOCK, 2-way (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 111 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHRSE5, FLHRSE5 ANV |
| 112 | 72620-08 | FUSE COVER, rear | FLHRSE5, FLHRSE5 ANV |
| 113 | 72639-10 | SECONDARY LOCK, 2-way socket | FLHRSE5, FLHRSE5 ANV |
| 114 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) | FLHRSE5, FLHRSE5 ANV |
| 115 | 72914-01BK | HOUSING, socket, 4-way (black) | FLHRSE5, FLHRSE5 ANV |
| 116 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 117 | 73102-96WE | PIN HOUSING, 2-position (white) | FLHRSE5, FLHRSE5 ANV |
| 118 | 73106-96BK | PIN HOUSING, 6-place (black) | FLHRSE5, FLHRSE5 ANV |
| 119 | 73152-96WE | HOUSING, 2-way, socket (white) | FLHRSE5, FLHRSE5 ANV |
| 120 | 73190-96 | TERMINAL, pin, 16-20 AWG (8) | FLHRSE5, FLHRSE5 ANV |
| 121 | 73198-96 | CONNECTOR ANCHOR | FLHRSE5, FLHRSE5 ANV |
| 122 | 73213-07 | RETAINER, x-mas tree clip (2) | FLHRSE5, FLHRSE5 ANV |
| 123 | 73301-04 | HOUSING, pin, 2-way | FLHRSE5, FLHRSE5 ANV |
| 124 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHRSE5, FLHRSE5 ANV |
| 125 | 73304-04 | TERMINAL, female, 10 AWG | FLHRSE5, FLHRSE5 ANV |
| 126 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHRSE5, FLHRSE5 ANV |
| 127 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHRSE5, FLHRSE5 ANV |
| 128 | 74115-06 | DC LEAD ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 129 | 74152-98 | SECONDARY LOCK, secondary, 2-way | FLHRSE5, FLHRSE5 ANV |
| 130 | 74191-98 | SOCKET TERMINAL (2) | FLHRSE5, FLHRSE5 ANV |
| 131 | 69200494 | COVER, fuseblock | FLHRSE5, FLHRSE5 ANV |
WIRING HARNESS, CONSOLE
| Index No. | Part No. | Description | Model(s) |
| 70495-08A | HARNESS ASSEMBLY, console | FLHRSE5, FLHRSE5 ANV | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 10147 | CLIP, connector, rosebud mount | FLHRSE5, FLHRSE5 ANV |
| 3 | 67488-04 | SWITCH, trip reset | FLHRSE5, FLHRSE5 ANV |
| 4 | 72130-04 | SOCKET HOUSING, 12-way, black | FLHRSE5, FLHRSE5 ANV |
| 5 | 72167-07BK | HOUSING, pin, 16-way | FLHRSE5, FLHRSE5 ANV |
| 6 | 72169-07 | TERMINAL, pin, 16-18 AWG (14) | FLHRSE5, FLHRSE5 ANV |
| 7 | 72189-04 | SEAL PIN (3) | FLHRSE5, FLHRSE5 ANV |
| 8 | 72205-94 | CONNECTOR, 4-way, male | FLHRSE5, FLHRSE5 ANV |
| 9 | 72208-94 | TERMINAL, 12 AWG, male (3) | FLHRSE5, FLHRSE5 ANV |
| 10 | 72303-08 | TERMINAL, 12 AWG, male (3) | FLHRSE5, FLHRSE5 ANV |
| 11 | 72327-03A | CONNECTOR, 3-way | FLHRSE5, FLHRSE5 ANV |
| 12 | 72473-07 | SEAL PIN (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 72485-07 | SOCKET HOUSING, 4-way | FLHRSE5, FLHRSE5 ANV |
| 14 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 15 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 16 | 72557-07 | SECONDARY LOCK, 4-way socket | FLHRSE5, FLHRSE5 ANV |
| 17 | 74108-98BK | HOUSING, pin, 8-way (black) | FLHRSE5, FLHRSE5 ANV |
| 18 | 74148-98 | SECONDARY LOCK, pin, 8-way | FLHRSE5, FLHRSE5 ANV |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG (7) | FLHRSE5, FLHRSE5 ANV |
| 20 | 74195-98 | SEAL PIN | FLHRSE5, FLHRSE5 ANV |
| 21 | 74196-04 | TERMINAL, socket, 20 AWG (9) | FLHRSE5, FLHRSE5 ANV |
| 22 | 74197-04 | SECONDARY LOCK, secondary 12-way | FLHRSE5, FLHRSE5 ANV |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT, flange | FLHRSE5, FLHRSE5 ANV |
| 2 | 3634 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4312C | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 7792 | NUT | FLHRSE5, FLHRSE5 ANV |
| 5 | 10368A | RETENTION CLIP, battery box | FLHRSE5, FLHRSE5 ANV |
| 6 | 66010-97C | BATTERY | FLHRSE5, FLHRSE5 ANV |
| 7 | 66051-08 | STRAP, battery removal | FLHRSE5, FLHRSE5 ANV |
| 8 | 66281-09B | BATTERY TRAY | FLHRSE5, FLHRSE5 ANV |
| 9 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHRSE5, FLHRSE5 ANV |
| 10 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHRSE5, FLHRSE5 ANV |
| 11 | 70578-89 | BOOT, battery positive | FLHRSE5, FLHRSE5 ANV |
| 12 | 72242-94 | TERMINAL, ring | FLHRSE5, FLHRSE5 ANV |
| 13 | 73304-04 | TERMINAL, female, 10 AWG | FLHRSE5, FLHRSE5 ANV |
| 14 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHRSE5, FLHRSE5 ANV |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 4775 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 6019 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6109 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 5 | 7495 | NUT | FLHRSE5, FLHRSE5 ANV |
| 6 | 7549A | ACORN NUT | FLHRSE5, FLHRSE5 ANV |
| 7 | 8108 | SPEEDNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 10039 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHRSE5, FLHRSE5 ANV |
| 10 | 69012-93A | COVER, horn (chrome) | FLHRSE5, FLHRSE5 ANV |
| 11 | 69060-90F | HORN ASSEMBLY | FLHRSE5, FLHRSE5 ANV |
| 12 | 69062-91A | CLAMP | FLHRSE5, FLHRSE5 ANV |
| 13 | 69120-91 | BRACKET, horn | FLHRSE5, FLHRSE5 ANV |
| 14 | 69123-92A | MOUNT, horn, rubber | FLHRSE5, FLHRSE5 ANV |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 10065 | CABLE STRAP (3) | FLHRSE5, FLHRSE5 ANV |
| 3 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHRSE5, FLHRSE5 ANV |
| 4 | 61081-92 | COVER, key head set (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 68924-07 | MODULE, security system & turn signal canceller | FLHRSE5, FLHRSE5 ANV |
| 68922-07 | MODULE, security system & turn signal canceller (Japan) | FLHRSE5, FLHRSE5 ANV | |
| 6 | 68926-07 | REMOTE CONTROL FOB (2) | FLHRSE5, FLHRSE5 ANV |
| 69995-11 | REMOTE CONTROL FOB (Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 7 | 68956-07 | ANTENNA MODULE, security system | FLHRSE5, FLHRSE5 ANV |
| 8 | 68958-07C | SIREN ALARM | FLHRSE5, FLHRSE5 ANV |
| 9 | 69309-10A | SIREN ALARM, battery replacement kit | FLHRSE5, FLHRSE5 ANV |
| 10 | 70617-07 | WIRE HARNESS, antenna jumper | FLHRSE5, FLHRSE5 ANV |
| 11 | 71313-96A | IGNITION SWITCH, w/ 72327-03A (specify key code) | FLHRSE5, FLHRSE5 ANV |
| 12 | 71540-94A | FORK LOCK | FLHRSE5, FLHRSE5 ANV |
| 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV | |
| 13 | 72114-94BK | HOUSING, 4-way socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 14 | 72154-94 | SECONDARY LOCK, 4-way socket | FLHRSE5, FLHRSE5 ANV |
| 15 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 16 | 72195-94 | SEAL PIN, socket, 16-18 AWG | FLHRSE5, FLHRSE5 ANV |
| 17 | 72327-03A | CONNECTOR, 3-way | FLHRSE5, FLHRSE5 ANV |
| 18 | 72720-07 | HOUSING, 2-way socket | FLHRSE5, FLHRSE5 ANV |
| 19 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 20 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
SOUND SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3658 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 7878 | NUT (3) | FLHRSE5, FLHRSE5 ANV |
| 4 | 10120 | CLIP, adhesive backed (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 11697 | GROMMET (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 11891 | SPACER (7) | FLHRSE5, FLHRSE5 ANV |
| 7 | 72166-07BK | HOUSING, socket, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 8 | 72167-07BK | HOUSING, 16-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 9 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHRSE5, FLHRSE5 ANV |
| 10 | 72169-07 | TERMINAL, pin, 16-20 AWG (13) | FLHRSE5, FLHRSE5 ANV |
| 11 | 72473-07 | SEAL PIN (6) | FLHRSE5, FLHRSE5 ANV |
| 12 | 73307-10 | TERMINAL, socket, 22 AWG (7) | FLHRSE5, FLHRSE5 ANV |
| 13 | 73212-07 | CONNECTOR | FLHRSE5, FLHRSE5 ANV |
| 14 | 10200012 | SCREW (16) | FLHRSE5, FLHRSE5 ANV |
| 15 | 10200095 | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 16 | 11100049 | TAPE | FLHRSE5, FLHRSE5 ANV |
| 17 | 12600068 | CLIP (3) | FLHRSE5, FLHRSE5 ANV |
| 18 | 25700117 | WASHER (8) | FLHRSE5, FLHRSE5 ANV |
| 19 | 25700156 | COVER, bracket (4) | FLHRSE5, FLHRSE5 ANV |
| 20 | 69200499 | BRACKET, interface module | FLHRSE5, FLHRSE5 ANV |
| 21 | 76000139 | BRACKET, amp | FLHRSE5, FLHRSE5 ANV |
| 22 | 76000140 | COVER, amp | FLHRSE5, FLHRSE5 ANV |
| 23 | 76000141 | POWER AMPLIFIER, w/ 8, 10 & 11 | FLHRSE5, FLHRSE5 ANV |
| 24 | 76000142 | SPEAKER, 5x7 in., w/ 76000274 (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 76000180 | SPEAKER GRILL, left | FLHRSE5, FLHRSE5 ANV |
| 76000181 | SPEAKER GRILL, right | FLHRSE5, FLHRSE5 ANV | |
| 26 | 76000182 | SPEAKER BASKET (2) | FLHRSE5, FLHRSE5 ANV |
| 76000274 | GASKET (not shown) (2) | FLHRSE5, FLHRSE5 ANV | |
| 27 | 76000205 | GRILLE (2) | FLHRSE5, FLHRSE5 ANV |
| 28 | 76000274 | GASKET (2) | FLHRSE5, FLHRSE5 ANV |
| 29 | 76000285 | MODULE, audio interface | FLHRSE5, FLHRSE5 ANV |
| 30 | 76000286 | SPEAKER, 5-1/4 in., w/ grille & screws (2) | FLHRSE5, FLHRSE5 ANV |
| Index 31Dealer: For all service and warranty claims on Advanced Audio System components please refer to the latest Warranty Bulletin revision of the Advanced Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Advanced Audio System components please contact your Harley-Davidson dealership.Power Amplifier is not a Harman product and should not be returned for repair.Index 32iPod: To obtain service or support for the iPod provided with the motorcycle, see support.apple.com, visit an Apple Retail Store, or contact Apple, Inc. at 1-800-275-2273. | |||
SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 2 | 2524B | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3592A | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 4 | 3593 | SCREW (16) | FLHRSE5, FLHRSE5 ANV |
| 5 | 3595 | SCREW (10) | FLHRSE5, FLHRSE5 ANV |
| 6 | 3612 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 7 | 3656 | SCREW (4) | FLHRSE5, FLHRSE5 ANV |
| 8 | 6229W | WASHER (4) | FLHRSE5, FLHRSE5 ANV |
| 9 | 6703 | WASHER (right side only) (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 7586 | JAMNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 7608 | NUT (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 10065 | CABLE STRAP (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 10103 | CLIP | FLHRSE5, FLHRSE5 ANV |
| 15 | 10120 | CLIP, right (10) | FLHRSE5, FLHRSE5 ANV |
| 16 | 11468 | GROMMET (4) | FLHRSE5, FLHRSE5 ANV |
| 17 | 53482-93 | RUB BAR, left, rear (plastic) | FLHRSE5, FLHRSE5 ANV |
| 53483-93 | RUB BAR, right, rear (plastic) | FLHRSE5, FLHRSE5 ANV | |
| 18 | 53567-93 | CHECK STRAP, right (2) | FLHRSE5, FLHRSE5 ANV |
| 90200002 | CHECK STRAP, left (not shown) (2) | FLHRSE5, FLHRSE5 ANV | |
| 19 | 53710-93 | LOCK, w/ 7586, 90682-93 & keys (specify key code) (set of 2) | FLHRSE5, FLHRSE5 ANV |
| 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300042 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV | |
| 20 | 59287-92 | REFLECTOR, right (red) (Domestic, Canada) | FLHRSE5, FLHRSE5 ANV |
| 59288-92 | REFLECTOR, left (red) (Domestic, Canada) | FLHRSE5, FLHRSE5 ANV | |
| 59289-92 | REFLECTOR, right (amber) (HDI, England, Japan) | FLHRSE5, FLHRSE5 ANV | |
| 59290-92 | REFLECTOR, left (amber) (HDI, England, Japan) | FLHRSE5, FLHRSE5 ANV | |
| 21 | 61081-92 | COVER, key | FLHRSE5, FLHRSE5 ANV |
| 22 | 72063-06 | HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 23 | 72094-06 | TERMINAL, socket, 18 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 72111-06 | SECONDARY LOCK, 2-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 26 | 72146-94 | PIN LOCK | FLHRSE5, FLHRSE5 ANV |
| 27 | 72149-94 | PIN LOCK | FLHRSE5, FLHRSE5 ANV |
| 28 | 72166-07BK | HOUSING, socket, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 29 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 30 | 72168-07 | TERMINAL, socket, 18-20 AWG (5) | FLHRSE5, FLHRSE5 ANV |
| 31 | 72169-07 | TERMINAL, pin, 16-20 AWG (13) | FLHRSE5, FLHRSE5 ANV |
| 32 | 72190-94 | TERMINAL, pin, 16-18 AWG (9) | FLHRSE5, FLHRSE5 ANV |
| 33 | 72195-94 | SEAL PIN, 4-way receptacle (3) | FLHRSE5, FLHRSE5 ANV |
| 34 | 72272-07 | TERMINAL, socket, 14-16 AWG (8) | FLHRSE5, FLHRSE5 ANV |
| 35 | 72473-07 | SEAL PIN (6) | FLHRSE5, FLHRSE5 ANV |
| 36 | 88335-09 | PROTECTOR, left hand | FLHRSE5, FLHRSE5 ANV |
| 88336-09 | PROTECTOR, right hand | FLHRSE5, FLHRSE5 ANV | |
| 37 | 90115-04 | PROTECTOR | FLHRSE5, FLHRSE5 ANV |
| 38 | 90400-00A | BAIL HEAD STUD (Bail must be removed for ALL HDI MODELS EXCEPT JAPAN) (4) | FLHRSE5, FLHRSE5 ANV |
| 39 | 90664-93 | LATCH ASSEMBLY, left, w/ 53482-93 & spring, also order 90981-09 | FLHRSE5, FLHRSE5 ANV |
| 90665-93 | LATCH ASSEMBLY, right, w/ 53483-93 & spring, also order 90980-09 | FLHRSE5, FLHRSE5 ANV |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 40 | 90682-93 | CAM HOOK (2) | FLHRSE5, FLHRSE5 ANV |
| 41 | 90707-00A | SPRING (2) | FLHRSE5, FLHRSE5 ANV |
| 42 | 90958-93 | MOUNTING BRACKET (4) | FLHRSE5, FLHRSE5 ANV |
| 43 | 90962-93 | WEARPLATE, cover (4) | FLHRSE5, FLHRSE5 ANV |
| 44 | 90980-09 | RUB BAR, right, front (plastic) | FLHRSE5, FLHRSE5 ANV |
| 90981-09 | RUB BAR, left, front (plastic) | FLHRSE5, FLHRSE5 ANV | |
| 45 | 91884-97A | LINER, removable (2) | FLHRSE5, FLHRSE5 ANV |
| 46 | 10200199 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 47 | 12100001 | GROMMET, right saddlebag | FLHRSE5, FLHRSE5 ANV |
| 48 | 12700035 | BACKING PLATE (2) | FLHRSE5, FLHRSE5 ANV |
| 49 | 12700064 | PLATE, 6-way | FLHRSE5, FLHRSE5 ANV |
| 50 | 14900001 | TOOL KIT | FLHRSE5, FLHRSE5 ANV |
| 51 | 25700155 | GASKET, plug | FLHRSE5, FLHRSE5 ANV |
| 52 | 25700176 | CAP (2) | FLHRSE5, FLHRSE5 ANV |
| 53 | 25700254 | GASKET, cover (2) | FLHRSE5, FLHRSE5 ANV |
| 54 | 53000155DQX | LATCH COVER, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV |
| 53000155DQZ | LATCH COVER, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 53000155DLE | LATCH COVER, right (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DQX | LATCH COVER, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DQZ | LATCH COVER, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DLE | LATCH COVER, left (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 55 | 69200290 | RECEPTACLE, 12-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 56 | 69200329 | COVER, plug (2) | FLHRSE5, FLHRSE5 ANV |
| 57 | 69200415 | WIRE HARNESS, jumper, left | FLHRSE5, FLHRSE5 ANV |
| 58 | 69200416 | WIRE HARNESS, jumper, right | FLHRSE5, FLHRSE5 ANV |
| 59 | 69200506 | RECEPTACLE, 6-way (black) | FLHRSE5, FLHRSE5 ANV |
| 60 | 90200609DQW | COVER ASSEMBLY, left w/ 43, 53 & label (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 90200609DQY | COVER ASSEMBLY, left w/ 43, 53 & label (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200609DLE | COVER ASSEMBLY, left w/ 43, 53 & label (Diamond Dust) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DQW | COVER ASSEMBLY, right w/ 43, 53 & label (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DQY | COVER ASSEMBLY, right w/ 43, 53 & label (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DLE | COVER ASSEMBLY, right w/ 43, 53 & label (Diamond Dust) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61 | 90200580DQW | BOTTOM ASSEMBLY, left (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 90200580DQY | BOTTOM ASSEMBLY, left (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200580DRI | BOTTOM ASSEMBLY, left (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DQW | BOTTOM ASSEMBLY, right (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DQY | BOTTOM ASSEMBLY, right (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DRI | BOTTOM ASSEMBLY, right (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 62 | 90200898 | CUSHION, front (4) | FLHRSE5, FLHRSE5 ANV |
| 63 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
| 64 | 93100031 | COVER, indoor storage | FLHRSE5, FLHRSE5 ANV |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3787 | BOLT (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4924 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6703 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 5 | 7531 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 7601 | LOCKNUT (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 47449-09 | BRACKET, saddlebag mounting, front (2) | FLHRSE5, FLHRSE5 ANV |
| 8 | 49206-09A | SUPPORT, saddlebag, left (chrome) | FLHRSE5, FLHRSE5 ANV |
| 49207-09A | SUPPORT, saddlebag, right (chrome) | FLHRSE5, FLHRSE5 ANV | |
| 9 | 66069-10 | BUMPER (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 70909-95 | RECEPTACLE (4) | FLHRSE5, FLHRSE5 ANV |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14019-83A | LABEL ON/OFF SWITCH | FLHRSE5, FLHRSE5 ANV |
| 2 | 14148-86 | ENGINE GUARD LABEL | FLHRSE5, FLHRSE5 ANV |
| 3 | 14272-06 | SHIFT PATTERN LABEL (Japan only) | FLHRSE5, FLHRSE5 ANV |
| 4 | 15342-06A | WARNING LABEL, mirror (HDI) | FLHRSE5, FLHRSE5 ANV |
| 5 | 15368-01A | WARNING LABEL, battery | FLHRSE5, FLHRSE5 ANV |
| 6 | 28012-09 | WARNING LABEL, air cleaner | FLHRSE5, FLHRSE5 ANV |
| 7 | 14000069 | WARNING LABEL, saddlebag | FLHRSE5, FLHRSE5 ANV |
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 10200012 | SCREW 8-18 X 3/4 HI-LO TORX head |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090A | SCREW 5/16-18 X 3-3/4 hex flange head with seal ring |
| 1095M | SCREW M6 x 1.0 X 22 SEMS socket head |
| 12600003 | SCREW 5/16-18 X 1-1/4 TORX with scotch grip (Grade 8) |
| 2225 | SCREW 1/4-20 X 5/8 socket flat countersink head |
| 2228 | SCREW M5 X 0.8 X 20.7 TORX pan head (Grade 9.8) |
| 2246 | SCREW 1/4-20 X 1 hex socket button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2524B | SCREW No. 8-32 X 5/16 TORX button head |
| 2559 | SCREW No. 6-32 X 3/4 Phillips pan head, with lockwasher |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2806 | SCREW No. 6-32 X 3/4 Pozidriv pan head (Grade 2) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2995 | SCREW No. 10-16 X 3/4 pan head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 3148 | SCREW 5/16-18 X 1.60 TORX head |
| 3152 | SCREW #10 X 1/2 TORX pan head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3592A | SCREW No. 8-32 X 1/2 TORX truss head with dogpoint lead (stainless) |
| 3593 | SCREW No. 8-32 X 5/16 TORX truss head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3643 | SCREW 1/4-20 X 1-1/4 hex head |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 36706-08K | BOLT M6 X 1.0 X 40 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3938 | SCREW button hex socket |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 3993 | BOLT 1/4-20 X 1-1/4 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45279-00 | WASHER 11/32 X 5/8 X 1/32 Aluminum |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4625 | SCREW 5/16-18 X 1.0 button socket head, with lockpatch (Grade 8) |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4855 | SCREW 7/16-20 X 1-3/8 hex head (Grade 8) |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5429 | BOLT 1/4-20 X 1-1/2 carriage (Grade 2) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6717 | WASHER No. 6 X 3/8 X 3/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 6789 | WASHER No. 6 X 7/8 X .05 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7326 | NUT 5/16-18 polished stainless steel |
| 7331 | ACORN NUT 5/16-24 |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7608 | NUT No. 8-32 X 1/8 X 11/32 (Grade 2) |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7878 | NUT No. 10-24 X 7/32 X 3/8 flange |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7888A | NUT No. 6-32 flange head |
| 7889 | NUT No. 6-32 keps |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 94067-90T | FLATWASHER 13/32 X 13/16 X 1/16 (chrome) |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19792-13 | ENGINE ASSEMBLY, complete - 110 cubic-inch (black) | FLHRSE5 ANV |
| 19838-13 | ENGINE ASSEMBLY, complete - 110 cubic-inch (granite) | FLHRSE5 |
| Index No. | Part No. | Description | Model(s) |
| 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE5 | |
| 17454-08A | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLHRSE5 | |
| 27 | 25800017 | SCREW, medallion (4) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 17572-99 | ROCKER COVER (chrome) (2) | FLHRSE5 | |
| 17573-99A | ROCKER HOUSING (chrome) (2) | FLHRSE5 | |
| 32 | 18572-13 | HYDRAULIC LIFTER (4) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 21 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | FLHRSE5, FLHRSE5 ANV |
| 24760-08A | CRANKCASE SET, w/ 765, 895, 1090A, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24605-07, 35114-02 & 68042-99 (granite) | FLHRSE5 | |
| 63076-09 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover (granite) | FLHRSE5 | |
| 36 | 63121-11A | COVER ASSEMBLY, oil cooler (chrome) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 25369-01B | CAM COVER (chrome) | FLHRSE5 | |
| 35 | 14100391 | INSERT, timer cover | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 6 | 29267-08A | BOLT, breather (2) | FLHRSE5, FLHRSE5 ANV |
| 29763-09 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHRSE5 ANV | |
| 11 | 29762-09 | RAINSOCK | FLHRSE5, FLHRSE5 ANV |
| 12 | 14100310 | INSERT, air cleaner cover | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 26561-99 | OIL PRESSURE SENDER | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (granite) | FLHRSE5 | |
| 35255-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 15, 17, 31, 32, 33, 34, 35, 36, 37, 38, 39, 7340, 35260-06, input shaft, counter shaft (granite) | FLHRSE5 | |
| 41 | 12400026 | SLEEVE (2) | FLHRSE5, FLHRSE5 ANV |
| 42 | 33600003 | LEVER, shifter heel (long) (chrome) | FLHRSE5, FLHRSE5 ANV |
| 43 | 33600007 | SHIFTER PEG, w/ 12400026 & screw (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4705 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 33166-10A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (black) | FLHRSE5, FLHRSE5 ANV | |
| 26 | 25700180 | SIDE COVER, transmission (black) | FLHRSE5 ANV |
| 25700179 | SIDE COVER, transmission (chrome) | FLHRSE5 | |
| 29 | 11900035 | O-RING | FLHRSE5, FLHRSE5 ANV |
| 30 | 25700178 | INNER SIDE COVER | FLHRSE5, FLHRSE5 ANV |
| 31 | 37200023 | SECONDARY CLUTCH ACTUATOR, w/ 43817-02, 44613-02, 11900035 | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 26166-08A | OIL PAN ASSEMBLY (granite) w/ 45893-99 & 60328-98B | FLHRSE5 | |
| 12 | 33166-10A | TRANSMISSION REPLACEMENT, w/o cable, covers, & sensors (black) | FLHRSE5, FLHRSE5 ANV |
| 34853-08 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (granite) | FLHRSE5 | |
| 22 | 74402-05B | SPEED SENSOR, w/ 11289A | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 12 | 11599A | SPACER, bearing | FLHRSE5, FLHRSE5 ANV |
| 35255-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ shifter cam & forks (granite) | FLHRSE5 | |
| 21 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08, & 35201-10 | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 36706-08K | BOLT (3) | FLHRSE5, FLHRSE5 ANV |
| 11 | 11700002 | COILSPRING (3) | FLHRSE5, FLHRSE5 ANV |
| 12 | 37000026 | CLUTCH ASSEMBLY, complete | FLHRSE5, FLHRSE5 ANV |
| 13 | 37000032 | PRESSURE PLATE, clutch | FLHRSE5, FLHRSE5 ANV |
| 14 | 37000033 | STOPPER PLATE | FLHRSE5, FLHRSE5 ANV |
| 15 | 37000034 | SPRING, damper | FLHRSE5, FLHRSE5 ANV |
| 16 | 37000035 | SEAT (3) | FLHRSE5, FLHRSE5 ANV |
| 17 | 37000036 | SEAT, damper-spring | FLHRSE5, FLHRSE5 ANV |
| 18 | 37000118 | KIT, clutch disks | FLHRSE5, FLHRSE5 ANV |
| 19 | 37000083 | HUB ASSEMBLY, clutch, w/ thrust washer & spring washer | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 60850-08A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (granite) | FLHRSE5 | |
| 23 | 14100390 | INSERT, clutch cover | FLHRSE5, FLHRSE5 ANV |
| 24 | 25700226 | GASKET KIT, inner primary | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 16 | 83936-09A | SPRING PACK | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3089 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 4293 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 6099 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 7 | 11143 | RING, retaining | FLHRSE5, FLHRSE5 ANV |
| 12 | 42010-06A | BOLT, banjo | FLHRSE5, FLHRSE5 ANV |
| 13 | 42115-06 | MASTER CYLINDER COVER KIT, w/ 3089 & gasket | FLHRSE5, FLHRSE5 ANV |
| 14 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHRSE5, FLHRSE5 ANV |
| 16 | 45032-82 | PIVOT PIN | FLHRSE5, FLHRSE5 ANV |
| 17 | 45423-92 | BUSHING, hand lever | FLHRSE5, FLHRSE5 ANV |
| 18 | 46244-01 | REPAIR KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 19 | 46246-01 | KIT, bushing & roller | FLHRSE5, FLHRSE5 ANV |
| 20 | 12100028 | GROMMET | FLHRSE5, FLHRSE5 ANV |
| 21 | 36700025 | MASTER CYLINDER ASSEMBLY, clutch (chrome), w/ 42145-06, 42115-06, 45032-82, 46244-01, 36700038 | FLHRSE5, FLHRSE5 ANV |
| 22 | 36700038 | LEVER ASSEMBLY, hand, w/ 11143, 45423-92 & 46246-01 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 23 | 37200019 | LINE ASSEMBLY, hydraulic-clutch, w/ 12100028 | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 2 | 7155 | LOCKWASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 4 | 91840-03B | MIRROR KIT, right (chrome), w/ 7155 & 7331 (HDI) (not shown) | FLHRSE5, FLHRSE5 ANV |
| 91845-03B | MIRROR KIT, left (chrome), w/ 7155 & 7331 (HDI) | FLHRSE5, FLHRSE5 ANV | |
| 5 | 56000063 | MIRROR, right (chrome) (Domestic) | FLHRSE5, FLHRSE5 ANV |
| 56000062 | MIRROR, left (chrome) (Domestic) (not shown) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 4890 | BLEEDER SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3340 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 24 | 42932-08A | REBUILD KIT, master cylinder | FLHRSE5, FLHRSE5 ANV |
| 27 | 46459-08B | MASTER CYLINDER ASSEMBLY, w/ 12, 13, 20, 21, 22, 23, 24, 25, 26 & 28 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 30 | 72023-51E | KIT SWITCH, rear stop lamp, w/ 9907 | FLHRSE5, FLHRSE5 ANV |
| 31 | 12600025 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 32 | 50600040 | KIT, brake pedal pad, w/ 3, 6, 31 & medallion | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 41852-08B | PAD & PIN KIT | FLHRSE5, FLHRSE5 ANV |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, w/ 4890, 41852-08A, 42853-06, 42865-06B & 42867-06A (black) | FLHRSE5, FLHRSE5 ANV |
| 10 | 44313-01 | PISTON KIT, caliper brake | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 18 | 55071-11 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHRSE5, FLHRSE5 ANV |
| 27 | 42300006 | WEIGHT, 1/2 oz., cast wheels (chrome) (6) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 19 | 47951-10 | WHEEL KIT, cast, w/o bearings & sleeve (chrome) | FLHRSE5, FLHRSE5 ANV |
| 25 | 42300006 | WEIGHT, 1/2 oz. cast wheels (chrome) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 22 | 72332-09 | BRACKET | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 7 | 6116 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 21 | 38938-09 | RETAINER, clutch line | FLHRSE5, FLHRSE5 ANV |
| 28 | 50075-07A | LEG, jiffy stand | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 33 | 66048-09A | SIDE COVER, right (prime) | FLHRSE5, FLHRSE5 ANV |
| 57200001DQW | SIDE COVER, left (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200001DQY | SIDE COVER, left (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200002DQW | SIDE COVER, right (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57200002DQY | SIDE COVER, right (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 35 | 69318-02 | CLAMP | FLHRSE5, FLHRSE5 ANV |
| 36 | 69336-03 | CLAMP (2) | FLHRSE5, FLHRSE5 ANV |
| 42 | 90329-98 | PLUG (2) | FLHRSE5, FLHRSE5 ANV |
| 45 | 12200004 | CLIP | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 7 | 11779 | PUSH-IN FASTENER | FLHRSE5, FLHRSE5 ANV |
| 47200139DQX | COVER, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 47200139DQZ | COVER, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 47200138DQX | COVER, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 47200138DQZ | COVER, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT CAP | FLHRSE5, FLHRSE5 ANV |
| 2 | 941 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 3633 | NUT | FLHRSE5, FLHRSE5 ANV |
| 4 | 6441 | WASHER | FLHRSE5, FLHRSE5 ANV |
| 5 | 14628-96 | EMBLEM | FLHRSE5, FLHRSE5 ANV |
| 6 | 51652-97A | BRACKET | FLHRSE5, FLHRSE5 ANV |
| 7 | 51676-97A | KIT, hardware w/ 4 & 5 | FLHRSE5, FLHRSE5 ANV |
| 8 | 52000076 | SEAT | FLHRSE5 |
| 52000110 | SEAT | FLHRSE5 ANV | |
| 9 | 52300209 | SEAT PILLION, passenger | FLHRSE5 |
| 52300236 | SEAT PILLION, passenger | FLHRSE5 ANV | |
| 10 | 52400035 | SEAT STRAP | FLHRSE5 |
| 52400026 | SEAT STRAP | FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 14 | 52300219 | PAD, backrest | FLHRSE5 |
| 52300238 | PAD, backrest | FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 9 | 12600025 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 50500058 | INSERT ASSEMBLY, left, rider, w/ 12600025 | FLHRSE5, FLHRSE5 ANV |
| 14 | 50500059 | INSERT ASSEMBLY, right, rider, w/ 12600025 | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 9 | 12400018 | SPACER (2) | FLHRSE5, FLHRSE5 ANV |
| 10 | 50500069 | FOOTPEG INSERT, rubber (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 50500070 | FOOTPEG BODY (2) | FLHRSE5, FLHRSE5 ANV |
| 12 | 50500116 | FOOTPEG, top (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 58900004DQW | FENDER, front (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 58900004DQY | FENDER, front (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 10 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 11 | 10183 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 12 | 10184 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 59500086DQW | FENDER, rear, w/ 11100024 (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500086DQY | FENDER, rear, w/ 11100024 (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500087DQW | FENDER, rear, w/ 11100024 (Burgundy Blaze w/ Hot Fusion Graphics) (Australia, Canada, HDI, England, Japan) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 59500087DQY | FENDER, rear, w/ 11100024 (Crushed Sapphire w/ Cold Fusion Graphics) (Australia, Canada, HDI, England, Japan) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 57300010DQX | FASCIA, rear fender (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57300010DQZ | FASCIA, rear fender (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 2 | 6119 | WASHER (2) | FLHRSE5, FLHRSE5 ANV |
| 3 | 6549 | PAD (HDI) | FLHRSE5, FLHRSE5 ANV |
| 9 | 60915-09A | BRACKET, license plate | FLHRSE5, FLHRSE5 ANV |
| 67900096DQX | COVER, license plate lite (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 67900096DQZ | COVER, license plate lite (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 17 | 74191-98 | SOCKET TERMINAL (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 61000006DQW | FUEL TANK, w/ medallions (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61000006DQY | FUEL TANK, w/ medallions (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61000057DRI | FUEL TANK, w/ medallions (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 9 | 61208-10 | FUEL LINE, tank to intake | FLHRSE5, FLHRSE5 ANV |
| 17 | 14100302 | MEDALLION, right (for Burgundy Blaze tanks) | FLHRSE5 |
| 14100303 | MEDALLION, left (for Burgundy Blaze tanks) | FLHRSE5 | |
| 14100386 | MEDALLION, right (for Crushed Sapphire tanks) | FLHRSE5 | |
| 14100387 | MEDALLION, left (for Crushed Sapphire tanks) | FLHRSE5 | |
| 18 | 14100305 | MEDALLION, right, w/ 14100372 (for Diamond Dust/Obsidian tanks) **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 14100307 | MEDALLION, left, w/ 14100372 (for Diamond Dust/Obsidian tanks) **RESTRICTED SALES PART** | FLHRSE5 ANV | |
| 19 | 14100372 | MEDALLION (for Diamond Dust/Obsidian tanks) (2) **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 22 | 70900364 | FUEL GAUGE, w/ 72990-01 (chrome) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 7 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 17 | 68892-00A | HOUSING ASSEMBLY, w/ LED lights, 74118-98BK, 74158-98, 74193-98 & 74195-98 | FLHRSE5, FLHRSE5 ANV |
| 18 | 68893-00A | INDICATOR BEZEL | FLHRSE5, FLHRSE5 ANV |
| 21 | 72130-04 | HOUSING, socket, 12-way (black) | FLHRSE5, FLHRSE5 ANV |
| 22 | 72114-94BK | HOUSING, socket, 4-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 23 | 72154-94 | SECONDARY LOCK, 4-way | FLHRSE5, FLHRSE5 ANV |
| 24 | 72189-04 | SEAL PIN (9) | FLHRSE5, FLHRSE5 ANV |
| 30 | 74196-04 | TERMINAL, socket, 20 AWG (3) | FLHRSE5, FLHRSE5 ANV |
| 31 | 74197-04 | SECONDARY LOCK, socket, 12-way | FLHRSE5, FLHRSE5 ANV |
| 32 | 14100301 | INSERT, console **RESTRICTED SALES PART** | FLHRSE5 |
| 33 | 14100393 | INSERT, console, serialized **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 34 | 14100407 | MEDALLION **RESTRICTED SALES PART** | FLHRSE5 ANV |
| 35 | 14100410 | DECAL | FLHRSE5 ANV |
| 14100413 | DECAL, serial **RESTRICTED SALES PART** | FLHRSE5 ANV | |
| 36 | 69200176 | WIRE HARNESS | FLHRSE5, FLHRSE5 ANV |
| 37 | 70900070A | SPEEDOMETER, mph, w/ 69200176 (Domestic, California) | FLHRSE5, FLHRSE5 ANV |
| 70900071A | SPEEDOMETER, kph, w/ 69200176 (Australia, Canada, HDI & Japan) | FLHRSE5, FLHRSE5 ANV | |
| 70900072A | SPEEDOMETER, dual, mph/kph, w/ 69200176 (England) | FLHRSE5, FLHRSE5 ANV | |
| 38 | 70900256 | INSTRUMENT PANEL (chrome) | FLHRSE5, FLHRSE5 ANV |
| 39 | 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 8 | 62229-08B | FILTER SHELL | FLHRSE5, FLHRSE5 ANV |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 16 & 17 | FLHRSE5, FLHRSE5 ANV |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLHRSE5, FLHRSE5 ANV |
| 16 | 75291-08A | TOP PLATE | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 5 | 60800006 | CARBON CANISTER | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 5 | 3088 | SCREW (3) | FLHRSE5, FLHRSE5 ANV |
| 8 | 6717 | WASHER (8) | FLHRSE5, FLHRSE5 ANV |
| 13 | 10006 | CABLE STRAP (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 10065 | CABLE STRAP (3) | FLHRSE5, FLHRSE5 ANV |
| 19 | 69604-03 | TRIM RING, headlamp | FLHRSE5, FLHRSE5 ANV |
| 22 | 67717-01 | BULB, high beam halogen | FLHRSE5, FLHRSE5 ANV |
| 24 | 67720-03A | SPRING, trim ring, headlamp | FLHRSE5, FLHRSE5 ANV |
| 31 | 67866-08A | COVER, handlebar (chrome) | FLHRSE5, FLHRSE5 ANV |
| 33 | 68124-04B | MOUNTING RING ASSEMBLY, w/ 3088 | FLHRSE5, FLHRSE5 ANV |
| 39 | 68881-01 | BULB, low beam halogen | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 47 | 72449-01 | HOUSING, 2-way socket (black) | FLHRSE5, FLHRSE5 ANV |
| 48 | 72450-01 | HOUSING, 2-way socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 49 | 72527-01 | SOCKET TERMINAL, 18-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 50 | 72633-02 | SEAL, 14-16 AWG (white) (4) | FLHRSE5, FLHRSE5 ANV |
| 51 | 73271-11 | HEADLAMP, w/ 67717-01, 68881-01 | FLHRSE5, FLHRSE5 ANV |
| 52 | 73272-11 | WIRE HARNESS, interconnect, w/ 14, 47, 48, 49, 50 | FLHRSE5, FLHRSE5 ANV |
| 54 | 14100389 | INSERT, handlebar cover **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 55 | 14100396 | TRIM ASSEMBLY, fork lock | FLHRSE5, FLHRSE5 ANV |
| 56 | 67700032 | KIT, headlamp, w/ 8, 13, 33, 51, 52 | FLHRSE5, FLHRSE5 ANV |
| 57 | 69200262 | WIRE HARNESS, jumper (Japan) | FLHRSE5, FLHRSE5 ANV |
| 58 | 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV |
| 59 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 67316-03B | BRACKET MOUNTING, right turn signal | FLHRSE5, FLHRSE5 ANV |
| 4 | 67355-04A | BRACKET MOUNTING, left turn signal | FLHRSE5, FLHRSE5 ANV |
| 6 | 68614-03 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02, 69331-02, & 68904-00 (2) | FLHRSE5, FLHRSE5 ANV |
| 68975-00 | TURN SIGNAL ASSEMBLY, front, w/ 68163-84, 68976-00, & 68906-00 (HDI, England, Australia, Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 68976-00 | LENS (HDI, England, Australia, Japan) (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 2 | 7154M | ACORN NUT (6) | FLHRSE5, FLHRSE5 ANV |
| 4 | 11564 | GROMMET (6) | FLHRSE5, FLHRSE5 ANV |
| 6 | 10200204 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 7 | 10200218 | SCREW (6) | FLHRSE5, FLHRSE5 ANV |
| 8 | 12700065 | BRACKET, right | FLHRSE5, FLHRSE5 ANV |
| 9 | 12700066 | BRACKET, left | FLHRSE5, FLHRSE5 ANV |
| 10 | 29200027 | VENT, air duct | FLHRSE5, FLHRSE5 ANV |
| 11 | 29200028 | SHROUD, air duct | FLHRSE5, FLHRSE5 ANV |
| 12 | 29200029 | VANE, air duct | FLHRSE5, FLHRSE5 ANV |
| 13 | 57400175 | TAPE | FLHRSE5, FLHRSE5 ANV |
| 14 | 57400176 | WINDSHIELD KIT, w/ brackets | FLHRSE5, FLHRSE5 ANV |
| 15 | 57400178 | MOUNT (6) | FLHRSE5, FLHRSE5 ANV |
| 16 | 57400196 | WINDSHIELD | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 57100095DQX | CAP, lower fairing, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100095DQZ | CAP, lower fairing, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100095DRJ | CAP, lower fairing, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DQX | CAP, lower fairing, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DQZ | CAP, lower fairing, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100096DRJ | CAP, lower fairing, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57100222DQX | LOWER FAIRING, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100222DQZ | LOWER FAIRING, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100222DRJ | LOWER FAIRING, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DQX | LOWER FAIRING, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DQZ | LOWER FAIRING, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100223DRJ | LOWER FAIRING, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57100220DQX | SPEAKERBOX, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100220DQZ | SPEAKERBOX, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100220DRJ | SPEAKERBOX, right (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DQX | SPEAKERBOX, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DQZ | SPEAKERBOX, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 57100221DRJ | SPEAKERBOX, left (Obsidian) | FLHRSE5, FLHRSE5 ANV | |
| 23 | 72111-06 | SECONDARY LOCK, 2-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72533-06 | DUST CAP, 2-pin connector (2) | FLHRSE5, FLHRSE5 ANV |
| 26 | 25700015 | PLUG (4) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 19 | 71707-02 | HOUSING, lower right (chrome) | FLHRSE5, FLHRSE5 ANV |
| 20 | 71752-08 | SWITCH KIT, cruise | FLHRSE5, FLHRSE5 ANV |
| 24 | 71828-02 | KNOB, cruise | FLHRSE5, FLHRSE5 ANV |
| 32 | 71500157 | HOUSING, lower left (chrome) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 11 | 55800218 | HANDLEBAR KIT, w/ 11698 & 11642 (chrome) | FLHRSE5, FLHRSE5 ANV |
| 12 | 55900017 | CLAMP, upper | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 11 | 56100021 | HANDGRIP ASSEMBLY, right, w/ 56100024 | FLHRSE5, FLHRSE5 ANV |
| 12 | 56100023 | HANDGRIP ASSEMBLY, left, w/ 56100024 | FLHRSE5, FLHRSE5 ANV |
| 13 | 56100024 | ENDCAP (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 4 | 10183 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 5 | 10184 | CLIP, t-stud | FLHRSE5, FLHRSE5 ANV |
| 68245-03 | LENS, tail lamp, w/ 68026-99 (Canada) | FLHRSE5, FLHRSE5 ANV | |
| 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK, & 73191-96 (Canada) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 40 | 64900198 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLHRSE5, FLHRSE5 ANV |
| 41 | 64900199 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main | FLHRSE5, FLHRSE5 ANV | |
| 11 | 11321 | CABLE STRAP | FLHRSE5, FLHRSE5 ANV |
| 14 | 31595-09 | RELAY | FLHRSE5, FLHRSE5 ANV |
| 16 | 70348-09 | CADDY, fuse block | FLHRSE5, FLHRSE5 ANV |
| 17 | 70377-09 | CABLE, battery, positive, w/ 70578-09, 73304-04, 73305-04 | FLHRSE5, FLHRSE5 ANV |
| 18 | 70578-89 | RUBBER BOOT | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| 29 | 72066-06A | SOCKET HOUSING, 4-way female (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 37 | 72116-94BK | HOUSING, 6-way, socket, sealed | FLHRSE5, FLHRSE5 ANV |
| 39 | 72114-94BK | SOCKET HOUSING, 4-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 45 | 72156-94 | SECONDARY LOCK, 6-way, socket | FLHRSE5, FLHRSE5 ANV |
| 51 | 72169-07 | TERMINAL, pin, 16-20 AWG (10) | FLHRSE5, FLHRSE5 ANV |
| 52 | 72175-07BK | HOUSING, 4-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 53 | 72179-94 | SEAL (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| 67 | 72282-09 | SECONDARY LOCK (8) | FLHRSE5, FLHRSE5 ANV |
| 68 | 72283-09 | TERMINAL, 14-16 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 77 | 72343-10 | TERMINAL, pin, 16-20 AWG (4) | FLHRSE5, FLHRSE5 ANV |
| 81 | 72405-98BK | PUSH ON WIRE ASSEMBLY, right angle molded, w/ 60 in. wire lead (black) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| 82 | 72406-07A | SOCKET HOUSING, 4-way | FLHRSE5, FLHRSE5 ANV |
| 87 | 72415-07GY | HOUSING, 4-way, pin (gray) | FLHRSE5, FLHRSE5 ANV |
| 90 | 72478-07BK | HOUSING, 8-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 94 | 72487-07BK | HOUSING, 12-way, socket (black) | FLHRSE5, FLHRSE5 ANV |
| 95 | 72491-07GY | HOUSING, 16-way, socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 97 | 72500-07ABK | SOCKET HOUSING, 20-way (black) | FLHRSE5, FLHRSE5 ANV |
| 100 | 72519-09BK | DUSTCAP, 3-way socket | FLHRSE5, FLHRSE5 ANV |
| 103 | 72543-07BK | HOUSING, 3-way, socket (black) (2) | FLHRSE5, FLHRSE5 ANV |
| 104 | 72544-07 | SECONDARY LOCK, 3-way (2) | FLHRSE5, FLHRSE5 ANV |
| 107 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 69200412 | WIRING HARNESS, main (continued) | FLHRSE5, FLHRSE5 ANV | |
| 113 | 72639-10 | SECONDARY LOCK, 2-way socket | FLHRSE5, FLHRSE5 ANV |
| 114 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) | FLHRSE5, FLHRSE5 ANV |
| 119 | 73152-96WE | HOUSING, 2-way, socket (white) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 3 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHRSE5, FLHRSE5 ANV |
| 69995-11 | REMOTE CONTROL FOB (Japan) (2) | FLHRSE5, FLHRSE5 ANV | |
| 8 | 68958-07C | SIREN ALARM | FLHRSE5, FLHRSE5 ANV |
| 9 | 69309-10A | SIREN ALARM, battery replacement kit | FLHRSE5, FLHRSE5 ANV |
| 10 | 70617-07 | WIRE HARNESS, antenna jumper | FLHRSE5, FLHRSE5 ANV |
| 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300043 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV | |
| 13 | 72114-94BK | HOUSING, 4-way socket (gray) | FLHRSE5, FLHRSE5 ANV |
| 17 | 72327-03A | CONNECTOR, 3-way | FLHRSE5, FLHRSE5 ANV |
| 20 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 2 | 3658 | SCREW | FLHRSE5, FLHRSE5 ANV |
| 3 | 7878 | NUT (3) | FLHRSE5, FLHRSE5 ANV |
| 5 | 11697 | GROMMET (2) | FLHRSE5, FLHRSE5 ANV |
| 6 | 11891 | SPACER (7) | FLHRSE5, FLHRSE5 ANV |
| 7 | 72166-07BK | HOUSING, socket, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 8 | 72167-07BK | HOUSING, 16-way, pin (black) | FLHRSE5, FLHRSE5 ANV |
| 9 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHRSE5, FLHRSE5 ANV |
| 10 | 72169-07 | TERMINAL, pin, 16-20 AWG (13) | FLHRSE5, FLHRSE5 ANV |
| 11 | 72473-07 | SEAL PIN (6) | FLHRSE5, FLHRSE5 ANV |
| 12 | 73307-10 | TERMINAL, socket, 22 AWG (7) | FLHRSE5, FLHRSE5 ANV |
| 13 | 73212-07 | CONNECTOR | FLHRSE5, FLHRSE5 ANV |
| 15 | 10200095 | SCREW (8) | FLHRSE5, FLHRSE5 ANV |
| 16 | 11100049 | TAPE | FLHRSE5, FLHRSE5 ANV |
| 17 | 12600068 | CLIP (3) | FLHRSE5, FLHRSE5 ANV |
| 18 | 25700117 | WASHER (8) | FLHRSE5, FLHRSE5 ANV |
| 19 | 25700156 | COVER, bracket (4) | FLHRSE5, FLHRSE5 ANV |
| 20 | 69200499 | BRACKET, interface module | FLHRSE5, FLHRSE5 ANV |
| 21 | 76000139 | BRACKET, amp | FLHRSE5, FLHRSE5 ANV |
| 22 | 76000140 | COVER, amp | FLHRSE5, FLHRSE5 ANV |
| 23 | 76000141 | POWER AMPLIFIER, w/ 8, 10 & 11 | FLHRSE5, FLHRSE5 ANV |
| 24 | 76000142 | SPEAKER, 5x7 in., w/ 76000274 (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 76000180 | SPEAKER GRILL, left | FLHRSE5, FLHRSE5 ANV |
| 76000181 | SPEAKER GRILL, right | FLHRSE5, FLHRSE5 ANV | |
| 26 | 76000182 | SPEAKER BASKET (2) | FLHRSE5, FLHRSE5 ANV |
| 76000274 | GASKET (not shown) (2) | FLHRSE5, FLHRSE5 ANV | |
| 27 | 76000205 | GRILLE (2) | FLHRSE5, FLHRSE5 ANV |
| 28 | 76000274 | GASKET (2) | FLHRSE5, FLHRSE5 ANV |
| 29 | 76000285 | MODULE, audio interface | FLHRSE5, FLHRSE5 ANV |
| 30 | 76000286 | SPEAKER, 5-1/4 in., w/ grille & screws (2) | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 6 | 3612 | SCREW (5) | FLHRSE5, FLHRSE5 ANV |
| 9 | 6703 | WASHER (right side only) (2) | FLHRSE5, FLHRSE5 ANV |
| 13 | 10102 | CLIP (2) | FLHRSE5, FLHRSE5 ANV |
| 14 | 10103 | CLIP | FLHRSE5, FLHRSE5 ANV |
| 71400067 | LOCKSET, complete (for key codes 5000 & up), w/ 90300042 keys, ignition switch, fork lock & saddlebag lock | FLHRSE5, FLHRSE5 ANV | |
| 22 | 72063-06 | HOUSING, 2-way | FLHRSE5, FLHRSE5 ANV |
| 23 | 72094-06 | TERMINAL, socket, 18 AWG (2) | FLHRSE5, FLHRSE5 ANV |
| 24 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (2) | FLHRSE5, FLHRSE5 ANV |
| 25 | 72111-06 | SECONDARY LOCK, 2-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 26 | 72146-94 | PIN LOCK | FLHRSE5, FLHRSE5 ANV |
| 27 | 72149-94 | PIN LOCK | FLHRSE5, FLHRSE5 ANV |
| 28 | 72166-07BK | HOUSING, socket, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 29 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHRSE5, FLHRSE5 ANV |
| 30 | 72168-07 | TERMINAL, socket, 18-20 AWG (5) | FLHRSE5, FLHRSE5 ANV |
| 31 | 72169-07 | TERMINAL, pin, 16-20 AWG (13) | FLHRSE5, FLHRSE5 ANV |
| 32 | 72190-94 | TERMINAL, pin, 16-18 AWG (9) | FLHRSE5, FLHRSE5 ANV |
| 33 | 72195-94 | SEAL PIN, 4-way receptacle (3) | FLHRSE5, FLHRSE5 ANV |
| 34 | 72272-07 | TERMINAL, socket, 14-16 AWG (8) | FLHRSE5, FLHRSE5 ANV |
| 35 | 72473-07 | SEAL PIN (6) | FLHRSE5, FLHRSE5 ANV |
| 37 | 90115-04 | PROTECTOR | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 41 | 90707-00A | SPRING (2) | FLHRSE5, FLHRSE5 ANV |
| 45 | 91884-97A | LINER, removable (2) | FLHRSE5, FLHRSE5 ANV |
| 46 | 10200199 | SCREW (2) | FLHRSE5, FLHRSE5 ANV |
| 48 | 12700035 | BACKING PLATE (2) | FLHRSE5, FLHRSE5 ANV |
| 49 | 12700064 | PLATE, 6-way | FLHRSE5, FLHRSE5 ANV |
| 51 | 25700155 | GASKET, plug | FLHRSE5, FLHRSE5 ANV |
| 52 | 25700176 | CAP (2) | FLHRSE5, FLHRSE5 ANV |
| 53 | 25700254 | GASKET, cover (2) | FLHRSE5, FLHRSE5 ANV |
| 54 | 53000155DQX | LATCH COVER, right (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV |
| 53000155DQZ | LATCH COVER, right (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 53000155DLE | LATCH COVER, right (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DQX | LATCH COVER, left (Burgundy Blaze) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DQZ | LATCH COVER, left (Crushed Sapphire) | FLHRSE5, FLHRSE5 ANV | |
| 53000156DLE | LATCH COVER, left (Diamond Dust) | FLHRSE5, FLHRSE5 ANV | |
| 55 | 69200290 | RECEPTACLE, 12-way (gray) | FLHRSE5, FLHRSE5 ANV |
| 57 | 69200415 | WIRE HARNESS, jumper, left | FLHRSE5, FLHRSE5 ANV |
| 58 | 69200416 | WIRE HARNESS, jumper, right | FLHRSE5, FLHRSE5 ANV |
| 59 | 69200506 | RECEPTACLE, 6-way (black) | FLHRSE5, FLHRSE5 ANV |
| 60 | 90200609DQW | COVER ASSEMBLY, left w/ 43, 53 & label (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 90200609DQY | COVER ASSEMBLY, left w/ 43, 53 & label (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200609DLE | COVER ASSEMBLY, left w/ 43, 53 & label (Diamond Dust) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DQW | COVER ASSEMBLY, right w/ 43, 53 & label (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DQY | COVER ASSEMBLY, right w/ 43, 53 & label (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200610DLE | COVER ASSEMBLY, right w/ 43, 53 & label (Diamond Dust) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 61 | 90200580DQW | BOTTOM ASSEMBLY, left (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV |
| 90200580DQY | BOTTOM ASSEMBLY, left (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200580DRI | BOTTOM ASSEMBLY, left (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DQW | BOTTOM ASSEMBLY, right (Burgundy Blaze w/ Hot Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DQY | BOTTOM ASSEMBLY, right (Crushed Sapphire w/ Cold Fusion Graphics) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 90200581DRI | BOTTOM ASSEMBLY, right (Diamond Dust/Obsidian) **RESTRICTED SALES PART** | FLHRSE5, FLHRSE5 ANV | |
| 62 | 90200898 | CUSHION, front (4) | FLHRSE5, FLHRSE5 ANV |
| 63 | 90300043 | KEY (specify key code) | FLHRSE5, FLHRSE5 ANV |
| 64 | 93100031 | COVER, indoor storage | FLHRSE5, FLHRSE5 ANV |
| Index No. | Part No. | Description | Model(s) |
| 1 | 14019-83A | LABEL ON/OFF SWITCH | FLHRSE5, FLHRSE5 ANV |
| 6 | 28012-09 | WARNING LABEL, air cleaner | FLHRSE5, FLHRSE5 ANV |
| 7 | 14000069 | WARNING LABEL, saddlebag | FLHRSE5, FLHRSE5 ANV |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10039 | |
| 10065 | |
| 10102 | |
| 10103 | |
| 10120 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10181 | |
| 10183 | |
| 10184 | |
| 10198 | |
| 10200012 | |
| 10200095 | |
| 10200199 | |
| 10200204 | |
| 10200218 | |
| 10336 | |
| 10340A | |
| 10354 | |
| 10368A | |
| 1039 | |
| 10394 | |
| 10395 | |
| 10396 | |
| 1062 | |
| 10860A | |
| 1090A | |
| 1095M | |
| 10991A | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100020 | |
| 11100024 | |
| 11100049 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11270 | |
| 11289A | |
| 11290 | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11321 | |
| 11323 | |
| 11364 | |
| 11389 | |
| 11461 | |
| 11468 | |
| 11489 | |
| 11564 | |
| 11575 | |
| 11599A | |
| 11642 | |
| 11650 | |
| 11663 | |
| 11686 | |
| 11692 | |
| 11697 | |
| 11698 | |
| 11700002 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900004 | |
| 11900035 | |
| 11902 | |
| 11904 | |
| 11907 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100001 | |
| 12100028 | |
| 12102 | |
| 12200004 | |
| 12400018 | |
| 12400026 | |
| 12600003 | |
| 12600025 | |
| 12600068 | |
| 12700035 | |
| 12700064 | |
| 12700065 | |
| 12700066 | |
| 14000069 | |
| 14019-83A | |
| 14100301 | |
| 14100302 | |
| 14100303 | |
| 14100305 | |
| 14100307 | |
| 14100310 | |
| 14100372 | |
| 14100386 | |
| 14100387 | |
| 14100389 | |
| 14100390 | |
| 14100391 | |
| 14100393 | |
| 14100396 | |
| 14100407 | |
| 14100410 | |
| 14100413 | |
| 14148-86 | |
| 14272-06 | |
| 14628-96 | |
| 14900001 | |
| 15342-06A | |
| 15346-98A | |
| 15368-01A | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16321-08 | |
| 16325-10 | |
| 16478-85A | |
| 16480-92A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16801-07B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17257-07A | |
| 17285-07A | |
| 17293-08A | |
| 17331-08A | |
| 17337-08A | |
| 17349-07B | |
| 17350-07B | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17454-08A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17707-11 | |
| 17709-11 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18048-98A | |
| 18067-09 | |
| 18083-09 | |
| 18153-05 | |
| 18154-05 | |
| 18155-05 | |
| 18156-05 | |
| 18157-05 | |
| 18158-05 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18572-13 | |
| 18635-99B | |
| 19792-13 | |
| 19838-13 | |
| 21951-11 | |
| 21953-11 | |
| 22000001 | |
| 22000003 | |
| 22097-99 | |
| 221 | |
| 2225 | |
| 2228 | |
| 22307-99 | |
| 2246 | |
| 23729-07B | |
| 24004-03B | |
| 24009-06 | |
| 24018-10 | |
| 24605-07 | |
| 24754-75A | |
| 24758-07A | |
| 24760-08A | |
| 2479 | |
| 2501A | |
| 25244-99A | |
| 2524B | |
| 25355-06A | |
| 25369-01B | |
| 25566-06 | |
| 25585-06 | |
| 2559 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700015 | |
| 25700117 | |
| 25700155 | |
| 25700156 | |
| 25700176 | |
| 25700178 | |
| 25700179 | |
| 25700180 | |
| 25700226 | |
| 25700254 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800017 | |
| 26037-06 | |
| 26041-05A | |
| 26077-99A | |
| 26166-08A | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 26561-99 | |
| 26993-06 | |
| 26995-86B | |
| 27048-84 | |
| 2708A | |
| 27200002 | |
| 27291-09 | |
| 27297-09 | |
| 27298-09 | |
| 27439-09 | |
| 27440-09 | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 28012-09 | |
| 2806 | |
| 28861-07A | |
| 29200027 | |
| 29200028 | |
| 29200029 | |
| 29241-08 | |
| 29267-08A | |
| 29269-83A | |
| 2933 | |
| 2934 | |
| 2935A | |
| 29400025 | |
| 29517-07A | |
| 2952A | |
| 2955 | |
| 29670-09 | |
| 29696-09 | |
| 29762-09 | |
| 29763-09 | |
| 2995 | |
| 29987-06B | |
| 30041-08 | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 3089 | |
| 3148 | |
| 3152 | |
| 31586-07 | |
| 31595-09 | |
| 31604-06 | |
| 31619-06A | |
| 31633-07A | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 32306-08 | |
| 32310-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3249 | |
| 32586-07 | |
| 3265A | |
| 3267 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33166-10A | |
| 3331 | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33413-06A | |
| 33600003 | |
| 33600007 | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33760-09 | |
| 33849-97 | |
| 33890-99A | |
| 33899-08 | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08B | |
| 34469-06B | |
| 34568-00B | |
| 3462 | |
| 34719-07B | |
| 34853-08 | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35255-10A | |
| 35259-06 | |
| 35260-06A | |
| 3536 | |
| 3537 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3592A | |
| 3593 | |
| 3594 | |
| 3595 | |
| 3605 | |
| 3607 | |
| 3612 | |
| 3622 | |
| 3633 | |
| 3634 | |
| 3643 | |
| 3655A | |
| 3656 | |
| 3658 | |
| 36700025 | |
| 36700038 | |
| 36706-08K | |
| 36731-91 | |
| 36805-06 | |
| 36819-07 | |
| 36822-04 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37000026 | |
| 37000032 | |
| 37000033 | |
| 37000034 | |
| 37000035 | |
| 37000036 | |
| 37000083 | |
| 37000118 | |
| 37065-06 | |
| 37101-84B | |
| 37195-11 | |
| 37198-11 | |
| 37200019 | |
| 37200023 | |
| 37200034 | |
| 3736A | |
| 37496-90A | |
| 3787 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 3892 | |
| 38937-09 | |
| 38938-09 | |
| 38969-10 | |
| 3929 | |
| 3938 | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 3993 | |
| 39968-06 | |
| 39969-06 | |
| 40024-09 | |
| 40037-07 | |
| 40100009 | |
| 40217-09 | |
| 40278-09 | |
| 40323-00 | |
| 4032A | |
| 40603-08 | |
| 40610-09 | |
| 40611-09 | |
| 40614-08 | |
| 40615-08 | |
| 40628-08 | |
| 40649-08 | |
| 40659-06 | |
| 40786-08 | |
| 41056-09 | |
| 41139-02 | |
| 41148-98 | |
| 41349-07 | |
| 41500002 | |
| 41500004 | |
| 41547-07A | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41810-08B | |
| 41819-02 | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 4196 | |
| 42010-06A | |
| 42054-05 | |
| 42102-08B | |
| 42105-06A | |
| 42115-06 | |
| 42119-08 | |
| 42123-08 | |
| 42145-06 | |
| 42271-06A | |
| 42300006 | |
| 42388-09 | |
| 4240 | |
| 42460-80B | |
| 42638-08A | |
| 42642-00A | |
| 42644-00 | |
| 4266A | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42857-06A | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4292 | |
| 4293 | |
| 42932-08A | |
| 42933-08A | |
| 42934-08 | |
| 4312C | |
| 4313 | |
| 43157-83A | |
| 43475-08 | |
| 43567-92 | |
| 4400 | |
| 44006-09 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44313-01 | |
| 44583-08 | |
| 44613-02 | |
| 44935-06 | |
| 45032-82 | |
| 45041-01A | |
| 45279-00 | |
| 45419-80 | |
| 45423-92 | |
| 45435-10 | |
| 45442-86 | |
| 45446-09 | |
| 45718-60 | |
| 45727-08 | |
| 45733-48 | |
| 45780-03 | |
| 45803-97 | |
| 45838-77 | |
| 45858-77 | |
| 45893-99 | |
| 45933-86 | |
| 45963-97 | |
| 45972-09 | |
| 4597M | |
| 45998-73 | |
| 4612 | |
| 46209-06 | |
| 46244-01 | |
| 46246-01 | |
| 4625 | |
| 46368-10 | |
| 46369-10 | |
| 46422-09 | |
| 46459-08B | |
| 46463-08 | |
| 46473-00B | |
| 46474-00C | |
| 46658-07 | |
| 4688 | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 47200138DLE | |
| 47200138DQX | |
| 47200138DQZ | |
| 47200139DLE | |
| 47200139DQX | |
| 47200139DQZ | |
| 4721 | |
| 4740A | |
| 4741A | |
| 47449-09 | |
| 47460-09BHP | |
| 47502-09BDK | |
| 47504-09BDK | |
| 47540-11 | |
| 47549-09 | |
| 47584-09 | |
| 4775 | |
| 47900-11BHP | |
| 47951-10 | |
| 48079-09BHP | |
| 4813A | |
| 4826 | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48343-09 | |
| 48361-80 | |
| 48365-48A | |
| 4838 | |
| 48419-04 | |
| 48420-04 | |
| 48487-02 | |
| 48489-02 | |
| 4855 | |
| 4856 | |
| 4868 | |
| 48787-09 | |
| 48789-09 | |
| 48790-09 | |
| 4890 | |
| 49015-04A | |
| 49036-04A | |
| 49184-09 | |
| 49206-09A | |
| 49207-09A | |
| 4924 | |
| 49377-09A | |
| 49725-07A | |
| 50015-74A | |
| 50075-07A | |
| 50096-09 | |
| 50126-08A | |
| 50245-07 | |
| 50351-03 | |
| 50500051 | |
| 50500052 | |
| 50500055 | |
| 50500058 | |
| 50500059 | |
| 50500069 | |
| 50500070 | |
| 50500116 | |
| 50588-09A | |
| 50600040 | |
| 50635-82A | |
| 50683-04 | |
| 50688-04 | |
| 50912-72 | |
| 50972-75 | |
| 515 | |
| 51652-97A | |
| 51676-97A | |
| 52000076 | |
| 52000110 | |
| 5210 | |
| 52300209 | |
| 52300219 | |
| 52300236 | |
| 52300238 | |
| 52400026 | |
| 52400035 | |
| 52605-04 | |
| 52610-09 | |
| 52682-09 | |
| 52825-05 | |
| 53000155DLE | |
| 53000155DQX | |
| 53000155DQZ | |
| 53000156DLE | |
| 53000156DQX | |
| 53000156DQZ | |
| 53436-97 | |
| 53482-93 | |
| 53483-93 | |
| 53567-93 | |
| 53684-96A | |
| 53710-93 | |
| 54040-09 | |
| 54042-09 | |
| 5416 | |
| 5429 | |
| 54321-85 | |
| 54674-10 | |
| 54675-10 | |
| 54677-10 | |
| 55055-11 | |
| 55071-11 | |
| 55800218 | |
| 55900017 | |
| 55928-08 | |
| 56000062 | |
| 56000063 | |
| 56073-83 | |
| 56100021 | |
| 56100023 | |
| 56100024 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56380-02 | |
| 57100095DQX | |
| 57100095DQZ | |
| 57100095DRJ | |
| 57100096DQX | |
| 57100096DQZ | |
| 57100096DRJ | |
| 57100220DQX | |
| 57100220DQZ | |
| 57100220DRJ | |
| 57100221DQX | |
| 57100221DQZ | |
| 57100221DRJ | |
| 57100222DQX | |
| 57100222DQZ | |
| 57100222DRJ | |
| 57100223DQX | |
| 57100223DQZ | |
| 57100223DRJ | |
| 57200001DQW | |
| 57200001DQY | |
| 57200001DRI | |
| 57200002DQW | |
| 57200002DQY | |
| 57200002DRI | |
| 57217-02 | |
| 57300010DLE | |
| 57300010DQX | |
| 57300010DQZ | |
| 57400175 | |
| 57400176 | |
| 57400178 | |
| 57400196 | |
| 57410-11 | |
| 57419-11 | |
| 57637-09 | |
| 58104-05 | |
| 58105-05 | |
| 5817 | |
| 58173-05 | |
| 5826 | |
| 5837A | |
| 58491-10 | |
| 58492-10 | |
| 58816-05A | |
| 58817-05A | |
| 58889-05 | |
| 58890-05 | |
| 58900004DQW | |
| 58900004DQY | |
| 58900004DRI | |
| 59166-80 | |
| 59174-99 | |
| 59259-90 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59359-06 | |
| 59481-00 | |
| 59482-00 | |
| 59500086DLE | |
| 59500086DQW | |
| 59500086DQY | |
| 59500087DLE | |
| 59500087DQW | |
| 59500087DQY | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59818-09 | |
| 59840-09 | |
| 601 | |
| 6012 | |
| 6019 | |
| 60328-98B | |
| 60386-09 | |
| 60432-07A | |
| 60463-09A | |
| 60465-09 | |
| 60472-09A | |
| 60553-07 | |
| 60678-85 | |
| 60709-07A | |
| 608 | |
| 60800006 | |
| 60818-07 | |
| 60819-10 | |
| 60850-08A | |
| 60886-11 | |
| 60915-09A | |
| 60916-09 | |
| 60919-09 | |
| 60920-09 | |
| 60921-09 | |
| 60922-09 | |
| 60934-10 | |
| 6099 | |
| 61000006DQW | |
| 61000006DQY | |
| 61000057DRI | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 61100004 | |
| 6116 | |
| 6119 | |
| 61208-10 | |
| 61213-04A | |
| 61268-08 | |
| 6127 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08A | |
| 62229-08B | |
| 6229W | |
| 6235 | |
| 62372-09 | |
| 62489-99A | |
| 62519-03 | |
| 62629-11 | |
| 62641-11 | |
| 62693-07A | |
| 62775-08 | |
| 62908-08 | |
| 6294 | |
| 63028-06 | |
| 63038-06 | |
| 63059-09 | |
| 63066-07 | |
| 63076-09 | |
| 63083-11 | |
| 63084-07 | |
| 63121-11A | |
| 6333 | |
| 6334 | |
| 63533-41A | |
| 63798-99A | |
| 6441 | |
| 64768-09A | |
| 64769-09A | |
| 64900198 | |
| 64900199 | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 6549 | |
| 6557 | |
| 65586-11 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65724-85 | |
| 65748-09 | |
| 6594 | |
| 65949-09 | |
| 65951-09 | |
| 65952-09 | |
| 66010-97C | |
| 66047-05 | |
| 66048-09A | |
| 66051-08 | |
| 66055-09 | |
| 66069-10 | |
| 66078-06 | |
| 66200-09 | |
| 66219-06 | |
| 66220-06 | |
| 66250-09 | |
| 66281-09B | |
| 66290-06 | |
| 66761-09A | |
| 66767-07 | |
| 66813-09 | |
| 66855-10A | |
| 66858-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 6717 | |
| 67208-08 | |
| 67316-03B | |
| 67341-04B | |
| 67355-04A | |
| 67488-04 | |
| 67493-08 | |
| 67621-94 | |
| 6762B | |
| 67668-05 | |
| 67674-03B | |
| 67682-03B | |
| 67700032 | |
| 67717-01 | |
| 67718-60A | |
| 6771A | |
| 67720-03A | |
| 67721-48 | |
| 67724-71 | |
| 67726-08 | |
| 67728-02A | |
| 67732-08 | |
| 67782-60A | |
| 67822-88 | |
| 67866-08A | |
| 67868-03 | |
| 67875-11 | |
| 67880-94 | |
| 6789 | |
| 67900096DLE | |
| 67900096DQX | |
| 67900096DQZ | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68124-04B | |
| 68142-04 | |
| 68163-84 | |
| 68167-04 | |
| 68245-03 | |
| 68296-99A | |
| 68329-03 | |
| 68344-05 | |
| 68345-05 | |
| 68359-05 | |
| 68370-03A | |
| 68380-05 | |
| 68558-03 | |
| 68614-03 | |
| 68653-05 | |
| 68830-99A | |
| 68881-01 | |
| 68892-00A | |
| 68893-00A | |
| 68904-00 | |
| 68922-07 | |
| 68924-07 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68975-00 | |
| 68976-00 | |
| 69012-93A | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69187-03A | |
| 69200018 | |
| 69200096 | |
| 69200176 | |
| 69200262 | |
| 69200290 | |
| 69200329 | |
| 69200412 | |
| 69200415 | |
| 69200416 | |
| 69200494 | |
| 69200499 | |
| 69200506 | |
| 69309-10A | |
| 69318-02 | |
| 69325-02 | |
| 69331-02 | |
| 69336-03 | |
| 69383-09A | |
| 69407-09A | |
| 69496-09B | |
| 69518-09B | |
| 69604-03 | |
| 6982 | |
| 69995-11 | |
| 70142-94 | |
| 70267-09 | |
| 70291-89 | |
| 70292-89 | |
| 70338-09 | |
| 70344-09 | |
| 70348-09 | |
| 70373-96 | |
| 70375-96 | |
| 70377-09 | |
| 7038 | |
| 7039 | |
| 703B | |
| 7041 | |
| 70450-09 | |
| 70494-08 | |
| 70495-08A | |
| 70578-89 | |
| 70598-99 | |
| 70617-07 | |
| 70631-08 | |
| 70674-08 | |
| 7068 | |
| 70681-09 | |
| 70900070A | |
| 70900071A | |
| 70900072A | |
| 70900256 | |
| 70900364 | |
| 70901-09 | |
| 70909-95 | |
| 70980-08 | |
| 70980-09 | |
| 70981-08 | |
| 70981-09 | |
| 70991-07 | |
| 70999-09 | |
| 71019-07 | |
| 71294-08 | |
| 71313-96A | |
| 71400067 | |
| 71500157 | |
| 71522-08 | |
| 71540-94A | |
| 7154M | |
| 7155 | |
| 71565-08 | |
| 71587-04 | |
| 71614-96 | |
| 71615-96 | |
| 71621-08 | |
| 71642-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71699-07 | |
| 71707-02 | |
| 71752-08 | |
| 71787-08 | |
| 71788-08 | |
| 71820-98 | |
| 71822-98 | |
| 71825-96A | |
| 71828-02 | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72023-51E | |
| 72024-08 | |
| 72038-71A | |
| 72039-71A | |
| 72056-92 | |
| 72063-06 | |
| 72066-06A | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72102-94BK | |
| 72104-94BK | |
| 72111-06 | |
| 72112-94BK | |
| 72114-94BK | |
| 72115-08 | |
| 72116-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72135-06 | |
| 72139-94GY | |
| 72142-94 | |
| 72144-94 | |
| 72146-94 | |
| 72149-94 | |
| 72152-94 | |
| 72154-94 | |
| 72155-08 | |
| 72156-94 | |
| 72157-08 | |
| 72159-94 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72179-94 | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72208-94 | |
| 72213-94 | |
| 72214-94 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72253-94 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72282-09 | |
| 72283-09 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72303-08 | |
| 72309-04 | |
| 72314-01 | |
| 72327-03A | |
| 72330-95 | |
| 72332-09 | |
| 72343-10 | |
| 72344-10 | |
| 72359-05 | |
| 72395-97 | |
| 72402-07 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72440-08 | |
| 72444-07GY | |
| 72449-01 | |
| 72450-01 | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72491-07GY | |
| 72492-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72527-01 | |
| 72533-06 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72547-08 | |
| 72549-07 | |
| 72556-08 | |
| 72557-07 | |
| 72599-10 | |
| 72605-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72620-08 | |
| 72633-02 | |
| 72639-10 | |
| 72663-11 | |
| 72676-11 | |
| 72720-07 | |
| 72721-07 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96WE | |
| 73106-96BK | |
| 73152-96WE | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 7326 | |
| 73271-11 | |
| 73272-11 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 74102-98BK | |
| 74108-98BK | |
| 74112-98BK | |
| 74115-06 | |
| 74118-98BK | |
| 74142-98 | |
| 74148-98 | |
| 74152-98 | |
| 74158-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74408-08A | |
| 74622-09 | |
| 7495 | |
| 7499 | |
| 75076-08B | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 76000139 | |
| 76000140 | |
| 76000141 | |
| 76000142 | |
| 76000180 | |
| 76000181 | |
| 76000182 | |
| 76000205 | |
| 76000274 | |
| 76000285 | |
| 76000286 | |
| 7601 | |
| 7608 | |
| 762 | |
| 765 | |
| 7686 | |
| 7688 | |
| 7716 | |
| 7744 | |
| 7748W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 786A | |
| 787 | |
| 7878 | |
| 7880 | |
| 7888A | |
| 7889 | |
| 7904 | |
| 791A | |
| 7964 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8175 | |
| 8250 | |
| 83935-09A | |
| 83936-09A | |
| 8483A | |
| 856A | |
| 88335-09 | |
| 88336-09 | |
| 8873 | |
| 8885 | |
| 895 | |
| 89584-07 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90115-04 | |
| 90200002 | |
| 90200580DQW | |
| 90200580DQY | |
| 90200580DRI | |
| 90200581DQW | |
| 90200581DQY | |
| 90200581DRI | |
| 90200609DLE | |
| 90200609DQW | |
| 90200609DQY | |
| 90200610DLE | |
| 90200610DQW | |
| 90200610DQY | |
| 90200898 | |
| 90300043 | |
| 90329-98 | |
| 90383-98 | |
| 90400-00A | |
| 90469-94 | |
| 90493-83 | |
| 90520-07 | |
| 90664-93 | |
| 90665-93 | |
| 90682-93 | |
| 90707-00A | |
| 90958-93 | |
| 90962-93 | |
| 90980-09 | |
| 90981-09 | |
| 91140-09 | |
| 91840-03B | |
| 91845-03B | |
| 91884-97A | |
| 9208 | |
| 9231 | |
| 924 | |
| 9252 | |
| 9276A | |
| 93100031 | |
| 940 | |
| 94067-90T | |
| 941 | |
| 942 | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9838 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 9907 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 8142 | Unknown |
| 7576 | 1990 |
| 7792 | 2012 |
| 7813A | 2007 |
| 3633 | Unknown |
| 7888A | Unknown |
| 7904 | 1998 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 5210 | 1991 |
| 7992 | 2010 |
| 74408-08A | 2008 |
| 7889 | Unknown |
| 11663 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 8250 | Unknown |
| 762 | 1997 |
| 7340 | Unknown |
| 7878 | 1993 |
| 7326 | Unknown |
| 7880 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7744 | 1943 |
| 7608 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3340 | Unknown |
| 3536 | Unknown |
| 4266A | Unknown |
| 1001 | Unknown |
| 2225 | Unknown |
| 3983 | 2005 |
| 2228 | Unknown |
| 3987 | Unknown |
| 42882-06 | 2006 |
| 44613-02 | 2002 |
| 3048 | 2016 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 10200095 | 2012 |
| 3622 | Unknown |
| 4741A | 1994 |
| 1090A | Unknown |
| 3050 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 2955 | 1996 |
| 2479 | Unknown |
| 2933 | Unknown |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 2559 | 1996 |
| 4313 | Unknown |
| 4597M | Unknown |
| 941 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 3643 | 2003 |
| 940 | Unknown |
| 3612 | 2012 |
| 3275 | 2002 |
| 3693A | Unknown |
| 3592A | Unknown |
| 895 | Unknown |
| 4890 | Unknown |
| 5429 | 2005 |
| 4705 | 2005 |
| 4740A | 1994 |
| 3658 | Unknown |
| 3656 | Unknown |
| 3267 | 1999 |
| 4240 | Unknown |
| 3607 | 2009 |
| 3605 | 2009 |
| 1095M | Unknown |
| 2952A | 2003 |
| 3331 | 2003 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 3148 | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3089 | Unknown |
| 3594 | 1992 |
| 3088 | Unknown |
| 4856 | Unknown |
| 2806 | Unknown |
| 45838-77 | 1977 |
| 4855 | Unknown |
| 3593 | Unknown |
| 4292 | Unknown |
| 10200204 | 2013 |
| 2995 | 2018 |
| 2708A | Unknown |
| 3595 | 1993 |
| 4293 | Unknown |
| 10200012 | 2011 |
| 924 | Unknown |
| 68042-99 | 1999 |
| 3152 | Unknown |
| 3993 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 3300 | Unknown |
| 787 | Unknown |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3563 | 1999 |
| 2501A | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 1780 | Unknown |
| 2524B | Unknown |
| 50635-82A | 1982 |
| 4868 | Unknown |
| 67724-71 | 1971 |
| 8175 | 2004 |
| 4625 | 2007 |
| 3938 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 10200199 | 2013 |
| 10200218 | 2013 |
| 4813A | 1990 |
| 3462 | Unknown |
| 3368 | Unknown |
| 703B | Unknown |
| 2246 | 2010 |
| 2935A | 1998 |
| 3736A | 2005 |
| 4194 | Unknown |
| 4196 | Unknown |
| 3892 | Unknown |
| 4192 | 1998 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6717 | Unknown |
| 6019 | Unknown |
| 6549 | Unknown |
| 6441 | Unknown |
| 7415A | Unknown |
| 11891 | Unknown |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6116 | Unknown |
| 6789 | Unknown |
| 59788-01 | 2001 |
| 94067-90T | 1990 |
| 6333 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 58173-05 | 2005 |
| 6594 | Unknown |
| 6127 | Unknown |
| 6532 | 2000 |
| 45727-08 | 2008 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6762B | Unknown |
| 6229W | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 6235 | Unknown |
| 58105-05 | 2005 |
| 45279-00 | 2000 |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 7154M | Unknown |
| 54321-85 | 1985 |
| 106A1 - Custom Washers | |
| 6557 | Unknown |
| 108A1 - Hose Clamps | |
| 27048-84 | 1984 |
| 10354 | Unknown |
| 10198 | Unknown |
| 66861-09A | 2009 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 10340A | Unknown |
| 9956 | 1972 |
| 9955 | Unknown |
| 108B1 - P Clamps | |
| 69336-03 | 2003 |
| 109A1 - Studs | |
| 59818-09 | 2009 |
| 3265A | Unknown |
| 66290-06 | 2006 |
| 90400-00A | 2000 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 45998-73 | 1973 |
| 70909-95 | 1995 |
| 59840-09 | 2009 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 52682-09 | 2009 |
| 57217-02 | 2002 |
| 40628-08 | 2008 |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 9825 | Unknown |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 9907 | Unknown |
| 72527-01 | 2001 |
| 72253-94 | 1994 |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111E1 - Mounting Tape | |
| 11100049 | 2012 |
| 111F1 - Protective Tape | |
| 66055-09 | 2009 |
| 63028-06 | 2006 |
| 11100020 | 2011 |
| 11100024 | 2012 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06A | 2006 |
| 117A1 - Coil Springs | |
| 11700002 | 2013 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11140 | 1982 |
| 11900035 | 2013 |
| 11289A | Unknown |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11364 | 2002 |
| 11900004 | 2011 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11564 | 2006 |
| 11698 | 2011 |
| 11697 | 2011 |
| 40603-08 | 2008 |
| 11692 | Unknown |
| 12100028 | 2013 |
| 11650 | 2010 |
| 12100001 | 2011 |
| 121B1 - Press-Fit Plugs | |
| 55928-08 | 2008 |
| 70292-89 | 1989 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 72164-94A | 1994 |
| 90329-98 | 1998 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 72599-10 | 2010 |
| 10120 | 1992 |
| 17945-36B | 1936 |
| 10368A | 2010 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 10860A | 2010 |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 41139-02 | 2002 |
| 66078-06 | 2006 |
| 11061A | 2008 |
| 11143 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 10394 | 2010 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 10336 | 2010 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11304 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 12200004 | 2011 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 12400026 | 2012 |
| 12400018 | 2012 |
| 41900-08 | 2008 |
| 5826 | Unknown |
| 5837A | Unknown |
| 11599A | 2012 |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 126A1 - Miscellaneous Hardware | |
| 12600003 | 2011 |
| 50972-75 | 1975 |
| 8041 | Unknown |
| 27711-08 | 2008 |
| 90493-83 | 1983 |
| 89584-07 | 2007 |
| 12600068 | 2012 |
| 56161-83A | 1983 |
| 90707-00A | 2000 |
| 26041-05A | 2005 |
| 58104-05 | 2005 |
| 12600025 | 2012 |
| 8873 | 1984 |
| 11468 | 2002 |
| 126B1 - Rivets Fasteners | |
| 70291-89 | 1989 |
| 11779 | 2008 |
| 8483A | Unknown |
| 11642 | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 12700064 | 2013 |
| 12700065 | 2013 |
| 12700066 | 2013 |
| 51652-97A | 1997 |
| 12700035 | 2012 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 28012-09 | 2009 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 15346-98A | 1998 |
| 14019-83A | 1983 |
| 140H1 - Label Set | |
| 14000069 | 2012 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 141A1 - Medallion | |
| 14100372 | 2013 |
| 67668-05 | 2005 |
| 14100307 | 2013 |
| 14100303 | 2013 |
| 14100305 | 2013 |
| 14100301 | 2013 |
| 14100302 | 2013 |
| 14628-96 | 1996 |
| 14100310 | 2013 |
| 14100407 | 2013 |
| 14100410 | 2013 |
| 14100413 | 2013 |
| 42856-06 | 2006 |
| 14100396 | 2013 |
| 14100386 | 2013 |
| 14100389 | 2013 |
| 14100387 | 2013 |
| 14100393 | 2013 |
| 14100391 | 2013 |
| 14100390 | 2013 |
| 149A1 - Tool | |
| 14900001 | 2011 |
| 162D1 - Engine Assembly | |
| 19838-13 | 2014 |
| 19792-13 | 2012 |
| 163B1 - Engine Isolator Mount | |
| 47460-09BHP | 2009 |
| 16207-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16325-10 | 2010 |
| 47159-09BHP | 2009 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7688 | 2000 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 17337-08A | 2008 |
| 17293-08A | 2008 |
| 17257-07A | 2007 |
| 17331-08A | 2008 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 17349-07B | 2011 |
| 17369-06 | 2006 |
| 17350-07B | 2011 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 33899-08 | 2008 |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17285-07A | 2011 |
| 17454-08A | 2011 |
| 173A1 - Rocker Arm | |
| 17709-11 | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18572-13 | 2013 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 36819-07 | 2007 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18158-05 | 2005 |
| 18153-05 | 2005 |
| 18154-05 | 2005 |
| 18067-09 | 2009 |
| 18157-05 | 2005 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18156-05 | 2005 |
| 18189-07 | 2007 |
| 18155-05 | 2005 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 37198-11 | 2011 |
| 18083-09 | 2009 |
| 17707-11 | 2011 |
| 220A1 - Piston Ring | |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03B | 2012 |
| 23729-07B | 2011 |
| 244A1 - Crankcase | |
| 24760-08A | 2011 |
| 24758-07A | 2011 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 26166-08A | 2009 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 24018-10 | 2010 |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 254D1 - Camshaft Support | |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32586-07 | 2007 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60709-07A | 2007 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 65324-83B | 2009 |
| 67208-08 | 2008 |
| 25700117 | 2012 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 42857-06A | 2006 |
| 34948-08 | 2008 |
| 25700254 | 2013 |
| 45733-48 | 1948 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 25700155 | 2012 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257F1 - Cover Plug | |
| 25700015 | 2011 |
| 25700156 | 2012 |
| 25700176 | 2012 |
| 257L1 - Primary Cover | |
| 60553-07 | 2007 |
| 25585-06 | 2006 |
| 60886-11 | 2011 |
| 60432-07A | 2008 |
| 25700180 | 2013 |
| 60850-08A | 2008 |
| 25700179 | 2013 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800017 | 2012 |
| 34469-06B | 2008 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 58890-05 | 2005 |
| 58889-05 | 2005 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 36822-04 | 2004 |
| 29241-08 | 2008 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273M1 - Throttle Cable Bracket | |
| 38969-10 | 2010 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29696-09 | 2009 |
| 292B1 - Air Duct Bezel | |
| 29200027 | 2013 |
| 29200028 | 2013 |
| 29200029 | 2013 |
| 294G1 - Air Cleaner | |
| 29267-08A | 2011 |
| 29670-09 | 2009 |
| 29763-09 | 2009 |
| 29400025 | 2011 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08 | 2008 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31619-06A | 2006 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 40614-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 50126-08A | 2008 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33600003 | 2012 |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 33600007 | 2012 |
| 339A1 - Shift Lever | |
| 34568-00B | 2000 |
| 33718-82B | 1982 |
| 33760-09 | 2009 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33166-10A | 2012 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34853-08 | 2008 |
| 34719-07B | 2007 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35255-10A | 2016 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 37195-11 | 2011 |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 36700038 | 2013 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700025 | 2013 |
| 46459-08B | 2013 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-08K | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000026 | 2013 |
| 370B1 - Clutch Friction Plate | |
| 37000118 | 2013 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032 | 2013 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000035 | 2013 |
| 37000036 | 2013 |
| 372C1 - Clutch Bleeder Screw Cap | |
| 37200034 | 2013 |
| 372D1 - Clutch Cable | |
| 38938-09 | 2009 |
| 372G1 - Clutch Hose | |
| 37200019 | 2013 |
| 372H1 - Clutch Hydraulic Cylinder | |
| 37200023 | 2013 |
| 400A1 - Drive-Belt | |
| 40024-09 | 2009 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 83935-09A | 2012 |
| 40100009 | 2012 |
| 409Z1 - Kit,Rear Wheel | |
| 47951-10 | 2010 |
| 410D1 - Electronic Control Module (ECM) | |
| 34246-08B | 2011 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 68922-07 | 2007 |
| 70617-07 | 2007 |
| 411A1 - ABS Control Unit | |
| 48343-09 | 2009 |
| 40786-08 | 2008 |
| 411A2 - ABS Electrical Control Unit | |
| 40649-08 | 2008 |
| 413A1 - Brake Caliper | |
| 44160-00 | 2000 |
| 46368-10 | 2010 |
| 46369-10 | 2010 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42054-05 | 2005 |
| 12102 | Unknown |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08B | 2012 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 415B1 - Brake Rotor | |
| 41500004 | 2011 |
| 41500002 | 2011 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42642-00A | 2011 |
| 44935-06 | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51E | 2012 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42123-08 | 2008 |
| 42102-08B | 2010 |
| 46463-08 | 2008 |
| 42115-06 | 2006 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 42933-08A | 2008 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45032-82 | 1982 |
| 42862-06B | 2010 |
| 45423-92 | 1992 |
| 417G1 - Front Brake Lever | |
| 42638-08A | 2008 |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 418B1 - Brake Line | |
| 40610-09 | 2009 |
| 38937-09 | 2009 |
| 40611-09 | 2009 |
| 42388-09 | 2009 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423K1 - Wheel Weights | |
| 42300006 | 2011 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08C | 2012 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 41056-09 | 2009 |
| 431A1 - Front Tire | |
| 44006-09 | 2009 |
| 55055-11 | 2011 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 433Z1 - Kit,Front Wheel | |
| 55071-11 | 2011 |
| 454A1 - Front Telescopic Fork | |
| 48790-09 | 2009 |
| 46473-00B | 2007 |
| 47549-09 | 2009 |
| 48789-09 | 2009 |
| 45963-97 | 1997 |
| 46474-00C | 2007 |
| 454B1 - Springer Fork | |
| 48787-09 | 2009 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 46658-07 | 2007 |
| 49377-09A | 2011 |
| 45419-80 | 1980 |
| 45442-86 | 1986 |
| 45972-09 | 2009 |
| 45933-86 | 1986 |
| 46209-06 | 2006 |
| 456C1 - Fork Lock | |
| 71540-94A | 1994 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45780-03 | 2003 |
| 48333-80 | 1980 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 45435-10 | 2010 |
| 45446-09 | 2009 |
| 470A1 - Frame | |
| 47900-11BHP | 2011 |
| 48079-09BHP | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 47502-09BDK | 2009 |
| 47504-09BDK | 2009 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 49206-09A | 2010 |
| 49207-09A | 2010 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 91140-09 | 2009 |
| 472E1 - Frame Cover | |
| 47200138DQX | 2013 |
| 47200138DQZ | 2013 |
| 47200139DLE | 2013 |
| 47200139DQZ | 2013 |
| 47200139DQX | 2013 |
| 47200138DLE | 2013 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49184-09 | 2009 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50075-07A | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50500059 | 2012 |
| 50500058 | 2012 |
| 50500051 | 2012 |
| 50688-04 | 2004 |
| 50683-04 | 2004 |
| 505B1 - Footpeg Mount Bracket | |
| 49036-04A | 2004 |
| 50500055 | 2012 |
| 50500052 | 2012 |
| 50588-09A | 2009 |
| 50351-03 | 2009 |
| 49015-04A | 2004 |
| 505D1 - Passenger Footpeg | |
| 50500070 | 2012 |
| 505G1 - Rider or Common Footpeg | |
| 50500116 | 2012 |
| 505H1 - Footpeg Insert | |
| 50500069 | 2012 |
| 506A1 - Brake Pedal | |
| 50912-72 | 1972 |
| 50600040 | 2012 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 52605-04 | 2004 |
| 52610-09 | 2009 |
| 520A1 - Rider Seat or Full Seat | |
| 52000110 | 2013 |
| 51676-97A | 1997 |
| 52000076 | 2013 |
| 521C1 - Seat Suspension Damper | |
| 46422-09 | 2009 |
| 523B1 - Back Rest Pad | |
| 52300238 | 2013 |
| 52300236 | 2013 |
| 52300219 | 2013 |
| 52300209 | 2013 |
| 523C1 - Back Rest Support Structure | |
| 52825-05 | 2005 |
| 523D2 - Docking Hardware | |
| 54040-09 | 2009 |
| 53684-96A | 1996 |
| 54042-09 | 2009 |
| 524A1 - Passenger Grab Handle | |
| 52400035 | 2012 |
| 52400026 | 2012 |
| 530C2 - Case Latch | |
| 53000155DLE | 2013 |
| 90665-93 | 1993 |
| 53000156DQX | 2013 |
| 53000156DQZ | 2013 |
| 90682-93 | 1993 |
| 90981-09 | 2009 |
| 53000156DLE | 2013 |
| 53000155DQX | 2013 |
| 53000155DQZ | 2013 |
| 90980-09 | 2009 |
| 540B1 - Rear Shock | |
| 54675-10 | 2010 |
| 54674-10 | 2010 |
| 540E1 - Rear Shock sub-component | |
| 54677-10 | 2010 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 55800218 | 2013 |
| 559C1 - Handlebar Mount Isolator | |
| 67866-08A | 2012 |
| 559D1 - Lower Handlebar Clamp | |
| 56380-02 | 2002 |
| 559E1 - Upper Handlebar Clamp | |
| 55900017 | 2013 |
| 560A1 - Mirror | |
| 91840-03B | 2003 |
| 56000062 | 2013 |
| 56000063 | 2013 |
| 91845-03B | 2003 |
| 561B1 - Left Hand Grip | |
| 56100023 | 2012 |
| 56100024 | 2012 |
| 561E1 - Throttle Grip | |
| 56100021 | 2012 |
| 561F1 - Grip Kit | |
| 32310-08 | 2008 |
| 571A1 - Fairing Lower | |
| 58817-05A | 2005 |
| 58816-05A | 2005 |
| 57100222DRJ | 2013 |
| 57100222DQZ | 2013 |
| 57100222DQX | 2013 |
| 57100223DRJ | 2013 |
| 57100223DQZ | 2013 |
| 57100223DQX | 2013 |
| 571B1 - Fairing Lower sub-component | |
| 57100095DQX | 2013 |
| 57100096DQZ | 2013 |
| 57100221DQX | 2013 |
| 57100096DQX | 2013 |
| 57100221DQZ | 2013 |
| 57100096DRJ | 2013 |
| 57100221DRJ | 2013 |
| 57419-11 | 2011 |
| 58492-10 | 2010 |
| 58491-10 | 2010 |
| 57410-11 | 2011 |
| 57100220DQZ | 2013 |
| 57100220DQX | 2013 |
| 57100220DRJ | 2013 |
| 57100095DRJ | 2013 |
| 57100095DQZ | 2013 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 57200002DRI | 2013 |
| 57200002DQW | 2013 |
| 57200002DQY | 2013 |
| 57200001DQW | 2013 |
| 57200001DQY | 2013 |
| 57200001DRI | 2013 |
| 66048-09A | 2012 |
| 66250-09 | 2009 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57300010DQX | 2013 |
| 57300010DQZ | 2013 |
| 57300010DLE | 2013 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 57400196 | 2013 |
| 57400178 | 2013 |
| 67621-94 | 1994 |
| 57400176 | 2013 |
| 57400175 | 2013 |
| 589A1 - Front Fender | |
| 60819-10 | 2010 |
| 58900004DQW | 2013 |
| 58900004DQY | 2013 |
| 58900004DRI | 2013 |
| 595A1 - Tailsection | |
| 60465-09 | 2009 |
| 595D1 - Rear Fender | |
| 59500087DQY | 2013 |
| 59500087DQW | 2013 |
| 59500087DLE | 2013 |
| 60463-09A | 2009 |
| 59500086DQY | 2013 |
| 59500086DQW | 2013 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 59500086DLE | 2013 |
| 60472-09A | 2009 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27297-09 | 2009 |
| 27291-09 | 2009 |
| 27439-09 | 2009 |
| 27298-09 | 2009 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 6119 | 2016 |
| 62229-08B | 2011 |
| 75076-08B | 2011 |
| 75291-08A | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000006DQW | 2013 |
| 61000006DQY | 2013 |
| 61000057DRI | 2013 |
| 61268-08 | 2008 |
| 611B1 - Fuel Cap | |
| 61100004 | 2011 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09 | 2009 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613M1 - Headlight Cover | |
| 67674-03B | 2010 |
| 67682-03B | 2010 |
| 614C1 - Trim | |
| 43475-08 | 2008 |
| 67868-03 | 2003 |
| 69604-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627A1 - Oil Cooler | |
| 63083-11 | 2011 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627D1 - Oil Duct Cover | |
| 63121-11A | 2012 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62693-07A | 2007 |
| 37065-06 | 2006 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 62641-11 | 2011 |
| 62629-11 | 2011 |
| 627K1 - Oil Line Fitting | |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08A | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63059-09 | 2009 |
| 63076-09 | 2009 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 66855-10A | 2011 |
| 65586-11 | 2011 |
| 649A1 - Muffler | |
| 65748-09 | 2009 |
| 65949-09 | 2009 |
| 64769-09A | 2011 |
| 64900199 | 2013 |
| 64900198 | 2013 |
| 64768-09A | 2011 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 66220-06 | 2006 |
| 65951-09 | 2009 |
| 62519-03 | 2003 |
| 66219-06 | 2006 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 66858-09 | 2009 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 660C1 - Battery Pan | |
| 66281-09B | 2009 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 70377-09 | 2009 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67782-60A | 1960 |
| 67732-08 | 2008 |
| 11489 | 1995 |
| 67700032 | 2011 |
| 73271-11 | 2011 |
| 69325-02 | 2002 |
| 67728-02A | 2002 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 67717-01 | 2001 |
| 67880-94 | 1994 |
| 677C1 - Headlight Support Bracket | |
| 68124-04B | 2010 |
| 678A1 - Taillight | |
| 68245-03 | 2003 |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68370-03A | 2003 |
| 678B1 - Taillight Housing | |
| 60934-10 | 2010 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68975-00 | 2000 |
| 69407-09A | 2011 |
| 69383-09A | 2011 |
| 67316-03B | 2011 |
| 68614-03 | 2003 |
| 67355-04A | 2011 |
| 67015-02 | 2002 |
| 69518-09B | 2011 |
| 69496-09B | 2011 |
| 678E1 - Turnsignal Lens | |
| 68976-00 | 2000 |
| 679A1 - License Plate Tray / Holder | |
| 60922-09 | 2009 |
| 57637-09 | 2009 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 59359-06 | 2006 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 68344-05 | 2005 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 60921-09 | 2009 |
| 60916-09 | 2009 |
| 60919-09 | 2009 |
| 60915-09A | 2012 |
| 679E1 - License Plate Light | |
| 67900096DQX | 2013 |
| 67900096DQZ | 2013 |
| 60920-09 | 2009 |
| 67900096DLE | 2013 |
| 680C1 - Incandescent Bulb | |
| 68881-01 | 2001 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692C1 - Electrical Miscellaneous Component | |
| 72547-08 | 2008 |
| 74115-06 | 2006 |
| 72332-09 | 2009 |
| 70348-09 | 2009 |
| 70981-09 | 2009 |
| 90469-94 | 1994 |
| 68892-00A | 2000 |
| 67720-03A | 2003 |
| 70344-09 | 2009 |
| 72189-04 | 2004 |
| 72676-11 | 2011 |
| 70980-09 | 2009 |
| 70980-08 | 2008 |
| 11904 | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 66200-09 | 2009 |
| 69200499 | 2013 |
| 69123-92A | 1992 |
| 71019-07 | 2007 |
| 69120-91 | 1991 |
| 69060-90F | 2010 |
| 69062-91A | 1991 |
| 67341-04B | 2004 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31595-09 | 2009 |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 692E2 - Fuse / Relay Block Cover | |
| 69200494 | 2013 |
| 72620-08 | 2008 |
| 692F1 - Wire Harness | |
| 69200412 | 2013 |
| 70142-94 | 1994 |
| 69200416 | 2013 |
| 69200415 | 2013 |
| 70495-08A | 2008 |
| 69200096 | 2011 |
| 73272-11 | 2011 |
| 68359-05 | 2005 |
| 70450-09 | 2009 |
| 70338-09 | 2009 |
| 70981-08 | 2008 |
| 69200262 | 2011 |
| 72152-94 | 1994 |
| 69200176 | 2011 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 69200018 | 2010 |
| 692G2 - Wire Guide | |
| 66761-09A | 2009 |
| 692H1 - Connector | |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 72206-94 | 1994 |
| 72159-94 | 1994 |
| 69200506 | 2013 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 69200290 | 2012 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72179-94 | 1994 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72444-07GY | 2007 |
| 72102-94BK | 1994 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72155-08 | 2008 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 73198-96 | 1996 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72639-10 | 2010 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72286-04 | 2004 |
| 72272-07 | 2007 |
| 72549-07 | 2007 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72303-08 | 2008 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72115-08 | 2008 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72663-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 73307-10 | 2010 |
| 72495-08 | 2008 |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 72395-97 | 1997 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 68904-00 | 2000 |
| 74193-98 | 1998 |
| 72142-94 | 1994 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 72112-94BK | 1994 |
| 29762-09 | 2009 |
| 72039-71A | 1971 |
| 72449-01 | 2001 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68653-05 | 2005 |
| 72104-94BK | 1994 |
| 72450-01 | 2001 |
| 72149-94 | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 72282-09 | 2009 |
| 74148-98 | 1998 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 74158-98 | 1998 |
| 72633-02 | 2002 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 72491-07GY | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 74108-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 72479-07BK | 2007 |
| 73152-96WE | 1996 |
| 72557-07 | 2007 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 72556-08 | 2008 |
| 72492-07GY | 2007 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72038-71A | 1971 |
| 73102-96WE | 1996 |
| 70494-08 | 2008 |
| 72327-03A | 2003 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 69318-02 | 2002 |
| 72544-07 | 2007 |
| 72079-08 | 2008 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 72440-08 | 2008 |
| 74118-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 692M1 - Electrical Component / Wire Cover | |
| 69200329 | 2012 |
| 709B1 - Instrument Cluster or Speedometer | |
| 68893-00A | 2000 |
| 70900072A | 2013 |
| 70900070A | 2013 |
| 70900071A | 2013 |
| 709B2 - Fuel Gauge | |
| 70900364 | 2013 |
| 63038-06 | 2006 |
| 709E1 - Tank Console | |
| 70900256 | 2013 |
| 714A1 - Ignition Switch | |
| 71400067 | 2012 |
| 71313-96A | 1996 |
| 714B1 - Mechanical Switch | |
| 71565-08 | 2008 |
| 71522-08 | 2008 |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 67488-04 | 2004 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 71788-08 | 2008 |
| 71787-08 | 2008 |
| 71825-96A | 1996 |
| 70375-96 | 1996 |
| 71614-96 | 1996 |
| 70373-96 | 1996 |
| 71500157 | 2013 |
| 71615-96 | 1996 |
| 71587-04 | 2004 |
| 71828-02 | 2002 |
| 71642-08 | 2008 |
| 71707-02 | 2002 |
| 71822-98 | 1998 |
| 71683-06A | 2006 |
| 67493-08 | 2008 |
| 71685-06A | 2006 |
| 71820-98 | 1998 |
| 71682-06A | 2006 |
| 71752-08 | 2008 |
| 71699-07 | 2007 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74622-09 | 2009 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 760C1 - Audio System Amplifier | |
| 76000141 | 2012 |
| 76000142 | 2012 |
| 76000285 | 2013 |
| 760C2 - Audio System Speaker | |
| 76000182 | 2012 |
| 76000180 | 2012 |
| 76000181 | 2012 |
| 76000140 | 2012 |
| 76000139 | 2012 |
| 76000286 | 2013 |
| 76000274 | 2012 |
| 76000205 | 2012 |
| 902A1 - Saddlebag | |
| 90115-04 | 2004 |
| 91884-97A | 1997 |
| 88335-09 | 2009 |
| 88336-09 | 2009 |
| 902B1 - Saddlebag Cover | |
| 90200609DQW | 2013 |
| 90200609DQY | 2013 |
| 90200610DQW | 2013 |
| 90200610DQY | 2013 |
| 90200609DLE | 2013 |
| 90200610DLE | 2013 |
| 90664-93 | 1993 |
| 90958-93 | 1993 |
| 902E1 - Saddlebag Bottom | |
| 90200581DRI | 2013 |
| 90200002 | 2011 |
| 90962-93 | 1993 |
| 53482-93 | 1993 |
| 47449-09 | 2009 |
| 53567-93 | 1993 |
| 66069-10 | 2010 |
| 90200898 | 2013 |
| 90200580DQW | 2013 |
| 90200580DQY | 2013 |
| 53483-93 | 1993 |
| 90200580DRI | 2013 |
| 75089-08 | 2008 |
| 90200581DQW | 2013 |
| 90200581DQY | 2013 |
| 903A1 - Lockset | |
| 53710-93 | 1993 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 69995-11 | 2011 |
| 931A1 - Protective / Storage Cover | |
| 93100031 | 2013 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS, FUEL TANK: |
BAGS, LUGGAGE & TRAVEL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90962-93 | WEARPLATE | SADDLEBAGS (2 OF 2): |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | FENDER, REAR: INSTRUMENTS, FUEL TANK: SADDLEBAGS (1 OF 2): |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER & OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : TRANSMISSION BEARINGS & COVERS: |
| 11143 | RING | CLUTCH: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 11150 | RING | SHIFTER, GEAR: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 11292 | O-RING | AIR CLEANER: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 11301 | O-RING | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 11304 | RING | FOOTPEGS: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS & COVERS: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 110™ : |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 25244-99A | GASKET | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | FENDER, REAR: |
| 2995 | SCREW | FAIRING LOWERS: |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SHIFTER, GEAR: |
| 3368 | SCREW | BELT, CHAINS & SPROCKETS: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER & OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 3592A | SCREW | SADDLEBAGS (1 OF 2): |
| 3595 | SCREW | SADDLEBAGS (1 OF 2): |
| 3655A | SCREW | WHEEL, FRONT: FAIRING LOWERS: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 3658 | SCREW | SOUND SYSTEM: |
| 36805-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE LINES, FRONT - ABS: BRAKE CONTROL, REAR: BRAKE LINES & MODULE, REAR - ABS: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 45279-00 | WASHER | FENDER, FRONT: |
| 45733-48 | OIL SEAL | FORK, FRONT: |
| 45858-77 | SCREW | FORK, FRONT: |
| 4740A | SCREW | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 48300-60 | BEARING KIT | FORK BRACKETS, FRONT: |
| 5210 | WELL NUT | NACELLE & HEADLAMP (1 OF 2): |
| 59768-97 | FENDER SEAT NUT KIT | FENDER, REAR: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6229W | WASHER | SADDLEBAGS (1 OF 2): |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | BRAKE LINES, FRONT - ABS: FORK, FRONT: FRAME & JIFFY STAND (1 OF 2): BACKREST, PASSENGER: |
| 7041 | LOCKWASHER | SHIFTER, GEAR: FORK, FRONT: FRAME & JIFFY STAND (1 OF 2): EXHAUST SYSTEM: |
| 70909-95 | RECEPTACLE | GUARDS, SADDLEBAG: |
| 7586 | JAMNUT | SADDLEBAGS (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | ALTERNATOR & REGULATOR: FOOTBOARDS: FENDER, REAR: FAIRING LOWERS: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9252 | BALL BEARING | WHEEL, FRONT: WHEEL, REAR: |
| 9276A | BALL BEARING | BELT, CHAINS & SPROCKETS: WHEEL, FRONT: WHEEL, REAR: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD & PIN KIT | BRAKE CALIPER, REAR: |
| 41854-08 | PAD & PIN KIT | BRAKE CALIPER, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME & JIFFY STAND (1 OF 2): |
| 50245-07 | BUMPER | FRAME & JIFFY STAND (1 OF 2): |
| 59166-80 | PLATE | FENDER, FRONT: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 71621-08 | SWITCH KIT | SWITCHES, HANDLEBAR: |
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (3 OF 5): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 110™ : |
| 33709-82A | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65296-95A | MUFFLER CLAMP | EXHAUST SYSTEM: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68329-03 | BULB | NACELLE & HEADLAMP (1 OF 2): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | ELECTRONIC CONTROL MODULE (ECM) & COIL: |
| 63798-99A | FILTER | CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™ : |
| 66010-97C | BATTERY | BATTERY: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | VALVE STEM | WHEEL, FRONT: WHEEL, REAR: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | WINDSHIELD: |
