2013 HARLEY-DAVIDSON® PARTS CATALOG: TRIKE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99602-13 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2013 TRIKE MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale within the
United States 5HD=Originally manufactured for sale outside of the
United States | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | MA=FLHTCUTG Tri Glide™ Ultra Classic® MA=FLHTCUTG ANV Tri Glide™ Ultra Classic® 110th Anniversary Edition | |
4 | Engine type | M=Twin Cam 103™, 1690 cm3 air-cooled, fuel-injected | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 3=California (CAL) A=Canada (CAN) | Mid-year or Special Introduction 2, 4=Domestic (DOM) 5, 6=California (CAL) B=Canada (CAN) |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | D=2013 | |
8 | Assembly plant | B=York, PA U.S.A. | |
9 | Sequential number | Varies | |
NOTES
ENGINE ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-13 | ENGINE ASSEMBLY, complete | ALL |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump & cylinder studs (See Note) | ALL |
| 3 | 91800042 | KIT, shortblock installation, w/ 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains & camshaft tensioners | ALL |
| Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
CYLINDERS, HEADS & VALVES - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | ALL |
| 2 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust, w/ 16699-06 (4) | ALL |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | ALL |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | ALL |
| 5 | 16547-99A | CYLINDER ASSEMBLY (black) (2) | ALL |
| 6 | 16595-99A | DOWEL PIN (4) | ALL |
| 7 | 16699-06 | SNAP RING (4) | ALL |
| 8 | 16715-83 | STUD, exhaust port (4) | ALL |
| 9 | 16787-99A | GASKET, cylinder head (2) | ALL |
| 10 | 16834-99A | STUD, cylinder (8) | ALL |
| 11 | 17052-99C | GASKET KIT, top end | ALL |
| 17053-99C | GASKET KIT, engine overhaul | ALL | |
| 12 | 17460-07A | CYLINDER ASSEMBLY, w/ piston, rings, piston pin & retaining rings (black) (2) | ALL |
| 13 | 17728-08 | CYLINDER HEAD, front, w/ guides & seats (black) | ALL |
| 17729-08 | CYLINDER HEAD, rear, w/ guides & seats (black) | ALL | |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | ALL |
| 15 | 18020-83 | INSERT, intake valve seat (2) | ALL |
| 16 | 18074-05A | INTAKE VALVE (2) | ALL |
| 17 | 18085-05B | EXHAUST VALVE (2) | ALL |
| 18 | 18094-02A | SEAL KIT, valve | ALL |
| 19 | 18245-02 | VALVE SPRING (4) | ALL |
| 20 | 18258-02 | COLLAR, valve spring (4) | ALL |
| 21 | 18260-02 | KEEPER, valve (8) | ALL |
| 22 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | ALL |
| 23 | 72009-05 | HOUSING, 2-way, pin (2) | ALL |
| 24 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | ALL |
ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | ALL |
| 2 | 3692A | SCREW (6) | ALL |
| 3 | 3693A | SCREW (10) | ALL |
| 4 | 3736B | SCREW (8) | ALL |
| 5 | 4400 | BOLT (4) | ALL |
| 6 | 4741A | SCREW (8) | ALL |
| 7 | 6762B | WASHER (4) | ALL |
| 8 | 11132A | O-RING, push rod cover (4) | ALL |
| 9 | 11145A | O-RING, push rod cover (4) | ALL |
| 10 | 11270 | O-RING (2) | ALL |
| 11 | 11293 | O-RING (4) | ALL |
| 12 | 16719-99B | GASKET, rocker housing (2) | ALL |
| 13 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | ALL |
| 14 | 17045-99D | GASKET KIT, cam service | ALL |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ 17429-91 (2) | ALL |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ 17429-91 (2) | ALL |
| 17 | 17386-99A | GASKET, rocker cover (2) | ALL |
| 18 | 17429-91 | BEARING, rocker arm (8) | ALL |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | ALL |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | ALL |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | ALL |
| 22 | 17611-83 | SHAFT, rocker arm (4) | ALL |
| 23 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | ALL |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | ALL | |
| 24 | 17939-99 | COVER, push rod, lower (4) | ALL |
| 25 | 17945-36B | CAP, cover spring (4) | ALL |
| 26 | 17947-36 | SPRING, push rod cover (4) | ALL |
| 27 | 17948-99 | COVER, push rod, upper (4) | ALL |
| 28 | 17964-99 | LIFTER COVER, front (chrome) | ALL |
| 17966-99 | LIFTER COVER, rear (chrome) | ALL | |
| 29 | 17968-99 | RETAINER, spring cap (4) | ALL |
| 30 | 18535-99 | PIN, anti-rotation (2) | ALL |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | ALL |
| 32 | 18635-99B | GASKET, lifter cover (2) | ALL |
| 33 | 26500002 | BREATHER, baffle assembly, w/ breather valve & filter | ALL |
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | ALL |
| 2 | 21918-99 | PISTON RING SET, standard (2) | ALL |
| 21919-99 | PISTON RING SET, 0.005 in. O.S. (2) | ALL | |
| 21945-99 | PISTON RING SET, 0.010 in. O.S. (2) | ALL | |
| 3 | 21962-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | ALL |
| 21963-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.005 in. O.S. (2) | ALL | |
| 21964-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | ALL | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | ALL |
| 5 | 22131-05 | PISTON PIN (2) | ALL |
| 6 | 23729-07B | FLYWHEEL ASSEMBLY KIT | ALL |
CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | ALL |
| 2 | 765 | PLUG (3) | ALL |
| 3 | 895 | SCREW (9) | ALL |
| 4 | 924 | SCREW (Early Model Year) (See Note) (2) | ALL |
| 5 | 4266A | SCREW (2) | ALL |
| 6 | 7601 | LOCKNUT (2) | ALL |
| 7 | 8972 | WASHER (2) | ALL |
| 8 | 9215 | BEARING, needle, left side, camshaft (2) | ALL |
| 9 | 10198 | CLAMP (2) | ALL |
| 10 | 10354 | CLAMP (2) | ALL |
| 11 | 11140 | O-RING (2) | ALL |
| 12 | 11273 | O-RING (2) | ALL |
| 13 | 11290 | O-RING (Early Model Year) (See Note) | ALL |
| 14 | 11692 | GROMMET, oil cooler cover (2) | ALL |
| 15 | 12068 | SEAL, oil | ALL |
| 16 | 16574-99A | DOWEL, pin (2) | ALL |
| 17 | 16589-99A | DOWEL, pin (2) | ALL |
| 18 | 16595-99A | DOWEL, pin (4) | ALL |
| 19 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | ALL |
| 20 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | ALL |
| 21 | 24009-06 | SPACER, sprocket shaft | ALL |
| 22 | 24605-07 | BEARING, main (2) | ALL |
| 23 | 24621-06B | CRANKCASE SET, w/ 703B, 765, 895, 3983 (not shown), 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24605-07, 35114-02 & 68042-99 (black) | ALL |
| 24 | 26041-05A | ADAPTER | ALL |
| 25 | 35114-02 | RING, retaining, internal | ALL |
| 26 | 62533-11 | COVER, oil cooler | ALL |
| 27 | 62629-11 | HOSE, oil cooler, RH | ALL |
| 28 | 62641-11 | HOSE, oil cooler, LH | ALL |
| 29 | 63059-09 | ADAPTER ASSEMBLY, oil cooler, w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover (Early Model Year) (See Note) | ALL |
| 30 | 63066-07 | GASKET | ALL |
| 31 | 63083-11 | OIL COOLER CORE, w/ mounting bracket | ALL |
| 32 | 63084-07 | GASKET (Early Model Year) (See Note) | ALL |
| 33 | 63533-41A | FITTING (2) | ALL |
| 34 | 63798-99A | FILTER, oil (chrome) | ALL |
| 35 | 68042-99 | SCREW (4) | ALL |
| 36 | 63059-09A | ADAPTER ASSEMBLY, oil cooler w/ 63533-41A, 11900010, 11900039 & 62800013 (Late Model Year) (See Note) | ALL |
| 37 | 11900010 | O-RING (Late Model Year) (See Note) (2) | ALL |
| 38 | 11900039 | O-RING (Late Model Year) (See Note) | ALL |
| 39 | 62800013 | PLUG ASSEMBLY, w/ 11900010 (Late Model Year) (See Note) (2) | ALL |
| NOTE: Parts labeled as Early Model Year are used to service motorcycles built prior to March, 2013. Parts labeled as Late Model Year are used to service motorcycles built March, 2013 & After. | |||
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | ALL |
| 2 | 942 | SCREW (2) | ALL |
| 3 | 4740A | SCREW (12) | ALL |
| 4 | 4741A | SCREW (10) | ALL |
| 5 | 6294 | WASHER | ALL |
| 6 | 8873 | BALL (12) | ALL |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | ALL |
| 8 | 11293 | O-RING | ALL |
| 9 | 11301 | O-RING (2) | ALL |
| 10 | 11461 | RETAINING RING | ALL |
| 11 | 17045-99D | GASKET KIT, cam service | ALL |
| 12 | 24608-07A | CAMSHAFT, front | ALL |
| 13 | 25244-99A | GASKET, cam cover | ALL |
| 14 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | ALL |
| 15 | 25369-01B | CAM COVER (chrome) | ALL |
| 16 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294, screws & washer | ALL |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | ALL |
| 18 | 25590-07A | CAMSHAFT, rear | ALL |
| 19 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | ALL |
| 20 | 25675-06 | CHAIN, primary cam drive | ALL |
| 21 | 25683-06 | CHAIN, secondary cam drive | ALL |
| 22 | 25728-06 | SPROCKET, cam drive, 34 T | ALL |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | ALL |
| 24 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | ALL |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | ALL | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | ALL | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | ALL | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | ALL | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | ALL | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06, 40323-00 & body | ALL |
| 26 | 26210-99 | SPRING, relief valve | ALL |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | ALL |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | ALL |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | ALL |
| 30 | 26400-82B | RELIEF VALVE, oil pump | ALL |
| 31 | 32543-07 | COVER, timer | FLHTCUTG |
| 32 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | ALL |
| 33 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | ALL |
| 34 | 40323-00 | SPRING, separator | ALL |
| 35 | 68120-00 | SCREW (5) | ALL |
| 36 | 25600016 | COVER, timer | FLHTCUTG ANV |
ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | ALL |
| 2 | 4688 | SCREW (3) | ALL |
| 3 | 4721 | BOLT (2) | ALL |
| 4 | 4838 | SCREW (2) | ALL |
| 5 | 4868 | SCREW (2) | ALL |
| 6 | 6127 | WASHER (6) | ALL |
| 7 | 7783 | NUT (2) | ALL |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | ALL |
| 9 | 16219-09 | STABLIZER LINK | ALL |
| 10 | 24754-75A | DOWEL BUSHING (2) | ALL |
| 11 | 47159-09BHP | BRACKET, front engine mount | ALL |
| 12 | 47460-09BHP | END CAP, front mount | ALL |
| 13 | 83874-09 | BRACKET, tie link | ALL |
| 14 | 83875-09 | SPACER, bracket, tie link (2) | ALL |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 4705 | SCREW (2) | ALL |
| 3 | 26993-06 | FLANGE, mounting (2) | ALL |
| 4 | 26995-86B | SEAL, intake manifold (2) | ALL |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ O-ring (2) | ALL |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | ALL |
| 7 | 27712-08 | BRACKET, induction module | ALL |
| 8 | 27721-08 | FUEL RAIL | ALL |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure, w/ O-ring | ALL |
| 10 | 61208-10 | FUEL LINE KIT | ALL |
| 11 | 90383-98 | CAP, purge tube | ALL |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | ALL |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | ALL |
| 2 | 10398 | CLIP, ACR connector retention | ALL |
| 3 | 29269-83A | SCREW | ALL |
| 4 | 29465-08 | BREATHER BOLT (2) | ALL |
| 5 | 29502-08A | BREATHER TUBE (2) | ALL |
| 6 | 29584-01 | SEAL, air cleaner cover | ALL |
| 7 | 29630-08A | BACKPLATE ASSEMBLY | ALL |
| 8 | 29633-08 | FILTER ELEMENT, w/ 29645-08 | ALL |
| 9 | 29644-08 | BRACKET ASSEMBLY, air cleaner cover | ALL |
| 10 | 29645-08 | GASKET, filter element | ALL |
| 11 | 29718-08 | GASKET, induction module to backplate | ALL |
| 12 | 83379-09 | INSERT, air cleaner, TriGlide | FLHTCUTG |
| 13 | 83881-09A | WARNING LABEL, air cleaner (Domestic, California) (chrome) | ALL |
| 14 | 83951-09 | COVER, air cleaner, w/ 83881-09A | ALL |
| 15 | 29200022 | INSERT, air cleaner, 110 years | FLHTCUTG ANV |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | ALL |
| 2 | 7716 | LOCKNUT (2) | ALL |
| 3 | 10039 | CABLE STRAP (3) | ALL |
| 4 | 10177 | CABLE STRAP, tree mount | ALL |
| 5 | 24009-06 | SPACER | ALL |
| 6 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP | ALL |
| 7 | 30041-08 | ROTOR ASSEMBLY | ALL |
| 8 | 74115-06 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | ALL |
| 9 | 74505-09 | VOLTAGE REGULATOR ASSEMBLY | ALL |
ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | ALL |
| 2 | 4826 | SCREW (2) | ALL |
| 3 | 10177 | CABLE STRAP, tree mount (3) | ALL |
| 4 | 31696-07A | IGNITION COIL | ALL |
| 5 | 32013-09A | SPARK PLUG CABLE, front cylinder, w/ 10177 | ALL |
| 6 | 32014-09A | SPARK PLUG CABLE, rear cylinder, w/ 10177 | ALL |
| 7 | 32362-04 | SPARK PLUG, 6R12 (2) | ALL |
| 8 | 34246-08B | ELECTRONIC CONTROL MODULE (ECM), base level, Requires digital programming. | ALL |
| 9 | 66200-09 | BRACKET, battery hold down | ALL |
| 10 | 70344-09 | CADDY, electronic control module (ECM) | ALL |
| 11 | 70681-09 | RETAINER, wire harness | ALL |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | ALL |
| 2 | 11289A | O-RING, crankshaft position sensor | ALL |
| 3 | 32319-07 | SENSOR, temperature manifold absolute pressure (TMAP), w/ O-ring | ALL |
| 4 | 32446-99 | SENSOR, engine temperature | ALL |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94 & 74194-98 | ALL |
| 6 | 72199-94 | CONNECTOR ANCHOR | ALL |
| 7 | 74194-98 | TERMINAL PIN, DTM #20-24 (2) | ALL |
| 8 | 74438-99A | OIL PRESSURE SENDER | ALL |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW | ALL |
| 2 | 4419 | SCREW (2) | ALL |
| 3 | 7838 | NUT (2) | ALL |
| 4 | 27444-00Y | O-RING, starter-to-case | ALL |
| 5 | 31527-90 | BRACKET ASSEMBLY, starter cover | ALL |
| 6 | 31611-08 | COVER (chrome) | ALL |
| 7 | 31604-06 | SOLENOID REPAIR KIT | ALL |
| 8 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | ALL |
| 9 | 31633-07A | CLUTCH SUBASSEMBLY | ALL |

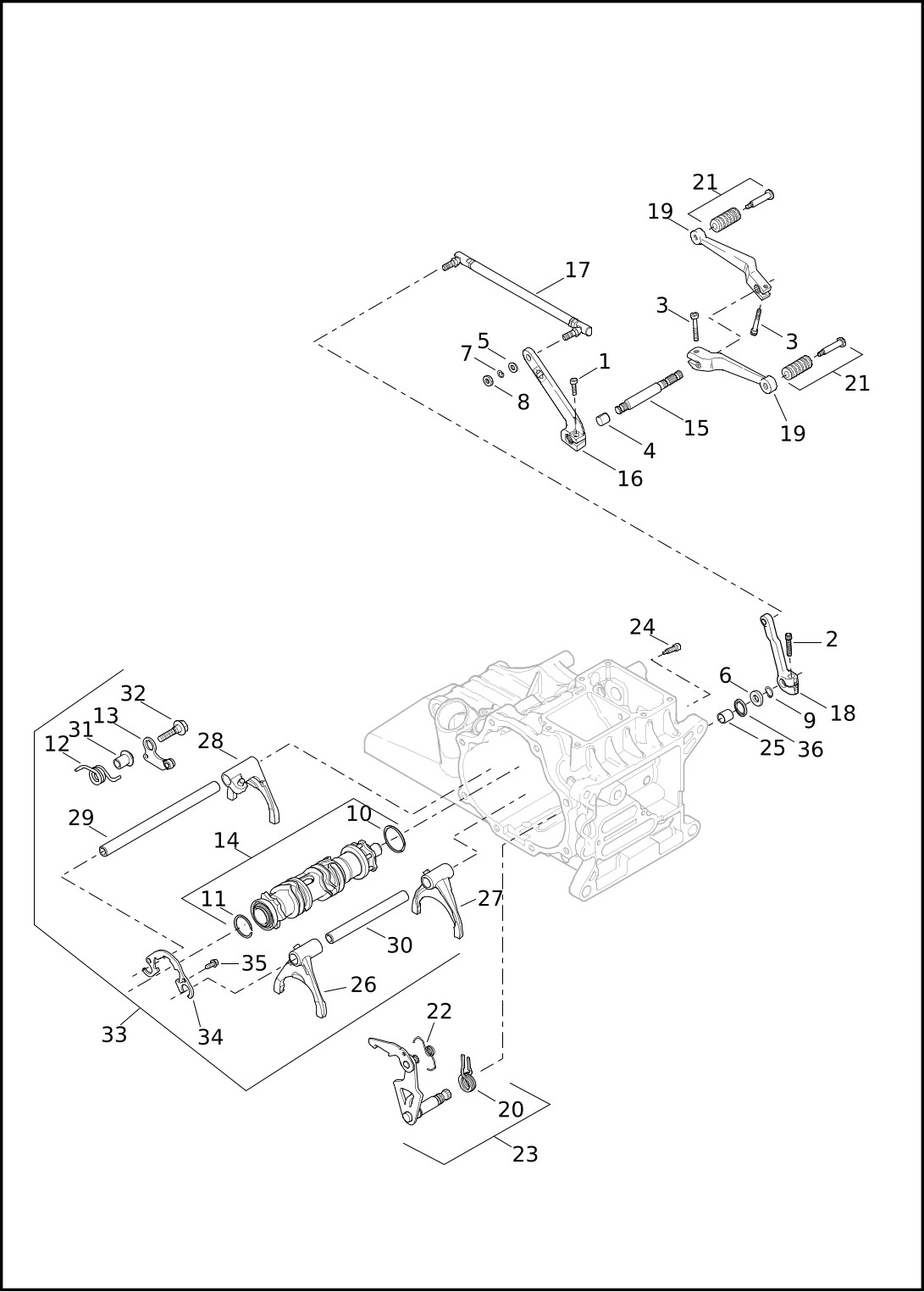

SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | ALL |
| 2 | 856A | SCREW | ALL |
| 3 | 3275 | SCREW (2) | ALL |
| 4 | 5817 | SPACER | ALL |
| 5 | 6016 | WASHER | ALL |
| 6 | 6497HW | WASHER | ALL |
| 7 | 7041 | LOCKWASHER | ALL |
| 8 | 7744 | JAM NUT | ALL |
| 9 | 11150 | RETAINING RING | ALL |
| 10 | 11389 | RING, shift cam retaining | ALL |
| 11 | 11575 | RING, shift cam retaining | ALL |
| 12 | 33389-07 | SPRING, detent | ALL |
| 13 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | ALL |
| 14 | 33413-06A | CAM, shift, w/ 11389, 11575 & bearing | ALL |
| 15 | 33709-82A | SHAFT | ALL |
| 16 | 33718-82B | LEVER | ALL |
| 17 | 33759-99B | SHIFTER ROD | ALL |
| 18 | 33849-97 | LEVER, shifter rod | ALL |
| 19 | 33895-82D | SHIFT LEVER KIT, w/ 3275 & shifter lever (2) | ALL |
| 20 | 34064-00C | SPRING, shift lever centering | ALL |
| 21 | 34611-65A | PEG, shift lever (2) | ALL |
| 22 | 34987-06 | SPRING, ratchet lever | ALL |
| 23 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | ALL |
| 24 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 25 | 35186-06 | SLEEVE | ALL |
| 26 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 27 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 28 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 29 | 35222-06 | SHAFT, 5 - 6 shift fork | ALL |
| 30 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | ALL |
| 31 | 35243-06 | SLEEVE | ALL |
| 32 | 35244-06 | SCREW | ALL |
| 33 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 10, 11, 12, 13, 14, 26, 27, 28, 29, 30, 31, 32, 34, 35, 7340, 35260-06, input shaft, countershaft & gears (black) | ALL |
| 34 | 35249-06A | LOCK PLATE, shift cam | ALL |
| 35 | 35259-06 | SCREW (2) | ALL |
| 36 | 37101-84B | OIL SEAL | ALL |
TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (6) | ALL |
| 3 | 3300 | SCREW (2) | ALL |
| 4 | 4718A | SCREW (4) | ALL |
| 5 | 4741A | SCREW (2) | ALL |
| 6 | 7340 | NUT, mainshaft & countershaft (2) | ALL |
| 7 | 8873 | BALL (3) | ALL |
| 8 | 8963 | BEARING, needle | ALL |
| 9 | 8967 | BEARING | ALL |
| 10 | 8970A | BEARING (2) | ALL |
| 11 | 9701A | BUSHING | ALL |
| 12 | 10998 | RETAINING RING | ALL |
| 13 | 11132A | O-RING, dipstick | ALL |
| 14 | 11161 | RETAINING RING | ALL |
| 15 | 11179 | O-RING | ALL |
| 16 | 12074 | SEAL | ALL |
| 17 | 16583-00A | BUSHING, dowel (2) | ALL |
| 18 | 25604-00A | INNER RAMP | ALL |
| 19 | 25605-00A | OUTER RAMP | ALL |
| 20 | 34920-86A | COUPLING | ALL |
| 21 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 22 | 35087-99A | RETAINING RING (2) | ALL |
| 23 | 35186-06 | SLEEVE | ALL |
| 24 | 35260-06A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (black) | ALL |
| 25 | 35607-06 | GASKET | ALL |
| 26 | 35654-06 | GASKET, bearing housing | ALL |
| 27 | 36805-06 | GASKET, cover | ALL |
| 28 | 37065-06 | DIPSTICK (chrome) | ALL |
| 29 | 37101-84B | OIL SEAL | ALL |
| 30 | 37116-06 | CLUTCH RELEASE COVER (chrome) | ALL |
| 31 | 38630-88 | BOOT, clutch cable | ALL |
| 32 | 38667-08A | CABLE, clutch control, w/ 11179, 38630-88 & 38900-08 | ALL |
TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | ALL |
| 2 | 3983 | SCREW (2) | ALL |
| 3 | 4705 | SCREW | ALL |
| 4 | 4741A | SCREW (18) | ALL |
| 5 | 7792 | NUT | ALL |
| 6 | 11105 | O-RING (2) | ALL |
| 7 | 11120 | O-RING | ALL |
| 8 | 11289A | O-RING | ALL |
| 9 | 16574-99A | DOWEL RING (2) | ALL |
| 10 | 26077-99A | GASKET, oil pan | ALL |
| 11 | 33165-11A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (chrome & black) | ALL |
| 12 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | ALL |
| 13 | 34469-06B | TRANSMISSION COVER, top (chrome) | ALL |
| 14 | 34917-06 | GASKET, upper cover | ALL |
| 15 | 45893-99 | PIPE PLUG (2) | ALL |
| 16 | 60328-98B | PLUG, magnetic, w/ 11105 (2) | ALL |
| 17 | 62372-09 | VENT HOSE, transmission | ALL |
| 18 | 62489-99A | OIL PAN ASSEMBLY, w/ 45893-99 & 60328-98B (black) | ALL |
| 19 | 66290-06 | STUD, ground | ALL |
| 20 | 74402-05B | SPEED SENSOR, w/ 11289A | ALL |
| 21 | 83978-11 | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 66290-06 & 83595-11 (black) | ALL |
| 22 | 62700026 | DIPSTICK ASSEMBLY, w/ 11120 (black cap) | ALL |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042 | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11061A | RETAINING RING | ALL |
| 8 | 11081A | RING, lock (3) | ALL |
| 9 | 11082 | SECURING SEGMENT (6) | ALL |
| 10 | 11096 | RING, retaining | ALL |
| 11 | 11201 | O-RING | ALL |
| 12 | 11207A | WASHER, internal spline | ALL |
| 13 | 11599A | SPACER, bearing | ALL |
| 14 | 12077 | OIL SEAL | ALL |
| 15 | 34091-08 | BEARING, inner race | ALL |
| 16 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599A & 12077 | ALL |
| 17 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 18 | 35126-06 | DOG RING, lugged (2) | ALL |
| 19 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 20 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 21 | 35204-06 | DOG RING, pocketed | ALL |
| 22 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 23, 24, 25, 26, 27, 28, 29, 35260-06A, shifter cam & forks (black) | ALL |
| 23 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | ALL |
| 24 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 25 | 35801-10 | GEAR, fifth input | ALL |
| 26 | 35805-06A | GEAR, countershaft-first | ALL |
| 27 | 35807-06 | GEAR, countershaft-second | ALL |
| 28 | 35811-06 | GEAR, countershaft-third | ALL |
| 29 | 35814-06 | GEAR, countershaft-fourth | ALL |
| 30 | 37069-90A | ROD ASSEMBLY | ALL |
| 31 | 37312-75 | BEARING | ALL |
| 32 | 37313-80 | THRUST RACE BEARING (2) | ALL |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | ALL |
| 2 | 7848W | JAM NUT | ALL |
| 3 | 11096 | RETAINING RING | ALL |
| 4 | 37069-90A | ROD ASSEMBLY | ALL |
| 5 | 37090-98A | SCREW, adjuster | ALL |
| 6 | 37092-06 | PUSH ROD, clutch release | ALL |
| 7 | 37312-75 | BEARING, push rod | ALL |
| 8 | 37313-80 | THRUST RACE BEARING (2) | ALL |
| 9 | 37496-90A | NUT, mainshaft | ALL |
| 10 | 37554-11 | HUB ASSEMBLY, clutch | ALL |
| 11 | 37807-03 | SPRING, clutch (pink) | ALL |
| 12 | 37817-11 | CLUTCH ASSEMBLY, w/ 1, 9, 10, 11, 13, 14, 15, 17, 18, 19, 20, 21, 22 & 23 | ALL |
| 13 | 37872-00 | SEAT, clutch spring | ALL |
| 14 | 37883-98 | SEAT, damper spring | ALL |
| 15 | 37884-98 | DAMPER SPRING | ALL |
| 16 | 37903-90 | RELEASE PLATE | ALL |
| 17 | 37904-90 | RETAINING RING | ALL |
| 18 | 37905-00 | RETAINING RING, internal | ALL |
| 19 | 37906-11 | BEARING, ball | ALL |
| 20 | 37909-90 | RETAINING RING, internal | ALL |
| 21 | 37912-00 | PRESSURE PLATE, clutch | ALL |
| 22 | 37913-98 | PLATE CLUTCH (8) | ALL |
| 23 | 37932-98 | FRICTION PLATE KIT, w/ nine friction plates | ALL |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1780 | SCREW (4) | ALL |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 9231 | BEARING | ALL |
| 7 | 11105 | O-RING | ALL |
| 8 | 12052A | SEAL | ALL |
| 9 | 16583-00A | DOWEL BUSHING (2) | ALL |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) w/ 11105 & seal clutch cover | ALL |
| 11 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 12 | 34901-07 | GASKET, primary cover | ALL |
| 13 | 34934-06 | GASKET, primary housing to case | ALL |
| 14 | 39929-06B | CHAIN TENSIONER ASSEMBLY | ALL |
| 15 | 42642-00A | BUSHING (2) | ALL |
| 16 | 60328-98B | PLUG, magnetic drain, w/ 11105 | ALL |
| 17 | 60432-07A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (black) | ALL |
| 18 | 60553-07 | COVER, primary (chrome) | ALL |
| 19 | 60678-85 | RETAINING RING | ALL |
| 20 | 60766-06 | COVER, clutch (chrome) | FLHTCUTG |
| 21 | 14100271 | COVER, clutch, 110 years (chrome) | FLHTCUTG ANV |
| 22 | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y & 37909-90 | ALL |
BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3368 | SCREW | ALL |
| 2 | 3594 | SCREW (2) | ALL |
| 3 | 6557 | WASHER, thrust | ALL |
| 4 | 35241-06 | NUT | ALL |
| 5 | 35242-06 | LOCKPLATE | ALL |
| 6 | 40037-07 | PRIMARY CHAIN | ALL |
| 7 | 40040-05 | REAR BELT, 139 T, 1-1/8 inch | ALL |
| 8 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 9 | 83424-09 | SPROCKET ASSEMBLY, rear, 70 T, w/ bearing (chrome) | ALL |
| 10 | 83595-11 | SPROCKET, transmission, 30 T | ALL |
| 11 | 83935-09A | COMPENSATOR ASSEMBLY, 34 T | ALL |
| 12 | 83936-09A | SPRING PACK | ALL |
| 13 | 40100009 | RETAINER, sprocket | ALL |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4015 | SCREW (2) | ALL |
| 2 | 6099 | WASHER (2) | ALL |
| 3 | 11143 | RETAINING RING | ALL |
| 4 | 11179 | O-RING | ALL |
| 5 | 38630-88 | BOOT, clutch cable | ALL |
| 6 | 38667-08A | CABLE, clutch control, w/ 11179, 38630-88 & 38900-08 | ALL |
| 7 | 38700-08A | BRACKET, hand lever | ALL |
| 8 | 38738-08 | PIN, hand lever pivot | ALL |
| 9 | 38900-08 | PIN, clutch, mechanical, w/ head | ALL |
| 10 | 45021-86 | SPRING, anti-rattle | ALL |
| 11 | 45080-08 | CLUTCH LEVER ASSEMBLY, w/ 45021-86, 45423-92 & 90770-79 | ALL |
| 12 | 45423-92 | BUSHING | ALL |
| 13 | 71603-02B | HOUSING, left, reverse switch (black) | ALL |
| 14 | 90770-79 | SCREW | ALL |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 41750-06B | BOLT, BANJO, brakeline | ALL |
| 4 | 41751-06A | GASKET (2) | ALL |
| 5 | 42854-06 | KIT, SIGHT GLASS, reservoir | ALL |
| 6 | 42855-06C | COVER KIT, master cylinder, w/ 42856-06, 42857-06B & 42858-06A (black) | ALL |
| 7 | 42856-06 | DECAL, reservoir cover | ALL |
| 8 | 42857-06B | GASKET, reservoir cover | ALL |
| 9 | 42858-06A | SCREW (2) | ALL |
| 10 | 42859-06B | BRAKE LEVER ASSEMBLY, front, w/ 42860-06B | ALL |
| 11 | 42860-06B | PIVOT PIN, w/ retaining ring | ALL |
| 12 | 42861-06B | PUSHROD, master cylinder | ALL |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | ALL |
| 14 | 44551-08C | MASTER CYLINDER ASSEMBLY, front-dual, w/ 5, 6, 7, 8, 9, 10, 11, 12 & 13 (black) | ALL |
| 15 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | ALL |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | ALL |
| 2 | 7331 | ACORN NUT (2) | ALL |
| 3 | 91840-03B | MIRROR KIT, short, convex, right, w/ 7155 & 7331 | ALL |
| 91845-03B | MIRROR KIT, short, convex, left, w/ 7155 & 7331 | ALL |
BRAKE LINE, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | ALL |
| 2 | 4890 | BLEEDER SCREW KIT (2) | ALL |
| 3 | 41750-06B | BOLT, BANJO, brakeline | ALL |
| 4 | 41751-06A | GASKET (6) | ALL |
| 5 | 41783-08 | BOLT, BANJO, bleeder assembly, w/ 4890 (2) | ALL |
| 6 | 42853-06 | CAP, bleeder screw (2) | ALL |
| 7 | 83475-09 | BRAKE LINE ASSEMBLY, front | ALL |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 2479 | SCREW (2) | ALL |
| 3 | 2579A | SCREW, cover (2) | ALL |
| 4 | 3563 | SCREW | ALL |
| 5 | 6220W | WASHER | ALL |
| 6 | 6334 | WASHER | ALL |
| 7 | 7825 | LOCKNUT | ALL |
| 8 | 8309 | NUT | ALL |
| 9 | 9907 | WIRE TERMINAL (2) | ALL |
| 10 | 10149 | CLIP, t-stud (4) | ALL |
| 11 | 11364 | O-RING (2) | ALL |
| 12 | 11688 | RETAINING RING | ALL |
| 13 | 40920-87 | COMPRESSION SPRING | ALL |
| 14 | 40922-87A | DUST BOOT | ALL |
| 15 | 41750-06B | BOLT, BANJO, brakeline | ALL |
| 16 | 41751-06A | GASKET, brakeline (2) | ALL |
| 17 | 42407-08 | LEVER ASSEMBLY, foot-brake, w/ 57217-02 | ALL |
| 18 | 42416-06 | PAD, brake pedal | ALL |
| 19 | 42454-99A | RESERVOIR KIT, master cylinder | ALL |
| 20 | 42460-80B | CLEVIS PIN | ALL |
| 21 | 42568-05A | GASKET, master cylinder reservoir cover | ALL |
| 22 | 46457-05B | MASTER CYLINDER COVER KIT, rear, DOT4, w/ 42568-05A (black) | ALL |
| 23 | 57217-02 | BUSHING, brake lever (2) | ALL |
| 24 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | ALL |
| 25 | 83393-09 | BRAKE LINE, right-rear, master cylinder to rear caliper | ALL |
| 26 | 83430-09B | MASTER CYLINDER ASSEMBLY, w/ 3, 12, 13, 14, 19 & 22 | ALL |
| 27 | 83431-09 | BRACKET, mounting, rear master cylinder | ALL |

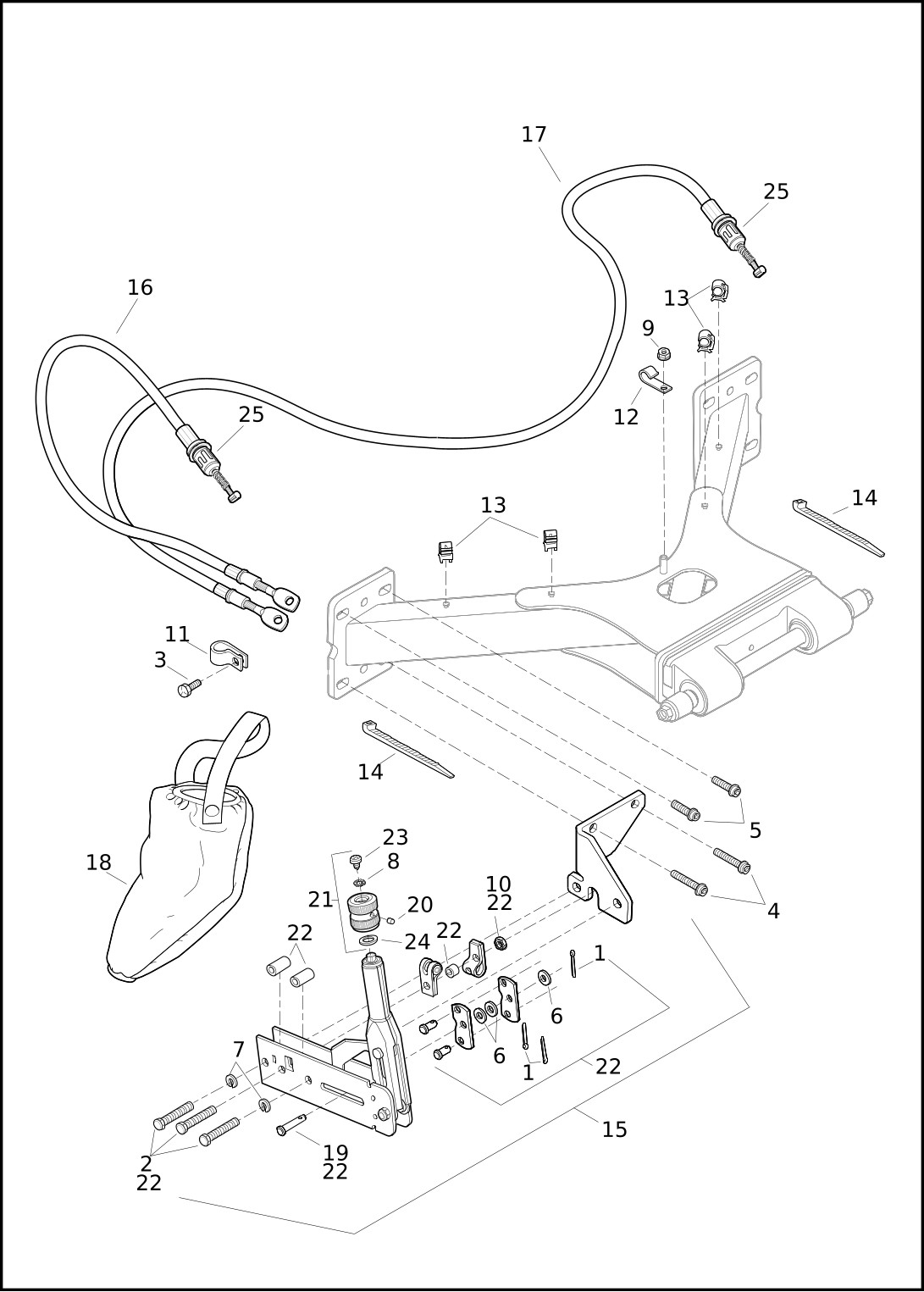

PARKING BRAKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 534 | COTTER PIN, parking brake (3) | ALL |
| 2 | 2667 | BOLT (3) | ALL |
| 3 | 2882W | SCREW | ALL |
| 4 | 4687 | SCREW (6) | ALL |
| 5 | 4688 | SCREW (2) | ALL |
| 6 | 6702 | WASHER (3) | ALL |
| 7 | 7041 | LOCKWASHER (2) | ALL |
| 8 | 7230 | LOCKWASHER | ALL |
| 9 | 7686 | LOCKNUT | ALL |
| 10 | 7763W | JAM NUT | ALL |
| 11 | 9990W | CLAMP | ALL |
| 12 | 10092 | J-CLAMP | ALL |
| 13 | 10149 | CLIP, t-stud (4) | ALL |
| 14 | 11321 | CABLE STRAP (2) | ALL |
| 15 | 83421-09 | PARKING BRAKE ASSEMBLY, w/ 1, 2, 6, 7, 10, 16, 17, 19 & 21 | ALL |
| 16 | 83422-09 | CABLE ASSEMBLY, parking brake, right, w/ 83000037 | ALL |
| 17 | 83423-09 | CABLE ASSEMBLY, parking brake, left, w/ 83000037 | ALL |
| 18 | 83443-09 | BOOT, parking brake | ALL |
| 19 | 83836-09 | CLEVIS PIN, parking brake (2) | ALL |
| 20 | 83884-09 | SET SCREW | ALL |
| 21 | 83891-09 | KNOB KIT, parking brake, w/ 7230, 10500011, 12300006 & 83884-09 | ALL |
| 22 | 83892-09 | KIT, parking brake, w/ 1, 2, 6, 10 & 19 | ALL |
| 23 | 10500011 | SCREW | ALL |
| 24 | 12300006 | WASHER, wave | ALL |
| 25 | 83000037 | SPRING CLIP, parking brake cable (2) | ALL |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | ALL |
| 2 | 42849-08 | PAD PIN KIT (2) | ALL |
| 3 | 42851-06 | COVER, caliper (2) | ALL |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | ALL |
| 5 | 43027-08 | CALIPER ASSEMBLY, left (black) | ALL |
| 44023-08 | CALIPER ASSEMBLY, right (black) | ALL | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | ALL |
| 7 | 44341-08 | MEDALLION, brake caliper (2) | ALL |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW KIT | ALL |
| 2 | 8314 | SCREW (4) | ALL |
| 3 | 8330 | O-RING (8) | ALL |
| 4 | 8332 | BUSHING (4) | ALL |
| 5 | 8333 | SCREW (8) | ALL |
| 6 | 8337 | LOCKNUT (2) | ALL |
| 7 | 41751-06A | GASKET (4) | ALL |
| 8 | 41783-08 | BLEEDER BOLT ASSEMBLY, BANJO, w/ 4890 (2) | ALL |
| 9 | 42853-06 | CAP, bleeder screw (2) | ALL |
| 10 | 83425-09A | BRAKE ROTOR, rear (2) | ALL |
| 11 | 83426-09B | CALIPER ASSEMBLY, rear, right, w/ 3, 4, 5, 6, 13, 14, 15, 16, 17, 18, 19 & 21 | ALL |
| 12 | 83427-09B | CALIPER ASSEMBLY, rear, left, w/ 3, 4, 5, 6, 14, 15, 16, 17, 18, 19, 20 & 21 | ALL |
| 13 | 83902-09 | BRACKET, parking brake, right | ALL |
| 14 | 83903-09 | ACTUATOR ARM, parking brake (2) | ALL |
| 15 | 83904-09 | DUST BOOT (2) | ALL |
| 16 | 83905-09 | SPRING (2) | ALL |
| 17 | 83906-09 | BRACKET, mounting (2) | ALL |
| 18 | 83907-09 | PIN, mounting, threaded (4) | ALL |
| 19 | 83908-09 | RETAINING RING (4) | ALL |
| 20 | 83910-09 | BRACKET, parking brake, left | ALL |
| 21 | 83911-09B | KIT, brake pads w/ 8337, 83907-09 & 83908-09 (set of 4) | ALL |

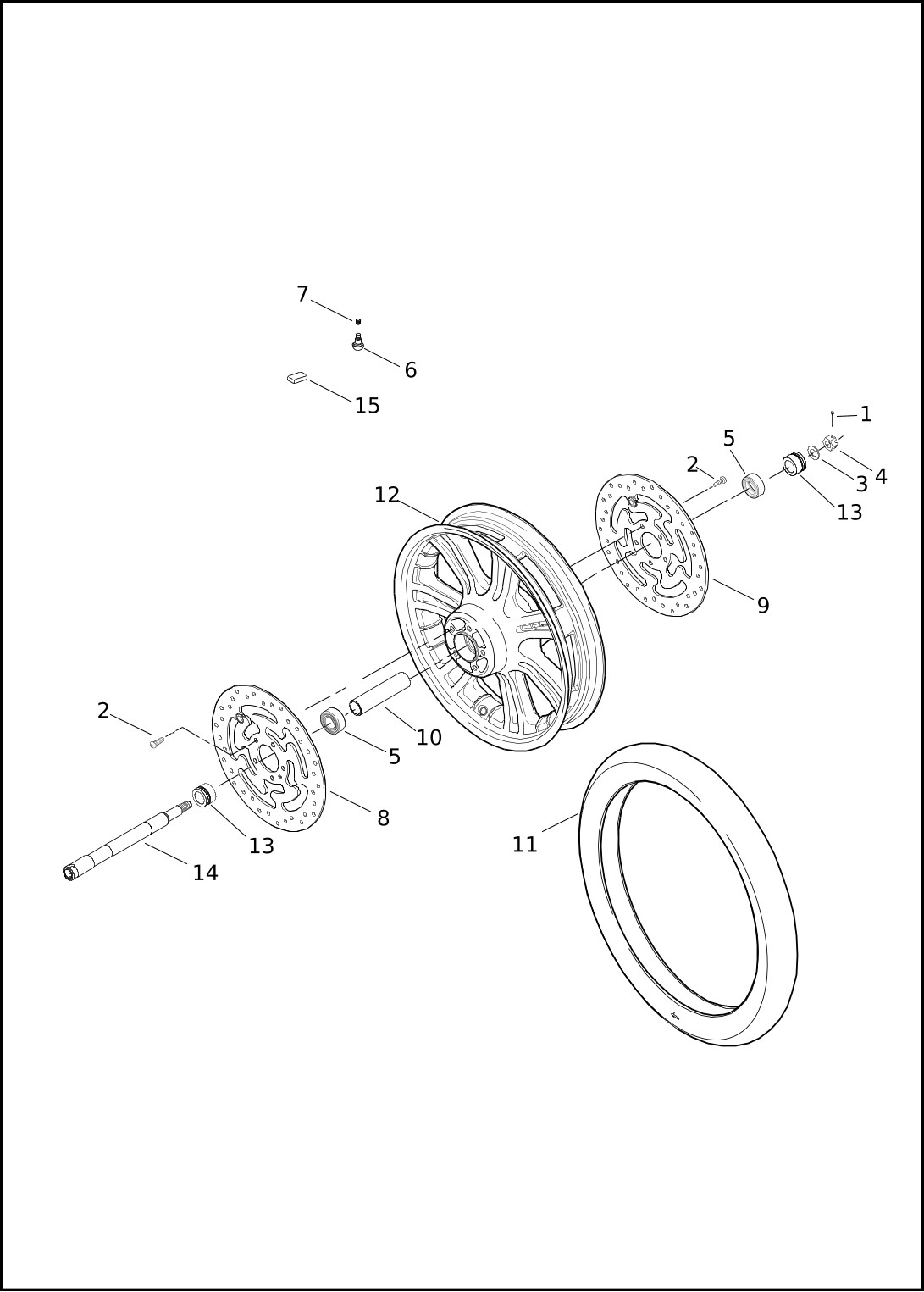

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 520W | COTTER PIN | ALL |
| 2 | 3655A | SCREW (10) | ALL |
| 3 | 6594 | WASHER | ALL |
| 4 | 7823 | NUT | ALL |
| 5 | 9276A | BALL BEARING (2) | ALL |
| 6 | 40999-87 | VALVE STEM, for cast wheels | ALL |
| 7 | 41123-79 | VALVE CAP | ALL |
| 8 | 41808-08 | BRAKE DISC, right | ALL |
| 9 | 41809-08 | BRAKE DISC, left | ALL |
| 10 | 41900-08 | SLEEVE, bearing spacer | ALL |
| 11 | 43022-91A | TIRE | ALL |
| 12 | 83326-09 | WHEEL, cast, 16 in., 7 spoke, w/o bearings & sleeve (black) | ALL |
| 13 | 83888-09 | SPACER (2) | ALL |
| 14 | 83889-09 | AXLE | ALL |
| 15 | 95595-84A | WEIGHT, 5 grams, cast wheels (silver) (6) | ALL |
WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4751 | SCREW (2) | ALL |
| 2 | 6703 | WASHER (2) | ALL |
| 3 | 40999-87 | VALVE STEM, cast wheels (2) | ALL |
| 4 | 41123-79 | VALVE CAP (2) | ALL |
| 5 | 83324-09 | TIRE (2) | ALL |
| 6 | 83327-09 | WHEEL, rear, 7 spoke, 15 inch (black) (2) | ALL |
| 7 | 83328-09 | LUG NUT, rear wheel (chrome) (8) | ALL |
| 8 | 83383-09 | CENTER CAP ASSEMBLY, rear wheel (2) | ALL |
| 9 | 83385-09 | CLAMP, center cap (2) | ALL |
| 10 | 95595-84A | WEIGHT, 5 grams, cast wheels (silver) (12) | ALL |
AXLE ASSEMBLY, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4795 | SCREW (8) | ALL |
| 2 | 6701 | WASHER (8) | ALL |
| 3 | 8308 | SCREW (8) | ALL |
| 4 | 8313 | SCREW (10) | ALL |
| 5 | 8319 | SCREW (4) | ALL |
| 6 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 7 | 83310-09 | T-BOLT, bearing retainer (8) | ALL |
| 8 | 83311-09 | STUD, wheel (8) | ALL |
| 9 | 83312-09 | NUT (8) | ALL |
| 10 | 83313-09 | RETAINER, bearing (2) | ALL |
| 11 | 83314-09 | BEARING, wheel (2) | ALL |
| 12 | 83315-09 | RETAINER, axle shaft (2) | ALL |
| 13 | 83316-09 | RETAINER, snap ring (2) | ALL |
| 14 | 83317-09 | BEARING, case (2) | ALL |
| 15 | 83323-09 | BOLT (4) | ALL |
| 16 | 83331-09 | SNAP RING, sprocket bearing | ALL |
| 17 | 83371-09B | AXLE ASSEMBLY, rear, w/ reverse, w/ 3, 4, 5, 6, 14, 15, 16, 18, 19, 20, 21, 22, 23, 24, 25 & 28 | ALL |
| 18 | 83402-09A | SHAFT ASSEMBLY, axle, left, w/ 8, 10, 11, 12 & 13 | ALL |
| 19 | 83403-09A | SHAFT ASSEMBLY, axle, right, w/ 8, 10, 11, 12 & 13 | ALL |
| 20 | 83408-09A | HOUSING, axle, rear | ALL |
| 21 | 83850-09 | KIT, COMPENSATOR BOWL, w/ 8313 | ALL |
| 22 | 83424-09 | SPROCKET ASSEMBLY, 70T | ALL |
| 23 | 83429-09 | BRACKET, caliper reaction (2) | ALL |
| 24 | 83450-09 | DIFFERENTIAL ASSEMBLY, rear, w/ 26 & 27 | ALL |
| 25 | 83456-09 | DOWEL PIN (2) | ALL |
| 26 | 83460-09 | PLUG, grease | ALL |
| 27 | 83848-09 | BEARING SEAL (2) | ALL |
| 28 | 83849-09A | RING GEAR, reverse | ALL |
STEERING DAMPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | ALL |
| 2 | 7531 | LOCKNUT | ALL |
| 3 | 7992 | ACORN NUT | ALL |
| 4 | 8324 | WASHER | ALL |
| 5 | 83808-09A | STEERING DAMPER | ALL |
| 6 | 83863-09 | BRACKET, side mounting, right | ALL |
| 7 | 83864-09 | SPACER, damper rod side bracket | ALL |
| 8 | 83865-09 | BRACKET, steering damper | ALL |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | ROLL PIN | ALL |
| 2 | 3537 | SCREW (4) | ALL |
| 3 | 4240 | SCREW | ALL |
| 4 | 7068 | LOCKWASHER (2) | ALL |
| 5 | 8300 | SCREW (2) | ALL |
| 6 | 10138 | TAB, electrical ground | ALL |
| 7 | 45419-80 | BOLT, fork (2) | ALL |
| 8 | 45442-86 | GUIDE BUSHING (2) | ALL |
| 9 | 45718-60 | NUT | ALL |
| 10 | 45727-08 | WASHER | ALL |
| 11 | 45733-48 | OIL SEAL, fork bracket bolt (2) | ALL |
| 12 | 45964-86 | COVER ASSEMBLY, fork tube (2) | ALL |
| 13 | 48300-60 | ROLLER BEARING, steering head, w/ 48315-60 (2) | ALL |
| 14 | 48315-60 | CUP, bearing (2) | ALL |
| 15 | 48333-80 | SEAT, upper head cone | ALL |
| 16 | 48361-80 | DUST SHIELD, bearing, upper | ALL |
| 17 | 48365-48A | DIRT GUARD, bearing, steering head | ALL |
| 18 | 83374-09 | BRACKET ASSEMBLY, fork stem, w/ 48365-48A | ALL |
| 19 | 83404-09A | BRACKET, upper fork stem | ALL |
FORK, FRONT, LEFT & RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (right) (2) | ALL |
| 2 | 7041 | LOCKWASHER (right) (2) | ALL |
| 3 | 7748W | NUT (right) (2) | ALL |
| 4 | 45419-80 | BOLT, fork (2) | ALL |
| 5 | 45733-48 | OIL SEAL (2) | ALL |
| 6 | 45803-97 | STOP, oil lock piece (2) | ALL |
| 7 | 45835-00 | HOLDER, axle (right) | ALL |
| 8 | 45838-77 | BOLT, front fork (2) | ALL |
| 9 | 45933-86 | REBOUND SPRING (2) | ALL |
| 10 | 45998-73 | STUD (right) (2) | ALL |
| 11 | 46209-09 | DAMPING VALVE (2) | ALL |
| 12 | 46422-09 | DAMPER TUBE, w/ piston ring (2) | ALL |
| 13 | 49377-09A | FORK REBUILD KIT | ALL |
| 14 | 60253-07 | REFLECTOR, amber (2) | ALL |
| 15 | 83499-09 | SPRING (2) | ALL |
| 16 | 83800-09 | FORK ASSEMBLY, complete (left) | ALL |
| 17 | 83801-09 | FORK ASSEMBLY, complete (right) | ALL |
| 18 | 83804-09 | FORK TUBE ASSEMBLY, w/ bushing (2) | ALL |
| 19 | 83815-09 | SLIDER, fork (left) | ALL |
| 20 | 83817-09 | SLIDER, fork (right), w/ 45998-73 | ALL |
| 21 | 45405-75A | SCREW, w/ washer (2) | ALL |
| 22 | 45842-77A | RETAINING RING, oil seal (2) | ALL |
| 23 | 45845-77 | O-RING (2) | ALL |
| 24 | 45859-77A | RING, piston damper tube (2) | ALL |
| 25 | 45865-84 | SPACER SEAL (2) | ALL |
| 26 | 45866-84 | BUSHING, slider (2) | ALL |
| 27 | 45875-84A | OIL SEAL (2) | ALL |
| 28 | 45940-84 | BUSHING (2) | ALL |
SHOCK ABSORBERS, REAR & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 4622 | SCREW (4) | ALL |
| 2 | 4795 | SCREW (6) | ALL |
| 3 | 6701 | WASHER (6) | ALL |
| 4 | 10006 | CABLE STRAP (3) | ALL |
| 5 | 54320-97 | FITTING, push-in, shock absorber (2) | ALL |
| 6 | 54321-85 | NUT | ALL |
| 7 | 54323-85A | CAP VALVE | ALL |
| 8 | 54357-03 | DUAL FITTING, air inlet | ALL |
| 9 | 83480-09 | SHOCK ABSORBER, rear, w/ 54320-97 (2) | ALL |
| 10 | 83497-09 | VALVE & AIRLINE ASSEMBLY, rear shock, w/ 54321-85, 54354-94A & 54357-03 | ALL |
| 11 | 83860-09 | BRACKET ASSEMBLY, shock mounting, left, lower | ALL |
| 12 | 83861-09 | BRACKET ASSEMBLY, shock mounting, right, lower | ALL |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 13 | 54354-94A | HOSE, 5/32 inch O.D. (25-foot length) (black) | ALL |
FRAME, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | ALL |
| 2 | 3787 | BOLT (4) | ALL |
| 3 | 4688 | SCREW (2) | ALL |
| 4 | 4924 | SCREW (2) | ALL |
| 5 | 6036 | WASHER (4) | ALL |
| 6 | 6116 | WASHER | ALL |
| 7 | 7495 | NUT (2) | ALL |
| 8 | 8108 | SPEEDNUT (2) | ALL |
| 9 | 8194 | NUT, special (2) | ALL |
| 10 | 8483A | RIVET, blind (2) | ALL |
| 11 | 10039 | CABLE STRAP (6) | ALL |
| 12 | 10065 | CABLE STRAP | ALL |
| 13 | 10336 | CLIP, conduit, rosebud mount | ALL |
| 14 | 10394 | CLIP, conduit, rosebud mount | ALL |
| 15 | 11650 | GROMMET, side cover (6) | ALL |
| 16 | 14148-86 | ENGINE GUARD LABEL | ALL |
| 17 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 18 | 48315-60 | BEARING CUP (2) | ALL |
| 19 | 49184-09 | ENGINE GUARD, w/ 2708A, 6116 & 14148-86 | ALL |
| 20 | 50096-09 | BRACKET | ALL |
| 21 | 50972-75 | FITTING, lubrication | ALL |
| 22 | 58167-09 | DEFLECTOR, air, right | ALL |
| 58169-09 | DEFLECTOR, air, left | ALL | |
| 23 | 69318-02 | CLAMP | ALL |
| 24 | 69336-03 | CLAMP | ALL |
| 25 | 70980-09 | TRAY, wire trough (main harness) | ALL |
| 26 | 70981-09 | COVER, wire trough (main harness), w/ 15368-01A | ALL |
| 27 | 83411-11BHP | FRAME, main, w/ 48315-60, 50972-75 & 90329-98 | ALL |
| 28 | 83865-09 | BRACKET, steering damper | ALL |
| 29 | 90469-94 | PLUG (4) | ALL |
| 30 | 90329-98 | PLUG (black) (2) | ALL |
| 31 | 90520-07 | HOLE PLUG, jiffy stand | ALL |
FRAME, INTERMEDIATE & FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (2) | ALL |
| 2 | 3391 | SCREW (2) | ALL |
| 3 | 3536 | BOLT (6) | ALL |
| 4 | 4685 | SCREW (4) | ALL |
| 5 | 4686 | SCREW, hex (2) | ALL |
| 6 | 4687 | SCREW (6) | ALL |
| 7 | 4688 | SCREW (2) | ALL |
| 8 | 4930 | SCREW | ALL |
| 9 | 6532 | WASHER (6) | ALL |
| 10 | 7069 | LOCKWASHER | ALL |
| 11 | 7783 | NUT (2) | ALL |
| 12 | 9208 | BEARING (2) | ALL |
| 13 | 32495-98 | SWITCH, bank angle | ALL |
| 14 | 47505-02 | SHAFT, rear fork | ALL |
| 15 | 48487-02 | SPACER, outer (2) | ALL |
| 16 | 48489-02 | SPACER, inner (2) | ALL |
| 17 | 50588-09A | BRACKET, rear fork, left | ALL |
| 18 | 67875-11 | HOLE PLUG (black) (2) | ALL |
| 19 | 83366-09 | REAR FORK, w/ 9208 & 48489-02 | ALL |
| 20 | 83373-09A | ADAPTER PLATE, rear fork (2) | ALL |
| 21 | 83382-09 | RUBBER MOUNT (2) | ALL |
| 22 | 83407-09 | BRACE ASSEMBLY (2) | ALL |
| 23 | 83466-11BHP | FRAME, intermediate | ALL |
| 24 | 83496-09 | NUT, pivot, rear (2) | ALL |
| 25 | 83886-09 | WASHER (2) | ALL |
| 26 | 83943-09 | BRACKET, switch, bank angle | ALL |
| 27 | 11779 | FASTENER, push-in (black) | ALL |
FRAME, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4678 | SCREW | ALL |
| 2 | 4685 | SCREW (8) | ALL |
| 3 | 6408HB | WASHER (8) | ALL |
| 4 | 6645 | WASHER (4) | ALL |
| 5 | 6718 | WASHER (2) | ALL |
| 6 | 7768W | LOCKNUT | ALL |
| 7 | 8328 | WASHER, rod end (2) | ALL |
| 8 | 8369 | BOLT (4) | ALL |
| 9 | 76259-86 | NUT (2) | ALL |
| 10 | 83823-09 | PANHARD ROD ASSEMBLY, w/ 76259-86 | ALL |
| 11 | 47000004B | SUB-FRAME ASSEMBLY, rear, with 12, 13, 14 | ALL |
| 12 | 47200096 | BAR | ALL |
| 13 | 6109 | WASHER (2) | ALL |
| 14 | 8343 | SCREW (2) | ALL |
SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | ALL |
| 2 | 2724 | SCREW (2) | ALL |
| 3 | 2952A | SCREW | ALL |
| 4 | 6716 | WASHER (2) | ALL |
| 5 | 7716 | LOCKNUT (6) | ALL |
| 6 | 52164-10 | SEAT | FLHTCUTG |
| 7 | 52192-86A | ISOLATOR KIT, passenger backrest | ALL |
| 8 | 52395-10 | BACKREST KIT, w/ 7716, 52192-86A, 53515-86 & 53517-86 (black) | FLHTCUTG |
| 9 | 53515-86 | BACKING PLATE | ALL |
| 10 | 53517-86 | BACKING PLATE, plastic | ALL |
| 11 | 83445-09 | BACKREST FLAP, passenger | ALL |
| 12 | 90844-80 | ACORN NUT (2) | ALL |
| 13 | 91583-99 | HANDRAIL ASSEMBLY, passenger | ALL |
| 14 | 52000066 | SEAT | FLHTCUTG ANV |
| 15 | 52300203 | BACKREST, w/ 52192-86A (black & brown) NOTE: Does not include passenger Tour-Pak backrest pad 52951-06 | FLHTCUTG ANV |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | ALL |
| 2 | 4032A | SCREW (2) | ALL |
| 3 | 4688 | SCREW (2) | ALL |
| 4 | 4916 | SCREW (2) | ALL |
| 5 | 7038 | LOCKWASHER (4) | ALL |
| 6 | 7601 | LOCKNUT (2) | ALL |
| 7 | 7716 | LOCKNUT (4) | ALL |
| 8 | 8860 | BALL (2) | ALL |
| 9 | 33085-74 | SPRING (2) | ALL |
| 10 | 47365-09 | BRACKET, front footboard (2) | ALL |
| 11 | 50518-09 | BRACKET, right rear | ALL |
| 12 | 50606-06 | PAD, passenger footboard (2) | ALL |
| 13 | 50613-91A | FOOTREST, passenger (2) | ALL |
| 14 | 50614-06 | PAD, footboard (2) | ALL |
| 15 | 50621-06 | FOOTBOARD ASSEMBLY, operator, w/ 50614-06 (2) | ALL |
| 16 | 50622-09 | BRACKET, left-rear | ALL |
| 17 | 50674-05 | SHOULDER BOLT, footboard (4) | ALL |
| 18 | 50933-86A | PIVOT PIN (4) | ALL |
| 19 | 52719-10 | SUPPORT, footboard (2) | ALL |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2531 | SCREW (6) | ALL |
| 2 | 2604 | SCREW (2) | ALL |
| 3 | 3092 | SCREW (4) | ALL |
| 4 | 3560WA | BOLT (2) | ALL |
| 5 | 3561WC | BOLT (2) | ALL |
| 6 | 7600 | NUT (6) | ALL |
| 7 | 7613A | PUSH NUT (6) | ALL |
| 8 | 7624 | LOCKNUT (4) | ALL |
| 9 | 7629 | NUT (2) | ALL |
| 10 | 7739 | LOCKNUT (4) | ALL |
| 11 | 8338 | WASHER, clipped (4) | ALL |
| 12 | 11437 | GROMMET, wiring harness | ALL |
| 13 | 59087-00B | FENDER (prime) | ALL |
| 59072-04BHY | FENDER (vivid black) | FLHTCUTG | |
| 59072-12DJQ | FENDER (2 tone big blue pearl /vivid black) | FLHTCUTG | |
| 59072-12DJT | FENDER (ember red sunglo) | FLHTCUTG | |
| 59072-13DKG | FENDER (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 59112-13DPZ | FENDER (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 14 | 59166-80 | LOCKPLATE (2) | ALL |
| 15 | 59180-80 | LENS, fender lamp (amber) | ALL |
| 16 | 59211-74A | TRIM, front fender (2) | ALL |
| 17 | 59231-86 | TRIM SKIRT, front fender, lower | ALL |
| 18 | 68193-95 | BULB, fender tip lamp | ALL |
| 19 | 68706-00 | FENDER LIGHT ASSEMBLY, w/ 59180-80, 68193-95, 73152-96BK & 73191-96 | ALL |
| 20 | 70196-00 | WIRE HARNESS ASSEMBLY, jumper, w/ 73102-96BK, 73190-96 & 73191-96 | ALL |
| 21 | 73102-96BK | PIN HOUSING, 2-place | ALL |
| 22 | 73152-96BK | SOCKET HOUSING, 2-place (2) | ALL |
| 23 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | ALL |
| 24 | 73191-96 | TERMINAL, socket, 16-20 gauge (4) | ALL |
| 25 | 83942-09 | COVER, fender (2) | ALL |
| 26 | 84027-11 | NAMEPLATE, Tri Glide (2) | ALL |
FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | ALL |
| 2 | 6703 | WASHER (2) | ALL |
| 3 | 8360 | SCREW (12) | ALL |
| 4 | 10102 | CLIP, small (4) | ALL |
| 5 | 10103 | CLIP, large (2) | ALL |
| 6 | 59407-01 | REFLECTOR (2) | ALL |
| 7 | 83356-11BHY | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (vivid black) | FLHTCUTG |
| 83356-12DJQ | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (2 tone big blue pearl/vivid black) | FLHTCUTG | |
| 83356-13DJT | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (ember red sunglo) | FLHTCUTG | |
| 83356-13DKG | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 83356-13DPZ | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 8 | 83359-11BHY | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (vivid black) | FLHTCUTG |
| 83359-12DJQ | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (2 tone big blue pearl/vivid black) | FLHTCUTG | |
| 83359-13DJT | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (ember red sunglo) | FLHTCUTG | |
| 83359-13DKG | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 83359-13DPZ | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 9 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | ALL |
| 10 | 83811-09 | FOAM TAPE (4) | ALL |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | ALL |
| 2 | 10039 | CABLE STRAP (2) | ALL |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | ALL |
| 4 | 11323 | O-RING, check valve to fuel tank | ALL |
| 5 | 27291-09 | TUBE, evaporative line, tank | ALL |
| 6 | 27440-09 | TUBE, evaporative line (except California) | ALL |
| 7 | 61208-10 | FUEL LINE KIT, tank to intake | ALL |
| 8 | 61356-08 | FUEL TANK (prime) | ALL |
| 61356-08BHY | FUEL TANK, w/ 62286-08 & 62287-08 (vivid black) | FLHTCUTG | |
| 61356-12DJQ | FUEL TANK, w/ 62288-08 & 62289-08 (2 tone big blue pearl /vivid black) | FLHTCUTG | |
| 61356-12DJT | FUEL TANK, w/ 62286-08 & 62287-08 (ember red sunglo) | FLHTCUTG | |
| 61356-13DKG | FUEL TANK, w/ 62288-08 & 62289-08 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 61356-13DPZ | FUEL TANK, w/ 14100261 & 14100262 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 9 | 62228-08A | CHECK VALVE, assembly, w/ 10396 & 11323 | ALL |
| 10 | 62286-08 | MEDALLION, left (for vivid black, ember red sunglo tanks) | FLHTCUTG |
| 62287-08 | MEDALLION, right (for vivid black, ember red sunglo tanks) | FLHTCUTG | |
| 11 | 62288-08 | MEDALLION, left (for 2 tone big blue pearl/vivid black, 2 tone midnight pearl/briliant silver pearl tanks) | FLHTCUTG |
| 62289-08 | MEDALLION, right (for 2 tone big blue pearl/vivid black, 2 tone midnight pearl/briliant silver pearl tanks) | FLHTCUTG | |
| 12 | 70901-09 | BOOT, tank bracket, right | ALL |
| 13 | 70999-09 | BOOT, tank bracket, left | ALL |
| 14 | 14100261 | MEDALLION, left (for 2 tone anniversary vintage bronze/anniversary vintage black tanks) **RESTRICTED SALES PART** | FLHTCUTG ANV |
| 14100262 | MEDALLION, right (for 2 tone anniversary vintage bronze/anniversary vintage black tanks) **RESTRICTED SALES PART** | FLHTCUTG ANV |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3529 | SCREW (2) | ALL |
| 2 | 3588 | SCREW | ALL |
| 3 | 4194 | SCREW (2) | ALL |
| 4 | 4856 | SCREW | ALL |
| 5 | 8142 | NUT, speed | ALL |
| 6 | 10065 | CABLE STRAP (3) | ALL |
| 7 | 10103 | CLIP, adhesive backed (2) | ALL |
| 8 | 10105 | CLIP, hinge mounting | ALL |
| 9 | 15341-08 | HOUSING, pod | ALL |
| 10 | 15347-08 | INSERT, cb console pod | ALL |
| 11 | 61029-92A | LOCK, fuel tank, w/ 84850-92 | ALL |
| 12 | 61081-92 | COVER, key-head, set (2) | ALL |
| 13 | 61109-85D | GASKET, filler cap | ALL |
| 14 | 61112-08 | BOOT | ALL |
| 15 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | ALL |
| 16 | 61274-92 | FUEL FILLER CAP, vacuum vented, w/ 61109-85D | ALL |
| 17 | 61278-08 | DOOR, console | FLHTCUTG |
| 61293-08 | DOOR, console | FLHTCUTG ANV | |
| 18 | 61313-88 | BUMPER, cover (2) | ALL |
| 19 | 62775-08 | TRIM COVER, fuel tank | ALL |
| 20 | 67493-08 | BRACKET, console mount | ALL |
| 21 | 69241-08 | DRAIN HOSE, console | ALL |
| 22 | 71294-08 | MOLDING, rubber (2) | ALL |
| 23 | 71452-91A | KEY (specify key code - for key codes 3000-4102) | ALL |
| 24 | 74119-98BK | HOUSING, socket, 12-way (black) | ALL |
| 25 | 74159-98 | SECONDARY LOCK, 12-way socket | ALL |
| 26 | 74191-98 | SOCKET TERMINAL (7) | ALL |
| 27 | 74195-98 | SEAL PIN (5) | ALL |
| 28 | 76266-98A | CAP ASSEMBLY, weather | ALL |
| 29 | 77121-08 | HARNESS, console DIN, w/ 10065, 74119-98BK, 74159-98, 74191-98 & 74195-98 | ALL |
| 30 | 77136-08 | CONSOLE POD ASSEMBLY, w/ 15341-08, 76266-98A & 77121-08 | ALL |
| 31 | 84850-92 | NUT | ALL |
| 32 | 14100373 | BADGE, console cover, serialized **RESTRICTED SALES PART** | FLHTCUTG ANV |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2625 | SCREW (4) | ALL |
| 2 | 10177 | CABLE STRAP, tree mount | ALL |
| 3 | 67043-96 | NUT (8) | ALL |
| 4 | 67348-04D | TACHOMETER | ALL |
| 5 | 67349-08 | SPEEDOMETER, mph (Domestic, California) | ALL |
| 67350-08 | SPEEDOMETER, kph (Canada) | ALL | |
| 6 | 67352-96A | BACKCLAMP, 2 in. gauge (4) | ALL |
| 7 | 67356-00 | GASKET, speedometer/tachometer (2) | ALL |
| 8 | 67445-00 | BULB, w/ rubber boot (4) | ALL |
| 9 | 67689-04 | BACKCLAMP, 4 in. gauge (2) | ALL |
| 10 | 67854-98 | SWITCH, odometer reset | ALL |
| 11 | 67880-94 | BOOT, odometer reset switch | ALL |
| 12 | 68382-07A | BEZEL ASSEMBLY, indicator lamp | ALL |
| 13 | 68789-96B | INDICATOR LAMP ASSEMBLY, w/ 73160-96BK | ALL |
| 14 | 73103-96BK | PIN HOUSING, 3-way | ALL |
| 15 | 73160-96BK | SOCKET HOUSING, 10-way | ALL |
| 16 | 74419-96A | SENSOR, air temperature, w/ 73103-96BK | ALL |
| 17 | 74526-96C | VOLTMETER | ALL |
| 75032-99B | OIL PRESSURE GAUGE, w/ 67445-00 & 75044-96 | ALL | |
| 75109-96C | AIR TEMPERATURE GAUGE, w/ 67445-00 & 75044-96 | ALL | |
| 75111-08 | FUEL GAUGE | ALL | |
| 18 | 75044-96 | SOCKET (4) | ALL |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | ALL |
| 2 | 11686 | O-RING | ALL |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | ALL |
| 4 | 61012-04A | CLIP, filter retainer | ALL |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ O-rings & screen | ALL |
| 6 | 61213-04A | CLIP, regulator retainer | ALL |
| 7 | 61402-08 | GASKET, top plate | ALL |
| 8 | 62229-08B | FILTER SHELL | ALL |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | ALL |
| 10 | 70369-08 | HARNESS, fuel tank, w/ 11, 12, 13, 14, 15 & 16 | ALL |
| 11 | 72485-07 | SOCKET HOUSING, 4-way (black) | ALL |
| 12 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | ALL |
| 13 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | ALL |
| 14 | 72557-07 | SECONDARY LOCK, 4-way | ALL |
| 15 | 73154-96BK | SOCKET HOUSING, 4-way (black) | ALL |
| 16 | 73191-96 | TERMINAL, socket, 16-20 gauge (4) | ALL |
| 17 | 75069-08C | TOP PLATE ASSEMBLY, w/ 3, 4, 5, 6, 8, 19 & 24 | ALL |
| 18 | 75089-08 | RING, fuel tank, cam | ALL |
| 19 | 75147-08B | TOP PLATE | ALL |
| 20 | 75205-08A | FUEL LEVEL SENDER | ALL |
| 21 | 75229-08 | HARNESS, fuel pump module | ALL |
| 22 | 75254-04A | STRAINER, fuel pump inlet | ALL |
| 23 | 75269-08 | TRANSFER TUBE, fuel pump | ALL |
| 24 | 75322-09 | HARNESS, ground, fuel pump module | ALL |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | ALL |
| 2 | 27291-09 | EVAP LINE, tank | ALL |
| 3 | 27297-09 | EVAP LINE, canister | ALL |
| 4 | 27298-09 | EVAP LINE, purge to canister | ALL |
| 5 | 27439-09 | TUBE, solenoid to induction module | ALL |
| 6 | 27715-07 | SOLENOID, purge valve | ALL |
| 7 | 70681-09 | RETAINER | ALL |
| 8 | 60800006 | CARBON CANISTER | ALL |
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 1332 | SCREW (2) | ALL |
| 2 | 3514 | SCREW (2) | ALL |
| 3 | 6702 | WASHER (4) | ALL |
| 4 | 7041 | LOCKWASHER (2) | ALL |
| 5 | 7130W | LOCKWASHER (2) | ALL |
| 6 | 7606 | LOCKNUT (2) | ALL |
| 7 | 7667 | NUT (2) | ALL |
| 8 | 8329 | SCREW (4) | ALL |
| 9 | 10065 | CABLE STRAP (4) | ALL |
| 10 | 40901-05 | ISOLATOR, rubber (2) | ALL |
| 11 | 68331-02 | RING, auxiliary lamp (2) | ALL |
| 12 | 68414-05 | AUXILIARY LAMP, w/ 68453-05 (clear) (2) | ALL |
| 13 | 68453-05 | BULB, 26.9W auxiliary lamp (2) | ALL |
| 14 | 68725-62A | BEZEL RING, auxiliary lamp (2) | ALL |
| 15 | 68821-00 | STAND-OFF (2) | ALL |
| 16 | 68836-04A | BAR ASSEMBLY, left, w/ 69563-06 & bar | ALL |
| 68837-04A | BAR ASSEMBLY, right, w/ 69563-06 & bar | ALL | |
| 17 | 69325-02 | LENS, turn signal (2) | ALL |
| 18 | 69326-10 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02 & 69331-02 (2) | ALL |
| 19 | 69331-02 | BULB, turn signal (amber) (2) | ALL |
| 20 | 69563-06 | CLAMP BLOCK (2) | ALL |
| 21 | 69567-06 | HOUSING, auxiliary lamp assembly w/ 72161-06, 72298-95 & 72356-95 (2) | ALL |
| 22 | 72161-06 | SOCKET HOUSING, 2-way (2) | ALL |
| 23 | 72298-95 | CABLE SEAL (green) (4) | ALL |
| 24 | 72356-95 | TERMINAL, 18-20 AWG (4) | ALL |
| 25 | 73154-96BK | SOCKET HOUSING, 4-way (black) (2) | ALL |
| 26 | 73191-96 | TERMINAL, socket, 16-20 gauge (8) | ALL |
WINDSHIELD, FAIRING & HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (3) | ALL |
| 2 | 2446 | SCREW (2) | ALL |
| 3 | 4790 | SCREW (4) | ALL |
| 4 | 16585-96 | INSERT, threaded (4) | ALL |
| 5 | 58187-96 | WINDSHIELD | ALL |
| 6 | 58236-96 | FAIRING, outer (prime) | ALL |
| 58231-04BHY | FAIRING, outer, w/ 58247-96 & 62787-96 (vivid black) | FLHTCUTG | |
| 58231-12DJQ | FAIRING, outer, w/ 58247-96 & 62787-96 (2 tone big blue pearl/vivid black) | FLHTCUTG | |
| 58231-12DJT | FAIRING, outer, w/ 58247-96 & 62787-96 (ember red sunglo) | FLHTCUTG | |
| 58231-13DKG | FAIRING, outer, w/ 58247-96 & 62787-96 (2 tone midnight pearl/brilliant silver pearl) | FLHTCUTG | |
| 57000286DPZ | FAIRING, outer, w/ 58247-96 & 62787-96 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 7 | 58247-96 | CUSHION TAPE, windshield mounting | ALL |
| 8 | 58949-96 | NUT, extension (2) | ALL |
| 9 | 62786-96 | TRIM STRIP, skirt | ALL |
| 10 | 62787-96 | SEAL, fairing skirt | ALL |
| 11 | 67668-05 | MEDALLION | ALL |
| 12 | 67712-83A | DOOR, headlamp | ALL |
| 13 | 67718-60A | SCREW | ALL |
| 14 | 67721-48 | SCREW (3) | ALL |
| 15 | 67724-71 | ADJUSTING SCREW, headlamp (2) | ALL |
| 16 | 67726-08 | RETAINING RING, headlamp | ALL |
| 17 | 67728-02A | BUCKET ASSEMBLY, w/ 67724-71 & 67782-60A | ALL |
| 18 | 67732-08 | MOUNTING RING, headlamp | ALL |
| 19 | 67778-60A | SPRING CLIP, headlamp door | ALL |
| 20 | 67782-60A | BRACKET, door | ALL |
| 21 | 68329-03 | BULB | ALL |
| 22 | 68342-05 | HEADLAMP ASSEMBLY, w/ 67668-05, 68329-03 & 68390-05 | ALL |
| 23 | 68390-05 | BOOT | ALL |
| 24 | 83453-09 | SKIRT, outer fairing | ALL |
FAIRING, INNER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | ALL |
| 2 | 2446 | SCREW (2) | ALL |
| 3 | 2563 | SCREW (8) | ALL |
| 4 | 2965 | SCREW (upper) (4) | ALL |
| 3387 | SCREW (lower) (2) | ALL | |
| 5 | 3061 | SCREW (12) | ALL |
| 6 | 3612 | SCREW (4) | ALL |
| 7 | 7686 | LOCKNUT (2) | ALL |
| 8 | 7688 | NUT (2) | ALL |
| 9 | 10065 | CABLE STRAP (3) | ALL |
| 10 | 10103 | CLIP, adhesive backed | ALL |
| 11 | 11445 | GROMMET, clutch cable | ALL |
| 12 | 11488 | GROMMET, handlebar, right | ALL |
| 11492 | GROMMET, handlebar, left | ALL | |
| 13 | 16585-96 | INSERT, threaded (5) | ALL |
| 14 | 57638-08 | SNAP HINGE, air deflector (2) | ALL |
| 15 | 58128-08A | AIR DEFLECTOR, right, w/ 57638-08 | ALL |
| 58129-08A | AIR DEFLECTOR, left, w/ 57638-08 | ALL | |
| 16 | 58311-96 | TRIM SEAL, inner fairing, 29 inches long (2) | ALL |
| 17 | 58478-96B | BRACKET, fairing support, left | ALL |
| 18 | 58479-96B | BRACKET, fairing support, right | ALL |
| 19 | 58510-96 | CAP ASSEMBLY, inner fairing | ALL |
| 20 | 58938-96C | SUPPORT, inner fairing, left | ALL |
| 21 | 58939-96C | SUPPORT, inner fairing, right | ALL |
| 22 | 70271-98 | WIRE HARNESS ASSEMBLY, inner fairing cap, w/ 9, 23, 24, 26, 27, 28, 29 & 32 | ALL |
| 70585-93 | CONNECTOR, switch, speaker (not shown) (2) | ALL | |
| 23 | 71434-96A | BRACKET, switch (2) | ALL |
| 24 | 71505-96 | SWITCH, auxiliary/fog lamps, w/ 73191-96 | ALL |
| 25 | 73212-07 | ANCHOR, t-stud connector (2) | ALL |
| 26 | 71513-98 | SWITCH, cruise control, w/ 70585-93 & 73191-96 | ALL |
| 27 | 71535-96 | SWITCH, accessory, w/ 73191-96 | ALL |
| 28 | 73162-96BK | SOCKET HOUSING, 12-way | ALL |
| 29 | 73191-96 | TERMINAL, socket, 16-20 gauge (12) | ALL |
| 30 | 77029-06 | SPEAKER, 5-1/4 in. (2) | ALL |
| 31 | 77047-98 | SPEAKER ADAPTOR & GRILLE (2) | ALL |
| 32 | 77092-98 | SWITCH, speaker control, w/ 70585-93 & 73191-96 | ALL |
| 33 | 83464-09 | BRACKET, antenna, left | ALL |
| 34 | 83465-09 | BRACKET, antenna, right | ALL |
| 35 | 83810-09 | INNER FAIRING ASSEMBLY, w/ 7688 & 58311-96 | ALL |
| 36 | 91808-89 | ELEMENT, cigarette lighter | ALL |
| 37 | 91812-89A | SOCKET, cigarette lighter | ALL |
FAIRING LOWERS, ULTRA
| Index No. | Part No. | Description | Model(s) |
| 1 | 2995 | SCREW (10) | ALL |
| 2 | 3655A | SCREW (2) | ALL |
| 3 | 5429 | BOLT (2) | ALL |
| 4 | 6235 | WASHER (2) | ALL |
| 5 | 7415A | WASHER (2) | ALL |
| 6 | 7576 | NUT (2) | ALL |
| 7 | 7686 | LOCKNUT (2) | ALL |
| 8 | 7716 | LOCKNUT (4) | ALL |
| 9 | 8174 | SNAP, push in (8) | ALL |
| 10 | 8175 | CLIP (4) | ALL |
| 11 | 10039 | CABLE STRAP (2) | ALL |
| 12 | 27048-84 | CLAMP (2) | ALL |
| 13 | 58104-05 | SPRING (2) | ALL |
| 14 | 58105-05 | WASHER, serrated/nylon (black) (2) | ALL |
| 15 | 58173-05 | WASHER, serrated/nylon (white) (2) | ALL |
| 16 | 58491-10 | CAP, fairing, lower - left (unpainted) | ALL |
| 58491-10DH | CAP, fairing, lower - left (vivid black) | FLHTCUTG | |
| 58491-12DJO | CAP, fairing, lower - left (big blue pearl) | FLHTCUTG | |
| 58491-12DJS | CAP, fairing, lower - left (ember red sunglo) | FLHTCUTG | |
| 58491-12DKJ | CAP, fairing, lower - left (midnight pearl) | FLHTCUTG | |
| 58491-13DME | CAP, fairing, lower - left (anniversary vintage black) | FLHTCUTG ANV | |
| 58492-10 | CAP, fairing, lower - right (unpainted) | ALL | |
| 58492-10DH | CAP, fairing, lower - right (vivid black) | FLHTCUTG | |
| 58492-12DJO | CAP, fairing, lower - right (big blue pearl) | FLHTCUTG | |
| 58492-12DJS | CAP, fairing, lower - right (ember red sunglo) | FLHTCUTG | |
| 58492-12DKJ | CAP, fairing, lower - right (midnight pearl) | FLHTCUTG | |
| 58492-13DME | CAP, fairing, lower - right (anniversary vintage black) | FLHTCUTG ANV | |
| 17 | 58679-05 | DOOR ASSEMBLY, glovebox - right | ALL |
| 58681-05 | DOOR ASSEMBLY, glovebox - left | ALL | |
| 18 | 58683-05 | STORAGE COMPARTMENT ASSEMBLY, left | ALL |
| 58684-05 | STORAGE COMPARTMENT ASSEMBLY, right | ALL | |
| 19 | 58816-05A | FAIRING, lower - left (unpainted) | ALL |
| 58836-05DH | FAIRING, lower - left (vivid black) | FLHTCUTG | |
| 58836-12DJO | FAIRING, lower - left (big blue pearl) | FLHTCUTG | |
| 58836-12DJS | FAIRING, lower - left (ember red sunglo) | FLHTCUTG | |
| 58836-13DKJ | FAIRING, lower - left (midnight pearl) | FLHTCUTG | |
| 58836-13DME | FAIRING, lower - left (anniversary vintage black) | FLHTCUTG ANV | |
| 58817-05A | FAIRING, lower - right (unpainted) | ALL | |
| 58837-05DH | FAIRING, lower - right (vivid black) | FLHTCUTG | |
| 58837-12DJO | FAIRING, lower - right (big blue pearl) | FLHTCUTG | |
| 58837-12DJS | FAIRING, lower - right (ember red sunglo) | FLHTCUTG | |
| 58837-13DKJ | FAIRING, lower - right (midnight pearl) | FLHTCUTG | |
| 58837-13DME | FAIRING, lower - right (anniversary vintage black) | FLHTCUTG ANV | |
| 20 | 58889-05 | VENT, lower - right | ALL |
| 58890-05 | VENT, lower - left | ALL | |
| 21 | 58891-05 | FACE OVERMOLD, glovebox - right | ALL |
| 58901-05 | FACE OVERMOLD, glovebox - left | ALL | |
| 22 | 58893-05 | TRAY, glovebox - right | ALL |
| 58903-05 | TRAY, glovebox - left | ALL |
SWITCHES, HANDLEBAR, LEFT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW | ALL |
| 2 | 2955 | SCREW (3) | ALL |
| 3 | 3658 | SCREW (4) | ALL |
| 4 | 4015 | SCREW (2) | ALL |
| 5 | 6099 | WASHER (2) | ALL |
| 6 | 10006 | CABLE STRAP | ALL |
| 7 | 10181 | CABLE STRAP (8) | ALL |
| 8 | 70373-96 | BRACKET, switch, lower left | ALL |
| 9 | 71567-96 | HOUSING, upper left | ALL |
| 10 | 71594-98A | HOUSING, lower left | ALL |
| 11 | 71603-02B | HOUSING, left, reverse switch (black) | ALL |
| 12 | 71620-08 | SWITCH KIT, clutch, w/ 10181 & 72266-94 | ALL |
| 13 | 71642-08 | SWITCH KIT, audio control +/-, w/ 10181 & 72266-94 | ALL |
| 14 | 71682-06A | SWITCH KIT, dimmer/horn, w/ 10181 & 72266-94 | ALL |
| 15 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 | ALL |
| 16 | 71735-08 | SWITCH KIT, SQ +/-, PTT, w/ 10181 & 72266-94 | ALL |
| 17 | 71711-02 | HOUSING, right, top (black) | ALL |
| 18 | 71714-02 | BRACKET, switch support | ALL |
| 19 | 71817-07 | PLUG, w/ hole, switch | ALL |
| 20 | 71820-98 | KNOB, audio control +/- | ALL |
| 21 | 71824-98 | KNOB, SQ+/-, PTT | ALL |
| 22 | 72169-07 | TERMINAL, pin, 16-20 AWG (20) | ALL |
| 23 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 in. x 2 in. (4) | ALL |
| 24 | 72415-07GY | HOUSING, 4-way pin (gray) | ALL |
| 25 | 72473-07 | SEAL PIN (2) | ALL |
| 26 | 72492-07GY | HOUSING, pin, 16-way (gray) | ALL |
| 27 | 83338-09A | KIT - HAND SWITCH ASSEMBLY, reverse, w/ 10006, 71714-02, 71817-07 & 72169-07 | ALL |
| 28 | 83883-09A | HAND SWITCH ASSEMBLY, reverse w/ 6, 11, 17, 18, 19, 22, 24 & 27 | ALL |
SWITCHES, HANDLEBAR, RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW | ALL |
| 2 | 2955 | SCREW (3) | ALL |
| 3 | 3658 | SCREW (2) | ALL |
| 4 | 10181 | CABLE STRAP (7) | ALL |
| 5 | 70375-96 | BRACKET, switch, lower right | ALL |
| 6 | 71564-96 | HOUSING, upper right | ALL |
| 7 | 71587-04 | V-CLIP | ALL |
| 8 | 71595-08 | HOUSING, lower right | ALL |
| 9 | 71621-08 | STOPLAMP SWITCH KIT, w/ 10181 & 72266-94 | ALL |
| 10 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | ALL |
| 11 | 71684-06A | SWITCH KIT, engine stop/start, w/ 10181 & 72266-94 | ALL |
| 12 | 71787-08 | SWITCH KIT, mode select up/down, w/ 10181 & 72266-94 | ALL |
| 13 | 71788-08 | SWITCH KIT, cruise control, set/resume, w/ 10181 & 72266-94 | ALL |
| 14 | 71822-98 | KNOB, mode select up/down | ALL |
| 15 | 71825-96A | KNOB, cruise control, set/resume | ALL |
| 16 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | ALL |
| 17 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 inches (4) | ALL |
| 18 | 72488-07BK | HOUSING, 12-way (black) | ALL |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3605 | BOLT (2) | ALL |
| 2 | 4240 | SCREW | ALL |
| 3 | 10065 | CABLE STRAP (4) | ALL |
| 4 | 55918-08 | CLAMP, upper | ALL |
| 5 | 55924-08 | HANDLEBAR | ALL |
| 6 | 56149-88B | RISER, lower, right | ALL |
| 56151-88B | RISER, lower, left | ALL | |
| 7 | 56159-73 | CUP WASHER (4) | ALL |
| 8 | 56161-83A | BUSHING, rubber (4) | ALL |
| 9 | 56163-93 | SPACER (2) | ALL |
| 10 | 70142-94 | CABLE ASSEMBLY, handlebar ground, w/ 72241-94A | ALL |
| 11 | 72241-94A | TERMINAL, 10 ring, 14-18 gauge | ALL |
| 12 | 12600003 | SCREW (4) | ALL |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32305-08A | SENSOR, twist grip, w/ 32306-08, 72902-01BK & 72990-01 | ALL |
| 2 | 32306-08 | SEAL CAP, throttle sensor | ALL |
| 3 | 56248-08 | GRIP, left | ALL |
| 4 | 56304-08 | GRIP & SLEEVE, throttle, right | ALL |
| 5 | 70415-08A | HARNESS, throttle, jumper | ALL |
| 6 | 72169-07 | TERMINAL, pin, 16-18 AWG (6) | ALL |
| 7 | 72188-07BK | HOUSING, 6-way (black) | ALL |
| 8 | 72902-01BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 9 | 72912-01BK | SOCKET HOUSING, 2-way (black) | ALL |
| 10 | 72990-01 | PIN TERMINAL (4) | ALL |
| 11 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | ALL |
| 12 | 73212-07 | ANCHOR, t-stud connector | ALL |
TAIL LAMP & TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | ALL |
| 2 | 6703 | WASHER (2) | ALL |
| 3 | 68026-99 | SCREW (4) | ALL |
| 4 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A (2) | ALL |
| 5 | 68167-04 | BULB, tail lamp, wedge mount (2) | ALL |
| 6 | 68245-03 | LENS, tail lamp, w/ 68026-99 (2) | ALL |
| 7 | 68296-99A | TAIL LIGHT BASE (chrome) (2) | ALL |
| 8 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK & 73191-96 (2) | ALL |
| 9 | 68830-99A | CIRCUIT BOARD & COVER (2) | ALL |
| 10 | 73154-96BK | SOCKET HOUSING, 4-way (2) | ALL |
| 11 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | ALL |
WIRING HARNESS, TURN SIGNALS & LIGHTS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | ALL |
| 2 | 10102 | CLIP, small (4) | ALL |
| 3 | 10103 | CLIP, large (2) | ALL |
| 4 | 10270 | CABLE STRAP | ALL |
| 5 | 73102-96BK | PIN HOUSING, 2 place (2) | ALL |
| 6 | 73103-96BK | PIN HOUSING, 3 place | ALL |
| 7 | 73108-96BK | PIN HOUSING, 8 place | ALL |
| 8 | 73152-96BK | SOCKET HOUSING, 2-way, (black) | ALL |
| 9 | 73156-96BK | HOUSING, socket, 6-way, single row (2) | ALL |
| 10 | 73158-96BK | HOUSING, socket, 8 position (2) | ALL |
| 11 | 73190-96 | TERMINAL, pin, 16-20 AWG (13) | ALL |
| 12 | 73191-96 | TERMINAL, socket, 16-20 AWG (22) | ALL |
| 13 | 83334-09B | HARNESS, rear lights, w/ 73102-96BK, 73103-96BK, 73152-96BK, 73156-96BK, 73158-96BK, 73190-96 & 73191-96 | ALL |
| 14 | 83386-09 | MODULE, CONVERTER, tail & turn signal lamp, rear harness, w/ 73108-96BK, 73158-96BK, 73190-96 & 73191-96 | ALL |
| 15 | 83439-09 | GROMMET | ALL |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3576 | SCREW | ALL |
| 2 | 3929 | SCREW (4) | ALL |
| 3 | 4705 | SCREW (2) | ALL |
| 4 | 5416 | BOLT | ALL |
| 5 | 7041 | LOCKWASHER (4) | ALL |
| 6 | 7593 | NUT (4) | ALL |
| 7 | 7601 | LOCKNUT | ALL |
| 8 | 9955 | CLAMP, worm drive #24 (7) | ALL |
| 9 | 9956 | CLAMP, worm drive #40 | ALL |
| 10 | 10039 | CABLE STRAP (2) | ALL |
| 11 | 11936 | GASKET, oxygen (O2) sensor (2) | ALL |
| 12 | 27729-10 | SENSOR, oxygen (O2), front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | ALL |
| 13 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | ALL |
| 14 | 65296-95A | MUFFLER CLAMP (2) | ALL |
| 15 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 16 | 65325-83A | RETAINING RING, exhaust gasket (2) | ALL |
| 17 | 65328-83A | FLANGE, exhaust pipe (2) | ALL |
| 18 | 65538-09 | MUFFLER, left, (chrome) (Domestic, Canada, California) | ALL |
| 19 | 65634-09 | SHIELD, right exhaust pipe, front | ALL |
| 20 | 65636-09 | SHIELD, left exhaust pipe, rear | ALL |
| 21 | 65678-09 | BRACKET, rear exhaust mount | ALL |
| 22 | 65723-85 | MOUNTING BRACKET (2) | ALL |
| 23 | 65846-10A | MUFFLER, right, (chrome) (Domestic, Canada, California) | ALL |
| 24 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | ALL |
| 25 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | ALL |
| 26 | 66813-09 | GASKET, clamp | ALL |
| 27 | 66859-09 | CLAMP, exhaust | ALL |
| 28 | 66861-09A | CLAMP, exhaust pipe, hinged | ALL |
| 29 | 66881-09 | BRACKET, exhaust pipe hanger | ALL |
| 30 | 72177-07BK | HOUSING, 4-way, socket (black) | ALL |
| 31 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | ALL |
| 32 | 72444-07GY | HOUSING, 4-way, socket (gray) | ALL |
| 33 | 73307-10 | TERMINAL, socket, 22 AWG (4) | ALL |
| 34 | 83448-09 | CROSSOVER PIPE ASSEMBLY (chrome) | ALL |
| 35 | 83449-10 | EXHAUST PIPE ASSEMBLY, catalytic (Domestic, Canada, California) (chrome) | ALL |
| 36 | 84021-10 | MOUNT, rubber (2) | ALL |
WIRING HARNESS, MAIN (1 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 3634 | SCREW (2) | ALL |
| 2 | 8339 | SEAL, pin | ALL |
| 3 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | ALL |
| 4 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | ALL |
| 5 | 10039 | CABLE STRAP | ALL |
| 6 | 10065 | CABLE STRAP (21) | ALL |
| 7 | 10073 | CABLE STRAP, rosebud mount | ALL |
| 8 | 10147 | CLIP, connector | ALL |
| 9 | 10177 | CABLE STRAP, tree mount (4) | ALL |
| 10 | 11321 | CABLE STRAP | ALL |
| 11 | 11779 | FASTENER, push-in (black) (2) | ALL |
| 12 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 13 | 31586-07 | RELAY (3) | ALL |
| 14 | 31595-09 | RELAY, high current | ALL |
| 15 | 70348-09 | CADDY, fuse block | ALL |
| 16 | 70598-99 | BOOT, engine temperature sensor | ALL |
| 17 | 70980-09 | TRAY, wire trough | ALL |
| 18 | 70981-09 | COVER, wire trough, w/ 15368-01A | ALL |
| 19 | 72007-05 | SOCKET HOUSING, 2-way (2) | ALL |
| 20 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | ALL |
| 21 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (4) | ALL |
| 22 | 72033-93 | TERMINAL, socket, 16-20 AWG (3) | ALL |
| 23 | 72063-06 | HOUSING, 2-way | ALL |
| 24 | 72066-06A | SOCKET HOUSING, 4-way female (black) | ALL |
| 25 | 72079-08 | SOCKET HOUSING, 73-way | ALL |
WIRING HARNESS, MAIN (2 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 26 | 72094-06 | TERMINAL, socket, 18 AWG (4) | ALL |
| 27 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | ALL |
| 28 | 72100-04 | HOUSING, 1-way, male (gray) | ALL |
| 29 | 72104-94BK | HOUSING, 4-pin (black) | ALL |
| 30 | 72106-94BK | PIN HOUSING, 6-way (black) | ALL |
| 31 | 72111-06 | LOCK, secondary, 2-way, female (gray) | ALL |
| 32 | 72115-08 | COVER, 73-way socket housing | ALL |
| 33 | 72124-94GY | HOUSING, 4-pin (gray) | ALL |
| 34 | 72135-06 | LOCK, secondary, 4-way socket, female | ALL |
| 35 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | ALL |
| 36 | 72144-94 | PIN LOCK, secondary, 4-way (2) | ALL |
| 37 | 72146-94 | PIN LOCK, 6-way | ALL |
| 38 | 72155-08 | LOCK, secondary, 73-way, socket housing | ALL |
| 39 | 72157-08 | LOCK, blue | ALL |
| 40 | 72159-94 | SOCKET LOCK, secondary, 12-way | ALL |
| 41 | 72164-94A | WEATHER PLUG, 4-way (2) | ALL |
| 42 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | ALL |
| 43 | 72168-07 | TERMINAL, socket, 16-18 AWG (43) | ALL |
| 44 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | ALL |
| 45 | 72175-07BK | HOUSING, 4-way, pin (black) | ALL |
| 46 | 72179-94 | SEAL, internal, 12 circuit (2) | ALL |
| 47 | 72190-94 | TERMINAL, pin, 16-18 AWG (13) | ALL |
| 48 | 72191-94 | TERMINAL, socket, 16-18 AWG (12) | ALL |
| 49 | 72195-94 | SEAL PIN | ALL |
| 50 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | ALL |
WIRING HARNESS, MAIN (3 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 51 | 72206-94 | CONNECTOR, 4-position, female | ALL |
| 52 | 72207-94 | TERMINAL, female, 14 AWG (2) | ALL |
| 53 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (4) | ALL |
| 54 | 72214-94 | CABLE SEAL (4) | ALL |
| 55 | 72232-96 | SEAL PLUG (2) | ALL |
| 56 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | ALL |
| 57 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | ALL |
| 58 | 72252-01 | TERMINAL, 10 AWG (3) | ALL |
| 59 | 72260-04 | HOUSING, female (gray) | ALL |
| 60 | 72265-04 | SECONDARY LOCK, bussed fuse block | ALL |
| 61 | 72272-07 | TERMINAL, socket, 14-16 AWG (6) | ALL |
| 62 | 72279-04 | TERMINAL, female, 14-16 AWG (18) | ALL |
| 63 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | ALL |
| 64 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | ALL |
| 65 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (14) | ALL |
| 66 | 72289-04 | TERMINAL, female, 10-12 AWG | ALL |
| 67 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | ALL |
| 68 | 72291-94 | TERMINAL, 14-16 AWG | ALL |
| 69 | 72295-94 | CONNECTOR, starter housing | ALL |
| 70 | 72309-04 | TERMINAL, 16-18 AWG (12) | ALL |
| 71 | 72314-01 | MAXI-FUSE 40 AMP, NOTE: Fuse is sold separately and is not part of main harness | ALL |
| 72 | 72330-95 | FUSE, 15 AMP (blue) (12) | ALL |
| 73 | 72343-10 | TERMINAL, pin, 16-20 AWG (gold) (4) | ALL |
| 74 | 72355-97 | TERMINAL, female, 12 AWG (2) | ALL |
| 75 | 72359-05 | TERMINAL, female, 10-12 AWG (2) | ALL |
WIRING HARNESS, MAIN (4 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 76 | 72381-98 | TERMINAL, socket (30) | ALL |
| 77 | 72384-06BK | SOCKET HOUSING, 35-place (black) | ALL |
| 78 | 72397-98 | SEAL PIN (5) | ALL |
| 79 | 72399-98 | CONNECTOR, 3-way | ALL |
| 80 | 72400-99 | CONNECTOR, 4-way | ALL |
| 81 | 72402-07 | SOCKET HOUSING, 2-way (2) | ALL |
| 82 | 72403-99 | SECONDARY LOCK, 4-way | ALL |
| 83 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | ALL |
| 84 | 72406-07A | SOCKET HOUSING, 4-way | ALL |
| 85 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | ALL |
| 86 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | ALL |
| 87 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | ALL |
| 88 | 72414-07BK | SOCKET HOUSING, 6-way (3) | ALL |
| 89 | 72415-07GY | HOUSING, 4-way pin (gray) | ALL |
| 90 | 72416-01 | HOUSING, 3-way, female | ALL |
| 91 | 72440-08 | SEAL PIN, plug (15) | ALL |
| 92 | 72444-07GY | HOUSING, 4-way, socket (gray) | ALL |
| 93 | 72473-07 | SEAL, pin (4) | ALL |
| 94 | 72483-08BK | SOCKET HOUSING, 6-way | ALL |
| 95 | 72484-08 | TERMINAL, socket, 20 AWG (8) | ALL |
| 96 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | ALL |
| 97 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | ALL |
| 98 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | ALL |
| 99 | 72518-01 | SOCKET HOUSING, 2-way (red) | ALL |
| 100 | 72533-06 | DUST CAP, 2-pin connector | ALL |
WIRING HARNESS, MAIN (5 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 101 | 72537-10 | COVER ASSEMBLY, fuse block, w/ graphics | ALL |
| 102 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | ALL |
| 103 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | ALL |
| 104 | 72556-08 | SEAL WIRE, 12-14 AWG | ALL |
| 105 | 72599-10 | CPA AXIAL LOCKING STRAP | ALL |
| 106 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (39) | ALL |
| 107 | 72609-08 | SECONDARY LOCK, 2-way (black) | ALL |
| 108 | 72620-08 | FUSE COVER, rear | ALL |
| 109 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) (6) | ALL |
| 110 | 73102-96BK | PIN HOUSING, 2-place | ALL |
| 111 | 73104-96BK | PIN HOUSING, 4-place (black) | ALL |
| 112 | 73108-96BK | PIN HOUSING, 8-place (black) | ALL |
| 113 | 73152-96BK | SOCKET HOUSING, 2-place | ALL |
| 114 | 73153-96BK | SOCKET HOUSING, 3-place (black) | ALL |
| 115 | 73190-96 | TERMINAL, pin, 16-20 AWG (12) | ALL |
| 116 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | ALL |
| 117 | 73198-96 | CONNECTOR ANCHOR | ALL |
| 118 | 73301-04 | HOUSING, pin, 2-way | ALL |
| 119 | 73303-04 | SECONDARY LOCK, female, 2-way | ALL |
| 120 | 73304-04 | TERMINAL, female, 10 AWG (2) | ALL |
| 121 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | ALL |
| 122 | 74109-98BK | HOUSING, pin, 12-way (black) | ALL |
| 123 | 74112-98BK | SOCKET HOUSING, 2-way (black) | ALL |
| 124 | 74115-06 | DC LEAD ASSEMBLY | ALL |
| 125 | 74119-98BK | HOUSING, socket, 12-way (black) | ALL |
WIRING HARNESS, MAIN (6 OF 6)
| Index No. | Part No. | Description | Model(s) |
| 70676-11 | MAIN WIRING HARNESS | ALL | |
| NOTE: Includes the following parts. | |||
| 126 | 74149-98 | SECONDARY LOCK, 12-way, pin | ALL |
| 127 | 74152-98 | SOCKET LOCK, secondary, 2-way | ALL |
| 128 | 74159-98 | SECONDARY LOCK, 12-way, socket | ALL |
| 129 | 74190-98 | TERMINAL, pin, 16-20 AWG (12) | ALL |
| 130 | 74191-98 | SOCKET TERMINAL (13) | ALL |
| 131 | 74195-98 | SEAL PIN | ALL |
| 132 | 76248-86 | CABLE, antenna | ALL |
| 133 | 76319-08 | CABLE ASSEMBLY, C.B. antenna | ALL |
| 134 | 76266-98A | CAP ASSEMBLY, weather | ALL |
| 135 | 83944-09 | SOCKET TERMINAL, 18-20 AWG (9) | ALL |
| 136 | 83945-09 | HOUSING, socket, 10-way | ALL |
| 137 | 66000008 | BOOT, battery positive | ALL |
| 138 | 66000009 | CABLE ASSEMBLY, battery positive to starter, w/ 73304-04, 73305-04 & 66000008 | ALL |
| 139 | 69200029 | SPRING ASSEMBLY, headset retraction | ALL |
WIRING HARNESS, INTERCONNECT
| Index No. | Part No. | Description | Model(s) |
| 70232-10 | WIRING HARNESS, interconnect | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 9839 | TERMINAL, positive lock (9) | ALL |
| 2 | 9847 | CONNECTOR, right hand female spade | ALL |
| 3 | 9848 | CONNECTOR, left hand female spade (2) | ALL |
| 4 | 9898 | TERMINAL, female flag, 14-16 gauge | ALL |
| 5 | 9937 | TERMINAL, female spade, 14-18 AWG (11) | ALL |
| 6 | 10039 | CABLE STRAP | ALL |
| 7 | 10065 | CABLE STRAP (12) | ALL |
| 8 | 10073 | CABLE STRAP, rosebud mount | ALL |
| 9 | 10147 | CLIP, connector, rosebud mount | ALL |
| 10 | 67854-98 | SWITCH, trip reset | ALL |
| 11 | 72056-92 | HOUSING, terminal 3-way | ALL |
| 12 | 72116-94BK | SOCKET HOUSING, 6-way, sealed, (black) | ALL |
| 13 | 72130-04 | SOCKET HOUSING, 12-way (black) | ALL |
| 14 | 72131-04 | SOCKET HOUSING, 12-way (gray) | ALL |
| 15 | 72156-94 | SOCKET LOCK, secondary 6-way | ALL |
| 16 | 72167-07BK | HOUSING, pin, 16-way | ALL |
| 17 | 72168-07 | TERMINAL, socket, 18-20 AWG (20) | ALL |
| 18 | 72169-07 | TERMINAL, pin, 16-18 AWG (28) | ALL |
| 19 | 72189-04 | SEAL PIN (11) | ALL |
| 20 | 72191-94 | TERMINAL, socket, 16-18 AWG (4) | ALL |
| 21 | 72195-94 | SEAL PIN (2) | ALL |
| 22 | 72200-94A | HOUSING, 3-way, female (4) | ALL |
| 23 | 72203-96 | HOUSING, 2-way (4) | ALL |
| 24 | 72205-94 | CONNECTOR, 4-way, male | ALL |
| 25 | 72208-94 | TERMINAL, 12 AWG, male | ALL |
| 26 | 72210-94 | TERMINAL, 14 AWG, male (3) | ALL |
| 27 | 72272-07 | TERMINAL, socket, 14-16 AWG (6) | ALL |
| 28 | 72290-94 | TERMINAL, insulated (5) | ALL |
| 29 | 72294-94 | TERMINAL, 16-20 AWG, female (2) | ALL |
| 30 | 72364-06 | TERMINAL, 10-14 AWG, female | ALL |
| 31 | 72381-98 | TERMINAL, socket (22) | ALL |
| 32 | 72382-98BK | HOUSING, 23-place (black) | ALL |
| 33 | 72397-98 | SEAL PIN | ALL |
| 34 | 72473-07 | SEAL PIN (4) | ALL |
| 35 | 72487-07BK | SOCKET HOUSING, 12-way (black) | ALL |
| 36 | 72490-07GY | PIN HOUSING, 12-way (gray) | ALL |
| 37 | 72491-07GY | SOCKET HOUSING, 16-way (gray) | ALL |
| 38 | 72902-01BK | PIN HOUSING, 2-way (black) | ALL |
| 39 | 72912-01BK | SOCKET HOUSING, 2-way (black) | ALL |
| 40 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | ALL |
| 41 | 73102-96BK | PIN HOUSING, 2-place (black) | ALL |
| 42 | 73104-96BK | PIN HOUSING, 4-place (black) (2) | ALL |
| 43 | 73110-96BK | PIN HOUSING, 10-place (black) | ALL |
| 44 | 73112-96BK | PIN HOUSING, 12-way (black) | ALL |
| 45 | 73153-96BK | SOCKET HOUSING, 3-way (black) | ALL |
| 46 | 73190-96 | TERMINAL, pin, 16-20 AWG (29) | ALL |
| 47 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | ALL |
| 48 | 73196-96 | ANCHOR, t-stud (2) | ALL |
| 49 | 73213-07 | RETAINER, x-mas tree clip (2) | ALL |
| 50 | 74196-04 | TERMINAL, socket (13) | ALL |
| 51 | 74197-04 | SOCKET LOCK, secondary 12-way (2) | ALL |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT, flange | ALL |
| 2 | 3634 | SCREW (6) | ALL |
| 3 | 4312C | SCREW (2) | ALL |
| 4 | 7792 | NUT | ALL |
| 5 | 10368A | RETENTION CLIP, battery box | ALL |
| 6 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 7 | 66010-97C | BATTERY | ALL |
| 8 | 66051-08 | STRAP, battery removal | ALL |
| 9 | 66200-09 | BRACKET, battery hold down | ALL |
| 10 | 66281-09B | BATTERY TRAY | ALL |
| 11 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | ALL |
| 12 | 70344-09 | CADDY, electronic control module (ECM) | ALL |
| 13 | 72242-94 | TERMINAL, ring | ALL |
| 14 | 73304-04 | TERMINAL, female, 10 AWG | ALL |
| 15 | 73305-04 | SEAL WIRE, 10 AWG (blue) | ALL |
| 16 | 66000008 | BOOT, battery positive | ALL |
| 17 | 66000009 | CABLE ASSEMBLY, battery positive to starter, w/ 73304-04, 73305-04 & 66000008 | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | ALL |
| 2 | 4775 | SCREW (2) | ALL |
| 3 | 6019 | WASHER (2) | ALL |
| 4 | 6109 | WASHER | ALL |
| 5 | 7495 | NUT | ALL |
| 6 | 7549A | ACORN NUT | ALL |
| 7 | 8108 | SPEEDNUT (2) | ALL |
| 8 | 16316-08 | BRACKET ASSEMBLY, horn mount | ALL |
| 9 | 69012-93A | COVER, horn (chrome) | ALL |
| 10 | 69060-90F | HORN ASSEMBLY | ALL |
| 11 | 69062-91A | CLAMP | ALL |
| 12 | 69120-91 | BRACKET, horn | ALL |
| 13 | 69123-92A | MOUNT, horn, rubber | ALL |
REVERSE MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8313 | SCREW (5) | ALL |
| 2 | 8335 | LOCKWASHER | ALL |
| 3 | 83388-09A | MOTOR, reverse, w/ 83857-09 | ALL |
| 4 | 83389-09A | BRACKET, adapter | ALL |
| 5 | 83857-09 | SOLENOID | ALL |
REVERSE CONTROL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4820A | SCREW | ALL |
| 2 | 7358 | NUT (2) | ALL |
| 3 | 7683 | LOCKNUT (4) | ALL |
| 4 | 8339 | SEAL, pin | ALL |
| 5 | 8348 | BOOT, rubber | ALL |
| 6 | 8370 | TERMINAL, male, 18-20 AWG (9) | ALL |
| 7 | 9825 | TERMINAL RING, 14-18 AWG (4) | ALL |
| 8 | 10006 | CABLE STRAP (3) | ALL |
| 9 | 10039 | CABLE STRAP (3) | ALL |
| 10 | 70018-07 | BOOT, solenoid cover | ALL |
| 11 | 70578-89 | BOOT, rubber (3) | ALL |
| 12 | 71474-07 | SOLENOID, starter, reverse control module, w/ 73152-96BK & 73191-96 | ALL |
| 13 | 73152-96BK | SOCKET HOUSING, 2-way, (black) | ALL |
| 14 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | ALL |
| 15 | 83869-09 | CIRCUIT BREAKER, 150A | ALL |
| 16 | 83876-09 | JUMPER, 14 AWG, w/ 9825 | ALL |
| 17 | 83878-10 | JUMPER, high current, w/ 8348 & 70578-89 | ALL |
| 18 | 83880-09 | JUMPER, 14 AWG, w/ 9825 & 70578-89 | ALL |
| 19 | 83895-10 | JUMPER, high current, motor, w/ 70578-89 | ALL |
| 20 | 83898-09 | JUMPER, reverse motor ground, 6 AWG | ALL |
| 21 | 83899-10 | BRACKET, circuit breaker | ALL |
| 22 | 83952-10 | PIN HOUSING, 10-way | ALL |
| 23 | 69200100 | MODULE, reverse, w/ 8339, 8370 & 83952-10 | ALL |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | ALL |
| 2 | 6150W | WASHER (2) | ALL |
| 3 | 9907 | WIRE TERMINAL (2) | ALL |
| 4 | 10065 | CABLE STRAP (2) | ALL |
| 5 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | ALL |
| 6 | 61081-92 | COVER, key head, set of 2 | ALL |
| 7 | 68920-07 | MODULE, turn signal canceller | ALL |
| 68924-07 | MODULE, security system | ALL | |
| 8 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (2) | ALL |
| 66373-06 | BATTERY, 3V, CR2032 | ALL | |
| 9 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 10 | 70617-07 | WIRE HARNESS, antenna jumper, w/ 72114-94BK, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07 | ALL |
| 11 | 71422-03 | PLATE, ignition switch | ALL |
| 12 | 71452-91A | KEY (specify key code - for key codes 3000-4102) | ALL |
| 13 | 71459-03 | SPRING, ignition knob | ALL |
| 14 | 71466-03 | DECAL, ignition switch knob | ALL |
| 15 | 71532-03 | KNOB, ignition switch, w/ 71466-03 (specify key code) | ALL |
| 16 | 71638-03 | COLLAR, ignition switch, bottom | ALL |
| 17 | 71660-03 | NUT, ignition switch | ALL |
| 18 | 71661-03 | COLLAR, ignition switch, top | ALL |
| 19 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | ALL |
| 20 | 72114-94BK | SOCKET HOUSING, 4-way (black) (replaces gray connector) | ALL |
| 21 | 72154-94 | SOCKET LOCK, secondary, 4-way | ALL |
| 22 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | ALL |
| 23 | 72195-94 | SEAL PIN, socket, 16-18 AWG | ALL |
| 24 | 72720-07 | HOUSING, 2-way socket | ALL |
| 25 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | ALL |
| 26 | 83332-09B | LOCKSET, complete, w/ 71452-91A keys, tour pak lock, trunk lock & ignition knob | ALL |
| 27 | 83873-09 | HOUSING, ignition switch, w/ 71638-03, 71660-03 & 71661-03 | ALL |
| NOTE: For additional fuse, relay and circuit breaker part number information see wiring harness pages. | |||
SOUND SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 932 | SCREW | ALL |
| 2 | 2625 | SCREW | ALL |
| 3 | 2965 | SCREW (4) | ALL |
| 4 | 3061 | SCREW (4) | ALL |
| 5 | 3227 | SCREW | ALL |
| 6 | 3387 | SCREW (2) | ALL |
| 7 | 6036 | WASHER | ALL |
| 8 | 7492 | NUT, w/ lockwasher | ALL |
| 9 | 9864 | RING TERMINAL, pre-insulated | ALL |
| 10 | 10102 | CLIP, adhesive backed | ALL |
| 11 | 11486 | GROMMET | ALL |
| 12 | 70465-86A | GROUND CABLE, w/ 9864 | ALL |
| 13 | 76160-06 | RADIO | ALL |
| 14 | 76416-06C | CB MODULE | ALL |
| 15 | 76248-86 | CABLE, AM/FM antenna | ALL |
| 16 | 76250-09 | ANTENNA MAST, C.B. | ALL |
| 17 | 76258-86 | PLUG ASSEMBLY | ALL |
| 18 | 76259-86 | NUT | ALL |
| 19 | 76260-89 | ANTENNA ADAPTOR (2) | ALL |
| 20 | 76294-09 | ANTENNA CABLE EXTENSION, C.B. | ALL |
| 21 | 76319-08 | CABLE ASSEMBLY, C.B. antenna | ALL |
| 22 | 76503-08 | ANTENNA MAST, AM/FM/WB/LW | ALL |
| 23 | 76529-10 | EAR PAD, foam (2) | ALL |
| 24 | 77029-06 | SPEAKER, 5-1/4 in. (2) | ALL |
| 25 | 77047-98 | SPEAKER ADAPTOR & GRILLE (2) | ALL |
| 26 | 77117-10 | HEADSET ASSEMBLY, w/ 76529-10, 77126-10 & 77148-10 | ALL |
| 27 | 77126-10 | WIND SOCK, microphone | ALL |
| 28 | 77148-10 | COILED CORD, headset | ALL |
| 29 | 90763-79 | WASHER | ALL |
| NOTE: For all service and warranty claims on Advanced Audio System components please refer to the latest Warranty Bulletin revision of the Advanced Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Advanced Audio System components please contact your Harley-Davidson dealership. | |||
BODY ASSEMBLY & SIDE COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | ALL |
| 2 | 3445 | BOLT | ALL |
| 3 | 6116 | WASHER (2) | ALL |
| 4 | 6645 | WASHER (6) | ALL |
| 5 | 6702 | WASHER (3) | ALL |
| 6 | 7739 | LOCKNUT (2) | ALL |
| 7 | 8369 | BOLT (4) | ALL |
| 8 | 10102 | CLIP, small (17) | ALL |
| 9 | 10103 | CLIP, large (3) | ALL |
| 10 | 11650 | GROMMET, side cover, left / right (6) | ALL |
| 11 | 70186-82 | GROUND STRAP | ALL |
| 12 | 83318-11DH | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (vivid black) (Also order locknut 7716, qty 6.) | FLHTCUTG |
| 83318-12DJO | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (big blue pearl) (Also order locknut 7716, qty 6.) | FLHTCUTG | |
| 83318-12DJS | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (ember red sunglo) (Also order locknut 7716, qty 6.) | FLHTCUTG | |
| 83318-13DKJ | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (midnight pearl) (Also order locknut 7716, qty 6.) | FLHTCUTG | |
| 83318-13DPY | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (anniversary vintage bronze) (Also order locknut 7716, qty 6.) | FLHTCUTG ANV | |
| 13 | 83364-11DH | SIDE COVER ASSEMBLY, left (vivid black) | FLHTCUTG |
| 83364-12DJO | SIDE COVER ASSEMBLY, left (big blue pearl) | FLHTCUTG | |
| 83364-12DJS | SIDE COVER ASSEMBLY, left (ember red sunglo) | FLHTCUTG | |
| 83364-13DKJ | SIDE COVER ASSEMBLY, left (midnight pearl) | FLHTCUTG | |
| 83364-13DPY | SIDE COVER ASSEMBLY, left (anniversary vintage bronze) | FLHTCUTG ANV | |
| 14 | 83365-11DH | SIDE COVER ASSEMBLY, right, w/ 83563-10 (vivid black) | FLHTCUTG |
| 83365-12DJO | SIDE COVER ASSEMBLY, right, w/ 83563-10 (big blue pearl) | FLHTCUTG | |
| 83365-12DJS | SIDE COVER ASSEMBLY, right, w/ 83563-10 (ember red sunglo) | FLHTCUTG | |
| 83365-13DKJ | SIDE COVER ASSEMBLY, right, w/ 83563-10 (midnight pearl) | FLHTCUTG | |
| 83365-13DPY | SIDE COVER ASSEMBLY, right, w/ 83563-10 (anniversary vintage bronze) | FLHTCUTG ANV | |
| 15 | 83563-10 | LABEL, tire warning | ALL |
| 16 | 83777-11 | INSERT, press-in, 5/16-18 (12) | ALL |
| 17 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | ALL |
| 18 | 83782-11 | INSERT, press-in, 1/4-20 (4) | ALL |
| 19 | 83798-11 | INSERT, TOP HAT, spacer (2) | ALL |
| 20 | 83811-09 | FOAM TAPE (4) | ALL |
| 21 | 83822-09 | STUD | ALL |
| 22 | 83991-11 | SEAL, trunk door (cut to fit) | ALL |
| 23 | 94435-10 | TOOL KIT | ALL |
| 24 | 12300002 | SEALING WASHER, trunk lock | ALL |
TRUNK DOOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (2) | ALL |
| 2 | 4365 | SCREW (2) | ALL |
| 3 | 4697 | SCREW (6) | ALL |
| 4 | 4699 | SCREW (3) | ALL |
| 5 | 6703 | WASHER (6) | ALL |
| 6 | 7686 | LOCKNUT (6) | ALL |
| 7 | 7763W | JAM NUT | ALL |
| 8 | 8359 | SCREW, SHOULDER (4) | ALL |
| 9 | 10102 | CLIP, adhesive backed (2) | ALL |
| 10 | 10968 | O-RING (2) | ALL |
| 11 | 52441-95 | BULB (2) | ALL |
| 12 | 59988-72A | REFLECTOR, reflex (red) | ALL |
| 13 | 73153-96BK | SOCKET HOUSING, 3-place (black) | ALL |
| 14 | 73191-96 | TERMINAL, socket, 16-20 gauge (2) | ALL |
| 15 | 83337-09A | HINGE, left trunk door | ALL |
| 16 | 83339-09A | HINGE, right trunk door | ALL |
| 17 | 83341-11DH | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (vivid black) | FLHTCUTG |
| 83341-12DJO | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (big blue pearl) | FLHTCUTG | |
| 83341-12DJS | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (ember red sunglo) | FLHTCUTG | |
| 83341-13DKJ | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (midnight pearl) | FLHTCUTG | |
| 83341-13DPY | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (anniversary vintage bronze) | FLHTCUTG ANV | |
| 18 | 83344-11 | LANYARD ASSEMBLY (2) | ALL |
| 19 | 83395-09A | BRACKET, license plate, top | ALL |
| 20 | 83396-09A | BRACKET, license plate, bottom | ALL |
| 21 | 83398-09 | COVER, light, license plate | ALL |
| 22 | 83418-09 | INSERT, square (2) | ALL |
| 23 | 83419-09 | RUBBER BUMPER | ALL |
| 24 | 83420-09 | CONTACT PAD, rubber | ALL |
| 25 | 83434-11 | COVER, trunk door, w/ 83446-09 | ALL |
| 26 | 83446-09 | WARNING LABEL, trunk door | ALL |
| 27 | 83538-11 | LATCH PIN ASSEMBLY, w/ 7763W & 83781-11 | ALL |
| 28 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | ALL |
| 29 | 83781-11 | LATCH PIN | ALL |
| 30 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (3) | ALL |
| 31 | 83799-10 | LIGHT ASSEMBLY, w/ lens, 52441-95 & 73191-96 | ALL |
| 32 | 10200004 | SCREW (7) | ALL |
LATCH ASSEMBLY, TRUNK DOOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4239 | SCREW (2) | ALL |
| 2 | 8364 | NUT (2) | ALL |
| 3 | 8365 | SCREW (3) | ALL |
| 4 | 8366 | SCREW (2) | ALL |
| 5 | 8367 | O-RING | ALL |
| 6 | 10927 | O-RING | ALL |
| 7 | 53865-06B | LOCK (specify key code) | ALL |
| 8 | 53868-06 | U-CLIP, lock | ALL |
| 9 | 83296-11 | LATCH COVER | ALL |
| 10 | 83346-11 | LATCH HOUSING ASSEMBLY, trunk door, w/ 2, 3, 4, 9, 11 & 15 | ALL |
| 11 | 83352-11 | LOCK MECHANISM | ALL |
| 12 | 83987-09 | LOCK BEZEL, w/ 10927 | ALL |
| 13 | 10200004 | SCREW (4) | ALL |
| 14 | 12300002 | WASHER, sealing | ALL |
| 15 | 53000077 | LATCH LEVER KIT | ALL |
TRUNK LINER
| Index No. | Part No. | Description | Model(s) |
| 1 | 83457-11 | TRUNK LINER, vertical side | ALL |
| 2 | 83458-11 | TRUNK LINER, bottom | ALL |
TOUR-PAK (BOTTOM)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (10) | ALL |
| 2 | 2968 | SCREW (4) | ALL |
| 3 | 3595 | SCREW (2) | ALL |
| 4 | 3597 | SCREW (2) | ALL |
| 5 | 3598 | SCREW (2) | ALL |
| 6 | 6029 | WASHER (2) | ALL |
| 7 | 6716 | WASHER (2) | ALL |
| 8 | 7716 | LOCKNUT (6) | ALL |
| 9 | 8500A | HINGE PIN KIT, w/ 3595 (2) | ALL |
| 10 | 10102 | CLIP, antenna cable (4) | ALL |
| 11 | 11486 | GROMMET | ALL |
| 12 | 11543 | GROMMET, split | ALL |
| 13 | 53128-09 | BOTTOM, Tour-Pak (prime) | ALL |
| 53134-09BHY | BOTTOM ASSEMBLY, Tour-Pak (vivid black) | FLHTCUTG | |
| 53134-12DJQ | BOTTOM ASSEMBLY, Tour-Pak (2 tone big blue pearl/vivid black) | FLHTCUTG | |
| 53134-12DJT | BOTTOM ASSEMBLY, Tour-Pak (ember red sunglo) | FLHTCUTG | |
| 53134-13DKG | BOTTOM ASSEMBLY, Tour-Pak (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 53000310DPZ | BOTTOM ASSEMBLY, Tour-Pak (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 14 | 53165-89A | POUCH, Tour-Pak | ALL |
| 15 | 53429-93 | BUMPER (2) | ALL |
| 16 | 53447-87 | HINGE, lower (2) | ALL |
| 17 | 53478-80 | BACKING PLATE, brace | ALL |
| 18 | 53563-82 | BRACKET, cable mounting | ALL |
| 19 | 53615-85A | SPACER (2) | ALL |
| 20 | 53616-85 | CATCH, lower | ALL |
| 21 | 53788-06 | LIGHT, right-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73131-96 | ALL |
| 53789-06 | LIGHT, left-bottom, Tour-Pak, sidemarker, w/ 73152-96BK & 73131-96 | ALL | |
| 22 | 57978-00 | GROMMET (2) | ALL |
| 23 | 73152-96BK | SOCKET HOUSING, 2-place (2) | ALL |
| 24 | 73191-96 | TERMINAL, socket, 16-20 gauge (4) | ALL |
| 25 | 83380-09 | BRACKET, support, Tour-Pak | ALL |
| 26 | 90649-07 | BODY, latch (2) | ALL |
| 27 | 90755-09 | PLATE, Tour-Pak reinforcing | ALL |
| 28 | 90844-80 | ACORN NUT (2) | ALL |
| 29 | 90964-63 | BACKING PLATE (4) | ALL |
| 30 | 90965-63 | RIVET (12) | ALL |
TOUR-PAK (COVER)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3595 | SCREW (2) | ALL |
| 2 | 6703 | WASHER (4) | FLHTCUTG ANV |
| 3 | 6970 | WASHER (2) | ALL |
| 4 | 7128 | LOCKWASHER | ALL |
| 5 | 7586 | JAM NUT | ALL |
| 6 | 7737W | ACORN NUT (4) | FLHTCUTG ANV |
| 7 | 14651-06 | DECAL, USA | FLHTCUTG |
| 8 | 53415-06 | GASKET, cover | ALL |
| 9 | 53426-87 | HINGE, cover, upper (2) | ALL |
| 10 | 53486-85 | PAD (2) | ALL |
| 11 | 53564-97 | TETHER, flexible | ALL |
| 12 | 53570-89 | BRACKET, cable mounting | ALL |
| 13 | 53617-85 | GUIDE, lock | ALL |
| 14 | 53641-02 | WASHER | ALL |
| 15 | 53665-87 | LUGGAGE RACK, Tour-Pak, w/ hardware (chrome) | FLHTCUTG ANV |
| 16 | 53848-00 | LOCK, w/ 7128 & 7586 (specify key code) | ALL |
| 17 | 58709-86 | RIVET, nylon (black) (2) | ALL |
| 18 | 66290-06 | STUD, luggage rack (4) | FLHTCUTG ANV |
| 19 | 71452-91A | KEY (specify key code - for key codes 3000-4102) | ALL |
| 20 | 79042-06 | COVER, Tour-Pak (prime) | ALL |
| 79039-06BHY | COVER, Tour-Pak, w/ 14651-06 (vivid black) | FLHTCUTG | |
| 79039-12DJQ | COVER, Tour-Pak, w/ 14651-06 (2 tone big blue pearl/vivid black) | FLHTCUTG | |
| 79039-12DJT | COVER, Tour-Pak, w/ 14651-06 (ember red sunglo) | FLHTCUTG | |
| 79039-13DKG | COVER, Tour-Pak, w/ 14651-06 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 53000295DPY | COVER, Tour-Pak, w/ 14100263 (anniversary vintage bronze) | FLHTCUTG ANV | |
| 21 | 84850-92 | NUT, lock | ALL |
| 22 | 90686-92 | CAM HOOK | ALL |
| 23 | 90688-85 | BACKING PLATE (2) | ALL |
| 24 | 90705-97 | HASP, rivet (2) | ALL |
| 25 | 90821-74C | LABEL, load limit | ALL |
| 26 | 90869-85A | MOUNTING PAD & WASHER SET, luggage rack | FLHTCUTG ANV |
| 27 | 90964-63 | BACKING PLATE (4) | ALL |
| 28 | 90965-63 | RIVET (12) | ALL |
| 29 | 14100263 | MEDALLION, Tour-Pak cover, 110th anniversary **RESTRICTED SALES PART** | FLHTCUTG ANV |
LAMPS & SPEAKER HOUSINGS, TOUR-PAK
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW | ALL |
| 2 | 2963 | SCREW (8) | ALL |
| 3 | 3612 | SCREW (4) | ALL |
| 4 | 3802W | BOLT (6) | ALL |
| 5 | 4922 | SCREW (2) | ALL |
| 6 | 4930 | SCREW (4) | ALL |
| 7 | 5210 | WELL NUT (8) | ALL |
| 8 | 5211 | CRIMP NUT (6) | ALL |
| 9 | 6036 | WASHER (6) | ALL |
| 10 | 6716 | WASHER (2) | ALL |
| 11 | 7624 | LOCKNUT (2) | ALL |
| 12 | 7838 | NUT | ALL |
| 13 | 7878 | NUT (4) | ALL |
| 14 | 10102 | CLIP, antenna cable (4) | ALL |
| 15 | 10181 | CABLE STRAP (4) | ALL |
| 16 | 53165-89A | POUCH, Tour-Pak | ALL |
| 17 | 53166-89 | REFLECTOR (2) | ALL |
| 18 | 53278-06A | LINER, molded | ALL |
| 19 | 53598-88A | LINER, removable | ALL |
| 20 | 58010-98 | BUSHING, open/close (2) | ALL |
| 21 | 58380-89 | CLIP, housing (2) | ALL |
| 22 | 58381-06 | NAMEPLATE | ALL |
| 23 | 58382-89 | SEAL, lamp lens (4) | ALL |
| 24 | 58383-89 | LENS, left | ALL |
| 58384-89 | LENS, right | ALL | |
| 25 | 58385-93 | HOUSING, lamp | ALL |
| 26 | 68168-89A | BULB, dual (2) | ALL |
| 27 | 70648-00A | WIRING HARNESS, luggage box, w/ 73102-96BK, 73103-96BK & 73190-96 | ALL |
| 28 | 71814-98 | KNOB, ptt vol-/vol+ rear control switch | ALL |
| 29 | 71823-98 | KNOB, mode select up/down rear control switch | ALL |
| 30 | 71834-11 | SWITCH ASSEMBLY, rear controls (2), w/ 10181 & 72169-07 | ALL |
| 31 | 72169-07 | TERMINAL PIN, 16-20 AWG (12) | ALL |
| 32 | 72188-07BK | PIN HOUSING, 6-way (black) (2) | ALL |
| 33 | 72290-94 | TERMINAL, female 1/4 in. (2) | ALL |
| 34 | 72294-94 | TERMINAL, female 16-20 gauge (2) | ALL |
| 35 | 73102-96BK | PIN HOUSING, 2-place (2) | ALL |
| 36 | 73103-96BK | PIN HOUSING, 3-place | ALL |
| 37 | 73190-96 | TERMINAL, pin, 16-20 AWG (7) | ALL |
| 38 | 76129-98 | HOUSING, rear control switch (2) | ALL |
| 39 | 76130-98 | BRACKET, rear control switch housing (2) | ALL |
| 40 | 76265-98 | BRACKET, rear headset tether | ALL |
| 41 | 76303-98B | SPEAKER BOX, left rear | ALL |
| 42 | 76304-98B | SPEAKER BOX, right rear | ALL |
| 43 | 76307-98 | GRILLE, rear speaker (2) | ALL |
| 44 | 77029-06 | SPEAKER, 5.25 inch (2) | ALL |
| 45 | 90844-80 | ACORN NUT (2) | ALL |
| 46 | 99461-89 | COVER, owner manual | ALL |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | ENGINE GUARD LABEL | ALL |
| 2 | 15368-01A | BATTERY DISCONNECT LABEL | ALL |
| 3 | 83446-09 | LABEL, trunk, load limit | ALL |
| 4 | 83563-10 | LABEL, tire warning | ALL |
| 5 | 83881-09A | AIR CLEANER WARNING LABEL (Domestic, California) (chrome) | ALL |
| 6 | 83890-09A | MIRROR WARNING LABEL | ALL |
| 7 | 90821-74C | LABEL, Tour Pak, load limit | ALL |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
| Part No. | Description |
| 10200004 | SCREW 1/4-20 X 1/2 TORX SEMS socket button head |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 10500011 | SCREW 1/4-28 X 13/32 pan head |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600003 | SCREW 5/16-18 X 1-1/4 TORX with scotch grip (Grade 8) |
| 1332 | SCREW No. 5/16 X 2-1/4 socket button head with lock patch (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2559 | SCREW No. 6-32 X 3/4 Phillips pan head, with lockwasher |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 2604 | SCREW No. 10-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2625 | SCREW No. 8-32 X 5/8 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2667 | BOLT 5/16-18 X 2 hex head (Grade 5) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 2882W | SCREW 5/16-18 X 5/8 hex head (Grade 5) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2963 | SCREW No. 6-32 X 1-1/4 TORX pan head |
| 2965 | SCREW No. 10 X 2 pan head, self-tapping |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 2995 | SCREW No. 10-16 X 3/4 pan head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3092 | SCREW 5/16-18UNRC X 2-1/4 hex head cap (Grade 8) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3227 | SCREW M5 (.08 pitch) X 35mm set |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3387 | SCREW No. 10-16 X 1.0 TORX pan head, self-tapping |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3597 | SCREW No. 6-32 X 9/16 TORX pan head, thread-cutting |
| 3598 | SCREW No. 6-32 X 3/4 TORX pan head, thread-cutting |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3802W | BOLT 1/4-20 X 7/8 hex head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4015 | SCREW 1/4-20 X 7/8 socket button head (Grade 8) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4239 | SCREW No. 10-24 X 1, socket flat countersink head (stainless) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4365 | SCREW 1/4-20 X 1/2 socket button head (Grade 8) |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4622 | SCREW 1/2-13 X 2-1/4 hex flange with lockpatch |
| 4678 | SCREW 1/2-13 X 1-3/4 hex flange |
| 4685 | SCREW 3/8-16 X 1 hex flange |
| 4686 | SCREW 3/8-16 X 4 hex |
| 4687 | SCREW 3/8-16 X 1 hex socket, SEMS |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4696 | SCREW machine, pan lock |
| 4697 | SCREW machine, flat / lock |
| 4699 | SCREW button, TORX / lock |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4795 | SCREW hex / lock |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4922 | SCREW No. 10-24 X 1 hex head (zinc plate) (Grade 2) |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4930 | SCREW No. 10-24 X 3/4 hex head (zinc plate) (Grade 2) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5429 | BOLT 1/4-20 X 1-1/2 carriage (Grade 2) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6029 | WASHER 5/32 X 3/8 X 1/32 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6408HB | WASHER 25/64 X 1.0 X 7/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6645 | WASHER 11/32 X 1-1/32 X 1/8 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6970 | WASHER 1/4 X 1/2 X 1/16 spring |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7069 | LOCKWASHER No. 10 |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7230 | LOCKWASHER 1/4 external tooth |
| 7331 | ACORN NUT 5/16-24 |
| 7358 | NUT M6 X 1 flange |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 76259-86 | NUT 1/2-20 hex jam |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7737W | ACORN NUT 1/4-20 X 15/32 X 7/16 (Grade 2) |
| 7739 | LOCKNUT 5/16-18 X 11/32 X 1/2 |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7763W | JAMNUT 5/16-18 X 3/16 X 1/2 |
| 7768W | LOCKNUT 1/2-13 X 19/32 X 3/4 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7823 | NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7878 | NUT No. 10-24 X 7/32 X 3/8 flange |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8300 | SCREW 1/2-20 X 2-3/4 hex head (Grade 8) (zinc plate) |
| 8308 | SCREW hex, SEMS / lock |
| 8309 | NUT hex |
| 8313 | SCREW hex, SEMS / lock |
| 8314 | SCREW hex flange |
| 8319 | SCREW hex flange / lock |
| 8329 | SCREW button, TORX |
| 83312-09 | NUT bearing retainer |
| 83323-09 | BOLT bearing cap |
| 8333 | SCREW socket head, low profile |
| 8335 | LOCKWASHER ext. tooth |
| 8337 | LOCKNUT nylon insert |
| 8359 | SCREW, SHOULDER 1/4-20, stainless steel |
| 8360 | SCREW 5/16-18 X 7/8 TORX button head SEMS, with lockpatch |
| 8364 | NUT No. 6-32, with tooth washer (stainless) |
| 8365 | SCREW No. 6-32 X 1/4, socket head, with lockpatch (stainless) |
| 8366 | SCREW No. 6-32 X 1/2, socket flat countersink head (stainless) |
| 8369 | BOLT 5/16-18 X 1-1/2 hex head, with lockpatch (Grade 5) |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 932 | SCREW 1/4-20 X 1/2 truss head (chrome) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-13 | ENGINE ASSEMBLY, complete | ALL |
| 2 | 16200068 | ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase, flywheel assembly, camshaft support plate assembly, oil pump & cylinder studs (See Note) | ALL |
| 3 | 91800042 | KIT, shortblock installation, w/ 17052-99C upper end gasket kit, 25700226 inner primary gasket kit, camshaft sprockets, camshaft drive chains & camshaft tensioners | ALL |
| Index No. | Part No. | Description | Model(s) |
| 20 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | ALL |
| 36 | 63059-09A | ADAPTER ASSEMBLY, oil cooler w/ 63533-41A, 11900010, 11900039 & 62800013 (Late Model Year) (See Note) | ALL |
| 37 | 11900010 | O-RING (Late Model Year) (See Note) (2) | ALL |
| 38 | 11900039 | O-RING (Late Model Year) (See Note) | ALL |
| 39 | 62800013 | PLUG ASSEMBLY, w/ 11900010 (Late Model Year) (See Note) (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 35 | 68120-00 | SCREW (5) | ALL |
| 36 | 25600016 | COVER, timer | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 15 | 29200022 | INSERT, air cleaner, 110 years | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 20 | 74402-05B | SPEED SENSOR, w/ 11289A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 21 | 14100271 | COVER, clutch, 110 years (chrome) | FLHTCUTG ANV |
| 22 | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y & 37909-90 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 83936-09A | SPRING PACK | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 45080-08 | CLUTCH LEVER ASSEMBLY, w/ 45021-86, 45423-92 & 90770-79 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 42855-06C | COVER KIT, master cylinder, w/ 42856-06, 42857-06B & 42858-06A (black) | ALL |
| 8 | 42857-06B | GASKET, reservoir cover | ALL |
| 14 | 44551-08C | MASTER CYLINDER ASSEMBLY, front-dual, w/ 5, 6, 7, 8, 9, 10, 11, 12 & 13 (black) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 21 | 42568-05A | GASKET, master cylinder reservoir cover | ALL |
| 22 | 46457-05B | MASTER CYLINDER COVER KIT, rear, DOT4, w/ 42568-05A (black) | ALL |
| 24 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 7230 | LOCKWASHER | ALL |
| 23 | 10500011 | SCREW | ALL |
| 24 | 12300006 | WASHER, wave | ALL |
| 25 | 83000037 | SPRING CLIP, parking brake cable (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 21 | 45405-75A | SCREW, w/ washer (2) | ALL |
| 22 | 45842-77A | RETAINING RING, oil seal (2) | ALL |
| 23 | 45845-77 | O-RING (2) | ALL |
| 24 | 45859-77A | RING, piston damper tube (2) | ALL |
| 25 | 45865-84 | SPACER SEAL (2) | ALL |
| 26 | 45866-84 | BUSHING, slider (2) | ALL |
| 27 | 45875-84A | OIL SEAL (2) | ALL |
| 28 | 45940-84 | BUSHING (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 24 | 69336-03 | CLAMP | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 47200096 | BAR | ALL |
| 13 | 6109 | WASHER (2) | ALL |
| 14 | 8343 | SCREW (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 52000066 | SEAT | FLHTCUTG ANV |
| 15 | 52300203 | BACKREST, w/ 52192-86A (black & brown) NOTE: Does not include passenger Tour-Pak backrest pad 52951-06 | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 59072-12DJT | FENDER (ember red sunglo) | FLHTCUTG | |
| 59072-13DKG | FENDER (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 59112-13DPZ | FENDER (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 83356-13DJT | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (ember red sunglo) | FLHTCUTG | |
| 83356-13DKG | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 83356-13DPZ | FENDER ASSEMBLY, left, rear, w/ 4, 5 & 10 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 83359-13DJT | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (ember red sunglo) | FLHTCUTG | |
| 83359-13DKG | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 83359-13DPZ | FENDER ASSEMBLY, right, rear, w/ 4, 5 & 10 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 61356-12DJT | FUEL TANK, w/ 62286-08 & 62287-08 (ember red sunglo) | FLHTCUTG | |
| 61356-13DKG | FUEL TANK, w/ 62288-08 & 62289-08 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 61356-13DPZ | FUEL TANK, w/ 14100261 & 14100262 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV | |
| 14 | 14100261 | MEDALLION, left (for 2 tone anniversary vintage bronze/anniversary vintage black tanks) **RESTRICTED SALES PART** | FLHTCUTG ANV |
| 14100262 | MEDALLION, right (for 2 tone anniversary vintage bronze/anniversary vintage black tanks) **RESTRICTED SALES PART** | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 61293-08 | DOOR, console | FLHTCUTG ANV | |
| 28 | 76266-98A | CAP ASSEMBLY, weather | ALL |
| 32 | 14100373 | BADGE, console cover, serialized **RESTRICTED SALES PART** | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 13 | 68789-96B | INDICATOR LAMP ASSEMBLY, w/ 73160-96BK | ALL |
| Index No. | Part No. | Description | Model(s) |
| 20 | 75205-08A | FUEL LEVEL SENDER | ALL |
| Index No. | Part No. | Description | Model(s) |
| 58231-12DJT | FAIRING, outer, w/ 58247-96 & 62787-96 (ember red sunglo) | FLHTCUTG | |
| 58231-13DKG | FAIRING, outer, w/ 58247-96 & 62787-96 (2 tone midnight pearl/brilliant silver pearl) | FLHTCUTG | |
| 57000286DPZ | FAIRING, outer, w/ 58247-96 & 62787-96 (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 58491-12DKJ | CAP, fairing, lower - left (midnight pearl) | FLHTCUTG | |
| 58491-13DME | CAP, fairing, lower - left (anniversary vintage black) | FLHTCUTG ANV | |
| 58492-12DKJ | CAP, fairing, lower - right (midnight pearl) | FLHTCUTG | |
| 58492-13DME | CAP, fairing, lower - right (anniversary vintage black) | FLHTCUTG ANV | |
| 58836-13DKJ | FAIRING, lower - left (midnight pearl) | FLHTCUTG | |
| 58836-13DME | FAIRING, lower - left (anniversary vintage black) | FLHTCUTG ANV | |
| 58837-13DKJ | FAIRING, lower - right (midnight pearl) | FLHTCUTG | |
| 58837-13DME | FAIRING, lower - right (anniversary vintage black) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 23 | 65846-10A | MUFFLER, right, (chrome) (Domestic, Canada, California) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 134 | 76266-98A | CAP ASSEMBLY, weather | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 83388-09A | MOTOR, reverse, w/ 83857-09 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 19 | 72023-51E | SWITCH KIT, rear stop lamp, w/ 9907 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 83318-13DKJ | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (midnight pearl) (Also order locknut 7716, qty 6.) | FLHTCUTG | |
| 83318-13DPY | MIDSECTION ASSEMBLY, w/ 9, 10, 16, 17, 18, 19, 20, 22 & 24 (anniversary vintage bronze) (Also order locknut 7716, qty 6.) | FLHTCUTG ANV | |
| 83364-13DKJ | SIDE COVER ASSEMBLY, left (midnight pearl) | FLHTCUTG | |
| 83364-13DPY | SIDE COVER ASSEMBLY, left (anniversary vintage bronze) | FLHTCUTG ANV | |
| 83365-13DKJ | SIDE COVER ASSEMBLY, right, w/ 83563-10 (midnight pearl) | FLHTCUTG | |
| 83365-13DPY | SIDE COVER ASSEMBLY, right, w/ 83563-10 (anniversary vintage bronze) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 83341-13DKJ | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (midnight pearl) | FLHTCUTG | |
| 83341-13DPY | TRUNK DOOR, w/ 10102, 83778-11 & 83783-11 (anniversary vintage bronze) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 53134-12DJT | BOTTOM ASSEMBLY, Tour-Pak (ember red sunglo) | FLHTCUTG | |
| 53134-13DKG | BOTTOM ASSEMBLY, Tour-Pak (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 53000310DPZ | BOTTOM ASSEMBLY, Tour-Pak (2 tone anniversary vintage bronze/anniversary vintage black) | FLHTCUTG ANV |
| Index No. | Part No. | Description | Model(s) |
| 6 | 7737W | ACORN NUT (4) | FLHTCUTG ANV |
| 15 | 53665-87 | LUGGAGE RACK, Tour-Pak, w/ hardware (chrome) | FLHTCUTG ANV |
| 79039-12DJT | COVER, Tour-Pak, w/ 14651-06 (ember red sunglo) | FLHTCUTG | |
| 79039-13DKG | COVER, Tour-Pak, w/ 14651-06 (2 tone midnight pearl/briliant silver pearl) | FLHTCUTG | |
| 53000295DPY | COVER, Tour-Pak, w/ 14100263 (anniversary vintage bronze) | FLHTCUTG ANV | |
| 26 | 90869-85A | MOUNTING PAD & WASHER SET, luggage rack | FLHTCUTG ANV |
| 29 | 14100263 | MEDALLION, Tour-Pak cover, 110th anniversary **RESTRICTED SALES PART** | FLHTCUTG ANV |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10092 | |
| 10102 | |
| 10103 | |
| 10105 | |
| 10138 | |
| 10147 | |
| 10149 | |
| 10177 | |
| 10181 | |
| 10198 | |
| 10200004 | |
| 10270 | |
| 10336 | |
| 10354 | |
| 10368A | |
| 1039 | |
| 10394 | |
| 10395 | |
| 10396 | |
| 10398 | |
| 10500011 | |
| 1062 | |
| 10927 | |
| 10968 | |
| 10991A | |
| 10998 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11096 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11256 | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11293 | |
| 11301 | |
| 11321 | |
| 11323 | |
| 11364 | |
| 11389 | |
| 11437 | |
| 11445 | |
| 11461 | |
| 11486 | |
| 11488 | |
| 11492 | |
| 11543 | |
| 11575 | |
| 11599A | |
| 11650 | |
| 11686 | |
| 11688 | |
| 11692 | |
| 11779 | |
| 11900010 | |
| 11900039 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12300002 | |
| 12300006 | |
| 12600003 | |
| 1332 | |
| 14100261 | |
| 14100262 | |
| 14100263 | |
| 14100271 | |
| 14100373 | |
| 14148-86 | |
| 14651-06 | |
| 15341-08 | |
| 15347-08 | |
| 15368-01A | |
| 16200068 | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16547-99A | |
| 16574-99A | |
| 16583-00A | |
| 16585-96 | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16787-99A | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17460-07A | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17728-08 | |
| 17729-08 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18074-05A | |
| 18085-05B | |
| 18094-02A | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 19678-13 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21962-07 | |
| 21963-07 | |
| 21964-07 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 22307-99 | |
| 23729-07B | |
| 24004-03B | |
| 24009-06 | |
| 2445 | |
| 2446 | |
| 24605-07 | |
| 24608-07A | |
| 24621-06B | |
| 24754-75A | |
| 2479 | |
| 2482 | |
| 25244-99A | |
| 2531 | |
| 25355-06A | |
| 25369-01B | |
| 25566-06 | |
| 25585-06 | |
| 2559 | |
| 25590-07A | |
| 25600016 | |
| 25604-00A | |
| 25605-00A | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2579A | |
| 26037-06 | |
| 2604 | |
| 26041-05A | |
| 26077-99A | |
| 26210-99 | |
| 2625 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 2667 | |
| 26993-06 | |
| 26995-86B | |
| 27048-84 | |
| 2708A | |
| 27200002 | |
| 2724 | |
| 27291-09 | |
| 27297-09 | |
| 27298-09 | |
| 27439-09 | |
| 27440-09 | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27712-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 2882W | |
| 28861-07A | |
| 29200022 | |
| 29269-83A | |
| 29465-08 | |
| 29502-08A | |
| 2952A | |
| 2955 | |
| 29584-01 | |
| 2963 | |
| 29630-08A | |
| 29633-08 | |
| 29644-08 | |
| 29645-08 | |
| 2965 | |
| 2968 | |
| 29718-08 | |
| 2980 | |
| 2995 | |
| 2998 | |
| 29987-06B | |
| 30041-08 | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3092 | |
| 3143 | |
| 31527-90 | |
| 31586-07 | |
| 31595-09 | |
| 31604-06 | |
| 31611-08 | |
| 31618-06A | |
| 31633-07A | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 3227 | |
| 32305-08A | |
| 32306-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3249 | |
| 32495-98 | |
| 32543-07 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33085-74 | |
| 33165-11A | |
| 3331 | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33759-99B | |
| 33849-97 | |
| 3387 | |
| 33895-82D | |
| 3391 | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08B | |
| 3445 | |
| 34469-06B | |
| 34611-65A | |
| 34901-07 | |
| 34917-06 | |
| 34920-86A | |
| 34934-06 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35259-06 | |
| 35260-06A | |
| 3529 | |
| 3536 | |
| 3537 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3595 | |
| 3597 | |
| 3598 | |
| 3605 | |
| 3612 | |
| 3634 | |
| 3655A | |
| 3658 | |
| 36805-06 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37101-84B | |
| 37116-06 | |
| 37312-75 | |
| 37313-80 | |
| 3736B | |
| 37496-90A | |
| 37554-11 | |
| 37807-03 | |
| 37817-11 | |
| 3787 | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 3802W | |
| 38630-88 | |
| 38667-08A | |
| 38700-08A | |
| 38738-08 | |
| 38900-08 | |
| 3929 | |
| 3983 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40037-07 | |
| 40040-05 | |
| 40100009 | |
| 4015 | |
| 40278-08 | |
| 40323-00 | |
| 4032A | |
| 40901-05 | |
| 40920-87 | |
| 40922-87A | |
| 40999-87 | |
| 41123-79 | |
| 4132 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41808-08 | |
| 41809-08 | |
| 41854-08 | |
| 41900-08 | |
| 4194 | |
| 4239 | |
| 4240 | |
| 42407-08 | |
| 42416-06 | |
| 42454-99A | |
| 42460-80B | |
| 42568-05A | |
| 42642-00A | |
| 4266A | |
| 42849-08 | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06C | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42859-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 43022-91A | |
| 43027-08 | |
| 4312C | |
| 4313 | |
| 4365 | |
| 4400 | |
| 44023-08 | |
| 44160-00 | |
| 4419 | |
| 44341-08 | |
| 44551-08C | |
| 45021-86 | |
| 45080-08 | |
| 45138-08A | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45442-86 | |
| 45718-60 | |
| 45727-08 | |
| 45733-48 | |
| 45803-97 | |
| 45835-00 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45893-99 | |
| 45933-86 | |
| 45940-84 | |
| 45964-86 | |
| 45998-73 | |
| 4612 | |
| 46209-09 | |
| 4622 | |
| 46422-09 | |
| 46457-05B | |
| 4678 | |
| 4685 | |
| 4686 | |
| 4687 | |
| 4688 | |
| 4696 | |
| 4697 | |
| 4699 | |
| 47000004B | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 47200096 | |
| 4721 | |
| 47365-09 | |
| 4740A | |
| 4741A | |
| 47460-09BHP | |
| 47505-02 | |
| 4751 | |
| 4775 | |
| 4790 | |
| 4795 | |
| 4813A | |
| 4820A | |
| 4826 | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48361-80 | |
| 48365-48A | |
| 4838 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4868 | |
| 4890 | |
| 4916 | |
| 49184-09 | |
| 4922 | |
| 4924 | |
| 4930 | |
| 49377-09A | |
| 50096-09 | |
| 50518-09 | |
| 50588-09A | |
| 50606-06 | |
| 50613-91A | |
| 50614-06 | |
| 50621-06 | |
| 50622-09 | |
| 50674-05 | |
| 50933-86A | |
| 50972-75 | |
| 515 | |
| 52000066 | |
| 520W | |
| 5210 | |
| 5211 | |
| 52164-10 | |
| 52192-86A | |
| 52300203 | |
| 52395-10 | |
| 52441-95 | |
| 52719-10 | |
| 53000077 | |
| 53000295DPY | |
| 53000310DPZ | |
| 53128-09 | |
| 53134-09BHY | |
| 53134-12DJQ | |
| 53134-12DJT | |
| 53134-13DKG | |
| 53165-89A | |
| 53166-89 | |
| 53278-06A | |
| 534 | |
| 53415-06 | |
| 53426-87 | |
| 53429-93 | |
| 53447-87 | |
| 53478-80 | |
| 53486-85 | |
| 53515-86 | |
| 53517-86 | |
| 53563-82 | |
| 53564-97 | |
| 53570-89 | |
| 53598-88A | |
| 53615-85A | |
| 53616-85 | |
| 53617-85 | |
| 53641-02 | |
| 53665-87 | |
| 53788-06 | |
| 53789-06 | |
| 53848-00 | |
| 53865-06B | |
| 53868-06 | |
| 5416 | |
| 5429 | |
| 54320-97 | |
| 54321-85 | |
| 54323-85A | |
| 54354-94A | |
| 54357-03 | |
| 55918-08 | |
| 55924-08 | |
| 56149-88B | |
| 56151-88B | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56248-08 | |
| 56304-08 | |
| 57000286DPZ | |
| 57217-02 | |
| 57638-08 | |
| 57978-00 | |
| 58010-98 | |
| 58104-05 | |
| 58105-05 | |
| 58128-08A | |
| 58129-08A | |
| 58167-09 | |
| 58169-09 | |
| 5817 | |
| 58173-05 | |
| 58187-96 | |
| 58231-04BHY | |
| 58231-12DJQ | |
| 58231-12DJT | |
| 58231-13DKG | |
| 58236-96 | |
| 58247-96 | |
| 58311-96 | |
| 5837A | |
| 58380-89 | |
| 58381-06 | |
| 58382-89 | |
| 58383-89 | |
| 58384-89 | |
| 58385-93 | |
| 58478-96B | |
| 58479-96B | |
| 58491-10 | |
| 58491-10DH | |
| 58491-12DJO | |
| 58491-12DJS | |
| 58491-12DKJ | |
| 58491-13DME | |
| 58492-10 | |
| 58492-10DH | |
| 58492-12DJO | |
| 58492-12DJS | |
| 58492-12DKJ | |
| 58492-13DME | |
| 58510-96 | |
| 58679-05 | |
| 58681-05 | |
| 58683-05 | |
| 58684-05 | |
| 58709-86 | |
| 58816-05A | |
| 58817-05A | |
| 58836-05DH | |
| 58836-12DJO | |
| 58836-12DJS | |
| 58836-13DKJ | |
| 58836-13DME | |
| 58837-05DH | |
| 58837-12DJO | |
| 58837-12DJS | |
| 58837-13DKJ | |
| 58837-13DME | |
| 58889-05 | |
| 58890-05 | |
| 58891-05 | |
| 58893-05 | |
| 58901-05 | |
| 58903-05 | |
| 58938-96C | |
| 58939-96C | |
| 58949-96 | |
| 59072-04BHY | |
| 59072-12DJQ | |
| 59072-12DJT | |
| 59072-13DKG | |
| 59087-00B | |
| 59112-13DPZ | |
| 59166-80 | |
| 59180-80 | |
| 59211-74A | |
| 59231-86 | |
| 59407-01 | |
| 59988-72A | |
| 601 | |
| 6016 | |
| 6019 | |
| 60253-07 | |
| 6029 | |
| 60328-98B | |
| 6036 | |
| 60432-07A | |
| 60553-07 | |
| 60678-85 | |
| 60766-06 | |
| 608 | |
| 60800006 | |
| 6099 | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6116 | |
| 61208-10 | |
| 61213-04A | |
| 6127 | |
| 61270-08 | |
| 61274-92 | |
| 61278-08 | |
| 61293-08 | |
| 61313-88 | |
| 61356-08 | |
| 61356-08BHY | |
| 61356-12DJQ | |
| 61356-12DJT | |
| 61356-13DKG | |
| 61356-13DPZ | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08A | |
| 62229-08B | |
| 62286-08 | |
| 62287-08 | |
| 62288-08 | |
| 62289-08 | |
| 6235 | |
| 62372-09 | |
| 62489-99A | |
| 62533-11 | |
| 62629-11 | |
| 62641-11 | |
| 62700026 | |
| 62775-08 | |
| 62786-96 | |
| 62787-96 | |
| 62800013 | |
| 62908-08 | |
| 6294 | |
| 63059-09 | |
| 63059-09A | |
| 63066-07 | |
| 63083-11 | |
| 63084-07 | |
| 6334 | |
| 63533-41A | |
| 63798-99A | |
| 6408HB | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65538-09 | |
| 6557 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65846-10A | |
| 6594 | |
| 65951-09 | |
| 65952-09 | |
| 66000008 | |
| 66000009 | |
| 66010-97C | |
| 66051-08 | |
| 66200-09 | |
| 66281-09B | |
| 66290-06 | |
| 66373-06 | |
| 6645 | |
| 66813-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 67043-96 | |
| 6716 | |
| 6718 | |
| 67348-04D | |
| 67349-08 | |
| 67350-08 | |
| 67352-96A | |
| 67356-00 | |
| 67445-00 | |
| 67493-08 | |
| 6762B | |
| 67668-05 | |
| 67689-04 | |
| 67712-83A | |
| 67718-60A | |
| 67721-48 | |
| 67724-71 | |
| 67726-08 | |
| 67728-02A | |
| 67732-08 | |
| 67778-60A | |
| 67782-60A | |
| 67854-98 | |
| 67875-11 | |
| 67880-94 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68167-04 | |
| 68168-89A | |
| 68193-95 | |
| 68245-03 | |
| 68296-99A | |
| 68329-03 | |
| 68331-02 | |
| 68342-05 | |
| 68370-03A | |
| 68382-07A | |
| 68390-05 | |
| 68414-05 | |
| 68453-05 | |
| 68706-00 | |
| 68725-62A | |
| 68789-96B | |
| 68821-00 | |
| 68830-99A | |
| 68836-04A | |
| 68837-04A | |
| 68920-07 | |
| 68924-07 | |
| 68926-07 | |
| 68956-07 | |
| 69012-93A | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200029 | |
| 69200100 | |
| 69241-08 | |
| 69318-02 | |
| 69325-02 | |
| 69326-10 | |
| 69331-02 | |
| 69336-03 | |
| 69563-06 | |
| 69567-06 | |
| 6970 | |
| 70018-07 | |
| 70142-94 | |
| 70186-82 | |
| 70196-00 | |
| 70232-10 | |
| 70267-09 | |
| 70271-98 | |
| 70344-09 | |
| 70348-09 | |
| 70369-08 | |
| 70373-96 | |
| 70375-96 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70415-08A | |
| 70465-86A | |
| 70578-89 | |
| 70585-93 | |
| 70598-99 | |
| 70617-07 | |
| 70648-00A | |
| 70676-11 | |
| 7068 | |
| 70681-09 | |
| 7069 | |
| 70901-09 | |
| 70980-09 | |
| 70981-09 | |
| 70999-09 | |
| 7128 | |
| 71294-08 | |
| 7130W | |
| 71422-03 | |
| 71434-96A | |
| 71452-91A | |
| 71459-03 | |
| 71466-03 | |
| 71474-07 | |
| 71505-96 | |
| 71513-98 | |
| 71532-03 | |
| 71535-96 | |
| 7155 | |
| 71564-96 | |
| 71567-96 | |
| 71587-04 | |
| 71594-98A | |
| 71595-08 | |
| 71603-02B | |
| 71620-08 | |
| 71621-08 | |
| 71638-03 | |
| 71642-08 | |
| 71660-03 | |
| 71661-03 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71711-02 | |
| 71714-02 | |
| 71735-08 | |
| 71787-08 | |
| 71788-08 | |
| 71814-98 | |
| 71817-07 | |
| 71820-98 | |
| 71822-98 | |
| 71823-98 | |
| 71824-98 | |
| 71825-96A | |
| 71834-11 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72023-51E | |
| 72024-08 | |
| 72033-93 | |
| 72056-92 | |
| 72063-06 | |
| 72066-06A | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72104-94BK | |
| 72106-94BK | |
| 72111-06 | |
| 72114-94BK | |
| 72115-08 | |
| 72116-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72131-04 | |
| 72135-06 | |
| 72139-94GY | |
| 72144-94 | |
| 72146-94 | |
| 72154-94 | |
| 72155-08 | |
| 72156-94 | |
| 72157-08 | |
| 72159-94 | |
| 72161-06 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72179-94 | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72200-94A | |
| 72203-96 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72207-94 | |
| 72208-94 | |
| 72210-94 | |
| 72213-94 | |
| 72214-94 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72252-01 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72282-09 | |
| 72283-09 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72298-95 | |
| 7230 | |
| 72309-04 | |
| 72314-01 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72355-97 | |
| 72356-95 | |
| 72359-05 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72384-06BK | |
| 72397-98 | |
| 72399-98 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72416-01 | |
| 72440-08 | |
| 72444-07GY | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72491-07GY | |
| 72492-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72518-01 | |
| 72533-06 | |
| 72537-10 | |
| 72543-07BK | |
| 72544-07 | |
| 72556-08 | |
| 72557-07 | |
| 72599-10 | |
| 72605-08 | |
| 72609-08 | |
| 72620-08 | |
| 72663-11 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73103-96BK | |
| 73104-96BK | |
| 73108-96BK | |
| 73110-96BK | |
| 73112-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73160-96BK | |
| 73162-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 7358 | |
| 74109-98BK | |
| 74112-98BK | |
| 74115-06 | |
| 74119-98BK | |
| 74149-98 | |
| 74152-98 | |
| 74159-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 74402-05B | |
| 74419-96A | |
| 74438-99A | |
| 74505-09 | |
| 74526-96C | |
| 7492 | |
| 7495 | |
| 75032-99B | |
| 75044-96 | |
| 75069-08C | |
| 75089-08 | |
| 75109-96C | |
| 75111-08 | |
| 75147-08B | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 7600 | |
| 7601 | |
| 7606 | |
| 76129-98 | |
| 76130-98 | |
| 7613A | |
| 76160-06 | |
| 7624 | |
| 76248-86 | |
| 76250-09 | |
| 76258-86 | |
| 76259-86 | |
| 76260-89 | |
| 76265-98 | |
| 76266-98A | |
| 7629 | |
| 76294-09 | |
| 76303-98B | |
| 76304-98B | |
| 76307-98 | |
| 76319-08 | |
| 76416-06C | |
| 765 | |
| 76503-08 | |
| 76529-10 | |
| 7667 | |
| 7683 | |
| 7686 | |
| 7688 | |
| 77029-06 | |
| 77047-98 | |
| 77092-98 | |
| 77117-10 | |
| 77121-08 | |
| 77126-10 | |
| 77136-08 | |
| 77148-10 | |
| 7716 | |
| 7737W | |
| 7739 | |
| 7744 | |
| 7748W | |
| 7763W | |
| 7768W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7823 | |
| 7825 | |
| 7838 | |
| 7848W | |
| 786A | |
| 7878 | |
| 79039-06BHY | |
| 79039-12DJQ | |
| 79039-12DJT | |
| 79039-13DKG | |
| 79042-06 | |
| 791A | |
| 7992 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8142 | |
| 8174 | |
| 8175 | |
| 8194 | |
| 8300 | |
| 83000037 | |
| 8308 | |
| 8309 | |
| 8313 | |
| 8314 | |
| 8319 | |
| 8324 | |
| 8328 | |
| 8329 | |
| 83296-11 | |
| 8330 | |
| 83310-09 | |
| 83311-09 | |
| 83312-09 | |
| 83313-09 | |
| 83314-09 | |
| 83315-09 | |
| 83316-09 | |
| 83317-09 | |
| 83318-11DH | |
| 83318-12DJO | |
| 83318-12DJS | |
| 83318-13DKJ | |
| 83318-13DPY | |
| 8332 | |
| 83323-09 | |
| 83324-09 | |
| 83326-09 | |
| 83327-09 | |
| 83328-09 | |
| 8333 | |
| 83331-09 | |
| 83332-09B | |
| 83334-09B | |
| 83337-09A | |
| 83338-09A | |
| 83339-09A | |
| 83341-11DH | |
| 83341-12DJO | |
| 83341-12DJS | |
| 83341-13DKJ | |
| 83341-13DPY | |
| 83344-11 | |
| 83346-11 | |
| 8335 | |
| 83352-11 | |
| 83356-11BHY | |
| 83356-12DJQ | |
| 83356-13DJT | |
| 83356-13DKG | |
| 83356-13DPZ | |
| 83359-11BHY | |
| 83359-12DJQ | |
| 83359-13DJT | |
| 83359-13DKG | |
| 83359-13DPZ | |
| 83364-11DH | |
| 83364-12DJO | |
| 83364-12DJS | |
| 83364-13DKJ | |
| 83364-13DPY | |
| 83365-11DH | |
| 83365-12DJO | |
| 83365-12DJS | |
| 83365-13DKJ | |
| 83365-13DPY | |
| 83366-09 | |
| 8337 | |
| 83371-09B | |
| 83373-09A | |
| 83374-09 | |
| 83379-09 | |
| 8338 | |
| 83380-09 | |
| 83382-09 | |
| 83383-09 | |
| 83385-09 | |
| 83386-09 | |
| 83388-09A | |
| 83389-09A | |
| 8339 | |
| 83393-09 | |
| 83395-09A | |
| 83396-09A | |
| 83398-09 | |
| 83402-09A | |
| 83403-09A | |
| 83404-09A | |
| 83407-09 | |
| 83408-09A | |
| 83411-11BHP | |
| 83418-09 | |
| 83419-09 | |
| 83420-09 | |
| 83421-09 | |
| 83422-09 | |
| 83423-09 | |
| 83424-09 | |
| 83425-09A | |
| 83426-09B | |
| 83427-09B | |
| 83429-09 | |
| 8343 | |
| 83430-09B | |
| 83431-09 | |
| 83434-11 | |
| 83439-09 | |
| 83443-09 | |
| 83445-09 | |
| 83446-09 | |
| 83448-09 | |
| 83449-10 | |
| 83450-09 | |
| 83453-09 | |
| 83456-09 | |
| 83457-11 | |
| 83458-11 | |
| 83460-09 | |
| 83464-09 | |
| 83465-09 | |
| 83466-11BHP | |
| 83475-09 | |
| 8348 | |
| 83480-09 | |
| 83496-09 | |
| 83497-09 | |
| 83499-09 | |
| 83538-11 | |
| 83563-10 | |
| 8359 | |
| 83595-11 | |
| 8360 | |
| 8364 | |
| 8365 | |
| 8366 | |
| 8367 | |
| 8369 | |
| 8370 | |
| 83777-11 | |
| 83778-11 | |
| 83781-11 | |
| 83782-11 | |
| 83783-11 | |
| 83798-11 | |
| 83799-10 | |
| 83800-09 | |
| 83801-09 | |
| 83804-09 | |
| 83808-09A | |
| 83810-09 | |
| 83811-09 | |
| 83815-09 | |
| 83817-09 | |
| 83822-09 | |
| 83823-09 | |
| 83836-09 | |
| 83848-09 | |
| 83849-09A | |
| 83850-09 | |
| 83857-09 | |
| 83860-09 | |
| 83861-09 | |
| 83863-09 | |
| 83864-09 | |
| 83865-09 | |
| 83869-09 | |
| 83873-09 | |
| 83874-09 | |
| 83875-09 | |
| 83876-09 | |
| 83878-10 | |
| 83880-09 | |
| 83881-09A | |
| 83883-09A | |
| 83884-09 | |
| 83886-09 | |
| 83888-09 | |
| 83889-09 | |
| 83890-09A | |
| 83891-09 | |
| 83892-09 | |
| 83895-10 | |
| 83898-09 | |
| 83899-10 | |
| 83902-09 | |
| 83903-09 | |
| 83904-09 | |
| 83905-09 | |
| 83906-09 | |
| 83907-09 | |
| 83908-09 | |
| 83910-09 | |
| 83911-09B | |
| 83935-09A | |
| 83936-09A | |
| 83942-09 | |
| 83943-09 | |
| 83944-09 | |
| 83945-09 | |
| 83951-09 | |
| 83952-10 | |
| 83978-11 | |
| 83987-09 | |
| 83991-11 | |
| 84021-10 | |
| 84027-11 | |
| 8483A | |
| 84850-92 | |
| 8500A | |
| 856A | |
| 882 | |
| 8860 | |
| 8873 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90329-98 | |
| 90383-98 | |
| 90469-94 | |
| 90520-07 | |
| 90649-07 | |
| 90686-92 | |
| 90688-85 | |
| 90705-97 | |
| 90755-09 | |
| 90763-79 | |
| 90770-79 | |
| 90821-74C | |
| 90844-80 | |
| 90869-85A | |
| 90964-63 | |
| 90965-63 | |
| 91583-99 | |
| 91800042 | |
| 91808-89 | |
| 91812-89A | |
| 91840-03B | |
| 91845-03B | |
| 9208 | |
| 9215 | |
| 9231 | |
| 924 | |
| 925 | |
| 926 | |
| 9276A | |
| 932 | |
| 942 | |
| 94435-10 | |
| 946 | |
| 95595-84A | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9838 | |
| 9839 | |
| 9847 | |
| 9848 | |
| 9864 | |
| 9898 | |
| 9907 | |
| 9937 | |
| 99461-89 | |
| 9955 | |
| 9956 | |
| 9990W |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7739 | Unknown |
| 7586 | Unknown |
| 8142 | Unknown |
| 7576 | 1990 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7737W | Unknown |
| 76259-86 | 1986 |
| 7763W | Unknown |
| 7613A | 1959 |
| 67043-96 | 1996 |
| 7748W | Unknown |
| 7823 | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 5210 | 1991 |
| 5211 | Unknown |
| 8309 | 2009 |
| 84850-92 | 1992 |
| 7768W | Unknown |
| 7992 | 2010 |
| 83496-09 | 2009 |
| 7495 | 1994 |
| 8364 | 2011 |
| 83328-09 | 2009 |
| 7492 | 1993 |
| 7340 | Unknown |
| 7878 | 1993 |
| 83312-09 | 2009 |
| 71660-03 | 2003 |
| 7331 | Unknown |
| 90844-80 | 1980 |
| 8108 | Unknown |
| 7744 | 1943 |
| 58949-96 | 1996 |
| 7593 | 1991 |
| 8337 | 2009 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3536 | Unknown |
| 4678 | Unknown |
| 2667 | 2016 |
| 3802W | 2009 |
| 4266A | Unknown |
| 3983 | 2005 |
| 882 | 2000 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 2563 | 2009 |
| 4697 | Unknown |
| 2579A | Unknown |
| 4699 | Unknown |
| 4741A | 1994 |
| 3050 | Unknown |
| 4916 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 4687 | 2006 |
| 2955 | 1996 |
| 2479 | Unknown |
| 4686 | 2006 |
| 35259-06 | 2006 |
| 2559 | 1996 |
| 3514 | Unknown |
| 2482 | Unknown |
| 4696 | Unknown |
| 4313 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 3561WC | Unknown |
| 4239 | 2006 |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 895 | Unknown |
| 4751 | Unknown |
| 4890 | Unknown |
| 5429 | 2005 |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 3529 | Unknown |
| 932 | Unknown |
| 2965 | 1997 |
| 4240 | Unknown |
| 2963 | Unknown |
| 2625 | 1971 |
| 3605 | 2009 |
| 2952A | 2003 |
| 3560WA | Unknown |
| 3331 | 2003 |
| 2968 | Unknown |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 90770-79 | 1979 |
| 3061 | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3594 | 1992 |
| 4922 | Unknown |
| 8319 | 2009 |
| 4856 | Unknown |
| 45838-77 | 1977 |
| 2995 | 2018 |
| 2708A | Unknown |
| 925 | Unknown |
| 2998 | Unknown |
| 3598 | 1993 |
| 3595 | 1993 |
| 926 | Unknown |
| 3597 | 1993 |
| 924 | Unknown |
| 8308 | 2009 |
| 68042-99 | 1999 |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 2604 | Unknown |
| 8314 | 2009 |
| 3227 | 1994 |
| 10200004 | 2011 |
| 3699D | 2006 |
| 8313 | 2009 |
| 3929 | 2009 |
| 2724 | Unknown |
| 3300 | Unknown |
| 4930 | 2008 |
| 3092 | 2007 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3387 | Unknown |
| 3563 | 1999 |
| 8300 | Unknown |
| 2882W | 2009 |
| 3143 | Unknown |
| 4015 | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 1780 | Unknown |
| 2531 | Unknown |
| 83323-09 | 2009 |
| 4820A | Unknown |
| 3391 | Unknown |
| 4868 | Unknown |
| 67724-71 | 1971 |
| 8175 | 2004 |
| 8360 | 2011 |
| 4622 | Unknown |
| 8366 | 2011 |
| 8365 | 2011 |
| 946 | Unknown |
| 8369 | 2011 |
| 4365 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 8359 | 2011 |
| 3445 | Unknown |
| 4813A | 1990 |
| 3368 | Unknown |
| 703B | Unknown |
| 8343 | 2010 |
| 3736B | 2010 |
| 8329 | Unknown |
| 4790 | Unknown |
| 1332 | 2010 |
| 4194 | Unknown |
| 4795 | 2006 |
| 4685 | 2007 |
| 42858-06A | 2006 |
| 4775 | 2000 |
| 8333 | 2009 |
| 16480-92A | 1992 |
| 2445 | Unknown |
| 83884-09 | 2009 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6718 | Unknown |
| 7415A | Unknown |
| 6016 | 2013 |
| 6408HB | 1970 |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6220W | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6116 | Unknown |
| 53641-02 | 2002 |
| 6334 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 8324 | 2009 |
| 6109 | 1980 |
| 6101 | 2011 |
| 58173-05 | 2005 |
| 6594 | Unknown |
| 7128 | Unknown |
| 6029 | Unknown |
| 7230 | Unknown |
| 6127 | Unknown |
| 90763-79 | 1979 |
| 6532 | 2000 |
| 6036 | Unknown |
| 45727-08 | 2008 |
| 7068 | Unknown |
| 7038 | 1998 |
| 6762B | Unknown |
| 8338 | Unknown |
| 83886-09 | 2009 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 8328 | 2009 |
| 6702 | Unknown |
| 6235 | Unknown |
| 6645 | Unknown |
| 6970 | Unknown |
| 58105-05 | 2005 |
| 8335 | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 10500011 | 2011 |
| 37090-98A | 1998 |
| 106A1 - Custom Washers | |
| 6557 | Unknown |
| 108A1 - Hose Clamps | |
| 27048-84 | 1984 |
| 10354 | Unknown |
| 10198 | Unknown |
| 9990W | 2010 |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 58380-89 | 1989 |
| 69563-06 | 2006 |
| 9956 | 1972 |
| 9955 | Unknown |
| 108B1 - P Clamps | |
| 10105 | 1992 |
| 10092 | 2010 |
| 69336-03 | 2003 |
| 109A1 - Studs | |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 83311-09 | 2009 |
| 45998-73 | 1973 |
| 83822-09 | 2009 |
| 16834-99A | 1999 |
| 110A1 - Bearing Dust Seals | |
| 83848-09 | 2009 |
| 110B1 - Plain Bushings | |
| 83317-09 | 2009 |
| 83314-09 | 2009 |
| 58010-98 | 1998 |
| 8967 | 2005 |
| 17429-91 | 1991 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 9701A | 2011 |
| 8332 | 2009 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 8860 | Unknown |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 58247-96 | 1996 |
| 9825 | Unknown |
| 9819 | Unknown |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 72252-01 | 2001 |
| 111C1 - Insulating Tape | |
| 83811-09 | 2009 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 117A1 - Coil Springs | |
| 33085-74 | 1974 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11900010 | 2013 |
| 10927 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11140 | 1982 |
| 10968 | Unknown |
| 11289A | Unknown |
| 11900039 | 2013 |
| 45845-77 | 1977 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11301 | Unknown |
| 8367 | 2011 |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11179 | 1986 |
| 8330 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 520W | 2010 |
| 50933-86A | 1986 |
| 534 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11445 | Unknown |
| 11692 | Unknown |
| 11437 | Unknown |
| 83439-09 | 2009 |
| 11488 | 1996 |
| 11486 | Unknown |
| 11492 | 1996 |
| 57978-00 | 2000 |
| 11543 | Unknown |
| 11650 | 2010 |
| 83460-09 | 2009 |
| 121B1 - Press-Fit Plugs | |
| 765 | 1997 |
| 90383-98 | 1998 |
| 72164-94A | 1994 |
| 90329-98 | 1998 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 72599-10 | 2010 |
| 10998 | 1985 |
| 17945-36B | 1936 |
| 10368A | 2010 |
| 45021-86 | 1986 |
| 35114-02 | 2002 |
| 11688 | Unknown |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 83908-09 | 2009 |
| 83313-09 | 2009 |
| 53868-06 | 2006 |
| 11061A | 2008 |
| 11143 | Unknown |
| 10398 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 10394 | 2010 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 83315-09 | 2009 |
| 10336 | 2010 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 83316-09 | 2009 |
| 11389 | Unknown |
| 11096 | 2010 |
| 8174 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10149 | Unknown |
| 10147 | 2018 |
| 11461 | Unknown |
| 83331-09 | 2009 |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 12300002 | 2011 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 7069 | Unknown |
| 12300006 | 2011 |
| 124A1 - Spacers | |
| 41900-08 | 2008 |
| 5837A | Unknown |
| 53615-85A | 1985 |
| 11599A | 2012 |
| 83864-09 | 2009 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10270 | 2003 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 12600003 | 2011 |
| 50972-75 | 1975 |
| 38900-08 | 2008 |
| 83905-09 | 2009 |
| 83339-09A | 2012 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 27711-08 | 2008 |
| 53426-87 | 1987 |
| 83891-09 | 2009 |
| 8500A | 1993 |
| 54320-97 | 1997 |
| 83337-09A | 2012 |
| 83892-09 | 2009 |
| 56161-83A | 1983 |
| 53447-87 | 1987 |
| 71459-03 | 2003 |
| 83987-09 | 2009 |
| 16585-96 | 1996 |
| 26041-05A | 2005 |
| 58104-05 | 2005 |
| 83310-09 | 2009 |
| 8873 | 1984 |
| 57638-08 | 2008 |
| 126B1 - Rivets Fasteners | |
| 58709-86 | 1986 |
| 11779 | 2008 |
| 8483A | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 83465-09 | 2009 |
| 83464-09 | 2009 |
| 58311-96 | 1996 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 90821-74C | 1974 |
| 83890-09A | 2010 |
| 83563-10 | 2010 |
| 83881-09A | 2010 |
| 140A3 - Other Special Warning Label | |
| 83446-09 | 2009 |
| 141A1 - Medallion | |
| 71466-03 | 2003 |
| 14100373 | 2013 |
| 67668-05 | 2005 |
| 84027-11 | 2011 |
| 14100271 | 2013 |
| 62286-08 | 2008 |
| 15347-08 | 2008 |
| 44341-08 | 2008 |
| 62287-08 | 2008 |
| 62288-08 | 2008 |
| 42856-06 | 2006 |
| 14100261 | 2013 |
| 62289-08 | 2008 |
| 14100262 | 2013 |
| 14100263 | 2013 |
| 149A1 - Tool | |
| 94435-10 | 2010 |
| 162D1 - Engine Assembly | |
| 19678-13 | 2009 |
| 16200068 | 2013 |
| 163B1 - Engine Isolator Mount | |
| 47460-09BHP | 2009 |
| 16207-09 | 2009 |
| 83382-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 27712-08 | 2008 |
| 47159-09BHP | 2009 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7600 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7688 | 2000 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 7358 | Unknown |
| 7848W | Unknown |
| 164D1 - Tiebar Mount | |
| 83874-09 | 2009 |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 17728-08 | 2008 |
| 18011-86 | 1986 |
| 17729-08 | 2008 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 16547-99A | 2012 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05B | 2005 |
| 181B1 - Valve Seals | |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18094-02A | 2002 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 17460-07A | 2012 |
| 21963-07 | 2007 |
| 21962-07 | 2007 |
| 21964-07 | 2007 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03B | 2012 |
| 23729-07B | 2011 |
| 244A1 - Crankcase | |
| 24621-06B | 2011 |
| 244B1 - Crankcase Gasket | |
| 34934-06 | 2006 |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 83456-09 | 2009 |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25675-06 | 2006 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32543-07 | 2007 |
| 25600016 | 2013 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 17053-99C | 2011 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 42857-06B | 2013 |
| 45733-48 | 1948 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 17052-99C | 2011 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 58382-89 | 1989 |
| 17386-99A | 1999 |
| 257L1 - Primary Cover | |
| 60553-07 | 2007 |
| 25585-06 | 2006 |
| 60432-07A | 2008 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 37116-06 | 2006 |
| 34469-06B | 2008 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 58890-05 | 2005 |
| 58889-05 | 2005 |
| 26500002 | 2011 |
| 29502-08A | 2011 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29630-08A | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 290D1 - Airbox Seal | |
| 29718-08 | 2008 |
| 29645-08 | 2008 |
| 292B1 - Air Duct Bezel | |
| 29200022 | 2013 |
| 294A1 - Air Filter Element | |
| 29633-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08 | 2008 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314G1 - Starter Motor sub-component | |
| 31527-90 | 1990 |
| 31611-08 | 2008 |
| 314H1 - Starter Solenoid | |
| 83857-09 | 2009 |
| 28861-07A | 2007 |
| 71474-07 | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 314M1 - Reverse Motor | |
| 83388-09A | 2012 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327A1 - Sensor | |
| 32495-98 | 1998 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 32305-08A | 2008 |
| 327D1 - Proximity Sensor | |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 74419-96A | 1996 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33895-82D | 2010 |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33759-99B | 1999 |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 83389-09A | 2010 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 83978-11 | 2011 |
| 33165-11A | 2012 |
| 350A1 - Transmission Output Sprocket | |
| 83595-11 | 2011 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 83850-09 | 2009 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40901-05 | 2005 |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 45080-08 | 2008 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 38738-08 | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37312-75 | 1975 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 37817-11 | 2011 |
| 37554-11 | 2011 |
| 37496-90A | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 372D1 - Clutch Cable | |
| 38667-08A | 2008 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40040-05 | 2005 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 83935-09A | 2012 |
| 40100009 | 2012 |
| 409A1 - Rear Wheel | |
| 83327-09 | 2009 |
| 410D1 - Electronic Control Module (ECM) | |
| 83386-09 | 2009 |
| 34246-08B | 2011 |
| 68920-07 | 2007 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 70617-07 | 2007 |
| 413A1 - Brake Caliper | |
| 43027-08 | 2008 |
| 44023-08 | 2008 |
| 44160-00 | 2000 |
| 83427-09B | 2011 |
| 83426-09B | 2011 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 83904-09 | 2009 |
| 42851-06 | 2006 |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 41854-08 | 2008 |
| 83911-09B | 2011 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 415A1 - Brake Rotor Guard | |
| 41809-08 | 2008 |
| 41808-08 | 2008 |
| 415B1 - Brake Rotor | |
| 83425-09A | 2011 |
| 416A1 - Brakes Miscellaneous Component | |
| 42860-06B | 2006 |
| 42642-00A | 2011 |
| 83907-09 | 2009 |
| 42852-06A | 2006 |
| 83421-09 | 2009 |
| 40920-87 | 1987 |
| 72023-51E | 2012 |
| 83443-09 | 2009 |
| 416B1 - Brake Mounting Bracket | |
| 83906-09 | 2009 |
| 83431-09 | 2009 |
| 417A1 - Brake Master Cylinder Assembly | |
| 83430-09B | 2011 |
| 44551-08C | 2013 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42568-05A | 2011 |
| 46457-05B | 2011 |
| 40922-87A | 1987 |
| 42862-06B | 2010 |
| 45423-92 | 1992 |
| 42855-06C | 2013 |
| 83836-09 | 2009 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 42859-06B | 2006 |
| 418B1 - Brake Line | |
| 83393-09 | 2009 |
| 83475-09 | 2009 |
| 422B1 - Wheel Sprocket | |
| 83424-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 54323-85A | 1985 |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 83849-09A | 2011 |
| 430C1 - Axle Nut | |
| 83402-09A | 2011 |
| 83889-09 | 2009 |
| 83403-09A | 2011 |
| 430E1 - Rear Axle | |
| 83371-09B | 2011 |
| 430F1 - Sidecar Axle | |
| 83450-09 | 2009 |
| 431A1 - Front Tire | |
| 43022-91A | 1991 |
| 432A1 - Rear Tire | |
| 83324-09 | 2013 |
| 433A1 - Front Wheel | |
| 83326-09 | 2009 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 83888-09 | 2009 |
| 83875-09 | 2009 |
| 48489-02 | 2002 |
| 454A1 - Front Telescopic Fork | |
| 83800-09 | 2009 |
| 83801-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 45964-86 | 1986 |
| 83817-09 | 2009 |
| 83815-09 | 2009 |
| 455B1 - Front Telescopic Fork Spring | |
| 83499-09 | 2009 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 83804-09 | 2009 |
| 49377-09A | 2011 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45442-86 | 1986 |
| 45933-86 | 1986 |
| 45835-00 | 2000 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 457B1 - Steering Damper | |
| 83808-09A | 2010 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 48333-80 | 1980 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 83374-09 | 2009 |
| 459A1 - Upper Triple Clamp | |
| 83404-09A | 2010 |
| 470A1 - Frame | |
| 83466-11BHP | 2011 |
| 47000004B | 2015 |
| 83411-11BHP | 2011 |
| 472A1 - Frame sub-component | |
| 47200096 | 2011 |
| 472C1 - Front Fairing Support Bracket | |
| 62787-96 | 1996 |
| 472C2 - Fairing Lower Support Bracket | |
| 58939-96C | 2010 |
| 58938-96C | 2010 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 83407-09 | 2009 |
| 83408-09A | 2009 |
| 83899-10 | 2010 |
| 53570-89 | 1989 |
| 83860-09 | 2009 |
| 83910-09 | 2009 |
| 83429-09 | 2009 |
| 29644-08 | 2008 |
| 53563-82 | 1982 |
| 47365-09 | 2009 |
| 76130-98 | 1998 |
| 83861-09 | 2009 |
| 474C1 - Swingarm | |
| 83366-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 83373-09A | 2010 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49184-09 | 2009 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 83863-09 | 2009 |
| 505A1 - Footboard | |
| 52719-10 | 2010 |
| 50613-91A | 1991 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 50588-09A | 2009 |
| 50622-09 | 2009 |
| 505C1 - Heel Guard / Pad | |
| 50606-06 | 2006 |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 50621-06 | 2006 |
| 506A1 - Brake Pedal | |
| 42416-06 | 2006 |
| 42407-08 | 2008 |
| 520A1 - Rider Seat or Full Seat | |
| 52164-10 | 2010 |
| 52000066 | 2013 |
| 521C1 - Seat Suspension Damper | |
| 46422-09 | 2009 |
| 46209-09 | 2009 |
| 523B1 - Back Rest Pad | |
| 52300203 | 2013 |
| 52395-10 | 2010 |
| 83445-09 | 2009 |
| 523C1 - Back Rest Support Structure | |
| 52192-86A | 1986 |
| 53517-86 | 1986 |
| 524A1 - Passenger Grab Handle | |
| 91583-99 | 1999 |
| 530A1 - Tour Pak | |
| 79042-06 | 2006 |
| 53000295DPY | 2013 |
| 530B1 - Tour Pak sub-component | |
| 53415-06 | 2006 |
| 53128-09 | 2009 |
| 79039-13DKG | 2013 |
| 53616-85 | 1985 |
| 53515-86 | 1986 |
| 53166-89 | 1989 |
| 53000310DPZ | 2013 |
| 79039-06BHY | 2006 |
| 79039-12DJQ | 2012 |
| 53478-80 | 1980 |
| 79039-12DJT | 2012 |
| 53134-13DKG | 2013 |
| 53134-12DJT | 2012 |
| 53134-09BHY | 2009 |
| 53134-12DJQ | 2012 |
| 53165-89A | 1989 |
| 53564-97 | 1997 |
| 90755-09 | 2009 |
| 90964-63 | 1963 |
| 53486-85 | 1985 |
| 53617-85 | 1985 |
| 53598-88A | 1988 |
| 90869-85A | 1985 |
| 90688-85 | 1985 |
| 53278-06A | 2009 |
| 530C1 - Trunk Pan | |
| 83341-13DKJ | 2013 |
| 83341-11DH | 2011 |
| 83341-13DPY | 2013 |
| 530C2 - Case Latch | |
| 83352-11 | 2011 |
| 53848-00 | 2000 |
| 90705-97 | 1997 |
| 90686-92 | 1992 |
| 90649-07 | 2007 |
| 530D1 - Trunk Pan sub-component | |
| 83782-11 | 2011 |
| 83434-11 | 2011 |
| 83346-11 | 2011 |
| 53000077 | 2011 |
| 83781-11 | 2011 |
| 83783-11 | 2011 |
| 83296-11 | 2011 |
| 83778-11 | 2011 |
| 83457-11 | 2011 |
| 83991-11 | 2011 |
| 83458-11 | 2011 |
| 83777-11 | 2011 |
| 83538-11 | 2011 |
| 83798-11 | 2011 |
| 530E1 - Tour-Pak Luggage Rack | |
| 53665-87 | 1987 |
| 540B1 - Rear Shock | |
| 83480-09 | 2009 |
| 540E1 - Rear Shock sub-component | |
| 83497-09 | 2009 |
| 54357-03 | 2003 |
| 540H1 - Rear Suspension Miscellaneous Component | |
| 83823-09 | 2009 |
| 540L1 - Shock-Mount Bracket | |
| 83865-09 | 2009 |
| 558A1 - Handlebar | |
| 55924-08 | 2008 |
| 559D1 - Lower Handlebar Clamp | |
| 56151-88B | 1988 |
| 56149-88B | 1988 |
| 560A1 - Mirror | |
| 91840-03B | 2003 |
| 91845-03B | 2003 |
| 561E1 - Throttle Grip | |
| 56304-08 | 2008 |
| 56248-08 | 2008 |
| 570A1 - Front Fairing | |
| 58231-12DJT | 2012 |
| 58231-12DJQ | 2012 |
| 58478-96B | 1996 |
| 58479-96B | 1996 |
| 58236-96 | 1996 |
| 58231-04BHY | 2004 |
| 57000286DPZ | 2013 |
| 58231-13DKG | 2013 |
| 570C1 - Inner Fairing | |
| 83810-09 | 2009 |
| 571A1 - Fairing Lower | |
| 58817-05A | 2005 |
| 58837-13DME | 2013 |
| 58492-10DH | 2010 |
| 58837-13DKJ | 2013 |
| 58836-12DJO | 2012 |
| 58836-05DH | 2005 |
| 58836-12DJS | 2012 |
| 58837-05DH | 2005 |
| 58837-12DJO | 2012 |
| 58837-12DJS | 2012 |
| 58492-12DJO | 2012 |
| 58492-13DME | 2013 |
| 58492-12DJS | 2012 |
| 58816-05A | 2005 |
| 58836-13DKJ | 2013 |
| 58836-13DME | 2013 |
| 571B1 - Fairing Lower sub-component | |
| 58679-05 | 2005 |
| 58491-13DME | 2013 |
| 58492-12DKJ | 2012 |
| 58681-05 | 2005 |
| 58491-12DJO | 2012 |
| 58491-12DJS | 2012 |
| 58492-10 | 2010 |
| 58491-12DKJ | 2012 |
| 58491-10 | 2010 |
| 58903-05 | 2005 |
| 58510-96 | 1996 |
| 83453-09 | 2009 |
| 58901-05 | 2005 |
| 58491-10DH | 2010 |
| 58893-05 | 2005 |
| 572C1 - Chin Spoiler Side | |
| 58128-08A | 2011 |
| 58129-08A | 2011 |
| 572D1 - Engine Shroud | |
| 58167-09 | 2009 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 573A1 - Bodywork Miscellaneous Component | |
| 83344-11 | 2011 |
| 58891-05 | 2005 |
| 574B1 - Windscreen / Windshield | |
| 58187-96 | 1996 |
| 589A1 - Front Fender | |
| 59072-12DJQ | 2012 |
| 59072-12DJT | 2012 |
| 59112-13DPZ | 2013 |
| 59072-13DKG | 2013 |
| 59072-04BHY | 2004 |
| 59087-00B | 2012 |
| 595D1 - Rear Fender | |
| 83356-13DJT | 2013 |
| 83356-13DKG | 2013 |
| 83359-13DPZ | 2013 |
| 83359-12DJQ | 2012 |
| 83359-13DJT | 2013 |
| 83359-11BHY | 2011 |
| 83356-11BHY | 2011 |
| 83359-13DKG | 2013 |
| 83356-13DPZ | 2013 |
| 83341-12DJO | 2012 |
| 83356-12DJQ | 2012 |
| 596B1 - Fender Tip | |
| 53429-93 | 1993 |
| 83419-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27297-09 | 2009 |
| 27291-09 | 2009 |
| 27439-09 | 2009 |
| 27298-09 | 2009 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 61112-08 | 2008 |
| 62229-08B | 2011 |
| 75069-08C | 2011 |
| 75147-08B | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61356-13DKG | 2013 |
| 61356-08 | 2008 |
| 61356-13DPZ | 2013 |
| 61356-12DJT | 2012 |
| 61356-12DJQ | 2012 |
| 61356-08BHY | 2008 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09 | 2009 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 83364-13DKJ | 2013 |
| 83364-13DPY | 2013 |
| 83364-11DH | 2011 |
| 83365-12DJO | 2012 |
| 83365-11DH | 2011 |
| 83365-12DJS | 2012 |
| 83365-13DPY | 2013 |
| 83364-12DJO | 2012 |
| 83364-12DJS | 2012 |
| 83951-09 | 2009 |
| 62775-08 | 2008 |
| 83365-13DKJ | 2013 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 61293-08 | 2008 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 613K1 - Airbox Cover | |
| 83379-09 | 2009 |
| 614C1 - Trim | |
| 59231-86 | 1986 |
| 15341-08 | 2008 |
| 59211-74A | 1974 |
| 62786-96 | 1996 |
| 14651-06 | 2006 |
| 58381-06 | 2006 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627A1 - Oil Cooler | |
| 63083-11 | 2011 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627D1 - Oil Duct Cover | |
| 62533-11 | 2011 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62700026 | 2012 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 62641-11 | 2011 |
| 62629-11 | 2011 |
| 627K1 - Oil Line Fitting | |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08A | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63059-09 | 2009 |
| 63059-09A | 2013 |
| 62800013 | 2013 |
| 649A1 - Muffler | |
| 65846-10A | 2011 |
| 83448-09 | 2009 |
| 84021-10 | 2010 |
| 65538-09 | 2009 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 65951-09 | 2009 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 83449-10 | 2010 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66281-09B | 2009 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 70186-82 | 1982 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 660G1 - Positive Battery Cable | |
| 66000009 | 2011 |
| 660H1 - Positive Battery Cable Boot | |
| 66000008 | 2011 |
| 70018-07 | 2007 |
| 8348 | Unknown |
| 670A1 - Tachometer | |
| 67356-00 | 2000 |
| 67348-04D | 2004 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67778-60A | 1960 |
| 67782-60A | 1960 |
| 67732-08 | 2008 |
| 69325-02 | 2002 |
| 67728-02A | 2002 |
| 68725-62A | 1962 |
| 67712-83A | 1983 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68390-05 | 2005 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68245-03 | 2003 |
| 68066-99A | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68370-03A | 2003 |
| 678D1 - Turnsignal | |
| 69326-10 | 2010 |
| 58384-89 | 1989 |
| 69567-06 | 2006 |
| 68821-00 | 2000 |
| 678E1 - Turnsignal Lens | |
| 58383-89 | 1989 |
| 679A1 - License Plate Tray / Holder | |
| 83398-09 | 2009 |
| 679B1 - Reflector | |
| 60253-07 | 2007 |
| 68342-05 | 2005 |
| 59407-01 | 2001 |
| 59988-72A | 1972 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 83395-09A | 2011 |
| 83396-09A | 2011 |
| 83420-09 | 2009 |
| 679E1 - License Plate Light | |
| 83799-10 | 2010 |
| 680A1 - Decorative Light | |
| 53789-06 | 2006 |
| 68706-00 | 2000 |
| 53788-06 | 2006 |
| 58385-93 | 1993 |
| 59180-80 | 1980 |
| 68414-05 | 2005 |
| 680C1 - Incandescent Bulb | |
| 68193-95 | 1995 |
| 67445-00 | 2000 |
| 68168-89A | 1989 |
| 68453-05 | 2005 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 52441-95 | 1995 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692C1 - Electrical Miscellaneous Component | |
| 91808-89 | 1989 |
| 72232-96 | 1996 |
| 83869-09 | 2009 |
| 74115-06 | 2006 |
| 83873-09 | 2009 |
| 70348-09 | 2009 |
| 70981-09 | 2009 |
| 90469-94 | 1994 |
| 68789-96B | 2012 |
| 70344-09 | 2009 |
| 68382-07A | 2010 |
| 91812-89A | 1989 |
| 72189-04 | 2004 |
| 70980-09 | 2009 |
| 71603-02B | 2002 |
| 69200100 | 2011 |
| 68837-04A | 2004 |
| 68836-04A | 2004 |
| 692C2 - Electrical Mounting Bracket | |
| 66200-09 | 2009 |
| 83943-09 | 2009 |
| 69123-92A | 1992 |
| 69120-91 | 1991 |
| 67689-04 | 2004 |
| 69060-90F | 2010 |
| 76265-98 | 1998 |
| 67352-96A | 1996 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 31595-09 | 2009 |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 692E2 - Fuse / Relay Block Cover | |
| 72537-10 | 2010 |
| 72620-08 | 2008 |
| 692F1 - Wire Harness | |
| 70142-94 | 1994 |
| 70465-86A | 1986 |
| 70271-98 | 1998 |
| 83895-10 | 2010 |
| 76319-08 | 2008 |
| 83880-09 | 2009 |
| 76248-86 | 1986 |
| 83334-09B | 2011 |
| 70232-10 | 2010 |
| 76294-09 | 2009 |
| 83878-10 | 2010 |
| 70369-08 | 2008 |
| 70648-00A | 2000 |
| 70196-00 | 2000 |
| 77121-08 | 2008 |
| 70676-11 | 2011 |
| 70415-08A | 2008 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 83422-09 | 2009 |
| 72298-95 | 1995 |
| 83423-09 | 2009 |
| 692H1 - Connector | |
| 76266-98A | 2012 |
| 73152-96BK | 1996 |
| 74149-98 | 1998 |
| 75044-96 | 1996 |
| 72114-94BK | 1994 |
| 72206-94 | 1994 |
| 83876-09 | 2009 |
| 72159-94 | 1994 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72384-06BK | 2006 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 72161-06 | 2006 |
| 72111-06 | 2006 |
| 72179-94 | 1994 |
| 72124-94GY | 1994 |
| 72416-01 | 2001 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72444-07GY | 2007 |
| 72399-98 | 1998 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 76258-86 | 1986 |
| 72155-08 | 2008 |
| 83952-10 | 2010 |
| 72131-04 | 2004 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 73198-96 | 1996 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72286-04 | 2004 |
| 72364-06 | 2006 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 72400-99 | 1999 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 83944-09 | 2009 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72210-94 | 1994 |
| 72115-08 | 2008 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 8370 | 2011 |
| 72381-98 | 1998 |
| 72663-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72355-97 | 1997 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 9839 | 1996 |
| 73307-10 | 2010 |
| 72495-08 | 2008 |
| 9937 | Unknown |
| 72294-94 | 1994 |
| 9864 | 1986 |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 72207-94 | 1994 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 72912-01BK | 2001 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 72104-94BK | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 73162-96BK | 1996 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 72282-09 | 2009 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 72491-07GY | 2007 |
| 73190-96 | 1996 |
| 72200-94A | 1994 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 70598-99 | 1999 |
| 69200029 | 2011 |
| 73112-96BK | 1996 |
| 72557-07 | 2007 |
| 74109-98BK | 1998 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 72397-98 | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72556-08 | 2008 |
| 72492-07GY | 2007 |
| 73158-96BK | 1996 |
| 72720-07 | 2007 |
| 72033-93 | 1993 |
| 72203-96 | 1996 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 73110-96BK | 1996 |
| 73160-96BK | 1996 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 74159-98 | 1998 |
| 72190-94 | 1994 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 74119-98BK | 1998 |
| 83898-09 | 2009 |
| 73104-96BK | 1996 |
| 73196-96 | 1996 |
| 73305-04 | 2004 |
| 83945-09 | 2009 |
| 69318-02 | 2002 |
| 72544-07 | 2007 |
| 73102-96BK | 1996 |
| 72079-08 | 2008 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 8339 | 2009 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 72440-08 | 2008 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72382-98BK | 1998 |
| 709B1 - Instrument Cluster or Speedometer | |
| 75032-99B | 1999 |
| 67350-08 | 2008 |
| 75109-96C | 1996 |
| 67349-08 | 2008 |
| 709B2 - Fuel Gauge | |
| 74526-96C | 2000 |
| 75111-08 | 2008 |
| 709E1 - Tank Console | |
| 61270-08 | 2008 |
| 61278-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71422-03 | 2003 |
| 714B1 - Mechanical Switch | |
| 71505-96 | 1996 |
| 83903-09 | 2009 |
| 33926-06B | 2006 |
| 71817-07 | 2007 |
| 714C1 - Pressure Switch | |
| 71814-98 | 1998 |
| 74438-99A | 2010 |
| 715A1 - Hand Control | |
| 71714-02 | 2002 |
| 71684-06A | 2006 |
| 71788-08 | 2008 |
| 71787-08 | 2008 |
| 71825-96A | 1996 |
| 67854-98 | 1998 |
| 70375-96 | 1996 |
| 76129-98 | 1998 |
| 70373-96 | 1996 |
| 71587-04 | 2004 |
| 71513-98 | 1998 |
| 71638-03 | 2003 |
| 71532-03 | 2003 |
| 83883-09A | 2010 |
| 71824-98 | 1998 |
| 71642-08 | 2008 |
| 71711-02 | 2002 |
| 38700-08A | 2008 |
| 71595-08 | 2008 |
| 71823-98 | 1998 |
| 71594-98A | 1998 |
| 71434-96A | 1996 |
| 71822-98 | 1998 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71661-03 | 2003 |
| 83338-09A | 2010 |
| 67493-08 | 2008 |
| 71685-06A | 2006 |
| 71820-98 | 1998 |
| 71834-11 | 2011 |
| 71682-06A | 2006 |
| 71535-96 | 1996 |
| 71620-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 71735-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74505-09 | 2009 |
| 760B1 - Antenna | |
| 76503-08 | 2008 |
| 68956-07 | 2007 |
| 76250-09 | 2009 |
| 76260-89 | 1989 |
| 760C2 - Audio System Speaker | |
| 76304-98B | 1998 |
| 76307-98 | 1998 |
| 76303-98B | 1998 |
| 77047-98 | 1998 |
| 77029-06 | 2006 |
| 760C3 - Radio Receiver | |
| 76160-06 | 2006 |
| 760C4 - Rider-Passenger Communication System | |
| 77117-10 | 2010 |
| 77136-08 | 2008 |
| 77148-10 | 2010 |
| 76529-10 | 2010 |
| 77126-10 | 2010 |
| 760D2 - Infotainment Mount sub-component | |
| 77092-98 | 1998 |
| 76416-06C | 2006 |
| 830A1 - Trike Body | |
| 83318-13DKJ | 2013 |
| 83318-12DJO | 2012 |
| 83318-12DJS | 2012 |
| 83318-13DPY | 2013 |
| 83341-12DJS | 2012 |
| 83318-11DH | 2011 |
| 830C1 - Parking Brake | |
| 83902-09 | 2009 |
| 83000037 | 2012 |
| 868D2 - Sidecar Fender | |
| 83942-09 | 2009 |
| 902E1 - Saddlebag Bottom | |
| 90965-63 | 1963 |
| 75089-08 | 2008 |
| 903A1 - Lockset | |
| 83332-09B | 2011 |
| 61029-92A | 1992 |
| 53865-06B | 2011 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 918B1 - Hardware Kit | |
| 91800042 | 2013 |
| 931A1 - Protective / Storage Cover | |
| 83418-09 | 2009 |
| 933B1 - Hard Storage | |
| 58683-05 | 2005 |
| 83383-09 | 2009 |
| 58684-05 | 2005 |
| 83380-09 | 2009 |
| 83385-09 | 2009 |
| 940A2 - Owner's Manual | |
| 99461-89 | 1989 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | |
| 1062 | SCREW | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11143 | RETAINING RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11270 | O-RING | |
| 11293 | O-RING | |
| 11301 | O-RING | |
| 12052A | SEAL | |
| 12074 | SEAL | |
| 16585-96 | INSERT | |
| 16715-83 | STUD | |
| 16719-99B | GASKET | |
| 17045-99D | GASKET KIT | |
| 17369-06 | GASKET SERVICE KIT | |
| 17386-99A | GASKET | |
| 18635-99B | GASKET | |
| 2445 | SCREW | |
| 2446 | SCREW | |
| 25244-99A | GASKET | |
| 2531 | SCREW | |
| 2563 | SCREW | |
| 25700226 | GASKET KIT | |
| 26995-86B | SEAL | |
| 27444-00Y | O-RING | |
| 2952A | SCREW | |
| 2995 | SCREW | |
| 3050 | SCREW | |
| 3275 | SCREW | |
| 3368 | SCREW | |
| 34091-08 | BEARING | |
| 34901-07 | GASKET | |
| 34917-06 | GASKET | |
| 34934-06 | GASKET | |
| 35654-06 | GASKET | |
| 3595 | SCREW | |
| 3597 | SCREW | |
| 3655A | SCREW | |
| 3658 | SCREW | |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41751-06A | GASKET | |
| 45405-75A | SCREW | |
| 45733-48 | OIL SEAL | |
| 45845-77 | O-RING | |
| 4740A | SCREW | |
| 48300-60 | ROLLER BEARING | |
| 5210 | WELL NUT | |
| 58311-96 | TRIM SEAL | |
| 60678-85 | RETAINING RING | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | |
| 7041 | LOCKWASHER | |
| 7586 | JAM NUT | |
| 7593 | NUT | |
| 7600 | NUT | |
| 7613A | PUSH NUT | |
| 7716 | LOCKNUT | |
| 786A | BOLT | |
| 856A | SCREW | |
| 9276A | BALL BEARING | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | PAD & PIN KIT | |
| 45875-84A | OIL SEAL |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 58938-96C | SUPPORT | |
| 58939-96C | SUPPORT | |
| 59166-80 | LOCKPLATE |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 71621-08 | STOPLAMP SWITCH KIT | |
| 72023-51E | SWITCH KIT | |
| 72330-95 | FUSE | |
| 91808-89 | ELEMENT |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | |
| 18538-99C | HYDRAULIC LIFTER | |
| 33709-82A | SHAFT | |
| 37909-90 | RETAINING RING | |
| 37913-98 | PLATE CLUTCH |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33895-82D | SHIFT LEVER KIT | |
| 34611-65A | PEG |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29633-08 | FILTER ELEMENT | |
| 61011-04A | FUEL FILTER KIT | |
| 65296-95A | MUFFLER CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67445-00 | BULB | |
| 68168-89A | BULB | |
| 68193-95 | BULB | |
| 68329-03 | BULB |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | |
| 63798-99A | FILTER | |
| 66010-97C | BATTERY | |
| 66373-06 | BATTERY | |
| 95595-84A | WEIGHT |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | |
| 43022-91A | TIRE |
