GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2012 FLTRXSE MODELS
VIN Model Codes

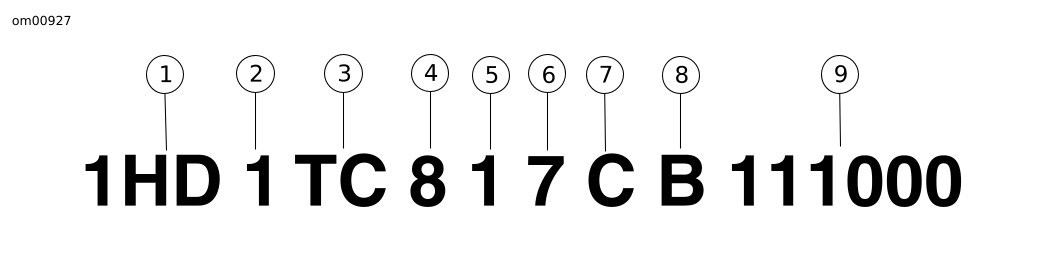

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale within the
United States 5HD=Originally manufactured for sale outside of the
United States 932=Originally manufactured in and for sale only in Brazil market MEG=Originally manufactured in and for sale only in India market | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) | |
3 | Model | TC=FLTRXSE CVO Road Glide® | |
4 | Engine type | 8=110 cu. in. (1802 cc) air-cooled, fuel-injected | |
5 | Introduction date/ Configuration and calibration recognition | Normal Introduction 1=Domestic 3=California A=Canada C=HDI E=Japan G=Australia J=Brazil L=Asia Pacific N=India | Mid-year or Special Introduction 2, 4=Domestic 5, 6=California B=Canada D=HDI F=Japan H=Australia K=Brazil M=Asia Pacific P=India |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | C=2012 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
NOTES

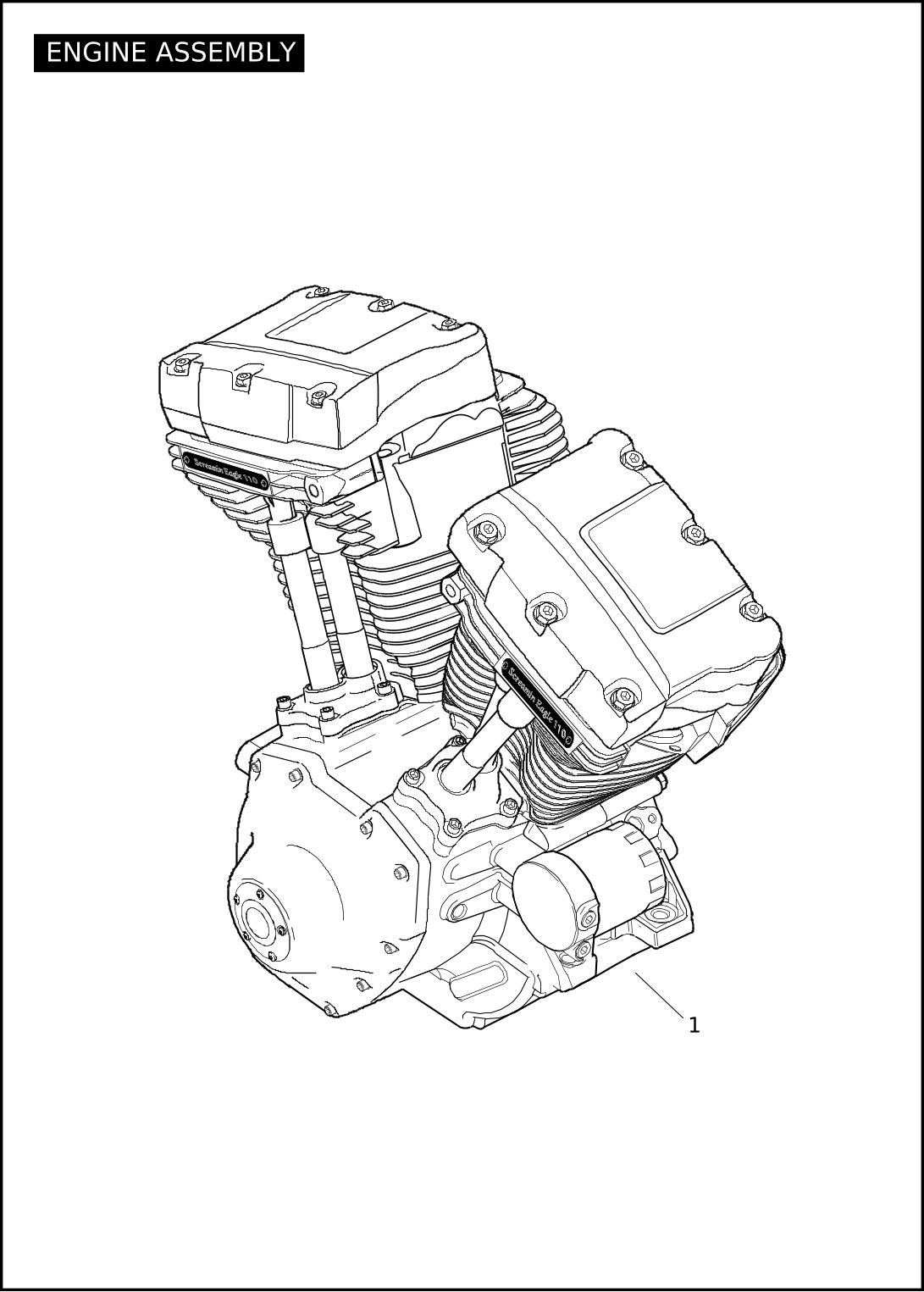

ENGINE ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19792-12 | ENGINE ASSEMBLY, complete - 110 cubic inch (black) | FLTRXSE |

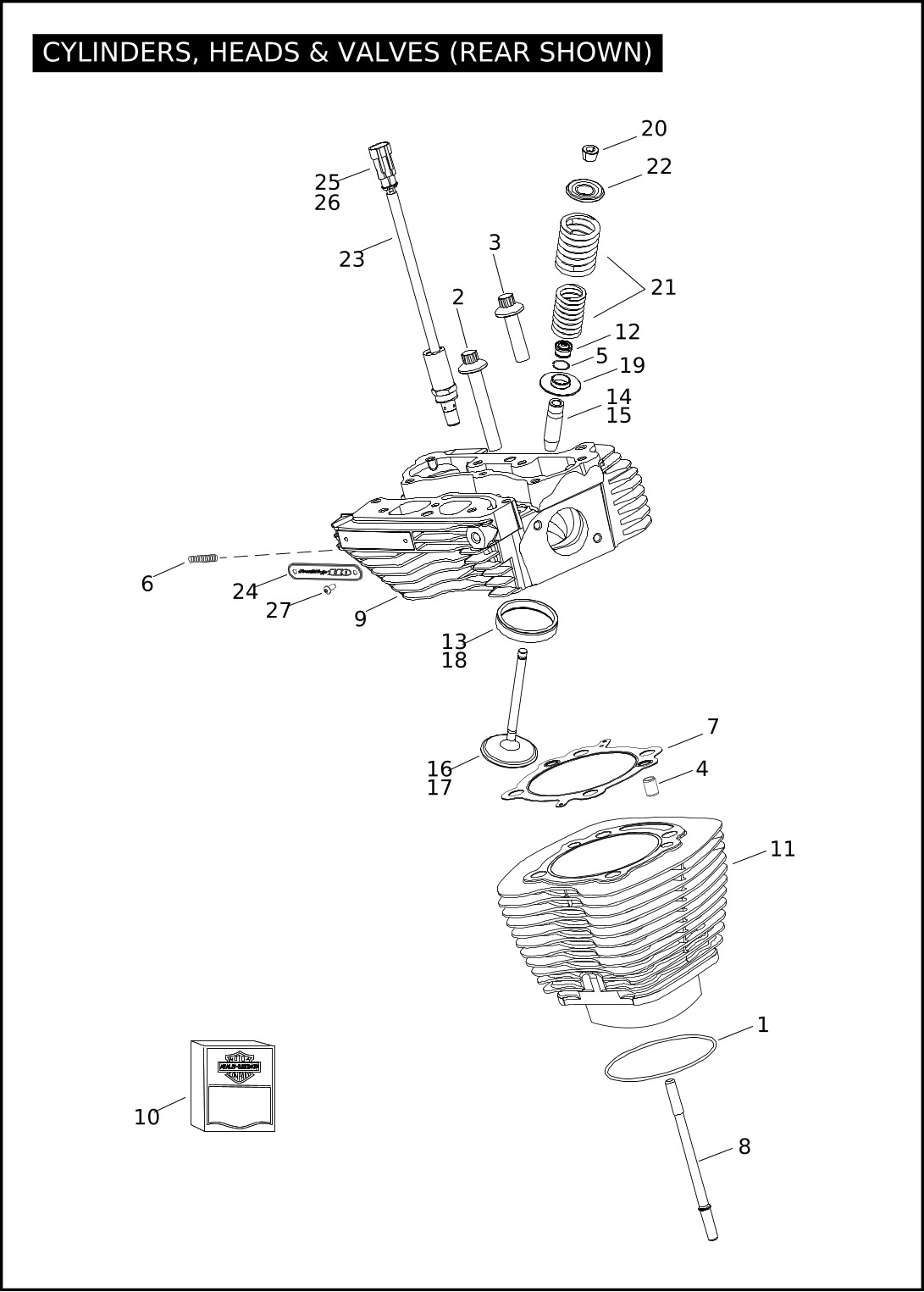

CYLINDERS, HEADS & VALVES - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING KIT, cylinder base, w/ crankcase dowel o-rings | FLTRXSE |
| 2 | 16478-85A | SCREW, internal thread, 3-3/16 in. long (4) | FLTRXSE |
| 3 | 16480-92A | SCREW, internal thread, 1-7/8 in. long (4) | FLTRXSE |
| 4 | 16595-99A | DOWEL PIN, ring (4) | FLTRXSE |
| 5 | 16699-06 | SNAP RING, wire (4) | FLTRXSE |
| 6 | 16715-83 | STUD, exhaust port (4) | FLTRXSE |
| 7 | 16801-07B | GASKET, cylinder head (2) | FLTRXSE |
| 8 | 16834-99A | STUD, cylinder (8) | FLTRXSE |
| 9 | 17257-07A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (black) | FLTRXSE |
| 17293-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (black) | FLTRXSE | |
| 10 | 17349-07B | GASKET KIT, top-end | FLTRXSE |
| 17350-07B | GASKET KIT, engine overhaul | FLTRXSE | |
| 11 | 17285-07A | CYLINDER ASSEMBLY, w/ 16595-99A (black) (2) | FLTRXSE |
| 12 | 18067-09 | VALVE SEAL (4) | FLTRXSE |
| 13 | 18048-98A | SEAT, exhaust valve (2) | FLTRXSE |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLTRXSE |
| 18154-05 | VALVE GUIDE, intake, .001 OS (2) | FLTRXSE | |
| 18156-05 | VALVE GUIDE, intake, .002 OS (2) | FLTRXSE | |
| 18158-05 | VALVE GUIDE, intake, .003 OS (2) | FLTRXSE | |
| 15 | 18168-08 | VALVE GUIDE, exhaust (2) | FLTRXSE |
| 18153-05 | VALVE GUIDE, exhaust, .001 OS (2) | FLTRXSE | |
| 18155-05 | VALVE GUIDE, exhaust, .002 OS (2) | FLTRXSE | |
| 18157-05 | VALVE GUIDE, exhaust, .003 OS (2) | FLTRXSE | |
| 16 | 18183-03 | EXHAUST VALVE (2) | FLTRXSE |
| 17 | 18187-07 | INTAKE VALVE (2) | FLTRXSE |
| 18 | 18189-07 | SEAT, intake valve (2) | FLTRXSE |
| 19 | 18270-00A | COLLAR, valve spring lower (4) | FLTRXSE |
| 20 | 18271-00 | KEY, valve spring collar (8) | FLTRXSE |
| 21 | 18272-00 | SPRING VALVE, inner & outer (4) | FLTRXSE |
| 22 | 18280-07 | COLLAR, valve spring upper (4) | FLTRXSE |
| 23 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLTRXSE |
| 24 | 29517-07A | MEDALLION KIT, w/ 2 medallions | FLTRXSE |
| 25 | 72009-05 | HOUSING, 2-way, pin | FLTRXSE |
| 26 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLTRXSE |
| 27 | 94634-99 | SCREW, medallion (4) | FLTRXSE |

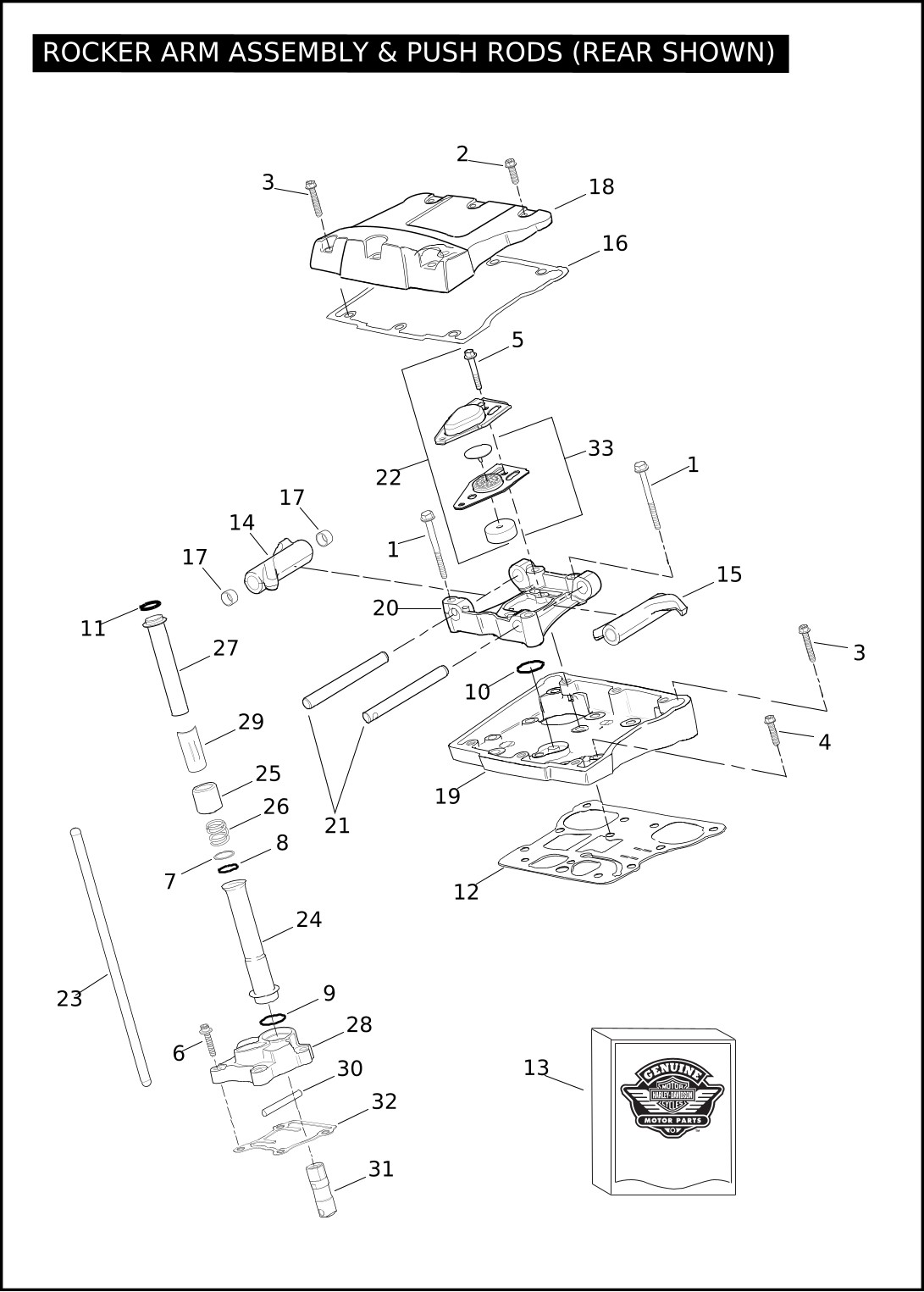

ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLTRXSE |
| 2 | 3692A | SCREW (6) | FLTRXSE |
| 3 | 3693A | SCREW (10) | FLTRXSE |
| 4 | 3736A | SCREW (8) | FLTRXSE |
| 5 | 4400 | BOLT (4) | FLTRXSE |
| 6 | 4741A | SCREW (8) | FLTRXSE |
| 7 | 6762B | WASHER (4) | FLTRXSE |
| 8 | 11132A | O-RING, push rod cover (4) | FLTRXSE |
| 9 | 11145A | O-RING, push rod cover (4) | FLTRXSE |
| 10 | 11270 | O-RING (2) | FLTRXSE |
| 11 | 11293 | O-RING (4) | FLTRXSE |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLTRXSE |
| 13 | 17045-99D | GASKET KIT, cam service | FLTRXSE |
| 14 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLTRXSE |
| 15 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLTRXSE |
| 16 | 17386-99A | GASKET, rocker cover (2) | FLTRXSE |
| 17 | 17429-91 | BUSHING, rocker arm (8) | FLTRXSE |
| 18 | 17707-11 | ROCKER COVER (black) (2) | FLTRXSE |
| 19 | 17709-11 | ROCKER HOUSING (black) (2) | FLTRXSE |
| 20 | 17594-99 | SUPPORT, rocker arm (2) | FLTRXSE |
| 21 | 17611-83 | SHAFT, rocker arm (4) | FLTRXSE |
| 22 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | FLTRXSE |
| 23 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLTRXSE |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLTRXSE | |
| 24 | 17939-99 | COVER, push rod, lower (4) | FLTRXSE |
| 25 | 17945-36B | CAP, cover spring (4) | FLTRXSE |
| 26 | 17947-36 | SPRING, push rod cover (4) | FLTRXSE |
| 27 | 17948-99 | COVER, push rod, upper (4) | FLTRXSE |
| 28 | 17964-99 | LIFTER COVER, front (chrome) | FLTRXSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FLTRXSE | |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLTRXSE |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLTRXSE |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLTRXSE |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLTRXSE |
| 33 | 26500002 | BREATHER, baffle assembly, w/ breather valve & filter (2) | FLTRXSE |

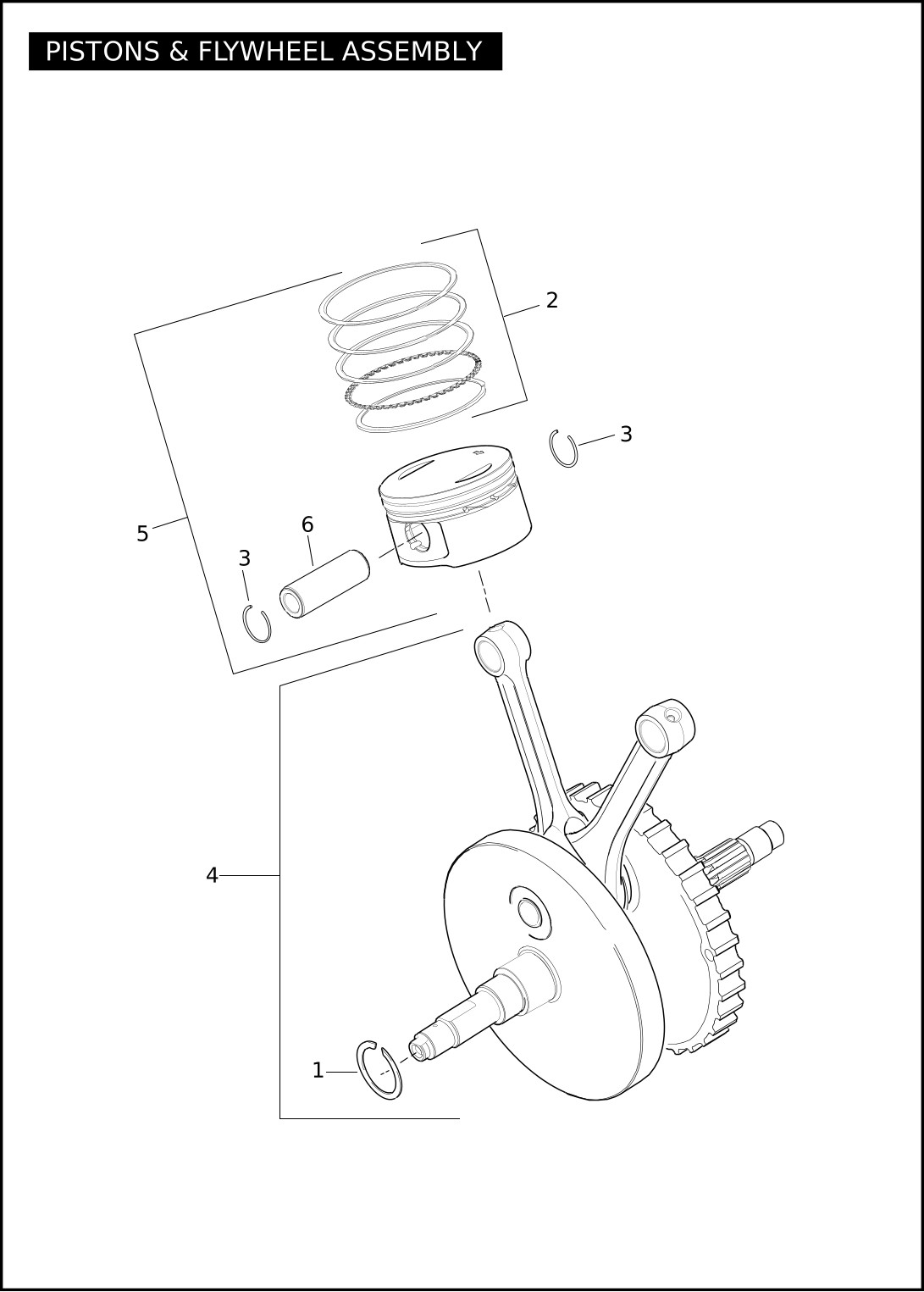

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLTRXSE |
| 2 | 21951-11 | PISTON RING SET, standard (2) | FLTRXSE |
| 21953-11 | PISTON RING SET, 0.010 in. O.S. (2) | FLTRXSE | |
| 3 | 22097-99 | LOCK RING, piston pin (4) | FLTRXSE |
| 4 | 23729-07B | FLYWHEEL ASSEMBLY KIT | FLTRXSE |
| 5 | 22000001 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLTRXSE |
| 22000003 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLTRXSE | |
| 6 | 22100001 | PISTON PIN (2) | FLTRXSE |

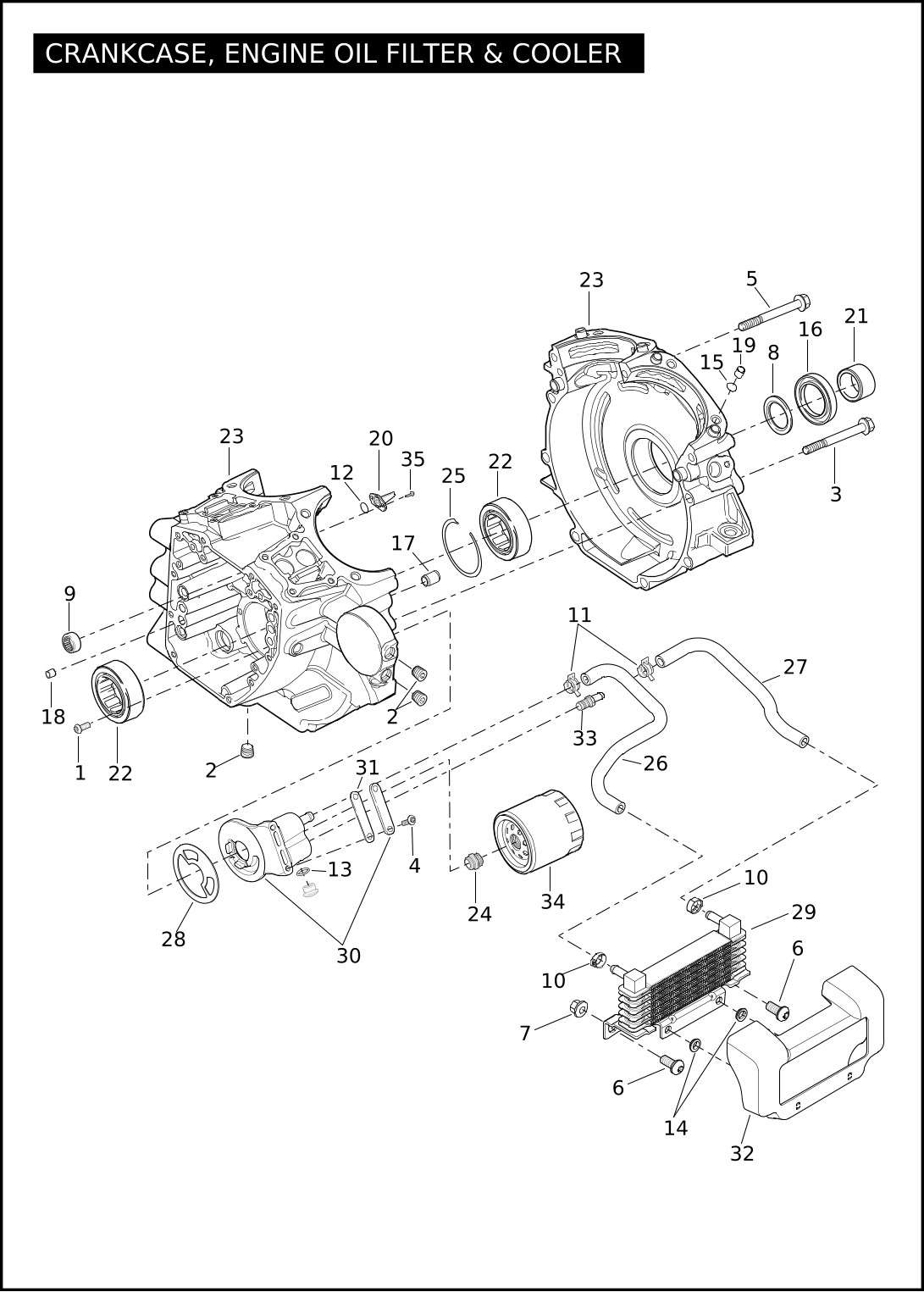

CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLTRXSE |
| 2 | 765 | PLUG (3) | FLTRXSE |
| 3 | 895 | SCREW (8) | FLTRXSE |
| 4 | 924 | SCREW (2) | FLTRXSE |
| 5 | 1090A | SCREW | FLTRXSE |
| 6 | 4266A | SCREW (2) | FLTRXSE |
| 7 | 7601 | LOCKNUT (2) | FLTRXSE |
| 8 | 8972 | WASHER (2) | FLTRXSE |
| 9 | 9215 | BEARING, needle, left side, camshaft (2) | FLTRXSE |
| 10 | 10198 | CLAMP (2) | FLTRXSE |
| 11 | 10354 | CLAMP (2) | FLTRXSE |
| 12 | 11140 | O-RING (2) | FLTRXSE |
| 13 | 11290 | O-RING | FLTRXSE |
| 14 | 11692 | GROMMET (2) | FLTRXSE |
| 15 | 11907 | O-RING KIT, w/ cylinder base o-rings | FLTRXSE |
| 16 | 12068 | SEAL, oil | FLTRXSE |
| 17 | 16574-99A | DOWEL PIN (2) | FLTRXSE |
| 18 | 16589-99A | DOWEL PIN (2) | FLTRXSE |
| 19 | 16595-99A | DOWEL PIN (4) | FLTRXSE |
| 20 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLTRXSE |
| 24004-03A | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race (not illustrated) | FLTRXSE | |
| 21 | 24009-06 | SPACER, sprocket shaft | FLTRXSE |
| 22 | 24605-07 | BEARING, main (2) | FLTRXSE |
| 23 | 24758-07A | CRANKCASE SET, w/ 765, 895, 1090A, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24605-07, 35114-02 & 68042-99 (black) | FLTRXSE |
| 24 | 26041-05A | ADAPTER | FLTRXSE |
| 25 | 35114-02 | RING, retaining, internal | FLTRXSE |
| 26 | 62629-11 | HOSE, oil cooler, right | FLTRXSE |
| 27 | 62641-11 | HOSE, oil cooler, left | FLTRXSE |
| 28 | 63066-07 | GASKET | FLTRXSE |
| 29 | 63083-11 | OIL COOLER CORE | FLTRXSE |
| 30 | 63059-09 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover (black) | FLTRXSE |
| 31 | 63084-07 | GASKET | FLTRXSE |
| 32 | 63121-11 | COVER ASSEMBLY, oil cooler (chrome) | FLTRXSE |
| 33 | 63533-41A | FITTING (2) | FLTRXSE |
| 34 | 63798-99A | FILTER, oil (chrome) | FLTRXSE |
| 35 | 68042-99 | SCREW (4) | FLTRXSE |

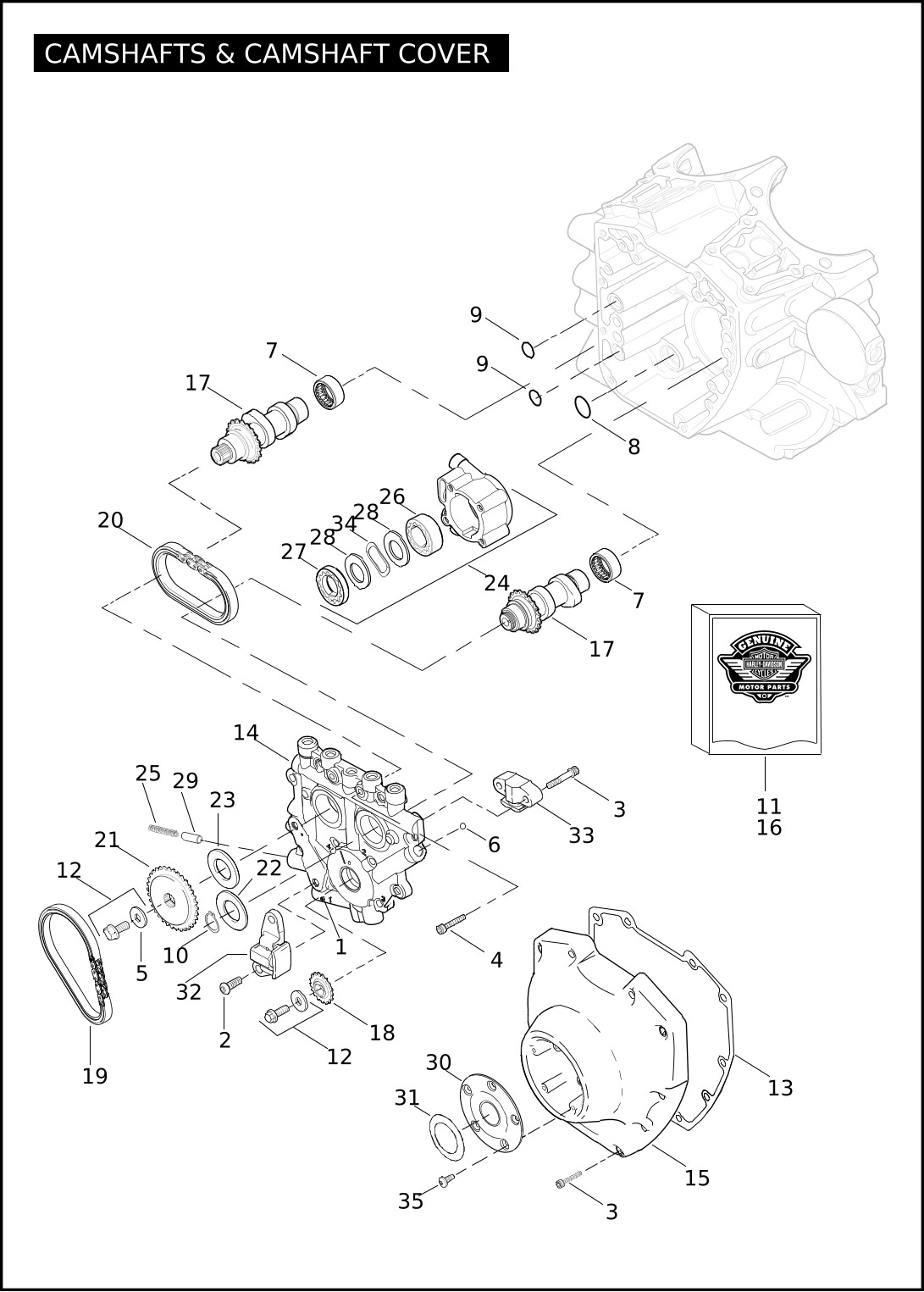

CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLTRXSE |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLTRXSE |
| 3 | 4740A | SCREW, secondary cam tensioner (2) | FLTRXSE |
| 4740A | SCREW, cam cover (10) | FLTRXSE | |
| 4 | 4741A | SCREW (10) | FLTRXSE |
| 5 | 6294 | WASHER | FLTRXSE |
| 6 | 8873 | BALL (12) | FLTRXSE |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLTRXSE |
| 8 | 11293 | O-RING | FLTRXSE |
| 9 | 11301 | O-RING (2) | FLTRXSE |
| 10 | 11461 | RETAINING RING | FLTRXSE |
| 11 | 17045-99D | GASKET KIT, cam service | FLTRXSE |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws | FLTRXSE |
| 13 | 25244-99A | GASKET, cam cover | FLTRXSE |
| 14 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLTRXSE |
| 15 | 37198-11 | CAM COVER (black) | FLTRXSE |
| 16 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT, w/ 25566-06, 25673-06, 25675-06 & 25728-06 | FLTRXSE |
| 17 | 25638-07 | CAMSHAFT KIT | FLTRXSE |
| 18 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLTRXSE |
| 19 | 25675-06 | CHAIN, primary cam drive | FLTRXSE |
| 20 | 25683-06 | CHAIN, secondary cam drive | FLTRXSE |
| 21 | 25728-06 | SPROCKET, cam drive, 34 T | FLTRXSE |
| 22 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLTRXSE |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLTRXSE |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLTRXSE | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLTRXSE | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLTRXSE | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLTRXSE | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLTRXSE | |
| 24 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06 & 40323-00 | FLTRXSE |
| 25 | 26210-99 | SPRING, relief valve | FLTRXSE |
| 26 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLTRXSE |
| 27 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLTRXSE |
| 28 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLTRXSE |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FLTRXSE |
| 30 | 32586-07 | COVER, timer cover (chrome) | FLTRXSE |
| 31 | 14100164 | INSERT, timer cover | FLTRXSE |
| 32 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLTRXSE |
| 33 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLTRXSE |
| 34 | 40323-00 | SPRING, separator | FLTRXSE |
| 35 | 68120-00 | SCREW (5) | FLTRXSE |

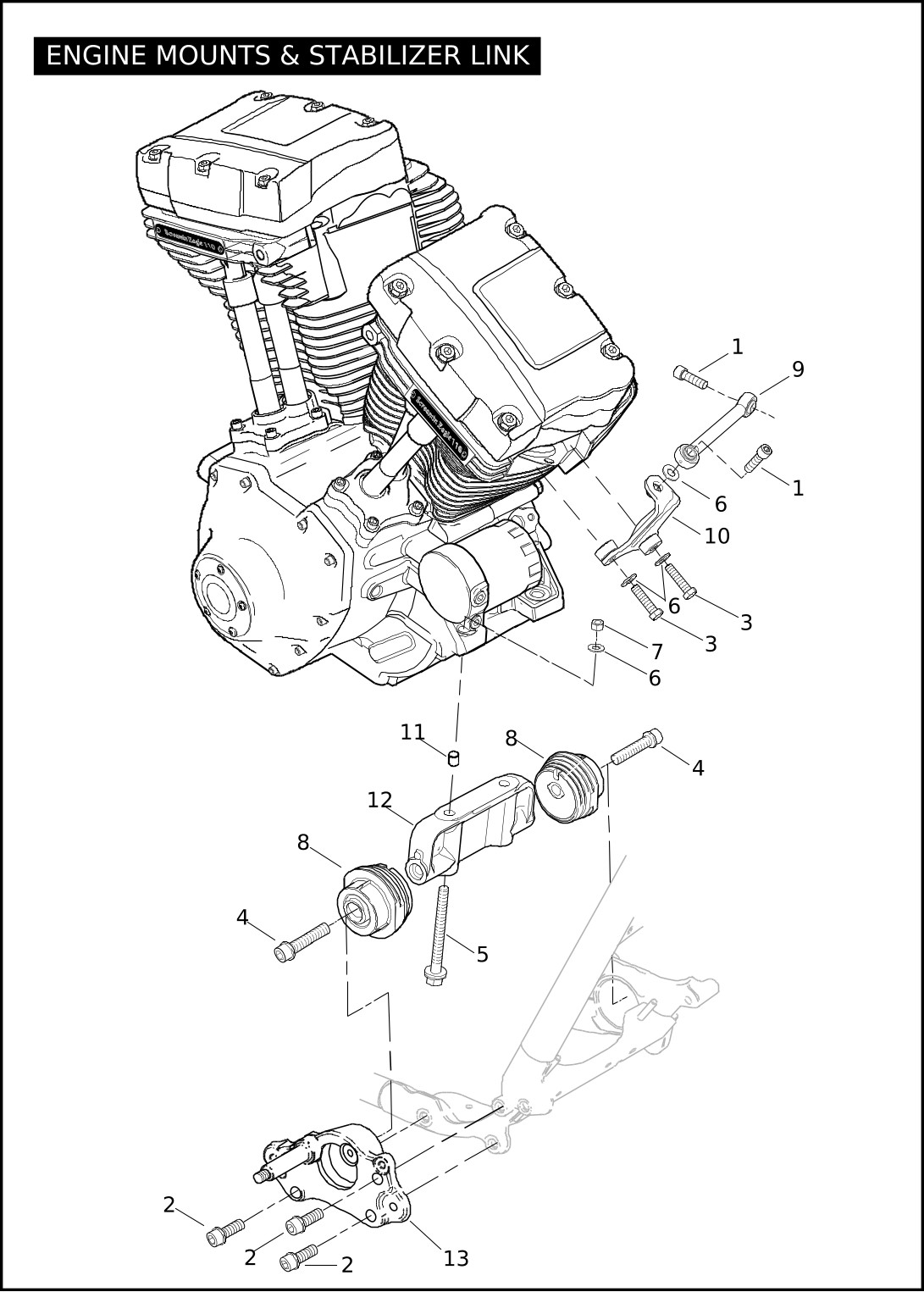

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | FLTRXSE |
| 2 | 4688 | SCREW (3) | FLTRXSE |
| 3 | 4721 | BOLT (2) | FLTRXSE |
| 4 | 4838 | SCREW (2) | FLTRXSE |
| 5 | 4868 | SCREW (2) | FLTRXSE |
| 6 | 6127 | WASHER (5) | FLTRXSE |
| 7 | 7783 | NUT (2) | FLTRXSE |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | FLTRXSE |
| 9 | 16219-09 | STABLIZER LINK | FLTRXSE |
| 10 | 16321-08 | WELDMENT, engine strap | FLTRXSE |
| 11 | 24754-75A | DOWEL, bushing (2) | FLTRXSE |
| 12 | 47159-09BHP | BRACKET, front engine mount | FLTRXSE |
| 13 | 47460-09BHP | END CAP, front mount | FLTRXSE |

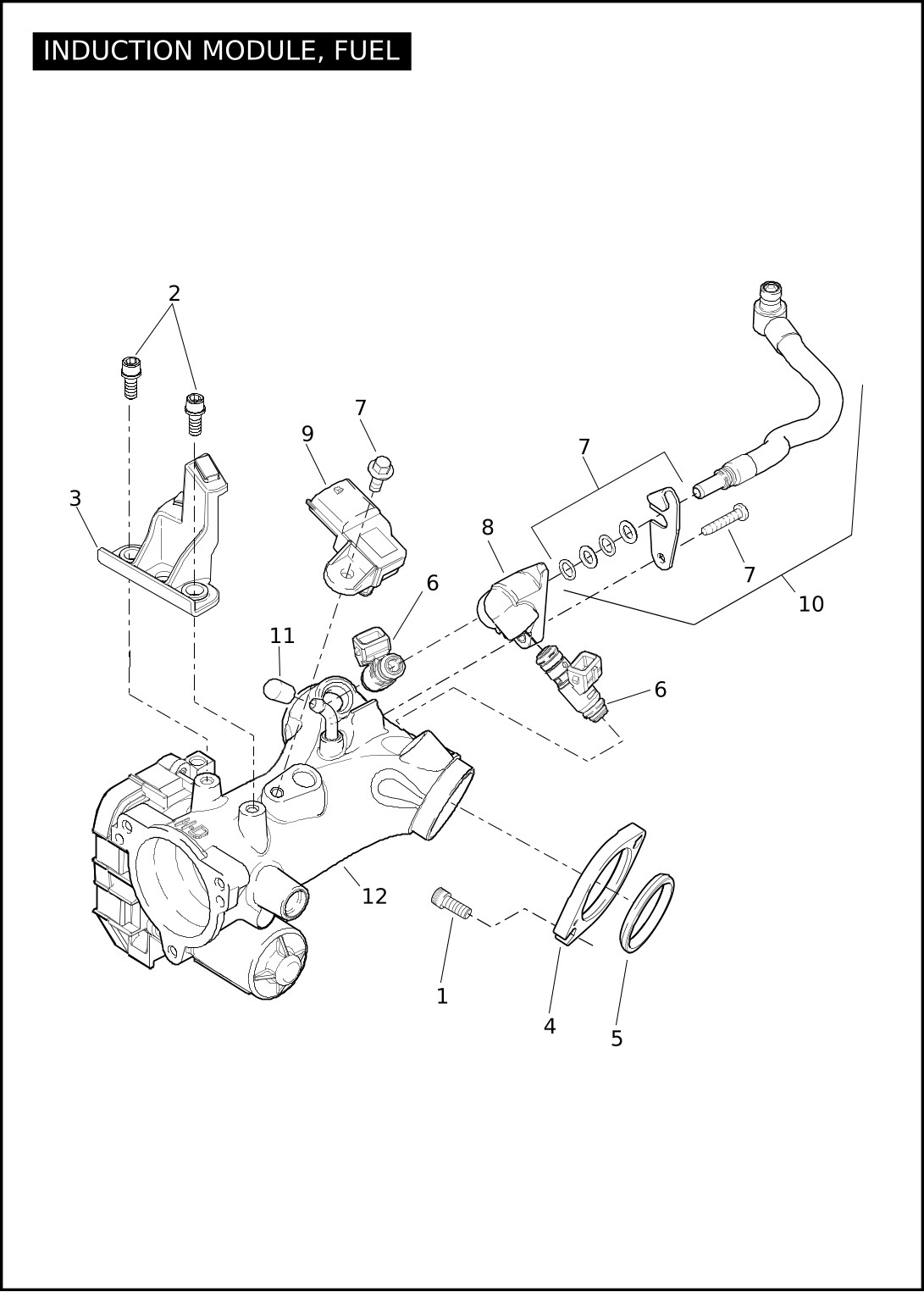

INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLTRXSE |
| 2 | 4705 | SCREW (2) | FLTRXSE |
| 3 | 16325-10 | BRACKET, induction module | FLTRXSE |
| 4 | 26993-06 | FLANGE, mounting (2) | FLTRXSE |
| 5 | 26995-86B | SEAL, intake manifold (2) | FLTRXSE |
| 6 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLTRXSE |
| 7 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLTRXSE |
| 8 | 27721-08 | FUEL RAIL | FLTRXSE |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLTRXSE |
| 10 | 61208-10 | FUEL LINE | FLTRXSE |
| 11 | 90383-98 | CAP, purge tube | FLTRXSE |
| 12 | 27200002 | INDUCTION MODULE KIT, w/ 27711-08 & 90383-98 | FLTRXSE |

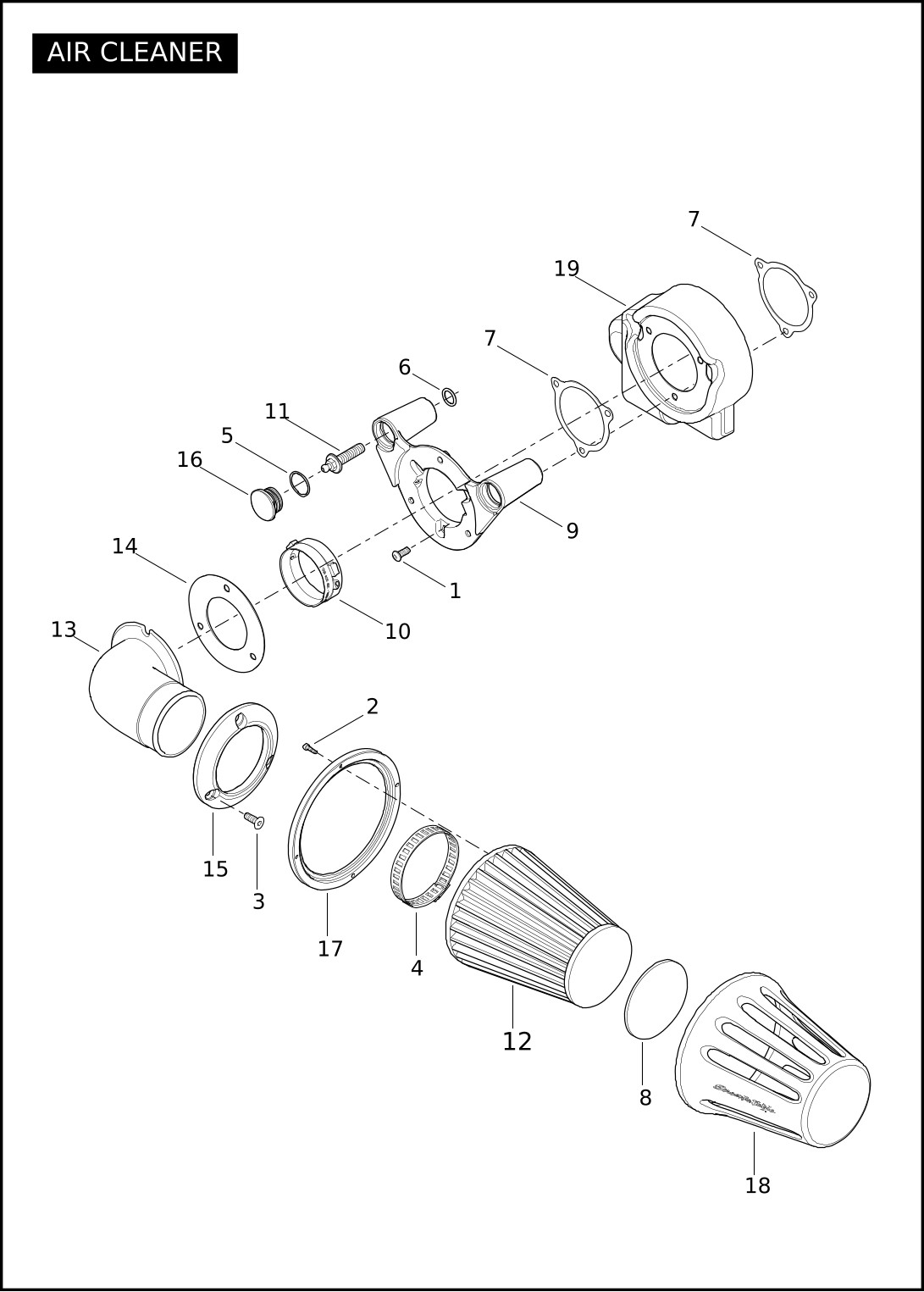

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (3) | FLTRXSE |
| 2 | 2260 | SCREW (4) | FLTRXSE |
| 3 | 2484 | SCREW (3) | FLTRXSE |
| 4 | 10074 | CLAMP, wormdrive | FLTRXSE |
| 5 | 10925 | O-RING (4) | FLTRXSE |
| 6 | 11292 | O-RING (2) | FLTRXSE |
| 7 | 27948-08 | GASKET, backplate | FLTRXSE |
| 8 | 28733-10 | FOAM PAD | FLTRXSE |
| 9 | 28887-09 | BACKPLATE (black) | FLTRXSE |
| 10 | 29395-08A | ADAPTER | FLTRXSE |
| 11 | 29465-08 | BOLT, breather (2) | FLTRXSE |
| 12 | 29702-08A | FILTER, element | FLTRXSE |
| 13 | 29739-08 | INTAKE TUBE | FLTRXSE |
| 14 | 29780-08A | GASKET, backplate tube | FLTRXSE |
| 15 | 29826-08A | MOUNTING RING | FLTRXSE |
| 16 | 29830-05A | PLUG, backplate (2) | FLTRXSE |
| 17 | 29400011 | MOUNTING RING (black) | FLTRXSE |
| 18 | 29400061 | COVER, air filter, w/ 2260, 28733-10 & 29400011 | FLTRXSE |
| 19 | 61300110 | COVER, w/ 27948-08 & label (black) | FLTRXSE |

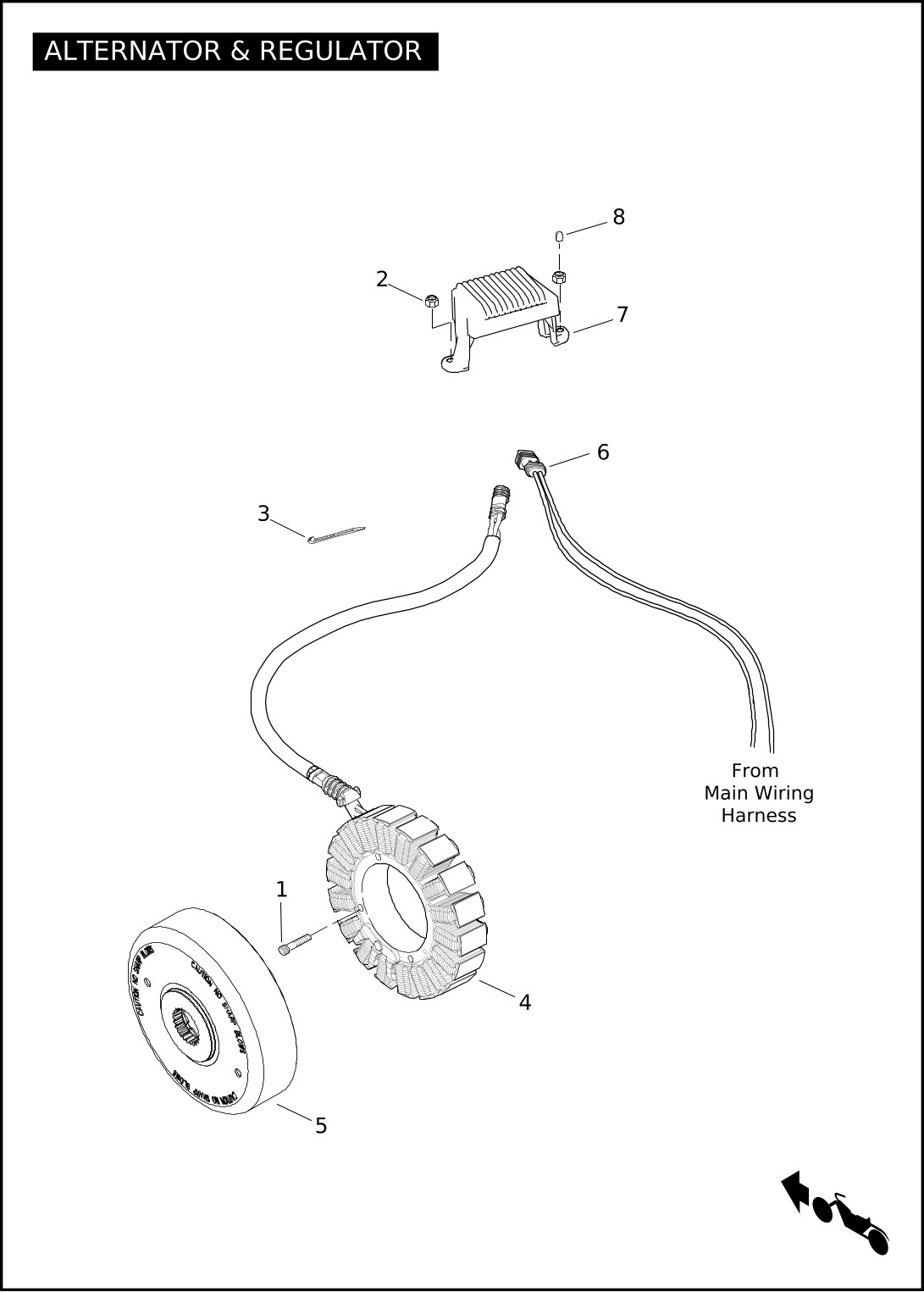

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLTRXSE |
| 2 | 7716 | LOCKNUT (2) | FLTRXSE |
| 3 | 10039 | CABLE STRAP (3) | FLTRXSE |
| 24009-06 | SPACER, sprocket shaft (not illustrated) | FLTRXSE | |
| 4 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLTRXSE |
| 5 | 30041-08 | ROTOR ASSEMBLY, 3-phase | FLTRXSE |
| 6 | 74115-06 | DC LEAD ASSEMBLY | FLTRXSE |
| 7 | 74622-09 | VOLTAGE REGULATOR KIT, 45 AMP (chrome) | FLTRXSE |
| 8 | 89584-07 | PROTECTOR CAP (2) | FLTRXSE |

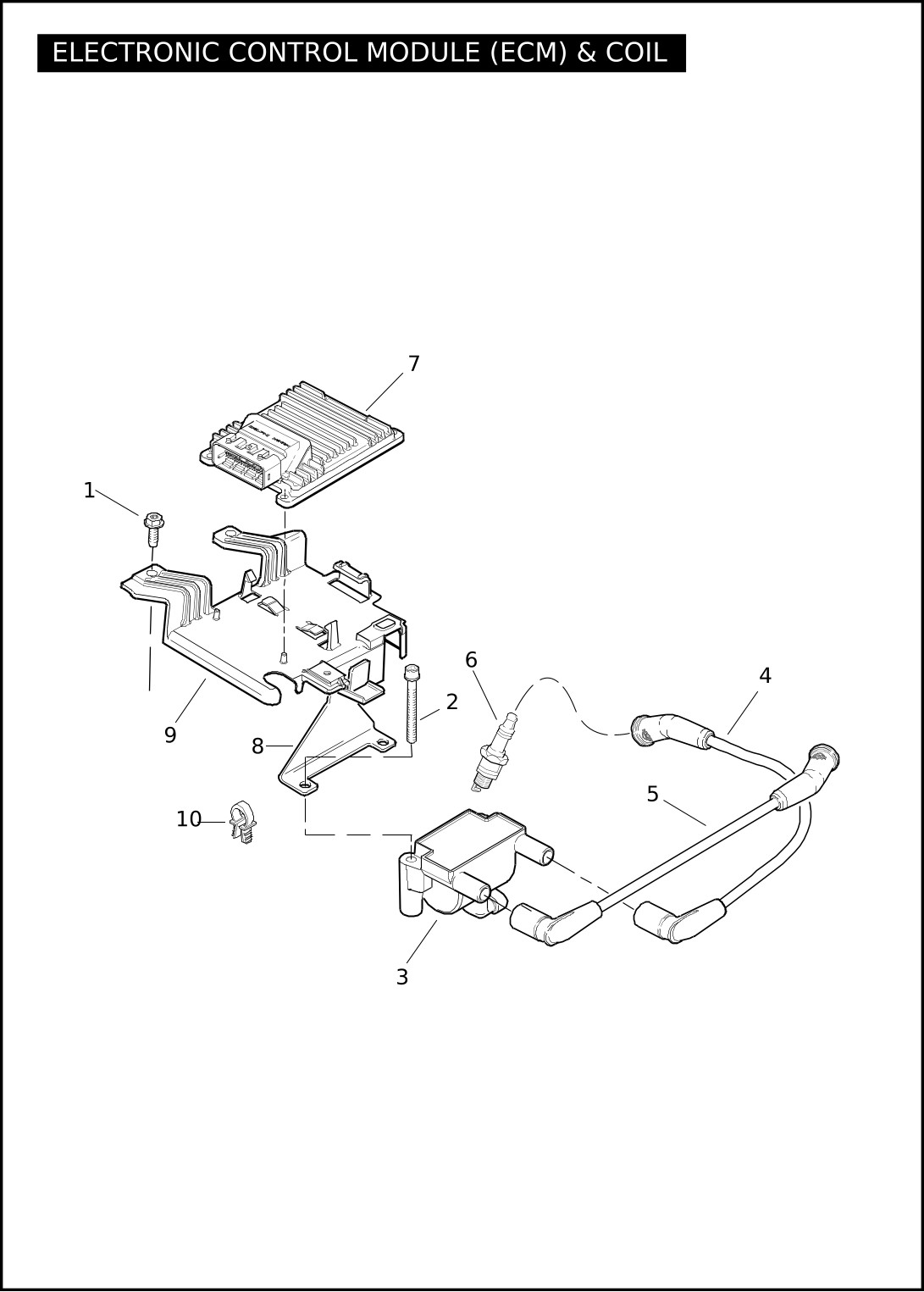

ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLTRXSE |
| 2 | 4826 | SCREW (2) | FLTRXSE |
| 10177 | CABLE STRAP, tree mount (not shown) (3) | FLTRXSE | |
| 3 | 31696-07A | IGNITION COIL | FLTRXSE |
| 4 | 32013-09A | SPARK PLUG CABLE, front cylinder, w/ 10177 | FLTRXSE |
| 5 | 32014-09A | SPARK PLUG CABLE, rear cylinder, w/ 10177 | FLTRXSE |
| 6 | 32362-04 | SPARK PLUG, 6R12 (2) | FLTRXSE |
| 7 | 34246-08B | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | FLTRXSE |
| 8 | 66200-09 | BRACKET, battery hold down | FLTRXSE |
| 9 | 70344-09 | CADDY, electronic control module (ECM) | FLTRXSE |
| 10 | 70681-09 | RETAINER, wire harness | FLTRXSE |

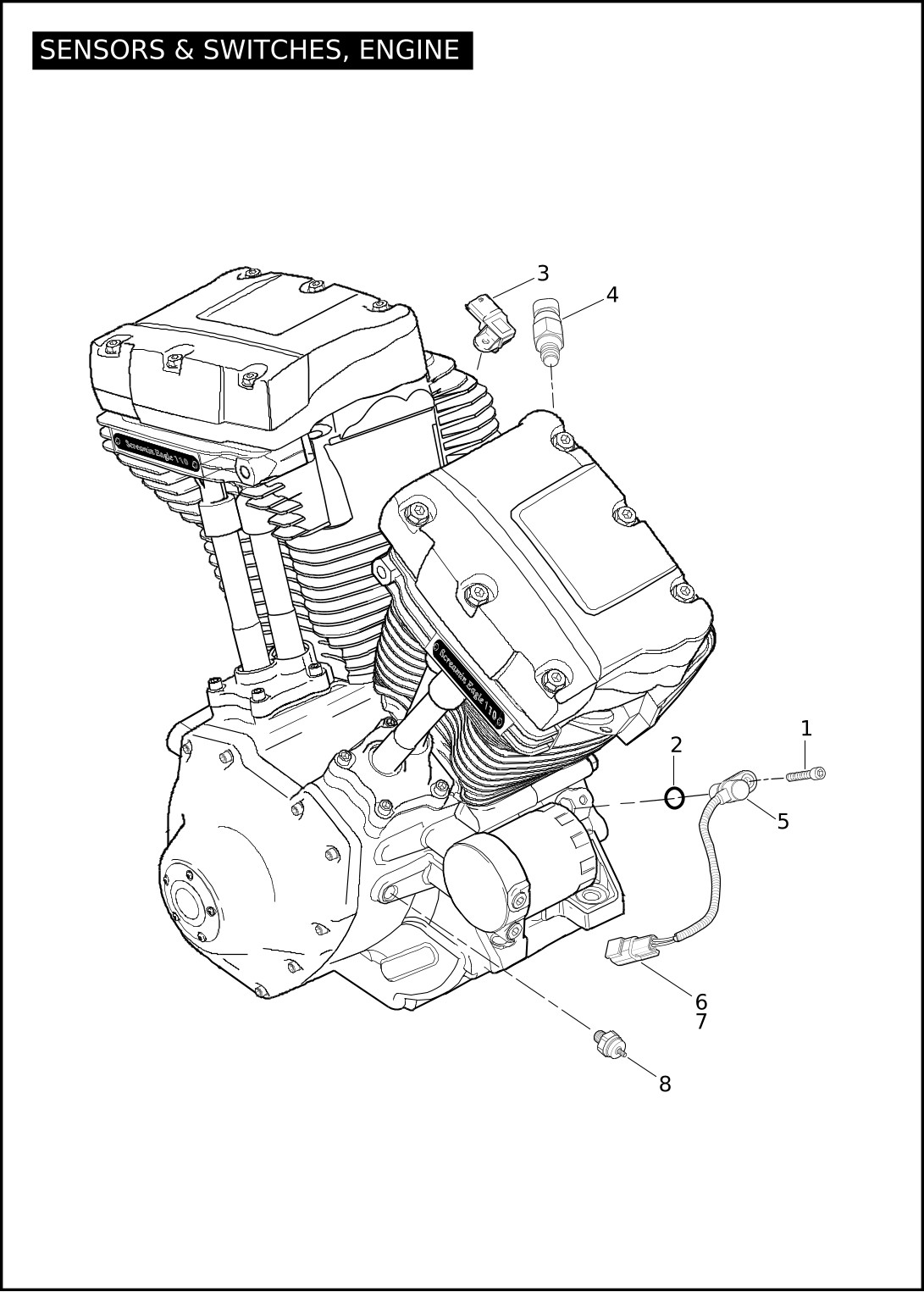

SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLTRXSE |
| 2 | 11289A | O-RING | FLTRXSE |
| 3 | 32319-07 | SENSOR, temperature manifold absolute pressure (MAP), w/ o-ring | FLTRXSE |
| 4 | 32446-99 | SENSOR, engine temperature | FLTRXSE |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 73198-96, & 74194-98 | FLTRXSE |
| 6 | 73198-96 | CONNECTOR | FLTRXSE |
| 7 | 74194-98 | PIN TERMINAL (2) | FLTRXSE |
| 8 | 74438-99A | OIL PRESSURE SENDER | FLTRXSE |

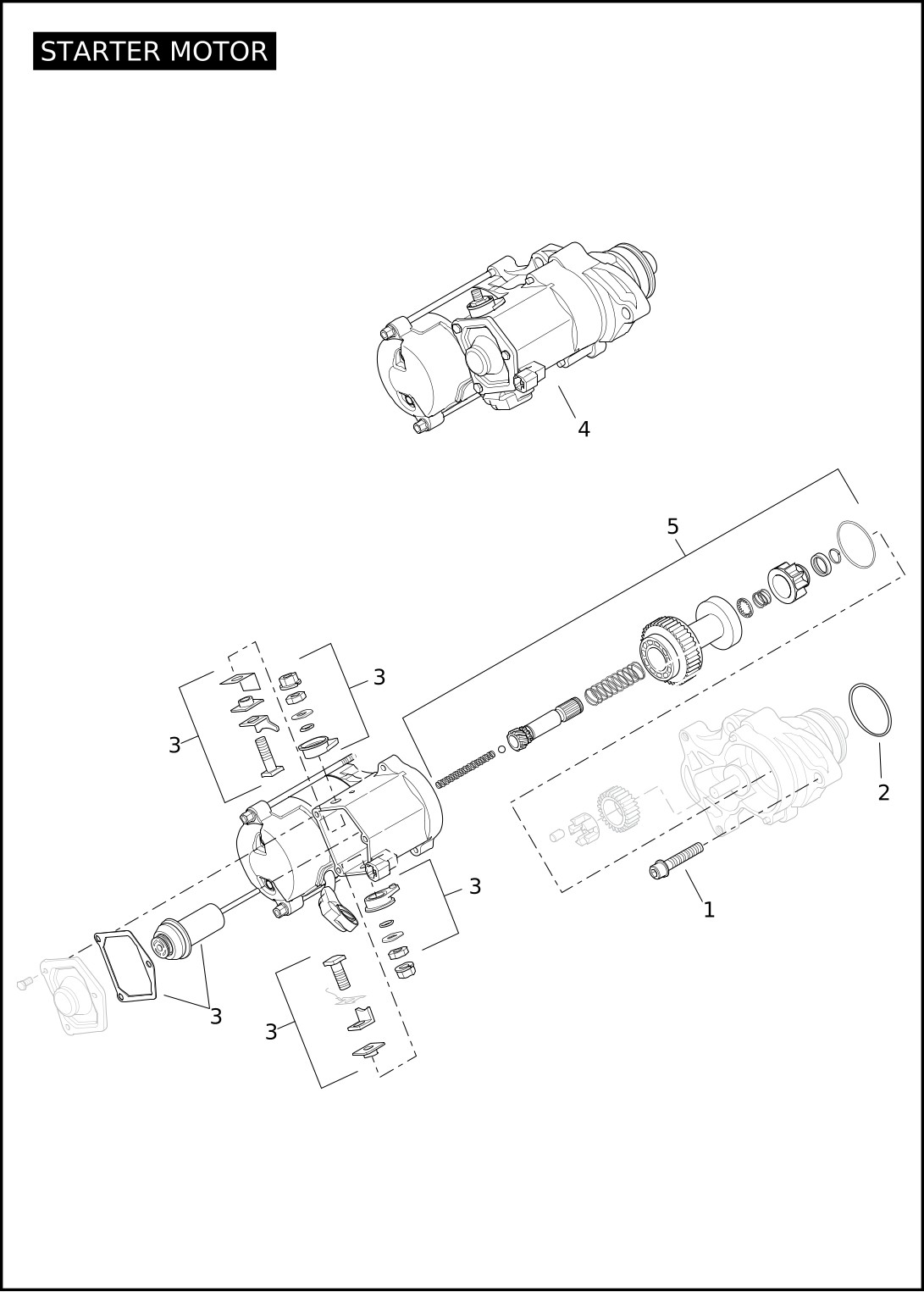

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW, starter mount (2) | FLTRXSE |
| 2 | 27444-00Y | O-RING, starter-to-case | FLTRXSE |
| 3 | 31604-06 | SOLENOID REPAIR KIT | FLTRXSE |
| 4 | 31619-06A | STARTER ASSEMBLY COMPLETE (black) | FLTRXSE |
| 5 | 31633-07A | CLUTCH SUBASSEMBLY, w/ 10957 | FLTRXSE |

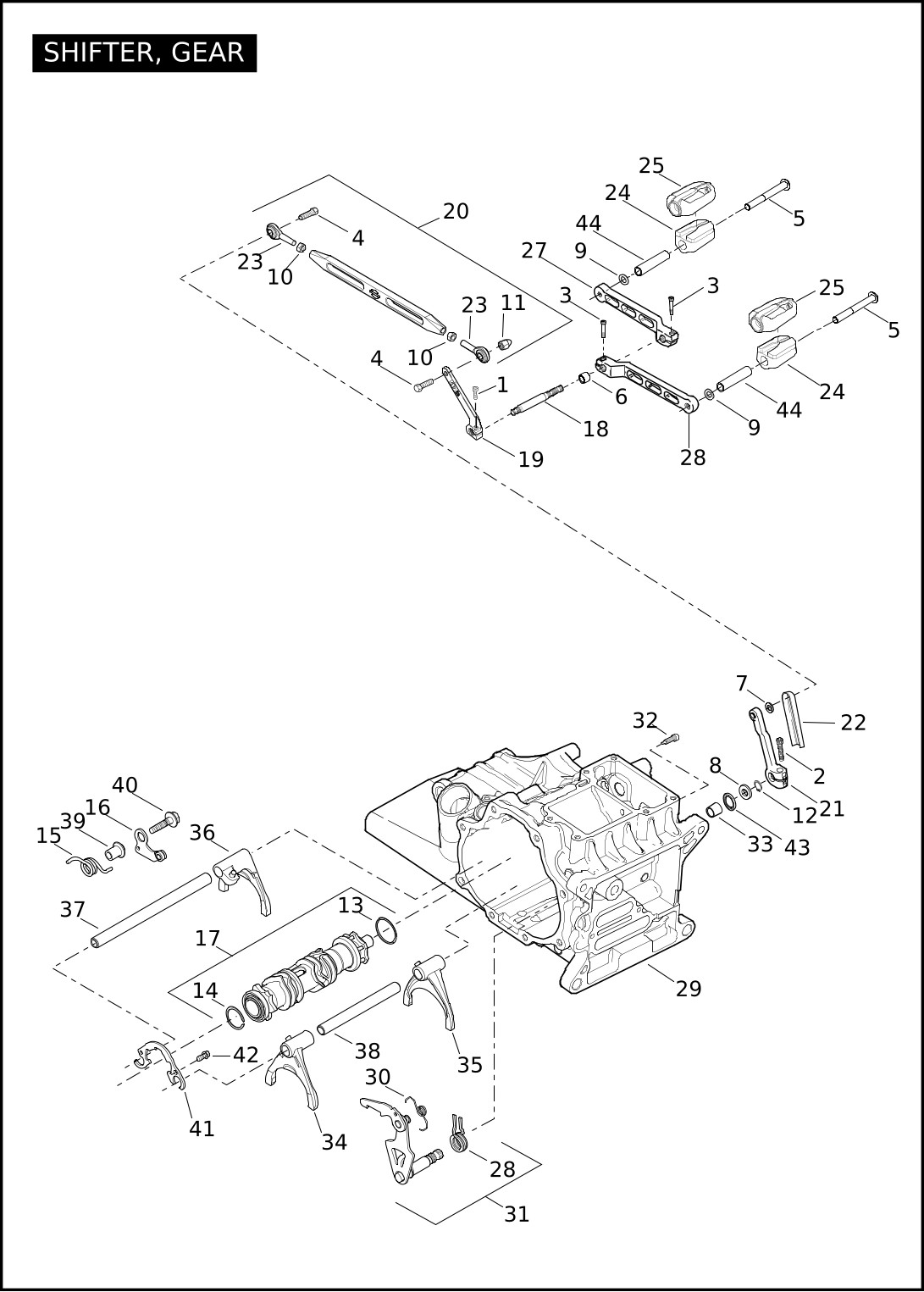

SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLTRXSE |
| 2 | 856A | SCREW | FLTRXSE |
| 3 | 3275 | SCREW (2) | FLTRXSE |
| 4 | 4192 | SCREW (2) | FLTRXSE |
| 5 | 4196 | SCREW | FLTRXSE |
| 6 | 5817 | SPACER | FLTRXSE |
| 7 | 5826 | SPACER, shifter cover | FLTRXSE |
| 8 | 6497HW | WASHER | FLTRXSE |
| 9 | 7041 | LOCKWASHER (2) | FLTRXSE |
| 10 | 7326 | NUT, rod-end (2) | FLTRXSE |
| 11 | 7904 | ACORN NUT (polished stainless steel) | FLTRXSE |
| 12 | 11150 | RING, retaining, external | FLTRXSE |
| 13 | 11389 | RING, shift cam retaining | FLTRXSE |
| 14 | 11575 | RING, shift cam retaining | FLTRXSE |
| 15 | 33389-07 | SPRING DETENT | FLTRXSE |
| 16 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLTRXSE |
| 17 | 33413-06A | SHIFTER CAM ASSEMBLY, w/ 11389, 11575 & bearing | FLTRXSE |
| 18 | 33709-82A | SHAFT | FLTRXSE |
| 19 | 33718-82B | LEVER, gearshift (chrome) | FLTRXSE |
| 20 | 33760-09 | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7326, 7904, 33899-08 & 33890-99A | FLTRXSE |
| 21 | 33849-97 | LEVER, shifter rod | FLTRXSE |
| 22 | 33890-99A | COVER, shifter rod | FLTRXSE |
| 23 | 33899-08 | ROD END, self-aligning (2) | FLTRXSE |
| 24 | 33960-09 | TREAD, shifter peg (2) | FLTRXSE |
| 25 | 33961-09 | COVER, shifter peg (chrome) (2) | FLTRXSE |
| 26 | 34064-00C | SPRING, shifter return | FLTRXSE |
| 27 | 34532-00B | LEVER, shifter heel (chrome) | FLTRXSE |
| 28 | 34568-00B | LEVER, shifter toe (chrome) | FLTRXSE |
| 29 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | FLTRXSE |
| 30 | 34987-06 | SPRING, ratchet lever | FLTRXSE |
| 31 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C, & 34987-06 | FLTRXSE |
| 32 | 35082-07 | CENTERING SCREW, shift lever | FLTRXSE |
| 33 | 35186-06 | SLEEVE | FLTRXSE |
| 34 | 35187-06 | FORK, shift 1 - 2 | FLTRXSE |
| 35 | 35210-06 | FORK, shift 3 - 4 | FLTRXSE |
| 36 | 35217-06 | FORK, shift 5 - 6 | FLTRXSE |
| 37 | 35222-06 | SHAFT, 5 - 6 shift fork | FLTRXSE |
| 38 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLTRXSE |
| 39 | 35243-06 | SLEEVE | FLTRXSE |
| 40 | 35244-06 | SCREW, detent | FLTRXSE |
| 41 | 35249-06A | LOCK PLATE, shift cam | FLTRXSE |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 15, 17, 34, 35, 36, 37, 38, 39, 40, 41, 42, 7340, 35260-06, input shaft, counter shaft (black) | FLTRXSE | |
| 42 | 35259-06 | SCREW, shift drum support (2) | FLTRXSE |
| 43 | 37101-84B | OIL SEAL | FLTRXSE |
| 44 | 50784-97 | SLEEVE (2) | FLTRXSE |

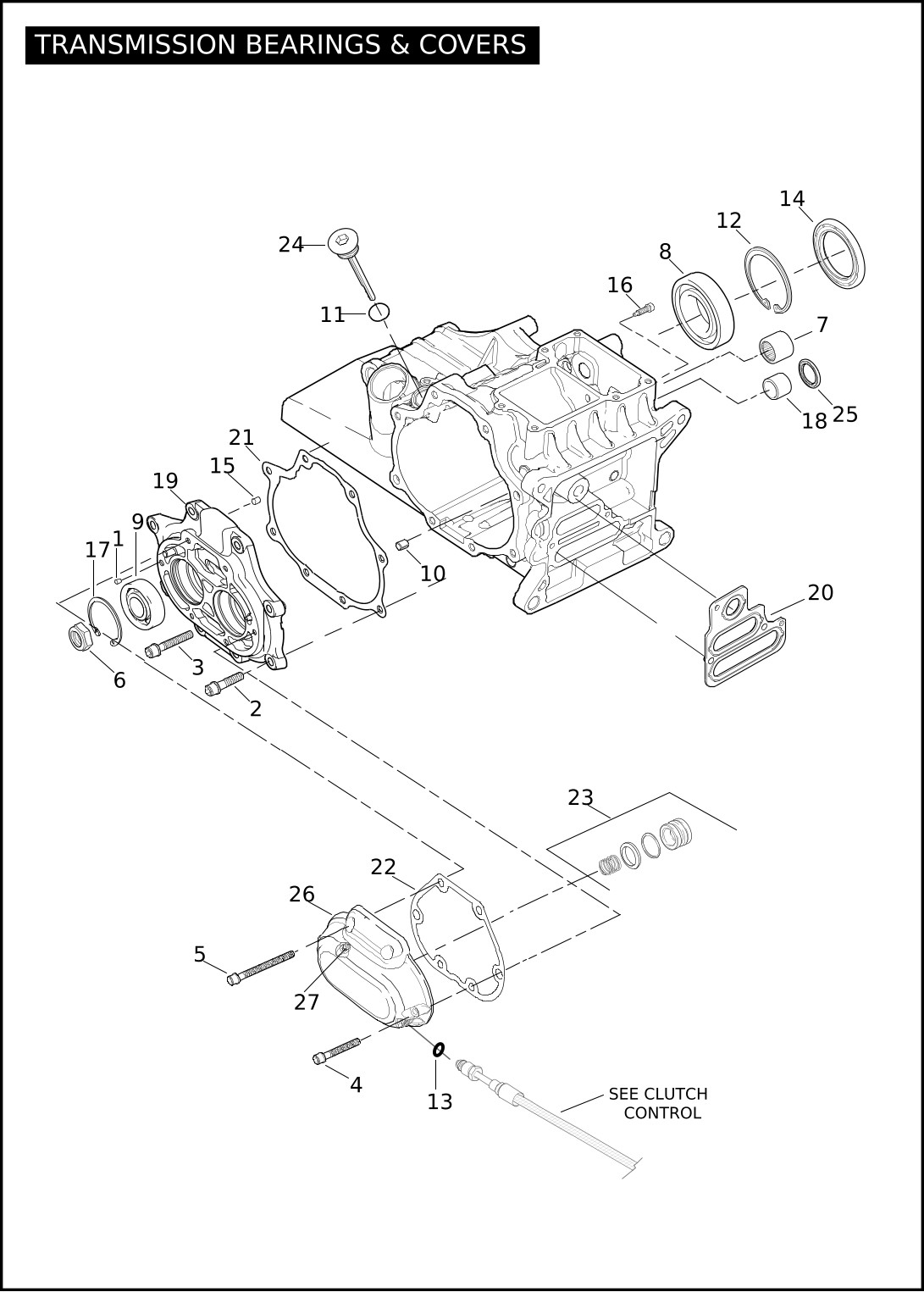

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLTRXSE |
| 2 | 3249 | SCREW (6) | FLTRXSE |
| 3 | 3300 | SCREW (2) | FLTRXSE |
| 4 | 4718A | SCREW (4) | FLTRXSE |
| 5 | 4741A | SCREW (2) | FLTRXSE |
| 6 | 7340 | NUT, mainshaft & countershaft (2) | FLTRXSE |
| 7 | 8963 | BEARING, needle | FLTRXSE |
| 8 | 8967 | BEARING | FLTRXSE |
| 9 | 8970A | BEARING (2) | FLTRXSE |
| 10 | 9701A | BUSHING | FLTRXSE |
| 11 | 11132A | O-RING, dipstick | FLTRXSE |
| 12 | 11161 | RETAINING RING | FLTRXSE |
| 13 | 11348 | O-RING | FLTRXSE |
| 14 | 12074 | SEAL | FLTRXSE |
| 15 | 16583-00A | BUSHING, dowel (2) | FLTRXSE |
| 33166-10 | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (black) | FLTRXSE | |
| 16 | 35082-07 | SCREW, centering, shifter lever | FLTRXSE |
| 17 | 35087-99A | RETAINING RING (2) | FLTRXSE |
| 18 | 35186-06 | SLEEVE | FLTRXSE |
| 19 | 35260-06A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (black) | FLTRXSE |
| 20 | 35607-06 | GASKET | FLTRXSE |
| 21 | 35654-06 | GASKET, bearing housing | FLTRXSE |
| 22 | 36805-06 | GASKET, cover | FLTRXSE |
| 23 | 36822-04 | SLAVE CYLINDER KIT | FLTRXSE |
| 24 | 37065-06 | DIPSTICK (chrome) | FLTRXSE |
| 25 | 37101-84B | OIL SEAL | FLTRXSE |
| 26 | 37200-11A | SIDE COVER, transmission (black) includes bleed screw and clutch piston | FLTRXSE |
| 27 | 43817-02 | CAP, bleeder screw | FLTRXSE |
| 44613-02 | BLEEDER SCREW | FLTRXSE |

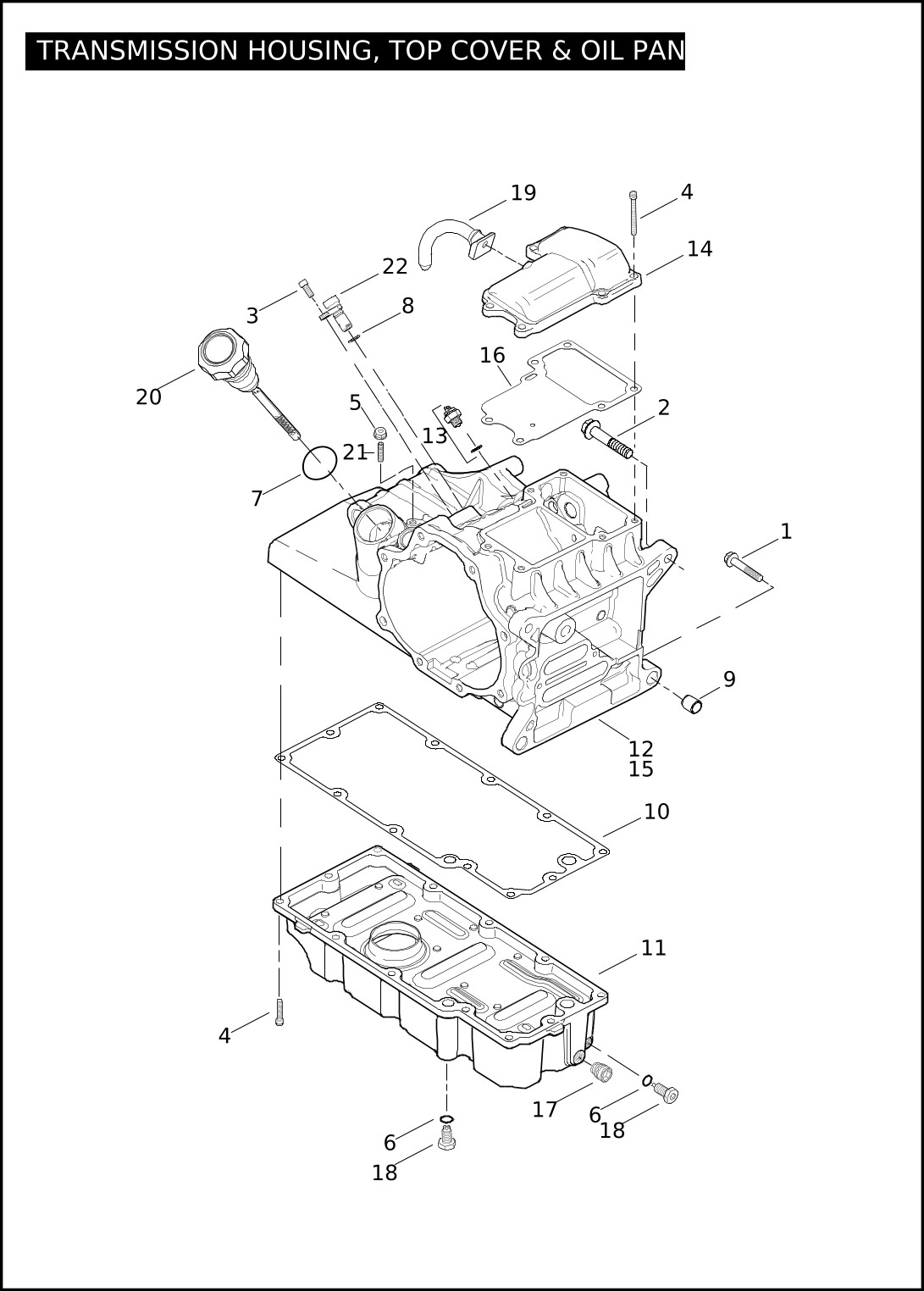

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLTRXSE |
| 2 | 3983 | SCREW (2) | FLTRXSE |
| 3 | 4705 | SCREW | FLTRXSE |
| 4 | 4741A | SCREW, trans. top cover (6) | FLTRXSE |
| 4741A | SCREW, oil pan (12) | FLTRXSE | |
| 5 | 7792 | NUT | FLTRXSE |
| 6 | 11105 | O-RING (2) | FLTRXSE |
| 7 | 11120 | O-RING | FLTRXSE |
| 8 | 11289A | O-RING | FLTRXSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLTRXSE |
| 10 | 26077-99A | GASKET, oil pan | FLTRXSE |
| 11 | 62489-99A | OIL PAN ASSEMBLY (black) w/ 45893-99 & 60328-98B | FLTRXSE |
| 12 | 33166-10 | TRANSMISSION REPLACEMENT, w/o cable, covers, & sensors (black) | FLTRXSE |
| 13 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLTRXSE |
| 14 | 34469-06B | TRANSMISSION COVER, top w/ 62372-09 (chrome) | FLTRXSE |
| 37195-11 | TRANSMISSION COVER, top w/ 62372-09 (black) | FLTRXSE | |
| 15 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | FLTRXSE |
| 16 | 34917-06 | GASKET, upper cover | FLTRXSE |
| 17 | 45893-99 | PIPE PLUG | FLTRXSE |
| 18 | 60328-98B | PLUG, magnetic w/ 11105 (2) | FLTRXSE |
| 19 | 62372-09 | VENT HOSE, transmission | FLTRXSE |
| 20 | 62693-07A | DIPSTICK ASSEMBLY, w/ 11120 (chrome) | FLTRXSE |
| 21 | 66290-06 | STUD, ground | FLTRXSE |
| 22 | 74402-05A | SPEED SENSOR, w/ 11289A | FLTRXSE |

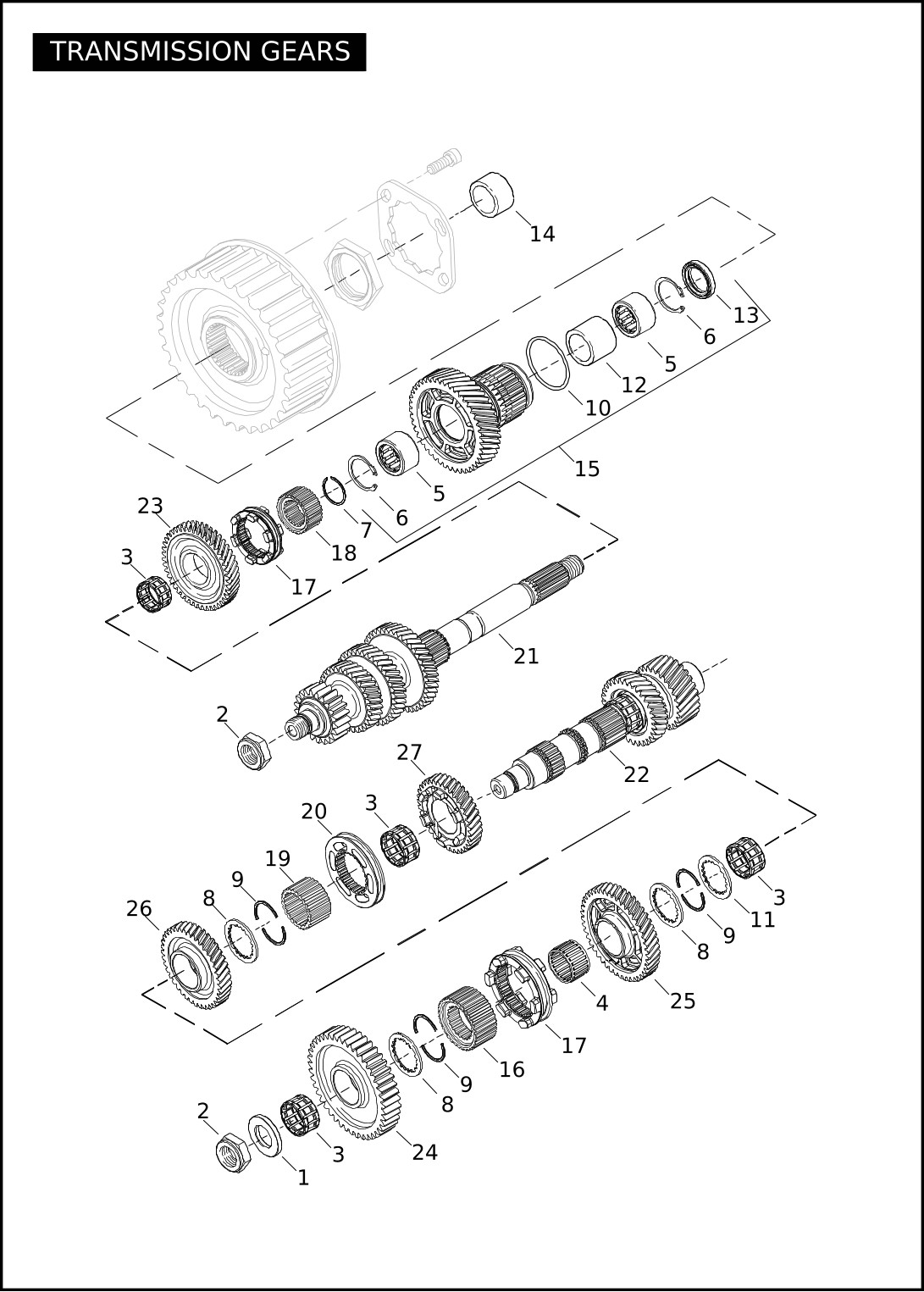

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLTRXSE |
| 2 | 7340 | NUT (2) | FLTRXSE |
| 3 | 8026K | BEARING, needle (counter shaft) (3) | FLTRXSE |
| 8026K | BEARING, needle (input shaft) | FLTRXSE | |
| 4 | 8041 | BEARING, needle | FLTRXSE |
| 5 | 8042 | BEARING, needle (2) | FLTRXSE |
| 6 | 10991A | RETAINING RING (2) | FLTRXSE |
| 7 | 11061A | RETAINING RING | FLTRXSE |
| 8 | 11081A | RING, lock (3) | FLTRXSE |
| 9 | 11082 | SECURING SEGMENT (6) | FLTRXSE |
| 10 | 11201 | O-RING | FLTRXSE |
| 11 | 11207A | WASHER, internal spline | FLTRXSE |
| 12 | 11599 | SPACER, bearing | FLTRXSE |
| 13 | 12077 | OIL SEAL | FLTRXSE |
| 14 | 34091-08 | BEARING, inner race | FLTRXSE |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599 & 12077 | FLTRXSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLTRXSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLTRXSE |
| 18 | 35201-10 | GUIDE HUB, dog ring | FLTRXSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLTRXSE |
| 20 | 35204-06 | DOG RING, pocketed | FLTRXSE |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ shifter cam & forks (black) | FLTRXSE | |
| 21 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08, & 35201-10 | FLTRXSE |
| 22 | 35470-10 | COUNTER SHAFT ASSEMBLY | FLTRXSE |
| 23 | 35801-10 | GEAR, fifth input | FLTRXSE |
| 24 | 35805-06A | GEAR, countershaft-first | FLTRXSE |
| 25 | 35807-06 | GEAR, countershaft-second | FLTRXSE |
| 26 | 35811-06 | GEAR, countershaft-third | FLTRXSE |
| 27 | 35814-06 | GEAR, countershaft-fourth | FLTRXSE |

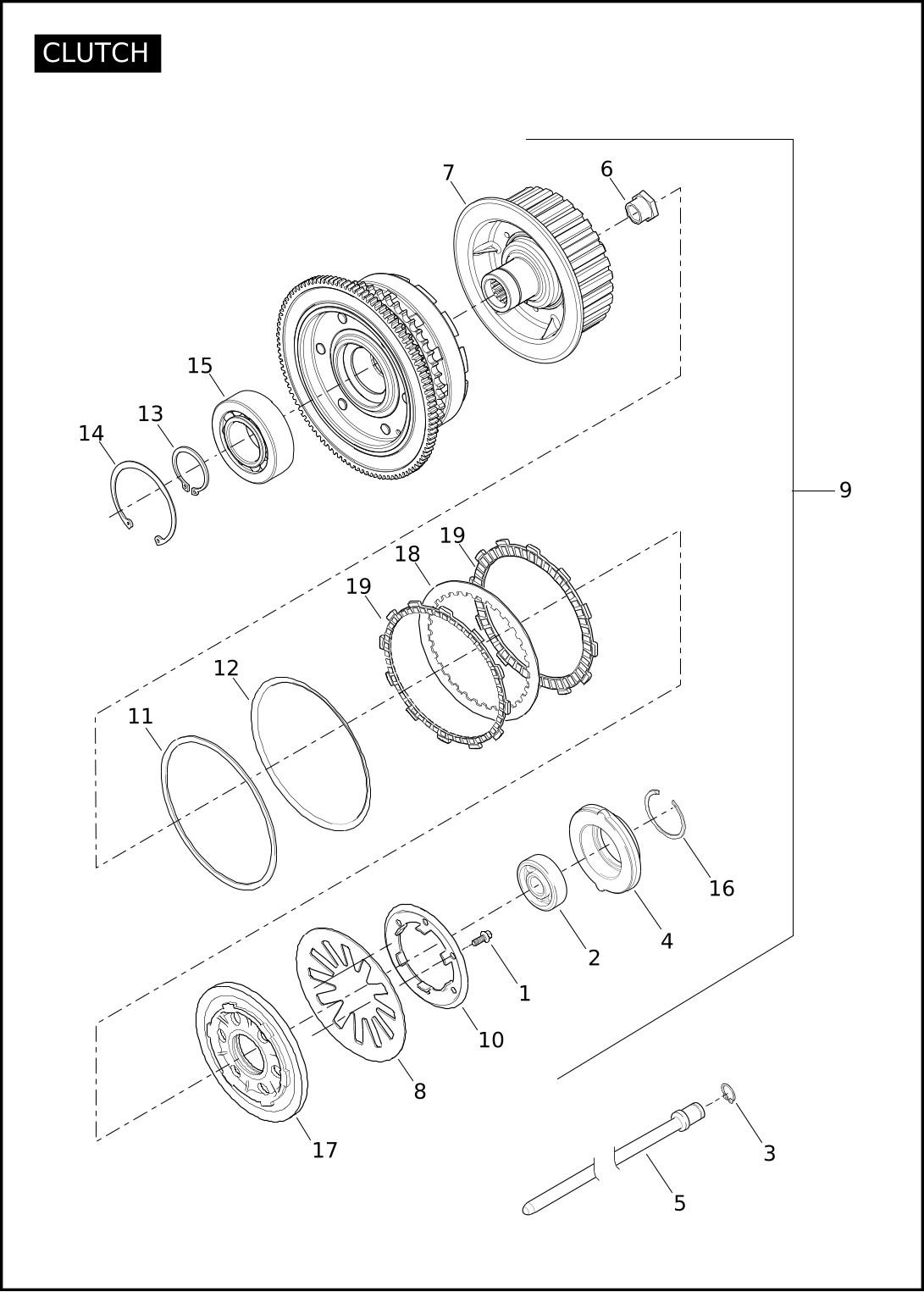

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLTRXSE |
| 2 | 8885 | BEARING | FLTRXSE |
| 3 | 11143 | RING, retaining, external | FLTRXSE |
| 4 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | FLTRXSE |
| 5 | 36819-07 | PUSH ROD, hydraulic-clutch | FLTRXSE |
| 6 | 37496-90A | NUT, mainshaft | FLTRXSE |
| 7 | 37554-11 | HUB ASSEMBLY, clutch, w/ thrust washer & spring washer | FLTRXSE |
| 8 | 37807-03 | SPRING, clutch (pink) | FLTRXSE |
| 9 | 37817-11 | CLUTCH ASSEMBLY, complete (includes all parts except 11143 & 36819-07) | FLTRXSE |
| 10 | 37872-00 | SEAT, clutch spring | FLTRXSE |
| 11 | 37883-98 | SEAT, damper-spring | FLTRXSE |
| 12 | 37884-98 | SPRING, damper | FLTRXSE |
| 13 | 37904-90 | RING, retaining, external | FLTRXSE |
| 14 | 37905-00 | RING, retaining, internal | FLTRXSE |
| 15 | 37906-11 | BEARING, ball, double-row | FLTRXSE |
| 16 | 37909-90 | RING, retaining, internal | FLTRXSE |
| 17 | 37912-00 | PRESSURE PLATE, clutch | FLTRXSE |
| 18 | 37913-98 | PLATE, clutch (steel) (8) | FLTRXSE |
| 19 | 37932-98 | FRICTION PLATE KIT, clutch (includes all 9 friction plates) | FLTRXSE |

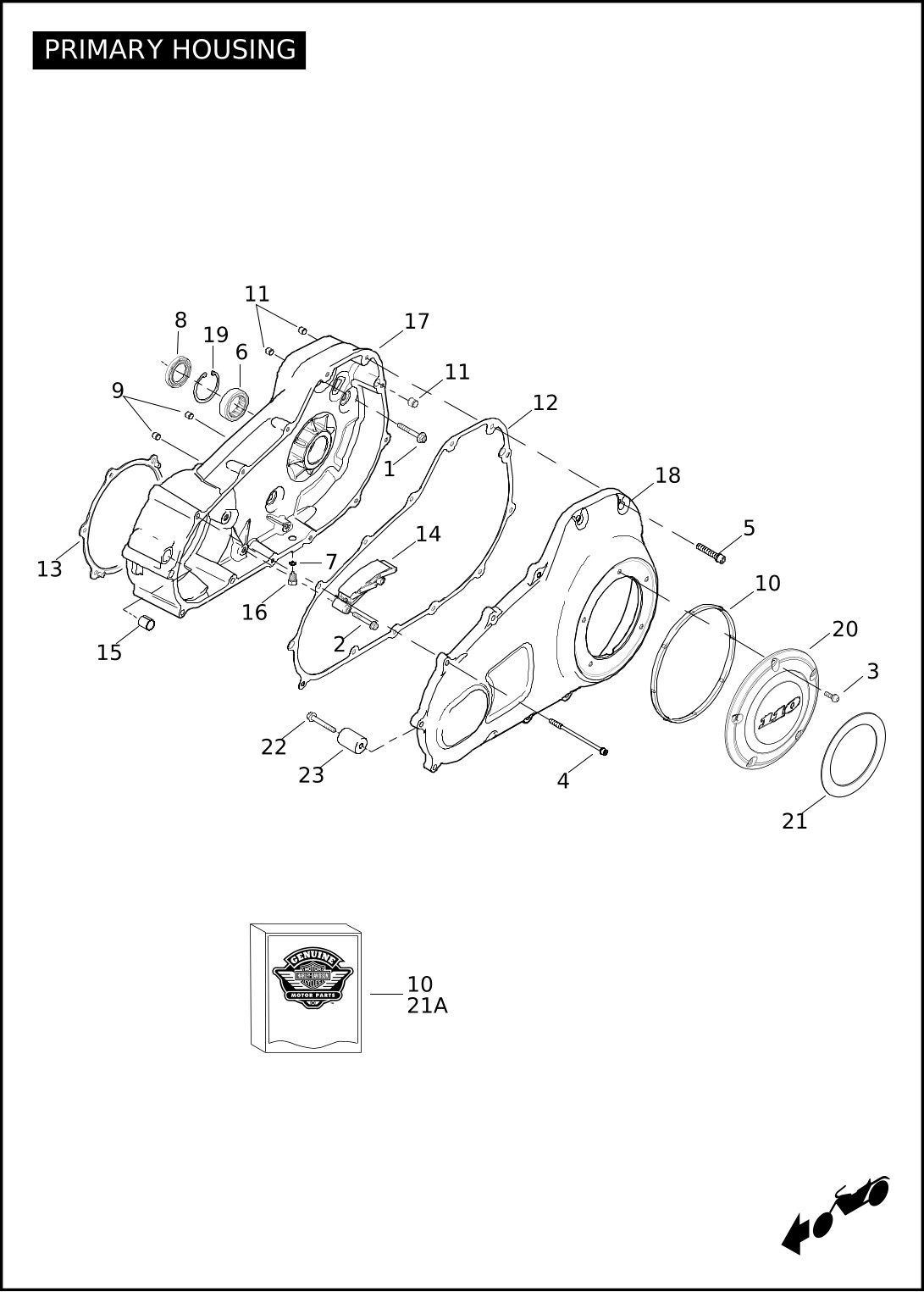

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLTRXSE |
| 2 | 791A | SCREW (2) | FLTRXSE |
| 3 | 1062 | SCREW (5) | FLTRXSE |
| 4 | 1780 | SCREW (4) | FLTRXSE |
| 5 | 4813A | SCREW (9) | FLTRXSE |
| 6 | 9231 | BEARING | FLTRXSE |
| 7 | 11105 | O-RING | FLTRXSE |
| 8 | 12052A | SEAL | FLTRXSE |
| 9 | 16583-00A | DOWEL BUSHING (2) | FLTRXSE |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | FLTRXSE |
| 11 | 24754-75A | DOWEL BUSHING, starter (4) | FLTRXSE |
| 12 | 34901-07 | GASKET, primary cover | FLTRXSE |
| 13 | 34948-08 | GASKET, primary housing to case | FLTRXSE |
| 14 | 39929-06B | CHAIN TENSIONER ASSEMBLY | FLTRXSE |
| 15 | 42642-00A | BUSHING (2) | FLTRXSE |
| 16 | 60328-98B | PLUG, magnetic drain w/ 11105 | FLTRXSE |
| 17 | 60432-07A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (black) | FLTRXSE |
| 18 | 60886-11 | COVER, primary (black) | FLTRXSE |
| 19 | 60678-85 | RETAINING RING | FLTRXSE |
| 20 | 60709-07A | COVER, clutch (chrome) | FLTRXSE |
| 21 | 14100118 | INSERT, clutch cover | FLTRXSE |
| 21A | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y, 37909-90 | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 791A | SCREW (Japan only) | FLTRXSE |
| 23 | 60818-07 | SLEEVE, dampener (Japan only) | FLTRXSE |
BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3368 | SCREW | FLTRXSE |
| 2 | 3594 | SCREW (2) | FLTRXSE |
| 3 | 3892 | SCREW (3) | FLTRXSE |
| 4 | 6557 | WASHER | FLTRXSE |
| 5 | 9276A | BALL BEARING (2) | FLTRXSE |
| 6 | 11843 | SPACER, compensator | FLTRXSE |
| 7 | 35241-06 | NUT, sprocket | FLTRXSE |
| 8 | 35242-06 | LOCKPLATE | FLTRXSE |
| 9 | 40024-09 | REAR BELT, 140 T, 1 inch | FLTRXSE |
| 10 | 40037-07 | PRIMARY CHAIN | FLTRXSE |
| 11 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T, w/ 9276A & 11843 (black) | FLTRXSE |
| 12 | 40278-09 | ISOLATOR, rubber | FLTRXSE |
| 13 | 40659-06 | SPROCKET, transmission, 32 T | FLTRXSE |
| 14 | 60386-09 | DEBRIS DEFLECTOR | FLTRXSE |
| 15 | 83935-09A | COMPENSATOR ASSEMBLY, w/ 6557 & 40100009 | FLTRXSE |
| 16 | 83936-09 | SPRING PACK | FLTRXSE |
| 17 | 40100009 | RETAINER, sprocket | FLTRXSE |

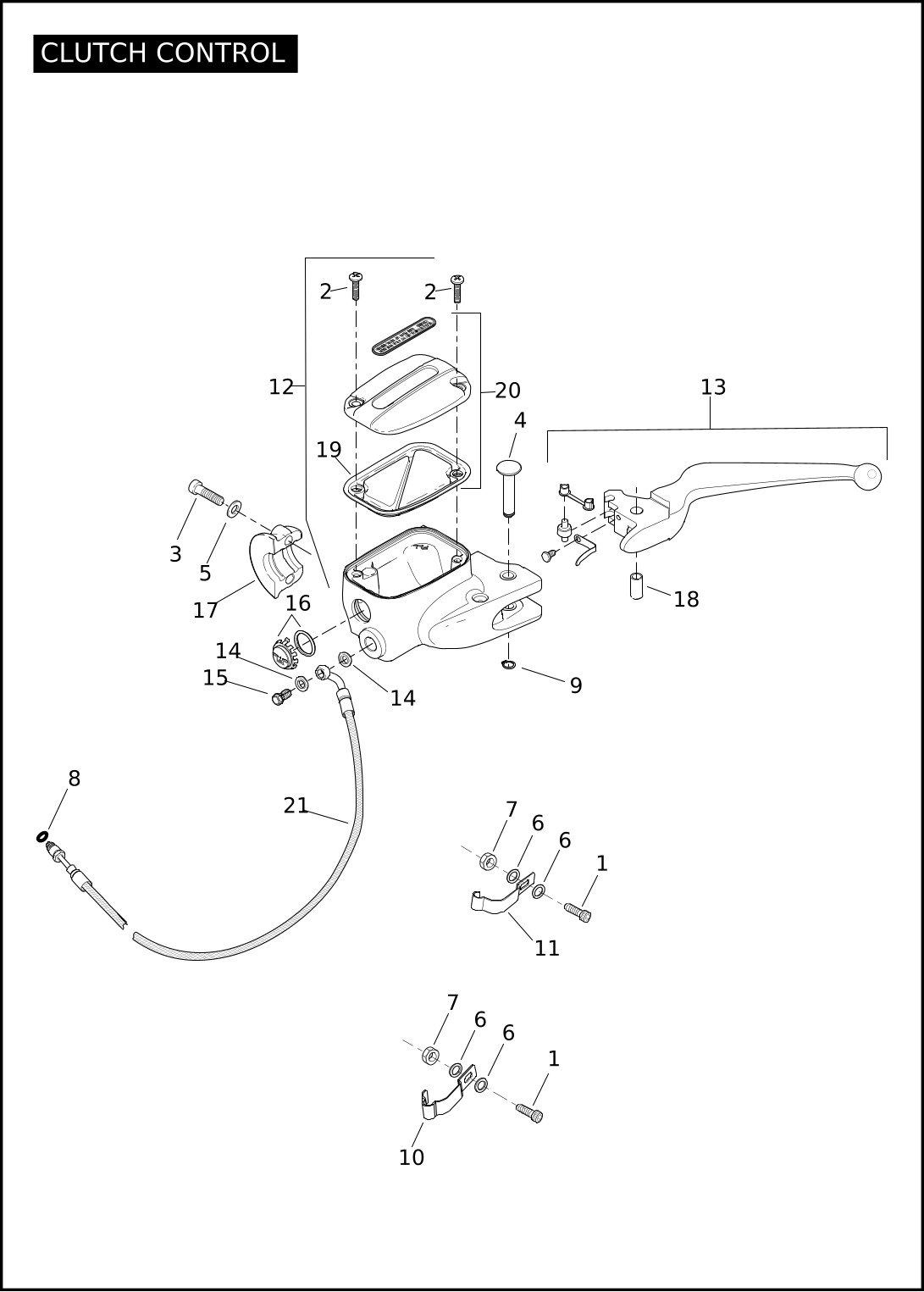

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (2) | FLTRXSE |
| 2 | 2590 | SCREW (2) | FLTRXSE |
| 3 | 4132 | SCREW (2) | FLTRXSE |
| 4 | 5120 | PIVOT PIN (black) | FLTRXSE |
| 5 | 6101 | WASHER (black) (2) | FLTRXSE |
| 6 | 6703 | WASHER (4) | FLTRXSE |
| 7 | 7688 | NUT (2) | FLTRXSE |
| 10039 | STRAP, cable (not illustrated) | FLTRXSE | |
| 8 | 11348 | O-RING | FLTRXSE |
| 9 | 11694 | RING, retaining | FLTRXSE |
| 10 | 38938-09 | RETAINER, clutch line, lower | FLTRXSE |
| 11 | 38969-10 | RETAINER, clutch line, upper | FLTRXSE |
| 12 | 38990-10 | MASTER CYLINDER ASSEMBLY, clutch (black), w/ 2590, 5120, 11694, 42145-06, 46322-06 & 46324-06 | FLTRXSE |
| 13 | 38997-10 | LEVER ASSEMBLY, hand, w/ 11694 & 45423-10 (black) | FLTRXSE |
| 14 | 41751-06A | GASKET, banjo-bolt (2) | FLTRXSE |
| 15 | 42010-06A | BOLT, banjo | FLTRXSE |
| 16 | 42145-06 | SIGHT GLASS KIT | FLTRXSE |
| 17 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | FLTRXSE |
| 18 | 45423-10 | BUSHING, hand lever | FLTRXSE |
| 19 | 46322-06 | GASKET, cover | FLTRXSE |
| 20 | 46324-06 | MASTER CYLINDER COVER KIT, w/ 2590 & 46322-06 | FLTRXSE |
| 21 | 37200014 | LINE ASSEMBLY, hydraulic-clutch, w/ 11348 | FLTRXSE |

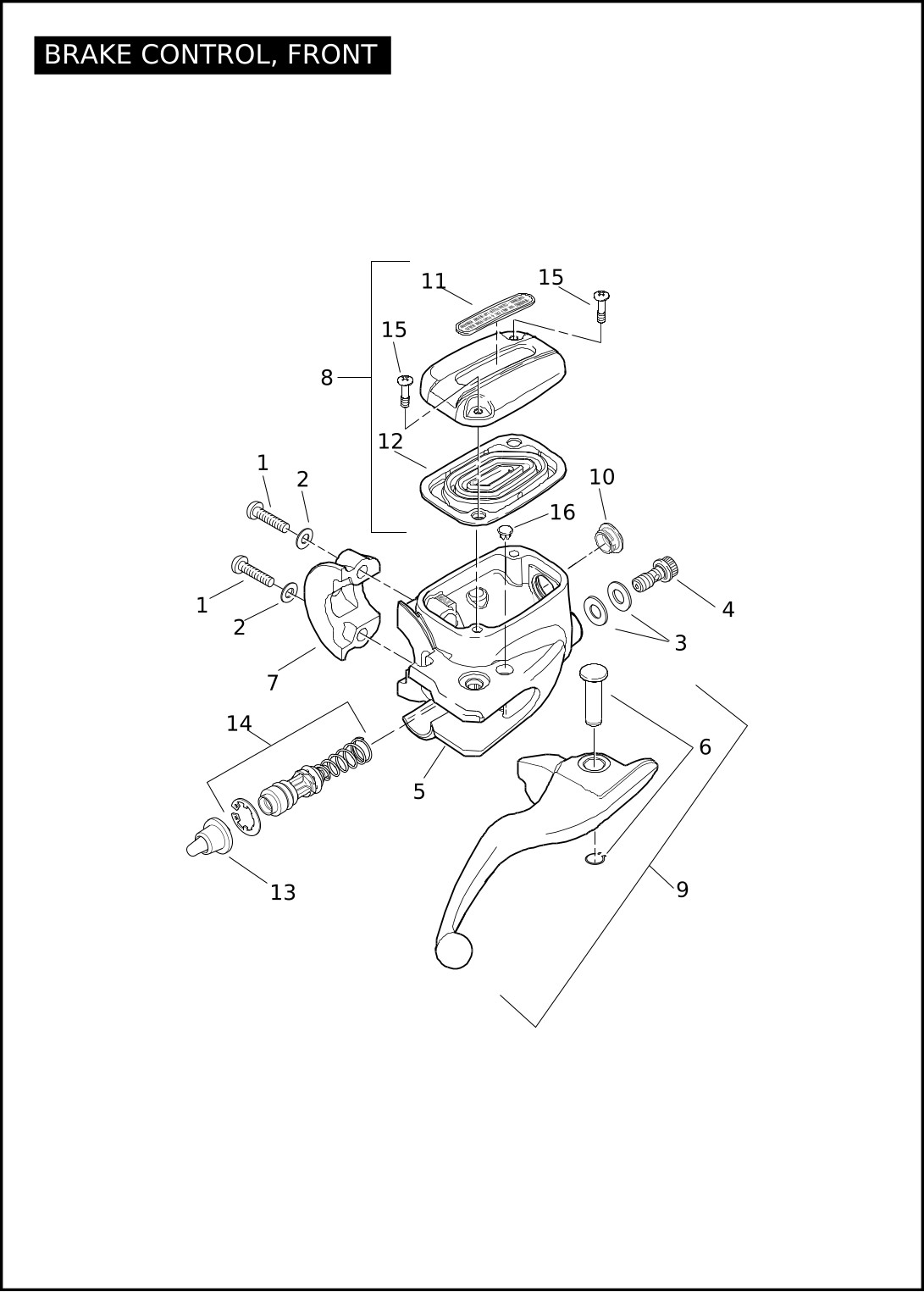

BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FLTRXSE |
| 2 | 6101 | WASHER (2) | FLTRXSE |
| 3 | 41751-06A | GASKET (2) | FLTRXSE |
| 4 | 42010-06A | BOLT, BANJO, brakeline | FLTRXSE |
| 5 | 42105-06A | PIVOT PIN KIT, w/ retaining ring | FLTRXSE |
| 6 | 42276-06A | BRAKE LEVER ASSEMBLY, front | FLTRXSE |
| 7 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLTRXSE |
| 8 | 42855-06B | COVER KIT, master cylinder (black), w/ 42856-06, 42857-06A & 42858-06A | FLTRXSE |
| 9 | 42856-06 | DECAL, reservoir cover | FLTRXSE |
| 10 | 42857-06A | GASKET, reservoir cover | FLTRXSE |
| 11 | 42858-06A | SCREW (2) | FLTRXSE |
| 12 | 42861-06B | PUSHROD, master cylinder | FLTRXSE |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLTRXSE |
| 14 | 44985-10 | MASTER CYLINDER ASSEMBLY, front-dual (black), w/ 7, 9, 10, 11, 12 & 13 | FLTRXSE |
| 15 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | FLTRXSE |
| 16 | 68446-00 | PLUG | FLTRXSE |

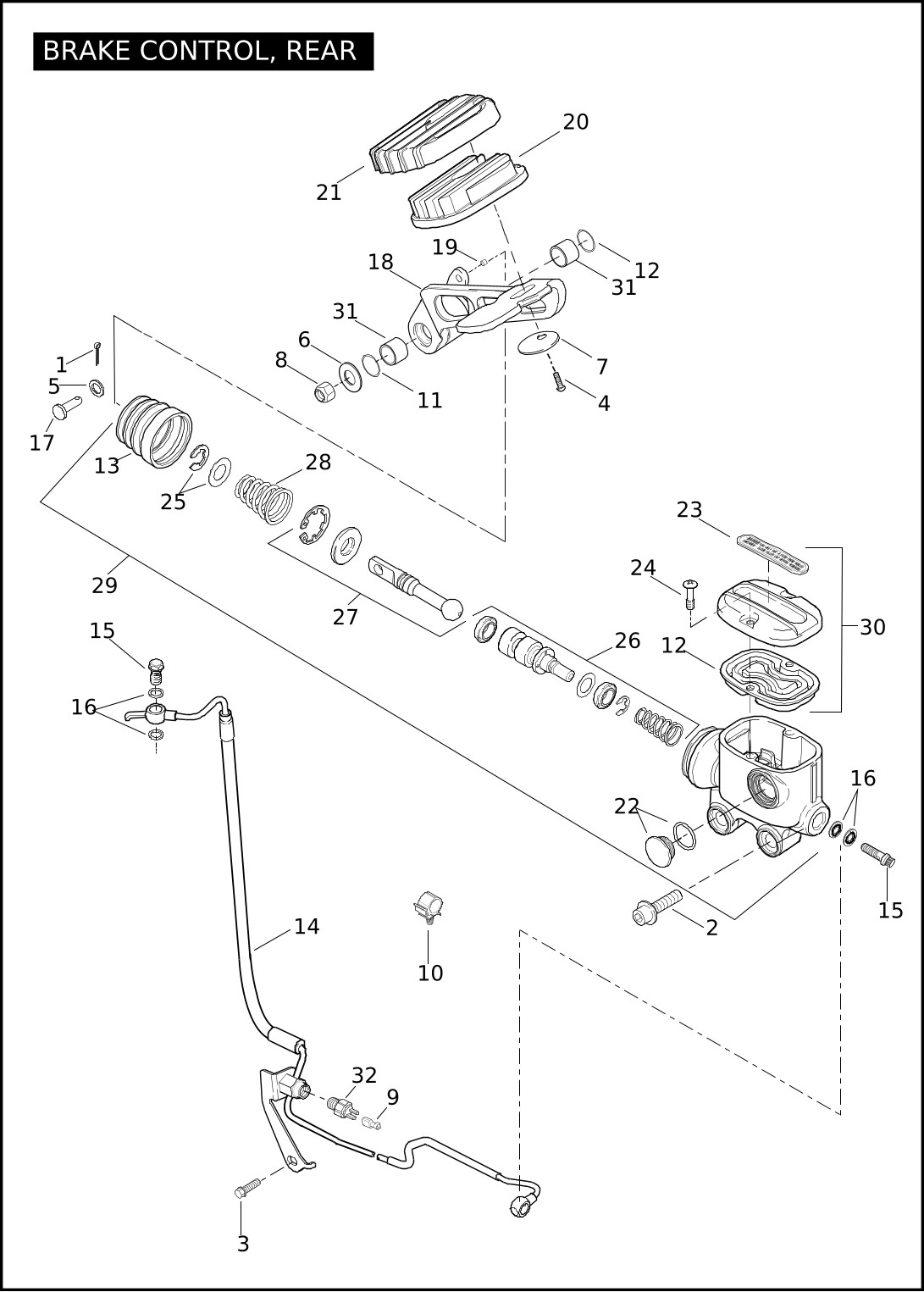

BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLTRXSE |
| 2 | 2479 | SCREW (2) | FLTRXSE |
| 3 | 3563 | SCREW | FLTRXSE |
| 4 | 4808 | SCREW | FLTRXSE |
| 5 | 6220W | WASHER | FLTRXSE |
| 6 | 6334 | WASHER | FLTRXSE |
| 7 | 6421 | WASHER, offset | FLTRXSE |
| 8 | 7825 | LOCKNUT | FLTRXSE |
| 9 | 9907 | WIRE TERMINAL | FLTRXSE |
| 10 | 10340A | CLIP, brake hose (2) | FLTRXSE |
| 11 | 11364 | O-RING (2) | FLTRXSE |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLTRXSE |
| 13 | 12102 | DUST BOOT | FLTRXSE |
| 14 | 40611-09 | BRAKELINE, right-rear, master cylinder to ABS module | FLTRXSE |
| 15 | 41750-06B | BOLT, BANJO, brakeline (2) | FLTRXSE |
| 16 | 41751-06A | GASKET (4) | FLTRXSE |
| 17 | 42460-80B | CLEVIS PIN | FLTRXSE |
| 18 | 42638-08A | LEVER ASSEMBLY, foot-brake, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLTRXSE |
| 19 | 42644-00 | BEARING, .25 x .177 (2) | FLTRXSE |
| 20 | 42684-09 | PAD, brake pedal | FLTRXSE |
| 21 | 42733-09 | COVER, brake pedal (chrome) | FLTRXSE |
| 22 | 42854-06 | KIT, SIGHT GLASS | FLTRXSE |
| 23 | 42856-06 | DECAL, reservoir cover | FLTRXSE |
| 24 | 42882-06 | SCREW (2) | FLTRXSE |
| 25 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLTRXSE |
| 26 | 42932-08 | REBUILD KIT, master cylinder | FLTRXSE |
| 27 | 42933-08A | PUSHROD KIT, master cylinder | FLTRXSE |
| 28 | 42934-08 | SPRING, pedal return | FLTRXSE |
| 29 | 46459-08A | MASTER CYLINDER ASSEMBLY, w/ 12, 13, 22, 23, 24, 25, 26, 27, 28 & 30 (chrome) | FLTRXSE |
| 30 | 46463-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | FLTRXSE |
| 31 | 57217-02 | BUSHING, brake lever (2) | FLTRXSE |
| 32 | 72023-51D | KIT SWITCH, rear brakelite, w/ 9907 | FLTRXSE |

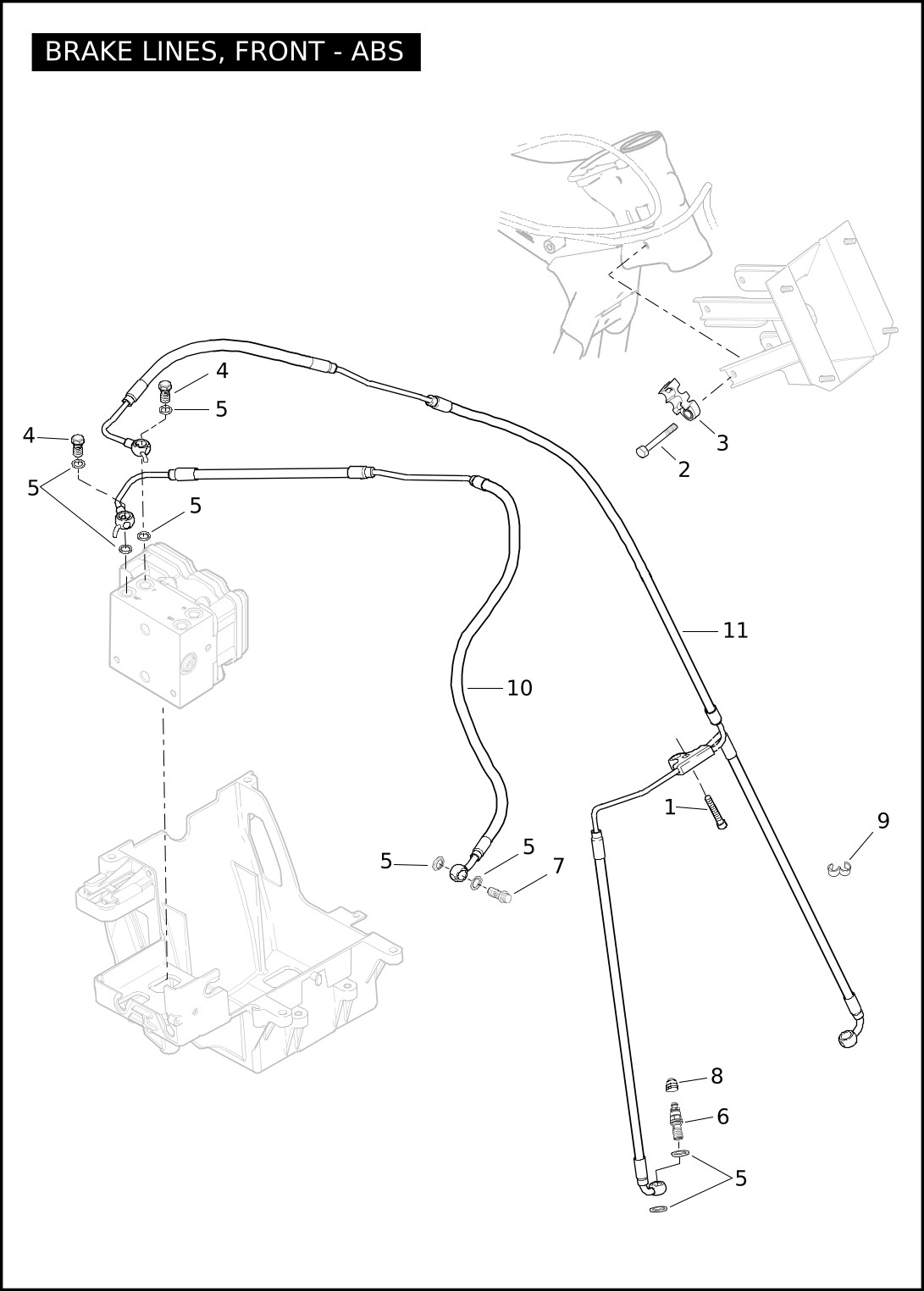

BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | FLTRXSE |
| 2 | 4706 | SCREW | FLTRXSE |
| 3 | 10869 | CLIP, brakeline | FLTRXSE |
| 4 | 41750-06B | BOLT BANJO, brakeline (2) | FLTRXSE |
| 5 | 41751-06A | GASKET (10) | FLTRXSE |
| 6 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (black) | FLTRXSE |
| 7 | 42010-06A | BOLT, BANJO, brakeline | FLTRXSE |
| 8 | 42853-06 | CAP, bleeder screw (2) | FLTRXSE |
| 9 | 70631-08 | CLIP, conduit (3) | FLTRXSE |
| 10 | 41800190 | BRAKELINE, front, upper, ABS | FLTRXSE |
| 11 | 41800193 | BRAKELINE, front, lower, ABS | FLTRXSE |

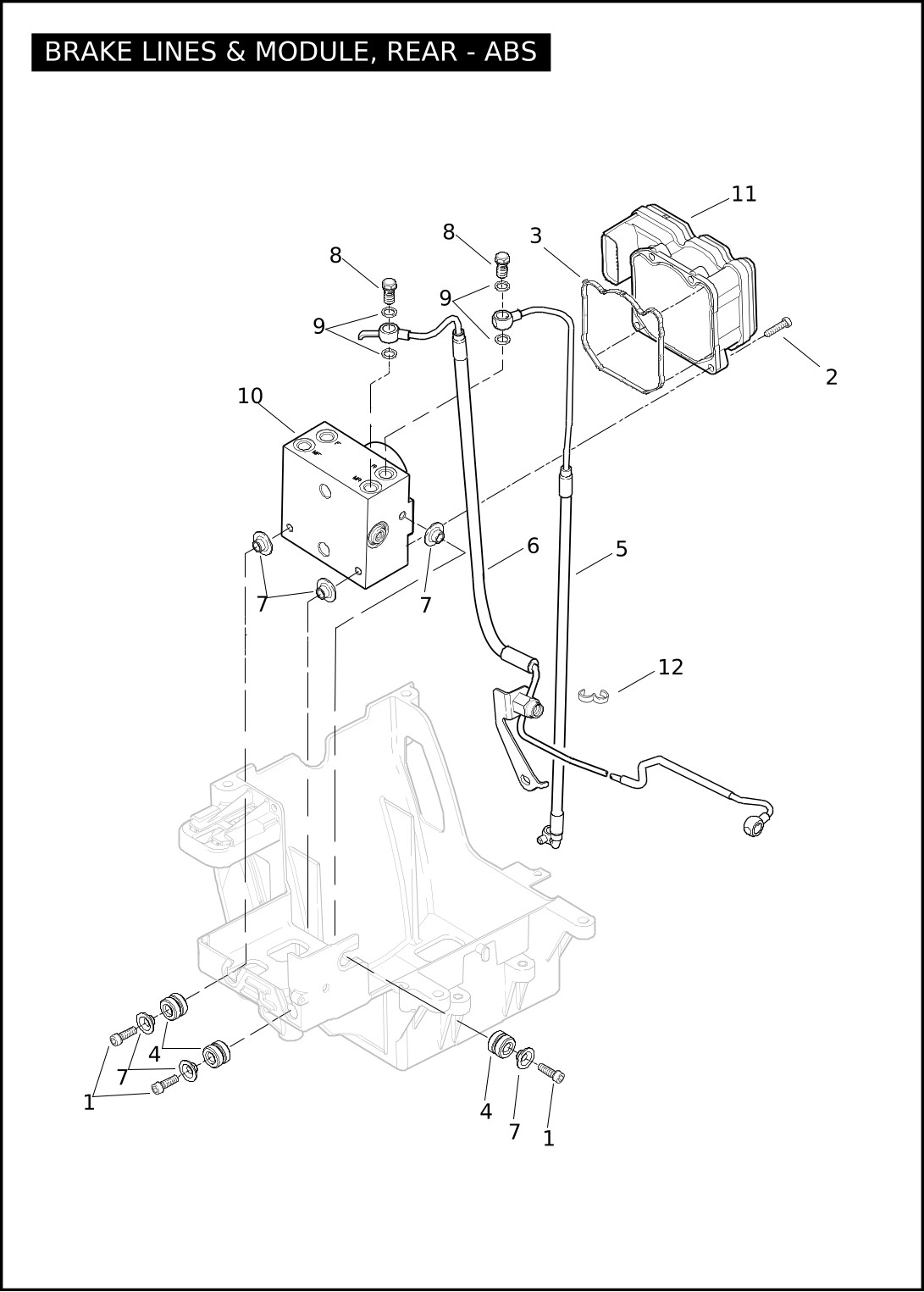

BRAKE LINES & MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1095M | SCREW (3) | FLTRXSE |
| 2 | 2228 | SCREW (4) | FLTRXSE |
| 3 | 11904 | GASKET, ABS module | FLTRXSE |
| 4 | 40603-08 | GROMMET (3) | FLTRXSE |
| 5 | 40610-09 | BRAKELINE, ABS module to caliper | FLTRXSE |
| 6 | 40611-09 | BRAKELINE, ABS module to master cylinder | FLTRXSE |
| 7 | 40628-08 | BUSHING, ABS (6) | FLTRXSE |
| 8 | 41750-06B | BOLT, BANJO, brakeline (2) | FLTRXSE |
| 9 | 41751-06A | GASKET (4) | FLTRXSE |
| 10 | 48343-09 | HYDRAULIC CONTROL UNIT | FLTRXSE |
| 11 | 40649-08 | ELECTRONIC CONTROL UNIT, w/ 11904 | FLTRXSE |
| 12 | 70631-08 | CLIP, conduit | FLTRXSE |

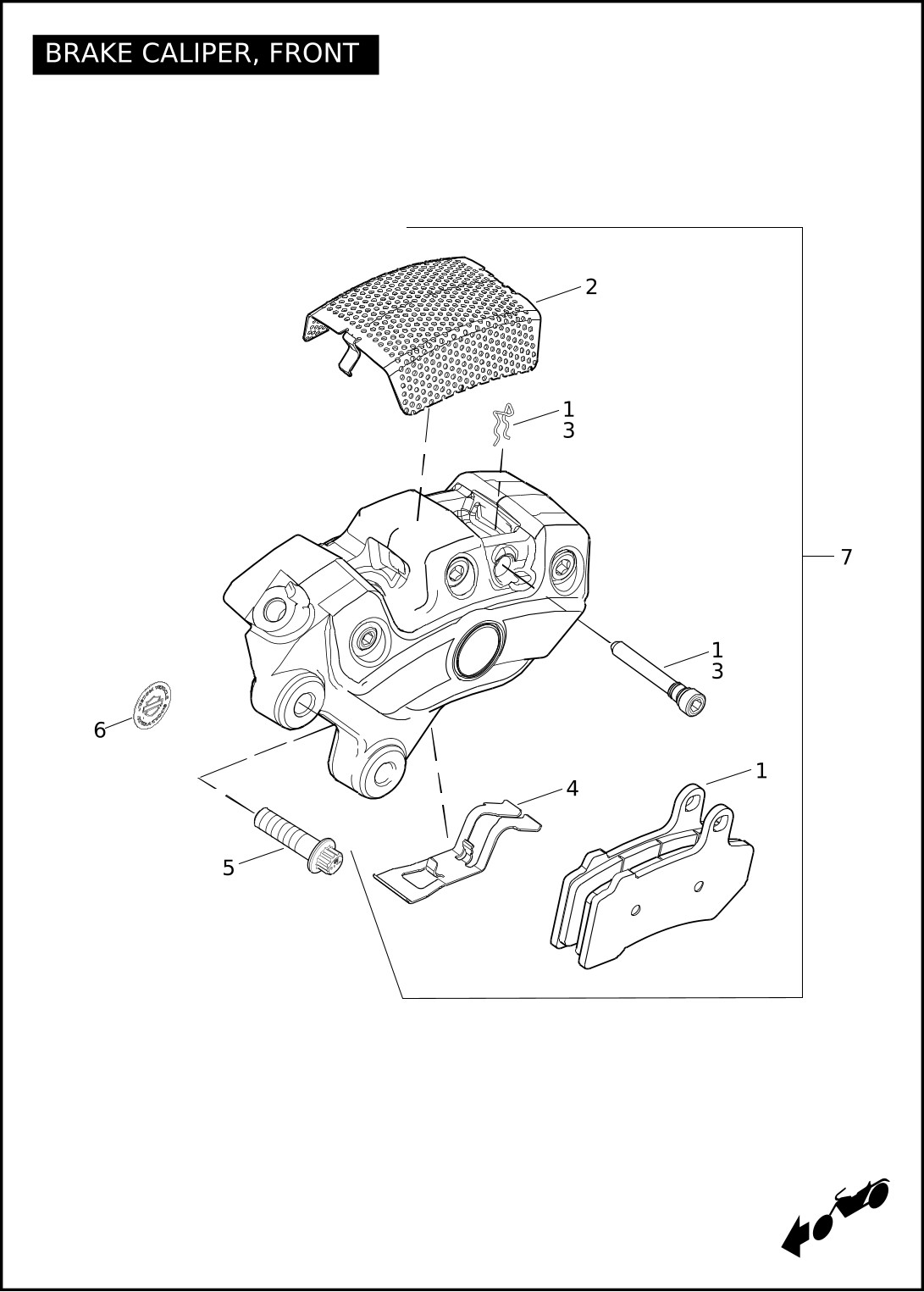

BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLTRXSE |
| 2 | 42054-05 | COVER, caliper (chrome) (2) | FLTRXSE |
| 3 | 42849-08 | PAD PIN KIT (2) | FLTRXSE |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLTRXSE |
| 5 | 44160-00 | BOLT, caliper mounting, lower (4) | FLTRXSE |
| 6 | 44935-06 | MEDALLION, brake caliper (2) **RESTRICTED SALES PART** | FLTRXSE |
| 7 | 46368-10 | CALIPER ASSEMBLY, right (black) | FLTRXSE |
| 46369-10 | CALIPER ASSEMBLY, left (black) | FLTRXSE |

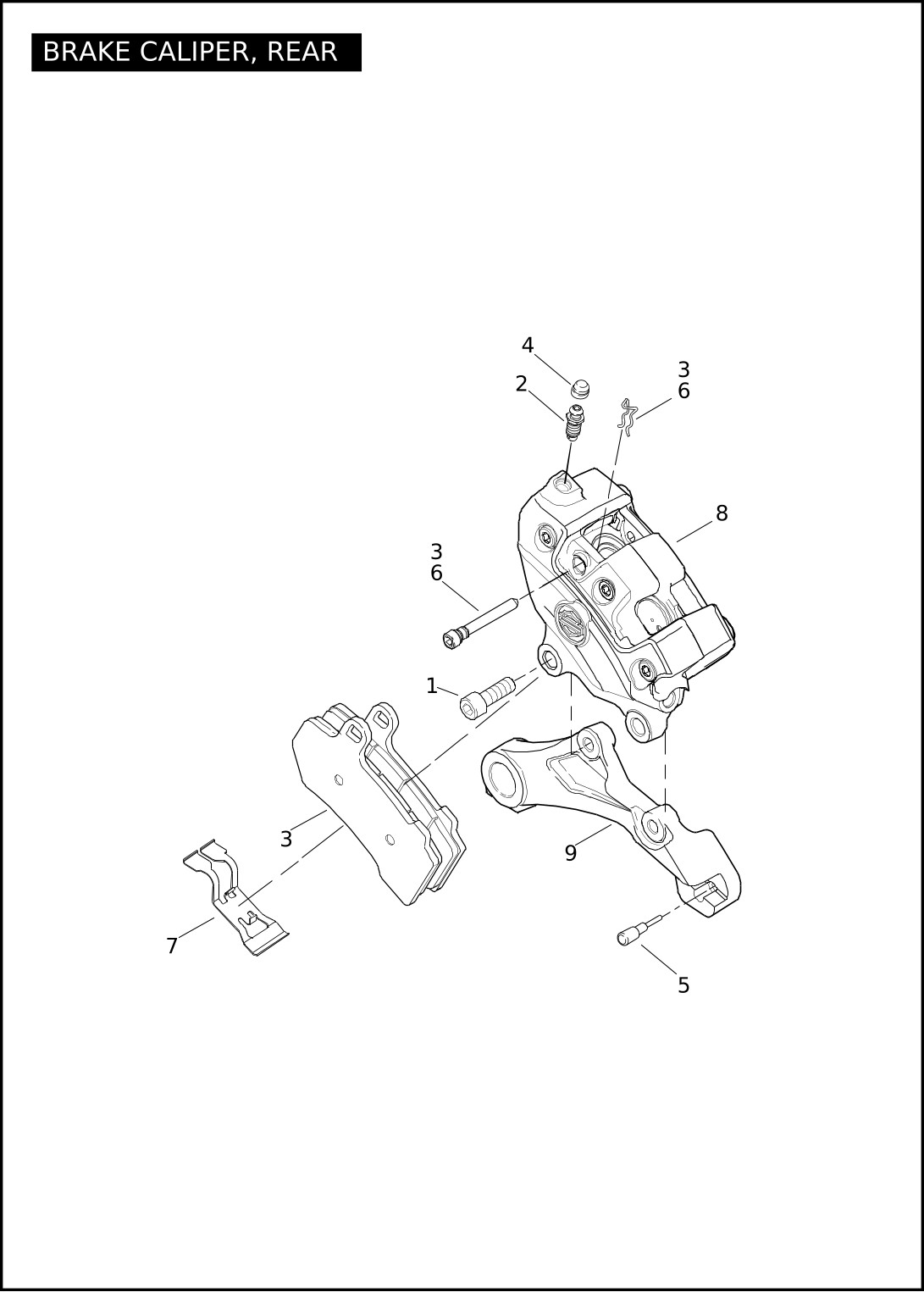

BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLTRXSE |
| 2 | 4890 | SCREW, bleeder | FLTRXSE |
| 3 | 41852-08A | PAD & PIN KIT | FLTRXSE |
| 4 | 42853-06 | CAP, bleeder screw | FLTRXSE |
| 5 | 42863-06 | BUMPER | FLTRXSE |
| 6 | 42865-06B | PAD PIN KIT | FLTRXSE |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLTRXSE |
| 8 | 44080-08B | CALIPER ASSEMBLY, rear, w/ 4890, 10965, 41852-08A, 42853-06, 42865-06B & 42867-06A (black) | FLTRXSE |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLTRXSE |

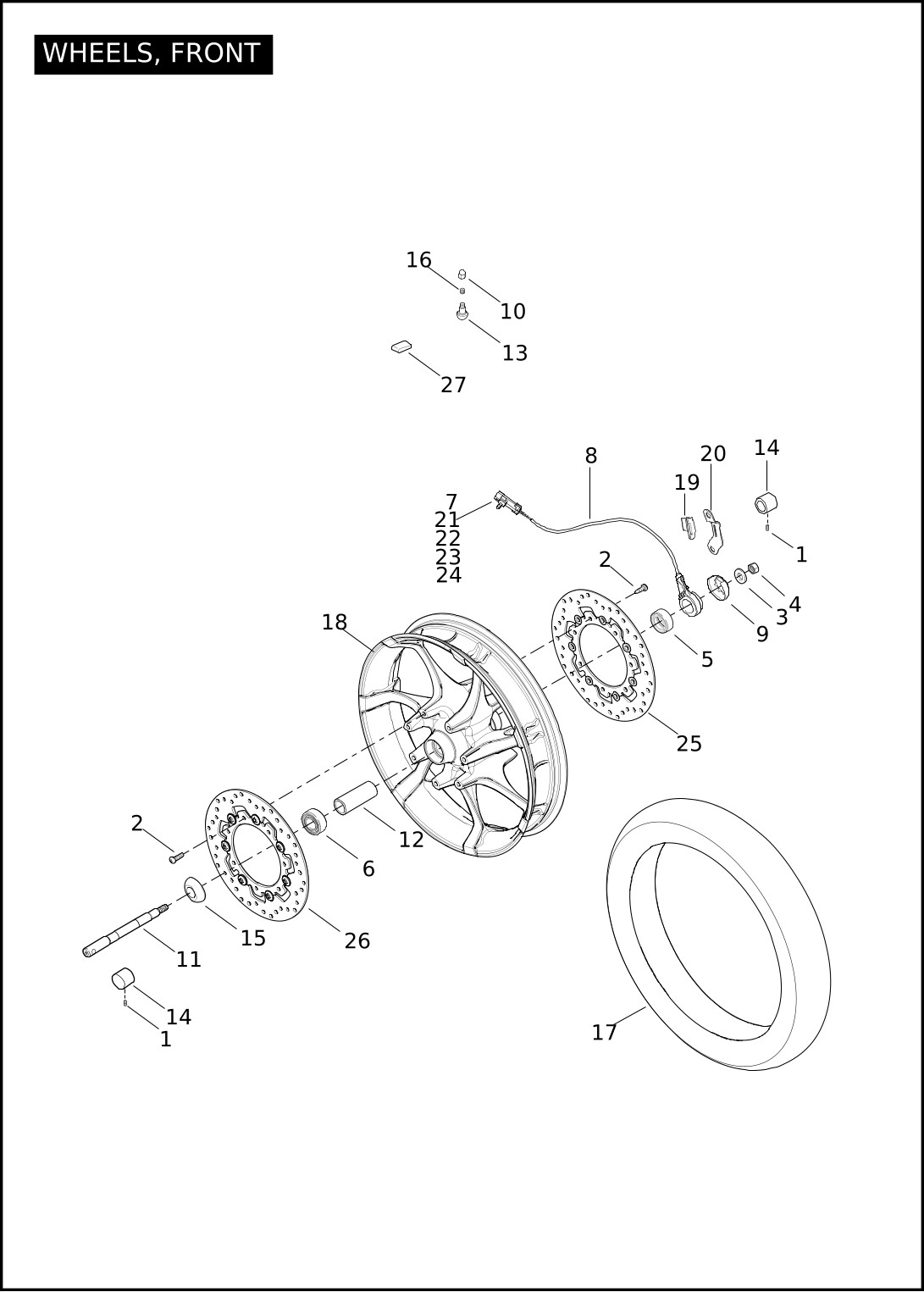

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SCREW, set (2) | FLTRXSE |
| 2 | 3655A | SCREW (14) | FLTRXSE |
| 3 | 6594 | WASHER | FLTRXSE |
| 4 | 7813A | NUT | FLTRXSE |
| 5 | 9252 | BALL BEARING, w/ encoder, ABS | FLTRXSE |
| 6 | 9276A | BALL BEARING | FLTRXSE |
| 7 | 10147 | CLIP, connector | FLTRXSE |
| 8 | 40614-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72609-08, 72608-08 & 72610-08 | FLTRXSE |
| 9 | 40786-08 | COVER, wheel speed sensor (chrome) | FLTRXSE |
| 10 | 41148-98 | CAP, tire valve acorn, w/ bar & shield, set of 2 (chrome) | FLTRXSE |
| 11 | 41547-07A | AXLE | FLTRXSE |
| 12 | 41900-08 | SLEEVE, bearing spacer | FLTRXSE |
| 13 | 43157-83A | STEM ASSEMBLY, tire valve w/ 54321-85 | FLTRXSE |
| 14 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) (2) | FLTRXSE |
| 15 | 44583-08 | SPACER | FLTRXSE |
| 16 | 54321-85 | NUT, valve stem | FLTRXSE |
| 17 | 55055-11 | TIRE | FLTRXSE |
| 18 | 55070-11 | WHEEL KIT, cast, w/o bearings & sleeve (black) | FLTRXSE |
| 19 | 70494-08 | CLIP, wheel speed sensor, ABS | FLTRXSE |
| 20 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLTRXSE |
| 21 | 72607-08 | HOUSING, 2 way pin | FLTRXSE |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLTRXSE |
| 23 | 72609-08 | LOCK, secondary, 2-way (black) | FLTRXSE |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLTRXSE |
| 25 | 41500002 | BRAKE DISC, front - left | FLTRXSE |
| 26 | 41500004 | BRAKE DISC, front - right | FLTRXSE |
| 27 | 42300001 | WEIGHT, 1/2 oz., cast wheels (black) (6) | FLTRXSE |

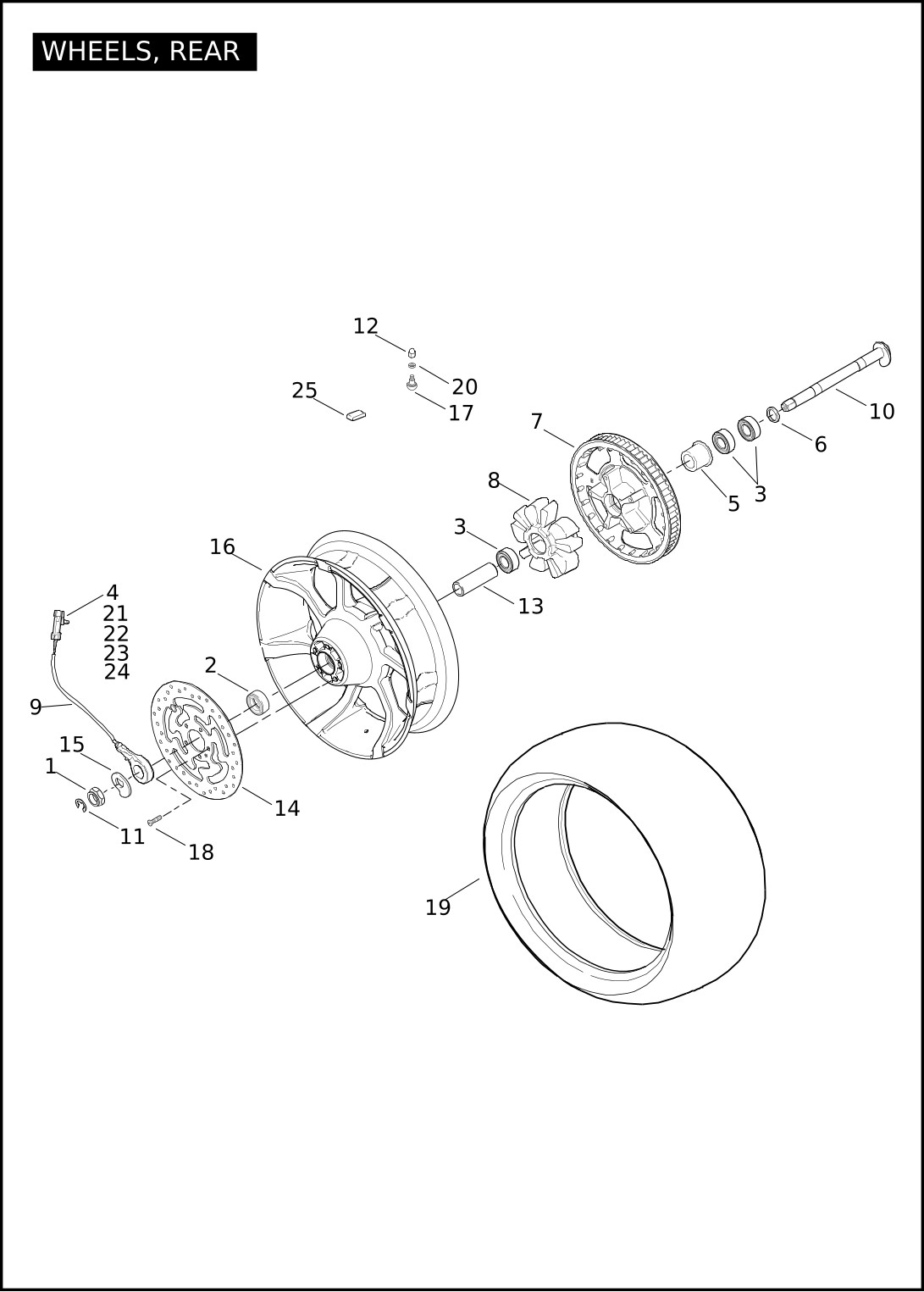

WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLTRXSE |
| 2 | 9252 | BALL BEARING, w/ encoder, ABS | FLTRXSE |
| 3 | 9276A | BALL BEARING (3) | FLTRXSE |
| 4 | 10147 | CLIP, connector | FLTRXSE |
| 5 | 11843 | SPACER, compensator | FLTRXSE |
| 6 | 11848 | SPACER | FLTRXSE |
| 7 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T w/ 9276 & 11843 (black) | FLTRXSE |
| 8 | 40278-09 | ISOLATOR, rubber | FLTRXSE |
| 9 | 40615-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08 | FLTRXSE |
| 10 | 41056-09 | REAR AXLE | FLTRXSE |
| 11 | 41139-02 | SPRING CLIP | FLTRXSE |
| 12 | 41148-98 | CAP, tire valve acorn, w/ bar & shield, set of 2 (chrome) | FLTRXSE |
| 13 | 41349-07 | SLEEVE, bearing spacer | FLTRXSE |
| 14 | 41810-08B | BRAKE DISC | FLTRXSE |
| 15 | 41819-02 | AXLE CAM | FLTRXSE |
| 16 | 40225-10 | WHEEL KIT, cast, w/o bearings & sleeve (black) | FLTRXSE |
| 17 | 43157-83A | VALVE STEM, cast wheels, w/ 54321-85 | FLTRXSE |
| 18 | 43567-92 | SCREW (5) | FLTRXSE |
| 19 | 44006-09 | TIRE | FLTRXSE |
| 20 | 54321-85 | NUT | FLTRXSE |
| 21 | 72607-08 | HOUSING, 2 way pin | FLTRXSE |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLTRXSE |
| 23 | 72609-08 | LOCK, secondary, 2-way (black) | FLTRXSE |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLTRXSE |
| 25 | 42300001 | WEIGHT, 1/2 oz. cast wheels (black) | FLTRXSE |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | ROLL PIN | FLTRXSE |
| 2 | 3537 | SCREW (4) | FLTRXSE |
| 3 | 4240 | SCREW (3) | FLTRXSE |
| 4 | 4855 | SCREW (2) | FLTRXSE |
| 5 | 7039 | LOCKWASHER (2) | FLTRXSE |
| 6 | 10138 | TAB, electrical ground | FLTRXSE |
| 7 | 45419-80 | BOLT, fork (2) | FLTRXSE |
| 8 | 45435-10 | BRACKET, upper | FLTRXSE |
| 9 | 45442-86 | GUIDE BUSHING, fork stem bracket assembly (2) | FLTRXSE |
| 10 | 45446-09 | BRACKET ASSEMBLY, lower, w/ 608 & 48365-48A | FLTRXSE |
| 11 | 45718-60 | NUT, fork stem | FLTRXSE |
| 12 | 45727-08 | WASHER | FLTRXSE |
| 13 | 45733-48 | OIL SEAL, fork bracket bolt (2) | FLTRXSE |
| 14 | 45964-10 | FORK SLIDER COVER (prime) (2) | FLTRXSE |
| 45591-02 | FORK SLIDER COVER (Vivid Black) (2) | FLTRXSE | |
| 45600015DLM | FORK SLIDER COVER (Twilight Blue) (2) | FLTRXSE | |
| 45600015DLO | FORK SLIDER COVER (Starfire Black) (2) | FLTRXSE | |
| 15 | 48300-60 | ROLLER BEARING, steering head, w/ 48315-60 (2) | FLTRXSE |
| 16 | 48315-60 | CUP, bearing (2) | FLTRXSE |
| 17 | 48333-80 | SEAT, upper head cone | FLTRXSE |
| 18 | 48361-80 | DUST SHIELD, bearing, upper | FLTRXSE |
| 19 | 48365-48A | DIRT GUARD, bearing, steering head | FLTRXSE |

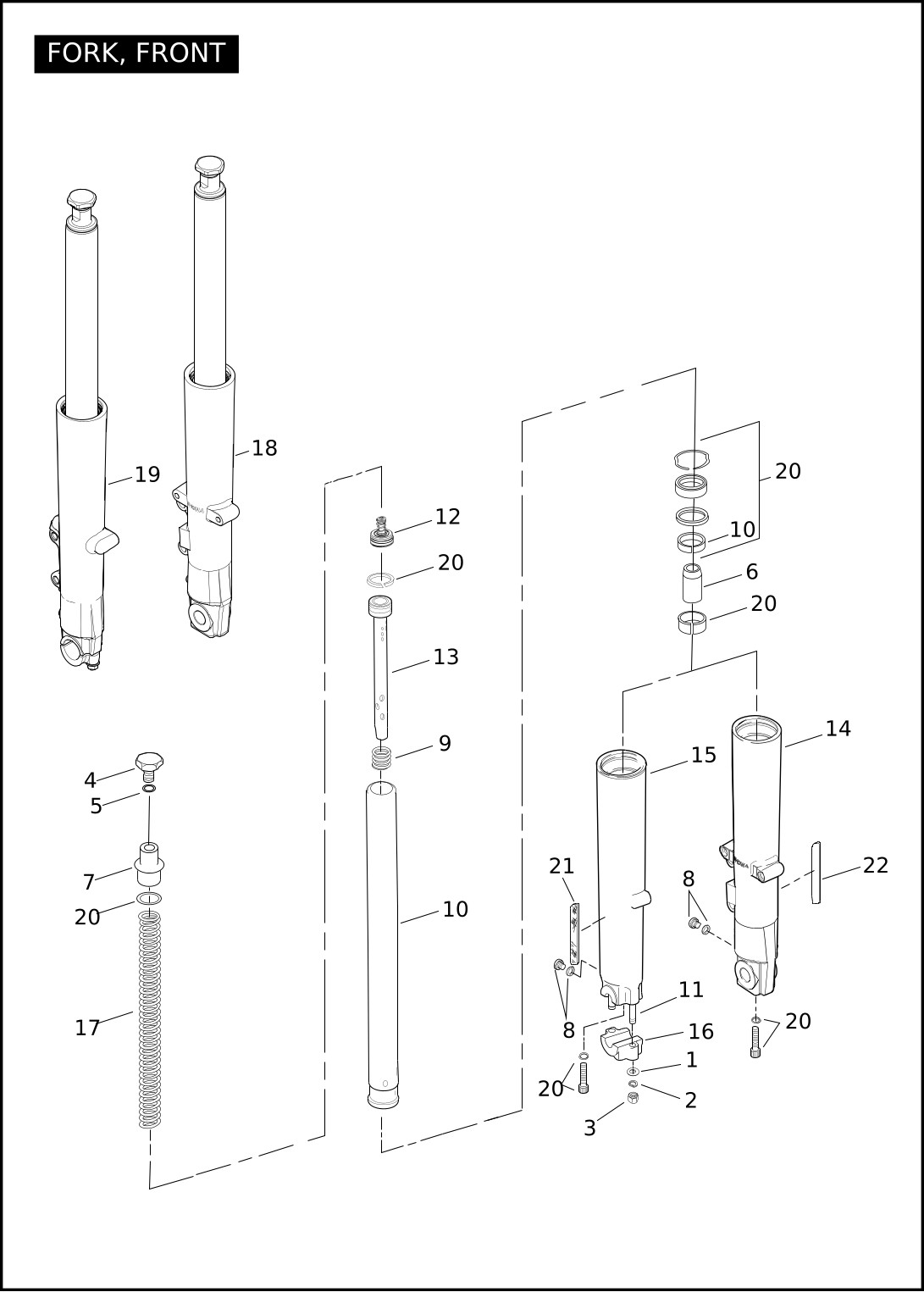

FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (right-hand) (2) | FLTRXSE |
| 2 | 7041 | LOCKWASHER (right-hand) (2) | FLTRXSE |
| 3 | 7748W | NUT (right-hand) (2) | FLTRXSE |
| 4 | 45419-80 | BOLT, fork (2) | FLTRXSE |
| 5 | 45733-48 | OIL SEAL (2) | FLTRXSE |
| 6 | 45803-97 | STOP, oil lock piece (2) | FLTRXSE |
| 7 | 45838-77 | BOLT, front fork (2) | FLTRXSE |
| 8 | 45858-77 | SCREW, drain, w/ washer (2) | FLTRXSE |
| 9 | 45933-86 | REBOUND SPRING (2) | FLTRXSE |
| 10 | 45972-09 | STANCHION TUBE ASSEMBLY, w/ slider bushing (2) | FLTRXSE |
| 11 | 45998-73 | STUD (right-hand) (2) | FLTRXSE |
| 12 | 46209-06 | DAMPING VALVE (2) | FLTRXSE |
| 13 | 46422-09 | DAMPER TUBE, w/ piston ring (2) | FLTRXSE |
| 14 | 46473-00B | SLIDER, fork (left-hand) | FLTRXSE |
| 15 | 46474-00C | SLIDER, fork (right-hand), w/ 45998-73 | FLTRXSE |
| 16 | 46658-07 | HOLDER, axle (right-hand) | FLTRXSE |
| 17 | 48787-09 | SPRING (2) | FLTRXSE |
| 18 | 48789-09 | FORK ASSEMBLY, complete (left-hand) (chrome) | FLTRXSE |
| 19 | 48790-09 | FORK ASSEMBLY, complete (right-hand) (chrome) | FLTRXSE |
| 20 | 49377-09A | FORK REBUILT KIT | FLTRXSE |
| 21 | 59481-00 | REFLECTOR (right-hand) (amber) | FLTRXSE |
| 22 | 59482-00 | REFLECTOR (left-hand) (amber) | FLTRXSE |

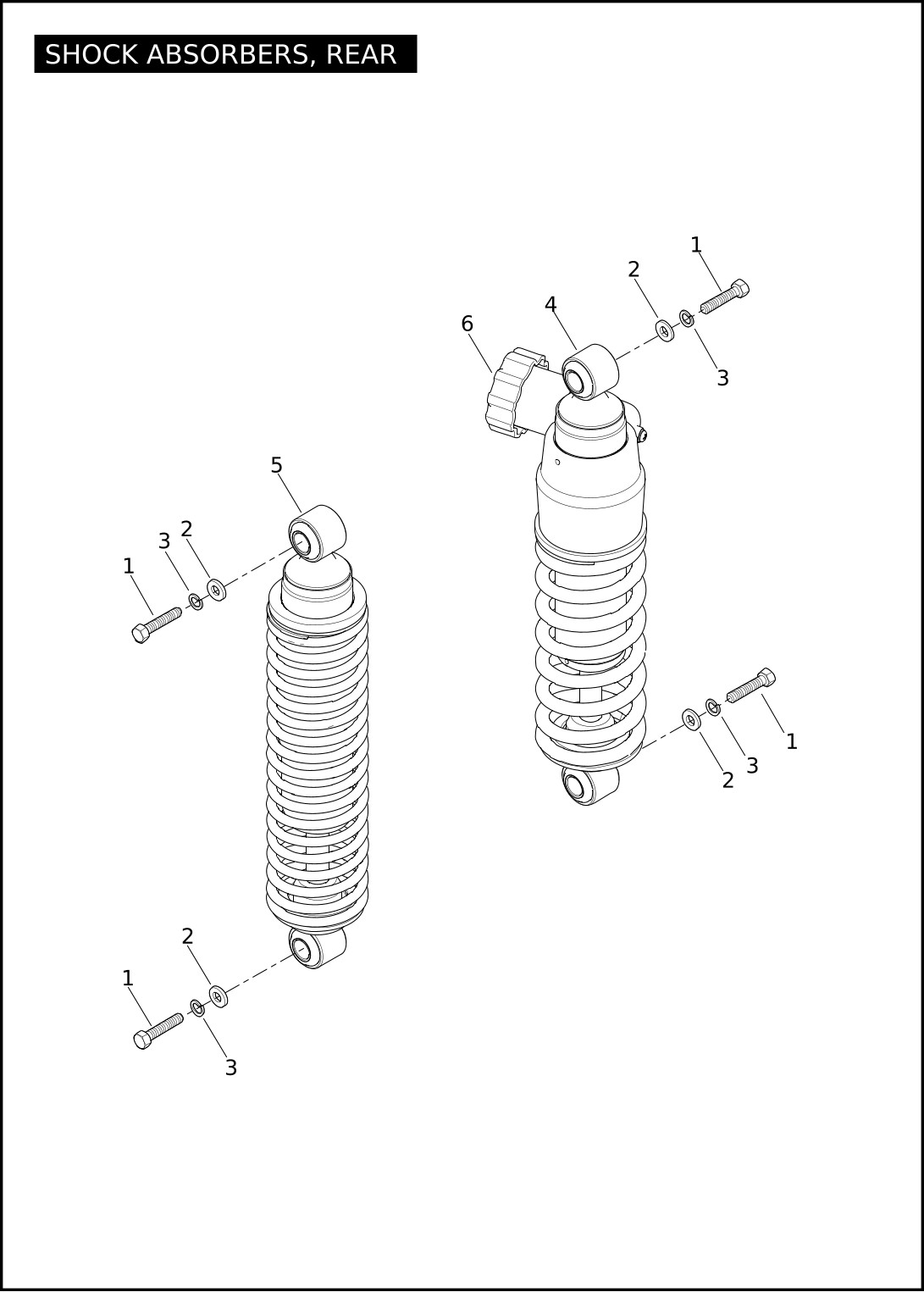

SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLTRXSE |
| 2 | 6012 | WASHER (4) | FLTRXSE |
| 3 | 7068 | LOCKWASHER (4) | FLTRXSE |
| 4 | 54674-10 | REAR SHOCK ABSORBER LOW, left | FLTRXSE |
| 5 | 54675-10 | REAR SHOCK ABSORBER LOW, right | FLTRXSE |
| 6 | 54677-10 | KNOB SERVICE KIT | FLTRXSE |

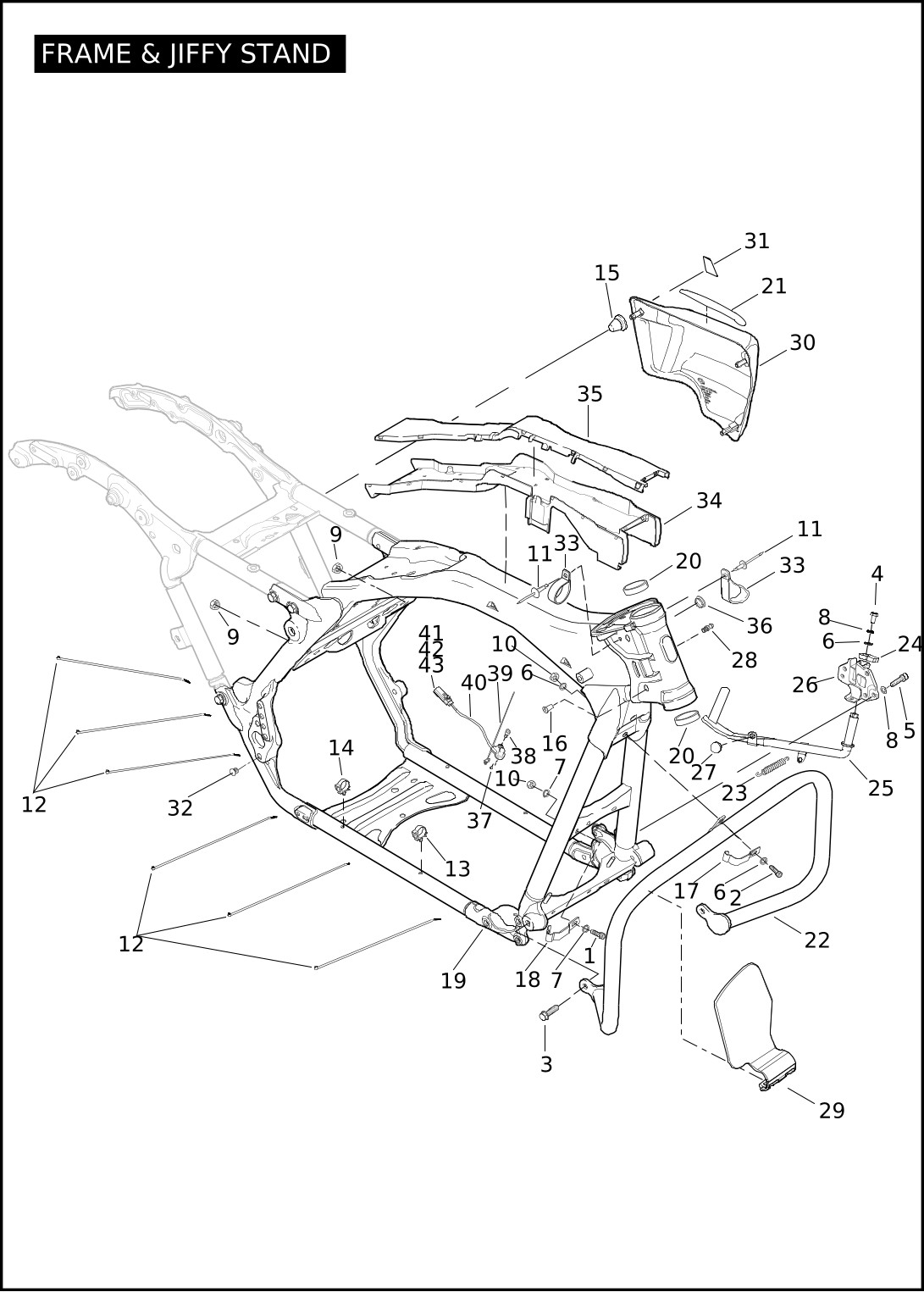

FRAME & JIFFY STAND (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (2) | FLTRXSE |
| 2 | 2708A | SCREW | FLTRXSE |
| 3 | 4924 | SCREW (2) | FLTRXSE |
| 4 | 3987 | BOLT | FLTRXSE |
| 5 | 4688 | SCREW (2) | FLTRXSE |
| 6 | 6702 | WASHER (2) | FLTRXSE |
| 7 | 6703 | WASHER (2) | FLTRXSE |
| 8 | 7041 | LOCKWASHER | FLTRXSE |
| 9 | 7495 | NUT (2) | FLTRXSE |
| 10 | 7688 | NUT (2) | FLTRXSE |
| 11 | 8483A | RIVET, blind (2) | FLTRXSE |
| 12 | 10039 | CABLE STRAP (6) | FLTRXSE |
| 13 | 10336 | CLIP, conduit, rosebud mount | FLTRXSE |
| 14 | 10394 | CLIP, conduit, rosebud mount | FLTRXSE |
| 15 | 11650 | GROMMET, side cover (6) | FLTRXSE |
| 16 | 11663 | RIVNUT, flathead, with ABS | FLTRXSE |
| 17 | 38969-10 | RETAINER, cable, upper | FLTRXSE |
| 18 | 38939-09A | RETAINER, clutch line | FLTRXSE |
| 19 | 47900-11BHP | FRAME, main, w/ 48315-60 & 50972-75 | FLTRXSE |
| 20 | 48315-60 | BEARING CUP (2) | FLTRXSE |
| 21 | 48419-04 | WEAR PAD, side cover - right (clear) | FLTRXSE |
| 48420-04 | WEAR PAD, side cover - left (clear) | FLTRXSE | |
| 22 | 49184-09 | ENGINE GUARD KIT, w/14148-86 | FLTRXSE |
| 23 | 49725-07A | SPRING, jiffy stand | FLTRXSE |
| 24 | 50015-74A | LEG STOP | FLTRXSE |
| 25 | 50075-07 | LEG, jiffy stand | FLTRXSE |
| 26 | 50096-09 | BRACKET, jiffy stand leg | FLTRXSE |
| 27 | 50245-07 | BUMPER, jiffy stand leg | FLTRXSE |
| 28 | 50972-75 | FITTING, lubrication | FLTRXSE |
| 29 | 57781-11 | WIND DEFLECTOR, right | FLTRXSE |
| 57780-11 | WIND DEFLECTOR, left (not shown) | FLTRXSE | |
| 30 | 66048-09 | SIDE COVER, right (prime) | FLTRXSE |
| 66250-09 | SIDE COVER, left (prime) | FLTRXSE | |
| 57200001DLH | SIDE COVER, left (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200001DLA | SIDE COVER, left (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200001DLN | SIDE COVER, left (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLH | SIDE COVER, right (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLA | SIDE COVER, right (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLN | SIDE COVER, right (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE |
FRAME & JIFFY STAND (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 31 | 66055-09 | WEAR PAD (clear) (2) | FLTRXSE |
| 32 | 68446-00 | PLUG (2) | FLTRXSE |
| 33 | 69318-02 | CLAMP (2) | FLTRXSE |
| 34 | 70980-09 | TRAY, wire trough (main harness) | FLTRXSE |
| 35 | 70981-09 | COVER, wire trough w/ 15368-01A (main harness) | FLTRXSE |
| 36 | 90469-94 | HOLE PLUG (4) | FLTRXSE |
| 37 | 90520-07 | HOLE PLUG, jiffy stand | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 38 | 3594 | SCREW, jiffy stand (England, HDI) | FLTRXSE |
| 39 | 10177 | CABLE STRAP, tree mount, jiffy stand (England, HDI) | FLTRXSE |
| 40 | 50126-08A | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI, Australia) | FLTRXSE |
| 41 | 72169-07 | TERMINAL, pin, 16-20 AWG (3) | FLTRXSE |
| 42 | 72511-07BK | HOUSING, pin, 3-way (black) | FLTRXSE |
| 43 | 73213-07 | RETAINER, xmas tree clip | FLTRXSE |

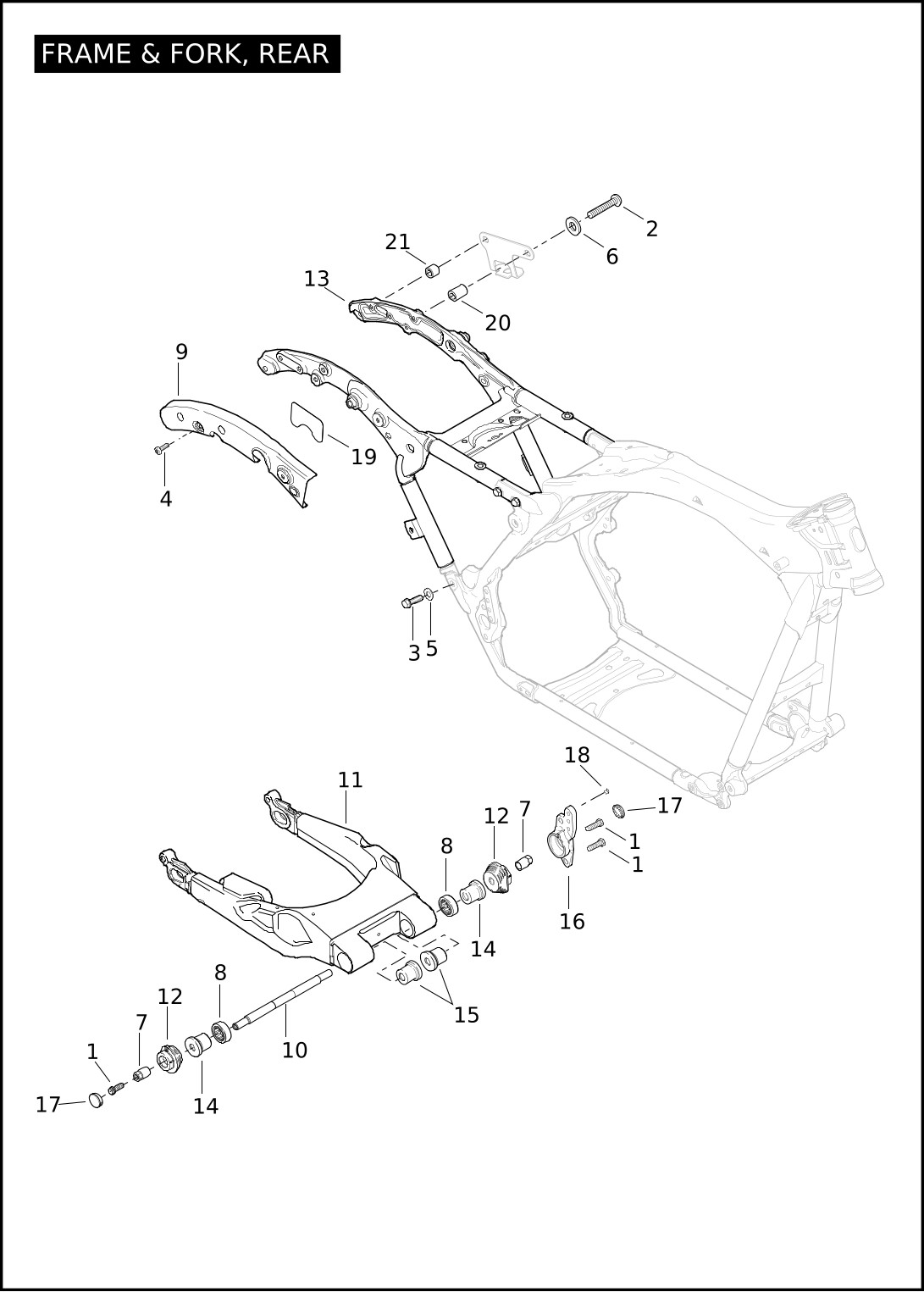

FRAME & FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW, locking (2) | FLTRXSE |
| 2 | 3148 | SCREW (4) | FLTRXSE |
| 3 | 3536 | BOLT (6) | FLTRXSE |
| 4 | 3684 | SCREW (2) | FLTRXSE |
| 5 | 6532 | WASHER (6) | FLTRXSE |
| 6 | 6702 | WASHER (4) | FLTRXSE |
| 7 | 6982 | WASHER (2) | FLTRXSE |
| 8 | 9208 | BEARING (2) | FLTRXSE |
| 9 | 47502-09BDK | COVER, left (prime) | FLTRXSE |
| 47504-09BDK | COVER, right (prime) | FLTRXSE | |
| 47200139BKO | COVER, right (Candy Cobalt) | FLTRXSE | |
| 47200139CGS | COVER, right (White Gold Pearl) | FLTRXSE | |
| 47200139DGM | COVER, right (Maple Metallic) | FLTRXSE | |
| 47200138BKO | COVER, left (Candy Cobalt) | FLTRXSE | |
| 47200138CGS | COVER, left (White Gold Pearl) | FLTRXSE | |
| 47200138DGM | COVER, left (Maple Metallic) | FLTRXSE | |
| 10 | 47540-11 | SHAFT, rear fork | FLTRXSE |
| 11 | 47549-09 | REAR FORK, w/ 9208 & 48489-02 | FLTRXSE |
| 12 | 47584-09 | RUBBER MOUNT (2) | FLTRXSE |
| 13 | 48079-09BHP | FRAME, rear | FLTRXSE |
| 14 | 48487-02 | SPACER, outer (2) | FLTRXSE |
| 15 | 48489-02 | SPACER, inner (2) | FLTRXSE |
| 16 | 50588-09A | BRACKET, rear fork, left | FLTRXSE |
| 17 | 67875-11 | CAP (2) | FLTRXSE |
| 18 | 90493-83 | HOLE PLUG (2) | FLTRXSE |
| 19 | 11100020 | PROTECTIVE PAD | FLTRXSE |
| 20 | 12400030 | SPACER, front | FLTRXSE |
| 21 | 12400031 | SPACER, rear | FLTRXSE |

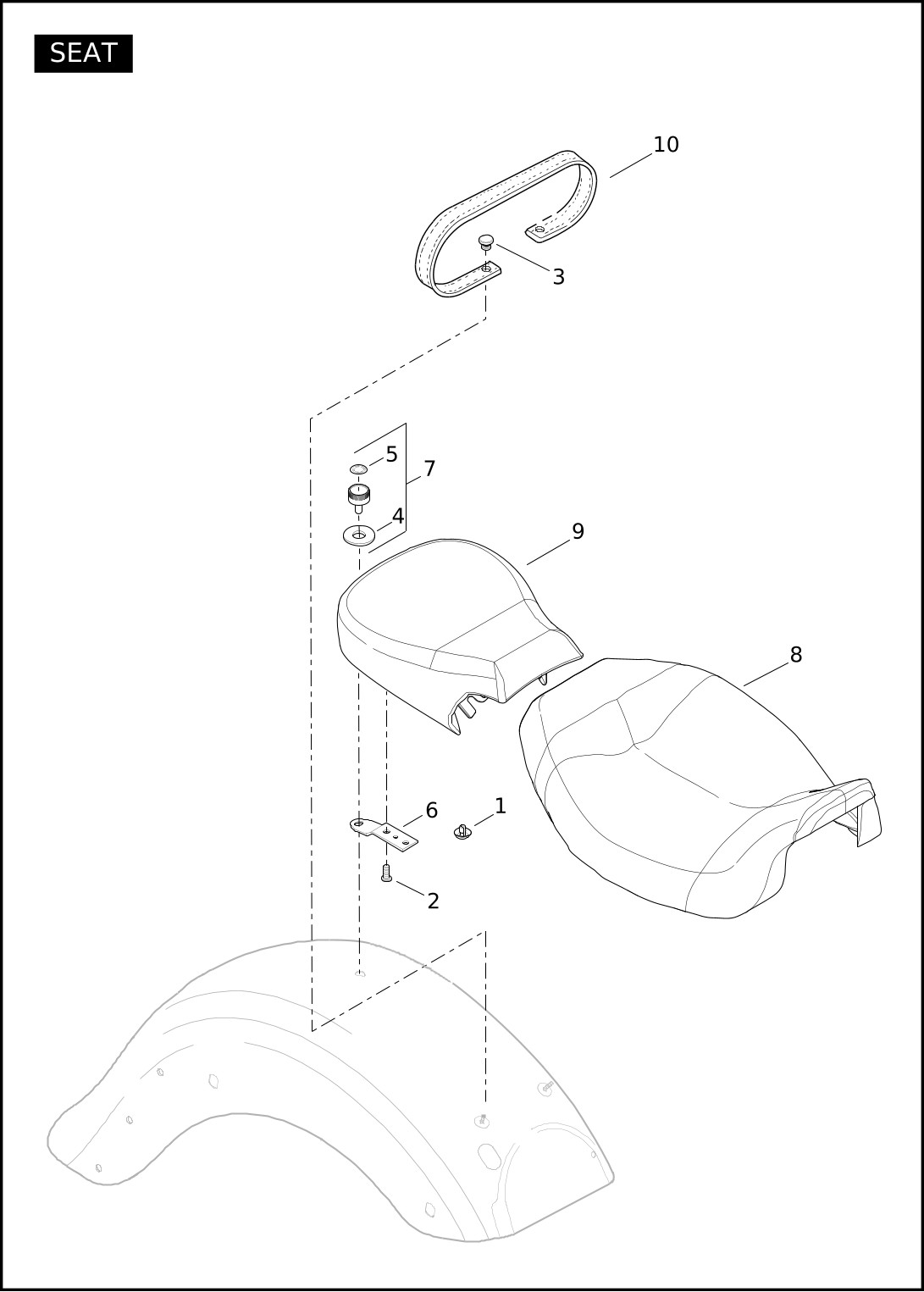

SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT CAP | FLTRXSE |
| 2 | 941 | SCREW (2) | FLTRXSE |
| 3 | 3633 | NUT | FLTRXSE |
| 4 | 6441 | WASHER | FLTRXSE |
| 5 | 14628-96 | EMBLEM | FLTRXSE |
| 6 | 51652-97A | BRACKET | FLTRXSE |
| 7 | 51676-97A | KIT, hardware, w/ 4 & 5 | FLTRXSE |
| 8 | 52000042 | SEAT (black/grey) (used w/ Candy Cobalt/Twilight Blue) | FLTRXSE |
| 52000043 | SEAT (brown/gold) (used w/ Maple Metallic/Vivid Black) | FLTRXSE | |
| 52000056 | SEAT (black/gold) (used w/ White Gold Pearl/Starfire Black) | FLTRXSE | |
| 9 | 52400024 | SEAT PILLION, passenger, w/ 1, 2 & 6 (black/grey) (used w/ Candy Cobalt/Twilight Blue) | FLTRXSE |
| 52400025 | SEAT PILLION, passenger, w/ 1, 2 & 6 (brown/gold) (used w/ Maple Metallic/Vivid Black) | FLTRXSE | |
| 52400038 | SEAT PILLION, passenger, w/ 1, 2 & 6 (black/gold) (used w/ White Gold Pearl/Starfire Black) | FLTRXSE | |
| 10 | 52400026 | SEAT STRAP (black/grey) | FLTRXSE |
| 52400027 | SEAT STRAP (brown/gold) | FLTRXSE | |
| 52400036 | SEAT STRAP (black/gold) | FLTRXSE |

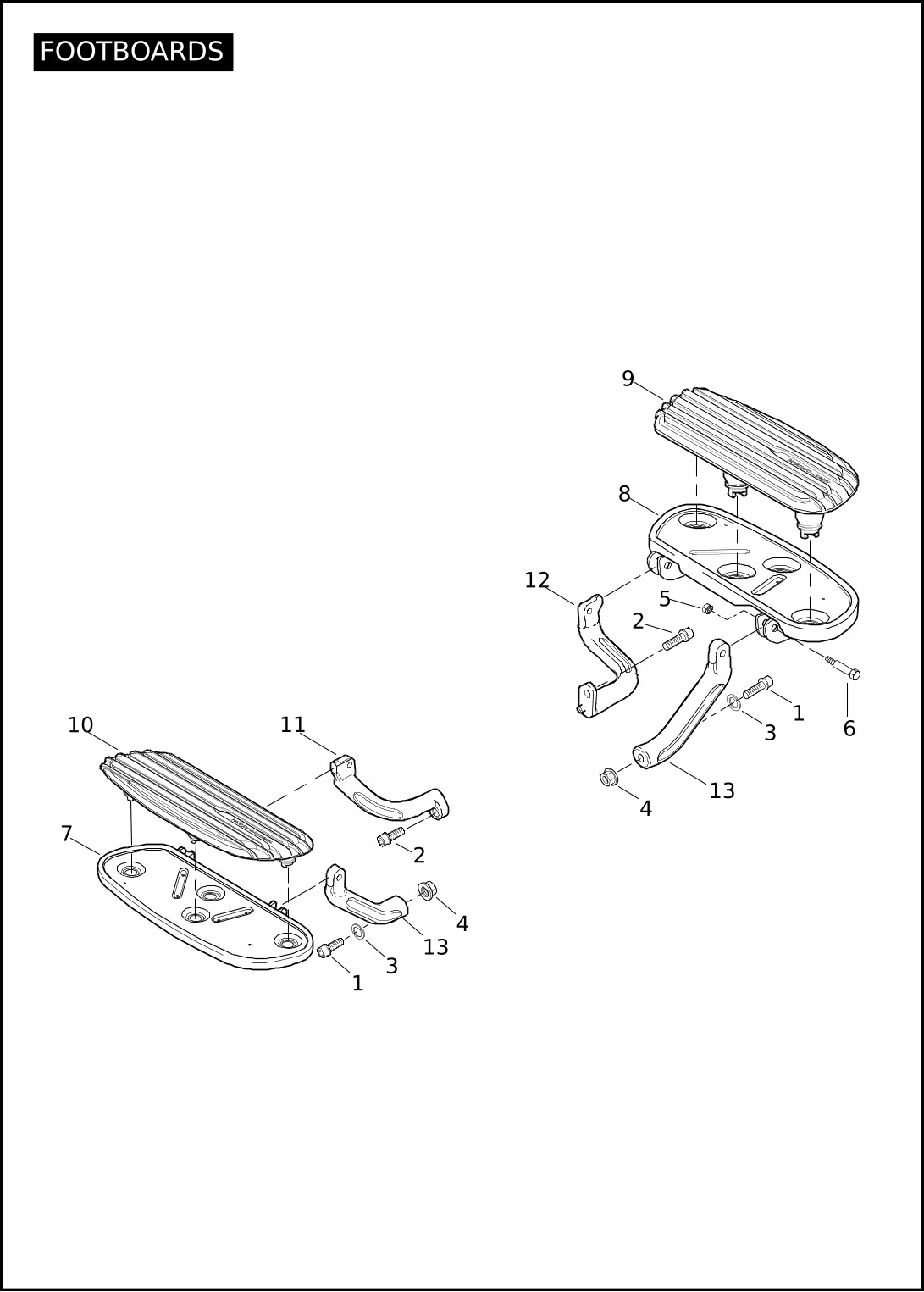

FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW (2) | FLTRXSE |
| 2 | 4688 | SCREW (2) | FLTRXSE |
| 3 | 7038 | LOCKWASHER (2) | FLTRXSE |
| 4 | 7601 | LOCKNUT (2) | FLTRXSE |
| 5 | 7716 | LOCKNUT (4) | FLTRXSE |
| 6 | 50635-82A | BOLT, footboard hinge (4) | FLTRXSE |
| 7 | 50683-04 | BOTTOM ASSEMBLY, right, w/ hinge | FLTRXSE |
| 8 | 50688-04 | BOTTOM ASSEMBLY, left, w/ hinge | FLTRXSE |
| 9 | 51498-09A | INSERT ASSEMBLY, left, rider | FLTRXSE |
| 10 | 51499-09A | INSERT ASSEMBLY, right, rider | FLTRXSE |
| 11 | 50500052 | BRACKET SUPPORT, footboard, rear right | FLTRXSE |
| 12 | 50500051 | BRACKET SUPPORT, footboard, rear left | FLTRXSE |
| 13 | 50500055 | MOUNTING BRACKET, front footboard (2) | FLTRXSE |

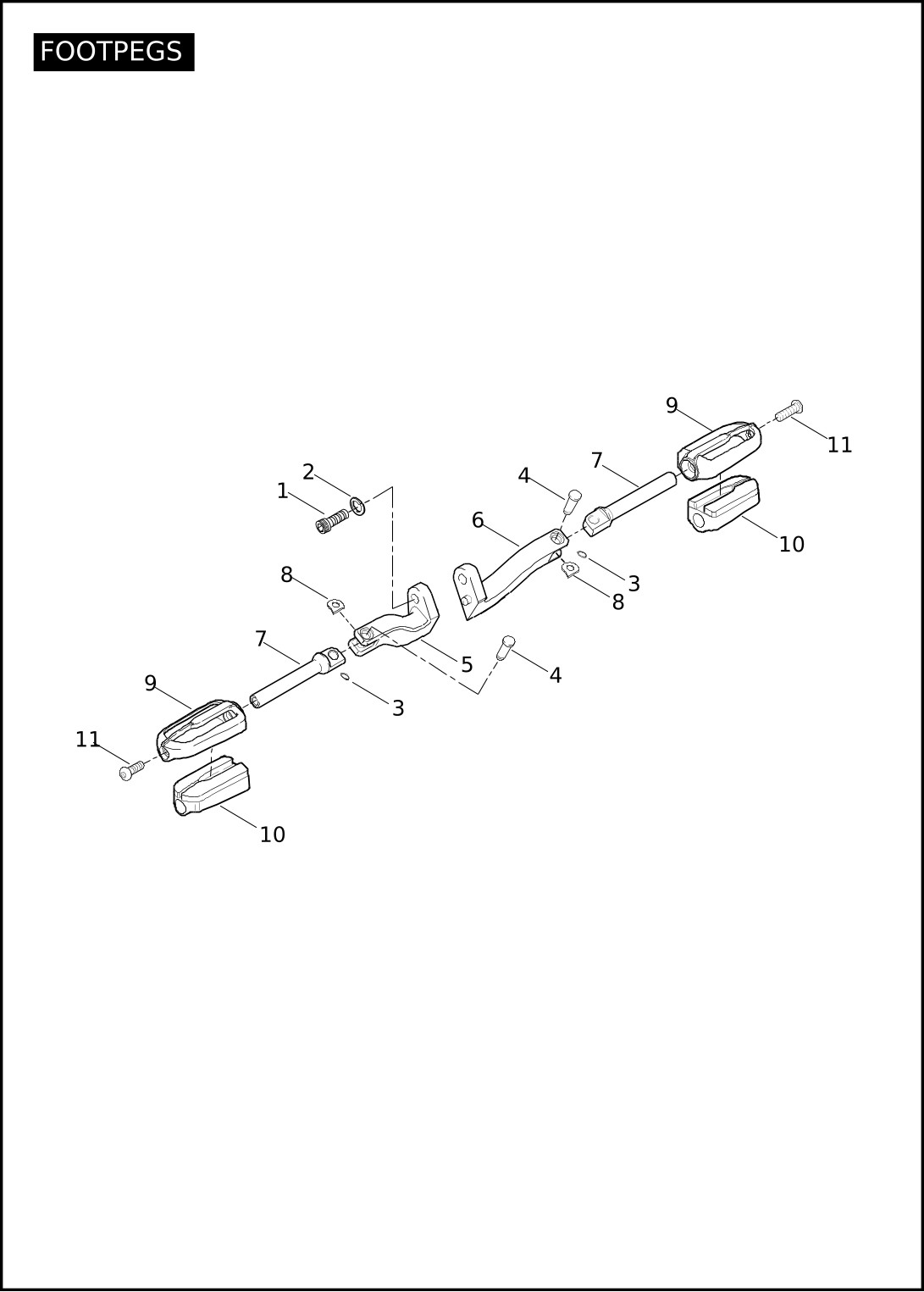

FOOTPEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (2) | FLTRXSE |
| 2 | 7038 | LOCKWASHER (2) | FLTRXSE |
| 3 | 11304 | RING, retaining (2) | FLTRXSE |
| 4 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLTRXSE |
| 5 | 49015-04A | BRACKET, right passenger footpeg | FLTRXSE |
| 6 | 49036-04A | BRACKET, left passenger footpeg (2) | FLTRXSE |
| 7 | 50351-03 | MOUNT, footpeg support (2) | FLTRXSE |
| 8 | 50912-72 | SPRING WASHER (2) | FLTRXSE |
| 9 | 51453-09 | FOOTPEG BODY (2) | FLTRXSE |
| 10 | 51459-09 | FOOTPEG TREAD (2) | FLTRXSE |
| 11 | 94409-03 | SCREW (2) | FLTRXSE |

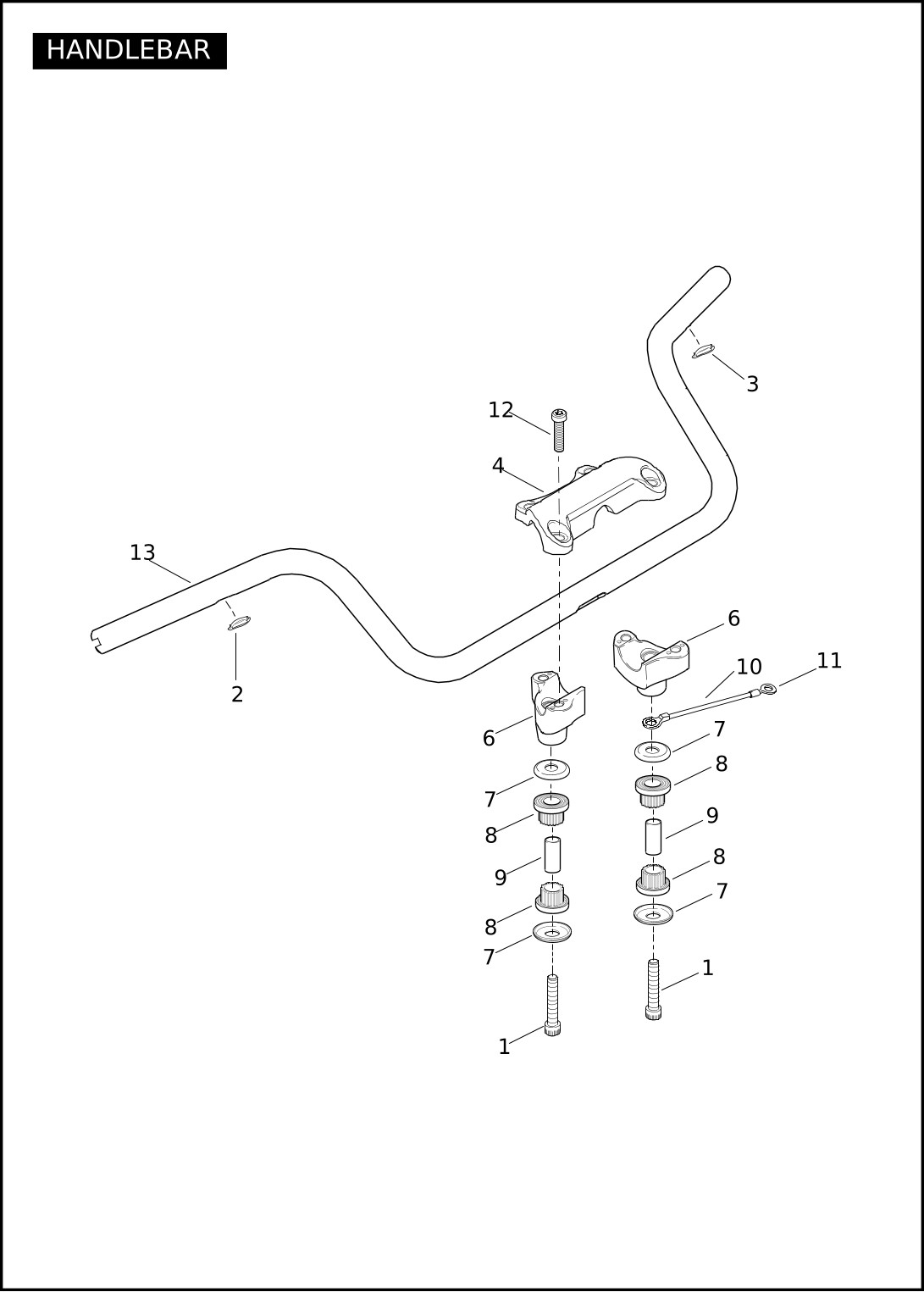

HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3605 | BOLT (2) | FLTRXSE |
| 2 | 11642 | GROMMET | FLTRXSE |
| 3 | 11698 | GROMMET | FLTRXSE |
| 4 | 55918-08 | CLAMP, upper | FLTRXSE |
| 5 | 56149-88B | RISER, lower right | FLTRXSE |
| 6 | 56151-88B | RISER, lower left | FLTRXSE |
| 7 | 56159-73 | WASHER, cup (4) | FLTRXSE |
| 8 | 56161-83A | BUSHING (rubber) (4) | FLTRXSE |
| 9 | 56163-93 | SPACER (2) | FLTRXSE |
| 10 | 70142-94 | CABLE, ground w/ 72241-94A | FLTRXSE |
| 11 | 72241-94A | RING TERMINAL, 10 ring, 14-18 gauge | FLTRXSE |
| 12 | 12600003 | SCREW, torx head (4) | FLTRXSE |
| 13 | 55800171 | HANDLEBAR KIT, w/ 11698 & 11642 (black) | FLTRXSE |

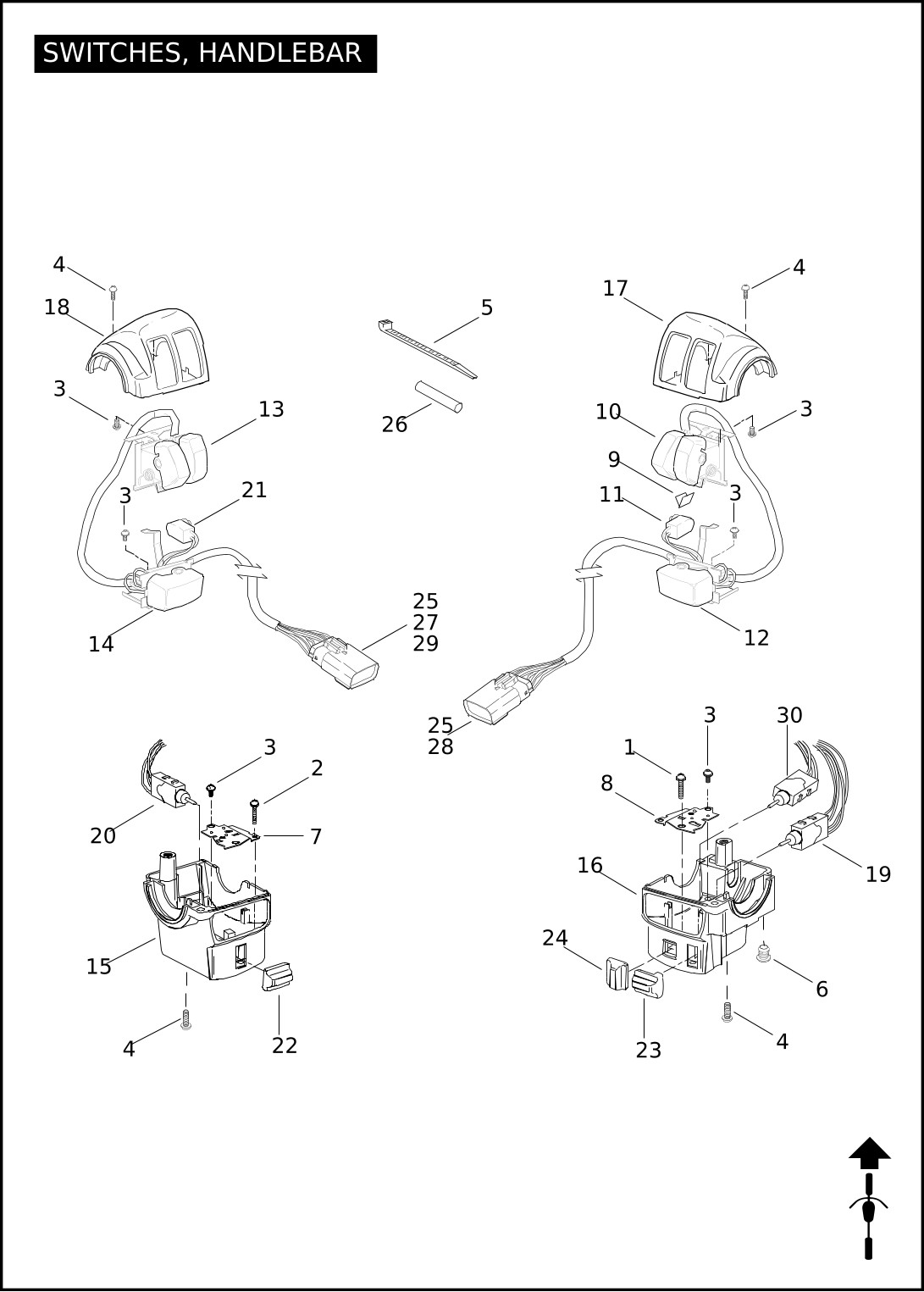

SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW, right | FLTRXSE |
| 2 | 2960 | SCREW, left | FLTRXSE |
| 3 | 2955 | SCREW (6) | FLTRXSE |
| 4 | 4292 | SCREW (4) | FLTRXSE |
| 5 | 10006 | CABLE STRAP | FLTRXSE |
| 10181 | CABLE STRAP | FLTRXSE | |
| 6 | 55928-08 | PLUG (2) | FLTRXSE |
| 7 | 70372-96 | BRACKET, switch, lower left | FLTRXSE |
| 8 | 70375-96 | BRACKET, switch, lower right | FLTRXSE |
| 9 | 71587-04 | CLIP, spring | FLTRXSE |
| 10 | 71684-06A | SWITCH ASSEMBLY, engine start/off/run, w/ 10181 & 72266-94 | FLTRXSE |
| 11 | 71621-08 | SWITCH ASSEMBLY, stop lamp, w/ 10181 & 72266-94 | FLTRXSE |
| 12 | 71683-06A | SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94 | FLTRXSE |
| 13 | 71682-06A | SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94 | FLTRXSE |
| 14 | 71685-06A | SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94 | FLTRXSE |
| 15 | 71558-96A | HOUSING, lower left | FLTRXSE |
| 16 | 71595-08 | HOUSING, lower right | FLTRXSE |
| 17 | 71564-96 | HOUSING, upper right | FLTRXSE |
| 18 | 71567-96 | HOUSING, upper left | FLTRXSE |
| 19 | 71787-08 | SWITCH ASSEMBLY, mode select, w/ 10181 & 72266-94 | FLTRXSE |
| 20 | 71810-08 | SWITCH ASSEMBLY, volume, w/ 10181 & 72266-94 | FLTRXSE |
| 21 | 71699-07 | SWITCH, clutch lockout | FLTRXSE |
| 22 | 71821-98 | KNOB, +/- audio | FLTRXSE |
| 23 | 71822-98 | KNOB, mode select, up/down | FLTRXSE |
| 24 | 71825-96A | KNOB, cruise control, set/resume | FLTRXSE |
| 25 | 72169-07 | TERMINAL, pin, #16-20 AWG (12) | FLTRXSE |
| 26 | 72266-94 | TUBE, heat shrink, dual wall, 0.3 x 2 inch (black) (15) | FLTRXSE |
| 27 | 72473-07 | SEAL PIN (2) | FLTRXSE |
| 28 | 72488-07BK | HOUSING, pin, 12-way | FLTRXSE |
| 29 | 72492-07GY | HOUSING, pin, 16-way | FLTRXSE |
| 30 | 71788-08 | SWITCH ASSEMBLY, cruise control, set/resume, w/ 10181 & 72266-94 | FLTRXSE |

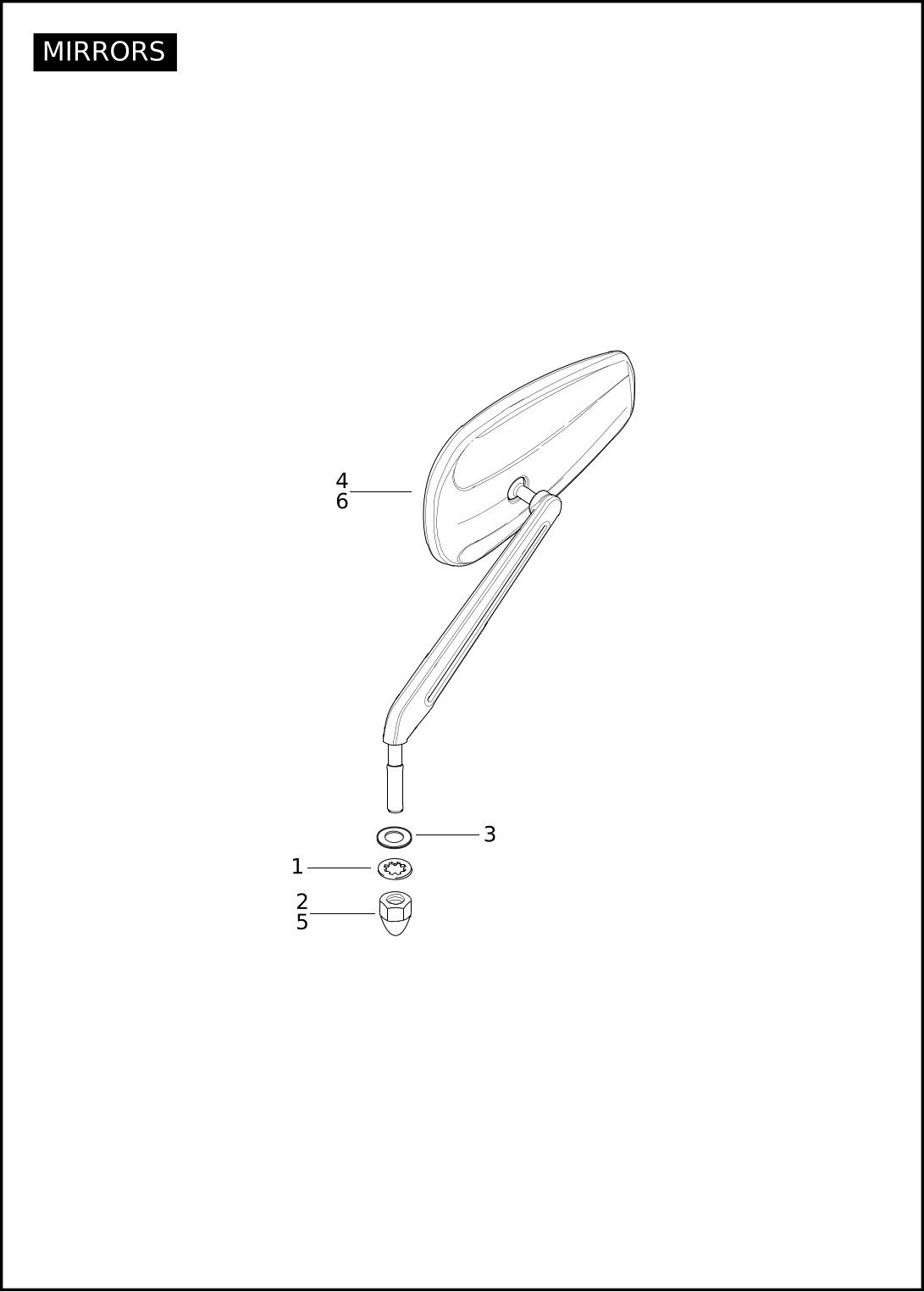

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | FLTRXSE |
| 2 | 7352 | ACORN NUT (2) | FLTRXSE |
| 3 | 12404 | WASHER (2) | FLTRXSE |
| 4 | 92426-08A | MIRROR, right | FLTRXSE |
| 92424-08A | MIRROR, left | FLTRXSE | |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 8196 | ACORN NUT (HDI) | FLTRXSE |
| 6 | 91982-03B | MIRROR, right (HDI) | FLTRXSE |
| 91983-03B | MIRROR, left (HDI) | FLTRXSE | |

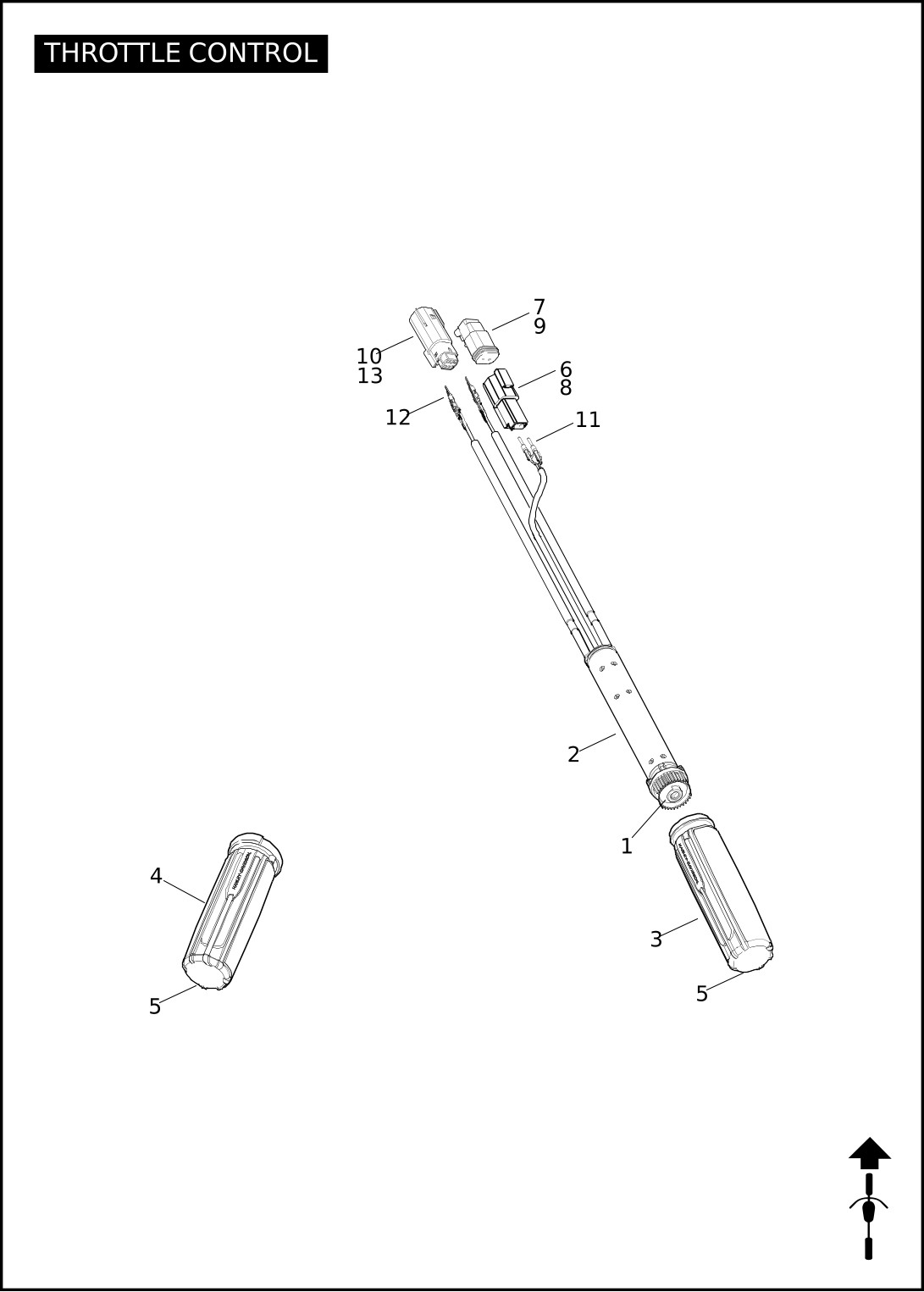

THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 10006 | CABLE STRAP (not illustrated) | FLTRXSE | |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLTRXSE |
| 2 | 32310-08 | SENSOR, twist grip, w/ 10006, 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72194-94, 72195-94, 72549-07 & 73212-07 (72195-94 SEAL PIN not used w/ heated grips) | FLTRXSE |
| 3 | 55936-09A | HANDGRIP ASSEMBLY, right, w/ 56162-09 | FLTRXSE |
| 4 | 55944-09A | HANDGRIP ASSEMBLY, left, w/ 56162-09 | FLTRXSE |
| 5 | 56162-09 | ENDCAP (chrome) (2) | FLTRXSE |
| 6 | 72102-94BK | PIN HOUSING, 2-way | FLTRXSE |
| 7 | 72112-94BK | SOCKET HOUSING, 2-way | FLTRXSE |
| 8 | 72142-94 | LOCK, secondary, 2-way | FLTRXSE |
| 9 | 72152-94 | SEAL, front, 2-way | FLTRXSE |
| 10 | 72188-07BK | PIN HOUSING, 6-way | FLTRXSE |
| 11 | 72194-94 | TERMINAL, pin, #20 AWG (2) | FLTRXSE |
| 12 | 72549-07 | TERMINAL, pin, #22 AWG (6) | FLTRXSE |
| 13 | 73212-07 | CONNECTOR ANCHOR, t-stud (2) | FLTRXSE |

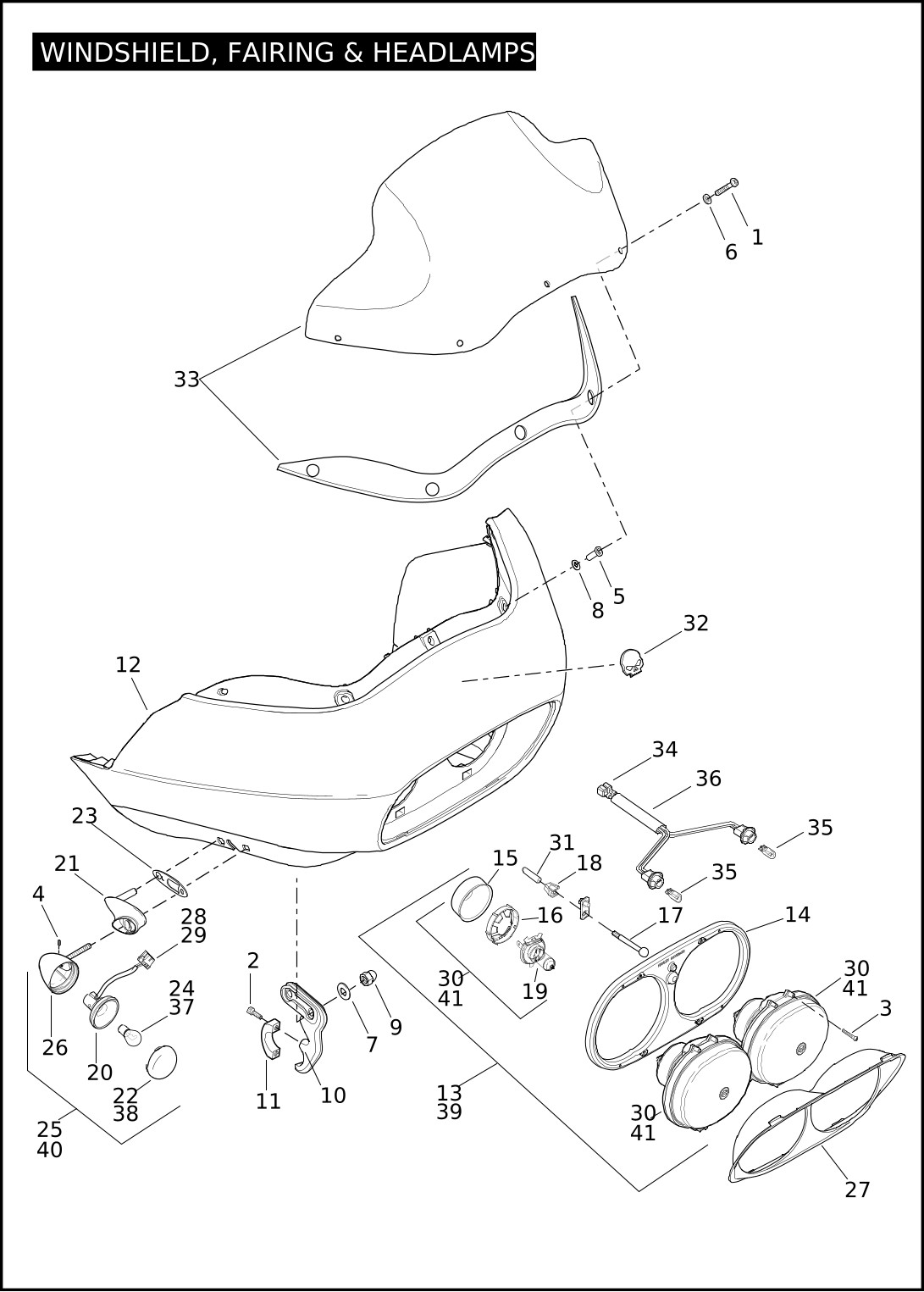

WINDSHIELD, FAIRING & HEADLAMPS
| Index No. | Part No. | Description | Model(s) |
| 1 | 933 | SCREW (5) | FLTRXSE |
| 2 | 2647B | SCREW (4) | FLTRXSE |
| 3 | 3165 | SCREW (8) | FLTRXSE |
| 4 | 3256 | SCREW (2) | FLTRXSE |
| 5 | 5207 | WELL NUT (5) | FLTRXSE |
| 6 | 6054 | WASHER (5) | FLTRXSE |
| 7 | 6702 | WASHER (4) | FLTRXSE |
| 8 | 7462A | WASHER, rubber (5) | FLTRXSE |
| 9 | 7549A | ACORN NUT (4) | FLTRXSE |
| 10 | 58454-10 | MOUNT, lower fairing, left | FLTRXSE |
| 58460-10 | MOUNT, lower fairing, right | FLTRXSE | |
| 11 | 58487-04 | CLAMP, lower fairing mount (2) | FLTRXSE |
| 12 | 58733-98B | OUTER FAIRING (prime) | FLTRXSE |
| 57000212DLA | OUTER FAIRING (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57000212DLH | OUTER FAIRING (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57000212DLN | OUTER FAIRING (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 13 | 67775-10 | DUAL HEADLAMP ASSEMBLY, w/ 3, 15, 17, 18, 30 & 31 (Domestic, California, Canada) | FLTRXSE |
| 14 | 67959-10 | TRIM, dual headlamp | FLTRXSE |
| 15 | 67978-98 | BOOT (2) | FLTRXSE |
| 16 | 67979-98 | RETAINER, headlamp bulb (2) | FLTRXSE |
| 17 | 67980-10 | ADJUSTMENT STUD (3) | FLTRXSE |
| 18 | 67981-98A | MOUNTING CLIP (3) | FLTRXSE |
| 19 | 68329-03 | BULB, halogen HB2/H-4 (2) | FLTRXSE |
| 20 | 68904-00 | SOCKET ASSEMBLY, w/ mount (Domestic) (2) | FLTRXSE |
| 21 | 68933-04 | MOUNTING BRACKET, right | FLTRXSE |
| 69199-04 | MOUNTING BRACKET, left | FLTRXSE | |
| 22 | 69325-02 | LENS, turn signal (grey) (2) | FLTRXSE |
| 23 | 69283-04 | GASKET (2) | FLTRXSE |
| 24 | 69331-02 | BULB, turn signal (2) | FLTRXSE |
| 25 | 69435-09 | TURN SIGNAL ASSEMBLY, w/ 22, 24, 26 & 29 | FLTRXSE |
| 26 | 69550-04 | TURN SIGNAL HOUSING, w/ 3256 (2) | FLTRXSE |
| 27 | 69987-09 | TRIM, headlamp | FLTRXSE |
| 28 | 73153-96BK | SOCKET HOUSING, 3-way (2) | FLTRXSE |
| 29 | 73191-96 | TERMINAL, socket, 16-20 gauge (domestic) (6) | FLTRXSE |
| 73191-96 | TERMINAL, socket, 16-20 gauge (HDI and Japan) (4) | FLTRXSE | |
| 30 | 73376-10 | HEADLAMP ASSEMBLY, w/ 67978-98, 67979-98 & 68329-03 (2) | FLTRXSE |
| 31 | 89582-04 | CAP, thread protector (3) | FLTRXSE |
| 32 | 14100228 | MEDALLION | FLTRXSE |
| 33 | 57400106 | WINDSHIELD KIT, w/ 1, 5, 6 & 8 | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 34 | 9897 | TERMINAL, wire (HDI, Japan, Asia-Pacific) (2) | FLTRXSE |
| 35 | 53436-97 | BULB, position lamp, wedge (HDI, Japan, Asia-Pacific) (2) | FLTRXSE |
| 36 | 68083-10 | POSITION LAMP, w/ 9897 (HDI, Japan, Asia-Pacific) | FLTRXSE |
| 37 | 68163-84 | BULB, turn signal (2) (HDI) | FLTRXSE |
| 38 | 68973-00 | LENS, turn signal (amber) (HDI) (2) | FLTRXSE |
| 39 | 68996-10 | DUAL HEADLAMP ASSEMBLY, left, dip, w/ 3, 14, 17, 18, 31, 35, 36 & 41 (HDI, Japan, Asia-Pacific) | FLTRXSE |
| 40 | 69272-05 | TURN SIGNAL ASSEMBLY, w/ 26, 29, 37, 38 & socket assembly (HDI) (2) | FLTRXSE |
| 41 | 73377-10 | HEADLAMP ASSEMBLY, w/ 67978-98, 67979-98 & 68329-03 (HDI, Japan, Asia-Pacific) (2) | FLTRXSE |

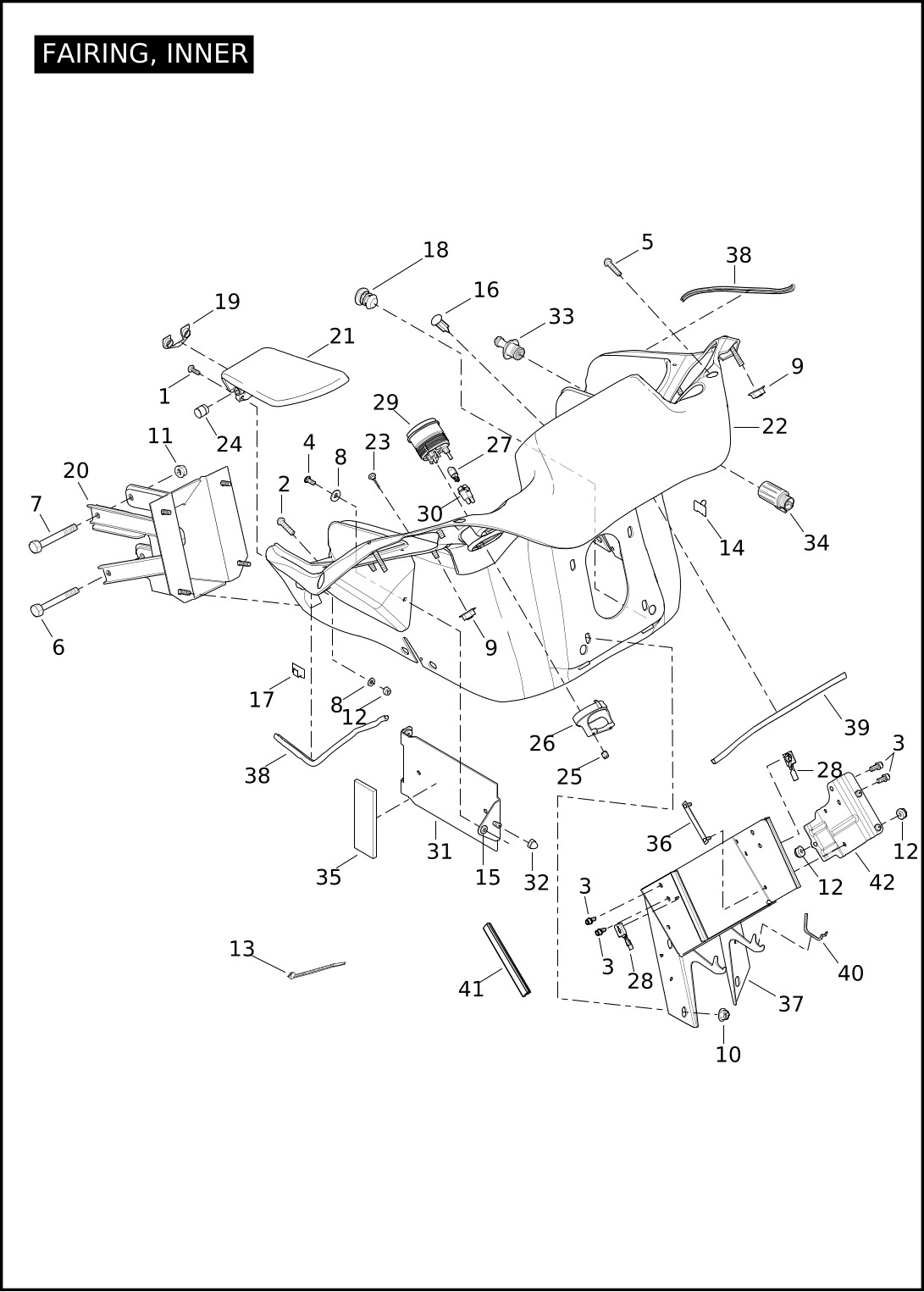

FAIRING, INNER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2665 | SCREW (4) | FLTRXSE |
| 2 | 2995 | SCREW, used in lower inner to outer fairing mounting holes (2) | FLTRXSE |
| 3 | 3061 | SCREW (4) | FLTRXSE |
| 4 | 3658 | SCREW | FLTRXSE |
| 5 | 3732 | SCREW (4) | FLTRXSE |
| 6 | 4706 | SCREW | FLTRXSE |
| 7 | 4768 | SCREW | FLTRXSE |
| 8 | 6716 | WASHER (5) | FLTRXSE |
| 9 | 7501 | NUT (2) | FLTRXSE |
| 10 | 7576 | NUT (4) | FLTRXSE |
| 11 | 7601 | LOCKNUT (2) | FLTRXSE |
| 12 | 7624 | LOCKNUT (4) | FLTRXSE |
| 13 | 10039 | CABLE STRAP (2) | FLTRXSE |
| 14 | 10120 | CLIP (2) | FLTRXSE |
| 15 | 11697 | GROMMET | FLTRXSE |
| 16 | 27268-04 | CLIP, push-in (2) | FLTRXSE |
| 17 | 53314-06 | KIT VELCRO | FLTRXSE |
| 18 | 55928-08 | PLUG (2) | FLTRXSE |
| 19 | 58459-98 | HINGE COVER, storage box (2) | FLTRXSE |
| 20 | 58530-10 | BRACKET, fairing mount | FLTRXSE |
| 21 | 58727-98B | COVER ASSEMBLY, right storage box, w/ 19 & 24 (prime) | FLTRXSE |
| 57000204DGM | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Maple Metallic) | FLTRXSE | |
| 57000204DLM | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Twilight Blue) | FLTRXSE | |
| 57000204DLO | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Starfire Black) | FLTRXSE | |
| 58728-98B | COVER ASSEMBLY, left storage box, w/ w/ 19 & 24 (prime) | FLTRXSE | |
| 57000203DGM | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Maple Metallic) | FLTRXSE | |
| 57000203DLM | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Twilight Blue) | FLTRXSE | |
| 57000203DLO | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Starfire Black) | FLTRXSE | |
| 22 | 57000201DGM | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Maple Metallic) | FLTRXSE |
| 57000201DLM | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Twilight Blue) | FLTRXSE | |
| 57000201DLO | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Starfire Black) | FLTRXSE | |
| 23 | 58888-98A | BUMPER, fairing door (4) | FLTRXSE |
| 24 | 64255-98 | BARREL HINGE (4) | FLTRXSE |
| 25 | 67043-96 | NUT (8) | FLTRXSE |
| 26 | 67352-96A | BACKCLAMP, 2-gauge (4) | FLTRXSE |
| 27 | 67454-04 | BULB, w/ rubber boot (4) | FLTRXSE |
| 28 | 72199-94 | ANCHOR, t-stud connector (2) | FLTRXSE |
FAIRING, INNER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 74727-10 | OIL PRESSURE GAUGE, w/ 67454-04 & 75044-96 | FLTRXSE |
| 74741-10 | FUEL GAUGE, w/ 67454-04 & 75044-96 | FLTRXSE | |
| 74742-10 | AIR TEMPERATURE GAUGE, w/ 67454-04 & 75044-96 | FLTRXSE | |
| 74743-10 | VOLTMETER, w/ 67454-04 & 75044-96 | FLTRXSE | |
| 30 | 75044-96 | SOCKET, bulb (4) | FLTRXSE |
| 31 | 83276-11 | BRACKET, I-pod module, w/ 11697 | FLTRXSE |
| 88385-11 | LINER, storage box, left (not illustrated) | FLTRXSE | |
| 88386-11 | LINER, storage box, right (not illustrated) | FLTRXSE | |
| 32 | 90844-80 | ACORN NUT | FLTRXSE |
| 33 | 91808-89 | ELEMENT, cigarette lighter | FLTRXSE |
| 34 | 91812-89A | SOCKET, cigarette lighter | FLTRXSE |
| 35 | 11100011 | TAPE (2) | FLTRXSE |
| 36 | 12700047 | STUD PLATE | FLTRXSE |
| 37 | 47200028A | BRACKET, radio carrier | FLTRXSE |
| 38 | 61300001 | EDGE TRIM, side (2) | FLTRXSE |
| 39 | 61300002 | EDGE TRIM, top | FLTRXSE |
| 40 | 61300039 | TRIM (2) | FLTRXSE |
| 41 | 61300043 | TRIM (2) | FLTRXSE |
| 42 | 69200281 | BRACKET, amp, w/ 11697 | FLTRXSE |

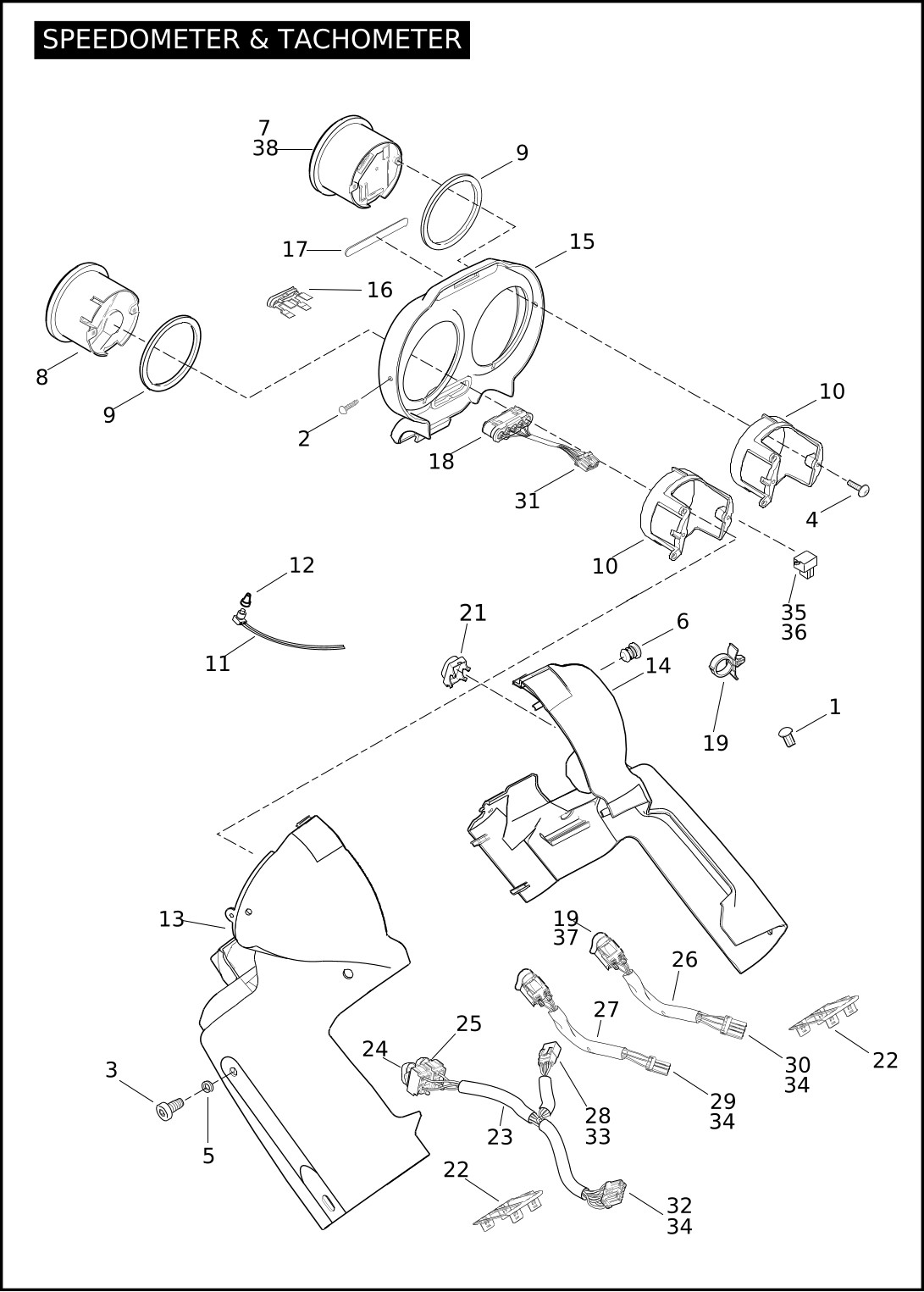

SPEEDOMETER & TACHOMETER
| Index No. | Part No. | Description | Model(s) |
| 1 | 728 | PLUG, hole (black) | FLTRXSE |
| 94535-95 | PLUG, hole (chrome) | FLTRXSE | |
| 2 | 3622 | SCREW (2) | FLTRXSE |
| 3 | 3676 | SCREW (4) | FLTRXSE |
| 4 | 2625 | SCREW (4) | FLTRXSE |
| 5 | 6333 | WASHER (4) | FLTRXSE |
| 6 | 55928-08 | PLUG | FLTRXSE |
| 7 | 70731-10 | SPEEDOMETER, mph (Domestic, California) | FLTRXSE |
| 8 | 74740-10 | TACHOMETER | FLTRXSE |
| 9 | 67356-00 | GASKET, speedometer & tachometer (2) | FLTRXSE |
| 10 | 67689-04 | BACKCLAMP, 4 inch gauge, speedometer & tachometer (2) | FLTRXSE |
| 11 | 67854-98 | SWITCH, speedometer trip/reset | FLTRXSE |
| 12 | 67880-94 | BOOT, odometer reset switch | FLTRXSE |
| 13 | 67965-11 | HOUSING, speedometer & tachometer, right (prime) | FLTRXSE |
| 57000199BKO | HOUSING, speedometer & tachometer, right (Candy Cobalt) | FLTRXSE | |
| 57000199DGM | HOUSING, speedometer & tachometer, right (Maple Metallic) | FLTRXSE | |
| 57000199DLO | HOUSING, speedometer & tachometer, right (Starfire Black) | FLTRXSE | |
| 14 | 67922-98E | HOUSING, speedometer & tachometer, left, w/ 1 & 19 (prime) | FLTRXSE |
| 57000198BKO | HOUSING, speedometer & tachometer, left (Candy Cobalt) | FLTRXSE | |
| 57000198DGM | HOUSING, speedometer & tachometer, left (Maple Metallic) | FLTRXSE | |
| 57000198DLO | HOUSING, speedometer & tachometer, left (Starfire Black) | FLTRXSE | |
| 15 | 67923-98B | COVER, speedometer & tachometer, w/ 68492-98 (prime) | FLTRXSE |
| 57000196BKO | COVER, speedometer & tachometer, w/ 68492-98 (Candy Cobalt) | FLTRXSE | |
| 57000196DGM | COVER, speedometer & tachometer, w/ 68492-98 (Maple Metallic) | FLTRXSE | |
| 57000196DLO | COVER, speedometer & tachometer, w/ 68492-98 (Starfire Black) | FLTRXSE | |
| 16 | 68382-07A | BEZEL ASSEMBLY, indicator lamps, w/ lens | FLTRXSE |
| 17 | 68492-98 | DECAL, speedometer & tachometer cover | FLTRXSE |
| 18 | 68789-96A | INDICATOR LAMP ASSEMBLY, w/ 73160-96BK | FLTRXSE |
| 19 | 70385-01 | RETAINER, clutch cable | FLTRXSE |
| 20 | 70585-93 | CONNECTOR, red | FLTRXSE |
| 21 | 71431-96A | PLUG, switch hole | FLTRXSE |
| 22 | 71434-96A | BRACKET, switch (2) | FLTRXSE |
| 23 | 71625-04 | SWITCH ASSEMBLY, accessory & cruise control, w/ 24, 25, 28, 32, 33 & 34 | FLTRXSE |
| 24 | 71636-98 | SWITCH, accessory, w/ 73191-96 | FLTRXSE |
| 25 | 71637-98 | SWITCH, cruise control, w/ 73190-96 & 73191-96 | FLTRXSE |
| 26 | 71655-98 | SWITCH ASSEMBLY, speaker control, w/ 73154-96BK, 73191-96 & 77092-98 | FLTRXSE |
| 27 | 71764-07 | SWITCH ASSEMBLY, power-lock, w/ 73153-96BK & 73191-96 | FLTRXSE |
| 28 | 73104-96BK | PIN HOUSING, 4-place | FLTRXSE |
| 29 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLTRXSE |
| 30 | 73154-96BK | SOCKET HOUSING, 4-place (black) (2) | FLTRXSE |
| 31 | 73160-96BK | SOCKET HOUSING, 10-way | FLTRXSE |
| 32 | 73162-96BK | SOCKET HOUSING, 12-way | FLTRXSE |
| 33 | 73190-96 | TERMINAL, pin, 16-20 AWG (5) | FLTRXSE |
| 34 | 73191-96 | TERMINAL, socket, 16-20 gauge (non-cruise) (3) | FLTRXSE |
| 73191-96 | TERMINAL, socket, 16-20 gauge (cruise) (15) | FLTRXSE | |
| 35 | 73103-96BK | PIN HOUSING, 3-way | FLTRXSE |
| 36 | 74419-96A | SENSOR, air temperature, w/ 73103-96BK | FLTRXSE |
| 37 | 77092-98 | SWITCH, speaker control, w/ 73191-96 | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 38 | 70732-10 | SPEEDOMETER, kph (Canada, HDI & Japan) | FLTRXSE |
| 70733-10 | SPEEDOMETER, kph (England) | FLTRXSE | |

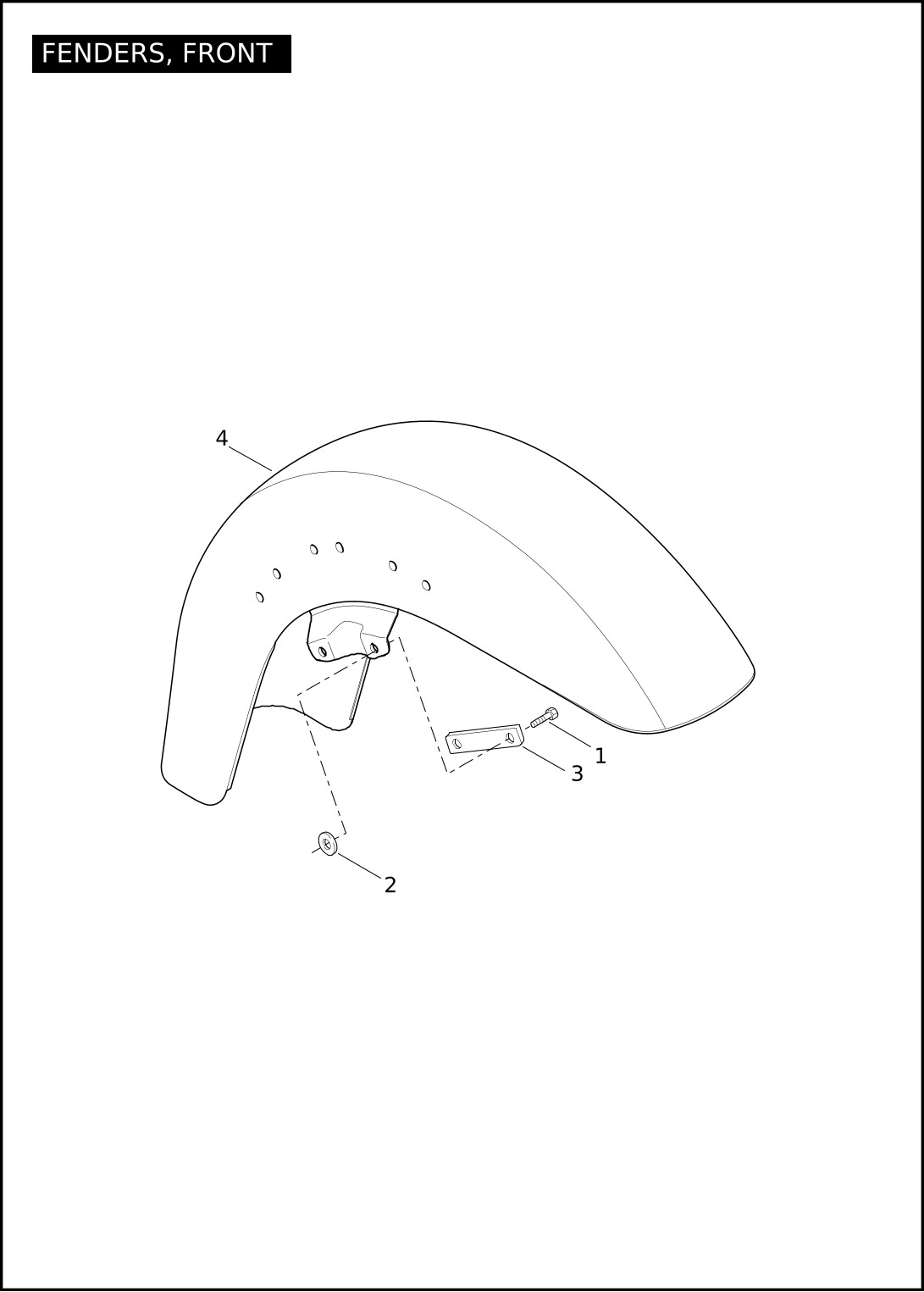

FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3462 | BOLT (4) | FLTRXSE |
| 2 | 45279-00 | WASHER (4) | FLTRXSE |
| 3 | 59166-80 | PLATE, lock (2) | FLTRXSE |
| 4 | 60819-10 | FENDER, front (prime) | FLTRXSE |
| 58900004DLA | FENDER, front (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 58900004DLH | FENDER, front (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 58900004DLN | FENDER, front (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE |

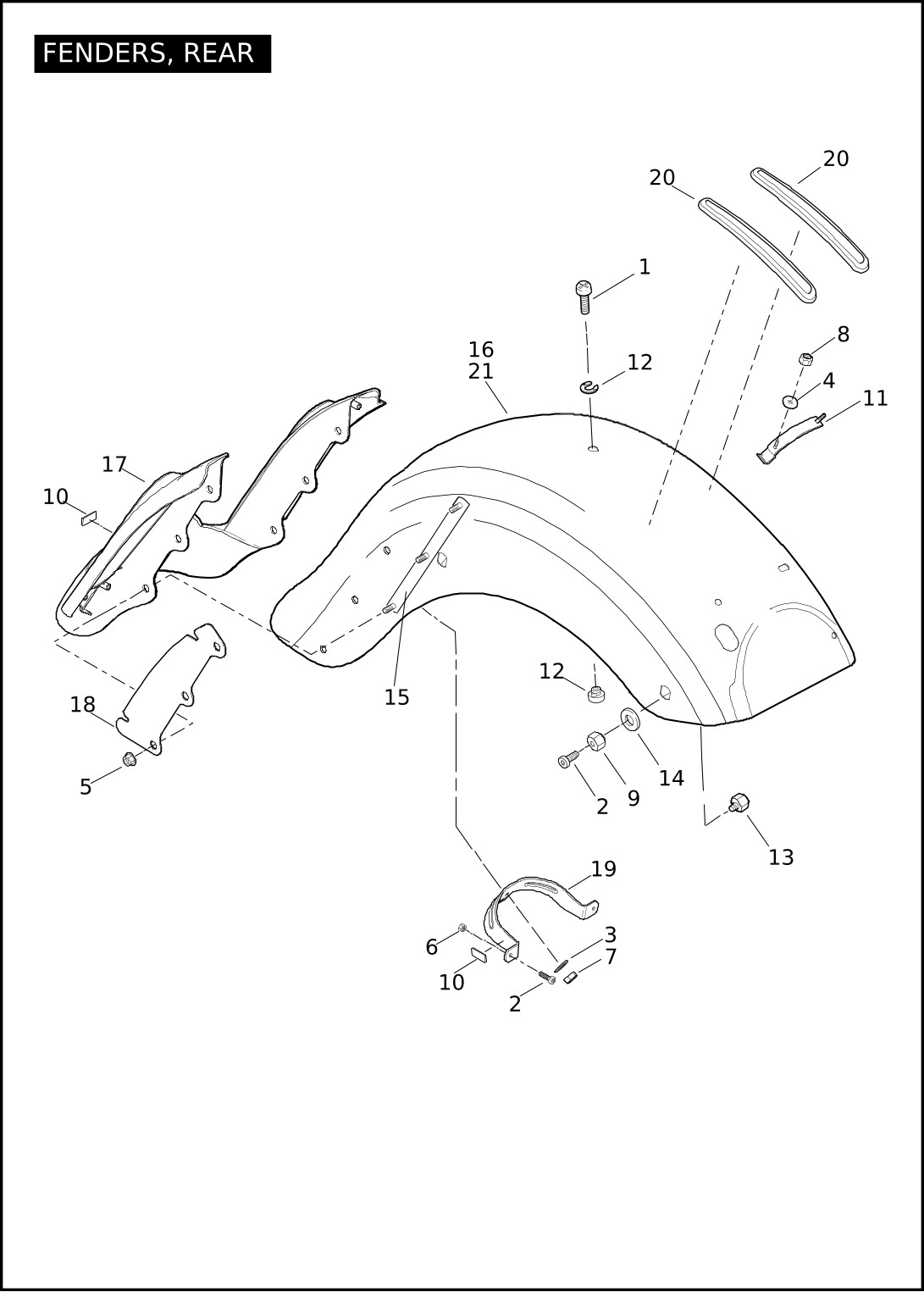

FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW | FLTRXSE |
| 2 | 3684 | SCREW (6) | FLTRXSE |
| 3 | 6703 | WASHER (2) | FLTRXSE |
| 4 | 7434 | WASHER (2) | FLTRXSE |
| 5 | 7499 | NUT (6) | FLTRXSE |
| 6 | 7531 | LOCKNUT (2) | FLTRXSE |
| 7 | 7686 | LOCKNUT | FLTRXSE |
| 8 | 7716 | LOCKNUT (2) | FLTRXSE |
| 9 | 7880 | NUT (4) | FLTRXSE |
| 10 | 11891 | SPACER (3) | FLTRXSE |
| 11 | 59174-99 | STUD PLATE | FLTRXSE |
| 12 | 59768-97 | FENDER SEAT NUT KIT | FLTRXSE |
| 13 | 59786-01 | BOSS, fender mounting, inner (4) | FLTRXSE |
| 14 | 59788-01 | WASHER (4) | FLTRXSE |
| 15 | 59818-09 | STUD PLATE (2) | FLTRXSE |
| 16 | 60463-09A | FENDER, rear (prime) | FLTRXSE |
| 59500086BKO | FENDER, rear, w/ 11100024 (Candy Cobalt) | FLTRXSE | |
| 59500086CGS | FENDER, rear, w/ 11100024 (White Gold Pearl) | FLTRXSE | |
| 59500086DGM | FENDER, rear, w/ 11100024 (Maple Metallic) | FLTRXSE | |
| 17 | 60465-09 | FASCIA, rear fender (prime) | FLTRXSE |
| 57300010BKO | FASCIA, rear fender (Candy Cobalt) | FLTRXSE | |
| 57300010CGS | FASCIA, rear fender (White Gold Pearl) | FLTRXSE | |
| 57300010DGM | FASCIA, rear fender (Maple Metallic) | FLTRXSE | |
| 60614-09 | TAPE, protective, rear fender (not illustrated) | FLTRXSE | |
| 18 | 60919-09 | PLATE, stiffner (2) | FLTRXSE |
| 19 | 91140-09 | BRACKET, fender to saddlebag support | FLTRXSE |
| 20 | 11100024 | PAD (2) | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 60472-09A | FENDER, rear (prime) (Canada, HDI, England, Japan) | FLTRXSE |
| 59500087BKO | FENDER, rear, w/ 11100024 (Candy Cobalt) (Canada, HDI, England, Japan) | FLTRXSE | |
| 59500087CGS | FENDER, rear, w/ 11100024 (White Gold Pearl) (Canada, HDI, England, Japan) | FLTRXSE | |
| 59500087DGM | FENDER, rear, w/ 11100024 (Maple Metallic) (Canada, HDI, England, Japan) | FLTRXSE | |

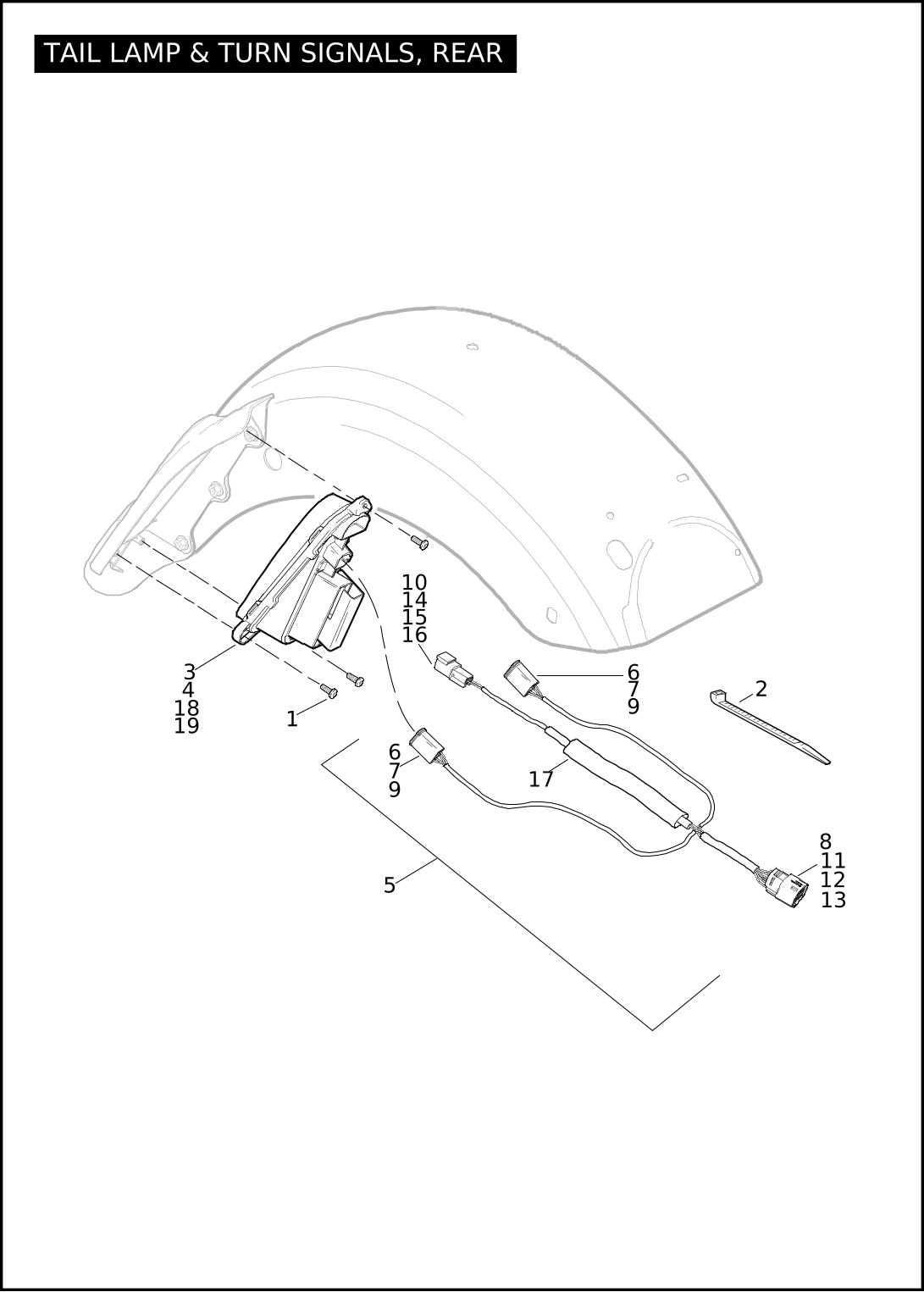

TAIL LAMP & TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3152 | SCREW (6) | FLTRXSE |
| 2 | 10006 | CABLE STRAP | FLTRXSE |
| 56073-83 | CLIP RETAINER, 2 per side, turn signal wires (not illustrated) (4) | FLTRXSE | |
| 3 | 69383-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, left (Domestic) | FLTRXSE |
| 4 | 69407-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, right (Domestic) | FLTRXSE |
| 5 | 70338-09 | HARNESS, rear lighting w/ 2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 & 17 (Domestic) | FLTRXSE |
| 6 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLTRXSE |
| 7 | 72154-94 | SECONDARY LOCK, 4-way socket (2) | FLTRXSE |
| 8 | 72168-07 | TERMINAL, socket 16-20GA (4) | FLTRXSE |
| 9 | 72191-94 | TERMINAL, socket (8) | FLTRXSE |
| 10 | 72199-94 | ANCHOR, t-stud | FLTRXSE |
| 11 | 72272-07 | TERMINAL, socket 14-16GA (8) | FLTRXSE |
| 12 | 72473-07 | SEAL, pin (3) | FLTRXSE |
| 13 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLTRXSE |
| 14 | 74102-98BK | PIN HOUSING, 2-way (black) | FLTRXSE |
| 15 | 74142-98 | SECONDARY LOCK, 2-way pin | FLTRXSE |
| 16 | 74190-98 | TERMINAL, pin 16-20AWG (8) | FLTRXSE |
| 17 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 69496-09B | ENVELOPE TURN SIGNAL ASSEMBLY, left (Amber) (Canada, HDI, England, Japan) | FLTRXSE |
| 19 | 69518-09B | ENVELOPE TURN SIGNAL ASSEMBLY, right (Amber) (Canada, HDI, England, Japan) | FLTRXSE |
| 70450-09 | HARNESS, rear lighting (not shown - for individual parts see TAIL LAMP (Canada, HDI, England, Japan) | FLTRXSE | |

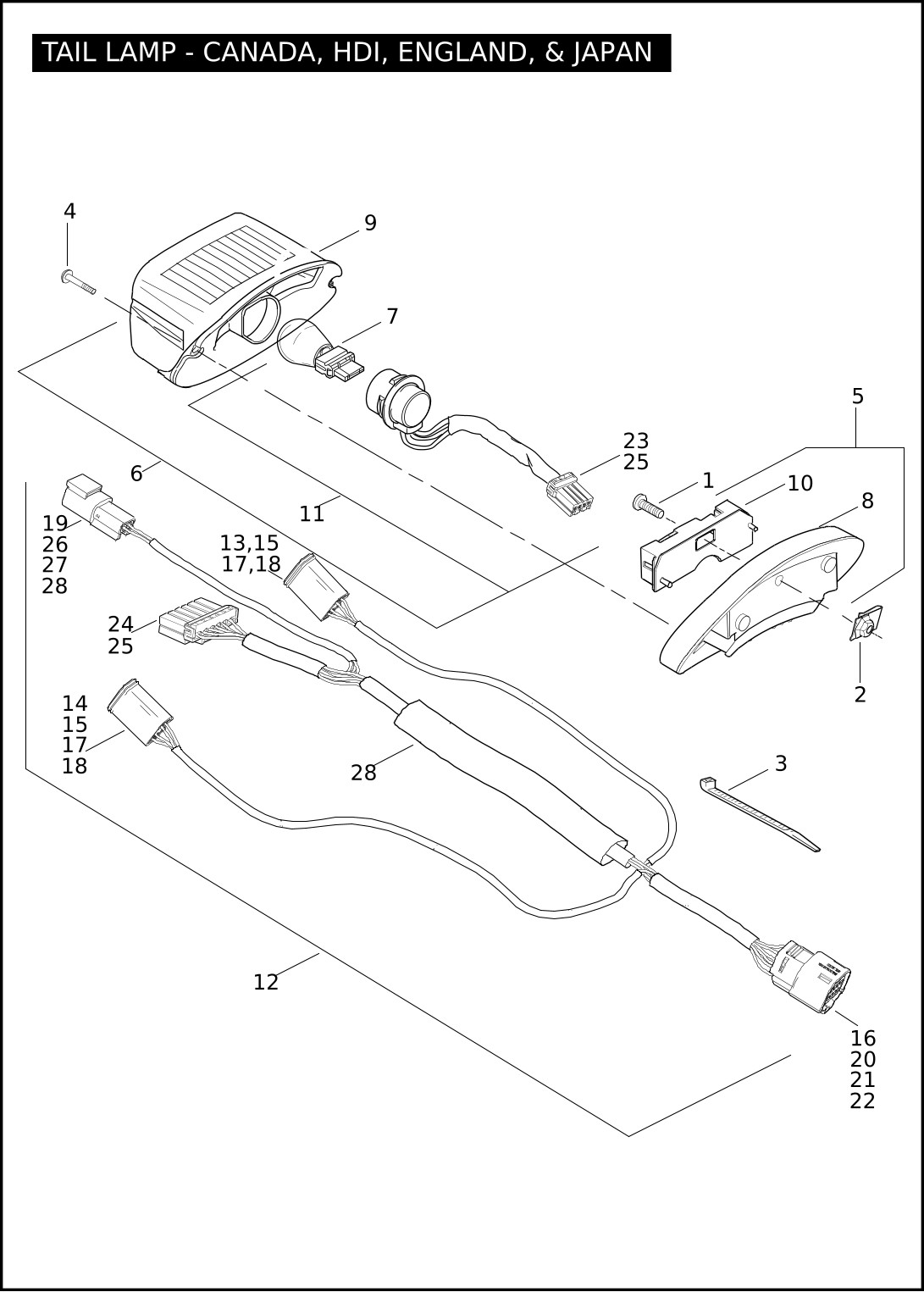

TAIL LAMP - CANADA, HDI, ENGLAND, & JAPAN
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 1 | 3022A | SCREW | FLTRXSE |
| 2 | 7964 | J-NUT | FLTRXSE |
| 3 | 10006 | CABLE STRAP | FLTRXSE |
| 56073-83 | CLIP RETAINER, 2 per side turn signal wires (not illustrated) (4) | FLTRXSE | |
| 4 | 68026-99 | SCREW, tail lamp (2) | FLTRXSE |
| 5 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A | FLTRXSE |
| 6 | 68142-04 | LIGHT ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A | FLTRXSE |
| 7 | 68167-04 | BULB, tail light, wedge mount | FLTRXSE |
| 8 | 68296-99A | TAIL LAMP BASE (chrome) | FLTRXSE |
| 9 | 68558-03 | LENS, tail lamp, w/ 68026-99 | FLTRXSE |
| 10 | 68830-99A | CIRCUIT BOARD & COVER | FLTRXSE |
| 11 | 69187-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK, & 73191-96 | FLTRXSE |
| 12 | 70450-09 | HARNESS, rear lighting, w/ 3, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 25, 26, 27 & 28 | FLTRXSE |
| 13 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLTRXSE |
| 14 | 72154-94 | SECONDARY LOCK, 4-way socket (2) | FLTRXSE |
| 15 | 72168-07 | TERMINAL, socket 16-20GA (5) | FLTRXSE |
| 16 | 72191-94 | TERMINAL, socket (4) | FLTRXSE |
| 17 | 72195-94 | SEAL PIN (4) | FLTRXSE |
| 18 | 72199-94 | ANCHOR, t-stud | FLTRXSE |
| 19 | 72272-07 | TERMINAL, socket 14-16GA | FLTRXSE |
| 20 | 72473-07 | SEAL, pin (2) | FLTRXSE |
| 21 | 72479-07BK | SOCKET HOUSING, 8-way (black) | FLTRXSE |
| 22 | 73154-96BK | SOCKET HOUSING, 4-place | FLTRXSE |
| 23 | 73156-96BK | SOCKET HOUSING, 6-place | FLTRXSE |
| 24 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (9) | FLTRXSE |
| 25 | 74102-98BK | PIN HOUSING, 2-way (black) | FLTRXSE |
| 26 | 74142-98 | SECONDARY LOCK, 2-way pin | FLTRXSE |
| 27 | 74190-98 | TERMINAL, pin 16-20AWG (2) | FLTRXSE |
| 28 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLTRXSE |

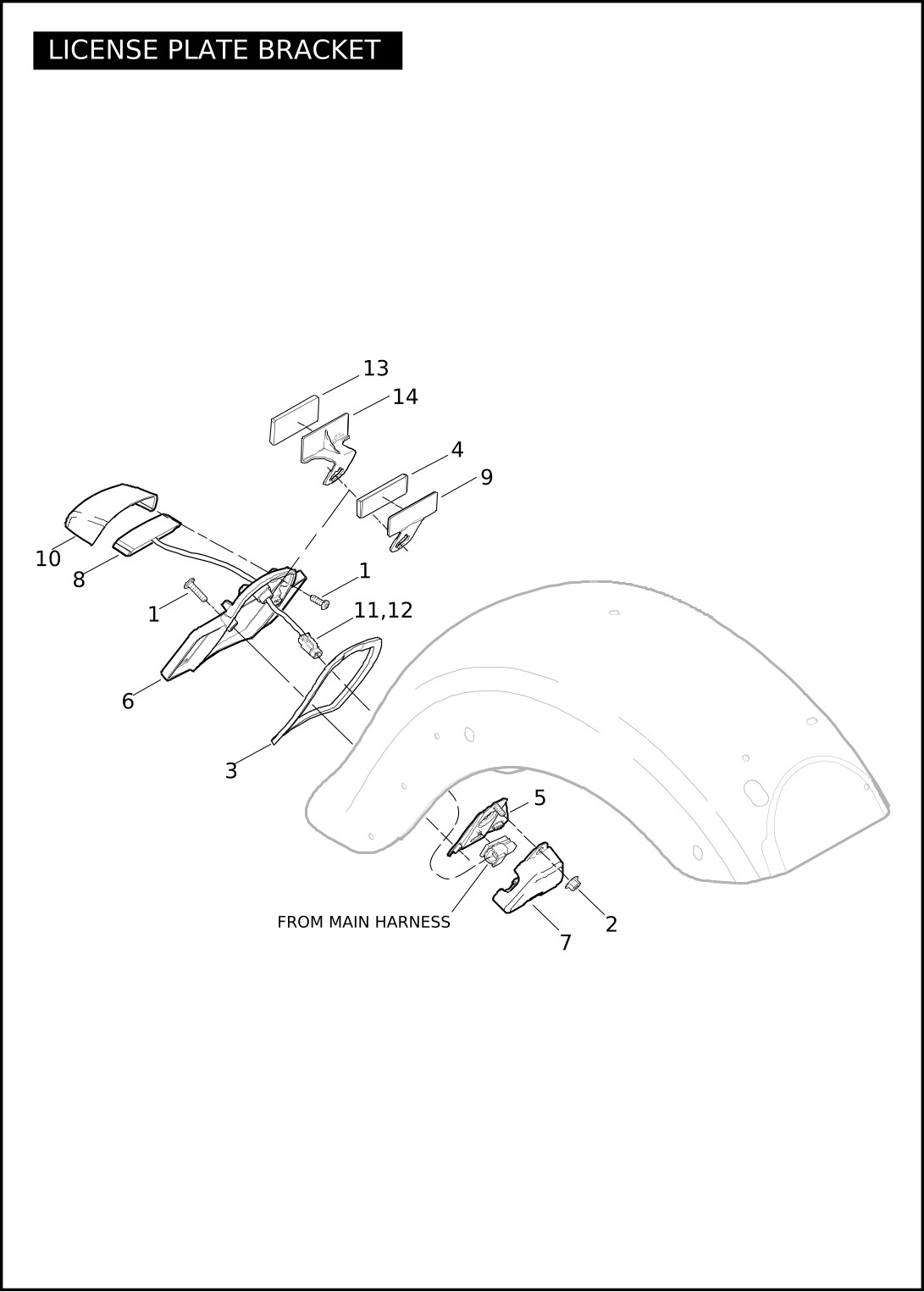

LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (4) | FLTRXSE |
| 2 | 7499 | NUT | FLTRXSE |
| 3 | 57637-09 | GASKET | FLTRXSE |
| 4 | 59359-06 | REFLECTOR (Domestic, Canada) | FLTRXSE |
| 5 | 59840-09 | STUD PLATE | FLTRXSE |
| 6 | 60915-09 | BRACKET, license plate | FLTRXSE |
| 7 | 60916-09 | COVER | FLTRXSE |
| 8 | 60920-09 | LITE ASSEMBLY | FLTRXSE |
| 9 | 60922-09 | BRACKET, reflector (Domestic, Canada) | FLTRXSE |
| 10 | 60934-10 | COVER, license plate lite (prime) | FLTRXSE |
| 67900096BKO | COVER, license plate lite (Candy Cobalt) | FLTRXSE | |
| 67900096CGS | COVER, license plate lite (White Gold Pearl) | FLTRXSE | |
| 67900096DGM | COVER, license plate lite (Maple Metallic) | FLTRXSE | |
| 11 | 74112-98BK | HOUSING SOCKET, 2-way | FLTRXSE |
| 12 | 74152-98 | SECONDARY LOCK, 2-way | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 13 | 59259-90 | REFLECTOR (HDI, England, Japan) | FLTRXSE |
| 14 | 60921-09 | BRACKET, reflector (HDI, England, Japan) | FLTRXSE |

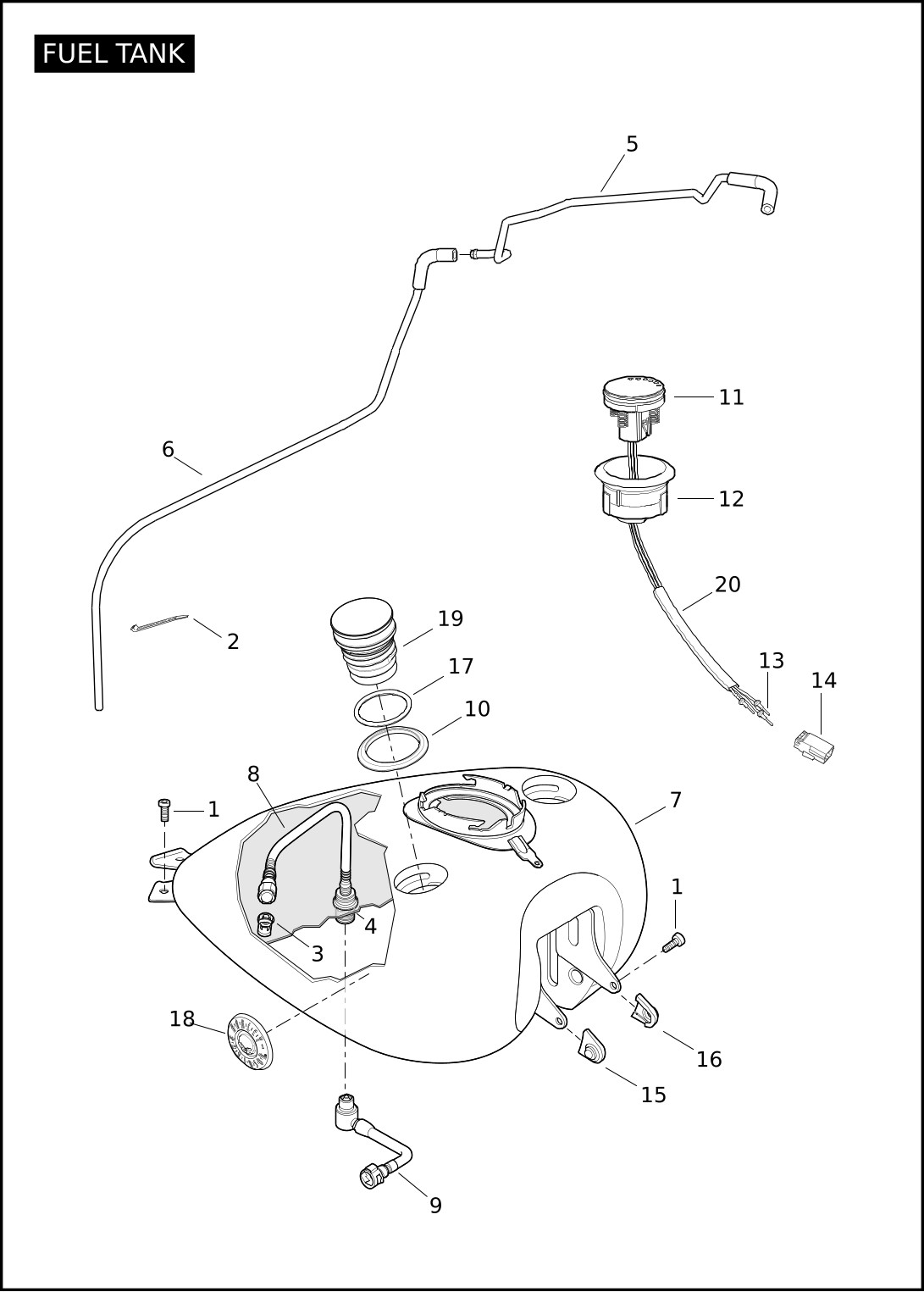

FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLTRXSE |
| 2 | 10039 | CABLE STRAP (2) | FLTRXSE |
| 3 | 10396 | RETAINER, fuel line 3/8(natural) | FLTRXSE |
| 4 | 11323 | O-RING, check valve-to-tank | FLTRXSE |
| 5 | 27291-09 | TUBE, evaporative line, tank | FLTRXSE |
| 6 | 27440-09 | TUBE, evaporative line (except California) | FLTRXSE |
| 7 | 61268-08 | FUEL TANK (prime) | FLTRXSE |
| 61000006DLA | FUEL TANK, w/ medallions (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 61000006DLH | FUEL TANK, w/ medallions (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 61000006DLN | FUEL TANK, w/ medallions (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 8 | 62228-08A | CHECK VALVE, assembly w/ 10396 | FLTRXSE |
| 9 | 62905-08 | FUEL LINE, tank to intake | FLTRXSE |
| 10 | 63028-06 | TRIM RING (chrome) | FLTRXSE |
| 75015-08 | TRIM RING (black) | FLTRXSE | |
| 11 | 74782-11 | FUEL GAUGE, w/ 72990-01 (black) | FLTRXSE |
| 70900040 | FUEL GAUGE, w/ 72990-01 (chrome) | FLTRXSE | |
| 12 | 63038-06 | HOUSING ASSEMBLY (chrome) | FLTRXSE |
| 75019-08 | HOUSING ASSEMBLY (black) | FLTRXSE | |
| 13 | 72990-01 | TERMINAL, pin, 18-22 gauge | FLTRXSE |
| 14 | 72904-01BK | HOUSING, pin, 4-way (black) | FLTRXSE |
| 15 | 70999-09 | BOOT, tank bracket, right | FLTRXSE |
| 16 | 70901-09 | BOOT, tank bracket, left | FLTRXSE |
| 17 | 11900004 | O-RING, filler cap | FLTRXSE |
| 18 | 14100216 | MEDALLION, left (not shown) | FLTRXSE |
| 14100217 | MEDALLION, right | FLTRXSE | |
| 19 | 61100004 | FUEL CAP ASSEMBLY, flush mount (chrome), w/ 11900004 | FLTRXSE |
| 61100005 | FUEL CAP ASSEMBLY, flush mount (black), w/ 11900004 | FLTRXSE | |
| 20 | 69200096 | WIRE HARNESS | FLTRXSE |

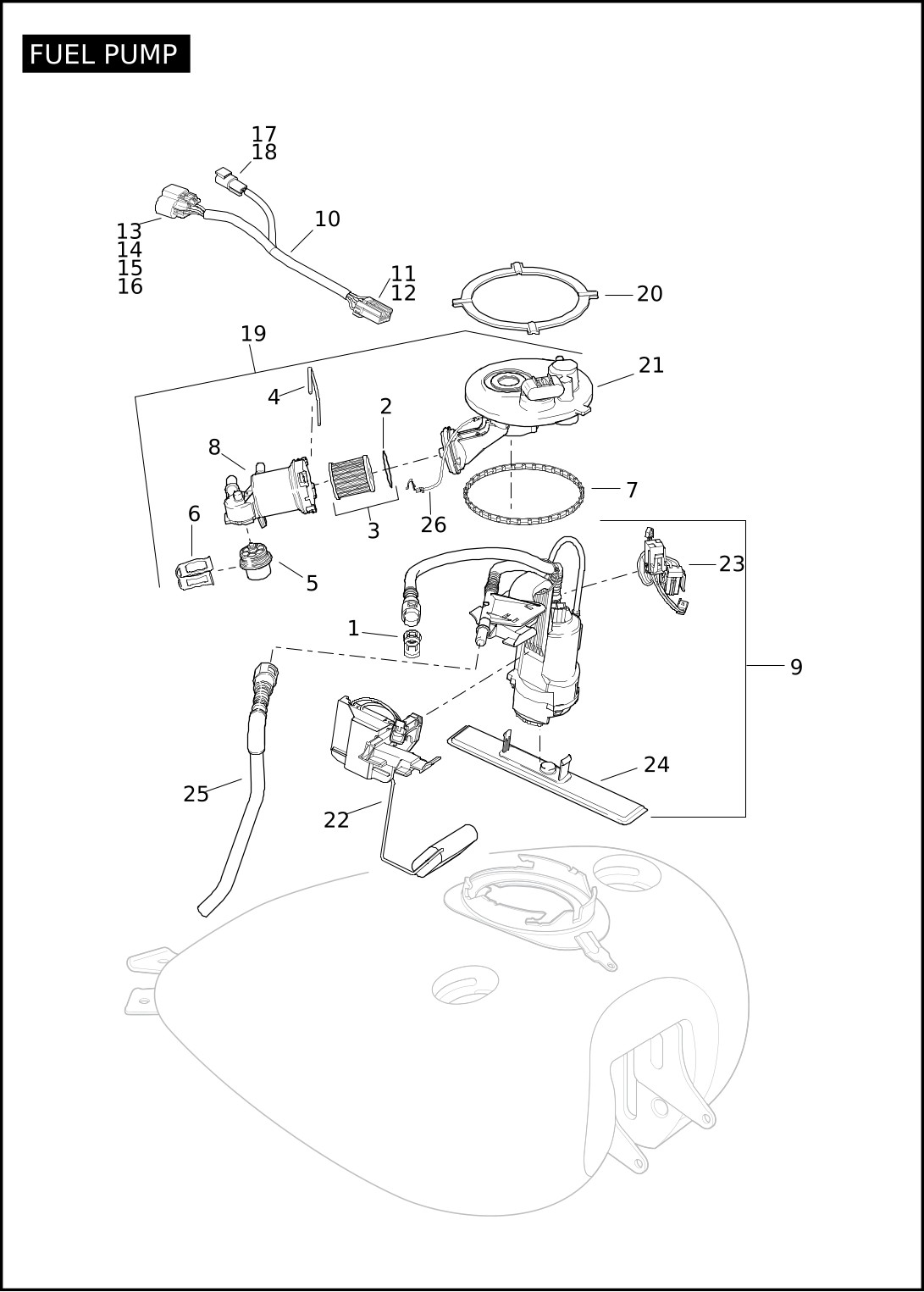

FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10396 | RETAINER, fuel line, 5/16 (black) | FLTRXSE |
| 2 | 11686 | O-RING | FLTRXSE |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLTRXSE |
| 4 | 61012-04A | CLIP, filter retainer | FLTRXSE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLTRXSE |
| 6 | 61213-04A | CLIP, regulator retainer | FLTRXSE |
| 7 | 61402-08 | GASKET, top plate | FLTRXSE |
| 8 | 62229-08A | FILTER SHELL | FLTRXSE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLTRXSE |
| 10 | 72670-11 | HARNESS, fuel tank w/ 11, 12, 13, 14, 15, 16, 17 & 18 | FLTRXSE |
| 11 | 72485-07 | SOCKET HOUSING, 4-way (black) | FLTRXSE |
| 12 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLTRXSE |
| 13 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLTRXSE |
| 14 | 72557-07 | SECONDARY LOCK, 4-way | FLTRXSE |
| 15 | 73156-96BK | SOCKET HOUSING, 6-way (black) | FLTRXSE |
| 16 | 73191-96 | SOCKET TERMINAL, 16-20 gauge (4) | FLTRXSE |
| 17 | 74102-98BK | HOUSING, 2-way pin (black) | FLTRXSE |
| 18 | 74195-98 | SEAL PIN (2) | FLTRXSE |
| 19 | 75076-08A | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 21 & 26 | FLTRXSE |
| 20 | 75089-08 | RING, fuel tank, cam | FLTRXSE |
| 21 | 75291-08 | TOP PLATE | FLTRXSE |
| 22 | 75205-08 | FUEL LEVEL SENDER | FLTRXSE |
| 23 | 75229-08 | HARNESS, fuel pump module | FLTRXSE |
| 24 | 75254-04A | STRAINER, fuel pump inlet | FLTRXSE |
| 25 | 75269-08 | TRANSFER TUBE, fuel pump w/ 10396 | FLTRXSE |
| 26 | 75322-09 | GROUND HARNESS | FLTRXSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLTRXSE |
| 2 | 4194 | SCREW (4) | FLTRXSE |
| 3 | 4856 | SCREW | FLTRXSE |
| 4 | 8142 | NUT, speed | FLTRXSE |
| 5 | 10102 | CLIP | FLTRXSE |
| 6 | 61418-12DGM | CONSOLE ASSEMBLY (Maple Metallic) | FLTRXSE |
| 61418-12BKO | CONSOLE ASSEMBLY (Candy Cobalt) | FLTRXSE | |
| 61418-12DLO | CONSOLE ASSEMBLY (Starfire Black) | FLTRXSE | |
| 7 | 62775-08 | TRIM COVER, fuel tank | FLTRXSE |
| 8 | 67493-08 | BRACKET, console mount | FLTRXSE |
| 9 | 69241-08 | DRAIN HOSE, console | FLTRXSE |
| 10 | 71294-08 | MOLDING, rubber (2) | FLTRXSE |
| 11 | 74102-98BK | HOUSING, 2-way (black) | FLTRXSE |
| 12 | 74142-98 | SECONDARY LOCK, 2-way | FLTRXSE |
| 13 | 74190-98 | TERMINAL, 16-20 AWG | FLTRXSE |
| 14 | 14100116 | INSERT CONSOLE, fuel tank **RESTRICTED SALES PART** | FLTRXSE |
| 15 | 68000034 | LIGHT, w/ 11, 12 & 13 | FLTRXSE |

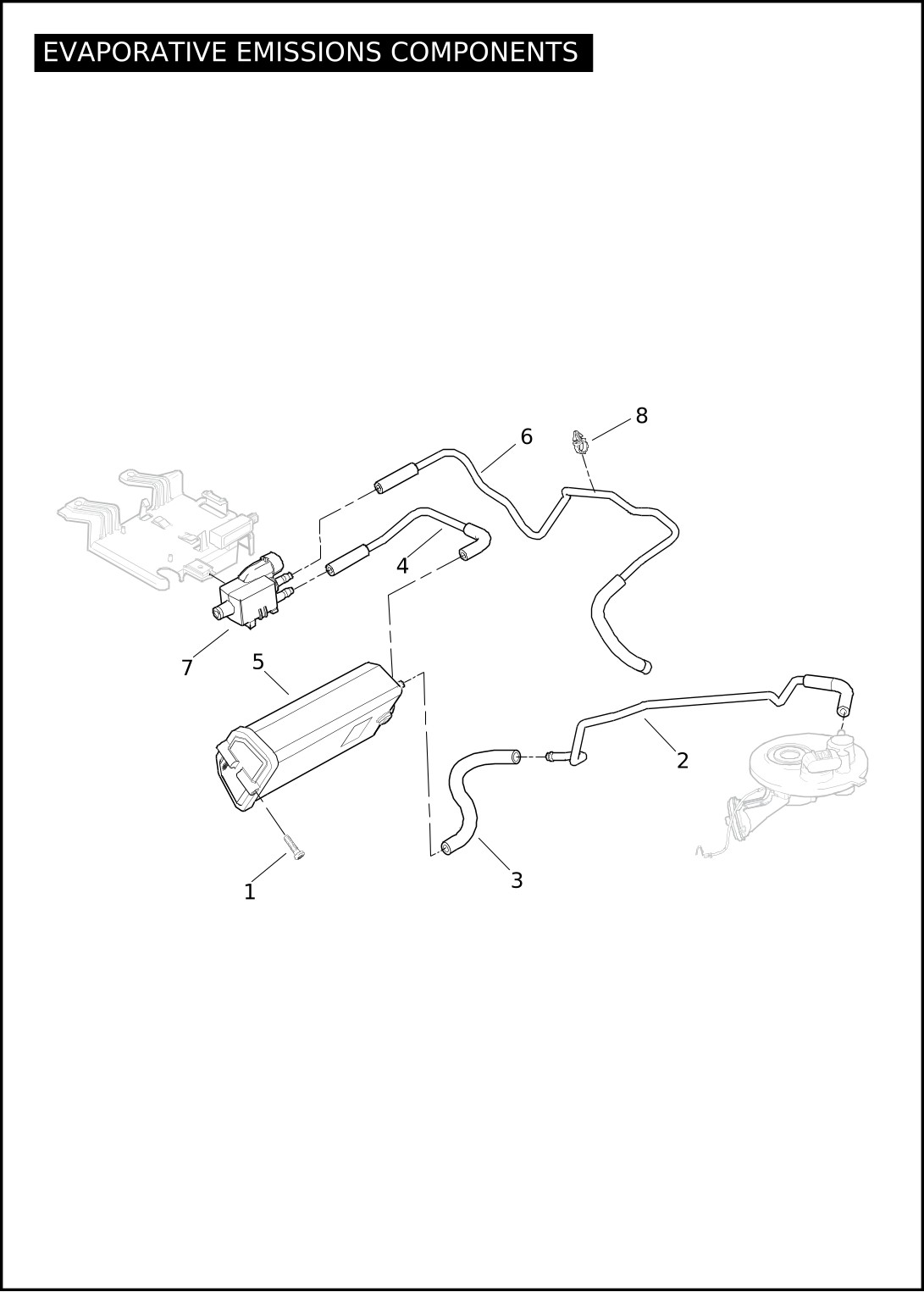

EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | FLTRXSE |
| 2 | 27291-09 | EVAP LINE, tank | FLTRXSE |
| 3 | 27297-09 | EVAP LINE, canister | FLTRXSE |
| 4 | 27298-09 | EVAP LINE, purge to canister | FLTRXSE |
| 5 | 27433-08 | CARBON CANISTER | FLTRXSE |
| 6 | 27439-09 | TUBE, solenoid to induction module | FLTRXSE |
| 7 | 27715-07 | SOLENOID, purge valve | FLTRXSE |
| 8 | 70681-09 | RETAINER (2) | FLTRXSE |

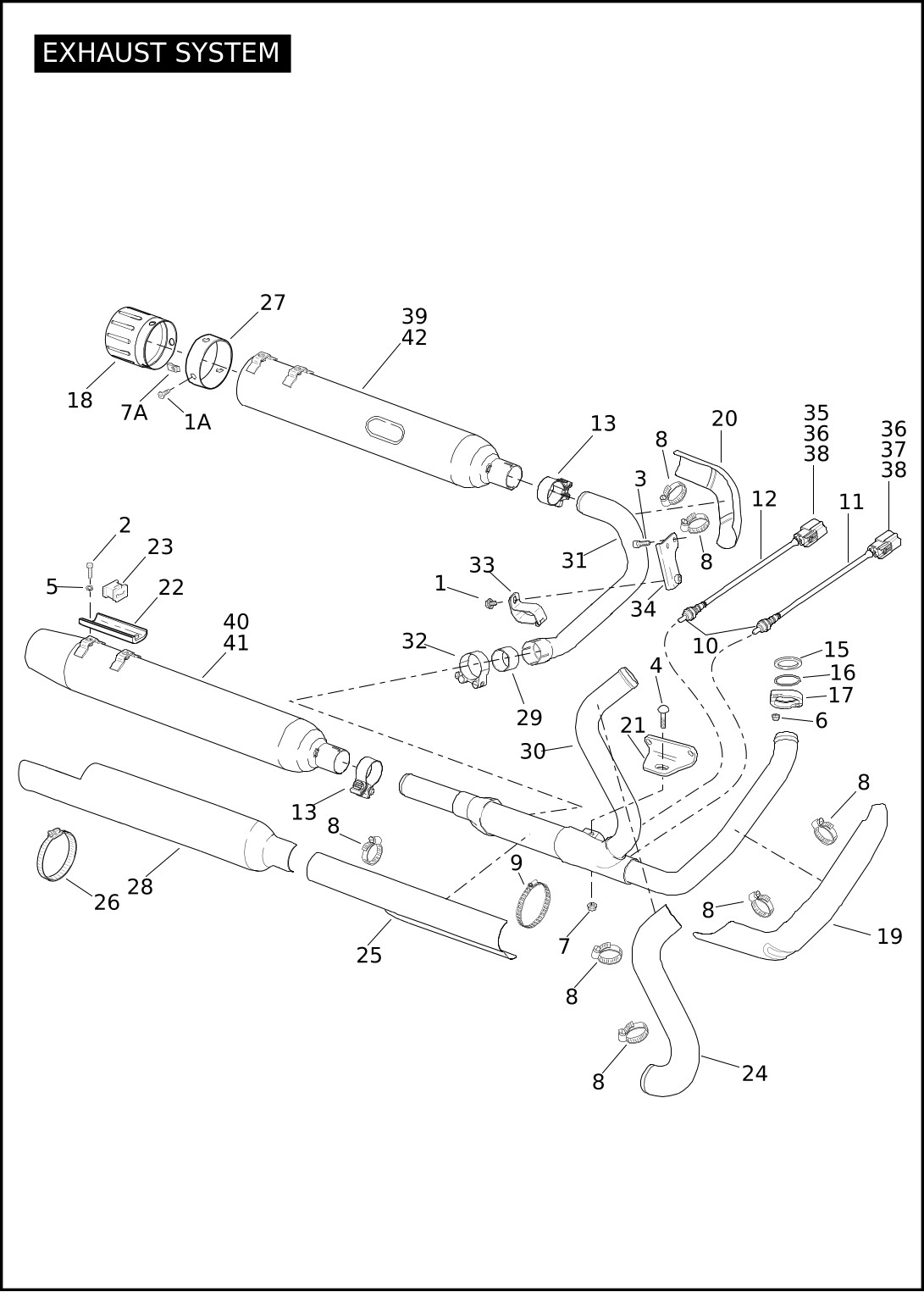

EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1A | 2225 | SCREW (6) | FLTRXSE |
| 1 | 3576 | SCREW | FLTRXSE |
| 2 | 3929 | SCREW (4) | FLTRXSE |
| 3 | 4705 | SCREW (2) | FLTRXSE |
| 4 | 5416 | BOLT | FLTRXSE |
| 5 | 7041 | LOCKWASHER (4) | FLTRXSE |
| 6 | 7593 | NUT (4) | FLTRXSE |
| 7 | 7601 | LOCKNUT | FLTRXSE |
| 7A | 8146 | NUT CLIP (6) | FLTRXSE |
| 8 | 9955 | CLAMP, worm drive #24 (7) | FLTRXSE |
| 9 | 9956 | CLAMP, worm drive #40 | FLTRXSE |
| 10 | 11936 | GASKET, oxygen (O2) sensor (2) | FLTRXSE |
| 11 | 27729-10 | SENSOR, oxygen (O2), front, w/ 36, 37 & 38 | FLTRXSE |
| 12 | 27809-10 | SENSOR, oxygen (O2), rear, 35, 36 & 38 | FLTRXSE |
| 13 | 65296-95A | MUFFLER CLAMP (2) | FLTRXSE |
| 15 | 65324-83B | GASKET, exhaust port (2) | FLTRXSE |
| 16 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLTRXSE |
| 17 | 65328-83A | CLAMP, exhaust manifold (2) | FLTRXSE |
| 18 | 65586-11 | END CAP (chrome-black) (2) | FLTRXSE |
| 65587-11 | END CAP (black-chrome) (2) | FLTRXSE | |
| 19 | 65634-09 | SHIELD, right exhaust pipe, front | FLTRXSE |
| 20 | 65636-09 | SHIELD, left exhaust pipe, rear | FLTRXSE |
| 21 | 65678-09 | BRACKET, rear exhaust mount | FLTRXSE |
| 22 | 65723-85 | MOUNTING BRACKET (2) | FLTRXSE |
| 23 | 65724-85 | MOUNT, rubber (2) | FLTRXSE |
| 24 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | FLTRXSE |
| 25 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | FLTRXSE |
| 26 | 66047-05 | CLAMP, worm (6) | FLTRXSE |
| 27 | 66078-06 | RING, retention (2) | FLTRXSE |
| 28 | 66219-06 | HEAT SHIELD, muffler, right | FLTRXSE |
| 66220-06 | HEAT SHIELD, muffler, left | FLTRXSE | |
| 29 | 66813-09 | GASKET, clamp | FLTRXSE |
| 30 | 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (chrome) | FLTRXSE |
| 31 | 66858-09 | CROSSOVER PIPE ASSEMBLY (chrome) | FLTRXSE |
| 32 | 66859-09 | CLAMP, exhaust | FLTRXSE |
| 33 | 66861-09A | CLAMP, exhaust pipe, hinged | FLTRXSE |
| 34 | 66881-09 | BRACKET, exhaust pipe hanger | FLTRXSE |
| 35 | 72177-07BK | HOUSING, 4-way (black) | FLTRXSE |
| 36 | 72344-10 | TERMINAL, socket, 22AWG (gold) (2) | FLTRXSE |
| 37 | 72444-07GY | HOUSING, 4-way (grey) | FLTRXSE |
| 38 | 73307-10 | TERMINAL, socket, 22AWG (2) | FLTRXSE |
| 39 | 64900111 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLTRXSE |
| 40 | 64900112 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 41 | 65748-09 | MUFFLER ASSEMBLY, right (chrome) (Japan) | FLTRXSE |
| 64769-09A | MUFFLER ASSEMBLY, right (chrome) (HDI, England, Australia) | FLTRXSE | |
| 42 | 65949-09 | MUFFLER ASSEMBLY, left (chrome) (Japan) | FLTRXSE |
| 64768-09A | MUFFLER ASSEMBLY, left (chrome) (HDI, England, Australia) | FLTRXSE | |

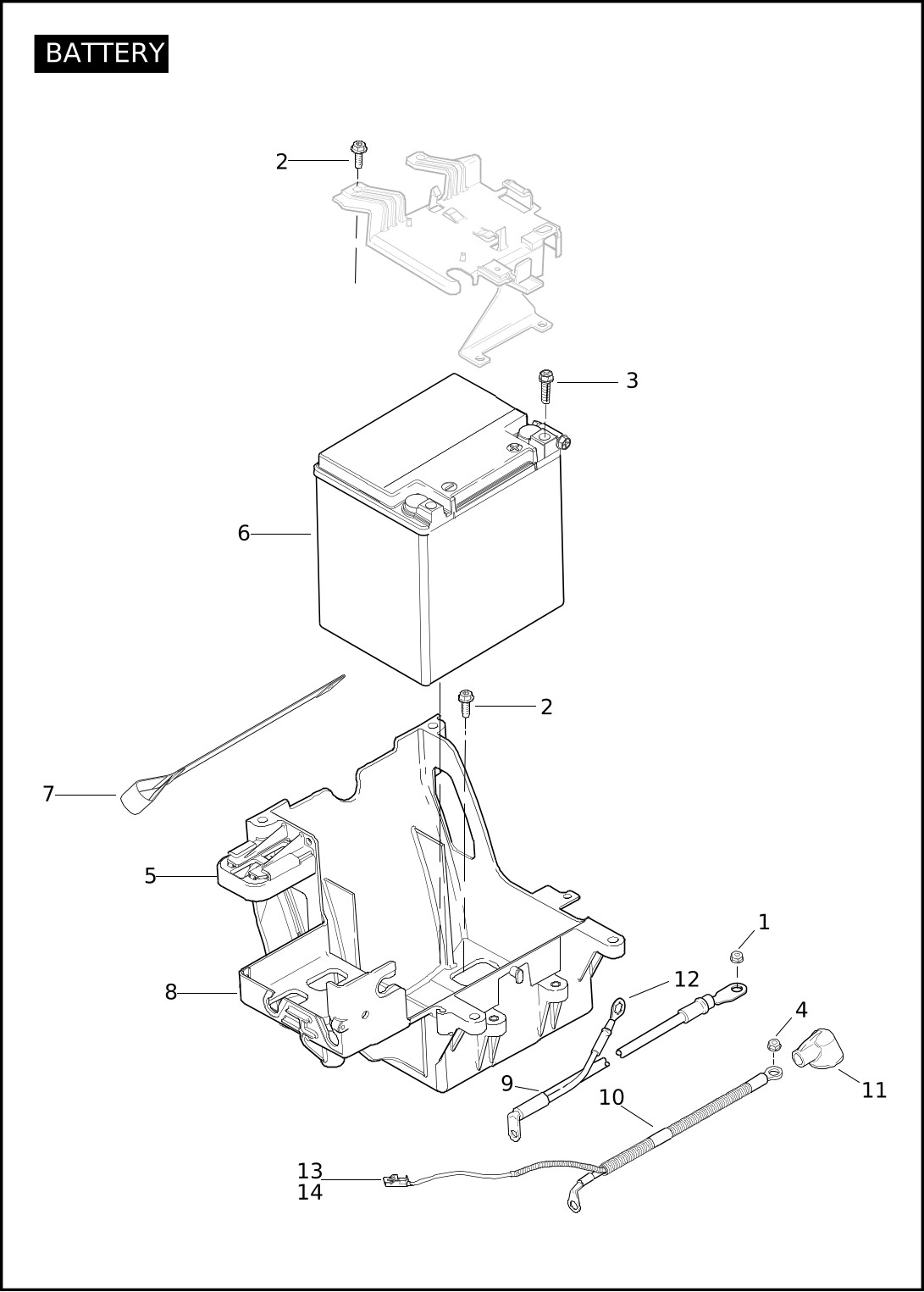

BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT, flange | FLTRXSE |
| 2 | 3634 | SCREW (6) | FLTRXSE |
| 3 | 4312C | SCREW (2) | FLTRXSE |
| 4 | 7792 | NUT | FLTRXSE |
| 5 | 10368A | RETENTION CLIP, battery box | FLTRXSE |
| 6 | 66010-97C | BATTERY | FLTRXSE |
| 7 | 66051-08 | STRAP, battery removal | FLTRXSE |
| 8 | 66281-09B | BATTERY TRAY | FLTRXSE |
| 9 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLTRXSE |
| 10 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLTRXSE |
| 11 | 70578-89 | BOOT, battery positive | FLTRXSE |
| 12 | 72242-94 | TERMINAL, ring | FLTRXSE |
| 13 | 73304-04 | TERMINAL, female, 10 AWG | FLTRXSE |
| 14 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLTRXSE |

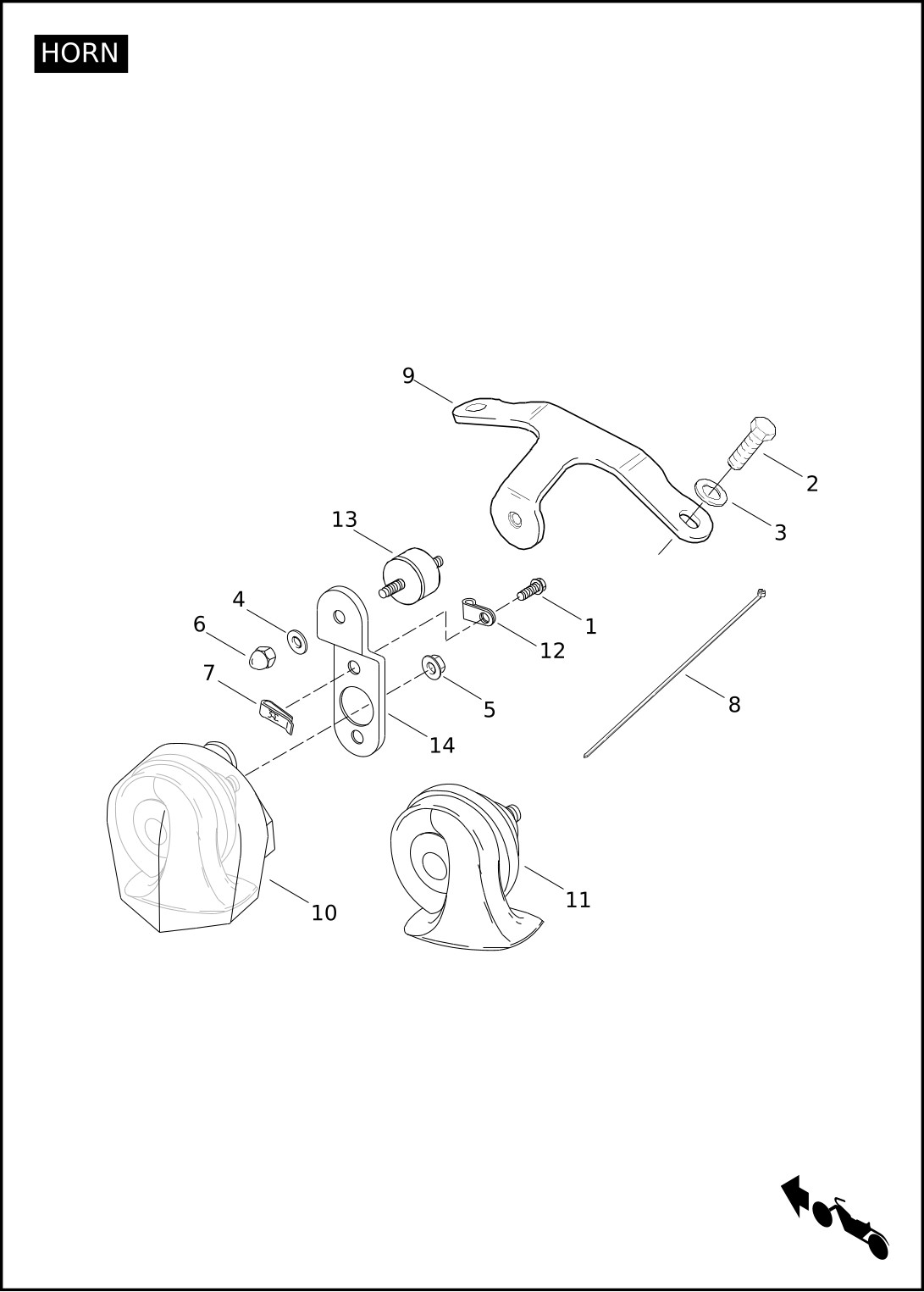

HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLTRXSE |
| 2 | 4775 | SCREW (2) | FLTRXSE |
| 3 | 6019 | WASHER (2) | FLTRXSE |
| 4 | 6109 | WASHER | FLTRXSE |
| 5 | 7495 | NUT | FLTRXSE |
| 6 | 7549A | ACORN NUT | FLTRXSE |
| 7 | 8108 | SPEEDNUT (2) | FLTRXSE |
| 8 | 10039 | CABLE STRAP | FLTRXSE |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLTRXSE |
| 10 | 69050-08 | COVER, horn (black) | FLTRXSE |
| 11 | 69060-90F | HORN ASSEMBLY | FLTRXSE |
| 12 | 69062-91A | CLAMP | FLTRXSE |
| 13 | 69123-92A | MOUNT, horn, rubber | FLTRXSE |
| 14 | 69274-10 | BRACKET, horn | FLTRXSE |

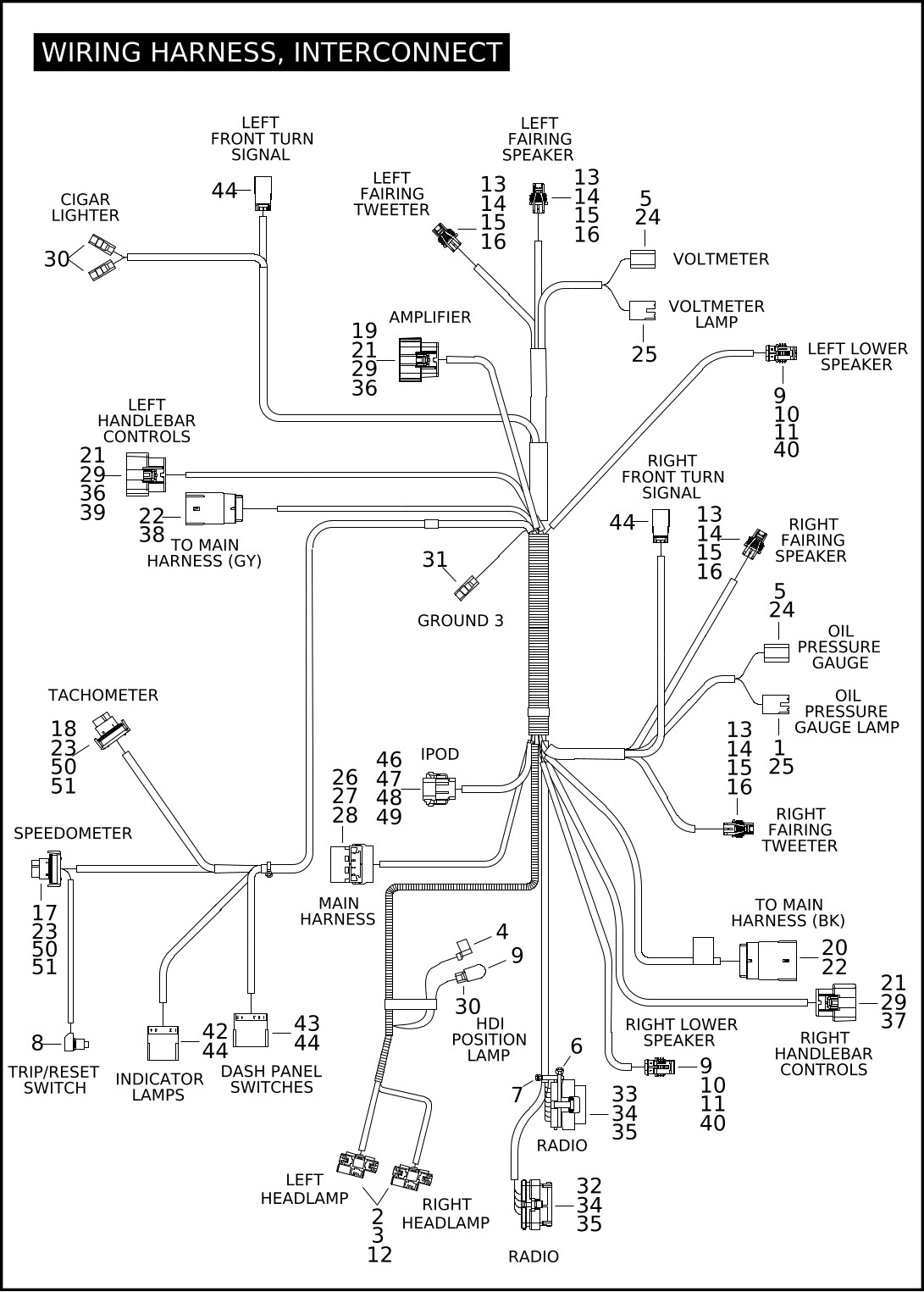

WIRING HARNESS, INTERCONNECT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200274 | WIRING HARNESS, interconnect | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9839 | TERMINAL, positive lock (4) | FLTRXSE |
| 2 | 9847 | CONNECTOR, right hand female spade (2) | FLTRXSE |
| 3 | 9848 | CONNECTOR, left hand female spade (4) | FLTRXSE |
| 4 | 9898 | TERMINAL FLAG, female, 14-16 gauge | FLTRXSE |
| 5 | 9937 | TERMINAL, female spade, 14-18 AWG (5) | FLTRXSE |
| 6 | 10039 | CABLE STRAP | FLTRXSE |
| 7 | 10065 | CABLE STRAP (2) | FLTRXSE |
| 8 | 67854-98 | SWITCH ASSEMBLY, trip reset | FLTRXSE |
| 9 | 72006-05 | TERMINAL, socket, 16-20 AWG (4) | FLTRXSE |
| 10 | 72007-05 | HOUSING, 2-way, socket (2) | FLTRXSE |
| 11 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLTRXSE |
| 12 | 72056-92 | HOUSING, terminal 3-way (2) | FLTRXSE |
| 13 | 72063-06 | HOUSING, 2-way, female, engine temp (4) | FLTRXSE |
| 14 | 72094-06 | TERMINAL, socket, female, 18 AWG (8) | FLTRXSE |
| 15 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (8) | FLTRXSE |
| 16 | 72111-06 | SECONDARY LOCK, 2-way, female (grey) (4) | FLTRXSE |
| 17 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLTRXSE |
| 18 | 72131-04 | SOCKET HOUSING, 12-way (grey) | FLTRXSE |
| 19 | 72166-07BK | HOUSING, 16-way, pin (black) | FLTRXSE |
| 20 | 72167-07BK | HOUSING, pin, 16-way | FLTRXSE |
| 21 | 72168-07 | TERMINAL, socket, 18-20 AWG (25) | FLTRXSE |
| 22 | 72169-07 | TERMINAL, pin, 16-18 AWG (28) | FLTRXSE |
| 23 | 72189-04 | SEAL PIN (11) | FLTRXSE |
| 24 | 72200-94A | HOUSING, 3-way, female (2) | FLTRXSE |
| 25 | 72203-96 | HOUSING, 2-way (2) | FLTRXSE |
| 26 | 72205-94 | CONNECTOR, 4-way, male | FLTRXSE |
| 27 | 72208-94 | TERMINAL, 12 AWG, male | FLTRXSE |
| 28 | 72210-94 | TERMINAL, 14 AWG, male (3) | FLTRXSE |
| 29 | 72272-07 | TERMINAL, socket, 14-16 AWG (14) | FLTRXSE |
| 30 | 72290-94 | TERMINAL, insulated (3) | FLTRXSE |
| 31 | 72364-06 | TERMINAL, 10-14 AWG, female | FLTRXSE |
| 32 | 72381-98 | TERMINAL, socket (23) | FLTRXSE |
| 33 | 72382-98BK | HOUSING, 23-place (black) | FLTRXSE |
WIRING HARNESS, INTERCONNECT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69200274 | WIRING HARNESS, interconnect | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 34 | 72384-06BK | HOUSING, socket, 35-way (black) | FLTRXSE |
| 35 | 72397-98 | SEAL PIN (35) | FLTRXSE |
| 36 | 72473-07 | SEAL PIN (5) | FLTRXSE |
| 37 | 72487-07BK | SOCKET HOUSING, 12-way (black) | FLTRXSE |
| 38 | 72490-07GY | PIN HOUSING, 12-way (grey) | FLTRXSE |
| 39 | 72491-07GY | SOCKET HOUSING, 16-way (grey) | FLTRXSE |
| 40 | 72533-06 | DUST CAP, 2-pin (2) | FLTRXSE |
| 41 | 73103-96BK | PIN HOUSING, 3-place (black) (2) | FLTRXSE |
| 42 | 73110-96BK | PIN HOUSING, 10-place (black) | FLTRXSE |
| 43 | 73112-96BK | PIN HOUSING, 12-way (black) | FLTRXSE |
| 44 | 73190-96 | TERMINAL, pin, 16-20 AWG (19) | FLTRXSE |
| 45 | 73213-07 | RETAINER, x-mas tree clip (2) | FLTRXSE |
| 46 | 74118-98BK | HOUSING SOCKET, 8-way (black) | FLTRXSE |
| 47 | 74158-98 | SECONDARY LOCK, 8-way, socket | FLTRXSE |
| 48 | 74191-98 | SOCKET TERMINAL (7) | FLTRXSE |
| 49 | 74195-98 | SEAL PIN | FLTRXSE |
| 50 | 74196-04 | TERMINAL, socket (13) | FLTRXSE |
| 51 | 74197-04 | SOCKET LOCK, secondary 12-way (2) | FLTRXSE |

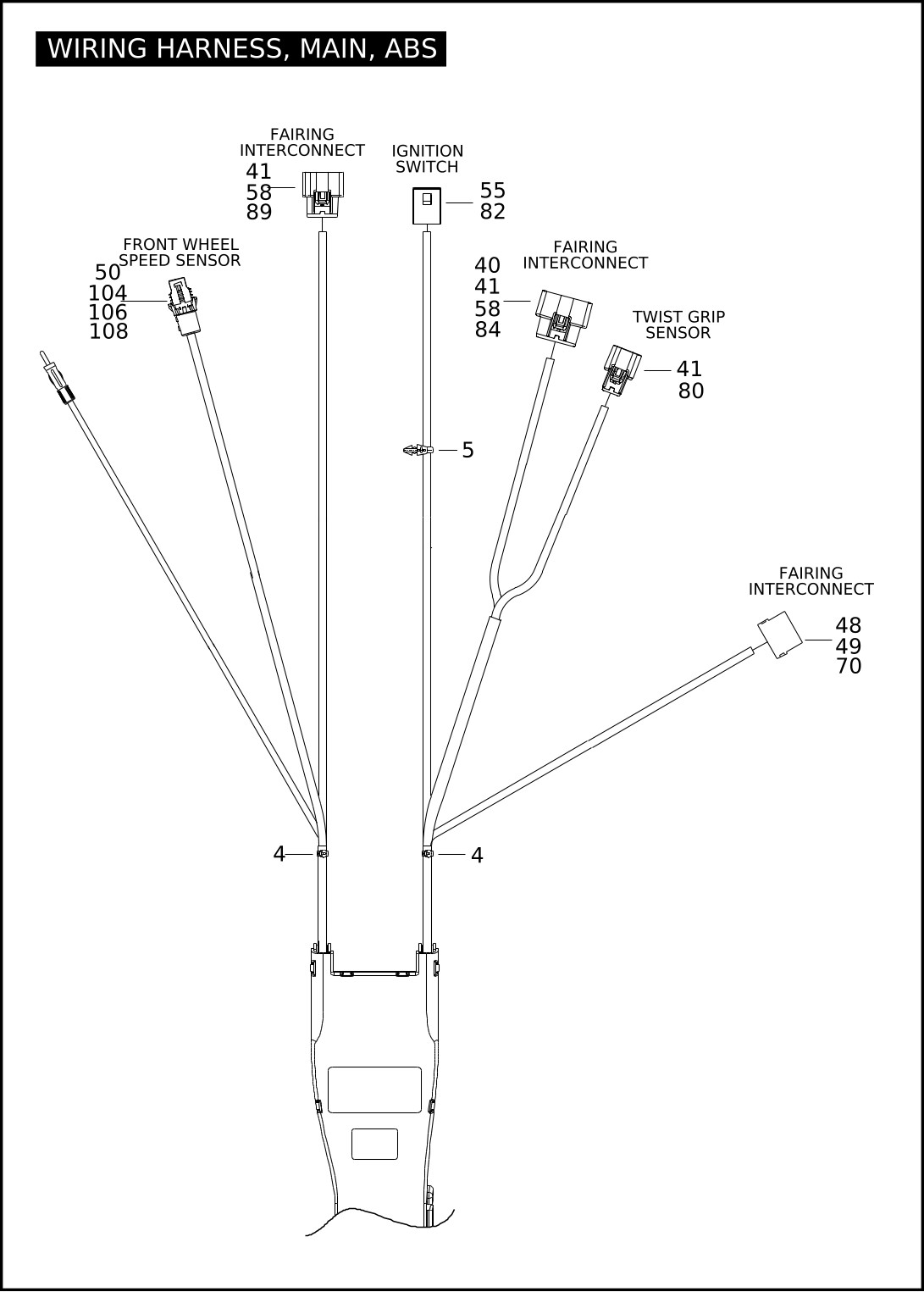

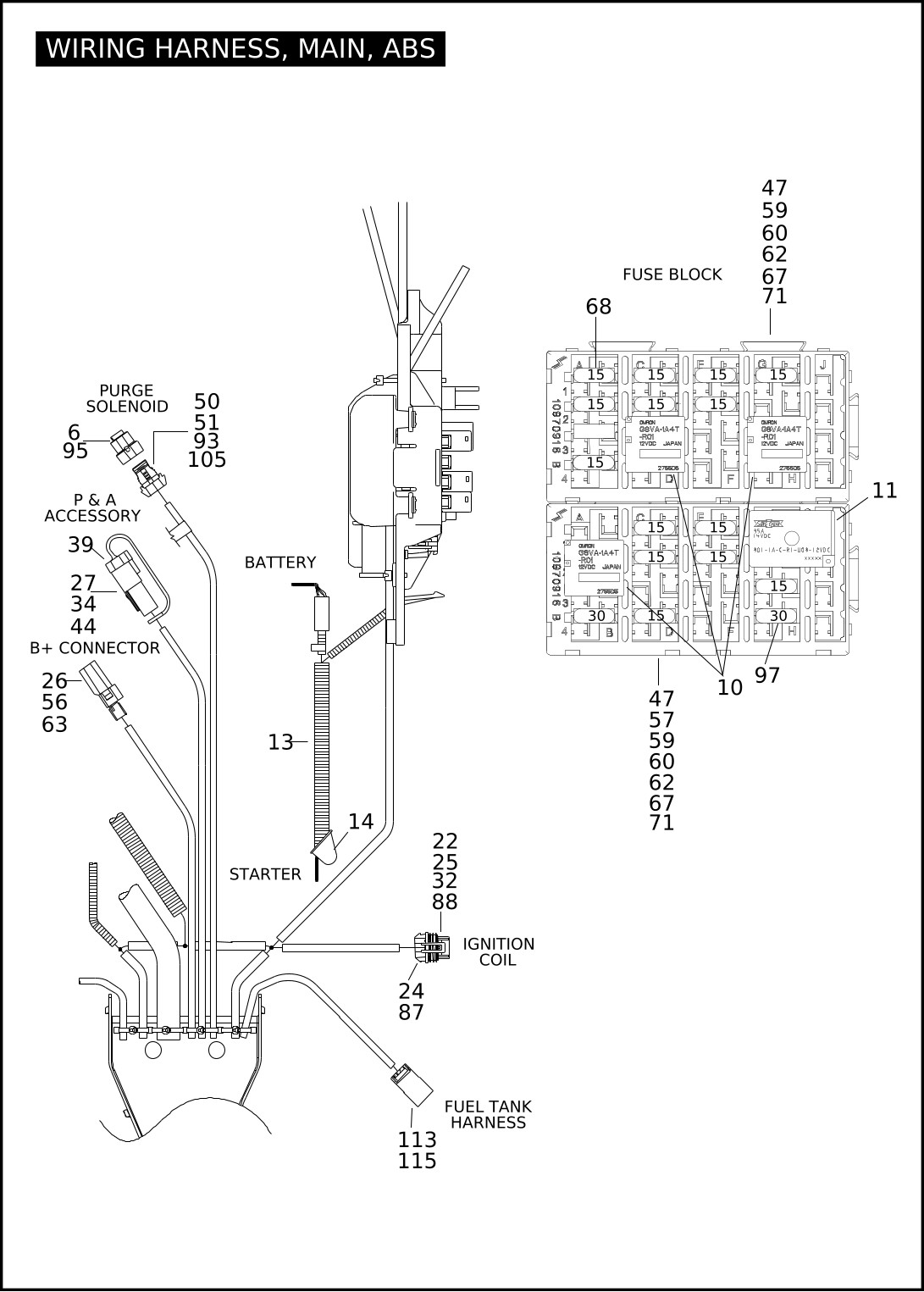

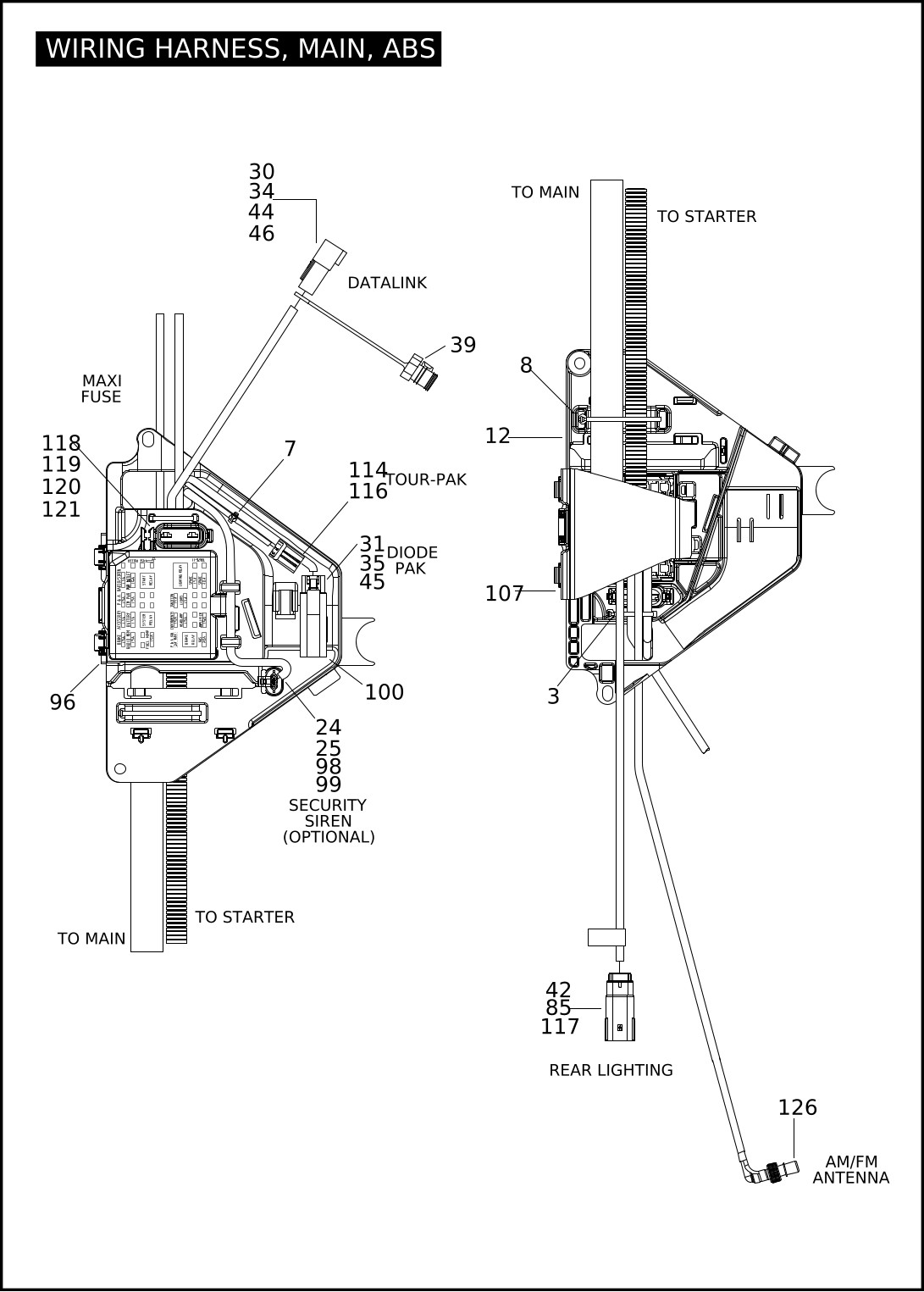

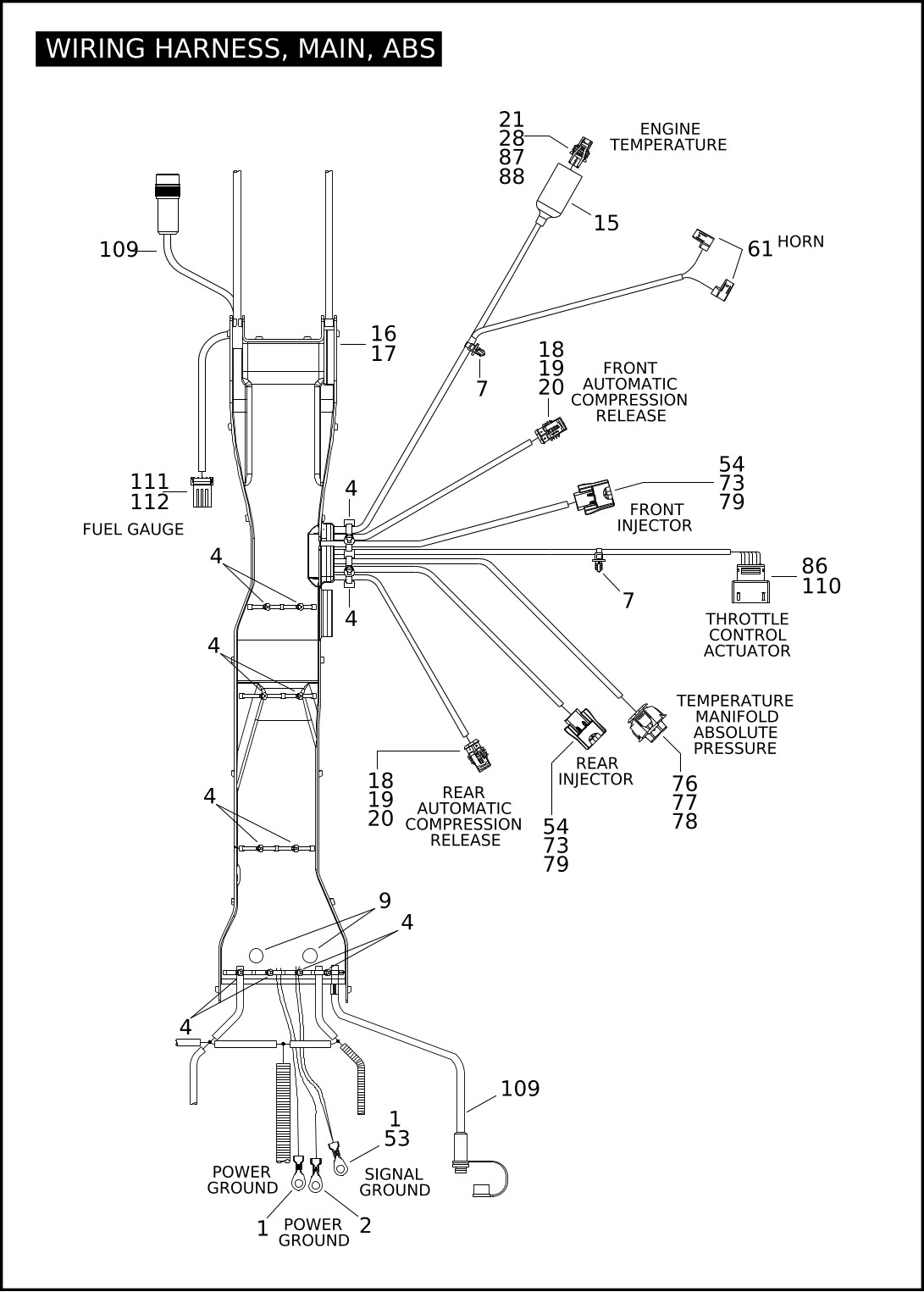

WIRING HARNESS, MAIN, ABS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | FLTRXSE |
| 2 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLTRXSE |
| 3 | 10039 | CABLE STRAP | FLTRXSE |
| 4 | 10065 | CABLE STRAP (17) | FLTRXSE |
| 5 | 10073 | CABLE STRAP, rosebud mount | FLTRXSE |
| 6 | 10147 | CLIP, connector | FLTRXSE |
| 7 | 10177 | CABLE STRAP, tree mount (4) | FLTRXSE |
| 8 | 11321 | CABLE STRAP | FLTRXSE |
| 9 | 11779 | FASTENER, push-in (black) (2) | FLTRXSE |
| 15368-01A | LABEL BATTERY WARNING (not shown) | FLTRXSE | |
| 10 | 31586-07 | RELAY (3) | FLTRXSE |
| 11 | 31595-09 | RELAY, high current | FLTRXSE |
| 12 | 70348-09 | CADDY, fuse block | FLTRXSE |
| 13 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLTRXSE |
| 14 | 70578-89 | RUBBER BOOT | FLTRXSE |
| 15 | 70598-99 | BOOT, engine temperature sensor | FLTRXSE |
| 16 | 70980-09 | TRAY, wire trough | FLTRXSE |
| 17 | 70981-09 | COVER, wire trough, w/ 15368-01A | FLTRXSE |
| 18 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (4) | FLTRXSE |
| 19 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLTRXSE |
| 20 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLTRXSE |
| 21 | 72063-06 | HOUSING, 2-way | FLTRXSE |
WIRING HARNESS, MAIN, ABS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 22 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLTRXSE |
| 23 | 72079-08 | SOCKET HOUSING, 73-way | FLTRXSE |
| 24 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLTRXSE |
| 25 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLTRXSE |
| 26 | 72100-04 | HOUSING, 1-way, male (grey) | FLTRXSE |
| 27 | 72104-94BK | HOUSING, 4-pin (black) | FLTRXSE |
| 28 | 72111-06 | LOCK, secondary, 2-way, female (grey) | FLTRXSE |
| 29 | 72115-08 | COVER, 73-way socket housing | FLTRXSE |
| 30 | 72124-94GY | HOUSING, 4-pin (grey) | FLTRXSE |
| 31 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLTRXSE |
| 32 | 72135-06 | LOCK, secondary, 4-way socket, female | FLTRXSE |
| 33 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (grey) | FLTRXSE |
| 34 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLTRXSE |
| 35 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLTRXSE |
| 36 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLTRXSE |
| 37 | 72157-08 | PLR, GT280 | FLTRXSE |
| 38 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLTRXSE |
| 39 | 72164-94A | WEATHER PLUG, 4-way (2) | FLTRXSE |
| 40 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLTRXSE |
| 41 | 72168-07 | TERMINAL, socket, 16-18 AWG (37) | FLTRXSE |
| 42 | 72169-07 | TERMINAL, pin, 16-20 AWG (10) | FLTRXSE |
| 43 | 72175-07BK | HOUSING, 4-way (black) | FLTRXSE |
| 44 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLTRXSE |
| 45 | 72191-94 | TERMINAL, socket, 16-18 AWG (16) | FLTRXSE |
| 46 | 72195-94 | SEAL PIN | FLTRXSE |
WIRING HARNESS, MAIN, ABS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 47 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLTRXSE |
| 48 | 72206-94 | CONNECTOR, 4-position, female | FLTRXSE |
| 49 | 72207-94 | TERMINAL, female, 14 AWG (2) | FLTRXSE |
| 50 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (8) | FLTRXSE |
| 51 | 72214-94 | CABLE SEAL (4) | FLTRXSE |
| 52 | 72232-96 | SEAL PLUG (2) | FLTRXSE |
| 53 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLTRXSE |
| 54 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLTRXSE |
| 55 | 72252-01 | TERMINAL, 10 AWG (3) | FLTRXSE |
| 56 | 72260-04 | HOUSING, female (grey) | FLTRXSE |
| 57 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLTRXSE |
| 58 | 72272-07 | TERMINAL, socket, 14-16 AWG (12) | FLTRXSE |
| 59 | 72279-04 | TERMINAL, female, 14-16 AWG (18) | FLTRXSE |
| 60 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | FLTRXSE |
| 61 | 72283-09 | TERMINAL, instulated (2) | FLTRXSE |
| 62 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (14) | FLTRXSE |
| 63 | 72289-04 | TERMINAL, female, 10-12 AWG | FLTRXSE |
| 64 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | FLTRXSE |
| 65 | 72291-94 | TERMINAL, 14-16 AWG | FLTRXSE |
| 66 | 72295-94 | CONNECTOR, starter housing | FLTRXSE |
| 67 | 72309-04 | TERMINAL, 16-18 AWG (10) | FLTRXSE |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harnesses | FLTRXSE | |
| 68 | 72330-95 | FUSE, 15 AMP (blue) (14) | FLTRXSE |
| 69 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLTRXSE |
| 70 | 72355-97 | TERMINAL, female, 12 AWG (2) | FLTRXSE |
| 71 | 72359-05 | TERMINAL, female, 10-12 AWG (5) | FLTRXSE |
| 72 | 72400-99 | CONNECTOR, 4-way | FLTRXSE |
| 73 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLTRXSE |
WIRING HARNESS, MAIN, ABS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 74 | 72403-99 | SECONDARY LOCK, 4-way | FLTRXSE |
| 75 | 72405-98BK | WIRING ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLTRXSE |
| 76 | 72406-07A | SOCKET HOUSING, 4-way | FLTRXSE |
| 77 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLTRXSE |
| 78 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLTRXSE |
| 79 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLTRXSE |
| 80 | 72414-07BK | SOCKET HOUSING, 6-way | FLTRXSE |
| 81 | 72415-07GY | PIN HOUSING, 4-way (grey) | FLTRXSE |
| 82 | 72416-01 | HOUSING, 3-way, female | FLTRXSE |
| 83 | 72440-08 | SEAL PIN, plug (18) | FLTRXSE |
| 84 | 72473-07 | SEAL, pin (10) | FLTRXSE |
| 85 | 72478-07BK | HOUSING, 8-way, pin (black) | FLTRXSE |
| 86 | 72483-08BK | SOCKET HOUSING, 6-way | FLTRXSE |
| 87 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLTRXSE |
| 88 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLTRXSE |
| 89 | 72489-07GY | SOCKET HOUSING, 12-way (grey) | FLTRXSE |
| 90 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLTRXSE |
| 91 | 72500-07ABK | SOCKET HOUSING, 20-way (black) | FLTRXSE |
| 92 | 72512-07BK | SOCKET HOUSING, 3-way (black) | FLTRXSE |
| 93 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLTRXSE |
| 94 | 72519-09BK | DUST CAP, 3-way socket (black) | FLTRXSE |
| 95 | 72533-06 | DUST CAP, 2-pin connector (domestic) | FLTRXSE |
| 72533-06 | DUST CAP, 2-pin connector (Japan) (3) | FLTRXSE | |
| 96 | 72675-11 | COVER ASSEMBLY, fuse block, w/ graphics | FLTRXSE |
| 97 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLTRXSE |
| 98 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | FLTRXSE |
| 99 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | FLTRXSE |
| 100 | 72547-08 | DIODE PACK | FLTRXSE |
| 101 | 72556-08 | SEAL WIRE, 12-14 AWG | FLTRXSE |
| 102 | 72599-10 | LOCKING STRAP | FLTRXSE |
WIRING HARNESS, MAIN, ABS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE | |
| NOTE: Includes the following parts. | |||
| 103 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (40) | FLTRXSE |
| 104 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLTRXSE |
| 105 | 72609-08 | SECONDARY LOCK, 2-way (black) (2) | FLTRXSE |
| 106 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLTRXSE |
| 107 | 72620-08 | FUSE COVER, rear | FLTRXSE |
| 108 | 72639-10 | SECONDARY LOCK, 2-way socket | FLTRXSE |
| 109 | 72648-11 | HARNESS, i-Pod intermediate | FLTRXSE |
| 110 | 72663-11 | TERMINAL, socket, 18-20 AWG (silver) (6) | FLTRXSE |
| 111 | 72914-01BK | HOUSING SOCKET, 4-way (black) | FLTRXSE |
| 112 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FLTRXSE |
| 113 | 73106-96BK | HOUSING PIN, 6-place, single row | FLTRXSE |
| 114 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLTRXSE |
| 115 | 73190-96 | TERMINAL, pin, 16-20 AWG (6) | FLTRXSE |
| 116 | 73191-96 | TERMINAL, socket, 16-20 AWG (3) | FLTRXSE |
| 117 | 73213-07 | RETAINER, x-mas tree clip | FLTRXSE |
| 118 | 73301-04 | HOUSING, pin, 2-way | FLTRXSE |
| 119 | 73303-04 | SECONDARY LOCK, female, 2-way | FLTRXSE |
| 120 | 73304-04 | TERMINAL, female, 10 AWG | FLTRXSE |
| 121 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLTRXSE |
| 122 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLTRXSE |
| 123 | 74115-06 | DC LEAD ASSEMBLY | FLTRXSE |
| 124 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLTRXSE |
| 125 | 74191-98 | SOCKET TERMINAL (2) | FLTRXSE |
| 126 | 76248-86 | CABLE, antenna | FLTRXSE |

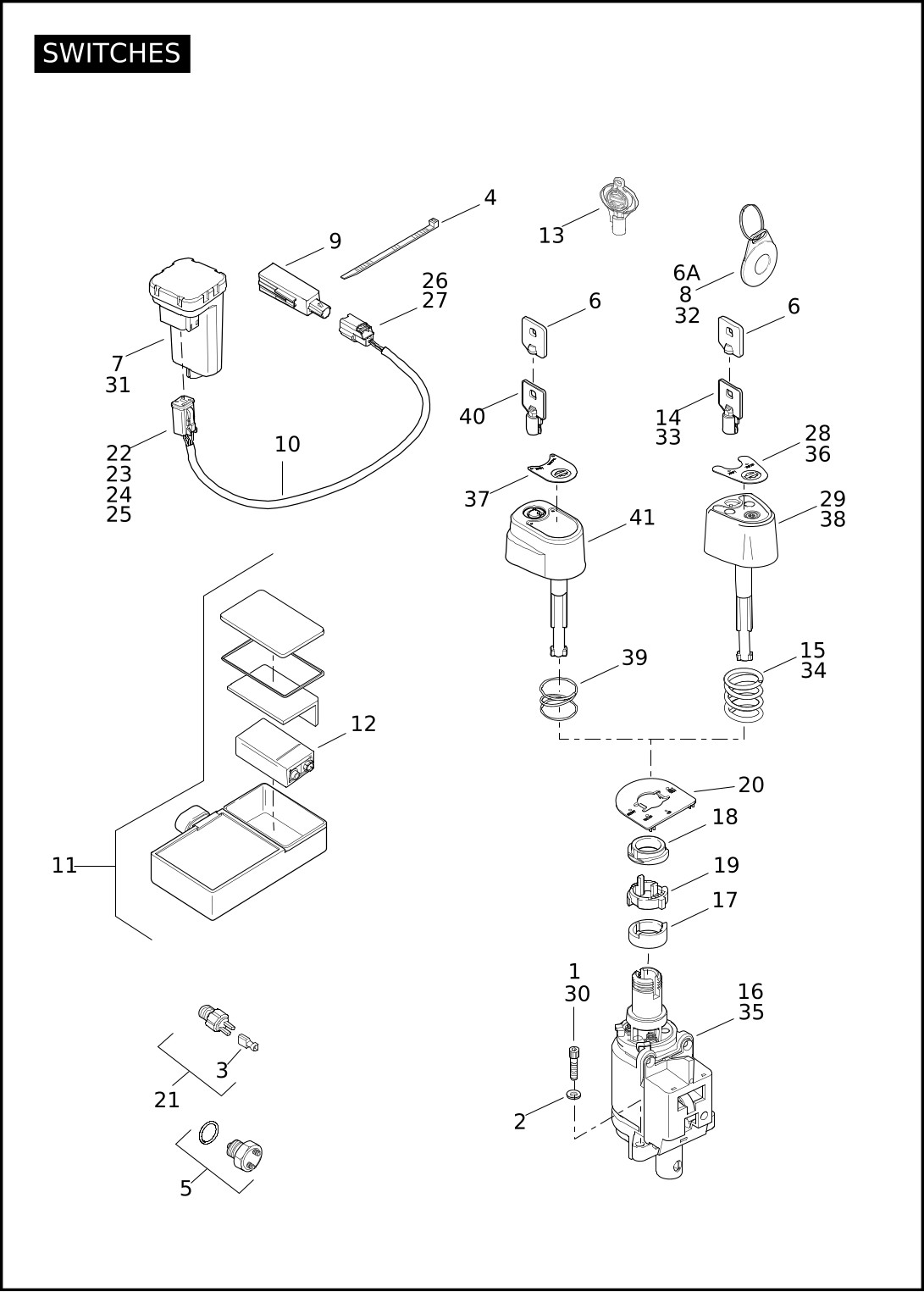

SWITCHES (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLTRXSE |
| 2 | 6150W | WASHER (2) | FLTRXSE |
| 3 | 9907 | WIRE TERMINAL (2) | FLTRXSE |
| 4 | 10065 | CABLE STRAP (2) | FLTRXSE |
| 5 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLTRXSE |
| 6 | 61081-92 | COVER, key head, set of 2 | FLTRXSE |
| 6A | 66373-06 | BATTERY, 3V, CR2032 | FLTRXSE |
| 7 | 68924-07 | MODULE, security system | FLTRXSE |
| 8 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 (2) | FLTRXSE |
| 9 | 68956-07 | ANTENNA MODULE, security system (excluding Japan) | FLTRXSE |
| 10 | 70617-07 | WIRE HARNESS, antenna jumper, w/ 72114-94BK, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07 (excluding Japan) | FLTRXSE |
| 11 | 68958-07C | SIREN ALARM | FLTRXSE |
| 12 | 69309-10 | BATTERY REPLACE KIT, siren alarm | FLTRXSE |
| 13 | 71031-04 | KEY, cvo, decorative (specify key code) | FLTRXSE |
| 14 | 71452-91A | KEY (specify key code) (Domestic) | FLTRXSE |
| 15 | 71459-03 | SPRING, ignition knob (Domestic) | FLTRXSE |
| 16 | 71572-06 | HOUSING, ignition switch, w/ 71638-03, 71660-03 & 71661-03 (Domestic) | FLTRXSE |
| 17 | 71638-03 | COLLAR, ignition switch, bottom | FLTRXSE |
| 18 | 71660-03 | NUT, ignition switch | FLTRXSE |
| 19 | 71661-03 | COLLAR, ignition switch, top | FLTRXSE |
| 20 | 71662-03A | PLATE, ignition switch | FLTRXSE |
| 21 | 72023-51D | KIT SWITCH, rear brakelite, w 9907 | FLTRXSE |
| 22 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLTRXSE |
| 23 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLTRXSE |
| 24 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | FLTRXSE |
| 25 | 72195-94 | SEAL PIN, socket, 16-18 AWG | FLTRXSE |
| 26 | 72720-07 | HOUSING, 2-way socket | FLTRXSE |
| 27 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLTRXSE |
| 28 | 14100104 | DECAL, ignition switch knob (Domestic) | FLTRXSE |
| 29 | 45600005 | KNOB, ignition switch, w/ 14100104 (specify key code) (Domestic) | FLTRXSE |
| 90300032 | LOCK SET, complete, w/ 71452-91A keys, ignition knob & saddlebag lock (Domestic) | FLTRXSE | |
| NOTE: Locksets indicated as (Early model year) are used to service key codes 3000HD to 4999HD. Locksets indicated as (Late model year) are used to service key codes 5000HD to 6079HD. | |||
SWITCHES (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 30 | 2934 | SCREW (HDI) (2) | FLTRXSE |
| 31 | 68922-07 | MODULE, security system & turn signal canceller (Japan) | FLTRXSE |
| 32 | 68939-00 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) (2) | FLTRXSE |
| 33 | 71452-91A | KEY (specify key code) (Australia, Japan) (England & HDI - Early model year) (See Note) (2) | FLTRXSE |
| 34 | 71459-03 | SPRING, ignition knob (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE |
| 35 | 71530-03B | HOUSING, ignition switch, w/ 71638-03, 71660-03 & 71661-03 (Australia, England, HDI & Japan) | FLTRXSE |
| 36 | 14100104 | DECAL, ignition switch knob (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE |
| 37 | 14100251 | DECAL, ignition switch knob (England & HDI - Late model year) (See Note) | FLTRXSE |
| 38 | 45600005 | KNOB, ignition switch, w/ 14100104 (specify key code) (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE |
| 39 | 71400073 | SPRING, ignition knob (England & HDI - Late model year) (See Note) | FLTRXSE |
| 90300032 | LOCKSET, complete, w/ 71452-91A keys, ignition knob & saddlebag lock (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE | |
| 90300058 | LOCKSET, complete, w/ 90300043 keys, ignition knob & saddlebag lock (England & HDI - Late model year) (See Note) | FLTRXSE | |
| 40 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE |
| 41 | 90300059 | KNOB, ignition switch, w/ 14100251 (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE |

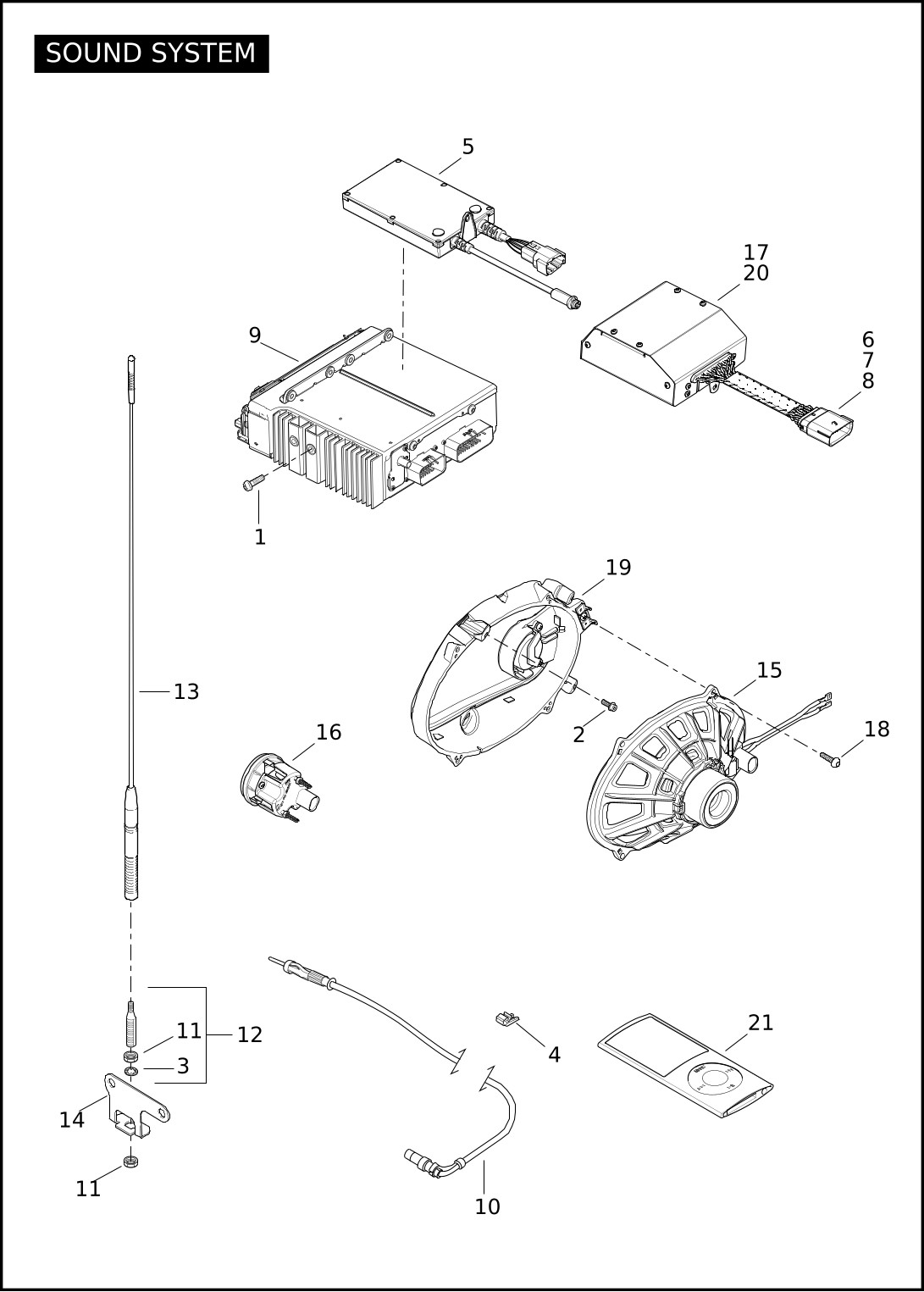

SOUND SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3061 | SCREW (4) | FLTRXSE |
| 2 | 3387 | SCREW (6) | FLTRXSE |
| 3 | 7129 | LOCKWASHER | FLTRXSE |
| 4 | 10120 | CLIP, adhesive backed (2) | FLTRXSE |
| 5 | 72647-11 | MODULE, iPod | FLTRXSE |
| 6 | 72167-07BK | HOUSING, 16-way (black) | FLTRXSE |
| 7 | 72169-07 | TERMINAL, 16-20 AWG (13) | FLTRXSE |
| 8 | 72473-07 | SEAL PIN | FLTRXSE |
| 9 | 76160-06 | RADIO | FLTRXSE |
| 10 | 76248-86 | CABLE, AM/FM antenna | FLTRXSE |
| 11 | 76259-86 | NUT (2) | FLTRXSE |
| 12 | 76335-87 | BASE ASSEMBLY, antenna w/ 7129, &76259-86 | FLTRXSE |
| 13 | 76388-08 | ANTENNA MAST, short AM/FM | FLTRXSE |
| 14 | 76555-09 | BRACKET, antenna | FLTRXSE |
| 15 | 76000206 | SPEAKER, 5 x 7 in. (2) | FLTRXSE |
| 16 | 77036-11A | TWEETER (2) | FLTRXSE |
| 17 | 76000141 | POWER AMPLIFIER | FLTRXSE |
| 18 | 10200012 | SCREW (8) | FLTRXSE |
| 19 | 76000184 | ADAPTER ASSEMBLY, speaker, left | FLTRXSE |
| 76000185 | ADAPTER ASSEMBLY, speaker, right | FLTRXSE | |
| Index 20Dealer: For all service and warranty claims on Advanced Audio System components please refer to the latest Warranty Bulletin revision of the Advanced Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Advanced Audio System components please contact your Harley-Davidson dealership.Power Amplifier is not a Harman product and should not be returned for repair.Index 21iPod: To obtain service or support for the iPod provided with the motorcycle, see support.apple.com, visit an Apple Retail Store, or contact Apple, Inc. at 1-800-275-2273. | |||

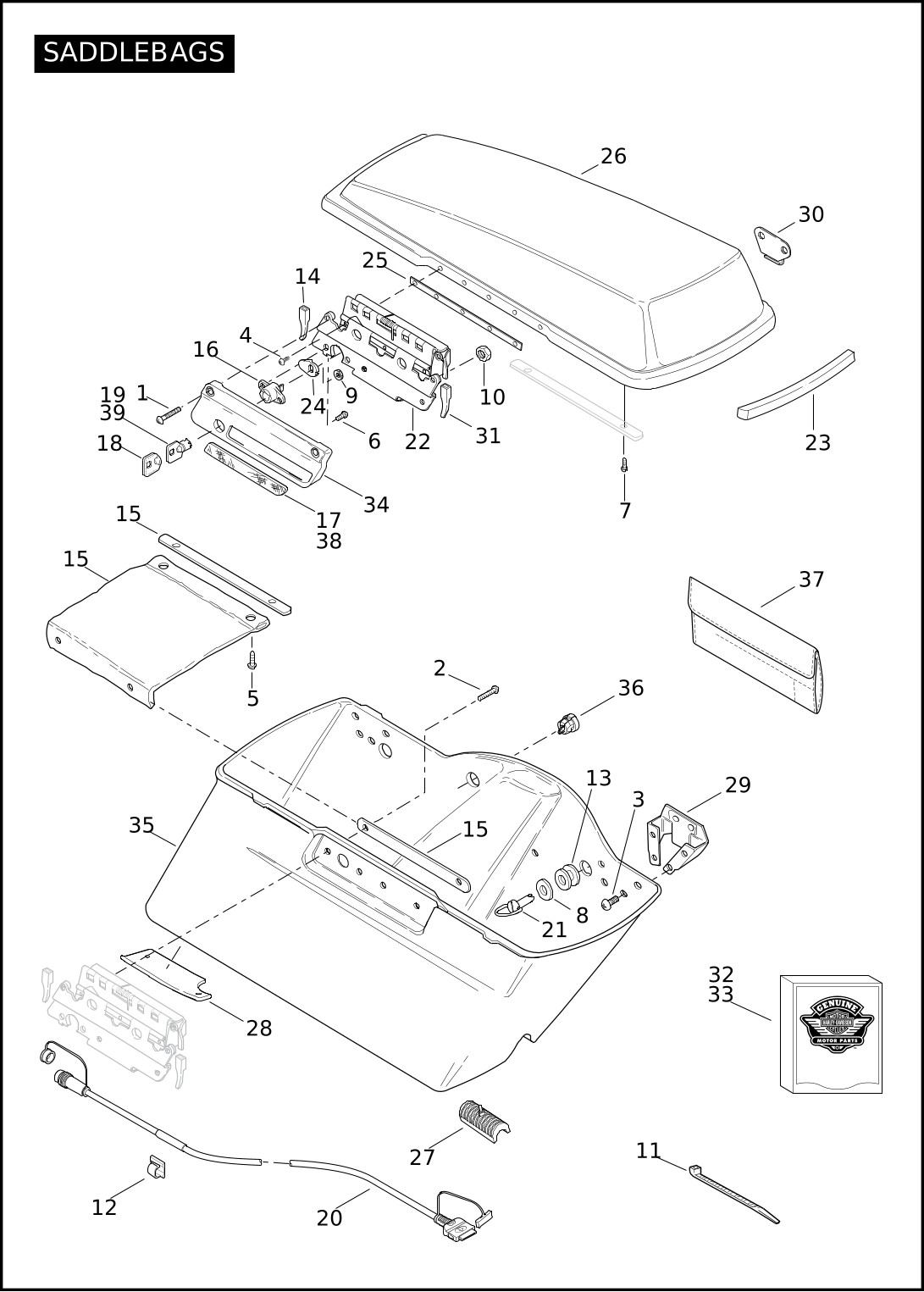

SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2524B | SCREW (4) | FLTRXSE |
| 2 | 3592A | SCREW (4) | FLTRXSE |
| 3 | 3593 | SCREW (16) | FLTRXSE |
| 4 | 3595 | SCREW (10) | FLTRXSE |
| 5 | 3612 | SCREW (4) | FLTRXSE |
| 6 | 3656 | SCREW (4) | FLTRXSE |
| 7 | 5233 | SCREW (4) | FLTRXSE |
| 8 | 6229W | WASHER (4) | FLTRXSE |
| 9 | 7586 | JAM NUT (2) | FLTRXSE |
| 10 | 7608 | NUT (2) | FLTRXSE |
| 11 | 10065 | CABLE STRAP (2) | FLTRXSE |
| 10102 | CLIP, adhesive backed (not illustrated) (4) | FLTRXSE | |
| 12 | 10120 | CLIP, right (7) | FLTRXSE |
| 13 | 11468 | GROMMET (4) | FLTRXSE |
| 14 | 53482-93 | RUB BAR, left, rear (plastic) | FLTRXSE |
| 53483-93 | RUB BAR, right, rear (plastic) | FLTRXSE | |
| 15 | 53567-93 | CHECK STRAP, left (2) | FLTRXSE |
| 90200002 | CHECK STRAP, right, i-Pod (not shown) (2) | FLTRXSE | |
| 16 | 53710-93 | LOCKSET, w/ 7586, 90682-93 & keys (specify key code) (set of 2) | FLTRXSE |
| 17 | 59287-92 | REFLECTOR, right (red) (Domestic, Canada) | FLTRXSE |
| 59288-92 | REFLECTOR, left (red) (Domestic, Canada) | FLTRXSE | |
| 18 | 61081-92 | COVER, key | FLTRXSE |
| 19 | 71452-91A | KEY (specify key code) (Domestic) | FLTRXSE |
| 90115-04 | PROTECTOR, saddlebag (not illustrated) (4) | FLTRXSE | |
| 20 | 72651-11 | HARNESS, i-Pod, right | FLTRXSE |
| 21 | 90400-00A | BAIL HEAD STUD (Bail must be removed for ALL HDI MODELS EXCEPT JAPAN) (4) | FLTRXSE |
| 22 | 90664-93 | LATCH ASSEMBLY, left, w/ 53482-93 & spring, also order 90981-09 | FLTRXSE |
| 90665-93 | LATCH ASSEMBLY, right, w/ 53483-93 & spring, also order 90980-09 | FLTRXSE | |
| 23 | 90675-93A | GASKET, cover (2) | FLTRXSE |
| 24 | 90682-93 | CAM HOOK (2) | FLTRXSE |
| 25 | 90700-93 | BACKING PLATE (2) | FLTRXSE |
| 26 | 90757-93 | COVER, saddlebag, left (prime) | FLTRXSE |
| 90200398BKO | COVER ASSEMBLY, saddlebag, left (Candy Cobalt) | FLTRXSE | |
| 90200398DGM | COVER ASSEMBLY, saddlebag, left (Maple Metallic) | FLTRXSE | |
| 90200398CGS | COVER ASSEMBLY, saddlebag, left (White Gold Pearl) | FLTRXSE | |
| 90756-93 | COVER, saddlebag, right (prime) | FLTRXSE | |
| 90200399BKO | COVER ASSEMBLY, saddlebag, right (Candy Cobalt) | FLTRXSE | |
| 90200399DGM | COVER ASSEMBLY, saddlebag, right (Maple Metallic) | FLTRXSE | |
| 90200399CGS | COVER ASSEMBLY, saddlebag, right (White Gold Pearl) | FLTRXSE | |
| 27 | 90764-93 | CUSHION, front (4) | FLTRXSE |
| 28 | 88335-09 | PROTECTOR, left hand | FLTRXSE |
| 88336-09 | PROTECTOR, right hand | FLTRXSE | |
| NOTE: Locksets indicated as (Early model year) are used to service key codes 3000HD to 4999HD. Locksets indicated as (Late model year) are used to service key codes 5000HD to 6079HD. | |||
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 90958-93 | MOUNTING BRACKET (4) | FLTRXSE |
| 30 | 90962-93 | WEARPLATE, cover (4) | FLTRXSE |
| 31 | 90980-09 | RUB BAR, right, front (plastic) | FLTRXSE |
| 90981-09 | RUB BAR, left, front (plastic) | FLTRXSE | |
| 32 | 91636-09 | COVER, indoor storage **RESTRICTED SALES PART** | FLTRXSE |
| 33 | 91885-97A | LINER, removable (2) | FLTRXSE |
| 34 | 53000155BKO | LATCH COVER, saddlebag, right (Candy Cobalt) | FLTRXSE |
| 53000155DGM | LATCH COVER, saddlebag, right (Maple Metallic) | FLTRXSE | |
| 53000155CGS | LATCH COVER, saddlebag, right (White Gold Pearl) | FLTRXSE | |
| 53000156BKO | LATCH COVER, saddlebag, left (Candy Cobalt) | FLTRXSE | |
| 53000156DGM | LATCH COVER, saddlebag, left (Maple Metallic) | FLTRXSE | |
| 53000156CGS | LATCH COVER, saddlebag, left (White Gold Pearl) | FLTRXSE | |
| 35 | 90200580DLA | BOTTOM ASSEMBLY, saddlebag, left (Candy Cobalt/Twilight Blue) | FLTRXSE |
| 90200580DLH | BOTTOM ASSEMBLY, saddlebag, left (Maple Metallic/Vivid Black) | FLTRXSE | |
| 90200580DLN | BOTTOM ASSEMBLY, saddlebag, left (White Gold Pearl/Starfire Black) | FLTRXSE | |
| 90200581DLA | BOTTOM ASSEMBLY, saddlebag, right (Candy Cobalt/Twilight Blue) | FLTRXSE | |
| 90200581DLH | BOTTOM ASSEMBLY, saddlebag, right (Maple Metallic/Vivid Black) | FLTRXSE | |
| 90200581DLN | BOTTOM ASSEMBLY, saddlebag, right (White Gold Pearl/Starfire Black) | FLTRXSE | |
| 36 | 12100001 | GROMMET, right saddlebag | FLTRXSE |
| 37 | 14900001 | TOOL KIT | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 38 | 59289-92 | REFLECTOR, right (amber) (HDI, England, Japan) | FLTRXSE |
| 59290-92 | REFLECTOR, left (amber) (HDI, England, Japan) | FLTRXSE | |
| 39 | 71452-91A | KEY (specify key code) (Australia, Japan) (England & HDI - Early model year) (See Note) (2) | FLTRXSE |
| 90300043 | KEY, w/ 61081-92 (set of 2) (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE | |

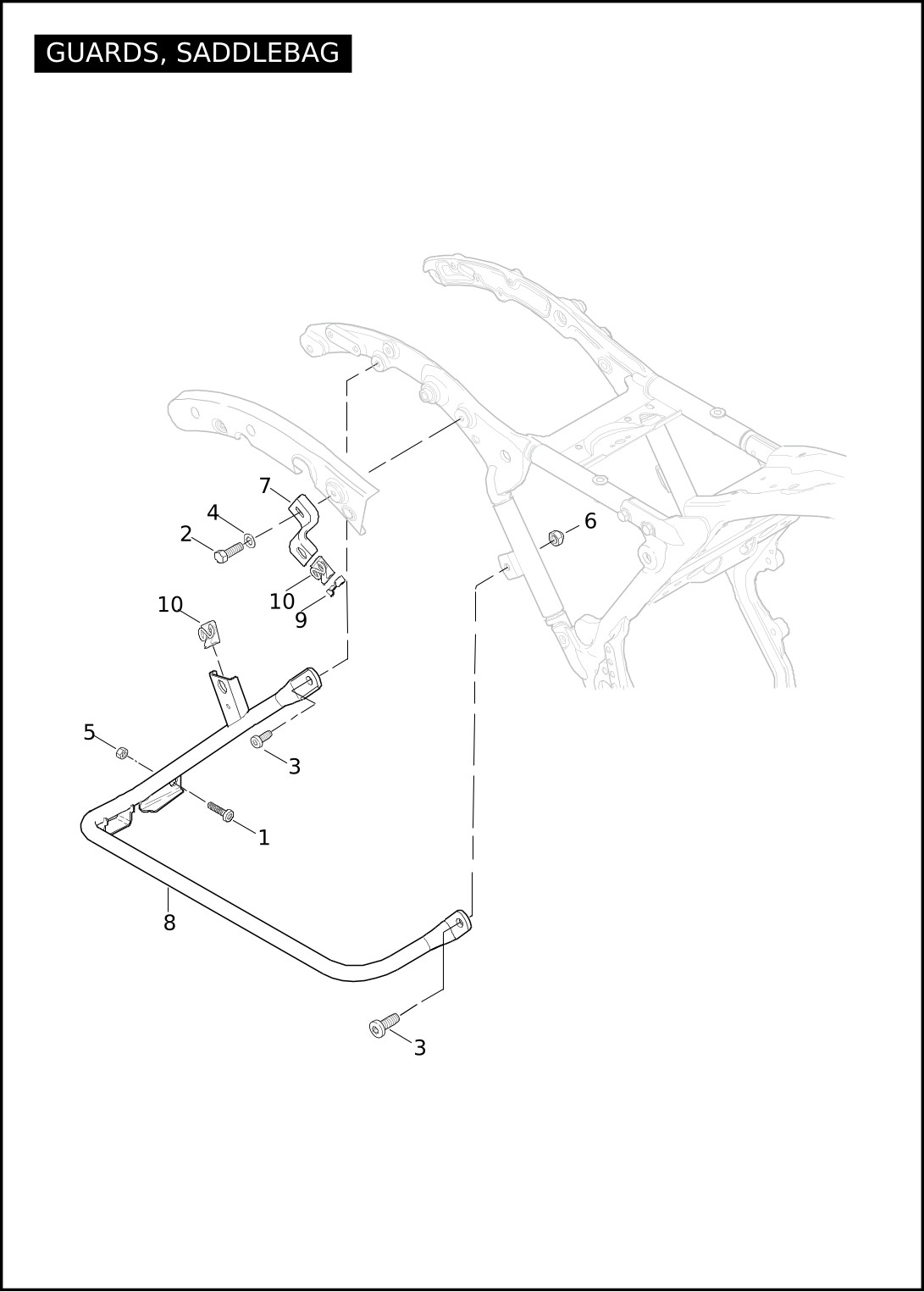

GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (2) | FLTRXSE |
| 2 | 3787 | BOLT (2) | FLTRXSE |
| 3 | 4924 | SCREW (2) | FLTRXSE |
| 4 | 6703 | WASHER (2) | FLTRXSE |
| 5 | 7531 | LOCKNUT (2) | FLTRXSE |
| 6 | 7601 | LOCKNUT (2) | FLTRXSE |
| 7 | 47449-09 | BRACKET, saddlebag mounting, front (2) | FLTRXSE |
| 8 | 49206-09A | SUPPORT, saddlebag, left (Chrome) | FLTRXSE |
| 49207-09A | SUPPORT, saddlebag, right (Chrome) | FLTRXSE | |
| 9 | 66069-10 | BUMPER (2) | FLTRXSE |
| 10 | 70909-95 | RECEPTACLE (4) | FLTRXSE |

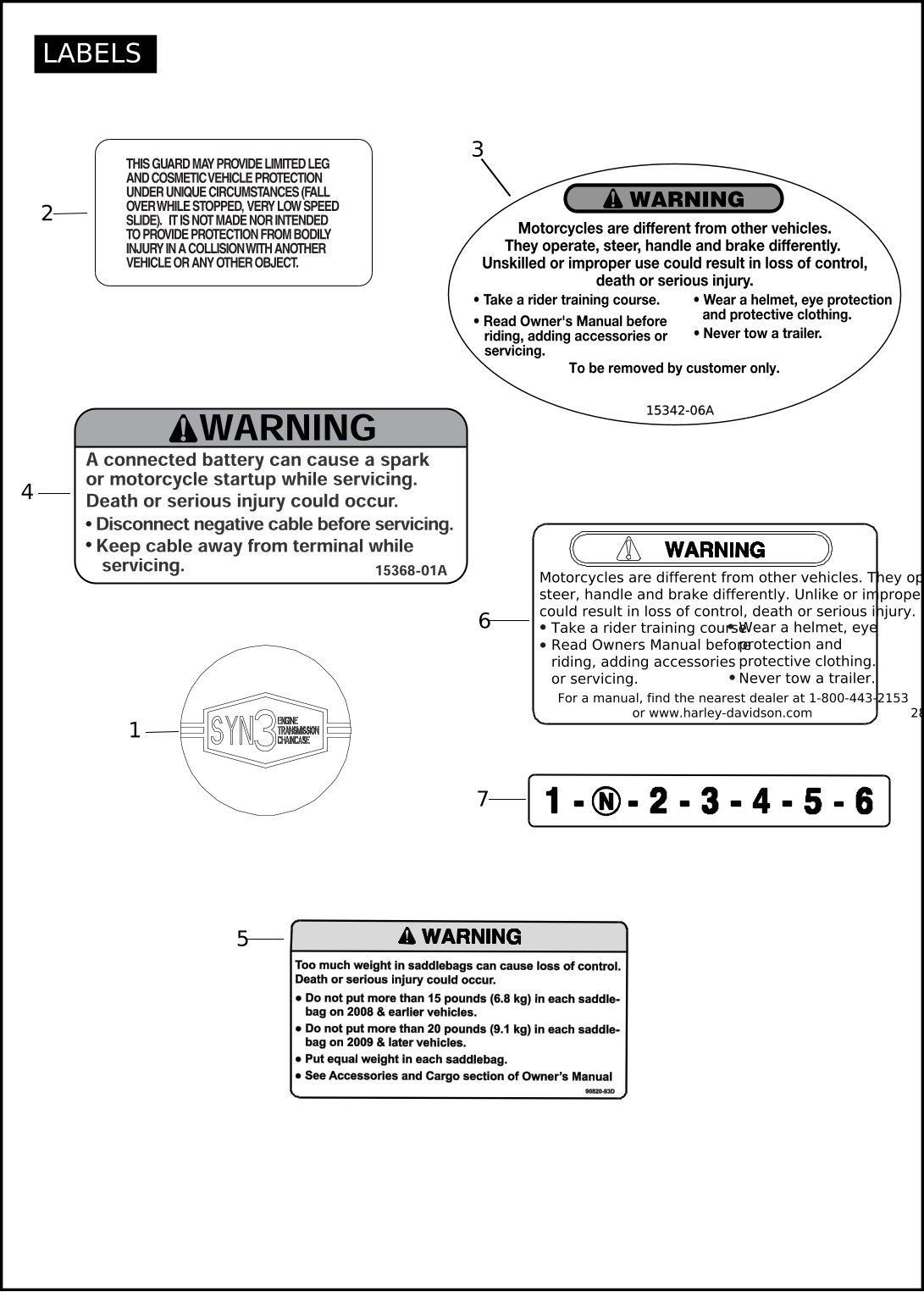

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13334-04 | LABEL, dipstick | FLTRXSE |
| 2 | 14148-86 | ENGINE GUARD LABEL | FLTRXSE |
| 3 | 15342-06A | MIRROR WARNING LABEL | FLTRXSE |
| 4 | 15368-01A | BATTERY DISCONNECT LABEL | FLTRXSE |
| 5 | 90820-93D | LABEL, saddlebag load limits (2) | FLTRXSE |
| 6 | 14000377 | AIR CLEANER WARNING LABEL (chrome) (Domestic, California) | FLTRXSE |
| INTERNATIONAL MODELS ONLY | |||
| 7 | 14272-06 | LABEL, shift pattern (Japan only) | FLTRXSE |
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 10200012 | SCREW 8-18 X 3/4 HI-LO TORX head |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090A | SCREW 5/16-18 X 3-3/4 hex flange head with seal ring |
| 1095M | SCREW M6 x 1.0 X 22 SEMS socket head |
| 12404 | WASHER 21/64 X 33/64 X 1/16 |
| 12600003 | SCREW 5/16-18 X 1-1/4 TORX with scotch grip (Grade 8) |
| 2225 | SCREW 1/4-20 X 5/8 socket flat countersink head |
| 2228 | SCREW M5 X 0.8 X 20.7 TORX pan head (Grade 9.8) |
| 2260 | SCREW 6-32 X 1/2 socket head cap |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2524B | SCREW No. 8-32 X 5/16 TORX button head |
| 2559 | SCREW No. 6-32 X 3/4 Phillips pan head, with lockwasher |
| 25700226 | GASKET KIT |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 2625 | SCREW No. 8-32 X 5/8 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2665 | SCREW No. 10-24 X 5/8 Pozidriv pan head (Grade 2) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2960 | SCREW No. 6-32 X 5/8 pan head |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 2995 | SCREW No. 10-16 X 3/4 pan head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3148 | SCREW 5/16-18 X 1.60 TORX head |
| 3152 | SCREW #10 X 1/2 TORX pan head |
| 3165 | SCREW #6-19 X 1 Phillips head (black) |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3256 | SCREW 5/16-18 X 2-1/2 |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3387 | SCREW No. 10-16 X 1.0 TORX pan head, self-tapping |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3592A | SCREW No. 8-32 X 1/2 TORX truss head with dogpoint lead (stainless) |
| 3593 | SCREW No. 8-32 X 5/16 TORX truss head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3732 | SCREW 3/16-16 X 5/8 TORX pan head |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45279-00 | WASHER 11/32 X 5/8 X 1/32 Aluminum |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4706 | SCREW 3/8-16 X 4 hex head |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4768 | SCREW 3/8 X 3-1/2 hex head (Grade 5) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4808 | SCREW 5/16-24 X 3/4 TORX button head with Scotch grip |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4855 | SCREW 7/16-20 X 1-3/8 hex head (Grade 8) |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 5233 | SCREW #10-16 X 1/2 Hi-Lo, Torx head T-25 |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6054 | WASHER 3/16 X 9/16 X 1/16 nylon (black) |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7129 | LOCKWASHER 1/2 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7326 | NUT 5/16-18 polished stainless steel |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7462A | WASHER 25/64 X 3/4 X 1/8 rubber |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7608 | NUT No. 8-32 X 1/8 X 11/32 (Grade 2) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 76259-86 | NUT 1/2-20 hex jam |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 8146 | NUT CLIP |
| 8196 | ACORN NUT 5/16-24 (gloss black) |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 933 | SCREW No. 10-32 X 15/16 Pozidriv truss head (Grade 2) |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 94409-03 | SCREW 5/16-18 X 1 socket button head with lock patch |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19792-12 | ENGINE ASSEMBLY, complete - 110 cubic inch (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 17429-91 | BUSHING, rocker arm (8) | FLTRXSE |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 22000001 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLTRXSE |
| 22000003 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLTRXSE | |
| 6 | 22100001 | PISTON PIN (2) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 31 | 14100164 | INSERT, timer cover | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 27948-08 | GASKET, backplate | FLTRXSE |
| 12 | 29702-08A | FILTER, element | FLTRXSE |
| 19 | 61300110 | COVER, w/ 27948-08 & label (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 7041 | LOCKWASHER (2) | FLTRXSE |
| 10 | 7326 | NUT, rod-end (2) | FLTRXSE |
| 20 | 33760-09 | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7326, 7904, 33899-08 & 33890-99A | FLTRXSE |
| 23 | 33899-08 | ROD END, self-aligning (2) | FLTRXSE |
| 29 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | FLTRXSE |
| 41 | 35249-06A | LOCK PLATE, shift cam | FLTRXSE |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ 15, 17, 34, 35, 36, 37, 38, 39, 40, 41, 42, 7340, 35260-06, input shaft, counter shaft (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 8970A | BEARING (2) | FLTRXSE |
| 19 | 35260-06A | BEARING HOUSING ASSEMBLY, w/ 221, 8970A, 16583-00A & 35087-99A (black) | FLTRXSE |
| 26 | 37200-11A | SIDE COVER, transmission (black) includes bleed screw and clutch piston | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 35246-10A | GEAR PACK, FORKS, & DRUM SUBASSEMBLY, w/ shifter cam & forks (black) | FLTRXSE | |
| 21 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08, & 35201-10 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 42642-00A | BUSHING (2) | FLTRXSE |
| 21 | 14100118 | INSERT, clutch cover | FLTRXSE |
| 21A | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y, 37909-90 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 9276A | BALL BEARING (2) | FLTRXSE |
| 15 | 83935-09A | COMPENSATOR ASSEMBLY, w/ 6557 & 40100009 | FLTRXSE |
| 17 | 40100009 | RETAINER, sprocket | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 2590 | SCREW (2) | FLTRXSE |
| 3 | 4132 | SCREW (2) | FLTRXSE |
| 4 | 5120 | PIVOT PIN (black) | FLTRXSE |
| 5 | 6101 | WASHER (black) (2) | FLTRXSE |
| 12 | 38990-10 | MASTER CYLINDER ASSEMBLY, clutch (black), w/ 2590, 5120, 11694, 42145-06, 46322-06 & 46324-06 | FLTRXSE |
| 17 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | FLTRXSE |
| 20 | 46324-06 | MASTER CYLINDER COVER KIT, w/ 2590 & 46322-06 | FLTRXSE |
| 21 | 37200014 | LINE ASSEMBLY, hydraulic-clutch, w/ 11348 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FLTRXSE |
| 2 | 6101 | WASHER (2) | FLTRXSE |
| 6 | 42276-06A | BRAKE LEVER ASSEMBLY, front | FLTRXSE |
| 8 | 42855-06B | COVER KIT, master cylinder (black), w/ 42856-06, 42857-06A & 42858-06A | FLTRXSE |
| 11 | 42858-06A | SCREW (2) | FLTRXSE |
| 14 | 44985-10 | MASTER CYLINDER ASSEMBLY, front-dual (black), w/ 7, 9, 10, 11, 12 & 13 | FLTRXSE |
| 15 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 4706 | SCREW | FLTRXSE |
| 3 | 10869 | CLIP, brakeline | FLTRXSE |
| 10 | 41800190 | BRAKELINE, front, upper, ABS | FLTRXSE |
| 11 | 41800193 | BRAKELINE, front, lower, ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 9276A | BALL BEARING (3) | FLTRXSE |
| 14 | 41810-08B | BRAKE DISC | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 49377-09A | FORK REBUILT KIT | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 38939-09A | RETAINER, clutch line | FLTRXSE |
| 23 | 49725-07A | SPRING, jiffy stand | FLTRXSE |
| 29 | 57781-11 | WIND DEFLECTOR, right | FLTRXSE |
| 57780-11 | WIND DEFLECTOR, left (not shown) | FLTRXSE | |
| 57200001DLH | SIDE COVER, left (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200001DLA | SIDE COVER, left (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200001DLN | SIDE COVER, left (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLH | SIDE COVER, right (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLA | SIDE COVER, right (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57200002DLN | SIDE COVER, right (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3148 | SCREW (4) | FLTRXSE |
| 6 | 6702 | WASHER (4) | FLTRXSE |
| 47200139BKO | COVER, right (Candy Cobalt) | FLTRXSE | |
| 47200139CGS | COVER, right (White Gold Pearl) | FLTRXSE | |
| 47200139DGM | COVER, right (Maple Metallic) | FLTRXSE | |
| 47200138BKO | COVER, left (Candy Cobalt) | FLTRXSE | |
| 47200138CGS | COVER, left (White Gold Pearl) | FLTRXSE | |
| 47200138DGM | COVER, left (Maple Metallic) | FLTRXSE | |
| 20 | 12400030 | SPACER, front | FLTRXSE |
| 21 | 12400031 | SPACER, rear | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 762 | NUT CAP | FLTRXSE |
| 2 | 941 | SCREW (2) | FLTRXSE |
| 3 | 3633 | NUT | FLTRXSE |
| 4 | 6441 | WASHER | FLTRXSE |
| 5 | 14628-96 | EMBLEM | FLTRXSE |
| 6 | 51652-97A | BRACKET | FLTRXSE |
| 7 | 51676-97A | KIT, hardware, w/ 4 & 5 | FLTRXSE |
| 8 | 52000042 | SEAT (black/grey) (used w/ Candy Cobalt/Twilight Blue) | FLTRXSE |
| 52000043 | SEAT (brown/gold) (used w/ Maple Metallic/Vivid Black) | FLTRXSE | |
| 52000056 | SEAT (black/gold) (used w/ White Gold Pearl/Starfire Black) | FLTRXSE | |
| 9 | 52400024 | SEAT PILLION, passenger, w/ 1, 2 & 6 (black/grey) (used w/ Candy Cobalt/Twilight Blue) | FLTRXSE |
| 52400025 | SEAT PILLION, passenger, w/ 1, 2 & 6 (brown/gold) (used w/ Maple Metallic/Vivid Black) | FLTRXSE | |
| 52400038 | SEAT PILLION, passenger, w/ 1, 2 & 6 (black/gold) (used w/ White Gold Pearl/Starfire Black) | FLTRXSE | |
| 10 | 52400026 | SEAT STRAP (black/grey) | FLTRXSE |
| 52400027 | SEAT STRAP (brown/gold) | FLTRXSE | |
| 52400036 | SEAT STRAP (black/gold) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW (2) | FLTRXSE |
| 3 | 7038 | LOCKWASHER (2) | FLTRXSE |
| 4 | 7601 | LOCKNUT (2) | FLTRXSE |
| 11 | 50500052 | BRACKET SUPPORT, footboard, rear right | FLTRXSE |
| 12 | 50500051 | BRACKET SUPPORT, footboard, rear left | FLTRXSE |
| 13 | 50500055 | MOUNTING BRACKET, front footboard (2) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 11698 | GROMMET | FLTRXSE |
| 13 | 55800171 | HANDLEBAR KIT, w/ 11698 & 11642 (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 71558-96A | HOUSING, lower left | FLTRXSE |
| 16 | 71595-08 | HOUSING, lower right | FLTRXSE |
| 17 | 71564-96 | HOUSING, upper right | FLTRXSE |
| 18 | 71567-96 | HOUSING, upper left | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | FLTRXSE |
| 2 | 7352 | ACORN NUT (2) | FLTRXSE |
| 3 | 12404 | WASHER (2) | FLTRXSE |
| 4 | 92426-08A | MIRROR, right | FLTRXSE |
| 92424-08A | MIRROR, left | FLTRXSE | |
| 5 | 8196 | ACORN NUT (HDI) | FLTRXSE |
| 6 | 91982-03B | MIRROR, right (HDI) | FLTRXSE |
| 91983-03B | MIRROR, left (HDI) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 55936-09A | HANDGRIP ASSEMBLY, right, w/ 56162-09 | FLTRXSE |
| 4 | 55944-09A | HANDGRIP ASSEMBLY, left, w/ 56162-09 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 57000212DLA | OUTER FAIRING (Candy Cobalt/Twilight Blue) **RESTRICTED SALES PART** | FLTRXSE | |
| 57000212DLH | OUTER FAIRING (Maple Metallic/Vivid Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 57000212DLN | OUTER FAIRING (White Gold Pearl/Starfire Black) **RESTRICTED SALES PART** | FLTRXSE | |
| 32 | 14100228 | MEDALLION | FLTRXSE |
| 33 | 57400106 | WINDSHIELD KIT, w/ 1, 5, 6 & 8 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 57000204DGM | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Maple Metallic) | FLTRXSE | |
| 57000204DLM | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Twilight Blue) | FLTRXSE | |
| 57000204DLO | COVER ASSEMBLY, right storage box, w/ 19 & 24 (Starfire Black) | FLTRXSE | |
| 57000203DGM | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Maple Metallic) | FLTRXSE | |
| 57000203DLM | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Twilight Blue) | FLTRXSE | |
| 57000203DLO | COVER ASSEMBLY, left storage box, w/ 19 & 24 (Starfire Black) | FLTRXSE | |
| 22 | 57000201DGM | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Maple Metallic) | FLTRXSE |
| 57000201DLM | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Twilight Blue) | FLTRXSE | |
| 57000201DLO | INNER FAIRING ASSEMBLY, w/ 1, 8, 12, 14, 17, 18, 21, 23, 38 & 39 (Starfire Black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 88385-11 | LINER, storage box, left (not illustrated) | FLTRXSE | |
| 88386-11 | LINER, storage box, right (not illustrated) | FLTRXSE | |
| 37 | 47200028A | BRACKET, radio carrier | FLTRXSE |
| 42 | 69200281 | BRACKET, amp, w/ 11697 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 57000199BKO | HOUSING, speedometer & tachometer, right (Candy Cobalt) | FLTRXSE | |
| 57000199DGM | HOUSING, speedometer & tachometer, right (Maple Metallic) | FLTRXSE | |
| 57000199DLO | HOUSING, speedometer & tachometer, right (Starfire Black) | FLTRXSE | |
| 14 | 67922-98E | HOUSING, speedometer & tachometer, left, w/ 1 & 19 (prime) | FLTRXSE |
| 57000198BKO | HOUSING, speedometer & tachometer, left (Candy Cobalt) | FLTRXSE | |
| 57000198DGM | HOUSING, speedometer & tachometer, left (Maple Metallic) | FLTRXSE | |
| 57000198DLO | HOUSING, speedometer & tachometer, left (Starfire Black) | FLTRXSE | |
| 57000196BKO | COVER, speedometer & tachometer, w/ 68492-98 (Candy Cobalt) | FLTRXSE | |
| 57000196DGM | COVER, speedometer & tachometer, w/ 68492-98 (Maple Metallic) | FLTRXSE | |
| 57000196DLO | COVER, speedometer & tachometer, w/ 68492-98 (Starfire Black) | FLTRXSE | |
| 21 | 71431-96A | PLUG, switch hole | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 69383-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, left (Domestic) | FLTRXSE |
| 4 | 69407-09A | ENVELOPE TAIL LIGHT/TURN SIGNAL ASSEMBLY, right (Domestic) | FLTRXSE |
| 17 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLTRXSE |
| 18 | 69496-09B | ENVELOPE TURN SIGNAL ASSEMBLY, left (Amber) (Canada, HDI, England, Japan) | FLTRXSE |
| 19 | 69518-09B | ENVELOPE TURN SIGNAL ASSEMBLY, right (Amber) (Canada, HDI, England, Japan) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 69200018 | CONDUIT, self-adhesive, 50ft. | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10102 | CLIP | FLTRXSE |
| 11 | 74102-98BK | HOUSING, 2-way (black) | FLTRXSE |
| 12 | 74142-98 | SECONDARY LOCK, 2-way | FLTRXSE |
| 13 | 74190-98 | TERMINAL, 16-20 AWG | FLTRXSE |
| 15 | 68000034 | LIGHT, w/ 11, 12 & 13 | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 1A | 2225 | SCREW (6) | FLTRXSE |
| 7A | 8146 | NUT CLIP (6) | FLTRXSE |
| 17 | 65328-83A | CLAMP, exhaust manifold (2) | FLTRXSE |
| 30 | 66855-10A | EXHAUST PIPE ASSEMBLY, catalytic (chrome) | FLTRXSE |
| 39 | 64900111 | MUFFLER, left, (chrome) (Domestic, Canada, California) | FLTRXSE |
| 40 | 64900112 | MUFFLER, right, (chrome) (Domestic, Canada, California) | FLTRXSE |
| 64769-09A | MUFFLER ASSEMBLY, right (chrome) (HDI, England, Australia) | FLTRXSE | |
| 64768-09A | MUFFLER ASSEMBLY, left (chrome) (HDI, England, Australia) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 69050-08 | COVER, horn (black) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200274 | WIRING HARNESS, interconnect | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200274 | WIRING HARNESS, interconnect | FLTRXSE | |
| 41 | 73103-96BK | PIN HOUSING, 3-place (black) (2) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 69200273 | MAIN WIRING HARNESS - ABS | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 6A | 66373-06 | BATTERY, 3V, CR2032 | FLTRXSE |
| 20 | 71662-03A | PLATE, ignition switch | FLTRXSE |
| 28 | 14100104 | DECAL, ignition switch knob (Domestic) | FLTRXSE |
| 29 | 45600005 | KNOB, ignition switch, w/ 14100104 (specify key code) (Domestic) | FLTRXSE |
| 90300032 | LOCK SET, complete, w/ 71452-91A keys, ignition knob & saddlebag lock (Domestic) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 36 | 14100104 | DECAL, ignition switch knob (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE |
| 37 | 14100251 | DECAL, ignition switch knob (England & HDI - Late model year) (See Note) | FLTRXSE |
| 38 | 45600005 | KNOB, ignition switch, w/ 14100104 (specify key code) (Australia, Japan) (England & HDI - Early model year) (See Note) | FLTRXSE |
| 39 | 71400073 | SPRING, ignition knob (England & HDI - Late model year) (See Note) | FLTRXSE |
| 90300058 | LOCKSET, complete, w/ 90300043 keys, ignition knob & saddlebag lock (England & HDI - Late model year) (See Note) | FLTRXSE | |
| 40 | 90300043 | KEY, w/ 61081-92 (set of 2) (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE |
| 41 | 90300059 | KNOB, ignition switch, w/ 14100251 (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3387 | SCREW (6) | FLTRXSE |
| 6 | 72167-07BK | HOUSING, 16-way (black) | FLTRXSE |
| 7 | 72169-07 | TERMINAL, 16-20 AWG (13) | FLTRXSE |
| 8 | 72473-07 | SEAL PIN | FLTRXSE |
| 15 | 76000206 | SPEAKER, 5 x 7 in. (2) | FLTRXSE |
| 16 | 77036-11A | TWEETER (2) | FLTRXSE |
| 17 | 76000141 | POWER AMPLIFIER | FLTRXSE |
| 19 | 76000184 | ADAPTER ASSEMBLY, speaker, left | FLTRXSE |
| 76000185 | ADAPTER ASSEMBLY, speaker, right | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 3612 | SCREW (4) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 34 | 53000155BKO | LATCH COVER, saddlebag, right (Candy Cobalt) | FLTRXSE |
| 53000155DGM | LATCH COVER, saddlebag, right (Maple Metallic) | FLTRXSE | |
| 53000155CGS | LATCH COVER, saddlebag, right (White Gold Pearl) | FLTRXSE | |
| 53000156BKO | LATCH COVER, saddlebag, left (Candy Cobalt) | FLTRXSE | |
| 53000156DGM | LATCH COVER, saddlebag, left (Maple Metallic) | FLTRXSE | |
| 53000156CGS | LATCH COVER, saddlebag, left (White Gold Pearl) | FLTRXSE | |
| 35 | 90200580DLA | BOTTOM ASSEMBLY, saddlebag, left (Candy Cobalt/Twilight Blue) | FLTRXSE |
| 90200580DLH | BOTTOM ASSEMBLY, saddlebag, left (Maple Metallic/Vivid Black) | FLTRXSE | |
| 90200580DLN | BOTTOM ASSEMBLY, saddlebag, left (White Gold Pearl/Starfire Black) | FLTRXSE | |
| 90200581DLA | BOTTOM ASSEMBLY, saddlebag, right (Candy Cobalt/Twilight Blue) | FLTRXSE | |
| 90200581DLH | BOTTOM ASSEMBLY, saddlebag, right (Maple Metallic/Vivid Black) | FLTRXSE | |
| 90200581DLN | BOTTOM ASSEMBLY, saddlebag, right (White Gold Pearl/Starfire Black) | FLTRXSE | |
| 90300043 | KEY, w/ 61081-92 (set of 2) (specify key code) (England & HDI - Late model year) (See Note) | FLTRXSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 14000377 | AIR CLEANER WARNING LABEL (chrome) (Domestic, California) | FLTRXSE |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10074 | |
| 10102 | |
| 10120 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10181 | |
| 10198 | |
| 10200012 | |
| 10336 | |
| 10340A | |
| 10354 | |
| 10368A | |
| 1039 | |
| 10394 | |
| 10396 | |
| 1062 | |
| 10869 | |
| 1090A | |
| 10925 | |
| 1095M | |
| 10991A | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11100011 | |
| 11100020 | |
| 11100024 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11270 | |
| 11289A | |
| 11290 | |
| 11292 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11321 | |
| 11323 | |
| 11348 | |
| 11364 | |
| 11389 | |
| 11461 | |
| 11468 | |
| 11575 | |
| 11599 | |
| 11642 | |
| 11650 | |
| 11663 | |
| 11686 | |
| 11692 | |
| 11694 | |
| 11697 | |
| 11698 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900004 | |
| 11902 | |
| 11904 | |
| 11907 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100001 | |
| 12102 | |
| 12400030 | |
| 12400031 | |
| 12404 | |
| 12600003 | |
| 12700047 | |
| 13334-04 | |
| 14000377 | |
| 14100104 | |
| 14100116 | |
| 14100118 | |
| 14100164 | |
| 14100216 | |
| 14100217 | |
| 14100228 | |
| 14100251 | |
| 14148-86 | |
| 14272-06 | |
| 14628-96 | |
| 14900001 | |
| 15342-06A | |
| 15368-01A | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16321-08 | |
| 16325-10 | |
| 16478-85A | |
| 16480-92A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16801-07B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17257-07A | |
| 17285-07A | |
| 17293-08A | |
| 17349-07B | |
| 17350-07B | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17594-99 | |
| 17611-83 | |
| 17707-11 | |
| 17709-11 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18048-98A | |
| 18067-09 | |
| 18153-05 | |
| 18154-05 | |
| 18155-05 | |
| 18156-05 | |
| 18157-05 | |
| 18158-05 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 19792-12 | |
| 21951-11 | |
| 21953-11 | |
| 22000001 | |
| 22000003 | |
| 22097-99 | |
| 221 | |
| 22100001 | |
| 2225 | |
| 2228 | |
| 22307-99 | |
| 2260 | |
| 23729-07B | |
| 24004-03A | |
| 24009-06 | |
| 24605-07 | |
| 24754-75A | |
| 24758-07A | |
| 2479 | |
| 2484 | |
| 25244-99A | |
| 2524B | |
| 25355-06A | |
| 25566-06 | |
| 25585-06 | |
| 2559 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2590 | |
| 26037-06 | |
| 26041-05A | |
| 26077-99A | |
| 26210-99 | |
| 2625 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26400-82B | |
| 2647B | |
| 26500002 | |
| 2665 | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27200002 | |
| 27268-04 | |
| 27291-09 | |
| 27297-09 | |
| 27298-09 | |
| 27433-08 | |
| 27439-09 | |
| 27440-09 | |
| 27444-00Y | |
| 27609-01B | |
| 27711-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 27948-08 | |
| 28733-10 | |
| 28861-07A | |
| 28887-09 | |
| 2934 | |
| 29395-08A | |
| 29400011 | |
| 29400061 | |
| 29465-08 | |
| 29517-07A | |
| 2952A | |
| 2955 | |
| 2960 | |
| 29702-08A | |
| 29739-08 | |
| 29780-08A | |
| 2980 | |
| 29826-08A | |
| 29830-05A | |
| 2995 | |
| 29987-06B | |
| 30041-08 | |
| 3022A | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3148 | |
| 3152 | |
| 31586-07 | |
| 31595-09 | |
| 31604-06 | |
| 31619-06A | |
| 31633-07A | |
| 3165 | |
| 31696-07A | |
| 32013-09A | |
| 32014-09A | |
| 32306-08 | |
| 32310-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3249 | |
| 3256 | |
| 32586-07 | |
| 3267 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33166-10 | |
| 3331 | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33760-09 | |
| 33849-97 | |
| 3387 | |
| 33890-99A | |
| 33899-08 | |
| 33926-06B | |
| 33960-09 | |
| 33961-09 | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08B | |
| 34469-06B | |
| 34532-00B | |
| 34568-00B | |
| 3462 | |
| 34719-07B | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35249-06A | |
| 35259-06 | |
| 35260-06A | |
| 3536 | |
| 3537 | |
| 35467-06B | |
| 35470-10 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3592A | |
| 3593 | |
| 3594 | |
| 3595 | |
| 3605 | |
| 3607 | |
| 3612 | |
| 3622 | |
| 3633 | |
| 3634 | |
| 3655A | |
| 3656 | |
| 3658 | |
| 36731-91 | |
| 3676 | |
| 36805-06 | |
| 36819-07 | |
| 36822-04 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37101-84B | |
| 37195-11 | |
| 37198-11 | |
| 37200-11A | |
| 37200014 | |
| 3732 | |
| 3736A | |
| 37496-90A | |
| 37554-11 | |
| 37807-03 | |
| 37817-11 | |
| 3787 | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 3892 | |
| 38938-09 | |
| 38939-09A | |
| 38969-10 | |
| 38990-10 | |
| 38997-10 | |
| 3929 | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40024-09 | |
| 40037-07 | |
| 40100009 | |
| 40217-09 | |
| 40225-10 | |
| 40278-09 | |
| 40323-00 | |
| 4032A | |
| 40603-08 | |
| 40610-09 | |
| 40611-09 | |
| 40614-08 | |
| 40615-08 | |
| 40628-08 | |
| 40649-08 | |
| 40659-06 | |
| 40786-08 | |
| 41056-09 | |
| 41139-02 | |
| 41148-98 | |
| 4132 | |
| 41349-07 | |
| 41500002 | |
| 41500004 | |
| 41547-07A | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800190 | |
| 41800193 | |
| 41810-08B | |
| 41819-02 | |
| 41852-08A | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 4196 | |
| 42010-06A | |
| 42054-05 | |
| 42105-06A | |
| 42145-06 | |
| 42276-06A | |
| 42300001 | |
| 4240 | |
| 42460-80B | |
| 42638-08A | |
| 42642-00A | |
| 42644-00 | |
| 4266A | |
| 42684-09 | |
| 42733-09 | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06B | |
| 42856-06 | |
| 42857-06A | |
| 42858-06A | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4292 | |
| 42932-08 | |
| 42933-08A | |
| 42934-08 | |
| 4312C | |
| 4313 | |
| 43157-83A | |
| 43475-08 | |
| 43567-92 | |
| 43817-02 | |
| 4400 | |
| 44006-09 | |
| 44080-08B | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44583-08 | |
| 44613-02 | |
| 44935-06 | |
| 44985-10 | |
| 45041-01A | |
| 45138-08A | |
| 45279-00 | |
| 45419-80 | |
| 45423-10 | |
| 45435-10 | |
| 45442-86 | |
| 45446-09 | |
| 45591-02 | |
| 45600005 | |
| 45600015DLM | |
| 45600015DLO | |
| 45718-60 | |
| 45727-08 | |
| 45733-48 | |
| 45803-97 | |
| 45838-77 | |
| 45858-77 | |
| 45893-99 | |
| 45933-86 | |
| 45964-10 | |
| 45972-09 | |
| 4597M | |
| 45998-73 | |
| 4612 | |
| 46209-06 | |
| 46322-06 | |
| 46324-06 | |
| 46368-10 | |
| 46369-10 | |
| 46422-09 | |
| 46459-08A | |
| 46463-08 | |
| 46473-00B | |
| 46474-00C | |
| 46658-07 | |
| 4688 | |
| 4705 | |
| 4706 | |
| 47159-09BHP | |
| 4718A | |
| 47200028A | |
| 47200138BKO | |
| 47200138CGS | |
| 47200138DGM | |
| 47200139BKO | |
| 47200139CGS | |
| 47200139DGM | |
| 4721 | |
| 4740A | |
| 4741A | |
| 47449-09 | |
| 47460-09BHP | |
| 47502-09BDK | |
| 47504-09BDK | |
| 47540-11 | |
| 47549-09 | |
| 47584-09 | |
| 4768 | |
| 4775 | |
| 47900-11BHP | |
| 48079-09BHP | |
| 4808 | |
| 4813A | |
| 4826 | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48343-09 | |
| 48361-80 | |
| 48365-48A | |
| 4838 | |
| 48419-04 | |
| 48420-04 | |
| 48487-02 | |
| 48489-02 | |
| 4855 | |
| 4856 | |
| 4868 | |
| 48787-09 | |
| 48789-09 | |
| 48790-09 | |
| 4890 | |
| 49015-04A | |
| 49036-04A | |
| 49184-09 | |
| 49206-09A | |
| 49207-09A | |
| 4924 | |
| 49377-09A | |
| 49725-07A | |
| 50015-74A | |
| 50075-07 | |
| 50096-09 | |
| 50126-08A | |
| 50245-07 | |
| 50351-03 | |
| 50500051 | |
| 50500052 | |
| 50500055 | |
| 50588-09A | |
| 50635-82A | |
| 50683-04 | |
| 50688-04 | |
| 50784-97 | |
| 50912-72 | |
| 50972-75 | |
| 5120 | |
| 51453-09 | |
| 51459-09 | |
| 51498-09A | |
| 51499-09A | |
| 515 | |
| 51652-97A | |
| 51676-97A | |
| 52000042 | |
| 52000043 | |
| 52000056 | |
| 5207 | |
| 5233 | |
| 52400024 | |
| 52400025 | |
| 52400026 | |
| 52400027 | |
| 52400036 | |
| 52400038 | |
| 53000155BKO | |
| 53000155CGS | |
| 53000155DGM | |
| 53000156BKO | |
| 53000156CGS | |
| 53000156DGM | |
| 53314-06 | |
| 53436-97 | |
| 53482-93 | |
| 53483-93 | |
| 53567-93 | |
| 53710-93 | |
| 5416 | |
| 54321-85 | |
| 54674-10 | |
| 54675-10 | |
| 54677-10 | |
| 55055-11 | |
| 55070-11 | |
| 55800171 | |
| 55918-08 | |
| 55928-08 | |
| 55936-09A | |
| 55944-09A | |
| 56073-83 | |
| 56149-88B | |
| 56151-88B | |
| 56159-73 | |
| 56161-83A | |
| 56162-09 | |
| 56163-93 | |
| 57000196BKO | |
| 57000196DGM | |
| 57000196DLO | |
| 57000198BKO | |
| 57000198DGM | |
| 57000198DLO | |
| 57000199BKO | |
| 57000199DGM | |
| 57000199DLO | |
| 57000201DGM | |
| 57000201DLM | |
| 57000201DLO | |
| 57000203DGM | |
| 57000203DLM | |
| 57000203DLO | |
| 57000204DGM | |
| 57000204DLM | |
| 57000204DLO | |
| 57000212DLA | |
| 57000212DLH | |
| 57000212DLN | |
| 57200001DLA | |
| 57200001DLH | |
| 57200001DLN | |
| 57200002DLA | |
| 57200002DLH | |
| 57200002DLN | |
| 57217-02 | |
| 57300010BKO | |
| 57300010CGS | |
| 57300010DGM | |
| 57400106 | |
| 57637-09 | |
| 57780-11 | |
| 57781-11 | |
| 5817 | |
| 5826 | |
| 5837A | |
| 58454-10 | |
| 58459-98 | |
| 58460-10 | |
| 58487-04 | |
| 58530-10 | |
| 58727-98B | |
| 58728-98B | |
| 58733-98B | |
| 58888-98A | |
| 58900004DLA | |
| 58900004DLH | |
| 58900004DLN | |
| 59166-80 | |
| 59174-99 | |
| 59259-90 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59359-06 | |
| 59481-00 | |
| 59482-00 | |
| 59500086BKO | |
| 59500086CGS | |
| 59500086DGM | |
| 59500087BKO | |
| 59500087CGS | |
| 59500087DGM | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59818-09 | |
| 59840-09 | |
| 601 | |
| 6012 | |
| 6019 | |
| 60328-98B | |
| 60386-09 | |
| 60432-07A | |
| 60463-09A | |
| 60465-09 | |
| 60472-09A | |
| 6054 | |
| 60614-09 | |
| 60678-85 | |
| 60709-07A | |
| 608 | |
| 60818-07 | |
| 60819-10 | |
| 60886-11 | |
| 60915-09 | |
| 60916-09 | |
| 60919-09 | |
| 60920-09 | |
| 60921-09 | |
| 60922-09 | |
| 60934-10 | |
| 61000006DLA | |
| 61000006DLH | |
| 61000006DLN | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 61100004 | |
| 61100005 | |
| 61208-10 | |
| 61213-04A | |
| 61268-08 | |
| 6127 | |
| 61300001 | |
| 61300002 | |
| 61300039 | |
| 61300043 | |
| 61300110 | |
| 61402-08 | |
| 61418-12BKO | |
| 61418-12DGM | |
| 61418-12DLO | |
| 6150W | |
| 6220W | |
| 62228-08A | |
| 62229-08A | |
| 6229W | |
| 62372-09 | |
| 62489-99A | |
| 62629-11 | |
| 62641-11 | |
| 62693-07A | |
| 62775-08 | |
| 62905-08 | |
| 62908-08 | |
| 6294 | |
| 63028-06 | |
| 63038-06 | |
| 63059-09 | |
| 63066-07 | |
| 63083-11 | |
| 63084-07 | |
| 63121-11 | |
| 6333 | |
| 6334 | |
| 63533-41A | |
| 63798-99A | |
| 6421 | |
| 64255-98 | |
| 6441 | |
| 64768-09A | |
| 64769-09A | |
| 64900111 | |
| 64900112 | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 6557 | |
| 65586-11 | |
| 65587-11 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65724-85 | |
| 65748-09 | |
| 6594 | |
| 65949-09 | |
| 65951-09 | |
| 65952-09 | |
| 66010-97C | |
| 66047-05 | |
| 66048-09 | |
| 66051-08 | |
| 66055-09 | |
| 66069-10 | |
| 66078-06 | |
| 66200-09 | |
| 66219-06 | |
| 66220-06 | |
| 66250-09 | |
| 66281-09B | |
| 66290-06 | |
| 66373-06 | |
| 66813-09 | |
| 66855-10A | |
| 66858-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67043-96 | |
| 6716 | |
| 67352-96A | |
| 67356-00 | |
| 67454-04 | |
| 67493-08 | |
| 6762B | |
| 67689-04 | |
| 67775-10 | |
| 67854-98 | |
| 67875-11 | |
| 67880-94 | |
| 67900096BKO | |
| 67900096CGS | |
| 67900096DGM | |
| 67922-98E | |
| 67923-98B | |
| 67959-10 | |
| 67965-11 | |
| 67978-98 | |
| 67979-98 | |
| 67980-10 | |
| 67981-98A | |
| 68000034 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68083-10 | |
| 68120-00 | |
| 68142-04 | |
| 68163-84 | |
| 68167-04 | |
| 68296-99A | |
| 68329-03 | |
| 68382-07A | |
| 68446-00 | |
| 68492-98 | |
| 68558-03 | |
| 68789-96A | |
| 68830-99A | |
| 68904-00 | |
| 68922-07 | |
| 68924-07 | |
| 68926-07 | |
| 68933-04 | |
| 68939-00 | |
| 68956-07 | |
| 68958-07C | |
| 68973-00 | |
| 68996-10 | |
| 69050-08 | |
| 69060-90F | |
| 69062-91A | |
| 69123-92A | |
| 69187-03A | |
| 69199-04 | |
| 69200018 | |
| 69200096 | |
| 69200273 | |
| 69200274 | |
| 69200281 | |
| 69241-08 | |
| 69272-05 | |
| 69274-10 | |
| 69283-04 | |
| 69309-10 | |
| 69318-02 | |
| 69325-02 | |
| 69331-02 | |
| 69383-09A | |
| 69407-09A | |
| 69435-09 | |
| 69496-09B | |
| 69518-09B | |
| 69550-04 | |
| 6982 | |
| 69987-09 | |
| 70142-94 | |
| 70267-09 | |
| 70338-09 | |
| 70344-09 | |
| 70348-09 | |
| 70372-96 | |
| 70375-96 | |
| 70377-09 | |
| 7038 | |
| 70385-01 | |
| 7039 | |
| 703B | |
| 7041 | |
| 70450-09 | |
| 70494-08 | |
| 70578-89 | |
| 70585-93 | |
| 70598-99 | |
| 70617-07 | |
| 70631-08 | |
| 70674-08 | |
| 7068 | |
| 70681-09 | |
| 70731-10 | |
| 70732-10 | |
| 70733-10 | |
| 70900040 | |
| 70901-09 | |
| 70909-95 | |
| 70980-09 | |
| 70981-09 | |
| 70999-09 | |
| 71031-04 | |
| 7129 | |
| 71294-08 | |
| 71400073 | |
| 71431-96A | |
| 71434-96A | |
| 71452-91A | |
| 71459-03 | |
| 71530-03B | |
| 7155 | |
| 71558-96A | |
| 71564-96 | |
| 71567-96 | |
| 71572-06 | |
| 71587-04 | |
| 71595-08 | |
| 71621-08 | |
| 71625-04 | |
| 71636-98 | |
| 71637-98 | |
| 71638-03 | |
| 71655-98 | |
| 71660-03 | |
| 71661-03 | |
| 71662-03A | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71699-07 | |
| 71764-07 | |
| 71787-08 | |
| 71788-08 | |
| 71810-08 | |
| 71821-98 | |
| 71822-98 | |
| 71825-96A | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72023-51D | |
| 72056-92 | |
| 72063-06 | |
| 72066-06A | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72102-94BK | |
| 72104-94BK | |
| 72111-06 | |
| 72112-94BK | |
| 72114-94BK | |
| 72115-08 | |
| 72124-94GY | |
| 72130-04 | |
| 72131-04 | |
| 72135-06 | |
| 72139-94GY | |
| 72142-94 | |
| 72144-94 | |
| 72152-94 | |
| 72154-94 | |
| 72155-08 | |
| 72157-08 | |
| 72159-94 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72200-94A | |
| 72203-96 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72207-94 | |
| 72208-94 | |
| 72210-94 | |
| 72213-94 | |
| 72214-94 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72252-01 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72282-09 | |
| 72283-09 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72309-04 | |
| 72314-01 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72355-97 | |
| 72359-05 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72384-06BK | |
| 72397-98 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72416-01 | |
| 72440-08 | |
| 72444-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72491-07GY | |
| 72492-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72547-08 | |
| 72549-07 | |
| 72556-08 | |
| 72557-07 | |
| 72599-10 | |
| 72605-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72620-08 | |
| 72639-10 | |
| 72647-11 | |
| 72648-11 | |
| 72651-11 | |
| 72663-11 | |
| 72670-11 | |
| 72675-11 | |
| 72720-07 | |
| 72721-07 | |
| 728 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73103-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73110-96BK | |
| 73112-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73160-96BK | |
| 73162-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 7326 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 73376-10 | |
| 73377-10 | |
| 7340 | |
| 7352 | |
| 74102-98BK | |
| 74112-98BK | |
| 74115-06 | |
| 74118-98BK | |
| 74142-98 | |
| 74152-98 | |
| 74158-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05A | |
| 74419-96A | |
| 74438-99A | |
| 74622-09 | |
| 7462A | |
| 74727-10 | |
| 74740-10 | |
| 74741-10 | |
| 74742-10 | |
| 74743-10 | |
| 74782-11 | |
| 7495 | |
| 7499 | |
| 7501 | |
| 75015-08 | |
| 75019-08 | |
| 75044-96 | |
| 75076-08A | |
| 75089-08 | |
| 75205-08 | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08 | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 76000141 | |
| 76000184 | |
| 76000185 | |
| 76000206 | |
| 7601 | |
| 7608 | |
| 76160-06 | |
| 762 | |
| 7624 | |
| 76248-86 | |
| 76259-86 | |
| 76335-87 | |
| 76388-08 | |
| 765 | |
| 76555-09 | |
| 7686 | |
| 7688 | |
| 77036-11A | |
| 77092-98 | |
| 7716 | |
| 7748W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 786A | |
| 7880 | |
| 7904 | |
| 791A | |
| 7964 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8196 | |
| 83276-11 | |
| 83935-09A | |
| 83936-09 | |
| 8483A | |
| 856A | |
| 88335-09 | |
| 88336-09 | |
| 88385-11 | |
| 88386-11 | |
| 8873 | |
| 8885 | |
| 895 | |
| 89582-04 | |
| 89584-07 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 90115-04 | |
| 90200002 | |
| 90200398BKO | |
| 90200398CGS | |
| 90200398DGM | |
| 90200399BKO | |
| 90200399CGS | |
| 90200399DGM | |
| 90200580DLA | |
| 90200580DLH | |
| 90200580DLN | |
| 90200581DLA | |
| 90200581DLH | |
| 90200581DLN | |
| 90300032 | |
| 90300043 | |
| 90300058 | |
| 90300059 | |
| 90383-98 | |
| 90400-00A | |
| 90469-94 | |
| 90493-83 | |
| 90520-07 | |
| 90664-93 | |
| 90665-93 | |
| 90675-93A | |
| 90682-93 | |
| 90700-93 | |
| 90756-93 | |
| 90757-93 | |
| 90764-93 | |
| 90820-93D | |
| 90844-80 | |
| 90958-93 | |
| 90962-93 | |
| 90980-09 | |
| 90981-09 | |
| 91140-09 | |
| 91636-09 | |
| 91808-89 | |
| 91812-89A | |
| 91885-97A | |
| 91982-03B | |
| 91983-03B | |
| 9208 | |
| 9215 | |
| 9231 | |
| 924 | |
| 92424-08A | |
| 92426-08A | |
| 9252 | |
| 926 | |
| 9276A | |
| 933 | |
| 940 | |
| 941 | |
| 942 | |
| 94409-03 | |
| 94535-95 | |
| 94634-99 | |
| 9701A | |
| 9819 | |
| 9838 | |
| 9839 | |
| 9847 | |
| 9848 | |
| 9897 | |
| 9898 | |
| 9907 | |
| 9937 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7586 | Unknown |
| 8142 | Unknown |
| 7576 | 1990 |
| 7624 | Unknown |
| 7792 | 2012 |
| 7813A | 2007 |
| 3633 | Unknown |
| 76259-86 | 1986 |
| 7501 | 2010 |
| 7904 | 1998 |
| 67043-96 | 1996 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 8196 | 2007 |
| 11663 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 762 | 1997 |
| 7340 | Unknown |
| 7326 | Unknown |
| 7880 | Unknown |
| 71660-03 | 2003 |
| 7964 | Unknown |
| 90844-80 | 1980 |
| 8020 | 2002 |
| 8108 | Unknown |
| 7608 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3536 | Unknown |
| 4768 | Unknown |
| 4266A | Unknown |
| 1001 | Unknown |
| 2665 | 1971 |
| 5233 | Unknown |
| 2225 | Unknown |
| 3983 | 2005 |
| 2228 | Unknown |
| 3987 | Unknown |
| 42882-06 | 2006 |
| 44613-02 | 2002 |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 3165 | 2010 |
| 3622 | Unknown |
| 4741A | 1994 |
| 1090A | Unknown |
| 3050 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 94409-03 | 2003 |
| 3057 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 2955 | 1996 |
| 2479 | Unknown |
| 2260 | 2010 |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 2484 | 2009 |
| 2559 | 1996 |
| 4313 | Unknown |
| 4597M | Unknown |
| 941 | Unknown |
| 3256 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 4808 | Unknown |
| 940 | Unknown |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 3592A | Unknown |
| 895 | Unknown |
| 4890 | Unknown |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3658 | Unknown |
| 3656 | Unknown |
| 3267 | 1999 |
| 4240 | Unknown |
| 933 | Unknown |
| 2625 | 1971 |
| 3607 | 2009 |
| 43817-02 | 2002 |
| 3605 | 2009 |
| 2960 | 1996 |
| 1095M | Unknown |
| 2952A | 2003 |
| 3331 | 2003 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 3148 | Unknown |
| 3061 | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3594 | 1992 |
| 4856 | Unknown |
| 45838-77 | 1977 |
| 4855 | Unknown |
| 3593 | Unknown |
| 4292 | Unknown |
| 2995 | 2018 |
| 2708A | Unknown |
| 3595 | 1993 |
| 10200012 | 2011 |
| 926 | Unknown |
| 924 | Unknown |
| 68042-99 | 1999 |
| 3152 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 3300 | Unknown |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3387 | Unknown |
| 3563 | 1999 |
| 780 | Unknown |
| 4032A | Unknown |
| 1780 | Unknown |
| 2524B | Unknown |
| 50635-82A | 1982 |
| 3732 | 1998 |
| 4868 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 3676 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 4813A | 1990 |
| 3462 | Unknown |
| 3368 | Unknown |
| 703B | Unknown |
| 3736A | 2005 |
| 4194 | Unknown |
| 4196 | Unknown |
| 42858-06A | 2006 |
| 3892 | Unknown |
| 4192 | 1998 |
| 2590 | 2005 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6441 | Unknown |
| 11891 | Unknown |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 59788-01 | 2001 |
| 6333 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6054 | Unknown |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 7129 | Unknown |
| 6127 | Unknown |
| 6532 | 2000 |
| 45727-08 | 2008 |
| 6421 | 1996 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6762B | Unknown |
| 6229W | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 45279-00 | 2000 |
| 7462A | 2001 |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 7352 | 2010 |
| 54321-85 | 1985 |
| 106A1 - Custom Washers | |
| 6557 | Unknown |
| 108A1 - Hose Clamps | |
| 10354 | Unknown |
| 10198 | Unknown |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 66047-05 | 2005 |
| 10340A | Unknown |
| 9956 | 1972 |
| 9955 | Unknown |
| 10074 | Unknown |
| 109A1 - Studs | |
| 59818-09 | 2009 |
| 66290-06 | 2006 |
| 90400-00A | 2000 |
| 16715-83 | 1983 |
| 45998-73 | 1973 |
| 70909-95 | 1995 |
| 59840-09 | 2009 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 12077 | Unknown |
| 37906-11 | 2011 |
| 57217-02 | 2002 |
| 40628-08 | 2008 |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 72252-01 | 2001 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111E1 - Mounting Tape | |
| 11100011 | 2011 |
| 111F1 - Protective Tape | |
| 60614-09 | 2009 |
| 66055-09 | 2009 |
| 63028-06 | 2006 |
| 11100020 | 2011 |
| 11100024 | 2012 |
| 75015-08 | 2008 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06A | 2006 |
| 119A1 - O-Rings | |
| 10925 | Unknown |
| 11270 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11348 | 2002 |
| 11140 | 1982 |
| 11289A | Unknown |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11364 | 2002 |
| 11900004 | 2011 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11698 | 2011 |
| 11697 | 2011 |
| 40603-08 | 2008 |
| 11692 | Unknown |
| 11650 | 2010 |
| 12100001 | 2011 |
| 121B1 - Press-Fit Plugs | |
| 55928-08 | 2008 |
| 68446-00 | 2000 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 72164-94A | 1994 |
| 90520-07 | 2007 |
| 121C1 - Threaded Plugs | |
| 728 | 1998 |
| 122A1 - Retaining Rings | |
| 72599-10 | 2010 |
| 10120 | 1992 |
| 11694 | 2010 |
| 17945-36B | 1936 |
| 10368A | 2010 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 41139-02 | 2002 |
| 66078-06 | 2006 |
| 11061A | 2008 |
| 11143 | Unknown |
| 10396 | Unknown |
| 10394 | 2010 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 10336 | 2010 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 70385-01 | 2001 |
| 11389 | Unknown |
| 11304 | Unknown |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 11599 | Unknown |
| 12400031 | 2012 |
| 12400030 | 2012 |
| 41900-08 | 2008 |
| 5826 | Unknown |
| 5837A | Unknown |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 12600003 | 2011 |
| 50972-75 | 1975 |
| 64255-98 | 1998 |
| 8041 | Unknown |
| 27711-08 | 2008 |
| 90493-83 | 1983 |
| 58459-98 | 1998 |
| 89584-07 | 2007 |
| 56161-83A | 1983 |
| 71459-03 | 2003 |
| 26041-05A | 2005 |
| 8873 | 1984 |
| 11468 | 2002 |
| 126B1 - Rivets Fasteners | |
| 11779 | 2008 |
| 8483A | Unknown |
| 11642 | Unknown |
| 126C1 - Bolt Covers | |
| 94535-95 | 1995 |
| 127B1 - Generic Mounting Bracket | |
| 51652-97A | 1997 |
| 58460-10 | 2010 |
| 12700047 | 2012 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 14000377 | 2012 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 13334-04 | 2004 |
| 90820-93D | 1993 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 141A1 - Medallion | |
| 14628-96 | 1996 |
| 14100104 | 2012 |
| 14100216 | 2012 |
| 14100116 | 2012 |
| 14100217 | 2012 |
| 14100118 | 2012 |
| 14100164 | 2012 |
| 14100228 | 2012 |
| 68492-98 | 1998 |
| 14100251 | 2012 |
| 42856-06 | 2006 |
| 149A1 - Tool | |
| 14900001 | 2011 |
| 162D1 - Engine Assembly | |
| 19792-12 | 2012 |
| 163B1 - Engine Isolator Mount | |
| 47460-09BHP | 2009 |
| 16207-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16325-10 | 2010 |
| 47159-09BHP | 2009 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7688 | 2000 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 5207 | 1980 |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 17293-08A | 2008 |
| 17257-07A | 2007 |
| 94634-99 | 1999 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 17349-07B | 2011 |
| 17369-06 | 2006 |
| 17350-07B | 2011 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 33899-08 | 2008 |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17285-07A | 2011 |
| 173A1 - Rocker Arm | |
| 17709-11 | 2011 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 36819-07 | 2007 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18158-05 | 2005 |
| 18153-05 | 2005 |
| 18154-05 | 2005 |
| 18067-09 | 2009 |
| 18157-05 | 2005 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18156-05 | 2005 |
| 18189-07 | 2007 |
| 18155-05 | 2005 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 37198-11 | 2011 |
| 17707-11 | 2011 |
| 220A1 - Piston Ring | |
| 21953-11 | 2011 |
| 21951-11 | 2011 |
| 22000001 | 2012 |
| 22000003 | 2012 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100001 | 2012 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03A | 2007 |
| 23729-07B | 2011 |
| 244A1 - Crankcase | |
| 24758-07A | 2011 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 254D1 - Camshaft Support | |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32586-07 | 2007 |
| 257B1 - Clutch Cover | |
| 60709-07A | 2007 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 65324-83B | 2009 |
| 90675-93A | 2000 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 42857-06A | 2006 |
| 34948-08 | 2008 |
| 45733-48 | 1948 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257L1 - Primary Cover | |
| 25585-06 | 2006 |
| 60886-11 | 2011 |
| 60432-07A | 2008 |
| 37200-11A | 2011 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17360-83A | 1983 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34469-06B | 2008 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 36822-04 | 2004 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200002 | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273M1 - Throttle Cable Bracket | |
| 38969-10 | 2010 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 294G1 - Air Cleaner | |
| 27948-08 | 2008 |
| 29395-08A | 2008 |
| 29780-08A | 2008 |
| 29400011 | 2010 |
| 29826-08A | 2008 |
| 28887-09 | 2009 |
| 29739-08 | 2008 |
| 29830-05A | 2005 |
| 29702-08A | 2011 |
| 29400061 | 2011 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08 | 2008 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31619-06A | 2006 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32013-09A | 2011 |
| 32014-09A | 2011 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 40614-08 | 2008 |
| 74727-10 | 2010 |
| 327D1 - Proximity Sensor | |
| 50126-08A | 2008 |
| 74402-05A | 2005 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 74419-96A | 1996 |
| 74742-10 | 2010 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33960-09 | 2009 |
| 33849-97 | 1997 |
| 34532-00B | 2000 |
| 339A1 - Shift Lever | |
| 34568-00B | 2000 |
| 33718-82B | 1982 |
| 33760-09 | 2009 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 33961-09 | 2009 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33166-10 | 2010 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34719-07B | 2007 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 37195-11 | 2011 |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 83936-09 | 2009 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 38997-10 | 2010 |
| 367B1 - Clutch Lever Master Cylinder | |
| 38990-10 | 2010 |
| 44985-10 | 2010 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 45423-10 | 2010 |
| 5120 | 2010 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 37817-11 | 2011 |
| 37554-11 | 2011 |
| 37496-90A | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 372D1 - Clutch Cable | |
| 38938-09 | 2009 |
| 38939-09A | 2009 |
| 372G1 - Clutch Hose | |
| 37200014 | 2012 |
| 400A1 - Drive-Belt | |
| 40024-09 | 2009 |
| 401A1 - Engine Sprocket | |
| 83935-09A | 2012 |
| 40100009 | 2012 |
| 409Z1 - Kit,Rear Wheel | |
| 40225-10 | 2010 |
| 410D1 - Electronic Control Module (ECM) | |
| 34246-08B | 2011 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 68922-07 | 2007 |
| 70617-07 | 2007 |
| 411A1 - ABS Control Unit | |
| 48343-09 | 2009 |
| 40786-08 | 2008 |
| 411A2 - ABS Electrical Control Unit | |
| 40649-08 | 2008 |
| 413A1 - Brake Caliper | |
| 44080-08B | 2009 |
| 44160-00 | 2000 |
| 46368-10 | 2010 |
| 46369-10 | 2010 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42054-05 | 2005 |
| 12102 | Unknown |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41500004 | 2011 |
| 41500002 | 2011 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42642-00A | 2011 |
| 41852-08A | 2009 |
| 44935-06 | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51D | 2004 |
| 44089-08 | 2008 |
| 416B1 - Brake Mounting Bracket | |
| 10869 | 2011 |
| 417A1 - Brake Master Cylinder Assembly | |
| 46463-08 | 2008 |
| 46322-06 | 2006 |
| 417B1 - Brake Master Cylinder | |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 42932-08 | 2008 |
| 46459-08A | 2008 |
| 42933-08A | 2008 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42862-06B | 2010 |
| 42855-06B | 2006 |
| 46324-06 | 2006 |
| 417G1 - Front Brake Lever | |
| 42276-06A | 2006 |
| 42638-08A | 2008 |
| 42105-06A | 2006 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 418B1 - Brake Line | |
| 40610-09 | 2009 |
| 40611-09 | 2009 |
| 41800193 | 2012 |
| 41800190 | 2012 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423K1 - Wheel Weights | |
| 42300001 | 2011 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 41056-09 | 2009 |
| 431A1 - Front Tire | |
| 44006-09 | 2009 |
| 55055-11 | 2011 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 50784-97 | 1997 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 433Z1 - Kit,Front Wheel | |
| 55070-11 | 2011 |
| 454A1 - Front Telescopic Fork | |
| 48790-09 | 2009 |
| 46473-00B | 2007 |
| 47549-09 | 2009 |
| 48789-09 | 2009 |
| 46474-00C | 2007 |
| 454B1 - Springer Fork | |
| 48787-09 | 2009 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 46658-07 | 2007 |
| 49377-09A | 2011 |
| 45964-10 | 2010 |
| 45419-80 | 1980 |
| 45442-86 | 1986 |
| 45972-09 | 2009 |
| 45933-86 | 1986 |
| 46209-06 | 2006 |
| 456A1 - Fork Protector | |
| 45591-02 | 2002 |
| 45600015DLM | 2012 |
| 45600015DLO | 2012 |
| 456C1 - Fork Lock | |
| 45600005 | 2012 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 48333-80 | 1980 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 45435-10 | 2010 |
| 45446-09 | 2009 |
| 470A1 - Frame | |
| 47900-11BHP | 2011 |
| 48079-09BHP | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 12404 | 2010 |
| 47502-09BDK | 2009 |
| 47504-09BDK | 2009 |
| 472C1 - Front Fairing Support Bracket | |
| 47200028A | 2012 |
| 58888-98A | 1998 |
| 472C2 - Fairing Lower Support Bracket | |
| 58487-04 | 2004 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 49206-09A | 2010 |
| 49207-09A | 2010 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 91140-09 | 2009 |
| 472E1 - Frame Cover | |
| 47200139BKO | 2012 |
| 47200138DGM | 2012 |
| 47200139CGS | 2012 |
| 47200138CGS | 2012 |
| 47200138BKO | 2012 |
| 47200139DGM | 2012 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49184-09 | 2009 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50075-07 | 2007 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50500051 | 2012 |
| 50688-04 | 2004 |
| 51498-09A | 2009 |
| 50683-04 | 2004 |
| 51499-09A | 2009 |
| 505B1 - Footpeg Mount Bracket | |
| 49036-04A | 2004 |
| 51453-09 | 2009 |
| 50500055 | 2012 |
| 50500052 | 2012 |
| 50588-09A | 2009 |
| 50351-03 | 2009 |
| 49015-04A | 2004 |
| 505H1 - Footpeg Insert | |
| 51459-09 | 2009 |
| 506A1 - Brake Pedal | |
| 50912-72 | 1972 |
| 42733-09 | 2009 |
| 42684-09 | 2009 |
| 520A1 - Rider Seat or Full Seat | |
| 52000056 | 2012 |
| 52000043 | 2012 |
| 52000042 | 2012 |
| 51676-97A | 1997 |
| 521C1 - Seat Suspension Damper | |
| 46422-09 | 2009 |
| 524A1 - Passenger Grab Handle | |
| 52400036 | 2012 |
| 52400027 | 2012 |
| 52400026 | 2012 |
| 524B1 - Passenger Seat | |
| 52400038 | 2012 |
| 52400025 | 2012 |
| 52400024 | 2012 |
| 530C2 - Case Latch | |
| 53000155CGS | 2012 |
| 53000156DGM | 2012 |
| 53000156BKO | 2012 |
| 90665-93 | 1993 |
| 53000155BKO | 2012 |
| 90682-93 | 1993 |
| 53000155DGM | 2012 |
| 90981-09 | 2009 |
| 53000156CGS | 2012 |
| 90980-09 | 2009 |
| 540B1 - Rear Shock | |
| 54675-10 | 2010 |
| 54674-10 | 2010 |
| 540E1 - Rear Shock sub-component | |
| 54677-10 | 2010 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 55800171 | 2012 |
| 559D1 - Lower Handlebar Clamp | |
| 56151-88B | 1988 |
| 56149-88B | 1988 |
| 560A1 - Mirror | |
| 92424-08A | 2011 |
| 92426-08A | 2011 |
| 91983-03B | 2003 |
| 91982-03B | 2003 |
| 561F1 - Grip Kit | |
| 32310-08 | 2008 |
| 55936-09A | 2012 |
| 55944-09A | 2012 |
| 570A1 - Front Fairing | |
| 58530-10 | 2010 |
| 57000212DLH | 2012 |
| 57000212DLA | 2012 |
| 57000212DLN | 2012 |
| 58733-98B | 1998 |
| 570B1 - Handlebar Wind Deflector | |
| 57781-11 | 2011 |
| 57780-11 | 2011 |
| 570C1 - Inner Fairing | |
| 57000196DGM | 2012 |
| 57000199DLO | 2012 |
| 57000196DLO | 2012 |
| 57000203DLM | 2012 |
| 57000203DLO | 2012 |
| 57000198DGM | 2012 |
| 57000204DGM | 2012 |
| 57000204DLO | 2012 |
| 57000204DLM | 2012 |
| 57000199BKO | 2012 |
| 57000196BKO | 2012 |
| 57000198DLO | 2012 |
| 57000198BKO | 2012 |
| 57000203DGM | 2012 |
| 57000201DGM | 2012 |
| 57000199DGM | 2012 |
| 57000201DLM | 2012 |
| 57000201DLO | 2012 |
| 571B1 - Fairing Lower sub-component | |
| 58454-10 | 2010 |
| 58727-98B | 1998 |
| 58728-98B | 1998 |
| 572E1 - Side Cover | |
| 57200001DLA | 2012 |
| 57200001DLH | 2012 |
| 57200002DLN | 2012 |
| 57200002DLA | 2012 |
| 57200002DLH | 2012 |
| 57200001DLN | 2012 |
| 32306-08 | 2008 |
| 66048-09 | 2009 |
| 66250-09 | 2009 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57300010CGS | 2012 |
| 57300010DGM | 2012 |
| 4706 | Unknown |
| 57300010BKO | 2012 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 57400106 | 2012 |
| 589A1 - Front Fender | |
| 58900004DLN | 2012 |
| 58900004DLH | 2012 |
| 58900004DLA | 2012 |
| 60819-10 | 2010 |
| 595A1 - Tailsection | |
| 60465-09 | 2009 |
| 595D1 - Rear Fender | |
| 59500086CGS | 2012 |
| 59500087DGM | 2012 |
| 59500086BKO | 2012 |
| 59500087CGS | 2012 |
| 60463-09A | 2009 |
| 59500086DGM | 2012 |
| 59500087BKO | 2012 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 60472-09A | 2009 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 27433-08 | 2008 |
| 608B1 - Carbon Canister Hose | |
| 27297-09 | 2009 |
| 27291-09 | 2009 |
| 27439-09 | 2009 |
| 27298-09 | 2009 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 75291-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000006DLH | 2012 |
| 61000006DLA | 2012 |
| 61000006DLN | 2012 |
| 61268-08 | 2008 |
| 611B1 - Fuel Cap | |
| 61100004 | 2011 |
| 61100005 | 2011 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09 | 2009 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 62229-08A | 2008 |
| 612B1 - Fuel Level Sensor | |
| 75205-08 | 2008 |
| 74741-10 | 2010 |
| 74782-11 | 2011 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 62905-08 | 2008 |
| 61208-10 | 2010 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 612K1 - Fuel Pump sub-component | |
| 75076-08A | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 61300001 | 2011 |
| 61300002 | 2011 |
| 613B2 - Battery Cover | |
| 61300039 | 2011 |
| 61300043 | 2011 |
| 613J1 - Throttle Body Cover | |
| 61300110 | 2012 |
| 613L1 - Airbox Cover sub-component | |
| 28733-10 | 2010 |
| 614A1 - Headlight Bezel | |
| 69987-09 | 2009 |
| 614C1 - Trim | |
| 43475-08 | 2008 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627A1 - Oil Cooler | |
| 63083-11 | 2011 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627D1 - Oil Duct Cover | |
| 63121-11 | 2011 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62693-07A | 2007 |
| 37065-06 | 2006 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 62641-11 | 2011 |
| 62629-11 | 2011 |
| 627K1 - Oil Line Fitting | |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08A | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63059-09 | 2009 |
| 648K1 - Exhaust Miscellaneous Component | |
| 66855-10A | 2011 |
| 65586-11 | 2011 |
| 65587-11 | 2011 |
| 649A1 - Muffler | |
| 65748-09 | 2009 |
| 64900111 | 2012 |
| 64900112 | 2012 |
| 65949-09 | 2009 |
| 64769-09A | 2011 |
| 64768-09A | 2011 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 56162-09 | 2009 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 66220-06 | 2006 |
| 65951-09 | 2009 |
| 66219-06 | 2006 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 66858-09 | 2009 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66281-09B | 2009 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 70377-09 | 2009 |
| 670A1 - Tachometer | |
| 74740-10 | 2010 |
| 67356-00 | 2000 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67775-10 | 2010 |
| 73377-10 | 2010 |
| 69325-02 | 2002 |
| 67980-10 | 2010 |
| 67959-10 | 2010 |
| 68996-10 | 2010 |
| 67981-98A | 1998 |
| 73376-10 | 2010 |
| 677B1 - Headlight sub-component | |
| 67978-98 | 1998 |
| 67979-98 | 1998 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 678B1 - Taillight Housing | |
| 60934-10 | 2010 |
| 678D1 - Turnsignal | |
| 69199-04 | 2004 |
| 69407-09A | 2011 |
| 69383-09A | 2011 |
| 69435-09 | 2009 |
| 69272-05 | 2005 |
| 69283-04 | 2004 |
| 68933-04 | 2004 |
| 69550-04 | 2004 |
| 69518-09B | 2011 |
| 69496-09B | 2011 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 679A1 - License Plate Tray / Holder | |
| 60922-09 | 2009 |
| 57637-09 | 2009 |
| 679B1 - Reflector | |
| 59359-06 | 2006 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 60921-09 | 2009 |
| 60915-09 | 2009 |
| 60916-09 | 2009 |
| 60919-09 | 2009 |
| 679E1 - License Plate Light | |
| 67900096DGM | 2012 |
| 67900096BKO | 2012 |
| 60920-09 | 2009 |
| 67900096CGS | 2012 |
| 680A1 - Decorative Light | |
| 68000034 | 2012 |
| 68083-10 | 2010 |
| 680C1 - Incandescent Bulb | |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 69274-10 | 2010 |
| 692C1 - Electrical Miscellaneous Component | |
| 72547-08 | 2008 |
| 72648-11 | 2011 |
| 91808-89 | 1989 |
| 72232-96 | 1996 |
| 72670-11 | 2011 |
| 74115-06 | 2006 |
| 83276-11 | 2011 |
| 72647-11 | 2011 |
| 70348-09 | 2009 |
| 70981-09 | 2009 |
| 90469-94 | 1994 |
| 68789-96A | 1996 |
| 70344-09 | 2009 |
| 68382-07A | 2010 |
| 72651-11 | 2011 |
| 91812-89A | 1989 |
| 72189-04 | 2004 |
| 70980-09 | 2009 |
| 11904 | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 27268-04 | 2004 |
| 66200-09 | 2009 |
| 69200281 | 2012 |
| 71431-96A | 1996 |
| 69123-92A | 1992 |
| 67923-98B | 1998 |
| 67689-04 | 2004 |
| 67922-98E | 1998 |
| 69060-90F | 2010 |
| 67352-96A | 1996 |
| 69050-08 | 2008 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31595-09 | 2009 |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 692E2 - Fuse / Relay Block Cover | |
| 72675-11 | 2011 |
| 72620-08 | 2008 |
| 692F1 - Wire Harness | |
| 70142-94 | 1994 |
| 69200096 | 2011 |
| 69200273 | 2012 |
| 69200274 | 2012 |
| 76248-86 | 1986 |
| 70450-09 | 2009 |
| 70338-09 | 2009 |
| 72152-94 | 1994 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 69200018 | 2010 |
| 692H1 - Connector | |
| 75044-96 | 1996 |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 72206-94 | 1994 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72384-06BK | 2006 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72124-94GY | 1994 |
| 72416-01 | 2001 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72444-07GY | 2007 |
| 72102-94BK | 1994 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72155-08 | 2008 |
| 72131-04 | 2004 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 73198-96 | 1996 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72639-10 | 2010 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72286-04 | 2004 |
| 72364-06 | 2006 |
| 72272-07 | 2007 |
| 72549-07 | 2007 |
| 72400-99 | 1999 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72210-94 | 1994 |
| 72115-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72381-98 | 1998 |
| 72663-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72355-97 | 1997 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 9839 | 1996 |
| 73307-10 | 2010 |
| 72495-08 | 2008 |
| 9937 | Unknown |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 72207-94 | 1994 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 68904-00 | 2000 |
| 72142-94 | 1994 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 72112-94BK | 1994 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 72104-94BK | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 73162-96BK | 1996 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 72282-09 | 2009 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 74158-98 | 1998 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 72491-07GY | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72200-94A | 1994 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 9897 | Unknown |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 72479-07BK | 2007 |
| 73112-96BK | 1996 |
| 72557-07 | 2007 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 72397-98 | 1998 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72556-08 | 2008 |
| 72492-07GY | 2007 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 70494-08 | 2008 |
| 72203-96 | 1996 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 73110-96BK | 1996 |
| 73160-96BK | 1996 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72489-07GY | 2007 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73104-96BK | 1996 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 69318-02 | 2002 |
| 72544-07 | 2007 |
| 72079-08 | 2008 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 72440-08 | 2008 |
| 74118-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 72382-98BK | 1998 |
| 709A1 - Dash Panel | |
| 70731-10 | 2010 |
| 70733-10 | 2010 |
| 70732-10 | 2010 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67454-04 | 2004 |
| 67965-11 | 2011 |
| 709B2 - Fuel Gauge | |
| 70900040 | 2011 |
| 63038-06 | 2006 |
| 75019-08 | 2008 |
| 709E1 - Tank Console | |
| 61418-12DLO | 2012 |
| 61418-12BKO | 2012 |
| 61418-12DGM | 2012 |
| 714A1 - Ignition Switch | |
| 71572-06 | 2006 |
| 71400073 | 2012 |
| 71530-03B | 2007 |
| 71662-03A | 2003 |
| 714B1 - Mechanical Switch | |
| 71625-04 | 2004 |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 71764-07 | 2007 |
| 74438-99A | 2010 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 71788-08 | 2008 |
| 71787-08 | 2008 |
| 71825-96A | 1996 |
| 67854-98 | 1998 |
| 71655-98 | 1998 |
| 70375-96 | 1996 |
| 71810-08 | 2008 |
| 71821-98 | 1998 |
| 71587-04 | 2004 |
| 71638-03 | 2003 |
| 71636-98 | 1998 |
| 71558-96A | 1996 |
| 70372-96 | 1996 |
| 71595-08 | 2008 |
| 71637-98 | 1998 |
| 71434-96A | 1996 |
| 71822-98 | 1998 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71661-03 | 2003 |
| 67493-08 | 2008 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71699-07 | 2007 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74743-10 | 2010 |
| 74622-09 | 2009 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76555-09 | 2009 |
| 76335-87 | 1987 |
| 76388-08 | 2008 |
| 760C1 - Audio System Amplifier | |
| 76000141 | 2012 |
| 760C2 - Audio System Speaker | |
| 76000184 | 2012 |
| 76000185 | 2012 |
| 76000206 | 2012 |
| 77036-11A | 2012 |
| 760C3 - Radio Receiver | |
| 76160-06 | 2006 |
| 760D2 - Infotainment Mount sub-component | |
| 77092-98 | 1998 |
| 902A1 - Saddlebag | |
| 90115-04 | 2004 |
| 88335-09 | 2009 |
| 88336-09 | 2009 |
| 902B1 - Saddlebag Cover | |
| 90200398DGM | 2012 |
| 90200398BKO | 2012 |
| 90200399BKO | 2012 |
| 90756-93 | 1993 |
| 90664-93 | 1993 |
| 90200398CGS | 2012 |
| 90200399DGM | 2012 |
| 90200399CGS | 2012 |
| 90757-93 | 1993 |
| 90958-93 | 1993 |
| 902E1 - Saddlebag Bottom | |
| 90200002 | 2011 |
| 90962-93 | 1993 |
| 90200581DLH | 2012 |
| 90200581DLA | 2012 |
| 53482-93 | 1993 |
| 88386-11 | 2011 |
| 90200581DLN | 2012 |
| 47449-09 | 2009 |
| 53567-93 | 1993 |
| 90700-93 | 1993 |
| 66069-10 | 2010 |
| 90764-93 | 1993 |
| 53483-93 | 1993 |
| 88385-11 | 2011 |
| 90200580DLA | 2012 |
| 75089-08 | 2008 |
| 90200580DLH | 2012 |
| 90200580DLN | 2012 |
| 903A1 - Lockset | |
| 90300058 | 2012 |
| 90300059 | 2012 |
| 90300032 | 2012 |
| 53710-93 | 1993 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 68939-00 | 2000 |
| 931A1 - Protective / Storage Cover | |
| 91636-09 | 2009 |
| 933A1 - Soft Storage | |
| 91885-97A | 1997 |
| 940A1 - Owner's Kit | |
| 53314-06 | 2006 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | SPEEDOMETER & TACHOMETER: |
BAGS, LUGGAGE & TRAVEL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90764-93 | CUSHION | SADDLEBAGS (1 OF 2): |
| 90962-93 | WEARPLATE | SADDLEBAGS (2 OF 2): |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | CONSOLE, FUEL TANK: SADDLEBAGS (1 OF 2): |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER & OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : TRANSMISSION BEARINGS & COVERS: |
| 11143 | RING | CLUTCH: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 11150 | RING | SHIFTER, GEAR: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 11292 | O-RING | AIR CLEANER: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 11301 | O-RING | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 11304 | RING | FOOTPEGS: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS & COVERS: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 110™ : |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 25244-99A | GASKET | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | FENDERS, REAR: |
| 2995 | SCREW | FAIRING, INNER (1 OF 2): |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SHIFTER, GEAR: |
| 3368 | SCREW | BELT, CHAINS & SPROCKETS: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER & OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 3592A | SCREW | SADDLEBAGS (1 OF 2): |
| 3595 | SCREW | SADDLEBAGS (1 OF 2): |
| 3655A | SCREW | WHEELS, FRONT: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 3658 | SCREW | FAIRING, INNER (1 OF 2): |
| 36805-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 4132 | SCREW | CLUTCH CONTROL: BRAKE CONTROL, FRONT: |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE CONTROL, REAR: BRAKE LINES, FRONT - ABS: BRAKE LINES & MODULE, REAR - ABS: |
| 43567-92 | SCREW | WHEELS, REAR: |
| 45279-00 | WASHER | FENDERS, FRONT: |
| 45733-48 | OIL SEAL | FORK BRACKETS, FRONT: FORK, FRONT: |
| 45858-77 | SCREW | FORK, FRONT: |
| 4740A | SCREW | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 110™ : |
| 48300-60 | ROLLER BEARING | FORK BRACKETS, FRONT: |
| 5207 | WELL NUT | WINDSHIELD, FAIRING & HEADLAMPS: |
| 59768-97 | FENDER SEAT NUT KIT | FENDERS, REAR: |
| 6054 | WASHER | WINDSHIELD, FAIRING & HEADLAMPS: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6229W | WASHER | SADDLEBAGS (1 OF 2): |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | FORK, FRONT: FRAME & JIFFY STAND (1 OF 2): FRAME & FORK, REAR : WINDSHIELD, FAIRING & HEADLAMPS: |
| 7041 | LOCKWASHER | SHIFTER, GEAR: FORK, FRONT: FRAME & JIFFY STAND (1 OF 2): EXHAUST SYSTEM: |
| 70909-95 | RECEPTACLE | GUARDS, SADDLEBAG: |
| 7462A | WASHER | WINDSHIELD, FAIRING & HEADLAMPS: |
| 7586 | JAM NUT | SADDLEBAGS (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | ALTERNATOR & REGULATOR: FOOTBOARDS: FENDERS, REAR: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9252 | BALL BEARING | WHEELS, FRONT: WHEELS, REAR: |
| 9276A | BALL BEARING | BELT, CHAINS & SPROCKETS: WHEELS, FRONT: WHEELS, REAR: |
| 933 | SCREW | WINDSHIELD, FAIRING & HEADLAMPS: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | PAD & PIN KIT | BRAKE CALIPER, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME & JIFFY STAND (1 OF 2): |
| 50245-07 | BUMPER | FRAME & JIFFY STAND (1 OF 2): |
| 59166-80 | PLATE | FENDERS, FRONT: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 71621-08 | SWITCH ASSEMBLY | SWITCHES, HANDLEBAR: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN, ABS (3 OF 5): |
| 91808-89 | ELEMENT | FAIRING, INNER (2 OF 2): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 110™ : |
| 33709-82A | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH: |
| 37913-98 | PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65296-95A | MUFFLER CLAMP | EXHAUST SYSTEM: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68329-03 | BULB | WINDSHIELD, FAIRING & HEADLAMPS: |
| 68973-00 | LENS | WINDSHIELD, FAIRING & HEADLAMPS: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | ELECTRONIC CONTROL MODULE (ECM) & COIL: |
| 63798-99A | FILTER | CRANKCASE & ENGINE OIL FILTER - TWIN CAM 110™ : |
| 66010-97C | BATTERY | BATTERY: |
| 66373-06 | BATTERY | SWITCHES (1 OF 2): |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES (1 OF 2): |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | STEM ASSEMBLY | WHEELS, FRONT: WHEELS, REAR: |
