GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2012 SOFTAIL MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale within the
United States 5HD=Originally manufactured for sale outside of the
United States 932=Originally manufactured in and for sale only in Brazil market MEG=Originally manufactured in and for sale only in India market | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 and larger) | |
3 | Model | See model table | |
4 | Engine type | 5=Twin Cam 96B™, 1585 cm3 air-cooled, fuel-injected, balanced V=Twin Cam 103B™, 1690 cm3 air-cooled, fuel-injected, balanced | |
5 | Introduction date/calibration | Normal Introduction 1=Domestic 3=California A=Canada C=HDI E=Japan G=Australia J=Brazil L=Asia Pacific N=India | Mid-year or Special Introduction 2, 4=Domestic 5, 6=California B=Canada D=HDI F=Japan H=Australia K=Brazil M=Asia Pacific P=India |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | C=2012 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
BV | FXST Softail® Standard (AUS markets) | JH | FLSTC Shrine |
BW | FLSTC Heritage Softail® Classic | JP | FXS Blackline® |
BX | FLSTF Fat Boy® | JN | FLSTFB Softail® Fat Boy® Lo (CAL,
CAN, DOM, JPN, APC markets) FLSTFB Softail® Fat Boy® Special
(HDI, ENG, BRZ markets) |
JD | FLSTN Softail® Deluxe | ||
JR | FLS Softail® Slim™ |
NOTES
ENGINE ASSEMBLY - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19246-12 | ENGINE ASSEMBLY (Asia-Pacific) | FXS |
| 19259-12 | ENGINE ASSEMBLY (black/chrome) (Asia-Pacific, Japan) | FLSTC, FLSTF, FLSTN | |
| 19877-12 | ENGINE ASSEMBLY (Asia-Pacific, Japan) | FLSTFB | |
| 19245-12 | ENGINE ASSEMBLY (Japan) | FXS | |
| 19649-12 | ENGINE ASSEMBLY (Japan) | FLS | |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
ENGINE ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19809-12 | ENGINE ASSEMBLY | FXS 103 |
| 19811-12 | ENGINE ASSEMBLY | FLSTC 103, FLSTF 103, FLSTN 103 | |
| 19816-12 | ENGINE ASSEMBLY | FLSTFB 103 | |
| 19817-12 | ENGINE ASSEMBLY | FXST | |
| 19818-12 | ENGINE ASSEMBLY | FLS 103 | |
| 19878-12 | ENGINE ASSEMBLY (HDI) | FLS 103 |
CYLINDERS, HEADS, VALVES - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 16465-06 | VALVE GUIDE, intake & exhaust, w/ retaining ring (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 16595-99A | DOWEL PIN, cylinder-to-head (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 16699-06 | SNAP RING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 7 | 16715-83 | STUD, exhaust port (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 8 | 16775-99B | GASKET, cylinder head (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 9 | 16834-99A | STUD, cylinder (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 10 | 17052-99C | GASKET KIT, top end | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17053-99C | GASKET KIT, engine overhaul, w/ 11140 | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 11 | 17180-06A | CYLINDER HEAD, front, w/ guides & seats (silver) | FXS |
| 17181-06 | CYLINDER HEAD, rear, w/ guides & seats (silver) | FXS | |
| 17178-06A | CYLINDER HEAD, front, w/ guides & seats (black) | FLSTC, FLSTF, FLSTFB, FLSTN | |
| 17179-06 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLSTC, FLSTF, FLSTFB, FLSTN | |
| 12 | 17458-07 | CYLINDER/PISTON ASSEMBLY KIT (black) (2) | FLSTC, FLSTF, FLSTFB, FLSTN |
| 17558-08 | CYLINDER/PISTON ASSEMBLY KIT (black) (Domestic) (2) | FXS | |
| 13 | 18011-86 | INSERT, exhaust valve seat (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 14 | 18020-83 | INSERT, intake valve seat (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 18074-05A | INTAKE VALVE (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 16 | 18085-05B | EXHAUST VALVE (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17 | 18094-02A | SEAL KIT, valve | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 18 | 18245-02 | VALVE SPRING (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 19 | 18258-02 | COLLAR, valve spring (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 20 | 18260-02 | RETAINER, valve collar (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 17365-08 | CYLINDER HEAD, front, w/ guides & seats (black) | FLS |
| 17366-08 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLS | |
| 22 | 17558-08 | CYLINDER/PISTON ASSEMBLY KIT (black) (Asia-Pacific, HDI) (2) | FXS |
| 17559-08 | CYLINDER/PISTON ASSEMBLY KIT (black) (Japan) (2) | FLS, FXS | |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
CYLINDERS, HEADS, VALVES - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 2 | 16465-06 | VALVE GUIDE, intake & exhaust, w/ retaining ring (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 5 | 16595-99A | DOWEL PIN, cylinder-to-head (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 6 | 16699-06 | SNAP RING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 7 | 16715-83 | STUD, exhaust port (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 8 | 16787-99A | GASKET, cylinder head (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 9 | 16834-99A | STUD, cylinder (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 10 | 17052-99C | GASKET KIT, top end | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 17053-99C | GASKET KIT, engine overhaul, w/ 11140 | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 11 | 17460-07A | CYLINDER/PISTON ASSEMBLY KIT (black highlighted) (2) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 |
| 21900011 | CYLINDER/PISTON ASSEMBLY KIT (silver) (2) | FXST | |
| 16800003A | CYLINDER/PISTON ASSEMBLY KIT (black non-highlighted) (2) | FLS 103, FXS 103 | |
| 12 | 17729-08 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 |
| 16500023 | CYLINDER HEAD, front, w/ guides & seats (black) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 | |
| 16500024 | CYLINDER HEAD, rear, w/ guides & seats (silver) | FXS 103, FXST | |
| 16500025 | CYLINDER HEAD, front, w/ guides & seats (silver) | FXS 103, FXST | |
| 16500026 | CYLINDER HEAD, front, w/ guides & seats (black) | FLS 103 | |
| 16500027 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLS 103 | |
| 16500034 | CYLINDER HEAD, front, w/ guides & seats (black) (HDI) | FLS 103 | |
| 16500037 | CYLINDER HEAD, rear, w/ guides & seats (black) (HDI) | FLS 103 | |
| 13 | 18011-86 | INSERT, exhaust valve seat (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 14 | 18020-83 | INSERT, intake valve seat (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 15 | 18074-05A | INTAKE VALVE (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 16 | 18085-05B | EXHAUST VALVE (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 17 | 18094-02A | SEAL KIT, valve | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 18 | 18245-02 | VALVE SPRING (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 19 | 18258-02 | COLLAR, valve spring (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 20 | 18260-02 | RETAINER, valve collar (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLS 103 |
| 22 | 72009-05 | HOUSING, 2-way, pin (2) | FLS 103 |
| 23 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLS 103 |
ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 3692A | SCREW (6) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 3 | 3693A | SCREW (10) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 4 | 3736B | SCREW (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 4400 | BOLT (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 4741A | SCREW (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 7 | 6762B | WASHER (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 8 | 11132A | O-RING, push rod cover (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 9 | 11145A | O-RING, push rod cover (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 10 | 11270 | O-RING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 11 | 11293 | O-RING (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 13 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 14 | 17045-99D | GASKET KIT, cam service | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, includes bushings (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, includes bushings (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 18 | 17429-91 | BUSHING, rocker arm (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLSTC, FLSTF, FLSTN |
| 17575-99 | ROCKER COVER (polished) | FLS | |
| 17595-10 | ROCKER COVER (satin chrome) (2) | FLSTFB | |
| 17707-11 | ROCKER COVER (black) (2) | FXS | |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLSTC, FLSTF, FLSTN, FXS |
| 17574-99A | ROCKER HOUSING (polished) | FLS | |
| 17587-10 | ROCKER HOUSING (satin chrome) (2) | FLSTFB | |
| 21 | 17576-99 | LIFTER COVER, front (polished) | FLS |
| 17577-99 | LIFTER COVER, rear (polished) | FLS | |
| 17596-10 | LIFTER COVER, front (satin chrome) | FLSTFB | |
| 17654-10 | LIFTER COVER, rear (satin chrome) | FLSTFB | |
| 17964-99 | LIFTER COVER, front (chrome) | FLSTC, FLSTF, FLSTN, FXS | |
| 17966-99 | LIFTER COVER, rear (chrome) | FLSTC, FLSTF, FLSTN, FXS | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. length (black oxide finish) (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17923-99 | PUSH ROD, intake, 10.418 in. length (plain finish) (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 26 | 17945-36B | CAP, cover spring (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 33 | 26500002 | BREATHER, baffle assembly, w/ gaskets (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 2 | 3692A | SCREW (6) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 3 | 3693A | SCREW (10) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 4 | 3736B | SCREW (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 5 | 4400 | BOLT (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 6 | 4741A | SCREW (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 7 | 6762B | WASHER (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 8 | 11132A | O-RING, push rod cover (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 9 | 11145A | O-RING, push rod cover (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 10 | 11270 | O-RING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 11 | 11293 | O-RING (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 13 | 17025-03A | BREATHER ASSEMBLY, w/ 4400 (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 14 | 17045-99D | GASKET KIT, cam service | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, includes bushings (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, includes bushings (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 18 | 17429-91 | BUSHING, rocker arm (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLSTC 103, FLSTF 103, FLSTN 103 |
| 17575-99 | ROCKER COVER (polished) (2) | FLS 103, FXST | |
| 17595-10 | ROCKER COVER (satin chrome) (2) | FLSTFB 103 | |
| 17707-11 | ROCKER COVER (black) (2) | FXS 103 |
ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 |
| 17574-99A | ROCKER HOUSING (polished) (2) | FLS 103, FXST | |
| 17587-10 | ROCKER HOUSING (satin chrome) (2) | FLSTFB 103 | |
| 21 | 17576-99 | LIFTER COVER, front (polished) | FLS 103, FXST |
| 17577-99 | LIFTER COVER, rear (polished) | FLS 103, FXST | |
| 17596-10 | LIFTER COVER, front (satin chrome) | FLSTFB 103 | |
| 17654-10 | LIFTER COVER, rear (satin chrome) | FLSTFB 103 | |
| 17964-99 | LIFTER COVER, front (chrome) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 | |
| 17966-99 | LIFTER COVER, rear (chrome) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. length (black oxide finish) (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 17923-99 | PUSH ROD, intake, 10.418 in. length (plain finish) (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 26 | 17945-36B | CAP, cover spring (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 29 | 17968-99 | RETAINER, spring cap (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 30 | 18535-99 | PIN, anti-rotation (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 32 | 18635-99B | GASKET, lifter cover (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 33 | 26500002 | BREATHER, baffle assembly, w/ gaskets (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 21949-07 | PISTON RING SET, standard (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 21950-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 21955-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 3 | 21959-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 21960-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.005 in. O.S. (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 21961-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 22131-05 | PISTON PIN (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 23912-07B | FLYWHEEL ASSEMBLY KIT | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 2 | 21918-99 | PISTON RING SET, standard (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21919-99 | PISTON RING SET, 0.005 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 21945-99 | PISTON RING SET, 0.010 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 3 | 21962-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21963-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.005 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 21964-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 5 | 22131-05 | PISTON PIN (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 6 | 23912-07B | FLYWHEEL ASSEMBLY KIT | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
CRANKCASE & ENGINE OIL FILTER - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 765 | PLUG (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 3 | 895 | SCREW (12) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 4 | 8972 | WASHER (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 9215 | NEEDLE BEARING, left side of camshafts (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 11140 | O-RING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 7 | 11273 | O-RING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 8 | 12068 | OIL SEAL | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 9 | 16574-99A | DOWEL PIN (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 10 | 16589-99A | DOWEL PIN (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 11 | 16595-99A | DOWEL PIN (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 12 | 22307-99 | PISTON COOLING JET, w/ 11140 (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 13 | 24004-03B | BEARING KIT, left side w/ 8972, 24605-07 & 35114-02 | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 14 | 24009-06 | SPACER, sprocket shaft | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 24722-07B | SET OF CRANKCASES, w/ bearings, cooling jets & through bolts (black) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 16 | 24603-00 | SPACER (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17 | 24605-07 | BEARING, main (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 18 | 26352-95A | ADAPTOR, oil filter | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 19 | 35114-02 | RETAINING RING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 20 | 63798-99A | OIL FILTER (chrome) | FLSTC, FLSTF, FLSTN |
| 63731-99A | OIL FILTER (black) | FLS, FLSTFB, FXS | |
| 21 | 68042-99 | SCREW (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
CRANKCASE & ENGINE OIL FILTER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 2 | 765 | PLUG (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 3 | 895 | SCREW (12) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 4 | 8972 | WASHER (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 5 | 9215 | NEEDLE BEARING, left side of camshafts (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 6 | 11140 | O-RING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 7 | 11273 | O-RING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 8 | 12068 | OIL SEAL | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 9 | 16574-99A | DOWEL PIN (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 10 | 16589-99A | DOWEL PIN (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 11 | 16595-99A | DOWEL PIN (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 12 | 22307-99 | PISTON COOLING JET, w/ 11140 (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 13 | 24004-03B | BEARING KIT, left side w/ 8972, 24605-07 & 35114-02 | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 14 | 24009-06 | SPACER, sprocket shaft | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 15 | 24722-07B | SET OF CRANKCASES, w/ bearings, cooling jets & through bolts (black) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 16 | 24603-00 | SPACER (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 17 | 24605-07 | BEARING, main (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 18 | 26352-95A | ADAPTOR, oil filter | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 19 | 35114-02 | RETAINING RING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 20 | 63798-99A | OIL FILTER (chrome) | FLSTC 103, FLSTF 103, FLSTN 103 |
| 63731-99A | OIL FILTER (black) | FLS 103, FLSTFB 103, FXS 103, FXST | |
| 21 | 68042-99 | SCREW (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 24724-07B | SET OF CRANKCASES, w/ bearings, cooling jets & through bolts (silver) | FXST |
ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | ALL |
| 2 | 956 | SCREW (6) | ALL |
| 3 | 3110 | BOLT, balancer shift bolt (2) | ALL |
| 4 | 6456 | WASHER, balancer shift bolt (2) | ALL |
| 5 | 8959 | BEARING, shell (2) | ALL |
| 6 | 8992A | BEARING (2) | ALL |
| 7 | 14728-07 | SUPPORT ASSEMBLY, chain guide, includes tensioner pistons | ALL |
| 8 | 14761-00 | GUIDE KIT, chain tensioner, includes lower, front & rear guides | ALL |
| 9 | 14762-00 | CHAIN DRIVE KIT, w/ 14769-00, front & rear sprockets | ALL |
| 10 | 14764-00 | PISTON ASSEMBLY KIT, chain tensioner (2) | ALL |
| 11 | 14769-00 | CHAIN, balancer drive | ALL |
| 12 | 14784-07 | SPACER, .039 in. thick | ALL |
| 13 | 14789-07 | BALANCE SHAFT KIT, w/ 8959, 8992A & balance shaft (2) | ALL |
| 14 | 16583-00A | BUSHING, dowel (2) | ALL |
| 15 | 35240-07 | RETAINING RING, balancer shift bearing (2) | ALL |
| 16 | 45359-00 | SEAL, oil interconnect | ALL |
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 3 | 4740A | SCREW, cam cover (10) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 4740A | SCREW, secondary cam tensioner (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 4 | 4741A | SCREW (10) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 6294 | WASHER | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 8873 | BALL (14) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 8 | 11293 | O-RING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 9 | 11301 | O-RING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 10 | 11461 | RETAINING RING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 11 | 17045-99D | GASKET KIT, cam service | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 12 | 24608-07A | CAMSHAFT, front | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 13 | 24983-00 | SCREEN, oil | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 14 | 25244-99A | GASKET, cam cover | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 16 | 25363-01B | CAM COVER (polished) | FLS |
| 25369-01B | CAM COVER (chrome) | FLSTC, FLSTF, FLSTN, FXS | |
| 25395-10 | CAM COVER (satin chrome) | FLSTFB | |
| 17 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ screws & washers | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 18 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 19 | 25590-07A | CAMSHAFT, rear | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 20 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 21 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 22 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 23 | 25683-06 | CHAIN, secondary cam drive | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 24 | 25675-06 | CHAIN, primary cam drive | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 25 | 25728-06 | SPROCKET, cam drive, 34 T | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 26 | 26037-06 | OIL PUMP ASSEMBLY, w/ body & internal parts | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 27 | 26210-99 | SPRING, relief valve | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 28 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 30 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 31 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 32 | 32543-07 | TIMER COVER (silver) | FLS, FLSTC, FLSTF, FLSTN |
| 32727-00 | TIMER COVER (black) | FLSTFB, FXS | |
| 33 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 34 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 35 | 40323-00 | SPRING, separator | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 36 | 68042-99 | SCREW (5) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 3 | 4740A | SCREW, cam cover (10) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 4740A | SCREW, secondary cam tensioner (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 4 | 4741A | SCREW (10) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 5 | 6294 | WASHER | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 6 | 8873 | BALL (14) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 8 | 11293 | O-RING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 9 | 11301 | O-RING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 10 | 11461 | RETAINING RING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 11 | 17045-99D | GASKET KIT, cam service | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 12 | 24608-07A | CAMSHAFT, front | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 13 | 24983-00 | SCREEN, oil | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 14 | 25244-99A | GASKET, cam cover | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 15 | 25355-06A | CAM SUPPORT PLATE, w/ bypass valve | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 16 | 25363-01B | CAM COVER (polished) | FLS 103 |
| 25367-01B | CAM COVER (silver painted) | FXST | |
| 25369-01B | CAM COVER (chrome) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 | |
| 25395-10 | CAM COVER (satin chrome) | FLSTFB 103 | |
| 17 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ screws & washers | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 18 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 19 | 25590-07A | CAMSHAFT, rear | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™ (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 20 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 22 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 23 | 25683-06 | CHAIN, secondary cam drive | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 24 | 25675-06 | CHAIN, primary cam drive | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 25 | 25728-06 | SPROCKET, cam drive, 34 T | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 26 | 26037-06 | OIL PUMP ASSEMBLY, w/ body & internal parts | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 27 | 26210-99 | SPRING, relief valve | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 28 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 29 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 30 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 31 | 26400-82B | RELIEF VALVE, oil pump | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 32 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 33 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 34 | 40323-00 | SPRING, separator | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 35 | 68042-99 | SCREW (5) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 36 | 25700082 | TIMER COVER (chrome) | FLS 103, FLSTC 103, FLSTF 103, FLSTN 103, FXS 103, FXST |
| 25700083 | TIMER COVER (denim black) | FLSTFB 103 |
ENGINE MOUNTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4729 | BOLT | ALL |
| 2 | 4775 | SCREW (2) | ALL |
| 3 | 6019 | WASHER (2) | ALL |
| 4 | 6516HW | WASHER | ALL |
| 5 | 6530 | WASHER (4) | ALL |
| 6 | 7601 | LOCKNUT (3) | ALL |
| 7 | 7879 | NUT, flange (2) | ALL |
| 8 | 10177 | CABLE STRAP (2) | ALL |
| 9 | 16236-08A | BRACKET, top engine mount | FXS, FXS 103 |
| 10 | 16247-06 | BRACKET, top engine mount | ALL |
| 11 | 24603-00 | SPACER (4) | ALL |
| 12 | 48054-00 | BOLT | ALL |
| 13 | 48093-00 | BOLT | ALL |
| 14 | 48094-00 | SPACER, engine mount (3) | ALL |
| 15 | 69046-06A | BRACKET, top engine mount | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 16 | 16400017 | BRACKET, top engine mount (India only) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 11291 | SEAL, manifold air pressure sensor | ALL |
| 3 | 26993-06 | FLANGE, mounting (2) | ALL |
| 4 | 26995-86B | SEAL, intake manifold (2) | ALL |
| 5 | 27381-06 | INTAKE AIR TEMPERATURE SENSOR KIT, w/ screws | ALL |
| 27708-06B | INDUCTION MODULE ASSEMBLY, complete | ALL | |
| 6 | 27709-06A | FUEL INJECTOR ASSEMBLY (2) | ALL |
| 7 | 27651-06 | FUEL RAIL SERVICE KIT, w/ fuel rail, screws, washers, O-rings & tube | ALL |
| 8 | 27655-06 | INDUCTION MODULE SERVICE KIT, sensor O-rings & screws, injector clips, fuel tube seal retainer & O-rings | ALL |
| 9 | 27658-06 | IAC MOTOR, w/ 2 screws | ALL |
| 10 | 27659-06 | THROTTLE POSITION SENSOR, w/ screws | ALL |
| 11 | 27684-06 | BRACKET, cable | ALL |
| 12 | 32417-10 | SENSOR, manifold air pressure | ALL |
| 13 | 90383-98 | CAP PLUG (2) | ALL |
| 13 | 90383-98 | CAP PLUG (California) (1) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 27300041 | RESTRICTOR PLATE KIT, 25 kw (HDI) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 945 | SCREW (3) | ALL |
| 2 | 28719-10 | COVER, air cleaner, w/ label (black denim) | FLSTFB, FLSTFB 103 |
| 29121-07 | COVER, air cleaner, w/ label (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST | |
| 3 | 29269-83A | SCREW | ALL |
| 4 | 29306-08 | BREATHER TUBE (Domestic) (2) | FLS 103, FXS, FXS 103 |
| 5 | 29313-95 | GASKET, filter element | ALL |
| 6 | 29314-08 | ELEMENT, air filter, w/ 29313-95 (Domestic) | FLS 103, FXS, FXS 103 |
| 7 | 29347-08 | BACKPLATE, air cleaner (Domestic) | FLS 103, FXS, FXS 103 |
| 8 | 29393-08 | BRACKET, air cleaner cover (Domestic) | FLS 103, FXS, FXS 103 |
| 9 | 29396-08 | SEAL, air cleaner cover (Domestic) | FLS 103, FXS, FXS 103 |
| 10 | 29465-08 | SCREW, breather (2) | ALL |
| 11 | 29474-99A | BRACKET, air cleaner cover | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 29476-99 | BREATHER TUBE (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 29581-08 | BACKPLATE, air cleaner | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 29583-01A | GASKET, backplate | ALL |
| 15 | 29584-01 | SEAL, air cleaner cover | ALL |
| 16 | 61300037 | INSERT, air cleaner | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXST |
| 17 | 29400042 | ELEMENT, air filter, w/ 29313-95 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 18 | 61300111 | COVER, air cleaner, w/ label (Domestic) (gloss black) | FLS 103 |
| 61300112 | COVER, air cleaner, w/ label (Domestic) (chrome) | FXS, FXS 103 | |
| INTERNATIONAL MODELS ONLY | |||
| 19 | 29104-08A | BACKPLATE, air cleaner (HDI, England, Australia) | ALL |
| 29582-08 | BACKPLATE, air cleaner (Asia-Pacific, Japan) | ALL | |
| 20 | 29461-99 | ELEMENT, air filter, w/ 29313-95 (HDI, England, Australia, Japan, Brazil) | FXS, FXS 103 |
| 21 | 29474-99A | BRACKET, air cleaner cover (Asia-Pacific, Australia, England, HDI, Japan) | FLS, FLS 103, FXS, FXS 103 |
| 22 | 29476-99 | BREATHER TUBE (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLS, FLS 103, FXS, FXS 103 |
| 23 | 29584-01 | SEAL, air cleaner cover (HDI, England, Australia, Japan) | FLS, FLS 103, FXS, FXS 103 |
| 24 | 29658-07 | INSERT, air cleaner, SOFTAIL (Asia-Pacific, Japan) | FLSTC, FLSTN |
| 29666-07 | INSERT, air cleaner, FAT BOY (Asia-Pacific, Japan) | FLSTF | |
| 30073-10 | INSERT, air cleaner, FAT BOY (Asia-Pacific, Japan) | FLSTFB | |
| 25 | 61300113 | COVER, air cleaner, w/ label (gloss black) (Australia, HDI, Japan) | FLS, FLS 103 |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2941 | SCREW (2) | ALL |
| 2 | 3050 | SCREW, stator to crankcase (4) | ALL |
| 3 | 4814A | SCREW (2) | ALL |
| 4 | 10102 | CLIP | ALL |
| 5 | 30017-08 | STATOR | ALL |
| 6 | 30041-08 | ROTOR ASSEMBLY | ALL |
| 7 | 46668-11 | BRACKET, front HCU | ALL |
| 8 | 74540-11 | VOLTAGE REGULATOR | ALL |
| 9 | 69200052 | BRACKET, regulator mounting | ALL |
ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1565 | LOCK PIN | FXS, FXS 103 |
| 2 | 3144 | SCREW | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 3 | 4717A | SCREW (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 4 | 7343 | NUT | FXS, FXS 103 |
| 5 | 10177 | CABLE STRAP, w/ plug-in retainer (4) | ALL |
| 6 | 31684-11 | IGNITION COIL | FXS, FXS 103 |
| 7 | 31696-07A | IGNITION COIL, dual | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 8 | 31743-01 | IGNITION COIL | FLS, FLS 103 |
| 9 | 31742-00 | PAD, coil cover | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 10 | 31772-07 | COIL COVER ASSEMBLY, w/ 31742-00 (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 31802-10 | COIL COVER ASSEMBLY, w/ 31742-00 (black denim) | FLSTFB, FLSTFB 103 | |
| 11 | 31981-99C | SPARK PLUG CABLE, front cylinder | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 12 | 31983-00C | SPARK PLUG CABLE, rear cylinder | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 13 | 32001-08A | CABLE ASSEMBLY, spark plug (2) | FXS, FXS 103 |
| 14 | 32362-04 | SPARK PLUG, 6R12 (2) | ALL |
| 15 | 45680-90 | FORK LOCK | FXS, FXS 103 |
| 16 | 61081-92 | COVER, key head set | FLS, FLS 103, FXS, FXS 103 |
| 17 | 71794-11 | SWITCH ASSEMBLY | FXS, FXS 103 |
| 18 | 71796-11 | KNOB, ignition switch kit, w/ 1565 | FXS, FXS 103 |
| 19 | 41000006A | ELECTRONIC CONTROL MODULE, base level Requires digital programming. | ALL |
| 20 | 71400077 | IGNITION SWITCH & FORK LOCK SET | FXS, FXS 103 |
| 21 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FXS, FXS 103 |
SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | ALL |
| 2 | 11289A | O-RING | ALL |
| 3 | 11291 | SEAL, manifold air pressure sensor | ALL |
| 4 | 26561-99 | OIL PRESSURE SWITCH | ALL |
| 5 | 32417-10 | SENSOR, manifold air pressure, w/ 11291 | ALL |
| 6 | 32446-99 | SENSOR, engine temperature | ALL |
| 7 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94 & 74194-98 | ALL |
| 8 | 38769-07A | CLAMP | ALL |
| 9 | 68042-99 | SCREW | ALL |
| 10 | 72199-94 | CONNECTOR ANCHOR | ALL |
| 11 | 74194-98 | TERMINAL, pin, solid (2) | ALL |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW, starter mount (2) | ALL |
| 2 | 27444-00Y | O-RING, starter-to-case | ALL |
| 3 | 31604-06 | SOLENOID REPAIR KIT | ALL |
| 4 | 31618-06A | STARTER ASSEMBLY COMPLETE (black) | ALL |
| 5 | 31633-07A | CLUTCH SUBASSEMBLY | ALL |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 856A | SCREW | ALL |
| 2 | 3275 | SCREW (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 3 | 4017 | BOLT | FXS, FXS 103, FXST |
| 4 | 6057 | WASHER | ALL |
| 5 | 6497HW | WASHER | ALL |
| 6 | 6702 | WASHER | ALL |
| 7 | 7041 | LOCKWASHER | FXS, FXS 103, FXST |
| 8 | 7330 | ACORN NUT | ALL |
| 9 | 11150 | RETAINING RING | ALL |
| 10 | 11191 | O-RING (2) | ALL |
| 11 | 11389 | RING, shift cam retaining | ALL |
| 12 | 11575 | RING, shift cam retaining | ALL |
| 13 | 33389-07 | SPRING, detent | ALL |
| 14 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | ALL |
| 15 | 33413-06A | CAM, shift, w/ 11389, 11575 & bearing | ALL |
| 16 | 33660-07 | SHIFT LEVER (chrome) | FXS, FXS 103, FXST |
| 33668-07 | SHIFT LEVER (chrome) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 17 | 33708-94 | BEARING SLEEVE (2) | ALL |
| 18 | 33719-79B | SHIFTER ROD | ALL |
| 19 | 33849-97 | LEVER, shifter rod | ALL |
| 20 | 33895-82D | SHIFT LEVER KIT, w/ 3275 & shifter lever (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 21 | 34064-00C | SPRING, shift lever centering | ALL |
| 22 | 34564-90B | SHIFT LEVER (chrome) | FXS, FXS 103, FXST |
| 23 | 34611-65A | PEG, shift lever (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 24 | 34987-06 | SPRING, ratchet lever | ALL |
| 25 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | ALL |
| 26 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 27 | 35186-06 | SLEEVE | ALL |
| 28 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 29 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 30 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 31 | 35222-06 | SHAFT, 5 - 6 shift fork | ALL |
| 32 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | ALL |
| 33 | 35243-06 | SLEEVE | ALL |
| 34 | 35244-06 | SCREW, detent | ALL |
| 35 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 11, 12, 13, 14, 15, 28, 29, 30, 31, 32, 33, 34, 35, 36, 7340, 35260-06, input shaft, countershaft & gears (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 35247-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 11, 12, 13, 14, 15, 28, 29, 30, 31, 32, 33, 34, 35, 36, 7340, 35260-06, input shaft, countershaft & gears (silver) | FXST | |
| 36 | 35249-06A | LOCK PLATE, shift cam | ALL |
| 37 | 35259-06 | SCREW, shift drum support (2) | ALL |
| 38 | 37101-84B | OIL SEAL | ALL |
TRANSMISSION HOUSING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (6) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 3249 | SCREW | FLSTC, FLSTC 103 | |
| 3 | 3300 | SCREW, bottom two holes of bearing housing (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 4 | 3699D | SCREW (2) | ALL |
| 5 | 3983 | SCREW, top RRI (2) | ALL |
| 6 | 4168A | SCREW | ALL |
| 7 | 4313 | SCREW | ALL |
| 8 | 4705 | SCREW | ALL |
| 9 | 4718A | SCREW, side cover to bearing plate (4) | ALL |
| 10 | 4741A | SCREW (8) | ALL |
| 11 | 6532 | WASHER (2) | ALL |
| 12 | 7340 | NUT (2) | ALL |
| 13 | 8873 | BALL (3) | ALL |
| 14 | 8963 | NEEDLE BEARING | ALL |
| 15 | 8967 | BALL BEARING | ALL |
| 16 | 8970A | BALL BEARING (2) | ALL |
| 17 | 9701A | BUSHING | ALL |
| 18 | 10998 | RETAINING RING | ALL |
| 19 | 11105 | O-RING, drain plug | ALL |
| 20 | 11132A | O-RING, filler plug | ALL |
| 21 | 11161 | RETAINING RING, ball bearing | ALL |
| 22 | 11179 | O-RING, clutch cable | ALL |
| 23 | 11289A | O-RING | ALL |
| 24 | 12074 | OIL SEAL (4) | ALL |
| 25 | 16574-99A | DOWEL PIN (2) | ALL |
| 26 | 16583-00A | BUSHING, dowel (2) | ALL |
| 27 | 25604-00A | INNER RAMP | ALL |
| 28 | 25605-00A | OUTER RAMP | ALL |
TRANSMISSION HOUSING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 33001-10A | TRANSMISSION ASSEMBLY, complete (silver painted) | FXST |
| 33012-10A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 34799-07 | TRANSMISSION CASE SUBASSEMBLY (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 34801-07 | TRANSMISSION CASE SUBASSEMBLY (silver painted) | FXST | |
| 30 | 33926-06B | SWITCH, neutral indicator, w/ O-ring | ALL |
| 31 | 34469-06B | COVER, upper (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 34521-06B | COVER, upper (black wrinkle) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 34528-06B | COVER, upper (silver painted) | FXST | |
| 37143-07A | COVER, upper (polished) | FLS, FLS 103 | |
| 32 | 34917-06 | GASKET, upper cover | ALL |
| 33 | 34920-86A | COUPLING | ALL |
| 34 | 35087-99A | RETAINING RING, bearing (2) | ALL |
| 35 | 35186-06 | SLEEVE | ALL |
| 36 | 35250-06A | BEARING HOUSING ASSEMBLY (sliver) | FXST |
| 35260-06A | BEARING HOUSING ASSEMBLY (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 37 | 35654-06 | GASKET, bearing housing | ALL |
| 38 | 36805-06 | GASKET, right side cover | ALL |
| 39 | 37065-06 | DIPSTICK (chrome) | ALL |
| 40 | 37101-84B | OIL SEAL | ALL |
| 41 | 37116-06 | CLUTCH RELEASE COVER (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 37129-06 | CLUTCH RELEASE COVER (silver painted) | FXST | |
| 37142-07 | CLUTCH RELEASE COVER (polished) | FLS, FLS 103 | |
| 37186-10 | CLUTCH RELEASE COVER (satin chrome) | FLSTFB, FLSTFB 103 | |
| 37193-11 | CLUTCH RELEASE COVER (black) | FXS, FXS 103 | |
| 42 | 48052-07 | BRACKET, transmission mounting, right | ALL |
| 43 | 60328-98B | PLUG ASSEMBLY, magnetic drain, w/ 11105 | ALL |
| 44 | 62372-09 | VENT HOSE | ALL |
| 45 | 74402-05B | SENSOR, speedometer | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 46 | 3249 | SCREW (Asia-Pacific, Australia, India, Japan) (8) | FLSTC, FLSTC 103, FXST |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042 | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11061A | RETAINING RING | ALL |
| 8 | 11081A | RING, lock (3) | ALL |
| 9 | 11082 | SECURING SEGMENT (6) | ALL |
| 10 | 11096 | RETAINING RING | ALL |
| 11 | 11201 | O-RING | ALL |
| 12 | 11207A | WASHER, internal spline | ALL |
| 13 | 11599A | SPACER, bearing | ALL |
| 14 | 12077 | OIL SEAL | ALL |
| 15 | 34091-08 | BEARING, inner race | ALL |
| 16 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991A, 11201, 11599A & 12077 | ALL |
| 17 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 18 | 35126-06 | DOG RING, lugged (2) | ALL |
| 19 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 20 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 21 | 35204-06 | DOG RING, pocketed | ALL |
| 22 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 35247-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (silver) | FXST | |
| 23 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | ALL |
| 24 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 25 | 35801-10 | GEAR, fifth input | ALL |
| 26 | 35805-06A | GEAR, countershaft-first | ALL |
| 27 | 35807-06 | GEAR, countershaft-second | ALL |
| 28 | 35811-06 | GEAR, countershaft-third | ALL |
| 29 | 35814-06 | GEAR, countershaft-fourth | ALL |
| 30 | 37069-90A | ROD ASSEMBLY | ALL |
| 31 | 37312-75 | BEARING | ALL |
| 32 | 37313-80 | THRUST RACE BEARING (2) | ALL |
CLUTCH - TWIN CAM 96™
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 2 | 7848W | JAM NUT | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 3 | 11096 | RETAINING RING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 4 | 37069-90A | ROD ASSEMBLY | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 5 | 37090-98A | SCREW, adjuster | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 6 | 37092-06 | PUSH ROD, clutch release (through mainshaft) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 7 | 37312-75 | BEARING, push rod | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 8 | 37313-80 | THRUST RACE BEARING (2) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 9 | 37496-90A | NUT, mainshaft | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 10 | 37554-11 | CLUTCH HUB, w/ hub, thrust washer, spring washer & retaining ring | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 11 | 37813-11 | CLUTCH ASSEMBLY, w/ 1, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 & 23 | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 12 | 37872-00 | CLUTCH SPRING SEAT | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 13 | 37882-06A | SPRING, diaphragm (blue) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 14 | 37883-98 | SEAT, damper spring | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 37884-98 | DAMPER SPRING | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 16 | 37903-90 | RELEASE PLATE | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 17 | 37904-90 | RETAINING RING, internal | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 18 | 37905-00 | RETAINING RING, internal | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 19 | 37906-11 | BEARING, ball - double row | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 20 | 37909-90 | RETAINING RING, internal | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 21 | 37912-00 | PLATE, clutch, pressure | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 22 | 37913-98 | PLATE CLUTCH (8) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 23 | 37932-98 | FRICTION PLATE KIT, includes all nine friction plates | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| NOTE: All parts listed are used on motorcycles sold in Asia-Pacific and Japan markets. | |||
CLUTCH - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 2 | 7848W | JAM NUT | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 3 | 11096 | RETAINING RING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 4 | 37069-90A | ROD ASSEMBLY | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 5 | 37090-98A | SCREW, adjuster | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 6 | 37092-06 | PUSH ROD, clutch release (through mainshaft) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 7 | 37312-75 | BEARING, push rod | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 8 | 37313-80 | THRUST RACE BEARING (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 9 | 37496-90A | NUT, mainshaft | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 10 | 37554-11 | CLUTCH HUB, w/ hub, thrust washer, spring washer & retaining ring | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 11 | 37816-11 | CLUTCH ASSEMBLY, w/ 1, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 & 23 | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 12 | 37871-04 | SPRING, diaphragm (blue) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 13 | 37872-00 | CLUTCH SPRING SEAT | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 14 | 37883-98 | SEAT, damper spring | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 15 | 37884-98 | DAMPER SPRING | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 16 | 37903-90 | RELEASE PLATE | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 17 | 37904-90 | RETAINING RING, internal | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 18 | 37905-00 | RETAINING RING, internal | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 19 | 37906-11 | BEARING, ball - double row | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 20 | 37909-90 | RETAINING RING, internal | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 21 | 37912-00 | PLATE, clutch, pressure | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 22 | 37913-98 | PLATE CLUTCH (8) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 23 | 37932-98 | FRICTION PLATE KIT, includes all nine friction plates | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1775 | SCREW (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 9231 | BEARING | ALL |
| 7 | 11105 | O-RING | ALL |
| 8 | 12052A | OIL SEAL | ALL |
| 9 | 16583-00A | BUSHING, dowel (2) | ALL |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | ALL |
| 11 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 12 | 34934-06 | GASKET, primary housing | ALL |
| 13 | 39929-06B | CHAIN TENSIONER | ALL |
| 14 | 60328-98B | PLUG ASSEMBLY, magnetic drain, w/ 11105 | ALL |
| 15 | 60547-06 | GASKET, primary cover | ALL |
| 16 | 60678-85 | RETAINING RING | ALL |
| 17 | 60782-06 | COVER ASSEMBLY, primary (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 60876-11 | COVER ASSEMBLY, primary (gloss black) | FXS, FXS 103 | |
| 60882-10 | COVER ASSEMBLY, primary (satin chrome) | FLSTFB, FLSTFB 103 | |
| 60563-08 | COVER ASSEMBLY, primary (polished) | FLS, FLS 103 | |
| 18 | 60791-06C | INNER PRIMARY HOUSING (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 19 | 60813-07 | SCREW, primary cover | ALL |
| 20 | 25700037 | COVER, clutch (chrome) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 |
| 25700038 | COVER, clutch (polished) | FLS 103 | |
| 25700043 | COVER, clutch (black) | FLSTFB 103 | |
| 20A | 25700226 | GASKET KIT, inner primary w/ 1, 7, 8, 12 and 25418-06, 27444-00Y, 37909-90 | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 60766-06 | COVER, clutch (chrome) (Asia-Pacific, Japan) | FLSTC, FLSTF, FLSTN, FXS |
| 60767-06 | COVER, clutch (polished) (Japan) | FLS | |
| 37192-10 | COVER, clutch (denim black) (Asia-Pacific, Japan) | FLSTFB | |
| 25700038 | COVER, clutch (polished) (Australia) | FXST | |
| 22 | 60722-07 | COVER ASSEMBLY, primary (silver) (Australia) | FXST |
| 23 | 60806-07B | INNER PRIMARY HOUSING (silver) (Australia) | FXST |
BELT, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW (5) | ALL |
| 2 | 3368 | SCREW, compensator to crank | ALL |
| 3 | 3594 | SCREW (2) | ALL |
| 4 | 6557 | WASHER, thrust | ALL |
| 5 | 35241-06 | NUT, sprocket | ALL |
| 6 | 35242-06 | LOCKPLATE, sprocket nut | ALL |
| 7 | 40325-07 | SPROCKET, rear, 66 T (black) | ALL |
| 8 | 40036-06 | PRIMARY CHAIN | ALL |
| 9 | 40659-06 | SPROCKET, transmission, 32 T | ALL |
| 10 | 83935-09A | COMPENSATOR ASSEMBLY | ALL |
| 11 | 83936-09 | SPRING PACK | ALL |
| 12 | 40000001 | REAR BELT, 133 T, 24 mm wide (blue) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 13 | 40100009 | RETAINER, sprocket | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 37770-07 | SPROCKET, rear, 64 T (Japan) (black) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 15 | 40074-07 | REAR BELT, 132 T, 20 mm wide (Japan) (yellow) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2566 | SCREW | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 10039 | CABLE STRAP | ALL |
| 5 | 10124 | CLAMP | ALL |
| 6 | 11143 | RETAINING RING | ALL |
| 7 | 11179 | O-RING | ALL |
| 8 | 38608-96 | BRACKET, hand lever | ALL |
| 9 | 38630-88 | BOOT, clutch cable | ALL |
| 10 | 38664-07C | CABLE, clutch control, includes O-ring, anchor pin & boot | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 38665-07B | CABLE, clutch control, includes O-ring, anchor pin & boot | FXS, FXS 103 | |
| 38666-07C | CABLE, clutch control, includes O-ring, anchor pin & boot | FLSTC, FLSTC 103, FXST | |
| 11 | 45015-96 | HAND LEVER, clutch | ALL |
| 12 | 45021-86 | SPRING, anti-rattle | ALL |
| 13 | 45032-82 | PIVOT PIN, hand lever | ALL |
| 14 | 45036-88 | ANCHOR PIN | ALL |
| 15 | 45044-96A | CLAMP, lever bracket | ALL |
| 16 | 45423-92 | BUSHING | ALL |
| 17 | 90770-79 | SCREW | ALL |
REAR BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT | ALL |
| 2 | 4407 | SCREW | ALL |
| 3 | 6702 | WASHER | ALL |
| 4 | 7549A | ACORN NUT | ALL |
| 5 | 7669 | NUT, tee | ALL |
| 6 | 8201 | BOLT, acorn (2) | ALL |
| 7 | 11413 | GROMMET | ALL |
| 8 | 60362-07A | DEBRIS DEFLECTOR, 1 in. | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 60452-07A | DEBRIS DEFLECTOR, 20 mm | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS | |
| 9 | 60570-07B | BELT GUARD (gloss black) | FLS, FLS 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 60867-08 | BELT GUARD, 1 in., w/ warning label (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2579A | SCREW (2) | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 11143 | RETAINING RING | ALL |
| 5 | 45006-96C | REPAIR KIT, master cylinder (9/16 in. bore) | ALL |
| 6 | 45016-96 | HAND LEVER, front brake control, w/ 45423-96 | ALL |
| 7 | 45029-11B | MASTER CYLINDER, front, w/ hand lever (9/16 in. bore) | ALL |
| 8 | 45032-82 | PIVOT PIN | ALL |
| 9 | 45044-96A | CLAMP, handlebar control | ALL |
| 10 | 45423-96 | BUSHING, lever pivot | ALL |
| 11 | 46423-05B | COVER KIT, reservoir, w/ 2579A | ALL |
BRAKE LINES, FRONT, NON-ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (3) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 2 | 3594 | SCREW | ALL |
| 3 | 4091 | SCREW (2) | FLS, FLS 103, FXST |
| 4 | 6703 | WASHER | ALL |
| 5 | 7220 | LOCKWASHER, external tooth (2) | FXST |
| 6 | 10053 | CLAMP (2) | FXST |
| 10053 | CLAMP (3) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 7 | 41731-01 | GASKET (2) | ALL |
| 8 | 41733-88 | GASKET, master cylinder (2) | ALL |
| 9 | 41739-84A | BANJO BOLT, master cylinder | ALL |
| 10 | 41747-82A | BANJO BOLT | ALL |
| 11 | 42314-08 | BRAKE LINE, front | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 42411-09 | BRAKE LINE, front | FLSTC, FLSTC 103 | |
| 45199-08 | BRAKE LINE, front | FXST | |
| 38154-11 | BRAKE LINE, front | FXS, FXS 103 |
BRAKE LINES, FRONT, ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4484M | SCREW (2) | ALL |
| 2 | 4717A | SCREW (2) | ALL |
| 3 | 4741A | SCREW (2) | ALL |
| 4 | 5001 | BOLT, banjo, brake line | ALL |
| 5 | 5002 | BOLT, banjo, brake line | ALL |
| 6 | 5004 | BOLT, shoulder, bearing | ALL |
| 7 | 10861 | CLIP, brake line (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN 103 |
| 10861 | CLIP, brake line (3) | FXS, FXS 103 | |
| 8 | 32009-11 | TRIM RING, HCU | ALL |
| 9 | 41731-01 | GASKET, brake line (4) | ALL |
| 10 | 41733-88 | GASKET, banjo (6) | ALL |
| 11 | 41739-84A | BANJO BOLT | ALL |
| 12 | 41747-82A | BANJO BOLT, brake line | ALL |
| 13 | 42369-11 | BRAKE LINE, front | FXST |
| 42552-11 | BRAKE LINE, front | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 41800008 | BRAKE LINE, front | FXS, FXS 103 | |
| 14 | 45824-11 | BRAKE LINE, front, HCU to master cylinder | FXST |
| 45829-11 | BRAKE LINE, front, HCU to master cylinder | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 45856-11 | BRAKE LINE, front, HCU to master cylinder | FLSTC, FLSTC 103 | |
| 38152-11 | BRAKE LINE, front, HCU to master cylinder | FXS, FXS 103 | |
| 15 | 46663-11 | HOLDER, front, HCU | ALL |
| 16 | 46664-11 | CAP, front, HCU holder | ALL |
| 17 | 46668-11 | BRACKET, front, HCU | ALL |
| 18 | 48349-11 | ABS HYDRAULIC CONTROL UNIT (HCU) | ALL |
| 19 | 70504-81 | CLIP, conduit (3) | FXST |
| 70504-81 | CLIP, conduit (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 2579A | SCREW (2) | ALL |
| 3 | 961 | SCREW | ALL |
| 4 | 3655A | SCREW | ALL |
| 5 | 6099 | WASHER | ALL |
| 6 | 6237 | WASHER | ALL |
| 7 | 8405 | JAM NUT | ALL |
| 8 | 9907 | WIRE TERMINAL (2) | ALL |
| 9 | 10039 | CABLE STRAP | ALL |
| 10 | 11364 | O-RING (2) | ALL |
| 11 | 40918-87 | RETAINING RING | ALL |
| 12 | 40920-87 | SPRING, brake return | ALL |
| 13 | 40922-87A | BOOT, push rod | ALL |
| 14 | 41731-01 | GASKET (4) | ALL |
| 15 | 41747-82A | BANJO BOLT (2) | ALL |
| 16 | 41767-05D | MASTER CYLINDER ASSEMBLY | ALL |
| 17 | 41957-97A | PUSH ROD KIT | ALL |
| 18 | 42382-87C | REBUILD KIT, master cylinder | ALL |
| 19 | 42416-06 | PAD, brake lever | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 20 | 42454-99A | RESERVOIR, master cylinder, w/ O-rings | ALL |
| 21 | 42568-05A | GASKET, master cylinder reservoir | ALL |
| 22 | 42515-07 | LEVER, foot brake, includes bushings (chrome) | FXS, FXS 103, FXST |
| 23 | 42532-06 | PAD, brake lever | FXS, FXS 103, FXST |
| 24 | 42597-00A | LEVER, foot brake, includes bushings, w/ 57217-02 (chrome) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 25 | 42460-80B | CLEVIS PIN | ALL |
| 26 | 42261-11 | BRAKE LINE ASSEMBLY, rear, NON-ABS | ALL |
| 43373-11 | BRAKE LINE ASSEMBLY, rear, ABS, HCU to master cylinder | ALL | |
| 43384-11 | BRAKE LINE ASSEMBLY, rear, ABS, HCU to caliper (not shown) | ALL | |
| 27 | 43992-08 | PAD, brake lever | FLS, FLS 103, FLSTC, FLSTC 103 |
| 28 | 46457-05B | COVER KIT, reservoir, w/ 42568-05 | ALL |
| 29 | 57217-02 | BUSHING, brake lever (2) | ALL |
| 30 | 72023-51D | STOP LAMP SWITCH, rear, w/ 9907 | ALL |
BRAKE LINE & MODULE, REAR, ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3061 | SCREW | ALL |
| 2 | 4168A | SCREW | ALL |
| 3 | 4751 | SCREW (2) | ALL |
| 4 | 5001 | BOLT, banjo, brake line | ALL |
| 5 | 5002 | BOLT, banjo, brake line | ALL |
| 6 | 6532 | WASHER (2) | ALL |
| 7 | 6703 | WASHER (2) | ALL |
| 8 | 8405 | JAM NUT | ALL |
| 9 | 9907 | TERMINAL, #14-16 AWG | ALL |
| 10 | 10006 | CABLE STRAP | ALL |
| 11 | 10851 | CLAMP, rear HCU (2) | ALL |
| 12 | 41731-01 | GASKET (6) | ALL |
| 13 | 41733-88 | GASKET (2) | ALL |
| 14 | 41747-82A | BANJO BOLT, brake line (2) | ALL |
| 15 | 43373-11 | BRAKE LINE ASSEMBLY, rear, ABS, HCU to master cylinder | ALL |
| 16 | 43384-11 | BRAKE LINE ASSEMBLY, rear, ABS, HCU to caliper | ALL |
| 17 | 46677-11 | BRACKET, rear HCU | ALL |
| 18 | 48349-11 | ABS HYDRAULIC CONTROL UNIT (HCU) | ALL |
| 19 | 70635-08 | CLIP, conduit (2) | ALL |
| 20 | 72023-51D | STOP LAMP SWITCH, rear, w/ 9907 | ALL |
| 21 | 41600017 | BRAKE LINE GUIDE, anti-rotation | ALL |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4564M | BOLT, bridge/pad pin (2) | ALL |
| 2 | 44048-83A | SCREW, bleeder | ALL |
| 3 | 44147-87A | CAP, bleeder | ALL |
| 4 | 44160-00 | BOLT, caliper mounting, lower | ALL |
| 5 | 44163-00 | BOLT, caliper mounting, upper | ALL |
| 6 | 44313-08 | PISTON KIT | ALL |
| 7 | 44337-08 | PAD SPRING KIT (4) | ALL |
| 8 | 44338-00 | DECAL | ALL |
| 9 | 46356-11 | CALIPER ASSEMBLY, left (black) | ALL |
| 10 | 46363-11 | PAD KIT | ALL |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 40908-08 | CALIPER ASSEMBLY, rear brake | ALL |
| 2 | 42143-08B | BOLT, lower | ALL |
| 3 | 42298-08 | PAD KIT | ALL |
| 4 | 42344-08 | PISTON KIT | ALL |
| 5 | 42345-08 | PAD PIN KIT | ALL |
| 6 | 42347-08 | BRAKE SPRING KIT | ALL |
| 7 | 42348-08 | TORQUE CLIP KIT | ALL |
| 8 | 42895-08A | MOUNTING BRACKET, rear | ALL |
| 9 | 44048-83A | SCREW, bleeder | ALL |
| 10 | 44066-08A | CALIPER PIN KIT | ALL |
| 11 | 44147-87A | CAP, bleeder screw | ALL |
| 12 | 44338-00 | DECAL | ALL |
| 13 | 44351-00 | BUMPER | ALL |
WHEELS, FRONT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (5) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 3655A | SCREW (10) | FLSTN, FLSTN 103 | |
| 2 | 6594 | WASHER | ALL |
| 3 | 7813A | NUT | ALL |
| 4 | 9252 | BALL BEARING, w/ encoder, ABS | ALL |
| 5 | 9276A | BALL BEARING, 25 mm (NON-ABS) (2) | ALL |
| 9276A | BALL BEARING, 25 mm (ABS) | ALL | |
| 6 | 10147 | CLIP, connector | ALL |
| 7 | 10850 | CLIP, wheel speed sensor, ABS | ALL |
| 8 | 11180 | RETAINING RING | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 9 | 40558-82 | INNER TUBE, 16 in., offset valve | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43140-80 | INNER TUBE, 21 in. | FXS, FXS 103, FXST | |
| 10 | 40982-11 | sensor, wheel speed, ABS | ALL |
| 11 | 41038-08 | WHEEL ASSEMBLY, 17 in. solid cast disc, w/o bearings & sleeve (silver) | FLSTF, FLSTF 103 |
| 41837-10 | WHEEL ASSEMBLY, 17 in., w/o bearings & sleeve (black) | FLSTFB, FLSTFB 103 | |
| 43590-09 | WHEEL ASSEMBLY, 17 in., w/o bearings & sleeve (chrome) | FLSTF, FLSTF 103 | |
| 12 | 41123-79 | VALVE CAP | ALL |
| 13 | 41349-07 | SLEEVE, spacer | ALL |
| 14 | 41502-07 | SPACER, left side of wheel | ALL |
| 15 | 41504-07 | SPACER, right side of wheel | FXS, FXS 103, FXST |
| 41695-07 | SPACER, right side of wheel | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 16 | 41510-07 | HUB CAP ASSEMBLY, front (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 17 | 41545-07A | AXLE, front | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 18 | 41547-07A | AXLE, front | FXS, FXS 103, FXST |
| 19 | 41559-08 | WHEEL ASSEMBLY, front, 16 in. laced, w/o bearings & sleeve | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43700-08 | WHEEL ASSEMBLY, front, 21 in. laced, w/o bearings & sleeve | FXST | |
| 55107-12 | WHEEL ASSEMBLY, front, 16 in. laced, w/o bearings & sleeve (black) | FLS, FLS 103 | |
| 20 | 41992-11 | RIM, 16 in. (used on 43300041 wheel assemblies) (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 55039-11 | RIM, 21 in. (black) | FXS, FXS 103 | |
| 21 | 43017-07 | RIM, 16 in. (black) | FLS, FLS 103 |
| 43085-97 | RIM, 16 in. (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 43662-80B | RIM, 21 in. (chrome) | FXST |
WHEELS, FRONT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 22 | 43022-91A | TIRE, 16 in. | FLS, FLS 103, FLSTC, FLSTC 103 |
| 43104-93A | TIRE, 21 in. | FXS, FXS 103 | |
| 43118-92A | TIRE, 16 in., wide white wall | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 43390-08A | TIRE, 21 in. | FXST | |
| 41474-06B | TIRE, 17 in. | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 23 | 43052-05A | SPOKE & NIPPLE SET, 16 in. (set of 40) (used on 43300041 wheel assemby) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43055-05 | SPOKE & NIPPLE SET, 21 in. (set of 40) (used on 55038-11 wheel assemby) | FXS, FXS 103 | |
| 43241-05 | SPOKE & NIPPLE SET, 16 in. (set of 40) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 43239-05 | SPOKE & NIPPLE SET, 21 in. (set of 40) | FXST | |
| 24 | 43147-40 | RIM FLAP, 16 in. laced | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43164-05 | RIM FLAP, 16 in. profile laced, (used on 43300041 wheel assemby) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 43939-89 | RIM FLAP, 21 in. laced/profile laced | FXS, FXS 103, FXST | |
| 25 | 43157-83A | VALVE STEM ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 26 | 44156-00 | BRAKE DISC, front | ALL |
| 27 | 44752-11 | RIM SEAL KIT, 16 X 3 inch, w/ 41123-79, 43164-05 & 54321-85 (used on 43300041 wheel assembly) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 28 | 54321-85 | NUT, valve stem (2-BVV/BW5/BWV) | ALL |
| 29 | 70684-11 | BRACKET, wheel speed sensor, ABS | ALL |
| 30 | 72607-08 | HOUSING, 2-way pin | ALL |
| 31 | 72608-08 | TERMINAL, pin, #16-20 AWG (2) | ALL |
| 32 | 72639-10 | SECONDARY LOCK, 2-way | ALL |
| 33 | 95594-84A | WEIGHT, 5 grams (black) | FLS, FLS 103 |
| 95595-84A | WEIGHT, 5 grams (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST | |
| 34 | 43300041 | WHEEL ASSEMBLY, front, 16 in. profile laced, w/o bearings & sleeve | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 55038-11 | WHEEL ASSEMBLY, front, 21 in. profile laced, w/o bearings & sleeve | FXS, FXS 103 |
WHEELS, REAR (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3109 | SCREW, w/ washer (5) | ALL |
| 2 | 6551 | WASHER | ALL |
| 3 | 8020 | NUT | ALL |
| 4 | 9252 | BALL BEARING, w/ encoder, ABS | ALL |
| 5 | 9276A | BALL BEARING, 25 mm (NON-ABS) (2) | ALL |
| 9276A | BALL BEARING, 25 mm (ABS) | ALL | |
| 6 | 10147 | CLIP, connector, ABS | ALL |
| 7 | 40325-07 | SPROCKET, rear, 66 T (black) | ALL |
| 8 | 40558-82 | INNER TUBE, 16 in. laced, offset valve | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 40575-05 | INNER TUBE, 16 in. profile laced, center valve, (used on 55043-11 wheel assemby) | FXS, FXS 103 | |
| 9 | 40700-08 | WHEEL ASSEMBLY, rear, 16 in., laced, w/o bearings & sleeve (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 55109-12 | WHEEL ASSEMBLY, rear, 16 in., laced, w/o bearings & sleeve (black) | FLS, FLS 103 | |
| 10 | 40985-11 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08 & 72639-10 | ALL |
| 11 | 41092-08 | WHEEL ASSEMBLY, rear, 17 in. disc (silver) | FLSTF, FLSTF 103 |
| 41840-10 | WHEEL ASSEMBLY, rear, 17 in. disc (black) | FLSTFB, FLSTFB 103 | |
| 43596-09 | WHEEL ASSEMBLY, rear, 17 in. disc (chrome) | FLSTF, FLSTF 103 | |
| 12 | 41123-79 | VALVE CAP | ALL |
| 13 | 41229-08 | RETAINING PIN | ALL |
| 14 | 41242-08 | SPACER, wheel, NON-ABS | ALL |
| 15 | 41359-08 | SPACER, rear axle, left | ALL |
| 16 | 41641-08 | AXLE ASSEMBLY | ALL |
| 17 | 41694-08 | SPACER, rear wheel adjustment | ALL |
WHEELS, REAR (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 18 | 41696-08 | SLEEVE, spacer | ALL |
| 19 | 41797-00 | BRAKE DISC, rear | ALL |
| 20 | 43017-07 | RIM, 16 in. (black) | FLS, FLS 103 |
| 43085-97 | RIM, 16 in. (used on 40700-08 wheel assembly) (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 21 | 43052-05A | SPOKE & NIPPLE SET, 16/17 in. rim (set of 40) (used w/ 40900050 & 55043-11) | FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 22 | 43241-05 | SPOKE & NIPPLE SET, 16 in. rim (set of 40) (used w/ 40700-08 & 55109-12) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 23 | 43147-40 | RIM FLAP, 16 in. laced | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43164-05 | RIM FLAP, 16 in. profile laced | FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 24 | 43157-83A | VALVE STEM ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 25 | 43242-06A | TIRE, 17 in. | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 43264-02 | TIRE, 16 in. | FLSTC, FLSTC 103 | |
| 43353-03 | TIRE, 16 in., wide white wall | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 43200001 | TIRE, 16 in. | FLS, FLS 103, FXS, FXS 103 | |
| 26 | 55044-11 | RIM, 16 in. (used on 55043-11 wheel assembly) (black) | FXS, FXS 103 |
| 41992-11 | RIM, 16 in. (used on 40900050 wheel assembly) (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 27 | 43567-92 | SCREW (5) | ALL |
| 28 | 44752-11 | RIM SEAL KIT, 16 X 3 inch, w/ 41123-79, 43164-05 & 54321-85 | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 29 | 54321-85 | NUT, valve stem | ALL |
| 30 | 55043-11 | WHEEL ASSEMBLY, rear, 16 in., profile laced, w/o bearings & sleeve (black) | FXS, FXS 103 |
| 40900050 | WHEEL ASSEMBLY, rear, 16 in., profile laced, w/o bearings & sleeve, w/ rim seal kit 44752-11 (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 31 | 72607-08 | HOUSING, 2-way pin | ALL |
| 32 | 72608-08 | TERMINAL, pin, #16-20 AWG (2) | ALL |
| 33 | 72639-10 | SECONDARY LOCK, 2-way | ALL |
| 34 | 95594-84A | WEIGHT, 5 grams (black) | FLS, FLS 103, FXS, FXS 103 |
| 35 | 95595-84A | WEIGHT, 5 grams (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| INTERNATIONAL MODELS ONLY | |||
| 36 | 37770-07 | SPROCKET, rear, 64 T (Japan) (black) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| 37 | 40964-08 | COVER, axle nut (HDI) (10) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST |
| 38 | 41995-08 | WHEEL ASSEMBLY, rear, 17 in. disc, w/o bearings & sleeve (mirror) (Australia) | FXST |
FORK BRACKETS, FRONT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 2 | 2708A | SCREW (6) | FXS, FXS 103 |
| 3 | 2823 | SCREW (2) | FXST |
| 4 | 3538 | SCREW (4) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 5 | 3953W | BOLT (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 6 | 4350A | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 7 | 4453 | BOLT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 8 | 4729 | BOLT (2) | FXST |
| 9 | 4945 | SCREW (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 10 | 6655 | WASHER | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 11 | 7039 | LOCKWASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 7062 | LOCKWASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 13 | 7686 | LOCKNUT (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 14 | 8108 | SPEEDNUT (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 15 | 10053 | CLAMP (3) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 16 | 45456-86B | BRACKET, upper | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 17 | 45605-00A | STEM & BRACKET ASSEMBLY, including lower bearing cone | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 18 | 45611-86 | RETAINING RING, fork stem | ALL |
| 19 | 45640-00A | STEM & BRACKET, w/ bearing & shield | FXST |
| 20 | 45648-85A | PAD, felt (2) | FXST |
| 21 | 45670-80A | CAP, fork stem | ALL |
| 22 | 45672-80B | BRACKET, upper (chrome) | FXST |
| 23 | 45685-93 | COVER, fork bracket (chrome) | FXST |
| 24 | 45710-11 | BRACKET, upper (denim black) | FXS, FXS 103 |
| 25 | 45718-60 | NUT, fork stem | FXS, FXS 103, FXST |
| 26 | 45727-08 | WASHER | FXS, FXS 103, FXST |
FORK BRACKETS, FRONT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 27 | 48300-60 | ROLLER BEARING, w/ cup (2) | ALL |
| 28 | 48315-60 | BEARING CUP (2) | ALL |
| 29 | 48324-00 | NUT | FXS, FXS 103 |
| 30 | 48332-48C | ADJUSTING NUT, upper | FXST |
| 31 | 48361-80 | DUST SHIELD, bearing, upper | ALL |
| 32 | 48365-48A | DUST SHIELD, bearing, lower | ALL |
| 33 | 48477-11 | BRACKET ASSEMBLY, w/ 45611-86 & 48365-48A | FXS, FXS 103 |
| 34 | 50991-86 | BRACKET, front panel (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 35 | 67814-86 | BACK PANEL, right rear (stainless steel) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 67988-10BHP | BACK PANEL, right rear (gloss black) | FLS, FLS 103, FLSTFB, FLSTFB 103 | |
| 36 | 67891-99 | TRIM STRIP KIT, front panel (2) | FLS, FLS 103, FLSTF, FLSTF 103 |
| 68055-10BHP | TRIM STRIP, front panel (2) | FLSTFB, FLSTFB 103 | |
| 37 | 67821-87 | BACK PANEL, left rear w/ switch hole (stainless steel) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 67993-10BHP | BACK PANEL, left rear w/ switch hole (gloss black) | FLS, FLS 103, FLSTFB, FLSTFB 103 | |
| 38 | 67605-05 | FRONT PANEL (chrome) | FLSTN, FLSTN 103 |
| 67830-09 | FRONT PANEL (chrome) | FLSTC, FLSTC 103 | |
| 67982-07 | FRONT PANEL (chrome) | FLSTF, FLSTF 103 | |
| 67987-10BHP | FRONT PANEL (gloss black) | FLSTFB, FLSTFB 103 | |
| 45900032 | FRONT PANEL (gloss black) | FLS, FLS 103 | |
| 39 | 90357-89 | PLUG | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
FORK, FRONT - FXST
| Index No. | Part No. | Description | Model(s) |
| 1 | 5710 | WASHER (2) | FXST |
| 2 | 7062 | LOCKWASHER (2) | FXST |
| 3 | 4042 | SCREW (2) | FXST |
| 4 | 45417-00 | SLIDER TUBE (2) | FXST |
| 5 | 45836-07 | DAMPER TUBE, w/ 45859-77A (2) | FXST |
| 6 | 45419-80 | CAP, slider tube (2) | FXST |
| 7 | 45420-80 | CASE COVER (2) | FXST |
| 8 | 45733-48 | OIL SEAL, fork tube plug (2) | FXST |
| 9 | 45803-97 | OIL LOCK STOP (2) | FXST |
| 10 | 45835-00 | AXLE CAP, right slider | FXST |
| 11 | 45838-77 | PLUG, fork tube (2) | FXST |
| 12 | 45858-77 | DRAIN SCREW, w/ washer (2) | FXST |
| 13 | 45873-07A | SLIDER ASSEMBLY, left | FXST |
| 45874-08A | SLIDER ASSEMBLY, right | FXST | |
| 14 | 46004-07A | FORK SLIDER & TUBE ASSEMBLY, left | FXST |
| 15 | 46006-08A | FORK SLIDER & TUBE ASSEMBLY, right | FXST |
| 16 | 46048-00 | SPRING (2) | FXST |
| 17 | 49377-09A | FORK REBUILD KIT | FXST |
| 18 | 60253-07 | BRACKET ASSEMBLY, reflector (2) | FXST |
| 19 | 60254-07 | REFLECTOR, amber (2) | FXST |
| NOTE: All parts listed are used on motorcycles sold in the Australia market. | |||
FORK, FRONT - FLS, FLSTC, FLSTF, FLSTFB & FLSTN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3537 | SCREW (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 2 | 4042 | SCREW (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 3 | 5710 | WASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 4 | 7062 | LOCKWASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 5 | 45419-80 | CAP, slider tube (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 6 | 45733-48 | OIL SEAL, fork tube plug (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 7 | 45803-97 | OIL LOCK STOP (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 8 | 45835-00 | AXLE CAP, right slider | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 9 | 45837-07 | DAMPER TUBE, w/ 45859-77A (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 10 | 45838-77 | PLUG, fork tube (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 11 | 45858-77 | DRAIN SCREW, w/ washer & slider (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 12 | 45915-08A | FORK SLIDER & TUBE ASSEMBLY, right | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 13 | 45916-07A | FORK SLIDER & TUBE ASSEMBLY, left | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 14 | 45917-08A | SLIDER ASSEMBLY, right | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 15 | 45918-07A | SLIDER ASSEMBLY, left | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 16 | 45930-00 | STANCHION TUBE, w/ 45866-84 (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 17 | 45931-00 | SPRING (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 18 | 45933-86 | SPRING, damper tube (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 19 | 45964-86 | COVER, slider (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 54673-10BYM | COVER, slider | FLSTFB, FLSTFB 103 | |
| 20 | 49377-09A | FORK REBUILD KIT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 21 | 60253-07 | BRACKET ASSEMBLY, reflector (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 22 | 60254-07 | REFLECTOR, amber (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
FORK, FRONT - FXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4042 | SCREW (2) | FXS, FXS 103 |
| 2 | 5003 | BOLT (2) | FXS, FXS 103 |
| 3 | 7062 | LOCKWASHER (2) | FXS, FXS 103 |
| 4 | 12203 | SPRING | FXS, FXS 103 |
| 5 | 45405-75A | SCREW (2) | FXS, FXS 103 |
| 6 | 45803-97 | OIL LOCK STOP (2) | FXS, FXS 103 |
| 7 | 45836-07 | DAMPER TUBE (2) | FXS, FXS 103 |
| 8 | 45842-77A | RETAINING RING, oil seal (2) | FXS, FXS 103 |
| 9 | 45858-77 | DRAIN SCREW, w/ washer (2) | FXS, FXS 103 |
| 10 | 45859-77A | PISTON RING, damper tube (2) | FXS, FXS 103 |
| 11 | 45865-84 | SPACER, seal | FXS, FXS 103 |
| 12 | 45866-84 | BUSHING, slider | FXS, FXS 103 |
| 13 | 45875-84A | OIL SEAL | FXS, FXS 103 |
| 14 | 45933-86 | SPRING, rebound (2) | FXS, FXS 103 |
| 15 | 45940-84 | BUSHING (2) | FXS, FXS 103 |
| 16 | 46175-00 | DUST SEAL (2) | FXS, FXS 103 |
| 17 | 46550-03 | AXLE CAP, right side | FXS, FXS 103 |
| 18 | 48624-07 | CASE COVER (2) | FXS, FXS 103 |
| 19 | 49377-09A | FORK REBUILD KIT | FXS, FXS 103 |
| 20 | 49408-11 | SLIDER TUBE (2) | FXS, FXS 103 |
| 21 | 49415-11 | FORK ASSEMBLY, left side | FXS, FXS 103 |
| 22 | 49416-11 | FORK ASSEMBLY, right side | FXS, FXS 103 |
| 23 | 49417-11 | SLIDER ASSEMBLY, left side | FXS, FXS 103 |
| 49418-11 | SLIDER ASSEMBLY, right side | FXS, FXS 103 | |
| 24 | 60253-07 | BRACKET ASSEMBLY, reflector (2) | FXS, FXS 103 |
| 25 | 60254-07 | REFLECTOR, amber (2) | FXS, FXS 103 |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | PRETZEL CLIP, jiffy stand | ALL |
| 2 | 939 | SCREW (2) | ALL |
| 3 | 3233 | SCREW | ALL |
| 4 | 4512A | SCREW (6) | ALL |
| 5 | 4813A | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 6 | 10006 | CABLE STRAP (3) | ALL |
| 10065 | CABLE STRAP, keys | ALL | |
| 7 | 10040 | CLIP (4) | FLS, FLSTC, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 10040 | CLIP (3) | FLSTN, FLSTN 103 | |
| 8 | 10193 | WIRE CLAMP | ALL |
| 9 | 33630-07A | BRACKET, jiffy stand, shift lever & footboard, includes shifter bushings | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 33683-07A | BRACKET, jiffy stand, shift lever & footrest, includes shifter bushings (black) | FXS, FXS 103, FXST | |
| 10 | 45680-90 | FORK LOCK (specify key code) | ALL |
| 11 | 47173-11BHP | FRAME (gloss black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 47173-11BYM | FRAME (denim black) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 12 | 48315-60 | BEARING CUP (2) | ALL |
| 13 | 48868-07 | POST, seat | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 49725-07A | SPRING, jiffy stand leg | ALL |
| 15 | 50003-89B | CLEVIS PIN, jiffy stand | ALL |
| 16 | 50087-07A | LEG, jiffy stand (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FXS, FXS 103, FXST |
| 17 | 50103-07A | LEG, jiffy stand | FLS, FLS 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 18 | 50972-75 | FITTING, lubrication | ALL |
| 19 | 53176-08 | BUSHING, jiffy stand (2) | ALL |
| 20 | 61081-92 | COVER, key head set (2) | ALL |
| 21 | 62123-07 | BUMPER | ALL |
| 22 | 71044-11 | WIRE TROUGH | ALL |
| 23 | 71400076 | LOCK SET, complete, w/ 45680-90, 71517-11 & keys | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 71400077 | IGNITION SWITCH & FORK LOCK SET | FXS, FXS 103 |
| 90520-07 | PLUG (not illustrated) | ALL | |
| 12600015 | FASTENER, tree (not illustrated) | ALL | |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 3594 | SCREW (HDI, England) | ALL |
| 26 | 49716-08A | JIFFY STAND SENSOR, w/ 72169-07, 72511-07BK, 73213-07 (Australia, HDI, England) | ALL |
| 27 | 72169-07 | TERMINAL, pin #16-20 AWG (HDI, England) (3) | ALL |
| 28 | 72511-07BK | HOUSING, 3-way, pin (HDI, England) | ALL |
| 29 | 73213-07 | RETAINER, X-mas tree clip (HDI, England) | ALL |
FORK, REAR & SHOCK ABSORBERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4074A | BOLT (2) | ALL |
| 2 | 4433 | ADJUSTING SCREW, rear axle (2) | ALL |
| 3 | 4867 | SCREW | ALL |
| 4 | 6534 | WASHER, hardened, right side | ALL |
| 5 | 6535 | WASHER, hardened, left side | ALL |
| 6 | 6724 | WASHER (2) | ALL |
| 7 | 7479 | NUT | ALL |
| 8 | 9270A | BEARING, rear fork pivot (2) | ALL |
| 9 | 11282 | RETAINING RING, fork bearing (2) | ALL |
| 10 | 11514 | BUMPER, rear fork | ALL |
| 11 | 41694-08 | SPACER, rear axle adjuster | ALL |
| 12 | 45764-00 | LOCKNUT (2) | ALL |
| 13 | 47573-11BHP | REAR FORK KIT, w/ 11282 & 9270A (gloss black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 47573-11BYM | REAR FORK KIT, w/ 11282 & 9270A (black denim) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 14 | 47610-08 | PIVOT SHAFT | ALL |
| 15 | 48048-00A | BUSHING, rear fork (2) | ALL |
| 16 | 48619-07A | SPACER, rear fork, right | ALL |
| 48076-08 | SPACER, rear fork, left | ALL | |
| 17 | 54508-00B | SHOCK ABSORBER, complete (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FXST |
| 54549-04 | SHOCK ABSORBER, complete (2) | FLS, FLS 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 18 | 56182-00A | BUSHING (2) | ALL |
| 19 | 56183-00 | WASHER, w/ grommet (4) | ALL |
| 20 | 60363-11 | SPLASH GUARD | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 60456-11 | SPLASH GUARD | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST | |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 54508-00B | SHOCK ABSORBER, complete (JN5, JNV - HDI, England, India) (JRV - Australia) (2) | FLS 103, FLSTFB, FLSTFB 103 |
SEATS - FLS, FLSTC, FLSTF, FLSTFB & FLSTN
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (4) | FLSTC, FLSTC 103 |
| 2 | 2538 | SCREW (3) | FLSTC, FLSTC 103 |
| 3 | 3075 | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 4 | 3633 | NUT, seat mounting (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 5 | 6036 | WASHER (2) | FLSTN, FLSTN 103 |
| 6 | 8126A | RETAINER CLIP (2) | FLSTC, FLSTC 103 |
| 7 | 51184-00 | PASSENGER STRAP | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 8 | 51494-11 | TRIM PANEL, backrest | FLSTC, FLSTC 103 |
| 9 | 51669-07 | BRACKET | FLSTN, FLSTN 103 |
| 10 | 51740-10 | BRACKET, seat mounting (gloss black) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 51652-97A | BRACKET, seat mounting | FLSTC, FLSTC 103 | |
| 11 | 51812-09 | PILLION ASSEMBLY | FLSTC, FLSTC 103 |
| 12 | 51873-10 | SEAT ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 13 | 51874-10 | PILLION ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 14 | 52125-05 | BRACKET | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 15 | 52189-09 | BACKREST | FLSTC, FLSTC 103 |
| 16 | 52237-07 | SEAT, passenger, w/ 51669-07 | FLSTN, FLSTN 103 |
| 17 | 52502-05C | SEAT ASSEMBLY, front, w/ 6036 & 52691-05 | FLSTN, FLSTN 103 |
| 18 | 52505-09 | SEAT ASSEMBLY | FLSTC, FLSTC 103 |
| 19 | 52691-05 | GRAB RAIL | FLSTN, FLSTN 103 |
| 20 | 52731-00 | SISSY BAR UPRIGHT | FLSTC, FLSTC 103 |
| 21 | 52771-82 | BRACKET, backrest | FLSTC, FLSTC 103 |
| 22 | 52787-00 | SIDE PLATE, right | FLSTC, FLSTC 103 |
| 52788-00 | SIDE PLATE, left | FLSTC, FLSTC 103 | |
| 23 | 59259-90 | REFLECTOR (Domestic, Canada) (2) | FLSTC, FLSTC 103 |
| 24 | 67956-96 | SCREW | FLS, FLS 103 |
| 25 | 91678-09 | CONCHO | FLSTC, FLSTC 103 |
| 26 | 52000031 | SEAT | FLS, FLS 103 |
| 27 | 52000032 | BRACKET, mounting | FLS, FLS 103 |
| 28 | 67900140 | BRACKET, reflector | FLSTC, FLSTC 103 |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 59256-84A | REFLECTOR (amber) (HDI, Australia, England, Japan) (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
SEATS - FXS & FXST
| Index No. | Part No. | Description | Model(s) |
| 1 | 3075 | SCREW | FXS, FXS 103 |
| 2 | 3767B | BOLT | FXS, FXS 103 |
| 3 | 6036 | WASHER | FXS, FXS 103 |
| 4 | 54168-11 | SEAT ASSEMBLY, w/ 3574 & 51740-10 | FXS, FXS 103 |
| 5 | 52400002 | PASSENGER STRAP | FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 6 | 3075 | SCREW (Australia) | FXST |
| 7 | 3588 | SCREW (Australia) | FXST |
| 8 | 3767B | BOLT (Australia) | FXST |
| 9 | 6036 | WASHER (Australia) | FXST |
| 10 | 51188-00 | PASSENGER STRAP (Australia) | FXST |
| 11 | 51652-97A | BRACKET, seat mounting (Australia) | FXST |
| 12 | 91767-07 | SEAT, w/ 3588 & 51652-97A (Australia) | FXST |
FOOTRESTS & FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4454 | SCREW (2) | FLSTC, FLSTC 103, FXST |
| 1 | 4454 | SCREW (1) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 4836 | SCREW, right | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 2 | 4390 | SCREW (2) | FLSTN, FLSTN 103 |
| 3 | 4512A | SCREW (6) | ALL |
| 4 | 7716 | LOCKNUT (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 5 | 10866 | CLIP, master cylinder retention | ALL |
| 6 | 11304 | RETAINING RING (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 11304 | RETAINING RING (3) | FXS, FXS 103, FXST | |
| 7 | 33048-72 | FOOTREST, w/ cover (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 33048-72 | FOOTREST, w/ cover (3) | FXST | |
| 33189-63 | FOOTREST COVER (black) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 33189-63 | FOOTREST COVER (black) (3) | FXST | |
| 8 | 33630-07A | BRACKET, jiffy stand, shift lever & footboard- includes shifter bushings | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 9 | 33683-07A | BRACKET, jiffy stand, shift lever & footrest, includes shifter bushings (black) | FXS, FXS 103, FXST |
| 10 | 33708-94 | BEARING SLEEVE (2) | ALL |
| 11 | 42431-11 | SUPPORT ASSEMBLY, right footboard & brake | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 12 | 42508-11BHP | BRACKET, brake lever & footrest (black) | FXS, FXS 103, FXST |
| 13 | 45041-01A | PIN, clevis (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 45041-01A | PIN, clevis (4) | FXS, FXS 103, FXST | |
| 14 | 50614-06 | PAD (2) | FLSTF, FLSTF 103 |
| 15 | 50617-05 | FOOTBOARD BOTTOM, right side | FLSTN, FLSTN 103 |
| 16 | 50621-06 | FOOTBOARD, includes pad (2) | FLSTF, FLSTF 103 |
| 17 | 50624-05 | FOOTBOARD BOTTOM, left side | FLSTN, FLSTN 103 |
| 18 | 50625-05 | FOOTBOARD COVER (2) | FLSTN, FLSTN 103 |
| 19 | 50630-05 | FOOTBOARD PAD (2) | FLSTN, FLSTN 103 |
| 20 | 50674-05 | BOLT, footboard hinge (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 21 | 50698-05 | FOOTBOARD ASSEMBLY, right, w/ 50617-05, 50625-05 & 50630-05 | FLSTN, FLSTN 103 |
| 22 | 50699-05 | FOOTBOARD ASSEMBLY, left, w/ 50624-05, 50625-05 & 50630-05 | FLSTN, FLSTN 103 |
| 23 | 50912-72 | SPRING WASHER (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 50912-72 | SPRING WASHER (4) | FXST | |
| 24 | 50943-05A | SUPPORT, passenger footrest (black) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST |
| 25 | 50944-05 | SUPPORT, passenger footrest, left | FLSTN, FLSTN 103 |
| 26 | 51218-09A | FOOTBOARD BOTTOM (polished) (2) | FLSTC, FLSTC 103 |
| 51402-08A | FOOTBOARD BOTTOM (gloss black) (2) | FLS, FLS 103, FLSTFB, FLSTFB 103 | |
| 27 | 51323-08 | FOOT PEG, right | FXS, FXS 103 |
| 28 | 51327-08 | FOOT PEG, left | FXS, FXS 103 |
| 29 | 51347-08B | FOOTBOARD ASSEMBLY, w/ 51403-08 w/ bottom (black) (No sold Footboard Assembly for BW5, BWV,JN5, JNV, JR5 & JRV. Parts sold separately.) (2) | FLSTFB, FLSTFB 103 |
| 30 | 51403-08 | PAD, footboard (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTFB, FLSTFB 103 |
| 31 | 54204-11 | WEAR PEG, footrest (2) | FXS, FXS 103 |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3471 | BOLT (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 2 | 3494A | BOLT (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 4350A | SCREW (4) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 3 | 7068 | LOCKWASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 7086 | WASHER (2) | FXS, FXS 103 |
| 5 | 7360 | NUT (2) | FXS, FXS 103 |
| 6 | 53156-86 | BUSHING (rubber) (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 55901-05 | HANDLEBAR | FLSTN, FLSTN 103 |
| 8 | 55902-05 | CLAMP, lower (2) | FLSTN, FLSTN 103 |
| 9 | 55903-05 | CLAMP, upper | FLSTN, FLSTN 103 |
| 10 | 55984-07 | RISER (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 11 | 56073-83 | RETAINER (3) | FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXST |
| 12 | 56153-73 | SPACER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 56159-73 | CUP WASHER (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 56887-07 | RISER (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 15 | 56889-07 | CAP (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 16 | 56569-09 | HANDLEBAR | FLSTC, FLSTC 103 |
| 17 | 56998-09 | CLAMP | FLS, FLS 103, FLSTC, FLSTC 103 |
| 18 | 70345-84 | RETAINER (4) | ALL |
| 19 | 55800048 | HANDLEBAR, right side, w/ 7360 | FXS, FXS 103 |
| 20 | 55800049 | HANDLEBAR, left side, w/ 7360 | FXS, FXS 103 |
| 21 | 55800050 | HANDLEBAR | FLS, FLS 103 |
| 22 | 55800058 | HANDLEBAR | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 4816A | SCREW (Australia) (4) | FXST |
| 24 | 10006 | CABLE STRAP (Australia) (2) | FXST |
| 25 | 56102-99 | HANDLEBAR (Australia) | FXST |
| 26 | 56119-77A | CLAMP, upper, (Australia) | FXST |
| 27 | 56122-77 | CLAMP, lower left, (Australia) | FXST |
| 28 | 56124-77 | CLAMP, lower right, (Australia) | FXST |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | ALL |
| 2 | 11155 | RETAINING RING | ALL |
| 3 | 11271 | RETAINING RING, idle control | ALL |
| 4 | 11272 | RETAINING RING, throttle control | ALL |
| 5 | 38653-01 | BOOT, throttle cable | ALL |
| 6 | 56248-08 | GRIP, left | ALL |
| 7 | 56220-94A | GRIP & SLEEVE, throttle, right | ALL |
| 8 | 56342-01 | IDLE CONTROL CABLE, w/ 11271 & 56508-76 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 56433-98 | IDLE CONTROL CABLE, w/ 11271 & 56508-76 | FXS, FXS 103 | |
| 56934-07A | IDLE CONTROL CABLE, w/ 11271 & 38653-01 | FLSTC, FLSTC 103 | |
| 9 | 56343-01 | THROTTLE CONTROL CABLE, w/ 11272, 38653-01 & 56508-01 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 56432-98 | THROTTLE CONTROL CABLE, w/ 11272, 38653-01 & 56508-01 | FXS, FXS 103 | |
| 56939-07A | THROTTLE CONTROL CABLE, w/ 11272 & 38653-01 | FLSTC, FLSTC 103 | |
| 10 | 56394-74 | SPRING, adjusting screw | ALL |
| 11 | 56396-74A | FRICTION SPRING, throttle | ALL |
| 12 | 56397-74C | ADJUSTING SCREW KIT | ALL |
| 13 | 56402-83A | ADJUSTING SCREW | ALL |
| 14 | 56508-76 | FERRULE, control wire (2) | ALL |
| 15 | 70504-81 | CLIP, throttle cables | ALL |
| 16 | 70392-07 | RETAINER, throttle cable | ALL |
WINDSHIELD - FLSTC
| Index No. | Part No. | Description | Model(s) |
| 1 | 2452 | SCREW (2) | FLSTC, FLSTC 103 |
| 2 | 2921 | SCREW (7) | FLSTC, FLSTC 103 |
| 3 | 4343 | SCREW (2) | FLSTC, FLSTC 103 |
| 4 | 4482 | SCREW (2) | FLSTC, FLSTC 103 |
| 5 | 6400HB | WASHER (8) | FLSTC, FLSTC 103 |
| 6 | 6703 | WASHER (2) | FLSTC, FLSTC 103 |
| 7 | 7651A | ACORN NUT (9) | FLSTC, FLSTC 103 |
| 8 | 57061-09 | WINDSHIELD ASSEMBLY, complete | FLSTC, FLSTC 103 |
| 9 | 57062-00A | BRACKET, windshield, right | FLSTC, FLSTC 103 |
| 57063-00A | BRACKET, windshield, left | FLSTC, FLSTC 103 | |
| 10 | 58294-09 | WINDSHIELD KIT, replacement, w/ 58416-77A & 58417-77 | FLSTC, FLSTC 103 |
| 11 | 58252-95 | RETAINER, windshield, left | FLSTC, FLSTC 103 |
| 58253-95 | RETAINER, windshield, right | FLSTC, FLSTC 103 | |
| 12 | 58272-95 | BUSHING, nylon (4) | FLSTC, FLSTC 103 |
| 13 | 58406-75A | BRACKET, windshield, outer right | FLSTC, FLSTC 103 |
| 14 | 58408-75A | BRACKET, windshield, outer left | FLSTC, FLSTC 103 |
| 15 | 58416-77A | TAPE, windshield, horizontal (2) | FLSTC, FLSTC 103 |
| 16 | 58417-77 | TAPE, windshield, vertical (2) | FLSTC, FLSTC 103 |
| 17 | 58428-94 | HORIZONTAL BRACE, windshield, outer | FLSTC, FLSTC 103 |
| 18 | 58431-94 | HORIZONTAL BRACE, windshield, inner | FLSTC, FLSTC 103 |
| 19 | 67621-94 | BUSHING (4) | FLSTC, FLSTC 103 |
| 20 | 94004-90T | ACORN NUT (2) | FLSTC, FLSTC 103 |
| 21 | 94426-95 | SCREW (2) | FLSTC, FLSTC 103 |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 57061-09 | WINDSHIELD ASSEMBLY, complete (Australia, India) | FLSTC, FLSTC 103 |
| 57091-06A | WINDSHIELD ASSEMBLY, complete (HDI, England, Japan) | FLSTC, FLSTC 103 | |
| 57400023 | WINDSHIELD ASSEMBLY, complete (Asia-Pacific) | FLSTC, FLSTC 103 | |
| 23 | 57250-06 | WINDSHIELD KIT, replacement, w/ 58416-77A & 58417-77 (HDI) | FLSTC, FLSTC 103 |
| 57634-07 | WINDSHIELD KIT, low, replacement, w/ 58416-77A & 58417-77 (Asia-Pacific & HDI) | FLSTC, FLSTC 103 | |
HEADLAMP (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW | FXS, FXS 103, FXST |
| 2 | 3615 | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 3 | 4411 | BOLT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 4 | 4721 | BOLT | FXS, FXS 103 |
| 5 | 4722 | BOLT | ALL |
| 6 | 4724 | BOLT | FXST |
| 7 | 6400HB | WASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 8 | 6701 | WASHER (2) | FXS, FXS 103, FXST |
| 9 | 7038 | LOCKWASHER | ALL |
| 10 | 7073 | LOCKWASHER (3) | FXS, FXS 103, FXST |
| 11 | 7130W | LOCKWASHER | ALL |
| 12 | 7230 | LOCKWASHER (3) | FXS, FXS 103, FXST |
| 13 | 7606 | LOCKNUT | FXS, FXS 103, FXST |
| 14 | 7716 | LOCKNUT | FXS, FXS 103, FXST |
| 15 | 7800W | NUT | ALL |
| 16 | 9847 | WIRE TERMINAL, female spade, right hand | ALL |
| 9848 | WIRE TERMINAL, female spade, left hand (2) | ALL | |
| 17 | 10065 | CABLE STRAP | ALL |
| 18 | 67667-05 | MEDALLION, lens | FXS, FXS 103, FXST |
| 19 | 67668-05 | MEDALLION, lens | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 20 | 67721-48 | SCREW (3) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 21 | 67768-97 | MOUNTING BLOCK | FLS, FLS 103, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 22 | 67769-93 | ADAPTOR RING | FXS, FXS 103, FXST |
| 23 | 67772-97 | MOUNTING BLOCK | FXS, FXS 103, FXST |
| 24 | 67790-93A | BEZEL RING (chrome) | FXS, FXS 103, FXST |
| 25 | 68050-93A | RETAINING RING | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 26 | 68051-08 | TRIM RING (chrome) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 27 | 68297-05 | REFLECTOR ASSEMBLY, 5-3/4 in. | FXS, FXS 103 |
| 28 | 68329-03 | BULB, HB2/H4 | ALL |
| 29 | 68342-05 | LENS ASSEMBLY, 7.0 in. | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
HEADLAMP (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 30 | 68380-05 | BOOT | FXS, FXS 103 |
| 68390-05 | BOOT | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 31 | 69609-00 | BUMPER, rubber | FXS, FXS 103, FXST |
| 32 | 69748-05B | SHELL ASSEMBLY, 7.0 in. | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 73295-10 | SHELL ASSEMBLY, 7.0 in. | FLS 103, FLSTFB, FLSTFB 103 | |
| 33 | 72056-92 | INSULATOR, spade terminal, 3-way | ALL |
| 34 | 72249-94 | SHRINK TUBE | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 35 | 73102-96BK | HOUSING, pin, 2-place | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 36 | 73154-96BK | HOUSING, 4-place socket | ALL |
| 37 | 73190-96 | TERMINAL, pin, #16-20 AWG (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 38 | 73191-96 | TERMINAL, socket, #16-20 AWG (4) | ALL |
| 39 | 67700029 | SHELL ASSEMBLY | FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 40 | 4380W | BOLT (India) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 41 | 9841 | TERMINAL (HDI) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 42 | 9898 | TERMINAL, female flag (Asia-Pacific, Australia, England, HDI, Japan) (2) | ALL |
| 43 | 45685-93 | COVER | FXST |
| 44 | 53436-97 | BULB, position lamp (Asia-Pacific, Australia, England, HDI, Japan) | ALL |
| 45 | 68335-05 | REFLECTOR ASSEMBLY, left dip, 5-3/4 in. (Australia, England, Japan) | FXS, FXS 103, FXST |
| 68341-05 | REFLECTOR ASSEMBLY, right dip, 5-3/4 in. (Asia-Pacific, HDI) | FXS, FXS 103 | |
| 46 | 68344-05 | REFLECTOR ASSEMBLY, left dip, 7 in. (Asia-Pacific, Australia, England, India, Japan) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 68345-05 | REFLECTOR ASSEMBLY, right dip, 7 in. (Asia-Pacific, Australia, HDI) (JRV-HDI only) | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 | |
| 47 | 68380-05 | BOOT (HDI, Australia, England, Japan) | ALL |
| 48 | 68653-05 | SOCKET, position lamp (Asia-Pacific, Australia, England, HDI, Japan) | ALL |
| 49 | 69696-05 | SHELL ASSEMBLY, 5-3/4 in. (Australia) | FXST |
| 67700094 | SHELL ASSEMBLY (Australia, England, Japan) | FXS, FXS 103 | |
| 67700029 | SHELL ASSEMBLY (Asia-Pacific, HDI) | FXS, FXS 103 | |
| 50 | 69750-05B | SHELL ASSEMBLY, 7 in., left dip (HDI, Australia, England, India, Japan) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 69783-08A | SHELL ASSEMBLY, 7 in., right dip (Asia-Pacific, HDI) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 | |
| 73293-10 | SHELL ASSEMBLY, 7 in., left dip (Australia, England, India, Japan) | FLS, FLS 103, FLSTFB, FLSTFB 103 | |
| 73294-10 | SHELL ASSEMBLY, 7 in., right dip (JN5 & JNV-Asia-Pacific, HDI) (JRV-HDI) | FLS 103, FLSTFB, FLSTFB 103 | |
| 51 | 69969-08 | SLEEVE (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLSTC & FLSTN (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (4) | FLSTC, FLSTC 103 |
| 2 | 3383 | SCREW (2) | FLSTN, FLSTN 103 |
| 3514 | SCREW (2) | FLSTC, FLSTC 103 | |
| 3 | 4481 | SCREW (2) | FLSTN, FLSTN 103 |
| 4 | 4482 | SCREW (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 5 | 5885 | SPACER (2) | FLSTC, FLSTC 103 |
| 6 | 6072 | WASHER (2) | FLSTC, FLSTC 103 |
| 7 | 6109 | WASHER (4) | FLSTN, FLSTN 103 |
| 8 | 7137 | NUT (2) | FLSTN, FLSTN 103 |
| 9 | 7601 | LOCKNUT (2) | FLSTC, FLSTC 103 |
| 10 | 7606 | LOCKNUT (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 11 | 10065 | CABLE STRAP (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 12 | 58082-02A | BRACKET, auxiliary lamps | FLSTC, FLSTC 103 |
| 13 | 58092-05 | LIGHT BAR | FLSTN, FLSTN 103 |
| 14 | 67615-96 | WIRING HARNESS, auxiliary lamps | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 15 | 67846-70 | NUT, toggle switch | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 16 | 67858-89 | TOGGLE SWITCH, auxiliary lamps, w/ 67846-70 | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 17 | 68168-89A | BULB, turn signal (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 18 | 68331-02 | RING, auxiliary lamps (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 19 | 68337-05 | JUMPER WIRE, auxiliary lamps | FLSTN, FLSTN 103 |
| 20 | 68440-86 | LENS, turn signal (amber) (2) | FLSTC, FLSTC 103 |
| 21 | 68452-86 | SCREW (4) | FLSTC, FLSTC 103 |
| 22 | 68453-05 | BULB (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 23 | 68519-68A | MOUNTING BRACKET (2) | FLSTC, FLSTC 103 |
| 24 | 68619-83 | LABEL, spotlight | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 25 | 68673-05 | COLLAR (2) | FLSTN, FLSTN 103 |
| 26 | 68414-05 | AUXILIARY LAMP, w/ 68453-05 (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 27 | 68720-62 | CLAMP BLOCK, auxiliary lamps (2) | FLSTC, FLSTC 103 |
| 28 | 68721-62 | SWIVEL BLOCK, auxiliary lamps (2) | FLSTC, FLSTC 103 |
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLSTC & FLSTN (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 29 | 68722-06 | HOUSING, auxiliary lamps, w/ 72298-95 & 72356-95 (2) | FLSTN, FLSTN 103 |
| 30 | 68725-62A | BEZEL RING, auxiliary lamps (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 31 | 68766-94 | TURN SIGNAL, front, w/ 68168-89A, 68440-86 & 68452-86 (2) | FLSTC, FLSTC 103 |
| 32 | 68840-05 | SUPPORT (2) | FLSTN, FLSTN 103 |
| 33 | 68973-00 | LENS, turn signal (2) | FLSTN, FLSTN 103 |
| 34 | 69220-06 | TURN SIGNAL ASSEMBLY, right | FLSTN, FLSTN 103 |
| 35 | 69221-06 | TURN SIGNAL ASSEMBLY, left | FLSTN, FLSTN 103 |
| 36 | 72160-06 | HOUSING, w/ 72161-06, 72298-95 & 72356-95 (2) | FLSTC, FLSTC 103 |
| 37 | 72161-06 | HOUSING, 2-way socket | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 38 | 72290-94 | TERMINAL | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 39 | 72298-95 | WIRE SEAL, green (4) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 40 | 72356-95 | TERMINAL, socket, #18-20 AWG (4) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 41 | 72411-97 | SHRINK TUBE | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 42 | 73102-96BK | HOUSING, 2-place pin | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 43 | 73152-96BK | HOUSING, 2-place socket | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 44 | 73156-96BK | HOUSING, 6-place socket | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 45 | 73190-96 | TERMINAL, pin, #16-20 AWG | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 46 | 73191-96 | TERMINAL, socket, #16-20 AWG (8) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| INTERNATIONAL MODELS ONLY | |||
| 47 | 9897 | TERMINAL, wire (Asia-Pacific, Australia, England, HDI, Japan) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 48 | 68163-84 | BULB, turn signal (HDI) (2) | FLSTN, FLSTN 103 |
| 49 | 68337-05 | JUMPER WIRE, fog lamps, w/ 9839 & 72049-92 (HDI) (2) | FLSTN, FLSTN 103 |
| 50 | 68505-90 | LENS, turn signal (amber) (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLSTC, FLSTC 103 |
| 51 | 68572-64B | BULB, turn signal (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLSTC, FLSTC 103 |
| 52 | 68731-98 | LABEL, spotlight (Asia-Pacific, Australia, England, HDI, Japan) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 53 | 68767-94 | TURN SIGNAL (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLSTC, FLSTC 103 |
| 54 | 68846-09 | FOG LAMP ASSEMBLY, w/ 3514, 7606, 68831-02, 68725-62A, 68847-09 & 72160-06 (Asia-Pacific, Australia, England, HDI, Japan) | FLSTC, FLSTC 103 |
| 55 | 68847-09 | BULB UNIT, fog lamps, w/ 68453-05 (Asia-Pacific, Australia, England, HDI, Japan) (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 56 | 68453-05 | BULB, 26.9W (HDI) (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 57 | 68973-00 | LENS, turn signal (HDI) (2) | FLSTN, FLSTN 103 |
| 58 | 69222-09 | TURN SIGNAL ASSEMBLY, right (Asia-Pacific, Australia, England, HDI, Japan) | FLSTN, FLSTN 103 |
| 59 | 69223-09 | TURN SIGNAL ASSEMBLY, left (Asia-Pacific, Australia, England, HDI, Japan) | FLSTN, FLSTN 103 |
| 60 | 72049-92 | HOUSING, jumper wire (HDI) (2) | FLSTN, FLSTN 103 |
| 61 | 72290-94 | TERMINAL | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 62 | 67873-08A | TOGGLE SWITCH, fog lamps, w/ 9897, 67846-70 & 72290-94 (Australia, Japan) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 63 | 69200263 | WIRING HARNESS, kit, fog lamp (Japan) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 755 | HOLE PLUG | FLSTN, FLSTN 103 |
| 2 | 2604 | SCREW (2) | FLSTC, FLSTC 103 |
| 3 | 3485A | SCREW (4) | ALL |
| 4 | 3560WA | BOLT, tee (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 5 | 3561WC | BOLT, tee (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 6 | 6702 | WASHER (4) | FXS, FXS 103, FXST |
| 7 | 7507 | ACORN NUT (4) | FXS, FXS 103, FXST |
| 8 | 7531 | LOCKNUT (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 9 | 7613A | PUSH NUT (6) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 10 | 7624 | LOCKNUT (4) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 11 | 7629 | NUT (2) | FLSTC, FLSTC 103 |
| 12 | 8037 | NUT (5) | FLSTN, FLSTN 103 |
| 8037 | NUT (3) | FLSTC, FLSTC 103 | |
| 13 | 10065 | CABLE STRAP (2) | FLSTC, FLSTC 103 |
| 14 | 10102 | CLIP | FLSTC, FLSTC 103 |
| 15 | 11437 | GROMMET | FLSTC, FLSTC 103 |
| 16 | 14142-09 | TRIM, Heritage Softail (2) | FLSTC, FLSTC 103 |
| 17 | 59019-05 | FRONT FENDER TIP | FLSTN, FLSTN 103 |
| 18 | 59129-09 | FENDER (prime) | FLSTC, FLSTC 103 |
| 19 | 59139-00A | FENDER (prime) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 20 | 59180-80 | LENS, fender tip lamp (amber) | FLSTC, FLSTC 103 |
| 21 | 59211-74A | SIDE TRIM (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 22 | 59234-05 | FENDER (prime) | FLSTN, FLSTN 103 |
| 23 | 59235-09 | TRIM SKIRT, lower | FLSTC, FLSTC 103 |
| 24 | 59360-05 | TRIM SKIRT, lower | FLSTN, FLSTN 103 |
| 25 | 59924-80B | FENDER (prime) | FXS, FXS 103 |
| 26 | 62274-05 | NAMEPLATE | FLSTN, FLSTN 103 |
| 27 | 68193-95 | BULB, fender tip lamp | FLSTC, FLSTC 103 |
| 28 | 68706-00 | LAMP ASSEMBLY FENDER TIP, w/ 59180-80, 68193-95, 73152-96BK & 73191-96 | FLSTC, FLSTC 103 |
| 29 | 70196-00 | HARNESS ASSEMBLY, fender tip light, w/ 73102-96BK, 73190-96 & 73191-96 | FLSTC, FLSTC 103 |
| 30 | 73102-96BK | HOUSING, 2-pin | FLSTC, FLSTC 103 |
| 31 | 73152-96BK | HOUSING, 2-place socket | FLSTC, FLSTC 103 |
| 32 | 73190-96 | TERMINAL, pin, #16-20 AWG (2) | FLSTC, FLSTC 103 |
| 33 | 73191-96 | TERMINAL, socket, #16-20 AWG (4) | FLSTC, FLSTC 103 |
| 34 | 58900021 | FENDER | FLS, FLS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 35 | 755 | HOLE PLUG (HDI) (2) | FLSTC, FLSTC 103 |
| 36 | 59116-96 | LAMP ASSEMBLY FENDER TIP, w/ 59201-96 (HDI) | FLSTC, FLSTC 103 |
| 37 | 59201-96 | LENS, fender tip (HDI) (chrome) | FLSTC, FLSTC 103 |
| 38 | 59924-80B | FENDER (prime) (Australia) | FXST |
FENDERS & SUPPORTS, REAR - FXST
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG (2) | FXST |
| 2 | 3056 | SCREW (4) | FXST |
| 3 | 4266A | SCREW (6) | FXST |
| 4 | 4867 | SCREW (3) | FXST |
| 5 | 6400HB | WASHER (4) | FXST |
| 6 | 6701 | WASHER (2) | FXST |
| 7 | 7601 | LOCKNUT (2) | FXST |
| 8 | 10184 | CLIP, t-stud (2) | FXST |
| 9 | 10228 | PLUG | FXST |
| 10 | 47809-08BHP | SUPPORT, left | FXST |
| 47813-08BHP | SUPPORT, right | FXST | |
| 11 | 59076-06 | BRACKET, fender mounting, rear (2) | FXST |
| 12 | 59430-08 | COVER, right (chrome) | FXST |
| 59434-08 | COVER, left (chrome) | FXST | |
| 13 | 59438-00 | BRACKET ASSEMBLY, ECM mounting | FXST |
| 14 | 59744-06 | PROTECTIVE TAPE, rear fender | FXST |
| 15 | 59768-97 | FENDER SEAT NUT KIT (2) | FXST |
| 16 | 59798-06 | BRACKET, fender mounting, front (2) | FXST |
| 17 | 59821-08 | COVER, right (black) | FXST |
| 59824-08 | COVER, left (black) | FXST | |
| 18 | 59914-06 | FENDER ASSEMBLY (prime) | FXST |
| 19 | 60254-07 | REFLECTOR, amber (Australia) (2) | FXST |
| 20 | 60834-07 | INNER FENDER DAMPING KIT | FXST |
| 21 | 69490-07 | REFLECTOR, red (2) | FXST |
| 22 | 69200044 | CADDY, ECM | FXST |
FENDERS & SUPPORTS, REAR - FLSTC
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2604 | SCREW (2) | FLSTC, FLSTC 103 |
| 2 | 3056 | SCREW (4) | FLSTC, FLSTC 103 |
| 3 | 4266A | SCREW (2) | FLSTC, FLSTC 103 |
| 4 | 4267 | SCREW (2) | FLSTC, FLSTC 103 |
| 5 | 7434 | WASHER (2) | FLSTC, FLSTC 103 |
| 6 | 7629 | NUT (2) | FLSTC, FLSTC 103 |
| 7 | 6400HB | WASHER (4) | FLSTC, FLSTC 103 |
| 8 | 10226 | FASTENER, nylon | FLSTC, FLSTC 103 |
| 9 | 47798-08BHP | SUPPORT, left | FLSTC, FLSTC 103 |
| 47807-08BHP | SUPPORT, right | FLSTC, FLSTC 103 | |
| 10 | 59050-03 | BRACKET, fender mounting, front (2) | FLSTC, FLSTC 103 |
| 11 | 59119-03 | BRACKET, fender mounting, rear (2) | FLSTC, FLSTC 103 |
| 12 | 59144-06A | REAR FENDER (prime) | FLSTC, FLSTC 103 |
| 13 | 59174-99 | STUD PLATE | FLSTC, FLSTC 103 |
| 14 | 59567-00C | PROTECTIVE TAPE | FLSTC, FLSTC 103 |
| 15 | 59683-03 | LAMP ASSEMBLY FENDER TIP | FLSTC, FLSTC 103 |
| 16 | 59768-97 | FENDER SEAT NUT KIT | FLSTC, FLSTC 103 |
| 17 | 59954-08 | COVER, left (chrome) | FLSTC, FLSTC 103 |
| 59955-08 | COVER, right (chrome) | FLSTC, FLSTC 103 | |
| 18 | 60832-07 | INNER FENDER DAMPING KIT | FLSTC, FLSTC 103 |
| 19 | 67266-94 | GROMMET, turn signal (2) | FLSTC, FLSTC 103 |
| 20 | 68046-79 | LENS, rear fender lamp | FLSTC, FLSTC 103 |
| 21 | 68193-95 | BULB, rear fender lamp | FLSTC, FLSTC 103 |
| 22 | 68446-00 | PLUG, button (2) | FLSTC, FLSTC 103 |
| 23 | 73191-96 | TERMINAL, socket, #16-20 AWG (3) | FLSTC, FLSTC 103 |
| 24 | 73153-96BK | HOUSING, 3-way socket | FLSTC, FLSTC 103 |
| 25 | 90367-03 | STUD, saddle bag (4) | FLSTC, FLSTC 103 |
| 26 | 69200045 | CADDY, ECM | FLSTC, FLSTC 103 |
| INTERNATIONAL MODELS ONLY | |||
| 27 | 59117-96 | LAMP ASSEMBLY FENDER TIP (HDI) | FLSTC, FLSTC 103 |
| 28 | 68081-96 | LENS, rear fender tip, chrome (HDI) | FLSTC, FLSTC 103 |
FENDERS & SUPPORTS, REAR - FLSTF & FLSTFB
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 2 | 3056 | SCREW (4) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 3 | 4266A | SCREW (6) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 4 | 4867 | SCREW | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 5 | 6400HB | WASHER (4) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 6 | 6701 | WASHER (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 7 | 7434 | WASHER (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 8 | 7601 | LOCKNUT (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 9 | 10228 | PLUG | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 10 | 45550-03 | PLATE, wire retainer (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 11 | 47809-08BHP | COVER, left (chrome) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 47813-08BHP | COVER, right (chrome) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 12 | 51803-07 | STUD PLATE ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 13 | 59798-06 | BRACKET, fender mounting, front (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 14 | 59088-03 | BRACKET, fender mounting, rear (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 15 | 59438-00 | BRACKET ASSEMBLY | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 16 | 59567-00C | PROTECTIVE TAPE | FLSTF, FLSTF 103 |
| 61008-10 | PROTECTIVE TAPE | FLSTFB, FLSTFB 103 | |
| 17 | 59768-97 | FENDER SEAT NUT KIT (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 18 | 59819-06B | REAR FENDER (prime) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 19 | 59430-08 | COVER, right (chrome) | FLSTF, FLSTF 103 |
| 59434-08 | COVER, left (chrome) | FLSTF, FLSTF 103 | |
| 59821-08 | COVER, right (black) | FLSTFB, FLSTFB 103 | |
| 59824-08 | COVER, left (black) | FLSTFB, FLSTFB 103 | |
| 20 | 60832-07 | INNER FENDER DAMPING KIT | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 21 | 69490-07 | REFLECTOR, rear fender (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 22 | 69200044 | CADDY, ECM | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 60254-07 | REFECTOR, amber (HDI, Australia, England & Japan) (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
FENDERS & SUPPORTS, REAR - FLSTN
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3056 | SCREW (4) | FLSTN, FLSTN 103 |
| 2 | 3767B | BOLT (2) | FLSTN, FLSTN 103 |
| 3 | 4266A | SCREW (6) | FLSTN, FLSTN 103 |
| 4 | 4267 | SCREW (2) | FLSTN, FLSTN 103 |
| 5 | 6110 | WASHER (3) | FLSTN, FLSTN 103 |
| 6 | 6400HB | WASHER (4) | FLSTN, FLSTN 103 |
| 7 | 7434 | WASHER (2) | FLSTN, FLSTN 103 |
| 8 | 8037 | NUT (3) | FLSTN, FLSTN 103 |
| 9 | 10226 | FASTENER, nylon | FLSTN, FLSTN 103 |
| 10 | 53462-05 | STUD, rear seat mounting | FLSTN, FLSTN 103 |
| 11 | 53830-00 | PLUG (2) | FLSTN, FLSTN 103 |
| 12 | 53860-05 | LUGGAGE RACK | FLSTN, FLSTN 103 |
| 13 | 59026-05 | REAR FENDER TIP | FLSTN, FLSTN 103 |
| 14 | 59174-99 | STUD PLATE | FLSTN, FLSTN 103 |
| 15 | 59238-05A | REAR FENDER (prime) | FLSTN, FLSTN 103 |
| 16 | 69490-07 | REFLECTOR, red (2) | FLSTN, FLSTN 103 |
| 17 | 59474-07 | BRACKET FENDER MOUNT, rear | FLSTN, FLSTN 103 |
| 18 | 59475-05 | BRACKET FENDER MOUNT, front | FLSTN, FLSTN 103 |
| 19 | 59572-05 | PROTECTIVE TAPE | FLSTN, FLSTN 103 |
| 20 | 59770-05BEO | COVER, fender | FLSTN, FLSTN 103 |
| 21 | 59954-08 | COVER, left (chrome) | FLSTN, FLSTN 103 |
| 59955-08 | COVER, right (chrome) | FLSTN, FLSTN 103 | |
| 22 | 60833-07 | INNER FENDER DAMPING KIT | FLSTN, FLSTN 103 |
| 23 | 67267-05 | GROMMET, turn signal (2) | FLSTN, FLSTN 103 |
| 24 | 68446-00 | PLUG, button (2) | FLSTN, FLSTN 103 |
| 25 | 47798-08BHP | SUPPORT, left | FLSTN, FLSTN 103 |
| 47807-08BHP | SUPPORT, right | FLSTN, FLSTN 103 | |
| 26 | 69200045 | CADDY, ECM | FLSTN, FLSTN 103 |
| INTERNATIONAL MODELS ONLY | |||
| 27 | 60254-07 | REFLECTOR, amber (HDI, Australia, England, Japan) (2) | FLSTN, FLSTN 103 |
FENDER, REAR - FLS & FXS
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG | FLS, FLS 103 |
| 2 | 3056 | SCREW (4) | FLS, FLS 103, FXS, FXS 103 |
| 3 | 4266A | SCREW (4) | FLS, FLS 103, FXS, FXS 103 |
| 4 | 4705 | SCREW (2) | FLS, FLS 103, FXS, FXS 103 |
| 5 | 6400HB | WASHER (4) | FLS, FLS 103, FXS, FXS 103 |
| 6 | 10177 | CABLE STRAP, x-mas tree | FLS, FLS 103, FXS, FXS 103 |
| 7 | 10226 | FASTENER, nylon | FLS, FLS 103, FXS, FXS 103 |
| 8 | 59500-11 | FENDER | FLS, FLS 103, FXS, FXS 103 |
| 9 | 59548-11 | BRACKET, fender mount (2) | FLS, FLS 103, FXS, FXS 103 |
| 10 | 59679-11 | BRACKET ASSEMBLY, license plate support | FXS, FXS 103 |
| 69200356 | BRACKET ASSEMBLY, license plate support (Domestic) | FLS 103 | |
| 11 | 59768-97 | FENDER SEAT NUT KIT (2) | FXS, FXS 103 |
| 12 | 59904-11BYM | SUPPORT, left side fender (not shown) | FXS, FXS 103 |
| 59904-12BHP | SUPPORT, left side fender (not shown) | FLS, FLS 103 | |
| 13 | 60187-11BYM | SUPPORT, right side fender | FXS, FXS 103 |
| 60187-12BHP | SUPPORT, right side fender | FLS, FLS 103 | |
| 14 | 69490-07 | REFLECTOR (2) | FLS 103 |
| 15 | 73412-11 | WIRE GUIDE (2) | FLS, FLS 103, FXS, FXS 103 |
| 16 | 73422-11 | WIRE CLIP | FLS, FLS 103, FXS, FXS 103 |
| 17 | 11100010 | TAPE, pad mounting (2) | FLS, FLS 103, FXS, FXS 103 |
| 18 | 11100014 | PROTECTIVE TAPE, fender | FLS, FLS 103, FXS, FXS 103 |
| 19 | 69200046 | CADDY, ECM | FLS, FLS 103, FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 59679-11 | BRACKET ASSEMBLY, license plate support (HDI, Australia, Canada, England, Japan) | FLS, FLS 103 |
GUARDS, SAREE
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the India market. | |||
| 1 | 927A | SCREW (3) | FLSTF 103, FLSTFB 103 |
| 2 | 4512A | SCREW (3) | FLSTF 103, FLSTFB 103 |
| 3 | 6703 | WASHER (3) | FLSTF 103, FLSTFB 103 |
| 4 | 93511-10 | FIRST AID KIT | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 5 | 94435-10 | FOLDING TOOL | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 6 | 10800054 | P-CLIP (3) | FLSTF 103, FLSTFB 103 |
| 7 | 60300018 | SAREE GUARD, left - rear | FLSTF 103, FLSTFB 103 |
| 8 | 60300019 | SAREE GUARD, right | FLSTF 103, FLSTFB 103 |
| 9 | 60300032 | SAREE GUARD, left - front | FLSTF 103, FLSTFB 103 |
LICENSE PLATE BRACKETS - FLS & FXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (2) | FLS 103, FXS, FXS 103 |
| 2 | 3612 | SCREW (2) | FLS 103, FXS, FXS 103 |
| 3 | 4091 | SCREW (2) | FLS 103, FXS, FXS 103 |
| 4 | 4705 | SCREW (2) | FLS 103, FXS, FXS 103 |
| 5 | 5403B | BOLT | FLS 103 |
| 6 | 6703 | WASHER (4) | FLS 103, FXS, FXS 103 |
| 7 | 7716 | LOCKNUT | FLS 103 |
| 8 | 7792 | NUT (2) | FLS 103, FXS, FXS 103 |
| 9 | 52441-95 | BULB, illuminator (2) | FLS, FLS 103, FXS, FXS 103 |
| 10 | 59259-90 | REFLECTOR, red (2) | FXS, FXS 103 |
| 11 | 59988-72A | REFLECTOR, red | FXS, FXS 103 |
| 12 | 60154-11 | BRACKET, license plate | FXS, FXS 103 |
| 13 | 68702-07 | BRACKET, license plate, adjustable | FLS 103 |
| 14 | 68966-08 | BRACKET, left reflector mount | FXS, FXS 103 |
| 15 | 68992-08 | BRACKET, right reflector mount | FXS, FXS 103 |
| 16 | 69557-10 | BLOCK, mounting | FLS 103 |
| 17 | 67900115 | LICENSE PLATE ASSEMBLY | FLS 103 |
| 18 | 67900117 | ILLUMINATOR | FLS 103 |
| 19 | 73403-11 | TAIL LAMP ASSEMBLY (Canada) | FXS, FXS 103 |
| 20 | 73410-11 | BRACKET, reflector | FXS, FXS 103 |
| 21 | 73504-11 | ILLUMINATOR, license plate | FXS, FXS 103 |
| 22 | 74113-98BK | HOUSING, 3-way socket (black) | FLS 103, FXS, FXS 103 |
| 23 | 74153-98 | SECONDARY LOCK, 3-way socket (black) | FLS 103, FXS, FXS 103 |
| 24 | 74191-98 | SOCKET TERMINAL (2) | FXS, FXS 103 |
| 25 | 74195-98 | SEAL PIN (2) | FLS 103, FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 940 | SCREW (Australia, Canada, England, HDI, Japan) (2) | FLS, FLS 103 |
| 27 | 3612 | SCREW (Australia, Canada, England, HDI, Japan) (2) | FLS, FLS 103 |
| 28 | 4091 | SCREW (Australia, England, HDI, Japan) (2) | FLS, FLS 103 |
| 29 | 4705 | SCREW (Australia, Canada, England, HDI, Japan) (2) | FLS, FLS 103 |
| 30 | 6703 | WASHER (Australia, Canada, England, HDI, Japan) (4) | FLS, FLS 103 |
| 31 | 7792 | NUT (Australia, Canada, England, HDI, Japan) (2) | FLS, FLS 103 |
| 32 | 59256-84A | REFLECTOR, amber (Australia, England, HDI, Japan) (2) | FLS, FLS 103, FXS, FXS 103 |
| 33 | 59259-90 | REFLECTOR, red (Canada, HDI) | FLS, FLS 103, FXS, FXS 103 |
| 34 | 59988-72A | REFLECTOR, red (Canada, HDI) | FLS, FLS 103, FXS, FXS 103 |
| 35 | 60123-02 | BRACKET, reflector, license plate (HDI) | FLS, FLS 103, FXS, FXS 103 |
| 36 | 60154-11 | BRACKET, license plate (Australia, Canada, England, HDI, Japan) | FLS, FLS 103 |
| 37 | 68966-08 | BRACKET, left reflector mount (Australia, Canada, England, HDI, Japan) | FLS, FLS 103 |
| 38 | 68992-08 | BRACKET, right reflector mount (Australia, Canada, England, HDI, Japan) | FLS, FLS 103 |
| 39 | 73403-11 | TAIL LAMP ASSEMBLY (Canada) | FLS 103 |
| 40 | 73410-11 | BRACKET, reflector (Canada) | FLS 103 |
| 41 | 73504-11 | ILLUMINATOR, license plate (Australia, England, HDI, Japan) | FLS, FLS 103 |
| 42 | 74113-98BK | HOUSING, 3-way socket (black) (Australia, Canada, England, HDI, Japan) | FLS, FLS 103 |
| 43 | 74153-98 | SECONDARY LOCK, 3-way socket (black) (Australia, Canada, England, HDI, Japan) | FLS, FLS 103 |
| 44 | 74191-98 | SOCKET TERMINAL (Australia, Canada, England, HDI, Japan) (2) | FLS, FLS 103 |
| 45 | 74195-98 | SEAL PIN (Australia, England, HDI, Japan) (2) | FLS 103 |
LICENSE PLATE BRACKETS - FLSTC, FLSTF, FLSTN, FLSTFB & FXST
| Index No. | Part No. | Description | Model(s) |
| 1 | 2604 | SCREW (2) | FLSTN, FLSTN 103 |
| 2 | 2773 | SCREW (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 3 | 3440 | BOLT (4) | FXST |
| 4 | 5403B | BOLT | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 5 | 6110 | WASHER | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 6 | 6379W | WASHER (4) | FXST |
| 7 | 7629 | NUT (2) | FLSTN, FLSTN 103 |
| 8 | 7792 | NUT (3) | FLSTN, FLSTN 103 |
| 8 | 7792 | NUT (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 9 | 59984-73 | BRACKET, license plate | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 10 | 59986-75 | SUPPORT, license plate | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 11 | 59988-72A | REFLECTOR | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 12 | 59995-06B | BRACKET, license plate & tail lamp | FXST |
| 13 | 60001-55 | CLAMP | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 60003-89 | CLAMP | FLSTN, FLSTN 103 | |
| 14 | 69490-07 | REFLECTOR | FXST |
| 15 | 60020-97 | BRACKET, license plate | FLSTN, FLSTN 103 |
| 16 | 60021-97 | SUPPORT, license plate | FLSTN, FLSTN 103 |
| 17 | 68004-05 | CLIP | FLSTN, FLSTN 103 |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 927A | SCREW (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 19 | 4380W | BOLT (India) | FLSTF 103, FLSTFB 103 |
| 20 | 6703 | WASHER (India) (2) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 21 | 7792 | NUT (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 22 | 59259-90 | REFLECTOR, red (HDI) | FXST |
| 23 | 60123-02 | BRACKET, reflector, license plate (HDI) | FXST |
| 24 | 10800007 | P-CLAMP (India) (2) | FLSTC 103 |
| 25 | 67900016 | BRACKET, license plate, front (India) | FLSTF 103, FLSTFB 103 |
| 26 | 67900089 | LICENSE PLATE, front (India) | FLSTF 103, FLSTFB 103 |
| 27 | 67900092 | LICENSE PLATE, front (India) | FLSTC 103 |
| 28 | 67900093 | LICENSE PLATE, rear (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
FUEL TANK - FLS, FLSTC, FLSTF, FLSTN, FLSTFB & FXST (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3017 | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 2 | 4197 | BOLT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 3 | 4763 | SCREW | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 5818A | BUSHING, front tank mount (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 5 | 6545 | WASHER (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 6 | 6702 | WASHER | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 6716 | WASHER | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 8 | 7862 | ACORN NUT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 9 | 7965 | TEE NUT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 10 | 10006 | CABLE STRAP (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 11 | 10038A | CLAMP, fuel crossover hose (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 10102 | CLIP | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 10226 | FASTENER, nylon | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 11323 | O-RING | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 15 | 11387A | O-RING | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 16 | 11529 | RUBBER TRIM, fuel tank | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 17 | 11533 | RETAINING RING (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
FUEL TANK - FLS, FLSTC, FLSTF, FLSTN, FLSTFB & FXST (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 18 | 61155-00 | TRIM PANEL, fuel tank | FXST |
| 61183-10 | TRIM PANEL, fuel tank | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 61257-05 | TRIM PANEL, fuel tank | FLSTN, FLSTN 103 | |
| 62377-11 | TRIM PANEL, fuel tank | FLSTC, FLSTC 103 | |
| 70900170 | TRIM PANEL, fuel tank | FLS, FLS 103 | |
| 19 | 61109-85D | GASKET | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 20 | 61272-92C | CAP, fuel filler, right, w/ 61109-85D | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 21 | 61625-11 | FUEL TANK, 5 gallon (prime) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 22 | 62189-08 | CHECK VALVE, out | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 23 | 62880-00 | GROMMET, fuel tank, upper rear | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 62881-00 | GROMMET, fuel tank, lower rear & front (3) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 25 | 62900-01D | FUEL LINE, from tank to intake | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 26 | 75307-07 | ADAPTOR KIT, fuel level sensor | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 27 | 62555-95 | INSULATOR, 5/8 in. I.D. (nylon) (8 ft. length) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 28 | 63521-95A | HOSE, 5/16 in. I.D. x 5/8 in. O.D. (rubber) (25 ft. length) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 29 | 61100001 | VENT LINE ASSEMBLY, fuel tank to vapor valve (except California & Asia-Pacific) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 30 | 61100003 | VENT HOSE (except California & Asia-Pacific) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
FUEL TANK - FXS
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 4197 | BOLT | FXS, FXS 103 |
| 2 | 4763 | SCREW | FXS, FXS 103 |
| 3 | 5471 | BOLT | FXS, FXS 103 |
| 4 | 5818A | BUSHING, front tank mount (2) | FXS, FXS 103 |
| 5 | 6545 | WASHER (2) | FXS, FXS 103 |
| 6 | 6702 | WASHER | FXS, FXS 103 |
| 7 | 7576 | NUT | FXS, FXS 103 |
| 8 | 7862 | ACORN NUT | FXS, FXS 103 |
| 9 | 7965 | TEE NUT | FXS, FXS 103 |
| 10 | 10006 | CABLE STRAP (2) | FXS, FXS 103 |
| 11 | 10038A | CLAMP, fuel crossover hose (2) | FXS, FXS 103 |
| 12 | 10226 | FASTENER, nylon | FXS, FXS 103 |
| 13 | 11323 | O-RING | FXS, FXS 103 |
| 14 | 11387A | O-RING | FXS, FXS 103 |
| 15 | 11529 | RUBBER TRIM, fuel tank | FXS, FXS 103 |
| 16 | 11533 | RETAINING RING (2) | FXS, FXS 103 |
| 17 | 61109-85D | GASKET | FXS, FXS 103 |
| 18 | 62189-08 | CHECK VALVE, out | FXS, FXS 103 |
| 19 | 62322-11 | FUEL TANK, 5 gallon (prime) | FXS, FXS 103 |
| 20 | 62543-11 | CAP, fuel, low profile w/ 61109-85D | FXS, FXS 103 |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 21 | 62555-95 | INSULATOR, 5/8 in. I.D. (nylon) (8 ft. length) | FXS, FXS 103 |
| 22 | 63521-95A | HOSE, 5/16 in. I.D. x 5/8 in. O.D. (rubber) (25 ft. length) | FXS, FXS 103 |
| 23 | 62880-00 | GROMMET, fuel tank, upper rear | FXS, FXS 103 |
| 24 | 62881-00 | GROMMET, fuel tank, lower rear & front (3) | FXS, FXS 103 |
| 25 | 62900-01D | FUEL LINE, from tank to intake | FXS, FXS 103 |
| 26 | 71340-11 | CONSOLE, fuel tank | FXS, FXS 103 |
| 27 | 71576-08A | MOULDING, rubber, instrument panel | FXS, FXS 103 |
| 28 | 72775-11 | TRIM INSERT, console | FXS, FXS 103 |
| 29 | 61100001 | VENT LINE ASSEMBLY, fuel tank to vapor valve (except California & Asia-Pacific) | FXS, FXS 103 |
| 30 | 61100003 | VENT HOSE (except California & Asia-Pacific) | FXS, FXS 103 |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW (10) | ALL |
| 2 | 7576 | NUT | ALL |
| 3 | 10006 | CABLE STRAP (2) | ALL |
| 4 | 10065 | CABLE STRAP | ALL |
| 5 | 10871 | CLAMP (2) | ALL |
| 6 | 11387A | O-RING | ALL |
| 7 | 61011-04A | FILTER, fuel w/ O-ring | ALL |
| 8 | 61015-04A | FUEL REGULATOR KIT, w/ O-rings, spacer & screen | ALL |
| 9 | 61192-96A | GASKET, fuel guage | ALL |
| 10 | 61381-02 | GASKET, top plate | ALL |
| 11 | 62143-11 | TUBE, ROV to top plate | ALL |
| 12 | 62155-11 | VALVE, roll over | ALL |
| 13 | 62158-11 | BRACKET, ROV | ALL |
| 14 | 72904-01BK | HOUSING, 4-way pin | ALL |
| 15 | 72990-01 | TERMINAL, pin (3) | ALL |
| 16 | 75141-11 | TOP PLATE ASSEMBLY, w/ 61381-02 & 75282-08A | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST |
| 75252-11 | TOP PLATE ASSEMBLY, w/ 61381-02 & 75282-08A | FLS, FLS 103, FLSTC, FLSTC 103 | |
| 17 | 75241-08 | FUEL GAUGE | ALL |
| 18 | 75276-08A | SENDER, fuel level | ALL |
| 19 | 75282-08A | FILTER MODULE ASSEMBLY | ALL |
| 20 | 75284-08A | MODULE ASSEMBLY, fuel pump w/ 75289-08 & 75290-08 | ALL |
| 21 | 75289-08 | KIT-HARNESS ASSEMBLY, fuel pump | ALL |
| 22 | 75290-08 | STRAINER, fuel pump | ALL |
| 23 | 91072-11 | BUMPER, rubber | ALL |
| 24 | 60900001 | TOP PLATE, w/ 61381-02 | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST |
| 60900003 | TOP PLATE, w/ 61381-02 | FLS, FLS 103, FLSTC, FLSTC 103 |
FUEL TANK TRIM
| Index No. | Part No. | Description | Model(s) |
| 1 | 61264-10 | MEDALLION, right (for vivid black, big blue pearl, brilliant silver pearl and black denim tanks) | FLSTFB, FLSTFB 103 |
| 61265-10 | MEDALLION, left (for vivid black, big blue pearl, brilliant silver pearl and black denim tanks) | FLSTFB, FLSTFB 103 | |
| 14100035 | MEDALLION, right (for vivid black, midnight pearl and chrome yellow tanks) | FLSTF, FLSTF 103 | |
| 14100036 | MEDALLION, left (for vivid black, midnight pearl and chrome yellow tanks) | FLSTF, FLSTF 103 | |
| 2 | 62241-08 | INSERT, PEACE OFFICER **RESTRICTED SALES PART** | FLSTC, FLSTC 103, FLSTF, FLSTF 103 |
| 3 | 62242-08 | INSERT, FIREFIGHTER **RESTRICTED SALES PART** | FLSTC, FLSTC 103, FLSTF, FLSTF 103 |
| 4 | 62243-08 | INSERT, SPECIAL EDITION **RESTRICTED SALES PART** | FLSTC, FLSTC 103, FLSTF, FLSTF 103 |
| 5 | 62276-05 | MEDALLION, left (for vivid black, big blue pearl, ember red sunglo, 2-tone birch white/sunburst red and birch white/midnight pearl tanks) | FLSTN, FLSTN 103 |
| 62277-05 | MEDALLION, right (for vivid black, big blue pearl, ember red sunglo, 2-tone birch white/sunburst red and birch white/midnight pearl tanks) | FLSTN, FLSTN 103 | |
| 6 | 62394-09 | MEDALLION, left, red glass (for vivid black and 2-tone ember red sunglo/merlot tanks) | FLSTC, FLSTC 103 |
| 62395-09 | MEDALLION, right, red glass (for vivid black and 2-tone ember red sunglo/merlot tanks) | FLSTC, FLSTC 103 | |
| 62416-09 | MEDALLION, left, blue glass (for big blue pearl, white hot pearl and 2-tone midnight pearl/ brilliant silver tanks) | FLSTC, FLSTC 103 | |
| 62427-09 | MEDALLION, right, blue glass (for big blue pearl, white hot pearl and 2-tone midnight pearl/ brilliant silver tanks) | FLSTC, FLSTC 103 | |
| 7 | 62567-08 | MEDALLION, fuel tank, left **RESTRICTED SALES PART** | FLSTC, FLSTC 103, FLSTF, FLSTF 103 |
| 62568-08 | MEDALLION, fuel tank, right **RESTRICTED SALES PART** | FLSTC, FLSTC 103, FLSTF, FLSTF 103 | |
| 8 | 61400055 | MEDALLION, fuel tank, left | FLS, FLS 103 |
| 61400056 | MEDALLION, fuel tank, right | FLS, FLS 103 | |
| Index 9Silkscreen that is only sold as part of vivid black and ember red sunglo FXST fuel tank assemblies.Index 10Silkscreen that is only sold as part of black denim, vivid black and 2-tone H-D orange/vivid black, big blue pearl/vivid black FXS fuel tank assemblies. | |||
OIL TANK & LINES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4216 | SCREW (3) | ALL |
| 2 | 4217 | SCREW (2) | ALL |
| 3 | 5775 | WASHER (3) | ALL |
| 4 | 8144 | LOCKNUT (2) | ALL |
| 5 | 10208 | CLAMP (4) | ALL |
| 6 | 10216 | CLIP, oil lines | ALL |
| 7 | 11105 | O-RING | ALL |
| 8 | 11326 | O-RING (3) | ALL |
| 9 | 11447 | GROMMET (3) | ALL |
| 10 | 33525-07 | OIL LINE, feed | ALL |
| 11 | 33531-07 | OIL LINE, return | ALL |
| 12 | 45468-00 | CONNECTOR ASSEMBLY, vent, w/ 11326 & 63783-00 | ALL |
| 13 | 45806-07 | OIL LINE, vent | ALL |
| 14 | 62498-01A | OIL TANK (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| 62507-10BYM | OIL TANK (denim black) | FLSTFB, FLSTFB 103 | |
| 62492-01A | OIL TANK (black) | FLS, FLS 103, FXS, FXS 103, FXST | |
| 15 | 62769-00A | BRACKET, oil tank top | ALL |
| 16 | 62845-00A | FILLER CAP, w/ dipstick | ALL |
| 17 | 63553-00B | HOSE, oil tank drain | ALL |
| 18 | 63601-00 | CONNECTOR ASSEMBLY, oil line, w/ 11326 & 63632-00 (2) | ALL |
| 19 | 63632-00 | OIL LINE RETAINER ASSEMBLY (2) | ALL |
| 20 | 63783-00 | OIL LINE RETAINER ASSEMBLY (3) | ALL |
| 21 | 63611-00 | HOSE, oil feed | ALL |
| 22 | 60328-98B | PLUG ASSEMBLY, magnetic drain, w/ 11105 | ALL |
EXHAUST SYSTEM - FLSTC & FXST
| Index No. | Part No. | Description | Model(s) |
| 1 | 3391 | SCREW (4) | FLSTC, FLSTC 103, FXST |
| 2 | 7593 | NUT (4) | FLSTC, FLSTC 103, FXST |
| 3 | 7601 | LOCKNUT (2) | FLSTC, FLSTC 103, FXST |
| 4 | 9955 | CLAMP, shield (4) | FLSTC, FLSTC 103, FXST |
| 5 | 10074 | CLAMP, shield (California) (4) | FLSTC, FLSTC 103, FXST |
| 6 | 10147 | CLIP, connector O² sensor (2) | FLSTC, FLSTC 103, FXST |
| 7 | 11860 | STUD, spacer (2) | FLSTC, FLSTC 103, FXST |
| 8 | 11936 | GASKET, oxygen sensor | FLSTC, FLSTC 103, FXST |
| 9 | 64708-08B | MUFFLER ASSEMBLY, front/rear (California, Canada, Domestic) (2) | FLSTC, FLSTC 103, FXST |
| 10 | 65184-02 | FLANGE, exhaust pipe (2) | FLSTC, FLSTC 103, FXST |
| 11 | 65296-95A | CLAMP, muffler (2) | FLSTC, FLSTC 103, FXST |
| 12 | 65324-83B | GASKET, exhaust port | FLSTC, FLSTC 103, FXST |
| 13 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLSTC, FLSTC 103, FXST |
| 14 | 65463-00 | SHIELD, muffler (2) | FLSTC, FLSTC 103, FXST |
| 15 | 65521-10 | KIT-CLAMP, interconnect (2) | FLSTC, FLSTC 103, FXST |
| 16 | 65702-00A | SHIELD, rear exhaust | FLSTC, FLSTC 103, FXST |
| 17 | 65707-10 | SHIELD, front exhaust | FXST |
| 65715-10 | SHIELD, front exhaust | FLSTC, FLSTC 103 | |
| 18 | 65830-10 | GASKET, exhaust interconnect (2) | FLSTC, FLSTC 103, FXST |
| 19 | 66737-10 | TUBE ASSEMBLY, interconnect | FLSTC, FLSTC 103, FXST |
| 20 | 72177-07BK | HOUSING, 4-way socket (black) | FLSTC, FLSTC 103, FXST |
| 21 | 72344-10 | TERMINAL, socket #22 AWG (gold) (2) | FLSTC, FLSTC 103, FXST |
| 22 | 72444-07GY | HOUSING, 4-way socket (gray) | FLSTC, FLSTC 103, FXST |
| 23 | 73307-10 | TERMINAL, socket #22 AWG (2) | FLSTC, FLSTC 103, FXST |
| 24 | 32700005 | OXYGEN SENSOR, front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLSTC, FLSTC 103, FXST |
| 25 | 32700006 | OXYGEN SENSOR, rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLSTC, FLSTC 103, FXST |
| 26 | 65600031 | EXHAUST PIPE ASSEMBLY, front | FLSTC, FLSTC 103, FXST |
| 27 | 65600035 | EXHAUST PIPE ASSEMBLY, rear (Domestic, California, Canada) | FLSTC, FLSTC 103, FXST |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 3574 | SCREW (HDI, Australia, Brazil, England) (4) | FLSTC, FLSTC 103, FXST |
| 29 | 65682-07 | MUFFLER ASSEMBLY, front/rear (HDI, England) | FLSTC, FLSTC 103 |
| 65682-07 | MUFFLER ASSEMBLY, front/rear (Asia-Pacific, Japan) (2) | FLSTC, FLSTC 103 | |
| 65685-07 | MUFFLER ASSEMBLY, rear (HDI, England) | FLSTC, FLSTC 103 | |
| 64900105 | MUFFLER ASSEMBLY, front (Australia) | FLSTC, FLSTC 103, FXST | |
| 64900106 | MUFFLER ASSEMBLY, rear (Australia) | FLSTC, FLSTC 103, FXST | |
| 30 | 66763-07 | EXHAUST ACTUATOR CABLE, w/ 66767-07 (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| 31 | 66767-07 | RETAINER, cable (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| 32 | 66797-07 | BRACKET, exhaust actuator (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| 33 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| 34 | 71019-07 | SHROUD, exhaust actuator (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| 35 | 65600031 | EXHAUST PIPE ASSEMBLY, front (Australia) | FXST |
| 36 | 65600035 | EXHAUST PIPE ASSEMBLY, rear (Asia-Pacific, Japan) | FLSTC, FLSTC 103 |
| 65600039 | EXHAUST PIPE ASSEMBLY, rear (HDI, Australia, England) | FLSTC, FLSTC 103, FXST | |
EXHAUST SYSTEM - FLS, FLSTF, FLSTFB, FLSTN & FXS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3391 | SCREW (4) | FLS, FLS 103, FLSTN, FLSTN 103 |
| 3391 | SCREW (6) | FLSTF, FLSTF 103 | |
| 2 | 4190 | SCREW | FLS, FLS 103, FLSTN, FLSTN 103 |
| 3 | 5416 | BOLT | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 4 | 7593 | NUT (4) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 5 | 7601 | LOCKNUT (3) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 6 | 9955 | CLAMP (7) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 9955 | CLAMP (8) | FLS, FLS 103, FLSTN, FLSTN 103 | |
| 7 | 10074 | CLAMP, muffler shield (4) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 8 | 10119 | CLAMP | FLS, FLS 103, FLSTN, FLSTN 103 |
| 9 | 11860 | STUD, spacer (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 10 | 11936 | GASKET, oxygen sensor | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 11 | 64709-08B | MUFFLER ASSEMBLY, front (chrome) | FLSTF, FLSTF 103 |
| 65822-10A | MUFFLER ASSEMBLY, front (satin chrome) | FLSTFB, FLSTFB 103 | |
| 12 | 64710-08B | MUFFLER ASSEMBLY, rear (chrome) | FLSTF, FLSTF 103 |
| 65862-10A | MUFFLER ASSEMBLY, rear (satin chrome) | FLSTFB, FLSTFB 103 | |
| 13 | 64711-08B | MUFFLER ASSEMBLY, front (chrome) | FLSTN, FLSTN 103 |
| 14 | 64712-08B | MUFFLER ASSEMBLY, rear (chrome) | FLSTN, FLSTN 103 |
| 15 | 64734-08A | MUFFLER ASSEMBLY, front, catalytic (chrome) | FLS 103, FXS, FXS 103 |
| 16 | 64735-08A | MUFFLER ASSEMBLY, rear, catalytic (chrome) | FLS 103, FXS, FXS 103 |
| 17 | 65148-00B | SHIELD, front exhaust | FLS, FLS 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 66899-10A | SHIELD, front exhaust | FLSTFB, FLSTFB 103 | |
| 18 | 65184-02 | FLANGE, exhaust manifold (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 19 | 65296-95A | CLAMP, muffler (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 20 | 65324-83B | GASKET, exhaust port (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 21 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 22 | 65383-05 | SHIELD, exhaust pipe | FLS, FLS 103, FLSTN, FLSTN 103 |
| 23 | 65389-05B | SHIELD, rear exhaust pipe | FLS, FLS 103, FLSTN, FLSTN 103 |
| 24 | 65395-05 | SHIELD, interconnect | FLS, FLS 103, FLSTN, FLSTN 103 |
| 25 | 65399-07 | MUFFLER SUPPORT | FLS, FLS 103, FLSTN, FLSTN 103 |
| 65435-07BHP | MUFFLER SUPPORT, gloss black | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 65688-11BHP | MUFFLER SUPPORT | FXS, FXS 103 | |
| 26 | 65463-00 | SHIELD, muffler (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 66901-10 | SHIELD, muffler (2) | FLSTFB, FLSTFB 103 | |
| 27 | 65464-07 | SHIELD, rear exhaust pipe | FLSTF, FLSTF 103, FXS, FXS 103 |
| 66897-10A | SHIELD, rear exhaust pipe | FLSTFB, FLSTFB 103 | |
| 28 | 65652-07 | BRACKET, exhaust | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 29 | 65946-07 | EXHAUST CLAMP ASSEMBLY | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 30 | 66274-07 | SHIELD, exhaust pipe | FLSTF, FLSTF 103, FXS, FXS 103 |
| 66882-10 | SHIELD, exhaust pipe | FLSTFB, FLSTFB 103 | |
| 31 | 72177-07BK | HOUSING, 4-way socket (black) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
EXHAUST SYSTEM - FLS, FLSTF, FLSTFB, FLSTN & FXS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 32 | 72344-10 | TERMINAL, socket #22 AWG (gold) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 33 | 72444-07GY | HOUSING, 4-way socket (gray) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 34 | 73307-10 | TERMINAL, socket #22 AWG (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 35 | 32700005 | OXYGEN SENSOR, front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 36 | 32700006 | OXYGEN SENSOR, rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 37 | 65600042 | EXHAUST PIPE ASSEMBLY (Domestic) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 38 | 65600049 | EXHAUST PIPE ASSEMBLY (Domestic) | FLS, FLS 103, FLSTN, FLSTN 103 |
| INTERNATIONAL MODELS ONLY | |||
| 39 | 3574 | SCREW (HDI, Australia, England) (4) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 40 | 64727-08 | MUFFLER ASSEMBLY, front, catalytic (HDI, Asia-Pacific, England, Japan) (chrome) | FLS, FLS 103, FXS, FXS 103 |
| 64727-08 | MUFFLER ASSEMBLY, front (Australia) (chrome) | FXS, FXS 103 | |
| 64900140 | MUFFLER ASSEMBLY, front (Australia) (chrome) | FLS 103 | |
| 41 | 64728-08 | MUFFLER ASSEMBLY, rear, catalytic (HDI, England) (chrome) | FLS 103, FXS, FXS 103 |
| 64900146 | MUFFLER ASSEMBLY, rear (Australia) (chrome) | FLS 103, FXS, FXS 103 | |
| 42 | 64729-08 | MUFFLER ASSEMBLY, rear, catalytic (Asia-Pacific, Japan) | FLS, FXS, FXS 103 |
| 43 | 64960-07 | MUFFLER ASSEMBLY, rear (Asia-Pacific, Japan) | FLSTN, FLSTN 103 |
| 44 | 64961-07 | MUFFLER ASSEMBLY, rear (Asia-Pacific, Japan) | FLSTF, FLSTF 103 |
| 64900143 | MUFFLER ASSEMBLY, rear (Australia) | FLSTF, FLSTF 103 | |
| 65920-10 | MUFFLER ASSEMBLY, rear (Asia-Pacific, Japan) | FLSTFB, FLSTFB 103 | |
| 64900145 | MUFFLER ASSEMBLY, rear (Australia) | FLSTFB, FLSTFB 103 | |
| 45 | 65368-07 | MUFFLER ASSEMBLY, front (HDI, Asia-Pacific, England, Japan) | FLSTN, FLSTN 103 |
| 64900141 | MUFFLER ASSEMBLY, front (Australia) | FLSTN, FLSTN 103 | |
| 46 | 65372-07 | MUFFLER ASSEMBLY, rear (HDI, England) | FLSTN, FLSTN 103 |
| 64900142 | MUFFLER ASSEMBLY, rear (Australia) | FLSTN, FLSTN 103 | |
| 47 | 65870-10 | MUFFLER ASSEMBLY, front (HDI, Asia-Pacific, England, Japan) | FLSTFB, FLSTFB 103 |
| 65939-07 | MUFFLER ASSEMBLY, front (HDI, Asia-Pacific, England, Japan) | FLSTF, FLSTF 103 | |
| 64900139 | MUFFLER ASSEMBLY, front (Australia) | FLSTF, FLSTF 103 | |
| 64900144 | MUFFLER ASSEMBLY, front (Australia) | FLSTFB, FLSTFB 103 | |
| 48 | 65880-10 | MUFFLER ASSEMBLY, rear (HDI, England) | FLSTFB, FLSTFB 103 |
| 65950-07 | MUFFLER ASSEMBLY, rear (HDI, Australia, England) | FLSTF, FLSTF 103 | |
| 49 | 66764-07 | EXHAUST ACTUATOR CABLE (HDI, Australia, England) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 66765-07 | EXHAUST ACTUATOR CABLE (HDI, Australia, England) | FLS 103, FLSTN, FLSTN 103 | |
| 50 | 66767-07 | RETAINER, cable (HDI, Australia, England) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 51 | 66797-07 | BRACKET, exhaust actuator (HDI, Australia, England) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 52 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI, Australia, England) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 53 | 71019-07 | SHROUD, exhaust actuator (HDI, Australia, England) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 54 | 65600046 | EXHAUST PIPE ASSEMBLY (HDI, Australia, England) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 55 | 65600053 | EXHAUST PIPE ASSEMBLY (HDI, Australia, England) | FLS 103, FLSTN, FLSTN 103 |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | ALL |
| 2 | 10065 | CABLE STRAP (2) | ALL |
| 3 | 65989-97C | BATTERY, sealed | ALL |
| 4 | 66415-08A | COVER, battery terminal | ALL |
| 5 | 70111-07 | CADDY | ALL |
| 6 | 70060-08A | CABLE ASSEMBLY, battery negative | ALL |
| 7 | 70078-08A | CABLE ASSEMBLY, battery positive, w/ 70593-08 | ALL |
| 8 | 70593-08 | BOOT | ALL |

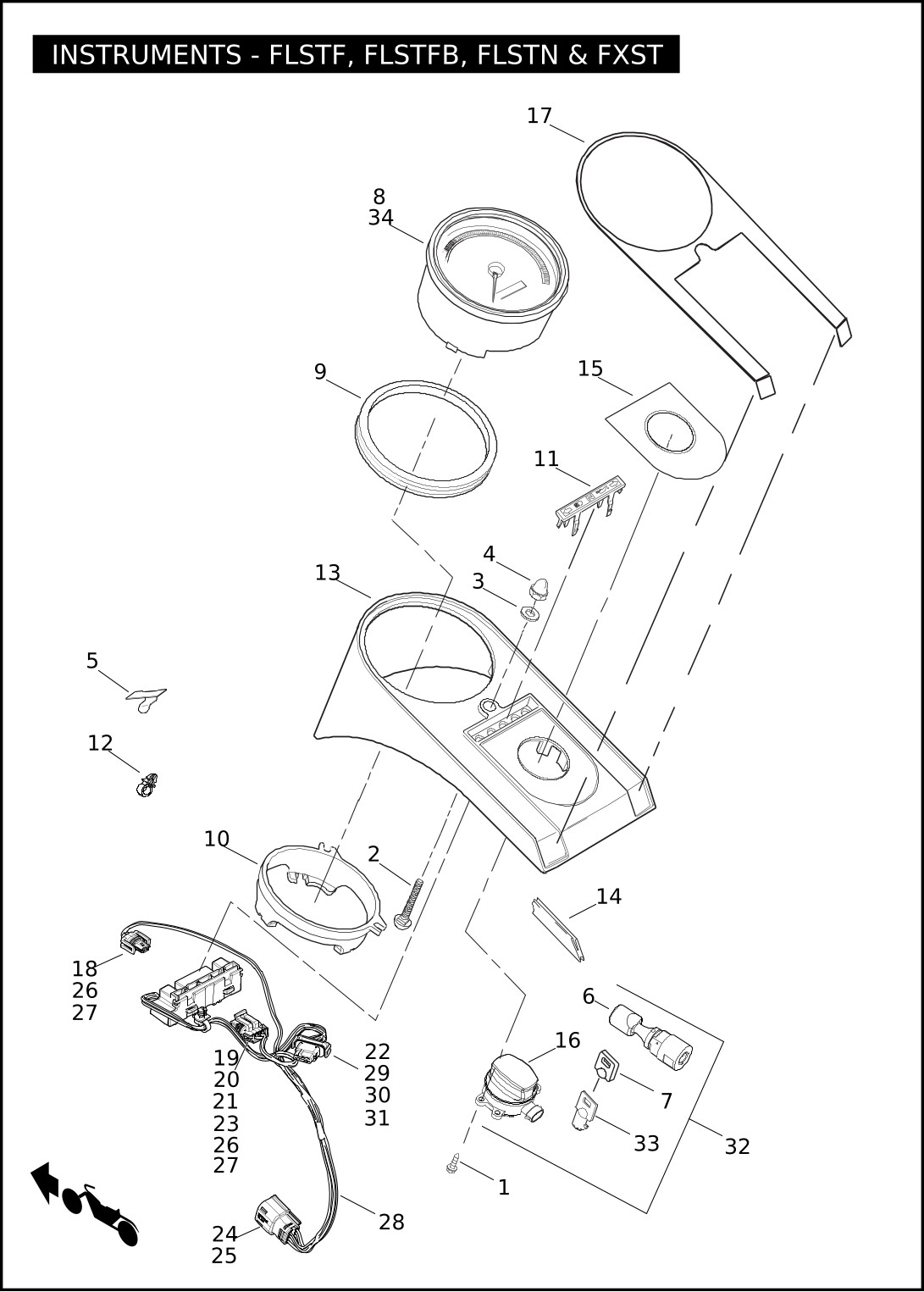

INSTRUMENTS - FLSTF, FLSTFB, FLSTN & FXST (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 2 | 5419 | BOLT | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 3 | 6771A | WASHER | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 7549A | ACORN NUT | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 5 | 10103 | CLIP, adhesive backed | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 6 | 45680-90 | FORK LOCK | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 61081-92 | COVER, key head set (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 8 | 67033-11 | SPEEDOMETER, mph | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 67439-11 | SPEEDOMETER, mph | FLSTN, FLSTN 103 | |
| 9 | 67190-89 | SEAL, speedometer | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 10 | 67271-04A | BACKCLAMP | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 11 | 68112-99A | BEZEL, indicator lamps | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 70345-84 | RETAINER, wiring | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 71250-11 | INSTRUMENT PANEL (chrome) | FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 71257-11 | INSTRUMENT PANEL (satin chrome) | FLSTFB, FLSTFB 103 | |
| 14 | 71265-95 | TRIM, instrument panel | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 15 | 71302-93A | NAMEPLATE, ignition switch | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 71669-05 | NAMEPLATE, ignition switch | FLSTN, FLSTN 103 | |
| 16 | 71517-11 | IGNITION SWITCH (specify key code) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 17 | 71664-05 | NAMEPLATE INLAY, console | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 19 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 20 | 72094-06 | TERMINAL, socket, female #18 AWG (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 21 | 72096-06 | WIRE SEAL, #18 AWG (yellow) (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 22 | 72130-04 | HOUSING, 12-way socket (black) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
INSTRUMENTS - FLSTF, FLSTFB, FLSTN & FXST (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 23 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 25 | 72479-07BK | HOUSING, 8-way socket (black) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 26 | 72484-08 | TERMINAL, socket, #20 AWG (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 27 | 72486-08 | WIRE SEAL, #20 AWG (green) (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 28 | 72657-12 | WIRING HARNESS, instrument controls | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 29 | 72662-11 | TERMINAL, socket, #22 AWG (5) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 30 | 74196-04 | TERMINAL, socket, 20 AWG (4) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 31 | 74197-04 | SECONDARY LOCK, 12-way socket | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 32 | 71400076 | LOCK SET, complete, w/ 45680-90, 71517-11 & keys | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 33 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| INTERNATIONAL MODELS ONLY | |||
| 34 | 67197-11 | SPEEDOMETER, kph (HDI, Australia, Canada & Japan) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 67196-11 | SPEEDOMETER, mph/kph (England) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
INSTRUMENTS - FLS & FLSTC
| Index No. | Part No. | Description | Model(s) |
| 1 | 5442 | CARRIAGE BOLT | FLS, FLS 103, FLSTC, FLSTC 103 |
| 2 | 2501A | SCREW (8) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 3 | 6771A | WASHER | FLS, FLS 103, FLSTC, FLSTC 103 |
| 4 | 7549A | ACORN NUT | FLS, FLS 103, FLSTC, FLSTC 103 |
| 5 | 10103 | CLIP, adhesive backed | FLS, FLS 103, FLSTC, FLSTC 103 |
| 6 | 45680-90 | FORK LOCK | FLS, FLS 103, FLSTC, FLSTC 103 |
| 7 | 61081-92 | COVER, key | FLS, FLS 103, FLSTC, FLSTC 103 |
| 8 | 67190-89 | SEAL | FLS, FLS 103, FLSTC, FLSTC 103 |
| 9 | 67341-04B | BACKCLAMP | FLS, FLS 103, FLSTC, FLSTC 103 |
| 10 | 67525-11 | SPEEDOMETER, mph | FLSTC, FLSTC 103 |
| 70700-11 | SPEEDOMETER, mph | FLS 103 | |
| 11 | 70345-84 | RETAINER, wiring | FLS, FLS 103, FLSTC, FLSTC 103 |
| 12 | 71512-11 | INSTRUMENT PANEL (chrome) | FLSTC, FLSTC 103 |
| 71953-11 | INSTRUMENT PANEL (gloss black) | FLS, FLS 103 | |
| 13 | 71517-11 | IGNITION SWITCH (specify key code) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 14 | 71978-08 | TRIM, rubber | FLS, FLS 103, FLSTC, FLSTC 103 |
| 15 | 71990-09 | NAMEPLATE, ignition switch | FLS, FLS 103, FLSTC, FLSTC 103 |
| 71989-09 | NAMEPLATE, ignition switch | FLS, FLS 103 | |
| 16 | 72062-06 | HOUSING, 2-way socket (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 17 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 18 | 72094-06 | TERMINAL, socket, female #18 AWG (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 19 | 72096-06 | WIRE SEAL, #18 AWG (yellow) (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 20 | 72130-04 | HOUSING, 12-way socket (black) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 21 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 22 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 23 | 72189-04 | SEAL PIN (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 24 | 72479-07BK | HOUSING, 8-way socket (black) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 25 | 72484-08 | TERMINAL, socket, #20 AWG (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 26 | 72486-08 | WIRE SEAL, #20 AWG (green) (2) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 27 | 72658-12 | HARNESS, instrument console, w/ LED indicator array | FLS, FLS 103, FLSTC, FLSTC 103 |
| 28 | 72662-11 | TERMINAL, socket, #22 AWG (5) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 29 | 74196-04 | TERMINAL, socket, 20 AWG (4) | FLS, FLS 103, FLSTC, FLSTC 103 |
| 30 | 74197-04 | SECONDARY LOCK, 12-way socket | FLS, FLS 103, FLSTC, FLSTC 103 |
| 31 | 71400076 | IGNITION SWIRCH & FORK LOCK SET | FLS, FLS 103, FLSTC, FLSTC 103 |
| 32 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FLS, FLS 103, FLSTC, FLSTC 103 |
| INTERNATIONAL MODELS ONLY | |||
| 33 | 67196-11 | SPEEDOMETER, mph/kph (England) | FLS 103, FLSTC, FLSTC 103 |
| 34 | 67197-11 | SPEEDOMETER, kph (HDI, Asia-Pacific, Australia, Canada & Japan) | FLS, FLS 103, FLSTC, FLSTC 103 |
INSTRUMENTS - FXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2646 | SCREW (2) | FXS, FXS 103 |
| 2 | 3656 | SCREW (2) | FXS, FXS 103 |
| 3 | 4741A | SCREW (2) | FXS, FXS 103 |
| 4 | 67121-95A | GASKET | FXS, FXS 103 |
| 5 | 67517-11 | SPEEDOMETER, mph | FXS, FXS 103 |
| 6 | 68382-07A | BEZEL ASSEMBLY, indicator lamp | FXS, FXS 103 |
| 7 | 70736-11 | COVER, speedometer | FXS, FXS 103 |
| 8 | 72130-04 | HOUSING, 12-way, socket (black) | FXS, FXS 103 |
| 9 | 72168-07 | TERMINAL, socket, #18-20 AWG (5) | FXS, FXS 103 |
| 10 | 72414-07BK | HOUSING, 6-way socket (black) | FXS, FXS 103 |
| 11 | 72656-11 | HARNESS, console | FXS, FXS 103 |
| 12 | 72662-11 | TERMINAL, socket, #22 AWG (5) | FXS, FXS 103 |
| 13 | 72770-11 | HOUSING | FXS, FXS 103 |
| 14 | 74196-04 | TERMINAL, socket, #20 AWG (5) | FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 15 | 67520-11 | SPEEDOMETER, kph (Australia, Asia-Pacific, Canada, HDI & Japan) | FXS, FXS 103 |
| 67571-11 | SPEEDOMETER, mph/kph (England) | FXS 103 | |
SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | ALL |
| 2 | 3658 | SCREW (2) | ALL |
| 3 | 7744 | JAM NUT (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 4 | 67019-04A | BRACKET, left turn signal mount | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 5 | 67015-02 | SCREW LOCK (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 6 | 67822-88 | BALL STUD (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 7 | 67827-88A | CLAMP, ball stud (2) | FXST |
| 8 | 67829-88 | BALL RECEPTACLE, left | FLSTF, FLSTF 103, FXST |
| 9 | 68168-89A | BULB, front turn signals (2) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 10 | 68973-00 | LENS (2) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 11 | 72908-11 | HOUSING, 4-way socket | ALL |
| 12 | 72910-11 | TERMINAL, socket #20-22 AWG (4) | ALL |
| 13 | 72920-11 | HOUSING, left, upper (black) | ALL |
| 14 | 72922-11 | HOUSING, left, lower (black) | ALL |
| 15 | 72933-11 | KEY CAP, left turn | ALL |
| 16 | 72941-11 | BRACKET, lower switch | ALL |
| 17 | 72943-12 | HAND CONTROL MODULE, left, w/ turn signal (chrome) | FLSTF, FLSTF 103 |
| 72949-12 | HAND CONTROL MODULE, left, w/o turn signal | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXST | |
| 72951-12 | HAND CONTROL MODULE, left, w/ turn signal (black) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 18 | 67800178 | TURN SIGNAL, w/ 68168-89A & 68973-00 (gloss black) | FLS 103 |
| 19 | 71500028 | KEY CAP, horn/trip | ALL |
| 20 | 71500029 | KEY CAP, lights | ALL |
| 21 | 71500117 | SWITCH, clutch | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 68163-84 | BULB (HDI, England, Japan) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 23 | 68973-00 | LENS (HDI, England, Japan) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 24 | 72945-12 | HAND CONTROL MODULE, left, w/ turn signal (chrome) (HDI) | FLSTF, FLSTF 103 |
| 72953-12 | HAND CONTROL MODULE, left, w/ turn signal (black) (HDI) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 25 | 67800179 | TURN SIGNAL, w/ 68163-84 & 68973-00 (gloss black) (HDI) | FLS, FLS 103, FXS, FXS 103 |
SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2261 | SCREW (2) | ALL |
| 2 | 3658 | SCREW (2) | ALL |
| 3 | 5118 | SEAL PIN | ALL |
| 4 | 7744 | JAM NUT (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 5 | 67013-04A | BRACKET, right turn signal mount | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 6 | 67015-02 | SCREW LOCK (2) | FLS, FLS 103, FXS, FXS 103 |
| 7 | 67822-88 | BALL STUD (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 8 | 67827-88A | CLAMP, ball stud (2) | FXST |
| 9 | 67831-03 | RETAINER, right | FXST |
| 10 | 68168-89A | BULB, front turn signals (2) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 11 | 68973-00 | LENS (2) | FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 12 | 72906-11 | HOUSING, 2-way socket | ALL |
| 13 | 72908-11 | HOUSING, 4-way socket | ALL |
| 14 | 72910-11 | TERMINAL, socket #20-22 AWG (4) | ALL |
| 15 | 72921-11 | HOUSING, right, upper (black) | ALL |
| 16 | 72923-11 | HOUSING, right, lower (black) | ALL |
| 17 | 72934-11 | KEY CAP, right turn | ALL |
| 18 | 72937-11 | KEY CAP, off/run, w/ pins & springs | ALL |
| 19 | 72940-11 | BRACKET, lower switch | ALL |
| 20 | 72944-12 | HAND CONTROL MODULE, right, w/ turn signal (chrome) | FLSTF, FLSTF 103 |
| 72948-12 | HAND CONTROL MODULE, right, w/o turn signal | FLS, FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXST | |
| 72952-12 | HAND CONTROL MODULE, right, w/ turn signal (black) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 21 | 67800178 | TURN SIGNAL, w/ 68168-89A & 68973-00 (gloss black) | FLS 103 |
| 22 | 71500030 | KEY CAP, hazard | ALL |
| 23 | 71500118 | SWITCH, brake | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 68163-84 | BULB (HDI) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 25 | 68973-00 | LENS (HDI) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 26 | 72946-12 | HAND CONTROL MODULE, right, w/ turn signal (chrome) (HDI) | FLSTF, FLSTF 103 |
| 72954-11 | HAND CONTROL MODULE, right, w/ turn signal (black) (HDI) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 27 | 67800179 | TURN SIGNAL, w/ 68163-84 & 68973-00 (gloss black) (HDI) | FLS, FLS 103 |
TURN SIGNALS, REAR (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2692WB | SCREW (4) | FLSTC, FLSTC 103 |
| 2 | 3987 | BOLT (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 3 | 4549 | SCREW (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 4 | 6336B | WASHER (2) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 5 | 6771A | WASHER (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 6 | 67267-05 | GROMMET (2) | FLSTN, FLSTN 103 |
| 7 | 68163-84 | BULB, rear turn signal (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 68572-64B | BULB, rear turn signal (2) | FLSTC, FLSTC 103 | |
| 68168-89A | BULB, rear turn signal (2) | FLS, FLS 103, FXS, FXS 103 | |
| 8 | 68440-86 | LENS, rear turn signal (2) | FLSTC, FLSTC 103 |
| 9 | 68452-86 | SCREW (4) | FLSTC, FLSTC 103 |
| 10 | 68497-07 | SOCKET | FXS, FXS 103 |
| 68905-00 | SOCKET | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 67800216 | SOCKET | FLS 103 | |
| 11 | 68508-04 | REAR TURN SIGNAL BAR | FLSTN, FLSTN 103 |
| 12 | 68510-74C | BRACKET, rear turn signal | FLSTC, FLSTC 103 |
| 13 | 68559-07 | LENS, red (2) | FLS, FLS 103, FXS, FXS 103 |
| 68973-00 | LENS (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 14 | 68713-94A | TURN SIGNAL, rear, w/ 68440-86, 68452-86 & 68572-64B (amber) (2) | FLSTC, FLSTC 103 |
| 15 | 68969-05 | DIRECTIONAL LAMP ASSEMBLY, w/ 68163-84, 68508-04, 68973-00, 74191-98 & socket | FLSTN, FLSTN 103 |
| 16 | 68978-00 | TURN SIGNAL, rear, w/ 68163-84, 68973-00 & socket (2) | FLSTF, FLSTF 103 |
| 69935-08 | TURN SIGNAL, rear, w/ 68163-84, 68973-00 & socket (Domestic) (2) | FLSTFB, FLSTFB 103 | |
| 67800217 | TURN SIGNAL, w/ 68168-89A, 68559-07 & 67800216 (2) | FLS 103 | |
| 17 | 69438-06 | SUPPORT, rear lamp mounting (2) | FLSTF, FLSTF 103, FXST |
| 69933-08 | SUPPORT, rear lamp mounting (black) (2, 1-JRV Domestic-right side only) | FLS 103, FLSTFB, FLSTFB 103 | |
| 73409-11 | SUPPORT, rear lamp mounting (2) | FXS, FXS 103 | |
| 67800184 | SUPPORT, rear lamp mounting (Domestic-left side only) | FLS 103 |
TURN SIGNALS, REAR (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 18 | 73152-96BK | HOUSING, 2-way socket (black) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 19 | 73191-96 | TERMINAL, socket, #16-20 AWG (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 20 | 73408-11 | TURN SIGNAL, rear, w/ 68168-89A, 68497-07 & 68559-07 (2) | FXS, FXS 103 |
| 21 | 74112-98BK | HOUSING, 2-way socket, right (black) | FLSTN, FLSTN 103 |
| 22 | 74112-05GY | HOUSING, 2-way socket, left (gray) | FLSTN, FLSTN 103 |
| 23 | 74114-98BK | HOUSING, 4-way socket, left turn signal (black) | FLSTN, FLSTN 103, FXS, FXS 103 |
| 69200011 | HOUSING, 4-way socket, right turn signal (gray) | FLSTN, FLSTN 103, FXS, FXS 103 | |
| 24 | 74152-98 | SECONDARY LOCK, terminal (2) | FLSTN, FLSTN 103 |
| 25 | 74154-98 | SECONDARY LOCK, 4-way socket (2) | FLSTN, FLSTN 103 |
| 26 | 74191-98 | TERMINAL, socket (4) | FLSTN, FLSTN 103 |
| 27 | 74195-98 | SEAL PIN (2) | FXS, FXS 103 |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 68163-84 | BULB (HDI) (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 29 | 68506-92 | LENS, turn signal (amber) (HDI) (2) | FLSTC, FLSTC 103 |
| 30 | 68765-94A | TURN SIGNAL, w/ 68163-84, 68452-86 & 68506-92 (amber) (HDI) (2) | FLSTC, FLSTC 103 |
| 31 | 68969-05 | DIRECTIONAL LAMP ASSEMBLY, w/ 68163-84, 68508-04, 68973-00, 74191-98 & socket (HDI) | FLSTN, FLSTN 103 |
| 32 | 68973-00 | LENS (HDI) (2) | FXST |
| 33 | 68978-00 | TURN SIGNAL (HDI) (2) | FLSTF, FLSTF 103, FXST |
| 69935-08 | TURN SIGNAL, rear (HDI) (2) | FLSTFB, FLSTFB 103 | |
| 34 | 69933-08 | SUPPORT (black) (Australia, England, HDI, Japan) (2) | FLS, FLS 103 |
| 35 | 73405-11 | TURN SIGNAL ASSEMBLY, rear, w/ 74191-98 (HDI) (2) | FXS, FXS 103 |
| 67800171 | TURN SIGNAL, rear, w/ 74191-98 (HDI) (2) | FLS, FLS 103 | |
| 67800238 | TURN SIGNAL, rear, LED (chrome) with 74191-98 (HDI) (2) | FLS, FLS 103 | |
TAIL LAMP - FLSTC, FLSTF, FLSTFB & FXST
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 2 | 7964 | J-NUT | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 3 | 10113 | CLIP, double (2) | FLSTC, FLSTC 103 |
| 4 | 10115 | CABLE STRAP | FLSTC, FLSTC 103, FLSTF, FLSTF 103 |
| 5 | 10183 | CLIP, T-stud | FLSTC, FLSTC 103 |
| 10183 | CLIP, T-stud (2) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 6 | 68026-99 | SCREW, tail lamp (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 7 | 68066-99A | BASE ASSEMBLY, tail light, chrome, w/ 68296-99A & 68830-99A | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 8 | 68140-04 | LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 9 | 68167-04 | BULB, tail lamp, wedge mount | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 10 | 68296-99A | TAIL LIGHT BASE, chrome | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 11 | 68369-03 | LENS, tail lamp, w/ 68026-99 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 12 | 68370-03A | BULB SOCKET ASSEMBLY, w/ 68167-04, 73154-96BK & 73191-96 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 13 | 68818-03B | HARNESS, rear lamps, w/ 10115, 70523-06, 73156-96BK, 73158-96BK & 73191-96 | FLSTC, FLSTC 103 |
| 68819-06A | HARNESS, rear lamps, w/ 70523-06, 73156-96BK, 73158-96BK & 73191-96 | FXST | |
| 69486-06B | HARNESS, rear lamps, w/ 70526-07, 73156-96BK, 73158-96BK & 73191-96 | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 | |
| 14 | 68830-99A | CIRCUIT BOARD & COVER | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 15 | 73154-96BK | HOUSING, 4-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 16 | 73156-96BK | HOUSING, 6-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 17 | 73158-96BK | HOUSING, 8-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 18 | 73191-96 | TERMINAL, socket, #16-20 AWG (16) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 19 | 69200018 | CONDUIT, harness | FLSTC, FLSTC 103, FXST |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 68141-04 | LIGHT ASSEMBLY, tail lamp, w/ 68372-03 & 69187-03A (HDI) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 21 | 68167-04 | BULB, tail lamp (HDI), wedge mount (HDI) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 22 | 68372-03 | LENS, tail lamp, w/ 68026-99 (HDI) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
| 23 | 69187-03A | BULB SOCKET ASSEMBLY, w/ 68167-04, 73154-96BK & 73191-96 (HDI) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST |
TAIL LAMP - FLSTN
| Index No. | Part No. | Description | Model(s) |
| 1 | 4166 | SCREW (3) | FLSTN, FLSTN 103 |
| 2 | 7686 | LOCKNUT | FLSTN, FLSTN 103 |
| 3 | 7792 | NUT (3) | FLSTN, FLSTN 103 |
| 4 | 10115 | CABLE STRAP | FLSTN, FLSTN 103 |
| 5 | 52441-95 | BULB, license lamp | FLSTN, FLSTN 103 |
| 6 | 68003-05 | COVER, tail light connector | FLSTN, FLSTN 103 |
| 7 | 68089-05 | CLIP, tail light connector cover | FLSTN, FLSTN 103 |
| 8 | 68168-89A | BULB, tail lamp | FLSTN, FLSTN 103 |
| 9 | 68226-97 | GASKET, lens | FLSTN, FLSTN 103 |
| 10 | 68280-05 | TAIL LIGHT ASSEMBLY | FLSTN, FLSTN 103 |
| 11 | 68235-97 | GASKET, license plate lens | FLSTN, FLSTN 103 |
| 12 | 68236-97 | LENS, license plate | FLSTN, FLSTN 103 |
| 13 | 68237-97 | PAD, mounting | FLSTN, FLSTN 103 |
| 14 | 68238-97 | LENS | FLSTN, FLSTN 103 |
| 15 | 68834-05A | HARNESS, rear lighting | FLSTN, FLSTN 103 |
| 16 | 72199-94 | CONNECTOR ANCHOR (3) | FLSTN, FLSTN 103 |
| 17 | 73158-96BK | HOUSING, 8-way socket (black) | FLSTN, FLSTN 103 |
| 18 | 73191-96 | TERMINAL, socket, #16-20 AWG (8) | FLSTN, FLSTN 103 |
| 19 | 74102-98BK | HOUSING, 2-way pin (black) | FLSTN, FLSTN 103 |
| 20 | 74102-05GY | HOUSING, 2-way pin (gray) | FLSTN, FLSTN 103 |
| 21 | 74104-98BK | HOUSING, 4-way pin (black) | FLSTN, FLSTN 103 |
| 22 | 74114-98BK | HOUSING, 4-way socket (black) | FLSTN, FLSTN 103 |
| 23 | 74142-98 | SECONDARY LOCK, 2-way (2) | FLSTN, FLSTN 103 |
| 24 | 74144-98 | SECONDARY LOCK, 4-way | FLSTN, FLSTN 103 |
| 25 | 74154-98 | SECONDARY LOCK, 4-way socket | FLSTN, FLSTN 103 |
| 26 | 74195-98 | SEAL PIN | FLSTN, FLSTN 103 |
| 27 | 74190-98 | TERMINAL, pin (8) | FLSTN, FLSTN 103 |
| 28 | 74191-98 | TERMINAL, socket (3) | FLSTN, FLSTN 103 |
| 29 | 89587-05 | CAP, thread protector (2) | FLSTN, FLSTN 103 |
| 29A | 69200018 | CONDUIT, self-adhesive | FLSTN, FLSTN 103 |
| INTERNATIONAL MODELS ONLY | |||
| 30 | 53436-97 | BULB, license lamp (HDI) | FLSTN, FLSTN 103 |
| 31 | 68169-90A | BULB, tail light (HDI) | FLSTN, FLSTN 103 |
| 32 | 68281-05 | TAIL LIGHT ASSEMBLY (HDI) | FLSTN, FLSTN 103 |
| 33 | 68239-97 | LENS, tail light (red) (HDI) | FLSTN, FLSTN 103 |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 2882W | SCREW | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 2 | 3563 | SCREW (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 3 | 6109 | WASHER | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 6702 | WASHER | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 5 | 7495 | NUT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103, FXST |
| 6 | 7549A | ACORN NUT | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 8108 | SPEEDNUT (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 8 | 69012-93A | COVER, horn (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 69050-08 | COVER, horn (gloss black) | FLS, FLS 103 | |
| 69140-10 | COVER, horn (black denim) | FLSTFB, FLSTFB 103 | |
| 9 | 69060-90F | HORN ASSEMBLY | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 10 | 69062-91A | CLAMP | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 11 | 69120-91 | BRACKET, horn | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 69130-10BYM | BRACKET, horn | FLSTFB, FLSTFB 103 | |
| 12 | 69123-92A | MOUNT, horn (rubber) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 69195-11 | HORN ASSEMBLY, w/ 7495 | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 14 | 69000026 | HORN ASSEMBLY, w/ 7495 (India) | FLSTC, FLSTC 103 |

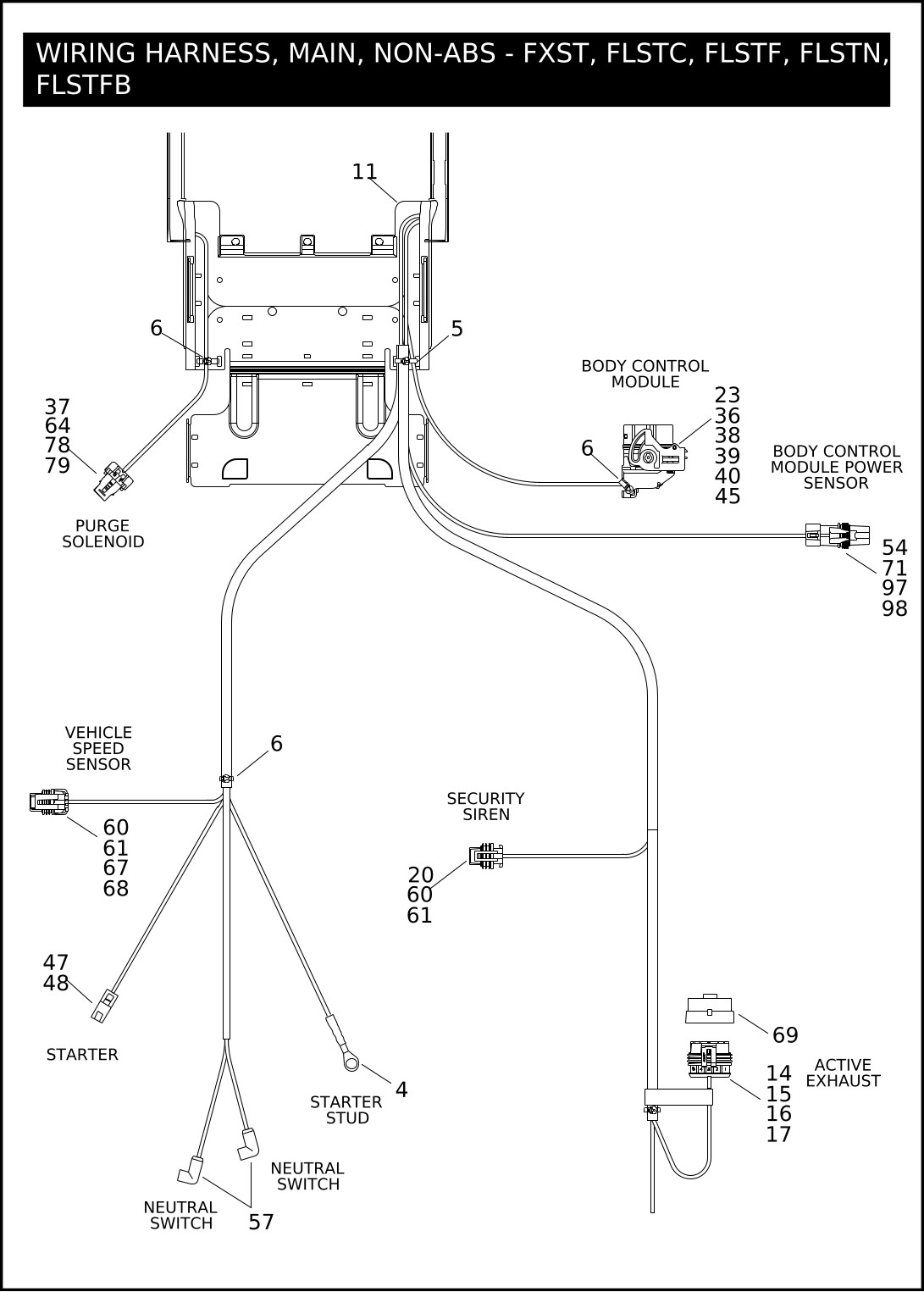

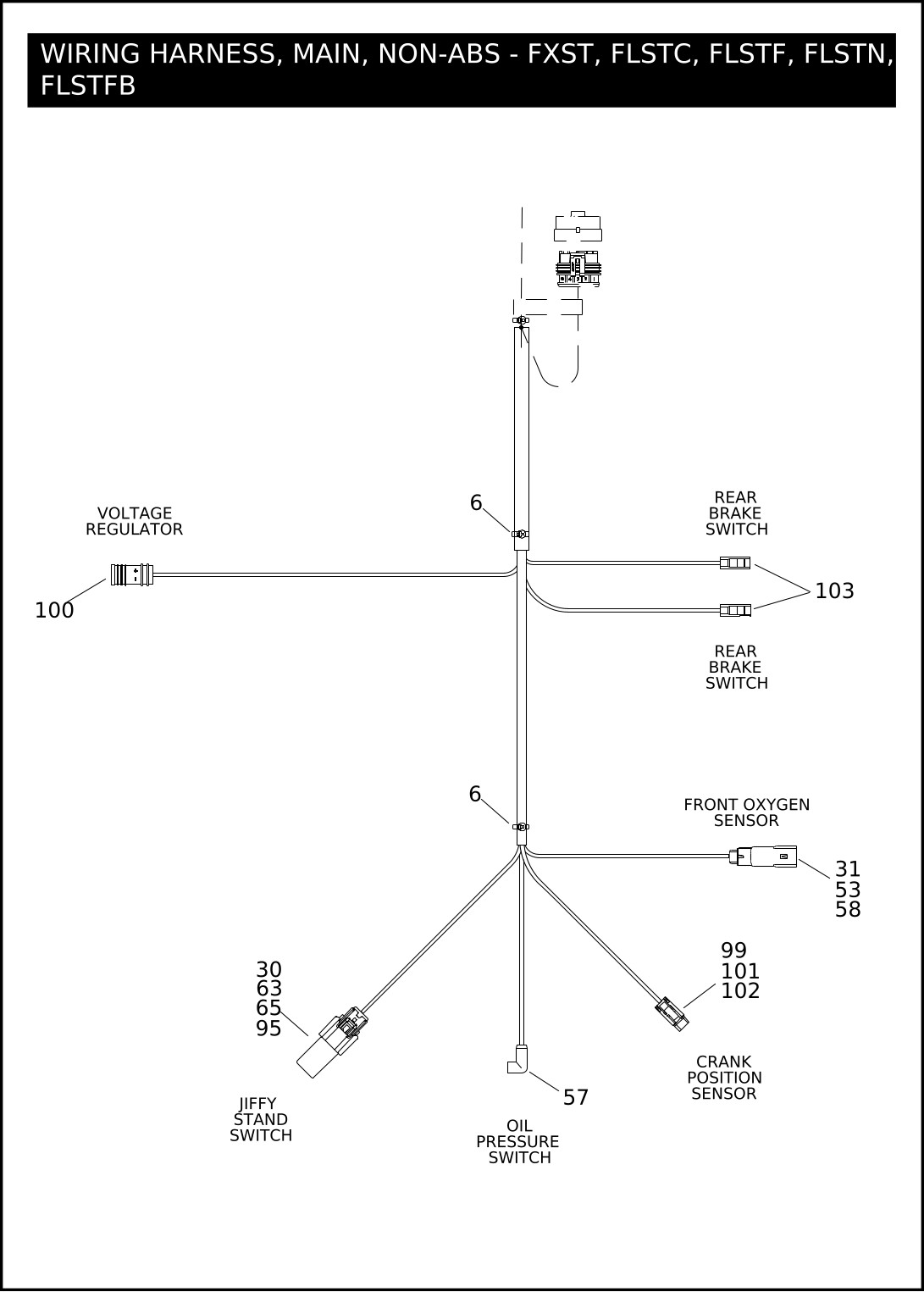

WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 2 | 6990 | PLUG, weather, 6-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 5 | 10006 | CABLE STRAP (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 6 | 10065 | CABLE STRAP (22) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 10287 | CABLE STRAP, x-mas tree | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 8 | 11785 | FASTENER, push-in (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 10 | 70976-06 | WIRE GUIDE, tps | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 11 | 70982-08 | WIRE SHIELD | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 71044-11 | WIRE TROUGH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 72007-05 | HOUSING, 2-way socket (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 15 | 72012-07 | HOUSING, 5-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 16 | 72014-07 | SEAL PIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 19 | 72063-06 | HOUSING, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 23 | 72081-11 | HOUSING, 48-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 72098-06 | HOUSING, 2-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 25 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 26 | 72106-94BK | HOUSING, 6-pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 27 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 28 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 29 | 72146-94 | PIN LOCK, sec 6 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 30 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 31 | 72169-07 | TERMINAL, pin, #16-20 AWG (5) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 32 | 72175-07BK | HOUSING, 4-way, pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 33 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 34 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 35 | 72199-94 | CONNECTOR ANCHOR | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 36 | 72209-11 | COVER, wire (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 37 | 72213-94 | TERMINAL, socket, #16-20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 38 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 39 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 40 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 41 | 72230-98 | HOUSING, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 42 | 72231-98 | SECONDARY LOCK, 3-way | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 43 | 72242-94 | TERMINAL, 1/4 ring (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 44 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 45 | 72256-11 | SEAL PIN, .6mm, plug | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 46 | 72283-09 | TERMINAL, female, #14-16 AWG | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 47 | 72291-94 | TERMINAL, #14-16 AWG | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 48 | 72295-94 | HOUSING, starter connection | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 49 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 50 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 51 | 72314-01 | MAXI-FUSE, 40 AMP | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 52 | 72330-95 | FUSE, 15 AMP (blue) (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 53 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 54 | 72350-11 | HOUSING, one-way | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 55 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 56 | 72369-08A | BRACKET, fuse block holder,(black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 57 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 58 | 72415-07GY | HOUSING, 4-way pin (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 59 | 72478-07BK | HOUSING, 8-way pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 60 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 61 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 62 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 63 | 72512-07BK | HOUSING, 3-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 64 | 72518-01 | HOUSING, socket, 2-way (red) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 65 | 72519-09BK | DUST CAP, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 66 | 72533-06 | DUST CAP, 2-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 67 | 72543-07BK | HOUSING, 3-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 68 | 72544-07 | SECONDARY LOCK, 3-way female | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 69 | 72553-07 | DUST CAP, 5-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 70 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 71 | 72575-11 | SECONDARY LOCK | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 72 | 72582-11 | FUSE BLOCK, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 73 | 72586-11 | COVER, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 74 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 75 | 72595-11 | SEAL, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 76 | 72596-11 | BRACKET, electrical connector, RH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 77 | 72597-11 | BRACKET, electrical connector, LH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 78 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 79 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 80 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 81 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 82 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 83 | 72720-07 | HOUSING, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 84 | 72721-07 | TERMINAL, socket, #18-20 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 85 | 72905-11 | HOUSING, 2-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 86 | 72907-11 | HOUSING, 4-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 87 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 88 | 72914-01BK | HOUSING, 4-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 89 | 72991-01 | TERMINAL, socket, #18-22 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 90 | 73104-96BK | HOUSING, 4-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 91 | 73106-96BK | HOUSING, 6-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 92 | 73108-96BK | HOUSING, 8-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 93 | 73190-96 | TERMINAL, pin, #16-20 AWG (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 94 | 73196-96 | ANCHOR, t-stud | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 95 | 73213-07 | RETAINER, x-mas tree clip | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 96 | 73229-11 | BRACKET, fuse block mounting | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 97 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 98 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 99 | 74112-98BK | HOUSING, 2-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 100 | 74120-08 | DC LEAD ASSEMBLY | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 101 | 74152-98 | SECONDARY LOCK, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 102 | 74191-98 | TERMINAL, socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 103 | 69200238 | TERMINAL, insulated (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, NON-ABS - FLS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLS, FLS 103 |
| 2 | 6990 | PLUG, weather, 6-way pin | FLS, FLS 103 |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FLS, FLS 103 |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FLS, FLS 103 |
| 5 | 10006 | CABLE STRAP (3) | FLS, FLS 103 |
| 6 | 10065 | CABLE STRAP (22) | FLS, FLS 103 |
| 7 | 10287 | CABLE STRAP, x-mas tree | FLS, FLS 103 |
| 8 | 11785 | FASTENER, push-in (2) | FLS, FLS 103 |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FLS, FLS 103 |
| 10 | 70976-06 | WIRE GUIDE, tps | FLS, FLS 103 |
| 11 | 70982-08 | WIRE SHIELD | FLS, FLS 103 |
| 12 | 71044-11 | WIRE TROUGH | FLS, FLS 103 |
| 13 | 72007-05 | HOUSING, 2-way socket (3) | FLS, FLS 103 |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FLS, FLS 103 |
| 15 | 72012-07 | HOUSING, 5-way socket | FLS, FLS 103 |
| 16 | 72014-07 | SEAL PIN | FLS, FLS 103 |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FLS, FLS 103 |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FLS, FLS 103 |
| 19 | 72063-06 | HOUSING, 2-way socket | FLS, FLS 103 |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FLS, FLS 103 |
WIRING HARNESS, MAIN, NON-ABS - FLS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FLS, FLS 103 |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLS, FLS 103 |
| 23 | 72081-11 | HOUSING, 48-way socket | FLS, FLS 103 |
| 24 | 72098-06 | HOUSING, 2-way socket (2) | FLS, FLS 103 |
| 25 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FLS, FLS 103 |
| 26 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLS, FLS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FLS, FLS 103 | |
| 27 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLS, FLS 103 |
| 28 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FLS, FLS 103 |
| 29 | 72146-94 | PIN LOCK, sec 6 | FLS, FLS 103 |
| 30 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLS, FLS 103 |
| 31 | 72169-07 | TERMINAL, pin, #16-20 AWG (5) | FLS, FLS 103 |
| 32 | 72175-07BK | HOUSING, 4-way, pin (black) | FLS, FLS 103 |
| 33 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FLS, FLS 103 |
| 34 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLS, FLS 103 |
| 35 | 72199-94 | CONNECTOR ANCHOR | FLS, FLS 103 |
| 36 | 72209-11 | COVER, wire (3) | FLS, FLS 103 |
| 37 | 72213-94 | TERMINAL, socket, #16-20 AWG (3) | FLS, FLS 103 |
WIRING HARNESS, MAIN, NON-ABS - FLS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 38 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FLS, FLS 103 |
| 39 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FLS, FLS 103 |
| 40 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FLS, FLS 103 |
| 41 | 72230-98 | HOUSING, 3-way socket | FLS, FLS 103 |
| 42 | 72231-98 | SECONDARY LOCK, 3-way | FLS, FLS 103 |
| 43 | 72242-94 | TERMINAL, 1/4 ring (3) | FLS, FLS 103 |
| 44 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FLS, FLS 103 |
| 45 | 72256-11 | SEAL PIN, .6mm, plug | FLS, FLS 103 |
| 46 | 72283-09 | TERMINAL, female, #14-16 AWG | FLS, FLS 103 |
| 47 | 72291-94 | TERMINAL, #14-16 AWG | FLS, FLS 103 |
| 48 | 72295-94 | HOUSING, starter connection | FLS, FLS 103 |
| 49 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FLS, FLS 103 |
| 50 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FLS, FLS 103 |
| 51 | 72314-01 | MAXI-FUSE, 40 AMP | FLS, FLS 103 |
| 52 | 72330-95 | FUSE, 15 AMP (blue) (4) | FLS, FLS 103 |
| 53 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLS, FLS 103 |
| 54 | 72350-11 | HOUSING, one-way | FLS, FLS 103 |
| 55 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FLS, FLS 103 |
| 56 | 72369-08A | BRACKET, fuse block holder,(black) | FLS, FLS 103 |
| 57 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FLS, FLS 103 |
| 58 | 72415-07GY | HOUSING, 4-way pin (gray) | FLS, FLS 103 |
| 59 | 72478-07BK | HOUSING, 8-way pin (black) | FLS, FLS 103 |
| 60 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FLS, FLS 103 |
WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 61 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FLS, FLS 103 |
| 62 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FLS, FLS 103 |
| 63 | 72512-07BK | HOUSING, 3-way socket (black) | FLS, FLS 103 |
| 64 | 72518-01 | HOUSING, socket, 2-way (red) | FLS, FLS 103 |
| 65 | 72519-09BK | DUST CAP, 3-way socket | FLS, FLS 103 |
| 66 | 72533-06 | DUST CAP, 2-pin | FLS, FLS 103 |
| 67 | 72543-07BK | HOUSING, 3-way socket (black) | FLS, FLS 103 |
| 68 | 72544-07 | SECONDARY LOCK, 3-way female | FLS, FLS 103 |
| 69 | 72553-07 | DUST CAP, 5-pin | FLS, FLS 103 |
| 70 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FLS, FLS 103 |
| 71 | 72575-11 | SECONDARY LOCK | FLS, FLS 103 |
| 72 | 72582-11 | FUSE BLOCK, maxi/mini | FLS, FLS 103 |
| 73 | 72586-11 | COVER, fuse block, maxi/mini | FLS, FLS 103 |
| 74 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FLS, FLS 103 |
| 75 | 72595-11 | SEAL, fuse block, maxi/mini | FLS, FLS 103 |
| 76 | 72596-11 | BRACKET, electrical connector, RH | FLS, FLS 103 |
| 77 | 72597-11 | BRACKET, electrical connector, LH | FLS, FLS 103 |
| 78 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLS, FLS 103 |
| 79 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FLS, FLS 103 |
| 80 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLS, FLS 103 |
| 81 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLS, FLS 103 |
| 82 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLS, FLS 103 |
| 83 | 72720-07 | HOUSING, 2-way socket | FLS, FLS 103 |
| 84 | 72721-07 | TERMINAL, socket, #18-20 AWG (2) | FLS, FLS 103 |
WIRING HARNESS, MAIN, NON-ABS - FLS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 85 | 72905-11 | HOUSING, 2-way pin | FLS, FLS 103 |
| 86 | 72907-11 | HOUSING, 4-way pin | FLS, FLS 103 |
| 87 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FLS, FLS 103 |
| 88 | 72914-01BK | HOUSING, 4-way socket (black) | FLS, FLS 103 |
| 89 | 72991-01 | TERMINAL, socket, #18-22 AWG (3) | FLS, FLS 103 |
| 90 | 73104-96BK | HOUSING, 4-pin | FLS, FLS 103 |
| 91 | 73106-96BK | HOUSING, 6-pin | FLS, FLS 103 |
| 92 | 73190-96 | TERMINAL, pin, #16-20 AWG (2) | FLS, FLS 103 |
| 93 | 73213-07 | RETAINER, x-mas tree clip | FLS, FLS 103 |
| 94 | 73229-11 | BRACKET, fuse block mounting | FLS, FLS 103 |
| 95 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FLS, FLS 103 |
| 96 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FLS, FLS 103 |
| 97 | 74103-98BK | HOUSING, 3-way pin | FLS, FLS 103 |
| 98 | 74104-98BK | HOUSING, 4-way pin(black) | FLS, FLS 103 |
| 99 | 74112-98BK | HOUSING, 2-way socket (black) | FLS, FLS 103 |
| 100 | 74120-08 | DC LEAD ASSEMBLY | FLS, FLS 103 |
| 101 | 74143-98 | SECONDARY LOCK, 3-way pin | FLS, FLS 103 |
| 102 | 74144-98 | SECONDARY LOCK, 4-way pin (2) | FLS, FLS 103 |
| 103 | 74152-98 | SECONDARY LOCK, 2-way socket | FLS, FLS 103 |
| 104 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FLS, FLS 103 |
| 105 | 74191-98 | TERMINAL, socket (2) | FLS, FLS 103 |
| 106 | 69200010 | CONNECTOR, 4-way pin (gray) | FLS, FLS 103 |
| 107 | 69200012 | BRACKET, pin housing | FLS, FLS 103 |
| 108 | 69200238 | TERMINAL, insulated (2) | FLS, FLS 103 |
WIRING HARNESS, MAIN, NON-ABS - FXS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FXS, FXS 103 |
| 2 | 6990 | PLUG, weather, 6-way pin | FXS, FXS 103 |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FXS, FXS 103 |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FXS, FXS 103 |
| 5 | 10006 | CABLE STRAP (3) | FXS, FXS 103 |
| 6 | 10065 | CABLE STRAP (22) | FXS, FXS 103 |
| 7 | 10287 | CABLE STRAP, x-mas tree | FXS, FXS 103 |
| 8 | 11785 | FASTENER, push-in (2) | FXS, FXS 103 |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FXS, FXS 103 |
| 10 | 70976-06 | WIRE GUIDE, tps | FXS, FXS 103 |
| 11 | 70982-08 | WIRE SHIELD | FXS, FXS 103 |
| 12 | 71044-11 | WIRE TROUGH | FXS, FXS 103 |
| 13 | 72007-05 | HOUSING, 2-way socket (3) | FXS, FXS 103 |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FXS, FXS 103 |
| 15 | 72012-07 | HOUSING, 5-way socket | FXS, FXS 103 |
| 16 | 72014-07 | SEAL PIN | FXS, FXS 103 |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FXS, FXS 103 |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FXS, FXS 103 |
| 19 | 72063-06 | HOUSING, 2-way socket | FXS, FXS 103 |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FXS, FXS 103 |
WIRING HARNESS, MAIN, NON-ABS - FXS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FXS, FXS 103 |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FXS, FXS 103 |
| 23 | 72081-11 | HOUSING, 48-way socket | FXS, FXS 103 |
| 24 | 72098-06 | HOUSING, 2-way socket (2) | FXS, FXS 103 |
| 25 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FXS, FXS 103 |
| 26 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FXS, FXS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FXS, FXS 103 | |
| 27 | 72127-06 | SECONDARY LOCK, 3-way (gray) | FXS, FXS 103 |
| 28 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FXS, FXS 103 |
| 29 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FXS, FXS 103 |
| 30 | 72146-94 | PIN LOCK, sec 6 | FXS, FXS 103 |
| 31 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FXS, FXS 103 |
| 32 | 72169-07 | TERMINAL, pin, #16-20 AWG (5) | FXS, FXS 103 |
| 33 | 72175-07BK | HOUSING, 4-way, pin (black) | FXS, FXS 103 |
| 34 | 72188-07BK | HOUSING, 6-way pin (black) | FXS, FXS 103 |
| 35 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FXS, FXS 103 |
| 36 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FXS, FXS 103 |
| 37 | 72199-94 | CONNECTOR ANCHOR | FXS, FXS 103 |
| 38 | 72209-11 | COVER, wire (3) | FXS, FXS 103 |
| 39 | 72213-94 | TERMINAL, socket, #16-20 AWG (3) | FXS, FXS 103 |
WIRING HARNESS, MAIN, NON-ABS - FXS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 40 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FXS, FXS 103 |
| 41 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FXS, FXS 103 |
| 42 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FXS, FXS 103 |
| 43 | 72230-98 | HOUSING, 3-way socket | FXS, FXS 103 |
| 44 | 72231-98 | SECONDARY LOCK, 3-way | FXS, FXS 103 |
| 45 | 72242-94 | TERMINAL, 1/4 ring (3) | FXS, FXS 103 |
| 46 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FXS, FXS 103 |
| 47 | 72256-11 | SEAL PIN, .6mm, plug | FXS, FXS 103 |
| 48 | 72283-09 | TERMINAL, female, #14-16 AWG | FXS, FXS 103 |
| 49 | 72291-94 | TERMINAL, #14-16 AWG | FXS, FXS 103 |
| 50 | 72295-94 | HOUSING, starter connection | FXS, FXS 103 |
| 51 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FXS, FXS 103 |
| 52 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FXS, FXS 103 |
| 53 | 72314-01 | MAXI-FUSE, 40 AMP | FXS, FXS 103 |
| 54 | 72330-95 | FUSE, 15 AMP (blue) (4) | FXS, FXS 103 |
| 55 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FXS, FXS 103 |
| 56 | 72350-11 | HOUSING, one-way | FXS, FXS 103 |
| 57 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FXS, FXS 103 |
| 58 | 72369-08A | BRACKET, fuse block holder,(black) | FXS, FXS 103 |
| 59 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FXS, FXS 103 |
| 60 | 72415-07GY | HOUSING, 4-way pin (gray) | FXS, FXS 103 |
| 61 | 72473-07 | SEAL PIN | FXS, FXS 103 |
| 62 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FXS, FXS 103 |
WIRING HARNESS, MAIN, NON-ABS - FXS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 63 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FXS, FXS 103 |
| 64 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FXS, FXS 103 |
| 65 | 72512-07BK | HOUSING, 3-way socket (black) | FXS, FXS 103 |
| 66 | 72514-07GY | HOUSING, 3-way socket (gray) | FXS, FXS 103 |
| 67 | 72518-01 | HOUSING, socket, 2-way (red) | FXS, FXS 103 |
| 68 | 72519-09BK | DUST CAP, 3-way socket | FXS, FXS 103 |
| 69 | 72533-06 | DUST CAP, 2-pin | FXS, FXS 103 |
| 70 | 72543-07BK | HOUSING, 3-way socket (black) | FXS, FXS 103 |
| 71 | 72544-07 | SECONDARY LOCK, 3-way female | FXS, FXS 103 |
| 72 | 72553-07 | DUST CAP, 5-pin | FXS, FXS 103 |
| 73 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FXS, FXS 103 |
| 74 | 72575-11 | SECONDARY LOCK | FXS, FXS 103 |
| 75 | 72582-11 | FUSE BLOCK, maxi/mini | FXS, FXS 103 |
| 76 | 72586-11 | COVER, fuse block, maxi/mini | FXS, FXS 103 |
| 77 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FXS, FXS 103 |
| 78 | 72595-11 | SEAL, fuse block, maxi/mini | FXS, FXS 103 |
| 79 | 72596-11 | BRACKET, electrical connector, RH | FXS, FXS 103 |
| 80 | 72597-11 | BRACKET, electrical connector, LH | FXS, FXS 103 |
| 81 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FXS, FXS 103 |
| 82 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FXS, FXS 103 |
| 83 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FXS, FXS 103 |
| 84 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FXS, FXS 103 |
| 85 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FXS, FXS 103 |
| 86 | 72677-11 | RESISTOR ASSEMBLY, fuel sender | FXS, FXS 103 |
| 87 | 72720-07 | HOUSING, 2-way socket | FXS, FXS 103 |
| 88 | 72721-07 | TERMINAL, socket, #18-20 AWG (2) | FXS, FXS 103 |
WIRING HARNESS, MAIN, NON-ABS - FXS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 89 | 72905-11 | HOUSING, 2-way pin | FXS, FXS 103 |
| 90 | 72907-11 | HOUSING, 4-way pin | FXS, FXS 103 |
| 91 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FXS, FXS 103 |
| 92 | 73104-96BK | HOUSING, 4-pin | FXS, FXS 103 |
| 93 | 73106-96BK | HOUSING, 6-pin | FXS, FXS 103 |
| 94 | 73154-96BK | HOUSING, 4-way, socket | FXS, FXS 103 |
| 95 | 73190-96 | TERMINAL, pin, #16-20 AWG (4) | FXS, FXS 103 |
| 96 | 73191-96 | TERMINAL, socket, #16-20 AWG | FXS, FXS 103 |
| 97 | 73213-07 | RETAINER, x-mas tree clip | FXS, FXS 103 |
| 98 | 73229-11 | BRACKET, fuse block mounting | FXS, FXS 103 |
| 99 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FXS, FXS 103 |
| 100 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FXS, FXS 103 |
| 101 | 74103-98BK | HOUSING, 3-way pin | FXS, FXS 103 |
| 102 | 74104-98BK | HOUSING, 4-way pin(black) | FXS, FXS 103 |
| 103 | 74112-98BK | HOUSING, 2-way socket (black) | FXS, FXS 103 |
| 104 | 74120-08 | DC LEAD ASSEMBLY | FXS, FXS 103 |
| 105 | 74143-98 | SECONDARY LOCK, 3-way pin | FXS, FXS 103 |
| 106 | 74144-98 | SECONDARY LOCK, 4-way pin (2) | FXS, FXS 103 |
| 107 | 74152-98 | SECONDARY LOCK, 2-way socket | FXS, FXS 103 |
| 108 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FXS, FXS 103 |
| 109 | 74191-98 | TERMINAL, socket (2) | FXS, FXS 103 |
| 110 | 69200010 | CONNECTOR, 4-way pin (gray) | FXS, FXS 103 |
| 111 | 69200012 | BRACKET, pin housing | FXS, FXS 103 |
| 112 | 69200238 | TERMINAL, insulated (2) | FXS, FXS 103 |

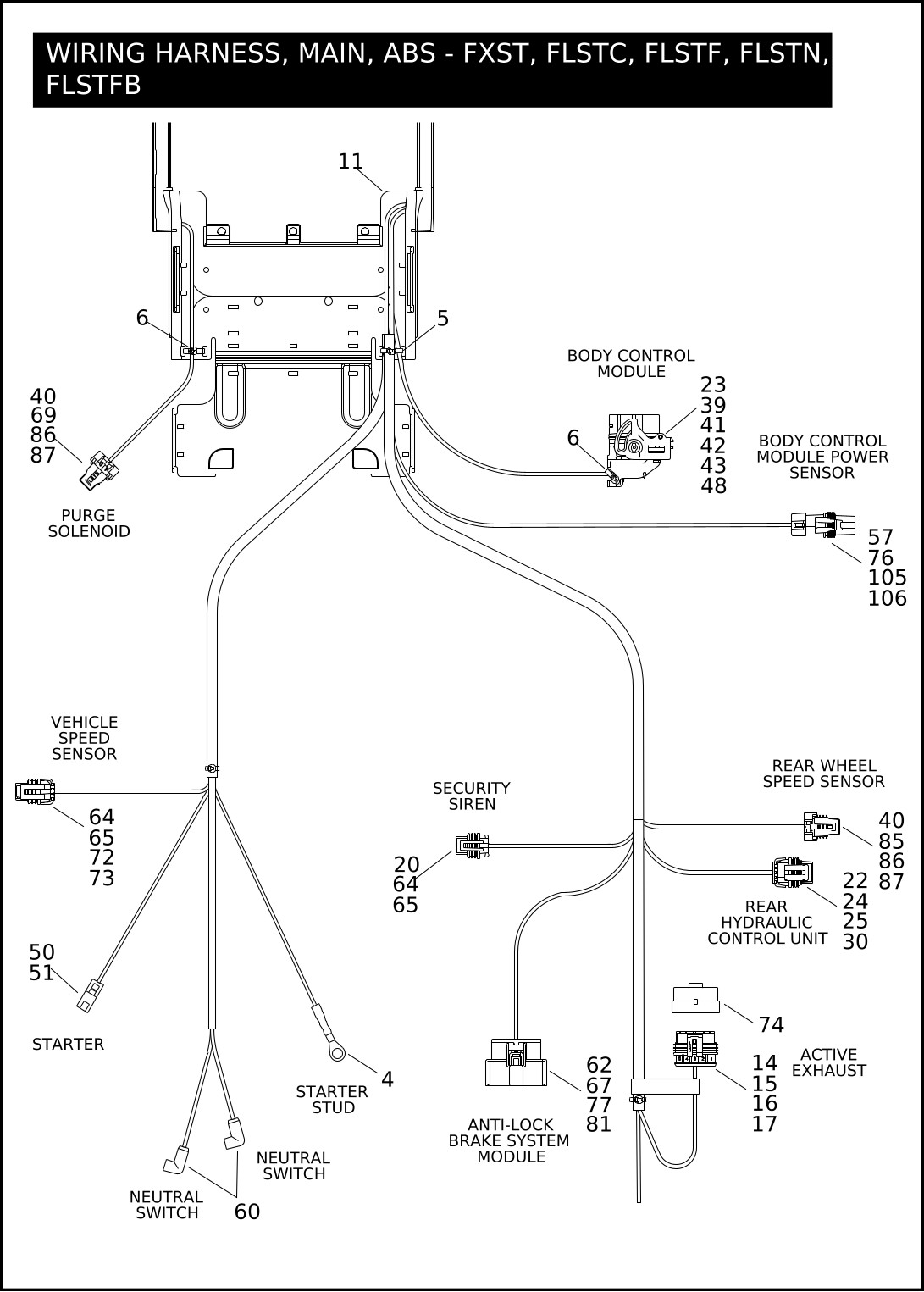

WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 2 | 6990 | PLUG, weather, 6-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 5 | 10006 | CABLE STRAP (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 6 | 10065 | CABLE STRAP (22) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 7 | 10287 | CABLE STRAP, x-mas tree | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 8 | 11785 | FASTENER, push-in (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 10 | 70976-06 | WIRE GUIDE, tps | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 11 | 70982-08 | WIRE SHIELD | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 12 | 71044-11 | WIRE TROUGH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 13 | 72007-05 | HOUSING, 2-way socket (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 15 | 72012-07 | HOUSING, 5-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 16 | 72014-07 | SEAL PIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 19 | 72063-06 | HOUSING, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 23 | 72081-11 | HOUSING, 48-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 72094-06 | TERMINAL, socket, female #18 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 25 | 72096-06 | WIRE SEAL, #18 AWG (yellow) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 26 | 72098-06 | HOUSING, 2-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 27 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 28 | 72106-94BK | HOUSING, 6-pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 29 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 30 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 31 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 32 | 72146-94 | PIN LOCK, sec 6 | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 33 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 34 | 72169-07 | TERMINAL, pin, #16-20 AWG (6) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 35 | 72175-07BK | HOUSING, 4-way, pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 36 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 37 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 38 | 72199-94 | CONNECTOR ANCHOR | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 39 | 72209-11 | COVER, wire (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 40 | 72213-94 | TERMINAL, socket, #16-20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB(3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 41 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 42 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 43 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 44 | 72230-98 | HOUSING, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 46 | 72242-94 | TERMINAL, 1/4 ring (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 47 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 48 | 72256-11 | SEAL PIN, .6mm, plug | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 49 | 72283-09 | TERMINAL, female, #14-16 AWG | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 50 | 72291-94 | TERMINAL, #14-16 AWG | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 51 | 72295-94 | HOUSING, starter connection | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 52 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 53 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 54 | 72314-01 | MAXI-FUSE, 40 AMP | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 55 | 72330-95 | FUSE, 15 AMP (blue) (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 56 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 57 | 72350-11 | HOUSING, one-way | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 58 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 59 | 72369-08A | BRACKET, fuse block holder,(black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 60 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 61 | 72415-07GY | HOUSING, 4-way pin (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 62 | 72473-07 | SEAL PIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 63 | 72478-07BK | HOUSING, 8-way pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 64 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 65 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 66 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 67 | 72500-07ABK | HOUSING, 20-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 68 | 72512-07BK | HOUSING, 3-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 69 | 72518-01 | HOUSING, socket, 2-way (red) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 70 | 72519-09BK | DUST CAP, 3-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 71 | 72533-06 | DUST CAP, 2-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 72 | 72543-07BK | HOUSING, 3-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 73 | 72544-07 | SECONDARY LOCK, 3-way female | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 74 | 72553-07 | DUST CAP, 5-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 75 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 76 | 72575-11 | SECONDARY LOCK | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 77 | 72581-11 | TERMINAL, socket, #18-20 AWG (gold) (12) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 78 | 72582-11 | FUSE BLOCK, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 79 | 72586-11 | COVER, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 80 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 81 | 72593-11 | TERMINAL, socket, #14-16 AWG (gold) (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 82 | 72595-11 | SEAL, fuse block, maxi/mini | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 83 | 72596-11 | BRACKET, electrical connector, RH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 84 | 72597-11 | BRACKET, electrical connector, LH | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 85 | 72606-08 | HOUSING, 2-way socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 86 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 87 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 88 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 89 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 90 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 91 | 72720-07 | HOUSING, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 92 | 72721-07 | TERMINAL, SOCKET, #18-20 AWG | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| NOTE: Includes the following parts. | |||
| 93 | 72905-11 | HOUSING, 2-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 94 | 72907-11 | HOUSING, 4-way pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 95 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 96 | 72914-01BK | HOUSING, 4-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 97 | 72991-01 | TERMINAL, socket, #18-22 AWG (3) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 98 | 73104-96BK | HOUSING, 4-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 99 | 73106-96BK | HOUSING, 6-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 100 | 73108-96BK | HOUSING, 8-pin | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 101 | 73190-96 | TERMINAL, pin, #16-20 AWG (4) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 102 | 73196-96 | ANCHOR, t-stud | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 103 | 73213-07 | RETAINER, x-mas tree clip | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 104 | 73229-11 | BRACKET, fuse block mounting | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 105 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 106 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 107 | 74112-98BK | HOUSING, 2-way socket (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 108 | 74120-08 | DC LEAD ASSEMBLY | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 109 | 74152-98 | SECONDARY LOCK, 2-way socket | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 110 | 74191-98 | TERMINAL, socket (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 111 | 69200238 | TERMINAL, insulated (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
WIRING HARNESS, MAIN, ABS - FLS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLS, FLS 103 |
| 2 | 6990 | PLUG, weather, 6-way pin | FLS, FLS 103 |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FLS, FLS 103 |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FLS, FLS 103 |
| 5 | 10006 | CABLE STRAP (3) | FLS, FLS 103 |
| 6 | 10065 | CABLE STRAP (22) | FLS, FLS 103 |
| 7 | 10287 | CABLE STRAP, x-mas tree | FLS, FLS 103 |
| 8 | 11785 | FASTENER, push-in (2) | FLS, FLS 103 |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FLS, FLS 103 |
| 10 | 70976-06 | WIRE GUIDE, tps | FLS, FLS 103 |
| 11 | 70982-08 | WIRE SHIELD | FLS, FLS 103 |
| 12 | 71044-11 | WIRE TROUGH | FLS, FLS 103 |
| 13 | 72007-05 | HOUSING, 2-way socket (3) | FLS, FLS 103 |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FLS, FLS 103 |
| 15 | 72012-07 | HOUSING, 5-way socket | FLS, FLS 103 |
| 16 | 72014-07 | SEAL PIN | FLS, FLS 103 |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FLS, FLS 103 |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FLS, FLS 103 |
| 19 | 72063-06 | HOUSING, 2-way socket | FLS, FLS 103 |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FLS, FLS 103 |
WIRING HARNESS, MAIN, ABS - FLS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FLS, FLS 103 |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FLS, FLS 103 |
| 23 | 72081-11 | HOUSING, 48-way socket | FLS, FLS 103 |
| 24 | 72094-06 | TERMINAL, socket, female #18 AWG (2) | FLS, FLS 103 |
| 25 | 72096-06 | WIRE SEAL, #18 AWG (yellow) (2) | FLS, FLS 103 |
| 26 | 72098-06 | HOUSING, 2-way socket (2) | FLS, FLS 103 |
| 27 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FLS, FLS 103 |
| 28 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLS, FLS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FLS, FLS 103 | |
| 29 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FLS, FLS 103 |
| 30 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FLS, FLS 103 |
| 31 | 72146-94 | PIN LOCK, sec 6 | FLS, FLS 103 |
| 32 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FLS, FLS 103 |
| 33 | 72169-07 | TERMINAL, pin, #16-20 AWG (6) | FLS, FLS 103 |
| 34 | 72175-07BK | HOUSING, 4-way, pin (black) | FLS, FLS 103 |
| 35 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FLS, FLS 103 |
| 36 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLS, FLS 103 |
| 37 | 72199-94 | CONNECTOR ANCHOR | FLS, FLS 103 |
| 38 | 72209-11 | COVER, wire (3) | FLS, FLS 103 |
| 39 | 72213-94 | TERMINAL, socket, #16-20 AWG (3) | FLS, FLS 103 |
WIRING HARNESS, MAIN, ABS - FLS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 40 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FLS, FLS 103 |
| 41 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FLS, FLS 103 |
| 42 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FLS, FLS 103 |
| 43 | 72230-98 | HOUSING, 3-way socket | FLS, FLS 103 |
| 44 | 72231-98 | SECONDARY LOCK, 3-way | FLS, FLS 103 |
| 45 | 72242-94 | TERMINAL, 1/4 ring (3) | FLS, FLS 103 |
| 46 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FLS, FLS 103 |
| 47 | 72256-11 | SEAL PIN, .6mm, plug | FLS, FLS 103 |
| 48 | 72283-09 | TERMINAL, female, #14-16 AWG | FLS, FLS 103 |
| 49 | 72291-94 | TERMINAL, #14-16 AWG | FLS, FLS 103 |
| 50 | 72295-94 | HOUSING, starter connection | FLS, FLS 103 |
| 51 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FLS, FLS 103 |
| 52 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FLS, FLS 103 |
| 53 | 72314-01 | MAXI-FUSE, 40 AMP | FLS, FLS 103 |
| 54 | 72330-95 | FUSE, 15 AMP (blue) (4) | FLS, FLS 103 |
| 55 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLS, FLS 103 |
| 56 | 72350-11 | HOUSING, one-way | FLS, FLS 103 |
| 57 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FLS, FLS 103 |
| 58 | 72369-08A | BRACKET, fuse block holder,(black) | FLS, FLS 103 |
| 59 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FLS, FLS 103 |
| 60 | 72415-07GY | HOUSING, 4-way pin (gray) | FLS, FLS 103 |
| 61 | 72473-07 | SEAL PIN | FLS, FLS 103 |
| 62 | 72478-07BK | HOUSING, 8-way pin (black) | FLS, FLS 103 |
| 63 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FLS, FLS 103 |
| 64 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FLS, FLS 103 |
WIRING HARNESS, MAIN, ABS - FLS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 65 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FLS, FLS 103 |
| 66 | 72500-07ABK | HOUSING, 20-way socket (black) | FLS, FLS 103 |
| 67 | 72512-07BK | HOUSING, 3-way socket (black) | FLS, FLS 103 |
| 68 | 72518-01 | HOUSING, socket, 2-way (red) | FLS, FLS 103 |
| 69 | 72519-09BK | DUST CAP, 3-way socket | FLS, FLS 103 |
| 70 | 72533-06 | DUST CAP, 2-pin | FLS, FLS 103 |
| 71 | 72543-07BK | HOUSING, 3-way socket (black) | FLS, FLS 103 |
| 72 | 72544-07 | SECONDARY LOCK, 3-way female | FLS, FLS 103 |
| 73 | 72553-07 | DUST CAP, 5-pin | FLS, FLS 103 |
| 74 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FLS, FLS 103 |
| 75 | 72575-11 | SECONDARY LOCK | FLS, FLS 103 |
| 76 | 72581-11 | TERMINAL, socket, #18-20 AWG (gold) (12) | FLS, FLS 103 |
| 77 | 72582-11 | FUSE BLOCK, maxi/mini | FLS, FLS 103 |
| 78 | 72586-11 | COVER, fuse block, maxi/mini | FLS, FLS 103 |
| 79 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FLS, FLS 103 |
| 80 | 72593-11 | TERMINAL, socket, #14-16 AWG (gold) (3) | FLS, FLS 103 |
| 81 | 72595-11 | SEAL, fuse block, maxi/mini | FLS, FLS 103 |
| 82 | 72596-11 | BRACKET, electrical connector, RH | FLS, FLS 103 |
| 83 | 72597-11 | BRACKET, electrical connector, LH | FLS, FLS 103 |
| 84 | 72606-08 | HOUSING, 2-way socket (2) | FLS, FLS 103 |
| 85 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FLS, FLS 103 |
| 86 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FLS, FLS 103 |
| 87 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLS, FLS 103 |
| 88 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLS, FLS 103 |
| 89 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLS, FLS 103 |
| 90 | 72720-07 | HOUSING, 2-way socket | FLS, FLS 103 |
| 91 | 72721-07 | TERMINAL, SOCKET, #18-20 AWG | FLS, FLS 103 |
WIRING HARNESS, MAIN, ABS - FLS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| NOTE: Includes the following parts. | |||
| 92 | 72905-11 | HOUSING, 2-way pin | FLS, FLS 103 |
| 93 | 72907-11 | HOUSING, 4-way pin | FLS, FLS 103 |
| 94 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FLS, FLS 103 |
| 95 | 72914-01BK | HOUSING, 4-way socket (black) | FLS, FLS 103 |
| 96 | 72991-01 | TERMINAL, socket, #18-22 AWG (3) | FLS, FLS 103 |
| 97 | 73104-96BK | HOUSING, 4-pin | FLS, FLS 103 |
| 98 | 73106-96BK | HOUSING, 6-pin | FLS, FLS 103 |
| 99 | 73190-96 | TERMINAL, pin, #16-20 AWG (4) | FLS, FLS 103 |
| 100 | 73213-07 | RETAINER, x-mas tree clip | FLS, FLS 103 |
| 101 | 73229-11 | BRACKET, fuse block mounting | FLS, FLS 103 |
| 102 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FLS, FLS 103 |
| 103 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FLS, FLS 103 |
| 104 | 74103-98BK | HOUSING, 3-way pin | FLS, FLS 103 |
| 105 | 74104-98BK | HOUSING, 4-way pin(black) | FLS, FLS 103 |
| 106 | 74112-98BK | HOUSING, 2-way socket (black) | FLS, FLS 103 |
| 107 | 74120-08 | DC LEAD ASSEMBLY | FLS, FLS 103 |
| 108 | 74143-98 | SECONDARY LOCK, 3-way pin | FLS, FLS 103 |
| 109 | 74144-98 | SECONDARY LOCK, 4-way pin (2) | FLS, FLS 103 |
| 110 | 74152-98 | SECONDARY LOCK, 2-way socket | FLS, FLS 103 |
| 111 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FLS, FLS 103 |
| 112 | 74191-98 | TERMINAL, socket (2) | FLS, FLS 103 |
| 113 | 69200010 | CONNECTOR, 4-way pin (gray) | FLS, FLS 103 |
| 114 | 69200012 | BRACKET, pin housing | FLS, FLS 103 |
| 115 | 69200238 | TERMINAL, insulated (2) | FLS, FLS 103 |
WIRING HARNESS, MAIN, ABS - FXS (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FXS, FXS 103 |
| 2 | 6990 | PLUG, weather, 6-way pin | FXS, FXS 103 |
| 3 | 9819 | TERMINAL RING, .25 stud, #12 AWGX2 | FXS, FXS 103 |
| 4 | 9842 | TERMINAL RING, .31 10-12 GA | FXS, FXS 103 |
| 5 | 10006 | CABLE STRAP (3) | FXS, FXS 103 |
| 6 | 10065 | CABLE STRAP (22) | FXS, FXS 103 |
| 7 | 10287 | CABLE STRAP, x-mas tree | FXS, FXS 103 |
| 8 | 11785 | FASTENER, push-in (2) | FXS, FXS 103 |
| 9 | 70974-08A | LOOM SHIELD, wire harness | FXS, FXS 103 |
| 10 | 70976-06 | WIRE GUIDE, tps | FXS, FXS 103 |
| 11 | 70982-08 | WIRE SHIELD | FXS, FXS 103 |
| 12 | 71044-11 | WIRE TROUGH | FXS, FXS 103 |
| 13 | 72007-05 | HOUSING, 2-way socket (4) | FXS, FXS 103 |
| 14 | 72010-05 | WIRE SEAL, #22-26 AWG (green) (10) | FXS, FXS 103 |
| 15 | 72012-07 | HOUSING, 5-way socket (2) | FXS, FXS 103 |
| 16 | 72014-07 | SEAL PIN | FXS, FXS 103 |
| 17 | 72024-08 | TERMINAL, socket, #20-22 AWG (6) | FXS, FXS 103 |
| 18 | 72062-06 | HOUSING, 2-way socket (2) | FXS, FXS 103 |
| 19 | 72063-06 | HOUSING, 2-way socket | FXS, FXS 103 |
| 20 | 72064-06 | HOUSING, 3-way socket (2) | FXS, FXS 103 |
WIRING HARNESS, MAIN, ABS - FXS (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 21 | 72065-06A | HOUSING, 3-way socket | FXS, FXS 103 |
| 22 | 72066-06A | HOUSING, 4-way socket (black) (3) | FXS, FXS 103 |
| 23 | 72081-11 | HOUSING, 48-way socket | FXS, FXS 103 |
| 24 | 72094-06 | TERMINAL, socket, female #18 AWG (2) | FXS, FXS 103 |
| 25 | 72096-06 | WIRE SEAL, #18 AWG (yellow) (3) | FXS, FXS 103 |
| 26 | 72098-06 | HOUSING, 2-way socket (2) | FXS, FXS 103 |
| 27 | 72111-06 | SECONDARY LOCK, 2-way socket (gray) | FXS, FXS 103 |
| 28 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FXS, FXS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FXS, FXS 103 | |
| 29 | 72127-06 | SECONDARY LOCK, 3-way (gray) | FXS, FXS 103 |
| 30 | 72135-06 | SECONDARY LOCK, 4-way socket (gray) (3) | FXS, FXS 103 |
| 31 | 72145-06 | SECONDARY LOCK, 2-way socket (blue) (2) | FXS, FXS 103 |
| 32 | 72146-94 | PIN LOCK, sec 6 | FXS, FXS 103 |
| 33 | 72168-07 | TERMINAL, socket, #18-20 AWG (12) | FXS, FXS 103 |
| 34 | 72169-07 | TERMINAL, pin, #16-20 AWG (6) | FXS, FXS 103 |
| 35 | 72175-07BK | HOUSING, 4-way, pin (black) | FXS, FXS 103 |
| 36 | 72188-07BK | HOUSING, 6-way pin (black) | FXS, FXS 103 |
| 37 | 72190-94 | TERMINAL, pin, #16-18 AWG (3) | FXS, FXS 103 |
| 38 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FXS, FXS 103 |
| 39 | 72199-94 | CONNECTOR ANCHOR | FXS, FXS 103 |
| 40 | 72209-11 | COVER, wire (3) | FXS, FXS 103 |
| 41 | 72213-94 | TERMINAL, socket, #16-20 AWG (4) | FXS, FXS 103 |
WIRING HARNESS, MAIN, ABS - FXS (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 42 | 72222-11 | TERMINAL SOCKET, #18-20 AWG (3) | FXS, FXS 103 |
| 43 | 72226-11 | TERMINAL SOCKET, #14-16 AWG (3) | FXS, FXS 103 |
| 44 | 72227-11 | TERMINAL, socket, #18-20 AWG (5) | FXS, FXS 103 |
| 45 | 72230-98 | HOUSING, 3-way socket | FXS, FXS 103 |
| 46 | 72231-98 | SECONDARY LOCK, 3-way | FXS, FXS 103 |
| 47 | 72242-94 | TERMINAL, 1/4 ring (3) | FXS, FXS 103 |
| 48 | 72254-94 | TERMINAL RING, .25 stud, #14-16 AWG (2) | FXS, FXS 103 |
| 49 | 72256-11 | SEAL PIN, .6mm, plug | FXS, FXS 103 |
| 50 | 72283-09 | TERMINAL, female, #14-16 AWG | FXS, FXS 103 |
| 51 | 72291-94 | TERMINAL, #14-16 AWG | FXS, FXS 103 |
| 52 | 72295-94 | HOUSING, starter connection | FXS, FXS 103 |
| 53 | 72298-95 | WIRE SEAL, #14-18 AWG (green) (6) | FXS, FXS 103 |
| 54 | 72308-97 | TERMINAL, female, #12-14 AWG (2) | FXS, FXS 103 |
| 55 | 72314-01 | MAXI-FUSE, 40 AMP | FXS, FXS 103 |
| 56 | 72330-95 | FUSE, 15 AMP (blue) (4) | FXS, FXS 103 |
| 57 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FXS, FXS 103 |
| 58 | 72350-11 | HOUSING, one-way | FXS, FXS 103 |
| 59 | 72356-95 | TERMINAL, socket, #18-20 AWG (2) | FXS, FXS 103 |
| 60 | 72369-08A | BRACKET, fuse block holder,(black) | FXS, FXS 103 |
| 61 | 72405-98BK | PUSH ON 90 DEGREE CONNECTOR (3) | FXS, FXS 103 |
| 62 | 72415-07GY | HOUSING, 4-way pin (gray) | FXS, FXS 103 |
| 63 | 72473-07 | SEAL PIN | FXS, FXS 103 |
| 64 | 72484-08 | TERMINAL, socket, #20 AWG (25) | FXS, FXS 103 |
WIRING HARNESS, MAIN, ABS - FXS (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 65 | 72486-08 | WIRE SEAL, #20 AWG (green) (10) | FXS, FXS 103 |
| 66 | 72499-07 | WIRE SEAL, #20-22 AWG (green) (4) | FXS, FXS 103 |
| 67 | 72500-07ABK | HOUSING, 20-way socket (black) | FXS, FXS 103 |
| 68 | 72512-07BK | HOUSING, 3-way socket (black) | FXS, FXS 103 |
| 69 | 72514-07GY | HOUSING, 3-way socket (gray) | FXS, FXS 103 |
| 70 | 72518-01 | HOUSING, socket, 2-way (red) | FXS, FXS 103 |
| 71 | 72519-09BK | DUST CAP, 3-way socket | FXS, FXS 103 |
| 72 | 72533-06 | DUST CAP, 2-pin (3) | FXS, FXS 103 |
| 73 | 72543-07BK | HOUSING, 3-way socket (black) | FXS, FXS 103 |
| 74 | 72544-07 | SECONDARY LOCK, 3-way female | FXS, FXS 103 |
| 75 | 72553-07 | DUST CAP, 5-pin | FXS, FXS 103 |
| 76 | 72569-08 | TERMINAL, socket, #20-22 AWG (4) | FXS, FXS 103 |
| 77 | 72575-11 | SECONDARY LOCK | FXS, FXS 103 |
| 78 | 72581-11 | TERMINAL, socket, #18-20 AWG (gold) (12) | FXS, FXS 103 |
| 79 | 72582-11 | FUSE BLOCK, maxi/mini | FXS, FXS 103 |
| 80 | 72586-11 | COVER, fuse block, maxi/mini | FXS, FXS 103 |
| 81 | 72587-11 | SECONDARY LOCK, fuse block, maxi/mini | FXS, FXS 103 |
| 82 | 72593-11 | TERMINAL, socket, #14-16 AWG (gold) (3) | FXS, FXS 103 |
| 83 | 72595-11 | SEAL, fuse block, maxi/mini | FXS, FXS 103 |
| 84 | 72596-11 | BRACKET, electrical connector, RH | FXS, FXS 103 |
| 85 | 72597-11 | BRACKET, electrical connector, LH | FXS, FXS 103 |
| 86 | 72606-08 | HOUSING, 2-way socket (2) | FXS, FXS 103 |
| 87 | 72609-08 | SECONDARY LOCK, 2-way socket (black) | FXS, FXS 103 |
| 88 | 72610-08 | SEAL, cable, #18-20 AWG (white) | FXS, FXS 103 |
| 89 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FXS, FXS 103 |
| 90 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FXS, FXS 103 |
| 91 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FXS, FXS 103 |
| 92 | 72677-11 | RESISTOR ASSEMBLY, fuel sender | FXS, FXS 103 |
| 93 | 72720-07 | HOUSING, 2-way socket | FXS, FXS 103 |
| 94 | 72721-07 | TERMINAL, SOCKET, #18-20 AWG | FXS, FXS 103 |
WIRING HARNESS, MAIN, ABS - FXS (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| NOTE: Includes the following parts. | |||
| 95 | 72905-11 | HOUSING, 2-way pin | FXS, FXS 103 |
| 96 | 72907-11 | HOUSING, 4-way pin | FXS, FXS 103 |
| 97 | 72909-11 | TERMINAL, pin, #20-21 AWG (9) | FXS, FXS 103 |
| 98 | 73104-96BK | HOUSING, 4-pin | FXS, FXS 103 |
| 99 | 73106-96BK | HOUSING, 6-pin | FXS, FXS 103 |
| 100 | 73154-96BK | HOUSING, 4-way, socket | FXS, FXS 103 |
| 101 | 73190-96 | TERMINAL, pin, #16-20 AWG (4) | FXS, FXS 103 |
| 102 | 73191-96 | TERMINAL, socket, #16-20 AWG | FXS, FXS 103 |
| 103 | 73213-07 | RETAINER, x-mas tree clip | FXS, FXS 103 |
| 104 | 73229-11 | BRACKET, fuse block mounting | FXS, FXS 103 |
| 105 | 73304-04 | TERMINAL, .31 socket, #10 AWG (2) | FXS, FXS 103 |
| 106 | 73305-04 | SEAL WIRE, #10 AWG (blue) (2) | FXS, FXS 103 |
| 107 | 74103-98BK | HOUSING, 3-way pin | FXS, FXS 103 |
| 108 | 74104-98BK | HOUSING, 4-way pin(black) | FXS, FXS 103 |
| 109 | 74112-98BK | HOUSING, 2-way socket (black) | FXS, FXS 103 |
| 110 | 74120-08 | DC LEAD ASSEMBLY | FXS, FXS 103 |
| 111 | 74143-98 | SECONDARY LOCK, 3-way pin | FXS, FXS 103 |
| 112 | 74144-98 | SECONDARY LOCK, 4-way pin (2) | FXS, FXS 103 |
| 113 | 74152-98 | SECONDARY LOCK, 2-way socket | FXS, FXS 103 |
| 114 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FXS, FXS 103 |
| 115 | 74191-98 | TERMINAL, socket (2) | FXS, FXS 103 |
| 116 | 69200010 | CONNECTOR, 4-way pin (gray) | FXS, FXS 103 |
| 117 | 69200012 | BRACKET, pin housing | FXS, FXS 103 |
| 118 | 69200238 | TERMINAL, insulated (2) | FXS, FXS 103 |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4867 | SCREW (3) | ALL |
| 2 | 10006 | CABLE STRAP | ALL |
| 3 | 27715-07 | PURGE SOLENOID | ALL |
| 4 | 33926-06B | SWITCH, neutral indicator | ALL |
| 5 | 40662-11A | ELECTRONIC CONTROL UNIT (ECU), ABS only | ALL |
| 6 | 66373-06 | BATTERY, 3V CR2032 | ALL |
| 7 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 | ALL |
| 8 | 68956-07 | MODULE, antenna security | ALL |
| 9 | 69991-11A | BODY CONTROL MODULE (BCM), base level | ALL |
| 69993-11A | BODY CONTROL MODULE (BCM), 434 MHZ, security | ALL | |
| 10 | 70354-11 | BRACKET, electrical | ALL |
| 11 | 72023-51D | STOP LAMP SWITCH, rear | ALL |
| 12 | 72314-01 | MAXI-FUSE, 40 AMP | ALL |
| 13 | 72330-95 | FUSE, 15 AMP (6) | ALL |
| 14 | 72594-11 | DUST CAP, 2-way socket, non-security | ALL |
| 15 | 73213-07 | RETAINER, christmas tree | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 16 | 68958-07C | SIREN ALARM, for siren vehicles (HDI, Japan) | ALL |
| 17 | 69309-10 | BATTERY, siren (HDI, Japan) | ALL |
| 18 | 69995-11 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) | ALL |
| 19 | 69997-11A | BODY CONTROL MODULE (BCM), 315 MHZ (Japan) | ALL |
SADDLEBAGS - FLSTC
| Index No. | Part No. | Description | Model(s) |
| 1 | 6229W | WASHER (4) | FLSTC, FLSTC 103 |
| 2 | 6702 | WASHER (2) | FLSTC, FLSTC 103 |
| 3 | 7549A | ACORN NUT (2) | FLSTC, FLSTC 103 |
| 4 | 7531 | LOCKNUT (4) | FLSTC, FLSTC 103 |
| 5 | 90247-00 | BUCKLE ASSEMBLY | FLSTC, FLSTC 103 |
| 6 | 90346-00 | SUPPORT, lower front (2) | FLSTC, FLSTC 103 |
| 7 | 90367-03 | STUD (4) | FLSTC, FLSTC 103 |
| 8 | 90438-10 | SADDLEBAG STRAP REPAIR KIT | FLSTC, FLSTC 103 |
| 9 | 90476-09 | SADDLEBAG, left | FLSTC, FLSTC 103 |
| 90477-09 | SADDLEBAG, right | FLSTC, FLSTC 103 | |
| 10 | 90524-01 | ISOLATOR (2) | FLSTC, FLSTC 103 |
| 11 | 91678-09 | CONCHO (2) | FLSTC, FLSTC 103 |
| 12 | 91679-00 | BACKPLATE (2) | FLSTC, FLSTC 103 |
| 13 | 98837-97 | SADDLEBAG REMOVAL KIT | FLSTC, FLSTC 103 |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | ALL |
| 2 | 7331 | ACORN NUT, left (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 7331 | ACORN NUT, left (1) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXST | |
| 3 | 91840-03B | MIRROR KIT, short, right, convex (chrome) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| 91845-03B | MIRROR KIT, short, left, convex (chrome) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST | |
| 91909-03B | MIRROR KIT, long, right, convex (black) | FXS, FXS 103 | |
| 91910-03B | MIRROR KIT, long, left, convex (black) | FXS, FXS 103 | |
| 91982-03B | MIRROR KIT, short, right, convex (black) | FLSTFB, FLSTFB 103 | |
| 91983-03B | MIRROR KIT, short, left, convex (black) | FLSTFB, FLSTFB 103 |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 15368-01A | LABEL, battery warning | ALL |
| 2 | 15370-01A | LABEL, mirror/general warning | ALL |
| 3 | 29127-95B | LABEL, air cleaner warning | ALL |
| 29404-01A | LABEL, air cleaner warning | FLS 103, FLSTFB, FLSTFB 103 | |
| INTERNATIONAL MODELS ONLY | |||
| 4 | 14272-06 | LABEL, shift pattern (Japan) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| 1 | 940 | SCREW (3) | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 2 | 27050-11 | CARBON CANISTER ASSEMBLY | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 3 | 27246-11 | EVAPORATIVE LINE, tank to canister | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 4 | 27715-07 | PURGE SOLENOID | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 5 | 28839-11 | VENTLINE ASSEMBLY | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 6 | 28860-11 | HOSE, canister to purge | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 7 | 28864-11 | VENTLINE ASSEMBLY, lower, w/ 27246-11 & 28860-11 | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 8 | 60800007 | EVAPORATIVE SYSTEM ASSEMBLY, upper, w/ 28839-11 & 61100001 | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 9 | 61100001 | VENTLINE ASSEMBLY, tank | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1311D | SCREW No. 8-32 X 1/2 Phillips truss head, self-sealing |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2452 | SCREW No. 12-24 X 13/16 pan head, with lockpatch |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2538 | SCREW 1/4-20 X 1 Pozidriv pan head (Grade 2) |
| 2566 | SCREW No. 8-32 X 7/8 self-tapping |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 2604 | SCREW No. 10-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2646 | SCREW No. 8-32 X 3/4 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2692WB | SCREW No. 10-24 X 1/2 socket fillister head (Grade 8) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2823 | SCREW 5/16-24 X 3/8 Pozidriv truss head, with lockpatch |
| 2882W | SCREW 5/16-18 X 5/8 hex head (Grade 5) |
| 2921 | SCREW No. 12 X 5/8 TORX pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3017 | SCREW No. 10-24 X 0.44 TORX pan head, self-tapping |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3056 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3075 | SCREW 1/4-20 X 11/32 pan head |
| 3109 | SCREW 7/16-14 X 2-5/8 hex cap with washer, lock patch |
| 3110 | BOLT 3/8-16 X 1-3/4 hex head |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3383 | SCREW No. 8-32 X 1-1/4 fillister head (Grade 2) |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3440 | BOLT 3/8-16 X 1/2 hex head (Grade 5) |
| 3471 | BOLT 1/2-13 X 2-3/4 hex head (Grade 5) |
| 3485A | SCREW 5/16-18 X 1-3/4 knurled head (Grade 8) |
| 3494A | BOLT 5/16-18 X 7/8 hex head |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3538 | SCREW 5/16-24 X 1/2 socket button head |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736B | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3767B | BOLT 1/4-20 X 5/8 hex head (Grade 5) |
| 3953W | BOLT 5/16-24 X 1/2 hex head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 4074A | BOLT 1/2-13 X 2 hex head, shoulder |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4166 | SCREW No. 8-32 X 1/2 socket button head (Grade 8) (chrome) |
| 4168A | SCREW 3/8-16 X 1 self-tapping |
| 4190 | SCREW 3/8-16 X 3/4 TORX button head |
| 4197 | BOLT 3/8-16 X 3-3/4 hex head (Grade 5) |
| 4216 | SCREW 5/16-18 X 7/8 hex flange head (Grade 5) |
| 4217 | SCREW 5/16-18 X 1.0 hex flange head (Grade 5) |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4267 | SCREW 3/8-16 X 1-1/4 button head (Grade 5) |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4343 | SCREW 5/16-24 X 1-3/4 socket button head, with adhesive |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4380W | BOLT 3/8-24 X 2 hex head (Grade 5) |
| 4390 | SCREW 1/2-13 X 2 hex head, shoulder |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4407 | SCREW 5/16-18 X 5/8 hex head, with washer |
| 4411 | BOLT 3/8-24 X 1-3/4 hex head (Grade 5) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4453 | BOLT 1/4-20 X 7/8 hex head SPECIAL WITH TAPPED HOLE |
| 4454 | SCREW 3/4-16 X 2-1/4 TORX head (Grade 8) |
| 4481 | SCREW 5/16-24 X 1 socket button head, with lockpatch (Grade 8) |
| 4482 | SCREW 5/16-24 X 1-3/8 socket button head, with lockptach (Grade 8) |
| 4484M | SCREW M5 X 0.8 X 16 SEMS hex head |
| 4512A | SCREW 3/8-16 X 1 TORX recessed button head (Grade 8) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4549 | SCREW 5/16-18 X 1-3/4 TORX button head (Grade 5) |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4722 | BOLT 3/8-16 X 2-1/4 hex head (Grade 5) |
| 4724 | BOLT 3/8-24 X 1-1/2 hex head (Grade 5) |
| 4729 | BOLT 7/16-20 X 1-1/4 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4763 | SCREW 5/16-18 X 1-1/4 TORX button head (Grade 5) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 4816A | SCREW 5/16-18 X 1-1/2 socket head |
| 4836 | SCREW 3/8-16 X 4 TORX socket head (Grade 8) |
| 4867 | SCREW hex head, socket |
| 4945 | SCREW 7/16-20 UNRF X 1-1/4 hex head (zinc plate) |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5419 | BOLT 5/16-18 X 1-3/4 carriage |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5471 | BOLT 5/16-18 X 5/8 round head carriage |
| 5710 | WASHER 63/64 X 1-1/2 X 5/64 |
| 5775 | WASHER 11/32 X 1/2 X 31/64 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6057 | WASHER 1/2 X 7/8 X 3/16, nylon |
| 6072 | WASHER 3/8 X 1 1/4 X 5/64 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6110 | WASHER 9/32 X 5/8 X 1/16 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6336B | WASHER 5/16 X 15/16 X 3/16 |
| 6379W | WASHER 3/8 X 5/8 X 3/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6456 | WASHER 13/32 X 1-3/16 X 9/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6530 | WASHER 1/2 X 1 X 3/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6534 | WASHER 3/8 X 1-3/4 X 3/32 hardened |
| 6535 | WASHER 5/16 X 1-1/4 X 3/32 hardened |
| 6545 | WASHER ferrous, heat-treated |
| 6551 | WASHER 1 X 1-5/8 X 1/8 hardened |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6724 | WASHER 21/32 X 1-1/16 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 67956-96 | SCREW 1/4-20 X 3/4 socket flat head |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7068 | LOCKWASHER 1/2 |
| 7073 | LOCKWASHER 1/4 external tooth |
| 7086 | WASHER 3/32 X 7/16 X 1/8 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7137 | NUT keps 5/16-18 (Grade 5) |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7220 | LOCKWASHER No. 10 external tooth |
| 7230 | LOCKWASHER 1/4 external tooth |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7331 | ACORN NUT 5/16-24 |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7479 | NUT 5/8-11 flange (Grade 6) |
| 7495 | NUT M6 X 1.0 flange lock |
| 7507 | ACORN NUT 5/16-18 X 11/16 X 1/2 (Grade 2) (chrome) |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7651A | ACORN NUT No. 12-24 (Grade 2) (chrome) |
| 7669 | NUT 5/16-18 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7879 | NUT 1/2-13 X 1/2 X 3/4 flange (Grade 6) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 8144 | NUT CLIP 5/16-18 |
| 8405 | JAMNUT .750-16UNF-2B |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 927A | SCREW 1/4-20 X 3/4 button head (Grade 8) |
| 939 | SCREW 1/4-20 X 1 self-tapping, with washer (Grade 2) |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 94004-90T | ACORN NUT 1/4-20 X 5/8 X 7/16 (chrome) |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| 956 | SCREW 5/16-18 X 3-1/4 button head, with lockpatch (Grade 8) |
| 961 | SCREW 1/4-20 X 1/2 TORX pan head, with washer (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19246-12 | ENGINE ASSEMBLY (Asia-Pacific) | FXS |
| 19259-12 | ENGINE ASSEMBLY (black/chrome) (Asia-Pacific, Japan) | FLSTC, FLSTF, FLSTN | |
| 19877-12 | ENGINE ASSEMBLY (Asia-Pacific, Japan) | FLSTFB | |
| 19245-12 | ENGINE ASSEMBLY (Japan) | FXS | |
| 19649-12 | ENGINE ASSEMBLY (Japan) | FLS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19809-12 | ENGINE ASSEMBLY | FXS 103 |
| 19811-12 | ENGINE ASSEMBLY | FLSTC 103, FLSTF 103, FLSTN 103 | |
| 19816-12 | ENGINE ASSEMBLY | FLSTFB 103 | |
| 19817-12 | ENGINE ASSEMBLY | FXST | |
| 19818-12 | ENGINE ASSEMBLY | FLS 103 | |
| 19878-12 | ENGINE ASSEMBLY (HDI) | FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 16787-99A | GASKET, cylinder head (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 11 | 17460-07A | CYLINDER/PISTON ASSEMBLY KIT (black highlighted) (2) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 |
| 21900011 | CYLINDER/PISTON ASSEMBLY KIT (silver) (2) | FXST | |
| 16800003A | CYLINDER/PISTON ASSEMBLY KIT (black non-highlighted) (2) | FLS 103, FXS 103 | |
| 12 | 17729-08 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 |
| 16500023 | CYLINDER HEAD, front, w/ guides & seats (black) | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103 | |
| 16500024 | CYLINDER HEAD, rear, w/ guides & seats (silver) | FXS 103, FXST | |
| 16500025 | CYLINDER HEAD, front, w/ guides & seats (silver) | FXS 103, FXST | |
| 16500026 | CYLINDER HEAD, front, w/ guides & seats (black) | FLS 103 | |
| 16500027 | CYLINDER HEAD, rear, w/ guides & seats (black) | FLS 103 | |
| 16500034 | CYLINDER HEAD, front, w/ guides & seats (black) (HDI) | FLS 103 | |
| 16500037 | CYLINDER HEAD, rear, w/ guides & seats (black) (HDI) | FLS 103 | |
| 21 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | FLS 103 |
| 22 | 72009-05 | HOUSING, 2-way, pin (2) | FLS 103 |
| 23 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 17575-99 | ROCKER COVER (polished) | FLS | |
| 17574-99A | ROCKER HOUSING (polished) | FLS | |
| 21 | 17576-99 | LIFTER COVER, front (polished) | FLS |
| 17577-99 | LIFTER COVER, rear (polished) | FLS | |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| Index No. | Part No. | Description | Model(s) |
| 31 | 18538-99C | HYDRAULIC LIFTER (4) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 2 | 21918-99 | PISTON RING SET, standard (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21919-99 | PISTON RING SET, 0.005 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 21945-99 | PISTON RING SET, 0.010 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 3 | 21962-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| 21963-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.005 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST | |
| 21964-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 13 | 24004-03B | BEARING KIT, left side w/ 8972, 24605-07 & 35114-02 | FLS, FLSTC, FLSTF, FLSTFB, FLSTN, FXS |
| Index No. | Part No. | Description | Model(s) |
| 16 | 25363-01B | CAM COVER (polished) | FLS |
| Index No. | Part No. | Description | Model(s) |
| 16 | 25363-01B | CAM COVER (polished) | FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 36 | 25700082 | TIMER COVER (chrome) | FLS 103, FLSTC 103, FLSTF 103, FLSTN 103, FXS 103, FXST |
| 25700083 | TIMER COVER (denim black) | FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 16 | 16400017 | BRACKET, top engine mount (India only) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 16 | 61300037 | INSERT, air cleaner | FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXST |
| 18 | 61300111 | COVER, air cleaner, w/ label (Domestic) (gloss black) | FLS 103 |
| 25 | 61300113 | COVER, air cleaner, w/ label (gloss black) (Australia, HDI, Japan) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 10102 | CLIP | ALL |
| 9 | 69200052 | BRACKET, regulator mounting | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 31743-01 | IGNITION COIL | FLS, FLS 103 |
| 17 | 71794-11 | SWITCH ASSEMBLY | FXS, FXS 103 |
| 19 | 41000006A | ELECTRONIC CONTROL MODULE, base level Requires digital programming. | ALL |
| 20 | 71400077 | IGNITION SWITCH & FORK LOCK SET | FXS, FXS 103 |
| 21 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 35247-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 11, 12, 13, 14, 15, 28, 29, 30, 31, 32, 33, 34, 35, 36, 7340, 35260-06, input shaft, countershaft & gears (silver) | FXST |
| Index No. | Part No. | Description | Model(s) |
| 16 | 8970A | BALL BEARING (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 29 | 33001-10A | TRANSMISSION ASSEMBLY, complete (silver painted) | FXST |
| 33012-10A | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 37143-07A | COVER, upper (polished) | FLS, FLS 103 | |
| 36 | 35250-06A | BEARING HOUSING ASSEMBLY (sliver) | FXST |
| 35260-06A | BEARING HOUSING ASSEMBLY (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 | |
| 37142-07 | CLUTCH RELEASE COVER (polished) | FLS, FLS 103 | |
| 45 | 74402-05B | SENSOR, speedometer | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 11599A | SPACER, bearing | ALL |
| 22 | 35246-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (black) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 35247-10A | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (silver) | FXST |
| Index No. | Part No. | Description | Model(s) |
| 11 | 37816-11 | CLUTCH ASSEMBLY, w/ 1, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 & 23 | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| 12 | 37871-04 | SPRING, diaphragm (blue) | FLS 103, FLSTC 103, FLSTF 103, FLSTFB 103, FLSTN 103, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 20 | 25700037 | COVER, clutch (chrome) | FLSTC 103, FLSTF 103, FLSTN 103, FXS 103 |
| 25700038 | COVER, clutch (polished) | FLS 103 | |
| 25700043 | COVER, clutch (black) | FLSTFB 103 | |
| 20A | 25700226 | GASKET KIT, inner primary w/ 1, 7, 8, 12 and 25418-06, 27444-00Y, 37909-90 | ALL |
| 60767-06 | COVER, clutch (polished) (Japan) | FLS | |
| 25700038 | COVER, clutch (polished) (Australia) | FXST |
| Index No. | Part No. | Description | Model(s) |
| 10 | 83935-09A | COMPENSATOR ASSEMBLY | ALL |
| 11 | 83936-09 | SPRING PACK | ALL |
| 13 | 40100009 | RETAINER, sprocket | ALL |
| Index No. | Part No. | Description | Model(s) |
| 60867-08 | BELT GUARD, 1 in., w/ warning label (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 7 | 45029-11B | MASTER CYLINDER, front, w/ hand lever (9/16 in. bore) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 19 | 70504-81 | CLIP, conduit (3) | FXST |
| 70504-81 | CLIP, conduit (4) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 16 | 41767-05D | MASTER CYLINDER ASSEMBLY | ALL |
| 21 | 42568-05A | GASKET, master cylinder reservoir | ALL |
| 28 | 46457-05B | COVER KIT, reservoir, w/ 42568-05 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 2 | 42143-08B | BOLT, lower | ALL |
| 10 | 44066-08A | CALIPER PIN KIT | ALL |
| Index No. | Part No. | Description | Model(s) |
| 16 | 41510-07 | HUB CAP ASSEMBLY, front (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 55107-12 | WHEEL ASSEMBLY, front, 16 in. laced, w/o bearings & sleeve (black) | FLS, FLS 103 | |
| 20 | 41992-11 | RIM, 16 in. (used on 43300041 wheel assemblies) (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 21 | 43017-07 | RIM, 16 in. (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 27 | 44752-11 | RIM SEAL KIT, 16 X 3 inch, w/ 41123-79, 43164-05 & 54321-85 (used on 43300041 wheel assembly) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 33 | 95594-84A | WEIGHT, 5 grams (black) | FLS, FLS 103 |
| 34 | 43300041 | WHEEL ASSEMBLY, front, 16 in. profile laced, w/o bearings & sleeve | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 55109-12 | WHEEL ASSEMBLY, rear, 16 in., laced, w/o bearings & sleeve (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 20 | 43017-07 | RIM, 16 in. (black) | FLS, FLS 103 |
| 41992-11 | RIM, 16 in. (used on 40900050 wheel assembly) (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 | |
| 28 | 44752-11 | RIM SEAL KIT, 16 X 3 inch, w/ 41123-79, 43164-05 & 54321-85 | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| 40900050 | WHEEL ASSEMBLY, rear, 16 in., profile laced, w/o bearings & sleeve, w/ rim seal kit 44752-11 (chrome) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 36 | 67891-99 | TRIM STRIP KIT, front panel (2) | FLS, FLS 103, FLSTF, FLSTF 103 |
| 45900032 | FRONT PANEL (gloss black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4512A | SCREW (6) | ALL |
| 16 | 50087-07A | LEG, jiffy stand (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FXS, FXS 103, FXST |
| 17 | 50103-07A | LEG, jiffy stand | FLS, FLS 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| 23 | 71400076 | LOCK SET, complete, w/ 45680-90, 71517-11 & keys | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 24 | 71400077 | IGNITION SWITCH & FORK LOCK SET | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 24 | 67956-96 | SCREW | FLS, FLS 103 |
| 26 | 52000031 | SEAT | FLS, FLS 103 |
| 27 | 52000032 | BRACKET, mounting | FLS, FLS 103 |
| 28 | 67900140 | BRACKET, reflector | FLSTC, FLSTC 103 |
| Index No. | Part No. | Description | Model(s) |
| 26 | 51218-09A | FOOTBOARD BOTTOM (polished) (2) | FLSTC, FLSTC 103 |
| 51402-08A | FOOTBOARD BOTTOM (gloss black) (2) | FLS, FLS 103, FLSTFB, FLSTFB 103 | |
| 29 | 51347-08B | FOOTBOARD ASSEMBLY, w/ 51403-08 w/ bottom (black) (No sold Footboard Assembly for BW5, BWV,JN5, JNV, JR5 & JRV. Parts sold separately.) (2) | FLSTFB, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 21 | 55800050 | HANDLEBAR | FLS, FLS 103 |
| 22 | 55800058 | HANDLEBAR | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 67700094 | SHELL ASSEMBLY (Australia, England, Japan) | FXS, FXS 103 | |
| 51 | 69969-08 | SLEEVE (2) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 47 | 9897 | TERMINAL, wire (Asia-Pacific, Australia, England, HDI, Japan) | FLSTC, FLSTC 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 34 | 58900021 | FENDER | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4867 | SCREW (3) | FXST |
| 22 | 69200044 | CADDY, ECM | FXST |
| Index No. | Part No. | Description | Model(s) |
| 8 | 10226 | FASTENER, nylon | FLSTC, FLSTC 103 |
| 26 | 69200045 | CADDY, ECM | FLSTC, FLSTC 103 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4867 | SCREW | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| 22 | 69200044 | CADDY, ECM | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 10226 | FASTENER, nylon | FLSTN, FLSTN 103 |
| 26 | 69200045 | CADDY, ECM | FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 761 | PLUG | FLS, FLS 103 |
| 7 | 10226 | FASTENER, nylon | FLS, FLS 103, FXS, FXS 103 |
| 69200356 | BRACKET ASSEMBLY, license plate support (Domestic) | FLS 103 | |
| 59904-12BHP | SUPPORT, left side fender (not shown) | FLS, FLS 103 | |
| 60187-12BHP | SUPPORT, right side fender | FLS, FLS 103 | |
| 19 | 69200046 | CADDY, ECM | FLS, FLS 103, FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 927A | SCREW (3) | FLSTF 103, FLSTFB 103 |
| 2 | 4512A | SCREW (3) | FLSTF 103, FLSTFB 103 |
| 3 | 6703 | WASHER (3) | FLSTF 103, FLSTFB 103 |
| 4 | 93511-10 | FIRST AID KIT | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 5 | 94435-10 | FOLDING TOOL | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 6 | 10800054 | P-CLIP (3) | FLSTF 103, FLSTFB 103 |
| 7 | 60300018 | SAREE GUARD, left - rear | FLSTF 103, FLSTFB 103 |
| 8 | 60300019 | SAREE GUARD, right | FLSTF 103, FLSTFB 103 |
| 9 | 60300032 | SAREE GUARD, left - front | FLSTF 103, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 7 | 7716 | LOCKNUT | FLS 103 |
| 13 | 68702-07 | BRACKET, license plate, adjustable | FLS 103 |
| 16 | 69557-10 | BLOCK, mounting | FLS 103 |
| 17 | 67900115 | LICENSE PLATE ASSEMBLY | FLS 103 |
| 18 | 67900117 | ILLUMINATOR | FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 18 | 927A | SCREW (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 20 | 6703 | WASHER (India) (2) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 21 | 7792 | NUT (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| 24 | 10800007 | P-CLAMP (India) (2) | FLSTC 103 |
| 25 | 67900016 | BRACKET, license plate, front (India) | FLSTF 103, FLSTFB 103 |
| 26 | 67900089 | LICENSE PLATE, front (India) | FLSTF 103, FLSTFB 103 |
| 27 | 67900092 | LICENSE PLATE, front (India) | FLSTC 103 |
| 28 | 67900093 | LICENSE PLATE, rear (India) | FLSTC 103, FLSTF 103, FLSTFB 103 |
| Index No. | Part No. | Description | Model(s) |
| 13 | 10226 | FASTENER, nylon | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70900170 | TRIM PANEL, fuel tank | FLS, FLS 103 | |
| 29 | 61100001 | VENT LINE ASSEMBLY, fuel tank to vapor valve (except California & Asia-Pacific) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 30 | 61100003 | VENT HOSE (except California & Asia-Pacific) | FLS, FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 12 | 10226 | FASTENER, nylon | FXS, FXS 103 |
| 29 | 61100001 | VENT LINE ASSEMBLY, fuel tank to vapor valve (except California & Asia-Pacific) | FXS, FXS 103 |
| 30 | 61100003 | VENT HOSE (except California & Asia-Pacific) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 20 | 75284-08A | MODULE ASSEMBLY, fuel pump w/ 75289-08 & 75290-08 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 62416-09 | MEDALLION, left, blue glass (for big blue pearl, white hot pearl and 2-tone midnight pearl/ brilliant silver tanks) | FLSTC, FLSTC 103 | |
| 62427-09 | MEDALLION, right, blue glass (for big blue pearl, white hot pearl and 2-tone midnight pearl/ brilliant silver tanks) | FLSTC, FLSTC 103 | |
| 8 | 61400055 | MEDALLION, fuel tank, left | FLS, FLS 103 |
| 61400056 | MEDALLION, fuel tank, right | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 14 | 62498-01A | OIL TANK (chrome) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 11936 | GASKET, oxygen sensor | FLSTC, FLSTC 103, FXST |
| 9 | 64708-08B | MUFFLER ASSEMBLY, front/rear (California, Canada, Domestic) (2) | FLSTC, FLSTC 103, FXST |
| 20 | 72177-07BK | HOUSING, 4-way socket (black) | FLSTC, FLSTC 103, FXST |
| 21 | 72344-10 | TERMINAL, socket #22 AWG (gold) (2) | FLSTC, FLSTC 103, FXST |
| 22 | 72444-07GY | HOUSING, 4-way socket (gray) | FLSTC, FLSTC 103, FXST |
| 23 | 73307-10 | TERMINAL, socket #22 AWG (2) | FLSTC, FLSTC 103, FXST |
| 24 | 32700005 | OXYGEN SENSOR, front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLSTC, FLSTC 103, FXST |
| 25 | 32700006 | OXYGEN SENSOR, rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLSTC, FLSTC 103, FXST |
| 26 | 65600031 | EXHAUST PIPE ASSEMBLY, front | FLSTC, FLSTC 103, FXST |
| 27 | 65600035 | EXHAUST PIPE ASSEMBLY, rear (Domestic, California, Canada) | FLSTC, FLSTC 103, FXST |
| 35 | 65600031 | EXHAUST PIPE ASSEMBLY, front (Australia) | FXST |
| 36 | 65600035 | EXHAUST PIPE ASSEMBLY, rear (Asia-Pacific, Japan) | FLSTC, FLSTC 103 |
| 65600039 | EXHAUST PIPE ASSEMBLY, rear (HDI, Australia, England) | FLSTC, FLSTC 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11936 | GASKET, oxygen sensor | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 11 | 64709-08B | MUFFLER ASSEMBLY, front (chrome) | FLSTF, FLSTF 103 |
| 65822-10A | MUFFLER ASSEMBLY, front (satin chrome) | FLSTFB, FLSTFB 103 | |
| 12 | 64710-08B | MUFFLER ASSEMBLY, rear (chrome) | FLSTF, FLSTF 103 |
| 65862-10A | MUFFLER ASSEMBLY, rear (satin chrome) | FLSTFB, FLSTFB 103 | |
| 13 | 64711-08B | MUFFLER ASSEMBLY, front (chrome) | FLSTN, FLSTN 103 |
| 14 | 64712-08B | MUFFLER ASSEMBLY, rear (chrome) | FLSTN, FLSTN 103 |
| 15 | 64734-08A | MUFFLER ASSEMBLY, front, catalytic (chrome) | FLS 103, FXS, FXS 103 |
| 16 | 64735-08A | MUFFLER ASSEMBLY, rear, catalytic (chrome) | FLS 103, FXS, FXS 103 |
| 17 | 65148-00B | SHIELD, front exhaust | FLS, FLS 103, FLSTF, FLSTF 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 66899-10A | SHIELD, front exhaust | FLSTFB, FLSTFB 103 | |
| 23 | 65389-05B | SHIELD, rear exhaust pipe | FLS, FLS 103, FLSTN, FLSTN 103 |
| 66897-10A | SHIELD, rear exhaust pipe | FLSTFB, FLSTFB 103 | |
| 31 | 72177-07BK | HOUSING, 4-way socket (black) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 32 | 72344-10 | TERMINAL, socket #22 AWG (gold) (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 33 | 72444-07GY | HOUSING, 4-way socket (gray) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 34 | 73307-10 | TERMINAL, socket #22 AWG (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 35 | 32700005 | OXYGEN SENSOR, front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 36 | 32700006 | OXYGEN SENSOR, rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 37 | 65600042 | EXHAUST PIPE ASSEMBLY (Domestic) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 38 | 65600049 | EXHAUST PIPE ASSEMBLY (Domestic) | FLS, FLS 103, FLSTN, FLSTN 103 |
| 64727-08 | MUFFLER ASSEMBLY, front (Australia) (chrome) | FXS, FXS 103 | |
| 64900140 | MUFFLER ASSEMBLY, front (Australia) (chrome) | FLS 103 | |
| 64900146 | MUFFLER ASSEMBLY, rear (Australia) (chrome) | FLS 103, FXS, FXS 103 | |
| 64900143 | MUFFLER ASSEMBLY, rear (Australia) | FLSTF, FLSTF 103 | |
| 64900145 | MUFFLER ASSEMBLY, rear (Australia) | FLSTFB, FLSTFB 103 | |
| 64900141 | MUFFLER ASSEMBLY, front (Australia) | FLSTN, FLSTN 103 | |
| 64900142 | MUFFLER ASSEMBLY, rear (Australia) | FLSTN, FLSTN 103 | |
| 64900139 | MUFFLER ASSEMBLY, front (Australia) | FLSTF, FLSTF 103 | |
| 64900144 | MUFFLER ASSEMBLY, front (Australia) | FLSTFB, FLSTFB 103 | |
| 54 | 65600046 | EXHAUST PIPE ASSEMBLY (HDI, Australia, England) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103 |
| 55 | 65600053 | EXHAUST PIPE ASSEMBLY (HDI, Australia, England) | FLS 103, FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 28 | 72657-12 | WIRING HARNESS, instrument controls | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 32 | 71400076 | LOCK SET, complete, w/ 45680-90, 71517-11 & keys | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 33 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 71953-11 | INSTRUMENT PANEL (gloss black) | FLS, FLS 103 | |
| 71989-09 | NAMEPLATE, ignition switch | FLS, FLS 103 | |
| 27 | 72658-12 | HARNESS, instrument console, w/ LED indicator array | FLS, FLS 103, FLSTC, FLSTC 103 |
| 31 | 71400076 | IGNITION SWIRCH & FORK LOCK SET | FLS, FLS 103, FLSTC, FLSTC 103 |
| 32 | 90300043 | KEY, w/ 61081-92 (set of two) (specify key code) | FLS, FLS 103, FLSTC, FLSTC 103 |
| Index No. | Part No. | Description | Model(s) |
| 17 | 72943-12 | HAND CONTROL MODULE, left, w/ turn signal (chrome) | FLSTF, FLSTF 103 |
| 72949-12 | HAND CONTROL MODULE, left, w/o turn signal | FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXST | |
| 72951-12 | HAND CONTROL MODULE, left, w/ turn signal (black) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 18 | 67800178 | TURN SIGNAL, w/ 68168-89A & 68973-00 (gloss black) | FLS 103 |
| 19 | 71500028 | KEY CAP, horn/trip | ALL |
| 20 | 71500029 | KEY CAP, lights | ALL |
| 24 | 72945-12 | HAND CONTROL MODULE, left, w/ turn signal (chrome) (HDI) | FLSTF, FLSTF 103 |
| 72953-12 | HAND CONTROL MODULE, left, w/ turn signal (black) (HDI) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 25 | 67800179 | TURN SIGNAL, w/ 68163-84 & 68973-00 (gloss black) (HDI) | FLS, FLS 103, FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 20 | 72944-12 | HAND CONTROL MODULE, right, w/ turn signal (chrome) | FLSTF, FLSTF 103 |
| 72948-12 | HAND CONTROL MODULE, right, w/o turn signal | FLS, FLS, FLS 103, FLSTC, FLSTC 103, FLSTN, FLSTN 103, FXST | |
| 72952-12 | HAND CONTROL MODULE, right, w/ turn signal (black) | FLSTFB, FLSTFB 103, FXS, FXS 103 | |
| 21 | 67800178 | TURN SIGNAL, w/ 68168-89A & 68973-00 (gloss black) | FLS 103 |
| 22 | 71500030 | KEY CAP, hazard | ALL |
| 23 | 71500118 | SWITCH, brake | ALL |
| 26 | 72946-12 | HAND CONTROL MODULE, right, w/ turn signal (chrome) (HDI) | FLSTF, FLSTF 103 |
| 27 | 67800179 | TURN SIGNAL, w/ 68163-84 & 68973-00 (gloss black) (HDI) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 6771A | WASHER (2) | FLS, FLS 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FXS, FXS 103, FXST |
| 67800216 | SOCKET | FLS 103 | |
| 67800217 | TURN SIGNAL, w/ 68168-89A, 68559-07 & 67800216 (2) | FLS 103 | |
| 67800184 | SUPPORT, rear lamp mounting (Domestic-left side only) | FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 67800171 | TURN SIGNAL, rear, w/ 74191-98 (HDI) (2) | FLS, FLS 103 | |
| 67800238 | TURN SIGNAL, rear, LED (chrome) with 74191-98 (HDI) (2) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 29A | 69200018 | CONDUIT, self-adhesive | FLSTN, FLSTN 103 |
| Index No. | Part No. | Description | Model(s) |
| 69050-08 | COVER, horn (gloss black) | FLS, FLS 103 | |
| 14 | 69000026 | HORN ASSEMBLY, w/ 7495 (India) | FLSTC, FLSTC 103 |
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 32 | 72175-07BK | HOUSING, 4-way, pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 53 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 56 | 72369-08A | BRACKET, fuse block holder,(black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 58 | 72415-07GY | HOUSING, 4-way pin (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 59 | 72478-07BK | HOUSING, 8-way pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 80 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 81 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 82 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70431-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 103 | 69200238 | TERMINAL, insulated (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 26 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLS, FLS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FLS, FLS 103 | |
| 32 | 72175-07BK | HOUSING, 4-way, pin (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 53 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLS, FLS 103 |
| 56 | 72369-08A | BRACKET, fuse block holder,(black) | FLS, FLS 103 |
| 58 | 72415-07GY | HOUSING, 4-way pin (gray) | FLS, FLS 103 |
| 59 | 72478-07BK | HOUSING, 8-way pin (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 80 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLS, FLS 103 |
| 81 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLS, FLS 103 |
| 82 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200318 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 106 | 69200010 | CONNECTOR, 4-way pin (gray) | FLS, FLS 103 |
| 107 | 69200012 | BRACKET, pin housing | FLS, FLS 103 |
| 108 | 69200238 | TERMINAL, insulated (2) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FXS, FXS 103 | |
| 33 | 72175-07BK | HOUSING, 4-way, pin (black) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 55 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FXS, FXS 103 |
| 60 | 72415-07GY | HOUSING, 4-way pin (gray) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 83 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FXS, FXS 103 |
| 84 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FXS, FXS 103 |
| 85 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71046-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 94 | 73154-96BK | HOUSING, 4-way, socket | FXS, FXS 103 |
| 96 | 73191-96 | TERMINAL, socket, #16-20 AWG | FXS, FXS 103 |
| 112 | 69200238 | TERMINAL, insulated (2) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 29 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 35 | 72175-07BK | HOUSING, 4-way, pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 56 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 59 | 72369-08A | BRACKET, fuse block holder,(black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 61 | 72415-07GY | HOUSING, 4-way pin (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 63 | 72478-07BK | HOUSING, 8-way pin (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 88 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 89 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| 90 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 70238-12 | WIRING HARNESS, MAIN (CONTINUED) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST | |
| 111 | 69200238 | TERMINAL, insulated (2) | FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXST |
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 28 | 72126-94GY | HOUSING, 6-pin (gray) - use 72106-94BK (black) | FLS, FLS 103 |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FLS, FLS 103 | |
| 34 | 72175-07BK | HOUSING, 4-way, pin (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 55 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FLS, FLS 103 |
| 58 | 72369-08A | BRACKET, fuse block holder,(black) | FLS, FLS 103 |
| 60 | 72415-07GY | HOUSING, 4-way pin (gray) | FLS, FLS 103 |
| 62 | 72478-07BK | HOUSING, 8-way pin (black) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 87 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FLS, FLS 103 |
| 88 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FLS, FLS 103 |
| 89 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 69200319 | WIRING HARNESS, MAIN (CONTINUED) | FLS, FLS 103 | |
| 115 | 69200238 | TERMINAL, insulated (2) | FLS, FLS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 72106-94BK | HOUSING, 6-pin (black) - replaces 72126-94GY (gray) | FXS, FXS 103 | |
| 35 | 72175-07BK | HOUSING, 4-way, pin (black) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 57 | 72343-10 | TERMINAL, pin, #16-20 AWG (gold) | FXS, FXS 103 |
| 60 | 72369-08A | BRACKET, fuse block holder,(black) | FXS, FXS 103 |
| 62 | 72415-07GY | HOUSING, 4-way pin (gray) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 89 | 72664-12 | HOUSING, 18-way, socket, key A (black) | FXS, FXS 103 |
| 90 | 72665-12 | HOUSING, 18-way, socket, key B (gray) | FXS, FXS 103 |
| 91 | 72666-12 | TERMINAL, socket, #18-20 AWG (silver) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 71065-12 | WIRING HARNESS, MAIN (CONTINUED) | FXS, FXS 103 | |
| 100 | 73154-96BK | HOUSING, 4-way, socket | FXS, FXS 103 |
| 102 | 73191-96 | TERMINAL, socket, #16-20 AWG | FXS, FXS 103 |
| 118 | 69200238 | TERMINAL, insulated (2) | FXS, FXS 103 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 69991-11A | BODY CONTROL MODULE (BCM), base level | ALL |
| 69993-11A | BODY CONTROL MODULE (BCM), 434 MHZ, security | ALL | |
| 14 | 72594-11 | DUST CAP, 2-way socket, non-security | ALL |
| 19 | 69997-11A | BODY CONTROL MODULE (BCM), 315 MHZ (Japan) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 7549A | ACORN NUT (2) | FLSTC, FLSTC 103 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 60800007 | EVAPORATIVE SYSTEM ASSEMBLY, upper, w/ 28839-11 & 61100001 | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| 9 | 61100001 | VENTLINE ASSEMBLY, tank | FLS 103, FLSTC, FLSTC 103, FLSTF, FLSTF 103, FLSTFB, FLSTFB 103, FLSTN, FLSTN 103, FXS, FXS 103 |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10038A | |
| 10039 | |
| 10040 | |
| 10053 | |
| 10065 | |
| 10074 | |
| 10102 | |
| 10103 | |
| 10113 | |
| 10115 | |
| 10119 | |
| 10124 | |
| 10147 | |
| 10177 | |
| 10183 | |
| 10184 | |
| 10193 | |
| 10208 | |
| 10216 | |
| 10226 | |
| 10228 | |
| 10287 | |
| 1039 | |
| 1062 | |
| 10800007 | |
| 10800054 | |
| 10850 | |
| 10851 | |
| 10861 | |
| 10866 | |
| 10871 | |
| 10991A | |
| 10998 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11096 | |
| 11100010 | |
| 11100014 | |
| 11105 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11155 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11180 | |
| 11191 | |
| 11201 | |
| 11207A | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11282 | |
| 11289A | |
| 11291 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11323 | |
| 11326 | |
| 11364 | |
| 11387A | |
| 11389 | |
| 11413 | |
| 11437 | |
| 11447 | |
| 11461 | |
| 11514 | |
| 11529 | |
| 11533 | |
| 11575 | |
| 11599A | |
| 11785 | |
| 11860 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12203 | |
| 12600015 | |
| 1311D | |
| 14100035 | |
| 14100036 | |
| 14142-09 | |
| 14272-06 | |
| 14728-07 | |
| 14761-00 | |
| 14762-00 | |
| 14764-00 | |
| 14769-00 | |
| 14784-07 | |
| 14789-07 | |
| 15368-01A | |
| 15370-01A | |
| 1565 | |
| 16236-08A | |
| 16247-06 | |
| 16400017 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16500023 | |
| 16500024 | |
| 16500025 | |
| 16500026 | |
| 16500027 | |
| 16500034 | |
| 16500037 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16775-99B | |
| 16787-99A | |
| 16800003A | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17178-06A | |
| 17179-06 | |
| 17180-06A | |
| 17181-06 | |
| 17360-83A | |
| 17365-08 | |
| 17366-08 | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17458-07 | |
| 17460-07A | |
| 17558-08 | |
| 17559-08 | |
| 17572-99 | |
| 17573-99A | |
| 17574-99A | |
| 17575-99 | |
| 17576-99 | |
| 17577-99 | |
| 17587-10 | |
| 17594-99 | |
| 17595-10 | |
| 17596-10 | |
| 17611-83 | |
| 17654-10 | |
| 17707-11 | |
| 17729-08 | |
| 1775 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18074-05A | |
| 18085-05B | |
| 18094-02A | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 19245-12 | |
| 19246-12 | |
| 19259-12 | |
| 19649-12 | |
| 19809-12 | |
| 19811-12 | |
| 19816-12 | |
| 19817-12 | |
| 19818-12 | |
| 19877-12 | |
| 19878-12 | |
| 21900011 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21949-07 | |
| 21950-07 | |
| 21955-07 | |
| 21959-07 | |
| 21960-07 | |
| 21961-07 | |
| 21962-07 | |
| 21963-07 | |
| 21964-07 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 22307-99 | |
| 2261 | |
| 23912-07B | |
| 24004-03B | |
| 24009-06 | |
| 2452 | |
| 24603-00 | |
| 24605-07 | |
| 24608-07A | |
| 24722-07B | |
| 24724-07B | |
| 24754-75A | |
| 24983-00 | |
| 2501A | |
| 25244-99A | |
| 25355-06A | |
| 25363-01B | |
| 25367-01B | |
| 25369-01B | |
| 2538 | |
| 25395-10 | |
| 25566-06 | |
| 25585-06 | |
| 25590-07A | |
| 25604-00A | |
| 25605-00A | |
| 2566 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700037 | |
| 25700038 | |
| 25700043 | |
| 25700082 | |
| 25700083 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2579A | |
| 26037-06 | |
| 2604 | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2646 | |
| 2647B | |
| 26500002 | |
| 26561-99 | |
| 2692WB | |
| 26993-06 | |
| 26995-86B | |
| 27050-11 | |
| 2708A | |
| 27246-11 | |
| 27300041 | |
| 27381-06 | |
| 27444-00Y | |
| 27651-06 | |
| 27655-06 | |
| 27658-06 | |
| 27659-06 | |
| 27684-06 | |
| 27708-06B | |
| 27709-06A | |
| 27715-07 | |
| 2773 | |
| 2823 | |
| 28719-10 | |
| 2882W | |
| 28839-11 | |
| 28860-11 | |
| 28861-07A | |
| 28864-11 | |
| 29104-08A | |
| 29121-07 | |
| 29127-95B | |
| 2921 | |
| 29269-83A | |
| 29306-08 | |
| 29313-95 | |
| 29314-08 | |
| 29347-08 | |
| 29393-08 | |
| 29396-08 | |
| 29400042 | |
| 29404-01A | |
| 2941 | |
| 29461-99 | |
| 29465-08 | |
| 29474-99A | |
| 29476-99 | |
| 29581-08 | |
| 29582-08 | |
| 29583-01A | |
| 29584-01 | |
| 29658-07 | |
| 29666-07 | |
| 2980 | |
| 30017-08 | |
| 30041-08 | |
| 30073-10 | |
| 3017 | |
| 3022A | |
| 3050 | |
| 3056 | |
| 3061 | |
| 3075 | |
| 3109 | |
| 3110 | |
| 3144 | |
| 31604-06 | |
| 31618-06A | |
| 31633-07A | |
| 31684-11 | |
| 31696-07A | |
| 31742-00 | |
| 31743-01 | |
| 31772-07 | |
| 31802-10 | |
| 31981-99C | |
| 31983-00C | |
| 32001-08A | |
| 32009-11 | |
| 3233 | |
| 32362-04 | |
| 32417-10 | |
| 32446-99 | |
| 3249 | |
| 32543-07 | |
| 32700005 | |
| 32700006 | |
| 32707-01C | |
| 32727-00 | |
| 3275 | |
| 3300 | |
| 33001-10A | |
| 33012-10A | |
| 33048-72 | |
| 33189-63 | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 33525-07 | |
| 33531-07 | |
| 33630-07A | |
| 33660-07 | |
| 33668-07 | |
| 3368 | |
| 33683-07A | |
| 33708-94 | |
| 33719-79B | |
| 3383 | |
| 33849-97 | |
| 33895-82D | |
| 3391 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 3440 | |
| 34469-06B | |
| 34521-06B | |
| 34528-06B | |
| 34564-90B | |
| 34611-65A | |
| 3471 | |
| 34799-07 | |
| 34801-07 | |
| 3485A | |
| 34917-06 | |
| 34920-86A | |
| 34934-06 | |
| 3494A | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35240-07 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10A | |
| 35247-10A | |
| 35249-06A | |
| 35250-06A | |
| 35259-06 | |
| 35260-06A | |
| 3537 | |
| 3538 | |
| 35467-06B | |
| 35470-10 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3612 | |
| 3615 | |
| 3633 | |
| 3655A | |
| 3656 | |
| 3658 | |
| 36805-06 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37101-84B | |
| 37116-06 | |
| 37129-06 | |
| 37142-07 | |
| 37143-07A | |
| 37186-10 | |
| 37192-10 | |
| 37193-11 | |
| 37312-75 | |
| 37313-80 | |
| 3736B | |
| 37496-90A | |
| 37554-11 | |
| 3767B | |
| 37770-07 | |
| 37813-11 | |
| 37816-11 | |
| 37871-04 | |
| 37872-00 | |
| 37882-06A | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-11 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38152-11 | |
| 38154-11 | |
| 38608-96 | |
| 38630-88 | |
| 38653-01 | |
| 38664-07C | |
| 38665-07B | |
| 38666-07C | |
| 38769-07A | |
| 3953W | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 39968-06 | |
| 39969-06 | |
| 40000001 | |
| 40036-06 | |
| 40074-07 | |
| 40100009 | |
| 4017 | |
| 40323-00 | |
| 40325-07 | |
| 4042 | |
| 40558-82 | |
| 40575-05 | |
| 40659-06 | |
| 40662-11A | |
| 40700-08 | |
| 4074A | |
| 40900050 | |
| 40908-08 | |
| 4091 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 40964-08 | |
| 40982-11 | |
| 40985-11 | |
| 41000006A | |
| 41038-08 | |
| 41092-08 | |
| 41123-79 | |
| 41229-08 | |
| 41242-08 | |
| 4132 | |
| 41349-07 | |
| 41359-08 | |
| 41474-06B | |
| 41502-07 | |
| 41504-07 | |
| 41510-07 | |
| 41545-07A | |
| 41547-07A | |
| 41559-08 | |
| 41600017 | |
| 41641-08 | |
| 4166 | |
| 4168A | |
| 41694-08 | |
| 41695-07 | |
| 41696-08 | |
| 41731-01 | |
| 41733-88 | |
| 41739-84A | |
| 41747-82A | |
| 41767-05D | |
| 41797-00 | |
| 41800008 | |
| 41837-10 | |
| 41840-10 | |
| 4190 | |
| 41957-97A | |
| 4197 | |
| 41992-11 | |
| 41995-08 | |
| 42143-08B | |
| 4216 | |
| 4217 | |
| 42261-11 | |
| 42298-08 | |
| 42314-08 | |
| 42344-08 | |
| 42345-08 | |
| 42347-08 | |
| 42348-08 | |
| 42369-11 | |
| 42382-87C | |
| 42411-09 | |
| 42416-06 | |
| 42431-11 | |
| 42454-99A | |
| 42460-80B | |
| 42508-11BHP | |
| 42515-07 | |
| 42532-06 | |
| 42552-11 | |
| 42568-05A | |
| 42597-00A | |
| 4266A | |
| 4267 | |
| 42895-08A | |
| 43017-07 | |
| 43022-91A | |
| 43052-05A | |
| 43055-05 | |
| 43085-97 | |
| 43104-93A | |
| 43118-92A | |
| 4312C | |
| 4313 | |
| 43140-80 | |
| 43147-40 | |
| 43157-83A | |
| 43164-05 | |
| 43200001 | |
| 43239-05 | |
| 43241-05 | |
| 43242-06A | |
| 43264-02 | |
| 43300041 | |
| 43353-03 | |
| 43373-11 | |
| 43384-11 | |
| 43390-08A | |
| 4343 | |
| 4350A | |
| 43567-92 | |
| 43590-09 | |
| 43596-09 | |
| 43662-80B | |
| 43700-08 | |
| 4380W | |
| 4390 | |
| 43939-89 | |
| 43992-08 | |
| 4400 | |
| 44048-83A | |
| 44066-08A | |
| 4407 | |
| 4411 | |
| 44147-87A | |
| 44156-00 | |
| 44160-00 | |
| 44163-00 | |
| 4419 | |
| 44313-08 | |
| 4433 | |
| 44337-08 | |
| 44338-00 | |
| 44351-00 | |
| 4453 | |
| 4454 | |
| 44752-11 | |
| 4481 | |
| 4482 | |
| 4484M | |
| 45006-96C | |
| 45015-96 | |
| 45016-96 | |
| 45021-86 | |
| 45029-11B | |
| 45032-82 | |
| 45036-88 | |
| 45041-01A | |
| 45044-96A | |
| 4512A | |
| 45199-08 | |
| 45359-00 | |
| 45405-75A | |
| 45417-00 | |
| 45419-80 | |
| 45420-80 | |
| 45423-92 | |
| 45423-96 | |
| 45456-86B | |
| 45468-00 | |
| 4549 | |
| 45550-03 | |
| 45605-00A | |
| 45611-86 | |
| 45640-00A | |
| 45648-85A | |
| 4564M | |
| 45670-80A | |
| 45672-80B | |
| 45680-90 | |
| 45685-93 | |
| 45710-11 | |
| 45718-60 | |
| 45727-08 | |
| 45733-48 | |
| 45764-00 | |
| 45803-97 | |
| 45806-07 | |
| 45824-11 | |
| 45829-11 | |
| 45835-00 | |
| 45836-07 | |
| 45837-07 | |
| 45838-77 | |
| 45842-77A | |
| 45856-11 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45873-07A | |
| 45874-08A | |
| 45875-84A | |
| 45900032 | |
| 45915-08A | |
| 45916-07A | |
| 45917-08A | |
| 45918-07A | |
| 45930-00 | |
| 45931-00 | |
| 45933-86 | |
| 45940-84 | |
| 45964-86 | |
| 46004-07A | |
| 46006-08A | |
| 46048-00 | |
| 46175-00 | |
| 46356-11 | |
| 46363-11 | |
| 46423-05B | |
| 46457-05B | |
| 46550-03 | |
| 46663-11 | |
| 46664-11 | |
| 46668-11 | |
| 46677-11 | |
| 4705 | |
| 47173-11BHP | |
| 47173-11BYM | |
| 4717A | |
| 4718A | |
| 4721 | |
| 4722 | |
| 4724 | |
| 4729 | |
| 4740A | |
| 4741A | |
| 4751 | |
| 47573-11BHP | |
| 47573-11BYM | |
| 47610-08 | |
| 4763 | |
| 4775 | |
| 47798-08BHP | |
| 47807-08BHP | |
| 47809-08BHP | |
| 47813-08BHP | |
| 48048-00A | |
| 48052-07 | |
| 48054-00 | |
| 48076-08 | |
| 48093-00 | |
| 48094-00 | |
| 4813A | |
| 4814A | |
| 4816A | |
| 48300-60 | |
| 48315-60 | |
| 48324-00 | |
| 48332-48C | |
| 48349-11 | |
| 4836 | |
| 48361-80 | |
| 48365-48A | |
| 48477-11 | |
| 48619-07A | |
| 48624-07 | |
| 4867 | |
| 48868-07 | |
| 49377-09A | |
| 49408-11 | |
| 49415-11 | |
| 49416-11 | |
| 49417-11 | |
| 49418-11 | |
| 4945 | |
| 49716-08A | |
| 49725-07A | |
| 50003-89B | |
| 5001 | |
| 5002 | |
| 5003 | |
| 5004 | |
| 50087-07A | |
| 50103-07A | |
| 50614-06 | |
| 50617-05 | |
| 50621-06 | |
| 50624-05 | |
| 50625-05 | |
| 50630-05 | |
| 50674-05 | |
| 50698-05 | |
| 50699-05 | |
| 50912-72 | |
| 50943-05A | |
| 50944-05 | |
| 50972-75 | |
| 50991-86 | |
| 5118 | |
| 51184-00 | |
| 51188-00 | |
| 51218-09A | |
| 51323-08 | |
| 51327-08 | |
| 51347-08B | |
| 51402-08A | |
| 51403-08 | |
| 51494-11 | |
| 515 | |
| 51652-97A | |
| 51669-07 | |
| 51740-10 | |
| 51803-07 | |
| 51812-09 | |
| 51873-10 | |
| 51874-10 | |
| 52000031 | |
| 52000032 | |
| 52125-05 | |
| 52189-09 | |
| 52237-07 | |
| 52400002 | |
| 52441-95 | |
| 52502-05C | |
| 52505-09 | |
| 52691-05 | |
| 52731-00 | |
| 52771-82 | |
| 52787-00 | |
| 52788-00 | |
| 53156-86 | |
| 53176-08 | |
| 53436-97 | |
| 53462-05 | |
| 53830-00 | |
| 53860-05 | |
| 5403B | |
| 5416 | |
| 54168-11 | |
| 5419 | |
| 54204-11 | |
| 54321-85 | |
| 5442 | |
| 54508-00B | |
| 54549-04 | |
| 54673-10BYM | |
| 5471 | |
| 55038-11 | |
| 55039-11 | |
| 55043-11 | |
| 55044-11 | |
| 55107-12 | |
| 55109-12 | |
| 554A | |
| 55800048 | |
| 55800049 | |
| 55800050 | |
| 55800058 | |
| 55901-05 | |
| 55902-05 | |
| 55903-05 | |
| 55984-07 | |
| 56073-83 | |
| 56102-99 | |
| 56119-77A | |
| 56122-77 | |
| 56124-77 | |
| 56153-73 | |
| 56159-73 | |
| 56182-00A | |
| 56183-00 | |
| 56220-94A | |
| 56248-08 | |
| 56342-01 | |
| 56343-01 | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56432-98 | |
| 56433-98 | |
| 56508-76 | |
| 56569-09 | |
| 56887-07 | |
| 56889-07 | |
| 56934-07A | |
| 56939-07A | |
| 56998-09 | |
| 57061-09 | |
| 57062-00A | |
| 57063-00A | |
| 57091-06A | |
| 5710 | |
| 57217-02 | |
| 57250-06 | |
| 57400023 | |
| 57634-07 | |
| 5775 | |
| 58082-02A | |
| 58092-05 | |
| 5818A | |
| 58252-95 | |
| 58253-95 | |
| 58272-95 | |
| 58294-09 | |
| 5837A | |
| 58406-75A | |
| 58408-75A | |
| 58416-77A | |
| 58417-77 | |
| 58428-94 | |
| 58431-94 | |
| 5885 | |
| 58900021 | |
| 59019-05 | |
| 59026-05 | |
| 59050-03 | |
| 59076-06 | |
| 59088-03 | |
| 59116-96 | |
| 59117-96 | |
| 59119-03 | |
| 59129-09 | |
| 59139-00A | |
| 59144-06A | |
| 59174-99 | |
| 59180-80 | |
| 59201-96 | |
| 59211-74A | |
| 59234-05 | |
| 59235-09 | |
| 59238-05A | |
| 59256-84A | |
| 59259-90 | |
| 59360-05 | |
| 59430-08 | |
| 59434-08 | |
| 59438-00 | |
| 59474-07 | |
| 59475-05 | |
| 59500-11 | |
| 59548-11 | |
| 59567-00C | |
| 59572-05 | |
| 59679-11 | |
| 59683-03 | |
| 59744-06 | |
| 59768-97 | |
| 59770-05BEO | |
| 59798-06 | |
| 59819-06B | |
| 59821-08 | |
| 59824-08 | |
| 59904-11BYM | |
| 59904-12BHP | |
| 59914-06 | |
| 59924-80B | |
| 59954-08 | |
| 59955-08 | |
| 59984-73 | |
| 59986-75 | |
| 59988-72A | |
| 59995-06B | |
| 60001-55 | |
| 60003-89 | |
| 60020-97 | |
| 60021-97 | |
| 601 | |
| 60123-02 | |
| 60154-11 | |
| 60187-11BYM | |
| 60187-12BHP | |
| 6019 | |
| 60253-07 | |
| 60254-07 | |
| 60300018 | |
| 60300019 | |
| 60300032 | |
| 60328-98B | |
| 6036 | |
| 60362-07A | |
| 60363-11 | |
| 60452-07A | |
| 60456-11 | |
| 60547-06 | |
| 60563-08 | |
| 6057 | |
| 60570-07B | |
| 60678-85 | |
| 6072 | |
| 60722-07 | |
| 60766-06 | |
| 60767-06 | |
| 60782-06 | |
| 60791-06C | |
| 60800007 | |
| 60806-07B | |
| 60813-07 | |
| 60832-07 | |
| 60833-07 | |
| 60834-07 | |
| 60867-08 | |
| 60876-11 | |
| 60882-10 | |
| 60900001 | |
| 60900003 | |
| 6099 | |
| 61008-10 | |
| 6101 | |
| 61011-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 6110 | |
| 61100001 | |
| 61100003 | |
| 61109-85D | |
| 61155-00 | |
| 61183-10 | |
| 61192-96A | |
| 61257-05 | |
| 61264-10 | |
| 61265-10 | |
| 61272-92C | |
| 61300037 | |
| 61300111 | |
| 61300112 | |
| 61300113 | |
| 61381-02 | |
| 61400055 | |
| 61400056 | |
| 61625-11 | |
| 62123-07 | |
| 62143-11 | |
| 62155-11 | |
| 62158-11 | |
| 62189-08 | |
| 62241-08 | |
| 62242-08 | |
| 62243-08 | |
| 62274-05 | |
| 62276-05 | |
| 62277-05 | |
| 6229W | |
| 62322-11 | |
| 6237 | |
| 62372-09 | |
| 62377-11 | |
| 62394-09 | |
| 62395-09 | |
| 62416-09 | |
| 62427-09 | |
| 62492-01A | |
| 62498-01A | |
| 62507-10BYM | |
| 62543-11 | |
| 62555-95 | |
| 62567-08 | |
| 62568-08 | |
| 62769-00A | |
| 62845-00A | |
| 62880-00 | |
| 62881-00 | |
| 62900-01D | |
| 6294 | |
| 6336B | |
| 63521-95A | |
| 63553-00B | |
| 63601-00 | |
| 63611-00 | |
| 63632-00 | |
| 63731-99A | |
| 63783-00 | |
| 63798-99A | |
| 6379W | |
| 6400HB | |
| 6456 | |
| 64708-08B | |
| 64709-08B | |
| 64710-08B | |
| 64711-08B | |
| 64712-08B | |
| 64727-08 | |
| 64728-08 | |
| 64729-08 | |
| 64734-08A | |
| 64735-08A | |
| 64900105 | |
| 64900106 | |
| 64900139 | |
| 64900140 | |
| 64900141 | |
| 64900142 | |
| 64900143 | |
| 64900144 | |
| 64900145 | |
| 64900146 | |
| 64960-07 | |
| 64961-07 | |
| 6497HW | |
| 65148-00B | |
| 6516HW | |
| 65184-02 | |
| 65296-95A | |
| 6530 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 6534 | |
| 6535 | |
| 65368-07 | |
| 65372-07 | |
| 65383-05 | |
| 65389-05B | |
| 65395-05 | |
| 65399-07 | |
| 65435-07BHP | |
| 6545 | |
| 65463-00 | |
| 65464-07 | |
| 6551 | |
| 65521-10 | |
| 6557 | |
| 65600031 | |
| 65600035 | |
| 65600039 | |
| 65600042 | |
| 65600046 | |
| 65600049 | |
| 65600053 | |
| 65652-07 | |
| 65682-07 | |
| 65685-07 | |
| 65688-11BHP | |
| 65702-00A | |
| 65707-10 | |
| 65715-10 | |
| 65822-10A | |
| 65830-10 | |
| 65862-10A | |
| 65870-10 | |
| 65880-10 | |
| 65920-10 | |
| 65939-07 | |
| 6594 | |
| 65946-07 | |
| 65950-07 | |
| 65989-97C | |
| 66274-07 | |
| 66373-06 | |
| 66415-08A | |
| 6655 | |
| 66737-10 | |
| 66763-07 | |
| 66764-07 | |
| 66765-07 | |
| 66767-07 | |
| 66797-07 | |
| 66882-10 | |
| 66897-10A | |
| 66899-10A | |
| 66901-10 | |
| 6701 | |
| 67013-04A | |
| 67015-02 | |
| 67019-04A | |
| 6702 | |
| 6703 | |
| 67033-11 | |
| 67121-95A | |
| 6716 | |
| 67190-89 | |
| 67196-11 | |
| 67197-11 | |
| 6724 | |
| 67266-94 | |
| 67267-05 | |
| 67271-04A | |
| 67341-04B | |
| 67439-11 | |
| 67517-11 | |
| 67520-11 | |
| 67525-11 | |
| 67571-11 | |
| 67605-05 | |
| 67615-96 | |
| 67621-94 | |
| 6762B | |
| 67667-05 | |
| 67668-05 | |
| 67700029 | |
| 67700094 | |
| 6771A | |
| 67721-48 | |
| 67768-97 | |
| 67769-93 | |
| 67772-97 | |
| 67790-93A | |
| 67800171 | |
| 67800178 | |
| 67800179 | |
| 67800184 | |
| 67800216 | |
| 67800217 | |
| 67800238 | |
| 67814-86 | |
| 67821-87 | |
| 67822-88 | |
| 67827-88A | |
| 67829-88 | |
| 67830-09 | |
| 67831-03 | |
| 67846-70 | |
| 67858-89 | |
| 67873-08A | |
| 67891-99 | |
| 67900016 | |
| 67900089 | |
| 67900092 | |
| 67900093 | |
| 67900115 | |
| 67900117 | |
| 67900140 | |
| 67956-96 | |
| 67982-07 | |
| 67987-10BHP | |
| 67988-10BHP | |
| 67993-10BHP | |
| 68003-05 | |
| 68004-05 | |
| 68026-99 | |
| 68042-99 | |
| 68046-79 | |
| 68050-93A | |
| 68051-08 | |
| 68055-10BHP | |
| 68066-99A | |
| 68081-96 | |
| 68089-05 | |
| 68112-99A | |
| 68140-04 | |
| 68141-04 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 68169-90A | |
| 68193-95 | |
| 68226-97 | |
| 68235-97 | |
| 68236-97 | |
| 68237-97 | |
| 68238-97 | |
| 68239-97 | |
| 68280-05 | |
| 68281-05 | |
| 68296-99A | |
| 68297-05 | |
| 68329-03 | |
| 68331-02 | |
| 68335-05 | |
| 68337-05 | |
| 68341-05 | |
| 68342-05 | |
| 68344-05 | |
| 68345-05 | |
| 68369-03 | |
| 68370-03A | |
| 68372-03 | |
| 68380-05 | |
| 68382-07A | |
| 68390-05 | |
| 68414-05 | |
| 68440-86 | |
| 68446-00 | |
| 68452-86 | |
| 68453-05 | |
| 68497-07 | |
| 68505-90 | |
| 68506-92 | |
| 68508-04 | |
| 68510-74C | |
| 68519-68A | |
| 68559-07 | |
| 68572-64B | |
| 68619-83 | |
| 68653-05 | |
| 68673-05 | |
| 68702-07 | |
| 68706-00 | |
| 68713-94A | |
| 68720-62 | |
| 68721-62 | |
| 68722-06 | |
| 68725-62A | |
| 68731-98 | |
| 68765-94A | |
| 68766-94 | |
| 68767-94 | |
| 68818-03B | |
| 68819-06A | |
| 68830-99A | |
| 68834-05A | |
| 68840-05 | |
| 68846-09 | |
| 68847-09 | |
| 68905-00 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68966-08 | |
| 68969-05 | |
| 68973-00 | |
| 68978-00 | |
| 68992-08 | |
| 69000026 | |
| 69012-93A | |
| 69046-06A | |
| 69050-08 | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69130-10BYM | |
| 69140-10 | |
| 69187-03A | |
| 69195-11 | |
| 69200010 | |
| 69200011 | |
| 69200012 | |
| 69200018 | |
| 69200044 | |
| 69200045 | |
| 69200046 | |
| 69200052 | |
| 69200238 | |
| 69200263 | |
| 69200318 | |
| 69200319 | |
| 69200356 | |
| 69220-06 | |
| 69221-06 | |
| 69222-09 | |
| 69223-09 | |
| 69309-10 | |
| 69438-06 | |
| 69486-06B | |
| 69490-07 | |
| 69557-10 | |
| 69609-00 | |
| 69696-05 | |
| 69748-05B | |
| 69750-05B | |
| 69783-08A | |
| 6990 | |
| 69933-08 | |
| 69935-08 | |
| 69969-08 | |
| 69991-11A | |
| 69993-11A | |
| 69995-11 | |
| 69997-11A | |
| 70060-08A | |
| 70078-08A | |
| 70111-07 | |
| 70196-00 | |
| 70238-12 | |
| 70345-84 | |
| 70354-11 | |
| 7038 | |
| 7039 | |
| 70392-07 | |
| 703B | |
| 7041 | |
| 70431-12 | |
| 70504-81 | |
| 70593-08 | |
| 7062 | |
| 70635-08 | |
| 7068 | |
| 70684-11 | |
| 70700-11 | |
| 7073 | |
| 70736-11 | |
| 7086 | |
| 70900170 | |
| 70974-08A | |
| 70976-06 | |
| 70982-08 | |
| 70991-07 | |
| 71019-07 | |
| 71044-11 | |
| 71046-12 | |
| 71065-12 | |
| 71250-11 | |
| 71257-11 | |
| 71265-95 | |
| 71302-93A | |
| 7130W | |
| 71340-11 | |
| 7137 | |
| 71400076 | |
| 71400077 | |
| 71500028 | |
| 71500029 | |
| 71500030 | |
| 71500117 | |
| 71500118 | |
| 71512-11 | |
| 71517-11 | |
| 7155 | |
| 71576-08A | |
| 71664-05 | |
| 71669-05 | |
| 71794-11 | |
| 71796-11 | |
| 71953-11 | |
| 71978-08 | |
| 71989-09 | |
| 71990-09 | |
| 72007-05 | |
| 72009-05 | |
| 72010-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72023-51D | |
| 72024-08 | |
| 72049-92 | |
| 72056-92 | |
| 72062-06 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72081-11 | |
| 72094-06 | |
| 72096-06 | |
| 72098-06 | |
| 72106-94BK | |
| 72111-06 | |
| 72126-94GY | |
| 72127-06 | |
| 72130-04 | |
| 72135-06 | |
| 72145-06 | |
| 72146-94 | |
| 72160-06 | |
| 72161-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72194-94 | |
| 72199-94 | |
| 7220 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72231-98 | |
| 72242-94 | |
| 72249-94 | |
| 72254-94 | |
| 72256-11 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72298-95 | |
| 7230 | |
| 72308-97 | |
| 72314-01 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72350-11 | |
| 72356-95 | |
| 72369-08A | |
| 72405-98BK | |
| 72411-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72484-08 | |
| 72486-08 | |
| 72499-07 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72514-07GY | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72553-07 | |
| 72569-08 | |
| 72575-11 | |
| 72581-11 | |
| 72582-11 | |
| 72586-11 | |
| 72587-11 | |
| 72593-11 | |
| 72594-11 | |
| 72595-11 | |
| 72596-11 | |
| 72597-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72639-10 | |
| 72656-11 | |
| 72657-12 | |
| 72658-12 | |
| 72662-11 | |
| 72664-12 | |
| 72665-12 | |
| 72666-12 | |
| 72677-11 | |
| 72720-07 | |
| 72721-07 | |
| 72770-11 | |
| 72775-11 | |
| 72904-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72914-01BK | |
| 72920-11 | |
| 72921-11 | |
| 72922-11 | |
| 72923-11 | |
| 72933-11 | |
| 72934-11 | |
| 72937-11 | |
| 72940-11 | |
| 72941-11 | |
| 72943-12 | |
| 72944-12 | |
| 72945-12 | |
| 72946-12 | |
| 72948-12 | |
| 72949-12 | |
| 72951-12 | |
| 72952-12 | |
| 72953-12 | |
| 72954-11 | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73213-07 | |
| 73229-11 | |
| 73293-10 | |
| 73294-10 | |
| 73295-10 | |
| 7330 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 73403-11 | |
| 73405-11 | |
| 73408-11 | |
| 73409-11 | |
| 73410-11 | |
| 73412-11 | |
| 73422-11 | |
| 7343 | |
| 73504-11 | |
| 7360 | |
| 74102-05GY | |
| 74102-98BK | |
| 74103-98BK | |
| 74104-98BK | |
| 74112-05GY | |
| 74112-98BK | |
| 74113-98BK | |
| 74114-98BK | |
| 74120-08 | |
| 74142-98 | |
| 74143-98 | |
| 74144-98 | |
| 74152-98 | |
| 74153-98 | |
| 74154-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74540-11 | |
| 7479 | |
| 7495 | |
| 7507 | |
| 75141-11 | |
| 75241-08 | |
| 75252-11 | |
| 75276-08A | |
| 75282-08A | |
| 75284-08A | |
| 75289-08 | |
| 75290-08 | |
| 75307-07 | |
| 7531 | |
| 7549A | |
| 755 | |
| 7576 | |
| 7593 | |
| 7601 | |
| 7606 | |
| 761 | |
| 7613A | |
| 7624 | |
| 7629 | |
| 765 | |
| 7651A | |
| 7669 | |
| 7686 | |
| 7716 | |
| 7744 | |
| 7792 | |
| 7800W | |
| 7813A | |
| 7848W | |
| 7862 | |
| 786A | |
| 7879 | |
| 791A | |
| 7964 | |
| 7965 | |
| 8020 | |
| 8026K | |
| 8037 | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8126A | |
| 8144 | |
| 8201 | |
| 83935-09A | |
| 83936-09 | |
| 8405 | |
| 856A | |
| 8873 | |
| 895 | |
| 89587-05 | |
| 8959 | |
| 8963 | |
| 8967 | |
| 8970A | |
| 8972 | |
| 8992A | |
| 90247-00 | |
| 90300043 | |
| 90346-00 | |
| 90357-89 | |
| 90367-03 | |
| 90383-98 | |
| 90438-10 | |
| 90476-09 | |
| 90477-09 | |
| 90520-07 | |
| 90524-01 | |
| 90770-79 | |
| 91072-11 | |
| 91678-09 | |
| 91679-00 | |
| 91767-07 | |
| 91840-03B | |
| 91845-03B | |
| 91909-03B | |
| 91910-03B | |
| 91982-03B | |
| 91983-03B | |
| 9215 | |
| 9231 | |
| 9252 | |
| 9270A | |
| 9276A | |
| 927A | |
| 93511-10 | |
| 939 | |
| 940 | |
| 94004-90T | |
| 941 | |
| 942 | |
| 94426-95 | |
| 94435-10 | |
| 945 | |
| 95594-84A | |
| 95595-84A | |
| 956 | |
| 961 | |
| 9701A | |
| 9819 | |
| 9841 | |
| 9842 | |
| 9847 | |
| 9848 | |
| 98837-97 | |
| 9897 | |
| 9898 | |
| 9907 | |
| 9955 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 8144 | Unknown |
| 7576 | 1990 |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7813A | 2007 |
| 3633 | Unknown |
| 8126A | 2017 |
| 7862 | Unknown |
| 7479 | 2000 |
| 7613A | 1959 |
| 94004-90T | 1990 |
| 67846-70 | 1970 |
| 7495 | 1994 |
| 8405 | 2011 |
| 7340 | Unknown |
| 7879 | 2000 |
| 7330 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 7965 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7744 | 1943 |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 45764-00 | 2000 |
| 102A1 - Generic Screws | |
| 4266A | Unknown |
| 4763 | Unknown |
| 1001 | Unknown |
| 3017 | 2000 |
| 3983 | 2005 |
| 3987 | Unknown |
| 3110 | Unknown |
| 4217 | 1999 |
| 68026-99 | 1999 |
| 2452 | Unknown |
| 4216 | 1999 |
| 2566 | 1995 |
| 3109 | Unknown |
| 2579A | Unknown |
| 4741A | 1994 |
| 3050 | Unknown |
| 786A | Unknown |
| 2692WB | Unknown |
| 3655A | Unknown |
| 4836 | Unknown |
| 5419 | 2000 |
| 3056 | 2011 |
| 3692A | Unknown |
| 5416 | Unknown |
| 3249 | Unknown |
| 4718A | 1994 |
| 2646 | 2000 |
| 2261 | 2011 |
| 3953W | 2009 |
| 3485A | Unknown |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 4380W | 2012 |
| 4512A | 2007 |
| 3514 | Unknown |
| 4313 | Unknown |
| 941 | Unknown |
| 2941 | Unknown |
| 4350A | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 4042 | Unknown |
| 940 | Unknown |
| 3561WC | Unknown |
| 2921 | Unknown |
| 4091 | Unknown |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 1311D | 2001 |
| 3693A | Unknown |
| 3615 | Unknown |
| 895 | Unknown |
| 2773 | Unknown |
| 4549 | Unknown |
| 4751 | Unknown |
| 4390 | Unknown |
| 4705 | 2005 |
| 68452-86 | 1986 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3075 | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 3656 | Unknown |
| 956 | Unknown |
| 939 | 1991 |
| 3560WA | Unknown |
| 2647B | Unknown |
| 4729 | Unknown |
| 4724 | 2009 |
| 90770-79 | 1979 |
| 89587-05 | 2005 |
| 4407 | Unknown |
| 3061 | Unknown |
| 4722 | 2009 |
| 4721 | 2009 |
| 4400 | 2011 |
| 3594 | 1992 |
| 4484M | Unknown |
| 45838-77 | 1977 |
| 2708A | Unknown |
| 4816A | Unknown |
| 68042-99 | 1999 |
| 4419 | Unknown |
| 1039 | Unknown |
| 2604 | Unknown |
| 4564M | Unknown |
| 3699D | 2006 |
| 4168A | 2011 |
| 3300 | Unknown |
| 4411 | 2009 |
| 3494A | Unknown |
| 4267 | Unknown |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3563 | 1999 |
| 2882W | 2009 |
| 4017 | 2009 |
| 2501A | Unknown |
| 3144 | Unknown |
| 3383 | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 2538 | Unknown |
| 1775 | Unknown |
| 4945 | Unknown |
| 94426-95 | 1995 |
| 3233 | Unknown |
| 56402-83A | 1983 |
| 4867 | Unknown |
| 3391 | Unknown |
| 4433 | Unknown |
| 4717A | Unknown |
| 3767B | 2009 |
| 927A | Unknown |
| 3574 | Unknown |
| 3440 | 2009 |
| 945 | Unknown |
| 4312C | Unknown |
| 961 | Unknown |
| 48093-00 | 2000 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 44048-83A | 1983 |
| 5471 | 2011 |
| 56397-74C | 1974 |
| 2823 | Unknown |
| 4813A | 1990 |
| 3368 | Unknown |
| 703B | Unknown |
| 67956-96 | 1996 |
| 4166 | Unknown |
| 5403B | Unknown |
| 3736B | 2010 |
| 4197 | Unknown |
| 4454 | Unknown |
| 4453 | 1986 |
| 4190 | Unknown |
| 4775 | 2000 |
| 5442 | Unknown |
| 16480-92A | 1992 |
| 4343 | Unknown |
| 4814A | Unknown |
| 3538 | Unknown |
| 3471 | 2009 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6456 | Unknown |
| 6545 | 1980 |
| 6336B | Unknown |
| 6551 | Unknown |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7086 | 2011 |
| 7434 | 1999 |
| 6294 | 2010 |
| 8972 | Unknown |
| 6379W | Unknown |
| 6110 | Unknown |
| 6057 | 1991 |
| 6099 | 2011 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 6072 | Unknown |
| 6534 | 2000 |
| 6535 | 2000 |
| 7230 | Unknown |
| 6516HW | Unknown |
| 6530 | Unknown |
| 6532 | 2000 |
| 6036 | Unknown |
| 45727-08 | 2008 |
| 7220 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6724 | 1984 |
| 7073 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 56183-00 | 2000 |
| 6229W | Unknown |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 8037 | 2005 |
| 7360 | 2011 |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 4481 | Unknown |
| 4482 | Unknown |
| 37090-98A | 1998 |
| 4074A | 2006 |
| 48054-00 | 2000 |
| 106A1 - Custom Washers | |
| 6557 | Unknown |
| 108A1 - Hose Clamps | |
| 65521-10 | 2010 |
| 10053 | 2010 |
| 55903-05 | 2005 |
| 10038A | 1994 |
| 10208 | Unknown |
| 38769-07A | 2007 |
| 10871 | 2011 |
| 9955 | Unknown |
| 10119 | Unknown |
| 10074 | Unknown |
| 10113 | Unknown |
| 45044-96A | 1996 |
| 65946-07 | 2007 |
| 108B1 - P Clamps | |
| 10800007 | 2012 |
| 10800054 | 2012 |
| 109A1 - Studs | |
| 53462-05 | 2005 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 51803-07 | 2007 |
| 90367-03 | 2003 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 5818A | Unknown |
| 8959 | Unknown |
| 62881-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 17429-91 | 1991 |
| 9270A | Unknown |
| 8992A | Unknown |
| 53156-86 | 1986 |
| 12077 | Unknown |
| 48076-08 | 2008 |
| 37906-11 | 2011 |
| 67266-94 | 1994 |
| 56182-00A | 2000 |
| 53176-08 | 2008 |
| 33708-94 | 1994 |
| 48048-00A | 2000 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 9701A | 2011 |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 45359-00 | 2000 |
| 12068 | Unknown |
| 12074 | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 9276A | 2019 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 58417-77 | 1977 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 9841 | Unknown |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 61008-10 | 2010 |
| 111E1 - Mounting Tape | |
| 11100010 | 2011 |
| 111F1 - Protective Tape | |
| 90524-01 | 2001 |
| 59567-00C | 2000 |
| 11100014 | 2011 |
| 59744-06 | 2006 |
| 59572-05 | 2005 |
| 116A1 - Banjo Bolts | |
| 41739-84A | 1984 |
| 50674-05 | 2005 |
| 5002 | 2009 |
| 5001 | 2011 |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11326 | Unknown |
| 11105 | Unknown |
| 11145A | 2007 |
| 11140 | 1982 |
| 11289A | Unknown |
| 11201 | Unknown |
| 11132A | 2007 |
| 11191 | 1989 |
| 11293 | 1996 |
| 11301 | Unknown |
| 11387A | Unknown |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11179 | 1986 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 60813-07 | 2007 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11447 | 1984 |
| 62880-00 | 2000 |
| 11437 | Unknown |
| 11413 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 40964-08 | 2008 |
| 68446-00 | 2000 |
| 765 | 1997 |
| 10228 | 2000 |
| 90383-98 | 1998 |
| 761 | 1996 |
| 755 | 2018 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 10998 | 1985 |
| 10861 | Unknown |
| 11271 | Unknown |
| 11272 | Unknown |
| 10124 | 1992 |
| 17945-36B | 1936 |
| 45021-86 | 1986 |
| 10040 | 1982 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 11150 | 1984 |
| 10193 | Unknown |
| 11155 | Unknown |
| 11533 | 2014 |
| 11061A | 2008 |
| 11143 | Unknown |
| 35240-07 | 2007 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11304 | Unknown |
| 11096 | 2010 |
| 11282 | Unknown |
| 11180 | Unknown |
| 10226 | 2000 |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 10216 | 2013 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 11161 | 1984 |
| 123B1 - Spring Washers | |
| 7137 | Unknown |
| 7155 | Unknown |
| 7062 | Unknown |
| 124A1 - Spacers | |
| 24603-00 | 2000 |
| 14784-07 | 2007 |
| 5775 | 1984 |
| 11860 | Unknown |
| 5885 | Unknown |
| 5837A | Unknown |
| 11599A | 2012 |
| 5710 | Unknown |
| 48094-00 | 2000 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10287 | 2004 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 10115 | 2003 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 48324-00 | 2000 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 11514 | 1998 |
| 11529 | Unknown |
| 68673-05 | 2005 |
| 56394-74 | 1974 |
| 90357-89 | 1989 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 12600015 | 2011 |
| 11785 | Unknown |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 91679-00 | 2000 |
| 93511-10 | 2010 |
| 127B1 - Generic Mounting Bracket | |
| 52125-05 | 2005 |
| 51652-97A | 1997 |
| 58082-02A | 2002 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 140G2 - EPA Label | |
| 29404-01A | 2001 |
| 29127-95B | 1995 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 141A1 - Medallion | |
| 62394-09 | 2009 |
| 67668-05 | 2005 |
| 71664-05 | 2005 |
| 67667-05 | 2005 |
| 61265-10 | 2010 |
| 62277-05 | 2005 |
| 61264-10 | 2010 |
| 62427-09 | 2009 |
| 62395-09 | 2009 |
| 62274-05 | 2005 |
| 62276-05 | 2005 |
| 71669-05 | 2005 |
| 44338-00 | 2000 |
| 14100036 | 2011 |
| 14100035 | 2011 |
| 62416-09 | 2009 |
| 71302-93A | 1993 |
| 149A1 - Tool | |
| 94435-10 | 2010 |
| 162D1 - Engine Assembly | |
| 19246-12 | 2012 |
| 19245-12 | 2012 |
| 19649-12 | 2012 |
| 19816-12 | 2012 |
| 19877-12 | 2006 |
| 19817-12 | 2012 |
| 19878-12 | 2012 |
| 19809-12 | 2012 |
| 19259-12 | 2012 |
| 19818-12 | 2012 |
| 19811-12 | 2012 |
| 164A1 - Engine Mount Bracket | |
| 16400017 | 2012 |
| 16247-06 | 2006 |
| 16236-08A | 2011 |
| 69046-06A | 2006 |
| 38608-96 | 1996 |
| 33683-07A | 2007 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7531 | 1980 |
| 7669 | Unknown |
| 7686 | Unknown |
| 7507 | Unknown |
| 7848W | Unknown |
| 7800W | Unknown |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 18011-86 | 1986 |
| 17178-06A | 2006 |
| 17729-08 | 2008 |
| 17180-06A | 2006 |
| 17365-08 | 2008 |
| 17181-06 | 2006 |
| 17179-06 | 2006 |
| 16500026 | 2012 |
| 16500027 | 2012 |
| 16500023 | 2012 |
| 16500024 | 2012 |
| 16500025 | 2012 |
| 16500037 | 2012 |
| 16500034 | 2012 |
| 17366-08 | 2008 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16775-99B | 1999 |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 17559-08 | 2008 |
| 16800003A | 2012 |
| 17558-08 | 2008 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 17577-99 | 1999 |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05B | 2005 |
| 181B1 - Valve Seals | |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18094-02A | 2002 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 17707-11 | 2011 |
| 219A1 - Piston | |
| 21960-07 | 2007 |
| 21900011 | 2012 |
| 21961-07 | 2007 |
| 17458-07 | 2007 |
| 17460-07A | 2012 |
| 21963-07 | 2007 |
| 21962-07 | 2007 |
| 21959-07 | 2007 |
| 21964-07 | 2007 |
| 220A1 - Piston Ring | |
| 21955-07 | 2007 |
| 21950-07 | 2007 |
| 21949-07 | 2007 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03B | 2012 |
| 23912-07B | 2011 |
| 14789-07 | 2007 |
| 244A1 - Crankcase | |
| 24722-07B | 2011 |
| 24724-07B | 2011 |
| 244B1 - Crankcase Gasket | |
| 34934-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 25355-06A | 2006 |
| 24009-06 | 2006 |
| 245A1 - PT Cases Miscellaneous Component | |
| 24983-00 | 2000 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25675-06 | 2006 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 14764-00 | 2000 |
| 256A1 - Timer Cover | |
| 32543-07 | 2007 |
| 32727-00 | 2000 |
| 257A1 - Cam Cover | |
| 25367-01B | 2001 |
| 25395-10 | 2001 |
| 25369-01B | 2001 |
| 25363-01B | 2001 |
| 257B1 - Clutch Cover | |
| 25700043 | 2012 |
| 25700037 | 2012 |
| 25700038 | 2012 |
| 37192-10 | 2010 |
| 60767-06 | 2006 |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 67121-95A | 1995 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 41731-01 | 2001 |
| 17053-99C | 2011 |
| 29583-01A | 2001 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 61381-02 | 2002 |
| 11936 | Unknown |
| 41733-88 | 1988 |
| 25244-99A | 1999 |
| 29313-95 | 1995 |
| 45733-48 | 1948 |
| 71978-08 | 2008 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 17052-99C | 2011 |
| 60547-06 | 2006 |
| 34917-06 | 2006 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257G1 - Ignition Cover | |
| 25700082 | 2012 |
| 25700083 | 2012 |
| 257L1 - Primary Cover | |
| 60563-08 | 2008 |
| 60782-06 | 2006 |
| 25585-06 | 2006 |
| 60876-11 | 2011 |
| 60882-10 | 2010 |
| 60722-07 | 2007 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17575-99 | 1999 |
| 17574-99A | 1999 |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17587-10 | 2010 |
| 17572-99 | 1999 |
| 17595-10 | 2010 |
| 257P1 - Tappet Cover | |
| 17576-99 | 1999 |
| 17964-99 | 1999 |
| 17596-10 | 2010 |
| 17966-99 | 1999 |
| 17654-10 | 2010 |
| 258A1 - PT Covers Miscellaneous Component | |
| 37142-07 | 2007 |
| 37143-07A | 2008 |
| 37116-06 | 2006 |
| 37186-10 | 2010 |
| 34521-06B | 2006 |
| 34528-06B | 2006 |
| 34469-06B | 2008 |
| 37129-06 | 2006 |
| 265A1 - Vent / Breather Line | |
| 17025-03A | 2011 |
| 29306-08 | 2008 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 273A1 - Intake Manifold | |
| 27708-06B | 2011 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27684-06 | 2006 |
| 27300041 | 2012 |
| 273E1 - Idle Air Control Actuator | |
| 27655-06 | 2006 |
| 27658-06 | 2006 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27651-06 | 2006 |
| 274C1 - Fuel Injector | |
| 27709-06A | 2006 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29347-08 | 2008 |
| 29104-08A | 2008 |
| 29581-08 | 2008 |
| 29582-08 | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 290D1 - Airbox Seal | |
| 29396-08 | 2008 |
| 292A1 - Air Duct | |
| 28719-10 | 2010 |
| 294A1 - Air Filter Element | |
| 29400042 | 2012 |
| 29461-99 | 1999 |
| 29314-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 294C1 - Breather Hose | |
| 29476-99 | 1999 |
| 295A1 - Intake Miscellaneous Component | |
| 29393-08 | 2008 |
| 30073-10 | 2010 |
| 28864-11 | 2011 |
| 29666-07 | 2007 |
| 299B1 - Charging Rotor Assembly | |
| 30041-08 | 2008 |
| 299F1 - Stator Assembly | |
| 30017-08 | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31633-07A | 2010 |
| 314F1 - Starter Motor | |
| 31618-06A | 2006 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 314L1 - Starter Motor Drive | |
| 33189-63 | 1963 |
| 316A1 - Ignition Coil | |
| 31684-11 | 2011 |
| 31696-07A | 2008 |
| 31743-01 | 2001 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31983-00C | 2000 |
| 32001-08A | 2008 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 32700005 | 2012 |
| 32700006 | 2012 |
| 32417-10 | 2010 |
| 327D1 - Proximity Sensor | |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 49716-08A | 2008 |
| 327E1 - Temperature Sensor | |
| 27381-06 | 2006 |
| 32446-99 | 1999 |
| 327F1 - Throttle Position Sensor | |
| 27659-06 | 2006 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33895-82D | 2010 |
| 336C1 - Shift Linkage Rod End | |
| 33719-79B | 1979 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33660-07 | 2007 |
| 34564-90B | 1990 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33012-10A | 2012 |
| 33001-10A | 2012 |
| 347B1 - Transmission Case | |
| 37193-11 | 2011 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34799-07 | 2007 |
| 34801-07 | 2007 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 35247-10A | 2016 |
| 35246-10A | 2016 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 352B1 - Engine Balancer sub-component | |
| 14728-07 | 2007 |
| 14769-00 | 2000 |
| 14762-00 | 2000 |
| 14761-00 | 2000 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35260-06A | 2012 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35250-06A | 2012 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40036-06 | 2006 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 83936-09 | 2009 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60791-06C | 2009 |
| 60806-07B | 2007 |
| 367A1 - Clutch Lever | |
| 45015-96 | 1996 |
| 367H1 - Clutch Lever sub-component | |
| 37312-75 | 1975 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 37871-04 | 2004 |
| 370A1 - Clutch Assembly | |
| 45036-88 | 1988 |
| 37554-11 | 2011 |
| 37496-90A | 1990 |
| 37816-11 | 2011 |
| 37813-11 | 2011 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 37882-06A | 2011 |
| 372D1 - Clutch Cable | |
| 38665-07B | 2007 |
| 38664-07C | 2011 |
| 38666-07C | 2011 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40000001 | 2012 |
| 40074-07 | 2007 |
| 401A1 - Engine Sprocket | |
| 83935-09A | 2012 |
| 40100009 | 2012 |
| 409A1 - Rear Wheel | |
| 55043-11 | 2011 |
| 41092-08 | 2008 |
| 40900050 | 2012 |
| 55109-12 | 2012 |
| 41840-10 | 2010 |
| 40700-08 | 2008 |
| 43596-09 | 2009 |
| 41995-08 | 2008 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000006A | 2012 |
| 410G1 - Security System Control Module | |
| 69991-11A | 2012 |
| 69993-11A | 2012 |
| 69997-11A | 2012 |
| 411A2 - ABS Electrical Control Unit | |
| 40662-11A | 2011 |
| 411A3 - ABS Hydraulic Control Unit | |
| 46663-11 | 2011 |
| 48349-11 | 2011 |
| 46677-11 | 2011 |
| 5004 | Unknown |
| 46668-11 | 2011 |
| 10851 | 2011 |
| 46664-11 | 2011 |
| 413A1 - Brake Caliper | |
| 44066-08A | 2012 |
| 46356-11 | 2011 |
| 44160-00 | 2000 |
| 40908-08 | 2008 |
| 42895-08A | 2008 |
| 44163-00 | 2000 |
| 413C1 - Brake Caliper sub-component | |
| 45420-80 | 1980 |
| 44337-08 | 2008 |
| 46175-00 | 2000 |
| 44147-87A | 1987 |
| 42347-08 | 2008 |
| 42348-08 | 2008 |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42298-08 | 2008 |
| 46363-11 | 2011 |
| 413G1 - Brake Caliper Piston Set | |
| 42344-08 | 2008 |
| 44313-08 | 2008 |
| 413H1 - Brake Caliper Carrier | |
| 42143-08B | 2012 |
| 415B1 - Brake Rotor | |
| 44156-00 | 2000 |
| 41797-00 | 2000 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 42431-11 | 2011 |
| 40920-87 | 1987 |
| 72023-51D | 2004 |
| 41600017 | 2011 |
| 42508-11BHP | 2011 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45029-11B | 2011 |
| 46423-05B | 2005 |
| 41767-05D | 2011 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 10866 | 2011 |
| 45006-96C | 1996 |
| 42568-05A | 2011 |
| 46457-05B | 2011 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 74143-98 | 1998 |
| 42345-08 | 2008 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417G1 - Front Brake Lever | |
| 45016-96 | 1996 |
| 418B1 - Brake Line | |
| 42314-08 | 2008 |
| 43373-11 | 2011 |
| 42261-11 | 2011 |
| 45824-11 | 2011 |
| 45199-08 | 2008 |
| 43384-11 | 2011 |
| 45856-11 | 2011 |
| 41800008 | 2011 |
| 42369-11 | 2011 |
| 38152-11 | 2011 |
| 42411-09 | 2009 |
| 45829-11 | 2011 |
| 38154-11 | 2011 |
| 42552-11 | 2011 |
| 420A1 - Wheel Rim | |
| 55039-11 | 2011 |
| 43017-07 | 2007 |
| 43662-80B | 1983 |
| 43085-97 | 1997 |
| 55044-11 | 2011 |
| 421A1 - Wheel Spoke with Nipple | |
| 43055-05 | 2005 |
| 43052-05A | 2005 |
| 43239-05 | 2005 |
| 43241-05 | 2005 |
| 422B1 - Wheel Sprocket | |
| 37770-07 | 2007 |
| 40325-07 | 2007 |
| 423B1 - Rim Seal | |
| 44752-11 | 2011 |
| 423C1 - Rim Strip | |
| 43164-05 | 2005 |
| 43939-89 | 1989 |
| 43147-40 | 1940 |
| 423D1 - Tire Inner Tube | |
| 43140-80 | 1980 |
| 40558-82 | 1982 |
| 40575-05 | 2005 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84A | 2010 |
| 430D1 - Front Axle | |
| 41545-07A | 2007 |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 41641-08 | 2008 |
| 431A1 - Front Tire | |
| 41474-06B | 2006 |
| 43022-91A | 1991 |
| 43118-92A | 1992 |
| 43104-93A | 1993 |
| 43390-08A | 2008 |
| 432A1 - Rear Tire | |
| 43353-03 | 2003 |
| 43242-06A | 2006 |
| 43264-02 | 2002 |
| 43200001 | 2011 |
| 433A1 - Front Wheel | |
| 55107-12 | 2012 |
| 41038-08 | 2008 |
| 43590-09 | 2009 |
| 55038-11 | 2011 |
| 43300041 | 2012 |
| 43700-08 | 2008 |
| 41559-08 | 2008 |
| 41837-10 | 2010 |
| 433B1 - Front Wheel Bearing Spacer | |
| 41359-08 | 2008 |
| 41694-08 | 2008 |
| 41504-07 | 2007 |
| 48619-07A | 2007 |
| 41502-07 | 2007 |
| 41696-08 | 2008 |
| 41695-07 | 2007 |
| 41242-08 | 2008 |
| 56153-73 | 1973 |
| 41349-07 | 2007 |
| 433C1 - Front Wheel Hub | |
| 41510-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 46006-08A | 2011 |
| 45916-07A | 2011 |
| 46004-07A | 2011 |
| 49416-11 | 2011 |
| 49415-11 | 2011 |
| 45915-08A | 2011 |
| 455A1 - Front Telescopic Fork Slider | |
| 45874-08A | 2011 |
| 45964-86 | 1986 |
| 45837-07 | 2007 |
| 45417-00 | 2000 |
| 45836-07 | 2007 |
| 12203 | 2011 |
| 46550-03 | 2003 |
| 49418-11 | 2011 |
| 49417-11 | 2011 |
| 45917-08A | 2011 |
| 45918-07A | 2011 |
| 45873-07A | 2011 |
| 455B1 - Front Telescopic Fork Spring | |
| 46048-00 | 2000 |
| 45931-00 | 2000 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 49377-09A | 2011 |
| 45930-00 | 2000 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 49408-11 | 2011 |
| 45933-86 | 1986 |
| 48624-07 | 2007 |
| 5003 | 2011 |
| 45835-00 | 2000 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 54673-10BYM | 2010 |
| 456C1 - Fork Lock | |
| 45680-90 | 1990 |
| 457D1 - Steering Stem | |
| 45605-00A | 2000 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 48332-48C | 1948 |
| 45670-80A | 1980 |
| 67988-10BHP | 2010 |
| 67987-10BHP | 2010 |
| 67993-10BHP | 2010 |
| 45648-85A | 1985 |
| 459A1 - Upper Triple Clamp | |
| 45456-86B | 1986 |
| 45710-11 | 2011 |
| 45672-80B | 1980 |
| 459B1 - Lower Triple Clamp | |
| 67814-86 | 1986 |
| 67821-87 | 1987 |
| 45685-93 | 1993 |
| 48477-11 | 2011 |
| 45640-00A | 2009 |
| 67982-07 | 2007 |
| 45900032 | 2012 |
| 50991-86 | 1986 |
| 459C1 - Triple Clamp Kit | |
| 67891-99 | 1999 |
| 470A1 - Frame | |
| 47173-11BHP | 2011 |
| 47173-11BYM | 2011 |
| 472A1 - Frame sub-component | |
| 60187-12BHP | 2012 |
| 60187-11BYM | 2011 |
| 59904-12BHP | 2012 |
| 59824-08 | 2008 |
| 472B2 - Structural Tailsection sub-component | |
| 91072-11 | 2011 |
| 472C1 - Front Fairing Support Bracket | |
| 59954-08 | 2008 |
| 59955-08 | 2008 |
| 59821-08 | 2008 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 41992-11 | 2011 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 68508-04 | 2004 |
| 66797-07 | 2007 |
| 48052-07 | 2007 |
| 62769-00A | 2000 |
| 474C1 - Swingarm | |
| 47573-11BHP | 2011 |
| 47573-11BYM | 2011 |
| 475B1 - Swingarm Pivot Shaft | |
| 47610-08 | 2008 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50103-07A | 2011 |
| 50087-07A | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 62123-07 | 2007 |
| 500F1 - Sidestand Pivot Pin | |
| 554A | 2002 |
| 505A1 - Footboard | |
| 51218-09A | 2012 |
| 50624-05 | 2005 |
| 50699-05 | 2005 |
| 51402-08A | 2012 |
| 50698-05 | 2005 |
| 505B1 - Footpeg Mount Bracket | |
| 33048-72 | 1972 |
| 50943-05A | 2005 |
| 50944-05 | 2005 |
| 505C1 - Heel Guard / Pad | |
| 50630-05 | 2005 |
| 51403-08 | 2008 |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 51327-08 | 2008 |
| 50617-05 | 2005 |
| 33668-07 | 2007 |
| 51323-08 | 2008 |
| 50621-06 | 2006 |
| 505K1 - Footpeg Wear Peg | |
| 54204-11 | 2011 |
| 506A1 - Brake Pedal | |
| 42597-00A | 2000 |
| 42532-06 | 2006 |
| 41957-97A | 1997 |
| 50912-72 | 1972 |
| 42416-06 | 2006 |
| 42515-07 | 2007 |
| 43992-08 | 2008 |
| 507B1 - Rider Interface Mounting Bracket | |
| 33630-07A | 2007 |
| 50625-05 | 2005 |
| 520A1 - Rider Seat or Full Seat | |
| 52000031 | 2012 |
| 91767-07 | 2007 |
| 52505-09 | 2009 |
| 52691-05 | 2005 |
| 52502-05C | 2005 |
| 54168-11 | 2011 |
| 51873-10 | 2010 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52000032 | 2012 |
| 51740-10 | 2010 |
| 51669-07 | 2007 |
| 521A1 - Seat Support Structure | |
| 53830-00 | 2000 |
| 48868-07 | 2007 |
| 521C1 - Seat Suspension Damper | |
| 60834-07 | 2007 |
| 60833-07 | 2007 |
| 60832-07 | 2007 |
| 523B1 - Back Rest Pad | |
| 52189-09 | 2009 |
| 52731-00 | 2000 |
| 523C1 - Back Rest Support Structure | |
| 51494-11 | 2011 |
| 52788-00 | 2000 |
| 52787-00 | 2000 |
| 52771-82 | 1982 |
| 524A1 - Passenger Grab Handle | |
| 51188-00 | 2000 |
| 51184-00 | 2000 |
| 524B1 - Passenger Seat | |
| 51874-10 | 2010 |
| 52237-07 | 2007 |
| 51812-09 | 2009 |
| 524C1 - Passenger Seat sub-component | |
| 52400002 | 2011 |
| 530B1 - Tour Pak sub-component | |
| 53860-05 | 2005 |
| 540B1 - Rear Shock | |
| 54508-00B | 2000 |
| 54549-04 | 2004 |
| 558A1 - Handlebar | |
| 56569-09 | 2009 |
| 55901-05 | 2005 |
| 56102-99 | 1999 |
| 55800049 | 2011 |
| 55800048 | 2011 |
| 55800050 | 2012 |
| 55800058 | 2012 |
| 559D1 - Lower Handlebar Clamp | |
| 56889-07 | 2007 |
| 55902-05 | 2005 |
| 56124-77 | 1977 |
| 56122-77 | 1977 |
| 56887-07 | 2007 |
| 55984-07 | 2007 |
| 559E1 - Upper Handlebar Clamp | |
| 56119-77A | 1977 |
| 56998-09 | 2009 |
| 560A1 - Mirror | |
| 67831-03 | 2003 |
| 91840-03B | 2003 |
| 91983-03B | 2003 |
| 91982-03B | 2003 |
| 91845-03B | 2003 |
| 91909-03B | 2003 |
| 91910-03B | 2003 |
| 561A1 - Throttle Cable | |
| 56432-98 | 1998 |
| 56939-07A | 2007 |
| 56433-98 | 1998 |
| 56343-01 | 2001 |
| 56342-01 | 2001 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 66765-07 | 2007 |
| 66763-07 | 2007 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 56248-08 | 2008 |
| 571B1 - Fairing Lower sub-component | |
| 59360-05 | 2005 |
| 573A1 - Bodywork Miscellaneous Component | |
| 59548-11 | 2011 |
| 58272-95 | 1995 |
| 72775-11 | 2011 |
| 58252-95 | 1995 |
| 59679-11 | 2011 |
| 7651A | Unknown |
| 573B1 - Bodywork Mounting Bracket | |
| 70684-11 | 2011 |
| 47813-08BHP | 2008 |
| 47807-08BHP | 2008 |
| 47809-08BHP | 2008 |
| 47798-08BHP | 2008 |
| 574B1 - Windscreen / Windshield | |
| 58428-94 | 1994 |
| 57634-07 | 2007 |
| 57061-09 | 2009 |
| 57400023 | 2011 |
| 58294-09 | 2009 |
| 58431-94 | 1994 |
| 57062-00A | 2000 |
| 57250-06 | 2006 |
| 58253-95 | 1995 |
| 58416-77A | 1977 |
| 58406-75A | 1975 |
| 67621-94 | 1994 |
| 57063-00A | 2000 |
| 57091-06A | 2006 |
| 58408-75A | 1975 |
| 589A1 - Front Fender | |
| 59475-05 | 2005 |
| 58900021 | 2012 |
| 59129-09 | 2009 |
| 59924-80B | 1980 |
| 59234-05 | 2005 |
| 59139-00A | 2000 |
| 59798-06 | 2006 |
| 59438-00 | 2000 |
| 59770-05BEO | 2005 |
| 59050-03 | 2003 |
| 595A1 - Tailsection | |
| 59430-08 | 2008 |
| 59434-08 | 2008 |
| 595D1 - Rear Fender | |
| 59238-05A | 2005 |
| 59144-06A | 2006 |
| 59474-07 | 2007 |
| 59076-06 | 2006 |
| 59914-06 | 2006 |
| 59235-09 | 2009 |
| 59119-03 | 2003 |
| 59500-11 | 2011 |
| 59768-97 | 1997 |
| 59088-03 | 2003 |
| 59174-99 | 1999 |
| 59819-06B | 2006 |
| 595E1 - Rear Fender Support | |
| 59904-11BYM | 2011 |
| 596A1 - Tire Mud Flap | |
| 60456-11 | 2011 |
| 60363-11 | 2011 |
| 596B1 - Fender Tip | |
| 69609-00 | 2000 |
| 68046-79 | 1979 |
| 59116-96 | 1996 |
| 59026-05 | 2005 |
| 59019-05 | 2005 |
| 59117-96 | 1996 |
| 603B1 - Belt / Chain Guard | |
| 60570-07B | 2007 |
| 8201 | Unknown |
| 60362-07A | 2007 |
| 60300019 | 2012 |
| 60300018 | 2012 |
| 60300032 | 2012 |
| 60867-08 | 2008 |
| 60452-07A | 2007 |
| 608A1 - Carbon Canister | |
| 27050-11 | 2011 |
| 608B1 - Carbon Canister Hose | |
| 27246-11 | 2011 |
| 28860-11 | 2011 |
| 60800007 | 2012 |
| 28839-11 | 2011 |
| 609A1 - Fuel Miscellaneous Component | |
| 60900003 | 2011 |
| 62158-11 | 2011 |
| 60900001 | 2011 |
| 75290-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 29474-99A | 1999 |
| 75307-07 | 2007 |
| 610A1 - Fuel Tank | |
| 75141-11 | 2011 |
| 75252-11 | 2011 |
| 62322-11 | 2011 |
| 61625-11 | 2011 |
| 611A1 - Filler Neck Trim | |
| 32009-11 | 2011 |
| 61257-05 | 2005 |
| 611B1 - Fuel Cap | |
| 61272-92C | 1992 |
| 62543-11 | 2011 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 62143-11 | 2011 |
| 62555-95 | 1995 |
| 61100003 | 2011 |
| 61100001 | 2011 |
| 612A1 - Fuel Filter | |
| 75282-08A | 2008 |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75276-08A | 2008 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 62900-01D | 2009 |
| 63521-95A | 1995 |
| 612F1 - Fuel Pump | |
| 75284-08A | 2012 |
| 612G1 - Fuel Pump Anti-Slosh Cover | |
| 62155-11 | 2011 |
| 613B1 - Horn Cover | |
| 69140-10 | 2010 |
| 69012-93A | 1993 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61300037 | 2012 |
| 62377-11 | 2011 |
| 29658-07 | 2007 |
| 613K1 - Airbox Cover | |
| 61300113 | 2011 |
| 61300112 | 2011 |
| 61300111 | 2011 |
| 29121-07 | 2007 |
| 614C1 - Trim | |
| 61183-10 | 2010 |
| 61400056 | 2012 |
| 61400055 | 2012 |
| 71990-09 | 2009 |
| 59211-74A | 1974 |
| 62567-08 | 2008 |
| 14142-09 | 2009 |
| 62242-08 | 2008 |
| 91678-09 | 2009 |
| 62243-08 | 2008 |
| 67605-05 | 2005 |
| 62241-08 | 2008 |
| 62568-08 | 2008 |
| 68055-10BHP | 2010 |
| 71265-95 | 1995 |
| 61155-00 | 2000 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 625B1 - Oil Tank | |
| 62498-01A | 2007 |
| 62492-01A | 2001 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62845-00A | 2000 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 33531-07 | 2007 |
| 63601-00 | 2000 |
| 33525-07 | 2007 |
| 63783-00 | 2000 |
| 63611-00 | 2000 |
| 45806-07 | 2007 |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 45468-00 | 2000 |
| 63632-00 | 2000 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62189-08 | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63553-00B | 2010 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 649A1 - Muffler | |
| 64727-08 | 2008 |
| 64900139 | 2012 |
| 64961-07 | 2007 |
| 65372-07 | 2007 |
| 64900141 | 2012 |
| 65682-07 | 2007 |
| 64900140 | 2012 |
| 65939-07 | 2007 |
| 64900143 | 2012 |
| 64900142 | 2012 |
| 64900145 | 2012 |
| 65880-10 | 2010 |
| 64900144 | 2012 |
| 66882-10 | 2010 |
| 64900146 | 2012 |
| 64900106 | 2011 |
| 65920-10 | 2010 |
| 64900105 | 2011 |
| 65685-07 | 2007 |
| 65822-10A | 2012 |
| 64712-08B | 2012 |
| 64728-08 | 2008 |
| 64735-08A | 2012 |
| 64960-07 | 2007 |
| 64711-08B | 2012 |
| 64708-08B | 2012 |
| 65368-07 | 2007 |
| 65870-10 | 2010 |
| 65862-10A | 2012 |
| 64710-08B | 2012 |
| 64734-08A | 2012 |
| 64709-08B | 2012 |
| 65950-07 | 2007 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 653A1 - Muffler sub-component | |
| 65688-11BHP | 2011 |
| 654A1 - Exhaust Shield | |
| 65715-10 | 2010 |
| 66899-10A | 2012 |
| 65463-00 | 2000 |
| 65395-05 | 2005 |
| 65702-00A | 2000 |
| 66274-07 | 2007 |
| 65707-10 | 2010 |
| 65383-05 | 2005 |
| 65389-05B | 2012 |
| 66897-10A | 2012 |
| 65464-07 | 2007 |
| 66901-10 | 2010 |
| 65148-00B | 2012 |
| 655A1 - Muffler Mount | |
| 65652-07 | 2007 |
| 65399-07 | 2007 |
| 65435-07BHP | 2007 |
| 655C1 - Exhaust Mounting Bracket | |
| 66737-10 | 2010 |
| 656E1 - Header Pipe | |
| 65600039 | 2012 |
| 65600035 | 2012 |
| 65600031 | 2012 |
| 65600049 | 2012 |
| 65600046 | 2012 |
| 65600042 | 2012 |
| 65600053 | 2012 |
| 658A1 - Exhaust Catalyst | |
| 64729-08 | 2008 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 659B1 - Exhaust Flange | |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65830-10 | 2010 |
| 660A1 - Battery | |
| 66373-06 | 2006 |
| 65989-97C | 1997 |
| 660F1 - Negative Battery Cable | |
| 70060-08A | 2008 |
| 660G1 - Positive Battery Cable | |
| 70078-08A | 2008 |
| 660H1 - Positive Battery Cable Boot | |
| 66415-08A | 2008 |
| 670A1 - Tachometer | |
| 40985-11 | 2011 |
| 40982-11 | 2011 |
| 677A1 - Headlight | |
| 69748-05B | 2005 |
| 68335-05 | 2005 |
| 73294-10 | 2010 |
| 73293-10 | 2010 |
| 69750-05B | 2005 |
| 68341-05 | 2005 |
| 67769-93 | 1993 |
| 67790-93A | 1993 |
| 68051-08 | 2008 |
| 73295-10 | 2010 |
| 69696-05 | 2005 |
| 69783-08A | 2008 |
| 68725-62A | 1962 |
| 68297-05 | 2005 |
| 68050-93A | 1993 |
| 67768-97 | 1997 |
| 67772-97 | 1997 |
| 69969-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 67830-09 | 2009 |
| 67700094 | 2011 |
| 67700029 | 2011 |
| 68390-05 | 2005 |
| 68840-05 | 2005 |
| 678A1 - Taillight | |
| 73403-11 | 2011 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68236-97 | 1997 |
| 68369-03 | 2003 |
| 68830-99A | 1999 |
| 68004-05 | 2005 |
| 68237-97 | 1997 |
| 68372-03 | 2003 |
| 68235-97 | 1997 |
| 68296-99A | 2004 |
| 68003-05 | 2005 |
| 68140-04 | 2004 |
| 68280-05 | 2005 |
| 68370-03A | 2003 |
| 68141-04 | 2004 |
| 68281-05 | 2005 |
| 68440-86 | 1986 |
| 68226-97 | 1997 |
| 678B1 - Taillight Housing | |
| 68722-06 | 2006 |
| 72160-06 | 2006 |
| 678C1 - Taillight Lens | |
| 68238-97 | 1997 |
| 68239-97 | 1997 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68510-74C | 1974 |
| 68767-94 | 1994 |
| 69935-08 | 2008 |
| 68978-00 | 2000 |
| 67800238 | 2013 |
| 68081-96 | 1996 |
| 67800178 | 2012 |
| 67800179 | 2012 |
| 67015-02 | 2002 |
| 67019-04A | 2004 |
| 67800171 | 2012 |
| 73405-11 | 2011 |
| 73409-11 | 2011 |
| 69222-09 | 2009 |
| 67267-05 | 2005 |
| 68766-94 | 1994 |
| 68765-94A | 1994 |
| 67800184 | 2012 |
| 69933-08 | 2008 |
| 67800216 | 2012 |
| 67800217 | 2012 |
| 67827-88A | 1988 |
| 69438-06 | 2006 |
| 68713-94A | 1994 |
| 59201-96 | 1996 |
| 67829-88 | 1988 |
| 68969-05 | 2005 |
| 68497-07 | 2007 |
| 69223-09 | 2009 |
| 73408-11 | 2011 |
| 69221-06 | 2006 |
| 67013-04A | 2004 |
| 69220-06 | 2006 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 68506-92 | 1992 |
| 68559-07 | 2007 |
| 68505-90 | 1990 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 60123-02 | 2002 |
| 69490-07 | 2007 |
| 60253-07 | 2007 |
| 59259-90 | 1990 |
| 60254-07 | 2007 |
| 69557-10 | 2010 |
| 59256-84A | 1984 |
| 68342-05 | 2005 |
| 59988-72A | 1972 |
| 68344-05 | 2005 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 58092-05 | 2005 |
| 73410-11 | 2011 |
| 67900140 | 2012 |
| 679D1 - License Plate Bracket | |
| 60020-97 | 1997 |
| 67900089 | 2011 |
| 67900093 | 2011 |
| 67900092 | 2012 |
| 68992-08 | 2008 |
| 60154-11 | 2011 |
| 60001-55 | 1955 |
| 60003-89 | 1989 |
| 59986-75 | 1975 |
| 68702-07 | 2007 |
| 59984-73 | 1973 |
| 59995-06B | 2006 |
| 60021-97 | 1997 |
| 67900115 | 2012 |
| 68966-08 | 2008 |
| 67900016 | 2012 |
| 679E1 - License Plate Light | |
| 73504-11 | 2011 |
| 67900117 | 2012 |
| 680A1 - Decorative Light | |
| 68706-00 | 2000 |
| 59683-03 | 2003 |
| 68721-62 | 1962 |
| 59180-80 | 1980 |
| 68731-98 | 1998 |
| 68846-09 | 2009 |
| 68414-05 | 2005 |
| 68720-62 | 1962 |
| 680C1 - Incandescent Bulb | |
| 68193-95 | 1995 |
| 68572-64B | 1964 |
| 68169-90A | 1990 |
| 68168-89A | 1989 |
| 68453-05 | 2005 |
| 53436-97 | 1997 |
| 68847-09 | 2009 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 52441-95 | 1995 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69195-11 | 2011 |
| 69000026 | 2012 |
| 692C1 - Electrical Miscellaneous Component | |
| 72597-11 | 2011 |
| 69200356 | 2012 |
| 72596-11 | 2011 |
| 68112-99A | 1999 |
| 72062-06 | 2006 |
| 70982-08 | 2008 |
| 68382-07A | 2010 |
| 72189-04 | 2004 |
| 71044-11 | 2011 |
| 68089-05 | 2005 |
| 6990 | 2011 |
| 692C2 - Electrical Mounting Bracket | |
| 70111-07 | 2007 |
| 69130-10BYM | 2010 |
| 31772-07 | 2007 |
| 72369-08A | 2012 |
| 69123-92A | 1992 |
| 71019-07 | 2007 |
| 69200052 | 2012 |
| 69120-91 | 1991 |
| 70354-11 | 2011 |
| 67271-04A | 2004 |
| 68519-68A | 1968 |
| 69060-90F | 2010 |
| 69200012 | 2011 |
| 31742-00 | 2000 |
| 31802-10 | 2010 |
| 69050-08 | 2008 |
| 45550-03 | 2003 |
| 69062-91A | 1991 |
| 67341-04B | 2004 |
| 692C3 - Electromechanical Mounting | |
| 69200044 | 2012 |
| 69200046 | 2012 |
| 69200045 | 2012 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72587-11 | 2011 |
| 73229-11 | 2011 |
| 72582-11 | 2011 |
| 692E2 - Fuse / Relay Block Cover | |
| 70736-11 | 2011 |
| 72586-11 | 2011 |
| 72595-11 | 2011 |
| 692F1 - Wire Harness | |
| 68818-03B | 2003 |
| 69200263 | 2011 |
| 72657-12 | 2012 |
| 71065-12 | 2012 |
| 75289-08 | 2008 |
| 69486-06B | 2006 |
| 70238-12 | 2012 |
| 72658-12 | 2012 |
| 69200318 | 2012 |
| 69200319 | 2012 |
| 67615-96 | 1996 |
| 70431-12 | 2012 |
| 70196-00 | 2000 |
| 71046-12 | 2012 |
| 68819-06A | 2006 |
| 68834-05A | 2005 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72411-97 | 1997 |
| 72249-94 | 1994 |
| 69200018 | 2010 |
| 692G2 - Wire Guide | |
| 73422-11 | 2011 |
| 56934-07A | 2007 |
| 72298-95 | 1995 |
| 66764-07 | 2007 |
| 73412-11 | 2011 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 73152-96BK | 1996 |
| 72553-07 | 2007 |
| 72519-09BK | 2009 |
| 74104-98BK | 1998 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 72161-06 | 2006 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72127-06 | 2006 |
| 72098-06 | 2006 |
| 72444-07GY | 2007 |
| 69200010 | 2011 |
| 72009-05 | 2005 |
| 69200011 | 2011 |
| 72049-92 | 1992 |
| 72007-05 | 2005 |
| 72126-94GY | 1994 |
| 72064-06 | 2006 |
| 72594-11 | 2011 |
| 74102-05GY | 2005 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72639-10 | 2010 |
| 70593-08 | 2008 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72227-11 | 2011 |
| 72356-95 | 1995 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 72593-11 | 2011 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72662-11 | 2012 |
| 72024-08 | 2008 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72254-94 | 1994 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 73307-10 | 2010 |
| 9842 | Unknown |
| 72094-06 | 2006 |
| 69200238 | 2011 |
| 72581-11 | 2011 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 72569-08 | 2008 |
| 692K1 - Connector / Terminal Seal | |
| 74144-98 | 1998 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 68653-05 | 2005 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 70974-08A | 2008 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 74112-05GY | 2005 |
| 74152-98 | 1998 |
| 72415-07GY | 2007 |
| 72231-98 | 1998 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 68337-05 | 2005 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 9897 | Unknown |
| 73156-96BK | 1996 |
| 74103-98BK | 1998 |
| 74113-98BK | 1998 |
| 72677-11 | 2011 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 72479-07BK | 2007 |
| 72499-07 | 2007 |
| 72230-98 | 1998 |
| 72145-06 | 2006 |
| 74120-08 | 2008 |
| 74153-98 | 1998 |
| 72486-08 | 2008 |
| 74195-98 | 1998 |
| 74102-98BK | 1998 |
| 73153-96BK | 1996 |
| 73158-96BK | 1996 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72665-12 | 2012 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 72514-07GY | 2007 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72065-06A | 2006 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72664-12 | 2012 |
| 72543-07BK | 2007 |
| 73104-96BK | 1996 |
| 72656-11 | 2011 |
| 73196-96 | 1996 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 70976-06 | 2006 |
| 70635-08 | 2008 |
| 72544-07 | 2007 |
| 72209-11 | 2011 |
| 74154-98 | 1998 |
| 73102-96BK | 1996 |
| 72014-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 72012-07 | 2007 |
| 73154-96BK | 1996 |
| 10850 | 2011 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 70392-07 | 2007 |
| 709A1 - Dash Panel | |
| 71512-11 | 2011 |
| 71953-11 | 2011 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67190-89 | 1989 |
| 72770-11 | 2011 |
| 67439-11 | 2011 |
| 67517-11 | 2011 |
| 70700-11 | 2011 |
| 67520-11 | 2011 |
| 67525-11 | 2011 |
| 67196-11 | 2011 |
| 67571-11 | 2011 |
| 67197-11 | 2011 |
| 67033-11 | 2011 |
| 709B2 - Fuel Gauge | |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 71257-11 | 2011 |
| 71250-11 | 2011 |
| 71340-11 | 2011 |
| 70900170 | 2012 |
| 714A1 - Ignition Switch | |
| 71400077 | 2012 |
| 71400076 | 2012 |
| 1565 | Unknown |
| 71796-11 | 2011 |
| 7343 | 2011 |
| 71517-11 | 2011 |
| 71794-11 | 2011 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 68619-83 | 1983 |
| 67873-08A | 2008 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 72949-12 | 2012 |
| 71500030 | 2012 |
| 72948-12 | 2012 |
| 72940-11 | 2011 |
| 72954-11 | 2011 |
| 71576-08A | 2008 |
| 72946-12 | 2012 |
| 72951-12 | 2012 |
| 72922-11 | 2011 |
| 72920-11 | 2011 |
| 72923-11 | 2011 |
| 72921-11 | 2011 |
| 67858-89 | 1989 |
| 72934-11 | 2011 |
| 72941-11 | 2011 |
| 71500118 | 2012 |
| 71500117 | 2012 |
| 72937-11 | 2011 |
| 72944-12 | 2012 |
| 72953-12 | 2012 |
| 72933-11 | 2011 |
| 72943-12 | 2012 |
| 71500029 | 2012 |
| 72952-12 | 2012 |
| 71500028 | 2012 |
| 72945-12 | 2012 |
| 747A1 - Voltage Regulator | |
| 74540-11 | 2011 |
| 72350-11 | 2011 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 902A1 - Saddlebag | |
| 98837-97 | 1997 |
| 90476-09 | 2009 |
| 90477-09 | 2009 |
| 90247-00 | 2000 |
| 90346-00 | 2000 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 69995-11 | 2011 |
| 917B1 - Service Program Kit | |
| 90438-10 | 2010 |
| 926A1 - Vehicle Completion Kit | |
| 62507-10BYM | 2010 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | FUEL TANK - FLS, FLSTC, FLSTF, FLSTN, FLSTFB & FXST (1 OF 2): |
| 10102 | CLIP | |
| 1062 | SCREW | |
| 11105 | O-RING | |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™ (1 OF 2): |
| 11143 | RETAINING RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11270 | O-RING | |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™ (1 OF 2): |
| 11301 | O-RING | |
| 11304 | RETAINING RING | |
| 11447 | GROMMET | |
| 12052A | OIL SEAL | |
| 12074 | OIL SEAL | |
| 1311D | SCREW | |
| 16715-83 | STUD | |
| 16719-99B | GASKET | |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 103™ (1 OF 2): |
| 17369-06 | GASKET SERVICE KIT | |
| 17386-99A | GASKET | |
| 18635-99B | GASKET | |
| 25244-99A | GASKET | |
| 25700226 | GASKET KIT | |
| 26995-86B | SEAL | |
| 27444-00Y | O-RING | |
| 3050 | SCREW | |
| 3109 | SCREW | |
| 3275 | SCREW | |
| 3368 | SCREW | |
| 34091-08 | BEARING | |
| 34917-06 | GASKET | |
| 34934-06 | GASKET | |
| 35654-06 | GASKET | |
| 3655A | SCREW | |
| 3656 | SCREW | |
| 3658 | SCREW | |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41731-01 | GASKET | |
| 41733-88 | GASKET | |
| 43567-92 | SCREW | |
| 45405-75A | SCREW | |
| 45733-48 | OIL SEAL | FORK, FRONT - FXST: |
| 45858-77 | DRAIN SCREW | FORK, FRONT - FXST: FORK, FRONT - FLS, FLSTC, FLSTF, FLSTFB & FLSTN: |
| 4740A | SCREW | CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™ (1 OF 2): |
| 48300-60 | ROLLER BEARING | |
| 53156-86 | BUSHING | |
| 59768-97 | FENDER SEAT NUT KIT | FENDERS & SUPPORTS, REAR - FXST: |
| 60547-06 | GASKET | |
| 60678-85 | RETAINING RING | |
| 61381-02 | GASKET | |
| 6229W | WASHER | |
| 6516HW | WASHER | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | FUEL TANK - FLS, FLSTC, FLSTF, FLSTN, FLSTFB & FXST (1 OF 2): |
| 7041 | LOCKWASHER | |
| 7593 | NUT | |
| 7613A | PUSH NUT | |
| 7716 | LOCKNUT | FOOTRESTS & FOOTBOARDS: LICENSE PLATE BRACKETS - FLS & FXS: |
| 786A | BOLT | |
| 8037 | NUT | |
| 856A | SCREW | |
| 9252 | BALL BEARING | |
| 9276A | BALL BEARING | |
| 961 | SCREW | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 42298-08 | PAD KIT | |
| 45875-84A | OIL SEAL |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | INSTRUMENTS - FLSTF, FLSTFB, FLSTN & FXST (1 OF 2): |
| 72330-95 | FUSE | WIRING HARNESS, MAIN, NON-ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB (3 OF 5): WIRING HARNESS, MAIN, ABS - FXST, FLSTC, FLSTF, FLSTN & FLSTFB(3 OF 5): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | |
| 18538-99C | HYDRAULIC LIFTER | |
| 37909-90 | RETAINING RING | |
| 37913-98 | PLATE CLUTCH |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33895-82D | SHIFT LEVER KIT | |
| 34611-65A | PEG |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29400042 | ELEMENT | |
| 29476-99 | BREATHER TUBE | |
| 61011-04A | FILTER | |
| 65296-95A | CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | |
| 68193-95 | BULB | |
| 68329-03 | BULB | |
| 68572-64B | BULB | |
| 68973-00 | LENS | SWITCHES, HANDLEBAR AND TURN SIGNALS, LEFT, FRONT: SWITCHES, HANDLEBAR AND TURN SIGNALS, RIGHT, FRONT: TURN SIGNALS, REAR (2 OF 2): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | |
| 63731-99A | OIL FILTER | |
| 63798-99A | OIL FILTER | |
| 65989-97C | BATTERY | |
| 66373-06 | BATTERY | |
| 95594-84A | WEIGHT | |
| 95595-84A | WEIGHT |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40558-82 | INNER TUBE | |
| 40575-05 | INNER TUBE | |
| 43022-91A | TIRE | |
| 43104-93A | TIRE | |
| 43118-92A | TIRE | |
| 43140-80 | INNER TUBE | |
| 43147-40 | RIM FLAP | |
| 43157-83A | VALVE STEM ASSEMBLY | |
| 43164-05 | RIM FLAP | |
| 43200001 | TIRE | |
| 43264-02 | TIRE | |
| 43353-03 | TIRE | |
| 43939-89 | RIM FLAP |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
