2012 HARLEY-DAVIDSON® PARTS CATALOG: SPORTSTER® MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99451-12A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2012 SPORTSTER MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured for sale within the United States 5HD=Originally manufactured for sale outside of the United States 932=Originally manufactured in and for sale only in Brazil market MEG=Originally manufactured in and for sale only in India market | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) 4=Middleweight motorcycle (351 cm3 to 900 cm3) | |
3 | Model | See model table | |
4 | Engine type | 2=Evolution® 883 cm3 air-cooled, fuel-injected 3=Evolution® 1202 cm3 air-cooled, fuel-injected 6=Evolution® 1202 cm3 precision-cooled, fuel-injected | |
5 | Introduction date/Configuration and calibration recognition | Normal Introduction 1=Domestic 3=California A=Canada C=HDI E=Japan G=Australia J=Brazil L=Asia Pacific N=India | Mid-year or Special Introduction 2, 4=Domestic 5, 6=California B=Canada D=HDI F=Japan H=Australia K=Brazil M=Asia Pacific P=India |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | C=2012 | |
8 | Assembly plant | C=Kansas City, MO U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes
CODE | MODEL | NAME | CODE | MODEL | NAME |
|---|---|---|---|---|---|
CR | XL 883L | SuperLow® | CZ | XL 1200N | Nightster® |
CS | XL 883R | 883 Roadster | LF | XL 1200V | Seventy-Two™ |
LE | XL 883N | Iron 883™ | LC | XL 1200X | Forty-Eight™ |
CT | XL 1200C | 1200 Custom | LD | XR 1200X | XR 1200X™ |
LH | XL 1200CP | 1200 Custom |
NOTES
ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19519-12 | ENGINE ASSEMBLY (883cc) (World) | XL883N, XL883R |
| 19527-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) (1200CP - Chrome Engine w/ Drag or Pull Back Handlebar) | XL1200C, XL1200CP | |
| 19566-12 | ENGINE ASSEMBLY (883cc) (World) | XL883L | |
| 19637-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) | XL1200N | |
| 19766-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) | XL1200X | |
| 19768-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada, HDI) (not shown) | XR1200X | |
| 19778-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) | XL1200V | |
| 19925-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) (1200CP - Chrome Engine w/ Mini-Ape Handlebar) | XL1200CP | |
| 19926-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) (1200CP - Black Engine w/ Drag or Pull Back Handlebar) | XL1200CP | |
| 19927-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) (1200CP - Black Engine w/ Mini-Ape Handlebar) | XL1200CP | |
| INTERNATIONAL MODELS ONLY | |||
| 2 | 19606-12 | ENGINE ASSEMBLY (1200cc) (HDI) | XL1200C |
| 19734-12 | ENGINE ASSEMBLY (1200cc) (HDI) | XL1200N | |
| 19767-12 | ENGINE ASSEMBLY (1200cc) (HDI) | XL1200X | |
| 19779-12 | ENGINE ASSEMBLY (1200cc) (HDI) | XL1200V | |
CYLINDERS, HEADS & VALVES - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 11190 | O-RING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4266A | SCREW (not illustrated) (2) | XL1200N, XL883L, XL883N, XL883R |
| 4748 | SCREW (2) | XL1200C, XL1200CP, XL1200V, XL1200X | |
| 3 | 6787 | WASHER (2) | XL1200C, XL1200CP, XL1200V, XL1200X |
| 4 | 16353-04 | BRACKET, center engine mount | XL1200C, XL1200CP, XL1200V |
| 5 | 16443-04 | CYLINDER, w/ piston (883 cc) (silver) (2) | XL883L |
| 16452-05 | CYLINDER, w/ piston (883 cc) (black) (2) | XL883N, XL883R | |
| 16463-04 | CYLINDER, w/ piston (1200 cc) (LH - black w/ fin highlights) (2) | XL1200C, XL1200CP | |
| 16469-10 | CYLINDER, w/ piston (1200 cc) (LH - black w/o fin highlights) (2) | XL1200CP, XL1200X | |
| 17496-07 | CYLINDER, w/ piston (1200 cc) (gray) (2) | XL1200N | |
| 16800019 | CYLINDER, w/ piston (1200 cc) (gray) (2) | XL1200V | |
| 6 | 16465-06 | VALVE GUIDE, w/ 16699-06 (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 16478-85A | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 16480-92A | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 16573-83A | DOWEL (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 16660-07 | HEAD, rear cylinder (883 cc) (silver), w/ valve guides & seats | XL883L |
| 16661-07 | HEAD, front cylinder (883 cc) (silver), w/ valve guides & seats | XL883L | |
| 16865-07 | HEAD, rear cylinder (883 cc) (black), w/ valve guides & seats | XL883N, XL883R | |
| 16867-07 | HEAD, front cylinder (883 cc) (black), w/ valve guides & seats | XL883N, XL883R | |
| 16666-07 | HEAD, rear cylinder (1200 cc) (LH - black w/ fin highlights), w/ valve guides & seats | XL1200C, XL1200CP | |
| 16667-07 | HEAD, front cylinder (1200 cc) (LH - black w/ fin highlights), w/ valve guides & seats | XL1200C, XL1200CP | |
| 17485-07 | HEAD, front cylinder (1200 cc) (LH - black w/o fin highlights), w/ valve guides & seats | XL1200CP, XL1200N, XL1200X | |
| 17488-07 | HEAD, rear cylinder (1200 cc) (LH - black w/o fin highlights), w/ valve guides & seats | XL1200CP, XL1200N, XL1200X | |
| 16500068 | HEAD, front cylinder (1200 cc) (gray), w/ valve guides & seats | XL1200V | |
| 16500071 | HEAD, rear cylinder (1200 cc) (gray), w/ valve guides & seats | XL1200V | |
| 11 | 16664-86D | GASKET, cylinder head (2) | XL883L, XL883N, XL883R |
| 16770-84F | GASKET, cylinder head (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 12 | 16699-06 | SNAP RING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 16715-83 | STUD, exhaust port (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 16789-04 | GASKET, cylinder base (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 16832-86C | STUD, cylinder base (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 17027-08 | GASKET KIT, engine overhaul | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17049-08 | GASKET KIT, top overhaul | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 17 | 18011-86 | INSERT, exhaust valve seat (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 18012-87A | INSERT, exhaust valve seat (2) | XL883L, XL883N, XL883R | |
| 18020-07 | INSERT, intake valve seat (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 18021-87A | INSERT, intake valve seat (2) | XL883L, XL883N, XL883R | |
| 18 | 18053-04 | INTAKE VALVE, 7mm (2) | XL883L, XL883N, XL883R |
| 18690-02 | INTAKE VALVE, 7mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 18059-04 | EXHAUST VALVE, 7mm (2) | XL883L, XL883N, XL883R | |
| 18691-02 | EXHAUST VALVE, 7mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 19 | 18094-02A | SEAL, valve (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 18245-02 | VALVE SPRING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 18258-02 | COLLAR, valve spring - upper (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 18260-02 | KEEPER, valve collar (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |

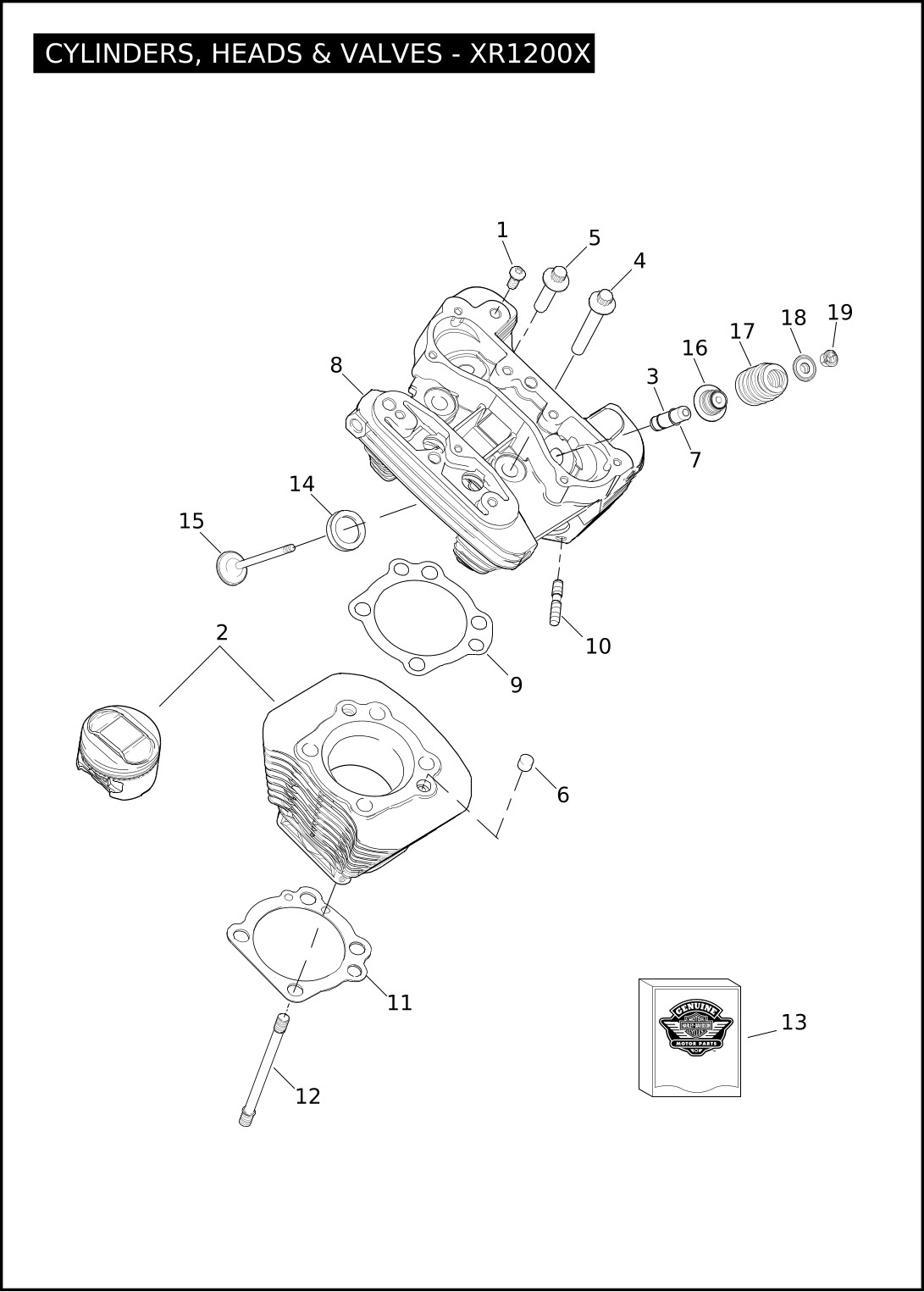

CYLINDERS, HEADS & VALVES - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4266A | SCREW (2) | XR1200X |
| 2 | 16468-08 | CYLINDER, w/ piston & rings (black) (2) | XR1200X |
| 3 | 16465-06 | VALVE GUIDE, w/ 16699-06 (4) | XR1200X |
| 4 | 16478-85A | SCREW (4) | XR1200X |
| 5 | 16480-92A | SCREW (4) | XR1200X |
| 6 | 16573-83A | DOWEL (4) | XR1200X |
| 7 | 16699-06 | SNAP RING (4) | XR1200X |
| 8 | 17562-10 | HEAD, front cylinder (black), w/ valve guides & seats | XR1200X |
| 17565-10 | HEAD, rear cylinder (black), w/ valve guides & seats | XR1200X | |
| 9 | 16771-08 | GASKET, cylinder head (2) | XR1200X |
| 10 | 16715-83 | STUD, exhaust port (4) | XR1200X |
| 11 | 16789-04 | GASKET, cylinder base (2) | XR1200X |
| 12 | 16832-86C | STUD, cylinder base (8) | XR1200X |
| 13 | 17027-08 | GASKET KIT, engine overhaul | XR1200X |
| 17049-08 | GASKET KIT, top overhaul | XR1200X | |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | XR1200X |
| 18020-07 | INSERT, intake valve seat (2) | XR1200X | |
| 15 | 18690-02 | INTAKE VALVE, 7mm (2) | XR1200X |
| 18691-02 | EXHAUST VALVE, 7mm (2) | XR1200X | |
| 16 | 18094-02A | SEAL, valve (4) | XR1200X |
| 17 | 18245-02 | VALVE SPRING (4) | XR1200X |
| 18 | 18258-02 | COLLAR, valve spring - upper (4) | XR1200X |
| 19 | 18260-02 | KEEPER, valve collar (8) | XR1200X |
ROCKER ARM ASSEMBLY & PUSH RODS - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 2441 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 2486 | SCREW (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 3849 | SCREW (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 3976 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 4718A | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 4741A | SCREW (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 6589 | WASHER (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 11190 | O-RING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 11377 | O-RING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 16800-84A | GASKET (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 17036-08 | GASKET KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 17362-07B | GASKET, lower (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 17695-07B | GASKET, inner (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 17360-83A | ROCKER ARM, front intake & rear exhaust (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 17375-83A | ROCKER ARM, front exhaust & rear intake (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 17393-07 | SEAL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 17429-91 | BUSHING (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 17501-04 | ROCKER COVER, outer (polished) (2) | XL1200N, XL1200X, XL883L |
| 17551-04 | ROCKER COVER, outer (chrome) (2) | XL1200C, XL1200CP, XL1200V | |
| 17655-05 | ROCKER COVER, outer (black) (2) | XL1200CP, XL883N, XL883R | |
| 20 | 17532-07A | ROCKER COVER, inner (polished) (2) | XL1200N, XL1200X, XL883L |
| 17537-07A | ROCKER COVER, inner (chrome) (2) | XL1200C, XL1200CP, XL1200V | |
| 17614-07A | ROCKER COVER, inner (silver) (2) | XL1200CP, XL883N, XL883R | |
| 21 | 17611-83 | SHAFT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 17972-04 | TAPPET COVER, front | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17981-04 | TAPPET COVER, rear | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 23 | 17976-04 | GASKET (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 17946-04 | COVER (chrome) (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 17908-02 | PUSH ROD, exhaust (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17909-02 | PUSH ROD, intake (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 26 | 18505-06 | ANTI-ROTATION DEVICE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 18538-99C | TAPPET, w/ roller (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 28 | 26010-04 | BREATHER, front | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26011-04 | BREATHER, rear | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 29 | 26012-07 | BREATHER, front w/ seal | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26020-07 | BREATHER, rear w/ seal | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
ROCKER ARM ASSEMBLY & PUSH RODS - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 943 | SCREW (2) | XR1200X |
| 2 | 1039 | SCREW (8) | XR1200X |
| 3 | 2486 | SCREW (8) | XR1200X |
| 4 | 3849 | SCREW (6) | XR1200X |
| 5 | 3976 | SCREW (2) | XR1200X |
| 6 | 4718A | SCREW (4) | XR1200X |
| 7 | 4741A | SCREW (8) | XR1200X |
| 8 | 6589 | WASHER (8) | XR1200X |
| 9 | 11190 | O-RING (4) | XR1200X |
| 10 | 11377 | O-RING (4) | XR1200X |
| 11 | 11621 | O-RING (2) | XR1200X |
| 12 | 11625 | O-RING (2) | XR1200X |
| 13 | 16800-84A | GASKET (2) | XR1200X |
| 14 | 17036-08 | GASKET KIT | XR1200X |
| 15 | 17695-07B | GASKET, inner (2) | XR1200X |
| 16 | 17633-08B | GASKET, lower (2) | XR1200X |
| 17 | 17360-83A | ROCKER ARM, front intake & rear exhaust (2) | XR1200X |
| 18 | 17375-83A | ROCKER ARM, front exhaust & rear intake (2) | XR1200X |
| 19 | 17429-91 | BUSHING (4) | XR1200X |
| 20 | 17569-08 | ROCKER BOX GUARD | XR1200X |
| 21 | 17615-10 | ROCKER COVER, outer (black) (2) | XR1200X |
| 22 | 17591-10 | ROCKER COVER, inner (black) (2) | XR1200X |
| 23 | 17611-83 | SHAFT (4) | XR1200X |
| 24 | 17903-10 | TAPPET COVER, front (black) | XR1200X |
| 17911-10 | TAPPET COVER, rear (black) | XR1200X | |
| 25 | 17976-04 | GASKET (2) | XR1200X |
| 26 | 17963-10 | COVER (black) (4) | XR1200X |
| 27 | 17908-02 | PUSH ROD, exhaust (2) | XR1200X |
| 17909-02 | PUSH ROD, intake (2) | XR1200X | |
| 28 | 18505-06 | ANTI-ROTATION DEVICE | XR1200X |
| 29 | 18538-99C | TAPPET, w/ roller (4) | XR1200X |
| 30 | 26016-08 | BREATHER (2) | XR1200X |
| 31 | 26856-89A | VALVE, umbrella-check, breather | XR1200X |
| 32 | 63548-08 | FITTING (2) | XR1200X |
PISTONS & FLYWHEEL ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | ALL |
| 2 | 11317 | KEY | ALL |
| 3 | 22266-86 | PISTON RING SET, standard (2) | XL883L, XL883N, XL883R |
| 22261-86 | PISTON RING SET, 0.010 O.S. (2) | XL883L, XL883N, XL883R | |
| 22271-86 | PISTON RING SET, 0.005 O.S. (2) | XL883L, XL883N, XL883R | |
| 21948-02 | PISTON RING SET, standard (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 22231-04 | PISTON RING SET, 0.005 O.S. (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 22238-04 | PISTON RING SET, 0.010 O.S. (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 4 | 22221-04 | PISTON & RINGS ASSEMBLY, standard (2) | XL883L, XL883N, XL883R |
| 22224-04 | PISTON & RINGS ASSEMBLY, 0.005 O.S. (2) | XL883L, XL883N, XL883R | |
| 22228-04 | PISTON & RINGS ASSEMBLY, 0.010 O.S. (2) | XL883L, XL883N, XL883R | |
| 22223-04 | PISTON & RINGS ASSEMBLY, standard (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 22227-04 | PISTON & RINGS ASSEMBLY, 0.005 O.S. (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 22230-04 | PISTON & RINGS ASSEMBLY, 0.010 O.S. (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 22244-04A | PISTON & RINGS ASSEMBLY, standard (2) | XR1200X | |
| 5 | 22589-83B | LOCK RING (4) | ALL |
| 6 | 22719-04 | PISTON PIN (2) | XL883L, XL883N, XL883R |
| 22765-02 | PISTON PIN (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 7 | 23905-04B | FLYWHEELS & CONNECTING ROD ASSEMBLY, w/ 11317 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23999-08 | FLYWHEELS & CONNECTING ROD ASSEMBLY, w/ 11317 | XR1200X | |
| 8 | 24332-36 | BUSHING, 0.01 O.S. (2) | ALL |
| 9 | 24658-87 | INNER RING | ALL |
CRANKCASE & GEARCASE - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 215 | PIN (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 358 | DOWEL PIN (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 835 | SCREW (11) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 1028 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 1048 | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 4091 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 8881 | BEARING RACE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 8972 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 10080 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 10177 | CABLE STRAP (as required) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 11177A | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 12068 | OIL SEAL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 24466-06B | CRANKCASE SET, w/ bearings (black) | XL1200C, XL1200CP, XL1200X, XL883N, XL883R |
| 24470-06B | CRANKCASE SET, w/ bearings (silver) | XL883L | |
| 24745-07A | CRANKCASE SET, w/ bearings (gray) | XL1200N, XL1200V | |
| 14 | 24605-07 | BEARING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 24647-87 | BEARING (blue) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24650-87 | BEARING (red) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 24659-87 | BEARING (white/gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 24660-87 | BEARING (green) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 16 | 24754-75A | DOWEL PIN (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 26436-90A | SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 26437-86B | BALL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 26638-00Y | GASKET (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 29950-91 | COVER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 68042-99 | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 33117-91A | ADAPTER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 35114-02 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 35118-03 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 40254-02 | SPACER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 45830-48 | PLUG (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 62651-04 | LINE, oil pump | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 28 | 63508-04 | HOSE, transmission vent | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 29 | 63533-41A | FITTING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 30 | 63805-80A | OIL FILTER (black) | XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 63796-77A | OIL FILTER (chrome) | XL1200C, XL1200CP, XL1200V | |
| 31 | 65088-04 | STUD, ground (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 32 | 62700014 | OIL JET ASSEMBLY (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
CRANKCASE & GEARCASE - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 215 | PIN | XR1200X |
| 2 | 232 | PIN | XR1200X |
| 3 | 358 | DOWEL PIN (4) | XR1200X |
| 4 | 835 | SCREW (12) | XR1200X |
| 5 | 1028 | SCREW | XR1200X |
| 6 | 1048 | SCREW (4) | XR1200X |
| 7 | 2487 | SCREW (3) | XR1200X |
| 8 | 4091 | SCREW (2) | XR1200X |
| 9 | 8881 | BEARING RACE | XR1200X |
| 10 | 8972 | WASHER | XR1200X |
| 11 | 10080 | CLAMP (2) | XR1200X |
| 12 | 10177 | CABLE STRAP (as required) | XR1200X |
| 13 | 11177A | RETAINING RING | XR1200X |
| 14 | 11290 | O-RING | XR1200X |
| 15 | 12068 | OIL SEAL | XR1200X |
| 16 | 16899-02 | STUD (2) | XR1200X |
| 17 | 17525-08 | PLATE | XR1200X |
| 18 | 24475-08 | CRANKCASE SET, w/ bearings (black) | XR1200X |
| 19 | 24605-07 | BEARING | XR1200X |
| 20 | 24647-87 | BEARING (blue) | XR1200X |
| 24650-87 | BEARING (red) | XR1200X | |
| 24659-87 | BEARING (white/gray) | XR1200X | |
| 24660-87 | BEARING (green) | XR1200X | |
| 21 | 24754-75A | DOWEL PIN (2) | XR1200X |
| 22 | 26436-90A | SPRING | XR1200X |
| 23 | 26437-86B | BALL | XR1200X |
| 24 | 26638-00Y | GASKET (2) | XR1200X |
| 25 | 29950-91 | COVER | XR1200X |
| 26 | 33117-91A | ADAPTOR | XR1200X |
| 27 | 35114-02 | RETAINING RING | XR1200X |
| 28 | 35118-03 | RETAINING RING | XR1200X |
| 29 | 40254-02 | SPACER | XR1200X |
| 30 | 45830-48 | PLUG | XR1200X |
| 31 | 60330-08 | PLUG, w/ O-ring (2) | XR1200X |
| 32 | 63508-04 | HOSE, transmission vent | XR1200X |
| 33 | 63533-41A | FITTING | XR1200X |
| 34 | 63805-80A | OIL FILTER | XR1200X |
| 35 | 65088-04 | STUD, ground (2) | XR1200X |
| 36 | 68042-99 | SCREW (4) | XR1200X |
| 37 | 62700013 | OIL JET ASSEMBLY, w/ gasket (2) | XR1200X |
INSPECTION COVER & PRIMARY COVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 943 | SCREW (6) | ALL |
| 2 | 4820A | SCREW (16) | ALL |
| 3 | 11171 | O-RING (2) | ALL |
| 4 | 11105 | O-RING | ALL |
| 5 | 25307-06 | PRIMARY COVER (black) w/ 40574-06 | XL1200CP, XL1200X, XL883N, XL883R |
| 25430-06 | PRIMARY COVER (polished) w/ 40574-06 | XL883L | |
| 25460-06 | PRIMARY COVER (chrome) w/ 40574-06 | XL1200C, XL1200CP, XL1200V | |
| 60830-07 | PRIMARY COVER (gray) w/ 40574-06 | XL1200N | |
| 60836-10 | PRIMARY COVER (black) w/ 40574-06 | XR1200X | |
| 6 | 25463-94A | GASKET | ALL |
| 7 | 34760-04 | INSPECTION COVER, clutch (chrome) | XL1200C, XL1200CP, XL1200V |
| 34992-04 | INSPECTION COVER, clutch (polished) | XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R | |
| 37718-10 | INSPECTION COVER, clutch (black) | XR1200X | |
| 8 | 34993-04A | INSPECTION COVER, chain, w/ gasket (polished) | XL1200CP, XL1200N, XL1200X, XL883L |
| 34761-04A | INSPECTION COVER, chain, w/ gasket (chrome) | XL1200C, XL1200CP, XL1200V | |
| 34794-05A | INSPECTION COVER, chain, w/ gasket (polished) | XL883N, XL883R | |
| 35077-10 | INSPECTION COVER, chain, w/ gasket (black) | XR1200X | |
| 9 | 34955-04 | GASKET | ALL |
| 10 | 34990-08 | GASKET | ALL |
| 11 | 40574-06 | BUSHING | ALL |
| 12 | 41191-74A | SCREW (2) | ALL |
| 13 | 60328-98B | OIL DRAIN PLUG ASSEMBLY | ALL |
CAMSHAFTS & GEAR COVER - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3480A | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4740A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4717A | SCREW (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 7916A | JAM NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 68120-00 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 11317 | T-KEY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 24047-00 | PINION GEAR | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 25194-06 | CAM GEAR SET, complete, w/ pinion gear | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 25219-04 | COVER ASSEMBLY (polished), w/ 62375-57A & bushings | XL883L |
| 25213-04 | COVER ASSEMBLY (chrome), w/ 62375-57A & bushings | XL1200C, XL1200CP, XL1200V | |
| 25486-05 | COVER ASSEMBLY (black), w/ 62375-57A & bushings | XL1200CP, XL1200X, XL883N, XL883R | |
| 25546-07 | COVER ASSEMBLY (gray), w/ 62375-57A & bushings | XL1200N | |
| 10 | 25263-90D | GASKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 25586-37 | OUTER BUSHING, cam gear shafts (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 25588-91 | BUSHING, rear intake cam gear shaft | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 25593-74 | BUSHING, flywheel gear shaft | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 25598-91 | INNER BUSHING, camshaft gear (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 26318-88A | DRIVE GEAR, oil pump | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 32506-90 | TIMER COVER | XL883L |
| 32514-04 | TIMER COVER | XL1200C, XL1200CP, XL883N, XL883R | |
| 32531-07 | TIMER COVER | XL1200N, XL1200X | |
| 25600007 | TIMER COVER | XL1200V | |
| 17 | 62375-57A | FITTING, oil vent hose | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
CAMSHAFTS & GEAR COVER - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3480A | SCREW (3) | XR1200X |
| 2 | 4717A | SCREW (3) | XR1200X |
| 3 | 4740A | SCREW | XR1200X |
| 4 | 4822A | SCREW | XR1200X |
| 5 | 7916A | JAM NUT | XR1200X |
| 6 | 11317 | T-KEY | XR1200X |
| 7 | 24047-00 | PINION GEAR | XR1200X |
| 8 | 25250-10 | COVER (black) | XR1200X |
| 9 | 25271-08 | CAM GEAR SET, complete, w/ pinion gear | XR1200X |
| 10 | 26332-08 | SPACER | XR1200X |
OIL PUMP - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4765 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 6157 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 11002 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 26204-91A | OIL PUMP, complete | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 26434-91 | O-RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 26239-07 | GEAR SHAFT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 26502-07 | GEROTOR SET, return | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 26503-07 | GEROTOR SET, feed | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 26495-89B | GASKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 26496-75A | FITTING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 62601-91A | FITTING, front | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 63533-41A | FITTING, rear | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
OIL PUMP - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 942 | SCREW (6) | XR1200X |
| 2 | 10966 | O-RING | XR1200X |
| 3 | 10967 | O-RING | XR1200X |
| 4 | 10969 | O-RING | XR1200X |
| 5 | 10971 | O-RING | XR1200X |
| 6 | 11110 | O-RING | XR1200X |
| 7 | 11140 | O-RING (2) | XR1200X |
| 8 | 11290 | O-RING (4) | XR1200X |
| 9 | 11326 | O-RING (2) | XR1200X |
| 10 | 11384K | RETAINER (2) | XR1200X |
| 11 | 11408 | RETAINER | XR1200X |
| 12 | 25279-08 | GASKET | XR1200X |
| 13 | 26064-08 | FITTING ASSEMBLY, w/ 11110, 11290 & 11408 | XR1200X |
| 14 | 26182-08 | CHECK VALVE ASSEMBLY, w/ 10971 | XR1200X |
| 15 | 26184-08 | FITTING | XR1200X |
| 16 | 26210-99 | SPRING, compression | XR1200X |
| 17 | 26400-82B | VALVE, bypass - oil pump | XR1200X |
| 18 | 26432-76A | O-RING | XR1200X |
| 19 | 26522-08 | COVER ASSEMBLY | XR1200X |
| 20 | 26525-08 | FITTING ASSEMBLY, w/ 11140, 11326 & 11384K (2) | XR1200X |
| 21 | 26526-08 | GEROTOR ASSEMBLY, feed | XR1200X |
| 22 | 26529-08 | THERMOSTAT ASSEMBLY | XR1200X |
| 23 | 26546-08 | GEROTOR ASSEMBLY, return | XR1200X |
| 24 | 26592-08 | OIL PUMP ASSEMBLY, w/ 13, 14, 15, 16, 17, 20, 22, 25 & 26 | XR1200X |
| 25 | 4741A | SCREW (2) | XR1200X |
| 26 | 60330-08 | PLUG, w/ 11290 (3) | XR1200X |
| 27 | 4718A | SCREW (3) | XR1200X |
INDUCTION MODULE, FUEL - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2481M | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3987 | BOLT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4798 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 16361-07 | BRACKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 26995-86B | SEAL (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 27216-95 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 27327-07 | FLANGE (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 27628-01A | KIT, IAC motor | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 27629-01A | KIT, throttle position sensor | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 27795-07 | INDUCTION MODULE ASSEMBLY, w/ fuel rail, fuel injector, intake manifold, TMAP sensor, cap, IAC Kit, TPS Kit, hardware kit | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 27693-07 | FUEL LINE KIT, w/ 27216-95 & bracket | XL1200C, XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 27829-10 | FUEL LINE KIT, w/ 27216-95 & bracket | XL1200V, XL1200X | |
| 12 | 27700-07 | KIT, hardware & O-rings | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 27701-07A | CABLE BRACKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 27704-07 | FUEL RAIL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 27706-07A | FUEL INJECTOR, w/ O-ring (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 27707-07 | INTAKE MANIFOLD | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 32319-07 | T-MAP SENSOR | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 90383-98 | CAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
INDUCTION MODULE, FUEL - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2481M | SCREW | XR1200X |
| 2 | 3987 | BOLT (4) | XR1200X |
| 3 | 4551 | SCREW (2) | XR1200X |
| 4 | 4798 | SCREW | XR1200X |
| 5 | 16360-08 | COVER (black) | XR1200X |
| 6 | 26995-86B | SEAL (2) | XR1200X |
| 7 | 27216-95 | SCREW | XR1200X |
| 8 | 27327-07 | FLANGE (2) | XR1200X |
| 9 | 27628-01A | KIT, IAC motor | XR1200X |
| 10 | 27629-01A | KIT, throttle position sensor | XR1200X |
| 11 | 27695-08 | INDUCTION MODULE ASSEMBLY, w/ fuel rail, fuel injector, intake manifold, TMAP sensor, cap, IAC Kit, TPS Kit | XR1200X |
| 12 | 27698-08A | BRACKET | XR1200X |
| 13 | 27704-07 | FUEL RAIL | XR1200X |
| 14 | 27706-07A | FUEL INJECTOR, w/ O-ring (2) | XR1200X |
| 15 | 27792-08 | FUEL LINE KIT, w/ 27216-95 & bracket | XR1200X |
| 16 | 32319-07 | T-MAP SENSOR | XR1200X |
| 17 | 90383-98 | CAP | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 27300029 | RESTRICTOR PLATE KIT (HDI) (not shown) | XR1200X | |
ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW (2) | ALL |
| 2 | 11289A | O-RING (2) | ALL |
| 3 | 11290 | O-RING | XR1200X |
| 4 | 25394-08 | PIPE ADAPTER, w/ 11290 | XR1200X |
| 5 | 26554-77B | SWITCH, oil pressure | ALL |
| 6 | 32472-10 | SENSOR, engine temperature w/ 72009-05, 72011-05 & cable strap | ALL |
| 7 | 32707-01C | SENSOR, crank position w/ 11289A & 74194-98 | ALL |
| 8 | 72009-05 | HOUSING, 2-way pin | ALL |
| 9 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (2) | ALL |
| 10 | 74194-98 | TERMINAL | ALL |
| 11 | 74402-05B | SENSOR, vehicle speed, w/ 11289A | ALL |
AIR CLEANER - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 2460 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 3565 | SCREW, breather (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 11202 | O-RING (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 29062-95B | GASKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 28794-10 | COVER (gloss black) w/ label | XL1200X |
| 28792-10 | COVER (chrome) w/ label | XL1200C, XL1200CP, XL883L | |
| 28793-10 | COVER (gray) w/ label | XL1200N | |
| 28790-10 | COVER (black) w/ label | XL883N, XL883R | |
| 7 | 29123-07 | TRIM INSERT | XL883L |
| 29200001 | TRIM INSERT | XL883N, XL883R | |
| 29355-07 | TRIM INSERT | XL1200N, XL1200X | |
| 29346-07 | TRIM INSERT | XL1200C, XL1200CP | |
| 8 | 29313-95 | GASKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 29315-04 | SEAL | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 10 | 29331-04 | FILTER ELEMENT, w/ 29313-95 | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 11 | 29369-07A | BACKPLATE ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 12 | 29000015 | BACKPLATE ASSEMBLY | XL1200V |
| 13 | 29000016 | SEAL | XL1200V |
| 14 | 29400015 | FILTER ELEMENT, w/ 29313-95 | XL1200V |
| 15 | 61300131 | COVER (chrome) w/ label | XL1200V |
AIR BOX - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 673 | CLIP (2) | XR1200X |
| 2 | 4802 | SCREW (2) | XR1200X |
| 3 | 2407 | SCREW (9) | XR1200X |
| 4 | 2612 | SCREW (2) | XR1200X |
| 5 | 6703 | WASHER (2) | XR1200X |
| 6 | 26162-08 | BREATHER HOSE ASSEMBLY | XR1200X |
| 7 | 26169-08 | HOSE, breather (2) | XR1200X |
| 8 | 29867-09 | AIR BOX ASSEMBLY, w/ 1, 3, 4, 6, 7, 9, & 10 (Domestic, Canada, Australia, Asia-Pacific) | XR1200X |
| 9 | 29377-08 | ELEMENT | XR1200X |
| 10 | 29379-08 | CLAMP (2) | XR1200X |
| 11 | 29380-08 | COUPLING | XR1200X |
| 12 | 65258-08 | AIR BOX FASCIA KIT | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 13 | 29371-08 | AIR BOX ASSEMBLY, w/ 1, 3, 4, 6, 7, 9, & 10 (HDI, England, Japan) | XR1200X |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3029 | SCREW (4) | ALL |
| 2 | 4329 | SCREW (2) | ALL |
| 3 | 4751 | SCREW (8) | ALL |
| 4 | 10177 | STRAP (3) | ALL |
| 5 | 29997-07A | STATOR | ALL |
| 6 | 30018-08 | ROTOR SPROCKET ASSEMBLY, w/ 4751 & sprocket | XR1200X |
| 7 | 32493-02B | ROTOR SPROCKET ASSEMBLY, w/ 4751 & 40241-02A | XL883L, XL883N, XL883R |
| 32494-04B | ROTOR SPROCKET ASSEMBLY, w/ 4751 & 40290-04A | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 8 | 40241-02A | SPROCKET, 34T | XL883L, XL883N, XL883R |
| 40290-04A | SPROCKET, 38T | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 9 | 72195-94 | SEAL, pin, 4-way | ALL |
| 10 | 74711-08 | REGULATOR, w/ 10177 | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 11 | 30029-08 | ROTOR SPROCKET ASSEMBLY, w/ 4751 & sprocket (Japan, Brazil) | XR1200X |
ELECTRONIC IGNITION SYSTEM - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2513 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3124 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 3480A | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 7220 | LOCKWASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 10177 | STRAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 31656-07 | IGNITION COIL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 31753-07 | PLATE, nut | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 31807-07 | BRACKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 32006-07 | CABLE, spark plug, rear (long) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 32003-07 | CABLE, spark plug, front (short) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 32534-11 | ELECTRONIC CONTROL MODULE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 32362-04 | SPARK PLUG (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 73227-10 | COVER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
ELECTRONIC IGNITION SYSTEM - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3480A | SCREW (2) | XR1200X |
| 2 | 3708M | SCREW (2) | XR1200X |
| 3 | 31656-07 | IGNITION COIL | XR1200X |
| 4 | 31753-07 | PLATE, nut | XR1200X |
| 5 | 31801-08 | BRACKET | XR1200X |
| 6 | 32004-08 | CABLE, spark plug, rear (long) | XR1200X |
| 7 | 32005-08A | CABLE, spark plug, front (short) | XR1200X |
| 8 | 27794-08 | SPARK PLUG (2) | XR1200X |
| 9 | 32534-11 | ELECTRONIC CONTROL MODULE | XR1200X |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 31390-91F | STARTER MOTOR, complete | ALL |
| 2 | 31488-81C | GASKET | ALL |
| 3 | 31556-91D | CLUTCH SUB-ASSEMBLY | ALL |
| 4 | 31603-91 | REPAIR KIT, starter solenoid | ALL |
| 5 | 45902-00 | SCREW (2) | ALL |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3990 | SCREW | ALL |
| 2 | 6003 | WASHER (4) | ALL |
| 3 | 6021 | SPACER | ALL |
| 4 | 8862 | BEARING (3) | ALL |
| 5 | 8884 | BEARING | ALL |
| 6 | 8956 | ROLLER BEARING | XR1200X |
| 7 | 8964 | BALL BEARING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 8966 | BEARING, closed end | ALL |
| 9 | 8970A | BALL BEARING | ALL |
| 10 | 10984 | SNAP RING | ALL |
| 11 | 11067 | RETAINING RING (4) | ALL |
| 12 | 11113 | O-RING | ALL |
| 13 | 11161 | RETAINING RING | ALL |
| 14 | 11631 | O-RING | XR1200X |
| 15 | 12030 | SEAL | ALL |
| 16 | 12074 | OIL SEAL | ALL |
| 17 | 33354-08 | SPACER | XR1200X |
| 18 | 35030-89A | BEARING, mainshaft | ALL |
| 19 | 35038-89A | RETAINING RING | ALL |
| 20 | 35051-89A | NEEDLE BEARING (2) | ALL |
| 21 | 35087-99A | RETAINING RING | ALL |
| 22 | 35107-06 | SPACER | ALL |
| 23 | 35159-06 | GEAR, fifth-mainshaft | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 35234-08 | GEAR, fifth-mainshaft | XR1200X | |
| 24 | 35163-06 | GEAR, mainshaft | ALL |
| 25 | 35165-06 | GEAR, fourth-mainshaft | ALL |
| 26 | 35167-06 | GEAR, first-mainshaft | ALL |
| 27 | 35172-06 | GEAR, countershaft | ALL |
| 28 | 35174-06 | GEAR, first-countershaft | ALL |
| 29 | 35190-06 | DOG RING | ALL |
| 30 | 35191-06 | GEAR, fourth-countershaft | ALL |
| 31 | 35193-06 | GEAR, third-countershaft | ALL |
| 32 | 35196-06 | DOG RING | ALL |
| 33 | 35197-06 | GEAR, second-countershaft | ALL |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 7080 | WASHER | ALL |
| 2 | 9187A | BEARING | ALL |
| 3 | 33540-06 | SPRING SLEEVE ASSEMBLY, detent | ALL |
| 4 | 33641-06 | SHIFTER CAM ASSEMBLY | ALL |
| 5 | 34014-06A | SHIFTER LEVER ASSEMBLY, w/ 34064-00C & 34491-02A | ALL |
| 6 | 34064-00C | SPRING, shifter return | ALL |
| 7 | 34076-02A | BUSHING | ALL |
| 8 | 34157-06 | FORK ASSEMBLY, shifter (2) | ALL |
| 9 | 34163-02 | PIN, shifter stop | ALL |
| 10 | 34483-06 | SPRING, detent | ALL |
| 11 | 34491-02A | SPRING, extension (2) | ALL |
| 12 | 34981-02A | SHAFT, shifter forks (2) | ALL |
| 13 | 34982-02A | BUSHING, right hand crankcase | ALL |
| 14 | 37107-06 | OIL SEAL | ALL |
| 15 | 34162-06 | FORK ASSEMBLY, shifter | ALL |
SHIFTER LEVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | ALL |
| 2 | 4016 | SCREW | XL1200C, XL1200CP, XL1200V, XL1200X, XR1200X |
| 3 | 4359 | SCREW | XL1200C, XL1200CP, XL1200V, XL1200X, XR1200X |
| 4 | 34665-10 | SHIFTER ARM (black) | XR1200X |
| 5 | 34572-04 | LEVER ASSEMBLY, w/ 42569-03 (1200CP - Forward Foot Controls) | XL1200C, XL1200CP, XL1200V |
| 34723-10 | LEVER ASSEMBLY, w/ 42569-03 | XL1200X | |
| 6 | 33832-08 | SHIFTER LINK | XR1200X |
| 7 | 34573-04 | SHIFTER ROD LINK | XL1200C, XL1200CP, XL1200V |
| 34663-10 | SHIFTER ROD LINK | XL1200X | |
| 8 | 33875-08 | SHIFTER LEVER ASSEMBLY, w/ 42443-80A | XR1200X |
| 9 | 34611-65A | SHIFTER TOE PEG KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 34660-04A | SHIFT LEVER (chrome) (1200CP - Mid Foot Controls) | XL1200CP, XL883L |
| 34721-07 | SHIFT LEVER (black) | XL1200N, XL883N, XL883R | |
| 11 | 34670-06 | SHIFT LEVER (chrome) | XL1200C, XL1200CP, XL1200V |
| 34724-10 | SHIFT LEVER (gloss black) | XL1200X | |
| 12 | 34672-08 | TOE PEG ASSEMBLY | XR1200X |
| 13 | 42443-80A | BUSHING | XR1200X |
| 14 | 42569-03 | BUSHING | XL1200C, XL1200CP, XL1200V, XL1200X |
CLUTCH - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 8873 | BALL (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 8885 | BEARING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 11046 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 11250 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 11730A | WELL NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 11765Y | ADJUSTMENT SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 25453-87A | RAMP, inner | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 25409-94B | RAMP, outer | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 34920-86A | COUPLING, clutch cable | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 36715-94 | SPRING, clutch adjustment | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 36731-91 | RELEASE PLATE, w/ 8885 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 36785-91 | CLUTCH HUB | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 36790-04 | CLUTCH SHELL & SPROCKET, w/ 36799-91 & 37905-90 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 36799-91 | BALL BEARING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 36802-84B | LOCKPLATE, well type | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 37495-91 | NUT, main shaft | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 37870-91 | SPRING WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 37872-90 | SEAT, spring-inner | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 37904-90 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 37905-90 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 37908-90 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 37909-90 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 37910-04B | SPRING, clutch plate | XL883L, XL883N, XL883R |
| 37924-04A | SPRING, clutch plate | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 24 | 37911-90 | FRICTION PLATE (paper) (8) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 37912-91 | PRESSURE PLATE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 37913-90 | STEEL PLATE (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 37977-90 | SPRING PLATE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
CLUTCH - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 8873 | BALL (3) | XR1200X |
| 2 | 8885 | BEARING | XR1200X |
| 3 | 9214 | BEARING | XR1200X |
| 4 | 11046 | RETAINING RING | XR1200X |
| 5 | 11250 | RETAINING RING | XR1200X |
| 6 | 11730A | WELL NUT | XR1200X |
| 7 | 11765Y | ADJUSTMENT SCREW | XR1200X |
| 8 | 25409-94B | RAMP, outer | XR1200X |
| 9 | 25453-87A | RAMP, inner | XR1200X |
| 10 | 34920-86A | COUPLING, clutch cable | XR1200X |
| 11 | 36715-94 | SPRING, clutch adjustment | XR1200X |
| 12 | 36731-91 | RELEASE PLATE, w/ 8885 | XR1200X |
| 13 | 36802-84B | LOCKPLATE, well type | XR1200X |
| 14 | 37495-91 | NUT, main shaft | XR1200X |
| 15 | 37870-91 | SPRING WASHER | XR1200X |
| 16 | 37872-90 | SEAT, spring-inner | XR1200X |
| 17 | 37890-02 | THRUST WASHER, inner | XR1200X |
| 18 | 37891-02 | THRUST WASHER, outer | XR1200X |
| 19 | 37892-02 | INNER RACE, needle bearing | XR1200X |
| 20 | 37894-02 | SPRING, clutch | XR1200X |
| 21 | 37895-02 | SEAT, damper spring | XR1200X |
| 22 | 37896-02 | PRESSURE PLATE | XR1200X |
| 23 | 37897-02 | FRICTION PLATE, narrow | XR1200X |
| 24 | 37898-02A | CLUTCH HUB | XR1200X |
| 25 | 37899-02A | CLUTCH SHELL & SPROCKET, w/ 9214 | XR1200X |
| 26 | 37908-90 | RETAINING RING | XR1200X |
| 27 | 37909-90 | RETAINING RING | XR1200X |
| 28 | 37911-90 | FRICTION PLATE (paper) (7) | XR1200X |
| 29 | 37913-90 | STEEL PLATE (7) | XR1200X |
| 30 | 37934-06 | SPRING, clutch | XR1200X |
BELT & SPROCKETS - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3480A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3594 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 3899 | SCREW (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 4717A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 4751 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 6516HW | WASHER (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 7804 | LOCKNUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 7839 | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 32493-02B | ROTOR SPROCKET ASSEMBLY, w/ 4751 & 40241-02A | XL883L, XL883N, XL883R |
| 32494-04B | ROTOR SPROCKET ASSEMBLY, w/ 4751 & 40290-04A | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 10 | 34911-04 | SPROCKET COVER | XL883L |
| 34932-04 | SPROCKET COVER | XL1200C, XL1200CP, XL1200V | |
| 34943-05 | SPROCKET COVER | XL1200X, XL883N, XL883R | |
| 34954-07 | SPROCKET COVER (gray) | XL1200N | |
| 11 | 35211-91B | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 40039-02C | CHAIN ADJUSTER ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 40005-57B | PRIMARY CHAIN, 94 links | XL883L, XL883N, XL883R |
| 40147-04 | PRIMARY CHAIN, 96 links | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 14 | 40254-02 | SPACER, sprocket | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 40241-02A | SPROCKET, triple row - 34T | XL883L, XL883N, XL883R |
| 40290-04A | SPROCKET, triple row - 38T | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 16 | 40251-92A | RETENTION PLATE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 40350-07 | SPROCKET, belt - 68T (black) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R |
| 40444-07 | SPROCKET, belt - 68T (black) | XL1200N, XL1200X, XL883N | |
| 18 | 40409-04 | SPROCKET, transmission - 29T (Domestic - CT/CZ/LC/LF/LH, World - CR/CS/LE) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 40591-07 | BELT, 137T | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 3814 | SCREW (Japan) (5) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 9254 | BEARING (Japan) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 40380-04 | SPROCKET, transmission - 30T (HDI) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 23 | 40518-08 | SPROCKET ASSEMBLY, final drive, w/ bearing - 68T (black) (Japan/Asia-Pacific) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 40560-05 | BOWL COMPENSATOR (Japan) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 40561-05 | ISOLATOR (Japan) (6) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 40562-05 | SPACER (Japan) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
BELT & SPROCKETS - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 675 | SCREW | XR1200X |
| 2 | 1751 | SCREW (2) | XR1200X |
| 3 | 3480A | SCREW | XR1200X |
| 4 | 3594 | SCREW (2) | XR1200X |
| 5 | 3899 | SCREW (5) | XR1200X |
| 6 | 4589 | SCREW | XR1200X |
| 7 | 4678 | SCREW | XR1200X |
| 8 | 4751 | SCREW (8) | XR1200X |
| 9 | 6400HB | WASHER (2) | XR1200X |
| 10 | 6445 | WASHER | XR1200X |
| 11 | 6516HW | WASHER (5) | XR1200X |
| 12 | 6701 | WASHER | XR1200X |
| 13 | 7804 | LOCKNUT | XR1200X |
| 14 | 9704 | DOWEL PIN, idler locating | XR1200X |
| 15 | 30018-08 | ROTOR SPROCKET ASSEMBLY, w/ 4751 & sprocket | XR1200X |
| 16 | 31630-08 | BUSHING (2) | XR1200X |
| 17 | 31698-08 | IDLER | XR1200X |
| 18 | 31699-08 | BRACKET ASSEMBLY, idler, w/ 9704 | XR1200X |
| 31602-08 | IDLER WHEEL KIT, w/ 7, 9, 14, 16, 17, 18, & 28 | XR1200X | |
| 19 | 35211-91B | NUT | XR1200X |
| 20 | 37716-10 | SPROCKET COVER (black) | XR1200X |
| 21 | 40039-02C | CHAIN ADJUSTER ASSEMBLY | XR1200X |
| 22 | 40057-08 | PRIMARY CHAIN, 94 links | XR1200X |
| 23 | 40254-02 | SPACER | XR1200X |
| 24 | 40251-92A | RETENTION PLATE | XR1200X |
| 25 | 40350-07 | SPROCKET, belt - 68T (black) | XR1200X |
| 26 | 40379-04 | SPROCKET, transmission - 28T | XR1200X |
| 27 | 40591-07 | BELT, 137T | XR1200X |
| 28 | DA0600.12FAZB | LOCKNUT (2) | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 3814 | SCREW (Japan) (5) | XR1200X |
| 30 | 9254 | BEARING (Japan) | XR1200X |
| 31 | 30029-08 | ROTOR SPROCKET ASSEMBLY, w/ 4751 & sprocket (Japan, Brazil) | XR1200X |
| 32 | 37797-09 | SPACER (Japan) | XR1200X |
| 33 | 40147-04 | PRIMARY CHAIN, 96 links (Japan, Brazil) | XR1200X |
| 34 | 40518-08 | SPROCKET ASSEMBLY, 68T (Japan) | XR1200X |
| 35 | 40560-05 | BOWL COMPENSATOR (Japan) | XR1200X |
| 36 | 40561-05 | ISOLATOR (Japan) | XR1200X |
ENGINE MOUNTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (3) | ALL |
| 2 | 3854 | SCREW (2) | ALL |
| 3 | 4180 | SCREW (3) | ALL |
| 4 | 4188 | SCREW (2) | ALL |
| 5 | 4290 | SCREW (9) | ALL |
| 6 | 6026 | WASHER (4) | ALL |
| 7 | 6152 | SPACER | ALL |
| 8 | 7039 | LOCKWASHER (2) | ALL |
| 9 | 16232-04B | TIE-LINK (3) | ALL |
| 10 | 16287-04 | MOUNT, front isolator | ALL |
| 11 | 16291-04 | MOUNT, rear isolator | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 16301-08 | MOUNT, rear isolator | XR1200X |
| 13 | 41561-04 | NUT | ALL |
| 14 | 41562-04 | BOLT | ALL |
| 15 | 41568-04 | SHAFT, swing arm pivot | ALL |
| 16 | 41699-04 | LOCKPLATE | ALL |
| 17 | 47470-04 | BRACKET (2) | ALL |
| 18 | 47471-04A | BRACKET | ALL |
| 19 | 48463-04A | ISOLATOR, front mount (2) | ALL |
| 20 | 48492-04A | ISOLATOR, rear mount (2) | ALL |
| 21 | 70297-04A | STRAP, grounding | ALL |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3244 | SCREW | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 11179 | O-RING | ALL |
| 4 | 11379 | RETAINING RING | ALL |
| 5 | 38630-88 | BOOT | ALL |
| 6 | 38671-04 | BRACKET | ALL |
| 7 | 38699-04C | CABLE ASSEMBLY, w/ 11179, 11379, 38630-88, & 46268-04 (1200CP - Pullback or Drag Handlebar) | XL1200C, XL1200CP, XL1200X, XL883L, XL883N, XL883R |
| 38702-05C | CABLE ASSEMBLY, w/ 11179, 11379, 38630-88, & 46268-04 | XL1200N | |
| 38786-08A | CABLE ASSEMBLY, w/ 11179, 11379, 38630-88, & 46268-04 | XR1200X | |
| 37000041 | CABLE ASSEMBLY, w/ 11179, 11379, 38630-88, & 46268-04 (1200CP - Mini-Ape Handlebar) | XL1200CP, XL1200V | |
| 8 | 42425-05 | KIT, w/ 6101 (2) & screw (2) | ALL |
| 9 | 42807-04 | BOLT | ALL |
| 10 | 42808-04 | CLAMP | ALL |
| 11 | 45356-07 | HAND LEVER, w/ 45799-04, 45800-04, & 45801-04 | XL1200C, XL1200CP, XL1200V, XL883L, XL883R |
| 46945-07A | HAND LEVER, w/ 45799-04, 45800-04, & 45801-04 | XL1200N, XL1200X, XL883N, XR1200X | |
| 12 | 45799-04 | SPRING, anti-rattle | ALL |
| 13 | 45800-04 | SCREW | ALL |
| 14 | 45801-04 | BUSHING | ALL |
| 15 | 46268-04 | PIN | ALL |
BRAKE CONTROL, FRONT - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2586A | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3244 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4240 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 4741A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 4748 | SCREW | XL1200C, XL1200CP, XL1200V |
| 6 | 6101 | WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 7045 | LOCKWASHER | XL1200C, XL1200CP, XL1200V |
| 8 | 10053 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 9 | 10031 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 11142 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 11379 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 41732-04 | SEALING WASHER, 10mm (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 41736-04 | BANJO BOLT, 10mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 41737-04 | BANJO BOLT, 12mm | XL883R |
| 15 | 41743-04 | SEALING WASHER, 12mm (2) | XL883R |
| 16 | 42425-05 | KIT, w/ 6101 (2) & screw (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 42803-07A | REBUILD KIT, single, w/ 10, 11, 12 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 42809-07A | REBUILD KIT, dual, w/ 10, 11, 15 | XL883R | |
| 18 | 42804-07 | CAP, w/ decal | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 42805-04 | GASKET KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 42806-04 | LEVER | XL1200C, XL1200CP, XL1200V, XL883L, XL883R |
| 46946-06A | LEVER (black) | XL1200N, XL1200X, XL883N | |
| 21 | 42807-04 | BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 42808-04 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 45052-07A | MASTER CYLINDER ASSEMBLY, dual | XL883R |
| 45146-07 | MASTER CYLINDER ASSEMBLY, single | XL1200C, XL1200CP, XL1200V, XL883L | |
| 42745-07 | MASTER CYLINDER ASSEMBLY, single (black) | XL1200N, XL1200X, XL883N | |
| 24 | 45074-95 | GUIDE | XL883R |
| 25 | 45319-04D | BRAKELINE, dual | XL883R |
| 26 | 45449-04C | BRAKELINE, single (1200CP - Pullback Handlebar) | XL1200C, XL1200CP, XL1200N |
| 46400-04C | BRAKELINE, single | XL883N | |
| 46417-10A | BRAKELINE, single | XL1200X | |
| 46688-11 | BRAKELINE, single (not shown) (1200CP - Mini-Ape Handlebar) | XL1200CP, XL1200V | |
| 46680-11 | BRAKELINE, single | XL883L | |
| 46986-11 | BRAKELINE, single (not shown) (1200CP - Drag Handlebar) | XL1200CP | |
| 27 | 10800003 | P-CLAMP (1200CP - Drag or Mini-Ape Handlebar) | XL1200CP, XL1200V |
| 10053 | P-CLAMP (1200CP - Pullback Handlebar) | XL1200C, XL1200CP |
BRAKE CONTROL, FRONT - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW | XR1200X |
| 2 | 2586A | SCREW | XR1200X |
| 3 | 3244 | SCREW | XR1200X |
| 4 | 4741A | SCREW | XR1200X |
| 5 | 6101 | WASHER (2) | XR1200X |
| 6 | 10031 | CLAMP | XR1200X |
| 7 | 11379 | RETAINING RING | XR1200X |
| 8 | 11142 | RETAINING RING | XR1200X |
| 9 | 41732-04 | SEALING WASHER, 10mm (4) | XR1200X |
| 10 | 41736-04 | BANJO BOLT, 10mm (2) | XR1200X |
| 11 | 41737-04 | BANJO BOLT, 12mm | XR1200X |
| 12 | 41743-04 | SEALING WASHER, 12mm (2) | XR1200X |
| 13 | 42736-08 | REBUILD KIT, w/ 7 & 8 | XR1200X |
| 14 | 42425-05 | KIT, w/ 6101 (2) & screw (2) | XR1200X |
| 15 | 42804-07 | CAP, w/ decal | XR1200X |
| 16 | 42805-04 | GASKET KIT | XR1200X |
| 17 | 46946-06A | LEVER (black) | XR1200X |
| 18 | 42807-04 | BOLT | XR1200X |
| 19 | 42808-04 | CLAMP | XR1200X |
| 20 | 42941-10 | MASTER CYLINDER ASSEMBLY | XR1200X |
| 21 | 42942-08A | BRAKELINE | XR1200X |
| 22 | 45074-95 | GUIDE | XR1200X |
BRAKE, MASTER CYLINDER, REAR - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 995 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 997 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 2501A | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 4076 | SCREW | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883N |
| 6 | 4816A | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 6701 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 6702 | WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 7477 | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 9907 | TERMINAL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 10031 | CLAMP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 10252 | CLAMP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 10255 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 11031 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 11121 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 11407 | GROMMET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 40946-04 | BOOT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 40948-04 | DUSTCOVER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 41732-04 | SEALING WASHER, 10mm (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 41736-04 | BANJO BOLT, 10mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 42521-07 | MASTER CYLINDER AND RESERVOIR ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 42595-04 | TANK | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 42810-07A | REBUILD KIT, w/ 11121, 41732-04, 42811-04, & 44189-04 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 42811-04 | BOOT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 42812-04 | PUSH ROD ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 42813-04 | YOKE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 42814-04 | PORT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 28 | 42815-04 | SEAL KIT, w/ retaining ring & O-ring | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 29 | 42816-07 | RESERVOIR ASSEMBLY, w/ 42595-04, 42817-07, & 42845-07 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 30 | 42817-07 | CAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 31 | 42845-07 | GASKET KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 32 | 42821-04 | HOSE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 33 | 42460-80B | PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 34 | 42593-04 | SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 35 | 42846-04 | BUSHING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 36 | 42976-04 | BRACKET, mounting | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 37 | 42979-04 | BELL CRANK ASSEMBLY, w/ 42846-04 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 38 | 44189-04 | SPRING PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 39 | 44429-11 | BRAKELINE ASSEMBLY, w/ 11407 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 40 | 44590-04 | RETAINER SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 41 | 51938-04 | COTTER CIRCLE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 42 | 67804-04 | COVER, reservoir | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 43 | 72023-51D | BRAKE LIGHT SWITCH, w/ 9907 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 44 | 94432-04 | SHOULDER BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 45 | 94612-04 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
BRAKE, MASTER CYLINDER, REAR - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 855B | SCREW | XR1200X |
| 2 | 997 | SCREW (2) | XR1200X |
| 3 | 9907 | TERMINAL | XR1200X |
| 4 | 10092 | CLAMP (2) | XR1200X |
| 5 | 10252 | CLAMP (2) | XR1200X |
| 6 | 10031 | RETAINING RING | XR1200X |
| 7 | 11121 | RETAINING RING | XR1200X |
| 8 | 11407 | GROMMET | XR1200X |
| 9 | 3579A | SCREW | XR1200X |
| 10 | 42425-05 | KIT, screw & washer | XR1200X |
| 11 | 4975M | SCREW (2) | XR1200X |
| 12 | 6099 | WASHER (2) | XR1200X |
| 13 | 7124 | LOCKWASHER | XR1200X |
| 14 | 40948-04 | DUSTCOVER | XR1200X |
| 15 | 41732-04 | SEALING WASHER, 10mm (4) | XR1200X |
| 16 | 41736-04 | BANJO BOLT (2) | XR1200X |
| 17 | 42460-80B | CLEVIS PIN | XR1200X |
| 18 | 42737-08 | HOSE | XR1200X |
| 19 | 42738-08 | REBUILD KIT, w/ 11121, 42811-04 | XR1200X |
| 20 | 42744-08 | RESERVOIR ASSEMBLY KIT, w/ 42817-07, 42845-07 | XR1200X |
| 21 | 42811-04 | BOOT | XR1200X |
| 22 | 42815-04 | SEAL KIT, w/ O-ring | XR1200X |
| 23 | 42817-07 | CAP | XR1200X |
| 24 | 42845-07 | GASKET KIT | XR1200X |
| 25 | 42945-08 | MASTER CYLINDER ASSEMBLY, rear | XR1200X |
| 26 | 42975-08A | BRAKELINE ASSEMBLY, w/ 10031, 11407 | XR1200X |
| 27 | 51045-08 | BRACKET | XR1200X |
| 28 | 51938-04 | COTTER CIRCLE | XR1200X |
| 29 | 72023-51D | BRAKE LIGHT SWITCH, w/ 9907 | XR1200X |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 855B | SCREW (2) | XR1200X |
| 2 | 34582-04 | BRAKE ROD ASSEMBLY | XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 3 | 42569-03 | BUSHING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 42969-04 | PEDAL ASSEMBLY, w/ 42569-03 (1200CP - Mid Foot Controls) | XL1200CP, XL883L |
| 42341-07 | PEDAL ASSEMBLY, w/ 42569-03 | XL1200N, XL883N, XL883R | |
| 5 | 42443-80A | BUSHING | XR1200X |
| 6 | 34581-04 | BRAKE ROD ASSEMBLY | XL1200C, XL1200CP, XL1200V |
| 42645-07 | BRAKE ROD ASSEMBLY | XL1200C, XL1200X | |
| 7 | 42649-07 | PEDAL ASSEMBLY, w/ 42569-03 | XL1200C, XL1200X |
| 42685-04 | PEDAL ASSEMBLY, w/ 42569-03 (1200CP - Forward Foot Controls) | XL1200C, XL1200CP, XL1200V | |
| 8 | 42949-08A | BRAKE PEDAL, w/ 42443-80A | XR1200X |
| 9 | 51045-08 | BRACKET | XR1200X |
BRAKE CALIPER, FRONT - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 42028-07 | PISTON KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 42823-04 | BOOT, bushing | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 42824-04 | BOOT, pin | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 42825-04 | CALIPER BRACKET ASSEMBLY, left, w/ 42824-04 | XL1200C, XL1200CP, XL1200V, XL883L |
| 42880-10 | CALIPER BRACKET ASSEMBLY, left, w/ 42824-04 | XL1200N, XL1200X, XL883N, XL883R | |
| 42878-10 | CALIPER BRACKET ASSEMBLY, right, w/ 42824-04 (not shown) | XL883R | |
| 5 | 42875-07 | BLEEDER SCREW, w/ O-ring, left | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 42827-04 | BLEEDER SCREW, right | XL883R | |
| 6 | 42828-04 | CAP, right | XL883R |
| 42893-07 | CAP, left | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 7 | 42829-04 | SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 42831-04A | PAD KIT, w/ retainer clip | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 42832-04 | PAD PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 42838-04 | PLUG | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 44121-07A | CALIPER ASSEMBLY, left | XL1200C, XL1200CP, XL1200V, XL883L |
| 42877-10 | CALIPER ASSEMBLY, right (not shown) | XL883R | |
| 42879-10 | CALIPER ASSEMBLY, left | XL1200N, XL1200X, XL883N, XL883R | |
| 12 | 44160-00 | BOLT (2-CR/CT/LF/LH/CZ/LE/LC, 4-CS) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 44440-04 | DECAL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
BRAKE CALIPER, FRONT - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 21965-08 | PISTON KIT | XR1200X |
| 2 | 42739-08 | PAD KIT, w/ spring & pins | XR1200X |
| 3 | 42827-04 | BLEEDER SCREW, right | XR1200X |
| 42875-07 | BLEEDER SCREW, left, w/ O-ring | XR1200X | |
| 4 | 42828-04 | CAP, right | XR1200X |
| 42893-07 | CAP, left | XR1200X | |
| 5 | 42899-08 | BOLT KIT (4) | XR1200X |
| 6 | 42943-08 | CALIPER ASSEMBLY, left | XR1200X |
| 7 | 42944-08 | CALIPER ASSEMBLY, right | XR1200X |
| 8 | 44160-00 | BOLT (2) | XR1200X |
BRAKE CALIPER, REAR - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 40968-11 | CALIPER ASSEMBLY (silver) | XL1200C, XL1200CP, XL1200V, XL883L |
| 42881-11 | CALIPER ASSEMBLY (black) | XL1200N, XL1200X, XL883N, XL883R | |
| 2 | 42823-04 | BOOT, bushing | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 42824-04 | BOOT, pin | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 42875-07 | BLEEDER SCREW, w/ O-ring | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 42893-07 | CAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 42834-04 | PISTON KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 42029-07 | PAD KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 42837-04 | PAD PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 42838-04 | PLUG | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 42839-04 | SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 42840-04 | DAMPER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 43528-04 | SEAL KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 44178-04 | PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 44184-04 | PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 44440-04 | DECAL | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
BRAKE CALIPER, REAR - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 42310-08 | PAD KIT | XR1200X |
| 2 | 42824-04 | BOOT, pin | XR1200X |
| 3 | 42834-04 | PISTON KIT, w/ 43528-04 | XR1200X |
| 4 | 42837-04 | PAD PIN | XR1200X |
| 5 | 42838-04 | PLUG | XR1200X |
| 6 | 42839-04 | SPRING | XR1200X |
| 7 | 42840-04 | DAMPER | XR1200X |
| 8 | 42875-07 | BLEEDER SCREW, w/ O-ring | XR1200X |
| 9 | 42892-08 | BRACKET ASSEMBLY, w/ 42824-04, 42840-04 | XR1200X |
| 10 | 42893-07 | CAP | XR1200X |
| 11 | 42900-08 | BOLT & SLEEVE KIT | XR1200X |
| 12 | 42948-08 | CALIPER ASSEMBLY, w/ 1, 3, 4, 5, 6, 8, 9, 10, 11 & 14 | XR1200X |
| 13 | 43528-04 | SEAL KIT | XR1200X |
| 14 | 44184-04 | PIN | XR1200X |
WHEELS, FRONT, CAST - 883L/N/R, 1200C/CP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 2 | 6594 | WASHER | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 3 | 7813A | NUT | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 4 | 9276A | BALL BEARING, 25mm (2) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 5 | 11804 | SPACER, right | XL1200C, XL1200CP, XL883L |
| 43358-08 | SPACER, right | XL883N, XL883R | |
| 6 | 40999-87 | VALVE STEM | XL1200C, XL1200CP |
| 7 | 41123-79 | VALVE CAP | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 8 | 41242-08 | SPACER, left | XL1200C, XL1200CP, XL883L |
| 43522-08 | SPACER, left | XL883N, XL883R | |
| 9 | 41628-08 | AXLE | XL1200C, XL1200CP, XL883L |
| 43895-08 | AXLE | XL883N, XL883R | |
| 10 | 43157-83A | VALVE STEM ASSEMBLY, w/ 54321-85 | XL883L, XL883N, XL883R |
| 11 | 43499-08 | WHEEL ASSEMBLY, 19 in. (13 spoke) (black) w/o bearings & sleeves | XL883R |
| 47875-09A | WHEEL ASSEMBLY, 19 in. (13 spoke) (black) w/o bearings & sleeves | XL883N | |
| 43689-11 | WHEEL ASSEMBLY, 18 in. (5 spoke) (black) w/o bearings & sleeves (not shown) | XL883L | |
| 55018-11 | WHEEL ASSEMBLY, 16 in. (5 spoke) (chrome) w/o bearings & sleeves (not shown) | XL1200C, XL1200CP | |
| 55074-11 | WHEEL ASSEMBLY, 16 in. (5 spoke) (black) w/o bearings & sleeves (not shown) | XL1200CP | |
| 12 | 43355-00 | HUB PLATE (flat black) | XL883N |
| 43359-00 | HUB PLATE (silver) | XL883L | |
| 13 | 43906-08 | SPACER | XL883N, XL883R |
| 11888 | SPACER | XL1200C, XL1200CP, XL883L | |
| 14 | 44136-00 | BRAKE DISC, right | XL883R |
| 15 | 44156-00 | BRAKE DISC, left | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 16 | 54321-85 | NUT | XL883L, XL883N, XL883R |
| 17 | 40879-11A | TIRE | XL883L |
| 43258-07B | TIRE | XL883N, XL883R | |
| 55035-11 | TIRE | XL1200C, XL1200CP | |
| 18 | 95595-84A | WHEEL WEIGHT, 5 grams (silver) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
WHEEL, FRONT, CAST - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | XR1200X |
| 2 | 6594 | WASHER | XR1200X |
| 3 | 7813A | NUT | XR1200X |
| 4 | 9276A | BALL BEARING, 25mm (2) | XR1200X |
| 5 | 11804 | SPACER (2) | XR1200X |
| 6 | 41123-79 | VALVE CAP | XR1200X |
| 7 | 41628-08 | AXLE (front) | XR1200X |
| 8 | 41748-08 | SLEEVE | XR1200X |
| 9 | 43343-10 | WHEEL ASSEMBLY, 18 in. (3 spoke) (black w/ stripe) w/o bearings & sleeves | XR1200X |
| 10 | 43157-83A | VALVE STEM ASSEMBLY, w/ 54321-85 | XR1200X |
| 11 | 40879-11A | TIRE | XR1200X |
| 12 | 54321-85 | NUT | XR1200X |
| 13 | 95594-84A | WHEEL WEIGHT, 5 grams (black) | XR1200X |
| 14 | 41822-10 | BRAKE DISC (2) | XR1200X |
WHEELS, FRONT, LACED - 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 2 | 6594 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 3 | 7813A | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 4 | 9276A | BALL BEARING, 25mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 5 | 41123-79 | VALVE CAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 6 | 41426-07 | RIM, 19 in. (black) | XL1200N |
| 41389-10 | RIM, 16 in. (black) | XL1200CP, XL1200X | |
| 43662-80B | RIM, 21 in. (chrome) | XL1200V | |
| 55127-11 | RIM, 16 in. (chrome) | XL1200C, XL1200CP | |
| 7 | 40759-05 | SPOKE & NIPPLE KIT, 21 in. rim - long (chrome) (set of 20) | XL1200V |
| 40760-05 | SPOKE & NIPPLE KIT, 21 in. rim - short (chrome) (set of 20) | XL1200V | |
| 40762-05 | SPOKE & NIPPLE KIT, 19 in. rim - long (chrome) (set of 20) | XL1200N | |
| 40761-05 | SPOKE & NIPPLE KIT, 19 in. rim - short (chrome) (set of 20) | XL1200N | |
| 47887-10 | SPOKE & NIPPLE KIT, 16 in. rim (set of 32) | XL1200C, XL1200CP, XL1200X | |
| 8 | 43831-08 | WHEEL ASSEMBLY, 19 in.(black) w/o bearings & sleeves | XL1200N |
| 41388-10 | WHEEL ASSEMBLY, 16 in. (black) w/o bearings & sleeves | XL1200CP, XL1200X | |
| 43557-08 | WHEEL ASSEMBLY, 21 in. (chrome) w/o bearings & sleeves | XL1200V | |
| 55126-11 | WHEEL ASSEMBLY, 16 in. (chrome) w/o bearings & sleeves | XL1200C, XL1200CP | |
| 9 | 43358-08 | SPACER, right | XL1200N, XL1200V |
| 11804 | SPACER, right | XL1200C, XL1200CP, XL1200X | |
| 10 | 43522-08 | SPACER, left | XL1200N, XL1200V |
| 41242-08 | SPACER, left | XL1200C, XL1200CP, XL1200X | |
| 11 | 43895-08 | AXLE | XL1200N, XL1200V |
| 41628-08 | AXLE | XL1200C, XL1200CP, XL1200X | |
| 12 | 43906-08 | SPACER | XL1200N, XL1200V |
| 11888 | SPACER | XL1200C, XL1200CP, XL1200X | |
| 13 | 44156-00 | BRAKE DISC | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 14 | 54321-85 | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 15 | 41188-06 | INNER TUBE | XL1200N |
| 40558-82 | INNER TUBE | XL1200X | |
| 40572-11 | INNER TUBE | XL1200C, XL1200CP | |
| 43140-80 | INNER TUBE | XL1200V | |
| 16 | 43258-07B | TIRE | XL1200N |
| 55035-11 | TIRE | XL1200C, XL1200CP, XL1200X | |
| 43100004 | TIRE | XL1200V | |
| 17 | 43145-47 | RIM STRIP | XL1200N |
| 40875-11 | RIM STRIP | XL1200C, XL1200CP, XL1200X | |
| 43939-89 | RIM STRIP | XL1200V | |
| 18 | 95595-84A | WHEEL WEIGHT, 5 grams (silver) | XL1200N, XL1200V |
| 95594-84A | WHEEL WEIGHT, 5 grams (black) | XL1200C, XL1200CP, XL1200X |
WHEELS, REAR, CAST - 883L/N/R, 1200C/CP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3899 | SCREW (5) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 2 | 6516HW | WASHER (5) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 3 | 6551 | WASHER | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 4 | 8190 | NUT | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 5 | 9276A | BALL BEARING, 25mm (2) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 7 | 40930-05 | SPACER, right | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 8 | 40999-87 | VALVE STEM | XL1200C, XL1200CP |
| 9 | 41012-08 | WHEEL ASSEMBLY, 16 in. (13 spoke) (black) w/o bearings & sleeves | XL883R |
| 47878-09A | WHEEL ASSEMBLY, 16 in. (13 spoke) (black) w/o bearings & sleeves | XL883N | |
| 55019-11 | WHEEL ASSEMBLY, 16 in. (5 spoke) (chrome) w/o bearings & sleeves (not shown) | XL1200C, XL1200CP | |
| 55076-11 | WHEEL ASSEMBLY, 16 in. (5 spoke) (black) w/o bearings & sleeves (not shown) | XL1200CP | |
| 44012-11 | WHEEL ASSEMBLY, 17 in. (5 spoke) (black) w/o bearings & sleeves (not shown) | XL883L | |
| 10 | 41123-79 | VALVE CAP | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 11 | 41176-08 | AXLE ASSEMBLY | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 12 | 41229-08 | RETAINING RING | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 13 | 41242-08 | SPACER, left | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 14 | 41833-08 | BRAKE DISC | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 15 | 43157-83A | VALVE STEM ASSEMBLY, w/ 54321-85 | XL883L, XL883N, XL883R |
| 16 | 40878-11 | TIRE | XL883N, XL883R |
| 43216-11 | TIRE | XL883L | |
| 40878-11 | TIRE | XL1200C, XL1200CP | |
| 17 | 43567-92 | SCREW (5) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 18 | 43905-08 | SLEEVE | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
| 19 | 54321-85 | NUT | XL883L, XL883N, XL883R |
| 20 | 95594-84A | WHEEL WEIGHT, 5 grams (black) (5) | XL1200CP |
| 95595-84A | WHEEL WEIGHT, 5 grams (silver) (4) | XL1200C, XL1200CP, XL883L, XL883N, XL883R |
WHEEL, REAR, CAST - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3899 | SCREW (5) | XR1200X |
| 2 | 6516HW | WASHER (5) | XR1200X |
| 3 | 6551 | WASHER (2) | XR1200X |
| 4 | 8190 | NUT | XR1200X |
| 5 | 9276A | BALL BEARING, 25mm (2) | XR1200X |
| 6 | 40930-05 | SPACER, left | XR1200X |
| 7 | 41123-79 | VALVE CAP | XR1200X |
| 8 | 41229-08 | RETAINING RING | XR1200X |
| 9 | 41627-08 | AXLE ASSEMBLY | XR1200X |
| 10 | 41730-08 | SPACER, right | XR1200X |
| 11 | 41833-08 | BRAKE DISC | XR1200X |
| 12 | 41858-08 | SLEEVE | XR1200X |
| 13 | 43348-10 | WHEEL ASSEMBLY, 17 in., w/o bearings & sleeve | XR1200X |
| 14 | 43157-83A | VALVE STEM ASSEMBLY, w/ 54321-85 | XR1200X |
| 15 | 43567-92 | SCREW (5) | XR1200X |
| 16 | 54321-85 | NUT | XR1200X |
| 17 | 95594-84A | WHEEL WEIGHT, 5 grams (4) | XR1200X |
| 18 | 43200011 | TIRE | XR1200X |
WHEELS, REAR, LACED - 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3899 | SCREW (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 2 | 6516HW | WASHER (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 3 | 6551 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 4 | 8190 | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 5 | 9276A | BALL BEARING, 25mm (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 6 | 40558-82 | INNER TUBE | XL1200V |
| 40572-11 | INNER TUBE | XL1200C, XL1200CP, XL1200N, XL1200X | |
| 7 | 40930-05 | SPACER, wheel bearing, sprocket side | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 8 | 41082-08 | WHEEL ASSEMBLY, 16 in. (chrome) w/o bearings & sleeves | XL1200C, XL1200CP, XL1200V |
| 41478-10 | WHEEL ASSEMBLY, 16 in. (black) w/o bearings & sleeves | XL1200CP, XL1200X | |
| 43832-08 | WHEEL ASSEMBLY, 16 in. (black) w/o bearings & sleeves | XL1200N | |
| 9 | 41123-79 | VALVE CAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 10 | 41176-08 | AXLE ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 11 | 41229-08 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 12 | 41242-08 | SPACER, disk side | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 13 | 41833-08 | BRAKE DISC | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 14 | 43017-07 | RIM, laced wheel, 16 in. (black) | XL1200CP, XL1200N, XL1200X |
| 43085-97 | RIM, laced wheel, 16 in. (chrome) | XL1200C, XL1200CP, XL1200V | |
| 15 | 43241-05 | SPOKE & NIPPLE KIT, 16 in. rim (chrome) (set of 40) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 16 | 43147-40 | RIM STRIP | XL1200V |
| 40875-11 | RIM STRIP | XL1200C, XL1200CP, XL1200N, XL1200X | |
| 17 | 40878-11 | TIRE | XL1200C, XL1200CP, XL1200N, XL1200X |
| 43200007 | TIRE | XL1200V | |
| 18 | 43567-92 | SCREW (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 19 | 43905-08 | SLEEVE, bearing spacer | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 20 | 54321-85 | NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 21 | 95595-84A | WHEEL WEIGHT, 5 grams (silver) (LH - chrome wheel) | XL1200C, XL1200CP, XL1200N, XL1200V |
| 95594-84A | WHEEL WEIGHT, 5 grams (black) (LH - black wheel) | XL1200CP, XL1200X |
FORK BRACKETS, FRONT - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3056 | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4359 | SCREW (2) | XL1200V |
| 3 | 4352 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 4993 | BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 6611 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 45611-86 | RETAINING RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 45966-04 | BRACKET, upper | XL1200V |
| 46009-10 | BRACKET, upper (not shown) | XL1200X | |
| 46758-07 | BRACKET, upper (black) | XL1200N, XL883N, XL883R | |
| 46997-11 | BRACKET, upper (not shown) | XL883L | |
| 49419-11 | BRACKET, upper (not shown) | XL1200C, XL1200CP | |
| 8 | 46014-10 | BRACKET, lower, w/ bearing, seal & retaining ring (not shown) | XL1200X |
| 46126-04 | BRACKET, lower, w/ bearing, seal & retaining ring | XL1200V | |
| 46767-07 | BRACKET, lower, w/ bearing, seal & retaining ring | XL1200N, XL883N, XL883R | |
| 46998-11 | BRACKET, lower, w/ bearing, seal & retaining ring | XL883L | |
| 49422-11 | BRACKET, lower, w/ bearing, seal & retaining ring | XL1200C, XL1200CP | |
| 9 | 48184-01 | SEAL, tapered bearing | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 48300-60 | ROLLER BEARING, w/ cup (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 48315-60 | BEARING CUP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 68041-04 | COVER, upper triple clamp | XL1200V |
FORK BRACKETS, FRONT - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW | XR1200X |
| 2 | 4352 | SCREW (5) | XR1200X |
| 3 | 4993 | BOLT | XR1200X |
| 4 | 6611 | WASHER | XR1200X |
| 5 | 45155-08 | GUIDE | XR1200X |
| 6 | 45611-86 | RETAINING RING | XR1200X |
| 7 | 48184-01 | SEAL, tapered bearing (2) | XR1200X |
| 8 | 48300-60 | ROLLER BEARING, w/ cup (2) | XR1200X |
| 9 | 48315-60 | BEARING CUP (2) | XR1200X |
| 10 | 46927-10 | BRACKET, lower, w/ bearing, seal & retaining ring | XR1200X |
| 11 | 46928-10 | BRACKET, upper | XR1200X |

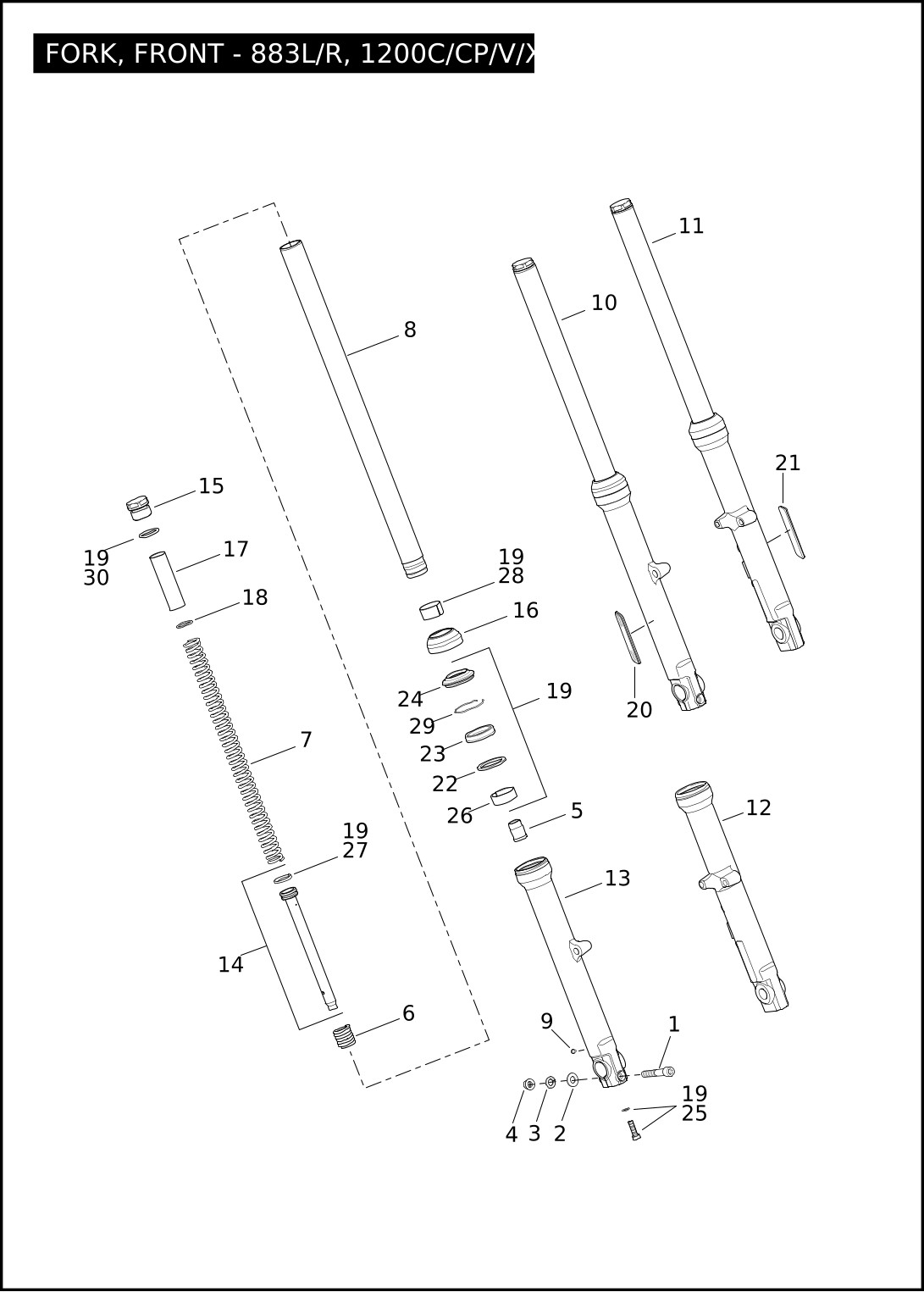

FORK, FRONT - 883L/R, 1200C/CP/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4029A | SCREW | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 2 | 6701 | WASHER | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 3 | 7038 | LOCKWASHER | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 4 | 7783 | NUT | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 5 | 45361-90 | LOWER STOP (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 6 | 45374-87 | SPRING (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 7 | 10417 | SPRING (2) | XL1200X |
| 45376-09 | SPRING (2) | XL883R | |
| 46245-09 | SPRING (2) | XL1200C, XL1200CP | |
| 46267-05 | SPRING (2) | XL883L | |
| 45500142 | SPRING (2) | XL1200V | |
| 8 | 45395-09 | SLIDER TUBE, w/ bushing (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883R |
| 46218-05 | SLIDER TUBE, w/ bushing (2) | XL883L | |
| 9 | 45790-80 | DRAIN SCREW, w/ washer (2) | XL1200V, XL883R |
| 10 | 49400-11 | FORK SLIDER & TUBE ASSEMBLY, right | XL883L |
| 49410-11 | FORK SLIDER & TUBE ASSEMBLY, right (not shown) | XL1200C, XL1200CP | |
| 45988-10 | FORK SLIDER & TUBE ASSEMBLY, right (not shown) | XL1200X | |
| 46453-09 | FORK SLIDER & TUBE ASSEMBLY, right (not shown) | XL883R | |
| 45400042 | FORK SLIDER & TUBE ASSEMBLY, right (not shown) | XL1200V | |
| 11 | 49382-11 | FORK SLIDER & TUBE ASSEMBLY, left | XL883L |
| 49409-11 | FORK SLIDER & TUBE ASSEMBLY, left (not shown) | XL1200C, XL1200CP | |
| 45968-10 | FORK SLIDER & TUBE ASSEMBLY, left (not shown) | XL1200X | |
| 46454-09 | FORK SLIDER & TUBE ASSEMBLY, left (not shown) | XL883R | |
| 45400041 | FORK SLIDER & TUBE ASSEMBLY, left (not shown) | XL1200V | |
| 12 | 49401-11 | SLIDER ASSEMBLY, left | XL883L |
| 46075-04 | SLIDER ASSEMBLY, left (not shown) | XL1200V | |
| 46450-08 | SLIDER ASSEMBLY, left (not shown) | XL883R | |
| 48850-10 | SLIDER ASSEMBLY, left (not shown) | XL1200X | |
| 49411-11 | SLIDER ASSEMBLY, left (not shown) | XL1200C, XL1200CP | |
| 13 | 49403-11 | SLIDER ASSEMBLY, right | XL883L |
| 46076-04 | SLIDER ASSEMBLY, right (not shown) | XL1200V | |
| 46449-08 | SLIDER ASSEMBLY, right (not shown) | XL883R | |
| 48849-10 | SLIDER ASSEMBLY, right (not shown) | XL1200X | |
| 49412-11 | SLIDER ASSEMBLY, right (not shown) | XL1200C, XL1200CP | |
| 14 | 10627 | DAMPER TUBE, w/ ring (2) | XL1200X |
| 45458-09 | DAMPER TUBE, w/ ring (2) | XL1200C, XL1200CP | |
| 45925-09 | DAMPER TUBE, w/ ring (2) | XL1200V, XL883R | |
| 45938-92 | DAMPER TUBE, w/ ring (2) | XL883L | |
| 15 | 45996-87 | CAP (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 16 | 46002-87 | COVER (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 17 | 48791-09 | SPRING COLLAR (2) | XL1200C, XL1200CP, XL1200V, XL883R |
| 18 | 48738-07 | WASHER (2) | XL1200C, XL1200CP, XL1200V, XL883R |
| 19 | 49378-09 | FRONT FORK SERVICE KIT | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 20 | 59481-00 | REFLECTOR, amber - right | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 21 | 59482-00 | REFLECTOR, amber - left | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 22 | 45377-87 | SPACER SEAL | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 23 | 45378-87 | OIL SEAL | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 24 | 45401-87 | DUST SEAL | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 25 | 45405-75A | SCREW | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 26 | 45461-87 | GUIDE BUSHING | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 27 | 45460-90 | PISTON RING (2) | XL1200C, XL1200CP, XL883L |
| 45462-87 | PISTON RING (2) | XL1200V, XL1200X, XL883R | |
| 28 | 45465-87 | SLIDE BUSHING | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 29 | 45905-87 | STOPPER RING | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 30 | 45984-87 | O-RING | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
FORK, FRONT - 883N, 1200N
| Index No. | Part No. | Description | Model(s) |
| 1 | 4029A | SCREW | XL1200N, XL883N |
| 2 | 6701 | WASHER | XL1200N, XL883N |
| 3 | 7038 | LOCKWASHER | XL1200N, XL883N |
| 4 | 7783 | NUT | XL1200N, XL883N |
| 5 | 45374-87 | SPRING (2) | XL1200N, XL883N |
| 6 | 45361-90 | LOWER STOP (2) | XL1200N, XL883N |
| 7 | 45451-07 | FORK GAITERS (2) | XL1200N, XL883N |
| 8 | 45790-80 | DRAIN SCREW, w/ washer (2) | XL1200N, XL883N |
| 9 | 45996-87 | CAP (2) | XL1200N, XL883N |
| 10 | 46218-05 | SLIDER TUBE, w/ bushing (2) | XL1200N, XL883N |
| 11 | 47299-07 | SPRING (2) | XL1200N, XL883N |
| 12 | 47313-07 | COMPRESSION PIPE, w/ ring (2) | XL1200N, XL883N |
| 13 | 48714-08 | FORK ASSEMBLY, left | XL1200N, XL883N |
| 14 | 48715-08 | FORK ASSEMBLY, right | XL1200N, XL883N |
| 15 | 48716-08 | SLIDER ASSEMBLY, right | XL1200N, XL883N |
| 16 | 48726-08 | SLIDER ASSEMBLY, left | XL1200N, XL883N |
| 17 | 48737-07 | COLLAR (2) | XL1200N, XL883N |
| 18 | 48738-07 | WASHER (2) | XL1200N, XL883N |
| 19 | 49378-09 | FRONT FORK SERVICE KIT | XL1200N, XL883N |
| 20 | 59481-00 | REFLECTOR, amber - right | XL1200N, XL883N |
| 21 | 59482-00 | REFLECTOR, amber - left | XL1200N, XL883N |
| 22 | 45377-87 | SPACER SEAL | XL1200N, XL883N |
| 23 | 45378-87 | OIL SEAL | XL1200N, XL883N |
| 24 | 45401-87 | DUST SEAL | XL1200N, XL883N |
| 25 | 45405-75A | SCREW | XL1200N, XL883N |
| 26 | 45461-87 | GUIDE BUSHING | XL1200N, XL883N |
| 27 | 45462-87 | PISTON RING (2) | XL1200N, XL883N |
| 28 | 45465-87 | SLIDE BUSHING | XL1200N, XL883N |
| 29 | 45905-87 | STOPPER RING | XL1200N, XL883N |
| 30 | 45984-87 | O-RING | XL1200N, XL883N |
FORK, FRONT - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4977 | BOLT (2) | XR1200X |
| 2 | 7341M | NUT (2) | XR1200X |
| 3 | 10418 | SPRING (2) | XR1200X |
| 4 | 10628 | OUTER TUBE (2) | XR1200X |
| 5 | 12200 | SPRING COLLAR (2) | XR1200X |
| 6 | 12201 | SPRING COLLAR (2) | XR1200X |
| 7 | 4250M | SCREW (4) | XR1200X |
| 8 | 4499M | BOLT | XR1200X |
| 9 | 44160-00 | BOLT (4) | XR1200X |
| 10 | 46372-10 | ROD GUIDE CASE (2) | XR1200X |
| 11 | 46681-10 | PISTON ROD, complete (2) | XR1200X |
| 12 | 48771-10 | FORK ASSEMBLY, left | XR1200X |
| 13 | 48778-10 | FORK ASSEMBLY, right | XR1200X |
| 14 | 48785-10 | SLIDER, right | XR1200X |
| 15 | 48786-10 | SLIDER, left | XR1200X |
| 16 | 49372-10 | REBOUND SPRING (2) | XR1200X |
| 17 | 49406-10 | FRONT FORK SERVICE KIT (2) | XR1200X |
| 18 | 69861-07 | REFLECTOR, amber w/black base - right | XR1200X |
| 19 | 69862-07 | REFLECTOR, amber w/black base - left | XR1200X |
| 20 | J8130.3A8 | DUST SEAL | XR1200X |
| 21 | 10926 | O-RING | XR1200X |
| 22 | 12085 | OIL SEAL | XR1200X |
| 23 | 45690-10 | PISTON RING 'B' | XR1200X |
| 24 | 45693-10 | PISTON RING | XR1200X |
| 25 | 45842-77A | RETAINING RING | XR1200X |
| 26 | 46329-06 | O-RING | XR1200X |
| 27 | 46343-06 | GUIDE BUSHING | XR1200X |
| 28 | 46346-06 | SEAL SPACER | XR1200X |
| 29 | 9742 | SLIDE BUSHING | XR1200X |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3880 | SCREW (2) | ALL |
| 2 | 4354 | SCREW (2) | ALL |
| 3 | 6718 | WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6718 | WASHER (4) | XR1200X | |
| 4 | 6738 | WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 7824 | LOCKNUT (2) | ALL |
| 7 | 54568-09 | SHOCK ABSORBER, complete, w/ bushings (LC - HDI, England) (2) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L |
| 54570-09 | SHOCK ABSORBER, complete, w/ bushings (2) | XL883R | |
| 54550-10 | SHOCK ABSORBER, complete, w/ bushings (LC - Domestic) (2) | XL1200N, XL1200X, XL883N | |
| 8 | 54671-10 | SHOCK ABSORBER, complete, left, w/ bushings | XR1200X |
| 54700-10 | SHOCK ABSORBER, complete, right, w/ bushings | XR1200X | |
| 10 | 54724-04 | COVER (chrome) (2) | XL1200C, XL1200CP, XL1200V, XL883R |
| 54741-07 | COVER (black) (2) | XL1200N, XL1200X, XL883L, XL883N | |
| INTERNATIONAL MODELS ONLY | |||
| 11 | 54570-09 | SHOCK ABSORBER, complete, w/ bushings (HDI, England, Australia, Asia-Pacific) (2) | XL1200N, XL883N |
| Index number 6 is not used in this illustration.Index number 9 is not used in this illustration. | |||

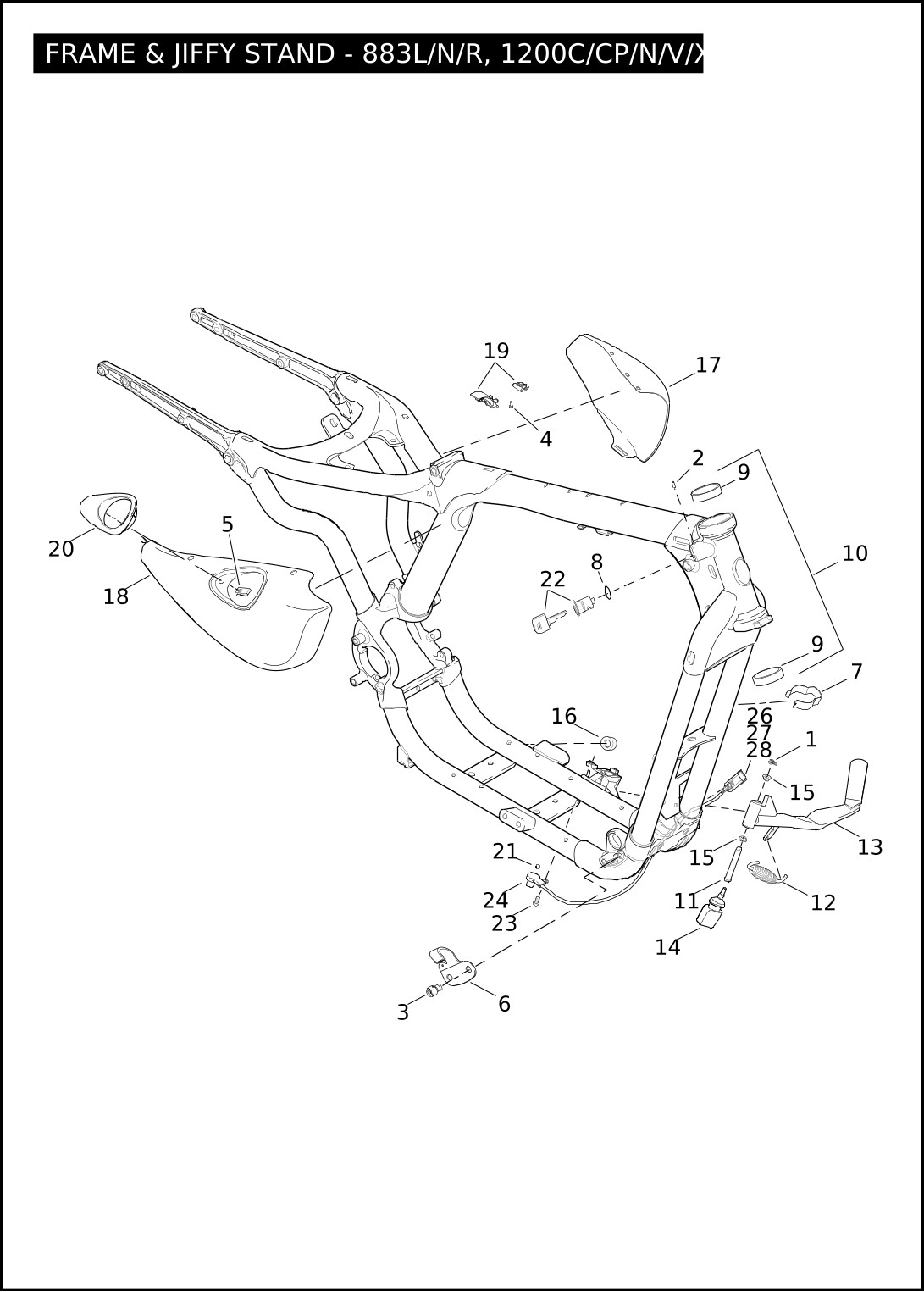

FRAME & JIFFY STAND - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | PRETZEL CLIP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 1594 | PIN LOCK | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4076 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 4991 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 8135B | PUSH NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 10179A | J-CLIP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 10289A | CLIP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 48027-99 | O-RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 48315-60 | BEARING CUP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 49376-11 | FRAME, w/ bearing cups | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 50003-89B | PIN | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 50005-85A | SPRING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 50124-09BHP | JIFFY STAND | XL883R |
| 50000025BHP | JIFFY STAND (CZ/LE - Domestic, HDI, Japan) | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N | |
| 50185-04C | JIFFY STAND (CZ/LE - England, Australia, Asia-Pacific) | XL1200N, XL1200V, XL883N | |
| 14 | 49735-08 | BUMPER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 53176-08 | BUSHING (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 62122-89A | BUMPER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 66251-04A | SIDE COVER, left (use w/ all paint except denim) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 66272-05A | SIDE COVER, left (use w/ black denim paint) | XL1200CP, XL1200N, XL1200V, XL883N | |
| 18 | 66252-04A | SIDE COVER, right (use w/ all paint except denim) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 66273-05A | SIDE COVER, right (use w/ black denim paint) | XL1200CP, XL1200N, XL1200V, XL883N | |
| 19 | 70417-04C | SIDE COVER MOUNTING KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 71472-04 | BEZEL (chrome) | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 62534-07 | BEZEL (satin chrome) | XL1200N, XL883N | |
| 21 | 90520-07 | PLUG | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 45600014 | FORK LOCK KIT, w/ 1594 & 48027-99 (specify key code) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 90300037 | LOCKSET ASSEMBLY, complete (not shown) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 4871 | SCREW (HDI, England) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 50126-08A | SENSOR (HDI, England), w/ 25, 26, 27 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 72169-07 | TERMINAL, pin, 16-20 gauge (HDI, England) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 72511-07BK | HOUSING (HDI, England) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 73213-07 | RETAINER (HDI, England) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
FRAME & JIFFY STAND - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | PRETZEL CLIP | XR1200X |
| 2 | 1594 | PIN LOCK | XR1200X |
| 3 | 3696 | SCREW | XR1200X |
| 4 | 4076 | SCREW (4) | XR1200X |
| 5 | 4549 | SCREW (6) | XR1200X |
| 6 | 6302 | WASHER (7) | XR1200X |
| 7 | 7531 | LOCKNUT (2) | XR1200X |
| 8 | 10006 | CABLE STRAP (as required) | XR1200X |
| 9 | 10179A | J-CLIP (2) | XR1200X |
| 10 | 10289A | CLIP | XR1200X |
| 11 | 11491A | GROMMET (3) | XR1200X |
| 12 | 11598 | SNAP RING | XR1200X |
| 13 | 48027-99 | O-RING | XR1200X |
| 14 | 45600014 | FORK LOCK KIT, w/ 1594 & 48027-99 (specify key code) | XR1200X |
| 90300037 | LOCKSET ASSEMBLY, complete (not shown) | XR1200X | |
| 15 | 48315-60 | BEARING CUP (2) | XR1200X |
| 16 | 48879-08A | FRAME, w/ bearing cups | XR1200X |
| 17 | 49735-08 | BUMPER | XR1200X |
| 18 | 50003-89B | PIN | XR1200X |
| 19 | 50005-85A | SPRING | XR1200X |
| 20 | 50124-09BHP | JIFFY STAND | XR1200X |
| 21 | 53176-08 | BUSHING (2) | XR1200X |
| 22 | 59400-08 | REAR FENDER SUPPORT | XR1200X |
| 23 | 59401-08 | MIDDLE FENDER SUPPORT | XR1200X |
| 24 | 62122-89A | BUMPER | XR1200X |
| 25 | 66269-08BDK | SIDE COVER, right (primed) | XR1200X |
| 66269-08CHJ | SIDE COVER, right (black) | XR1200X | |
| 26 | 66270-08BDK | SIDE COVER, left (primed) | XR1200X |
| 66270-08CHJ | SIDE COVER, left (black) | XR1200X | |
| 27 | 65316-08 | SUPPORT, muffler | XR1200X |
| 28 | 70633-08 | CLIP | XR1200X |
| 29 | 71287-08 | WIRE GUARD | XR1200X |
| 30 | 71478-08 | BEZEL (chrome) | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 31 | 4871 | SCREW (HDI, England, Asia-Pacific) | XR1200X |
| 32 | 50126-08A | SENSOR (HDI, England, Asia-Pacific) | XR1200X |
| 33 | 72169-07 | TERMINAL, pin, 16-20 gauge (HDI, England, Asia-Pacific) (3) | XR1200X |
| 34 | 72511-07BK | HOUSING (HDI, England, Asia-Pacific) | XR1200X |
| 35 | 73213-07 | RETAINER (HDI, England, Asia-Pacific) | XR1200X |
FORK, REAR, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (5) | XR1200X |
| 2 | 2708A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 3579A | SCREW (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 6702 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 6863 | PLUG | XR1200X |
| 6 | 6864A | PLUG (4) | XR1200X |
| 7 | 7766 | LOCKNUT (2) | ALL |
| 8 | 7531 | LOCKNUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 9209 | BEARING, w/ 11282 (2) | ALL |
| 10 | 11282 | RETAINING RING (2) | ALL |
| 11 | 41573-05 | ADJUSTER (2) (1-Japan, left) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 41626-08 | ADJUSTER (2) (1-Japan, left) | XR1200X |
| 13 | 41698-04 | BOLT (2) | ALL |
| 14 | 47587-05 | REAR FORK, w/ bearings & 9209 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 47682-10 | REAR FORK, w/ bearings (black) | XR1200X |
| 16 | 60367-04 | BELT GUARD | XL1200C, XL1200CP, XL1200V, XL883L, XL883N, XL883R |
| 17 | 60379-09 | BELT GUARD | XL1200N, XL1200X |
| 18 | 60403-08 | BELT GUARD | XR1200X |
| 19 | 60416-08 | DEBRIS DEFLECTOR | XR1200X |
| 20 | 60435-04A | DEBRIS DEFLECTOR | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 89579-91 | CAP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 89586-04 | CAP (2) | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 41623-05 | ADJUSTER, right (Japan) (not shown) | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 24 | 42174-09 | ADJUSTER, right (Japan) (not shown) | XR1200X |
SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3574 | SCREW (2) | XL1200V, XL1200X, XL883L |
| 3 | 51382-08 | SEAT, rider | XR1200X |
| 4 | 51383-08 | SEAT, pillion | XR1200X |
| 5 | 51532-07 | SEAT ASSEMBLY, w/ 51652-97A | XL883N |
| 6 | 51550-11 | SEAT ASSEMBLY, w/ 3574 & 51652-97A (1200CP - Solo) | XL1200CP, XL883L |
| 7 | 51551-07 | SEAT ASSEMBLY, w/ 51652-97A | XL883R |
| 8 | 51652-97A | BRACKET | XL1200C, XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 9 | 51530-07 | SEAT ASSEMBLY, w/ 51652-97A (1200CP - 2-Up) | XL1200C, XL1200CP |
| 10 | 51740-10 | BRACKET | XL1200V, XL1200X |
| 11 | 51899-07 | SEAT ASSEMBLY, w/ 51652-97A | XL1200N |
| 12 | 51911-10 | SEAT ASSEMBLY, w/ 3574 & 51740-10 | XL1200V, XL1200X |
FOOTRESTS - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3162 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3214 | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 11304 | RETAINING RING (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 11304 | RETAINING RING (4) | XL883R | |
| 4 | 11390 | RETAINING RING (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 33032-99 | FOOTPEG ASSEMBLY, w/ 33216-06 (2) | XL883R |
| 6 | 33048-72 | FOOTPEG ASSEMBLY, w/ 33189-63 (2) | XL1200C, XL1200CP, XL883R |
| 7 | 33130-07A | WEAR PEG (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 8 | 33133-06 | RUBBER, footpegs (2) | XL1200N, XL883N |
| 9 | 33134-07CAZ | FOOTPEG ASSEMBLY, w/ 33133-06, right (black) | XL1200N, XL883N |
| 10 | 33135-07CAZ | FOOTPEG ASSEMBLY, w/ 33133-06, left (black) | XL1200N, XL883N |
| 11 | 33189-63 | RUBBER, footrest (2) | XL1200C, XL1200CP, XL883R |
| 12 | 33216-99 | RUBBER, footrest (2) | XL883R |
| 13 | 42541-04 | CLEVIS, right | XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 14 | 42651-04 | SUPPORT BRACKET, left (1200CP - Forward Foot Controls) | XL1200C, XL1200CP, XL1200V, XL1200X |
| 42652-04 | SUPPORT BRACKET, right (not shown) (1200CP - Forward Foot Controls) | XL1200C, XL1200CP, XL1200V, XL1200X | |
| 15 | 42971-04 | BRACKET, right (1200CP - Mid Foot Controls) | XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 16 | 42972-04 | BRACKET, left (1200CP - Mid Foot Controls) | XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 17 | 45041-01A | CLEVIS PIN (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 45041-01A | CLEVIS PIN (4) | XL883R | |
| 18 | 49314-04 | BRACKET, right (not shown) (1200CP - 2Up) | XL1200C, XL1200CP, XL883R |
| 49315-04 | BRACKET, left (1200CP - 2Up) | XL1200C, XL1200CP, XL883R | |
| 19 | 50912-72 | SPRING WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N |
| 50912-72 | SPRING WASHER (4) | XL883R | |
| 20 | 51323-08 | FOOTPEG ASSEMBLY, right | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L |
| 21 | 51327-08 | FOOTPEG ASSEMBLY, left | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L |
| 22 | 51731-10 | CLEVIS, right (not shown) | XL1200C, XL1200CP, XL1200V, XL1200X |
| 51730-10 | CLEVIS, left | XL1200C, XL1200CP, XL1200V, XL1200X | |
| 90493-83 | HOLE PLUG (not illustrated) (as required) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R |
FOOTRESTS - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 855B | SCREW (2) | XR1200X |
| 2 | 3162 | SCREW (2) | XR1200X |
| 3 | 3048 | SCREW (2) | XR1200X |
| 4 | 4350A | SCREW (2) | XR1200X |
| 5 | 6400HB | WASHER (2) | XR1200X |
| 6 | 6874 | WASHER (2) | XR1200X |
| 7 | 11304 | RETAINING RING (4) | XR1200X |
| 8 | 33084-06 | HEEL REST | XR1200X |
| 9 | 33130-07A | WEAR PEG (2) | XR1200X |
| 10 | 33133-06 | RUBBER (4) | XR1200X |
| 11 | 33134-07CAZ | FOOTPEG ASSEMBLY, w/ 33133-06, right (2) | XR1200X |
| 12 | 33135-07CAZ | FOOTPEG ASSEMBLY, w/ 33133-06, left (2) | XR1200X |
| 13 | 45041-01A | CLEVIS PIN (2) | XR1200X |
| 14 | 45067-06 | CLEVIS PIN (4) | XR1200X |
| 15 | 45065-06 | RETURN SPRING (2) | XR1200X |
| 16 | 50912-72 | SPRING WASHER (2) | XR1200X |
| 17 | 51044-08 | BRACKET, left | XR1200X |
| 18 | 51046-09 | CLEVIS (2) | XR1200X |
| 19 | 51048-08 | BRACKET, left | XR1200X |
| 20 | 51049-08 | BRACKET, right | XR1200X |
| 21 | 90520-07 | PLUG (2) | XR1200X |
HANDLEBAR & THROTTLE CONTROL - 883L/N/R, 1200N/X, XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | XL1200N, XL1200X, XL883L, XL883N |
| 2 | 3605 | BOLT (2) | XL1200N, XL883N, XL883R |
| 3 | 4326A | SCREW (2) | XL883R, XR1200X |
| 4 | 4816A | SCREW (2) | XL883R, XR1200X |
| 5 | 6590HW | WASHER (2) | XL1200N, XL883N, XL883R |
| 6 | 6702 | WASHER (2) | XL883R, XR1200X |
| 7 | 11271 | RING RETAINER, idle | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 8 | 11272 | RING RETAINER, throttle | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 9 | 38653-01 | BOOT, throttle | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 10 | 56014-09A | HANDLEBAR | XL1200X, XL883N |
| 56085-83A | HANDLEBAR | XL1200N, XL883R, XR1200X | |
| 57209-11 | HANDLEBAR | XL883L | |
| 11 | 56115-95 | CLAMP, upper (black) | XL883R, XR1200X |
| 12 | 56116-82A | CLAMP, lower left | XL1200N, XL883N, XL883R |
| 13 | 56117-82A | CLAMP, lower right | XL1200N, XL883N, XL883R |
| 14 | 56637-08 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | XR1200X |
| 56884-07 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | XL1200N, XL1200X, XL883L, XL883N, XL883R | |
| 15 | 56639-08 | IDLE CONTROL ASSEMBLY, w/ 11271 | XR1200X |
| 56885-07 | IDLE CONTROL ASSEMBLY, w/ 11271 | XL1200N, XL1200X, XL883L, XL883N, XL883R | |
| 16 | 56508-76 | FERRULE (2) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 17 | 56666-04 | GRIP & SLEEVE, throttle | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 18 | 56667-04 | HANDLEBAR GRIP | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 19 | 70345-84 | RETAINER (4) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 20 | 70504-81 | CLIP (2) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
HANDLEBAR & THROTTLE CONTROL - 1200C/CP/V
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | XL1200C, XL1200CP, XL1200V |
| 2 | 3605 | BOLT (2) | XL1200C, XL1200CP, XL1200V |
| 3 | 3666A | SCREW (2) | XL1200C, XL1200CP |
| 4 | 6590HW | WASHER (2) | XL1200C, XL1200CP, XL1200V |
| 5 | 10006 | CABLE STRAP (as required) | XL1200C, XL1200CP |
| 6 | 11271 | RING RETAINER, idle | XL1200C, XL1200CP, XL1200V |
| 7 | 11272 | RING RETAINER, throttle | XL1200C, XL1200CP, XL1200V |
| 8 | 14448-94 | LOGO BAR & SHIELD | XL1200C, XL1200CP |
| 9 | 38653-01 | BOOT, throttle | XL1200C, XL1200CP, XL1200V |
| 10 | 55785-11 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-11 | XL1200CP, XL1200V |
| 11 | 55786-11 | IDLE CONTROL ASSEMBLY, w/ 11271 | XL1200CP, XL1200V |
| 12 | 55840-04A | HANDLEBAR (1200CP - Pull Back) | XL1200C, XL1200CP |
| 13 | 55842-04 | COVER, riser | XL1200C, XL1200CP |
| 14 | 56017-04 | RISER ASSEMBLY, w/ 14448-94 | XL1200C, XL1200CP |
| 15 | 56079-93 | HANDLEBAR (1200CP - Mini-Ape) | XL1200CP, XL1200V |
| 16 | 56508-76 | FERRULE (2) | XL1200C, XL1200CP, XL1200V |
| 17 | 56541-86A | CLAMP, lower left | XL1200CP, XL1200V |
| 18 | 56542-86A | CLAMP, lower right | XL1200CP, XL1200V |
| 19 | 56666-04 | GRIP & SLEEVE, throttle | XL1200C, XL1200CP, XL1200V |
| 20 | 56667-04 | HANDLEBAR GRIP | XL1200C, XL1200CP, XL1200V |
| 21 | 56884-07 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-11 | XL1200C, XL1200CP |
| 22 | 56885-07 | IDLE CONTROL ASSEMBLY, w/ 11271 | XL1200C, XL1200CP |
| 23 | 57472-11 | HANDLEBAR (1200CP - Drag) | XL1200CP |
| 24 | 70345-84 | RETAINER (4) | XL1200C, XL1200CP, XL1200V |
| 25 | 70504-81 | CLIP (2) | XL1200C, XL1200CP, XL1200V |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | ALL |
| 2 | 3658 | SCREW (4) | ALL |
| 3 | 10181 | CABLE STRAP (as required) | ALL |
| 4 | 11155 | RETAINING RING | ALL |
| 5 | 70345-84 | RETAINER, wiring harness (4) | ALL |
| 6 | 56394-74 | SPRING | ALL |
| 7 | 56396-74A | FRICTION SPRING | ALL |
| 8 | 56397-74C | THROTTLE ADJUSTING SCREW KIT, w/ 11155, 56394-74, & 56402-83A | ALL |
| 9 | 56402-83A | ADJUSTING SCREW | ALL |
| 10 | 71587-04 | CLIP | ALL |
| 11 | 71563-96 | HOUSING, lower right | ALL |
| 12 | 71564-96 | HOUSING, upper right | ALL |
| 13 | 71567-96 | HOUSING, upper left | ALL |
| 14 | 71568-96A | HOUSING, lower left | ALL |
| 15 | 71620-08 | SWITCH, clutch, w/ 10181 & 72266-94 | ALL |
| 16 | 71684-06A | SWITCH ASSEMBLY, engine stop & start, w/ 10181 & 72266-94 | ALL |
| 17 | 71621-08 | SWITCH ASSEMBLY, stoplight, w/ 10181 & 72266-94 | ALL |
| 18 | 71683-06A | SWITCH ASSEMBLY, right directional, w/ 10181 | ALL |
| 19 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn, w/ 10181 & 72266-94 | ALL |
| 20 | 71685-06A | SWITCH ASSEMBLY, left directional, w/ 10181 | ALL |
| 21 | 72169-07 | TERMINAL, pin, 16-20 gauge (14) | ALL |
| 22 | 72188-07BK | HOUSING, 6-way pin (black) | ALL |
| 23 | 72266-94 | SHRINK TUBE (as required) | ALL |
| 24 | 72447-07GY | HOUSING, 8-way pin (gray) | ALL |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3018A | SCREW (4) | XL1200X |
| 2 | 3210A | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 3 | 3731M | SCREW (4) | XR1200X |
| 4 | 4250M | SCREW (4) | XR1200X |
| 5 | 4978 | SCREW (4) | XL1200X |
| 6 | 7495 | NUT (4) | XR1200X |
| 7 | 7531 | LOCKNUT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 8 | 46420-10 | BRACE | XL1200X |
| 9 | 58998-83E | FRONT FENDER, prime | XL883N, XL883R |
| 60955-11 | FRONT FENDER, prime | XL1200C, XL1200CP, XL883L | |
| 59712-07A | FRONT FENDER, prime | XL1200N, XL1200V | |
| 10 | 59022-07BDK | FRONT FENDER, prime | XR1200X |
| 11 | 60574-10 | FRONT FENDER, prime | XL1200X |
| 12 | 59441-10 | FENDER SUPPORT | XR1200X |
FENDERS, REAR - 883L/R/1200C/CP (ALL), 883N/1200N/V/X (CANADA ONLY)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4017 | BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4778 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 4779 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 6192 | WASHER (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 6702 | WASHER (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 6798 | WASHER (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 7531 | LOCKNUT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 7882 | TEE SPACER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 8692 | RIVET (7) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 10200 | BRACKET, wire retention (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 10242 | CLIP, threaded | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 11474 | GROMMET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 56104-02 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 59259-90 | REFLECTOR, red | XL1200C, XL1200CP |
| 16 | 59287-92 | REFLECTOR, right (red) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 59288-92 | REFLECTOR, left (red) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 17 | 59502-04A | REAR FENDER EXTENSION | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 59673-04A | FENDER SUPPORT | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 59500034 | FENDER SUPPORT | XL1200C, XL1200CP | |
| 19 | 59723-04 | SEAT POST | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 59768-97 | FENDER SEAT NUT KIT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 59847-10 | FENDER, rear (prime) | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 59885-11 | FENDER, rear (prime) | XL1200C, XL1200CP | |
| 22 | 59902-04 | COVER, rear fender support - right (chrome) | XL1200C, XL1200CP, XL1200V, XL883R |
| 59903-04 | COVER, rear fender support - left (chrome) (not shown) | XL1200C, XL1200CP, XL1200V, XL883R | |
| 60203-06 | COVER, rear fender support - right (vivid black) | XL1200N, XL1200X, XL883L, XL883N | |
| 60204-06 | COVER, rear fender support - left (vivid black) (not shown) | XL1200N, XL1200X, XL883L, XL883N | |
| 23 | 69302-11 | WIRE GUIDE (2) | XL1200C, XL1200CP |
| 24 | 67900006 | BRACKET, reflector | XL1200C, XL1200CP |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 59256-84A | REFLECTOR, amber (HDI) (2) | XL1200C, XL1200N, XL883L, XL883R |
FENDERS, REAR - 883N/1200N/V/X (ALL EXCEPT CANADA)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2952A | SCREW | XL1200N, XL1200V, XL1200X, XL883N |
| 2 | 3085 | SCREW | XL1200N, XL1200V, XL1200X, XL883N |
| 3 | 4017 | BOLT | XL1200N, XL1200V, XL1200X, XL883N |
| 4 | 4778 | SCREW (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 5 | 4779 | SCREW (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 6 | 5531 | SCREW (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 7 | 6192 | WASHER (5) | XL1200N, XL1200V, XL1200X, XL883N |
| 8 | 6702 | WASHER (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 9 | 6703 | WASHER | XL1200N, XL1200V, XL1200X, XL883N |
| 10 | 6798 | WASHER (4) | XL1200N, XL1200V, XL1200X, XL883N |
| 11 | 7531 | LOCKNUT (4) | XL1200N, XL1200V, XL1200X, XL883N |
| 12 | 7716 | LOCKNUT | XL1200N, XL1200V, XL1200X, XL883N |
| 13 | 7882 | TEE SPACER | XL1200N, XL1200V, XL1200X, XL883N |
| 14 | 8692 | RIVET (9) | XL1200N, XL1200V, XL1200X, XL883N |
| 15 | 10323 | CLIP, threaded (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 16 | 11474 | GROMMET | XL1200N, XL1200V, XL1200X, XL883N |
| 17 | 59359-06 | REFLECTOR (red) | XL1200N, XL1200V, XL1200X, XL883N |
| 18 | 59502-04A | REAR FENDER EXTENSION | XL1200N, XL1200V, XL1200X, XL883N |
| 19 | 59723-04 | SEAT POST | XL1200N, XL1200V, XL1200X, XL883N |
| 20 | 59727-07 | FENDER SUPPORT | XL1200N, XL1200V, XL1200X, XL883N |
| 21 | 59768-97 | FENDER SEAT NUT KIT | XL1200N, XL1200V, XL1200X, XL883N |
| 22 | 59865-10 | FENDER, rear (prime) | XL1200N, XL1200V, XL1200X, XL883N |
| 23 | 60203-06 | COVER, rear fender support - right (vivid black) | XL1200N, XL1200V, XL1200X, XL883N |
| 60204-06 | COVER, rear fender support - left (vivid black) (not shown) | XL1200N, XL1200V, XL1200X, XL883N | |
| 24 | 68724-07 | MOUNTING BLOCK, w/ tape | XL1200N, XL1200V, XL1200X, XL883N |
| 25 | 68704-07 | BRACKET REFLECTOR MOUNT, right | XL1200N, XL1200V, XL1200X, XL883N |
| 26 | 69490-07 | REFLECTOR (red) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| INTERNATIONAL MODELS ONLY | |||
| 27 | 2446 | SCREW (HDI) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 28 | 59256-84A | REFLECTOR (amber) (HDI) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 29 | 68857-07 | BRACKET, reflector mount, left (HDI) | XL1200N, XL1200V, XL1200X, XL883N |
| 30 | 68966-08 | BRACKET, reflector, LH (HDI) | XL1200N, XL1200V, XL1200X, XL883N |
| 31 | 69498-08 | COVER, side reflector (HDI) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 32 | 73504-11 | BRACKET, reflector, RH (HDI) | XL1200N, XL1200V, XL1200X, XL883N |
FENDERS, REAR - XR1200X
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2445 | SCREW | XR1200X |
| 2 | 2653 | SCREW (2) | XR1200X |
| 3 | 2872W | BOLT (2) | XR1200X |
| 4 | 3574 | SCREW | XR1200X |
| 5 | 3706M | SCREW (4) | XR1200X |
| 6 | 3802W | BOLT (3) | XR1200X |
| 7 | 6703 | WASHER (2) | XR1200X |
| 8 | 7900 | LOCKNUT | XR1200X |
| 9 | 48390-06 | SPACER (3) | XR1200X |
| 10 | 51710-08 | POST, grabstrap (2) | XR1200X |
| 11 | 52429-08 | SEAT POST | XR1200X |
| 12 | 59259-90 | REFLECTOR, red (HDI) | XR1200X |
| 59259-90 | REFLECTOR, red (domestic) (2) | XR1200X | |
| 13 | 59901-08BDK | FENDER, rear (prime) | XR1200X |
| 14 | 59916-08 | FENDER ASSEMBLY, inner | XR1200X |
| 15 | 60183-08 | BRACKET, reflector (2) | XR1200X |
| 16 | 69148-01 | SUPPORT PLATE (2) | XR1200X |
| 17 | 92500-10 | TOOL KIT, w/ C2045.1AK, C2050.1AM, C2051.1AM | XR1200X |
| C2045.1AK | HEX KEY, 5mm (tool kit) (not illustrated) | XR1200X | |
| C2050.1AM | WRENCH, rear shock (tool kit) (not illustrated) | XR1200X | |
| C2051.1AM | HANDLE, wrench (tool kit) (not illustrated) | XR1200X | |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 59256-84A | REFLECTOR, amber (HDI) (2) | XR1200X |
GUARDS, SAREE
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the India market. | |||
| 1 | 2708A | SCREW | XL883R |
| 2 | 4778 | SCREW (2) | XL883R |
| 3 | 4779 | SCREW (2) | XL883R |
| 4 | 6109 | WASHER (2) | XL883R |
| 5 | 6798 | WASHER (4) | XL883R |
| 6 | 7531 | LOCKNUT | XL883R |
| 7 | 56104-02 | SCREW (2) | XL883R |
| 8 | 93511-10 | FIRST AID KIT | XL883R |
| 9 | 94435-10 | FOLDING TOOL | XL883R |
| 10 | 47200177 | COVER, shock stud | XL883R |
| 11 | 50500227 | BRACKET, support | XL883R |
| 12 | 60300007 | SAREE GUARD, left - rear | XL883R |
| 13 | 60300008 | SAREE GUARD, right | XL883R |
| 14 | 60300009 | SAREE GUARD, left - front | XL883R |
LICENSE PLATE BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2508 | SCREW | XL1200C, XL1200CP |
| 2 | 2607 | SCREW | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3085 | SCREW | XL1200C, XL1200CP | |
| 3 | 2773 | SCREW (2) | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 5403B | BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 6703 | WASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 6716 | WASHER (2) | XL1200C, XL1200CP |
| 7 | 7716 | LOCKNUT | XL1200N, XL1200V, XL1200X, XL883N |
| 8 | 7792 | NUT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 59259-90 | REFLECTOR, red | XL1200N, XL1200X, XL883N, XR1200X |
| 10 | 59984-73 | BRACKET, license plate | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 59986-75 | SUPPORT, license plate bracket | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 59988-72A | REFLECTOR, license plate bracket | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 60001-55 | CLAMP, license plate bracket | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 60225-08BHP | BRACKET, license plate | XL1200C, XL1200CP |
| 15 | 60318-07 | LICENSE PLATE BRACKET MOUNT ASSEMBLY, left w/ 5403B, 7716, 60375-10 & 68702-07 | XL1200N, XL1200V, XL1200X, XL883N |
| 16 | 60375-10 | ILLUMINATOR, license plate w/ 73152-96BK, & 73191-96 | XL1200N, XL1200V, XL1200X, XL883N |
| 17 | 68257-08 | LICENSE PLATE MODULE | XR1200X |
| 18 | 68561-09 | BRACKET, reflector | XR1200X |
| 19 | 68702-07 | BRACKET ADJUST, license plate | XL1200N, XL1200V, XL1200X, XL883N |
| 20 | 73152-96BK | SOCKET HOUSING, 2-way (black) | XL1200N, XL1200V, XL1200X, XL883N |
| 21 | 73191-96 | SOCKET TERMINAL, 16-20 awg (2) | XL1200N, XL1200V, XL1200X, XL883N |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 927A | SCREW (India) | XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 23 | 60188-08 | BRACKET, w/ 59259-90 (HDI, England, Japan, Asia-Pacific) | XL1200N, XL1200X, XL883N, XR1200X |
| 24 | 60901-07 | LICENSE PLATE MODULE (HDI) | XL1200N, XL1200X, XL883N |
| 25 | 10800006 | P-CLAMP, 39mm (India) | XL1200N, XL883L, XL883N, XL883R |
| 26 | 67900079 | BRACKET (India) | XL1200X |
| 27 | 67900088 | LICENSE PLATE, front (India) | XL1200N, XL883N, XL883R |
| 67900089 | LICENSE PLATE, front (India) | XL1200X, XL883L | |
| 28 | 67900093 | LICENSE PLATE, rear (India) | XL1200N, XL1200X, XL883L, XL883N, XL883R |
FUEL TANK - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 4758A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4771 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 3 | 6702 | WASHER (4) | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 4 | 7531 | LOCKNUT (2) | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 5 | 27067-07A | VENTLINE, tank-to-valve, w/ 27250-96B | XL1200C, XL1200CP, XL1200N, XL883L, XL883N, XL883R |
| 27071-10 | VENTLINE, tank-to-valve, w/ 27250-96B | XL1200V, XL1200X | |
| 6 | 27096-04A | VENTLINE, vapor valve-to-atmosphere | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 27250-96B | CONNECTOR, 90 degree | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 8 | 28911-04A | HOSE, vapor valve-to-evaporative canister (California) | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 9 | 61109-85D | GASKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 61272-92C | FUEL CAP ASSEMBLY, w/ 61109-85D | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 61289-07A | FUEL CAP ASSEMBLY, vented, w/ 61109-85D | XL1200N, XL883N | |
| 11 | 61405-07 | FUEL TANK ASSEMBLY (prime) | XL1200N, XL883N, XL883R |
| 61724-10 | FUEL TANK ASSEMBLY (prime) | XL1200V, XL1200X | |
| 12 | 62150-85 | VAPOR VALVE | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 62213-07 | FUEL TANK ASSEMBLY (prime) | XL1200C, XL1200CP, XL883L |
| 14 | 70903-04 | TRIM, left | XL1200C, XL1200CP, XL883L |
| 15 | 70904-04 | TRIM, left | XL1200N, XL1200V, XL1200X, XL883N, XL883R |
| 16 | 70917-04 | TRIM, right | XL1200N, XL1200V, XL1200X, XL883N, XL883R |
| 17 | 70919-04 | TRIM, right | XL1200C, XL1200CP, XL883L |
| 18 | 89579-91 | CAP | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 19 | 89586-04 | CAP | XL1200C, XL1200CP, XL1200N, XL1200X, XL883L, XL883N, XL883R |
FUEL TANK - XR1200X
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 1081A | SCREW (6) | XR1200X |
| 2 | 3059 | SCREW (4) | XR1200X |
| 3 | 3060 | SCREW (4) | XR1200X |
| 4 | 3485A | SCREW | XR1200X |
| 5 | 4553 | SCREW | XR1200X |
| 6 | 5845 | BUSHING (3) | XR1200X |
| 7 | 6400HB | WASHER (3) | XR1200X |
| 8 | 7531 | LOCKNUT | XR1200X |
| 9 | 8102 | SPEEDNUT | XR1200X |
| 10 | 11570 | O-RING | XR1200X |
| 11 | 11668 | PAD (8) | XR1200X |
| 12 | 27096-04A | VENT LINE, vapor valve-to-atmosphere | XR1200X |
| 13 | 27200-08 | VENT LINE, fuel tank | XR1200X |
| 14 | 61392-08 | FUEL TANK | XR1200X |
| 15 | 61572-08A | FILLER CAP | XR1200X |
| 16 | 61573-08A | O-RING | XR1200X |
| 17 | 61574-08 | TOP PLATE | XR1200X |
| 18 | 61576-08 | CLAMP RING | XR1200X |
| 19 | 61577-08 | TRIM RING | XR1200X |
| 20 | 62881-00 | BUSHING, rubber (6) | XR1200X |
| 21 | 66271-08BDK | COVER, fuel cell (primed) | XR1200X |
| 22 | 89586-04 | CAP | XR1200X |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 1081A | SCREW (5) | ALL |
| 2 | 56871-08 | BRACKET | XR1200X |
| 3 | 75268-07E | FUEL PUMP MODULE, w/ fuel sender harness | ALL |
| NOTE: Includes the following parts. | |||
| 4 | 1091 | SCREW (3) | ALL |
| 5 | 10181 | CABLE STRAP (3) | ALL |
| 6 | 10303 | CLAMP, pump assembly | ALL |
| 7 | 10304 | CLAMP, tube | ALL |
| 8 | 61015-04A | PRESSURE REGULATOR ASSEMBLY | ALL |
| 9 | 61213-04A | RETAINING CLIP (2) | ALL |
| 10 | 75301-07 | SEAL, cover plate | ALL |
| 11 | 75302-07B | SENSOR, fuel level w/ retaining ring | ALL |
| 12 | 75304-07A | FUEL FILTER KIT, w/ 10181, 10303, strainer & filter element | ALL |
| 13 | 75305-07A | FUEL PUMP, w/ 1091, 10181, 10303 & 10304 | ALL |
| 14 | 75309-07 | VALVE ASSEMBLY | ALL |
| 15 | 75317-07 | FILTER HOUSING | ALL |
FUEL TANK TRIM
| Index No. | Part No. | Description | Model(s) |
| 1 | 13566-05 | DECAL, fuel tank (left) | XL883R |
| 13567-05 | DECAL, fuel tank (right) | XL883R | |
| 2 | 62426-11 | MEDALLION, fuel tank (left) (red/black) | XL1200C, XL1200CP |
| 62439-11 | MEDALLION, fuel tank (right) (red/black) | XL1200C, XL1200CP | |
| 62580-11 | MEDALLION, fuel tank (left) (blue/black) | XL1200CP | |
| 62581-11 | MEDALLION, fuel tank (right) (blue/black) | XL1200CP | |
| Index 3Silkscreen that is only sold as part of XL883L fuel tank assemblies.Index 4Silkscreen that is only sold as part of XL1200N fuel tank assemblies.Index 5Silkscreen that is only sold as part of XL883N fuel tank assemblies.Index 6Silkscreen that is only sold as part of XR1200X fuel tank assemblies.Index 7Silkscreen that is only sold as part of XL1200X fuel tank assemblies.Index 8Silkscreen that is only sold as part of XL1200CP fuel tank assemblies.Index 9Silkscreen that is only sold as part of XL1200CP fuel tank assemblies.Index 10Silkscreen that is only sold as part of XL1200CP fuel tank assemblies.Index 11Silkscreen that is only sold as part of XL1200V fuel tank assemblies. | |||
OIL TANK & LINES - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 3696 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 7624 | LOCKNUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 9969 | HOSE CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 10014 | CLAMP (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 10080 | CLAMP (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 10142 | CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 11120 | O-RING | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 31512-04 | HOSE CLAMP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 33123-06A | PLUG, oil tank drain | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 33138-06 | SLEEVE, oil drain line | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 62338-01Y | LINE, oil feed | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 62360-10 | LINE, vent tube, w/ 10014 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 62361-10 | LINE, oil return | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 62954-10 | OIL TANK ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 63000-04B | DIPSTICK ASSEMBLY, w/ 11120 | XL1200C, XL1200CP, XL1200V, XL1200X, XL883L, XL883R |
| 62592-07A | DIPSTICK ASSEMBLY, w/ 11120 | XL1200N, XL883N | |
| 17 | 63596-06 | LINE, oil drain | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 66199-10 | BRACKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 70503-10 | HOSE CLIP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
OIL TANK & LINES- XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW (5) | XR1200X |
| 2 | 3696 | SCREW | XR1200X |
| 3 | 4705 | SCREW | XR1200X |
| 4 | 9969 | HOSE CLAMP | XR1200X |
| 5 | 10014 | CLAMP (2) | XR1200X |
| 6 | 10344 | CLAMP (2) | XR1200X |
| 7 | 10142 | CLAMP | XR1200X |
| 8 | 11120 | O-RING | XR1200X |
| 9 | 33123-06A | PLUG, oil tank drain | XR1200X |
| 10 | 33138-06 | SLEEVE, oil drain line | XR1200X |
| 11 | 62360-04A | LINE, oil vent, upper, w/ 10014 | XR1200X |
| 12 | 62888-08A | OIL TANK ASSEMBLY | XR1200X |
| 13 | 63008-08 | DIPSTICK ASSEMBLY, w/ 11120 | XR1200X |
| 14 | 63099-08 | LINE, oil feed | XR1200X |
| 15 | 63103-08 | LINE, oil vent, lower | XR1200X |
| 16 | 63596-06 | LINE, oil drain | XR1200X |
| 17 | 66199-10 | BRACKET | XR1200X |
OIL LINES & COOLER - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | XR1200X |
| 2 | 1094 | SCREW (2) | XR1200X |
| 3 | 4705 | SCREW (2) | XR1200X |
| 4 | 4886 | SCREW | XR1200X |
| 5 | 4897 | SCREW | XR1200X |
| 6 | 6110 | WASHER | XR1200X |
| 7 | 7686 | LOCKNUT | XR1200X |
| 8 | 10344 | CLAMP | XR1200X |
| 9 | 10970 | O-RING (2) | XR1200X |
| 10 | 10972 | SPACER (2) | XR1200X |
| 11 | 11110 | O-RING (2) | XR1200X |
| 12 | 11140 | O-RING (2) | XR1200X |
| 13 | 11290 | O-RING (4) | XR1200X |
| 14 | 11351 | O-RING (2) | XR1200X |
| 15 | 11384K | RETAINER, wire clip (2) | XR1200X |
| 16 | 11408 | RETAINER, wire clip (2) | XR1200X |
| 17 | 11652 | BUMPER, rubber (2) | XR1200X |
| 18 | 26064-08 | FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (2) | XR1200X |
| 19 | 26183-08 | FITTING, w/ 11290 (2) | XR1200X |
| 20 | 63050-08A | OIL COOLER | XR1200X |
| 21 | 63080-08 | LINE, front head return | XR1200X |
| 22 | 63081-08 | LINE, rear cylinder head | XR1200X |
| 23 | 63097-08 | LINE, oil cooler feed, w/ 11140, 11384K & quick connect fitting | XR1200X |
| 24 | 63098-08 | LINE, oil cooler return, w/ 11140, 11384K & quick connect fitting | XR1200X |
| 25 | 63108-08 | CLAMP | XR1200X |
| 26 | 63110-08 | BRACKET ASSEMBLY, manifold, w/ 11652 | XR1200X |
| 27 | 63111-08 | LINE, scavenge return | XR1200X |
| 28 | 63112-08 | MANIFOLD ASSEMBLY, oil tank return, w/ 10970 & 10972 | XR1200X |
| 29 | 63116-08 | MANIFOLD | XR1200X |
| 30 | 63119-08 | BRACKET | XR1200X |
| 31 | 63120-08 | LINE, front cylinder head | XR1200X |
| 32 | 63125-08 | CLAMP (2) | XR1200X |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 2535 | SCREW (3) | ALL |
| 2 | 3588 | SCREW | ALL |
| 3 | 3696 | SCREW | ALL |
| 4 | 4312C | SCREW (2) | ALL |
| 5 | 7792 | NUT | ALL |
| 6 | 10006 | CABLE STRAP (as required) | ALL |
| 7 | 65958-04A | BATTERY, w/ 4312C | ALL |
| 8 | 66194-04D | TRAY | ALL |
| 9 | 66476-04A | STRAP | ALL |
| 10 | 70003-04 | COVER, terminal | ALL |
| 11 | 70295-10 | CABLE, battery-to-starter, w/ 70578-89 | ALL |
| 12 | 70296-04A | CABLE, battery-to-ground | ALL |
| 13 | 70578-89 | RUBBER BOOT | ALL |
HEADLAMP - 883L/N/R, 1200N/X, XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 2 | 3655A | SCREW (2) | XL1200N, XL883L, XL883N, XL883R |
| 3 | 4724 | BOLT | XL1200X |
| 4 | 4748 | SCREW | XL1200X |
| 5 | 6701 | WASHER (2) | XL1200X |
| 6 | 6702 | WASHER (2) | XL1200N, XL883L, XL883N, XL883R |
| 7 | 7038 | LOCKWASHER | XL1200X |
| 8 | 7045 | LOCKWASHER | XL1200X |
| 9 | 7068 | LOCKWASHER | XL1200N, XL883L, XL883N, XL883R, XR1200X |
| 10 | 7606 | LOCKNUT | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 11 | 7800W | NUT | XL1200X |
| 12 | 7880 | NUT | XL1200N, XL883L, XL883N, XL883R, XR1200X |
| 13 | 9847 | CONNECTOR, right | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 14 | 9848 | CONNECTOR, left | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 15 | 67883-04A | ADAPTER RING | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 16 | 67667-05 | MEDALLION | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 17 | 67790-93A | BEZEL (chrome) | XL1200X, XL883L, XL883R |
| 68443-07A | BEZEL (satin chrome) | XL1200N, XL883N | |
| 69397-08 | BEZEL (black) | XR1200X | |
| 18 | 67805-92 | BRACKET (polished) | XL883L |
| 67963-05 | BRACKET (denim black / satin) | XL1200N, XL883N, XL883R | |
| 19 | 67815-59A | WASHER | XL1200N, XL883L, XL883N, XL883R, XR1200X |
| 20 | 67834-83 | TRIM (brushed) | XL883L |
| 67972-98 | TRIM (gloss black) | XL1200N, XL883N, XL883R | |
| 21 | 67865-89 | PLUG (chrome) | XL883L |
| 69449-05 | PLUG (denim black / satin) | XL1200N, XL883N, XL883R, XR1200X | |
| 22 | 68297-05 | LAMP ASSEMBLY, w/ 16, 23 & 24 | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 23 | 68329-03 | BULB | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 24 | 68380-05 | BOOT | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 25 | 73264-10 | HEADLAMP SHELL, w/ 13, 14, 27, 28, 29, 31 (black) | XL1200X |
| 26 | 69386-08 | HEADLAMP SHELL, w/ 13, 14, 27, 28, 29, 31 (black) | XR1200X |
| 69774-07A | HEADLAMP SHELL, w/ 13, 14, 27, 28, 29, 31 (black) | XL1200N, XL883L, XL883N, XL883R | |
| 27 | 72056-92 | HOUSING, female | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 28 | 73154-96BK | SOCKET HOUSING, 4-way (black) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 29 | 73191-96 | SOCKET TERMINAL, 16-20 awg (4) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 30 | 73266-10 | MOUNT | XL1200X |
| INTERNATIONAL MODELS ONLY | |||
| 7073 | LOCKWASHER (not shown) (India) (3) | XL1200X | |
| 7230 | LOCKWASHER (not shown) (India) (6) | XL1200X | |
| 7716 | LOCKNUT (not shown) (India) (3) | XL1200X | |
| 31 | 9898 | TERMINAL FLAG (2) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 32 | 53436-97 | BULB | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 33 | 68335-05 | LAMP ASSEMBLY, left (Australia, England, Japan), w/ 16, 23, 24, 32 & 34 | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 68341-05 | LAMP ASSEMBLY, right (HDI, Asia-Pacific), w/ 16, 23, 24, 32 & 34 | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X | |
| 34 | 68653-05 | SOCKET, bulb (2 spade) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 35 | 67700094 | HEADLAMP SHELL, w/ 13, 14, 27, 28, 29, 31, 7073, 7230 & 7716 (India) (not shown) | XL1200X |
HEADLAMP - 1200C/CP/V
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW | XL1200C, XL1200CP |
| 2 | 2708A | SCREW (2) | XL1200C, XL1200CP |
| 3 | 3615 | SCREW | XL1200C, XL1200CP, XL1200V |
| 4 | 4420 | SCREW | XL1200C, XL1200CP, XL1200V |
| 5 | 4748 | SCREW | XL1200C, XL1200CP, XL1200V |
| 6 | 6701 | WASHER (2) | XL1200C, XL1200CP, XL1200V |
| 7 | 6702 | WASHER (2) | XL1200C, XL1200CP |
| 8 | 7045 | LOCKWASHER | XL1200C, XL1200CP, XL1200V |
| 9 | 7778 | LOCKNUT | XL1200C, XL1200CP, XL1200V |
| 10 | 9847 | CONNECTOR, right | XL1200C, XL1200CP, XL1200V |
| 11 | 9848 | CONNECTOR, left | XL1200C, XL1200CP, XL1200V |
| 12 | 38999-11 | GUIDE, clutch cable | XL1200C, XL1200CP |
| 13 | 67667-05 | MEDALLION | XL1200C, XL1200CP, XL1200V |
| 14 | 67601-94A | GASKET (This gasket is sold seperately and is not part of items 18 & 28) | XL1200C, XL1200CP, XL1200V |
| 15 | 67746-11 | MOUNT | XL1200C, XL1200CP, XL1200V |
| 16 | 67603-94A | ADAPTER RING | XL1200CP, XL1200V |
| 67883-04A | ADAPTER RING | XL1200C | |
| 17 | 67894-93A | BEZEL | XL1200C, XL1200CP, XL1200V |
| 18 | 68297-05 | LAMP ASSEMBLY, w/ 13, 19 & 20 | XL1200C, XL1200CP, XL1200V |
| 19 | 68329-03 | BULB | XL1200C, XL1200CP, XL1200V |
| 20 | 68380-05 | BOOT | XL1200C, XL1200CP, XL1200V |
| 21 | 69681-07B | HEADLAMP SHELL, w/ 10, 11, 22, 23, 24 & 26 | XL1200C, XL1200CP, XL1200V |
| 22 | 72056-92 | HOUSING, female | XL1200C, XL1200CP, XL1200V |
| 23 | 73154-96BK | SOCKET HOUSING, 4-way (black) | XL1200C, XL1200CP, XL1200V |
| 24 | 73191-96 | SOCKET TERMINAL, 16-20 awg (4) | XL1200C, XL1200CP, XL1200V |
| 25 | 73246-11 | VISOR | XL1200C, XL1200CP |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 9898 | TERMINAL FLAG (2) | XL1200C, XL1200V |
| 27 | 53436-97 | BULB | XL1200C, XL1200V |
| 28 | 68335-05 | LAMP ASSEMBLY, left (Australia, England, Japan), w/ 13, 19, 20, 27 & 29 | XL1200C, XL1200V |
| 68341-05 | LAMP ASSEMBLY, right (HDI, Asia-Pacific), w/ 13, 19, 20, 27 & 29 | XL1200C, XL1200V | |
| 29 | 68653-05 | SOCKET, bulb (2 spade) | XL1200C, XL1200V |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | ALL |
| 2 | 7331 | ACORN NUT (2) | XL1200N, XL883N, XL883R |
| 3 | 7357 | BULLET NUT (2) | XL1200X |
| 4 | 7725 | LOCKNUT (2) | XL1200C, XL1200CP, XL1200V, XL883L, XR1200X |
| 5 | 91982-03B | MIRROR KIT, right, short (black), w/ 1, 2 | XL1200N, XL883N, XL883R |
| 6 | 91983-03B | MIRROR KIT, left, short (black), w/ 1, 2 | XL1200N, XL883N, XL883R |
| 7 | 92381-09 | MIRROR KIT, right, long (chrome), w/ 1, 4 (LH - Pull Back & Drag Handlebar) | XL1200C, XL1200CP |
| 92401-09 | MIRROR KIT, right, short (chrome), w/ 1, 4 (LH - Mini-Ape Handlebar) | XL1200CP, XL1200V, XL883L | |
| 92376-09 | MIRROR KIT, right, short (black), w/ 1, 4 | XR1200X | |
| 8 | 92400-09 | MIRROR KIT, left, long (chrome), w/ 1, 4 (LH - Pull Back & Drag Handlebar) | XL1200C, XL1200CP |
| 92402-09 | MIRROR KIT, left, short (chrome), w/ 1, 4 (LH - Mini-Ape Handlebar) | XL1200CP, XL1200V, XL883L | |
| 92377-09 | MIRROR KIT, left, short (black), w/ 1, 4 | XR1200X | |
| 9 | 91960-10 | MIRROR KIT, right, short (black), w/ 1, 3 | XL1200X |
| 10 | 91961-10 | MIRROR KIT, left, short (black), w/ 1, 3 | XL1200X |
EXHAUST SYSTEM - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 4269 | SCREW (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 4748 | SCREW (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 5414 | BOLT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 6139 | WASHER (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 6701 | WASHER (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 7593 | NUT (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 7862 | ACORN NUT | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 9955 | CLAMP, heat shield (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 27714-06 | SEAL RING (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 27719-07 | SENSOR, oxygen, w/ 27714-06, 72009-05, 72011-05 (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 64842-04 | MUFFLER, front (CR/CS/LE), rear (CR/LE) | XL883L, XL883N, XL883R |
| 64890-04 | MUFFLER, rear (CS) | XL883R | |
| 80399-04 | MUFFLER, front & rear | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X | |
| 13 | 64846-04A | HEAT SHIELD, front exhaust pipe | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 64847-04A | HEAT SHIELD, rear exhaust pipe, chrome | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 66851-07 | HEAT SHIELD, upper rear exhaust pipe, stainless steel (LH - Mid Foot Controls) | XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 16 | 65339-04 | MUFFLER INTERCONNECT BRACKET | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 64942-07 | EXHAUST PIPE, front (chrome) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 64943-07 | EXHAUST PIPE, rear (chrome) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 65184-02 | FLANGE, exhaust pipe (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 65296-95A | CLAMP, muffler (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 65302-82A | CLAMP, exhaust pipe | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 65324-83B | GASKET, exhaust port (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 65325-83A | RETAINING RING, exhaust gasket (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 65927-00 | GASKET, exhaust interconnect (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 65974-04A | BRACKET, exhaust clamp | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 72009-05 | HOUSING, 2-way pin (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 10074 | CLAMP, muffler heat shield (HDI, England, Japan, Asia-Pacific, CZ - Brazil) (4) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 29 | 64737-09 | MUFFLER, front (Japan), rear (CR/CT/CZ/LE/LF - Japan, CZ - Brazil) | XL1200C, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 64738-09 | MUFFLER, rear (CS - Japan, CZ - Brazil) | XL1200N, XL883R | |
| 64853-04 | MUFFLER, front (Australia), rear (CR/CT/CZ/LF - Australia) | XL1200C, XL1200N, XL1200V, XL883L, XL883N, XL883R | |
| 64854-04 | MUFFLER, rear (Australia) | XL1200N, XL883N, XL883R | |
| 64891-04A | MUFFLER, front (HDI, England, Asia-Pacific), rear (CR/CT - HDI, England) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 64893-04A | MUFFLER, rear (HDI, England, Asia-Pacific) | XL1200N, XL883N, XL883R | |
| 30 | 64889-04 | HEAT SHIELD, muffler, (HDI, England, Japan, Asia-Pacific, CZ - Brazil) (2) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
EXHAUST SYSTEM - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 4269 | SCREW (2) | XR1200X |
| 2 | 4549 | SCREW (2) | XR1200X |
| 3 | 4748 | SCREW (3) | XR1200X |
| 4 | 4859 | SCREW | XR1200X |
| 5 | 5416 | BOLT | XR1200X |
| 6 | 6701 | WASHER (2) | XR1200X |
| 7 | 6702 | WASHER (3) | XR1200X |
| 8 | 6930 | WASHER | XR1200X |
| 9 | 7593 | NUT (4) | XR1200X |
| 10 | 7601 | LOCKNUT | XR1200X |
| 11 | 9955 | CLAMP, heat shield (9) | XR1200X |
| 12 | 9956 | CLAMP, heat shield (2) | XR1200X |
| 13 | 27690-08 | SENSOR, oxygen, w/ 27714-06, 72009-05, 72011-05 (2) | XR1200X |
| 14 | 27714-06 | SEAL RING (2) | XR1200X |
| 15 | 64850-08 | SUPPORT BAR ASSEMBLY, exhaust | XR1200X |
| 16 | 65218-10 | MUFFLER, lower (black) | XR1200X |
| 17 | 65219-10 | MUFFLER, upper (black) | XR1200X |
| 18 | 65168-10 | HEAT SHIELD, lower (black) | XR1200X |
| 19 | 65176-10 | HEAT SHIELD, upper (black) | XR1200X |
| 20 | 65189-10 | SHIELD, collector (black) | XR1200X |
| 21 | 65197-10 | EXHAUST SHIELD ASSEMBLY, upper (black) | XR1200X |
| 22 | 65198-10 | EXHAUST SHIELD ASSEMBLY, lower (black) | XR1200X |
| 23 | 64851-09 | EXHAUST ASSEMBLY | XR1200X |
| 24 | 65328-83A | FLANGE, exhaust pipe (2) | XR1200X |
| 25 | 65240-08 | KIT, exhaust isolator w/ 4859, 6930 & 65453-08 | XR1200X |
| 26 | 65257-08 | CLAMP | XR1200X |
| 27 | 65316-08 | SUPPORT, muffler, rear | XR1200X |
| 28 | 65317-08A | GASKET, muffler inlet (2) | XR1200X |
| 29 | 65324-83B | GASKET, exhaust port (2) | XR1200X |
| 30 | 65325-83A | RETAINING RING, exhaust gasket (2) | XR1200X |
| 31 | 65453-08 | WASHER, snubbing | XR1200X |
| 32 | 72009-05 | HOUSING, 2-way pin (2) | XR1200X |
| 33 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (4) | XR1200X |
| INTERNATIONAL MODELS ONLY | |||
| 34 | 65218-10 | MUFFLER, lower (England, HDI, Asia-Pacific) (black) | XR1200X |
| 35 | 65219-10 | MUFFLER, upper (England, HDI, Asia-Pacific) (black) | XR1200X |
| 36 | 64965-08A | EXHAUST ASSEMBLY (HDI, England, Japan, Asia-Pacific) | XR1200X |
SPEEDOMETER - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2325 | SCREW (2) | XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 2361 | SCREW (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 55844-04 | HOUSING, instrument (chrome) (1200CP - Drag & Pullback Handlebar) | XL1200C, XL1200CP |
| 4 | 55846-05A | BRACKET, speedometer (chrome) (1200CP - Mini-Ape Handlebar) | XL1200CP, XL1200V |
| 55847-05A | BRACKET, speedometer (black) (1200CP - Mini-Ape Handlebar) | XL1200CP, XL1200N, XL883L, XL883N, XL883R | |
| 5 | 67037-08 | SPEEDOMETER, mph | XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 67436-08 | SPEEDOMETER, mph | XL1200C, XL1200CP, XL1200V | |
| 6 | 67089-05 | COVER, speedometer back (chrome) | XL1200V |
| 67320-95 | COVER, speedometer back (black) | XL1200CP, XL1200N, XL883L, XL883N, XL883R | |
| 7 | 67104-95 | CUSHION, rear | XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R |
| 8 | 67121-95A | CUSHION, front | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 67854-98 | SWITCH, reset | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 67880-94 | BOOT, reset switch | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 68382-07A | BEZEL ASSEMBLY, indicator lamps | XL1200C, XL1200CP |
| 13 | 68513-07 | BEZEL, indicator lamps | XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 68813-07 | HARNESS, w/ LED indicator | XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 68814-07 | HARNESS, w/ LED indicator | XL1200C, XL1200CP |
| 16 | 71980-10 | BRACKET, speedometer | XL1200X |
| 17 | 71988-10 | COVER, speedometer back | XL1200X |
| 18 | 72130-04 | HOUSING, socket 12-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 72169-07 | TERMINAL, pin, 16-20 gauge (7) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 72189-04 | SEAL, pin | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 72488-07BK | HOUSING, 12-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 72549-07 | TERMINAL, pin, 22 AWG (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 74196-04 | TERMINAL, socket, 20 AWG | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 74197-04 | SOCKET LOCK, secondary, 12-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 67041-08 | SPEEDOMETER, kph (Canada, HDI, Australia, Japan, Asia-Pacific) | XL1200N, XL1200X, XL883L, XL883N, XL883R |
| 67290-08 | SPEEDOMETER, mph/kph (England) | XL1200N, XL1200X, XL883L, XL883N, XL883R | |
| 67415-08 | SPEEDOMETER, mph/kph (England) | XL1200C, XL1200V | |
| 67416-08 | SPEEDOMETER, kph (Australia, Canada, HDI, Japan, Asia-Pacific) | XL1200C, XL1200V | |
SPEEDOMETER & TACHOMETER - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 1 | 2325 | SCREW (2) | XR1200X |
| 2 | 2361 | SCREW (4) | XR1200X |
| 3 | 70714-10 | SPEEDOMETER (black) | XR1200X |
| 4 | 67091-08 | HARNESS, instrument assembly | XR1200X |
| 5 | 67121-95A | GASKET, tachometer | XR1200X |
| 6 | 67157-08 | BRACKET, instrument mounting | XR1200X |
| 7 | 67170-08 | BACK COVER, instrument | XR1200X |
| 8 | 67174-08 | GASKET, speedometer | XR1200X |
| 9 | 67854-98 | SWITCH, reset | XR1200X |
| 10 | 74714-10 | TACHOMETER | XR1200X |
| 11 | 67880-94 | BOOT, reset switch | XR1200X |
| 12 | 68513-07 | BEZEL, indicator lamps | XR1200X |
| 13 | 72032-93 | PLUG, connector | XR1200X |
| 14 | 72033-93 | TERMINAL, socket 16-20 AWG (4) | XR1200X |
| 15 | 72130-04 | HOUSING, socket 12-way (black) | XR1200X |
| 16 | 72169-07 | TERMINAL, pin, 16-20 gauge (7) | XR1200X |
| 17 | 72189-04 | SEAL, pin (3) | XR1200X |
| 18 | 72329-08 | HOUSING, socket 5-way | XR1200X |
| 19 | 72488-07BK | HOUSING, pin 12-way (black) | XR1200X |
| 20 | 72549-07 | TERMINAL, pin, 22 AWG (5) | XR1200X |
| 21 | 74196-04 | TERMINAL, socket, 20 AWG (9) | XR1200X |
| 22 | 74197-04 | SOCKET LOCK, secondary, 12-way | XR1200X |
TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4351 | SCREW (2) | XL1200X |
| 2 | 6610 | WASHER (2) | XL1200X |
| 3 | 7038 | LOCKWASHER (2) | XL1200X |
| 4 | 7783 | NUT (2) | XL1200X |
| 5 | 68168-89A | BULB, dual contact | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 6 | 68265-04 | BALL STUD (1200CP - Mini Ape & Pullback Handlebar) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL883L, XL883N, XL883R, XR1200X |
| 67800070 | BALL STUD (1200CP - Drag Handlebar) (2) | XL1200CP | |
| 7 | 68730-07 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (2) | XL1200N, XL883N |
| 68804-06 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (2) | XR1200X | |
| 68972-00 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R | |
| 8 | 68755-07 | LENS (2) | XL1200N, XL1200X, XL883N |
| 68973-00 | LENS (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R, XR1200X | |
| 9 | 68904-00 | SOCKET ASSEMBLY, w/ vibration mount (All HDI & CZ,LC,LE Domestic - not sold seperately) (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R, XR1200X |
| 10 | 73156-96BK | SOCKET HOUSING, 6-way (black) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 11 | 73191-96 | SOCKET TERMINAL, 16-20 awg | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 12 | 73267-10 | MOUNT, turn signal (2) | XL1200X |
| 13 | 73282-10 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (2) | XL1200X |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 68163-84 | BULB, single contact (HDI) (2) | XL1200C, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 15 | 68838-06 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (HDI) (2) | XR1200X |
| 68975-00 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (HDI) (2) | XL1200C, XL1200V, XL883L, XL883R | |
| 69362-08 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (HDI) (2) | XL1200N, XL883N | |
| 16 | 73284-10 | TURN SIGNAL ASSEMBLY, w/ socket & vibration mount (HDI) (2) | XL1200X |
TAIL LAMP & TURN SIGNALS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (as required) | XL1200N, XL1200V, XL1200X, XL883N |
| 2 | 5531 | SCREW (2) | XL1200N, XL1200X, XL883N |
| 56104-02 | SCREW (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R | |
| 3 | 68163-84 | BULB, single contact (LF - Canada) (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R, XR1200X |
| 68168-89A | BULB, dual contact (Domestic) (2) | XL1200N, XL1200V, XL1200X, XL883N | |
| 68572-64B | BULB, single contact (Canada) (2) | XL1200N, XL1200X, XL883N | |
| 4 | 68277-07 | SUPPORT (2) | XL1200N, XL1200X, XL883N |
| 68480-02 | SUPPORT (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R | |
| 5 | 68278-07 | HARNESS | XL1200N, XL1200V, XL1200X, XL883N |
| 6 | 68299-07 | HOLDER, harness | XL1200N, XL1200V, XL1200X, XL883N |
| 7 | 68449-07 | TURN SIGNAL ASSEMBLY (Domestic), w/ 68168-89A, 68559-07, 68497-07 (2) | XL1200N, XL1200X, XL883N |
| 73318-09 | TURN SIGNAL ASSEMBLY (Canada), w/ 68572-64B, 68755-07 (2) | XL1200N, XL1200X, XL883N | |
| 68978-00 | TURN SIGNAL ASSEMBLY, w/ 68163-84, 68979-00 (LF - Canada) (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R | |
| 68461-09 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68497-07, 68559-07 (2) | XL1200V | |
| 8 | 68559-07 | LENS (Domestic) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 68755-07 | LENS (Canada) (2) | XL1200N, XL1200X, XL883N | |
| 68973-00 | LENS (LF - Canada) (2) | XL1200C, XL1200CP, XL1200V, XL883L, XL883R | |
| 9 | 68899-04A | HARNESS | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 68497-07 | SOCKET ASSEMBLY (CR,CS,CT,LH - All & CZ,LC,LE - Canada - not sold seperately) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 11 | 68984-01 | TURN SIGNAL ASSEMBLY, w/ 68163-84, 69066-01A, 69110-01 (2) | XR1200X |
| 12 | 69066-01A | SOCKET ASSEMBLY (HDI - not sold seperately) (2) | XR1200X |
| 13 | 69110-01 | LENS (2) | XR1200X |
| 14 | 70025-11 | HARNESS (2) | XL1200C, XL1200CP |
| 15 | 72904-01BK | HOUSING, pin, 4-way (black) (2) | XL1200N, XL1200V, XL1200X, XL883N |
| 16 | 72914-01BK | HOUSING, socket, 4-way (black) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X |
| 17 | 72990-01 | TERMINAL, pin (6) | XL1200N, XL1200V, XL1200X, XL883N |
| 18 | 72991-01 | TERMINAL, socket, 18-22 awg (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883N |
| 73191-96 | TERMINAL, socket, 16-20 awg (4) | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R, XR1200X | |
| 19 | 73102-96BK | HOUSING, pin, 2-way (black) | XL1200N, XL1200V, XL1200X, XL883N |
| 20 | 73103-96BK | HOUSING, pin, 3-way | XL1200C, XL1200CP |
| 21 | 73152-96BK | HOUSING, socket, 2-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 73152-96WE | HOUSING, socket, 2-way (white) | XR1200X |
| 23 | 73156-96BK | HOUSING, socket, 6-way (black) | XL1200N, XL1200V, XL1200X, XL883N |
| 24 | 73190-96 | TERMINAL, pin (2) | XL1200N, XL1200V, XL1200X, XL883N |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 68955-08 | HARNESS (HDI) | XL1200N, XL1200V, XL1200X, XL883N |
| 26 | 69406-09 | TURN SIGNAL ASSEMBLY, w/ 72991-01 (HDI) (2) | XL1200N, XL1200X, XL883N |
| 73358-12 | TURN SIGNAL ASSEMBLY, w/ 72991-01 (HDI) (2) | XL1200V | |
| 27 | 69530-08 | TURN SIGNAL ASSEMBLY, w/ 68163-84, 69110-01, 73191-96 (HDI) (2) | XR1200X |
TAIL LAMPS
| Index No. | Part No. | Description | Model(s) |
| 1 | 930 | SCREW | XR1200X |
| 2 | 2508 | SCREW (4) | XL1200C, XL1200CP |
| 3 | 3022A | SCREW | XL1200V, XL883L, XL883R |
| 4 | 4365 | SCREW (3) | XL1200C, XL1200CP |
| 5 | 7964 | CLIP NUT | XL1200V, XL883L, XL883R |
| 6 | 11954 | GASKET | XL1200C, XL1200CP |
| 7 | 68026-99 | SCREW (2) | XL1200V, XL883L, XL883R, XR1200X |
| 8 | 68066-99A | BASE ASSEMBLY, chromed, w/ 68296-99A & 68830-99A | XL1200V, XL883L, XL883R |
| 9 | 68140-04 | LIGHT ASSEMBLY, w/ 68369-03 & 68370-03A | XL1200N, XL1200V, XL1200X, XL883L, XL883N, XR1200X |
| 10 | 68167-04 | BULB | XL1200V, XL883L, XL883R, XR1200X |
| 11 | 68296-99A | BASE TAIL LAMP, chrome | XL1200V, XL883L, XL883R |
| 12 | 68369-03 | LENS, w/ 68026-99 (LD - HDI not sold seperately) | XL1200V, XL883L, XL883R, XR1200X |
| 13 | 68370-03A | BULB SOCKET ASSEMBLY, w/ 68167-04, 73154-96BK, 73191-96 | XL1200V, XL883L, XL883R, XR1200X |
| 14 | 68830-99A | CIRCUIT BOARD & COVER ASSEMBLY | XL1200V, XL883L, XL883R, XR1200X |
| 15 | 68899-04A | HARNESS, rear lighting, w/ 73156-96BK & 73191-96 | XL1200V, XL883L, XL883R |
| 16 | 69352-11 | TAIL LAMP | XL1200C, XL1200CP |
| 17 | 69361-11 | TAIL LAMP BASE | XL1200C, XL1200CP |
| 18 | 70025-11 | HARNESS | XL1200C, XL1200CP, XL1200V |
| 19 | 73152-96BK | SOCKET HOUSING, 2-way (black) | XL1200N, XL1200X, XL883N |
| 20 | 73154-96BK | SOCKET HOUSING, 4-way (black) | XL1200V, XL883L, XL883R, XR1200X |
| 21 | 73156-96BK | SOCKET HOUSING, 6-way (black) | XL1200V, XL883L, XL883R |
| 22 | 73191-96 | SOCKET TERMINAL, 16-20 awg | ALL |
| 22A | 73153-96BK | SOCKET HOUSING, 3-way (black) | XL1200C, XL1200CP |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 2362 | SCREW (HDI) (2) | XL1200N, XL1200X, XL883N |
| 24 | 52441-95 | BULB (HDI) | XL1200N, XL1200X, XL883N |
| 25 | 68141-04 | LIGHT ASSEMBLY (HDI), w/ 68372-03 & 69187-03A | XL1200V, XL883L, XL883R |
| 26 | 68372-03 | LENS, w/ 68026-99 (HDI) | XL1200V, XL883L, XL883R |
| 27 | 69187-03A | BULB SOCKET ASSEMBLY, w/ 68167-04, 73154-96BK, 73191-96 (HDI) | XL1200V, XL883L, XL883R, XR1200X |
| 28 | 69864-08 | TAIL LAMP ENVELOPE (HDI), w/ 68026-99 | XR1200X |
| 29 | 73504-11 | ILLUMINATOR, license plate w/ 73191-96 (HDI) | XL1200N, XL1200X, XL883N |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3026 | SCREW (2) | XL1200C, XL1200CP, XL1200V |
| 2 | 3563 | SCREW (2) | XL1200C, XL1200CP, XL1200V |
| 3 | 3124 | SCREW (3) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 4 | 4180 | SCREW (2) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 5 | 6026 | WASHER (2) | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 6 | 7041 | LOCKWASHER | XL1200C, XL1200CP, XL1200V |
| 7 | 7549A | ACORN NUT | XL1200C, XL1200CP, XL1200V |
| 8 | 7495 | NUT | ALL |
| 9 | 7531 | LOCKNUT | XL1200C, XL1200CP, XL1200V |
| 10 | 8108 | SPEEDNUT (2) | XL1200C, XL1200CP, XL1200V |
| 11 | 69049-07 | BRACKET, horn | XL1200C, XL1200CP, XL1200V |
| 12 | 69012-93A | COVER | XL1200C, XL1200CP, XL1200V |
| 13 | 69000014 | HORN, complete, w/ bracket & 7495 | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 14 | 69060-90F | HORN, w/ 7495 | XL1200C, XL1200CP, XL1200V |
| 15 | 69062-91A | CLAMP, horn wire | XL1200C, XL1200CP, XL1200V |
| 16 | 69120-91 | HORN BRACKET | XL1200C, XL1200CP, XL1200V |
| 17 | 69123-92A | RUBBER MOUNT | XL1200C, XL1200CP, XL1200V |
| 18 | 69135-04 | HORN BRACKET | XL1200N, XL1200X, XL883L, XL883N, XL883R, XR1200X |
| 19 | 6237 | WASHER (2) | XL1200C, XL1200CP, XL1200V |
WIRING HARNESS, MAIN - 883L/N/R, 1200C/CP/N/V/X (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3123 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 10039 | CABLE STRAP | XL1200V, XL1200X |
| 3 | 70640-07 | CLIP, caddy | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 56073-83 | RETAINER, h-clip | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 69200317 | WIRING HARNESS, main | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| NOTE: Includes the following parts. | |||
| 5 | 3124 | SCREW | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 7220 | LOCKWASHER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 9838 | TERMINAL RING, 1/4, 10-12 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 9898 | TERMINAL FLAG (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 10006 | CABLE STRAP (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 10065 | CABLE STRAP (15) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 10279 | CLIP, harness mount | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 10287 | CABLE STRAP (as required) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 11778 | FASTENER, push in | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 11785 | CLIP, push in fastener | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 31586-07 | RELAY (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 31797-07 | BRACKET ASSEMBLY, ignition switch | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 70466-07A | WIRE HARNESS CADDY, left | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 18 | 70598-99 | BOOT, temperature sensor | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 19 | 70642-07 | WIRE HARNESS CADDY, right | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 20 | 70664-08 | BOOT, jiffy stand sensor | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 21 | 70679-10 | CADDY, ECM & wire distribution | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 22 | 70680-10 | CADDY, RH | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 23 | 71510-04 | HOUSING, IGNITION SWITCH | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 24 | 71550-94 | LABEL, ignition switch | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 25 | 71552-94 | FACE NUT, ignition switch | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 26 | 72006-05 | TERMINAL, 16-20 gauge | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 27 | 72007-05 | HOUSING, socket, 2-way (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 28 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 29 | 72024-08 | TERMINAL, socket, 20-22 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 30 | 72066-06A | SOCKET HOUSING, 4-way, female (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 31 | 72076-00 | TERMINAL, socket (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 32 | 72077-00 | SEAL PIN (10) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 33 | 72094-06 | TERMINAL, socket, 18 gauge (5) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 34 | 72078-00 | CONNECTOR KIT, 36 position socket | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
WIRING HARNESS, MAIN - 883L/N/R, 1200C/CP/N/V/X (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200317 | WIRING HARNESS, main (continued) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| NOTE: Includes the following parts. | |||
| 35 | 72096-06 | SEAL WIRE, 18-20 AWG (yellow) (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 36 | 72124-94GY | SOCKET HOUSING, 4-way (gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 37 | 72135-06 | SECONDARY LOCK, 4-way, female (gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 38 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 39 | 72144-94 | SECONDARY LOCK, 4-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 40 | 72159-94 | SECONDARY LOCK, pin, 12-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 41 | 72164-94A | WEATHER PLUG, 4-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 42 | 72167-07BK | HOUSING, 16-way, pin (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 43 | 72168-07 | TERMINAL, socket, 18-20 gauge (26) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 44 | 72169-07 | TERMINAL, pin, 16-20 gauge (16) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 45 | 72175-07BK | HOUSING, pin, 4-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 46 | 72190-94 | TERMINAL, pin, 16-18 gauge (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 47 | 72191-94 | TERMINAL, socket, 16-18 gauge (12) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 48 | 72195-94 | SEAL, pin, 4-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 49 | 72199-94 | CONNECTOR ANCHOR (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 50 | 72260-04 | HOUSING, female, 1-way (gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 51 | 72272-07 | TERMINAL, socket, 14-16 gauge (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 52 | 72289-04 | TERMINAL, female, 10-12 gauge | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 53 | 72290-94 | TERMINAL, insulated (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 54 | 72291-94 | TERMINAL, female spade, 14-16 gauge | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 55 | 72295-94 | TERMINAL HOUSING, 1-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 56 | 72312-04 | HOUSING, socket, 3-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 57 | 72330-95 | FUSE, 15 amp (6) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 58 | 72335-10 | TERMINAL, socket, 20-22 gauge (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 59 | 72378-04 | CAP, red | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 60 | 72405-98BK | PUSH ON WIRE ASSEMBLY, right angle molded, w/ 60 in. wire lead (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 61 | 72414-07BK | HOUSING, socket, 6-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 62 | 72430-00 | FUSEBLOCK MOUNTING, relay, 9 fuses | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 63 | 72434-00 | TERMINAL, 14-16 gauge (12) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 64 | 72441-04 | TERMINAL, 12-14 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
WIRING HARNESS, MAIN - 883L/N/R, 1200C/CP/N/V/X (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200317 | WIRING HARNESS, main (continued) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| NOTE: Includes the following parts. | |||
| 65 | 72445-99TN | TERMINAL, female (tan) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 66 | 72484-08 | TERMINAL, socket, 20 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 67 | 72469-07GY | HOUSING, socket, 8-way (gray) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 68 | 72473-07 | SEAL PIN (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 69 | 72486-08 | WIRE SEAL, 20 gauge (green) (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 70 | 72487-07BK | HOUSING, socket, 12-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 71 | 72512-07BK | HOUSING, socket, 3-way (black) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 72 | 72516-01 | DUSTCAP | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 73 | 72519-09BK | DUSTCAP, 3-way socket | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 74 | 72543-07BK | SOCKET HOUSING, 3-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 75 | 72544-07 | SECONDARY LOCK, 3-way, female | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 76 | 72545-08 | RESISTOR ASSEMBLY, fuel sender | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 77 | 72568-08 | TERMINAL, socket, 20-22 gauge (22) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 78 | 72592-10 | TERMINAL, socket, 18 gauge (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 79 | 72611-07 | TERMINAL, socket, 16-20 gauge (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 80 | 73104-96BK | CONNECTOR, 4-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 81 | 73106-96BK | CONNECTOR, 6-way (black) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 82 | 73190-96 | TERMINAL, pin, 20-16 gauge (16) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 83 | 73213-07 | RETAINER | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 84 | 73214-10 | COVER ASSEMBLY, fuseblock | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 85 | 73301-04 | HOUSING, 2-way, female | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 86 | 73302-04 | COVER, maxi-fuse, fuse block | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 87 | 73303-04 | SECONDARY LOCK, 2-way, female | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 88 | 73304-04 | TERMINAL, female, 10 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 89 | 73305-04 | SEAL WIRE, 10 gauge (blue) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 90 | 74112-98BK | SOCKET HOUSING, 2-way (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 91 | 74120-08 | DC LEAD ASSEMBLY | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 92 | 74152-98 | SECONDARY LOCK, 2-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 93 | 74191-98 | SOCKET TERMINAL (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
WIRING HARNESS, MAIN - XR1200X (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 56073-83 | RETAINER, h-clip | XR1200X |
| 69200316 | WIRING HARNESS, main | XR1200X | |
| NOTE: Includes the following parts. | |||
| 2 | 3124 | SCREW | XR1200X |
| 3 | 7220 | LOCKWASHER | XR1200X |
| 4 | 9810 | OVERMOLD, fuel tank, ground | XR1200X |
| 5 | 9838 | TERMINAL RING, 1/4, 10-12 gauge (2) | XR1200X |
| 6 | 9898 | TERMINAL FLAG (2) | XR1200X |
| 7 | 10006 | CABLE STRAP (as required) | XR1200X |
| 8 | 10065 | CABLE STRAP (as required) | XR1200X |
| 9 | 10279 | CLIP, harness mount | XR1200X |
| 10 | 10287 | CABLE STRAP (as required) | XR1200X |
| 11 | 31586-07 | RELAY (2) | XR1200X |
| 12 | 31806-08A | BRACKET ASSEMBLY | XR1200X |
| 13 | 70368-08 | WIRE HARNESS CADDY | XR1200X |
| 14 | 70598-99 | BOOT, temperature sensor | XR1200X |
| 15 | 70632-08 | CADDY COVER | XR1200X |
| 16 | 70664-08 | BOOT, jiffy stand sensor | XR1200X |
| 17 | 71341-10 | CADDY | XR1200X |
| 18 | 71510-04 | HOUSING, ignition switch | XR1200X |
| 19 | 71550-94 | LABEL, ignition switch | XR1200X |
| 20 | 71552-94 | FACE NUT, ignition switch (2) | XR1200X |
| 21 | 72006-05 | TERMINAL, 16-20 gauge (2) | XR1200X |
| 22 | 72007-05 | HOUSING, socket, 2-way (3) | XR1200X |
| 23 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (6) | XR1200X |
| 24 | 72033-93 | TERMINAL, socket, 16-20 gauge (3) | XR1200X |
| 25 | 72066-06A | SOCKET HOUSING, 4-way | XR1200X |
| 26 | 72076-00 | TERMINAL, socket (27) | XR1200X |
| 27 | 72077-00 | SEAL PIN (9) | XR1200X |
| 28 | 72078-00 | KIT, connector, 36-position socket housing | XR1200X |
| 29 | 72094-06 | TERMINAL, socket, female, 18 gauge (7) | XR1200X |
| 30 | 72096-06 | SEAL WIRE, 18-20 AWG (yellow) (7) | XR1200X |
WIRING HARNESS, MAIN - XR1200X (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200316 | WIRING HARNESS, main (continued) | XR1200X | |
| NOTE: Includes the following parts. | |||
| 31 | 72124-94GY | SOCKET HOUSING, 4-way (gray) | XR1200X |
| 32 | 72135-06 | SECONDARY LOCK, 4-way, female (gray) | XR1200X |
| 33 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | XR1200X |
| 34 | 72144-94 | SECONDARY LOCK, 4-way | XR1200X |
| 35 | 72159-94 | SECONDARY LOCK, pin, 12-way | XR1200X |
| 36 | 72164-94A | WEATHER PLUG, 4-way | XR1200X |
| 37 | 72167-07BK | HOUSING, 16-way, pin (black) | XR1200X |
| 38 | 72168-07 | TERMINAL, socket, 18-20 gauge (25) | XR1200X |
| 39 | 72169-07 | TERMINAL, pin, 16-20 gauge (17) | XR1200X |
| 40 | 72175-07BK | HOUSING, pin, 4-way (black) | XR1200X |
| 41 | 72190-94 | TERMINAL, pin, 16-18 gauge (3) | XR1200X |
| 42 | 72191-94 | TERMINAL, socket, 16-18 gauge (12) | XR1200X |
| 43 | 72195-94 | SEAL, pin, 4-way | XR1200X |
| 44 | 72199-94 | CONNECTOR ANCHOR (2) | XR1200X |
| 45 | 72260-04 | HOUSING, female, 1-way (gray) | XR1200X |
| 46 | 72272-07 | TERMINAL, socket, 14-16 gauge (6) | XR1200X |
| 47 | 72289-04 | TERMINAL, female, 10-12 gauge | XR1200X |
| 48 | 72290-94 | TERMINAL, insulated (2) | XR1200X |
| 49 | 72291-94 | TERMINAL, female spade, 14-16 gauge | XR1200X |
| 50 | 72295-94 | TERMINAL HOUSING, 1-way | XR1200X |
| 51 | 72312-04 | HOUSING, socket, 3-way | XR1200X |
| 52 | 72330-95 | FUSE, 15-amp (6) | XR1200X |
| 53 | 72378-04 | CAP, red | XR1200X |
| 54 | 72405-98BK | PUSH ON WIRE ASSEMBLY, right angle molded, w/ 60 in. wire lead (black) | XR1200X |
| 55 | 72414-07BK | HOUSING, socket, 6-way (black) | XR1200X |
| 56 | 72430-00 | FUSEBLOCK MOUNTING, relay, 9 fuses | XR1200X |
| 57 | 72434-00 | TERMINAL, 14-16 gauge (12) | XR1200X |
| 58 | 72441-04 | TERMINAL, 12-14 gauge (2) | XR1200X |
| 59 | 72445-99TN | TERMINAL, female (tan) | XR1200X |
| 60 | 72469-07GY | HOUSING, socket, 8-way (gray) | XR1200X |
WIRING HARNESS, MAIN - XR1200X (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 69200316 | WIRING HARNESS, main (continued) | XR1200X | |
| NOTE: Includes the following parts. | |||
| 61 | 72473-07 | SEAL PIN (4) | XR1200X |
| 62 | 72487-07BK | HOUSING, socket, 12-way (black) | XR1200X |
| 63 | 72512-07BK | HOUSING, socket, 3-way (black) (2) | XR1200X |
| 64 | 72516-01 | DUSTCAP | XR1200X |
| 65 | 72519-09BK | CAP | XR1200X |
| 66 | 72543-07BK | HOUSING, socket, 3-way (black) | XR1200X |
| 67 | 72544-07 | SECONDARY LOCK, 3-way, female | XR1200X |
| 68 | 72545-08 | RESISTOR ASSEMBLY, fuel sender | XR1200X |
| 69 | 72592-10 | TERMINAL, socket, 18 gauge (4) | XR1200X |
| 70 | 72611-07 | TERMINAL, socket, 16-20 gauge (gold) (4) | XR1200X |
| 71 | 73104-96BK | CONNECTOR, 4-way (black) | XR1200X |
| 72 | 73106-96BK | CONNECTOR, 6-way (black) | XR1200X |
| 73 | 73156-96BK | SOCKET HOUSING, 6-way (black) | XR1200X |
| 74 | 73190-96 | TERMINAL, pin, 16-20 gauge (10) | XR1200X |
| 75 | 73191-96 | SOCKET TERMINAL, 16-20 awg (6) | XR1200X |
| 76 | 73213-07 | RETAINER (2) | XR1200X |
| 77 | 73228-10 | COVER, fuseblock | XR1200X |
| 78 | 73301-04 | HOUSING, 2-way, female | XR1200X |
| 79 | 73302-04 | COVER, maxi-fuse, fuse block | XR1200X |
| 80 | 73303-04 | SECONDARY LOCK, 2-way, female | XR1200X |
| 81 | 73304-04 | TERMINAL, female, 10 gauge (2) | XR1200X |
| 82 | 73305-04 | SEAL WIRE, 10 gauge (blue) (2) | XR1200X |
| 83 | 74112-98BK | SOCKET HOUSING, 2-way (black) | XR1200X |
| 84 | 74120-08 | DC LEAD ASSEMBLY | XR1200X |
| 85 | 74152-98 | SECONDARY LOCK, 2-way | XR1200X |
| 86 | 74191-98 | SOCKET TERMINAL (2) | XR1200X |
WIRING HARNESS, ENGINE - 883L/N/R, 1200C/CP/N/V/X
| Index No. | Part No. | Description | Model(s) |
| 70167-08A | WIRING HARNESS, engine | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| NOTE: Includes the following parts. | |||
| 1 | 10279 | CLIP, harness mount | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 2 | 72033-93 | TERMINAL, socket, 16-20 gauge (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 3 | 72094-06 | TERMINAL, socket, 18 gauge (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 4 | 72096-06 | SEAL WIRE, 18-20 AWG (yellow) (3) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 5 | 72166-07BK | HOUSING, 16-way, socket (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 6 | 72168-07 | TERMINAL, socket, 18-20 gauge (10) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 7 | 72251-07 | SECONDARY LOCK, 2-way (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 72263-95 | HOUSING, 4-way, socket (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 9 | 72272-07 | TERMINAL, socket, 14-16 gauge (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 10 | 72402-07 | HOUSING, 2-way, socket (black) (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 11 | 72406-07A | HOUSING, 4-way, socket | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 12 | 72407-07 | TERMINAL, socket, 16-20 gauge (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 13 | 72408-07 | SEAL WIRE, 16-20 gauge (blue) (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 14 | 72413-07 | TERMINAL, socket, 18-20 gauge (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 15 | 72473-07 | SEAL PIN (4) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 16 | 72543-07BK | HOUSING, 3-way, socket (black) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 17 | 72544-07 | SECONDARY LOCK, 3-way | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
WIRING HARNESS, ENGINE - XR1200X
| Index No. | Part No. | Description | Model(s) |
| 70163-10 | WIRING HARNESS, engine | XR1200X | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP (as required) | XR1200X |
| 2 | 10279 | CLIP | XR1200X |
| 3 | 72006-05 | TERMINAL, socket, 16-20 gauge (2) | XR1200X |
| 4 | 72007-05 | HOUSING, socket, 2-way | XR1200X |
| 5 | 72009-05 | HOUSING, pin, 2-way | XR1200X |
| 6 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (2) | XR1200X |
| 7 | 72014-07 | SEAL PIN (2) | XR1200X |
| 8 | 72033-93 | TERMINAL, socket, 16-20 gauge (4) | XR1200X |
| 9 | 72166-07BK | HOUSING, socket, 16-way (black) | XR1200X |
| 10 | 72168-07 | TERMINAL, socket, 18-20 gauge (14) | XR1200X |
| 11 | 72251-07 | SECONDARY LOCK, 2-way (2) | XR1200X |
| 12 | 72263-95 | HOUSING, 4-way, socket (black) | XR1200X |
| 13 | 72312-04 | HOUSING, 3-way, socket | XR1200X |
| 14 | 72402-07 | HOUSING, 2-way, socket (black) (2) | XR1200X |
| 15 | 72406-07A | HOUSING, 4-way, socket | XR1200X |
| 16 | 72407-07 | TERMINAL, socket, 16-20 gauge (4) | XR1200X |
| 17 | 72408-07 | SEAL WIRE, 16-20 gauge (blue) (4) | XR1200X |
| 18 | 72413-07 | TERMINAL, socket, 18-20 gauge (4) | XR1200X |
| 19 | 72473-07 | SEAL PIN (2) | XR1200X |
TURN SIGNAL MODULE & SECURITY SIREN
| Index No. | Part No. | Description | Model(s) |
| 1 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 2 | 68920-07 | TURN SIGNAL MODULE, standard | ALL |
| 3 | 68924-07 | MODULE, security system | ALL |
| 4 | 70617-07 | HARNESS, security module w/ 5, 6, 7, 8, 9, 10 | XR1200X |
| 70619-07 | HARNESS, security module w/ 5, 6, 7, 8, 9, 10 | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R | |
| 5 | 72114-94BK | HOUSING, 4-way (black) | ALL |
| 6 | 72154-94 | LOCK, secondary, 4-way | ALL |
| 7 | 72191-94 | TERMINAL, socket, 16-18 gauge (3) | ALL |
| 8 | 72195-94 | SEAL, pin, 4-way | ALL |
| 9 | 72720-07 | HOUSING, socket, 2-way | ALL |
| 10 | 72721-07 | TERMINAL, socket, 18-20 gauge | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 11 | 3732 | SCREW (HDI) (3) | ALL |
| 12 | 66523-06 | PLATE, siren mounting bracket (HDI) | ALL |
| 13 | 66524-06 | COVER, siren (HDI) | ALL |
| 14 | 68958-07C | SIREN (HDI) | ALL |
| 15 | 69309-10 | BATTERY REPLACEMENT KIT, siren | ALL |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3658 | SCREW | ALL |
| 2 | 6288 | WASHER | ALL |
| 3 | 9907 | TERMINAL, wire (2) | ALL |
| 4 | 27629-01A | THROTTLE POSITION SENSOR KIT | ALL |
| 5 | 27690-08 | SENSOR, oxygen, w/ 27714-06, 72009-05, 72011-05 (2) | XR1200X |
| 6 | 27714-06 | SEAL RING (2) | ALL |
| 7 | 27719-07 | SENSOR, oxygen, w/ 27714-06, 72009-05, 72011-05 (2) | XL1200C, XL1200CP, XL1200N, XL1200V, XL1200X, XL883L, XL883N, XL883R |
| 8 | 31586-07 | RELAY (2) | ALL |
| 9 | 32319-07 | T-MAP SENSOR | ALL |
| 10 | 33900-99 | SWITCH, neutral indicator, w/ washer | ALL |
| 11 | 66373-06 | BATTERY, 3V, CR2032 | ALL |
| 12 | 68926-07 | REMOTE CONTROL FOB, w/ 66373-06 | ALL |
| 13 | 70247-07 | JUMPER WIRE, neutral switch | ALL |
| 14 | 71510-04 | HOUSING, ignition switch | ALL |
| 15 | 71550-94 | LABEL, ignition switch | ALL |
| 16 | 72009-05 | HOUSING, 2-way pin (2) | ALL |
| 17 | 72011-05 | WIRE SEAL, 16-20 gauge (yellow) (4) | ALL |
| 18 | 72023-51D | BRAKE LIGHT SWITCH, w/ 9907 | ALL |
| 19 | 72318-04 | FUSE, 30A | ALL |
| 20 | 72330-95 | FUSE, 15A (6) | ALL |
| 21 | 75302-07B | SENSOR, fuel level | ALL |
| 22 | 71400058 | IGNITION SWITCH, w/ 90300035 & 90300036 (specify key code) | ALL |
| 23 | 90300034 | KEY SET (specify key code) | ALL |
| 24 | 90300036 | FACE NUT, ignition switch (2) | ALL |
| 90300037 | LOCKSET ASSEMBLY, complete (not shown) | ALL | |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 50126-08A | SENSOR, jiffystand (HDI, England) w/ 72169-07, 72511-07BK, 73213-07 | ALL |
| 26 | 68939-00 | REMOTE CONTROL FOB, w/ 66373-06 (Japan) | ALL |
| 27 | 72169-07 | TERMINAL, pin, 16-20 gauge (HDI, England) (3) | ALL |
| 28 | 72511-07BK | HOUSING (HDI, England) | ALL |
| 29 | 73213-07 | RETAINER (HDI, England) | ALL |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 15368-01A | LABEL, battery warning | ALL |
| 2 | 15370-01A | LABEL, mirror warning | ALL |
| 3 | 15376-06A | LABEL, battery removal | ALL |
| 4 | 29127-95B | LABEL, air cleaner | XL1200C, XL1200CP, XL1200V, XL883L |
| 29147-07 | LABEL, air cleaner | XL1200N, XL1200X, XL883N, XL883R | |
| 29466-08 | LABEL, air cleaner | XR1200X | |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 14270-92 | LABEL, shift (Japan) | ALL |

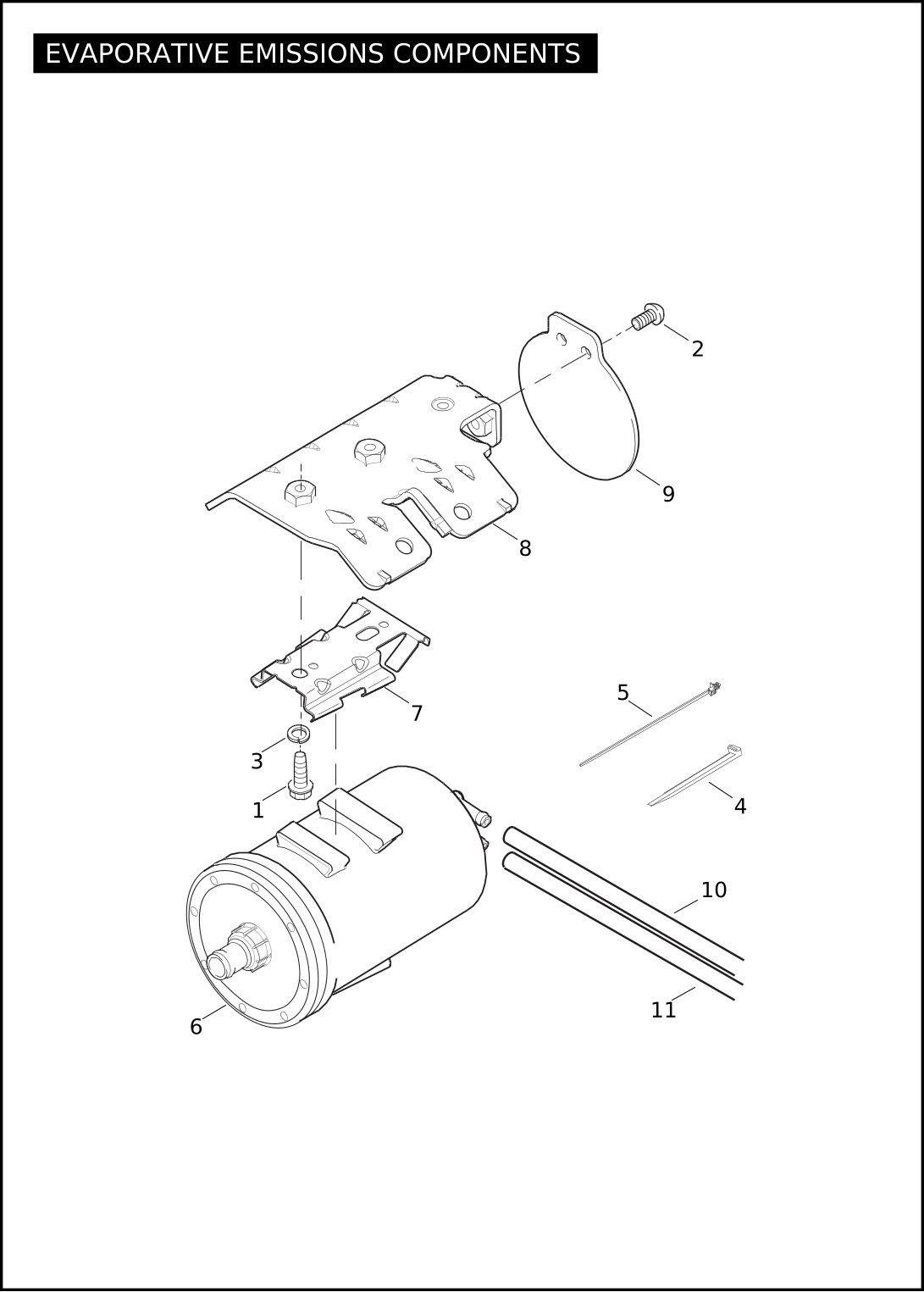

EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| 1 | 3767B | BOLT (2) | ALL |
| 2 | 4363 | SCREW (2) | ALL |
| 3 | 6099 | WASHER (2) | ALL |
| 4 | 10006 | CABLE STRAP (as required) | ALL |
| 5 | 10177 | CABLE STRAP (as required) | ALL |
| 6 | 27042-84A | CANNISTER | ALL |
| 7 | 27047-84B | BRACKET, mounting | ALL |
| 8 | 28908-04A | BRACKET | ALL |
| 9 | 28909-04 | GUARD | ALL |
| 10 | 28822-07A | HOSE, canister-to-manifold | ALL |
| 11 | 28911-04A | HOSE, canister-to-vapor valve | ALL |
| Part No. | Description |
| 1028 | SCREW 5/16-18 X 2-1/2 SEMS socket head, with lockpatch |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1048 | SCREW 5/16-18 X 1-1/2 hex flange head |
| 1081A | SCREW 10-24 X 0.895 SEMS pan head |
| 1091 | SCREW 10-24 X 9.5 SEMS socket head |
| 1751 | SCREW No. 1/4-20 X 3.0 hex socket |
| 2325 | SCREW No. 6 X 3/4 cross recess pan head, self-tapping |
| 2361 | SCREW No. 8-32 X 3/8 socket countersink head, with lockpatch |
| 2362 | SCREW No. 10 X 3/4 hex head, self-tapping |
| 2407 | SCREW No. 8 X 1/2 pan head, Phillips drive, plastite |
| 2441 | SCREW No. 10-24 X 1/2 TORX pan head |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2460 | SCREW 5/16-18 X 1/2 socket countersink head |
| 2481M | SCREW M5 X 0.8 X 16 TORX head, self-tapping |
| 2486 | SCREW 1/4-20 X 1 hex socket, SEMS/Lock |
| 2487 | SCREW 6-32 X 3/8 hex washer head, self-tapping |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2508 | SCREW No. 10-32 X 1/2 socket head |
| 2513 | SCREW 1/4-20 X 1-1/4 socket head (black) |
| 2535 | SCREW 5/16-18 X 1 socket head |
| 2586A | SCREW M4 X 0.7 X 12 flat head |
| 2607 | SCREW 1/4-20 X 3/4 Pozidriv pan head (Grade 2) |
| 2612 | SCREW No. 8-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2653 | SCREW No. 10-24 X 7/8 fillister head |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2872W | BOLT 1/4-20 X 1-1/2 hex head (Grade 5) |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 3018A | SCREW 10-24 X 3/8 TORX head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3026 | SCREW No. 10-32 X 1/2 socket button head |
| 3029 | SCREW No. 10-24 X 1 TORX head, with adhesive |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3056 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 3059 | SCREW 10-24 X 1/2 hex flat head |
| 3060 | SCREW 10-24 X 3/4 hex flat head |
| 3085 | SCREW 1/4-20 X 1/2 with washer |
| 3123 | SCREW 10-14 X 1.0 torx pan head |
| 3124 | SCREW 10-24 X 1/2 torx pan head with lock patch |
| 3162 | SCREW 5/16-18 X 1-1/4 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3214 | SCREW 3/8-16 X 1-1/4 socket head, thread-cutting |
| 3244 | SCREW M8 X 1.25 X 12 |
| 3480A | SCREW 1/4-20 X 1-3/4 knurled head (Grade 8) |
| 3485A | SCREW 5/16-18 X 1-3/4 knurled head (Grade 8) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35211-91B | NUT 1-1/2-24 X .350 X 1-7/8 hex head |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3579A | SCREW 1/4-28 X 1/4 SEMS hex head, self-tapping (Grade 2) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3666A | SCREW No. 10-24 X 1.500 TORX recessed head, with washer |
| 3696 | SCREW 5/16 X 3/4 TORX pan head (Grade 5) |
| 3706M | SCREW M6 X 1.0 X 20 hex head |
| 3708M | SCREW M6 X 1.0 X30 hex head |
| 3731M | SCREW M6 X 1.0 X 12 socket button head, with lockpatch |
| 3732 | SCREW 3/16-16 X 5/8 TORX pan head |
| 3767B | BOLT 1/4-20 X 5/8 hex head (Grade 5) |
| 3802W | BOLT 1/4-20 X 7/8 hex head (Grade 5) |
| 3814 | SCREW 7/16-14 X 1-3/4 hex head, with washer (Grade 8) |
| 3849 | SCREW 1/4-20 X 1-1/4 SEMS hex head (Grade 8) |
| 3854 | SCREW 7/16-14 X 1, hex head (Grade 8) |
| 3880 | SCREW 1/2-13 X 2-1/4 TORX recessed button head |
| 3899 | SCREW 7/16-14 X 1-3/4 hex head, with lockpatch |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4016 | SCREW 5/16-18 X 1.0 socket button head |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4029A | SCREW 3/8-16 X 2-1/4 socket head (black) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4076 | SCREW 3/8-16 X 1/2 socket head |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 41191-74A | SCREW 1/2-20 X 5/8 hex socket flat head, with lockpatch |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4180 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 4188 | SCREW 3/8-16 X 1-1/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4250M | SCREW M8 X 1.25 X 25 hex socket head cap |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4269 | SCREW 5/16-18 X 3/4, flange head |
| 4290 | SCREW 3/8-16 X 1-1/4, TORX button head (Grade 5) |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 4329 | SCREW 1/4-20 X 3/4 hex head with washer, self-tapping |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 4351 | SCREW 3/8-16 X 1-1/2 TORX head, self-tapping (Grade 8) |
| 4352 | SCREW 3/8-16 X 1-1/2 TORX, self-tapping (Grade 8) |
| 4354 | SCREW 1/2-20 X 2-1/2, TORX button head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4359 | SCREW 5/16-18 X 7/8 socket button head |
| 4363 | SCREW 1/4-20 X 1/2 socket button head |
| 4365 | SCREW 1/4-20 X 1/2 socket button head (Grade 8) |
| 4420 | SCREW 3/8-16 X 2.75 hex head (Grade 5) |
| 4499M | BOLT M10 X 1.25 X 35 socket head |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4549 | SCREW 5/16-18 X 1-3/4 TORX button head (Grade 5) |
| 4551 | SCREW 1/2-13 X 1-1/8 hex socket head, with adhesive |
| 4553 | SCREW 5/16-18 X 6.0 socket head cap |
| 4589 | SCREW 9/16-12 X 2-5/16 hex flange head |
| 4678 | SCREW 1/2-13 X 1-3/4 hex flange |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4724 | BOLT 3/8-24 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4748 | SCREW 3/8-16 X 1-1/8 socket head (Grade 8) |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4758A | SCREW 5/16-18 X 3.48 socket head (Grade 8) |
| 4765 | SCREW 1/4-20 X 2-5/8 SEMS socket head, with lockpatch (Grade 8) (zinc) |
| 4771 | SCREW 5/16-18 X 4-1/4 socket head (Grade 5) |
| 4778 | SCREW 5/16-18 X 1-3/8 TORX button head |
| 4779 | SCREW 5/16-18 X 1-3/4 TORX button head |
| 4798 | SCREW 1/4-20 X 5/8 |
| 4816A | SCREW 5/16-18 X 1-1/2 socket head |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4859 | SCREW 5/16-18 X 2.0 hex flange head |
| 4871 | SCREW 1/4-20 X 29/64 flange head |
| 4897 | SCREW 1/4-20 X 5/8 TORX socket button head (black) |
| 4975M | SCREW M6 X 1.0 X 20 hex socket head cap with lock patch |
| 4978 | SCREW 5/16-18 X 1.5 hex socket head cap |
| 4991 | SCREW M6 torx pan head, |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 5414 | BOLT 3/8-16 X 7/8 carriage (Grade 5) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6003 | WASHER 1-3/16 X 1-3/8 X 11/16 |
| 6026 | WASHER 3/8 X 7/8 X 7/64 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6110 | WASHER 9/32 X 5/8 X 1/16 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6152 | SPACER 13/32 X 1.0 X 5/16 |
| 6157 | WASHER 27/64 X 5/8 X 1/64 heat treated |
| 6192 | WASHER No. 8 X 7/16 X 3/64 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6288 | WASHER 17/32 X 25/32 X 1/32 |
| 6302 | WASHER 5/16 X 11/16 X 19/32 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6445 | WASHER 1/2 X 2 X 0.300 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6551 | WASHER 1 X 1-5/8 X 1/8 hardened |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6610 | WASHER 0.375 X 0.7 X 0.035 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6738 | WASHER 17/32 X 7/8 X 7/64 |
| 675 | SCREW 3/8-16 X 3-1/4 socket head |
| 6787 | WASHER 7/16 X 13/16 X 5/64 flat |
| 6798 | WASHER 5/16 X 1/2 X 1/32 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6874 | WASHER 25/64 X 5/8 X 1/16 |
| 6930 | WASHER 0.344 X 1-1/8 X 0.078 heat treated |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7045 | LOCKWASHER 3/8 high collar |
| 7068 | LOCKWASHER 1/2 |
| 7073 | LOCKWASHER 1/4 external tooth |
| 7080 | WASHER 9/16 X 3/4 X 1/4 |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7220 | LOCKWASHER No. 10 external tooth |
| 7230 | LOCKWASHER 1/4 external tooth |
| 7331 | ACORN NUT 5/16-24 |
| 7357 | BULLET NUT 5/16-24 (black) |
| 7477 | NUT M8 X 1.25 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7725 | LOCKNUT 5/16-24 X 11/32 X 1/2 |
| 7766 | LOCKNUT 5/16-18 flange |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7804 | LOCKNUT 1/2-13 X 15/32 X 7/8 self-sealing |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7824 | LOCKNUT 1/2-20 X 1/4 (Grade 2) |
| 7839 | NUT 3/4-16 X 21/32 flange (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 7916A | JAMNUT 5/8-18 |
| 8102 | SPEEDNUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8190 | NUT M24 X 2.0 |
| 835 | SCREW 5/16-18 X 3 flange head, with lockpatch |
| 855B | SCREW 3/8-16 X 2 knurled head |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 927A | SCREW 1/4-20 X 3/4 button head (Grade 8) |
| 930 | SCREW 10-24 X 1-1/4 fillister head |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 943 | SCREW 1/4-20 X 5/8 socket button head |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| 995 | SCREW 5/16-18 X 5/8 TORX button head |
| 997 | SCREW 5/16-18 X 1 TORX button head |
| DA0600.12FAZB | LOCKNUT 3/8-24 flange (Grade 5) |
| Index No. | Part No. | Description | Model(s) |
| 19778-12 | ENGINE ASSEMBLY (1200cc) (Domestic, California, Canada) | XL1200V | |
| 19779-12 | ENGINE ASSEMBLY (1200cc) (HDI) | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 16800019 | CYLINDER, w/ piston (1200 cc) (gray) (2) | XL1200V | |
| 16500068 | HEAD, front cylinder (1200 cc) (gray), w/ valve guides & seats | XL1200V | |
| 16500071 | HEAD, rear cylinder (1200 cc) (gray), w/ valve guides & seats | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 25600007 | TIMER COVER | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 27829-10 | FUEL LINE KIT, w/ 27216-95 & bracket | XL1200V, XL1200X |
| Index No. | Part No. | Description | Model(s) |
| 11 | 74402-05B | SENSOR, vehicle speed, w/ 11289A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 29000015 | BACKPLATE ASSEMBLY | XL1200V |
| 13 | 29000016 | SEAL | XL1200V |
| 14 | 29400015 | FILTER ELEMENT, w/ 29313-95 | XL1200V |
| 15 | 61300131 | COVER (chrome) w/ label | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 8 | 42949-08A | BRAKE PEDAL, w/ 42443-80A | XR1200X |
| Index No. | Part No. | Description | Model(s) |
| 17 | 40879-11A | TIRE | XL883L |
| Index No. | Part No. | Description | Model(s) |
| 43662-80B | RIM, 21 in. (chrome) | XL1200V | |
| 7 | 40759-05 | SPOKE & NIPPLE KIT, 21 in. rim - long (chrome) (set of 20) | XL1200V |
| 40760-05 | SPOKE & NIPPLE KIT, 21 in. rim - short (chrome) (set of 20) | XL1200V | |
| 43557-08 | WHEEL ASSEMBLY, 21 in. (chrome) w/o bearings & sleeves | XL1200V | |
| 43140-80 | INNER TUBE | XL1200V | |
| 43100004 | TIRE | XL1200V | |
| 43939-89 | RIM STRIP | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 43200007 | TIRE | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 45400042 | FORK SLIDER & TUBE ASSEMBLY, right (not shown) | XL1200V | |
| 45400041 | FORK SLIDER & TUBE ASSEMBLY, left (not shown) | XL1200V | |
| 46075-04 | SLIDER ASSEMBLY, left (not shown) | XL1200V | |
| 46076-04 | SLIDER ASSEMBLY, right (not shown) | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 8 | 93511-10 | FIRST AID KIT | XL883R |
| 9 | 94435-10 | FOLDING TOOL | XL883R |
| 10 | 47200177 | COVER, shock stud | XL883R |
| 11 | 50500227 | BRACKET, support | XL883R |
| 12 | 60300007 | SAREE GUARD, left - rear | XL883R |
| 13 | 60300008 | SAREE GUARD, right | XL883R |
| 14 | 60300009 | SAREE GUARD, left - front | XL883R |
| Index No. | Part No. | Description | Model(s) |
| 4 | 55846-05A | BRACKET, speedometer (chrome) (1200CP - Mini-Ape Handlebar) | XL1200CP, XL1200V |
| 6 | 67089-05 | COVER, speedometer back (chrome) | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 68461-09 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68497-07, 68559-07 (2) | XL1200V | |
| 20 | 73103-96BK | HOUSING, pin, 3-way | XL1200C, XL1200CP |
| 73358-12 | TURN SIGNAL ASSEMBLY, w/ 72991-01 (HDI) (2) | XL1200V |
| Index No. | Part No. | Description | Model(s) |
| 2 | 10039 | CABLE STRAP | XL1200V, XL1200X |
| Index No. | Part No. | Description | Model(s) |
| 15 | 72406-07A | HOUSING, 4-way, socket | XR1200X |
| Part No. | Description |
| 10006 | |
| 10014 | |
| 10031 | |
| 10039 | |
| 10053 | |
| 10065 | |
| 10074 | |
| 10080 | |
| 10092 | |
| 10142 | |
| 10177 | |
| 10179A | |
| 10181 | |
| 10200 | |
| 10242 | |
| 10252 | |
| 10255 | |
| 10279 | |
| 1028 | |
| 10287 | |
| 10289A | |
| 10303 | |
| 10304 | |
| 10323 | |
| 10344 | |
| 1039 | |
| 10417 | |
| 10418 | |
| 1048 | |
| 10627 | |
| 10628 | |
| 10800003 | |
| 10800006 | |
| 1081A | |
| 1091 | |
| 10926 | |
| 1094 | |
| 10966 | |
| 10967 | |
| 10969 | |
| 10970 | |
| 10971 | |
| 10972 | |
| 10984 | |
| 11002 | |
| 11031 | |
| 11046 | |
| 11067 | |
| 11105 | |
| 11110 | |
| 11113 | |
| 11120 | |
| 11121 | |
| 11140 | |
| 11142 | |
| 11155 | |
| 11161 | |
| 11171 | |
| 11177A | |
| 11179 | |
| 11190 | |
| 11202 | |
| 11250 | |
| 11271 | |
| 11272 | |
| 11282 | |
| 11289A | |
| 11290 | |
| 11304 | |
| 11317 | |
| 11326 | |
| 11351 | |
| 11377 | |
| 11379 | |
| 11384K | |
| 11390 | |
| 11407 | |
| 11408 | |
| 11474 | |
| 11491A | |
| 11570 | |
| 11598 | |
| 11621 | |
| 11625 | |
| 11631 | |
| 11652 | |
| 11668 | |
| 11730A | |
| 11765Y | |
| 11778 | |
| 11785 | |
| 11804 | |
| 11888 | |
| 11954 | |
| 12030 | |
| 12068 | |
| 12074 | |
| 12085 | |
| 12200 | |
| 12201 | |
| 13566-05 | |
| 13567-05 | |
| 14270-92 | |
| 14448-94 | |
| 15368-01A | |
| 15370-01A | |
| 15376-06A | |
| 1594 | |
| 16232-04B | |
| 16287-04 | |
| 16291-04 | |
| 16301-08 | |
| 16353-04 | |
| 16360-08 | |
| 16361-07 | |
| 16443-04 | |
| 16452-05 | |
| 16463-04 | |
| 16465-06 | |
| 16468-08 | |
| 16469-10 | |
| 16478-85A | |
| 16480-92A | |
| 16500068 | |
| 16500071 | |
| 16573-83A | |
| 16660-07 | |
| 16661-07 | |
| 16664-86D | |
| 16666-07 | |
| 16667-07 | |
| 16699-06 | |
| 16715-83 | |
| 16770-84F | |
| 16771-08 | |
| 16789-04 | |
| 16800-84A | |
| 16800019 | |
| 16832-86C | |
| 16865-07 | |
| 16867-07 | |
| 16899-02 | |
| 17027-08 | |
| 17036-08 | |
| 17049-08 | |
| 17360-83A | |
| 17362-07B | |
| 17375-83A | |
| 17393-07 | |
| 17429-91 | |
| 17485-07 | |
| 17488-07 | |
| 17496-07 | |
| 17501-04 | |
| 1751 | |
| 17525-08 | |
| 17532-07A | |
| 17537-07A | |
| 17551-04 | |
| 17562-10 | |
| 17565-10 | |
| 17569-08 | |
| 17591-10 | |
| 17611-83 | |
| 17614-07A | |
| 17615-10 | |
| 17633-08B | |
| 17655-05 | |
| 17695-07B | |
| 17903-10 | |
| 17908-02 | |
| 17909-02 | |
| 17911-10 | |
| 17946-04 | |
| 17963-10 | |
| 17972-04 | |
| 17976-04 | |
| 17981-04 | |
| 18011-86 | |
| 18012-87A | |
| 18020-07 | |
| 18021-87A | |
| 18053-04 | |
| 18059-04 | |
| 18094-02A | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18505-06 | |
| 18538-99C | |
| 18690-02 | |
| 18691-02 | |
| 19519-12 | |
| 19527-12 | |
| 19566-12 | |
| 19606-12 | |
| 19637-12 | |
| 19734-12 | |
| 19766-12 | |
| 19767-12 | |
| 19768-12 | |
| 19778-12 | |
| 19779-12 | |
| 19925-12 | |
| 19926-12 | |
| 19927-12 | |
| 215 | |
| 21948-02 | |
| 21965-08 | |
| 22221-04 | |
| 22223-04 | |
| 22224-04 | |
| 22227-04 | |
| 22228-04 | |
| 22230-04 | |
| 22231-04 | |
| 22238-04 | |
| 22244-04A | |
| 22261-86 | |
| 22266-86 | |
| 22271-86 | |
| 22589-83B | |
| 22719-04 | |
| 22765-02 | |
| 232 | |
| 2325 | |
| 2361 | |
| 2362 | |
| 23905-04B | |
| 23999-08 | |
| 24047-00 | |
| 2407 | |
| 24332-36 | |
| 2441 | |
| 2445 | |
| 2446 | |
| 24466-06B | |
| 24470-06B | |
| 24475-08 | |
| 2460 | |
| 24605-07 | |
| 24647-87 | |
| 24650-87 | |
| 24658-87 | |
| 24659-87 | |
| 24660-87 | |
| 24745-07A | |
| 24754-75A | |
| 2481M | |
| 2486 | |
| 2487 | |
| 2501A | |
| 2508 | |
| 2513 | |
| 25194-06 | |
| 25213-04 | |
| 25219-04 | |
| 25250-10 | |
| 25263-90D | |
| 25271-08 | |
| 25279-08 | |
| 25307-06 | |
| 2535 | |
| 25394-08 | |
| 25409-94B | |
| 25430-06 | |
| 25453-87A | |
| 25460-06 | |
| 25463-94A | |
| 25486-05 | |
| 25546-07 | |
| 25586-37 | |
| 25588-91 | |
| 25593-74 | |
| 25598-91 | |
| 25600007 | |
| 2586A | |
| 26010-04 | |
| 26011-04 | |
| 26012-07 | |
| 26016-08 | |
| 26020-07 | |
| 26064-08 | |
| 2607 | |
| 2612 | |
| 26162-08 | |
| 26169-08 | |
| 26182-08 | |
| 26183-08 | |
| 26184-08 | |
| 26204-91A | |
| 26210-99 | |
| 26239-07 | |
| 26318-88A | |
| 26332-08 | |
| 26400-82B | |
| 26432-76A | |
| 26434-91 | |
| 26436-90A | |
| 26437-86B | |
| 26495-89B | |
| 26496-75A | |
| 26502-07 | |
| 26503-07 | |
| 26522-08 | |
| 26525-08 | |
| 26526-08 | |
| 26529-08 | |
| 2653 | |
| 26546-08 | |
| 26554-77B | |
| 26592-08 | |
| 26638-00Y | |
| 26856-89A | |
| 26995-86B | |
| 27042-84A | |
| 27047-84B | |
| 27067-07A | |
| 27071-10 | |
| 2708A | |
| 27096-04A | |
| 27200-08 | |
| 27216-95 | |
| 27250-96B | |
| 27300029 | |
| 27327-07 | |
| 27628-01A | |
| 27629-01A | |
| 27690-08 | |
| 27693-07 | |
| 27695-08 | |
| 27698-08A | |
| 27700-07 | |
| 27701-07A | |
| 27704-07 | |
| 27706-07A | |
| 27707-07 | |
| 27714-06 | |
| 27719-07 | |
| 2773 | |
| 27792-08 | |
| 27794-08 | |
| 27795-07 | |
| 27829-10 | |
| 2872W | |
| 28790-10 | |
| 28792-10 | |
| 28793-10 | |
| 28794-10 | |
| 28822-07A | |
| 28908-04A | |
| 28909-04 | |
| 28911-04A | |
| 29000015 | |
| 29000016 | |
| 29062-95B | |
| 29123-07 | |
| 29127-95B | |
| 29147-07 | |
| 29200001 | |
| 29313-95 | |
| 29315-04 | |
| 29331-04 | |
| 29346-07 | |
| 29355-07 | |
| 29369-07A | |
| 29371-08 | |
| 29377-08 | |
| 29379-08 | |
| 29380-08 | |
| 29400015 | |
| 29466-08 | |
| 2952A | |
| 2955 | |
| 29867-09 | |
| 29950-91 | |
| 29997-07A | |
| 30018-08 | |
| 30029-08 | |
| 3018A | |
| 3022A | |
| 3026 | |
| 3029 | |
| 3048 | |
| 3056 | |
| 3059 | |
| 3060 | |
| 3085 | |
| 3123 | |
| 3124 | |
| 31390-91F | |
| 31488-81C | |
| 31512-04 | |
| 31556-91D | |
| 31586-07 | |
| 31602-08 | |
| 31603-91 | |
| 3162 | |
| 31630-08 | |
| 31656-07 | |
| 31698-08 | |
| 31699-08 | |
| 31753-07 | |
| 31797-07 | |
| 31801-08 | |
| 31806-08A | |
| 31807-07 | |
| 32003-07 | |
| 32004-08 | |
| 32005-08A | |
| 32006-07 | |
| 3210A | |
| 3214 | |
| 32319-07 | |
| 32362-04 | |
| 3244 | |
| 32472-10 | |
| 32493-02B | |
| 32494-04B | |
| 32506-90 | |
| 32514-04 | |
| 32531-07 | |
| 32534-11 | |
| 32707-01C | |
| 33032-99 | |
| 33048-72 | |
| 33084-06 | |
| 33117-91A | |
| 33123-06A | |
| 33130-07A | |
| 33133-06 | |
| 33134-07CAZ | |
| 33135-07CAZ | |
| 33138-06 | |
| 33189-63 | |
| 33216-99 | |
| 33354-08 | |
| 33540-06 | |
| 33641-06 | |
| 33832-08 | |
| 33875-08 | |
| 33900-99 | |
| 34014-06A | |
| 34064-00C | |
| 34076-02A | |
| 34157-06 | |
| 34162-06 | |
| 34163-02 | |
| 34483-06 | |
| 34491-02A | |
| 34572-04 | |
| 34573-04 | |
| 34581-04 | |
| 34582-04 | |
| 34611-65A | |
| 34660-04A | |
| 34663-10 | |
| 34665-10 | |
| 34670-06 | |
| 34672-08 | |
| 34721-07 | |
| 34723-10 | |
| 34724-10 | |
| 34760-04 | |
| 34761-04A | |
| 34794-05A | |
| 3480A | |
| 3485A | |
| 34911-04 | |
| 34920-86A | |
| 34932-04 | |
| 34943-05 | |
| 34954-07 | |
| 34955-04 | |
| 34981-02A | |
| 34982-02A | |
| 34990-08 | |
| 34992-04 | |
| 34993-04A | |
| 35030-89A | |
| 35038-89A | |
| 35051-89A | |
| 35077-10 | |
| 35087-99A | |
| 35107-06 | |
| 35114-02 | |
| 35118-03 | |
| 3514 | |
| 35159-06 | |
| 35163-06 | |
| 35165-06 | |
| 35167-06 | |
| 35172-06 | |
| 35174-06 | |
| 35190-06 | |
| 35191-06 | |
| 35193-06 | |
| 35196-06 | |
| 35197-06 | |
| 35211-91B | |
| 35234-08 | |
| 3563 | |
| 3565 | |
| 3574 | |
| 3579A | |
| 358 | |
| 3588 | |
| 3594 | |
| 3605 | |
| 3615 | |
| 3655A | |
| 3658 | |
| 3666A | |
| 36715-94 | |
| 36731-91 | |
| 36785-91 | |
| 36790-04 | |
| 36799-91 | |
| 36802-84B | |
| 3696 | |
| 37000041 | |
| 3706M | |
| 3708M | |
| 37107-06 | |
| 3731M | |
| 3732 | |
| 37495-91 | |
| 3767B | |
| 37716-10 | |
| 37718-10 | |
| 37797-09 | |
| 37870-91 | |
| 37872-90 | |
| 37890-02 | |
| 37891-02 | |
| 37892-02 | |
| 37894-02 | |
| 37895-02 | |
| 37896-02 | |
| 37897-02 | |
| 37898-02A | |
| 37899-02A | |
| 37904-90 | |
| 37905-90 | |
| 37908-90 | |
| 37909-90 | |
| 37910-04B | |
| 37911-90 | |
| 37912-91 | |
| 37913-90 | |
| 37924-04A | |
| 37934-06 | |
| 37977-90 | |
| 3802W | |
| 3814 | |
| 3849 | |
| 3854 | |
| 38630-88 | |
| 38653-01 | |
| 38671-04 | |
| 38699-04C | |
| 38702-05C | |
| 38786-08A | |
| 3880 | |
| 3899 | |
| 38999-11 | |
| 3976 | |
| 3987 | |
| 3990 | |
| 40005-57B | |
| 40039-02C | |
| 40057-08 | |
| 40147-04 | |
| 4016 | |
| 4017 | |
| 40241-02A | |
| 40251-92A | |
| 40254-02 | |
| 40290-04A | |
| 4029A | |
| 4032A | |
| 40350-07 | |
| 40379-04 | |
| 40380-04 | |
| 40409-04 | |
| 40444-07 | |
| 40518-08 | |
| 40558-82 | |
| 40560-05 | |
| 40561-05 | |
| 40562-05 | |
| 40572-11 | |
| 40574-06 | |
| 40591-07 | |
| 40759-05 | |
| 4076 | |
| 40760-05 | |
| 40761-05 | |
| 40762-05 | |
| 40875-11 | |
| 40878-11 | |
| 40879-11A | |
| 4091 | |
| 40930-05 | |
| 40946-04 | |
| 40948-04 | |
| 40968-11 | |
| 40999-87 | |
| 41012-08 | |
| 41082-08 | |
| 41123-79 | |
| 41176-08 | |
| 41188-06 | |
| 41191-74A | |
| 41229-08 | |
| 41242-08 | |
| 4132 | |
| 41388-10 | |
| 41389-10 | |
| 41426-07 | |
| 41478-10 | |
| 41561-04 | |
| 41562-04 | |
| 41568-04 | |
| 41573-05 | |
| 41623-05 | |
| 41626-08 | |
| 41627-08 | |
| 41628-08 | |
| 41698-04 | |
| 41699-04 | |
| 41730-08 | |
| 41732-04 | |
| 41736-04 | |
| 41737-04 | |
| 41743-04 | |
| 41748-08 | |
| 4180 | |
| 41822-10 | |
| 41833-08 | |
| 41858-08 | |
| 4188 | |
| 42028-07 | |
| 42029-07 | |
| 42174-09 | |
| 42310-08 | |
| 42341-07 | |
| 4240 | |
| 42425-05 | |
| 42443-80A | |
| 42460-80B | |
| 4250M | |
| 42521-07 | |
| 42541-04 | |
| 42569-03 | |
| 42593-04 | |
| 42595-04 | |
| 42645-07 | |
| 42649-07 | |
| 42651-04 | |
| 42652-04 | |
| 4266A | |
| 42685-04 | |
| 4269 | |
| 42736-08 | |
| 42737-08 | |
| 42738-08 | |
| 42739-08 | |
| 42744-08 | |
| 42745-07 | |
| 42803-07A | |
| 42804-07 | |
| 42805-04 | |
| 42806-04 | |
| 42807-04 | |
| 42808-04 | |
| 42809-07A | |
| 42810-07A | |
| 42811-04 | |
| 42812-04 | |
| 42813-04 | |
| 42814-04 | |
| 42815-04 | |
| 42816-07 | |
| 42817-07 | |
| 42821-04 | |
| 42823-04 | |
| 42824-04 | |
| 42825-04 | |
| 42827-04 | |
| 42828-04 | |
| 42829-04 | |
| 42831-04A | |
| 42832-04 | |
| 42834-04 | |
| 42837-04 | |
| 42838-04 | |
| 42839-04 | |
| 42840-04 | |
| 42845-07 | |
| 42846-04 | |
| 42875-07 | |
| 42877-10 | |
| 42878-10 | |
| 42879-10 | |
| 42880-10 | |
| 42881-11 | |
| 42892-08 | |
| 42893-07 | |
| 42899-08 | |
| 4290 | |
| 42900-08 | |
| 42941-10 | |
| 42942-08A | |
| 42943-08 | |
| 42944-08 | |
| 42945-08 | |
| 42948-08 | |
| 42949-08A | |
| 42969-04 | |
| 42971-04 | |
| 42972-04 | |
| 42975-08A | |
| 42976-04 | |
| 42979-04 | |
| 43017-07 | |
| 43085-97 | |
| 43100004 | |
| 4312C | |
| 43140-80 | |
| 43145-47 | |
| 43147-40 | |
| 43157-83A | |
| 43200007 | |
| 43200011 | |
| 43216-11 | |
| 43241-05 | |
| 43258-07B | |
| 4326A | |
| 4329 | |
| 43343-10 | |
| 43348-10 | |
| 43355-00 | |
| 43358-08 | |
| 43359-00 | |
| 43499-08 | |
| 4350A | |
| 4351 | |
| 4352 | |
| 43522-08 | |
| 43528-04 | |
| 4354 | |
| 43557-08 | |
| 43567-92 | |
| 4359 | |
| 4363 | |
| 4365 | |
| 43662-80B | |
| 43689-11 | |
| 43831-08 | |
| 43832-08 | |
| 43895-08 | |
| 43905-08 | |
| 43906-08 | |
| 43939-89 | |
| 44012-11 | |
| 44121-07A | |
| 44136-00 | |
| 44156-00 | |
| 44160-00 | |
| 44178-04 | |
| 44184-04 | |
| 44189-04 | |
| 4420 | |
| 44429-11 | |
| 44440-04 | |
| 44590-04 | |
| 4499M | |
| 45041-01A | |
| 45052-07A | |
| 45065-06 | |
| 45067-06 | |
| 45074-95 | |
| 45146-07 | |
| 45155-08 | |
| 45319-04D | |
| 45356-07 | |
| 45361-90 | |
| 45374-87 | |
| 45376-09 | |
| 45377-87 | |
| 45378-87 | |
| 45395-09 | |
| 45400041 | |
| 45400042 | |
| 45401-87 | |
| 45405-75A | |
| 45449-04C | |
| 45451-07 | |
| 45458-09 | |
| 45460-90 | |
| 45461-87 | |
| 45462-87 | |
| 45465-87 | |
| 4549 | |
| 45500142 | |
| 4551 | |
| 4553 | |
| 45600014 | |
| 45611-86 | |
| 45690-10 | |
| 45693-10 | |
| 45790-80 | |
| 45799-04 | |
| 45800-04 | |
| 45801-04 | |
| 45830-48 | |
| 45842-77A | |
| 4589 | |
| 45902-00 | |
| 45905-87 | |
| 45925-09 | |
| 45938-92 | |
| 45966-04 | |
| 45968-10 | |
| 45984-87 | |
| 45988-10 | |
| 45996-87 | |
| 46002-87 | |
| 46009-10 | |
| 46014-10 | |
| 46075-04 | |
| 46076-04 | |
| 46126-04 | |
| 46218-05 | |
| 46245-09 | |
| 46267-05 | |
| 46268-04 | |
| 46329-06 | |
| 46343-06 | |
| 46346-06 | |
| 46372-10 | |
| 46400-04C | |
| 46417-10A | |
| 46420-10 | |
| 46449-08 | |
| 46450-08 | |
| 46453-09 | |
| 46454-09 | |
| 46680-11 | |
| 46681-10 | |
| 46688-11 | |
| 46758-07 | |
| 46767-07 | |
| 4678 | |
| 46927-10 | |
| 46928-10 | |
| 46945-07A | |
| 46946-06A | |
| 46986-11 | |
| 46997-11 | |
| 46998-11 | |
| 4705 | |
| 4717A | |
| 4718A | |
| 47200177 | |
| 4724 | |
| 47299-07 | |
| 47313-07 | |
| 4740A | |
| 4741A | |
| 47470-04 | |
| 47471-04A | |
| 4748 | |
| 4751 | |
| 47587-05 | |
| 4758A | |
| 4765 | |
| 47682-10 | |
| 4771 | |
| 4778 | |
| 4779 | |
| 47875-09A | |
| 47878-09A | |
| 47887-10 | |
| 4798 | |
| 4802 | |
| 48027-99 | |
| 4816A | |
| 48184-01 | |
| 4820A | |
| 4822A | |
| 48300-60 | |
| 48315-60 | |
| 48390-06 | |
| 48463-04A | |
| 48492-04A | |
| 4859 | |
| 4871 | |
| 48714-08 | |
| 48715-08 | |
| 48716-08 | |
| 48726-08 | |
| 48737-07 | |
| 48738-07 | |
| 48771-10 | |
| 48778-10 | |
| 48785-10 | |
| 48786-10 | |
| 48791-09 | |
| 48849-10 | |
| 48850-10 | |
| 4886 | |
| 48879-08A | |
| 4897 | |
| 49314-04 | |
| 49315-04 | |
| 49372-10 | |
| 49376-11 | |
| 49378-09 | |
| 49382-11 | |
| 49400-11 | |
| 49401-11 | |
| 49403-11 | |
| 49406-10 | |
| 49409-11 | |
| 49410-11 | |
| 49411-11 | |
| 49412-11 | |
| 49419-11 | |
| 49422-11 | |
| 49735-08 | |
| 4975M | |
| 4977 | |
| 4978 | |
| 4991 | |
| 4993 | |
| 50000025BHP | |
| 50003-89B | |
| 50005-85A | |
| 50124-09BHP | |
| 50126-08A | |
| 50185-04C | |
| 50500227 | |
| 50912-72 | |
| 51044-08 | |
| 51045-08 | |
| 51046-09 | |
| 51048-08 | |
| 51049-08 | |
| 51323-08 | |
| 51327-08 | |
| 51382-08 | |
| 51383-08 | |
| 51530-07 | |
| 51532-07 | |
| 51550-11 | |
| 51551-07 | |
| 51652-97A | |
| 51710-08 | |
| 51730-10 | |
| 51731-10 | |
| 51740-10 | |
| 51899-07 | |
| 51911-10 | |
| 51938-04 | |
| 52429-08 | |
| 52441-95 | |
| 53176-08 | |
| 53436-97 | |
| 5403B | |
| 5414 | |
| 5416 | |
| 54321-85 | |
| 54550-10 | |
| 54568-09 | |
| 54570-09 | |
| 54671-10 | |
| 54700-10 | |
| 54724-04 | |
| 54741-07 | |
| 55018-11 | |
| 55019-11 | |
| 55035-11 | |
| 55074-11 | |
| 55076-11 | |
| 55126-11 | |
| 55127-11 | |
| 5531 | |
| 554A | |
| 55785-11 | |
| 55786-11 | |
| 55840-04A | |
| 55842-04 | |
| 55844-04 | |
| 55846-05A | |
| 55847-05A | |
| 56014-09A | |
| 56017-04 | |
| 56073-83 | |
| 56079-93 | |
| 56085-83A | |
| 56104-02 | |
| 56115-95 | |
| 56116-82A | |
| 56117-82A | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56508-76 | |
| 56541-86A | |
| 56542-86A | |
| 56637-08 | |
| 56639-08 | |
| 56666-04 | |
| 56667-04 | |
| 56871-08 | |
| 56884-07 | |
| 56885-07 | |
| 57209-11 | |
| 57472-11 | |
| 5845 | |
| 58998-83E | |
| 59022-07BDK | |
| 59256-84A | |
| 59259-90 | |
| 59287-92 | |
| 59288-92 | |
| 59359-06 | |
| 59400-08 | |
| 59401-08 | |
| 59441-10 | |
| 59481-00 | |
| 59482-00 | |
| 59500034 | |
| 59502-04A | |
| 59673-04A | |
| 59712-07A | |
| 59723-04 | |
| 59727-07 | |
| 59768-97 | |
| 59847-10 | |
| 59865-10 | |
| 59885-11 | |
| 59901-08BDK | |
| 59902-04 | |
| 59903-04 | |
| 59916-08 | |
| 59984-73 | |
| 59986-75 | |
| 59988-72A | |
| 60001-55 | |
| 6003 | |
| 60183-08 | |
| 60188-08 | |
| 60203-06 | |
| 60204-06 | |
| 6021 | |
| 60225-08BHP | |
| 6026 | |
| 60300007 | |
| 60300008 | |
| 60300009 | |
| 60318-07 | |
| 60328-98B | |
| 60330-08 | |
| 60367-04 | |
| 60375-10 | |
| 60379-09 | |
| 60403-08 | |
| 60416-08 | |
| 60435-04A | |
| 60574-10 | |
| 60830-07 | |
| 60836-10 | |
| 60901-07 | |
| 60955-11 | |
| 6099 | |
| 6101 | |
| 61015-04A | |
| 6109 | |
| 6110 | |
| 61109-85D | |
| 61213-04A | |
| 61272-92C | |
| 61289-07A | |
| 61300131 | |
| 6139 | |
| 61392-08 | |
| 61405-07 | |
| 6152 | |
| 6157 | |
| 61572-08A | |
| 61573-08A | |
| 61574-08 | |
| 61576-08 | |
| 61577-08 | |
| 61724-10 | |
| 6192 | |
| 62122-89A | |
| 62150-85 | |
| 62213-07 | |
| 62338-01Y | |
| 62360-04A | |
| 62360-10 | |
| 62361-10 | |
| 6237 | |
| 62375-57A | |
| 62426-11 | |
| 62439-11 | |
| 62534-07 | |
| 62580-11 | |
| 62581-11 | |
| 62592-07A | |
| 62601-91A | |
| 62651-04 | |
| 62700013 | |
| 62700014 | |
| 6288 | |
| 62881-00 | |
| 62888-08A | |
| 62954-10 | |
| 63000-04B | |
| 63008-08 | |
| 6302 | |
| 63050-08A | |
| 63080-08 | |
| 63081-08 | |
| 63097-08 | |
| 63098-08 | |
| 63099-08 | |
| 63103-08 | |
| 63108-08 | |
| 63110-08 | |
| 63111-08 | |
| 63112-08 | |
| 63116-08 | |
| 63119-08 | |
| 63120-08 | |
| 63125-08 | |
| 63508-04 | |
| 63533-41A | |
| 63548-08 | |
| 63596-06 | |
| 63796-77A | |
| 63805-80A | |
| 6400HB | |
| 6445 | |
| 64737-09 | |
| 64738-09 | |
| 64842-04 | |
| 64846-04A | |
| 64847-04A | |
| 64850-08 | |
| 64851-09 | |
| 64853-04 | |
| 64854-04 | |
| 64889-04 | |
| 64890-04 | |
| 64891-04A | |
| 64893-04A | |
| 64942-07 | |
| 64943-07 | |
| 64965-08A | |
| 65088-04 | |
| 65168-10 | |
| 6516HW | |
| 65176-10 | |
| 65184-02 | |
| 65189-10 | |
| 65197-10 | |
| 65198-10 | |
| 65218-10 | |
| 65219-10 | |
| 65240-08 | |
| 65257-08 | |
| 65258-08 | |
| 65296-95A | |
| 65302-82A | |
| 65316-08 | |
| 65317-08A | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65339-04 | |
| 65453-08 | |
| 6551 | |
| 6589 | |
| 6590HW | |
| 65927-00 | |
| 6594 | |
| 65958-04A | |
| 65974-04A | |
| 6610 | |
| 6611 | |
| 66194-04D | |
| 66199-10 | |
| 66251-04A | |
| 66252-04A | |
| 66269-08BDK | |
| 66269-08CHJ | |
| 66270-08BDK | |
| 66270-08CHJ | |
| 66271-08BDK | |
| 66272-05A | |
| 66273-05A | |
| 66373-06 | |
| 66476-04A | |
| 66523-06 | |
| 66524-06 | |
| 66851-07 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 67037-08 | |
| 67041-08 | |
| 67089-05 | |
| 67091-08 | |
| 67104-95 | |
| 67121-95A | |
| 67157-08 | |
| 6716 | |
| 67170-08 | |
| 67174-08 | |
| 6718 | |
| 67290-08 | |
| 673 | |
| 67320-95 | |
| 6738 | |
| 67415-08 | |
| 67416-08 | |
| 67436-08 | |
| 675 | |
| 67601-94A | |
| 67603-94A | |
| 67667-05 | |
| 67700094 | |
| 67746-11 | |
| 67790-93A | |
| 67800070 | |
| 67804-04 | |
| 67805-92 | |
| 67815-59A | |
| 67834-83 | |
| 67854-98 | |
| 67865-89 | |
| 6787 | |
| 67880-94 | |
| 67883-04A | |
| 67894-93A | |
| 67900006 | |
| 67900079 | |
| 67900088 | |
| 67900089 | |
| 67900093 | |
| 67963-05 | |
| 67972-98 | |
| 6798 | |
| 68026-99 | |
| 68041-04 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68141-04 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 68257-08 | |
| 68265-04 | |
| 68277-07 | |
| 68278-07 | |
| 68296-99A | |
| 68297-05 | |
| 68299-07 | |
| 68329-03 | |
| 68335-05 | |
| 68341-05 | |
| 68369-03 | |
| 68370-03A | |
| 68372-03 | |
| 68380-05 | |
| 68382-07A | |
| 68443-07A | |
| 68449-07 | |
| 68461-09 | |
| 68480-02 | |
| 68497-07 | |
| 68513-07 | |
| 68559-07 | |
| 68561-09 | |
| 68572-64B | |
| 6863 | |
| 6864A | |
| 68653-05 | |
| 68702-07 | |
| 68704-07 | |
| 68724-07 | |
| 68730-07 | |
| 6874 | |
| 68755-07 | |
| 68804-06 | |
| 68813-07 | |
| 68814-07 | |
| 68830-99A | |
| 68838-06 | |
| 68857-07 | |
| 68899-04A | |
| 68904-00 | |
| 68920-07 | |
| 68924-07 | |
| 68926-07 | |
| 68939-00 | |
| 68955-08 | |
| 68956-07 | |
| 68958-07C | |
| 68966-08 | |
| 68972-00 | |
| 68973-00 | |
| 68975-00 | |
| 68978-00 | |
| 68984-01 | |
| 69000014 | |
| 69012-93A | |
| 69049-07 | |
| 69060-90F | |
| 69062-91A | |
| 69066-01A | |
| 69110-01 | |
| 69120-91 | |
| 69123-92A | |
| 69135-04 | |
| 69148-01 | |
| 69187-03A | |
| 69200316 | |
| 69200317 | |
| 6930 | |
| 69302-11 | |
| 69309-10 | |
| 69352-11 | |
| 69361-11 | |
| 69362-08 | |
| 69386-08 | |
| 69397-08 | |
| 69406-09 | |
| 69449-05 | |
| 69490-07 | |
| 69498-08 | |
| 69530-08 | |
| 69681-07B | |
| 69774-07A | |
| 69861-07 | |
| 69862-07 | |
| 69864-08 | |
| 70003-04 | |
| 70025-11 | |
| 70163-10 | |
| 70167-08A | |
| 70247-07 | |
| 70295-10 | |
| 70296-04A | |
| 70297-04A | |
| 70345-84 | |
| 70368-08 | |
| 7038 | |
| 7039 | |
| 7041 | |
| 70417-04C | |
| 7045 | |
| 70466-07A | |
| 70503-10 | |
| 70504-81 | |
| 70578-89 | |
| 70598-99 | |
| 70617-07 | |
| 70619-07 | |
| 70632-08 | |
| 70633-08 | |
| 70640-07 | |
| 70642-07 | |
| 70664-08 | |
| 70679-10 | |
| 7068 | |
| 70680-10 | |
| 70714-10 | |
| 7073 | |
| 7080 | |
| 70903-04 | |
| 70904-04 | |
| 70917-04 | |
| 70919-04 | |
| 7124 | |
| 71287-08 | |
| 71341-10 | |
| 71400058 | |
| 71472-04 | |
| 71478-08 | |
| 71510-04 | |
| 7155 | |
| 71550-94 | |
| 71552-94 | |
| 71563-96 | |
| 71564-96 | |
| 71567-96 | |
| 71568-96A | |
| 71587-04 | |
| 71620-08 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71980-10 | |
| 71988-10 | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72014-07 | |
| 72023-51D | |
| 72024-08 | |
| 72032-93 | |
| 72033-93 | |
| 72056-92 | |
| 72066-06A | |
| 72076-00 | |
| 72077-00 | |
| 72078-00 | |
| 72094-06 | |
| 72096-06 | |
| 72114-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72135-06 | |
| 72139-94GY | |
| 72144-94 | |
| 72154-94 | |
| 72159-94 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 7220 | |
| 72251-07 | |
| 72260-04 | |
| 72263-95 | |
| 72266-94 | |
| 72272-07 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 7230 | |
| 72312-04 | |
| 72318-04 | |
| 72329-08 | |
| 72330-95 | |
| 72335-10 | |
| 72378-04 | |
| 72402-07 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72430-00 | |
| 72434-00 | |
| 72441-04 | |
| 72445-99TN | |
| 72447-07GY | |
| 72469-07GY | |
| 72473-07 | |
| 72484-08 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72511-07BK | |
| 72512-07BK | |
| 72516-01 | |
| 72519-09BK | |
| 72543-07BK | |
| 72544-07 | |
| 72545-08 | |
| 72549-07 | |
| 72568-08 | |
| 72592-10 | |
| 72611-07 | |
| 72720-07 | |
| 72721-07 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73103-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73214-10 | |
| 73227-10 | |
| 73228-10 | |
| 73246-11 | |
| 73264-10 | |
| 73266-10 | |
| 73267-10 | |
| 73282-10 | |
| 73284-10 | |
| 73301-04 | |
| 73302-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 7331 | |
| 73318-09 | |
| 73358-12 | |
| 7341M | |
| 73504-11 | |
| 7357 | |
| 74112-98BK | |
| 74120-08 | |
| 74152-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 74402-05B | |
| 74711-08 | |
| 74714-10 | |
| 7477 | |
| 7495 | |
| 75268-07E | |
| 75301-07 | |
| 75302-07B | |
| 75304-07A | |
| 75305-07A | |
| 75309-07 | |
| 7531 | |
| 75317-07 | |
| 7549A | |
| 7593 | |
| 7601 | |
| 7606 | |
| 761 | |
| 7624 | |
| 7686 | |
| 7716 | |
| 7725 | |
| 7766 | |
| 7778 | |
| 7783 | |
| 7792 | |
| 7800W | |
| 7804 | |
| 7813A | |
| 7824 | |
| 7839 | |
| 7862 | |
| 7880 | |
| 7882 | |
| 7900 | |
| 7916A | |
| 7964 | |
| 80399-04 | |
| 8102 | |
| 8108 | |
| 8135B | |
| 8190 | |
| 835 | |
| 855B | |
| 8692 | |
| 882 | |
| 8862 | |
| 8873 | |
| 8881 | |
| 8884 | |
| 8885 | |
| 8956 | |
| 89579-91 | |
| 89586-04 | |
| 8964 | |
| 8966 | |
| 8970A | |
| 8972 | |
| 90300034 | |
| 90300036 | |
| 90300037 | |
| 90383-98 | |
| 90493-83 | |
| 90520-07 | |
| 9187A | |
| 91960-10 | |
| 91961-10 | |
| 91982-03B | |
| 91983-03B | |
| 9209 | |
| 9214 | |
| 92376-09 | |
| 92377-09 | |
| 92381-09 | |
| 92400-09 | |
| 92401-09 | |
| 92402-09 | |
| 92500-10 | |
| 9254 | |
| 9276A | |
| 927A | |
| 930 | |
| 93511-10 | |
| 940 | |
| 942 | |
| 943 | |
| 94432-04 | |
| 94435-10 | |
| 946 | |
| 94612-04 | |
| 95594-84A | |
| 95595-84A | |
| 9704 | |
| 9742 | |
| 9810 | |
| 9838 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 9907 | |
| 995 | |
| 9955 | |
| 9956 | |
| 9969 | |
| 997 | |
| C2045.1AK | |
| C2050.1AM | |
| C2051.1AM | |
| DA0600.12FAZB | |
| J8130.3A8 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7725 | Unknown |
| 7839 | Unknown |
| 7624 | Unknown |
| 7792 | 2012 |
| 8135B | Unknown |
| 7813A | 2007 |
| 7778 | Unknown |
| 7862 | Unknown |
| 7477 | Unknown |
| 7916A | Unknown |
| 7766 | Unknown |
| 7900 | Unknown |
| 7824 | Unknown |
| 11730A | Unknown |
| 8190 | Unknown |
| 7495 | 1994 |
| 7880 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 37495-91 | 1991 |
| 7341M | 2010 |
| 8108 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3899 | 1999 |
| 4678 | Unknown |
| 3802W | 2009 |
| 4266A | Unknown |
| 4188 | Unknown |
| 3244 | Unknown |
| 4250M | Unknown |
| 4765 | 1998 |
| 3579A | Unknown |
| 3990 | 2006 |
| 4180 | Unknown |
| 2872W | 2009 |
| 675 | Unknown |
| 3854 | 2009 |
| 882 | 2000 |
| 3987 | Unknown |
| 4771 | Unknown |
| 3048 | 2016 |
| 68026-99 | 1999 |
| 3162 | Unknown |
| 3849 | Unknown |
| 3018A | 2010 |
| 4741A | 1994 |
| 2481M | Unknown |
| 94612-04 | 2004 |
| 3655A | Unknown |
| 3976 | 2004 |
| 3056 | 2011 |
| 1081A | Unknown |
| 5416 | Unknown |
| 4718A | 1994 |
| 3731M | Unknown |
| 2955 | 1996 |
| 3485A | Unknown |
| 4897 | 2008 |
| 4993 | Unknown |
| 5414 | Unknown |
| 3022A | Unknown |
| 4991 | 2009 |
| 43567-92 | 1992 |
| 4802 | 2009 |
| 3514 | Unknown |
| 4499M | Unknown |
| 4350A | Unknown |
| 942 | 1992 |
| 42827-04 | 2004 |
| 4551 | Unknown |
| 940 | Unknown |
| 4748 | 2009 |
| 943 | Unknown |
| 4553 | Unknown |
| 4091 | Unknown |
| 4886 | Unknown |
| 2653 | 1972 |
| 3615 | Unknown |
| 4326A | 1990 |
| 2325 | Unknown |
| 2773 | Unknown |
| 4549 | Unknown |
| 4751 | Unknown |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 2586A | Unknown |
| 3059 | 2008 |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 930 | Unknown |
| 1048 | Unknown |
| 4240 | Unknown |
| 4975M | Unknown |
| 2508 | Unknown |
| 3605 | 2009 |
| 2952A | 2003 |
| 3060 | 2008 |
| 4822A | 1994 |
| 68120-00 | 2000 |
| 4724 | 2009 |
| 2487 | 2008 |
| 2486 | Unknown |
| 45996-87 | 1987 |
| 3814 | Unknown |
| 3594 | 1992 |
| 835 | Unknown |
| 4290 | Unknown |
| 3708M | 2011 |
| 3085 | Unknown |
| 2708A | Unknown |
| 2513 | 1990 |
| 4816A | Unknown |
| 68042-99 | 1999 |
| 4859 | Unknown |
| 4076 | Unknown |
| 1039 | Unknown |
| 2607 | Unknown |
| 4029A | 1990 |
| 42875-07 | 2007 |
| 4420 | 2009 |
| 45902-00 | 2000 |
| 3588 | 1990 |
| 2612 | 1973 |
| 3563 | 1999 |
| 4017 | 2009 |
| 4589 | Unknown |
| 3706M | Unknown |
| 2501A | Unknown |
| 1028 | Unknown |
| 4016 | Unknown |
| 4032A | Unknown |
| 3124 | Unknown |
| 2535 | 2004 |
| 4269 | Unknown |
| 45800-04 | 2004 |
| 4351 | Unknown |
| 3210A | Unknown |
| 4820A | Unknown |
| 1091 | Unknown |
| 4354 | Unknown |
| 4352 | Unknown |
| 56402-83A | 1983 |
| 1094 | Unknown |
| 2361 | Unknown |
| 3732 | 1998 |
| 3666A | 1997 |
| 2362 | Unknown |
| 3480A | Unknown |
| 4717A | Unknown |
| 2441 | Unknown |
| 3767B | 2009 |
| 927A | Unknown |
| 3574 | Unknown |
| 3214 | Unknown |
| 946 | Unknown |
| 4871 | Unknown |
| 855B | 2014 |
| 4363 | 2013 |
| 4758A | Unknown |
| 4365 | Unknown |
| 4312C | Unknown |
| 4798 | Unknown |
| 3565 | Unknown |
| 1751 | 2006 |
| 3123 | Unknown |
| 997 | Unknown |
| 16478-85A | 1985 |
| 995 | 2009 |
| 4359 | Unknown |
| 56397-74C | 1974 |
| 3880 | 2004 |
| 5403B | Unknown |
| 4329 | Unknown |
| 3029 | Unknown |
| 4778 | Unknown |
| 4779 | Unknown |
| 2407 | 2008 |
| 27216-95 | 1995 |
| 45790-80 | 1980 |
| 2460 | Unknown |
| 3026 | Unknown |
| 16480-92A | 1992 |
| 2445 | Unknown |
| 3696 | Unknown |
| 103A1 - Generic Washers | |
| 41732-04 | 2004 |
| 6718 | Unknown |
| 6026 | Unknown |
| 27714-06 | 2006 |
| 6445 | Unknown |
| 6611 | Unknown |
| 6157 | Unknown |
| 6302 | Unknown |
| 41743-04 | 2004 |
| 6610 | Unknown |
| 6551 | Unknown |
| 36802-84B | 1984 |
| 8972 | Unknown |
| 6110 | Unknown |
| 6787 | Unknown |
| 6288 | Unknown |
| 37891-02 | 2002 |
| 6930 | 2008 |
| 6099 | 2011 |
| 6798 | 2012 |
| 10972 | 2008 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 6139 | Unknown |
| 67815-59A | 1959 |
| 37890-02 | 2002 |
| 6589 | Unknown |
| 6590HW | Unknown |
| 7230 | Unknown |
| 6516HW | Unknown |
| 7220 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 65453-08 | 2008 |
| 7073 | Unknown |
| 6738 | Unknown |
| 6237 | 2014 |
| 6192 | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 42425-05 | 2005 |
| 7045 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 41191-74A | 1974 |
| 94432-04 | 2004 |
| 106A1 - Custom Washers | |
| 6874 | Unknown |
| 7080 | Unknown |
| 6003 | 2010 |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 42808-04 | 2004 |
| 10053 | 2010 |
| 10252 | 2004 |
| 10031 | 2010 |
| 55847-05A | 2005 |
| 10344 | Unknown |
| 31512-04 | 2004 |
| 10014 | Unknown |
| 61576-08 | 2008 |
| 29379-08 | 2008 |
| 9956 | 1972 |
| 9955 | Unknown |
| 10080 | Unknown |
| 10304 | Unknown |
| 10074 | Unknown |
| 10303 | Unknown |
| 108B1 - P Clamps | |
| 70417-04C | 2004 |
| 10255 | 2004 |
| 10179A | Unknown |
| 10800003 | 2011 |
| 10800006 | 2011 |
| 10323 | Unknown |
| 10092 | 2010 |
| 10142 | Unknown |
| 109A1 - Studs | |
| 16715-83 | 1983 |
| 16832-86C | 1986 |
| 16899-02 | 2002 |
| 65088-04 | 2004 |
| 110B1 - Plain Bushings | |
| 25586-37 | 1937 |
| 9214 | Unknown |
| 34982-02A | 2011 |
| 35030-89A | 1989 |
| 62881-00 | 2000 |
| 40574-06 | 2006 |
| 8966 | Unknown |
| 34076-02A | 2002 |
| 17429-91 | 1991 |
| 9254 | 2006 |
| 45801-04 | 2004 |
| 25598-91 | 1991 |
| 25593-74 | 1974 |
| 24647-87 | 1987 |
| 45465-87 | 1987 |
| 42569-03 | 2003 |
| 53176-08 | 2008 |
| 9742 | 2010 |
| 8885 | Unknown |
| 25588-91 | 1991 |
| 42443-80A | 1980 |
| 42846-04 | 2004 |
| 110C1 - Radial Shaft Seals | |
| 37107-06 | 2006 |
| 12068 | Unknown |
| 12074 | Unknown |
| 67104-95 | 1995 |
| 110D1 - Rolling Element Bearings | |
| 9209 | 2003 |
| 8956 | Unknown |
| 8964 | 2006 |
| 24650-87 | 1987 |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 8884 | Unknown |
| 9276A | 2019 |
| 24659-87 | 1987 |
| 9187A | 2011 |
| 8862 | Unknown |
| 24660-87 | 1987 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 111C1 - Insulating Tape | |
| 11668 | Unknown |
| 116A1 - Banjo Bolts | |
| 41737-04 | 2004 |
| 41736-04 | 2004 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11570 | Unknown |
| 10926 | 2010 |
| 11631 | Unknown |
| 46329-06 | 2002 |
| 11621 | Unknown |
| 11625 | Unknown |
| 11326 | Unknown |
| 26432-76A | 1976 |
| 11105 | Unknown |
| 11351 | 2001 |
| 11113 | Unknown |
| 11110 | Unknown |
| 10967 | Unknown |
| 10966 | Unknown |
| 11140 | 1982 |
| 10969 | Unknown |
| 11289A | Unknown |
| 10971 | Unknown |
| 10970 | 2008 |
| 11202 | Unknown |
| 61573-08A | 2008 |
| 48027-99 | 1999 |
| 11120 | Unknown |
| 11190 | Unknown |
| 11290 | 1998 |
| 45984-87 | 1987 |
| 11377 | Unknown |
| 26434-91 | 1991 |
| 11171 | Unknown |
| 11179 | 1986 |
| 11317 | Unknown |
| 120A1 - Pins | |
| 232 | 2008 |
| 215 | Unknown |
| 16573-83A | 1983 |
| 42460-80B | 1980 |
| 9704 | Unknown |
| 50003-89B | 1989 |
| 1594 | 1998 |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 51938-04 | 2004 |
| 358 | Unknown |
| 121A1 - Grommets | |
| 11474 | Unknown |
| 11491A | 2012 |
| 11407 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 67865-89 | 1989 |
| 42838-04 | 2004 |
| 6863 | Unknown |
| 90383-98 | 1998 |
| 761 | 1996 |
| 72164-94A | 1994 |
| 6864A | 2010 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 8102 | Unknown |
| 11271 | Unknown |
| 11272 | Unknown |
| 673 | Unknown |
| 10279 | Unknown |
| 35118-03 | 2003 |
| 11598 | 2007 |
| 11002 | Unknown |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 11031 | Unknown |
| 11155 | Unknown |
| 11142 | Unknown |
| 11408 | Unknown |
| 10984 | Unknown |
| 70640-07 | 2007 |
| 11390 | Unknown |
| 11046 | Unknown |
| 61213-04A | 2004 |
| 11121 | 2008 |
| 11177A | 1996 |
| 11304 | Unknown |
| 11282 | Unknown |
| 11067 | Unknown |
| 11379 | 2002 |
| 16699-06 | 2006 |
| 11384K | Unknown |
| 11250 | 1992 |
| 44590-04 | 2004 |
| 35038-89A | 1989 |
| 41229-08 | 2008 |
| 10242 | 2004 |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 26436-90A | 1990 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 48738-07 | 2007 |
| 124A1 - Spacers | |
| 48390-06 | 2006 |
| 6021 | Unknown |
| 33354-08 | 2008 |
| 6152 | Unknown |
| 11804 | Unknown |
| 46346-06 | 2002 |
| 40562-05 | 2005 |
| 37797-09 | 2009 |
| 45377-87 | 1987 |
| 7882 | Unknown |
| 35107-06 | 2006 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10287 | 2004 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 126A1 - Miscellaneous Hardware | |
| 42593-04 | 2004 |
| 45799-04 | 2004 |
| 12030 | Unknown |
| 90493-83 | 1983 |
| 42899-08 | 2008 |
| 12200 | Unknown |
| 12201 | Unknown |
| 42829-04 | 2004 |
| 48737-07 | 2007 |
| 69148-01 | 2001 |
| 33540-06 | 2006 |
| 45065-06 | 2006 |
| 48791-09 | 2009 |
| 56394-74 | 1974 |
| 8873 | 1984 |
| 42839-04 | 2004 |
| 126B1 - Rivets Fasteners | |
| 8692 | Unknown |
| 11778 | Unknown |
| 11785 | Unknown |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 93511-10 | 2010 |
| 127B1 - Generic Mounting Bracket | |
| 51652-97A | 1997 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 15376-06A | 2006 |
| 140A2 - General Warning Label | |
| 29466-08 | 2008 |
| 29147-07 | 2007 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 141A1 - Medallion | |
| 13567-05 | 2020 |
| 62581-11 | 2011 |
| 67667-05 | 2005 |
| 71550-94 | 1994 |
| 14270-92 | 1992 |
| 62439-11 | 2011 |
| 14448-94 | 1994 |
| 13566-05 | 2005 |
| 62580-11 | 2011 |
| 62426-11 | 2011 |
| 44440-04 | 2004 |
| 149A1 - Tool | |
| C2045.1AK | 2006 |
| C2051.1AM | 2008 |
| 92500-10 | 2010 |
| C2050.1AM | 2008 |
| 94435-10 | 2010 |
| 161A1 - Powertrain Assembly | |
| 19766-12 | 2012 |
| 19767-12 | 2012 |
| 19927-12 | 2012 |
| 19606-12 | 2012 |
| 19637-12 | 2012 |
| 19566-12 | 2012 |
| 19778-12 | 2009 |
| 19519-12 | 2012 |
| 19734-12 | 2012 |
| 19779-12 | 2005 |
| 19527-12 | 2012 |
| 19926-12 | 2012 |
| 19768-12 | 2012 |
| 19925-12 | 2012 |
| 163B1 - Engine Isolator Mount | |
| 16353-04 | 2004 |
| 41562-04 | 2004 |
| 16287-04 | 2004 |
| 48492-04A | 2004 |
| 48463-04A | 2004 |
| 16301-08 | 2008 |
| 16291-04 | 2004 |
| 41561-04 | 2004 |
| 164A1 - Engine Mount Bracket | |
| 63110-08 | 2008 |
| 63119-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 16232-04B | 2004 |
| 7783 | Unknown |
| 7531 | 1980 |
| DA0600.12FAZB | Unknown |
| 7804 | Unknown |
| 7686 | Unknown |
| 7357 | Unknown |
| 7800W | Unknown |
| 164D1 - Tiebar Mount | |
| 47471-04A | 2004 |
| 165A1 - Cylinder Head | |
| 17565-10 | 2010 |
| 16500068 | 2012 |
| 16500071 | 2012 |
| 16667-07 | 2007 |
| 17488-07 | 2007 |
| 16867-07 | 2007 |
| 18011-86 | 1986 |
| 16661-07 | 2007 |
| 18020-07 | 2007 |
| 16865-07 | 2007 |
| 16660-07 | 2007 |
| 17562-10 | 2010 |
| 17485-07 | 2007 |
| 16666-07 | 2007 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16664-86D | 1986 |
| 16789-04 | 2004 |
| 16770-84F | 1984 |
| 16771-08 | 2008 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 37934-06 | 2006 |
| 37896-02 | 2002 |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 16463-04 | 2004 |
| 17496-07 | 2007 |
| 16800019 | 2012 |
| 16443-04 | 2004 |
| 16452-05 | 2005 |
| 16468-08 | 2008 |
| 16469-10 | 2010 |
| 179A1 - Lifters | |
| 17981-04 | 2004 |
| 17972-04 | 2004 |
| 17903-10 | 2010 |
| 17911-10 | 2010 |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17908-02 | 2002 |
| 17909-02 | 2002 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18505-06 | 2006 |
| 180A1 - Valves | |
| 18690-02 | 2002 |
| 18053-04 | 2004 |
| 18021-87A | 1987 |
| 18059-04 | 2004 |
| 181B1 - Valve Seals | |
| 18012-87A | 1987 |
| 16465-06 | 2006 |
| 18094-02A | 2002 |
| 181C1 - Valve Collars | |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 17569-08 | 2008 |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 21965-08 | 2008 |
| 22244-04A | 2004 |
| 220A1 - Piston Ring | |
| 22266-86 | 1986 |
| 22224-04 | 2004 |
| 22223-04 | 2004 |
| 22231-04 | 2004 |
| 21948-02 | 2002 |
| 22261-86 | 1986 |
| 22238-04 | 2004 |
| 22271-86 | 1986 |
| 22221-04 | 2004 |
| 22227-04 | 2004 |
| 22228-04 | 2004 |
| 22230-04 | 2004 |
| 221A1 - Piston Pin | |
| 22589-83B | 1983 |
| 22765-02 | 2002 |
| 22719-04 | 2004 |
| 237B1 - Connecting Rod sub-component | |
| 24332-36 | 1936 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 24658-87 | 1987 |
| 241A1 - Flywheel | |
| 23999-08 | 2008 |
| 23905-04B | 2007 |
| 244A1 - Crankcase | |
| 24470-06B | 2006 |
| 24745-07A | 2008 |
| 24466-06B | 2006 |
| 24475-08 | 2008 |
| 244D1 - Crankcase sub-component | |
| 17525-08 | 2008 |
| 24047-00 | 2000 |
| 8881 | Unknown |
| 254A1 - Camdrive Gear | |
| 25271-08 | 2008 |
| 25194-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 40039-02C | 2007 |
| 256A1 - Timer Cover | |
| 32506-90 | 1990 |
| 25600007 | 2012 |
| 32531-07 | 2007 |
| 32514-04 | 2004 |
| 257B1 - Clutch Cover | |
| 37718-10 | 2010 |
| 34992-04 | 2004 |
| 34760-04 | 2004 |
| 257D1 - Clutch Inspection Cover | |
| 34993-04A | 2004 |
| 34794-05A | 2005 |
| 34761-04A | 2006 |
| 35077-10 | 2010 |
| 257E1 - Cover Gaskets | |
| 67121-95A | 1995 |
| 65324-83B | 2009 |
| 75301-07 | 2007 |
| 25279-08 | 2008 |
| 17393-07 | 2007 |
| 17695-07B | 2011 |
| 34955-04 | 2004 |
| 67174-08 | 2008 |
| 17362-07B | 2011 |
| 16800-84A | 1984 |
| 61109-85D | 1985 |
| 26638-00Y | 2000 |
| 25463-94A | 1994 |
| 67601-94A | 1994 |
| 17027-08 | 2008 |
| 17976-04 | 2004 |
| 29313-95 | 1995 |
| 12085 | Unknown |
| 29062-95B | 1995 |
| 17036-08 | 2008 |
| 17633-08B | 2011 |
| 34990-08 | 2008 |
| 45378-87 | 1987 |
| 17049-08 | 2008 |
| 25263-90D | 1990 |
| 257L1 - Primary Cover | |
| 60836-10 | 2010 |
| 25486-05 | 2005 |
| 25430-06 | 2006 |
| 25546-07 | 2007 |
| 60830-07 | 2007 |
| 25307-06 | 2006 |
| 25460-06 | 2006 |
| 257M1 - Push Rod Cover | |
| 17946-04 | 2004 |
| 17963-10 | 2010 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17501-04 | 2004 |
| 17375-83A | 1983 |
| 17615-10 | 2010 |
| 17537-07A | 2007 |
| 17611-83 | 1983 |
| 17551-04 | 2004 |
| 17360-83A | 1983 |
| 17532-07A | 2007 |
| 17655-05 | 2005 |
| 17591-10 | 2010 |
| 17614-07A | 2008 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25250-10 | 2010 |
| 25219-04 | 2004 |
| 25213-04 | 2004 |
| 265A1 - Vent / Breather Line | |
| 63508-04 | 2004 |
| 26162-08 | 2008 |
| 62360-10 | 2010 |
| 62360-04A | 2004 |
| 26169-08 | 2008 |
| 63103-08 | 2008 |
| 271C1 - Intercooler Gasket | |
| 65927-00 | 2000 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27695-08 | 2008 |
| 16360-08 | 2008 |
| 27795-07 | 2007 |
| 16361-07 | 2007 |
| 273A1 - Intake Manifold | |
| 27707-07 | 2007 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27327-07 | 2007 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300029 | 2011 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273M1 - Throttle Cable Bracket | |
| 27698-08A | 2008 |
| 27701-07A | 2007 |
| 56871-08 | 2008 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27704-07 | 2007 |
| 274C1 - Fuel Injector | |
| 27706-07A | 2007 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 27700-07 | 2007 |
| 290A1 - Airbox Baseplate | |
| 29369-07A | 2007 |
| 29000015 | 2012 |
| 290C1 - Airbox Baseplate sub-component | |
| 29123-07 | 2007 |
| 29355-07 | 2007 |
| 290D1 - Airbox Seal | |
| 29315-04 | 2004 |
| 29000016 | 2012 |
| 290E1 - Airbox Helmholtz Chamber | |
| 29867-09 | 2009 |
| 292A1 - Air Duct | |
| 28794-10 | 2010 |
| 292B1 - Air Duct Bezel | |
| 29200001 | 2011 |
| 294A1 - Air Filter Element | |
| 29371-08 | 2008 |
| 29400015 | 2012 |
| 29377-08 | 2008 |
| 29331-04 | 2004 |
| 294F1 - Engine Breather Valve | |
| 26016-08 | 2008 |
| 295A1 - Intake Miscellaneous Component | |
| 26011-04 | 2004 |
| 28911-04A | 2004 |
| 26020-07 | 2007 |
| 26012-07 | 2007 |
| 29380-08 | 2008 |
| 26010-04 | 2004 |
| 299C1 - Charging Rotor | |
| 30018-08 | 2008 |
| 30029-08 | 2008 |
| 32493-02B | 2008 |
| 32494-04B | 2008 |
| 299F1 - Stator Assembly | |
| 29997-07A | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31556-91D | 2010 |
| 314F1 - Starter Motor | |
| 31390-91F | 1991 |
| 314G1 - Starter Motor sub-component | |
| 31488-81C | 2008 |
| 314H1 - Starter Solenoid | |
| 31603-91 | 1991 |
| 314L1 - Starter Motor Drive | |
| 33189-63 | 1963 |
| 315B1 - Exhaust Valve Actuator | |
| 18691-02 | 2002 |
| 316A1 - Ignition Coil | |
| 31656-07 | 2007 |
| 316B1 - Spark Plug Cable | |
| 32003-07 | 2007 |
| 32004-08 | 2008 |
| 32005-08A | 2008 |
| 32006-07 | 2007 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 27794-08 | 2008 |
| 327B1 - Chemical / Gas Sensor | |
| 27719-07 | 2007 |
| 27690-08 | 2008 |
| 327C1 - Pressure Sensor | |
| 26554-77B | 1977 |
| 327D1 - Proximity Sensor | |
| 50126-08A | 2008 |
| 74402-05B | 2012 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32472-10 | 2010 |
| 32319-07 | 2007 |
| 327F1 - Throttle Position Sensor | |
| 27629-01A | 2001 |
| 336A1 - Shift Linkage Rod Assembly | |
| 34723-10 | 2010 |
| 34663-10 | 2010 |
| 336B1 - Shift Linkage Connection Rod | |
| 33832-08 | 2008 |
| 336C1 - Shift Linkage Rod End | |
| 34573-04 | 2004 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 336G1 - Toepeg Rubber | |
| 34672-08 | 2008 |
| 33133-06 | 2006 |
| 339A1 - Shift Lever | |
| 34572-04 | 2004 |
| 34670-06 | 2006 |
| 34660-04A | 2004 |
| 34721-07 | 2007 |
| 33875-08 | 2008 |
| 339C1 - Shifter Drum | |
| 33641-06 | 2006 |
| 339D1 - Shifter Fork | |
| 34162-06 | 2006 |
| 34157-06 | 2006 |
| 34981-02A | 2002 |
| 339F1 - Shifter Index Lever | |
| 34724-10 | 2010 |
| 34014-06A | 2006 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 34491-02A | 2002 |
| 34665-10 | 2010 |
| 34483-06 | 2006 |
| 34163-02 | 2002 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34932-04 | 2004 |
| 34954-07 | 2007 |
| 34911-04 | 2004 |
| 37716-10 | 2010 |
| 34943-05 | 2005 |
| 350A1 - Transmission Output Sprocket | |
| 40380-04 | 2004 |
| 40409-04 | 2004 |
| 40379-04 | 2004 |
| 350B1 - Transmission Output Sprocket Compensating Cushion | |
| 37899-02A | 2002 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40560-05 | 2005 |
| 350E1 - Transmission Gear | |
| 35167-06 | 2006 |
| 35159-06 | 2006 |
| 35234-08 | 2008 |
| 35165-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35163-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35197-06 | 2006 |
| 35191-06 | 2006 |
| 35172-06 | 2006 |
| 35193-06 | 2006 |
| 35174-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35196-06 | 2006 |
| 35190-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35051-89A | 1989 |
| 35211-91B | 1991 |
| 365A1 - Primary Chain | |
| 40147-04 | 2004 |
| 40005-57B | 1957 |
| 40057-08 | 2008 |
| 365C1 - Primary Drive Assembly | |
| 40254-02 | 2002 |
| 40290-04A | 2004 |
| 40241-02A | 2003 |
| 40251-92A | 1992 |
| 367A1 - Clutch Lever | |
| 45356-07 | 2007 |
| 46945-07A | 2007 |
| 367E1 - Clutch Lever Mount Clamp | |
| 38671-04 | 2004 |
| 367H1 - Clutch Lever sub-component | |
| 34920-86A | 1986 |
| 37892-02 | 2002 |
| 37904-90 | 1990 |
| 37870-91 | 1991 |
| 36715-94 | 1994 |
| 38630-88 | 1988 |
| 37872-90 | 1990 |
| 37905-90 | 1990 |
| 37909-90 | 1990 |
| 37910-04B | 2006 |
| 37895-02 | 2002 |
| 36799-91 | 1991 |
| 37977-90 | 1990 |
| 46268-04 | 2004 |
| 37908-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37924-04A | 2006 |
| 37000041 | 2011 |
| 370B1 - Clutch Friction Plate | |
| 37897-02 | 2002 |
| 37911-90 | 1990 |
| 370C1 - Clutch Hub | |
| 36785-91 | 1991 |
| 37898-02A | 2002 |
| 370F1 - Clutch Pressure Plate | |
| 37912-91 | 1991 |
| 37913-90 | 1990 |
| 370F3 - Clutch Diaphragm Spring | |
| 37894-02 | 2002 |
| 370G1 - Clutch Shell | |
| 36790-04 | 2004 |
| 372A1 - Clutch Actuation Screw | |
| 11765Y | Unknown |
| 372D1 - Clutch Cable | |
| 38702-05C | 2005 |
| 38786-08A | 2008 |
| 38699-04C | 2004 |
| 38999-11 | 2011 |
| 372K2 - Clutch Ramp | |
| 25453-87A | 1987 |
| 25409-94B | 1994 |
| 400A1 - Drive-Belt | |
| 40591-07 | 2007 |
| 400B1 - Idler Pulley Assembly | |
| 31602-08 | 2008 |
| 31630-08 | 2008 |
| 400C1 - Idler Pulley | |
| 31698-08 | 2008 |
| 400E1 - Idler Pulley Bracket | |
| 31699-08 | 2008 |
| 409A1 - Rear Wheel | |
| 41012-08 | 2008 |
| 43348-10 | 2010 |
| 55076-11 | 2011 |
| 41082-08 | 2008 |
| 41478-10 | 2010 |
| 44012-11 | 2011 |
| 43832-08 | 2008 |
| 55019-11 | 2011 |
| 410D1 - Electronic Control Module (ECM) | |
| 32534-11 | 2011 |
| 68920-07 | 2007 |
| 68278-07 | 2007 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 70617-07 | 2007 |
| 413A1 - Brake Caliper | |
| 42892-08 | 2008 |
| 42948-08 | 2008 |
| 42881-11 | 2011 |
| 40968-11 | 2011 |
| 42944-08 | 2008 |
| 44121-07A | 2008 |
| 44160-00 | 2000 |
| 42877-10 | 2010 |
| 42943-08 | 2008 |
| 42879-10 | 2010 |
| 413C1 - Brake Caliper sub-component | |
| 42823-04 | 2004 |
| 42824-04 | 2004 |
| 45401-87 | 1987 |
| 40948-04 | 2004 |
| 413D1 - Brake Pad | |
| 42029-07 | 2007 |
| 415B1 - Brake Rotor | |
| 44136-00 | 2000 |
| 44156-00 | 2000 |
| 41833-08 | 2008 |
| 41822-10 | 2010 |
| 416A1 - Brakes Miscellaneous Component | |
| 34582-04 | 2004 |
| 45067-06 | 2006 |
| 42837-04 | 2004 |
| 72023-51D | 2004 |
| 42807-04 | 2004 |
| 416B1 - Brake Mounting Bracket | |
| 42825-04 | 2004 |
| 42878-10 | 2010 |
| 42880-10 | 2010 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42813-04 | 2004 |
| 42805-04 | 2004 |
| 42814-04 | 2004 |
| 42945-08 | 2008 |
| 417B1 - Brake Master Cylinder | |
| 45146-07 | 2007 |
| 45052-07A | 2008 |
| 42941-10 | 2010 |
| 42745-07 | 2007 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42834-04 | 2004 |
| 42028-07 | 2007 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42809-07A | 2008 |
| 67804-04 | 2004 |
| 42900-08 | 2008 |
| 40946-04 | 2004 |
| 42736-08 | 2008 |
| 42893-07 | 2007 |
| 42832-04 | 2004 |
| 44178-04 | 2004 |
| 44189-04 | 2004 |
| 42803-07A | 2008 |
| 42811-04 | 2004 |
| 42738-08 | 2008 |
| 42595-04 | 2004 |
| 42804-07 | 2007 |
| 42815-04 | 2004 |
| 42810-07A | 2008 |
| 42976-04 | 2004 |
| 42979-04 | 2004 |
| 42645-07 | 2007 |
| 42828-04 | 2004 |
| 44184-04 | 2004 |
| 43528-04 | 2004 |
| 42817-07 | 2007 |
| 417E1 - Brake Master Cylinder Hose | |
| 42821-04 | 2004 |
| 42737-08 | 2008 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42816-07 | 2007 |
| 42521-07 | 2007 |
| 42845-07 | 2007 |
| 42744-08 | 2008 |
| 417G1 - Front Brake Lever | |
| 46946-06A | 2006 |
| 42806-04 | 2004 |
| 418B1 - Brake Line | |
| 46986-11 | 2011 |
| 45319-04D | 2011 |
| 42942-08A | 2008 |
| 45449-04C | 2011 |
| 46417-10A | 2011 |
| 45074-95 | 1995 |
| 46400-04C | 2011 |
| 46688-11 | 2011 |
| 46680-11 | 2011 |
| 42975-08A | 2008 |
| 44429-11 | 2011 |
| 420A1 - Wheel Rim | |
| 41389-10 | 2010 |
| 43017-07 | 2007 |
| 43662-80B | 1983 |
| 41426-07 | 2007 |
| 43085-97 | 1997 |
| 55127-11 | 2011 |
| 421A1 - Wheel Spoke with Nipple | |
| 40760-05 | 2005 |
| 40761-05 | 2005 |
| 43241-05 | 2005 |
| 40762-05 | 2005 |
| 40759-05 | 2005 |
| 47887-10 | 2010 |
| 422B1 - Wheel Sprocket | |
| 40444-07 | 2007 |
| 40350-07 | 2007 |
| 40518-08 | 2008 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40561-05 | 2005 |
| 423C1 - Rim Strip | |
| 43145-47 | 1947 |
| 43939-89 | 1989 |
| 43147-40 | 1940 |
| 40875-11 | 2011 |
| 423D1 - Tire Inner Tube | |
| 43140-80 | 1980 |
| 41188-06 | 2006 |
| 40558-82 | 1982 |
| 40572-11 | 2011 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84A | 2010 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 47878-09A | 2010 |
| 55126-11 | 2011 |
| 430B1 - Rear Axle Carrier / Adjuster | |
| 42174-09 | 2009 |
| 41626-08 | 2008 |
| 430D1 - Front Axle | |
| 43895-08 | 2008 |
| 41628-08 | 2008 |
| 430E1 - Rear Axle | |
| 41176-08 | 2008 |
| 41573-05 | 2005 |
| 41623-05 | 2005 |
| 41627-08 | 2008 |
| 431A1 - Front Tire | |
| 43258-07B | 2011 |
| 40879-11A | 2012 |
| 55035-11 | 2011 |
| 43100004 | 2012 |
| 432A1 - Rear Tire | |
| 43200011 | 2012 |
| 43200007 | 2012 |
| 40878-11 | 2011 |
| 43216-11 | 2011 |
| 433A1 - Front Wheel | |
| 43355-00 | 2000 |
| 43557-08 | 2008 |
| 55074-11 | 2011 |
| 43359-00 | 2000 |
| 43343-10 | 2010 |
| 47875-09A | 2010 |
| 43689-11 | 2011 |
| 43499-08 | 2008 |
| 43831-08 | 2008 |
| 55018-11 | 2011 |
| 41388-10 | 2010 |
| 433B1 - Front Wheel Bearing Spacer | |
| 40930-05 | 2005 |
| 43358-08 | 2008 |
| 41858-08 | 2008 |
| 43906-08 | 2008 |
| 43522-08 | 2008 |
| 41748-08 | 2008 |
| 43905-08 | 2008 |
| 41730-08 | 2008 |
| 41242-08 | 2008 |
| 454A1 - Front Telescopic Fork | |
| 48715-08 | 2008 |
| 49378-09 | 2009 |
| 49409-11 | 2011 |
| 45400041 | 2013 |
| 45400042 | 2013 |
| 45968-10 | 2010 |
| 46453-09 | 2009 |
| 48778-10 | 2010 |
| 49382-11 | 2011 |
| 49400-11 | 2011 |
| 49406-10 | 2010 |
| 45988-10 | 2010 |
| 49410-11 | 2011 |
| 48771-10 | 2010 |
| 48714-08 | 2008 |
| 454B1 - Springer Fork | |
| 47299-07 | 2007 |
| 10417 | Unknown |
| 455A1 - Front Telescopic Fork Slider | |
| 45395-09 | 2009 |
| 48786-10 | 2010 |
| 48849-10 | 2010 |
| 49403-11 | 2011 |
| 46075-04 | 2004 |
| 48716-08 | 2008 |
| 48850-10 | 2010 |
| 46218-05 | 2005 |
| 48726-08 | 2008 |
| 49411-11 | 2011 |
| 46076-04 | 2004 |
| 49412-11 | 2011 |
| 49401-11 | 2011 |
| 46450-08 | 2008 |
| 46449-08 | 2008 |
| 48785-10 | 2010 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500142 | 2013 |
| 49372-10 | 2010 |
| 46267-05 | 2005 |
| 10418 | 2010 |
| 45376-09 | 2009 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45374-87 | 1987 |
| 45462-87 | 1987 |
| 46343-06 | 2002 |
| 45690-10 | 2010 |
| 45461-87 | 1987 |
| 45361-90 | 1990 |
| 45460-90 | 1990 |
| 46002-87 | 1987 |
| 46372-10 | 2010 |
| 45938-92 | 1992 |
| 10628 | Unknown |
| 45905-87 | 1987 |
| J8130.3A8 | 2005 |
| 45693-10 | 2010 |
| 46681-10 | 2010 |
| 456A1 - Fork Protector | |
| 45451-07 | 2007 |
| 456B1 - Fork Brace | |
| 46420-10 | 2010 |
| 49419-11 | 2011 |
| 456C1 - Fork Lock | |
| 45600014 | 2012 |
| 457D1 - Steering Stem | |
| 4977 | Unknown |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45458-09 | 2009 |
| 4978 | Unknown |
| 46245-09 | 2009 |
| 45842-77A | 1977 |
| 48184-01 | 2001 |
| 68041-04 | 2004 |
| 459A1 - Upper Triple Clamp | |
| 46009-10 | 2010 |
| 46928-10 | 2010 |
| 45966-04 | 2004 |
| 46758-07 | 2007 |
| 46997-11 | 2011 |
| 459B1 - Lower Triple Clamp | |
| 46998-11 | 2011 |
| 46014-10 | 2010 |
| 46767-07 | 2007 |
| 46126-04 | 2004 |
| 46927-10 | 2010 |
| 49422-11 | 2011 |
| 470A1 - Frame | |
| 48879-08A | 2011 |
| 49376-11 | 2011 |
| 472C1 - Front Fairing Support Bracket | |
| 42972-04 | 2004 |
| 60204-06 | 2006 |
| 60203-06 | 2006 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 47313-07 | 2007 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 59903-04 | 2004 |
| 59902-04 | 2004 |
| 59502-04A | 2004 |
| 47470-04 | 2004 |
| 472E1 - Frame Cover | |
| 47200177 | 2012 |
| 474C1 - Swingarm | |
| 47587-05 | 2005 |
| 474D1 - Rear Lift Stand Spool | |
| 47682-10 | 2010 |
| 475B1 - Swingarm Pivot Shaft | |
| 41698-04 | 2004 |
| 41699-04 | 2004 |
| 41568-04 | 2004 |
| 500A1 - Sidestand Assembly | |
| 50185-04C | 2011 |
| 50000025BHP | 2011 |
| 500D1 - Sidestand Leg | |
| 50124-09BHP | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 49735-08 | 2008 |
| 62122-89A | 1989 |
| 50005-85A | 1985 |
| 500F1 - Sidestand Pivot Pin | |
| 554A | 2002 |
| 505B1 - Footpeg Mount Bracket | |
| 51044-08 | 2008 |
| 33048-72 | 1972 |
| 42651-04 | 2004 |
| 51049-08 | 2008 |
| 51048-08 | 2008 |
| 49315-04 | 2004 |
| 42652-04 | 2004 |
| 51045-08 | 2008 |
| 49314-04 | 2004 |
| 42971-04 | 2004 |
| 505C1 - Heel Guard / Pad | |
| 33084-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 50500227 | 2012 |
| 51327-08 | 2008 |
| 33134-07CAZ | 2007 |
| 33032-99 | 1999 |
| 33135-07CAZ | 2007 |
| 51323-08 | 2008 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 33216-99 | 1999 |
| 506A1 - Brake Pedal | |
| 42969-04 | 2004 |
| 50912-72 | 1972 |
| 42812-04 | 2004 |
| 42685-04 | 2004 |
| 42341-07 | 2007 |
| 42649-07 | 2007 |
| 34581-04 | 2004 |
| 42949-08A | 2008 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 51731-10 | 2010 |
| 51730-10 | 2010 |
| 42541-04 | 2004 |
| 51046-09 | 2009 |
| 520A1 - Rider Seat or Full Seat | |
| 51551-07 | 2007 |
| 51899-07 | 2007 |
| 51382-08 | 2008 |
| 51911-10 | 2010 |
| 51532-07 | 2007 |
| 51550-11 | 2011 |
| 51530-07 | 2007 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 51740-10 | 2010 |
| 521A1 - Seat Support Structure | |
| 52429-08 | 2008 |
| 51710-08 | 2008 |
| 521C1 - Seat Suspension Damper | |
| 42840-04 | 2004 |
| 45925-09 | 2009 |
| 10627 | Unknown |
| 524A1 - Passenger Grab Handle | |
| 59723-04 | 2004 |
| 524B1 - Passenger Seat | |
| 51383-08 | 2008 |
| 540B1 - Rear Shock | |
| 54570-09 | 2009 |
| 46454-09 | 2009 |
| 54568-09 | 2009 |
| 54550-10 | 2010 |
| 54700-10 | 2010 |
| 54671-10 | 2010 |
| 540E1 - Rear Shock sub-component | |
| 54741-07 | 2007 |
| 54724-04 | 2004 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 42831-04A | 2005 |
| 42739-08 | 2008 |
| 42310-08 | 2008 |
| 558A1 - Handlebar | |
| 55840-04A | 2004 |
| 56014-09A | 2010 |
| 56079-93 | 1993 |
| 57472-11 | 2011 |
| 56085-83A | 1983 |
| 558B1 - Handlebar Tube | |
| 57209-11 | 2011 |
| 559D1 - Lower Handlebar Clamp | |
| 55842-04 | 2004 |
| 56542-86A | 1986 |
| 56017-04 | 2004 |
| 56541-86A | 1986 |
| 56117-82A | 1982 |
| 56116-82A | 1982 |
| 559E1 - Upper Handlebar Clamp | |
| 56115-95 | 1995 |
| 560A1 - Mirror | |
| 92401-09 | 2009 |
| 92400-09 | 2009 |
| 92376-09 | 2009 |
| 92377-09 | 2009 |
| 91983-03B | 2003 |
| 91961-10 | 2010 |
| 92381-09 | 2009 |
| 91960-10 | 2010 |
| 91982-03B | 2003 |
| 92402-09 | 2009 |
| 561A1 - Throttle Cable | |
| 56637-08 | 2008 |
| 56884-07 | 2007 |
| 45155-08 | 2008 |
| 56885-07 | 2007 |
| 56639-08 | 2008 |
| 561B1 - Left Hand Grip | |
| 56667-04 | 2004 |
| 561C1 - Throttle Assembly w/Grip | |
| 56666-04 | 2004 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 571C1 - Fairing Side | |
| 66269-08BDK | 2008 |
| 571D1 - Debris Deflector | |
| 60435-04A | 2011 |
| 572E1 - Side Cover | |
| 66270-08BDK | 2008 |
| 66269-08CHJ | 2008 |
| 66272-05A | 2005 |
| 66251-04A | 2004 |
| 66252-04A | 2004 |
| 66270-08CHJ | 2008 |
| 66273-05A | 2005 |
| 589A1 - Front Fender | |
| 59022-07BDK | 2007 |
| 58998-83E | 2008 |
| 59441-10 | 2010 |
| 60574-10 | 2010 |
| 59712-07A | 2007 |
| 60955-11 | 2011 |
| 595D1 - Rear Fender | |
| 59673-04A | 2004 |
| 59885-11 | 2011 |
| 59901-08BDK | 2008 |
| 59400-08 | 2008 |
| 59401-08 | 2008 |
| 59916-08 | 2008 |
| 59727-07 | 2007 |
| 59865-10 | 2010 |
| 59768-97 | 1997 |
| 59847-10 | 2010 |
| 595E1 - Rear Fender Support | |
| 59500034 | 2011 |
| 603B1 - Belt / Chain Guard | |
| 60367-04 | 2004 |
| 60300008 | 2012 |
| 60300007 | 2012 |
| 60300009 | 2012 |
| 60416-08 | 2008 |
| 60403-08 | 2008 |
| 60379-09 | 2009 |
| 608A1 - Carbon Canister | |
| 28908-04A | 2004 |
| 28909-04 | 2004 |
| 27042-84A | 1995 |
| 608B1 - Carbon Canister Hose | |
| 28822-07A | 2007 |
| 27200-08 | 2008 |
| 27067-07A | 2007 |
| 609A1 - Fuel Miscellaneous Component | |
| 5845 | Unknown |
| 89586-04 | 2004 |
| 89579-91 | 1991 |
| 75317-07 | 2007 |
| 27047-84B | 1984 |
| 610A1 - Fuel Tank | |
| 61724-10 | 2010 |
| 61405-07 | 2007 |
| 62213-07 | 2007 |
| 61392-08 | 2008 |
| 611A1 - Filler Neck Trim | |
| 71478-08 | 2008 |
| 611B1 - Fuel Cap | |
| 61289-07A | 2011 |
| 61572-08A | 2008 |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27071-10 | 2010 |
| 27096-04A | 2004 |
| 612A1 - Fuel Filter | |
| 75304-07A | 2007 |
| 612B1 - Fuel Level Sensor | |
| 75302-07B | 2011 |
| 612B2 - Fuel Valve | |
| 75309-07 | 2007 |
| 61015-04A | 2004 |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 27693-07 | 2007 |
| 27792-08 | 2008 |
| 27829-10 | 2010 |
| 612F1 - Fuel Pump | |
| 75268-07E | 2011 |
| 75305-07A | 2007 |
| 612K1 - Fuel Pump sub-component | |
| 61574-08 | 2008 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 66271-08BDK | 2008 |
| 28792-10 | 2010 |
| 613K1 - Airbox Cover | |
| 61300131 | 2012 |
| 28793-10 | 2010 |
| 28790-10 | 2010 |
| 614C1 - Trim | |
| 62534-07 | 2007 |
| 70919-04 | 2004 |
| 70904-04 | 2004 |
| 70917-04 | 2004 |
| 70903-04 | 2004 |
| 29346-07 | 2007 |
| 61577-08 | 2008 |
| 71472-04 | 2004 |
| 624A1 - Oil Pump Assembly | |
| 26204-91A | 1991 |
| 26592-08 | 2008 |
| 624B1 - Oil Pump Assembly sub-component | |
| 62601-91A | 1991 |
| 26332-08 | 2008 |
| 26182-08 | 2008 |
| 26239-07 | 2007 |
| 26210-99 | 1999 |
| 26495-89B | 1989 |
| 26437-86B | 1986 |
| 62651-04 | 2004 |
| 33117-91A | 1991 |
| 26502-07 | 2007 |
| 26526-08 | 2008 |
| 11652 | Unknown |
| 45830-48 | 1948 |
| 26546-08 | 2008 |
| 26400-82B | 1982 |
| 26503-07 | 2007 |
| 624D1 - Oil Pump Drive Gear | |
| 26318-88A | 1988 |
| 624E1 - Oil Pump Internal Cover | |
| 26522-08 | 2008 |
| 625B1 - Oil Tank | |
| 62954-10 | 2010 |
| 62888-08A | 2008 |
| 627A1 - Oil Cooler | |
| 63050-08A | 2008 |
| 627B1 - Oil Drain Plug | |
| 33123-06A | 2006 |
| 60330-08 | 2008 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 63008-08 | 2008 |
| 62592-07A | 2007 |
| 63000-04B | 2004 |
| 627F1 - Oil Filter | |
| 63796-77A | 1977 |
| 63805-80A | 1980 |
| 627G1 - Oil Jet | |
| 62700013 | 2011 |
| 62700014 | 2011 |
| 627H1 - Oil Line | |
| 62338-01Y | 2001 |
| 63081-08 | 2008 |
| 62361-10 | 2010 |
| 63120-08 | 2008 |
| 63099-08 | 2008 |
| 63080-08 | 2008 |
| 33138-06 | 2006 |
| 63596-06 | 2006 |
| 63097-08 | 2008 |
| 9969 | Unknown |
| 63098-08 | 2008 |
| 63111-08 | 2008 |
| 627K1 - Oil Line Fitting | |
| 26496-75A | 1975 |
| 63548-08 | 2008 |
| 26184-08 | 2008 |
| 25394-08 | 2008 |
| 26064-08 | 2008 |
| 26183-08 | 2008 |
| 62375-57A | 1957 |
| 26525-08 | 2008 |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 26856-89A | 1989 |
| 627P1 - Oil Thermostat | |
| 26529-08 | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63116-08 | 2008 |
| 70503-10 | 2010 |
| 66199-10 | 2010 |
| 63125-08 | 2008 |
| 63112-08 | 2008 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 63108-08 | 2008 |
| 648K1 - Exhaust Miscellaneous Component | |
| 65258-08 | 2008 |
| 64850-08 | 2008 |
| 649A1 - Muffler | |
| 64842-04 | 2004 |
| 65219-10 | 2010 |
| 65218-10 | 2010 |
| 64893-04A | 2004 |
| 64738-09 | 2009 |
| 64891-04A | 2004 |
| 80399-04 | 2004 |
| 64890-04 | 2004 |
| 64737-09 | 2009 |
| 653A1 - Muffler sub-component | |
| 65240-08 | 2008 |
| 654A1 - Exhaust Shield | |
| 66851-07 | 2007 |
| 64847-04A | 2004 |
| 64846-04A | 2004 |
| 65198-10 | 2010 |
| 64889-04 | 2004 |
| 65176-10 | 2010 |
| 65168-10 | 2010 |
| 65189-10 | 2010 |
| 65197-10 | 2010 |
| 655A1 - Muffler Mount | |
| 65316-08 | 2008 |
| 655C1 - Exhaust Mounting Bracket | |
| 65339-04 | 2004 |
| 65974-04A | 2004 |
| 656C1 - Header | |
| 64851-09 | 2009 |
| 656E1 - Header Pipe | |
| 64965-08A | 2010 |
| 64943-07 | 2007 |
| 64942-07 | 2007 |
| 658A1 - Exhaust Catalyst | |
| 64853-04 | 2004 |
| 64854-04 | 2004 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65302-82A | 1982 |
| 65257-08 | 2008 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65317-08A | 2009 |
| 660A1 - Battery | |
| 65958-04A | 2004 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66194-04D | 2004 |
| 660D1 - Battery Strap | |
| 66476-04A | 2004 |
| 660E1 - Ground Strap | |
| 70297-04A | 2004 |
| 660F1 - Negative Battery Cable | |
| 70296-04A | 2004 |
| 660G1 - Positive Battery Cable | |
| 70295-10 | 2010 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-04 | 2004 |
| 670A1 - Tachometer | |
| 74714-10 | 2010 |
| 677A1 - Headlight | |
| 68335-05 | 2005 |
| 67603-94A | 1994 |
| 67883-04A | 2004 |
| 69774-07A | 2007 |
| 73266-10 | 2010 |
| 67963-05 | 2005 |
| 69449-05 | 2005 |
| 68341-05 | 2005 |
| 67894-93A | 1993 |
| 67834-83 | 1983 |
| 67790-93A | 1993 |
| 67972-98 | 1998 |
| 73264-10 | 2010 |
| 69386-08 | 2008 |
| 68297-05 | 2005 |
| 68443-07A | 2007 |
| 69397-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 67700094 | 2011 |
| 69681-07B | 2011 |
| 67880-94 | 1994 |
| 73246-11 | 2011 |
| 677C1 - Headlight Support Bracket | |
| 67805-92 | 1992 |
| 67746-11 | 2011 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 69352-11 | 2011 |
| 68830-99A | 1999 |
| 69864-08 | 2008 |
| 68372-03 | 2003 |
| 69361-11 | 2011 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68141-04 | 2004 |
| 678B1 - Taillight Housing | |
| 68513-07 | 2010 |
| 678D1 - Turnsignal | |
| 68975-00 | 2000 |
| 68804-06 | 2006 |
| 68730-07 | 2007 |
| 68265-04 | 2004 |
| 68480-02 | 2002 |
| 69066-01A | 2002 |
| 5531 | Unknown |
| 68978-00 | 2000 |
| 69530-08 | 2008 |
| 68984-01 | 2001 |
| 68277-07 | 2007 |
| 73318-09 | 2009 |
| 68972-00 | 2000 |
| 73284-10 | 2010 |
| 56104-02 | 2002 |
| 73358-12 | 2012 |
| 73282-10 | 2010 |
| 68838-06 | 2006 |
| 68497-07 | 2007 |
| 73267-10 | 2010 |
| 68461-09 | 2009 |
| 69406-09 | 2009 |
| 68449-07 | 2007 |
| 69362-08 | 2008 |
| 67800070 | 2011 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 69110-01 | 2001 |
| 68755-07 | 2007 |
| 68559-07 | 2007 |
| 679B1 - Reflector | |
| 60183-08 | 2008 |
| 69490-07 | 2007 |
| 59359-06 | 2006 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 69862-07 | 2007 |
| 59256-84A | 1984 |
| 68561-09 | 2009 |
| 59288-92 | 1992 |
| 69861-07 | 2007 |
| 68704-07 | 2007 |
| 59988-72A | 1972 |
| 69498-08 | 2008 |
| 60188-08 | 2008 |
| 68724-07 | 2007 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900006 | 2011 |
| 679D1 - License Plate Bracket | |
| 67900079 | 2011 |
| 68257-08 | 2008 |
| 67900089 | 2011 |
| 67900088 | 2011 |
| 67900093 | 2011 |
| 60001-55 | 1955 |
| 59986-75 | 1975 |
| 68702-07 | 2007 |
| 60318-07 | 2007 |
| 60901-07 | 2007 |
| 59984-73 | 1973 |
| 68857-07 | 2007 |
| 60225-08BHP | 2008 |
| 68966-08 | 2008 |
| 68299-07 | 2007 |
| 679E1 - License Plate Light | |
| 73504-11 | 2011 |
| 60375-10 | 2010 |
| 680C1 - Incandescent Bulb | |
| 68572-64B | 1964 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 52441-95 | 1995 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69000014 | 2011 |
| 692C1 - Electrical Miscellaneous Component | |
| 70368-08 | 2008 |
| 11954 | 2011 |
| 72378-04 | 2004 |
| 71552-94 | 1994 |
| 70633-08 | 2008 |
| 68382-07A | 2010 |
| 72189-04 | 2004 |
| 70632-08 | 2008 |
| 10289A | Unknown |
| 70466-07A | 2007 |
| 692C2 - Electrical Mounting Bracket | |
| 31797-07 | 2007 |
| 71980-10 | 2010 |
| 69123-92A | 1992 |
| 70642-07 | 2007 |
| 69135-04 | 2004 |
| 69049-07 | 2007 |
| 73227-10 | 2010 |
| 71341-10 | 2010 |
| 70680-10 | 2010 |
| 67157-08 | 2008 |
| 69120-91 | 1991 |
| 31801-08 | 2008 |
| 69060-90F | 2010 |
| 67089-05 | 2005 |
| 71988-10 | 2010 |
| 67170-08 | 2008 |
| 67320-95 | 1995 |
| 66523-06 | 2006 |
| 31807-07 | 2007 |
| 31806-08A | 2008 |
| 66524-06 | 2006 |
| 31753-07 | 2007 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72318-04 | 2004 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72430-00 | 2000 |
| 692E2 - Fuse / Relay Block Cover | |
| 73214-10 | 2010 |
| 73302-04 | 2004 |
| 73228-10 | 2010 |
| 692F1 - Wire Harness | |
| 68814-07 | 2007 |
| 70247-07 | 2007 |
| 68955-08 | 2008 |
| 67091-08 | 2008 |
| 68813-07 | 2007 |
| 70167-08A | 2008 |
| 70163-10 | 2010 |
| 70619-07 | 2007 |
| 68899-04A | 2004 |
| 69200316 | 2012 |
| 70025-11 | 2011 |
| 69200317 | 2012 |
| 55844-04 | 2004 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 11888 | 2010 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 29950-91 | 1991 |
| 71287-08 | 2008 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72312-04 | 2004 |
| 27250-96B | 1996 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72078-00 | 2000 |
| 73301-04 | 2004 |
| 72516-01 | 2001 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 692H2 - Terminal | |
| 72076-00 | 2000 |
| 72272-07 | 2007 |
| 72441-04 | 2004 |
| 72549-07 | 2007 |
| 9810 | Unknown |
| 72289-04 | 2004 |
| 72592-10 | 2010 |
| 72413-07 | 2007 |
| 72335-10 | 2010 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72024-08 | 2008 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72169-07 | 2007 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 72094-06 | 2006 |
| 72434-00 | 2000 |
| 72991-01 | 2001 |
| 72611-07 | 2007 |
| 74194-98 | 1998 |
| 72445-99TN | 1999 |
| 72568-08 | 2008 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68653-05 | 2005 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 73213-07 | 2007 |
| 72487-07BK | 2007 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72263-95 | 1995 |
| 72488-07BK | 2007 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72473-07 | 2007 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 73152-96WE | 1996 |
| 74120-08 | 2008 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 72251-07 | 2007 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72032-93 | 1993 |
| 72720-07 | 2007 |
| 72033-93 | 1993 |
| 10200 | Unknown |
| 72011-05 | 2005 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 73191-96 | 1996 |
| 70664-08 | 2008 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72188-07BK | 2007 |
| 72543-07BK | 2007 |
| 73104-96BK | 1996 |
| 72469-07GY | 2007 |
| 73305-04 | 2004 |
| 72544-07 | 2007 |
| 73102-96BK | 1996 |
| 72014-07 | 2007 |
| 72056-92 | 1992 |
| 72545-08 | 2008 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 72329-08 | 2008 |
| 72406-07A | 2007 |
| 74112-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 692M1 - Electrical Component / Wire Cover | |
| 70679-10 | 2010 |
| 69302-11 | 2011 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67436-08 | 2008 |
| 67041-08 | 2008 |
| 70714-10 | 2010 |
| 67416-08 | 2008 |
| 67037-08 | 2008 |
| 67290-08 | 2008 |
| 67415-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71400058 | 2012 |
| 714B1 - Mechanical Switch | |
| 33900-99 | 1999 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 71587-04 | 2004 |
| 71510-04 | 2004 |
| 55786-11 | 2011 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 55846-05A | 2005 |
| 71563-96 | 1996 |
| 71568-96A | 1996 |
| 55785-11 | 2011 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71620-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74711-08 | 2008 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 903A1 - Lockset | |
| 90300036 | 2012 |
| 90300037 | 2012 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 68939-00 | 2000 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | SPEEDOMETER & TACHOMETER - XR1200X: |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | OIL TANK & LINES- XR1200X: |
| 10080 | CLAMP | CRANKCASE & GEARCASE - 883L/N/R, 1200C/CP/N/V/X: CRANKCASE & GEARCASE - XR1200X: |
| 11105 | O-RING | |
| 11171 | O-RING | |
| 11304 | RETAINING RING | FOOTRESTS - 883L/N/R, 1200C/CP/N/V/X: FOOTRESTS - XR1200X: |
| 11379 | RETAINING RING | BRAKE CONTROL, FRONT - 883L/N/R, 1200C/CP/N/V/X: BRAKE CONTROL, FRONT - XR1200X: |
| 11491A | GROMMET | FRAME & JIFFY STAND - XR1200X: |
| 12074 | OIL SEAL | |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - 883L/N/R, 1200C/CP/N/V/X: CYLINDERS, HEADS & VALVES - XR1200X: |
| 16800-84A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - 883L/N/R, 1200C/CP/N/V/X: ROCKER ARM ASSEMBLY & PUSH RODS - XR1200X: |
| 2445 | SCREW | FORK BRACKETS, FRONT - XR1200X: FORK, REAR, DEBRIS DEFLECTOR & BELT GUARD: FENDERS, REAR - XR1200X: |
| 2446 | SCREW | |
| 25463-94A | GASKET | |
| 26995-86B | SEAL | INDUCTION MODULE, FUEL - 883L/N/R, 1200C/CP/N/V/X: INDUCTION MODULE, FUEL - XR1200X: |
| 2952A | SCREW | |
| 34990-08 | GASKET | |
| 3655A | SCREW | WHEEL, FRONT, CAST - XR1200X: |
| 3658 | SCREW | |
| 4132 | SCREW | |
| 43567-92 | SCREW | WHEEL, REAR, CAST - XR1200X: |
| 45378-87 | OIL SEAL | |
| 45405-75A | SCREW | |
| 4740A | SCREW | CAMSHAFTS & GEAR COVER - 883L/N/R, 1200C/CP/N/V/X: CAMSHAFTS & GEAR COVER - XR1200X: |
| 48300-60 | ROLLER BEARING | FORK BRACKETS, FRONT - 883L/N/R, 1200C/CP/N/V/X: FORK BRACKETS, FRONT - XR1200X: |
| 59768-97 | FENDER SEAT NUT KIT | FENDERS, REAR - 883L/R/1200C/CP (ALL), 883N/1200N/V/X (CANADA ONLY): |
| 6516HW | WASHER | BELT & SPROCKETS - XR1200X: WHEEL, REAR, CAST - XR1200X: |
| 65324-83B | GASKET | EXHAUST SYSTEM - XR1200X: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM - XR1200X: |
| 65927-00 | GASKET | |
| 6702 | WASHER | BRAKE, MASTER CYLINDER, REAR - 883L/N/R, 1200C/CP/N/V/X: FENDERS, REAR - 883L/R/1200C/CP (ALL), 883N/1200N/V/X (CANADA ONLY): EXHAUST SYSTEM - XR1200X: |
| 7041 | LOCKWASHER | |
| 7593 | NUT | EXHAUST SYSTEM - XR1200X: |
| 7716 | LOCKNUT | HEADLAMP - 883L/N/R, 1200N/X, XR1200X: |
| 8692 | RIVET | FENDERS, REAR - 883L/R/1200C/CP (ALL), 883N/1200N/V/X (CANADA ONLY): |
| 9276A | BALL BEARING | WHEEL, FRONT, CAST - XR1200X: WHEEL, REAR, CAST - XR1200X: |
| 943 | SCREW | ROCKER ARM ASSEMBLY & PUSH RODS - XR1200X: |
| 9955 | CLAMP | EXHAUST SYSTEM - XR1200X: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING | FRAME & JIFFY STAND - 883L/N/R, 1200C/CP/N/V/X: FRAME & JIFFY STAND - XR1200X: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | |
| 71621-08 | SWITCH ASSEMBLY | |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - 883L/N/R, 1200C/CP/N/V/X (2 OF 3): WIRING HARNESS, MAIN - XR1200X (2 OF 3): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | TAPPET | ROCKER ARM ASSEMBLY & PUSH RODS - 883L/N/R, 1200C/CP/N/V/X: ROCKER ARM ASSEMBLY & PUSH RODS - XR1200X: |
| 37909-90 | RETAINING RING | CLUTCH - XR1200X: |
| 37911-90 | FRICTION PLATE | CLUTCH - XR1200X: |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | SHIFTER TOE PEG KIT |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29331-04 | FILTER ELEMENT | |
| 65296-95A | CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | |
| 68329-03 | BULB | |
| 68572-64B | BULB | |
| 68973-00 | LENS |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | |
| 63796-77A | OIL FILTER | |
| 63805-80A | OIL FILTER | CRANKCASE & GEARCASE - XR1200X: |
| 65958-04A | BATTERY | |
| 66373-06 | BATTERY | |
| 95594-84A | WHEEL WEIGHT | WHEEL, FRONT, CAST - XR1200X: WHEELS, REAR, CAST - 883L/N/R, 1200C/CP: WHEEL, REAR, CAST - XR1200X: |
| 95595-84A | WHEEL WEIGHT |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40558-82 | INNER TUBE | WHEELS, FRONT, LACED - 1200C/CP/N/V/X: WHEELS, REAR, LACED - 1200C/CP/N/V/X: |
| 40999-87 | VALVE STEM | |
| 43140-80 | INNER TUBE | WHEELS, FRONT, LACED - 1200C/CP/N/V/X: |
| 43147-40 | RIM STRIP | WHEELS, REAR, LACED - 1200C/CP/N/V/X: |
| 43157-83A | VALVE STEM ASSEMBLY | WHEEL, FRONT, CAST - XR1200X: WHEEL, REAR, CAST - XR1200X: |
| 43939-89 | RIM STRIP | WHEELS, FRONT, LACED - 1200C/CP/N/V/X: |
