2011 HARLEY-DAVIDSON® PARTS CATALOG: VRSC MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99457-11A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2011 VRSC MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | Market designation | 1=Originally manufactured for sale within the United States 5=Originally manufactured for sale outside of the United States | |
2 | Manufacturer/vehicle type | HD=Harley-Davidson motorcycle | |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc and larger) | |
4 | Model | See model table | |
5 | Engine type | H=Revolution®, 1250 cm3 liquid-cooled, fuel injected J=Revolution®, 1250 cm3 liquid-cooled, fuel injected 105 HP HDI only | |
6 | Introduction date/calibration | Normal Introduction 1=Domestic 3=California A=Canada C=HDI E=Japan G=Australia J=Brazil L=Asia Pacific N=India | Mid-year or Special Introduction 2, 4=Domestic 5, 6=California B=Canada D=HDI F=Japan H=Australia K=Brazil M=Asia Pacific P=India |
7 | V.I.N. check digit | Can be 0-9 or X | |
8 | Model year | B=2011 | |
9 | Assembly plant | C=Kansas City, MO USA | |
10 | Sequential number | Varies | |
Table 3. VIN Model Codes
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
HH | VRSCDX Night Rod® Special | HP | VRSCF V-Rod Muscle™ |
NOTES

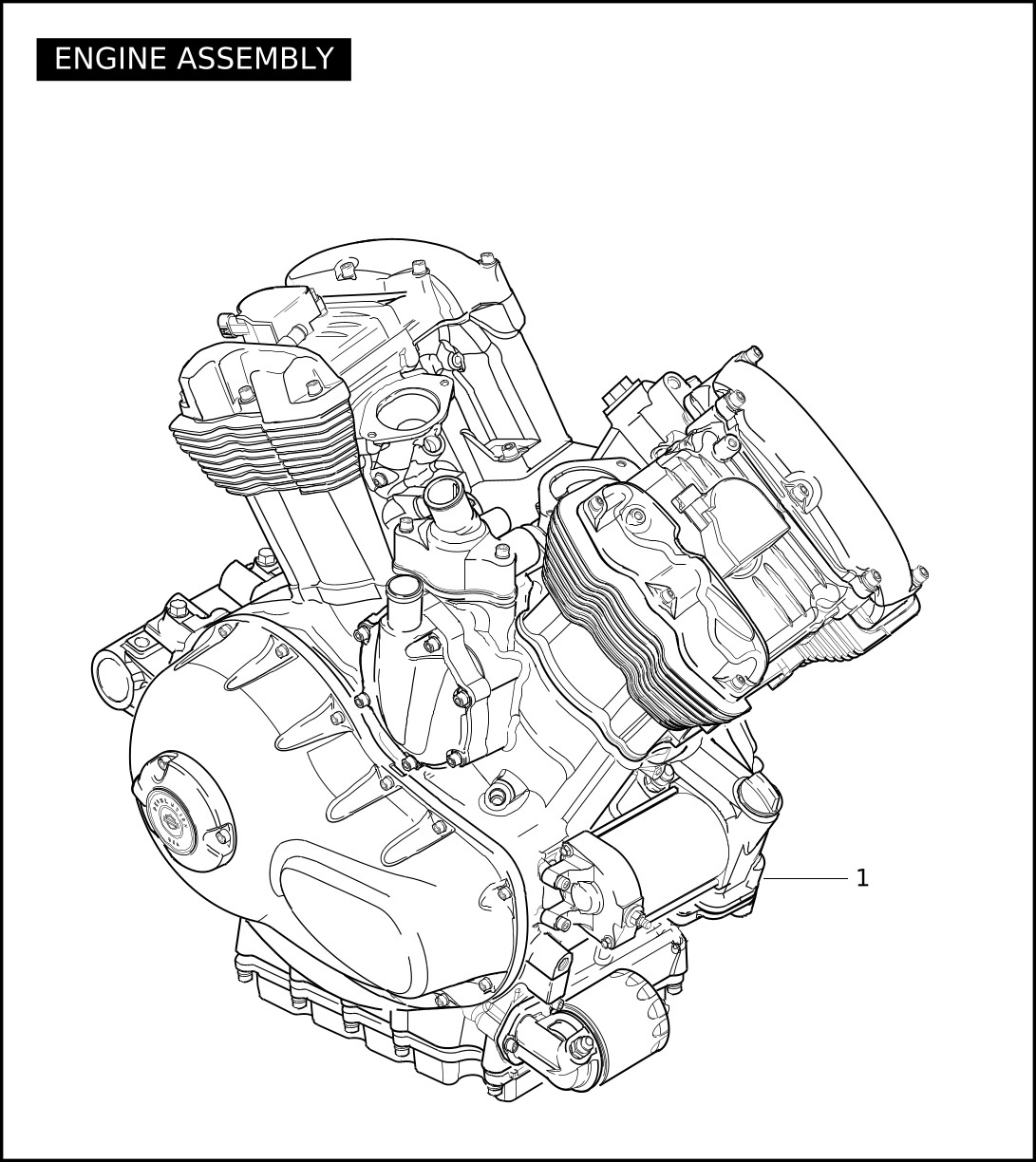

ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19569-11K | ENGINE ASSEMBLY (black/gloss black) | VRSCDX |
| 19844-11K | ENGINE ASSEMBLY (polished/platinum) | VRSCF |

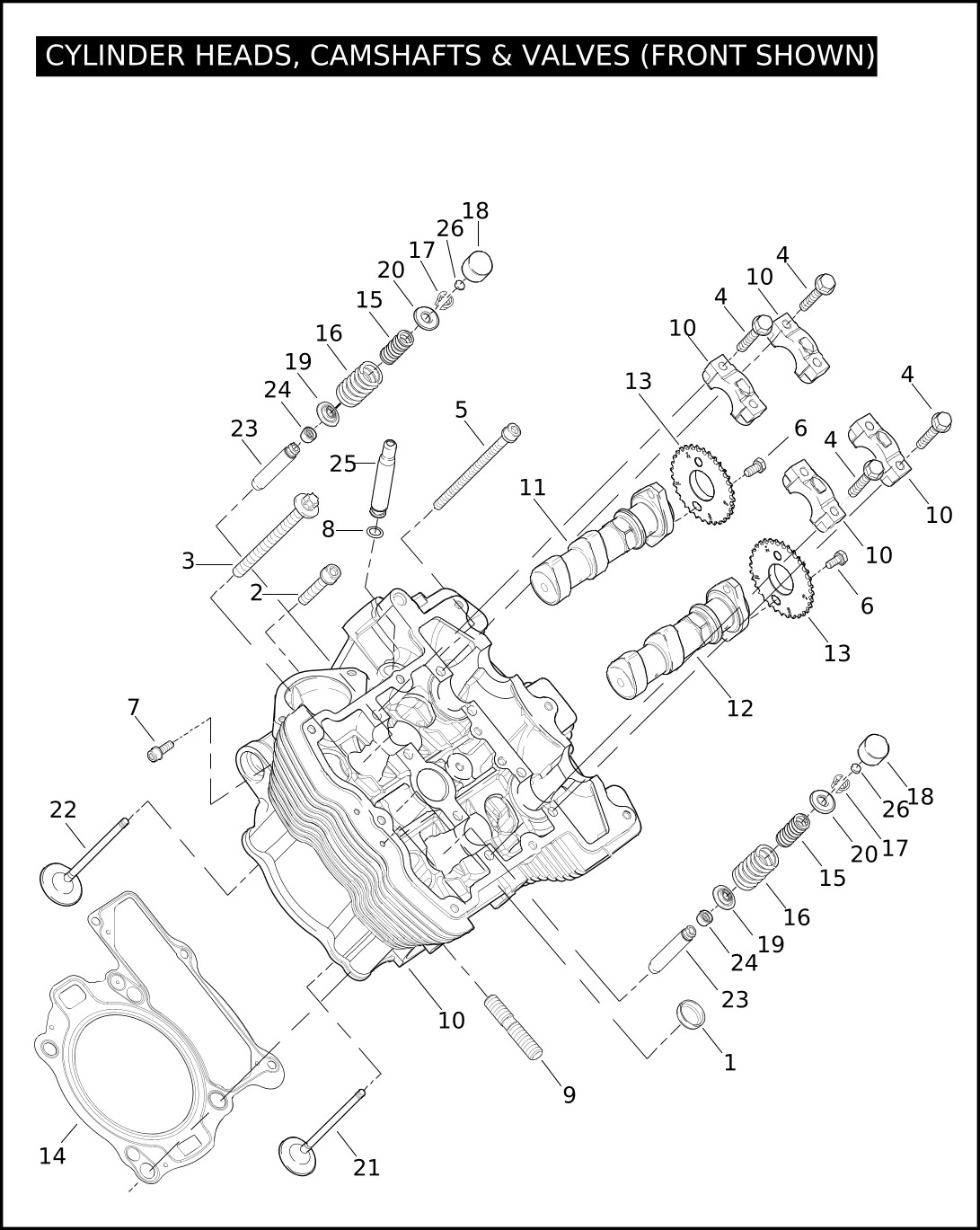

CYLINDER HEADS, CAMSHAFTS, & VALVES (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 769MA | PLUG, expansion (4) | ALL |
| 2 | 966M | SCREW (2) | ALL |
| 3 | 984M | BOLT (8) | ALL |
| 4 | 1014M | SCREW (16) | ALL |
| 5 | 1017M | SCREW (4) | ALL |
| 6 | 1031M | SCREW (8) | ALL |
| 7 | 1043MA | SCREW (2) | ALL |
| 8 | 11391K | O-RING | ALL |
| 9 | 16448-01KA | STUD (4) | ALL |
| 10 | 17125-08KA | CYLINDER HEAD ASSEMBLY, front (black) | VRSCDX |
| 17126-08KA | CYLINDER HEAD ASSEMBLY, rear (not shown) (black) | VRSCDX | |
| 17304-09K | CYLINDER HEAD ASSEMBLY, front (not shown) (platinum) | VRSCF | |
| 17305-09K | CYLINDER HEAD ASSEMBLY, rear (not shown) (platinum) | VRSCF | |
| 11 | 17431-05K | CAMSHAFT ASSEMBLY, intake (2) | ALL |
| 12 | 17421-08K | CAMSHAFT ASSEMBLY, exhaust (2) | ALL |
| 13 | 17423-01K | SPROCKET, camshaft (4) | ALL |
| 14 | 17691-08K | GASKET, cylinder head - front | ALL |
| 17692-08K | GASKET, cylinder head - rear (not shown) | ALL | |
| 15 | 18052-01K | VALVE SPRING, inner valve (8) | ALL |
| 16 | 18055-01K | VALVE SPRING, outer valve (8) | ALL |
| 17 | 18057-01K | COLLET, valve (8) | ALL |
| 18 | 18181-01K | TAPPET (8) | ALL |
| 19 | 18661-01K | COLLAR, valve spring - lower (8) | ALL |
| 20 | 18662-01K | COLLAR, valve spring - upper (8) | ALL |
| 21 | 18663-01K | EXHAUST VALVE (4) | ALL |
| 22 | 18688-06K | INTAKE VALVE (4) | ALL |
| 23 | 18665-01K | VALVE GUIDE (8) | ALL |
| 24 | 18687-01K | SEAL, valve (8) | ALL |
| 27798-08 | STUD, bracket O2 sensor (on rear cylinder not shown) | ALL | |
| 25 | 29601-05K | TUBE ASSEMBLY, front breather, w/ 11391K | ALL |
| 26 | 18696-01K | SHIM, 1.825 mm | ALL |
| 18697-01K | SHIM, 1.850 mm | ALL | |
| 18698-01K | SHIM, 1.875 mm | ALL | |
| 18699-01K | SHIM, 1.900 mm | ALL | |
| 18700-01K | SHIM, 1.925 mm | ALL | |
| 18701-01K | SHIM, 1.950 mm | ALL | |
| 18702-01K | SHIM, 1.975 mm | ALL | |
| 18666-01K | SHIM, 2.000 mm | ALL | |
| 18624-01K | SHIM, 2.025 mm | ALL | |
| 18667-01K | SHIM, 2.050 mm | ALL | |
| SHIMS 1.825 mm - 2.050 mm LISTED BELOW | |||
CYLINDER HEADS, CAMSHAFTS, & VALVES (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 18625-01K | SHIM, 2.075 mm | ALL |
| 18668-01K | SHIM, 2.100 mm | ALL | |
| 18626-01K | SHIM, 2.125 mm | ALL | |
| 18669-01K | SHIM, 2.150 mm | ALL | |
| 18627-01K | SHIM, 2.175 mm | ALL | |
| 18670-01K | SHIM, 2.200 mm | ALL | |
| 18628-01K | SHIM, 2.225 mm | ALL | |
| 18671-01K | SHIM, 2.250 mm | ALL | |
| 18629-01K | SHIM, 2.275 mm | ALL | |
| 18672-01K | SHIM, 2.300 mm | ALL | |
| 18630-01K | SHIM, 2.325 mm | ALL | |
| 18673-01K | SHIM, 2.350 mm | ALL | |
| 18631-01K | SHIM, 2.375 mm | ALL | |
| 18674-01K | SHIM, 2.400 mm | ALL | |
| 18632-01K | SHIM, 2.425 mm | ALL | |
| 18675-01K | SHIM, 2.450 mm | ALL | |
| 18638-01K | SHIM, 2.475 mm | ALL | |
| 18676-01K | SHIM, 2.500 mm | ALL | |
| 18639-01K | SHIM, 2.525 mm | ALL | |
| 18677-01K | SHIM, 2.550 mm | ALL | |
| 18655-01K | SHIM, 2.575 mm | ALL | |
| 18678-01K | SHIM, 2.600 mm | ALL | |
| 18656-01K | SHIM, 2.625 mm | ALL | |
| 18679-01K | SHIM, 2.650 mm | ALL | |
| 18657-01K | SHIM, 2.675 mm | ALL | |
| 18680-01K | SHIM, 2.700 mm | ALL | |
| 18658-01K | SHIM, 2.725 mm | ALL | |
| 18681-01K | SHIM, 2.750 mm | ALL | |
| 18659-01K | SHIM, 2.775 mm | ALL | |
| 18682-01K | SHIM, 2.800 mm | ALL | |
| 18692-01K | SHIM, 2.825 mm | ALL | |
| 18683-01K | SHIM, 2.850 mm | ALL | |
| 18693-01K | SHIM, 2.875 mm | ALL | |
| 18684-01K | SHIM, 2.900 mm | ALL | |
| 18694-01K | SHIM, 2.925 mm | ALL | |
| 18685-01K | SHIM, 2.950 mm | ALL | |
| 18695-01K | SHIM, 2.975 mm | ALL | |
| 18686-01K | SHIM, 3.000 mm | ALL | |
| SHIMS 2.075 mm - 3.500 mm LISTED BELOW | |||

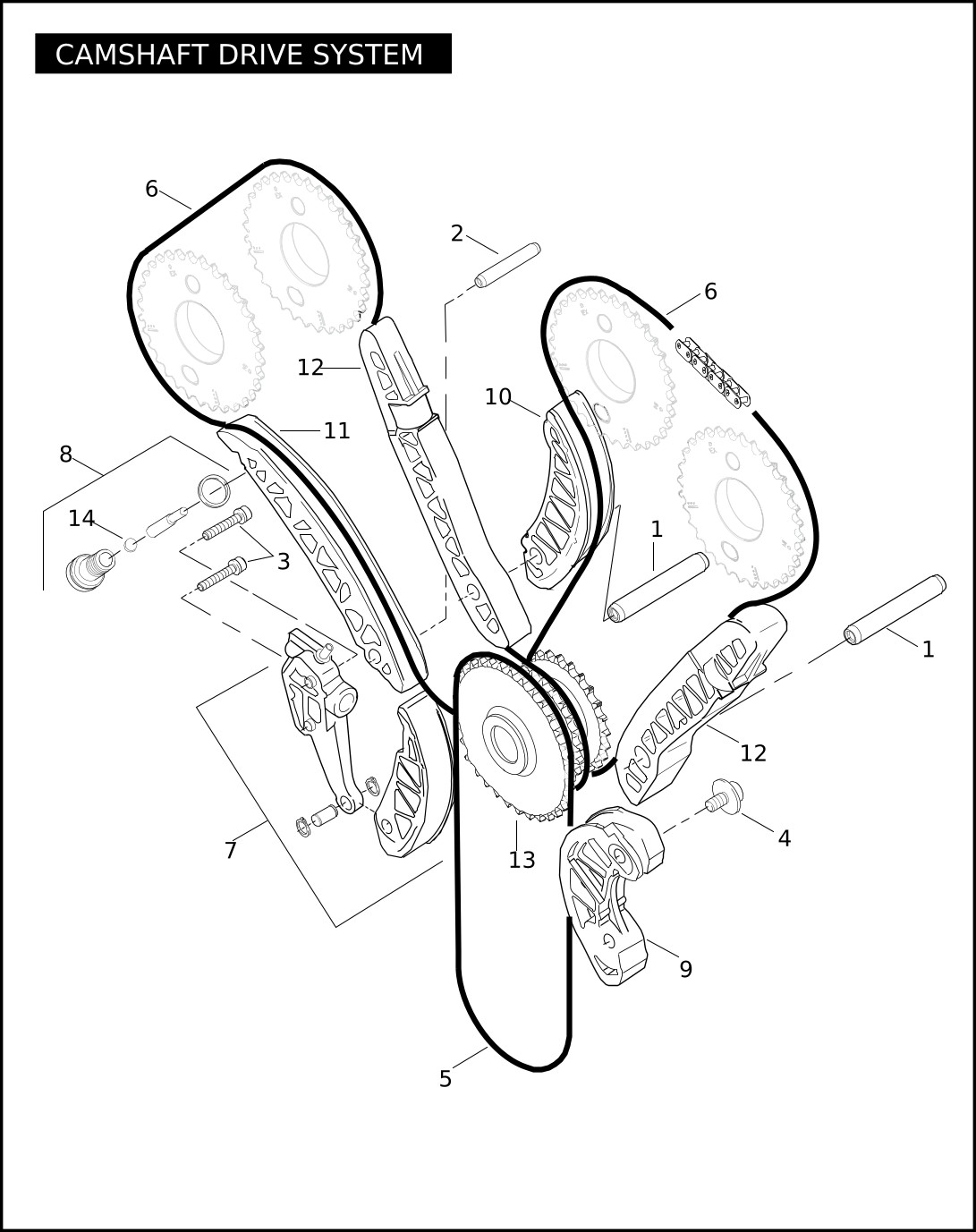

CAMSHAFT DRIVE SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | ALL |
| 2 | 485K | PIN | ALL |
| 3 | 966M | SCREW (2) | ALL |
| 4 | 1007M | SCREW | ALL |
| 5 | 17406-01KA | CHAIN, primary cam drive | ALL |
| 6 | 17407-01KA | CHAIN, secondary cam drive (2) | ALL |
| 7 | 17629-01K | TENSIONER ASSEMBLY, primary, w/ guide, shaft, clips, & dowel | ALL |
| 8 | 17632-01K | TENSIONER ASSEMBLY, secondary (2) | ALL |
| 9 | 17637-01K | GUIDE TENSIONER, primary - front | ALL |
| 10 | 17638-01K | GUIDE TENSIONER, secondary - front | ALL |
| 11 | 17639-01K | GUIDE TENSIONER, secondary - rear | ALL |
| 12 | 17640-01K | GUIDE TENSIONER, secondary (2) | ALL |
| 13 | 25800-01K | SPROCKET, triple | ALL |
| 14 | 40095-01K | SHIM, tensioner | ALL |

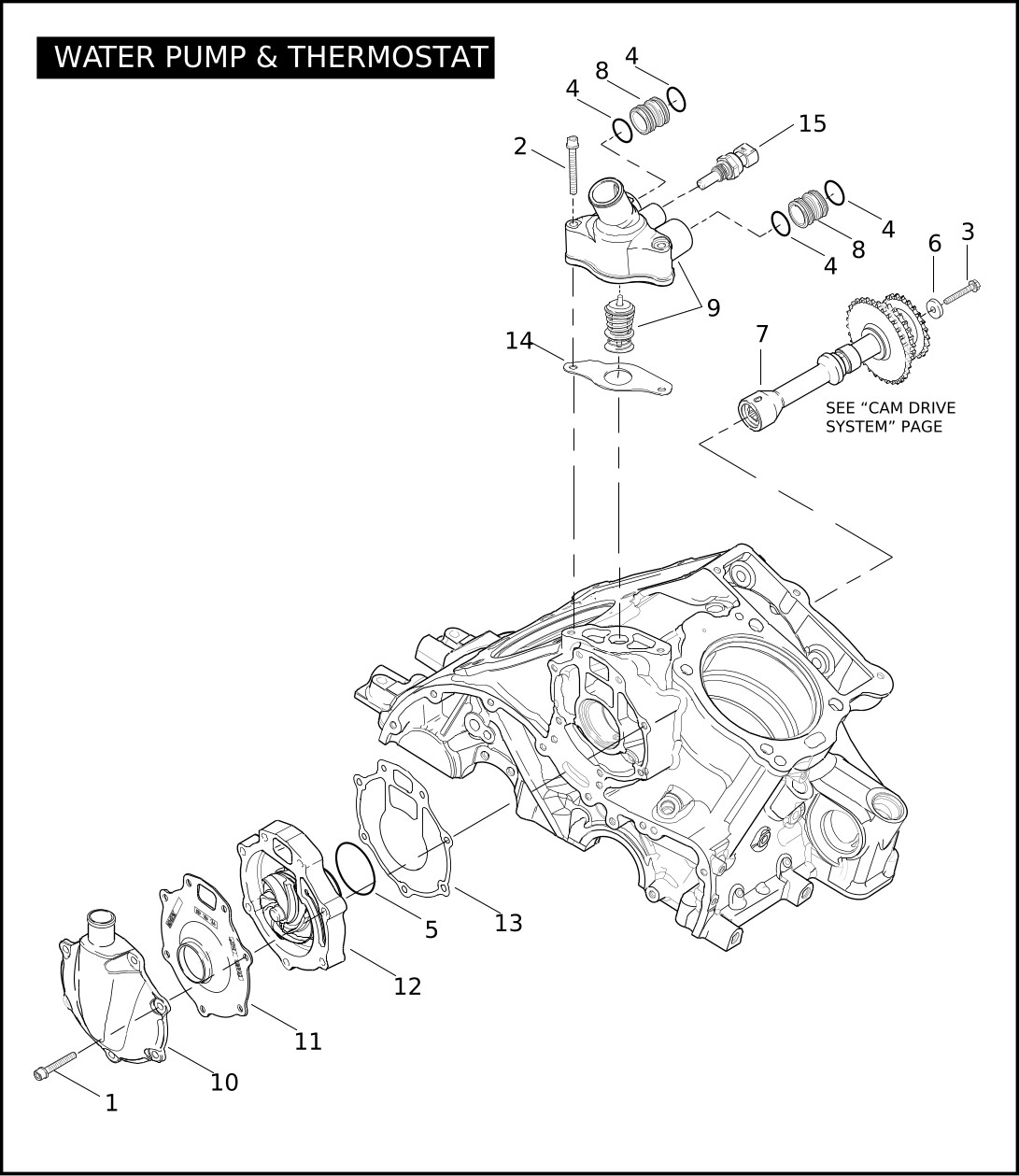

WATER PUMP & THERMOSTAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (7) | ALL |
| 2 | 1030M | SCREW (2) | ALL |
| 3 | 1023M | SCREW | ALL |
| 4 | 11312K | O-RING (4) | ALL |
| 5 | 11366K | O-RING (2) | ALL |
| 6 | 25911-01K | WASHER | ALL |
| 7 | 26582-01KA | SHAFT, intermediate | ALL |
| 8 | 26737-01K | TUBE, thermostat (2) | ALL |
| 9 | 26740-01K | THERMOSTAT ASSEMBLY | VRSCF |
| 26769-04K | THERMOSTAT ASSEMBLY (black) | VRSCDX | |
| 10 | 25295-04K | COVER, water pump (polished) | VRSCF |
| 26821-07K | COVER, water pump (gloss black) | VRSCDX | |
| 11 | 26749-01K | GASKET OUTER, water pump | ALL |
| 12 | 26750-01K | HOUSING, water pump assembly, w/ 11366K (platinum) | VRSCF |
| 26759-04K | HOUSING, water pump assembly, w/ 11366K (black) | VRSCDX | |
| 13 | 26752-01K | GASKET, water pump | ALL |
| 14 | 26765-01K | GASKET, thermostat | ALL |
| 15 | 32315-01 | SENSOR, engine coolant temperature | ALL |

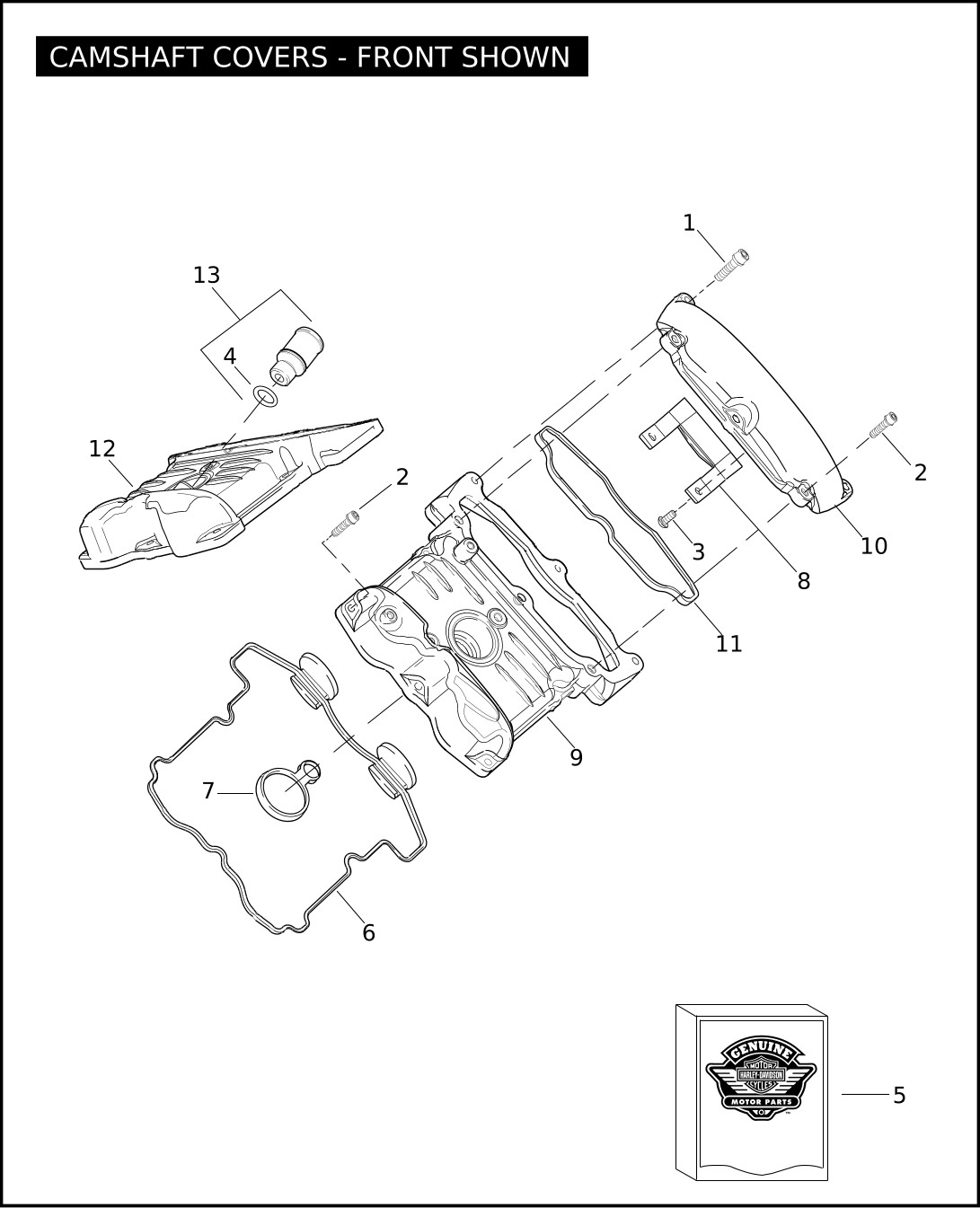

CAMSHAFT COVERS - FRONT SHOWN
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (6) | ALL |
| 2 | 1004M | SCREW (16) | ALL |
| 3 | 3716M | SCREW (4) | ALL |
| 4 | 11392K | O-RING | ALL |
| 5 | 17010-01K | GASKET KIT, cam cover | ALL |
| 6 | 17416-01KA | CAM COVER GASKET, outer (2) | ALL |
| 7 | 17418-01K | CAM COVER GASKET, inner (2) | ALL |
| 8 | 17641-01K | SECONDARY TOP GUIDE (2) | ALL |
| 9 | 17679-04K | CAM COVER, lower front (polished) | VRSCF |
| 17699-07K | CAM COVER, lower front (gloss black) | VRSCDX | |
| 10 | 17680-04K | CAM COVER, upper (polished) (2) | VRSCF |
| 17705-07K | CAM COVER, upper (gloss black) (2) | VRSCDX | |
| 11 | 17666-01K | CAM COVER GASKET, upper (2) | ALL |
| 12 | 17701-07K | CAM COVER, lower rear (gloss black) | VRSCDX |
| 17689-04K | CAM COVER, lower rear (polished) | VRSCF | |
| 13 | 63654-04K | FITTING ASSEMBLY, breather, w/ 11392K | ALL |

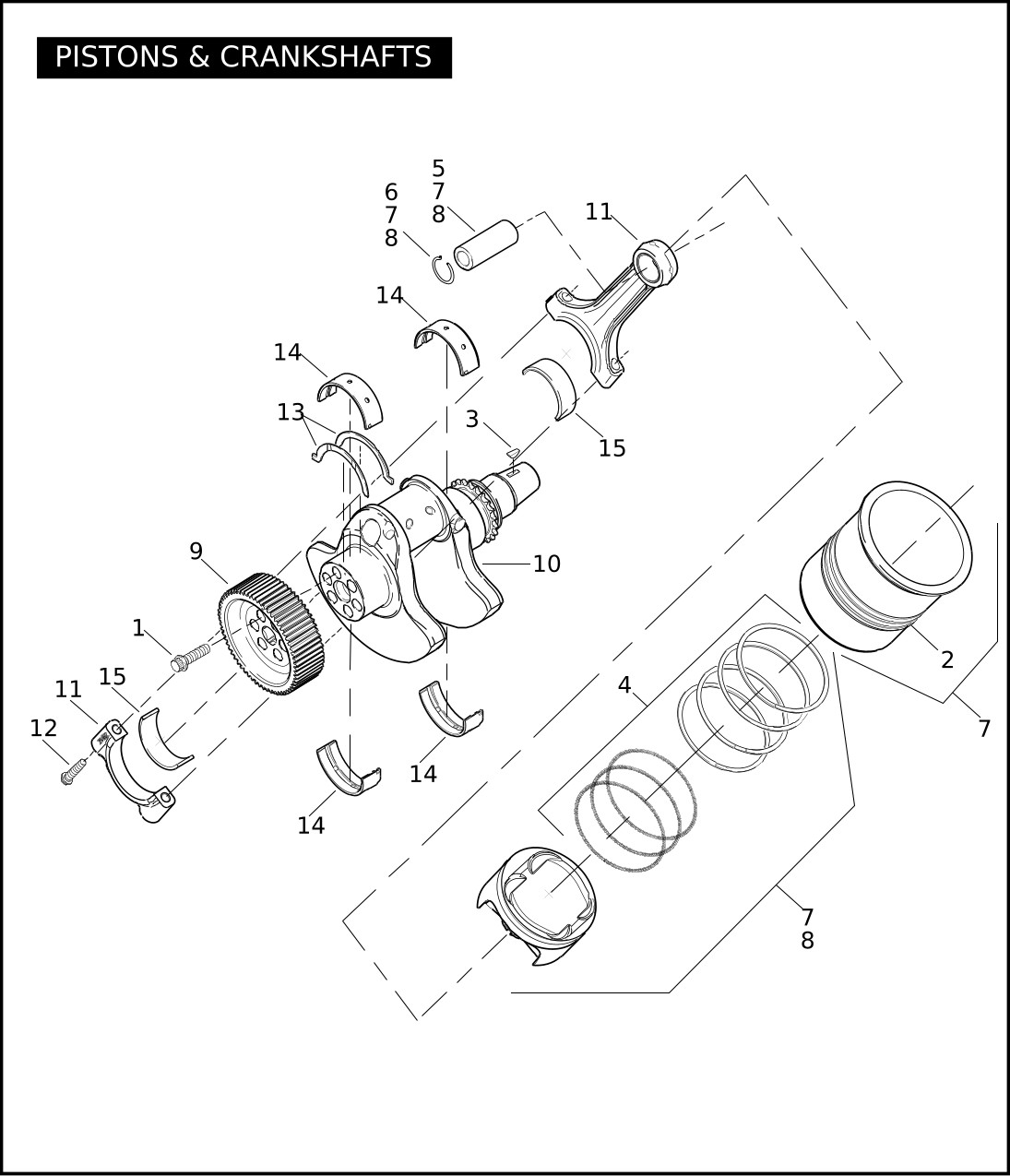

PISTONS & CRANKSHAFTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 983M | BOLT (6) | ALL |
| 2 | 11314K | O-RING, cylinder liner (4) | ALL |
| 3 | 11329K | KEY (2) | ALL |
| 4 | 22919-05K | PISTON RINGS | ALL |
| 5 | 22953-08K | PISTON PIN (2) | ALL |
| 6 | 22121-01K | RETAINING RING (4) | ALL |
| 7 | 22928-05KA | PISTON/LINER ASSEMBLY, w/ 2, 5, & 6 (2) | ALL |
| 8 | 22934-08K | PISTON ASSEMBLY KIT, w/ pistons, rings, & pins (2) | ALL |
| 9 | 23712-01K | PRIMARY CRANK GEAR | ALL |
| 10 | 23725-01K | CRANK ASSEMBLY, w/ 11329K | ALL |
| 11 | 24307-01K | CONNECTING ROD ASSEMBLY, w/ 24311-01K (2) | ALL |
| 12 | 24311-01K | BOLT, connecting rod (4) | ALL |
| 13 | 24312-01K | BEARING, thrust (2) | ALL |
| 14 | 24409-01K | MAIN BEARING SHELL (red) (2) | ALL |
| 24410-01K | MAIN BEARING SHELL (green) (2) | ALL | |
| 24411-01K | MAIN BEARING SHELL (blue) (2) | ALL | |
| 15 | 24412-01K | ROD BEARING SHELL (red) (2) | ALL |
| 24413-01K | ROD BEARING SHELL (blue) (2) | ALL |

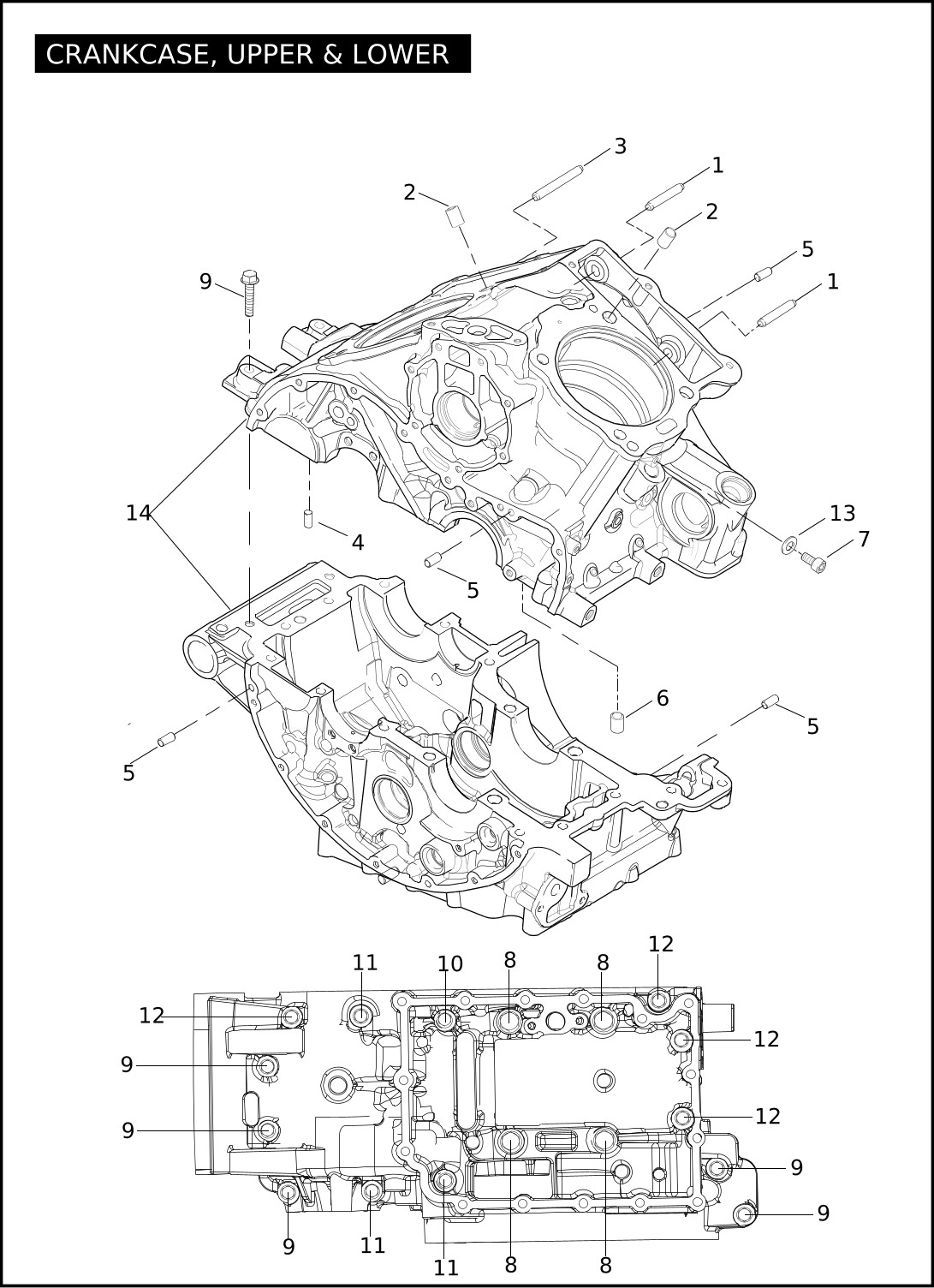

CRANKCASE, UPPER & LOWER
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | ALL |
| 2 | 482K | DOWEL (4) | ALL |
| 3 | 485K | PIN | ALL |
| 4 | 486K | PIN | ALL |
| 5 | 487K | PIN (4) | ALL |
| 6 | 488K | DOWEL RING (2) | ALL |
| 7 | 965M | SCREW | ALL |
| 8 | 968M | SCREW (4) | ALL |
| 9 | 970M | SCREW (7) | ALL |
| 10 | 972M | SCREW | ALL |
| 11 | 973M | SCREW (3) | ALL |
| 12 | 1025M | SCREW (4) | ALL |
| 13 | 6137K | WASHER | ALL |
| 14 | 24467-09K | CRANKCASE SET KIT (black) | VRSCDX |
| 24457-09K | CRANKCASE SET KIT (not shown) (no dipstick) (platinum) | VRSCF |

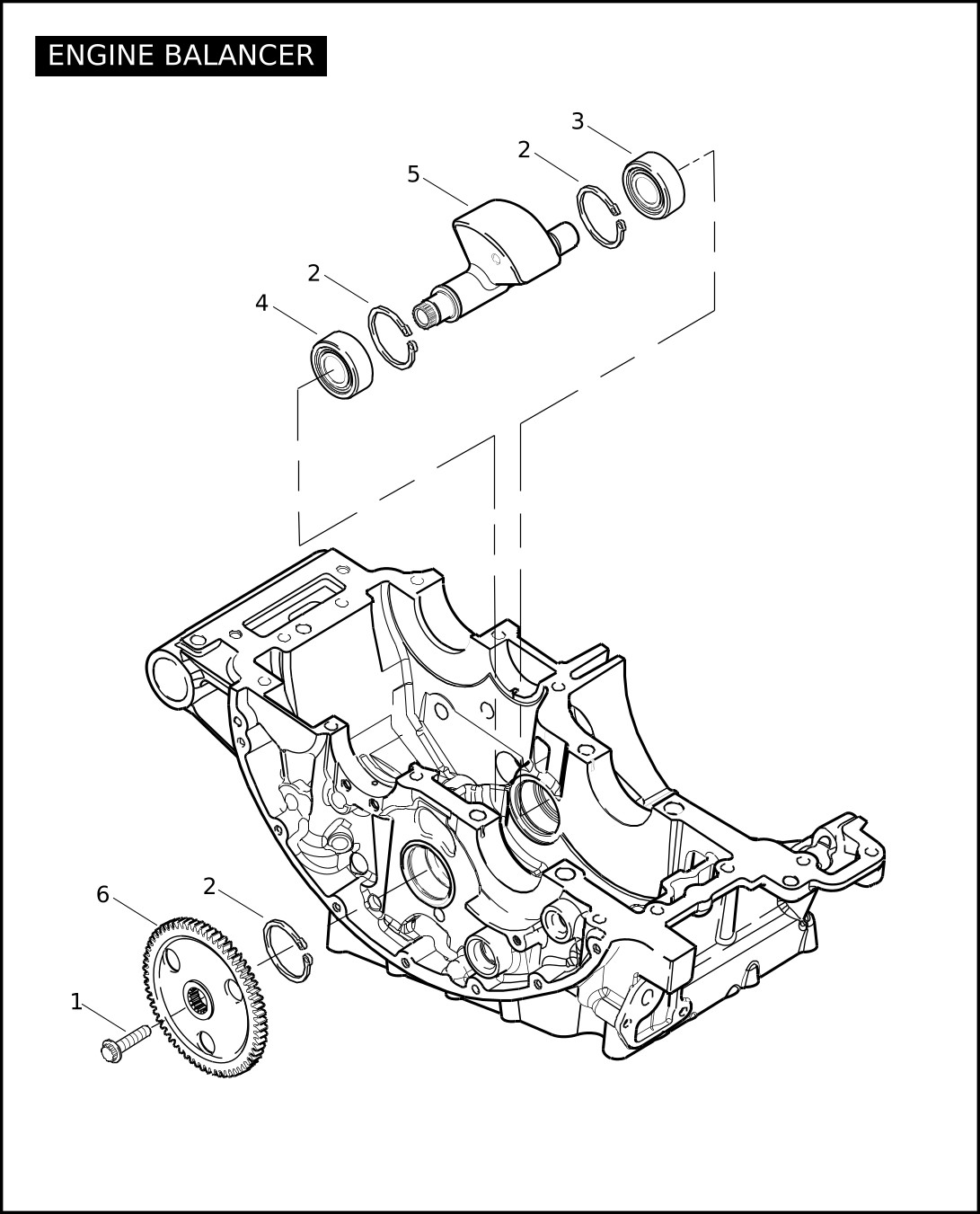

ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1033M | BOLT | ALL |
| 2 | 11335K | E-CLIP (3) | ALL |
| 3 | 14794-01K | BEARING, left | ALL |
| 4 | 14795-01K | BEARING, right | ALL |
| 5 | 14791-01KA | BALANCE SHAFT | ALL |
| 6 | 14758-01K | GEAR, balance shaft | ALL |

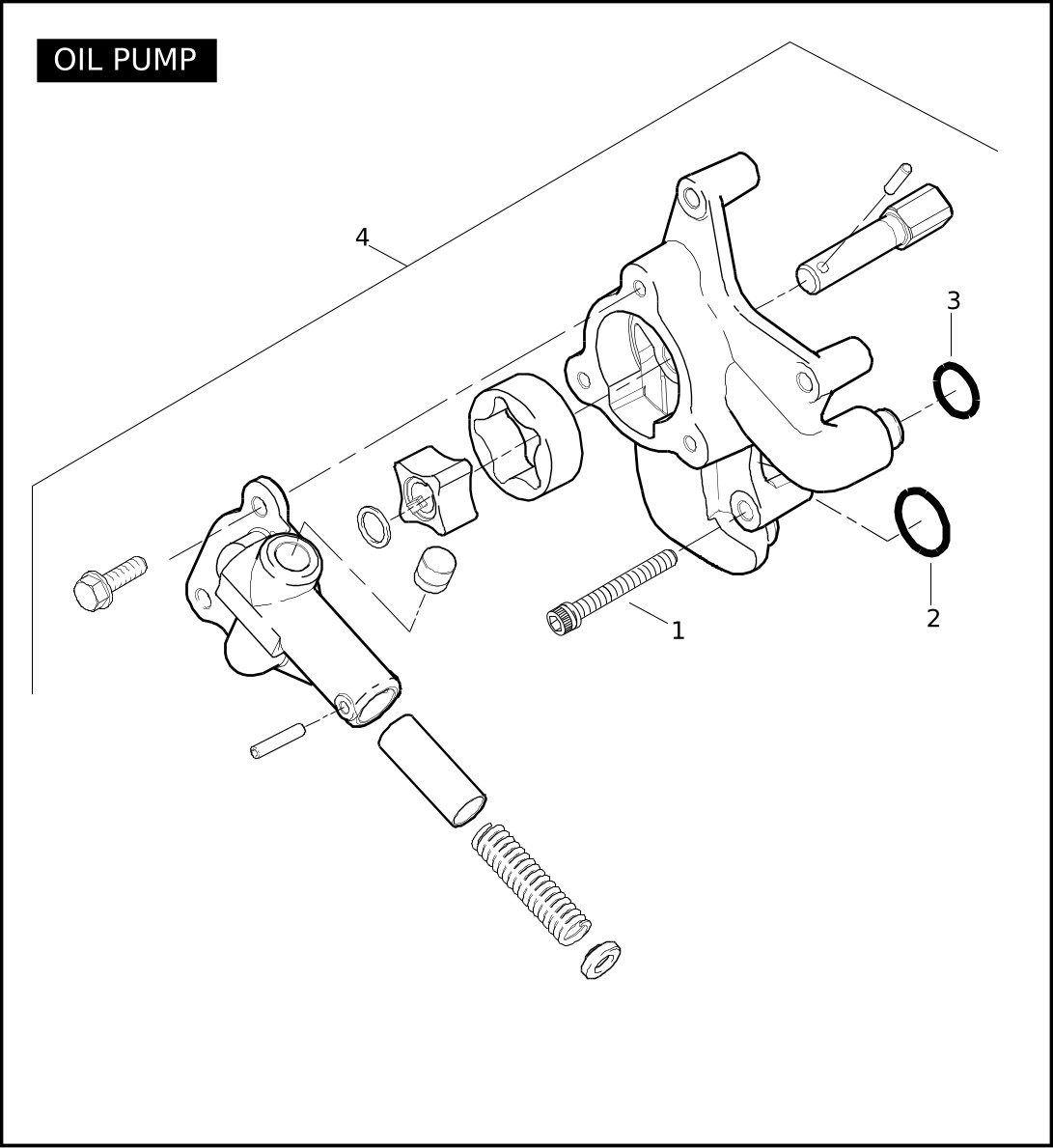

OIL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (3) | ALL |
| 2 | 11312K | O-RING | ALL |
| 3 | 11331K | O-RING | ALL |
| 4 | 26575-01KB | OIL PUMP ASSEMBLY (978M not part of assembly) | ALL |

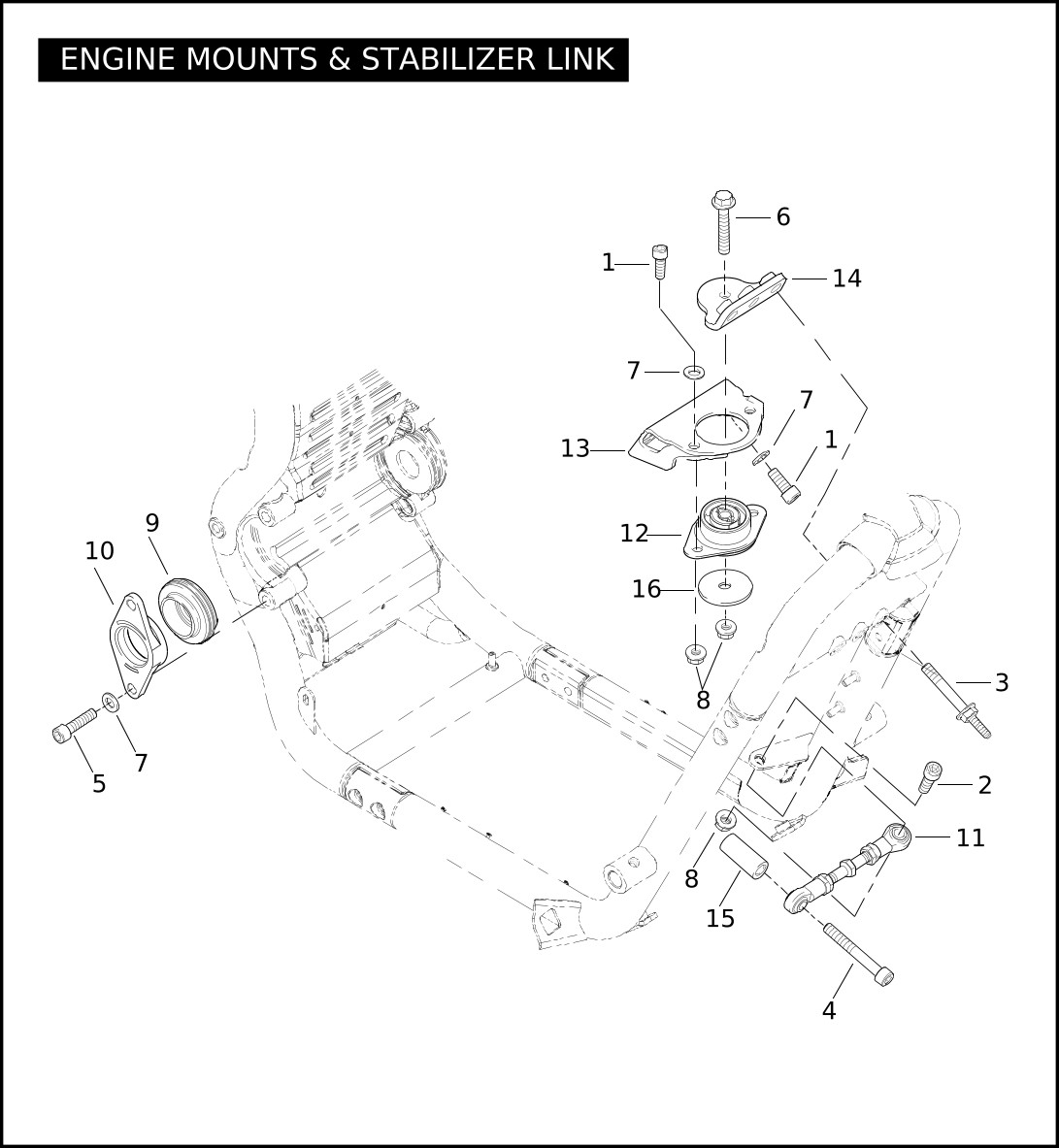

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3701M | SCREW (6) | ALL |
| 2 | 3703M | SCREW | ALL |
| 3 | 3704M | STUD, dual threaded (2) | ALL |
| 4 | 3966M | SCREW, set | ALL |
| 5 | 3919M | SCREW (2) | ALL |
| 6 | 3920M | SCREW | ALL |
| 7 | 6839M | WASHER (8) | ALL |
| 8 | 7427M | NUT, locking (4) | ALL |
| 9 | 16298-05A | ENGINE MOUNT, rear (2) | ALL |
| 10 | 16299-01 | BRACKET, engine mount rear | ALL |
| 11 | 16306-04A | STABLILIZER LINK | ALL |
| 12 | 16307-05 | ENGINE MOUNT, front | ALL |
| 13 | 16308-01 | BRACKET, front engine mount | ALL |
| 14 | 16311-05 | BRACKET, front mount - frame | ALL |
| 15 | 16312-04A | SPACER | ALL |
| 16 | 94756-01 | WASHER | ALL |

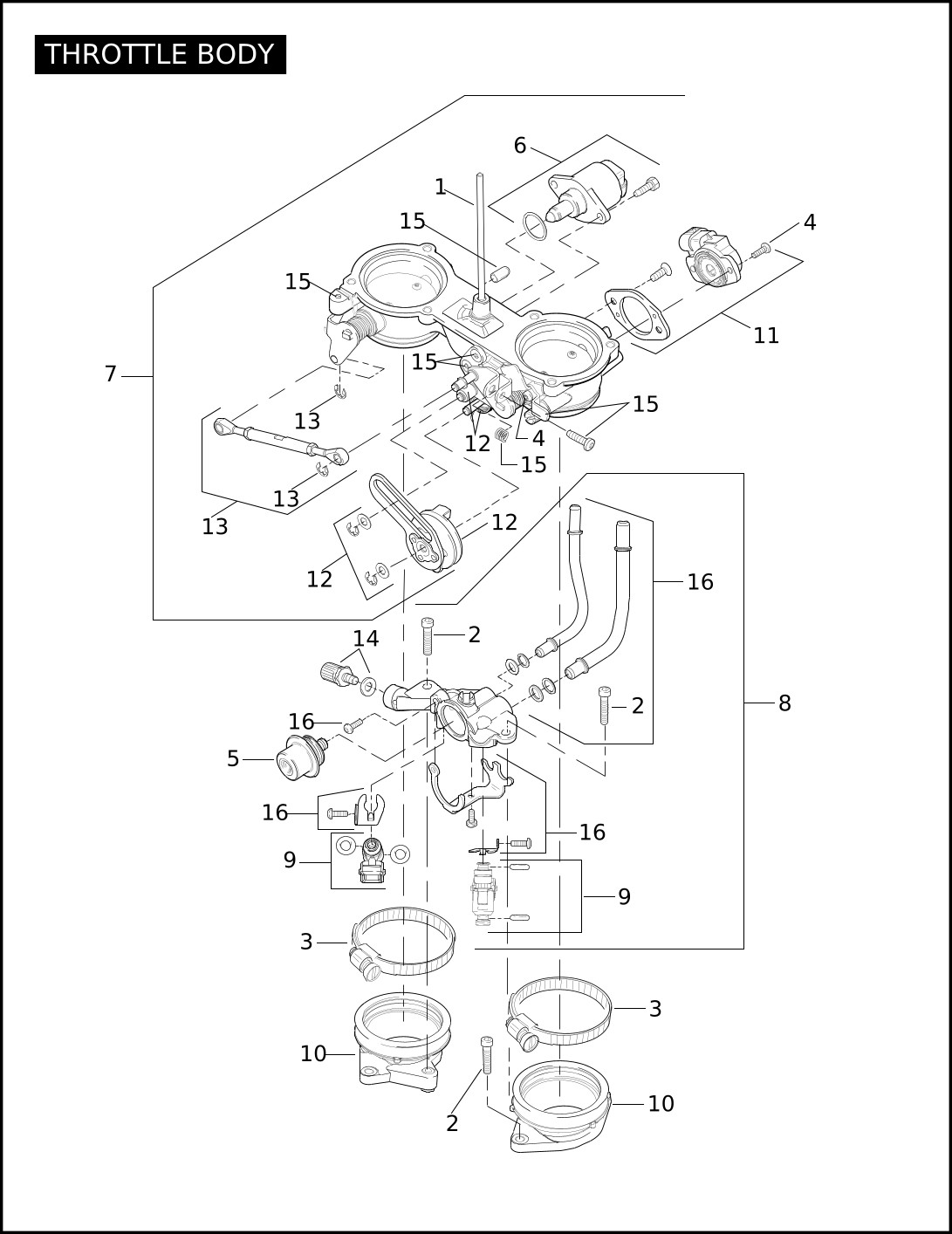

THROTTLE BODY
| Index No. | Part No. | Description | Model(s) |
| 1 | 964 | STUD | ALL |
| 2 | 1114M | SCREW (6) | ALL |
| 3 | 10232K | HOSE CLAMP (2) | ALL |
| 4 | 27225-01 | SCREW (3) | ALL |
| 5 | 27408-01 | FUEL PRESSURE REGULATOR | ALL |
| 6 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ o-ring, screw, & motor | ALL |
| 7 | 27657-01 | THROTTLE BODY ASSEMBLY, w/ 6, 11, 12, 13, & 15 | ALL |
| 8 | 27662-01B | FUEL RAIL ASSEMBLY, w/ 5, 9, &14, | ALL |
| 9 | 27665-01A | INJECTOR, w/ o-rings | ALL |
| 10 | 27669-01K | RUBBER BOOT (2) | ALL |
| 11 | 27975-01 | THROTTLE POSITION SENSOR KIT, w/ screws for sensor, plate t.p.s., & throttle position sensor | ALL |
| 12 | 27977-01 | CAM LEVER KIT, w/ bushing, clip, spring cam, shim roller, cam roller assembly, & cam lever | ALL |
| 13 | 27982-01 | LINKAGE ROD KIT, w/ bushing, clip, linkage rod assembly, nut, & rod end | ALL |
| 27990-01 | FUEL TUBE KIT (not illustrated) | ALL | |
| 14 | 27993-01 | CHECK VALVE BODY ASSEMBLY, w/ washers | ALL |
| 15 | 27995-01 | HARDWARE KIT, throttle body, w/ shim, cable bracket, washer shaft purge tube cap, clip, spring, screws, & o-ring | ALL |
| 16 | 28002-01 | FUEL RAIL HARDWARE KIT, w/ o-rings, washer, & pressure regulator plate | ALL |

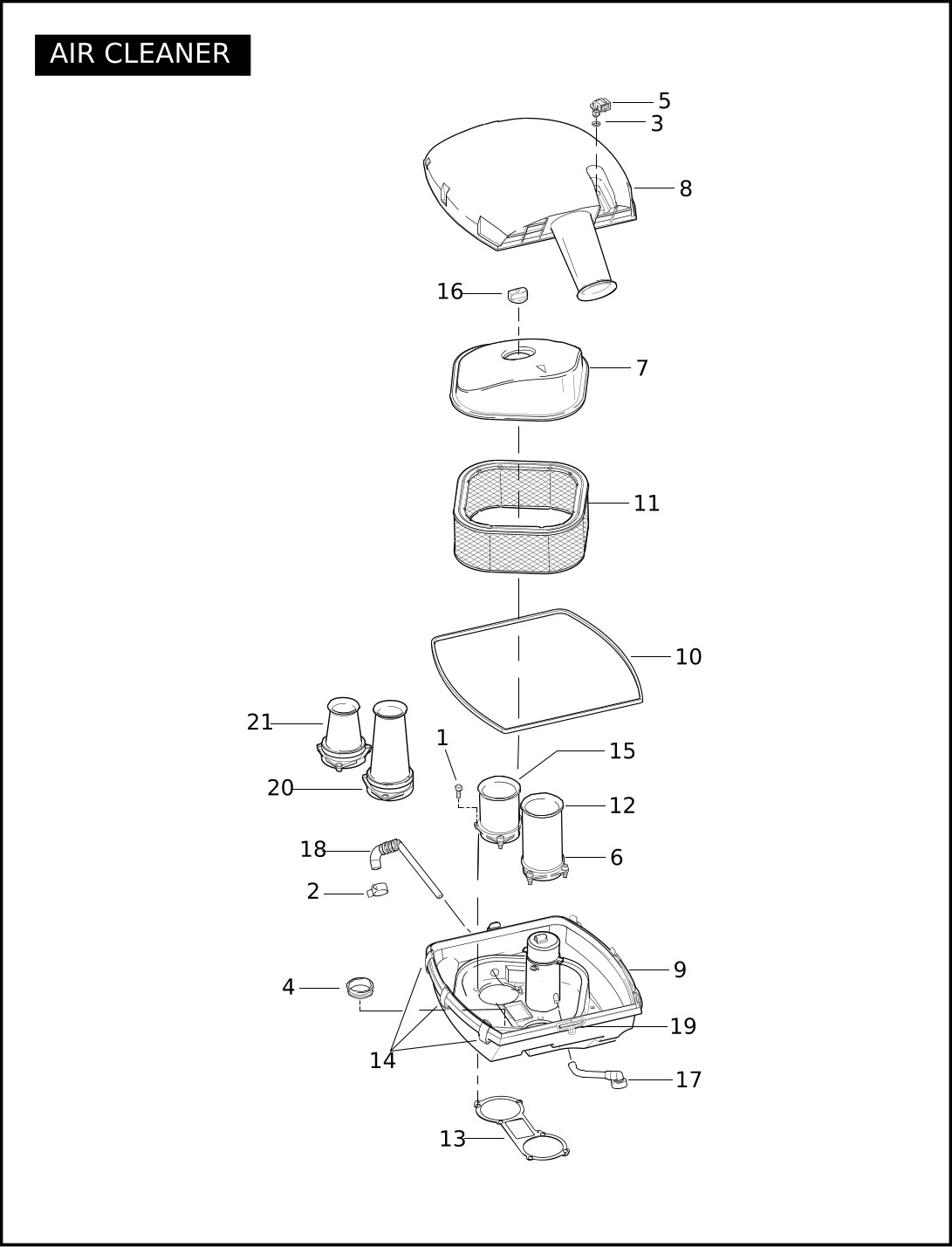

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW (6) | ALL |
| 2 | 9998 | CLAMP | ALL |
| 3 | 11361 | O-RING | ALL |
| 4 | 24927-01 | PLUG | ALL |
| 5 | 27388-01 | SENSOR, intake air temperature, w/11361 | ALL |
| 6 | 28862-01 | O-RING (2) | ALL |
| 7 | 28863-01 | CAP, filter element | ALL |
| 8 | 29434-03A | COVER, air cleaner w/ 29647-01 | ALL |
| 9 | 29435-05 | BOTTOM, air cleaner, w/ 29504-05A & 29505-05 | ALL |
| 10 | 29436-01 | GASKET | ALL |
| 11 | 29437-01 | FILTER ELEMENT | ALL |
| 12 | 29438-01 | VELOCITY STACK, front - 115 H.P. (Domestic, California, Canada) | ALL |
| 13 | 29439-01 | GASKET, throttle body | ALL |
| 14 | 29519-01 | CLIP (7) | ALL |
| 15 | 29521-01 | VELOCITY STACK, rear - 115 H.P. (Domestic, California, Canada) | ALL |
| 16 | 29522-01 | WING NUT | ALL |
| 17 | 29504-05A | BREATHER TUBE, front | ALL |
| 18 | 29505-05 | BREATHER TUBE, rear | ALL |
| 19 | 29647-01 | CLIP | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 29438-01 | VELOCITY STACK, front - 115 H.P. (HDI, Australia, England, Japan, Asia-Pacific) | ALL | |
| 29521-01 | VELOCITY STACK, rear - 115 H.P. (HDI, Australia, England, Japan, Asia-Pacific) | ALL | |
| 20 | 29566-06 | VELOCITY STACK, front - 105 H.P. (HDI) | ALL |
| 21 | 29568-06 | VELOCITY STACK, rear - 105 H.P. (HDI) | ALL |

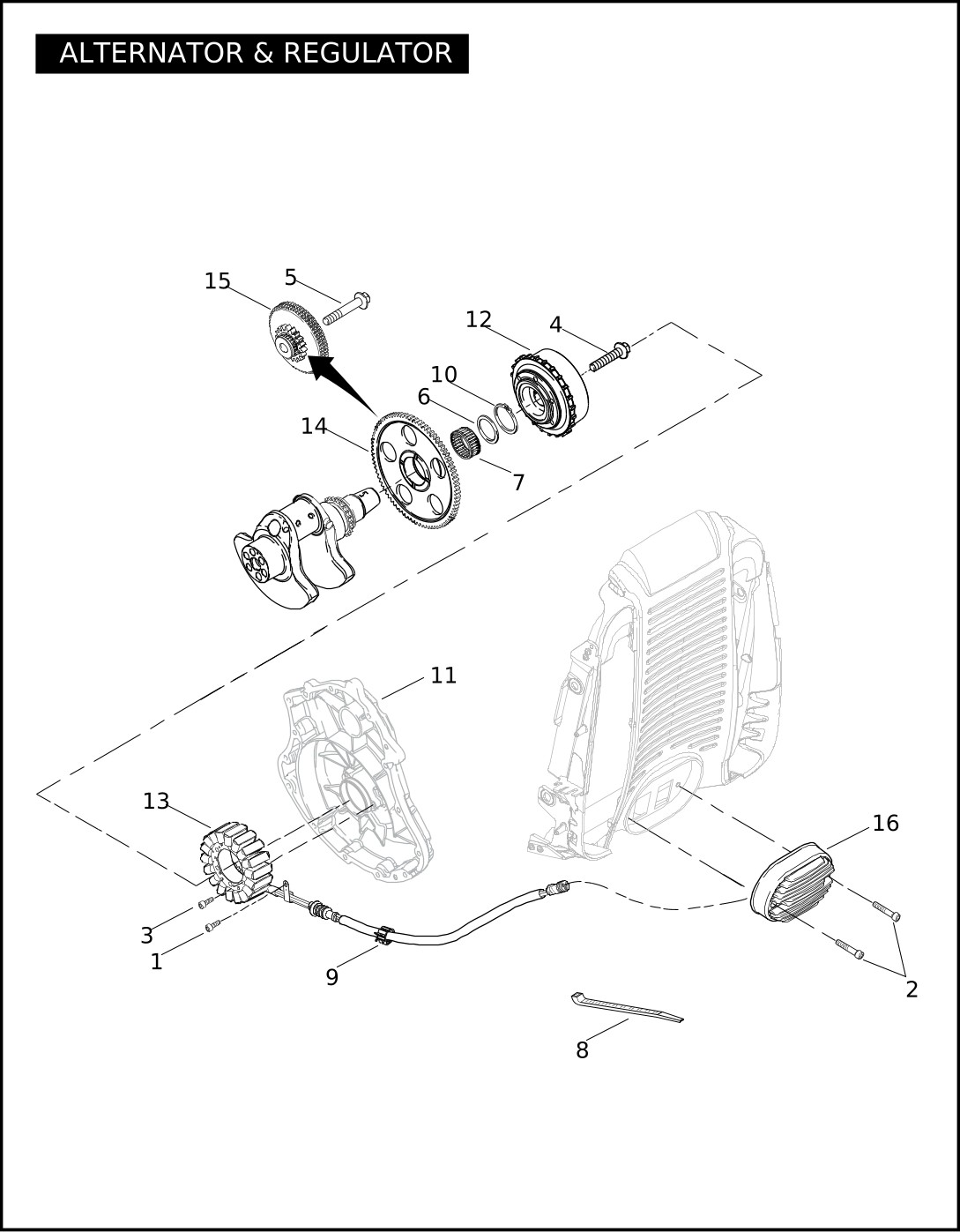

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 966M | SCREW (2) | ALL |
| 3 | 978M | SCREW (3) | ALL |
| 4 | 1035M | SCREW | ALL |
| 5 | 1027M | SCREW | ALL |
| 6 | 6176MA | WASHER | ALL |
| 7 | 8002K | NEEDLE ROLLER & CAGE ASSEMBLY | ALL |
| 8 | 10006 | CABLE STRAP | ALL |
| 9 | 10108 | CLIP | ALL |
| 10 | 11328M | RETAINING CLIP | ALL |
| 11 | 25311-04K | ALTERNATOR COVER (polished) | VRSCF |
| 25899-07K | ALTERNATOR COVER (gloss black) | VRSCDX | |
| 12 | 30731-01K | ROTOR ASSEMBLY, w/ ball catch assembly | ALL |
| 13 | 30734-08K | STATOR ASSEMBLY, w/ plug assembly stator | ALL |
| 14 | 31301-01K | GEAR, ball clutch | ALL |
| 15 | 31303-01K | LIMITER ASSEMBLY | ALL |
| 16 | 74440-08 | VOLTAGE REGULATOR | ALL |

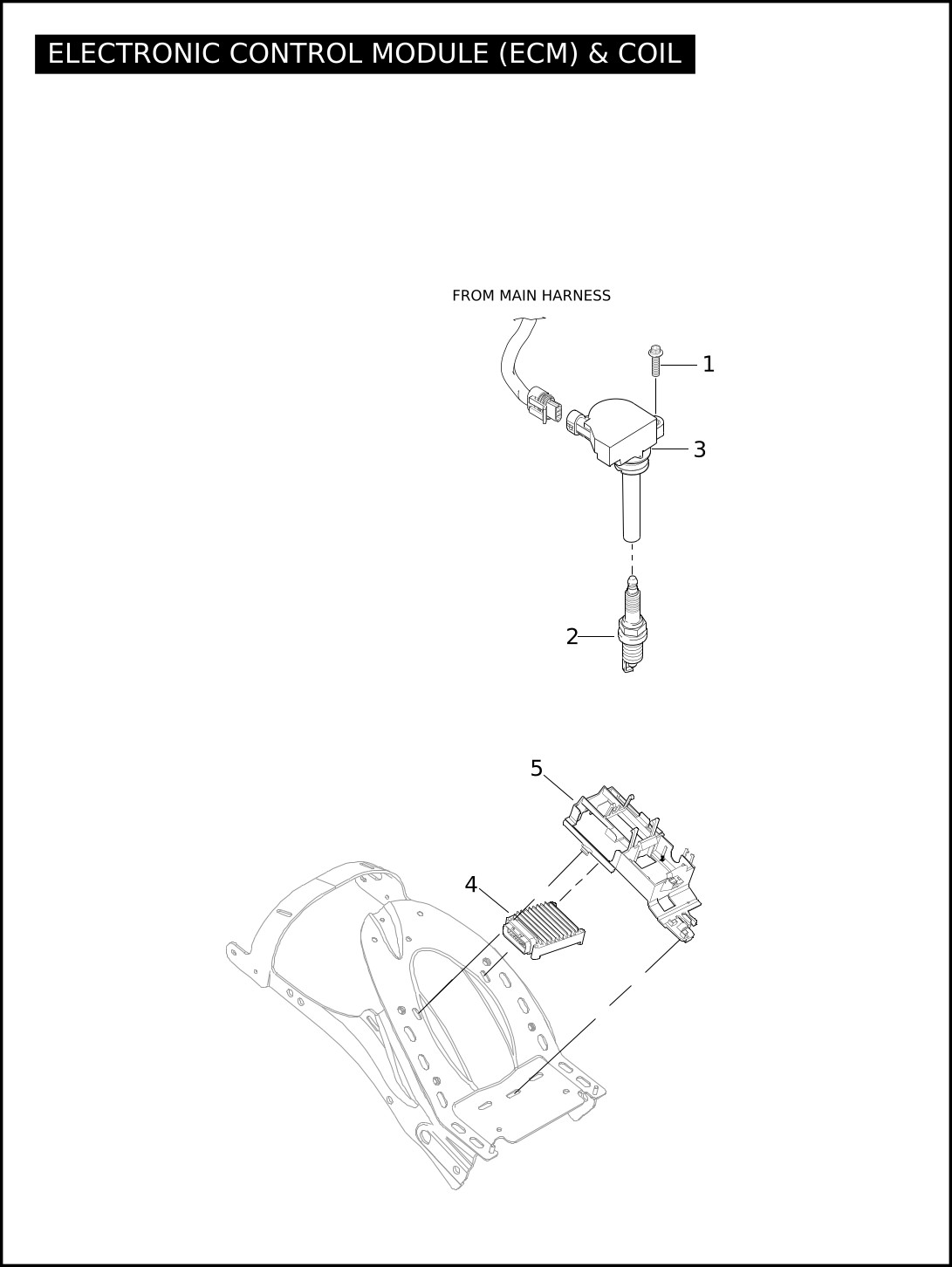

ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1024M | SCREW (2) | ALL |
| 2 | 32335-04 | SPARK PLUGS (2) | ALL |
| 3 | 32477-01A | COIL ASSEMBLY (2) | ALL |
| 4 | 32534-11 | ECM, base level -115/105 H.P. (DOM/HDI) Requires digital tech programing | ALL |
| 5 | 70394-07A | ELECTRICAL CADDY | ALL |

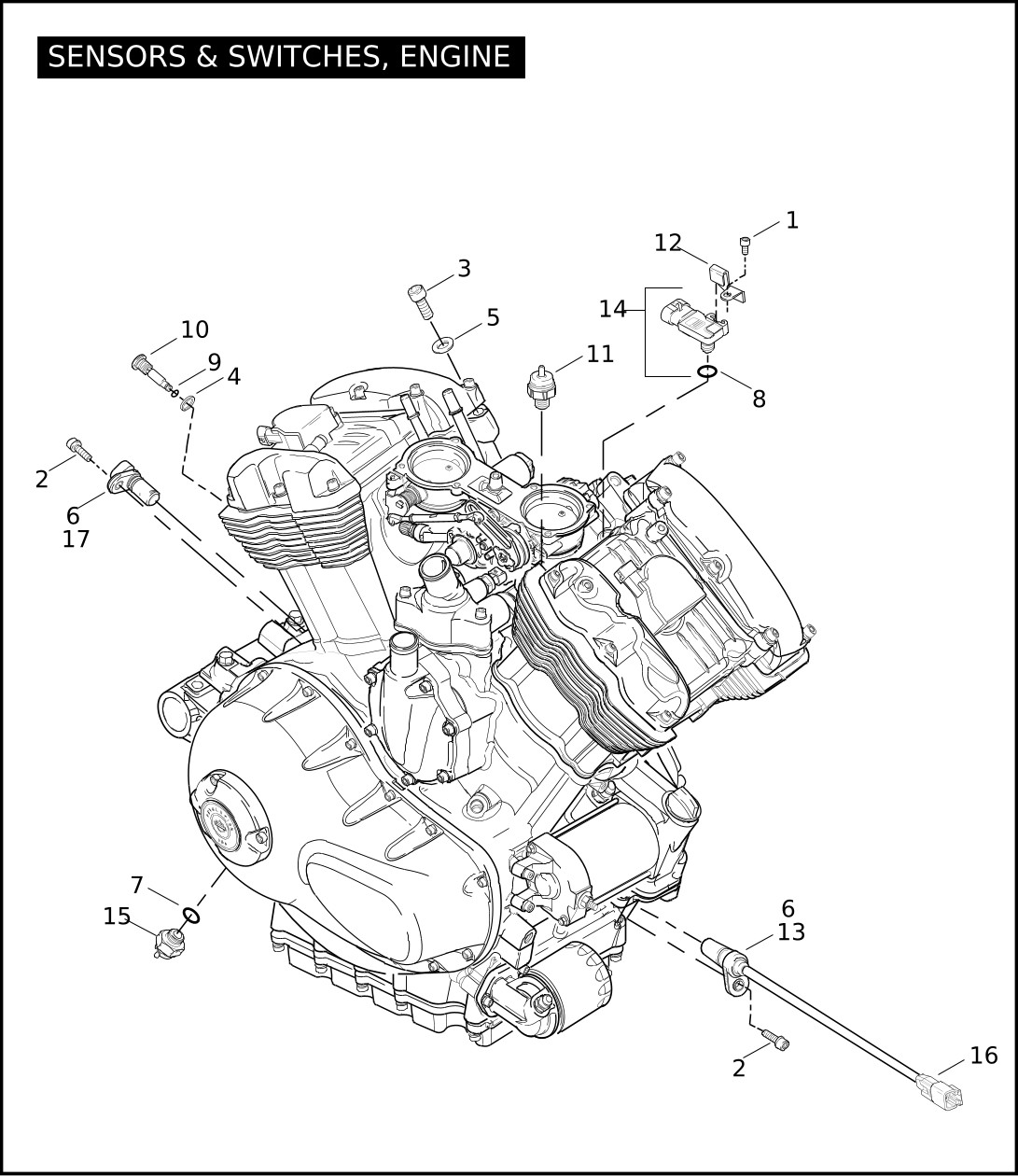

SENSORS & SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 1009M | SCREW (2) | ALL |
| 3 | 3701M | SCREW | ALL |
| 4 | 6298M | WASHER, throttle plug assembly | ALL |
| 5 | 6839M | WASHER | ALL |
| 6 | 11289A | O-RING (2) | ALL |
| 7 | 11290 | O-RING | ALL |
| 8 | 11291 | SEAL | ALL |
| 9 | 11362K | O-RING | ALL |
| 10 | 24986-01K | THROTTLE PLUG ASSEMBLY, w/ 11362K | ALL |
| 11 | 26561-99 | SWITCH, oil pressure | ALL |
| 12 | 27667-01K | BRACKET, map sensor | ALL |
| 13 | 32313-01A | SENSOR, crankshaft position, w/ 11289A, 74194-98 | ALL |
| 14 | 32416-10 | MAP SENSOR, w/11291 | ALL |
| 15 | 33902-98A | SWITCH, neutral gear, w/11290 | ALL |
| 16 | 74194-98 | TERMINAL (2) | ALL |
| 17 | 74402-05A | SPEED SENSOR, w/ 11289A | ALL |

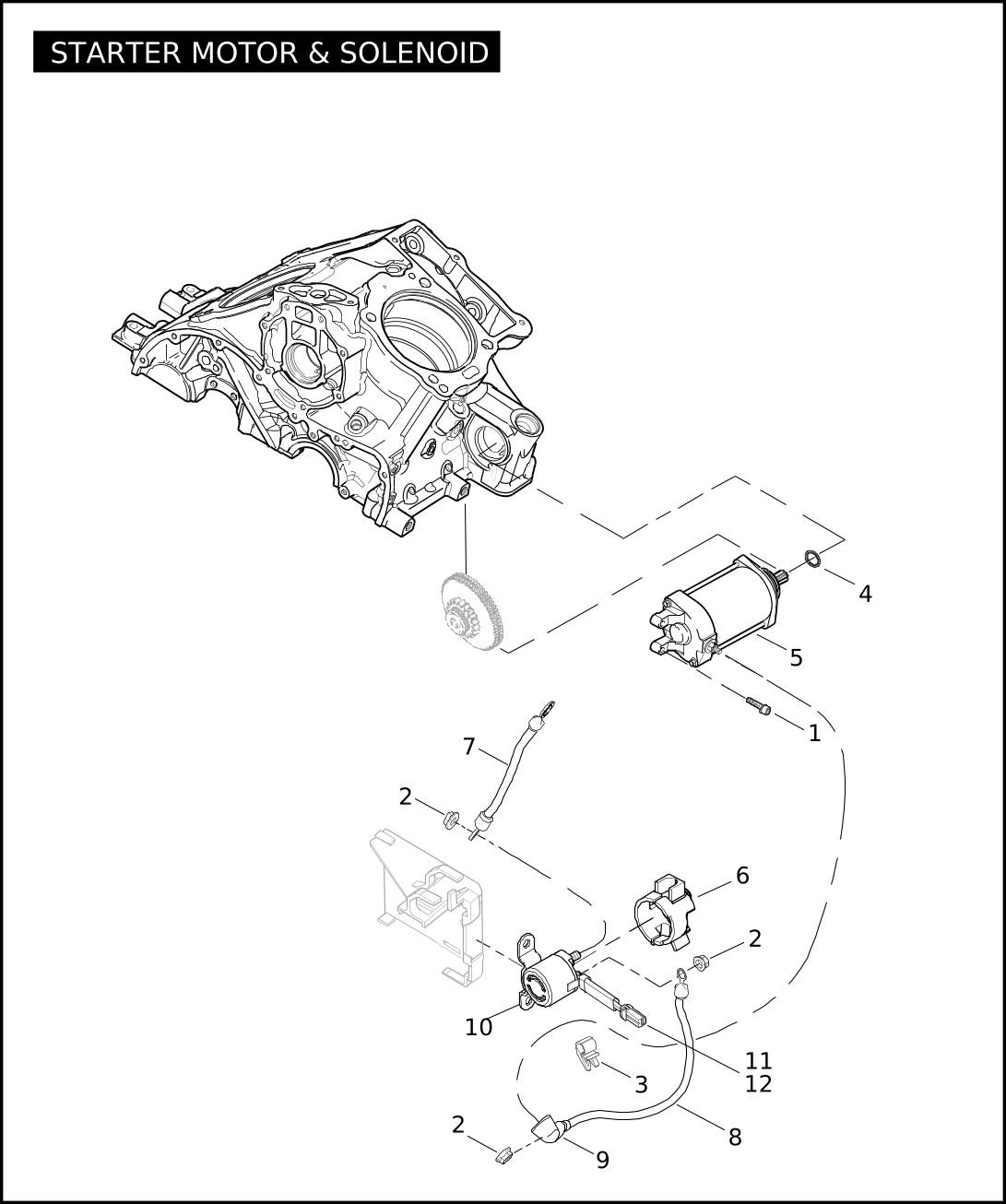

STARTER MOTOR & SOLENOID
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | ALL |
| 2 | 7495 | NUT (3) | ALL |
| 3 | 10110 | CLIP | ALL |
| 4 | 11346K | O-RING | ALL |
| 5 | 31717-01K | STARTER MOTOR ASSEMBLY, w/11346K | VRSCF |
| 31718-07K | STARTER MOTOR ASSEMBLY, w/11346K | VRSCDX | |
| 6 | 70018-07 | BOOT, solenoid cover | ALL |
| 7 | 70106-07A | CABLE, solenoid to battery | ALL |
| 8 | 70108-07A | CABLE ASSEMBLY, solenoid to starter, w/ 70578-89 | ALL |
| 9 | 70578-89 | BOOT, starter | ALL |
| 10 | 71474-07 | SOLENOID, w/ 73152-96BK & 73191-96 | ALL |
| 11 | 73152-96BK | HOUSING SOCKET, 2-way | ALL |
| 12 | 73191-96 | SOCKET CONTACT (2) | ALL |

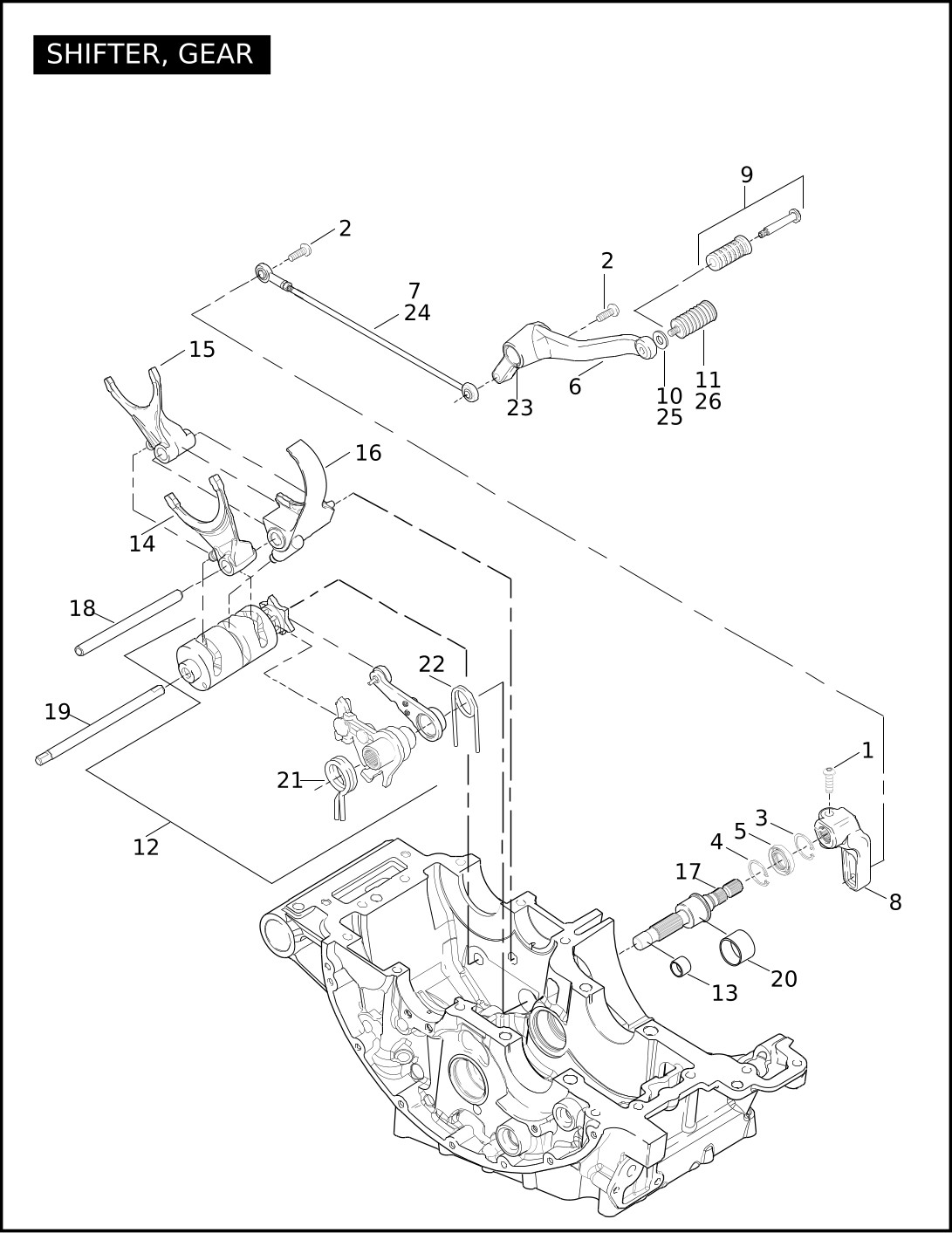

SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | ALL |
| 2 | 4793M | SCREW (2) | ALL |
| 3 | 11356K | SNAP RING - silver | ALL |
| 4 | 11355K | SNAP RING - black | ALL |
| 5 | 12071K | SHAFT SEAL | ALL |
| 6 | 33757-01A | SHIFTER LEVER ASSEMBLY, w/ 42569-03 | ALL |
| 7 | 33738-04 | SHIFTER ROD, long (ALL HP) | VRSCF |
| 33758-01 | SHIFTER ROD, short (ALL HH - except Japan) | VRSCDX | |
| 8 | 34567-01 | LEVER, shift rod | ALL |
| 9 | 34611-65A | SHIFTER KIT, w/ peg & rubber | VRSCDX |
| 10 | 34647-04 | SPACER, peg assembly (ALL HP) | VRSCF |
| 11 | 34696-04 | PEG, sift lever (ALL HP) | VRSCF |
| 12 | 35017-01K | SHIFT ACTUATOR KIT | ALL |
| 13 | 35420-01K | BUSHING | ALL |
| 14 | 35428-01KA | SHIFTER FORK, 1st & 3rd gears | ALL |
| 15 | 35429-01KA | SHIFTER FORK, 2nd gear | ALL |
| 16 | 35430-01KA | SHIFTER FORK, 4th & 5th gears | ALL |
| 17 | 35432-01K | SHIFT SHAFT | ALL |
| 18 | 35434-01K | SHIFTER FORK | ALL |
| 19 | 35441-01K | SHIFT DRUM AXIS | ALL |
| 20 | 35442-01K | BUSHING | ALL |
| 21 | 35443-01K | SPRING | ALL |
| 22 | 35445-01K | SPRING | ALL |
| 23 | 42569-03 | BUSHING | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 33738-04 | SHIFTER ROD (Japan) | VRSCDX |
| 25 | 34647-04 | SPACER, peg assembly (Japan) | VRSCDX |
| 26 | 34696-04 | PEG, sift lever (Japan) | VRSCDX |

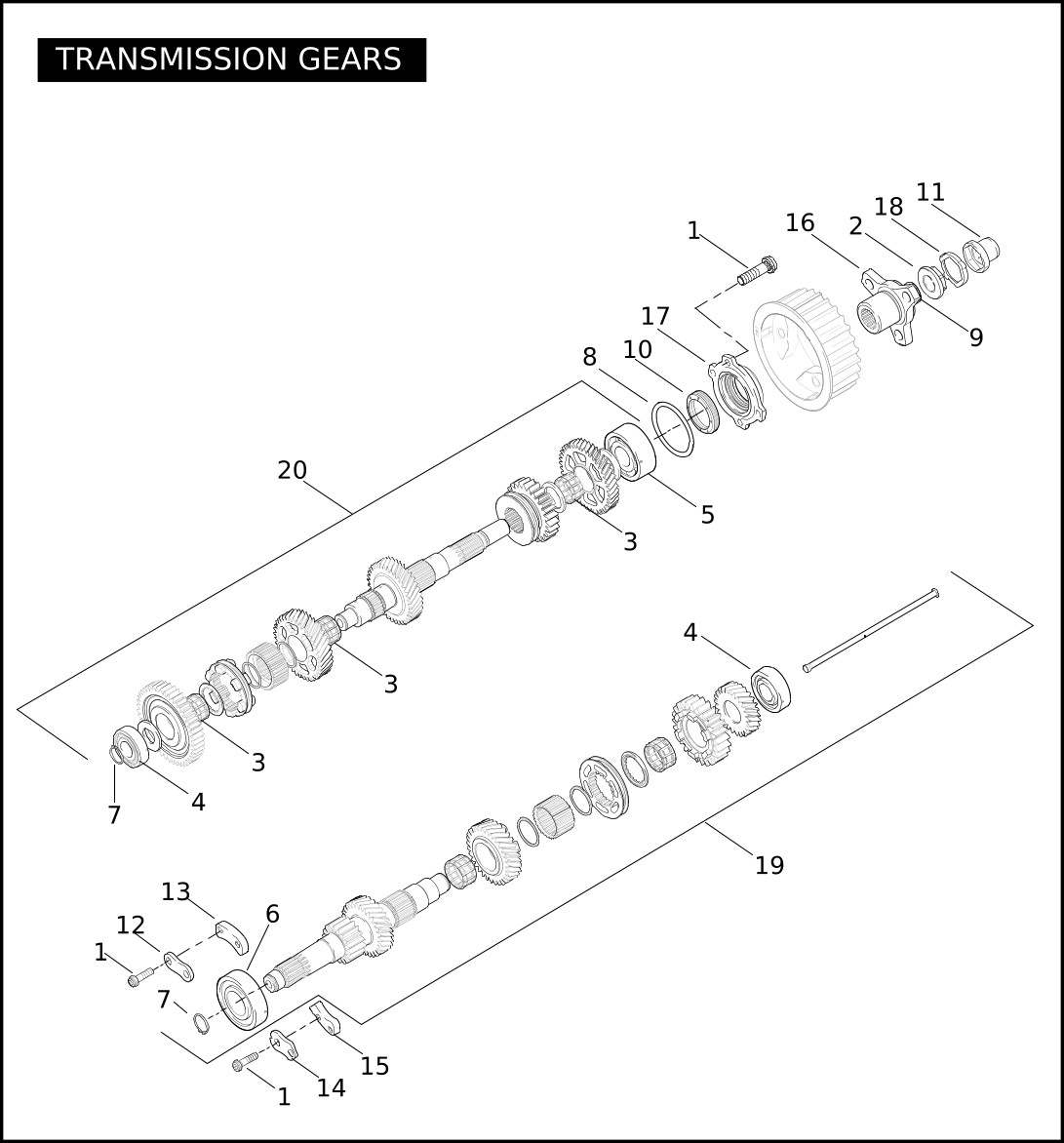

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1021M | SCREW (8) | ALL |
| 2 | 7910M | NUT COLLAR | ALL |
| 3 | 8026K | BEARING (3) | ALL |
| 4 | 8027K | BEARING (2) | ALL |
| 5 | 8028K | BEARING | ALL |
| 6 | 8029K | BEARING | ALL |
| 7 | 11200K | RING (2) | ALL |
| 8 | 11353K | O-RING | ALL |
| 9 | 11354K | O-RING | ALL |
| 10 | 12072K | SEAL | ALL |
| 11 | 34007-01K | CAP, thread | ALL |
| 12 | 35001-01K | BEARING RETAINER, upper - outer | ALL |
| 13 | 35002-01K | BEARING RETAINER, upper - inner | ALL |
| 14 | 35003-01K | BEARING RETAINER, lower - outer | ALL |
| 15 | 35004-01K | BEARING RETAINER, lower - inner | ALL |
| 16 | 35423-04K | FLANGE OUTPUT | ALL |
| 17 | 35433-01K | SEAL CARRIER ASSEMBLY, w/ 11353K & 12072K | ALL |
| 18 | 35451-01K | LOCKING PLATE | ALL |
| 19 | 35454-01KA | INPUT SHAFT ASSEMBLY | ALL |
| 20 | 35455-01KA | OUTPUT SHAFT ASSEMBLY KIT | ALL |

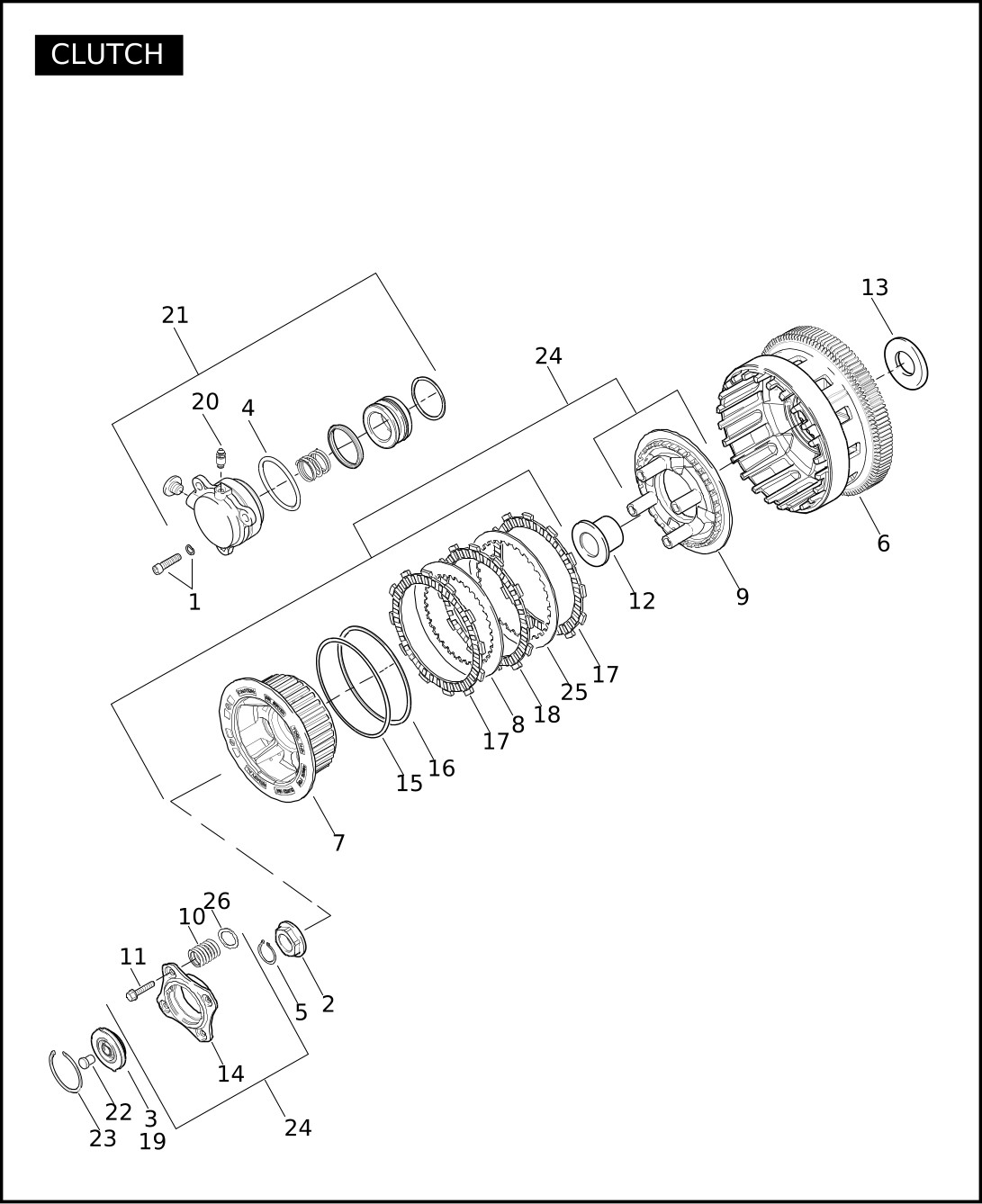

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (3) | ALL |
| 2 | 8008M | NUT | ALL |
| 3 | 8885 | BEARING | ALL |
| 4 | 11347K | O-RING | ALL |
| 5 | 11363K | RETAINING RING | ALL |
| 6 | 36699-01KB | CLUTCH SHELL | ALL |
| 7 | 36701-08KA | CLUTCH HUB | ALL |
| 8 | 36702-08K | CLUTCH PLATE (7) | ALL |
| 9 | 36704-08KA | CLUTCH PRESSURE PLATE | ALL |
| 10 | 36705-08K | SPRING, pressure plate (4) | ALL |
| 11 | 36706-08K | BOLT (4) | ALL |
| 12 | 36707-01K | COLLAR, distance | ALL |
| 13 | 36709-01K | THRUST WASHER | ALL |
| 14 | 36710-08K | LIFTER PLATE | ALL |
| 15 | 36711-08K | SEAT, spring | ALL |
| 16 | 36712-08K | SPRING | ALL |
| 17 | 36713-01K | FRICTION CLUTCH (2) | ALL |
| 18 | 36720-08K | FRICTION CLUTCH (7) | ALL |
| 19 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | ALL |
| 20 | 36757-05K | BLEEDER SCREW, w/ o-ring | ALL |
| 21 | 36779-05K | SECONDARY CLUTCH ACTUATOR | ALL |
| 36781-01K | SECONDARY CLUTCH ACTUATOR, repair kit (chrome) w/36779-05K, & cover | VRSCF | |
| 22 | 36780-01K | CONTACT BUTTON | ALL |
| 23 | 37909-90 | RETAINING RING | ALL |
| 24 | 37938-08KA | CLUTCH KIT | ALL |
| 25 | 38841-08K | CLUTCH PLATE | ALL |
| 26 | 38842-08K | SEAT, spring (4) | ALL |

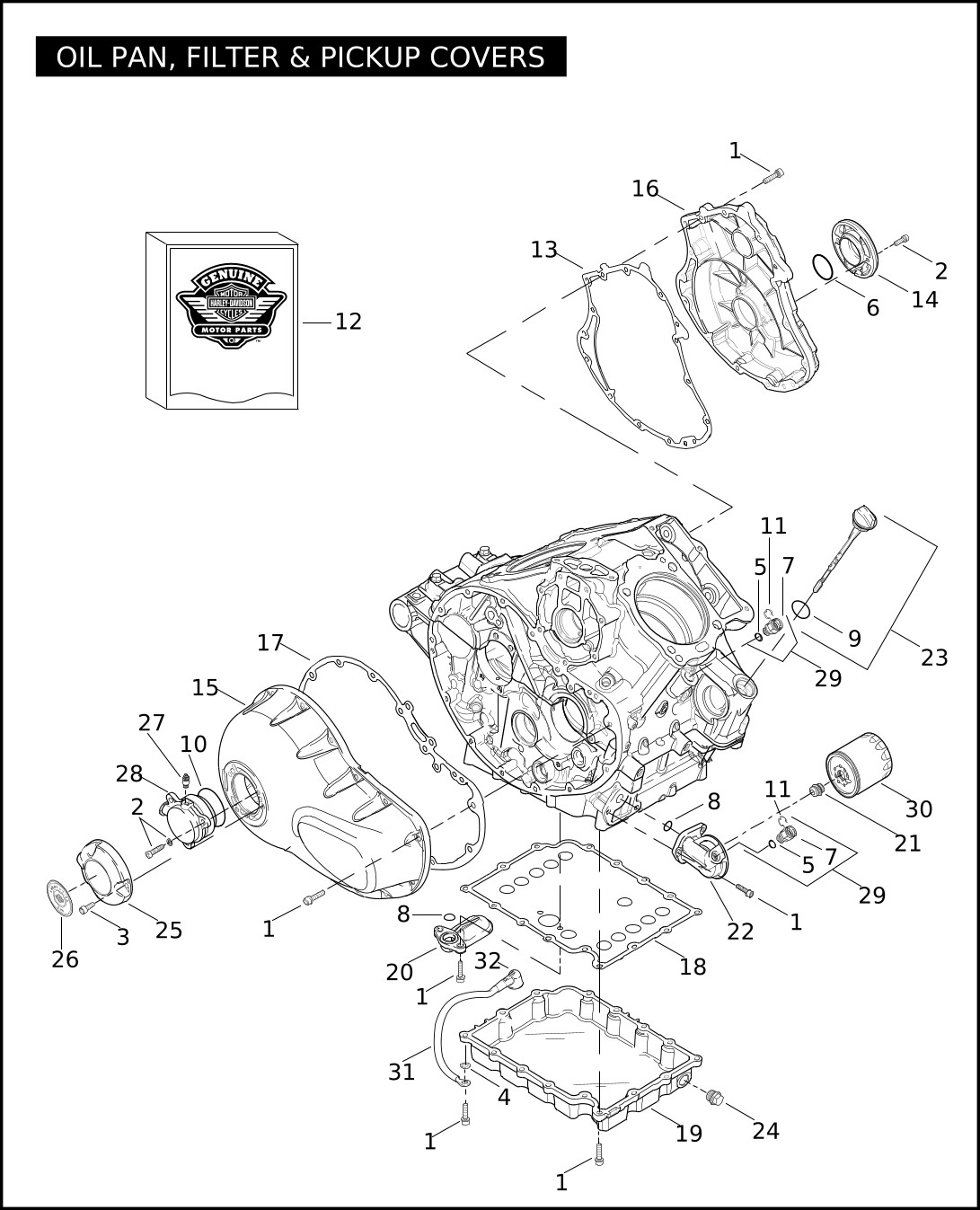

OIL PAN, FILTER & PICKUP COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (48) | ALL |
| 2 | 1009M | SCREW (5) | ALL |
| 3 | 3729M | SCREW (3) | ALL |
| 4 | 7124 | LOCKWASHER | ALL |
| 5 | 10994K | O-RING (2) | ALL |
| 6 | 11130K | O-RING | ALL |
| 7 | 11140 | O-RING (2) | ALL |
| 8 | 11312K | O-RING (2) | ALL |
| 9 | 11341K | O-RING | ALL |
| 10 | 11347K | O-RING | ALL |
| 11 | 11384K | RETAINER WIRE CLIP (2) | ALL |
| 12 | 17011-01KB | ENGINE GASKET KIT | ALL |
| 13 | 25080-01K | GASKET, cover alternator | ALL |
| 14 | 25878-07K | COVER, derby (polished) | VRSCDX |
| 25943-08K | COVER, derby (polished) | VRSCF | |
| 15 | 25292-09K | COVER, clutch (not shown) (polished) | VRSCF |
| 25894-07K | COVER, clutch (gloss black) | VRSCDX | |
| 16 | 25311-04K | COVER, alternator (polished) | VRSCF |
| 25899-07K | COVER, alternator (gloss black) | VRSCDX | |
| 17 | 25891-01K | GASKET, clutch cover | ALL |
| 18 | 26034-01K | GASKET, baffle plate | ALL |
| 19 | 26103-01K | OIL PAN | VRSCF |
| 26107-04K | OIL PAN (black) | VRSCDX | |
| 20 | 26393-01K | OIL PICKUP ASSEMBLY, w/ 11312K & oil pickup | ALL |
| 21 | 26399-01K | OIL FILTER ADAPER | ALL |
| 22 | 26539-01K | OIL FILTER MOUNT (platinum) | VRSCF |
| 26762-04K | OIL FILTER MOUNT (black) | VRSCDX | |
| 23 | 26541-01K | OIL FILL PLUG ASSEMBLY, w/ 11341K & dipstick | VRSCF |
| 26778-04K | OIL FILL PLUG ASSEMBLY, w/ 11341K & dipstick | VRSCDX | |
| 24 | 26542-01K | PLUG, oil drain, w/ magnet | ALL |
| 25 | 34878-07A | COVER, secondary clutch actuator (gloss black) | VRSCDX |
| 34927-05A | COVER, secondary clutch actuator (polished) | VRSCF | |
| 26 | 34877-07 | EMBLEM, cover secondary clutch actuator | VRSCDX |
| 34918-08 | EMBLEM, cover secondary clutch actuator | VRSCF | |
| 27 | 36757-05K | SCREW, bleeder, w/ o-ring | ALL |
| 28 | 36779-05K | SECONDARY CLUTCH ACTUATOR, w/ 11347K, & 36757-05K | ALL |
| 36781-01K | SECONDARY CLUTCH ACTUATOR, repair kit (chrome) w/36779-05K, & cover | VRSCF | |
| 29 | 63650-04K | CONNECTOR ASSEMBLY, w/ 10994K, 11140, 11384K, & fitting (2) | ALL |
| 30 | 63793-01K | ENGINE OIL FILTER | ALL |
| 31 | 70441-01A | CABLE, engine ground to chassis, w/ 70578-89 | ALL |
| 32 | 70578-89 | BOOT, cable assembly | ALL |

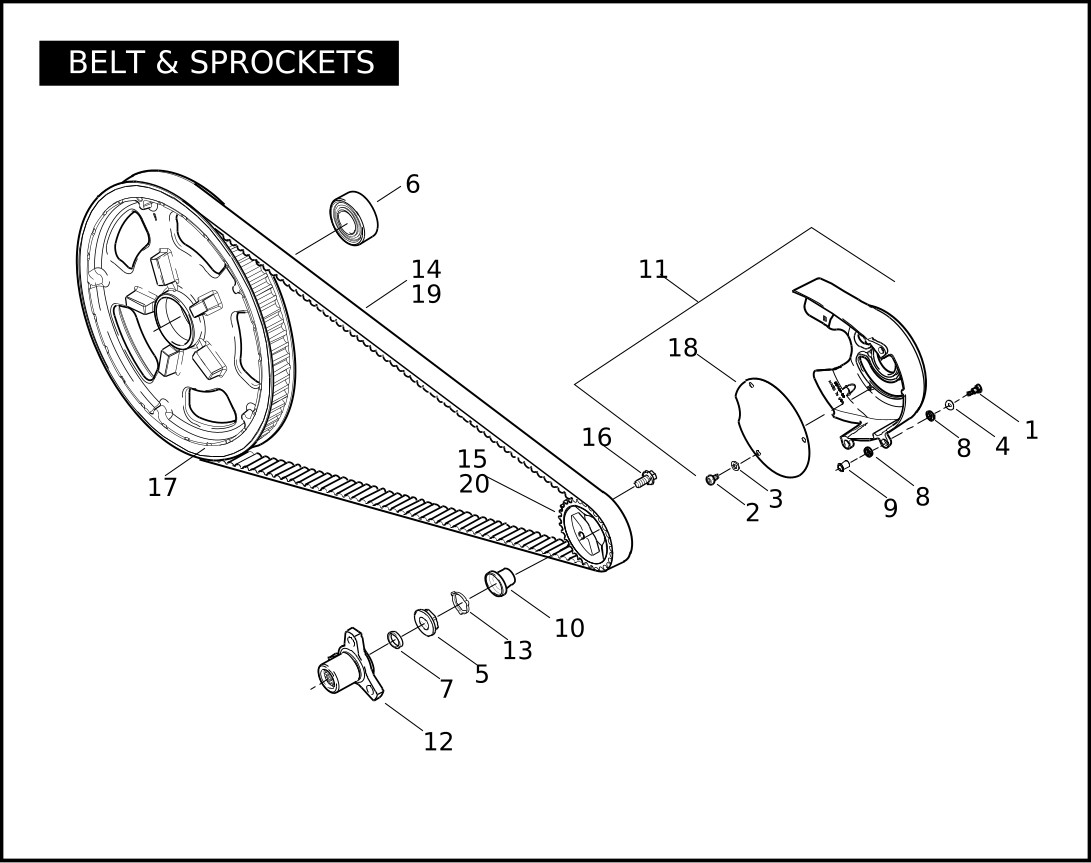

BELT & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 966M | SCREW (3) | ALL |
| 2 | 4543 | SCREW (3) | ALL |
| 3 | 6110 | WASHER (3) | ALL |
| 4 | 6859M | WASHER (3) | ALL |
| 5 | 7910M | NUT, collar | ALL |
| 6 | 9254 | BEARING | ALL |
| 7 | 11354K | SPACER, rubber seal | ALL |
| 8 | 11542 | BUSHING (6) | ALL |
| 9 | 26812-07 | SPACER (3) | ALL |
| 10 | 34007-01K | CAP, plastic | ALL |
| 11 | 37124-08 | COVER ASSEMBLY, sprocket, w/ 4543, 6110, & 76231-08 (polished) | VRSCF |
| 37156-07 | COVER ASSEMBLY, sprocket, w/ 4543, 6110, & insert (gloss black) | VRSCDX | |
| 12 | 35423-04K | FLANGE, output | ALL |
| 13 | 35451-01K | LOCKING PLATE | ALL |
| 14 | 40144-07 | REAR BELT - 151T (Domestic, California, Canada) | ALL |
| 15 | 40656-06B | SPROCKET, transmission 28T (Domestic, California, Canada) | ALL |
| 16 | 40399-01M | SCREW (3) | ALL |
| 17 | 40590-07 | SPROCKET ASSEMBLY - 72T, w/ sprocket (black) | ALL |
| 18 | 76231-08 | INSERT, cover | VRSCF |
| INTERNATIONAL MODELS ONLY | |||
| 19 | 40145-07 | REAR BELT - 152T (HDI, Australia, England, Japan, Asia-Pacific, H105) | ALL |
| 20 | 40657-06B | SPROCKET, transmission 30T (HDI, Australia, England, Japan, Asia-Pacific, H105) | ALL |

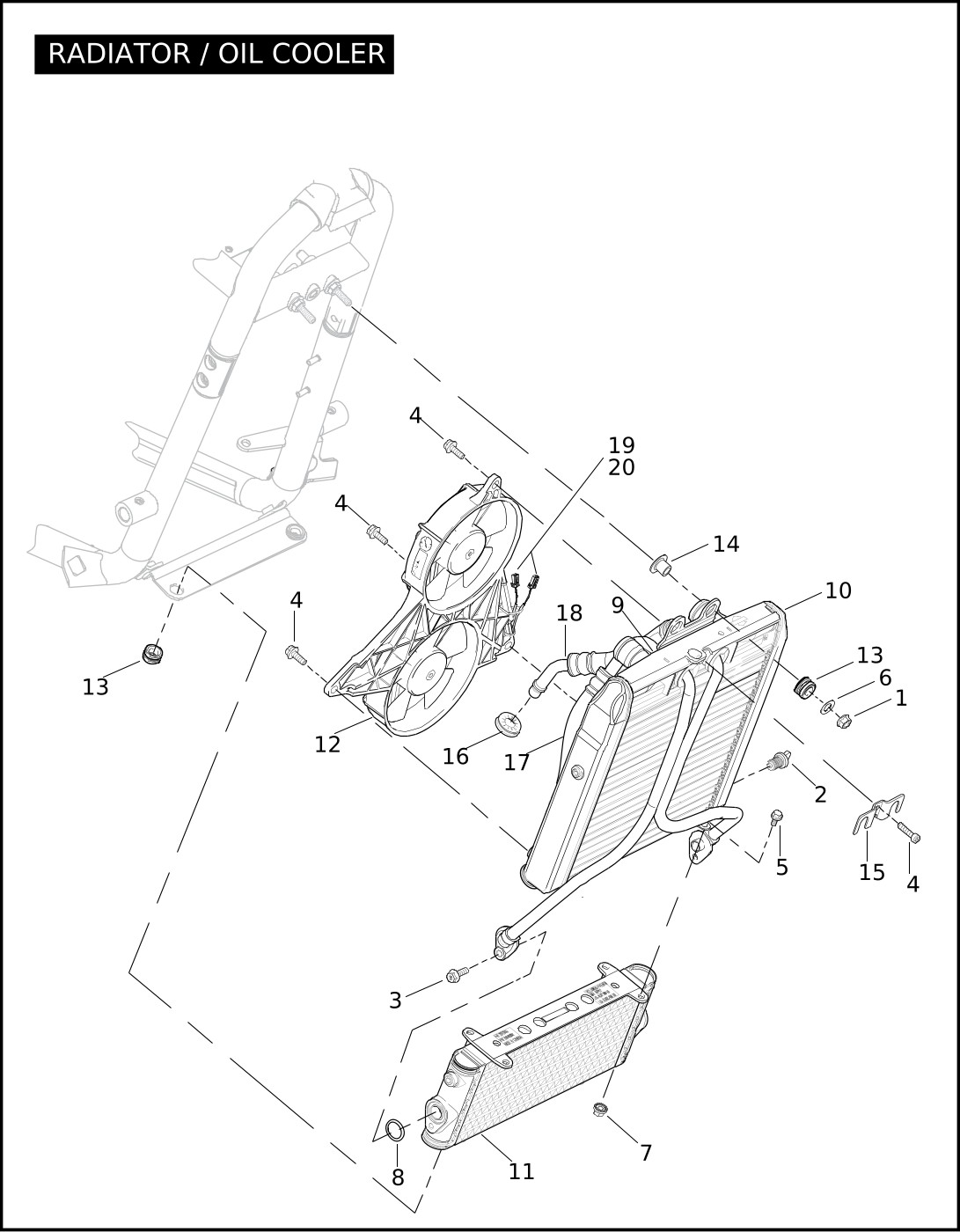

RADIATOR & OIL COOLER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3725M | NUT (2) | ALL |
| 2 | 5235 | PLUG | ALL |
| 3 | 5236M | SCREW (2) | ALL |
| 4 | 5237M | SCREW (4) | ALL |
| 5 | 5534M | SCREW (4) | ALL |
| 6 | 6838M | WASHER, front (2) | ALL |
| 7 | 7347M | LOCKNUT (4) | ALL |
| 8 | 11101 | O-RING (2) | ALL |
| 9 | 11568 | BUSHING (2) | ALL |
| 26721-01C | RADIATOR/OIL COOLER ASSEMBLY KIT | ALL | |
| 10 | 26722-04 | RADIATOR | ALL |
| 11 | 26723-04 | OIL COOLER ASSEMBLY | ALL |
| 12 | 26724-04 | FAN ASSEMBLY | ALL |
| 13 | 26757-01 | GROMMET (4) | ALL |
| 14 | 26758-01 | SPACER (2) | ALL |
| 15 | 26772-04 | BRACKET | ALL |
| 16 | 62909-04 | CAP | ALL |
| 17 | 62940-04A | OIL LINE, oil cooler - inlet | ALL |
| 18 | 62941-04A | OIL LINE, oil cooler - outlet | ALL |
| 19 | 73152-96BK | SOCKET HOUSING, 2-place (2) | ALL |
| 20 | 73191-96 | CONTACT SOCKET (4) | ALL |

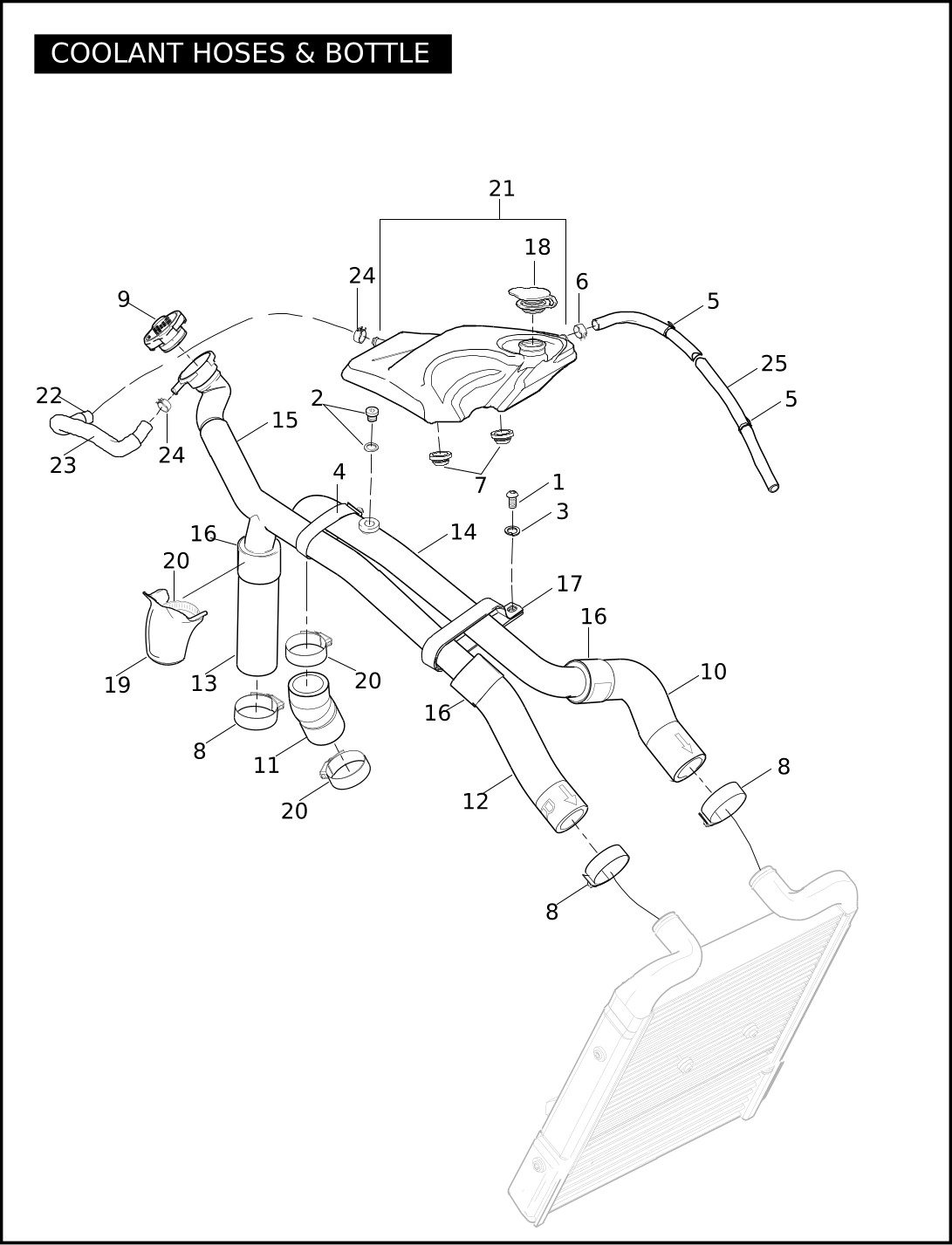

COOLANT HOSES & BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | ALL |
| 2 | 5234 | PLUG ASSEMBLY | ALL |
| 3 | 7036 | WASHER | ALL |
| 4 | 9830 | CLAMP | ALL |
| 5 | 10006 | CABLE STRAP (2) | ALL |
| 6 | 10014 | CLAMP | ALL |
| 7 | 11519 | GROMMET (2) | ALL |
| 8 | 26730-01 | CLAMP, bright (3) | ALL |
| 9 | 26733-01 | CAP, pressure | ALL |
| 10 | 26753-01 | HOSE COOLANT, engine | ALL |
| 11 | 26754-01 | HOSE COOLANT | ALL |
| 12 | 26755-01 | HOSE COOLANT, engine in - front | ALL |
| 13 | 26756-01 | HOSE COOLANT, engine in - rear | ALL |
| 14 | 26767-01 | PIPE COOLANT, engine out | ALL |
| 15 | 26768-01A | PIPE COOLANT, engine in | ALL |
| 16 | 26770-01 | CLAMP, shrink (4) | ALL |
| 17 | 26777-01 | CLAMP | ALL |
| 18 | 26780-05A | CAP | ALL |
| 19 | 26810-06A | COVER, hose (satin black) | VRSCF |
| 66306-07DH | COVER, hose (vivid black) | VRSCDX | |
| 66306-07BYM | COVER, hose (denim black) | VRSCDX | |
| 20 | 26790-01 | CLAMP, black (3) | ALL |
| 21 | 26803-07A | COOLANT BOTTLE & CAP ASSEMBLY, w/ 26780-05A & bottle | ALL |
| 22 | 26834-08 | HOSE, drain | ALL |
| 23 | 26835-08 | SLEEVE, hose | ALL |
| 24 | 62943-01 | CLAMP, drain hose (2) | ALL |
| 25 | 62953-09 | HOSE, drain coolant bottle to ground | ALL |

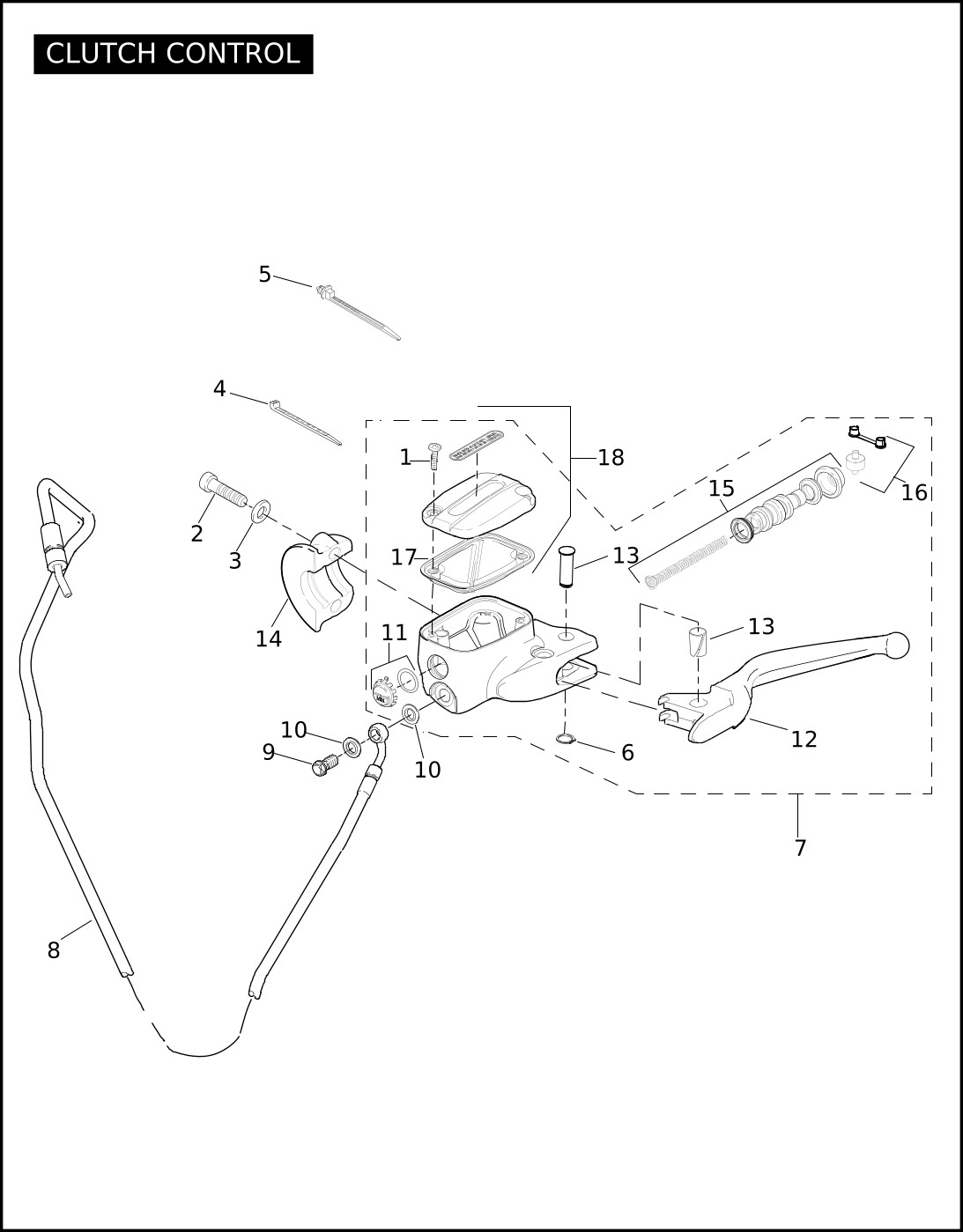

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2590 | SCREW | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 6101 | WASHER (2) | ALL |
| 4 | 10006 | CABLE STRAP | ALL |
| 5 | 10177 | RETAINER, clutch line | ALL |
| 6 | 11143 | RETAINING RING (2) | ALL |
| 7 | 38744-09 | MASTER CYLINDER ASSEMBLY, clutch (black) | ALL |
| 8 | 38658-01B | LINE ASSEMBLY, clutch | VRSCF |
| 38692-04C | LINE ASSEMBLY, clutch | VRSCDX | |
| 9 | 41750-06B | BOLT, banjo | ALL |
| 10 | 41756-08 | GASKET, brake line (2) | ALL |
| 11 | 42145-06 | SIGHT GLASS KIT | ALL |
| 12 | 42876-06A | CLUTCH LEVER KIT, w/ 11143 | ALL |
| 13 | 45050-06 | PIVOT PIN KIT, w/ 38738-08 | ALL |
| 14 | 45138-08A | CLAMP, master cylinder clutch (black) | ALL |
| 15 | 46244-01 | REPAIR KIT, master cylinder, w/ 11143 & 41731-01 | ALL |
| 16 | 46246-01 | BUSHING & ROLLER KIT | ALL |
| 17 | 46322-06 | GASKET COVER | ALL |
| 18 | 46324-06 | COVER MASTER CYLINDER ASSEMBLY, w/ 46322-06 | ALL |

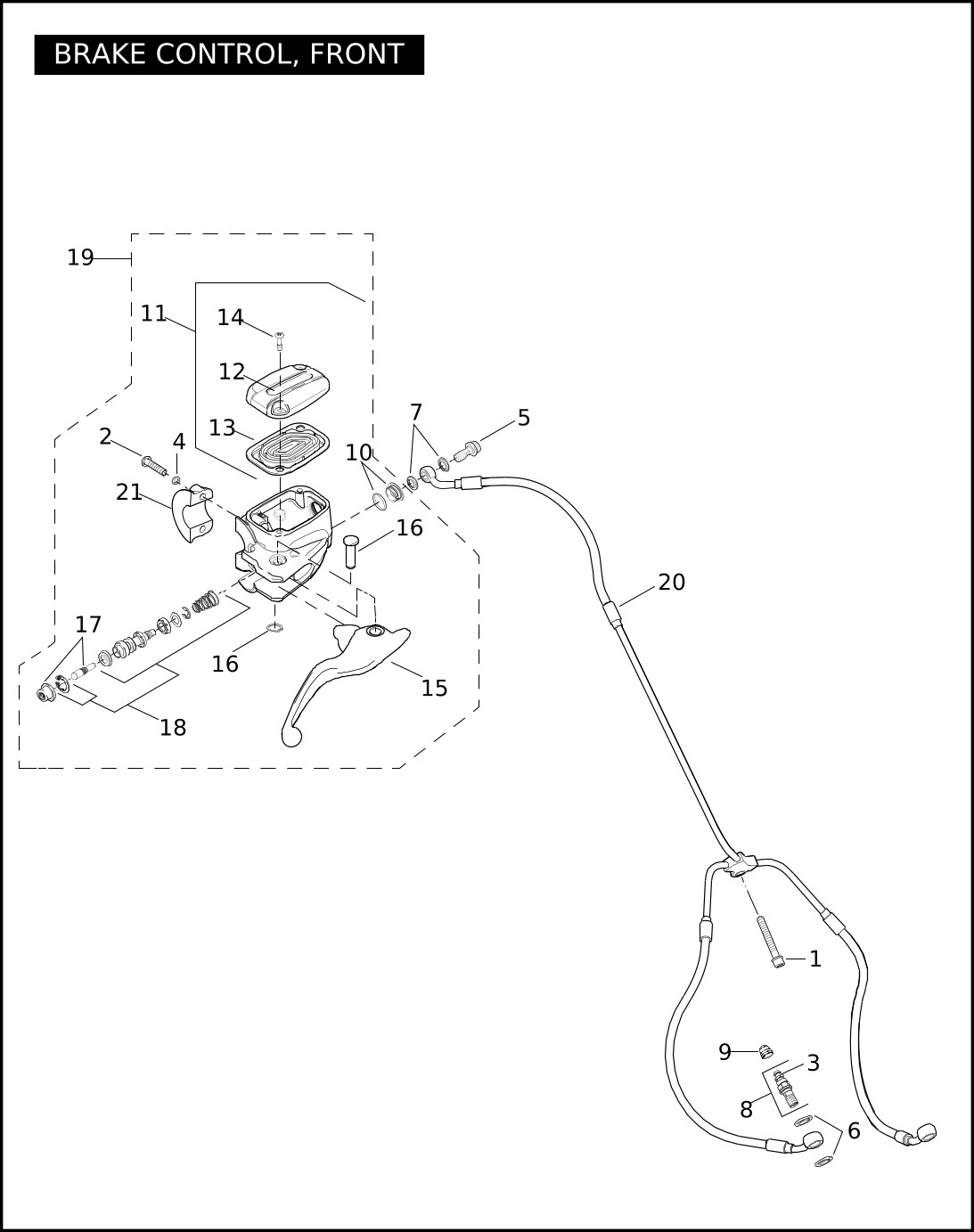

BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | ALL |
| 2 | 4132 | SCREW (2) | ALL |
| 3 | 4890 | BLEEDER SCREW (2) | ALL |
| 4 | 6101 | WASHER (2) | ALL |
| 5 | 41750-06B | BANJO BOLT | ALL |
| 6 | 41751-06A | GASKET (4) | ALL |
| 7 | 41756-08 | GASKET (2) | ALL |
| 8 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 9 | 42853-06 | CAP (2) | ALL |
| 10 | 42854-06 | SIGHT GLASS KIT | ALL |
| 11 | 42855-06B | COVER KIT, w/ 42856-06, 42857-06A, & 42858-06A (black) | ALL |
| 12 | 42856-06 | DECAL | ALL |
| 13 | 42857-06A | GASKET, cover | ALL |
| 14 | 42858-06A | SCREW (2) | ALL |
| 15 | 42859-06B | HAND LEVER, front brake control w/ 42860-06B | ALL |
| 16 | 42860-06B | PIVOT PIN | ALL |
| 17 | 42861-06B | PUSHROD KIT | ALL |
| 18 | 42862-06B | REPAIR KIT, master cylinder (11/16 in. diameter) | ALL |
| 19 | 44551-08B | MASTER CYLINDER ASSEMBLY, front, (black) | ALL |
| 20 | 42020-09 | BRAKE LINE, non ABS | VRSCF |
| 46957-07A | BRAKE LINE, non ABS | VRSCDX | |
| 21 | 45138-08A | CLAMP, master cylinder front brake (black) | ALL |

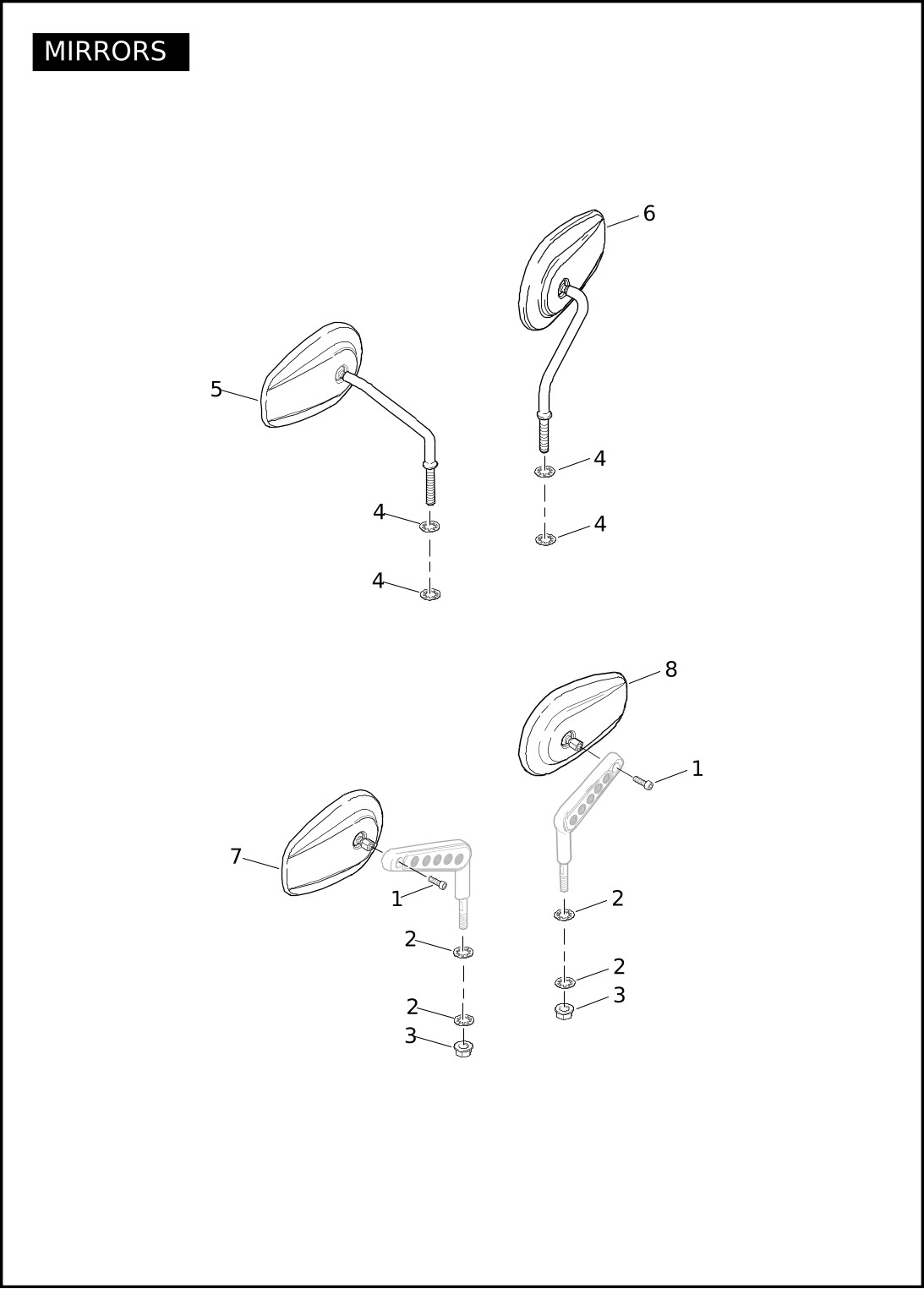

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4974M | SCREW (2) | VRSCF |
| 2 | 7127 | LOCKWASHER (4) | VRSCF |
| 3 | 7432M | NUT (2) | VRSCF |
| 4 | 7155 | LOCKWASHER (4) | VRSCDX |
| 5 | 91909-03B | MIRROR, kit - right | VRSCDX |
| 6 | 91910-03B | MIRROR, kit - left | VRSCDX |
| 7 | 92094-09 | MIRROR, - right | VRSCF |
| 8 | 92095-09 | MIRROR ASSEMBLY, - left | VRSCF |

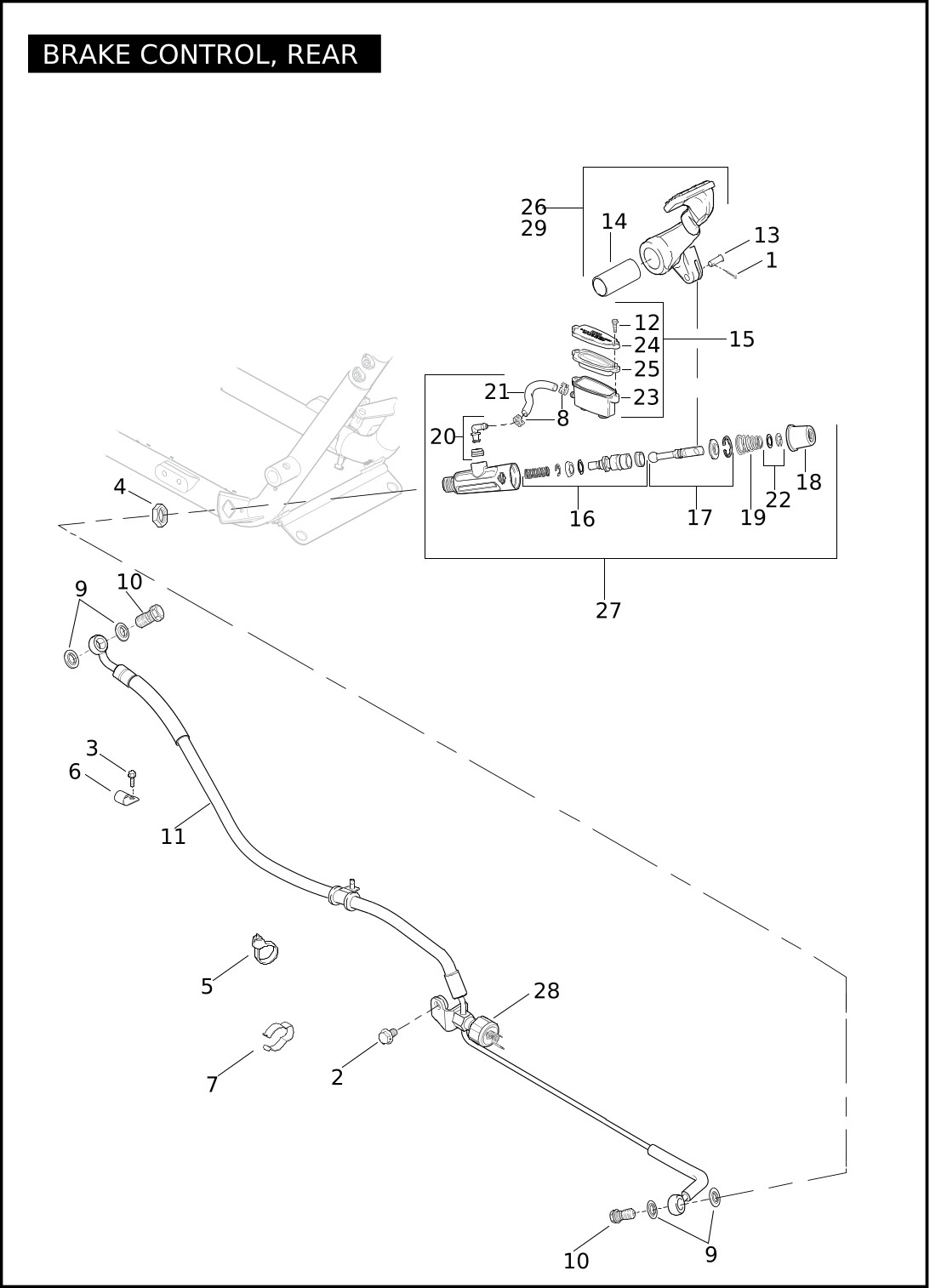

BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 3731M | SCREW | ALL |
| 3 | 4240 | SCREW (5) | ALL |
| 4 | 7951 | JAM NUT | ALL |
| 5 | 10006 | CABLE STRAP (2) | ALL |
| 6 | 10231 | CLIP (5) | ALL |
| 7 | 10289A | WIRE RETAINER, brakeline (2) | ALL |
| 8 | 11608 | CLAMP (2) | ALL |
| 9 | 41751-06A | GASKET (4) | ALL |
| 10 | 41750-06B | BOLT (2) | ALL |
| 11 | 41967-07B | BRAKE LINE ASSEMBLY, rear - non ABS | ALL |
| 12 | 42375-87 | SCREW (2) | ALL |
| 13 | 42460-80B | CLEVIS PIN | ALL |
| 14 | 42569-03 | BUSHING, brake pedal | ALL |
| 15 | 42586-06 | RESERVOIR ASSEMBLY, master cylinder (components are sold separately) | ALL |
| 16 | 42883-06A | MASTER CYLINDER REPAIR KIT | ALL |
| 17 | 42884-06A | MASTER CYLINDER PUSHROD KIT | ALL |
| 18 | 42885-06 | BOOT, pushrod | ALL |
| 19 | 42886-06 | SPRING | ALL |
| 20 | 42887-06 | RESERVOIR PORT KIT | ALL |
| 21 | 42888-06 | HOSE, reservoir | ALL |
| 22 | 42889-06 | SPRING RETENTION KIT | ALL |
| 23 | 43914-06 | RESERVOIR, body | ALL |
| 24 | 43915-06 | COVER, reservoir | ALL |
| 25 | 43917-01 | GASKET, master cylinder reservoir | ALL |
| 26 | 44738-06 | BRAKE PEDAL ASSEMBLY, w/ 42569-03 (ALL except VRSCDX Japan) | ALL |
| 27 | 44740-06A | MASTER CYLINDER ASSEMBLY | ALL |
| 28 | 72023-51D | STOPLIGHT SWITCH | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 44741-06 | BRAKE PEDAL ASSEMBLY, w/ 42569-03 (Japan) | VRSCDX |
| 44738-06 | BRAKE PEDAL ASSEMBLY, w/ 42569-03 (HDI, England, Australia, Asia-Pacific, Japan) | VRSCF | |

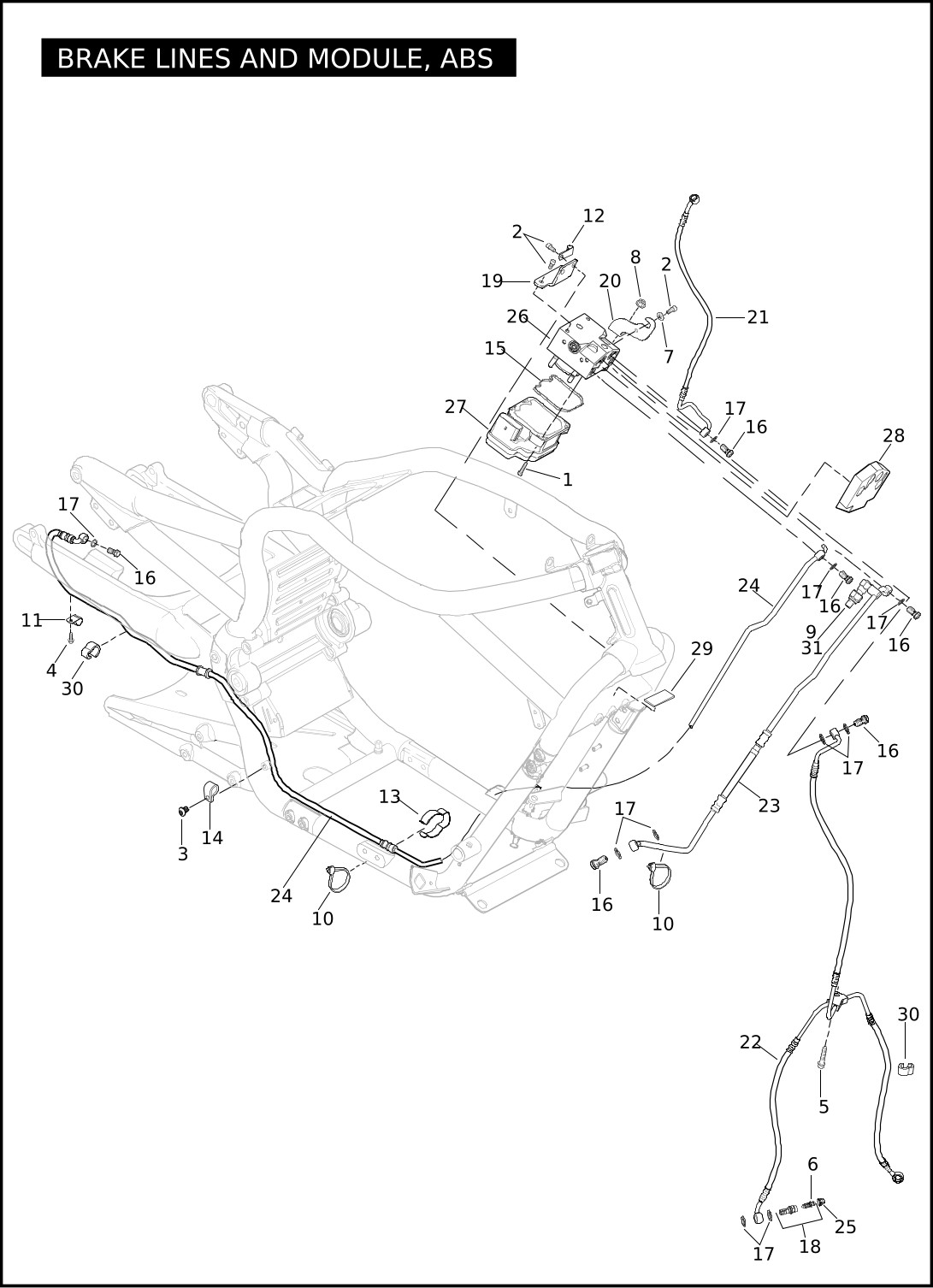

BRAKE LINES & MODULE, ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2228 | SCREW | ALL |
| 2 | 3707M | SCREW (5) | ALL |
| 3 | 3731M | SCREW | ALL |
| 4 | 4240 | SCREW (5) | ALL |
| 5 | 4741A | SCREW | ALL |
| 6 | 4890 | BLEEDER SCREW (2) | ALL |
| 7 | 6859M | WASHER | ALL |
| 8 | 7495 | NUT | ALL |
| 9 | 9907 | WIRE TERMINAL (2) | ALL |
| 10 | 10006 | CABLE STRAP (2) | ALL |
| 11 | 10231 | CLAMP (5) | ALL |
| 12 | 10390 | J-CLIP | ALL |
| 13 | 10289A | RETAINER, wire (2) | ALL |
| 14 | 10867 | CLAMP, wire | ALL |
| 15 | 11904 | GASKET, sealing | ALL |
| 16 | 41750-06B | BOLT (6) | ALL |
| 17 | 41751-06A | GASKET (11) | ALL |
| 18 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 19 | 41855-08 | BRACKET, ABS mount - top | ALL |
| 20 | 41861-08 | BRACKET, ABS mount - left | ALL |
| 21 | 42021-09 | BRAKE LINE, front master cylinder to ABS module | VRSCF |
| 42265-08A | BRAKE LINE, front master cylinder to ABS module | VRSCDX | |
| 22 | 42022-09 | BRAKE LINE, ABS module to front brake caliper | VRSCF |
| 42294-08A | BRAKE LINE, ABS module to front brake caliper | VRSCDX | |
| 23 | 44724-08A | BRAKE LINE, ABS module to rear master cylinder | ALL |
| 24 | 44725-08A | BRAKE LINE, ABS module to rear brake caliper | ALL |
| 25 | 42853-06 | CAP (2) | ALL |
| 26 | 48344-09 | HYDRAULIC CONTROL UNIT | ALL |
| 27 | 40649-08 | ELECTRONIC CONTROL UNIT, w/ 11904 | ALL |
| 28 | 66208-08 | COVER, ABS module | ALL |
| 29 | 66494-01 | PAD | ALL |
| 30 | 70635-08 | CLIP, conduit (front) (3) | VRSCDX, VRSCF |
| 30 | 70635-08 | CLIP, conduit (rear) (4) | ALL |
| 31 | 72023-51D | STOPLIGHT SWITCH, rear w/ 9907 | ALL |
| 72547-08 | DIODE PACK - NOTE: is part of the ABS wire harness | ALL |

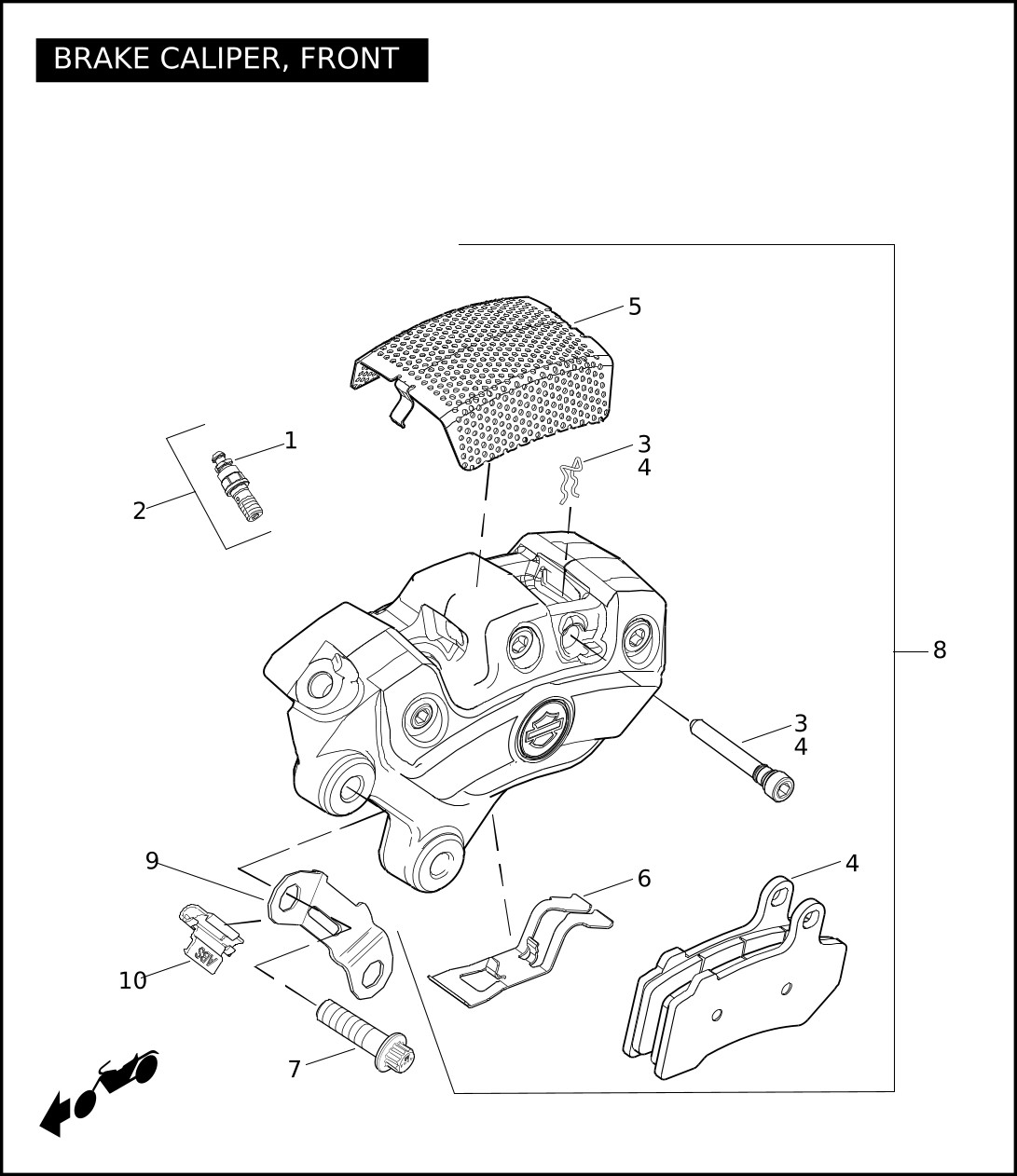

BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | ALL |
| 2 | 41783-08 | BANJO BOLT BLEEDER ASSEMBLY (2) | ALL |
| 3 | 42849-08 | PIN BRAKE PAD, w/ clip (2) | ALL |
| 4 | 42897-08 | BRAKE PAD KIT, w/ 42849-08 (2) | ALL |
| 5 | 42851-06 | COVER (2) | ALL |
| 6 | 42852-06A | SPRING PAD (2) | ALL |
| 7 | 44160-00 | BOLT, caliper mounting (4) | ALL |
| 8 | 44731-08 | CALIPER ASSEMBLY, right - not shown (black) | ALL |
| 44732-08 | CALIPER ASSEMBLY, left (black) | ALL | |
| 9 | 70493-08 | BRACKET - ABS, wire clip speed sensor | VRSCDX |
| 70505-09 | BRACKET - ABS, wire clip speed sensor (not shown) | VRSCF | |
| 10 | 70494-08 | WIRE CLIP - ABS, speed sensor | ALL |

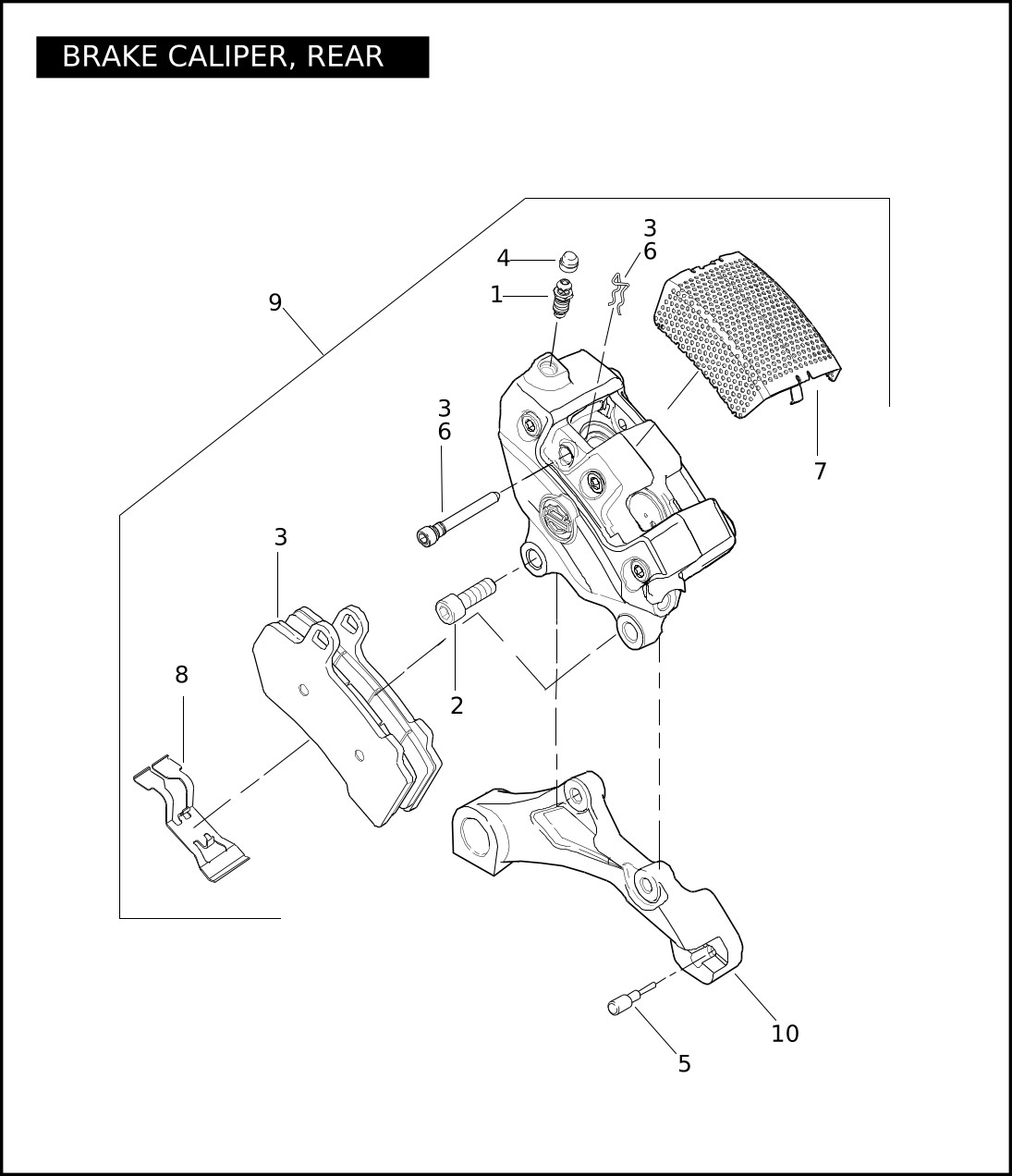

BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | SCREW, bleeder | ALL |
| 2 | 4597M | SCREW (2) | ALL |
| 3 | 42850-06B | BRAKE PAD KIT, w/ 42865-06B | ALL |
| 4 | 42853-06 | CAP, bleeder screw | ALL |
| 5 | 42863-06 | BUMPER | ALL |
| 6 | 42865-06B | PIN BRAKE PAD, w/ clip | ALL |
| 7 | 42866-06 | COVER | ALL |
| 8 | 42867-06A | SPRING PAD KIT | ALL |
| 9 | 43050-08 | CALIPER ASSEMBLY (black) | ALL |
| 10 | 44089-08 | BRACKET, caliper w/42863-06 (black) | ALL |

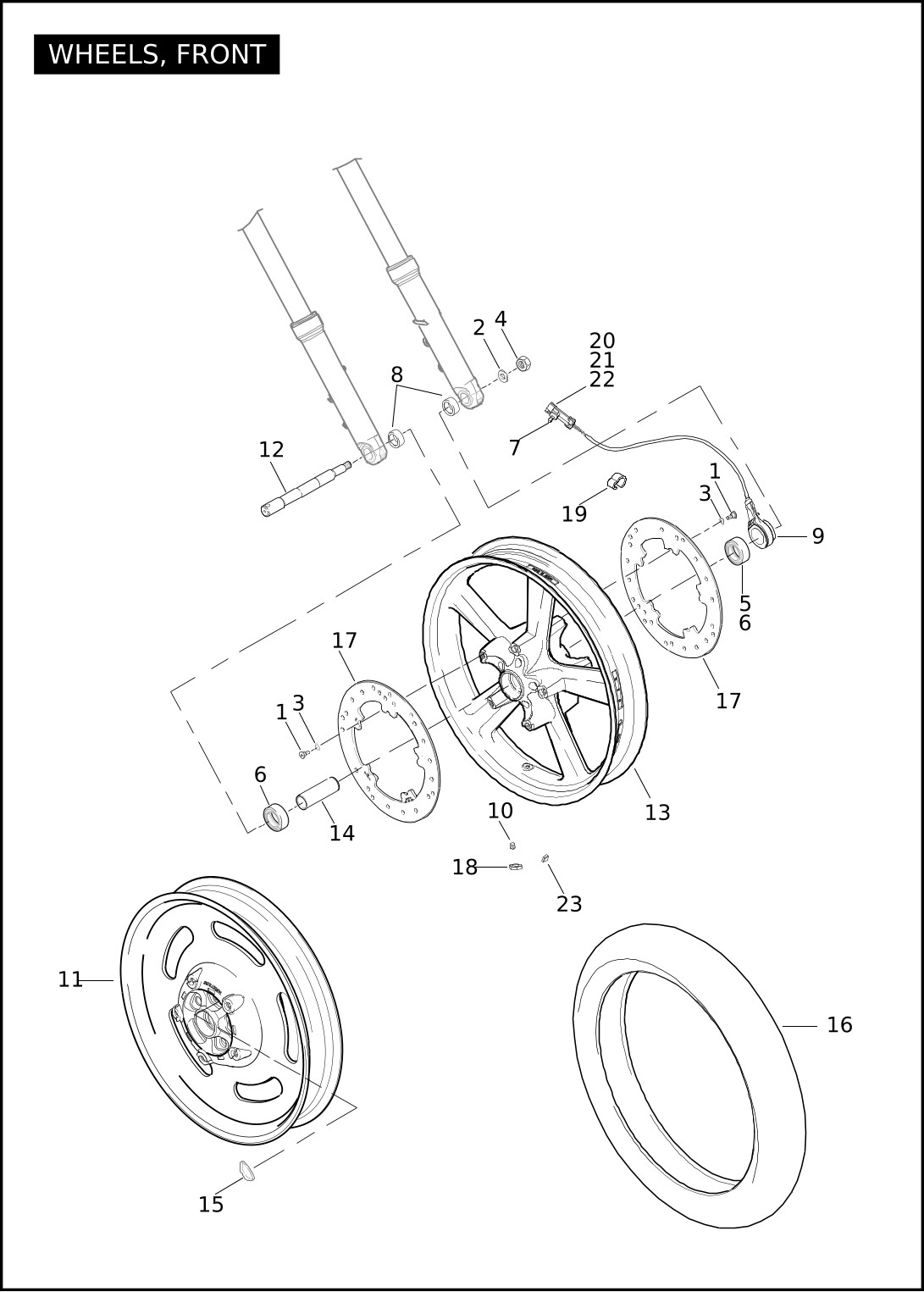

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3762M | BOLT (10) | ALL |
| 2 | 6655 | WASHER | ALL |
| 3 | 6966M | WASHER (10) | ALL |
| 4 | 7813A | NUT | ALL |
| 5 | 9252 | BEARING, ABS - left | ALL |
| 6 | 9276A | BEARING (ABS - right) (1) | ALL |
| 9276A | BEARING (Non ABS - right & left) (2) | ALL | |
| 7 | 10147 | CLIP, connector - ABS | ALL |
| 8 | 11804 | SPACER, ABS - right side | ALL |
| 11804 | SPACER, NON-ABS (2) | ALL | |
| 9 | 40648-08 | SENSOR, wheel - ABS w/ 10147, 72607-08, 72608-08 & 72639-10 | ALL |
| 10 | 41123-79 | VALVE CAP | ALL |
| 11 | 41469-08 | WHEEL ASSEMBLY, w/o bearings & sleeve (w/ orange pin stripe) | VRSCDX |
| 55101-11 | WHEEL ASSEMBLY, w/o bearings & sleeve (w/ machined pin stripe) | VRSCDX | |
| 12 | 41628-08 | AXLE, front | ALL |
| 13 | 41670-09 | WHEEL ASSEMBLY, w/o bearings & sleeve | VRSCF |
| 14 | 41748-08 | SLEEVE | ALL |
| 15 | 43212-01 | PLUG (solid disc only) (10) | VRSCDX |
| 16 | 43213-11 | TIRE | ALL |
| 17 | 44553-06A | BRAKE DISC (2) | ALL |
| 18 | 54321-85 | NUT, valve stem | ALL |
| 19 | 70635-08 | CLIP, conduit - ABS (3) | ALL |
| 20 | 72607-08 | PIN HOUSING, 2-way - ABS | ALL |
| 21 | 72608-08 | TERMINAL, pin 16-20 awg - ABS (2) | ALL |
| 22 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 23 | 95595-84A | WEIGHT 5 grams (black) (4) | VRSCF |
| 95594-84A | WEIGHT 5 grams (silver) (4) | VRSCDX |

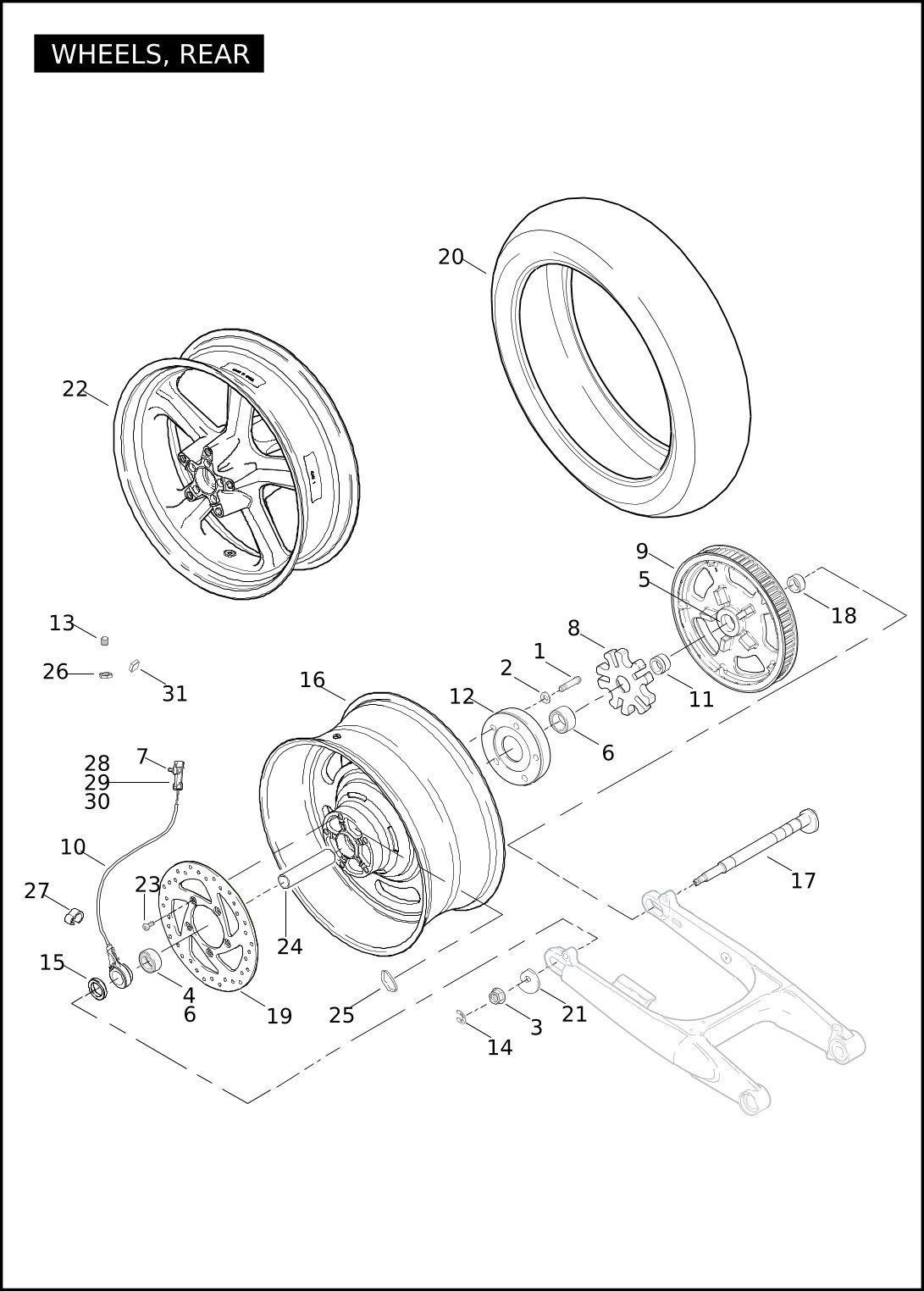

WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4552 | SCREW (5) | ALL |
| 2 | 7039 | LOCKWASHER (5) | ALL |
| 3 | 8020 | NUT | ALL |
| 4 | 9252 | BEARING, ABS - right | ALL |
| 5 | 9254 | BEARING | ALL |
| 6 | 9276A | BEARING, ABS - left | ALL |
| 9276A | BEARING, NON-ABS - right and left (2) | ALL | |
| 7 | 10147 | CLIP, connector - ABS | ALL |
| 8 | 40434-01 | CUSHION, compensator | ALL |
| 9 | 40590-07 | SPROCKET ASSEMBLY - 72T, w/ sprocket (black) | ALL |
| 10 | 40652-08 | SENSOR, wheel - ABS w/ 10147, 72607-08, 72608-08, & 72639-10 | ALL |
| 11 | 40668-07 | SPACER | ALL |
| 12 | 40669-07 | COMPENSATOR BOWL | ALL |
| 13 | 41123-79 | VALVE CAP | ALL |
| 14 | 41139-02 | E-CLIP | ALL |
| 15 | 41242-08 | SPACER, wheel bearing - non ABS | ALL |
| 16 | 41471-08 | WHEEL ASSEMBLY, slot, w/ plugs, w/o bearings & sleeve (black w/ red stripe) | VRSCDX |
| 55106-11 | WHEEL ASSEMBLY, slot, w/ plugs, w/o bearings & sleeve (black w/ machined pin stripe) | VRSCDX | |
| 17 | 41544-08 | AXLE, rear | ALL |
| 18 | 41550-08 | SPACER, left | ALL |
| 19 | 41667-06 | DISC, brake | VRSCDX |
| 48952-09 | DISC, brake (not shown) | VRSCF | |
| 20 | 43189-11 | TIRE | ALL |
| 21 | 41714-05 | REAR AXLE ADJUSTER | ALL |
| 22 | 41744-09 | WHEEL ASSEMBLY, 5 spoke, w/o bearings & sleeve | VRSCF |
| 23 | 43567-92 | SCREW (5) | ALL |
| 24 | 43704-08 | SLEEVE BEARING | ALL |
| 25 | 43708-01 | PLUG (solid disc only) (5) | VRSCDX |
| 26 | 54321-85 | NUT | ALL |
| 27 | 70635-08 | CLIP, conduit - ABS (4) | ALL |
| 28 | 72607-08 | PIN HOUSING, 2-way - ABS | ALL |
| 29 | 72608-08 | TERMINAL, pin 16-20 awg - ABS (2) | ALL |
| 30 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 31 | 95594-84A | WEIGHT, 5 grams (black) (4) | VRSCDX |
| 95595-84A | WEIGHT, 5 grams (silver) (4) | VRSCF |

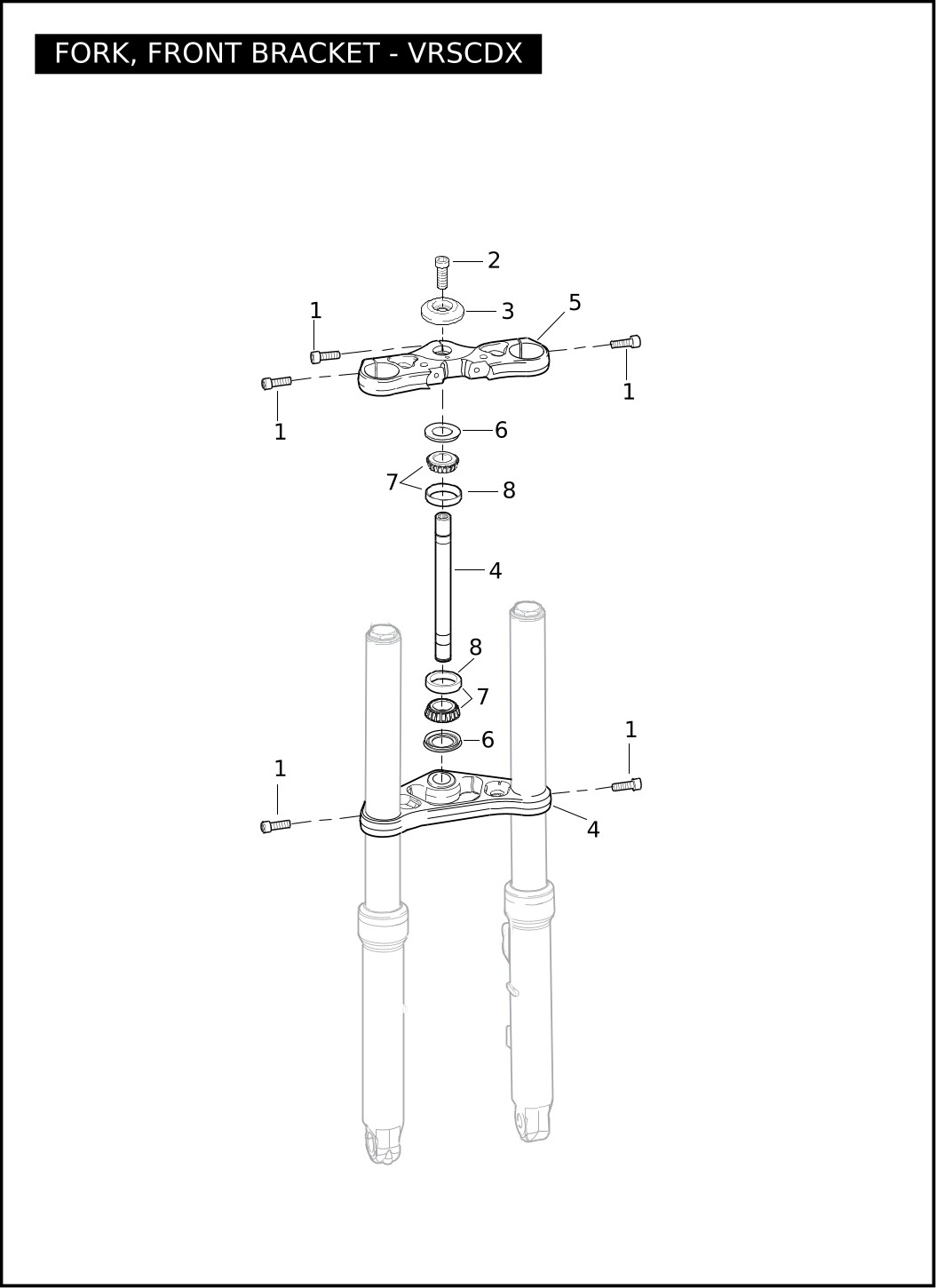

FORK, FRONT BRACKET - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4534M | SCREW (5) | VRSCDX |
| 2 | 4892M | BOLT | VRSCDX |
| 3 | 6513 | STEERING WASHER (black) | VRSCDX |
| 4 | 46855-09 | STEM & BRACKET, w/ bearing & shield | VRSCDX |
| 5 | 46859-09 | BRACKET UPPER | VRSCDX |
| 6 | 48184-01 | SEAL (2) | VRSCDX |
| 7 | 48300-60 | ROLLER BEARING, w/ cup | VRSCDX |
| 8 | 48315-60 | BEARING CUP (2) | VRSCDX |

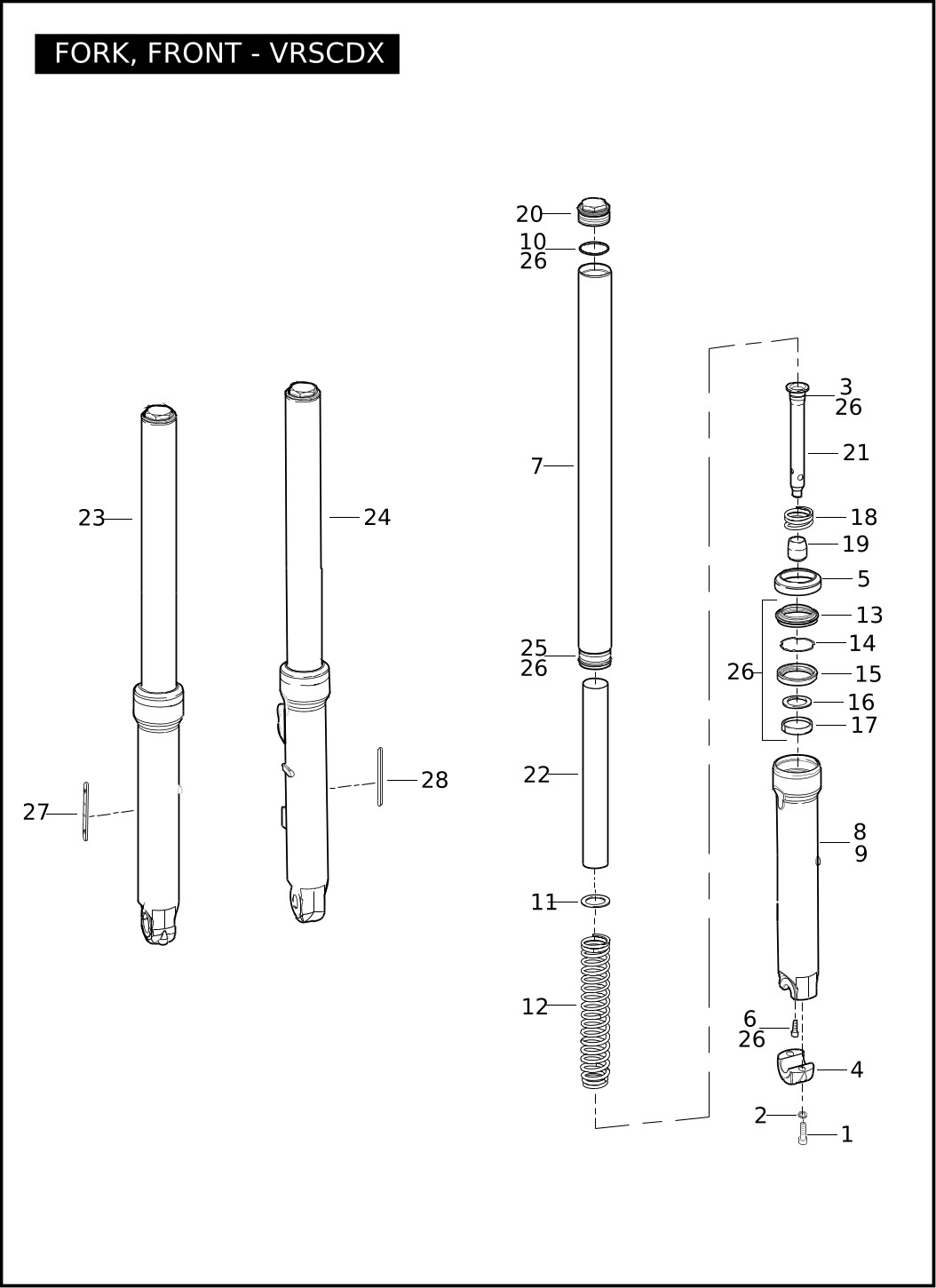

FORK, FRONT - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4042 | SCREW, right (2) | VRSCDX |
| 2 | 7062 | LOCKWASHER (2) | VRSCDX |
| 3 | 11689 | O-RING | VRSCDX |
| 4 | 46849-07 | HOLDER AXLE, right (gloss black) | VRSCDX |
| 5 | 46691-07 | COVER, slider (gloss black) (2) | VRSCDX |
| 6 | 45405-75A | SCREW, left | VRSCDX |
| 7 | 46504-07 | SLIDER TUBE, w/ 46080-01 (2) | VRSCDX |
| 8 | 46764-07 | SLIDER, right (black) | VRSCDX |
| 9 | 46798-07A | SLIDER, left (black) | VRSCDX |
| 10 | 46508-01 | O-RING (2) | VRSCDX |
| 11 | 46509-01 | WASHER, left | VRSCDX |
| 12 | 46511-07 | SPRING (2) | VRSCDX |
| 13 | 46512-01A | DUST COVER (2) | VRSCDX |
| 14 | 46513-01 | RING, stopper (2) | VRSCDX |
| 15 | 46514-01A | OIL SEAL (2) | VRSCDX |
| 16 | 46515-01 | SPACER, seal (2) | VRSCDX |
| 17 | 46516-01 | BUSHING GUIDE (2) | VRSCDX |
| 18 | 46517-01 | SPRING (2) | VRSCDX |
| 19 | 46519-01 | STOP OIL LOCK PIECE (2) | VRSCDX |
| 20 | 46612-06 | CAP, slider tube (2) | VRSCDX |
| 21 | 46635-07 | SEAT PIPE, w/11689 (2) | VRSCDX |
| 22 | 46510-07 | COLLAR, spring (2) | VRSCDX |
| 23 | 46762-07 | FORK ASSEMBLY, right (black) | VRSCDX |
| 24 | 46763-07A | FORK ASSEMBLY, left (black) | VRSCDX |
| 25 | 46080-01 | BUSHING, slider (2) | VRSCDX |
| 26 | 49379-09 | FORK REBUILD KIT (2) | VRSCDX |
| 27 | 69861-07 | REFLECTOR, amber w/black base - right hand | VRSCDX |
| 28 | 69862-07 | REFLECTOR, amber w/black base - left hand | VRSCDX |
FORK, FRONT BRACKET - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 4534M | SCREW (7) | VRSCF |
| 2 | 4870M | BOLT | VRSCF |
| 3 | 6514 | STEERING WASHER (silver) | VRSCF |
| 4 | 46891-09C | BRACKET UPPER | VRSCF |
| 5 | 46892-09B | STEM & BRACKET, w/ bearing & shield | VRSCF |
| 6 | 48184-01 | SEAL (2) | VRSCF |
| 7 | 48300-60 | ROLLER BEARING, w/ cup | VRSCF |
| 8 | 48315-60 | BEARING CUP (2) | VRSCF |

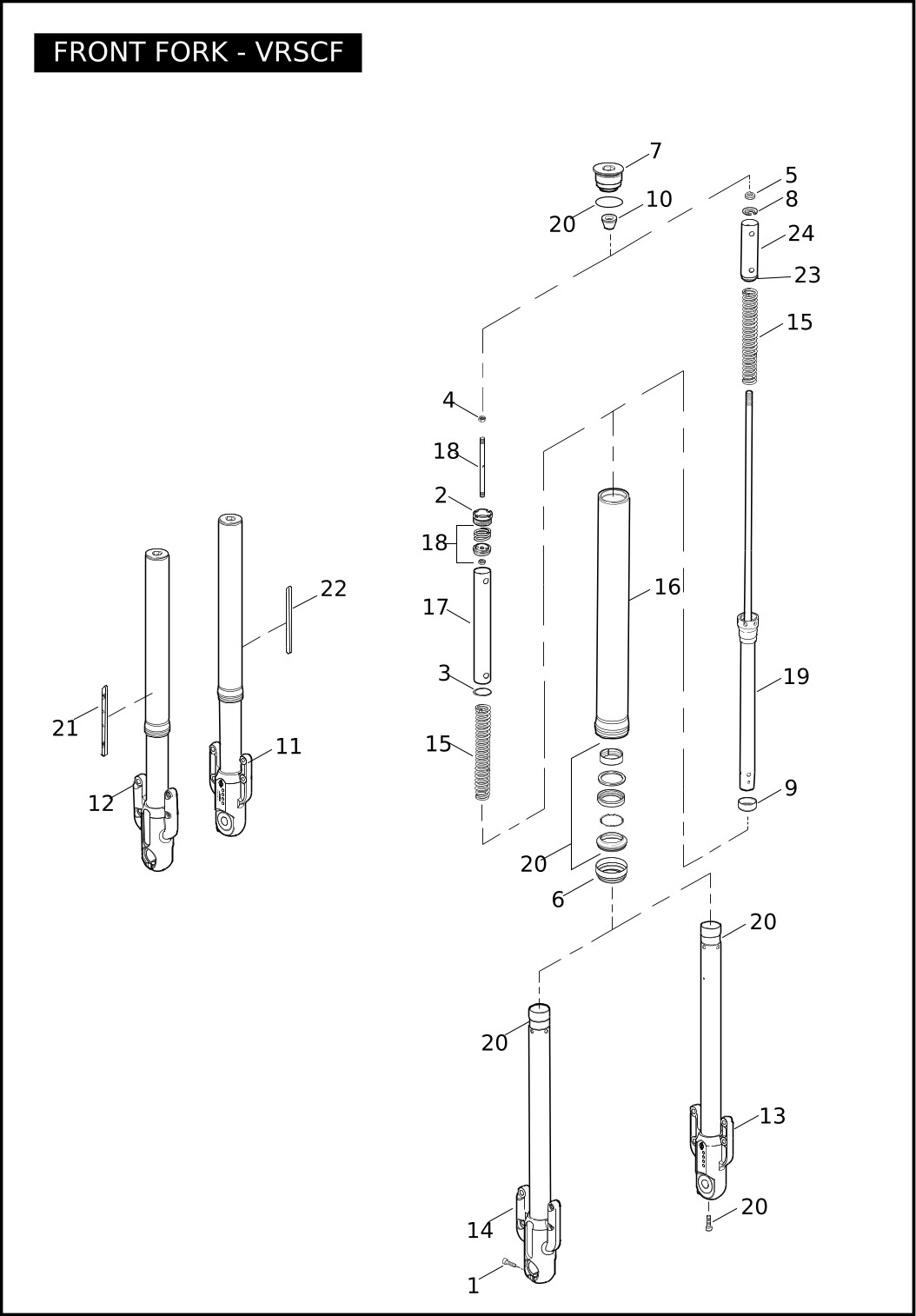

FORK, FRONT - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 4499M | BOLT, right only | VRSCF |
| 2 | 4575 | BOLT, inner fork - right only | VRSCF |
| 3 | 5925 | WASHER, right only | VRSCF |
| 4 | 7468M | NUT, right | VRSCF |
| 5 | 8199M | NUT, left | VRSCF |
| 6 | 46344-06 | COVER, slider (2) | VRSCF |
| 7 | 46350-06 | CAP, slider tube (2) | VRSCF |
| 8 | 46352-06 | SPRING SEAT - left only | VRSCF |
| 9 | 46353-06 | CENTERING PLATE - left only | VRSCF |
| 10 | J8146.1AS | STOPPER, rubber - both | VRSCF |
| 11 | 48700-09 | FORK ASSEMBLY, left | VRSCF |
| 12 | 48701-09 | FORK ASSEMBLY, right | VRSCF |
| 13 | 48702-09 | SLIDER, left | VRSCF |
| 14 | 48703-09 | SLIDER, right | VRSCF |
| 15 | 48704-09 | SPRING (2) | VRSCF |
| 16 | 48705-09 | OUTER TUBE, left/right (2) | VRSCF |
| 17 | 48708-09 | SPRING COLLAR - right only | VRSCF |
| 18 | 48777-09 | JOINT ROD - right only | VRSCF |
| 19 | 48779-09 | DAMPER COMP - left only | VRSCF |
| 20 | 49380-09 | FORK REBUILD KIT | VRSCF |
| 21 | 59481-00 | REFLECTOR, amber w/silver base - right hand | VRSCF |
| 22 | 59482-00 | REFLECTOR, amber w/silver base - left hand | VRSCF |
| 23 | J0117.3A8 | SPRING JOINT - left only | VRSCF |
| 24 | J8135.1AE | SPRING COLLAR - left only | VRSCF |

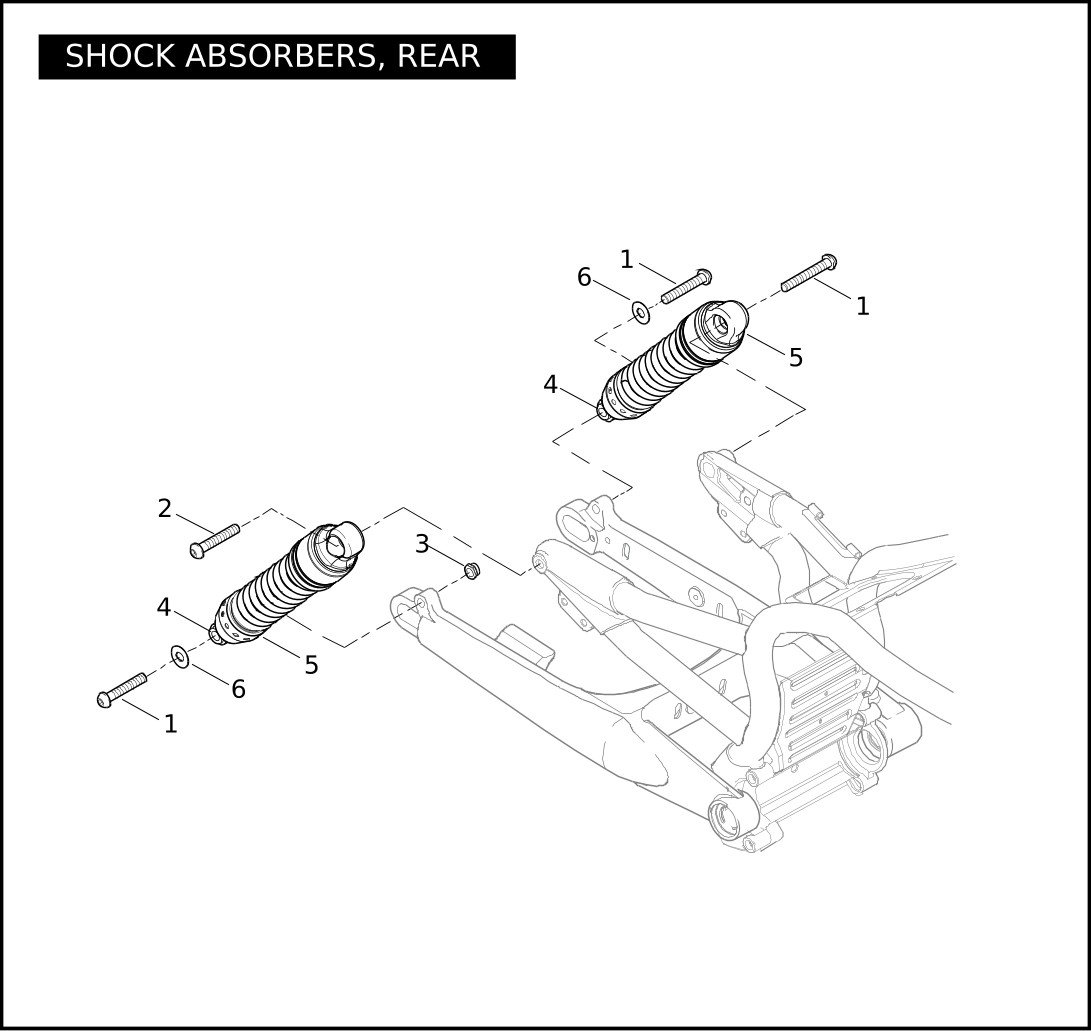

SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3074M | SCREW (3) | ALL |
| 2 | 4603M | SCREW | ALL |
| 3 | 7433M | LOCKNUT, right | ALL |
| 4 | 54556-84 | BUSHING, damper (2) | VRSCDX |
| 5 | 54617-09 | SHOCK ASSEMBLY, rear (2) | VRSCF |
| 54667-07 | SHOCK ASSEMBLY, rear, w/ 54473-79, 54474-79, 54475-79, & 54556-84 (2) | VRSCDX | |
| 6 | 59018-98 | WASHER (2) | ALL |

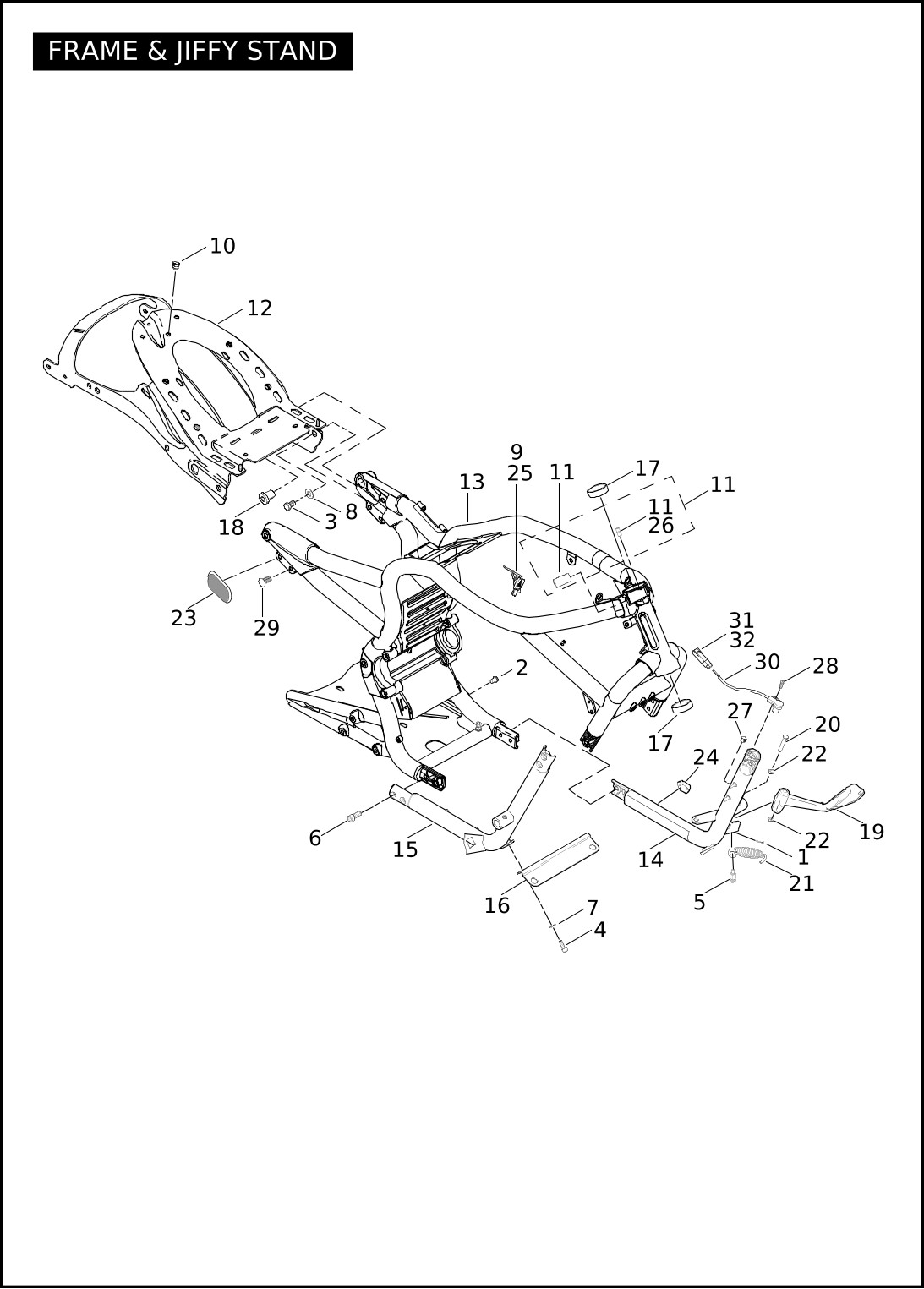

FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | ALL |
| 2 | 755 | PLUG (3) | VRSCDX |
| 3 | 3292MA | SCREW (2) | ALL |
| 4 | 3755M | SCREW (2) | ALL |
| 5 | 3718M | ANCHOR | ALL |
| 6 | 4530M | SCREW (8) | ALL |
| 7 | 6302 | WASHER (2) | ALL |
| 8 | 6876M | WASHER (2) | ALL |
| 9 | 10065 | CABLE STRAP | ALL |
| 10 | 42853-06 | CAP | VRSCF |
| 11 | 45804-01A | FORK LOCK, w/ 71578-01A (specify key code) | ALL |
| 12 | 48523-07 | SEAT PAN | VRSCDX |
| 48527-09 | SEAT PAN | VRSCF | |
| 13 | 47764-08 | FRAME ASSEMBLY UPPER, w/ 48315-60 (black) | ALL |
| 14 | 47987-07BK | FRAME LOWER, left (black) | ALL |
| 15 | 47988-08BK | FRAME LOWER, right (black) | ALL |
| 16 | 48086-01 | CROSS MEMBER, front | ALL |
| 17 | 48315-60 | BEARING CUP, steering head (2) | ALL |
| 18 | 48486-07 | NUT, shock mount (2) | ALL |
| 19 | 49733-07BK | LEG, jiffy stand (black) | VRSCDX |
| 49755-09BK | LEG, jiffy stand (black) | VRSCF | |
| 20 | 50003-89B | PIN | ALL |
| 21 | 50005-85A | SPRING | ALL |
| 22 | 53176-08 | BUSHING, jiffy stand (2) | ALL |
| 23 | 59440-09 | REFLECTOR, rear w/ 59407-01 (Domestic,Canada) (2) | VRSCF |
| 24 | 62107-01 | BUMPER | ALL |
| 71402-07A | LOCKSET COMPLETE | ALL | |
| 25 | 71452-91A | KEY (specify key code) | ALL |
| 61081-92 | COVER, key head set (not illustrated) (2) | ALL | |
| 26 | 71578-01A | PLUNGER FORK LOCK | ALL |
| 27 | 90520-07 | PLUG (Domestic, California, Canada, Australia, Japan, Asia-Pacific) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 3731M | SCREW (HDI, England, H105, Brazil) | ALL |
| 29 | 10040 | PLUG (HDI) (4) | VRSCF |
| 30 | 50277-08A | SENSOR, jiffy stand w/ 72169-07 & 72511-07BK (HDI, England, H105, Brazil) | ALL |
| 31 | 72169-07 | TERMINAL, pin (HDI, England, H105, Brazil) (3) | ALL |
| 32 | 72511-07BK | HOUSING, 3-way (HDI, England, H105, Brazil) | ALL |

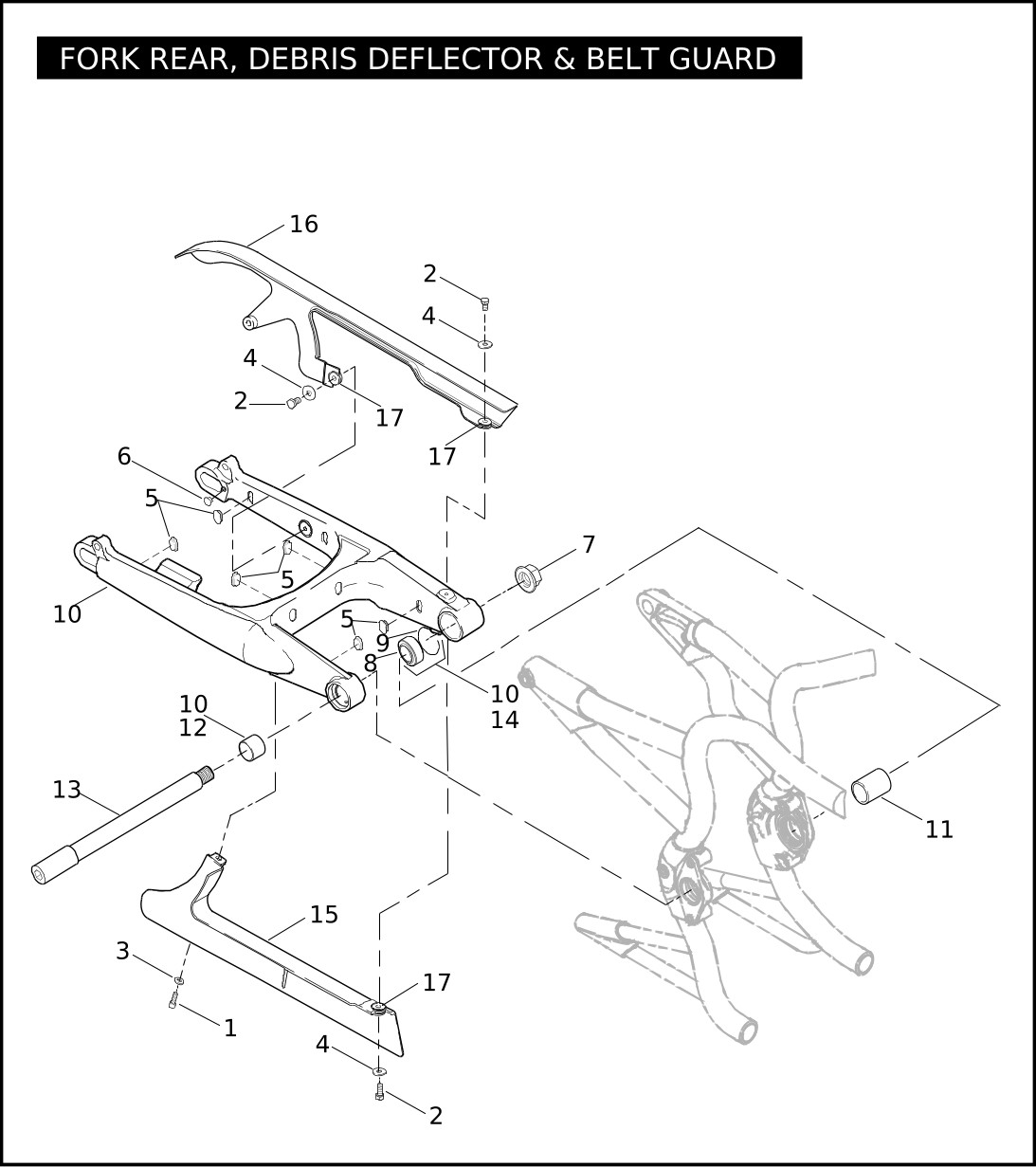

FORK REAR, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | ALL |
| 2 | 3755M | SCREW (3) | ALL |
| 3 | 6703 | WASHER | ALL |
| 4 | 6838M | WASHER (3) | ALL |
| 5 | 6864A | PLUG, small (10) | ALL |
| 6 | 10040 | CLIP (2) | ALL |
| 7 | 7460M | LOCKNUT | ALL |
| 8 | 9208 | BEARING | ALL |
| 9 | 10950 | RETAINING RING, internal | ALL |
| 10 | 48606-07A | REAR FORK ASSEMBLY, w/ 48389-01, 48712-07, & pin axle adjuster (polished) | VRSCF |
| 48612-07A | REAR FORK ASSEMBLY, w/ 48389-01, 48712-07, & pin axle adjuster (black) | VRSCDX | |
| 11 | 48386-05A | SPACER, left | ALL |
| 12 | 48389-01 | BUSHING, pivot - right | ALL |
| 13 | 48392-05 | PIVOT SHAFT ASSEMBLY | ALL |
| 14 | 48712-07 | BEARING KIT, w/ 10950, & 9208 | ALL |
| 15 | 60473-07A | DEBRIS DEFLECTOR | ALL |
| 16 | 60474-07 | BELT GUARD | ALL |
| 17 | 67621-94 | BUSHING (3) | ALL |

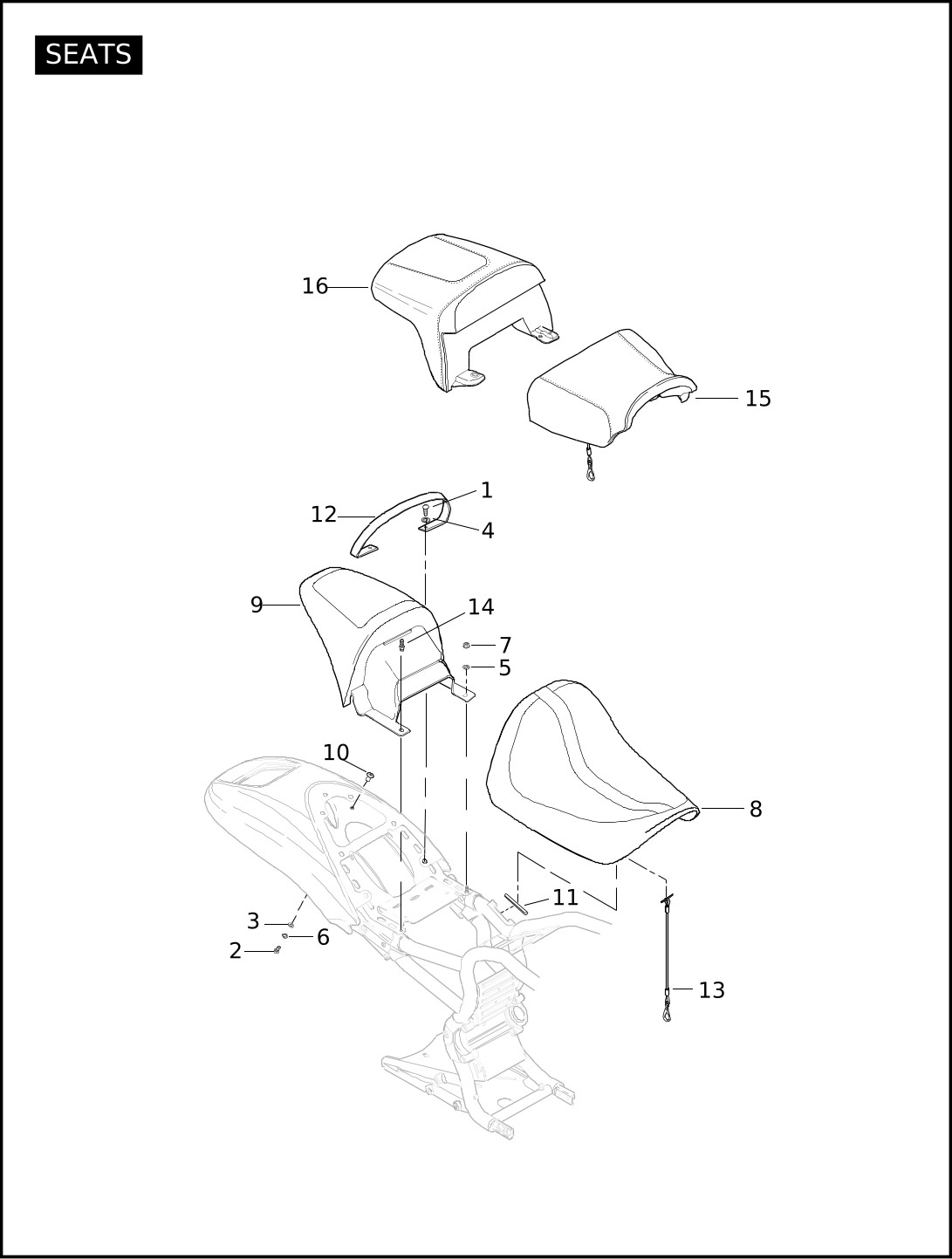

SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3108M | SCREW (2) | ALL |
| 2 | 3540 | SCREW | VRSCDX |
| 3 | 6302 | WASHER | VRSCDX |
| 4 | 6838M | WASHER (2) | ALL |
| 5 | 6859M | WASHER | ALL |
| 6 | 7041 | LOCKWASHER | VRSCDX |
| 7 | 7495 | NUT | ALL |
| 8 | 51547-07 | SEAT, rider | VRSCDX |
| 9 | 51574-07 | SEAT, passenger | VRSCDX |
| 10 | 51952-07 | NUT, seat retention | VRSCDX |
| 11 | 52041-82 | SLEEVE | ALL |
| 12 | 52386-07A | STRAP, seat | ALL |
| 13 | 52402-01 | LANYARD, seat | ALL |
| 14 | 52410-07 | SEAT POST | ALL |
| 15 | 52433-09 | SEAT, rider | VRSCF |
| 16 | 52438-09 | SEAT, passenger | VRSCF |

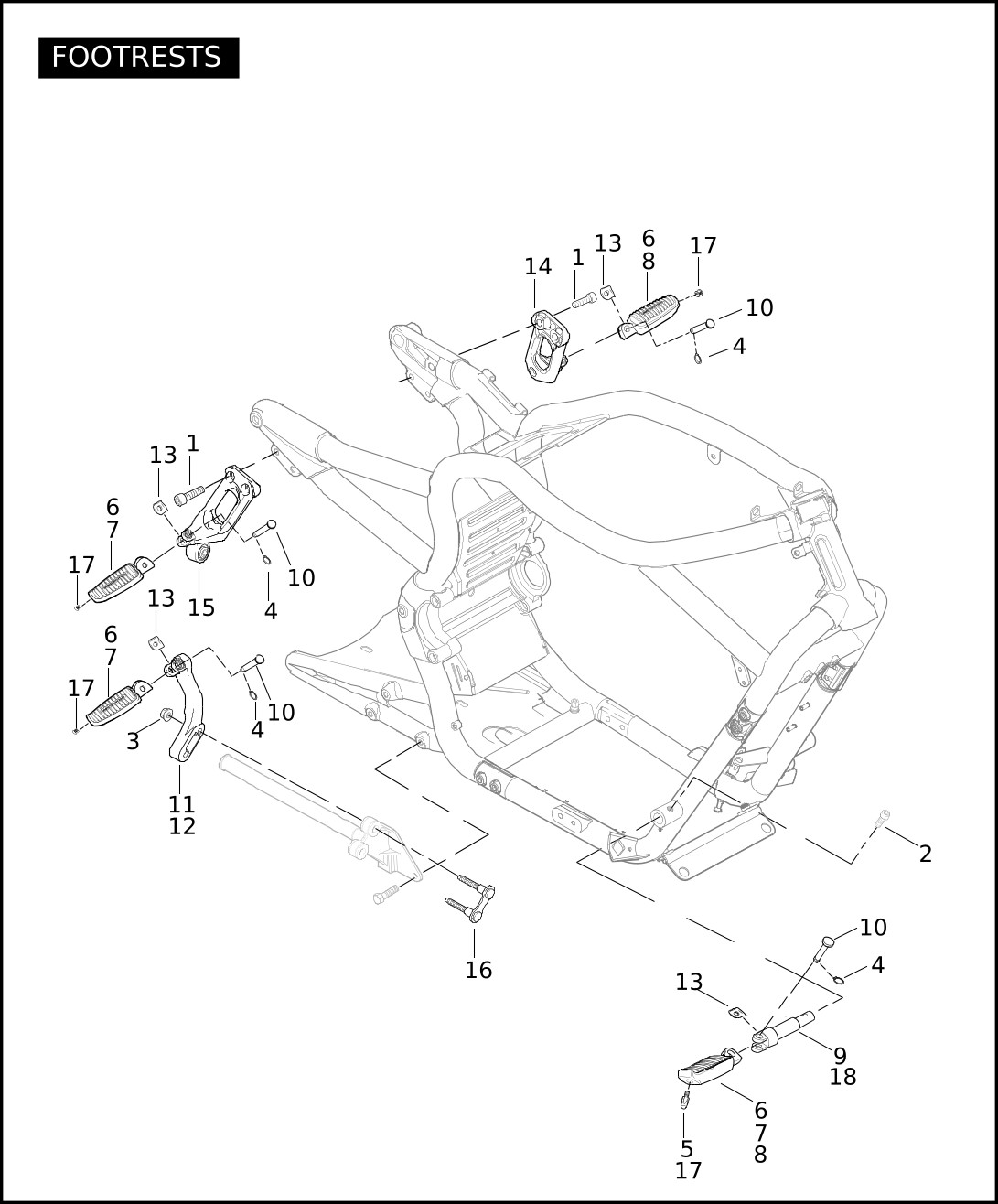

FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3703M | SCREW (4) | VRSCDX |
| 2 | 3729M | SCREW (2) | ALL |
| 3 | 7432M | NUT (4) | VRSCF |
| 4 | 11304 | RING, retaining (4) | ALL |
| 5 | 33129-06 | WEAR PEG (2) | ALL |
| 6 | 33133-06 | COVER (4) | ALL |
| 7 | 33134-07CAZ | FOOTPEG ASSEMBLY, right, w/ 33133-06 (black) (2) | ALL |
| 8 | 33135-07CAZ | FOOTPEG ASSEMBLY, left, w/ 33133-06 (black) (2) | ALL |
| 9 | 42584-01 | CLEVIS, footrest (2) | VRSCDX |
| 50272-02B | CLEVIS, footrest - right (not shown) | VRSCF | |
| 50274-02B | CLEVIS, footrest - left (not shown) | VRSCF | |
| 10 | 45041-01A | PIN, clevis (4) | ALL |
| 11 | 50822-09 | FOOTREST SUPPORT PASSENGER, left (not shown) | VRSCF |
| 12 | 50826-09 | FOOTREST SUPPORT PASSENGER, right | VRSCF |
| 13 | 50912-72 | SPRING WASHER (4) | ALL |
| 14 | 51723-07 | FOOTREST SUPPORT PASSENGER, left | VRSCDX |
| 15 | 51722-07 | FOOTREST SUPPORT PASSENGER, right | VRSCDX |
| 16 | 65786-09 | STUD PLATE (2) | VRSCF |
| 17 | 90520-07 | PLUG (2) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 50272-02B | CLEVIS, footrest - right (Japan) (not shown) | VRSCDX |
| 50274-02B | CLEVIS, footrest - left (Japan) (not shown) | VRSCDX | |
HANDLEBAR & THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3385M | SCREW (4) | VRSCDX |
| 2 | 3726M | SCREW (2) | ALL |
| 3 | 4889M | SCREW (2) | VRSCF |
| 4 | 11155 | SNAP RING | ALL |
| 5 | 11271 | RETAINING RING, idle control | ALL |
| 6 | 11272 | RETAINING RING, throttle control | ALL |
| 7 | 38653-01 | BOOT, throttle cable | ALL |
| 8 | 55999-06 | RISER HANDLEBAR (black) | VRSCDX |
| 9 | 56012-09 | HANDLEBAR | VRSCF |
| 10 | 56220-94A | GRIP & SLEEVE, throttle - right | VRSCF |
| 11 | 56248-08 | GRIP, left | VRSCF |
| 12 | 56284-06 | CLAMP HANDLEBAR (black) | VRSCDX |
| 13 | 56365-01 | THROTTLE CONTROL ASM, w/ 11272, 38653-01, & 56508-76 | VRSCF |
| 56984-07 | THROTTLE CONTROL ASSEMBLY, w/ 11272, & 38653-01 | VRSCDX | |
| 14 | 56367-01 | IDLE CONTROL ASSEMBLY, w/ 11271 & 56508-76 | VRSCF |
| 56985-07 | IDLE CONTROL ASSEMBLY, w/ 11271 & 38653-01 | VRSCDX | |
| 15 | 56394-74 | SPRING, adjusting screw | ALL |
| 16 | 56396-74A | FRICTION SPRING, throttle | ALL |
| 17 | 56402-83A | ADJUSTING SCREW | ALL |
| 18 | 56508-76 | FERRULE, control wire (2) | ALL |
| 19 | 56666-04 | GRIP & SLEEVE, throttle - right | VRSCDX |
| 20 | 56667-04 | GRIP, left | VRSCDX |
| 21 | 56953-07 | HANDLEBAR | VRSCDX |
| 22 | 70504-81 | CLIP, throttle cables | ALL |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | ALL |
| 2 | 3658 | SCREW (4) | ALL |
| 3 | 10181 | CABLE STRAP (as required) | ALL |
| 4 | 11402 | GROMMET | VRSCF |
| 5 | 70345-84 | RETAINER (2) | VRSCDX |
| 6 | 71587-04 | CLIP | ALL |
| 7 | 71684-06A | SWITCH ASSEMBLY, engine stop/start, w/ 10181 & 72266-94 | ALL |
| 8 | 71621-08 | STOPLAMP & CLUTCH SWITCH w/10181 & 72266-94 (2) | ALL |
| 9 | 71683-06A | SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94 | ALL |
| 10 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn, w/ 10181 & 72266-94 | ALL |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal, w/ 10181 | ALL |
| 12 | 71568-96A | HOUSING, lower - left (black) | VRSCDX |
| 71571-06A | HOUSING, lower - left, w/ hole (black) | VRSCF | |
| 13 | 71567-96 | HOUSING, upper - left (black) | ALL |
| 14 | 71563-96 | HOUSING, lower - right (black) | VRSCDX |
| 71569-06 | HOUSING, lower - right, w/ hole (black) | VRSCF | |
| 15 | 71564-96 | HOUSING, upper - right (black) | ALL |
| 16 | 72188-07BK | HOUSING, 6-way - right (black) | ALL |
| 17 | 72447-07GY | HOUSING, 8-way - left (gray) | ALL |
| 18 | 72169-07 | TERMINAL, pin (14) | ALL |
| 19 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 in. (as required) | ALL |
HEADLAMP (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3385M | SCREW (2) | VRSCDX |
| 2 | 3514 | SCREW | VRSCDX |
| 3 | 3709M | SCREW (2) | VRSCF |
| 4 | 3753M | SCREW (2) | VRSCF |
| 5 | 3832M | SCREW (2) | VRSCF |
| 6 | 6839M | WASHER | VRSCDX |
| 7 | 3853M | SCREW (6) | VRSCF |
| 8 | 3919M | SCREW | VRSCDX |
| 9 | 4363 | SCREW (4) | VRSCDX |
| 10 | 6424 | WASHER (4) | VRSCDX |
| 11 | 7427M | NUT | VRSCDX |
| 12 | 7606 | LOCKNUT | VRSCDX |
| 13 | 9847 | CONNECTOR, right hand, spade female | VRSCDX |
| 14 | 9848 | CONNECTOR, left hand, spade female (2) | VRSCDX |
| 15 | 10065 | CABLE STRAP | VRSCF |
| 16 | 67657-05 | HARNESS HEADLAMP | VRSCF |
| 17 | 67717-01 | BULB - high beam | VRSCF |
| 18 | 67667-05 | MEDALLION | VRSCDX |
| 19 | 67790-93A | BEZEL | VRSCDX |
| 20 | 67883-04A | RING, lamp adaptor | VRSCDX |
| 21 | 68134-97 | SEAL | VRSCDX |
| 22 | 68228-09 | BRACKET, headlamp mounting | VRSCF |
| 23 | 68297-05 | LAMP ASSEMBLY 5-3/4 in. | VRSCDX |
| 24 | 68329-03 | BULB HB2/H4 | VRSCDX |
| 25 | 68380-05 | BOOT HB2/H4 | VRSCDX |
| 26 | 68807-01 | BRACKET, reflector mounting (2) | VRSCF |
| 27 | 68254-01 | REFLECTOR ASSEMBLY, headlamp, w/ 3853M & 68807-01 | VRSCF |
| 28 | 69873-07A | HEADLAMP ASSEMBLY (Domestic, California, Canada) (satin black) | VRSCF |
| 29 | 68881-01 | BULB - low beam | VRSCF |
HEADLAMP (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 30 | 68971-98B | VISOR KIT - primed | VRSCDX |
| 31 | 69271-06 | BRACKET, headlamp assembly | VRSCDX |
| 32 | 69356-06A | HEADLAMP BUCKET | VRSCDX |
| 33 | 72056-92 | HOUSING TERMINAL, female - 3-way | VRSCDX |
| 34 | 72449-01 | HOUSING SOCKET - 2-way (black) | VRSCF |
| 35 | 72450-01 | HOUSING SOCKET - 2-way (gray) | VRSCF |
| 36 | 72527-01 | SOCKET TERMINAL, #18-20 AWG. (4) | VRSCF |
| 37 | 72633-02 | SEAL WIRE, 14-16 AWG. (white) (4) | VRSCF |
| 38 | 73154-96BK | SOCKET HOUSING - 4-way | ALL |
| 39 | 73191-96 | SOCKET CONTACT 20-16 gauge (as required) | ALL |
| 40 | 90339-06 | BRACKET, headlamp visor | VRSCDX |
| INTERNATIONAL MODELS ONLY | |||
| 41 | 9898 | TERMINAL (2) (HDI) | VRSCDX |
| 42 | 53436-97 | BULB, position lamp (HDI) | ALL |
| 43 | 67658-05 | HARNESS HEADLAMP (HDI) | VRSCF |
| 44 | 68255-01 | REFLECTOR ASSEMBLY, headlamp - right dip (HDI, H105, Asia-Pacific) | VRSCF |
| 68256-01 | REFLECTOR ASSEMBLY, headlamp - left dip (England, Australia, Japan) | VRSCF | |
| 45 | 68335-05 | LAMP ASSEMBLY 5-3/4 in. - left dip (England, Australia, Japan) | VRSCDX |
| 68341-05 | LAMP ASSEMBLY 5-3/4 in. - right dip (HDI, H105, Asia-Pacific) | VRSCDX | |
| 46 | 68653-05 | SOCKET, bulb (HDI) | VRSCDX |
| 47 | 69875-07A | HEADLAMP ASSEMBLY - left dip (England, Australia, Japan) | VRSCF |
| 69874-07A | HEADLAMP ASSEMBLY - right dip (HDI, H105, Asia-Pacific) | VRSCF | |
| 48 | 69356-06A | HEADLAMP BUCKET (HDI, England, Asutralia, Japan, H105, Asia-Pacific) | VRSCDX |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2243M | SCREW (4) | VRSCF |
| 2 | 3709M | SCREW (4) | VRSCDX |
| 3 | 4250M | SCREW (4) | VRSCF |
| 4 | 4858M | SCREW (4) | VRSCDX |
| 5 | 7495 | NUT (4) | VRSCDX |
| 6 | 59447-07 | BRACKET FENDER, front (gloss black) | VRSCDX |
| 7 | 59024-09 | FENDER, front | VRSCF |
| 8 | 59026-09A | BRACKET FENDER, front - left (satin black) | VRSCF |
| 9 | 59130-09A | BRACKET FENDER, front - right (satin black) | VRSCF |
| 10 | 59789-07BEO | FENDER, front (prime) | VRSCDX |
| NOTE: For fender color part numbers see Service Section of h-dnet.com | |||
FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3108M | SCREW (2) | VRSCF |
| 3108M | SCREW (6) | VRSCDX | |
| 2 | 4250M | SCREW (2) | VRSCF |
| 3 | 6838M | WASHER (4) | VRSCF |
| 6838M | WASHER (6) | VRSCDX | |
| 4 | 59260-09 | FENDER REAR, outer | VRSCF |
| 5 | 59823-07BEO | FENDER REAR, outer (prime) | VRSCDX |
| 6 | 59690-07 | MUDFLAP | ALL |
| NOTE: For fender color part numbers see Service Section of h-dnet.com | |||
TURN SIGNALS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 7127 | LOCKWASHER (4) | VRSCF |
| 7155 | LOCKWASHER (2) | VRSCDX | |
| 2 | 7432M | NUT (2) | VRSCF |
| 3 | 7744 | JAM NUT (2) | VRSCDX |
| 4 | 11524A | GROMMET | VRSCF |
| 5 | 67822-88 | BALL STUD (2) | VRSCDX |
| 6 | 67827-88A | CLAMP, ball stud (2) | VRSCDX |
| 7 | 67831-03 | RETAINER (2) | VRSCDX |
| 8 | 69331-02 | BULB, front turn signals (2) | VRSCDX |
| 9 | 68904-00 | SOCKET ASSEMBLY (2) | VRSCDX |
| 10 | 69587-07 | TURN SIGNAL SUBASSEMBLY (2) | VRSCDX |
| 11 | 69325-02 | LENS (2) | VRSCDX |
| 12 | 69395-09A | TURN SIGNAL ASSEMBLY - right, w/74191-98 (Domestic, Canada) | VRSCF |
| 13 | 69396-09A | TURN SIGNAL ASSEMBLY - left, w/74191-98 (Domestic, Canada) | VRSCF |
| 14 | 69457-09 | TURN SIGNAL MODULE, w/73156-96BK, 73191-96, 74104-98BK, 74144-98, & 74190-98 (Domestic, Canada) | VRSCF |
| 15 | 72168-07 | TERMINAL, socket (6) | VRSCDX |
| 16 | 73156-96BK | SOCKET HOUSING, 6-place | ALL |
| 17 | 73191-96 | SOCKET CONTACT, 16-20 gauge (6) | ALL |
| 18 | 74104-98BK | SOCKET HOUSING (black) | VRSCF |
| 19 | 74114-98BK | SOCKET HOUSING (black) | VRSCF |
| 20 | 74144-98 | SECONDARY LOCK, 4-way | VRSCF |
| 21 | 74154-98 | SECONDARY LOCK, 4-WAY | VRSCF |
| 22 | 74190-98 | TERMINAL, pin (4) | VRSCF |
| 23 | 74191-98 | TERMINAL, socket (4) | VRSCF |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 68163-84 | BULB, P21W (HDI, Australia, England, Japan, H-105, Asia-Pacific) (2) | VRSCDX |
| 25 | 68838-06 | TURN SIGNAL (HDI, Australia, England, Japan, H-105, Asia-Pacific) (2) | VRSCDX |
| 26 | 68973-00 | LENS (HDI, Australia, England, Japan, H-105, Asia-Pacific) (2) | VRSCDX |
| 27 | 69402-09A | TURN SIGNAL ASSEMBLY - right, w/74191-98 (HDI, Australia, England, Japan, H-105, Asia-Pacific) | VRSCF |
| 28 | 69403-09A | TURN SIGNAL ASSEMBLY - left, w/74191-98 (HDI, Australia, England, Japan, H-105, Asis-Pacific) | VRSCF |
| 29 | 69529-09 | TURN SIGNAL MODULE, w/73156-96BK, 73191-96, 74104-98BK, 74144-98, & 74190-98 (HDI, Australia, England, Japan, H-105, Asia-Pacific) | VRSCF |
TAIL LAMP, TURN SIGNALS REAR & LICENSE PLATE BRACKET - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4593M | SCREW (4) | VRSCDX |
| 2 | 7495 | NUT (4) | VRSCDX |
| 3 | 53436-97 | BULB, license plate illumination (2) | VRSCDX |
| 4 | 59407-01 | REFLECTOR, side - left/right (2) | VRSCDX |
| 5 | 59464-06 | STUD PLATE (2) | VRSCDX |
| 6 | 59557-07A | SHROUD, tail lamp | VRSCDX |
| 7 | 59988-72A | REFLECTOR | VRSCDX |
| 8 | 69330-02 | BULB, turn signal (2) | VRSCDX |
| 9 | 68168-89A | BULB, tail lamp | VRSCDX |
| 10 | 68205-07 | LAMP ASM, license plate illum., w/ 53436-97, & 73191-96 | VRSCDX |
| 11 | 68324-07 | BULB SOCKET ASSEMBLY, w/ 72412-97, 73154-96BK, & 73191-96 | VRSCDX |
| 12 | 68326-01A | ENVELOPE ASSEMBLY, tail lamp - includes lens | VRSCDX |
| 13 | 68340-01 | BRACKET, reflector rear, w/ 59988-72A | VRSCDX |
| 14 | 68876-07 | TAIL LAMP ASSEMBLY, w/ 68168-89A, 68324-07, & 68326-01A | VRSCDX |
| 15 | 69086-07A | LICENSE PLATE BRACKET, rear lighting | VRSCDX |
| 16 | 69066-01A | SOCKET ASSEMBLY, turn signal (2) | VRSCDX |
| 17 | 69323-02 | LENS, turn signal (2) | VRSCDX |
| 18 | 69190-07 | SUPPORT PLATE (2) | VRSCDX |
| 19 | 69584-07 | TURN SIGNAL ASSEMBLY, w/ 69066-01A, 69323-02, 69330-02 & 73191-96 (2) | VRSCDX |
| 20 | 72412-97 | CABLE SEAL (3) | VRSCDX |
| 21 | 73154-96BK | HOUSING SOCKET, 4-way (black) | VRSCDX |
| 22 | 73156-96BK | HOUSING SOCKET, 6-way (black) | VRSCDX |
| 23 | 73191-96 | TERMINAL (as required) | VRSCDX |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 53436-97 | BULB, license plate illumination (HDI) (2) | VRSCDX |
| 25 | 59259-90 | REFLECTOR (HDI) | VRSCDX |
| 26 | 59409-01 | REFLECTOR, side - right/left (HDI) (2) | VRSCDX |
| 27 | 60119-03 | BRACKET, reflector w/ 59259-90 (HDI) | VRSCDX |
| 28 | 68163-84 | BULB, turn signal (HDI) (2) | VRSCDX |
| 29 | 68169-90A | BULB, tail lamp (HDI) | VRSCDX |
| 30 | 68205-07 | LAMP ASM, license plate illum., w/ 53436-97, 73191-96 (HDI) | VRSCDX |
| 31 | 68325-07 | BULB SOCKET ASSEMBLY, w/ 72412-97, 73154-96BK & 73191-96 (HDI) | VRSCDX |
| 32 | 68327-01A | ENVELOPE ASSEMBLY, tail lamp (HDI) | VRSCDX |
| 33 | 68879-07 | TAIL LAMP ASSEMBLY, w/ 68169-90A, 68325-07, & 68327-01A (HDI) | VRSCDX |
| 34 | 69583-07 | TURN SIGNAL ASSEMBLY, w/ 68163-84, 69068-01A, 69110-01, & 73191-96 (HDI) (2) | VRSCDX |
| 35 | 69086-07A | LICENSE PLATE BRACKET, rear lighting (HDI) | VRSCDX |
| 36 | 69068-01A | SOCKET ASSEMBLY, turn signal (HDI) (2) | VRSCDX |
| 37 | 69110-01 | LENS, turn signal (HDI) (2) | VRSCDX |
TAIL LAMP, TURN SIGNALS REAR, & LICENSE PLATE BRACKET - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3711M | SCREW (2) | VRSCF |
| 2 | 4863M | SCREW (4) | VRSCF |
| 3 | 4873M | SCREW (2) | VRSCF |
| 4 | 5403B | BOLT | VRSCF |
| 5 | 6859M | WASHER (2) | VRSCF |
| 6 | 7495 | NUT (6) | VRSCF |
| 7 | 7716 | LOCKNUT | VRSCF |
| 8 | 10177 | CABLE STRAP | VRSCF |
| 9 | 59472-09 | STUD PLATE (2) | VRSCF |
| 10 | 68702-07 | BRACKET ADJUST | VRSCF |
| 11 | 69390-09 | LICENSE PLATE BRACKET, w/ 5403B, 7716, 10177 & 68702-07 | VRSCF |
| 12 | 69391-09 | TAILLAMP, w/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96, &73191-96 (Domestic) | VRSCF |
| 13 | 60375-10 | ILLUMINATOR, license plate | VRSCF |
| 14 | 73102-96BK | PIN HOUSING, 2-way (black) | VRSCF |
| 15 | 73152-96BK | HOUSING SOCKET, 2-way (2) | VRSCF |
| 16 | 73154-96BK | HOUSING SOCKET, 4-way (black) | VRSCF |
| 17 | 73156-96BK | HOUSING SOCKET, 6-way (black) | VRSCF |
| 18 | 73190-96 | TERMINAL, pin 20-16 gauge (26) | VRSCF |
| 19 | 73191-96 | TERMINAL (as required) | VRSCF |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 60254-07 | REFLECTOR (HDI) (2) | VRSCF |
| 21 | 69392-09 | TAILLAMP, w/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96, &73191-96 (HDI) | VRSCF |
| 22 | 69394-09 | LICENSE PLATE BRACKET, w/ 60254-07, 69424-09, 69523-09, &69585-09 (HDI) | VRSCF |
| 23 | 69424-09 | LAMP ASSEMBLY, w/ 73152-96BK, &73191-96 (HDI) | VRSCF |
| 24 | 69523-09 | LICENSE PLATE BRACKET, w/ 60924-09 (HDI) | VRSCF |
| 25 | 69585-09 | COVER, license plate (HDI) | VRSCF |
FUEL TANK & FUEL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3700MA | SCREW (2) | ALL |
| 2 | 4484M | SCREW (6) | ALL |
| 3 | 6856M | WASHER (2) | ALL |
| 4 | 10224 | CLIP | ALL |
| 5 | 10297 | CLAMP (2) | ALL |
| 6 | 11570 | O-RING | ALL |
| 7 | 11630 | O-RING (2) | ALL |
| 8 | 11632 | SNAP RING | ALL |
| 9 | 27431-07B | TUBE ASSEMBLY, tank to atmosphere | ALL |
| 10 | 60970-07 | BRACKET, fuel tank | ALL |
| 11 | 61109-85D | GASKET, filler cap | ALL |
| 12 | 61274-92 | FILLER CAP, w/ 61109-85D | ALL |
| 13 | 61284-06 | CLAMP RING | ALL |
| 14 | 61285-06 | PAD | ALL |
| 15 | 61504-07 | FUEL LINE, pressure | ALL |
| 16 | 61505-07 | FUEL LINE, return | ALL |
| 17 | 62109-07 | FUEL PUMP, w/ 75254-04A | ALL |
| 18 | 62113-07 | HOSE, filter to fuel | ALL |
| 19 | 62921-07A | FUEL TANK ASSEMBLY, w/ 61285-06 | ALL |
| 20 | 72169-07 | TERMINAL PIN (3) | ALL |
| 21 | 72506-07 | CONNECTOR, 4-way | ALL |
| 22 | 72541-07BN | HOUSING, 3-way (brown) | ALL |
| 23 | 75169-07 | FILTER, pressure side | ALL |
| 24 | 75210-09 | SENSOR, fuel level w/ 11630, 72169-07, & 72541-07BN | ALL |
| 25 | 75254-04A | STRAINER, fuel pump inlet | ALL |
| 26 | 75272-07 | FLANGE, fuel module w/ 72506-07 | ALL |
| 27 | 75274-07 | ELECTRICAL HARNESS | ALL |
| 28 | 75310-07 | FUEL MODULE ASSEMBLY | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 61292-11 | FUEL CAP & TETHER ASSEMBLY w/61274-92 (Asia-Pacific) | ALL |
EXHAUST SYSTEM - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (6) | VRSCF |
| 2 | 4561M | SCREW (8) | VRSCF |
| 3 | 6302 | WASHER (6) | VRSCF |
| 4 | 6454 | WASHER (8) | VRSCF |
| 5 | 7081 | LOCKWASHER (8) | VRSCF |
| 6 | 7432M | NUT (5) | VRSCF |
| 7 | 7495 | NUT | VRSCF |
| 8 | 9955 | CLAMP (8) | VRSCF |
| 9 | 10119 | CLAMP (2) | VRSCF |
| 10 | 27683-07 | OXYGEN SENSOR, front w/ 27714-06, 72009-05, & 72011-05 | VRSCF |
| 27703-08 | OXYGEN SENSOR, rear w/ 27714-06, 72009-05, & 72011-05 | VRSCF | |
| 11 | 27714-06 | SEAL RING (2) | VRSCF |
| 12 | 64971-09 | SEAL, exhaust (2) | VRSCF |
| 13 | 65045-01 | RETAINING RING (2) | VRSCF |
| 14 | 65102-01 | FLANGE, exhaust (2) | VRSCF |
| 15 | 65126-09 | ISOLATOR (2) | VRSCF |
| 16 | 65188-09 | EXHAUST PIPE, front (Domestic, California, Canada) (chrome) | VRSCF |
| 17 | 65236-09 | EXHAUST PIPE, rear w/ 66277-09 (Domestic, California, Canada) (chrome) | VRSCF |
| 18 | 65296-95A | CLAMP, exhaust (2) | VRSCF |
| 19 | 65268-09 | MUFFLER, left & right w/ 7432M & 65800-09 (Domestic, California, Canada, HDI, Australia, England, H105, Asia-Pacific) (2) | VRSCF |
| 20 | 65286-09 | SUPPORT EXHAUST, right w/ 65126-09 | VRSCF |
| 65616-09 | SUPPORT EXHAUST, left - (not shown) | VRSCF | |
| 21 | 66813-09 | SEAL, exhaust | VRSCF |
| 22 | 65787-09 | SHIELD, upper, right | VRSCF |
| 23 | 65799-09 | SHIELD, lower, right | VRSCF |
| 24 | 65800-09 | PIN (2) | VRSCF |
| 25 | 65801-09 | SHIELD, left | VRSCF |
| 26 | 66253-09 | ENDCAP, outer (Domestic, California) (2) | VRSCF |
| 27 | 66254-10 | ENDCAP, inner (Domestic, California) (2) | VRSCF |
| 28 | 66255-10 | SHIELD, cross over | VRSCF |
| 29 | 66277-09 | CLAMP | VRSCF |
| 30 | 70580-08 | BRACKET, oxygen sensor - rear | VRSCF |
| 31 | 72009-05 | PIN HOUSING, 2-way (2) | VRSCF |
| 32 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | VRSCF |
| INTERNATIONAL MODELS ONLY | |||
| 33 | 64959-10 | ENDCAP (HDI, Australia, England, Japan, Canada, H105, Asia-Pacific) (black) (2) | VRSCF |
| 34 | 65285-09 | MUFFLER, left & right (Japan) | VRSCF |
| 35 | 66814-09 | EXHAUST PIPE, front (HDI, Australia, England, Japan, H105, Asia-Pacific) | VRSCF |
| 36 | 66815-09 | EXHAUST PIPE, rear (HDI, Australia, England, Japan, H105, Asia-Pacific) | VRSCF |
EXHAUST SYSTEM - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (5) | VRSCDX |
| 2 | 4485M | SCREW (2) | VRSCDX |
| 3 | 4560M | SCREW (4) | VRSCDX |
| 4 | 4561M | SCREW (6) | VRSCDX |
| 5 | 4608MA | SCREW (6) | VRSCDX |
| 6 | 6302 | WASHER (7) | VRSCDX |
| 7 | 6454 | WASHER (6) | VRSCDX |
| 8 | 6917M | WASHER (6) | VRSCDX |
| 9 | 7081 | LOCKWASHER (6) | VRSCDX |
| 10 | 7432M | NUT (5) | VRSCDX |
| 11 | 7495 | NUT | VRSCDX |
| 12 | 8006 | NUT (4) | VRSCDX |
| 13 | 8070MA | NUT (6) | VRSCDX |
| 14 | 9955 | CLAMP (6) | VRSCDX |
| 15 | 27683-07 | OXYGEN SENSOR, front w/ 27714-06, 72009-05, & 72011-05 | VRSCDX |
| 27703-08 | OXYGEN SENSOR, rear w/ 27714-06, 72009-05, & 72011-05 | VRSCDX | |
| 16 | 27714-06 | SEAL RING (2) | VRSCDX |
| 17 | 64801-10 | SHIELD EXHAUST ASSEMBLY, rear (black) w/ 65400007 | VRSCDX |
| 18 | 64802-10 | SHIELD EXHAUST ASSEMBLY, front (black) | VRSCDX |
| 19 | 64803-10 | SHIELD, lower exhaust (black) | VRSCDX |
| 20 | 64810-10 | SHIELD, upper exhaust (black) | VRSCDX |
| 21 | 64832-09 | CLAMP, exhaust | VRSCDX |
| 22 | 64966-09 | EXHAUST PIPE, rear (chrome) | VRSCDX |
| 23 | 64971-09 | SEAL, exhaust (2) | VRSCDX |
| 24 | 65045-01 | RETAINING RING (2) | VRSCDX |
| 25 | 65089-05A | MUFFLER, top (Domestic, Cal., Canada, HDI, Australia, England, 105, Asia-Pacific) | VRSCDX |
| 26 | 65096-05A | MUFFLER, bottom (Domestic, Cal., Canada, HDI, Australia, England, 105, Asia-Pacific) | VRSCDX |
| 27 | 65102-01 | FLANGE, exhaust (2) | VRSCDX |
| 28 | 65108-01 | CLAMP, exhaust (2) | VRSCDX |
| 29 | 65341-10 | ENDCAP, muffler inlet (black) (2) | VRSCDX |
| 30 | 65342-10 | ENDCAP, muffler outlet (black) (2) | VRSCDX |
| 31 | 65893-09 | AUXILIARY VOLUME (Domestic, California, Canada) | VRSCDX |
| 32 | 66777-07A | SUPPORT ASSEMBLY EXHAUST | VRSCDX |
| 33 | 70580-08 | BRACKET, oxygen sensor - rear | VRSCDX |
| 34 | 72009-05 | PIN HOUSING, 2-way (2) | VRSCDX |
| 35 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | VRSCDX |
| INTERNATIONAL MODELS ONLY | |||
| 36 | 64812-09 | AUXILIARY VOLUME (HDI, Australia, England, Japan, 105, Asia-Pacific) | VRSCDX |
| 37 | 64816-07A | MUFFLER, bottom (Japan) | VRSCDX |
| 38 | 64817-07A | MUFFLER, top (Japan) | VRSCDX |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | ALL |
| 2 | 4312C | SCREW (2) | ALL |
| 3 | 4576M | SCREW | ALL |
| 4 | 7495 | NUT (4) | ALL |
| 5 | 65989-97C | BATTERY | ALL |
| 6 | 66017-01 | BATTERY STRAP | ALL |
| 7 | 66056-00 | ADAPTER KIT, w/ 7495 | ALL |
| 8 | 66494-01 | PAD, battery (1) | ALL |
| 9 | 70003-04 | COVER, battery terminal | ALL |
| 10 | 70106-07A | CABLE, battery to solenoid w/ 10065, & 70003-04 | ALL |
| 11 | 70393-07 | BATTERY TRAY | ALL |
| 12 | 70110-07A | CABLE ASSEMBLY, battery - negative to engine | ALL |
| 13 | 70441-01A | CABLE ASSEMBLY, engine to chassis guard, w/ boot 70578-89 | ALL |
| 14 | 70473-07 | BATTERY CADDY, left | ALL |
| 15 | 70475-07 | BATTERY CADDY, right | ALL |
| 16 | 70578-89 | BOOT | ALL |
INSTRUMENTS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3386 | SCREW (4) | VRSCDX |
| 2 | 3716M | SCREW (6) | VRSCF |
| 3 | 3798M | SCREW (2) | VRSCDX |
| 4 | 46383-06 | INSTRUMENT HOUSING (gloss black) | VRSCDX |
| 5 | 67453-09 | INSTRUMENT CLUSTER, mph, w/ 67854-98 & 67880-94 (Domestic, California) | VRSCDX |
| 6 | 67854-98 | SWITCH, reset, w/ 70585-93 | ALL |
| 7 | 67880-94 | BOOT, reset switch | ALL |
| 8 | 70585-93 | CONNECTOR (2) | ALL |
| 9 | 71352-07 | BEZEL, instrument housing | VRSCDX |
| 10 | 71958-09 | BEZEL, instrument housing | VRSCF |
| 11 | 71959-09 | INSTRUMENT HOUSING | VRSCF |
| 12 | 71962-09 | INSTRUMENT CLUSTER, mph, w/ 67854-98 (Domestic, California) | VRSCF |
| 13 | 74191-98 | SOCKET TERMINAL (2) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 67308-09 | INSTRUMENT CLUSTER, kph, w/ 67854-98 & 67880-94 (Canada, HDI, Australia, Japan, H105, Asia-Pacific) | VRSCDX |
| 15 | 67394-09 | INSTRUMENT CLUSTER, dual mph/kph, w/ 67854-98 & 67880-94 (England) | VRSCDX |
| 16 | 71963-09 | INSTRUMENT CLUSTER, kph, w/ 67854-98 (Canada, HDI, Australia, Japan, H105, Asia-Pacific) | VRSCF |
| 17 | 71964-09 | INSTRUMENT CLUSTER, dual mph/kph, w/ 67854-98 (England) | VRSCF |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3711M | SCREW (2) | ALL |
| 2 | 3724M | ACORN NUT | ALL |
| 3 | 7435M | LOCKNUT | ALL |
| 4 | 7495 | NUT | ALL |
| 5 | 7999M | NUT (2) | ALL |
| 6 | 69537-07 | HORN COVER (black) | VRSCDX |
| 69053-09 | HORN COVER (satin chrome) | VRSCF | |
| 7 | 69060-90F | HORN KIT, w/ 69152-01A | ALL |
| 8 | 69143-01 | MOUNT (rubber) | ALL |
| 9 | 69152-01A | BRACKET, horn mount | ALL |
| 10 | 70480-07A | BRACKET, harness mount | ALL |
WIRING HARNESS, MAIN - NON ABS (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70125-08A | WIRING HARNESS, MAIN | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 9838 | TERMINAL RING, #10-12 AWG | ALL |
| 2 | 9898 | TERMINAL RING (2) | ALL |
| 3 | 10065 | CABLE STRAP | ALL |
| 4 | 10247 | CLIP | ALL |
| 5 | 10279 | CLIP (3) | ALL |
| 6 | 31586-07 | RELAY (3) | ALL |
| 7 | 72007-05 | SOCKET HOUSING, 2-way (2) | ALL |
| 8 | 72011-05 | WIRE SEAL, 16-20 awg (yellow) (4) | ALL |
| 70394-07A | CADDY, electrical components (not illustrated) | ALL | |
| 9 | 72064-06 | TERMINAL, socket | ALL |
| 10 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| 11 | 72076-00 | SOCKET TERMINAL, 18 gauge (29) | ALL |
| 12 | 72077-00 | SEAL PIN (7) | ALL |
| 13 | 72078-00 | CONNECTOR KIT, 36-position | ALL |
| 14 | 72094-06 | TERMINAL, socket (19) | ALL |
| 15 | 72096-06 | WIRE SEAL (19) | ALL |
| 16 | 72100-04 | HOUSING, 1-way | ALL |
| 17 | 72124-94GY | PIN HOUSING, 4-way (gray) | ALL |
| 18 | 72135-06 | SECONDARY LOCK, 4-way | ALL |
| 19 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | ALL |
| 20 | 72144-94 | SECONDARY LOCK, 4-way | ALL |
| 21 | 72159-94 | SECONDARY LOCK, 12-way | ALL |
| 22 | 72164-94A | PLUG, 4-way | ALL |
| 23 | 72168-07 | TERMINAL, socket (14) | ALL |
| 24 | 72169-07 | TERMINAL, pin (8) | ALL |
| 25 | 72190-94 | TERMINAL, pin (3) | ALL |
| 26 | 72191-94 | TERMINAL, socket (12) | ALL |
WIRING HARNESS, MAIN - NON ABS (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70125-08A | WIRING HARNESS, MAIN (CONTINUED) | ALL | |
| NOTE: Includes the following parts. | |||
| 27 | 72195-94 | SEAL PIN | ALL |
| 28 | 72213-94 | TERMINAL, female 18-20 gauge (2) | ALL |
| 29 | 72214-94 | CABLE SEAL, 14-16 gauge (2) | ALL |
| 30 | 72260-04 | HOUSING, 1-way | ALL |
| 31 | 72272-07 | TERMINAL, socket (6) | ALL |
| 32 | 72289-04 | TERMINAL | ALL |
| 33 | 72290-94 | TERMINAL (2) | ALL |
| 34 | 72303-08 | TERMINAL | ALL |
| 35 | 72304-08 | TERMINAL (2) | ALL |
| 36 | 72314-01 | FUSE, 40 amp - Maxi | ALL |
| 37 | 72326-95 | TERMINAL (20) | ALL |
| 38 | 72327-03A | CONNECTOR, 3-way | ALL |
| 39 | 72330-95 | FUSE, 15 amp (9) | ALL |
| 40 | 72405-98BK | TERMINAL, right angle (2) | ALL |
| 41 | 72414-07BK | HOUSING, 6-way (black) | ALL |
| 42 | 72430-00 | FUSE BLOCK (2) | ALL |
| 43 | 72434-00 | TERMINAL (11) | ALL |
| 44 | 72469-07GY | HOUSING SOCKET, 8-way (gray) | ALL |
| 45 | 72478-07BK | PIN HOUSING, 8-way (black) | ALL |
| 46 | 72485-07 | HOUSING SOCKET, 4-way | ALL |
| 47 | 72493-07 | TERMINAL, socket (2) | ALL |
| 48 | 72494-07 | WIRE SEAL (2) | ALL |
| 49 | 72519-09BK | HOUSING, pin 3-way (black) | ALL |
| 50 | 72512-07BK | HOUSING, socket 3-way (black) | ALL |
| 51 | 72516-01 | DUST CAP | ALL |
| 52 | 72518-01 | HOUSING, socket 2-way (red) | ALL |
WIRING HARNESS, MAIN - NON ABS (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70125-08A | WIRING HARNESS, MAIN (CONTINUED) | ALL | |
| NOTE: Includes the following parts. | |||
| 53 | 72520-01 | SECONDARY LOCK, 2-way (blue) | ALL |
| 54 | 72521-01 | FUSE HOLDER, 1-way | ALL |
| 55 | 72522-01 | TERMINAL FEMALE MAXIFUSE (2) | ALL |
| 56 | 72524-01 | SECONDARY LOCK, maxifuse | ALL |
| 57 | 72525-01 | TERMINAL, ring (2) | ALL |
| 58 | 72526-01 | HOUSING SOCKET, 2-way | ALL |
| 59 | 72527-01 | TERMINAL, socket (2) | ALL |
| 60 | 72528-01 | SEAL WIRE (2) | ALL |
| 61 | 72542-07BN | HOUSING SOCKET, 3-way (brown) | ALL |
| 62 | 72543-07BK | HOUSING SOCKET, 3-way (black) (4) | ALL |
| 63 | 72544-07 | SECONDARY LOCK, 3-way (4) | ALL |
| 64 | 72557-07 | SECONDARY LOCK, 4-way | ALL |
| 65 | 72558-07 | SEAL PIN, plug (2) | ALL |
| 66 | 72611-07 | TERMINAL, socket (4) | ALL |
| 67 | 73101-96BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 68 | 73102-96BK | PIN HOUSING, 2-way (black) | ALL |
| 69 | 73104-96BK | PIN HOUSING, 4-way (black) (2) | ALL |
| 70 | 73106-96BK | PIN HOUSING, 6-way (black) (2) | ALL |
| 71 | 73190-96 | TERMINAL, pin 20-16 gauge (26) | ALL |
| 73215-07 | COVER, fuse block (not illustrated) | ALL | |
| 72 | 74112-98BK | HOUSING SOCKET, 2-way (black) | ALL |
| 73 | 74119-98BK | HOUSING SOCKET, 12-way (black) | ALL |
| 74 | 74120-08 | DC LEAD ASSEMBLY | ALL |
| 75 | 74152-98 | SECONDARY LOCK, socket - 2-way | ALL |
| 76 | 74159-98 | SECONDARY LOCK, socket - 12-way | ALL |
| 77 | 74191-98 | TERMINAL, socket (13) | ALL |
| 78 | 74195-98 | SEAL PIN, plug | ALL |
WIRING HARNESS, MAIN - ABS (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70170-08A | WIRING HARNESS, MAIN - ABS | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 9838 | TERMINAL RING, #10-12 AWG | ALL |
| 2 | 9898 | TERMINAL RING (2) | ALL |
| 3 | 10065 | CABLE STRAP | ALL |
| 4 | 10247 | CLIP | ALL |
| 5 | 10279 | CLIP | ALL |
| 6 | 31586-07 | RELAY (3) | ALL |
| 70394-07A | CADDY, electrical components (not illustrated) | ALL | |
| 7 | 72007-05 | SOCKET HOUSING, 2-way (2) | ALL |
| 8 | 72011-05 | WIRE SEAL, 16-20 awg (yellow) (4) | ALL |
| 9 | 72064-06 | SOCKET HOUSING, 3-way | ALL |
| 10 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| 11 | 72076-00 | SOCKET TERMINAL, 18 gauge (29) | ALL |
| 12 | 72077-00 | SEAL PIN (7) | ALL |
| 13 | 72078-00 | CONNECTOR KIT, 36-position | ALL |
| 14 | 72094-06 | TERMINAL, socket (19) | ALL |
| 15 | 72096-06 | WIRE SEAL (19) | ALL |
| 16 | 72100-04 | HOUSING, 1-way | ALL |
| 17 | 72124-94GY | PIN HOUSING, 4-way (gray) | ALL |
| 18 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | ALL |
| 19 | 72135-06 | SECONDARY LOCK, 4-way | ALL |
| 20 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | ALL |
| 21 | 72144-94 | SECONDARY LOCK, 4-way | ALL |
| 22 | 72154-94 | SECONDARY LOCK, 4-way | ALL |
| 23 | 72159-94 | SECONDARY LOCK, 12-way | ALL |
| 24 | 72164-94A | PLUG, 4-way | ALL |
| 25 | 72168-07 | TERMINAL, socket (21) | ALL |
| 26 | 72169-07 | TERMINAL, pin (8) | ALL |
| 27 | 72190-94 | TERMINAL, pin (3) | ALL |
| 28 | 72191-94 | TERMINAL, socket (16) | ALL |
WIRING HARNESS, MAIN - ABS (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70170-08A | WIRING HARNESS, MAIN - ABS (CONTINUED) | ALL | |
| NOTE: Includes the following parts. | |||
| 29 | 72195-94 | SEAL PIN | ALL |
| 30 | 72213-94 | TERMINAL, female 18-20 gauge (6) | ALL |
| 31 | 72214-94 | CABLE SEAL, 14-16 gauge (2) | ALL |
| 32 | 72260-04 | HOUSING, 1-way | ALL |
| 33 | 72272-07 | TERMINAL, socket (10) | ALL |
| 34 | 72289-04 | TERMINAL | ALL |
| 35 | 72290-94 | TERMINAL (2) | ALL |
| 36 | 72303-08 | TERMINAL | ALL |
| 37 | 72304-08 | TERMINAL (2) | ALL |
| 38 | 72314-01 | MAXI FUSE, 40 amp | ALL |
| 39 | 72326-95 | TERMINAL (20) | ALL |
| 40 | 72327-03A | CONNECTOR, 3-way | ALL |
| 41 | 72330-95 | FUSE, 15 amp (9) | ALL |
| 42 | 72405-98BK | TERMINAL, right angle (2) | ALL |
| 43 | 72414-07BK | HOUSING, 6-way (black) | ALL |
| 44 | 72430-00 | FUSE BLOCK (2) | ALL |
| 45 | 72434-00 | TERMINAL (13) | ALL |
| 46 | 72469-07GY | HOUSING SOCKET, 8-way (gray) | ALL |
| 47 | 72473-07 | SEAL PIN (8) | ALL |
| 48 | 72478-07BK | PIN HOUSING, 8-way (black) | ALL |
| 49 | 72485-07 | HOUSING SOCKET, 4-way | ALL |
| 50 | 72493-07 | TERMINAL, socket (2) | ALL |
| 51 | 72494-07 | WIRE SEAL (2) | ALL |
| 52 | 72500-07ABK | HOUSING SOCKET, 20-way (black) | ALL |
| 53 | 72519-09BK | HOUSING, pin 3-way (black) | ALL |
| 54 | 72512-07BK | HOUSING, socket 3-way (black) | ALL |
| 55 | 72516-01 | DUST CAP | ALL |
| 56 | 72518-01 | HOUSING, socket 2-way (red) | ALL |
WIRING HARNESS, MAIN - ABS (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 70170-08A | WIRING HARNESS, MAIN - ABS (CONTINUED) | ALL | |
| NOTE: Includes the following parts. | |||
| 57 | 72520-01 | SECONDARY LOCK, 2-way | ALL |
| 58 | 72521-01 | FUSE HOLDER, 1-way | ALL |
| 59 | 72522-01 | TERMINAL FEMALE MAXIFUSE (2) | ALL |
| 60 | 72524-01 | SECONDARY LOCK, maxifuse | ALL |
| 61 | 72525-01 | TERMINAL, ring (2) | ALL |
| 62 | 72526-01 | HOUSING SOCKET, 2-way | ALL |
| 63 | 72527-01 | TERMINAL, socket (2) | ALL |
| 64 | 72528-01 | SEAL WIRE (2) | ALL |
| 65 | 72539-06 | FUSE, mini type 30 amp (green) | ALL |
| 66 | 72542-07BN | HOUSING SOCKET, 3-way (brown) | ALL |
| 67 | 72543-07BK | HOUSING SOCKET, 3-way (black) (4) | ALL |
| 68 | 72544-07 | SECONDARY LOCK, 3-way (4) | ALL |
| 69 | 72547-08 | DIODE PACK | ALL |
| 70 | 72557-07 | SECONDARY LOCK, 4-way | ALL |
| 71 | 72558-07 | SEAL PIN, plug (2) | ALL |
| 72 | 72606-08 | HOUSING SOCKET, 2-way (2) | ALL |
| 73 | 72609-08 | SECONDARY LOCK, 2-way (2) | ALL |
| 74 | 72610-08 | SEAL, 18-20 awg (white) (4) | ALL |
| 75 | 72611-07 | TERMINAL, socket (4) | ALL |
| 76 | 73101-96BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 77 | 73102-96BK | PIN HOUSING, 2-way (black) | ALL |
| 78 | 73104-96BK | PIN HOUSING, 4-way (black) (2) | ALL |
| 79 | 73106-96BK | PIN HOUSING, 6-way (black) (2) | ALL |
| 80 | 73190-96 | TERMINAL, pin 20-16 gauge (26) | ALL |
| 81 | 74112-98BK | HOUSING SOCKET, 2-way (black) | ALL |
| 82 | 74119-98BK | HOUSING SOCKET, 12-way (black) | ALL |
| 83 | 74120-08 | DC LEAD ASSEMBLY | ALL |
| 84 | 74152-98 | SECONDARY LOCK, socket - 2-way | ALL |
| 85 | 74159-98 | SECONDARY LOCK, socket - 12-way | ALL |
| 86 | 74191-98 | TERMINAL, socket (13) | ALL |
| 87 | 74195-98 | SEAL PIN, plug | ALL |
WIRING HARNESS, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 70155-07 | WIRING HARNESS, ENGINE | ALL | |
| NOTE: Includes the following parts. | |||
| 1 | 72063-06 | HOUSING, 2-way | ALL |
| 2 | 72094-06 | TERMINAL, socket (2) | ALL |
| 3 | 72096-06 | WIRE SEAL (2) | ALL |
| 4 | 72111-06 | SECONDARY LOCK, 2-way | ALL |
| 5 | 72168-07 | TERMINAL, socket (8) | ALL |
| 6 | 72213-94 | TERMINAL, female, 18-21 gauge (3) | ALL |
| 7 | 72214-94 | CABLE SEAL (3) | ALL |
| 8 | 72230-98 | SOCKET HOUSING, 3-way | ALL |
| 9 | 72231-98 | SOCKET LOCK, secondary 3-way | ALL |
| 10 | 72244-95 | SOCKET HOUSING, 2-way (2) | ALL |
| 11 | 72245-95 | TERMINAL, socket (4) | ALL |
| 12 | 72405-98GN | TERMINAL, push on #18 AWG | ALL |
| 13 | 72479-07BK | SOCKET HOUSING, 8-way (black) | ALL |
TURN SIGNAL MODULE & IGNITION SWITCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 3556B | SCREW (4) | ALL |
| 2 | 3815M | SCREW (2) | ALL |
| 3 | 9278 | BEARING | ALL |
| 4 | 10065 | CABLE STRAP | ALL |
| 5 | 45804-01A | FORK LOCK, w/ 9278, & 71578-01A (specify key code) | ALL |
| 6 | 68921-07 | MODULE, turn signal canceller (Domestic, HDI) | ALL |
| 68925-07 | MODULE, security system | ALL | |
| 7 | 68926-07 | REMOTE CONTROL FOB (2) | ALL |
| 8 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 9 | 70020-05 | IGNITION SWITCH KIT, w/ 71452-91A & ignition switch (specify key code) | ALL |
| 10 | 70406-06 | BRACKET, ignition switch | ALL |
| 11 | 70432-06 | NAMEPLATE | ALL |
| 12 | 70433-06 | COVER ASSEMBLY, ignition, w/ 70432-06 | ALL |
| 13 | 70620-07 | HARNESS, hands free | ALL |
| 71402-07A | LOCKSET, complete | ALL | |
| 14 | 71452-91A | KEY (specify key code) (2) | ALL |
| 61081-92 | COVER, key head set (not illustrated) (2) | ALL | |
| 15 | 71578-01A | PLUNGER | ALL |
| 16 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | ALL |
| 17 | 72154-94 | SECONDARY LOCK, 4-way | ALL |
| 18 | 72191-94 | SOCKET TERMINAL (3) | ALL |
| 19 | 72195-94 | SEAL PIN | ALL |
| 20 | 72720-07 | SOCKET HOUSING, 2-way | ALL |
| 21 | 72721-07 | SOCKET TERMINAL (2) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 69976-08 | MODULE, security system (HDI) | ALL |
| 23 | 68926-07 | REMOTE CONTROL FOB (HDI) (2) | ALL |
| 24 | 68958-07C | SIREN, w/ 68959-00 (HDI, Australia, England, Japan, H105, Asia-Pacific) | ALL |
| 25 | 69309-10 | SIREN ALARM, battery replacement kit (HDI, Australia, England, Japan, H105, Asia-Pacific) | ALL |
| 72637-10 | ANTI-THEFT MODULE (not ilustrated) (Brazil only) | ALL | |
| 72638-10 | JUMPER HARNESS, anti-theft w/ 72066-06A, 72094-06, 72096-06, 72103-94BK, 72113-94BK, 72135-06, 72143-94, 72153-94, 72190-94 & 72191-94 (not illustrated) (Brazil only) | ALL | |
COSMETIC COVERS - VRSCDX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (4) | VRSCDX |
| 2 | 3707M | SCREW (2) | ALL |
| 3 | 3716M | SCREW (4) | ALL |
| 4 | 3729M | SCREW (2) | VRSCDX |
| 5 | 3731M | SCREW (2) | ALL |
| 6 | 6837M | WASHER (4) | ALL |
| 7 | 6872M | WASHER (2) | VRSCDX |
| 8 | 8130 | SPEED NUT (6) | VRSCDX |
| 9 | 8235 | RIVET (2) | ALL |
| 10 | 11519 | BUSHING (ABS) (2) | ALL |
| 11519 | BUSHING (NON-ABS) (4) | ALL | |
| 11 | 11523 | WASHER | ALL |
| 12 | 11524A | RUBBER MOUNT (4) | ALL |
| 13 | 11558 | BUMPER, air box (4) | VRSCDX |
| 14 | 26813-08A | COVER ASSEMBLY, radiator w/ 3612, 8130, 26788-08A, 26814-07, & 26815-07 (black) | VRSCDX |
| 15 | 26788-08A | COVER ASSEMBLY, radiator molded | VRSCDX |
| 16 | 66154-07BEO | COVER, air box (prime) | VRSCDX |
| 17 | 26814-07 | BEZEL INLET, radiator - left | VRSCDX |
| 26815-07 | BEZEL INLET, radiator - right | VRSCDX | |
| 18 | 66209-08 | COVER, non ABS | ALL |
| 19 | 66221-08 | BRACKET, cover - non ABS | ALL |
| 20 | 66157-07BDK | RADIATOR, trim cover - left (prime) | VRSCDX |
| 66158-07BDK | RADIATOR, trim cover - right (prime) | VRSCDX | |
| 21 | 66712-01 | S-SPRING | ALL |
| 22 | 66713-01 | STUD BAIL HEAD | ALL |
| NOTE: For part numbers for RADIATOR, trim cover (left/right) and all color part numbers see service section of h-dnet.com | |||
COSMETIC COVERS - VRSCF
| Index No. | Part No. | Description | Model(s) |
| 1 | 3707M | SCREW (2) | ALL |
| 2 | 3716M | SCREW (4) | ALL |
| 3 | 3731M | SCREW (4) | ALL |
| 4 | 4965M | SCREW (10) | VRSCF |
| 5 | 6837M | WASHER (4) | ALL |
| 6 | 8235 | RIVET (2) | ALL |
| 7 | 11519 | BUSHING (ABS) (2) | ALL |
| 11519 | BUSHING (NON-ABS) (4) | ALL | |
| 8 | 11523 | WASHER | ALL |
| 9 | 11524A | RUBBER MOUNT (2) | ALL |
| 10 | 26826-09 | COVER ASSEMBLY | VRSCF |
| 11 | 62272-09 | MEDALLION (2) | VRSCF |
| 12 | 66209-08 | COVER, non ABS | ALL |
| 13 | 66221-08 | BRACKET, cover - non ABS | ALL |
| 14 | 66385-09 | BRACKET, airbox | VRSCF |
| 15 | 66390-09 | COVER ASSEMBLY, air box w/ 3731M, & 66385-09 (prime) | VRSCF |
| 16 | 66547-09 | SIDECOVER, front - left, w/ 62272-09, & 67718-60A (prime) | VRSCF |
| 17 | 66548-09 | SIDECOVER, front - right, w/ 62272-09, & 67718-60A (prime) | VRSCF |
| 18 | 26836-09 | RADIATOR, trim cover - right (prime) | VRSCF |
| 26837-09 | RADIATOR, trim cover - left (prime) | VRSCF | |
| 19 | 66712-01 | S-SPRING | ALL |
| 20 | 66713-01 | STUD BAIL HEAD | ALL |
| 21 | 67718-60A | SCREW (12) | VRSCF |
| NOTE: For part numbers for RADIATOR, trim cover (left/right) and all color part numbers see service section of h-dnet.com | |||
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13694-07 | LABEL FUSE BLOCK, non ABS | ALL |
| 13725-08 | LABEL FUSE BLOCK, ABS | ALL | |
| 2 | 15348-01A | WARNING LABEL | VRSCDX |
| 3 | 29147-07 | WARNING LABEL | VRSCF |
| 4 | 15368-01A | BATTERY WARNING LABEL (silver or black) | ALL |
| 5 | 15370-01A | MIRROR LABEL (silver or black) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 6 | 14270-92 | LABEL SHIFT PATTERN (silver or black) (Japan) | ALL |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| NOTE: These parts are required for motorcycles sold in Asia-Pacific markets. | |||
| 1 | 3123 | SCREW (2) | ALL |
| 2 | 10006 | CABLE STRAP, throttle body hose | ALL |
| 3 | 27378-08A | TUBE ASSEMBLY, tank to canister | ALL |
| 4 | 27382-08A | TUBE ASSEMBLY, canister to solenoid | ALL |
| 5 | 27391-07B | TUBE ASSEMBLY, solenoid to throttle body | ALL |
| 6 | 27433-08 | CARBON CANISTER ASSEMBLY | ALL |
| 7 | 27715-07 | VALVE SOLENOID, purge | ALL |
| Part No. | Description |
| 1004M | SCREW M6 X 1.0 X 27 socket head |
| 1007M | SCREW M6 X 1.0 X 12 socket head |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 1014M | SCREW M6 X 1.0 X 40 hex flange head |
| 1017M | SCREW M6 X 1.0 X 95 socket head |
| 1021M | SCREW M8 X 29 TORX head |
| 1023M | SCREW M8 X 1.25 X 55 hex flange head |
| 1024M | SCREW M6 X 1.0 X 60 socket head |
| 1025M | SCREW M8 X 1.25 X 90 hex flange head |
| 1027M | SCREW M10 X 1.5 X 60 hex flange head |
| 1030M | SCREW M6 X 1.0 X 50 socket head |
| 1031M | SCREW M8 X 1.0 X 18 hex head |
| 1035M | SCREW M14 X 1.5 X 70 hex flange head |
| 1043MA | SCREW M5 X 0.8 X 10 socket head |
| 1114M | SCREW M6 X 1 X 20 socket head |
| 2228 | SCREW M5 X 0.8 X 20.7 TORX pan head (Grade 9.8) |
| 2243M | SCREW M6 X 1.0 hex button head with washer & lock patch (black) |
| 24311-01K | BOLT M10 X 1.0 X 55 |
| 2590 | SCREW No. 8-32 X 5/8 Phillips head |
| 25911-01K | WASHER 8.2 X 28 X 5.0 |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 3074M | SCREW M12 X 1.75 X 70 TORX recessed button head |
| 3108M | SCREW M8 X 1.25 X 20 hex head |
| 3123 | SCREW 10-14 X 1.0 torx pan head |
| 3292MA | SCREW M12 X 1.75 X 20 hex head |
| 3385M | SCREW M8 X 1.25 X 35 socket head |
| 3386 | SCREW No. 8-32 X 3/8 socket head |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 3540 | SCREW 5/16-18 X 5/8 socket button head |
| 3556B | SCREW No. 8-32 X 3/8 hex socket head cap |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 36706-08K | BOLT M6 X 1.0 X 40 hex flange head |
| 3700MA | SCREW M10 X 1.5 X 30 socket button head |
| 3701M | SCREW M10 X 1.5 X 25 socket head |
| 3703M | SCREW M10 X 1.5 X 30 socket head |
| 3707M | SCREW M6 X 1.0 X 10 socket head |
| 3708M | SCREW M6 X 1.0 X30 hex head |
| 3709M | SCREW M8 X 1.25 X 20 socket head |
| 3711M | SCREW M6 X 1.0 X 16 hex head |
| 3716M | SCREW M6 X 1.0 X 12 button socket head |
| 3724M | ACORN NUT M8 X 1.25 |
| 3725M | NUT M8 X 1.25 hex flange head, with lockpatch |
| 3726M | SCREW M10 X 1.5 X 50 hex flange head |
| 3729M | SCREW M6 X 1.0 X 16 socket head |
| 3731M | SCREW M6 X 1.0 X 12 socket button head, with lockpatch |
| 3753M | SCREW M3 X 1.06 cross recesss pan head |
| 3755M | SCREW M8 X 1.25 X 16 hex head |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3798M | SCREW M5 X 0.8 X 12 socket head |
| 3815M | SCREW M6 X 1.0 X 10 socket button head |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3853M | SCREW M5 X 1.59 X1.30 hex flat head, self-tapping |
| 3919M | SCREW M10 X 1.5 X 40 socket head |
| 3920M | SCREW M10 X 1.5 X 60 flat socket head |
| 3966M | SCREW M10 X 1.5 X 65 socket head |
| 40399-01M | SCREW M12 X 1.75 X 25 hex flange head, with lockpatch |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4250M | SCREW M8 X 1.25 X 25 hex socket head cap |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4363 | SCREW 1/4-20 X 1/2 socket button head |
| 4484M | SCREW M5 X 0.8 X 16 SEMS hex head |
| 4485M | SCREW M8 X 1.25 X 45 socket head |
| 4499M | BOLT M10 X 1.25 X 35 socket head |
| 4534M | SCREW M10 X 1.5 x 30 socket head |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4543 | SCREW 8-32 X .31 SEMS TORX recessed, self tapping |
| 4552 | SCREW 3/8-14 X 2-3/8 12 pt. FLG, with lockpatch |
| 4560M | SCREW M4 X .7 filister head |
| 4561M | SCREW M5 X .8 X 10 hex socket head cap |
| 4576M | SCREW M6 X 1 X 12 hex head |
| 4593M | SCREW M6 X 1 X 16 hex head, with lockpatch |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4603M | SCREW M12 X 1.75 X 60 TORX recessed button head |
| 4608MA | SCREW 6 X 1 X 8.0 TORX button head (T25 TORX) |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4793M | SCREW M8 X 1.25 X 25 hex button head |
| 4858M | SCREW M6 X 1.0 X 10 button head with lockpatch |
| 4863M | SCREW M5 X .8 X 10 button head |
| 4870M | BOLT M12 X 1.75X 30 M8 drive |
| 4873M | SCREW M10 X 1.5 X 15 button head |
| 4889M | SCREW M6 X 1.0 X12 #4 hex flange head |
| 4892M | BOLT M12 X 1.75X 35 M8 drive |
| 4974M | SCREW M6 X 1.0 X 10 hex socket head cap with lock patch |
| 5236M | SCREW M6 X 1.0 X 20 hex flange head |
| 5237M | SCREW M6, X 1.0 X 16 hex flange head |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5534M | SCREW M6 X 1.0 X 1.6 hex head |
| 59018-98 | WASHER 17/32 X 1-1/4 X 1/8 |
| 5925 | WASHER 29 X 39 X 2-19/64 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6110 | WASHER 9/32 X 5/8 X 1/16 |
| 6137K | WASHER 6.35 X 9.80 X 1.0 |
| 6176MA | WASHER 37 X 47 X 2.5 |
| 6298M | WASHER 12.45 X 15.3 X 1.5 |
| 6302 | WASHER 5/16 X 11/16 X 19/32 |
| 6424 | WASHER 9/32 X 5/8 X 1/16 |
| 6454 | WASHER 5.3 X 9.9 X 1.0 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 6837M | WASHER M6 regular |
| 6838M | WASHER M8 regular |
| 6839M | WASHER M10 narrow |
| 6856M | WASHER M10 |
| 6859M | WASHER M6 special |
| 6872M | WASHER M6 special |
| 6876M | WASHER M12 |
| 6917M | WASHER M6 |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7081 | LOCKWASHER M5 stainless steel |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7347M | LOCKNUT M6 X 1 flange |
| 7427M | NUT M10 X 1.5 flange |
| 7432M | NUT M8 X 1.25 flange |
| 7433M | LOCKNUT M12 X 1.75 flexlock height |
| 7435M | LOCKNUT M8 X 1.25 flange |
| 7460M | LOCKNUT M20 X 2.5 flange |
| 7468M | NUT M10 X 1 X 6 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7999M | NUT M6 X 1.0 |
| 8006 | NUT M4 X .7 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8070MA | NUT M6 X 1 square |
| 8199M | NUT M10 X 1.0 |
| 965M | SCREW M6 X 1.0 X 12 socket head |
| 966M | SCREW M6 X 1.0 X 35 socket head |
| 968M | SCREW M10 X 1.5 X 150 hex flange head |
| 970M | SCREW M8 X 1.25 X 40 hex head |
| 972M | SCREW M8 X 1.25 X 150 hex flange head |
| 973M | SCREW M8 X 1.25 X 120 hex flange head |
| 978M | SCREW M6 X 1.0 X 40 socket head |
| 983M | BOLT M10 X 1.0 X 33 - 12 point flange head |
| Index No. | Part No. | Description | Model(s) |
| 10 | 17125-08KA | CYLINDER HEAD ASSEMBLY, front (black) | VRSCDX |
| 17126-08KA | CYLINDER HEAD ASSEMBLY, rear (not shown) (black) | VRSCDX | |
| 17304-09K | CYLINDER HEAD ASSEMBLY, front (not shown) (platinum) | VRSCF | |
| 17305-09K | CYLINDER HEAD ASSEMBLY, rear (not shown) (platinum) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 17689-04K | CAM COVER, lower rear (polished) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 6 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ o-ring, screw, & motor | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 32477-01A | COIL ASSEMBLY (2) | ALL |
| 4 | 32534-11 | ECM, base level -115/105 H.P. (DOM/HDI) Requires digital tech programing | ALL |
| 5 | 70394-07A | ELECTRICAL CADDY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 17011-01KB | ENGINE GASKET KIT | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 5534M | SCREW (4) | ALL |
| 7 | 7347M | LOCKNUT (4) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 91910-03B | MIRROR, kit - left | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 10289A | WIRE RETAINER, brakeline (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3731M | SCREW | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 9276A | BEARING (ABS - right) (1) | ALL |
| 9276A | BEARING (Non ABS - right & left) (2) | ALL | |
| 55101-11 | WHEEL ASSEMBLY, w/o bearings & sleeve (w/ machined pin stripe) | VRSCDX | |
| 16 | 43213-11 | TIRE | ALL |
| 22 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 23 | 95595-84A | WEIGHT 5 grams (black) (4) | VRSCF |
| 95594-84A | WEIGHT 5 grams (silver) (4) | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 6 | 9276A | BEARING, ABS - left | ALL |
| 9276A | BEARING, NON-ABS - right and left (2) | ALL | |
| 55106-11 | WHEEL ASSEMBLY, slot, w/ plugs, w/o bearings & sleeve (black w/ machined pin stripe) | VRSCDX | |
| 20 | 43189-11 | TIRE | ALL |
| 30 | 72639-10 | SECONDARY LOCK, 2-way socket - ABS | ALL |
| 31 | 95594-84A | WEIGHT, 5 grams (black) (4) | VRSCDX |
| 95595-84A | WEIGHT, 5 grams (silver) (4) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 4 | 46849-07 | HOLDER AXLE, right (gloss black) | VRSCDX |
| 13 | 46512-01A | DUST COVER (2) | VRSCDX |
| 15 | 46514-01A | OIL SEAL (2) | VRSCDX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 46891-09C | BRACKET UPPER | VRSCF |
| 5 | 46892-09B | STEM & BRACKET, w/ bearing & shield | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 5 | 6864A | PLUG, small (10) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 59026-09A | BRACKET FENDER, front - left (satin black) | VRSCF |
| 9 | 59130-09A | BRACKET FENDER, front - right (satin black) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 12 | 69395-09A | TURN SIGNAL ASSEMBLY - right, w/74191-98 (Domestic, Canada) | VRSCF |
| 13 | 69396-09A | TURN SIGNAL ASSEMBLY - left, w/74191-98 (Domestic, Canada) | VRSCF |
| Index No. | Part No. | Description | Model(s) |
| 19 | 62921-07A | FUEL TANK ASSEMBLY, w/ 61285-06 | ALL |
| 29 | 61292-11 | FUEL CAP & TETHER ASSEMBLY w/61274-92 (Asia-Pacific) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 70394-07A | CADDY, electrical components (not illustrated) | ALL | |
| 10 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| Index No. | Part No. | Description | Model(s) |
| 70394-07A | CADDY, electrical components (not illustrated) | ALL | |
| 10 | 72066-06A | SOCKET HOUSING, 4-way | ALL |
| 18 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3556B | SCREW (4) | ALL |
| 24 | 68958-07C | SIREN, w/ 68959-00 (HDI, Australia, England, Japan, H105, Asia-Pacific) | ALL |
| 25 | 69309-10 | SIREN ALARM, battery replacement kit (HDI, Australia, England, Japan, H105, Asia-Pacific) | ALL |
| 72637-10 | ANTI-THEFT MODULE (not ilustrated) (Brazil only) | ALL | |
| 72638-10 | JUMPER HARNESS, anti-theft w/ 72066-06A, 72094-06, 72096-06, 72103-94BK, 72113-94BK, 72135-06, 72143-94, 72153-94, 72190-94 & 72191-94 (not illustrated) (Brazil only) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3123 | SCREW (2) | ALL |
| Part No. | Description |
| 10006 | |
| 10014 | |
| 10040 | |
| 1004M | |
| 10065 | |
| 1007M | |
| 1009M | |
| 10108 | |
| 10110 | |
| 10119 | |
| 10147 | |
| 1014M | |
| 10177 | |
| 1017M | |
| 10181 | |
| 1021M | |
| 10224 | |
| 10231 | |
| 10232K | |
| 1023M | |
| 10247 | |
| 1024M | |
| 1025M | |
| 10279 | |
| 1027M | |
| 10289A | |
| 10297 | |
| 1030M | |
| 1031M | |
| 1033M | |
| 1035M | |
| 10390 | |
| 1043MA | |
| 10867 | |
| 10950 | |
| 10994K | |
| 11101 | |
| 11130K | |
| 11140 | |
| 11143 | |
| 1114M | |
| 11155 | |
| 11200K | |
| 11271 | |
| 11272 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11304 | |
| 11312K | |
| 11314K | |
| 11328M | |
| 11329K | |
| 11331K | |
| 11335K | |
| 11341K | |
| 11346K | |
| 11347K | |
| 11353K | |
| 11354K | |
| 11355K | |
| 11356K | |
| 11361 | |
| 11362K | |
| 11363K | |
| 11366K | |
| 11384K | |
| 11391K | |
| 11392K | |
| 11402 | |
| 11519 | |
| 11523 | |
| 11524A | |
| 11542 | |
| 11558 | |
| 11568 | |
| 11570 | |
| 11608 | |
| 11630 | |
| 11632 | |
| 11689 | |
| 11804 | |
| 11904 | |
| 12071K | |
| 12072K | |
| 13694-07 | |
| 13725-08 | |
| 14270-92 | |
| 14758-01K | |
| 14791-01KA | |
| 14794-01K | |
| 14795-01K | |
| 15348-01A | |
| 15368-01A | |
| 15370-01A | |
| 16298-05A | |
| 16299-01 | |
| 16306-04A | |
| 16307-05 | |
| 16308-01 | |
| 16311-05 | |
| 16312-04A | |
| 16448-01KA | |
| 17010-01K | |
| 17011-01KB | |
| 17125-08KA | |
| 17126-08KA | |
| 17304-09K | |
| 17305-09K | |
| 17406-01KA | |
| 17407-01KA | |
| 17416-01KA | |
| 17418-01K | |
| 17421-08K | |
| 17423-01K | |
| 17431-05K | |
| 17629-01K | |
| 17632-01K | |
| 17637-01K | |
| 17638-01K | |
| 17639-01K | |
| 17640-01K | |
| 17641-01K | |
| 17666-01K | |
| 17679-04K | |
| 17680-04K | |
| 17689-04K | |
| 17691-08K | |
| 17692-08K | |
| 17699-07K | |
| 17701-07K | |
| 17705-07K | |
| 18052-01K | |
| 18055-01K | |
| 18057-01K | |
| 18181-01K | |
| 18624-01K | |
| 18625-01K | |
| 18626-01K | |
| 18627-01K | |
| 18628-01K | |
| 18629-01K | |
| 18630-01K | |
| 18631-01K | |
| 18632-01K | |
| 18638-01K | |
| 18639-01K | |
| 18655-01K | |
| 18656-01K | |
| 18657-01K | |
| 18658-01K | |
| 18659-01K | |
| 18661-01K | |
| 18662-01K | |
| 18663-01K | |
| 18665-01K | |
| 18666-01K | |
| 18667-01K | |
| 18668-01K | |
| 18669-01K | |
| 18670-01K | |
| 18671-01K | |
| 18672-01K | |
| 18673-01K | |
| 18674-01K | |
| 18675-01K | |
| 18676-01K | |
| 18677-01K | |
| 18678-01K | |
| 18679-01K | |
| 18680-01K | |
| 18681-01K | |
| 18682-01K | |
| 18683-01K | |
| 18684-01K | |
| 18685-01K | |
| 18686-01K | |
| 18687-01K | |
| 18688-06K | |
| 18692-01K | |
| 18693-01K | |
| 18694-01K | |
| 18695-01K | |
| 18696-01K | |
| 18697-01K | |
| 18698-01K | |
| 18699-01K | |
| 18700-01K | |
| 18701-01K | |
| 18702-01K | |
| 19569-11K | |
| 19844-11K | |
| 22121-01K | |
| 2228 | |
| 2243M | |
| 22919-05K | |
| 22928-05KA | |
| 22934-08K | |
| 22953-08K | |
| 23712-01K | |
| 23725-01K | |
| 24307-01K | |
| 24311-01K | |
| 24312-01K | |
| 24409-01K | |
| 24410-01K | |
| 24411-01K | |
| 24412-01K | |
| 24413-01K | |
| 24457-09K | |
| 24467-09K | |
| 24927-01 | |
| 24986-01K | |
| 25080-01K | |
| 25292-09K | |
| 25295-04K | |
| 25311-04K | |
| 25800-01K | |
| 25878-07K | |
| 25891-01K | |
| 25894-07K | |
| 25899-07K | |
| 2590 | |
| 25911-01K | |
| 25943-08K | |
| 26034-01K | |
| 26103-01K | |
| 26107-04K | |
| 26393-01K | |
| 26399-01K | |
| 26539-01K | |
| 26541-01K | |
| 26542-01K | |
| 26561-99 | |
| 26575-01KB | |
| 26582-01KA | |
| 26721-01C | |
| 26722-04 | |
| 26723-04 | |
| 26724-04 | |
| 26730-01 | |
| 26733-01 | |
| 26737-01K | |
| 26740-01K | |
| 26749-01K | |
| 26750-01K | |
| 26752-01K | |
| 26753-01 | |
| 26754-01 | |
| 26755-01 | |
| 26756-01 | |
| 26757-01 | |
| 26758-01 | |
| 26759-04K | |
| 26762-04K | |
| 26765-01K | |
| 26767-01 | |
| 26768-01A | |
| 26769-04K | |
| 26770-01 | |
| 26772-04 | |
| 26777-01 | |
| 26778-04K | |
| 26780-05A | |
| 26788-08A | |
| 26790-01 | |
| 26803-07A | |
| 26810-06A | |
| 26812-07 | |
| 26813-08A | |
| 26814-07 | |
| 26815-07 | |
| 26821-07K | |
| 26826-09 | |
| 26834-08 | |
| 26835-08 | |
| 26836-09 | |
| 26837-09 | |
| 27225-01 | |
| 27378-08A | |
| 27382-08A | |
| 27388-01 | |
| 27391-07B | |
| 27408-01 | |
| 27431-07B | |
| 27433-08 | |
| 27628-01A | |
| 27657-01 | |
| 27662-01B | |
| 27665-01A | |
| 27667-01K | |
| 27669-01K | |
| 27683-07 | |
| 27703-08 | |
| 27714-06 | |
| 27715-07 | |
| 27798-08 | |
| 27975-01 | |
| 27977-01 | |
| 27982-01 | |
| 27990-01 | |
| 27993-01 | |
| 27995-01 | |
| 28002-01 | |
| 28862-01 | |
| 28863-01 | |
| 29147-07 | |
| 29434-03A | |
| 29435-05 | |
| 29436-01 | |
| 29437-01 | |
| 29438-01 | |
| 29439-01 | |
| 29504-05A | |
| 29505-05 | |
| 29519-01 | |
| 29521-01 | |
| 29522-01 | |
| 2955 | |
| 29566-06 | |
| 29568-06 | |
| 29601-05K | |
| 29647-01 | |
| 30731-01K | |
| 30734-08K | |
| 3074M | |
| 3108M | |
| 3123 | |
| 31301-01K | |
| 31303-01K | |
| 31586-07 | |
| 31717-01K | |
| 31718-07K | |
| 32313-01A | |
| 32315-01 | |
| 32335-04 | |
| 32416-10 | |
| 32477-01A | |
| 32534-11 | |
| 3292MA | |
| 33129-06 | |
| 33133-06 | |
| 33134-07CAZ | |
| 33135-07CAZ | |
| 33738-04 | |
| 33757-01A | |
| 33758-01 | |
| 3385M | |
| 3386 | |
| 33902-98A | |
| 34007-01K | |
| 34567-01 | |
| 34611-65A | |
| 34647-04 | |
| 34696-04 | |
| 34877-07 | |
| 34878-07A | |
| 34918-08 | |
| 34927-05A | |
| 35001-01K | |
| 35002-01K | |
| 35003-01K | |
| 35004-01K | |
| 35017-01K | |
| 3514 | |
| 3540 | |
| 35420-01K | |
| 35423-04K | |
| 35428-01KA | |
| 35429-01KA | |
| 35430-01KA | |
| 35432-01K | |
| 35433-01K | |
| 35434-01K | |
| 35441-01K | |
| 35442-01K | |
| 35443-01K | |
| 35445-01K | |
| 35451-01K | |
| 35454-01KA | |
| 35455-01KA | |
| 3556B | |
| 3612 | |
| 3658 | |
| 36699-01KB | |
| 36701-08KA | |
| 36702-08K | |
| 36704-08KA | |
| 36705-08K | |
| 36706-08K | |
| 36707-01K | |
| 36709-01K | |
| 36710-08K | |
| 36711-08K | |
| 36712-08K | |
| 36713-01K | |
| 36720-08K | |
| 36731-91 | |
| 36757-05K | |
| 36779-05K | |
| 36780-01K | |
| 36781-01K | |
| 3700MA | |
| 3701M | |
| 3703M | |
| 3704M | |
| 3707M | |
| 3708M | |
| 3709M | |
| 3711M | |
| 37124-08 | |
| 37156-07 | |
| 3716M | |
| 3718M | |
| 3724M | |
| 3725M | |
| 3726M | |
| 3729M | |
| 3731M | |
| 3753M | |
| 3755M | |
| 3762M | |
| 37909-90 | |
| 37938-08KA | |
| 3798M | |
| 3815M | |
| 3832M | |
| 3853M | |
| 38653-01 | |
| 38658-01B | |
| 38692-04C | |
| 38744-09 | |
| 38841-08K | |
| 38842-08K | |
| 3919M | |
| 3920M | |
| 3966M | |
| 40095-01K | |
| 40144-07 | |
| 40145-07 | |
| 40399-01M | |
| 4042 | |
| 40434-01 | |
| 40590-07 | |
| 40648-08 | |
| 40649-08 | |
| 40652-08 | |
| 40656-06B | |
| 40657-06B | |
| 40668-07 | |
| 40669-07 | |
| 409K | |
| 41123-79 | |
| 41139-02 | |
| 41242-08 | |
| 4132 | |
| 41469-08 | |
| 41471-08 | |
| 41544-08 | |
| 41550-08 | |
| 41628-08 | |
| 41667-06 | |
| 41670-09 | |
| 41714-05 | |
| 41744-09 | |
| 41748-08 | |
| 41750-06B | |
| 41751-06A | |
| 41756-08 | |
| 41783-08 | |
| 41855-08 | |
| 41861-08 | |
| 41967-07B | |
| 42020-09 | |
| 42021-09 | |
| 42022-09 | |
| 42145-06 | |
| 42265-08A | |
| 42294-08A | |
| 42375-87 | |
| 4240 | |
| 42460-80B | |
| 4250M | |
| 42569-03 | |
| 42584-01 | |
| 42586-06 | |
| 42849-08 | |
| 42850-06B | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06B | |
| 42856-06 | |
| 42857-06A | |
| 42858-06A | |
| 42859-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42866-06 | |
| 42867-06A | |
| 42876-06A | |
| 42883-06A | |
| 42884-06A | |
| 42885-06 | |
| 42886-06 | |
| 42887-06 | |
| 42888-06 | |
| 42889-06 | |
| 42897-08 | |
| 43050-08 | |
| 4312C | |
| 43189-11 | |
| 43212-01 | |
| 43213-11 | |
| 43567-92 | |
| 4363 | |
| 43704-08 | |
| 43708-01 | |
| 43914-06 | |
| 43915-06 | |
| 43917-01 | |
| 44089-08 | |
| 44160-00 | |
| 44551-08B | |
| 44553-06A | |
| 44724-08A | |
| 44725-08A | |
| 44731-08 | |
| 44732-08 | |
| 44738-06 | |
| 44740-06A | |
| 44741-06 | |
| 4484M | |
| 4485M | |
| 4499M | |
| 45041-01A | |
| 45050-06 | |
| 45138-08A | |
| 4530M | |
| 4534M | |
| 45405-75A | |
| 4543 | |
| 4552 | |
| 4560M | |
| 4561M | |
| 4575 | |
| 4576M | |
| 45804-01A | |
| 4593M | |
| 4597M | |
| 4603M | |
| 46080-01 | |
| 4608MA | |
| 46244-01 | |
| 46246-01 | |
| 46322-06 | |
| 46324-06 | |
| 46344-06 | |
| 46350-06 | |
| 46352-06 | |
| 46353-06 | |
| 46383-06 | |
| 46504-07 | |
| 46508-01 | |
| 46509-01 | |
| 46510-07 | |
| 46511-07 | |
| 46512-01A | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 46519-01 | |
| 46612-06 | |
| 46635-07 | |
| 46691-07 | |
| 46762-07 | |
| 46763-07A | |
| 46764-07 | |
| 46798-07A | |
| 46849-07 | |
| 46855-09 | |
| 46859-09 | |
| 46891-09C | |
| 46892-09B | |
| 46957-07A | |
| 4741A | |
| 47764-08 | |
| 4793M | |
| 47987-07BK | |
| 47988-08BK | |
| 48086-01 | |
| 48184-01 | |
| 482K | |
| 48300-60 | |
| 48315-60 | |
| 48344-09 | |
| 48386-05A | |
| 48389-01 | |
| 48392-05 | |
| 48486-07 | |
| 48523-07 | |
| 48527-09 | |
| 4858M | |
| 485K | |
| 48606-07A | |
| 48612-07A | |
| 4863M | |
| 486K | |
| 48700-09 | |
| 48701-09 | |
| 48702-09 | |
| 48703-09 | |
| 48704-09 | |
| 48705-09 | |
| 48708-09 | |
| 4870M | |
| 48712-07 | |
| 4873M | |
| 48777-09 | |
| 48779-09 | |
| 487K | |
| 4889M | |
| 488K | |
| 4890 | |
| 4892M | |
| 48952-09 | |
| 49379-09 | |
| 49380-09 | |
| 4965M | |
| 49733-07BK | |
| 4974M | |
| 49755-09BK | |
| 50003-89B | |
| 50005-85A | |
| 50272-02B | |
| 50274-02B | |
| 50277-08A | |
| 50822-09 | |
| 50826-09 | |
| 50912-72 | |
| 515 | |
| 51547-07 | |
| 51574-07 | |
| 51722-07 | |
| 51723-07 | |
| 51952-07 | |
| 52041-82 | |
| 5234 | |
| 5235 | |
| 5236M | |
| 5237M | |
| 52386-07A | |
| 52402-01 | |
| 52410-07 | |
| 52433-09 | |
| 52438-09 | |
| 53176-08 | |
| 53436-97 | |
| 5403B | |
| 54321-85 | |
| 54556-84 | |
| 54617-09 | |
| 54667-07 | |
| 55101-11 | |
| 55106-11 | |
| 5534M | |
| 554A | |
| 55999-06 | |
| 56012-09 | |
| 56220-94A | |
| 56248-08 | |
| 56284-06 | |
| 56365-01 | |
| 56367-01 | |
| 56394-74 | |
| 56396-74A | |
| 56402-83A | |
| 56508-76 | |
| 56666-04 | |
| 56667-04 | |
| 56953-07 | |
| 56984-07 | |
| 56985-07 | |
| 59018-98 | |
| 59024-09 | |
| 59026-09A | |
| 59130-09A | |
| 5925 | |
| 59259-90 | |
| 59260-09 | |
| 59407-01 | |
| 59409-01 | |
| 59440-09 | |
| 59447-07 | |
| 59464-06 | |
| 59472-09 | |
| 59481-00 | |
| 59482-00 | |
| 59557-07A | |
| 59690-07 | |
| 59789-07BEO | |
| 59823-07BEO | |
| 59988-72A | |
| 60119-03 | |
| 60254-07 | |
| 60375-10 | |
| 60473-07A | |
| 60474-07 | |
| 60970-07 | |
| 6101 | |
| 61081-92 | |
| 6110 | |
| 61109-85D | |
| 61274-92 | |
| 61284-06 | |
| 61285-06 | |
| 61292-11 | |
| 6137K | |
| 61504-07 | |
| 61505-07 | |
| 6176MA | |
| 62107-01 | |
| 62109-07 | |
| 62113-07 | |
| 62272-09 | |
| 62909-04 | |
| 62921-07A | |
| 62940-04A | |
| 62941-04A | |
| 62943-01 | |
| 62953-09 | |
| 6298M | |
| 6302 | |
| 63650-04K | |
| 63654-04K | |
| 63793-01K | |
| 6424 | |
| 6454 | |
| 64801-10 | |
| 64802-10 | |
| 64803-10 | |
| 64810-10 | |
| 64812-09 | |
| 64816-07A | |
| 64817-07A | |
| 64832-09 | |
| 64959-10 | |
| 64966-09 | |
| 64971-09 | |
| 65045-01 | |
| 65089-05A | |
| 65096-05A | |
| 65102-01 | |
| 65108-01 | |
| 65126-09 | |
| 6513 | |
| 6514 | |
| 65188-09 | |
| 65236-09 | |
| 65268-09 | |
| 65285-09 | |
| 65286-09 | |
| 65296-95A | |
| 65341-10 | |
| 65342-10 | |
| 65616-09 | |
| 65786-09 | |
| 65787-09 | |
| 65799-09 | |
| 65800-09 | |
| 65801-09 | |
| 65893-09 | |
| 65989-97C | |
| 66017-01 | |
| 66056-00 | |
| 66154-07BEO | |
| 66157-07BDK | |
| 66158-07BDK | |
| 66208-08 | |
| 66209-08 | |
| 66221-08 | |
| 66253-09 | |
| 66254-10 | |
| 66255-10 | |
| 66277-09 | |
| 66306-07BYM | |
| 66306-07DH | |
| 66385-09 | |
| 66390-09 | |
| 66494-01 | |
| 66547-09 | |
| 66548-09 | |
| 6655 | |
| 66712-01 | |
| 66713-01 | |
| 66777-07A | |
| 66813-09 | |
| 66814-09 | |
| 66815-09 | |
| 6703 | |
| 67308-09 | |
| 67394-09 | |
| 67453-09 | |
| 67621-94 | |
| 67657-05 | |
| 67658-05 | |
| 67667-05 | |
| 67717-01 | |
| 67718-60A | |
| 67790-93A | |
| 67822-88 | |
| 67827-88A | |
| 67831-03 | |
| 67854-98 | |
| 67880-94 | |
| 67883-04A | |
| 68134-97 | |
| 68163-84 | |
| 68168-89A | |
| 68169-90A | |
| 68205-07 | |
| 68228-09 | |
| 68254-01 | |
| 68255-01 | |
| 68256-01 | |
| 68297-05 | |
| 68324-07 | |
| 68325-07 | |
| 68326-01A | |
| 68327-01A | |
| 68329-03 | |
| 68335-05 | |
| 68340-01 | |
| 68341-05 | |
| 6837M | |
| 68380-05 | |
| 6838M | |
| 6839M | |
| 6856M | |
| 6859M | |
| 6864A | |
| 68653-05 | |
| 68702-07 | |
| 6872M | |
| 6876M | |
| 68807-01 | |
| 68838-06 | |
| 68876-07 | |
| 68879-07 | |
| 68881-01 | |
| 68904-00 | |
| 68921-07 | |
| 68925-07 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07C | |
| 68971-98B | |
| 68973-00 | |
| 69053-09 | |
| 69060-90F | |
| 69066-01A | |
| 69068-01A | |
| 69086-07A | |
| 69110-01 | |
| 69143-01 | |
| 69152-01A | |
| 6917M | |
| 69190-07 | |
| 69271-06 | |
| 69309-10 | |
| 69323-02 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69356-06A | |
| 69390-09 | |
| 69391-09 | |
| 69392-09 | |
| 69394-09 | |
| 69395-09A | |
| 69396-09A | |
| 69402-09A | |
| 69403-09A | |
| 69424-09 | |
| 69457-09 | |
| 69523-09 | |
| 69529-09 | |
| 69537-07 | |
| 69583-07 | |
| 69584-07 | |
| 69585-09 | |
| 69587-07 | |
| 6966M | |
| 69861-07 | |
| 69862-07 | |
| 69873-07A | |
| 69874-07A | |
| 69875-07A | |
| 69976-08 | |
| 70003-04 | |
| 70018-07 | |
| 70020-05 | |
| 70106-07A | |
| 70108-07A | |
| 70110-07A | |
| 70125-08A | |
| 70155-07 | |
| 70170-08A | |
| 70345-84 | |
| 7036 | |
| 7039 | |
| 70393-07 | |
| 70394-07A | |
| 70406-06 | |
| 7041 | |
| 70432-06 | |
| 70433-06 | |
| 70441-01A | |
| 70473-07 | |
| 70475-07 | |
| 70480-07A | |
| 70493-08 | |
| 70494-08 | |
| 70504-81 | |
| 70505-09 | |
| 70578-89 | |
| 70580-08 | |
| 70585-93 | |
| 7062 | |
| 70620-07 | |
| 70635-08 | |
| 7081 | |
| 7124 | |
| 7127 | |
| 71352-07 | |
| 71402-07A | |
| 71452-91A | |
| 71474-07 | |
| 7155 | |
| 71563-96 | |
| 71564-96 | |
| 71567-96 | |
| 71568-96A | |
| 71569-06 | |
| 71571-06A | |
| 71578-01A | |
| 71587-04 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71958-09 | |
| 71959-09 | |
| 71962-09 | |
| 71963-09 | |
| 71964-09 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72023-51D | |
| 72056-92 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06A | |
| 72076-00 | |
| 72077-00 | |
| 72078-00 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72111-06 | |
| 72124-94GY | |
| 72134-94GY | |
| 72135-06 | |
| 72139-94GY | |
| 72144-94 | |
| 72154-94 | |
| 72159-94 | |
| 72164-94A | |
| 72168-07 | |
| 72169-07 | |
| 72188-07BK | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72244-95 | |
| 72245-95 | |
| 72260-04 | |
| 72266-94 | |
| 72272-07 | |
| 72289-04 | |
| 72290-94 | |
| 72303-08 | |
| 72304-08 | |
| 72314-01 | |
| 72326-95 | |
| 72327-03A | |
| 72330-95 | |
| 72405-98BK | |
| 72405-98GN | |
| 72412-97 | |
| 72414-07BK | |
| 72430-00 | |
| 72434-00 | |
| 72447-07GY | |
| 72449-01 | |
| 72450-01 | |
| 72469-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72485-07 | |
| 72493-07 | |
| 72494-07 | |
| 72500-07ABK | |
| 72506-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72516-01 | |
| 72518-01 | |
| 72519-09BK | |
| 72520-01 | |
| 72521-01 | |
| 72522-01 | |
| 72524-01 | |
| 72525-01 | |
| 72526-01 | |
| 72527-01 | |
| 72528-01 | |
| 72539-06 | |
| 72541-07BN | |
| 72542-07BN | |
| 72543-07BK | |
| 72544-07 | |
| 72547-08 | |
| 72557-07 | |
| 72558-07 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72611-07 | |
| 72633-02 | |
| 72637-10 | |
| 72638-10 | |
| 72639-10 | |
| 72720-07 | |
| 72721-07 | |
| 73101-96BK | |
| 73102-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73215-07 | |
| 7347M | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74119-98BK | |
| 74120-08 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 7427M | |
| 7432M | |
| 7433M | |
| 7435M | |
| 74402-05A | |
| 74440-08 | |
| 7460M | |
| 7468M | |
| 7495 | |
| 75169-07 | |
| 75210-09 | |
| 75254-04A | |
| 75272-07 | |
| 75274-07 | |
| 75310-07 | |
| 755 | |
| 7606 | |
| 76231-08 | |
| 769MA | |
| 7716 | |
| 7744 | |
| 7813A | |
| 7910M | |
| 7951 | |
| 7999M | |
| 8002K | |
| 8006 | |
| 8008M | |
| 8020 | |
| 8026K | |
| 8027K | |
| 8028K | |
| 8029K | |
| 8070MA | |
| 8130 | |
| 8199M | |
| 8235 | |
| 8885 | |
| 90339-06 | |
| 90520-07 | |
| 91909-03B | |
| 91910-03B | |
| 9208 | |
| 92094-09 | |
| 92095-09 | |
| 9252 | |
| 9254 | |
| 9276A | |
| 9278 | |
| 94756-01 | |
| 95594-84A | |
| 95595-84A | |
| 964 | |
| 965M | |
| 966M | |
| 968M | |
| 970M | |
| 972M | |
| 973M | |
| 978M | |
| 9830 | |
| 9838 | |
| 983M | |
| 9847 | |
| 9848 | |
| 984M | |
| 9898 | |
| 9907 | |
| 9955 | |
| 9998 | |
| J0117.3A8 | |
| J8135.1AE | |
| J8146.1AS |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7433M | Unknown |
| 7951 | Unknown |
| 3724M | Unknown |
| 7427M | Unknown |
| 7813A | 2007 |
| 8130 | Unknown |
| 8070MA | Unknown |
| 7999M | 2002 |
| 8199M | Unknown |
| 7910M | Unknown |
| 7495 | 1994 |
| 29522-01 | 2001 |
| 7435M | Unknown |
| 7468M | 2006 |
| 8006 | Unknown |
| 8020 | 2002 |
| 7744 | 1943 |
| 7432M | Unknown |
| 3725M | Unknown |
| 102A1 - Generic Screws | |
| 1023M | Unknown |
| 40399-01M | 2001 |
| 4561M | Unknown |
| 4250M | Unknown |
| 46612-06 | 2006 |
| 4608MA | Unknown |
| 1014M | Unknown |
| 2228 | Unknown |
| 4560M | Unknown |
| 4858M | Unknown |
| 42375-87 | 1987 |
| 1004M | Unknown |
| 978M | Unknown |
| 4741A | 1994 |
| 1025M | Unknown |
| 67718-60A | 2009 |
| 4530M | Unknown |
| 3731M | Unknown |
| 2955 | 1996 |
| 1027M | Unknown |
| 1035M | Unknown |
| 43567-92 | 1992 |
| 3514 | Unknown |
| 4597M | Unknown |
| 4499M | Unknown |
| 1024M | Unknown |
| 1017M | Unknown |
| 4042 | Unknown |
| 4552 | Unknown |
| 3612 | 2012 |
| 4543 | Unknown |
| 3753M | Unknown |
| 4890 | Unknown |
| 4132 | Unknown |
| 1114M | Unknown |
| 968M | Unknown |
| 4576M | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 3853M | 2001 |
| 4240 | Unknown |
| 4485M | Unknown |
| 3798M | Unknown |
| 3755M | Unknown |
| 3815M | Unknown |
| 4870M | Unknown |
| 3762M | 2000 |
| 4484M | Unknown |
| 3703M | Unknown |
| 3919M | Unknown |
| 3708M | 2011 |
| 4889M | Unknown |
| 3700MA | Unknown |
| 3707M | Unknown |
| 984M | Unknown |
| 970M | Unknown |
| 1033M | Unknown |
| 3386 | Unknown |
| 3108M | Unknown |
| 3729M | Unknown |
| 3711M | Unknown |
| 3704M | Unknown |
| 983M | Unknown |
| 27225-01 | 2001 |
| 972M | Unknown |
| 4873M | Unknown |
| 973M | Unknown |
| 56402-83A | 1983 |
| 3701M | Unknown |
| 4974M | Unknown |
| 1031M | Unknown |
| 3556B | 2007 |
| 3074M | Unknown |
| 4363 | 2013 |
| 4603M | Unknown |
| 4575 | Unknown |
| 4863M | Unknown |
| 4793M | Unknown |
| 1009M | Unknown |
| 1021M | Unknown |
| 4312C | Unknown |
| 5236M | 2004 |
| 3123 | Unknown |
| 1030M | Unknown |
| 3920M | Unknown |
| 2243M | Unknown |
| 3966M | Unknown |
| 966M | Unknown |
| 4534M | 2010 |
| 3716M | Unknown |
| 4593M | 2007 |
| 5403B | Unknown |
| 3726M | Unknown |
| 1007M | Unknown |
| 4965M | Unknown |
| 42858-06A | 2006 |
| 3540 | Unknown |
| 2590 | 2005 |
| 3709M | Unknown |
| 965M | Unknown |
| 3832M | 2022 |
| 3385M | Unknown |
| 4892M | Unknown |
| 103A1 - Generic Washers | |
| 6454 | Unknown |
| 59018-98 | 1998 |
| 27714-06 | 2006 |
| 6302 | Unknown |
| 6876M | Unknown |
| 6424 | Unknown |
| 6872M | Unknown |
| 6837M | Unknown |
| 46509-01 | 2001 |
| 6859M | Unknown |
| 6514 | Unknown |
| 6513 | Unknown |
| 6110 | Unknown |
| 6917M | Unknown |
| 6838M | Unknown |
| 6137K | Unknown |
| 6101 | 2011 |
| 11523 | Unknown |
| 6839M | Unknown |
| 7039 | Unknown |
| 6966M | Unknown |
| 94756-01 | 2001 |
| 6856M | Unknown |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 104A1 - Custom Nuts | |
| 7347M | 2009 |
| 48486-07 | 2007 |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 8008M | Unknown |
| 105A1 - Custom Screws | |
| 1043MA | Unknown |
| 5534M | 2009 |
| 3292MA | Unknown |
| 5237M | 2004 |
| 106A1 - Custom Washers | |
| 25911-01K | 2001 |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 10231 | Unknown |
| 26770-01 | 2001 |
| 9830 | Unknown |
| 62943-01 | 2001 |
| 61284-06 | 2006 |
| 9998 | Unknown |
| 11608 | Unknown |
| 10232K | Unknown |
| 10390 | Unknown |
| 10014 | Unknown |
| 26730-01 | 2001 |
| 56284-06 | 2006 |
| 26777-01 | 2001 |
| 9955 | Unknown |
| 10297 | 2007 |
| 10119 | Unknown |
| 26790-01 | 2001 |
| 108B1 - P Clamps | |
| 10110 | Unknown |
| 109A1 - Studs | |
| 16448-01KA | 2001 |
| 59464-06 | 2006 |
| 65786-09 | 2009 |
| 27798-08 | 2008 |
| 964 | Unknown |
| 10224 | Unknown |
| 66713-01 | 2001 |
| 110B1 - Plain Bushings | |
| 8029K | Unknown |
| 11568 | 2004 |
| 8028K | Unknown |
| 11519 | Unknown |
| 35420-01K | 2001 |
| 9252 | 2019 |
| 46246-01 | 2001 |
| 9254 | 2006 |
| 54556-84 | 1984 |
| 42569-03 | 2003 |
| 53176-08 | 2008 |
| 8027K | Unknown |
| 48389-01 | 2001 |
| 11542 | Unknown |
| 8885 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 12072K | Unknown |
| 12071K | Unknown |
| 6298M | Unknown |
| 11291 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 14794-01K | 2001 |
| 14795-01K | 2001 |
| 6176MA | Unknown |
| 9276A | 2019 |
| 9278 | 2001 |
| 111A1 - Adhesive | |
| 72525-01 | 2001 |
| 72524-01 | 2001 |
| 9907 | Unknown |
| 72527-01 | 2001 |
| 72522-01 | 2001 |
| 9838 | Unknown |
| 111F1 - Protective Tape | |
| 61285-06 | 2006 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11570 | Unknown |
| 11347K | Unknown |
| 28862-01 | 2001 |
| 11341K | Unknown |
| 11130K | Unknown |
| 11630 | Unknown |
| 27669-01K | 2001 |
| 11353K | Unknown |
| 11362K | Unknown |
| 11101 | 1949 |
| 11391K | Unknown |
| 11392K | Unknown |
| 11140 | 1982 |
| 11289A | Unknown |
| 11354K | Unknown |
| 11366K | Unknown |
| 46508-01 | 2001 |
| 11290 | 1998 |
| 11331K | Unknown |
| 11312K | 2011 |
| 10994K | Unknown |
| 11361 | Unknown |
| 11314K | Unknown |
| 11346K | Unknown |
| 120A1 - Pins | |
| 482K | Unknown |
| 409K | Unknown |
| 488K | Unknown |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 485K | Unknown |
| 487K | Unknown |
| 515 | Unknown |
| 45041-01A | 2001 |
| 486K | Unknown |
| 65800-09 | 2009 |
| 121A1 - Grommets | |
| 26757-01 | 2001 |
| 11402 | 2005 |
| 41471-08 | 2008 |
| 26758-01 | 2001 |
| 121B1 - Press-Fit Plugs | |
| 5234 | Unknown |
| 43212-01 | 2001 |
| 769MA | Unknown |
| 43708-01 | 2001 |
| 72164-94A | 1994 |
| 6864A | 2010 |
| 755 | 2018 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 11271 | Unknown |
| 11272 | Unknown |
| 65045-01 | 2001 |
| 11632 | Unknown |
| 10279 | Unknown |
| 11363K | Unknown |
| 10040 | 1982 |
| 10950 | Unknown |
| 10108 | Unknown |
| 11155 | Unknown |
| 22121-01K | 2001 |
| 11355K | Unknown |
| 41139-02 | 2002 |
| 11143 | Unknown |
| 11356K | Unknown |
| 11328M | Unknown |
| 11335K | Unknown |
| 11304 | Unknown |
| 11200K | Unknown |
| 10147 | 2018 |
| 11384K | Unknown |
| 10247 | 2006 |
| 29519-01 | 2001 |
| 123A1 - Sealing Washers | |
| 41756-08 | 2008 |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7081 | Unknown |
| 7127 | Unknown |
| 7155 | Unknown |
| 7062 | Unknown |
| 124A1 - Spacers | |
| 5925 | 2006 |
| 16312-04A | 2004 |
| 11804 | Unknown |
| 46515-01 | 2001 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 126A1 - Miscellaneous Hardware | |
| 66712-01 | 2001 |
| 11524A | Unknown |
| 40434-01 | 2001 |
| 68134-97 | 1997 |
| 11329K | Unknown |
| 11558 | Unknown |
| 27995-01 | 2001 |
| 48708-09 | 2009 |
| 56394-74 | 1974 |
| 126B1 - Rivets Fasteners | |
| 8235 | Unknown |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 29147-07 | 2007 |
| 140A3 - Other Special Warning Label | |
| 13725-08 | 2008 |
| 15370-01A | 2001 |
| 15348-01A | 2001 |
| 140D3 - Fuse Block Label | |
| 13694-07 | 2007 |
| 141A1 - Medallion | |
| 67667-05 | 2005 |
| 14270-92 | 1992 |
| 34918-08 | 2008 |
| 34877-07 | 2007 |
| 70432-06 | 2006 |
| 42856-06 | 2006 |
| 161A1 - Powertrain Assembly | |
| 19844-11K | 2011 |
| 19569-11K | 2011 |
| 163B1 - Engine Isolator Mount | |
| 16307-05 | 2005 |
| 16311-05 | 2005 |
| 65126-09 | 2009 |
| 16298-05A | 2005 |
| 16308-01 | 2001 |
| 164A1 - Engine Mount Bracket | |
| 16299-01 | 2001 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7460M | Unknown |
| 27667-01K | 2001 |
| 164C1 - Tiebar | |
| 16306-04A | 2004 |
| 165A1 - Cylinder Head | |
| 17304-09K | 2009 |
| 17126-08KA | 1984 |
| 17692-08K | 2008 |
| 17125-08KA | 1986 |
| 17305-09K | 2007 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17691-08K | 2008 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168B1 - Cylinder Liner | |
| 22928-05KA | 2005 |
| 179A1 - Lifters | |
| 18181-01K | 2001 |
| 180A1 - Valves | |
| 18057-01K | 2001 |
| 18665-01K | 2001 |
| 18688-06K | 2006 |
| 181B1 - Valve Seals | |
| 17638-01K | 2001 |
| 17640-01K | 2001 |
| 17637-01K | 2001 |
| 18687-01K | 2001 |
| 17639-01K | 2001 |
| 181C1 - Valve Collars | |
| 35004-01K | 2001 |
| 35002-01K | 2001 |
| 35003-01K | 2001 |
| 35001-01K | 2001 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18055-01K | 2001 |
| 18661-01K | 2001 |
| 18662-01K | 2001 |
| 17641-01K | 2001 |
| 18052-01K | 2001 |
| 219A1 - Piston | |
| 22934-08K | 2008 |
| 220A1 - Piston Ring | |
| 11689 | Unknown |
| 22919-05K | 2005 |
| 221A1 - Piston Pin | |
| 22953-08K | 2008 |
| 237A1 - Connecting Rod | |
| 24307-01K | 2001 |
| 237B1 - Connecting Rod sub-component | |
| 27982-01 | 2001 |
| 24311-01K | 2001 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 25800-01K | 2001 |
| 35445-01K | 2001 |
| 8002K | Unknown |
| 14791-01KA | 2001 |
| 35443-01K | 2001 |
| 35441-01K | 2001 |
| 8026K | Unknown |
| 35423-04K | 2004 |
| 35433-01K | 2001 |
| 241A1 - Flywheel | |
| 23712-01K | 2001 |
| 23725-01K | 2001 |
| 24312-01K | 2001 |
| 244A1 - Crankcase | |
| 24457-09K | 2009 |
| 24467-09K | 2009 |
| 244D1 - Crankcase sub-component | |
| 24411-01K | 2001 |
| 24412-01K | 2001 |
| 24409-01K | 2001 |
| 24410-01K | 2001 |
| 24413-01K | 2001 |
| 32313-01A | 2001 |
| 244F1 - Oil Pan | |
| 26107-04K | 2004 |
| 254B1 - Camshaft | |
| 17431-05K | 2005 |
| 17421-08K | 2008 |
| 254C1 - Camshaft Sprocket | |
| 17423-01K | 2001 |
| 40590-07 | 2007 |
| 254D1 - Camshaft Support | |
| 41714-05 | 2005 |
| 255A1 - Camdrive Chain | |
| 17407-01KA | 2001 |
| 17406-01KA | 2001 |
| 255C1 - Camdrive Chain Tensioner | |
| 17632-01K | 2001 |
| 17629-01K | 2001 |
| 257A1 - Cam Cover | |
| 17680-04K | 2004 |
| 17705-07K | 2007 |
| 17689-04K | 2004 |
| 17679-04K | 2004 |
| 17699-07K | 2007 |
| 257B1 - Clutch Cover | |
| 25894-07K | 2007 |
| 25292-09K | 2009 |
| 25943-08K | 2008 |
| 257D1 - Clutch Inspection Cover | |
| 25878-07K | 2007 |
| 257E1 - Cover Gaskets | |
| 17418-01K | 2001 |
| 17416-01KA | 2001 |
| 17010-01K | 2001 |
| 61109-85D | 1985 |
| 17011-01KB | 2001 |
| 37156-07 | 2007 |
| 42857-06A | 2006 |
| 17666-01K | 2001 |
| 64971-09 | 2009 |
| 25891-01K | 2001 |
| 25080-01K | 2001 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17701-07K | 2007 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34878-07A | 2009 |
| 34927-05A | 2005 |
| 25899-07K | 2007 |
| 265A1 - Vent / Breather Line | |
| 29505-05 | 2005 |
| 266E1 - Water Pump Housing | |
| 26750-01K | 2001 |
| 26759-04K | 2004 |
| 25295-04K | 2004 |
| 26821-07K | 2007 |
| 266F1 - Water Pump Housing Gasket | |
| 26749-01K | 2001 |
| 26752-01K | 2001 |
| 267A1 - Thermostat Housing Gasket | |
| 26765-01K | 2001 |
| 268C1 - Radiator | |
| 26722-04 | 2004 |
| 268D1 - Radiator Bleeder Valve | |
| 5235 | 2004 |
| 268F1 - Radiator Pressure Cap | |
| 62909-04 | 2004 |
| 26733-01 | 2001 |
| 268H1 - Radiator System Cover | |
| 26813-08A | 2008 |
| 26814-07 | 2007 |
| 66157-07BDK | 2007 |
| 66158-07BDK | 2007 |
| 26788-08A | 2008 |
| 268J1 - Cooling System Module | |
| 26721-01C | 2001 |
| 269B1 - Radiator Hose | |
| 26767-01 | 2001 |
| 26754-01 | 2001 |
| 62953-09 | 2009 |
| 26768-01A | 2001 |
| 26753-01 | 2001 |
| 26834-08 | 2008 |
| 26756-01 | 2001 |
| 26835-08 | 2008 |
| 26755-01 | 2001 |
| 26737-01K | 2001 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26803-07A | 2007 |
| 270A1 - Carburetor | |
| 27990-01 | 2001 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27657-01 | 2001 |
| 272D1 - Throttle Body to Airbox Baseplate Seal | |
| 27977-01 | 2001 |
| 272E1 - Velocity Stack | |
| 29521-01 | 2001 |
| 29438-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 24986-01K | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27662-01B | 2001 |
| 27408-01 | 2001 |
| 28002-01 | 2001 |
| 274C1 - Fuel Injector | |
| 27665-01A | 2001 |
| 290C1 - Airbox Baseplate sub-component | |
| 29435-05 | 2005 |
| 290D1 - Airbox Seal | |
| 29439-01 | 2001 |
| 29436-01 | 2001 |
| 290E1 - Airbox Helmholtz Chamber | |
| 29647-01 | 2001 |
| 294A1 - Air Filter Element | |
| 29437-01 | 2001 |
| 294C1 - Breather Hose | |
| 29601-05K | 2005 |
| 29504-05A | 2005 |
| 295A1 - Intake Miscellaneous Component | |
| 26724-04 | 2004 |
| 29566-06 | 2006 |
| 29568-06 | 2006 |
| 28863-01 | 2001 |
| 299A1 - Alternator | |
| 25311-04K | 2004 |
| 299C1 - Charging Rotor | |
| 30731-01K | 2001 |
| 299F1 - Stator Assembly | |
| 30734-08K | 2008 |
| 314F1 - Starter Motor | |
| 31717-01K | 2001 |
| 31718-07K | 2007 |
| 314H1 - Starter Solenoid | |
| 71474-07 | 2007 |
| 27715-07 | 2007 |
| 315A1 - Quick Shift Actuator | |
| 35017-01K | 2001 |
| 315B1 - Exhaust Valve Actuator | |
| 18663-01K | 2001 |
| 316A1 - Ignition Coil | |
| 32477-01A | 2011 |
| 316C1 - Spark Plug | |
| 32335-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27683-07 | 2007 |
| 27703-08 | 2008 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 40652-08 | 2008 |
| 40648-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 74402-05A | 2005 |
| 50277-08A | 2008 |
| 327E1 - Temperature Sensor | |
| 32315-01 | 2001 |
| 27388-01 | 2001 |
| 327F1 - Throttle Position Sensor | |
| 27975-01 | 2001 |
| 336A1 - Shift Linkage Rod Assembly | |
| 34696-04 | 2004 |
| 336C1 - Shift Linkage Rod End | |
| 33738-04 | 2004 |
| 35434-01K | 2001 |
| 33758-01 | 2001 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 336G1 - Toepeg Rubber | |
| 33133-06 | 2006 |
| 339A1 - Shift Lever | |
| 33757-01A | 2001 |
| 339D1 - Shifter Fork | |
| 35428-01KA | 2001 |
| 35430-01KA | 2001 |
| 35429-01KA | 2001 |
| 339E1 - Shifter Fork Shaft | |
| 26582-01KA | 2001 |
| 35432-01K | 2001 |
| 339F1 - Shifter Index Lever | |
| 34567-01 | 2001 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 35442-01K | 2001 |
| 34007-01K | 2001 |
| 35451-01K | 2001 |
| 348A1 - Transmission Output Sprocket Cover | |
| 37124-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40657-06B | 2009 |
| 40656-06B | 2009 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40669-07 | 2007 |
| 350F1 - Transmission Mainshaft | |
| 35454-01KA | 2001 |
| 350G1 - Transmission Shim / Spacer | |
| 18628-01K | 2001 |
| 18678-01K | 2001 |
| 18629-01K | 2001 |
| 40095-01K | 2001 |
| 18698-01K | 2001 |
| 18632-01K | 2001 |
| 18630-01K | 2001 |
| 18656-01K | 2001 |
| 18667-01K | 2001 |
| 18673-01K | 2001 |
| 18683-01K | 2001 |
| 18700-01K | 2001 |
| 18676-01K | 2001 |
| 18666-01K | 2001 |
| 18655-01K | 2001 |
| 18686-01K | 2001 |
| 18627-01K | 2001 |
| 18693-01K | 2001 |
| 18680-01K | 2001 |
| 18695-01K | 2001 |
| 18696-01K | 2001 |
| 18659-01K | 2001 |
| 18699-01K | 2001 |
| 18701-01K | 2001 |
| 18679-01K | 2001 |
| 18669-01K | 2001 |
| 18675-01K | 2001 |
| 18624-01K | 2001 |
| 18685-01K | 2001 |
| 18684-01K | 2001 |
| 18626-01K | 2001 |
| 18697-01K | 2001 |
| 18670-01K | 2001 |
| 18639-01K | 2001 |
| 18674-01K | 2001 |
| 18702-01K | 2001 |
| 18672-01K | 2001 |
| 18671-01K | 2001 |
| 18682-01K | 2001 |
| 18658-01K | 2001 |
| 18681-01K | 2001 |
| 18677-01K | 2001 |
| 18668-01K | 2001 |
| 18692-01K | 2001 |
| 18657-01K | 2001 |
| 18631-01K | 2001 |
| 18625-01K | 2001 |
| 18694-01K | 2001 |
| 18638-01K | 2001 |
| 352B1 - Engine Balancer sub-component | |
| 14758-01K | 2001 |
| 356A1 - Transmission Countershaft | |
| 35455-01KA | 2001 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 26103-01K | 2001 |
| 76231-08 | 2008 |
| 367A1 - Clutch Lever | |
| 42876-06A | 2006 |
| 367B1 - Clutch Lever Master Cylinder | |
| 38744-09 | 2009 |
| 44740-06A | 2006 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36757-05K | 2005 |
| 36706-08K | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 36709-01K | 2001 |
| 36705-08K | 2008 |
| 36711-08K | 2008 |
| 36712-08K | 2008 |
| 38842-08K | 2008 |
| 37909-90 | 1990 |
| 31301-01K | 2001 |
| 370A1 - Clutch Assembly | |
| 37938-08KA | 2008 |
| 370B1 - Clutch Friction Plate | |
| 36713-01K | 2001 |
| 36707-01K | 2001 |
| 36720-08K | 2008 |
| 370C1 - Clutch Hub | |
| 36701-08KA | 2008 |
| 370E1 - Clutch Metal Plate | |
| 36780-01K | 2001 |
| 370F1 - Clutch Pressure Plate | |
| 36704-08KA | 2008 |
| 36710-08K | 2008 |
| 38841-08K | 2008 |
| 36702-08K | 2008 |
| 370G1 - Clutch Shell | |
| 36699-01KB | 2005 |
| 370H1 - Clutch Sprocket | |
| 36781-01K | 2001 |
| 36779-05K | 2005 |
| 372D1 - Clutch Cable | |
| 38658-01B | 2001 |
| 38692-04C | 2004 |
| 372F1 - Clutch Diaphragm Plate | |
| 31303-01K | 2001 |
| 400A1 - Drive-Belt | |
| 40144-07 | 2007 |
| 40145-07 | 2007 |
| 409A1 - Rear Wheel | |
| 41744-09 | 2009 |
| 55106-11 | 2011 |
| 410D1 - Electronic Control Module (ECM) | |
| 68921-07 | 2007 |
| 69529-09 | 2009 |
| 72637-10 | 2010 |
| 32534-11 | 2011 |
| 69457-09 | 2009 |
| 410G1 - Security System Control Module | |
| 68925-07 | 2007 |
| 69976-08 | 2008 |
| 411A1 - ABS Control Unit | |
| 66208-08 | 2008 |
| 41861-08 | 2008 |
| 41855-08 | 2008 |
| 411A2 - ABS Electrical Control Unit | |
| 40649-08 | 2008 |
| 411A3 - ABS Hydraulic Control Unit | |
| 48344-09 | 2009 |
| 413A1 - Brake Caliper | |
| 44731-08 | 2008 |
| 44732-08 | 2008 |
| 44160-00 | 2000 |
| 43050-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 42866-06 | 2006 |
| 42851-06 | 2006 |
| 413D1 - Brake Pad | |
| 42850-06B | 2006 |
| 42867-06A | 2006 |
| 42897-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41667-06 | 2006 |
| 48952-09 | 2009 |
| 44553-06A | 2006 |
| 416A1 - Brakes Miscellaneous Component | |
| 10867 | 2010 |
| 42860-06B | 2006 |
| 42886-06 | 2006 |
| 42852-06A | 2006 |
| 42863-06 | 2006 |
| 72023-51D | 2004 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 46322-06 | 2006 |
| 44551-08B | 2010 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 42884-06A | 2006 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 43915-06 | 2006 |
| 42887-06 | 2006 |
| 42862-06B | 2010 |
| 42855-06B | 2006 |
| 43914-06 | 2006 |
| 45050-06 | 2006 |
| 46324-06 | 2006 |
| 43917-01 | 2001 |
| 42883-06A | 2006 |
| 42885-06 | 2006 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42586-06 | 2006 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 42859-06B | 2006 |
| 418B1 - Brake Line | |
| 42020-09 | 2009 |
| 42022-09 | 2009 |
| 44724-08A | 2008 |
| 41967-07B | 2007 |
| 44725-08A | 2008 |
| 42888-06 | 2006 |
| 42294-08A | 2008 |
| 42021-09 | 2009 |
| 46957-07A | 2007 |
| 42265-08A | 2008 |
| 422A1 - Wheel Sprocket Cover | |
| 26812-07 | 2007 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84A | 2010 |
| 430D1 - Front Axle | |
| 41628-08 | 2008 |
| 430E1 - Rear Axle | |
| 46849-07 | 2007 |
| 41544-08 | 2008 |
| 431A1 - Front Tire | |
| 43213-11 | 2011 |
| 432A1 - Rear Tire | |
| 43189-11 | 2011 |
| 433A1 - Front Wheel | |
| 41670-09 | 2009 |
| 55101-11 | 2011 |
| 41469-08 | 2008 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43704-08 | 2008 |
| 34647-04 | 2004 |
| 40668-07 | 2007 |
| 41748-08 | 2008 |
| 41550-08 | 2008 |
| 41242-08 | 2008 |
| 454A1 - Front Telescopic Fork | |
| 49379-09 | 2009 |
| 46762-07 | 2007 |
| 48705-09 | 2009 |
| 48700-09 | 2009 |
| 49380-09 | 2009 |
| 48701-09 | 2009 |
| 46763-07A | 2007 |
| 454B1 - Springer Fork | |
| 48704-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 46764-07 | 2007 |
| 48703-09 | 2009 |
| 46504-07 | 2007 |
| 48702-09 | 2009 |
| 46798-07A | 2007 |
| 455B1 - Front Telescopic Fork Spring | |
| 46517-01 | 2001 |
| 46511-07 | 2007 |
| 455C1 - Front Telescopic Fork sub-component | |
| 48777-09 | 2009 |
| 46080-01 | 2001 |
| 46512-01A | 2010 |
| J8135.1AE | 2003 |
| 46691-07 | 2007 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 46353-06 | 2006 |
| 46519-01 | 2001 |
| 46344-06 | 2006 |
| J8146.1AS | 2007 |
| 46513-01 | 2001 |
| J0117.3A8 | 2005 |
| 46352-06 | 2006 |
| 46510-07 | 2007 |
| 456C1 - Fork Lock | |
| 45804-01A | 2001 |
| 457D1 - Steering Stem | |
| 46350-06 | 2006 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 48184-01 | 2001 |
| 459A1 - Upper Triple Clamp | |
| 46891-09C | 2011 |
| 459B1 - Lower Triple Clamp | |
| 46892-09B | 2009 |
| 46855-09 | 2009 |
| 459C1 - Triple Clamp Kit | |
| 46859-09 | 2009 |
| 470A1 - Frame | |
| 46635-07 | 2007 |
| 47988-08BK | 2008 |
| 47764-08 | 2008 |
| 472A1 - Frame sub-component | |
| 47987-07BK | 2007 |
| 48086-01 | 2001 |
| 7036 | Unknown |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70406-06 | 2006 |
| 68807-01 | 2001 |
| 474C1 - Swingarm | |
| 48612-07A | 2008 |
| 48606-07A | 2008 |
| 474F1 - Swingarm Bearing Spacer | |
| 48712-07 | 2007 |
| 48386-05A | 2005 |
| 475B1 - Swingarm Pivot Shaft | |
| 48392-05 | 2005 |
| 500D1 - Sidestand Leg | |
| 49733-07BK | 2007 |
| 49755-09BK | 2009 |
| 500E1 - Sidestand Leg sub-component | |
| 50005-85A | 1985 |
| 3718M | Unknown |
| 62107-01 | 2001 |
| 500F1 - Sidestand Pivot Pin | |
| 554A | 2002 |
| 505B1 - Footpeg Mount Bracket | |
| 50822-09 | 2009 |
| 51723-07 | 2007 |
| 50826-09 | 2009 |
| 51722-07 | 2007 |
| 505D1 - Passenger Footpeg | |
| 33134-07CAZ | 2007 |
| 33135-07CAZ | 2007 |
| 505K1 - Footpeg Wear Peg | |
| 33129-06 | 2006 |
| 506A1 - Brake Pedal | |
| 44741-06 | 2006 |
| 50912-72 | 1972 |
| 44738-06 | 2006 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 50272-02B | 2002 |
| 50274-02B | 2002 |
| 42584-01 | 2001 |
| 520A1 - Rider Seat or Full Seat | |
| 51547-07 | 2007 |
| 52433-09 | 2009 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52402-01 | 2001 |
| 52041-82 | 1982 |
| 521A1 - Seat Support Structure | |
| 52410-07 | 2007 |
| 51952-07 | 2007 |
| 48527-09 | 2009 |
| 48523-07 | 2007 |
| 521C1 - Seat Suspension Damper | |
| 48779-09 | 2009 |
| 524A1 - Passenger Grab Handle | |
| 52386-07A | 2007 |
| 524B1 - Passenger Seat | |
| 52438-09 | 2009 |
| 51574-07 | 2007 |
| 540B1 - Rear Shock | |
| 54667-07 | 2007 |
| 54617-09 | 2009 |
| 558A1 - Handlebar | |
| 56953-07 | 2007 |
| 56012-09 | 2009 |
| 559D1 - Lower Handlebar Clamp | |
| 55999-06 | 2006 |
| 560A1 - Mirror | |
| 92094-09 | 2009 |
| 67831-03 | 2003 |
| 92095-09 | 2009 |
| 91909-03B | 2003 |
| 91910-03B | 2003 |
| 561A1 - Throttle Cable | |
| 56367-01 | 2001 |
| 56365-01 | 2001 |
| 56985-07 | 2007 |
| 56984-07 | 2007 |
| 561B1 - Left Hand Grip | |
| 56667-04 | 2004 |
| 561C1 - Throttle Assembly w/Grip | |
| 56666-04 | 2004 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 56248-08 | 2008 |
| 572E1 - Side Cover | |
| 26837-09 | 2009 |
| 66548-09 | 2009 |
| 66547-09 | 2009 |
| 574B1 - Windscreen / Windshield | |
| 67621-94 | 1994 |
| 589A1 - Front Fender | |
| 59026-09A | 2010 |
| 59789-07BEO | 2007 |
| 59130-09A | 2010 |
| 59447-07 | 2007 |
| 59024-09 | 2009 |
| 595D1 - Rear Fender | |
| 59823-07BEO | 2007 |
| 59260-09 | 2009 |
| 596A1 - Tire Mud Flap | |
| 59690-07 | 2007 |
| 603B1 - Belt / Chain Guard | |
| 60474-07 | 2007 |
| 60473-07A | 2007 |
| 608A1 - Carbon Canister | |
| 27433-08 | 2008 |
| 608B1 - Carbon Canister Hose | |
| 27431-07B | 2007 |
| 27378-08A | 2008 |
| 27382-08A | 2008 |
| 27391-07B | 2007 |
| 609A1 - Fuel Miscellaneous Component | |
| 75254-04A | 2004 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 60970-07 | 2007 |
| 610A1 - Fuel Tank | |
| 62921-07A | 2007 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 61292-11 | 2011 |
| 612A1 - Fuel Filter | |
| 75169-07 | 2007 |
| 62113-07 | 2007 |
| 612B1 - Fuel Level Sensor | |
| 75210-09 | 2009 |
| 612C1 - Fuel Line | |
| 61505-07 | 2007 |
| 61504-07 | 2007 |
| 612F1 - Fuel Pump | |
| 75310-07 | 2007 |
| 62109-07 | 2007 |
| 75272-07 | 2007 |
| 613B1 - Horn Cover | |
| 69053-09 | 2009 |
| 69537-07 | 2007 |
| 66306-07DH | 2007 |
| 613H1 - Radiator Mud Guard | |
| 26826-09 | 2009 |
| 26815-07 | 2007 |
| 26836-09 | 2009 |
| 613K1 - Airbox Cover | |
| 29434-03A | 2003 |
| 66154-07BEO | 2007 |
| 66390-09 | 2009 |
| 613L1 - Airbox Cover sub-component | |
| 66385-09 | 2009 |
| 614A1 - Headlight Bezel | |
| 90339-06 | 2006 |
| 614C1 - Trim | |
| 71958-09 | 2009 |
| 71352-07 | 2007 |
| 62272-09 | 2009 |
| 624A1 - Oil Pump Assembly | |
| 26575-01KB | 2001 |
| 624B1 - Oil Pump Assembly sub-component | |
| 27993-01 | 2001 |
| 26539-01K | 2001 |
| 627A1 - Oil Cooler | |
| 26723-04 | 2004 |
| 627B1 - Oil Drain Plug | |
| 26542-01K | 2001 |
| 627D1 - Oil Duct Cover | |
| 66306-07BYM | 2007 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 26778-04K | 2004 |
| 26541-01K | 2001 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63793-01K | 2001 |
| 627H1 - Oil Line | |
| 62940-04A | 2004 |
| 62941-04A | 2004 |
| 26772-04 | 2004 |
| 627K1 - Oil Line Fitting | |
| 63654-04K | 2004 |
| 26399-01K | 2001 |
| 63650-04K | 2004 |
| 627K2 - Oil Line Fitting Cover | |
| 26810-06A | 2006 |
| 627N1 - Oil System Baffle | |
| 26034-01K | 2001 |
| 627P1 - Oil Thermostat | |
| 26740-01K | 2001 |
| 26769-04K | 2004 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 26393-01K | 2001 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 26762-04K | 2004 |
| 649A1 - Muffler | |
| 64816-07A | 2007 |
| 65268-09 | 2009 |
| 65089-05A | 2005 |
| 64812-09 | 2009 |
| 65285-09 | 2009 |
| 64817-07A | 2007 |
| 65893-09 | 2009 |
| 65096-05A | 2005 |
| 65188-09 | 2009 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65342-10 | 2010 |
| 64959-10 | 2010 |
| 66253-09 | 2009 |
| 65341-10 | 2010 |
| 653A1 - Muffler sub-component | |
| 66254-10 | 2010 |
| 654A1 - Exhaust Shield | |
| 65799-09 | 2009 |
| 64803-10 | 2010 |
| 66255-10 | 2010 |
| 64810-10 | 2010 |
| 64802-10 | 2010 |
| 65801-09 | 2009 |
| 66277-09 | 2009 |
| 65787-09 | 2009 |
| 64801-10 | 2010 |
| 655C1 - Exhaust Mounting Bracket | |
| 65286-09 | 2009 |
| 65616-09 | 2009 |
| 66777-07A | 2007 |
| 656C1 - Header | |
| 66815-09 | 2009 |
| 65236-09 | 2009 |
| 66814-09 | 2009 |
| 656E1 - Header Pipe | |
| 64966-09 | 2009 |
| 659A1 - Exhaust Clamp | |
| 64832-09 | 2009 |
| 65108-01 | 2001 |
| 65296-95A | 1995 |
| 659B1 - Exhaust Flange | |
| 65102-01 | 2001 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 65989-97C | 1997 |
| 660B1 - Battery Pad | |
| 66494-01 | 2001 |
| 660C1 - Battery Pan | |
| 70393-07 | 2007 |
| 660D1 - Battery Strap | |
| 66017-01 | 2001 |
| 660E1 - Ground Strap | |
| 70441-01A | 2001 |
| 660F1 - Negative Battery Cable | |
| 70110-07A | 2007 |
| 660G1 - Positive Battery Cable | |
| 70108-07A | 2007 |
| 70106-07A | 2007 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-04 | 2004 |
| 70018-07 | 2007 |
| 660J1 - Battery Charger | |
| 66056-00 | 2000 |
| 677A1 - Headlight | |
| 69271-06 | 2006 |
| 69331-02 | 2002 |
| 68335-05 | 2005 |
| 67883-04A | 2004 |
| 68341-05 | 2005 |
| 69873-07A | 2007 |
| 69874-07A | 2007 |
| 69323-02 | 2002 |
| 69875-07A | 2007 |
| 68228-09 | 2009 |
| 69356-06A | 2006 |
| 69330-02 | 2002 |
| 67790-93A | 1993 |
| 69325-02 | 2002 |
| 68297-05 | 2005 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 68255-01 | 2001 |
| 68256-01 | 2001 |
| 67717-01 | 2001 |
| 67880-94 | 1994 |
| 68254-01 | 2001 |
| 678A1 - Taillight | |
| 59557-07A | 2007 |
| 68326-01A | 2002 |
| 68876-07 | 2007 |
| 69391-09 | 2009 |
| 68879-07 | 2007 |
| 69392-09 | 2009 |
| 68327-01A | 2002 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 69587-07 | 2007 |
| 69402-09A | 2011 |
| 69066-01A | 2002 |
| 69583-07 | 2007 |
| 69403-09A | 2011 |
| 69068-01A | 2002 |
| 69396-09A | 2011 |
| 69190-07 | 2007 |
| 67827-88A | 1988 |
| 69584-07 | 2007 |
| 68838-06 | 2006 |
| 69395-09A | 2011 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 69110-01 | 2001 |
| 679B1 - Reflector | |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 68340-01 | 2001 |
| 59481-00 | 2000 |
| 60254-07 | 2007 |
| 69862-07 | 2007 |
| 59409-01 | 2001 |
| 60119-03 | 2003 |
| 59407-01 | 2001 |
| 59440-09 | 2009 |
| 69861-07 | 2007 |
| 59988-72A | 1972 |
| 679D1 - License Plate Bracket | |
| 69585-09 | 2009 |
| 69523-09 | 2009 |
| 59472-09 | 2009 |
| 68702-07 | 2007 |
| 69424-09 | 2009 |
| 69086-07A | 2010 |
| 69390-09 | 2009 |
| 69394-09 | 2009 |
| 679E1 - License Plate Light | |
| 60375-10 | 2010 |
| 68205-07 | 2007 |
| 680C1 - Incandescent Bulb | |
| 68169-90A | 1990 |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68324-07 | 2007 |
| 68325-07 | 2007 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 692C1 - Electrical Miscellaneous Component | |
| 70475-07 | 2007 |
| 72547-08 | 2008 |
| 68971-98B | 1998 |
| 70394-07A | 2011 |
| 70473-07 | 2007 |
| 70480-07A | 2007 |
| 10289A | Unknown |
| 11904 | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 70433-06 | 2006 |
| 70505-09 | 2009 |
| 69143-01 | 2001 |
| 69152-01A | 2001 |
| 70493-08 | 2008 |
| 66209-08 | 2008 |
| 66221-08 | 2008 |
| 69060-90F | 2010 |
| 70580-08 | 2008 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72521-01 | 2001 |
| 72430-00 | 2000 |
| 692E2 - Fuse / Relay Block Cover | |
| 73215-07 | 2007 |
| 692F1 - Wire Harness | |
| 67657-05 | 2005 |
| 72638-10 | 2010 |
| 70125-08A | 2010 |
| 70170-08A | 2010 |
| 70620-07 | 2007 |
| 67658-05 | 2005 |
| 70155-07 | 2007 |
| 75274-07 | 2007 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 72506-07 | 2007 |
| 72519-09BK | 2009 |
| 74104-98BK | 1998 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72111-06 | 2006 |
| 72526-01 | 2001 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72064-06 | 2006 |
| 72078-00 | 2000 |
| 72518-01 | 2001 |
| 72516-01 | 2001 |
| 72639-10 | 2010 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72304-08 | 2008 |
| 72272-07 | 2007 |
| 72289-04 | 2004 |
| 72608-08 | 2008 |
| 72303-08 | 2008 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72493-07 | 2007 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72169-07 | 2007 |
| 72168-07 | 2007 |
| 72326-95 | 1995 |
| 72094-06 | 2006 |
| 72434-00 | 2000 |
| 72611-07 | 2007 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 74144-98 | 1998 |
| 72134-94GY | 1994 |
| 72449-01 | 2001 |
| 72520-01 | 2001 |
| 72154-94 | 1994 |
| 68653-05 | 2005 |
| 72450-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72541-07BN | 2007 |
| 72558-07 | 2007 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72231-98 | 1998 |
| 72633-02 | 2002 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 73101-96BK | 1996 |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72542-07BN | 2007 |
| 72479-07BK | 2007 |
| 72230-98 | 1998 |
| 74120-08 | 2008 |
| 72557-07 | 2007 |
| 74195-98 | 1998 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72528-01 | 2001 |
| 70494-08 | 2008 |
| 72244-95 | 1995 |
| 72327-03A | 2003 |
| 72011-05 | 2005 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 24927-01 | 2001 |
| 74159-98 | 1998 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72543-07BK | 2007 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 72469-07GY | 2007 |
| 72607-08 | 2008 |
| 70635-08 | 2008 |
| 72544-07 | 2007 |
| 74154-98 | 1998 |
| 72405-98GN | 1998 |
| 73102-96BK | 1996 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 709A1 - Dash Panel | |
| 46383-06 | 2006 |
| 71959-09 | 2009 |
| 709B1 - Instrument Cluster or Speedometer | |
| 71962-09 | 2009 |
| 67308-09 | 2009 |
| 67453-09 | 2009 |
| 71964-09 | 2009 |
| 71963-09 | 2009 |
| 67394-09 | 2009 |
| 714A1 - Ignition Switch | |
| 71578-01A | 2001 |
| 70020-05 | 2005 |
| 714B1 - Mechanical Switch | |
| 33902-98A | 1998 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 71569-06 | 2006 |
| 71587-04 | 2004 |
| 71571-06A | 2006 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71563-96 | 1996 |
| 71568-96A | 1996 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74440-08 | 2008 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 903A1 - Lockset | |
| 71402-07A | 2007 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | |
| 11143 | RETAINING RING | |
| 11304 | RING | |
| 3658 | SCREW | |
| 4132 | SCREW | |
| 41751-06A | GASKET | |
| 43567-92 | SCREW | |
| 45405-75A | SCREW | FORK, FRONT - VRSCDX: |
| 48300-60 | ROLLER BEARING | FORK, FRONT BRACKET - VRSCDX: FORK, FRONT BRACKET - VRSCF: |
| 7041 | LOCKWASHER | SEATS: |
| 7716 | LOCKNUT | TAIL LAMP, TURN SIGNALS REAR, & LICENSE PLATE BRACKET - VRSCF: |
| 9252 | BEARING | |
| 9276A | BEARING | |
| 9955 | CLAMP | EXHAUST SYSTEM - VRSCF: EXHAUST SYSTEM - VRSCDX: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 46514-01A | OIL SEAL | FORK, FRONT - VRSCDX: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FILLER CAP |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | SWITCHES, HANDLEBAR: |
| 71621-08 | STOPLAMP & CLUTCH SWITCH w/10181 & 72266-94 | |
| 72330-95 | FUSE |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 37909-90 | RETAINING RING |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | SHIFTER KIT | SHIFTER, GEAR: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 65296-95A | CLAMP | EXHAUST SYSTEM - VRSCF: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP, TURN SIGNALS REAR & LICENSE PLATE BRACKET - VRSCDX: |
| 68329-03 | BULB HB2/H4 | HEADLAMP (1 OF 2): |
| 68973-00 | LENS (HDI, Australia, England, Japan, H-105, Asia-Pacific) | TURN SIGNALS, FRONT: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32335-04 | SPARK PLUGS | |
| 63793-01K | ENGINE OIL FILTER | |
| 65989-97C | BATTERY | |
| 95594-84A | WEIGHT 5 grams (silver) | WHEELS, FRONT: WHEELS, REAR: |
| 95595-84A | WEIGHT 5 grams | WHEELS, FRONT: WHEELS, REAR: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
