GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2010 POLICE MODELS
VIN Model Codes

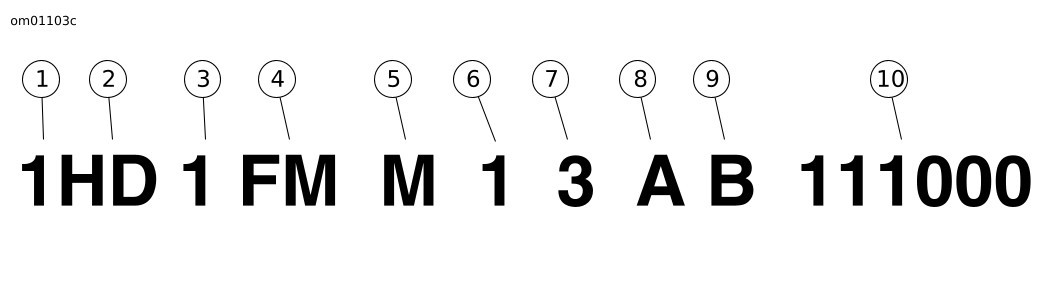

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson V.I.N. Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | Market designation | 1=Originally manufactured for sale within the
United States 5=Originally manufactured for sale outside of the
United States | |
2 | Manufacturer | HD=Harley-Davidson | |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) | |
4 | Model | See V.I.N. model table | |
5 | Engine type | M=Twin Cam 103™ 1690 cc air-cooled,
fuel-injected | |
6 | Introduction date/ Calibration recognition | Normal Introduction 1=Domestic 3=California A=Canada C=HDI J=Brazil | Mid-year or Special Introduction 2, 4=Domestic 5, 6=California B=Canada D=HDI K=Brazil |
7 | V.I.N. check digit | Can be 0-9 or X | |
8 | Model year | A=2010 | |
9 | Assembly plant | B=York, PA U.S.A. | |
10 | Sequential number | Varies | |
Table 3. V.I.N. Model Codes
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
FH | Police FLHP Road King® | FM | Police FLHTP Electra Glide® |
FT | Police FLHPE Road King® (California only) |
NOTES

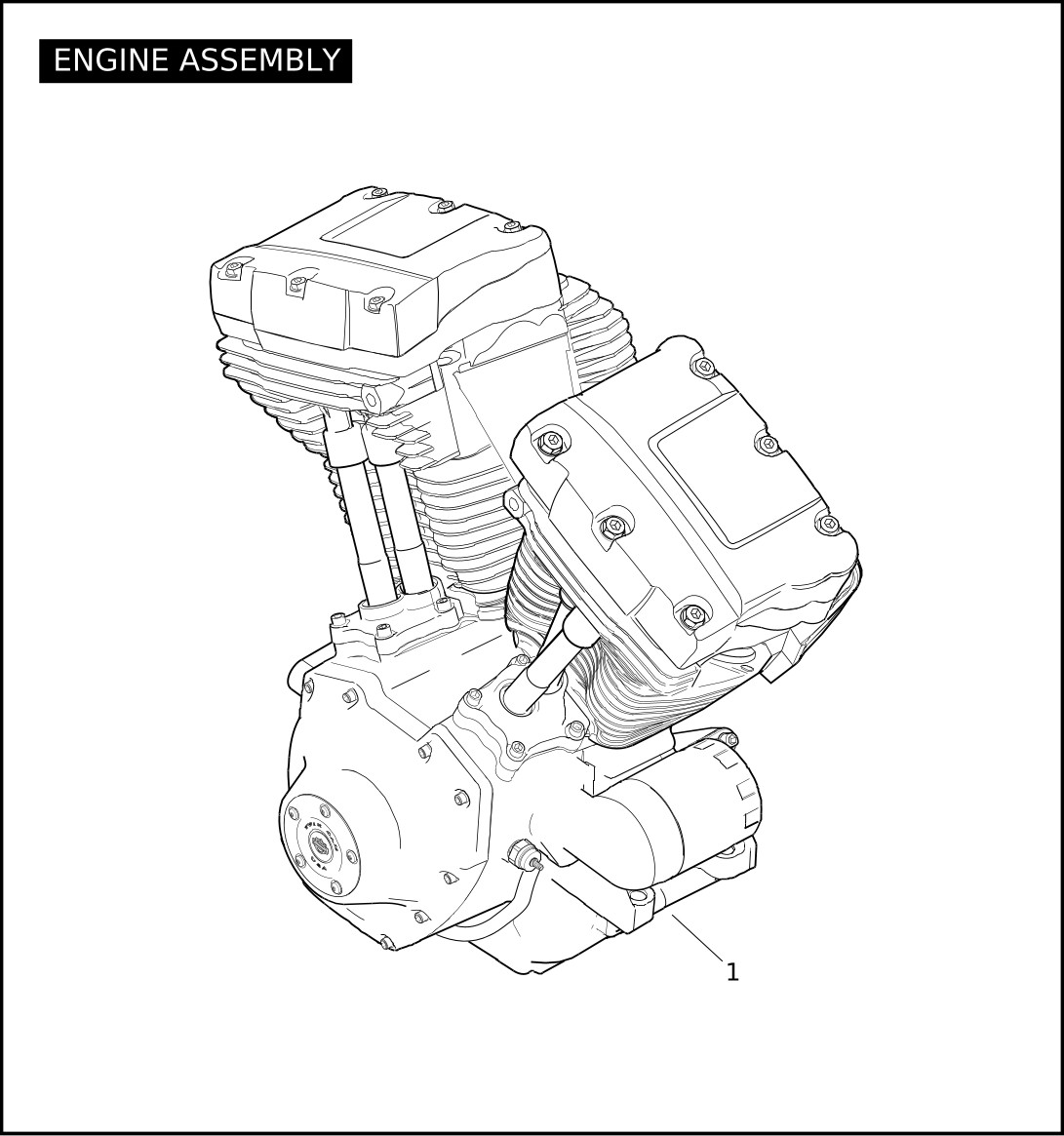

ENGINE ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-10 | ENGINE ASSEMBLY, complete | ALL |

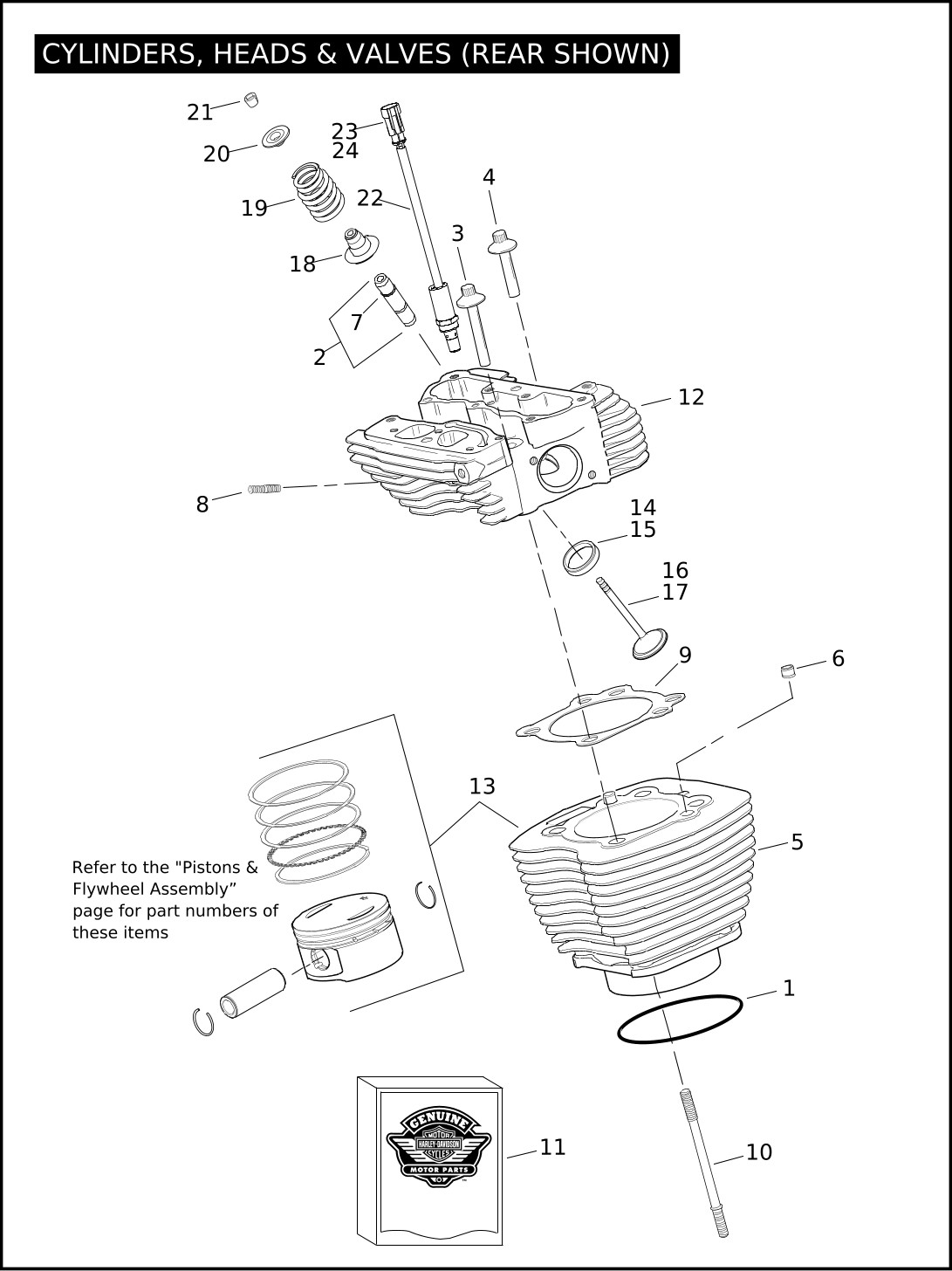

CYLINDERS, HEADS & VALVES - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | ALL |
| 2 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust w/ 16699-06 (4) | ALL |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | ALL |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | ALL |
| 5 | 16547-99 | CYLINDER ASSEMBLY (black) (2) | ALL |
| 6 | 16595-99A | DOWEL, pin (4) | ALL |
| 7 | 16699-06 | SNAP RING (4) | ALL |
| 8 | 16715-83 | STUD, exhaust port (4) | ALL |
| 9 | 16787-99A | GASKET, cylinder head (2) | ALL |
| 10 | 16834-99A | STUD, cylinder (8) | ALL |
| 11 | 17052-99B | GASKET KIT, top end | ALL |
| 17053-99B | GASKET KIT, engine overhaul | ALL | |
| 12 | 17728-08 | CYLINDER HEAD, front, w/ guides & seats (black) | ALL |
| 17729-08 | CYLINDER HEAD, rear, w/ guides & seats (black) | ALL | |
| 13 | 17460-07 | CYLINDER ASSEMBLY, w/ piston, rings, piston pin & retaining rings (black) (2) | ALL |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | ALL |
| 15 | 18020-83 | INSERT, intake valve seat (2) | ALL |
| 16 | 18074-05A | INTAKE VALVE (2) | ALL |
| 17 | 18085-05B | EXHAUST VALVE (2) | ALL |
| 18 | 18094-02A | SEAL KIT, valve | ALL |
| 19 | 18245-02 | VALVE SPRING (4) | ALL |
| 20 | 18258-02 | COLLAR, valve spring (4) | ALL |
| 21 | 18260-02 | KEEPER, valve (8) | ALL |
| 22 | 28861-07A | SOLENOID, auto compression release, w/ 72009-05 & 72011-05 (2) | ALL |
| 23 | 72009-05 | HOUSING, 2-way, pin (2) | ALL |
| 24 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (4) | ALL |
ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | ALL |
| 2 | 3692A | SCREW (6) | ALL |
| 3 | 3693A | SCREW (10) | ALL |
| 4 | 3736A | SCREW (8) | ALL |
| 5 | 3746A | SCREW (4) | ALL |
| 6 | 4741A | SCREW (8) | ALL |
| 7 | 6762B | WASHER (4) | ALL |
| 8 | 11132A | O-RING, push rod cover (4) | ALL |
| 9 | 11145A | O-RING, push rod cover (4) | ALL |
| 10 | 11270 | O-RING (2) | ALL |
| 11 | 11293 | O-RING (4) | ALL |
| 12 | 16719-99B | GASKET, rocker housing (2) | ALL |
| 13 | 17045-99C | GASKET KIT, cam service | ALL |
| 14 | 17162-03 | GASKET KIT, breather assembly w/ 26858-99, 63815-99 & gaskets | ALL |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | ALL |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | ALL |
| 17 | 17386-99A | GASKET, rocker cover (2) | ALL |
| 18 | 17428-57 | BUSHING, rocker arm (8) | ALL |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | ALL |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | ALL |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | ALL |
| 22 | 17611-83 | SHAFT, rocker arm (4) | ALL |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle & gaskets (2) | ALL |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | ALL |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | ALL | |
| 25 | 17939-99 | COVER, push rod, lower (4) | ALL |
| 26 | 17945-36B | CAP, cover spring (4) | ALL |
| 27 | 17947-36 | SPRING, push rod cover (4) | ALL |
| 28 | 17948-99 | COVER, push rod, upper (4) | ALL |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | ALL |
| 17966-99 | LIFTER COVER, rear (chrome) | ALL | |
| 30 | 17968-99 | RETAINER, spring cap (4) | ALL |
| 31 | 18535-99 | PIN, anti-rotation (2) | ALL |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | ALL |
| 33 | 18635-99B | GASKET, lifter cover (2) | ALL |
| 34 | 26858-99 | VALVE, breather | ALL |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | ALL |

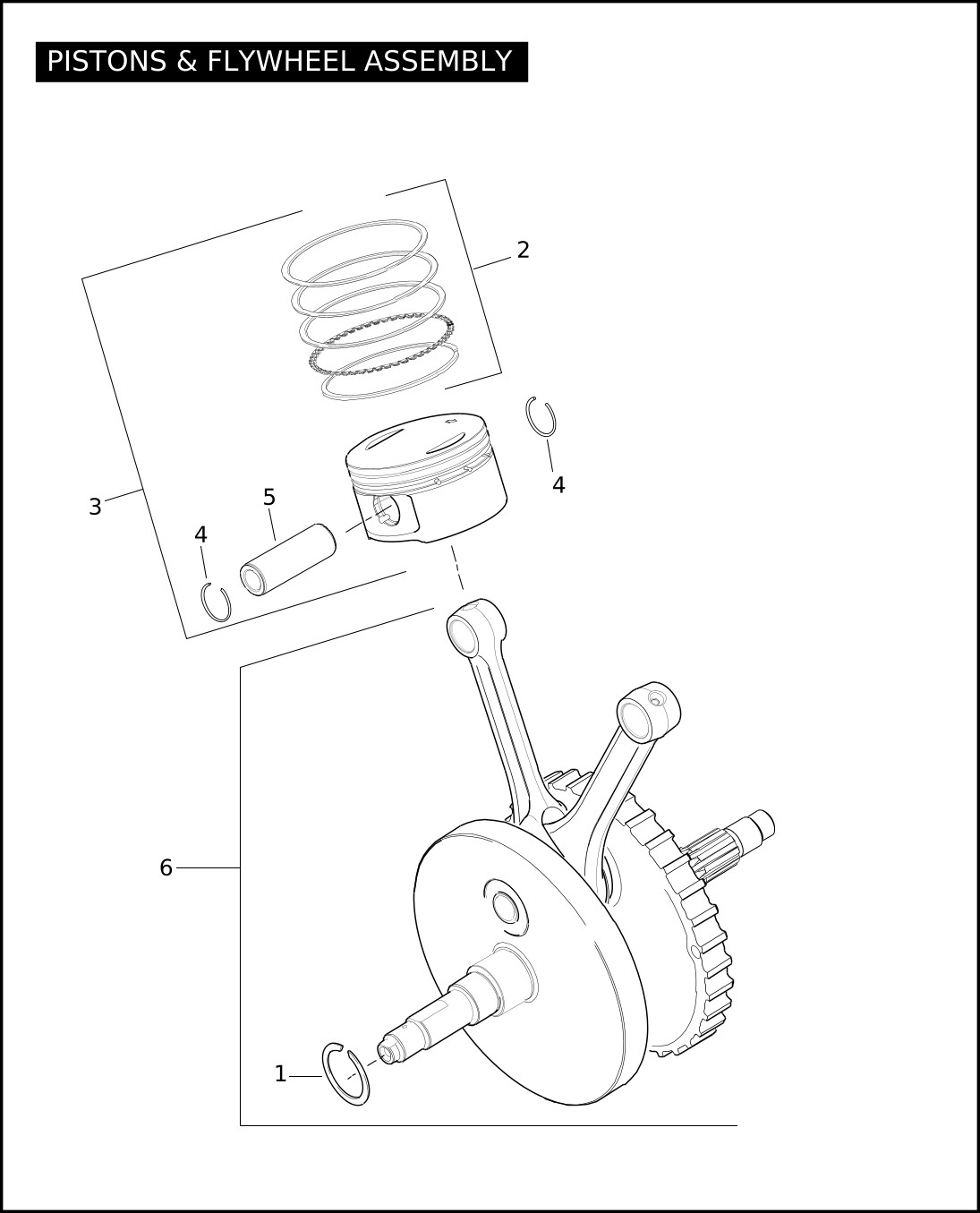

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | ALL |
| 2 | 21918-99 | PISTON RING SET, standard (2) | ALL |
| 21919-99 | PISTON RING SET, 0.005 in. O.S. (2) | ALL | |
| 21945-99 | PISTON RING SET, 0.010 in. O.S. (2) | ALL | |
| 3 | 21962-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2) | ALL |
| 21963-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.005 in. O.S. (2) | ALL | |
| 21964-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2) | ALL | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | ALL |
| 5 | 22131-05 | PISTON PIN (2) | ALL |
| 6 | 23729-07A | FLYWHEEL ASSEMBLY KIT | ALL |

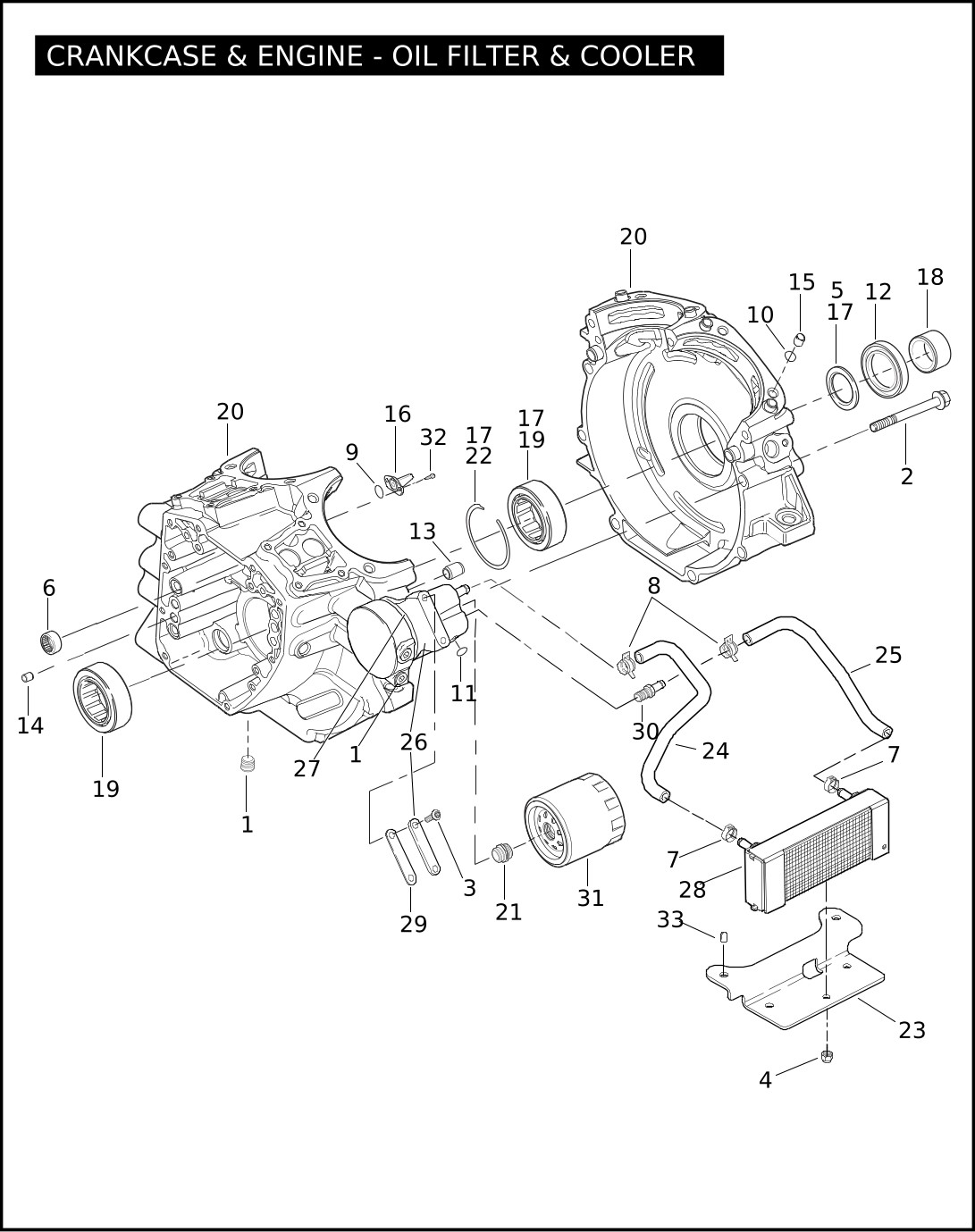

CRANKCASE & ENGINE - OIL FILTER & COOLER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG (3) | ALL |
| 2 | 895 | SCREW (9) | ALL |
| 3 | 924 | SCREW (2) | ALL |
| 4 | 7716 | LOCKNUT (3) | ALL |
| 5 | 8972 | WASHER (2) | ALL |
| 6 | 9215 | BEARING, needle, left side, camshaft (2) | ALL |
| 7 | 10198 | CLAMP (2) | ALL |
| 8 | 10354 | CLAMP (2) | ALL |
| 9 | 11140 | O-RING (2) | ALL |
| 10 | 11273 | O-RING (2) | ALL |
| 11 | 11290 | O-RING | ALL |
| 12 | 12068 | SEAL, oil | ALL |
| 13 | 16574-99A | DOWEL, pin (2) | ALL |
| 14 | 16589-99A | DOWEL, pin (2) | ALL |
| 15 | 16595-99A | DOWEL, pin (4) | ALL |
| 16 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | ALL |
| 17 | 24004-03A | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | ALL |
| 18 | 24009-06 | SPACER, sprocket shaft | ALL |
| 19 | 24605-07 | BEARING, main (2) | ALL |
| 20 | 24621-06A | CRANKCASE SET, w/ 895, 3983 (not shown), 9215, 11140, 22307-99, 24605-07, 35114-02 & 68042-99 (black) | ALL |
| 21 | 26041-05A | ADAPTER | ALL |
| 22 | 35114-02 | RING, retaining, internal | ALL |
| 23 | 62108-09 | BRACKET, mounting, oil-cooler | ALL |
| 24 | 62629-09 | HOSE, oil cooler, right | ALL |
| 25 | 62641-09 | HOSE, oil cooler, left | ALL |
| 26 | 63059-09 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 63066-07, 63084-07, 63533-41A & cover | ALL |
| 27 | 63066-07 | GASKET | ALL |
| 28 | 63083-09 | OIL COOLER CORE | ALL |
| 29 | 63084-07 | GASKET | ALL |
| 30 | 63533-41A | FITTING (2) | ALL |
| 31 | 63798-99A | FILTER, oil (chrome) | ALL |
| 32 | 68042-99 | SCREW (4) | ALL |
| 33 | 89584-07 | PROTECTOR CAP (2) | ALL |

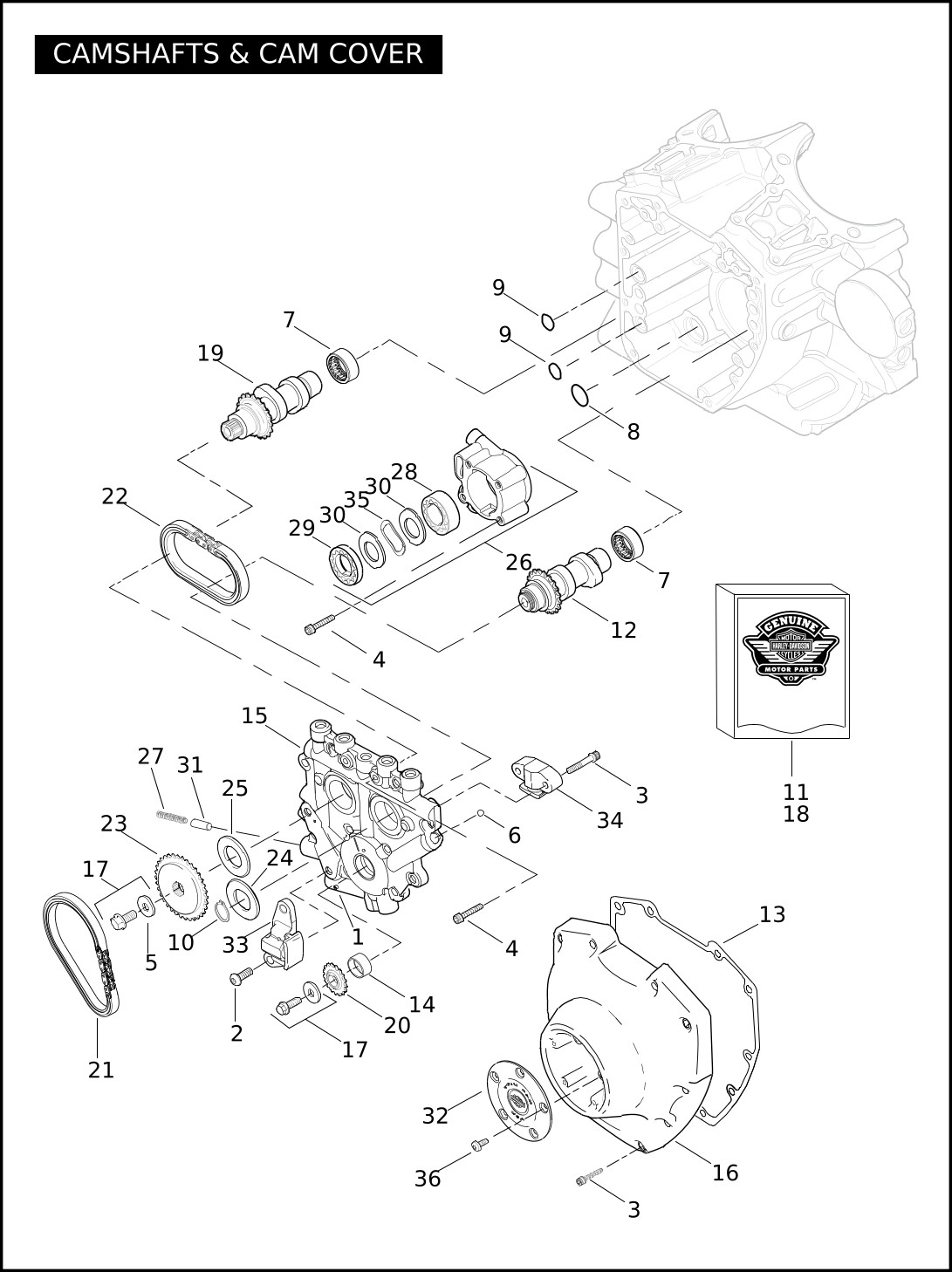

CAMSHAFTS & CAM COVER - TWIN CAM 103™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | ALL |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | ALL |
| 3 | 4740A | SCREW, cam cover (10) | ALL |
| 4740A | SCREW, secondary cam tensioner (2) | ALL | |
| 4 | 4741A | SCREW (10) | ALL |
| 5 | 6294 | WASHER | ALL |
| 6 | 8873 | BALL (12) | ALL |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | ALL |
| 8 | 11293 | O-RING | ALL |
| 9 | 11301 | O-RING (2) | ALL |
| 10 | 11461 | RETAINING RING | ALL |
| 11 | 17045-99C | GASKET KIT, cam service | ALL |
| 12 | 24608-07A | CAMSHAFT, front | ALL |
| 13 | 25244-99A | GASKET, cam cover | ALL |
| 14 | 25344-99 | BUSHING, crankshaft | ALL |
| 15 | 25355-06 | CAM SUPPORT PLATE, w/ bypass valve | ALL |
| 16 | 25369-01B | CAM COVER (chrome) | ALL |
| 17 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294, screws & washer | ALL |
| 18 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | ALL |
| 19 | 25590-07A | CAMSHAFT, rear | ALL |
| 20 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | ALL |
| 21 | 25675-06 | CHAIN, primary cam drive | ALL |
| 22 | 25683-06 | CHAIN, secondary cam drive | ALL |
| 23 | 25728-06 | SPROCKET, cam drive, 34 T | ALL |
| 24 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick | ALL |
| 25 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | ALL |
| 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | ALL | |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | ALL | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | ALL | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | ALL | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | ALL | |
| 26 | 26037-06 | OIL PUMP ASSEMBLY, w/ body, both gerotor assemblies & separator plate | ALL |
| 27 | 26210-99 | SPRING, relief valve | ALL |
| 28 | 26278-06 | GEROTOR ASSEMBLY, scavenge | ALL |
| 29 | 26281-06 | GEROTOR ASSEMBLY, pressure | ALL |
| 30 | 26282-06 | SEPARATOR PLATE, gerotor (2) | ALL |
| 31 | 26400-82B | RELIEF VALVE, oil pump | ALL |
| 32 | 32543-07 | COVER, timer cover | ALL |
| 33 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | ALL |
| 34 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | ALL |
| 35 | 40323-00 | SPRING, separator | ALL |
| 36 | 68042-99 | SCREW (5) | ALL |

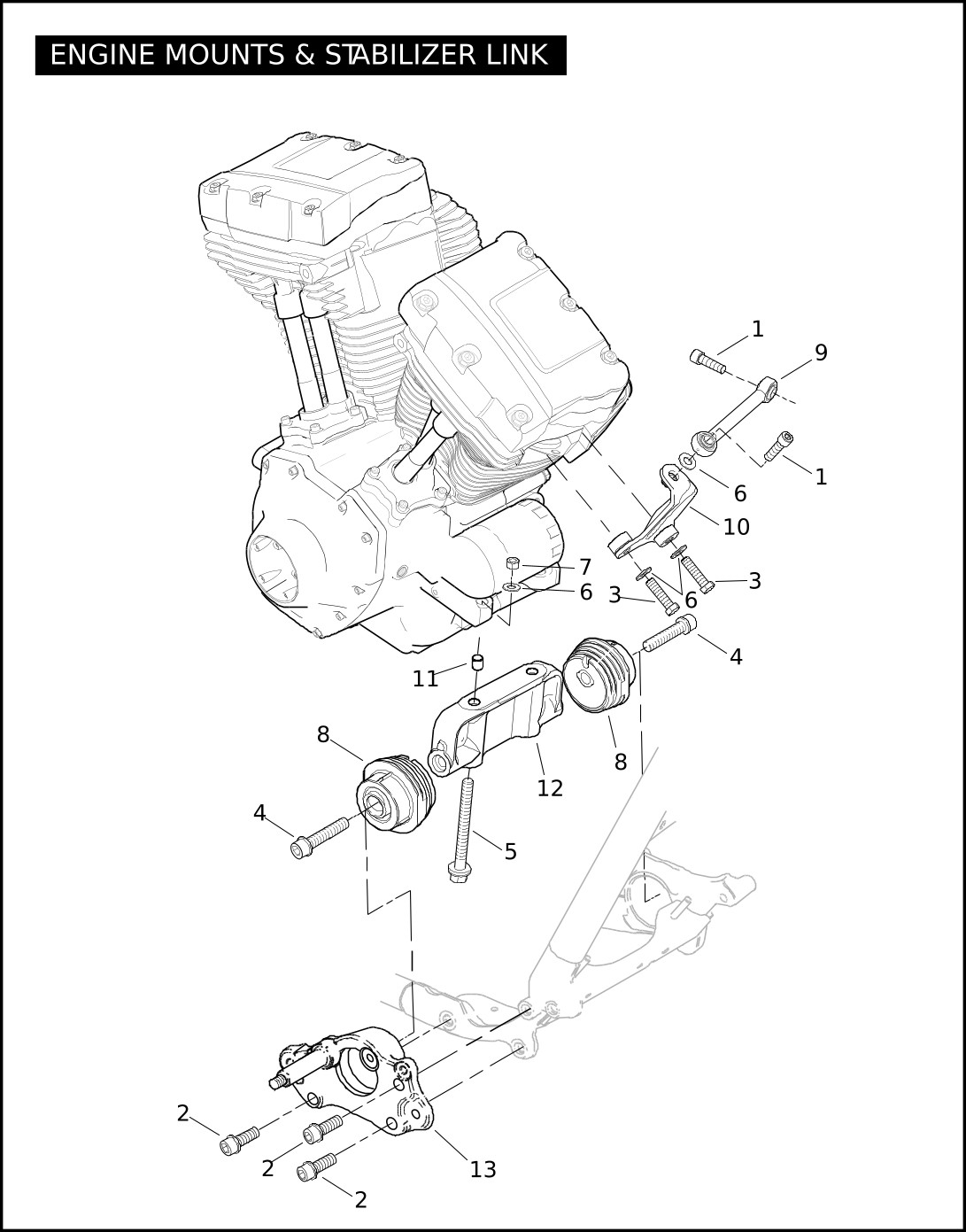

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4313 | SCREW (2) | ALL |
| 2 | 4688 | SCREW (3) | ALL |
| 3 | 4721 | BOLT (2) | ALL |
| 4 | 4838 | SCREW (2) | ALL |
| 5 | 4868 | SCREW (2) | ALL |
| 6 | 6127 | WASHER (5) | ALL |
| 7 | 7783 | NUT (2) | ALL |
| 8 | 16207-09 | ENGINE MOUNT, front (2) | ALL |
| 9 | 16219-09 | STABLIZER LINK | ALL |
| 10 | 16321-08 | WELDMENT, engine strap | ALL |
| 11 | 24754-75A | DOWEL BUSHING (2) | ALL |
| 12 | 47159-09BHP | BRACKET, front engine mount | ALL |
| 13 | 47460-09BHP | END CAP, front mount | ALL |

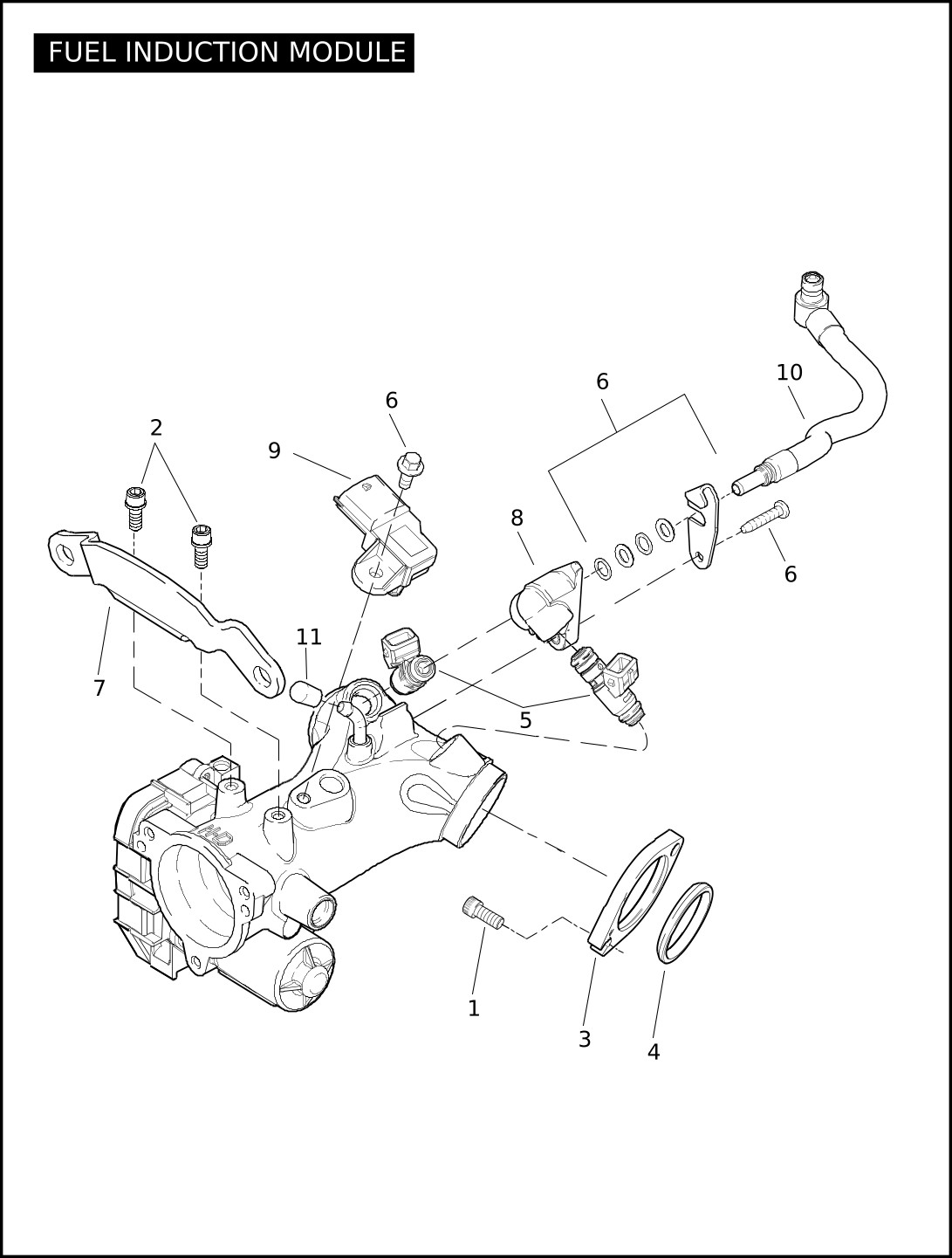

FUEL INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 4705 | SCREW (2) | ALL |
| 3 | 26993-06 | FLANGE, mounting (2) | ALL |
| 4 | 26995-86B | SEAL, intake manifold (2) | ALL |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | ALL |
| 27685-08A | INDUCTION MODULE ASSEMBLY, complete | ALL | |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | ALL |
| 7 | 27712-08 | BRACKET, induction module | ALL |
| 8 | 27721-08 | FUEL RAIL | ALL |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | ALL |
| 10 | 62905-08 | FUEL LINE | ALL |
| 11 | 90383-98 | CAP, purge tube | ALL |

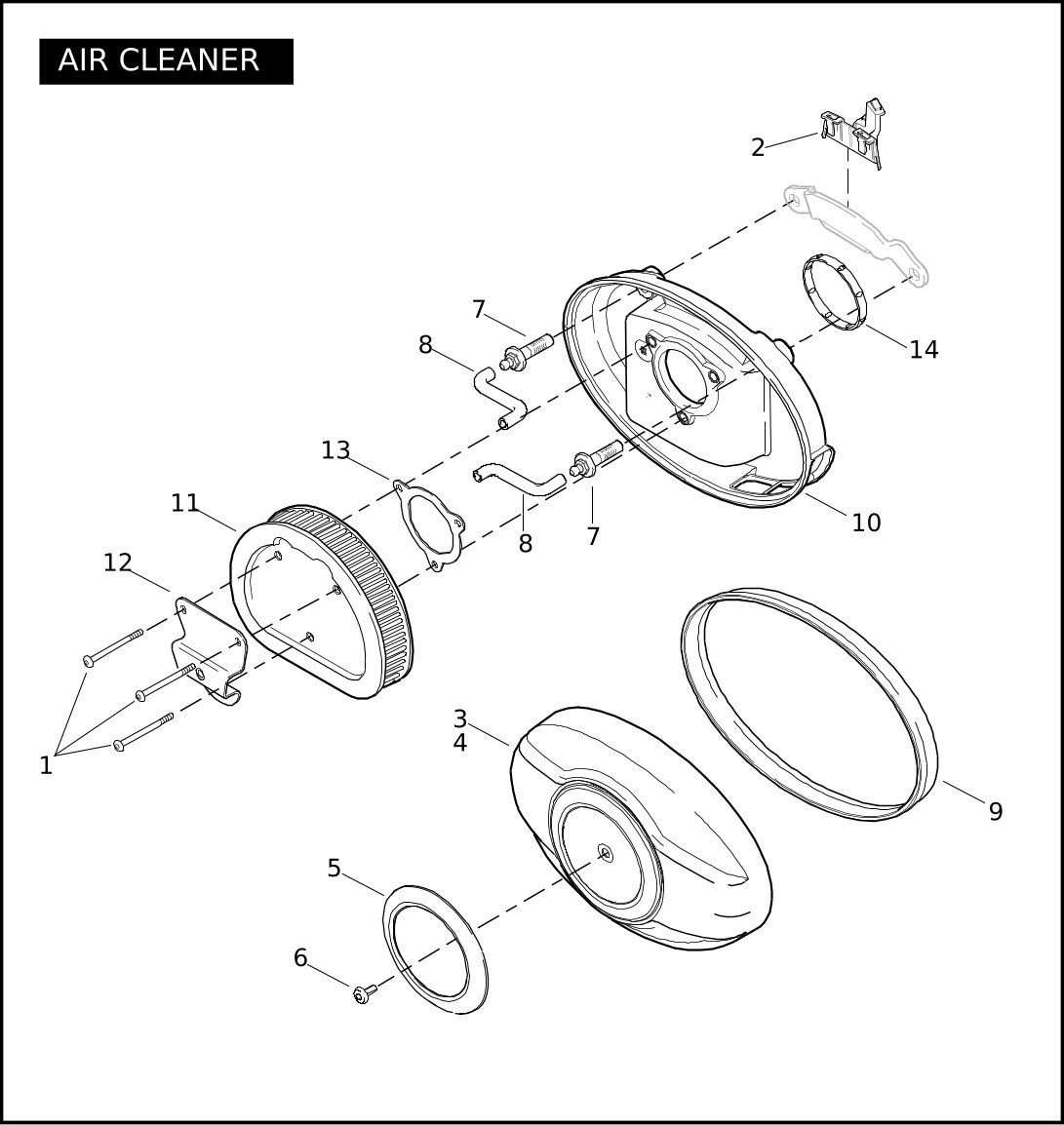

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | ALL |
| 2 | 10398 | CLIP, ACR connector retention | ALL |
| 3 | 29121-07 | COVER, air cleaner, w/ 29127-95B | ALL |
| 4 | 29127-95B | WARNING LABEL, air cleaner (chrome) | ALL |
| 5 | 29158-07 | INSERT, air cleaner | ALL |
| 6 | 29269-83A | SCREW | ALL |
| 7 | 29465-08 | BREATHER BOLT (2) | ALL |
| 8 | 29502-08 | BREATHER TUBE (2) | ALL |
| 9 | 29584-01 | SEAL, air cleaner cover | ALL |
| 10 | 29630-08A | BACKPLATE ASSEMBLY | ALL |
| 11 | 29633-08 | FILTER ELEMENT, w/ 29645-08 | ALL |
| 12 | 29644-08 | BRACKET ASSEMBLY, air cleaner cover | ALL |
| 13 | 29645-08 | GASKET, filter element | ALL |
| 14 | 29718-08 | GASKET, induction module to backplate | ALL |

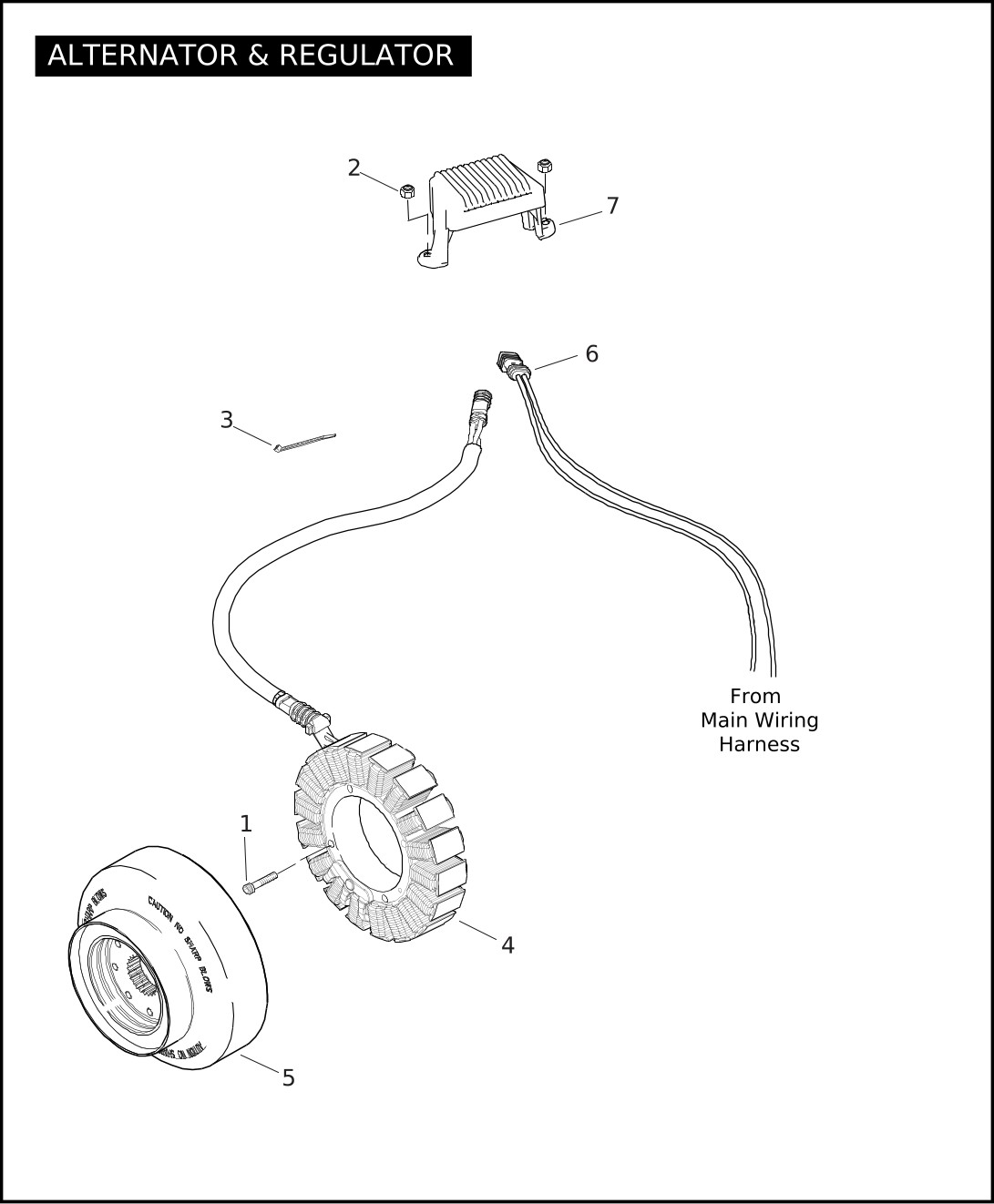

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | ALL |
| 2 | 7716 | LOCKNUT (2) | ALL |
| 3 | 10039 | CABLE STRAP (3) | ALL |
| 24009-06 | SPACER (not illustrated) | ALL | |
| 4 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP | ALL |
| 5 | 40356-07 | ROTOR & SPRING COVER ASSEMBLY | ALL |
| 6 | 74115-06 | DC LEAD ASSEMBLY, voltage regulator | ALL |
| 7 | 74505-09 | VOLTAGE REGULATOR ASSEMBLY | ALL |

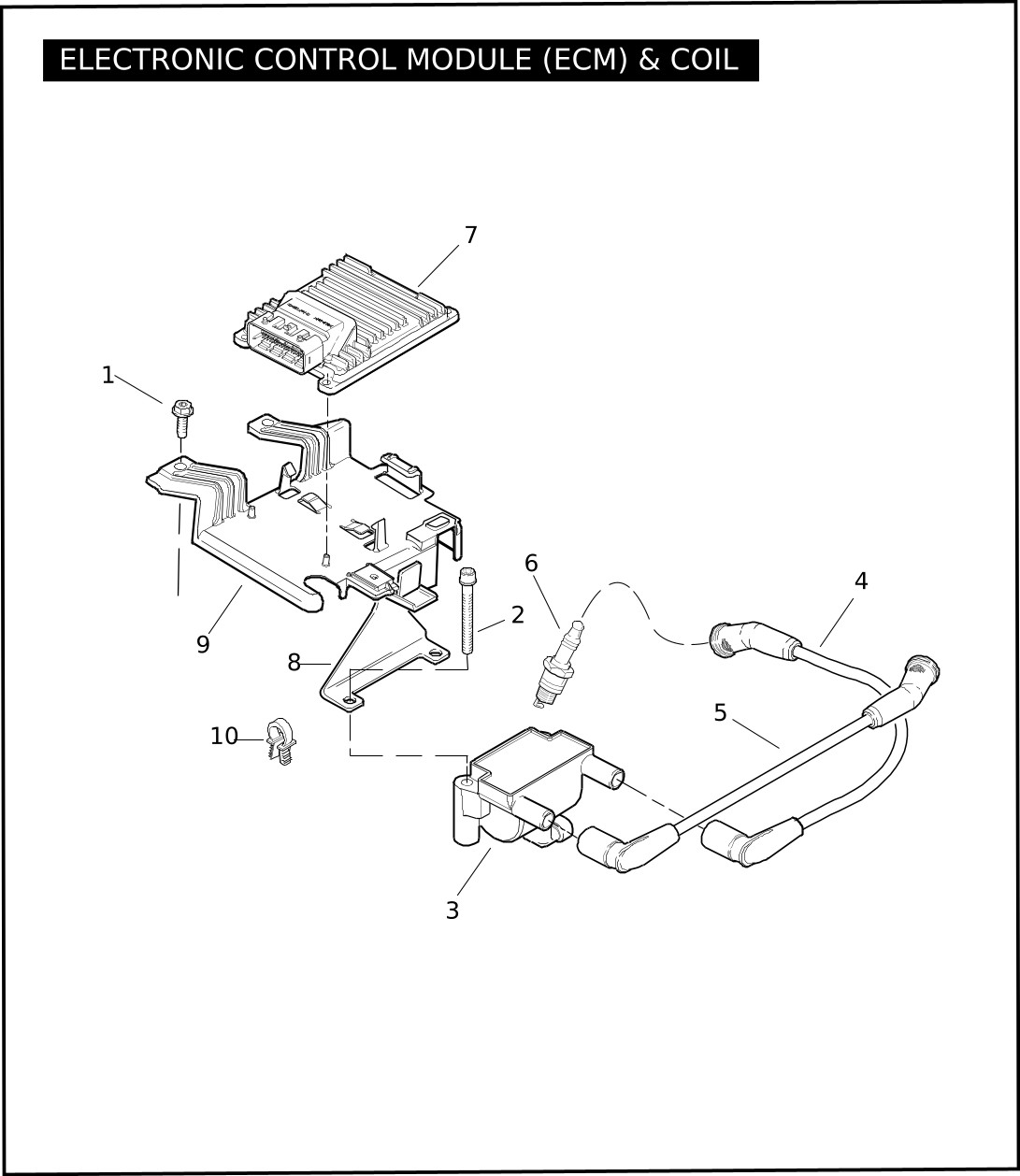

ELECTRONIC CONTROL MODULE (ECM) & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | ALL |
| 2 | 4826 | SCREW (2) | ALL |
| 3 | 31696-07A | IGNITION COIL | ALL |
| 4 | 32013-09 | SPARK PLUG CABLE, front cylinder | ALL |
| 5 | 32014-09 | SPARK PLUG CABLE, rear cylinder | ALL |
| 6 | 32362-04 | SPARK PLUG, 6R12 (2) | ALL |
| 7 | 34246-08A | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | ALL |
| 8 | 66200-09 | BRACKET, battery hold down | ALL |
| 9 | 70344-09 | CADDY, electronic control module (ECM) | ALL |
| 10 | 70681-09 | RETAINER, wire harness (4) | ALL |

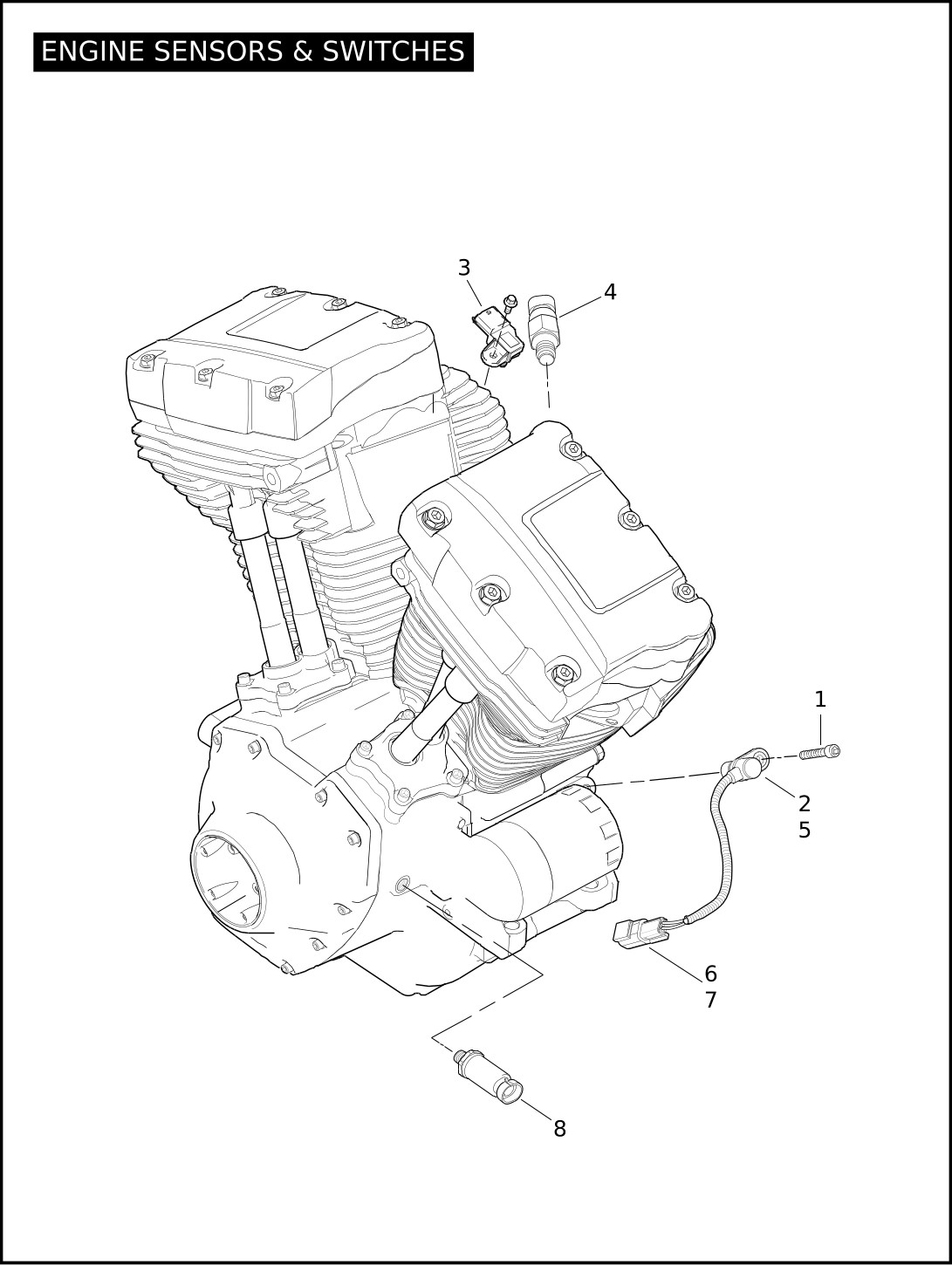

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | ALL |
| 2 | 11289A | O-RING, crankshaft position sensor | ALL |
| 3 | 32319-07 | SENSOR, temperature manifold absolute pressure (TMAP), w/ o-ring | ALL |
| 4 | 32446-99 | SENSOR, engine temperature | ALL |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94, 74194-98 | ALL |
| 6 | 72199-94 | CONNECTOR ANCHOR | ALL |
| 7 | 74194-98 | TERMINAL PIN, DTM #20-24 (2) | ALL |
| 8 | 74438-99 | OIL PRESSURE SENDER | ALL |

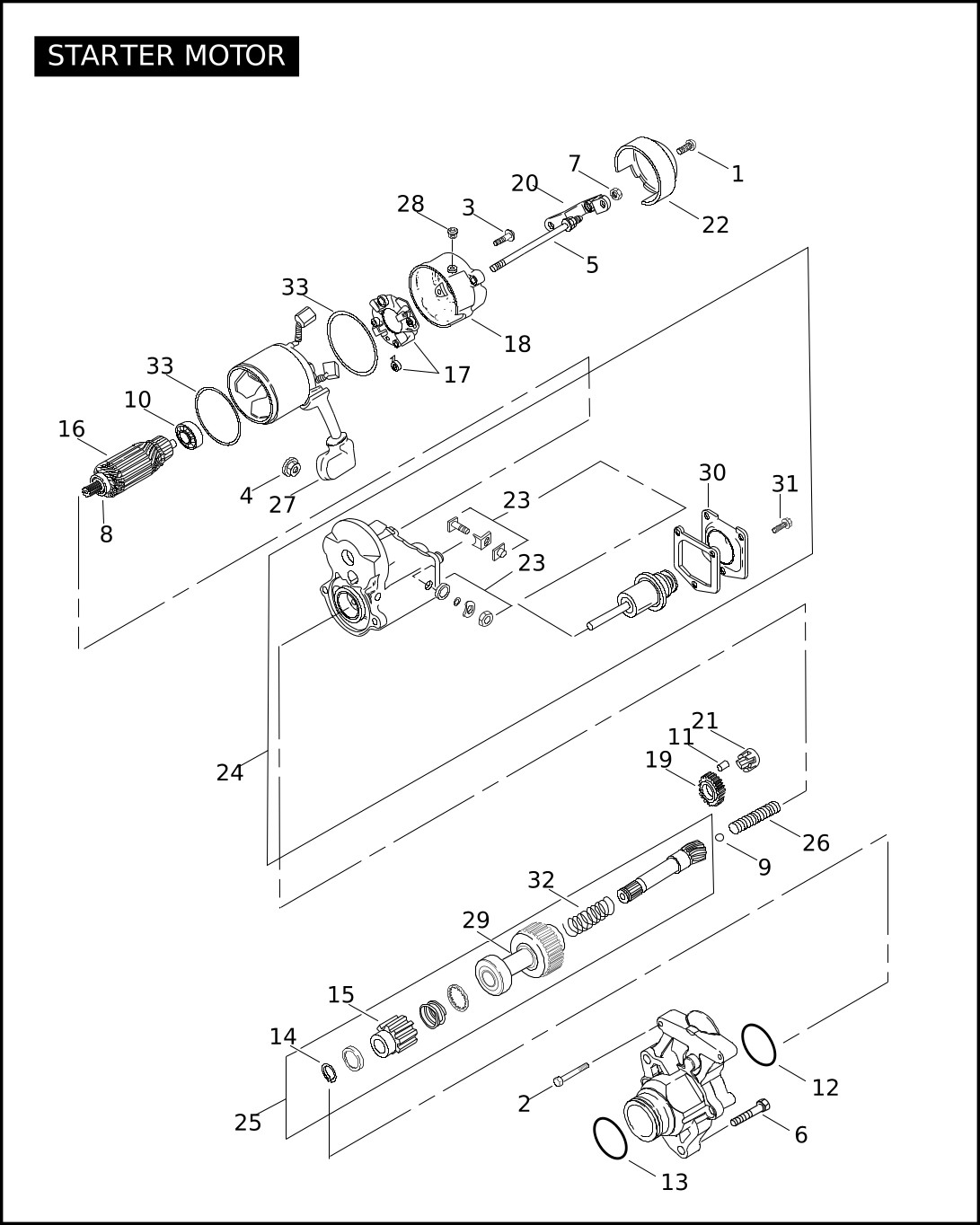

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW, cover | ALL |
| 2 | 928 | BOLT, starter (2) | ALL |
| 3 | 929A | SCREW, w/ o-ring (2) | ALL |
| 4 | 3403 | LOCKNUT, flange | ALL |
| 5 | 3559 | BOLT, starter (2) | ALL |
| 6 | 4419 | SCREW, starter mount (2) | ALL |
| 7 | 7838 | NUT, bracket (2) | ALL |
| 8 | 8871 | BALL BEARING | ALL |
| 9 | 8879 | BALL | ALL |
| 10 | 8883 | BALL BEARING | ALL |
| 11 | 9077 | CLUTCH ROLLER (5) | ALL |
| 12 | 10957 | O-RING | ALL |
| 13 | 27444-00Y | O-RING, starter-to-case | ALL |
| 14 | 31328-91 | RING, snap | ALL |
| 15 | 31345-06 | GEAR, pinion | ALL |
| 16 | 31515-90 | ARMATURE ASSEMBLY | ALL |
| 17 | 31518-90 | BRUSH HOLDER ASSEMBLY | ALL |
| 18 | 31519-90 | FRAME, starter end | ALL |
| 19 | 31525-90 | IDLER GEAR | ALL |
| 20 | 31527-90 | BRACKET ASSEMBLY, starter cover | ALL |
| 21 | 31530-90 | RETAINER, idler | ALL |
| 22 | 31611-08 | COVER (chrome) | ALL |
| 23 | 31604-06 | SOLENOID REPAIR KIT | ALL |
| 31618-06A | STARTER ASSEMBLY COMPLETE (black) | ALL | |
| 24 | 31631-06 | SOLENOID ASSEMBLY, w/ 31688-90 & 31689-90 | ALL |
| 25 | 31633-07 | CLUTCH SUBASSEMBLY, w/ 31328-91, 31345-06, 31681-07 & 31692-90 | ALL |
| 26 | 31641-06 | SPRING, solenoid | ALL |
| 27 | 31643-06 | CAP, terminal, rubber | ALL |
| 28 | 31660-90 | DRAIN VENT | ALL |
| 29 | 31681-07 | CLUTCH, starter motor | ALL |
| 30 | 31688-90 | COVER, solenoid | ALL |
| 31 | 31689-90 | BOLT, w/ washer (3) | ALL |
| 32 | 31692-90 | SPRING | ALL |
| 33 | 31695-90 | O-RING (2) | ALL |

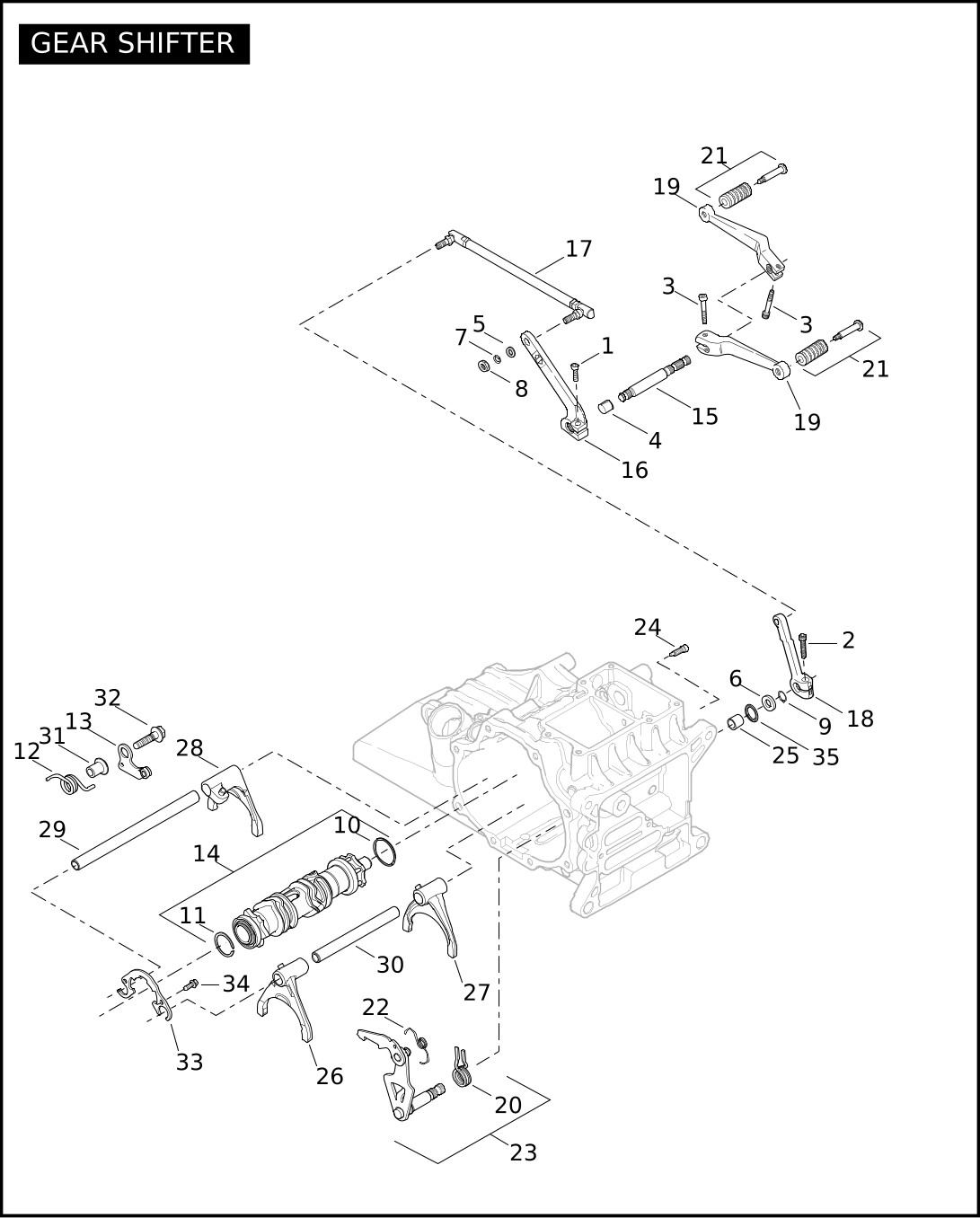

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | ALL |
| 2 | 856A | SCREW | ALL |
| 3 | 3275 | SCREW (2) | ALL |
| 4 | 5817 | SPACER | ALL |
| 5 | 6016 | WASHER | ALL |
| 6 | 6497HW | WASHER | ALL |
| 7 | 7041 | LOCKWASHER | ALL |
| 8 | 7744 | JAM NUT | ALL |
| 9 | 11150 | RETAINING RING | ALL |
| 10 | 11389 | RING, shift cam retaining | ALL |
| 11 | 11575 | RING, shift cam retaining | ALL |
| 12 | 33389-07 | SPRING, detent | ALL |
| 13 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | ALL |
| 14 | 33413-06A | CAM, shift, w/ 11389, 11575 & bearing | ALL |
| 15 | 33709-82A | SHAFT | ALL |
| 16 | 33718-82B | LEVER | ALL |
| 17 | 33759-99B | SHIFTER ROD | ALL |
| 18 | 33849-97 | LEVER, shifter rod | ALL |
| 19 | 33895-82C | SHIFT LEVER KIT, w/ 3275 & shifter lever (2) | ALL |
| 20 | 34064-00C | SPRING, shift lever centering | ALL |
| 21 | 34611-65A | PEG, shift lever (2) | ALL |
| 22 | 34987-06 | SPRING, ratchet lever | ALL |
| 23 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | ALL |
| 24 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 25 | 35186-06 | SLEEVE | ALL |
| 26 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 27 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 28 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 29 | 35222-06 | SHAFT, 5 - 6 shift fork | ALL |
| 30 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | ALL |
| 31 | 35243-06 | SLEEVE | ALL |
| 32 | 35244-06 | SCREW, detent | ALL |
| 35246-10 | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 10, 11, 12, 13, 14, 26, 27, 28, 29, 30, 31, 32, 33, 34, 7340, 35260-06, input shaft, countershaft & gears (black) | ALL | |
| 33 | 35249-06A | LOCK PLATE, shift cam | ALL |
| 34 | 35259-06 | SCREW, shift drum support (2) | ALL |
| 35 | 37101-84B | OIL SEAL | ALL |

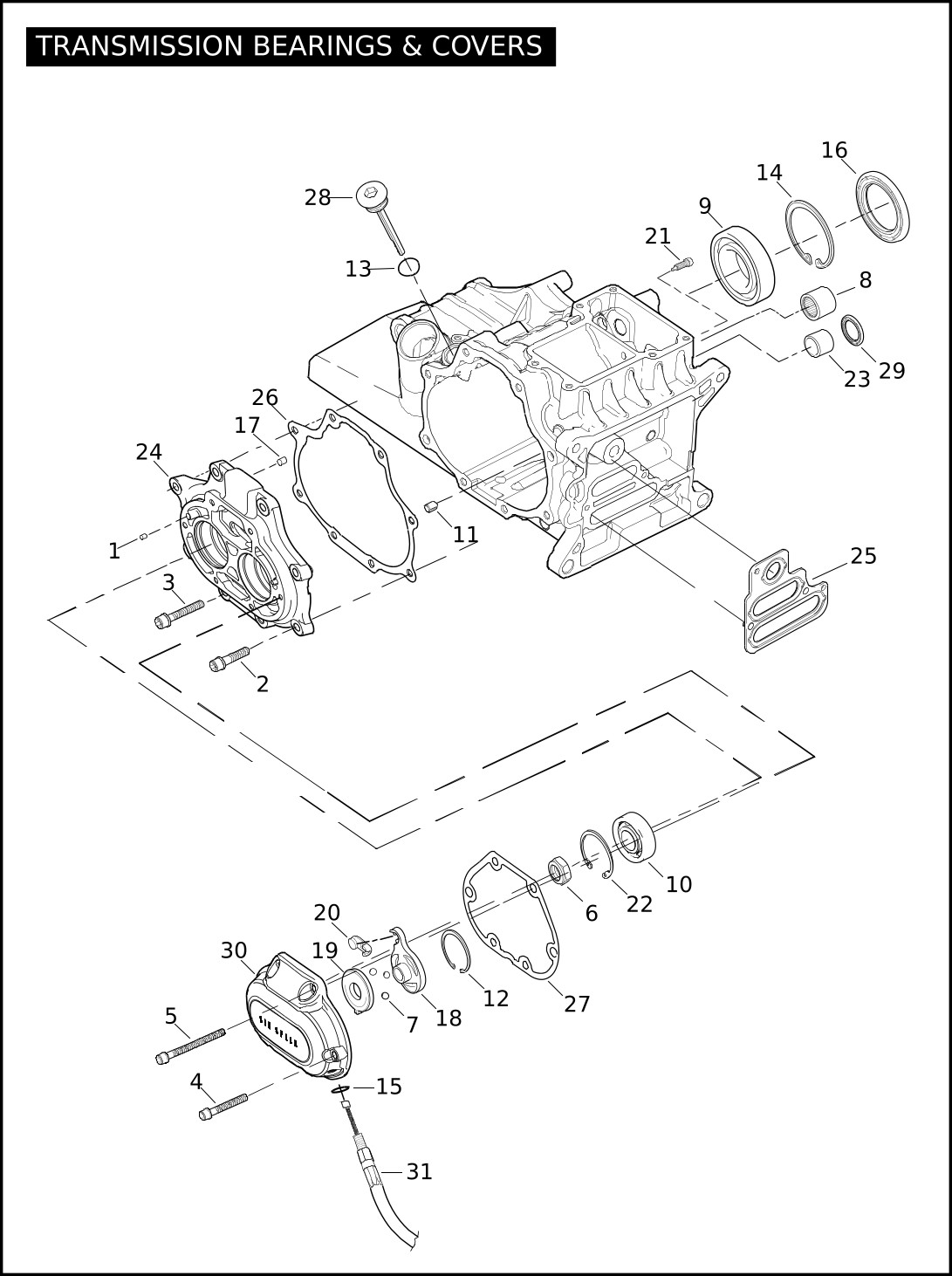

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (6) | ALL |
| 3 | 3300 | SCREW (2) | ALL |
| 4 | 4718A | SCREW (4) | ALL |
| 5 | 4741A | SCREW (2) | ALL |
| 6 | 7340 | NUT, mainshaft & countershaft (2) | ALL |
| 7 | 8873 | BALL (3) | ALL |
| 8 | 8963 | BEARING, needle | ALL |
| 9 | 8967 | BEARING | ALL |
| 10 | 8970 | BEARING (2) | ALL |
| 11 | 9701 | BUSHING | ALL |
| 12 | 10998 | RETAINING RING | ALL |
| 13 | 11132A | O-RING, dipstick | ALL |
| 14 | 11161 | RETAINING RING | ALL |
| 15 | 11179 | O-RING | ALL |
| 16 | 12074 | SEAL | ALL |
| 17 | 16583-00A | DOWEL BUSHING (2) | ALL |
| 18 | 25604-00A | INNER RAMP | ALL |
| 19 | 25605-00A | OUTER RAMP | ALL |
| 20 | 34920-86A | COUPLING | ALL |
| 21 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 22 | 35087-99A | RETAINING RING (2) | ALL |
| 23 | 35186-06 | SLEEVE | ALL |
| 24 | 35260-06 | BEARING HOUSING ASSEMBLY, w/ 221, 8970, 16583-00A & 35087-99A (black) | ALL |
| 25 | 35607-06 | GASKET | ALL |
| 26 | 35654-06 | GASKET, bearing housing | ALL |
| 27 | 36805-06 | GASKET, cover | ALL |
| 28 | 37065-06 | DIPSTICK (chrome) | ALL |
| 29 | 37101-84B | OIL SEAL | ALL |
| 30 | 37116-06 | CLUTCH RELEASE COVER (chrome) | ALL |
| 38630-88 | BOOT, clutch cable (not illustrated) | ALL | |
| 31 | 38667-08A | CABLE, clutch control, w/ 38630-88 & 11179 | ALL |

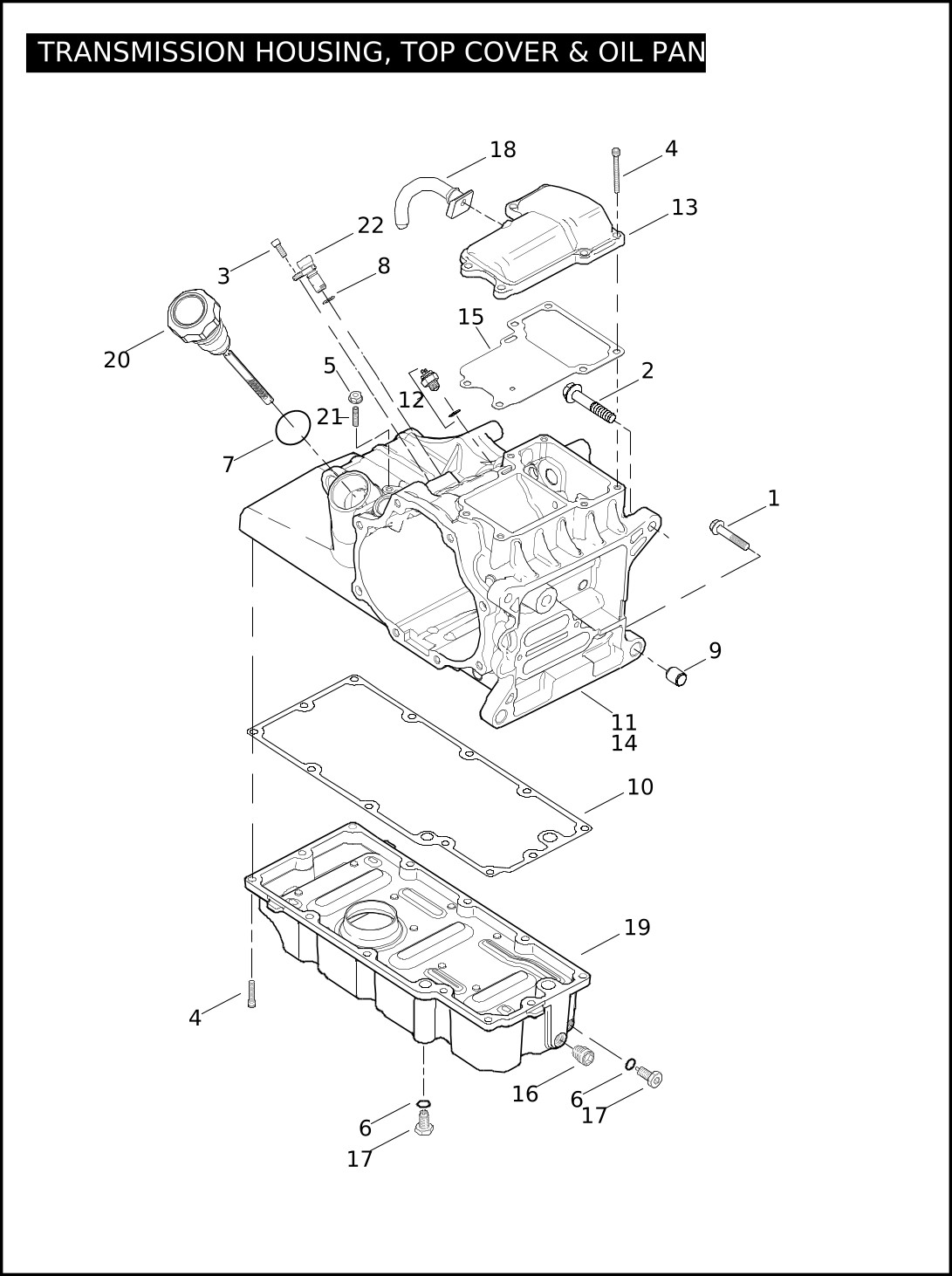

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | ALL |
| 2 | 3983 | SCREW (2) | ALL |
| 3 | 4705 | SCREW | ALL |
| 4 | 4741A | SCREW (18) | ALL |
| 5 | 7792 | NUT | ALL |
| 6 | 11105 | O-RING (2) | ALL |
| 7 | 11120 | O-RING | ALL |
| 8 | 11289A | O-RING | ALL |
| 9 | 16574-99A | DOWEL RING (2) | ALL |
| 10 | 26077-99A | GASKET, oil pan | ALL |
| 11 | 33166-10 | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (chrome & black) | ALL |
| 12 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | ALL |
| 13 | 34469-06B | TRANSMISSION COVER, top (chrome) | ALL |
| 14 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | ALL |
| 15 | 34917-06 | GASKET, upper cover | ALL |
| 16 | 45893-99 | PIPE PLUG | ALL |
| 17 | 60328-98B | PLUG, magnetic w/ 11105 (2) | ALL |
| 18 | 62372-09 | VENT HOSE, transmission | ALL |
| 19 | 62489-99A | OIL PAN ASSEMBLY (black) w/ 11105, 45893-99 & 60328-99B | ALL |
| 20 | 62849-07A | DIPSTICK ASSEMBLY, w/ 11120 (silver cap) | ALL |
| 21 | 66290-06 | STUD, ground | ALL |
| 22 | 74402-05A | SPEED SENSOR, w/ 11289A | ALL |

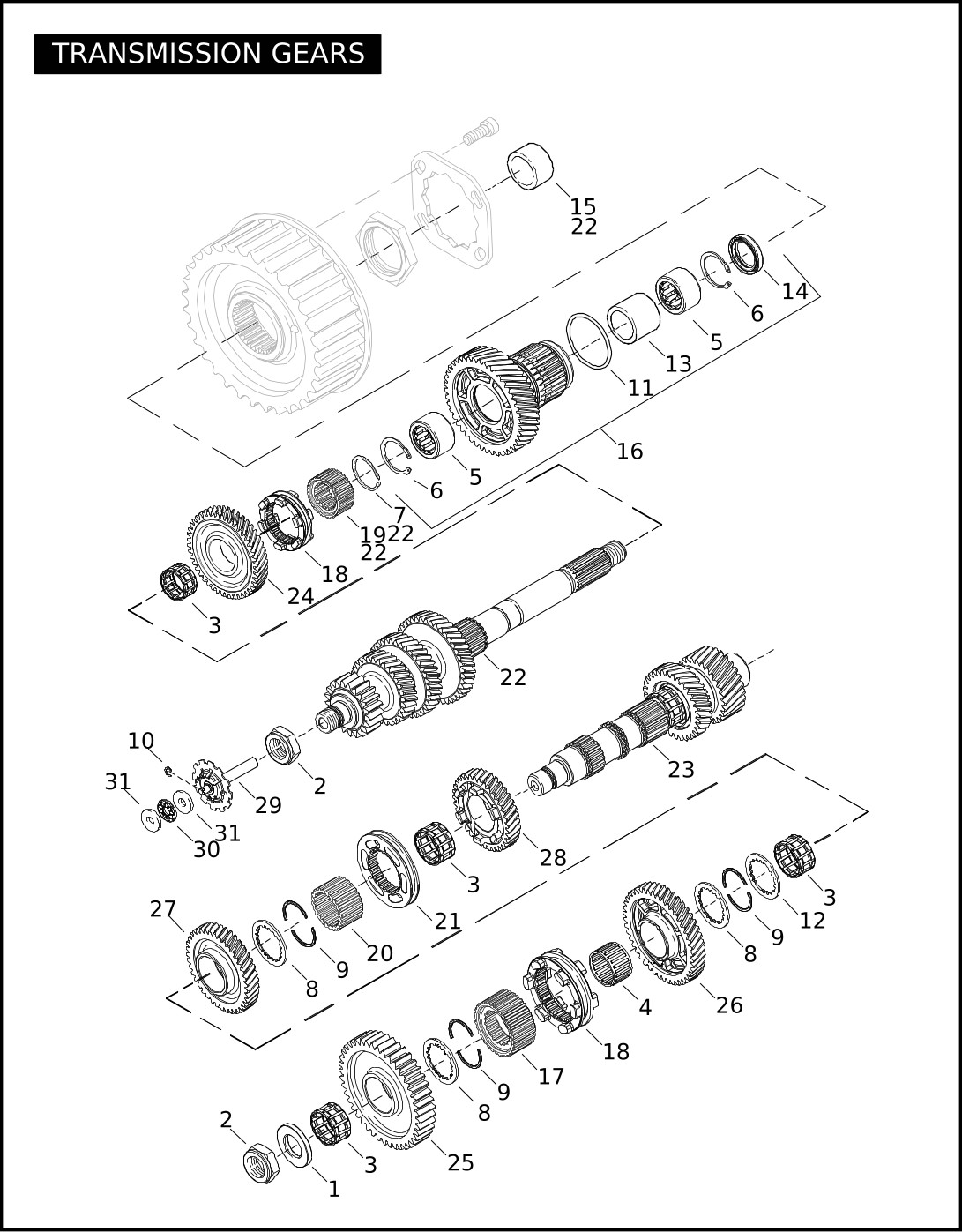

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042 | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11061A | RETAINING RING | ALL |
| 8 | 11081A | RING, lock (3) | ALL |
| 9 | 11082 | SECURING SEGMENT (6) | ALL |
| 10 | 11096 | RING, retaining | ALL |
| 11 | 11201 | O-RING | ALL |
| 12 | 11207 | WASHER, internal spline | ALL |
| 13 | 11599 | SPACER, bearing | ALL |
| 14 | 12077 | OIL SEAL | ALL |
| 15 | 34091-08 | BEARING, inner race | ALL |
| 16 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991, 11201, 11599 & 12077 | ALL |
| 17 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 18 | 35126-06 | DOG RING, lugged (2) | ALL |
| 19 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 20 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 21 | 35204-06 | DOG RING, pocketed | ALL |
| 35246-10 | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (black) | ALL | |
| 22 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | ALL |
| 23 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 24 | 35801-10 | GEAR, fifth input | ALL |
| 25 | 35805-06A | GEAR, countershaft-first | ALL |
| 26 | 35807-06 | GEAR, countershaft-second | ALL |
| 27 | 35811-06 | GEAR, countershaft-third | ALL |
| 28 | 35814-06 | GEAR, countershaft-fourth | ALL |
| 29 | 37069-90 | ROD ASSEMBLY | ALL |
| 30 | 37312-75 | BEARING | ALL |
| 31 | 37313-80 | THRUST RACE BEARING (2) | ALL |

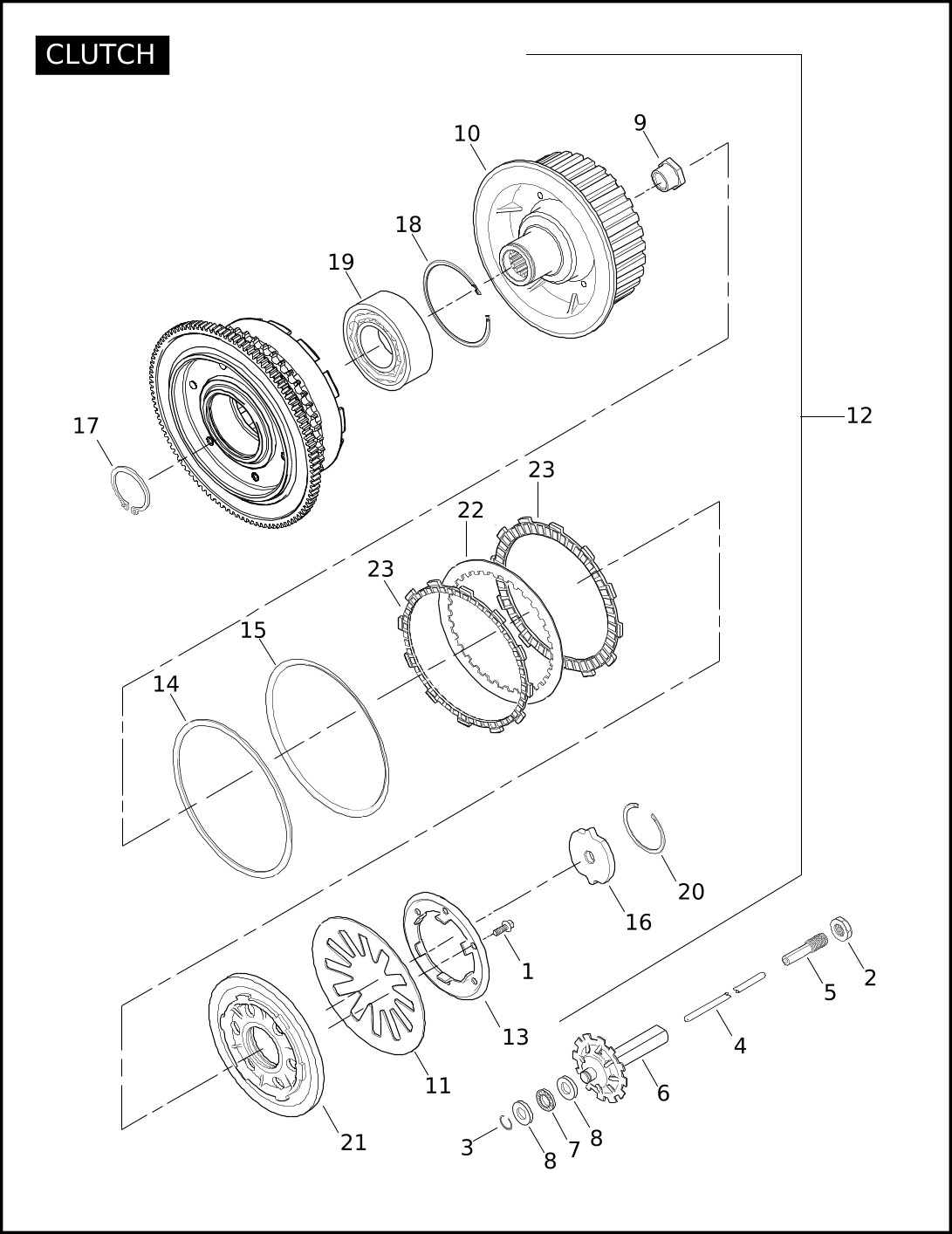

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | ALL |
| 2 | 7848W | JAM NUT | ALL |
| 3 | 11096 | RETAINING RING | ALL |
| 4 | 37092-06 | PUSH ROD, clutch release | ALL |
| 5 | 37090-98A | SCREW, adjuster | ALL |
| 6 | 37069-90 | ROD ASSEMBLY | ALL |
| 7 | 37312-75 | BEARING, push rod | ALL |
| 8 | 37313-80 | THRUST RACE BEARING (2) | ALL |
| 9 | 37496-90A | NUT, mainshaft | ALL |
| 10 | 37554-06A | HUB ASSEMBLY, clutch | ALL |
| 11 | 37807-03 | SPRING, clutch (pink) | ALL |
| 12 | 37817-07 | CLUTCH ASSEMBLY, w/ 1, 9, 10, 11, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 & 23 | ALL |
| 13 | 37872-00 | SEAT, clutch spring | ALL |
| 14 | 37883-98 | SEAT, damper spring | ALL |
| 15 | 37884-98 | DAMPER SPRING | ALL |
| 16 | 37903-90 | RELEASE PLATE | ALL |
| 17 | 37904-90 | RETAINING RING | ALL |
| 18 | 37905-00 | RETAINING RING, internal | ALL |
| 19 | 37906-90 | BEARING, ball | ALL |
| 20 | 37909-90 | RETAINING RING, internal | ALL |
| 21 | 37912-00 | PRESSURE PLATE, clutch | ALL |
| 22 | 37913-98 | PLATE CLUTCH (8) | ALL |
| 23 | 37932-98 | FRICTION PLATE KIT, w/ nine friction plates | ALL |

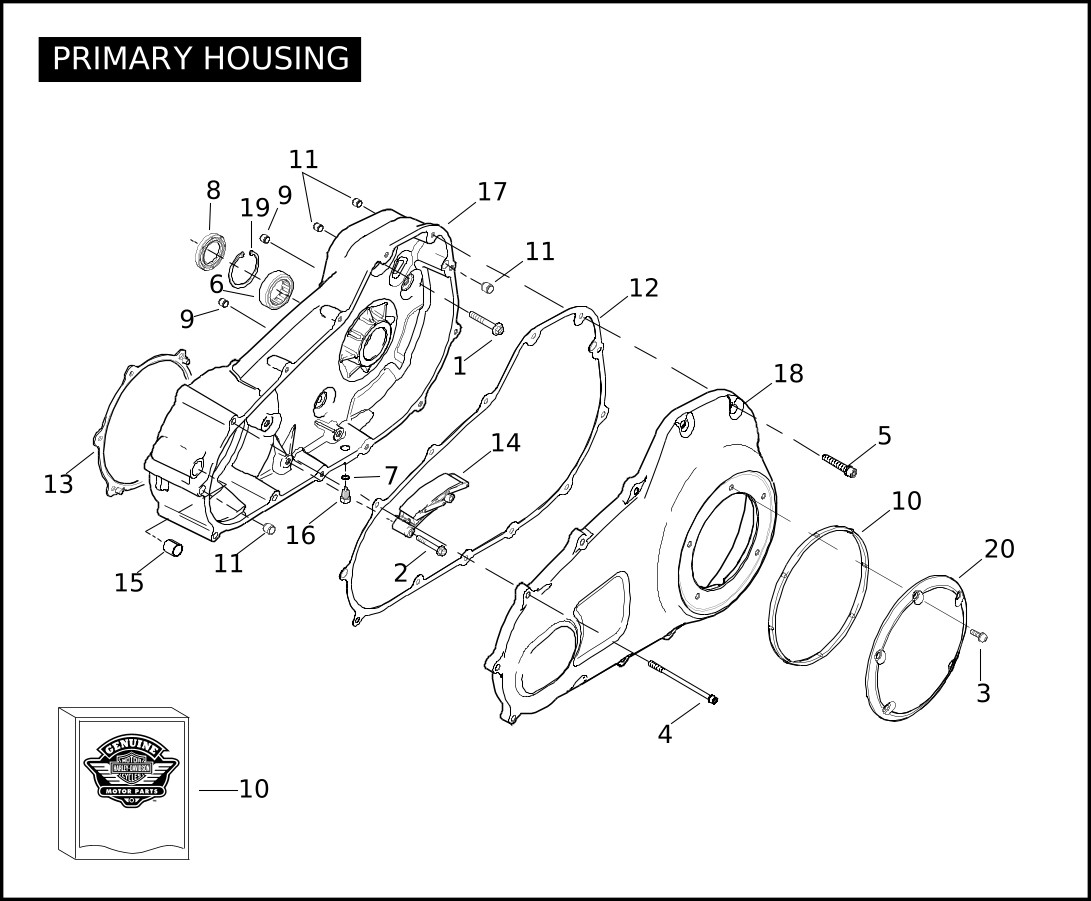

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1780 | SCREW (4) | ALL |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 9231 | BEARING | ALL |
| 7 | 11105 | O-RING | ALL |
| 8 | 12052A | SEAL | ALL |
| 9 | 16583-00A | DOWEL BUSHING (2) | ALL |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | ALL |
| 11 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 12 | 34901-07 | GASKET, primary cover | ALL |
| 13 | 34934-06 | GASKET, primary housing to case | ALL |
| 14 | 39929-06B | CHAIN TENSIONER ASSEMBLY | ALL |
| 15 | 42642-00 | BUSHING (2) | ALL |
| 16 | 60328-98B | PLUG, magnetic drain w/ 11105 | ALL |
| 17 | 60432-07A | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (black) | ALL |
| 18 | 60553-07 | COVER, primary (chrome) | ALL |
| 19 | 60678-85 | RETAINING RING | ALL |
| 20 | 60766-06 | COVER, clutch (chrome) | ALL |

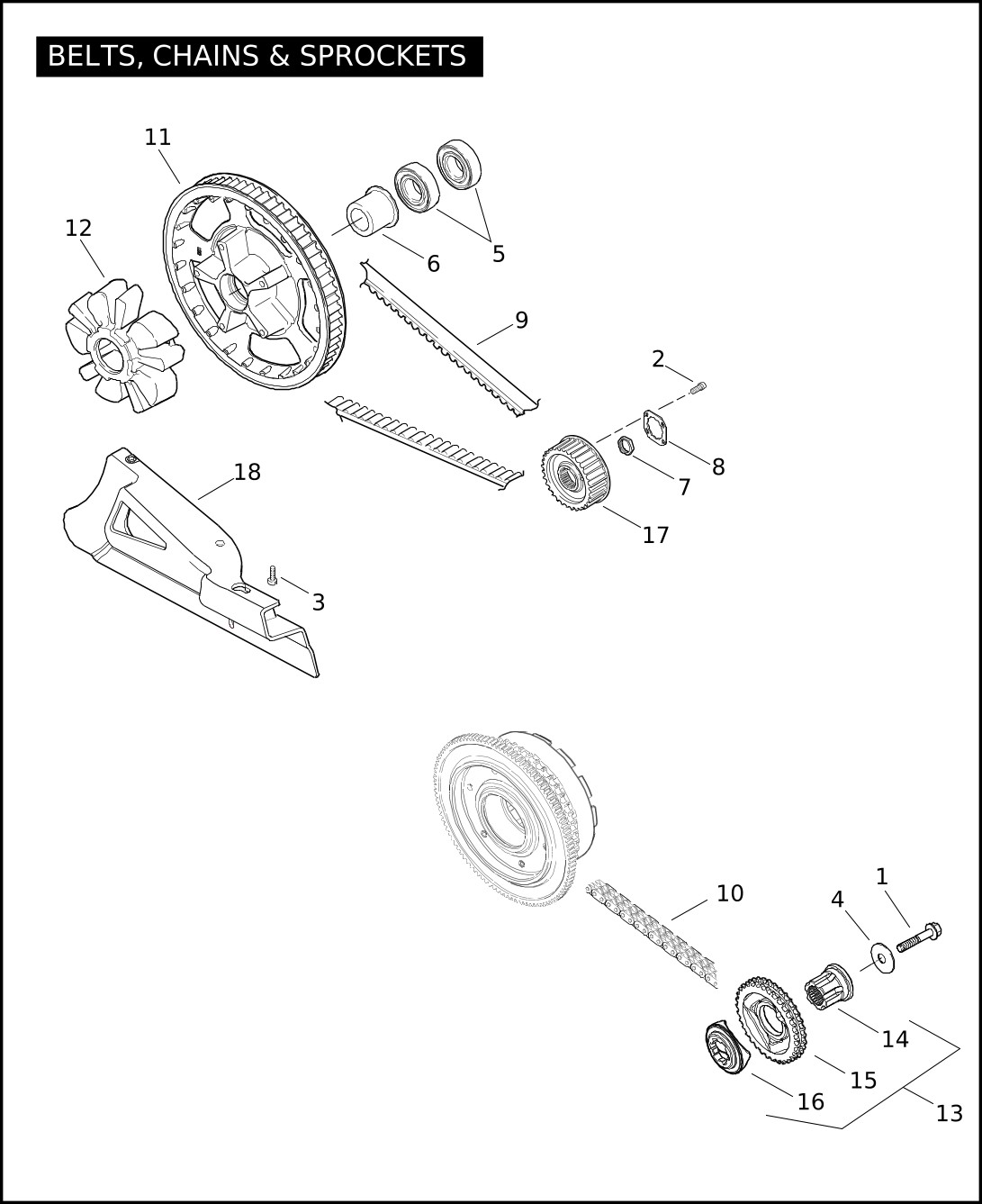

BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3368 | SCREW | ALL |
| 2 | 3594 | SCREW (2) | ALL |
| 3 | 3892 | SCREW (3) | ALL |
| 4 | 6445 | WASHER | ALL |
| 5 | 9276 | BALL BEARING (2) | ALL |
| 6 | 11843 | SPACER, compensator | ALL |
| 7 | 35241-06 | NUT, sprocket | ALL |
| 8 | 35242-06 | LOCKPLATE | ALL |
| 9 | 40024-09 | REAR BELT, 140 T, 1 inch | ALL |
| 10 | 40037-07 | PRIMARY CHAIN | ALL |
| 11 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T (black) | ALL |
| 12 | 40278-09 | ISOLATOR, rubber | ALL |
| 13 | 40296-06A | COMPENSATOR ASSEMBLY | ALL |
| 14 | 40297-06 | SHAFT EXTENSION | ALL |
| 15 | 40320-06 | COMPENSATING SPROCKET, 34 T | ALL |
| 16 | 40333-06A | CAM SLIDER | ALL |
| 17 | 40659-06 | SPROCKET, transmission, 32 T | ALL |
| 18 | 60386-09 | DEBRIS DEFLECTOR | ALL |

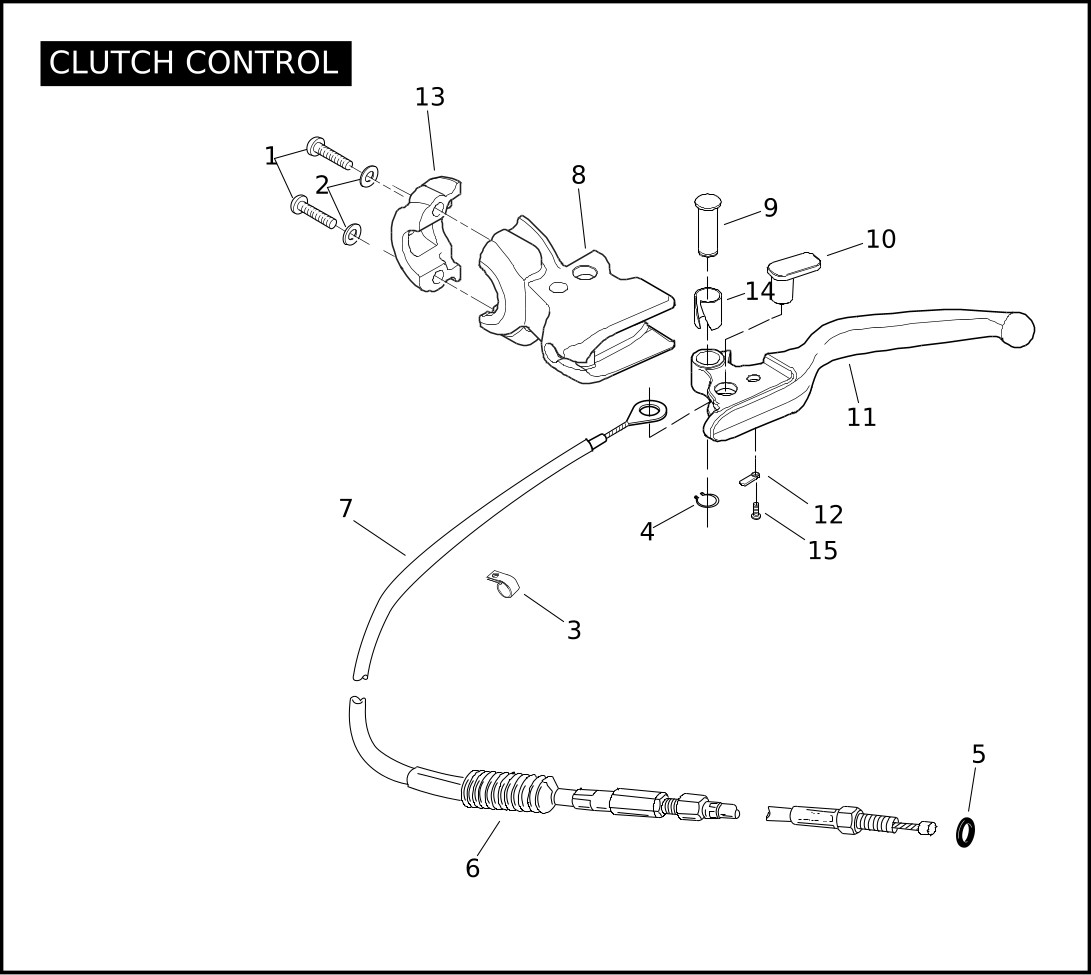

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 9990W | CLAMP | FLHP, FLHPE |
| 4 | 11143 | RETAINING RING | ALL |
| 5 | 11179 | O-RING | ALL |
| 6 | 38630-88 | BOOT, clutch cable | ALL |
| 7 | 38667-08A | CABLE, clutch control, w/ 11179, 38630-88 & 38900-08 | ALL |
| 8 | 38700-08A | BRACKET, hand lever | ALL |
| 9 | 38738-08 | PIN, hand lever pivot | ALL |
| 10 | 38900-08 | PIN, clutch, mechanical, w/ head | ALL |
| 11 | 45015-08 | CLUTCH LEVER ASSEMBLY, w/ 45021-86, 45423-92 & 90770-79 | ALL |
| 12 | 45021-86 | SPRING, anti-rattle | ALL |
| 13 | 45138-08A | HALF-CLAMP, master cylinder & clutch (black) | ALL |
| 14 | 45423-92 | BUSHING | ALL |
| 15 | 90770-79 | SCREW | ALL |

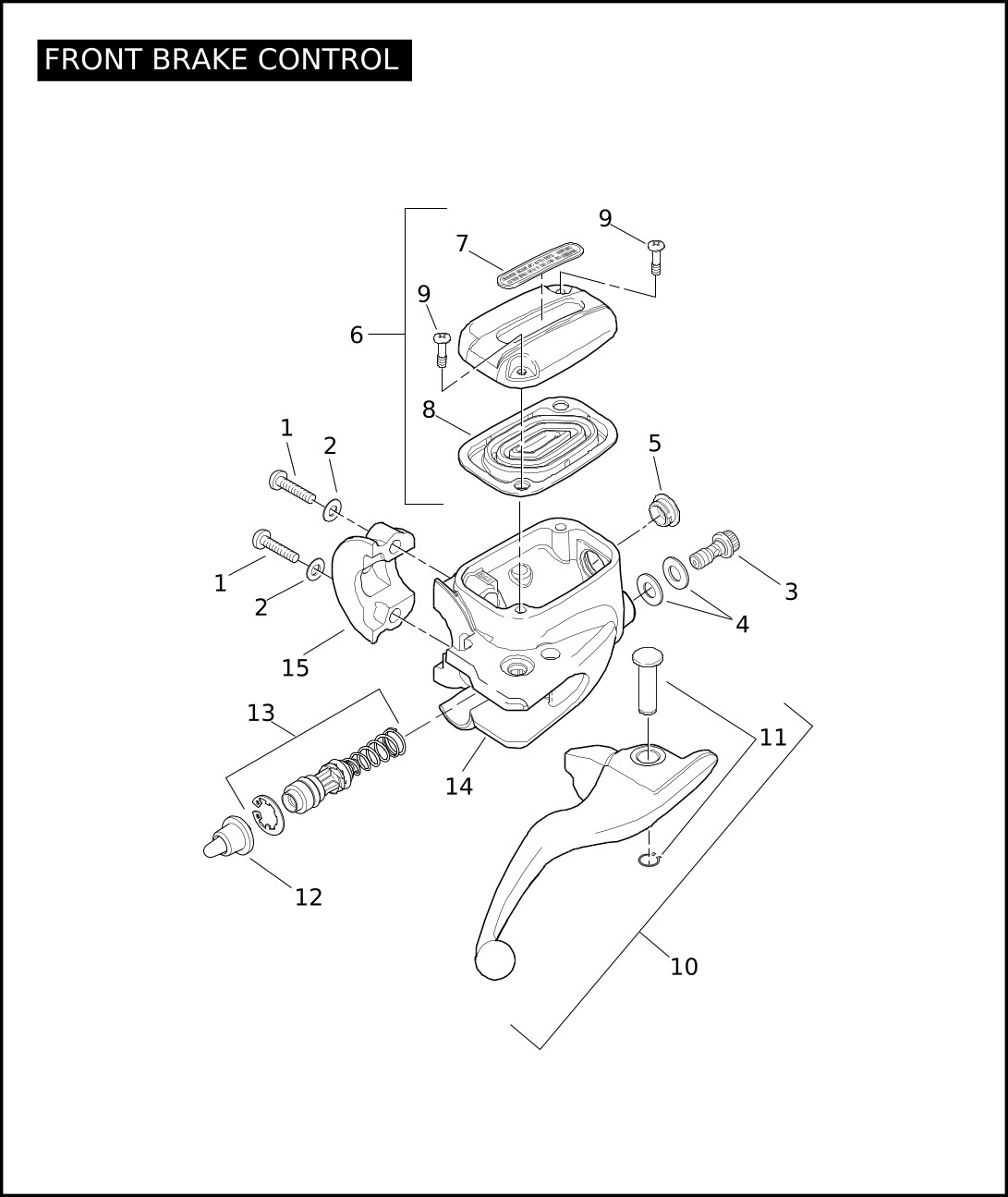

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 41750-06B | BOLT, BANJO, brakeline | ALL |
| 4 | 41751-06A | GASKET (2) | ALL |
| 5 | 42854-06 | KIT, SIGHT GLASS, reservoir | ALL |
| 6 | 42855-06B | COVER KIT, master cylinder (black), w/ 42856-06, 42857-06A & 42858-06A | ALL |
| 7 | 42856-06 | DECAL, reservoir cover | ALL |
| 8 | 42857-06A | GASKET, reservoir cover | ALL |
| 9 | 42858-06A | SCREW KIT, cover | ALL |
| 10 | 42859-06B | BRAKE LEVER ASSEMBLY, front, w/ 42860-06B | ALL |
| 11 | 42860-06B | PIVOT PIN, w/ retaining ring | ALL |
| 12 | 42861-06B | PUSHROD, master cylinder | ALL |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | ALL |
| 14 | 44551-08B | MASTER CYLINDER ASSEMBLY, front-dual (black), w/ 5, 6, 7, 8, 9, 10, 11, 12 & 13 | ALL |
| 15 | 45138-08A | HALF-CLAMP, master cylinder and clutch (black) | ALL |

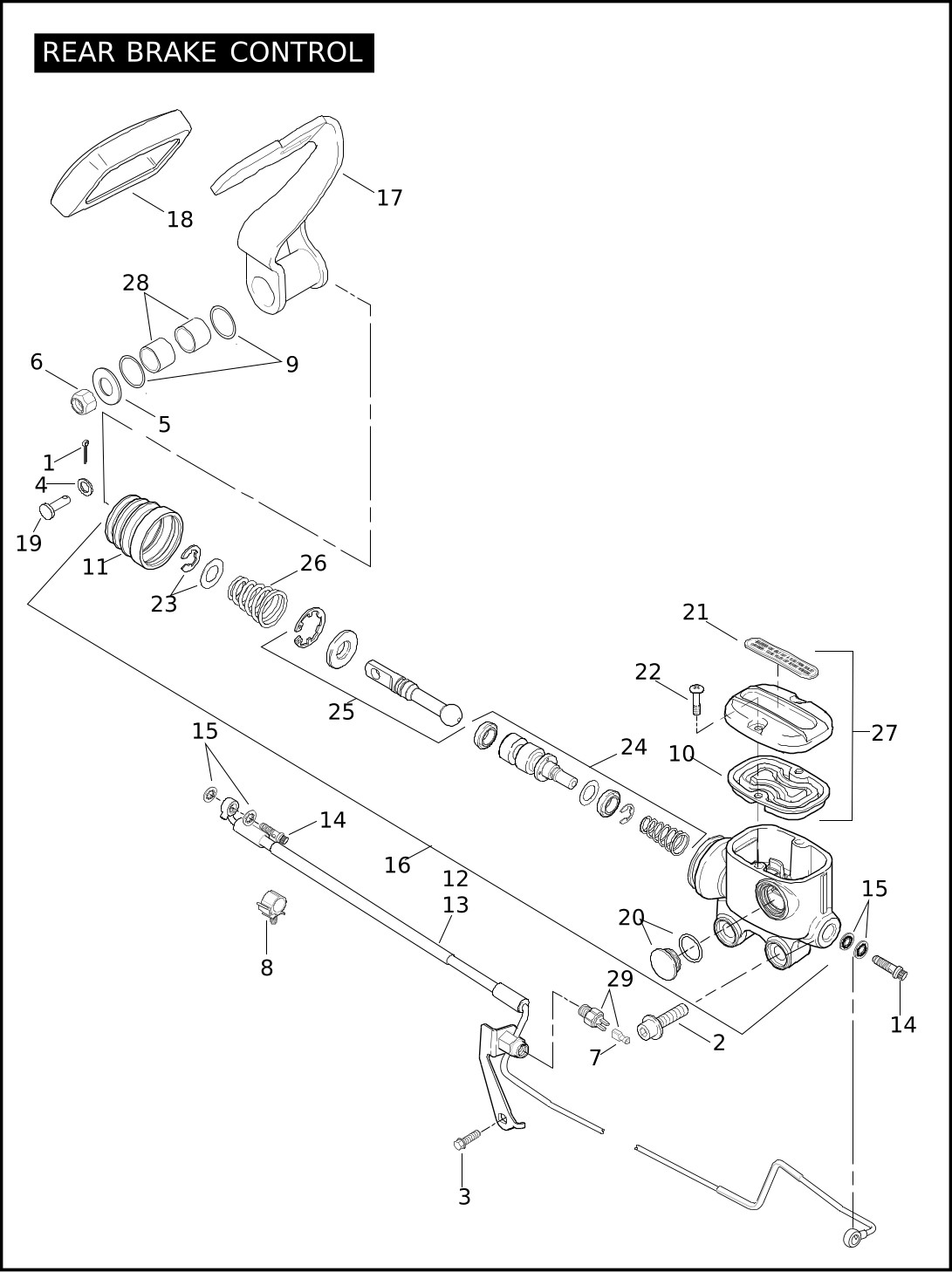

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 2479 | SCREW (2) | ALL |
| 3 | 3563 | SCREW | ALL |
| 4 | 6220W | WASHER | ALL |
| 5 | 6334 | WASHER | ALL |
| 6 | 7825 | LOCKNUT | ALL |
| 7 | 9907 | WIRE TERMINAL (2) | ALL |
| 8 | 10340A | CLIP, brake hose (2) | ALL |
| 9 | 11364 | O-RING (2) | ALL |
| 10 | 11902 | GASKET, master cylinder reservoir cover | ALL |
| 11 | 12102 | DUST BOOT | ALL |
| 12 | 40611-09 | BRAKELINE, right-rear, master cylinder to ABS unit, ABS | ALL |
| 13 | 40971-09 | BRAKELINE, right-rear, master cylinder to rear caliper, NON-ABS | ALL |
| 14 | 41750-06B | BOLT, BANJO, brakeline (2) | ALL |
| 15 | 41751-06A | GASKET (4) | ALL |
| 16 | 41763-08A | MASTER CYLINDER ASSEMBLY, w/ 10, 11, 20, 21, 22, 23, 24, 25, 26 & 27 | ALL |
| 17 | 42407-08 | LEVER ASSEMBLY, foot-brake, w/ 57217-02 | ALL |
| 18 | 42416-06 | PAD, brake pedal | ALL |
| 19 | 42460-80B | CLEVIS PIN | ALL |
| 20 | 42854-06 | KIT, SIGHT GLASS | ALL |
| 21 | 42856-06 | DECAL, reservoir cover | ALL |
| 22 | 42858-06A | SCREW KIT, cover | ALL |
| 23 | 42889-06 | PUSH ROD KIT, master cylinder | ALL |
| 24 | 42932-08 | REBUILD KIT, master cylinder | ALL |
| 25 | 42933-08A | PUSHROD KIT, master cylinder | ALL |
| 26 | 42934-08 | SPRING, pedal return | ALL |
| 27 | 42937-08A | MASTER CYLINDER COVER KIT, rear, DOT4, w/ 11902. 42856-06 & 42858-06A | ALL |
| 28 | 57217-02 | BUSHING, brake lever (2) | ALL |
| 29 | 72023-51D | SWITCH KIT, rear brakelite, w/ 9907 | ALL |

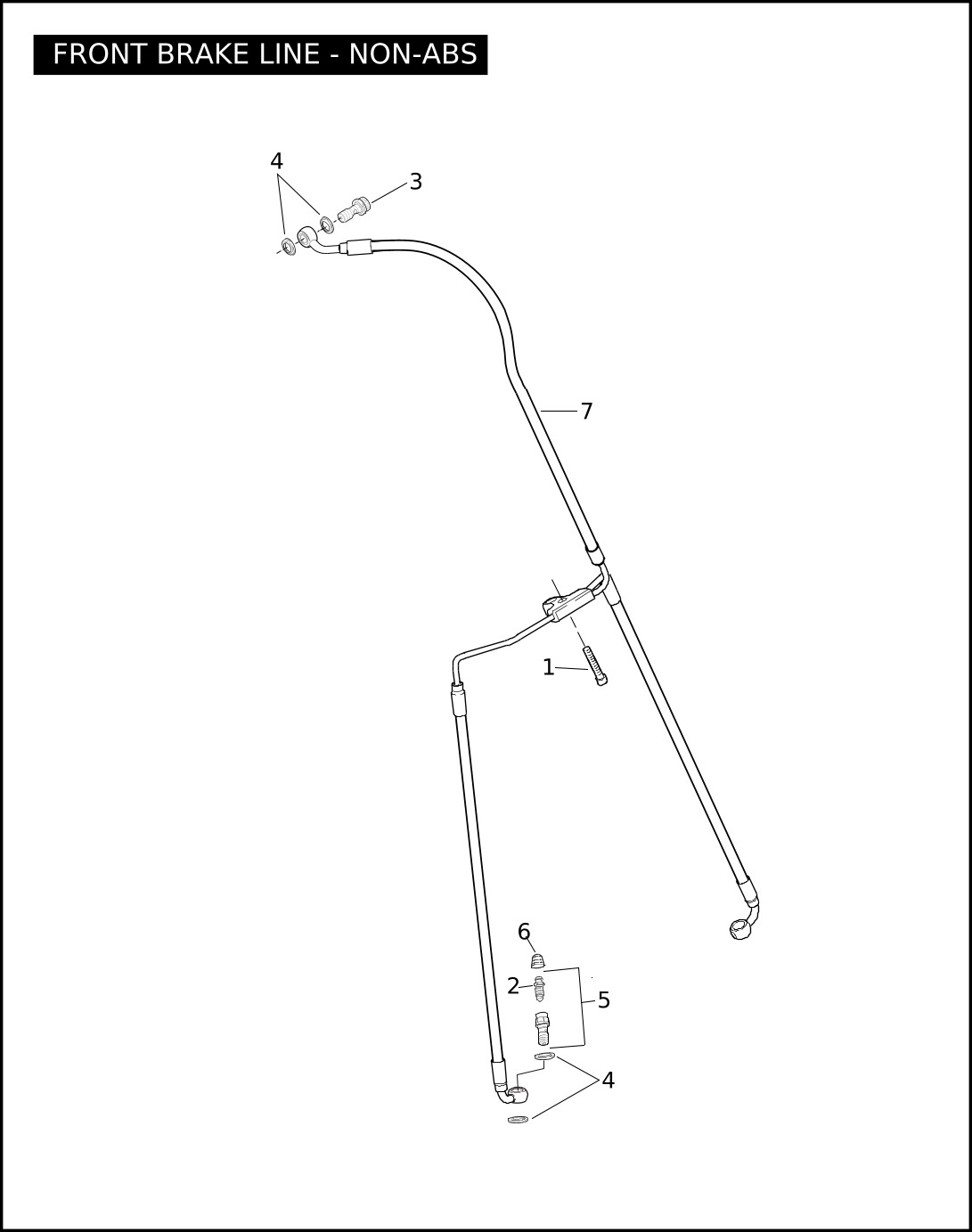

FRONT BRAKE LINE - NON-ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | ALL |
| 2 | 4890 | BLEEDER SCREW (2) | ALL |
| 3 | 41750-06B | BOLT, BANJO, brakeline | ALL |
| 4 | 41751-06A | GASKET (6) | ALL |
| 5 | 41783-08 | BOLT, BANJO, bleeder assembly, w/ 4890 (2) | ALL |
| 6 | 42853-06 | CAP, bleeder screw (2) | ALL |
| 7 | 43350-08 | BRAKELINE, front, NON-ABS | ALL |

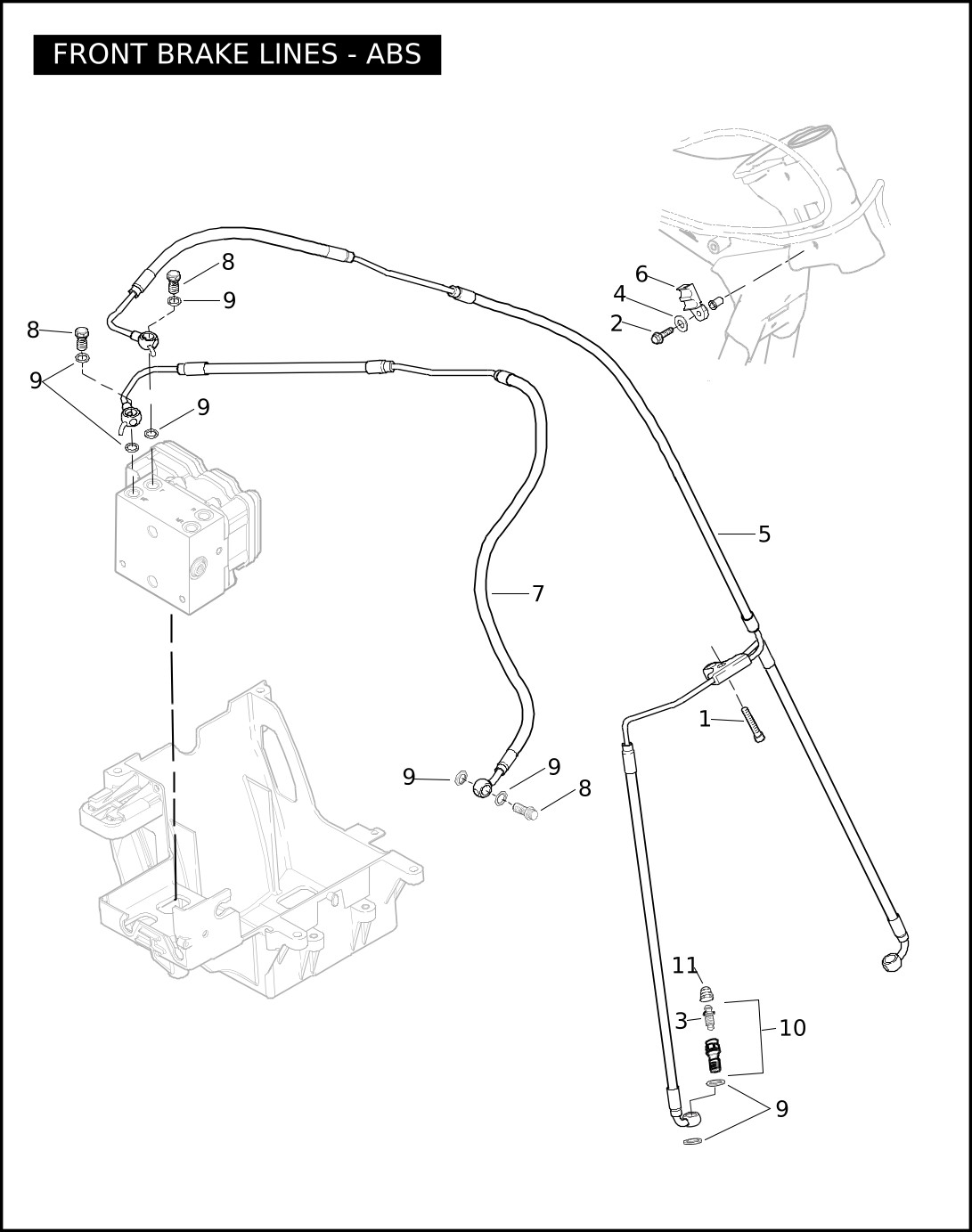

FRONT BRAKE LINES - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | ALL |
| 2 | 3901 | SCREW | ALL |
| 3 | 4890 | BLEEDER SCREW (2) | ALL |
| 4 | 6702 | WASHER | ALL |
| 5 | 40612-09 | BRAKELINE, front, lower, ABS | ALL |
| 6 | 40638-09 | CLIP, brakeline | ALL |
| 7 | 41679-09 | BRAKELINE, front, upper, ABS | ALL |
| 8 | 41750-06B | BOLT, BANJO, brakeline (3) | ALL |
| 9 | 41751-06A | GASKET (10) | ALL |
| 10 | 41783-08 | BOLT, BANJO, bleeder assembly, w/ 4890 (2) | ALL |
| 11 | 42853-06 | CAP, bleeder screw (2) | ALL |

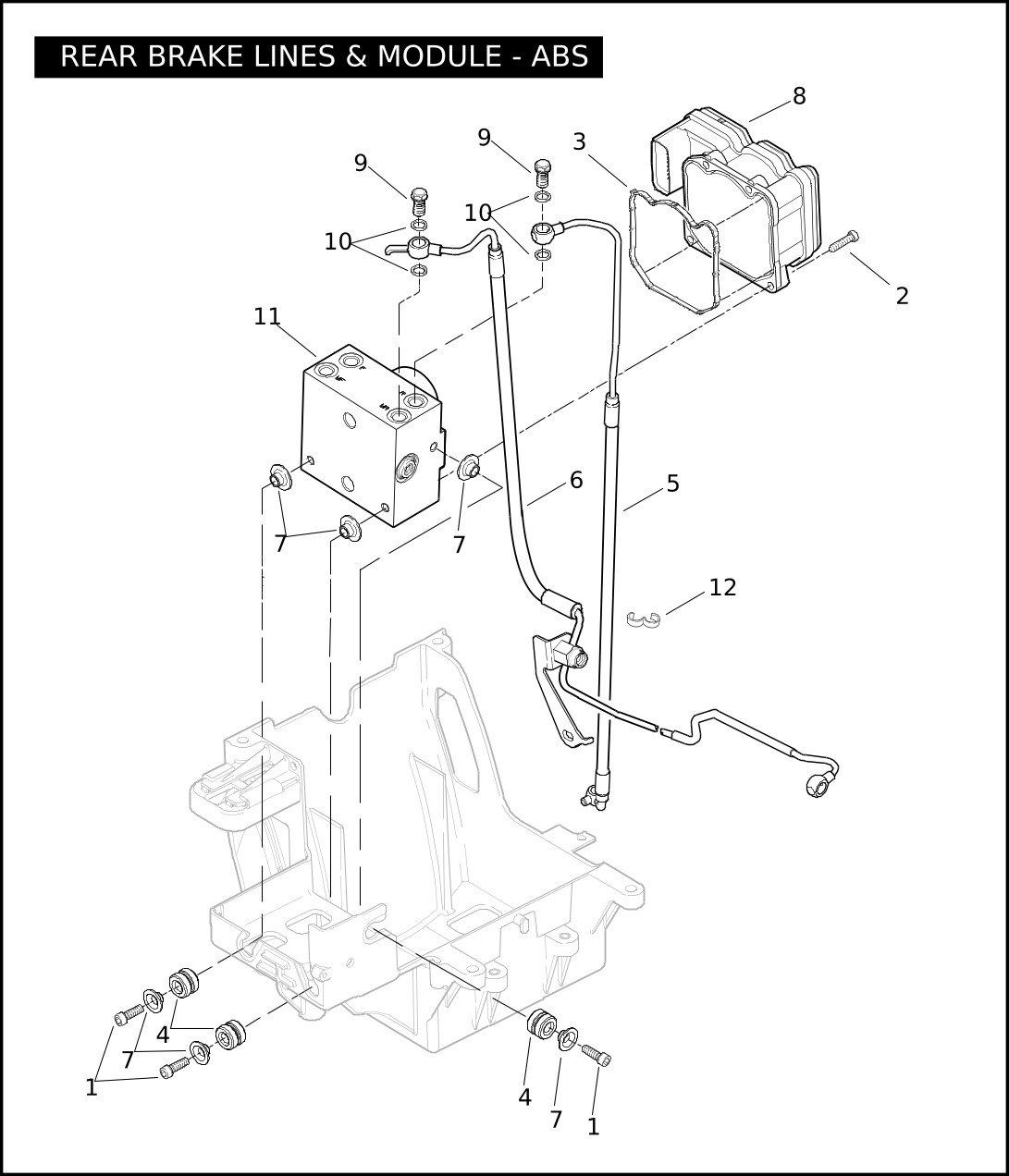

REAR BRAKE LINES & MODULE - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1095M | SCREW (3) | ALL |
| 2 | 2228 | SCREW (4) | ALL |
| 3 | 11904 | GASKET, ABS module | ALL |
| 4 | 40603-08 | GROMMET (3) | ALL |
| 5 | 40610-09 | BRAKELINE, ABS module to caliper | ALL |
| 6 | 40611-09 | BRAKELINE, ABS module to master cylinder | ALL |
| 7 | 40628-08 | BUSHING, ABS (6) | ALL |
| 8 | 40649-08 | CONTROLLER, electronic, ABS unit w/ 11904 | ALL |
| 9 | 41750-06B | BOLT, BANJO, brakeline (2) | ALL |
| 10 | 41751-06A | GASKET (4) | ALL |
| 11 | 48343-09 | MODULATOR ASSEMBLY, hydraulic, ABS unit | ALL |
| 12 | 70631-08 | CLIP, conduit | ALL |

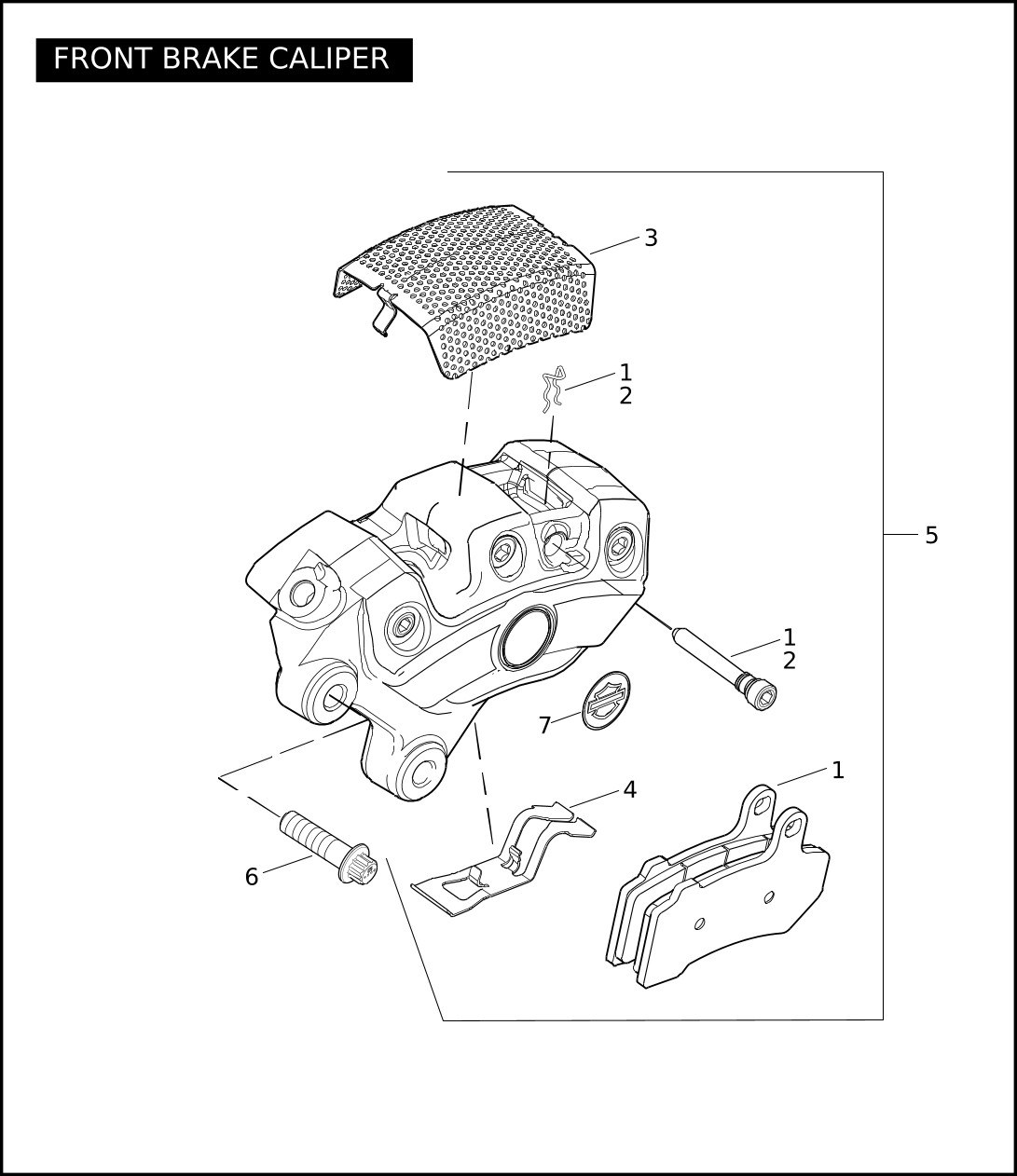

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | ALL |
| 2 | 42849-08 | PAD PIN KIT (2) | ALL |
| 3 | 42851-06 | COVER, caliper (2) | ALL |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | ALL |
| 5 | 43027-08 | CALIPER ASSEMBLY, left (black) | ALL |
| 44023-08 | CALIPER ASSEMBLY, right (black) | ALL | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | ALL |
| 7 | 44341-08 | MEDALLION, brake caliper (2) | ALL |

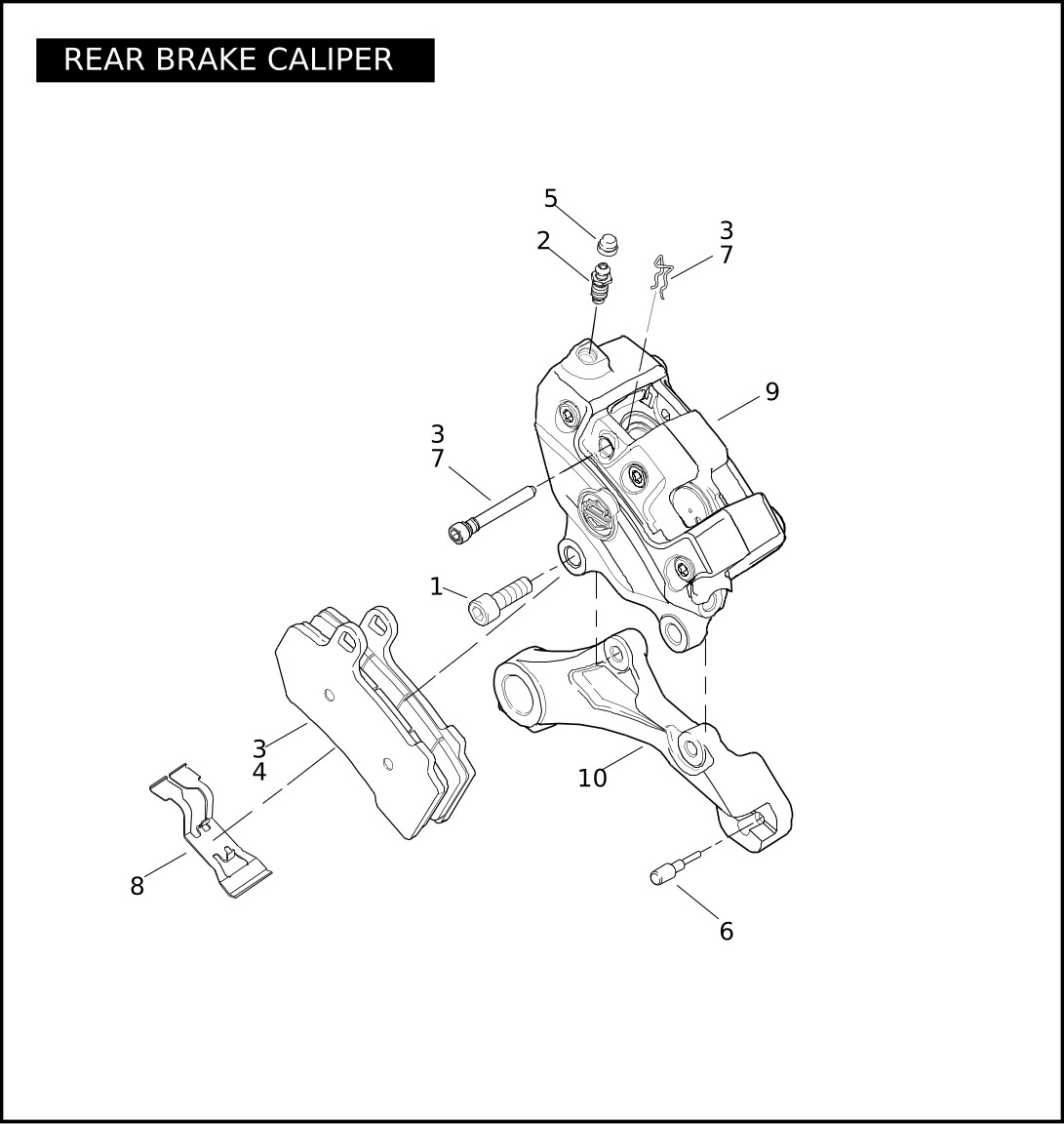

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | ALL |
| 2 | 4890 | SCREW, bleeder (2) | ALL |
| 3 | 41852-08A | PAD & PIN KIT, w/ 42551-08 | ALL |
| 4 | 42551-08 | PASTE KIT, brake pad | ALL |
| 5 | 42853-06 | CAP, bleeder screw | ALL |
| 6 | 42863-06 | BUMPER | ALL |
| 7 | 42865-06B | PAD PIN KIT | ALL |
| 8 | 42867-06A | SPRING KIT, anti-rattle | ALL |
| 9 | 44080-08B | CALIPER ASSEMBLY, rear, w/ 4890, 41852-08A, 42853-06, 42865-06B & 42867-06A (black) | ALL |
| 10 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | ALL |

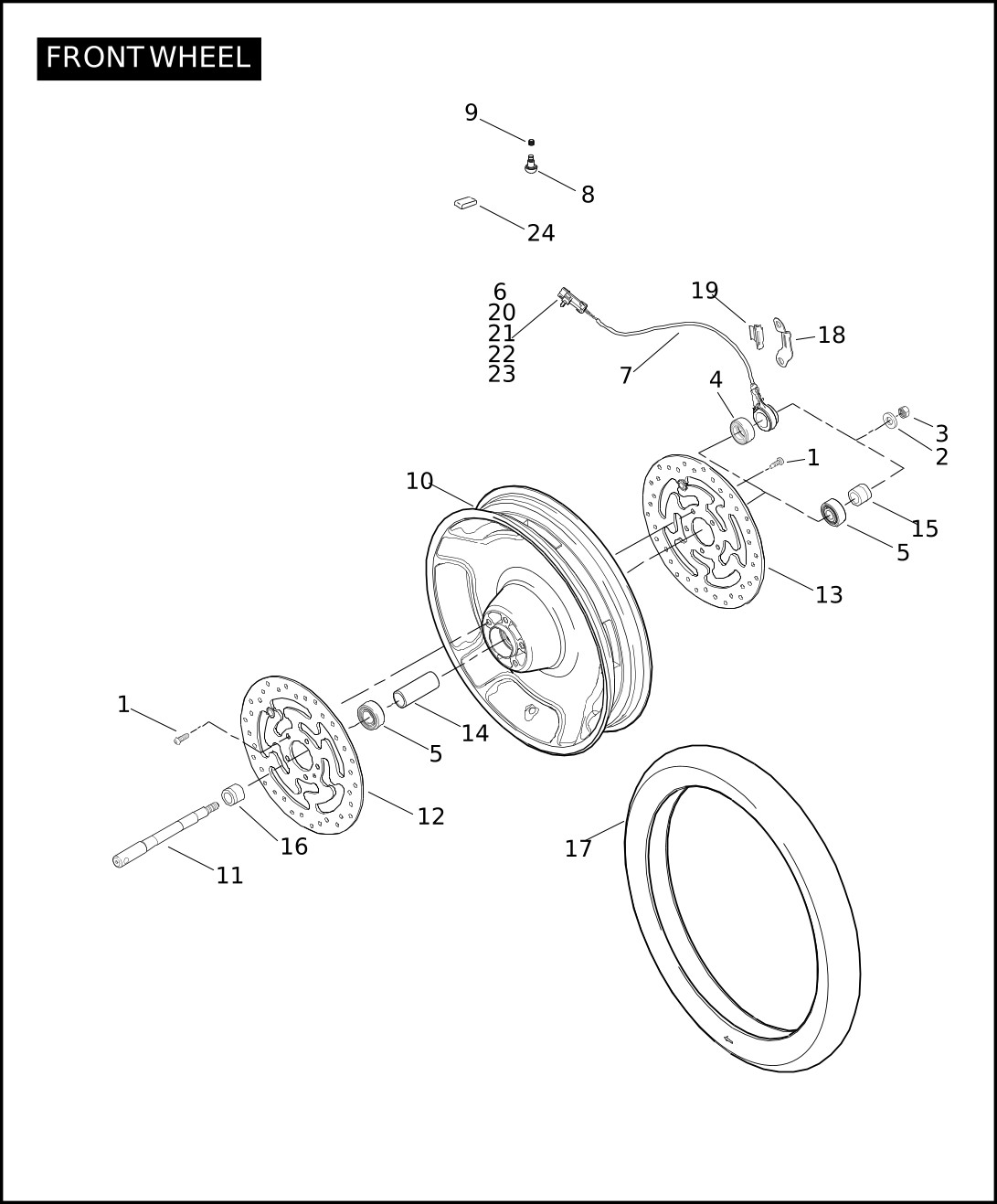

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | ALL |
| 2 | 6594 | WASHER | ALL |
| 3 | 7813A | NUT | ALL |
| 4 | 9252 | BALL BEARING, w/ encoder, ABS | ALL |
| 5 | 9276 | BALL BEARING (NON-ABS) (2) | ALL |
| 9276 | BALL BEARING (ABS) | ALL | |
| 6 | 10147 | CLIP, connector | ALL |
| 7 | 40614-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08 | ALL |
| 8 | 40999-87 | VALVE STEM, for cast wheels | ALL |
| 9 | 41123-79 | VALVE CAP | ALL |
| 10 | 41285-09 | WHEEL, cast, 17 in., w/o bearings & sleeve (black) | ALL |
| 11 | 41547-07A | AXLE | ALL |
| 12 | 41808-08 | BRAKE DISC, right | ALL |
| 13 | 41809-08 | BRAKE DISC, left | ALL |
| 14 | 41900-08 | SLEEVE, bearing spacer | ALL |
| 15 | 41901-08 | SPACER, NON-ABS | ALL |
| 16 | 41901-08 | SPACER | ALL |
| 17 | 43109-09A | TIRE | ALL |
| 18 | 70493-08 | BRACKET, wheel speed sensor, ABS | ALL |
| 19 | 70494-08 | CLIP, wheel speed sensor, ABS | ALL |
| 20 | 72607-08 | HOUSING, 2 way pin | ALL |
| 21 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | ALL |
| 22 | 72609-08 | SECONDARY LOCK, 2-way (black) | ALL |
| 23 | 72610-08 | SEAL, 18-20 awg (white) (2) | ALL |
| 24 | 95594-84 | WEIGHT, 1/4 oz., cast wheels (black) (4) | ALL |

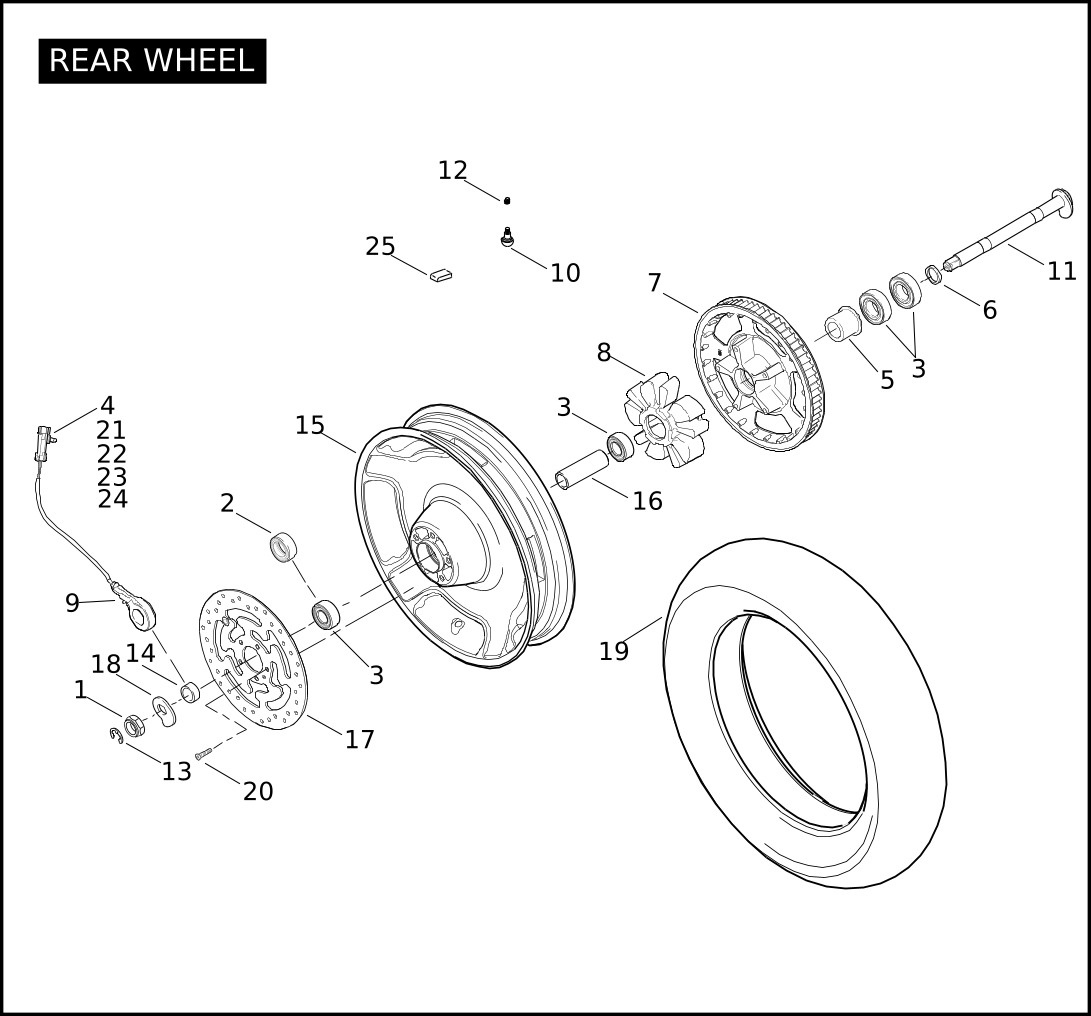

REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | ALL |
| 2 | 9252 | BALL BEARING, w/ encoder, ABS | ALL |
| 3 | 9276 | BALL BEARING (NON-ABS) (4) | ALL |
| 9276 | BALL BEARING (ABS) (3) | ALL | |
| 4 | 10147 | CLIP, connector | ALL |
| 5 | 11843 | SPACER, compensator | ALL |
| 6 | 11848 | SPACER | ALL |
| 7 | 40217-09 | SPROCKET & BEARING ASSEMBLY, rear, 68 T w/ 9276 & 11843 (black) | ALL |
| 8 | 40278-09 | ISOLATOR, rubber | ALL |
| 9 | 40615-08 | SENSOR, wheel speed, ABS, w/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08 | ALL |
| 10 | 40999-87 | VALVE STEM, cast wheels | ALL |
| 11 | 41056-09 | REAR AXLE | ALL |
| 12 | 41123-79 | VALVE CAP | ALL |
| 13 | 41139-02 | SPRING CLIP | ALL |
| 14 | 41242-08 | SPACER, wheel bearing, NON-ABS | ALL |
| 15 | 41288-09 | WHEEL, 16 inch cast, w/o bearings & sleeve (black) | ALL |
| 16 | 41349-07 | SLEEVE, bearing spacer | ALL |
| 17 | 41810-08A | BRAKE DISC | ALL |
| 18 | 41819-02 | AXLE CAM | ALL |
| 19 | 43329-09 | TIRE | ALL |
| 20 | 43567-92 | SCREW (5) | ALL |
| 21 | 72607-08 | HOUSING, 2 way pin | ALL |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | ALL |
| 23 | 72609-08 | SECONDARY LOCK, 2-way (black) | ALL |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | ALL |
| 25 | 95594-84 | WEIGHT, 1/4 oz. cast wheels (black) (4) | ALL |

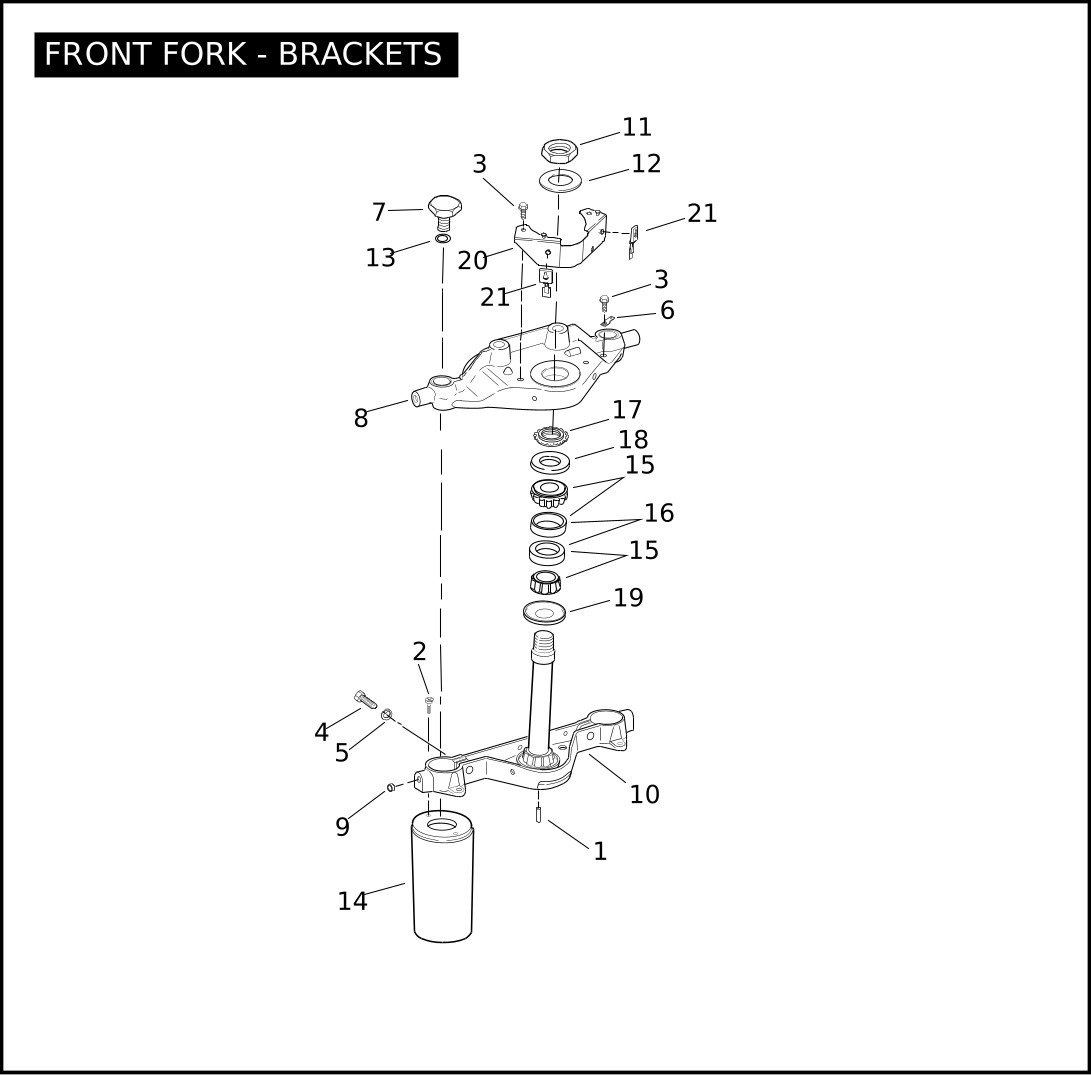

FRONT FORK - BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | ROLL PIN | ALL |
| 2 | 3537 | SCREW (4) | ALL |
| 3 | 4240 | SCREW (3) | FLHP, FLHPE |
| 4 | 4855 | SCREW (2) | ALL |
| 5 | 7039 | LOCKWASHER (2) | ALL |
| 6 | 10138 | TAB, electrical ground | FLHTP |
| 7 | 45419-80 | BOLT, fork (2) | ALL |
| 8 | 45435-10 | BRACKET, upper fork stem | ALL |
| 9 | 45442-86 | GUIDE BUSHING (2) | FLHTP |
| 10 | 45446-09 | BRACKET ASSEMBLY, fork stem, w/ 48365-48A & bearing | ALL |
| 11 | 45718-60 | NUT, fork stem | ALL |
| 12 | 45727-08 | WASHER | ALL |
| 13 | 45733-48 | OIL SEAL, fork bracket bolt (2) | ALL |
| 14 | 45964-86 | COVER ASSEMBLY, fork tube (2) | ALL |
| 15 | 48300-60 | ROLLER BEARING, steering head, w/ 48315-60 (2) | ALL |
| 16 | 48315-60 | CUP, bearing (2) | ALL |
| 17 | 48333-80 | SEAT, upper head cone | ALL |
| 18 | 48361-80 | DUST SHIELD, bearing, upper | ALL |
| 19 | 48365-48A | DIRT GUARD, bearing, steering head | ALL |
| 20 | 72332-02A | BRACKET, mounting | FLHP, FLHPE |
| 21 | 73212-07 | ANCHOR, t-stud connector (2) | FLHP, FLHPE |

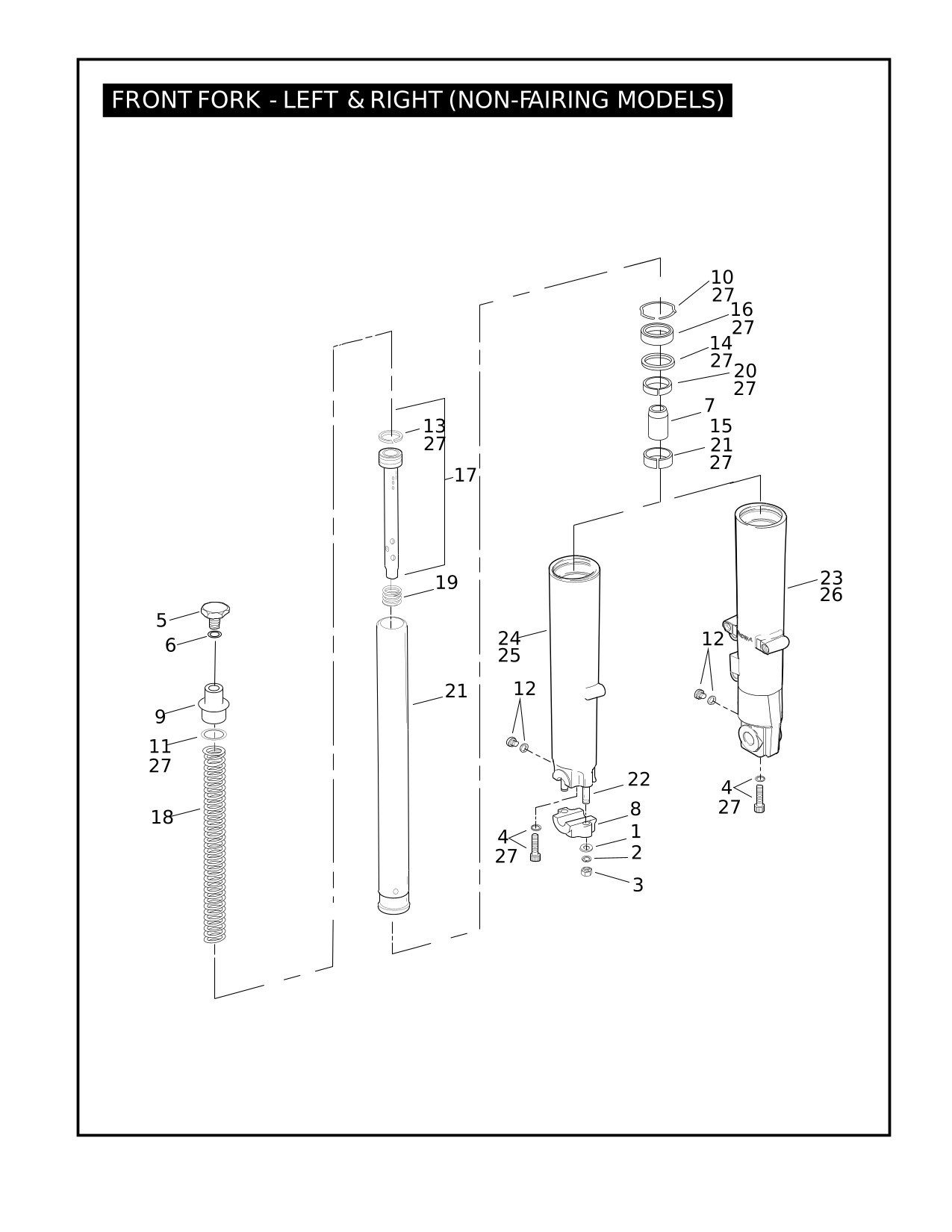

FRONT FORK - LEFT & RIGHT (NON-FAIRING MODELS)
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (right hand) (2) | FLHP, FLHPE |
| 2 | 7041 | LOCKWASHER (right hand) (2) | FLHP, FLHPE |
| 3 | 7748W | NUT (right hand) (2) | FLHP, FLHPE |
| 4 | 45405-75A | SCREW, w/ washer (2) | FLHP, FLHPE |
| 5 | 45419-80 | BOLT, fork (2) | FLHP, FLHPE |
| 6 | 45733-48 | OIL SEAL (2) | FLHP, FLHPE |
| 7 | 45803-97 | STOP, oil lock piece (2) | FLHP, FLHPE |
| 8 | 45835-00 | HOLDER, axle (right-hand) | FLHP, FLHPE |
| 9 | 45838-77 | BOLT, front fork (2) | FLHP, FLHPE |
| 10 | 45842-77A | RETAINING RING, oil seal (2) | FLHP, FLHPE |
| 11 | 45845-77 | O-RING (2) | FLHP, FLHPE |
| 12 | 45858-77 | SCREW, drain, w/ washer (2) | FLHP, FLHPE |
| 13 | 45859-77A | RING, piston damper tube (2) | FLHP, FLHPE |
| 14 | 45865-84 | SPACER SEAL (2) | FLHP, FLHPE |
| 15 | 45866-84 | BUSHING, slider (2) | FLHP, FLHPE |
| 16 | 45875-84A | OIL SEAL (2) | FLHP, FLHPE |
| 17 | 45891-09 | DAMPER TUBE, w/ 45859-77A (2) | FLHP, FLHPE |
| 18 | 45892-09 | SPRING, fork (2) | FLHP, FLHPE |
| 19 | 45933-86 | SPRING, rebound (2) | FLHP, FLHPE |
| 20 | 45940-84 | BUSHING (2) | FLHP, FLHPE |
| 21 | 45972-09 | STANCHION TUBE ASSEMBLY, w/ 45866-84 (2) | FLHP, FLHPE |
| 22 | 45998-73 | STUD, slider (right hand) (2) | FLHP, FLHPE |
| 23 | 46496-00A | SLIDER, slider (left-hand) | FLHP, FLHPE |
| 24 | 46497-09 | FORK ASSEMBLY, complete (right-hand) | FLHP, FLHPE |
| 25 | 46498-00A | SLIDER, fork, w/ 45998-73 (right-hand) | FLHP, FLHPE |
| 26 | 46537-09 | FORK ASSEMBLY, complete (left-hand) | FLHP, FLHPE |
| 27 | 49377-09 | FORK REBUILD KIT, w/ 4, 10, 11, 13, 14, 15, 16 & 20 | FLHP, FLHPE |

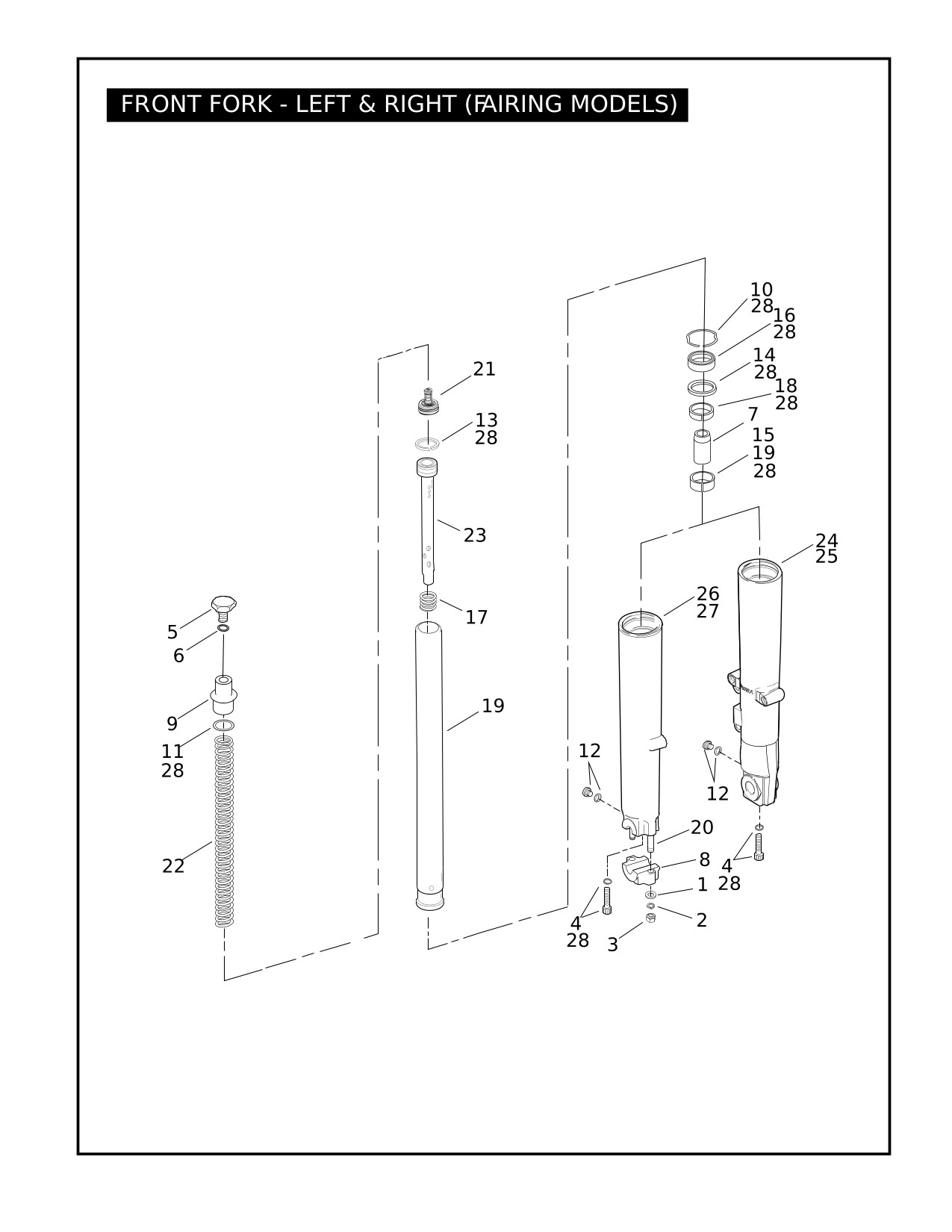

FRONT FORK - LEFT & RIGHT (FAIRING MODELS)
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (right hand) (2) | FLHTP |
| 2 | 7041 | LOCKWASHER (right hand) (2) | FLHTP |
| 3 | 7748W | NUT (right hand) (2) | FLHTP |
| 4 | 45405-75A | SCREW, w/ washer | FLHTP |
| 5 | 45419-80 | BOLT, fork (2) | FLHTP |
| 6 | 45733-48 | OIL SEAL (2) | FLHTP |
| 7 | 45803-97 | STOP, oil lock piece (2) | FLHTP |
| 8 | 45835-00 | HOLDER, axle (right-hand) | FLHTP |
| 9 | 45838-77 | BOLT, front fork (2) | FLHTP |
| 10 | 45842-77A | RETAINING RING, oil seal (2) | FLHTP |
| 11 | 45845-77 | O-RING (2) | FLHTP |
| 12 | 45858-77 | SCREW, drain, w/ washer (2) | FLHTP |
| 13 | 45859-77A | PISTON RING, damper tube (2) | FLHTP |
| 14 | 45865-84 | SPACER SEAL (2) | FLHTP |
| 15 | 45866-84 | BUSHING, slider (2) | FLHTP |
| 16 | 45875-84A | OIL SEAL (2) | FLHTP |
| 17 | 45933-86 | REBOUND SPRING (2) | FLHTP |
| 18 | 45940-84 | BUSHING (2) | FLHTP |
| 19 | 45972-09 | STANCHION TUBE ASSEMBLY, w/ 45866-84 (2) | FLHTP |
| 20 | 45998-73 | STUD (right-hand) (2) | FLHTP |
| 21 | 46209-09 | DAMPING VALVE (2) | FLHTP |
| 22 | 46235-09 | SPRING (2) | FLHTP |
| 23 | 46422-09 | DAMPER TUBE, w/ 45859-77A (2) | FLHTP |
| 24 | 46495-09 | FORK ASSEMBLY, complete (left-hand) | FLHTP |
| 25 | 46496-00A | SLIDER, fork (left-hand) | FLHTP |
| 26 | 46498-00A | SLIDER, fork (right-hand), w/ 45998-73 | FLHTP |
| 27 | 46502-09 | FORK ASSEMBLY, complete (right-hand) | FLHTP |
| 28 | 49377-09 | FORK REBUILD KIT, w/ 4, 10, 11, 13, 14, 15, 16 & 18 | FLHTP |

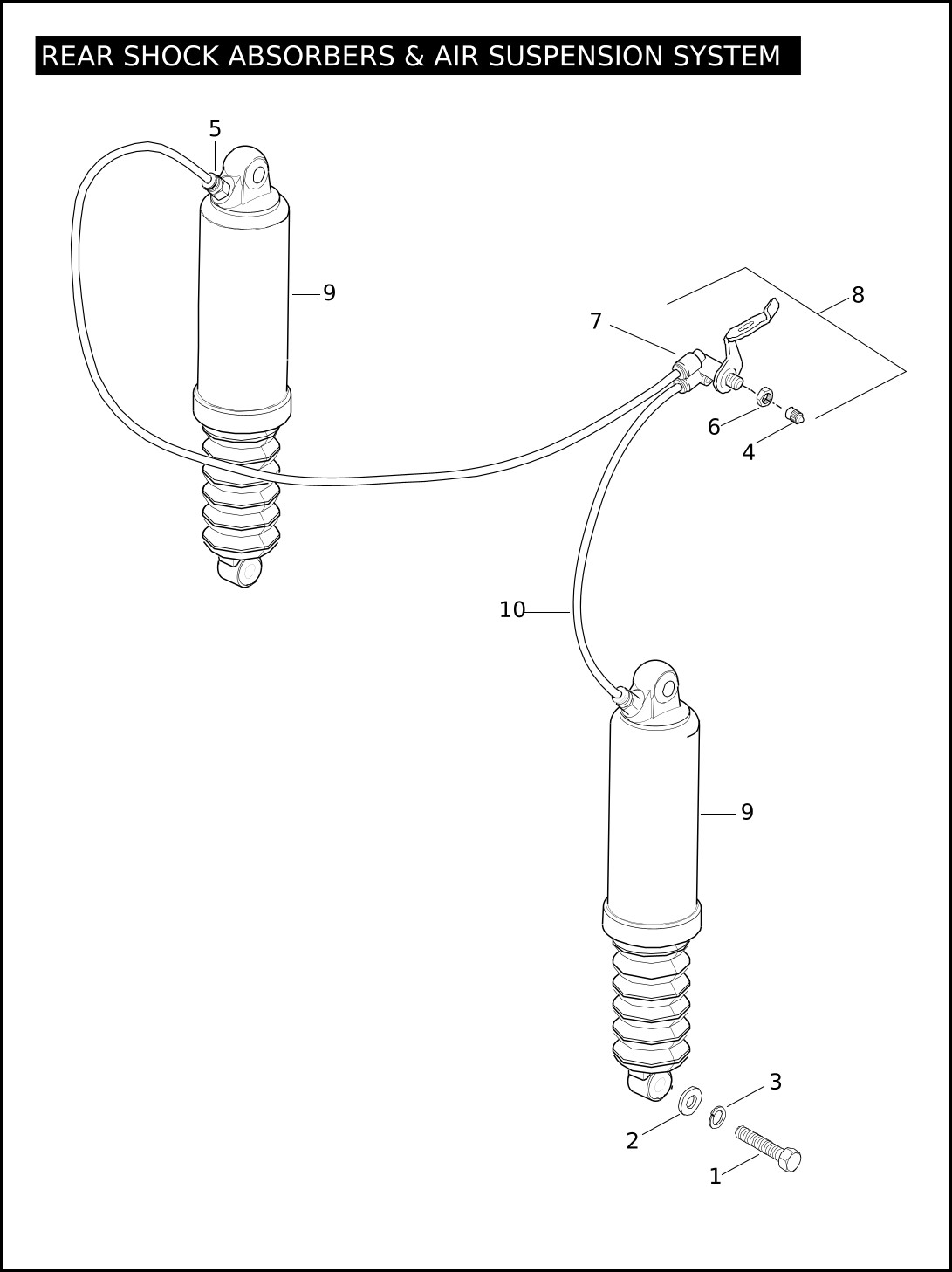

REAR SHOCK ABSORBERS & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | ALL |
| 2 | 6012 | WASHER (4) | ALL |
| 3 | 7068 | LOCKWASHER (4) | ALL |
| 4 | 41123-79 | VALVE CAP | ALL |
| 5 | 54320-97 | FITTING, 5/32 in. push-in (2) | ALL |
| 6 | 54321-85 | NUT | ALL |
| 7 | 54357-03 | UNION FITTING, 5/32 in. push-in | ALL |
| 8 | 54536-09 | VALVE ASSEMBLY, w/ 54321-85, 54354-94A & 54357-03 | ALL |
| 9 | 54565-09 | REAR SHOCK ABSORBER, w/ 54320-97 (2) | ALL |
| 90820-93D | LABEL, air suspension, inside right saddlebag (not illustrated) | ALL | |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 10 | 54354-94A | HOSE, 5/32 inch O.D. (25-foot length) (black) | ALL |

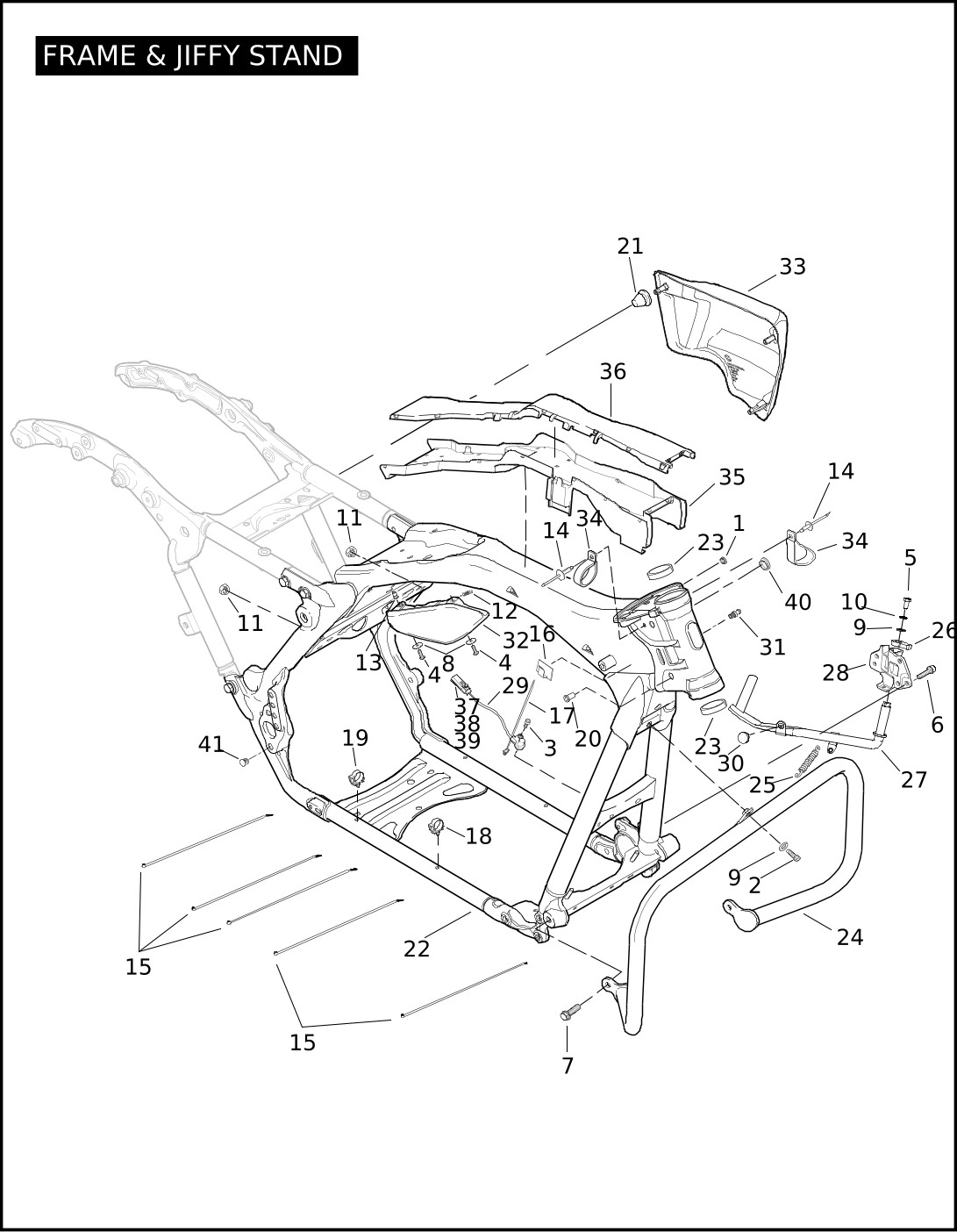

FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 755 | HOLE PLUG | ALL |
| 2 | 2708A | SCREW | ALL |
| 3 | 3594 | SCREW, jiffy stand | ALL |
| 4 | 3787 | BOLT (4) | ALL |
| 5 | 3987 | BOLT | ALL |
| 6 | 4688 | SCREW (2) | ALL |
| 7 | 4924 | SCREW (2) | ALL |
| 8 | 6036 | WASHER (4) | ALL |
| 9 | 6702 | WASHER (2) | ALL |
| 10 | 7041 | LOCKWASHER | ALL |
| 11 | 7495 | NUT (2) | ALL |
| 12 | 8108 | SPEEDNUT, push (2) | ALL |
| 13 | 8194 | NUT, special (2) | ALL |
| 14 | 8483A | RIVET, blind (2) | ALL |
| 15 | 10039 | CABLE STRAP (6) | ALL |
| 16 | 10102 | CLIP | ALL |
| 17 | 10177 | CABLE STRAP, tree mount, jiffy stand | ALL |
| 18 | 10336 | CLIP, conduit, rosebud mount | ALL |
| 19 | 10394 | CLIP, conduit, rosebud mount | ALL |
| 20 | 11663 | RIVNUT, flathead, with ABS | ALL |
| 21 | 11650 | GROMMET, side cover (6) | ALL |
| 22 | 47900-10BHP | FRAME, main, w/ 48315-60 & 50972-75 | ALL |
| 23 | 48315-60 | BEARING CUP (2) | ALL |
| 24 | 49184-09 | ENGINE GUARD, w/ 2708A, 6702 & 14148-86 | ALL |
| 25 | 49725-07 | SPRING, jiffy stand | ALL |
| 26 | 50015-74A | LEG STOP | ALL |
| 27 | 50075-07 | LEG, jiffy stand | ALL |
| 28 | 50096-09 | BRACKET, jiffy stand leg | ALL |
| 29 | 50126-08A | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 | ALL |
| 30 | 50245-07 | BUMPER, jiffy stand leg | ALL |
| 31 | 50972-75 | FITTING, lubrication | ALL |
| 32 | 58167-09 | DEFLECTOR, air, right | ALL |
| 58169-09 | DEFLECTOR, air, left | ALL | |
| 33 | 66048-09 | SIDE COVER, right (unpainted) | ALL |
| 66250-09 | SIDE COVER, left (unpainted) | ALL | |
| 34 | 69318-02 | CLAMP (2) | ALL |
| 35 | 70980-09 | TRAY, wire trough (main harness) | ALL |
| 36 | 70981-09 | COVER, wire trough (main harness) | ALL |
| 37 | 72169-07 | TERMINAL, pin, 16-20 AWG (3) | ALL |
| 38 | 72511-07BK | HOUSING, pin, 3-way (black) | ALL |
| 39 | 73213-07 | RETAINER, xmas tree clip | ALL |
| 40 | 90469-94 | PLUG (4 - NON-ABS, 3 - ABS) | ALL |
| 41 | 90329-98 | PLUG (black) (2) | ALL |

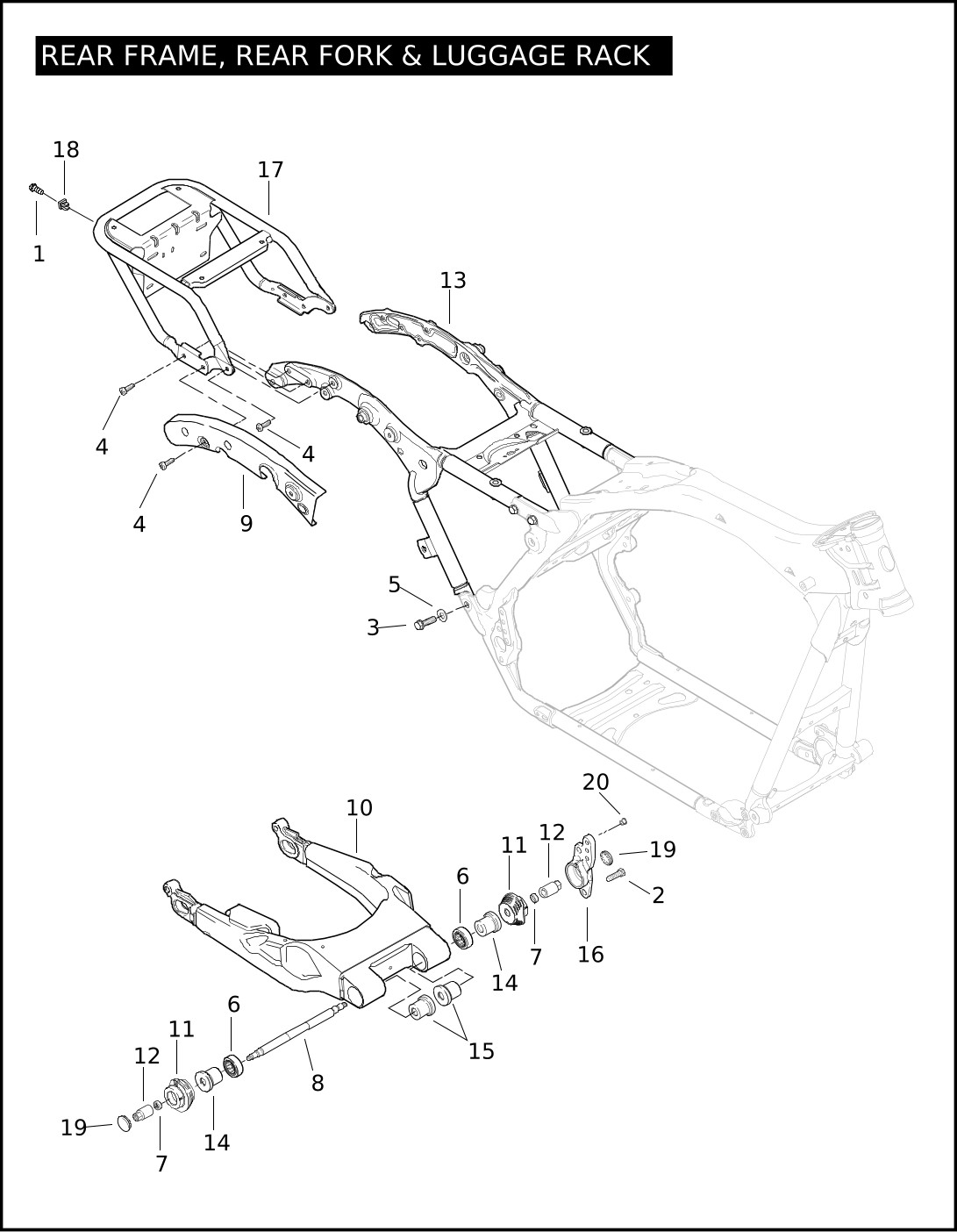

REAR FRAME, REAR FORK & LUGGAGE RACK
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2731W | SCREW (2) | ALL |
| 2 | 3057 | SCREW, locking (2) | ALL |
| 3 | 3536 | BOLT (6) | ALL |
| 4 | 3684 | SCREW (6) | ALL |
| 5 | 6532 | WASHER (6) | ALL |
| 6 | 9208 | BEARING (2) | ALL |
| 7 | 47491-02A | WASHER (2) | ALL |
| 8 | 47505-02 | SHAFT, rear fork | ALL |
| 9 | 47526-09 | COVER, left | ALL |
| 47522-09 | COVER, right | ALL | |
| 10 | 47549-09 | REAR FORK, w/ 9208 & 48489-02 | ALL |
| 11 | 47584-09 | RUBBER MOUNT (2) | ALL |
| 12 | 47606-09 | NUT, pivot, rear (2) | ALL |
| 13 | 48079-09BHP | FRAME, rear | ALL |
| 14 | 48487-02 | SPACER, outer (2) | ALL |
| 15 | 48489-02 | SPACER, inner (2) | ALL |
| 16 | 50588-09A | BRACKET, rear fork, left | ALL |
| 17 | 53411-09 | LUGGAGE RACK (chrome) | ALL |
| 18 | 59292-94 | NUT, plastic (2) | ALL |
| 19 | 67865-89 | CAP (2) | ALL |
| 20 | 90493-83 | HOLE PLUG (6) | ALL |

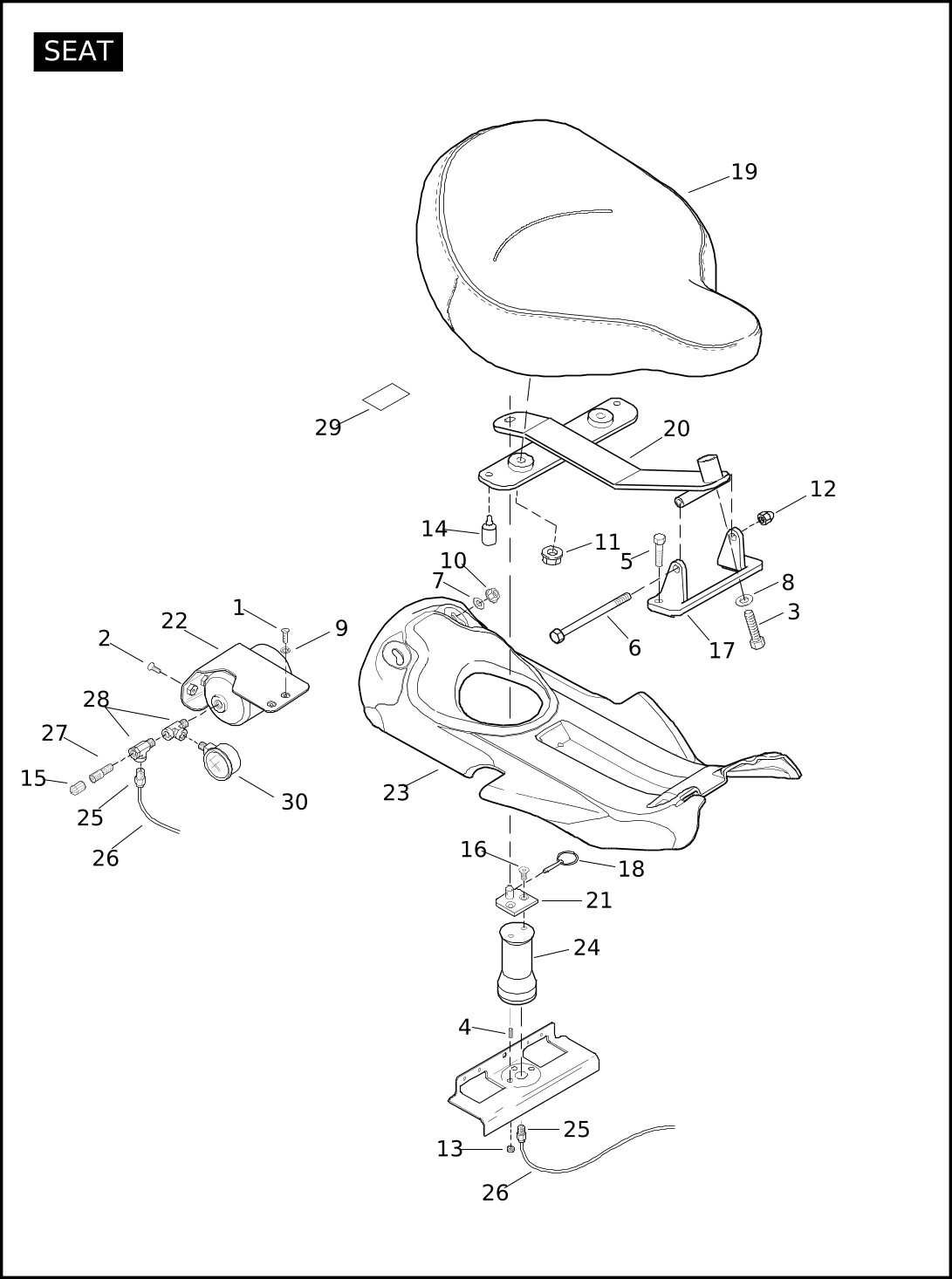

SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2443 | SCREW (2) | ALL |
| 2 | 2592 | SCREW (2) | ALL |
| 3 | 2667 | BOLT | ALL |
| 4 | 3278 | SCREW, set (2) | ALL |
| 5 | 4017 | BOLT (2) | ALL |
| 6 | 4067 | BOLT | ALL |
| 7 | 6333 | WASHER (2) | ALL |
| 8 | 6702 | WASHER | ALL |
| 9 | 7234 | LOCKWASHER, lock (2) | ALL |
| 10 | 7499 | NUT, flange (2) | ALL |
| 11 | 7531 | LOCKNUT (2) | ALL |
| 12 | 7549A | ACORN NUT, locking | ALL |
| 13 | 7716 | LOCKNUT (2) | ALL |
| 14 | 11495 | BUMPER, rubber (2) | ALL |
| 15 | 41123-79 | VALVE CAP | ALL |
| 16 | 41191-74A | SCREW (2) | ALL |
| 17 | 52220-08 | BRACKET, mount seat, right | ALL |
| 18 | 52241-97 | PIN, quick release | ALL |
| 19 | 52242-83E | SOLO SEAT | ALL |
| 20 | 52249-08 | BRACKET, seat support | ALL |
| 21 | 52261-08A | TOP PLATE | ALL |
| 22 | 52266-09 | AIR RESERVOIR | ALL |
| 23 | 52301-09 | FAIRING POLICE SEAT | ALL |
| 24 | 52282-94C | AIR SPRING ASSEMBLY, w/ 3278, 54300-94 & 54301-94A | ALL |
| 25 | 54300-94 | FITTING, quick release (2) | ALL |
| 26 | 54301-94A | HOSE, air spring | ALL |
| 27 | 54316-83A | AIR VALVE ASSEMBLY, w/ 41123-79 | ALL |
| 28 | 54326-94 | FITTING, tee (2) | ALL |
| 29 | 61067-94A | DECAL, air pressure | ALL |
| 30 | 75059-94 | GAUGE, air pressure | ALL |

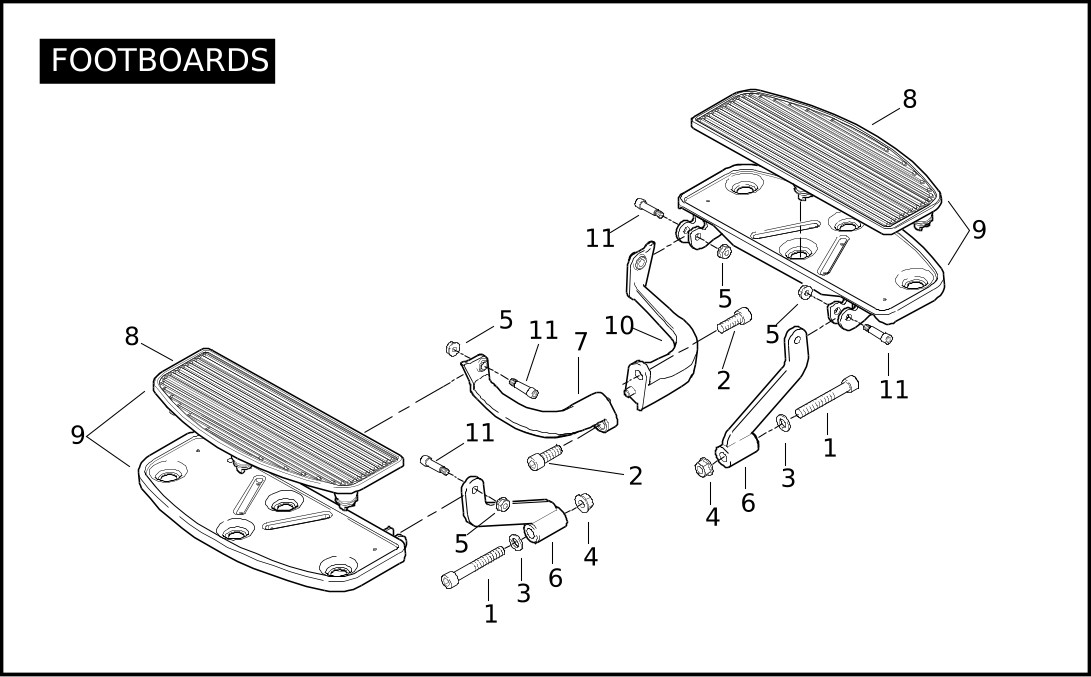

FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4032A | SCREW (2) | ALL |
| 2 | 4688 | SCREW (2) | ALL |
| 3 | 7038 | LOCKWASHER (2) | ALL |
| 4 | 7601 | LOCKNUT (2) | ALL |
| 5 | 7716 | LOCKNUT (4) | ALL |
| 6 | 47365-09 | BRACKET, front footboard (2) | ALL |
| 7 | 50518-09 | BRACKET, right rear | ALL |
| 8 | 50614-06 | PAD, footboard (2) | ALL |
| 9 | 50621-06 | FOOTBOARD ASSEMBLY, w/ 50614-06 (2) | ALL |
| 10 | 50622-09 | BRACKET, left rear | ALL |
| 11 | 50674-05 | SHOULDER BOLT, footboard (4) | ALL |

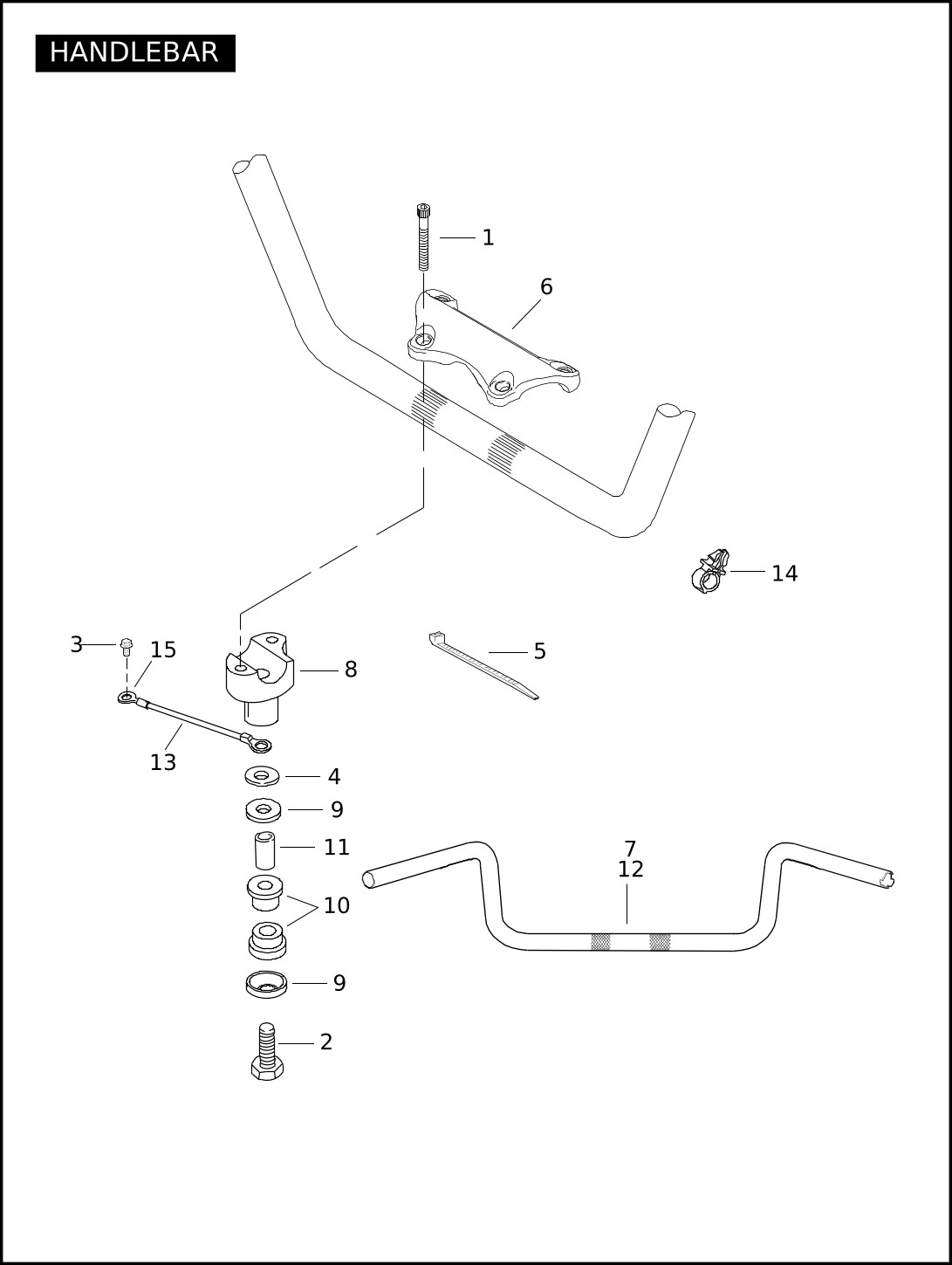

HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | ALL |
| 2 | 3605 | BOLT (2) | ALL |
| 3 | 4240 | SCREW | ALL |
| 4 | 6113 | WASHER, right only | ALL |
| 5 | 10006 | CABLE STRAP (2) | FLHTP |
| 10065 | CABLE STRAP (3) | FLHTP | |
| 6 | 55918-08 | CLAMP, upper | ALL |
| 7 | 55924-08 | HANDLEBAR | FLHTP |
| 8 | 56149-88B | RISER, lower, right | ALL |
| 56151-88B | RISER, lower, left | ALL | |
| 9 | 56159-73 | CUP WASHER (4) | ALL |
| 10 | 56161-83A | BUSHING, rubber (4) | ALL |
| 11 | 56163-93 | SPACER (2) | ALL |
| 12 | 56902-08 | HANDLEBAR | FLHP, FLHPE |
| 13 | 70142-94 | CABLE ASSEMBLY, handlebar ground, w/ 72241-94A | ALL |
| 14 | 70345-84 | RETAINER (4) | FLHP, FLHPE |
| 15 | 72241-94A | TERMINAL, 10 ring, 14-18 gauge | ALL |

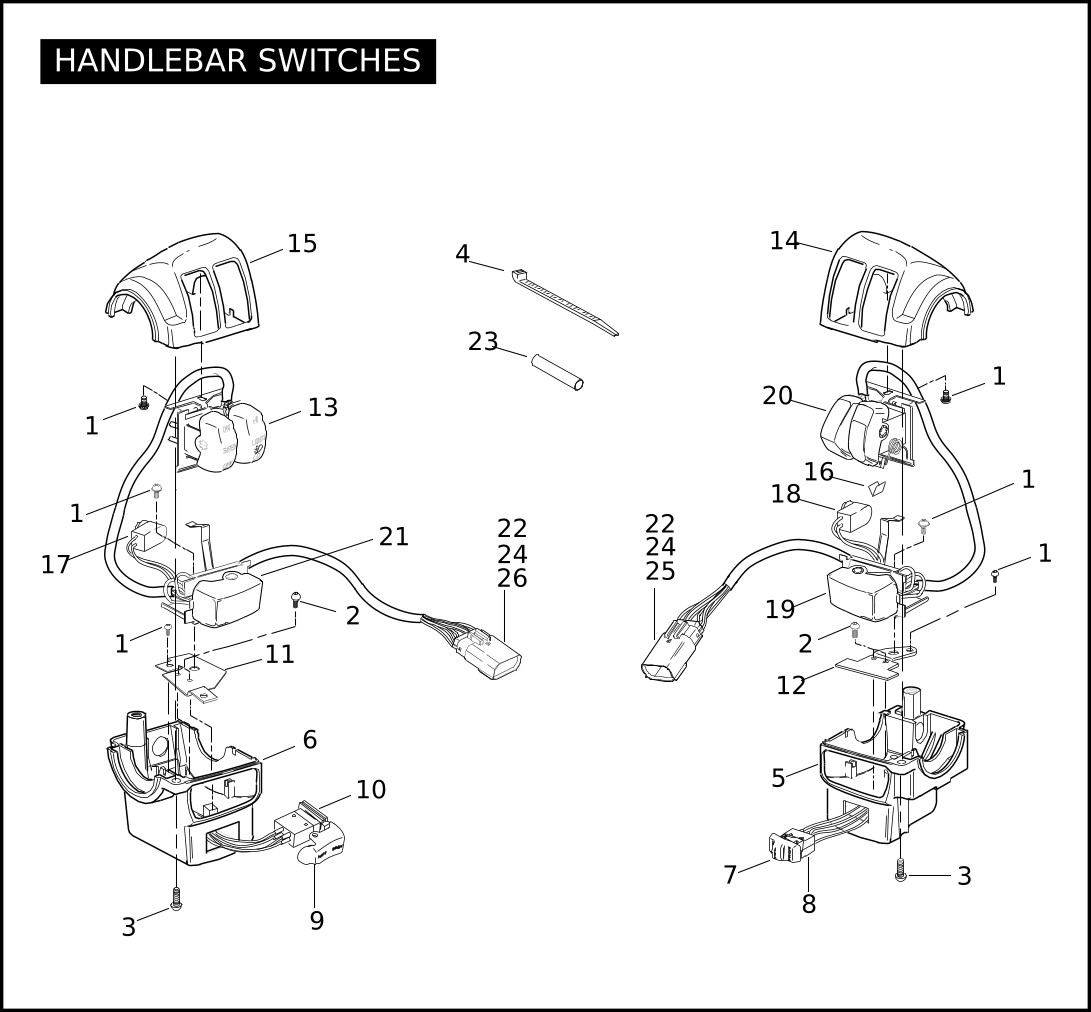

HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (6) | ALL |
| 2 | 3619 | SCREW (4) | ALL |
| 3 | 3658 | SCREW (4) | ALL |
| 4 | 10181 | CABLE STRAP (6) | ALL |
| 5 | 70355-08 | HOUSING, lower, right | ALL |
| 6 | 70358-96 | HOUSING, lower, left | ALL |
| 7 | 70356-96A | KNOB, pursuit | ALL |
| 8 | 70357-96 | SWITCH ASSEMBLY, pursuit | ALL |
| 9 | 70359-96A | KNOB, horn/siren | ALL |
| 10 | 70361-96 | SWITCH ASSEMBLY, horn/siren | ALL |
| 11 | 70388-96 | BRACKET, switch, left | ALL |
| 12 | 70389-96 | BRACKET, switch, right | ALL |
| 13 | 71515-08 | SWITCH KIT, siren/dimmer | ALL |
| 14 | 71564-96 | HOUSING, upper, right | ALL |
| 15 | 71567-96 | HOUSING, upper, left | ALL |
| 16 | 71587-04 | V-CLIP | ALL |
| 17 | 71620-08 | SWITCH KIT, clutch | ALL |
| 18 | 71621-08 | SWITCH KIT, stop lamp | ALL |
| 19 | 71683-06A | SWITCH KIT, right turn signal | ALL |
| 20 | 71684-06A | SWITCH KIT, engine stop & start | ALL |
| 21 | 71685-06A | SWITCH KIT, left turn signal | ALL |
| 22 | 72169-07 | TERMINAL, pin, 16-18 AWG (19) | ALL |
| 23 | 72266-94 | SHRINK TUBE (4) | ALL |
| 24 | 72473-07 | SEAL PIN (5) | ALL |
| 25 | 72488-07BK | HOUSING PIN, 12-way, right (black) | ALL |
| 26 | 72490-07GY | HOUSING PIN, 12-way, left (gray) | ALL |

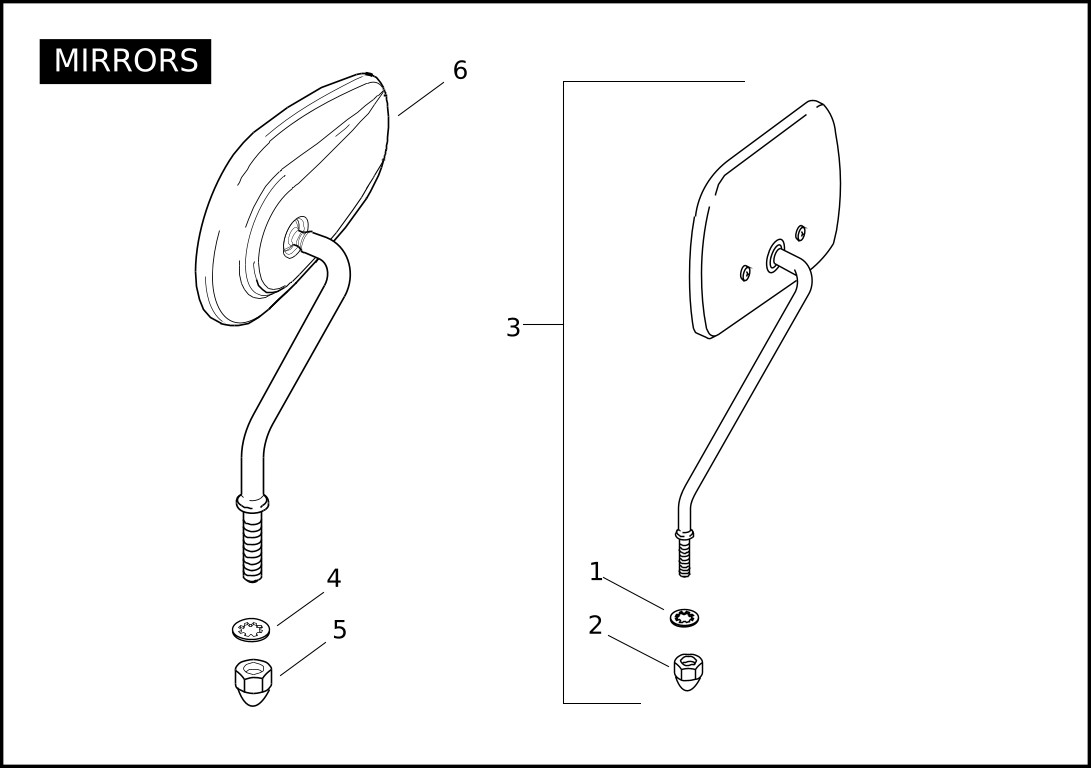

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7127 | LOCKWASHER (2) | ALL |
| 2 | 7736 | ACORN NUT (2) | ALL |
| 3 | 91904-86A | MIRROR KIT, long flat, right (Domestic, California & Canada) | ALL |
| 91902-86A | MIRROR KIT, long flat, left (Domestic, California & Canada) | ALL | |
| INTERNATIONAL MODELS ONLY | |||
| 4 | 7155 | LOCKWASHER (2) | FLHP, FLHTP |
| 5 | 7331 | ACORN NUT (2) | FLHP, FLHTP |
| 6 | 91840-03B | MIRROR KIT, short, convex, right, w/ 7155 & 7331 (HDI) | FLHP, FLHTP |
| 91845-03B | MIRROR KIT, short, convex, left, w/ 7155 & 7331 (HDI) | FLHP, FLHTP | |

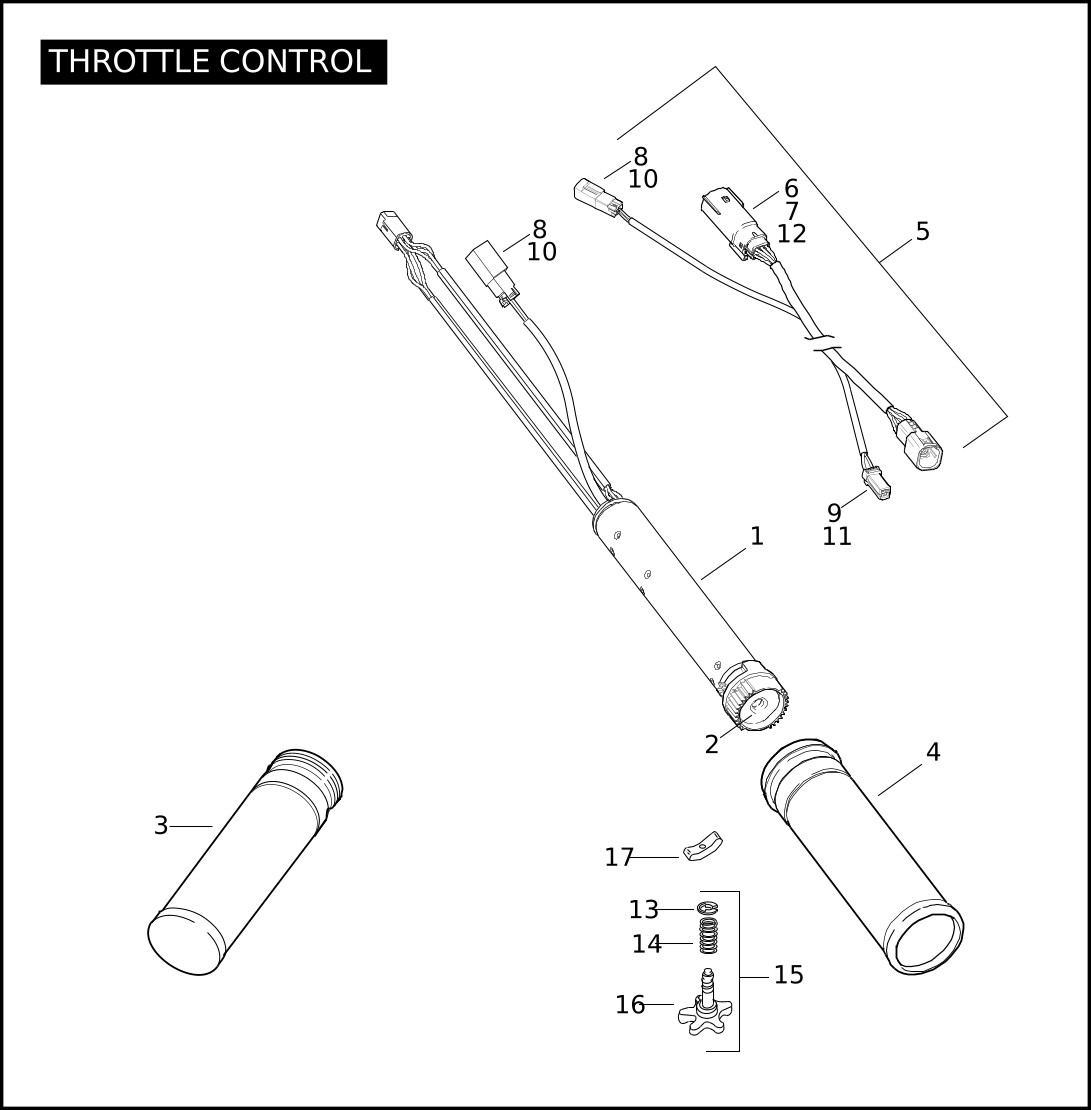

THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32305-08A | SENSOR, twist grip, w/ 32306-08, 72902-01BK & 72990-01 | ALL |
| 2 | 32306-08 | SEAL CAP, throttle sensor | ALL |
| 3 | 56248-08 | GRIP, left | ALL |
| 4 | 56304-08 | GRIP & SLEEVE, throttle, right | ALL |
| 5 | 70415-08A | HARNESS, throttle, jumper | ALL |
| 6 | 72169-07 | TERMINAL, pin, 16-18 AWG (6) | ALL |
| 7 | 72188-07BK | PIN HOUSING, 6-way (black) | ALL |
| 8 | 72902-01BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 9 | 72912-01BK | SOCKET HOUSING, 2-way (black) | ALL |
| 10 | 72990-01 | PIN TERMINAL (4) | ALL |
| 11 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | ALL |
| 12 | 73212-07 | ANCHOR, t-stud connector | ALL |
| 13 | 11155 | RETAINING RING | ALL |
| 14 | 56394-74 | SPRING, adjusting screw | ALL |
| 15 | 56397-74C | ADJUSTING SCREW KIT, w/ 11155, 56394-74 & 56402-83A | ALL |
| 16 | 56402-83A | ADJUSTING SCREW | ALL |
| 17 | 56954-08 | FRICTION SPRING, throttle | ALL |

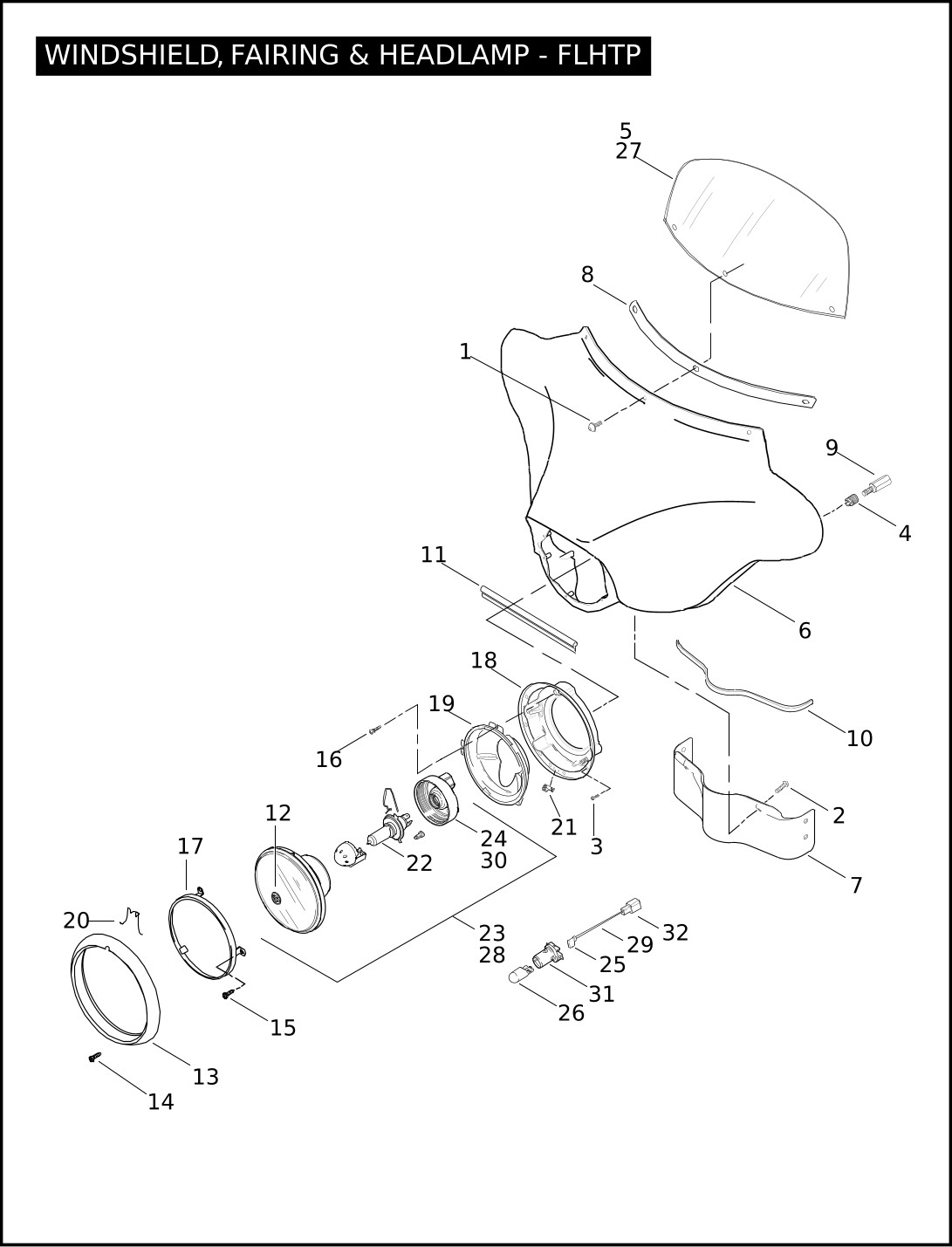

WINDSHIELD, FAIRING & HEADLAMP - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (3) | FLHTP |
| 2 | 2446 | SCREW (2) | FLHTP |
| 3 | 4790 | SCREW (4) | FLHTP |
| 4 | 16585-96 | INSERT, threaded (4) | FLHTP |
| 5 | 58187-96 | WINDSHIELD | FLHTP |
| 6 | 58236-96 | FAIRING, outer (prime) | FLHTP |
| 7 | 58208-96A | SKIRT, outer fairing | FLHTP |
| 8 | 58247-96 | CUSHION TAPE, windshield mounting | FLHTP |
| 9 | 58949-96 | NUT, extension (2) | FLHTP |
| 10 | 62786-96 | TRIM STRIP, skirt | FLHTP |
| 11 | 62787-96 | SEAL, fairing skirt | FLHTP |
| 12 | 67668-05 | MEDALLION | FLHTP |
| 13 | 67712-83A | DOOR, headlamp | FLHTP |
| 14 | 67718-60A | SCREW, headlamp door | FLHTP |
| 15 | 67721-48 | SCREW, headlamp retaining ring (3) | FLHTP |
| 16 | 67724-71 | ADJUSTING SCREW, headlamp (2) | FLHTP |
| 17 | 67726-08 | RETAINING RING, headlamp | FLHTP |
| 18 | 67728-02A | BUCKET ASSEMBLY | FLHTP |
| 19 | 67732-08 | MOUNTING RING, headlamp | FLHTP |
| 20 | 67778-60A | TOP SPRING | FLHTP |
| 21 | 67782-60A | BRACKET, door | FLHTP |
| 22 | 68329-03 | BULB | FLHTP |
| 23 | 68342-05 | HEADLAMP ASSEMBLY (Domestic) | FLHTP |
| 24 | 68390-05 | BOOT | FLHTP |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 9898 | TERMINAL FLAG, 18-20 ga, (HDI) (2) | FLHTP |
| 26 | 53436-97 | BULB, position lamp (HDI) | FLHTP |
| 27 | 58324-97 | WINDSHIELD, clear (HDI) | FLHTP |
| 28 | 68345-05 | REFLECTOR ASSEMBLY, right dip (HDI) | FLHTP |
| 29 | 68359-05 | JUMPER HARNESS, position bulb, w/ 9898 & 72253-94 (HDI) | FLHTP |
| 30 | 68380-05 | BOOT, bulb (HDI) | FLHTP |
| 31 | 68653-05 | SOCKET, position lamp (HDI) | FLHTP |
| 32 | 72253-94 | TERMINAL, 18-20 ga (HDI) (2) | FLHTP |

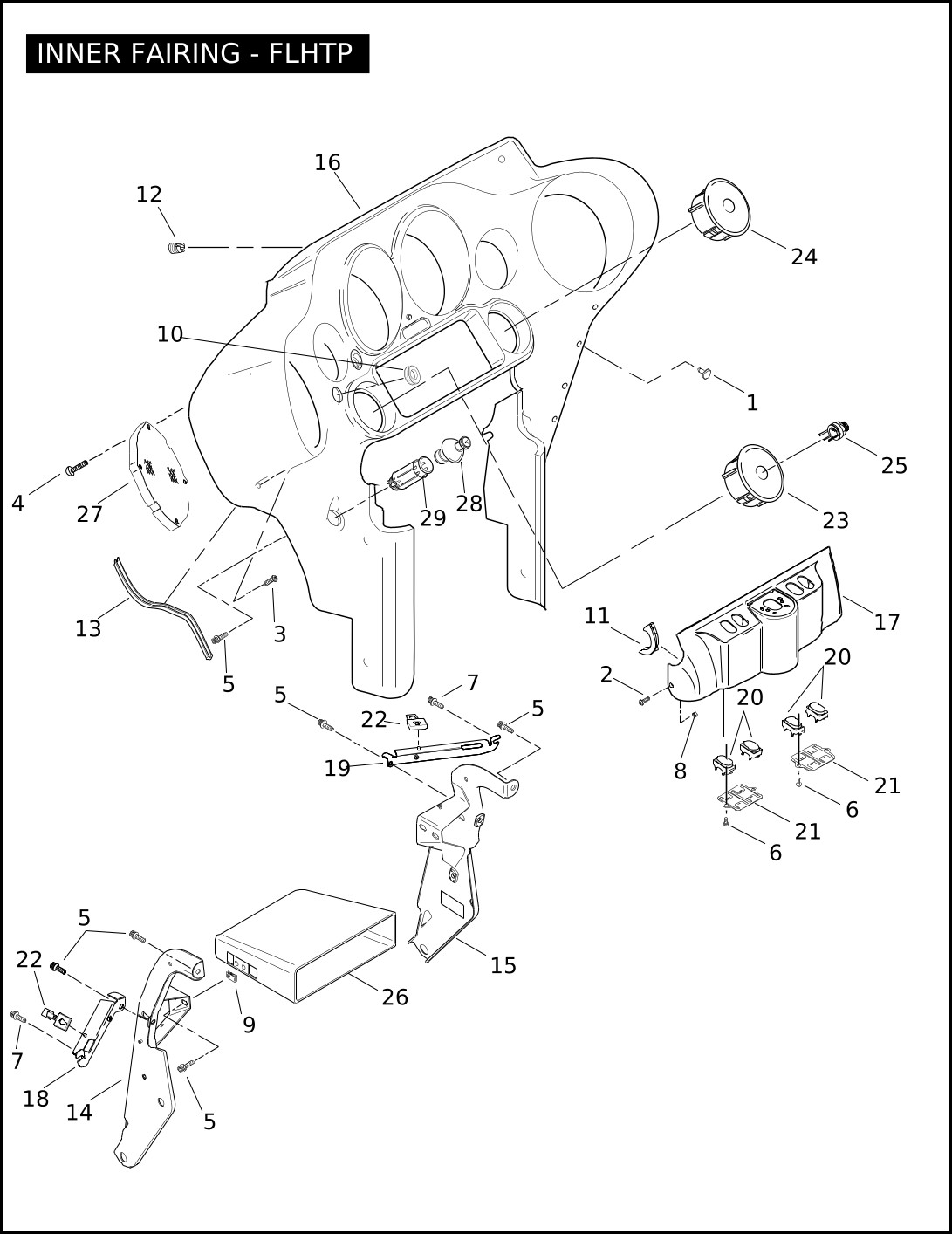

INNER FAIRING - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 1 | 756 | PLUG, air deflector hole (8) | FLHTP |
| 2 | 2445 | SCREW (2) | FLHTP |
| 3 | 2446 | SCREW (2) | FLHTP |
| 4 | 3387 | SCREW, front speaker mounting (4) | FLHTP |
| 5 | 3061 | SCREW (10) | FLHTP |
| 6 | 3612 | SCREW (4) | FLHTP |
| 7 | 3639 | SCREW (2) | FLHTP |
| 8 | 7688 | NUT (2) | FLHTP |
| 9 | 7900 | LOCKNUT (4) | FLHTP |
| 10 | 11445 | GROMMET, clutch cable | FLHTP |
| 11 | 11488 | GROMMET, handlebar, right | FLHTP |
| 11492 | GROMMET, handlebar, left | FLHTP | |
| 12 | 16585-96 | INSERT, threaded (5) | FLHTP |
| 13 | 58311-96 | TRIM SEAL, inner fairing, 29 in. long (2) | FLHTP |
| 14 | 58478-96B | BRACKET, fairing support, left | FLHTP |
| 15 | 58479-96B | BRACKET, fairing support, right | FLHTP |
| 16 | 58497-08A | INNER FAIRING ASSEMBLY, w/ 7688 & 58311-96 | FLHTP |
| 17 | 58510-96 | CAP, inner fairing | FLHTP |
| 18 | 58938-96C | SUPPORT, inner fairing, left | FLHTP |
| 19 | 58939-96C | SUPPORT, inner fairing, right | FLHTP |
| 20 | 71431-96A | PLUG, switch hole (4) | FLHTP |
| 21 | 71434-96A | BRACKET, switch (2) | FLHTP |
| 22 | 73212-07 | ANCHOR, t-stud connector (2) | FLHTP |
| 23 | 75105-96A | PLUG, microphone jack | FLHTP |
| 24 | 75106-96A | PLUG, pursuit lamp w/out hole | FLHTP |
| 25 | 76233-85 | JACK, microphone, left | FLHTP |
| 26 | 76286-96 | GLOVE BOX, w/ 7900 | FLHTP |
| 27 | 77046-96A | COVER, speaker opening (2) | FLHTP |
| 28 | 91808-89 | ELEMENT, cigarette lighter | FLHTP |
| 29 | 91812-89A | SOCKET, cigarette lighter | FLHTP |

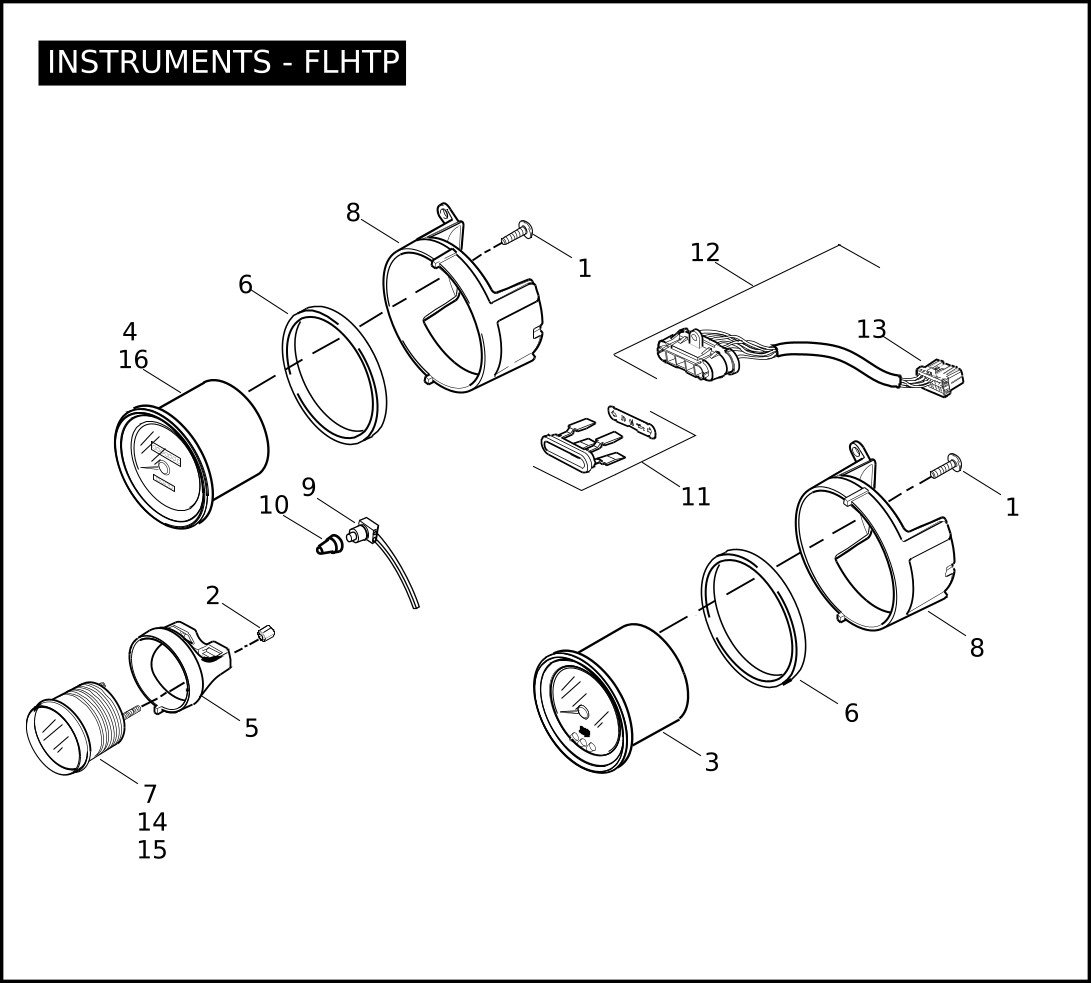

INSTRUMENTS - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2625 | SCREW (4) | FLHTP |
| 2 | 67043-96 | NUT (4) | FLHTP |
| 3 | 67348-04D | TACHOMETER | FLHTP |
| 4 | 67349-08 | SPEEDOMETER, mph (Domestic) | FLHTP |
| 5 | 67352-96A | BACKCLAMP, 2 in. gauge (2) | FLHTP |
| 6 | 67356-00 | GASKET, speedometer/tachometer (2) | FLHTP |
| 7 | 67445-00 | BULB, w/ rubber boot (2) | FLHTP |
| 8 | 67689-04 | BACKCLAMP, 4 in. gauge (2) | FLHTP |
| 9 | 67854-98 | SWITCH, odometer reset | FLHTP |
| 10 | 67880-94 | BOOT, odometer reset switch | FLHTP |
| 11 | 68382-07 | BEZEL ASSEMBLY, indicator lamp | FLHTP |
| 12 | 68789-96A | INDICATOR LAMP ASSEMBLY, w/ 73160-96BK | FLHTP |
| 13 | 73160-96BK | SOCKET HOUSING, 10-way | FLHTP |
| 14 | 74526-96C | VOLTMETER, w/ 67445-00 & 75044-96 | FLHTP |
| 75111-08 | FUEL GAUGE, w/ 67445-00 & 75044-96 | FLHTP | |
| 15 | 75044-96 | SOCKET (2) | FLHTP |
| INTERNATIONAL MODELS ONLY | |||
| 16 | 67350-08 | SPEEDOMETER, kph (Canada, HDI) | FLHTP |

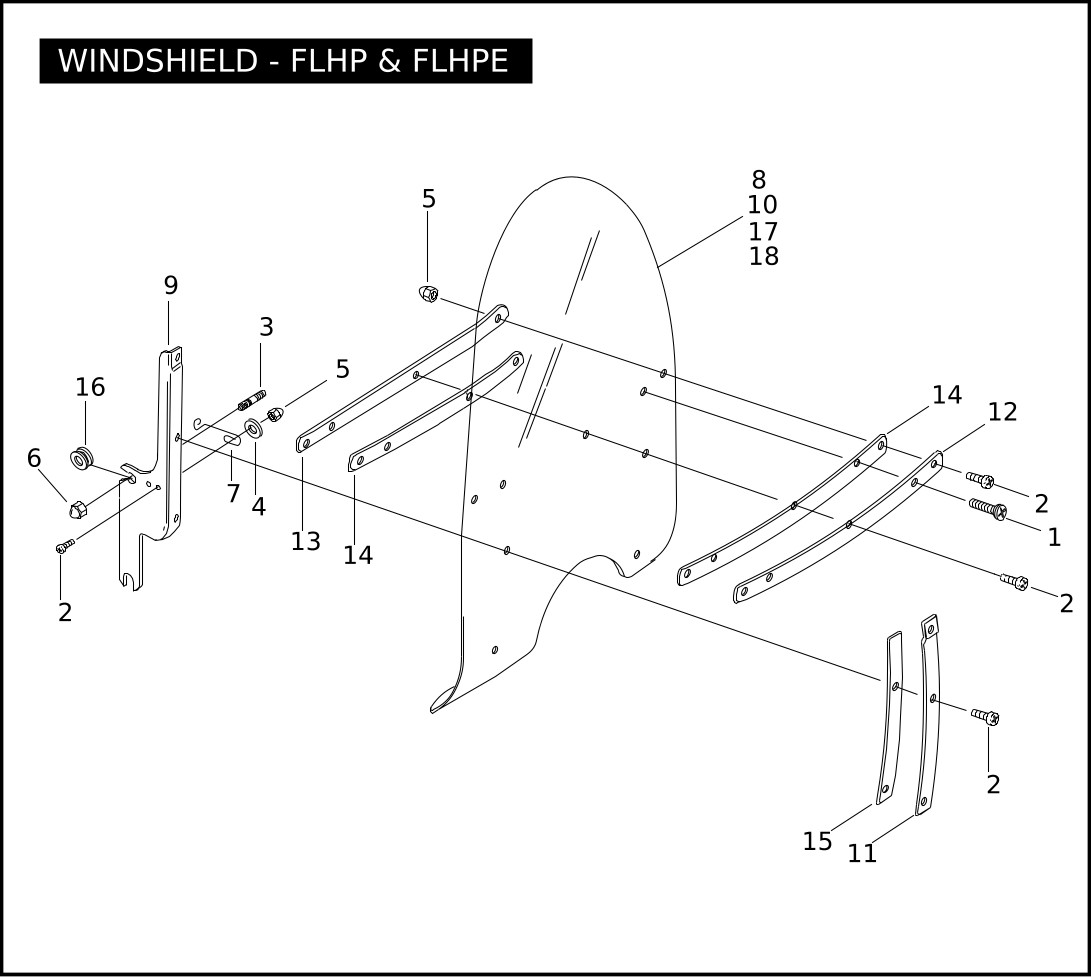

WINDSHIELD - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2452 | SCREW (2) | FLHP, FLHPE |
| 2 | 2921 | SCREW (11) | FLHP, FLHPE |
| 3 | 3265A | STUD (4) | FLHP, FLHPE |
| 4 | 6119 | WASHER (8) | FLHP, FLHPE |
| 5 | 7651A | ACORN NUT (13) | FLHP, FLHPE |
| 6 | 7992 | ACORN NUT (4) | FLHP, FLHPE |
| 9990W | CLAMP, clutch line (not illustrated) | FLHP, FLHPE | |
| 7 | 38722-94 | SPRING LATCH (2) | FLHP, FLHPE |
| 8 | 57995-96 | WINDSHIELD ASSEMBLY, complete (Domestic) | FLHP, FLHPE |
| 9 | 58084-94 | ADJUSTING BRACKET, right | FLHP, FLHPE |
| 58088-94 | ADJUSTING BRACKET, left | FLHP, FLHPE | |
| 10 | 58433-96 | WINDSHIELD REPLACEMENT KIT | FLHP, FLHPE |
| 11 | 58406-75A | BRACE, right | FLHP, FLHPE |
| 58408-75A | BRACE, left | FLHP, FLHPE | |
| 12 | 58428-94 | BRACE, outer | FLHP, FLHPE |
| 13 | 58431-94 | BRACE, inner | FLHP, FLHPE |
| 14 | 58416-77A | TAPE (2) | FLHP, FLHPE |
| 15 | 58417-77 | TAPE (2) | FLHP, FLHPE |
| 16 | 67621-94 | BUSHING (4) | FLHP, FLHPE |
| INTERNATIONAL MODELS ONLY | |||
| 17 | 58325-06 | WINDSHIELD ASSEMBLY, complete (HDI) | FLHP |
| 18 | 58327-06 | WINDSHIELD REPLACEMENT KIT (HDI) | FLHP |

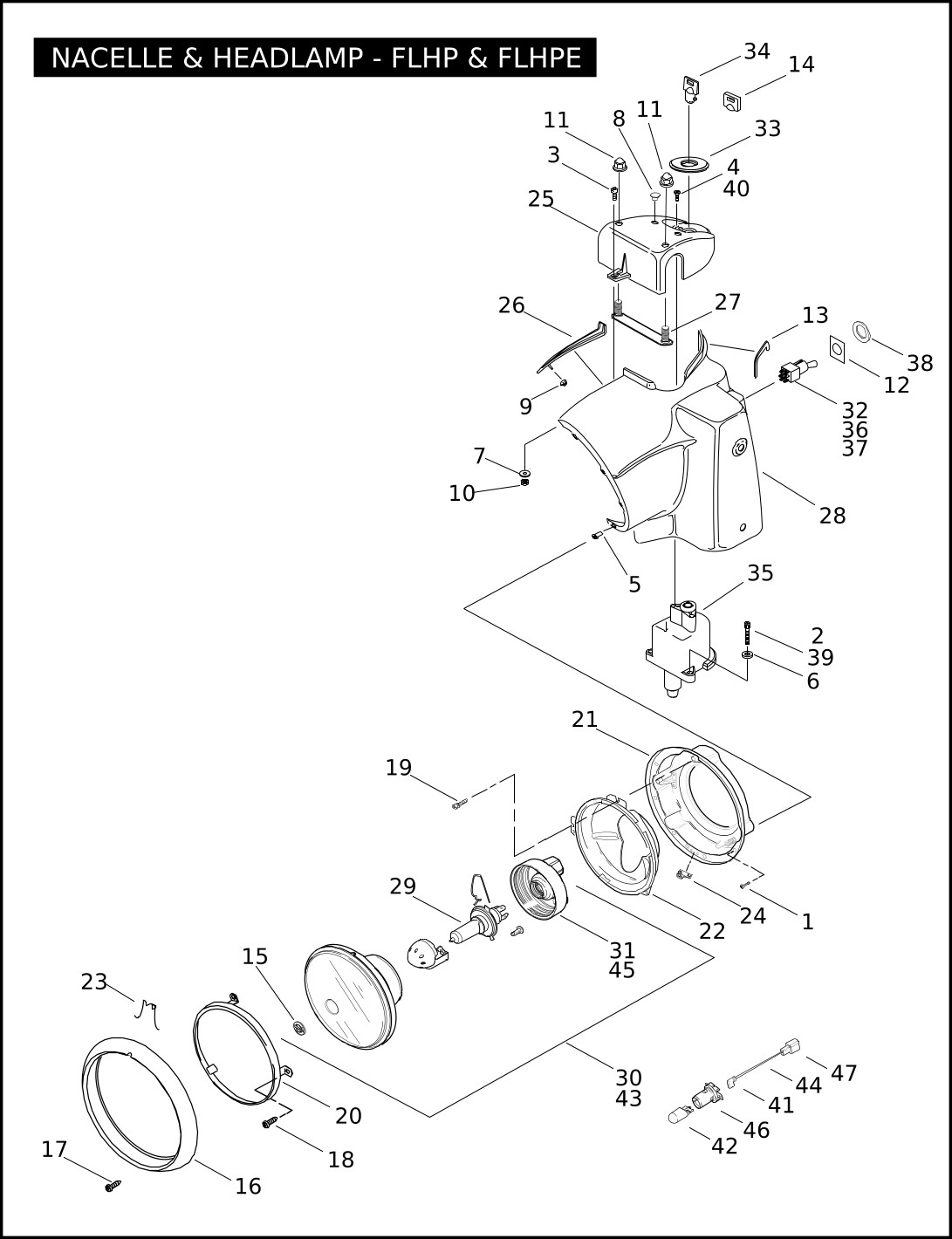

NACELLE & HEADLAMP - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 787 | SCREW (7) | FLHP, FLHPE |
| 2 | 2647B | SCREW (2) | FLHP, FLHPE |
| 3 | 2806 | SCREW | FLHP, FLHPE |
| 4 | 2933 | SCREW (2) | FLHP, FLHPE |
| 5 | 5210 | WELLNUT (7) | FLHP, FLHPE |
| 6 | 6150W | WASHER (2) | FLHP, FLHPE |
| 7 | 6789 | WASHER | FLHP, FLHPE |
| 8 | 6931 | PLUG (2) | FLHP, FLHPE |
| 9 | 7888A | NUT | FLHP, FLHPE |
| 10 | 7889 | NUT | FLHP, FLHPE |
| 11 | 7992 | ACORN NUT (2) | FLHP, FLHPE |
| 12 | 14019-83A | LABEL, on/off | FLHP, FLHPE |
| 13 | 11489 | TRIM (2) | FLHP, FLHPE |
| 53568-03A | LOCKSET, complete, w/ keys, key cover, ignition switch, lock assembly, fork lock & camlock (not illustrated) | FLHP, FLHPE | |
| 14 | 61081-92 | COVER, key head set (2) | FLHP, FLHPE |
| 15 | 67668-05 | MEDALLION | FLHP, FLHPE |
| 16 | 67712-83A | DOOR, headlamp | FLHP, FLHPE |
| 17 | 67718-60A | SCREW, headlamp door | FLHP, FLHPE |
| 18 | 67721-48 | SCREW (3) | FLHP, FLHPE |
| 19 | 67724-71 | ADJUSTING SCREW (2) | FLHP, FLHPE |
| 20 | 67726-08 | RETAINING RING | FLHP, FLHPE |
| 21 | 67728-02A | BUCKET ASSEMBLY | FLHP, FLHPE |
| 22 | 67732-08 | MOUNTING RING | FLHP, FLHPE |
| 23 | 67778-60A | SPRING | FLHP, FLHPE |
| 24 | 67782-60A | BRACKET, door | FLHP, FLHPE |
| 25 | 67810-03 | COVER, handlebar | FLHP, FLHPE |
| 26 | 67868-03 | TRIM, nacelle | FLHP, FLHPE |
| 27 | 67909-96 | STUD PLATE | FLHP, FLHPE |
| 28 | 67911-03B | NACELLE, left | FLHP, FLHPE |
| 67912-03C | NACELLE, right | FLHP, FLHPE | |
| 29 | 68329-03 | BULB | FLHP, FLHPE |
| 30 | 68342-05 | HEADLAMP ASSEMBLY | FLHP, FLHPE |
| 31 | 68390-05 | BOOT, bulb | FLHP, FLHPE |
| 32 | 70292-89 | SOCKET HOUSING, 4-way | FLHP, FLHPE |
| 33 | 71310-94 | TRIM ASSEMBLY, fork lock | FLHP, FLHPE |
| 34 | 71452-91A | KEY (specify key code) (2) | FLHP, FLHPE |
| 35 | 71540-94A | FORK LOCK | FLHP, FLHPE |
| 36 | 71522-08 | SWITCH, spot lamp & accessory, w/ 70292-89 & 72038-71A | FLHP, FLHPE |
| 37 | 72038-71A | TERMINAL, socket (4) | FLHP, FLHPE |
| 38 | 74408-08A | DRESS NUT (chrome) | FLHP, FLHPE |
| INTERNATIONAL MODELS ONLY | |||
| 39 | 2934 | SCREW (HDI) (2) | FLHP |
| 40 | 2935A | SCREW (HDI) (2) | FLHP |
| 41 | 9898 | TERMINAL FLAG, 18-20 ga, (HDI) (2) | FLHP |
| 42 | 53436-97 | BULB, position lamp (HDI) | FLHP |
| 43 | 68345-05 | REFLECTOR ASSEMBLY, right dip (HDI) | FLHP |
| 44 | 68359-05 | JUMPER HARNESS, position bulb (HDI) (2) | FLHP |
| 45 | 68380-05 | BOOT, bulb (HDI) | FLHP |
| 46 | 68653-05 | SOCKET, position lamp (HDI) | FLHP |
| 47 | 72253-94 | TERMINAL, 18-20 ga (HDI) (2) | FLHP |

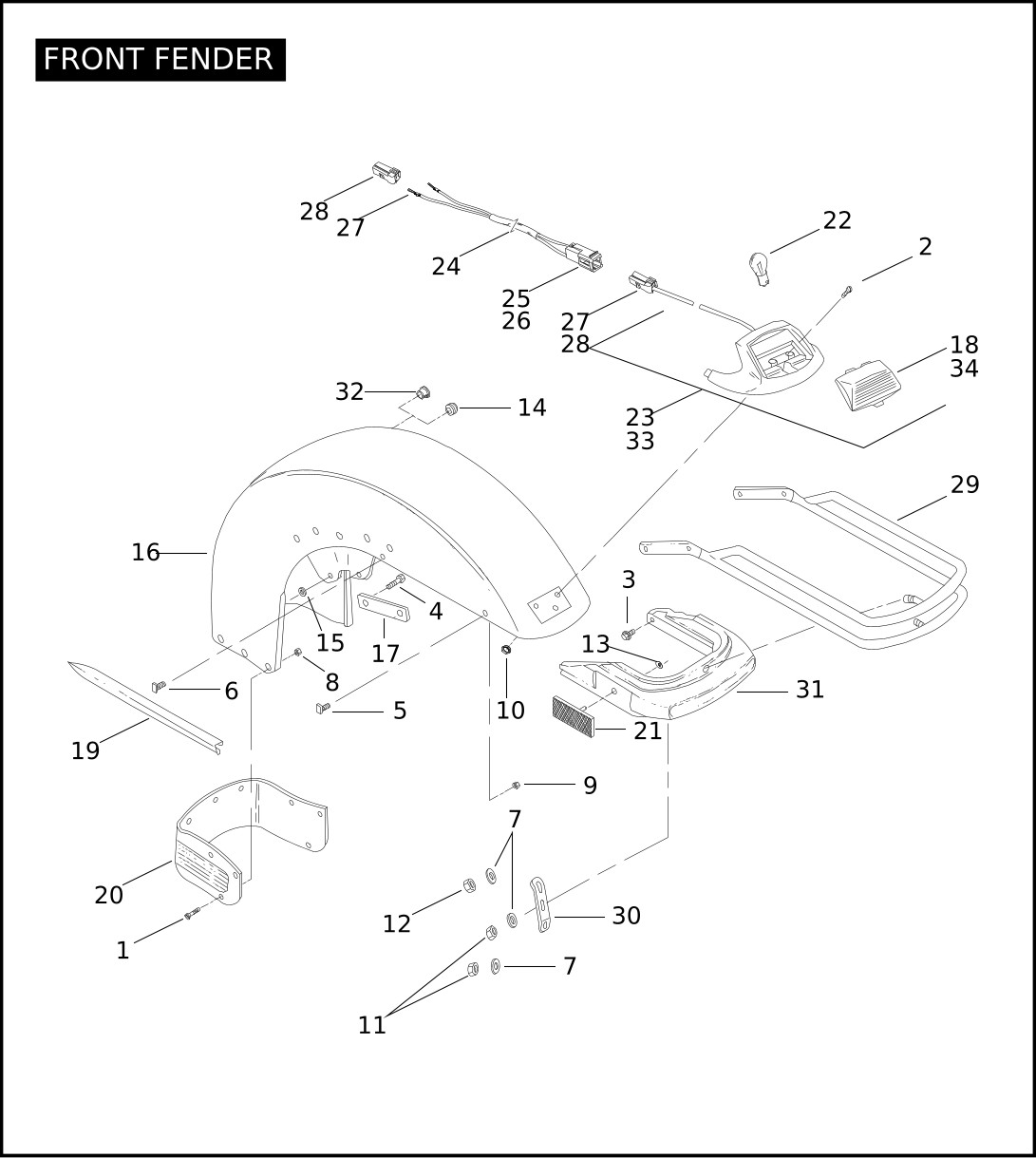

FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2531 | SCREW (6) | ALL |
| 2 | 2604 | SCREW (2) | ALL |
| 3 | 3602A | SCREW (2) | ALL |
| 4 | 3462 | BOLT (4) | ALL |
| 5 | 3560WA | BOLT (2) | ALL |
| 6 | 3561WC | BOLT (2) | ALL |
| 7 | 6703 | WASHER (3) | ALL |
| 8 | 7600 | NUT (6) | ALL |
| 9 | 7624 | LOCKNUT (4) | ALL |
| 10 | 7629 | NUT (2) | ALL |
| 11 | 7682 | LOCKNUT (2) | ALL |
| 12 | 7683 | LOCKNUT | ALL |
| 13 | 8126A | SPEED NUT, reflector (2) | ALL |
| 14 | 11437 | GROMMET, wiring harness | ALL |
| 15 | 45279-00 | WASHER (4) | ALL |
| 16 | 59093-00B | FENDER (prime) | ALL |
| 17 | 59166-80 | PLATE LOCK (2) | ALL |
| 18 | 59180-80 | LENS, fender lamp (amber) | ALL |
| 19 | 59211-74A | SIDE TRIM (2) | ALL |
| 20 | 59231-86 | TRIM SKIRT, lower | ALL |
| 21 | 59261-91 | REFLECTOR (amber) (2) | ALL |
| 22 | 68193-95 | BULB, fender tip lamp | ALL |
| 23 | 68706-00 | FENDER LIGHT ASSEMBLY, w/ 59180-80, 68193-95, 73152-96BK & 73191-96 | ALL |
| 24 | 70196-00A | WIRE ASSEMBLY, w/ 73102-96BK, 73190-96 & 73191-96 | ALL |
| 25 | 73102-96BK | PIN HOUSING, 2-way | ALL |
| 26 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | ALL |
| 27 | 73191-96 | TERMINAL, socket, 16-20 AWG (4) | ALL |
| 28 | 73152-96BK | SOCKET HOUSING, 2-way (2) | ALL |
| 29 | 91085-83D | BUMPER ASSEMBLY, w/ 3, 4, 7, 11, 12, 13, 17, 21, 30 & 31 | ALL |
| 30 | 91090-77A | BRACKET, bumper | ALL |
| 31 | 91107-77C | CUSHION, bumper | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 32 | 755 | HOLE PLUG (HDI) | FLHP, FLHTP |
| 33 | 59116-96 | FENDER TIP ASSEMBLY, w/ 59201-96 (HDI) | FLHP, FLHTP |
| 34 | 59201-96 | LENS, fender tip (HDI) | FLHP, FLHTP |

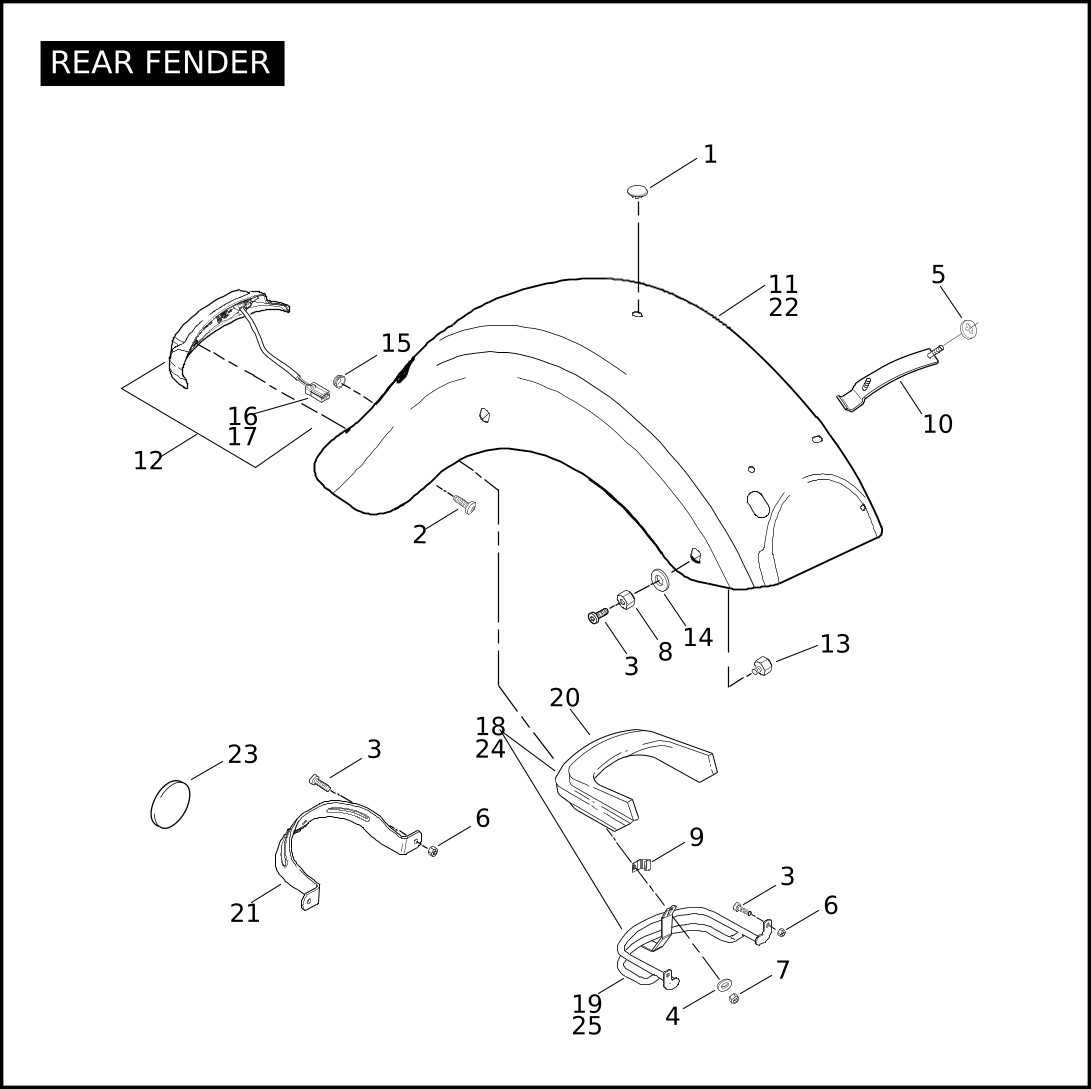

REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG | ALL |
| 2 | 3612 | SCREW (Domestic) (2) | ALL |
| 3 | 3684 | SCREW (6) | ALL |
| 4 | 6703 | WASHER | ALL |
| 5 | 7434 | WASHER (2) | ALL |
| 6 | 7531 | LOCKNUT (2) | ALL |
| 7 | 7686 | LOCKNUT | ALL |
| 8 | 7880 | NUT, outer (4) | ALL |
| 9 | 10092 | CLAMP (Domestic) | ALL |
| 10 | 59174-99 | STUD PLATE | ALL |
| 11 | 59579-09 | FENDER, rear (prime) (Domestic) | ALL |
| 12 | 59672-09 | LAMP ASSEMBLY, fender tip, w/ 73153-96BK & 73191-96 (Domestic) | ALL |
| 13 | 59786-01 | FENDER MOUNTING BOSS, inner (4) | ALL |
| 14 | 59788-01 | FENDER MOUNTING WASHER (4) | ALL |
| 15 | 67266-94 | GROMMET, turn signal (2) | ALL |
| 16 | 73153-96BK | SOCKET HOUSING, 3-way | ALL |
| 17 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | ALL |
| 18 | 91013-09 | REAR BUMPER ASSEMBLY, w/ 91023-09 & 91123-09 (Domestic) | ALL |
| 19 | 91023-09 | RAIL, rear bumper (Domestic) | ALL |
| 20 | 91123-09 | BUMPER CUSHION, rear | ALL |
| 21 | 91140-09 | BRACKET, saddlebag to fender support | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 58702-09 | FENDER, rear (prime) (HDI) | FLHP, FLHTP |
| 23 | 59581-05 | BUMPER, rear fender (black) | FLHP, FLHTP |
| 24 | 91049-09 | REAR BUMPER ASSEMBLY, w/ 91065-09 & 91123-09 (HDI) | FLHP, FLHTP |
| 25 | 91065-09 | RAIL, rear bumper (HDI) | FLHP, FLHTP |

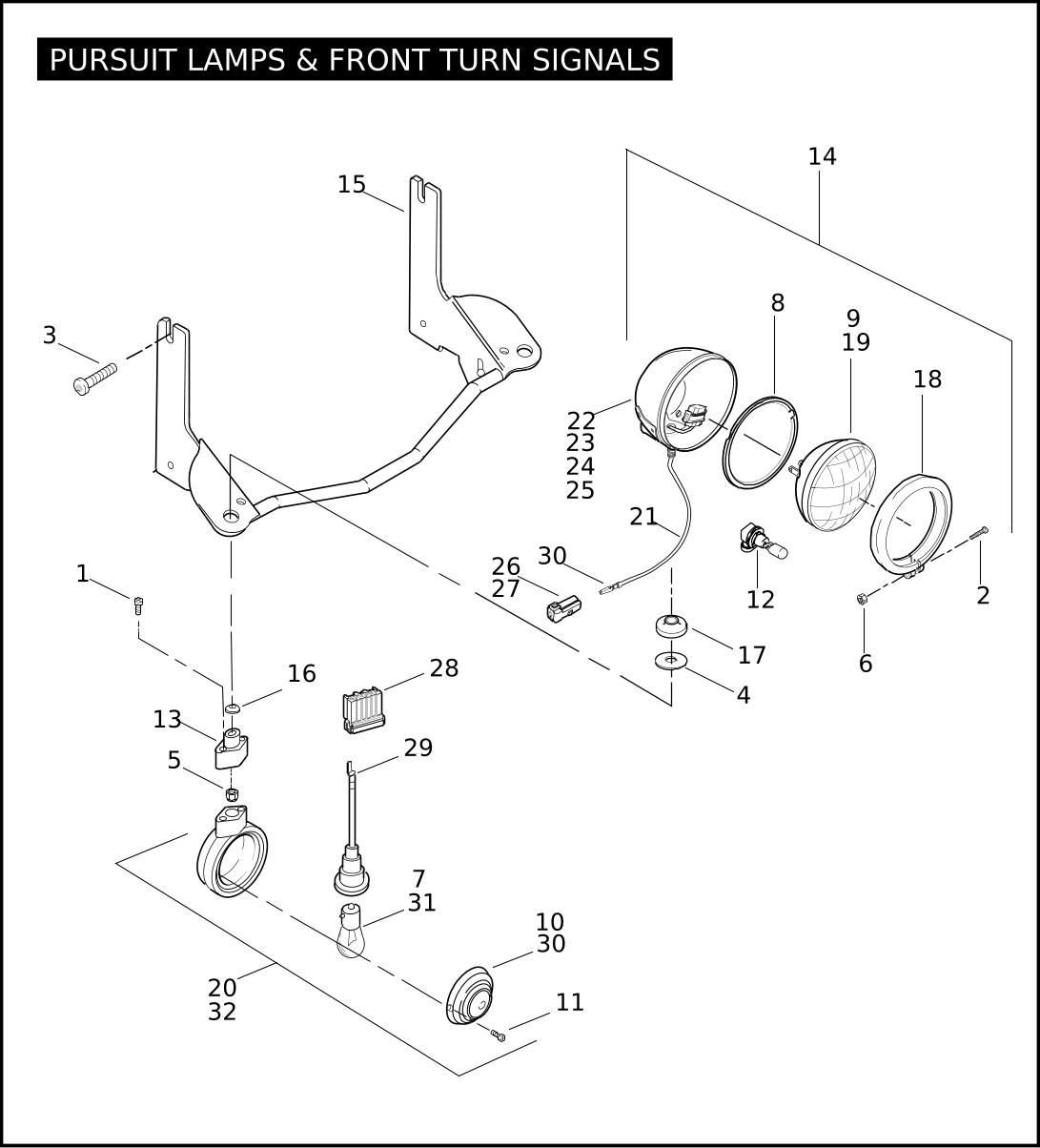

PURSUIT LAMPS & FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (4) | ALL |
| 2 | 3514 | SCREW (2) | ALL |
| 3 | 3684 | SCREW (4) | FLHTP |
| 4 | 6072 | WASHER, belleville (2) | ALL |
| 5 | 7601 | LOCKNUT (2) | ALL |
| 6 | 7606 | LOCKNUT (2) | ALL |
| 10065 | CABLE STRAP (not illustrated) | FLHP, FLHPE | |
| 7 | 68168-89A | BULB, turn signal (Domestic) (2) | ALL |
| 8 | 68331-02 | RING, passing lamps (2) | ALL |
| 9 | 68414-05 | LAMP, auxiliary, w/ 68453-05 (California only) (2) | FLHPE |
| 10 | 68440-86 | LENS, turn signal (amber) (Domestic) (2) | ALL |
| 11 | 68452-86 | SCREW (4) | ALL |
| 12 | 68453-05 | BULB, auxiliary lamp (2) | ALL |
| 13 | 68519-68A | MOUNTING BRACKET (2) | FLHP, FLHTP |
| 14 | 68663-64F | PURSUIT LAMP (red) w/ 3514, 7606, 68725-62A, 68727-09, 68331-02 & 72160-06 | FLHP, FLHTP |
| 68665-84E | PURSUIT LAMP (blue) w/ 3514, 7606, 68725-62A, 68728-09, 68331-02 & 672160-06 | FLHP, FLHTP | |
| 15 | 68712-94A | BRACKET, pursuit lamps | ALL |
| 16 | 68720-62 | CLAMP BLOCK, pursuit lamps (2) | ALL |
| 17 | 68721-62 | SWIVEL BLOCK, pursuit lamps (2) | ALL |
| 18 | 68725-62A | MOLDING, pursuit lamps (2) | ALL |
| 19 | 68727-09 | PURSUIT LAMP, w/ 68453-05 (red) | FLHP, FLHTP |
| 68728-09 | PURSUIT LAMP, w/ 68453-05 (blue) | FLHP, FLHTP | |
| 20 | 68766-94 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68440-86 & 68452-86 (Domestic) (2) | ALL |
| 21 | 70522-06A | CONDUIT, self-adhesive (2) | ALL |
| 22 | 72160-06 | HOUSING, auxiliary lamp, w/ 72161-06, 72298-95 & 72356-95 (2) | ALL |
| 23 | 72161-06 | SOCKET HOUSING, 2-way (2) | ALL |
| 24 | 72298-95 | TERMINAL SEAL (green) (4) | ALL |
| 25 | 72356-95 | SOCKET TERMINAL, 18 - 20 AWG (4) | ALL |
| 26 | 73152-96WE | SOCKET HOUSING, 2-way (white) | FLHP, FLHPE |
| 27 | 73154-96BK | SOCKET HOUSING, 4-way (black) (2) | FLHTP |
| 28 | 73156-96BK | SOCKET HOUSING, 6-way (black) | FLHP, FLHPE |
| 29 | 73191-96 | TERMINAL, socket, 16-20 AWG (domestic) (10) | ALL |
| 29 | 73191-96 | TERMINAL, socket, 16-20 AWG (HDI) (8) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 30 | 68505-90 | LENS, turn signal (amber) (HDI) (2) | FLHP |
| 31 | 68572-64B | BULB, turn signal (HDI) (2) | FLHP |
| 32 | 68767-94 | TURN SIGNAL ASSEMBLY, w/ 68452-86, 68505-90 & 68572-64B (HDI) (2) | FLHP |

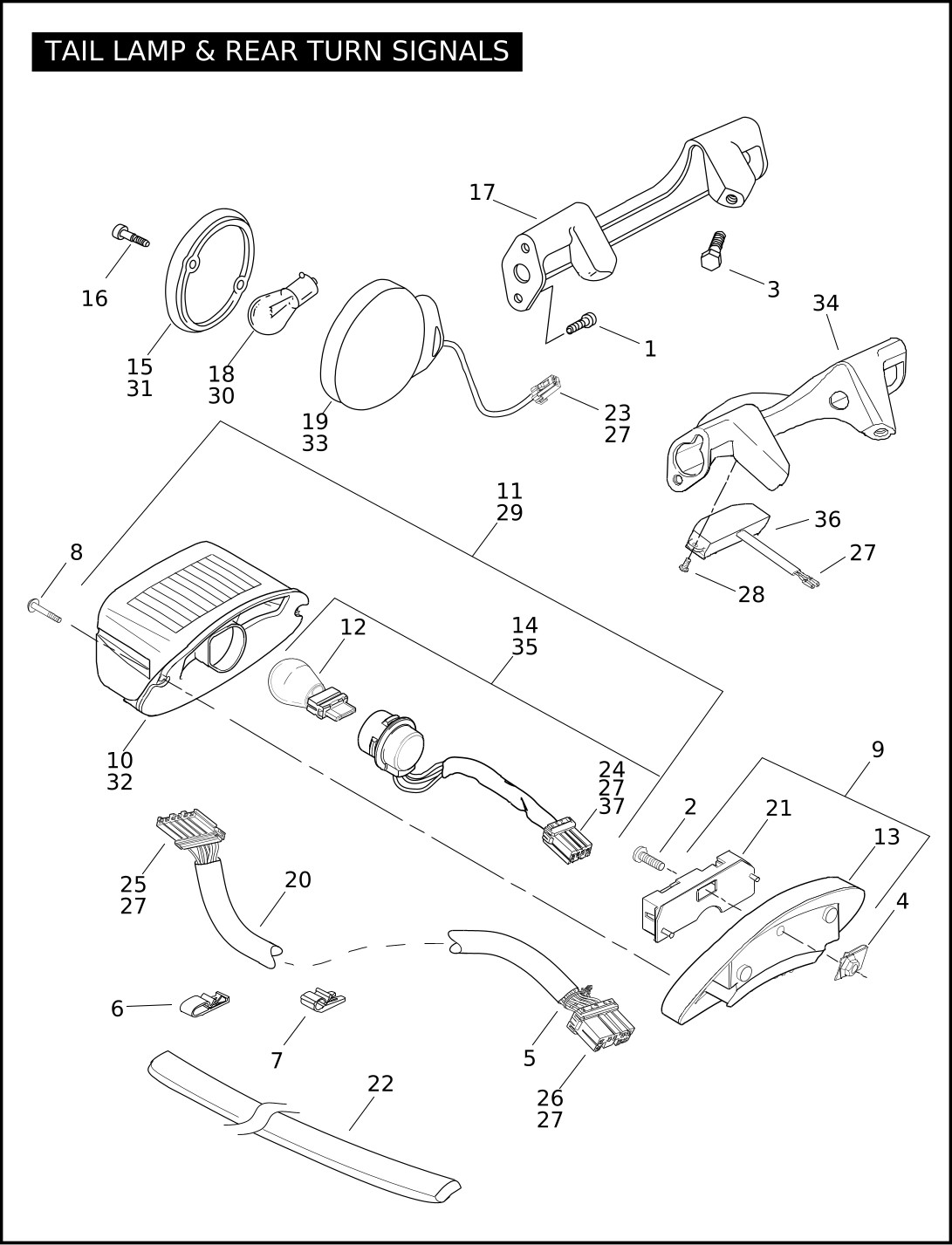

TAIL LAMP & REAR TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2692WB | SCREW (4) | ALL |
| 2 | 3022A | SCREW | ALL |
| 3 | 3576 | SCREW (2) | ALL |
| 4 | 7964 | J-NUT | ALL |
| 5 | 10006 | CABLE STRAP | ALL |
| 6 | 10183 | CLIP, t-stud | ALL |
| 7 | 10184 | CLIP, t-stud | ALL |
| 8 | 68026-99 | SCREW, tail lamp (2) | ALL |
| 9 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A | ALL |
| 10 | 68369-03 | LENS, tail lamp w/ 68026-99 | ALL |
| 11 | 68140-04 | LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A (Domestic) | ALL |
| 12 | 68167-04 | BULB, tail lamp, wedge mount | ALL |
| 13 | 68296-99A | TAIL LIGHT BASE (chrome) | ALL |
| 14 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK & 73191-96 | ALL |
| 15 | 68440-86 | LENS, turn signal (Domestic) (2) | ALL |
| 16 | 68452-86 | SCREW (4) | ALL |
| 17 | 68510-74C | BRACKET, rear turn signal (Domestic) | ALL |
| 18 | 68572-64B | BULB, rear turn signal (2) | ALL |
| 19 | 68713-94A | LAMP ASSEMBLY, rear, w/ 68440-86, 68452-86 & 68572-64B (amber) (Domestic) (2) | ALL |
| 20 | 68772-09 | HARNESS, rear lamps, w/ 10006, 70522-06A, 73156-96BK, 73158-96BK & 73191-96 | ALL |
| 21 | 68830-99A | CIRCUIT BOARD & COVER | ALL |
| 22 | 70522-06A | CONDUIT, self-adhesive | ALL |
| 23 | 73152-96BK | SOCKET HOUSING, 2-way (2) | ALL |
| 24 | 73154-96BK | SOCKET HOUSING, 4-way | ALL |
| 25 | 73156-96BK | SOCKET HOUSING, 6-way | ALL |
| 26 | 73158-96BK | SOCKET HOUSING, 8-way | ALL |
| 27 | 73191-96 | TERMINAL, socket, 16-20 AWG (19-21) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 2482 | SCREW (2) | FLHP, FLHTP |
| 29 | 68142-04 | LAMP ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (HDI) | FLHP, FLHTP |
| 30 | 68572-64B | BULB, rear turn signal (2) (HDI) | FLHP, FLHTP |
| 31 | 68506-92 | LENS, turn signal (amber) (2) (HDI) | FLHP, FLHTP |
| 32 | 68558-03 | LENS, tail lamp, w/ 68026-99 (red) (HDI) | FLHP, FLHTP |
| 33 | 68765-94A | LAMP ASSEMBLY, rear, w/ 68452-86, 68506-92 & 68572-64B (2) (HDI) | FLHP, FLHTP |
| 34 | 68742-09 | BRACKET, rear turn signal | FLHP, FLHTP |
| 35 | 69187-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-04, 73154-96BK & 73191-96 (HDI) | FLHP, FLHTP |
| 36 | 69378-09 | LIGHT ASSEMBLY, w/ 73191-96 & lens (HDI) | FLHP, FLHTP |
| 37 | 73153-96BK | SOCKET HOUSING, 3-way (black) (HDI) | FLHP, FLHTP |

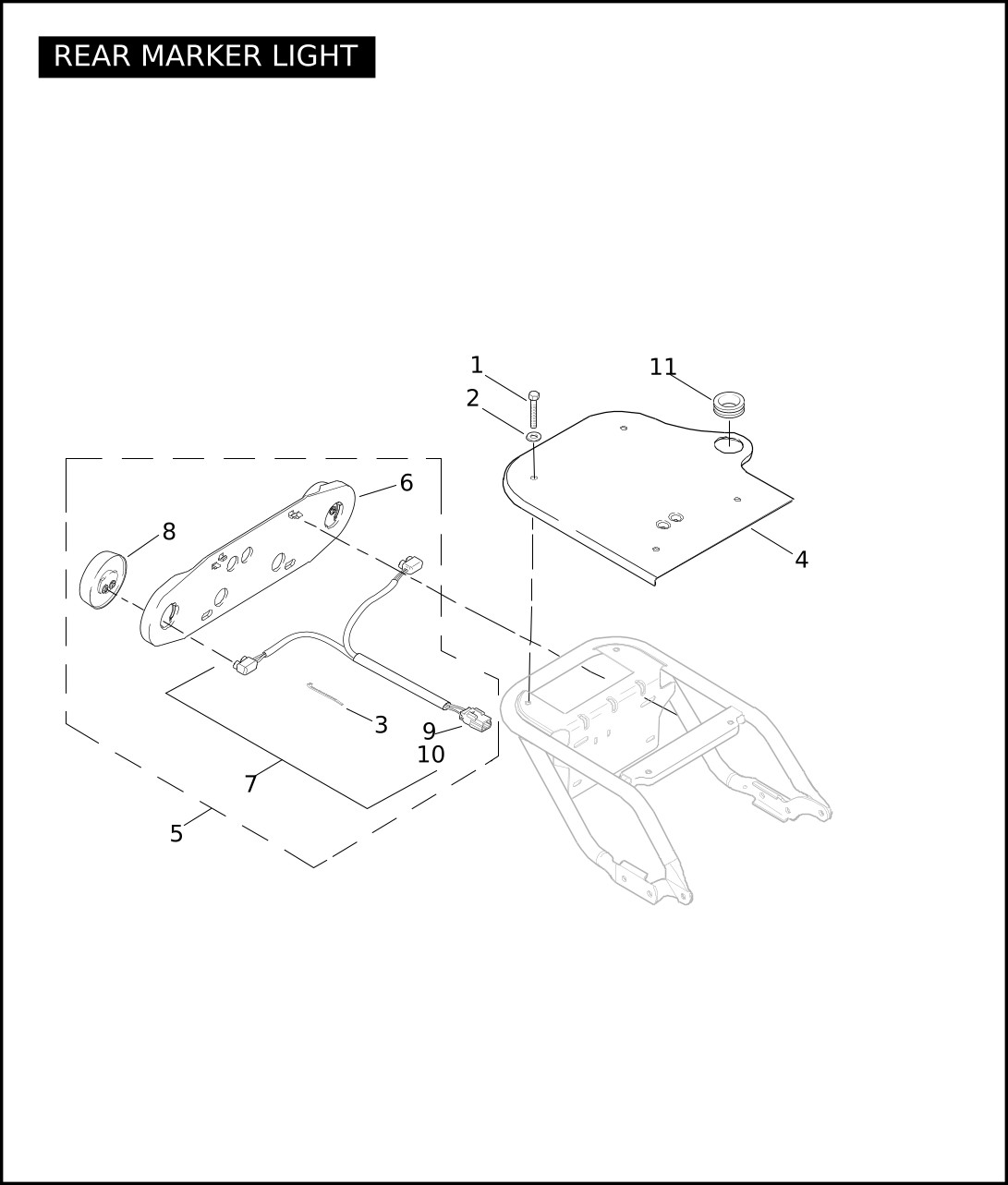

REAR MARKER LIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2551W | BOLT (4) | ALL |
| 2 | 6703 | WASHER (4) | ALL |
| 3 | 10065 | CABLE STRAP | ALL |
| 4 | 53419-09 | MOUNTING PLATE | ALL |
| 5 | 60016-05A | MARKER LIGHT ASSEMBLY, rear, w/ 10065, 60018-05A, 60100-05, 60114-05, 73103-96BK & 73190-96 | ALL |
| 6 | 60018-05A | BRACKET, marker light, rear | ALL |
| 7 | 60100-05 | WIRE HARNESS, license plate, w/ 10065, 73103-96BK & 73190-96 | ALL |
| 8 | 60114-05 | MARKER LIGHT (blue) (2) | ALL |
| 9 | 73103-96BK | PIN HOUSING, 3-way (black) | ALL |
| 10 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | ALL |
| 11 | 12100011 | GROMMET | ALL |

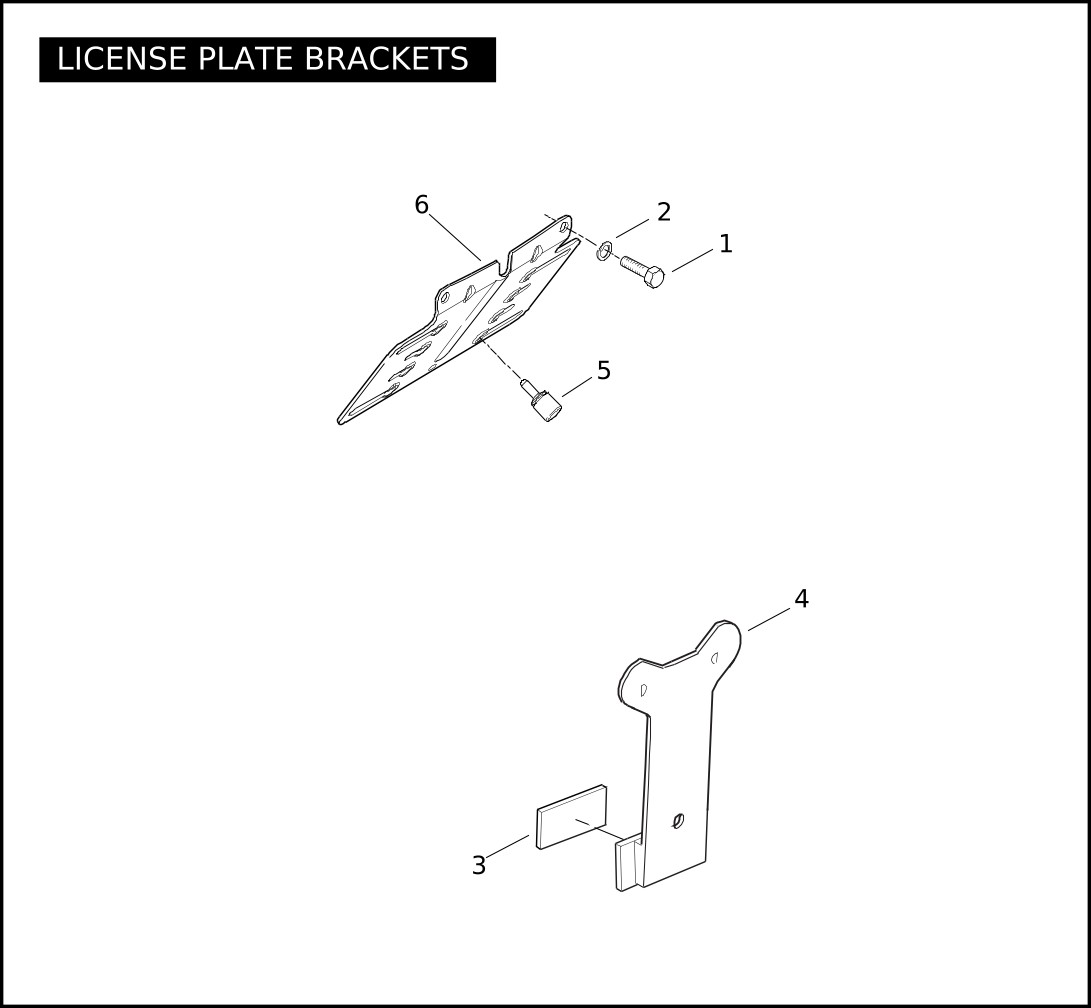

LICENSE PLATE BRACKETS
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 1 | 3061 | SCREW (HDI) (2) | FLHP, FLHTP |
| 2 | 7036 | WASHER (HDI) (2) | FLHP, FLHTP |
| 3 | 59259-90 | REFLECTOR, red (HDI) | FLHP, FLHTP |
| 4 | 60188-08 | LICENSE PLATE BRACKET, w/ 59259-90 (HDI) | FLHP, FLHTP |
| 5 | 60909-09 | BUMPER, license plate bracket (HDI) | FLHP, FLHTP |
| 6 | 69380-09BHP | BRACKET, license plate (black) (HDI) | FLHP, FLHTP |

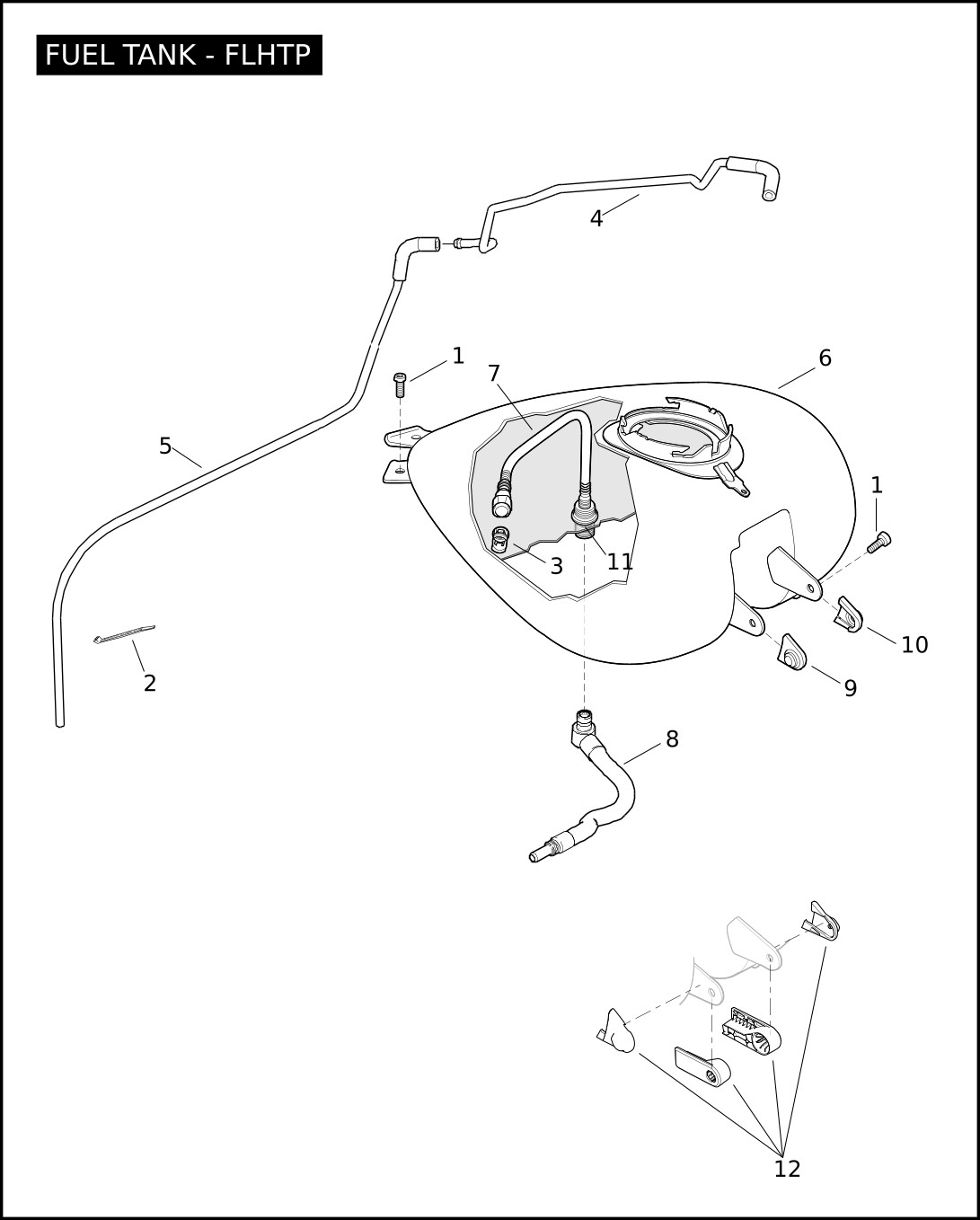

FUEL TANK - FLHTP
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3634 | SCREW (4) | FLHTP |
| 2 | 10039 | CABLE STRAP (2) | FLHTP |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTP |
| 4 | 27291-09 | TUBE, evaporative line, tank | FLHTP |
| 5 | 27440-09 | TUBE, evaporative line (except California) | FLHTP |
| 6 | 61356-08 | FUEL TANK (prime) | FLHTP |
| 7 | 62228-08A | CHECK VALVE, assembly, w/ 10396 & 11323 | FLHTP |
| 8 | 62905-08 | FUEL LINE, tank to intake | FLHTP |
| 9 | 70901-09 | BOOT, tank bracket, right | FLHTP |
| 10 | 70999-09 | BOOT, tank bracket, left | FLHTP |
| 11 | 11323 | O-RING, check valve to fuel tank | FLHTP |
| 12 | 62564-09 | SERVICE KIT, fuel tank mount (See Note) | FLHTP |

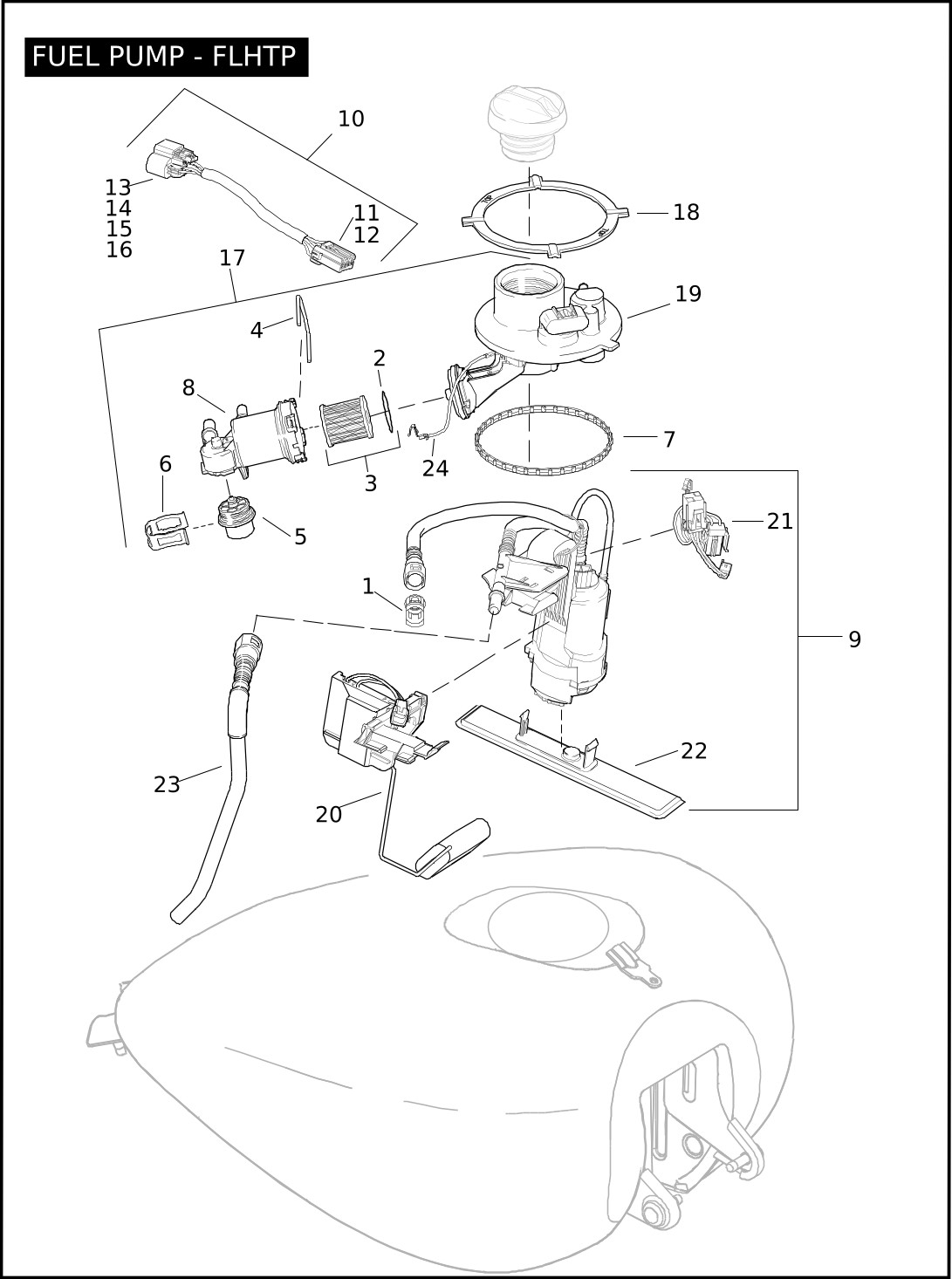

FUEL PUMP - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHTP |
| 2 | 11686 | O-RING | FLHTP |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHTP |
| 4 | 61012-04A | CLIP, filter retainer | FLHTP |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHTP |
| 6 | 61213-04A | CLIP, regulator retainer | FLHTP |
| 7 | 61402-08 | GASKET, top plate | FLHTP |
| 8 | 62229-08A | FILTER SHELL | FLHTP |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHTP |
| 10 | 70369-08 | HARNESS, fuel tank, w/ 11, 12, 13, 14, 15 & 16 | FLHTP |
| 11 | 72485-07 | SOCKET HOUSING, 4-way (black) | FLHTP |
| 12 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTP |
| 13 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTP |
| 14 | 72557-07 | SECONDARY LOCK, 4-way | FLHTP |
| 15 | 73154-96BK | SOCKET HOUSING, 4-way (black) | FLHTP |
| 16 | 73191-96 | TERMINAL, socket, 16-20 gauge (4) | FLHTP |
| 17 | 75069-08B | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 19 & 24 | FLHTP |
| 18 | 75089-08 | RING, fuel tank, cam | FLHTP |
| 19 | 75147-08A | TOP PLATE | FLHTP |
| 20 | 75205-08 | FUEL LEVEL SENDER | FLHTP |
| 21 | 75229-08 | HARNESS, fuel pump module | FLHTP |
| 22 | 75254-04A | STRAINER, fuel pump inlet | FLHTP |
| 23 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTP |
| 24 | 75322-09 | HARNESS, ground, fuel pump module | FLHTP |

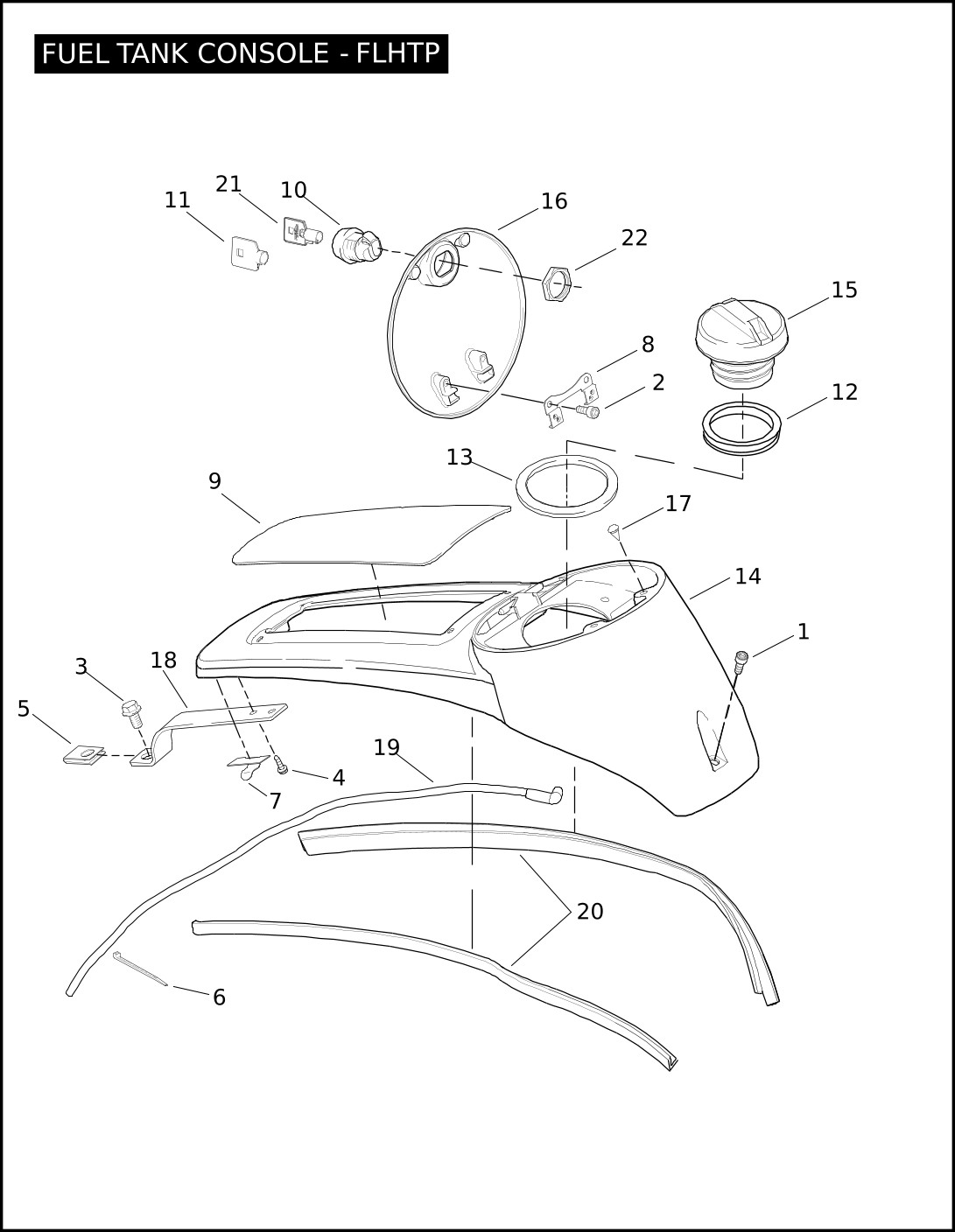

FUEL TANK CONSOLE - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2375 | SCREW | FLHTP |
| 2 | 3529 | SCREW (2) | FLHTP |
| 3 | 3588 | SCREW | FLHTP |
| 4 | 4194 | SCREW (2) | FLHTP |
| 5 | 8142 | NUT, speed | FLHTP |
| 6 | 10065 | CABLE STRAP | FLHTP |
| 7 | 10103 | CLIP, adhesive backed (2) | FLHTP |
| 8 | 10105 | CLIP, hinge mounting | FLHTP |
| 9 | 60957-08 | INSERT, console panel | FLHTP |
| 10 | 61029-92A | LOCK, fuel tank, w/ 84850-92 | FLHTP |
| 11 | 61081-92 | COVER, key-head, set (2) | FLHTP |
| 12 | 61109-85D | GASKET, filler cap | FLHTP |
| 13 | 61112-08 | BOOT | FLHTP |
| 14 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | FLHTP |
| 15 | 61274-92 | FUEL FILLER CAP, vacuum vented, w/ 61109-85D | FLHTP |
| 16 | 61278-08 | DOOR, console | FLHTP |
| 17 | 61313-88 | BUMPER, cover (2) | FLHTP |
| 18 | 67493-08 | BRACKET, console mount | FLHTP |
| 19 | 69241-08 | DRAIN HOSE, console | FLHTP |
| 20 | 71294-08 | MOLDING, rubber (2) | FLHTP |
| 21 | 71452-91A | KEY (specify key code) | FLHTP |
| 22 | 84850-92 | NUT | FLHTP |

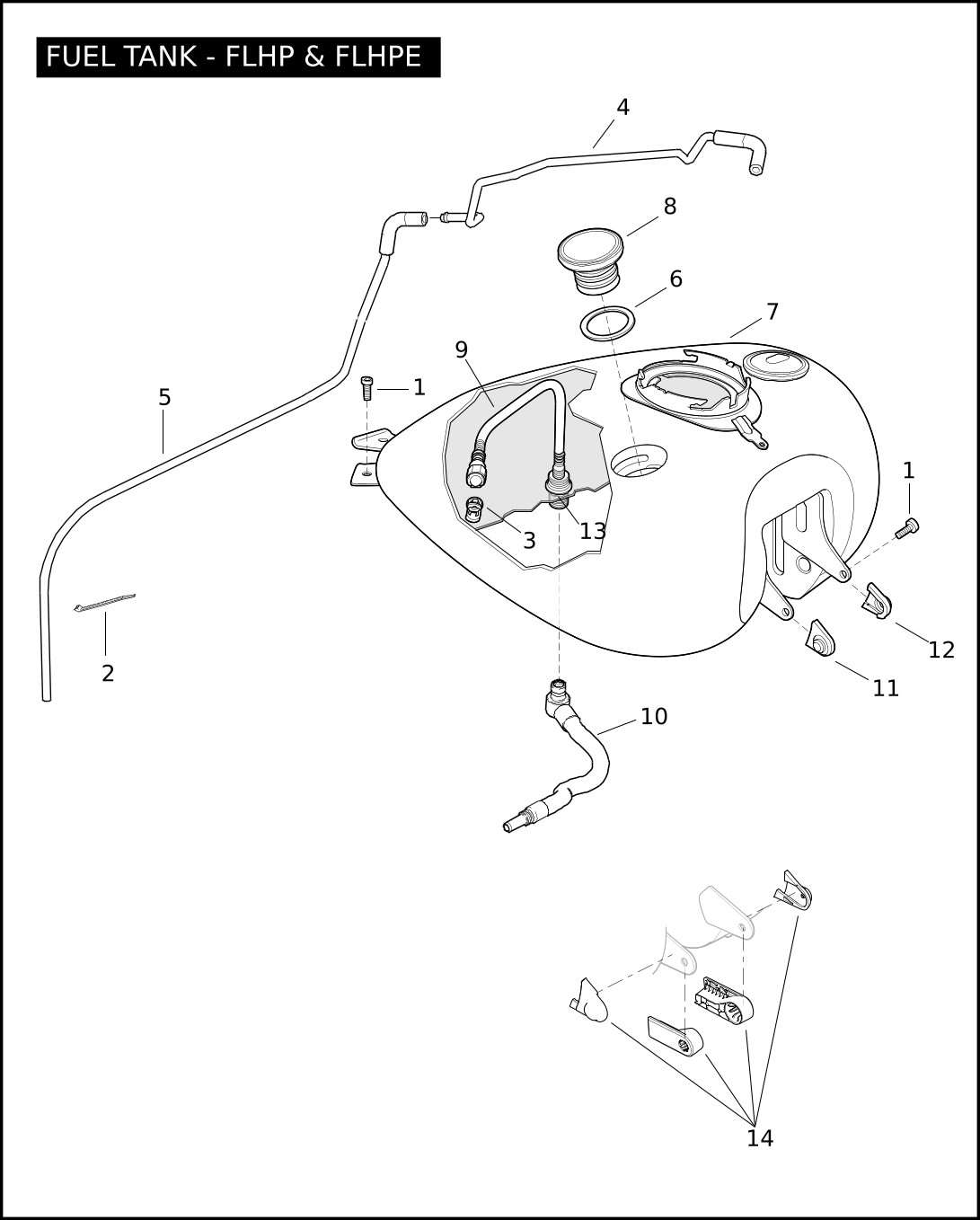

FUEL TANK - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3634 | SCREW (4) | FLHP, FLHPE |
| 2 | 10039 | CABLE STRAP (2) | FLHP, FLHPE |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHP, FLHPE |
| 4 | 27291-09 | TUBE, evaporative line, tank | FLHP, FLHPE |
| 5 | 27440-09 | TUBE, evaporative line (except California) | FLHP, FLHPE |
| 6 | 61109-85D | GASKET, filler cap | FLHP, FLHPE |
| 7 | 61268-08 | FUEL TANK (prime) | FLHP, FLHPE |
| 8 | 61272-92B | FILLER CAP ASSEMBLY, w/ 61109-85D | FLHP, FLHPE |
| 9 | 62228-08A | CHECK VALVE, assembly, w/ 10396 & 11323 | FLHP, FLHPE |
| 10 | 62905-08 | FUEL LINE, tank to intake | FLHP, FLHPE |
| 11 | 70901-09 | BOOT, tank bracket, right | FLHP, FLHPE |
| 12 | 70999-09 | BOOT, tank bracket, left | FLHP, FLHPE |
| 13 | 11323 | O-RING, check valve to fuel tank | FLHP, FLHPE |
| 14 | 62564-09 | SERVICE KIT, fuel tank mount (See Note) | FLHP, FLHPE |

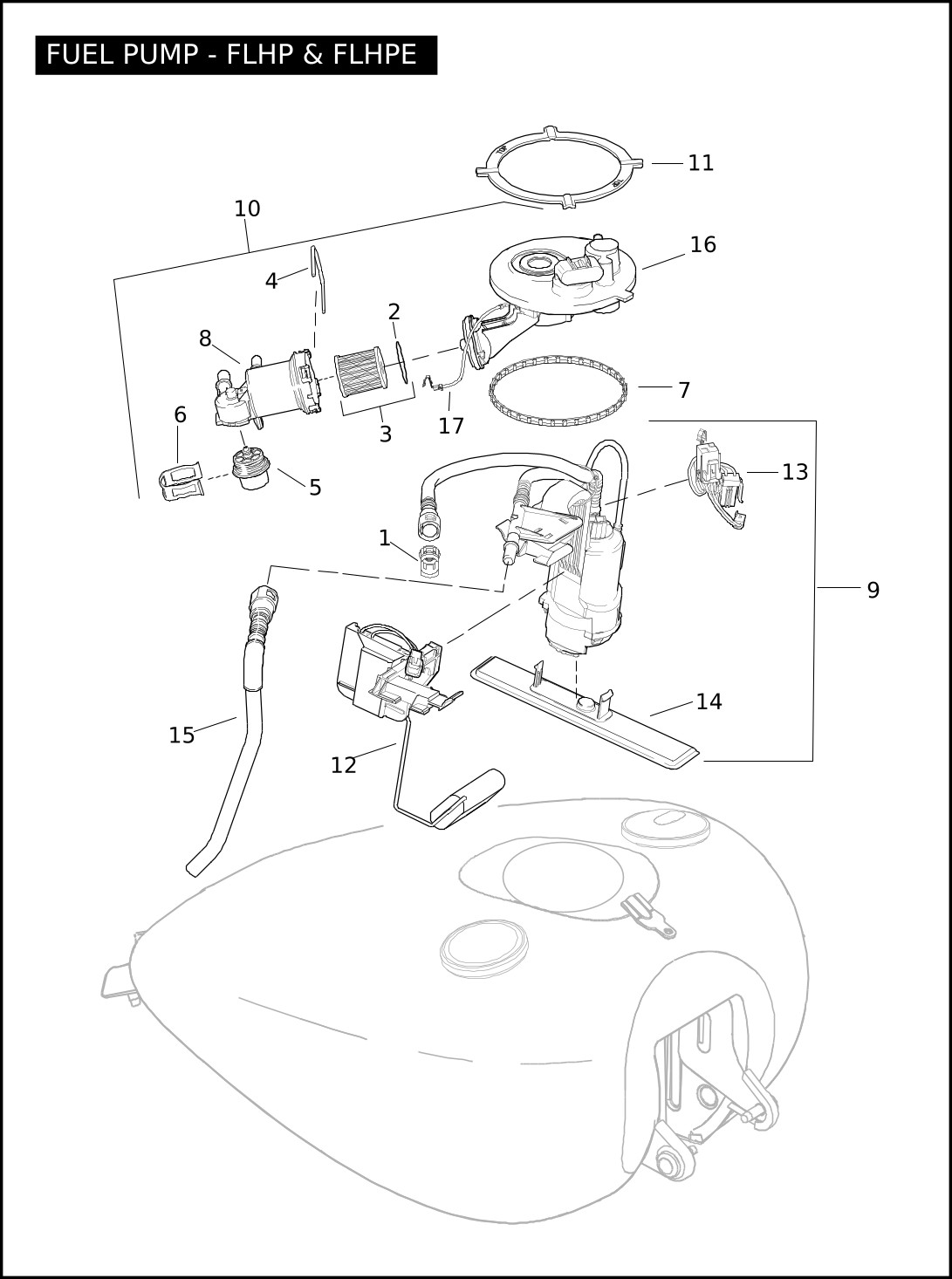

FUEL PUMP - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHP, FLHPE |
| 2 | 11686 | O-RING | FLHP, FLHPE |
| 3 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHP, FLHPE |
| 4 | 61012-04A | CLIP, filter retainer | FLHP, FLHPE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHP, FLHPE |
| 6 | 61213-04A | CLIP, regulator retainer | FLHP, FLHPE |
| 7 | 61402-08 | GASKET, top plate | FLHP, FLHPE |
| 8 | 62229-08A | FILTER SHELL | FLHP, FLHPE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHP, FLHPE |
| 10 | 75076-08A | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 16 & 17 | FLHP, FLHPE |
| 11 | 75089-08 | RING, fuel tank, cam | FLHP, FLHPE |
| 12 | 75205-08 | FUEL LEVEL SENDER | FLHP, FLHPE |
| 13 | 75229-08 | HARNESS, fuel pump module | FLHP, FLHPE |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLHP, FLHPE |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump | FLHP, FLHPE |
| 16 | 75291-08 | TOP PLATE | FLHP, FLHPE |
| 17 | 75322-09 | HARNESS, ground, fuel pump module | FLHP, FLHPE |

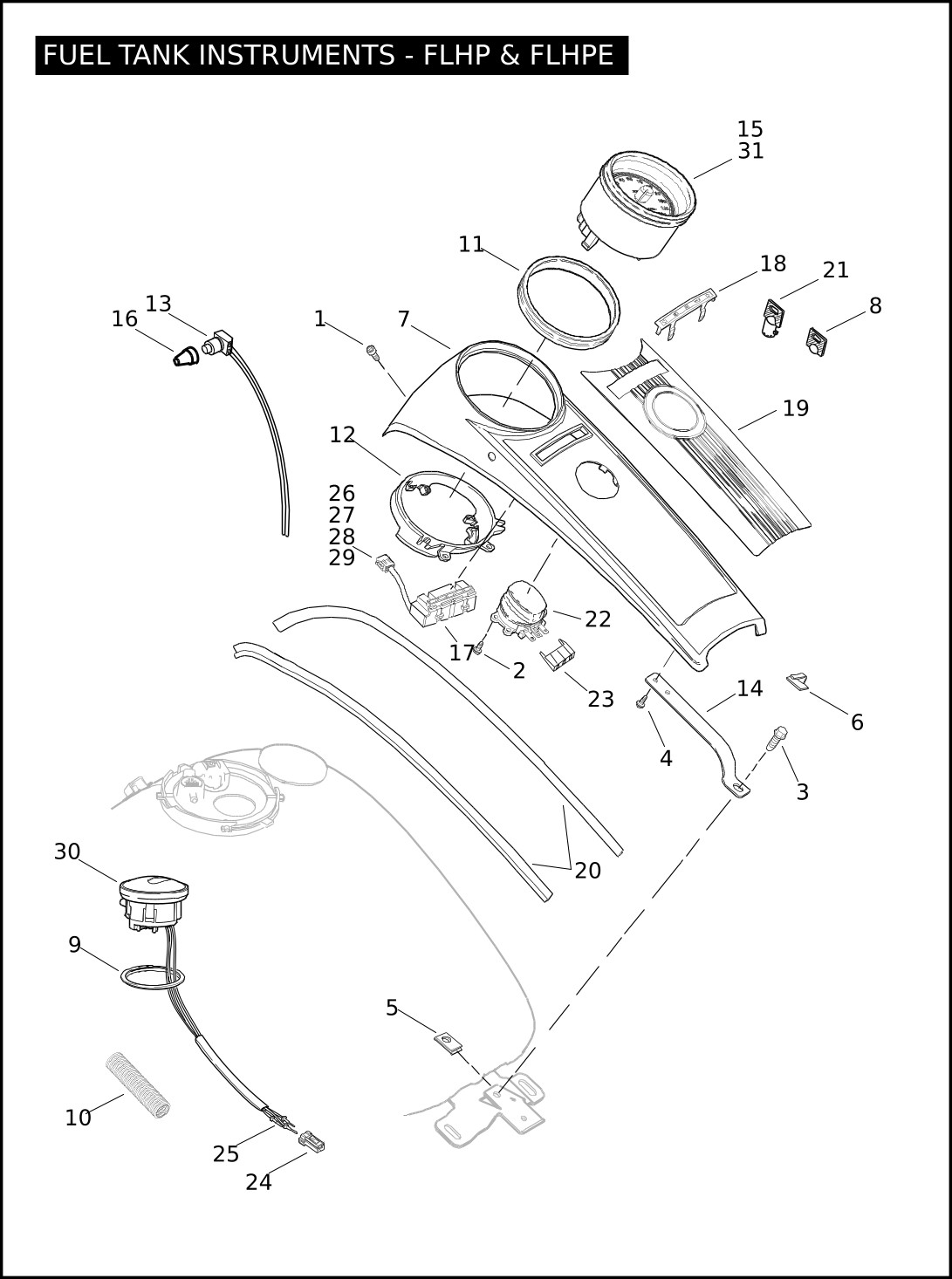

FUEL TANK INSTRUMENTS - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2375 | SCREW | FLHP, FLHPE |
| 2 | 3622 | SCREW (4) | FLHP, FLHPE |
| 3 | 3588 | SCREW | FLHP, FLHPE |
| 4 | 4194 | SCREW | FLHP, FLHPE |
| 5 | 8142 | NUT, speed | FLHP, FLHPE |
| 6 | 10103 | CLIP, under instrument panel (3) | FLHP, FLHPE |
| 53568-03A | LOCKSET, complete w/ keys, ignition switch, cover, fork lock & saddle bag lock | FLHP, FLHPE | |
| 7 | 60960-08 | INSTRUMENT PANEL (chrome) | FLHP, FLHPE |
| 8 | 61081-92 | COVER, key-head, set (2) | FLHP, FLHPE |
| 9 | 61192-96A | GASKET, fuel gauge | FLHP, FLHPE |
| 10 | 62519-03 | HOSE, shield 1/4 in. I.D., 5.00 in. long, fuel gauge wires | FLHP, FLHPE |
| 11 | 67208-08 | SEAL, speedometer | FLHP, FLHPE |
| 12 | 67341-04B | BACKCLAMP, 5-speedo (red) | FLHP, FLHPE |
| 13 | 67488-04 | SWITCH, odometer reset w/ connector | FLHP, FLHPE |
| 14 | 67493-08 | BRACKET, console mount | FLHP, FLHPE |
| 15 | 67557-08A | SPEEDOMETER, mph (Domestic) | FLHP, FLHPE |
| 16 | 67880-94 | BOOT, odometer reset switch | FLHP, FLHPE |
| 17 | 68113-99B | HOUSING ASSEMBLY, w/ LED lights, 74118-98BK, 74158-98, 74193-98 & 74195-98 | FLHP, FLHPE |
| 18 | 68253-08 | INDICATOR BEZEL | FLHP, FLHPE |
| 19 | 71209-08 | INSERT, console | FLHP, FLHPE |
| 20 | 71294-08 | TRIM (2) | FLHP, FLHPE |
| 21 | 71452-91A | KEY (specify key code) | FLHP, FLHPE |
| 22 | 71313-96A | IGNITION SWITCH (keyed-to-match) w/ 72327-03A | FLHP, FLHPE |
| 23 | 72327-03A | CONNECTOR, 3-way | FLHP, FLHPE |
| 24 | 72904-01BK | HOUSING, pin, 4-way | FLHP, FLHPE |
| 25 | 72990-01 | PIN TERMINAL (3) | FLHP, FLHPE |
| 26 | 74118-98BK | SOCKET HOUSING, 8-way, (black) | FLHP, FLHPE |
| 27 | 74158-98 | SECONDARY LOCK, 8-way socket housing | FLHP, FLHPE |
| 28 | 74193-98 | SOCKET TERMINAL (7) | FLHP, FLHPE |
| 29 | 74195-98 | SEAL PIN | FLHP, FLHPE |
| 30 | 75241-08 | FUEL GAUGE, w/o LED, w/ 72990-01 | FLHP, FLHPE |
| INTERNATIONAL MODELS ONLY | |||
| 31 | 67558-08A | SPEEDOMETER, kph (Canada, HDI) | FLHP, FLHPE |

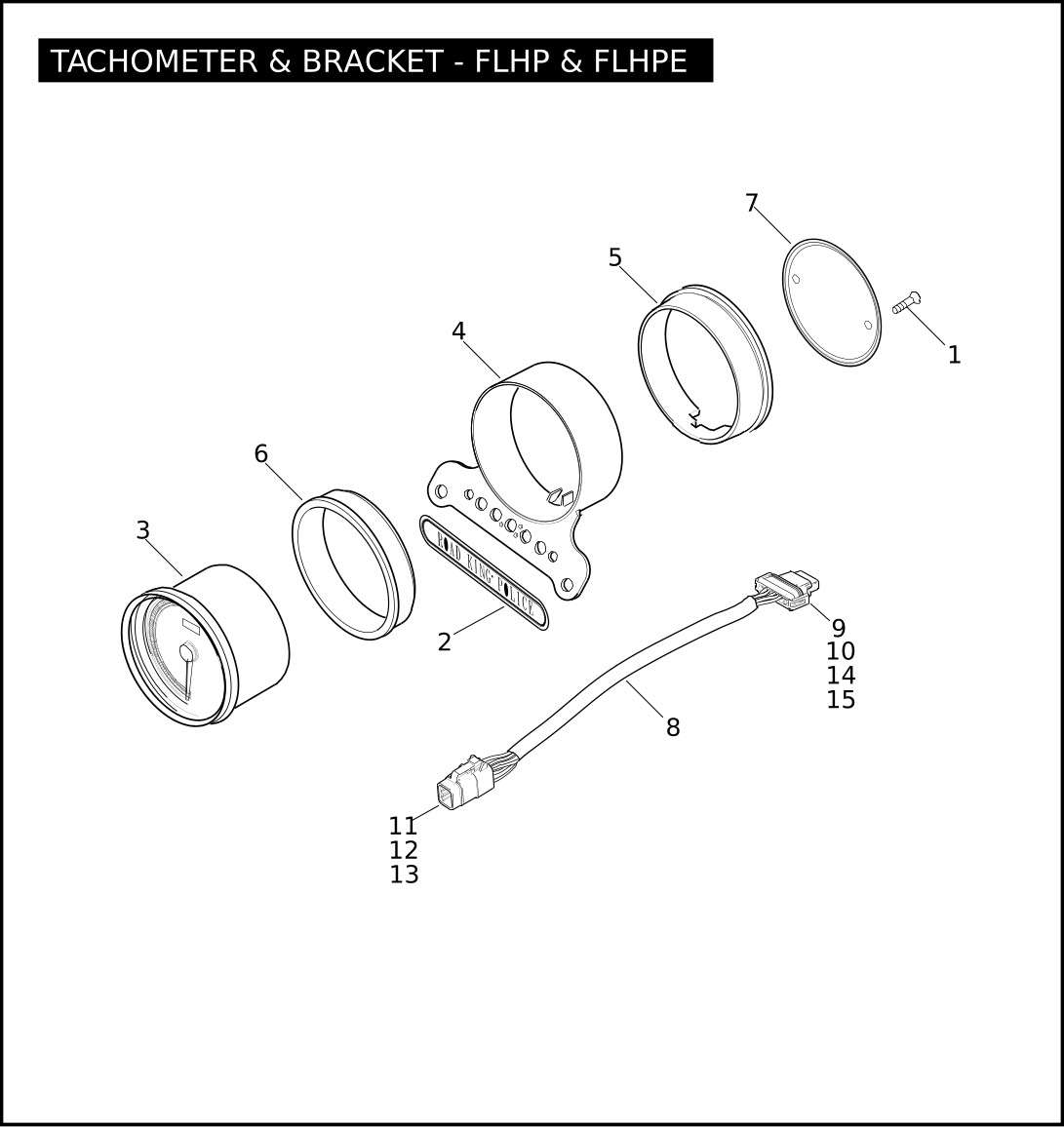

TACHOMETER & BRACKET - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2361 | SCREW (2) | FLHP, FLHPE |
| 2 | 14630-96 | DECAL | FLHP, FLHPE |
| 3 | 67042-04D | TACHOMETER | FLHP, FLHPE |
| 4 | 67053-95 | BRACKET | FLHP, FLHPE |
| 5 | 67104-95 | GASKET, rear | FLHP, FLHPE |
| 6 | 67121-95A | GASKET, front | FLHP, FLHPE |
| 7 | 67319-95 | COVER, tachometer back | FLHP, FLHPE |
| 8 | 68912-09 | HARNESS ASSEMBLY, tachometer, w/ 9, 10, 11, 12, 13, 14 & 15 | FLHP, FLHPE |
| 9 | 72131-04 | SOCKET HOUSING, 12-way (gray) | FLHP, FLHPE |
| 10 | 72189-04 | SEAL PIN (6) | FLHP, FLHPE |
| 11 | 74116-98BK | SOCKET HOUSING, 6-way (black) | FLHP, FLHPE |
| 12 | 74156-98 | SOCKET LOCK, 6-way | FLHP, FLHPE |
| 13 | 74193-98 | SOCKET TERMINAL (6) | FLHP, FLHPE |
| 14 | 74196-04 | TERMINAL SOCKET, #20 AWG (7) | FLHP, FLHPE |
| 15 | 74197-04 | SOCKET LOCK, secondary, 12-way | FLHP, FLHPE |

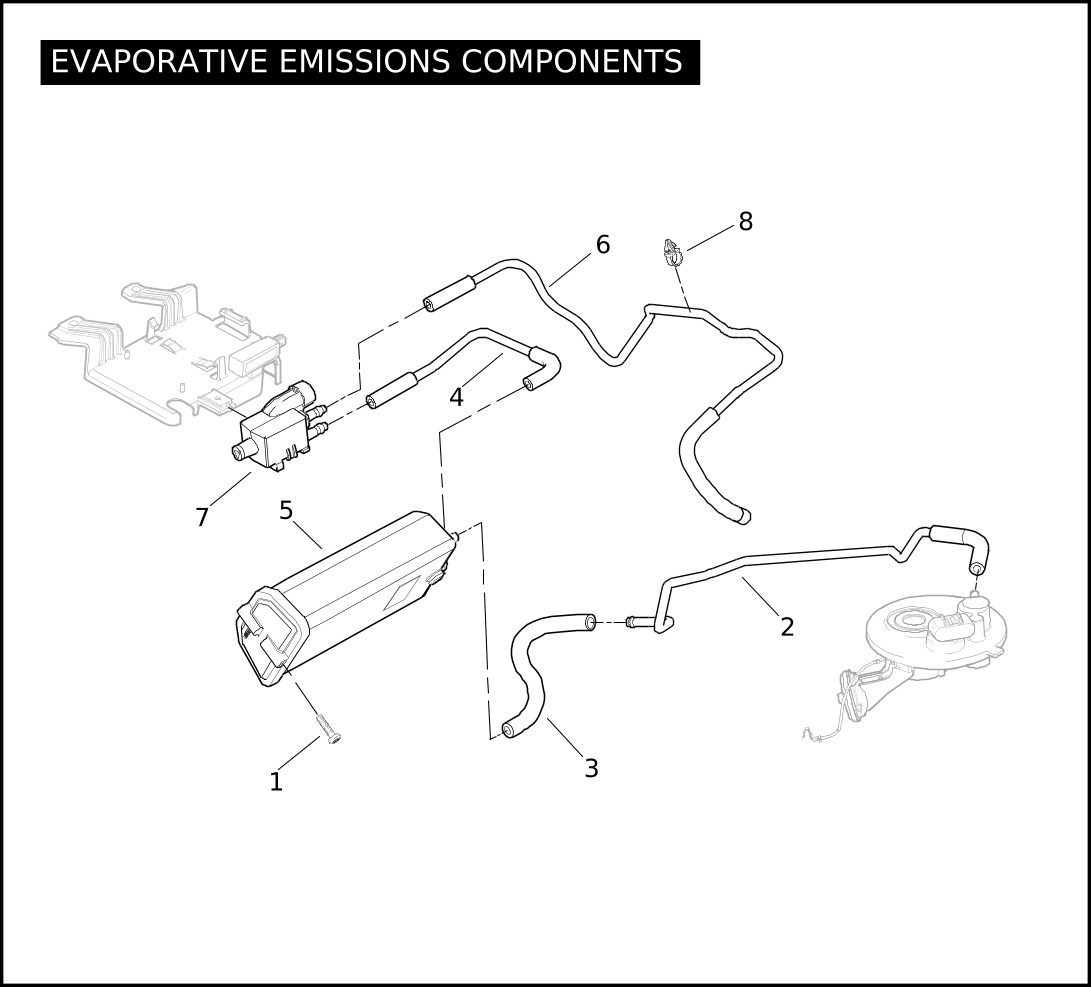

EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | FLHPE |
| 2 | 27291-09 | EVAP LINE, tank | FLHPE |
| 3 | 27297-09 | EVAP LINE, canister | FLHPE |
| 4 | 27298-09 | EVAP LINE, purge to canister | FLHPE |
| 5 | 27433-08 | CARBON CANISTER | FLHPE |
| 6 | 27439-09 | TUBE, solenoid to induction module | FLHPE |
| 7 | 27715-07 | SOLENOID, purge valve | FLHPE |
| 8 | 70681-09 | RETAINER | FLHPE |

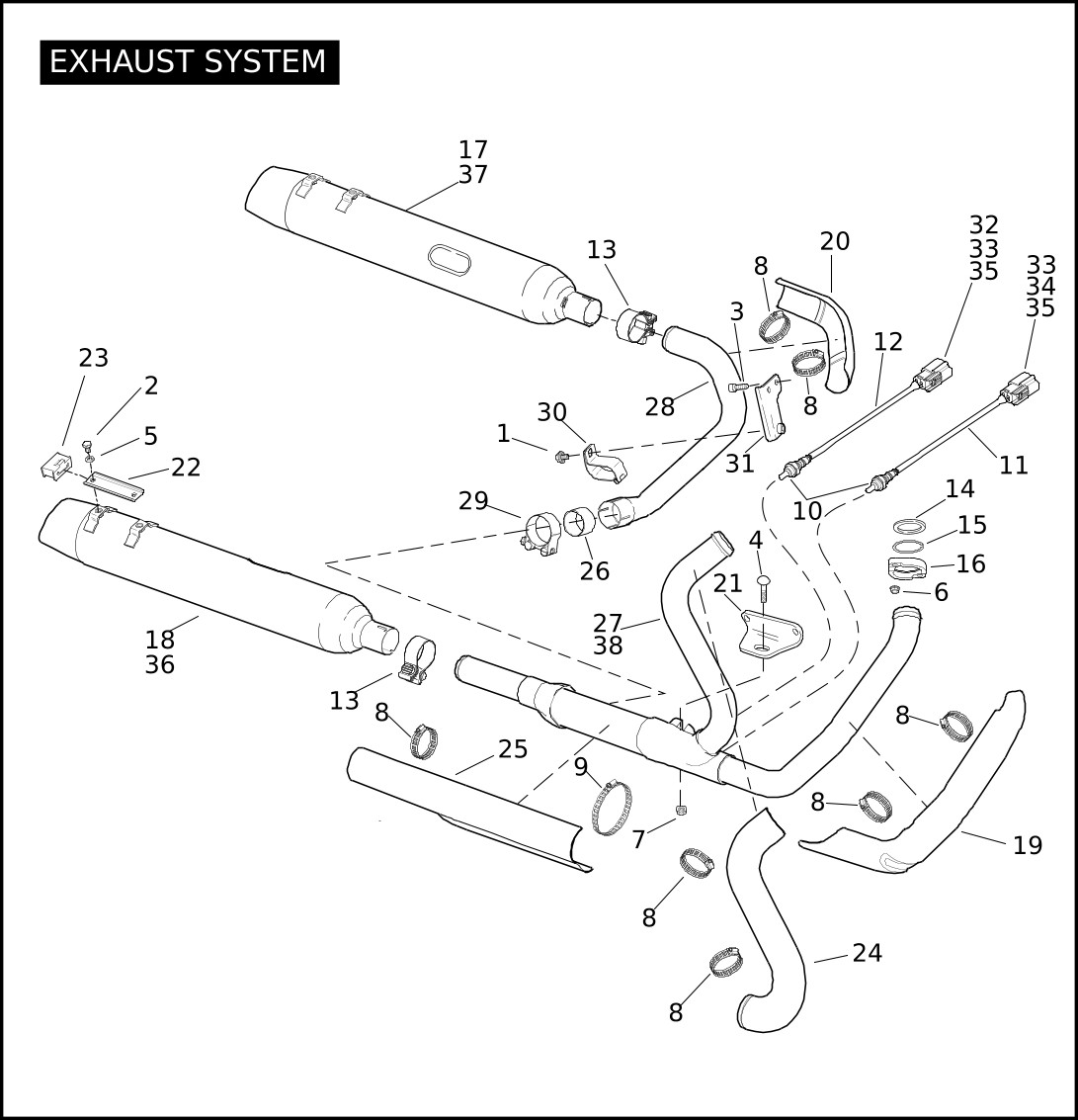

EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3576 | SCREW | ALL |
| 2 | 3929 | SCREW (4) | ALL |
| 3 | 4705 | SCREW (2) | ALL |
| 4 | 5416 | BOLT | ALL |
| 5 | 7041 | LOCKWASHER (4) | ALL |
| 6 | 7593 | NUT (4) | ALL |
| 7 | 7601 | LOCKNUT | ALL |
| 8 | 9955 | CLAMP, worm drive #24 (7) | ALL |
| 9 | 9956 | CLAMP, worm drive #40 | ALL |
| 10039 | CABLE STRAP (not shown) (2) | ALL | |
| 10 | 11936 | GASKET, oxygen (O2) sensor (2) | ALL |
| 11 | 27729-10 | SENSOR, oxygen (O2), front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | ALL |
| 12 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | ALL |
| 13 | 65296-95A | MUFFLER CLAMP (2) | ALL |
| 14 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 15 | 65325-83A | RETAINING RING, exhaust gasket (2) | ALL |
| 16 | 65328-83 | CLAMP, exhaust manifold (2) | ALL |
| 17 | 65538-09 | MUFFLER, left, (chrome) (Domestic, Canada, California) | ALL |
| 18 | 65846-10 | MUFFLER, right, (chrome) (Domestic, Canada, California) | ALL |
| 19 | 65634-09 | SHIELD, right exhaust pipe, front | ALL |
| 20 | 65636-09 | SHIELD, left exhaust pipe, rear | ALL |
| 21 | 65678-09 | BRACKET, rear exhaust mount | ALL |
| 22 | 65723-85 | MOUNTING BRACKET (2) | ALL |
| 23 | 65724-85 | MOUNT, rubber (2) | ALL |
| 24 | 65951-09 | HEAT SHIELD ASSEMBLY, rear exhaust pipe | ALL |
| 25 | 65952-09 | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | ALL |
| 26 | 66813-09 | GASKET, clamp | ALL |
| 27 | 66855-10 | EXHAUST PIPE ASSEMBLY, catalytic (Domestic, Canada, California) (chrome) | ALL |
| 28 | 66858-09 | CROSSOVER PIPE ASSEMBLY (chrome) | ALL |
| 29 | 66859-09 | CLAMP, exhaust | ALL |
| 30 | 66861-09A | CLAMP, exhaust pipe, hinged | ALL |
| 31 | 66881-09 | BRACKET, exhaust pipe hanger | ALL |
| 32 | 72177-07BK | HOUSING, 4-way, socket (black) | ALL |
| 33 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | ALL |
| 34 | 72444-07GY | HOUSING, 4-way, socket (gray) | ALL |
| 35 | 73307-10 | TERMINAL, socket, 22 AWG (4) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 36 | 65863-09 | MUFFLER ASSEMBLY, right, catalytic (chrome) HDI | FLHP, FLHTP |
| 37 | 65949-09 | MUFFLER ASSEMBLY, left, (chrome) (HDI) | FLHP, FLHTP |
| 38 | 66849-10 | EXHAUST PIPE ASSEMBLY, catalytic (chrome) (HDI) | FLHP, FLHTP |

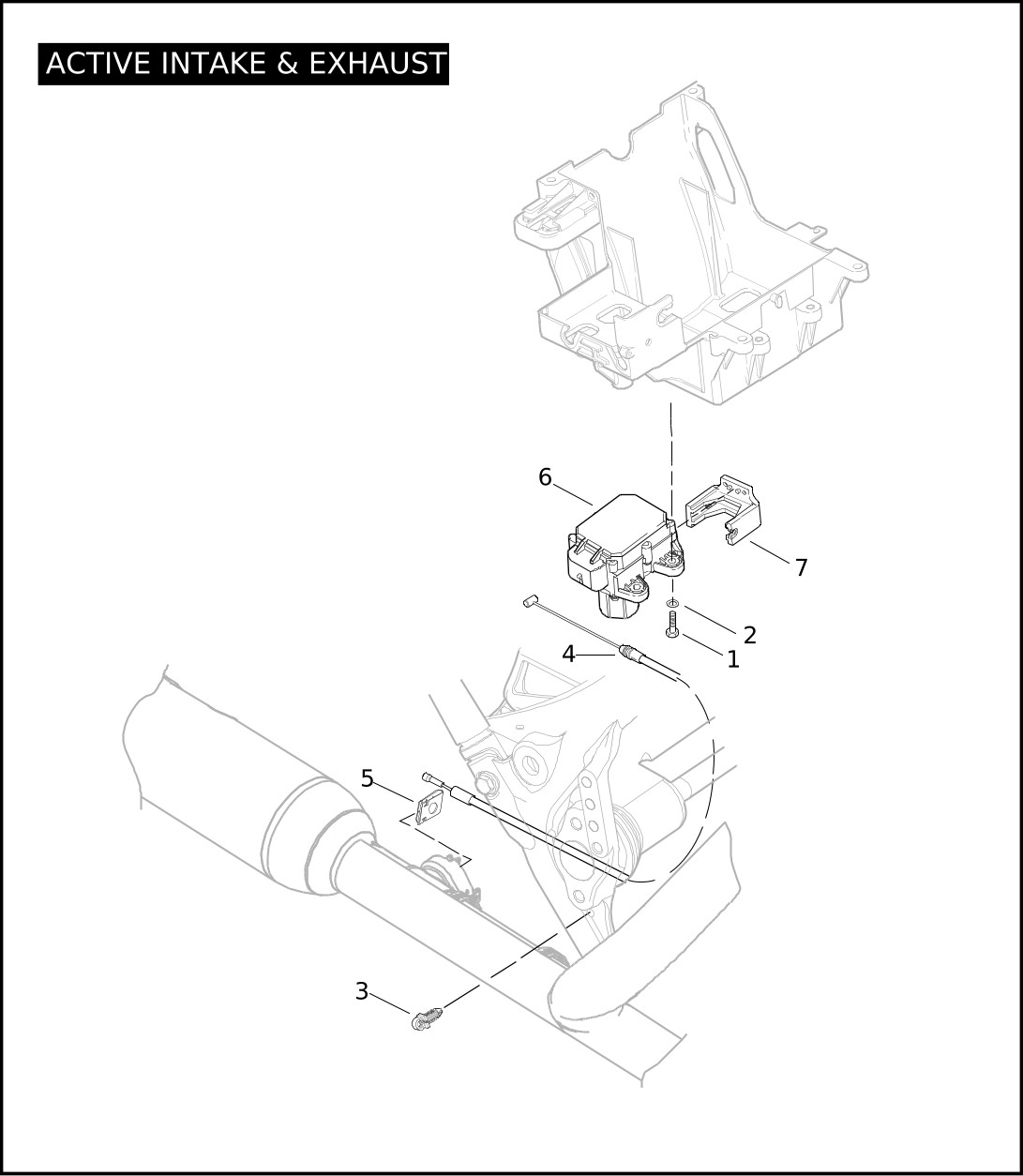

ACTIVE INTAKE & EXHAUST
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 1 | 3993 | BOLT (HDI) | FLHP, FLHTP |
| 2 | 6119 | WASHER (HDI) (2) | FLHP, FLHTP |
| 3 | 18083-09 | RETAINER, exhaust cable (HDI) | FLHP, FLHTP |
| 4 | 66761-09A | CABLE, contol, exhaust valve, w/ 66767-07 (HDI) | FLHP, FLHTP |
| 5 | 66767-07 | RETAINER CABLE (HDI) | FLHP, FLHTP |
| 6 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI) | FLHP, FLHTP |
| 7 | 71019-07 | SHROUD, exhaust actuator, (HDI) | FLHP, FLHTP |

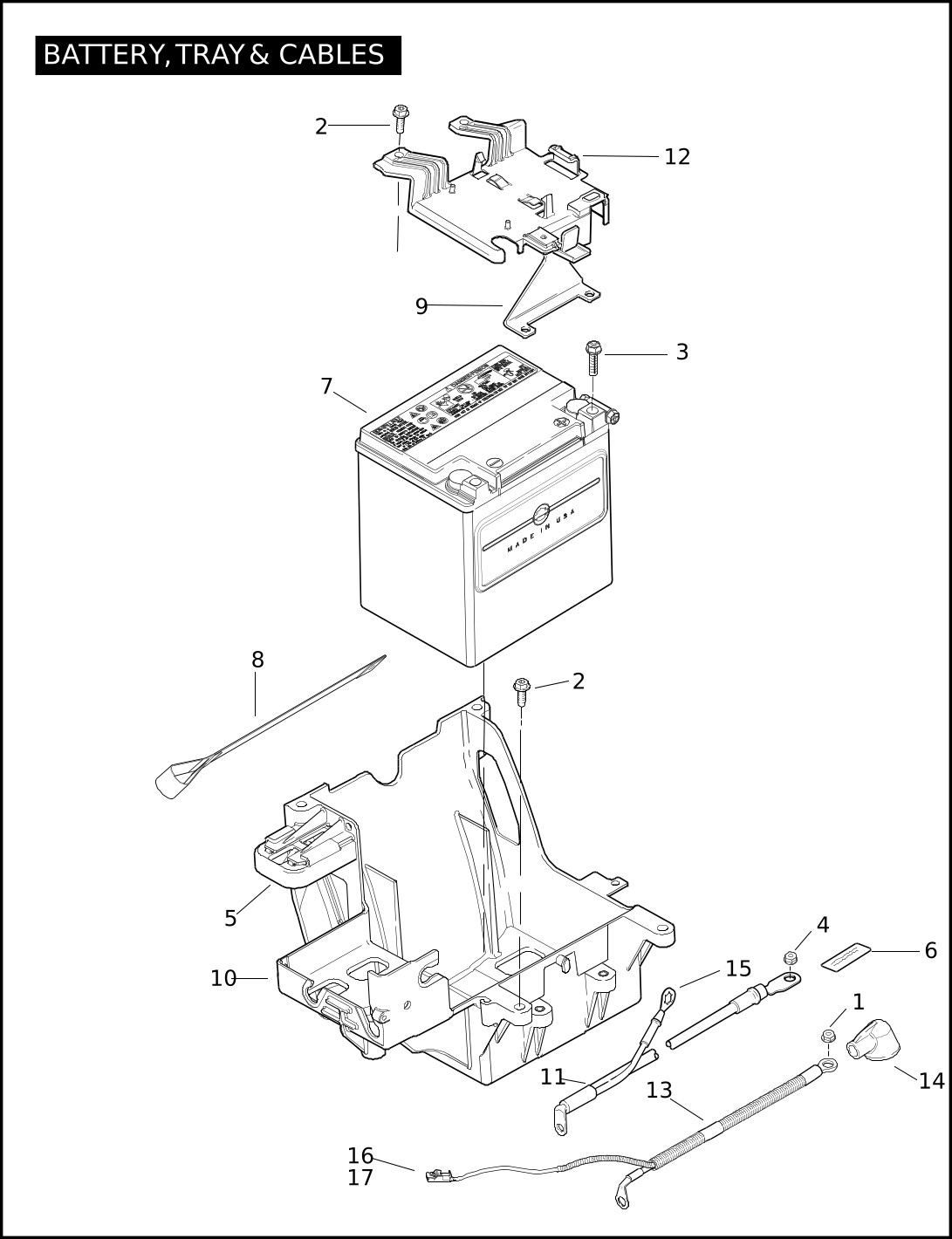

BATTERY, TRAY & CABLES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3403 | LOCKNUT, flange | ALL |
| 2 | 3634 | SCREW (6) | ALL |
| 3 | 4312C | SCREW (2) | ALL |
| 4 | 7792 | NUT | ALL |
| 5 | 10368A | RETENTION CLIP, battery box | ALL |
| 6 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 7 | 66010-97C | BATTERY | ALL |
| 8 | 66051-08 | STRAP, battery removal | ALL |
| 9 | 66200-09 | BRACKET, battery hold down | ALL |
| 10 | 66281-09B | BATTERY TRAY | ALL |
| 11 | 70267-09 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | ALL |
| 12 | 70344-09 | CADDY, electronic control module (ECM) | ALL |
| 13 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | ALL |
| 14 | 70578-89 | BOOT, battery positive | ALL |
| 15 | 72242-94 | TERMINAL, ring | ALL |
| 16 | 73304-04 | TERMINAL, female, 10 AWG | ALL |
| 17 | 73305-04 | SEAL WIRE, 10 AWG (blue) | ALL |

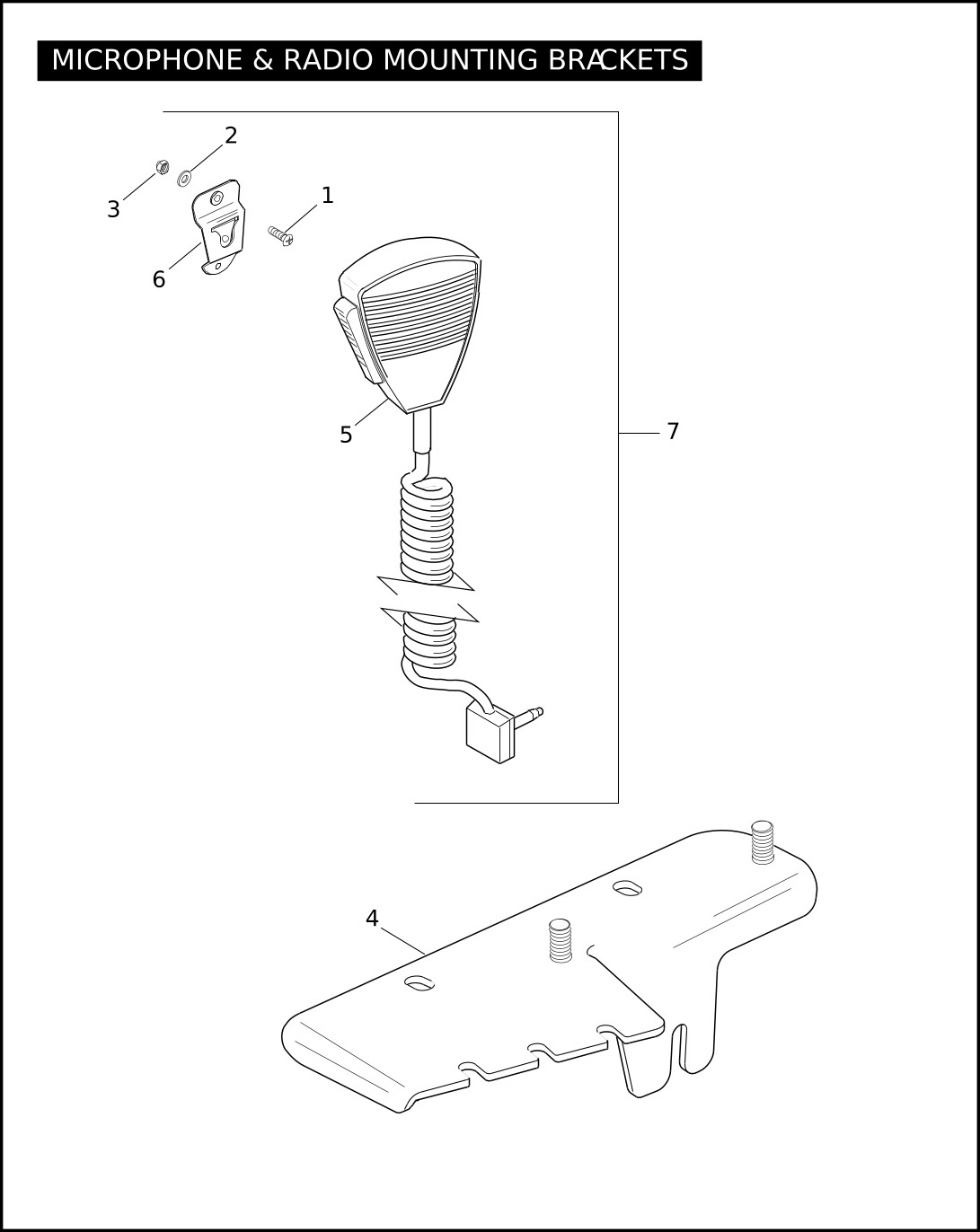

MICROPHONE & RADIO MOUNTING BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2659 | SCREW (2) | ALL |
| 2 | 6716 | WASHER (2) | ALL |
| 3 | 7624 | LOCKNUT (2) | ALL |
| 4 | 67895-96 | BRACKET, instrument mounting | FLHP, FLHPE |
| 5 | 76185-93 | MICROPHONE | ALL |
| 6 | 76201-80A | HANGER, microphone | ALL |
| 7 | 91448-00 | MICROPHONE MOUNTING KIT, w/ 2659, 6716, 7624, 76185-93 & 76201-80A | ALL |

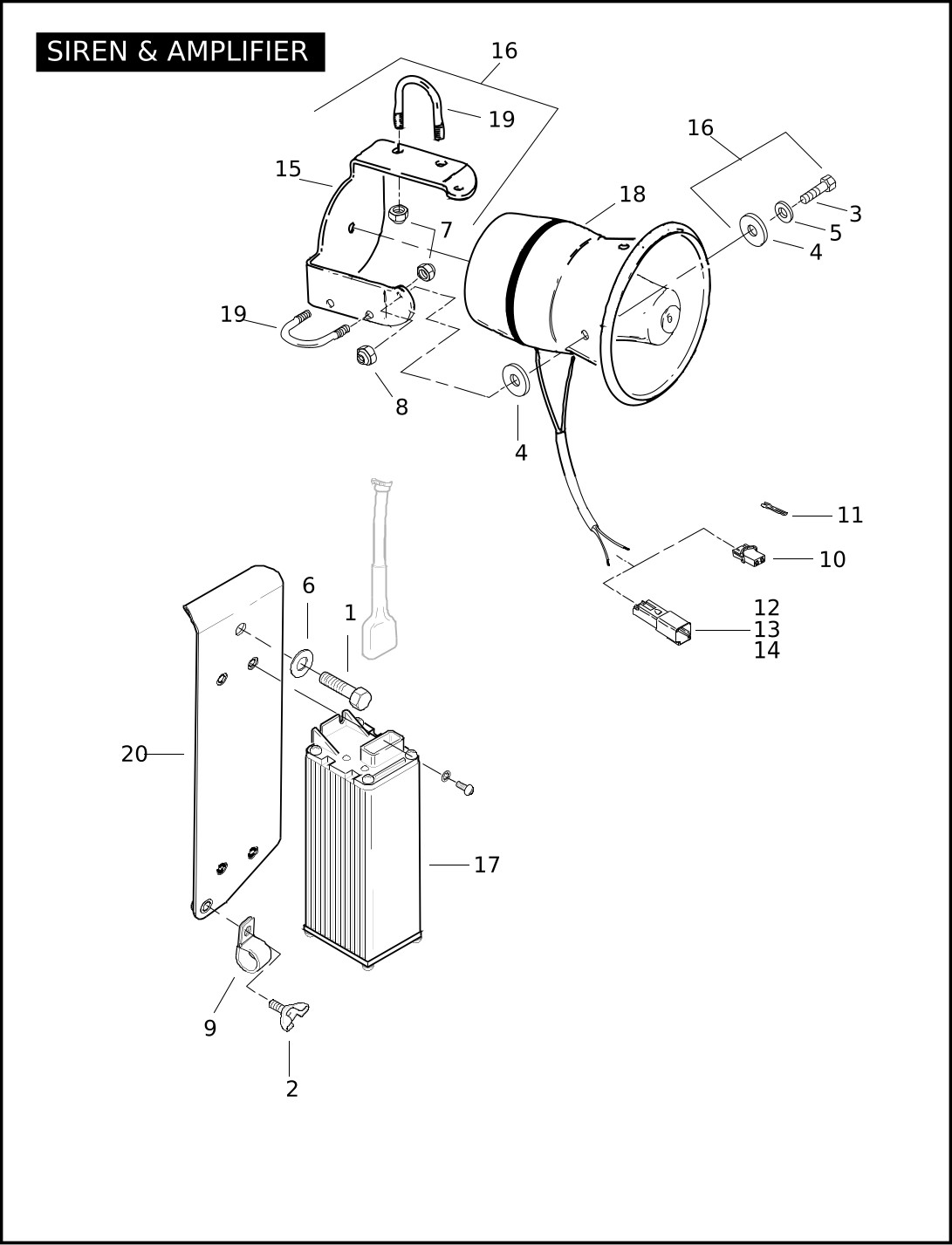

SIREN & AMPLIFIER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2871W | BOLT | ALL |
| 2 | 2979 | SCREW | ALL |
| 3 | 3787 | BOLT (2) | ALL |
| 4 | 6035A | WASHER (4) | ALL |
| 5 | 6036 | WASHER (4) | ALL |
| 6 | 6237 | WASHER (4) | ALL |
| 7 | 7531 | LOCKNUT (4) | ALL |
| 8 | 7716 | LOCKNUT (2) | ALL |
| 9 | 28867-88 | CLAMP | ALL |
| 10 | 72035-71 | PIN HOUSING, 2-way | ALL |
| 11 | 72039-71A | PIN, single socket (2) | ALL |
| 12 | 72102-94BK | PIN HOUSING, 2-way pin (black) | ALL |
| 13 | 72142-94 | PIN LOCK, secondary, 2-way | ALL |
| 14 | 72190-94 | TERMINAL, pin (2) | ALL |
| 15 | 91127-85 | BRACKET, speaker mounting | ALL |
| 16 | 91154-87 | SPEAKER MOUNTING KIT, w/ 3787, 6035A, 6036, 7531, 7716, 91127-85 & 91159-82 | ALL |
| 17 | 91156-93 | AMPLIFIER, siren, 100 watt | FLHP, FLHTP |
| 18 | 91157-88A | SPEAKER, w/ 72035-71, 72039-71A, 72102-94BK, 72142-94 & 72190-94 | FLHP, FLHTP |
| 19 | 91159-82 | U-BOLT, speaker mounting (2) | ALL |
| 20 | 91260-93A | MOUNTING KIT, amplifier, w/ 2871W, 2979, 6237 & 28867-88 | ALL |
| NOTE: Optional amplifier and siren parts are shown for reference only and must be ordered separately through Parts and Accessories. See your Harley-Davidson dealer. | |||

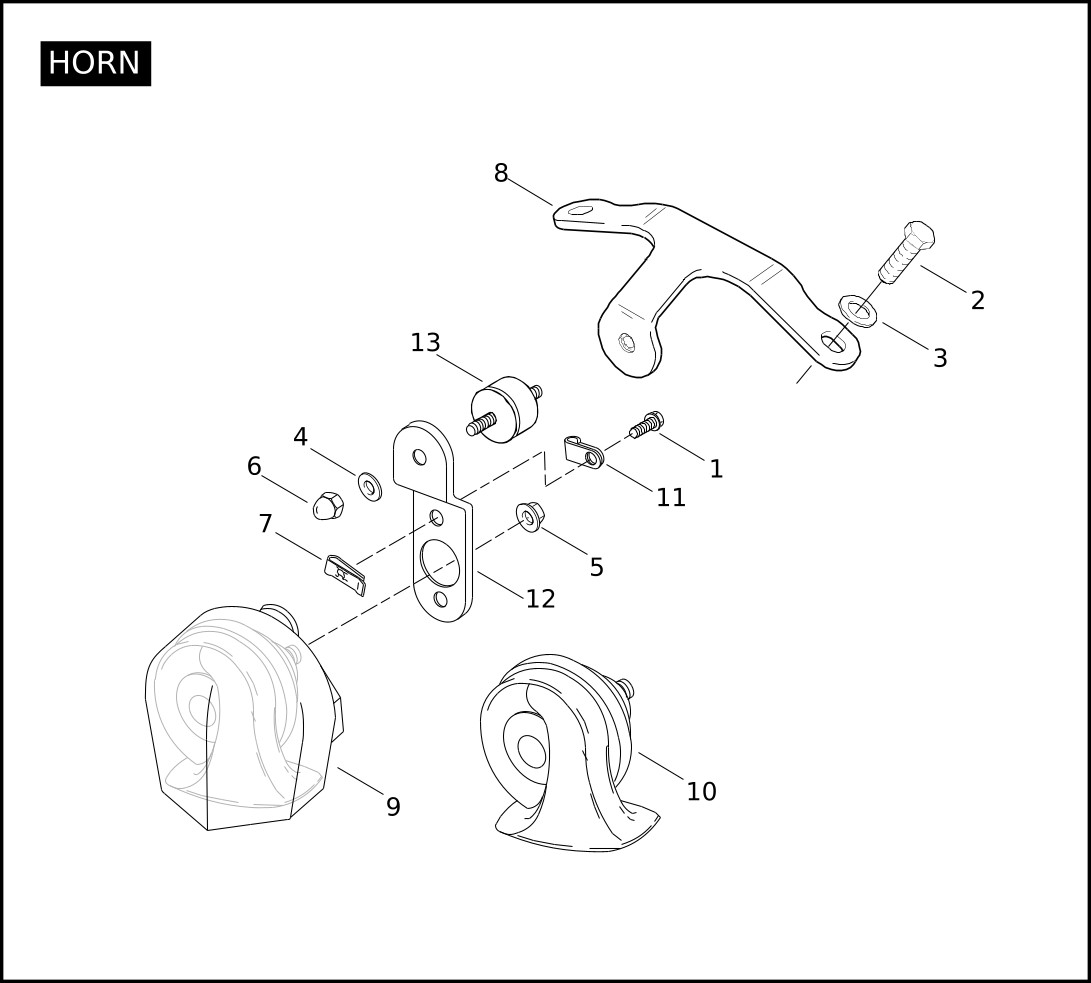

HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | ALL |
| 2 | 4775 | SCREW (2) | ALL |
| 3 | 6019 | WASHER (2) | ALL |
| 4 | 6109 | WASHER | ALL |
| 5 | 7495 | NUT | ALL |
| 6 | 7549A | ACORN NUT | ALL |
| 7 | 8108 | SPEEDNUT, push (2) | ALL |
| 8 | 16316-08 | BRACKET ASSEMBLY, horn mount | ALL |
| 9 | 69012-93A | COVER, horn (chrome) | ALL |
| 10 | 69060-90F | HORN ASSEMBLY | ALL |
| 11 | 69062-91A | CLAMP | ALL |
| 12 | 69120-91 | BRACKET, horn | ALL |
| 13 | 69123-92A | MOUNT, horn, rubber | ALL |

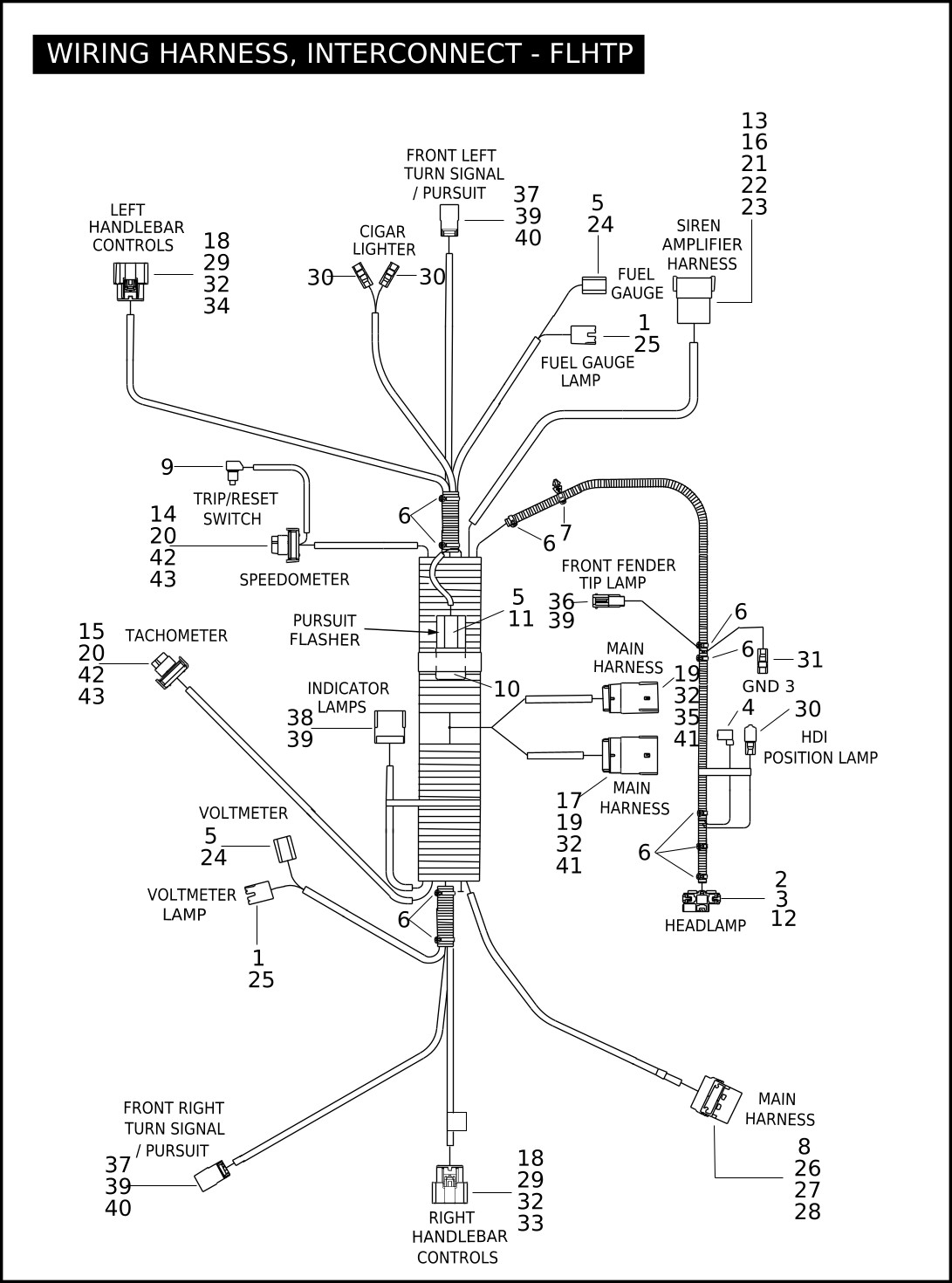

WIRING HARNESS, INTERCONNECT - FLHTP
| Index No. | Part No. | Description | Model(s) |
| 69552-08 | WIRING HARNESS, interconnect | FLHTP | |
| NOTE: Includes the following parts. | |||
| 1 | 9839 | TERMINAL, positive lock (4) | FLHTP |
| 2 | 9847 | CONNECTOR (RH) female spade | FLHTP |
| 3 | 9848 | CONNECTOR (LH) female spade (2) | FLHTP |
| 4 | 9898 | TERMINAL FLAG | FLHTP |
| 5 | 9937 | TERMINAL, 14-18 AWG , 1/4 in. slot (8) | FLHTP |
| 6 | 10065 | CABLE STRAP (10) | FLHTP |
| 7 | 10073 | CABLE STRAP, mounting, rosebud | FLHTP |
| 8 | 10147 | CLIP, connector | FLHTP |
| 9 | 67854-98 | SWITCH, trip/reset | FLHTP |
| 10 | 68563-04A | RELAY/FLASHER | FLHTP |
| 11 | 72046-79 | SOCKET HOUSING, 5-way, female | FLHTP |
| 12 | 72056-92 | HOUSING, spade terminal, 3-way | FLHTP |
| 13 | 72109-94BK | PIN HOUSING, 12-pin (black) | FLHTP |
| 14 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTP |
| 15 | 72131-04 | SOCKET HOUSING, 12-way (gray) | FLHTP |
| 16 | 72149-94 | PIN LOCK, secondary, 12-way | FLHTP |
| 17 | 72167-07BK | PIN HOUSING, 16-way (black) | FLHTP |
| 18 | 72168-07 | TERMINAL, socket, #18-20 AWG (13) | FLHTP |
| 19 | 72169-07 | TERMINAL, pin, #16-20 AWG (23) | FLHTP |
| 20 | 72189-04 | SEAL PIN (10) | FLHTP |
| 21 | 72190-94 | TERMINAL, pin, #16-18 AWG (7) | FLHTP |
| 22 | 72195-94 | SEAL PIN, 4-way, recptacle (5) | FLHTP |
| 23 | 72199-94 | CONNECTOR ANCHOR | FLHTP |
| 24 | 72200-94A | HOUSING, 3-way, female (2) | FLHTP |
| 25 | 72203-96 | HOUSING, 2-way, female (2) | FLHTP |
| 26 | 72205-94 | CONNECTOR, 4-way, male | FLHTP |
| 27 | 72208-94 | TERMINAL, male, #12 AWG | FLHTP |
| 28 | 72210-94 | TERMINAL, male, #14 AWG | FLHTP |
| 29 | 72272-07 | TERMINAL, socket, #14-16 AWG (7) | FLHTP |
| 30 | 72290-94 | TERMINAL, 1/4 in. female (3) | FLHTP |
| 31 | 72364-06 | TERMINAL, 1/4 in. female, #10-14 AWG | FLHTP |
| 32 | 72473-07 | SEAL PIN (9) | FLHTP |
| 33 | 72487-07BK | SOCKET HOUSING, 12-way (black) | FLHTP |
| 34 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHTP |
| 35 | 72490-07GY | HOUSING PIN, 12-way (gray) | FLHTP |
| 36 | 73102-96BK | PIN HOUSING, 2-way (black) | FLHTP |
| 37 | 73104-96BK | PIN HOUSING, 4-way (black) (2) | FLHTP |
| 38 | 73110-96BK | PIN HOUSING, 10-place (black) | FLHTP |
| 39 | 73190-96 | TERMINAL, pin, 16-20 AWG (17) | FLHTP |
| 40 | 73196-96 | ANCHOR, t-stud (2) | FLHTP |
| 41 | 73213-07 | RETAINER, x-mas tree clip (2) | FLHTP |
| 42 | 74196-04 | TERMINAL SOCKET, #20 AWG (15) | FLHTP |
| 43 | 74197-04 | SOCKET LOCK, 12-way (2) | FLHTP |

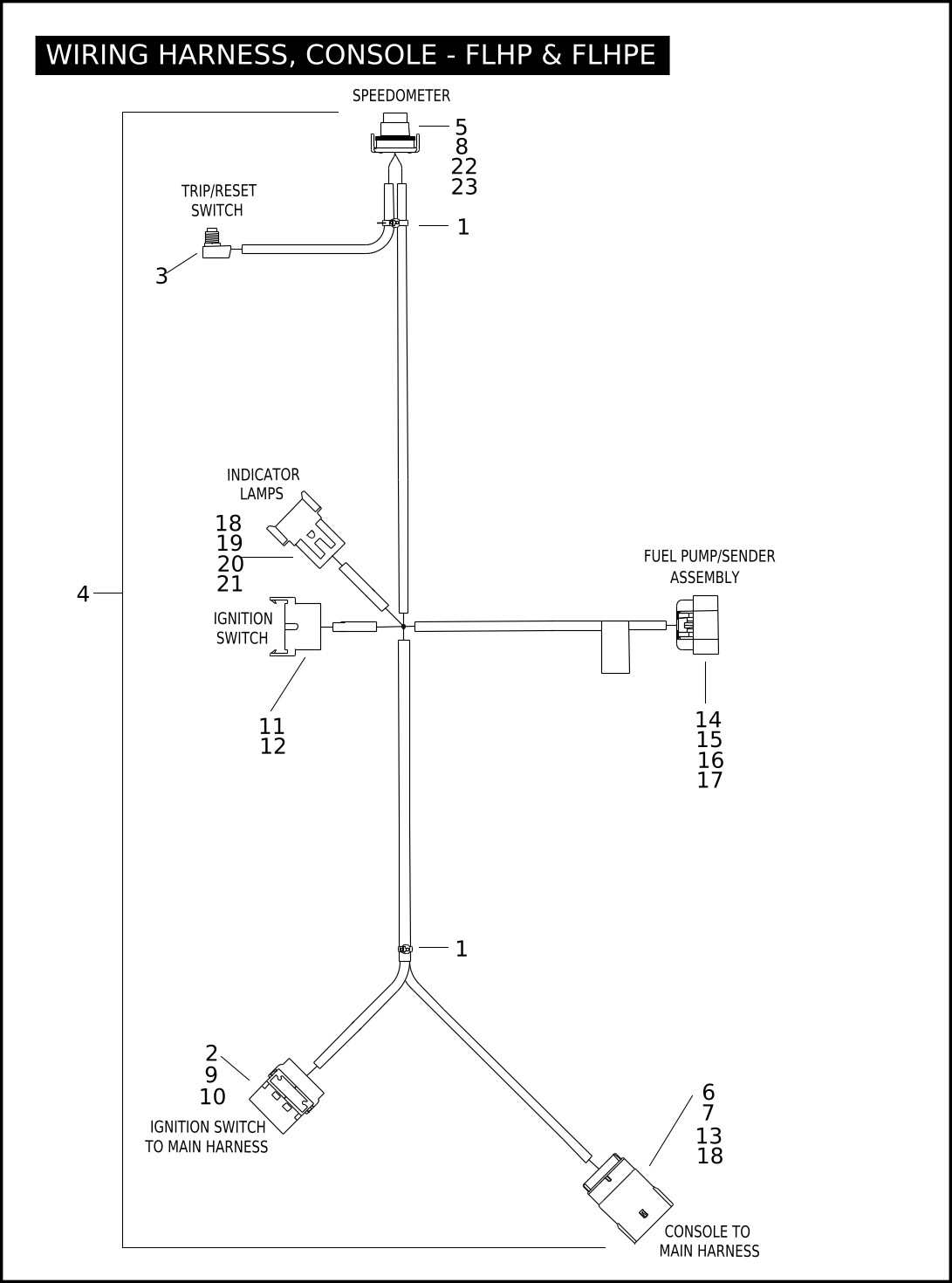

WIRING HARNESS, CONSOLE - FLHP & FLHPE
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (2) | FLHP, FLHPE |
| 2 | 10147 | CLIP, connector, rosebud mount | FLHP, FLHPE |
| 3 | 67488-04 | SWITCH, trip reset | FLHP, FLHPE |
| 4 | 70495-08A | HARNESS ASSEMBLY, console | FLHP, FLHPE |
| 5 | 72130-04 | SOCKET HOUSING, 12-way, black | FLHP, FLHPE |
| 6 | 72167-07BK | PIN HOUSING, 16-way | FLHP, FLHPE |
| 7 | 72169-07 | TERMINAL, pin, 16-18 AWG (14) | FLHP, FLHPE |
| 8 | 72189-04 | SEAL PIN (3) | FLHP, FLHPE |
| 9 | 72205-94 | CONNECTOR, 4-way, male | FLHP, FLHPE |
| 10 | 72208-94 | TERMINAL, 12 AWG, male (3) | FLHP, FLHPE |
| 11 | 72303-08 | TERMINAL, 12 AWG, male (3) | FLHP, FLHPE |
| 12 | 72327-03A | CONNECTOR, 3-way | FLHP, FLHPE |
| 13 | 72473-07 | SEAL PIN (2) | FLHP, FLHPE |
| 14 | 72485-07 | SOCKET HOUSING, 4-way | FLHP, FLHPE |
| 15 | 72493-07 | TERMINAL, socket, 16-18 AWG (4) | FLHP, FLHPE |
| 16 | 72494-07 | SEAL WIRE, 16-18 AWG (4) | FLHP, FLHPE |
| 17 | 72557-07 | SECONDARY LOCK, 4-way socket | FLHP, FLHPE |
| 18 | 74108-98BK | HOUSING, pin, 8-way (black) | FLHP, FLHPE |
| 19 | 74148-98 | SECONDARY LOCK, pin, 8-way | FLHP, FLHPE |
| 20 | 74190-98 | PIN TERMINAL, 16-20 AWG (7) | FLHP, FLHPE |
| 21 | 74195-98 | SEAL PIN | FLHP, FLHPE |
| 22 | 74196-04 | TERMINAL SOCKET, 20 AWG (9) | FLHP, FLHPE |
| 23 | 74197-04 | SOCKET LOCK, secondary 12-way | FLHP, FLHPE |

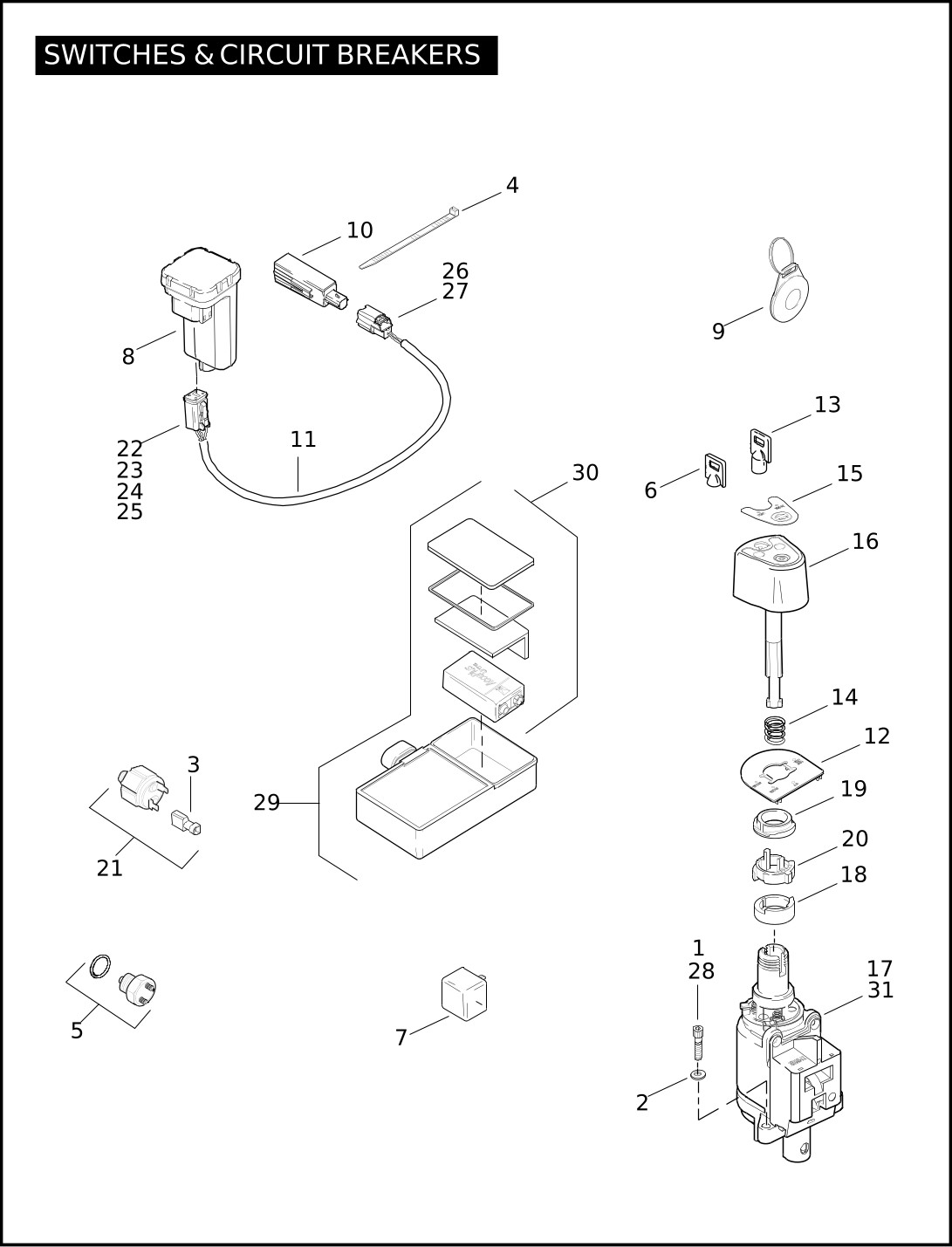

SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHTP |
| 2 | 6150W | WASHER (2) | FLHTP |
| 3 | 9907 | WIRE TERMINAL (2) | ALL |
| 4 | 10065 | CABLE STRAP (2) | ALL |
| 5 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | ALL |
| 53562-06 | LOCKSET, complete, w/ keys, cam hook & ignition knob | FLHTP | |
| 53568-03A | LOCKSET, complete, w/ keys, key covers, cam hook, ignition switch, fork lock, cam lock & cable strap (specify 4-digit key code) | FLHP, FLHPE | |
| 53848-00 | T-PAK LOCK SET (specify 4-digit key code) | ALL | |
| 6 | 61081-92 | COVER, key head, set of 2 | ALL |
| 7 | 68437-99 | MODULE, jumper 3-way flasher plug (California) | FLHPE |
| 8 | 68920-07 | MODULE, turn signal canceller | ALL |
| 68924-07 | MODULE, security system | ALL | |
| 9 | 68926-07 | REMOTE CONTROL FOB (2) | ALL |
| 10 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 11 | 70617-07 | WIRE HARNESS, antenna jumper, w/ 72114-94BK, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07 | ALL |
| 12 | 71422-03 | PLATE, ignition switch | FLHTP |
| 13 | 71452-91A | KEY (specify key #) (2) | ALL |
| 14 | 71459-03 | SPRING, ignition knob | FLHTP |
| 15 | 71466-03 | DECAL, ignition switch knob | FLHTP |
| 16 | 71532-03 | KNOB, ignition switch, w/ 71466-03 (specify key code) | FLHTP |
| 17 | 71572-06 | HOUSING, ignition switch, w/ 71638-03, 71660-03 & 71661-03 (Domestic only) | FLHTP |
| 18 | 71638-03 | COLLAR, ignition switch, bottom | FLHTP |
| 19 | 71660-03 | NUT, ignition switch | FLHTP |
| 20 | 71661-03 | COLLAR, ignition switch, top | FLHTP |
| 21 | 72023-51D | SWITCH KIT, rear brakelite, w/ 9907 | ALL |
| 22 | 72114-94BK | SOCKET HOUSING, 4-way (black) (replaces gray connector) | ALL |
| 23 | 72154-94 | SOCKET LOCK, secondary, 4-way | ALL |
| 24 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | ALL |
| 25 | 72195-94 | SEAL PIN, socket, 16-18 AWG | ALL |
| 26 | 72720-07 | HOUSING, 2-way socket | ALL |
| 27 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 2934 | SCREW (2) | FLHTP |
| 29 | 68958-07B | SIREN ALARM (HDI) | ALL |
| 30 | 69018-00 | BATTERY REPLACE KIT, siren alarm (HDI) | ALL |
| 31 | 71530-03B | HOUSING, ignition switch, w/ 71638-03, 71660-03 & 71661-03 (HDI) | FLHTP |

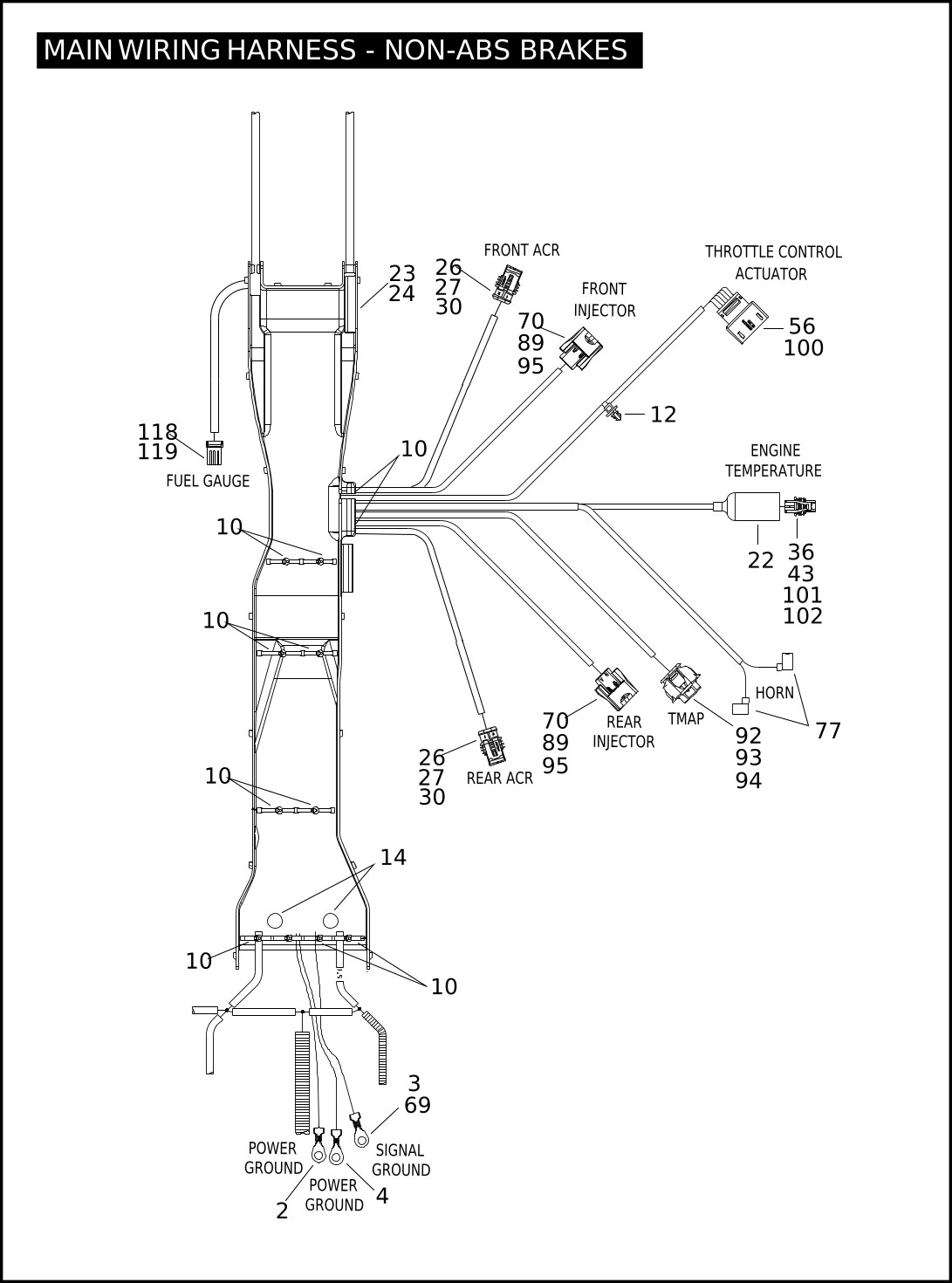

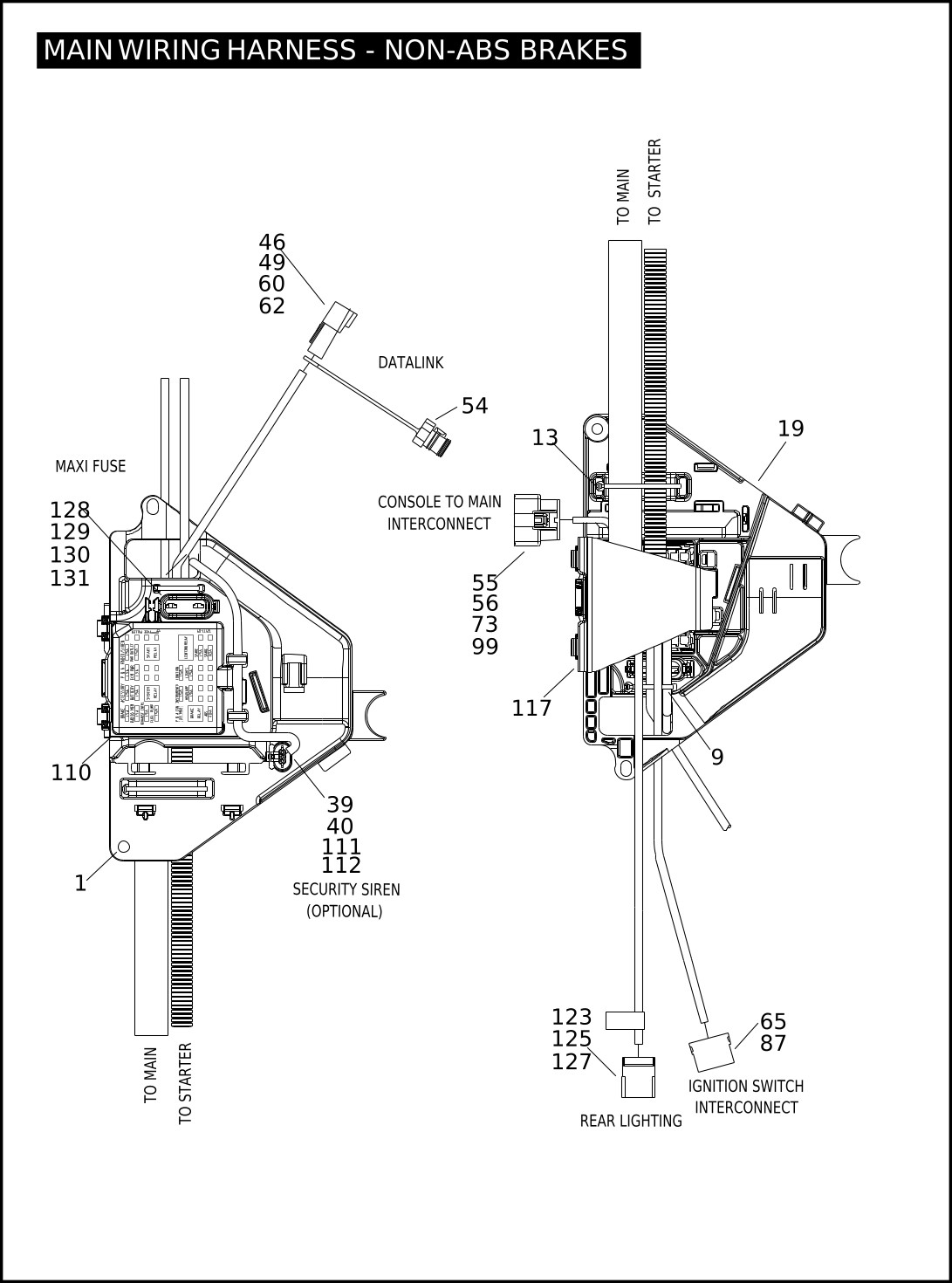

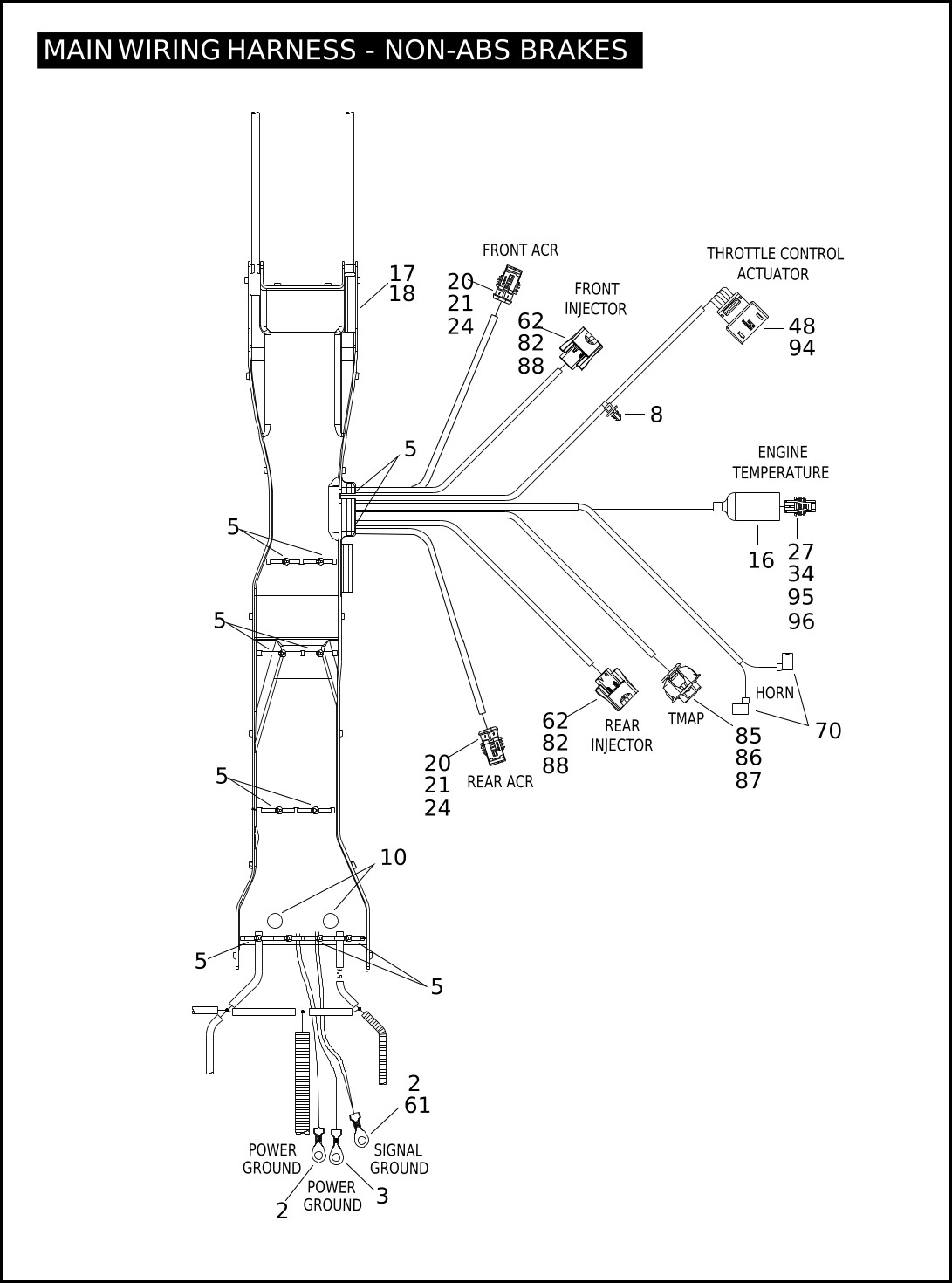

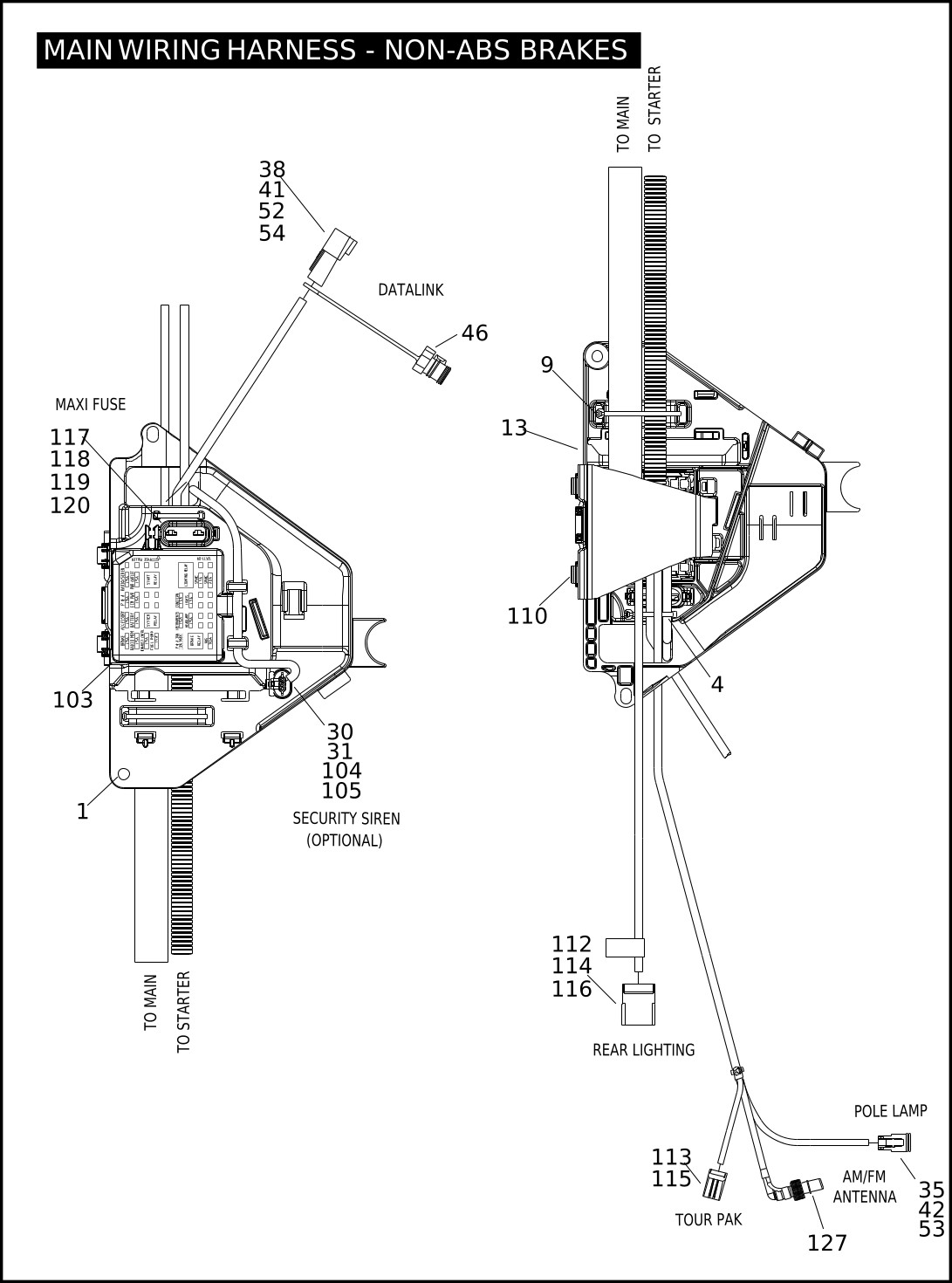

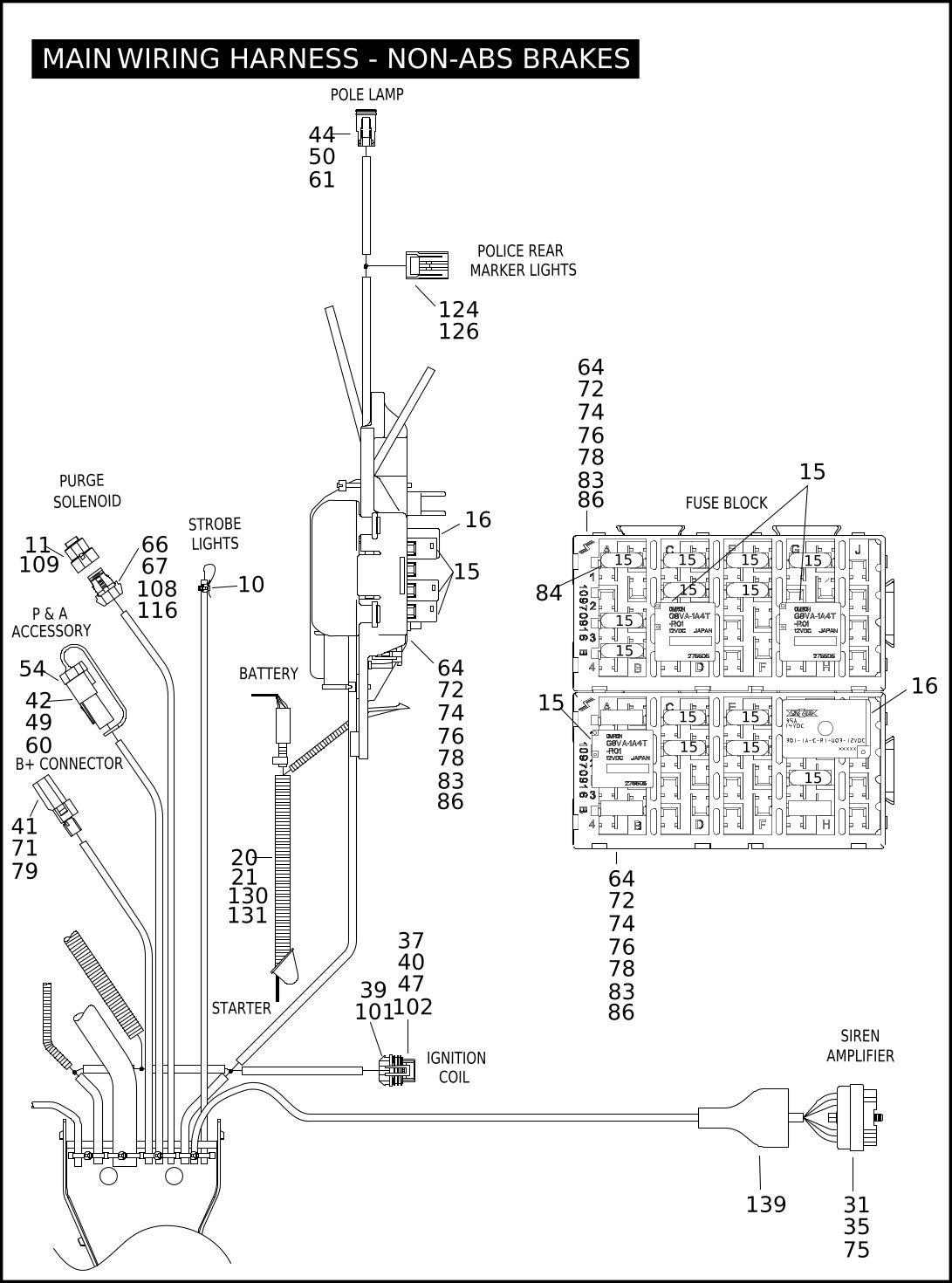

MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 1 | 3634 | SCREW (2) | FLHTP |
| 2 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | FLHTP |
| 3 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHTP |
| 4 | 10039 | CABLE STRAP | FLHTP |
| 5 | 10065 | CABLE STRAP (21) | FLHTP |
| 6 | 10073 | CABLE STRAP, rosebud mount | FLHTP |
| 7 | 10147 | CLIP, connector | FLHTP |
| 8 | 10177 | CABLE STRAP, tree mount (2) | FLHTP |
| 9 | 11321 | CABLE STRAP | FLHTP |
| 10 | 11779 | FASTENER, push-in (black) (2) | FLHTP |
| 15368-01A | LABEL BATTERY WARNING (not shown) | FLHTP | |
| 11 | 31586-07 | RELAY (3) | FLHTP |
| 12 | 31595-09 | RELAY, high current | FLHTP |
| 13 | 70348-09 | CADDY, fuse block | FLHTP |
| 14 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHTP |
| 15 | 70578-89 | BOOT, battery positive | FLHTP |
| 16 | 70598-99 | BOOT, engine temperature sensor | FLHTP |
| 17 | 70980-09 | TRAY, wire trough | FLHTP |
| 18 | 70981-09 | COVER, wire trough, w/ 15368-01A | FLHTP |
| 19 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (2) | FLHTP |
| 20 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLHTP |
| 21 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLHTP |
| 22 | 72012-07 | SOCKET HOUSING, 5-way | FLHTP |
| 23 | 72014-07 | SEAL PIN | FLHTP |
| 24 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (6) | FLHTP |
| 25 | 72032-93 | CONNECTOR PLUG (8) | FLHTP |
| 26 | 72059-08 | SOCKET TERMINAL, 16-18 AWG (10) | FLHTP |
| 27 | 72063-06 | HOUSING, 2-way | FLHTP |

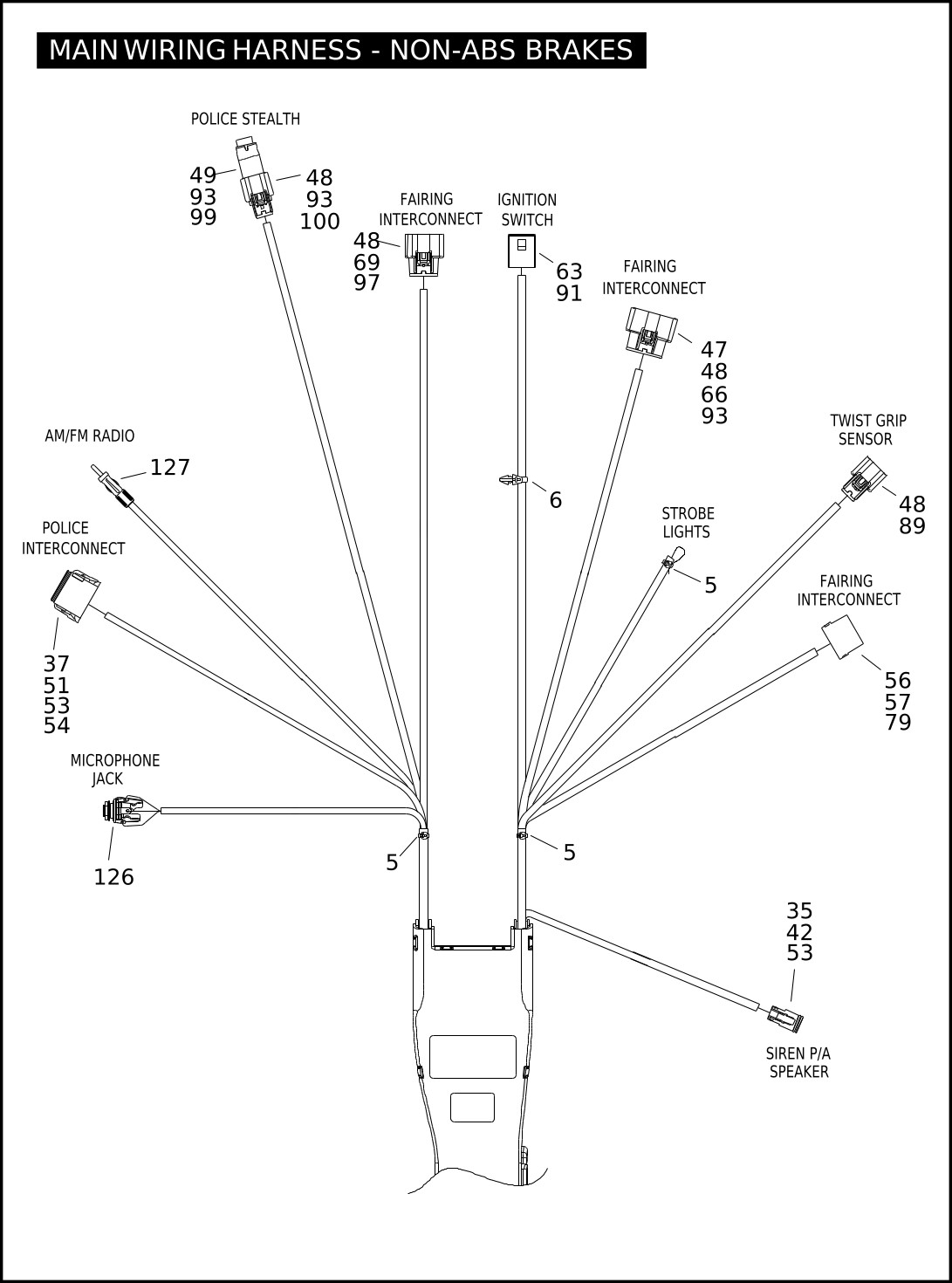

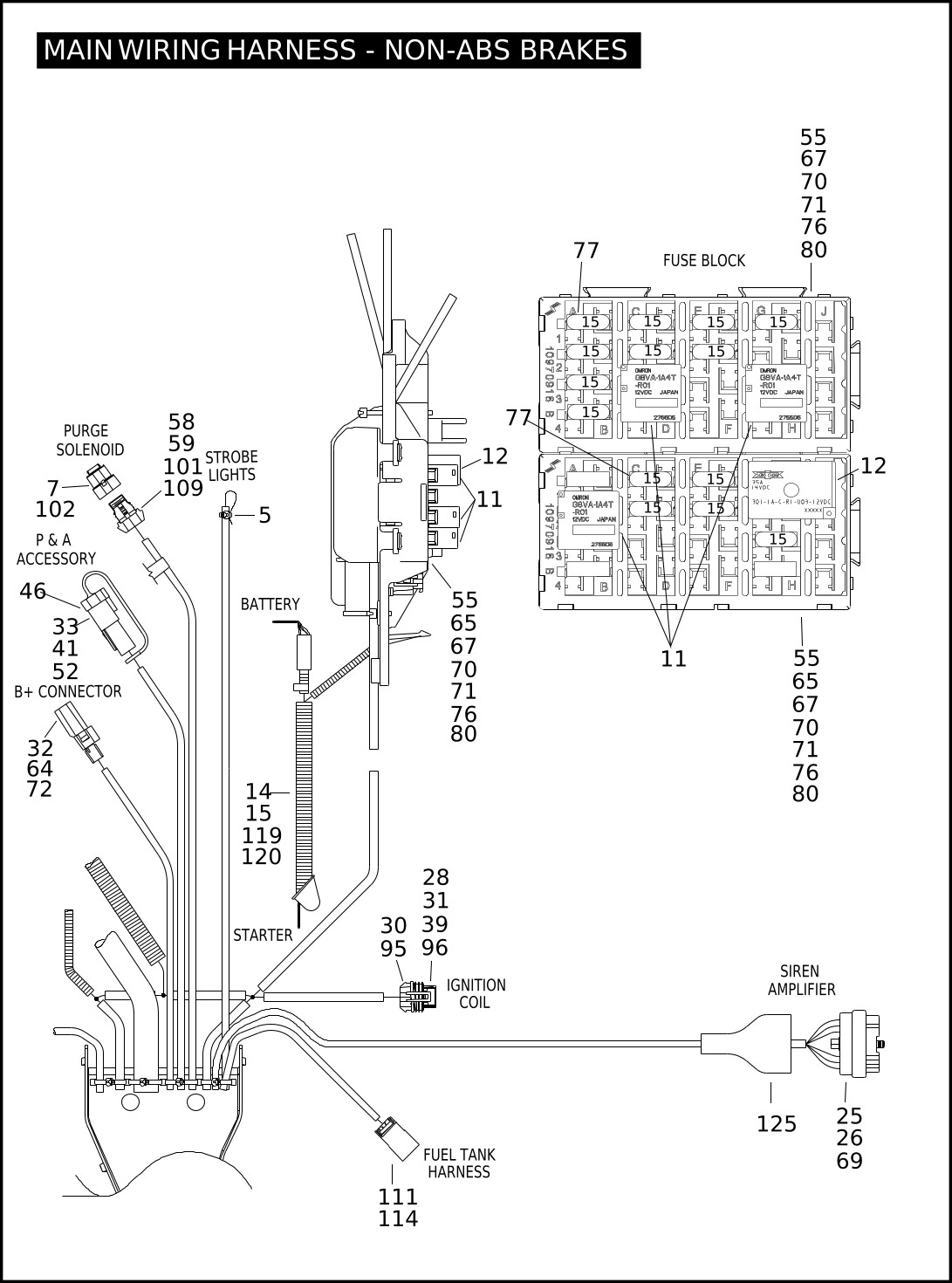

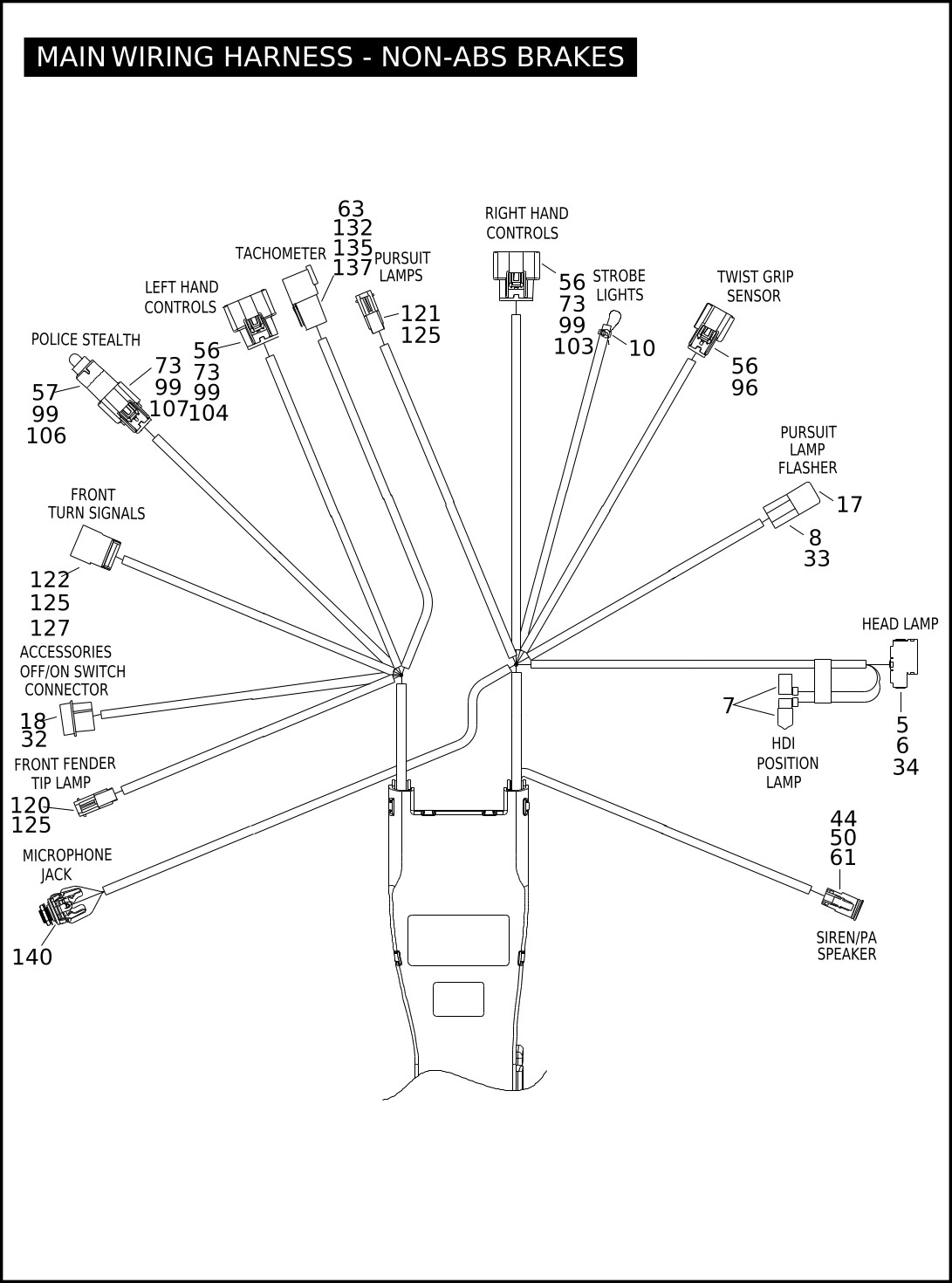

MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS NON-ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 28 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHTP |
| 29 | 72079-08 | SOCKET HOUSING, 73-way | FLHTP |
| 30 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHTP |
| 31 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHTP |
| 32 | 72100-04 | HOUSING, 1-way, male (gray) | FLHTP |
| 33 | 72104-94BK | HOUSING, 4-pin (black) | FLHTP |
| 34 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHTP |
| 35 | 72112-94BK | SOCKET HOUSING, sealed, 2-way (black) (2) | FLHTP |
| 36 | 72115-08 | COVER, 73-way socket housing | FLHTP |
| 37 | 72119-94BK | SOCKET HOUSING, 12-way, w/ 72179-94 (black) | FLHTP |
| 38 | 72124-94GY | HOUSING, 4-pin (gray) | FLHTP |
| 39 | 72135-06 | LOCK, secondary, 4-way socket, female (2) | FLHTP |
| 40 | 72139-94GY | SOCKET HOUSING, 12-way , w/ 72179-94 (gray) | FLHTP |
| 41 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHTP |
| 42 | 72152-94 | SOCKET LOCK, secondary, 2-way | FLHTP |
| 43 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHTP |
| 44 | 72157-08 | LOCK, blue | FLHTP |
| 45 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHTP |
| 46 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHTP |
| 47 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHTP |
| 48 | 72168-07 | TERMINAL, socket, 16-18 AWG (35) | FLHTP |
| 49 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHTP |
| 50 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHTP |
| 51 | 72179-94 | SEAL, internal, 12 circuit (4) | FLHTP |
| 52 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHTP |
| 53 | 72191-94 | TERMINAL, socket, 16-18 AWG (23) | FLHTP |
| 54 | 72195-94 | SEAL PIN (6) | FLHTP |
| 55 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHTP |
| 56 | 72206-94 | CONNECTOR, 4-position, female | FLHTP |

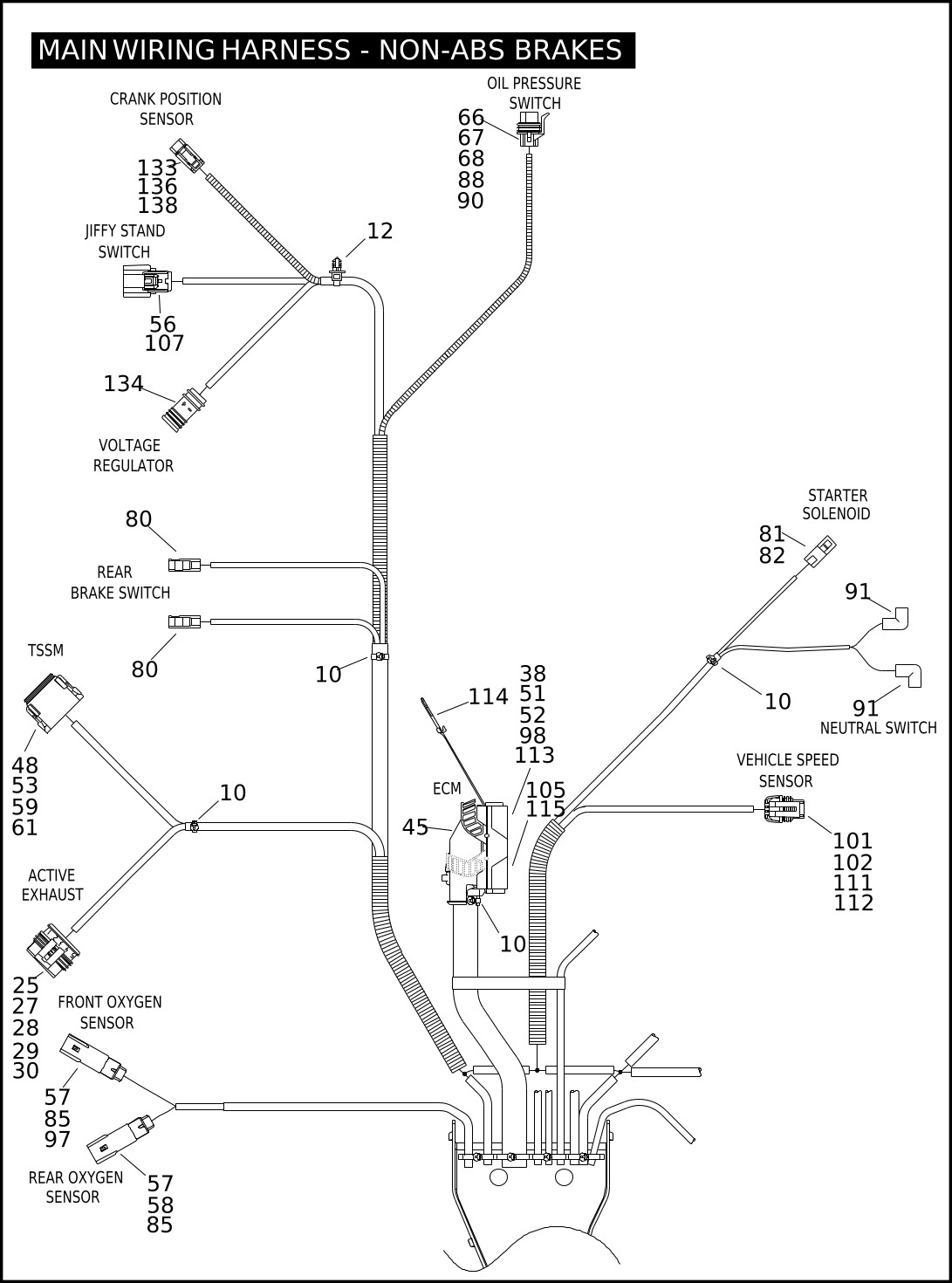

MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 57 | 72207-94 | TERMINAL, female, 14 AWG (2) | FLHTP |
| 58 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (4) | FLHTP |
| 59 | 72214-94 | CABLE SEAL (4) | FLHTP |
| 60 | 72232-96 | SEAL PLUG (2) | FLHTP |
| 61 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHTP |
| 62 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHTP |
| 63 | 72252-01 | TERMINAL, 10 AWG (3) | FLHTP |
| 64 | 72260-04 | HOUSING, female (gray) | FLHTP |
| 65 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLHTP |
| 66 | 72272-07 | TERMINAL, socket, 14-16 AWG (6) | FLHTP |
| 67 | 72279-04 | TERMINAL, female, 14-16 AWG (17) | FLHTP |
| 68 | 72281-93 | SOCKET HOUSING, 18-way | FLHTP |
| 69 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | FLHTP |
| 70 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHTP |
| 71 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (13) | FLHTP |
| 72 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHTP |
| 73 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | FLHTP |
| 74 | 72291-94 | TERMINAL, 14-16 AWG | FLHTP |
| 75 | 72295-94 | CONNECTOR, starter housing | FLHTP |
| 76 | 72309-04 | TERMINAL, 16-18 AWG (11) | FLHTP |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHTP | |
| 77 | 72330-95 | FUSE, 15 AMP (blue) (14) | FLHTP |
| 78 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHTP |
| 79 | 72355-97 | TERMINAL, female, 12 AWG | FLHTP |
| 80 | 72359-05 | TERMINAL, female, 10-12 AWG (4) | FLHTP |
| 81 | 72400-99 | CONNECTOR, 4-way | FLHTP |
| 82 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHTP |
| 83 | 72403-99 | SECONDARY LOCK, 4-way | FLHTP |
| 84 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHTP |
| 85 | 72406-07A | SOCKET HOUSING, 4-way | FLHTP |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 86 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHTP |
| 87 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHTP |
| 88 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTP |
| 89 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTP |
| 90 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHTP |
| 91 | 72416-01 | HOUSING, 3-way, female | FLHTP |
| 92 | 72440-08 | SEAL PIN, plug (17) | FLHTP |
| 93 | 72473-07 | SEAL PIN (6) | FLHTP |
| 94 | 72483-08BK | SOCKET HOUSING, 6-way | FLHTP |
| 95 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTP |
| 96 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTP |
| 97 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHTP |
| 98 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHTP |
| 99 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHTP |
| 100 | 72512-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHTP |
| 101 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHTP |
| 102 | 72533-06 | DUST CAP, 2-pin connector | FLHTP |
| 103 | 72537-10 | COVER ASSEMBLY, fuse block, w/ graphics | FLHTP |
| 104 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHTP |
| 105 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | FLHTP |
| 106 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHTP |
| 107 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHTP |
| 108 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (39) | FLHTP |
| 109 | 72609-08 | SECONDARY LOCK, 2-way (black) | FLHTP |
| 110 | 72620-08 | FUSE COVER, rear | FLHTP |
| 111 | 73104-96BK | PIN HOUSING, 4-place (black) | FLHTP |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 112 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHTP |
| 113 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLHTP |
| 114 | 73190-96 | TERMINAL, pin, 16-20 AWG (10) | FLHTP |
| 115 | 73191-96 | TERMINAL, socket, 16-20 AWG (3) | FLHTP |
| 116 | 73198-96 | CONNECTOR ANCHOR | FLHTP |
| 117 | 73301-04 | HOUSING, pin, 2-way | FLHTP |
| 118 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHTP |
| 119 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHTP |
| 120 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHTP |
| 121 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHTP |
| 122 | 74115-06 | DC LEAD ASSEMBLY | FLHTP |
| 123 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHTP |
| 124 | 74191-98 | SOCKET TERMINAL (2) | FLHTP |
| 125 | 74413-93 | BOOT, siren amplifier connector | FLHTP |
| 126 | 76233-85 | JACK, microphone | FLHTP |
| 127 | 76248-86 | CABLE, antenna | FLHTP |

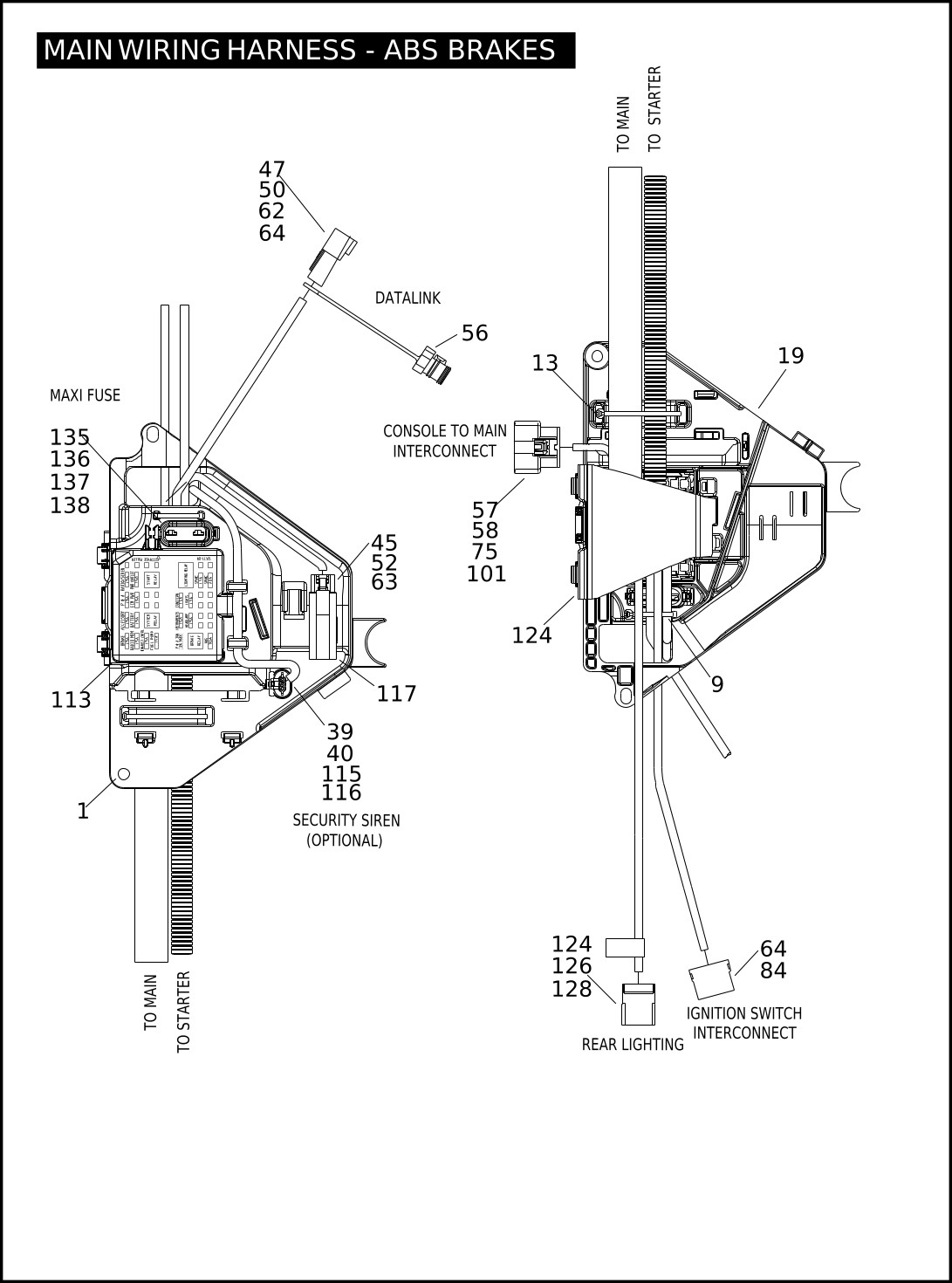

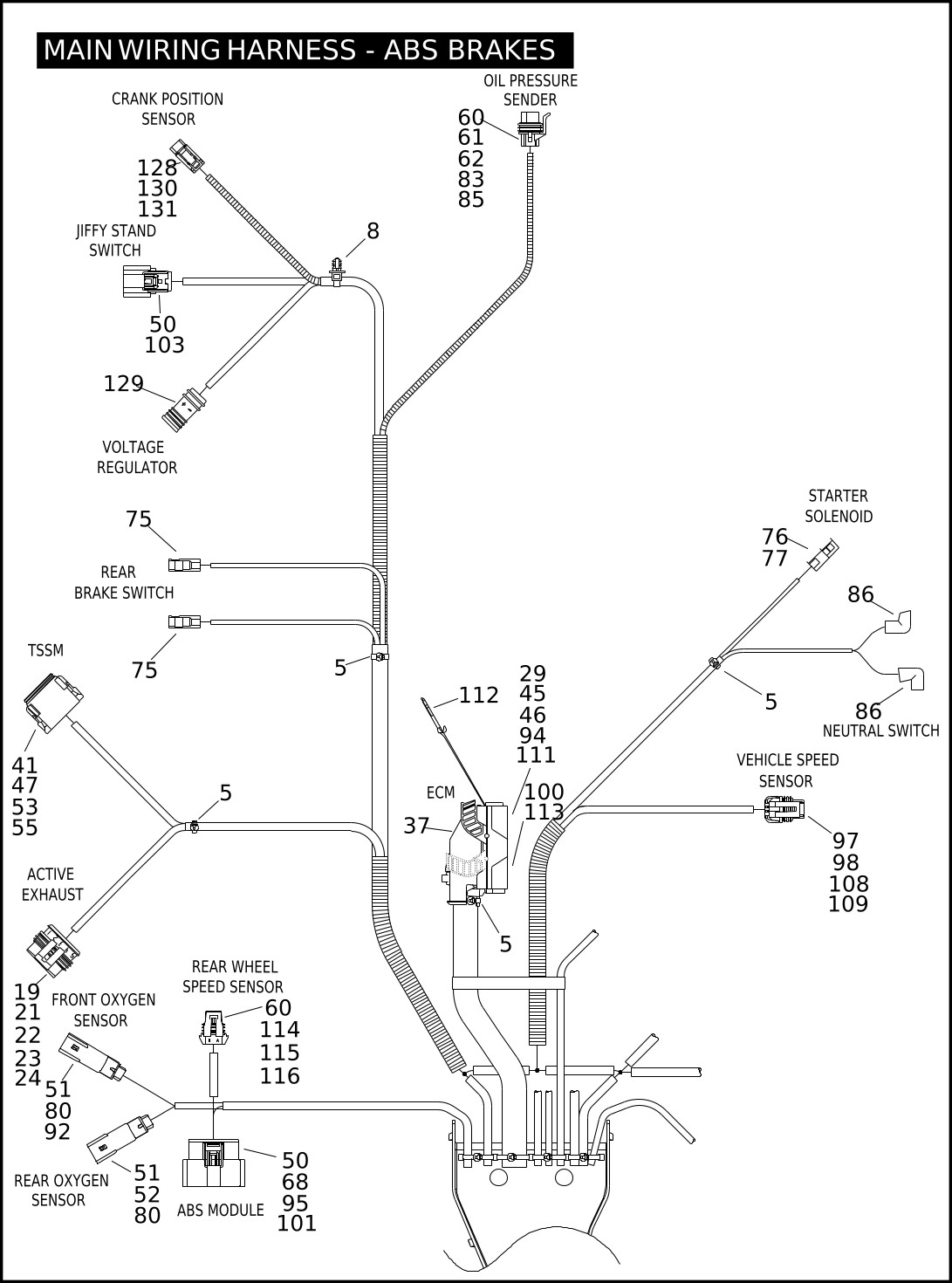

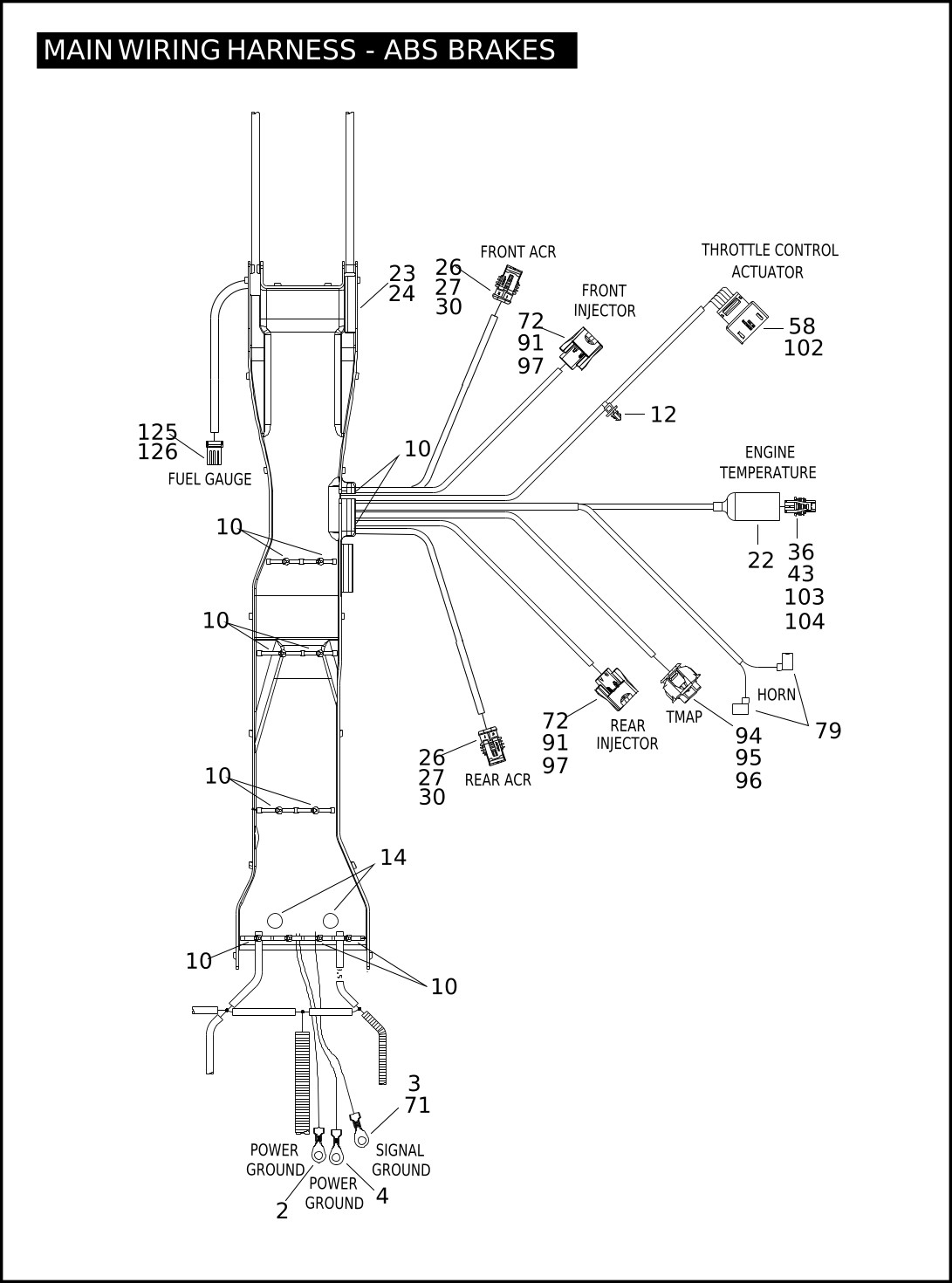

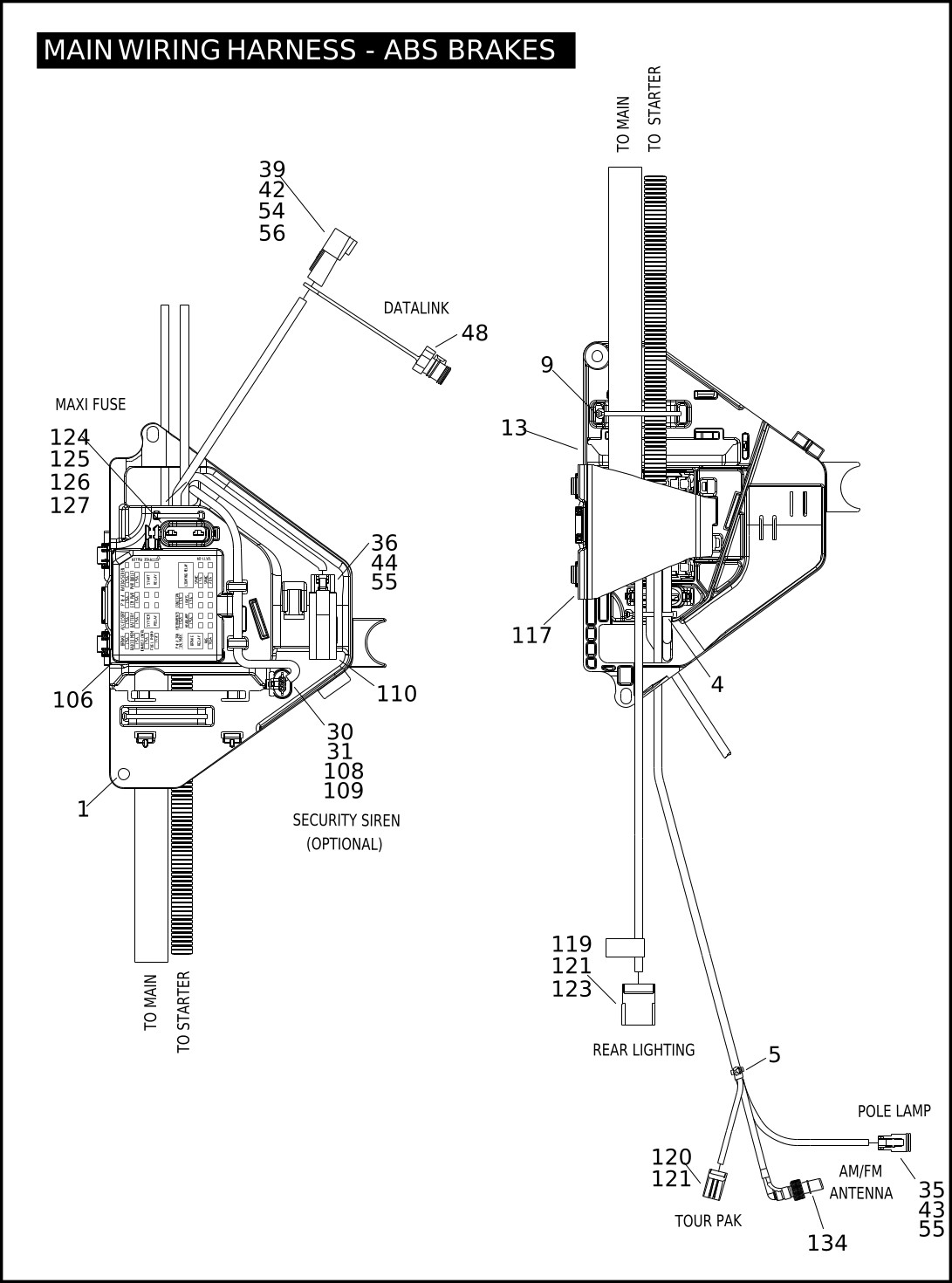

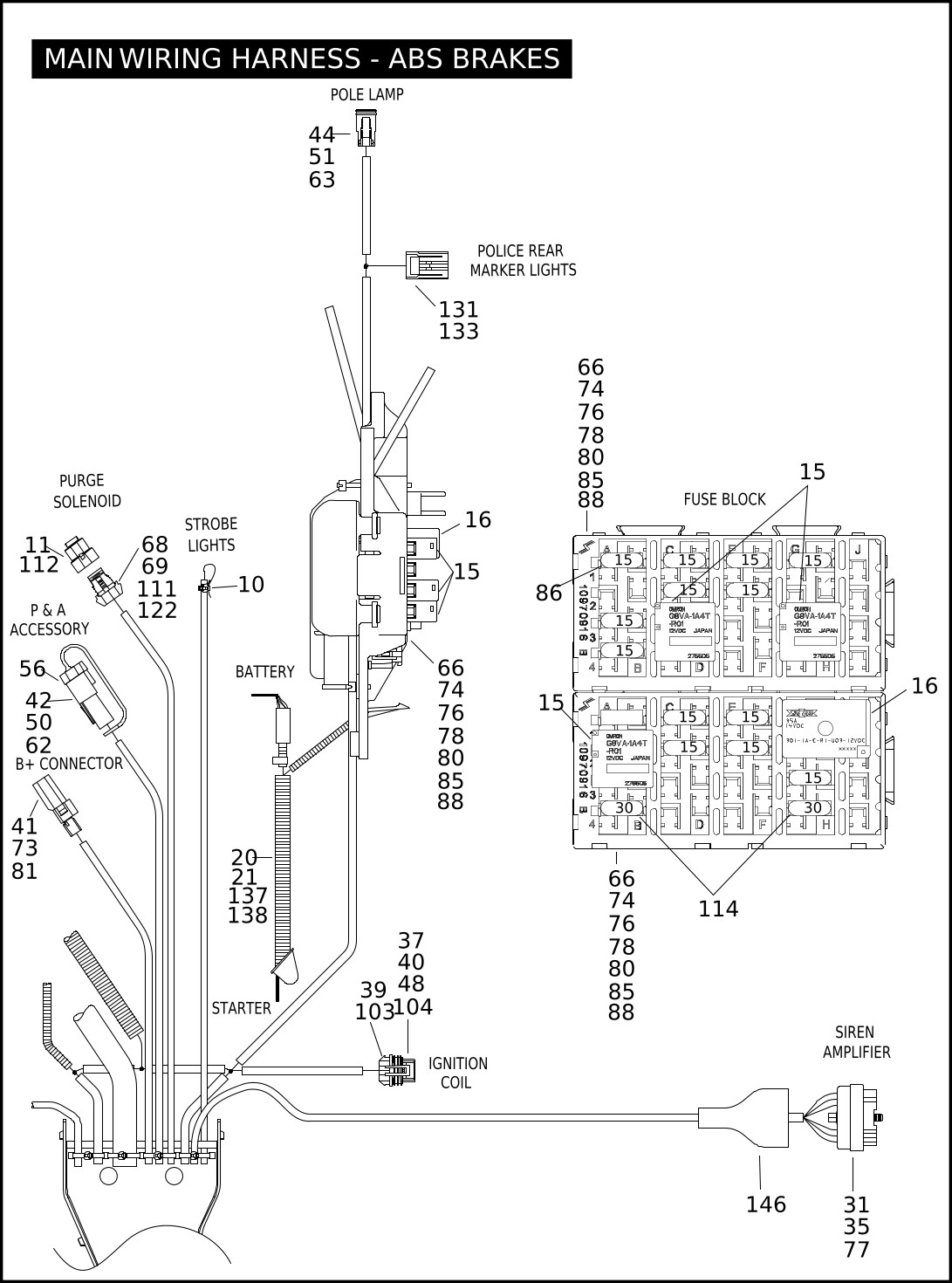

MAIN WIRING HARNESS - ABS BRAKES - FLHTP (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 1 | 3634 | SCREW (2) | FLHTP |
| 2 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | FLHTP |
| 3 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHTP |
| 4 | 10039 | CABLE STRAP | FLHTP |
| 5 | 10065 | CABLE STRAP (21) | FLHTP |
| 6 | 10073 | CABLE STRAP, rosebud mount | FLHTP |
| 7 | 10147 | CLIP, connector | FLHTP |
| 8 | 10177 | CABLE STRAP, tree mount (2) | FLHTP |
| 9 | 11321 | CABLE STRAP | FLHTP |
| 10 | 11779 | FASTENER, push-in (black) (2) | FLHTP |
| 15368-01A | LABEL BATTERY WARNING (not shown) | FLHTP | |
| 11 | 31586-07 | RELAY (3) | FLHTP |
| 12 | 31595-09 | RELAY, high current | FLHTP |
| 13 | 70348-09 | CADDY, fuse block | FLHTP |
| 14 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHTP |
| 15 | 70578-89 | BOOT, battery positive | FLHTP |
| 16 | 70598-99 | BOOT, engine temperature sensor | FLHTP |
| 17 | 70980-09 | TRAY, wire trough | FLHTP |
| 18 | 70981-09 | COVER, wire trough, w/ 15368-01A | FLHTP |
| 19 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (2) | FLHTP |
| 20 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLHTP |
| 21 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLHTP |
| 22 | 72012-07 | SOCKET HOUSING, 5-way | FLHTP |
| 23 | 72014-07 | SEAL PIN | FLHTP |
| 24 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (6) | FLHTP |
| 25 | 72032-93 | CONNECTOR PLUG (8) | FLHTP |
| 26 | 72059-08 | SOCKET TERMINAL, 16-18 AWG (10) | FLHTP |
| 27 | 72063-06 | HOUSING, 2-way | FLHTP |

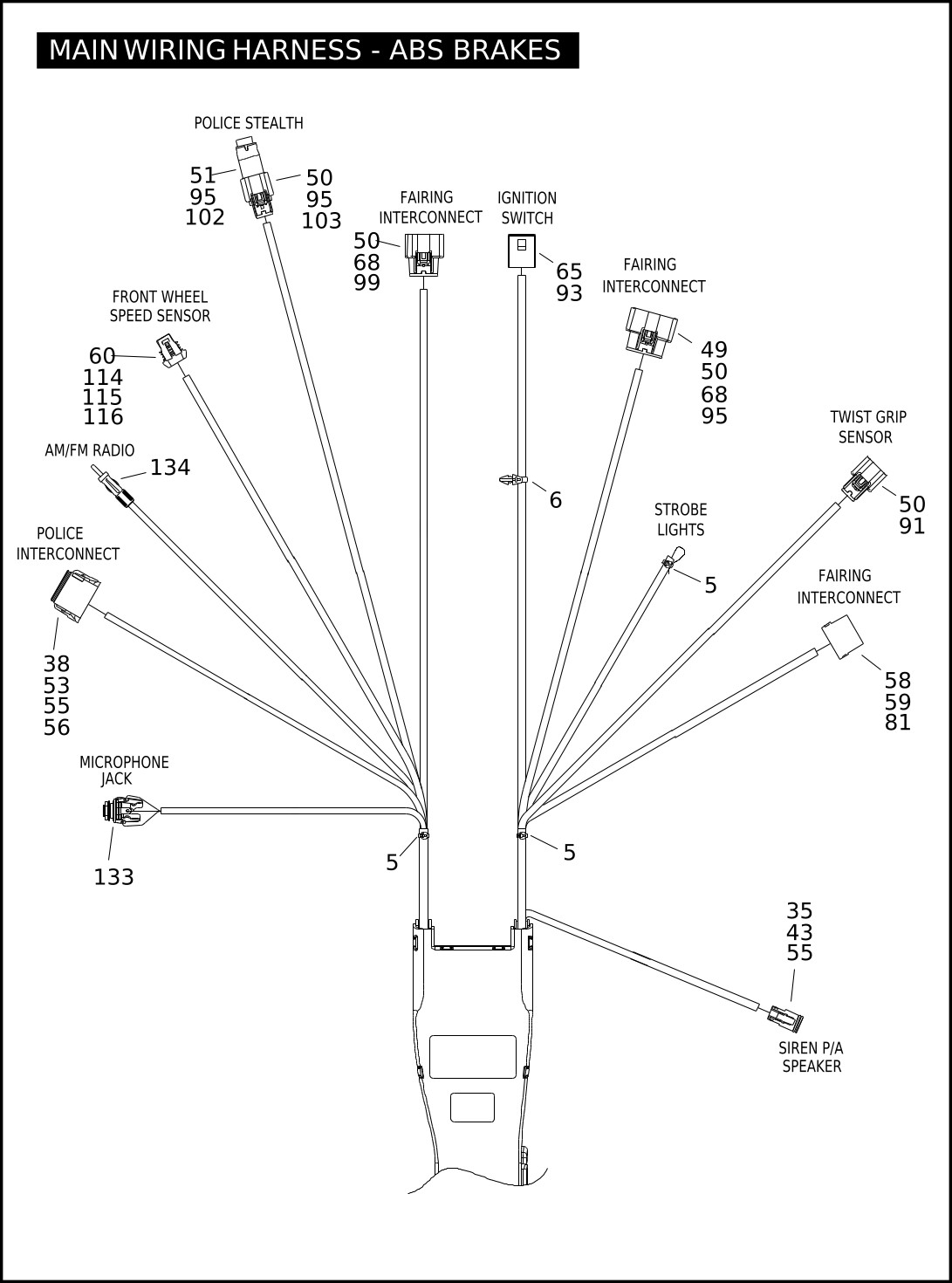

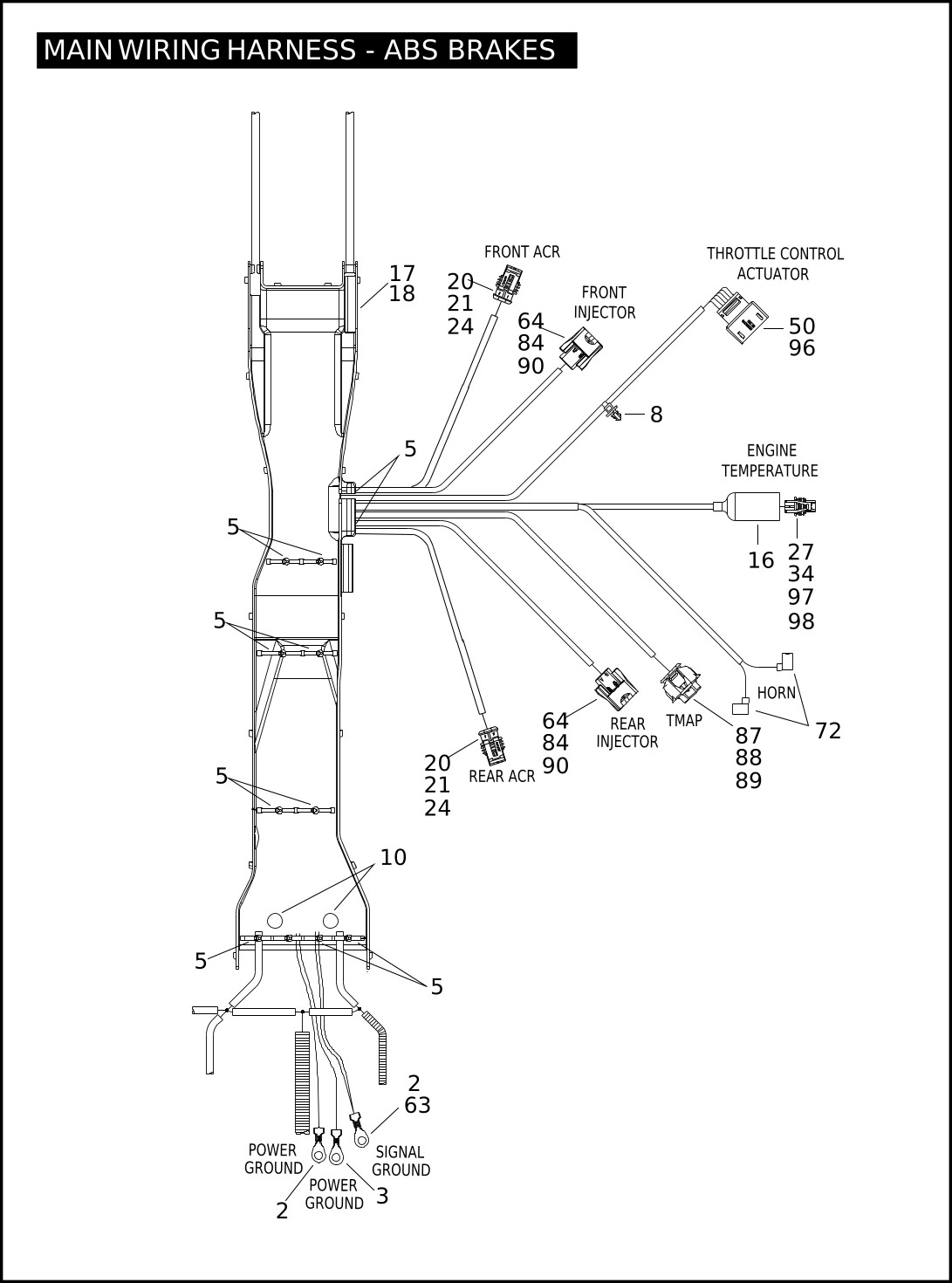

MAIN WIRING HARNESS - ABS BRAKES - FLHTP (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 28 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHTP |
| 29 | 72079-08 | SOCKET HOUSING, 73-way | FLHTP |
| 30 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHTP |
| 31 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHTP |
| 32 | 72100-04 | HOUSING, 1-way, male (gray) | FLHTP |
| 33 | 72104-94BK | HOUSING, 4-pin (black) | FLHTP |
| 34 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHTP |
| 35 | 72112-94BK | SOCKET HOUSING, sealed, 2-way (black) (2) | FLHTP |
| 36 | 72114-94BK | SOCKET HOUSING, 4-way (black) (replaces gray connector) | FLHTP |
| 37 | 72115-08 | COVER, 73-way socket housing | FLHTP |
| 38 | 72119-94BK | SOCKET HOUSING, 12-way, w/ 72179-94 (black) | FLHTP |
| 39 | 72124-94GY | HOUSING, 4-pin (gray) | FLHTP |
| 40 | 72135-06 | LOCK, secondary, 4-way socket, female | FLHTP |
| 41 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHTP |
| 42 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHTP |
| 43 | 72152-94 | SOCKET LOCK, secondary, 2-way | FLHTP |
| 44 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHTP |
| 45 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHTP |
| 46 | 72157-08 | LOCK, blue | FLHTP |
| 47 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHTP |
| 48 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHTP |
| 49 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHTP |
| 50 | 72168-07 | TERMINAL, socket, 16-18 AWG (43) | FLHTP |
| 51 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHTP |
| 52 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHTP |
| 53 | 72179-94 | SEAL, internal, 12 circuit (4) | FLHTP |
| 54 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHTP |
| 55 | 72191-94 | TERMINAL, socket, 16-18 AWG (27) | FLHTP |
| 56 | 72195-94 | SEAL PIN (6) | FLHTP |

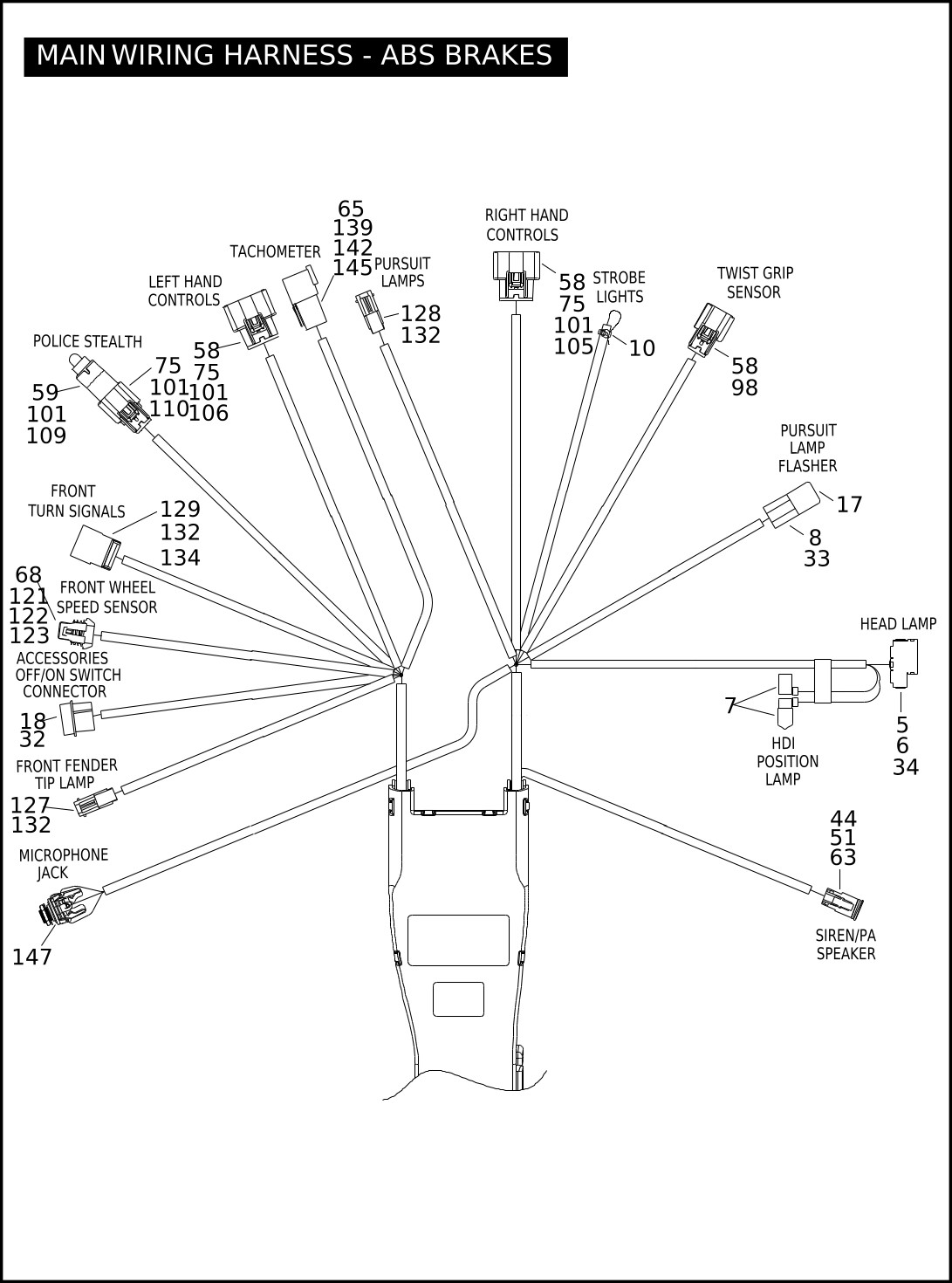

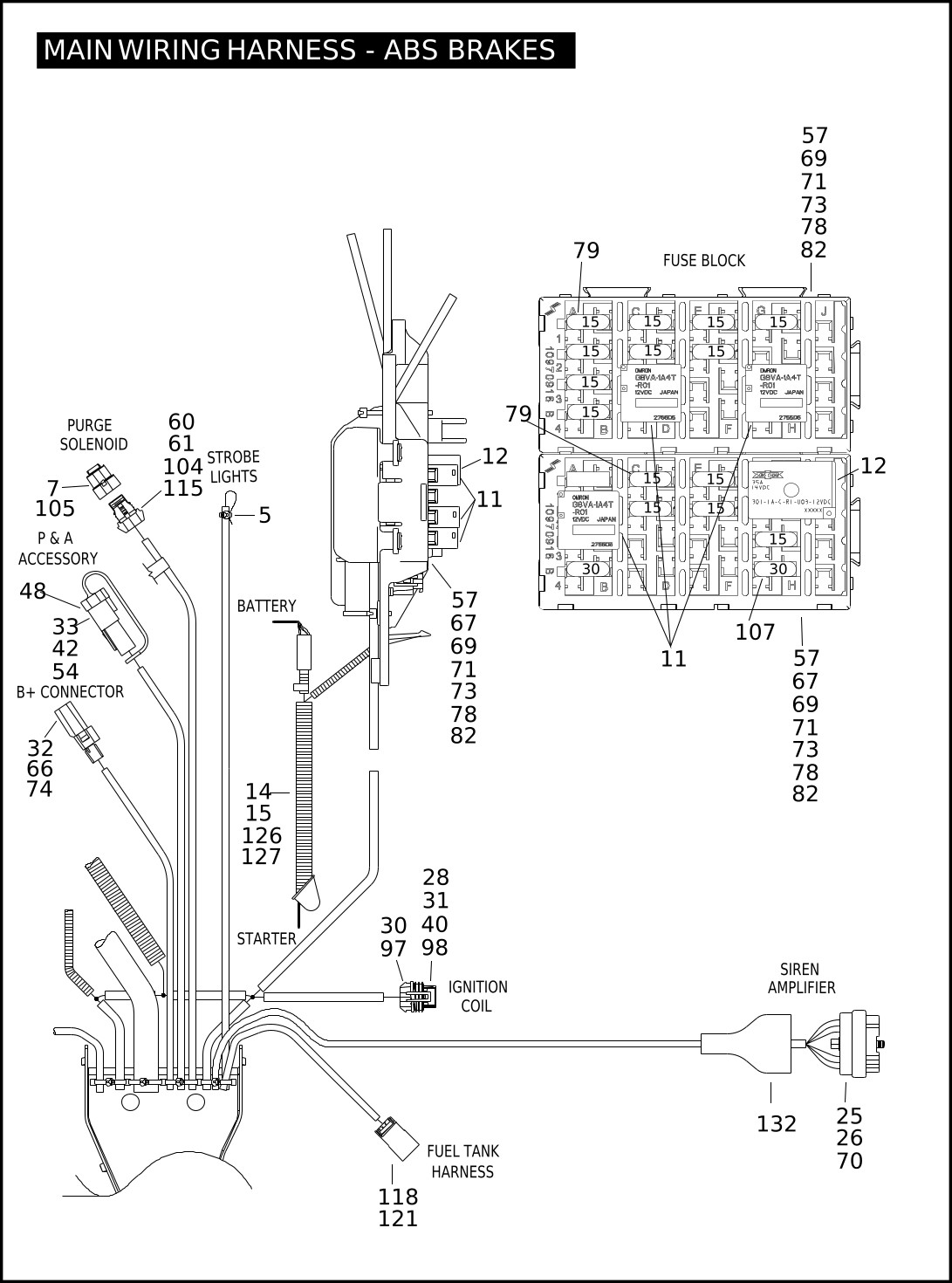

MAIN WIRING HARNESS - ABS BRAKES - FLHTP (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 57 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHTP |
| 58 | 72206-94 | CONNECTOR, 4-position, female | FLHTP |
| 59 | 72207-94 | TERMINAL, female, 14 AWG (2) | FLHTP |
| 60 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (8) | FLHTP |
| 61 | 72214-94 | CABLE SEAL (4) | FLHTP |
| 62 | 72232-96 | SEAL PLUG (2) | FLHTP |
| 63 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHTP |
| 64 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHTP |
| 65 | 72252-01 | TERMINAL, 10 AWG (3) | FLHTP |
| 66 | 72260-04 | HOUSING, female (gray) | FLHTP |
| 67 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLHTP |
| 68 | 72272-07 | TERMINAL, socket, 14-16 AWG (10) | FLHTP |
| 69 | 72279-04 | TERMINAL, female, 14-16 AWG (17) | FLHTP |
| 70 | 72281-93 | SOCKET HOUSING, 18-way | FLHTP |
| 71 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | FLHTP |
| 72 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHTP |
| 73 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (13) | FLHTP |
| 74 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHTP |
| 75 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | FLHTP |
| 76 | 72291-94 | TERMINAL, 14-16 AWG | FLHTP |
| 77 | 72295-94 | CONNECTOR, starter housing | FLHTP |
| 78 | 72309-04 | TERMINAL, 16-18 AWG (11) | FLHTP |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHTP | |
| 79 | 72330-95 | FUSE, 15 AMP (blue) (14) | FLHTP |
| 80 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHTP |
| 81 | 72355-97 | TERMINAL, female, 12 AWG | FLHTP |
| 82 | 72359-05 | TERMINAL, female, 10-12 AWG (6) | FLHTP |
| 83 | 72400-99 | CONNECTOR, 4-way | FLHTP |
| 84 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHTP |

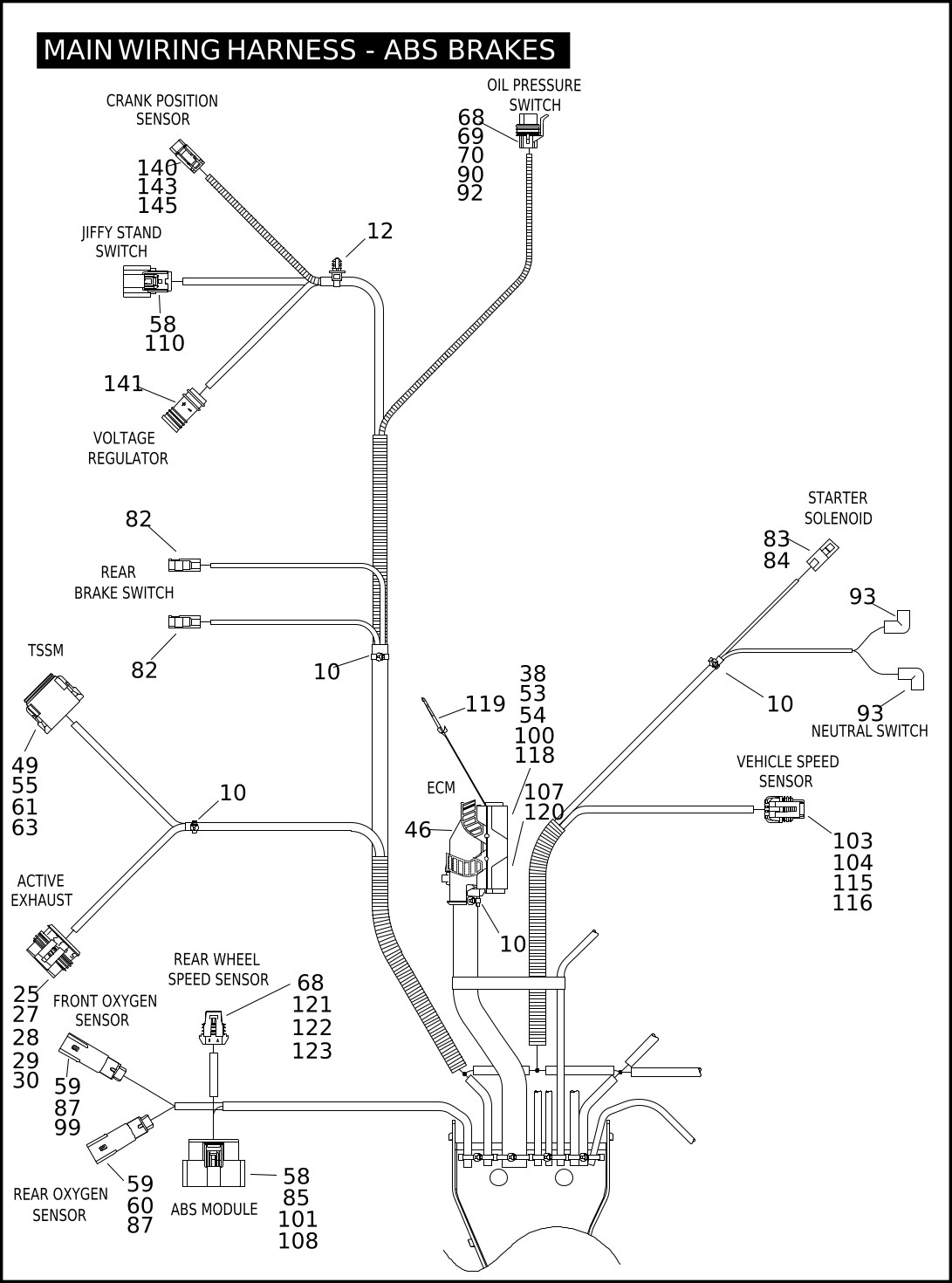

MAIN WIRING HARNESS - ABS BRAKES - FLHTP (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 85 | 72403-99 | SECONDARY LOCK, 4-way | FLHTP |
| 86 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHTP |
| 87 | 72406-07A | SOCKET HOUSING, 4-way | FLHTP |
| 88 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHTP |
| 89 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHTP |
| 90 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTP |
| 91 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTP |
| 92 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHTP |
| 93 | 72416-01 | HOUSING, 3-way, female | FLHTP |
| 94 | 72440-08 | SEAL PIN, plug (17) | FLHTP |
| 95 | 72473-07 | SEAL PIN (14) | FLHTP |
| 96 | 72483-08BK | SOCKET HOUSING, 6-way | FLHTP |
| 97 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTP |
| 98 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTP |
| 99 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHTP |
| 100 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHTP |
| 101 | 72500-07ABK | SOCKET HOUSING, 20-way (black) | FLHTP |
| 102 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHTP |
| 103 | 72512-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHTP |
| 104 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHTP |
| 105 | 72533-06 | DUST CAP, 2-pin connector | FLHTP |
| 106 | 72537-10 | COVER ASSEMBLY, fuse block, w/ graphics | FLHTP |
| 107 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLHTP |
| 108 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHTP |
| 109 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | FLHTP |
| 110 | 72547-08 | DIODE PACK | FLHTP |
| 111 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHTP |
| 112 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHTP |
| 113 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (39) | FLHTP |
MAIN WIRING HARNESS - ABS BRAKES - FLHTP (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| NOTE: Includes the following parts. | |||
| 114 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHTP |
| 115 | 72609-08 | SECONDARY LOCK, 2-way (black) (3) | FLHTP |
| 116 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHTP |
| 117 | 72620-08 | FUSE COVER, rear | FLHTP |
| 118 | 73104-96BK | PIN HOUSING, 4-place (black) | FLHTP |
| 119 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHTP |
| 120 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLHTP |
| 121 | 73190-96 | TERMINAL, pin, 16-20 AWG (10) | FLHTP |
| 122 | 73191-96 | TERMINAL, socket, 16-20 AWG (3) | FLHTP |
| 123 | 73198-96 | CONNECTOR ANCHOR | FLHTP |
| 124 | 73301-04 | HOUSING, pin, 2-way | FLHTP |
| 125 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHTP |
| 126 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHTP |
| 127 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHTP |
| 128 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHTP |
| 129 | 74115-06 | DC LEAD ASSEMBLY | FLHTP |
| 130 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHTP |
| 131 | 74191-98 | SOCKET TERMINAL (2) | FLHTP |
| 132 | 74413-93 | BOOT, siren amplifier connector | FLHTP |
| 133 | 76233-85 | JACK, microphone | FLHTP |
| 134 | 76248-86 | CABLE, antenna | FLHTP |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHP & FLHPE (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 1 | 3634 | SCREW (2) | FLHP, FLHPE |
| 2 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG | FLHP, FLHPE |
| 3 | 9825 | TERMINAL, 14-18 AWG | FLHP, FLHPE |
| 4 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHP, FLHPE |
| 5 | 9847 | CONNECTOR, female spade, right | FLHP, FLHPE |
| 6 | 9848 | CONNECTOR, female spade, left (2) | FLHP, FLHPE |
| 7 | 9898 | TERMINAL FLAG, insulated (2) | FLHP, FLHPE |
| 8 | 9937 | TERMINAL, female spade, 14-18 AWG (3) | FLHP, FLHPE |
| 9 | 10039 | CABLE STRAP | FLHP, FLHPE |
| 10 | 10065 | CABLE STRAP (17) | FLHP, FLHPE |
| 11 | 10147 | CLIP, connector | FLHP, FLHPE |
| 12 | 10177 | CABLE STRAP, tree mount (2) | FLHP, FLHPE |
| 13 | 11321 | CABLE STRAP | FLHP, FLHPE |
| 14 | 11779 | FASTENER, push-in (black) (2) | FLHP, FLHPE |
| 15368-01A | LABEL BATTERY WARNING (not shown) | FLHP, FLHPE | |
| 15 | 31586-07 | RELAY (3) | FLHP, FLHPE |
| 16 | 31595-09 | RELAY, high current | FLHP, FLHPE |
| 17 | 68563-04A | RELAY/FLASHER | FLHP |
| 18 | 70291-89 | HOUSING, 4-place | FLHP, FLHPE |
| 19 | 70348-09 | CADDY, fuse block | FLHP, FLHPE |
| 20 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHP, FLHPE |
| 21 | 70578-89 | BOOT, battery positive | FLHP, FLHPE |
| 22 | 70598-99 | BOOT, engine temperature sensor | FLHP, FLHPE |
| 23 | 70980-09 | TRAY, wire trough | FLHP, FLHPE |
| 24 | 70981-09 | COVER, wire trough, w/ 15368-01A | FLHP, FLHPE |
| 25 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (2) | FLHP, FLHPE |
| 26 | 72007-05 | SOCKET HOUSING, 2-way (2) | FLHP, FLHPE |
| 27 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLHP, FLHPE |
| 28 | 72012-07 | SOCKET HOUSING, 5-way | FLHP, FLHPE |
| 29 | 72014-07 | SEAL PIN | FLHP, FLHPE |
| 30 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (6) | FLHP, FLHPE |
| 31 | 72032-93 | CONNECTOR PLUG (8) | FLHP, FLHPE |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHP & FLHPE (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 32 | 72039-71A | PIN, terminal (2) | FLHP, FLHPE |
| 33 | 72046-79 | HOUSING, 5-place, female | FLHP, FLHPE |
| 34 | 72056-92 | HOUSING, terminal, 3-way, female | FLHP, FLHPE |
| 35 | 72059-08 | SOCKET TERMINAL, 16-18 AWG (10) | FLHP, FLHPE |
| 36 | 72063-06 | HOUSING, 2-way | FLHP, FLHPE |
| 37 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHP, FLHPE |
| 38 | 72079-08 | SOCKET HOUSING, 73-way | FLHP, FLHPE |
| 39 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHP, FLHPE |
| 40 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHP, FLHPE |
| 41 | 72100-04 | HOUSING, 1-way, male (gray) | FLHP, FLHPE |
| 42 | 72104-94BK | HOUSING, 4 pin | FLHP, FLHPE |
| 43 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHP, FLHPE |
| 44 | 72112-94BK | SOCKET HOUSING, sealed, 2-way (black) (2) | FLHP, FLHPE |
| 45 | 72115-08 | COVER, 73-way socket housing | FLHP, FLHPE |
| 46 | 72124-94GY | HOUSING, 4-pin (gray) | FLHP, FLHPE |
| 47 | 72135-06 | LOCK, secondary, 4-way socket, female | FLHP, FLHPE |
| 48 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHP, FLHPE |
| 49 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHP, FLHPE |
| 50 | 72152-94 | SOCKET LOCK, secondary, 2-way | FLHP, FLHPE |
| 51 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHP, FLHPE |
| 52 | 72157-08 | LOCK, blue | FLHP, FLHPE |
| 53 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHP, FLHPE |
| 54 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHP, FLHPE |
| 55 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHP, FLHPE |
| 56 | 72168-07 | TERMINAL, socket, 16-18 AWG (39) | FLHP, FLHPE |
| 57 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHP, FLHPE |
| 58 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHP, FLHPE |
| 59 | 72179-94 | SEAL, internal, 12-circuit (2) | FLHP, FLHPE |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHP & FLHPE (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 60 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHP, FLHPE |
| 61 | 72191-94 | TERMINAL, socket, 16-18 AWG (16) | FLHP, FLHPE |
| 62 | 72195-94 | SEAL PIN | FLHP, FLHPE |
| 63 | 72199-94 | CONNECTOR ANCHOR | FLHP, FLHPE |
| 64 | 72204-04 | FUSE/RELAY BLOCK, bussed | FLHP, FLHPE |
| 65 | 72206-94 | CONNECTOR, 4-position, female | FLHP, FLHPE |
| 66 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (3) | FLHP, FLHPE |
| 67 | 72214-94 | CABLE SEAL (3) | FLHP, FLHPE |
| 68 | 72232-96 | SEAL PLUG (3) | FLHP, FLHPE |
| 69 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHP, FLHPE |
| 70 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHP, FLHPE |
| 71 | 72260-04 | HOUSING, female (gray) | FLHP, FLHPE |
| 72 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLHP, FLHPE |
| 73 | 72272-07 | TERMINAL, socket, 14-16 AWG (12) | FLHP, FLHPE |
| 74 | 72279-04 | TERMINAL, female, 14-16 AWG (17) | FLHP, FLHPE |
| 75 | 72281-93 | SOCKET HOUSING, 18-way | FLHP, FLHPE |
| 76 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | FLHP, FLHPE |
| 77 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHP, FLHPE |
| 78 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (15) | FLHP, FLHPE |
| 79 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHP, FLHPE |
| 80 | 72290-94 | TERMINAL, 1/4 inch insulated (3) | FLHP, FLHPE |
| 81 | 72291-94 | TERMINAL, 14-16 AWG | FLHP, FLHPE |
| 82 | 72295-94 | CONNECTOR, starter housing | FLHP, FLHPE |
| 83 | 72309-04 | TERMINAL, 16-18 AWG (11) | FLHP, FLHPE |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHP, FLHPE | |
| 84 | 72330-95 | FUSE, 15 AMP (blue) (13) | FLHP, FLHPE |
| 85 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHP, FLHPE |
| 86 | 72359-05 | TERMINAL, female, 10-12 AWG (3) | FLHP, FLHPE |
| 87 | 72395-97 | TERMINAL, female, 10-12 AWG (3) | FLHP, FLHPE |
| 88 | 72400-99 | CONNECTOR, 4-way | FLHP, FLHPE |
| 89 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHP, FLHPE |
| 90 | 72403-99 | SECONDARY LOCK, 4-way | FLHP, FLHPE |
| 91 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHP, FLHPE |
| 92 | 72406-07A | SOCKET HOUSING, 4-way | FLHP, FLHPE |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHP & FLHPE (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 93 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHP, FLHPE |
| 94 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHP, FLHPE |
| 95 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHP, FLHPE |
| 96 | 72414-07BK | SOCKET HOUSING, 6-way (black) | FLHP, FLHPE |
| 97 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHP, FLHPE |
| 98 | 72440-08 | SEAL PIN, plug (17) | FLHP, FLHPE |
| 99 | 72473-07 | SEAL PIN (9) | FLHP, FLHPE |
| 100 | 72483-08BK | SOCKET HOUSING, 6-way | FLHP, FLHPE |
| 101 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHP, FLHPE |
| 102 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHP, FLHPE |
| 103 | 72487-07BK | SOCKET HOUSING, 12-way (black) | FLHP, FLHPE |
| 104 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHP, FLHPE |
| 105 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHP, FLHPE |
| 106 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHP, FLHPE |
| 107 | 72512-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHP, FLHPE |
| 108 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHP, FLHPE |
| 109 | 72533-06 | DUST CAP, 2-pin connector | FLHP, FLHPE |
| 110 | 72537-10 | COVER ASSEMBLY, fuse block | FLHP, FLHPE |
| 111 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHP, FLHPE |
| 112 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | FLHP, FLHPE |
| 113 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHP, FLHPE |
| 114 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHP, FLHPE |
| 115 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (39) | FLHP, FLHPE |
| 116 | 72609-08 | SECONDARY LOCK, 2-way (black) | FLHP, FLHPE |
| 117 | 72620-08 | FUSE COVER, rear | FLHP, FLHPE |
| 118 | 72914-01BK | HOUSING, socket, 4-way (black) | FLHP, FLHPE |
| 119 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (3) | FLHP, FLHPE |
MAIN WIRING HARNESS - NON-ABS BRAKES - FLHP & FLHPE (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 120 | 73102-96BK | PIN HOUSING, 2-place | FLHP, FLHPE |
| 121 | 73102-96WE | PIN HOUSING, 2-position (white) | FLHP, FLHPE |
| 122 | 73106-96BK | PIN HOUSING, 6-place (black) | FLHP, FLHPE |
| 123 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHP, FLHPE |
| 124 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLHP, FLHPE |
| 125 | 73190-96 | TERMINAL, pin, 16-20 AWG (16) | FLHP, FLHPE |
| 126 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHP, FLHPE |
| 127 | 73198-96 | CONNECTOR ANCHOR (2) | FLHP, FLHPE |
| 128 | 73301-04 | HOUSING, pin, 2-way | FLHP, FLHPE |
| 129 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHP, FLHPE |
| 130 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHP, FLHPE |
| 131 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHP, FLHPE |
| 132 | 74106-98BK | PIN HOUSING, 6-way pin (black) | FLHP, FLHPE |
| 133 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHP, FLHPE |
| 134 | 74115-06 | DC LEAD ASSEMBLY | FLHP, FLHPE |
| 135 | 74146-98 | SECONDARY LOCK, pin 6-way | FLHP, FLHPE |
| 136 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHP, FLHPE |
| 137 | 74190-98 | PIN TERMINAL, #16-20 AWG (6) | FLHP, FLHPE |
| 138 | 74191-98 | SOCKET TERMINAL (2) | FLHP, FLHPE |
| 139 | 74413-93 | BOOT, siren amplifier connector | FLHP, FLHPE |
| 140 | 76233-85 | JACK, microphone | FLHP, FLHPE |
MAIN WIRING HARNESS - ABS BRAKES - FLHP & FLHPE (1 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 1 | 3634 | SCREW (2) | FLHP, FLHPE |
| 2 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | FLHP, FLHPE |
| 3 | 9825 | TERMINAL, 14-18 AWG | FLHP, FLHPE |
| 4 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHP, FLHPE |
| 5 | 9847 | CONNECTOR, female spade, right | FLHP, FLHPE |
| 6 | 9848 | CONNECTOR, female spade, left (2) | FLHP, FLHPE |
| 7 | 9898 | TERMINAL FLAG, insulated (2) | FLHP, FLHPE |
| 8 | 9937 | TERMINAL, female spade, 14-18 AWG (3) | FLHP, FLHPE |
| 9 | 10039 | CABLE STRAP | FLHP, FLHPE |
| 10 | 10065 | CABLE STRAP (17) | FLHP, FLHPE |
| 11 | 10147 | CLIP, connector | FLHP, FLHPE |
| 12 | 10177 | CABLE STRAP, tree mount (2) | FLHP, FLHPE |
| 13 | 11321 | CABLE STRAP | FLHP, FLHPE |
| 14 | 11779 | FASTENER, push-in (black) (2) | FLHP, FLHPE |
| 15368-01A | LABEL BATTERY WARNING (not shown) | FLHP, FLHPE | |
| 15 | 31586-07 | RELAY (3) | FLHP, FLHPE |
| 16 | 31595-09 | RELAY, high current | FLHP, FLHPE |
| 17 | 68563-04A | RELAY/FLASHER | FLHP |
| 68437-99 | MODULE, jumper 3-way flasher plug (California)(not illustrated) NOTE: Module is sold seperately and is not part of main harness. Replaces flasher supplied with main harness. | FLHPE | |
| 18 | 70291-89 | HOUSING, 4-place (2) | FLHP, FLHPE |
| 19 | 70348-09 | CADDY, fuse block | FLHP, FLHPE |
| 20 | 70377-09 | CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04 & 73305-04 | FLHP, FLHPE |
| 21 | 70578-89 | BOOT, battery positive | FLHP, FLHPE |
| 22 | 70598-99 | BOOT, engine temperature sensor | FLHP, FLHPE |
| 23 | 70980-09 | TRAY, wire trough | FLHP, FLHPE |
| 24 | 70981-09 | COVER, wire trough, w/ 15368-01A | FLHP, FLHPE |
| 25 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (2) | FLHP, FLHPE |
| 26 | 72007-05 | SOCKET HOUSING, 2-way (2) | FLHP, FLHPE |
| 27 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLHP, FLHPE |
| 28 | 72012-07 | SOCKET HOUSING, 5-way | FLHP, FLHPE |
| 29 | 72014-07 | SEAL PIN | FLHP, FLHPE |
| 30 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (6) | FLHP, FLHPE |
MAIN WIRING HARNESS - ABS BRAKES - FLHP & FLHPE (2 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 31 | 72032-93 | CONNECTOR PLUG (8) | FLHP, FLHPE |
| 32 | 72039-71A | PIN, terminal (2) | FLHP, FLHPE |
| 33 | 72046-79 | HOUSING, 5-place, female | FLHP, FLHPE |
| 34 | 72056-92 | HOUSING, terminal, 3-way, female | FLHP, FLHPE |
| 35 | 72059-08 | SOCKET TERMINAL, 16-18 AWG (10) | FLHP, FLHPE |
| 36 | 72063-06 | HOUSING, 2-way | FLHP, FLHPE |
| 37 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHP, FLHPE |
| 38 | 72079-08 | SOCKET HOUSING, 73-way | FLHP, FLHPE |
| 39 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHP, FLHPE |
| 40 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHP, FLHPE |
| 41 | 72100-04 | HOUSING, 1-way, male (gray) | FLHP, FLHPE |
| 42 | 72104-94BK | HOUSING, 4 pin | FLHP, FLHPE |
| 43 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHP, FLHPE |
| 44 | 72112-94BK | SOCKET HOUSING, sealed, 2-way (black) (2) | FLHP, FLHPE |
| 45 | 72114-94BK | SOCKET HOUSING, 4-way (black) (replaces gray connector) | FLHP, FLHPE |
| 46 | 72115-08 | COVER, 73-way socket housing | FLHP, FLHPE |
| 47 | 72124-94GY | HOUSING, 4-pin, w/ 72179-94 (gray) | FLHP, FLHPE |
| 48 | 72135-06 | LOCK, secondary, 4-way socket, female | FLHP, FLHPE |
| 49 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHP, FLHPE |
| 50 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHP, FLHPE |
| 51 | 72152-94 | SOCKET LOCK, secondary, 2-way (2) | FLHP, FLHPE |
| 52 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHP, FLHPE |
| 53 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHP, FLHPE |
| 54 | 72157-08 | LOCK, blue | FLHP, FLHPE |
| 55 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHP, FLHPE |
| 56 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHP, FLHPE |
| 57 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHP, FLHPE |
| 58 | 72168-07 | TERMINAL, socket, 16-18 AWG (47) | FLHP, FLHPE |
| 59 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHP, FLHPE |
| 60 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHP, FLHPE |
MAIN WIRING HARNESS - ABS BRAKES - FLHP & FLHPE (3 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 61 | 72179-94 | SEAL, internal, 12-circuit (2) | FLHP, FLHPE |
| 62 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHP, FLHPE |
| 63 | 72191-94 | TERMINAL, socket, 16-18 AWG (20) | FLHP, FLHPE |
| 64 | 72195-94 | SEAL PIN | FLHP, FLHPE |
| 65 | 72199-94 | CONNECTOR ANCHOR | FLHP, FLHPE |
| 66 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHP, FLHPE |
| 67 | 72206-94 | CONNECTOR, 4-position, female | FLHP, FLHPE |
| 68 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (7) | FLHP, FLHPE |
| 69 | 72214-94 | CABLE SEAL (3) | FLHP, FLHPE |
| 70 | 72232-96 | SEAL PLUG (3) | FLHP, FLHPE |
| 71 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHP, FLHPE |
| 72 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHP, FLHPE |
| 73 | 72260-04 | HOUSING, female (gray) | FLHP, FLHPE |
| 74 | 72265-04 | SECONDARY LOCK, bussed fuse block | FLHP, FLHPE |
| 75 | 72272-07 | TERMINAL, socket, 14-16 AWG (15) | FLHP, FLHPE |
| 76 | 72279-04 | TERMINAL, female, 14-16 AWG (17) | FLHP, FLHPE |
| 77 | 72281-93 | SOCKET HOUSING, 18-way | FLHP, FLHPE |
| 78 | 72282-09 | SECONDARY LOCK, bussed fuse block, 2-row (8) | FLHP, FLHPE |
| 79 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHP, FLHPE |
| 80 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (15) | FLHP, FLHPE |
| 81 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHP, FLHPE |
| 82 | 72290-94 | TERMINAL, 1/4 inch insulated (3) | FLHP, FLHPE |
| 83 | 72291-94 | TERMINAL, 14-16 AWG | FLHP, FLHPE |
| 84 | 72295-94 | CONNECTOR, starter housing | FLHP, FLHPE |
| 85 | 72309-04 | TERMINAL, 16-18 AWG (11) | FLHP, FLHPE |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHP, FLHPE | |
| 86 | 72330-95 | FUSE, 15 AMP (blue) (13) | FLHP, FLHPE |
| 87 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHP, FLHPE |
| 88 | 72359-05 | TERMINAL, female, 10-12 AWG (5) | FLHP, FLHPE |
| 89 | 72395-97 | TERMINAL, female, 10-12 AWG (3) | FLHP, FLHPE |
| 90 | 72400-99 | CONNECTOR, 4-way | FLHP, FLHPE |
| 91 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHP, FLHPE |
| 92 | 72403-99 | SECONDARY LOCK, 4-way | FLHP, FLHPE |
| 93 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2) | FLHP, FLHPE |
MAIN WIRING HARNESS - ABS BRAKES - FLHP & FLHPE (4 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 94 | 72406-07A | SOCKET HOUSING, 4-way | FLHP, FLHPE |
| 95 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHP, FLHPE |
| 96 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHP, FLHPE |
| 97 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHP, FLHPE |
| 98 | 72414-07BK | SOCKET HOUSING, 6-way (black) | FLHP, FLHPE |
| 99 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHP, FLHPE |
| 100 | 72440-08 | SEAL PIN, plug (17) | FLHP, FLHPE |
| 101 | 72473-07 | SEAL PIN (17) | FLHP, FLHPE |
| 102 | 72483-08BK | SOCKET HOUSING, 6-way | FLHP, FLHPE |
| 103 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHP, FLHPE |
| 104 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHP, FLHPE |
| 105 | 72487-07BK | SOCKET HOUSING, 12-way (black) | FLHP, FLHPE |
| 106 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHP, FLHPE |
| 107 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHP, FLHPE |
| 108 | 72500-07ABK | SOCKET HOUSING, 20-way (black) | FLHP, FLHPE |
| 109 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHP, FLHPE |
| 110 | 72512-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHP, FLHPE |
| 111 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHP, FLHPE |
| 112 | 72533-06 | DUST CAP, 2-pin connector | FLHP, FLHPE |
| 113 | 72537-10 | COVER ASSEMBLY, fuse block | FLHP, FLHPE |
| 114 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLHP, FLHPE |
| 115 | 72543-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHP, FLHPE |
| 116 | 72544-07 | SECONDARY LOCK, 3-way, female (2) | FLHP, FLHPE |
| 117 | 72547-08 | DIODE PACK | FLHP, FLHPE |
| 118 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHP, FLHPE |
| 119 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHP, FLHPE |
| 120 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (39) | FLHP, FLHPE |
| 121 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHP, FLHPE |
MAIN WIRING HARNESS - ABS BRAKES - FLHP & FLHPE (5 OF 5)
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| NOTE: Includes the following parts. | |||
| 122 | 72609-08 | SECONDARY LOCK, 2-way (black) (3) | FLHP, FLHPE |
| 123 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHP, FLHPE |
| 124 | 72620-08 | FUSE COVER, rear | FLHP, FLHPE |
| 125 | 72914-01BK | HOUSING, socket, 4-way (black) | FLHP, FLHPE |
| 126 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (3) | FLHP, FLHPE |
| 127 | 73102-96BK | PIN HOUSING, 2-place | FLHP, FLHPE |
| 128 | 73102-96WE | PIN HOUSING, 2-position (white) | FLHP, FLHPE |
| 129 | 73106-96BK | PIN HOUSING, 6-place (black) | FLHP, FLHPE |
| 130 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHP, FLHPE |
| 131 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLHP, FLHPE |
| 132 | 73190-96 | TERMINAL, pin, 16-20 AWG (16) | FLHP, FLHPE |
| 133 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHP, FLHPE |
| 134 | 73198-96 | CONNECTOR ANCHOR (2) | FLHP, FLHPE |
| 135 | 73301-04 | HOUSING, pin, 2-way | FLHP, FLHPE |
| 136 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHP, FLHPE |
| 137 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHP, FLHPE |
| 138 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHP, FLHPE |
| 139 | 74106-98BK | PIN HOUSING, 6-way pin (black) | FLHP, FLHPE |
| 140 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHP, FLHPE |
| 141 | 74115-06 | DC LEAD ASSEMBLY | FLHP, FLHPE |
| 142 | 74146-98 | SECONDARY LOCK, pin 6-way | FLHP, FLHPE |
| 143 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHP, FLHPE |
| 144 | 74190-98 | PIN TERMINAL, #16-20 AWG (6) | FLHP, FLHPE |
| 145 | 74191-98 | SOCKET TERMINAL (2) | FLHP, FLHPE |
| 146 | 74413-93 | BOOT, siren amplifier connector | FLHP, FLHPE |
| 147 | 76233-85 | JACK, microphone | FLHP, FLHPE |

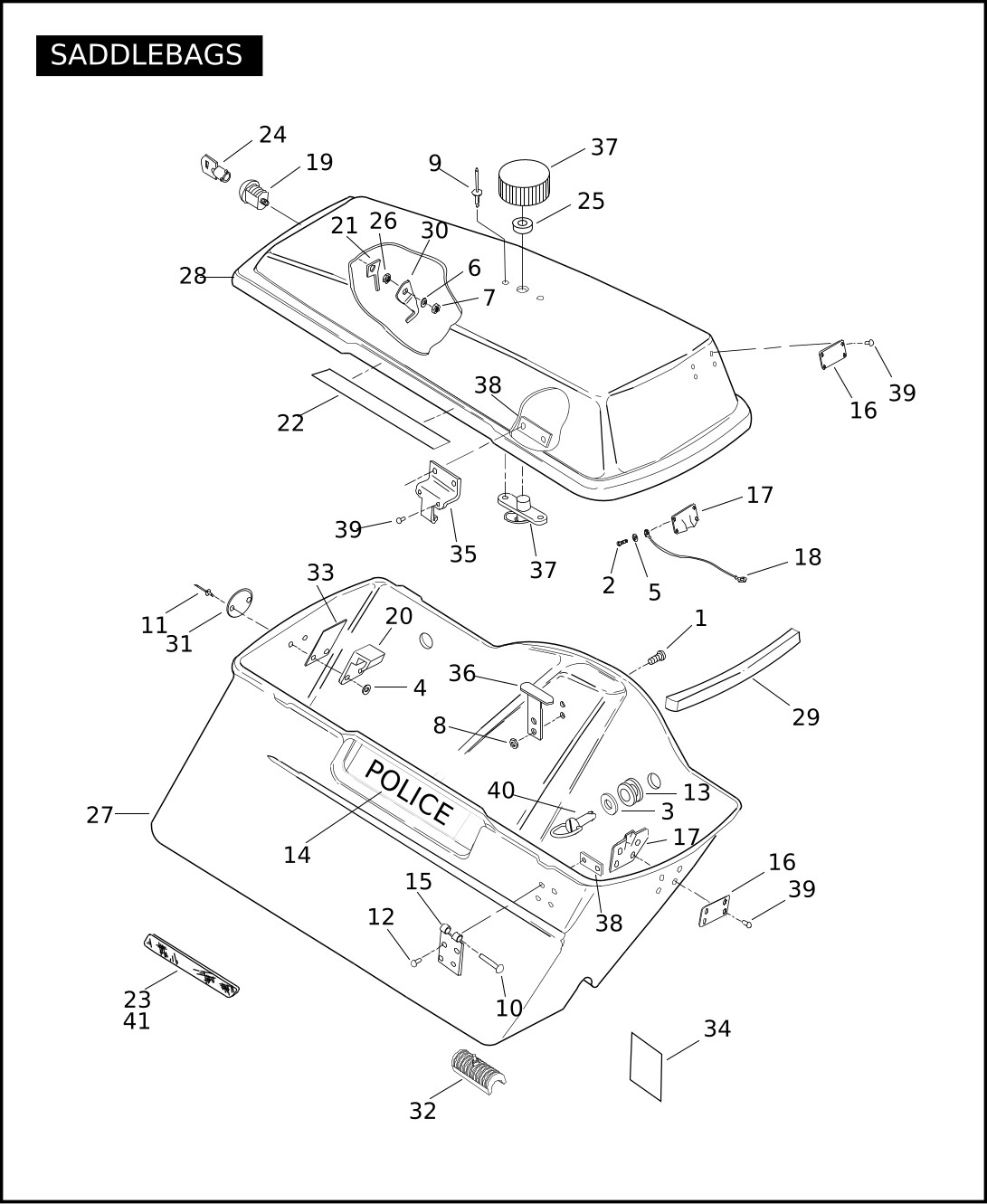

SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2664 | SCREW (4) | ALL |
| 2 | 3595 | SCREW (4) | ALL |
| 3 | 6229W | WASHER (4) | ALL |
| 4 | 6368 | WASHER (4) | ALL |
| 5 | 6970 | WASHER (4) | ALL |
| 6 | 7128 | LOCKWASHER (2) | ALL |
| 7 | 7586 | JAM NUT (2) | ALL |
| 8 | 7838 | NUT (4) | ALL |
| 9 | 8468 | RIVET (4) | ALL |
| 10 | 8502 | RIVET (4) | ALL |
| 11 | 8551 | RIVET (4) | ALL |
| 12 | 8557 | RIVET (16) | ALL |
| 13 | 11464 | ISOLATOR GROMMET (4) | ALL |
| 14 | 14274-93A | DECAL, right (POLICE) | ALL |
| 14275-93A | DECAL, left (POLICE) | ALL | |
| 59223-93A | DECAL, right (SHERIFF) | ALL | |
| 59224-93A | DECAL, left (SHERIFF) | ALL | |
| 15 | 53427-80 | HINGE (4) | ALL |
| 16 | 53478-80 | BACKING PLATE (4) | ALL |
| 17 | 53563-82 | BRACKET, cable brace mounting (4) | ALL |
| 18 | 53861-93 | CABLE BRACE, cover (2) | ALL |
| 53562-06 | LOCKSET, complete, w/ keys, key covers, cam hook, ignition switch, fork lock, cam lock & cable strap | FLHTP | |
| 53568-03A | LOCKSET, complete, w/ keys, key covers, cam hook, ignition switch, fork lock, cam lock & cable strap | FLHP, FLHPE | |
| 19 | 53848-00 | T-PAK LOCK SET (specify 4-digit key code) | ALL |
| 20 | 53616-85 | CATCH (2) | ALL |
| 21 | 53617-85 | GUIDE, latch (2) | ALL |
| 22 | 59221-93 | COVER, decal, left | ALL |
| 59222-93 | COVER, decal, right | ALL | |
| 23 | 59287-92 | REFLECTOR, right (red) | ALL |
| 59288-92 | REFLECTOR, left (red) | ALL | |
| 24 | 71452-91A | KEY (specify key code) (2) | ALL |
| 61081-92 | COVER, key head set (not illustrated) (2) | ALL | |
| 25 | 79048-98 | SEAL, latch (2) | ALL |
| 26 | 84850-92 | NUT (2) | ALL |
| 27 | 90634-93 | BOTTOM, saddlebag (prime), right | ALL |
| 90796-93 | BOTTOM, saddlebag (prime), left | ALL | |
| 28 | 90754-93 | COVER, saddlebag (prime), right | ALL |
| 90776-93 | COVER, saddlebag (prime), left | ALL | |
| 29 | 90675-93A | GASKET, saddlebag cover (2) | ALL |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 30 | 90686-92 | CAM HOOK (2) | ALL |
| 31 | 90687-85 | REINFORCING PLATE (2) | ALL |
| 32 | 90764-93 | CUSHION, saddlebag support (4) | ALL |
| 33 | 90798-99 | GASKET (2) | ALL |
| 34 | 90820-93D | LABEL, load limits (2) | ALL |
| 35 | 90902-93 | PLATE HINGE (4) | ALL |
| 36 | 90926-84 | BRACKET, spring latch (2) | ALL |
| 37 | 90929-84 | SPRING LATCH, w/ knob (2) | ALL |
| 38 | 90964-63 | BACKING PLATE (16) | ALL |
| 39 | 90967-64 | RIVET (32) | ALL |
| 40 | 90834-95A | BAIL HEAD STUD (4) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 41 | 59289-92 | REFLECTOR, right (amber) (HDI) | ALL |
| 59290-92 | REFLECTOR, left (amber) (HDI) | ALL | |

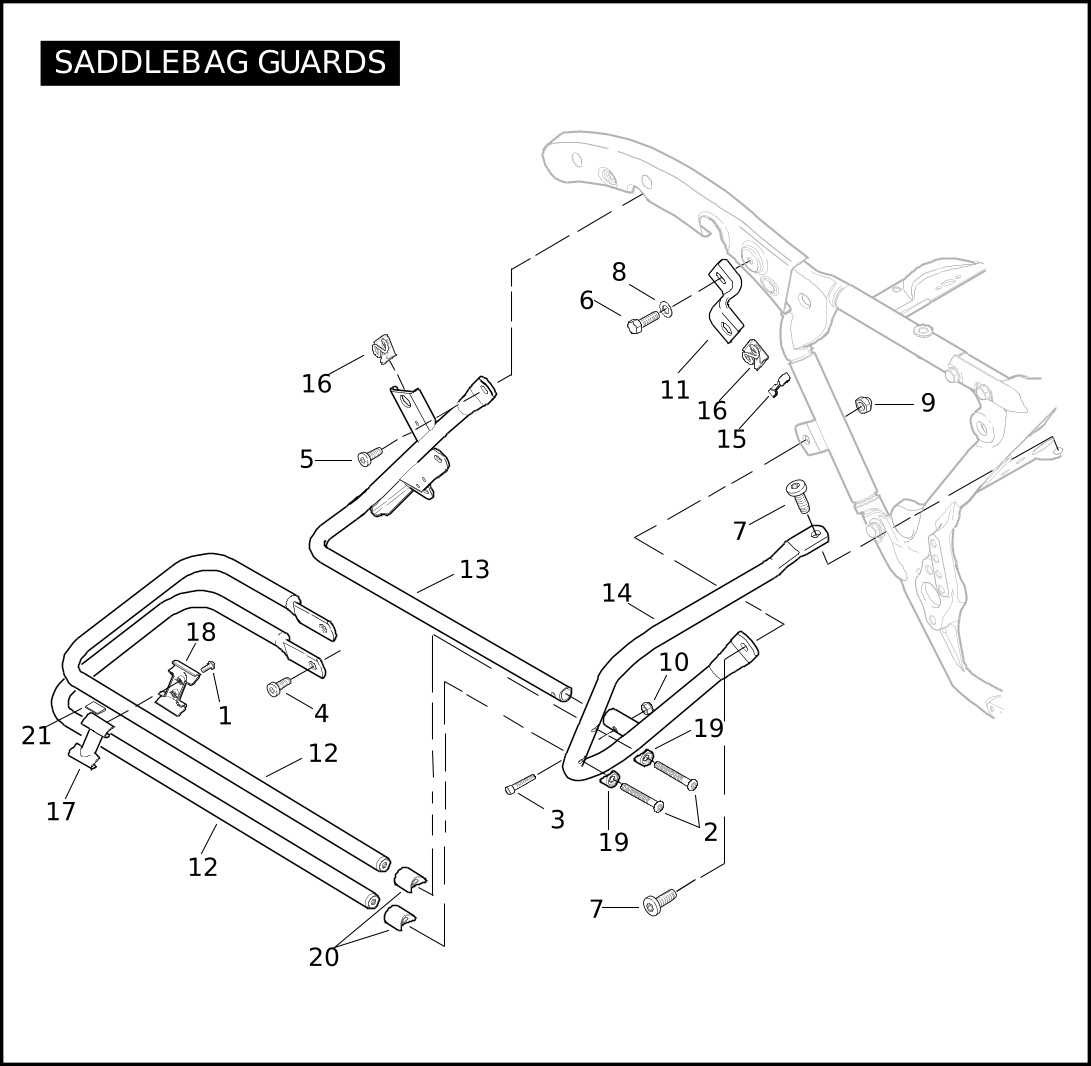

SADDLEBAG GUARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1750 | SCREW (4) | ALL |
| 2 | 3584 | SCREW (4) | ALL |
| 3 | 3601 | SCREW (2) | ALL |
| 4 | 3676 | SCREW (4) | ALL |
| 5 | 3684 | SCREW (2) | ALL |
| 6 | 3787 | BOLT (2) | ALL |
| 7 | 4924 | SCREW (4) | ALL |
| 8 | 6703 | WASHER (2) | ALL |
| 9 | 7601 | LOCKNUT (2) | ALL |
| 10 | 7686 | LOCKNUT (2) | ALL |
| 14148-86 | ENGINE GUARD LABEL (not Illustrated) (2) | ALL | |
| 11 | 47449-09 | BRACKET, saddlebag mounting, front (flat black) (2) | ALL |
| 12 | 49193-09 | GUARD, saddlebags (4) | ALL |
| 13 | 49194-09A | SUPPORT, saddlebag, left | ALL |
| 90781-09A | SUPPORT, saddlebag, right | ALL | |
| 14 | 49202-09 | GUARD, right, w/ 14148-86 | ALL |
| 49203-09 | GUARD, left, w/ 14148-86 | ALL | |
| 15 | 66069-10 | BUMPER, saddlebag bracket (2) | ALL |
| 16 | 70909-95 | RECEPTACLE (4) | ALL |
| 17 | 90934-93A | CLAMP, rear left, outer | ALL |
| 90946-93A | CLAMP, rear right, outer | ALL | |
| 18 | 90935-93A | CLAMP, rear right, inner, w/ 91054-07 | ALL |
| 90936-93A | CLAMP, rear left, inner, w/ 91054-07 | ALL | |
| 19 | 90943-93A | MOUNT, guard (4) | ALL |
| 20 | 90945-93A | MOUNT, guard (4) | ALL |
| 21 | 91054-07 | TAPE (2) | ALL |

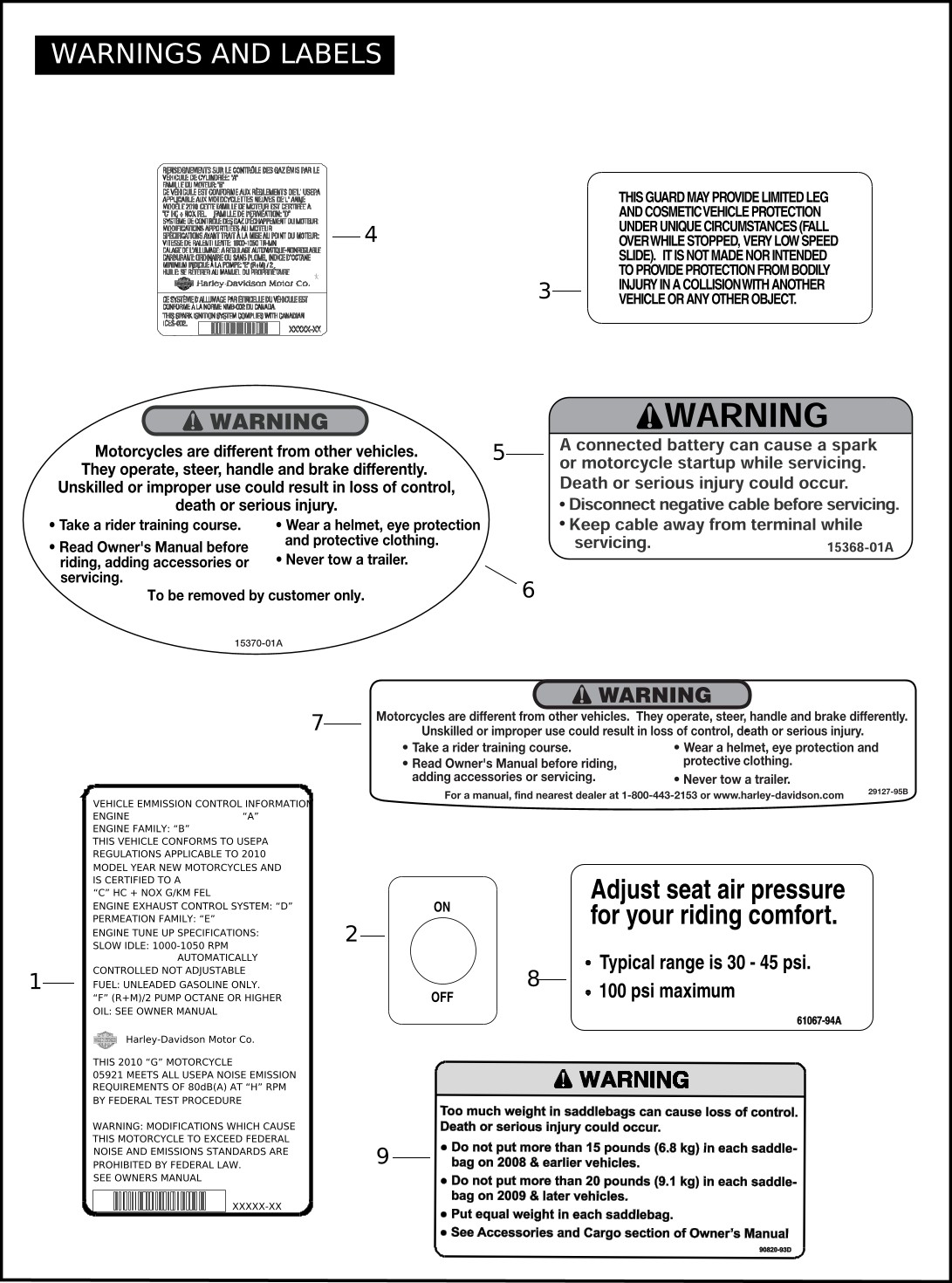

WARNINGS AND LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 13700-10 | EMISSIONS LABEL (California) **RESTRICTED SALES PART** | FLHPE |
| 13701-10 | EMISSIONS LABEL (Domestic, Canada) **RESTRICTED SALES PART** | FLHP, FLHTP | |
| 2 | 14019-83A | ON/OFF SWITCH LABEL | FLHP, FLHPE |
| 3 | 14148-86 | ENGINE GUARD LABEL (3) | ALL |
| 4 | 14711-10 | EMISSIONS LABEL (French) (Canada) **RESTRICTED SALES PART** | FLHP, FLHTP |
| 5 | 15368-01A | LABEL BATTERY WARNING | ALL |
| 6 | 15370-01A | MIRROR WARNING LABEL | ALL |
| 7 | 29127-95B | AIR CLEANER WARNING LABEL (chrome) Domestic, Calif. | ALL |
| 8 | 61067-94A | SEAT AIR PRESSURE LABEL | ALL |
| 9 | 90820-93D | LABEL, saddlebag load limits (2) | ALL |
| Part No. | Description |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1095M | SCREW M6 x 1.0 X 22 SEMS socket head |
| 1750 | SCREW No. 10-24 X 1/2 TORX flat head |
| 2228 | SCREW M5 X 0.8 X 20.7 TORX pan head (Grade 9.8) |
| 2361 | SCREW No. 8-32 X 3/8 socket countersink head, with lockpatch |
| 2375 | SCREW No. 10-24 X 1/2 socket head, with lockpatch (chrome) |
| 2443 | SCREW No. 10-24 X 3/8 oval head |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2452 | SCREW No. 12-24 X 13/16 pan head, with lockpatch |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2551W | BOLT 1/4-20 X 1 hex head (Grade 5) |
| 2592 | SCREW No. 10-24 X 1/2 Pozidriv pan head (Grade 2) |
| 2604 | SCREW No. 10-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2625 | SCREW No. 8-32 X 5/8 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2659 | SCREW No. 10-24 X 7/8 pan head |
| 2664 | SCREW No. 10-24 X 7/16 Pozidriv pan head (Grade 2) |
| 2667 | BOLT 5/16-18 X 2 hex head (Grade 5) |
| 2692WB | SCREW No. 10-24 X 1/2 socket fillister head (Grade 8) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2731W | SCREW No. 10 X 3/8 Phillips truss head, self-tapping |
| 2806 | SCREW No. 6-32 X 3/4 Pozidriv pan head (Grade 2) |
| 2871W | BOLT 5/16-18 X 1-1/4 hex head (Grade 5) |
| 2921 | SCREW No. 12 X 5/8 TORX pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2979 | SCREW 5/16-18 X 3/4 wing. |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3387 | SCREW No. 10-16 X 1.0 TORX pan head, self-tapping |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3584 | SCREW 5/16-18 X 2-1/2 socket button head (Grade 8) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3601 | SCREW 1/4-20 X 1-1/4 knurled head (Grade 8) |
| 3602A | SCREW No. 10-32 X 1/2 self-tapping |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3619 | SCREW No. 2-56 X 3/4 TORX pan head, with washer |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3639 | SCREW 10-12 X 1-1/8 TORX pan head, self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 3993 | BOLT 1/4-20 X 1-1/4 hex head (Grade 5) |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4032A | SCREW 3/8-16 X 2-1/2 socket head |
| 4067 | BOLT 5/16-18 X 4-1/2 hex head (Grade 5) |
| 41191-74A | SCREW 1/2-20 X 5/8 hex socket flat head, with lockpatch |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45279-00 | WASHER 11/32 X 5/8 X 1/32 Aluminum |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 45727-08 | WASHER 1-1/32 X 2.0 X 1/16 |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4826 | SCREW 1/4-20 X 2-1/2 socket head, with washer |
| 4838 | SCREW 7/16-14 X 2-1/2 hex socket head, with washer, with lockpatch |
| 4855 | SCREW 7/16-20 X 1-3/8 hex head (Grade 8) |
| 4868 | SCREW 3/8-16 X 3-3/4 hex flange head, with washer, with lockpatch |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6035A | WASHER 1/4 X 1-1/4 X 1/8 neoprene |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6072 | WASHER 3/8 X 1 1/4 X 5/64 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6368 | WASHER 1/8 X 3/8 X 1/16 |
| 6445 | WASHER 1/2 X 2 X 0.300 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 6789 | WASHER No. 6 X 7/8 X .05 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 6970 | WASHER 1/4 X 1/2 X 1/16 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7234 | LOCKWASHER No. 10 external tooth |
| 7331 | ACORN NUT 5/16-24 |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7651A | ACORN NUT No. 12-24 (Grade 2) (chrome) |
| 7682 | LOCKNUT 1/4-28 X 3/16 X 7/16 |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7888A | NUT No. 6-32 flange head |
| 7889 | NUT No. 6-32 keps |
| 7900 | CLIP NUT 1/4-20 |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 928 | BOLT M5 X 0.8 X 35.2 hex head |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19678-10 | ENGINE ASSEMBLY, complete | ALL |
| Index No. | Part No. | Description | Model(s) |
| 2 | 10398 | CLIP, ACR connector retention | ALL |
| Index No. | Part No. | Description | Model(s) |
| 35246-10 | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 10, 11, 12, 13, 14, 26, 27, 28, 29, 30, 31, 32, 33, 34, 7340, 35260-06, input shaft, countershaft & gears (black) | ALL | |
| 33 | 35249-06A | LOCK PLATE, shift cam | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 7340 | NUT, mainshaft & countershaft (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 33166-10 | TRANSMISSION REPLACEMENT, w/o cable, covers & sensors (chrome & black) | ALL |
| 14 | 34719-07B | TRANSMISSION CASE SUBASSEMBLY, w/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (black) | ALL |
| 22 | 74402-05A | SPEED SENSOR, w/ 11289A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 2 | 7340 | NUT (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 19 | 35201-10 | GUIDE HUB, dog ring | ALL |
| 35246-10 | GEAR PACK, FORKS & DRUM SUBASSEMBLY, w/ 1, 2, 3, 4, 7, 8, 9, 12, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 35260-06, shifter cam & forks (black) | ALL | |
| 22 | 35467-06B | INPUT SHAFT KIT, w/ 11061A, 34091-08 & 35201-10 | ALL |
| 23 | 35470-10 | COUNTER SHAFT ASSEMBLY | ALL |
| 24 | 35801-10 | GEAR, fifth input | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 37872-00 | SEAT, clutch spring | ALL |
| 21 | 37912-00 | PRESSURE PLATE, clutch | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 39929-06B | CHAIN TENSIONER ASSEMBLY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | ALL |
| 14 | 44551-08B | MASTER CYLINDER ASSEMBLY, front-dual (black), w/ 5, 6, 7, 8, 9, 10, 11, 12 & 13 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 10340A | CLIP, brake hose (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 17 | 43109-09A | TIRE | ALL |
| Index No. | Part No. | Description | Model(s) |
| 17 | 41810-08A | BRAKE DISC | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 45435-10 | BRACKET, upper fork stem | ALL |
| Index No. | Part No. | Description | Model(s) |
| 27 | 49377-09 | FORK REBUILD KIT, w/ 4, 10, 11, 13, 14, 15, 16 & 20 | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 49377-09 | FORK REBUILD KIT, w/ 4, 10, 11, 13, 14, 15, 16 & 18 | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 19 | 10394 | CLIP, conduit, rosebud mount | ALL |
| 22 | 47900-10BHP | FRAME, main, w/ 48315-60 & 50972-75 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 16 | 50588-09A | BRACKET, rear fork, left | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 70356-96A | KNOB, pursuit | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 7155 | LOCKWASHER (2) | FLHP, FLHTP |
| 5 | 7331 | ACORN NUT (2) | FLHP, FLHTP |
| 6 | 91840-03B | MIRROR KIT, short, convex, right, w/ 7155 & 7331 (HDI) | FLHP, FLHTP |
| 91845-03B | MIRROR KIT, short, convex, left, w/ 7155 & 7331 (HDI) | FLHP, FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 1 | 32305-08A | SENSOR, twist grip, w/ 32306-08, 72902-01BK & 72990-01 | ALL |
| 3 | 56248-08 | GRIP, left | ALL |
| 5 | 70415-08A | HARNESS, throttle, jumper | ALL |
| 8 | 72902-01BK | PIN HOUSING, 2-way (black) (2) | ALL |
| 9 | 72912-01BK | SOCKET HOUSING, 2-way (black) | ALL |
| 11 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 26 | 53436-97 | BULB, position lamp (HDI) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 14 | 58478-96B | BRACKET, fairing support, left | FLHTP |
| 15 | 58479-96B | BRACKET, fairing support, right | FLHTP |
| 16 | 58497-08A | INNER FAIRING ASSEMBLY, w/ 7688 & 58311-96 | FLHTP |
| 18 | 58938-96C | SUPPORT, inner fairing, left | FLHTP |
| 19 | 58939-96C | SUPPORT, inner fairing, right | FLHTP |
| 20 | 71431-96A | PLUG, switch hole (4) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 28 | 67911-03B | NACELLE, left | FLHP, FLHPE |
| 67912-03C | NACELLE, right | FLHP, FLHPE | |
| 42 | 53436-97 | BULB, position lamp (HDI) | FLHP |
| Index No. | Part No. | Description | Model(s) |
| 11 | 12100011 | GROMMET | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 11323 | O-RING, check valve to fuel tank | FLHTP |
| 12 | 62564-09 | SERVICE KIT, fuel tank mount (See Note) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 17 | 75069-08B | TOP PLATE ASSEMBLY, w/ 2, 3, 4, 5, 6, 8, 19 & 24 | FLHTP |
| 19 | 75147-08A | TOP PLATE | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 13 | 11323 | O-RING, check valve to fuel tank | FLHP, FLHPE |
| 14 | 62564-09 | SERVICE KIT, fuel tank mount (See Note) | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11936 | GASKET, oxygen (O2) sensor (2) | ALL |
| 11 | 27729-10 | SENSOR, oxygen (O2), front, w/ 11936, 72344-10, 72444-07GY & 73307-10 | ALL |
| 12 | 27809-10 | SENSOR, oxygen (O2), rear, w/ 11936, 72177-07BK, 72344-10 & 73307-10 | ALL |
| 18 | 65846-10 | MUFFLER, right, (chrome) (Domestic, Canada, California) | ALL |
| 27 | 66855-10 | EXHAUST PIPE ASSEMBLY, catalytic (Domestic, Canada, California) (chrome) | ALL |
| 32 | 72177-07BK | HOUSING, 4-way, socket (black) | ALL |
| 33 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | ALL |
| 34 | 72444-07GY | HOUSING, 4-way, socket (gray) | ALL |
| 35 | 73307-10 | TERMINAL, socket, 22 AWG (4) | ALL |
| 38 | 66849-10 | EXHAUST PIPE ASSEMBLY, catalytic (chrome) (HDI) | FLHP, FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 4 | 66761-09A | CABLE, contol, exhaust valve, w/ 66767-07 (HDI) | FLHP, FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10368A | RETENTION CLIP, battery box | ALL |
| 10 | 66281-09B | BATTERY TRAY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 69060-90F | HORN ASSEMBLY | ALL |
| 13 | 69123-92A | MOUNT, horn, rubber | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | ALL |
| 29 | 68958-07B | SIREN ALARM (HDI) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| 9 | 11321 | CABLE STRAP | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS NON-ABS | FLHTP | |
| 28 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHTP |
| 50 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| 70 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHTP |
| 78 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHTP |
| 85 | 72406-07A | SOCKET HOUSING, 4-way | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP | |
| 90 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHTP |
| 103 | 72537-10 | COVER ASSEMBLY, fuse block, w/ graphics | FLHTP |
| 107 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70998-10 | MAIN WIRING HARNESS - NON-ABS | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| 9 | 11321 | CABLE STRAP | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| 28 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHTP |
| 52 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| 72 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHTP |
| 80 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP | |
| 87 | 72406-07A | SOCKET HOUSING, 4-way | FLHTP |
| 92 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHTP |
| 106 | 72537-10 | COVER ASSEMBLY, fuse block, w/ graphics | FLHTP |
| 112 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70269-10 | MAIN WIRING HARNESS - ABS | FLHTP |
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| 13 | 11321 | CABLE STRAP | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| 37 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHP, FLHPE |
| 58 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| 77 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHP, FLHPE |
| 85 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHP, FLHPE |
| 92 | 72406-07A | SOCKET HOUSING, 4-way | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE | |
| 97 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHP, FLHPE |
| 110 | 72537-10 | COVER ASSEMBLY, fuse block | FLHP, FLHPE |
| 114 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70260-10 | MAIN WIRING HARNESS - NON-ABS | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| 13 | 11321 | CABLE STRAP | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| 37 | 72066-06A | SOCKET HOUSING, 4-way female (black) | FLHP, FLHPE |
| 60 | 72175-07BK | PIN HOUSING, 4-way (black) | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| 79 | 72283-09 | TERMINAL, female, 14-16 AWG, 90 degree (2) | FLHP, FLHPE |
| 87 | 72343-10 | PIN TERMINAL, 16-20 AWG (gold) (4) | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE | |
| 94 | 72406-07A | SOCKET HOUSING, 4-way | FLHP, FLHPE |
| 99 | 72415-07GY | PIN HOUSING, 4-way (gray) | FLHP, FLHPE |
| 113 | 72537-10 | COVER ASSEMBLY, fuse block | FLHP, FLHPE |
| 119 | 72599-10 | CPA AXIAL LOCKING STRAP | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 70268-10 | MAIN WIRING HARNESS - ABS | FLHP, FLHPE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 49194-09A | SUPPORT, saddlebag, left | ALL |
| 90781-09A | SUPPORT, saddlebag, right | ALL | |
| 15 | 66069-10 | BUMPER, saddlebag bracket (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 13700-10 | EMISSIONS LABEL (California) **RESTRICTED SALES PART** | FLHPE |
| 13701-10 | EMISSIONS LABEL (Domestic, Canada) **RESTRICTED SALES PART** | FLHP, FLHTP | |
| 4 | 14711-10 | EMISSIONS LABEL (French) (Canada) **RESTRICTED SALES PART** | FLHP, FLHTP |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10092 | |
| 10102 | |
| 10103 | |
| 10105 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10181 | |
| 10183 | |
| 10184 | |
| 10198 | |
| 10336 | |
| 10340A | |
| 10354 | |
| 10368A | |
| 1039 | |
| 10394 | |
| 10395 | |
| 10396 | |
| 10398 | |
| 1062 | |
| 10957 | |
| 1095M | |
| 10991A | |
| 10998 | |
| 11061A | |
| 11081A | |
| 11082 | |
| 11096 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11155 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207 | |
| 11256 | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11293 | |
| 11301 | |
| 11321 | |
| 11323 | |
| 11364 | |
| 11389 | |
| 11437 | |
| 11445 | |
| 11461 | |
| 11464 | |
| 11488 | |
| 11489 | |
| 11492 | |
| 11495 | |
| 11575 | |
| 11599 | |
| 11650 | |
| 11663 | |
| 11686 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11902 | |
| 11904 | |
| 11936 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12100011 | |
| 12102 | |
| 13700-10 | |
| 13701-10 | |
| 14019-83A | |
| 14148-86 | |
| 14274-93A | |
| 14275-93A | |
| 14630-96 | |
| 14711-10 | |
| 15368-01A | |
| 15370-01A | |
| 16207-09 | |
| 16219-09 | |
| 16316-08 | |
| 16321-08 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16547-99 | |
| 16574-99A | |
| 16583-00A | |
| 16585-96 | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99B | |
| 16787-99A | |
| 16834-99A | |
| 17045-99C | |
| 17052-99B | |
| 17053-99B | |
| 17162-03 | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17428-57 | |
| 17460-07 | |
| 1750 | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17650-02 | |
| 17728-08 | |
| 17729-08 | |
| 1780 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18074-05A | |
| 18083-09 | |
| 18085-05B | |
| 18094-02A | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18535-99 | |
| 18538-99B | |
| 18635-99B | |
| 19678-10 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21962-07 | |
| 21963-07 | |
| 21964-07 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 2228 | |
| 22307-99 | |
| 2361 | |
| 23729-07A | |
| 2375 | |
| 24004-03A | |
| 24009-06 | |
| 2443 | |
| 2445 | |
| 2446 | |
| 2452 | |
| 24605-07 | |
| 24608-07A | |
| 24621-06A | |
| 24754-75A | |
| 2479 | |
| 2482 | |
| 25244-99A | |
| 2531 | |
| 25344-99 | |
| 25355-06 | |
| 25369-01B | |
| 2551W | |
| 25566-06 | |
| 25585-06 | |
| 25590-07A | |
| 25604-00A | |
| 25605-00A | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2592 | |
| 26037-06 | |
| 2604 | |
| 26041-05A | |
| 26077-99A | |
| 26210-99 | |
| 2625 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26400-82B | |
| 2647B | |
| 2659 | |
| 2664 | |
| 2667 | |
| 26858-99 | |
| 2692WB | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27291-09 | |
| 27297-09 | |
| 27298-09 | |
| 2731W | |
| 27433-08 | |
| 27439-09 | |
| 27440-09 | |
| 27444-00Y | |
| 27609-01B | |
| 27685-08A | |
| 27711-08 | |
| 27712-08 | |
| 27715-07 | |
| 27721-08 | |
| 27729-10 | |
| 27809-10 | |
| 2806 | |
| 2871W | |
| 28861-07A | |
| 28867-88 | |
| 29121-07 | |
| 29127-95B | |
| 29158-07 | |
| 2921 | |
| 29269-83A | |
| 2933 | |
| 2934 | |
| 2935A | |
| 29465-08 | |
| 29502-08 | |
| 2955 | |
| 29584-01 | |
| 29630-08A | |
| 29633-08 | |
| 29644-08 | |
| 29645-08 | |
| 29718-08 | |
| 2979 | |
| 2980 | |
| 29987-06B | |
| 3022A | |
| 3050 | |
| 3057 | |
| 3061 | |
| 31328-91 | |
| 31345-06 | |
| 31515-90 | |
| 31518-90 | |
| 31519-90 | |
| 31525-90 | |
| 31527-90 | |
| 31530-90 | |
| 31586-07 | |
| 31595-09 | |
| 31604-06 | |
| 31611-08 | |
| 31618-06A | |
| 31631-06 | |
| 31633-07 | |
| 31641-06 | |
| 31643-06 | |
| 31660-90 | |
| 31681-07 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31696-07A | |
| 32013-09 | |
| 32014-09 | |
| 3210A | |
| 32305-08A | |
| 32306-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3249 | |
| 32543-07 | |
| 3265A | |
| 32707-01C | |
| 3275 | |
| 3278 | |
| 3300 | |
| 33166-10 | |
| 3331 | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33759-99B | |
| 33849-97 | |
| 3387 | |
| 33895-82C | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08A | |
| 34469-06B | |
| 34611-65A | |
| 3462 | |
| 34719-07B | |
| 34901-07 | |
| 34917-06 | |
| 34920-86A | |
| 34934-06 | |
| 34987-06 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-10 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35246-10 | |
| 35249-06A | |
| 35259-06 | |
| 35260-06 | |
| 3529 | |
| 3536 | |
| 3537 | |
| 35467-06B | |
| 35470-10 | |
| 3559 | |
| 35607-06 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 3576 | |
| 35801-10 | |
| 35805-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3584 | |
| 3588 | |
| 3594 | |
| 3595 | |
| 3601 | |
| 3602A | |
| 3605 | |
| 3607 | |
| 3612 | |
| 3619 | |
| 3622 | |
| 3634 | |
| 3639 | |
| 3655A | |
| 3658 | |
| 3676 | |
| 36805-06 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37069-90 | |
| 37090-98A | |
| 37092-06 | |
| 37101-84B | |
| 37116-06 | |
| 37312-75 | |
| 37313-80 | |
| 3736A | |
| 3746A | |
| 37496-90A | |
| 37554-06A | |
| 37807-03 | |
| 37817-07 | |
| 3787 | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38630-88 | |
| 38667-08A | |
| 38700-08A | |
| 38722-94 | |
| 38738-08 | |
| 38900-08 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3983 | |
| 3987 | |
| 39929-06B | |
| 3993 | |
| 39968-06 | |
| 39969-06 | |
| 40024-09 | |
| 40037-07 | |
| 4017 | |
| 40217-09 | |
| 40278-09 | |
| 40296-06A | |
| 40297-06 | |
| 40320-06 | |
| 40323-00 | |
| 4032A | |
| 40333-06A | |
| 40356-07 | |
| 40603-08 | |
| 40610-09 | |
| 40611-09 | |
| 40612-09 | |
| 40614-08 | |
| 40615-08 | |
| 40628-08 | |
| 40638-09 | |
| 40649-08 | |
| 40659-06 | |
| 4067 | |
| 40971-09 | |
| 40999-87 | |
| 41056-09 | |
| 41123-79 | |
| 41139-02 | |
| 41191-74A | |
| 41242-08 | |
| 41285-09 | |
| 41288-09 | |
| 4132 | |
| 41349-07 | |
| 41547-07A | |
| 41679-09 | |
| 41750-06B | |
| 41751-06A | |
| 41763-08A | |
| 41783-08 | |
| 41808-08 | |
| 41809-08 | |
| 41810-08A | |
| 41819-02 | |
| 41852-08A | |
| 41854-08 | |
| 41900-08 | |
| 41901-08 | |
| 4194 | |
| 4240 | |
| 42407-08 | |
| 42416-06 | |
| 42460-80B | |
| 42551-08 | |
| 42642-00 | |
| 42849-08 | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06B | |
| 42856-06 | |
| 42857-06A | |
| 42858-06A | |
| 42859-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42889-06 | |
| 42932-08 | |
| 42933-08A | |
| 42934-08 | |
| 42937-08A | |
| 43027-08 | |
| 43109-09A | |
| 4312C | |
| 4313 | |
| 43329-09 | |
| 43350-08 | |
| 43567-92 | |
| 44023-08 | |
| 44080-08B | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44341-08 | |
| 44551-08B | |
| 45015-08 | |
| 45021-86 | |
| 45138-08A | |
| 45279-00 | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45435-10 | |
| 45442-86 | |
| 45446-09 | |
| 45718-60 | |
| 45727-08 | |
| 45733-48 | |
| 45803-97 | |
| 45835-00 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45891-09 | |
| 45892-09 | |
| 45893-99 | |
| 45933-86 | |
| 45940-84 | |
| 45964-86 | |
| 45972-09 | |
| 4597M | |
| 45998-73 | |
| 4612 | |
| 46209-09 | |
| 46235-09 | |
| 46422-09 | |
| 46495-09 | |
| 46496-00A | |
| 46497-09 | |
| 46498-00A | |
| 46502-09 | |
| 46537-09 | |
| 4688 | |
| 4705 | |
| 47159-09BHP | |
| 4718A | |
| 4721 | |
| 47365-09 | |
| 4740A | |
| 4741A | |
| 47449-09 | |
| 47460-09BHP | |
| 47491-02A | |
| 47505-02 | |
| 47522-09 | |
| 47526-09 | |
| 47549-09 | |
| 47584-09 | |
| 47606-09 | |
| 4775 | |
| 4790 | |
| 47900-10BHP | |
| 48079-09BHP | |
| 4813A | |
| 4826 | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48343-09 | |
| 48361-80 | |
| 48365-48A | |
| 4838 | |
| 48487-02 | |
| 48489-02 | |
| 4855 | |
| 4868 | |
| 4890 | |
| 49184-09 | |
| 49193-09 | |
| 49194-09A | |
| 49202-09 | |
| 49203-09 | |
| 4924 | |
| 49377-09 | |
| 49725-07 | |
| 50015-74A | |
| 50075-07 | |
| 50096-09 | |
| 50126-08A | |
| 50245-07 | |
| 50518-09 | |
| 50588-09A | |
| 50614-06 | |
| 50621-06 | |
| 50622-09 | |
| 50674-05 | |
| 50972-75 | |
| 515 | |
| 5210 | |
| 52220-08 | |
| 52241-97 | |
| 52242-83E | |
| 52249-08 | |
| 52261-08A | |
| 52266-09 | |
| 52282-94C | |
| 52301-09 | |
| 53411-09 | |
| 53419-09 | |
| 53427-80 | |
| 53436-97 | |
| 53478-80 | |
| 53562-06 | |
| 53563-82 | |
| 53568-03A | |
| 53616-85 | |
| 53617-85 | |
| 53848-00 | |
| 53861-93 | |
| 5416 | |
| 54300-94 | |
| 54301-94A | |
| 54316-83A | |
| 54320-97 | |
| 54321-85 | |
| 54326-94 | |
| 54354-94A | |
| 54357-03 | |
| 54536-09 | |
| 54565-09 | |
| 55918-08 | |
| 55924-08 | |
| 56149-88B | |
| 56151-88B | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56248-08 | |
| 56304-08 | |
| 56394-74 | |
| 56397-74C | |
| 56402-83A | |
| 56902-08 | |
| 56954-08 | |
| 57217-02 | |
| 57995-96 | |
| 58084-94 | |
| 58088-94 | |
| 58167-09 | |
| 58169-09 | |
| 5817 | |
| 58187-96 | |
| 58208-96A | |
| 58236-96 | |
| 58247-96 | |
| 58311-96 | |
| 58324-97 | |
| 58325-06 | |
| 58327-06 | |
| 5837A | |
| 58406-75A | |
| 58408-75A | |
| 58416-77A | |
| 58417-77 | |
| 58428-94 | |
| 58431-94 | |
| 58433-96 | |
| 58478-96B | |
| 58479-96B | |
| 58497-08A | |
| 58510-96 | |
| 58702-09 | |
| 58938-96C | |
| 58939-96C | |
| 58949-96 | |
| 59093-00B | |
| 59116-96 | |
| 59166-80 | |
| 59174-99 | |
| 59180-80 | |
| 59201-96 | |
| 59211-74A | |
| 59221-93 | |
| 59222-93 | |
| 59223-93A | |
| 59224-93A | |
| 59231-86 | |
| 59259-90 | |
| 59261-91 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59292-94 | |
| 59579-09 | |
| 59581-05 | |
| 59672-09 | |
| 59786-01 | |
| 59788-01 | |
| 60016-05A | |
| 60018-05A | |
| 601 | |
| 60100-05 | |
| 60114-05 | |
| 6012 | |
| 6016 | |
| 60188-08 | |
| 6019 | |
| 60328-98B | |
| 6035A | |
| 6036 | |
| 60386-09 | |
| 60432-07A | |
| 60553-07 | |
| 60678-85 | |
| 6072 | |
| 60766-06 | |
| 608 | |
| 60909-09 | |
| 60957-08 | |
| 60960-08 | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61067-94A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6113 | |
| 6119 | |
| 61192-96A | |
| 61213-04A | |
| 61268-08 | |
| 6127 | |
| 61270-08 | |
| 61272-92B | |
| 61274-92 | |
| 61278-08 | |
| 61313-88 | |
| 61356-08 | |
| 61402-08 | |
| 6150W | |
| 62108-09 | |
| 6220W | |
| 62228-08A | |
| 62229-08A | |
| 6229W | |
| 6237 | |
| 62372-09 | |
| 62489-99A | |
| 62519-03 | |
| 62564-09 | |
| 62629-09 | |
| 62641-09 | |
| 62786-96 | |
| 62787-96 | |
| 62849-07A | |
| 62905-08 | |
| 62908-08 | |
| 6294 | |
| 63059-09 | |
| 63066-07 | |
| 63083-09 | |
| 63084-07 | |
| 6333 | |
| 6334 | |
| 63533-41A | |
| 6368 | |
| 63798-99A | |
| 63815-99 | |
| 6445 | |
| 6497HW | |
| 65296-95A | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83 | |
| 65538-09 | |
| 65634-09 | |
| 65636-09 | |
| 65678-09 | |
| 65723-85 | |
| 65724-85 | |
| 65846-10 | |
| 65863-09 | |
| 6594 | |
| 65949-09 | |
| 65951-09 | |
| 65952-09 | |
| 66010-97C | |
| 66048-09 | |
| 66051-08 | |
| 66069-10 | |
| 66200-09 | |
| 66250-09 | |
| 66281-09B | |
| 66290-06 | |
| 66761-09A | |
| 66767-07 | |
| 66813-09 | |
| 66849-10 | |
| 66855-10 | |
| 66858-09 | |
| 66859-09 | |
| 66861-09A | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67042-04D | |
| 67043-96 | |
| 67053-95 | |
| 67104-95 | |
| 67121-95A | |
| 6716 | |
| 67208-08 | |
| 67266-94 | |
| 67319-95 | |
| 67341-04B | |
| 67348-04D | |
| 67349-08 | |
| 67350-08 | |
| 67352-96A | |
| 67356-00 | |
| 67445-00 | |
| 67488-04 | |
| 67493-08 | |
| 67557-08A | |
| 67558-08A | |
| 67621-94 | |
| 6762B | |
| 67668-05 | |
| 67689-04 | |
| 67712-83A | |
| 67718-60A | |
| 67721-48 | |
| 67724-71 | |
| 67726-08 | |
| 67728-02A | |
| 67732-08 | |
| 67778-60A | |
| 67782-60A | |
| 67810-03 | |
| 67854-98 | |
| 67865-89 | |
| 67868-03 | |
| 67880-94 | |
| 6789 | |
| 67895-96 | |
| 67909-96 | |
| 67911-03B | |
| 67912-03C | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68113-99B | |
| 68140-04 | |
| 68142-04 | |
| 68167-04 | |
| 68168-89A | |
| 68193-95 | |
| 68253-08 | |
| 68296-99A | |
| 68329-03 | |
| 68331-02 | |
| 68342-05 | |
| 68345-05 | |
| 68359-05 | |
| 68369-03 | |
| 68370-03A | |
| 68380-05 | |
| 68382-07 | |
| 68390-05 | |
| 68414-05 | |
| 68437-99 | |
| 68440-86 | |
| 68452-86 | |
| 68453-05 | |
| 68505-90 | |
| 68506-92 | |
| 68510-74C | |
| 68519-68A | |
| 68558-03 | |
| 68563-04A | |
| 68572-64B | |
| 68653-05 | |
| 68663-64F | |
| 68665-84E | |
| 68706-00 | |
| 68712-94A | |
| 68713-94A | |
| 68720-62 | |
| 68721-62 | |
| 68725-62A | |
| 68727-09 | |
| 68728-09 | |
| 68742-09 | |
| 68765-94A | |
| 68766-94 | |
| 68767-94 | |
| 68772-09 | |
| 68789-96A | |
| 68830-99A | |
| 68912-09 | |
| 68920-07 | |
| 68924-07 | |
| 68926-07 | |
| 68956-07 | |
| 68958-07B | |
| 69012-93A | |
| 69018-00 | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69187-03A | |
| 69241-08 | |
| 6931 | |
| 69318-02 | |
| 69378-09 | |
| 69380-09BHP | |
| 69552-08 | |
| 6970 | |
| 70142-94 | |
| 70196-00A | |
| 70260-10 | |
| 70267-09 | |
| 70268-10 | |
| 70269-10 | |
| 70291-89 | |
| 70292-89 | |
| 70344-09 | |
| 70345-84 | |
| 70348-09 | |
| 70355-08 | |
| 70356-96A | |
| 70357-96 | |
| 70358-96 | |
| 70359-96A | |
| 7036 | |
| 70361-96 | |
| 70369-08 | |
| 70377-09 | |
| 7038 | |
| 70388-96 | |
| 70389-96 | |
| 7039 | |
| 7041 | |
| 70415-08A | |
| 70493-08 | |
| 70494-08 | |
| 70495-08A | |
| 70522-06A | |
| 70578-89 | |
| 70598-99 | |
| 70617-07 | |
| 70631-08 | |
| 7068 | |
| 70681-09 | |
| 70901-09 | |
| 70909-95 | |
| 70980-09 | |
| 70981-09 | |
| 70991-07 | |
| 70998-10 | |
| 70999-09 | |
| 71019-07 | |
| 71209-08 | |
| 7127 | |
| 7128 | |
| 71294-08 | |
| 71310-94 | |
| 71313-96A | |
| 71422-03 | |
| 71431-96A | |
| 71434-96A | |
| 71452-91A | |
| 71459-03 | |
| 71466-03 | |
| 71515-08 | |
| 71522-08 | |
| 71530-03B | |
| 71532-03 | |
| 71540-94A | |
| 7155 | |
| 71564-96 | |
| 71567-96 | |
| 71572-06 | |
| 71587-04 | |
| 71620-08 | |
| 71621-08 | |
| 71638-03 | |
| 71660-03 | |
| 71661-03 | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72023-51D | |
| 72024-08 | |
| 72032-93 | |
| 72035-71 | |
| 72038-71A | |
| 72039-71A | |
| 72046-79 | |
| 72056-92 | |
| 72059-08 | |
| 72063-06 | |
| 72066-06A | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72102-94BK | |
| 72104-94BK | |
| 72109-94BK | |
| 72111-06 | |
| 72112-94BK | |
| 72114-94BK | |
| 72115-08 | |
| 72119-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72131-04 | |
| 72135-06 | |
| 72139-94GY | |
| 72142-94 | |
| 72144-94 | |
| 72149-94 | |
| 72152-94 | |
| 72154-94 | |
| 72155-08 | |
| 72157-08 | |
| 72159-94 | |
| 72160-06 | |
| 72161-06 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72179-94 | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72200-94A | |
| 72203-96 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72207-94 | |
| 72208-94 | |
| 72210-94 | |
| 72213-94 | |
| 72214-94 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72252-01 | |
| 72253-94 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72281-93 | |
| 72282-09 | |
| 72283-09 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72298-95 | |
| 72303-08 | |
| 72309-04 | |
| 72314-01 | |
| 72327-03A | |
| 72330-95 | |
| 72332-02A | |
| 7234 | |
| 72343-10 | |
| 72344-10 | |
| 72355-97 | |
| 72356-95 | |
| 72359-05 | |
| 72364-06 | |
| 72395-97 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72405-98BK | |
| 72406-07A | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72415-07GY | |
| 72416-01 | |
| 72440-08 | |
| 72444-07GY | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72533-06 | |
| 72537-10 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72547-08 | |
| 72556-08 | |
| 72557-07 | |
| 72599-10 | |
| 72605-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72620-08 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72904-01BK | |
| 72912-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73102-96WE | |
| 73103-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73110-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73160-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 74106-98BK | |
| 74108-98BK | |
| 74112-98BK | |
| 74115-06 | |
| 74116-98BK | |
| 74118-98BK | |
| 74146-98 | |
| 74148-98 | |
| 74152-98 | |
| 74156-98 | |
| 74158-98 | |
| 74190-98 | |
| 74191-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05A | |
| 74408-08A | |
| 74413-93 | |
| 74438-99 | |
| 74505-09 | |
| 74526-96C | |
| 7495 | |
| 7499 | |
| 75044-96 | |
| 75059-94 | |
| 75069-08B | |
| 75076-08A | |
| 75089-08 | |
| 75105-96A | |
| 75106-96A | |
| 75111-08 | |
| 75147-08A | |
| 75205-08 | |
| 75229-08 | |
| 75241-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08 | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 755 | |
| 756 | |
| 7586 | |
| 7593 | |
| 7600 | |
| 7601 | |
| 7606 | |
| 761 | |
| 76185-93 | |
| 76201-80A | |
| 76233-85 | |
| 7624 | |
| 76248-86 | |
| 76286-96 | |
| 7629 | |
| 765 | |
| 7651A | |
| 7682 | |
| 7683 | |
| 7686 | |
| 7688 | |
| 77046-96A | |
| 7716 | |
| 7736 | |
| 7744 | |
| 7748W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 7838 | |
| 7848W | |
| 786A | |
| 787 | |
| 7880 | |
| 7888A | |
| 7889 | |
| 7900 | |
| 79048-98 | |
| 791A | |
| 7964 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8108 | |
| 8126A | |
| 8142 | |
| 8194 | |
| 8468 | |
| 8483A | |
| 84850-92 | |
| 8502 | |
| 8551 | |
| 8557 | |
| 856A | |
| 8871 | |
| 8873 | |
| 8879 | |
| 8883 | |
| 895 | |
| 89584-07 | |
| 8963 | |
| 8967 | |
| 8970 | |
| 8972 | |
| 90329-98 | |
| 90383-98 | |
| 90469-94 | |
| 90493-83 | |
| 90634-93 | |
| 90675-93A | |
| 90686-92 | |
| 90687-85 | |
| 90754-93 | |
| 90764-93 | |
| 9077 | |
| 90770-79 | |
| 90776-93 | |
| 90781-09A | |
| 90796-93 | |
| 90798-99 | |
| 90820-93D | |
| 90834-95A | |
| 90902-93 | |
| 90926-84 | |
| 90929-84 | |
| 90934-93A | |
| 90935-93A | |
| 90936-93A | |
| 90943-93A | |
| 90945-93A | |
| 90946-93A | |
| 90964-63 | |
| 90967-64 | |
| 91013-09 | |
| 91023-09 | |
| 91049-09 | |
| 91054-07 | |
| 91065-09 | |
| 91085-83D | |
| 91090-77A | |
| 91107-77C | |
| 91123-09 | |
| 91127-85 | |
| 91140-09 | |
| 91154-87 | |
| 91156-93 | |
| 91157-88A | |
| 91159-82 | |
| 91260-93A | |
| 91448-00 | |
| 91808-89 | |
| 91812-89A | |
| 91840-03B | |
| 91845-03B | |
| 91902-86A | |
| 91904-86A | |
| 9208 | |
| 9215 | |
| 9231 | |
| 924 | |
| 925 | |
| 9252 | |
| 9276 | |
| 928 | |
| 929A | |
| 942 | |
| 946 | |
| 95594-84 | |
| 9701 | |
| 9819 | |
| 9825 | |
| 9838 | |
| 9839 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 9907 | |
| 9937 | |
| 9955 | |
| 9956 | |
| 9990W |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7736 | 1949 |
| 7586 | Unknown |
| 8142 | Unknown |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7813A | 2007 |
| 8126A | 2017 |
| 7888A | Unknown |
| 7900 | Unknown |
| 67043-96 | 1996 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 7682 | Unknown |
| 5210 | 1991 |
| 84850-92 | 1992 |
| 7992 | 2010 |
| 74408-08A | 2008 |
| 7889 | Unknown |
| 11663 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 7340 | Unknown |
| 7880 | Unknown |
| 71660-03 | 2003 |
| 7331 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7744 | 1943 |
| 58949-96 | 1996 |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3536 | Unknown |
| 2667 | 2016 |
| 2664 | 1971 |
| 3983 | 2005 |
| 2228 | Unknown |
| 3987 | Unknown |
| 4826 | Unknown |
| 68026-99 | 1999 |
| 2452 | Unknown |
| 3639 | 1998 |
| 3622 | Unknown |
| 4741A | 1994 |
| 3050 | Unknown |
| 786A | Unknown |
| 2692WB | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4688 | Unknown |
| 4718A | 1994 |
| 4838 | Unknown |
| 2955 | 1996 |
| 2479 | Unknown |
| 2933 | Unknown |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 3514 | Unknown |
| 2482 | Unknown |
| 4313 | Unknown |
| 4597M | Unknown |
| 3619 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 3561WC | Unknown |
| 2921 | Unknown |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 895 | Unknown |
| 2659 | Unknown |
| 4890 | Unknown |
| 2979 | Unknown |
| 4705 | 2005 |
| 68452-86 | 1986 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 2551W | 2009 |
| 3529 | Unknown |
| 4240 | Unknown |
| 2871W | 2017 |
| 2625 | 1971 |
| 3584 | Unknown |
| 3607 | 2009 |
| 3605 | 2009 |
| 2731W | Unknown |
| 1095M | Unknown |
| 3560WA | Unknown |
| 3331 | 2003 |
| 3601 | Unknown |
| 2647B | Unknown |
| 90770-79 | 1979 |
| 3061 | Unknown |
| 4721 | 2009 |
| 4924 | Unknown |
| 3576 | 2013 |
| 3594 | 1992 |
| 2806 | Unknown |
| 45838-77 | 1977 |
| 4855 | Unknown |
| 928 | Unknown |
| 2708A | Unknown |
| 925 | Unknown |
| 3595 | 1993 |
| 924 | Unknown |
| 68042-99 | 1999 |
| 3746A | 2004 |
| 3993 | Unknown |
| 4419 | Unknown |
| 1039 | Unknown |
| 4612 | Unknown |
| 2604 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 3300 | Unknown |
| 787 | Unknown |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3387 | Unknown |
| 3563 | 1999 |
| 4017 | 2009 |
| 929A | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 4032A | Unknown |
| 67721-48 | 1948 |
| 1780 | Unknown |
| 2531 | Unknown |
| 3210A | Unknown |
| 3602A | Unknown |
| 3559 | Unknown |
| 56402-83A | 1983 |
| 2361 | Unknown |
| 3278 | Unknown |
| 4868 | Unknown |
| 67724-71 | 1971 |
| 946 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 4067 | 2009 |
| 3787 | Unknown |
| 1750 | 1993 |
| 3676 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1062 | Unknown |
| 56397-74C | 1974 |
| 4813A | 1990 |
| 3462 | Unknown |
| 3368 | Unknown |
| 2935A | 1998 |
| 3736A | 2005 |
| 2592 | 1973 |
| 4790 | Unknown |
| 4194 | Unknown |
| 42858-06A | 2006 |
| 3892 | Unknown |
| 4775 | 2000 |
| 2443 | 2008 |
| 16480-92A | 1992 |
| 2445 | Unknown |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6445 | Unknown |
| 6016 | 2013 |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6035A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6368 | Unknown |
| 6789 | Unknown |
| 59788-01 | 2001 |
| 6113 | Unknown |
| 6333 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 7128 | Unknown |
| 11207 | 2000 |
| 31689-90 | 1990 |
| 6072 | Unknown |
| 7234 | 1991 |
| 6127 | Unknown |
| 6532 | 2000 |
| 6036 | Unknown |
| 45727-08 | 2008 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 6229W | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 6970 | Unknown |
| 45279-00 | 2000 |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 47606-09 | 2009 |
| 105A1 - Custom Screws | |
| 41191-74A | 1974 |
| 91159-82 | 1982 |
| 2375 | 2008 |
| 37090-98A | 1998 |
| 108A1 - Hose Clamps | |
| 10354 | Unknown |
| 10198 | Unknown |
| 90946-93A | 1993 |
| 90936-93A | 1993 |
| 9990W | 2010 |
| 55918-08 | 2008 |
| 66861-09A | 2009 |
| 10340A | Unknown |
| 90935-93A | 1993 |
| 9956 | 1972 |
| 9955 | Unknown |
| 90934-93A | 1993 |
| 108B1 - P Clamps | |
| 10105 | 1992 |
| 28867-88 | 1988 |
| 10092 | 2010 |
| 109A1 - Studs | |
| 3265A | Unknown |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 90834-95A | 1995 |
| 45998-73 | 1973 |
| 70909-95 | 1995 |
| 67909-96 | 1996 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 42642-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 25344-99 | 1999 |
| 9701 | 2006 |
| 17428-57 | 1957 |
| 12077 | Unknown |
| 67266-94 | 1994 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 8883 | Unknown |
| 40628-08 | 2008 |
| 8879 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 67104-95 | 1995 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 8970 | 2004 |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 9276 | 2007 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 58247-96 | 1996 |
| 9825 | Unknown |
| 9819 | Unknown |
| 58417-77 | 1977 |
| 9907 | Unknown |
| 72253-94 | 1994 |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 72252-01 | 2001 |
| 111F1 - Protective Tape | |
| 91054-07 | 2007 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 117A1 - Coil Springs | |
| 56954-08 | 2008 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11686 | Unknown |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11140 | 1982 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11301 | Unknown |
| 31695-90 | 1990 |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11179 | 1986 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 40603-08 | 2008 |
| 11445 | Unknown |
| 11437 | Unknown |
| 11488 | 1996 |
| 11492 | 1996 |
| 12100011 | 2011 |
| 11650 | 2010 |
| 121B1 - Press-Fit Plugs | |
| 67865-89 | 1989 |
| 70292-89 | 1989 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 761 | 1996 |
| 72164-94A | 1994 |
| 755 | 2018 |
| 90329-98 | 1998 |
| 756 | 2010 |
| 122A1 - Retaining Rings | |
| 72599-10 | 2010 |
| 10998 | 1985 |
| 17945-36B | 1936 |
| 31328-91 | 1991 |
| 10368A | 2010 |
| 45021-86 | 1986 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 40638-09 | 2009 |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 11155 | Unknown |
| 41139-02 | 2002 |
| 31530-90 | 1990 |
| 11061A | 2008 |
| 11143 | Unknown |
| 10398 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 10394 | 2010 |
| 10991A | Unknown |
| 37905-00 | 2000 |
| 10336 | 2010 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11096 | 2010 |
| 16699-06 | 2006 |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 11599 | Unknown |
| 41900-08 | 2008 |
| 5837A | Unknown |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 38900-08 | 2008 |
| 31692-90 | 1990 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 27711-08 | 2008 |
| 54326-94 | 1994 |
| 59292-94 | 1994 |
| 90902-93 | 1993 |
| 90493-83 | 1983 |
| 6931 | Unknown |
| 89584-07 | 2007 |
| 54320-97 | 1997 |
| 11495 | Unknown |
| 56161-83A | 1983 |
| 71459-03 | 2003 |
| 54300-94 | 1994 |
| 16585-96 | 1996 |
| 31641-06 | 2006 |
| 26041-05A | 2005 |
| 53427-80 | 1980 |
| 56394-74 | 1974 |
| 8873 | 1984 |
| 11464 | 2011 |
| 126B1 - Rivets Fasteners | |
| 8468 | Unknown |
| 70291-89 | 1989 |
| 8557 | Unknown |
| 8551 | Unknown |
| 11779 | 2008 |
| 8483A | Unknown |
| 90967-64 | 1964 |
| 127B1 - Generic Mounting Bracket | |
| 90687-85 | 1985 |
| 90945-93A | 1993 |
| 58311-96 | 1996 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 140A3 - Other Special Warning Label | |
| 15370-01A | 2001 |
| 14019-83A | 1983 |
| 90820-93D | 1993 |
| 140G2 - EPA Label | |
| 13700-10 | 2010 |
| 14711-10 | 2010 |
| 13701-10 | 2010 |
| 29127-95B | 1995 |
| 141A1 - Medallion | |
| 71466-03 | 2003 |
| 67668-05 | 2005 |
| 14275-93A | 1993 |
| 59224-93A | 2008 |
| 14274-93A | 1993 |
| 14630-96 | 1996 |
| 59223-93A | 2008 |
| 59221-93 | 1993 |
| 44341-08 | 2008 |
| 59222-93 | 1993 |
| 61067-94A | 1994 |
| 42856-06 | 2006 |
| 162D1 - Engine Assembly | |
| 19678-10 | 2010 |
| 163B1 - Engine Isolator Mount | |
| 47460-09BHP | 2009 |
| 16207-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 27712-08 | 2008 |
| 47159-09BHP | 2009 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7600 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7688 | 2000 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 7848W | Unknown |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 17728-08 | 2008 |
| 18011-86 | 1986 |
| 17729-08 | 2008 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 16547-99 | 1999 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99B | 1999 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05B | 2005 |
| 181B1 - Valve Seals | |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18094-02A | 2002 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18083-09 | 2009 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 17460-07 | 2007 |
| 21963-07 | 2007 |
| 21962-07 | 2007 |
| 21964-07 | 2007 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03A | 2007 |
| 23729-07A | 2009 |
| 244A1 - Crankcase | |
| 24621-06A | 2007 |
| 244B1 - Crankcase Gasket | |
| 34934-06 | 2006 |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24009-06 | 2006 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25675-06 | 2006 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 254D1 - Camshaft Support | |
| 25355-06 | 2006 |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 39929-06B | 2008 |
| 256A1 - Timer Cover | |
| 32543-07 | 2007 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 67121-95A | 1995 |
| 65324-83B | 2009 |
| 90675-93A | 2000 |
| 67208-08 | 2008 |
| 35654-06 | 2006 |
| 90798-99 | 1999 |
| 71294-08 | 2008 |
| 17053-99B | 2005 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99C | 2006 |
| 34901-07 | 2007 |
| 11936 | Unknown |
| 25244-99A | 1999 |
| 17162-03 | 2003 |
| 42857-06A | 2006 |
| 45733-48 | 1948 |
| 18635-99B | 1999 |
| 17052-99B | 2005 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 79048-98 | 1998 |
| 257L1 - Primary Cover | |
| 60553-07 | 2007 |
| 25585-06 | 2006 |
| 60432-07A | 2008 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 37116-06 | 2006 |
| 34469-06B | 2008 |
| 265A1 - Vent / Breather Line | |
| 29502-08 | 2008 |
| 17650-02 | 2002 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 271D1 - Intercooler Hose | |
| 54301-94A | 2009 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27685-08A | 2009 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29630-08A | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 290D1 - Airbox Seal | |
| 29718-08 | 2008 |
| 29645-08 | 2008 |
| 292B1 - Air Duct Bezel | |
| 29158-07 | 2007 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29633-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 294F1 - Engine Breather Valve | |
| 26858-99 | 1999 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31681-07 | 2007 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31518-90 | 1990 |
| 31618-06A | 2006 |
| 31515-90 | 1990 |
| 314G1 - Starter Motor sub-component | |
| 31660-90 | 1990 |
| 31643-06 | 2007 |
| 31527-90 | 1990 |
| 31611-08 | 2008 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 32014-09 | 2009 |
| 32013-09 | 2009 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27729-10 | 2010 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 74438-99 | 1999 |
| 32305-08A | 2008 |
| 40615-08 | 2008 |
| 40614-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 50126-08A | 2008 |
| 74402-05A | 2005 |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 32446-99 | 1999 |
| 327G1 - Police Radar | |
| 91448-00 | 2000 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 33895-82C | 2007 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33759-99B | 1999 |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33166-10 | 2010 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34719-07B | 2007 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40296-06A | 2008 |
| 350E1 - Transmission Gear | |
| 35801-10 | 2010 |
| 31525-90 | 1990 |
| 35246-10 | 2010 |
| 31345-06 | 2006 |
| 35122-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35467-06B | 2008 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35805-06A | 2006 |
| 35470-10 | 2010 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-10 | 2010 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40297-06 | 2006 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35260-06 | 2008 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 365C1 - Primary Drive Assembly | |
| 40333-06A | 2008 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 45015-08 | 2008 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 38738-08 | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37312-75 | 1975 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 38630-88 | 1988 |
| 31633-07 | 2007 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 37817-07 | 2007 |
| 37496-90A | 1990 |
| 37069-90 | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37554-06A | 2008 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 372D1 - Clutch Cable | |
| 38667-08A | 2008 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40024-09 | 2009 |
| 401A1 - Engine Sprocket | |
| 40320-06 | 2006 |
| 40356-07 | 2007 |
| 409A1 - Rear Wheel | |
| 41288-09 | 2009 |
| 410D1 - Electronic Control Module (ECM) | |
| 34246-08A | 2009 |
| 68920-07 | 2007 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 69018-00 | 2000 |
| 70617-07 | 2007 |
| 411A1 - ABS Control Unit | |
| 48343-09 | 2009 |
| 411A2 - ABS Electrical Control Unit | |
| 40649-08 | 2008 |
| 413A1 - Brake Caliper | |
| 44080-08B | 2009 |
| 43027-08 | 2008 |
| 44023-08 | 2008 |
| 44160-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 42851-06 | 2006 |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415A1 - Brake Rotor Guard | |
| 41809-08 | 2008 |
| 41808-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41810-08A | 2008 |
| 416A1 - Brakes Miscellaneous Component | |
| 42860-06B | 2006 |
| 41852-08A | 2009 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42551-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51D | 2004 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41763-08A | 2009 |
| 44551-08B | 2010 |
| 417B1 - Brake Master Cylinder | |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42861-06B | 2006 |
| 42932-08 | 2008 |
| 42933-08A | 2008 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42862-06B | 2010 |
| 45423-92 | 1992 |
| 42855-06B | 2006 |
| 42937-08A | 2009 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 42859-06B | 2006 |
| 418B1 - Brake Line | |
| 40610-09 | 2009 |
| 41679-09 | 2009 |
| 40971-09 | 2009 |
| 40611-09 | 2009 |
| 40612-09 | 2009 |
| 43350-08 | 2008 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95594-84 | 1984 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 41056-09 | 2009 |
| 431A1 - Front Tire | |
| 43109-09A | 2009 |
| 432A1 - Rear Tire | |
| 43329-09 | 2009 |
| 433A1 - Front Wheel | |
| 41285-09 | 2009 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41242-08 | 2008 |
| 41901-08 | 2008 |
| 41349-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 47549-09 | 2009 |
| 46502-09 | 2009 |
| 46497-09 | 2009 |
| 49377-09 | 2009 |
| 46495-09 | 2009 |
| 46537-09 | 2009 |
| 455A1 - Front Telescopic Fork Slider | |
| 45964-86 | 1986 |
| 46496-00A | 2000 |
| 46498-00A | 2000 |
| 455B1 - Front Telescopic Fork Spring | |
| 46235-09 | 2009 |
| 45892-09 | 2009 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 71310-94 | 1994 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45442-86 | 1986 |
| 45972-09 | 2009 |
| 45933-86 | 1986 |
| 45835-00 | 2000 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 71540-94A | 1994 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 48333-80 | 1980 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 45435-10 | 2010 |
| 45446-09 | 2009 |
| 470A1 - Frame | |
| 47900-10BHP | 2010 |
| 48079-09BHP | 2009 |
| 31519-90 | 1990 |
| 472A1 - Frame sub-component | |
| 47522-09 | 2009 |
| 47526-09 | 2009 |
| 7036 | Unknown |
| 472C1 - Front Fairing Support Bracket | |
| 62787-96 | 1996 |
| 472C2 - Fairing Lower Support Bracket | |
| 58939-96C | 2010 |
| 58938-96C | 2010 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 90781-09A | 2010 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 68712-94A | 1994 |
| 91140-09 | 2009 |
| 29644-08 | 2008 |
| 53563-82 | 1982 |
| 47365-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 47491-02A | 2002 |
| 47584-09 | 2009 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490A1 - Frame Guard | |
| 49202-09 | 2009 |
| 49203-09 | 2009 |
| 490C1 - Engine Guard | |
| 49184-09 | 2009 |
| 500B1 - Sidestand Bracket | |
| 50096-09 | 2009 |
| 500D1 - Sidestand Leg | |
| 50075-07 | 2007 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 49725-07 | 2007 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 50588-09A | 2009 |
| 50622-09 | 2009 |
| 505C1 - Heel Guard / Pad | |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 50621-06 | 2006 |
| 506A1 - Brake Pedal | |
| 42416-06 | 2006 |
| 42407-08 | 2008 |
| 520A1 - Rider Seat or Full Seat | |
| 52242-83E | 1983 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52241-97 | 1997 |
| 521A1 - Seat Support Structure | |
| 52220-08 | 2008 |
| 52249-08 | 2008 |
| 52301-09 | 2009 |
| 521C1 - Seat Suspension Damper | |
| 45891-09 | 2009 |
| 46422-09 | 2009 |
| 46209-09 | 2009 |
| 521D1 - Seat Suspension Spring | |
| 52282-94C | 2009 |
| 530B1 - Tour Pak sub-component | |
| 53616-85 | 1985 |
| 53411-09 | 2009 |
| 53861-93 | 1993 |
| 53478-80 | 1980 |
| 90964-63 | 1963 |
| 53617-85 | 1985 |
| 530C2 - Case Latch | |
| 53848-00 | 2000 |
| 90686-92 | 1992 |
| 8502 | 1993 |
| 540B1 - Rear Shock | |
| 54565-09 | 2009 |
| 540C1 - Rear Shock Body with Reservoir | |
| 52266-09 | 2009 |
| 540E1 - Rear Shock sub-component | |
| 54536-09 | 2009 |
| 54357-03 | 2003 |
| 53419-09 | 2009 |
| 54316-83A | 1983 |
| 558A1 - Handlebar | |
| 55924-08 | 2008 |
| 56902-08 | 2008 |
| 558B1 - Handlebar Tube | |
| 67810-03 | 2003 |
| 559D1 - Lower Handlebar Clamp | |
| 56151-88B | 1988 |
| 56149-88B | 1988 |
| 560A1 - Mirror | |
| 91904-86A | 1986 |
| 91902-86A | 1986 |
| 91840-03B | 2003 |
| 91845-03B | 2003 |
| 561E1 - Throttle Grip | |
| 56304-08 | 2008 |
| 56248-08 | 2008 |
| 570A1 - Front Fairing | |
| 58478-96B | 1996 |
| 58479-96B | 1996 |
| 58236-96 | 1996 |
| 570C1 - Inner Fairing | |
| 58497-08A | 2010 |
| 571A1 - Fairing Lower | |
| 76286-96 | 1996 |
| 571B1 - Fairing Lower sub-component | |
| 58208-96A | 1996 |
| 58510-96 | 1996 |
| 571C1 - Fairing Side | |
| 75106-96A | 1996 |
| 572D1 - Engine Shroud | |
| 58167-09 | 2009 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 66048-09 | 2009 |
| 66250-09 | 2009 |
| 573A1 - Bodywork Miscellaneous Component | |
| 38722-94 | 1994 |
| 7651A | Unknown |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 58088-94 | 1994 |
| 58428-94 | 1994 |
| 58084-94 | 1994 |
| 58324-97 | 1997 |
| 57995-96 | 1996 |
| 58431-94 | 1994 |
| 58187-96 | 1996 |
| 58325-06 | 2006 |
| 58327-06 | 2006 |
| 58416-77A | 1977 |
| 58406-75A | 1975 |
| 67621-94 | 1994 |
| 58433-96 | 1996 |
| 58408-75A | 1975 |
| 589A1 - Front Fender | |
| 91107-77C | 2009 |
| 59093-00B | 2012 |
| 595D1 - Rear Fender | |
| 91123-09 | 2009 |
| 58702-09 | 2009 |
| 59579-09 | 2009 |
| 75069-08B | 2008 |
| 59174-99 | 1999 |
| 596B1 - Fender Tip | |
| 91049-09 | 2009 |
| 91013-09 | 2009 |
| 91085-83D | 1983 |
| 91065-09 | 2009 |
| 59581-05 | 2005 |
| 59116-96 | 1996 |
| 91090-77A | 1977 |
| 91023-09 | 2009 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 27433-08 | 2008 |
| 608B1 - Carbon Canister Hose | |
| 27297-09 | 2009 |
| 27291-09 | 2009 |
| 27439-09 | 2009 |
| 27298-09 | 2009 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 6119 | 2016 |
| 61112-08 | 2008 |
| 75147-08A | 2008 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 75291-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61356-08 | 2008 |
| 61268-08 | 2008 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 61272-92B | 1999 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09 | 2009 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 62229-08A | 2008 |
| 612B1 - Fuel Level Sensor | |
| 75205-08 | 2008 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 62905-08 | 2008 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 612K1 - Fuel Pump sub-component | |
| 52261-08A | 2008 |
| 75076-08A | 2008 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 60957-08 | 2008 |
| 613K1 - Airbox Cover | |
| 29121-07 | 2007 |
| 613M1 - Headlight Cover | |
| 67911-03B | 2010 |
| 67912-03C | 2010 |
| 614C1 - Trim | |
| 59231-86 | 1986 |
| 59211-74A | 1974 |
| 62786-96 | 1996 |
| 67868-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 627A1 - Oil Cooler | |
| 63083-09 | 2009 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62849-07A | 2009 |
| 37065-06 | 2006 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62641-09 | 2009 |
| 62629-09 | 2009 |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08A | 2008 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63059-09 | 2009 |
| 628B1 - PT Lubrication and Cooling Mounting Bracket | |
| 62108-09 | 2009 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 649A1 - Muffler | |
| 65949-09 | 2009 |
| 65846-10 | 2010 |
| 65538-09 | 2009 |
| 65863-09 | 2009 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 654A1 - Exhaust Shield | |
| 65636-09 | 2009 |
| 65951-09 | 2009 |
| 62519-03 | 2003 |
| 65634-09 | 2009 |
| 65952-09 | 2009 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-09 | 2009 |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 66855-10 | 2010 |
| 66849-10 | 2010 |
| 66858-09 | 2009 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 66859-09 | 2009 |
| 659B1 - Exhaust Flange | |
| 65328-83 | 1983 |
| 659C1 - Exhaust Gasket | |
| 66813-09 | 2009 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 660C1 - Battery Pan | |
| 66281-09B | 2009 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 70267-09 | 2009 |
| 70377-09 | 2009 |
| 670A1 - Tachometer | |
| 67356-00 | 2000 |
| 67042-04D | 2004 |
| 67348-04D | 2004 |
| 677A1 - Headlight | |
| 67778-60A | 1960 |
| 67782-60A | 1960 |
| 67732-08 | 2008 |
| 11489 | 1995 |
| 67728-02A | 2002 |
| 68725-62A | 1962 |
| 67712-83A | 1983 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 68390-05 | 2005 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68440-86 | 1986 |
| 678B1 - Taillight Housing | |
| 72160-06 | 2006 |
| 678D1 - Turnsignal | |
| 68510-74C | 1974 |
| 68767-94 | 1994 |
| 68766-94 | 1994 |
| 68765-94A | 1994 |
| 68713-94A | 1994 |
| 59201-96 | 1996 |
| 68742-09 | 2009 |
| 678E1 - Turnsignal Lens | |
| 68506-92 | 1992 |
| 69378-09 | 2009 |
| 68505-90 | 1990 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 68342-05 | 2005 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 59261-91 | 1991 |
| 60188-08 | 2008 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 69380-09BHP | 2009 |
| 60909-09 | 2009 |
| 680A1 - Decorative Light | |
| 59672-09 | 2009 |
| 68706-00 | 2000 |
| 68663-64F | 2009 |
| 68728-09 | 2009 |
| 68721-62 | 1962 |
| 59180-80 | 1980 |
| 68727-09 | 2009 |
| 68414-05 | 2005 |
| 68720-62 | 1962 |
| 68665-84E | 2009 |
| 680B1 - Emergency Light | |
| 60016-05A | 2009 |
| 60018-05A | 2009 |
| 60114-05 | 2005 |
| 680C1 - Incandescent Bulb | |
| 68193-95 | 1995 |
| 68572-64B | 1964 |
| 67445-00 | 2000 |
| 68168-89A | 1989 |
| 68453-05 | 2005 |
| 53436-97 | 1997 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 690A1 - Emergency Siren | |
| 68958-07B | 2007 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692C1 - Electrical Miscellaneous Component | |
| 72547-08 | 2008 |
| 91808-89 | 1989 |
| 72232-96 | 1996 |
| 74115-06 | 2006 |
| 68253-08 | 2008 |
| 70348-09 | 2009 |
| 70981-09 | 2009 |
| 90469-94 | 1994 |
| 76233-85 | 1985 |
| 68113-99B | 1999 |
| 68789-96A | 1996 |
| 70344-09 | 2009 |
| 72332-02A | 2002 |
| 91812-89A | 1989 |
| 72189-04 | 2004 |
| 70980-09 | 2009 |
| 68382-07 | 2007 |
| 76201-80A | 1980 |
| 76185-93 | 1993 |
| 11904 | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 66200-09 | 2009 |
| 70493-08 | 2008 |
| 71431-96A | 1996 |
| 69123-92A | 1992 |
| 71019-07 | 2007 |
| 67053-95 | 1995 |
| 69120-91 | 1991 |
| 67689-04 | 2004 |
| 67895-96 | 1996 |
| 68519-68A | 1968 |
| 69060-90F | 2010 |
| 91154-87 | 1987 |
| 67319-95 | 1995 |
| 91260-93A | 1993 |
| 67352-96A | 1996 |
| 69062-91A | 1991 |
| 91127-85 | 1985 |
| 67341-04B | 2004 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31595-09 | 2009 |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 692E2 - Fuse / Relay Block Cover | |
| 72537-10 | 2010 |
| 72620-08 | 2008 |
| 692F1 - Wire Harness | |
| 69552-08 | 2008 |
| 70142-94 | 1994 |
| 70495-08A | 2008 |
| 68359-05 | 2005 |
| 70998-10 | 2010 |
| 76248-86 | 1986 |
| 70196-00A | 2000 |
| 60100-05 | 2005 |
| 72152-94 | 1994 |
| 70269-10 | 2010 |
| 68772-09 | 2009 |
| 70369-08 | 2008 |
| 68912-09 | 2009 |
| 70268-10 | 2010 |
| 70260-10 | 2010 |
| 70415-08A | 2008 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 72249-94 | 1994 |
| 70522-06A | 2009 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 66761-09A | 2009 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 72119-94BK | 1994 |
| 75044-96 | 1996 |
| 72109-94BK | 1994 |
| 72114-94BK | 1994 |
| 72206-94 | 1994 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 72161-06 | 2006 |
| 72111-06 | 2006 |
| 72179-94 | 1994 |
| 72124-94GY | 1994 |
| 72416-01 | 2001 |
| 9848 | Unknown |
| 9847 | Unknown |
| 74146-98 | 1998 |
| 72444-07GY | 2007 |
| 68437-99 | 1999 |
| 72102-94BK | 1994 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72155-08 | 2008 |
| 72131-04 | 2004 |
| 75105-96A | 1996 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 73198-96 | 1996 |
| 72035-71 | 1971 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72343-10 | 2010 |
| 72286-04 | 2004 |
| 72364-06 | 2006 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 72400-99 | 1999 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72303-08 | 2008 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72407-07 | 2007 |
| 72210-94 | 1994 |
| 72115-08 | 2008 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72059-08 | 2008 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72355-97 | 1997 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 9839 | 1996 |
| 73307-10 | 2010 |
| 72495-08 | 2008 |
| 9937 | Unknown |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 72207-94 | 1994 |
| 72395-97 | 1997 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 72281-93 | 1993 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 74156-98 | 1998 |
| 74193-98 | 1998 |
| 72142-94 | 1994 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 74116-98BK | 1998 |
| 72912-01BK | 2001 |
| 72112-94BK | 1994 |
| 72039-71A | 1971 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68653-05 | 2005 |
| 72104-94BK | 1994 |
| 72149-94 | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 74106-98BK | 1998 |
| 72487-07BK | 2007 |
| 72282-09 | 2009 |
| 74148-98 | 1998 |
| 70345-84 | 1984 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 74158-98 | 1998 |
| 72402-07 | 2007 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 72200-94A | 1994 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 74108-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 73152-96WE | 1996 |
| 72557-07 | 2007 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72556-08 | 2008 |
| 73158-96BK | 1996 |
| 72032-93 | 1993 |
| 72720-07 | 2007 |
| 72038-71A | 1971 |
| 73102-96WE | 1996 |
| 70494-08 | 2008 |
| 72327-03A | 2003 |
| 72203-96 | 1996 |
| 70681-09 | 2009 |
| 72011-05 | 2005 |
| 73110-96BK | 1996 |
| 73160-96BK | 1996 |
| 72405-98BK | 1998 |
| 74413-93 | 1993 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72489-07GY | 2007 |
| 72190-94 | 1994 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72543-07BK | 2007 |
| 73104-96BK | 1996 |
| 73196-96 | 1996 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 69318-02 | 2002 |
| 72544-07 | 2007 |
| 73102-96BK | 1996 |
| 72079-08 | 2008 |
| 72014-07 | 2007 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72406-07A | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 72046-79 | 1979 |
| 72440-08 | 2008 |
| 74118-98BK | 1998 |
| 72012-07 | 2007 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 709A1 - Dash Panel | |
| 71209-08 | 2008 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67558-08A | 2008 |
| 67557-08A | 2008 |
| 75059-94 | 1994 |
| 67350-08 | 2008 |
| 67349-08 | 2008 |
| 709B2 - Fuel Gauge | |
| 74526-96C | 2000 |
| 75111-08 | 2008 |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 61270-08 | 2008 |
| 61278-08 | 2008 |
| 60960-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71572-06 | 2006 |
| 71313-96A | 1996 |
| 71530-03B | 2007 |
| 71422-03 | 2003 |
| 714B1 - Mechanical Switch | |
| 71522-08 | 2008 |
| 33926-06B | 2006 |
| 31631-06 | 2006 |
| 714C1 - Pressure Switch | |
| 67488-04 | 2004 |
| 714D1 - Relay | |
| 68563-04A | 2004 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 70357-96 | 1996 |
| 70356-96A | 1996 |
| 71587-04 | 2004 |
| 71638-03 | 2003 |
| 71532-03 | 2003 |
| 70361-96 | 1996 |
| 70389-96 | 1996 |
| 70358-96 | 1996 |
| 38700-08A | 2008 |
| 70388-96 | 1996 |
| 70359-96A | 1996 |
| 71434-96A | 1996 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71661-03 | 2003 |
| 67493-08 | 2008 |
| 71685-06A | 2006 |
| 71515-08 | 2008 |
| 71620-08 | 2008 |
| 70355-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74505-09 | 2009 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 760C1 - Audio System Amplifier | |
| 91156-93 | 1993 |
| 760C2 - Audio System Speaker | |
| 77046-96A | 1996 |
| 91157-88A | 1988 |
| 902B1 - Saddlebag Cover | |
| 90776-93 | 1993 |
| 90754-93 | 1993 |
| 902E1 - Saddlebag Bottom | |
| 49193-09 | 2009 |
| 90634-93 | 1993 |
| 90943-93A | 1993 |
| 47449-09 | 2009 |
| 49194-09A | 2010 |
| 90926-84 | 1984 |
| 66069-10 | 2010 |
| 90764-93 | 1993 |
| 90929-84 | 1984 |
| 90796-93 | 1993 |
| 75089-08 | 2008 |
| 903A1 - Lockset | |
| 61029-92A | 1992 |
| 53568-03A | 2003 |
| 53562-06 | 2006 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 915A1 - Recall Kit | |
| 62564-09 | 2010 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS - FLHTP: |
BAGS, LUGGAGE & TRAVEL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90764-93 | CUSHION |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | |
| 1062 | SCREW | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11143 | RETAINING RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11270 | O-RING | |
| 11293 | O-RING | |
| 11301 | O-RING | |
| 12052A | SEAL | |
| 12074 | SEAL | |
| 16585-96 | INSERT | WINDSHIELD, FAIRING & HEADLAMP - FLHTP: INNER FAIRING - FLHTP: |
| 16715-83 | STUD | |
| 16719-99B | GASKET | |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | |
| 17386-99A | GASKET | |
| 18635-99B | GASKET | |
| 2445 | SCREW | WINDSHIELD, FAIRING & HEADLAMP - FLHTP: INNER FAIRING - FLHTP: |
| 2446 | SCREW | WINDSHIELD, FAIRING & HEADLAMP - FLHTP: INNER FAIRING - FLHTP: |
| 25244-99A | GASKET | |
| 2531 | SCREW | |
| 26995-86B | SEAL | |
| 27444-00Y | O-RING | |
| 3050 | SCREW | |
| 3275 | SCREW | |
| 3368 | SCREW | |
| 34091-08 | BEARING | |
| 34901-07 | GASKET | |
| 34917-06 | GASKET | |
| 34934-06 | GASKET | |
| 35654-06 | GASKET | |
| 3595 | SCREW | |
| 3655A | SCREW | |
| 3658 | SCREW | |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41751-06A | GASKET | |
| 43567-92 | SCREW | |
| 45279-00 | WASHER | |
| 45405-75A | SCREW | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 45733-48 | OIL SEAL | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 45845-77 | O-RING | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 45858-77 | SCREW | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 4740A | SCREW | |
| 48300-60 | ROLLER BEARING | |
| 5210 | WELLNUT | |
| 58311-96 | TRIM SEAL | INNER FAIRING - FLHTP: |
| 60678-85 | RETAINING RING | |
| 6229W | WASHER | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 7041 | LOCKWASHER | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
| 70909-95 | RECEPTACLE | |
| 7586 | JAM NUT | |
| 7593 | NUT | |
| 7600 | NUT | |
| 7716 | LOCKNUT | |
| 786A | BOLT | |
| 856A | SCREW | |
| 9252 | BALL BEARING | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | PAD & PIN KIT | |
| 45875-84A | OIL SEAL | FRONT FORK - LEFT & RIGHT (FAIRING MODELS): |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50245-07 | BUMPER | |
| 58938-96C | SUPPORT | INNER FAIRING - FLHTP: |
| 58939-96C | SUPPORT | INNER FAIRING - FLHTP: |
| 59166-80 | PLATE LOCK |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | FUEL TANK CONSOLE - FLHTP: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | |
| 71621-08 | SWITCH KIT | |
| 72330-95 | FUSE | MAIN WIRING HARNESS - NON-ABS BRAKES - FLHTP (3 OF 5): MAIN WIRING HARNESS - ABS BRAKES - FLHTP (3 OF 5): |
| 91808-89 | ELEMENT | INNER FAIRING - FLHTP: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33709-82A | SHAFT | |
| 37909-90 | RETAINING RING | |
| 37913-98 | PLATE CLUTCH |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | PEG |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29633-08 | FILTER ELEMENT | |
| 61011-04A | FUEL FILTER KIT | FUEL PUMP - FLHTP : |
| 65296-95A | MUFFLER CLAMP | |
| 65724-85 | MOUNT |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67445-00 | BULB | INSTRUMENTS - FLHTP: |
| 68168-89A | BULB | |
| 68193-95 | BULB | |
| 68329-03 | BULB | WINDSHIELD, FAIRING & HEADLAMP - FLHTP: |
| 68572-64B | BULB | PURSUIT LAMPS & FRONT TURN SIGNALS: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | |
| 63798-99A | FILTER | |
| 66010-97C | BATTERY |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | |
| 43109-09A | TIRE |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
