GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2008 FLHRSE4 MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson V.I.N. Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Originally manufactured for sale within the United States 5=Originally manufactured for sale outside of the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) |
4 | Model | PG=FLHRSE4 Screamin' Eagle® Road King® |
5 | Engine type | 4=Twin Cam 96™, 1584 cc air cooled, fuel injected 8=110 cu. in. (1800 cc) air cooled, fuel injected |
6 | Introduction date | 1=Regular 2=Mid-year 3=California/regular 4=Cosmetic changes and/or special introductory date 5=California/cosmetic changes and/or special introductory date 6=California/mid-year |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 8=2008 |
9 | Assembly plant | Y=York, PA U.S.A. |
10 | Sequential number | Varies |
NOTES
ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19838-08 | ENGINE ASSEMBLY, complete - 110 cubic-inch (granite) | FLHRSE4 |
| 19261-08 | ENGINE ASSEMBLY, complete - 96 cubic-inch (Japan) (black) | FLHRSE4 |

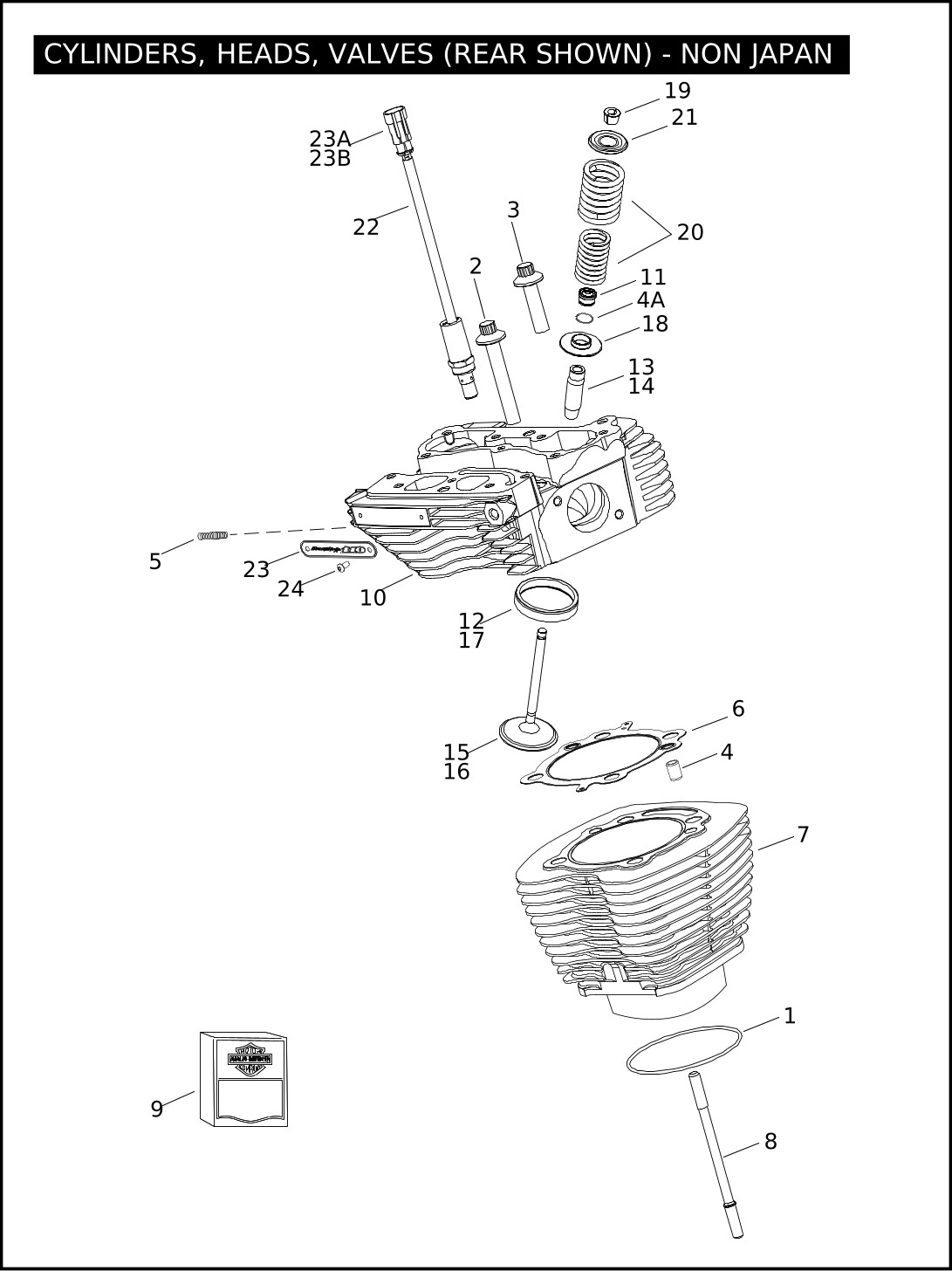

CYLINDERS, HEADS, & VALVES - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING, cylinder base (2) | FLHRSE4 |
| 2 | 16478-85A | SCREW, internal thread, 3-3/16 in. long (4) | FLHRSE4 |
| 3 | 16480-92A | SCREW, internal thread, 1-7/8 in. long (4) | FLHRSE4 |
| 4 | 16595-99A | DOWEL PIN, ring (4) | FLHRSE4 |
| 4A | 16699-06 | SNAP RING, wire (4) | FLHRSE4 |
| 5 | 16715-83 | STUD, exhaust port (4) | FLHRSE4 |
| 6 | 16801-07B | GASKET, cylinder head (2) | FLHRSE4 |
| 7 | 17454-08 | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLHRSE4 |
| 8 | 16834-99A | STUD, cylinder (8) | FLHRSE4 |
| 9 | 17052-99B | GASKET KIT, top-end - does not include 11256, & 16775-99B order separately | FLHRSE4 |
| 17053-99B | GASKET KIT, engine overhaul - does not include 11256, & 16775-99B order separately | FLHRSE4 | |
| 10 | 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE4 |
| 17337-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE4 | |
| 11 | 18067-09 | VALVE SEAL (4) | FLHRSE4 |
| 12 | 18048-98A | SEAT, exhaust valve (2) | FLHRSE4 |
| 13 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHRSE4 |
| 18153-05 | VALVE GUIDE, exhaust, .001 OS (2) | FLHRSE4 | |
| 18155-05 | VALVE GUIDE, exhaust, .002 OS (2) | FLHRSE4 | |
| 18157-05 | VALVE GUIDE, exhaust, .003 OS (2) | FLHRSE4 | |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHRSE4 |
| 18154-05 | VALVE GUIDE, intake, .001 OS (2) | FLHRSE4 | |
| 18156-05 | VALVE GUIDE, intake, .002 OS (2) | FLHRSE4 | |
| 18158-05 | VALVE GUIDE, intake, .003 OS (2) | FLHRSE4 | |
| 15 | 18183-03 | EXHAUST VALVE (2) | FLHRSE4 |
| 16 | 18187-07 | INTAKE VALVE (2) | FLHRSE4 |
| 17 | 18189-07 | SEAT, intake valve (2) | FLHRSE4 |
| 18 | 18270-00A | COLLAR, valve spring lower (4) | FLHRSE4 |
| 19 | 18271-00 | KEY, valve spring collar (8) | FLHRSE4 |
| 20 | 18272-00 | SPRING VALVE, inner & outer | FLHRSE4 |
| 21 | 18280-07 | COLLAR, valve spring upper (4) | FLHRSE4 |
| 22 | 28861-07A | SOLENOID, auto compression release w/ 72009-05, & 72011-05 | FLHRSE4 |
| 23 | 29517-07A | MEDALLION KIT | FLHRSE4 |
| 23A | 72009-05 | HOUSING, 2-way, pin | FLHRSE4 |
| 23B | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHRSE4 |
| 24 | 94634-99 | SCREW, medallion (4) | FLHRSE4 |

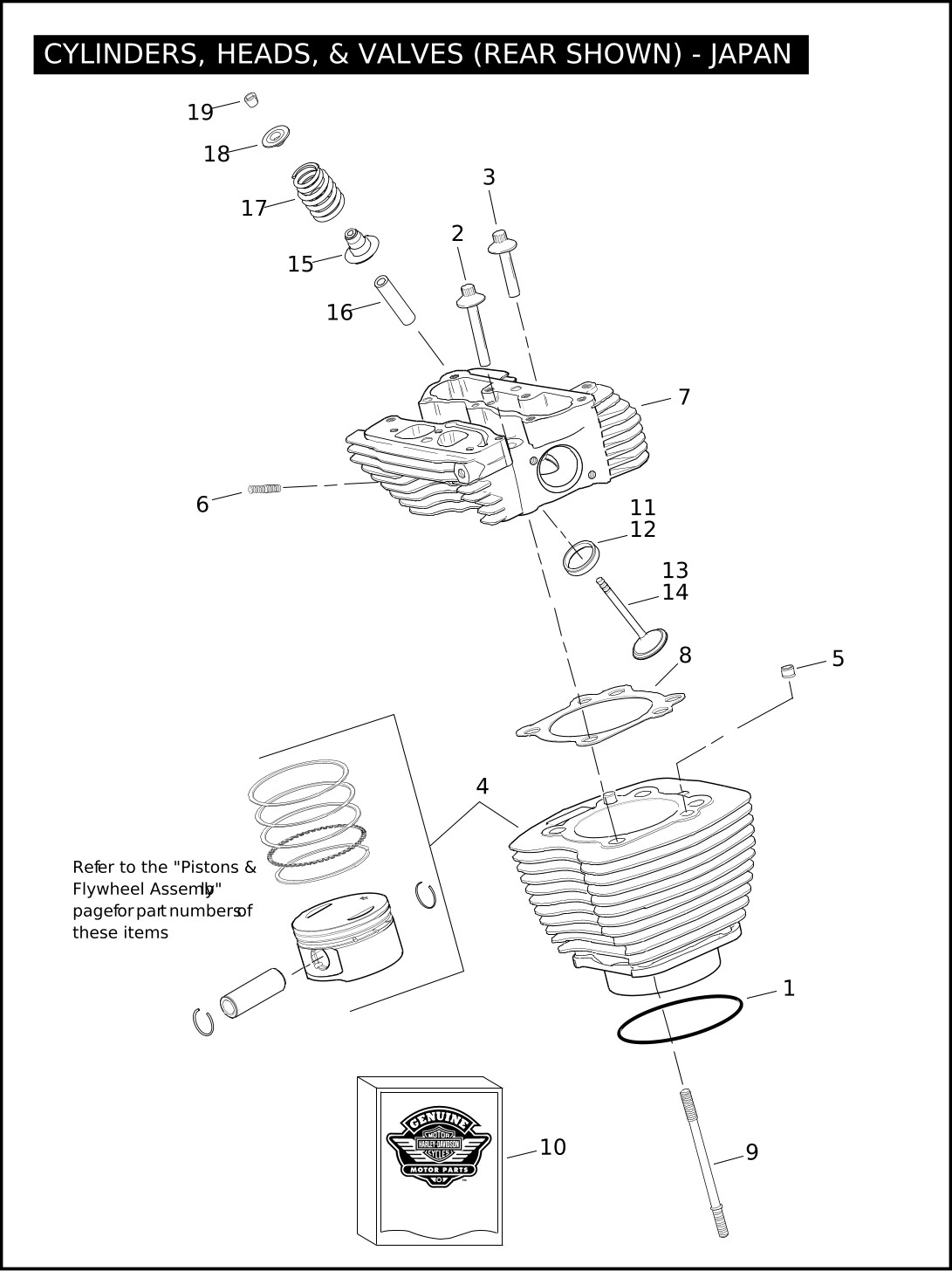

CYLINDERS, HEADS, & VALVES - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLHRSE4 |
| 2 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLHRSE4 |
| 3 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLHRSE4 |
| 4 | 17458-07 | CYLINDER ASSEMBLY, w/ piston, rings, piston pin, & retaining rings (black) (2) | FLHRSE4 |
| 5 | 16595-99A | DOWEL PIN (4) | FLHRSE4 |
| 6 | 16715-83 | STUD, exhaust port (4) | FLHRSE4 |
| 7 | 17179-06 | CYLINDER HEAD, rear, w/ guides, seats, & collars (black) | FLHRSE4 |
| 17721-08 | CYLINDER HEAD, front, w/ guides, seats, & collars (black) | FLHRSE4 | |
| 8 | 16775-99B | GASKET, cylinder head (2) | FLHRSE4 |
| 9 | 16834-99A | STUD, cylinder (8) | FLHRSE4 |
| 10 | 17052-99B | GASKET KIT, top end | FLHRSE4 |
| 17053-99B | GASKET KIT, engine overhaul | FLHRSE4 | |
| 11 | 18011-86 | INSERT, exhaust valve seat (2) | FLHRSE4 |
| 12 | 18020-83 | INSERT, intake valve seat (2) | FLHRSE4 |
| 13 | 18074-05A | INTAKE VALVE (2) | FLHRSE4 |
| 14 | 18085-05A | EXHAUST VALVE (2) | FLHRSE4 |
| 15 | 18094-02A | SEAL, valve (4) | FLHRSE4 |
| 16 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust (4) | FLHRSE4 |
| 17 | 18245-02 | VALVE SPRING (4) | FLHRSE4 |
| 18 | 18258-02 | COLLAR, valve spring (4) | FLHRSE4 |
| 19 | 18260-02 | KEEPER, valve (8) | FLHRSE4 |
| NOTE: FLHR4-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

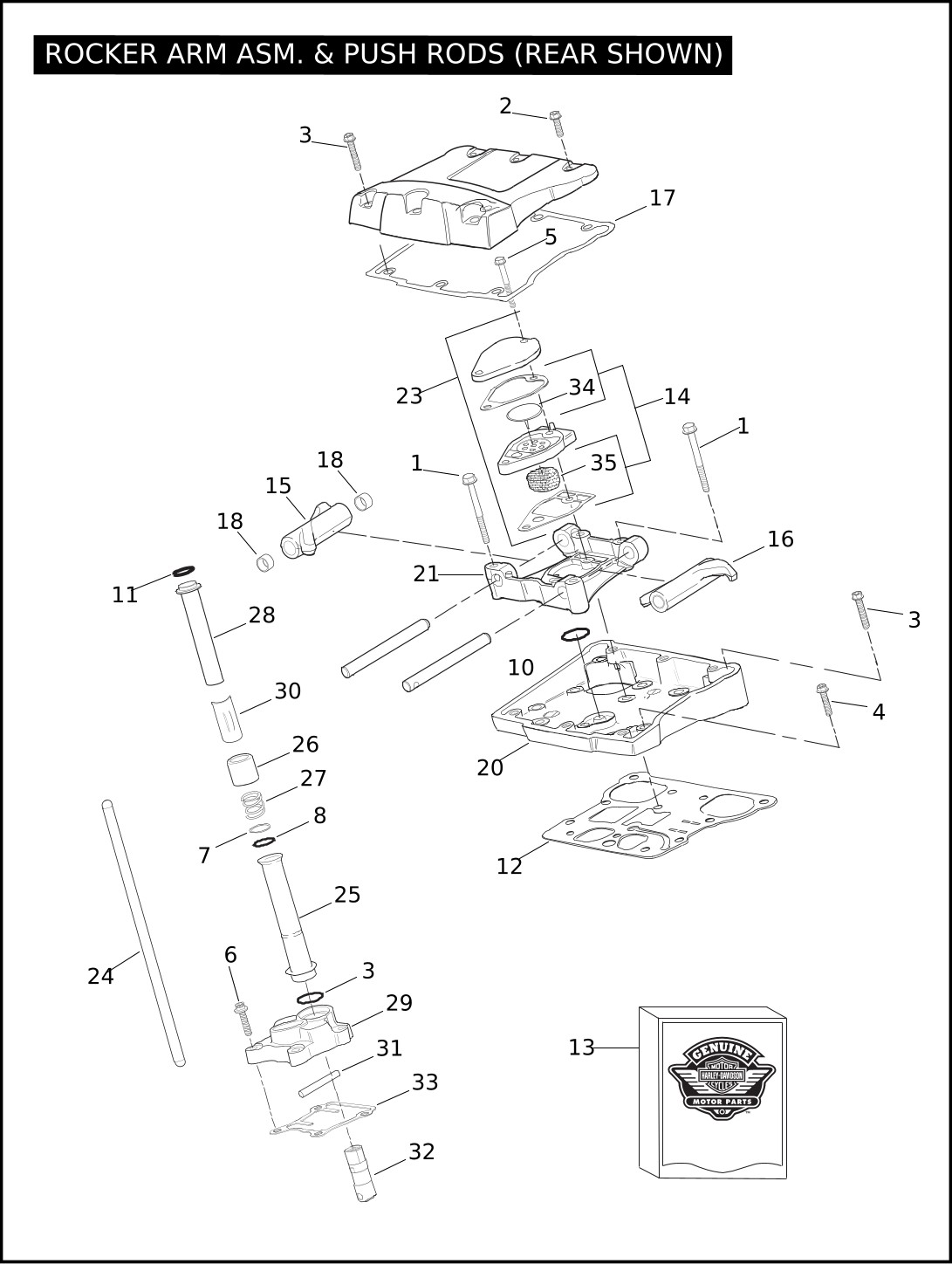

ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHRSE4 |
| 2 | 3692A | SCREW (6) | FLHRSE4 |
| 3 | 3693A | SCREW (10) | FLHRSE4 |
| 4 | 3736A | SCREW (8) | FLHRSE4 |
| 5 | 3746A | SCREW (4) | FLHRSE4 |
| 6 | 4741A | SCREW (8) | FLHRSE4 |
| 7 | 6762B | WASHER (4) | FLHRSE4 |
| 8 | 11132A | O-RING, push rod cover (4) | FLHRSE4 |
| 9 | 11145A | O-RING, push rod cover (4) | FLHRSE4 |
| 10 | 11270 | O-RING (2) | FLHRSE4 |
| 11 | 11293 | O-RING (4) | FLHRSE4 |
| 12 | 16719-99A | GASKET, rocker housing (2) | FLHRSE4 |
| 13 | 17045-99C | GASKET KIT, cam service | FLHRSE4 |
| 14 | 17162-03 | GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets | FLHRSE4 |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHRSE4 |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHRSE4 |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLHRSE4 |
| 18 | 17428-57 | BUSHING, rocker arm (8) | FLHRSE4 |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLHRSE4 |
| 20 | 17573-99 | ROCKER HOUSING (chrome) (2) | FLHRSE4 |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | FLHRSE4 |
| 22 | 17611-83 | SHAFT, rocker arm (4) | FLHRSE4 |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle, & gaskets | FLHRSE4 |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLHRSE4 |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLHRSE4 | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLHRSE4 |
| 26 | 17945-36B | CAP, cover spring (4) | FLHRSE4 |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLHRSE4 |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLHRSE4 |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLHRSE4 |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHRSE4 | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHRSE4 |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHRSE4 |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | FLHRSE4 |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHRSE4 |
| 34 | 26858-99 | VALVE, breather (2) | FLHRSE4 |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FLHRSE4 |

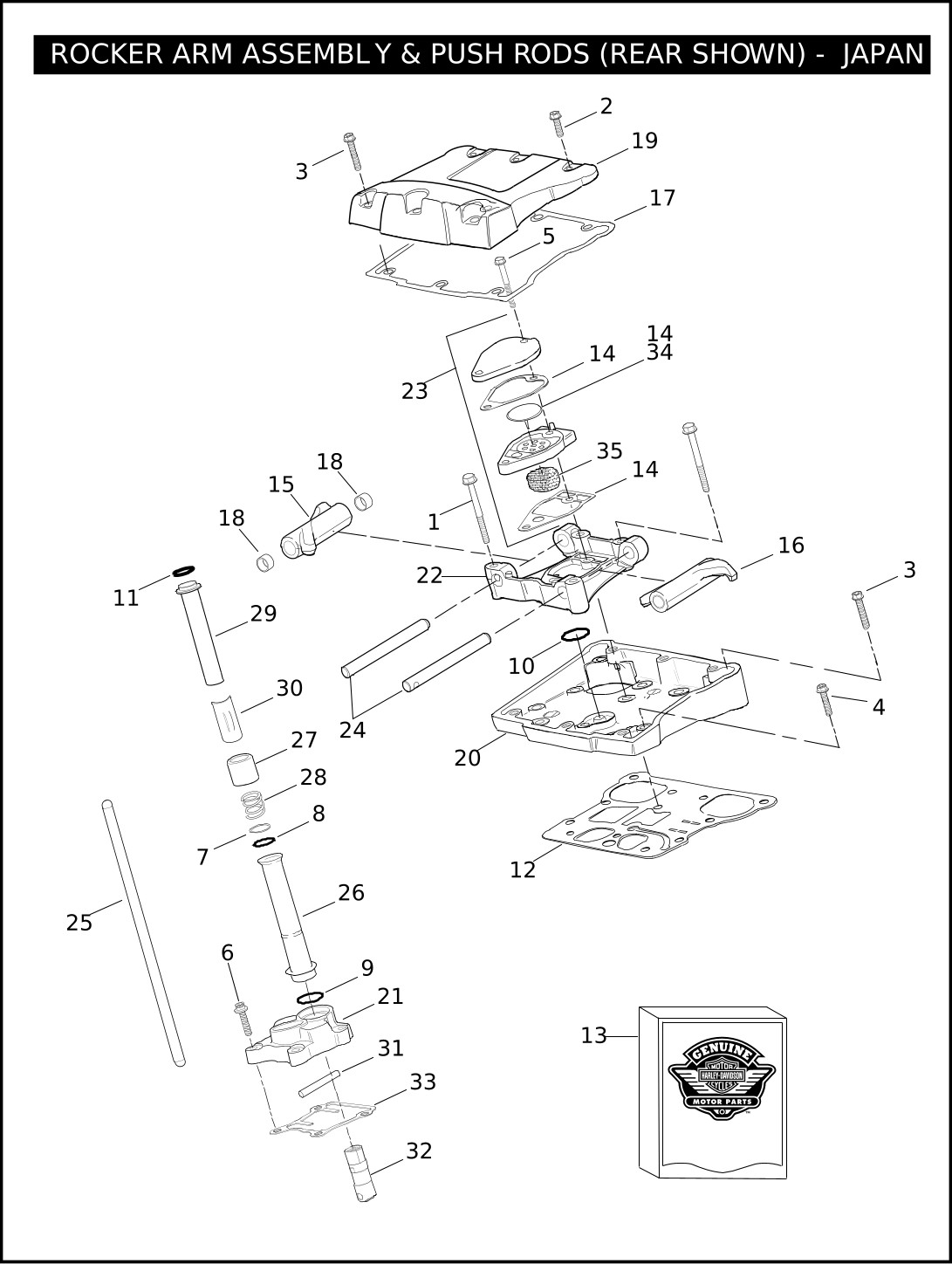

ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHRSE4 |
| 2 | 3692A | SCREW (6) | FLHRSE4 |
| 3 | 3693A | SCREW (10) | FLHRSE4 |
| 4 | 3736A | SCREW (8) | FLHRSE4 |
| 5 | 3746A | SCREW (4) | FLHRSE4 |
| 6 | 4741A | SCREW (8) | FLHRSE4 |
| 7 | 6762B | WASHER (4) | FLHRSE4 |
| 8 | 11132 | O-RING, push rod cover (4) | FLHRSE4 |
| 9 | 11145A | O-RING, push rod cover (4) | FLHRSE4 |
| 10 | 11270 | O-RING (2) | FLHRSE4 |
| 11 | 11293 | O-RING (4) | FLHRSE4 |
| 12 | 16719-99A | GASKET, rocker housing (2) | FLHRSE4 |
| 13 | 17045-99C | GASKET KIT, cam service | FLHRSE4 |
| 14 | 17162-03 | GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets | FLHRSE4 |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHRSE4 |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHRSE4 |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLHRSE4 |
| 18 | 17428-57 | BUSHING, rocker arm (8) | FLHRSE4 |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLHRSE4 |
| 20 | 17573-99 | ROCKER HOUSING (chrome) (2) | FLHRSE4 |
| 21 | 17964-99 | LIFTER COVER, front (chrome) | FLHRSE4 |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHRSE4 | |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FLHRSE4 |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle, & gaskets | FLHRSE4 |
| 24 | 17611-83 | SHAFT, rocker arm (4) | FLHRSE4 |
| 25 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLHRSE4 |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLHRSE4 | |
| 26 | 17939-99 | COVER, push rod, lower (4) | FLHRSE4 |
| 27 | 17945-36B | CAP, cover spring (4) | FLHRSE4 |
| 28 | 17947-36 | SPRING, push rod cover (4) | FLHRSE4 |
| 29 | 17948-99 | COVER, push rod, upper (4) | FLHRSE4 |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHRSE4 |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHRSE4 |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | FLHRSE4 |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHRSE4 |
| 34 | 26858-99 | VALVE, breather (2) | FLHRSE4 |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FLHRSE4 |
| NOTE: FLHR4-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

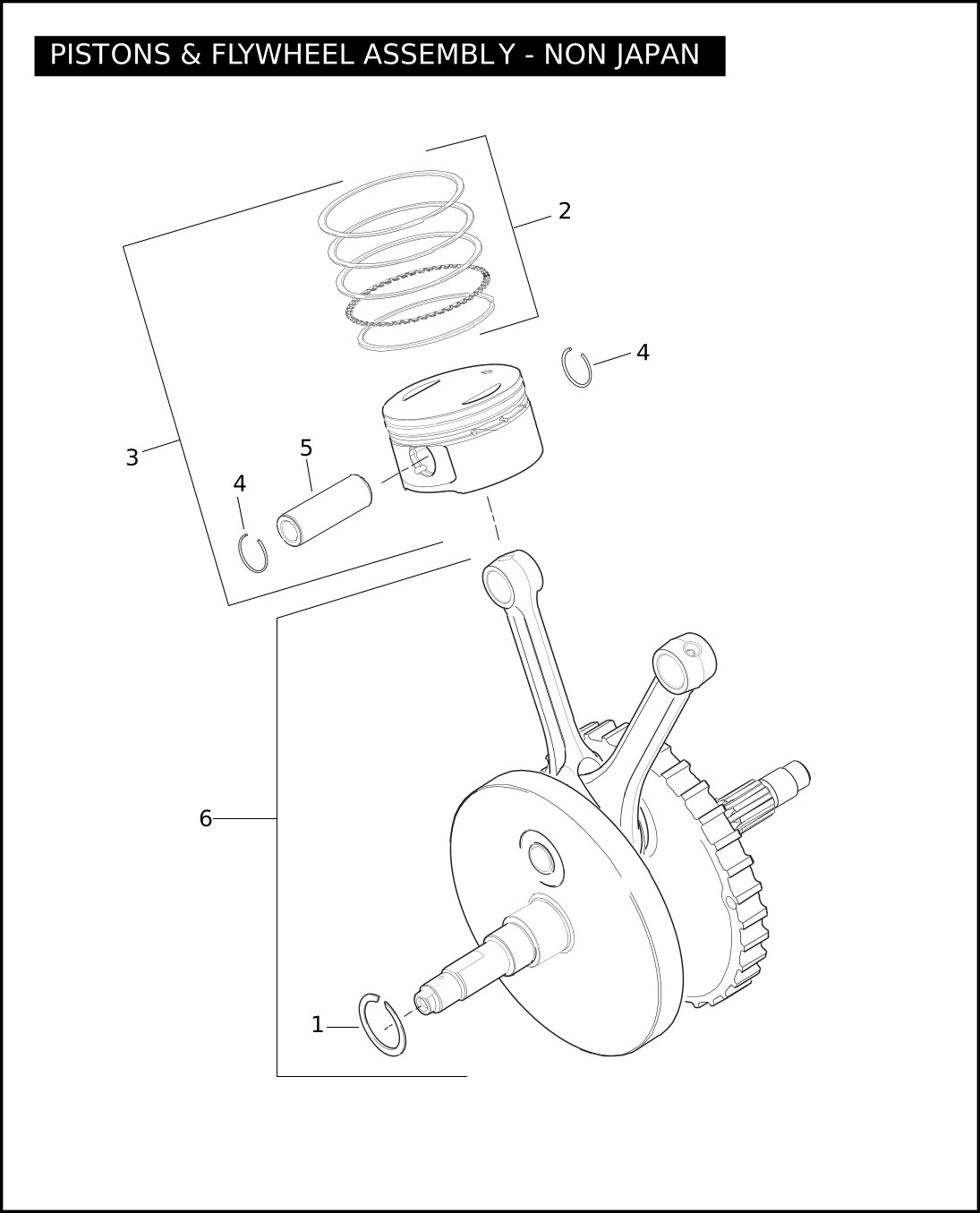

PISTON & FLYWHEEL ASSEMBLY - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHRSE4 |
| 2 | 22285-07 | PISTON RING SET, standard (2) | FLHRSE4 |
| 22286-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLHRSE4 | |
| 22287-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLHRSE4 | |
| 3 | 22284-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHRSE4 |
| 22288-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 in. O.S. (2) | FLHRSE4 | |
| 22290-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHRSE4 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLHRSE4 |
| 5 | 22269-07 | PISTON PIN (2) | FLHRSE4 |
| 6 | 23729-07 | FLYWHEEL ASSEMBLY KIT | FLHRSE4 |
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHRSE4 |
| 2 | 21949-07 | PISTON RING SET, standard (2) | FLHRSE4 |
| 21950-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLHRSE4 | |
| 21955-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLHRSE4 | |
| 3 | 21959-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHRSE4 |
| 21960-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 in. O.S. (2) | FLHRSE4 | |
| 21961-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHRSE4 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLHRSE4 |
| 5 | 22131-05 | PISTON PIN (2) | FLHRSE4 |
| 6 | 23729-07 | FLYWHEEL ASSEMBLY KIT | FLHRSE4 |
| NOTE: FLHR4-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||
CRANKCASE & ENGINE - OIL FILTER & COOLER - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FLHRSE4 |
| 2 | 895 | SCREW (8) | FLHRSE4 |
| 3 | 924 | SCREW (2) | FLHRSE4 |
| 4 | 1090 | SCREW | FLHRSE4 |
| 5 | 6703 | WASHER (3) | FLHRSE4 |
| 6 | 7671 | LOCKNUT (3) | FLHRSE4 |
| 7 | 8972 | WASHER (2) | FLHRSE4 |
| 8 | 9215 | BEARING, needle, left side, camshaft (2) | FLHRSE4 |
| 9 | 10198 | CLAMP (4) | FLHRSE4 |
| 10 | 11140 | O-RING (2) | FLHRSE4 |
| 11 | 11290 | O-RING | FLHRSE4 |
| 12 | 12068 | SEAL, oil | FLHRSE4 |
| 13 | 11273 | O-RING (2) | FLHRSE4 |
| 14 | 14448-94 | LOGO, bar and shield | FLHRSE4 |
| 15 | 16574-99A | DOWEL, pin (2) | FLHRSE4 |
| 16 | 16589-99A | DOWEL, pin (2) | FLHRSE4 |
| 17 | 16595-99A | DOWEL, pin (4) | FLHRSE4 |
| 18 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLHRSE4 |
| 24004-03A | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race (not illustrated) | FLHRSE4 | |
| 19 | 24008-03 | SPACER, sprocket shaft | FLHRSE4 |
| 20 | 24604-00D | BEARING, main | FLHRSE4 |
| 21 | 24605-07 | BEARING, main | FLHRSE4 |
| 22 | 24760-08 | CRANKCASE SET, w/ 895, 9215, 11140, 22307-99, 24604-00D, 24605-07, 35114-02, & 68042-99 (gray) | FLHRSE4 |
| 23 | 26041-05A | ADAPTER | FLHRSE4 |
| 24 | 35114-02 | RING, retaining, internal | FLHRSE4 |
| 25 | 62108-03 | BRACKET, mounting, oil-cooler | FLHRSE4 |
| 26 | 62629-05A | HOSE, oil - short | FLHRSE4 |
| 27 | 62641-05A | HOSE, oil - long | FLHRSE4 |
| 28 | 63076-08 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 26356-05A, 63066-07, 63084-07, & 63533-41A | FLHRSE4 |
| 29 | 63066-07 | GASKET | FLHRSE4 |
| 30 | 63068-07 | OIL COOLER CORE | FLHRSE4 |
| 31 | 63071-07 | COVER ASSEMBLY, oil cooler, w/ 14448-94 (chrome) | FLHRSE4 |
| 32 | 63084-07 | GASKET | FLHRSE4 |
| 33 | 63533-41A | FITTING (2) | FLHRSE4 |
| 34 | 63798-99A | FILTER, oil (chrome) | FLHRSE4 |
| 35 | 68042-99 | SCREW (4) | FLHRSE4 |
CRANKCASE & ENGINE OIL FILTER -TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FLHRSE4 |
| 2 | 895 | SCREW (5) | FLHRSE4 |
| 3 | 8972 | WASHER (2) | FLHRSE4 |
| 4 | 9215 | NEEDLE BEARING, left side of camshafts (2) | FLHRSE4 |
| 5 | 11140 | O-RING (2) | FLHRSE4 |
| 6 | 11273 | O-RING (2) | FLHRSE4 |
| 7 | 12068 | OIL SEAL | FLHRSE4 |
| 8 | 16574-99A | DOWEL PIN (2) | FLHRSE4 |
| 9 | 16589-99A | DOWEL PIN (2) | FLHRSE4 |
| 10 | 16595-99A | DOWEL PIN (4) | FLHRSE4 |
| 11 | 22307-99 | PISTON COOLING JET, w/ o-ring (2) | FLHRSE4 |
| 12 | 24004-03 | BEARING KIT, w/ 8972, 24604-00D, 35114-02, & inner race | FLHRSE4 |
| 13 | 24008-03 | SPACER, sprocket shaft | FLHRSE4 |
| 14 | 24621-06A | SET OF CRANKCASES (black) w/ bearings, cooling jets, & through bolts | FLHRSE4 |
| 15 | 24605-07 | BEARING, main (2) | FLHRSE4 |
| 16 | 26352-95A | ADAPTOR, oil filter | FLHRSE4 |
| 17 | 35114-02 | RETAINING RING (2) | FLHRSE4 |
| 18 | 63798-99A | OIL FILTER (chrome) | FLHRSE4 |
| 19 | 68042-99 | SCREW (4) | FLHRSE4 |
| NOTE: FLHR4-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

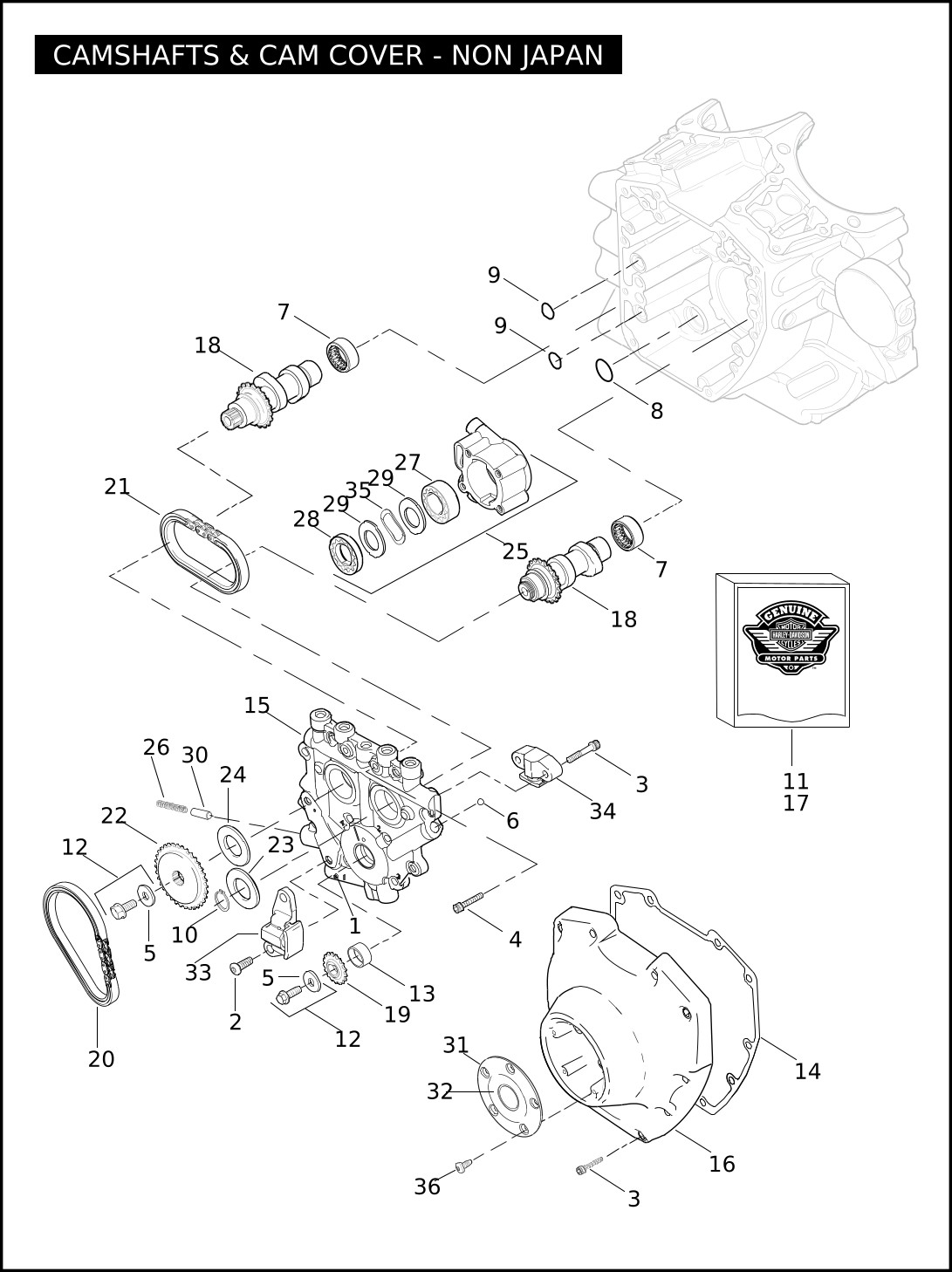

CAMSHAFTS & CAM COVER - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHRSE4 |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHRSE4 |
| 3 | 4740A | SCREW, secondary cam tensioner (2) | FLHRSE4 |
| 4740A | SCREW, cam cover (10) | FLHRSE4 | |
| 4 | 4741A | SCREW (8) | FLHRSE4 |
| 5 | 6294 | WASHER (2) | FLHRSE4 |
| 6 | 8873 | BALL (12) | FLHRSE4 |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLHRSE4 |
| 8 | 11293 | O-RING | FLHRSE4 |
| 9 | 11301 | O-RING (2) | FLHRSE4 |
| 10 | 11461 | RETAINING RING | FLHRSE4 |
| 11 | 17045-99C | GASKET KIT, cam service | FLHRSE4 |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws (2) | FLHRSE4 |
| 13 | 25344-99 | BUSHING, crankshaft | FLHRSE4 |
| 14 | 25244-99A | GASKET, cam cover | FLHRSE4 |
| 15 | 25355-06 | CAM SUPPORT PLATE, w/ bypass valve | FLHRSE4 |
| 16 | 25369-01A | CAM COVER (chrome) | FLHRSE4 |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLHRSE4 |
| 18 | 25638-07 | CAMSHAFT KIT | FLHRSE4 |
| 19 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHRSE4 |
| 20 | 25675-06 | CHAIN, primary cam drive | FLHRSE4 |
| 21 | 25683-06 | CHAIN, secondary cam drive | FLHRSE4 |
| 22 | 25728-06 | SPROCKET, cam drive, 34 T | FLHRSE4 |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHRSE4 |
| 24 | 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHRSE4 |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHRSE4 | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHRSE4 | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHRSE4 | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHRSE4 | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06, & 40323-00 | FLHRSE4 |
| 26 | 26210-99 | SPRING, relief valve | FLHRSE4 |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHRSE4 |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHRSE4 |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHRSE4 |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLHRSE4 |
| 31 | 32586-07 | COVER, timer cover (chrome) | FLHRSE4 |
| 32 | 32589-07 | INSERT, timer cover | FLHRSE4 |
| 33 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHRSE4 |
| 34 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHRSE4 |
| 35 | 40323-00 | SPRING, separator | FLHRSE4 |
| 36 | 68120-00 | SCREW (5) | FLHRSE4 |
CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHRSE4 |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHRSE4 |
| 3 | 4740A | SCREW, cam cover (10) | FLHRSE4 |
| 4740A | SCREW, secondary cam tensioner (2) | FLHRSE4 | |
| 4 | 4741A | SCREW (8) | FLHRSE4 |
| 5 | 6294 | WASHER | FLHRSE4 |
| 6 | 8873 | BALL (12) | FLHRSE4 |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLHRSE4 |
| 8 | 11293 | O-RING | FLHRSE4 |
| 9 | 11301 | O-RING (2) | FLHRSE4 |
| 10 | 11461 | RETAINING RING | FLHRSE4 |
| 11 | 17045-99C | GASKET KIT, cam service | FLHRSE4 |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws (2) | FLHRSE4 |
| 13 | 25344-99 | BUSHING, crankshaft | FLHRSE4 |
| 14 | 25244-99A | GASKET, cam cover | FLHRSE4 |
| 15 | 25355-06 | CAM SUPPORT PLATE, w/ bypass valve | FLHRSE4 |
| 16 | 25369-01A | CAM COVER (chrome) | FLHRSE4 |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLHRSE4 |
| 18 | 24608-07A | CAMSHAFT KIT, front | FLHRSE4 |
| 19 | 25590-07A | CAMSHAFT KIT, rear | FLHRSE4 |
| 20 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHRSE4 |
| 21 | 25675-06 | CHAIN, primary cam drive | FLHRSE4 |
| 22 | 25683-06 | CHAIN, secondary cam drive | FLHRSE4 |
| 23 | 25728-06 | SPROCKET, cam drive, 34 T | FLHRSE4 |
| 24 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHRSE4 |
| 25 | 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHRSE4 |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHRSE4 | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHRSE4 | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHRSE4 | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHRSE4 | |
| 26 | 26037-06 | OIL PUMP ASSEMBLY, w/ body, both gerotor assemblies, & separator plate | FLHRSE4 |
| 27 | 26210-99 | SPRING, relief valve | FLHRSE4 |
| 28 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHRSE4 |
| 29 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHRSE4 |
| 30 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHRSE4 |
| 31 | 26400-82B | RELIEF VALVE, oil pump | FLHRSE4 |
| 32 | 32586-07 | COVER, timer cover (chrome) | FLHRSE4 |
| 33 | 32589-07 | INSERT, timer cover | FLHRSE4 |
| 34 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHRSE4 |
| 35 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHRSE4 |
| 36 | 40323-00 | SPRING, separator | FLHRSE4 |
| 37 | 68120-00 | SCREW (5) | FLHRSE4 |
| NOTE: FLHR4-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

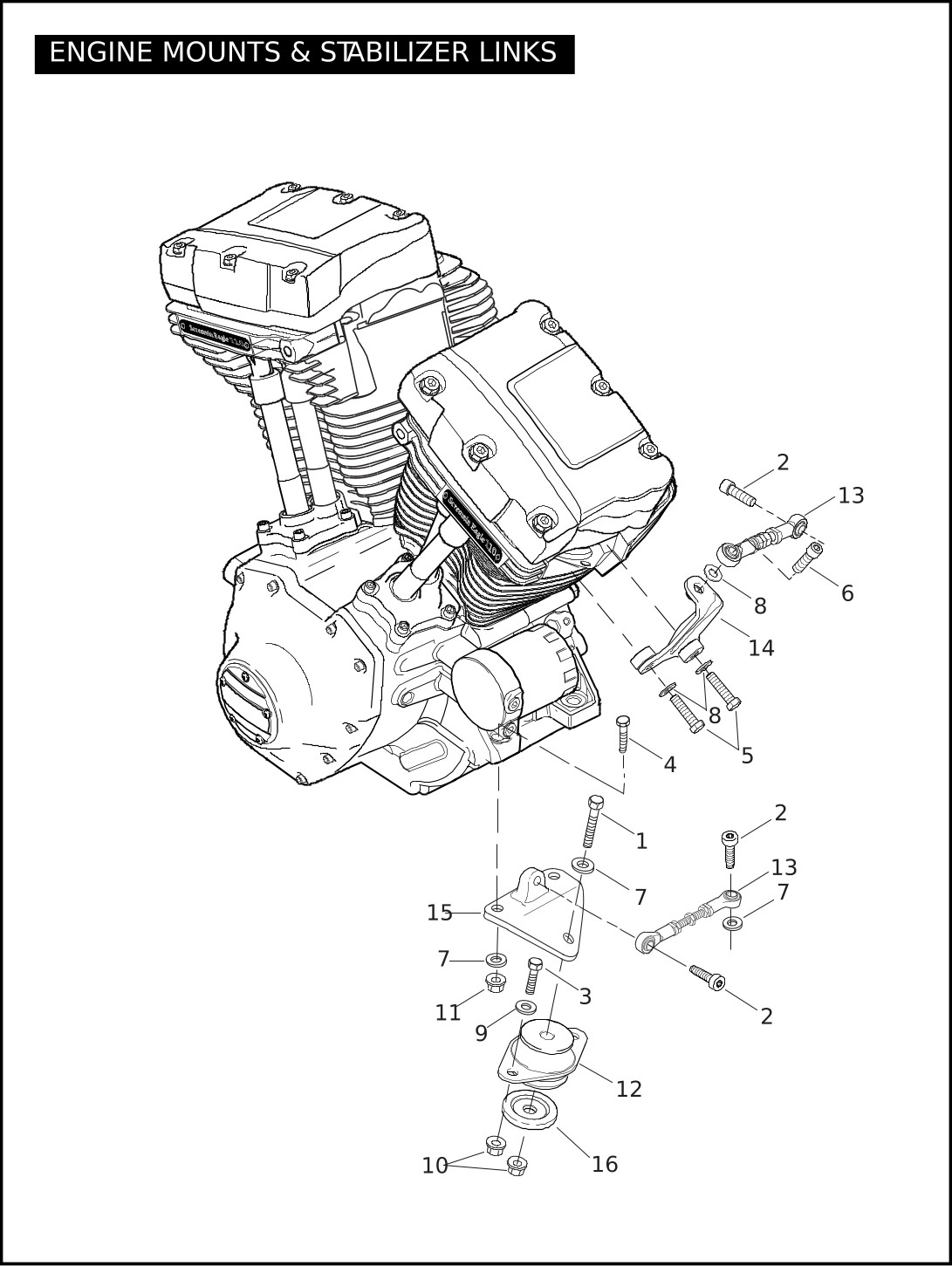

ENGINE MOUNTS & STABILIZER LINKS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3512 | BOLT | FLHRSE4 |
| 2 | 4313 | SCREW (3) | FLHRSE4 |
| 3 | 4319 | BOLT (2) | FLHRSE4 |
| 4 | 4648 | SCREW (2) | FLHRSE4 |
| 5 | 4721 | BOLT (2) | FLHRSE4 |
| 6 | 4775 | SCREW | FLHRSE4 |
| 7 | 6019 | WASHER (4) | FLHRSE4 |
| 8 | 6127 | WASHER (3) | FLHRSE4 |
| 9 | 6400HB | WASHER (2) | FLHRSE4 |
| 10 | 7780 | LOCKNUT, flange locking (3) | FLHRSE4 |
| 11 | 7783 | NUT (2) | FLHRSE4 |
| 12 | 16207-79D | ENGINE MOUNT, front | FLHRSE4 |
| 13 | 16219-79C | STABLIZER LINK (2) | FLHRSE4 |
| 14 | 16321-08 | WELDMENT, engine strap | FLHRSE4 |
| 15 | 47159-07BHP | BRACKET, front engine mount | FLHRSE4 |
| 16 | 96210-80A | WASHER | FLHRSE4 |

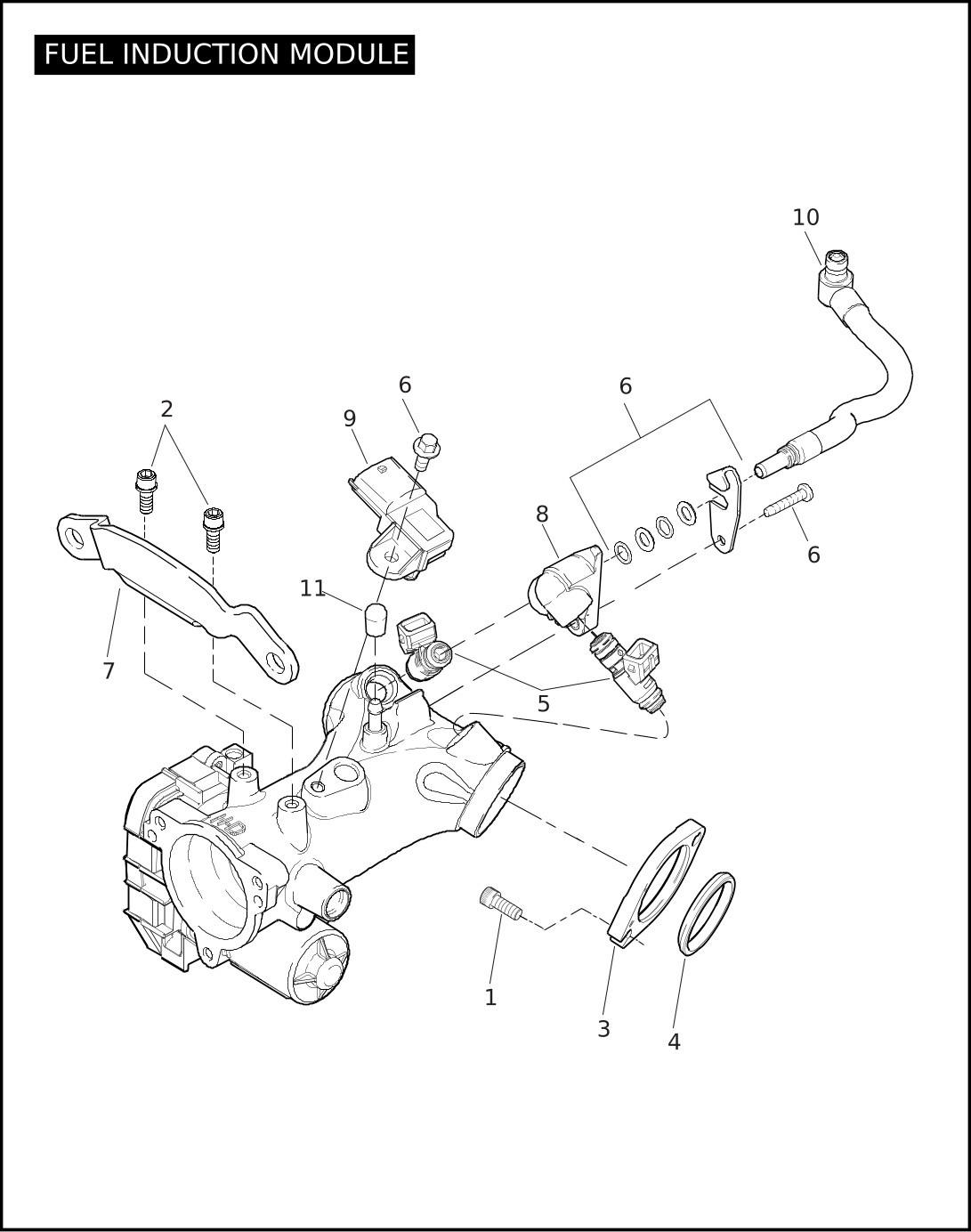

INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHRSE4 |
| 2 | 4705 | SCREW (2) | FLHRSE4 |
| 3 | 26993-06 | FLANGE, mounting (2) | FLHRSE4 |
| 4 | 26995-86B | SEAL, intake manifold (2) | FLHRSE4 |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHRSE4 |
| 27685-08 | INDUCTION MODULE ASSEMBLY, complete | FLHRSE4 | |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHRSE4 |
| 7 | 27712-08 | BRACKET, induction module | FLHRSE4 |
| 8 | 27721-08 | FUEL RAIL | FLHRSE4 |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLHRSE4 |
| 10 | 62905-08 | FUEL LINE | FLHRSE4 |
| 11 | 90383-98 | CAP, purge tube | FLHRSE4 |

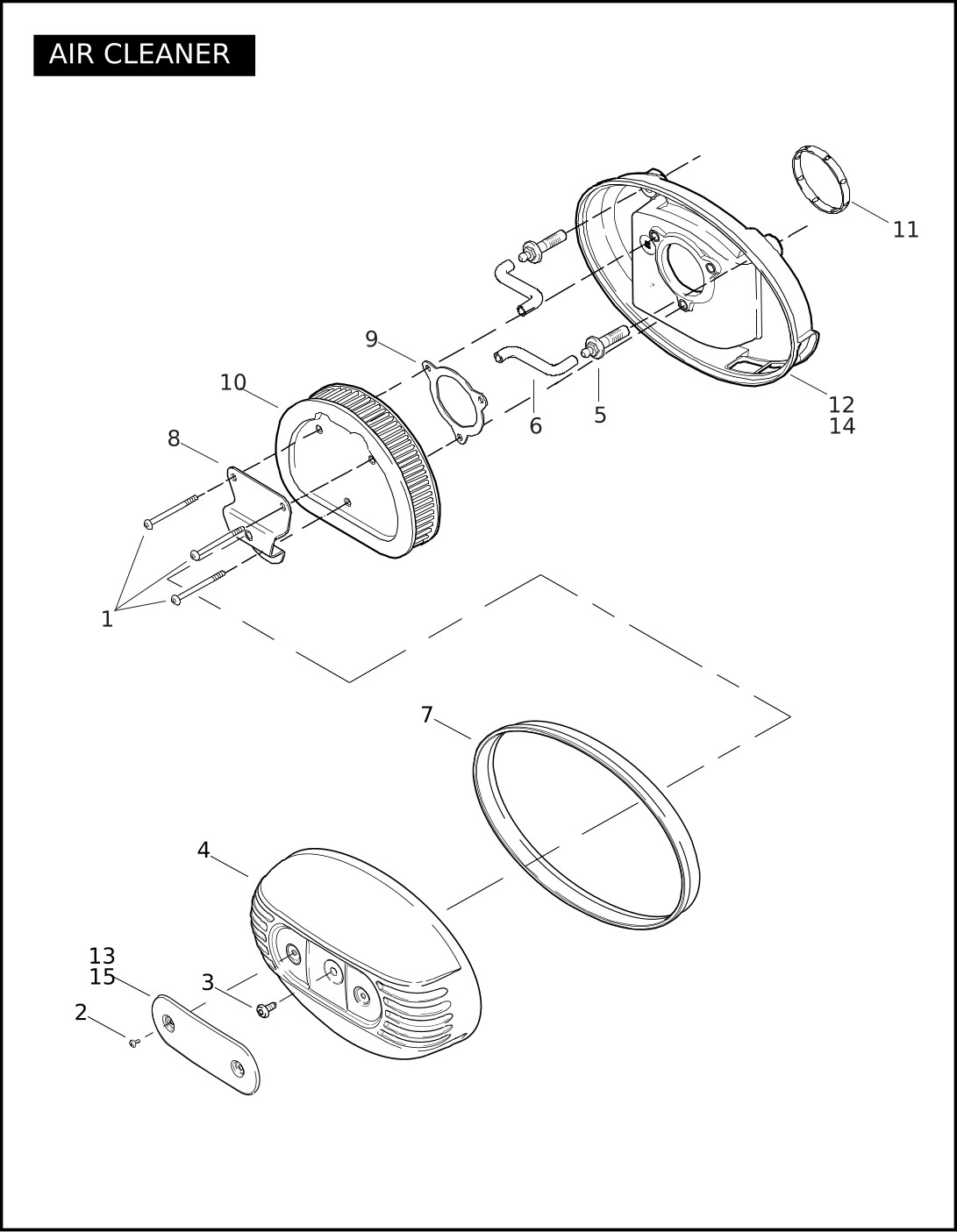

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | FLHRSE4 |
| 2 | 3048 | SCREW (2) | FLHRSE4 |
| 3 | 29269-83A | SCREW | FLHRSE4 |
| 4 | 29353-05 | COVER, air cleaner | FLHRSE4 |
| 5 | 29465-08 | BREATHER BOLT (2) | FLHRSE4 |
| 6 | 29502-08 | BREATHER TUBE (2) | FLHRSE4 |
| 7 | 29584-01 | SEAL, air cleaner cover | FLHRSE4 |
| 8 | 29644-08 | BRACKET ASSEMBLY, air cleaner cover | FLHRSE4 |
| 9 | 29645-08 | GASKET, filter element | FLHRSE4 |
| 10 | 29633-08 | FILTER ELEMENT, w/ 29645-08 | FLHRSE4 |
| 11 | 29718-08 | GASKET, induction module to backplate | FLHRSE4 |
| 12 | 29764-08 | BACKPLATE ASSEMBLY (Domestic, California, Canada) (not shown) | FLHRSE4 |
| 13 | 29895-08 | INSERT, air cleaner (Domestic, California, Canada, England, Australia - all anniiversary bikes except Japan) | FLHRSE4 |
| 30027-08 | INSERT, air cleaner (Domestic, California, Canada, England, Australia - all non anniiversary bikes except Japan) | FLHRSE4 | |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 29630-08 | BACKPLATE ASSEMBLY (HDI, England, Australia, Japan) | FLHRSE4 |
| 15 | 29821-06 | INSERT, air cleaner (Japan - non anniversary) | FLHRSE4 |

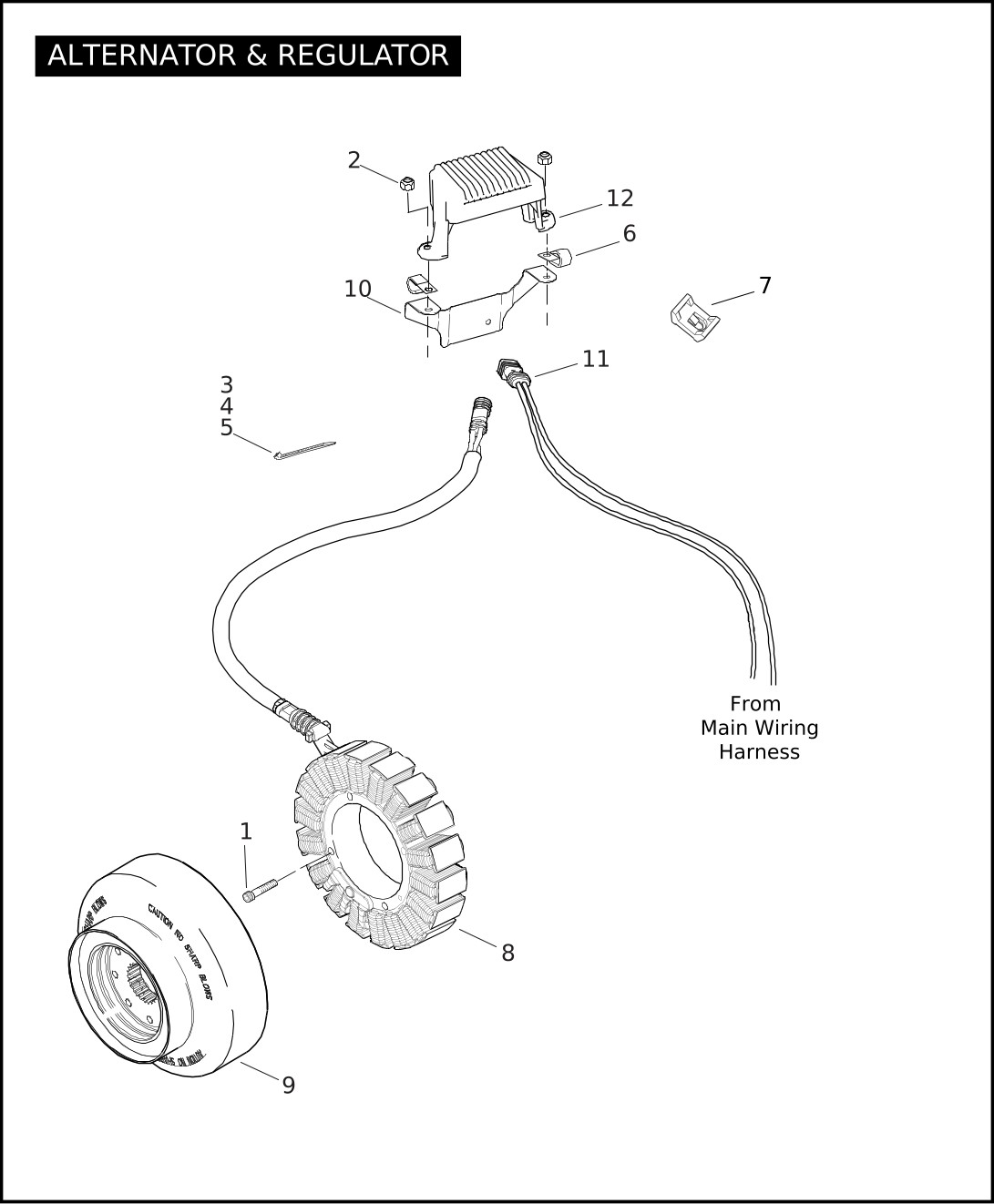

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLHRSE4 |
| 2 | 7716 | LOCKNUT (2) | FLHRSE4 |
| 3 | 10039 | CABLE STRAP (3) | FLHRSE4 |
| 4 | 10065 | CABLE STRAP | FLHRSE4 |
| 5 | 10073 | CABLE STRAP | FLHRSE4 |
| 6 | 10092 | CLAMP, J (2) | FLHRSE4 |
| 7 | 10132 | CLIP, anchor (2) | FLHRSE4 |
| 24009-06 | SPACER, sprocket shaft (not illustrated) | FLHRSE4 | |
| 8 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLHRSE4 |
| 9 | 40356-07 | ROTOR ASSEMBLY, 3-phase | FLHRSE4 |
| 10 | 70430-07 | BRACKET ASSEMBLY | FLHRSE4 |
| 11 | 74115-06 | DC LEAD ASSEMBLY | FLHRSE4 |
| 12 | 74622-06 | VOLTAGE REGULATOR KIT, 45 AMP w/ 10006 (chrome) | FLHRSE4 |

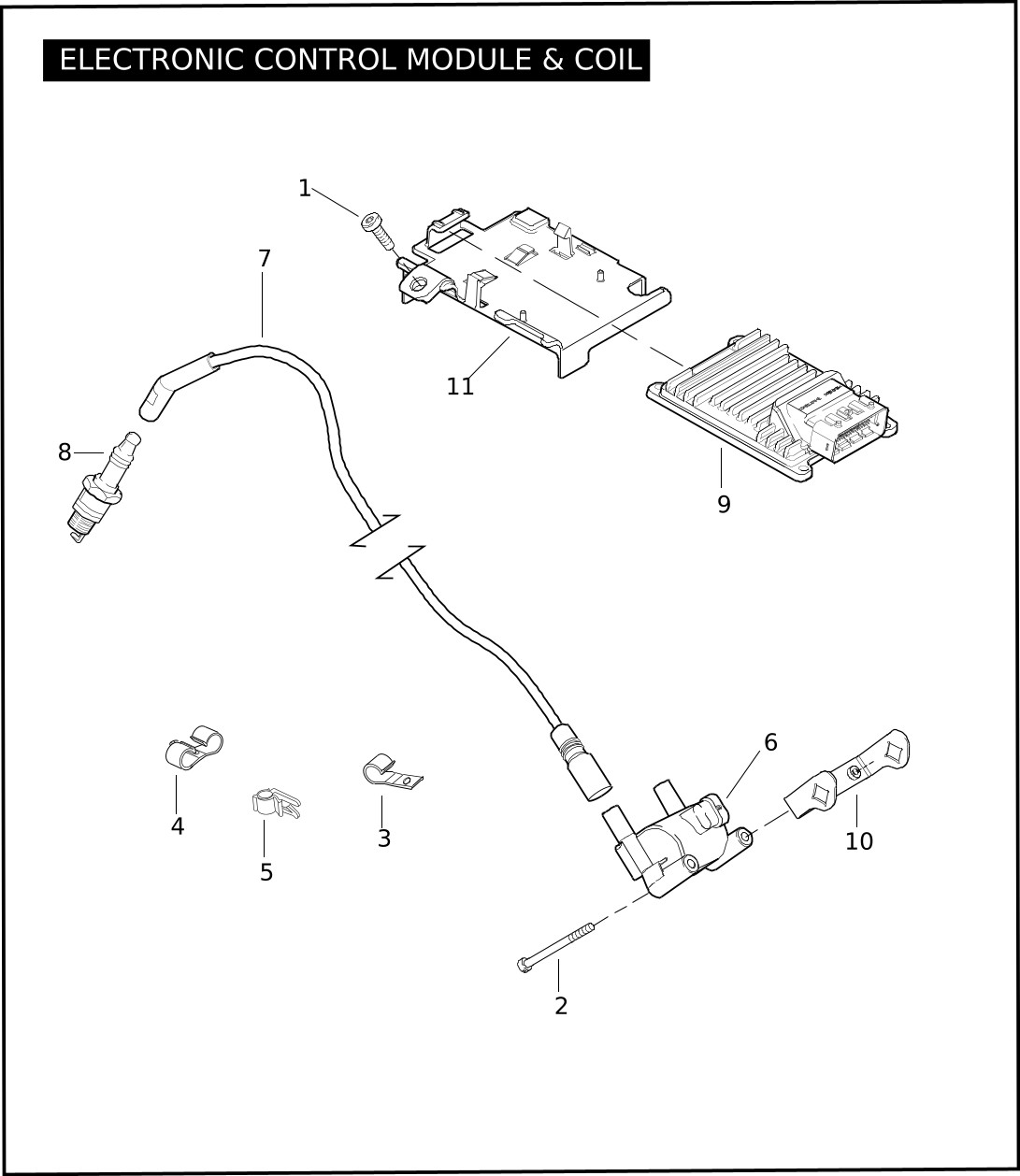

ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW | FLHRSE4 |
| 2 | 4717A | SCREW (2) | FLHRSE4 |
| 3 | 10110 | CLIP | FLHRSE4 |
| 4 | 10113 | CLIP, double | FLHRSE4 |
| 5 | 10183 | CLIP, single | FLHRSE4 |
| 6 | 31696-07A | IGNITION COIL | FLHRSE4 |
| 7 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | FLHRSE4 |
| 8 | 32362-04 | SPARK PLUG, 6R12 (2) | FLHRSE4 |
| 9 | 34246-08 | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | FLHRSE4 |
| 10 | 47420-08 | BRACKET, coil | FLHRSE4 |
| 11 | 70344-08 | CADDY, electronic control module (ECM) | FLHRSE4 |

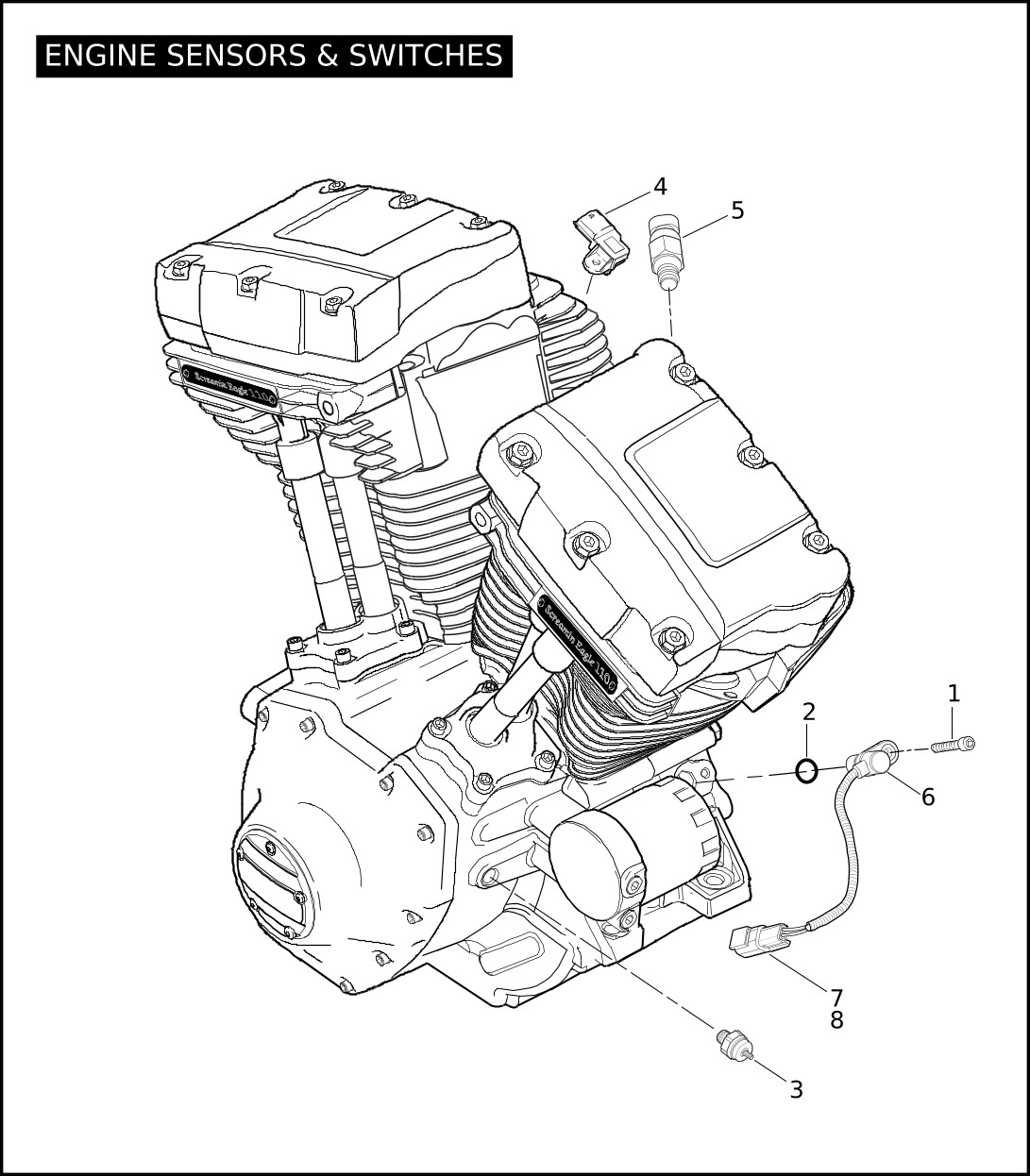

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | FLHRSE4 |
| 2 | 11289A | O-RING, crankshaft position sensor | FLHRSE4 |
| 3 | 26561-99 | OIL PRESSURE SWITCH | FLHRSE4 |
| 4 | 32319-07 | SENSOR, temperature manifold absolute pressure (TMAP) w/ o-ring | FLHRSE4 |
| 5 | 32446-99 | SENSOR, engine temperature | FLHRSE4 |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94, 74194-98 | FLHRSE4 |
| 7 | 72199-94 | CONNECTOR ANCHOR | FLHRSE4 |
| 8 | 74194-98 | TERMINAL PIN, DTM #20-24 | FLHRSE4 |

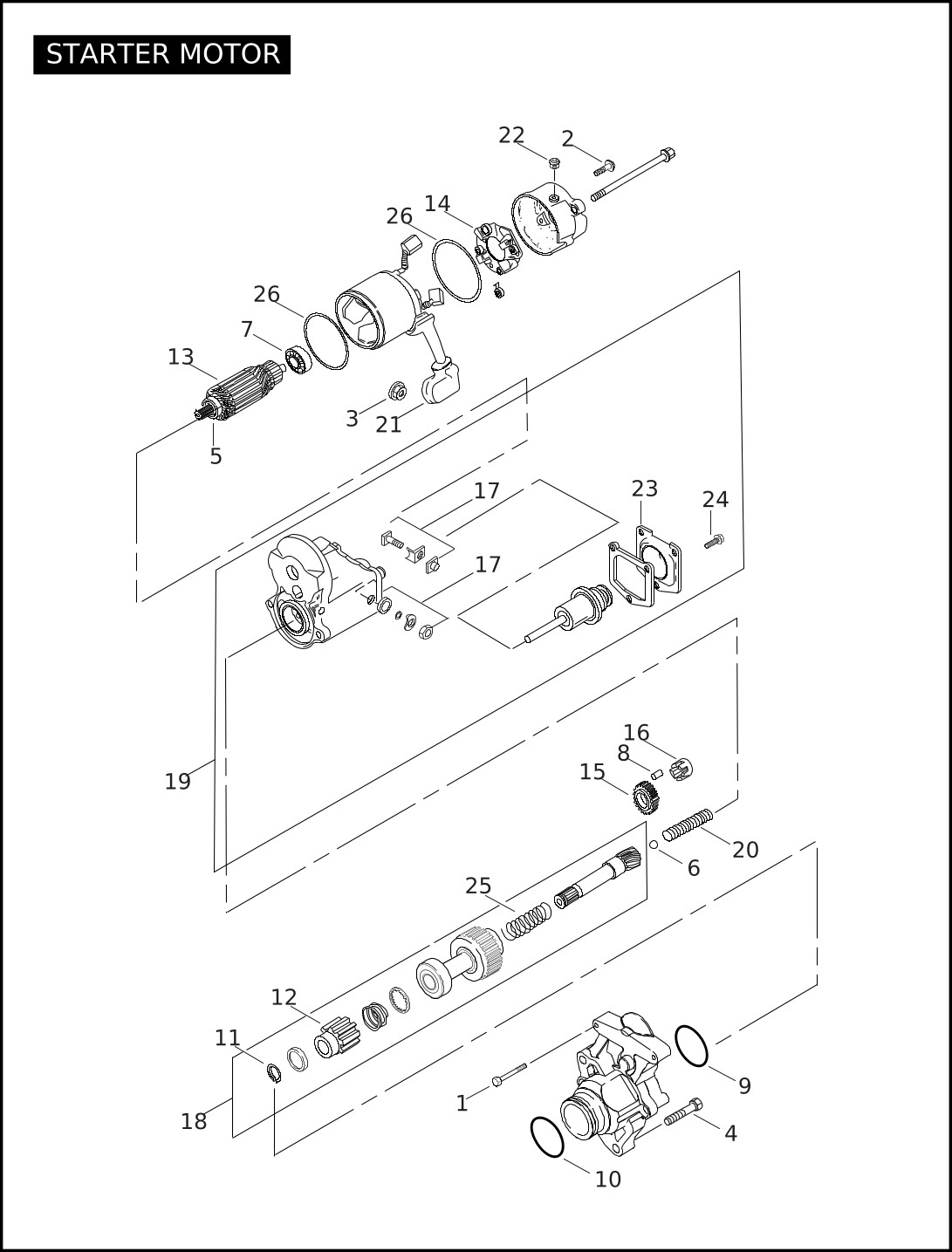

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 928 | BOLT, starter (2) | FLHRSE4 |
| 2 | 929A | SCREW, w/ o-ring (2) | FLHRSE4 |
| 3 | 3403 | LOCKNUT, flange | FLHRSE4 |
| 4 | 4615 | SCREW, starter mount (2) | FLHRSE4 |
| 5 | 8871 | BALL BEARING | FLHRSE4 |
| 6 | 8879 | BEARING | FLHRSE4 |
| 7 | 8883 | BALL BEARING | FLHRSE4 |
| 8 | 9077 | CLUTCH ROLLER (5) | FLHRSE4 |
| 9 | 10957 | O-RING | FLHRSE4 |
| 10 | 27444-00Y | O-RING, starter-to-case | FLHRSE4 |
| 11 | 31328-91 | RING, snap | FLHRSE4 |
| 12 | 31345-06 | GEAR, pinion | FLHRSE4 |
| 13 | 31515-90 | ARMATURE ASSEMBLY | FLHRSE4 |
| 14 | 31542-06 | BRUSH HOLDER ASSEMBLY | FLHRSE4 |
| 15 | 31525-90 | IDLER GEAR | FLHRSE4 |
| 16 | 31530-90 | RETAINER, idler | FLHRSE4 |
| 17 | 31604-06 | SOLENOID REPAIR KIT | FLHRSE4 |
| 31619-06A | STARTER ASSEMBLY COMPLETE (black) | FLHRSE4 | |
| 18 | 31633-07 | CLUTCH SUBASSEMBLY | FLHRSE4 |
| 19 | 31631-06 | SOLENOID ASSEMBLY | FLHRSE4 |
| 20 | 31641-06 | SPRING, solenoid | FLHRSE4 |
| 21 | 31643-06 | CAP, terminal, rubber | FLHRSE4 |
| 22 | 31660-90 | DRAIN VENT | FLHRSE4 |
| 23 | 31688-90 | COVER, solenoid | FLHRSE4 |
| 24 | 31689-90 | BOLT, w/ washer (3) | FLHRSE4 |
| 25 | 31692-90 | SPRING | FLHRSE4 |
| 26 | 31695-90 | O-RING (2) | FLHRSE4 |

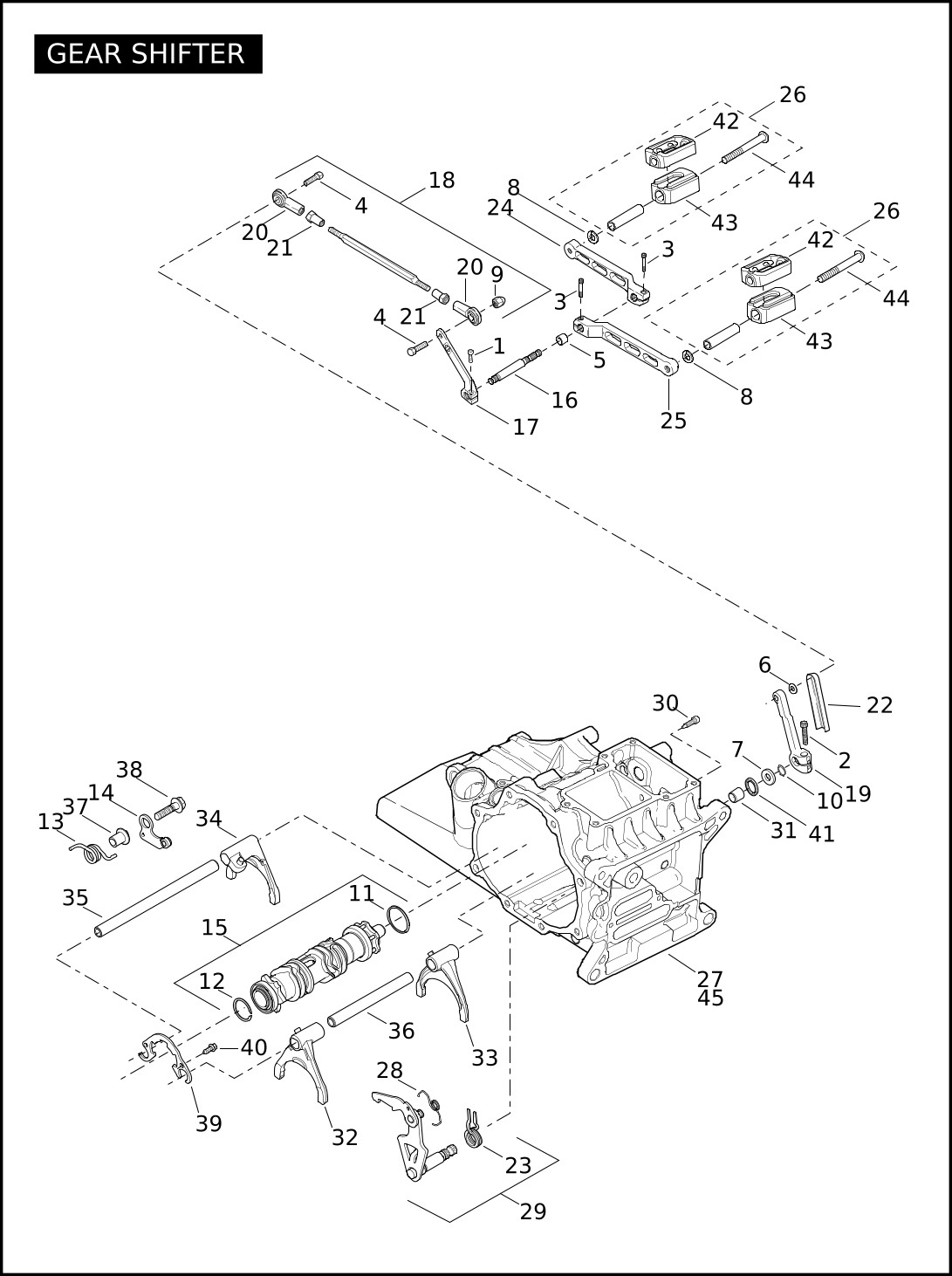

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHRSE4 |
| 2 | 856A | SCREW | FLHRSE4 |
| 3 | 3275 | SCREW (2) | FLHRSE4 |
| 4 | 4192 | SCREW (2) | FLHRSE4 |
| 5 | 5817 | SPACER | FLHRSE4 |
| 6 | 5826 | SPACER, shifter cover | FLHRSE4 |
| 7 | 6497HW | WASHER | FLHRSE4 |
| 8 | 7041 | LOCKWASHER (2) | FLHRSE4 |
| 9 | 7904 | ACORN NUT (polished stainless steel) | FLHRSE4 |
| 10 | 11150 | RING, retaining, external | FLHRSE4 |
| 11 | 11389 | RING, shift cam retaining | FLHRSE4 |
| 12 | 11575 | RING, shift cam retaining | FLHRSE4 |
| 13 | 33389-07 | SPRING DETENT | FLHRSE4 |
| 14 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLHRSE4 |
| 15 | 33413-06A | SHIFTER CAM ASSEMBLY, w/ 11389, 11575 & bearing | FLHRSE4 |
| 16 | 33709-82A | SHAFT | FLHRSE4 |
| 17 | 33718-82B | LEVER, gearshift (chrome) | FLHRSE4 |
| 18 | 33819-98A | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904, 33888-99, 33889-99, & 33890-99A | FLHRSE4 |
| 19 | 33849-97 | LEVER, shifter rod | FLHRSE4 |
| 20 | 33888-99 | ROD END, self-aligning (polished stainless steel) (2) | FLHRSE4 |
| 21 | 33889-99 | NUT, rod-end (polished stainless steel) (2) | FLHRSE4 |
| 22 | 33890-99A | COVER, shifter rod | FLHRSE4 |
| 23 | 34064-00C | SPRING, shifter return | FLHRSE4 |
| 24 | 34532-00B | LEVER, shifter heel (chrome) | FLHRSE4 |
| 25 | 34568-00B | LEVER, shifter toe (chrome) | FLHRSE4 |
| 26 | 34720-07 | SHIFTER PEG KIT, Ironside w/ 49292-07, 49295-07, 94081-90T, 94545-03, & spacer tube (2) | FLHRSE4 |
| 27 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (granite) | FLHRSE4 |
| 28 | 34987-06 | SPRING, ratchet lever | FLHRSE4 |
| 29 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | FLHRSE4 |
| 30 | 35082-07 | CENTERING SCREW, shift lever | FLHRSE4 |
| 32 | 35186-06 | SLEEVE | FLHRSE4 |
| 32 | 35187-06 | FORK, shift 1 - 2 | FLHRSE4 |
| 33 | 35210-06 | FORK, shift 3 - 4 | FLHRSE4 |
| 34 | 35217-06 | FORK, shift 5 - 6 | FLHRSE4 |
| 35 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHRSE4 |
| 36 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLHRSE4 |
| 37 | 35243-06 | SLEEVE | FLHRSE4 |
| 38 | 35244-06 | SCREW, detent | FLHRSE4 |
| 39 | 35249-06 | LOCK PLATE, shift cam | FLHRSE4 |
| 40 | 35259-06 | SCREW, shift drum support (2) | FLHRSE4 |
| 41 | 37101-84B | OIL SEAL | FLHRSE4 |
| 42 | 49292-07 | CASTING, shifter peg (chrome) (2) | FLHRSE4 |
| 43 | 49295-07 | TREAD, shifter peg (2) | FLHRSE4 |
| 44 | 94545-03 | SCREW | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 45 | 34740-07A | TRANSMISSION CASE SUBASSEMBLY (black) (Japan) | FLHRSE4 |

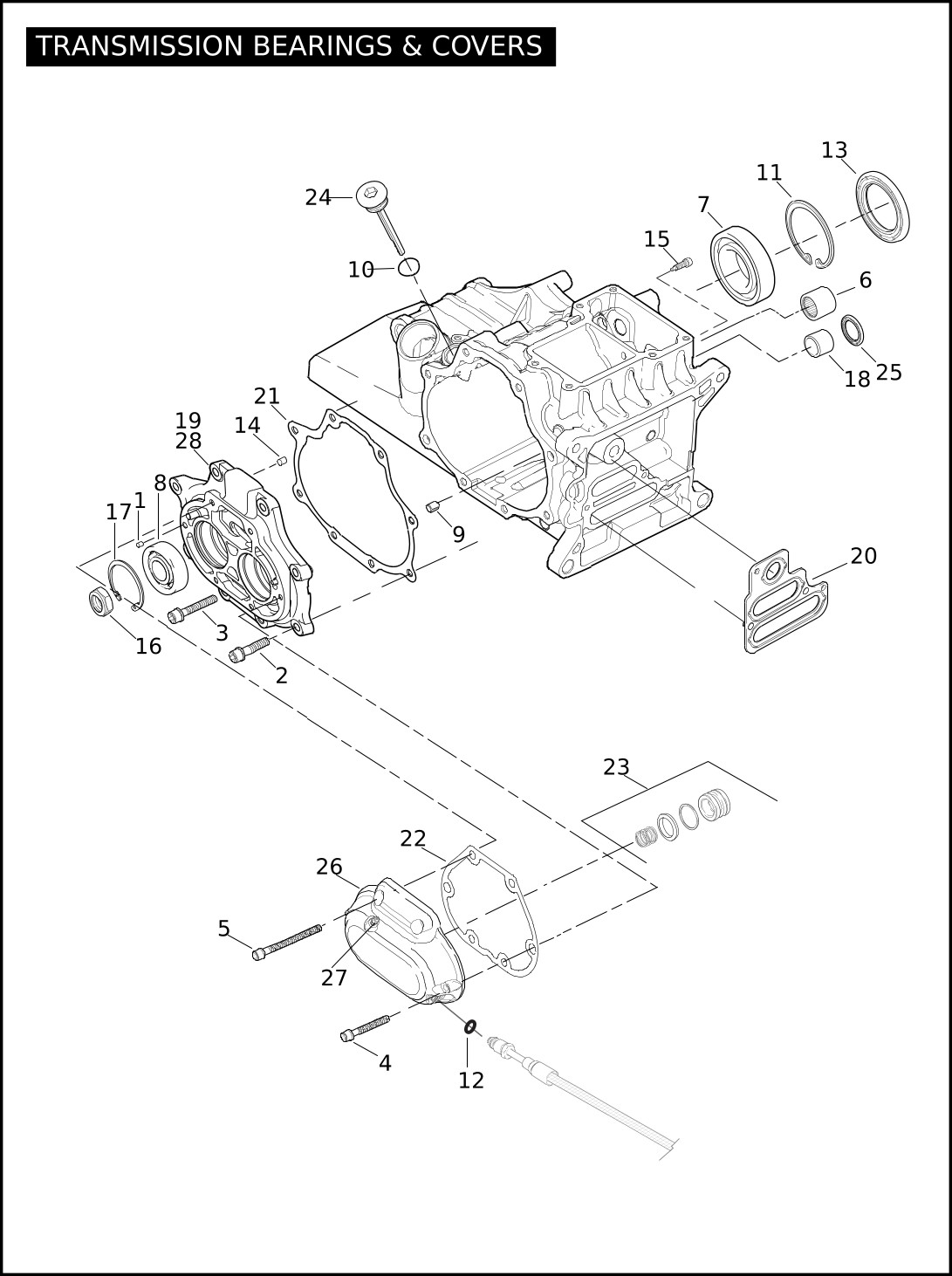

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHRSE4 |
| 2 | 3249 | SCREW (6) | FLHRSE4 |
| 3 | 3300 | SCREW (2) | FLHRSE4 |
| 4 | 4718A | SCREW (4) | FLHRSE4 |
| 5 | 4741A | SCREW (3) | FLHRSE4 |
| 6 | 8963 | BEARING, needle | FLHRSE4 |
| 7 | 8967 | BEARING | FLHRSE4 |
| 8 | 8970 | BEARING (2) | FLHRSE4 |
| 9 | 9701 | BUSHING | FLHRSE4 |
| 10 | 11132A | O-RING, dipstick | FLHRSE4 |
| 11 | 11161 | RETAINING RING | FLHRSE4 |
| 12 | 11348 | O-RING | FLHRSE4 |
| 13 | 12074 | SEAL | FLHRSE4 |
| 14 | 16583-00A | BUSHING, dowel (2) | FLHRSE4 |
| 33140-08 | TRANSMISSION ASSEMBLY, complete (granite) | FLHRSE4 | |
| 15 | 35082-07 | PIN | FLHRSE4 |
| 16 | 35078-79 | NUT, mainshaft & countershaft (2) | FLHRSE4 |
| 17 | 35087-99A | RETAINING RING (2) | FLHRSE4 |
| 18 | 35186-06 | SLEEVE | FLHRSE4 |
| 19 | 35256-08 | BEARING HOUSING ASSEMBLY, w/ 1, 8, 14, & 17 (granite) | FLHRSE4 |
| 20 | 35607-06 | GASKET | FLHRSE4 |
| 21 | 35654-06 | GASKET, bearing housing | FLHRSE4 |
| 22 | 36805-06 | GASKET, cover | FLHRSE4 |
| 23 | 36822-04 | SLAVE CYLINDER KIT | FLHRSE4 |
| 24 | 37065-06 | DIP STICK (chrome) | FLHRSE4 |
| 25 | 37101-84B | OIL SEAL | FLHRSE4 |
| 26 | 37137-07 | SIDE COVER, transmission (chrome) | FLHRSE4 |
| 27 | 43817-02 | CAP, bleeder screw | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (black) | FLHRSE4 | |
| 28 | 35260-06 | BEARING HOUSING ASSEMBLY (Japan) (black) | FLHRSE4 |

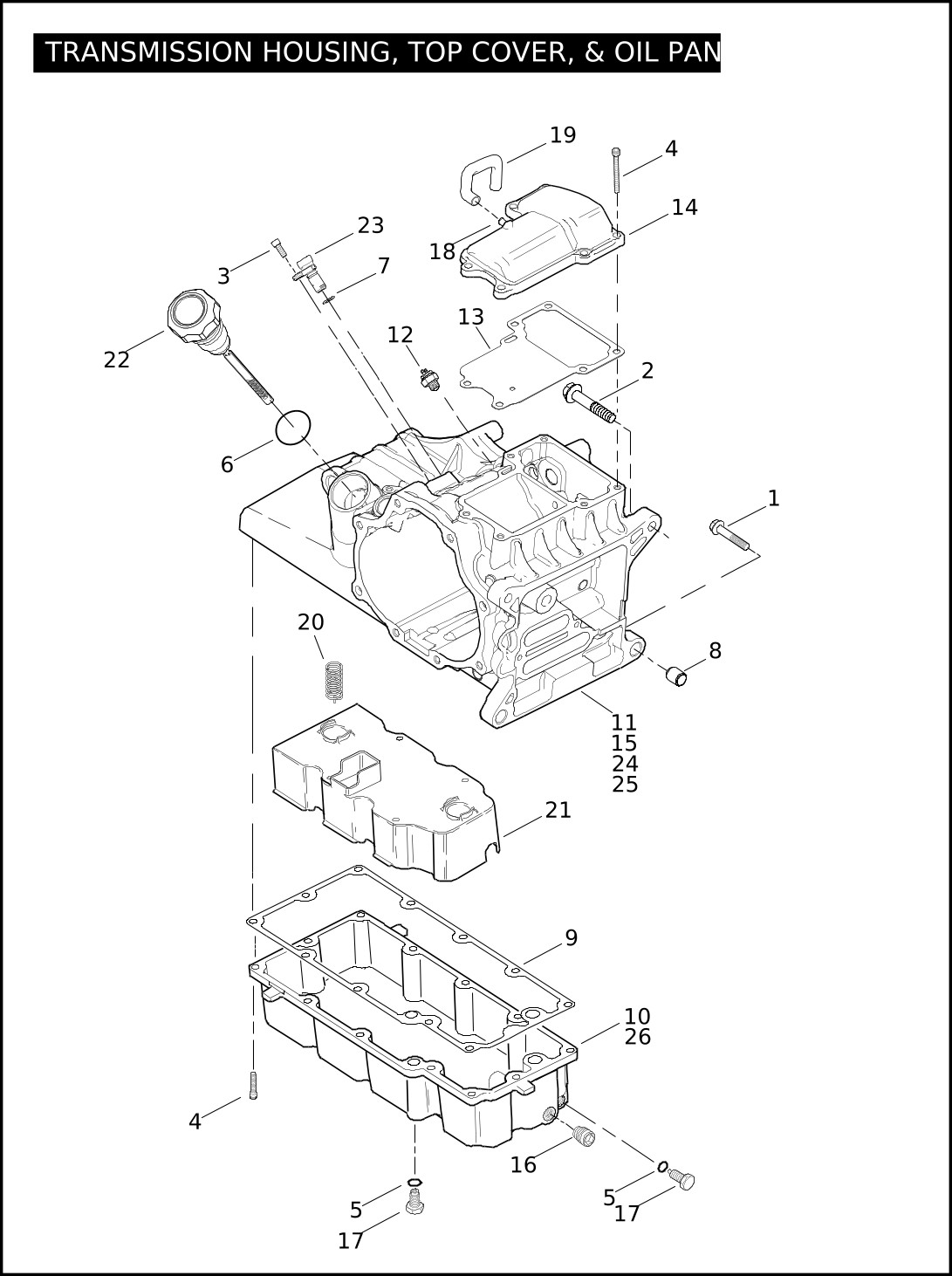

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHRSE4 |
| 2 | 3983 | SCREW (2) | FLHRSE4 |
| 3 | 4705 | SCREW | FLHRSE4 |
| 4 | 4741A | SCREW (18) | FLHRSE4 |
| 5 | 11105 | O-RING (2) | FLHRSE4 |
| 6 | 11120 | O-RING | FLHRSE4 |
| 7 | 11289A | O-RING | FLHRSE4 |
| 8 | 16574-99A | DOWEL RING (2) | FLHRSE4 |
| 9 | 26077-99A | GASKET, oil pan | FLHRSE4 |
| 10 | 26166-08 | OIL PAN ASSEMBLY, w/ 45893-99 & 60328-98B (granite) | FLHRSE4 |
| 11 | 33140-08 | TRANSMISSION ASSEMBLY, complete (granite) | FLHRSE4 |
| 12 | 33926-06B | NEUTRAL INDICATOR SWITCH, w/ o-ring | FLHRSE4 |
| 13 | 34917-06 | GASKET, upper cover | FLHRSE4 |
| 14 | 34469-06A | TRANSMISSION COVER, top (chrome) | FLHRSE4 |
| 15 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (granite) | FLHRSE4 |
| 16 | 45893-99 | PIPE PLUG (2) | FLHRSE4 |
| 17 | 60328-98B | PLUG, magnetic w/ 11105 (2) | FLHRSE4 |
| 18 | 62365-06 | FITTING, straight | FLHRSE4 |
| 19 | 62367-06A | VENT HOSE, transmission | FLHRSE4 |
| 20 | 62828-99 | SPRING, baffle (2) | FLHRSE4 |
| 21 | 62830-99 | BAFFLE, serpentine | FLHRSE4 |
| 22 | 62693-07 | DIPSTICK ASSEMBLY, w/ 11120 (chrome) | FLHRSE4 |
| 23 | 74402-05 | SPEED SENSOR, w/ 11289A | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 33118-08 | TRANSMISSION ASSEMBLY, complete (black) | FLHRSE4 |
| 25 | 34740-07A | TRANSMISSION CASE SUBASSEMBLY (black) | FLHRSE4 |
| 26 | 62489-99 | OIL PAN ASSEMBLY (black) | FLHRSE4 |

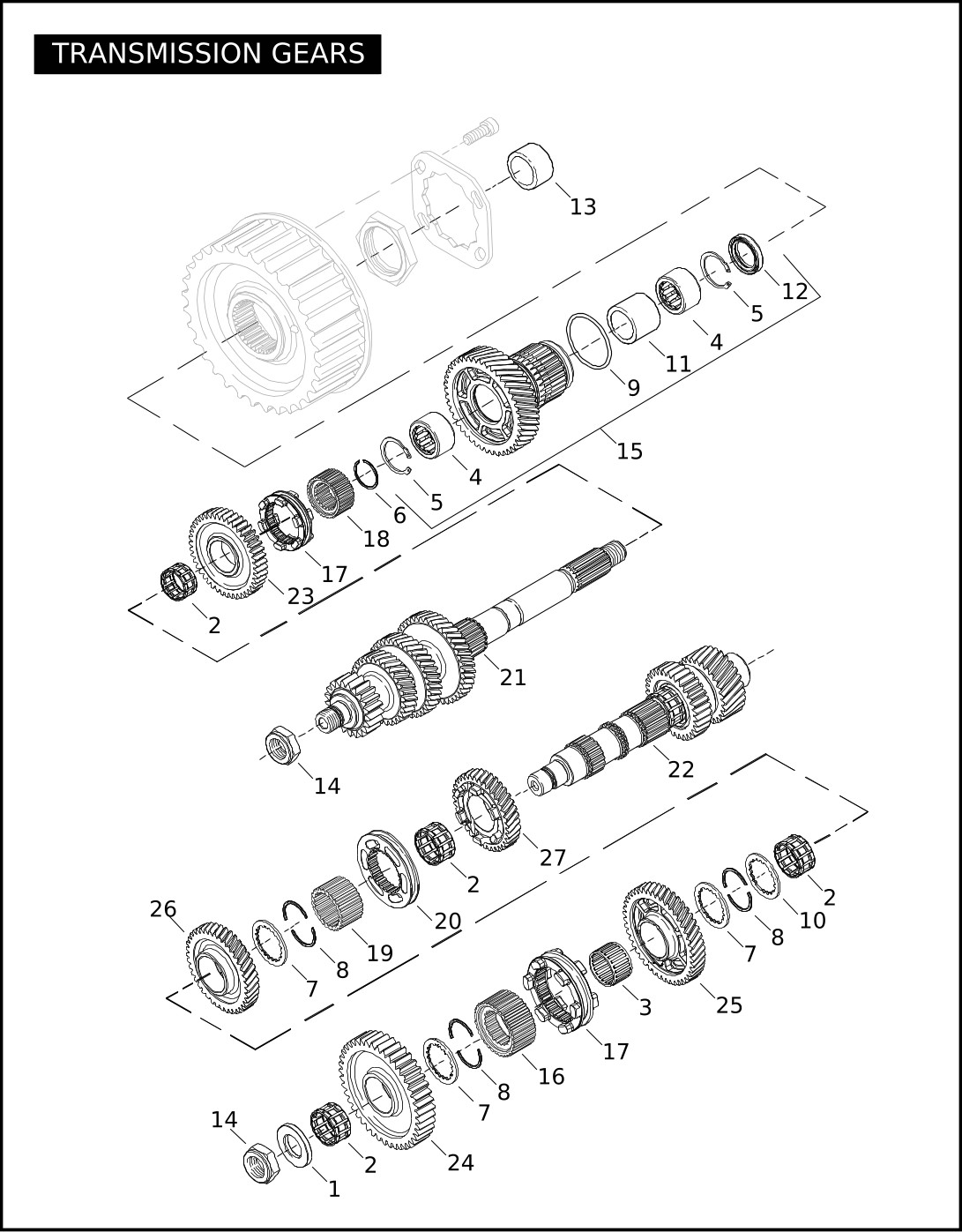

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHRSE4 |
| 2 | 8026K | BEARING, needle (4) | FLHRSE4 |
| 3 | 8041 | BEARING, needle | FLHRSE4 |
| 4 | 8042 | BEARING, needle (2) | FLHRSE4 |
| 5 | 10991 | RETAINING RING (2) | FLHRSE4 |
| 6 | 11061 | RETAINING RING | FLHRSE4 |
| 7 | 11081A | RING, lock (3) | FLHRSE4 |
| 8 | 11082 | SECURING SEGMENT (6) | FLHRSE4 |
| 9 | 11201 | O-RING | FLHRSE4 |
| 10 | 11207 | WASHER, internal spline | FLHRSE4 |
| 11 | 11599 | SPACER, bearing | FLHRSE4 |
| 12 | 12077 | OIL SEAL | FLHRSE4 |
| 13 | 34091-08 | BEARING, inner race | FLHRSE4 |
| 14 | 35078-79 | NUT | FLHRSE4 |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output w/ 4, 5, 9, 11, & 12 | FLHRSE4 |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHRSE4 |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHRSE4 |
| 18 | 35201-06 | GUIDE HUB, dog ring | FLHRSE4 |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHRSE4 |
| 20 | 35204-06 | DOG RING, pocketed | FLHRSE4 |
| 21 | 35467-08 | INPUT SHAFT | FLHRSE4 |
| 22 | 35470-06 | COUNTER SHAFT ASSEMBLY | FLHRSE4 |
| 23 | 35801-06 | GEAR, fifth input | FLHRSE4 |
| 24 | 35805-06 | GEAR, countershaft-first | FLHRSE4 |
| 25 | 35807-06 | GEAR, countershaft-second | FLHRSE4 |
| 26 | 35811-06 | GEAR, countershaft-third | FLHRSE4 |
| 27 | 35814-06 | GEAR, countershaft-fourth | FLHRSE4 |

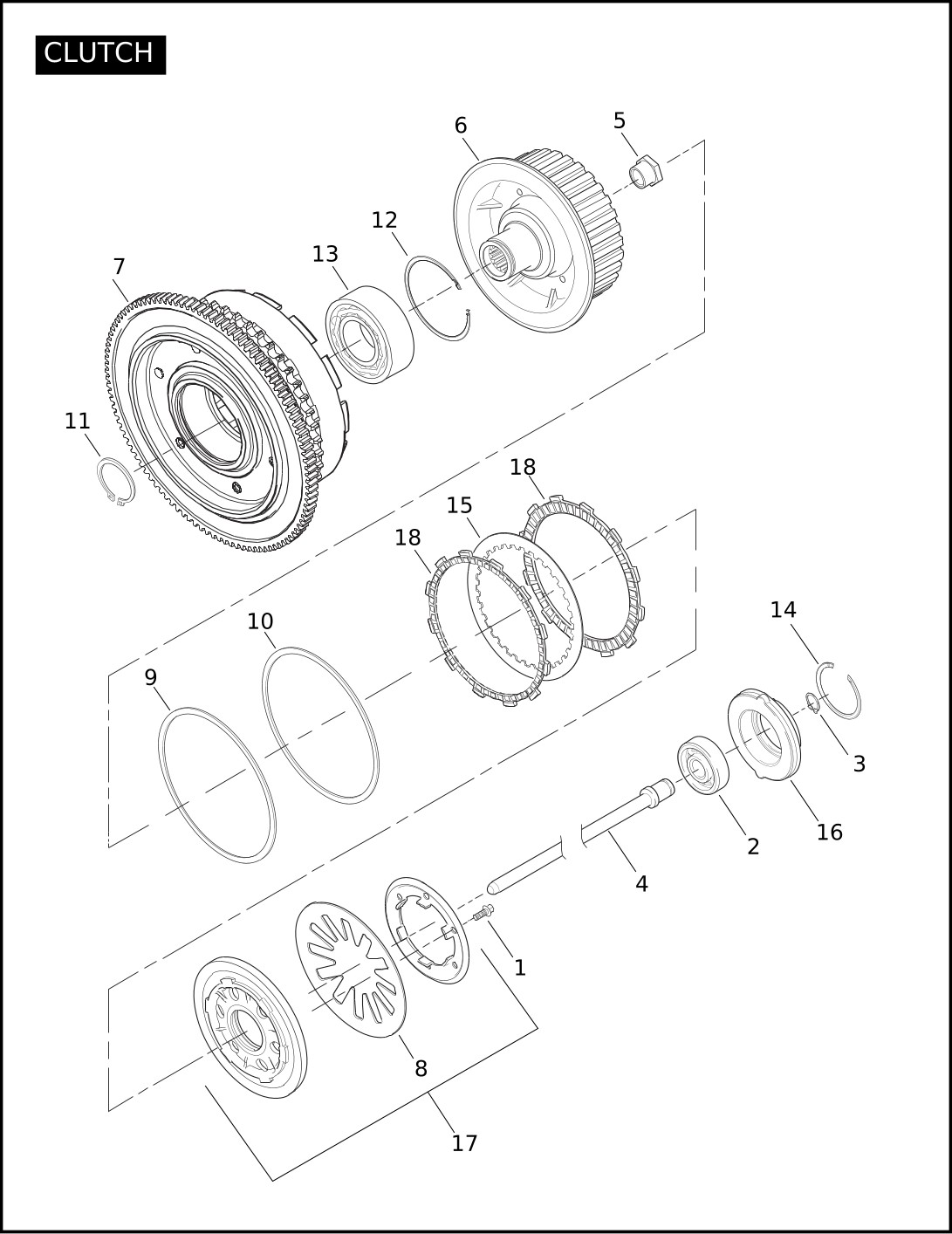

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLHRSE4 |
| 2 | 8885 | BEARING | FLHRSE4 |
| 3 | 11143 | RING, retaining, external | FLHRSE4 |
| 4 | 36819-07 | PUSH ROD, hydraulic-clutch | FLHRSE4 |
| 5 | 37496-90A | NUT, mainshaft | FLHRSE4 |
| 6 | 37554-06A | HUB ASSEMBLY, clutch, w/ thrust washer & spring washer | FLHRSE4 |
| 7 | 37817-07 | CLUTCH ASSEMBLY, complete (includes all parts except 11143 & push rod) | FLHRSE4 |
| 8 | 37807-03 | SPRING, clutch (pink) | FLHRSE4 |
| 9 | 37883-98 | SEAT, damper-spring | FLHRSE4 |
| 10 | 37884-98 | SPRING, damper | FLHRSE4 |
| 11 | 37904-90 | RING, retaining, external | FLHRSE4 |
| 12 | 37905-00 | RING, retaining, internal | FLHRSE4 |
| 13 | 37906-90 | BEARING, ball, double-row | FLHRSE4 |
| 14 | 37909-90 | RING, retaining, internal | FLHRSE4 |
| 15 | 37913-98 | PLATE, clutch (steel) (8) | FLHRSE4 |
| 16 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | FLHRSE4 |
| 17 | 37927-03 | PRESSURE PLATE KIT, clutch, w/ 37807-03, pressure plate, & spring seat | FLHRSE4 |
| 18 | 37932-98 | FRICTION PLATE KIT, clutch (includes all 9 friction plates) | FLHRSE4 |

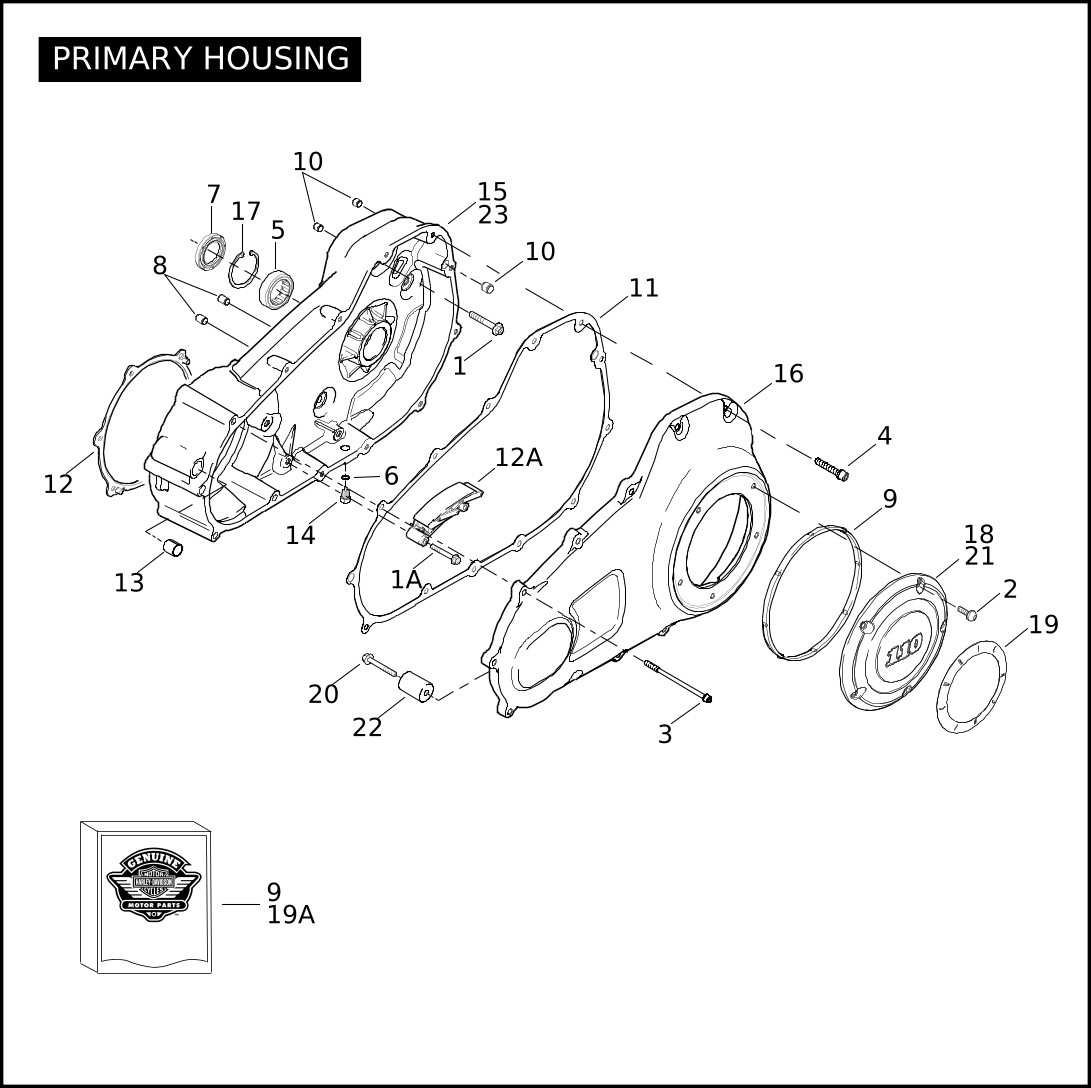

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHRSE4 |
| 1A | 791A | SCREW (2) | FLHRSE4 |
| 2 | 1062 | SCREW (5) | FLHRSE4 |
| 3 | 1780 | SCREW (4) | FLHRSE4 |
| 4 | 4813A | SCREW (9) | FLHRSE4 |
| 5 | 9231 | BEARING | FLHRSE4 |
| 6 | 11105 | O-RING | FLHRSE4 |
| 7 | 12052A | SEAL (2) | FLHRSE4 |
| 8 | 16583-00A | DOWEL BUSHING (2) | FLHRSE4 |
| 9 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | FLHRSE4 |
| 10 | 24754-75A | DOWEL BUSHING, starter (4) | FLHRSE4 |
| 11 | 34901-07 | GASKET, primary cover | FLHRSE4 |
| 12 | 34948-08 | GASKET, primary housing to case | FLHRSE4 |
| 12A | 39929-06A | CHAIN TENSIONER ASSEMBLY | FLHRSE4 |
| 13 | 42642-00 | BUSHING (2) | FLHRSE4 |
| 14 | 60328-98B | PLUG, magnetic drain w/ 11105 | FLHRSE4 |
| 15 | 60850-08 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (granite) | FLHRSE4 |
| 16 | 60553-07 | COVER, primary (chrome) | FLHRSE4 |
| 17 | 60678-85 | RETAINING RING | FLHRSE4 |
| 18 | 60709-07 | COVER, clutch (chrome) | FLHRSE4 |
| 19 | 60710-07 | INSERT, cover | FLHRSE4 |
| 19A | 25700226 | GASKET KIT, inner primary, w/ 1, 6, 7, 9, 12, 11150, 27444-00Y, 37909-90 | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 797A | SCREW (Japan) | FLHRSE4 |
| 21 | 60766-06 | COVER, clutch (chrome) (Japan)(not shown) | FLHRSE4 |
| 22 | 60818-07 | SLEEVE, primary cover (Japan) | FLHRSE4 |
| 23 | 60432-07 | INNER PRIMARY HOUSING (black) (Japan) | FLHRSE4 |

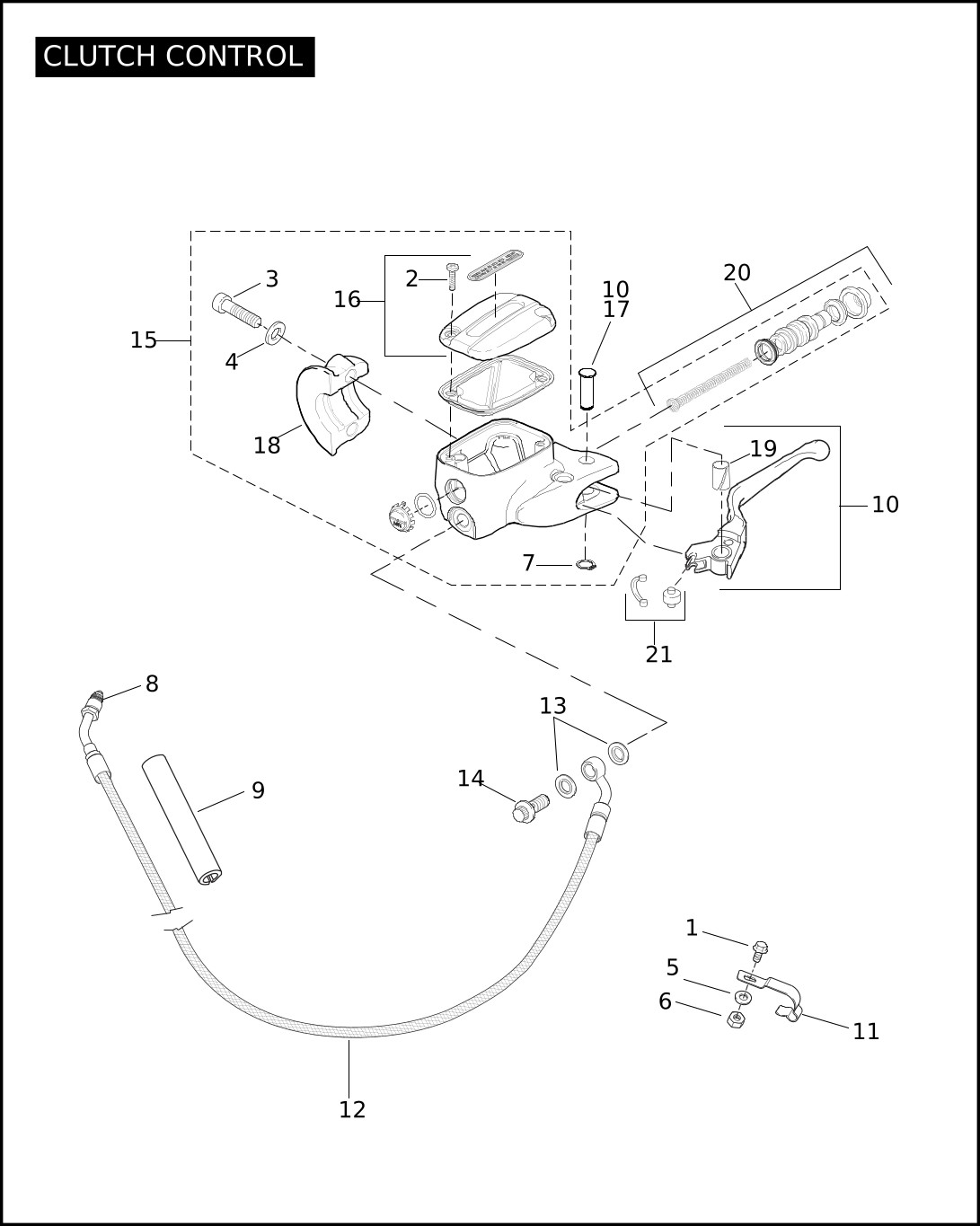

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW | FLHRSE4 |
| 2 | 3089 | SCREW (polished stainless steel) (2) | FLHRSE4 |
| 3 | 4293 | SCREW (2) | FLHRSE4 |
| 4 | 6099 | WASHER (2) | FLHRSE4 |
| 5 | 6703 | WASHER | FLHRSE4 |
| 6 | 7688 | NUT | FLHRSE4 |
| 10039 | STRAP, cable (not illustrated) | FLHRSE4 | |
| 7 | 11143 | RING, retaining | FLHRSE4 |
| 8 | 11348 | O-RING | FLHRSE4 |
| 9 | 28919-04 | TUBING, split | FLHRSE4 |
| 10 | 38774-08 | LEVER ASSEMBLY, hand, w/ 11143, & 45423-92 (chrome) | FLHRSE4 |
| 11 | 38901-08 | RETAINER, cable | FLHRSE4 |
| 12 | 38898-08 | CLUTCH LINE ASSEMBLY, w/ 11348 | FLHRSE4 |
| 13 | 41751-06A | GASKET, banjo-bolt (2) | FLHRSE4 |
| 14 | 42010-06 | BOLT, banjo | FLHRSE4 |
| 15 | 42101-06 | MASTER CYLINDER ASSEMBLY, clutch (chrome) | FLHRSE4 |
| 16 | 42115-06 | MASTER CYLINDER COVER KIT, w/ 3089 | FLHRSE4 |
| 17 | 45032-82 | PIN, pivot | FLHRSE4 |
| 18 | 45282-99A | CLAMP, master cylinder (chrome) | FLHRSE4 |
| 19 | 45423-92 | BUSHING, hand lever | FLHRSE4 |
| 20 | 46244-01 | REPAIR KIT, master-cylinder, w/ 11143 & 41731-01 | FLHRSE4 |
| 21 | 46246-01 | BUSHING & ROLLER KIT | FLHRSE4 |

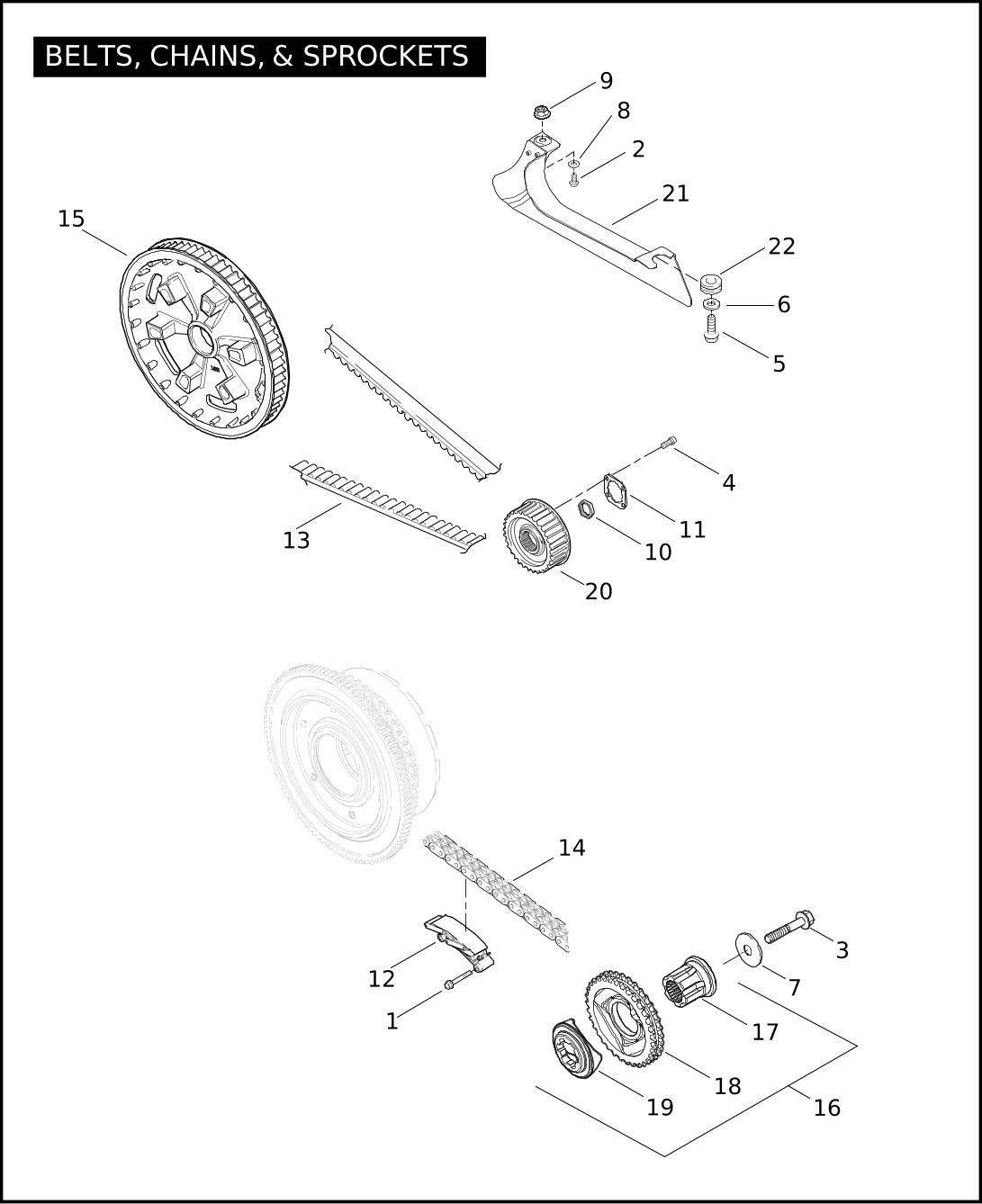

BELTS, CHAINS, & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 791A | SCREW (2) | FLHRSE4 |
| 2 | 1001 | SCREW | FLHRSE4 |
| 3 | 3368 | SCREW | FLHRSE4 |
| 4 | 3594 | SCREW (2) | FLHRSE4 |
| 5 | 4407 | SCREW | FLHRSE4 |
| 6 | 6229W | WASHER | FLHRSE4 |
| 7 | 6445 | WASHER | FLHRSE4 |
| 8 | 6703 | WASHER | FLHRSE4 |
| 9 | 7601 | LOCKNUT | FLHRSE4 |
| 10 | 35241-06 | NUT, sprocket | FLHRSE4 |
| 11 | 35242-06 | LOCKPLATE | FLHRSE4 |
| 12 | 39929-06A | CHAIN TENSIONER ASSEMBLY | FLHRSE4 |
| 13 | 40024-07 | REAR BELT, 137 T, 1 inch | FLHRSE4 |
| 14 | 40037-07 | PRIMARY CHAIN | FLHRSE4 |
| 15 | 40265-08 | SPROCKET, rear, 66 T (black) | FLHRSE4 |
| 16 | 40296-06 | COMPENSATOR ASSEMBLY | FLHRSE4 |
| 17 | 40297-06 | SHAFT EXTENSION | FLHRSE4 |
| 18 | 40320-06 | COMPENSATING SPROCKET, 34 T | FLHRSE4 |
| 19 | 40333-06 | CAM SLIDER | FLHRSE4 |
| 20 | 40659-06 | SPROCKET, transmission, 32 T | FLHRSE4 |
| 21 | 60589-07 | DEBRIS DEFLECTOR | FLHRSE4 |
| 22 | 67633-01 | GROMMET | FLHRSE4 |

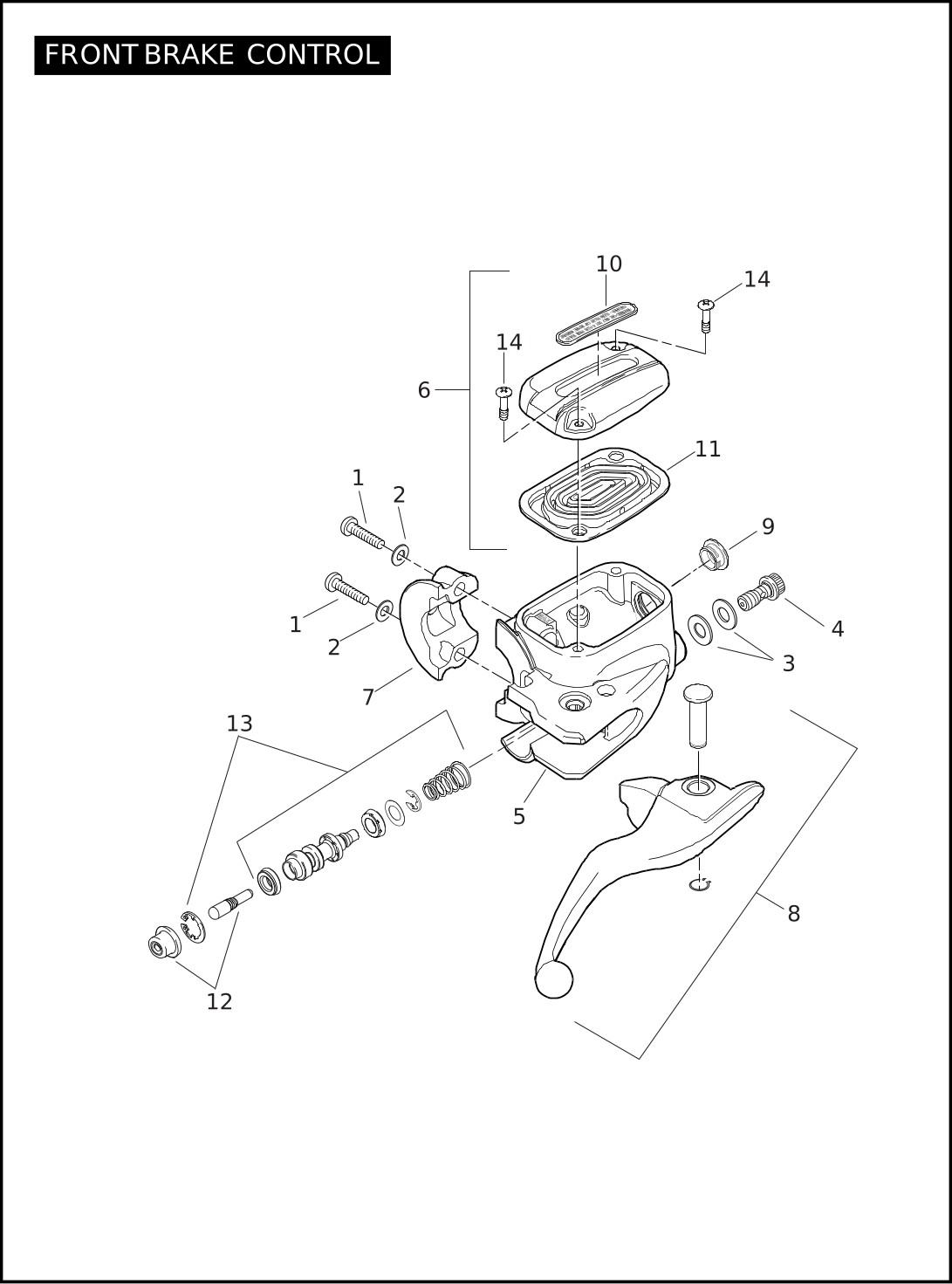

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHRSE4 |
| 2 | 6099 | WASHER (2) | FLHRSE4 |
| 3 | 41751-06A | GASKET (2) | FLHRSE4 |
| 4 | 42010-06 | BOLT, BANJO, brakeline | FLHRSE4 |
| 5 | 42102-08 | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14 & 15 | FLHRSE4 |
| 6 | 42116-06A | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06A & 42882-06 | FLHRSE4 |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHRSE4 |
| 8 | 42271-06A | BRAKE LEVER ASSEMBLY, front | FLHRSE4 |
| 9 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHRSE4 |
| 10 | 42856-06 | DECAL, reservoir cover | FLHRSE4 |
| 11 | 42857-06A | GASKET, reservoir cover | FLHRSE4 |
| 12 | 42861-06A | PUSHROD, master cylinder | FLHRSE4 |
| 13 | 42862-06A | PISTON SERVICE KIT, master cylinder | FLHRSE4 |
| 14 | 42882-06 | SCREW (2) | FLHRSE4 |

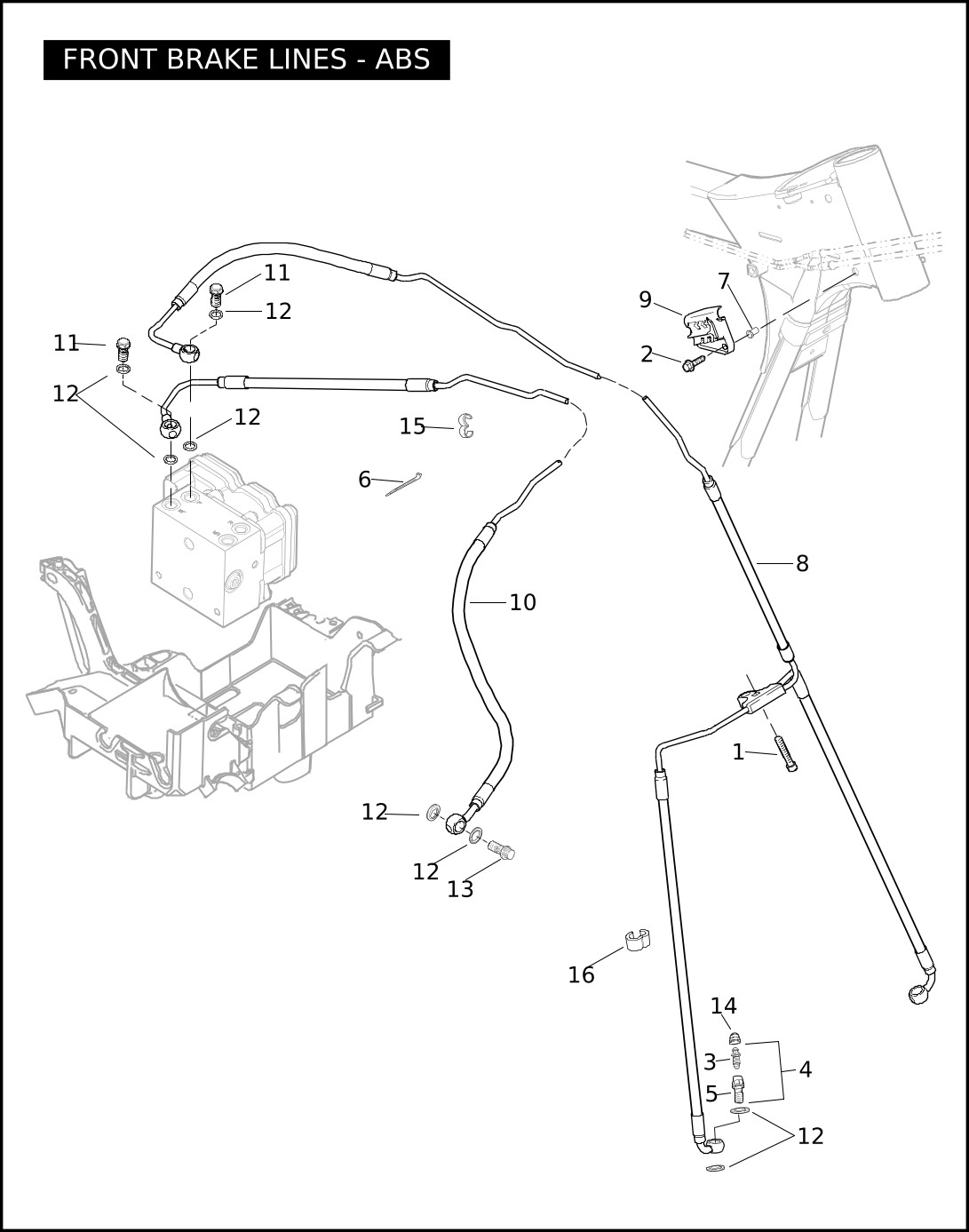

FRONT BRAKE LINES - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | FLHRSE4 |
| 2 | 3901 | SCREW | FLHRSE4 |
| 3 | 5435 | BLEEDER SCREW (2) | FLHRSE4 |
| 4 | 5438 | BOLT, BANJO, bleeder assembly, w/ 5435 & 5455M (2) | FLHRSE4 |
| 5 | 5455M | BOLT, BANJO, w/ threaded head (2) | FLHRSE4 |
| 6 | 10006 | CABLE STRAP | FLHRSE4 |
| 7 | 11604 | RIVNUT | FLHRSE4 |
| 8 | 40663-08 | BRAKE LINE, front, lower, ABS | FLHRSE4 |
| 9 | 40699-08 | CLIP, brakeline | FLHRSE4 |
| 10 | 40651-08 | BRAKE LINE, front, upper, ABS | FLHRSE4 |
| 11 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 12 | 41751-06A | GASKET (10) | FLHRSE4 |
| 13 | 42010-06 | BOLT, BANJO, brakeline | FLHRSE4 |
| 14 | 42853-06 | CAP, bleeder screw (2) | FLHRSE4 |
| 15 | 70504-81 | CLIP, conduit (3) | FLHRSE4 |
| 16 | 70631-08 | CLIP, conduit (3) | FLHRSE4 |

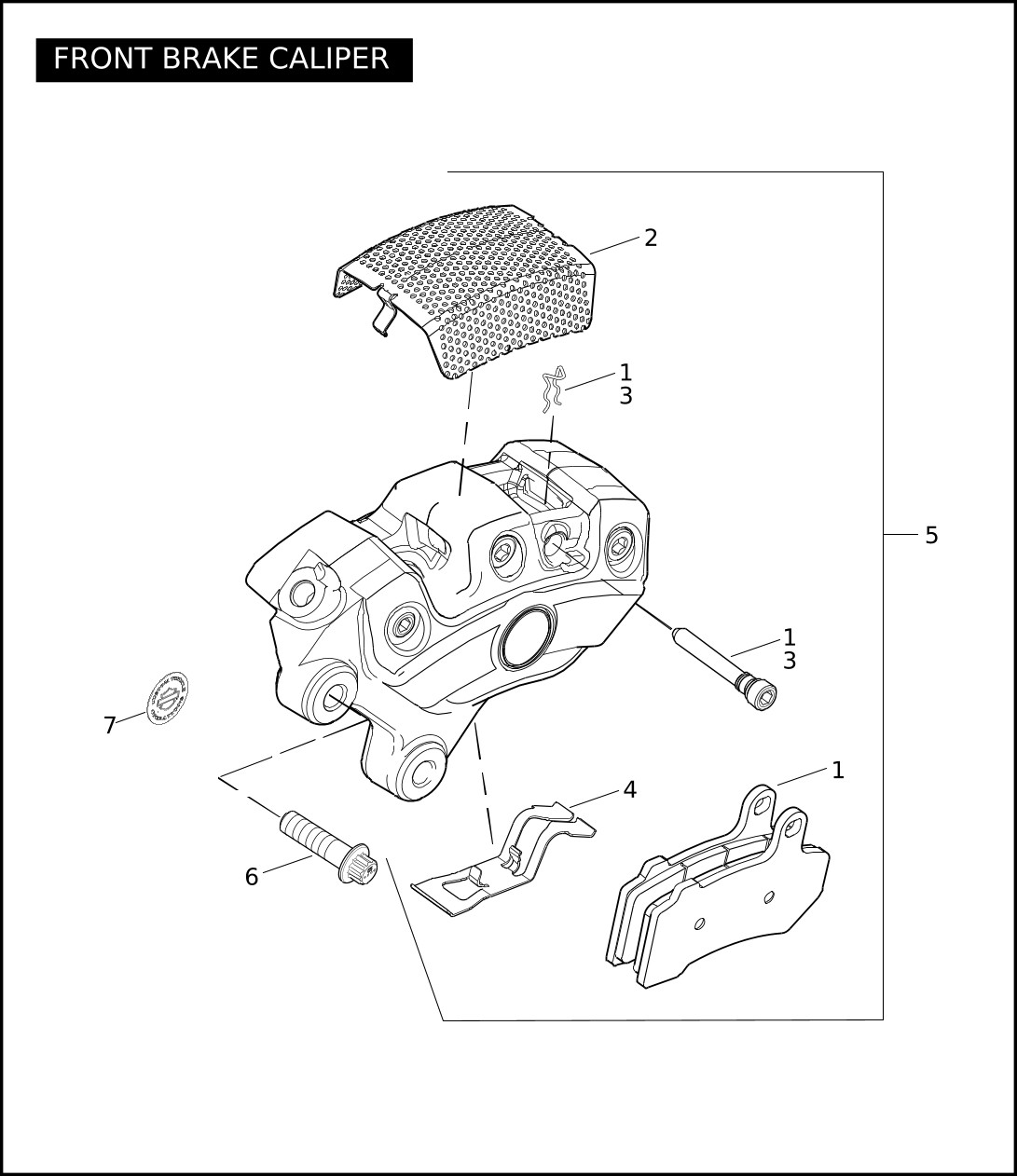

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHRSE4 |
| 2 | 42019-06 | COVER, caliper (chrome) (2) | FLHRSE4 |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHRSE4 |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHRSE4 |
| 5 | 42938-08 | CALIPER ASSEMBLY, left (silver) | FLHRSE4 |
| 42939-08 | CALIPER ASSEMBLY, right (silver) | FLHRSE4 | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | FLHRSE4 |
| 7 | 44935-06 | MEDALLION, brake caliper (2) | FLHRSE4 |

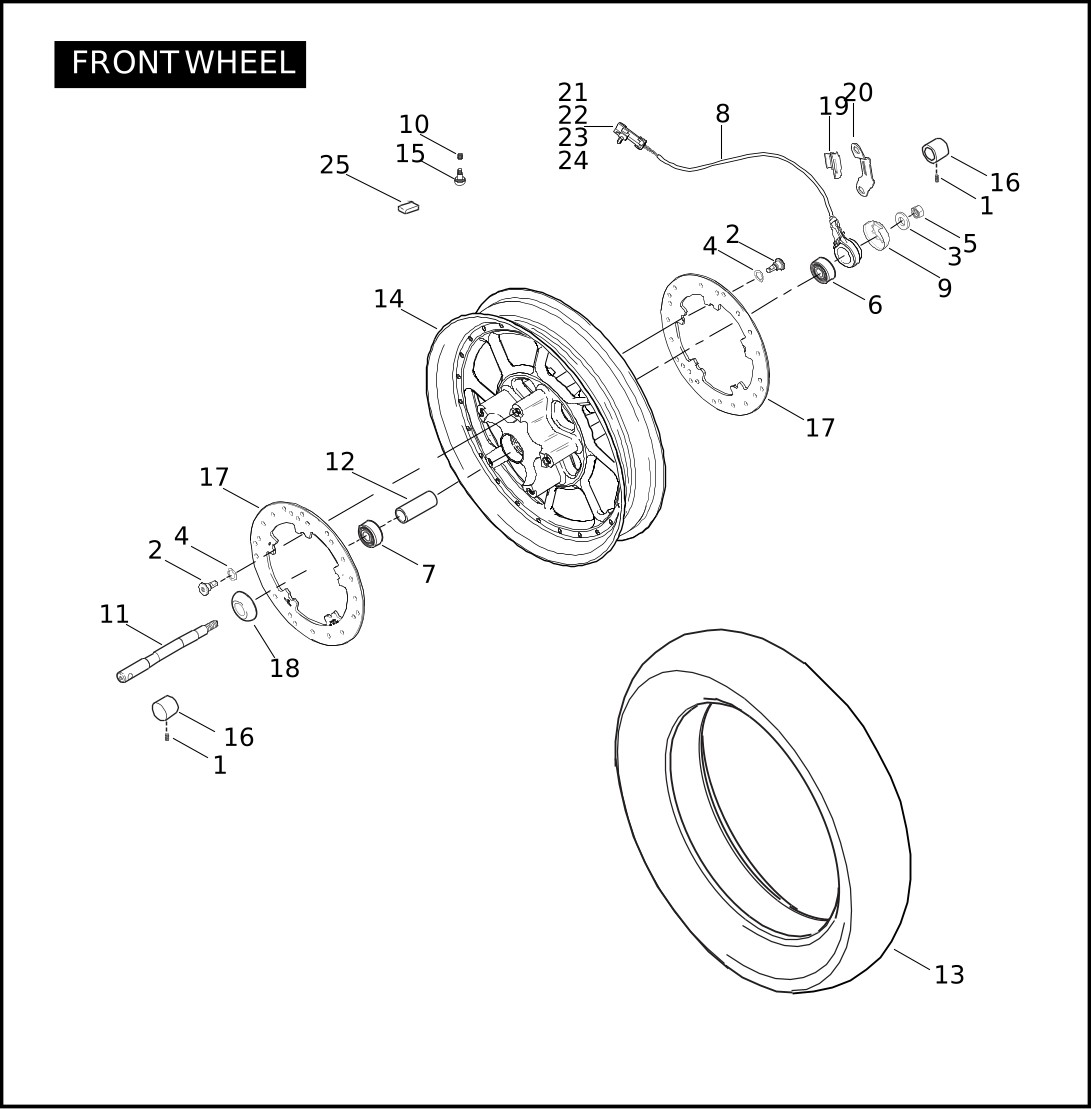

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SCREW, set (2) | FLHRSE4 |
| 2 | 3762M | BOLT (10) | FLHRSE4 |
| 3 | 6655 | WASHER | FLHRSE4 |
| 4 | 6966M | WASHER (10) | FLHRSE4 |
| 5 | 7813A | NUT | FLHRSE4 |
| 6 | 9252 | BALL BEARING, ABS, left | FLHRSE4 |
| 7 | 9276 | BALL BEARING, right | FLHRSE4 |
| 8 | 40614-08 | SENSOR, wheel speed, ABS | FLHRSE4 |
| 9 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHRSE4 |
| 10 | 41148-98 | VALVE STEM CAP KIT, tire valve acorn, w/ bar & shield (chrome) | FLHRSE4 |
| 11 | 41547-07A | AXLE, front | FLHRSE4 |
| 12 | 41900-08 | SLEEVE, bearing spacer | FLHRSE4 |
| 13 | 41999-07A | TIRE, front 18 in. 130/70R18 | FLHRSE4 |
| 14 | 42085-07 | RIM, 18 in. front | FLHRSE4 |
| 15 | 43157-83A | STEM ASSEMBLY, tire valve w/ 54321-85 | FLHRSE4 |
| 16 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) | FLHRSE4 |
| 17 | 44553-06A | BRAKE DISC (2) | FLHRSE4 |
| 18 | 44583-08 | SPACER | FLHRSE4 |
| 19 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHRSE4 |
| 20 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHRSE4 |
| 21 | 72607-08 | HOUSING, 2 way pin | FLHRSE4 |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE4 |
| 23 | 72609-08 | LOCK, secondary, 2-way (black) | FLHRSE4 |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE4 |
| 25 | 95595-84 | WEIGHT, 1/4 oz., cast wheels (silver) | FLHRSE4 |

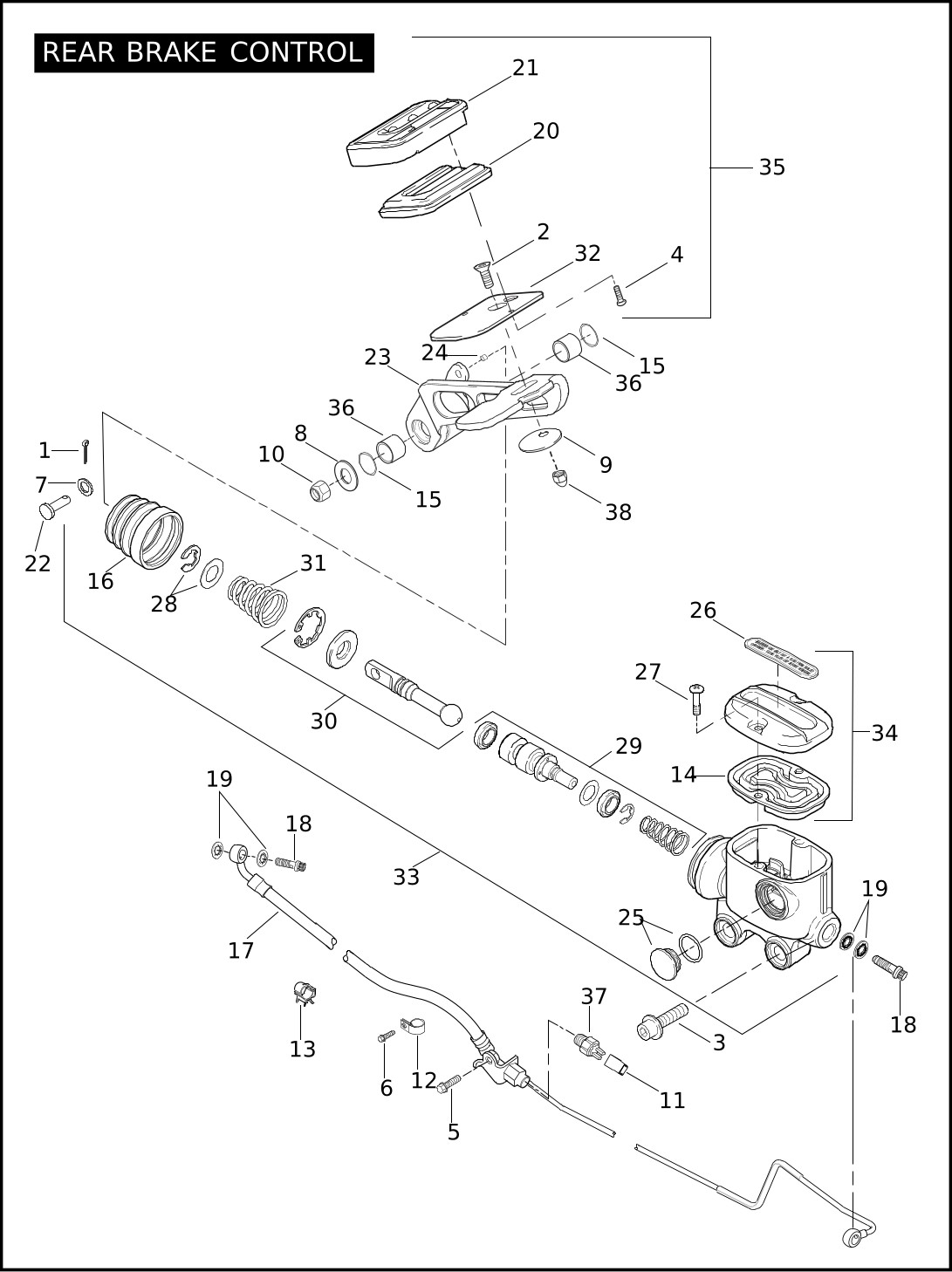

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHRSE4 |
| 2 | 1783C | SCREW | FLHRSE4 |
| 3 | 2479 | SCREW (2) | FLHRSE4 |
| 4 | 2903 | SCREW (2) | FLHRSE4 |
| 5 | 3588 | SCREW | FLHRSE4 |
| 6 | 4240 | SCREW | FLHRSE4 |
| 7 | 6220W | WASHER | FLHRSE4 |
| 8 | 6334 | WASHER | FLHRSE4 |
| 9 | 6421 | WASHER, offset | FLHRSE4 |
| 10 | 7825 | LOCKNUT | FLHRSE4 |
| 11 | 9907 | WIRE TERMINAL | FLHRSE4 |
| 12 | 10031 | CLAMP | FLHRSE4 |
| 13 | 10108 | CLIP, brake hose (2) | FLHRSE4 |
| 14 | 11902 | GASKET, master cylinder reservoir cover | FLHRSE4 |
| 15 | 11364 | O-RING (2) | FLHRSE4 |
| 16 | 12102 | DUST BOOT | FLHRSE4 |
| 17 | 40611-08 | BRAKELINE ASSEMBLY, right-rear, master cylinder to ABS UNIT, ABS | FLHRSE4 |
| 18 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 19 | 41751-06A | GASKET (4) | FLHRSE4 |
| 20 | 42146-07 | PAD, brake pedal | FLHRSE4 |
| 21 | 42147-07 | COVER, brake pedal | FLHRSE4 |
| 22 | 42460-80B | CLEVIS PIN | FLHRSE4 |
| 23 | 42638-08 | BRAKE LEVER KIT, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLHRSE4 |
| 24 | 42644-00 | BEARING, .25 x .177 | FLHRSE4 |
| 25 | 42854-06 | KIT, SIGHT GLASS | FLHRSE4 |
| 26 | 42856-06 | DECAL, reservoir cover | FLHRSE4 |
| 27 | 42882-06 | SCREW (2) | FLHRSE4 |
| 28 | 42889-06 | PUSH ROD KIT, master cylinder | FLHRSE4 |
| 29 | 42932-08 | REBUILD KIT, master cylinder | FLHRSE4 |
| 30 | 42933-08 | PUSHROD KIT, master cylinder | FLHRSE4 |
| 31 | 42934-08 | SPRING, pedal return | FLHRSE4 |
| 32 | 44437-04 | BACK PLATE, brake pedal | FLHRSE4 |
| 33 | 46459-08 | MASTER CYLINDER ASSEMBLY, complete (chrome) | FLHRSE4 |
| 34 | 46461-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902. 42856-06 & 42882-06 | FLHRSE4 |
| 35 | 46959-07 | BRAKE PEDAL PAD KIT, w/ 1783C, 2903, 6421, 42146-07, 42147-07, 44437-04 & 94006-90T | FLHRSE4 |
| 36 | 57217-02 | BUSHING, brake lever (2) | FLHRSE4 |
| 37 | 72023-51D | KIT SWITCH, rear brakelite, w/ 9907 | FLHRSE4 |
| 38 | 94006-90T | NUT, acorn | FLHRSE4 |

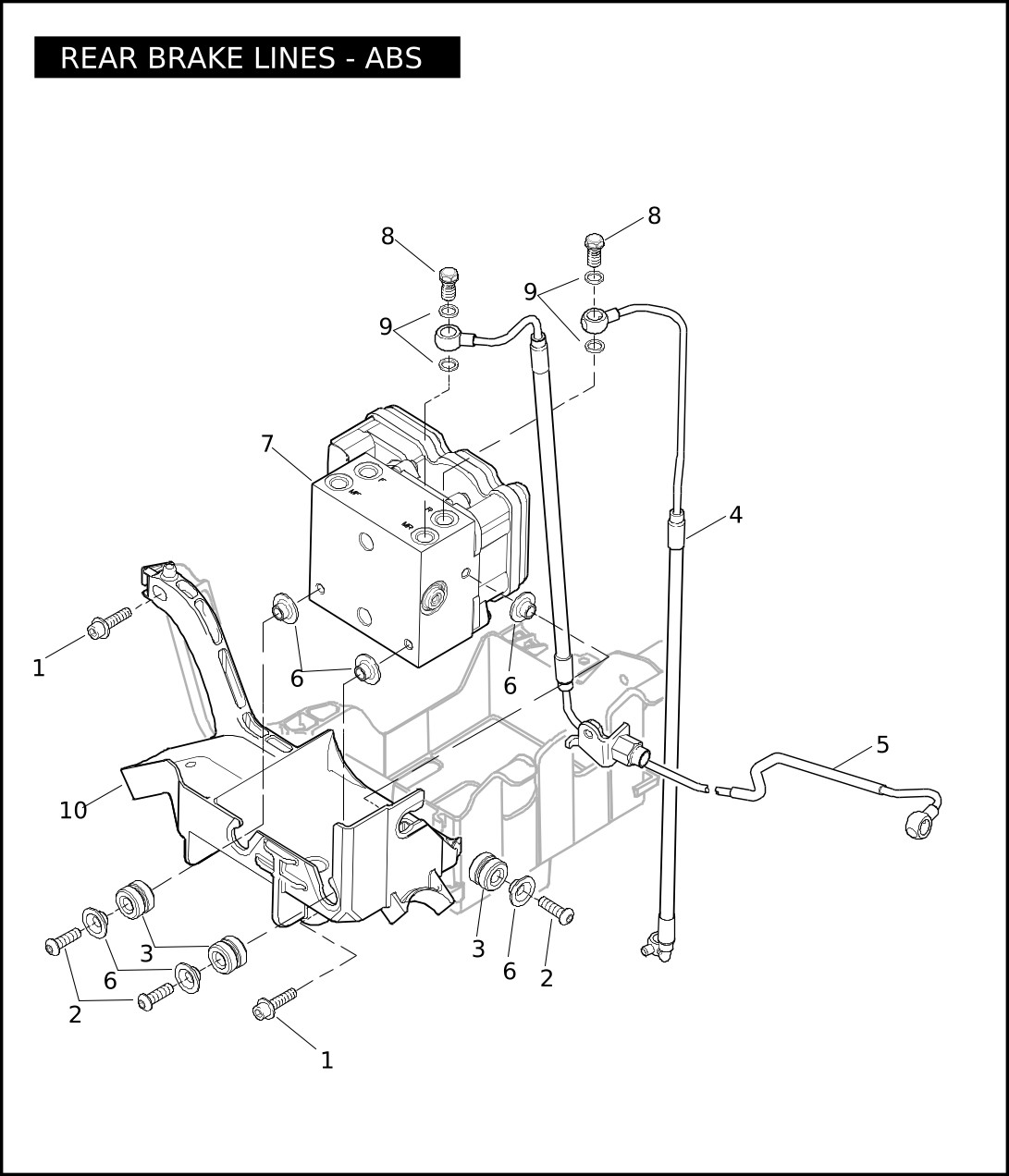

REAR BRAKE LINES - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3249 | SCREW (2) | FLHRSE4 |
| 2 | 3832M | SCREW (3) | FLHRSE4 |
| 3 | 40603-08 | GROMMET (3) | FLHRSE4 |
| 4 | 40610-08 | BRAKELINE, ABS module to caliper | FLHRSE4 |
| 5 | 40611-08 | BRAKELINE, ABS module to master cylinder | FLHRSE4 |
| 6 | 40628-08 | BUSHING, ABS (6) | FLHRSE4 |
| 7 | 40688-08 | ABS MODULE KIT | FLHRSE4 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 9 | 41751-06A | GASKET (4) | FLHRSE4 |
| 10 | 66318-08 | CADDY, RH, w/ ABS | FLHRSE4 |

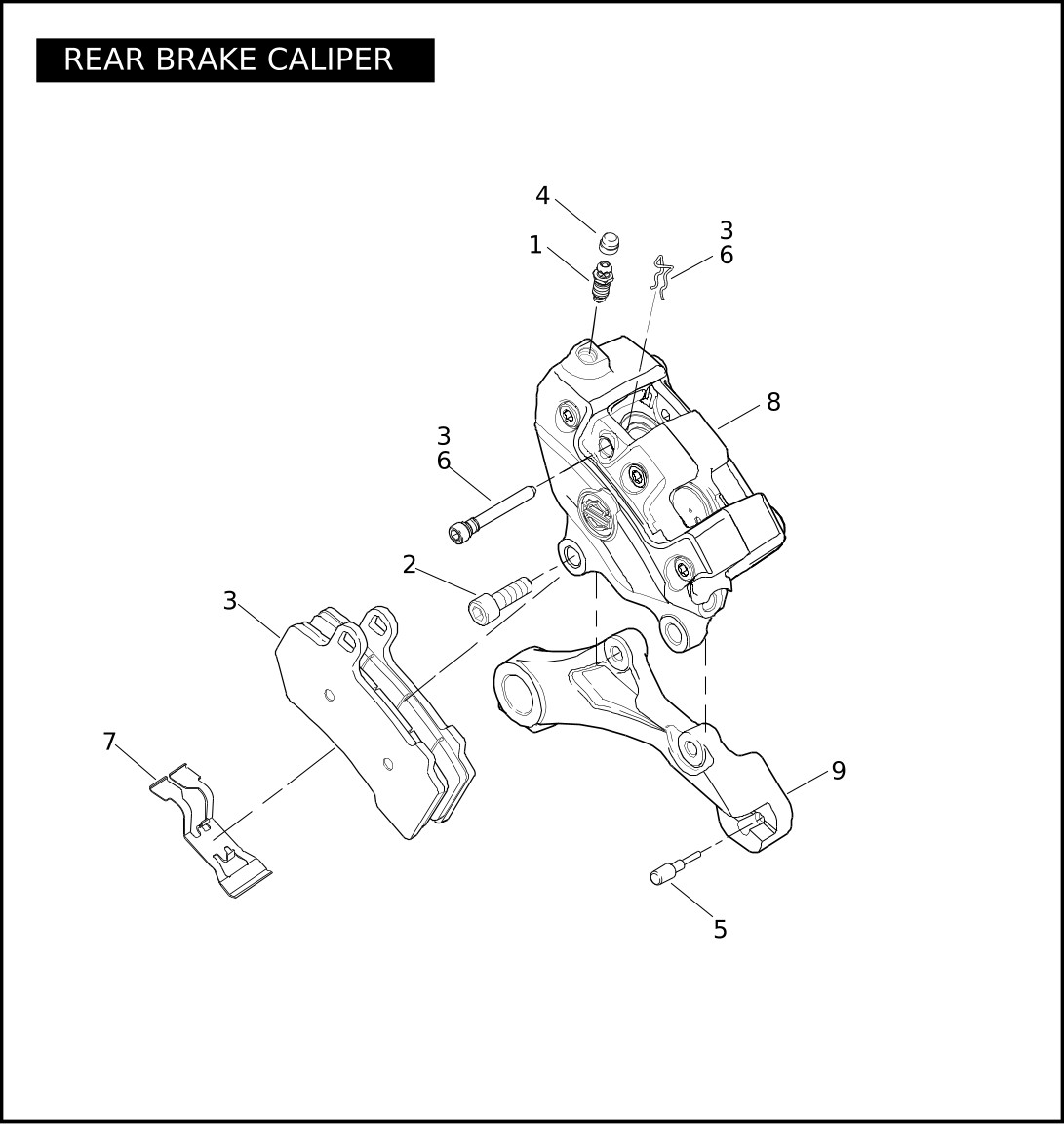

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 4596 | SCREW, bleeder | FLHRSE4 |
| 2 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHRSE4 |
| 3 | 41852-08 | PAD & PIN KIT | FLHRSE4 |
| 4 | 42853-06 | CAP, bleeder screw | FLHRSE4 |
| 5 | 42863-06 | BUMPER | FLHRSE4 |
| 6 | 42865-06A | PAD PIN KIT | FLHRSE4 |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHRSE4 |
| 8 | 44080-08 | CALIPER ASSEMBLY, rear, w/ 4596, 41852-08, 42853-06, 42865-06A & 42867-06A (black) | FLHRSE4 |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHRSE4 |

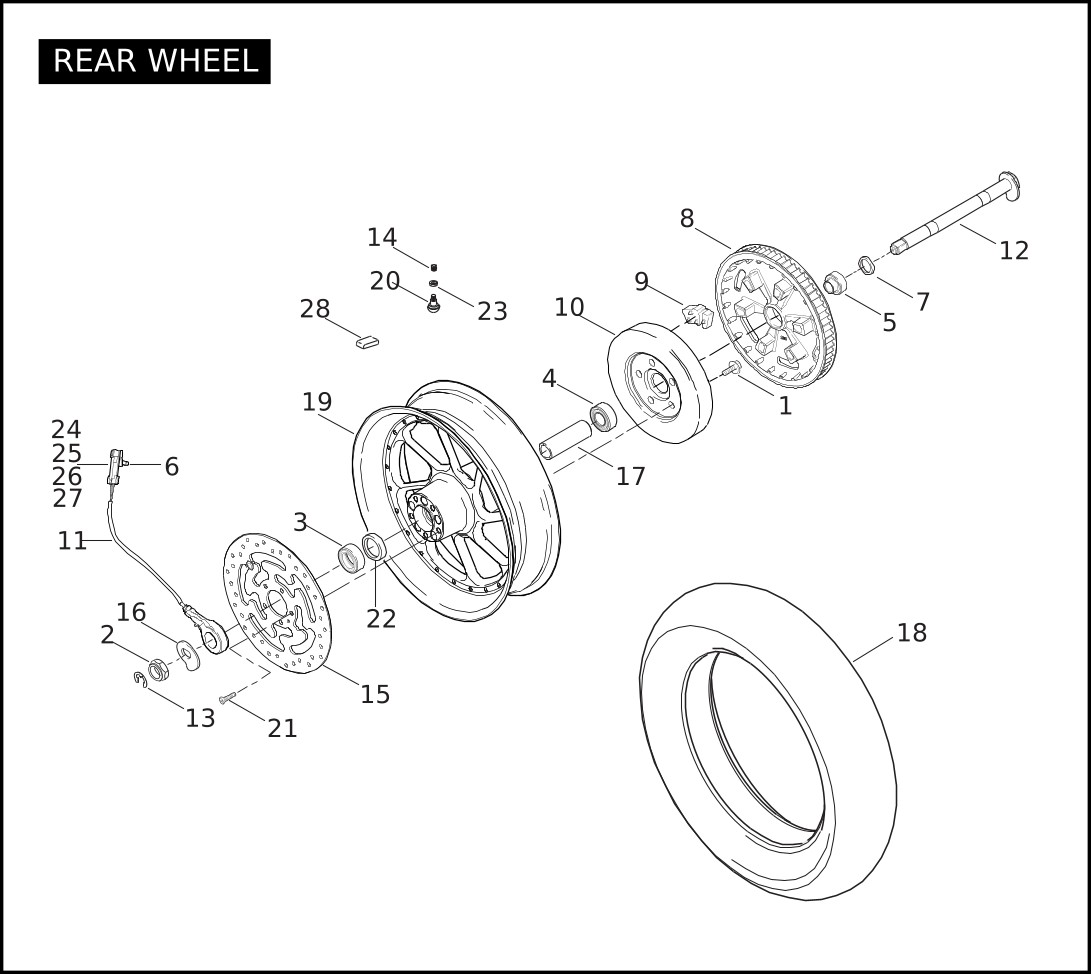

REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3814 | SCREW (5) | FLHRSE4 |
| 2 | 8020 | NUT, slotted | FLHRSE4 |
| 3 | 9252 | BALL BEARING, w/ encoder, ABS - right | FLHRSE4 |
| 4 | 9276 | BALL BEARING, left | FLHRSE4 |
| 5 | 9285 | BALL BEARING, sprocket | FLHRSE4 |
| 6 | 10147 | CLIP, connector | FLHRSE4 |
| 7 | 11844 | SPACER | FLHRSE4 |
| 8 | 40265-08 | SPROCKET, 66-tooth (black) | FLHRSE4 |
| 9 | 40278-08 | ISOLATOR, rubber (6) | FLHRSE4 |
| 10 | 40560-05 | BOWL, compensator | FLHRSE4 |
| 11 | 40615-08 | SENSOR, wheel speed, ABS | FLHRSE4 |
| 12 | 42120-08 | REAR AXLE | FLHRSE4 |
| 13 | 41139-02 | SPRING CLIP | FLHRSE4 |
| 14 | 41148-98 | CAP, tire valve acorn, w/ bar & shield (chrome) (2) | FLHRSE4 |
| 15 | 41810-08 | BRAKE DISC | FLHRSE4 |
| 16 | 41819-02 | AXLE CAM | FLHRSE4 |
| 17 | 42122-08 | SLEEVE, bearing spacer | FLHRSE4 |
| 18 | 41998-07 | TIRE, 17 in 170/60R17 | FLHRSE4 |
| 19 | 42082-07 | RIM, 17 inch cast | FLHRSE4 |
| 20 | 43157-83A | VALVE STEM, cast wheels, w/ 54321-85 | FLHRSE4 |
| 21 | 43567-92 | SCREW (5) | FLHRSE4 |
| 22 | 43904-08 | SPACER, rear wheel bearing | FLHRSE4 |
| 23 | 54321-85 | NUT | FLHRSE4 |
| 24 | 72607-08 | HOUSING, 2 way pin | FLHRSE4 |
| 25 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE4 |
| 26 | 72609-08 | LOCK, secondary, 2-way (black) | FLHRSE4 |
| 27 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE4 |
| 28 | 95595-84 | WEIGHT, 1/4 oz. cast wheels (silver) | FLHRSE4 |

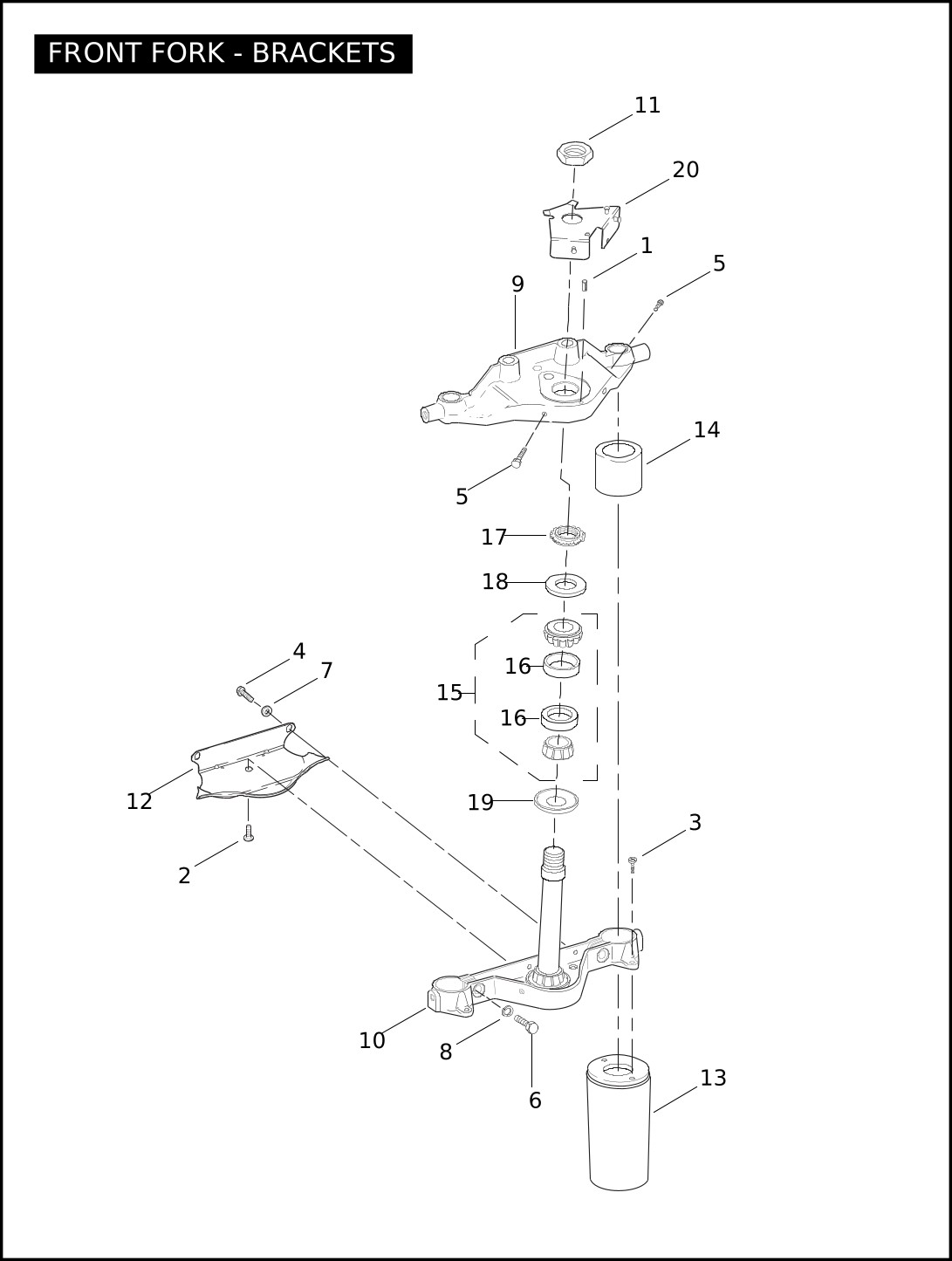

FRONT FORK - BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | PIN, roll | FLHRSE4 |
| 2 | 3331 | SCREW | FLHRSE4 |
| 3 | 3537 | SCREW (4) | FLHRSE4 |
| 4 | 3892 | SCREW (2) | FLHRSE4 |
| 5 | 4240 | SCREW (2) | FLHRSE4 |
| 6 | 4752 | BOLT (2) | FLHRSE4 |
| 7 | 6703 | WASHER (2) | FLHRSE4 |
| 8 | 7039 | LOCKWASHER (2) | FLHRSE4 |
| 9 | 45435-95 | BRACKET, upper fork | FLHRSE4 |
| 10 | 45446-87A | BRACKET ASSEMBLY, fork stem | FLHRSE4 |
| 11 | 45718-60 | NUT, fork stem | FLHRSE4 |
| 12 | 45780-03 | COVER, fork bracket (chrome) | FLHRSE4 |
| 13 | 45963-97 | FORK TUBE COVER KIT | FLHRSE4 |
| 14 | 47530-79B | STOP, fork, rubber (2) | FLHRSE4 |
| 15 | 48300-60 | BEARING KIT, roller, w/ 48315-60 (2) | FLHRSE4 |
| 16 | 48315-60 | CUP, roller-bearing (2) | FLHRSE4 |
| 17 | 48333-80 | ADJUSTER, bearing | FLHRSE4 |
| 18 | 48361-80 | SHIELD, dust, upper bearing | FLHRSE4 |
| 19 | 48365-48A | SHIELD, dust, lower bearing | FLHRSE4 |
| 20 | 72332-02A | BRACKET, mounting | FLHRSE4 |

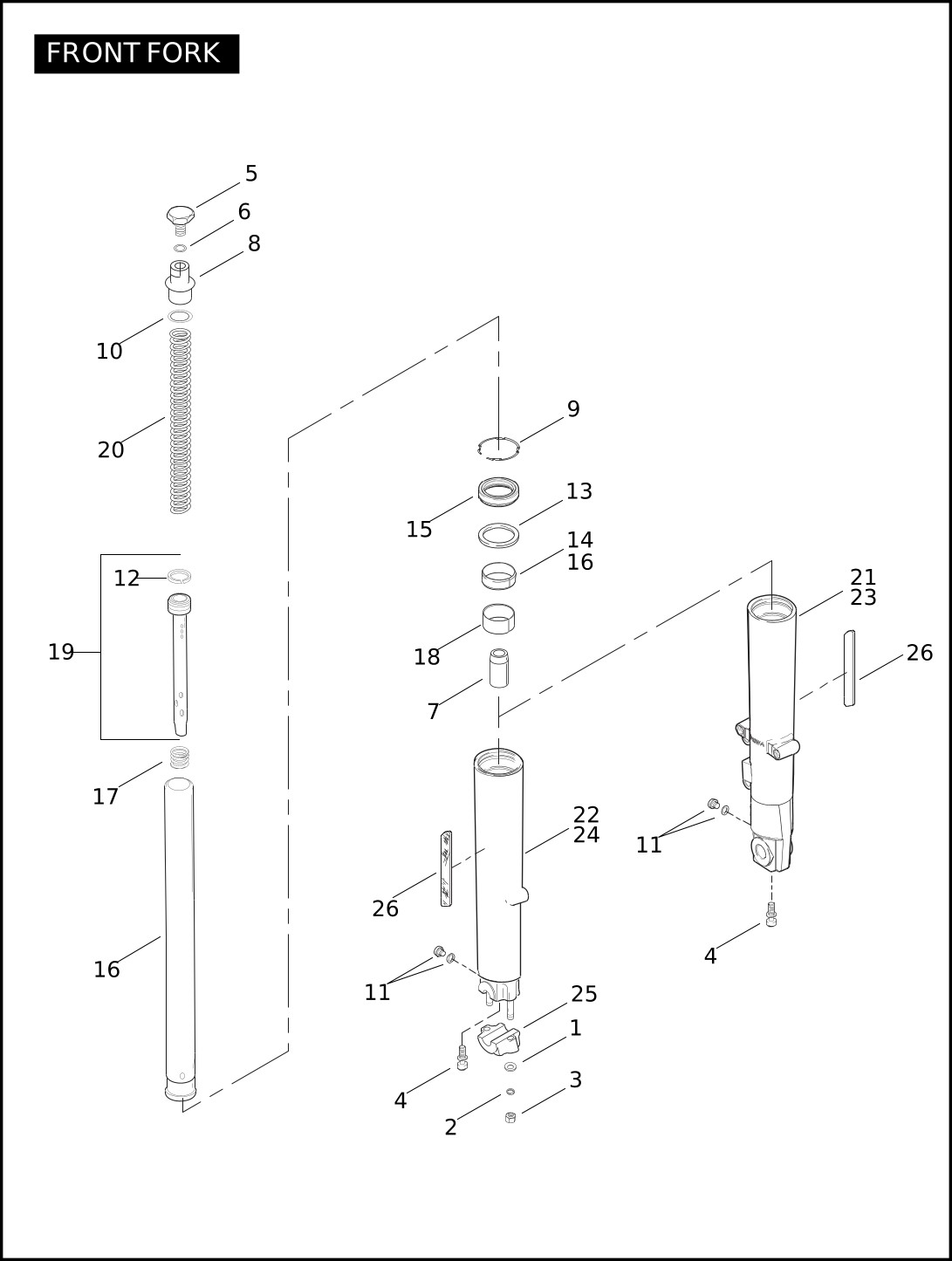

FRONT FORK
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER, right (2) | FLHRSE4 |
| 2 | 7041 | LOCKWASHER, right (2) | FLHRSE4 |
| 3 | 7748W | NUT, right (2) | FLHRSE4 |
| 4 | 45405-75A | SCREW, damper tube, w/ captive washer (2) | FLHRSE4 |
| 5 | 45419-80 | BOLT, fork (2) | FLHRSE4 |
| 6 | 45733-48 | SEAL, oil, bolt (2) | FLHRSE4 |
| 7 | 45803-97 | STOP, lower (2) | FLHRSE4 |
| 8 | 45838-77 | BOLT, front fork (2) | FLHRSE4 |
| 9 | 45842-77A | RING, retaining, oil-seal (2) | FLHRSE4 |
| 10 | 45845-77 | O-RING (2) | FLHRSE4 |
| 11 | 45858-77 | SCREW, drain, w/ copper washer (2) | FLHRSE4 |
| 12 | 45859-77A | RING, piston damper tube (2) | FLHRSE4 |
| 13 | 45865-84 | SPACER, seal (2) | FLHRSE4 |
| 14 | 45866-84 | BUSHING, slider (2) | FLHRSE4 |
| 15 | 45875-84A | SEAL, oil (2) | FLHRSE4 |
| 16 | 45890-97 | TUBE ASSEMBLY, stanchion, w/ 45866-84 (2) | FLHRSE4 |
| 17 | 45933-86 | SPRING, rebound (2) | FLHRSE4 |
| 18 | 45940-84 | BUSHING, guide (2) | FLHRSE4 |
| 19 | 45891-97 | DAMPER TUBE, w/ 45859-77A (2) | FLHRSE4 |
| 20 | 45892-02 | SPRING, fork (2) | FLHRSE4 |
| 21 | 46240-02A | FORK ASSEMBLY, left | FLHRSE4 |
| 22 | 46241-02A | FORK ASSEMBLY, right | FLHRSE4 |
| 23 | 46473-00B | SLIDER, fork, left (chrome) | FLHRSE4 |
| 24 | 46474-00C | SLIDER, fork, right (chrome) | FLHRSE4 |
| 25 | 46658-07 | HOLDER, right axle | FLHRSE4 |
| 26 | 59481-00 | REFLECTOR, right | FLHRSE4 |
| 59482-00 | REFLECTOR, left | FLHRSE4 |

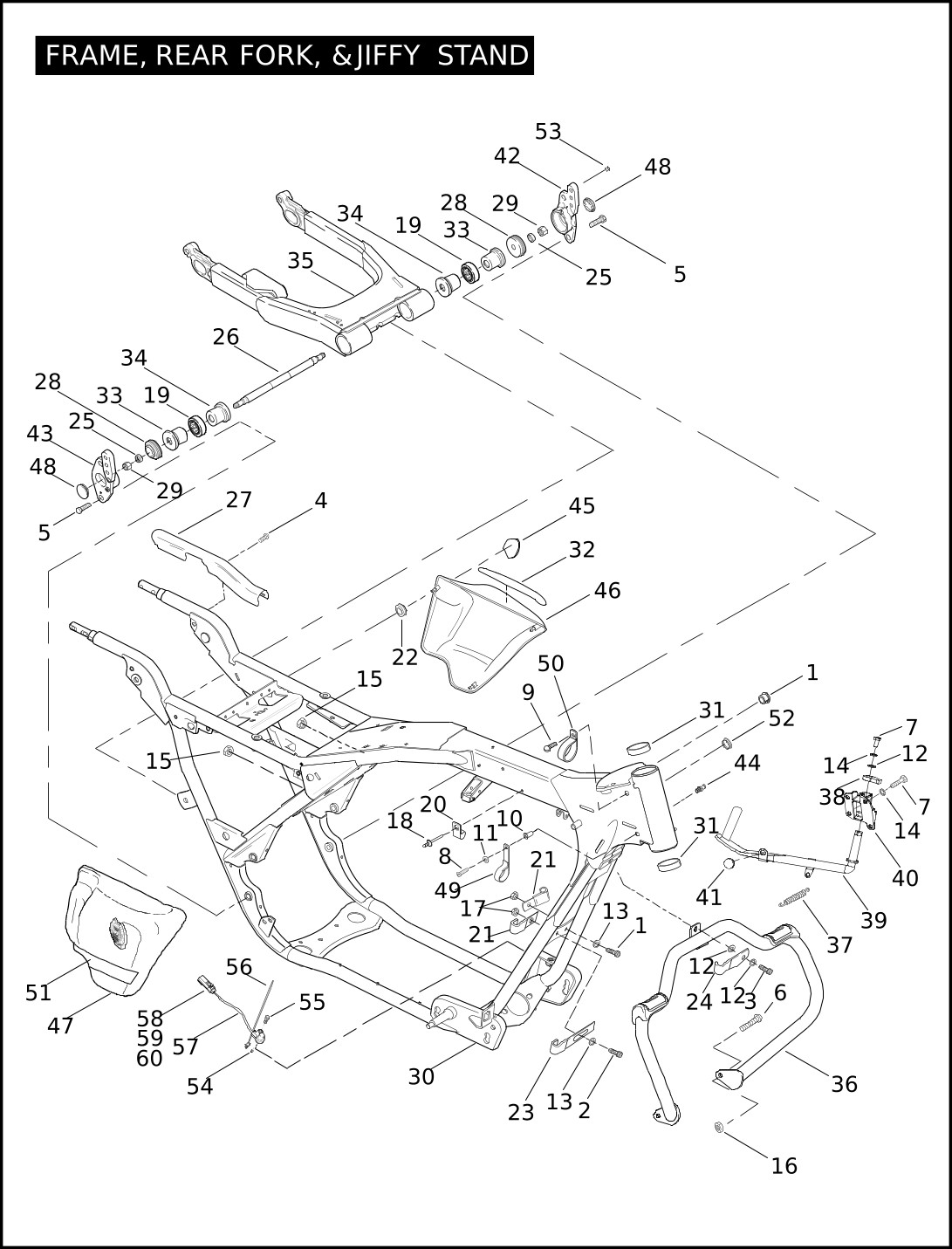

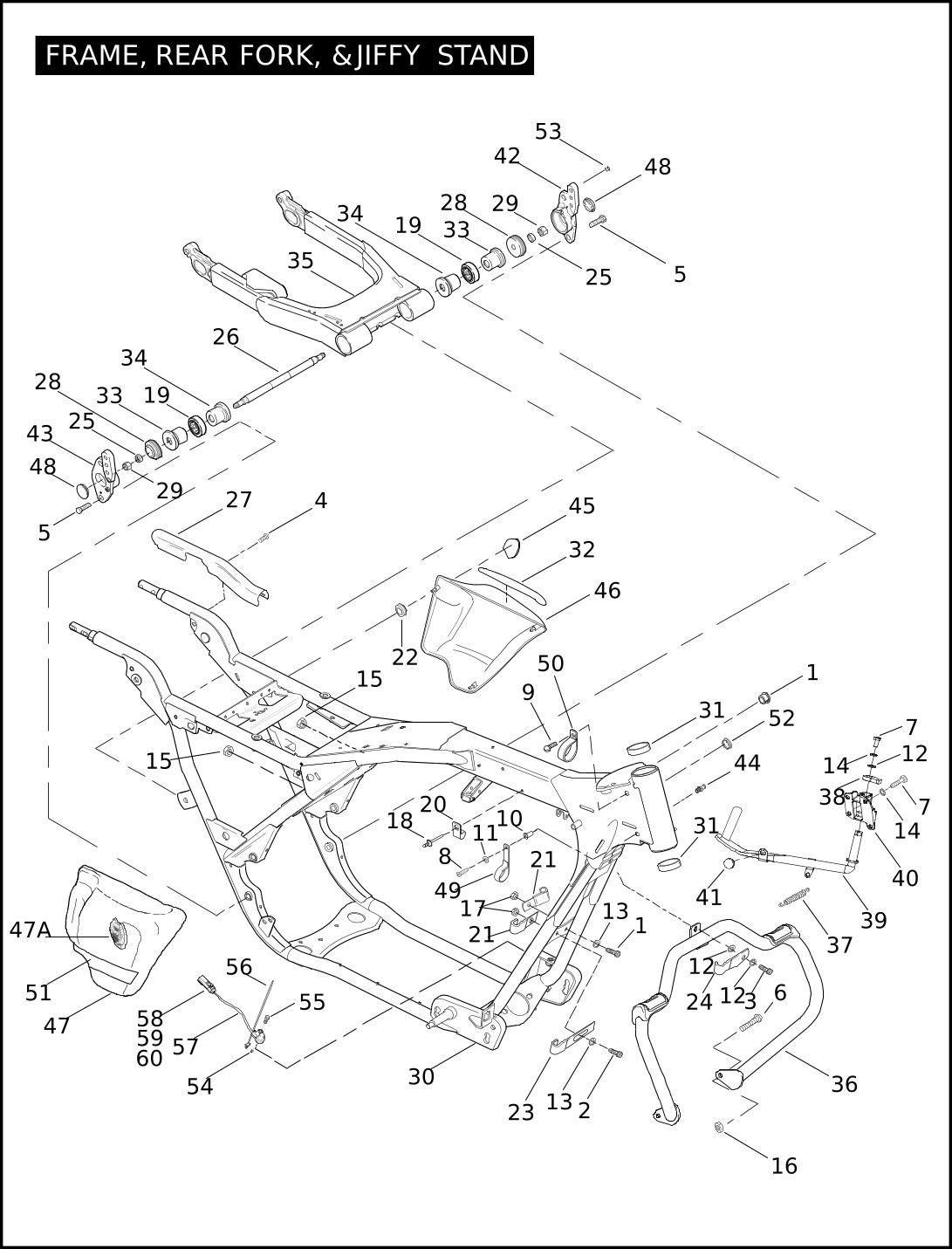

FRAME, REAR FORK, & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 755 | PLUG | FLHRSE4 |
| 2 | 1001 | SCREW (2) | FLHRSE4 |
| 3 | 2708A | SCREW | FLHRSE4 |
| 4 | 2782 | SCREW (2) | FLHRSE4 |
| 5 | 3057 | SCREW (4) | FLHRSE4 |
| 6 | 3678 | SCREW (2) | FLHRSE4 |
| 7 | 3987 | BOLT (3) | FLHRSE4 |
| 8 | 4094 | SCREW | FLHRSE4 |
| 9 | 4124 | SCREW | FLHRSE4 |
| 10 | 5207 | WELLNUT | FLHRSE4 |
| 11 | 6047 | WASHER | FLHRSE4 |
| 12 | 6702 | WASHER (3) | FLHRSE4 |
| 13 | 6703 | WASHER (2) | FLHRSE4 |
| 14 | 7041 | LOCKWASHER (3) | FLHRSE4 |
| 15 | 7495 | NUT (2) | FLHRSE4 |
| 16 | 7601 | LOCKNUT (2) | FLHRSE4 |
| 17 | 7688 | NUT (2) | FLHRSE4 |
| 18 | 8483A | RIVET | FLHRSE4 |
| 19 | 9208 | BEARING (2) | FLHRSE4 |
| 20 | 10076 | CLAMP | FLHRSE4 |
| 21 | 10092 | CLAMP (2) | FLHRSE4 |
| 22 | 11491A | GROMMET, side cover (6) | FLHRSE4 |
| 23 | 38901-08 | RETAINER, cable, lower | FLHRSE4 |
| 24 | 38904-08 | RETAINER, cable, upper | FLHRSE4 |
| 25 | 47491-02 | WASHER (2) | FLHRSE4 |
| 26 | 47505-02 | SHAFT, rear fork | FLHRSE4 |
| 27 | 47558-07 | COVER, left | FLHRSE4 |
| 47560-07 | COVER, right | FLHRSE4 | |
| 28 | 47564-86B | SPACER, large (2) | FLHRSE4 |
| 29 | 47606-02 | LOCKNUT (2) | FLHRSE4 |
| 30 | 47900-08CJL | FRAME (blue) | FLHRSE4 |
| 47900-08CRP | FRAME (black) | FLHRSE4 | |
| 47900-08CRR | FRAME (copper) | FLHRSE4 | |
| 31 | 48315-60 | CUP, bearing (2) | FLHRSE4 |
| 32 | 48419-04 | WEAR PAD, right | FLHRSE4 |
| 48420-04 | WEAR PAD, left | FLHRSE4 | |
| 33 | 48487-02 | SPACER, outer (2) | FLHRSE4 |
| 34 | 48489-02 | SPACER, inner (2) | FLHRSE4 |
| 35 | 48613-08CJL | FORK, rear, w/ 9208 & 48489-02 (blue) | FLHRSE4 |
| 48613-08CRP | FORK, rear, w/ 9208 & 48489-02 (black) | FLHRSE4 | |
| 48613-08CRR | FORK, rear, w/ 9208 & 48489-02 (copper) | FLHRSE4 | |
| 36 | 49293-07 | ENGINE GUARD | FLHRSE4 |
| 37 | 49725-07 | SPRING, jiffy-stand | FLHRSE4 |
| 38 | 50015-74A | STOP, leg | FLHRSE4 |
| 39 | 50075-07 | LEG, jiffy-stand | FLHRSE4 |
| 40 | 50078-81B | BRACKET, leg, jiffy stand | FLHRSE4 |
| 41 | 50245-07 | BUMPER, leg, jiffy stand | FLHRSE4 |
| 42 | 50588-08CJL | BRACKET, rear fork, left (blue) | FLHRSE4 |
| 50588-08CRP | BRACKET, rear fork, left (black) | FLHRSE4 | |
| 50588-08CRR | BRACKET, rear fork, left (copper) | FLHRSE4 | |
| 43 | 50589-08CJL | BRACKET, rear fork, right (blue) | FLHRSE4 |
| 50589-08CRP | BRACKET, rear fork, right (black) | FLHRSE4 | |
| 50589-08CRR | BRACKET, rear fork, right (copper) | FLHRSE4 | |
| 44 | 50972-75 | FITTING, lubrication | FLHRSE4 |
| 45 | 66055-93 | WEAR PAD (2) | FLHRSE4 |
FRAME, REAR FORK, & JIFFY STAND (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 46 | 66622-08CJL | COVER, side, left (blue) | FLHRSE4 |
| 66622-08CRP | COVER, side, left (black) | FLHRSE4 | |
| 66622-08CRV | COVER, side, left (copper/black) | FLHRSE4 | |
| 47 | 66623-08CJL | COVER, side, right (blue) | FLHRSE4 |
| 66623-08CRP | COVER, side, right (black) | FLHRSE4 | |
| 66625-08CRV | COVER, side, right w/ 48419-04, 69055-93 & 88328-08 (copper/black) | FLHRSE4 | |
| 47A | 92371-08 | MEDALLION ASSEMBLY, w/ serialized plate | FLHRSE4 |
| 48 | 67865-89 | CAP (2) | FLHRSE4 |
| 49 | 68750-93 | CLAMP | FLHRSE4 |
| 50 | 69318-02 | CLAMP | FLHRSE4 |
| 51 | 88328-08 | TRIM, side cover - right side | FLHRSE4 |
| 88327-08 | TRIM, side cover - left side | FLHRSE4 | |
| 52 | 90469-94 | PLUG (3) | FLHRSE4 |
| 53 | 90493-83 | PLUG, hole (2) | FLHRSE4 |
| 54 | 90520-07 | PLUG, jiffy stand (Domestic, California, Canada, Australia, Japan) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 55 | 3594 | SCREW, jiffy stand (England, HDI) | FLHRSE4 |
| 56 | 10177 | CABLE STRAP, tree mount, jiffy stand (England, HDI) | FLHRSE4 |
| 57 | 50126-08 | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) | FLHRSE4 |
| 58 | 72169-07 | TERMINAL, pin, 16-20 AWG (England, HDI) | FLHRSE4 |
| 59 | 72511-07BK | HOUSING, pin, 3-way (black) (England, HDI) | FLHRSE4 |
| 60 | 73213-07 | RETAINER, xmas tree clip (England, HDI) | FLHRSE4 |

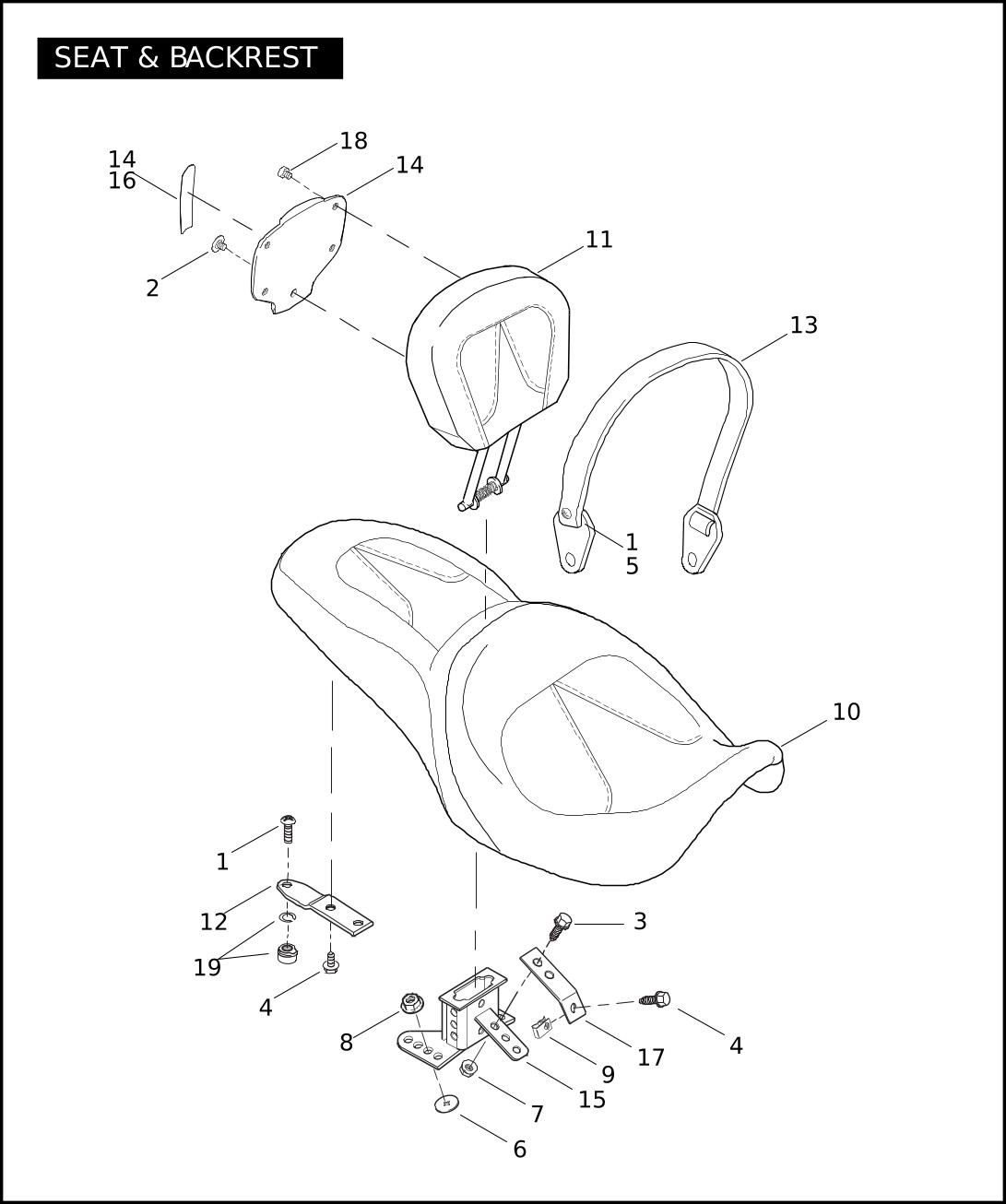

SEAT & BACKREST
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW (3) | FLHRSE4 |
| 2 | 3540 | SCREW, adjuster | FLHRSE4 |
| 3 | 3546 | BOLT | FLHRSE4 |
| 4 | 3588 | SCREW (3) | FLHRSE4 |
| 5 | 6703 | WASHER | FLHRSE4 |
| 6 | 7434 | WASHER, nylon (2) | FLHRSE4 |
| 7 | 7531 | LOCKNUT | FLHRSE4 |
| 8 | 7716 | LOCKNUT (2) | FLHRSE4 |
| 9 | 8108 | SPEEDNUT | FLHRSE4 |
| 10 | 51483-08 | SEAT, w/ 3588, & 51652-97 | FLHRSE4 |
| 11 | 51489-08 | PAD, rider backrest | FLHRSE4 |
| 12 | 51652-97 | BRACKET, seat mounting | FLHRSE4 |
| 13 | 51880-07 | GRAB STRAP, passenger, w/ 2952A & 6703 | FLHRSE4 |
| 14 | 53293-04 | BACKREST MOUNT ASSEMBLY, rider w/ 52618-04 | FLHRSE4 |
| 15 | 52567-93B | MOUNTING BRACKET, rider backrest | FLHRSE4 |
| 16 | 52618-04 | INSERT | FLHRSE4 |
| 17 | 52624-05 | BRACKET | FLHRSE4 |
| 18 | 53202-04 | SCREW (4) | FLHRSE4 |
| 19 | 59768-97 | NUT KIT, seat, w/ retention washer | FLHRSE4 |

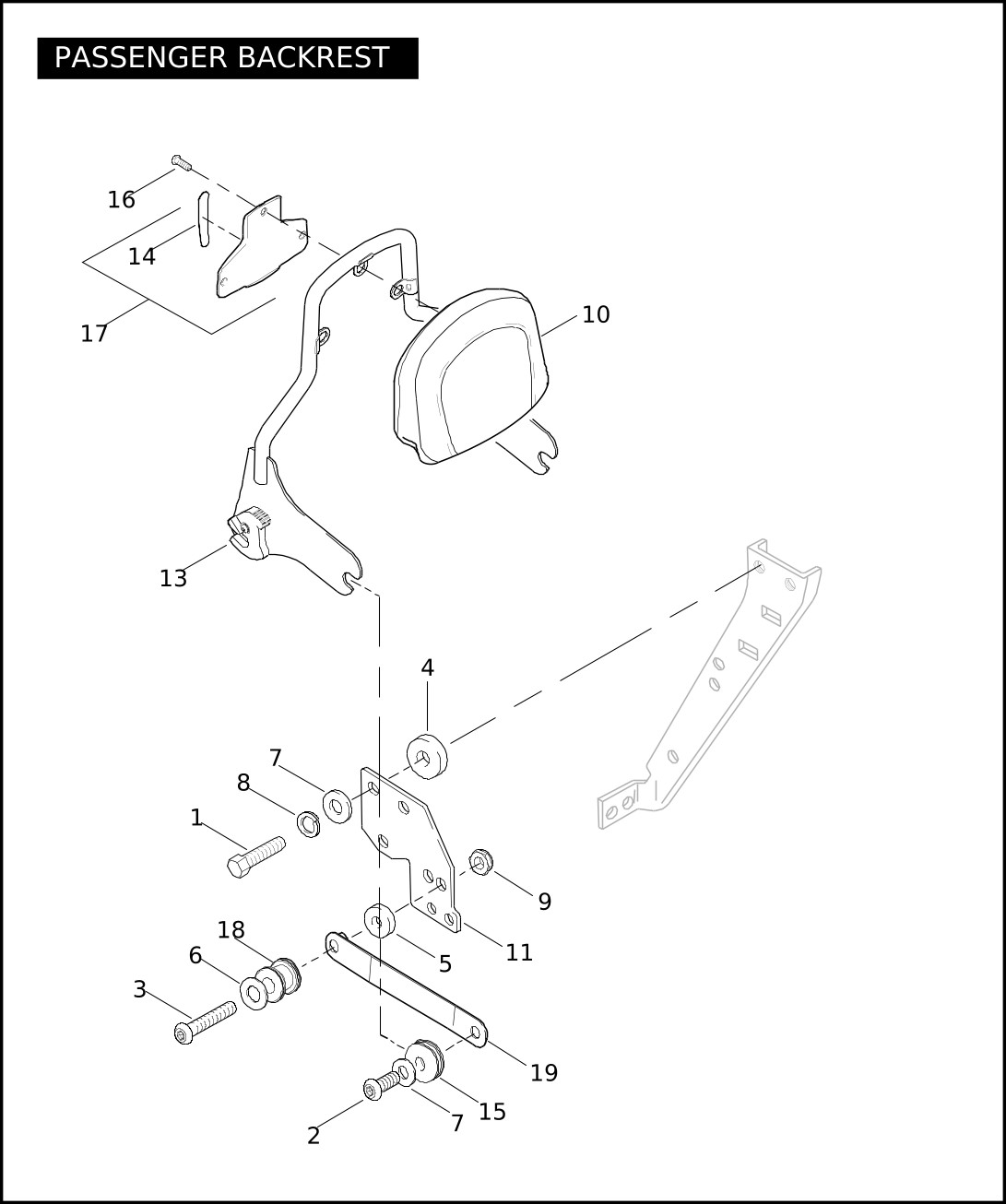

PASSENGER BACKREST
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW (4) | FLHRSE4 |
| 2 | 4016 | SCREW (2) | FLHRSE4 |
| 3 | 4502 | SCREW (2) | FLHRSE4 |
| 4 | 6378 | WASHER (4) | FLHRSE4 |
| 5 | 6474 | WASHER | FLHRSE4 |
| 6 | 6701 | WASHER (2) | FLHRSE4 |
| 7 | 6702 | WASHER (6) | FLHRSE4 |
| 8 | 7041 | LOCKWASHER (4) | FLHRSE4 |
| 9 | 7667 | NUT (2) | FLHRSE4 |
| 10 | 51487-08 | PAD, backrest | FLHRSE4 |
| 11 | 51861-07 | BRACKET | FLHRSE4 |
| 13 | 52935-04 | BRACKET ASSEMBLY KIT, passenger | FLHRSE4 |
| 14 | 52605-04 | INSERT, passenger backrest | FLHRSE4 |
| 15 | 67621-94 | BUSHING, front (2) | FLHRSE4 |
| 16 | 53202-04 | SCREW (3) | FLHRSE4 |
| 17 | 53294-04 | MOUNT ASSEMBLY, passenger backrest w/ 52605-04 | FLHRSE4 |
| 18 | 53684-96A | BUSHING, rear (2) | FLHRSE4 |
| 19 | 53805-99 | BRACKET (2) | FLHRSE4 |
| Index number 12 is not used in this illustration. | |||

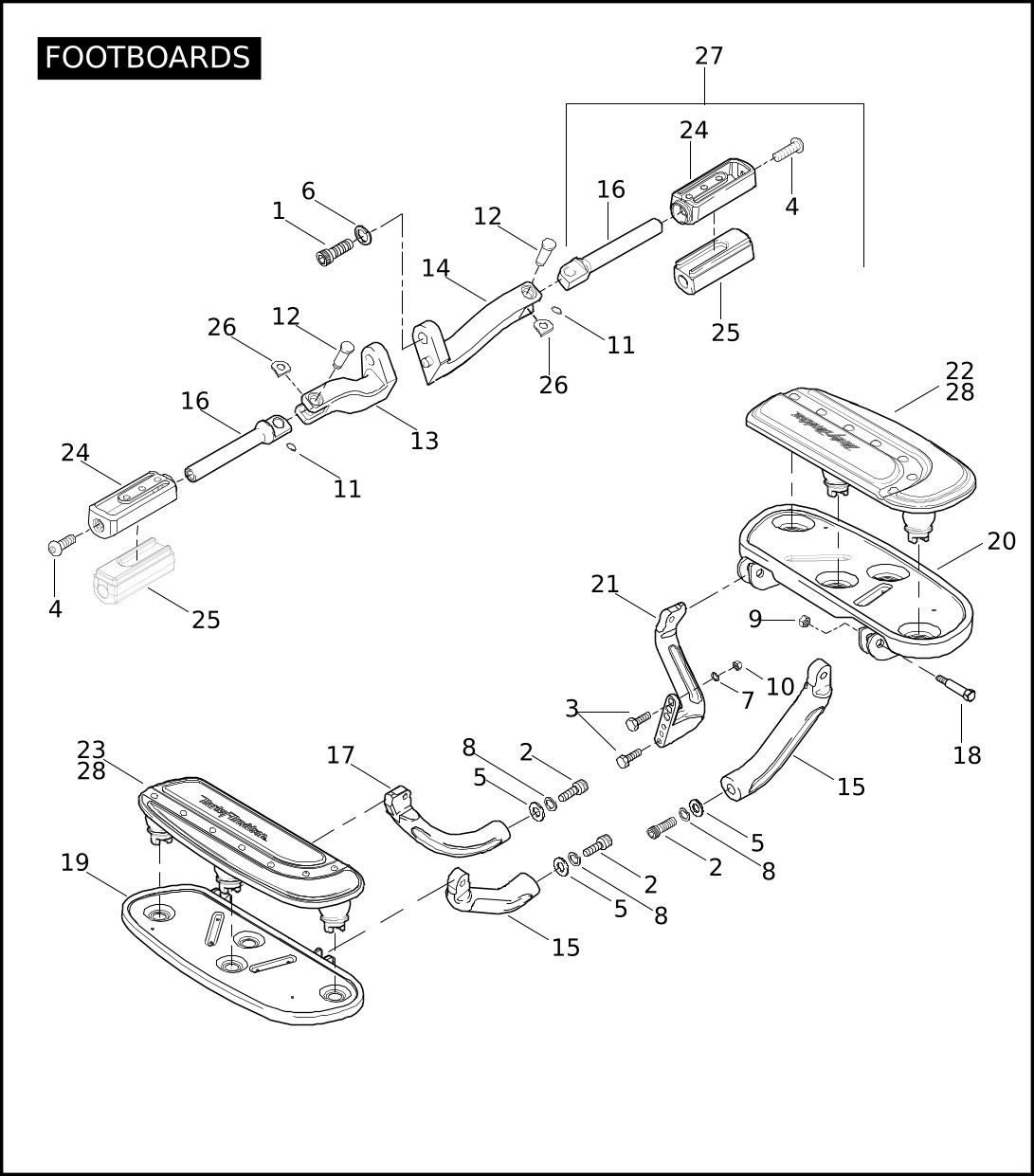

FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 861A | SCREW (2) | FLHRSE4 |
| 2 | 3599 | SCREW (3) | FLHRSE4 |
| 3 | 4017 | BOLT (2) | FLHRSE4 |
| 4 | 4625 | SCREW (2) | FLHRSE4 |
| 5 | 6738 | WASHER (3) | FLHRSE4 |
| 6 | 7038 | LOCKWASHER (2) | FLHRSE4 |
| 7 | 7041 | LOCKWASHER | FLHRSE4 |
| 8 | 7068 | LOCKWASHER (3) | FLHRSE4 |
| 9 | 7716 | LOCKNUT (4) | FLHRSE4 |
| 10 | 7748W | NUT | FLHRSE4 |
| 11 | 11304 | RING, retaining (2) | FLHRSE4 |
| 12 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHRSE4 |
| 13 | 49015-04A | BRACKET, right passenger footpeg | FLHRSE4 |
| 14 | 49036-04A | SUPPORT, left passenger footpeg | FLHRSE4 |
| 15 | 47370-04 | SUPPORT, support footboard, front (2) | FLHRSE4 |
| 16 | 50351-03 | MOUNT, footpeg support (2) | FLHRSE4 |
| 17 | 50571-04 | BRACKET, support footboard, rear right | FLHRSE4 |
| 18 | 50635-82A | BOLT, footboard hinge (4) | FLHRSE4 |
| 19 | 50683-04 | BOTTOM ASSEMBLY, right, w/ hinge | FLHRSE4 |
| 20 | 50688-04 | BOTTOM ASSEMBLY, left, w/ hinge | FLHRSE4 |
| 21 | 50806-07 | BRACKET, support, footboard, rear left | FLHRSE4 |
| 22 | 50812-07 | FOOTBOARD INSERT ASSEMBLY, left | FLHRSE4 |
| 23 | 50816-07 | FOOTBOARD INSERT ASSEMBLY, right | FLHRSE4 |
| 24 | 50834-07 | FOOTPEG BODY (2) | FLHRSE4 |
| 25 | 50835-07 | FOOTPEG TREAD (2) | FLHRSE4 |
| 26 | 50912-72 | SPRING WASHER (2) | FLHRSE4 |
| 27 | 50935-07 | FOOTPEG KIT, w/ 50351-03, 50834-07, 50835-07, & 94409-03 (2) | FLHRSE4 |
| 28 | 50968-07 | FOOTBOARD KIT, w/ 50812-07, & 50816-07 (2) | FLHRSE4 |

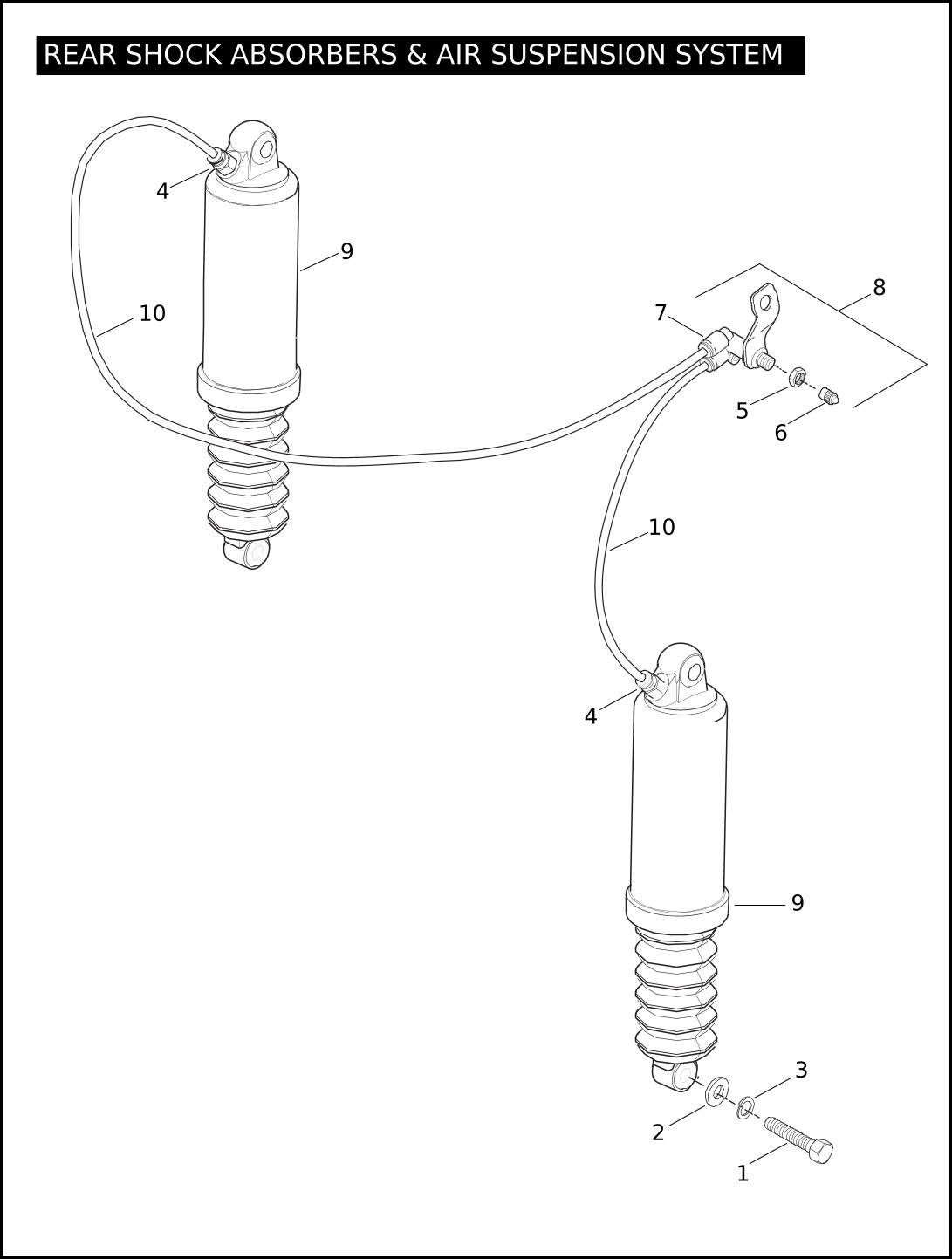

REAR SHOCK ABSORBERS & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHRSE4 |
| 2 | 6590HW | WASHER (4) | FLHRSE4 |
| 3 | 7068 | LOCKWASHER (4) | FLHRSE4 |
| 4 | 54320-97 | FITTING, 5/32 in. push-in (2) | FLHRSE4 |
| 5 | 54321-85 | NUT | FLHRSE4 |
| 6 | 54323-85A | VALVE CAP | FLHRSE4 |
| 7 | 54357-03 | UNION FITTING, 5/32 in. push-in | FLHRSE4 |
| 8 | 54536-02A | VALVE ASSEMBLY, w/ 54321-85, 54357-03, 54354-94A, & bracket | FLHRSE4 |
| 9 | 54669-07 | SHOCK ABSORBER, w/ 54320-97 (2) | FLHRSE4 |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 10 | 54354-94A | HOSE, 5/32 in. O.D. (25 ft. length) (black) | FLHRSE4 |

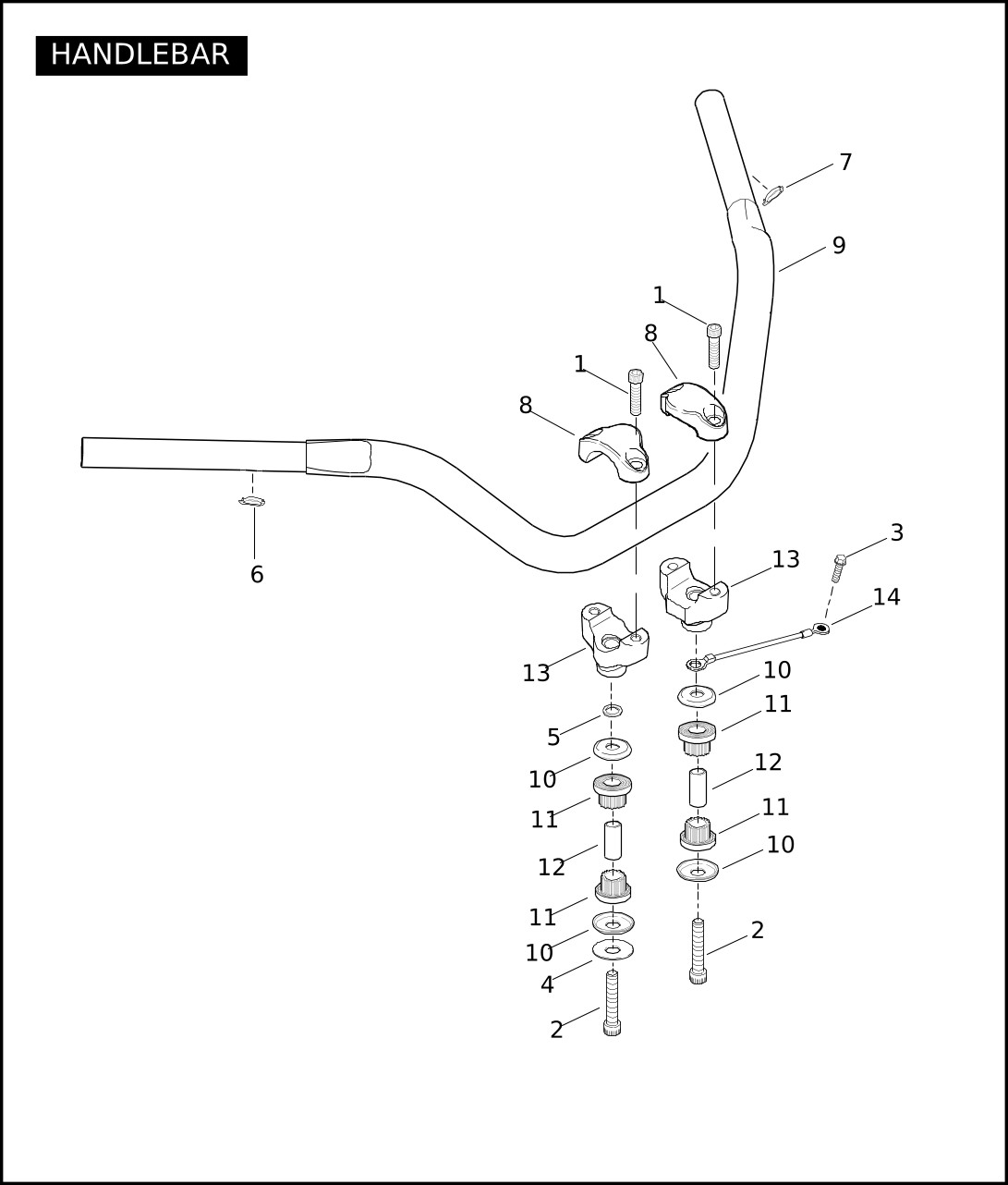

HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FLHRSE4 |
| 2 | 3605 | BOLT (2) | FLHRSE4 |
| 3 | 4240 | SCREW | FLHRSE4 |
| 4 | 6083 | WASHER (right only) | FLHRSE4 |
| 5 | 6113 | WASHER (right only) | FLHRSE4 |
| 6 | 11403A | GROMMET | FLHRSE4 |
| 7 | 11642 | GROMMET | FLHRSE4 |
| 8 | 55962-02 | CLAMP, upper (2) | FLHRSE4 |
| 9 | 56111-08 | HANDLEBAR KIT, w/ 11403A (chrome) | FLHRSE4 |
| 10 | 56159-73 | WASHER, cup (4) | FLHRSE4 |
| 11 | 56161-83A | BUSHING (rubber) (4) | FLHRSE4 |
| 12 | 56163-93 | SPACER (2) | FLHRSE4 |
| 13 | 56380-02 | RISER, lower (2) | FLHRSE4 |
| 14 | 70142-94 | CABLE, ground | FLHRSE4 |

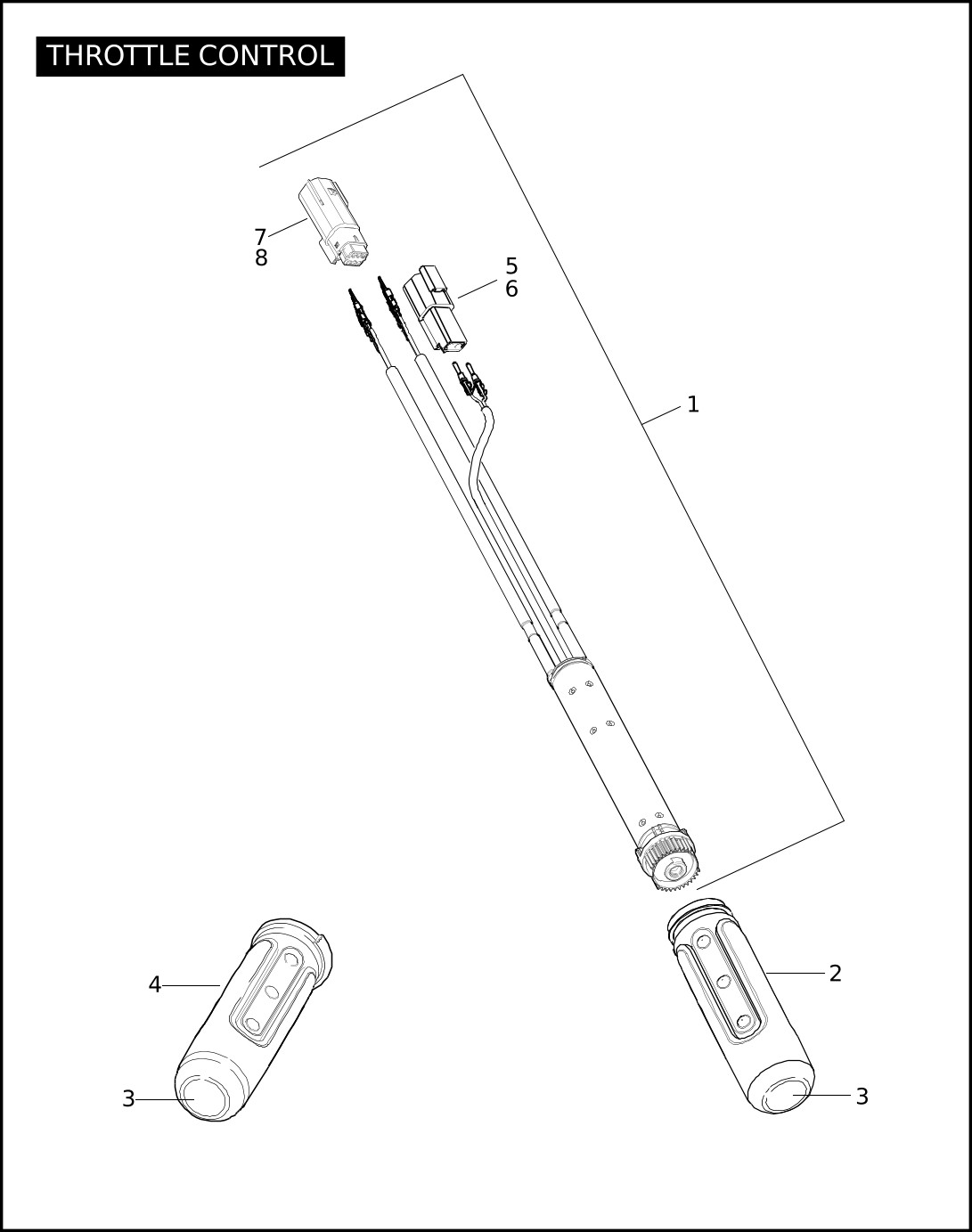

THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32310-08 | SENSOR KIT, twist grip w/ 5, 6, 7, 8, 10006, 72112-94BK, 72152-94, & 72195-94 | FLHRSE4 |
| 2 | 55926-08 | HANDGRIP ASSEMBLY, right, w/ 56480-01 | FLHRSE4 |
| 3 | 56480-01 | ENDCAP (chrome) | FLHRSE4 |
| 4 | 56971-07 | HANDGRIP ASSEMBLY, left, w/ 56480-01 | FLHRSE4 |
| 5 | 72102-94BK | PIN HOUSING, 2-way | FLHRSE4 |
| 6 | 72142-94 | LOCK, secondary, 2-way | FLHRSE4 |
| 7 | 72188-07BK | PIN HOUSING, 6-way | FLHRSE4 |
| 8 | 73212-07 | CONNECTOR ANCHOR, t-stud (2) | FLHRSE4 |

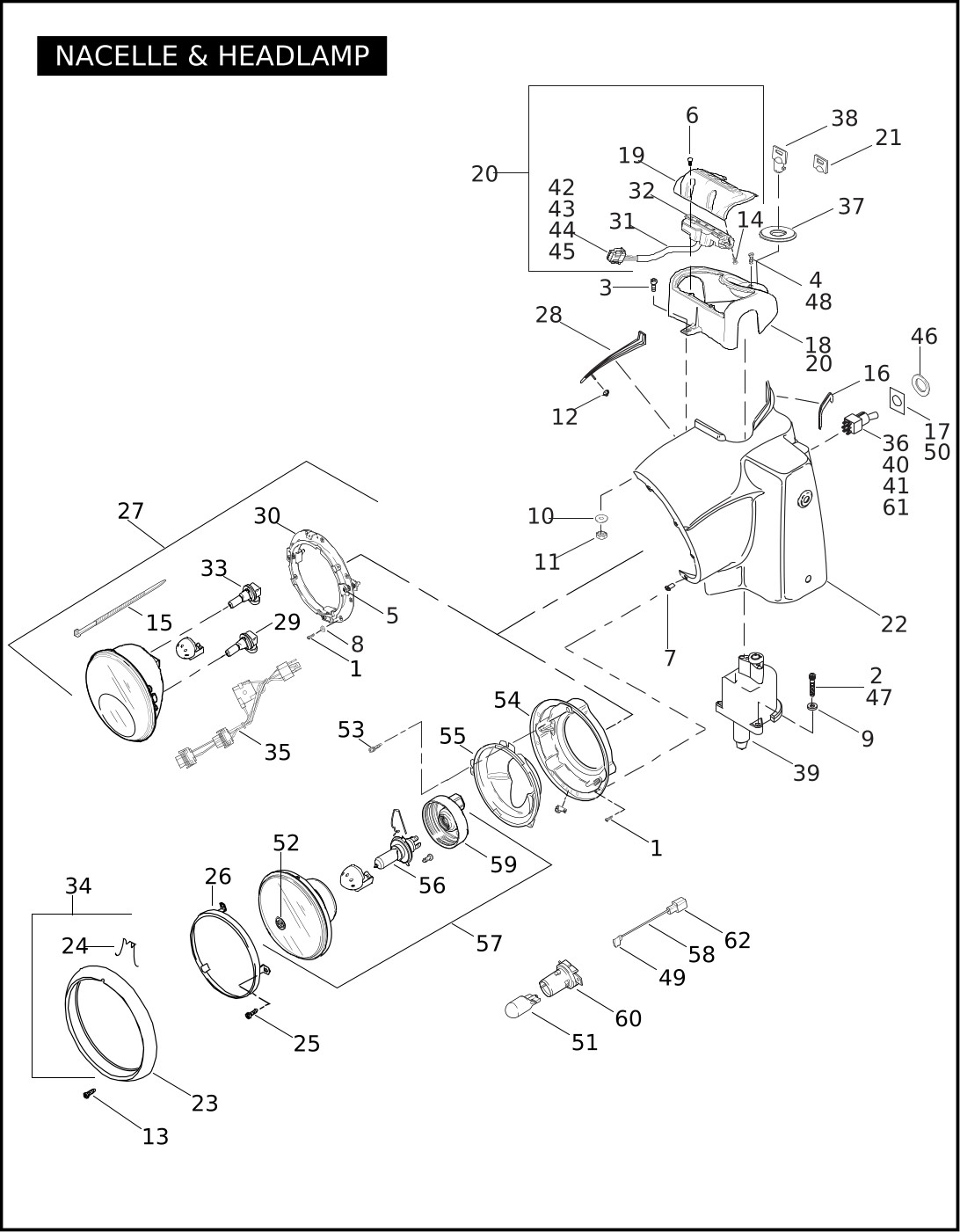

NACELLE & HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 787 | SCREW (8) | FLHRSE4 |
| 2 | 2647B | SCREW (2) | FLHRSE4 |
| 3 | 2806 | SCREW | FLHRSE4 |
| 4 | 2933 | SCREW (2) | FLHRSE4 |
| 5 | 3088 | SCREW (3) | FLHRSE4 |
| 6 | 4166 | SCREW (2) | FLHRSE4 |
| 7 | 5210 | WELLNUT (7) | FLHRSE4 |
| 8 | 6717 | WASHER (8) | FLHRSE4 |
| 9 | 6150W | WASHER (2) | FLHRSE4 |
| 10 | 6789 | WASHER | FLHRSE4 |
| 11 | 7889 | NUT, w/ washer | FLHRSE4 |
| 12 | 7888A | NUT, speed | FLHRSE4 |
| 13 | 9475 | SCREW, headlamp door | FLHRSE4 |
| 14 | 9496 | SCREW (2) | FLHRSE4 |
| 15 | 10006 | CABLE STRAP (2) | FLHRSE4 |
| 16 | 11489 | TRIM (2) | FLHRSE4 |
| 17 | 14019-83A | LABEL, on - off (2) | FLHRSE4 |
| 18 | 56034-08 | COVER, handlebar - lower (chrome) | FLHRSE4 |
| 19 | 56035-08 | COVER, handlebar - upper (chrome) | FLHRSE4 |
| 20 | 56050-08 | HANDLEBAR COVER ASSEMBLY (chrome) | FLHRSE4 |
| 21 | 61081-92 | COVER, key-head, set (2) | FLHRSE4 |
| 22 | 67674-03A | NACELLE, right | FLHRSE4 |
| 67682-03A | NACELLE, left | FLHRSE4 | |
| 23 | 69604-03 | DOOR, headlamp | FLHRSE4 |
| 24 | 67720-03A | SPRING, top door, headlamp | FLHRSE4 |
| 25 | 67721-48 | SCREW (3) | FLHRSE4 |
| 26 | 67726-71A | RETAINING RING | FLHRSE4 |
| 27 | 67864-04A | HEADLAMP ASSEMBLY | FLHRSE4 |
| 28 | 67868-03 | TRIM, nacelle | FLHRSE4 |
| 29 | 68096-04 | BULB, high beam | FLHRSE4 |
| 30 | 68124-04A | MOUNTING RING ASSEMBLY, 3088 | FLHRSE4 |
| 31 | 68210-08 | LAMP ASSEMBLY, LED indicator w/ 68246-08, 74118-98BK, 74158-98, 74193-98, & 74195-98 | FLHRSE4 |
NACELLE & HEADLAMP (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 32 | 68246-08 | BEZEL, indicator light | FLHRSE4 |
| 33 | 68881-01 | BULB, low beam | FLHRSE4 |
| 34 | 69604-03 | DOOR ASSEMBLY KIT | FLHRSE4 |
| 35 | 70319-04 | WIRE HARNESS ASSEMBLY, handlebar | FLHRSE4 |
| 36 | 70292-89 | SOCKET HOUSING, 4-place (3) | FLHRSE4 |
| 37 | 71310-94 | TRIM ASSEMBLY, fork lock | FLHRSE4 |
| 38 | 71452-91A | KEY (specify key #) | FLHRSE4 |
| 39 | 71540-94A | FORK LOCK | FLHRSE4 |
| 40 | 71522-08 | SWITCH, spotlamp & accessories w/ 70292-89, & 72038-71A (2) | FLHRSE4 |
| 41 | 72038-71A | TERMINAL SOCKET (3) | FLHRSE4 |
| 42 | 74118-98BK | HOUSING, 8-way socket | FLHRSE4 |
| 43 | 74158-98 | SECONDARY LOCK, 8-way socket | FLHRSE4 |
| 44 | 74193-98 | TERMINAL, socket, 20-24 AWG (7) | FLHRSE4 |
| 45 | 74195-98 | SEAL PIN | FLHRSE4 |
| 46 | 74408-08 | DRESS NUT (chrome) (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 47 | 2934 | SCREW (England, Australia, HDI, Japan) (2) | FLHRSE4 |
| 48 | 2935A | SCREW (England, Australia, HDI, Japan) (2) | FLHRSE4 |
| 49 | 9898 | TERMINAL FLAG, 18-20 ga.(England, Australia, HDI, Japan) (2) | FLHRSE4 |
| 50 | 15346-98A | LABEL, spotlamp, right (England, Australia, HDI, Japan) | FLHRSE4 |
| 14019-83A | LABEL, on - off, left (England, Australia, HDI, Japan) | FLHRSE4 | |
| 51 | 53438-92 | BULB, position lamp (England, Australia, HDI, Japan) | FLHRSE4 |
| 52 | 67668-05 | MEDALLION, 7 inch bilb (England, Australia, HDI, Japan) | FLHRSE4 |
| 53 | 67724-71 | ADJUSTING SCREW (England, Australia, HDI, Japan) (2) | FLHRSE4 |
| 54 | 67728-02 | BUCKET ASSEMBLY (England, Australia, HDI, Japan) | FLHRSE4 |
| 55 | 67732-71B | MOUNTING RING (England, Australia, HDI, Japan) | FLHRSE4 |
| 56 | 68329-03 | BULB (England, Australia, HDI, Japan) | FLHRSE4 |
| 57 | 68344-05 | REFLECTOR ASSMEBLY, left dip, (England, Australia, Japan) | FLHRSE4 |
| 68345-05 | REFLECTOR ASSMEBLY, right dip (HDI) | FLHRSE4 | |
| 58 | 68359-05 | JUMPER HARNESS, position bulb w/ 9898, &72253-94 (England, Australia, HDI, Japan) | FLHRSE4 |
| 59 | 68380-05 | BOOT, bulb (England, Australia, HDI, Japan) | FLHRSE4 |
| 60 | 68653-05 | SOCKET, position lamp (England, Australia, HDI, Japan) | FLHRSE4 |
| 61 | 71565-08 | SWITCH, illuminated w/ 70292-89, & 72038-71A (Japan) (2) | FLHRSE4 |
| 62 | 72253-94 | TERMINAL, 18-20 ga. (England, Australia, HDI, Japan) | FLHRSE4 |

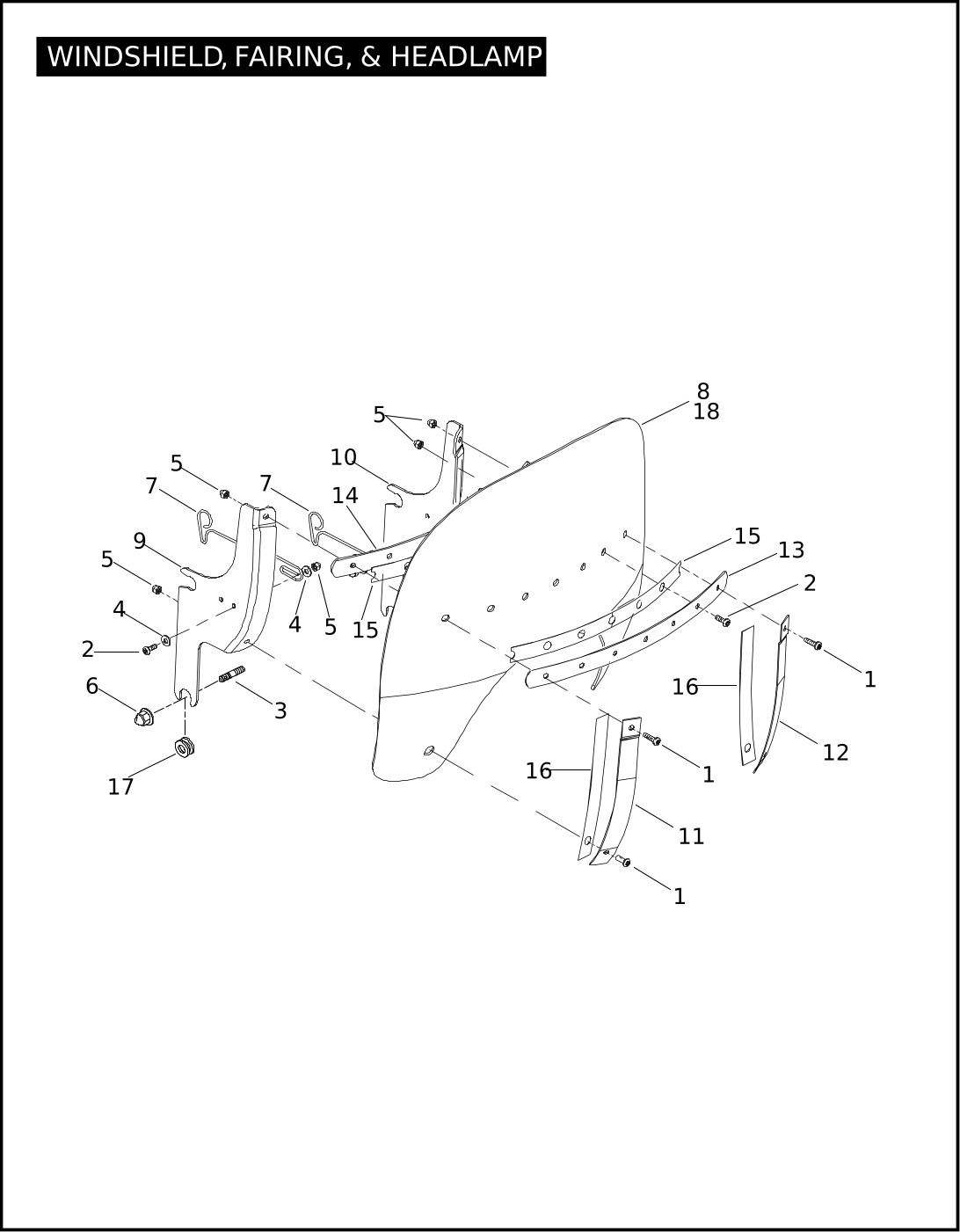

WINDSHIELD
| Index No. | Part No. | Description | Model(s) |
| 1 | 2452 | SCREW (2) | FLHRSE4 |
| 2 | 2921 | SCREW (11) | FLHRSE4 |
| 3 | 3265A | STUD (4) | FLHRSE4 |
| 4 | 6119 | WASHER (8) | FLHRSE4 |
| 5 | 7651A | ACORN NUT (13) | FLHRSE4 |
| 6 | 7992 | ACORN NUT (4) | FLHRSE4 |
| 7 | 38736-07 | SPRING LATCH (2) | FLHRSE4 |
| 8 | 57357-07 | WINDSHIELD ASSEMBLY, complete tall (gray) (Domestic, Canada) | FLHRSE4 |
| 9 | 58542-02 | ADJUSTING BRACKET, right | FLHRSE4 |
| 10 | 58543-02 | ADJUSTING BRACKET, left | FLHRSE4 |
| 11 | 58674-02 | BRACE, outer vertical, right | FLHRSE4 |
| 12 | 58677-02 | BRACE, outer vertical, left | FLHRSE4 |
| 13 | 58476-02 | BRACE, outer horizontal | FLHRSE4 |
| 14 | 58462-02 | BRACE, inner horizontal | FLHRSE4 |
| 15 | 58537-02 | TAPE, horizontal brace (2) | FLHRSE4 |
| 16 | 58664-02 | TAPE, outer vertical (2) | FLHRSE4 |
| 17 | 67621-94 | BUSHING (4) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 57316-07 | WINDSHIELD ASSEMBLY, complete (clear) (HDI, England, Australia Japan) | FLHRSE4 |

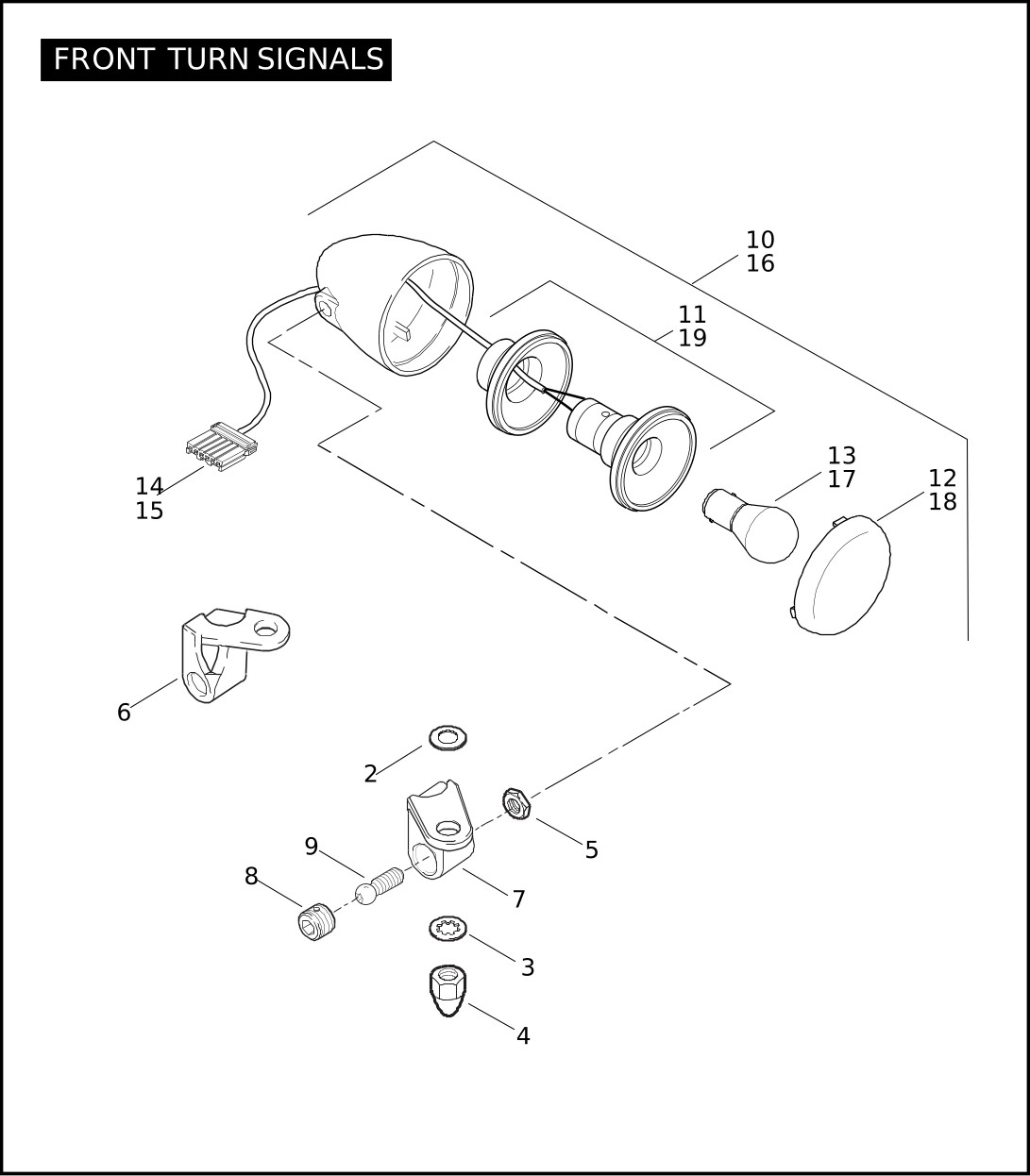

FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 2 | 6771A | WASHER (2) | FLHRSE4 |
| 3 | 7127 | LOCKWASHER (2) | FLHRSE4 |
| 4 | 7736 | ACORN NUT (2) | FLHRSE4 |
| 5 | 7744 | JAM NUT (2) | FLHRSE4 |
| 6 | 67316-03A | BRACKET MOUNTING, right turn signal | FLHRSE4 |
| 7 | 67355-04 | BRACKET MOUNTING, left turn signal | FLHRSE4 |
| 8 | 67015-02 | SET SCREW (2) | FLHRSE4 |
| 9 | 67822-88 | BALL STUD (2) | FLHRSE4 |
| 10 | 68614-03 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02, 69331-02, & 68904-00 (2) | FLHRSE4 |
| 11 | 68904-00 | SOCKET ASSEMBLY, front (2) | FLHRSE4 |
| 12 | 69325-02 | LENS, turn signal (2) | FLHRSE4 |
| 13 | 69331-02 | BULB, turn signal (2) | FLHRSE4 |
| 14 | 73156-96BK | SOCKET HOUSING, 6-place | FLHRSE4 |
| 15 | 73191-96 | TERMINAL SOCKET (6) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 16 | 68886-00 | TURN SIGNAL ASSEMBLY, front, w/ 68163-84, 68976-00, & 68906-00 (HDI, England, Australia, Japan) (2) | FLHRSE4 |
| 17 | 68163-84 | BULB, turn signal (HDI, England, Australia, Japan) (2) | FLHRSE4 |
| 18 | 68976-00 | LENS (HDI, England, Australia, Japan) (2) | FLHRSE4 |
| 19 | 68906-00 | SOCKET ASSEMBLY, front (HDI, England, Australia, Japan) (2) | FLHRSE4 |
| Index number 1 is not used in this illustration. | |||

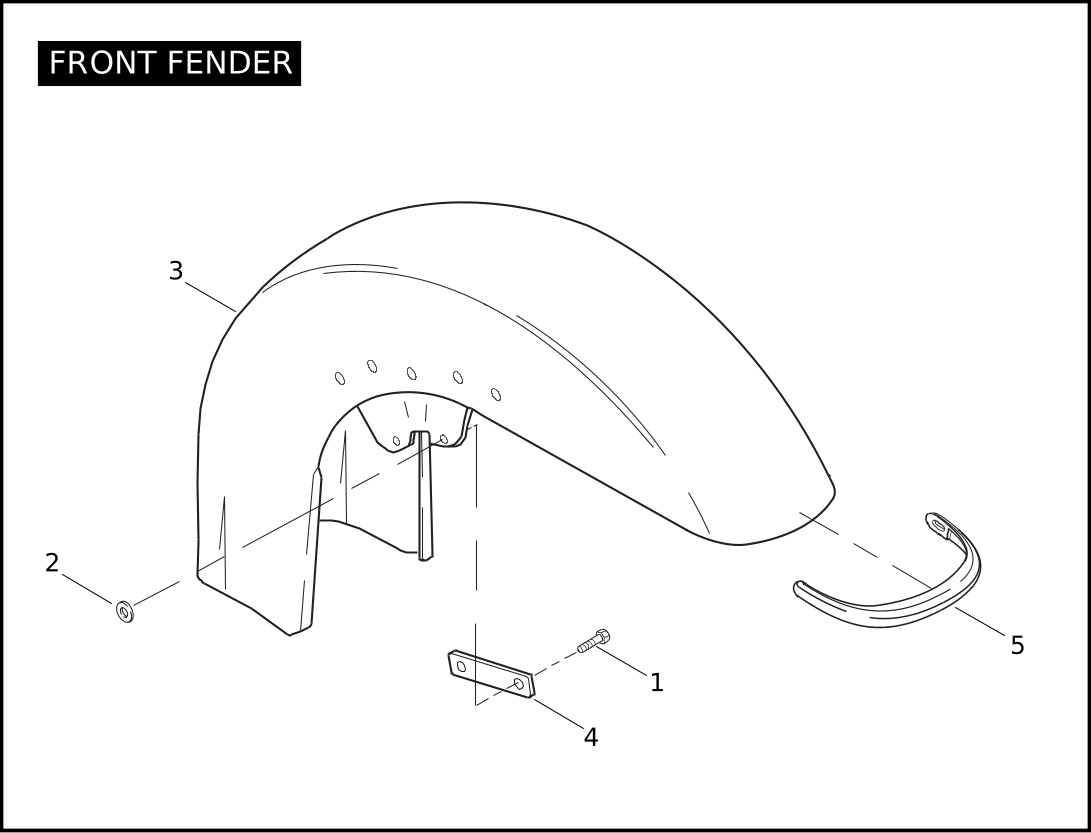

FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3462 | BOLT (4) | FLHRSE4 |
| 2 | 45279-00 | WASHER (4) | FLHRSE4 |
| 3 | 59045-00B | FENDER, front (prime) | FLHRSE4 |
| 58972-08CTP | FENDER, front (blue/blue) | FLHRSE4 | |
| 58972-08CTO | FENDER, front (black/silver) | FLHRSE4 | |
| 58972-08CRV | FENDER, front (copper/black) | FLHRSE4 | |
| 4 | 59166-80 | PLATE, lock (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 59280-02 | FENDER TIP (HDI, England, Australia, Japan) | FLHRSE4 |

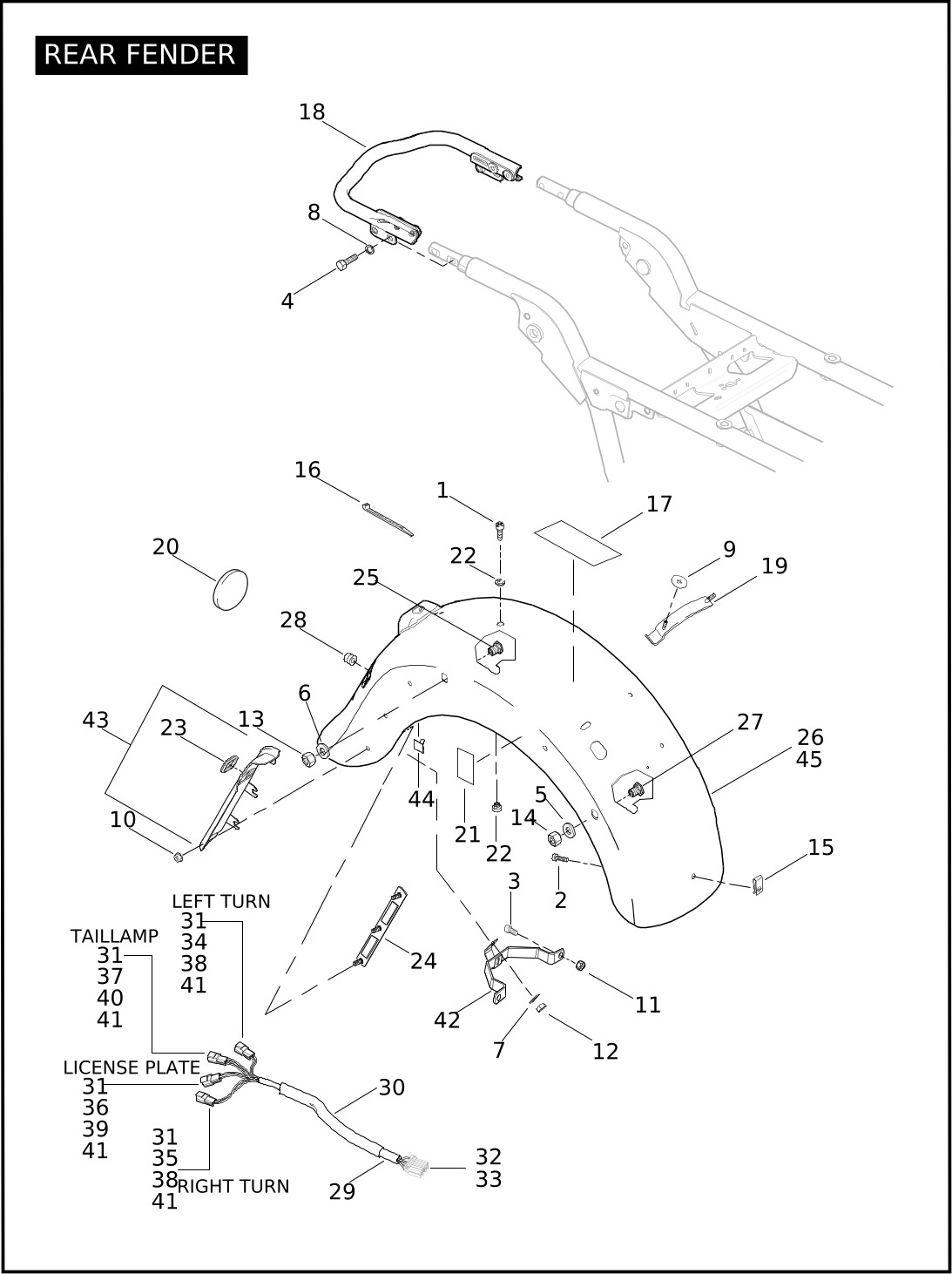

REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW | FLHRSE4 |
| 2 | 3676 | SCREW | FLHRSE4 |
| 3 | 3684 | SCREW (2) | FLHRSE4 |
| 4 | 4017 | SCREW (4) | FLHRSE4 |
| 5 | 6476 | WASHER, outer front location (2) | FLHRSE4 |
| 6 | 6477 | WASHER, outer rear location (2) | FLHRSE4 |
| 7 | 6703 | WASHER | FLHRSE4 |
| 8 | 7127 | LOCKWASHER (4) | FLHRSE4 |
| 9 | 7434 | WASHER (2) | FLHRSE4 |
| 10 | 7499 | NUT (6) | FLHRSE4 |
| 11 | 7531 | LOCKNUT (2) | FLHRSE4 |
| 12 | 7683 | LOCKNUT | FLHRSE4 |
| 13 | 8076 | NUT SPACER, rear location (2) | FLHRSE4 |
| 14 | 8081 | NUT SPACER, front location (2) | FLHRSE4 |
| 15 | 8144 | NUT, clip | FLHRSE4 |
| 16 | 10006 | CABLE STRAP, lighting harness | FLHRSE4 |
| 17 | 48421-04 | PROTECTIVE TAPE, rear fender | FLHRSE4 |
| 18 | 53956-07 | TUBE SUPPORT, luggage rack | FLHRSE4 |
| 19 | 59174-99 | PLATE, stud | FLHRSE4 |
| 20 | 59581-05 | BUMPER (black) | FLHRSE4 |
| 21 | 59682-07 | PROTECTIVE TAPE, rear fender (2) | FLHRSE4 |
| 22 | 59768-97 | FENDER SEAT NUT KIT | FLHRSE4 |
| 23 | 59799-07 | PLUG (2) | FLHRSE4 |
| 24 | 59818-06 | STUD PLATE (2) | FLHRSE4 |
| 25 | 59786-01 | BOSS, fender mounting, inner rear (2) | FLHRSE4 |
| 26 | 60268-08CTP | FENDER, rear (blue/blue) | FLHRSE4 |
| 60268-08CTO | FENDER, rear (black/silver) | FLHRSE4 | |
| 60268-08CRR | FENDER, rear (copper) | FLHRSE4 | |
| 60275-07 | FENDER, rear (prime) | FLHRSE4 | |
| 27 | 60292-07 | BOSS, fender mounting, inner front (2) | FLHRSE4 |
| 28 | 67266-94 | GROMMET, 1/2 in. I.D. (nylon) (2) | FLHRSE4 |
REAR FENDER (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 29 | 69811-07 | WIRE HARNESS, rear lighting | FLHRSE4 |
| 30 | 70527-07 | CONDUIT, wire harness, self-adhesive | FLHRSE4 |
| 31 | 72199-94 | CONNECTOR ANCHOR (4) | FLHRSE4 |
| 32 | 73158-96BK | HOUSING SOCKET, 8-way | FLHRSE4 |
| 33 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (8) | FLHRSE4 |
| 34 | 74102-05GY | HOUSING SOCKET, 2-way (gray) | FLHRSE4 |
| 35 | 74102-98BK | HOUSING SOCKET, 2-way (black) | FLHRSE4 |
| 36 | 74103-98BK | HOUSING SOCKET, 3-way (black) | FLHRSE4 |
| 37 | 74104-98BK | HOUSING SOCKET, 4-way (black) | FLHRSE4 |
| 38 | 74142-98 | SECONDARY LOCK, pin, 2-way (2) | FLHRSE4 |
| 39 | 74143-98 | SECONDARY LOCK, pin, 3-way | FLHRSE4 |
| 40 | 74144-98 | SECONDARY LOCK, pin, 4-way | FLHRSE4 |
| 41 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FLHRSE4 |
| 42 | 91169-07 | BRACKET, fender to saddlebag support | FLHRSE4 |
| 43 | 91628-08CJL | FASCIA, fender left w/ 59799-07 (blue) | FLHRSE4 |
| 91628-08CRP | FASCIA, fender left w/ 59799-07 (black) | FLHRSE4 | |
| 91628-08CRR | FASCIA, fender left w/ 59799-07 (copper) | FLHRSE4 | |
| 91629-08CJL | FASCIA, fender right w/ 59799-07 (blue) | FLHRSE4 | |
| 91629-08CRP | FASCIA, fender right w/ 59799-07 (black) | FLHRSE4 | |
| 91629-08CRR | FASCIA, fender right w/ 59799-07 (copper) | FLHRSE4 | |
| INTERNATIONAL MODELS ONLY | |||
| 44 | 10102 | CLIP (HDI, England, Japan) (2) | FLHRSE4 |
| 45 | 59604-07 | FENDER, rear (prime) (HDI, England, Australia, Japan) | FLHRSE4 |
| 60302-08CTP | FENDER, rear (blue) (HDI, England, Australia, Japan) | FLHRSE4 | |
| 60302-08CTO | FENDER, rear (black) (HDI, England, Australia, Japan) | FLHRSE4 | |
| 60302-08CRR | FENDER, rear (copper) (HDI, England, Australia, Japan) | FLHRSE4 | |

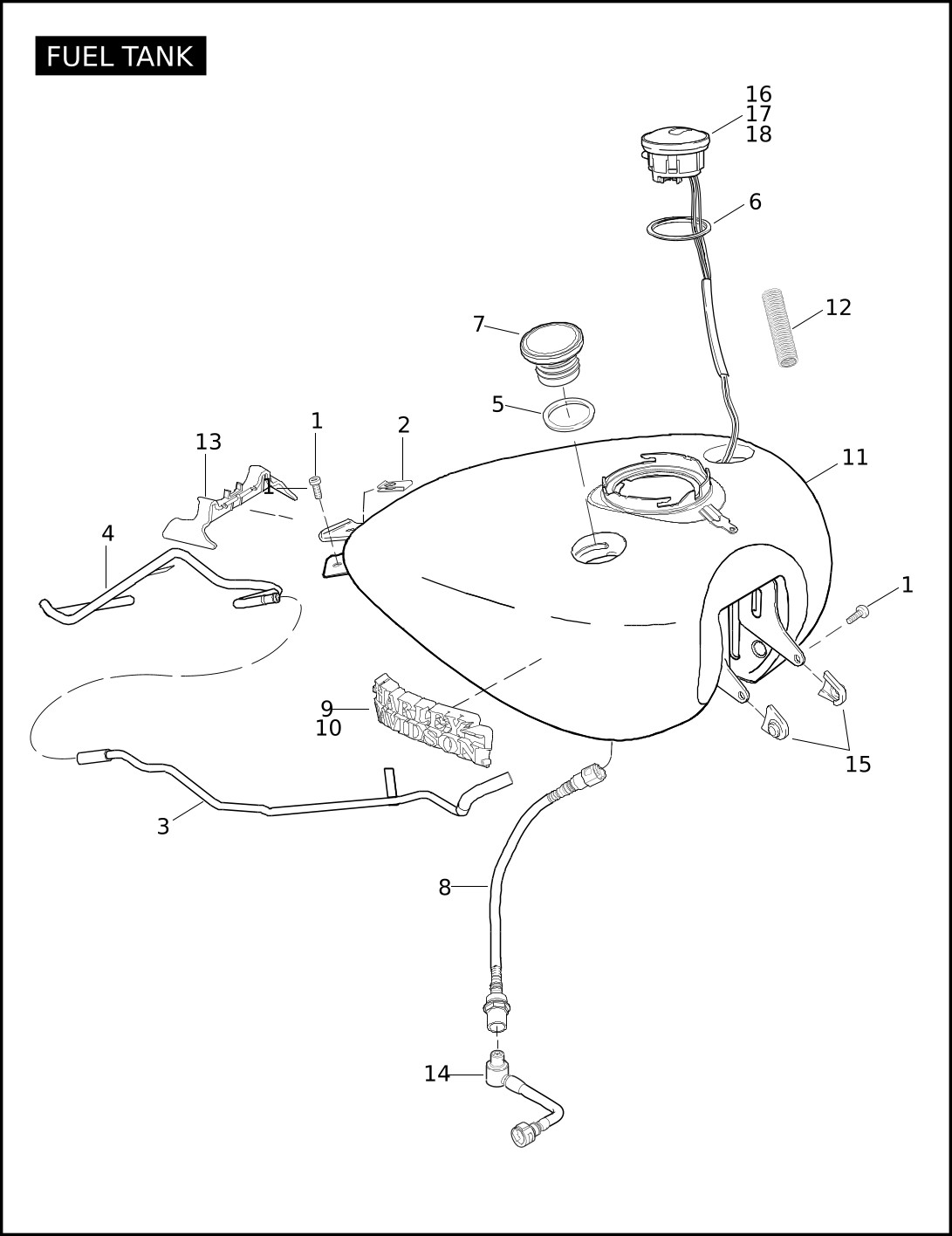

FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (3) | FLHRSE4 |
| 2 | 8142 | NUT, speed | FLHRSE4 |
| 3 | 27291-08 | TUBE, evaporative line, tank | FLHRSE4 |
| 4 | 27440-08 | TUBE, evaporative line (except California) | FLHRSE4 |
| 5 | 61109-85D | GASKET, filler cap | FLHRSE4 |
| 6 | 61192-96A | GASKET, fuel gauge | FLHRSE4 |
| 7 | 61272-92B | FILLER CAP ASSEMBLY, w/ 61109-85D | FLHRSE4 |
| 8 | 62228-08 | CHECK VALVE, assembly | FLHRSE4 |
| 9 | 62280-08 | MEDALLION, left | FLHRSE4 |
| 10 | 62281-08 | MEDALLION, right | FLHRSE4 |
| 11 | 62291-08CTP | FUEL TANK (blue/blue) | FLHRSE4 |
| 62291-08CTO | FUEL TANK (black/silver) | FLHRSE4 | |
| 62291-08CRV | FUEL TANK (copper/black) | FLHRSE4 | |
| 61268-08 | FUEL TANK (prime) | FLHRSE4 | |
| 12 | 62519-03 | HOSE, shield 1/4 in. I.D., 5.00 in. long, fuel gauge wires | FLHRSE4 |
| 13 | 62775-08 | TRIM COVER, fuel tank | FLHRSE4 |
| 14 | 62905-08 | FUEL LINE, tank to intake | FLHRSE4 |
| 15 | 70901-08 | BOOT, tank bracket, right (USE BEFORE 9/3/2007) | FLHRSE4 |
| 70999-08 | BOOT, tank bracket, left (USE BEFORE 9/3/2007) | FLHRSE4 | |
| 11852 | COVER, tank bracket, left (not shown) (USE AFTER 9/3/2007) | FLHRSE4 | |
| 11853 | COVER, tank bracket, right (not shown) (USE AFTER 9/3/2007) | FLHRSE4 | |
| 16 | 72904-01BK | HOUSING, pin, 4-way | FLHRSE4 |
| 17 | 72990-01 | PIN TERMINAL (3) | FLHRSE4 |
| 18 | 75241-08 | FUEL GAUGE, w/o LED, w/ 72990-01 | FLHRSE4 |

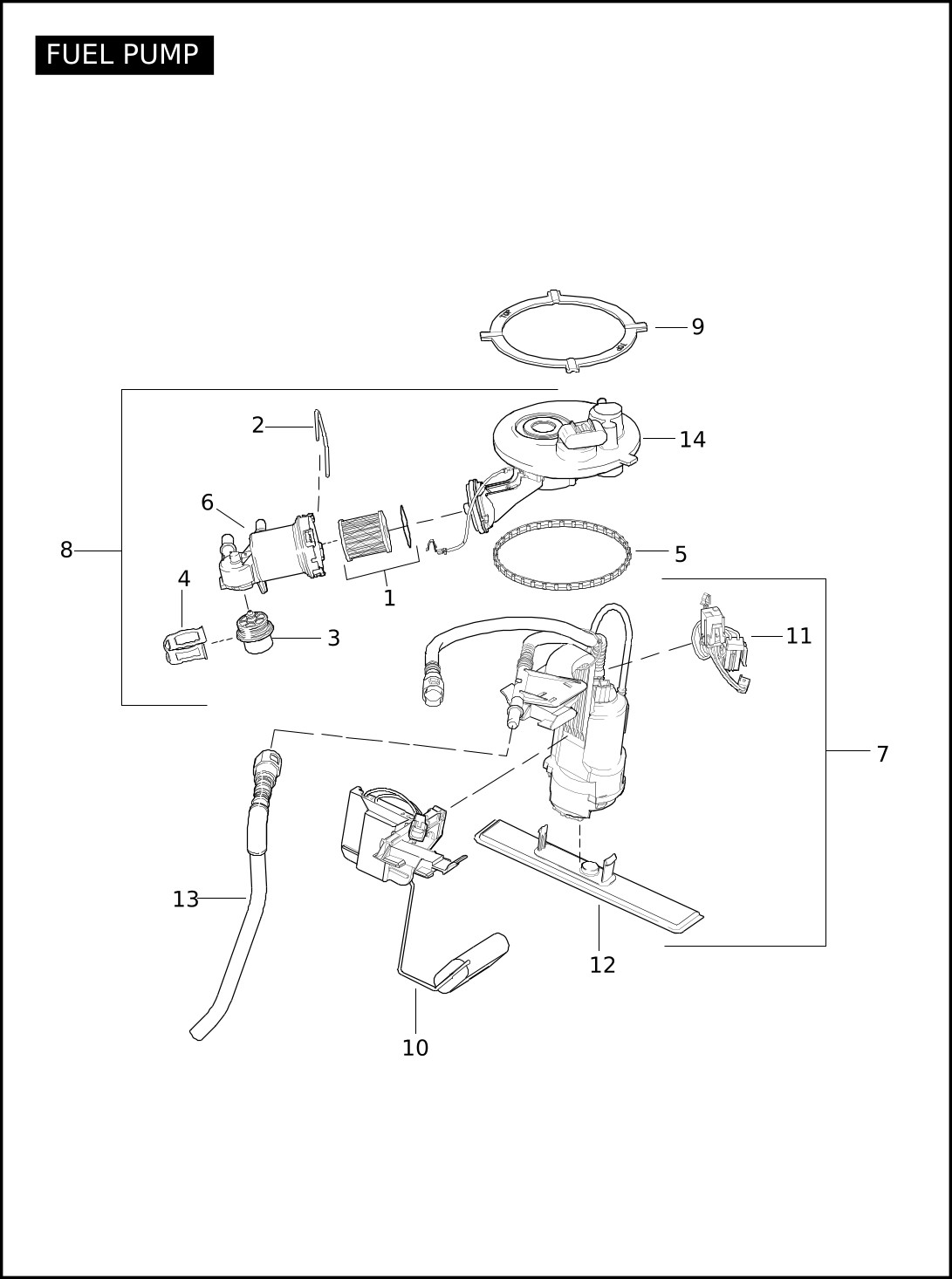

FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 61011-04A | FUEL FILTER KIT, w/ o-ring | FLHRSE4 |
| 2 | 61012-04A | CLIP, filter retainer | FLHRSE4 |
| 3 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHRSE4 |
| 4 | 61213-04A | CLIP, regulator retainer | FLHRSE4 |
| 5 | 61402-08 | GASKET, top plate | FLHRSE4 |
| 6 | 62229-08 | FILTER SHELL | FLHRSE4 |
| 7 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 75229-08, & 75254-04A | FLHRSE4 |
| 8 | 75076-08 | TOP PLATE ASSEMBLY, w/ 1, 2, 3, 4, 6, & 14 | FLHRSE4 |
| 9 | 75089-08 | RING, fuel tank, cam | FLHRSE4 |
| 10 | 75205-08 | FUEL LEVEL SENDER | FLHRSE4 |
| 11 | 75229-08 | HARNESS, fuel pump module | FLHRSE4 |
| 12 | 75254-04A | STRAINER, fuel pump inlet | FLHRSE4 |
| 13 | 75269-08 | TRANSFER TUBE, fuel pump | FLHRSE4 |
| 14 | 75291-08 | TOP PLATE | FLHRSE4 |

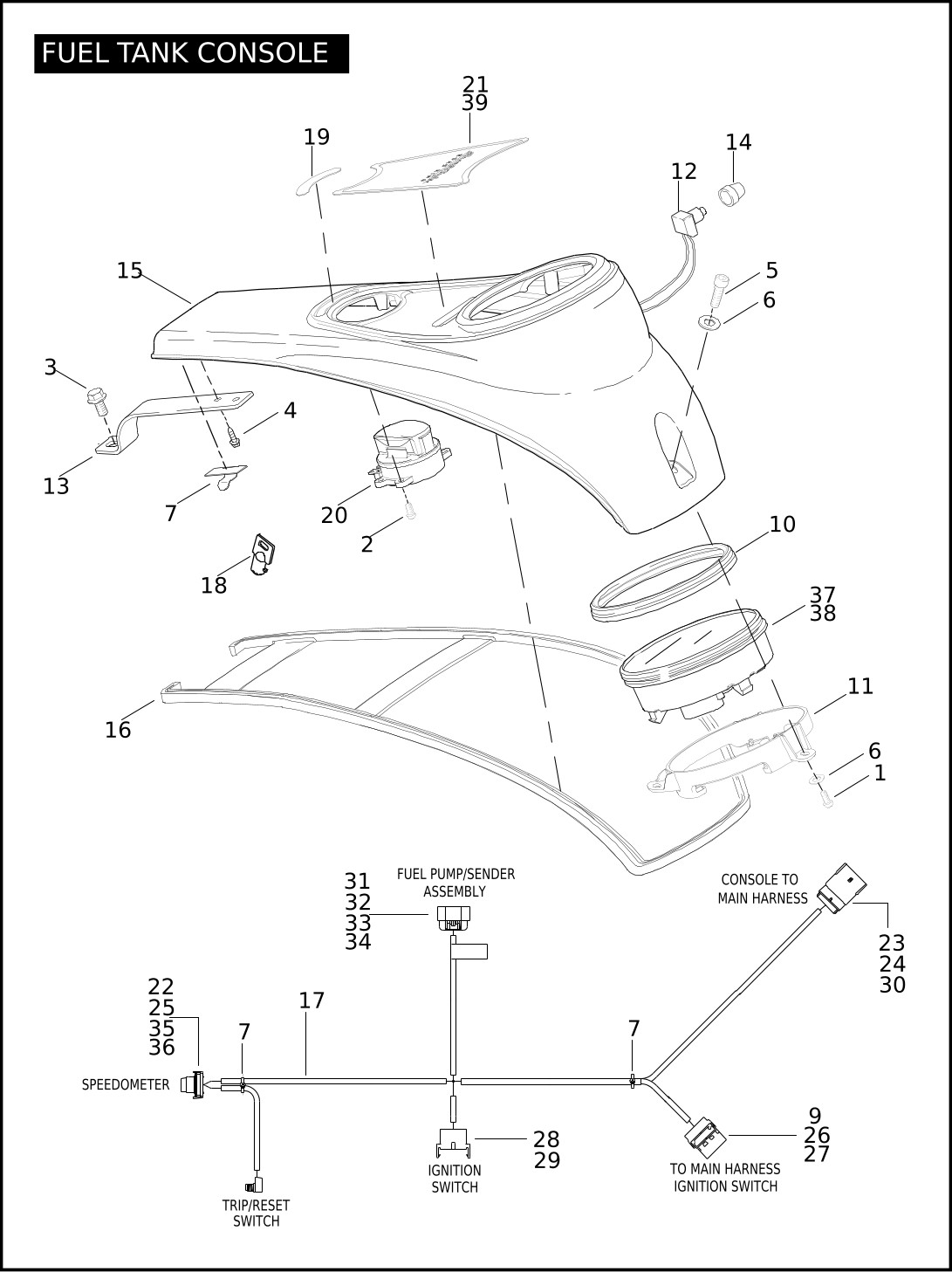

FUEL TANK CONSOLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2478 | SCREW (3) | FLHRSE4 |
| 2 | 2501A | SCREW (4) | FLHRSE4 |
| 3 | 3588 | SCREW | FLHRSE4 |
| 4 | 4194 | SCREW (2) | FLHRSE4 |
| 5 | 4856 | SCREW | FLHRSE4 |
| 6 | 6198 | WASHER (4) | FLHRSE4 |
| 7 | 10065 | CABLE STRAP (2) | FLHRSE4 |
| 8 | 10103 | CLIP (3) | FLHRSE4 |
| 9 | 10147 | CLIP | FLHRSE4 |
| 10 | 67223-00A | SEAL, speedometer | FLHRSE4 |
| 11 | 67421-08 | BACK CLAMP | FLHRSE4 |
| 12 | 67488-04 | SWITCH, reset | FLHRSE4 |
| 13 | 67493-08 | BRACKET, console | FLHRSE4 |
| 14 | 67880-94 | BOOT, reset switch | FLHRSE4 |
| 15 | 70000-08 | INSTRUMENT PANEL | FLHRSE4 |
| 16 | 70001-08 | TRIM | FLHRSE4 |
| 17 | 70428-08 | HARNESS ASSEMBLY, console | FLHRSE4 |
| 18 | 71452-91A | KEY (specify key code) | FLHRSE4 |
| 19 | 71315-01 | INSERT (Domestic, Canada, HDI, England, Australia, Japan) | FLHRSE4 |
| 20 | 71605-07 | IGNITION SWITCH (specify key code) | FLHRSE4 |
| 21 | 71693-08 | INSERT (Domestic, Canada, HDI, England, Australia) | FLHRSE4 |
| 22 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHRSE4 |
| 23 | 72167-07BK | HOUSING PIN, 16-way (black) | FLHRSE4 |
| 24 | 72169-07 | TERMINAL PIN (9) | FLHRSE4 |
| 25 | 72189-04 | SEAL PIN (4) | FLHRSE4 |
| 26 | 72205-94 | CONNECTOR, male | FLHRSE4 |
| 27 | 72208-94 | TERMINAL (3) | FLHRSE4 |
| 28 | 72292-94 | TERMINAL (3) | FLHRSE4 |
| 29 | 72327-03 | CONNECTOR, 3-way | FLHRSE4 |
| 30 | 72473-07 | SEAL PIN (8) | FLHRSE4 |
| 31 | 72485-07 | SOCKET HOUSING, 4-way | FLHRSE4 |
| 32 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHRSE4 |
| 33 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHRSE4 |
| 34 | 72557-07 | SECONDARY LOCK, 4-way socket | FLHRSE4 |
| 35 | 74196-04 | TERMINAL SOCKET, 20 AWG (8) | FLHRSE4 |
| 36 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHRSE4 |
| 37 | 75351-08 | SPEEDOMETER KIT, mph | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 38 | 75352-08 | SPEEDOMETER KIT, kph (Canada, HDI, Japan) | FLHRSE4 |
| 75353-08 | SPEEDOMETER, dual mph/kph (England) | FLHRSE4 | |
| 39 | 71698-08 | INSERT (Japan) | FLHRSE4 |

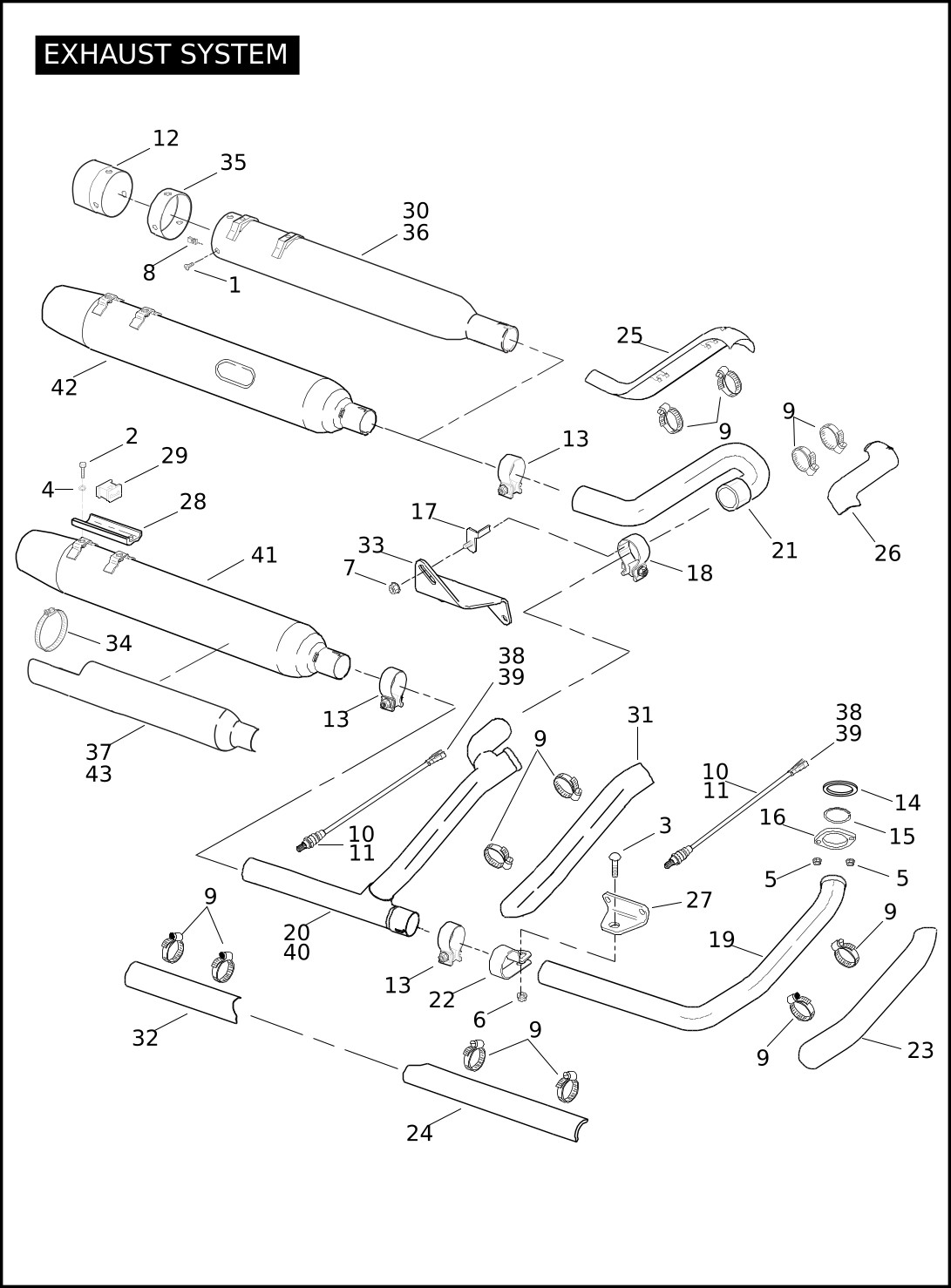

EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 2225 | SCREW (6) | FLHRSE4 |
| 2 | 3929 | SCREW (4) | FLHRSE4 |
| 3 | 5416 | BOLT | FLHRSE4 |
| 4 | 7041 | LOCKWASHER (4) | FLHRSE4 |
| 5 | 7593 | NUT (4) | FLHRSE4 |
| 6 | 7601 | LOCKNUT | FLHRSE4 |
| 7 | 7796 | NUT, w/ washer | FLHRSE4 |
| 8 | 8146 | NUT, clip (6) | FLHRSE4 |
| 9 | 9955 | CLAMP, shield (12) | FLHRSE4 |
| 10 | 27714-06 | SEAL RING | FLHRSE4 |
| 11 | 27719-07 | SENSOR, oxygen (O2) w/ 27714-06, 72009-05, 72011-05 (2) | FLHRSE4 |
| 12 | 64993-07 | END CAP (2) | FLHRSE4 |
| 13 | 65283-94 | CLAMP, ring (3) | FLHRSE4 |
| 14 | 65324-83A | GASKET, exhaust port (2) | FLHRSE4 |
| 15 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHRSE4 |
| 16 | 65328-83 | CLAMP, exhaust manifold (2) | FLHRSE4 |
| 17 | 65619-98 | BRACKET TAB, exhaust mount at starter | FLHRSE4 |
| 18 | 65620-98A | CLAMP & BRACKET, exhaust mount at starter | FLHRSE4 |
| 19 | 65621-07 | EXHAUST PIPE, right, front | FLHRSE4 |
| 20 | 65626-07A | EXHAUST PIPE, right, rear | FLHRSE4 |
| 21 | 65627-07 | EXHAUST PIPE, left | FLHRSE4 |
| 22 | 65654-97 | CLAMP, pipe to bracket | FLHRSE4 |
| 23 | 65694-05A | SHIELD, front exhaust pipe | FLHRSE4 |
| 24 | 65634-98A | SHIELD, right exhaust pipe, front | FLHRSE4 |
| 25 | 65636-07 | SHIELD, left exhaust pipe, rear | FLHRSE4 |
| 26 | 65647-98 | SHIELD, left exhaust pipe, front | FLHRSE4 |
| 27 | 65678-07 | BRACKET, rear exhaust mount | FLHRSE4 |
| 28 | 65723-85 | MOUNTING BRACKET (2) | FLHRSE4 |
| 29 | 65724-85 | MOUNT, rubber (2) | FLHRSE4 |
| 30 | 65913-06B | MUFFLER ASSEMBLY, left, catalytic (chrome) | FLHRSE4 |
| 31 | 65951-98A | HEAT SHIELD, rear exhaust pipe | FLHRSE4 |
| 32 | 65952-98A | HEAT SHIELD, exhaust pipe, right rear lower | FLHRSE4 |
| 33 | 65988-07A | SUPPORT BRACKET, exhaust mount at starter | FLHRSE4 |
| 34 | 66047-05 | CLAMP, worm (6) | FLHRSE4 |
| 35 | 66078-06 | RING, retention (2) | FLHRSE4 |
| 36 | 66080-06B | MUFFLER ASSEMBLY, right, catalytic (chrome) | FLHRSE4 |
| 37 | 66219-06 | HEAT SHIELD, muffler, right | FLHRSE4 |
| 66220-06 | HEAT SHIELD, muffler, left | FLHRSE4 | |
| 38 | 72009-05 | HOUSING, 2-way, pin | FLHRSE4 |
| 39 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 40 | 65626-07A | EXHAUST PIPE, right, rear (Japan) | FLHRSE4 |
| 65905-07A | EXHAUST PIPE, right, rear (HDI, England) | FLHRSE4 | |
| 41 | 65748-07 | MUFFLER ASSEMBLY, right, catalytic (chrome) (Japan) | FLHRSE4 |
| 65863-07 | MUFFLER ASSEMBLY, right, catalytic (chrome) (HDI, England) | FLHRSE4 | |
| 42 | 65949-07 | MUFFLER ASSEMBLY, left, catalytic (chrome) (HDI, England, Japan) | FLHRSE4 |
| 43 | 65742-05 | SHIELD MUFFLER, right (HDI, England, Japan) | FLHRSE4 |
| 65743-05 | SHIELD MUFFLER, left (HDI, England, Japan) | FLHRSE4 | |

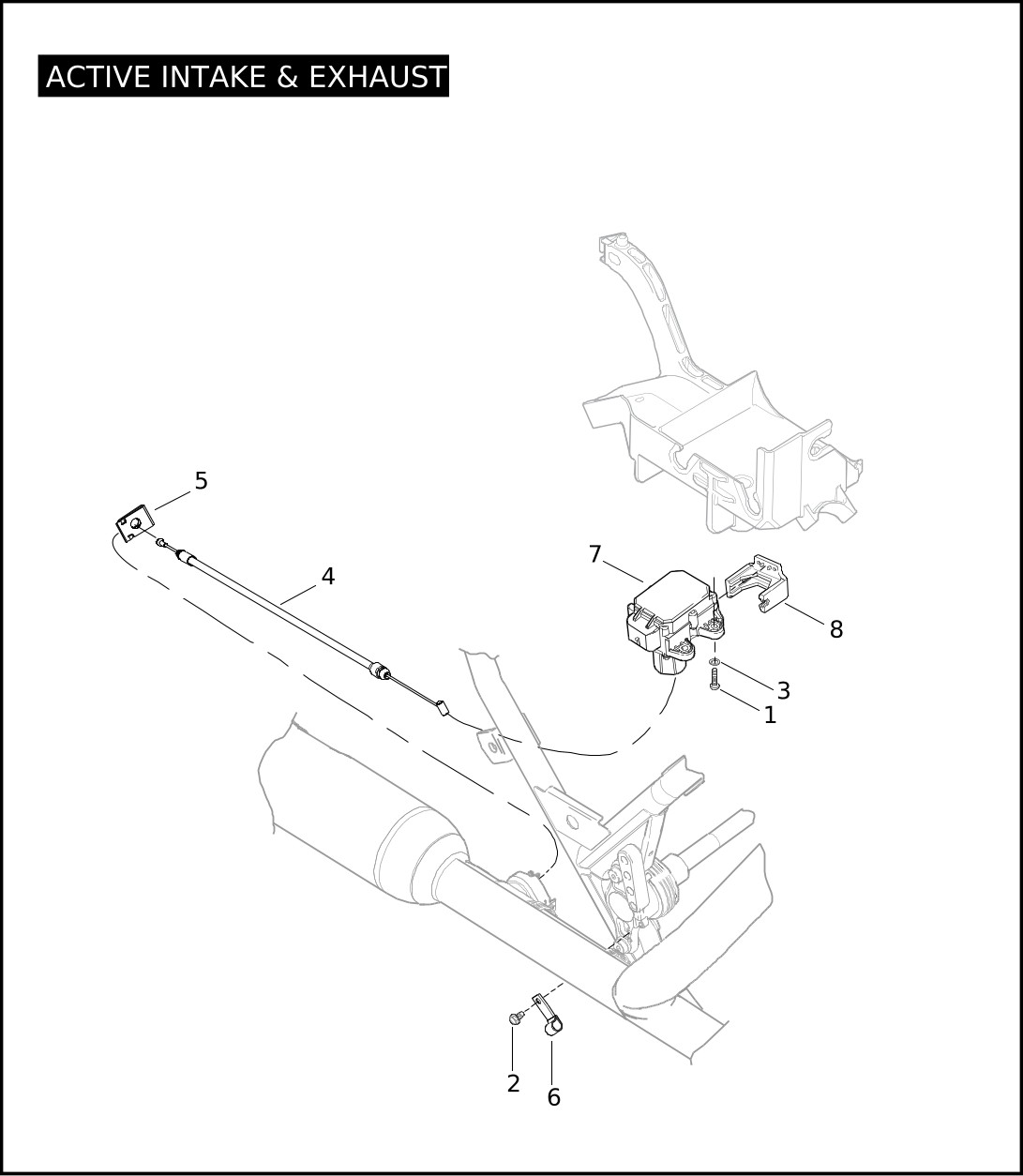

ACTIVE INTAKE & EXHAUST
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 1 | 4132 | SCREW (HDI except Japan) (2) | FLHRSE4 |
| 2 | 4240 | SCREW (HDI except Japan) | FLHRSE4 |
| 3 | 6119 | WASHER (HDI except Japan) (2) | FLHRSE4 |
| 4 | 66761-08 | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHRSE4 |
| 5 | 66767-07 | RETAINER CABLE (HDI except Japan) | FLHRSE4 |
| 6 | 66799-07 | CLIP (HDI except Japan) | FLHRSE4 |
| 7 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI except Japan) | FLHRSE4 |
| 8 | 71019-07 | SHROUD, exhaust actuator, (HDI except Japan) | FLHRSE4 |

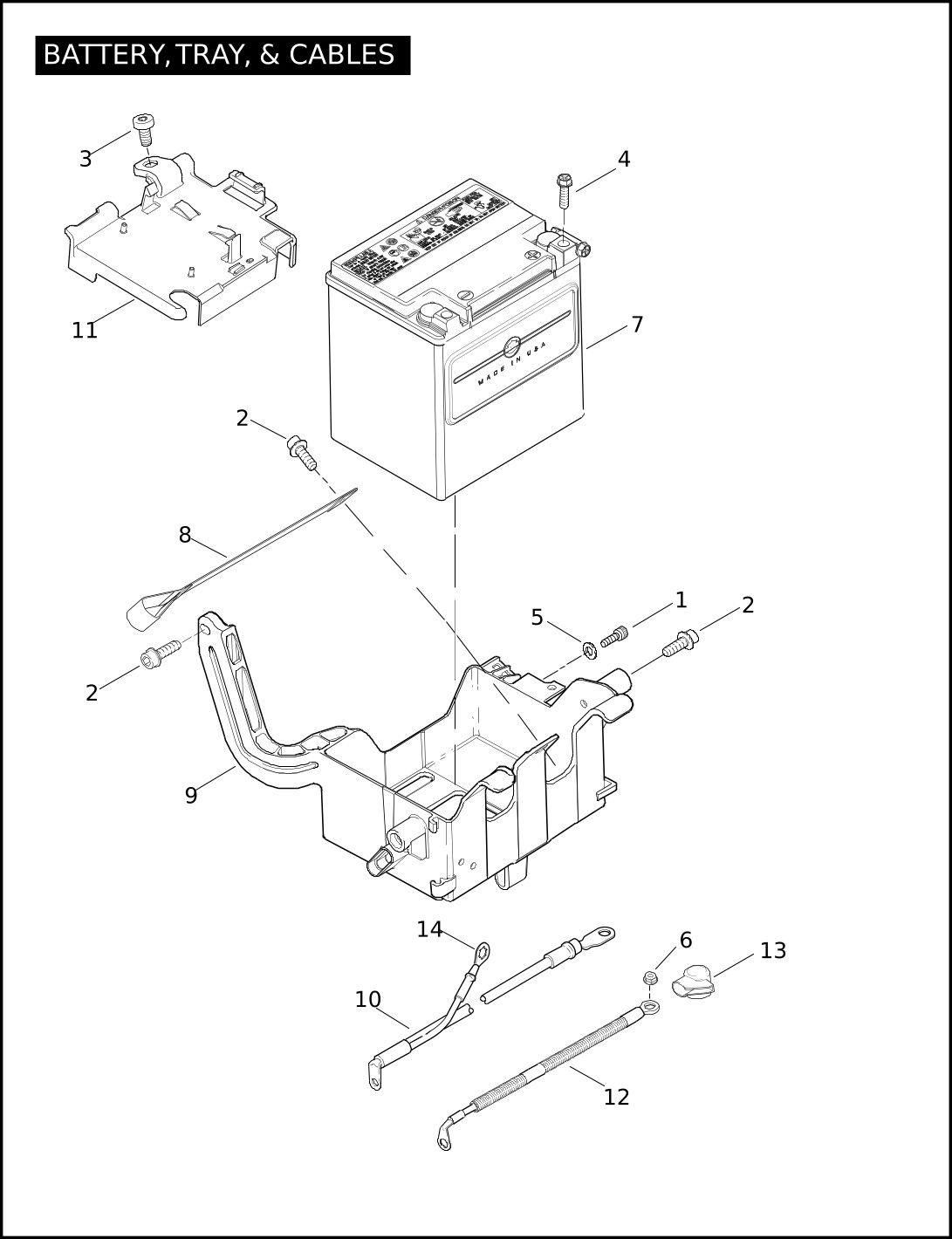

BATTERY, TRAY, & CABLES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (1) | FLHRSE4 |
| 2 | 3249 | SCREW (3) | FLHRSE4 |
| 3 | 3684 | SCREW | FLHRSE4 |
| 4 | 4312C | SCREW (2) | FLHRSE4 |
| 5 | 6336B | WASHER | FLHRSE4 |
| 6 | 7792 | NUT | FLHRSE4 |
| 7 | 66010-97B | BATTERY, 28 amp hours | FLHRSE4 |
| 8 | 66051-08 | STRAP, battery removal | FLHRSE4 |
| 9 | 66281-08 | BATTERY TRAY | FLHRSE4 |
| 10 | 70267-08 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHRSE4 |
| 11 | 70344-08 | CADDY, electronic control module (ECM) | FLHRSE4 |
| 12 | 70377-08 | CABLE ASSEMBLY, battery positive to starter, w/ 70584-94 | FLHRSE4 |
| 13 | 70584-94 | BOOT, battery positive | FLHRSE4 |
| 14 | 72242-94 | TERMINAL, ring | FLHRSE4 |

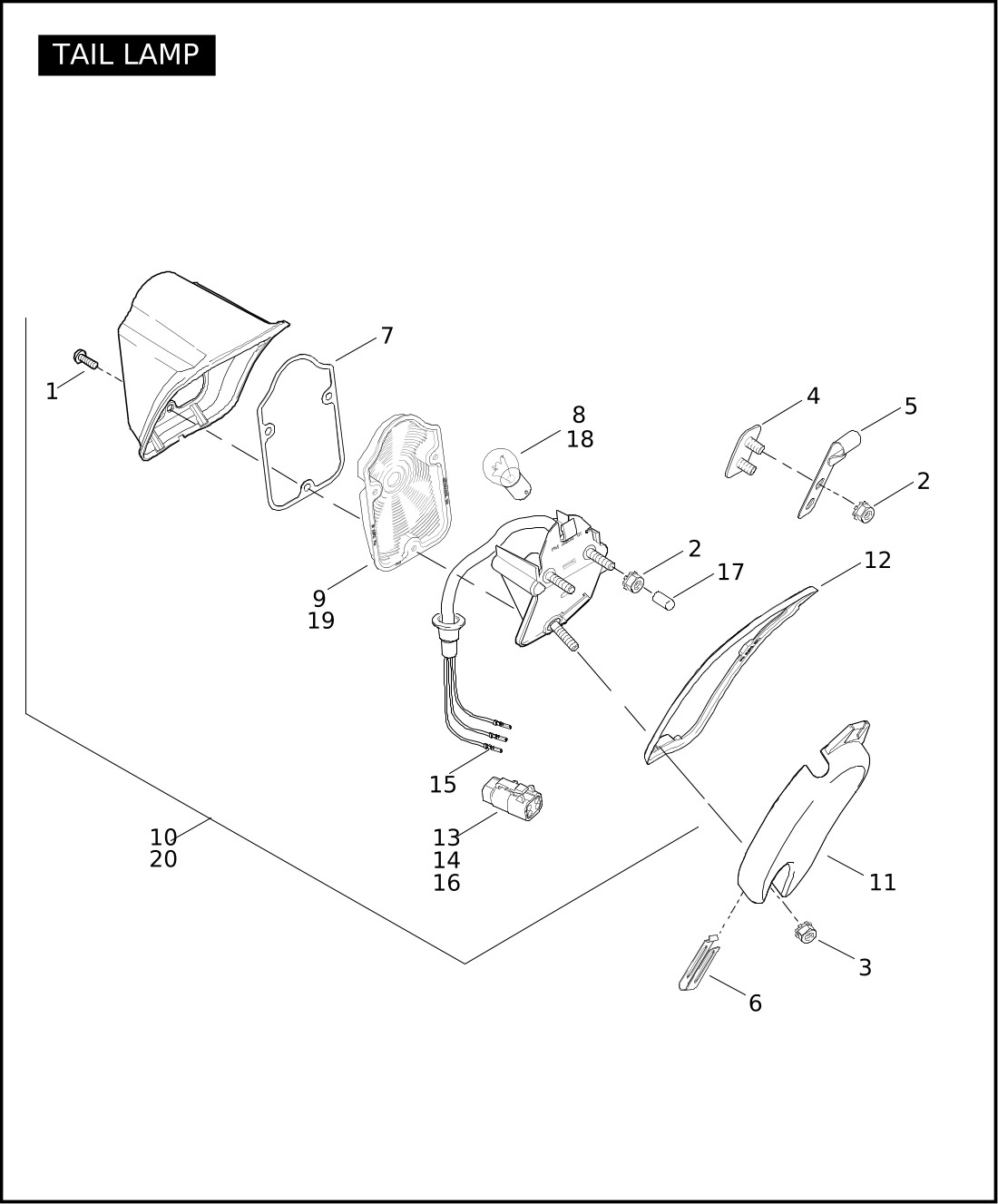

TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 4166 | SCREW (3) | FLHRSE4 |
| 2 | 7792 | NUT (5) | FLHRSE4 |
| 3 | 7671 | NUT | FLHRSE4 |
| 4 | 60289-07 | STUD PLATE | FLHRSE4 |
| 5 | 68004-05 | CLIP, tail lamp connector cover, top | FLHRSE4 |
| 6 | 68089-05 | CLIP, tail lamp connector cover, bottom | FLHRSE4 |
| 7 | 68226-97 | GASKET, lens | FLHRSE4 |
| 8 | 68168-89A | BULB, tail lamp | FLHRSE4 |
| 9 | 68238-97 | LENS | FLHRSE4 |
| 10 | 69807-07 | TAIL LIGHT ASSEMBLY | FLHRSE4 |
| 11 | 69809-07 | COVER | FLHRSE4 |
| 12 | 69810-07 | PAD, mounting | FLHRSE4 |
| 13 | 74114-98BK | SOCKET HOUSING, 4-place | FLHRSE4 |
| 14 | 74154-98 | SOCKET LOCK, 4-place | FLHRSE4 |
| 15 | 74191-98 | TERMINAL SOCKET (3) | FLHRSE4 |
| 16 | 74195-98 | SEAL PIN | FLHRSE4 |
| 17 | 89587-05 | CAP, thread protector (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 68169-90A | BULB, tail lamp (HDI, England, Japan) | FLHRSE4 |
| 19 | 68239-97 | LENS (HDI, England, Japan) | FLHRSE4 |
| 20 | 69808-07 | TAIL LIGHT ASSEMBLY (HDI, England, Japan) | FLHRSE4 |

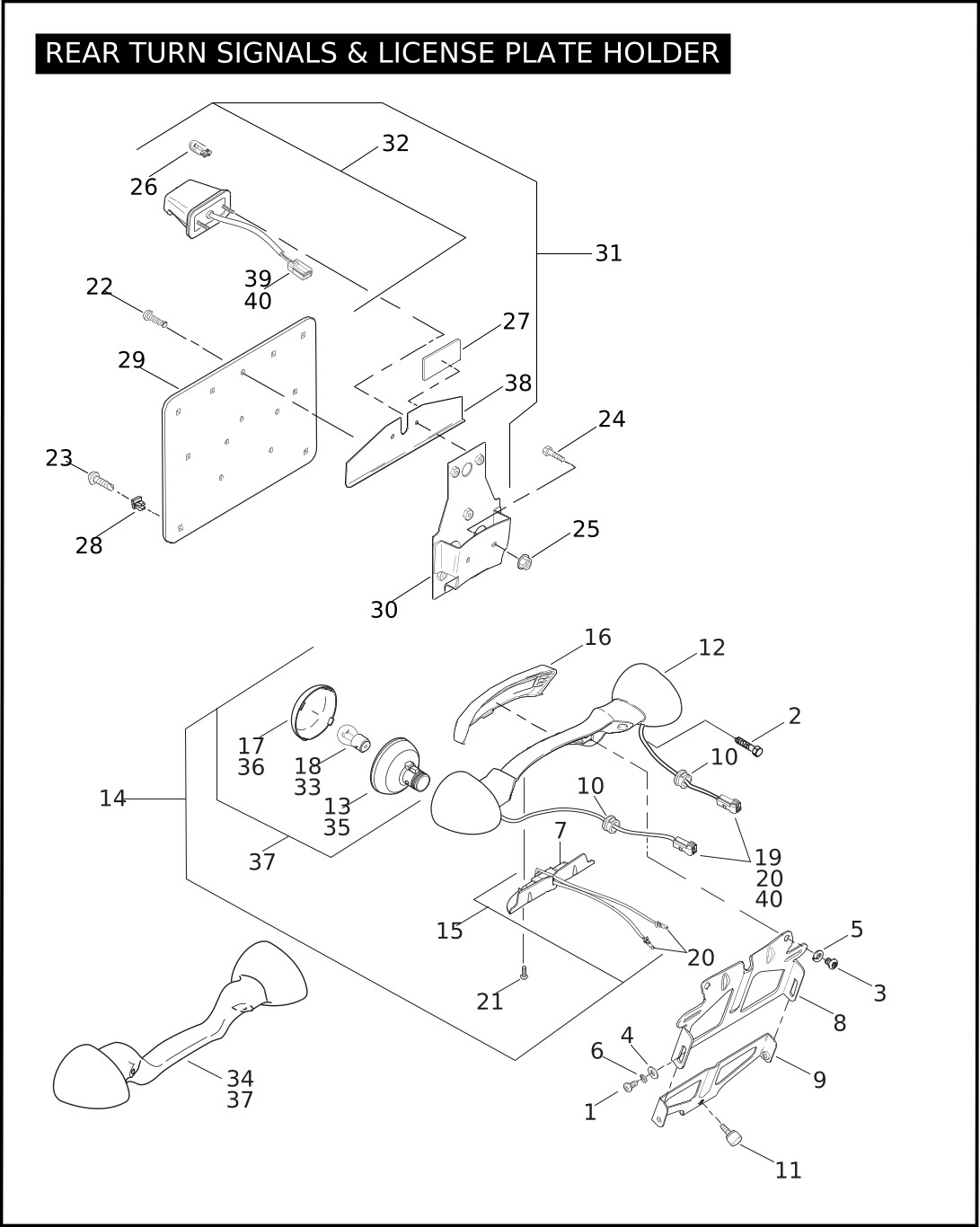

REAR TURN SIGNALS & LICENSE PLATE HOLDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2660 | SCREW (2) | FLHRSE4 |
| 2 | 3576 | SCREW (2) | FLHRSE4 |
| 3 | 3728 | SCREW (2) | FLHRSE4 |
| 4 | 6716 | WASHER (2) | FLHRSE4 |
| 5 | 7036 | WASHER (2) | FLHRSE4 |
| 6 | 7069 | LOCKWASHER (2) | FLHRSE4 |
| 7 | 52441-95 | BULB, back lite | FLHRSE4 |
| 8 | 60089-05 | BRACKET, license plate, top | FLHRSE4 |
| 9 | 60090-05 | BRACKET, license plate, bottom | FLHRSE4 |
| 10 | 67266-94 | BUSHING, nylon (2) | FLHRSE4 |
| 11 | 67845-05 | BUMPER, rubber | FLHRSE4 |
| 12 | 68629-05 | LIGHTBAR, turn signal | FLHRSE4 |
| 13 | 68905-00 | SOCKET ASSEMBLY, rear turn signal (2) | FLHRSE4 |
| 14 | 69837-07 | LIGHTBAR ASSEMBLY | FLHRSE4 |
| 15 | 69846-07 | LAMP ASSEMBLY | FLHRSE4 |
| 16 | 69848-07 | REFLECTOR | FLHRSE4 |
| 17 | 69325-02 | LENS, turn signal (2) | FLHRSE4 |
| 18 | 69330-02 | BULB, turn signal (amber) (2) | FLHRSE4 |
| 19 | 74112-05GY | SOCKET HOUSING, 2-place - left (gray) (2) | FLHRSE4 |
| 74112-98BK | SOCKET HOUSING, 2-place - right (black) (2) | FLHRSE4 | |
| 20 | 74191-98 | SOCKET TERMINAL (6) | FLHRSE4 |
| 21 | 94412-05 | SCREW (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 22 | 2420 | SCREW (HDI, England, Japan) (3) | FLHRSE4 |
| 23 | 2731W | SCREW (HDI, England, Japan) (4) | FLHRSE4 |
| 24 | 3574 | SCREW (HDI, England, Japan) (2) | FLHRSE4 |
| 25 | 7499 | NUT (HDI, England, Japan) (2) | FLHRSE4 |
| 26 | 53436-97 | BULB, wedge (HDI, England, Japan) | FLHRSE4 |
| 27 | 59259-90 | REFLECTOR, red (HDI, England, Japan) (2) | FLHRSE4 |
| 28 | 59292-94 | NUT, plastic (HDI, England, Japan) (4) | FLHRSE4 |
| 29 | 60026-97 | PLATE, license back w/ 2731W, & 59292-94 (HDI, England, Japan) | FLHRSE4 |
| 30 | 60039-97 | BRACKET, license plate mounting (HDI, England, Japan) | FLHRSE4 |
| 31 | 60309-07 | LICENSE PLATE BRACKET ASSEMBLY (HDI, England, Japan) | FLHRSE4 |
| 32 | 60315-07 | LAMP ASSEMBLY, license plate illumination w/ 53436-97, & 74191-98 (HDI, England, Japan) | FLHRSE4 |
| 33 | 68163-84 | BULB, turn signal (HDI, England, Japan) (2) | FLHRSE4 |
| 34 | 68508-04 | LIGHTBAR, turn signal (HDI, England, Japan) | FLHRSE4 |
| 35 | 68907-00 | SOCKET ASSEMBLY, rear turn signal (HDI, England, Japan) (2) | FLHRSE4 |
| 36 | 68973-00 | LENS, turn signal (HDI, England, Japan) (2) | FLHRSE4 |
| 37 | 68969-05 | LAMP ASSEMBLY, rear turn signal (HDI, England, Japan) | FLHRSE4 |
| 38 | 69355-07 | BRACKET, reflector (HDI, England, Japan) | FLHRSE4 |
| 39 | 73153-96BK | SOCKET HOUSING, 3-place (black) (HDI, England, Japan) | FLHRSE4 |
| 40 | 74191-98 | SOCKET TERMINAL (HDI, England, Japan) (6) | FLHRSE4 |

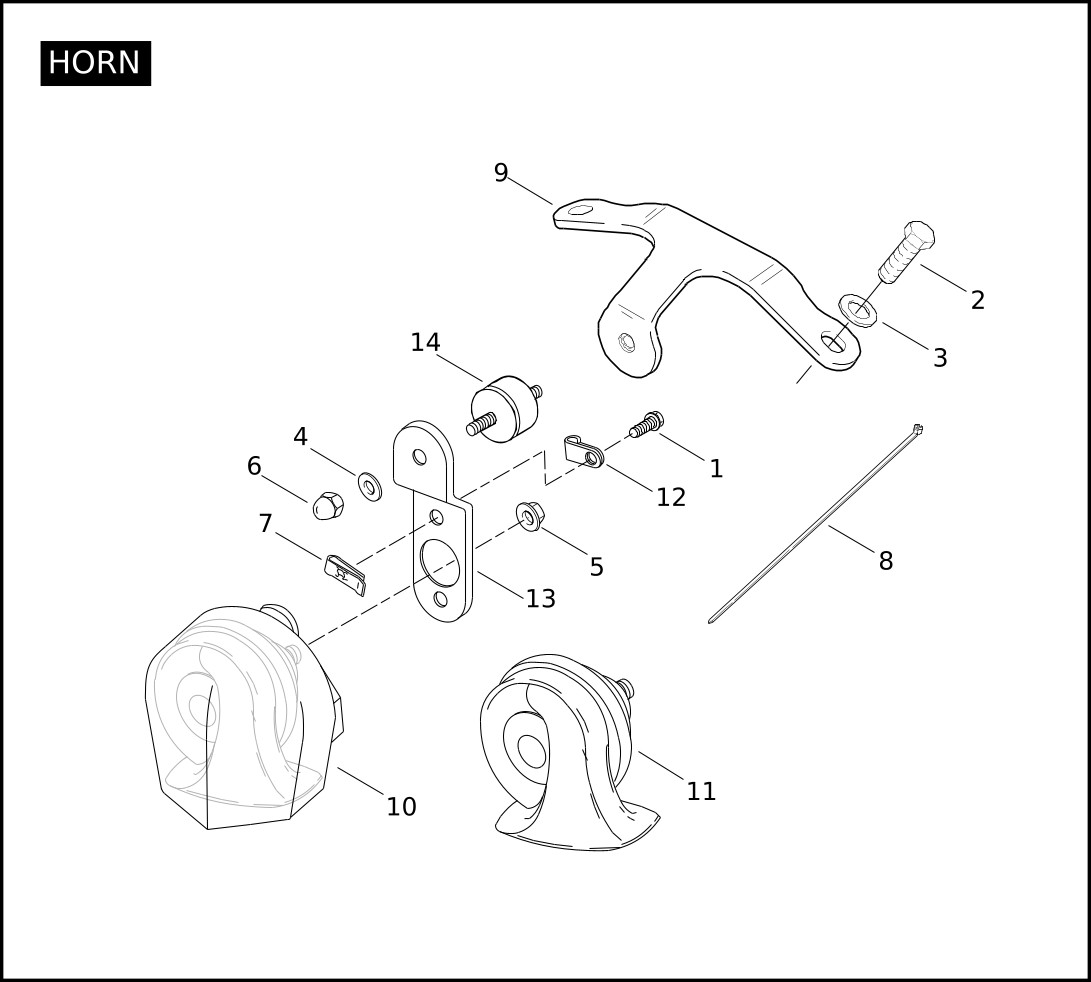

HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHRSE4 |
| 2 | 4775 | SCREW (2) | FLHRSE4 |
| 3 | 6019 | SCREW (2) | FLHRSE4 |
| 4 | 6109 | WASHER | FLHRSE4 |
| 5 | 7495 | NUT | FLHRSE4 |
| 6 | 7549A | ACORN NUT | FLHRSE4 |
| 7 | 8108 | SPEEDNUT (2) | FLHRSE4 |
| 8 | 10039 | CABLE STRAP | FLHRSE4 |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHRSE4 |
| 10 | 69012-93A | COVER, horn (chrome) | FLHRSE4 |
| 11 | 69060-90E | HORN ASSEMBLY, w/ 7495 | FLHRSE4 |
| 12 | 69062-91A | CLAMP | FLHRSE4 |
| 13 | 69120-91 | BRACKET, horn | FLHRSE4 |
| 14 | 69123-92 | MOUNT, horn, rubber | FLHRSE4 |

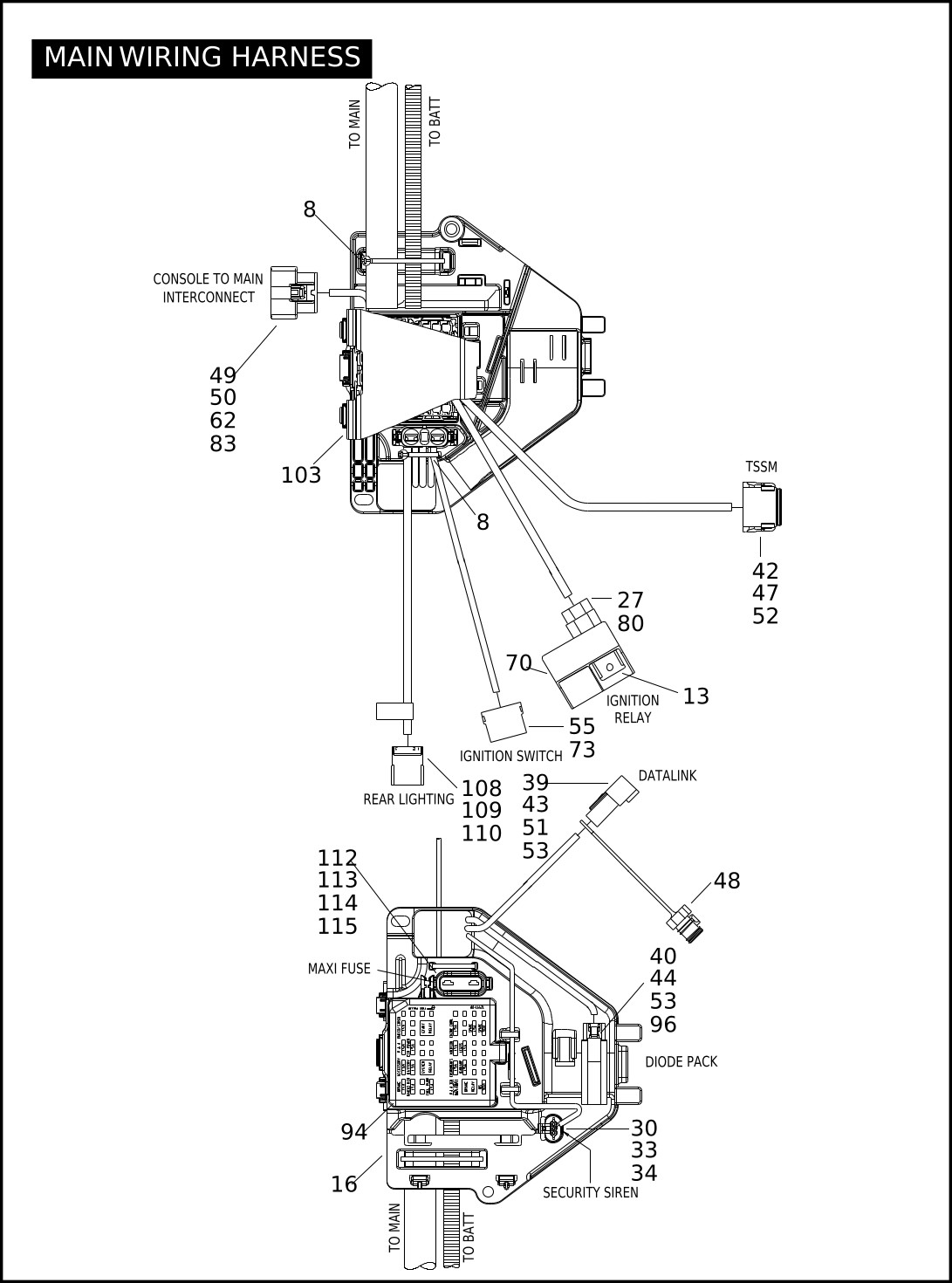

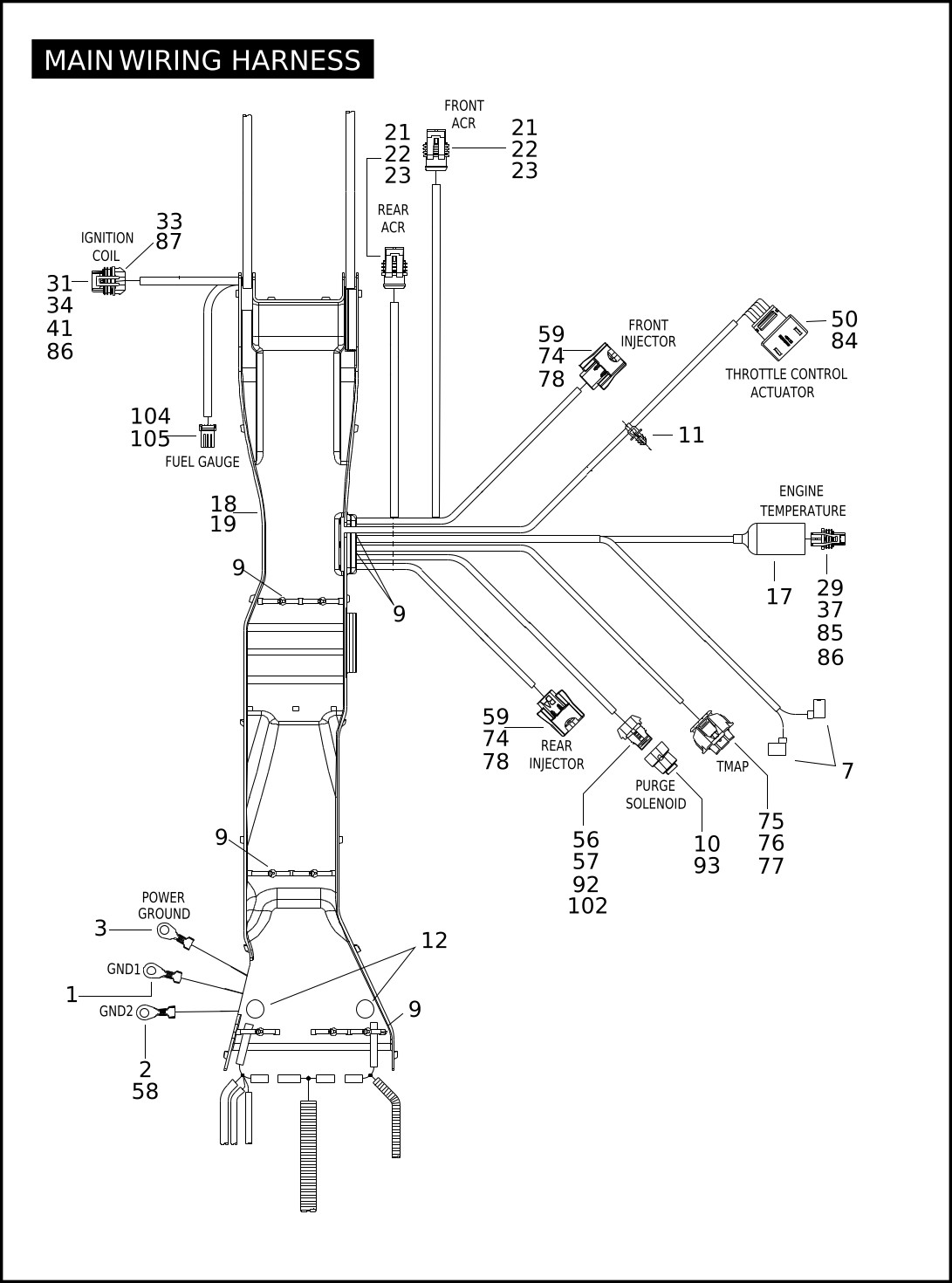

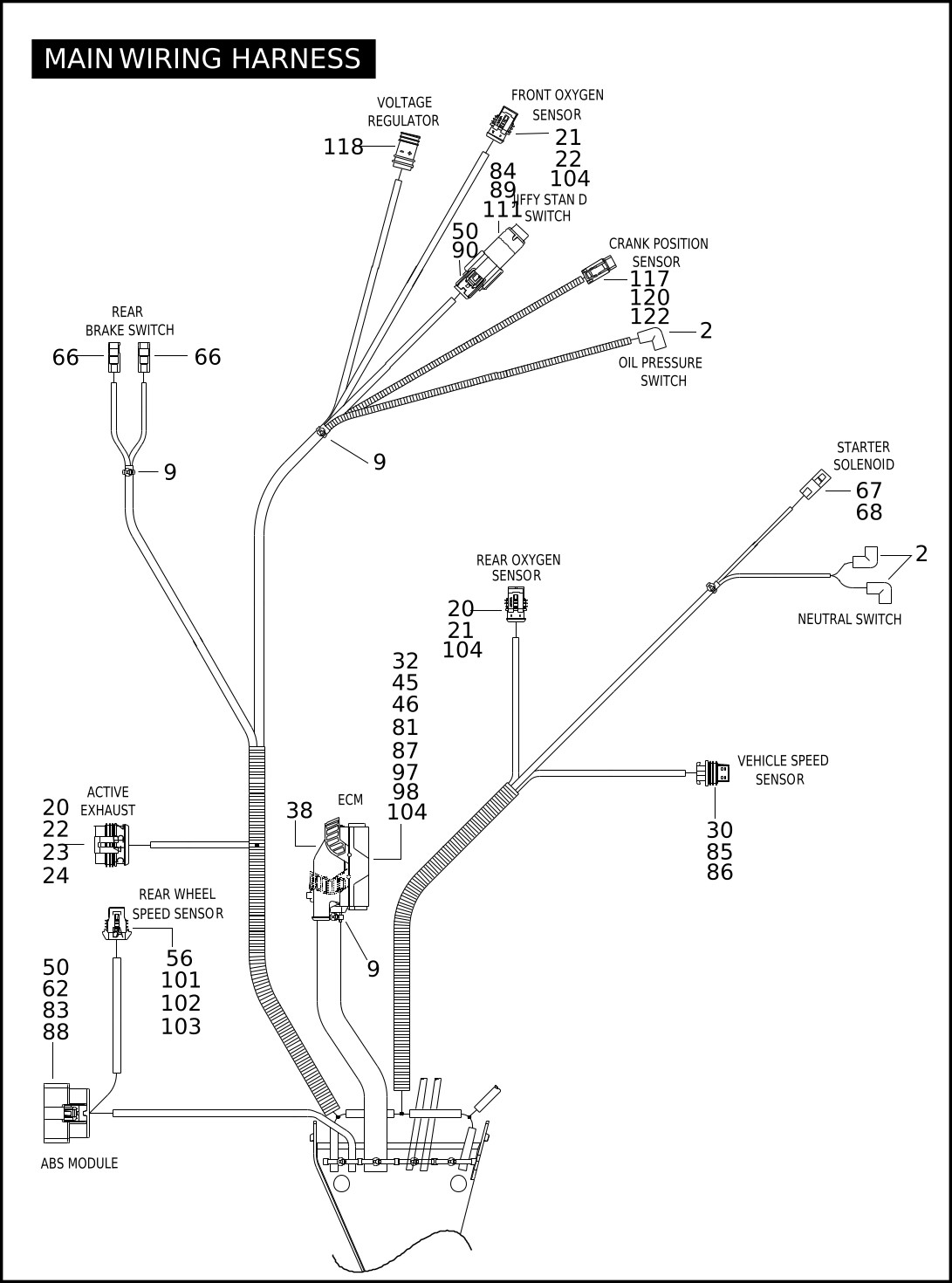

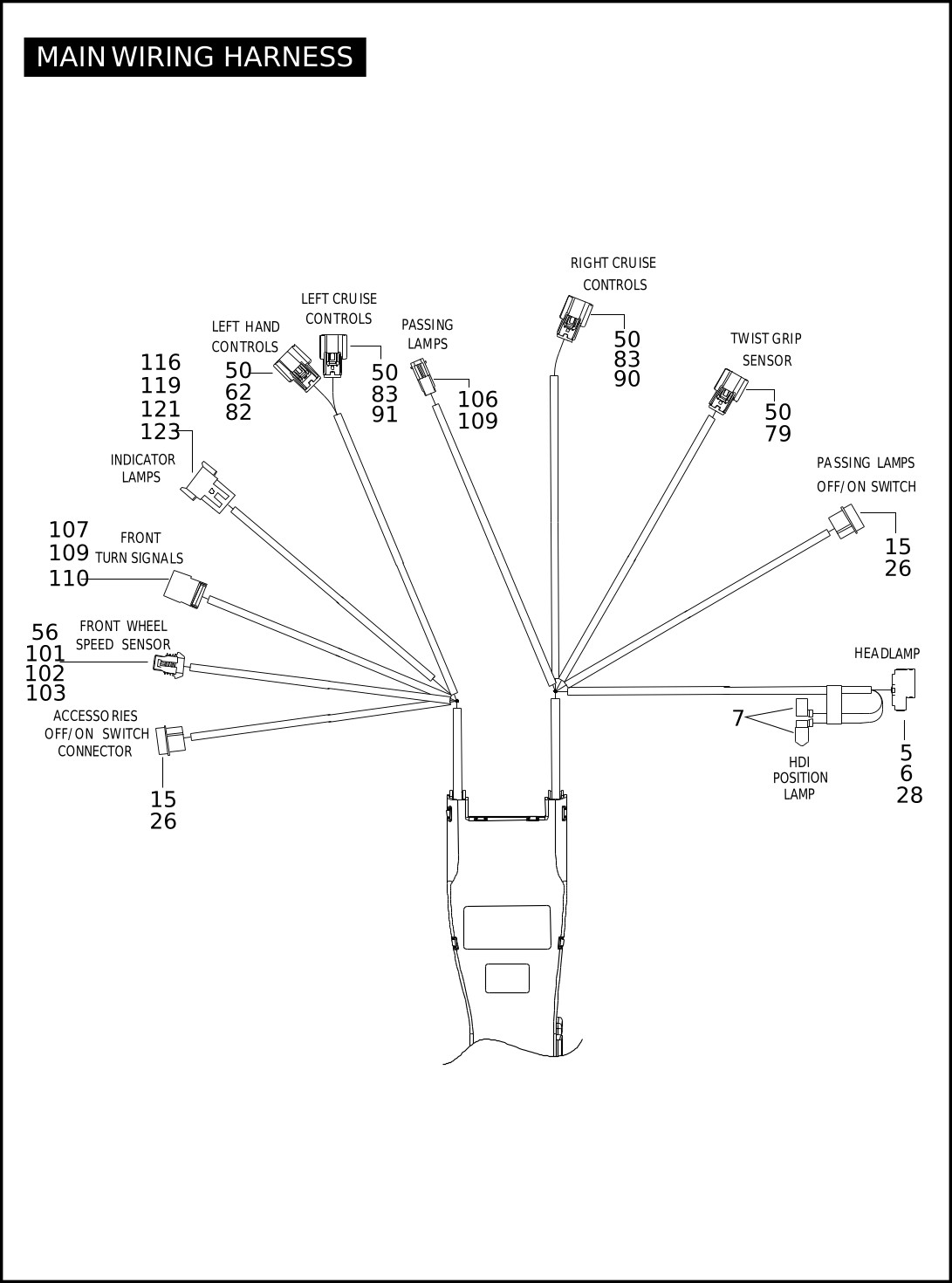

WIRING HARNESS, MAIN
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main | FLHRSE4 | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG | FLHRSE4 |
| 2 | 9825 | TERMINAL, 14-18 AWG | FLHRSE4 |
| 3 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHRSE4 |
| 4 | 9842 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHRSE4 |
| 5 | 9847 | CONNECTOR, female spade, right | FLHRSE4 |
| 6 | 9848 | CONNECTOR, female spade, left (2) | FLHRSE4 |
| 7 | 9898 | TERMINAL, instulated (4) | FLHRSE4 |
| 8 | 10039 | CABLE STRAP (2) | FLHRSE4 |
| 9 | 10065 | CABLE STRAP (13) | FLHRSE4 |
| 10 | 10147 | CLIP, connector | FLHRSE4 |
| 11 | 10177 | CABLE STRAP, tree mount | FLHRSE4 |
| 12 | 11779 | FASTENER, push-in (black) (2) | FLHRSE4 |
| 13 | 31504-91B | RELAY, w/ diode | FLHRSE4 |
| 14 | 31586-07 | RELAY (3) | FLHRSE4 |
| 15 | 70291-89 | HOUSING, 4-place (2) | FLHRSE4 |
| 16 | 70348-08 | CADDY, fuse block | FLHRSE4 |
| 17 | 70598-99 | BOOT, engine temperature sensor | FLHRSE4 |
| 18 | 70980-08 | COVER, wire trough | FLHRSE4 |
| 19 | 70981-08 | TRAY, wire trough | FLHRSE4 |
| 20 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (6) | FLHRSE4 |
| 21 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLHRSE4 |
| 22 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (10) | FLHRSE4 |
| 23 | 72012-07 | SOCKET HOUSING, 5-way | FLHRSE4 |
| 24 | 72014-07 | SEAL PIN | FLHRSE4 |
| 25 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (2) | FLHRSE4 |

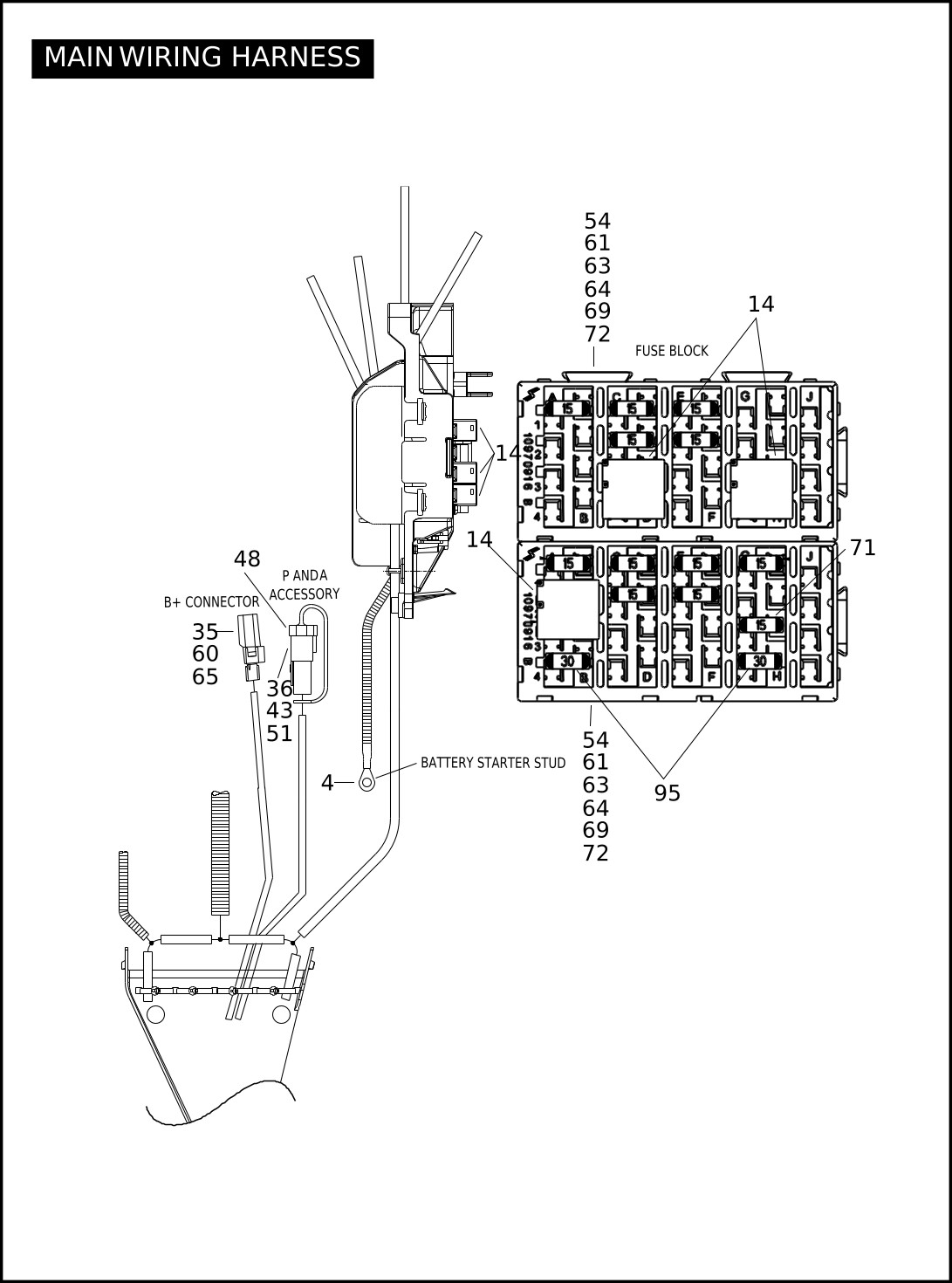

WIRING HARNESS, MAIN (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main (CONTINUED) | FLHRSE4 | |
| NOTE: Includes the following parts. | |||
| 26 | 72039-71A | PIN, terminal (5) | FLHRSE4 |
| 27 | 72046-79 | HOUSING, 5-place, female | FLHRSE4 |
| 28 | 72056-92 | HOUSING, terminal, 3-way, female | FLHRSE4 |
| 29 | 72063-06 | HOUSING, 2-way | FLHRSE4 |
| 30 | 72064-06 | SOCKET HOUSING, 3-way, female (2) | FLHRSE4 |
| 31 | 72066-06 | SOCKET HOUSING, 4-way female (black) | FLHRSE4 |
| 32 | 72079-08 | SOCKET HOUSING, 73-way | FLHRSE4 |
| 33 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHRSE4 |
| 34 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHRSE4 |
| 35 | 72100-04 | HOUSING, 1-way, male (gray) | FLHRSE4 |
| 36 | 72104-94BK | HOUSING, 4 pin | FLHRSE4 |
| 37 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHRSE4 |
| 38 | 72115-08 | COVER, 73-way socket housing | FLHRSE4 |
| 39 | 72124-94GY | HOUSING, 4-pin w 72179-94 (gray) | FLHRSE4 |
| 40 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | FLHRSE4 |
| 41 | 72135-06 | LOCK, secondary, 4-way socket, female | FLHRSE4 |
| 42 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHRSE4 |
| 43 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHRSE4 |
| 44 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHRSE4 |
| 45 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHRSE4 |
| 46 | 72157-08 | PLR, GT280 | FLHRSE4 |
| 47 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHRSE4 |
| 48 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHRSE4 |
| 49 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHRSE4 |
| 50 | 72168-07 | TERMINAL, socket, 16-18 AWG (39) | FLHRSE4 |
WIRING HARNESS, MAIN (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main (CONTINUED) | FLHRSE4 | |
| NOTE: Includes the following parts. | |||
| 51 | 72190-94 | TERMINAL, pin, 16-18 AWG (7) | FLHRSE4 |
| 52 | 72191-94 | TERMINAL, socket, 16-18 AWG (16) | FLHRSE4 |
| 53 | 72195-94 | SEAL PIN | FLHRSE4 |
| 54 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHRSE4 |
| 55 | 72206-94 | CONNECTOR, 4-position, female | FLHRSE4 |
| 56 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (6) | FLHRSE4 |
| 57 | 72214-94 | CABLE SEAL (2) | FLHRSE4 |
| 58 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHRSE4 |
| 59 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHRSE4 |
| 60 | 72260-04 | HOUSING, female (gray) | FLHRSE4 |
| 61 | 72265-04 | SECONDARY LOCK, bussed fuse block (16) | FLHRSE4 |
| 62 | 72272-07 | TERMINAL, socket, 14-16 AWG (13) | FLHRSE4 |
| 63 | 72279-04 | TERMINAL, female, 14-16 AWG (13) | FLHRSE4 |
| 64 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (12) | FLHRSE4 |
| 65 | 72289-04 | TERMINAL, female, 10-12 AWG | FLHRSE4 |
| 66 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | FLHRSE4 |
| 67 | 72291-94 | TERMINAL, 14-16 AWG | FLHRSE4 |
| 68 | 72295-94 | CONNECTOR, starter housing | FLHRSE4 |
| 69 | 72309-04 | TERMINAL, 16-18 AWG (8) | FLHRSE4 |
| 72314-01 | MAXI-FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHRSE4 | |
| 70 | 72325-97 | RELAY HOLDER | FLHRSE4 |
| 71 | 72330-95 | FUSE, 15 AMP (blue) (12) | FLHRSE4 |
| 72 | 72359-05 | TERMINAL, female, 10-12 AWG (3) | FLHRSE4 |
| 73 | 72395-97 | TERMINAL, female, 10-12 AWG (3) | FLHRSE4 |
| 74 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHRSE4 |
WIRING HARNESS, MAIN (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main (CONTINUED) | FLHRSE4 | |
| NOTE: Includes the following parts. | |||
| 75 | 72406-07 | SOCKET HOUSING, 4-way | FLHRSE4 |
| 76 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHRSE4 |
| 77 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHRSE4 |
| 78 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHRSE4 |
| 79 | 72414-07BK | SOCKET HOUSING, 6-way (black) | FLHRSE4 |
| 80 | 72429-00 | TERMINAL, .25 inch, female, 12-16 AWG (4) | FLHRSE4 |
| 81 | 72440-08 | SEAL PIN, plug (22) | FLHRSE4 |
| 82 | 72469-07GY | SOCKET HOUSING, 8-way (gray) | FLHRSE4 |
| 83 | 72473-07 | SEAL PIN (21) | FLHRSE4 |
| 84 | 72483-08BK | SOCKET HOUSING, 6-way | FLHRSE4 |
| 85 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHRSE4 |
| 86 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHRSE4 |
| 87 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHRSE4 |
| 88 | 72500-07BK | SOCKET HOUSING, 20-way (black) | FLHRSE4 |
| 89 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHRSE4 |
| 90 | 72512-07BK | SOCKET HOUSING, 3-way (black) (2) | FLHRSE4 |
| 91 | 72514-07GY | SOCKET HOUSING, 3-way (gray) | FLHRSE4 |
| 92 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHRSE4 |
| 93 | 72533-06 | DUST CAP, 2-pin connector | FLHRSE4 |
| 94 | 72537-08 | COVER ASSEMBLY, fuse block | FLHRSE4 |
| 95 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLHRSE4 |
| 96 | 72547-08 | DIODE PACK | FLHRSE4 |
| 97 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHRSE4 |
| 98 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (38) | FLHRSE4 |
| 99 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHRSE4 |
WIRING HARNESS, MAIN (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main (CONTINUED) | FLHRSE4 | |
| NOTE: Includes the following parts. | |||
| 100 | 72609-08 | SECONDARY LOCK, 2-way (black) (3) | FLHRSE4 |
| 101 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHRSE4 |
| 102 | 72611-07 | TERMINAL, socket, 16-20 AWG (gold) (4) | FLHRSE4 |
| 103 | 72620-08 | FUSE COVER, rear | FLHRSE4 |
| 104 | 72914-01BK | HOUSING, socket, 4-way (black) | FLHRSE4 |
| 105 | 72991-01 | SOCKET TERMINAL, 18-22 AWG (3) | FLHRSE4 |
| 106 | 73102-96WE | PIN HOUSING, 2-position (white) | FLHRSE4 |
| 107 | 73106-96BK | PIN HOUSING, 6-place (black) | FLHRSE4 |
| 108 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHRSE4 |
| 109 | 73190-96 | TERMINAL, pin, 16-20 AWG (14) | FLHRSE4 |
| 110 | 73198-96 | CONNECTOR ANCHOR (2) | FLHRSE4 |
| 111 | 73213-07 | RETAINER, x-mas tree clip | FLHRSE4 |
| 112 | 73301-04 | HOUSING, pin, 2-way | FLHRSE4 |
| 113 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHRSE4 |
| 114 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHRSE4 |
| 115 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHRSE4 |
| 116 | 74108-98BK | HOUSING, 8-way pin (black) | FLHRSE4 |
| 117 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FLHRSE4 |
| 118 | 74115-06 | DC LEAD ASSEMBLY | FLHRSE4 |
| 119 | 74148-98 | SECONDARY LOCK, 8-way | FLHRSE4 |
| 120 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHRSE4 |
| 121 | 74190-98 | TERMINAL, 16-20 AWG (7) | FLHRSE4 |
| 122 | 74191-98 | SOCKET TERMINAL (2) | FLHRSE4 |
| 123 | 74195-98 | SEAL PIN (2) | FLHRSE4 |

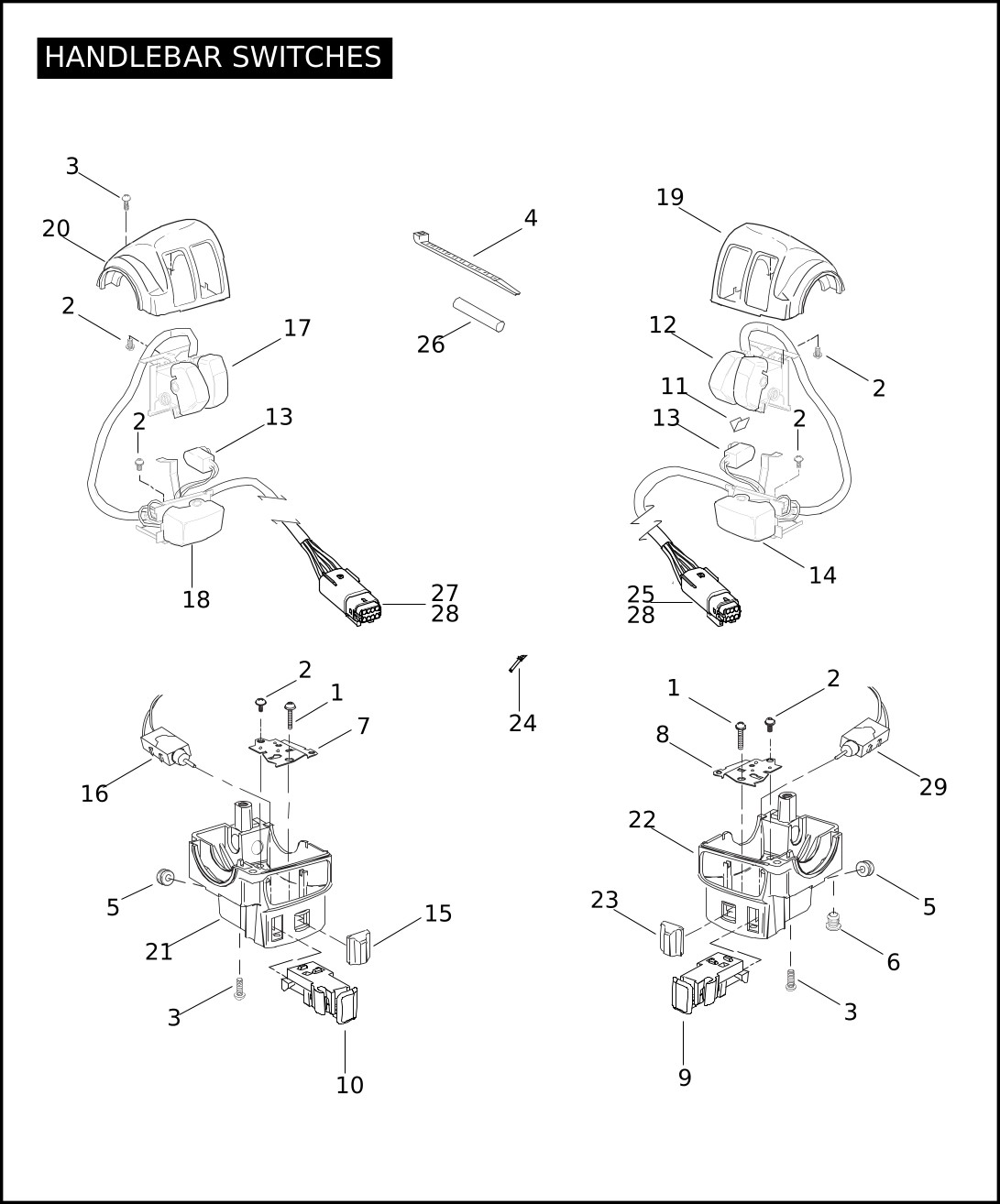

HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW (2) | FLHRSE4 |
| 2 | 2955 | SCREW (6) | FLHRSE4 |
| 3 | 4292 | SCREW (4) | FLHRSE4 |
| 4 | 10006 | STRAP, cable (3) | FLHRSE4 |
| 10181 | STRAP, cable (2) | FLHRSE4 | |
| 5 | 11402 | GROMMET, 3/16 in. I.D. (2) | FLHRSE4 |
| 6 | 55928-08 | PLUG (2) | FLHRSE4 |
| 7 | 70373-96 | BRACKET, switch, lower left | FLHRSE4 |
| 8 | 70375-96 | BRACKET, switch, lower right | FLHRSE4 |
| 9 | 71183-04 | LENS, right | FLHRSE4 |
| 10 | 71184-04 | LENS, left | FLHRSE4 |
| 11 | 71509-00 | CLIP, spring | FLHRSE4 |
| 12 | 71589-96B | SWITCH ASSEMBLY, engine start/off/run, w/ 10181 & 72266-94 | FLHRSE4 |
| 13 | 71590-96A | STOPLAMP & CLUTCH SWITCH, stop lamp, w/ 10181 & 72266-94A (2) | FLHRSE4 |
| 14 | 71591-00 | SWITCH ASSEMBLY, right turn signal, w/ 10181 | FLHRSE4 |
| 15 | 71828-02 | KNOB, cruise contol, on/off | FLHRSE4 |
| 16 | 71842-02 | SWITCH, cruise control, on/off | FLHRSE4 |
| 17 | 71597-96B | SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94 | FLHRSE4 |
| 18 | 71598-00 | SWITCH ASSEMBLY, left turn signal, w/ 10181 | FLHRSE4 |
| 19 | 71614-96 | HOUSING, upper right, (chrome) | FLHRSE4 |
| 20 | 71615-96 | HOUSING, upper left, (chrome) | FLHRSE4 |
| 21 | 71706-02A | HOUSING, lower left (chrome) | FLHRSE4 |
| 22 | 71707-02 | HOUSING, lower right (chrome) | FLHRSE4 |
| 23 | 71825-96A | KNOB, cruise control, set/resume | FLHRSE4 |
| 24 | 72169-07 | TERMINAL, socket, formed (right) (8) | FLHRSE4 |
| 72169-07 | TERMINAL, socket, formed (left) (9) | FLHRSE4 | |
| 25 | 72478-07BK | HOUSING, 8-way, right (black) | FLHRSE4 |
| 26 | 72266-94 | TUBE, heat shrink, dual wall, 0.3 x 2 inch (black) (8) | FLHRSE4 |
| 27 | 72447-07GY | HOUSING, 8-way, left (gray) | FLHRSE4 |
| 28 | 73212-07 | RETAINER (2) | FLHRSE4 |
| 29 | 77101-98 | SWITCH ASSEMBLY, cruise control, set/resume, w/ 10181 & 72266-94 | FLHRSE4 |

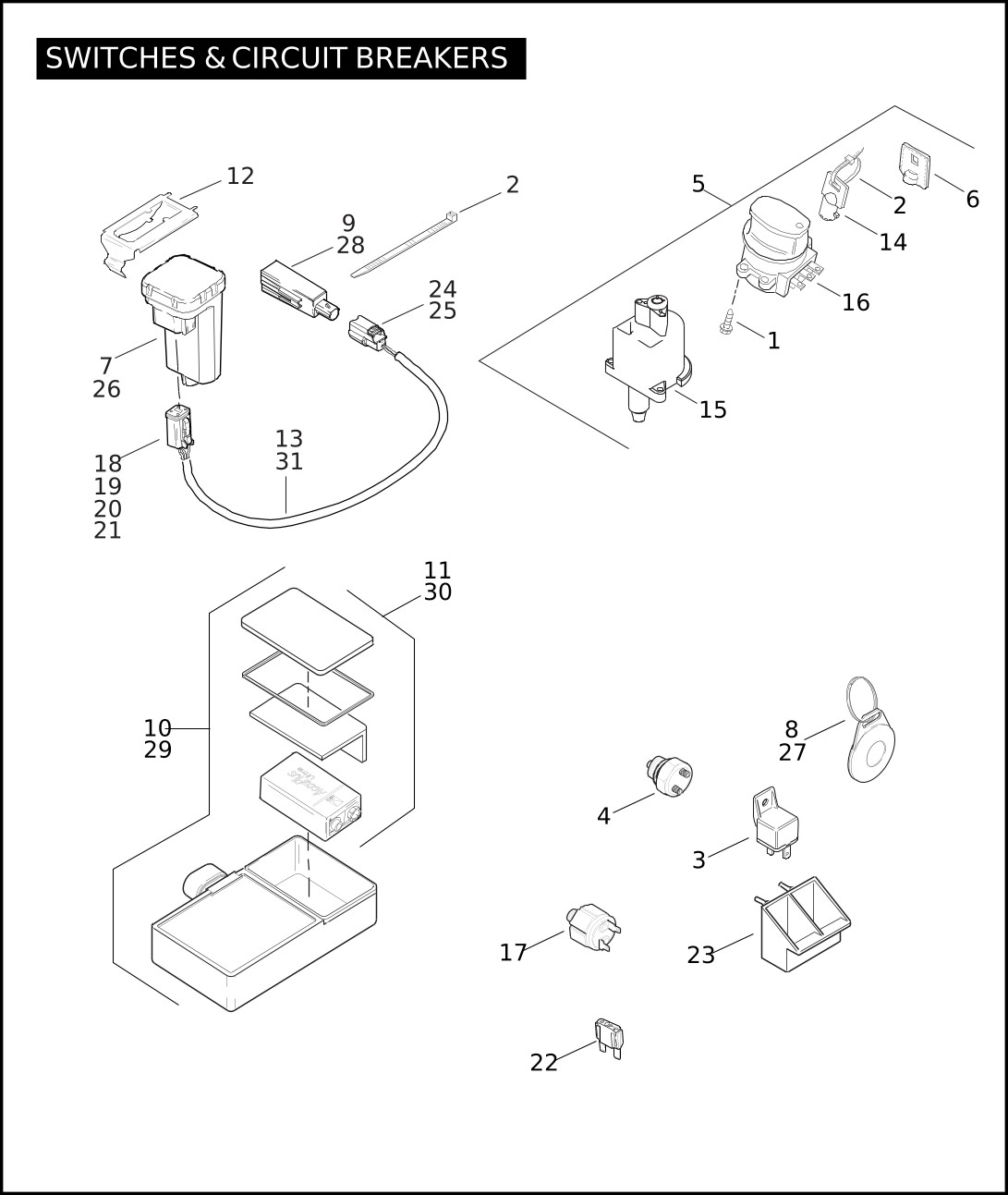

SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FLHRSE4 |
| 2 | 10065 | CABLE STRAP (3) | FLHRSE4 |
| 3 | 31504-91B | RELAY, w/ diode (2) | FLHRSE4 |
| 4 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHRSE4 |
| 5 | 53461-07 | LOCKSET COMPLETE, w/ keys, fork lock, & ignition switch | FLHRSE4 |
| 6 | 61081-92 | COVER, key head set (2) | FLHRSE4 |
| 7 | 68924-07 | MODULE, security system & turn signal canceller | FLHRSE4 |
| 8 | 68926-07 | REMOTE CONTROL FOB (2) | FLHRSE4 |
| 9 | 68956-07 | ANTENNA MODULE, security system | FLHRSE4 |
| 10 | 68958-07A | SIREN | FLHRSE4 |
| 11 | 69018-00 | SIREN ALARM, battery replacement kit | FLHRSE4 |
| 12 | 70447-01 | CLIP | FLHRSE4 |
| 13 | 70616-07 | WIRE HARNESS, antenna jumper | FLHRSE4 |
| 14 | 71452-91A | KEY (specify key code) | FLHRSE4 |
| 71031-04 | KEY, deco cvo mark | FLHRSE4 | |
| 15 | 71540-94A | FORK LOCK | FLHRSE4 |
| 16 | 71605-07 | IGNITION SWITCH (specify key code) | FLHRSE4 |
| 17 | 72023-51D | STOPLIGHT, rear w/ 9907 | FLHRSE4 |
| 18 | 72134-94GY | HOUSING, 4-way socket (grey) | FLHRSE4 |
| 19 | 72154-94 | SECONDARY LOCK, 4-way socket | FLHRSE4 |
| 20 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | FLHRSE4 |
| 21 | 72195-94 | SEAL PIN, socket, 16-18 AWG | FLHRSE4 |
| 22 | 72314-01 | MAXI-FUSE, 40 AMP | FLHRSE4 |
| 23 | 72325-97 | RELAY HOLDER | FLHRSE4 |
| 24 | 72720-07 | HOUSING, 2-way socket | FLHRSE4 |
| 25 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 68922-07 | MODULE, security system & turn signal canceller (Japan) | FLHRSE4 |
| 68924-07 | MODULE, security system & turn signal canceller (England, Australia, & HDI) | FLHRSE4 | |
| 27 | 68926-07 | REMOTE CONTROL FOB (England, Australia, & HDI) (2) | FLHRSE4 |
| 68939-00 | REMOTE CONTROL FOB (Japan) (2) | FLHRSE4 | |
| 28 | 68956-07 | ANTENNA MODULE, security system (England, Australia, & HDI) | FLHRSE4 |
| 29 | 68958-07A | SIREN ALARM (England, Australia, HDI, & Japan) | FLHRSE4 |
| 30 | 69018-00 | BATTERY REPLACE KIT, siren alarm (England, Australia, HDI, & Japan) | FLHRSE4 |
| 31 | 70616-07 | WIRE HARNESS, antenna jumper (England, Australia, & HDI) | FLHRSE4 |

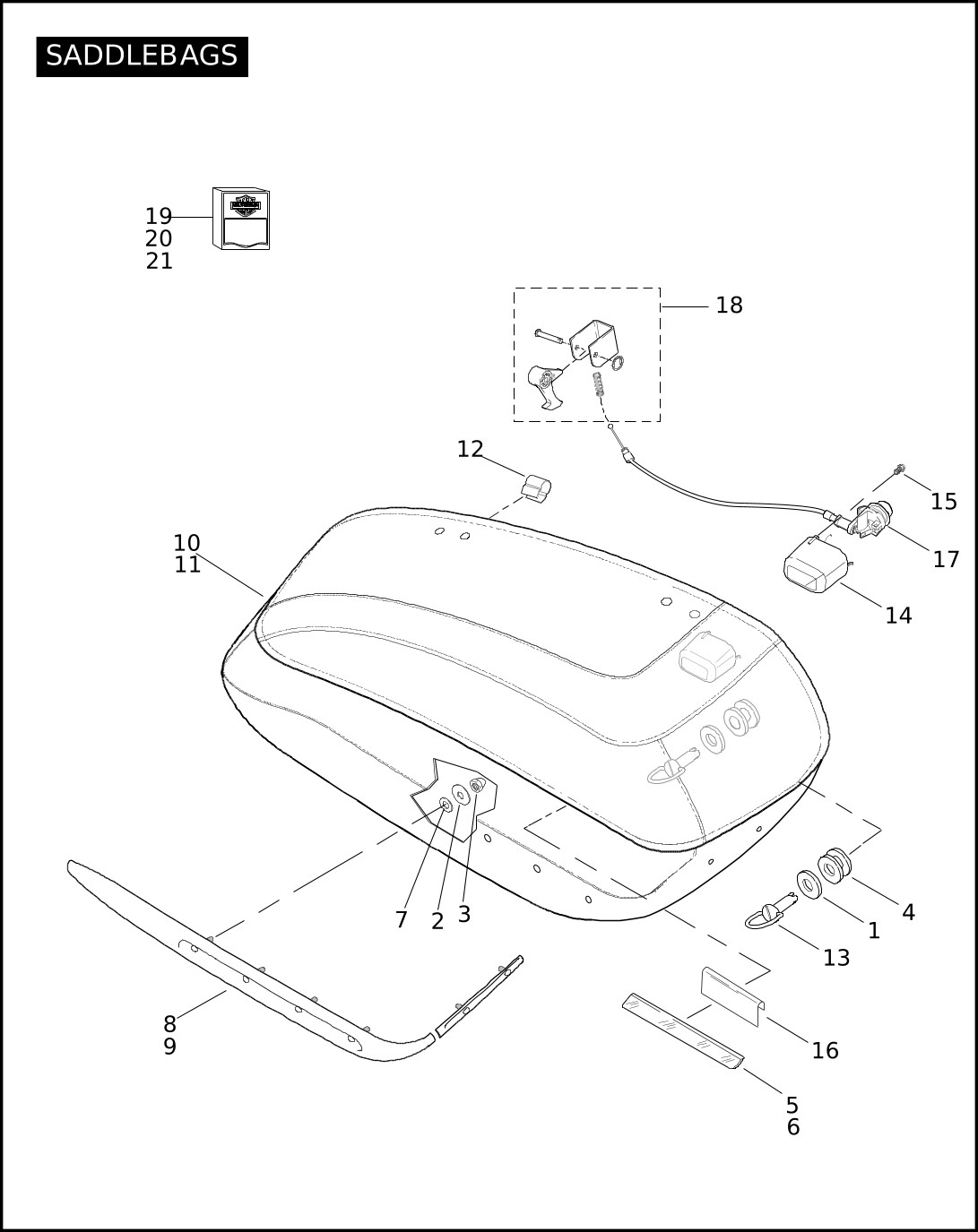

SADDLEBAGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6229W | WASHER (4) | FLHRSE4 |
| 2 | 6919 | WASHER (10) | FLHRSE4 |
| 3 | 8083 | ACORN NUT (10) | FLHRSE4 |
| 4 | 11468 | GROMMET (4) | FLHRSE4 |
| 5 | 59287-92 | REFLECTOR, right | FLHRSE4 |
| 6 | 59288-92 | REFLECTOR, left | FLHRSE4 |
| 7 | 61121-04 | WASHER (10) | FLHRSE4 |
| 8 | 88222-07 | TRIM SADDLEBAG, right (chrome) | FLHRSE4 |
| 9 | 88223-07 | TRIM SADDLEBAG, left (chrome) | FLHRSE4 |
| 10 | 88284-08 | SADDLEBAG ASSEMBLY, complete, right | FLHRSE4 |
| 11 | 88285-08 | SADDLEBAG ASSEMBLY, complete, left | FLHRSE4 |
| 12 | 90382-98 | SPRING HINGE KIT | FLHRSE4 |
| 13 | 90400-00 | BAIL HEAD STUD (4) | FLHRSE4 |
| 14 | 91328-04 | COVER, actuator shroud (2) | FLHRSE4 |
| 15 | 91329-04 | SCREW (4) | FLHRSE4 |
| 16 | 91342-04 | EXTRUSION, reflector (2) | FLHRSE4 |
| 17 | 91406-04 | CABLE ASSEMBLY, actuator (2) | FLHRSE4 |
| 18 | 91411-04 | LATCH & SPRING KIT, right | FLHRSE4 |
| 91445-04 | LATCH & SPRING KIT, left | FLHRSE4 | |
| 19 | 91625-04 | COVER KIT, motorcycle | FLHRSE4 |
| 20 | 91887-98 | LINER SADDLEBAG KIT | FLHRSE4 |
| 21 | 94819-02 | TOOL KIT | FLHRSE4 |

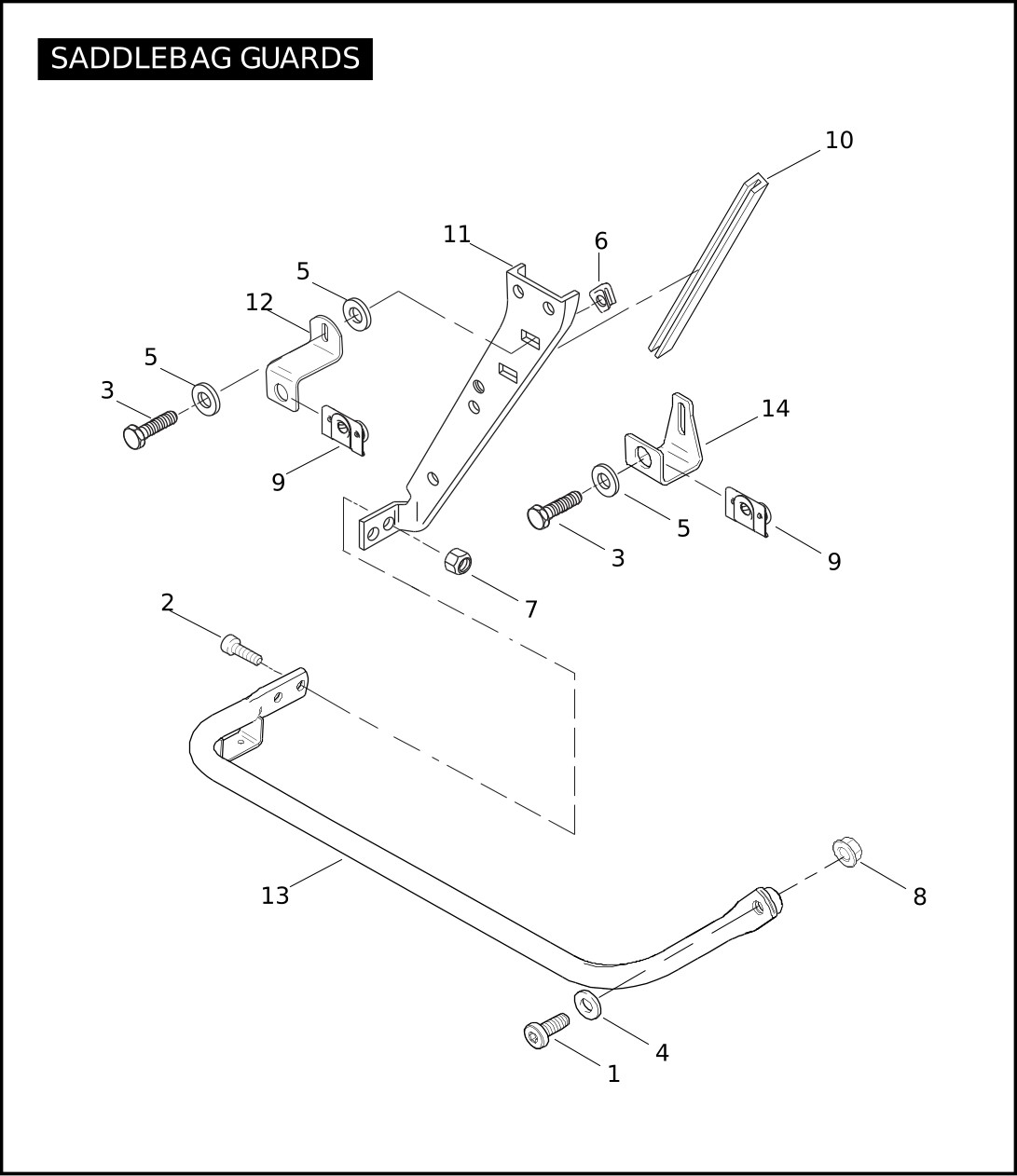

SADDLEBAG GUARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3443 | SCREW (2) | FLHRSE4 |
| 2 | 3684 | SCREW (4) | FLHRSE4 |
| 3 | 3787 | BOLT (4) | FLHRSE4 |
| 4 | 6701 | WASHER (2) | FLHRSE4 |
| 5 | 6703 | WASHER (4) | FLHRSE4 |
| 6 | 7490 | CLIP NUT (2) | FLHRSE4 |
| 7 | 7531 | LOCKNUT (4) | FLHRSE4 |
| 8 | 7601 | LOCKNUT (2) | FLHRSE4 |
| 9 | 70909-95 | RECEPTACLE (4) | FLHRSE4 |
| 10 | 90594-85A | MOULDING (2) | FLHRSE4 |
| 11 | 90718-79C | SUPPORT BRACKET KIT, left | FLHRSE4 |
| 90720-79C | SUPPORT BRACKET KIT, right | FLHRSE4 | |
| 12 | 90801-06 | BRACKET, saddlebag mounting (2) | FLHRSE4 |
| 13 | 91069-07 | SUPPORT, saddlebag, left (chrome) | FLHRSE4 |
| 91074-07 | SUPPORT, saddlebag, right (chrome) | FLHRSE4 | |
| 14 | 91130-07 | BRACKET, front (2) | FLHRSE4 |

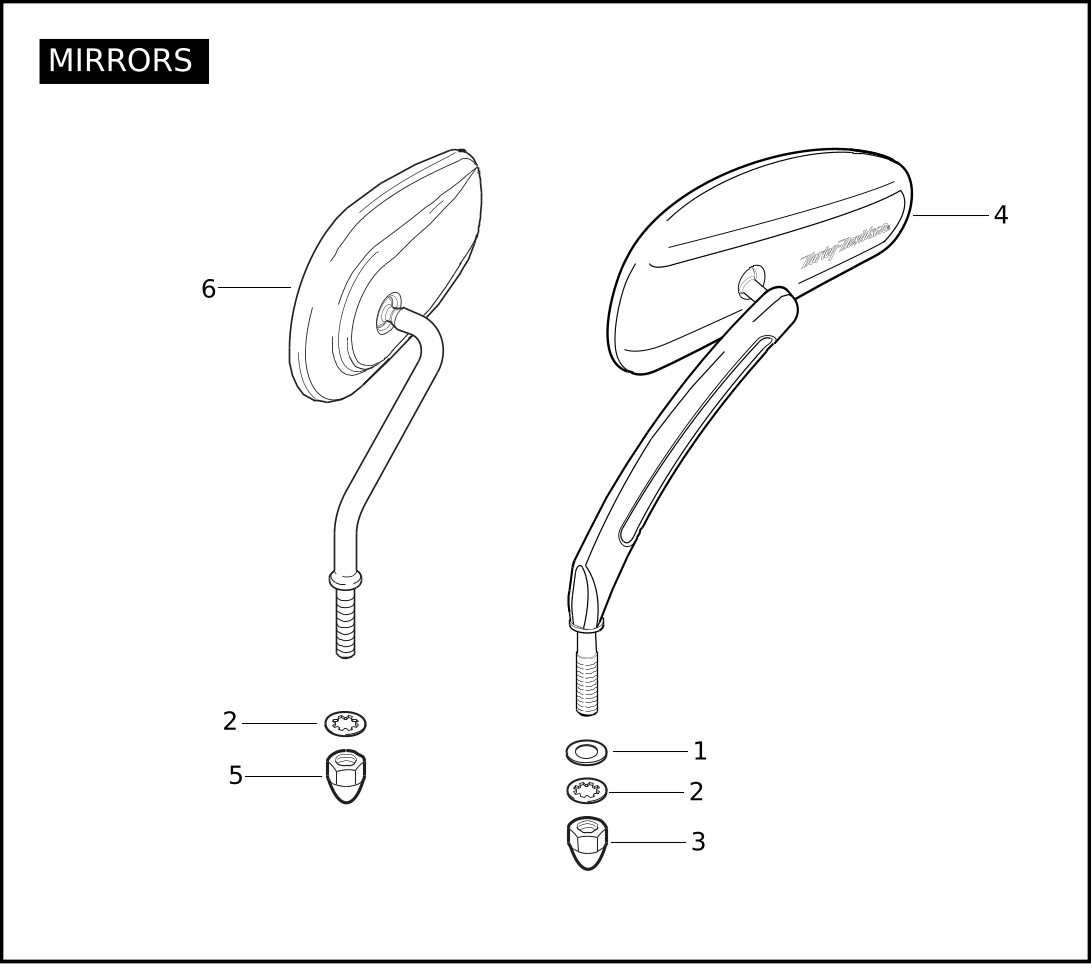

MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLHRSE4 |
| 2 | 7127 | LOCKWASHER (2) | FLHRSE4 |
| 3 | 7736 | ACORN NUT (2) | FLHRSE4 |
| 4 | 92344-08 | MIRROR, right (chrome) | FLHRSE4 |
| 92345-08 | MIRROR, left (chrome) | FLHRSE4 | |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 7720 | ACORN NUT (HDI) (2) | FLHRSE4 |
| 6 | 91840-03A | MIRROR KIT, right, short (chrome), w/ 7127 & 7720 (HDI) | FLHRSE4 |
| 91845-03A | MIRROR KIT, left, short (chrome), w/ 7127 & 7720 (HDI) | FLHRSE4 | |

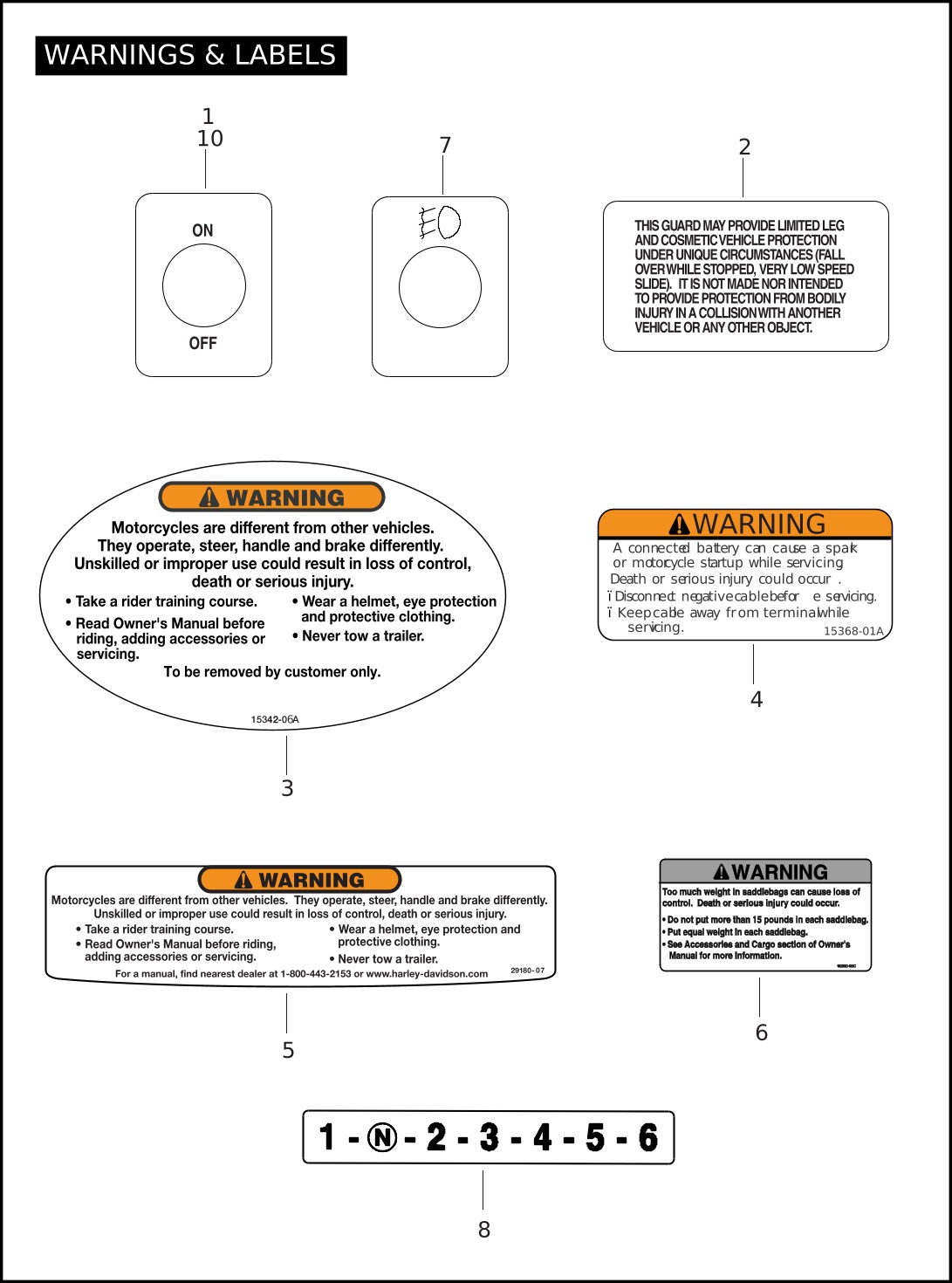

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14019-83A | LABEL ON/OFF SWITCH | FLHRSE4 |
| 2 | 14148-86 | ENGINE GUARD LABEL | FLHRSE4 |
| 3 | 15342-06A | MIRROR WARNING LABEL | FLHRSE4 |
| 4 | 15368-01A | LABEL BATTERY WARNING | FLHRSE4 |
| 5 | 29180-07 | WARNING LABEL, air cleaner, Domestic, Calif. | FLHRSE4 |
| 6 | 90820-93C | DECAL, air suspension, inside right saddlebag | FLHRSE4 |
| INTERNATIONAL MODELS ONLY | |||
| 7 | 14019-83A | LABEL ON/OFF SWITCH (HDI, England, Australia, Japan) | FLHRSE4 |
| 8 | 14272-06 | SHIFT PATTERN LABEL (Japan only) | FLHRSE4 |
| 9 | 14188-08 | NOISE LABEL (Australia) (not illustrated) | FLHRSE4 |
| 10 | 14019-83A | LABEL SPOTLIGHT, right (HDI, England, Australia, Japan) | FLHRSE4 |

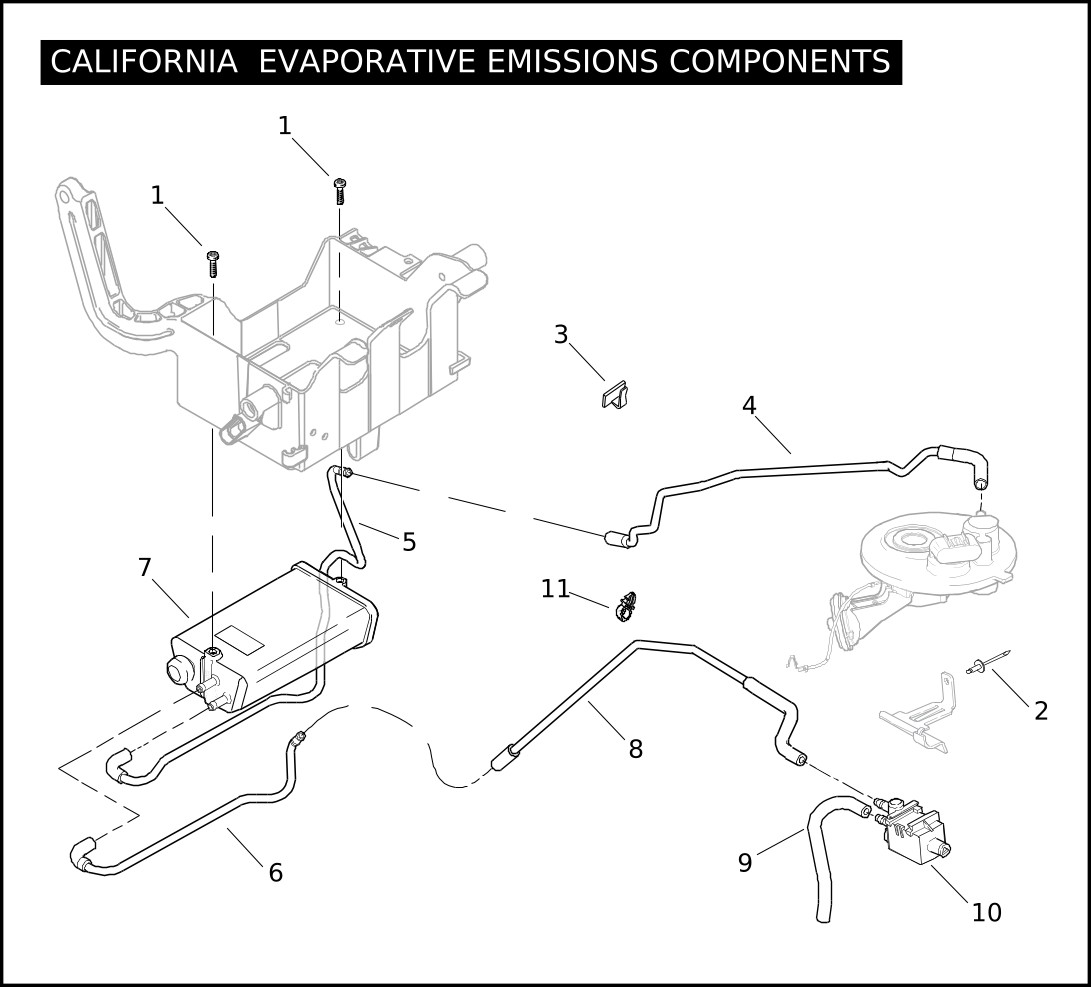

CALIFORNIA EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | FLHRSE4 |
| 2 | 8483A | RIVET | FLHRSE4 |
| 3 | 10103 | CLIP, adhesive backed (2) | FLHRSE4 |
| 4 | 27291-08 | EVAP LINE, tank | FLHRSE4 |
| 5 | 27297-08 | EVAP LINE, canister | FLHRSE4 |
| 6 | 27298-08 | EVAP LINE, purge to canister | FLHRSE4 |
| 7 | 27433-08 | CARBON CANISTER | FLHRSE4 |
| 8 | 27437-08 | EVAP LINE, purge | FLHRSE4 |
| 9 | 27439-08 | TUBE, solenoid to induction module | FLHRSE4 |
| 10 | 27715-07 | SOLENOID, purge valve | FLHRSE4 |
| 11 | 56073-83 | RETAINER (2) | FLHRSE4 |
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090 | SCREW 5/16-18 X 3-3/4 hex flange head |
| 11207 | WASHER |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2225 | SCREW 1/4-20 X 5/8 socket flat countersink head |
| 2420 | SCREW 1/4-20 X 3/4 truss head (Grade 2) |
| 2452 | SCREW No. 12-24 X 13/16 pan head, with lockpatch |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2559 | SCREW No. 6-32 X 3/4 Phillips pan head, with lockwasher |
| 25700226 | GASKET KIT |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2660 | SCREW No. 10-24 X 3/8 pan head |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2731W | SCREW No. 10 X 3/8 Phillips truss head, self-tapping |
| 2782 | SCREW 5/16-18 X 1/2 truss head (Grade 2) |
| 2806 | SCREW No. 6-32 X 3/4 Pozidriv pan head (Grade 2) |
| 2903 | SCREW No. 10-24 X 1/2 pan head |
| 2921 | SCREW No. 12 X 5/8 TORX pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3443 | SCREW 3/8-16 X 1-3/8 hex head |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 3512 | BOLT 3/8-24 X 3-1/4 hex head (chrome) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3540 | SCREW 5/16-18 X 5/8 socket button head |
| 3546 | BOLT 5/16-18 X 5/8 hex flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3599 | SCREW 1/2-13 X 1-1/8 knurled head (Grade 8) |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3678 | SCREW 3/8-16 X 7/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3728 | SCREW 1/4-20 X 1/2 hex head |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3814 | SCREW 7/16-14 X 1-3/4 hex head, with washer (Grade 8) |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4016 | SCREW 5/16-18 X 1.0 socket button head |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4094 | SCREW No. 10-32 X 1 Pozidriv pan head (Grade 2) |
| 4124 | SCREW No. 10 X 5/8 self-tapping |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4166 | SCREW No. 8-32 X 1/2 socket button head (Grade 8) (chrome) |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4319 | BOLT 3/8-24 X 1 hex head (Grade 5) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4407 | SCREW 5/16-18 X 5/8 hex head, with washer |
| 4502 | SCREW 3/8-16 X 1-3/4 button head (Grade 8) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4615 | SCREW 5/16-18 X 2.00 hex socket head with lock patch |
| 4625 | SCREW 5/16-18 X 1.0 button socket head, with lockpatch (Grade 8) |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4752 | BOLT 7/16-14 X 1-1/4 hex head (Grade 8) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 53202-04 | SCREW 1/4-20 X 3/4 cap internal hex |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6047 | WASHER 5/8 X 13/64 X 3/64 |
| 6083 | WASHER 1/2 X 11/16 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 61121-04 | WASHER 5/32 X 3/4 X 1/16 EPDM (black) |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6198 | WASHER No. 8 X 1/4 X .06 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6336B | WASHER 5/16 X 15/16 X 3/16 |
| 6378 | WASHER 21/64 X 7/8 X 11/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6445 | WASHER 1/2 X 2 X 0.300 |
| 6474 | WASHER 3/8 X 5/16 X 3/16 hardened |
| 6476 | WASHER 21/32 X 1.0 X 5/32 |
| 6477 | WASHER 21/32 X 1.0 X 3/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6717 | WASHER No. 6 X 3/8 X 3/64 |
| 6738 | WASHER 17/32 X 7/8 X 7/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 6789 | WASHER No. 6 X 7/8 X .05 |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6919 | WASHER 9/64 X 5/8 X 1/32 (stainless) |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7069 | LOCKWASHER No. 10 |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7651A | ACORN NUT No. 12-24 (Grade 2) (chrome) |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7671 | LOCKNUT 1/4-20 nylon |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7720 | ACORN NUT 5/16-24 (chrome) |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7780 | LOCKNUT 3/8-24 X 13/32 X 11/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7796 | NUT 5/16-18 X 1/4 external-tooth washer (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7888A | NUT No. 6-32 flange head |
| 7889 | NUT No. 6-32 keps |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8083 | ACORN NUT 6-32 (stainless) |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 861A | SCREW 3/8-16 X 1 knurled head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 91329-04 | SCREW #6-19 X 1/4 hi-low, hex washer head. |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 928 | BOLT M5 X 0.8 X 35.2 hex head |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 94545-03 | SCREW 5/16-24 X 2-5/8 socket button head, with lock patch |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| 9475 | SCREW #10-15 X 5/8 self tapping, round head phillips |
| 9496 | SCREW 8-32 X 1/4 pan head self tapping |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19838-08 | ENGINE ASSEMBLY, complete - 110 cubic-inch (granite) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 16801-07B | GASKET, cylinder head (2) | FLHRSE4 |
| 7 | 17454-08 | CYLINDER ASSEMBLY, w/ 16595-99A (gray) (2) | FLHRSE4 |
| 10 | 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE4 |
| 17337-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (gray) | FLHRSE4 | |
| 13 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHRSE4 |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHRSE4 |
| 18 | 18270-00A | COLLAR, valve spring lower (4) | FLHRSE4 |
| 23A | 72009-05 | HOUSING, 2-way, pin | FLHRSE4 |
| 23B | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 17721-08 | CYLINDER HEAD, front, w/ guides, seats, & collars (black) | FLHRSE4 | |
| 13 | 18074-05A | INTAKE VALVE (2) | FLHRSE4 |
| 14 | 18085-05A | EXHAUST VALVE (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 22 | 24760-08 | CRANKCASE SET, w/ 895, 9215, 11140, 22307-99, 24604-00D, 24605-07, 35114-02, & 68042-99 (gray) | FLHRSE4 |
| 26 | 62629-05A | HOSE, oil - short | FLHRSE4 |
| 27 | 62641-05A | HOSE, oil - long | FLHRSE4 |
| 28 | 63076-08 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 26356-05A, 63066-07, 63084-07, & 63533-41A | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 18 | 24608-07A | CAMSHAFT KIT, front | FLHRSE4 |
| 19 | 25590-07A | CAMSHAFT KIT, rear | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 6127 | WASHER (3) | FLHRSE4 |
| 12 | 16207-79D | ENGINE MOUNT, front | FLHRSE4 |
| 14 | 16321-08 | WELDMENT, engine strap | FLHRSE4 |
| 16 | 96210-80A | WASHER | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 4705 | SCREW (2) | FLHRSE4 |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHRSE4 |
| 27685-08 | INDUCTION MODULE ASSEMBLY, complete | FLHRSE4 | |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHRSE4 |
| 7 | 27712-08 | BRACKET, induction module | FLHRSE4 |
| 8 | 27721-08 | FUEL RAIL | FLHRSE4 |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLHRSE4 |
| 10 | 62905-08 | FUEL LINE | FLHRSE4 |
| 11 | 90383-98 | CAP, purge tube | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 29465-08 | BREATHER BOLT (2) | FLHRSE4 |
| 6 | 29502-08 | BREATHER TUBE (2) | FLHRSE4 |
| 8 | 29644-08 | BRACKET ASSEMBLY, air cleaner cover | FLHRSE4 |
| 9 | 29645-08 | GASKET, filter element | FLHRSE4 |
| 10 | 29633-08 | FILTER ELEMENT, w/ 29645-08 | FLHRSE4 |
| 11 | 29718-08 | GASKET, induction module to backplate | FLHRSE4 |
| 12 | 29764-08 | BACKPLATE ASSEMBLY (Domestic, California, Canada) (not shown) | FLHRSE4 |
| 13 | 29895-08 | INSERT, air cleaner (Domestic, California, Canada, England, Australia - all anniiversary bikes except Japan) | FLHRSE4 |
| 30027-08 | INSERT, air cleaner (Domestic, California, Canada, England, Australia - all non anniiversary bikes except Japan) | FLHRSE4 | |
| 14 | 29630-08 | BACKPLATE ASSEMBLY (HDI, England, Australia, Japan) | FLHRSE4 |
| 15 | 29821-06 | INSERT, air cleaner (Japan - non anniversary) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 31696-07A | IGNITION COIL | FLHRSE4 |
| 7 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | FLHRSE4 |
| 9 | 34246-08 | ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires digital programming. | FLHRSE4 |
| 10 | 47420-08 | BRACKET, coil | FLHRSE4 |
| 11 | 70344-08 | CADDY, electronic control module (ECM) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 32319-07 | SENSOR, temperature manifold absolute pressure (TMAP) w/ o-ring | FLHRSE4 |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94, 74194-98 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 17 | 33718-82B | LEVER, gearshift (chrome) | FLHRSE4 |
| 27 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (granite) | FLHRSE4 |
| 45 | 34740-07A | TRANSMISSION CASE SUBASSEMBLY (black) (Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11132A | O-RING, dipstick | FLHRSE4 |
| 12 | 11348 | O-RING | FLHRSE4 |
| 33140-08 | TRANSMISSION ASSEMBLY, complete (granite) | FLHRSE4 | |
| 19 | 35256-08 | BEARING HOUSING ASSEMBLY, w/ 1, 8, 14, & 17 (granite) | FLHRSE4 |
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (black) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 26166-08 | OIL PAN ASSEMBLY, w/ 45893-99 & 60328-98B (granite) | FLHRSE4 |
| 11 | 33140-08 | TRANSMISSION ASSEMBLY, complete (granite) | FLHRSE4 |
| 12 | 33926-06B | NEUTRAL INDICATOR SWITCH, w/ o-ring | FLHRSE4 |
| 15 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (granite) | FLHRSE4 |
| 24 | 33118-08 | TRANSMISSION ASSEMBLY, complete (black) | FLHRSE4 |
| 25 | 34740-07A | TRANSMISSION CASE SUBASSEMBLY (black) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 7 | 11081A | RING, lock (3) | FLHRSE4 |
| 13 | 34091-08 | BEARING, inner race | FLHRSE4 |
| 21 | 35467-08 | INPUT SHAFT | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 12 | 34948-08 | GASKET, primary housing to case | FLHRSE4 |
| 12A | 39929-06A | CHAIN TENSIONER ASSEMBLY | FLHRSE4 |
| 15 | 60850-08 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (granite) | FLHRSE4 |
| 18 | 60709-07 | COVER, clutch (chrome) | FLHRSE4 |
| 19 | 60710-07 | INSERT, cover | FLHRSE4 |
| 19A | 25700226 | GASKET KIT, inner primary, w/ 1, 6, 7, 9, 12, 11150, 27444-00Y, 37909-90 | FLHRSE4 |
| 23 | 60432-07 | INNER PRIMARY HOUSING (black) (Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3089 | SCREW (polished stainless steel) (2) | FLHRSE4 |
| 10 | 38774-08 | LEVER ASSEMBLY, hand, w/ 11143, & 45423-92 (chrome) | FLHRSE4 |
| 11 | 38901-08 | RETAINER, cable | FLHRSE4 |
| 12 | 38898-08 | CLUTCH LINE ASSEMBLY, w/ 11348 | FLHRSE4 |
| 13 | 41751-06A | GASKET, banjo-bolt (2) | FLHRSE4 |
| 14 | 42010-06 | BOLT, banjo | FLHRSE4 |
| 15 | 42101-06 | MASTER CYLINDER ASSEMBLY, clutch (chrome) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 15 | 40265-08 | SPROCKET, rear, 66 T (black) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 41751-06A | GASKET (2) | FLHRSE4 |
| 4 | 42010-06 | BOLT, BANJO, brakeline | FLHRSE4 |
| 5 | 42102-08 | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14 & 15 | FLHRSE4 |
| 6 | 42116-06A | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06A & 42882-06 | FLHRSE4 |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHRSE4 |
| 8 | 42271-06A | BRAKE LEVER ASSEMBLY, front | FLHRSE4 |
| 9 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHRSE4 |
| 10 | 42856-06 | DECAL, reservoir cover | FLHRSE4 |
| 11 | 42857-06A | GASKET, reservoir cover | FLHRSE4 |
| 12 | 42861-06A | PUSHROD, master cylinder | FLHRSE4 |
| 13 | 42862-06A | PISTON SERVICE KIT, master cylinder | FLHRSE4 |
| 14 | 42882-06 | SCREW (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3901 | SCREW | FLHRSE4 |
| 3 | 5435 | BLEEDER SCREW (2) | FLHRSE4 |
| 4 | 5438 | BOLT, BANJO, bleeder assembly, w/ 5435 & 5455M (2) | FLHRSE4 |
| 5 | 5455M | BOLT, BANJO, w/ threaded head (2) | FLHRSE4 |
| 6 | 10006 | CABLE STRAP | FLHRSE4 |
| 7 | 11604 | RIVNUT | FLHRSE4 |
| 8 | 40663-08 | BRAKE LINE, front, lower, ABS | FLHRSE4 |
| 9 | 40699-08 | CLIP, brakeline | FLHRSE4 |
| 10 | 40651-08 | BRAKE LINE, front, upper, ABS | FLHRSE4 |
| 11 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 12 | 41751-06A | GASKET (10) | FLHRSE4 |
| 13 | 42010-06 | BOLT, BANJO, brakeline | FLHRSE4 |
| 14 | 42853-06 | CAP, bleeder screw (2) | FLHRSE4 |
| 15 | 70504-81 | CLIP, conduit (3) | FLHRSE4 |
| 16 | 70631-08 | CLIP, conduit (3) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHRSE4 |
| 2 | 42019-06 | COVER, caliper (chrome) (2) | FLHRSE4 |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHRSE4 |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHRSE4 |
| 5 | 42938-08 | CALIPER ASSEMBLY, left (silver) | FLHRSE4 |
| 42939-08 | CALIPER ASSEMBLY, right (silver) | FLHRSE4 | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | FLHRSE4 |
| 7 | 44935-06 | MEDALLION, brake caliper (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 9252 | BALL BEARING, ABS, left | FLHRSE4 |
| 7 | 9276 | BALL BEARING, right | FLHRSE4 |
| 8 | 40614-08 | SENSOR, wheel speed, ABS | FLHRSE4 |
| 9 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHRSE4 |
| 11 | 41547-07A | AXLE, front | FLHRSE4 |
| 12 | 41900-08 | SLEEVE, bearing spacer | FLHRSE4 |
| 13 | 41999-07A | TIRE, front 18 in. 130/70R18 | FLHRSE4 |
| 16 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) | FLHRSE4 |
| 17 | 44553-06A | BRAKE DISC (2) | FLHRSE4 |
| 18 | 44583-08 | SPACER | FLHRSE4 |
| 19 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHRSE4 |
| 20 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHRSE4 |
| 21 | 72607-08 | HOUSING, 2 way pin | FLHRSE4 |
| 22 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE4 |
| 23 | 72609-08 | LOCK, secondary, 2-way (black) | FLHRSE4 |
| 24 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 14 | 11902 | GASKET, master cylinder reservoir cover | FLHRSE4 |
| 16 | 12102 | DUST BOOT | FLHRSE4 |
| 17 | 40611-08 | BRAKELINE ASSEMBLY, right-rear, master cylinder to ABS UNIT, ABS | FLHRSE4 |
| 18 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 19 | 41751-06A | GASKET (4) | FLHRSE4 |
| 23 | 42638-08 | BRAKE LEVER KIT, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLHRSE4 |
| 25 | 42854-06 | KIT, SIGHT GLASS | FLHRSE4 |
| 26 | 42856-06 | DECAL, reservoir cover | FLHRSE4 |
| 27 | 42882-06 | SCREW (2) | FLHRSE4 |
| 28 | 42889-06 | PUSH ROD KIT, master cylinder | FLHRSE4 |
| 29 | 42932-08 | REBUILD KIT, master cylinder | FLHRSE4 |
| 30 | 42933-08 | PUSHROD KIT, master cylinder | FLHRSE4 |
| 31 | 42934-08 | SPRING, pedal return | FLHRSE4 |
| 33 | 46459-08 | MASTER CYLINDER ASSEMBLY, complete (chrome) | FLHRSE4 |
| 34 | 46461-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902. 42856-06 & 42882-06 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3832M | SCREW (3) | FLHRSE4 |
| 3 | 40603-08 | GROMMET (3) | FLHRSE4 |
| 4 | 40610-08 | BRAKELINE, ABS module to caliper | FLHRSE4 |
| 5 | 40611-08 | BRAKELINE, ABS module to master cylinder | FLHRSE4 |
| 6 | 40628-08 | BUSHING, ABS (6) | FLHRSE4 |
| 7 | 40688-08 | ABS MODULE KIT | FLHRSE4 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHRSE4 |
| 9 | 41751-06A | GASKET (4) | FLHRSE4 |
| 10 | 66318-08 | CADDY, RH, w/ ABS | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4596 | SCREW, bleeder | FLHRSE4 |
| 2 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHRSE4 |
| 3 | 41852-08 | PAD & PIN KIT | FLHRSE4 |
| 4 | 42853-06 | CAP, bleeder screw | FLHRSE4 |
| 5 | 42863-06 | BUMPER | FLHRSE4 |
| 6 | 42865-06A | PAD PIN KIT | FLHRSE4 |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHRSE4 |
| 8 | 44080-08 | CALIPER ASSEMBLY, rear, w/ 4596, 41852-08, 42853-06, 42865-06A & 42867-06A (black) | FLHRSE4 |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3814 | SCREW (5) | FLHRSE4 |
| 3 | 9252 | BALL BEARING, w/ encoder, ABS - right | FLHRSE4 |
| 4 | 9276 | BALL BEARING, left | FLHRSE4 |
| 5 | 9285 | BALL BEARING, sprocket | FLHRSE4 |
| 7 | 11844 | SPACER | FLHRSE4 |
| 8 | 40265-08 | SPROCKET, 66-tooth (black) | FLHRSE4 |
| 9 | 40278-08 | ISOLATOR, rubber (6) | FLHRSE4 |
| 10 | 40560-05 | BOWL, compensator | FLHRSE4 |
| 11 | 40615-08 | SENSOR, wheel speed, ABS | FLHRSE4 |
| 12 | 42120-08 | REAR AXLE | FLHRSE4 |
| 15 | 41810-08 | BRAKE DISC | FLHRSE4 |
| 17 | 42122-08 | SLEEVE, bearing spacer | FLHRSE4 |
| 19 | 42082-07 | RIM, 17 inch cast | FLHRSE4 |
| 22 | 43904-08 | SPACER, rear wheel bearing | FLHRSE4 |
| 24 | 72607-08 | HOUSING, 2 way pin | FLHRSE4 |
| 25 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHRSE4 |
| 26 | 72609-08 | LOCK, secondary, 2-way (black) | FLHRSE4 |
| 27 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 21 | 46240-02A | FORK ASSEMBLY, left | FLHRSE4 |
| 22 | 46241-02A | FORK ASSEMBLY, right | FLHRSE4 |
| 25 | 46658-07 | HOLDER, right axle | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 23 | 38901-08 | RETAINER, cable, lower | FLHRSE4 |
| 24 | 38904-08 | RETAINER, cable, upper | FLHRSE4 |
| 30 | 47900-08CJL | FRAME (blue) | FLHRSE4 |
| 47900-08CRP | FRAME (black) | FLHRSE4 | |
| 47900-08CRR | FRAME (copper) | FLHRSE4 | |
| 35 | 48613-08CJL | FORK, rear, w/ 9208 & 48489-02 (blue) | FLHRSE4 |
| 48613-08CRP | FORK, rear, w/ 9208 & 48489-02 (black) | FLHRSE4 | |
| 48613-08CRR | FORK, rear, w/ 9208 & 48489-02 (copper) | FLHRSE4 | |
| 40 | 50078-81B | BRACKET, leg, jiffy stand | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 47 | 66623-08CJL | COVER, side, right (blue) | FLHRSE4 |
| 66623-08CRP | COVER, side, right (black) | FLHRSE4 | |
| 66625-08CRV | COVER, side, right w/ 48419-04, 69055-93 & 88328-08 (copper/black) | FLHRSE4 | |
| 47A | 92371-08 | MEDALLION ASSEMBLY, w/ serialized plate | FLHRSE4 |
| 51 | 88328-08 | TRIM, side cover - right side | FLHRSE4 |
| 88327-08 | TRIM, side cover - left side | FLHRSE4 | |
| 57 | 50126-08 | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (England, HDI) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 51483-08 | SEAT, w/ 3588, & 51652-97 | FLHRSE4 |
| 11 | 51489-08 | PAD, rider backrest | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4625 | SCREW (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 7 | 11642 | GROMMET | FLHRSE4 |
| 9 | 56111-08 | HANDLEBAR KIT, w/ 11403A (chrome) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 32310-08 | SENSOR KIT, twist grip w/ 5, 6, 7, 8, 10006, 72112-94BK, 72152-94, & 72195-94 | FLHRSE4 |
| 2 | 55926-08 | HANDGRIP ASSEMBLY, right, w/ 56480-01 | FLHRSE4 |
| 7 | 72188-07BK | PIN HOUSING, 6-way | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 3088 | SCREW (3) | FLHRSE4 |
| 8 | 6717 | WASHER (8) | FLHRSE4 |
| 14 | 9496 | SCREW (2) | FLHRSE4 |
| 17 | 14019-83A | LABEL, on - off (2) | FLHRSE4 |
| 18 | 56034-08 | COVER, handlebar - lower (chrome) | FLHRSE4 |
| 19 | 56035-08 | COVER, handlebar - upper (chrome) | FLHRSE4 |
| 20 | 56050-08 | HANDLEBAR COVER ASSEMBLY (chrome) | FLHRSE4 |
| 23 | 69604-03 | DOOR, headlamp | FLHRSE4 |
| 27 | 67864-04A | HEADLAMP ASSEMBLY | FLHRSE4 |
| 31 | 68210-08 | LAMP ASSEMBLY, LED indicator w/ 68246-08, 74118-98BK, 74158-98, 74193-98, & 74195-98 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 32 | 68246-08 | BEZEL, indicator light | FLHRSE4 |
| 34 | 69604-03 | DOOR ASSEMBLY KIT | FLHRSE4 |
| 35 | 70319-04 | WIRE HARNESS ASSEMBLY, handlebar | FLHRSE4 |
| 40 | 71522-08 | SWITCH, spotlamp & accessories w/ 70292-89, & 72038-71A (2) | FLHRSE4 |
| 46 | 74408-08 | DRESS NUT (chrome) (2) | FLHRSE4 |
| 50 | 15346-98A | LABEL, spotlamp, right (England, Australia, HDI, Japan) | FLHRSE4 |
| 14019-83A | LABEL, on - off, left (England, Australia, HDI, Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 57357-07 | WINDSHIELD ASSEMBLY, complete tall (gray) (Domestic, Canada) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3462 | BOLT (4) | FLHRSE4 |
| 2 | 45279-00 | WASHER (4) | FLHRSE4 |
| 58972-08CTP | FENDER, front (blue/blue) | FLHRSE4 | |
| 58972-08CTO | FENDER, front (black/silver) | FLHRSE4 | |
| 58972-08CRV | FENDER, front (copper/black) | FLHRSE4 | |
| 4 | 59166-80 | PLATE, lock (2) | FLHRSE4 |
| 5 | 59280-02 | FENDER TIP (HDI, England, Australia, Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 26 | 60268-08CTP | FENDER, rear (blue/blue) | FLHRSE4 |
| 60268-08CTO | FENDER, rear (black/silver) | FLHRSE4 | |
| 60268-08CRR | FENDER, rear (copper) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 43 | 91628-08CJL | FASCIA, fender left w/ 59799-07 (blue) | FLHRSE4 |
| 91628-08CRP | FASCIA, fender left w/ 59799-07 (black) | FLHRSE4 | |
| 91628-08CRR | FASCIA, fender left w/ 59799-07 (copper) | FLHRSE4 | |
| 91629-08CJL | FASCIA, fender right w/ 59799-07 (blue) | FLHRSE4 | |
| 91629-08CRP | FASCIA, fender right w/ 59799-07 (black) | FLHRSE4 | |
| 91629-08CRR | FASCIA, fender right w/ 59799-07 (copper) | FLHRSE4 | |
| 60302-08CTP | FENDER, rear (blue) (HDI, England, Australia, Japan) | FLHRSE4 | |
| 60302-08CTO | FENDER, rear (black) (HDI, England, Australia, Japan) | FLHRSE4 | |
| 60302-08CRR | FENDER, rear (copper) (HDI, England, Australia, Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 8142 | NUT, speed | FLHRSE4 |
| 3 | 27291-08 | TUBE, evaporative line, tank | FLHRSE4 |
| 4 | 27440-08 | TUBE, evaporative line (except California) | FLHRSE4 |
| 6 | 61192-96A | GASKET, fuel gauge | FLHRSE4 |
| 8 | 62228-08 | CHECK VALVE, assembly | FLHRSE4 |
| 9 | 62280-08 | MEDALLION, left | FLHRSE4 |
| 10 | 62281-08 | MEDALLION, right | FLHRSE4 |
| 11 | 62291-08CTP | FUEL TANK (blue/blue) | FLHRSE4 |
| 62291-08CTO | FUEL TANK (black/silver) | FLHRSE4 | |
| 62291-08CRV | FUEL TANK (copper/black) | FLHRSE4 | |
| 61268-08 | FUEL TANK (prime) | FLHRSE4 | |
| 13 | 62775-08 | TRIM COVER, fuel tank | FLHRSE4 |
| 14 | 62905-08 | FUEL LINE, tank to intake | FLHRSE4 |
| 15 | 70901-08 | BOOT, tank bracket, right (USE BEFORE 9/3/2007) | FLHRSE4 |
| 70999-08 | BOOT, tank bracket, left (USE BEFORE 9/3/2007) | FLHRSE4 | |
| 11852 | COVER, tank bracket, left (not shown) (USE AFTER 9/3/2007) | FLHRSE4 | |
| 11853 | COVER, tank bracket, right (not shown) (USE AFTER 9/3/2007) | FLHRSE4 | |
| 18 | 75241-08 | FUEL GAUGE, w/o LED, w/ 72990-01 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 61011-04A | FUEL FILTER KIT, w/ o-ring | FLHRSE4 |
| 2 | 61012-04A | CLIP, filter retainer | FLHRSE4 |
| 3 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHRSE4 |
| 4 | 61213-04A | CLIP, regulator retainer | FLHRSE4 |
| 5 | 61402-08 | GASKET, top plate | FLHRSE4 |
| 6 | 62229-08 | FILTER SHELL | FLHRSE4 |
| 7 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 75229-08, & 75254-04A | FLHRSE4 |
| 8 | 75076-08 | TOP PLATE ASSEMBLY, w/ 1, 2, 3, 4, 6, & 14 | FLHRSE4 |
| 9 | 75089-08 | RING, fuel tank, cam | FLHRSE4 |
| 10 | 75205-08 | FUEL LEVEL SENDER | FLHRSE4 |
| 11 | 75229-08 | HARNESS, fuel pump module | FLHRSE4 |
| 12 | 75254-04A | STRAINER, fuel pump inlet | FLHRSE4 |
| 13 | 75269-08 | TRANSFER TUBE, fuel pump | FLHRSE4 |
| 14 | 75291-08 | TOP PLATE | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2478 | SCREW (3) | FLHRSE4 |
| 3 | 3588 | SCREW | FLHRSE4 |
| 5 | 4856 | SCREW | FLHRSE4 |
| 6 | 6198 | WASHER (4) | FLHRSE4 |
| 10 | 67223-00A | SEAL, speedometer | FLHRSE4 |
| 11 | 67421-08 | BACK CLAMP | FLHRSE4 |
| 13 | 67493-08 | BRACKET, console | FLHRSE4 |
| 15 | 70000-08 | INSTRUMENT PANEL | FLHRSE4 |
| 16 | 70001-08 | TRIM | FLHRSE4 |
| 17 | 70428-08 | HARNESS ASSEMBLY, console | FLHRSE4 |
| 19 | 71315-01 | INSERT (Domestic, Canada, HDI, England, Australia, Japan) | FLHRSE4 |
| 21 | 71693-08 | INSERT (Domestic, Canada, HDI, England, Australia) | FLHRSE4 |
| 37 | 75351-08 | SPEEDOMETER KIT, mph | FLHRSE4 |
| 38 | 75352-08 | SPEEDOMETER KIT, kph (Canada, HDI, Japan) | FLHRSE4 |
| 75353-08 | SPEEDOMETER, dual mph/kph (England) | FLHRSE4 | |
| 39 | 71698-08 | INSERT (Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 18 | 65620-98A | CLAMP & BRACKET, exhaust mount at starter | FLHRSE4 |
| 20 | 65626-07A | EXHAUST PIPE, right, rear | FLHRSE4 |
| 30 | 65913-06B | MUFFLER ASSEMBLY, left, catalytic (chrome) | FLHRSE4 |
| 33 | 65988-07A | SUPPORT BRACKET, exhaust mount at starter | FLHRSE4 |
| 36 | 66080-06B | MUFFLER ASSEMBLY, right, catalytic (chrome) | FLHRSE4 |
| 40 | 65626-07A | EXHAUST PIPE, right, rear (Japan) | FLHRSE4 |
| 65905-07A | EXHAUST PIPE, right, rear (HDI, England) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (HDI except Japan) (2) | FLHRSE4 |
| 3 | 6119 | WASHER (HDI except Japan) (2) | FLHRSE4 |
| 4 | 66761-08 | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4312C | SCREW (2) | FLHRSE4 |
| 5 | 6336B | WASHER | FLHRSE4 |
| 7 | 66010-97B | BATTERY, 28 amp hours | FLHRSE4 |
| 8 | 66051-08 | STRAP, battery removal | FLHRSE4 |
| 9 | 66281-08 | BATTERY TRAY | FLHRSE4 |
| 10 | 70267-08 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHRSE4 |
| 11 | 70344-08 | CADDY, electronic control module (ECM) | FLHRSE4 |
| 12 | 70377-08 | CABLE ASSEMBLY, battery positive to starter, w/ 70584-94 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHRSE4 |
| 11 | 69060-90E | HORN ASSEMBLY, w/ 7495 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main | FLHRSE4 | |
| 14 | 31586-07 | RELAY (3) | FLHRSE4 |
| 16 | 70348-08 | CADDY, fuse block | FLHRSE4 |
| 18 | 70980-08 | COVER, wire trough | FLHRSE4 |
| 19 | 70981-08 | TRAY, wire trough | FLHRSE4 |
| 25 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 70335-08 | WIRING HARNESS, main (CONTINUED) | FLHRSE4 | |
| 32 | 72079-08 | SOCKET HOUSING, 73-way | FLHRSE4 |
| 38 | 72115-08 | COVER, 73-way socket housing | FLHRSE4 |
| 45 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHRSE4 |
| 46 | 72157-08 | PLR, GT280 | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 59 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHRSE4 |
| 74 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 75 | 72406-07 | SOCKET HOUSING, 4-way | FLHRSE4 |
| 76 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHRSE4 |
| 77 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHRSE4 |
| 78 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHRSE4 |
| 81 | 72440-08 | SEAL PIN, plug (22) | FLHRSE4 |
| 84 | 72483-08BK | SOCKET HOUSING, 6-way | FLHRSE4 |
| 85 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHRSE4 |
| 86 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHRSE4 |
| 87 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHRSE4 |
| 88 | 72500-07BK | SOCKET HOUSING, 20-way (black) | FLHRSE4 |
| 92 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHRSE4 |
| 94 | 72537-08 | COVER ASSEMBLY, fuse block | FLHRSE4 |
| 95 | 72539-06 | FUSE, 30 amp, mini type (green) (2) | FLHRSE4 |
| 96 | 72547-08 | DIODE PACK | FLHRSE4 |
| 97 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHRSE4 |
| 98 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (38) | FLHRSE4 |
| 99 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 100 | 72609-08 | SECONDARY LOCK, 2-way (black) (3) | FLHRSE4 |
| 101 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHRSE4 |
| 102 | 72611-07 | TERMINAL, socket, 16-20 AWG (gold) (4) | FLHRSE4 |
| 103 | 72620-08 | FUSE COVER, rear | FLHRSE4 |
| 116 | 74108-98BK | HOUSING, 8-way pin (black) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 55928-08 | PLUG (2) | FLHRSE4 |
| 13 | 71590-96A | STOPLAMP & CLUTCH SWITCH, stop lamp, w/ 10181 & 72266-94A (2) | FLHRSE4 |
| 25 | 72478-07BK | HOUSING, 8-way, right (black) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHRSE4 |
| 10 | 68958-07A | SIREN | FLHRSE4 |
| 29 | 68958-07A | SIREN ALARM (England, Australia, HDI, & Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 88284-08 | SADDLEBAG ASSEMBLY, complete, right | FLHRSE4 |
| 11 | 88285-08 | SADDLEBAG ASSEMBLY, complete, left | FLHRSE4 |
| 20 | 91887-98 | LINER SADDLEBAG KIT | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 90594-85A | MOULDING (2) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 92344-08 | MIRROR, right (chrome) | FLHRSE4 |
| 92345-08 | MIRROR, left (chrome) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 14019-83A | LABEL ON/OFF SWITCH | FLHRSE4 |
| 6 | 90820-93C | DECAL, air suspension, inside right saddlebag | FLHRSE4 |
| 7 | 14019-83A | LABEL ON/OFF SWITCH (HDI, England, Australia, Japan) | FLHRSE4 |
| 9 | 14188-08 | NOISE LABEL (Australia) (not illustrated) | FLHRSE4 |
| 10 | 14019-83A | LABEL SPOTLIGHT, right (HDI, England, Australia, Japan) | FLHRSE4 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHRSE4 |
| 4 | 27291-08 | EVAP LINE, tank | FLHRSE4 |
| 5 | 27297-08 | EVAP LINE, canister | FLHRSE4 |
| 6 | 27298-08 | EVAP LINE, purge to canister | FLHRSE4 |
| 7 | 27433-08 | CARBON CANISTER | FLHRSE4 |
| 8 | 27437-08 | EVAP LINE, purge | FLHRSE4 |
| 9 | 27439-08 | TUBE, solenoid to induction module | FLHRSE4 |
| 10 | 27715-07 | SOLENOID, purge valve | FLHRSE4 |
| 11 | 56073-83 | RETAINER (2) | FLHRSE4 |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10031 | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10076 | |
| 10092 | |
| 10102 | |
| 10103 | |
| 10108 | |
| 10110 | |
| 10113 | |
| 10132 | |
| 10147 | |
| 10177 | |
| 10181 | |
| 10183 | |
| 10198 | |
| 1039 | |
| 1062 | |
| 1090 | |
| 10957 | |
| 10991 | |
| 11061 | |
| 11081A | |
| 11082 | |
| 11105 | |
| 11120 | |
| 11132 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207 | |
| 11256 | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11293 | |
| 11301 | |
| 11304 | |
| 11348 | |
| 11364 | |
| 11389 | |
| 11402 | |
| 11403A | |
| 11461 | |
| 11468 | |
| 11489 | |
| 11491A | |
| 11575 | |
| 11599 | |
| 11604 | |
| 11642 | |
| 11779 | |
| 11844 | |
| 11852 | |
| 11853 | |
| 11902 | |
| 11907 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12102 | |
| 14019-83A | |
| 14148-86 | |
| 14188-08 | |
| 14272-06 | |
| 14448-94 | |
| 15342-06A | |
| 15346-98A | |
| 15368-01A | |
| 16207-79D | |
| 16219-79C | |
| 16316-08 | |
| 16321-08 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99A | |
| 16775-99B | |
| 16801-07B | |
| 16834-99A | |
| 17045-99C | |
| 17052-99B | |
| 17053-99B | |
| 17162-03 | |
| 17179-06 | |
| 17331-08A | |
| 17337-08A | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17428-57 | |
| 17454-08 | |
| 17458-07 | |
| 17572-99 | |
| 17573-99 | |
| 17594-99 | |
| 17611-83 | |
| 17650-02 | |
| 17721-08 | |
| 1780 | |
| 1783C | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18048-98A | |
| 18067-09 | |
| 18074-05A | |
| 18085-05A | |
| 18094-02A | |
| 18153-05 | |
| 18154-05 | |
| 18155-05 | |
| 18156-05 | |
| 18157-05 | |
| 18158-05 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18538-99B | |
| 18635-99B | |
| 19261-08 | |
| 19838-08 | |
| 21949-07 | |
| 21950-07 | |
| 21955-07 | |
| 21959-07 | |
| 21960-07 | |
| 21961-07 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 2225 | |
| 22269-07 | |
| 22284-07 | |
| 22285-07 | |
| 22286-07 | |
| 22287-07 | |
| 22288-07 | |
| 22290-07 | |
| 22307-99 | |
| 23729-07 | |
| 24004-03 | |
| 24004-03A | |
| 24008-03 | |
| 24009-06 | |
| 2420 | |
| 2452 | |
| 24604-00D | |
| 24605-07 | |
| 24608-07A | |
| 24621-06A | |
| 24754-75A | |
| 24760-08 | |
| 2478 | |
| 2479 | |
| 2501A | |
| 25244-99A | |
| 25344-99 | |
| 25355-06 | |
| 25369-01A | |
| 25566-06 | |
| 25585-06 | |
| 2559 | |
| 25590-07A | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 26037-06 | |
| 26041-05A | |
| 26077-99A | |
| 26166-08 | |
| 26210-99 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26561-99 | |
| 2660 | |
| 26858-99 | |
| 26993-06 | |
| 26995-86B | |
| 2708A | |
| 27291-08 | |
| 27297-08 | |
| 27298-08 | |
| 2731W | |
| 27433-08 | |
| 27437-08 | |
| 27439-08 | |
| 27440-08 | |
| 27444-00Y | |
| 27609-01B | |
| 27685-08 | |
| 27711-08 | |
| 27712-08 | |
| 27714-06 | |
| 27715-07 | |
| 27719-07 | |
| 27721-08 | |
| 2782 | |
| 2806 | |
| 28861-07A | |
| 28919-04 | |
| 2903 | |
| 29180-07 | |
| 2921 | |
| 29269-83A | |
| 2933 | |
| 2934 | |
| 29353-05 | |
| 2935A | |
| 29465-08 | |
| 29502-08 | |
| 29517-07A | |
| 2952A | |
| 2955 | |
| 29584-01 | |
| 29630-08 | |
| 29633-08 | |
| 29644-08 | |
| 29645-08 | |
| 29718-08 | |
| 29764-08 | |
| 2980 | |
| 29821-06 | |
| 29895-08 | |
| 2998 | |
| 29987-06B | |
| 30027-08 | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 3089 | |
| 31328-91 | |
| 31345-06 | |
| 31504-91B | |
| 31515-90 | |
| 31525-90 | |
| 31530-90 | |
| 31542-06 | |
| 31586-07 | |
| 31604-06 | |
| 31619-06A | |
| 31631-06 | |
| 31633-07 | |
| 31641-06 | |
| 31643-06 | |
| 31660-90 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31696-07A | |
| 31992-99B | |
| 3210A | |
| 32310-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3249 | |
| 32586-07 | |
| 32589-07 | |
| 3265A | |
| 3267 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33118-08 | |
| 33140-08 | |
| 3331 | |
| 33389-07 | |
| 33409-06B | |
| 33413-06A | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33819-98A | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08 | |
| 3443 | |
| 34469-06A | |
| 34532-00B | |
| 34568-00B | |
| 3462 | |
| 34720-07 | |
| 34740-07A | |
| 34753-08 | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35078-79 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 3512 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35201-06 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06 | |
| 35256-08 | |
| 35259-06 | |
| 35260-06 | |
| 3537 | |
| 3540 | |
| 3546 | |
| 35467-08 | |
| 35470-06 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 3576 | |
| 35801-06 | |
| 35805-06 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3599 | |
| 3605 | |
| 3607 | |
| 3634 | |
| 36731-91 | |
| 3676 | |
| 3678 | |
| 36805-06 | |
| 36819-07 | |
| 36822-04 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37101-84B | |
| 37137-07 | |
| 3728 | |
| 3736A | |
| 3746A | |
| 37496-90A | |
| 37554-06A | |
| 3762M | |
| 37807-03 | |
| 37817-07 | |
| 3787 | |
| 37883-98 | |
| 37884-98 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37913-98 | |
| 37927-03 | |
| 37932-98 | |
| 3814 | |
| 3832M | |
| 38736-07 | |
| 38774-08 | |
| 38898-08 | |
| 38901-08 | |
| 38904-08 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3983 | |
| 3987 | |
| 39929-06A | |
| 39968-06 | |
| 39969-06 | |
| 40024-07 | |
| 40037-07 | |
| 4016 | |
| 4017 | |
| 40265-08 | |
| 40278-08 | |
| 40296-06 | |
| 40297-06 | |
| 40320-06 | |
| 40323-00 | |
| 40333-06 | |
| 40356-07 | |
| 40560-05 | |
| 40603-08 | |
| 40610-08 | |
| 40611-08 | |
| 40614-08 | |
| 40615-08 | |
| 40628-08 | |
| 40651-08 | |
| 40659-06 | |
| 40663-08 | |
| 40688-08 | |
| 40699-08 | |
| 40786-08 | |
| 4094 | |
| 41139-02 | |
| 41148-98 | |
| 4124 | |
| 4132 | |
| 41547-07A | |
| 4166 | |
| 41750-06A | |
| 41751-06A | |
| 41810-08 | |
| 41819-02 | |
| 41852-08 | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 41998-07 | |
| 41999-07A | |
| 42010-06 | |
| 42019-06 | |
| 42082-07 | |
| 42085-07 | |
| 42101-06 | |
| 42102-08 | |
| 42115-06 | |
| 42116-06A | |
| 42119-08 | |
| 42120-08 | |
| 42122-08 | |
| 42146-07 | |
| 42147-07 | |
| 42271-06A | |
| 4240 | |
| 42460-80B | |
| 42638-08 | |
| 42642-00 | |
| 42644-00 | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42857-06A | |
| 42861-06A | |
| 42862-06A | |
| 42863-06 | |
| 42865-06A | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4292 | |
| 4293 | |
| 42932-08 | |
| 42933-08 | |
| 42934-08 | |
| 42938-08 | |
| 42939-08 | |
| 4312C | |
| 4313 | |
| 43157-83A | |
| 4319 | |
| 43475-08 | |
| 43567-92 | |
| 43817-02 | |
| 43904-08 | |
| 4407 | |
| 44080-08 | |
| 44089-08 | |
| 44160-00 | |
| 44437-04 | |
| 44553-06A | |
| 44583-08 | |
| 44935-06 | |
| 4502 | |
| 45032-82 | |
| 45041-01A | |
| 45279-00 | |
| 45282-99A | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45435-95 | |
| 45446-87A | |
| 45718-60 | |
| 45733-48 | |
| 45780-03 | |
| 45803-97 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45890-97 | |
| 45891-97 | |
| 45892-02 | |
| 45893-99 | |
| 45933-86 | |
| 45940-84 | |
| 4596 | |
| 45963-97 | |
| 4597M | |
| 4612 | |
| 4615 | |
| 46240-02A | |
| 46241-02A | |
| 46244-01 | |
| 46246-01 | |
| 4625 | |
| 46459-08 | |
| 46461-08 | |
| 46473-00B | |
| 46474-00C | |
| 4648 | |
| 46658-07 | |
| 46959-07 | |
| 4705 | |
| 47159-07BHP | |
| 4717A | |
| 4718A | |
| 4721 | |
| 47370-04 | |
| 4740A | |
| 4741A | |
| 47420-08 | |
| 47491-02 | |
| 47505-02 | |
| 4752 | |
| 47530-79B | |
| 47558-07 | |
| 47560-07 | |
| 47564-86B | |
| 47606-02 | |
| 4775 | |
| 47900-08CJL | |
| 47900-08CRP | |
| 47900-08CRR | |
| 4813A | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48361-80 | |
| 48365-48A | |
| 48419-04 | |
| 48420-04 | |
| 48421-04 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 48613-08CJL | |
| 48613-08CRP | |
| 48613-08CRR | |
| 49015-04A | |
| 49036-04A | |
| 49292-07 | |
| 49293-07 | |
| 49295-07 | |
| 49725-07 | |
| 50015-74A | |
| 50075-07 | |
| 50078-81B | |
| 50126-08 | |
| 50245-07 | |
| 50351-03 | |
| 50571-04 | |
| 50588-08CJL | |
| 50588-08CRP | |
| 50588-08CRR | |
| 50589-08CJL | |
| 50589-08CRP | |
| 50589-08CRR | |
| 50635-82A | |
| 50683-04 | |
| 50688-04 | |
| 50806-07 | |
| 50812-07 | |
| 50816-07 | |
| 50834-07 | |
| 50835-07 | |
| 50912-72 | |
| 50935-07 | |
| 50968-07 | |
| 50972-75 | |
| 51483-08 | |
| 51487-08 | |
| 51489-08 | |
| 515 | |
| 51652-97 | |
| 51861-07 | |
| 51880-07 | |
| 5207 | |
| 5210 | |
| 52441-95 | |
| 52567-93B | |
| 52605-04 | |
| 52618-04 | |
| 52624-05 | |
| 52935-04 | |
| 53202-04 | |
| 53293-04 | |
| 53294-04 | |
| 53436-97 | |
| 53438-92 | |
| 53461-07 | |
| 53684-96A | |
| 53805-99 | |
| 53956-07 | |
| 5416 | |
| 54320-97 | |
| 54321-85 | |
| 54323-85A | |
| 5435 | |
| 54354-94A | |
| 54357-03 | |
| 5438 | |
| 54536-02A | |
| 5455M | |
| 54669-07 | |
| 55926-08 | |
| 55928-08 | |
| 55962-02 | |
| 56034-08 | |
| 56035-08 | |
| 56050-08 | |
| 56073-83 | |
| 56111-08 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56380-02 | |
| 56480-01 | |
| 56971-07 | |
| 57217-02 | |
| 57316-07 | |
| 57357-07 | |
| 5817 | |
| 5826 | |
| 5837A | |
| 58462-02 | |
| 58476-02 | |
| 58537-02 | |
| 58542-02 | |
| 58543-02 | |
| 58664-02 | |
| 58674-02 | |
| 58677-02 | |
| 58972-08CRV | |
| 58972-08CTO | |
| 58972-08CTP | |
| 59045-00B | |
| 59166-80 | |
| 59174-99 | |
| 59259-90 | |
| 59280-02 | |
| 59287-92 | |
| 59288-92 | |
| 59292-94 | |
| 59481-00 | |
| 59482-00 | |
| 59581-05 | |
| 59604-07 | |
| 59682-07 | |
| 59768-97 | |
| 59786-01 | |
| 59799-07 | |
| 59818-06 | |
| 60026-97 | |
| 60039-97 | |
| 60089-05 | |
| 60090-05 | |
| 601 | |
| 6019 | |
| 60268-08CRR | |
| 60268-08CTO | |
| 60268-08CTP | |
| 60275-07 | |
| 60289-07 | |
| 60292-07 | |
| 60302-08CRR | |
| 60302-08CTO | |
| 60302-08CTP | |
| 60309-07 | |
| 60315-07 | |
| 60328-98B | |
| 60432-07 | |
| 6047 | |
| 60553-07 | |
| 60589-07 | |
| 60678-85 | |
| 60709-07 | |
| 60710-07 | |
| 60766-06 | |
| 608 | |
| 60818-07 | |
| 6083 | |
| 60850-08 | |
| 6099 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61121-04 | |
| 6113 | |
| 6119 | |
| 61192-96A | |
| 61213-04A | |
| 61268-08 | |
| 6127 | |
| 61272-92B | |
| 61402-08 | |
| 6150W | |
| 6198 | |
| 62108-03 | |
| 6220W | |
| 62228-08 | |
| 62229-08 | |
| 62280-08 | |
| 62281-08 | |
| 62291-08CRV | |
| 62291-08CTO | |
| 62291-08CTP | |
| 6229W | |
| 62365-06 | |
| 62367-06A | |
| 62489-99 | |
| 62519-03 | |
| 62629-05A | |
| 62641-05A | |
| 62693-07 | |
| 62775-08 | |
| 62828-99 | |
| 62830-99 | |
| 62905-08 | |
| 62908-08 | |
| 6294 | |
| 63066-07 | |
| 63068-07 | |
| 63071-07 | |
| 63076-08 | |
| 63084-07 | |
| 6334 | |
| 6336B | |
| 63533-41A | |
| 6378 | |
| 63798-99A | |
| 63815-99 | |
| 6400HB | |
| 6421 | |
| 6445 | |
| 6474 | |
| 6476 | |
| 6477 | |
| 6497HW | |
| 64993-07 | |
| 65283-94 | |
| 65324-83A | |
| 65325-83A | |
| 65328-83 | |
| 65619-98 | |
| 65620-98A | |
| 65621-07 | |
| 65626-07A | |
| 65627-07 | |
| 65634-98A | |
| 65636-07 | |
| 65647-98 | |
| 65654-97 | |
| 65678-07 | |
| 65694-05A | |
| 65723-85 | |
| 65724-85 | |
| 65742-05 | |
| 65743-05 | |
| 65748-07 | |
| 65863-07 | |
| 65905-07A | |
| 6590HW | |
| 65913-06B | |
| 65949-07 | |
| 65951-98A | |
| 65952-98A | |
| 65988-07A | |
| 66010-97B | |
| 66047-05 | |
| 66051-08 | |
| 66055-93 | |
| 66078-06 | |
| 66080-06B | |
| 66219-06 | |
| 66220-06 | |
| 66281-08 | |
| 66318-08 | |
| 6655 | |
| 66622-08CJL | |
| 66622-08CRP | |
| 66622-08CRV | |
| 66623-08CJL | |
| 66623-08CRP | |
| 66625-08CRV | |
| 66761-08 | |
| 66767-07 | |
| 66799-07 | |
| 6701 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 6716 | |
| 6717 | |
| 67223-00A | |
| 67266-94 | |
| 67316-03A | |
| 67355-04 | |
| 6738 | |
| 67421-08 | |
| 67488-04 | |
| 67493-08 | |
| 67621-94 | |
| 6762B | |
| 67633-01 | |
| 67668-05 | |
| 67674-03A | |
| 67682-03A | |
| 6771A | |
| 67720-03A | |
| 67721-48 | |
| 67724-71 | |
| 67726-71A | |
| 67728-02 | |
| 67732-71B | |
| 67822-88 | |
| 67845-05 | |
| 67864-04A | |
| 67865-89 | |
| 67868-03 | |
| 67880-94 | |
| 6789 | |
| 68004-05 | |
| 68042-99 | |
| 68089-05 | |
| 68096-04 | |
| 68120-00 | |
| 68124-04A | |
| 68163-84 | |
| 68168-89A | |
| 68169-90A | |
| 68210-08 | |
| 68226-97 | |
| 68238-97 | |
| 68239-97 | |
| 68246-08 | |
| 68329-03 | |
| 68344-05 | |
| 68345-05 | |
| 68359-05 | |
| 68380-05 | |
| 68508-04 | |
| 68614-03 | |
| 68629-05 | |
| 68653-05 | |
| 68750-93 | |
| 68881-01 | |
| 68886-00 | |
| 68904-00 | |
| 68905-00 | |
| 68906-00 | |
| 68907-00 | |
| 68922-07 | |
| 68924-07 | |
| 68926-07 | |
| 68939-00 | |
| 68956-07 | |
| 68958-07A | |
| 68969-05 | |
| 68973-00 | |
| 68976-00 | |
| 69012-93A | |
| 69018-00 | |
| 69060-90E | |
| 69062-91A | |
| 69120-91 | |
| 69123-92 | |
| 6919 | |
| 69318-02 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69355-07 | |
| 69604-03 | |
| 6966M | |
| 69807-07 | |
| 69808-07 | |
| 69809-07 | |
| 69810-07 | |
| 69811-07 | |
| 69837-07 | |
| 69846-07 | |
| 69848-07 | |
| 70000-08 | |
| 70001-08 | |
| 70142-94 | |
| 70267-08 | |
| 70291-89 | |
| 70292-89 | |
| 70319-04 | |
| 70335-08 | |
| 70344-08 | |
| 70348-08 | |
| 7036 | |
| 70373-96 | |
| 70375-96 | |
| 70377-08 | |
| 7038 | |
| 7039 | |
| 7041 | |
| 70428-08 | |
| 70430-07 | |
| 70447-01 | |
| 70494-08 | |
| 70504-81 | |
| 70527-07 | |
| 70584-94 | |
| 70598-99 | |
| 70616-07 | |
| 70631-08 | |
| 70674-08 | |
| 7068 | |
| 7069 | |
| 70901-08 | |
| 70909-95 | |
| 70980-08 | |
| 70981-08 | |
| 70991-07 | |
| 70999-08 | |
| 71019-07 | |
| 71031-04 | |
| 71183-04 | |
| 71184-04 | |
| 7127 | |
| 71310-94 | |
| 71315-01 | |
| 71452-91A | |
| 71509-00 | |
| 71522-08 | |
| 71540-94A | |
| 71565-08 | |
| 71589-96B | |
| 71590-96A | |
| 71591-00 | |
| 71597-96B | |
| 71598-00 | |
| 71605-07 | |
| 71614-96 | |
| 71615-96 | |
| 71693-08 | |
| 71698-08 | |
| 71706-02A | |
| 71707-02 | |
| 71825-96A | |
| 71828-02 | |
| 71842-02 | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72023-51D | |
| 72024-08 | |
| 72038-71A | |
| 72039-71A | |
| 72046-79 | |
| 72056-92 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06 | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72102-94BK | |
| 72104-94BK | |
| 72111-06 | |
| 72115-08 | |
| 72124-94GY | |
| 72130-04 | |
| 72134-94GY | |
| 72135-06 | |
| 72139-94GY | |
| 72142-94 | |
| 72144-94 | |
| 72154-94 | |
| 72155-08 | |
| 72157-08 | |
| 72159-94 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72208-94 | |
| 72213-94 | |
| 72214-94 | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72253-94 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72292-94 | |
| 72295-94 | |
| 72309-04 | |
| 72314-01 | |
| 72325-97 | |
| 72327-03 | |
| 72330-95 | |
| 72332-02A | |
| 72359-05 | |
| 72395-97 | |
| 72402-07 | |
| 72406-07 | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72429-00 | |
| 72440-08 | |
| 72447-07GY | |
| 72469-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72500-07BK | |
| 72511-07BK | |
| 72512-07BK | |
| 72514-07GY | |
| 72518-01 | |
| 72533-06 | |
| 72537-08 | |
| 72539-06 | |
| 72547-08 | |
| 72556-08 | |
| 72557-07 | |
| 72605-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72611-07 | |
| 72620-08 | |
| 72720-07 | |
| 72721-07 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96WE | |
| 73106-96BK | |
| 73108-96BK | |
| 73153-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 74102-05GY | |
| 74102-98BK | |
| 74103-98BK | |
| 74104-98BK | |
| 74108-98BK | |
| 74112-05GY | |
| 74112-98BK | |
| 74114-98BK | |
| 74115-06 | |
| 74118-98BK | |
| 74142-98 | |
| 74143-98 | |
| 74144-98 | |
| 74148-98 | |
| 74152-98 | |
| 74154-98 | |
| 74158-98 | |
| 74190-98 | |
| 74191-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05 | |
| 74408-08 | |
| 74622-06 | |
| 7490 | |
| 7495 | |
| 7499 | |
| 75076-08 | |
| 75089-08 | |
| 75205-08 | |
| 75229-08 | |
| 75241-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08 | |
| 7531 | |
| 75351-08 | |
| 75352-08 | |
| 75353-08 | |
| 7549A | |
| 755 | |
| 7593 | |
| 7601 | |
| 765 | |
| 7651A | |
| 7667 | |
| 7671 | |
| 7683 | |
| 7688 | |
| 77101-98 | |
| 7716 | |
| 7720 | |
| 7736 | |
| 7744 | |
| 7748W | |
| 7780 | |
| 7783 | |
| 7792 | |
| 7796 | |
| 780 | |
| 7813A | |
| 7825 | |
| 786A | |
| 787 | |
| 7888A | |
| 7889 | |
| 7904 | |
| 791A | |
| 797A | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8076 | |
| 8081 | |
| 8083 | |
| 8108 | |
| 8142 | |
| 8144 | |
| 8146 | |
| 8483A | |
| 856A | |
| 861A | |
| 88222-07 | |
| 88223-07 | |
| 88284-08 | |
| 88285-08 | |
| 88327-08 | |
| 88328-08 | |
| 8871 | |
| 8873 | |
| 8879 | |
| 8883 | |
| 8885 | |
| 895 | |
| 89587-05 | |
| 8963 | |
| 8967 | |
| 8970 | |
| 8972 | |
| 90382-98 | |
| 90383-98 | |
| 90400-00 | |
| 90469-94 | |
| 90493-83 | |
| 90520-07 | |
| 90594-85A | |
| 90718-79C | |
| 90720-79C | |
| 9077 | |
| 90801-06 | |
| 90820-93C | |
| 91069-07 | |
| 91074-07 | |
| 91130-07 | |
| 91169-07 | |
| 91328-04 | |
| 91329-04 | |
| 91342-04 | |
| 91406-04 | |
| 91411-04 | |
| 91445-04 | |
| 91625-04 | |
| 91628-08CJL | |
| 91628-08CRP | |
| 91628-08CRR | |
| 91629-08CJL | |
| 91629-08CRP | |
| 91629-08CRR | |
| 91840-03A | |
| 91845-03A | |
| 91887-98 | |
| 9208 | |
| 9215 | |
| 9231 | |
| 92344-08 | |
| 92345-08 | |
| 92371-08 | |
| 924 | |
| 9252 | |
| 9276 | |
| 928 | |
| 9285 | |
| 929A | |
| 94006-90T | |
| 942 | |
| 94412-05 | |
| 94545-03 | |
| 946 | |
| 94634-99 | |
| 9475 | |
| 94819-02 | |
| 9496 | |
| 95595-84 | |
| 96210-80A | |
| 9701 | |
| 9819 | |
| 9825 | |
| 9838 | |
| 9842 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 9907 | |
| 9955 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7736 | 1949 |
| 8144 | Unknown |
| 33889-99 | 1999 |
| 8142 | Unknown |
| 7792 | 2012 |
| 7813A | 2007 |
| 7796 | Unknown |
| 7780 | 1973 |
| 7888A | Unknown |
| 8076 | Unknown |
| 8083 | Unknown |
| 8081 | Unknown |
| 7904 | 1998 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 5210 | 1991 |
| 74408-08 | 2008 |
| 94006-90T | 1990 |
| 35078-79 | 1979 |
| 7992 | 2010 |
| 7889 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7744 | 1943 |
| 7593 | 1991 |
| 7549A | Unknown |
| 47606-02 | 2002 |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 1001 | Unknown |
| 42019-06 | 2006 |
| 4596 | Unknown |
| 2225 | Unknown |
| 3983 | 2005 |
| 3987 | Unknown |
| 2903 | Unknown |
| 42882-06 | 2006 |
| 3048 | 2016 |
| 3546 | 2013 |
| 2452 | Unknown |
| 4752 | Unknown |
| 94545-03 | 2003 |
| 9475 | Unknown |
| 4741A | 1994 |
| 3050 | Unknown |
| 786A | Unknown |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4718A | 1994 |
| 2955 | 1996 |
| 2479 | Unknown |
| 2933 | Unknown |
| 2478 | 2007 |
| 3512 | Unknown |
| 35259-06 | 2006 |
| 43567-92 | 1992 |
| 53202-04 | 2004 |
| 2559 | 1996 |
| 4313 | Unknown |
| 4597M | Unknown |
| 4319 | 2009 |
| 791A | 2007 |
| 942 | 1992 |
| 4094 | Unknown |
| 2921 | Unknown |
| 2980 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 895 | Unknown |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 2782 | Unknown |
| 45405-75A | 1975 |
| 2660 | Unknown |
| 3267 | 1999 |
| 4240 | Unknown |
| 3607 | 2009 |
| 43817-02 | 2002 |
| 3605 | 2009 |
| 2731W | Unknown |
| 2952A | 2003 |
| 3331 | 2003 |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 89587-05 | 2005 |
| 4407 | Unknown |
| 4721 | 2009 |
| 3576 | 2013 |
| 3814 | Unknown |
| 3089 | Unknown |
| 3594 | 1992 |
| 3762M | 2000 |
| 3088 | Unknown |
| 4856 | Unknown |
| 2806 | Unknown |
| 45838-77 | 1977 |
| 928 | Unknown |
| 4292 | Unknown |
| 2708A | Unknown |
| 2998 | Unknown |
| 4293 | Unknown |
| 924 | Unknown |
| 4615 | 2008 |
| 861A | Unknown |
| 3599 | Unknown |
| 68042-99 | 1999 |
| 3728 | 2014 |
| 3746A | 2004 |
| 1039 | Unknown |
| 4612 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 3300 | Unknown |
| 787 | Unknown |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3563 | 1999 |
| 4017 | 2009 |
| 929A | Unknown |
| 2501A | Unknown |
| 4016 | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 1780 | Unknown |
| 3210A | Unknown |
| 50635-82A | 1982 |
| 1090 | 2000 |
| 67724-71 | 1971 |
| 4717A | Unknown |
| 3574 | Unknown |
| 4625 | 2007 |
| 946 | Unknown |
| 797A | Unknown |
| 91329-04 | 2004 |
| 2420 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 3676 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 1062 | Unknown |
| 3678 | Unknown |
| 3443 | 2009 |
| 4813A | 1990 |
| 3462 | Unknown |
| 3368 | Unknown |
| 4166 | Unknown |
| 4648 | Unknown |
| 2935A | 1998 |
| 3736A | 2005 |
| 4194 | Unknown |
| 4124 | Unknown |
| 9496 | Unknown |
| 3540 | Unknown |
| 3892 | Unknown |
| 4192 | 1998 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 3832M | 2022 |
| 3537 | Unknown |
| 4502 | Unknown |
| 103A1 - Generic Washers | |
| 6717 | Unknown |
| 6019 | Unknown |
| 27714-06 | 2006 |
| 6445 | Unknown |
| 6336B | Unknown |
| 6474 | Unknown |
| 6477 | Unknown |
| 6476 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6378 | Unknown |
| 6789 | Unknown |
| 6113 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6083 | Unknown |
| 6047 | Unknown |
| 11207 | 2000 |
| 31689-90 | 1990 |
| 6919 | Unknown |
| 6590HW | Unknown |
| 6127 | Unknown |
| 6421 | 1996 |
| 11852 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6966M | Unknown |
| 6198 | Unknown |
| 6738 | Unknown |
| 6762B | Unknown |
| 96210-80A | 1980 |
| 6229W | Unknown |
| 47491-02 | 2002 |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6400HB | Unknown |
| 45279-00 | 2000 |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 7671 | Unknown |
| 54321-85 | 1985 |
| 108A1 - Hose Clamps | |
| 65283-94 | 1994 |
| 10031 | 2010 |
| 10198 | Unknown |
| 68750-93 | 1993 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 9955 | Unknown |
| 10113 | Unknown |
| 108B1 - P Clamps | |
| 7490 | Unknown |
| 10092 | 2010 |
| 10076 | 2010 |
| 10110 | Unknown |
| 109A1 - Studs | |
| 59818-06 | 2006 |
| 90400-00 | 2000 |
| 3265A | Unknown |
| 16715-83 | 1983 |
| 60289-07 | 2007 |
| 70909-95 | 1995 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 42642-00 | 2000 |
| 24604-00D | 2000 |
| 42644-00 | 2000 |
| 8967 | 2005 |
| 9252 | 2019 |
| 46246-01 | 2001 |
| 25344-99 | 1999 |
| 9701 | 2006 |
| 17428-57 | 1957 |
| 12077 | Unknown |
| 9285 | 2008 |
| 67266-94 | 1994 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 8883 | Unknown |
| 40628-08 | 2008 |
| 8885 | Unknown |
| 8879 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 24004-03 | 1987 |
| 8970 | 2004 |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 9276 | 2007 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 9825 | Unknown |
| 9819 | Unknown |
| 9907 | Unknown |
| 72253-94 | 1994 |
| 72990-01 | 2001 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111F1 - Protective Tape | |
| 59682-07 | 2007 |
| 66055-93 | 1993 |
| 69810-07 | 2007 |
| 48421-04 | 2004 |
| 116A1 - Banjo Bolts | |
| 41750-06A | 2007 |
| 5438 | Unknown |
| 42010-06 | 2006 |
| 5455M | Unknown |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11273 | Unknown |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11348 | 2002 |
| 11140 | 1982 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11201 | Unknown |
| 11132 | 1979 |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11301 | Unknown |
| 31695-90 | 1990 |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 40603-08 | 2008 |
| 11491A | 2012 |
| 11403A | Unknown |
| 11402 | 2005 |
| 59799-07 | 2007 |
| 121B1 - Press-Fit Plugs | |
| 71183-04 | 2004 |
| 67865-89 | 1989 |
| 55928-08 | 2008 |
| 71184-04 | 2004 |
| 70292-89 | 1989 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 72164-94A | 1994 |
| 755 | 2018 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 10991 | 2000 |
| 17945-36B | 1936 |
| 31328-91 | 1991 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 40699-08 | 2008 |
| 11150 | 1984 |
| 10108 | Unknown |
| 41139-02 | 2002 |
| 66078-06 | 2006 |
| 31530-90 | 1990 |
| 11143 | Unknown |
| 71509-00 | 2000 |
| 37905-00 | 2000 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11061 | 2006 |
| 11389 | Unknown |
| 11304 | Unknown |
| 38904-08 | 2008 |
| 16699-06 | 2006 |
| 10132 | Unknown |
| 11082 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 7069 | Unknown |
| 124A1 - Spacers | |
| 11599 | Unknown |
| 41900-08 | 2008 |
| 5826 | Unknown |
| 11853 | Unknown |
| 5837A | Unknown |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 31692-90 | 1990 |
| 8041 | Unknown |
| 45892-02 | 2002 |
| 27711-08 | 2008 |
| 59292-94 | 1994 |
| 90493-83 | 1983 |
| 54320-97 | 1997 |
| 56161-83A | 1983 |
| 31641-06 | 2006 |
| 26041-05A | 2005 |
| 8873 | 1984 |
| 11468 | 2002 |
| 126B1 - Rivets Fasteners | |
| 70291-89 | 1989 |
| 11604 | Unknown |
| 11779 | 2008 |
| 8483A | Unknown |
| 11642 | Unknown |
| 126C1 - Bolt Covers | |
| 94412-05 | 2005 |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 91342-04 | 2004 |
| 91328-04 | 2004 |
| 91406-04 | 2004 |
| 127B1 - Generic Mounting Bracket | |
| 50589-08CJL | 2008 |
| 50588-08CJL | 2008 |
| 50588-08CRR | 2008 |
| 50588-08CRP | 2008 |
| 51652-97 | 1997 |
| 53956-07 | 2007 |
| 50589-08CRP | 2008 |
| 50589-08CRR | 2008 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 15346-98A | 1998 |
| 14019-83A | 1983 |
| 140G3 - Noise Label | |
| 14188-08 | 2008 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 141A1 - Medallion | |
| 67668-05 | 2005 |
| 62281-08 | 2008 |
| 14448-94 | 1994 |
| 62280-08 | 2008 |
| 92371-08 | 2008 |
| 90820-93C | 1993 |
| 42856-06 | 2006 |
| 149A1 - Tool | |
| 94819-02 | 2002 |
| 161A1 - Powertrain Assembly | |
| 19838-08 | 2008 |
| 19261-08 | 2008 |
| 162D1 - Engine Assembly | |
| 17721-08 | 2008 |
| 163B1 - Engine Isolator Mount | |
| 16207-79D | 1979 |
| 164A1 - Engine Mount Bracket | |
| 47159-07BHP | 2007 |
| 27712-08 | 2008 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7720 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7688 | 2000 |
| 5207 | 1980 |
| 16219-79C | 1979 |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 18011-86 | 1986 |
| 17337-08A | 2008 |
| 17331-08A | 2008 |
| 17179-06 | 2006 |
| 94634-99 | 1999 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 16775-99B | 1999 |
| 17369-06 | 2006 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 38736-07 | 2007 |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17454-08 | 2008 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99B | 1999 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 36819-07 | 2007 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05A | 2007 |
| 181B1 - Valve Seals | |
| 18158-05 | 2005 |
| 18153-05 | 2005 |
| 18154-05 | 2005 |
| 18067-09 | 2009 |
| 18157-05 | 2005 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18156-05 | 2005 |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18189-07 | 2007 |
| 18094-02A | 2002 |
| 18155-05 | 2005 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 21960-07 | 2007 |
| 21961-07 | 2007 |
| 17458-07 | 2007 |
| 21959-07 | 2007 |
| 220A1 - Piston Ring | |
| 21955-07 | 2007 |
| 21950-07 | 2007 |
| 21949-07 | 2007 |
| 67726-71A | 1971 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03A | 2007 |
| 23729-07 | 2007 |
| 244A1 - Crankcase | |
| 24760-08 | 2008 |
| 24621-06A | 2007 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24009-06 | 2006 |
| 24008-03 | 2003 |
| 244E1 - Transmission Access Door | |
| 35256-08 | 2001 |
| 244F1 - Oil Pan | |
| 62489-99 | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 25675-06 | 2006 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 254C1 - Camshaft Sprocket | |
| 40333-06 | 2006 |
| 254D1 - Camshaft Support | |
| 25355-06 | 2006 |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 256A1 - Timer Cover | |
| 32589-07 | 2007 |
| 32586-07 | 2007 |
| 257A1 - Cam Cover | |
| 25369-01A | 2002 |
| 257B1 - Clutch Cover | |
| 60709-07 | 2007 |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 35654-06 | 2006 |
| 17053-99B | 2005 |
| 67223-00A | 2000 |
| 61109-85D | 1985 |
| 16719-99A | 2005 |
| 17045-99C | 2006 |
| 34901-07 | 2007 |
| 25244-99A | 1999 |
| 17162-03 | 2003 |
| 42857-06A | 2006 |
| 34948-08 | 2008 |
| 45733-48 | 1948 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 17052-99B | 2005 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257L1 - Primary Cover | |
| 60553-07 | 2007 |
| 25585-06 | 2006 |
| 37137-07 | 2007 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 17573-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 60710-07 | 2007 |
| 26166-08 | 2008 |
| 34469-06A | 2007 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 62367-06A | 2006 |
| 29502-08 | 2008 |
| 17650-02 | 2002 |
| 270A1 - Carburetor | |
| 36822-04 | 2004 |
| 22284-07 | 2007 |
| 22269-07 | 2007 |
| 22287-07 | 2007 |
| 22288-07 | 2007 |
| 22286-07 | 2007 |
| 22290-07 | 2007 |
| 22285-07 | 2007 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27685-08 | 2008 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29764-08 | 2008 |
| 29630-08 | 2008 |
| 67421-08 | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 29353-05 | 2005 |
| 290D1 - Airbox Seal | |
| 29718-08 | 2008 |
| 29645-08 | 2008 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29633-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 294C1 - Breather Hose | |
| 28919-04 | 2004 |
| 294F1 - Engine Breather Valve | |
| 26858-99 | 1999 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31619-06A | 2006 |
| 31515-90 | 1990 |
| 314G1 - Starter Motor sub-component | |
| 31660-90 | 1990 |
| 31643-06 | 2007 |
| 31542-06 | 2006 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 31992-99B | 1999 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27719-07 | 2007 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 40614-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32707-01C | 2007 |
| 74402-05 | 2005 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 33819-98A | 2001 |
| 33888-99 | 1999 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 34532-00B | 2000 |
| 339A1 - Shift Lever | |
| 34568-00B | 2000 |
| 34720-07 | 2007 |
| 49295-07 | 2007 |
| 49292-07 | 2007 |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35249-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33140-08 | 2008 |
| 33118-08 | 2008 |
| 347B1 - Transmission Case | |
| 34740-07A | 2007 |
| 34753-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40560-05 | 2005 |
| 350E1 - Transmission Gear | |
| 31525-90 | 1990 |
| 31345-06 | 2006 |
| 35801-06 | 2006 |
| 35122-06 | 2006 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35467-08 | 2008 |
| 35470-06 | 2006 |
| 35805-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-06 | 2006 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40297-06 | 2006 |
| 62830-99 | 1999 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35260-06 | 2008 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 39929-06A | 2007 |
| 365C1 - Primary Drive Assembly | |
| 40296-06 | 2006 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60432-07 | 2007 |
| 60850-08 | 2008 |
| 367A1 - Clutch Lever | |
| 38774-08 | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 31633-07 | 2007 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37817-07 | 2007 |
| 37496-90A | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37554-06A | 2008 |
| 370F1 - Clutch Pressure Plate | |
| 37927-03 | 2003 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 372D1 - Clutch Cable | |
| 38901-08 | 2008 |
| 372G1 - Clutch Hose | |
| 38898-08 | 2008 |
| 400A1 - Drive-Belt | |
| 40024-07 | 2007 |
| 401A1 - Engine Sprocket | |
| 40320-06 | 2006 |
| 40356-07 | 2007 |
| 410D1 - Electronic Control Module (ECM) | |
| 34246-08 | 2008 |
| 410D2 - ECM Calibration | |
| 75353-08 | 2008 |
| 75351-08 | 2008 |
| 75352-08 | 2008 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 68922-07 | 2007 |
| 69018-00 | 2000 |
| 411A1 - ABS Control Unit | |
| 40786-08 | 2008 |
| 40688-08 | 2008 |
| 413A1 - Brake Caliper | |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 42938-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 5435 | Unknown |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41810-08 | 2008 |
| 44553-06A | 2006 |
| 416A1 - Brakes Miscellaneous Component | |
| 44935-06 | 2006 |
| 42865-06A | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51D | 2004 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42101-06 | 2006 |
| 42102-08 | 2008 |
| 42115-06 | 2006 |
| 42862-06A | 2008 |
| 46459-08 | 2008 |
| 42116-06A | 2006 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42932-08 | 2008 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 46461-08 | 2008 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 74143-98 | 1998 |
| 417G1 - Front Brake Lever | |
| 42638-08 | 2008 |
| 42271-06A | 2007 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45282-99A | 1999 |
| 418B1 - Brake Line | |
| 40610-08 | 2008 |
| 40663-08 | 2008 |
| 40611-08 | 2008 |
| 40651-08 | 2008 |
| 420A1 - Wheel Rim | |
| 42082-07 | 2007 |
| 422B1 - Wheel Sprocket | |
| 40265-08 | 2008 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 54323-85A | 1985 |
| 423K1 - Wheel Weights | |
| 95595-84 | 1984 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08 | 2008 |
| 430C1 - Axle Nut | |
| 42120-08 | 2008 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 431A1 - Front Tire | |
| 41998-07 | 2007 |
| 41999-07A | 2007 |
| 433A1 - Front Wheel | |
| 42085-07 | 2007 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 42122-08 | 2008 |
| 48489-02 | 2002 |
| 43904-08 | 2008 |
| 11844 | Unknown |
| 454A1 - Front Telescopic Fork | |
| 46473-00B | 2007 |
| 46240-02A | 2002 |
| 46241-02A | 2002 |
| 45963-97 | 1997 |
| 48613-08CRP | 2008 |
| 48613-08CRR | 2008 |
| 48613-08CJL | 2008 |
| 46474-00C | 2007 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 71310-94 | 1994 |
| 46658-07 | 2007 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45890-97 | 1997 |
| 45933-86 | 1986 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 71540-94A | 1994 |
| 457A1 - Steering Stop Block | |
| 47530-79B | 1979 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45780-03 | 2003 |
| 45446-87A | 1987 |
| 48333-80 | 1980 |
| 459A1 - Upper Triple Clamp | |
| 45435-95 | 1995 |
| 470A1 - Frame | |
| 47900-08CJL | 2008 |
| 47900-08CRP | 2008 |
| 47900-08CRR | 2008 |
| 472A1 - Frame sub-component | |
| 47560-07 | 2007 |
| 7036 | Unknown |
| 47558-07 | 2007 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 65619-98 | 1998 |
| 68508-04 | 2004 |
| 68629-05 | 2005 |
| 29644-08 | 2008 |
| 51861-07 | 2007 |
| 474E1 - Swingarm Assembly sub-component | |
| 47564-86B | 1986 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49293-07 | 2007 |
| 500B1 - Sidestand Bracket | |
| 50078-81B | 1981 |
| 500C1 - Sidestand Bracket sub-component | |
| 50126-08 | 2008 |
| 500D1 - Sidestand Leg | |
| 50075-07 | 2007 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 49725-07 | 2007 |
| 505A1 - Footboard | |
| 50816-07 | 2007 |
| 50968-07 | 2007 |
| 50688-04 | 2004 |
| 50812-07 | 2007 |
| 50683-04 | 2004 |
| 505B1 - Footpeg Mount Bracket | |
| 47370-04 | 2004 |
| 49036-04A | 2004 |
| 50571-04 | 2004 |
| 50351-03 | 2009 |
| 50806-07 | 2007 |
| 49015-04A | 2004 |
| 505D1 - Passenger Footpeg | |
| 50935-07 | 2007 |
| 505G1 - Rider or Common Footpeg | |
| 50834-07 | 2007 |
| 50835-07 | 2007 |
| 506A1 - Brake Pedal | |
| 42147-07 | 2007 |
| 42861-06A | 2006 |
| 50912-72 | 1972 |
| 42146-07 | 2007 |
| 46959-07 | 2007 |
| 44437-04 | 2004 |
| 42933-08 | 2008 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 52605-04 | 2004 |
| 52618-04 | 2004 |
| 520A1 - Rider Seat or Full Seat | |
| 51483-08 | 2008 |
| 521C1 - Seat Suspension Damper | |
| 45891-97 | 1997 |
| 523B1 - Back Rest Pad | |
| 53293-04 | 2004 |
| 53294-04 | 2004 |
| 51487-08 | 2008 |
| 51489-08 | 2008 |
| 523C1 - Back Rest Support Structure | |
| 53805-99 | 1999 |
| 52624-05 | 2005 |
| 52567-93B | 1993 |
| 52935-04 | 2004 |
| 523D2 - Docking Hardware | |
| 53684-96A | 1996 |
| 524A1 - Passenger Grab Handle | |
| 51880-07 | 2007 |
| 530C2 - Case Latch | |
| 90382-98 | 1998 |
| 540B1 - Rear Shock | |
| 54669-07 | 2007 |
| 540E1 - Rear Shock sub-component | |
| 54357-03 | 2003 |
| 54536-02A | 2002 |
| 558A1 - Handlebar | |
| 55962-02 | 2002 |
| 56111-08 | 2008 |
| 41148-98 | 1998 |
| 558B1 - Handlebar Tube | |
| 56035-08 | 2008 |
| 56050-08 | 2008 |
| 56034-08 | 2008 |
| 559D1 - Lower Handlebar Clamp | |
| 56380-02 | 2002 |
| 560A1 - Mirror | |
| 92345-08 | 2008 |
| 91840-03A | 2003 |
| 92344-08 | 2008 |
| 91845-03A | 2003 |
| 561B1 - Left Hand Grip | |
| 56480-01 | 2001 |
| 561F1 - Grip Kit | |
| 32310-08 | 2008 |
| 56971-07 | 2007 |
| 55926-08 | 2013 |
| 572E1 - Side Cover | |
| 66622-08CJL | 2008 |
| 66623-08CRP | 2008 |
| 66625-08CRV | 2008 |
| 66622-08CRV | 2008 |
| 66623-08CJL | 2008 |
| 66622-08CRP | 2008 |
| 573A1 - Bodywork Miscellaneous Component | |
| 7651A | Unknown |
| 573B1 - Bodywork Mounting Bracket | |
| 58542-02 | 2002 |
| 59786-01 | 2001 |
| 60292-07 | 2007 |
| 58543-02 | 2002 |
| 574B1 - Windscreen / Windshield | |
| 58462-02 | 2002 |
| 57357-07 | 2007 |
| 58476-02 | 2002 |
| 58677-02 | 2002 |
| 58674-02 | 2002 |
| 58537-02 | 2002 |
| 67621-94 | 1994 |
| 57316-07 | 2007 |
| 58664-02 | 2002 |
| 589A1 - Front Fender | |
| 58972-08CRV | 2008 |
| 58972-08CTP | 2008 |
| 58972-08CTO | 2008 |
| 59045-00B | 2012 |
| 595D1 - Rear Fender | |
| 60275-07 | 2007 |
| 60268-08CTO | 2008 |
| 60268-08CTP | 2008 |
| 60302-08CTP | 2008 |
| 60302-08CTO | 2008 |
| 60268-08CRR | 2008 |
| 60302-08CRR | 2008 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 59604-07 | 2007 |
| 596B1 - Fender Tip | |
| 61121-04 | 2004 |
| 59581-05 | 2005 |
| 59280-02 | 2002 |
| 603B1 - Belt / Chain Guard | |
| 60589-07 | 2007 |
| 608A1 - Carbon Canister | |
| 27433-08 | 2008 |
| 608B1 - Carbon Canister Hose | |
| 27297-08 | 2008 |
| 27439-08 | 2008 |
| 27437-08 | 2008 |
| 27298-08 | 2008 |
| 609A1 - Fuel Miscellaneous Component | |
| 6119 | 2016 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 75291-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70999-08 | 2008 |
| 70901-08 | 2008 |
| 610A1 - Fuel Tank | |
| 62291-08CTO | 2008 |
| 62291-08CTP | 2008 |
| 61268-08 | 2008 |
| 62291-08CRV | 2008 |
| 611B1 - Fuel Cap | |
| 61272-92B | 1999 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-08 | 2008 |
| 27291-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 62229-08 | 2008 |
| 612B1 - Fuel Level Sensor | |
| 75205-08 | 2008 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 62905-08 | 2008 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 612K1 - Fuel Pump sub-component | |
| 75076-08 | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 29895-08 | 2008 |
| 29821-06 | 2006 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 71693-08 | 2008 |
| 71698-08 | 2008 |
| 613L1 - Airbox Cover sub-component | |
| 30027-08 | 2008 |
| 29180-07 | 2007 |
| 614A1 - Headlight Bezel | |
| 67732-71B | 1971 |
| 67674-03A | 2003 |
| 67682-03A | 2003 |
| 614C1 - Trim | |
| 43475-08 | 2008 |
| 88328-08 | 2008 |
| 68246-08 | 2008 |
| 88327-08 | 2008 |
| 70001-08 | 2008 |
| 67868-03 | 2003 |
| 69604-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 625A1 - Oil Cooler Grille | |
| 63071-07 | 2007 |
| 627A1 - Oil Cooler | |
| 63068-07 | 2007 |
| 62108-03 | 2003 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62693-07 | 2007 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62641-05A | 2005 |
| 62629-05A | 2005 |
| 627K1 - Oil Line Fitting | |
| 62365-06 | 2006 |
| 26352-95A | 1995 |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08 | 2008 |
| 627N1 - Oil System Baffle | |
| 62828-99 | 1999 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63076-08 | 2008 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 65694-05A | 2005 |
| 66799-07 | 2007 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 64993-07 | 2007 |
| 654A1 - Exhaust Shield | |
| 65743-05 | 2005 |
| 65636-07 | 2007 |
| 66220-06 | 2006 |
| 65951-98A | 1998 |
| 65952-98A | 1998 |
| 62519-03 | 2003 |
| 65742-05 | 2005 |
| 66219-06 | 2006 |
| 65634-98A | 1998 |
| 65647-98 | 1998 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-07 | 2007 |
| 65988-07A | 2007 |
| 656E1 - Header Pipe | |
| 65621-07 | 2007 |
| 65627-07 | 2007 |
| 65626-07A | 2007 |
| 65905-07A | 2007 |
| 658A1 - Exhaust Catalyst | |
| 65748-07 | 2007 |
| 65949-07 | 2007 |
| 66080-06B | 2008 |
| 65863-07 | 2007 |
| 65913-06B | 2008 |
| 659A1 - Exhaust Clamp | |
| 65654-97 | 2017 |
| 65620-98A | 1998 |
| 659B1 - Exhaust Flange | |
| 65328-83 | 1983 |
| 659C1 - Exhaust Gasket | |
| 65324-83A | 1985 |
| 660A1 - Battery | |
| 66010-97B | 1997 |
| 660C1 - Battery Pan | |
| 66281-08 | 2008 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660F1 - Negative Battery Cable | |
| 70267-08 | 2008 |
| 660G1 - Positive Battery Cable | |
| 70377-08 | 2008 |
| 660H1 - Positive Battery Cable Boot | |
| 70584-94 | 1994 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67316-03A | 2004 |
| 68096-04 | 2004 |
| 11489 | 1995 |
| 69330-02 | 2002 |
| 69325-02 | 2002 |
| 67864-04A | 2005 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 67728-02 | 2002 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 69807-07 | 2007 |
| 68004-05 | 2005 |
| 69808-07 | 2007 |
| 68226-97 | 1997 |
| 678B1 - Taillight Housing | |
| 69809-07 | 2007 |
| 678C1 - Taillight Lens | |
| 68238-97 | 1997 |
| 68239-97 | 1997 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68614-03 | 2003 |
| 71591-00 | 2000 |
| 67015-02 | 2002 |
| 68969-05 | 2005 |
| 68886-00 | 2000 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 68976-00 | 2000 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59288-92 | 1992 |
| 69848-07 | 2007 |
| 68344-05 | 2005 |
| 679D1 - License Plate Bracket | |
| 60309-07 | 2007 |
| 59166-80 | 1980 |
| 60026-97 | 1997 |
| 60090-05 | 2005 |
| 67845-05 | 2005 |
| 60039-97 | 1997 |
| 60089-05 | 2005 |
| 679E1 - License Plate Light | |
| 60315-07 | 2007 |
| 680A1 - Decorative Light | |
| 69837-07 | 2007 |
| 70319-04 | 2004 |
| 680B1 - Emergency Light | |
| 67633-01 | 2001 |
| 680C1 - Incandescent Bulb | |
| 68169-90A | 1990 |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 52441-95 | 1995 |
| 53438-92 | 1992 |
| 690A1 - Emergency Siren | |
| 68958-07A | 2007 |
| 690C1 - Horn | |
| 69060-90E | 2007 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692C1 - Electrical Miscellaneous Component | |
| 72547-08 | 2008 |
| 74115-06 | 2006 |
| 70348-08 | 2008 |
| 68210-08 | 2008 |
| 90469-94 | 1994 |
| 67720-03A | 2003 |
| 70344-08 | 2008 |
| 72332-02A | 2002 |
| 72189-04 | 2004 |
| 70980-08 | 2008 |
| 68089-05 | 2005 |
| 68124-04A | 2004 |
| 692C2 - Electrical Mounting Bracket | |
| 70447-01 | 2001 |
| 69123-92 | 1992 |
| 71019-07 | 2007 |
| 69120-91 | 1991 |
| 66318-08 | 2008 |
| 67355-04 | 2004 |
| 70430-07 | 2007 |
| 47420-08 | 2008 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 72325-97 | 1997 |
| 692E2 - Fuse / Relay Block Cover | |
| 72620-08 | 2008 |
| 72537-08 | 2008 |
| 692F1 - Wire Harness | |
| 70142-94 | 1994 |
| 68359-05 | 2005 |
| 70335-08 | 2008 |
| 70981-08 | 2008 |
| 70616-07 | 2007 |
| 69811-07 | 2007 |
| 70428-08 | 2008 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 70527-07 | 2007 |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 66761-08 | 2008 |
| 692H1 - Connector | |
| 72206-94 | 1994 |
| 74104-98BK | 1998 |
| 72159-94 | 1994 |
| 72144-94 | 1994 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72066-06 | 2006 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72102-94BK | 1994 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72155-08 | 2008 |
| 72500-07BK | 2007 |
| 72064-06 | 2006 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 74102-05GY | 2005 |
| 73198-96 | 1996 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 72286-04 | 2004 |
| 72272-07 | 2007 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72292-94 | 1994 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72429-00 | 2000 |
| 72407-07 | 2007 |
| 72115-08 | 2008 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72327-03 | 2003 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 72495-08 | 2008 |
| 9842 | Unknown |
| 72094-06 | 2006 |
| 72395-97 | 1997 |
| 72991-01 | 2001 |
| 72611-07 | 2007 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 68904-00 | 2000 |
| 68907-00 | 2000 |
| 68906-00 | 2000 |
| 74193-98 | 1998 |
| 72142-94 | 1994 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 74144-98 | 1998 |
| 72134-94GY | 1994 |
| 72039-71A | 1971 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 68653-05 | 2005 |
| 72104-94BK | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 74148-98 | 1998 |
| 72512-07BK | 2007 |
| 74112-05GY | 2005 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72402-07 | 2007 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 74103-98BK | 1998 |
| 74108-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 72406-07 | 2007 |
| 72557-07 | 2007 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72556-08 | 2008 |
| 73158-96BK | 1996 |
| 72478-07BK | 2007 |
| 72720-07 | 2007 |
| 72038-71A | 1971 |
| 73102-96WE | 1996 |
| 70494-08 | 2008 |
| 72011-05 | 2005 |
| 72514-07GY | 2007 |
| 73191-96 | 1996 |
| 72447-07GY | 2007 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 72469-07GY | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 69318-02 | 2002 |
| 74154-98 | 1998 |
| 72079-08 | 2008 |
| 72014-07 | 2007 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 72046-79 | 1979 |
| 72440-08 | 2008 |
| 74118-98BK | 1998 |
| 72012-07 | 2007 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72914-01BK | 2001 |
| 72610-08 | 2008 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70000-08 | 2008 |
| 69846-07 | 2007 |
| 709B2 - Fuel Gauge | |
| 75241-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71605-07 | 2007 |
| 714B1 - Mechanical Switch | |
| 71565-08 | 2008 |
| 71522-08 | 2008 |
| 33926-06B | 2006 |
| 31631-06 | 2006 |
| 714C1 - Pressure Switch | |
| 71842-02 | 2002 |
| 26561-99 | 1999 |
| 67488-04 | 2004 |
| 714D1 - Relay | |
| 31504-91B | 2000 |
| 715A1 - Hand Control | |
| 71315-01 | 2001 |
| 71825-96A | 1996 |
| 70375-96 | 1996 |
| 71614-96 | 1996 |
| 70373-96 | 1996 |
| 71615-96 | 1996 |
| 71828-02 | 2002 |
| 77101-98 | 1998 |
| 71598-00 | 2000 |
| 71590-96A | 1996 |
| 71597-96B | 2000 |
| 71589-96B | 2000 |
| 71707-02 | 2002 |
| 67493-08 | 2008 |
| 71706-02A | 2002 |
| 747A1 - Voltage Regulator | |
| 74622-06 | 2006 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 902A1 - Saddlebag | |
| 88285-08 | 2008 |
| 90720-79C | 1985 |
| 91411-04 | 2004 |
| 88284-08 | 2008 |
| 91445-04 | 2004 |
| 902C1 - Saddlebag Inner | |
| 91887-98 | 1998 |
| 902E1 - Saddlebag Bottom | |
| 91628-08CJL | 2008 |
| 90718-79C | 1985 |
| 90594-85A | 1985 |
| 88222-07 | 2007 |
| 91628-08CRR | 2008 |
| 91169-07 | 2007 |
| 91628-08CRP | 2008 |
| 91629-08CJL | 2008 |
| 90801-06 | 2006 |
| 91074-07 | 2007 |
| 75089-08 | 2008 |
| 88223-07 | 2007 |
| 91130-07 | 2007 |
| 91629-08CRP | 2008 |
| 91629-08CRR | 2008 |
| 91069-07 | 2007 |
| 903A1 - Lockset | |
| 53461-07 | 2007 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 68939-00 | 2000 |
| 940A1 - Owner's Kit | |
| 91625-04 | 2004 |
| 960ZA - UNASSIGNED | |
| 69355-07 | 2007 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | FUEL TANK CONSOLE: |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | REAR FENDER (CONTINUED): |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER & OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: TRANSMISSION BEARINGS & COVERS: |
| 11143 | RING | CLUTCH: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan: |
| 11150 | RING | GEAR SHIFTER: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan: CAMSHAFTS & CAM COVER - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 11301 | O-RING | CAMSHAFTS & CAM COVER - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 11304 | RING | FOOTBOARDS: |
| 11491A | GROMMET | FRAME, REAR FORK, & JIFFY STAND: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS & COVERS: |
| 16715-83 | STUD | CYLINDERS, HEADS, & VALVES - NON JAPAN: CYLINDERS, HEADS, & VALVES - TWIN CAM 96™ - JAPAN: |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - Japan: |
| 25244-99A | GASKET | CAMSHAFTS & CAM COVER - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | SEAT & BACKREST: REAR FENDER: |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE: GEAR SHIFTER: |
| 3368 | SCREW | BELTS, CHAINS, & SPROCKETS: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER & OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 36805-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 4132 | SCREW | ACTIVE INTAKE & EXHAUST: |
| 41751-06A | GASKET | CLUTCH CONTROL: FRONT BRAKE CONTROL: FRONT BRAKE LINES - ABS: REAR BRAKE CONTROL: REAR BRAKE LINES - ABS: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45279-00 | WASHER | FRONT FENDER: |
| 45405-75A | SCREW | FRONT FORK: |
| 45733-48 | SEAL | FRONT FORK: |
| 45845-77 | O-RING | FRONT FORK: |
| 45858-77 | SCREW | FRONT FORK: |
| 4740A | SCREW | CAMSHAFTS & CAM COVER - NON JAPAN: CAMSHAFTS & CAM COVER - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 48300-60 | BEARING KIT | FRONT FORK - BRACKETS: |
| 5207 | WELLNUT | FRAME, REAR FORK, & JIFFY STAND: |
| 5210 | WELLNUT | NACELLE & HEADLAMP: |
| 59768-97 | NUT KIT | SEAT & BACKREST: REAR FENDER: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6229W | WASHER | BELTS, CHAINS, & SPROCKETS: SADDLEBAGS: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | FRONT FORK: FRAME, REAR FORK, & JIFFY STAND: PASSENGER BACKREST: |
| 7041 | LOCKWASHER | GEAR SHIFTER: FRONT FORK: FRAME, REAR FORK, & JIFFY STAND: PASSENGER BACKREST: FOOTBOARDS: EXHAUST SYSTEM: |
| 70909-95 | RECEPTACLE | SADDLEBAG GUARDS: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | ALTERNATOR & REGULATOR: SEAT & BACKREST: FOOTBOARDS: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | GEAR SHIFTER: |
| 9252 | BALL BEARING | FRONT WHEEL: REAR WHEEL: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | PAD & PIN KIT | FRONT BRAKE CALIPER: |
| 45875-84A | SEAL | FRONT FORK: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 16207-79D | ENGINE MOUNT | ENGINE MOUNTS & STABILIZER LINKS: |
| 50245-07 | BUMPER | FRAME, REAR FORK, & JIFFY STAND: |
| 59166-80 | PLATE | FRONT FENDER: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72330-95 | FUSE | WIRING HARNESS, MAIN (CONTINUED): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33709-82A | SHAFT | GEAR SHIFTER: |
| 37909-90 | RING | CLUTCH: |
| 37913-98 | PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29633-08 | FILTER ELEMENT | AIR CLEANER: |
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP: |
| 68329-03 | BULB | NACELLE & HEADLAMP (CONTINUED): |
| 68973-00 | LENS | REAR TURN SIGNALS & LICENSE PLATE HOLDER: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | ELECTRONIC CONTROL MODULE & COIL: |
| 63798-99A | FILTER | CRANKCASE & ENGINE - OIL FILTER & COOLER - NON JAPAN: CRANKCASE & ENGINE OIL FILTER -TWIN CAM 96™ - JAPAN: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES & CIRCUIT BREAKERS: SWITCHES & CIRCUIT BREAKERS: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | STEM ASSEMBLY | FRONT WHEEL: REAR WHEEL: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | PASSENGER BACKREST: WINDSHIELD: |
