2008 HARLEY-DAVIDSON® PARTS CATALOG: FLHTCUSE3 MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99428-08 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2008 FLHTCUSE3 MODELS
VIN Model Codes

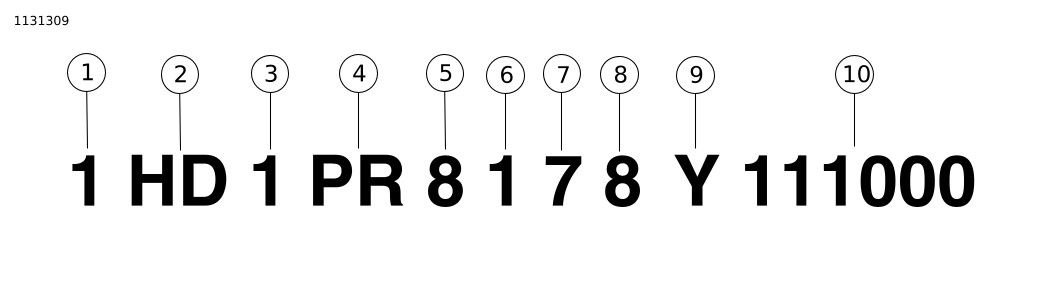

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson V.I.N. Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Originally manufactured for sale within the United States 5=Originally manufactured for sale outside of the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) |
4 | Model | PR=FLHTCUSE3 Screamin' Eagle® Ultra Classic® Electra Glide® PR=FLHTCU3-CVO (Japan only) |
5 | Engine type | 4=96 cu. in. (1584 cc) air cooled, fuel injected 8=110 cu. in. (1800 cc) air cooled, fuel injected |
6 | Introduction date | 1=Regular 2=Mid-year 3=California/regular 4=Cosmetic changes and/or special introductory date 5=California/cosmetic changes and/or special introductory date 6=California/mid-year |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 8=2008 |
9 | Assembly plant | Y=York, PA U.S.A. |
10 | Sequential number | Varies |
NOTES

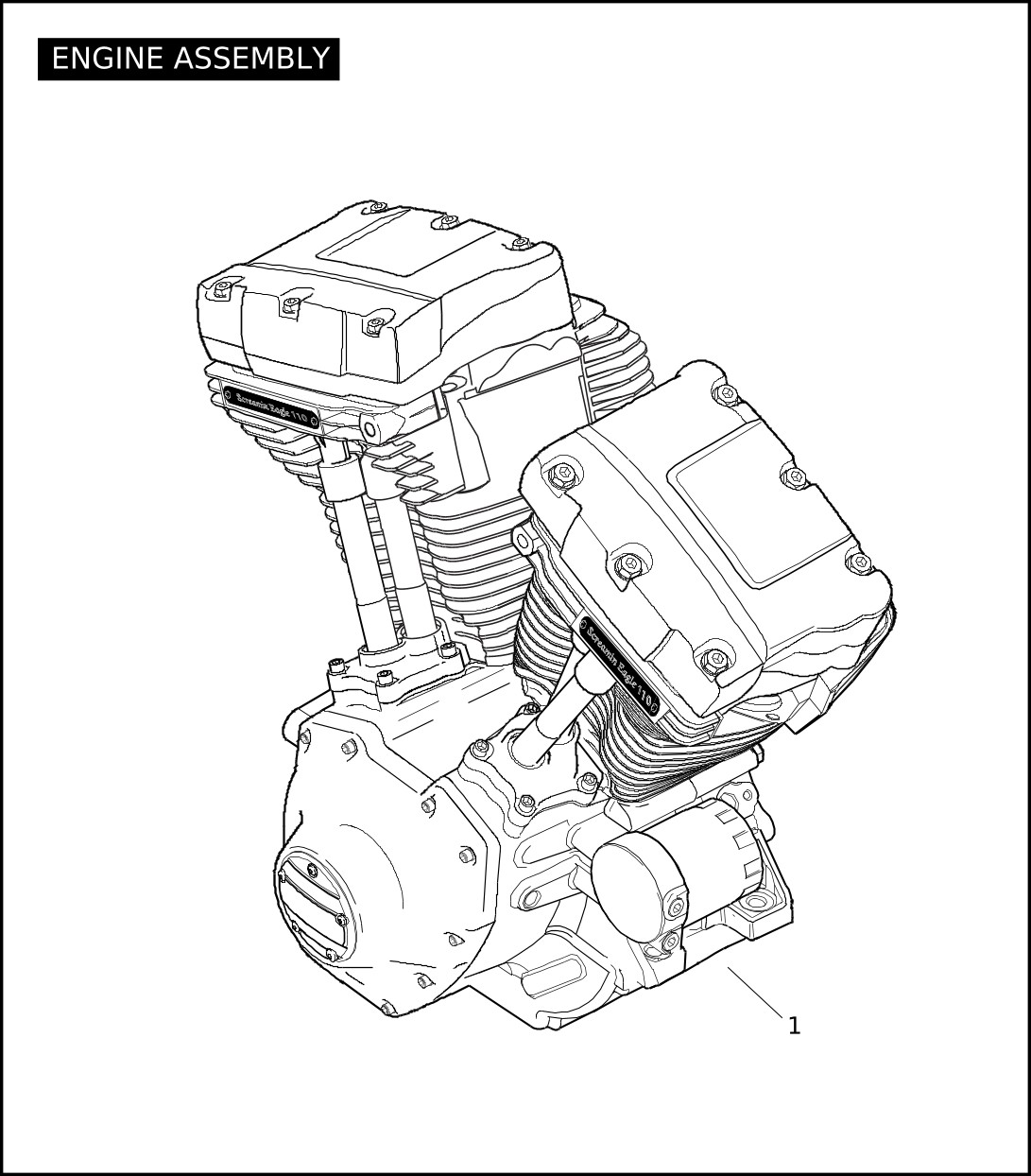

ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19838-08 | ENGINE ASSEMBLY, complete, 110 cubic-inch (granite) (Domestic, Canada, HDI) | FLHTCUSE3 |
| 19261-08 | ENGINE ASSEMBLY, complete, 96 cubic-inch (black) (Japan) | FLHTCUSE3 |

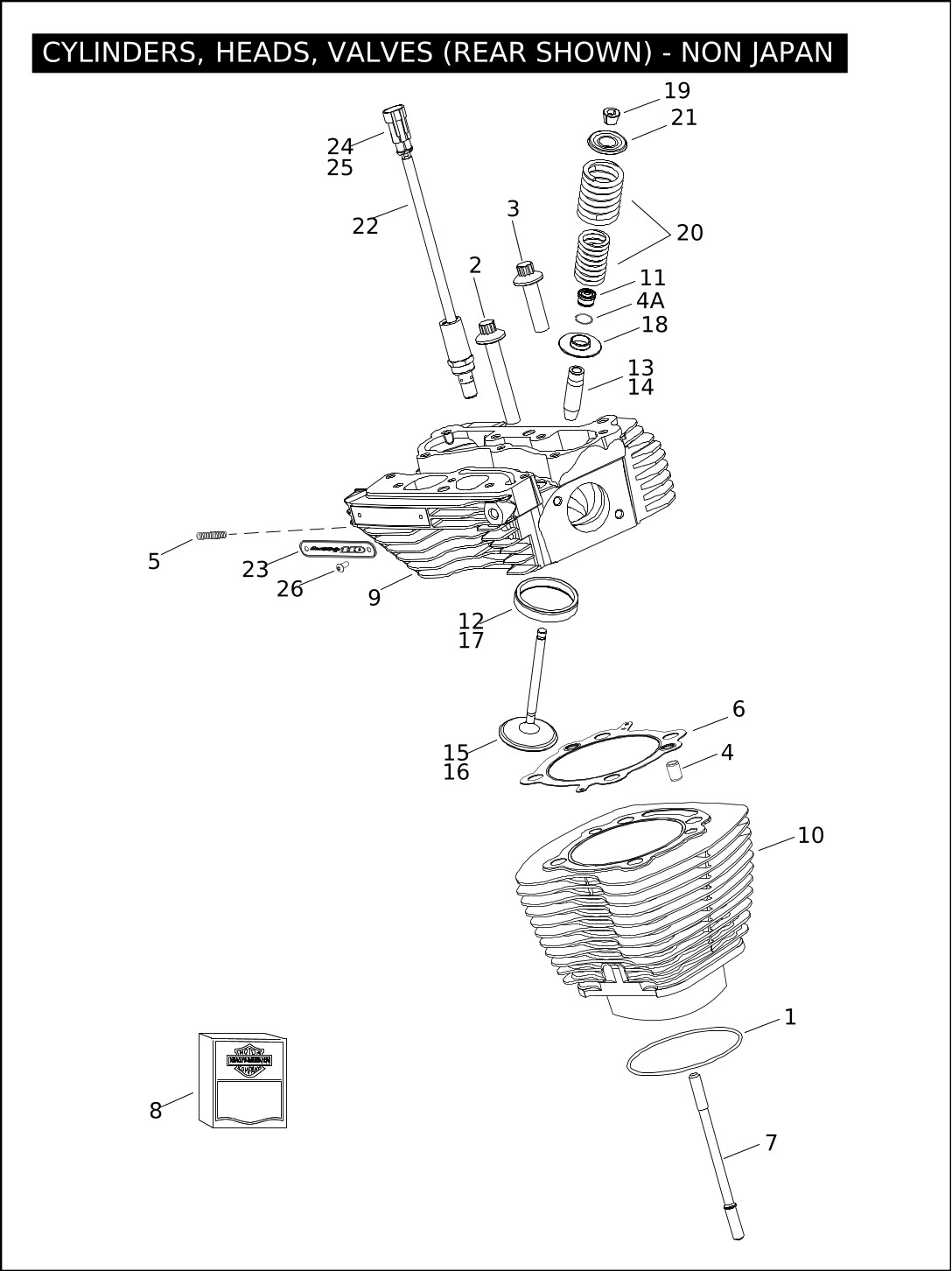

CYLINDERS, HEADS, & VALVES 110™ - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11907 | O-RING, cylinder base (2) | FLHTCUSE3 |
| 2 | 16478-85A | SCREW, internal thread, 3-3/16 in. long (4) | FLHTCUSE3 |
| 3 | 16480-92A | SCREW, internal thread, 1-7/8 in. long (4) | FLHTCUSE3 |
| 4 | 16595-99A | DOWEL PIN, ring (4) | FLHTCUSE3 |
| 4A | 16699-06 | SNAP RING, wire (4) | FLHTCUSE3 |
| 5 | 16715-83 | STUD, exhaust port (4) | FLHTCUSE3 |
| 6 | 16801-07B | GASKET, cylinder head (2) | FLHTCUSE3 |
| 7 | 16834-99A | STUD, cylinder (8) | FLHTCUSE3 |
| 8 | 17052-99B | GASKET KIT, top-end - does not include 10956 and 16801-07A, order separately | FLHTCUSE3 |
| 17053-99B | GASKET KIT, engine overhaul - does not include 10956 and 16801-07A, order separately | FLHTCUSE3 | |
| 9 | 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08, & 18189-07 (granite) | FLHTCUSE3 |
| 17337-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08, & 18189-07 (granite) | FLHTCUSE3 | |
| 10 | 17454-08 | CYLINDER ASSEMBLY, w/ 16595-99A (granite) (2) | FLHTCUSE3 |
| 11 | 18067-09 | VALVE SEAL (4) | FLHTCUSE3 |
| 12 | 18048-98A | SEAT, exhaust valve (2) | FLHTCUSE3 |
| 13 | 18168-08 | VALVE GUIDE, exhaust (2) | FLHTCUSE3 |
| 18153-05 | VALVE GUIDE, exhaust, .001 OS (2) | FLHTCUSE3 | |
| 18155-05 | VALVE GUIDE, exhaust, .002 OS (2) | FLHTCUSE3 | |
| 18157-05 | VALVE GUIDE, exhaust, .003 OS (2) | FLHTCUSE3 | |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHTCUSE3 |
| 18154-05 | VALVE GUIDE, intake, .001 OS (2) | FLHTCUSE3 | |
| 18156-05 | VALVE GUIDE, intake, .002 OS (2) | FLHTCUSE3 | |
| 18158-05 | VALVE GUIDE, intake, .003 OS (2) | FLHTCUSE3 | |
| 15 | 18183-03 | EXHAUST VALVE (2) | FLHTCUSE3 |
| 16 | 18187-07 | INTAKE VALVE (2) | FLHTCUSE3 |
| 17 | 18189-07 | SEAT, intake valve (2) | FLHTCUSE3 |
| 18 | 18270-00A | COLLAR, valve spring lower (4) | FLHTCUSE3 |
| 19 | 18271-00 | KEY, valve spring collar (8) | FLHTCUSE3 |
| 20 | 18272-00 | SPRING VALVE, inner & outer | FLHTCUSE3 |
| 21 | 18280-07 | COLLAR, valve spring upper (4) | FLHTCUSE3 |
| 22 | 28861-07A | SOLENOID, auto compression release (2) | FLHTCUSE3 |
| 23 | 29517-07A | MEDALLION KIT, w/ 2 medallions | FLHTCUSE3 |
| 24 | 72009-05 | HOUSING, 2-way, pin | FLHTCUSE3 |
| 25 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHTCUSE3 |
| 26 | 94634-99 | SCREW, medallion (4) | FLHTCUSE3 |

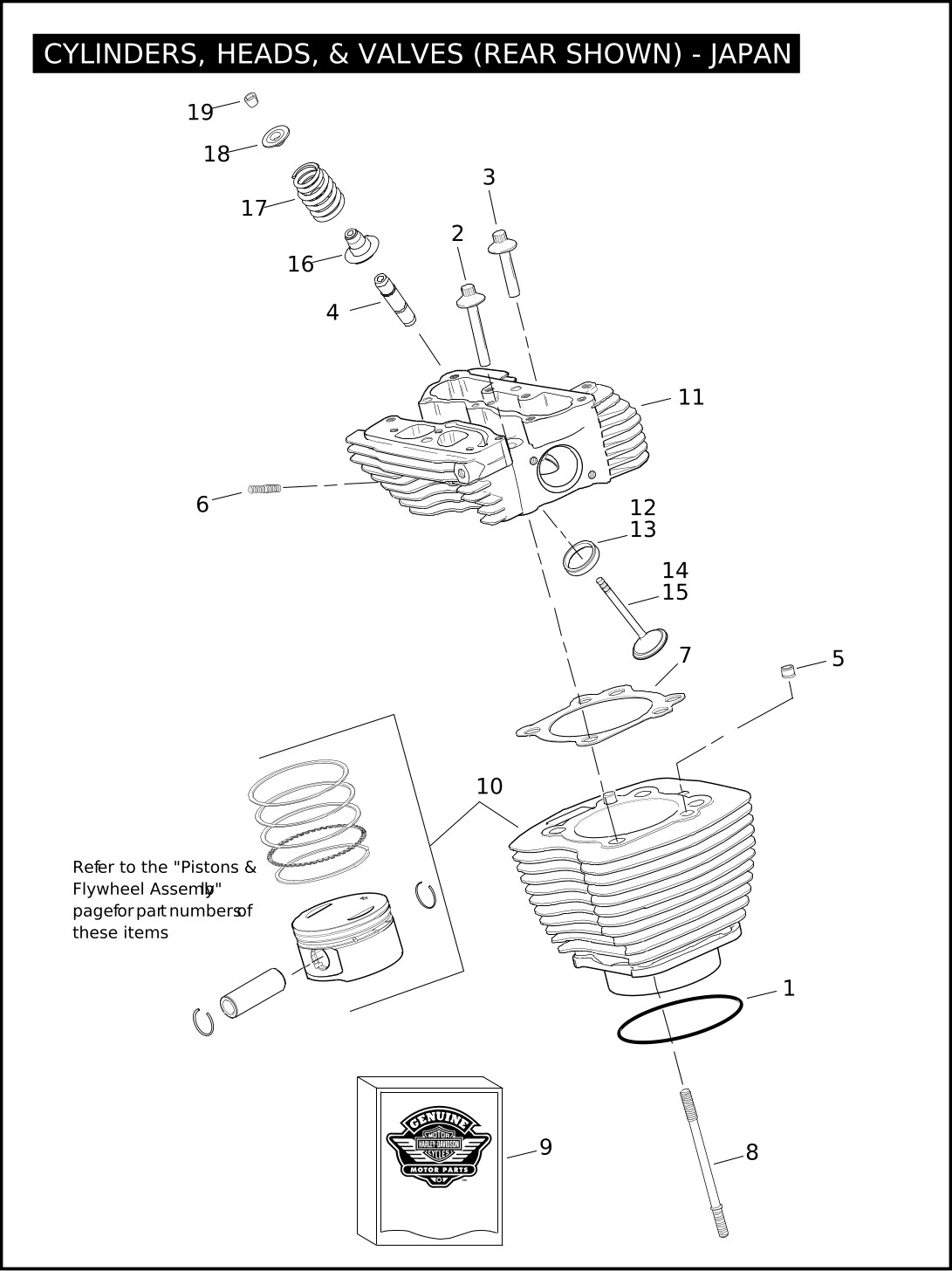

CYLINDERS, HEADS, & VALVES - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLHTCUSE3 |
| 2 | 16478-85A | SCREW, internal thread 3-3/16 in. long (4) | FLHTCUSE3 |
| 3 | 16480-92A | SCREW, internal thread 1-7/8 in. long (4) | FLHTCUSE3 |
| 4 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust, w/ retaining ring (4) | FLHTCUSE3 |
| 5 | 16595-99A | DOWEL PIN (4) | FLHTCUSE3 |
| 6 | 16715-83 | STUD, exhaust port (4) | FLHTCUSE3 |
| 7 | 16775-99B | GASKET, cylinder head (2) | FLHTCUSE3 |
| 8 | 16834-99A | STUD, cylinder (8) | FLHTCUSE3 |
| 9 | 17052-99B | GASKET KIT, top end | FLHTCUSE3 |
| 17053-99B | GASKET KIT, engine overhaul | FLHTCUSE3 | |
| 10 | 17458-07 | CYLINDER ASSEMBLY, w/ piston, rings, piston pin, & retaining rings (black) (2) | FLHTCUSE3 |
| 11 | 17721-08 | CYLINDER HEAD, front, w/ guides, seats, & collars (black) | FLHTCUSE3 |
| 17179-06 | CYLINDER HEAD, rear, w/ guides, seats, & collars (black) | FLHTCUSE3 | |
| 12 | 18011-86 | INSERT, exhaust valve seat (2) | FLHTCUSE3 |
| 13 | 18020-83 | INSERT, intake valve seat (2) | FLHTCUSE3 |
| 14 | 18074-05A | INTAKE VALVE (2) | FLHTCUSE3 |
| 15 | 18085-05A | EXHAUST VALVE (2) | FLHTCUSE3 |
| 16 | 18094-02A | SEAL, valve (4) | FLHTCUSE3 |
| 17 | 18245-02 | VALVE SPRING (4) | FLHTCUSE3 |
| 18 | 18258-02 | COLLAR, valve spring (4) | FLHTCUSE3 |
| 19 | 18260-02 | KEEPER, valve (8) | FLHTCUSE3 |
| NOTE: FLHT3-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

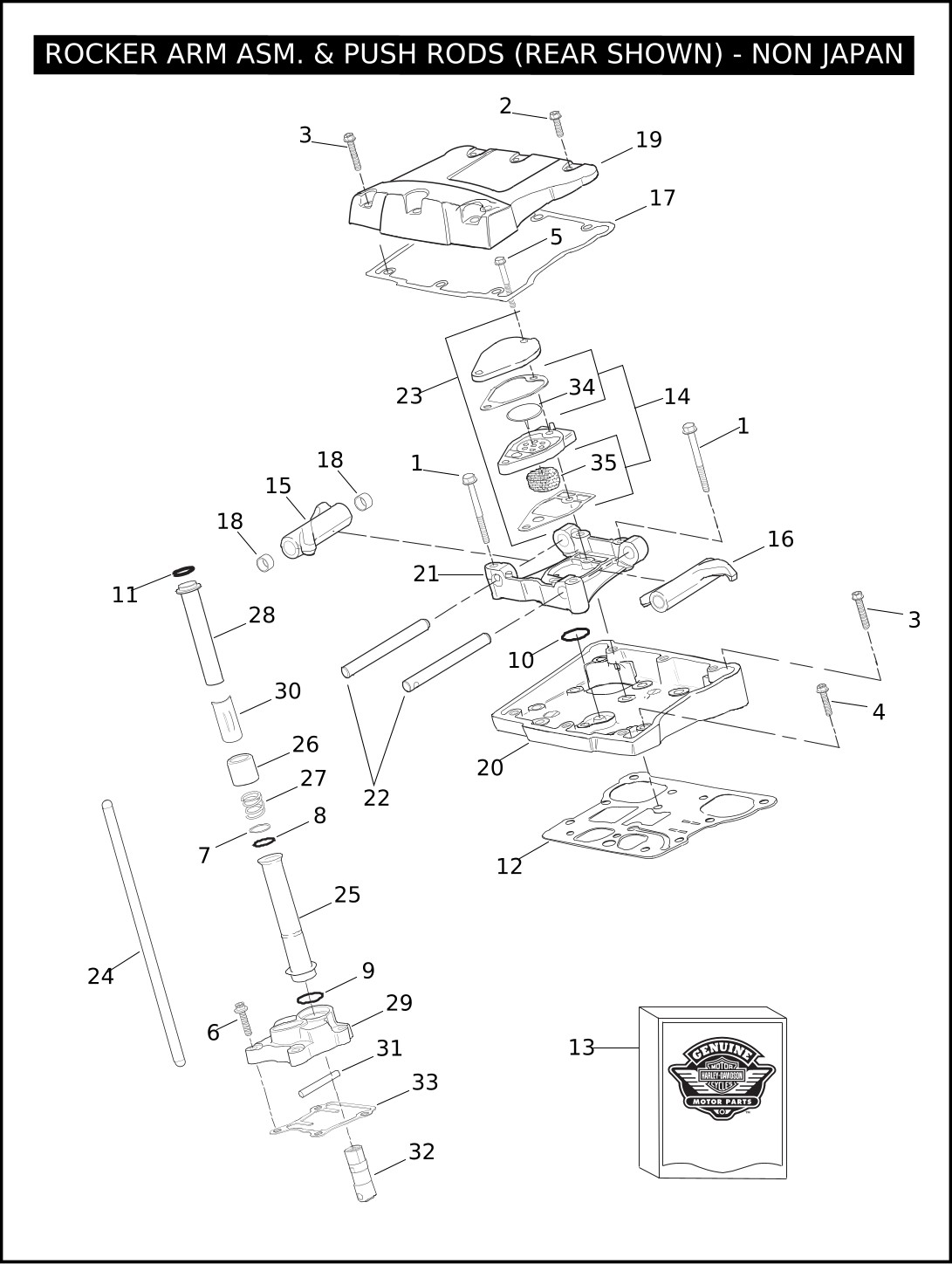

ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHTCUSE3 |
| 2 | 3692A | SCREW (6) | FLHTCUSE3 |
| 3 | 3693A | SCREW (10) | FLHTCUSE3 |
| 4 | 3736A | SCREW (8) | FLHTCUSE3 |
| 5 | 3746A | SCREW (4) | FLHTCUSE3 |
| 6 | 4741A | SCREW (8) | FLHTCUSE3 |
| 7 | 6762B | WASHER (4) | FLHTCUSE3 |
| 8 | 11132A | O-RING, push rod cover (4) | FLHTCUSE3 |
| 9 | 11145A | O-RING, push rod cover (4) | FLHTCUSE3 |
| 10 | 11270 | O-RING (2) | FLHTCUSE3 |
| 11 | 11293 | O-RING (4) | FLHTCUSE3 |
| 12 | 16719-99A | GASKET, rocker housing (2) | FLHTCUSE3 |
| 13 | 17045-99C | GASKET KIT, cam service | FLHTCUSE3 |
| 14 | 17162-03 | GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets | FLHTCUSE3 |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHTCUSE3 |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHTCUSE3 |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLHTCUSE3 |
| 18 | 17428-57 | BUSHING, rocker arm (8) | FLHTCUSE3 |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLHTCUSE3 |
| 20 | 17573-99 | ROCKER HOUSING (chrome) (2) | FLHTCUSE3 |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | FLHTCUSE3 |
| 22 | 17611-83 | SHAFT, rocker arm (4) | FLHTCUSE3 |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle, & gaskets | FLHTCUSE3 |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLHTCUSE3 |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLHTCUSE3 | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLHTCUSE3 |
| 26 | 17945-36B | CAP, cover spring (4) | FLHTCUSE3 |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLHTCUSE3 |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLHTCUSE3 |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLHTCUSE3 |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHTCUSE3 | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHTCUSE3 |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHTCUSE3 |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | FLHTCUSE3 |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHTCUSE3 |
| 34 | 26858-99 | VALVE, breather (2) | FLHTCUSE3 |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FLHTCUSE3 |
ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLHTCUSE3 |
| 2 | 3692A | SCREW (6) | FLHTCUSE3 |
| 3 | 3693A | SCREW (10) | FLHTCUSE3 |
| 4 | 3736A | SCREW (8) | FLHTCUSE3 |
| 5 | 3746A | SCREW (4) | FLHTCUSE3 |
| 6 | 4741A | SCREW (8) | FLHTCUSE3 |
| 7 | 6762B | WASHER (4) | FLHTCUSE3 |
| 8 | 11132A | O-RING, push rod cover (4) | FLHTCUSE3 |
| 9 | 11145A | O-RING, push rod cover (4) | FLHTCUSE3 |
| 10 | 11270 | O-RING (2) | FLHTCUSE3 |
| 11 | 11293 | O-RING (4) | FLHTCUSE3 |
| 12 | 16719-99A | GASKET, rocker housing (2) | FLHTCUSE3 |
| 13 | 17045-99C | GASKET KIT, cam service | FLHTCUSE3 |
| 14 | 17162-03 | GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets | FLHTCUSE3 |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLHTCUSE3 |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLHTCUSE3 |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLHTCUSE3 |
| 18 | 17428-57 | BUSHING, rocker arm (8) | FLHTCUSE3 |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLHTCUSE3 |
| 20 | 17573-99 | ROCKER HOUSING (chrome) (2) | FLHTCUSE3 |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | FLHTCUSE3 |
| 22 | 17611-83 | SHAFT, rocker arm (4) | FLHTCUSE3 |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle, & gaskets | FLHTCUSE3 |
| 24 | 17922-99 | PUSH ROD, exhaust, 10.536 in. long (black oxide finish) (2) | FLHTCUSE3 |
| 17923-99 | PUSH ROD, intake, 10.418 in. long (plain finish) (2) | FLHTCUSE3 | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLHTCUSE3 |
| 26 | 17945-36B | CAP, cover spring (4) | FLHTCUSE3 |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLHTCUSE3 |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLHTCUSE3 |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLHTCUSE3 |
| 17966-99 | LIFTER COVER, rear (chrome) | FLHTCUSE3 | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLHTCUSE3 |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLHTCUSE3 |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | FLHTCUSE3 |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLHTCUSE3 |
| 34 | 26858-99 | VALVE, breather (2) | FLHTCUSE3 |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FLHTCUSE3 |
| NOTE: FLHT3-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

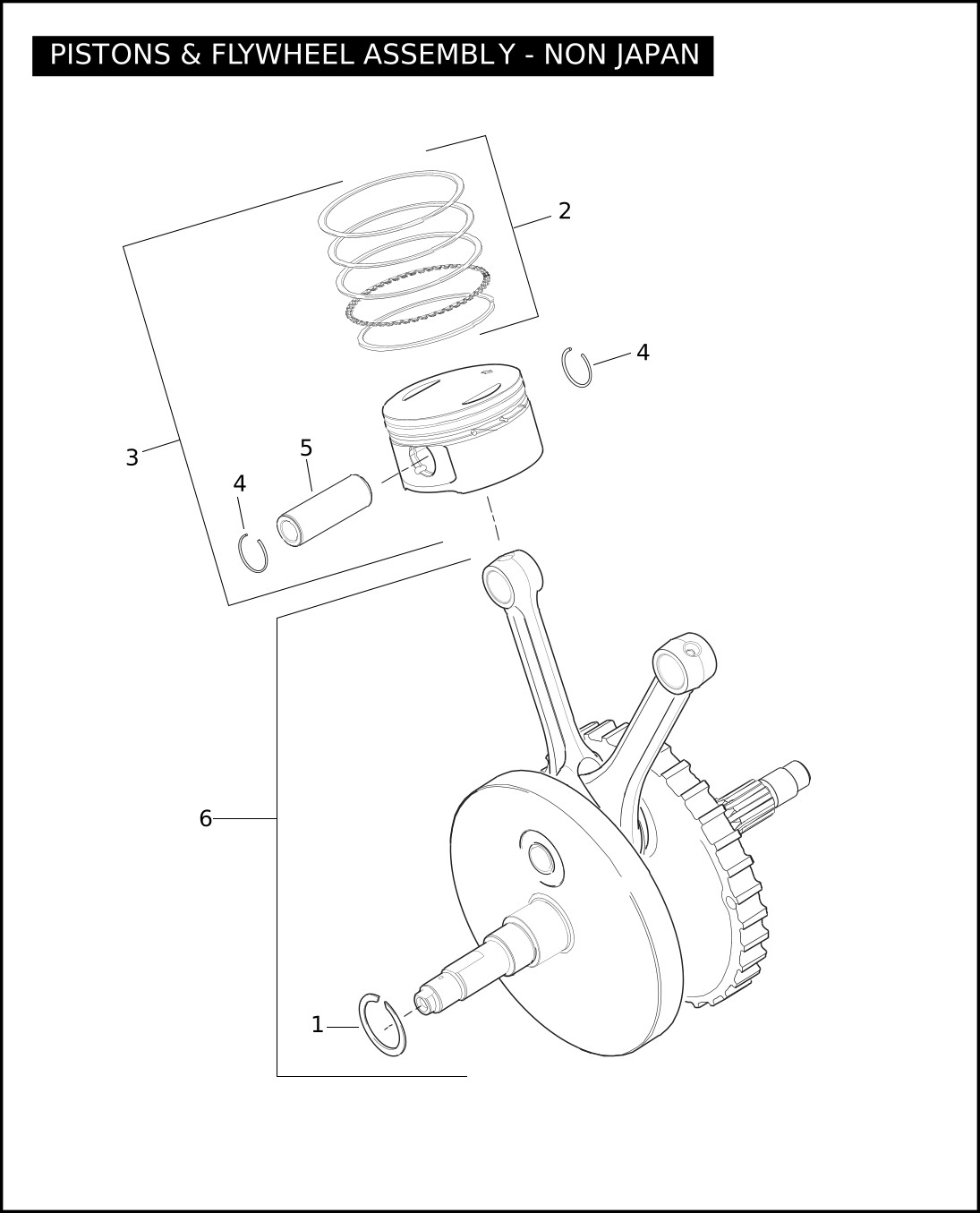

PISTON & FLYWHEEL ASSEMBLY 110™ - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHTCUSE3 |
| 2 | 22285-07 | PISTON RING SET, standard (2) | FLHTCUSE3 |
| 22286-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 22287-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 3 | 22284-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHTCUSE3 |
| 22288-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 22290-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLHTCUSE3 |
| 5 | 22269-07 | PISTON PIN (2) | FLHTCUSE3 |
| 6 | 23729-07 | FLYWHEEL ASSEMBLY KIT | FLHTCUSE3 |

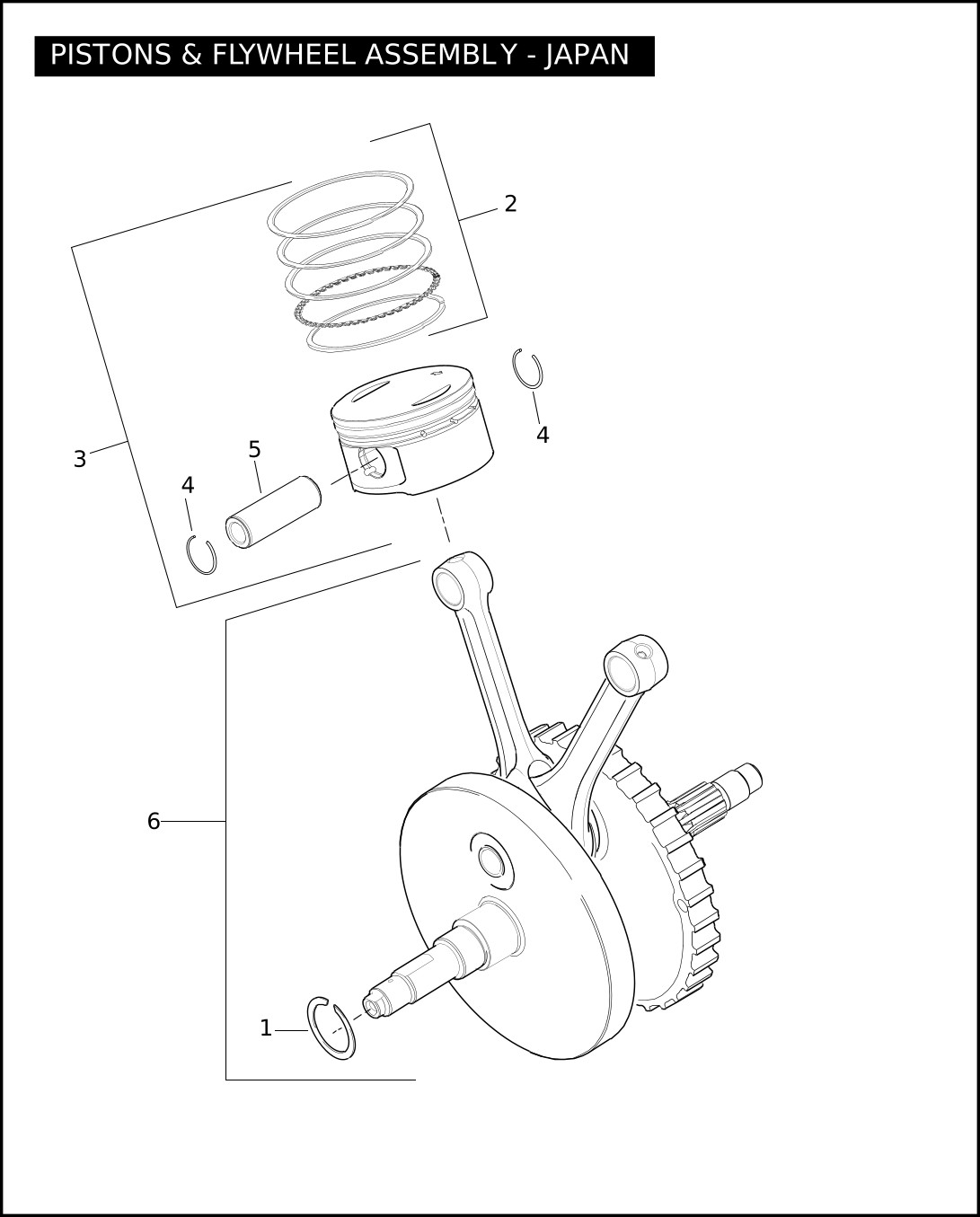

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHTCUSE3 |
| 2 | 21949-07 | PISTON RING SET, standard (2) | FLHTCUSE3 |
| 21950-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 21955-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 3 | 21959-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHTCUSE3 |
| 21960-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 21961-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLHTCUSE3 |
| 5 | 22131-05 | PISTON PIN (2) | FLHTCUSE3 |
| 6 | 23729-07 | FLYWHEEL ASSEMBLY KIT | FLHTCUSE3 |
| NOTE: FLHT3-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

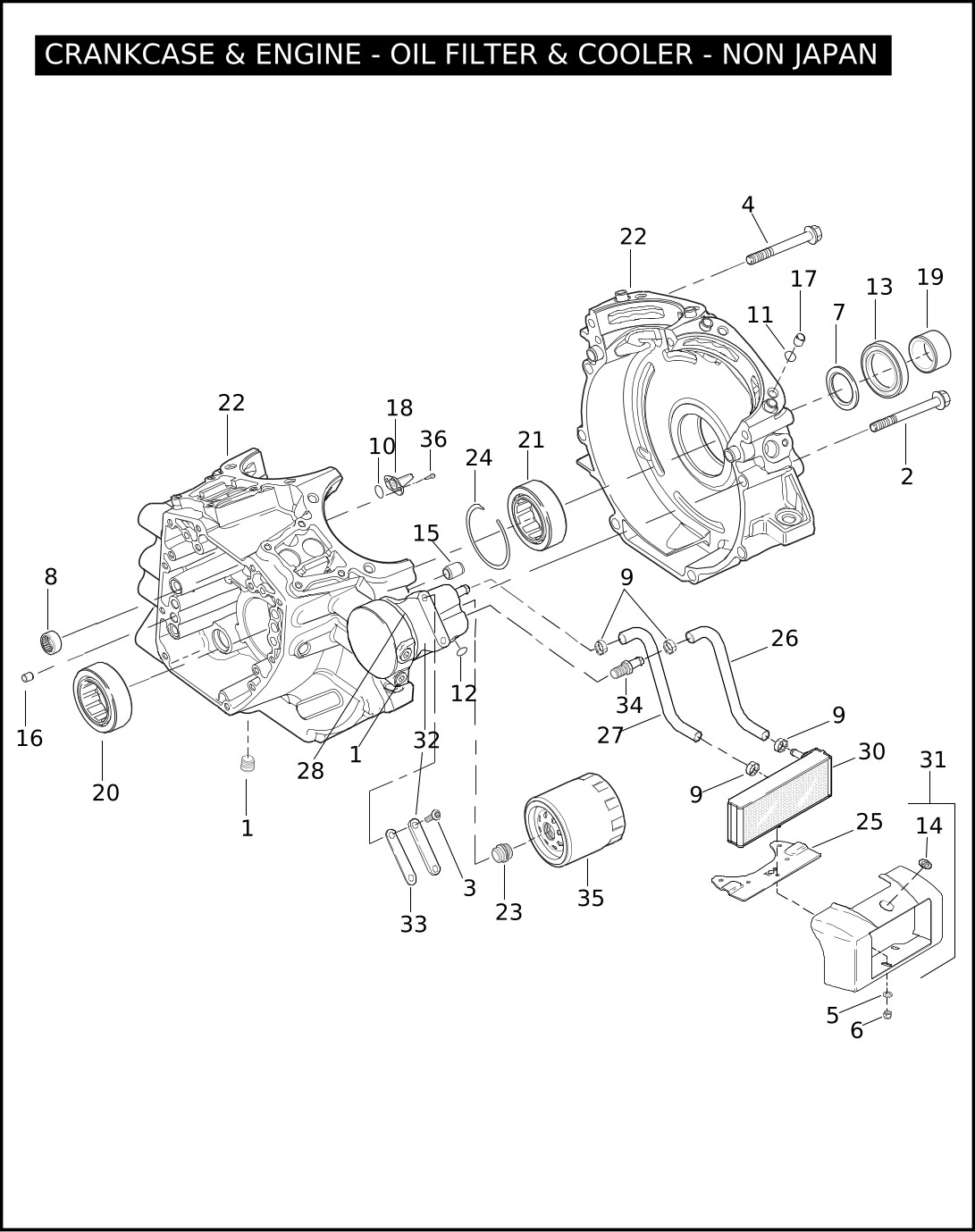

CRANKCASE & ENGINE - OIL FILTER & COOLER 110™ - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG (3) | FLHTCUSE3 |
| 2 | 895 | SCREW (8) | FLHTCUSE3 |
| 3 | 924 | SCREW (2) | FLHTCUSE3 |
| 4 | 1090 | SCREW | FLHTCUSE3 |
| 5 | 6703 | WASHER (3) | FLHTCUSE3 |
| 6 | 7671 | LOCKNUT (3) | FLHTCUSE3 |
| 7 | 8972 | WASHER (2) | FLHTCUSE3 |
| 8 | 9215 | BEARING, needle, left side, camshaft (2) | FLHTCUSE3 |
| 9 | 10198 | CLAMP (4) | FLHTCUSE3 |
| 10 | 11140 | O-RING (2) | FLHTCUSE3 |
| 11 | 11273 | O-RING (2) | FLHTCUSE3 |
| 12 | 11290 | O-RING | FLHTCUSE3 |
| 13 | 12068 | SEAL, oil | FLHTCUSE3 |
| 14 | 14448-94 | LOGO, bar and shield | FLHTCUSE3 |
| 15 | 16574-99A | DOWEL PIN (2) | FLHTCUSE3 |
| 16 | 16589-99A | DOWEL PIN (2) | FLHTCUSE3 |
| 17 | 16595-99A | DOWEL PIN (4) | FLHTCUSE3 |
| 18 | 22307-99 | JET, cooling, piston, w/ 11140 (2) | FLHTCUSE3 |
| 24004-03A | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race (not illustrated) | FLHTCUSE3 | |
| 19 | 24009-06 | SPACER, sprocket shaft | FLHTCUSE3 |
| 20 | 24604-00D | BEARING, main | FLHTCUSE3 |
| 21 | 24605-07 | BEARING, main | FLHTCUSE3 |
| 22 | 24760-08 | CRANKCASE SET, w/ 765, 895, 1090, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24604-00D, 24605-07, 35114-02, & 68042-99 (granite) | FLHTCUSE3 |
| 23 | 26041-05A | ADAPTER | FLHTCUSE3 |
| 24 | 35114-02 | RING, retaining, internal | FLHTCUSE3 |
| 25 | 62108-03 | BRACKET, mounting, oil-cooler | FLHTCUSE3 |
| 26 | 62629-05A | HOSE, oil - short | FLHTCUSE3 |
| 27 | 62641-05A | HOSE, oil - long | FLHTCUSE3 |
| 28 | 63066-07 | GASKET | FLHTCUSE3 |
| 30 | 63068-07 | OIL COOLER CORE | FLHTCUSE3 |
| 31 | 63071-07 | COVER ASSEMBLY, oil cooler, w/ 14448-94 (chrome) | FLHTCUSE3 |
| 32 | 63076-08 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 26356-05A, 63066-07, 63084-07, 63533-41A & cover | FLHTCUSE3 |
| 33 | 63084-07 | GASKET | FLHTCUSE3 |
| 34 | 63533-41A | FITTING (2) | FLHTCUSE3 |
| 35 | 63798-99A | FILTER, oil (chrome) | FLHTCUSE3 |
| 36 | 68042-99 | SCREW (4) | FLHTCUSE3 |
| Index number 29 is not used in this illustration. | |||

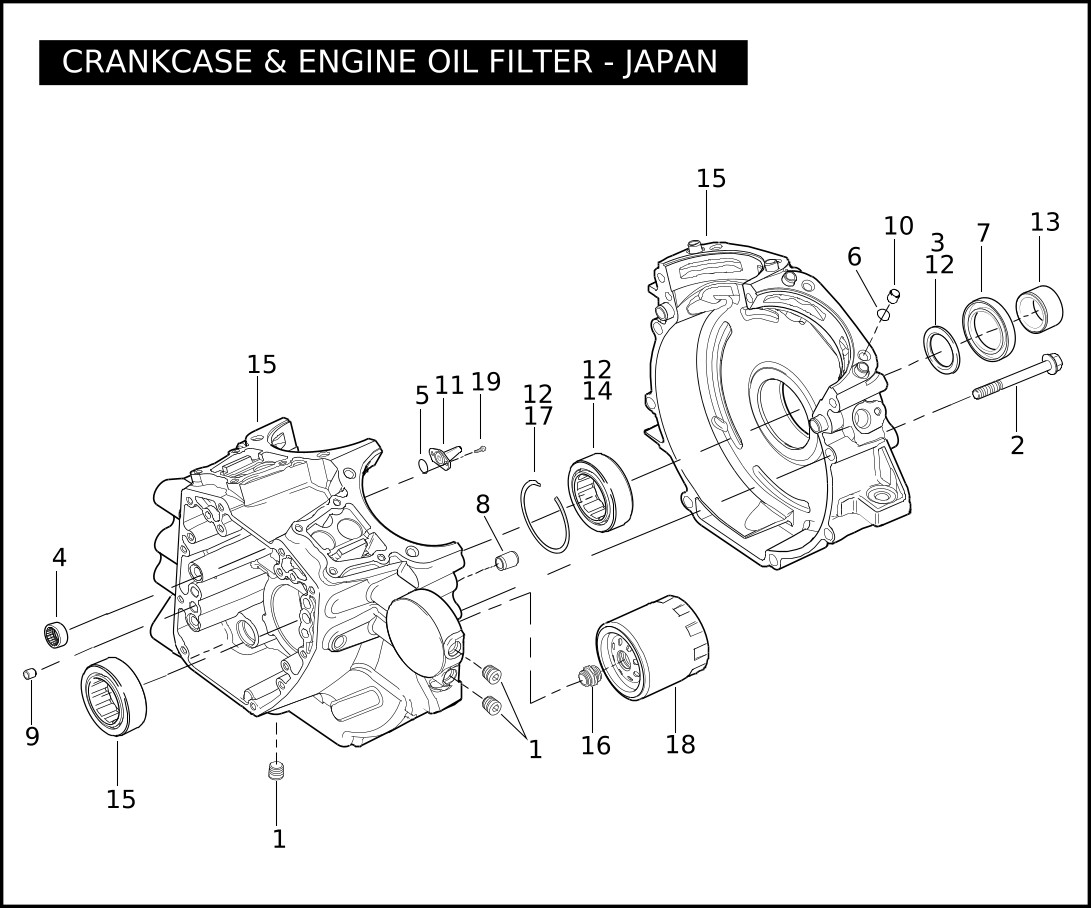

CRANKCASE & ENGINE OIL FILTER -TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FLHTCUSE3 |
| 2 | 895 | SCREW (5) | FLHTCUSE3 |
| 3 | 8972 | WASHER (2) | FLHTCUSE3 |
| 4 | 9215 | NEEDLE BEARING, left side of camshafts (2) | FLHTCUSE3 |
| 5 | 11140 | O-RING (2) | FLHTCUSE3 |
| 6 | 11273 | O-RING (2) | FLHTCUSE3 |
| 7 | 12068 | OIL SEAL | FLHTCUSE3 |
| 8 | 16574-99A | DOWEL PIN (2) | FLHTCUSE3 |
| 9 | 16589-99A | DOWEL PIN (2) | FLHTCUSE3 |
| 10 | 16595-99A | DOWEL PIN (4) | FLHTCUSE3 |
| 11 | 22307-99 | JET, piston cooling, w/ 11140 (2) | FLHTCUSE3 |
| 12 | 24004-03A | BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race | FLHTCUSE3 |
| 13 | 24009-06 | SPACER, sprocket shaft | FLHTCUSE3 |
| 14 | 24605-07 | BEARING, main (2) | FLHTCUSE3 |
| 15 | 24621-06A | SET OF CRANKCASES (black) w/ bearings, cooling jets, & through bolts | FLHTCUSE3 |
| 16 | 26352-95A | ADAPTOR, oil filter | FLHTCUSE3 |
| 17 | 35114-02 | RETAINING RING (2) | FLHTCUSE3 |
| 18 | 63798-99A | OIL FILTER (chrome) | FLHTCUSE3 |
| 19 | 68042-99 | SCREW (4) | FLHTCUSE3 |
| NOTE: FLHT3-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

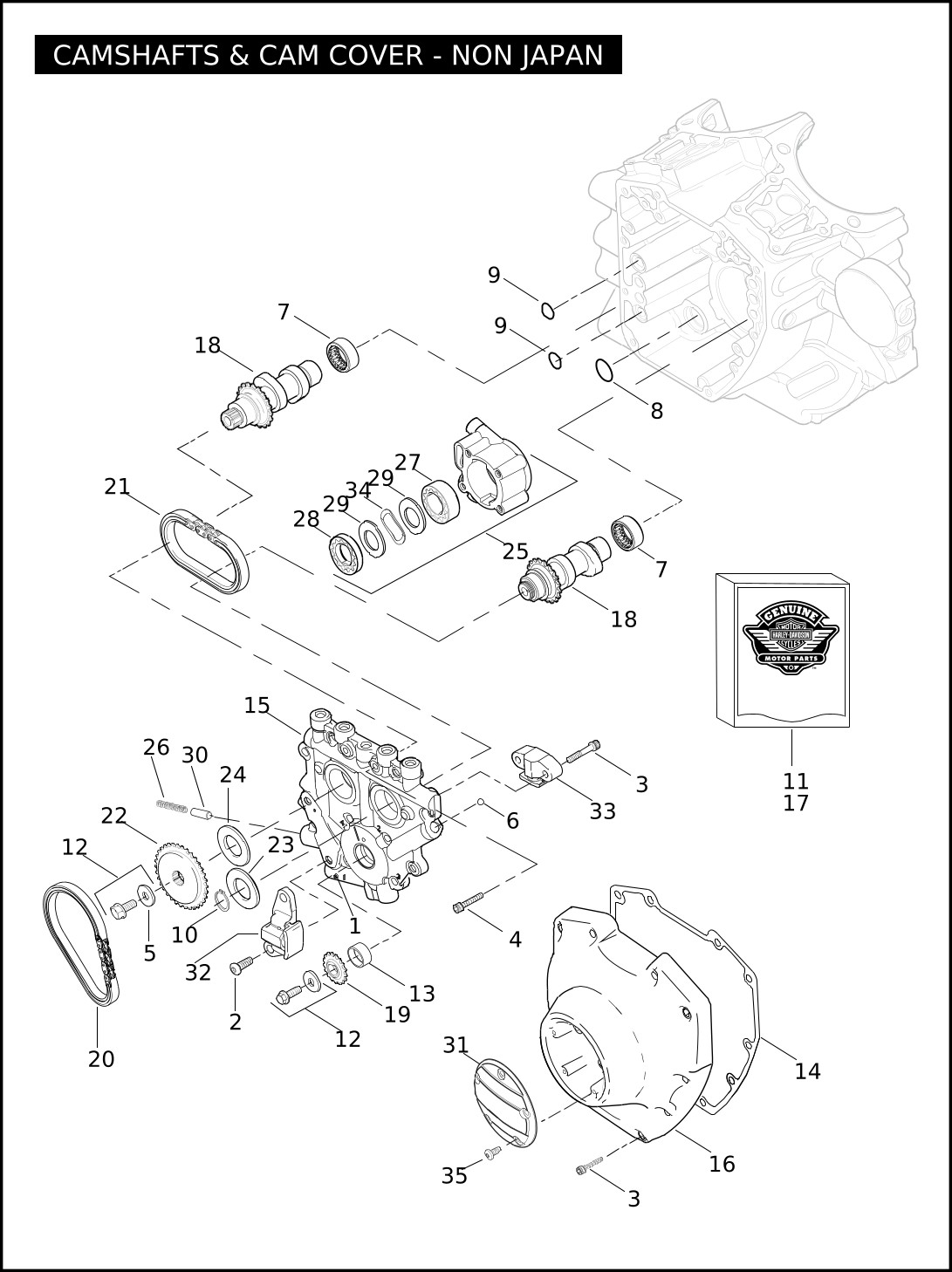

CAMSHAFTS & CAM COVER 110™ - NON JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHTCUSE3 |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHTCUSE3 |
| 3 | 4740A | SCREW, secondary cam tensioner (2) | FLHTCUSE3 |
| 4740A | SCREW, cam cover (10) | FLHTCUSE3 | |
| 4 | 4741A | SCREW (8) | FLHTCUSE3 |
| 5 | 6294 | WASHER | FLHTCUSE3 |
| 6 | 8873 | BALL (12) | FLHTCUSE3 |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLHTCUSE3 |
| 8 | 11293 | O-RING | FLHTCUSE3 |
| 9 | 11301 | O-RING (2) | FLHTCUSE3 |
| 10 | 11461 | RETAINING RING | FLHTCUSE3 |
| 11 | 17045-99C | GASKET KIT, cam service | FLHTCUSE3 |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws | FLHTCUSE3 |
| 13 | 25344-99 | BUSHING, crankshaft | FLHTCUSE3 |
| 14 | 25244-99A | GASKET, cam cover | FLHTCUSE3 |
| 15 | 25355-06 | CAM SUPPORT PLATE, w/ bypass valve | FLHTCUSE3 |
| 16 | 25369-01A | CAM COVER (chrome) | FLHTCUSE3 |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT, w/ 25566-06, 25673-06, 25675-06 & 25728-06 | FLHTCUSE3 |
| 18 | 25638-07 | CAMSHAFT KIT | FLHTCUSE3 |
| 19 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHTCUSE3 |
| 20 | 25675-06 | CHAIN, primary cam drive | FLHTCUSE3 |
| 21 | 25683-06 | CHAIN, secondary cam drive | FLHTCUSE3 |
| 22 | 25728-06 | SPROCKET, cam drive, 34 T | FLHTCUSE3 |
| 23 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHTCUSE3 |
| 24 | 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHTCUSE3 |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHTCUSE3 | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHTCUSE3 | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHTCUSE3 | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHTCUSE3 | |
| 25 | 26037-06 | OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06, & 40323-00 | FLHTCUSE3 |
| 26 | 26210-99 | SPRING, relief valve | FLHTCUSE3 |
| 27 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHTCUSE3 |
| 28 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHTCUSE3 |
| 29 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHTCUSE3 |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLHTCUSE3 |
| 31 | 32578-07 | COVER, timer cover (chrome) | FLHTCUSE3 |
| 32 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHTCUSE3 |
| 33 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHTCUSE3 |
| 34 | 40323-00 | SPRING, separator | FLHTCUSE3 |
| 35 | 68120-00 | SCREW (5) | FLHTCUSE3 |
CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHTCUSE3 |
| 2 | 942 | SCREW, primary cam chain tensioner (2) | FLHTCUSE3 |
| 3 | 4740A | SCREW, cam cover (10) | FLHTCUSE3 |
| 4740A | SCREW, secondary cam tensioner (2) | FLHTCUSE3 | |
| 4 | 4741A | SCREW (8) | FLHTCUSE3 |
| 5 | 6294 | WASHER | FLHTCUSE3 |
| 6 | 8873 | BALL (12) | FLHTCUSE3 |
| 7 | 9215 | NEEDLE BEARING, camshaft (2) | FLHTCUSE3 |
| 8 | 11293 | O-RING | FLHTCUSE3 |
| 9 | 11301 | O-RING (2) | FLHTCUSE3 |
| 10 | 11461 | RETAINING RING | FLHTCUSE3 |
| 11 | 17045-99C | GASKET KIT, cam service | FLHTCUSE3 |
| 12 | 25566-06 | CAM DRIVE SPROCKET RETENTION KIT, w/ 6294 & screws | FLHTCUSE3 |
| 13 | 25344-99 | BUSHING, crankshaft | FLHTCUSE3 |
| 14 | 25244-99A | GASKET, cam cover | FLHTCUSE3 |
| 15 | 25355-06 | CAM SUPPORT PLATE, w/ bypass valve | FLHTCUSE3 |
| 16 | 25369-01A | CAM COVER (chrome) | FLHTCUSE3 |
| 17 | 25585-06 | CAMSHAFT CHAIN & FASTENER KIT | FLHTCUSE3 |
| 18 | 24608-07A | CAMSHAFT KIT, front | FLHTCUSE3 |
| 19 | 25590-07A | CAMSHAFT KIT, rear | FLHTCUSE3 |
| 20 | 25673-06 | SPROCKET, cam drive on crankshaft, 17 T | FLHTCUSE3 |
| 21 | 25675-06 | CHAIN, primary cam drive | FLHTCUSE3 |
| 22 | 25683-06 | CHAIN, secondary cam drive | FLHTCUSE3 |
| 23 | 25728-06 | SPROCKET, cam drive, 34 T | FLHTCUSE3 |
| 24 | 25729-06 | SPACER, cam drive sprocket alignment 0.100 in. thick (use as required) | FLHTCUSE3 |
| 25 | 25731-06 | SPACER, cam drive sprocket alignment 0.110 in. thick (use as required) | FLHTCUSE3 |
| 25734-06 | SPACER, cam drive sprocket alignment 0.120 in. thick (use as required) | FLHTCUSE3 | |
| 25736-06 | SPACER, cam drive sprocket alignment 0.130 in. thick (use as required) | FLHTCUSE3 | |
| 25737-06 | SPACER, cam drive sprocket alignment 0.140 in. thick (use as required) | FLHTCUSE3 | |
| 25738-06 | SPACER, cam drive sprocket alignment 0.150 in. thick (use as required) | FLHTCUSE3 | |
| 26 | 26037-06 | OIL PUMP ASSEMBLY, w/ body, both gerotor assemblies, & separator plate | FLHTCUSE3 |
| 27 | 26210-99 | SPRING, relief valve | FLHTCUSE3 |
| 28 | 26278-06 | GEROTOR ASSEMBLY, scavenge | FLHTCUSE3 |
| 29 | 26281-06 | GEROTOR ASSEMBLY, pressure | FLHTCUSE3 |
| 30 | 26282-06 | SEPARATOR PLATE, gerotor (2) | FLHTCUSE3 |
| 31 | 26400-82B | RELIEF VALVE, oil pump | FLHTCUSE3 |
| 32 | 32543-07 | COVER, timer cover | FLHTCUSE3 |
| 33 | 39968-06 | CHAIN TENSIONER, primary cam drive chain | FLHTCUSE3 |
| 34 | 39969-06 | CHAIN TENSIONER, secondary cam drive chain | FLHTCUSE3 |
| 35 | 40323-00 | SPRING, separator | FLHTCUSE3 |
| 36 | 68120-00 | SCREW (5) | FLHTCUSE3 |
| NOTE: FLHT3-CVO Sold in Japan market only feature Twin Cam 96™ Parts Listed Below | |||

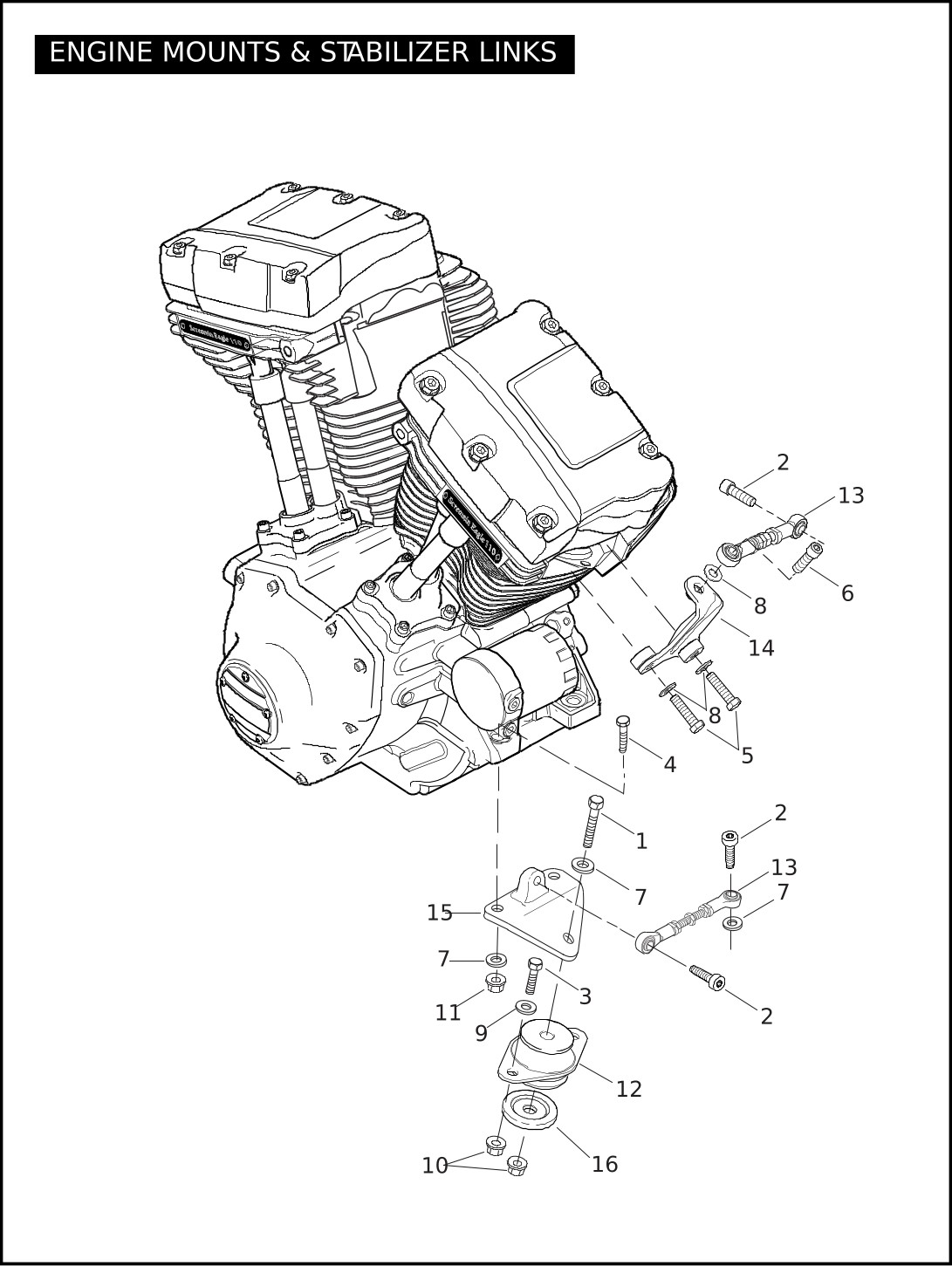

ENGINE MOUNTS & STABILIZER LINKS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3512 | BOLT | FLHTCUSE3 |
| 2 | 4313 | SCREW (3) | FLHTCUSE3 |
| 3 | 4319 | BOLT (2) | FLHTCUSE3 |
| 4 | 4648 | SCREW (2) | FLHTCUSE3 |
| 5 | 4721 | BOLT (2) | FLHTCUSE3 |
| 6 | 4775 | SCREW | FLHTCUSE3 |
| 7 | 6019 | WASHER (4) | FLHTCUSE3 |
| 8 | 6127 | WASHER (3) | FLHTCUSE3 |
| 9 | 6400HB | WASHER (2) | FLHTCUSE3 |
| 10 | 7780 | LOCKNUT, flange locking (3) | FLHTCUSE3 |
| 11 | 7783 | NUT (2) | FLHTCUSE3 |
| 12 | 16207-79D | ENGINE MOUNT, front | FLHTCUSE3 |
| 13 | 16219-79C | STABLIZER LINK (2) | FLHTCUSE3 |
| 14 | 16321-08 | WELDMENT, engine strap | FLHTCUSE3 |
| 15 | 47159-07BHP | BRACKET, front engine mount | FLHTCUSE3 |
| 16 | 96210-80A | WASHER | FLHTCUSE3 |

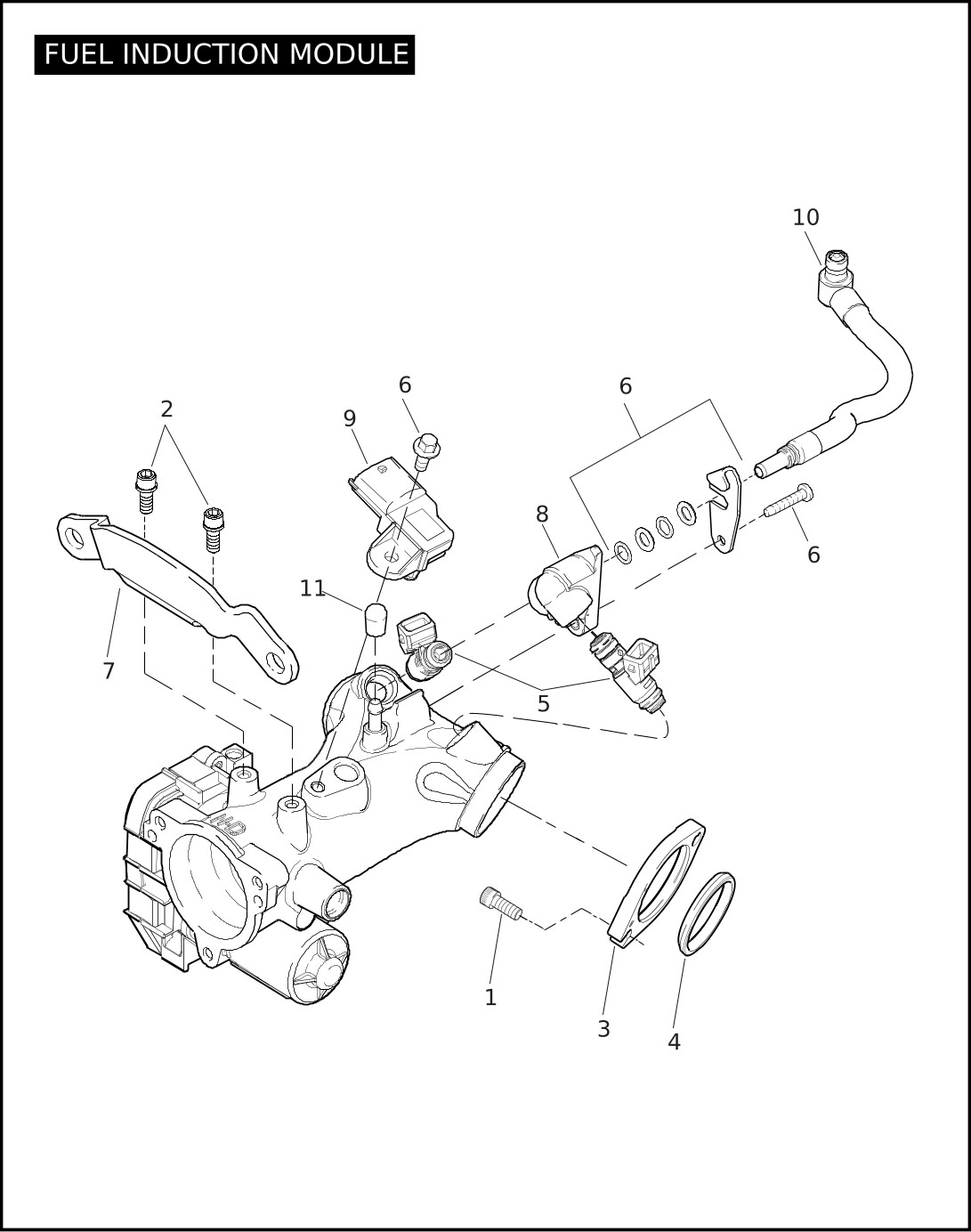

FUEL INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHTCUSE3 |
| 2 | 4705 | SCREW (2) | FLHTCUSE3 |
| 3 | 26993-06 | FLANGE, mounting (2) | FLHTCUSE3 |
| 4 | 26995-86B | SEAL, intake manifold (2) | FLHTCUSE3 |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHTCUSE3 |
| 27685-08 | INDUCTION MODULE ASSEMBLY, complete | FLHTCUSE3 | |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHTCUSE3 |
| 7 | 27712-08 | BRACKET, induction module | FLHTCUSE3 |
| 8 | 27721-08 | FUEL RAIL | FLHTCUSE3 |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLHTCUSE3 |
| 10 | 62905-08 | FUEL LINE | FLHTCUSE3 |
| 11 | 90383-98 | CAP, purge tube | FLHTCUSE3 |

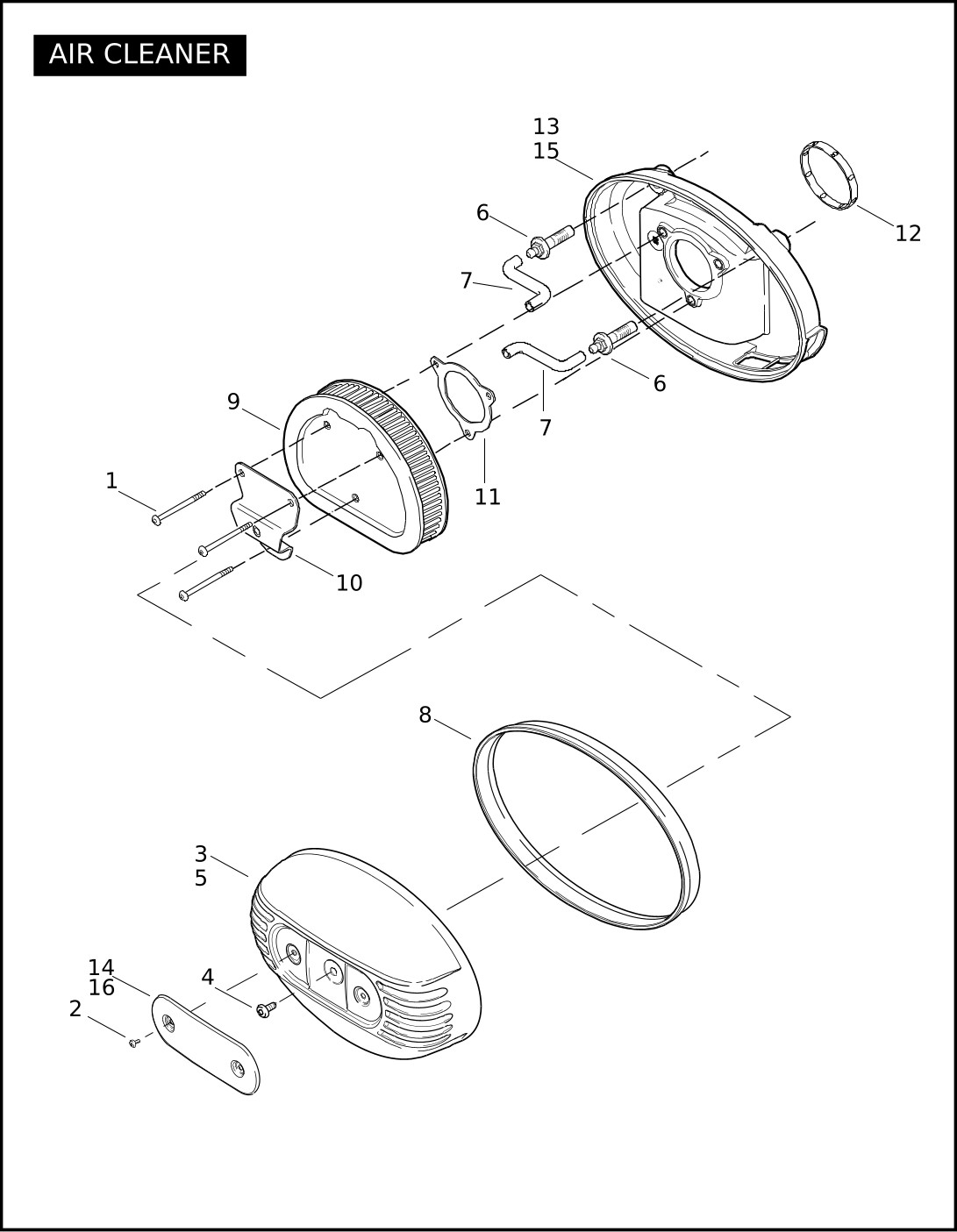

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW, bracket (3) | FLHTCUSE3 |
| 2 | 3048 | SCREW (2) | FLHTCUSE3 |
| 3 | 29127-95B | WARNING LABEL, air cleaner (chrome) | FLHTCUSE3 |
| 4 | 29269-83A | SCREW, air cleaner | FLHTCUSE3 |
| 5 | 29353-05 | COVER, air cleaner (chrome) | FLHTCUSE3 |
| 6 | 29465-08 | BOLT, breather (2) | FLHTCUSE3 |
| 7 | 29502-08 | TUBE, breather (2) | FLHTCUSE3 |
| 8 | 29584-01 | SEAL, cover, air cleaner | FLHTCUSE3 |
| 9 | 29633-08 | ELEMENT, air filter, w/ 29645-08 | FLHTCUSE3 |
| 10 | 29644-08 | BRACKET, air cleaner cover | FLHTCUSE3 |
| 11 | 29645-08 | GASKET, filter element | FLHTCUSE3 |
| 12 | 29718-08 | GASKET, induction module to backplate | FLHTCUSE3 |
| 13 | 29764-08 | BACKPLATE ASSEMBLY, air cleaner | FLHTCUSE3 |
| 14 | 29895-08 | INSERT, air cleaner cover, crystal copper text | FLHTCUSE3 |
| 30026-08 | INSERT, air cleaner cover, silver text | FLHTCUSE3 | |
| INTERNATIONAL MODELS ONLY | |||
| 15 | 29630-08 | BACKPLATE ASSEMBLY, air cleaner (HDI & Japan) | FLHTCUSE3 |
| 16 | 29821-06 | INSERT, air cleaner cover (Japan) | FLHTCUSE3 |

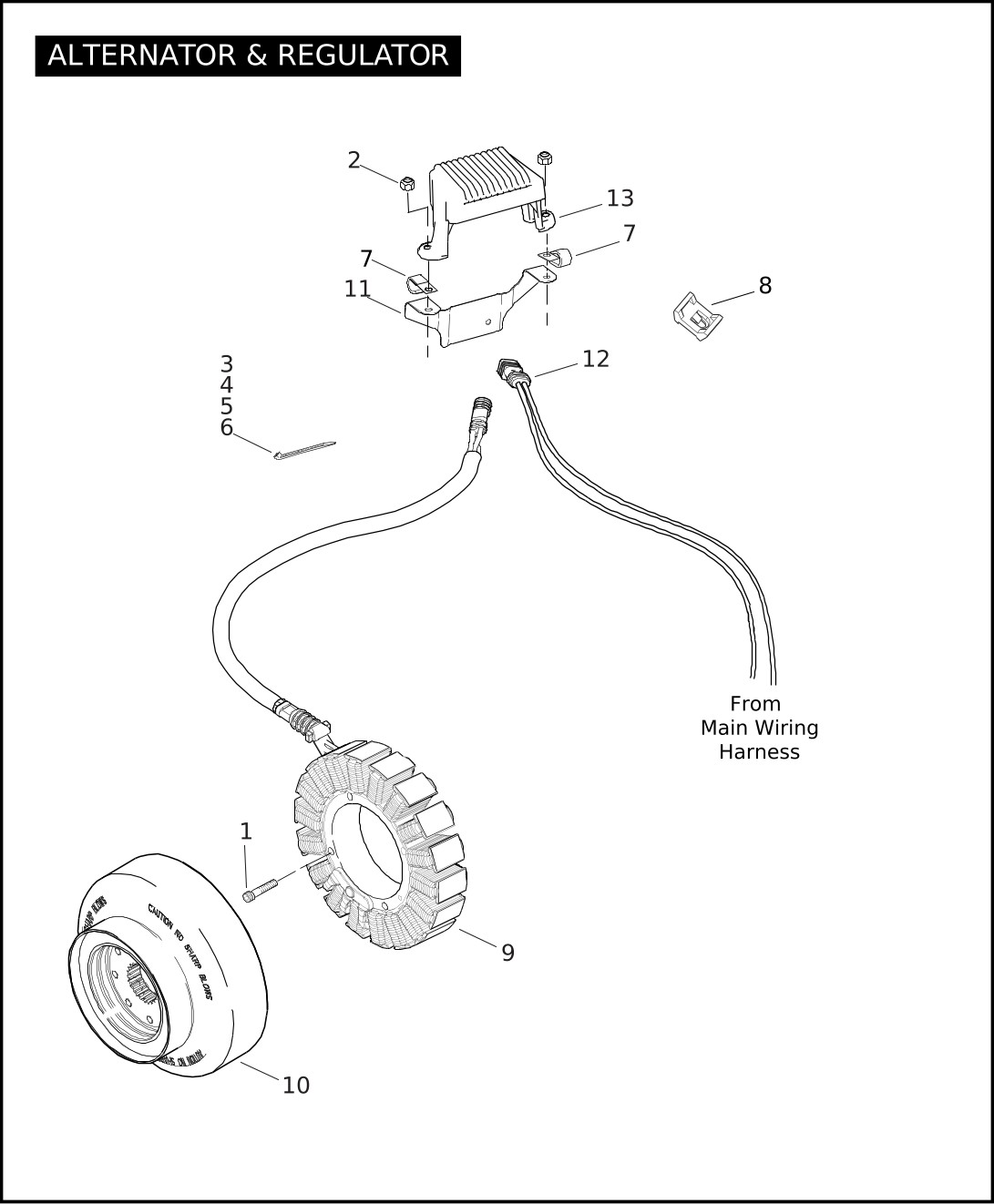

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (4) | FLHTCUSE3 |
| 2 | 7716 | LOCKNUT (2) | FLHTCUSE3 |
| 3 | 10006 | CABLE STRAP | FLHTCUSE3 |
| 4 | 10039 | CABLE STRAP (3) | FLHTCUSE3 |
| 5 | 10065 | CABLE STRAP | FLHTCUSE3 |
| 6 | 10073 | CABLE STRAP (2) | FLHTCUSE3 |
| 7 | 10092 | CLAMP, J (2) | FLHTCUSE3 |
| 8 | 10132 | CLIP, anchor (2) | FLHTCUSE3 |
| 24009-06 | SPACER, sprocket shaft (not illustrated) | FLHTCUSE3 | |
| 9 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLHTCUSE3 |
| 10 | 40356-07 | ROTOR ASSEMBLY, 3-phase | FLHTCUSE3 |
| 11 | 70430-07 | BRACKET ASSEMBLY | FLHTCUSE3 |
| 12 | 74115-06 | DC LEAD ASSEMBLY | FLHTCUSE3 |
| 13 | 74622-06 | VOLTAGE REGULATOR KIT, 45 AMP, w/ 10006 (chrome) | FLHTCUSE3 |

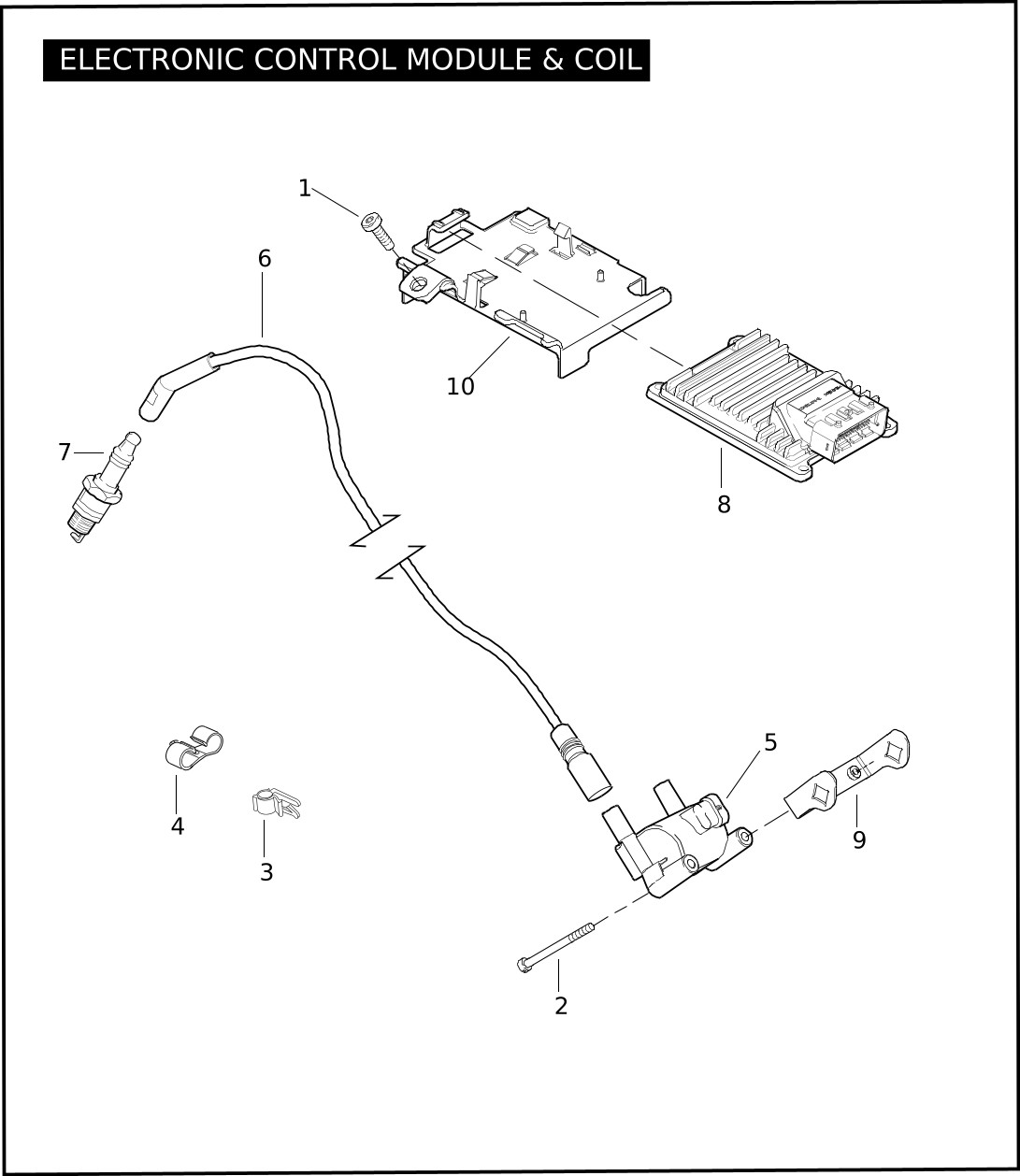

ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW | FLHTCUSE3 |
| 2 | 4717A | SCREW (2) | FLHTCUSE3 |
| 3 | 10110 | CLIP, single, rear wire (2) | FLHTCUSE3 |
| 4 | 10113 | CLIP, double | FLHTCUSE3 |
| 5 | 31696-07A | IGNITION COIL | FLHTCUSE3 |
| 6 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | FLHTCUSE3 |
| 7 | 32362-04 | SPARK PLUG, 6R12 (2) | FLHTCUSE3 |
| 8 | 34246-08 | ELECTRONIC CONTROL MODULE, blank (service) | FLHTCUSE3 |
| 9 | 47420-08 | BRACKET, coil | FLHTCUSE3 |
| 10 | 70344-08 | CADDY, electronic control module (ECM) | FLHTCUSE3 |
| Requires digital tech programming | |||

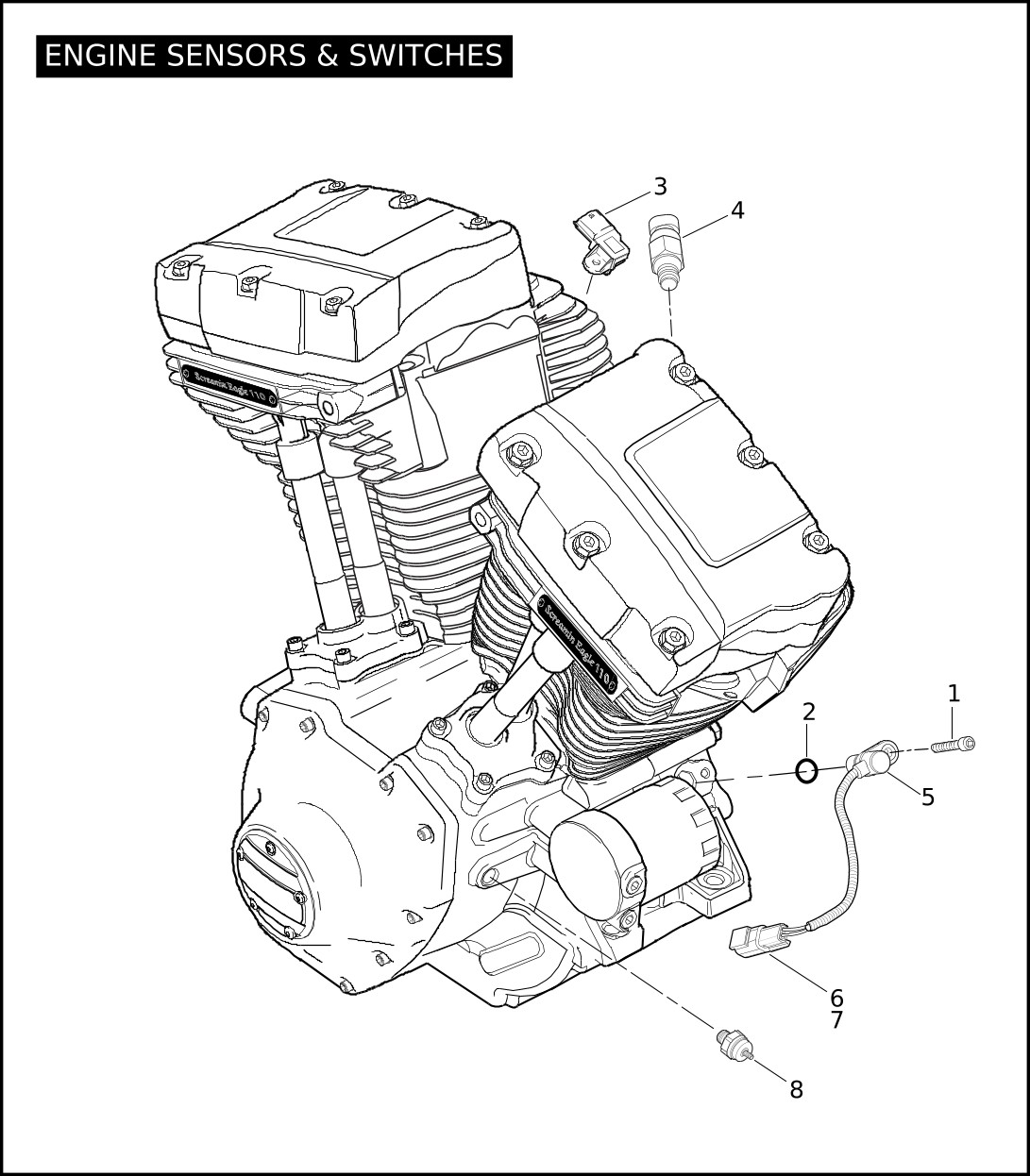

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | FLHTCUSE3 |
| 2 | 11289A | O-RING | FLHTCUSE3 |
| 3 | 32319-07 | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTCUSE3 |
| 4 | 32446-99 | SENSOR, engine temperature | FLHTCUSE3 |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94, & 74194-98 | FLHTCUSE3 |
| 6 | 72199-94 | CONNECTOR | FLHTCUSE3 |
| 7 | 74194-98 | PIN TERMINAL (2) | FLHTCUSE3 |
| 8 | 74438-99 | OIL PRESSURE SENDER | FLHTCUSE3 |

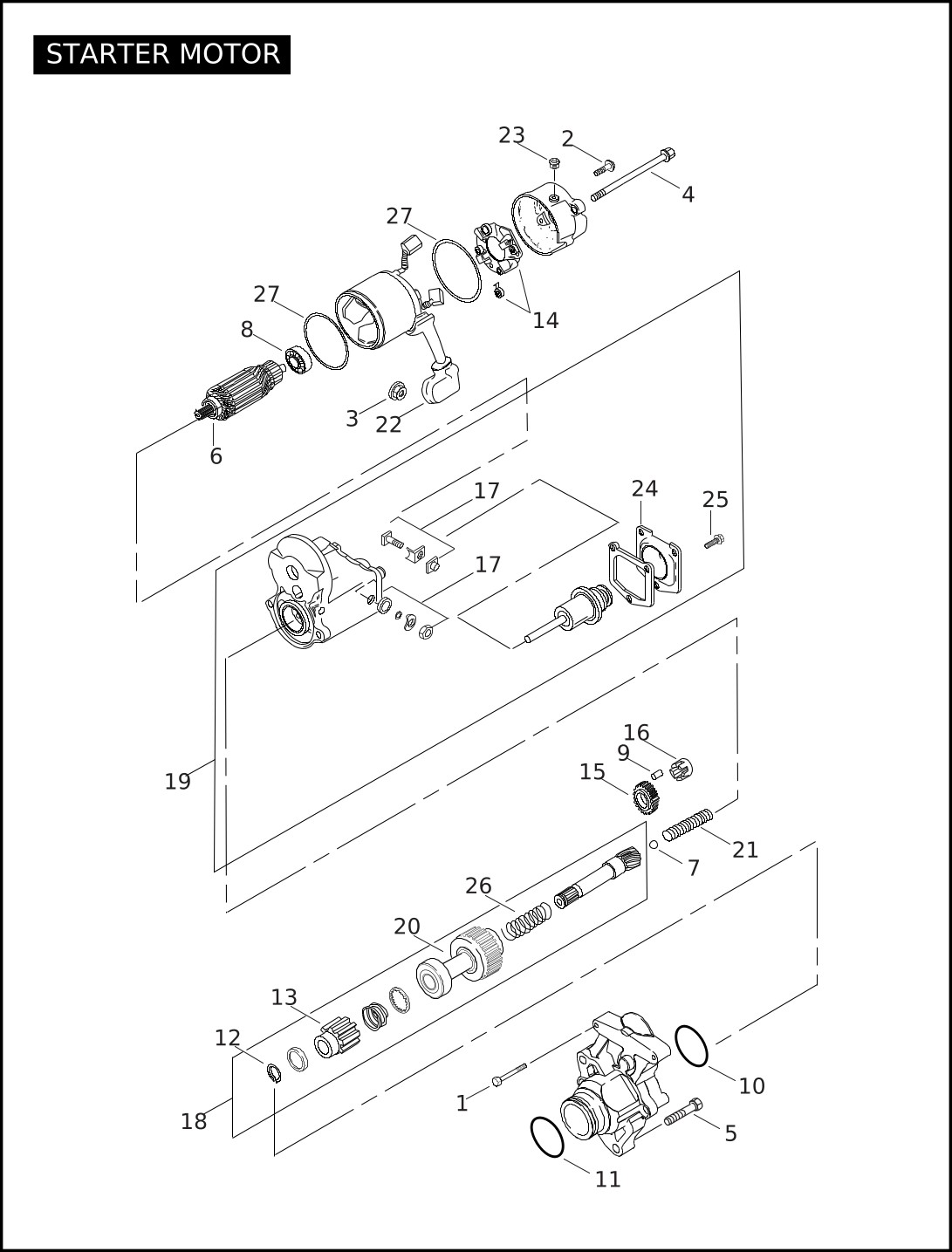

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 928 | BOLT, starter (chrome) (2) | FLHTCUSE3 |
| 2 | 929A | SCREW (2) | FLHTCUSE3 |
| 3 | 3403 | LOCKNUT, flange | FLHTCUSE3 |
| 4 | 3624 | BOLT, starter | FLHTCUSE3 |
| 5 | 4615 | SCREW, starter mount (2) | FLHTCUSE3 |
| 6 | 8871 | BALL BEARING | FLHTCUSE3 |
| 7 | 8879 | BALL | FLHTCUSE3 |
| 8 | 8883 | BALL BEARING | FLHTCUSE3 |
| 9 | 9077 | CLUTCH ROLLER (5) | FLHTCUSE3 |
| 10 | 10957 | O-RING | FLHTCUSE3 |
| 11 | 27444-00Y | O-RING, starter-to-case | FLHTCUSE3 |
| 12 | 31328-91 | RING, snap | FLHTCUSE3 |
| 13 | 31345-06 | GEAR, pinion | FLHTCUSE3 |
| 14 | 31542-06 | BRUSH HOLDER ASSEMBLY, w/ springs | FLHTCUSE3 |
| 15 | 31525-90 | IDLER GEAR | FLHTCUSE3 |
| 16 | 31530-90 | RETAINER, idler | FLHTCUSE3 |
| 17 | 31604-06 | SOLENOID REPAIR KIT | FLHTCUSE3 |
| 31619-06A | STARTER ASSEMBLY COMPLETE (black) | FLHTCUSE3 | |
| 18 | 31633-07 | CLUTCH SUBASSEMBLY | FLHTCUSE3 |
| 19 | 31631-06 | SOLENOID ASSEMBLY | FLHTCUSE3 |
| 20 | 31681-07 | CLUTCH, starter | FLHTCUSE3 |
| 21 | 31641-06 | SPRING, solenoid | FLHTCUSE3 |
| 22 | 31643-06 | CAP, terminal, rubber | FLHTCUSE3 |
| 23 | 31660-90 | DRAIN VENT | FLHTCUSE3 |
| 24 | 31688-90 | COVER, solenoid | FLHTCUSE3 |
| 25 | 31689-90 | BOLT, w/ washer (3) | FLHTCUSE3 |
| 26 | 31692-90 | SPRING | FLHTCUSE3 |
| 27 | 31695-90 | O-RING (2) | FLHTCUSE3 |

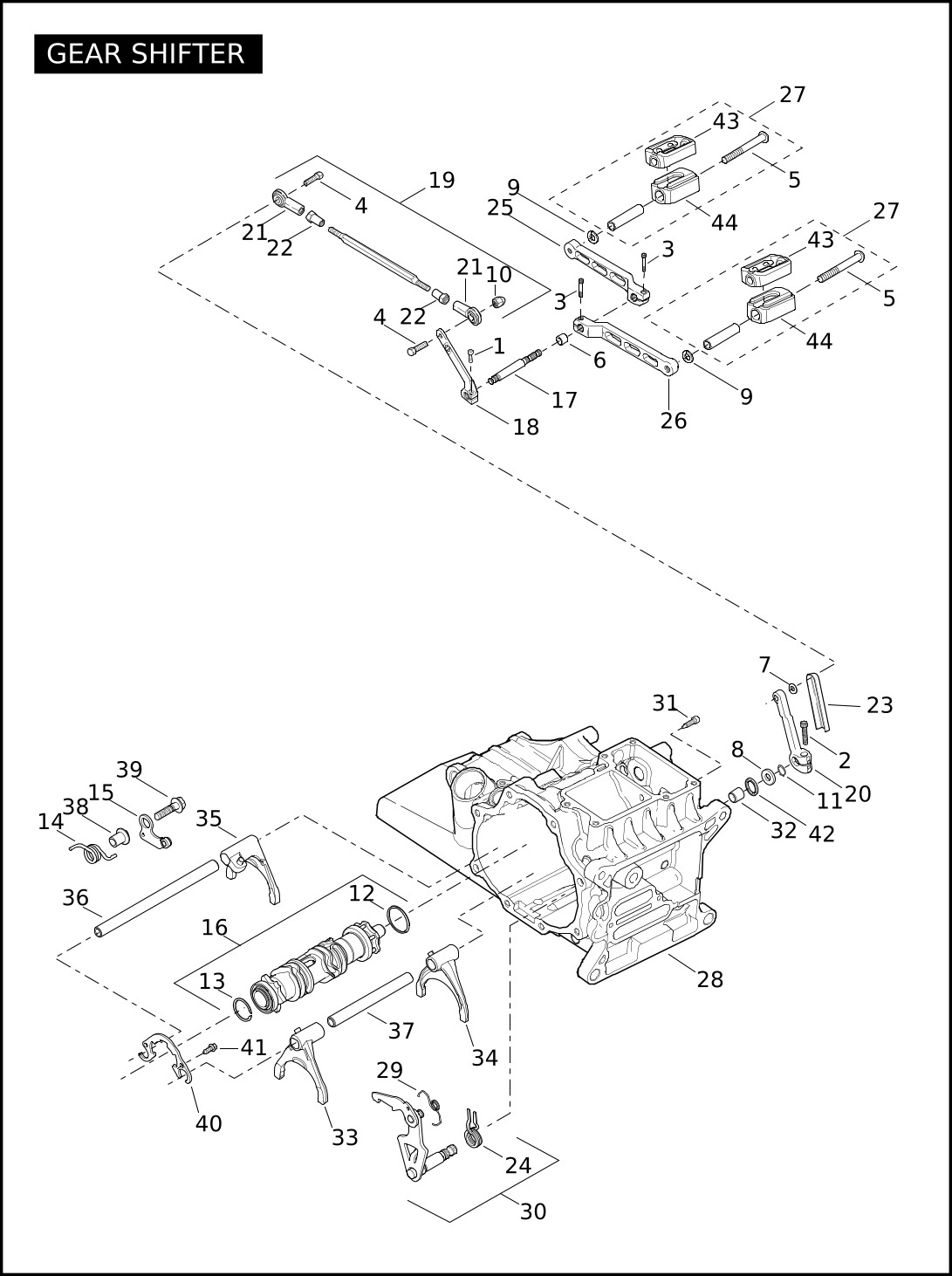

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHTCUSE3 |
| 2 | 856A | SCREW | FLHTCUSE3 |
| 3 | 3275 | SCREW (2) | FLHTCUSE3 |
| 4 | 4192 | SCREW (2) | FLHTCUSE3 |
| 5 | 4196 | SCREW | FLHTCUSE3 |
| 6 | 5817 | SPACER | FLHTCUSE3 |
| 7 | 5826 | SPACER, shifter cover | FLHTCUSE3 |
| 8 | 6497HW | WASHER | FLHTCUSE3 |
| 9 | 7041 | LOCKWASHER (2) | FLHTCUSE3 |
| 10 | 7904 | ACORN NUT (polished stainless steel) | FLHTCUSE3 |
| 11 | 11150 | RING, retaining, external | FLHTCUSE3 |
| 12 | 11389 | RING, shift cam retaining | FLHTCUSE3 |
| 13 | 11575 | RING, shift cam retaining | FLHTCUSE3 |
| 14 | 33389-07 | SPRING DETENT | FLHTCUSE3 |
| 15 | 33409-06B | DETENT ARM ASSEMBLY, w/ 33389-07 | FLHTCUSE3 |
| 16 | 33413-06A | SHIFTER CAM ASSEMBLY, w/ 11389, 11575 & bearing | FLHTCUSE3 |
| 17 | 33709-82A | SHAFT | FLHTCUSE3 |
| 18 | 33718-82B | LEVER, gearshift (chrome) | FLHTCUSE3 |
| 19 | 33819-98A | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904, 33888-99, 33889-99, & 33890-99A | FLHTCUSE3 |
| 20 | 33849-97 | LEVER, shifter rod | FLHTCUSE3 |
| 21 | 33888-99 | ROD END, self-aligning (polished stainless steel) (2) | FLHTCUSE3 |
| 22 | 33889-99 | NUT, rod-end (polished stainless steel) (2) | FLHTCUSE3 |
| 23 | 33890-99A | COVER, shifter rod | FLHTCUSE3 |
| 24 | 34064-00C | SPRING, shifter return | FLHTCUSE3 |
| 25 | 34532-00B | LEVER, shifter heel (chrome) | FLHTCUSE3 |
| 26 | 34568-00B | LEVER, shifter toe (chrome) | FLHTCUSE3 |
| 27 | 34720-07 | SHIFTER PEG KIT, Ironside w/ 4196, 49292-07, 49295-07, 94081-90T, & spacer tube (2) | FLHTCUSE3 |
| 28 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 34740-07A | TRANSMISSION CASE SUBASSEMBLY (Japan) (black) | FLHTCUSE3 | |
| 29 | 34987-06 | SPRING, ratchet lever | FLHTCUSE3 |
| 30 | 35081-06 | SHIFT MECHANISM, w/ 34064-00C & 34987-06 | FLHTCUSE3 |
| 31 | 35082-07 | CENTERING SCREW, shift lever | FLHTCUSE3 |
| 32 | 35186-06 | SLEEVE | FLHTCUSE3 |
| 33 | 35187-06 | FORK, shift 1 - 2 | FLHTCUSE3 |
| 34 | 35210-06 | FORK, shift 3 - 4 | FLHTCUSE3 |
| 35 | 35217-06 | FORK, shift 5 - 6 | FLHTCUSE3 |
| 36 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHTCUSE3 |
| 37 | 35223-06 | SHAFT, 1 - 2 & 3 - 4 shift fork | FLHTCUSE3 |
| 38 | 35243-06 | SLEEVE | FLHTCUSE3 |
| 39 | 35244-06 | SCREW, detent | FLHTCUSE3 |
| 40 | 35249-06 | LOCK PLATE, shift cam | FLHTCUSE3 |
| 41 | 35259-06 | SCREW, shift drum support (2) | FLHTCUSE3 |
| 42 | 37101-84B | OIL SEAL | FLHTCUSE3 |
| 43 | 49292-07 | CASTING, shifter peg (chrome) (2) | FLHTCUSE3 |
| 44 | 49295-07 | TREAD, shifter peg (2) | FLHTCUSE3 |

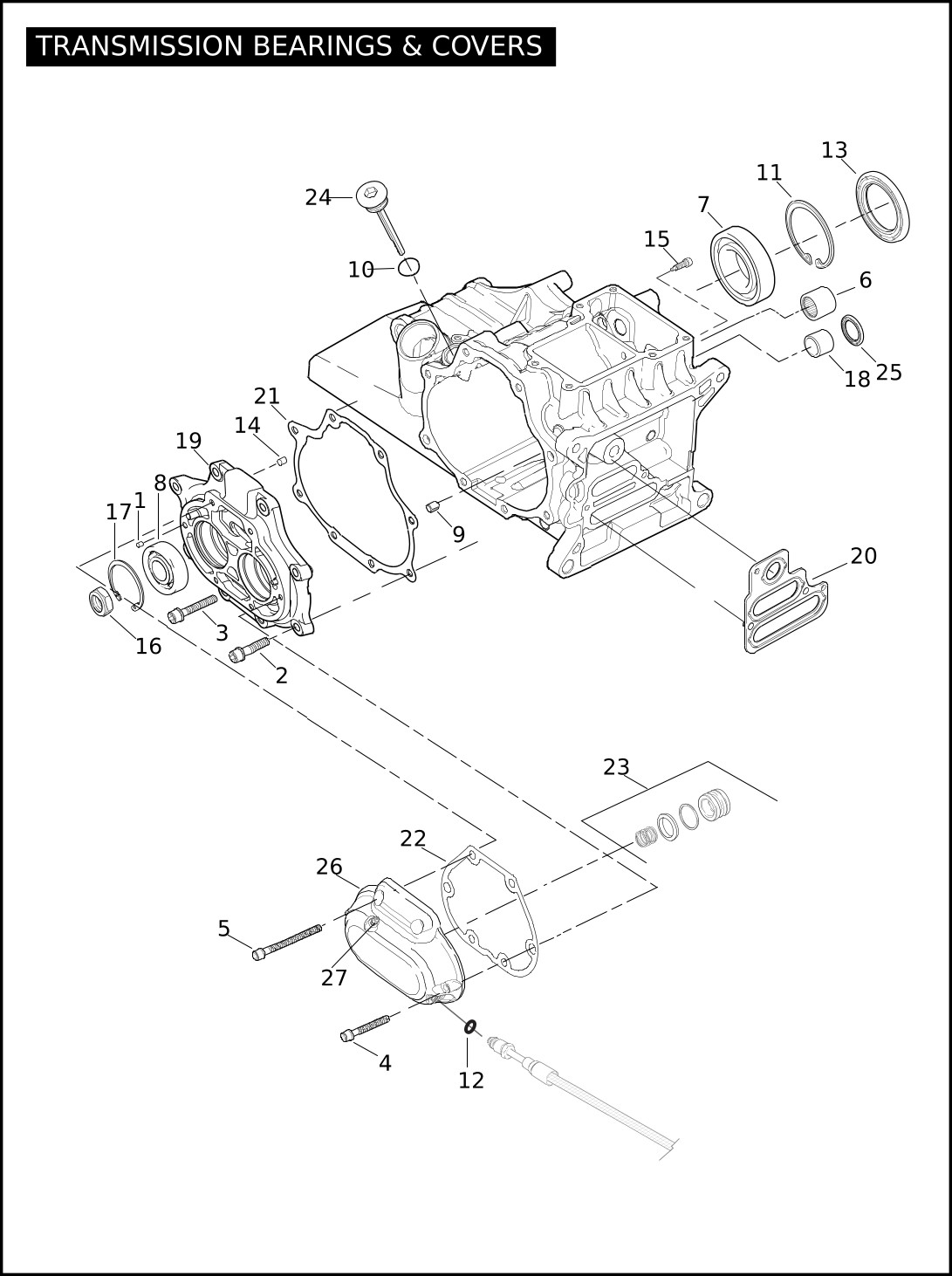

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHTCUSE3 |
| 2 | 3249 | SCREW (6) | FLHTCUSE3 |
| 3 | 3300 | SCREW (2) | FLHTCUSE3 |
| 4 | 4718A | SCREW (4) | FLHTCUSE3 |
| 5 | 4741A | SCREW (3) | FLHTCUSE3 |
| 6 | 8963 | BEARING, needle | FLHTCUSE3 |
| 7 | 8967 | BEARING | FLHTCUSE3 |
| 8 | 8970 | BEARING (2) | FLHTCUSE3 |
| 9 | 9701 | BUSHING | FLHTCUSE3 |
| 10 | 11132A | O-RING, dipstick | FLHTCUSE3 |
| 11 | 11161 | RETAINING RING | FLHTCUSE3 |
| 12 | 11348 | O-RING | FLHTCUSE3 |
| 13 | 12074 | SEAL | FLHTCUSE3 |
| 14 | 16583-00A | BUSHING, dowel (2) | FLHTCUSE3 |
| 33140-08 | TRANSMISSION ASSEMBLY, complete (Domestic, Canada & HDI) (chrome & granite) | FLHTCUSE3 | |
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (chrome & black) | FLHTCUSE3 | |
| 15 | 35082-07 | SCREW, centering, shifter lever | FLHTCUSE3 |
| 16 | 35078-79 | NUT, mainshaft & countershaft (2) | FLHTCUSE3 |
| 17 | 35087-99A | RETAINING RING (2) | FLHTCUSE3 |
| 18 | 35186-06 | SLEEVE | FLHTCUSE3 |
| 19 | 35256-08 | BEARING HOUSING ASSEMBLY, w/ 221, 8970, 16583-00A, & 35087-99A (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 35260-06 | BEARING HOUSING ASSEMBLY, w/ 221, 8970, 16583-00A, & 35087-99A (Japan) (black) | FLHTCUSE3 | |
| 20 | 35607-06 | GASKET | FLHTCUSE3 |
| 21 | 35654-06 | GASKET, bearing housing | FLHTCUSE3 |
| 22 | 36805-06 | GASKET, cover | FLHTCUSE3 |
| 23 | 36822-04 | SLAVE CYLINDER KIT | FLHTCUSE3 |
| 24 | 37065-06 | DIPSTICK (chrome) | FLHTCUSE3 |
| 25 | 37101-84B | OIL SEAL | FLHTCUSE3 |
| 26 | 37137-07 | SIDE COVER, transmission (chrome) includes bleed screw and clutch piston | FLHTCUSE3 |
| 27 | 43817-02 | CAP, bleeder screw | FLHTCUSE3 |

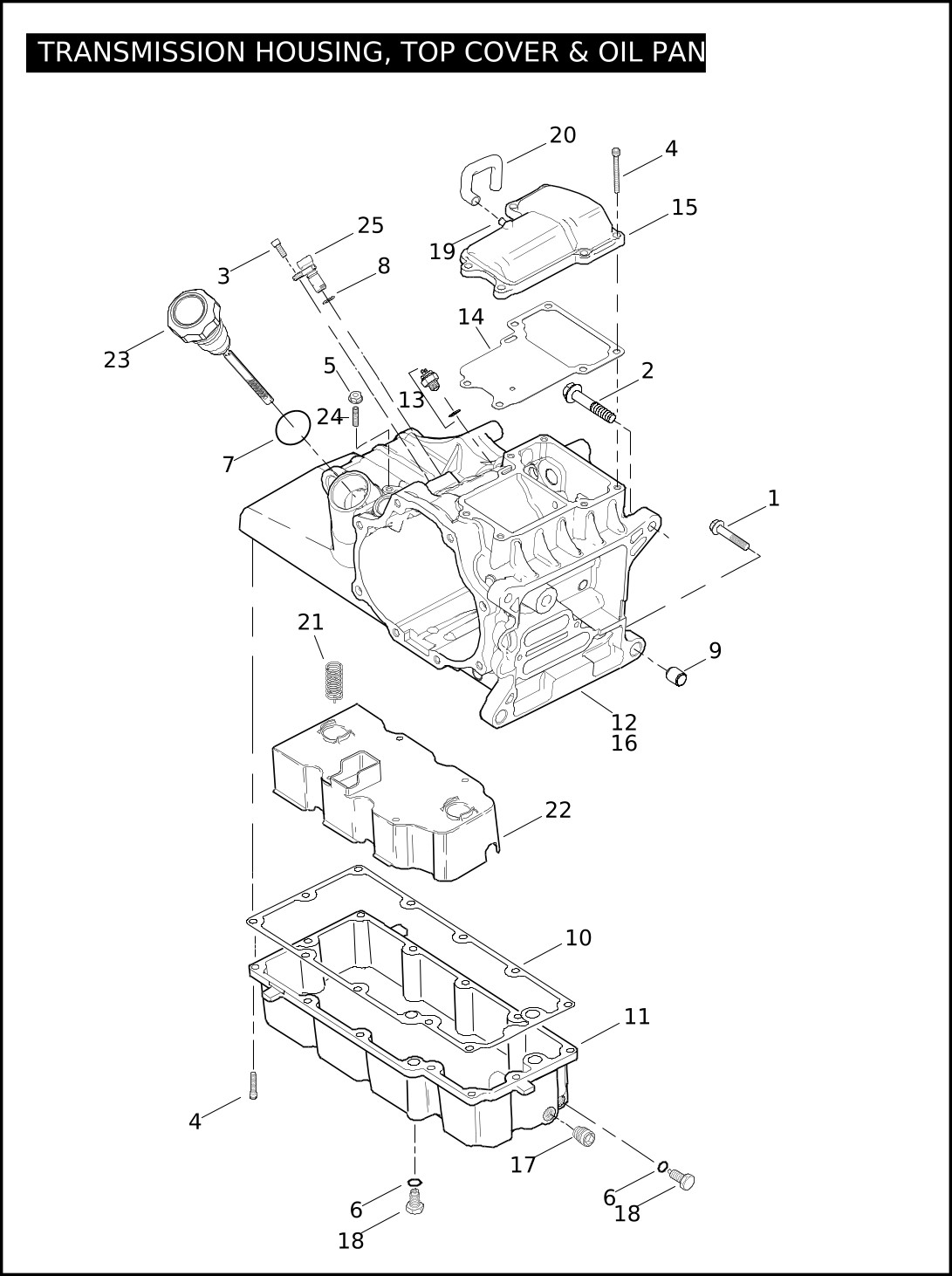

TRANSMISSION HOUSING, TOP COVER & OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHTCUSE3 |
| 2 | 3983 | SCREW (2) | FLHTCUSE3 |
| 3 | 4705 | SCREW | FLHTCUSE3 |
| 4 | 4741A | SCREW (18) | FLHTCUSE3 |
| 5 | 7792 | NUT | FLHTCUSE3 |
| 6 | 11105 | O-RING (2) | FLHTCUSE3 |
| 7 | 11120 | O-RING | FLHTCUSE3 |
| 8 | 11289A | O-RING | FLHTCUSE3 |
| 9 | 16574-99A | DOWEL PIN (2) | FLHTCUSE3 |
| 10 | 26077-99A | GASKET, oil pan | FLHTCUSE3 |
| 11 | 26166-08 | OIL PAN ASSEMBLY (Domestic, Canada & HDI) (granite) w/ 45893-99 & 60328-98B | FLHTCUSE3 |
| 62489-99 | OIL PAN ASSEMBLY (Japan) (black) w/ 45893-99 & 60328-98B | FLHTCUSE3 | |
| 12 | 33140-08 | TRANSMISSION ASSEMBLY, complete (Domestic, Canada & HDI) (chrome & granite) | FLHTCUSE3 |
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (chrome & black) | FLHTCUSE3 | |
| 13 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTCUSE3 |
| 14 | 34917-06 | GASKET, upper cover | FLHTCUSE3 |
| 15 | 34469-06A | TRANSMISSION COVER, top (chrome) | FLHTCUSE3 |
| 16 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 34740-07A | TRANSMISSION CASE SUBASSEMBLY (Japan) (black) | FLHTCUSE3 | |
| 17 | 45893-99 | PIPE PLUG | FLHTCUSE3 |
| 18 | 60328-98B | PLUG, magnetic w/ 11105 (2) | FLHTCUSE3 |
| 19 | 62365-06 | FITTING, straight | FLHTCUSE3 |
| 20 | 62367-06A | VENT HOSE, transmission | FLHTCUSE3 |
| 21 | 62828-99 | SPRING, baffle (2) | FLHTCUSE3 |
| 22 | 62830-99 | BAFFLE, serpentine | FLHTCUSE3 |
| 23 | 62693-07 | DIPSTICK ASSEMBLY, w/ 11120 (chrome) | FLHTCUSE3 |
| 24 | 66290-06 | STUD, ground | FLHTCUSE3 |
| 25 | 74402-05 | SPEED SENSOR, w/ 11289A | FLHTCUSE3 |

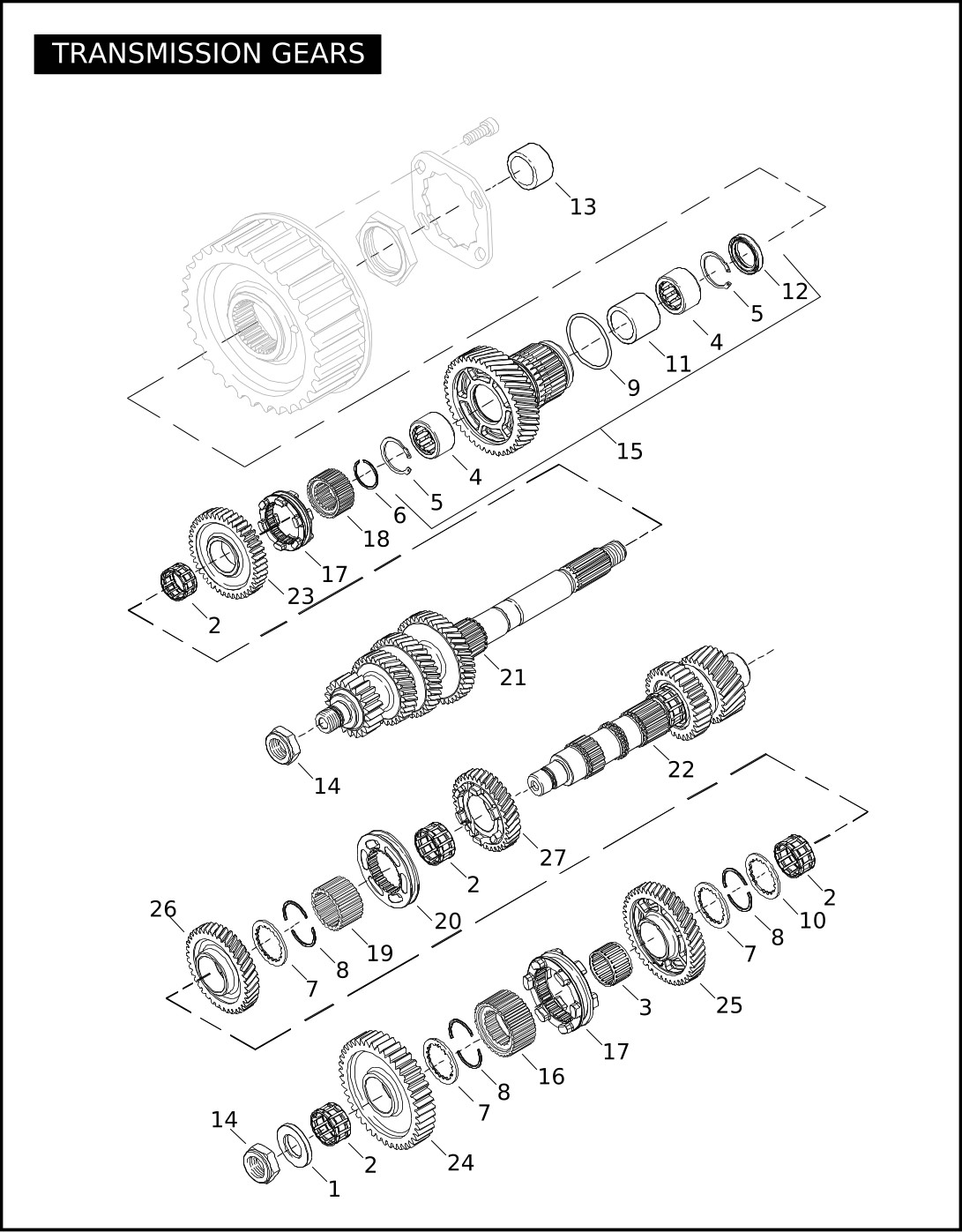

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHTCUSE3 |
| 2 | 8026K | BEARING, needle (4) | FLHTCUSE3 |
| 3 | 8041 | BEARING, needle | FLHTCUSE3 |
| 4 | 8042 | BEARING, needle (2) | FLHTCUSE3 |
| 5 | 10991 | RETAINING RING (2) | FLHTCUSE3 |
| 6 | 11061 | RETAINING RING | FLHTCUSE3 |
| 7 | 11081 | RING, lock (3) | FLHTCUSE3 |
| 8 | 11082 | SECURING SEGMENT (6) | FLHTCUSE3 |
| 9 | 11201 | O-RING | FLHTCUSE3 |
| 10 | 11207 | WASHER, internal spline | FLHTCUSE3 |
| 11 | 11599 | SPACER, bearing | FLHTCUSE3 |
| 12 | 12077 | OIL SEAL | FLHTCUSE3 |
| 13 | 34091-08 | BEARING, inner race | FLHTCUSE3 |
| 14 | 35078-79 | NUT (2) | FLHTCUSE3 |
| 15 | 35122-06 | GEAR ASSEMBLY, driven output, w/ 8042, 10991, 11201, 11599 & 12077 | FLHTCUSE3 |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHTCUSE3 |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHTCUSE3 |
| 18 | 35201-06 | GUIDE HUB, dog ring | FLHTCUSE3 |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHTCUSE3 |
| 20 | 35204-06 | DOG RING, pocketed | FLHTCUSE3 |
| 21 | 35467-08 | INPUT SHAFT | FLHTCUSE3 |
| 22 | 35470-06 | COUNTER SHAFT ASSEMBLY | FLHTCUSE3 |
| 23 | 35801-06 | GEAR, fifth input | FLHTCUSE3 |
| 24 | 35805-06 | GEAR, countershaft-first | FLHTCUSE3 |
| 25 | 35807-06 | GEAR, countershaft-second | FLHTCUSE3 |
| 26 | 35811-06 | GEAR, countershaft-third | FLHTCUSE3 |
| 27 | 35814-06 | GEAR, countershaft-fourth | FLHTCUSE3 |

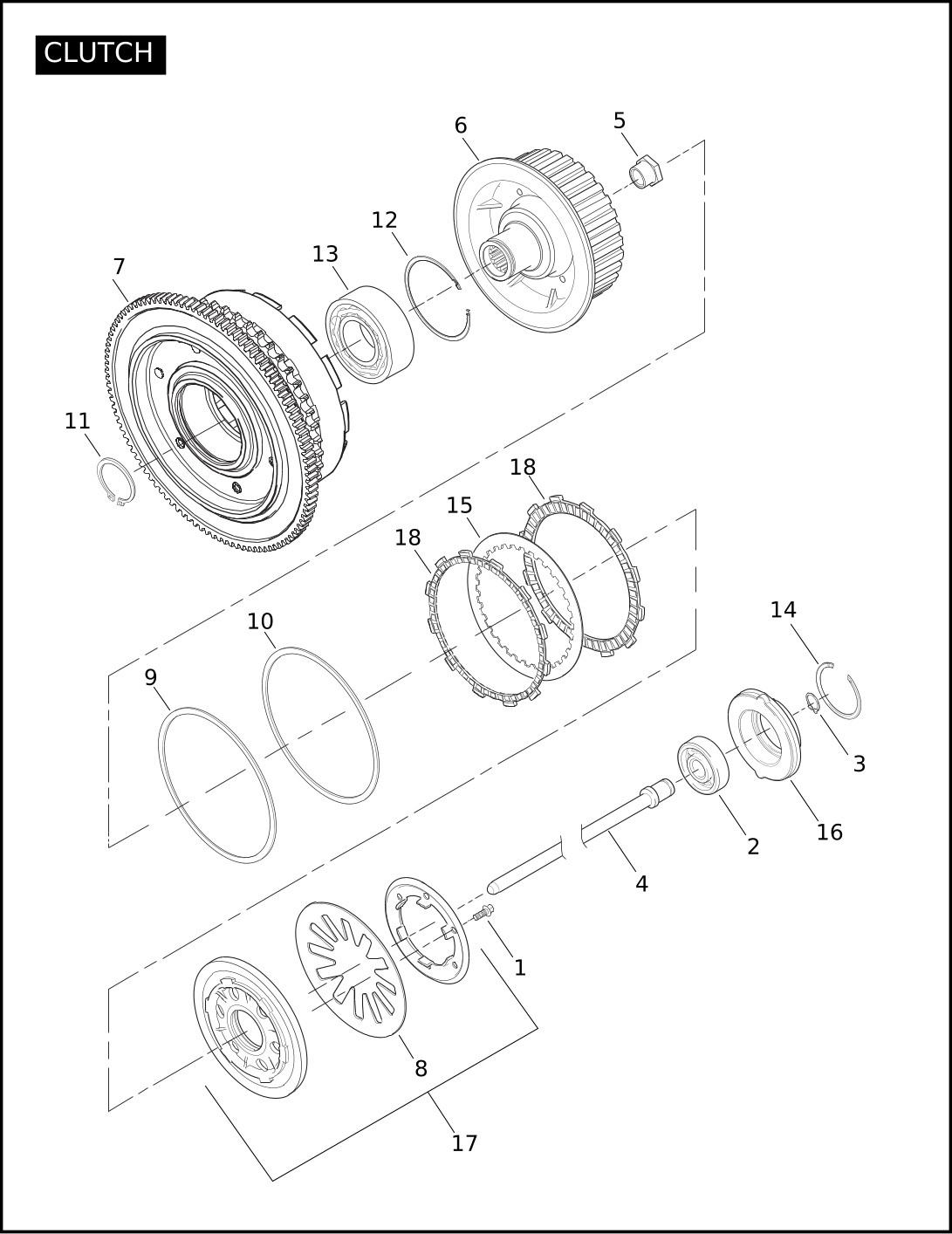

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLHTCUSE3 |
| 2 | 8885 | BEARING | FLHTCUSE3 |
| 3 | 11143 | RING, retaining, external | FLHTCUSE3 |
| 4 | 36819-07 | PUSH ROD, hydraulic-clutch | FLHTCUSE3 |
| 5 | 37496-90A | NUT, mainshaft | FLHTCUSE3 |
| 6 | 37554-06A | HUB ASSEMBLY, clutch, w/ thrust washer & spring washer | FLHTCUSE3 |
| 7 | 37817-07 | CLUTCH ASSEMBLY, complete (includes all parts except 11143 & 36819-07) | FLHTCUSE3 |
| 8 | 37807-03 | SPRING, clutch (pink) | FLHTCUSE3 |
| 9 | 37883-98 | SEAT, damper-spring | FLHTCUSE3 |
| 10 | 37884-98 | SPRING, damper | FLHTCUSE3 |
| 11 | 37904-90 | RING, retaining, external | FLHTCUSE3 |
| 12 | 37905-00 | RING, retaining, internal | FLHTCUSE3 |
| 13 | 37906-90 | BEARING, ball, double-row | FLHTCUSE3 |
| 14 | 37909-90 | RING, retaining, internal | FLHTCUSE3 |
| 15 | 37913-98 | PLATE, clutch (steel) (8) | FLHTCUSE3 |
| 16 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | FLHTCUSE3 |
| 17 | 37927-03 | PRESSURE PLATE KIT, clutch, w/ 37807-03, pressure plate, & spring seat | FLHTCUSE3 |
| 18 | 37932-98 | FRICTION PLATE KIT, clutch (includes all 9 friction plates) | FLHTCUSE3 |

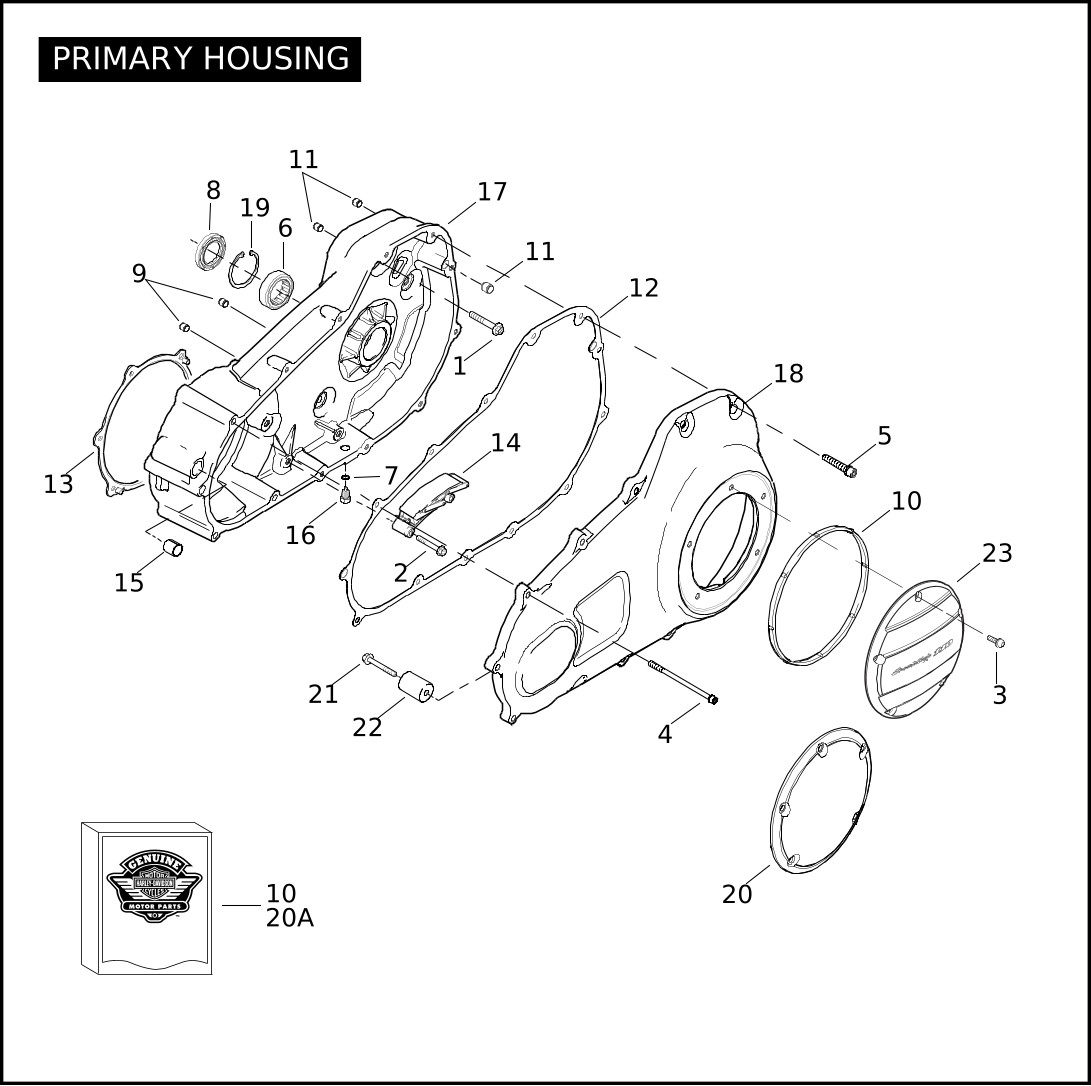

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHTCUSE3 |
| 2 | 791A | SCREW (2) | FLHTCUSE3 |
| 3 | 1062 | SCREW (5) | FLHTCUSE3 |
| 4 | 1780 | SCREW (4) | FLHTCUSE3 |
| 5 | 4813A | SCREW (9) | FLHTCUSE3 |
| 6 | 9231 | BEARING | FLHTCUSE3 |
| 7 | 11105 | O-RING | FLHTCUSE3 |
| 8 | 12052A | SEAL (2) | FLHTCUSE3 |
| 9 | 16583-00A | DOWEL BUSHING (2) | FLHTCUSE3 |
| 10 | 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K), w/ 11105 & seal clutch cover | FLHTCUSE3 |
| 11 | 24754-75A | DOWEL BUSHING, starter (4) | FLHTCUSE3 |
| 12 | 34901-07 | GASKET, primary cover | FLHTCUSE3 |
| 13 | 34948-08 | GASKET, primary housing to case | FLHTCUSE3 |
| 14 | 39929-06A | CHAIN TENSIONER ASSEMBLY | FLHTCUSE3 |
| 15 | 42642-00 | BUSHING (2) | FLHTCUSE3 |
| 16 | 60328-98B | PLUG, magnetic drain w/ 11105 | FLHTCUSE3 |
| 17 | 60850-08 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 60432-07 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (Japan) (black) | FLHTCUSE3 | |
| 18 | 60553-07 | COVER, primary (chrome) | FLHTCUSE3 |
| 19 | 60678-85 | RETAINING RING | FLHTCUSE3 |
| 20 | 60863-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ canyon copper text) | FLHTCUSE3 |
| 60864-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ white frost text) | FLHTCUSE3 | |
| 60865-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ crystal copper text) | FLHTCUSE3 | |
| 20A | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y, 37909-90 | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 797A | SCREW (Japan only) | FLHTCUSE3 |
| 22 | 60818-07 | SLEEVE, dampener (Japan only) | FLHTCUSE3 |
| 23 | 60766-06 | COVER, clutch (Japan) (chrome) | FLHTCUSE3 |

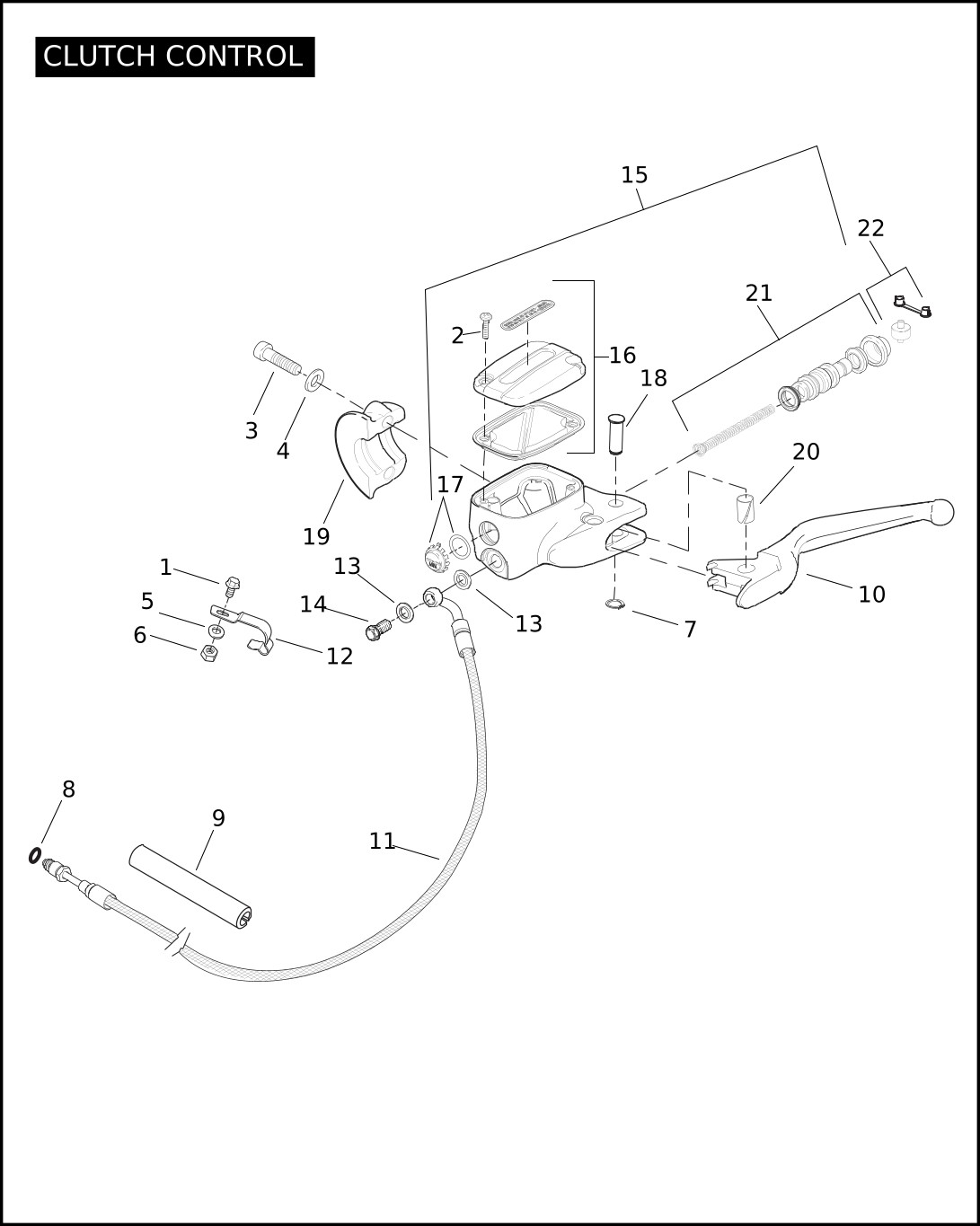

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW | FLHTCUSE3 |
| 2 | 3089 | SCREW (polished stainless steel) (2) | FLHTCUSE3 |
| 3 | 4293 | SCREW (2) | FLHTCUSE3 |
| 4 | 6099 | WASHER (2) | FLHTCUSE3 |
| 5 | 6703 | WASHER | FLHTCUSE3 |
| 6 | 7688 | NUT | FLHTCUSE3 |
| 10039 | STRAP, cable (not illustrated) | FLHTCUSE3 | |
| 7 | 11143 | RING, retaining | FLHTCUSE3 |
| 8 | 11348 | O-RING | FLHTCUSE3 |
| 9 | 28919-04 | TUBING, split | FLHTCUSE3 |
| 10 | 38774-08 | LEVER ASSEMBLY, hand, w/ 11143 & 45423-92 | FLHTCUSE3 |
| 11 | 38881-08 | LINE ASSEMBLY, hydraulic-clutch, w/ 11348 | FLHTCUSE3 |
| 12 | 38901-08 | RETAINER, cable | FLHTCUSE3 |
| 13 | 41751-06A | GASKET, banjo-bolt (2) | FLHTCUSE3 |
| 14 | 42010-06 | BOLT, banjo | FLHTCUSE3 |
| 15 | 42101-06 | MASTER CYLINDER ASSEMBLY, clutch (chrome) | FLHTCUSE3 |
| 16 | 42115-06 | MASTER CYLINDER COVER KIT | FLHTCUSE3 |
| 17 | 42145-06 | SIGHT GLASS KIT | FLHTCUSE3 |
| 18 | 45032-82 | PIN, pivot | FLHTCUSE3 |
| 19 | 45282-99A | CLAMP, master cylinder (chrome) | FLHTCUSE3 |
| 20 | 45423-92 | BUSHING, hand lever | FLHTCUSE3 |
| 21 | 46244-01 | REPAIR KIT, master-cylinder, w/ 11143 | FLHTCUSE3 |
| 22 | 46246-01 | BUSHING & ROLLER KIT | FLHTCUSE3 |

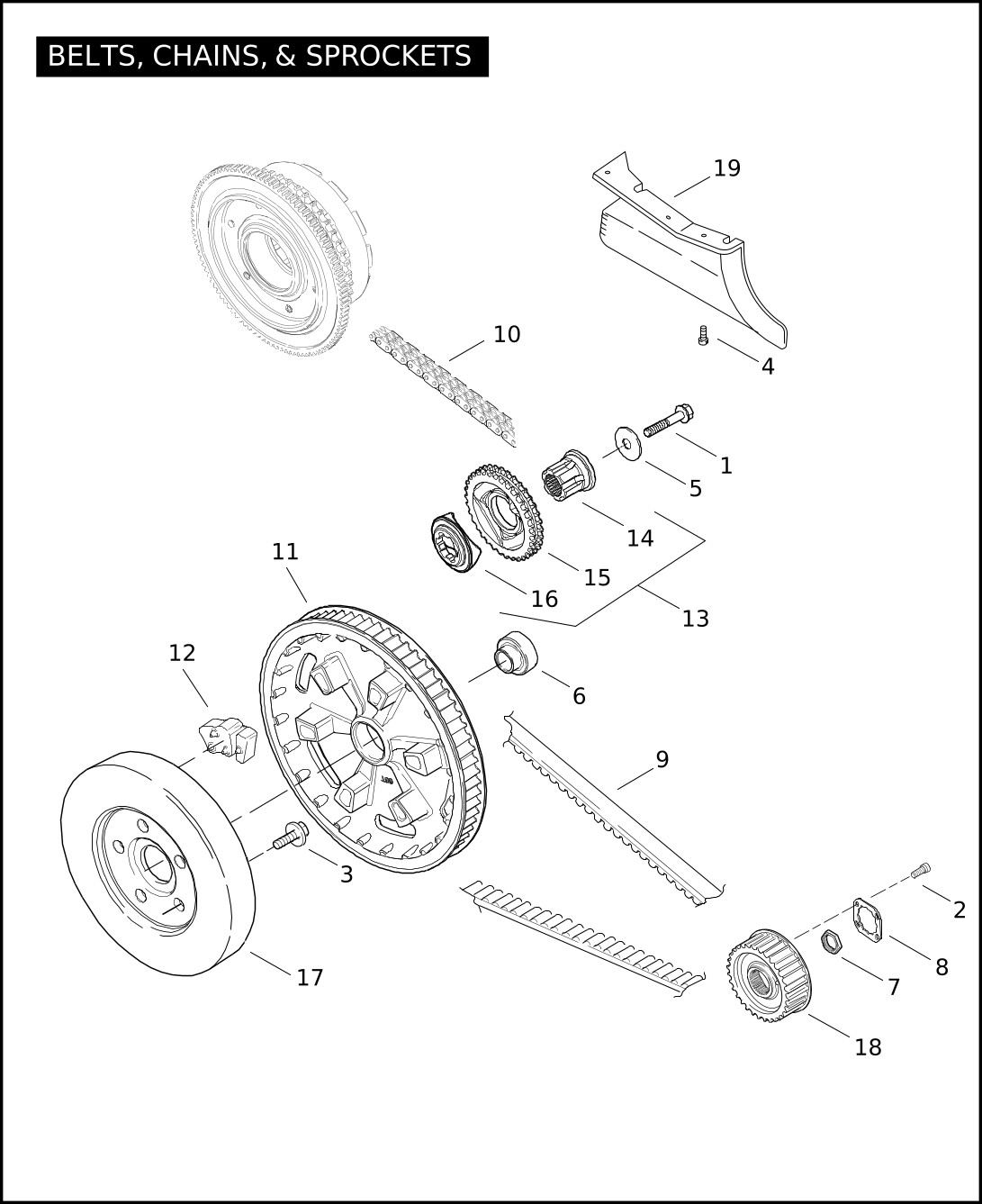

BELTS, CHAINS, & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3368 | SCREW | FLHTCUSE3 |
| 2 | 3594 | SCREW (2) | FLHTCUSE3 |
| 3 | 3814 | SCREW, w/ washer assembly (5) | FLHTCUSE3 |
| 4 | 3892 | SCREW (3) | FLHTCUSE3 |
| 5 | 6445 | WASHER | FLHTCUSE3 |
| 6 | 9285 | BALL BEARING, 2 row, extended race | FLHTCUSE3 |
| 7 | 35241-06 | NUT, sprocket | FLHTCUSE3 |
| 8 | 35242-06 | LOCKPLATE | FLHTCUSE3 |
| 9 | 40024-07 | REAR BELT, 137 T, 1 inch | FLHTCUSE3 |
| 10 | 40037-07 | PRIMARY CHAIN | FLHTCUSE3 |
| 11 | 40265-08 | SPROCKET, rear, 66 T (black) | FLHTCUSE3 |
| 12 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUSE3 |
| 13 | 40296-06 | COMPENSATOR ASSEMBLY | FLHTCUSE3 |
| 14 | 40297-06 | SHAFT EXTENSION | FLHTCUSE3 |
| 15 | 40320-06 | COMPENSATING SPROCKET, 34 T | FLHTCUSE3 |
| 16 | 40333-06 | CAM SLIDER | FLHTCUSE3 |
| 17 | 40560-05 | BOWL, compensator | FLHTCUSE3 |
| 18 | 40659-06 | SPROCKET, transmission, 32 T | FLHTCUSE3 |
| 19 | 60386-04 | DEBRIS DEFLECTOR | FLHTCUSE3 |

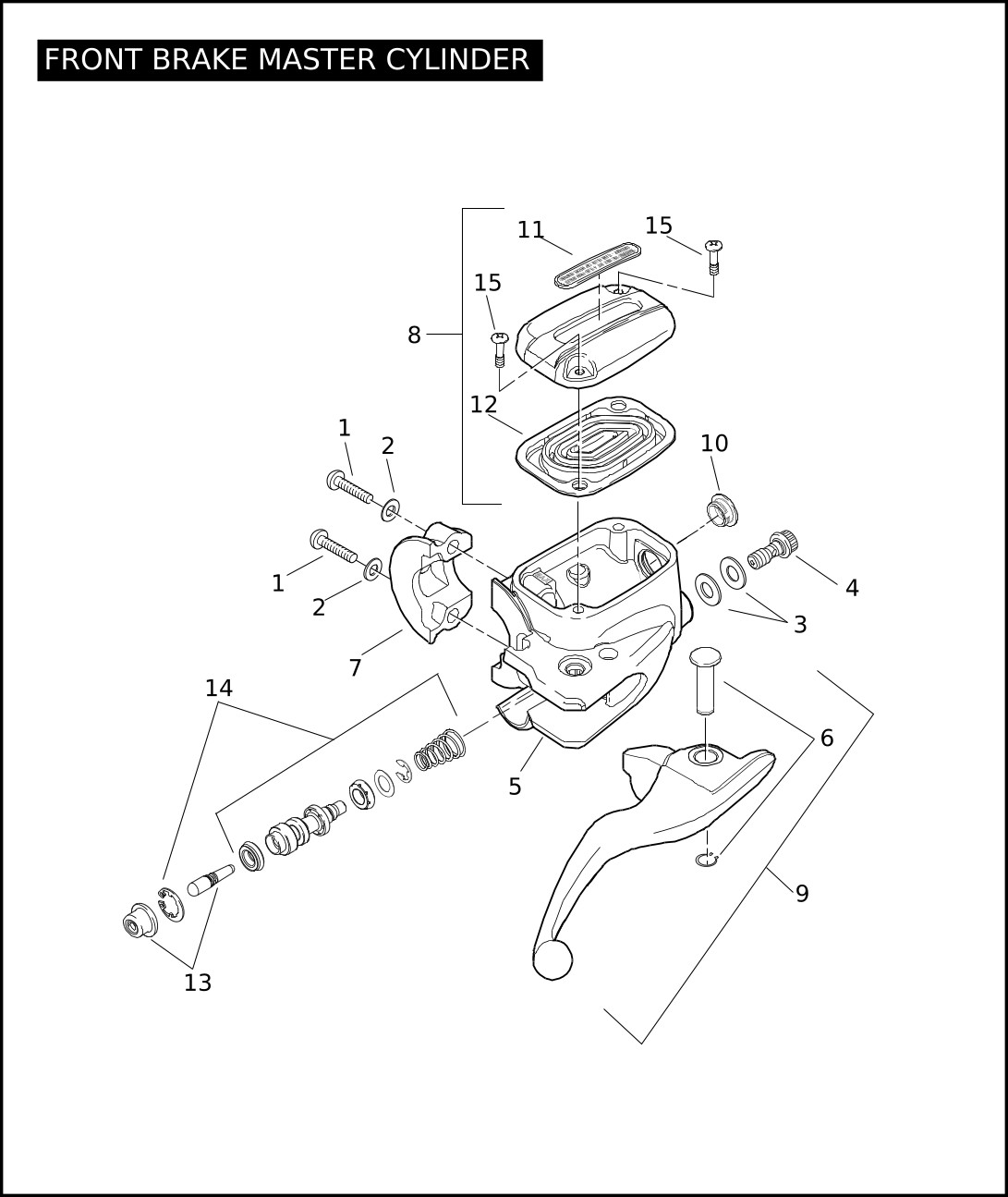

FRONT BRAKE MASTER CYLINDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTCUSE3 |
| 2 | 6099 | WASHER (2) | FLHTCUSE3 |
| 3 | 41751-06A | GASKET (2) | FLHTCUSE3 |
| 4 | 42010-06 | BOLT, BANJO, brakeline | FLHTCUSE3 |
| 5 | 42102-08 | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14 & 15 | FLHTCUSE3 |
| 6 | 42105-06A | PIVOT PIN, w/ retaining ring | FLHTCUSE3 |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHTCUSE3 |
| 8 | 42123-08 | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06A & 42882-06 | FLHTCUSE3 |
| 9 | 42271-06A | BRAKE LEVER ASSEMBLY, front, w/ 42105-06A | FLHTCUSE3 |
| 10 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHTCUSE3 |
| 11 | 42856-06 | DECAL, reservoir cover | FLHTCUSE3 |
| 12 | 42857-06A | GASKET, reservoir cover | FLHTCUSE3 |
| 13 | 42861-06A | PUSHROD, master cylinder | FLHTCUSE3 |
| 14 | 42862-06A | PISTON SERVICE KIT, master cylinder | FLHTCUSE3 |
| 15 | 42882-06 | SCREW (2) | FLHTCUSE3 |

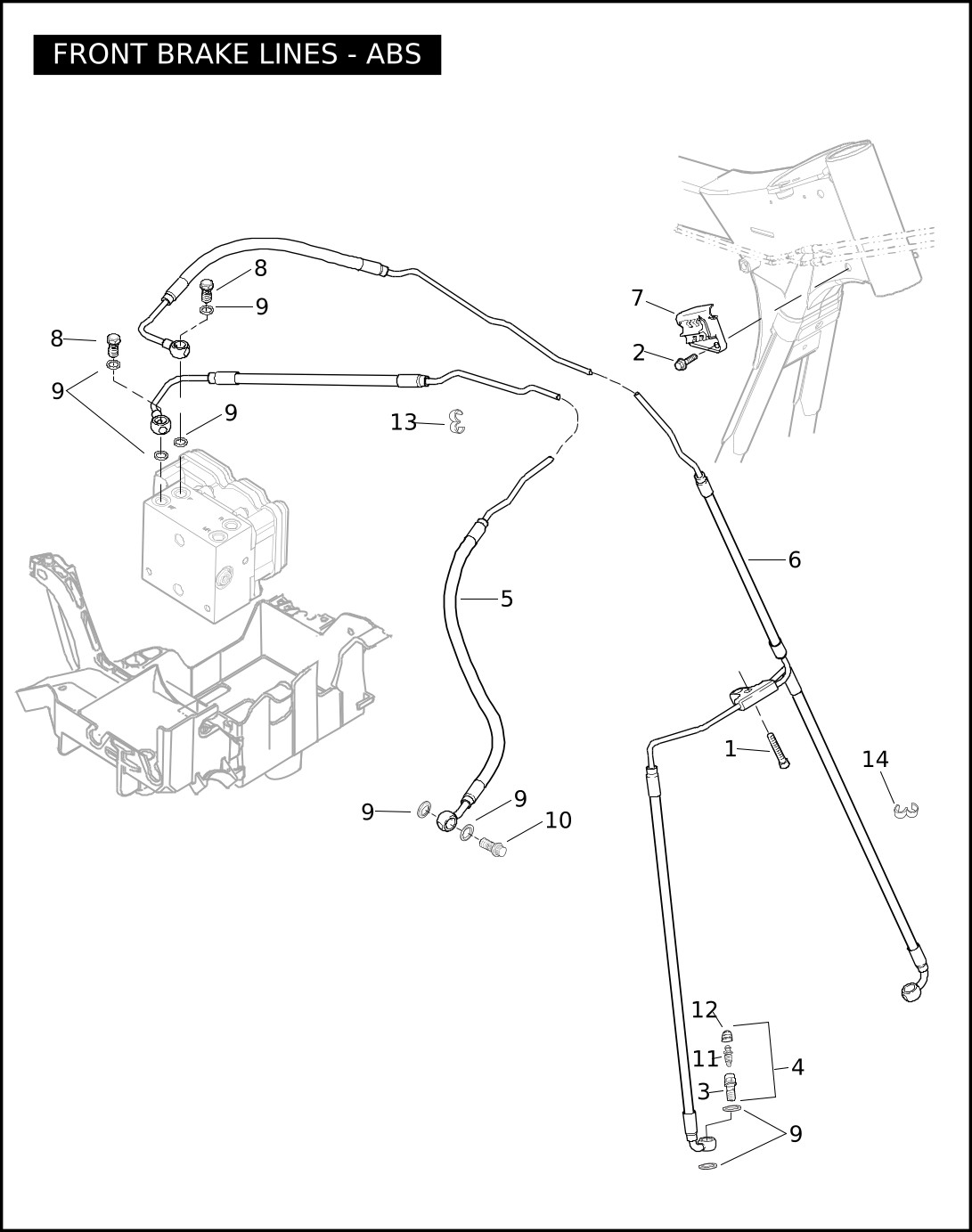

FRONT BRAKE LINES - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3331 | SCREW | FLHTCUSE3 |
| 2 | 3901 | SCREW | FLHTCUSE3 |
| 3 | 5455M | BOLT, BANJO, w/ threaded head (2) | FLHTCUSE3 |
| 4 | 5457 | BOLT, BANJO, bleeder assembly, w/ 5455M, 42011-06 & 42853-06 (2) | FLHTCUSE3 |
| 5 | 40650-08 | BRAKELINE, front, upper, ABS | FLHTCUSE3 |
| 6 | 40663-08 | BRAKELINE, front, lower, ABS | FLHTCUSE3 |
| 7 | 40699-08 | CLIP, brakeline | FLHTCUSE3 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 9 | 41751-06A | GASKET (10) | FLHTCUSE3 |
| 10 | 42010-06 | BOLT, BANJO, brakeline | FLHTCUSE3 |
| 11 | 42011-06 | BLEEDER SCREW (2) | FLHTCUSE3 |
| 12 | 42853-06 | CAP, bleeder screw (2) | FLHTCUSE3 |
| 13 | 70504-81 | CLIP, conduit (2) | FLHTCUSE3 |
| 14 | 70631-08 | CLIP, conduit (3) | FLHTCUSE3 |

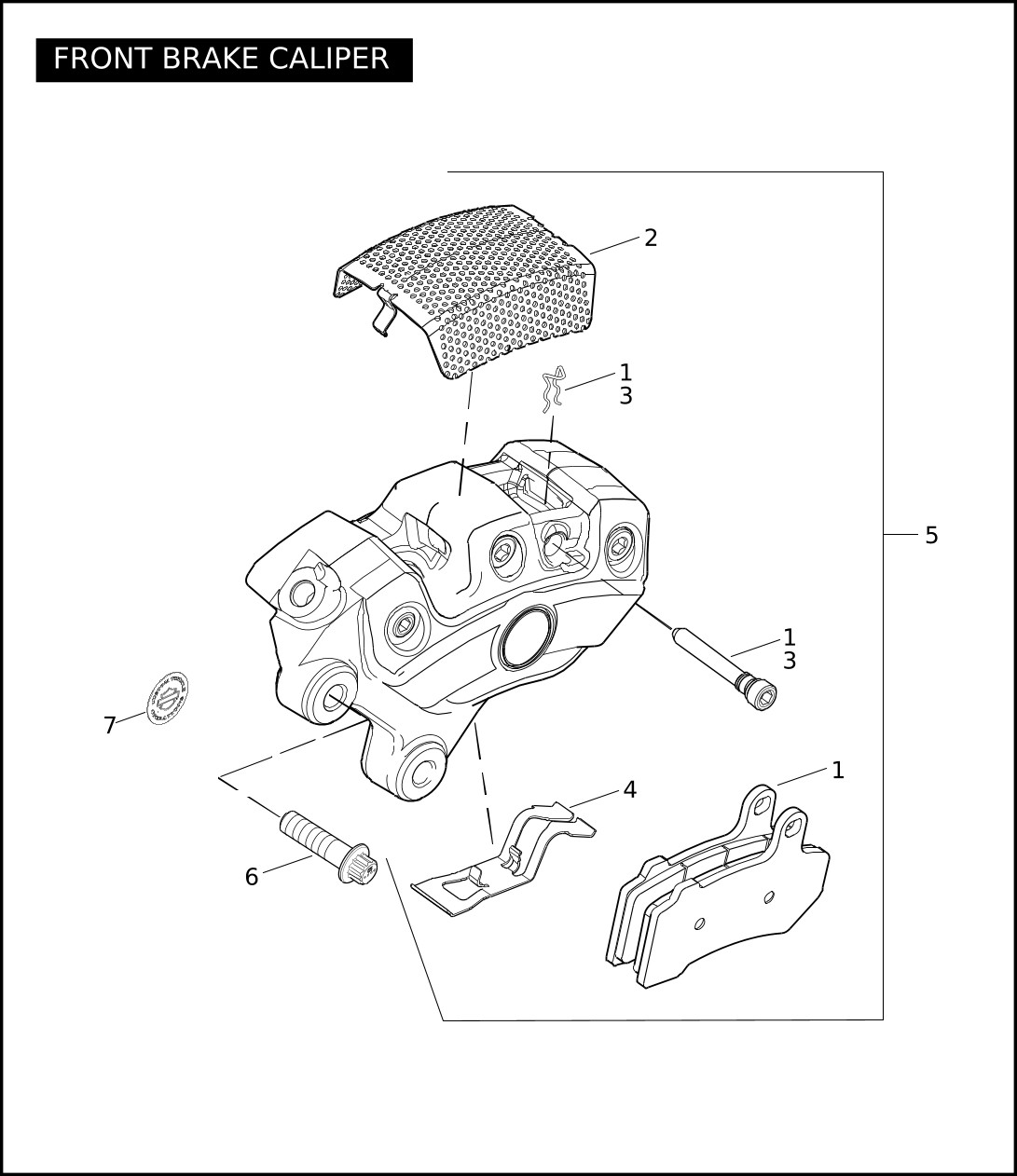

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHTCUSE3 |
| 2 | 42019-06 | COVER, caliper (chrome) (2) | FLHTCUSE3 |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHTCUSE3 |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHTCUSE3 |
| 5 | 42938-08 | CALIPER ASSEMBLY, left (silver) | FLHTCUSE3 |
| 42939-08 | CALIPER ASSEMBLY, right (silver) | FLHTCUSE3 | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | FLHTCUSE3 |
| 7 | 44935-06 | MEDALLION, brake caliper (2) | FLHTCUSE3 |

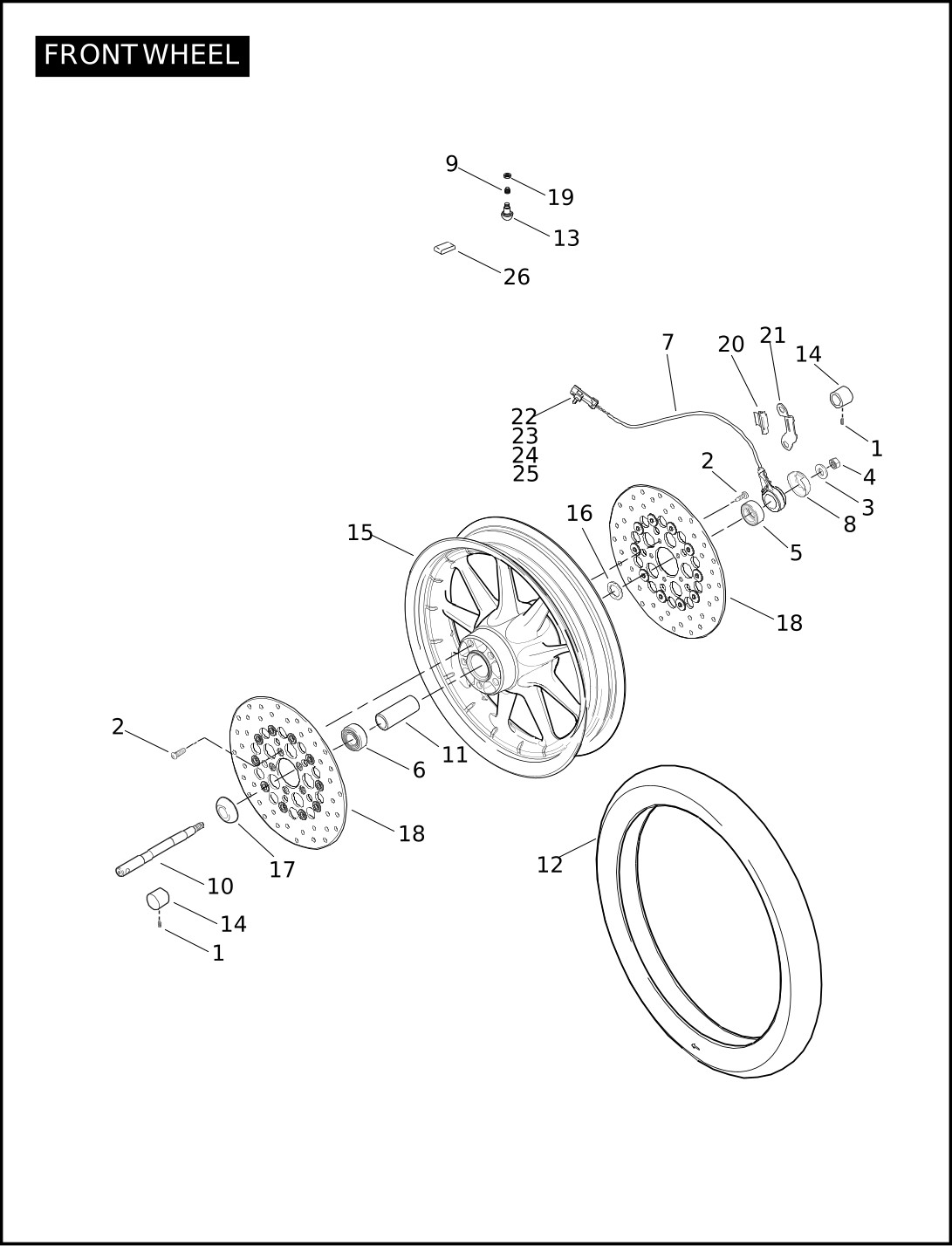

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SCREW, set (2) | FLHTCUSE3 |
| 2 | 3655A | SCREW (10) | FLHTCUSE3 |
| 3 | 6655 | WASHER | FLHTCUSE3 |
| 4 | 7813A | NUT | FLHTCUSE3 |
| 5 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTCUSE3 |
| 6 | 9276 | BALL BEARING | FLHTCUSE3 |
| 7 | 40614-08 | SENSOR, wheel speed, ABS | FLHTCUSE3 |
| 8 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHTCUSE3 |
| 9 | 41148-98 | CAP, tire valve acorn, w/ bar & shield (chrome) (2) | FLHTCUSE3 |
| 10 | 41547-07A | AXLE | FLHTCUSE3 |
| 11 | 41900-08 | SLEEVE, bearing spacer | FLHTCUSE3 |
| 12 | 43022-91A | TIRE, black wall | FLHTCUSE3 |
| 13 | 43157-83A | STEM ASSEMBLY, tire valve | FLHTCUSE3 |
| 14 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) (2) | FLHTCUSE3 |
| 15 | 43539-08 | WHEEL ASSEMBLY, cast, w/o bearings & sleeve (chrome) | FLHTCUSE3 |
| 16 | 43903-08 | SPACER, front wheel bearing | FLHTCUSE3 |
| 17 | 44583-08 | SPACER | FLHTCUSE3 |
| 18 | 44944-08 | BRAKE DISC KIT, front, w/ 3655A (2) | FLHTCUSE3 |
| 19 | 54321-85 | NUT, valve stem | FLHTCUSE3 |
| 20 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHTCUSE3 |
| 21 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHTCUSE3 |
| 22 | 72607-08 | HOUSING, 2 way pin | FLHTCUSE3 |
| 23 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTCUSE3 |
| 24 | 72609-08 | LOCK, secondary, 2-way (black) | FLHTCUSE3 |
| 25 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHTCUSE3 |
| 26 | 95595-84 | WEIGHT, 1/4 oz., cast wheels (silver) (4) | FLHTCUSE3 |

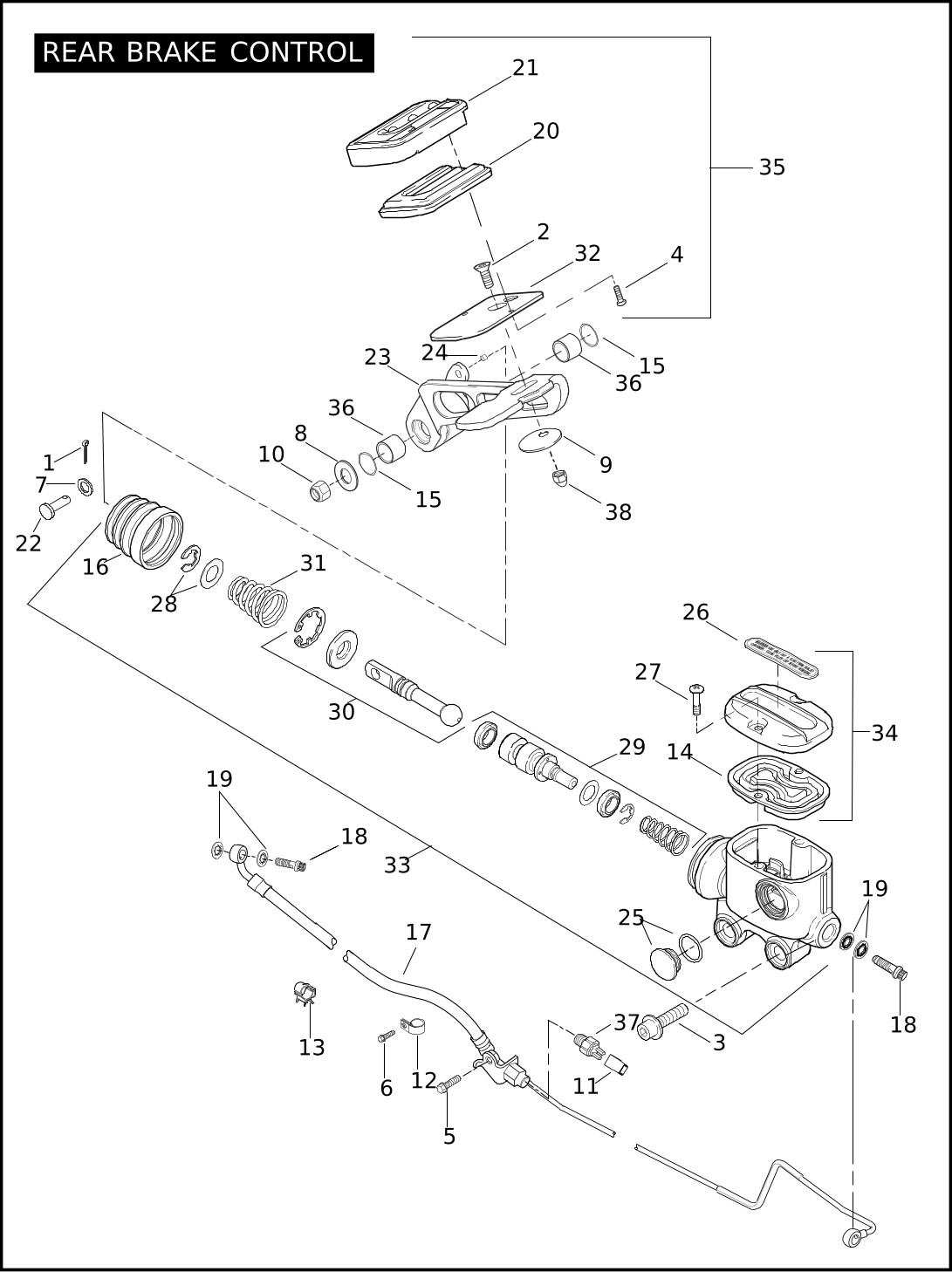

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHTCUSE3 |
| 2 | 1783C | SCREW | FLHTCUSE3 |
| 3 | 2479 | SCREW (2) | FLHTCUSE3 |
| 4 | 2903 | SCREW (2) | FLHTCUSE3 |
| 5 | 3588 | SCREW | FLHTCUSE3 |
| 6 | 4240 | SCREW | FLHTCUSE3 |
| 7 | 6220W | WASHER | FLHTCUSE3 |
| 8 | 6334 | WASHER | FLHTCUSE3 |
| 9 | 6421 | WASHER, offset | FLHTCUSE3 |
| 10 | 7825 | LOCKNUT | FLHTCUSE3 |
| 11 | 9907 | WIRE TERMINAL (2) | FLHTCUSE3 |
| 12 | 10031 | CLAMP | FLHTCUSE3 |
| 13 | 10108 | CLIP, brake hose (2) | FLHTCUSE3 |
| 14 | 11902 | GASKET, master cylinder reservoir cover | FLHTCUSE3 |
| 15 | 11364 | O-RING (2) | FLHTCUSE3 |
| 16 | 12102 | DUST BOOT | FLHTCUSE3 |
| 17 | 40611-08 | BRAKELINE, right-rear, master cylinder to ABS UNIT, ABS | FLHTCUSE3 |
| 18 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 19 | 41751-06A | GASKET (4) | FLHTCUSE3 |
| 20 | 42146-07 | PAD, brake pedal | FLHTCUSE3 |
| 21 | 42147-07 | COVER, brake pedal | FLHTCUSE3 |
| 22 | 42460-80B | CLEVIS PIN | FLHTCUSE3 |
| 23 | 42638-08 | LEVER ASSEMBLY, foot-brake, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLHTCUSE3 |
| 24 | 42644-00 | BEARING, .25 x .177 | FLHTCUSE3 |
| 25 | 42854-06 | KIT, SIGHT GLASS | FLHTCUSE3 |
| 26 | 42856-06 | DECAL, reservoir cover | FLHTCUSE3 |
| 27 | 42882-06 | SCREW (2) | FLHTCUSE3 |
| 28 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHTCUSE3 |
| 29 | 42932-08 | REBUILD KIT, master cylinder | FLHTCUSE3 |
| 30 | 42933-08 | PUSHROD KIT, master cylinder | FLHTCUSE3 |
| 31 | 42934-08 | SPRING, pedal return | FLHTCUSE3 |
| 32 | 44437-04 | BACK PLATE, brake pedal | FLHTCUSE3 |
| 33 | 46459-08 | MASTER CYLINDER ASSEMBLY, w/ 14, 16, 25, 26, 27, 28, 29, 30, 31 & 34 (chrome) | FLHTCUSE3 |
| 34 | 46463-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | FLHTCUSE3 |
| 35 | 46959-07 | BRAKE PEDAL PAD KIT, w/ 1783C, 2903, 6421, 42146-07, 42147-07, 44437-04 & 94006-90T | FLHTCUSE3 |
| 36 | 57217-02 | BUSHING, brake lever (2) | FLHTCUSE3 |
| 37 | 72023-51D | KIT SWITCH, rear brakelite, w/ 9907 | FLHTCUSE3 |
| 38 | 94006-90T | NUT, acorn | FLHTCUSE3 |

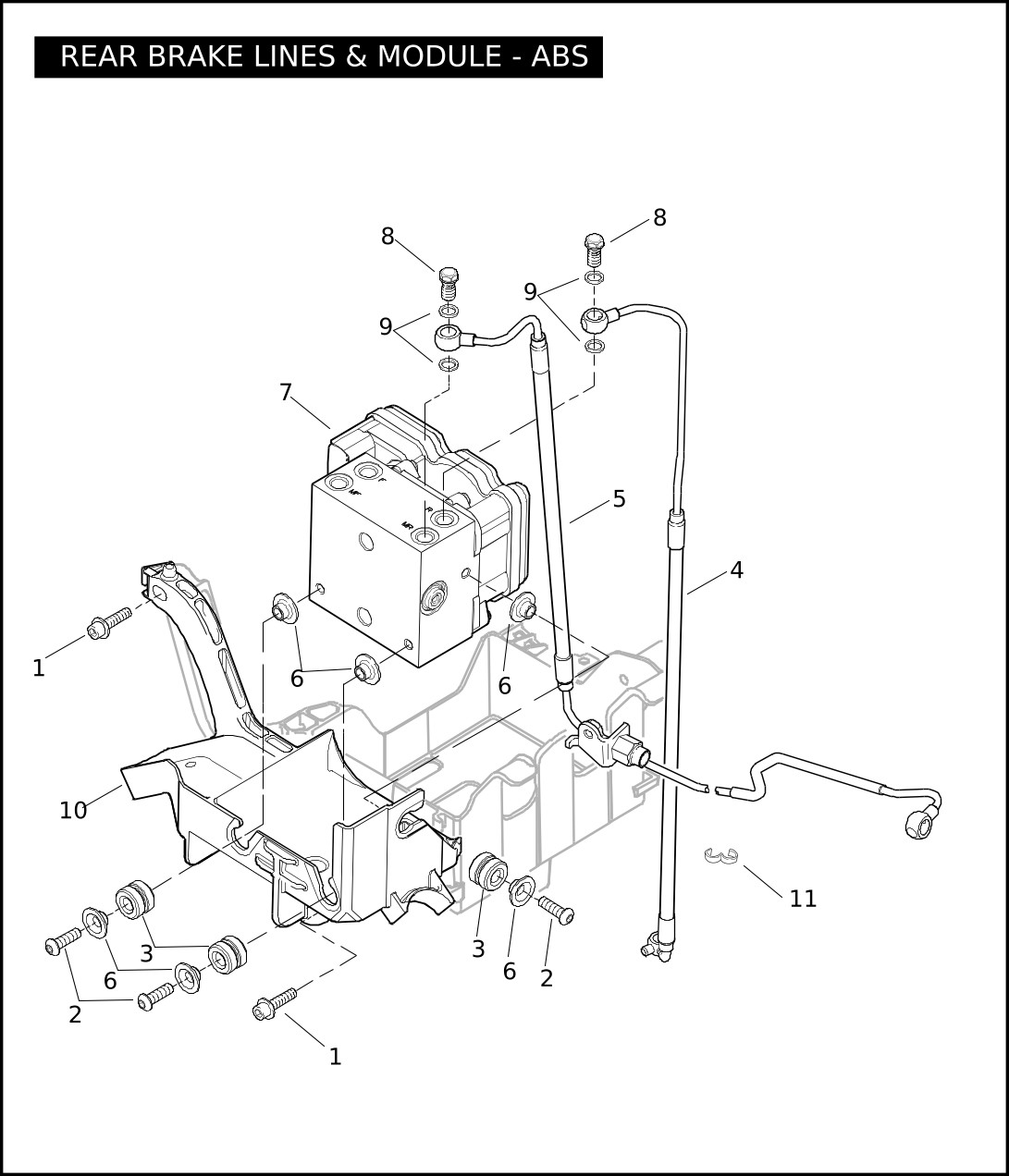

REAR BRAKE LINES & MODULE - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3249 | SCREW (2) | FLHTCUSE3 |
| 2 | 3832M | SCREW (3) | FLHTCUSE3 |
| 3 | 40603-08 | GROMMET (3) | FLHTCUSE3 |
| 4 | 40610-08 | BRAKELINE, ABS module to caliper | FLHTCUSE3 |
| 5 | 40611-08 | BRAKELINE, ABS module to master cylinder | FLHTCUSE3 |
| 6 | 40628-08 | BUSHING, ABS (6) | FLHTCUSE3 |
| 7 | 40688-08 | KIT, ABS UNIT | FLHTCUSE3 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 9 | 41751-06A | GASKET (4) | FLHTCUSE3 |
| 10 | 66318-08 | CADDY, RH, with ABS | FLHTCUSE3 |
| 11 | 70631-08 | CLIP, conduit | FLHTCUSE3 |

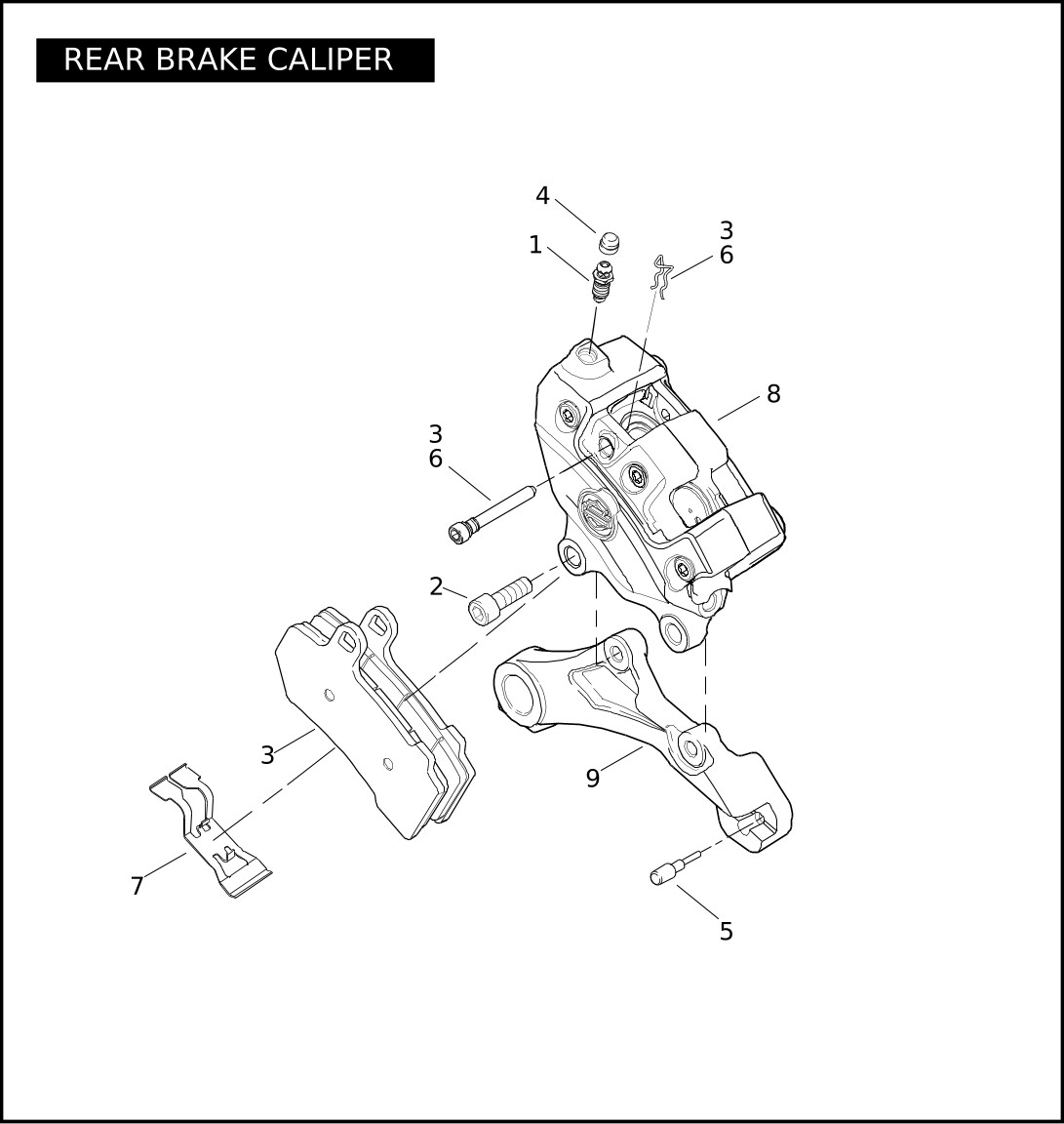

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 4596 | SCREW, bleeder | FLHTCUSE3 |
| 2 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHTCUSE3 |
| 3 | 41852-08 | PAD & PIN KIT | FLHTCUSE3 |
| 4 | 42853-06 | CAP, bleeder screw | FLHTCUSE3 |
| 5 | 42863-06 | BUMPER | FLHTCUSE3 |
| 6 | 42865-06A | PAD PIN KIT | FLHTCUSE3 |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHTCUSE3 |
| 8 | 44080-08 | CALIPER ASSEMBLY, rear, w/ 4596, 41852-08, 42853-06, 42865-06A & 42867-06A (black) | FLHTCUSE3 |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHTCUSE3 |
REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3814 | SCREW (5) | FLHTCUSE3 |
| 2 | 8020 | NUT, slotted | FLHTCUSE3 |
| 3 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTCUSE3 |
| 4 | 9276 | BALL BEARING | FLHTCUSE3 |
| 5 | 9285 | BALL BEARING, 2 row, extended race | FLHTCUSE3 |
| 6 | 10147 | CLIP, connector | FLHTCUSE3 |
| 7 | 11844 | SPACER | FLHTCUSE3 |
| 8 | 40265-08 | SPROCKET, 66-tooth (black) | FLHTCUSE3 |
| 9 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUSE3 |
| 10 | 40560-05 | BOWL, compensator | FLHTCUSE3 |
| 11 | 40615-08 | SENSOR, wheel speed, ABS | FLHTCUSE3 |
| 12 | 41056-08 | REAR AXLE | FLHTCUSE3 |
| 13 | 41139-02 | SPRING CLIP | FLHTCUSE3 |
| 14 | 41148-98 | CAP, tire valve acorn, w/ bar & shield (chrome) (2) | FLHTCUSE3 |
| 15 | 41810-08 | BRAKE DISC | FLHTCUSE3 |
| 16 | 41819-02 | AXLE CAM | FLHTCUSE3 |
| 17 | 41900-08 | SLEEVE, bearing spacer | FLHTCUSE3 |
| 18 | 43157-83A | VALVE STEM, cast wheels, w/ 54321-85 | FLHTCUSE3 |
| 19 | 43329-04 | TIRE, 16 inch black wall | FLHTCUSE3 |
| 20 | 43484-08 | WHEEL ASSEMBLY, 16 inch cast, 9 spoke, w/o bearings & sleeve (chrome) | FLHTCUSE3 |
| 21 | 43567-92 | SCREW (5) | FLHTCUSE3 |
| 22 | 43904-08 | SPACER, rear wheel bearing | FLHTCUSE3 |
| 23 | 54321-85 | NUT | FLHTCUSE3 |
| 24 | 72607-08 | HOUSING, 2 way pin | FLHTCUSE3 |
| 25 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTCUSE3 |
| 26 | 72609-08 | LOCK, secondary, 2-way (black) | FLHTCUSE3 |
| 27 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHTCUSE3 |
| 28 | 95595-84 | WEIGHT, 1/4 oz. cast wheels (silver) | FLHTCUSE3 |
FRONT FORK - BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | PIN, roll | FLHTCUSE3 |
| 2 | 3331 | SCREW | FLHTCUSE3 |
| 3 | 3537 | SCREW (4) | FLHTCUSE3 |
| 4 | 3892 | SCREW (2) | FLHTCUSE3 |
| 5 | 4240 | SCREW | FLHTCUSE3 |
| 6 | 4752 | BOLT (2) | FLHTCUSE3 |
| 7 | 6703 | WASHER (2) | FLHTCUSE3 |
| 8 | 7039 | LOCKWASHER (2) | FLHTCUSE3 |
| 9 | 10138 | TAB, electrical ground | FLHTCUSE3 |
| 10 | 45435-95 | BRACKET, upper fork | FLHTCUSE3 |
| 11 | 45446-87A | BRACKET ASSEMBLY, fork stem, w/ 3892, 4752, 48365-48A, & bearing cone | FLHTCUSE3 |
| 12 | 45718-60 | NUT, fork stem | FLHTCUSE3 |
| 13 | 45780-03 | COVER, fork bracket (chrome) | FLHTCUSE3 |
| 14 | 45794-94A | PLATE, locking | FLHTCUSE3 |
| 15 | 45963-97 | FORK SLIDER COVERS, pair | FLHTCUSE3 |
| 16 | 47530-79B | STOP, fork, rubber (2) | FLHTCUSE3 |
| 17 | 48300-60 | BEARING KIT, roller, w/ 48315-60 (2) | FLHTCUSE3 |
| 18 | 48315-60 | CUP, roller-bearing (2) | FLHTCUSE3 |
| 19 | 48333-80 | ADJUSTER, bearing | FLHTCUSE3 |
| 20 | 48361-80 | SHIELD, dust, upper bearing | FLHTCUSE3 |
| 21 | 48365-48A | SHIELD, dust, lower bearing | FLHTCUSE3 |
FRONT FORK - TUBE ASSEMBLIES & SLIDERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6702 | WASHER (2) | FLHTCUSE3 |
| 2 | 7041 | LOCKWASHER (2) | FLHTCUSE3 |
| 3 | 7748W | NUT (2) | FLHTCUSE3 |
| 4 | 45405-75A | SCREW, damper tube, w/ captive washer (2) | FLHTCUSE3 |
| 5 | 45419-80 | BOLT, fork (2) | FLHTCUSE3 |
| 6 | 45733-48 | SEAL, oil, bolt (2) | FLHTCUSE3 |
| 7 | 45803-97 | STOP, lower (2) | FLHTCUSE3 |
| 8 | 45838-77 | BOLT, front fork (2) | FLHTCUSE3 |
| 9 | 45842-77A | RING, retaining, oil-seal (2) | FLHTCUSE3 |
| 10 | 45845-77 | O-RING (2) | FLHTCUSE3 |
| 11 | 45865-84 | SPACER, seal (2) | FLHTCUSE3 |
| 12 | 45866-84 | BUSHING, slider (2) | FLHTCUSE3 |
| 13 | 45875-84A | SEAL, oil (2) | FLHTCUSE3 |
| 14 | 45933-86 | SPRING, rebound (2) | FLHTCUSE3 |
| 15 | 45940-84 | BUSHING, guide (2) | FLHTCUSE3 |
| 16 | 45972-06 | TUBE ASSEMBLY, stanchion, w/ 45866-84 (2) | FLHTCUSE3 |
| 17 | 46209-06 | DAMPER VALVE | FLHTCUSE3 |
| 18 | 46235-06 | SPRING, fork (2) | FLHTCUSE3 |
| 19 | 46422-06 | DAMPER TUBE (2) | FLHTCUSE3 |
| 20 | 46473-00B | SLIDER, fork, left (chrome) | FLHTCUSE3 |
| 21 | 46474-00C | SLIDER, fork, right (chrome) | FLHTCUSE3 |
| 22 | 46621-06A | FORK ASSEMBLY, right front (chrome) (complete) | FLHTCUSE3 |
| 23 | 46622-06A | FORK ASSEMBLY, left front (chrome) (complete) | FLHTCUSE3 |
| 24 | 46658-07 | HOLDER, right axle (chrome) | FLHTCUSE3 |
| 25 | 59481-00 | REFLECTOR, right | FLHTCUSE3 |
| 59482-00 | REFLECTOR, left (not illustrated) | FLHTCUSE3 |
FRAME, REAR FORK, & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 1001 | SCREW (2) | FLHTCUSE3 |
| 2 | 2708A | SCREW | FLHTCUSE3 |
| 3 | 2782 | SCREW (2) | FLHTCUSE3 |
| 4 | 3057 | SCREW (4) | FLHTCUSE3 |
| 5 | 3678 | SCREW (2) | FLHTCUSE3 |
| 6 | 3987 | BOLT (3) | FLHTCUSE3 |
| 7 | 4124 | SCREW (2) | FLHTCUSE3 |
| 8 | 6702 | WASHER (3) | FLHTCUSE3 |
| 9 | 6703 | WASHER (2) | FLHTCUSE3 |
| 10 | 7041 | LOCKWASHER (2) | FLHTCUSE3 |
| 11 | 7495 | NUT (2) | FLHTCUSE3 |
| 12 | 7601 | LOCKNUT (2) | FLHTCUSE3 |
| 13 | 7688 | NUT (2) | FLHTCUSE3 |
| 14 | 9208 | BEARING (2) | FLHTCUSE3 |
| 15 | 10092 | CLAMP (2) | FLHTCUSE3 |
| 16 | 11491A | GROMMET, side cover (6) | FLHTCUSE3 |
| 17 | 11604 | RIVNUT, flathead | FLHTCUSE3 |
| 14148-86 | ENGINE GUARD LABEL (not illustrated) | FLHTCUSE3 | |
| 18 | 38901-08 | RETAINER, clutch line | FLHTCUSE3 |
| 19 | 38904-08 | RETAINER, cable, upper | FLHTCUSE3 |
| 20 | 47491-02 | WASHER (2) | FLHTCUSE3 |
| 21 | 47505-02 | SHAFT, rear fork | FLHTCUSE3 |
| 22 | 47549-02A | FORK, rear, w/ 9208 & 48489-02 (black) | FLHTCUSE3 |
| 23 | 47558-07 | COVER, right | FLHTCUSE3 |
| 47560-07 | COVER, left | FLHTCUSE3 | |
| 24 | 47564-86B | SPACER, large (2) | FLHTCUSE3 |
| 25 | 47606-02 | LOCKNUT (2) | FLHTCUSE3 |
| 26 | 47900-08BHP | FRAME, w/ 48315-60 & 50972-75 (black) | FLHTCUSE3 |
| 27 | 48315-60 | CUP, bearing (2) | FLHTCUSE3 |
| 28 | 48419-04 | WEAR PAD, right | FLHTCUSE3 |
| 48420-04 | WEAR PAD, left | FLHTCUSE3 | |
| 29 | 48487-02 | SPACER, outer (2) | FLHTCUSE3 |
| 30 | 48489-02 | SPACER, inner (2) | FLHTCUSE3 |
| 31 | 49184-97 | ENGINE GUARD, w/ 2708A, 6702 & 14148-86 | FLHTCUSE3 |
| 32 | 49725-07 | SPRING, jiffy-stand | FLHTCUSE3 |
| 33 | 50015-74A | STOP, leg | FLHTCUSE3 |
| 34 | 50075-07 | LEG, jiffy-stand | FLHTCUSE3 |
| 35 | 50078-81B | BRACKET, leg, jiffy stand | FLHTCUSE3 |
| 36 | 50245-07 | BUMPER, leg, jiffy stand | FLHTCUSE3 |
| 37 | 50588-07 | BRACKET, rear fork, left (black) | FLHTCUSE3 |
| 38 | 50589-07 | BRACKET, rear fork, right (black) | FLHTCUSE3 |
| 39 | 50972-75 | FITTING, lubrication | FLHTCUSE3 |
| 40 | 66055-93 | WEAR PAD (2) | FLHTCUSE3 |
FRAME, REAR FORK, & JIFFY STAND (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 41 | 66620-08CRV | COVER, side, left, w/ 48419-04 & 66055-93 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 66620-08CTB | COVER, side, left, w/ 48419-04 & 66055-93 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 66620-08CTE | COVER, side, left, w/ 48419-04 & 66055-93 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 42 | 66621-08CRV | COVER, side, right, w/ 48419-04 & 66055-93 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 66621-08CTB | COVER, side, right, w/ 48419-04 & 66055-93 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 66621-08CTE | COVER, side, right, w/ 48419-04 & 66055-93 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 43 | 67865-89 | CAP (2) | FLHTCUSE3 |
| 44 | 69318-02 | CLAMP (2) | FLHTCUSE3 |
| 45 | 70980-08 | TRAY, wire trough (main harness) | FLHTCUSE3 |
| 46 | 70981-08 | COVER, wire trough (main harness) | FLHTCUSE3 |
| 47 | 90469-94 | PLUG (4) | FLHTCUSE3 |
| 48 | 90493-83 | PLUG, hole (2) | FLHTCUSE3 |
| 49 | 90520-07 | HOLE PLUG, jiffy stand | FLHTCUSE3 |
| 50 | 92370-08 | MEDALLION ASSEMBLY, side cover | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 51 | 3594 | SCREW, jiffy stand (Australia, England, HDI) | FLHTCUSE3 |
| 52 | 10177 | CABLE STRAP, tree mount, jiffy stand (Australia, England, HDI) | FLHTCUSE3 |
| 53 | 50126-08 | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (Australia, England, HDI) | FLHTCUSE3 |
| 54 | 72169-07 | TERMINAL, pin, 16-20 AWG | FLHTCUSE3 |
| 55 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHTCUSE3 |
| 56 | 73213-07 | RETAINER, xmas tree clip | FLHTCUSE3 |
TOUR-PAK (COVER)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2478 | SCREW | FLHTCUSE3 |
| 2 | 3595 | SCREW (3) | FLHTCUSE3 |
| 3 | 3787 | BOLT (4) | FLHTCUSE3 |
| 4 | 4630 | SCREW (2) | FLHTCUSE3 |
| 5 | 6703 | WASHER (4) | FLHTCUSE3 |
| 6 | 6970 | WASHER | FLHTCUSE3 |
| 7 | 7036 | WASHER (4) | FLHTCUSE3 |
| 8 | 7128 | LOCKWASHER | FLHTCUSE3 |
| 9 | 7586 | JAM NUT | FLHTCUSE3 |
| 10 | 7624 | LOCKNUT | FLHTCUSE3 |
| 11 | 8500A | HINGE PIN KIT, w/ 3595 | FLHTCUSE3 |
| 12 | 10102 | CLIP, adhesive backed (3) | FLHTCUSE3 |
| 13 | 53280-08 | LINER, Tour-Pak, top | FLHTCUSE3 |
| 14 | 53314-06 | KIT, VELCRO, liner (2) | FLHTCUSE3 |
| 15 | 53357-08 | TRIM, lid (gray) | FLHTCUSE3 |
| 54056-08 | TRIM, lid (Crystal Copper) | FLHTCUSE3 | |
| 16 | 53415-06 | GASKET, cover | FLHTCUSE3 |
| 17 | 53426-87 | HINGE, cover, upper (2) | FLHTCUSE3 |
| 18 | 53486-85 | PAD (2) | FLHTCUSE3 |
| 19 | 53564-97 | TETHER, flexible | FLHTCUSE3 |
| 20 | 53570-89 | BRACKET, cable mounting | FLHTCUSE3 |
| 21 | 53575-08 | HARDWARE KIT, power lock | FLHTCUSE3 |
| 22 | 53594-08A | LOCK, w/ 7128 & 7586 (specify key code) | FLHTCUSE3 |
| 23 | 53597-07 | ACTUATOR, power lock, w/ 74191-98 | FLHTCUSE3 |
| 24 | 53641-02 | WASHER | FLHTCUSE3 |
| 25 | 53665-87 | RACK KIT, Tour-Pak, w/ 3787, 6703, 7036 & 90869-85A | FLHTCUSE3 |
| 26 | 54332-04A | LIGHT, Tour-Pak, top | FLHTCUSE3 |
| 27 | 58709-86 | RIVET, nylon (black) (2) | FLHTCUSE3 |
| 28 | 74112-98BK | HOUSING, socket, 2-way | FLHTCUSE3 |
| 29 | 74152-98 | LOCK, secondary, 2-way | FLHTCUSE3 |
| 30 | 74191-98 | SOCKET TERMINAL (2) | FLHTCUSE3 |
| 31 | 79042-06 | COVER, Tour-Pak (prime) | FLHTCUSE3 |
| 79209-08CRV | COVER, Tour-Pak (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 79209-08CTB | COVER, Tour-Pak (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 79209-08CTE | COVER, Tour-Pak (White Frost/Silver Mist) | FLHTCUSE3 | |
| 32 | 79114-07 | GROMMET | FLHTCUSE3 |
| 33 | 79135-08 | BRACKET, cable | FLHTCUSE3 |
| 34 | 79145-07 | BASE, power lock system | FLHTCUSE3 |
| 35 | 79146-07 | LID, power lock system | FLHTCUSE3 |
| 36 | 79149-08 | CABLE ASSEMBLY, power lock | FLHTCUSE3 |
| 37 | 79169-08 | POWER LOCK ASSEMBLY, tour-pak | FLHTCUSE3 |
| 38 | 79171-08 | COVER, power lock | FLHTCUSE3 |
| 39 | 84850-92 | NUT | FLHTCUSE3 |
| 40 | 90688-85 | BACKING PLATE (2) | FLHTCUSE3 |
| 41 | 90705-97 | HASP, rivet (2) | FLHTCUSE3 |
| 42 | 90821-74B | LABEL, load limit | FLHTCUSE3 |
| 43 | 90869-85A | MOUNTING PAD & WASHER SET | FLHTCUSE3 |
| 44 | 90964-63 | BACKING PLATE (4) | FLHTCUSE3 |
| 45 | 90965-63 | RIVET (12) | FLHTCUSE3 |
TOUR-PAK (BOTTOM)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2551W | BOLT (6) | FLHTCUSE3 |
| 2 | 2718 | BOLT (4) | FLHTCUSE3 |
| 3 | 2968 | SCREW (4) | FLHTCUSE3 |
| 4 | 3595 | SCREW (3) | FLHTCUSE3 |
| 5 | 3597 | SCREW (2) | FLHTCUSE3 |
| 6 | 3598 | SCREW (2) | FLHTCUSE3 |
| 7 | 3767B | BOLT | FLHTCUSE3 |
| 8 | 4033 | SCREW | FLHTCUSE3 |
| 9 | 6029 | WASHER (2) | FLHTCUSE3 |
| 10 | 6036 | WASHER (8) | FLHTCUSE3 |
| 11 | 6703 | WASHER (7) | FLHTCUSE3 |
| 12 | 6716 | WASHER (2) | FLHTCUSE3 |
| 13 | 6970 | WASHER | FLHTCUSE3 |
| 14 | 7229W | LOCKWASHER | FLHTCUSE3 |
| 15 | 7686 | LOCKNUT | FLHTCUSE3 |
| 16 | 7716 | LOCKNUT (6) | FLHTCUSE3 |
| 17 | 7887 | LOCKNUT (4) | FLHTCUSE3 |
| 18 | 8500A | HINGE PIN KIT, w/ 3595 (2) | FLHTCUSE3 |
| 19 | 9864 | RING TERMINAL, insulated | FLHTCUSE3 |
| 20 | 10102 | CLIP, adhesive backed (2) | FLHTCUSE3 |
| 21 | 10103 | CLIP, adhesive backed (2) | FLHTCUSE3 |
| 22 | 11486 | GROMMET | FLHTCUSE3 |
| 23 | 11507 | GROMMET, split | FLHTCUSE3 |
| 24 | 53221-08CRR | BOTTOM ASSEMBLY, w/ lights, latches & hinges (Crystal Copper/Black Onyx) (Domestic) | FLHTCUSE3 |
| 53221-08CTB | BOTTOM ASSEMBLY, w/ lights, latches & hinges (Canyon Copper/Stardust Silver) (Domestic) | FLHTCUSE3 | |
| 53221-08CTE | BOTTOM ASSEMBLY, w/ lights, latches & hinges (White Frost/Silver Mist) (Domestic) | FLHTCUSE3 | |
| 25 | 53165-89A | POUCH, Tour-pak | FLHTCUSE3 |
| 26 | 53301-06 | LINER KIT, molded, w/ 53314-06 | FLHTCUSE3 |
| 27 | 53314-06 | KIT, VELCRO, liner (2) | FLHTCUSE3 |
| 28 | 53598-88A | LINER, removable | FLHTCUSE3 |
| 29 | 53429-93 | BUMPER (2) | FLHTCUSE3 |
| 30 | 53447-87 | HINGE, lower (2) | FLHTCUSE3 |
| 31 | 53478-80 | BACKING PLATE, brace | FLHTCUSE3 |
| 32 | 53563-82 | BRACKET, cable mounting | FLHTCUSE3 |
| 33 | 53615-85A | SPACER (2) | FLHTCUSE3 |
| 34 | 53788-06 | LIGHT, right-bottom, Tour-Pak, sidemarker (Domestic) | FLHTCUSE3 |
| 53789-06 | LIGHT, left-bottom, Tour-Pak, sidemarker (Domestic) | FLHTCUSE3 | |
| 35 | 53799-99 | LUGGAGE RACK SPACER (5) | FLHTCUSE3 |
| 36 | 57978-00 | GROMMET (Domestic) (2) | FLHTCUSE3 |
| 37 | 70465-86A | GROUND CABLE, w/ 9864 | FLHTCUSE3 |
| 38 | 73152-96BK | SOCKET HOUSING, 2-way (black) (Domestic) (2) | FLHTCUSE3 |
| 39 | 73191-96 | SOCKET TERMINAL (Domestic) (4) | FLHTCUSE3 |
| 40 | 76294-98 | LOADING COIL ASSEMBLY, CB antenna (Domestic & HDI) | FLHTCUSE3 |
| 41 | 79182-08 | CATCH, lower | FLHTCUSE3 |
| 42 | 90493-83 | PLUG, hole | FLHTCUSE3 |
| 43 | 90649-07 | BODY, latch (2) | FLHTCUSE3 |
| 44 | 90844-80 | ACORN NUT (2) | FLHTCUSE3 |
| 45 | 90964-63 | BACKING PLATE (4) | FLHTCUSE3 |
| 46 | 90965-63 | RIVET (12) | FLHTCUSE3 |
TOUR-PAK (BOTTOM) (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 47 | 2576 | SCREW (2) | FLHTCUSE3 |
| 48 | 2724 | SCREW | FLHTCUSE3 |
| 49 | 2968 | SCREW (4) | FLHTCUSE3 |
| 50 | 3227 | SCREW | FLHTCUSE3 |
| 51 | 7118 | LOCKWASHER (2) | FLHTCUSE3 |
| 52 | 7492 | NUT, w/ lockwasher | FLHTCUSE3 |
| 53 | 7961 | NUT, speed (2) | FLHTCUSE3 |
| 54 | 53228-08CRR | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Crystal Copper/Black Onyx) (HDI) | FLHTCUSE3 |
| 53228-08CTB | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Canyon Copper/Stardust Silver) (HDI) | FLHTCUSE3 | |
| 53228-08CTE | BOTTOM ASSEMBLY, w/ trim, latches & hinges (White Frost/Silver Mist) (HDI) | FLHTCUSE3 | |
| 53305-08CRR | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Crystal Copper/Black Onyx) (Japan) | FLHTCUSE3 | |
| 53305-08CTB | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Canyon Copper/Stardust Silver) (Japan) | FLHTCUSE3 | |
| 53305-08CTE | BOTTOM ASSEMBLY, w/ trim, latches & hinges (White Frost/Silver Mist) (Japan) | FLHTCUSE3 | |
| 55 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (HDI) | FLHTCUSE3 |
| 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (HDI) | FLHTCUSE3 | |
| 56 | 76252-86 | BASE, antenna, w/ 76258-86 & 76259-86 (2) | FLHTCUSE3 |
| 57 | 76253-86 | REINFORCEMENT PLATE, antenna, left hand | FLHTCUSE3 |
| 58 | 76255-86 | GASKET, base (2) | FLHTCUSE3 |
| 59 | 76258-86 | PLUG ASSEMBLY (2) | FLHTCUSE3 |
| 60 | 76259-86 | NUT (2) | FLHTCUSE3 |
| 61 | 76322-97 | REINFORCEMENT PLATE, antenna, right hand | FLHTCUSE3 |
| 62 | 90755-09 | PLATE, Tour-Pak reinforcing | FLHTCUSE3 |
| 63 | 99461-89 | COVER, owner manual | FLHTCUSE3 |
LAMPS - TOUR-PAK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3227 | SCREW | FLHTCUSE3 |
| 2 | 4930 | BOLT (4) | FLHTCUSE3 |
| 3 | 4922 | SCREW (2) | FLHTCUSE3 |
| 4 | 6036 | WASHER | FLHTCUSE3 |
| 5 | 7492 | NUT, w/ lockwasher | FLHTCUSE3 |
| 6 | 7624 | LOCKNUT (2) | FLHTCUSE3 |
| 7 | 7878 | NUT (4) | FLHTCUSE3 |
| 8 | 53166-89 | REFLECTOR (2) | FLHTCUSE3 |
| 9 | 53389-08 | INSERT, screaming eagle (gray) (Canyon Copper, White Frost) (Domestic) | FLHTCUSE3 |
| 54057-08 | INSERT, screaming eagle (Crystal Copper) (Domestic) | FLHTCUSE3 | |
| 10 | 58380-89 | CLIP, housing (2) | FLHTCUSE3 |
| 11 | 58382-89 | SEAL, lamp lens (4) | FLHTCUSE3 |
| 12 | 58383-89 | LENS, left | FLHTCUSE3 |
| 58384-89 | LENS, right | FLHTCUSE3 | |
| 13 | 68072-08CAS | HOUSING, lamp (Canyon Copper) | FLHTCUSE3 |
| 68072-08CTD | HOUSING, lamp (Crystal Copper) | FLHTCUSE3 | |
| 68072-08CTF | HOUSING, lamp (White Frost) | FLHTCUSE3 | |
| 14 | 68165-64 | BULB, dual (2) | FLHTCUSE3 |
| 15 | 70648-00A | WIRING HARNESS, luggage box | FLHTCUSE3 |
| 16 | 73102-96BK | PIN HOUSING, 2-place (2) | FLHTCUSE3 |
| 17 | 73103-96BK | PIN HOUSING, 3-place | FLHTCUSE3 |
| 18 | 73190-96 | TERMINAL, pin, 16-20 AWG (7) | FLHTCUSE3 |
| 19 | 76258-86 | PLUG ASSEMBLY | FLHTCUSE3 |
| 20 | 76259-86 | NUT (2) | FLHTCUSE3 |
| 21 | 76260-89 | ADAPTER, antenna | FLHTCUSE3 |
| 22 | 90763-79 | WASHER, reinforcement | FLHTCUSE3 |
SEAT & BACKREST
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW | FLHTCUSE3 |
| 2 | 2952A | SCREW (2) | FLHTCUSE3 |
| 3 | 3540 | SCREW, adjuster | FLHTCUSE3 |
| 4 | 3546 | BOLT | FLHTCUSE3 |
| 5 | 3588 | SCREW | FLHTCUSE3 |
| 6 | 6703 | WASHER | FLHTCUSE3 |
| 7 | 6716 | WASHER (2) | FLHTCUSE3 |
| 8 | 7434 | WASHER, nylon (2) | FLHTCUSE3 |
| 9 | 7531 | LOCKNUT | FLHTCUSE3 |
| 10 | 7716 | LOCKNUT (7) | FLHTCUSE3 |
| 11 | 8108 | SPEEDNUT | FLHTCUSE3 |
| 12 | 51239-06 | GRAB STRAP, passenger, w/ 2952A & 6703 | FLHTCUSE3 |
| 13 | 52128-08 | SEAT | FLHTCUSE3 |
| 14 | 52167-08 | RIDER BACKREST KIT, w/ 3540, 8108, 52567-93B & hardware | FLHTCUSE3 |
| 15 | 52186-08 | BACKREST KIT, passenger, w/ 7716, 53515-86 & 53517-86 | FLHTCUSE3 |
| 16 | 52192-86A | ISOLATOR SET, passenger backrest | FLHTCUSE3 |
| 17 | 52567-93B | MOUNTING BRACKET, rider backrest | FLHTCUSE3 |
| 18 | 52624-05 | BRACKET | FLHTCUSE3 |
| 19 | 53052-08 | BACKREST PAD, passenger Tour-Pak | FLHTCUSE3 |
| 20 | 53515-86 | BACKING PLATE | FLHTCUSE3 |
| 21 | 53517-86 | CUSHION PLATE, plastic | FLHTCUSE3 |
| 22 | 59768-97 | NUT KIT, seat, w/ retention washer | FLHTCUSE3 |
| 23 | 90844-80 | NUT, acorn (2) | FLHTCUSE3 |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 861A | SCREW (2) | FLHTCUSE3 |
| 2 | 3341 | SET SCREW | FLHTCUSE3 |
| 3 | 3599 | SCREW (3) | FLHTCUSE3 |
| 4 | 4017 | BOLT (2) | FLHTCUSE3 |
| 5 | 4631 | SCREW (4) | FLHTCUSE3 |
| 6 | 6738 | WASHER (3) | FLHTCUSE3 |
| 7 | 7038 | LOCKWASHER (2) | FLHTCUSE3 |
| 8 | 7041 | LOCKWASHER | FLHTCUSE3 |
| 9 | 7068 | LOCKWASHER (3) | FLHTCUSE3 |
| 10 | 7716 | LOCKNUT (4) | FLHTCUSE3 |
| 11 | 8126A | PUSHNUT (12) | FLHTCUSE3 |
| 12 | 8861 | BALL (2) | FLHTCUSE3 |
| 13 | 51501-07 | SPRING (2) | FLHTCUSE3 |
| 14 | 50700-04 | FOOTBOARD, left-hand, passenger | FLHTCUSE3 |
| 15 | 50701-04 | FOOTBOARD, right-hand, passenger | FLHTCUSE3 |
| 16 | 50806-07 | BRACKET SUPPORT, footboard, rear left | FLHTCUSE3 |
| 17 | 47370-04 | MOUNTING BRACKET, front footboard (2) | FLHTCUSE3 |
| 18 | 50571-04 | BRACKET, support footboard, rear right | FLHTCUSE3 |
| 19 | 50635-82A | BOLT, footboard hinge (4) | FLHTCUSE3 |
| 20 | 50683-04 | BOTTOM ASSEMBLY, right, w/ hinge | FLHTCUSE3 |
| 21 | 50688-04 | BOTTOM ASSEMBLY, left, w/ hinge | FLHTCUSE3 |
| 22 | 50812-07 | INSERT ASSEMBLY, left, rider | FLHTCUSE3 |
| 23 | 50816-07 | INSERT ASSEMBLY, right, rider | FLHTCUSE3 |
| 24 | 50819-07 | FOOTBOARD INSERT, passenger, left, w/ 8126A | FLHTCUSE3 |
| 50823-07 | FOOTBOARD INSERT, passenger, right w/ 8126A (not illustrated) | FLHTCUSE3 | |
| 25 | 50938-04 | PIVOT PIN KIT, w/ 4 pins | FLHTCUSE3 |
| 26 | 50998-07 | ARM, rotating, right | FLHTCUSE3 |
| 51006-07 | ARM, rotating, left | FLHTCUSE3 | |
| 27 | 51007-07 | SUPPORT, footboard (2) | FLHTCUSE3 |
| 28 | 51008-07 | ARM, main mounting assembly (2) | FLHTCUSE3 |
| 29 | 51023-07 | WAVE SPRING (4) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 30 | 44430-04 | PAD, rubber (HDI) (2) | FLHTCUSE3 |
HIGHWAY PEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4617 | SCREW (4) | FLHTCUSE3 |
| 2 | 4625 | SCREW (2) | FLHTCUSE3 |
| 3 | 4626 | SCREW (2) | FLHTCUSE3 |
| 4 | 6462 | WASHER (2) | FLHTCUSE3 |
| 5 | 8075 | NUT, decorative | FLHTCUSE3 |
| 6 | 50351-03 | MOUNT, footpeg support (2) | FLHTCUSE3 |
| 7 | 50834-07 | FOOTPEG BODY (2) | FLHTCUSE3 |
| 8 | 50835-07 | FOOTPEG TREAD (2) | FLHTCUSE3 |
| 9 | 50912-72 | SPRING WASHER (2) | FLHTCUSE3 |
| 10 | 50935-07 | FOOTPEG KIT, w/ 50351-03, 50834-07, 50835-07, & 94409-03 | FLHTCUSE3 |
| 11 | 50988-02A | MOUNT, footpeg (2) | FLHTCUSE3 |
| 12 | 51009-02A | MOUNT, footpeg (2) | FLHTCUSE3 |
| 13 | 94409-03 | SCREW (2) | FLHTCUSE3 |
REAR SHOCK ABSORBERS & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHTCUSE3 |
| 2 | 6590HW | WASHER (4) | FLHTCUSE3 |
| 3 | 7068 | LOCKWASHER (4) | FLHTCUSE3 |
| 4 | 54320-97 | FITTING, 5/32 in. push-in (2) | FLHTCUSE3 |
| 5 | 54321-85 | NUT | FLHTCUSE3 |
| 6 | 54323-85A | VALVE CAP | FLHTCUSE3 |
| 7 | 54357-03 | UNION FITTING, 5/32 in. push-in | FLHTCUSE3 |
| 8 | 54565-97C | REAR SHOCK ABSORBER, w/ air fitting (2) | FLHTCUSE3 |
| 9 | 54536-02A | VALVE ASSEMBLY, w/ 54321-85, 54357-03, & 54354-94A | FLHTCUSE3 |
| 90820-93C | LABEL, air suspension, inside saddlebag (not illustrated) (2) | FLHTCUSE3 | |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 10 | 54354-94A | HOSE, 5/32 inch O.D. (25-foot length) (black) | FLHTCUSE3 |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FLHTCUSE3 |
| 2 | 3605 | BOLT (2) | FLHTCUSE3 |
| 3 | 6083 | WASHER (right only) | FLHTCUSE3 |
| 4 | 6113 | WASHER (right only) | FLHTCUSE3 |
| 5 | 11403A | GROMMET | FLHTCUSE3 |
| 6 | 11642 | GROMMET | FLHTCUSE3 |
| 7 | 55918-08 | CLAMP, upper | FLHTCUSE3 |
| 8 | 56036-08 | HANDLEBAR KIT, w/ 11403A & 11642 (chrome) | FLHTCUSE3 |
| 9 | 56159-73 | WASHER, cup (4) | FLHTCUSE3 |
| 10 | 56161-83A | BUSHING (rubber) (4) | FLHTCUSE3 |
| 11 | 56163-93 | SPACER (2) | FLHTCUSE3 |
| 12 | 56149-88B | RISER, lower right | FLHTCUSE3 |
| 13 | 56151-88B | RISER, lower left | FLHTCUSE3 |
| 14 | 70142-94 | CABLE, ground w/ 72241-94A | FLHTCUSE3 |
| 15 | 72241-94A | RING TERMINAL, 10 ring, 14-18 gauge | FLHTCUSE3 |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHTCUSE3 |
| 2 | 32310-08 | SENSOR, twist grip, w/ 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72195-94 & 73212-07 (72195-94 SEAL PIN not used w/ heated grips) | FLHTCUSE3 |
| 3 | 55927-08 | HANDGRIP ASSEMBLY, right | FLHTCUSE3 |
| 4 | 55949-08 | ENDCAP (chrome) | FLHTCUSE3 |
| 5 | 56956-07 | HANDGRIP ASSEMBLY, left, w/ 72191-94 | FLHTCUSE3 |
| 6 | 72102-94BK | PIN HOUSING, 2-way | FLHTCUSE3 |
| 7 | 72112-94BK | SOCKET HOUSING, 2-way | FLHTCUSE3 |
| 8 | 72113-94BK | SOCKET HOUSING, 3-way | FLHTCUSE3 |
| 9 | 72142-94 | LOCK, secondary, 2-way | FLHTCUSE3 |
| 10 | 72152-94 | SEAL, front, 2-way | FLHTCUSE3 |
| 11 | 72153-94 | LOCK, secondary, 3-way | FLHTCUSE3 |
| 12 | 72172-94 | LOCK, secondary, 2-way | FLHTCUSE3 |
| 13 | 72173-94 | SEAL, 3-way | FLHTCUSE3 |
| 14 | 72188-07BK | PIN HOUSING, 6-way | FLHTCUSE3 |
| 15 | 72191-94 | TERMINAL, socket, #16-18 AWG (5) | FLHTCUSE3 |
| 16 | 73212-07 | CONNECTOR ANCHOR, t-stud (2) | FLHTCUSE3 |
WINDSHIELD, FAIRING, HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (3) | FLHTCUSE3 |
| 2 | 2446 | SCREW (2) | FLHTCUSE3 |
| 3 | 3088 | SCREW (3) | FLHTCUSE3 |
| 4 | 4790 | SCREW (4) | FLHTCUSE3 |
| 5 | 6717 | WASHER (8) | FLHTCUSE3 |
| 10006 | CABLE STRAP (not illustrated) (2) | FLHTCUSE3 | |
| 6 | 16585-96 | INSERT, threaded (4) | FLHTCUSE3 |
| 7 | 58303-96 | WINDSHIELD, smoked | FLHTCUSE3 |
| 8 | 58208-96A | SKIRT, outer fairing | FLHTCUSE3 |
| 9 | 58247-96 | CUSHION TAPE, windshield mounting | FLHTCUSE3 |
| 10 | 58260-08CRV | FAIRING, outer, w/ 58247-96 & 62787-96 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 58260-08CTB | FAIRING, outer, w/ 58247-96 & 62787-96 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58260-08CTE | FAIRING, outer, w/ 58247-96 & 62787-96 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 11 | 58949-96 | NUT, extension (2) | FLHTCUSE3 |
| 12 | 62786-96 | TRIM STRIP, skirt | FLHTCUSE3 |
| 13 | 62787-96 | SEAL, fairing skirt | FLHTCUSE3 |
| 14 | 67712-83A | DOOR (chrome) | FLHTCUSE3 |
| 16 | 67718-60A | SCREW, headlamp door | FLHTCUSE3 |
| 17 | 67721-48 | SCREW, retaining ring (3) | FLHTCUSE3 |
| 18 | 67726-08 | RETAINING RING, headlamp | FLHTCUSE3 |
| 19 | 67778-60A | SPRING, top | FLHTCUSE3 |
| 21 | 67864-04A | HALOGEN HEADLAMP KIT, 7 in., W/ 6717, 10006, 68096-04, 68124-04, 68881-01 (Domestic & Canada) | FLHTCUSE3 |
| 22 | 68096-04 | BULB, high beam halogen | FLHTCUSE3 |
| 23 | 68124-04A | MOUNTING RING ASSEMBLY, w/ 3088 | FLHTCUSE3 |
| 24 | 68881-01 | BULB, low beam halogen | FLHTCUSE3 |
| 70174-06 | WIRING HARNESS, halogen bulb interconnect & garage door opener (not illustrated) | FLHTCUSE3 | |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 9898 | TERMINAL, female flag, 14-16 gauge | FLHTCUSE3 |
| 26 | 53438-92 | BULB, position lamp (HDI, Japan) | FLHTCUSE3 |
| 27 | 58324-97 | WINDSHIELD, clear (HDI) | FLHTCUSE3 |
| 28 | 67668-05 | MEDALLION, lens (HDI, Japan) | FLHTCUSE3 |
| 29 | 67728-02A | BUCKET ASSEMBLY (HDI, Japan) | FLHTCUSE3 |
| 30 | 67732-08 | MOUNTING RING, headlamp (HDI, Japan) | FLHTCUSE3 |
| 31 | 68329-03 | BULB, HB2/H4 (HDI, Japan) | FLHTCUSE3 |
| 32 | 68344-05 | REFLECTOR ASSEMBLY, 7 in., left dip (England, Australia) | FLHTCUSE3 |
| 33 | 68345-05 | REFLECTOR ASSEMBLY, 7 in., right dip (HDI, Japan) | FLHTCUSE3 |
| 34 | 68359-05 | HARNESS JUMPER, position bulb, w/ 9898 & 72253-94 (HDI, Japan) | FLHTCUSE3 |
| 35 | 68380-05 | BOOT (HDI, Japan) | FLHTCUSE3 |
| 36 | 68653-05 | SOCKET, position lamp (HDI, Japan) | FLHTCUSE3 |
| 37 | 72253-94 | TERMINAL, 18-20 ga (Australia, England, HDI, Japan) | FLHTCUSE3 |
| Index number 15 is not used in this illustration.Index number 20 is not used in this illustration. | |||
INNER FAIRING
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUSE3 |
| 2 | 2446 | SCREW (2) | FLHTCUSE3 |
| 3 | 2563 | SCREW (8) | FLHTCUSE3 |
| 4 | 2965 | SCREW, front speaker mounting (4) | FLHTCUSE3 |
| 3387 | SCREW, front speaker mounting (2) | FLHTCUSE3 | |
| 5 | 3061 | SCREW (8) | FLHTCUSE3 |
| 6 | 3612 | SCREW (4) | FLHTCUSE3 |
| 7 | 3652 | SCREW (2) | FLHTCUSE3 |
| 8 | 4569 | SCREW (2) | FLHTCUSE3 |
| 9 | 6837M | WASHER (2) | FLHTCUSE3 |
| 10 | 7688 | NUT (2) | FLHTCUSE3 |
| 11 | 10065 | CABLE STRAP (4) | FLHTCUSE3 |
| 12 | 10103 | CLIP, adhesive backed | FLHTCUSE3 |
| 13 | 11445 | GROMMET, clutch hose | FLHTCUSE3 |
| 14 | 11488 | GROMMET, handlebar, right | FLHTCUSE3 |
| 11492 | GROMMET, handlebar, left | FLHTCUSE3 | |
| 15 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTCUSE3 |
| 16 | 57655-08 | AIR DEFLECTOR, right, lightly smoked, w/ 57638-08 | FLHTCUSE3 |
| 57657-08 | AIR DEFLECTOR, left, lightly smoked, w/ 57638-08 | FLHTCUSE3 | |
| 17 | 57842-06 | TRIM, dash pad | FLHTCUSE3 |
| 18 | 57860-06 | DASH PAD, leather-wrapped | FLHTCUSE3 |
| 19 | 58128-08 | AIR DEFLECTOR, right, smoked, w/ 57638-08 (used w/ crystal copper/black onyx painted parts) | FLHTCUSE3 |
| 58129-08 | AIR DEFLECTOR, left, smoked, w/ 57638-08 (used w/ crystal copper/black onyx painted parts) | FLHTCUSE3 | |
| 20 | 58317-04 | TRIM SEAL, inner fairing, 29 in. length (2) | FLHTCUSE3 |
| 21 | 58478-96A | BRACKET, fairing support, left | FLHTCUSE3 |
| 22 | 58479-96A | BRACKET, fairing support, right | FLHTCUSE3 |
| 23 | 58545-08CAS | CAP, inner fairing (Canyon Copper) | FLHTCUSE3 |
| 58545-08CRR | CAP, inner fairing (Crystal Copper) | FLHTCUSE3 | |
| 58545-08CTF | CAP, inner fairing (White Frost) | FLHTCUSE3 | |
| 24 | 58546-08CAS | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Canyon Copper) | FLHTCUSE3 |
| 58546-08CRR | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Crystal Copper) | FLHTCUSE3 | |
| 58546-08CTF | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (White Frost) | FLHTCUSE3 | |
| 25 | 58938-96B | SUPPORT, inner fairing, left | FLHTCUSE3 |
| 26 | 58939-96B | SUPPORT, inner fairing, right | FLHTCUSE3 |
| 27 | 70290-07 | WIRE HARNESS ASSEMBLY, inner fairing cap | FLHTCUSE3 |
| 28 | 71434-96A | BRACKET, switch (2) | FLHTCUSE3 |
| 29 | 71765-07 | SWITCH ASSEMBLY, spot lamp/cruise, w/ 71434-96A & 73191-96 | FLHTCUSE3 |
| 30 | 71535-96 | SWITCH, accessory, w/ 73191-96 | FLHTCUSE3 |
| 31 | 71764-07 | SWITCH ASSEMBLY, power lock, w/ 73153-96BK & 73191-96 | FLHTCUSE3 |
| 32 | 73153-96BK | SOCKET HOUSING, 6-place (black) | FLHTCUSE3 |
| 33 | 73162-96BK | SOCKET HOUSING, 12-place (black) | FLHTCUSE3 |
| 34 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (15) | FLHTCUSE3 |
| 35 | 77029-06 | SPEAKER (2) | FLHTCUSE3 |
| 77047-98 | ADAPTOR & GRILL, speaker (2) | FLHTCUSE3 | |
| 36 | 77092-98 | SWITCH, speaker, w/ 73191-96 | FLHTCUSE3 |
| 37 | 91808-89 | ELEMENT, cigarette lighter | FLHTCUSE3 |
| 38 | 91812-89A | SOCKET, cigarette lighter | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 39 | 70308-07 | WIRE HARNESS ASSEMBLY, inner fairing cap (HDI) | FLHTCUSE3 |
| 40 | 71772-07 | SWITCH ASSEMBLY, spot lamp/cruise, w/ 71434-96A & 73191-96 (HDI) | FLHTCUSE3 |
FAIRING LOWERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2995 | SCREW (10) | FLHTCUSE3 |
| 2 | 3655A | SCREW (2) | FLHTCUSE3 |
| 3 | 5429 | BOLT (2) | FLHTCUSE3 |
| 4 | 6235 | WASHER (2) | FLHTCUSE3 |
| 5 | 7415A | WASHER (2) | FLHTCUSE3 |
| 6 | 7576 | NUT (2) | FLHTCUSE3 |
| 7 | 7686 | LOCKNUT (2) | FLHTCUSE3 |
| 8 | 7716 | LOCKNUT (4) | FLHTCUSE3 |
| 9 | 8174 | SNAP, push-in (8) | FLHTCUSE3 |
| 10 | 8175 | CLIP (4) | FLHTCUSE3 |
| 11 | 27048-84 | CLAMP (2) | FLHTCUSE3 |
| 12 | 58104-05 | SPRING (2) | FLHTCUSE3 |
| 13 | 58105-05 | WASHER (2) | FLHTCUSE3 |
| 14 | 58173-05 | WASHER, serrated/nylon (4) | FLHTCUSE3 |
| 15 | 58499-08CAS | FAIRING LOWER CAP, left (Canyon Copper) | FLHTCUSE3 |
| 58499-08CRR | FAIRING LOWER CAP, left (Crystal Copper) | FLHTCUSE3 | |
| 58499-08CTF | FAIRING LOWER CAP, left (White Frost) | FLHTCUSE3 | |
| 58500-08CAS | FAIRING LOWER CAP, right (Canyon Copper) | FLHTCUSE3 | |
| 58500-08CRR | FAIRING LOWER CAP, right (Crystal Copper) | FLHTCUSE3 | |
| 58500-08CTF | FAIRING LOWER CAP, right (White Frost) | FLHTCUSE3 | |
| 16 | 58679-05 | DOOR ASSEMBLY, glovebox, right | FLHTCUSE3 |
| 58681-05 | DOOR ASSEMBLY, glovebox, left | FLHTCUSE3 | |
| 17 | 58851-08CRR | FAIRING LOWER, left (Crystal Copper) | FLHTCUSE3 |
| 58851-08CTB | FAIRING LOWER, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58851-08CTE | FAIRING LOWER, left (White Frost/Silver Mist) | FLHTCUSE3 | |
| 58852-08CRR | FAIRING LOWER, right (Crystal Copper) | FLHTCUSE3 | |
| 58852-08CTB | FAIRING LOWER, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58852-08CTE | FAIRING LOWER, right (White Frost/Silver Mist) | FLHTCUSE3 | |
| 18 | 58863-06 | LINER, glovebox, LH | FLHTCUSE3 |
| 58864-06 | LINER, glovebox, RH | FLHTCUSE3 | |
| 19 | 58889-05 | VENT LOWER, right | FLHTCUSE3 |
| 58890-05 | VENT LOWER, left | FLHTCUSE3 | |
| 20 | 58891-05 | FACE OVERMOLD, glovebox, right | FLHTCUSE3 |
| 58901-05 | FACE OVERMOLD, glovebox, left | FLHTCUSE3 | |
| 21 | 58893-05 | TRAY GLOVEBOX, right | FLHTCUSE3 |
| 58903-05 | TRAY GLOVEBOX, left | FLHTCUSE3 |
PASSING LAMPS & FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3337 | SCREW (4) | FLHTCUSE3 |
| 2 | 3514 | SCREW, passing lamp molding (2) | FLHTCUSE3 |
| 3 | 4296 | SCREW (2) | FLHTCUSE3 |
| 4 | 7041 | LOCKWASHER (2) | FLHTCUSE3 |
| 5 | 7130W | LOCKWASHER (2) | FLHTCUSE3 |
| 6 | 7606 | LOCKNUT (2) | FLHTCUSE3 |
| 7 | 7667 | NUT (2) | FLHTCUSE3 |
| 8 | 10065 | CABLE STRAP (2) | FLHTCUSE3 |
| 9 | 40901-05 | ISOLATOR, rubber (2) | FLHTCUSE3 |
| 10 | 57920-04 | WASHER (4) | FLHTCUSE3 |
| 11 | 68331-02 | RING, auxiliary lamp (2) | FLHTCUSE3 |
| 12 | 68414-05 | AUXILIARY LAMP (clear) (2) | FLHTCUSE3 |
| 13 | 68453-05 | BULB, 26.9W auxiliary lamp (2) | FLHTCUSE3 |
| 14 | 68725-62A | BEZEL RING, passing lamps (2) | FLHTCUSE3 |
| 15 | 68821-00 | STAND-OFF (2) | FLHTCUSE3 |
| 16 | 68836-04A | BAR ASSEMBLY, left, w/ 69563-06 & bar | FLHTCUSE3 |
| 68837-04A | BAR ASSEMBLY, right, w/ 69563-06 & bar | FLHTCUSE3 | |
| 17 | 69218-04 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02, & 69331-02 (2) | FLHTCUSE3 |
| 18 | 69325-02 | LENS, turn signal (2) | FLHTCUSE3 |
| 19 | 69331-02 | BULB, turn signal (amber) (2) | FLHTCUSE3 |
| 20 | 69563-06 | CLAMP BLOCK (2) | FLHTCUSE3 |
| 21 | 69567-06 | HOUSING, auxiliary lamp assembly w/ 72161-06, 72356-95 & 72298-95 (2) | FLHTCUSE3 |
| 22 | 72161-06 | SOCKET HOUSING, 2-way (2) | FLHTCUSE3 |
| 23 | 72298-95 | CABLE SEAL, green (4) | FLHTCUSE3 |
| 24 | 72356-95 | TERMINAL, #18-20 AWG (4) | FLHTCUSE3 |
| 25 | 73154-96BK | SOCKET HOUSING, 4-place (black) (2) | FLHTCUSE3 |
| 26 | 73191-96 | SOCKET TERMINAL (4) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 27 | 68163-84 | BULB, turn signal (HDI) (2) | FLHTCUSE3 |
| 28 | 68822-04 | HOUSING, passing lamp assembly (HDI) (2) | FLHTCUSE3 |
| 29 | 68847-98A | FOGLAMP BULB (HDI) (2) | FLHTCUSE3 |
| 30 | 68851-98 | BULB, 35W halogen (HDI) (2) | FLHTCUSE3 |
| 68853-98 | DUST CAP, rubber (not illustrated) (2) | FLHTCUSE3 | |
| 31 | 68973-00 | LENS (HDI) (2) | FLHTCUSE3 |
| 32 | 69231-04 | TURN SIGNAL ASSEMBLY, front (amber), w/ 68163-84, & 68973-00 (HDI) | FLHTCUSE3 |
FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3462 | BOLT (4) | FLHTCUSE3 |
| 2 | 45279-00 | WASHER (4) | FLHTCUSE3 |
| 3 | 59045-00B | FENDER, front (prime) | FLHTCUSE3 |
| 58972-08CRV | FENDER, front (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 58972-08CTB | FENDER, front (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58972-08CTE | FENDER, front (White Frost/Silver Mist) | FLHTCUSE3 | |
| 4 | 59166-80 | PLATE, lock (2) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 59280-02 | FENDER TIP (HDI) | FLHTCUSE3 |
REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW | FLHTCUSE3 |
| 2 | 3676 | SCREW (2) | FLHTCUSE3 |
| 3 | 3684 | SCREW (2) | FLHTCUSE3 |
| 4 | 6703 | WASHER | FLHTCUSE3 |
| 5 | 7434 | WASHER (2) | FLHTCUSE3 |
| 6 | 7531 | LOCKNUT (2) | FLHTCUSE3 |
| 7 | 7683 | LOCKNUT | FLHTCUSE3 |
| 8 | 7880 | NUT (4) | FLHTCUSE3 |
| 9 | 10006 | CABLE STRAP, lighting harness | FLHTCUSE3 |
| 10 | 10183 | CLIP, t-stud | FLHTCUSE3 |
| 11 | 10184 | CLIP, t-stud | FLHTCUSE3 |
| 12 | 58702-06 | FENDER, rear (prime) | FLHTCUSE3 |
| 59583-08CAS | FENDER, rear (Canyon Copper) | FLHTCUSE3 | |
| 59583-08CRR | FENDER, rear (Crystal Copper) | FLHTCUSE3 | |
| 59583-08CTF | FENDER, rear (White Frost) | FLHTCUSE3 | |
| 13 | 59174-99 | PLATE, stud | FLHTCUSE3 |
| 14 | 59423-03 | CLOISONN'E, rear fender | FLHTCUSE3 |
| 59699-06 | PROTECTIVE TAPE, rear fender (not illustrated) | FLHTCUSE3 | |
| 15 | 59768-97 | FENDER SEAT NUT KIT | FLHTCUSE3 |
| 16 | 59786-01 | BOSS, fender mounting, inner (4) | FLHTCUSE3 |
| 17 | 59788-01 | WASHER (4) | FLHTCUSE3 |
| 18 | 67266-94 | GROMMET, 1/2 in. I.D. (nylon) (2) | FLHTCUSE3 |
| 19 | 68772-06 | LIGHTING HARNESS | FLHTCUSE3 |
| 20 | 70522-06 | CONDUIT, wire harness, self-adhesive | FLHTCUSE3 |
| 21 | 73156-96BK | SOCKET HOUSING, 6-place | FLHTCUSE3 |
| 22 | 73158-96BK | SOCKET HOUSING, 8-place | FLHTCUSE3 |
| 23 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (12) | FLHTCUSE3 |
| 24 | 91140-04 | BRACKET, fender to saddlebag support | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 25 | 59579-06 | FENDER, rear (Prime) (HDI) | FLHTCUSE3 |
| 59661-08CAS | FENDER, rear (Canyon Copper) (HDI) | FLHTCUSE3 | |
| 59661-08CRR | FENDER, rear (Crystal Copper) (HDI) | FLHTCUSE3 | |
| 59661-08CTF | FENDER, rear (White Frost) (HDI) | FLHTCUSE3 | |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTCUSE3 |
| 1A | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTCUSE3 |
| 2 | 27291-08 | TUBE, evaporative line, tank | FLHTCUSE3 |
| 3 | 27440-08 | TUBE, evaporative line (except California) | FLHTCUSE3 |
| 4 | 61356-08 | FUEL TANK (prime) | FLHTCUSE3 |
| 61386-08CRV | FUEL TANK (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 61386-08CTB | FUEL TANK (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 61386-08CTE | FUEL TANK (White Frost/Silver Mist) | FLHTCUSE3 | |
| 5 | 62228-08 | CHECK VALVE, assembly, w/ 10396 | FLHTCUSE3 |
| 6 | 62384-08 | MEDALLION, fuel tank, left hand | FLHTCUSE3 |
| 62385-08 | MEDALLION, fuel tank, right hand | FLHTCUSE3 | |
| 7 | 62905-08 | FUEL LINE, tank to intake | FLHTCUSE3 |
| 8 | 70901-08 | BOOT, tank bracket, right (USE BEFORE 9/3/2007) | FLHTCUSE3 |
| 70999-08 | BOOT, tank bracket, left (USE BEFORE 9/3/2007) | FLHTCUSE3 | |
| 11852 | COVER, tank bracket, left (USE AFTER 9/3/2007) | FLHTCUSE3 | |
| 11853 | COVER, tank bracket, right (USE AFTER 9/3/2007) | FLHTCUSE3 |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHTCUSE3 |
| 1A | 10395 | RETAINER | FLHTCUSE3 |
| 1B | 11387A | O-RING | FLHTCUSE3 |
| 1C | 11686 | O-RING | FLHTCUSE3 |
| 2 | 61012-04A | CLIP, filter retainer | FLHTCUSE3 |
| 3 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHTCUSE3 |
| 4 | 61213-04A | CLIP, regulator retainer | FLHTCUSE3 |
| 5 | 61402-08 | GASKET, top plate | FLHTCUSE3 |
| 6 | 62229-08 | FILTER SHELL | FLHTCUSE3 |
| 7 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHTCUSE3 |
| 8 | 70369-08 | HARNESS, fuel tank w/ 9, 10, 11, 12, 13 & 14 | FLHTCUSE3 |
| 9 | 72485-07 | SOCKET HOUSING, 4-way (black) | FLHTCUSE3 |
| 10 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUSE3 |
| 11 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUSE3 |
| 12 | 72557-07 | SECONDARY LOCK, 4-way | FLHTCUSE3 |
| 13 | 73154-96BK | SOCKET HOUSING, 4-way (black) | FLHTCUSE3 |
| 14 | 73191-96 | SOCKET TERMINAL, 16-20 gauge (4) | FLHTCUSE3 |
| 15 | 75069-08 | TOP PLATE ASSEMBLY, w/ 1, 2, 3, 4, 6 & 17 | FLHTCUSE3 |
| 16 | 75089-08 | RING, fuel tank, cam | FLHTCUSE3 |
| 17 | 75147-08 | TOP PLATE | FLHTCUSE3 |
| 18 | 75205-08 | FUEL LEVEL SENDER | FLHTCUSE3 |
| 19 | 75229-08 | HARNESS, fuel pump module | FLHTCUSE3 |
| 20 | 75254-04A | STRAINER, fuel pump inlet | FLHTCUSE3 |
| 21 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTCUSE3 |
FUEL TANK CONSOLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3529 | SCREW (2) | FLHTCUSE3 |
| 2 | 3588 | SCREW | FLHTCUSE3 |
| 3 | 4194 | SCREW (5) | FLHTCUSE3 |
| 4 | 4856 | SCREW | FLHTCUSE3 |
| 5 | 8142 | NUT, speed | FLHTCUSE3 |
| 6 | 10065 | CABLE STRAP (2) | FLHTCUSE3 |
| 7 | 10103 | CLIP, adhesive backed (2) | FLHTCUSE3 |
| 8 | 10334 | CLIP, hinge mounting | FLHTCUSE3 |
| 9 | 61109-85D | GASKET, filler cap | FLHTCUSE3 |
| 10 | 61112-08 | BOOT | FLHTCUSE3 |
| 11 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | FLHTCUSE3 |
| 12 | 61274-92 | FUEL FILLER CAP, vacuum vented | FLHTCUSE3 |
| 13 | 61278-08 | DOOR, console | FLHTCUSE3 |
| 14 | 61313-88 | BUMPER, cover (2) | FLHTCUSE3 |
| 15 | 62775-08 | TRIM COVER, fuel tank | FLHTCUSE3 |
| 16 | 63603-05 | PUSH BUTTON KIT, fuel tank, w, 84850-92 | FLHTCUSE3 |
| 17 | 67493-08 | BRACKET, console mount | FLHTCUSE3 |
| 18 | 69241-08 | DRAIN HOSE, console | FLHTCUSE3 |
| 19 | 71294-08 | MOLDING, rubber (2) | FLHTCUSE3 |
| 20 | 74119-98BK | HOUSING, socket, 12-way (black) | FLHTCUSE3 |
| 21 | 74159-98 | SECONDARY LOCK, 12-way socket | FLHTCUSE3 |
| 22 | 74191-98 | SOCKET TERMINAL (7) | FLHTCUSE3 |
| 23 | 74195-98 | SEAL PIN (5) | FLHTCUSE3 |
| 24 | 76266-98 | CAP ASSEMBLY, weather | FLHTCUSE3 |
| 25 | 77121-08 | HARNESS, console DIN, w/ 10065, 74119-98BK, 74159-98, 74191-98 & 74195-98 | FLHTCUSE3 |
| 26 | 77153-08 | HOUSING, pod (chrome) | FLHTCUSE3 |
| 27 | 77154-08 | INSERT, console pod, CB intercom (Canyon Copper text) (Domestic) | FLHTCUSE3 |
| 77168-08 | INSERT, console pod, CB intercom (White Frost text) (Domestic) | FLHTCUSE3 | |
| 77169-08 | INSERT, console pod, CB intercom (Crystal Copper w/ silver text) (Domestic) | FLHTCUSE3 | |
| 28 | 77177-08 | BRACKET, retainer, rear, console pod | FLHTCUSE3 |
| 29 | 77188-08 | BRACKET, retainer, front, console pod (2) | FLHTCUSE3 |
| 30 | 84850-92 | NUT | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 31 | 77154-08 | INSERT, console pod, CB intercom (Canyon Copper text) (HDI) | FLHTCUSE3 |
| 77168-08 | INSERT, console pod, CB intercom (White Frost text) (HDI) | FLHTCUSE3 | |
| 77169-08 | INSERT, console pod, CB intercom (Crystal Copper w/ silver text) (HDI) | FLHTCUSE3 | |
| 77201-08 | INSERT, console pod, CB intercom (Canyon Copper) (Japan) | FLHTCUSE3 | |
| 77202-08 | INSERT, console pod, CB intercom (White Frost) (Japan) | FLHTCUSE3 | |
| 77203-08 | INSERT, console pod, CB intercom (Crystal Copper) (Japan) | FLHTCUSE3 | |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 2225 | SCREW (6) | FLHTCUSE3 |
| 2 | 3929 | SCREW (4) | FLHTCUSE3 |
| 3 | 5416 | BOLT | FLHTCUSE3 |
| 4 | 7041 | LOCKWASHER (4) | FLHTCUSE3 |
| 5 | 7601 | LOCKNUT | FLHTCUSE3 |
| 6 | 7593 | NUT (4) | FLHTCUSE3 |
| 7 | 7796 | NUT, w/ washer | FLHTCUSE3 |
| 8 | 8146 | NUT, clip (6) | FLHTCUSE3 |
| 9 | 9955 | CLAMP, worm drive #24 (12) | FLHTCUSE3 |
| 10 | 27714-06 | SEAL RING | FLHTCUSE3 |
| 11 | 27719-07 | SENSOR, oxygen, w/ 27714-06, 72009-05 & 72011-05 (2) | FLHTCUSE3 |
| 12 | 65283-94 | MUFFLER CLAMP (3) | FLHTCUSE3 |
| 13 | 65324-83A | SEAL, exhaust (2) | FLHTCUSE3 |
| 14 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHTCUSE3 |
| 15 | 65328-83 | CLAMP, exhaust manifold (2) | FLHTCUSE3 |
| 16 | 65913-06B | MUFFLER, left, catalytic (chrome) | FLHTCUSE3 |
| 17 | 66080-06B | MUFFLER, right, catalytic (chrome) | FLHTCUSE3 |
| 18 | 65619-98 | BRACKET TAB, exhaust mount at starter | FLHTCUSE3 |
| 19 | 65620-98A | CLAMP, exhaust | FLHTCUSE3 |
| 20 | 65621-07 | EXHAUST PIPE, right, front | FLHTCUSE3 |
| 21 | 65694-05A | SHIELD, front exhaust pipe | FLHTCUSE3 |
| 22 | 65626-07B | EXHAUST PIPE ASSEMBLY, right, rear | FLHTCUSE3 |
| 23 | 65627-07 | EXHAUST PIPE, left, rear (chrome) | FLHTCUSE3 |
| 24 | 65634-98A | SHIELD, right exhaust pipe, front | FLHTCUSE3 |
| 25 | 65636-07 | SHIELD, left exhaust pipe, rear | FLHTCUSE3 |
| 26 | 65647-98 | SHIELD, left exhaust pipe, front | FLHTCUSE3 |
| 27 | 65654-97 | CLAMP, exhaust pipe | FLHTCUSE3 |
| 28 | 65678-07 | MOUNTING BRACKET, rear exhaust mount | FLHTCUSE3 |
| 29 | 65723-85 | MOUNTING BRACKET (2) | FLHTCUSE3 |
| 30 | 65724-85 | MOUNT, rubber (2) | FLHTCUSE3 |
| 31 | 65951-98A | HEAT SHIELD ASSEMBLY, rear exhaust pipe | FLHTCUSE3 |
| 32 | 65952-98A | HEAT SHIELD ASSEMBLY, exhaust pipe, right rear lower | FLHTCUSE3 |
| 33 | 65988-07A | SUPPORT BRACKET, exhaust mount at starter | FLHTCUSE3 |
| 34 | 66012-06B | MUFFLER ASSEMBLY, left, catalytic (chrome), w/ 2225, 8146, 65913-06B, 66078-06, & 66079-06 | FLHTCUSE3 |
| 35 | 66047-05 | CLAMP, worm (6) | FLHTCUSE3 |
| 36 | 66078-06 | RING, retention (2) | FLHTCUSE3 |
| 37 | 66079-06 | END CAP (2) | FLHTCUSE3 |
| 38 | 66077-06B | MUFFLER ASSEMBLY, right, catalytic (chrome), w/ 2225, 8146, 66078-06, 66079-06, & 66080-06B | FLHTCUSE3 |
| 39 | 66219-06 | HEAT SHIELD, muffler, right | FLHTCUSE3 |
| 66220-06 | HEAT SHIELD, muffler, left | FLHTCUSE3 | |
| 40 | 72009-05 | HOUSING, 2-way, pin | FLHTCUSE3 |
| 41 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (2) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 42 | 65748-07 | MUFFLER ASSEMBLY, right, catalytic (chrome) (Japan) | FLHTCUSE3 |
| 65863-07 | MUFFLER ASSEMBLY, right, catalytic (chrome) (HDI) | FLHTCUSE3 | |
| 43 | 65905-07B | EXHAUST PIPE, right, rear (HDI) | FLHTCUSE3 |
| 44 | 65949-07 | MUFFLER ASSEMBLY, left, catalytic (chrome) (HDI & Japan) | FLHTCUSE3 |
| 45 | 65742-05 | HEAT SHIELD, muffler, right (HDI & Japan) | FLHTCUSE3 |
| 65743-05 | HEAT SHIELD, muffler, left (HDI & Japan) | FLHTCUSE3 | |
ACTIVE INTAKE & EXHAUST
| Index No. | Part No. | Description | Model(s) |
| INTERNATIONAL MODELS ONLY | |||
| 1 | 4132 | SCREW (HDI except Japan) (2) | FLHTCUSE3 |
| 2 | 4240 | SCREW (HDI except Japan) | FLHTCUSE3 |
| 3 | 6119 | WASHER (HDI except Japan) (2) | FLHTCUSE3 |
| 4 | 66318-08 | CADDY, RH, used w/ active intake & exhaust | FLHTCUSE3 |
| 5 | 66761-08 | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHTCUSE3 |
| 6 | 66767-07 | RETAINER CABLE (HDI except Japan) | FLHTCUSE3 |
| 7 | 66799-07 | CLIP (HDI except Japan) | FLHTCUSE3 |
| 8 | 70991-07 | EXHAUST ACTUATOR, w/ 71019-07 (HDI except Japan) | FLHTCUSE3 |
| 9 | 71019-07 | SHROUD, exhaust actuator, (HDI except Japan) | FLHTCUSE3 |
BATTERY, TRAY, & CABLES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW | FLHTCUSE3 |
| 2 | 3249 | SCREW (2) | FLHTCUSE3 |
| 3 | 3684 | SCREW | FLHTCUSE3 |
| 4 | 4312C | SCREW (2) | FLHTCUSE3 |
| 5 | 6336B | WASHER | FLHTCUSE3 |
| 6 | 7792 | NUT | FLHTCUSE3 |
| 7 | 15368-01A | LABEL BATTERY WARNING | FLHTCUSE3 |
| 8 | 66010-97B | BATTERY, 28 amp hours | FLHTCUSE3 |
| 9 | 66051-08 | STRAP, battery removal | FLHTCUSE3 |
| 10 | 66281-08 | BATTERY TRAY | FLHTCUSE3 |
| 11 | 70267-08 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHTCUSE3 |
| 12 | 70344-08 | CADDY, electronic control module (ECM) | FLHTCUSE3 |
| 13 | 70377-08 | CABLE ASSEMBLY, battery positive to starter, w/ 70584-94 | FLHTCUSE3 |
| 14 | 70584-94 | BOOT, battery positive | FLHTCUSE3 |
| 15 | 72242-94 | TERMINAL, ring | FLHTCUSE3 |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2625 | SCREW (4) | FLHTCUSE3 |
| 10073 | CABLE STRAP (not illustrated) | FLHTCUSE3 | |
| 2 | 67043-96 | NUT (8) | FLHTCUSE3 |
| 3 | 67522-04B | TACHOMETER | FLHTCUSE3 |
| 4 | 67516-08 | SPEEDOMETER, mph | FLHTCUSE3 |
| 5 | 67352-96A | CLAMP, 2 in. AWG (4) | FLHTCUSE3 |
| 6 | 67356-00 | GASKET, speedometer/tachometer (2) | FLHTCUSE3 |
| 7 | 67454-04 | BULB, w/ rubber boot (4) | FLHTCUSE3 |
| 8 | 67689-04 | BACK CLAMP (2) | FLHTCUSE3 |
| 9 | 67854-98 | SWITCH, trip reset | FLHTCUSE3 |
| 10 | 67880-94 | BOOT, reset switch | FLHTCUSE3 |
| 11 | 68382-07 | BEZEL ASSEMBLY, indicator lamp | FLHTCUSE3 |
| 12 | 68789-96A | INDICATOR LAMP ASSEMBLY, w/ 67184-94, 68024-94, 73160-96BK, & 73191-96 | FLHTCUSE3 |
| 13 | 73160-96BK | SOCKET HOUSING, 10-place | FLHTCUSE3 |
| 14 | 74419-96A | SENSOR, air temperature, w/ 73103-96BK | FLHTCUSE3 |
| 15 | 74552-04A | VOLTMETER, w/ 67454-04 & 75044-96 | FLHTCUSE3 |
| 74553-04A | OIL PRESSURE GAUGE, w/ 67454-04 & 75044-96 | FLHTCUSE3 | |
| 74554-04 | AIR TEMPERATURE GAUGE, w/ 67454-04 & 75044-96 | FLHTCUSE3 | |
| 75113-08 | FUEL GAUGE, w/ 67454-04 & 75044-96 | FLHTCUSE3 | |
| 16 | 75044-96 | SOCKET (4) | FLHTCUSE3 |
| 17 | 73103-96BK | PIN HOUSING, 3-way (black) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 67519-08 | SPEEDOMETER, kph (Canada, HDI, Japan) | FLHTCUSE3 |
| 67581-08 | SPEEDOMETER, mph/kph (England) | FLHTCUSE3 | |
TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FLHTCUSE3 |
| 2 | 7964 | J-NUT | FLHTCUSE3 |
| 3 | 10006 | CABLE STRAP | FLHTCUSE3 |
| 4 | 10183 | CLIP, t-stud (4) | FLHTCUSE3 |
| 5 | 10184 | CLIP, t-stud | FLHTCUSE3 |
| 6 | 68026-99 | SCREW, tail lamp (2) | FLHTCUSE3 |
| 7 | 68066-99A | TAIL LAMP BASE ASSEMBLY, w/ 68296-99A & 68830-99A | FLHTCUSE3 |
| 8 | 68167-04 | BULB, tail light, wedge mount | FLHTCUSE3 |
| 9 | 68296-99A | TAIL LAMP BASE (chrome) | FLHTCUSE3 |
| 10 | 68140-04 | LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A | FLHTCUSE3 |
| 11 | 68369-03 | LENS, tail lamp, w/ 68026-99 | FLHTCUSE3 |
| 12 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, w/ 68167-88, 73154-96BK, & 73191-96 | FLHTCUSE3 |
| 13 | 68772-06 | HARNESS, rear lamps, W/ 10006, 70522-06, 73156-96BK, 73158-96BK & 73191-96 | FLHTCUSE3 |
| 14 | 68830-99A | CIRCUIT BOARD & COVER | FLHTCUSE3 |
| 15 | 70522-06 | CONDUIT, self-adhesive | FLHTCUSE3 |
| 16 | 73154-96BK | SOCKET HOUSING, 4-place (3) | FLHTCUSE3 |
| 17 | 73156-96BK | SOCKET HOUSING, 6-place | FLHTCUSE3 |
| 18 | 73158-96BK | SOCKET HOUSING, 8-place | FLHTCUSE3 |
| 19 | 73191-96 | SOCKET TERMINAL, #16-20 AWG (24) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 20 | 68142-04 | LIGHT ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (HDI) | FLHTCUSE3 |
| 21 | 68167-04 | BULB, tail lamp, wedge mount (HDI) | FLHTCUSE3 |
| 22 | 68558-03 | LENS, tail lamp, w/ 68026-99 (HDI) | FLHTCUSE3 |
| 23 | 69187-03A | BULB SOCKET ASSEMBLY, tail light, w/ 68167-04, 73154-96BK, & 73191-96 (HDI) | FLHTCUSE3 |
REAR TURN SIGNALS & LICENSE PLATE HOLDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2718 | BOLT (4) | FLHTCUSE3 |
| 2 | 3576 | SCREW (2) | FLHTCUSE3 |
| 3 | 3684 | SCREW (2) | FLHTCUSE3 |
| 4 | 3987 | BOLT (2) | FLHTCUSE3 |
| 5 | 4017 | BOLT (4) | FLHTCUSE3 |
| 6 | 4033 | SCREW | FLHTCUSE3 |
| 7 | 6036 | WASHER (2) | FLHTCUSE3 |
| 8 | 6703 | WASHER (7) | FLHTCUSE3 |
| 9 | 7127 | LOCKWASHER (4) | FLHTCUSE3 |
| 10 | 7686 | LOCKNUT | FLHTCUSE3 |
| 11 | 7887 | LOCKNUT (4) | FLHTCUSE3 |
| 12 | 53375-97A | LICENSE PLATE HOLDER | FLHTCUSE3 |
| 13 | 53422-97 | TUBE SUPPORT, bottom | FLHTCUSE3 |
| 14 | 53799-99 | LUGGAGE RACK SPACER (5) | FLHTCUSE3 |
| 15 | 53801-98 | TUBE SUPPORT, top | FLHTCUSE3 |
| 16 | 59988-72A | REFLECTOR | FLHTCUSE3 |
| 17 | 61135-57 | SPACER (2) | FLHTCUSE3 |
| 18 | 67266-94 | BUSHING (2) | FLHTCUSE3 |
| 19 | 68508-04 | BRACKET, rear turn signal bar | FLHTCUSE3 |
| 20 | 68905-00 | SOCKET ASSEMBLY (2) | FLHTCUSE3 |
| 21 | 69325-02 | LENS, turn signal (2) | FLHTCUSE3 |
| 22 | 69330-02 | BULB, turn signal (2) | FLHTCUSE3 |
| 23 | 73152-96BK | SOCKET HOUSING, 2-way (black) (2) | FLHTCUSE3 |
| 24 | 73153-96BK | SOCKET HOUSING, 3-way (black) | FLHTCUSE3 |
| 25 | 73191-96 | SOCKET TERMINAL (6) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 2420 | SCREW (HDI) (3) | FLHTCUSE3 |
| 27 | 2731W | SCREW (HDI) (4) | FLHTCUSE3 |
| 28 | 3574 | SCREW (HDI) (2) | FLHTCUSE3 |
| 29 | 53436-97 | BULB, wedge (HDI) | FLHTCUSE3 |
| 30 | 59292-94 | NUT, plastic (HDI) (4) | FLHTCUSE3 |
| 31 | 60026-97 | PLATE, license back (HDI) | FLHTCUSE3 |
| 32 | 60039-97 | BRACKET, license plate mounting (HDI) | FLHTCUSE3 |
| 33 | 68163-84 | BULB, turn signal (HDI) (2) | FLHTCUSE3 |
| 34 | 68180-99 | LAMP ASSEMBLY, license plate illumination, w/ 7629, 53436-97, 73153-96BK, & 73191-96 (HDI) | FLHTCUSE3 |
| 35 | 68907-00 | SOCKET ASSEMBLY, rear turn signal (HDI) (2) | FLHTCUSE3 |
| 36 | 68973-00 | LENS, rear turn signal (HDI) (2) | FLHTCUSE3 |
| 37 | 68997-04 | LAMP ASSEMBLY, rear turn signal, w/ 68163-84, 68508-04, 68907-00, 68973-00, 73152-96BK, & 73191-96 (HDI) | FLHTCUSE3 |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHTCUSE3 |
| 2 | 4775 | SCREW (2) | FLHTCUSE3 |
| 3 | 6019 | SCREW (2) | FLHTCUSE3 |
| 4 | 6109 | WASHER | FLHTCUSE3 |
| 5 | 7495 | NUT | FLHTCUSE3 |
| 6 | 7549A | ACORN NUT | FLHTCUSE3 |
| 7 | 8108 | SPEEDNUT (2) | FLHTCUSE3 |
| 8 | 10039 | CABLE STRAP | FLHTCUSE3 |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHTCUSE3 |
| 10 | 69012-93A | COVER, horn (chrome) | FLHTCUSE3 |
| 11 | 69060-90E | HORN ASSEMBLY, w/ 7495 | FLHTCUSE3 |
| 12 | 69062-91A | CLAMP | FLHTCUSE3 |
| 13 | 69120-91 | BRACKET, horn | FLHTCUSE3 |
| 14 | 69123-92 | MOUNT, horn, rubber | FLHTCUSE3 |
WIRING HARNESS - INTERCONNECT
| Index No. | Part No. | Description | Model(s) |
| 70232-08 | WIRING HARNESS, interconnect | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 1 | 9839 | TERMINAL, positive lock (9) | FLHTCUSE3 |
| 2 | 9847 | CONNECTOR, right hand female spade | FLHTCUSE3 |
| 3 | 9848 | CONNECTOR, left hand female spade (2) | FLHTCUSE3 |
| 4 | 9898 | TERMINAL, female flag, 14-16 gauge | FLHTCUSE3 |
| 5 | 9937 | TERMINAL, female spade, 14-18 AWG (11) | FLHTCUSE3 |
| 6 | 10039 | CABLE STRAP | FLHTCUSE3 |
| 7 | 10065 | CABLE STRAP (12) | FLHTCUSE3 |
| 8 | 10073 | CABLE STRAP, rosebud mount (2) | FLHTCUSE3 |
| 9 | 10147 | CLIP, connector, rosebud mount | FLHTCUSE3 |
| 10 | 67854-98 | SWITCH, trip reset | FLHTCUSE3 |
| 11 | 72056-92 | HOUSING, terminal 3-way | FLHTCUSE3 |
| 12 | 72116-94BK | SOCKET HOUSING, 6-way, sealed, (black) | FLHTCUSE3 |
| 13 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTCUSE3 |
| 14 | 72131-04 | SOCKET HOUSING, 12-way (gray) | FLHTCUSE3 |
| 15 | 72156-94 | SOCKET LOCK, secondary 6-way | FLHTCUSE3 |
| 16 | 72167-07BK | HOUSING, pin, 16-way | FLHTCUSE3 |
| 17 | 72168-07 | TERMINAL, socket, 18-20 AWG (20) | FLHTCUSE3 |
| 18 | 72169-07 | TERMINAL, pin, 16-18 AWG (28) | FLHTCUSE3 |
| 19 | 72189-04 | SEAL PIN (11) | FLHTCUSE3 |
| 20 | 72191-94 | TERMINAL, socket, 16-18 AWG (4) | FLHTCUSE3 |
| 21 | 72195-94 | SEAL PIN (2) | FLHTCUSE3 |
| 22 | 72200-94 | HOUSING, 3-way, female (4) | FLHTCUSE3 |
| 23 | 72203-96 | HOUSING, 2-way (4) | FLHTCUSE3 |
| 24 | 72205-94 | CONNECTOR, 4-way, male | FLHTCUSE3 |
| 25 | 72208-94 | TERMINAL, 12 AWG, male | FLHTCUSE3 |
| 26 | 72210-94 | TERMINAL, 14 AWG, male (3) | FLHTCUSE3 |
| 27 | 72272-07 | TERMINAL, socket, 14-16 AWG (6) | FLHTCUSE3 |
| 28 | 72290-94 | TERMINAL, insulated (5) | FLHTCUSE3 |
| 29 | 72294-94 | TERMINAL, 16-20 AWG, female (2) | FLHTCUSE3 |
| 30 | 72364-06 | TERMINAL, 10-14 AWG, female | FLHTCUSE3 |
| 31 | 72381-98 | TERMINAL, socket (22) | FLHTCUSE3 |
| 32 | 72382-98BK | HOUSING, 23-place (black) | FLHTCUSE3 |
| 33 | 72397-98 | SEAL PIN | FLHTCUSE3 |
| 34 | 72473-07 | SEAL PIN (4) | FLHTCUSE3 |
| 35 | 72487-07BK | SOCKET HOUSING, 12-way (black) | FLHTCUSE3 |
| 36 | 72490-07GY | PIN HOUSING, 12-way (gray) | FLHTCUSE3 |
| 37 | 72491-07GY | SOCKET HOUSING, 16-way (gray) | FLHTCUSE3 |
| 38 | 73102-96BK | PIN HOUSING, 2-place (black) | FLHTCUSE3 |
| 39 | 73104-96BK | PIN HOUSING, 4-place (black) | FLHTCUSE3 |
| 40 | 73110-96BK | PIN HOUSING, 10-place (black) | FLHTCUSE3 |
| 41 | 73112-96BK | PIN HOUSING, 12-way (black) | FLHTCUSE3 |
| 42 | 73153-96BK | SOCKET HOUSING, 3-way (black) | FLHTCUSE3 |
| 43 | 73190-96 | TERMINAL, pin, 16-20 AWG (29) | FLHTCUSE3 |
| 44 | 73191-96 | SOCKET TERMINAL, 16-20 AWG (2) | FLHTCUSE3 |
| 45 | 73196-96 | ANCHOR, t-stud (2) | FLHTCUSE3 |
| 46 | 73213-07 | RETAINER, x-mas tree clip (2) | FLHTCUSE3 |
| 47 | 74196-04 | TERMINAL, socket (13) | FLHTCUSE3 |
| 48 | 74197-04 | SOCKET LOCK, secondary 12-way (2) | FLHTCUSE3 |
MAIN WIRING HARNESS - ABS BRAKES
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in. ring, 12 AWG (2) | FLHTCUSE3 |
| 2 | 9838 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHTCUSE3 |
| 3 | 9842 | TERMINAL, 1/4 in. ring, 10-12 AWG | FLHTCUSE3 |
| 4 | 9898 | TERMINAL, insulated (2) | FLHTCUSE3 |
| 5 | 10039 | CABLE STRAP (2) | FLHTCUSE3 |
| 6 | 10065 | CABLE STRAP (16) | FLHTCUSE3 |
| 7 | 10073 | CABLE STRAP, rosebud mount | FLHTCUSE3 |
| 8 | 10147 | CLIP, connector | FLHTCUSE3 |
| 9 | 10177 | CABLE STRAP, tree mount | FLHTCUSE3 |
| 10 | 11779 | FASTENER, push-in (black) (2) | FLHTCUSE3 |
| 11 | 31504-91B | RELAY, w/ diode | FLHTCUSE3 |
| 12 | 31586-07 | RELAY (3) | FLHTCUSE3 |
| 13 | 70160-08 | WIRING HARNESS, audio overlay | FLHTCUSE3 |
| 14 | 70348-08 | CADDY, fuse block | FLHTCUSE3 |
| 15 | 70598-99 | BOOT, engine temperature sensor | FLHTCUSE3 |
| 16 | 70980-08 | TRAY, wire trough | FLHTCUSE3 |
| 17 | 70981-08 | COVER, wire trough | FLHTCUSE3 |
| 18 | 72006-05 | SOCKET TERMINAL, 16-20 AWG (4) | FLHTCUSE3 |
| 19 | 72007-05 | SOCKET HOUSING, 2-way (4) | FLHTCUSE3 |
| 20 | 72011-05 | WIRE SEAL, 16-20 AWG (yellow) (12) | FLHTCUSE3 |
| 21 | 72012-07 | SOCKET HOUSING, 5-way | FLHTCUSE3 |
| 22 | 72014-07 | SEAL PIN | FLHTCUSE3 |
| 23 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (4) | FLHTCUSE3 |
| 24 | 72046-79 | HOUSING, 5-place, female | FLHTCUSE3 |
| 25 | 72063-06 | HOUSING, 2-way | FLHTCUSE3 |
MAIN WIRING HARNESS - ABS BRAKES (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 26 | 72064-06 | SOCKET HOUSING, 3-way, female (2) | FLHTCUSE3 |
| 27 | 72066-06 | SOCKET HOUSING, 4-way female (black) | FLHTCUSE3 |
| 28 | 72079-08 | SOCKET HOUSING, 73-way | FLHTCUSE3 |
| 29 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHTCUSE3 |
| 30 | 72096-06 | WIRE SEAL, 18-20 AWG (yellow) (4) | FLHTCUSE3 |
| 31 | 72100-04 | HOUSING, 1-way, male (gray) | FLHTCUSE3 |
| 32 | 72103-94BK | HOUSING, 3-pin (black) | FLHTCUSE3 |
| 33 | 72104-94BK | HOUSING, 4-pin (black) (2) | FLHTCUSE3 |
| 34 | 72111-06 | LOCK, secondary, 2-way, female (gray) | FLHTCUSE3 |
| 35 | 72115-08 | COVER, 73-way socket housing | FLHTCUSE3 |
| 36 | 72124-94GY | HOUSING, 4-pin (gray) | FLHTCUSE3 |
| 37 | 72114-94BK | SOCKET HOUSING, 4-way (black) | FLHTCUSE3 |
| 38 | 72135-06 | LOCK, secondary, 4-way socket, female (2) | FLHTCUSE3 |
| 39 | 72138-94GY | SOCKET HOUSING, 8-way (gray) | FLHTCUSE3 |
| 40 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHTCUSE3 |
| 41 | 72143-94 | PIN LOCK, secondary, 3-way | FLHTCUSE3 |
| 42 | 72144-94 | PIN LOCK, secondary, 4-way (2) | FLHTCUSE3 |
| 43 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHTCUSE3 |
| 44 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHTCUSE3 |
| 45 | 72157-08 | PLR, GT280 | FLHTCUSE3 |
| 46 | 72158-94 | PIN LOCK, secondary, 8-way | FLHTCUSE3 |
| 47 | 72159-94 | SOCKET LOCK, secondary, 12-way | FLHTCUSE3 |
| 48 | 72164-94A | WEATHER PLUG, 4-way (2) | FLHTCUSE3 |
| 49 | 72166-07BK | SOCKET HOUSING, 16-way 18-20 AWG (black) | FLHTCUSE3 |
| 50 | 72168-07 | TERMINAL, socket, 16-18 AWG (44) | FLHTCUSE3 |
| 51 | 72179-94 | SEAL, internal, 12 circuit (2) | FLHTCUSE3 |
| 52 | 72190-94 | TERMINAL, pin, 16-18 AWG (12) | FLHTCUSE3 |
| 53 | 72191-94 | TERMINAL, socket, 16-18 AWG (22) | FLHTCUSE3 |
| 54 | 72195-94 | SEAL PIN (5) | FLHTCUSE3 |
MAIN WIRING HARNESS - ABS BRAKES (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 55 | 72199-94 | ANCHOR, t-stud | FLHTCUSE3 |
| 56 | 72204-04 | FUSE/RELAY BLOCK, bussed (2) | FLHTCUSE3 |
| 57 | 72206-94 | CONNECTOR, 4-position, female | FLHTCUSE3 |
| 58 | 72207-94 | TERMINAL, female, 14 AWG (2) | FLHTCUSE3 |
| 59 | 72213-94 | TERMINAL, socket, female, 16-20 AWG (8) | FLHTCUSE3 |
| 60 | 72214-94 | CABLE SEAL (4) | FLHTCUSE3 |
| 61 | 72232-96 | SEAL PLUG (2) | FLHTCUSE3 |
| 62 | 72249-94 | SHRINK TUBE, .415 x 1 (black) | FLHTCUSE3 |
| 63 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHTCUSE3 |
| 64 | 72252-01 | TERMINAL, 10 AWG (3) | FLHTCUSE3 |
| 65 | 72260-04 | HOUSING, female (gray) (2) | FLHTCUSE3 |
| 66 | 72265-04 | SECONDARY LOCK, bussed fuse block (16) | FLHTCUSE3 |
| 67 | 72272-07 | TERMINAL, socket, 14-16 AWG (10) | FLHTCUSE3 |
| 68 | 72279-04 | TERMINAL, female, 14-16 AWG (18) | FLHTCUSE3 |
| 69 | 72286-04 | TERMINAL, buss, female, 12-14 AWG (13) | FLHTCUSE3 |
| 70 | 72289-04 | TERMINAL, female, 10-12 AWG (2) | FLHTCUSE3 |
| 71 | 72290-94 | TERMINAL, 1/4 inch insulated (2) | FLHTCUSE3 |
| 72 | 72291-94 | TERMINAL, 14-16 AWG | FLHTCUSE3 |
| 73 | 72295-94 | CONNECTOR, starter housing | FLHTCUSE3 |
| 74 | 72309-04 | TERMINAL, 16-18 AWG (13) | FLHTCUSE3 |
| 72314-01 | MAXI - FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHTCUSE3 | |
| 75 | 72325-97 | RELAY HOLDER | FLHTCUSE3 |
| 76 | 72330-95 | FUSE, 15 AMP (blue) (15) | FLHTCUSE3 |
| 77 | 72331-95 | FUSE, 5 AMP (light tan) | FLHTCUSE3 |
| 78 | 72355-97 | TERMINAL, female, 12 AWG (2) | FLHTCUSE3 |
| 79 | 72359-05 | TERMINAL, female, 10-12 AWG (5) | FLHTCUSE3 |
| 80 | 72400-99 | CONNECTOR, 4-way | FLHTCUSE3 |
| 81 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHTCUSE3 |
MAIN WIRING HARNESS - ABS BRAKES (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 82 | 72403-99 | SECONDARY LOCK, 4-way | FLHTCUSE3 |
| 83 | 72406-07 | SOCKET HOUSING, 4-way | FLHTCUSE3 |
| 84 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUSE3 |
| 85 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHTCUSE3 |
| 86 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUSE3 |
| 87 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTCUSE3 |
| 88 | 72416-01 | HOUSING, 3-way, female | FLHTCUSE3 |
| 89 | 72429-00 | TERMINAL, .25 inch, female, 12-16 AWG (4) | FLHTCUSE3 |
| 90 | 72440-08 | SEAL PIN, plug (18) | FLHTCUSE3 |
| 91 | 72473-07 | SEAL PIN (12) | FLHTCUSE3 |
| 92 | 72483-08BK | SOCKET HOUSING, 6-way | FLHTCUSE3 |
| 93 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTCUSE3 |
| 94 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTCUSE3 |
| 95 | 72489-07GY | SOCKET HOUSING, 12-way (gray) | FLHTCUSE3 |
| 96 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHTCUSE3 |
| 97 | 72500-07BAK | SOCKET HOUSING, 20-way (black) | FLHTCUSE3 |
| 98 | 72511-07BK | HOUSING, pin, 3-way (black) | FLHTCUSE3 |
| 99 | 72512-07BK | SOCKET HOUSING, 3-way (black) | FLHTCUSE3 |
| 100 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHTCUSE3 |
| 101 | 72533-06 | DUST CAP, 2-pin connector | FLHTCUSE3 |
| 102 | 72539-06 | FUSE, 30 amp, mini type (green) (3) | FLHTCUSE3 |
| 103 | 72547-08 | DIODE PACK | FLHTCUSE3 |
| 104 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHTCUSE3 |
| 105 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (38) | FLHTCUSE3 |
MAIN WIRING HARNESS - ABS BRAKES (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 106 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHTCUSE3 |
| 107 | 72609-08 | LOCK, secondary, 2-way (black) (3) | FLHTCUSE3 |
| 108 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHTCUSE3 |
| 109 | 72611-07 | TERMINAL, socket, 16-20 AWG (gold) (4) | FLHTCUSE3 |
| 110 | 72620-08 | FUSE COVER, rear | FLHTCUSE3 |
| 111 | 72635-08 | COVER ASSEMBLY, fuse block w/ graphics | FLHTCUSE3 |
| 112 | 73102-96BK | PIN HOUSING, 2-place (black) | FLHTCUSE3 |
| 113 | 73103-96BK | PIN HOUSING, 3-place (black) | FLHTCUSE3 |
| 114 | 73104-96BK | PIN HOUSING, 4-place (black) | FLHTCUSE3 |
| 115 | 73108-96BK | PIN HOUSING, 8-place (black) | FLHTCUSE3 |
| 116 | 73153-96BK | SOCKET HOUSING, 3-place (black) | FLHTCUSE3 |
| 117 | 73190-96 | TERMINAL, pin, 16-20 AWG (15) | FLHTCUSE3 |
| 118 | 73191-96 | SOCKET TERMINAL, 16-20 AWG (3) | FLHTCUSE3 |
| 119 | 73198-96 | CONNECTOR ANCHOR (3) | FLHTCUSE3 |
| 120 | 73213-07 | RETAINER, x-mas tree clip | FLHTCUSE3 |
| 121 | 73301-04 | HOUSING, pin, 2-way | FLHTCUSE3 |
| 122 | 73303-04 | SECONDARY LOCK, female, 2-way | FLHTCUSE3 |
| 123 | 73304-04 | TERMINAL, female, 10 AWG (2) | FLHTCUSE3 |
| 124 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHTCUSE3 |
| 125 | 74102-98BK | PIN HOUSING, 2-way (black) | FLHTCUSE3 |
| 126 | 74112-98BK | HOUSING, socket, 2-way (black) | FLHTCUSE3 |
| 127 | 74115-06 | DC LEAD ASSEMBLY | FLHTCUSE3 |
| 128 | 74142-98 | SECONDARY LOCK, 2-way | FLHTCUSE3 |
| 129 | 74152-98 | SOCKET LOCK, secondary, 2-way | FLHTCUSE3 |
| 130 | 74190-98 | TERMINAL, pin, 16-20 AWG (6) | FLHTCUSE3 |
| 131 | 74191-98 | SOCKET TERMINAL (2) | FLHTCUSE3 |
| 132 | 76248-86 | CABLE, antenna | FLHTCUSE3 |
SOUND SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW | FLHTCUSE3 |
| 2 | 2625 | SCREW (domestic) (2) | FLHTCUSE3 |
| 2625 | SCREW (HDI) (1) | FLHTCUSE3 | |
| 3 | 2551W | BOLT (6) | FLHTCUSE3 |
| 4 | 2881W | SCREW (4) | FLHTCUSE3 |
| 5 | 2963 | SCREW (8) | FLHTCUSE3 |
| 6 | 2965 | SCREW (4) | FLHTCUSE3 |
| 7 | 3061 | SCREW (4) | FLHTCUSE3 |
| 8 | 3248 | SCREW, metric (5) | FLHTCUSE3 |
| 9 | 3387 | SCREW (2) | FLHTCUSE3 |
| 10 | 3612 | SCREW (4) | FLHTCUSE3 |
| 11 | 5211 | JACK NUT (6) | FLHTCUSE3 |
| 12 | 6703 | WASHER (7) | FLHTCUSE3 |
| 13 | 6036 | WASHER (8) | FLHTCUSE3 |
| 14 | 7686 | LOCKNUT (5) | FLHTCUSE3 |
| 15 | 7838 | NUT | FLHTCUSE3 |
| 16 | 9864 | RING TERMINAL | FLHTCUSE3 |
| 10006 | CABLE STRAP (not illustrated) | FLHTCUSE3 | |
| 10181 | CABLE STRAP (not illustrated) (4) | FLHTCUSE3 | |
| 17 | 58010-98 | BUSHING, open/closed (2) | FLHTCUSE3 |
| 18 | 70465-86A | GROUND CABLE | FLHTCUSE3 |
| 19 | 71814-98 | SWITCH KNOB, volume | FLHTCUSE3 |
| 71823-98 | SWITCH KNOB, mode select | FLHTCUSE3 | |
| 20 | 71834-98 | SWITCH, rear controls, w/ 10181 & 74191-98 (2) | FLHTCUSE3 |
| 21 | 72290-94 | TERMINAL, 1/4 in., female, insulated, 14 -18 AWG (2) | FLHTCUSE3 |
| 22 | 72294-94 | TERMINAL, 3/16 in., female, insulated, 16-20 AWG (2) | FLHTCUSE3 |
| 23 | 74116-98BK | HOUSING, 6-way socket (2) | FLHTCUSE3 |
| 24 | 74156-98 | SECONDARY LOCK, 6-way socket | FLHTCUSE3 |
| 25 | 74191-98 | SOCKET TERMINAL (12) | FLHTCUSE3 |
SOUND SYSTEM (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 26 | 74414-93 | ANTENNA BOOT | FLHTCUSE3 |
| 27 | 76129-98 | SWITCH HOUSING (2) | FLHTCUSE3 |
| 28 | 76130-98 | SPRING CLAMP (2) | FLHTCUSE3 |
| 29 | 76160-06 | RADIO/CD | FLHTCUSE3 |
| 76160-06REFURB | RADIO/CD, refurbished, Core exchange required with refurbished parts | FLHTCUSE3 | |
| 30 | 76165-06A | XM MODULE (Domestic only) | FLHTCUSE3 |
| 31 | 76167-06A | GPS MODULE | FLHTCUSE3 |
| 32 | 76192-06A | AMPLIFIER | FLHTCUSE3 |
| 33 | 76416-06B | KIT CB RADIO, touring | FLHTCUSE3 |
| 76236-06REFURB | CB MODULE, refurbished, Core exchange required with refurbished parts | FLHTCUSE3 | |
| 34 | 76250-98 | ANTENNA MAST, CB, w/ 3248 | FLHTCUSE3 |
| 35 | 76265-98 | TETHER BRACKET, left speaker | FLHTCUSE3 |
| 36 | 76284-08 | SPEAKER BOX ASSEMBLY, left rear | FLHTCUSE3 |
| 76301-08 | SPEAKER BOX ASSEMBLY, right rear | FLHTCUSE3 | |
| 37 | 76306-98 | ANTENNA MAST, AM/FM, w/ 3248 | FLHTCUSE3 |
| 38 | 76307-98 | SPEAKER GRILLE, rear (2) | FLHTCUSE3 |
| 39 | 76337-06A | XM ANTENNA (Domestic only) | FLHTCUSE3 |
| 40 | 76338-06A | GPS ANTENNA | FLHTCUSE3 |
| 41 | 76456-06 | XM ANTENNA BRACKET (Domestic only) | FLHTCUSE3 |
| 42 | 76455-06 | GPS ANTENNA BRACKET | FLHTCUSE3 |
| 76472-06A | GPS MAPS (not illustrated) (DOM) | FLHTCUSE3 | |
| 43 | 76529-07 | EAR PAD (2) | FLHTCUSE3 |
| 44 | 77029-06 | SPEAKER, 5-1/4 in. (4) | FLHTCUSE3 |
| 45 | 77047-98 | SPEAKER GRILLE, front (2) | FLHTCUSE3 |
| 46 | 77126-98 | WIND SOCK, microphone (domestic) (1) | FLHTCUSE3 |
| 77126-98 | WIND SOCK, microphone (HDI) (2) | FLHTCUSE3 | |
| 47 | 77147-98 | HEADSET ASSEMBLY, w/ 76529-07, 77126-98, 77148-98A & 77151-98 | FLHTCUSE3 |
| 48 | 77148-98A | COILED CORD, headset | FLHTCUSE3 |
| 49 | 77151-98 | HEADSET CLAMP & HARDWARE (domestic) (1) | FLHTCUSE3 |
| 77151-98 | HEADSET CLAMP & HARDWARE (HDI) (2) | FLHTCUSE3 | |
| INTERNATIONAL MODELS ONLY | |||
| 76403-06 | GPS MAPS (not illustrated) (HDI) | FLHTCUSE3 | |
AUDIO HARNESS
| Index No. | Part No. | Description | Model(s) |
| 70160-08 | WIRING HARNESS, audio overlay | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 1 | 10039 | CABLE STRAP | FLHTCUSE3 |
| 2 | 10065 | CABLE STRAP (4) | FLHTCUSE3 |
| 3 | 72106-94BK | PIN HOUSING, 6-way (black) | FLHTCUSE3 |
| 4 | 72146-94 | PIN LOCK, 6-way | FLHTCUSE3 |
| 5 | 72190-94 | TERMINAL, pin (6) | FLHTCUSE3 |
| 6 | 72381-98 | TERMINAL, socket (30) | FLHTCUSE3 |
| 7 | 72384-06BK | SOCKET HOUSING, 35-place (black) | FLHTCUSE3 |
| 8 | 72397-98 | SEAL PIN (5) | FLHTCUSE3 |
| 9 | 74106-98BK | HOUSING, PIN, 6-way (black) (2) | FLHTCUSE3 |
| 10 | 74109-98BK | HOUSING, PIN, 12-way (black) | FLHTCUSE3 |
| 11 | 74119-98BK | HOUSING, socket, 12-way (black) | FLHTCUSE3 |
| 12 | 74146-98 | SECONDARY LOCK, 6-way, pin (2) | FLHTCUSE3 |
| 13 | 74149-98 | SECONDARY LOCK, 12-way, pin | FLHTCUSE3 |
| 14 | 74159-98 | SECONDARY LOCK, 12-way, socket | FLHTCUSE3 |
| 15 | 74190-98 | TERMINAL, pin, 16-20 AWG (24) | FLHTCUSE3 |
| 16 | 74191-98 | SOCKET TERMINAL (12) | FLHTCUSE3 |
| 17 | 74195-98 | SEAL PIN | FLHTCUSE3 |
| 18 | 76247-98 | SPRING ASSEMBLY, retract, w/ 10065 | FLHTCUSE3 |
| 19 | 76266-98 | CAP ASSEMBLY, weather | FLHTCUSE3 |
| 20 | 76319-08 | CABLE ASSEMBLY, C.B. antenna | FLHTCUSE3 |
AMPLIFIER HARNESS
| Index No. | Part No. | Description | Model(s) |
| 70179-06A | AMPLIFIER HARNESS | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 1 | 9825 | TERMINAL RING, .25 #14-18 AWG | FLHTCUSE3 |
| 2 | 9930 | TERMINAL, .187 female, #16-20 AWG (2) | FLHTCUSE3 |
| 3 | 10065 | CABLE STRAP (4) | FLHTCUSE3 |
| 4 | 72100-04 | HOUSING, 1-way, male (gray) | FLHTCUSE3 |
| 5 | 72101-04 | TERMINAL, male 14-16AWG | FLHTCUSE3 |
| 6 | 72106-94BK | HOUSING, 6-way pin (black) | FLHTCUSE3 |
| 7 | 72116-94BK | HOUSING, 6-way socket (black) | FLHTCUSE3 |
| 8 | 72146-94 | PIN LOCK, secondary, 6-way | FLHTCUSE3 |
| 9 | 72156-94 | SOCKET LOCK, secondary 6-way | FLHTCUSE3 |
| 10 | 72190-94 | TERMINAL, pin, #16-18 AWG (6) | FLHTCUSE3 |
| 11 | 72191-94 | TERMINAL, socket, #16-18 AWG (6) | FLHTCUSE3 |
| 12 | 72195-94 | SEAL PIN (2) | FLHTCUSE3 |
| 13 | 72249-94 | SHRINK TUBE, .415 X 1 (black) (9) | FLHTCUSE3 |
| 14 | 72381-98 | TERMINAL, socket (22) | FLHTCUSE3 |
| 15 | 72382-98BK | HOUSING, 23-way (black) | FLHTCUSE3 |
| 16 | 72397-98 | SEAL PIN (5) | FLHTCUSE3 |
| 17 | 73306-07 | COVER, amplifier cable | FLHTCUSE3 |
| 18 | 74106-98BK | HOUSING, 6-way pin (black) (2) | FLHTCUSE3 |
| 19 | 74116-98BK | HOUSING, 6-way socket (black) (2) | FLHTCUSE3 |
| 20 | 74146-98 | SECONDARY LOCK, 6-way pin (2) | FLHTCUSE3 |
| 21 | 74156-98 | SECONDARY LOCK, 6-way socket (2) | FLHTCUSE3 |
| 22 | 74190-98 | TERMINAL, pin, #16-20 AWG (12) | FLHTCUSE3 |
| 23 | 74191-98 | TERMINAL, socket (12) | FLHTCUSE3 |
| 24 | 74195-98 | SEAL PIN (4) | FLHTCUSE3 |
CB/XM RADIO HARNESS
| Index No. | Part No. | Description | Model(s) |
| 70172-06 | CB/XM RADIO HARNESS | FLHTCUSE3 | |
| NOTE: Includes the following parts. | |||
| 1 | 74109-98BK | HOUSING, 12-way pin (black) | FLHTCUSE3 |
| 2 | 74119-98BK | HOUSING, 12-way socket (black) (2) | FLHTCUSE3 |
| 3 | 74149-98 | SECONDARY LOCK, 12-way pin | FLHTCUSE3 |
| 4 | 74159-98 | SECONDARY LOCK, 12-way socket (2) | FLHTCUSE3 |
| 5 | 74190-98 | TERMINAL, pin, #16-20 AWG (11) | FLHTCUSE3 |
| 6 | 74191-98 | TERMINAL, socket, #16-20 AWG (22) | FLHTCUSE3 |
| 7 | 74195-98 | SEAL PIN (3) | FLHTCUSE3 |
GARAGE DOOR TRANSMITTER & RECEIVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 9938 | TERMINAL, #14-18 AWG | FLHTCUSE3 |
| 2 | 10065 | CABLE STRAP | FLHTCUSE3 |
| 3 | 70174-06 | HARNESS ASSEMBLY, garage door opener | FLHTCUSE3 |
| 4 | 72199-94 | ANCHOR, t-stud | FLHTCUSE3 |
| 5 | 72449-01 | HOUSING, 2-way socket, (black) (2) | FLHTCUSE3 |
| 6 | 72527-01 | SOCKET TERMINAL, #18-20 AWG (4) | FLHTCUSE3 |
| 7 | 72633-02 | SEAL WIRE, #14-16 AWG (white) (4) | FLHTCUSE3 |
| 8 | 74104-98BK | HOUSING, 4-way pin (black) | FLHTCUSE3 |
| 9 | 74114-98BK | HOUSING, 4-way socket (black) | FLHTCUSE3 |
| 10 | 74144-98 | SECONDARY LOCK, 4-way pin | FLHTCUSE3 |
| 11 | 74154-98 | SECONDARY LOCK, 4-way socket | FLHTCUSE3 |
| 12 | 74190-98 | TERMINAL, pin, #16-20 AWG (4) | FLHTCUSE3 |
| 13 | 74191-98 | TERMINAL, socket, #16-20 AWG (4) | FLHTCUSE3 |
| 14 | 91560-01 | RECEIVER ASSEMBLY | FLHTCUSE3 |
| 15 | 91574-04 | TRANSMITTER ASSEMBLY, w/ 74114-98BK, 74154-98, & 74191-98 | FLHTCUSE3 |
HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2559 | SCREW (2) | FLHTCUSE3 |
| 2 | 2955 | SCREW (6) | FLHTCUSE3 |
| 3 | 4292 | SCREW (4) | FLHTCUSE3 |
| 4 | 10006 | STRAP, cable (4) | FLHTCUSE3 |
| 10181 | STRAP, cable (29) | FLHTCUSE3 | |
| 5 | 55928-08 | PLUG (2) | FLHTCUSE3 |
| 6 | 56866-06A | HOUSING, lower left, (chrome) | FLHTCUSE3 |
| 7 | 70373-96 | BRACKET, switch, lower left | FLHTCUSE3 |
| 8 | 70375-96 | BRACKET, switch, lower right | FLHTCUSE3 |
| 9 | 71699-07 | SWITCH KIT, clutch | FLHTCUSE3 |
| 10 | 71590-96A | SWITCH ASSEMBLY, stop lamp, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 11 | 71593-96 | SWITCH ASSEMBLY, volume, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 12 | 71612-96 | HOUSING, lower right, (chrome) | FLHTCUSE3 |
| 13 | 71614-96 | HOUSING, upper right | FLHTCUSE3 |
| 14 | 71615-96 | HOUSING, upper left | FLHTCUSE3 |
| 15 | 71618-98 | SWITCH ASSEMBLY, mode select, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 16 | 71682-06 | SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 17 | 71683-06 | SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 18 | 71684-06 | SWITCH ASSEMBLY, engine start/off/run, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 19 | 71685-06 | SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 20 | 71820-98 | KNOB, +/- audio | FLHTCUSE3 |
| 21 | 71822-98 | KNOB, mode select, up/down | FLHTCUSE3 |
| 22 | 71824-98 | KNOB, switch, PTT/SQ -/+ | FLHTCUSE3 |
| 23 | 71825-96A | KNOB, cruise control, set/resume | FLHTCUSE3 |
| 24 | 72169-07 | TERMINAL, pin, #16-20 AWG (26) | FLHTCUSE3 |
| 25 | 72488-07BK | HOUSING, pin, 12-way | FLHTCUSE3 |
| 26 | 72473-07 | SEAL PIN (2) | FLHTCUSE3 |
| 27 | 72492-07GY | HOUSING, pin, 16-way | FLHTCUSE3 |
| 28 | 72266-94 | TUBE, heat shrink, dual wall, 0.3 x 2 inch (black) (15) | FLHTCUSE3 |
| 29 | 73212-07 | CONNECTOR ANCHOR, t-stud | FLHTCUSE3 |
| 30 | 77100-98 | SWITCH ASSEMBLY, PTT/SQ -/+, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 31 | 77101-98 | SWITCH ASSEMBLY, cruise control, set/resume, w/ 10181 & 72266-94 | FLHTCUSE3 |
SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHTCUSE3 |
| 2 | 2692WB | SCREW | FLHTCUSE3 |
| 3 | 4741A | SCREW | FLHTCUSE3 |
| 4 | 6150W | WASHER (2) | FLHTCUSE3 |
| 5 | 9907 | WIRE TERMINAL (2) | FLHTCUSE3 |
| 6 | 10006 | CABLE STRAP | FLHTCUSE3 |
| 7 | 31504-91B | RELAY, w/ diode (2) | FLHTCUSE3 |
| 8 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTCUSE3 |
| 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak, & saddlebag lock (Domestic) | FLHTCUSE3 | |
| 9 | 68924-07 | MODULE, security system & turn signal canceller (Domestic) | FLHTCUSE3 |
| 10 | 68926-07 | REMOTE CONTROL FOB, security system (Domestic) (2) | FLHTCUSE3 |
| 11 | 68956-07 | ANTENNA MODULE, security system | FLHTCUSE3 |
| 12 | 68958-07A | SIREN | FLHTCUSE3 |
| 13 | 69018-00 | SIREN ALARM, battery replacement kit | FLHTCUSE3 |
| 14 | 70447-01 | CLIP | FLHTCUSE3 |
| 15 | 70617-07 | HARNESS, hands free security antenna jumper, w/ 72134-94GY, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07 | FLHTCUSE3 |
| 16 | 71422-03 | PLATE, ignition switch | FLHTCUSE3 |
| 17 | 71031-04 | KEY, cvo, decorative | FLHTCUSE3 |
| 18 | 71459-03 | SPRING, ignition knob | FLHTCUSE3 |
| 19 | 71539-08 | KNOB, ignition switch, w/ 71581-08 | FLHTCUSE3 |
| 20 | 71572-06 | IGNITION SWITCH, w/ 71638-03, 71660-03 & 71661-03 (Domestic) | FLHTCUSE3 |
| 21 | 71581-08 | DECAL, ignition switch knob | FLHTCUSE3 |
| 22 | 71638-03 | COLLAR, ignition switch, bottom | FLHTCUSE3 |
| 23 | 71660-03 | NUT, ignition switch | FLHTCUSE3 |
| 24 | 71661-03 | COLLAR, ignition switch, top | FLHTCUSE3 |
| 25 | 72023-51D | STOPLIGHT SWITCH, rear, W/ 9907 | FLHTCUSE3 |
| 26 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | FLHTCUSE3 |
| 27 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHTCUSE3 |
| 28 | 72191-94 | TERMINAL, socket, 16-18 AWG (3) | FLHTCUSE3 |
| 29 | 72195-94 | SEAL PIN (2) | FLHTCUSE3 |
| 30 | 72325-97 | RELAY HOLDER (2) | FLHTCUSE3 |
| 31 | 72720-07 | HOUSING, 2-way socket | FLHTCUSE3 |
| 32 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUSE3 |
| 33 | 76524-08 | MODULE, power lock receiver | FLHTCUSE3 |
| 34 | 76525-08 | BRACKET, power lock receiver module | FLHTCUSE3 |
| 35 | 76537-08 | KEY & FOB ASSEMBLY, power lock (2) | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 36 | 2934 | SCREW (HDI, Japan) (2) | FLHTCUSE3 |
| 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak, & saddlebag lock (HDI) | FLHTCUSE3 | |
| 54026-08A | LOCKSET COMPLETE, w/ keys, ignition knob, tour-pak & saddlebag lock (Japan) | FLHTCUSE3 | |
| 37 | 61081-92 | COVER, key head, set (Japan) | FLHTCUSE3 |
| 38 | 68924-07 | MODULE, security system & turn signal canceller (HDI) | FLHTCUSE3 |
| 68922-07 | MODULE, security system & turn signal canceller (Japan) | FLHTCUSE3 | |
| 39 | 71452-91A | KEY (specify key code) (Japan) (2) | FLHTCUSE3 |
| 40 | 71530-03B | IGNITION SWITCH, w/ 71638-03, 71660-03 & 71661-03 (HDI, Japan) | FLHTCUSE3 |
| 41 | 76537-08 | KEY & FOB ASSEMBLY, power lock (HDI) (2) | FLHTCUSE3 |
| 42 | 68926-07 | REMOTE CONTROL FOB, security system (HDI) (2) | FLHTCUSE3 |
| 68939-00 | REMOTE CONTROL FOB, security system (Japan) (2) | FLHTCUSE3 | |
SADDLEBAGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2478 | SCREW (2) | FLHTCUSE3 |
| 2 | 2524B | SCREW (4) | FLHTCUSE3 |
| 3 | 3592A | SCREW (8) | FLHTCUSE3 |
| 4 | 3593 | SCREW (16) | FLHTCUSE3 |
| 5 | 3595 | SCREW (10) | FLHTCUSE3 |
| 6 | 3656 | SCREW (4) | FLHTCUSE3 |
| 7 | 4134 | SCREW (4) | FLHTCUSE3 |
| 8 | 4616 | SCREW (4) | FLHTCUSE3 |
| 9 | 4630 | SCREW (4) | FLHTCUSE3 |
| 10 | 5233 | SCREW (4) | FLHTCUSE3 |
| 11 | 6229W | WASHER (4) | FLHTCUSE3 |
| 12 | 6831 | WASHER (4) | FLHTCUSE3 |
| 13 | 7608 | NUT (2) | FLHTCUSE3 |
| 14 | 7624 | LOCKNUT (2) | FLHTCUSE3 |
| 10102 | CLIP, adhesive backed (not illustrated) (4) | FLHTCUSE3 | |
| 15 | 10302 | E-CLIP (2) | FLHTCUSE3 |
| 16 | 11468 | GROMMET (4) | FLHTCUSE3 |
| 17 | 53482-93 | RUB BAR, left (plastic) (2) | FLHTCUSE3 |
| 53483-93 | RUB BAR, right (plastic) (2) | FLHTCUSE3 | |
| 18 | 53567-93 | CHECK STRAP (2) | FLHTCUSE3 |
| 19 | 53597-07 | ACTUATOR, power lock (2) | FLHTCUSE3 |
| 20 | 53825-06 | TRIM STRIP, cover, left | FLHTCUSE3 |
| 53827-06 | TRIM STRIP, cover, right | FLHTCUSE3 | |
| 21 | 53986-07 | LOCK (specify key code) (2) | FLHTCUSE3 |
| 22 | 53869-06 | GASKET (2) | FLHTCUSE3 |
| 23 | 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak & saddlebag lock (Domestic) | FLHTCUSE3 |
| 24 | 59287-92 | REFLECTOR, right (red) | FLHTCUSE3 |
| 59288-92 | REFLECTOR, left (red) | FLHTCUSE3 | |
| 25 | 61121-04 | WASHER (4) | FLHTCUSE3 |
| 26 | 74112-98BK | HOUSING, 2-way socket (2) | FLHTCUSE3 |
| 27 | 74152-98 | SECONDARY LOCK, 2-way socket (2) | FLHTCUSE3 |
| 28 | 74191-98 | SOCKET TERMINAL (4) | FLHTCUSE3 |
| 29 | 79113-07 | CABLE ASSEMBLY (2) | FLHTCUSE3 |
| 30 | 79114-07 | GROMMET (2) | FLHTCUSE3 |
| 31 | 79145-07 | BASE, power lock system, left | FLHTCUSE3 |
| 79158-07 | BASE, power lock system, right | FLHTCUSE3 | |
| 32 | 79146-07 | LID, power lock system, left | FLHTCUSE3 |
| 79159-07 | LID, power lock system, right | FLHTCUSE3 | |
| 33 | 79156-07 | POWER LOCK ASSEMBLY, right | FLHTCUSE3 |
| 79163-07 | POWER LOCK ASSEMBLY, left | FLHTCUSE3 | |
| 34 | 79157-07 | BOX & ACTUATOR ASSEMBLY, right | FLHTCUSE3 |
| 79164-07 | BOX & ACTUATOR ASSEMBLY, left | FLHTCUSE3 | |
| 35 | 79165-07 | ACTUATOR ASSEMBLY, cable (2) | FLHTCUSE3 |
| 36 | 88283-07 | POWER LOCK HARDWARE, w/ 4616, 10102, 10302, 74112-98BK, 74152-98, springs, cams, & spacers (2) | FLHTCUSE3 |
| 90115-04 | PROTECTOR, saddlebag (not illustrated) (4) | FLHTCUSE3 | |
| 37 | 90400-00 | BAIL HEAD STUD (Bail must be removed for HDE and HDI) (4) | FLHTCUSE3 |
| 38 | 90601-93A | FACE PLATE, right | FLHTCUSE3 |
| 90603-93A | FACE PLATE, left | FLHTCUSE3 |
SADDLEBAGS (CONTINUED)
| Index No. | Part No. | Description | Model(s) |
| 39 | 88275-08CRV | BOTTOM ASSEMBLY, saddlebag, left (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 88275-08CTB | BOTTOM ASSEMBLY, saddlebag, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 88275-08CTE | BOTTOM ASSEMBLY, saddlebag, left (White Frost/Silver Mist) | FLHTCUSE3 | |
| 88277-08CRV | BOTTOM ASSEMBLY, saddlebag, right (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 88277-08CTB | BOTTOM ASSEMBLY, saddlebag, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 88277-08CTE | BOTTOM ASSEMBLY, saddlebag, right (White Frost/Silver Mist) | FLHTCUSE3 | |
| 40 | 90664-93 | LATCH ASSEMBLY, left, w/ 53482-93 & 90707-00 | FLHTCUSE3 |
| 90665-93 | LATCH ASSEMBLY, right, w/ 53483-93 & 90707-00 | FLHTCUSE3 | |
| 41 | 90675-93A | GASKET, cover (2) | FLHTCUSE3 |
| 42 | 90700-93 | BACKING PLATE (2) | FLHTCUSE3 |
| 43 | 90707-00 | SPRING (2) | FLHTCUSE3 |
| 44 | 90737-08CAS | COVER ASSEMBLY, saddlebag, left (Canyon Copper) | FLHTCUSE3 |
| 90737-08CRR | COVER ASSEMBLY, saddlebag, left (Crystal Copper) | FLHTCUSE3 | |
| 90737-08CTF | COVER ASSEMBLY, saddlebag, left (White Frost) | FLHTCUSE3 | |
| 90738-08CAS | COVER ASSEMBLY, saddlebag, right (Canyon Copper) | FLHTCUSE3 | |
| 90738-08CRR | COVER ASSEMBLY, saddlebag, right (Crystal Copper) | FLHTCUSE3 | |
| 90738-08CTF | COVER ASSEMBLY, saddlebag, right (White Frost) | FLHTCUSE3 | |
| 45 | 90764-93 | CUSHION (4) | FLHTCUSE3 |
| 46 | 90958-93 | MOUNTING BRACKET (4) | FLHTCUSE3 |
| 47 | 90962-93 | WEARPLATE, cover (4) | FLHTCUSE3 |
| 48 | 91171-07 | BOTTOM, saddlebag, right, primed | FLHTCUSE3 |
| 91190-07 | BOTTOM, saddlebag, left, primed | FLHTCUSE3 | |
| 49 | 91586-07 | PLATE COVER, right | FLHTCUSE3 |
| 91587-07 | PLATE COVER, left | FLHTCUSE3 | |
| 50 | 91630-04A | COVER, indoor storage | FLHTCUSE3 |
| 51 | 91841-93A | LINER, removable, w/ handles (2) | FLHTCUSE3 |
| 88235-07 | LINER, right, black EVA foam (not illustrated) | FLHTCUSE3 | |
| 88236-07 | LINER, left, black EVA foam (not illustrated) | FLHTCUSE3 | |
| 92350-08CRV | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 92350-08CTB | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 92350-08CTE | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (White Frost/Silver Mistl) | FLHTCUSE3 | |
| 92351-08CRV | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 92351-08CTB | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 92351-08CTE | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (White Frost/Silver Mist) | FLHTCUSE3 | |
| 94819-02 | TOOL KIT (not illustrated) | FLHTCUSE3 | |
| INTERNATIONAL MODELS ONLY | |||
| 52 | 59289-92 | REFLECTOR, left (amber) (HDI, Japan) | FLHTCUSE3 |
| 59290-92 | REFLECTOR, right (amber) (HDI, Japan) | FLHTCUSE3 | |
| 53 | 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak & saddlebag lock (HDI) | FLHTCUSE3 |
| 54026-08A | LOCKSET COMPLETE, w/ keys, ignition knob, tour-pak, & saddlebag lock (Japan) | FLHTCUSE3 | |
| 54 | 90562-02 | STUD, bailless (HDI) (4) | FLHTCUSE3 |
SADDLEBAG GUARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2879W | BOLT (2) | FLHTCUSE3 |
| 2 | 3601 | SCREW (2) | FLHTCUSE3 |
| 3 | 3655A | SCREW (4) | FLHTCUSE3 |
| 4 | 3676 | SCREW (2) | FLHTCUSE3 |
| 5 | 3678 | SCREW (2) | FLHTCUSE3 |
| 6 | 3684 | SCREW (4) | FLHTCUSE3 |
| 7 | 3787 | BOLT (2) | FLHTCUSE3 |
| 8 | 3802W | BOLT (2) | FLHTCUSE3 |
| 9 | 6116 | WASHER (4) | FLHTCUSE3 |
| 10 | 6378 | WASHER (2) | FLHTCUSE3 |
| 11 | 6701 | WASHER (2) | FLHTCUSE3 |
| 12 | 6703 | WASHER (4) | FLHTCUSE3 |
| 13 | 7490 | CLIP NUT (2) | FLHTCUSE3 |
| 14 | 7531 | LOCKNUT (4) | FLHTCUSE3 |
| 15 | 7601 | LOCKNUT (2) | FLHTCUSE3 |
| 16 | 7686 | LOCKNUT (2) | FLHTCUSE3 |
| 17 | 47449-06 | BRACKET, front (2) | FLHTCUSE3 |
| 18 | 49205-97 | GUARD ASSEMBLY, rear, right | FLHTCUSE3 |
| 49201-97 | GUARD ASSEMBLY, rear, left | FLHTCUSE3 | |
| 19 | 49194-85 | SUPPORT, saddlebag, left | FLHTCUSE3 |
| 90781-93 | SUPPORT, saddlebag, right | FLHTCUSE3 | |
| 20 | 70909-95 | RECEPTACLE (4) | FLHTCUSE3 |
| 21 | 90594-85A | MOLDING, rubber (2) | FLHTCUSE3 |
| 22 | 90718-79C | SUPPORT BRACKET KIT, left | FLHTCUSE3 |
| 90720-79C | SUPPORT BRACKET KIT, right | FLHTCUSE3 | |
| 23 | 90801-06 | BRACKET, saddlebag mounting (2) | FLHTCUSE3 |
| 24 | 91413-08CAS | FILLER STRIP, saddlebag trim (Canyon Copper) (2) | FLHTCUSE3 |
| 91413-08CRR | FILLER STRIP, saddlebag trim (Crystal Copper) (2) | FLHTCUSE3 | |
| 91413-08CTF | FILLER STRIP, saddlebag trim (White Frost) (2) | FLHTCUSE3 |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLHTCUSE3 |
| 2 | 7127 | LOCKWASHER (2) | FLHTCUSE3 |
| 3 | 7736 | ACORN NUT (2) | FLHTCUSE3 |
| 4 | 91950-07 | MIRROR, right (chrome) | FLHTCUSE3 |
| 91951-07 | MIRROR, left (chrome) | FLHTCUSE3 | |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 7720 | ACORN NUT (HDI) (2) | FLHTCUSE3 |
| 6 | 91840-03A | MIRROR KIT, right, short (chrome), w/ 7127 & 7720 (HDI) | FLHTCUSE3 |
| 91845-03A | MIRROR KIT, left, short (chrome), w/ 7127 & 7720 (HDI) | FLHTCUSE3 | |
CALIFORNIA EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 4612 | SCREW (2) | FLHTCUSE3 |
| 2 | 8483A | RIVET | FLHTCUSE3 |
| 3 | 10103 | CLIP, adhesive backed | FLHTCUSE3 |
| 4 | 27291-08 | EVAP LINE, tank | FLHTCUSE3 |
| 5 | 27297-08 | EVAP LINE, canister | FLHTCUSE3 |
| 6 | 27298-08 | EVAP LINE, purge to canister | FLHTCUSE3 |
| 7 | 27433-08 | CARBON CANISTER | FLHTCUSE3 |
| 8 | 27437-08 | EVAP LINE, purge | FLHTCUSE3 |
| 9 | 27439-08 | TUBE, solenoid to induction module | FLHTCUSE3 |
| 10 | 27715-07 | SOLENOID, purge valve | FLHTCUSE3 |
| 11 | 27723-08 | BRACKET, purge solenoid | FLHTCUSE3 |
| 12 | 56073-83 | RETAINER (2) | FLHTCUSE3 |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | ENGINE GUARD LABEL (2) | FLHTCUSE3 |
| 2 | 15342-06A | MIRROR WARNING LABEL | FLHTCUSE3 |
| 3 | 15368-01A | BATTERY DISCONNECT LABEL | FLHTCUSE3 |
| 4 | 29127-95B | AIR CLEANER WARNING LABEL (chrome) Domestic, Calif. | FLHTCUSE3 |
| 5 | 90820-93C | LABEL, saddlebag load limits (2) | FLHTCUSE3 |
| 6 | 90821-74B | LABEL, Tour-Pak load limits | FLHTCUSE3 |
| INTERNATIONAL MODELS ONLY | |||
| 7 | 14272-06 | LABEL, shift pattern (Japan only) | FLHTCUSE3 |
| 8 | 14702-08 | LABEL, noise (Australia only) (not shown) | FLHTCUSE3 |
| Part No. | Description |
| 1001 | SCREW 1/4-20 X 5/8 TORX button head, self-tapping (Grade 8) |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 1090 | SCREW 5/16-18 X 3-3/4 hex flange head |
| 11207 | WASHER |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2225 | SCREW 1/4-20 X 5/8 socket flat countersink head |
| 2420 | SCREW 1/4-20 X 3/4 truss head (Grade 2) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2524B | SCREW No. 8-32 X 5/16 TORX button head |
| 2551W | BOLT 1/4-20 X 1 hex head (Grade 5) |
| 2559 | SCREW No. 6-32 X 3/4 Phillips pan head, with lockwasher |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 25700226 | GASKET KIT |
| 2576 | SCREW No. 10-32 X 3/4 pan head (Grade 2) |
| 2625 | SCREW No. 8-32 X 5/8 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2692WB | SCREW No. 10-24 X 1/2 socket fillister head (Grade 8) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2718 | BOLT 1/4-20 X 1-5/8 hex head (Grade 5) |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 2731W | SCREW No. 10 X 3/8 Phillips truss head, self-tapping |
| 2782 | SCREW 5/16-18 X 1/2 truss head (Grade 2) |
| 2879W | BOLT 3/8-16 X 1 hex head (Grade 5) |
| 2881W | SCREW 1/4-20 X 2 hex head (Grade 5) |
| 2903 | SCREW No. 10-24 X 1/2 pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2963 | SCREW No. 6-32 X 1-1/4 TORX pan head |
| 2965 | SCREW No. 10 X 2 pan head, self-tapping |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 2995 | SCREW No. 10-16 X 3/4 pan head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3089 | SCREW 8-32 X 5/8 Phillips head (stainless) |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3227 | SCREW M5 (.08 pitch) X 35mm set |
| 3248 | SCREW M4 X 0.7 X 3mm |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3331 | SCREW 5/16-18 X 1 TORX button head, self-tapping (Grade 5) |
| 3337 | SCREW 5/16-18 X 1-1/4 TORX button head, self-tapping |
| 3341 | SET SCREW No. 10-24 X 1/2 hex head (stainless) |
| 3368 | SCREW 9/16-1/2 X 3 hex head (Grade 8) |
| 3387 | SCREW No. 10-16 X 1.0 TORX pan head, self-tapping |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 3512 | BOLT 3/8-24 X 3-1/4 hex head (chrome) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3540 | SCREW 5/16-18 X 5/8 socket button head |
| 3546 | BOLT 5/16-18 X 5/8 hex flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3592A | SCREW No. 8-32 X 1/2 TORX truss head with dogpoint lead (stainless) |
| 3593 | SCREW No. 8-32 X 5/16 TORX truss head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3597 | SCREW No. 6-32 X 9/16 TORX pan head, thread-cutting |
| 3598 | SCREW No. 6-32 X 3/4 TORX pan head, thread-cutting |
| 3599 | SCREW 1/2-13 X 1-1/8 knurled head (Grade 8) |
| 3601 | SCREW 1/4-20 X 1-1/4 knurled head (Grade 8) |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3624 | BOLT M5 X 0.8 X 130 |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3652 | SCREW 1/4-20 X 3/8 button head (Grade 8) |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3678 | SCREW 3/8-16 X 7/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 3767B | BOLT 1/4-20 X 5/8 hex head (Grade 5) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3802W | BOLT 1/4-20 X 7/8 hex head (Grade 5) |
| 3814 | SCREW 7/16-14 X 1-3/4 hex head, with washer (Grade 8) |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4033 | SCREW 1/4-20 X 1-5/8 socket button head |
| 4124 | SCREW No. 10 X 5/8 self-tapping |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4134 | SCREW No. 10-24 X 3/8 TORX pan head |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4196 | SCREW 5/16-24 X 2-3/4 TORX button head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4296 | SCREW 5/16-18 X 2-1/4 socket button head |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4319 | BOLT 3/8-24 X 1 hex head (Grade 5) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4569 | SCREW No. 10-32 x 1/4 hex socket head cap |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4615 | SCREW 5/16-18 X 2.00 hex socket head with lock patch |
| 4617 | SCREW 1/4-20 X 5/8 hex socket head full thread (Grade 8) |
| 4625 | SCREW 5/16-18 X 1.0 button socket head, with lockpatch (Grade 8) |
| 4626 | SCREW 5/16-18 X 1.5 button socket head, with lockpatch (Grade 8) |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4752 | BOLT 7/16-14 X 1-1/4 hex head (Grade 8) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4922 | SCREW No. 10-24 X 1 hex head (zinc plate) (Grade 2) |
| 4930 | SCREW No. 10-24 X 3/4 hex head (zinc plate) (Grade 2) |
| 5233 | SCREW #10-16 X 1/2 Hi-Lo, Torx head T-25 |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5429 | BOLT 1/4-20 X 1-1/2 carriage (Grade 2) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6029 | WASHER 5/32 X 3/8 X 1/32 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6083 | WASHER 1/2 X 11/16 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 61121-04 | WASHER 5/32 X 3/4 X 1/16 EPDM (black) |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6336B | WASHER 5/16 X 15/16 X 3/16 |
| 6378 | WASHER 21/64 X 7/8 X 11/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6445 | WASHER 1/2 X 2 X 0.300 |
| 6462 | WASHER 13/32 X 5/8 X 1/8 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6717 | WASHER No. 6 X 3/8 X 3/64 |
| 6738 | WASHER 17/32 X 7/8 X 7/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6831 | WASHER 13/64 X 47/64 X 1/16 |
| 6837M | WASHER M6 regular |
| 6970 | WASHER 1/4 X 1/2 X 1/16 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7118 | LOCKWASHER 3/16 internal tooth |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7229W | LOCKWASHER 1/4 internal/external tooth |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7608 | NUT No. 8-32 X 1/8 X 11/32 (Grade 2) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7671 | LOCKNUT 1/4-20 nylon |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7720 | ACORN NUT 5/16-24 (chrome) |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7780 | LOCKNUT 3/8-24 X 13/32 X 11/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7796 | NUT 5/16-18 X 1/4 external-tooth washer (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7878 | NUT No. 10-24 X 7/32 X 3/8 flange |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7887 | LOCKNUT 1/4-20 nylon |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 861A | SCREW 3/8-16 X 1 knurled head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 928 | BOLT M5 X 0.8 X 35.2 hex head |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 94409-03 | SCREW 5/16-18 X 1 socket button head with lock patch |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19838-08 | ENGINE ASSEMBLY, complete, 110 cubic-inch (granite) (Domestic, Canada, HDI) | FLHTCUSE3 |
| 19261-08 | ENGINE ASSEMBLY, complete, 96 cubic-inch (black) (Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 4A | 16699-06 | SNAP RING, wire (4) | FLHTCUSE3 |
| 6 | 16801-07B | GASKET, cylinder head (2) | FLHTCUSE3 |
| 9 | 17331-08A | HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08, & 18189-07 (granite) | FLHTCUSE3 |
| 17337-08A | HEAD, cylinder, front, w/ 18048-98A, 18161-08, 18168-08, & 18189-07 (granite) | FLHTCUSE3 | |
| 10 | 17454-08 | CYLINDER ASSEMBLY, w/ 16595-99A (granite) (2) | FLHTCUSE3 |
| 11 | 18067-09 | VALVE SEAL (4) | FLHTCUSE3 |
| 12 | 18048-98A | SEAT, exhaust valve (2) | FLHTCUSE3 |
| 14 | 18161-08 | VALVE GUIDE, intake (2) | FLHTCUSE3 |
| 18 | 18270-00A | COLLAR, valve spring lower (4) | FLHTCUSE3 |
| 22 | 28861-07A | SOLENOID, auto compression release (2) | FLHTCUSE3 |
| 23 | 29517-07A | MEDALLION KIT, w/ 2 medallions | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FLHTCUSE3 |
| 4 | 16465-06 | VALVE GUIDE ASSEMBLY, intake & exhaust, w/ retaining ring (4) | FLHTCUSE3 |
| 7 | 16775-99B | GASKET, cylinder head (2) | FLHTCUSE3 |
| 10 | 17458-07 | CYLINDER ASSEMBLY, w/ piston, rings, piston pin, & retaining rings (black) (2) | FLHTCUSE3 |
| 12 | 18011-86 | INSERT, exhaust valve seat (2) | FLHTCUSE3 |
| 13 | 18020-83 | INSERT, intake valve seat (2) | FLHTCUSE3 |
| 14 | 18074-05A | INTAKE VALVE (2) | FLHTCUSE3 |
| 15 | 18085-05A | EXHAUST VALVE (2) | FLHTCUSE3 |
| 16 | 18094-02A | SEAL, valve (4) | FLHTCUSE3 |
| 17 | 18245-02 | VALVE SPRING (4) | FLHTCUSE3 |
| 18 | 18258-02 | COLLAR, valve spring (4) | FLHTCUSE3 |
| 19 | 18260-02 | KEEPER, valve (8) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 21949-07 | PISTON RING SET, standard (2) | FLHTCUSE3 |
| 21950-07 | PISTON RING SET, 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 21955-07 | PISTON RING SET, 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 3 | 21959-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - std. (2) | FLHTCUSE3 |
| 21960-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 in. O.S. (2) | FLHTCUSE3 | |
| 21961-07 | PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 in. O.S. (2) | FLHTCUSE3 | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLHTCUSE3 |
| 5 | 22131-05 | PISTON PIN (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 22 | 24760-08 | CRANKCASE SET, w/ 765, 895, 1090, 9215, 11140, 16574-99A, 16589-99A, 16595-99A, 22307-99, 24604-00D, 24605-07, 35114-02, & 68042-99 (granite) | FLHTCUSE3 |
| 32 | 63076-08 | ADAPTER ASSEMBLY, oil cooler w/ 924, 11290, 26356-05A, 63066-07, 63084-07, 63533-41A & cover | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 16 | 26352-95A | ADAPTOR, oil filter | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 18 | 24608-07A | CAMSHAFT KIT, front | FLHTCUSE3 |
| 19 | 25590-07A | CAMSHAFT KIT, rear | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 6127 | WASHER (3) | FLHTCUSE3 |
| 12 | 16207-79D | ENGINE MOUNT, front | FLHTCUSE3 |
| 14 | 16321-08 | WELDMENT, engine strap | FLHTCUSE3 |
| 16 | 96210-80A | WASHER | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 4705 | SCREW (2) | FLHTCUSE3 |
| 5 | 27609-01B | FUEL INJECTOR ASSEMBLY, w/ o-ring (2) | FLHTCUSE3 |
| 27685-08 | INDUCTION MODULE ASSEMBLY, complete | FLHTCUSE3 | |
| 6 | 27711-08 | INDUCTION MODULE SERVICE KIT | FLHTCUSE3 |
| 7 | 27712-08 | BRACKET, induction module | FLHTCUSE3 |
| 8 | 27721-08 | FUEL RAIL | FLHTCUSE3 |
| 9 | 32319-07 | SENSOR, temperature manifold absolute pressure w/ o-ring | FLHTCUSE3 |
| 10 | 62905-08 | FUEL LINE | FLHTCUSE3 |
| 11 | 90383-98 | CAP, purge tube | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW, bracket (3) | FLHTCUSE3 |
| 6 | 29465-08 | BOLT, breather (2) | FLHTCUSE3 |
| 7 | 29502-08 | TUBE, breather (2) | FLHTCUSE3 |
| 9 | 29633-08 | ELEMENT, air filter, w/ 29645-08 | FLHTCUSE3 |
| 10 | 29644-08 | BRACKET, air cleaner cover | FLHTCUSE3 |
| 11 | 29645-08 | GASKET, filter element | FLHTCUSE3 |
| 12 | 29718-08 | GASKET, induction module to backplate | FLHTCUSE3 |
| 13 | 29764-08 | BACKPLATE ASSEMBLY, air cleaner | FLHTCUSE3 |
| 14 | 29895-08 | INSERT, air cleaner cover, crystal copper text | FLHTCUSE3 |
| 30026-08 | INSERT, air cleaner cover, silver text | FLHTCUSE3 | |
| 15 | 29630-08 | BACKPLATE ASSEMBLY, air cleaner (HDI & Japan) | FLHTCUSE3 |
| 16 | 29821-06 | INSERT, air cleaner cover (Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 29987-06B | STATOR ASSEMBLY, 3-phase, 50 AMP, w/ plug | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 31696-07A | IGNITION COIL | FLHTCUSE3 |
| 6 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | FLHTCUSE3 |
| 8 | 34246-08 | ELECTRONIC CONTROL MODULE, blank (service) | FLHTCUSE3 |
| 9 | 47420-08 | BRACKET, coil | FLHTCUSE3 |
| 10 | 70344-08 | CADDY, electronic control module (ECM) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 32319-07 | SENSOR, temperature manifold absolute pressure, w/ o-ring | FLHTCUSE3 |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A, 72199-94, & 74194-98 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 4615 | SCREW, starter mount (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 18 | 33718-82B | LEVER, gearshift (chrome) | FLHTCUSE3 |
| 28 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 34740-07A | TRANSMISSION CASE SUBASSEMBLY (Japan) (black) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11132A | O-RING, dipstick | FLHTCUSE3 |
| 11 | 11161 | RETAINING RING | FLHTCUSE3 |
| 33140-08 | TRANSMISSION ASSEMBLY, complete (Domestic, Canada & HDI) (chrome & granite) | FLHTCUSE3 | |
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (chrome & black) | FLHTCUSE3 | |
| 19 | 35256-08 | BEARING HOUSING ASSEMBLY, w/ 221, 8970, 16583-00A, & 35087-99A (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 35260-06 | BEARING HOUSING ASSEMBLY, w/ 221, 8970, 16583-00A, & 35087-99A (Japan) (black) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 7792 | NUT | FLHTCUSE3 |
| 11 | 26166-08 | OIL PAN ASSEMBLY (Domestic, Canada & HDI) (granite) w/ 45893-99 & 60328-98B | FLHTCUSE3 |
| 62489-99 | OIL PAN ASSEMBLY (Japan) (black) w/ 45893-99 & 60328-98B | FLHTCUSE3 | |
| 12 | 33140-08 | TRANSMISSION ASSEMBLY, complete (Domestic, Canada & HDI) (chrome & granite) | FLHTCUSE3 |
| 33118-08 | TRANSMISSION ASSEMBLY, complete (Japan) (chrome & black) | FLHTCUSE3 | |
| 13 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTCUSE3 |
| 16 | 34753-08 | TRANSMISSION CASE SUBASSEMBLY (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 34740-07A | TRANSMISSION CASE SUBASSEMBLY (Japan) (black) | FLHTCUSE3 | |
| 24 | 66290-06 | STUD, ground | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 13 | 34091-08 | BEARING, inner race | FLHTCUSE3 |
| 21 | 35467-08 | INPUT SHAFT | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 791A | SCREW (2) | FLHTCUSE3 |
| 13 | 34948-08 | GASKET, primary housing to case | FLHTCUSE3 |
| 14 | 39929-06A | CHAIN TENSIONER ASSEMBLY | FLHTCUSE3 |
| 17 | 60850-08 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (Domestic, Canada & HDI) (granite) | FLHTCUSE3 |
| 60432-07 | INNER PRIMARY HOUSING, w/ 9231, 12052A, 16583-00A, 42642-00, 60328-98B & 60678-85 (Japan) (black) | FLHTCUSE3 | |
| 20 | 60863-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ canyon copper text) | FLHTCUSE3 |
| 60864-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ white frost text) | FLHTCUSE3 | |
| 60865-08 | COVER, clutch (Domestic, Canada & HDI) (chrome w/ crystal copper text) | FLHTCUSE3 | |
| 20A | 25700226 | GASKET KIT, inner primary, w/ 1, 7, 8, 10, 13, 11150, 27444-00Y, 37909-90 | FLHTCUSE3 |
| 21 | 797A | SCREW (Japan only) | FLHTCUSE3 |
| 22 | 60818-07 | SLEEVE, dampener (Japan only) | FLHTCUSE3 |
| 23 | 60766-06 | COVER, clutch (Japan) (chrome) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3089 | SCREW (polished stainless steel) (2) | FLHTCUSE3 |
| 10 | 38774-08 | LEVER ASSEMBLY, hand, w/ 11143 & 45423-92 | FLHTCUSE3 |
| 11 | 38881-08 | LINE ASSEMBLY, hydraulic-clutch, w/ 11348 | FLHTCUSE3 |
| 12 | 38901-08 | RETAINER, cable | FLHTCUSE3 |
| 13 | 41751-06A | GASKET, banjo-bolt (2) | FLHTCUSE3 |
| 14 | 42010-06 | BOLT, banjo | FLHTCUSE3 |
| 15 | 42101-06 | MASTER CYLINDER ASSEMBLY, clutch (chrome) | FLHTCUSE3 |
| 16 | 42115-06 | MASTER CYLINDER COVER KIT | FLHTCUSE3 |
| 17 | 42145-06 | SIGHT GLASS KIT | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3814 | SCREW, w/ washer assembly (5) | FLHTCUSE3 |
| 6 | 9285 | BALL BEARING, 2 row, extended race | FLHTCUSE3 |
| 11 | 40265-08 | SPROCKET, rear, 66 T (black) | FLHTCUSE3 |
| 12 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUSE3 |
| 17 | 40560-05 | BOWL, compensator | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 41751-06A | GASKET (2) | FLHTCUSE3 |
| 4 | 42010-06 | BOLT, BANJO, brakeline | FLHTCUSE3 |
| 5 | 42102-08 | MASTER CYLINDER ASSEMBLY, front-dual (chrome), w/ 10, 11, 12, 13, 14 & 15 | FLHTCUSE3 |
| 6 | 42105-06A | PIVOT PIN, w/ retaining ring | FLHTCUSE3 |
| 7 | 42119-08 | HALF-CLAMP, master cylinder and clutch (chrome) | FLHTCUSE3 |
| 8 | 42123-08 | COVER KIT, master cylinder (chrome), w/ 42856-06, 42857-06A & 42882-06 | FLHTCUSE3 |
| 9 | 42271-06A | BRAKE LEVER ASSEMBLY, front, w/ 42105-06A | FLHTCUSE3 |
| 10 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHTCUSE3 |
| 11 | 42856-06 | DECAL, reservoir cover | FLHTCUSE3 |
| 12 | 42857-06A | GASKET, reservoir cover | FLHTCUSE3 |
| 13 | 42861-06A | PUSHROD, master cylinder | FLHTCUSE3 |
| 14 | 42862-06A | PISTON SERVICE KIT, master cylinder | FLHTCUSE3 |
| 15 | 42882-06 | SCREW (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3901 | SCREW | FLHTCUSE3 |
| 3 | 5455M | BOLT, BANJO, w/ threaded head (2) | FLHTCUSE3 |
| 4 | 5457 | BOLT, BANJO, bleeder assembly, w/ 5455M, 42011-06 & 42853-06 (2) | FLHTCUSE3 |
| 5 | 40650-08 | BRAKELINE, front, upper, ABS | FLHTCUSE3 |
| 6 | 40663-08 | BRAKELINE, front, lower, ABS | FLHTCUSE3 |
| 7 | 40699-08 | CLIP, brakeline | FLHTCUSE3 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 9 | 41751-06A | GASKET (10) | FLHTCUSE3 |
| 10 | 42010-06 | BOLT, BANJO, brakeline | FLHTCUSE3 |
| 11 | 42011-06 | BLEEDER SCREW (2) | FLHTCUSE3 |
| 12 | 42853-06 | CAP, bleeder screw (2) | FLHTCUSE3 |
| 13 | 70504-81 | CLIP, conduit (2) | FLHTCUSE3 |
| 14 | 70631-08 | CLIP, conduit (3) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD & PIN KIT, w/ 42849-08 (2) | FLHTCUSE3 |
| 2 | 42019-06 | COVER, caliper (chrome) (2) | FLHTCUSE3 |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHTCUSE3 |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHTCUSE3 |
| 5 | 42938-08 | CALIPER ASSEMBLY, left (silver) | FLHTCUSE3 |
| 42939-08 | CALIPER ASSEMBLY, right (silver) | FLHTCUSE3 | |
| 6 | 44160-00 | BOLT, caliper mounting, lower (4) | FLHTCUSE3 |
| 7 | 44935-06 | MEDALLION, brake caliper (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 6655 | WASHER | FLHTCUSE3 |
| 4 | 7813A | NUT | FLHTCUSE3 |
| 5 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTCUSE3 |
| 6 | 9276 | BALL BEARING | FLHTCUSE3 |
| 7 | 40614-08 | SENSOR, wheel speed, ABS | FLHTCUSE3 |
| 8 | 40786-08 | COVER, wheel speed sensor (chrome) | FLHTCUSE3 |
| 10 | 41547-07A | AXLE | FLHTCUSE3 |
| 11 | 41900-08 | SLEEVE, bearing spacer | FLHTCUSE3 |
| 14 | 43475-08 | COVER KIT, axle nut left & right, w/ 3267 (chrome) (2) | FLHTCUSE3 |
| 15 | 43539-08 | WHEEL ASSEMBLY, cast, w/o bearings & sleeve (chrome) | FLHTCUSE3 |
| 16 | 43903-08 | SPACER, front wheel bearing | FLHTCUSE3 |
| 17 | 44583-08 | SPACER | FLHTCUSE3 |
| 18 | 44944-08 | BRAKE DISC KIT, front, w/ 3655A (2) | FLHTCUSE3 |
| 20 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHTCUSE3 |
| 21 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) | FLHTCUSE3 |
| 22 | 72607-08 | HOUSING, 2 way pin | FLHTCUSE3 |
| 23 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTCUSE3 |
| 24 | 72609-08 | LOCK, secondary, 2-way (black) | FLHTCUSE3 |
| 25 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 14 | 11902 | GASKET, master cylinder reservoir cover | FLHTCUSE3 |
| 16 | 12102 | DUST BOOT | FLHTCUSE3 |
| 17 | 40611-08 | BRAKELINE, right-rear, master cylinder to ABS UNIT, ABS | FLHTCUSE3 |
| 18 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 19 | 41751-06A | GASKET (4) | FLHTCUSE3 |
| 23 | 42638-08 | LEVER ASSEMBLY, foot-brake, w/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & brake lever | FLHTCUSE3 |
| 25 | 42854-06 | KIT, SIGHT GLASS | FLHTCUSE3 |
| 26 | 42856-06 | DECAL, reservoir cover | FLHTCUSE3 |
| 27 | 42882-06 | SCREW (2) | FLHTCUSE3 |
| 28 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHTCUSE3 |
| 29 | 42932-08 | REBUILD KIT, master cylinder | FLHTCUSE3 |
| 30 | 42933-08 | PUSHROD KIT, master cylinder | FLHTCUSE3 |
| 31 | 42934-08 | SPRING, pedal return | FLHTCUSE3 |
| 33 | 46459-08 | MASTER CYLINDER ASSEMBLY, w/ 14, 16, 25, 26, 27, 28, 29, 30, 31 & 34 (chrome) | FLHTCUSE3 |
| 34 | 46463-08 | MASTER CYLINDER COVER KIT, rear, DOT4, (chrome) w/ 11902, 42856-06 & 42882-06 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3832M | SCREW (3) | FLHTCUSE3 |
| 3 | 40603-08 | GROMMET (3) | FLHTCUSE3 |
| 4 | 40610-08 | BRAKELINE, ABS module to caliper | FLHTCUSE3 |
| 5 | 40611-08 | BRAKELINE, ABS module to master cylinder | FLHTCUSE3 |
| 6 | 40628-08 | BUSHING, ABS (6) | FLHTCUSE3 |
| 7 | 40688-08 | KIT, ABS UNIT | FLHTCUSE3 |
| 8 | 41750-06A | BOLT, BANJO, brakeline (2) | FLHTCUSE3 |
| 9 | 41751-06A | GASKET (4) | FLHTCUSE3 |
| 10 | 66318-08 | CADDY, RH, with ABS | FLHTCUSE3 |
| 11 | 70631-08 | CLIP, conduit | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4596 | SCREW, bleeder | FLHTCUSE3 |
| 2 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHTCUSE3 |
| 3 | 41852-08 | PAD & PIN KIT | FLHTCUSE3 |
| 4 | 42853-06 | CAP, bleeder screw | FLHTCUSE3 |
| 5 | 42863-06 | BUMPER | FLHTCUSE3 |
| 6 | 42865-06A | PAD PIN KIT | FLHTCUSE3 |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHTCUSE3 |
| 8 | 44080-08 | CALIPER ASSEMBLY, rear, w/ 4596, 41852-08, 42853-06, 42865-06A & 42867-06A (black) | FLHTCUSE3 |
| 9 | 44089-08 | BRACKET, reaction, rear brake, w/ 42863-06 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3814 | SCREW (5) | FLHTCUSE3 |
| 3 | 9252 | BALL BEARING, w/ encoder, ABS | FLHTCUSE3 |
| 4 | 9276 | BALL BEARING | FLHTCUSE3 |
| 5 | 9285 | BALL BEARING, 2 row, extended race | FLHTCUSE3 |
| 7 | 11844 | SPACER | FLHTCUSE3 |
| 8 | 40265-08 | SPROCKET, 66-tooth (black) | FLHTCUSE3 |
| 9 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUSE3 |
| 10 | 40560-05 | BOWL, compensator | FLHTCUSE3 |
| 11 | 40615-08 | SENSOR, wheel speed, ABS | FLHTCUSE3 |
| 12 | 41056-08 | REAR AXLE | FLHTCUSE3 |
| 15 | 41810-08 | BRAKE DISC | FLHTCUSE3 |
| 17 | 41900-08 | SLEEVE, bearing spacer | FLHTCUSE3 |
| 20 | 43484-08 | WHEEL ASSEMBLY, 16 inch cast, 9 spoke, w/o bearings & sleeve (chrome) | FLHTCUSE3 |
| 22 | 43904-08 | SPACER, rear wheel bearing | FLHTCUSE3 |
| 24 | 72607-08 | HOUSING, 2 way pin | FLHTCUSE3 |
| 25 | 72608-08 | TERMINAL PIN, 16-20 awg (2) | FLHTCUSE3 |
| 26 | 72609-08 | LOCK, secondary, 2-way (black) | FLHTCUSE3 |
| 27 | 72610-08 | SEAL, 18-20 awg (white) (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 10138 | TAB, electrical ground | FLHTCUSE3 |
| 14 | 45794-94A | PLATE, locking | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 12 | 45866-84 | BUSHING, slider (2) | FLHTCUSE3 |
| 16 | 45972-06 | TUBE ASSEMBLY, stanchion, w/ 45866-84 (2) | FLHTCUSE3 |
| 20 | 46473-00B | SLIDER, fork, left (chrome) | FLHTCUSE3 |
| 21 | 46474-00C | SLIDER, fork, right (chrome) | FLHTCUSE3 |
| 22 | 46621-06A | FORK ASSEMBLY, right front (chrome) (complete) | FLHTCUSE3 |
| 23 | 46622-06A | FORK ASSEMBLY, left front (chrome) (complete) | FLHTCUSE3 |
| 24 | 46658-07 | HOLDER, right axle (chrome) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 17 | 11604 | RIVNUT, flathead | FLHTCUSE3 |
| 19 | 38904-08 | RETAINER, cable, upper | FLHTCUSE3 |
| 26 | 47900-08BHP | FRAME, w/ 48315-60 & 50972-75 (black) | FLHTCUSE3 |
| 35 | 50078-81B | BRACKET, leg, jiffy stand | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 41 | 66620-08CRV | COVER, side, left, w/ 48419-04 & 66055-93 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 66620-08CTB | COVER, side, left, w/ 48419-04 & 66055-93 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 66620-08CTE | COVER, side, left, w/ 48419-04 & 66055-93 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 42 | 66621-08CRV | COVER, side, right, w/ 48419-04 & 66055-93 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 66621-08CTB | COVER, side, right, w/ 48419-04 & 66055-93 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 66621-08CTE | COVER, side, right, w/ 48419-04 & 66055-93 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 45 | 70980-08 | TRAY, wire trough (main harness) | FLHTCUSE3 |
| 46 | 70981-08 | COVER, wire trough (main harness) | FLHTCUSE3 |
| 50 | 92370-08 | MEDALLION ASSEMBLY, side cover | FLHTCUSE3 |
| 53 | 50126-08 | SENSOR, jiffy stand, w/ 72169-07, 72511-07BK & 73213-07 (Australia, England, HDI) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 6970 | WASHER | FLHTCUSE3 |
| 7 | 7036 | WASHER (4) | FLHTCUSE3 |
| 11 | 8500A | HINGE PIN KIT, w/ 3595 | FLHTCUSE3 |
| 13 | 53280-08 | LINER, Tour-Pak, top | FLHTCUSE3 |
| 14 | 53314-06 | KIT, VELCRO, liner (2) | FLHTCUSE3 |
| 15 | 53357-08 | TRIM, lid (gray) | FLHTCUSE3 |
| 54056-08 | TRIM, lid (Crystal Copper) | FLHTCUSE3 | |
| 16 | 53415-06 | GASKET, cover | FLHTCUSE3 |
| 17 | 53426-87 | HINGE, cover, upper (2) | FLHTCUSE3 |
| 18 | 53486-85 | PAD (2) | FLHTCUSE3 |
| 19 | 53564-97 | TETHER, flexible | FLHTCUSE3 |
| 20 | 53570-89 | BRACKET, cable mounting | FLHTCUSE3 |
| 21 | 53575-08 | HARDWARE KIT, power lock | FLHTCUSE3 |
| 22 | 53594-08A | LOCK, w/ 7128 & 7586 (specify key code) | FLHTCUSE3 |
| 24 | 53641-02 | WASHER | FLHTCUSE3 |
| 25 | 53665-87 | RACK KIT, Tour-Pak, w/ 3787, 6703, 7036 & 90869-85A | FLHTCUSE3 |
| 26 | 54332-04A | LIGHT, Tour-Pak, top | FLHTCUSE3 |
| 27 | 58709-86 | RIVET, nylon (black) (2) | FLHTCUSE3 |
| 31 | 79042-06 | COVER, Tour-Pak (prime) | FLHTCUSE3 |
| 79209-08CRV | COVER, Tour-Pak (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 79209-08CTB | COVER, Tour-Pak (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 79209-08CTE | COVER, Tour-Pak (White Frost/Silver Mist) | FLHTCUSE3 | |
| 33 | 79135-08 | BRACKET, cable | FLHTCUSE3 |
| 36 | 79149-08 | CABLE ASSEMBLY, power lock | FLHTCUSE3 |
| 37 | 79169-08 | POWER LOCK ASSEMBLY, tour-pak | FLHTCUSE3 |
| 38 | 79171-08 | COVER, power lock | FLHTCUSE3 |
| 39 | 84850-92 | NUT | FLHTCUSE3 |
| 42 | 90821-74B | LABEL, load limit | FLHTCUSE3 |
| 43 | 90869-85A | MOUNTING PAD & WASHER SET | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2551W | BOLT (6) | FLHTCUSE3 |
| 3 | 2968 | SCREW (4) | FLHTCUSE3 |
| 5 | 3597 | SCREW (2) | FLHTCUSE3 |
| 6 | 3598 | SCREW (2) | FLHTCUSE3 |
| 7 | 3767B | BOLT | FLHTCUSE3 |
| 8 | 4033 | SCREW | FLHTCUSE3 |
| 9 | 6029 | WASHER (2) | FLHTCUSE3 |
| 12 | 6716 | WASHER (2) | FLHTCUSE3 |
| 13 | 6970 | WASHER | FLHTCUSE3 |
| 14 | 7229W | LOCKWASHER | FLHTCUSE3 |
| 17 | 7887 | LOCKNUT (4) | FLHTCUSE3 |
| 18 | 8500A | HINGE PIN KIT, w/ 3595 (2) | FLHTCUSE3 |
| 22 | 11486 | GROMMET | FLHTCUSE3 |
| 23 | 11507 | GROMMET, split | FLHTCUSE3 |
| 24 | 53221-08CRR | BOTTOM ASSEMBLY, w/ lights, latches & hinges (Crystal Copper/Black Onyx) (Domestic) | FLHTCUSE3 |
| 53221-08CTB | BOTTOM ASSEMBLY, w/ lights, latches & hinges (Canyon Copper/Stardust Silver) (Domestic) | FLHTCUSE3 | |
| 53221-08CTE | BOTTOM ASSEMBLY, w/ lights, latches & hinges (White Frost/Silver Mist) (Domestic) | FLHTCUSE3 | |
| 25 | 53165-89A | POUCH, Tour-pak | FLHTCUSE3 |
| 26 | 53301-06 | LINER KIT, molded, w/ 53314-06 | FLHTCUSE3 |
| 27 | 53314-06 | KIT, VELCRO, liner (2) | FLHTCUSE3 |
| 28 | 53598-88A | LINER, removable | FLHTCUSE3 |
| 30 | 53447-87 | HINGE, lower (2) | FLHTCUSE3 |
| 31 | 53478-80 | BACKING PLATE, brace | FLHTCUSE3 |
| 32 | 53563-82 | BRACKET, cable mounting | FLHTCUSE3 |
| 33 | 53615-85A | SPACER (2) | FLHTCUSE3 |
| 34 | 53788-06 | LIGHT, right-bottom, Tour-Pak, sidemarker (Domestic) | FLHTCUSE3 |
| 53789-06 | LIGHT, left-bottom, Tour-Pak, sidemarker (Domestic) | FLHTCUSE3 | |
| 35 | 53799-99 | LUGGAGE RACK SPACER (5) | FLHTCUSE3 |
| 36 | 57978-00 | GROMMET (Domestic) (2) | FLHTCUSE3 |
| 41 | 79182-08 | CATCH, lower | FLHTCUSE3 |
| 42 | 90493-83 | PLUG, hole | FLHTCUSE3 |
| 43 | 90649-07 | BODY, latch (2) | FLHTCUSE3 |
| 44 | 90844-80 | ACORN NUT (2) | FLHTCUSE3 |
| 45 | 90964-63 | BACKING PLATE (4) | FLHTCUSE3 |
| 46 | 90965-63 | RIVET (12) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 47 | 2576 | SCREW (2) | FLHTCUSE3 |
| 48 | 2724 | SCREW | FLHTCUSE3 |
| 50 | 3227 | SCREW | FLHTCUSE3 |
| 51 | 7118 | LOCKWASHER (2) | FLHTCUSE3 |
| 53 | 7961 | NUT, speed (2) | FLHTCUSE3 |
| 54 | 53228-08CRR | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Crystal Copper/Black Onyx) (HDI) | FLHTCUSE3 |
| 53228-08CTB | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Canyon Copper/Stardust Silver) (HDI) | FLHTCUSE3 | |
| 53228-08CTE | BOTTOM ASSEMBLY, w/ trim, latches & hinges (White Frost/Silver Mist) (HDI) | FLHTCUSE3 | |
| 53305-08CRR | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Crystal Copper/Black Onyx) (Japan) | FLHTCUSE3 | |
| 53305-08CTB | BOTTOM ASSEMBLY, w/ trim, latches & hinges (Canyon Copper/Stardust Silver) (Japan) | FLHTCUSE3 | |
| 53305-08CTE | BOTTOM ASSEMBLY, w/ trim, latches & hinges (White Frost/Silver Mist) (Japan) | FLHTCUSE3 | |
| 55 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (HDI) | FLHTCUSE3 |
| 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (HDI) | FLHTCUSE3 | |
| 56 | 76252-86 | BASE, antenna, w/ 76258-86 & 76259-86 (2) | FLHTCUSE3 |
| 57 | 76253-86 | REINFORCEMENT PLATE, antenna, left hand | FLHTCUSE3 |
| 58 | 76255-86 | GASKET, base (2) | FLHTCUSE3 |
| 59 | 76258-86 | PLUG ASSEMBLY (2) | FLHTCUSE3 |
| 60 | 76259-86 | NUT (2) | FLHTCUSE3 |
| 61 | 76322-97 | REINFORCEMENT PLATE, antenna, right hand | FLHTCUSE3 |
| 62 | 90755-09 | PLATE, Tour-Pak reinforcing | FLHTCUSE3 |
| 63 | 99461-89 | COVER, owner manual | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3227 | SCREW | FLHTCUSE3 |
| 2 | 4930 | BOLT (4) | FLHTCUSE3 |
| 3 | 4922 | SCREW (2) | FLHTCUSE3 |
| 7 | 7878 | NUT (4) | FLHTCUSE3 |
| 8 | 53166-89 | REFLECTOR (2) | FLHTCUSE3 |
| 9 | 53389-08 | INSERT, screaming eagle (gray) (Canyon Copper, White Frost) (Domestic) | FLHTCUSE3 |
| 54057-08 | INSERT, screaming eagle (Crystal Copper) (Domestic) | FLHTCUSE3 | |
| 10 | 58380-89 | CLIP, housing (2) | FLHTCUSE3 |
| 11 | 58382-89 | SEAL, lamp lens (4) | FLHTCUSE3 |
| 12 | 58383-89 | LENS, left | FLHTCUSE3 |
| 13 | 68072-08CAS | HOUSING, lamp (Canyon Copper) | FLHTCUSE3 |
| 68072-08CTD | HOUSING, lamp (Crystal Copper) | FLHTCUSE3 | |
| 68072-08CTF | HOUSING, lamp (White Frost) | FLHTCUSE3 | |
| 14 | 68165-64 | BULB, dual (2) | FLHTCUSE3 |
| 15 | 70648-00A | WIRING HARNESS, luggage box | FLHTCUSE3 |
| 19 | 76258-86 | PLUG ASSEMBLY | FLHTCUSE3 |
| 20 | 76259-86 | NUT (2) | FLHTCUSE3 |
| 21 | 76260-89 | ADAPTER, antenna | FLHTCUSE3 |
| 22 | 90763-79 | WASHER, reinforcement | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW | FLHTCUSE3 |
| 12 | 51239-06 | GRAB STRAP, passenger, w/ 2952A & 6703 | FLHTCUSE3 |
| 13 | 52128-08 | SEAT | FLHTCUSE3 |
| 14 | 52167-08 | RIDER BACKREST KIT, w/ 3540, 8108, 52567-93B & hardware | FLHTCUSE3 |
| 15 | 52186-08 | BACKREST KIT, passenger, w/ 7716, 53515-86 & 53517-86 | FLHTCUSE3 |
| 16 | 52192-86A | ISOLATOR SET, passenger backrest | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3341 | SET SCREW | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4617 | SCREW (4) | FLHTCUSE3 |
| 2 | 4625 | SCREW (2) | FLHTCUSE3 |
| 3 | 4626 | SCREW (2) | FLHTCUSE3 |
| 4 | 6462 | WASHER (2) | FLHTCUSE3 |
| 5 | 8075 | NUT, decorative | FLHTCUSE3 |
| 6 | 50351-03 | MOUNT, footpeg support (2) | FLHTCUSE3 |
| 7 | 50834-07 | FOOTPEG BODY (2) | FLHTCUSE3 |
| 8 | 50835-07 | FOOTPEG TREAD (2) | FLHTCUSE3 |
| 9 | 50912-72 | SPRING WASHER (2) | FLHTCUSE3 |
| 10 | 50935-07 | FOOTPEG KIT, w/ 50351-03, 50834-07, 50835-07, & 94409-03 | FLHTCUSE3 |
| 11 | 50988-02A | MOUNT, footpeg (2) | FLHTCUSE3 |
| 12 | 51009-02A | MOUNT, footpeg (2) | FLHTCUSE3 |
| 13 | 94409-03 | SCREW (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 90820-93C | LABEL, air suspension, inside saddlebag (not illustrated) (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 11642 | GROMMET | FLHTCUSE3 |
| 7 | 55918-08 | CLAMP, upper | FLHTCUSE3 |
| 8 | 56036-08 | HANDLEBAR KIT, w/ 11403A & 11642 (chrome) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHTCUSE3 |
| 2 | 32310-08 | SENSOR, twist grip, w/ 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72195-94 & 73212-07 (72195-94 SEAL PIN not used w/ heated grips) | FLHTCUSE3 |
| 3 | 55927-08 | HANDGRIP ASSEMBLY, right | FLHTCUSE3 |
| 4 | 55949-08 | ENDCAP (chrome) | FLHTCUSE3 |
| 8 | 72113-94BK | SOCKET HOUSING, 3-way | FLHTCUSE3 |
| 11 | 72153-94 | LOCK, secondary, 3-way | FLHTCUSE3 |
| 13 | 72173-94 | SEAL, 3-way | FLHTCUSE3 |
| 14 | 72188-07BK | PIN HOUSING, 6-way | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3088 | SCREW (3) | FLHTCUSE3 |
| 8 | 58208-96A | SKIRT, outer fairing | FLHTCUSE3 |
| 10 | 58260-08CRV | FAIRING, outer, w/ 58247-96 & 62787-96 (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 58260-08CTB | FAIRING, outer, w/ 58247-96 & 62787-96 (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58260-08CTE | FAIRING, outer, w/ 58247-96 & 62787-96 (White Frost/Silver Mist) | FLHTCUSE3 | |
| 14 | 67712-83A | DOOR (chrome) | FLHTCUSE3 |
| 18 | 67726-08 | RETAINING RING, headlamp | FLHTCUSE3 |
| 21 | 67864-04A | HALOGEN HEADLAMP KIT, 7 in., W/ 6717, 10006, 68096-04, 68124-04, 68881-01 (Domestic & Canada) | FLHTCUSE3 |
| 26 | 53438-92 | BULB, position lamp (HDI, Japan) | FLHTCUSE3 |
| 30 | 67732-08 | MOUNTING RING, headlamp (HDI, Japan) | FLHTCUSE3 |
| 37 | 72253-94 | TERMINAL, 18-20 ga (Australia, England, HDI, Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 2563 | SCREW (8) | FLHTCUSE3 |
| 15 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTCUSE3 |
| 16 | 57655-08 | AIR DEFLECTOR, right, lightly smoked, w/ 57638-08 | FLHTCUSE3 |
| 57657-08 | AIR DEFLECTOR, left, lightly smoked, w/ 57638-08 | FLHTCUSE3 | |
| 19 | 58128-08 | AIR DEFLECTOR, right, smoked, w/ 57638-08 (used w/ crystal copper/black onyx painted parts) | FLHTCUSE3 |
| 58129-08 | AIR DEFLECTOR, left, smoked, w/ 57638-08 (used w/ crystal copper/black onyx painted parts) | FLHTCUSE3 | |
| 23 | 58545-08CAS | CAP, inner fairing (Canyon Copper) | FLHTCUSE3 |
| 58545-08CRR | CAP, inner fairing (Crystal Copper) | FLHTCUSE3 | |
| 58545-08CTF | CAP, inner fairing (White Frost) | FLHTCUSE3 | |
| 24 | 58546-08CAS | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Canyon Copper) | FLHTCUSE3 |
| 58546-08CRR | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (Crystal Copper) | FLHTCUSE3 | |
| 58546-08CTF | INNER FAIRING ASSEMBLY, w/ 7688, & 58317-04 (White Frost) | FLHTCUSE3 | |
| 38 | 91812-89A | SOCKET, cigarette lighter | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 7 | 7686 | LOCKNUT (2) | FLHTCUSE3 |
| 15 | 58499-08CAS | FAIRING LOWER CAP, left (Canyon Copper) | FLHTCUSE3 |
| 58499-08CRR | FAIRING LOWER CAP, left (Crystal Copper) | FLHTCUSE3 | |
| 58499-08CTF | FAIRING LOWER CAP, left (White Frost) | FLHTCUSE3 | |
| 58500-08CAS | FAIRING LOWER CAP, right (Canyon Copper) | FLHTCUSE3 | |
| 58500-08CRR | FAIRING LOWER CAP, right (Crystal Copper) | FLHTCUSE3 | |
| 58500-08CTF | FAIRING LOWER CAP, right (White Frost) | FLHTCUSE3 | |
| 17 | 58851-08CRR | FAIRING LOWER, left (Crystal Copper) | FLHTCUSE3 |
| 58851-08CTB | FAIRING LOWER, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58851-08CTE | FAIRING LOWER, left (White Frost/Silver Mist) | FLHTCUSE3 | |
| 58852-08CRR | FAIRING LOWER, right (Crystal Copper) | FLHTCUSE3 | |
| 58852-08CTB | FAIRING LOWER, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58852-08CTE | FAIRING LOWER, right (White Frost/Silver Mist) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 58972-08CRV | FENDER, front (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 58972-08CTB | FENDER, front (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 58972-08CTE | FENDER, front (White Frost/Silver Mist) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 59583-08CAS | FENDER, rear (Canyon Copper) | FLHTCUSE3 | |
| 59583-08CRR | FENDER, rear (Crystal Copper) | FLHTCUSE3 | |
| 59583-08CTF | FENDER, rear (White Frost) | FLHTCUSE3 | |
| 59661-08CAS | FENDER, rear (Canyon Copper) (HDI) | FLHTCUSE3 | |
| 59661-08CRR | FENDER, rear (Crystal Copper) (HDI) | FLHTCUSE3 | |
| 59661-08CTF | FENDER, rear (White Frost) (HDI) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1A | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTCUSE3 |
| 2 | 27291-08 | TUBE, evaporative line, tank | FLHTCUSE3 |
| 3 | 27440-08 | TUBE, evaporative line (except California) | FLHTCUSE3 |
| 4 | 61356-08 | FUEL TANK (prime) | FLHTCUSE3 |
| 61386-08CRV | FUEL TANK (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 61386-08CTB | FUEL TANK (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 61386-08CTE | FUEL TANK (White Frost/Silver Mist) | FLHTCUSE3 | |
| 5 | 62228-08 | CHECK VALVE, assembly, w/ 10396 | FLHTCUSE3 |
| 6 | 62384-08 | MEDALLION, fuel tank, left hand | FLHTCUSE3 |
| 62385-08 | MEDALLION, fuel tank, right hand | FLHTCUSE3 | |
| 7 | 62905-08 | FUEL LINE, tank to intake | FLHTCUSE3 |
| 8 | 70901-08 | BOOT, tank bracket, right (USE BEFORE 9/3/2007) | FLHTCUSE3 |
| 70999-08 | BOOT, tank bracket, left (USE BEFORE 9/3/2007) | FLHTCUSE3 | |
| 11852 | COVER, tank bracket, left (USE AFTER 9/3/2007) | FLHTCUSE3 | |
| 11853 | COVER, tank bracket, right (USE AFTER 9/3/2007) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 61011-04A | FUEL FILTER KIT, w/ 11686 | FLHTCUSE3 |
| 1A | 10395 | RETAINER | FLHTCUSE3 |
| 1B | 11387A | O-RING | FLHTCUSE3 |
| 1C | 11686 | O-RING | FLHTCUSE3 |
| 2 | 61012-04A | CLIP, filter retainer | FLHTCUSE3 |
| 3 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, w/ o-rings & screen | FLHTCUSE3 |
| 4 | 61213-04A | CLIP, regulator retainer | FLHTCUSE3 |
| 5 | 61402-08 | GASKET, top plate | FLHTCUSE3 |
| 6 | 62229-08 | FILTER SHELL | FLHTCUSE3 |
| 7 | 62908-08 | PUMP ASSEMBLY, fuel, w/ 10395, 75229-08 & 75254-04A | FLHTCUSE3 |
| 8 | 70369-08 | HARNESS, fuel tank w/ 9, 10, 11, 12, 13 & 14 | FLHTCUSE3 |
| 9 | 72485-07 | SOCKET HOUSING, 4-way (black) | FLHTCUSE3 |
| 10 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUSE3 |
| 11 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUSE3 |
| 12 | 72557-07 | SECONDARY LOCK, 4-way | FLHTCUSE3 |
| 15 | 75069-08 | TOP PLATE ASSEMBLY, w/ 1, 2, 3, 4, 6 & 17 | FLHTCUSE3 |
| 16 | 75089-08 | RING, fuel tank, cam | FLHTCUSE3 |
| 17 | 75147-08 | TOP PLATE | FLHTCUSE3 |
| 18 | 75205-08 | FUEL LEVEL SENDER | FLHTCUSE3 |
| 19 | 75229-08 | HARNESS, fuel pump module | FLHTCUSE3 |
| 20 | 75254-04A | STRAINER, fuel pump inlet | FLHTCUSE3 |
| 21 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 2 | 3588 | SCREW | FLHTCUSE3 |
| 4 | 4856 | SCREW | FLHTCUSE3 |
| 5 | 8142 | NUT, speed | FLHTCUSE3 |
| 8 | 10334 | CLIP, hinge mounting | FLHTCUSE3 |
| 10 | 61112-08 | BOOT | FLHTCUSE3 |
| 11 | 61270-08 | CONSOLE ASSEMBLY, w/ hinge pin | FLHTCUSE3 |
| 13 | 61278-08 | DOOR, console | FLHTCUSE3 |
| 15 | 62775-08 | TRIM COVER, fuel tank | FLHTCUSE3 |
| 17 | 67493-08 | BRACKET, console mount | FLHTCUSE3 |
| 18 | 69241-08 | DRAIN HOSE, console | FLHTCUSE3 |
| 19 | 71294-08 | MOLDING, rubber (2) | FLHTCUSE3 |
| 25 | 77121-08 | HARNESS, console DIN, w/ 10065, 74119-98BK, 74159-98, 74191-98 & 74195-98 | FLHTCUSE3 |
| 26 | 77153-08 | HOUSING, pod (chrome) | FLHTCUSE3 |
| 27 | 77154-08 | INSERT, console pod, CB intercom (Canyon Copper text) (Domestic) | FLHTCUSE3 |
| 77168-08 | INSERT, console pod, CB intercom (White Frost text) (Domestic) | FLHTCUSE3 | |
| 77169-08 | INSERT, console pod, CB intercom (Crystal Copper w/ silver text) (Domestic) | FLHTCUSE3 | |
| 28 | 77177-08 | BRACKET, retainer, rear, console pod | FLHTCUSE3 |
| 29 | 77188-08 | BRACKET, retainer, front, console pod (2) | FLHTCUSE3 |
| 31 | 77154-08 | INSERT, console pod, CB intercom (Canyon Copper text) (HDI) | FLHTCUSE3 |
| 77168-08 | INSERT, console pod, CB intercom (White Frost text) (HDI) | FLHTCUSE3 | |
| 77169-08 | INSERT, console pod, CB intercom (Crystal Copper w/ silver text) (HDI) | FLHTCUSE3 | |
| 77201-08 | INSERT, console pod, CB intercom (Canyon Copper) (Japan) | FLHTCUSE3 | |
| 77202-08 | INSERT, console pod, CB intercom (White Frost) (Japan) | FLHTCUSE3 | |
| 77203-08 | INSERT, console pod, CB intercom (Crystal Copper) (Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 12 | 65283-94 | MUFFLER CLAMP (3) | FLHTCUSE3 |
| 16 | 65913-06B | MUFFLER, left, catalytic (chrome) | FLHTCUSE3 |
| 17 | 66080-06B | MUFFLER, right, catalytic (chrome) | FLHTCUSE3 |
| 19 | 65620-98A | CLAMP, exhaust | FLHTCUSE3 |
| 22 | 65626-07B | EXHAUST PIPE ASSEMBLY, right, rear | FLHTCUSE3 |
| 33 | 65988-07A | SUPPORT BRACKET, exhaust mount at starter | FLHTCUSE3 |
| 34 | 66012-06B | MUFFLER ASSEMBLY, left, catalytic (chrome), w/ 2225, 8146, 65913-06B, 66078-06, & 66079-06 | FLHTCUSE3 |
| 38 | 66077-06B | MUFFLER ASSEMBLY, right, catalytic (chrome), w/ 2225, 8146, 66078-06, 66079-06, & 66080-06B | FLHTCUSE3 |
| 42 | 65748-07 | MUFFLER ASSEMBLY, right, catalytic (chrome) (Japan) | FLHTCUSE3 |
| 43 | 65905-07B | EXHAUST PIPE, right, rear (HDI) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (HDI except Japan) (2) | FLHTCUSE3 |
| 3 | 6119 | WASHER (HDI except Japan) (2) | FLHTCUSE3 |
| 4 | 66318-08 | CADDY, RH, used w/ active intake & exhaust | FLHTCUSE3 |
| 5 | 66761-08 | CABLE, contol, exhaust valve w/ 66767-07 (HDI except Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4312C | SCREW (2) | FLHTCUSE3 |
| 5 | 6336B | WASHER | FLHTCUSE3 |
| 6 | 7792 | NUT | FLHTCUSE3 |
| 8 | 66010-97B | BATTERY, 28 amp hours | FLHTCUSE3 |
| 9 | 66051-08 | STRAP, battery removal | FLHTCUSE3 |
| 10 | 66281-08 | BATTERY TRAY | FLHTCUSE3 |
| 11 | 70267-08 | CABLE ASSEMBLY, starter to ground, w/ 72242-94 | FLHTCUSE3 |
| 12 | 70344-08 | CADDY, electronic control module (ECM) | FLHTCUSE3 |
| 13 | 70377-08 | CABLE ASSEMBLY, battery positive to starter, w/ 70584-94 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 67522-04B | TACHOMETER | FLHTCUSE3 |
| 4 | 67516-08 | SPEEDOMETER, mph | FLHTCUSE3 |
| 9 | 67854-98 | SWITCH, trip reset | FLHTCUSE3 |
| 11 | 68382-07 | BEZEL ASSEMBLY, indicator lamp | FLHTCUSE3 |
| 12 | 68789-96A | INDICATOR LAMP ASSEMBLY, w/ 67184-94, 68024-94, 73160-96BK, & 73191-96 | FLHTCUSE3 |
| 14 | 74419-96A | SENSOR, air temperature, w/ 73103-96BK | FLHTCUSE3 |
| 15 | 74552-04A | VOLTMETER, w/ 67454-04 & 75044-96 | FLHTCUSE3 |
| 74553-04A | OIL PRESSURE GAUGE, w/ 67454-04 & 75044-96 | FLHTCUSE3 | |
| 75113-08 | FUEL GAUGE, w/ 67454-04 & 75044-96 | FLHTCUSE3 | |
| 18 | 67519-08 | SPEEDOMETER, kph (Canada, HDI, Japan) | FLHTCUSE3 |
| 67581-08 | SPEEDOMETER, mph/kph (England) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 4033 | SCREW | FLHTCUSE3 |
| 11 | 7887 | LOCKNUT (4) | FLHTCUSE3 |
| 17 | 61135-57 | SPACER (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 9 | 16316-08 | BRACKET ASSEMBLY, horn mount | FLHTCUSE3 |
| 11 | 69060-90E | HORN ASSEMBLY, w/ 7495 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70232-08 | WIRING HARNESS, interconnect | FLHTCUSE3 | |
| 10 | 67854-98 | SWITCH, trip reset | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS | FLHTCUSE3 | |
| 12 | 31586-07 | RELAY (3) | FLHTCUSE3 |
| 13 | 70160-08 | WIRING HARNESS, audio overlay | FLHTCUSE3 |
| 14 | 70348-08 | CADDY, fuse block | FLHTCUSE3 |
| 16 | 70980-08 | TRAY, wire trough | FLHTCUSE3 |
| 17 | 70981-08 | COVER, wire trough | FLHTCUSE3 |
| 23 | 72024-08 | SOCKET TERMINAL, 20-22 AWG (4) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| 28 | 72079-08 | SOCKET HOUSING, 73-way | FLHTCUSE3 |
| 35 | 72115-08 | COVER, 73-way socket housing | FLHTCUSE3 |
| 39 | 72138-94GY | SOCKET HOUSING, 8-way (gray) | FLHTCUSE3 |
| 40 | 72139-94GY | SOCKET HOUSING, 12-way w/ 72179-94 (gray) | FLHTCUSE3 |
| 43 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHTCUSE3 |
| 44 | 72155-08 | LOCK, secondary, 73-way, socket housing | FLHTCUSE3 |
| 45 | 72157-08 | PLR, GT280 | FLHTCUSE3 |
| 46 | 72158-94 | PIN LOCK, secondary, 8-way | FLHTCUSE3 |
| 51 | 72179-94 | SEAL, internal, 12 circuit (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| 63 | 72251-07 | LOCK, secondary, 2-way (yellow) (2) | FLHTCUSE3 |
| 72314-01 | MAXI - FUSE 40 AMP (not illustrated) NOTE: Fuse is sold seperately and is not part of main harness | FLHTCUSE3 | |
| 81 | 72402-07 | SOCKET HOUSING, 2-way (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| 83 | 72406-07 | SOCKET HOUSING, 4-way | FLHTCUSE3 |
| 84 | 72407-07 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUSE3 |
| 85 | 72408-07 | SEAL WIRE, 16-20 AWG (blue) (4) | FLHTCUSE3 |
| 86 | 72413-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUSE3 |
| 87 | 72414-07BK | SOCKET HOUSING, 6-way | FLHTCUSE3 |
| 90 | 72440-08 | SEAL PIN, plug (18) | FLHTCUSE3 |
| 92 | 72483-08BK | SOCKET HOUSING, 6-way | FLHTCUSE3 |
| 93 | 72484-08 | TERMINAL, socket, 20 AWG (8) | FLHTCUSE3 |
| 94 | 72486-08 | SEAL WIRE, 20 AWG (green) (8) | FLHTCUSE3 |
| 96 | 72495-08 | TERMINAL, socket, 12-14 AWG (gold) | FLHTCUSE3 |
| 97 | 72500-07BAK | SOCKET HOUSING, 20-way (black) | FLHTCUSE3 |
| 100 | 72518-01 | SOCKET HOUSING, 2-way (red) | FLHTCUSE3 |
| 103 | 72547-08 | DIODE PACK | FLHTCUSE3 |
| 104 | 72556-08 | SEAL WIRE, 12-14 AWG | FLHTCUSE3 |
| 105 | 72605-08 | TERMINAL, socket, 20 AWG (gold) (38) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70973-08 | MAIN WIRING HARNESS - ABS (CONTINUED) | FLHTCUSE3 | |
| 106 | 72606-08 | SOCKET HOUSING, 2-way (2) | FLHTCUSE3 |
| 107 | 72609-08 | LOCK, secondary, 2-way (black) (3) | FLHTCUSE3 |
| 108 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHTCUSE3 |
| 110 | 72620-08 | FUSE COVER, rear | FLHTCUSE3 |
| 111 | 72635-08 | COVER ASSEMBLY, fuse block w/ graphics | FLHTCUSE3 |
| 120 | 73213-07 | RETAINER, x-mas tree clip | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW | FLHTCUSE3 |
| 15 | 7838 | NUT | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 33 | 76416-06B | KIT CB RADIO, touring | FLHTCUSE3 |
| 35 | 76265-98 | TETHER BRACKET, left speaker | FLHTCUSE3 |
| 36 | 76284-08 | SPEAKER BOX ASSEMBLY, left rear | FLHTCUSE3 |
| 76301-08 | SPEAKER BOX ASSEMBLY, right rear | FLHTCUSE3 | |
| 40 | 76338-06A | GPS ANTENNA | FLHTCUSE3 |
| 76472-06A | GPS MAPS (not illustrated) (DOM) | FLHTCUSE3 | |
| 43 | 76529-07 | EAR PAD (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 70160-08 | WIRING HARNESS, audio overlay | FLHTCUSE3 | |
| 18 | 76247-98 | SPRING ASSEMBLY, retract, w/ 10065 | FLHTCUSE3 |
| 20 | 76319-08 | CABLE ASSEMBLY, C.B. antenna | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 5 | 55928-08 | PLUG (2) | FLHTCUSE3 |
| 9 | 71699-07 | SWITCH KIT, clutch | FLHTCUSE3 |
| 16 | 71682-06 | SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 17 | 71683-06 | SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 18 | 71684-06 | SWITCH ASSEMBLY, engine start/off/run, w/ 10181 & 72266-94 | FLHTCUSE3 |
| 19 | 71685-06 | SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94 | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 8 | 33926-06B | SWITCH, neutral indicator, w/ o-ring | FLHTCUSE3 |
| 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak, & saddlebag lock (Domestic) | FLHTCUSE3 | |
| 9 | 68924-07 | MODULE, security system & turn signal canceller (Domestic) | FLHTCUSE3 |
| 10 | 68926-07 | REMOTE CONTROL FOB, security system (Domestic) (2) | FLHTCUSE3 |
| 11 | 68956-07 | ANTENNA MODULE, security system | FLHTCUSE3 |
| 12 | 68958-07A | SIREN | FLHTCUSE3 |
| 15 | 70617-07 | HARNESS, hands free security antenna jumper, w/ 72134-94GY, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07 | FLHTCUSE3 |
| 19 | 71539-08 | KNOB, ignition switch, w/ 71581-08 | FLHTCUSE3 |
| 20 | 71572-06 | IGNITION SWITCH, w/ 71638-03, 71660-03 & 71661-03 (Domestic) | FLHTCUSE3 |
| 21 | 71581-08 | DECAL, ignition switch knob | FLHTCUSE3 |
| 26 | 72134-94GY | SOCKET HOUSING, 4-way (gray) | FLHTCUSE3 |
| 27 | 72154-94 | SOCKET LOCK, secondary, 4-way | FLHTCUSE3 |
| 31 | 72720-07 | HOUSING, 2-way socket | FLHTCUSE3 |
| 32 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUSE3 |
| 33 | 76524-08 | MODULE, power lock receiver | FLHTCUSE3 |
| 34 | 76525-08 | BRACKET, power lock receiver module | FLHTCUSE3 |
| 35 | 76537-08 | KEY & FOB ASSEMBLY, power lock (2) | FLHTCUSE3 |
| 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak, & saddlebag lock (HDI) | FLHTCUSE3 | |
| 54026-08A | LOCKSET COMPLETE, w/ keys, ignition knob, tour-pak & saddlebag lock (Japan) | FLHTCUSE3 | |
| 38 | 68924-07 | MODULE, security system & turn signal canceller (HDI) | FLHTCUSE3 |
| 68922-07 | MODULE, security system & turn signal canceller (Japan) | FLHTCUSE3 | |
| 40 | 71530-03B | IGNITION SWITCH, w/ 71638-03, 71660-03 & 71661-03 (HDI, Japan) | FLHTCUSE3 |
| 41 | 76537-08 | KEY & FOB ASSEMBLY, power lock (HDI) (2) | FLHTCUSE3 |
| 42 | 68926-07 | REMOTE CONTROL FOB, security system (HDI) (2) | FLHTCUSE3 |
| 68939-00 | REMOTE CONTROL FOB, security system (Japan) (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3592A | SCREW (8) | FLHTCUSE3 |
| 23 | 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak & saddlebag lock (Domestic) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 39 | 88275-08CRV | BOTTOM ASSEMBLY, saddlebag, left (Crystal Copper/Black Onyx) | FLHTCUSE3 |
| 88275-08CTB | BOTTOM ASSEMBLY, saddlebag, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 88277-08CRV | BOTTOM ASSEMBLY, saddlebag, right (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 88277-08CTB | BOTTOM ASSEMBLY, saddlebag, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 88277-08CTE | BOTTOM ASSEMBLY, saddlebag, right (White Frost/Silver Mist) | FLHTCUSE3 | |
| 44 | 90737-08CAS | COVER ASSEMBLY, saddlebag, left (Canyon Copper) | FLHTCUSE3 |
| 90737-08CRR | COVER ASSEMBLY, saddlebag, left (Crystal Copper) | FLHTCUSE3 | |
| 90737-08CTF | COVER ASSEMBLY, saddlebag, left (White Frost) | FLHTCUSE3 | |
| 90738-08CAS | COVER ASSEMBLY, saddlebag, right (Canyon Copper) | FLHTCUSE3 | |
| 90738-08CRR | COVER ASSEMBLY, saddlebag, right (Crystal Copper) | FLHTCUSE3 | |
| 90738-08CTF | COVER ASSEMBLY, saddlebag, right (White Frost) | FLHTCUSE3 | |
| 50 | 91630-04A | COVER, indoor storage | FLHTCUSE3 |
| 92350-08CRV | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 92350-08CTB | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 92350-08CTE | SADDLEBAG ASSEMBLY, complete, w/o power lock, left (White Frost/Silver Mistl) | FLHTCUSE3 | |
| 92351-08CRV | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (Crystal Copper/Black Onyx) | FLHTCUSE3 | |
| 92351-08CTB | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (Canyon Copper/Stardust Silver) | FLHTCUSE3 | |
| 92351-08CTE | SADDLEBAG ASSEMBLY, complete, w/o power lock, right (White Frost/Silver Mist) | FLHTCUSE3 | |
| 94819-02 | TOOL KIT (not illustrated) | FLHTCUSE3 | |
| 52 | 59289-92 | REFLECTOR, left (amber) (HDI, Japan) | FLHTCUSE3 |
| 59290-92 | REFLECTOR, right (amber) (HDI, Japan) | FLHTCUSE3 | |
| 53 | 54018-08A | LOCKSET COMPLETE, w/ key & fob assembly, ignition knob, tour-pak & saddlebag lock (HDI) | FLHTCUSE3 |
| 54026-08A | LOCKSET COMPLETE, w/ keys, ignition knob, tour-pak, & saddlebag lock (Japan) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2879W | BOLT (2) | FLHTCUSE3 |
| 8 | 3802W | BOLT (2) | FLHTCUSE3 |
| 11 | 6701 | WASHER (2) | FLHTCUSE3 |
| 21 | 90594-85A | MOLDING, rubber (2) | FLHTCUSE3 |
| 24 | 91413-08CAS | FILLER STRIP, saddlebag trim (Canyon Copper) (2) | FLHTCUSE3 |
| 91413-08CRR | FILLER STRIP, saddlebag trim (Crystal Copper) (2) | FLHTCUSE3 | |
| 91413-08CTF | FILLER STRIP, saddlebag trim (White Frost) (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 91840-03A | MIRROR KIT, right, short (chrome), w/ 7127 & 7720 (HDI) | FLHTCUSE3 |
| 91845-03A | MIRROR KIT, left, short (chrome), w/ 7127 & 7720 (HDI) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHTCUSE3 |
| 4 | 27291-08 | EVAP LINE, tank | FLHTCUSE3 |
| 5 | 27297-08 | EVAP LINE, canister | FLHTCUSE3 |
| 6 | 27298-08 | EVAP LINE, purge to canister | FLHTCUSE3 |
| 7 | 27433-08 | CARBON CANISTER | FLHTCUSE3 |
| 8 | 27437-08 | EVAP LINE, purge | FLHTCUSE3 |
| 9 | 27439-08 | TUBE, solenoid to induction module | FLHTCUSE3 |
| 10 | 27715-07 | SOLENOID, purge valve | FLHTCUSE3 |
| 11 | 27723-08 | BRACKET, purge solenoid | FLHTCUSE3 |
| 12 | 56073-83 | RETAINER (2) | FLHTCUSE3 |
| Index No. | Part No. | Description | Model(s) |
| 6 | 90821-74B | LABEL, Tour-Pak load limits | FLHTCUSE3 |
| 7 | 14272-06 | LABEL, shift pattern (Japan only) | FLHTCUSE3 |
| 8 | 14702-08 | LABEL, noise (Australia only) (not shown) | FLHTCUSE3 |
| Part No. | Description |
| 10006 | |
| 1001 | |
| 10031 | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10092 | |
| 10102 | |
| 10103 | |
| 10108 | |
| 10110 | |
| 10113 | |
| 10132 | |
| 10138 | |
| 10147 | |
| 10177 | |
| 10181 | |
| 10183 | |
| 10184 | |
| 10198 | |
| 10302 | |
| 10334 | |
| 1039 | |
| 10395 | |
| 10396 | |
| 1062 | |
| 1090 | |
| 10957 | |
| 10991 | |
| 11061 | |
| 11081 | |
| 11082 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207 | |
| 11256 | |
| 11270 | |
| 11273 | |
| 11289A | |
| 11290 | |
| 11293 | |
| 11301 | |
| 11348 | |
| 11364 | |
| 11387A | |
| 11389 | |
| 11403A | |
| 11445 | |
| 11461 | |
| 11468 | |
| 11486 | |
| 11488 | |
| 11491A | |
| 11492 | |
| 11507 | |
| 11575 | |
| 11599 | |
| 11604 | |
| 11642 | |
| 11686 | |
| 11779 | |
| 11844 | |
| 11852 | |
| 11853 | |
| 11902 | |
| 11907 | |
| 12052A | |
| 12068 | |
| 12074 | |
| 12077 | |
| 12102 | |
| 14148-86 | |
| 14272-06 | |
| 14448-94 | |
| 14702-08 | |
| 15342-06A | |
| 15368-01A | |
| 16207-79D | |
| 16219-79C | |
| 16316-08 | |
| 16321-08 | |
| 16465-06 | |
| 16478-85A | |
| 16480-92A | |
| 16574-99A | |
| 16583-00A | |
| 16585-96 | |
| 16589-99A | |
| 16595-99A | |
| 16699-06 | |
| 16715-83 | |
| 16719-99A | |
| 16775-99B | |
| 16801-07B | |
| 16834-99A | |
| 17045-99C | |
| 17052-99B | |
| 17053-99B | |
| 17162-03 | |
| 17179-06 | |
| 17331-08A | |
| 17337-08A | |
| 17360-83A | |
| 17369-06 | |
| 17375-83A | |
| 17386-99A | |
| 17428-57 | |
| 17454-08 | |
| 17458-07 | |
| 17572-99 | |
| 17573-99 | |
| 17594-99 | |
| 17611-83 | |
| 17650-02 | |
| 17721-08 | |
| 1780 | |
| 1783C | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18011-86 | |
| 18020-83 | |
| 18048-98A | |
| 18067-09 | |
| 18074-05A | |
| 18085-05A | |
| 18094-02A | |
| 18153-05 | |
| 18154-05 | |
| 18155-05 | |
| 18156-05 | |
| 18157-05 | |
| 18158-05 | |
| 18161-08 | |
| 18168-08 | |
| 18183-03 | |
| 18187-07 | |
| 18189-07 | |
| 18245-02 | |
| 18258-02 | |
| 18260-02 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18280-07 | |
| 18535-99 | |
| 18538-99B | |
| 18635-99B | |
| 19261-08 | |
| 19838-08 | |
| 21949-07 | |
| 21950-07 | |
| 21955-07 | |
| 21959-07 | |
| 21960-07 | |
| 21961-07 | |
| 22097-99 | |
| 221 | |
| 22131-05 | |
| 2225 | |
| 22269-07 | |
| 22284-07 | |
| 22285-07 | |
| 22286-07 | |
| 22287-07 | |
| 22288-07 | |
| 22290-07 | |
| 22307-99 | |
| 23729-07 | |
| 24004-03A | |
| 24009-06 | |
| 2420 | |
| 2445 | |
| 2446 | |
| 24604-00D | |
| 24605-07 | |
| 24608-07A | |
| 24621-06A | |
| 24754-75A | |
| 24760-08 | |
| 2478 | |
| 2479 | |
| 25244-99A | |
| 2524B | |
| 25344-99 | |
| 25355-06 | |
| 25369-01A | |
| 2551W | |
| 25566-06 | |
| 25585-06 | |
| 2559 | |
| 25590-07A | |
| 2563 | |
| 25638-07 | |
| 25673-06 | |
| 25675-06 | |
| 25683-06 | |
| 25700226 | |
| 25728-06 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 2576 | |
| 26037-06 | |
| 26041-05A | |
| 26077-99A | |
| 26166-08 | |
| 26210-99 | |
| 2625 | |
| 26278-06 | |
| 26281-06 | |
| 26282-06 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26858-99 | |
| 2692WB | |
| 26993-06 | |
| 26995-86B | |
| 27048-84 | |
| 2708A | |
| 2718 | |
| 2724 | |
| 27291-08 | |
| 27297-08 | |
| 27298-08 | |
| 2731W | |
| 27433-08 | |
| 27437-08 | |
| 27439-08 | |
| 27440-08 | |
| 27444-00Y | |
| 27609-01B | |
| 27685-08 | |
| 27711-08 | |
| 27712-08 | |
| 27714-06 | |
| 27715-07 | |
| 27719-07 | |
| 27721-08 | |
| 27723-08 | |
| 2782 | |
| 2879W | |
| 2881W | |
| 28861-07A | |
| 28919-04 | |
| 2903 | |
| 29127-95B | |
| 29269-83A | |
| 2934 | |
| 29353-05 | |
| 29465-08 | |
| 29502-08 | |
| 29517-07A | |
| 2952A | |
| 2955 | |
| 29584-01 | |
| 2963 | |
| 29630-08 | |
| 29633-08 | |
| 29644-08 | |
| 29645-08 | |
| 2965 | |
| 2968 | |
| 29718-08 | |
| 29764-08 | |
| 2980 | |
| 29821-06 | |
| 29895-08 | |
| 2995 | |
| 29987-06B | |
| 30026-08 | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3088 | |
| 3089 | |
| 31328-91 | |
| 31345-06 | |
| 31504-91B | |
| 31525-90 | |
| 31530-90 | |
| 31542-06 | |
| 31586-07 | |
| 31604-06 | |
| 31619-06A | |
| 31631-06 | |
| 31633-07 | |
| 31641-06 | |
| 31643-06 | |
| 31660-90 | |
| 31681-07 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31696-07A | |
| 31992-99B | |
| 3210A | |
| 3227 | |
| 32306-08 | |
| 32310-08 | |
| 32319-07 | |
| 32362-04 | |
| 32446-99 | |
| 3248 | |
| 3249 | |
| 32543-07 | |
| 32578-07 | |
| 3267 | |
| 32707-01C | |
| 3275 | |
| 3300 | |
| 33118-08 | |
| 33140-08 | |
| 3331 | |
| 3337 | |
| 33389-07 | |
| 33409-06B | |
| 3341 | |
| 33413-06A | |
| 3368 | |
| 33709-82A | |
| 33718-82B | |
| 33819-98A | |
| 33849-97 | |
| 3387 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33926-06B | |
| 3403 | |
| 34064-00C | |
| 34091-08 | |
| 34246-08 | |
| 34469-06A | |
| 34532-00B | |
| 34568-00B | |
| 3462 | |
| 34720-07 | |
| 34740-07A | |
| 34753-08 | |
| 34901-07 | |
| 34917-06 | |
| 34948-08 | |
| 34987-06 | |
| 35078-79 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 3512 | |
| 35122-06 | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35201-06 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06 | |
| 35256-08 | |
| 35259-06 | |
| 35260-06 | |
| 3529 | |
| 3537 | |
| 3540 | |
| 3546 | |
| 35467-08 | |
| 35470-06 | |
| 35607-06 | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 3576 | |
| 35801-06 | |
| 35805-06 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3592A | |
| 3593 | |
| 3594 | |
| 3595 | |
| 3597 | |
| 3598 | |
| 3599 | |
| 3601 | |
| 3605 | |
| 3607 | |
| 3612 | |
| 3624 | |
| 3634 | |
| 3652 | |
| 3655A | |
| 3656 | |
| 36731-91 | |
| 3676 | |
| 3678 | |
| 36805-06 | |
| 36819-07 | |
| 36822-04 | |
| 3684 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37065-06 | |
| 37101-84B | |
| 37137-07 | |
| 3736A | |
| 3746A | |
| 37496-90A | |
| 37554-06A | |
| 3767B | |
| 37807-03 | |
| 37817-07 | |
| 3787 | |
| 37883-98 | |
| 37884-98 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37913-98 | |
| 37927-03 | |
| 37932-98 | |
| 3802W | |
| 3814 | |
| 3832M | |
| 38774-08 | |
| 38881-08 | |
| 38901-08 | |
| 38904-08 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3983 | |
| 3987 | |
| 39929-06A | |
| 39968-06 | |
| 39969-06 | |
| 40024-07 | |
| 40037-07 | |
| 4017 | |
| 40265-08 | |
| 40278-08 | |
| 40296-06 | |
| 40297-06 | |
| 40320-06 | |
| 40323-00 | |
| 4033 | |
| 40333-06 | |
| 40356-07 | |
| 40560-05 | |
| 40603-08 | |
| 40610-08 | |
| 40611-08 | |
| 40614-08 | |
| 40615-08 | |
| 40628-08 | |
| 40650-08 | |
| 40659-06 | |
| 40663-08 | |
| 40688-08 | |
| 40699-08 | |
| 40786-08 | |
| 40901-05 | |
| 41056-08 | |
| 41139-02 | |
| 41148-98 | |
| 4124 | |
| 4132 | |
| 4134 | |
| 41547-07A | |
| 41750-06A | |
| 41751-06A | |
| 41810-08 | |
| 41819-02 | |
| 41852-08 | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 4196 | |
| 42010-06 | |
| 42011-06 | |
| 42019-06 | |
| 42101-06 | |
| 42102-08 | |
| 42105-06A | |
| 42115-06 | |
| 42119-08 | |
| 42123-08 | |
| 42145-06 | |
| 42146-07 | |
| 42147-07 | |
| 42271-06A | |
| 4240 | |
| 42460-80B | |
| 42638-08 | |
| 42642-00 | |
| 42644-00 | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42857-06A | |
| 42861-06A | |
| 42862-06A | |
| 42863-06 | |
| 42865-06A | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4292 | |
| 4293 | |
| 42932-08 | |
| 42933-08 | |
| 42934-08 | |
| 42938-08 | |
| 42939-08 | |
| 4296 | |
| 43022-91A | |
| 4312C | |
| 4313 | |
| 43157-83A | |
| 4319 | |
| 43329-04 | |
| 43475-08 | |
| 43484-08 | |
| 43539-08 | |
| 43567-92 | |
| 43817-02 | |
| 43903-08 | |
| 43904-08 | |
| 44080-08 | |
| 44089-08 | |
| 44160-00 | |
| 44430-04 | |
| 44437-04 | |
| 44583-08 | |
| 44935-06 | |
| 44944-08 | |
| 45032-82 | |
| 45279-00 | |
| 45282-99A | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45435-95 | |
| 45446-87A | |
| 4569 | |
| 45718-60 | |
| 45733-48 | |
| 45780-03 | |
| 45794-94A | |
| 45803-97 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45893-99 | |
| 45933-86 | |
| 45940-84 | |
| 4596 | |
| 45963-97 | |
| 45972-06 | |
| 4597M | |
| 4612 | |
| 4615 | |
| 4616 | |
| 4617 | |
| 46209-06 | |
| 46235-06 | |
| 46244-01 | |
| 46246-01 | |
| 4625 | |
| 4626 | |
| 4630 | |
| 4631 | |
| 46422-06 | |
| 46459-08 | |
| 46463-08 | |
| 46473-00B | |
| 46474-00C | |
| 4648 | |
| 46621-06A | |
| 46622-06A | |
| 46658-07 | |
| 46959-07 | |
| 4705 | |
| 47159-07BHP | |
| 4717A | |
| 4718A | |
| 4721 | |
| 47370-04 | |
| 4740A | |
| 4741A | |
| 47420-08 | |
| 47449-06 | |
| 47491-02 | |
| 47505-02 | |
| 4752 | |
| 47530-79B | |
| 47549-02A | |
| 47558-07 | |
| 47560-07 | |
| 47564-86B | |
| 47606-02 | |
| 4775 | |
| 4790 | |
| 47900-08BHP | |
| 4813A | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48361-80 | |
| 48365-48A | |
| 48419-04 | |
| 48420-04 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 49184-97 | |
| 49194-85 | |
| 49201-97 | |
| 49205-97 | |
| 4922 | |
| 49292-07 | |
| 49295-07 | |
| 4930 | |
| 49725-07 | |
| 50015-74A | |
| 50075-07 | |
| 50078-81B | |
| 50126-08 | |
| 50245-07 | |
| 50351-03 | |
| 50571-04 | |
| 50588-07 | |
| 50589-07 | |
| 50635-82A | |
| 50683-04 | |
| 50688-04 | |
| 50700-04 | |
| 50701-04 | |
| 50806-07 | |
| 50812-07 | |
| 50816-07 | |
| 50819-07 | |
| 50823-07 | |
| 50834-07 | |
| 50835-07 | |
| 50912-72 | |
| 50935-07 | |
| 50938-04 | |
| 50972-75 | |
| 50988-02A | |
| 50998-07 | |
| 51006-07 | |
| 51007-07 | |
| 51008-07 | |
| 51009-02A | |
| 51023-07 | |
| 51239-06 | |
| 515 | |
| 51501-07 | |
| 5211 | |
| 52128-08 | |
| 52167-08 | |
| 52186-08 | |
| 52192-86A | |
| 5233 | |
| 52567-93B | |
| 52624-05 | |
| 53052-08 | |
| 53165-89A | |
| 53166-89 | |
| 53221-08CRR | |
| 53221-08CTB | |
| 53221-08CTE | |
| 53228-08CRR | |
| 53228-08CTB | |
| 53228-08CTE | |
| 53280-08 | |
| 53301-06 | |
| 53305-08CRR | |
| 53305-08CTB | |
| 53305-08CTE | |
| 53314-06 | |
| 53357-08 | |
| 53375-97A | |
| 53389-08 | |
| 53415-06 | |
| 53422-97 | |
| 53426-87 | |
| 53429-93 | |
| 53436-97 | |
| 53438-92 | |
| 53447-87 | |
| 53478-80 | |
| 53482-93 | |
| 53483-93 | |
| 53486-85 | |
| 53515-86 | |
| 53517-86 | |
| 53563-82 | |
| 53564-97 | |
| 53567-93 | |
| 53570-89 | |
| 53575-08 | |
| 53594-08A | |
| 53597-07 | |
| 53598-88A | |
| 53615-85A | |
| 53641-02 | |
| 53665-87 | |
| 53734-06 | |
| 53735-06 | |
| 53788-06 | |
| 53789-06 | |
| 53799-99 | |
| 53801-98 | |
| 53825-06 | |
| 53827-06 | |
| 53869-06 | |
| 53986-07 | |
| 54018-08A | |
| 54026-08A | |
| 54056-08 | |
| 54057-08 | |
| 5416 | |
| 5429 | |
| 54320-97 | |
| 54321-85 | |
| 54323-85A | |
| 54332-04A | |
| 54354-94A | |
| 54357-03 | |
| 54536-02A | |
| 5455M | |
| 54565-97C | |
| 5457 | |
| 55918-08 | |
| 55927-08 | |
| 55928-08 | |
| 55949-08 | |
| 56036-08 | |
| 56073-83 | |
| 56149-88B | |
| 56151-88B | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56866-06A | |
| 56956-07 | |
| 57217-02 | |
| 57638-08 | |
| 57655-08 | |
| 57657-08 | |
| 57842-06 | |
| 57860-06 | |
| 57920-04 | |
| 57978-00 | |
| 58010-98 | |
| 58104-05 | |
| 58105-05 | |
| 58128-08 | |
| 58129-08 | |
| 5817 | |
| 58173-05 | |
| 58208-96A | |
| 58247-96 | |
| 5826 | |
| 58260-08CRV | |
| 58260-08CTB | |
| 58260-08CTE | |
| 58303-96 | |
| 58317-04 | |
| 58324-97 | |
| 5837A | |
| 58380-89 | |
| 58382-89 | |
| 58383-89 | |
| 58384-89 | |
| 58478-96A | |
| 58479-96A | |
| 58499-08CAS | |
| 58499-08CRR | |
| 58499-08CTF | |
| 58500-08CAS | |
| 58500-08CRR | |
| 58500-08CTF | |
| 58545-08CAS | |
| 58545-08CRR | |
| 58545-08CTF | |
| 58546-08CAS | |
| 58546-08CRR | |
| 58546-08CTF | |
| 58679-05 | |
| 58681-05 | |
| 58702-06 | |
| 58709-86 | |
| 58851-08CRR | |
| 58851-08CTB | |
| 58851-08CTE | |
| 58852-08CRR | |
| 58852-08CTB | |
| 58852-08CTE | |
| 58863-06 | |
| 58864-06 | |
| 58889-05 | |
| 58890-05 | |
| 58891-05 | |
| 58893-05 | |
| 58901-05 | |
| 58903-05 | |
| 58938-96B | |
| 58939-96B | |
| 58949-96 | |
| 58972-08CRV | |
| 58972-08CTB | |
| 58972-08CTE | |
| 59045-00B | |
| 59166-80 | |
| 59174-99 | |
| 59280-02 | |
| 59287-92 | |
| 59288-92 | |
| 59289-92 | |
| 59290-92 | |
| 59292-94 | |
| 59423-03 | |
| 59481-00 | |
| 59482-00 | |
| 59579-06 | |
| 59583-08CAS | |
| 59583-08CRR | |
| 59583-08CTF | |
| 59661-08CAS | |
| 59661-08CRR | |
| 59661-08CTF | |
| 59699-06 | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59988-72A | |
| 60026-97 | |
| 60039-97 | |
| 601 | |
| 6019 | |
| 6029 | |
| 60328-98B | |
| 6036 | |
| 60386-04 | |
| 60432-07 | |
| 60553-07 | |
| 60678-85 | |
| 60766-06 | |
| 608 | |
| 60818-07 | |
| 6083 | |
| 60850-08 | |
| 60863-08 | |
| 60864-08 | |
| 60865-08 | |
| 6099 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 61121-04 | |
| 6113 | |
| 61135-57 | |
| 6116 | |
| 6119 | |
| 61213-04A | |
| 6127 | |
| 61270-08 | |
| 61274-92 | |
| 61278-08 | |
| 61313-88 | |
| 61356-08 | |
| 61386-08CRV | |
| 61386-08CTB | |
| 61386-08CTE | |
| 61402-08 | |
| 6150W | |
| 62108-03 | |
| 6220W | |
| 62228-08 | |
| 62229-08 | |
| 6229W | |
| 6235 | |
| 62365-06 | |
| 62367-06A | |
| 62384-08 | |
| 62385-08 | |
| 62489-99 | |
| 62629-05A | |
| 62641-05A | |
| 62693-07 | |
| 62775-08 | |
| 62786-96 | |
| 62787-96 | |
| 62828-99 | |
| 62830-99 | |
| 62905-08 | |
| 62908-08 | |
| 6294 | |
| 63066-07 | |
| 63068-07 | |
| 63071-07 | |
| 63076-08 | |
| 63084-07 | |
| 6334 | |
| 6336B | |
| 63533-41A | |
| 63603-05 | |
| 6378 | |
| 63798-99A | |
| 63815-99 | |
| 6400HB | |
| 6421 | |
| 6445 | |
| 6462 | |
| 6497HW | |
| 65283-94 | |
| 65324-83A | |
| 65325-83A | |
| 65328-83 | |
| 65619-98 | |
| 65620-98A | |
| 65621-07 | |
| 65626-07B | |
| 65627-07 | |
| 65634-98A | |
| 65636-07 | |
| 65647-98 | |
| 65654-97 | |
| 65678-07 | |
| 65694-05A | |
| 65723-85 | |
| 65724-85 | |
| 65742-05 | |
| 65743-05 | |
| 65748-07 | |
| 65863-07 | |
| 65905-07B | |
| 6590HW | |
| 65913-06B | |
| 65949-07 | |
| 65951-98A | |
| 65952-98A | |
| 65988-07A | |
| 66010-97B | |
| 66012-06B | |
| 66047-05 | |
| 66051-08 | |
| 66055-93 | |
| 66077-06B | |
| 66078-06 | |
| 66079-06 | |
| 66080-06B | |
| 66219-06 | |
| 66220-06 | |
| 66281-08 | |
| 66290-06 | |
| 66318-08 | |
| 6655 | |
| 66620-08CRV | |
| 66620-08CTB | |
| 66620-08CTE | |
| 66621-08CRV | |
| 66621-08CTB | |
| 66621-08CTE | |
| 66761-08 | |
| 66767-07 | |
| 66799-07 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 67043-96 | |
| 6716 | |
| 6717 | |
| 67266-94 | |
| 67352-96A | |
| 67356-00 | |
| 6738 | |
| 67454-04 | |
| 67493-08 | |
| 67516-08 | |
| 67519-08 | |
| 67522-04B | |
| 67581-08 | |
| 6762B | |
| 67668-05 | |
| 67689-04 | |
| 67712-83A | |
| 67718-60A | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67728-02A | |
| 67732-08 | |
| 67778-60A | |
| 67854-98 | |
| 67864-04A | |
| 67865-89 | |
| 67880-94 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68072-08CAS | |
| 68072-08CTD | |
| 68072-08CTF | |
| 68096-04 | |
| 68120-00 | |
| 68124-04A | |
| 68140-04 | |
| 68142-04 | |
| 68163-84 | |
| 68165-64 | |
| 68167-04 | |
| 68180-99 | |
| 68296-99A | |
| 6831 | |
| 68329-03 | |
| 68331-02 | |
| 68344-05 | |
| 68345-05 | |
| 68359-05 | |
| 68369-03 | |
| 68370-03A | |
| 6837M | |
| 68380-05 | |
| 68382-07 | |
| 68414-05 | |
| 68453-05 | |
| 68508-04 | |
| 68558-03 | |
| 68653-05 | |
| 68725-62A | |
| 68772-06 | |
| 68789-96A | |
| 68821-00 | |
| 68822-04 | |
| 68830-99A | |
| 68836-04A | |
| 68837-04A | |
| 68847-98A | |
| 68851-98 | |
| 68853-98 | |
| 68881-01 | |
| 68905-00 | |
| 68907-00 | |
| 68922-07 | |
| 68924-07 | |
| 68926-07 | |
| 68939-00 | |
| 68956-07 | |
| 68958-07A | |
| 68973-00 | |
| 68997-04 | |
| 69012-93A | |
| 69018-00 | |
| 69060-90E | |
| 69062-91A | |
| 69120-91 | |
| 69123-92 | |
| 69187-03A | |
| 69218-04 | |
| 69231-04 | |
| 69241-08 | |
| 69318-02 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69563-06 | |
| 69567-06 | |
| 6970 | |
| 70142-94 | |
| 70160-08 | |
| 70172-06 | |
| 70174-06 | |
| 70179-06A | |
| 70232-08 | |
| 70267-08 | |
| 70290-07 | |
| 70308-07 | |
| 70344-08 | |
| 70348-08 | |
| 7036 | |
| 70369-08 | |
| 70373-96 | |
| 70375-96 | |
| 70377-08 | |
| 7038 | |
| 7039 | |
| 7041 | |
| 70430-07 | |
| 70447-01 | |
| 70465-86A | |
| 70494-08 | |
| 70504-81 | |
| 70522-06 | |
| 70584-94 | |
| 70598-99 | |
| 70617-07 | |
| 70631-08 | |
| 70648-00A | |
| 70674-08 | |
| 7068 | |
| 70901-08 | |
| 70909-95 | |
| 70973-08 | |
| 70980-08 | |
| 70981-08 | |
| 70991-07 | |
| 70999-08 | |
| 71019-07 | |
| 71031-04 | |
| 7118 | |
| 7127 | |
| 7128 | |
| 71294-08 | |
| 7130W | |
| 71422-03 | |
| 71434-96A | |
| 71452-91A | |
| 71459-03 | |
| 71530-03B | |
| 71535-96 | |
| 71539-08 | |
| 71572-06 | |
| 71581-08 | |
| 71590-96A | |
| 71593-96 | |
| 71612-96 | |
| 71614-96 | |
| 71615-96 | |
| 71618-98 | |
| 71638-03 | |
| 71660-03 | |
| 71661-03 | |
| 71682-06 | |
| 71683-06 | |
| 71684-06 | |
| 71685-06 | |
| 71699-07 | |
| 71764-07 | |
| 71765-07 | |
| 71772-07 | |
| 71814-98 | |
| 71820-98 | |
| 71822-98 | |
| 71823-98 | |
| 71824-98 | |
| 71825-96A | |
| 71834-98 | |
| 72006-05 | |
| 72007-05 | |
| 72009-05 | |
| 72011-05 | |
| 72012-07 | |
| 72014-07 | |
| 72023-51D | |
| 72024-08 | |
| 72046-79 | |
| 72056-92 | |
| 72063-06 | |
| 72064-06 | |
| 72066-06 | |
| 72079-08 | |
| 72094-06 | |
| 72096-06 | |
| 72100-04 | |
| 72101-04 | |
| 72102-94BK | |
| 72103-94BK | |
| 72104-94BK | |
| 72106-94BK | |
| 72111-06 | |
| 72112-94BK | |
| 72113-94BK | |
| 72114-94BK | |
| 72115-08 | |
| 72116-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72131-04 | |
| 72134-94GY | |
| 72135-06 | |
| 72138-94GY | |
| 72139-94GY | |
| 72142-94 | |
| 72143-94 | |
| 72144-94 | |
| 72146-94 | |
| 72152-94 | |
| 72153-94 | |
| 72154-94 | |
| 72155-08 | |
| 72156-94 | |
| 72157-08 | |
| 72158-94 | |
| 72159-94 | |
| 72161-06 | |
| 72164-94A | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72172-94 | |
| 72173-94 | |
| 72179-94 | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72200-94 | |
| 72203-96 | |
| 72204-04 | |
| 72205-94 | |
| 72206-94 | |
| 72207-94 | |
| 72208-94 | |
| 72210-94 | |
| 72213-94 | |
| 72214-94 | |
| 72232-96 | |
| 72241-94A | |
| 72242-94 | |
| 72249-94 | |
| 72251-07 | |
| 72252-01 | |
| 72253-94 | |
| 72260-04 | |
| 72265-04 | |
| 72266-94 | |
| 72272-07 | |
| 72279-04 | |
| 72286-04 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72298-95 | |
| 7229W | |
| 72309-04 | |
| 72314-01 | |
| 72325-97 | |
| 72330-95 | |
| 72331-95 | |
| 72355-97 | |
| 72356-95 | |
| 72359-05 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72384-06BK | |
| 72397-98 | |
| 72400-99 | |
| 72402-07 | |
| 72403-99 | |
| 72406-07 | |
| 72407-07 | |
| 72408-07 | |
| 72413-07 | |
| 72414-07BK | |
| 72416-01 | |
| 72429-00 | |
| 72440-08 | |
| 72449-01 | |
| 72473-07 | |
| 72483-08BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72491-07GY | |
| 72492-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72495-08 | |
| 72500-07BAK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72527-01 | |
| 72533-06 | |
| 72539-06 | |
| 72547-08 | |
| 72556-08 | |
| 72557-07 | |
| 72605-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72611-07 | |
| 72620-08 | |
| 72633-02 | |
| 72635-08 | |
| 72720-07 | |
| 72721-07 | |
| 73102-96BK | |
| 73103-96BK | |
| 73104-96BK | |
| 73108-96BK | |
| 73110-96BK | |
| 73112-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73160-96BK | |
| 73162-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73198-96 | |
| 73212-07 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73306-07 | |
| 74102-98BK | |
| 74104-98BK | |
| 74106-98BK | |
| 74109-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74115-06 | |
| 74116-98BK | |
| 74119-98BK | |
| 74142-98 | |
| 74144-98 | |
| 74146-98 | |
| 74149-98 | |
| 74152-98 | |
| 74154-98 | |
| 74156-98 | |
| 74159-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05 | |
| 74414-93 | |
| 74419-96A | |
| 74438-99 | |
| 74552-04A | |
| 74553-04A | |
| 74554-04 | |
| 74622-06 | |
| 7490 | |
| 7492 | |
| 7495 | |
| 75044-96 | |
| 75069-08 | |
| 75089-08 | |
| 75113-08 | |
| 75147-08 | |
| 75205-08 | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 7531 | |
| 7549A | |
| 7576 | |
| 7586 | |
| 7593 | |
| 7601 | |
| 7606 | |
| 7608 | |
| 76129-98 | |
| 76130-98 | |
| 76160-06 | |
| 76160-06REFURB | |
| 76165-06A | |
| 76167-06A | |
| 76192-06A | |
| 76236-06REFURB | |
| 7624 | |
| 76247-98 | |
| 76248-86 | |
| 76250-98 | |
| 76252-86 | |
| 76253-86 | |
| 76255-86 | |
| 76258-86 | |
| 76259-86 | |
| 76260-89 | |
| 76265-98 | |
| 76266-98 | |
| 76284-08 | |
| 76294-98 | |
| 76301-08 | |
| 76306-98 | |
| 76307-98 | |
| 76319-08 | |
| 76322-97 | |
| 76337-06A | |
| 76338-06A | |
| 76403-06 | |
| 76416-06B | |
| 76455-06 | |
| 76456-06 | |
| 76472-06A | |
| 765 | |
| 76524-08 | |
| 76525-08 | |
| 76529-07 | |
| 76537-08 | |
| 7667 | |
| 7671 | |
| 7683 | |
| 7686 | |
| 7688 | |
| 77029-06 | |
| 77047-98 | |
| 77092-98 | |
| 77100-98 | |
| 77101-98 | |
| 77121-08 | |
| 77126-98 | |
| 77147-98 | |
| 77148-98A | |
| 77151-98 | |
| 77153-08 | |
| 77154-08 | |
| 7716 | |
| 77168-08 | |
| 77169-08 | |
| 77177-08 | |
| 77188-08 | |
| 7720 | |
| 77201-08 | |
| 77202-08 | |
| 77203-08 | |
| 7736 | |
| 7748W | |
| 7780 | |
| 7783 | |
| 7792 | |
| 7796 | |
| 780 | |
| 7813A | |
| 7825 | |
| 7838 | |
| 786A | |
| 7878 | |
| 7880 | |
| 7887 | |
| 7904 | |
| 79042-06 | |
| 79113-07 | |
| 79114-07 | |
| 79135-08 | |
| 79145-07 | |
| 79146-07 | |
| 79149-08 | |
| 79156-07 | |
| 79157-07 | |
| 79158-07 | |
| 79159-07 | |
| 79163-07 | |
| 79164-07 | |
| 79165-07 | |
| 79169-08 | |
| 79171-08 | |
| 79182-08 | |
| 791A | |
| 79209-08CRV | |
| 79209-08CTB | |
| 79209-08CTE | |
| 7961 | |
| 7964 | |
| 797A | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042 | |
| 8075 | |
| 8108 | |
| 8126A | |
| 8142 | |
| 8146 | |
| 8174 | |
| 8175 | |
| 8483A | |
| 84850-92 | |
| 8500A | |
| 856A | |
| 861A | |
| 88235-07 | |
| 88236-07 | |
| 88275-08CRV | |
| 88275-08CTB | |
| 88275-08CTE | |
| 88277-08CRV | |
| 88277-08CTB | |
| 88277-08CTE | |
| 88283-07 | |
| 8861 | |
| 8871 | |
| 8873 | |
| 8879 | |
| 8883 | |
| 8885 | |
| 895 | |
| 8963 | |
| 8967 | |
| 8970 | |
| 8972 | |
| 90115-04 | |
| 90383-98 | |
| 90400-00 | |
| 90469-94 | |
| 90493-83 | |
| 90520-07 | |
| 90562-02 | |
| 90594-85A | |
| 90601-93A | |
| 90603-93A | |
| 90649-07 | |
| 90664-93 | |
| 90665-93 | |
| 90675-93A | |
| 90688-85 | |
| 90700-93 | |
| 90705-97 | |
| 90707-00 | |
| 90718-79C | |
| 90720-79C | |
| 90737-08CAS | |
| 90737-08CRR | |
| 90737-08CTF | |
| 90738-08CAS | |
| 90738-08CRR | |
| 90738-08CTF | |
| 90755-09 | |
| 90763-79 | |
| 90764-93 | |
| 9077 | |
| 90781-93 | |
| 90801-06 | |
| 90820-93C | |
| 90821-74B | |
| 90844-80 | |
| 90869-85A | |
| 90958-93 | |
| 90962-93 | |
| 90964-63 | |
| 90965-63 | |
| 91140-04 | |
| 91171-07 | |
| 91190-07 | |
| 91413-08CAS | |
| 91413-08CRR | |
| 91413-08CTF | |
| 91560-01 | |
| 91574-04 | |
| 91586-07 | |
| 91587-07 | |
| 91630-04A | |
| 91808-89 | |
| 91812-89A | |
| 91840-03A | |
| 91841-93A | |
| 91845-03A | |
| 91950-07 | |
| 91951-07 | |
| 9208 | |
| 9215 | |
| 9231 | |
| 92350-08CRV | |
| 92350-08CTB | |
| 92350-08CTE | |
| 92351-08CRV | |
| 92351-08CTB | |
| 92351-08CTE | |
| 92370-08 | |
| 924 | |
| 9252 | |
| 9276 | |
| 928 | |
| 9285 | |
| 929A | |
| 94006-90T | |
| 942 | |
| 94409-03 | |
| 946 | |
| 94634-99 | |
| 94819-02 | |
| 95595-84 | |
| 96210-80A | |
| 9701 | |
| 9819 | |
| 9825 | |
| 9838 | |
| 9839 | |
| 9842 | |
| 9847 | |
| 9848 | |
| 9864 | |
| 9898 | |
| 9907 | |
| 9930 | |
| 9937 | |
| 9938 | |
| 99461-89 | |
| 9955 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7736 | 1949 |
| 7961 | Unknown |
| 7586 | Unknown |
| 33889-99 | 1999 |
| 8142 | Unknown |
| 7576 | 1990 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7792 | 2012 |
| 7813A | 2007 |
| 7796 | Unknown |
| 7780 | 1973 |
| 8126A | 2017 |
| 76259-86 | 1986 |
| 8075 | Unknown |
| 7904 | 1998 |
| 67043-96 | 1996 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 5211 | Unknown |
| 84850-92 | 1992 |
| 94006-90T | 1990 |
| 35078-79 | 1979 |
| 7495 | 1994 |
| 7887 | 1993 |
| 7492 | 1993 |
| 7878 | 1993 |
| 7880 | Unknown |
| 71660-03 | 2003 |
| 7964 | Unknown |
| 90844-80 | 1980 |
| 8020 | 2002 |
| 8108 | Unknown |
| 58949-96 | 1996 |
| 7608 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 47606-02 | 2002 |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2446 | Unknown |
| 3802W | 2009 |
| 1001 | Unknown |
| 5233 | Unknown |
| 42019-06 | 2006 |
| 2881W | 2009 |
| 4596 | Unknown |
| 2225 | Unknown |
| 2576 | 1990 |
| 3983 | 2005 |
| 3987 | Unknown |
| 2903 | Unknown |
| 42882-06 | 2006 |
| 3048 | 2016 |
| 3546 | 2013 |
| 68026-99 | 1999 |
| 2563 | 2009 |
| 4752 | Unknown |
| 4741A | 1994 |
| 3248 | Unknown |
| 3050 | Unknown |
| 786A | Unknown |
| 2692WB | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 3634 | Unknown |
| 5416 | Unknown |
| 94409-03 | 2003 |
| 3057 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4718A | 1994 |
| 2955 | 1996 |
| 2479 | Unknown |
| 2478 | 2007 |
| 3512 | Unknown |
| 35259-06 | 2006 |
| 3022A | Unknown |
| 43567-92 | 1992 |
| 2559 | 1996 |
| 3514 | Unknown |
| 4313 | Unknown |
| 4597M | Unknown |
| 4319 | 2009 |
| 791A | 2007 |
| 942 | 1992 |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 3693A | Unknown |
| 3592A | Unknown |
| 895 | Unknown |
| 4134 | 1994 |
| 5429 | 2005 |
| 4705 | 2005 |
| 4132 | Unknown |
| 4740A | 1994 |
| 2782 | Unknown |
| 45405-75A | 1975 |
| 3656 | Unknown |
| 2551W | 2009 |
| 3267 | 1999 |
| 3529 | Unknown |
| 2965 | 1997 |
| 4240 | Unknown |
| 4033 | Unknown |
| 2963 | Unknown |
| 2625 | 1971 |
| 3607 | 2009 |
| 3652 | Unknown |
| 43817-02 | 2002 |
| 3605 | 2009 |
| 2731W | Unknown |
| 2952A | 2003 |
| 3331 | 2003 |
| 2968 | Unknown |
| 3601 | Unknown |
| 2647B | Unknown |
| 68120-00 | 2000 |
| 3061 | Unknown |
| 4721 | 2009 |
| 3576 | 2013 |
| 3814 | Unknown |
| 3089 | Unknown |
| 3594 | 1992 |
| 4922 | Unknown |
| 3088 | Unknown |
| 4856 | Unknown |
| 45838-77 | 1977 |
| 928 | Unknown |
| 3593 | Unknown |
| 4292 | Unknown |
| 2995 | 2018 |
| 2718 | 2009 |
| 2708A | Unknown |
| 3598 | 1993 |
| 3595 | 1993 |
| 4293 | Unknown |
| 3597 | 1993 |
| 4616 | Unknown |
| 4296 | 2004 |
| 924 | Unknown |
| 4615 | 2008 |
| 861A | Unknown |
| 3599 | Unknown |
| 68042-99 | 1999 |
| 3746A | 2004 |
| 1039 | Unknown |
| 4612 | Unknown |
| 3227 | 1994 |
| 3699D | 2006 |
| 3929 | 2009 |
| 2724 | Unknown |
| 3300 | Unknown |
| 4617 | Unknown |
| 4930 | 2008 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3387 | Unknown |
| 3563 | 1999 |
| 4017 | 2009 |
| 929A | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 4631 | Unknown |
| 1780 | Unknown |
| 2524B | Unknown |
| 3210A | Unknown |
| 50635-82A | 1982 |
| 1090 | 2000 |
| 4630 | Unknown |
| 8175 | 2004 |
| 4717A | Unknown |
| 3767B | 2009 |
| 3574 | Unknown |
| 4569 | Unknown |
| 4625 | 2007 |
| 946 | Unknown |
| 797A | Unknown |
| 2420 | Unknown |
| 4626 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 3676 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 42011-06 | 2006 |
| 1062 | Unknown |
| 3678 | Unknown |
| 3624 | 1999 |
| 2879W | 2009 |
| 4813A | 1990 |
| 3462 | Unknown |
| 3368 | Unknown |
| 4648 | Unknown |
| 3736A | 2005 |
| 4790 | Unknown |
| 4194 | Unknown |
| 4196 | Unknown |
| 4124 | Unknown |
| 3540 | Unknown |
| 3892 | Unknown |
| 4192 | 1998 |
| 3337 | 2004 |
| 4775 | 2000 |
| 16480-92A | 1992 |
| 3832M | 2022 |
| 2445 | Unknown |
| 3537 | Unknown |
| 3341 | Unknown |
| 103A1 - Generic Washers | |
| 6717 | Unknown |
| 6019 | Unknown |
| 27714-06 | 2006 |
| 6445 | Unknown |
| 7415A | Unknown |
| 7229W | Unknown |
| 6336B | Unknown |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 57920-04 | 2004 |
| 6220W | Unknown |
| 6294 | 2010 |
| 6837M | Unknown |
| 8972 | Unknown |
| 6116 | Unknown |
| 6378 | Unknown |
| 7118 | Unknown |
| 53641-02 | 2002 |
| 59788-01 | 2001 |
| 6113 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6831 | Unknown |
| 6083 | Unknown |
| 58173-05 | 2005 |
| 7128 | Unknown |
| 11207 | 2000 |
| 31689-90 | 1990 |
| 6590HW | Unknown |
| 6029 | Unknown |
| 6127 | Unknown |
| 90763-79 | 1979 |
| 6036 | Unknown |
| 6421 | 1996 |
| 11852 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6738 | Unknown |
| 6762B | Unknown |
| 96210-80A | 1980 |
| 6229W | Unknown |
| 47491-02 | 2002 |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6235 | Unknown |
| 6462 | Unknown |
| 6970 | Unknown |
| 58105-05 | 2005 |
| 6400HB | Unknown |
| 45279-00 | 2000 |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 7671 | Unknown |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 108A1 - Hose Clamps | |
| 27048-84 | 1984 |
| 65283-94 | 1994 |
| 10031 | 2010 |
| 10198 | Unknown |
| 55918-08 | 2008 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 58380-89 | 1989 |
| 69563-06 | 2006 |
| 9955 | Unknown |
| 10113 | Unknown |
| 108B1 - P Clamps | |
| 51009-02A | 2002 |
| 7490 | Unknown |
| 10092 | 2010 |
| 10110 | Unknown |
| 109A1 - Studs | |
| 90400-00 | 2000 |
| 66290-06 | 2006 |
| 16715-83 | 1983 |
| 10184 | Unknown |
| 90562-02 | 2002 |
| 70909-95 | 1995 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 42642-00 | 2000 |
| 24604-00D | 2000 |
| 42644-00 | 2000 |
| 58010-98 | 1998 |
| 8967 | 2005 |
| 9252 | 2019 |
| 46246-01 | 2001 |
| 25344-99 | 1999 |
| 9701 | 2006 |
| 17428-57 | 1957 |
| 12077 | Unknown |
| 9285 | 2008 |
| 67266-94 | 1994 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 8883 | Unknown |
| 40628-08 | 2008 |
| 8885 | Unknown |
| 8879 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 37101-84B | 1984 |
| 12068 | Unknown |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8042 | Unknown |
| 8963 | Unknown |
| 8970 | 2004 |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 9276 | 2007 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 58247-96 | 1996 |
| 9825 | Unknown |
| 9819 | Unknown |
| 9907 | Unknown |
| 72527-01 | 2001 |
| 72253-94 | 1994 |
| 9838 | Unknown |
| 74196-04 | 2004 |
| 72252-01 | 2001 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111D1 - Isolating Tape | |
| 44430-04 | 2004 |
| 111F1 - Protective Tape | |
| 66055-93 | 1993 |
| 59699-06 | 2006 |
| 116A1 - Banjo Bolts | |
| 41750-06A | 2007 |
| 5457 | 2003 |
| 42010-06 | 2006 |
| 5455M | Unknown |
| 117A1 - Coil Springs | |
| 51501-07 | 2007 |
| 119A1 - O-Rings | |
| 11270 | Unknown |
| 11273 | Unknown |
| 11686 | Unknown |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11348 | 2002 |
| 11140 | 1982 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11201 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11301 | Unknown |
| 31695-90 | 1990 |
| 11387A | Unknown |
| 11364 | 2002 |
| 11256 | 1996 |
| 27444-00Y | 2000 |
| 11907 | Unknown |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 608 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 50938-04 | 2004 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 40603-08 | 2008 |
| 11445 | Unknown |
| 11491A | 2012 |
| 11403A | Unknown |
| 11507 | 1997 |
| 11488 | 1996 |
| 11486 | Unknown |
| 11492 | 1996 |
| 79114-07 | 2007 |
| 57978-00 | 2000 |
| 121B1 - Press-Fit Plugs | |
| 67865-89 | 1989 |
| 55928-08 | 2008 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 72164-94A | 1994 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 10991 | 2000 |
| 76247-98 | 1998 |
| 17945-36B | 1936 |
| 31328-91 | 1991 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 40699-08 | 2008 |
| 11150 | 1984 |
| 10108 | Unknown |
| 41139-02 | 2002 |
| 66078-06 | 2006 |
| 31530-90 | 1990 |
| 11143 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 37905-00 | 2000 |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11061 | 2006 |
| 11389 | Unknown |
| 38904-08 | 2008 |
| 8174 | Unknown |
| 16699-06 | 2006 |
| 10132 | Unknown |
| 11081 | 2006 |
| 11082 | 2016 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11461 | Unknown |
| 11575 | Unknown |
| 11161 | 1984 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 124A1 - Spacers | |
| 11599 | Unknown |
| 41900-08 | 2008 |
| 53799-99 | 1999 |
| 5826 | Unknown |
| 61135-57 | 1957 |
| 11853 | Unknown |
| 5837A | Unknown |
| 53615-85A | 1985 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 10302 | 1996 |
| 8861 | Unknown |
| 50972-75 | 1975 |
| 31692-90 | 1990 |
| 8041 | Unknown |
| 68331-02 | 2002 |
| 90707-00 | 2000 |
| 27711-08 | 2008 |
| 53426-87 | 1987 |
| 59292-94 | 1994 |
| 8500A | 1993 |
| 90493-83 | 1983 |
| 88283-07 | 2007 |
| 54320-97 | 1997 |
| 56161-83A | 1983 |
| 53447-87 | 1987 |
| 71459-03 | 2003 |
| 16585-96 | 1996 |
| 31641-06 | 2006 |
| 26041-05A | 2005 |
| 58104-05 | 2005 |
| 8873 | 1984 |
| 57638-08 | 2008 |
| 11468 | 2002 |
| 126B1 - Rivets Fasteners | |
| 58709-86 | 1986 |
| 11604 | Unknown |
| 11779 | 2008 |
| 8483A | Unknown |
| 11642 | Unknown |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 91630-04A | 2004 |
| 127B1 - Generic Mounting Bracket | |
| 53422-97 | 1997 |
| 79135-08 | 2008 |
| 53801-98 | 1998 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 90821-74B | 1974 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 140G3 - Noise Label | |
| 14702-08 | 2008 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 141A1 - Medallion | |
| 67668-05 | 2005 |
| 59423-03 | 2003 |
| 62384-08 | 2008 |
| 14448-94 | 1994 |
| 92370-08 | 2008 |
| 61386-08CRV | 2008 |
| 90820-93C | 1993 |
| 42856-06 | 2006 |
| 62385-08 | 2008 |
| 71581-08 | 2008 |
| 149A1 - Tool | |
| 94819-02 | 2002 |
| 161A1 - Powertrain Assembly | |
| 19838-08 | 2008 |
| 19261-08 | 2008 |
| 162D1 - Engine Assembly | |
| 17721-08 | 2008 |
| 163B1 - Engine Isolator Mount | |
| 16207-79D | 1979 |
| 164A1 - Engine Mount Bracket | |
| 47159-07BHP | 2007 |
| 27712-08 | 2008 |
| 16321-08 | 2008 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7720 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7688 | 2000 |
| 7686 | Unknown |
| 16219-79C | 1979 |
| 165A1 - Cylinder Head | |
| 18280-07 | 2007 |
| 18011-86 | 1986 |
| 17337-08A | 2008 |
| 17331-08A | 2008 |
| 17179-06 | 2006 |
| 94634-99 | 1999 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16801-07B | 2007 |
| 16775-99B | 1999 |
| 17369-06 | 2006 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 17454-08 | 2008 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99B | 1999 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 36819-07 | 2007 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18074-05A | 2007 |
| 18085-05A | 2007 |
| 181B1 - Valve Seals | |
| 18158-05 | 2005 |
| 18153-05 | 2005 |
| 18154-05 | 2005 |
| 18067-09 | 2009 |
| 18157-05 | 2005 |
| 18271-00 | 2000 |
| 18161-08 | 2008 |
| 18187-07 | 2007 |
| 18183-03 | 2003 |
| 18168-08 | 2008 |
| 18156-05 | 2005 |
| 16465-06 | 2006 |
| 18020-83 | 1983 |
| 18189-07 | 2007 |
| 18094-02A | 2002 |
| 18155-05 | 2005 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18260-02 | 2002 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18245-02 | 2002 |
| 18258-02 | 2002 |
| 219A1 - Piston | |
| 21960-07 | 2007 |
| 21961-07 | 2007 |
| 17458-07 | 2007 |
| 21959-07 | 2007 |
| 220A1 - Piston Ring | |
| 21955-07 | 2007 |
| 21950-07 | 2007 |
| 21949-07 | 2007 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24004-03A | 2007 |
| 23729-07 | 2007 |
| 244A1 - Crankcase | |
| 24760-08 | 2008 |
| 24621-06A | 2007 |
| 244B1 - Crankcase Gasket | |
| 35607-06 | 2006 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24009-06 | 2006 |
| 244E1 - Transmission Access Door | |
| 35256-08 | 2001 |
| 244F1 - Oil Pan | |
| 62489-99 | 1999 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25638-07 | 2007 |
| 25675-06 | 2006 |
| 25590-07A | 2014 |
| 25673-06 | 2006 |
| 25728-06 | 2006 |
| 24608-07A | 2014 |
| 254C1 - Camshaft Sprocket | |
| 40333-06 | 2006 |
| 254D1 - Camshaft Support | |
| 25355-06 | 2006 |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25683-06 | 2006 |
| 255C1 - Camdrive Chain Tensioner | |
| 39969-06 | 2006 |
| 256A1 - Timer Cover | |
| 32543-07 | 2007 |
| 257A1 - Cam Cover | |
| 25369-01A | 2002 |
| 257B1 - Clutch Cover | |
| 60865-08 | 2008 |
| 60864-08 | 2008 |
| 60863-08 | 2008 |
| 60766-06 | 2006 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 33890-99A | 1999 |
| 90675-93A | 2000 |
| 35654-06 | 2006 |
| 71294-08 | 2008 |
| 17053-99B | 2005 |
| 61109-85D | 1985 |
| 16719-99A | 2005 |
| 17045-99C | 2006 |
| 34901-07 | 2007 |
| 25244-99A | 1999 |
| 17162-03 | 2003 |
| 53869-06 | 2006 |
| 42857-06A | 2006 |
| 34948-08 | 2008 |
| 45733-48 | 1948 |
| 25700226 | 2012 |
| 18635-99B | 1999 |
| 17052-99B | 2005 |
| 26077-99A | 1999 |
| 34917-06 | 2006 |
| 58382-89 | 1989 |
| 17386-99A | 1999 |
| 11902 | Unknown |
| 257G1 - Ignition Cover | |
| 32578-07 | 2007 |
| 257L1 - Primary Cover | |
| 60553-07 | 2007 |
| 25585-06 | 2006 |
| 37137-07 | 2007 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 17573-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 26166-08 | 2008 |
| 34469-06A | 2007 |
| 60818-07 | 2007 |
| 265A1 - Vent / Breather Line | |
| 62367-06A | 2006 |
| 29502-08 | 2008 |
| 58890-05 | 2005 |
| 17650-02 | 2002 |
| 58889-05 | 2005 |
| 270A1 - Carburetor | |
| 36822-04 | 2004 |
| 22284-07 | 2007 |
| 22269-07 | 2007 |
| 22287-07 | 2007 |
| 22288-07 | 2007 |
| 22286-07 | 2007 |
| 22290-07 | 2007 |
| 22285-07 | 2007 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27685-08 | 2008 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 26993-06 | 2006 |
| 273G1 - Throttle Body | |
| 29517-07A | 2007 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 274B1 - Fuel Rail | |
| 27721-08 | 2008 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 290A1 - Airbox Baseplate | |
| 29764-08 | 2008 |
| 29630-08 | 2008 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 29353-05 | 2005 |
| 290D1 - Airbox Seal | |
| 29718-08 | 2008 |
| 29645-08 | 2008 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29633-08 | 2008 |
| 294B1 - Breather Bolt | |
| 29465-08 | 2008 |
| 294C1 - Breather Hose | |
| 28919-04 | 2004 |
| 294F1 - Engine Breather Valve | |
| 26858-99 | 1999 |
| 299F1 - Stator Assembly | |
| 29987-06B | 2008 |
| 314E1 - Starter Friction Clutch | |
| 31681-07 | 2007 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31619-06A | 2006 |
| 314G1 - Starter Motor sub-component | |
| 31660-90 | 1990 |
| 31643-06 | 2007 |
| 31542-06 | 2006 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 28861-07A | 2007 |
| 27715-07 | 2007 |
| 31604-06 | 2006 |
| 316A1 - Ignition Coil | |
| 31696-07A | 2008 |
| 316B1 - Spark Plug Cable | |
| 31992-99B | 1999 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 27719-07 | 2007 |
| 327C1 - Pressure Sensor | |
| 74438-99 | 1999 |
| 40615-08 | 2008 |
| 40614-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32707-01C | 2007 |
| 74402-05 | 2005 |
| 327E1 - Temperature Sensor | |
| 32319-07 | 2007 |
| 74419-96A | 1996 |
| 32446-99 | 1999 |
| 336A1 - Shift Linkage Rod Assembly | |
| 5817 | 2000 |
| 33819-98A | 2001 |
| 33888-99 | 1999 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 34532-00B | 2000 |
| 339A1 - Shift Lever | |
| 34568-00B | 2000 |
| 34720-07 | 2007 |
| 49295-07 | 2007 |
| 49292-07 | 2007 |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35249-06 | 2006 |
| 35081-06 | 2006 |
| 33413-06A | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347A1 - Transmission Assembly | |
| 33140-08 | 2008 |
| 33118-08 | 2008 |
| 347B1 - Transmission Case | |
| 34740-07A | 2007 |
| 34753-08 | 2008 |
| 350A1 - Transmission Output Sprocket | |
| 40659-06 | 2006 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 40560-05 | 2005 |
| 350E1 - Transmission Gear | |
| 31525-90 | 1990 |
| 31345-06 | 2006 |
| 35801-06 | 2006 |
| 35122-06 | 2006 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35467-08 | 2008 |
| 35470-06 | 2006 |
| 35805-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35201-06 | 2006 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 40297-06 | 2006 |
| 40901-05 | 2005 |
| 62830-99 | 1999 |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35260-06 | 2008 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 39968-06 | 2006 |
| 39929-06A | 2007 |
| 365C1 - Primary Drive Assembly | |
| 40296-06 | 2006 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60432-07 | 2007 |
| 60850-08 | 2008 |
| 367A1 - Clutch Lever | |
| 38774-08 | 2008 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 31633-07 | 2007 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37817-07 | 2007 |
| 37496-90A | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37554-06A | 2008 |
| 370F1 - Clutch Pressure Plate | |
| 37927-03 | 2003 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 372D1 - Clutch Cable | |
| 38901-08 | 2008 |
| 372G1 - Clutch Hose | |
| 38881-08 | 2008 |
| 400A1 - Drive-Belt | |
| 40024-07 | 2007 |
| 401A1 - Engine Sprocket | |
| 40320-06 | 2006 |
| 40356-07 | 2007 |
| 410D1 - Electronic Control Module (ECM) | |
| 34246-08 | 2008 |
| 410G1 - Security System Control Module | |
| 68924-07 | 2007 |
| 68922-07 | 2007 |
| 69018-00 | 2000 |
| 70617-07 | 2007 |
| 411A1 - ABS Control Unit | |
| 40786-08 | 2008 |
| 40688-08 | 2008 |
| 413A1 - Brake Caliper | |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 42938-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 48361-80 | 1980 |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41810-08 | 2008 |
| 44944-08 | 2008 |
| 416A1 - Brakes Miscellaneous Component | |
| 44935-06 | 2006 |
| 42865-06A | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51D | 2004 |
| 44089-08 | 2008 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42123-08 | 2008 |
| 42101-06 | 2006 |
| 42102-08 | 2008 |
| 46463-08 | 2008 |
| 42115-06 | 2006 |
| 42862-06A | 2008 |
| 46459-08 | 2008 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42932-08 | 2008 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 417G1 - Front Brake Lever | |
| 42638-08 | 2008 |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45282-99A | 1999 |
| 418B1 - Brake Line | |
| 40610-08 | 2008 |
| 40650-08 | 2008 |
| 40663-08 | 2008 |
| 40611-08 | 2008 |
| 420A1 - Wheel Rim | |
| 43484-08 | 2008 |
| 43539-08 | 2008 |
| 422B1 - Wheel Sprocket | |
| 40265-08 | 2008 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 54323-85A | 1985 |
| 423K1 - Wheel Weights | |
| 95595-84 | 1984 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08 | 2008 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 41056-08 | 2008 |
| 431A1 - Front Tire | |
| 43022-91A | 1991 |
| 432A1 - Rear Tire | |
| 43329-04 | 2004 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43903-08 | 2008 |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 43904-08 | 2008 |
| 11844 | Unknown |
| 454A1 - Front Telescopic Fork | |
| 46473-00B | 2007 |
| 46621-06A | 2006 |
| 46622-06A | 2006 |
| 45963-97 | 1997 |
| 47549-02A | 2002 |
| 46474-00C | 2007 |
| 455B1 - Front Telescopic Fork Spring | |
| 46235-06 | 2006 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 46658-07 | 2007 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45972-06 | 2006 |
| 45933-86 | 1986 |
| 46209-06 | 2006 |
| 457A1 - Steering Stop Block | |
| 47530-79B | 1979 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45794-94A | 1994 |
| 45780-03 | 2003 |
| 45446-87A | 1987 |
| 48333-80 | 1980 |
| 459A1 - Upper Triple Clamp | |
| 45435-95 | 1995 |
| 470A1 - Frame | |
| 47900-08BHP | 2008 |
| 472A1 - Frame sub-component | |
| 47560-07 | 2007 |
| 7036 | Unknown |
| 47558-07 | 2007 |
| 472C1 - Front Fairing Support Bracket | |
| 58478-96A | 1996 |
| 62787-96 | 1996 |
| 58479-96A | 1996 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 51023-07 | 2007 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 65619-98 | 1998 |
| 76525-08 | 2008 |
| 68508-04 | 2004 |
| 53570-89 | 1989 |
| 27723-08 | 2008 |
| 29644-08 | 2008 |
| 53563-82 | 1982 |
| 76130-98 | 1998 |
| 68853-98 | 1998 |
| 474E1 - Swingarm Assembly sub-component | |
| 47564-86B | 1986 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490A1 - Frame Guard | |
| 49205-97 | 1997 |
| 49201-97 | 1997 |
| 490C1 - Engine Guard | |
| 49184-97 | 1997 |
| 500B1 - Sidestand Bracket | |
| 50078-81B | 1981 |
| 500C1 - Sidestand Bracket sub-component | |
| 50126-08 | 2008 |
| 500D1 - Sidestand Leg | |
| 50075-07 | 2007 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 49725-07 | 2007 |
| 505A1 - Footboard | |
| 50823-07 | 1997 |
| 51008-07 | 2007 |
| 50816-07 | 2007 |
| 50688-04 | 2004 |
| 50701-04 | 2004 |
| 51007-07 | 2007 |
| 50819-07 | 2003 |
| 50812-07 | 2007 |
| 50683-04 | 2004 |
| 51006-07 | 2007 |
| 50998-07 | 2007 |
| 50700-04 | 2004 |
| 505B1 - Footpeg Mount Bracket | |
| 47370-04 | 2004 |
| 50588-07 | 2007 |
| 50988-02A | 2002 |
| 50571-04 | 2004 |
| 50351-03 | 2009 |
| 50806-07 | 2007 |
| 50589-07 | 2007 |
| 505D1 - Passenger Footpeg | |
| 50935-07 | 2007 |
| 505G1 - Rider or Common Footpeg | |
| 50834-07 | 2007 |
| 50835-07 | 2007 |
| 506A1 - Brake Pedal | |
| 42147-07 | 2007 |
| 42861-06A | 2006 |
| 50912-72 | 1972 |
| 42146-07 | 2007 |
| 46959-07 | 2007 |
| 44437-04 | 2004 |
| 42933-08 | 2008 |
| 520A1 - Rider Seat or Full Seat | |
| 52128-08 | 2008 |
| 521C1 - Seat Suspension Damper | |
| 46422-06 | 2006 |
| 523B1 - Back Rest Pad | |
| 52167-08 | 2008 |
| 52186-08 | 2008 |
| 523C1 - Back Rest Support Structure | |
| 52192-86A | 1986 |
| 52624-05 | 2005 |
| 52567-93B | 1993 |
| 53517-86 | 1986 |
| 524A1 - Passenger Grab Handle | |
| 51239-06 | 2006 |
| 530A1 - Tour Pak | |
| 79182-08 | 2008 |
| 79042-06 | 2006 |
| 53301-06 | 2006 |
| 53280-08 | 2008 |
| 54056-08 | 2008 |
| 53357-08 | 2008 |
| 79149-08 | 2008 |
| 79171-08 | 2008 |
| 54057-08 | 2008 |
| 53052-08 | 2008 |
| 53389-08 | 2008 |
| 53594-08A | 2008 |
| 530B1 - Tour Pak sub-component | |
| 53221-08CTB | 2008 |
| 53415-06 | 2006 |
| 53221-08CTE | 2008 |
| 79209-08CRV | 2008 |
| 53221-08CRR | 2008 |
| 79146-07 | 2007 |
| 79209-08CTE | 2008 |
| 79209-08CTB | 2008 |
| 53515-86 | 1986 |
| 53228-08CTB | 2008 |
| 53166-89 | 1989 |
| 53228-08CTE | 2008 |
| 53228-08CRR | 2008 |
| 53478-80 | 1980 |
| 53305-08CTE | 2008 |
| 53305-08CTB | 2008 |
| 53305-08CRR | 2008 |
| 53165-89A | 1989 |
| 53564-97 | 1997 |
| 79159-07 | 2007 |
| 90755-09 | 2009 |
| 90964-63 | 1963 |
| 53486-85 | 1985 |
| 53598-88A | 1988 |
| 90869-85A | 1985 |
| 90688-85 | 1985 |
| 530C2 - Case Latch | |
| 90705-97 | 1997 |
| 90665-93 | 1993 |
| 90649-07 | 2007 |
| 530E1 - Tour-Pak Luggage Rack | |
| 53665-87 | 1987 |
| 540B1 - Rear Shock | |
| 54565-97C | 1997 |
| 540E1 - Rear Shock sub-component | |
| 54357-03 | 2003 |
| 54536-02A | 2002 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 56036-08 | 2008 |
| 559D1 - Lower Handlebar Clamp | |
| 56151-88B | 1988 |
| 56149-88B | 1988 |
| 560A1 - Mirror | |
| 91840-03A | 2003 |
| 91950-07 | 2007 |
| 91951-07 | 2007 |
| 91845-03A | 2003 |
| 561F1 - Grip Kit | |
| 32310-08 | 2008 |
| 55927-08 | 2008 |
| 56956-07 | 2007 |
| 570A1 - Front Fairing | |
| 57842-06 | 2006 |
| 58260-08CTB | 2008 |
| 58260-08CTE | 2008 |
| 58260-08CRV | 2008 |
| 57860-06 | 2006 |
| 570B1 - Handlebar Wind Deflector | |
| 58128-08 | 2008 |
| 58129-08 | 2008 |
| 57657-08 | 2008 |
| 57655-08 | 2008 |
| 570C1 - Inner Fairing | |
| 58864-06 | 2006 |
| 58863-06 | 2006 |
| 571A1 - Fairing Lower | |
| 58851-08CRR | 2008 |
| 58851-08CTE | 2008 |
| 58851-08CTB | 2008 |
| 58852-08CTB | 2008 |
| 58852-08CTE | 2008 |
| 58852-08CRR | 2008 |
| 571B1 - Fairing Lower sub-component | |
| 58499-08CRR | 2008 |
| 58208-96A | 1996 |
| 58546-08CRR | 2008 |
| 58500-08CRR | 2008 |
| 58545-08CRR | 2008 |
| 58499-08CTF | 2008 |
| 58679-05 | 2005 |
| 58545-08CAS | 2008 |
| 58546-08CTF | 2008 |
| 58500-08CTF | 2008 |
| 58546-08CAS | 2008 |
| 58681-05 | 2005 |
| 58545-08CTF | 2008 |
| 58317-04 | 2004 |
| 58500-08CAS | 2008 |
| 58903-05 | 2005 |
| 58499-08CAS | 2008 |
| 58901-05 | 2005 |
| 58893-05 | 2005 |
| 571C1 - Fairing Side | |
| 58939-96B | 1996 |
| 58938-96B | 1996 |
| 572E1 - Side Cover | |
| 66620-08CRV | 2008 |
| 32306-08 | 2008 |
| 66621-08CTB | 2008 |
| 66621-08CTE | 2008 |
| 66620-08CTE | 2008 |
| 66620-08CTB | 2008 |
| 573A1 - Bodywork Miscellaneous Component | |
| 58891-05 | 2005 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 58303-96 | 1996 |
| 58324-97 | 1997 |
| 589A1 - Front Fender | |
| 58972-08CRV | 2008 |
| 58972-08CTB | 2008 |
| 58972-08CTE | 2008 |
| 59045-00B | 2012 |
| 595D1 - Rear Fender | |
| 59661-08CRR | 2008 |
| 59583-08CTF | 2008 |
| 75069-08 | 2008 |
| 59583-08CAS | 2008 |
| 59579-06 | 2006 |
| 59583-08CRR | 2008 |
| 58702-06 | 2006 |
| 59661-08CAS | 2008 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 59661-08CTF | 2008 |
| 596B1 - Fender Tip | |
| 61121-04 | 2004 |
| 59280-02 | 2002 |
| 53429-93 | 1993 |
| 603B1 - Belt / Chain Guard | |
| 60386-04 | 2004 |
| 608A1 - Carbon Canister | |
| 27433-08 | 2008 |
| 608B1 - Carbon Canister Hose | |
| 27297-08 | 2008 |
| 27439-08 | 2008 |
| 27437-08 | 2008 |
| 27298-08 | 2008 |
| 609A1 - Fuel Miscellaneous Component | |
| 75147-08 | 2008 |
| 6119 | 2016 |
| 61112-08 | 2008 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70999-08 | 2008 |
| 70901-08 | 2008 |
| 610A1 - Fuel Tank | |
| 61356-08 | 2008 |
| 61386-08CTB | 2008 |
| 61386-08CTE | 2008 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 10334 | 2014 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-08 | 2008 |
| 27291-08 | 2008 |
| 69241-08 | 2008 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 62229-08 | 2008 |
| 612B1 - Fuel Level Sensor | |
| 75205-08 | 2008 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 612C1 - Fuel Line | |
| 62905-08 | 2008 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 29895-08 | 2008 |
| 63603-05 | 2005 |
| 30026-08 | 2008 |
| 29821-06 | 2006 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 77168-08 | 2008 |
| 61313-88 | 1988 |
| 77154-08 | 2008 |
| 77202-08 | 2008 |
| 77203-08 | 2008 |
| 77169-08 | 2008 |
| 77201-08 | 2008 |
| 614C1 - Trim | |
| 43475-08 | 2008 |
| 62786-96 | 1996 |
| 53735-06 | 2006 |
| 53734-06 | 2006 |
| 624A1 - Oil Pump Assembly | |
| 26037-06 | 2006 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26278-06 | 2006 |
| 26282-06 | 2006 |
| 26281-06 | 2006 |
| 26400-82B | 1982 |
| 625A1 - Oil Cooler Grille | |
| 63071-07 | 2007 |
| 627A1 - Oil Cooler | |
| 63068-07 | 2007 |
| 62108-03 | 2003 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627C1 - Oil Drain Plug Gasket | |
| 63066-07 | 2007 |
| 63084-07 | 2007 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06 | 2006 |
| 62693-07 | 2007 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 42145-06 | 2006 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62641-05A | 2005 |
| 62629-05A | 2005 |
| 627K1 - Oil Line Fitting | |
| 62365-06 | 2006 |
| 26352-95A | 1995 |
| 63533-41A | 1941 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62228-08 | 2008 |
| 627N1 - Oil System Baffle | |
| 62828-99 | 1999 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63076-08 | 2008 |
| 648K1 - Exhaust Miscellaneous Component | |
| 70991-07 | 2007 |
| 65694-05A | 2005 |
| 66799-07 | 2007 |
| 649A1 - Muffler | |
| 66077-06B | 2008 |
| 66012-06B | 2008 |
| 650B1 - Active Exhaust Valve sub-components | |
| 66767-07 | 2007 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 66079-06 | 2006 |
| 55949-08 | 2008 |
| 654A1 - Exhaust Shield | |
| 65743-05 | 2005 |
| 65636-07 | 2007 |
| 66220-06 | 2006 |
| 65951-98A | 1998 |
| 65952-98A | 1998 |
| 65742-05 | 2005 |
| 66219-06 | 2006 |
| 65634-98A | 1998 |
| 65647-98 | 1998 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-07 | 2007 |
| 65988-07A | 2007 |
| 656E1 - Header Pipe | |
| 65621-07 | 2007 |
| 65627-07 | 2007 |
| 65626-07B | 2007 |
| 65905-07B | 2007 |
| 658A1 - Exhaust Catalyst | |
| 65748-07 | 2007 |
| 65949-07 | 2007 |
| 66080-06B | 2008 |
| 65863-07 | 2007 |
| 65913-06B | 2008 |
| 659A1 - Exhaust Clamp | |
| 65654-97 | 2017 |
| 65620-98A | 1998 |
| 659B1 - Exhaust Flange | |
| 65328-83 | 1983 |
| 659C1 - Exhaust Gasket | |
| 65324-83A | 1985 |
| 660A1 - Battery | |
| 66010-97B | 1997 |
| 660C1 - Battery Pan | |
| 66281-08 | 2008 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660F1 - Negative Battery Cable | |
| 70267-08 | 2008 |
| 660G1 - Positive Battery Cable | |
| 70377-08 | 2008 |
| 660H1 - Positive Battery Cable Boot | |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 67356-00 | 2000 |
| 67522-04B | 2004 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67778-60A | 1960 |
| 67732-08 | 2008 |
| 69231-04 | 2004 |
| 68096-04 | 2004 |
| 69330-02 | 2002 |
| 69325-02 | 2002 |
| 67864-04A | 2005 |
| 67728-02A | 2002 |
| 68725-62A | 1962 |
| 67712-83A | 1983 |
| 67726-08 | 2008 |
| 69218-04 | 2004 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 678D1 - Turnsignal | |
| 58384-89 | 1989 |
| 68997-04 | 2004 |
| 69567-06 | 2006 |
| 68821-00 | 2000 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 58383-89 | 1989 |
| 679A1 - License Plate Tray / Holder | |
| 53375-97A | 1997 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 59287-92 | 1992 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59290-92 | 1992 |
| 59289-92 | 1992 |
| 59288-92 | 1992 |
| 59988-72A | 1972 |
| 68344-05 | 2005 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 60026-97 | 1997 |
| 60039-97 | 1997 |
| 679E1 - License Plate Light | |
| 68180-99 | 1999 |
| 680A1 - Decorative Light | |
| 53789-06 | 2006 |
| 68072-08CTF | 2008 |
| 68072-08CTD | 2008 |
| 54332-04A | 2005 |
| 68822-04 | 2004 |
| 68072-08CAS | 2008 |
| 53788-06 | 2006 |
| 68414-05 | 2005 |
| 680C1 - Incandescent Bulb | |
| 68847-98A | 1998 |
| 68881-01 | 2001 |
| 68165-64 | 1964 |
| 68453-05 | 2005 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68851-98 | 1998 |
| 68167-04 | 2004 |
| 53438-92 | 1992 |
| 690A1 - Emergency Siren | |
| 68958-07A | 2007 |
| 690C1 - Horn | |
| 69060-90E | 2007 |
| 690D1 - Horn Bracket | |
| 16316-08 | 2008 |
| 692C1 - Electrical Miscellaneous Component | |
| 72547-08 | 2008 |
| 91808-89 | 1989 |
| 72232-96 | 1996 |
| 53597-07 | 2007 |
| 74115-06 | 2006 |
| 79165-07 | 2007 |
| 72635-08 | 2008 |
| 70348-08 | 2008 |
| 90469-94 | 1994 |
| 68789-96A | 1996 |
| 70344-08 | 2008 |
| 91812-89A | 1989 |
| 72189-04 | 2004 |
| 68382-07 | 2007 |
| 70980-08 | 2008 |
| 73306-07 | 2007 |
| 68124-04A | 2004 |
| 68837-04A | 2004 |
| 68836-04A | 2004 |
| 692C2 - Electrical Mounting Bracket | |
| 70447-01 | 2001 |
| 69123-92 | 1992 |
| 71019-07 | 2007 |
| 69120-91 | 1991 |
| 67689-04 | 2004 |
| 66318-08 | 2008 |
| 70430-07 | 2007 |
| 76265-98 | 1998 |
| 67352-96A | 1996 |
| 47420-08 | 2008 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 72314-01 | 2001 |
| 72330-95 | 1995 |
| 72331-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 72204-04 | 2004 |
| 72325-97 | 1997 |
| 692E2 - Fuse / Relay Block Cover | |
| 72620-08 | 2008 |
| 692F1 - Wire Harness | |
| 70174-06 | 2006 |
| 70142-94 | 1994 |
| 70465-86A | 1986 |
| 68359-05 | 2005 |
| 70308-07 | 2007 |
| 76319-08 | 2008 |
| 76248-86 | 1986 |
| 70981-08 | 2008 |
| 70232-08 | 2008 |
| 70290-07 | 2007 |
| 70160-08 | 2008 |
| 72152-94 | 1994 |
| 70973-08 | 2008 |
| 68772-06 | 2006 |
| 70369-08 | 2008 |
| 70648-00A | 2000 |
| 77121-08 | 2008 |
| 70172-06 | 2006 |
| 70179-06A | 2006 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 54354-94A | 1994 |
| 72249-94 | 1994 |
| 70522-06 | 2006 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 66761-08 | 2008 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 74149-98 | 1998 |
| 75044-96 | 1996 |
| 72114-94BK | 1994 |
| 72206-94 | 1994 |
| 74104-98BK | 1998 |
| 72159-94 | 1994 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72138-94GY | 1994 |
| 72384-06BK | 2006 |
| 72063-06 | 2006 |
| 72100-04 | 2004 |
| 72157-08 | 2008 |
| 72161-06 | 2006 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 72179-94 | 1994 |
| 72066-06 | 2006 |
| 72124-94GY | 1994 |
| 72416-01 | 2001 |
| 76266-98 | 1998 |
| 9848 | Unknown |
| 9847 | Unknown |
| 74146-98 | 1998 |
| 72113-94BK | 1994 |
| 72102-94BK | 1994 |
| 72200-94 | 1994 |
| 72260-04 | 2004 |
| 72009-05 | 2005 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72007-05 | 2005 |
| 72172-94 | 1994 |
| 76258-86 | 1986 |
| 72155-08 | 2008 |
| 72131-04 | 2004 |
| 72064-06 | 2006 |
| 72205-94 | 1994 |
| 73301-04 | 2004 |
| 73198-96 | 1996 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72153-94 | 1994 |
| 73212-07 | 2007 |
| 692H2 - Terminal | |
| 9930 | Unknown |
| 72286-04 | 2004 |
| 72364-06 | 2006 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 72400-99 | 1999 |
| 72289-04 | 2004 |
| 72605-08 | 2008 |
| 72608-08 | 2008 |
| 72413-07 | 2007 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72484-08 | 2008 |
| 72429-00 | 2000 |
| 72407-07 | 2007 |
| 72210-94 | 1994 |
| 72115-08 | 2008 |
| 72024-08 | 2008 |
| 72493-07 | 2007 |
| 72309-04 | 2004 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72381-98 | 1998 |
| 72169-07 | 2007 |
| 72242-94 | 1994 |
| 72279-04 | 2004 |
| 72355-97 | 1997 |
| 72208-94 | 1994 |
| 72168-07 | 2007 |
| 72291-94 | 1994 |
| 9839 | 1996 |
| 72101-04 | 2004 |
| 72495-08 | 2008 |
| 9842 | Unknown |
| 9938 | Unknown |
| 9937 | Unknown |
| 72294-94 | 1994 |
| 9864 | 1986 |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 72207-94 | 1994 |
| 72611-07 | 2007 |
| 74190-98 | 1998 |
| 72359-05 | 2005 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 72265-04 | 2004 |
| 74156-98 | 1998 |
| 68907-00 | 2000 |
| 72142-94 | 1994 |
| 72403-99 | 1999 |
| 73303-04 | 2004 |
| 72006-05 | 2005 |
| 74116-98BK | 1998 |
| 74144-98 | 1998 |
| 72173-94 | 1994 |
| 72112-94BK | 1994 |
| 72134-94GY | 1994 |
| 72449-01 | 2001 |
| 72154-94 | 1994 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 68653-05 | 2005 |
| 72104-94BK | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 73162-96BK | 1996 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 74106-98BK | 1998 |
| 72487-07BK | 2007 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72633-02 | 2002 |
| 72402-07 | 2007 |
| 72473-07 | 2007 |
| 72214-94 | 1994 |
| 72491-07GY | 2007 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 70598-99 | 1999 |
| 72406-07 | 2007 |
| 73112-96BK | 1996 |
| 72557-07 | 2007 |
| 74109-98BK | 1998 |
| 72486-08 | 2008 |
| 72408-07 | 2007 |
| 74195-98 | 1998 |
| 72251-07 | 2007 |
| 72397-98 | 1998 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 73153-96BK | 1996 |
| 72556-08 | 2008 |
| 72492-07GY | 2007 |
| 73158-96BK | 1996 |
| 72720-07 | 2007 |
| 72143-94 | 1994 |
| 70494-08 | 2008 |
| 72203-96 | 1996 |
| 72011-05 | 2005 |
| 72106-94BK | 1994 |
| 73110-96BK | 1996 |
| 73160-96BK | 1996 |
| 72103-94BK | 1994 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 74159-98 | 1998 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 10138 | Unknown |
| 72188-07BK | 2007 |
| 72483-08BK | 2008 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 73196-96 | 1996 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 69318-02 | 2002 |
| 74154-98 | 1998 |
| 73102-96BK | 1996 |
| 72079-08 | 2008 |
| 72014-07 | 2007 |
| 72485-07 | 2007 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 72046-79 | 1979 |
| 72440-08 | 2008 |
| 72158-94 | 1994 |
| 72012-07 | 2007 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 73108-96BK | 1996 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 72382-98BK | 1998 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67581-08 | 2008 |
| 67516-08 | 2008 |
| 67454-04 | 2004 |
| 67519-08 | 2008 |
| 74554-04 | 2004 |
| 709B2 - Fuel Gauge | |
| 75113-08 | 2008 |
| 709E1 - Tank Console | |
| 61270-08 | 2008 |
| 61278-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71572-06 | 2006 |
| 71530-03B | 2007 |
| 71422-03 | 2003 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 31631-06 | 2006 |
| 714C1 - Pressure Switch | |
| 71764-07 | 2007 |
| 71593-96 | 1996 |
| 71814-98 | 1998 |
| 71683-06 | 2006 |
| 71772-07 | 2007 |
| 71684-06 | 2006 |
| 71685-06 | 2006 |
| 71765-07 | 2007 |
| 71682-06 | 2006 |
| 714D1 - Relay | |
| 31504-91B | 2000 |
| 715A1 - Hand Control | |
| 71825-96A | 1996 |
| 67854-98 | 1998 |
| 70375-96 | 1996 |
| 71614-96 | 1996 |
| 76129-98 | 1998 |
| 74553-04A | 2004 |
| 70373-96 | 1996 |
| 71615-96 | 1996 |
| 71834-98 | 1998 |
| 71638-03 | 2003 |
| 77101-98 | 1998 |
| 56866-06A | 2006 |
| 71539-08 | 2008 |
| 71590-96A | 1996 |
| 71824-98 | 1998 |
| 71823-98 | 1998 |
| 71612-96 | 1996 |
| 71434-96A | 1996 |
| 71822-98 | 1998 |
| 71661-03 | 2003 |
| 67493-08 | 2008 |
| 77100-98 | 1998 |
| 71820-98 | 1998 |
| 71535-96 | 1996 |
| 71699-07 | 2007 |
| 71618-98 | 1998 |
| 747A1 - Voltage Regulator | |
| 74552-04A | 2004 |
| 74622-06 | 2006 |
| 760A1 - GPS Unit | |
| 76167-06A | 2006 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76306-98 | 1998 |
| 76337-06A | 2006 |
| 76252-86 | 1986 |
| 76455-06 | 2006 |
| 76250-98 | 1998 |
| 76338-06A | 2006 |
| 76456-06 | 2006 |
| 76322-97 | 1997 |
| 74414-93 | 1993 |
| 76294-98 | 1998 |
| 76253-86 | 1986 |
| 76255-86 | 1986 |
| 76260-89 | 1989 |
| 760C1 - Audio System Amplifier | |
| 76192-06A | 2006 |
| 760C2 - Audio System Speaker | |
| 76284-08 | 2008 |
| 76301-08 | 2008 |
| 76307-98 | 1998 |
| 77047-98 | 1998 |
| 76236-06REFURB | 2006 |
| 77029-06 | 2006 |
| 760C3 - Radio Receiver | |
| 76160-06REFURB | 2006 |
| 76160-06 | 2006 |
| 91560-01 | 2001 |
| 76165-06A | 2006 |
| 760C4 - Rider-Passenger Communication System | |
| 77153-08 | 2008 |
| 77126-98 | 1998 |
| 77148-98A | 1998 |
| 77147-98 | 1998 |
| 76529-07 | 2007 |
| 77151-98 | 1998 |
| 760D1 - Infotainment Mount | |
| 77188-08 | 2008 |
| 77177-08 | 2008 |
| 760D2 - Infotainment Mount sub-component | |
| 77092-98 | 1998 |
| 76416-06B | 2009 |
| 76524-08 | 2008 |
| 76472-06A | 2006 |
| 79113-07 | 2007 |
| 76403-06 | 2006 |
| 902A1 - Saddlebag | |
| 88277-08CTE | 2008 |
| 91171-07 | 2007 |
| 88277-08CTB | 2008 |
| 92350-08CRV | 2008 |
| 88277-08CRV | 2008 |
| 92350-08CTE | 2008 |
| 92350-08CTB | 2008 |
| 88235-07 | 2007 |
| 90720-79C | 1985 |
| 90115-04 | 2004 |
| 88275-08CTB | 2008 |
| 88275-08CTE | 2008 |
| 92351-08CTB | 2008 |
| 88275-08CRV | 2008 |
| 92351-08CTE | 2008 |
| 92351-08CRV | 2008 |
| 91190-07 | 2007 |
| 88236-07 | 2007 |
| 902B1 - Saddlebag Cover | |
| 90737-08CAS | 2008 |
| 90738-08CRR | 2008 |
| 91586-07 | 2007 |
| 90737-08CTF | 2008 |
| 90738-08CAS | 2008 |
| 90738-08CTF | 2008 |
| 90664-93 | 1993 |
| 90737-08CRR | 2008 |
| 90958-93 | 1993 |
| 902C1 - Saddlebag Inner | |
| 91841-93A | 1993 |
| 902E1 - Saddlebag Bottom | |
| 91413-08CRR | 2008 |
| 90718-79C | 1985 |
| 91413-08CAS | 2008 |
| 90962-93 | 1993 |
| 90594-85A | 1985 |
| 91587-07 | 2007 |
| 49194-85 | 1985 |
| 79158-07 | 2007 |
| 79145-07 | 2007 |
| 91140-04 | 2004 |
| 53482-93 | 1993 |
| 53567-93 | 1993 |
| 79164-07 | 2007 |
| 90603-93A | 1993 |
| 90965-63 | 1963 |
| 47449-06 | 2006 |
| 90801-06 | 2006 |
| 53825-06 | 2006 |
| 53986-07 | 2007 |
| 90700-93 | 1993 |
| 90781-93 | 1993 |
| 90764-93 | 1993 |
| 53827-06 | 2006 |
| 53483-93 | 1993 |
| 91413-08CTF | 2008 |
| 79157-07 | 2007 |
| 75089-08 | 2008 |
| 90601-93A | 1993 |
| 903A1 - Lockset | |
| 54026-08A | 2008 |
| 79163-07 | 2007 |
| 54018-08A | 2008 |
| 53575-08 | 2008 |
| 79169-08 | 2008 |
| 79156-07 | 2007 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-07 | 2007 |
| 76537-08 | 2008 |
| 68939-00 | 2000 |
| 926A1 - Vehicle Completion Kit | |
| 91574-04 | 2004 |
| 940A1 - Owner's Kit | |
| 53314-06 | 2006 |
| 940A2 - Owner's Manual | |
| 99461-89 | 1989 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS: |
BAGS, LUGGAGE & TRAVEL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90764-93 | CUSHION | SADDLEBAGS (CONTINUED): |
| 90962-93 | WEARPLATE | SADDLEBAGS (CONTINUED): |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | TOUR-PAK (COVER): TOUR-PAK (BOTTOM): SADDLEBAGS: |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11105 | O-RING | TRANSMISSION HOUSING, TOP COVER & OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: TRANSMISSION BEARINGS & COVERS: |
| 11143 | RING | CLUTCH: CLUTCH CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: |
| 11150 | RING | GEAR SHIFTER: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: CAMSHAFTS & CAM COVER 110™ - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 11301 | O-RING | CAMSHAFTS & CAM COVER 110™ - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 11491A | GROMMET | FRAME, REAR FORK, & JIFFY STAND: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS & COVERS: |
| 16585-96 | INSERT | WINDSHIELD, FAIRING, HEADLAMP: |
| 16715-83 | STUD | CYLINDERS, HEADS, & VALVES 110™ - NON JAPAN: CYLINDERS, HEADS, & VALVES - TWIN CAM 96™ - JAPAN: |
| 17369-06 | GASKET SERVICE KIT (1K, 5K, 10K) | PRIMARY HOUSING: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS 110™ - NON JAPAN: ROCKER ARM ASSEMBLY & PUSH RODS -TWIN CAM 96™ - JAPAN: |
| 2445 | SCREW | WINDSHIELD, FAIRING, HEADLAMP: INNER FAIRING: |
| 2446 | SCREW | WINDSHIELD, FAIRING, HEADLAMP: INNER FAIRING: |
| 25244-99A | GASKET | CAMSHAFTS & CAM COVER 110™ - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 2563 | SCREW | INNER FAIRING: SOUND SYSTEM: |
| 25700226 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | FUEL INDUCTION MODULE: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | SEAT & BACKREST: REAR FENDER: |
| 2995 | SCREW | FAIRING LOWERS: |
| 3050 | SCREW | ALTERNATOR & REGULATOR: |
| 3275 | SCREW | FUEL INDUCTION MODULE: GEAR SHIFTER: |
| 3368 | SCREW | BELTS, CHAINS, & SPROCKETS: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 34901-07 | GASKET | PRIMARY HOUSING: |
| 34917-06 | GASKET | TRANSMISSION HOUSING, TOP COVER & OIL PAN: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 3592A | SCREW | SADDLEBAGS: |
| 3595 | SCREW | TOUR-PAK (COVER): TOUR-PAK (BOTTOM): SADDLEBAGS: |
| 3597 | SCREW | TOUR-PAK (BOTTOM): |
| 3655A | SCREW | FRONT WHEEL: FAIRING LOWERS: SADDLEBAG GUARDS: |
| 3656 | SCREW | SADDLEBAGS: |
| 36805-06 | GASKET | TRANSMISSION BEARINGS & COVERS: |
| 4132 | SCREW | ACTIVE INTAKE & EXHAUST: |
| 41751-06A | GASKET | CLUTCH CONTROL: FRONT BRAKE MASTER CYLINDER: FRONT BRAKE LINES - ABS: REAR BRAKE CONTROL: REAR BRAKE LINES & MODULE - ABS: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45279-00 | WASHER | FRONT FENDER: |
| 45405-75A | SCREW | FRONT FORK - TUBE ASSEMBLIES & SLIDERS: |
| 45733-48 | SEAL | FRONT FORK - TUBE ASSEMBLIES & SLIDERS: |
| 45845-77 | O-RING | FRONT FORK - TUBE ASSEMBLIES & SLIDERS: |
| 4740A | SCREW | CAMSHAFTS & CAM COVER 110™ - NON JAPAN: CAMSHAFTS & CAM COVER 110™ - NON JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: CAMSHAFTS & CAM COVER - TWIN CAM 96™ - JAPAN: |
| 48300-60 | BEARING KIT | FRONT FORK - BRACKETS: |
| 59768-97 | NUT KIT | SEAT & BACKREST: REAR FENDER: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 6229W | WASHER | SADDLEBAGS: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | FRONT FORK - TUBE ASSEMBLIES & SLIDERS: FRAME, REAR FORK, & JIFFY STAND: |
| 7041 | LOCKWASHER | GEAR SHIFTER: FRONT FORK - TUBE ASSEMBLIES & SLIDERS: FRAME, REAR FORK, & JIFFY STAND: FOOTBOARDS: PASSING LAMPS & FRONT TURN SIGNALS: EXHAUST SYSTEM: |
| 70909-95 | RECEPTACLE | SADDLEBAG GUARDS: |
| 7586 | JAM NUT | TOUR-PAK (COVER): |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | ALTERNATOR & REGULATOR: TOUR-PAK (BOTTOM): SEAT & BACKREST: FOOTBOARDS: FAIRING LOWERS: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | GEAR SHIFTER: |
| 9252 | BALL BEARING | FRONT WHEEL: REAR WHEEL: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | PAD & PIN KIT | FRONT BRAKE CALIPER: |
| 45875-84A | SEAL | FRONT FORK - TUBE ASSEMBLIES & SLIDERS: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 16207-79D | ENGINE MOUNT | ENGINE MOUNTS & STABILIZER LINKS: |
| 50245-07 | BUMPER | FRAME, REAR FORK, & JIFFY STAND: |
| 59166-80 | PLATE | FRONT FENDER: |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | FUEL TANK CONSOLE: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72330-95 | FUSE | MAIN WIRING HARNESS - ABS BRAKES (CONTINUED): |
| 91808-89 | ELEMENT | INNER FAIRING: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33709-82A | SHAFT | GEAR SHIFTER: |
| 37909-90 | RING | CLUTCH: |
| 37913-98 | PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29633-08 | ELEMENT | AIR CLEANER: |
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65724-85 | MOUNT | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68329-03 | BULB | WINDSHIELD, FAIRING, HEADLAMP: |
| 68973-00 | LENS | PASSING LAMPS & FRONT TURN SIGNALS: REAR TURN SIGNALS & LICENSE PLATE HOLDER: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | ELECTRONIC CONTROL MODULE & COIL: |
| 63798-99A | FILTER | CRANKCASE & ENGINE - OIL FILTER & COOLER 110™ - NON JAPAN: CRANKCASE & ENGINE OIL FILTER -TWIN CAM 96™ - JAPAN: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68926-07 | REMOTE CONTROL FOB | SWITCHES & CIRCUIT BREAKERS: SWITCHES & CIRCUIT BREAKERS: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43022-91A | TIRE | FRONT WHEEL: |
| 43157-83A | STEM ASSEMBLY | FRONT WHEEL: REAR WHEEL: |
