2005 HARLEY-DAVIDSON® PARTS CATALOG: FLSTFSE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99430-05A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2005 FLSTFSE MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Domestic 5=International |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle |
4 | Model | PL= FLSTFSE |
5 | Engine type | F=1690cc fuel injected, balanced |
6 | Introduction date | 1=Regular 2=Mid-year 3=California 4=Special Edition 5=Special Edition Cal. Only |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 5=2005 |
9 | Assembly plant | Y=York, PA K=Kansas City, MO |
10 | Sequential number | varies |
NOTES

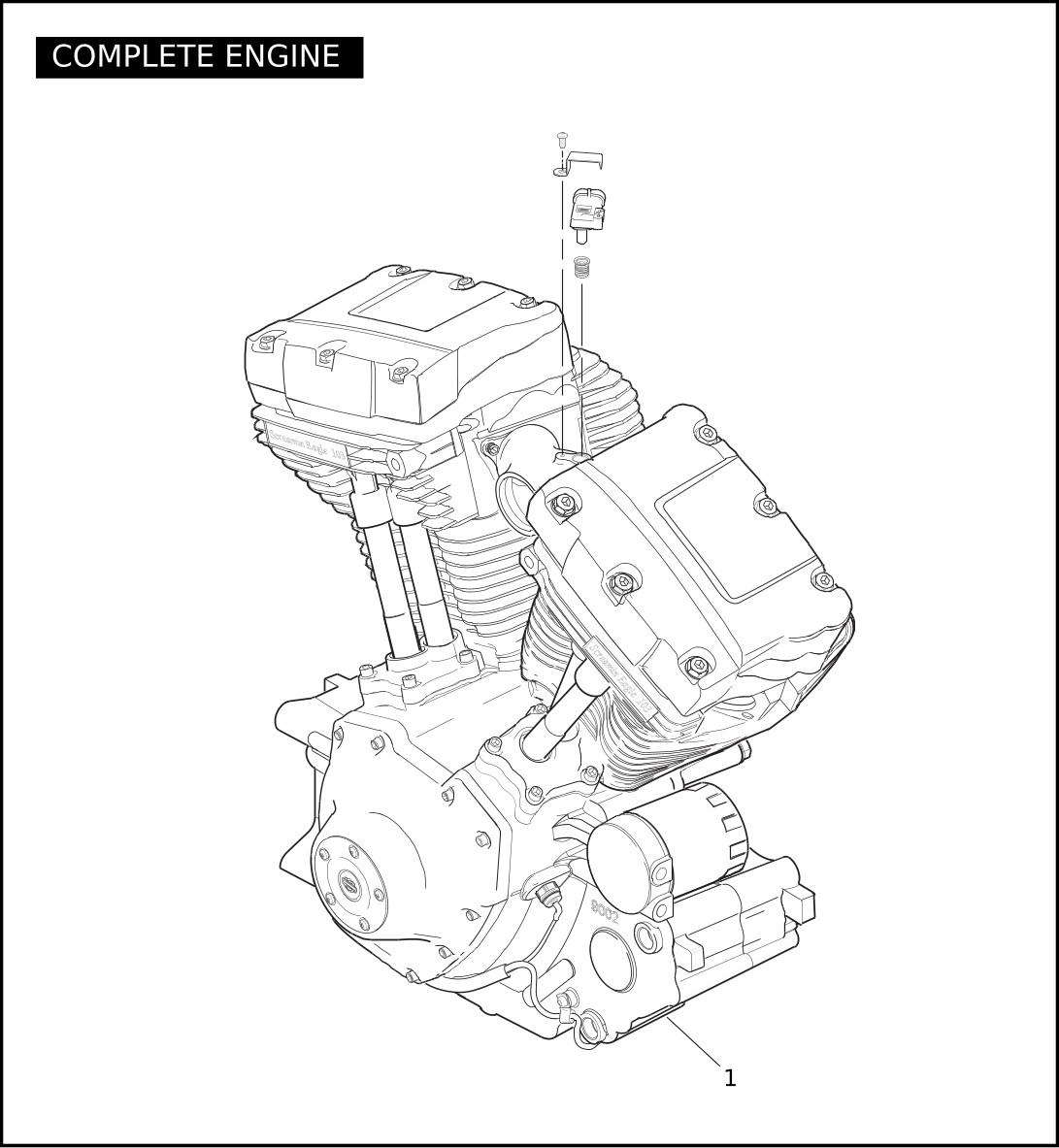

COMPLETE ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 19296-05B | ENGINE ASSEMBLY, complete, 103 cubic-inch (Domestic, Canada, HDI) | FLSTFSE |
CYLINDERS, HEADS & VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3231B | SCREW (4) | FLSTFSE |
| 2 | 11256 | O-RING, cylinder-base (2) | FLSTFSE |
| 3 | 16478-85A | SCREW, internal-thread, 3-3/16 inch long (4) | FLSTFSE |
| 4 | 16480-92A | SCREW, internal-thread, 1-7/8 inch long (4) | FLSTFSE |
| 5 | 16548-99 | CYLINDER ASSEMBLY, w/ 16595-99A (silver) (2) | FLSTFSE |
| 6 | 16595-99A | DOWEL, ring (4) | FLSTFSE |
| 7 | 16715-83 | STUD, exhaust-port (4) | FLSTFSE |
| 8 | 16787-99A | GASKET, cylinder-head (2) | FLSTFSE |
| 9 | 16834-99A | STUD, cylinder (8) | FLSTFSE |
| 10 | 16961-03A | HEAD, cylinder, front w/ 18048-98A, 18049-98A & valve guides (silver) | FLSTFSE |
| 16967-03A | HEAD, cylinder, rear w/ 18048-98A, 18049-98A & valve guides (silver) | FLSTFSE | |
| 11 | 17052-99C | GASKET KIT, top end w/ 11256 & 16787-99A | FLSTFSE |
| 17053-99C | GASKET KIT, engine overhaul w/ 11256 & 16787-99A | FLSTFSE | |
| 12 | 18044-98 | VALVE, exhaust (2) | FLSTFSE |
| 13 | 18045-98 | VALVE, intake (2) | FLSTFSE |
| 14 | 18046-98 | SEAL, valve (4) | FLSTFSE |
| 15 | 18048-98A | SEAT, exhaust valve (2) | FLSTFSE |
| 16 | 18049-98A | SEAT, intake valve (2) | FLSTFSE |
| 17 | 18269-00 | COLLAR, upper, valve spring (4) | FLSTFSE |
| 18 | 18270-00A | COLLAR, lower, valve spring (4) | FLSTFSE |
| 19 | 18271-00 | KEY, collar, valve spring (8) | FLSTFSE |
| 20 | 18272-00 | SPRING SET, inner & outer, valve | FLSTFSE |
| 21 | 18154-05 | GUIDE, intake-valve, 0.001 O.S. (2) | FLSTFSE |
| 18156-05 | GUIDE, intake-valve, 0.002 O.S. (2) | FLSTFSE | |
| 18158-05 | GUIDE, intake-valve, 0.003 O.S. (2) | FLSTFSE | |
| 22 | 18153-05 | GUIDE, exhaust-valve, 0.001 O.S. (2) | FLSTFSE |
| 18155-05 | GUIDE, exhaust-valve, 0.002 O.S. (2) | FLSTFSE | |
| 18157-05 | GUIDE, exhaust-valve, 0.003 O.S. (2) | FLSTFSE | |
| 23 | 43823-01 | HEADBOLT COVER (4) | FLSTFSE |
ROCKER ARM ASSEMBLY & PUSH RODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FLSTFSE |
| 2 | 3692A | SCREW (6) | FLSTFSE |
| 3 | 3693A | SCREW (10) | FLSTFSE |
| 4 | 3736A | SCREW (8) | FLSTFSE |
| 5 | 3746A | SCREW (4) | FLSTFSE |
| 6 | 4741A | SCREW (8) | FLSTFSE |
| 7 | 6762B | WASHER (4) | FLSTFSE |
| 8 | 11132A | O-RING, push rod cover (4) | FLSTFSE |
| 9 | 11145A | O-RING, push rod cover (4) | FLSTFSE |
| 10 | 11270 | O-RING (2) | FLSTFSE |
| 11 | 11293 | O-RING (4) | FLSTFSE |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLSTFSE |
| 13 | 17045-99D | GASKET KIT, cam service | FLSTFSE |
| 14 | 17162-03 | GASKET KIT, breather assembly w/ 26858-99 & gaskets | FLSTFSE |
| 15 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ bushings (2) | FLSTFSE |
| 16 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ bushings (2) | FLSTFSE |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLSTFSE |
| 18 | 17429-91 | BUSHING, rocker arm (8) | FLSTFSE |
| 19 | 17572-99 | ROCKER COVER (chrome) (2) | FLSTFSE |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLSTFSE |
| 21 | 17594-99 | SUPPORT, rocker arm (2) | FLSTFSE |
| 22 | 17611-83 | SHAFT, rocker arm (4) | FLSTFSE |
| 23 | 17650-02 | BREATHER ASSEMBLY KIT, w/ 26858-99, 63815-99, breather cover, baffle & gaskets | FLSTFSE |
| 24 | 17922-99 | PUSHROD, exhaust, 10.536 inch (black oxide finish) (2) | FLSTFSE |
| 17923-99 | PUSHROD, intake, 10.418 inch (plain finish) (2) | FLSTFSE | |
| 25 | 17939-99 | COVER, push rod, lower (4) | FLSTFSE |
| 26 | 17945-36B | CAP, cover spring (4) | FLSTFSE |
| 27 | 17947-36 | SPRING, push rod cover (4) | FLSTFSE |
| 28 | 17948-99 | COVER, push rod, upper (4) | FLSTFSE |
| 29 | 17964-99 | LIFTER COVER, front (chrome) | FLSTFSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FLSTFSE | |
| 30 | 17968-99 | RETAINER, spring cap (4) | FLSTFSE |
| 31 | 18535-99 | PIN, anti-rotation (2) | FLSTFSE |
| 32 | 18538-99B | HYDRAULIC LIFTER (4) | FLSTFSE |
| 33 | 18635-99B | GASKET, lifter cover (2) | FLSTFSE |
| 34 | 26858-99 | VALVE, breather (2) | FLSTFSE |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FLSTFSE |

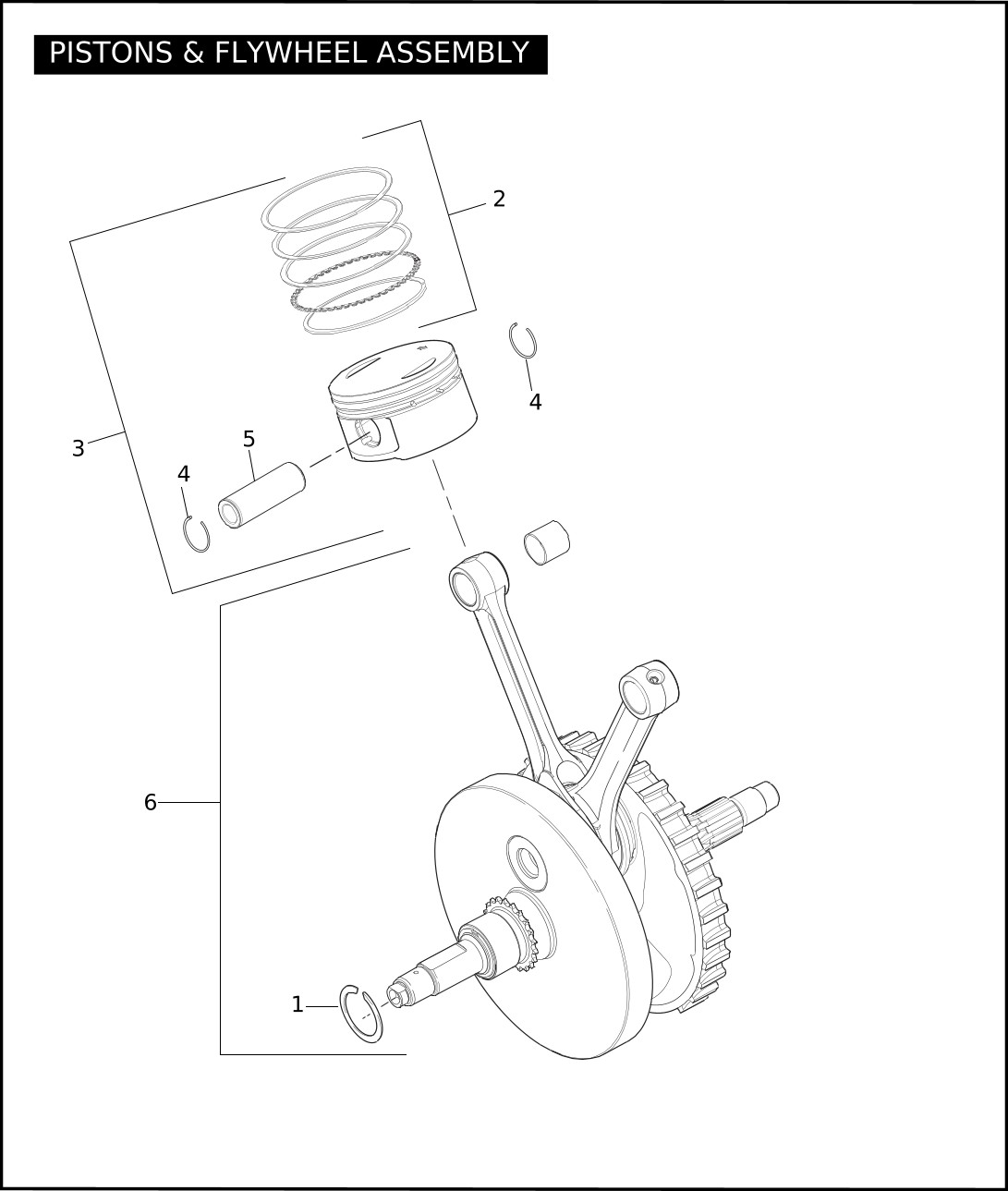

PISTONS & FLYWHEEL ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLSTFSE |
| 2 | 21918-99 | PISTON RING SET, standard (2) | FLSTFSE |
| 21919-99 | PISTON RING SET, 0.005 inch O.S. (2) | FLSTFSE | |
| 21945-99 | PISTON RING SET, 0.010 inch O.S. (2) | FLSTFSE | |
| 3 | 22505-05 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - standard (2) | FLSTFSE |
| 22506-05 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 inch O.S. (2) | FLSTFSE | |
| 22507-05 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 inch O.S. (2) | FLSTFSE | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FLSTFSE |
| 5 | 22131-05 | PISTON PIN (2) | FLSTFSE |
| 6 | 23727-07A | FLYWHEEL ASSEMBLY, w/ 11177A, thrust washer, plugs, inner race, connecting rods, flywheels, bearings, crankpin & ring | FLSTFSE |
CRANKCASE & ENGINE OIL FILTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FLSTFSE |
| 2 | 895 | SCREW (8) | FLSTFSE |
| 3 | 8972 | WASHER, thrust (2) | FLSTFSE |
| 8989 | BEARING (not illustrated) (2) | FLSTFSE | |
| 4 | 9198 | NEEDLE BEARING, left side of camshafts (2) | FLSTFSE |
| 5 | 11140 | O-RING (2) | FLSTFSE |
| 6 | 11273 | O-RING (2) | FLSTFSE |
| 7 | 12068 | OIL SEAL | FLSTFSE |
| 8 | 16574-99A | DOWEL (2) | FLSTFSE |
| 9 | 16589-99A | DOWEL RING (2) | FLSTFSE |
| 10 | 16595-99A | DOWEL RING (4) | FLSTFSE |
| 11 | 22307-99 | PISTON COOLING JET, w/ O-ring (2) | FLSTFSE |
| 12 | 24039-03 | SPACER, sprocket shaft | FLSTFSE |
| 13 | 24603-00 | SPACER (4) | FLSTFSE |
| 14 | 24605-07 | BEARING, main, right side of crankshaft (2) | FLSTFSE |
| 15 | 24619-00A | SET OF CRANKCASES, w/ 2, 4, 11, 13, 18, 20 & 8989 (silver) | FLSTFSE |
| 16 | 26352-95A | ADAPTOR, oil filter | FLSTFSE |
| 17 | 26432-76A | O-RING (2) | FLSTFSE |
| 18 | 35114-02 | RETAINING RING | FLSTFSE |
| 19 | 63798-99A | OIL FILTER (chrome) | FLSTFSE |
| 20 | 68042-99 | SCREW (4) | FLSTFSE |
ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 956 | SCREW (6) | FLSTFSE |
| 2 | 6852 | WASHER (2) | FLSTFSE |
| 3 | 7974 | JAM NUT (2) | FLSTFSE |
| 4 | 8986 | WASHER, thrust (2) | FLSTFSE |
| 5 | 8989 | BEARING (2) | FLSTFSE |
| 6 | 14716-00 | SUPPORT, front balance shaft | FLSTFSE |
| 7 | 14717-00 | SUPPORT, rear balance shaft | FLSTFSE |
| 8 | 14728-00 | SUPPORT ASSEMBLY, chain guide, includes tensioner pistons | FLSTFSE |
| 9 | 14761-00 | GUIDE KIT, chain tensioner, includes lower, front and rear guides | FLSTFSE |
| 10 | 14762-00 | CHAIN DRIVE KIT, includes chain, front and rear sprockets | FLSTFSE |
| 11 | 14764-00 | PISTON ASSEMBLY KIT, chain tensioner (2) | FLSTFSE |
| 12 | 14780-00 | SPACER, .130 inch thick | FLSTFSE |
| 14781-00 | SPACER, .140 inch thick | FLSTFSE | |
| 14782-00 | SPACER, .150 inch thick | FLSTFSE | |
| 14783-00 | SPACER, .160 inch thick | FLSTFSE | |
| 14784-00 | SPACER, .170 inch thick | FLSTFSE | |
| 14785-00 | SPACER, .180 inch thick | FLSTFSE | |
| 14786-00 | SPACER, .190 inch thick | FLSTFSE | |
| 14787-00 | SPACER, .200 inch thick | FLSTFSE | |
| 14788-00 | SPACER, .210 inch thick | FLSTFSE | |
| 13 | 14822-05 | BALANCE SHAFT KIT, front, includes balance shaft assembly and sprocket | FLSTFSE |
| 14 | 14823-05 | BALANCE SHAFT KIT, rear, includes balance shaft assembly and sprocket | FLSTFSE |
| 15 | 16583-00A | DOWEL (4) | FLSTFSE |
| 16 | 45359-00 | SEAL, oil interconnect | FLSTFSE |
| 17 | 8962 | BEARING (2) | FLSTFSE |
| 18 | 8961 | INNER BEARING (2) | FLSTFSE |
| 19 | 8960 | THRUST WASHER (2) | FLSTFSE |

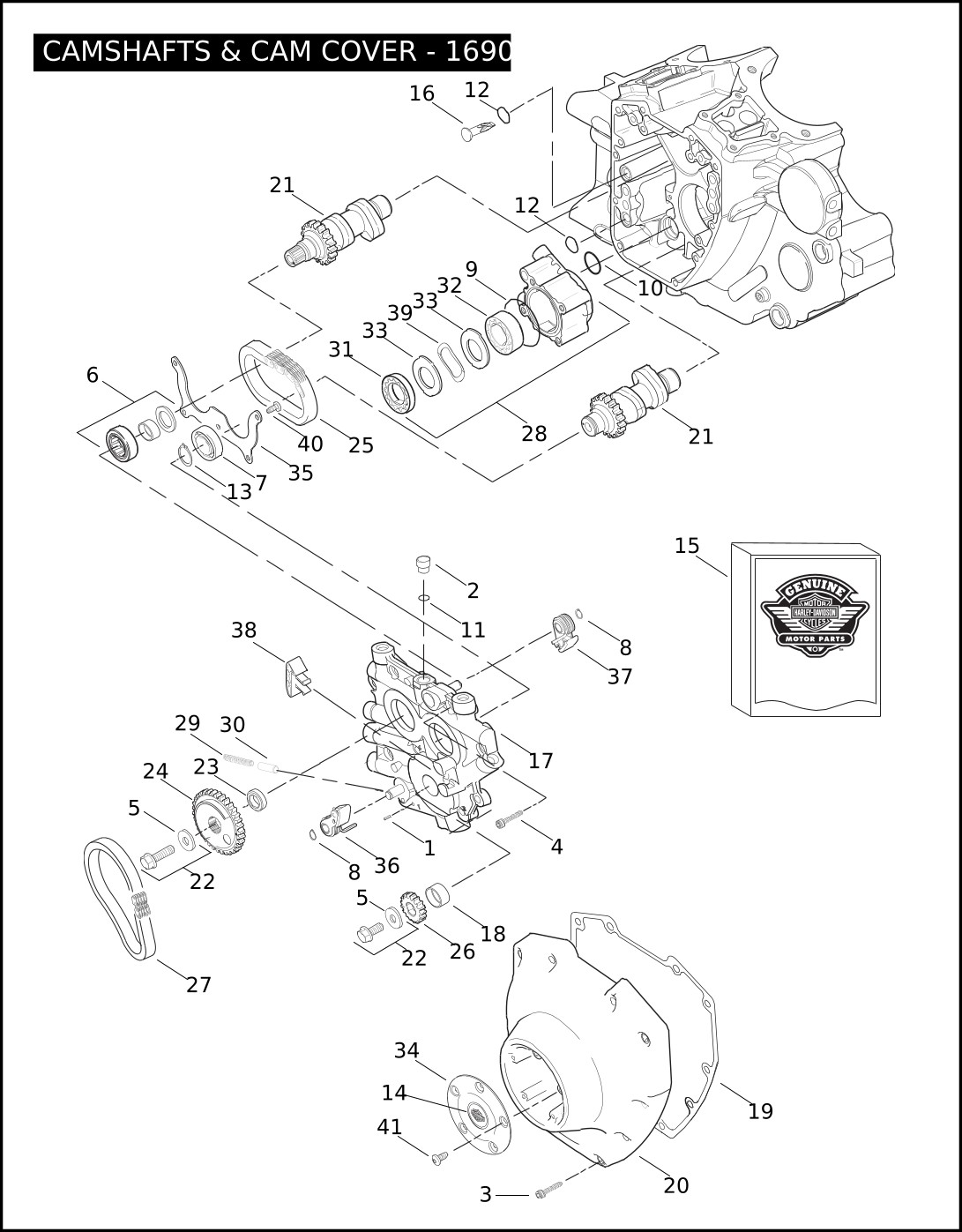

CAMSHAFTS & CAM COVER - 1690
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLSTFSE |
| 2 | 3290 | PLUG, cam support plate | FLSTFSE |
| 3 | 4740A | SCREW (10) | FLSTFSE |
| 4 | 4741A | SCREW (8) | FLSTFSE |
| 5 | 6294 | WASHER | FLSTFSE |
| 6 | 8983 | ROLLER BEARING ASSEMBLY, rear camshaft | FLSTFSE |
| 7 | 8990A | BALL BEARING, front camshaft | FLSTFSE |
| 8 | 11031 | RETAINING RING (2) | FLSTFSE |
| 9 | 11286 | O-RING | FLSTFSE |
| 10 | 11157 | O-RING | FLSTFSE |
| 11 | 11298 | O-RING, viton | FLSTFSE |
| 12 | 11301 | O-RING (2) | FLSTFSE |
| 13 | 11494 | RETAINING RING | FLSTFSE |
| 14 | 13885-04 | LOGO, bar & shield | FLSTFSE |
| 15 | 17045-99D | GASKET KIT, cam service | FLSTFSE |
| 16 | 24983-00 | SCREEN, oil | FLSTFSE |
| 17 | 25267-99B | CAM SUPPORT ASSEMBLY, w/ bearings, retaining plate, tensioners & bypass valve | FLSTFSE |
| 18 | 25344-99 | BUSHING, crankshaft | FLSTFSE |
| 19 | 25244-99A | GASKET, cam cover | FLSTFSE |
| 20 | 25369-01B | CAM COVER, chrome | FLSTFSE |
| 21 | 25376-03 | CAMSHAFT KIT, includes front, rear camshaft and required gaskets | FLSTFSE |
| 22 | 25533-99A | CAM DRIVE SPROCKET RETENSION KIT, includes 2 screws & washers | FLSTFSE |
| 23 | 25717-00 | SPACER, cam drive sprocket alignment 0.327 inch thick (use as required) | FLSTFSE |
| 25719-00 | SPACER, cam drive sprocket alignment 0.317 inch thick (use as required) | FLSTFSE | |
| 25721-00 | SPACER, cam drive sprocket alignment 0.307 inch thick (use as required) | FLSTFSE | |
| 25722-00 | SPACER, cam drive sprocket alignment 0.287 inch thick (use as required) | FLSTFSE | |
| 25723-00 | SPACER, cam drive sprocket alignment 0.297 inch thick (use as required) | FLSTFSE | |
| 25725-00 | SPACER, cam drive sprocket alignment 0.337 inch thick (use as required) | FLSTFSE | |
| 25938-00 | SPACER KIT | FLSTFSE | |
| 24 | 25716-99 | SPROCKET, cam drive, 34-tooth | FLSTFSE |
| 25 | 25607-99 | CHAIN, secondary cam drive | FLSTFSE |
| 26 | 25609-99 | SPROCKET, cam drive on crankshaft, 17-tooth | FLSTFSE |
| 27 | 25610-99 | CHAIN, primary cam drive | FLSTFSE |
| 28 | 26035-99B | OIL PUMP ASSEMBLY, w/ body, both gerotor assembly and separator plate | FLSTFSE |
| 29 | 26210-99 | SPRING, relief valve | FLSTFSE |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLSTFSE |
| 31 | 26464-99 | GEROTOR ASSEMBLY, pressure | FLSTFSE |
| 32 | 26255-00 | GEROTOR ASSEMBLY, scavenge | FLSTFSE |
| 33 | 26248-00 | SEPARATOR PLATE, gerotor (2) | FLSTFSE |
| 34 | 32574-03 | TIMER COVER (chrome) | FLSTFSE |
| 35 | 35060-00 | PLATE, bearing retaining | FLSTFSE |
| 36 | 39954-99A | CHAIN TENSIONER, primary cam drive chain | FLSTFSE |
| 37 | 39964-99A | CHAIN TENSIONER, secondary cam drive chain | FLSTFSE |
| 38 | 39965-99 | CHAIN GUIDE | FLSTFSE |
| 39 | 40323-00 | SPRING SEPARATOR | FLSTFSE |
| 40 | 68042-99 | SCREW (4) | FLSTFSE |
| 41 | 68120-00 | SCREW (5) | FLSTFSE |

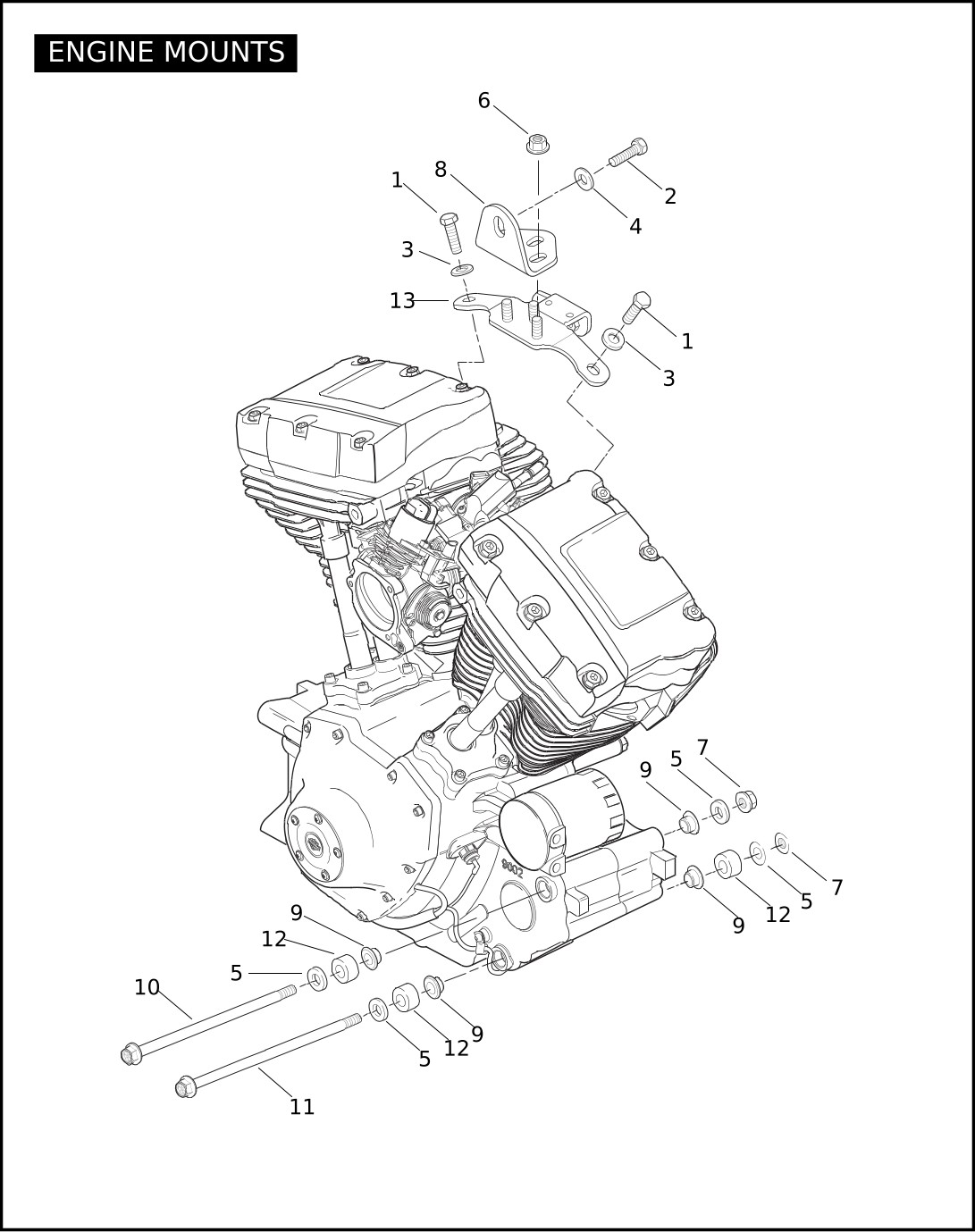

ENGINE MOUNTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4775 | SCREW (2) | FLSTFSE |
| 2 | 4729 | BOLT | FLSTFSE |
| 3 | 6019 | WASHER (2) | FLSTFSE |
| 4 | 6516HW | WASHER | FLSTFSE |
| 5 | 6530 | WASHER (4) | FLSTFSE |
| 6 | 7601 | LOCKNUT (3) | FLSTFSE |
| 7 | 7879 | NUT (2) | FLSTFSE |
| 8 | 16247-00 | BRACKET, top engine mount | FLSTFSE |
| 9 | 24603-00 | SPACER (4) | FLSTFSE |
| 10 | 48054-00 | BOLT | FLSTFSE |
| 11 | 48093-00 | BOLT | FLSTFSE |
| 12 | 48094-00 | SPACER, engine mount (3) | FLSTFSE |
| 13 | 69046-01 | BRACKET, top engine mount, horn | FLSTFSE |

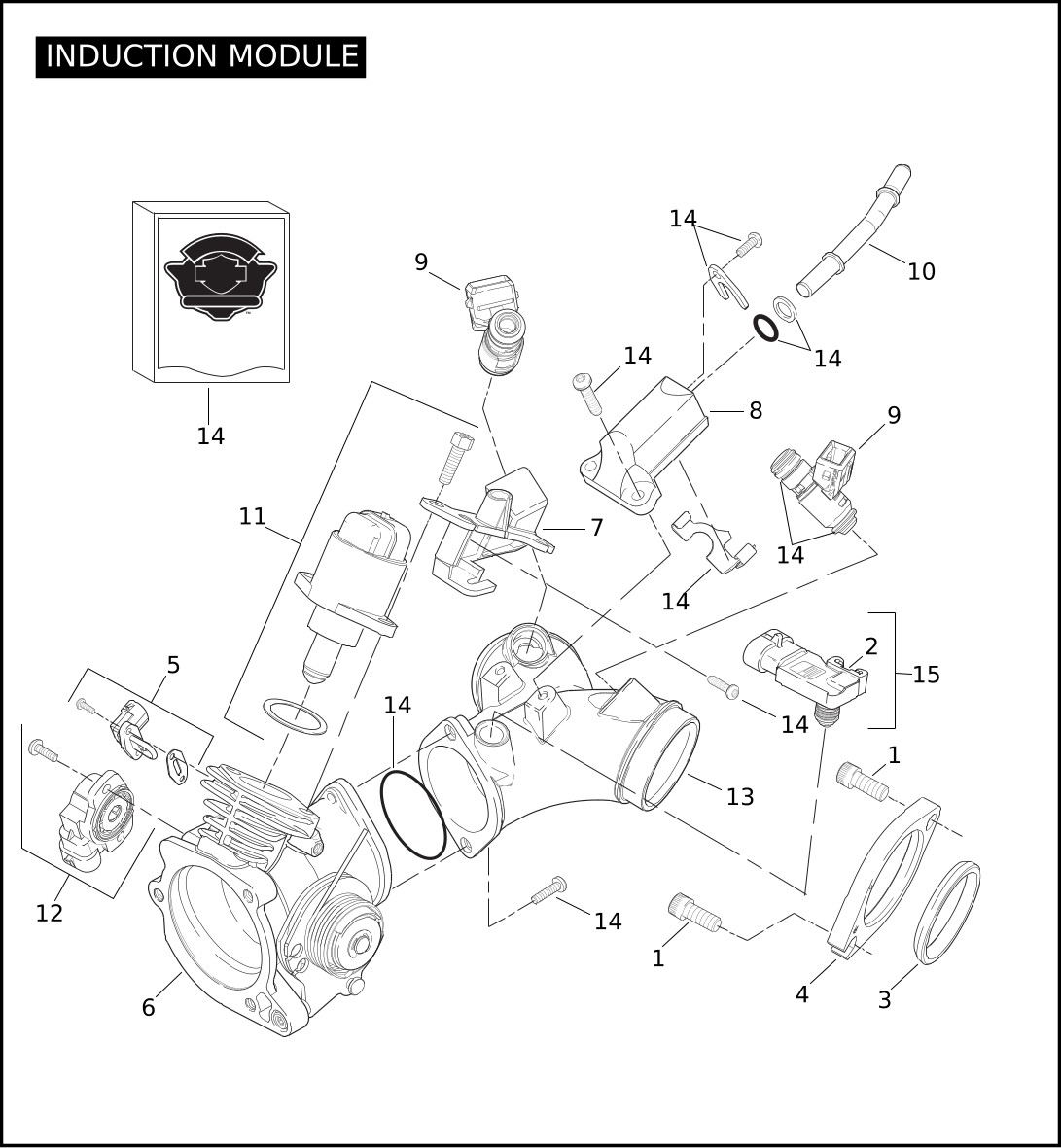

INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLSTFSE |
| 2 | 11291 | SEAL, manifold air pressure sensor | FLSTFSE |
| 3 | 26995-86B | SEAL, intake manifold (2) | FLSTFSE |
| 4 | 27009-86A | FLANGE, mounting, front | FLSTFSE |
| 27010-86A | FLANGE, mounting, rear | FLSTFSE | |
| 5 | 27270-95 | INTAKE AIR TEMPERATURE KIT, w/ 2 screws & gasket | FLSTFSE |
| 27600-01A | INDUCTION MODULE ASSEMBLY, complete | FLSTFSE | |
| 6 | 27603-01 | THROTTLE BODY ASSEMBLY, w/ idle adjustment screw | FLSTFSE |
| 7 | 27604-01A | THROTTLE HOUSING, stop | FLSTFSE |
| 8 | 27608-01A | FUEL RAIL | FLSTFSE |
| 9 | 27609-01B | INJECTOR, fuel (2) | FLSTFSE |
| 10 | 27612-01 | TUBE, fuel supply | FLSTFSE |
| 11 | 27628-01A | IDLE KIT, air control w/ 2 screws, O-ring & idle control | FLSTFSE |
| 12 | 27629-01A | THROTTLE KIT, position sensor w/ 2 screws & sensor throttle | FLSTFSE |
| 13 | 27630-01 | MANIFOLD INTAKE | FLSTFSE |
| 14 | 27635-01A | KIT, hardware induction module w/ screws, injector retaining clip, tube retaining clip, O-rings & washer | FLSTFSE |
| 15 | 32416-10 | SENSOR, manifold w/ 11291 | FLSTFSE |
| 90383-98 | PLUG, cap (not illustrated) (California only) | FLSTFSE |

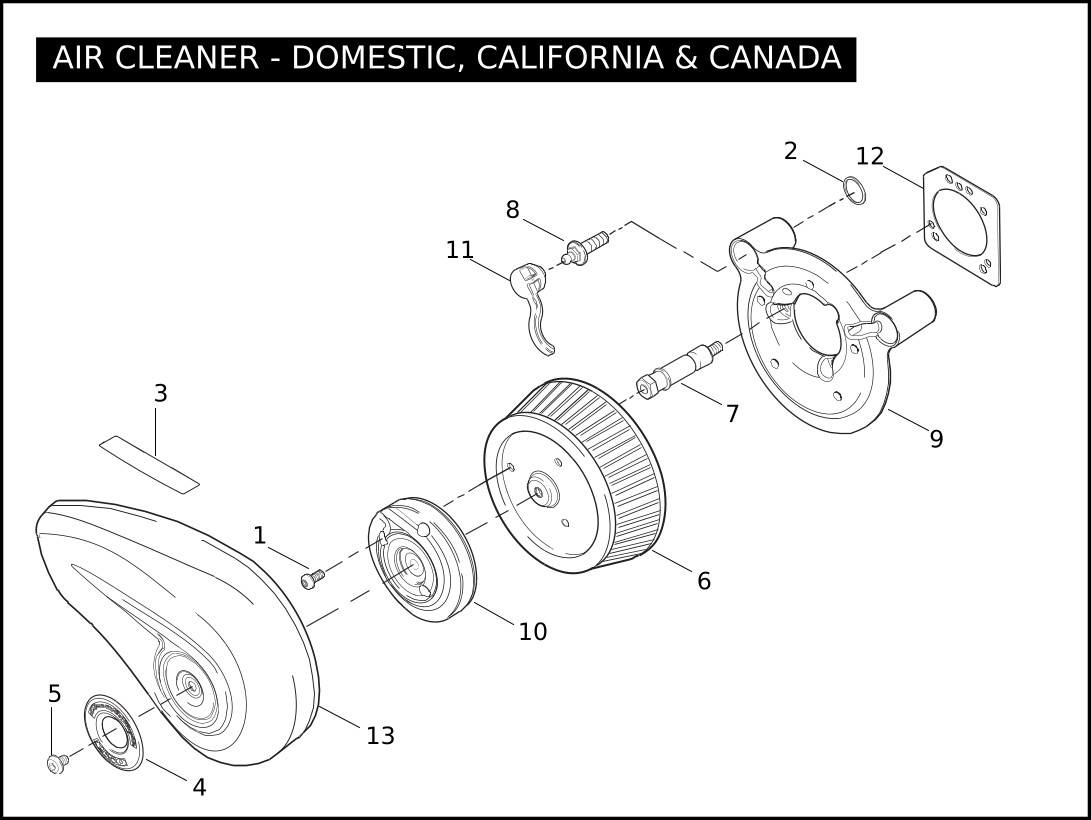

AIR CLEANER - Domestic, California & Canada
| Index No. | Part No. | Description | Model(s) |
| 1 | 961 | SCREW (3) | FLSTFSE |
| 2 | 11292 | O-RING (2) | FLSTFSE |
| 3 | 29127-95B | WARNING LABEL (Domestic, California) | FLSTFSE |
| 4 | 29140-05 | INSERT, air cleaner | FLSTFSE |
| 5 | 29327-94 | SCREW, air cleaner cover | FLSTFSE |
| 6 | 29442-99E | ELEMENT, filter | FLSTFSE |
| 7 | 29447-99A | STUD, mounting, air cleaner (3) | FLSTFSE |
| 8 | 29465-99 | SCREW, breather (2) | FLSTFSE |
| 9 | 29478-05A | BACKPLATE, air cleaner | FLSTFSE |
| 10 | 29479-05 | ADAPTER, air cleaner cover | FLSTFSE |
| 11 | 29557-05 | PLUG, breather (2) | FLSTFSE |
| 12 | 29583-01A | GASKET, backplate | FLSTFSE |
| 13 | 29614-03 | AIR CLEANER COVER | FLSTFSE |

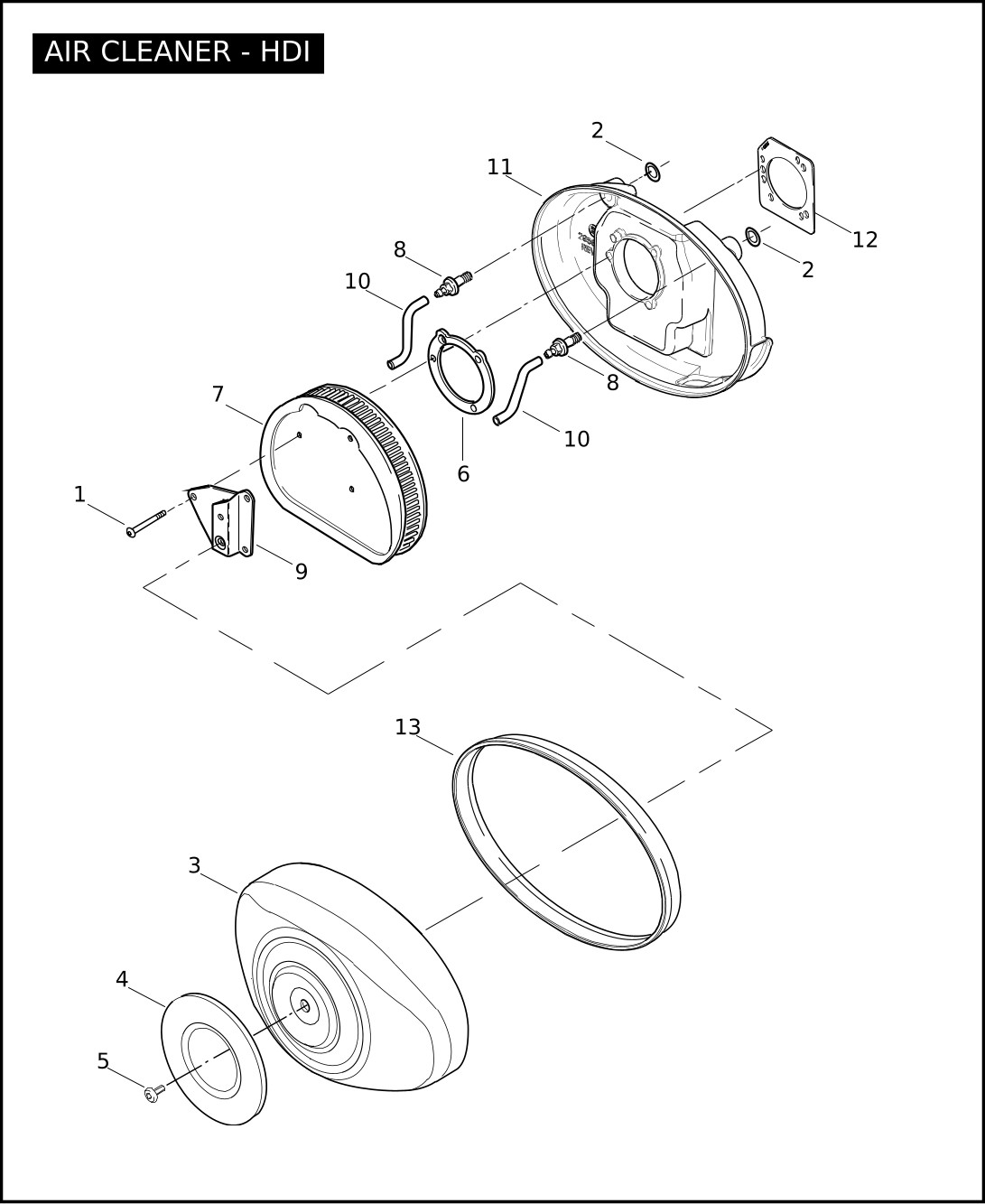

AIR CLEANER - HDI
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW, bracket (3) | FLSTFSE |
| 2 | 11292 | O-RING (2) | FLSTFSE |
| 3 | 29157-05 | INSERT, air cleaner cover | FLSTFSE |
| 4 | 29121-01 | COVER, air cleaner | FLSTFSE |
| 5 | 29269-83A | SCREW, air cleaner | FLSTFSE |
| 6 | 29313-95 | GASKET, filter element | FLSTFSE |
| 7 | 29461-99 | ELEMENT, filter w/ 29313-95 | FLSTFSE |
| 8 | 29465-99 | SCREW, breather (2) | FLSTFSE |
| 9 | 29474-99A | BRACKET, air cleaner cover | FLSTFSE |
| 10 | 29476-99 | TUBE, breather (2) | FLSTFSE |
| 11 | 29582-01B | BACKPLATE ASSEMBLY, air cleaner | FLSTFSE |
| 12 | 29583-01A | GASKET, induction module to backplate | FLSTFSE |
| 13 | 29584-01 | SEAL, cover, air cleaner (HDI) | FLSTFSE |

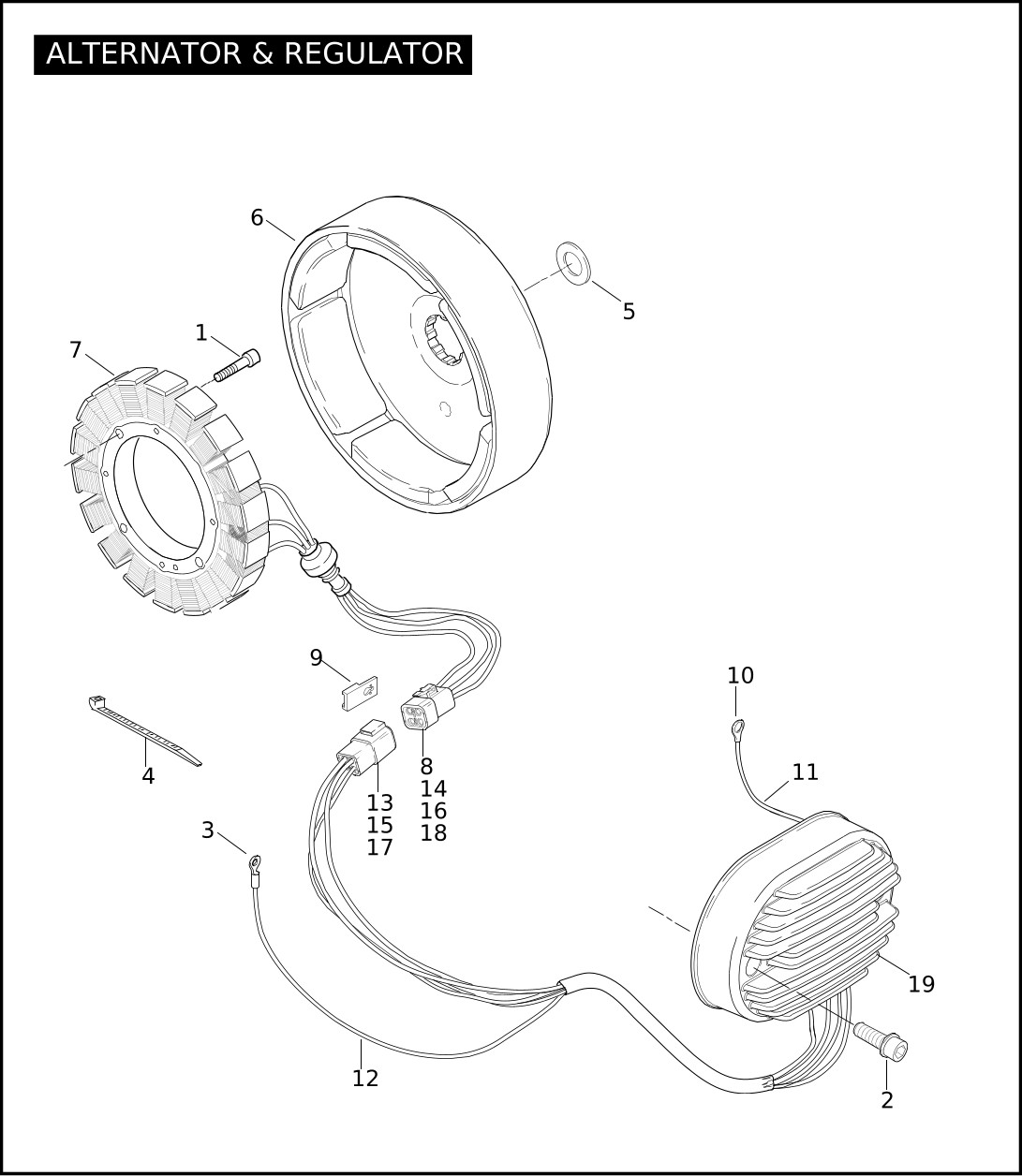

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2720 | SCREW (4) | FLSTFSE |
| 2 | 4740A | SCREW (2) | FLSTFSE |
| 3 | 9843 | TERMINAL, #10 ring - 10-12 AWG | FLSTFSE |
| 4 | 10006 | CABLE STRAP (6) | FLSTFSE |
| 5 | 29923-01A | SPACER | FLSTFSE |
| 6 | 29981-95 | ROTOR ASSEMBLY | FLSTFSE |
| 7 | 30017-01B | STATOR | FLSTFSE |
| 8 | 72195-94 | SEAL PIN | FLSTFSE |
| 9 | 72199-94 | ANCHOR, connector | FLSTFSE |
| 10 | 72242-94 | TERMINAL, 1/4 ring - #10-12 AWG | FLSTFSE |
| 11 | 72249-94 | SHRINK TUBE (black) | FLSTFSE |
| 12 | 72366-95 | SHRINK TUBE (yellow) | FLSTFSE |
| 13 | 72604-01BK | PIN HOUSING, 4-way (black) | FLSTFSE |
| 14 | 72614-01BK | SOCKET HOUSING, 4-way (black) | FLSTFSE |
| 15 | 72644-01 | SECONDARY LOCK, pin housing | FLSTFSE |
| 16 | 72654-01 | SECONDARY LOCK, socket housing | FLSTFSE |
| 17 | 72690-01 | TERMINAL, pin (3) | FLSTFSE |
| 18 | 72691-01 | TERMINAL, socket (3) | FLSTFSE |
| 19 | 74610-01 | VOLTAGE REGULATOR, kit (chrome) | FLSTFSE |

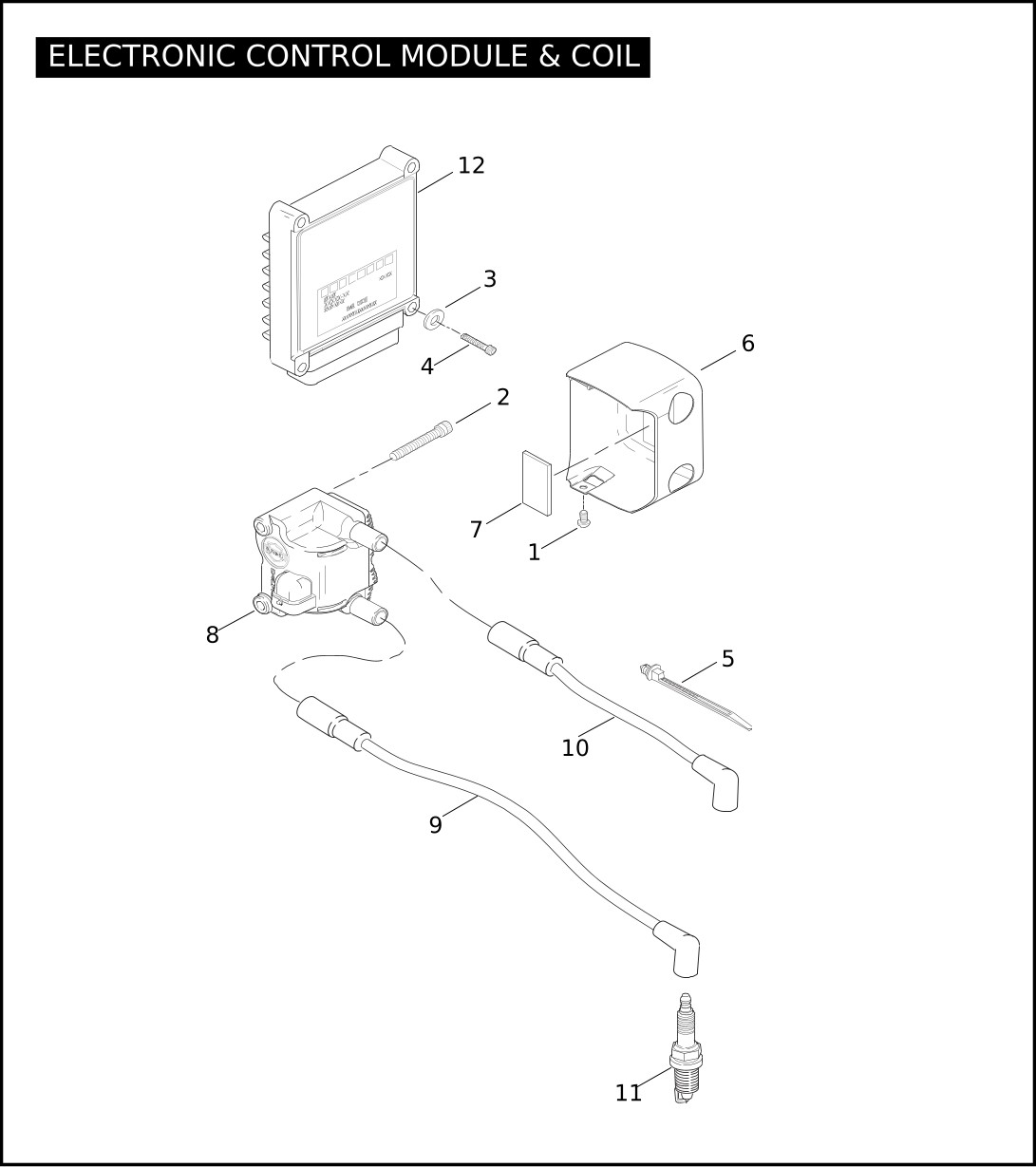

ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3602A | SCREW, w/ washer | FLSTFSE |
| 2 | 4717A | SCREW (2) | FLSTFSE |
| 3 | 6099 | WASHER (4) | FLSTFSE |
| 4 | 3601 | SCREW (4) | FLSTFSE |
| 5 | 10177 | CABLE STRAP, w/ plug-in retainer (3) | FLSTFSE |
| 6 | 31772-01 | COIL COVER ASSEMBLY, w/ 31742-00 (chrome) | FLSTFSE |
| 7 | 31742-00 | PAD, coil cover | FLSTFSE |
| 8 | 31743-01 | IGNITION COIL, dual | FLSTFSE |
| 9 | 31981-99C | SPARK PLUG CABLE, front cylinder | FLSTFSE |
| 10 | 31983-00C | SPARK PLUG CABLE, rear cylinder | FLSTFSE |
| 11 | 32317-86A | SPARK PLUG, 6R12 (2) | FLSTFSE |
| 12 | 32534-05C | ELECTRONIC CONTROL MODULE, base level (Note: Requires digital tech programming.) | FLSTFSE |

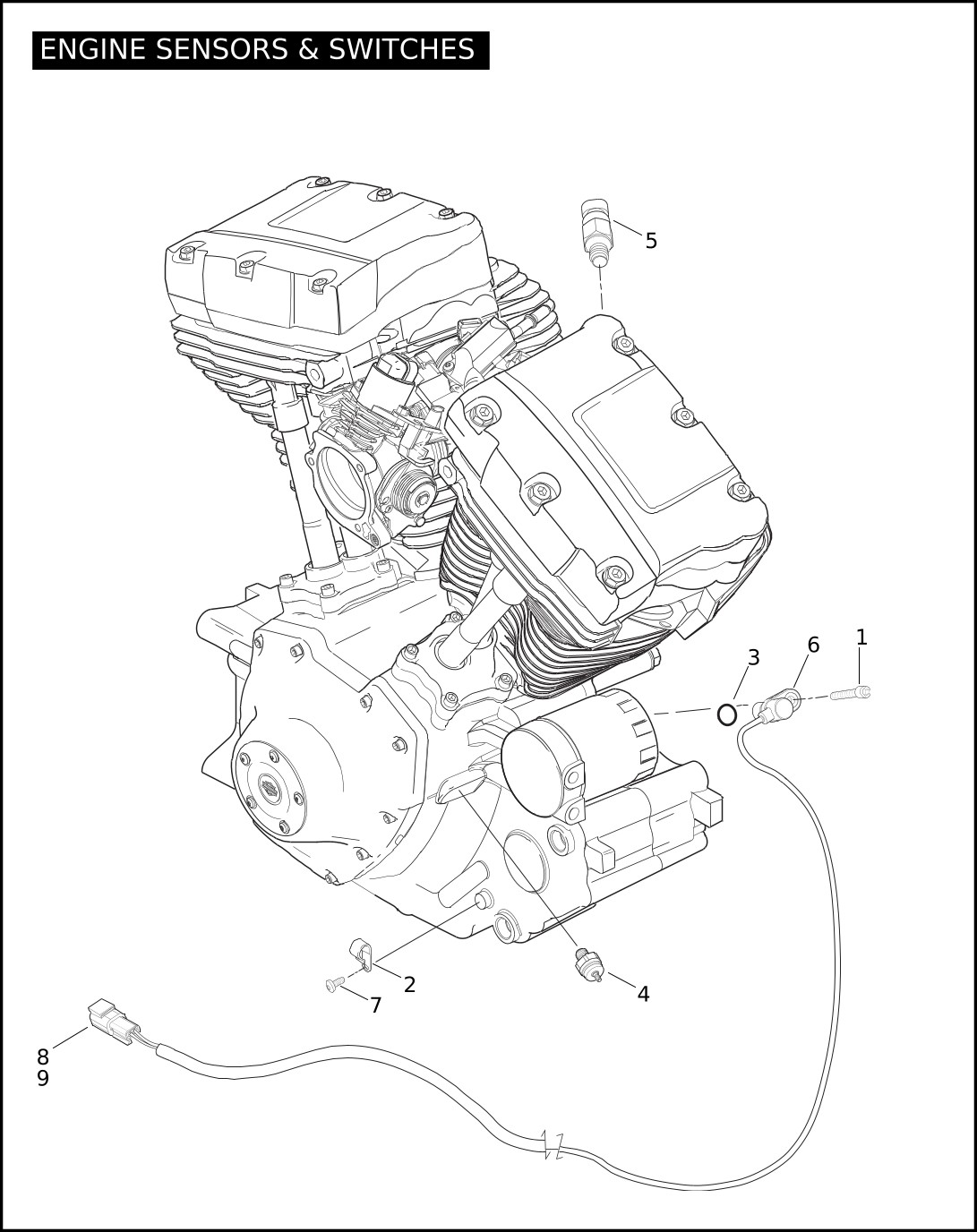

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | FLSTFSE |
| 2 | 10031 | CLAMP | FLSTFSE |
| 3 | 11289A | O-RING | FLSTFSE |
| 4 | 26561-99 | OIL PRESSURE SWITCH | FLSTFSE |
| 5 | 32446-99 | SENSOR, engine temperature | FLSTFSE |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ O-ring, terminal pins & pin housing | FLSTFSE |
| 7 | 68042-99 | SCREW | FLSTFSE |
| 8 | 72199-94 | ANCHOR, connector | FLSTFSE |
| 9 | 74194-98 | TERMINAL PIN, solid gold-plated (2) | FLSTFSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 928 | BOLT, starter (2) | FLSTFSE |
| 2 | 929A | SCREW, w/ O-ring (2) | FLSTFSE |
| 3 | 3403 | LOCKNUT | FLSTFSE |
| 4 | 3624 | BOLT, starter (2) | FLSTFSE |
| 5 | 4326A | SCREW (2) | FLSTFSE |
| 6 | 4358A | SCREW | FLSTFSE |
| 7 | 7041 | LOCKWASHER (2) | FLSTFSE |
| 8 | 8871 | BALL BEARING | FLSTFSE |
| 9 | 8879 | BALL | FLSTFSE |
| 10 | 8883 | BALL BEARING | FLSTFSE |
| 11 | 9077 | CLUTCH ROLLER (5) | FLSTFSE |
| 12 | 10957 | O-RING | FLSTFSE |
| 13 | 11182 | RETAINING RING | FLSTFSE |
| 14 | 11248 | RETAINING RING | FLSTFSE |
| 31335-03A | STARTER ASSEMBLY, complete (black) | FLSTFSE | |
| 15 | 31342-94 | PINION GEAR | FLSTFSE |
| 16 | 31430-94 | WASHER, thrust | FLSTFSE |
| 17 | 31516-94A | CLUTCH ASSEMBLY, starter w/ 8879, 10957, 31600-90, 31664-94 & 31692-90 | FLSTFSE |
| 18 | 31518-90 | BRUSH HOLDER ASSEMBLY | FLSTFSE |
| 19 | 31525-90 | IDLER GEAR | FLSTFSE |
| 20 | 31530-90 | RETAINER, idler gear | FLSTFSE |
| 21 | 31548-90 | COUPLING | FLSTFSE |
| 22 | 31600-90 | SPRING, return | FLSTFSE |
| 23 | 31604-91A | REPAIR KIT, starter solenoid | FLSTFSE |
| 24 | 31612-09 | JACKSHAFT KIT, starter | FLSTFSE |
| 25 | 31660-90 | DRAIN VENT | FLSTFSE |
| 26 | 31662-90 | BOOT, insulating | FLSTFSE |
| 27 | 31664-94 | SHAFT, output | FLSTFSE |
| 28 | 31688-90 | COVER, solenoid | FLSTFSE |
| 29 | 31689-90 | BOLT, w/ washer | FLSTFSE |
| 30 | 31692-90 | SPRING | FLSTFSE |
| 31 | 31695-90 | O-RING (2) | FLSTFSE |
| 32 | 31783-00 | COVER KIT, solenoid w/ gasket, screws & washer | FLSTFSE |
| 33 | 33126-94 | LOCKPLATE | FLSTFSE |
| 34 | 33127-94 | SHAFT, extension | FLSTFSE |
| 35 | 33449-94 | SPRING, pinion gear | FLSTFSE |
| 36 | 60647-94 | COUPLING | FLSTFSE |

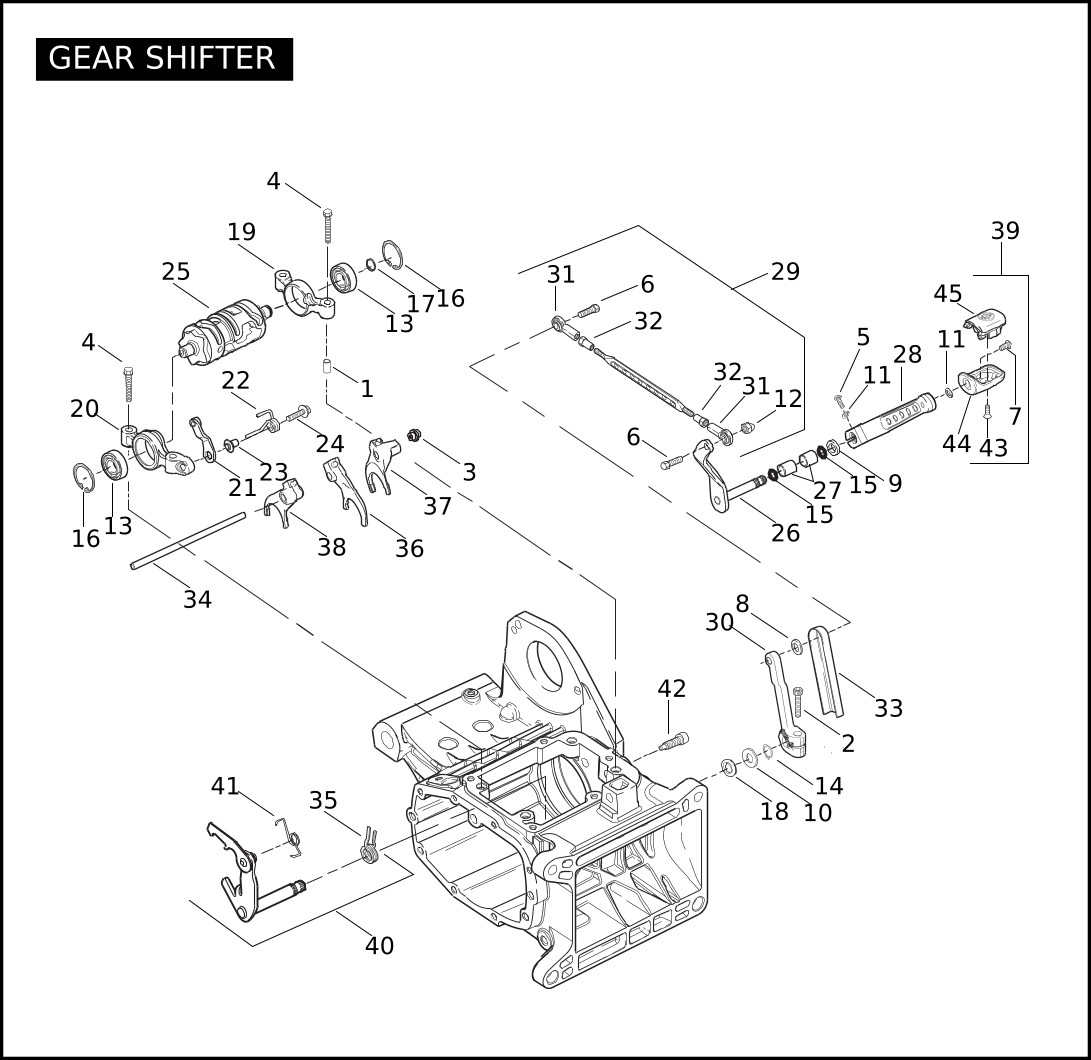

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 609 | PIN (4) | FLSTFSE |
| 2 | 856A | SCREW | FLSTFSE |
| 3 | 3784 | SET SCREW, shifter fork shaft, left | FLSTFSE |
| 4 | 3909 | SCREW (4) | FLSTFSE |
| 5 | 3275 | SCREW | FLSTFSE |
| 6 | 4192 | SCREW (2) | FLSTFSE |
| 7 | 4387 | SCREW | FLSTFSE |
| 8 | 5826 | SPACER, shifter cover | FLSTFSE |
| 9 | 5977 | WASHER, rubber | FLSTFSE |
| 10 | 6497HW | WASHER | FLSTFSE |
| 11 | 7041 | LOCKWASHER (2) | FLSTFSE |
| 12 | 7904 | ACORN NUT, stainless | FLSTFSE |
| 13 | 9837 | BALL BEARING (2) | FLSTFSE |
| 14 | 11150 | RETAINING RING | FLSTFSE |
| 15 | 11191 | O-RING | FLSTFSE |
| 16 | 11319A | RETAINING RING (2) | FLSTFSE |
| 17 | 11342 | RETAINING RING | FLSTFSE |
| 18 | 12045 | SEAL | FLSTFSE |
| 19 | 33301-00A | SUPPORT ASSEMBLY, shifter cam, left, w/ bearing and retaining ring | FLSTFSE |
| 20 | 33304-00 | SUPPORT ASSEMBLY, shifter cam, right, w/ bearing and retaining ring | FLSTFSE |
| 21 | 33364-00A | DETENT FOLLOWER ASSEMBLY | FLSTFSE |
| 22 | 33374-00 | SPRING, detent arm | FLSTFSE |
| 23 | 33375-00A | SLEEVE, detent arm spring | FLSTFSE |
| 24 | 33376-00 | PIVOT SCREW, detent arm | FLSTFSE |
| 25 | 33383-02 | SHIFTER CAM | FLSTFSE |
| 26 | 33660-90B | LEVER ASSEMBLY | FLSTFSE |
| 27 | 33708-94 | BEARING, sleeve (2) | FLSTFSE |
| 28 | 33742-05 | SHIFTER LEVER | FLSTFSE |
| 29 | 33807-05 | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904, 33890-99A, 33888-99 & 33889-99 | FLSTFSE |
| 30 | 33849-97 | LEVER, shifter rod | FLSTFSE |
| 31 | 33888-99 | ROD END, shifter rod (2) | FLSTFSE |
| 32 | 33889-99 | NUT, rod end (2) | FLSTFSE |
| 33 | 33890-99A | COVER, shifter rod | FLSTFSE |
| 34 | 34088-87A | SHAFT, shifter fork | FLSTFSE |
| 35 | 34064-00C | SPRING, shift lever centering | FLSTFSE |
| 36 | 34191-79E | SHIFTER FORK | FLSTFSE |
| 37 | 34193-79E | SHIFTER FORK | FLSTFSE |
| 38 | 34195-79E | SHIFTER FORK | FLSTFSE |
| 39 | 34601-02 | SHIFTER PEG KIT, w/ 4387, 7041, 42534-82, 49318-03 & 49319-03 | FLSTFSE |
| 40 | 34972-02B | LEVER ASSEMBLY, shifter pawl | FLSTFSE |
| 41 | 34977-02A | SPRING, shifter shaft lever | FLSTFSE |
| 42 | 34978-00A | CENTERING PIN | FLSTFSE |
| 34979-00 | SHIFT LEVER SLEEVE (not illustrated) | FLSTFSE | |
| 43 | 42534-82 | SCREW | FLSTFSE |
| 44 | 49318-03 | PEG, shift lever | FLSTFSE |
| 45 | 49319-03 | INSERT, shifter peg | FLSTFSE |
TRANSMISSION HOUSING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 337 | DOWEL PIN | FLSTFSE |
| 2 | 375 | DOWEL PIN | FLSTFSE |
| 3 | 609 | PIN (6) | FLSTFSE |
| 4 | 634 | PIN | FLSTFSE |
| 5 | 3249 | SCREW (2) | FLSTFSE |
| 6 | 3300 | SCREW (2) | FLSTFSE |
| 7 | 3480A | SCREW (4) | FLSTFSE |
| 8 | 3594 | SCREW | FLSTFSE |
| 9 | 3699D | SCREW (4) | FLSTFSE |
| 10 | 4168 | SCREW | FLSTFSE |
| 11 | 4313 | SCREW | FLSTFSE |
| 12 | 4717A | SCREW (3) | FLSTFSE |
| 13 | 4740A | SCREW (4) | FLSTFSE |
| 14 | 4814A | SCREW (2) | FLSTFSE |
| 15 | 6532 | WASHER (2) | FLSTFSE |
| 16 | 8977 | NEEDLE BEARING | FLSTFSE |
| 17 | 8996A | BALL BEARING, mainshaft, left side | FLSTFSE |
| 18 | 8992A | BALL BEARING (2) | FLSTFSE |
| 19 | 11105 | O-RING, drain plug | FLSTFSE |
| 20 | 11132A | O-RING, filler plug | FLSTFSE |
| 21 | 11161 | RETAINING RING, ball bearing | FLSTFSE |
| 22 | 11165 | QUAD SEAL, ball bearing | FLSTFSE |
| 23 | 11290 | O-RING | FLSTFSE |
| 24 | 12067B | OIL SEAL, mainshaft, left side | FLSTFSE |
| 25 | 16574-99A | DOWEL (2) | FLSTFSE |
TRANSMISSION HOUSING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 33054-05 | TRANSMISSION ASSEMBLY | FLSTFSE |
| 27 | 33344-94 | SPACER, sprocket | FLSTFSE |
| 28 | 33904-00A | SWITCH, neutral indicator, w/ O-ring | FLSTFSE |
| 29 | 34541-00 | COVER, upper | FLSTFSE |
| 30 | 34774-00A | TRANSMISSION HOUSING ASSEMBLY (silver painted) | FLSTFSE |
| 31 | 34904-86D | GASKET, upper cover | FLSTFSE |
| 32 | 35087-99A | RETAINING RING, bearing (2) | FLSTFSE |
| 33 | 35251-93C | BEARING HOUSING ASSEMBLY, w/ bearings & retaining rings (black) | FLSTFSE |
| 34 | 35076-79 | SPACER (2) | FLSTFSE |
| 35 | 35078-79 | NUT, mainshaft & countershaft | FLSTFSE |
| 36 | 35653-98A | GASKET, bearing housing | FLSTFSE |
| 37 | 36801-87C | GASKET, right side cover | FLSTFSE |
| 38 | 37075-87 | FILLER PLUG (chrome) | FLSTFSE |
| 39 | 37121-03A | CLUTCH RELEASE COVER (chrome) | FLSTFSE |
| 40 | 37963-02 | PISTON KIT, hydraulic clutch | FLSTFSE |
| 41 | 43817-02 | CAP, bleeder screw | FLSTFSE |
| 42 | 44613-02 | SCREW, bleeder | FLSTFSE |
| 43 | 48052-00A | BRACKET, transmission mounting, right | FLSTFSE |
| 44 | 42533-91A | VENT HOSE | FLSTFSE |
| 45 | 60328-98B | DRAIN PLUG, w/ O-ring | FLSTFSE |
| 46 | 62375-57A | FITTING, upper cover | FLSTFSE |
| 47 | 74430-00D | SENSOR, speedometer | FLSTFSE |
| NOTE: Includes the following parts. | |||
| 48 | 11289A | O-RING | FLSTFSE |
| 49 | 72143-94 | SECONDARY LOCK, 3-way receptacle | FLSTFSE |
| 50 | 72163-94BK | RECEPTACLE, 3-way pin | FLSTFSE |
| 51 | 72194-94 | TERMINAL, pin (3) | FLSTFSE |

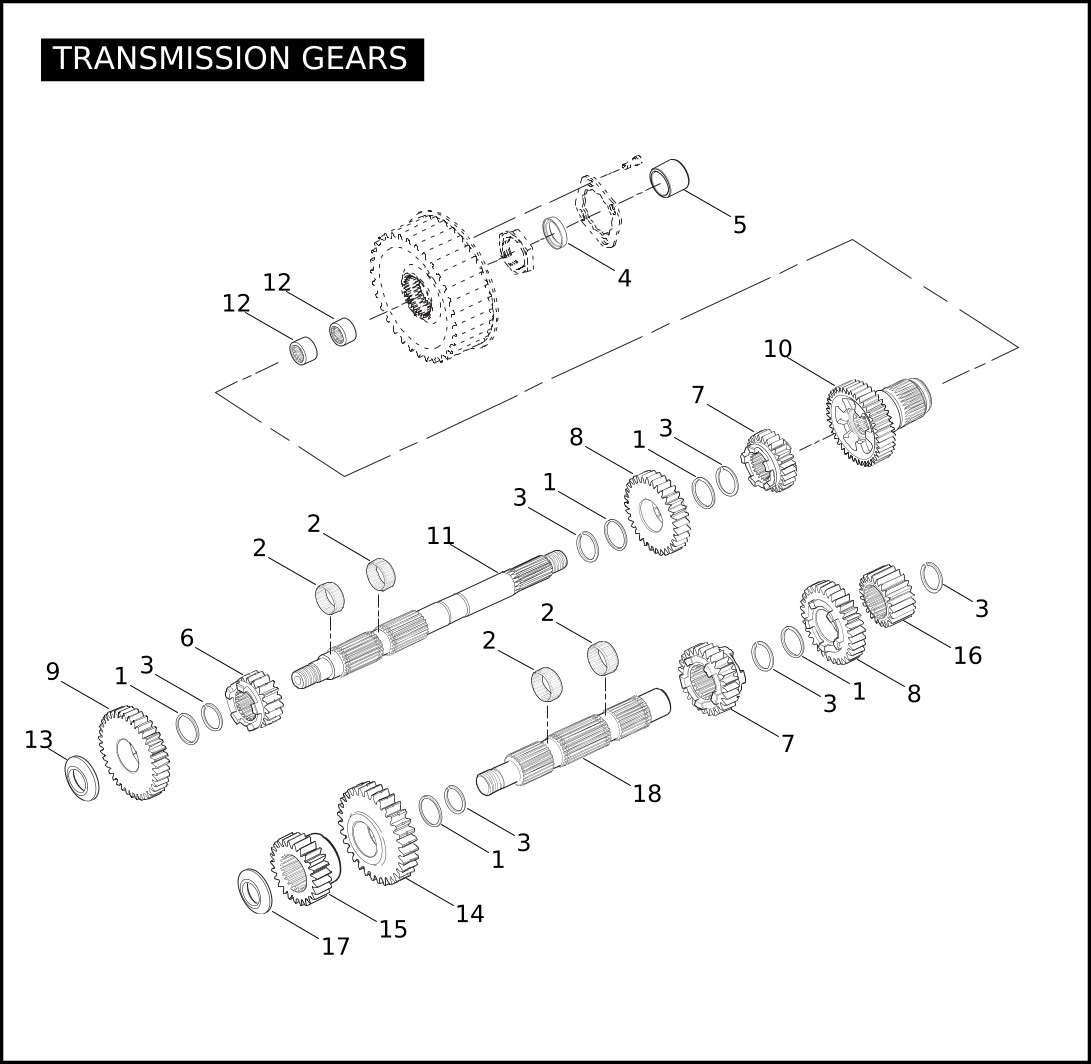

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6003 | WASHER, thrust (5) | FLSTFSE |
| 2 | 8876A | BEARING (4) | FLSTFSE |
| 3 | 11067 | RING, retaining (6) | FLSTFSE |
| 4 | 12035B | SEAL, oil, mainshaft 5th gear | FLSTFSE |
| 33054-05 | TRANSMISSION ASSEMBLY, complete (silver & chrome) | FLSTFSE | |
| 5 | 34091-85A | BEARING RACE, inner | FLSTFSE |
| 6 | 35025-79B | FIRST GEAR, mainshaft | FLSTFSE |
| 7 | 35026-94 | GEAR, mainshaft 2nd & countershaft 3rd (2) | FLSTFSE |
| 8 | 35027-94 | GEAR, mainshaft 3rd & countershaft 2nd (2) | FLSTFSE |
| 9 | 35028-94 | FOURTH GEAR, mainshaft | FLSTFSE |
| 10 | 35029-94 | FIFTH GEAR, mainshaft w/ 12035B & 35051-89A | FLSTFSE |
| 11 | 35042-91 | MAINSHAFT | FLSTFSE |
| 12 | 35051-89A | BEARING, needle (2) | FLSTFSE |
| 13 | 35064-79 | SPACER, mainshaft | FLSTFSE |
| 14 | 35622-79C | FIRST GEAR, countershaft | FLSTFSE |
| 15 | 35625-94 | FOURTH GEAR, countershaft | FLSTFSE |
| 16 | 35626-94 | FIFTH GEAR, countershaft | FLSTFSE |
| 17 | 35629-79 | SPACER | FLSTFSE |
| 18 | 35632-79 | COUNTERSHAFT | FLSTFSE |

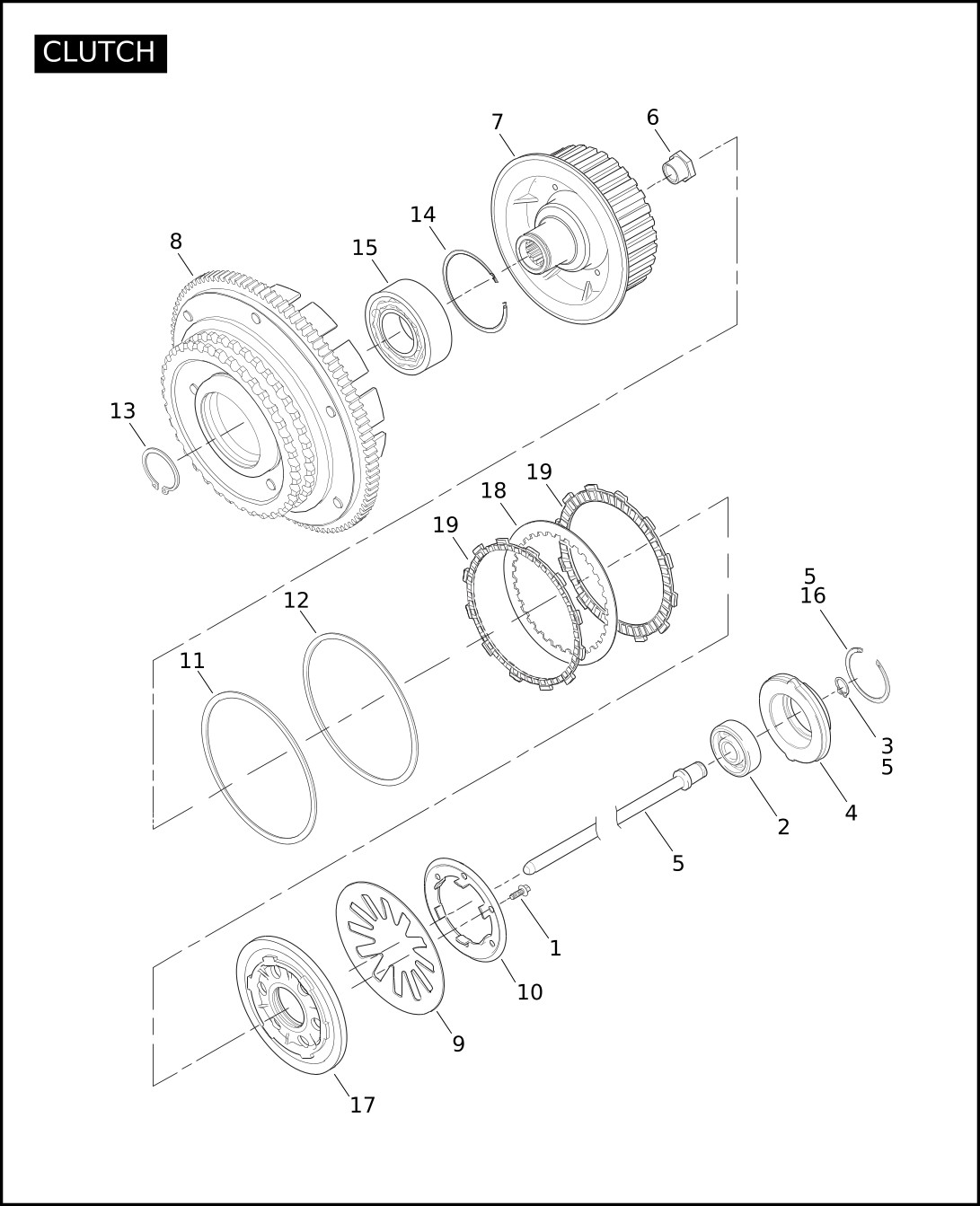

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FLSTFSE |
| 2 | 8885 | BEARING | FLSTFSE |
| 3 | 11143 | RETAINING RING, external | FLSTFSE |
| 4 | 36731-91 | PLATE, release w/ 8885 | FLSTFSE |
| 5 | 36818-03 | PUSH ROD KIT, hydraulic-clutch w/ 11143, 37909-90 & push rod | FLSTFSE |
| 6 | 37496-90 | NUT, mainshaft | FLSTFSE |
| 7 | 37550-98 | HUB ASSEMBLY, clutch w/ thrust washer & spring washer | FLSTFSE |
| 8 | 37707-98A | CLUTCH ASSEMBLY, outer w/ 37905-00 & 37906-00 | FLSTFSE |
| 37806-03 | CLUTCH ASSEMBLY, complete (includes all parts except 11143 & push rod) | FLSTFSE | |
| 9 | 37807-03 | SPRING, diaphragm (pink) | FLSTFSE |
| 10 | 37872-00 | SPRING SEAT | FLSTFSE |
| 11 | 37883-98 | SEAT, damper-spring | FLSTFSE |
| 12 | 37884-98 | SPRING, damper | FLSTFSE |
| 13 | 37904-90 | RING, retaining, external | FLSTFSE |
| 14 | 37905-00 | RING, retaining, internal | FLSTFSE |
| 15 | 37906-90 | BEARING, ball, double-row | FLSTFSE |
| 16 | 37909-90 | RING, retaining, internal | FLSTFSE |
| 17 | 37912-00 | PRESSURE PLATE | FLSTFSE |
| 18 | 37913-98 | PLATE, clutch (steel) (8) | FLSTFSE |
| 19 | 37932-98 | FRICTION-PLATE KIT, clutch (includes all 9 friction plates) | FLSTFSE |

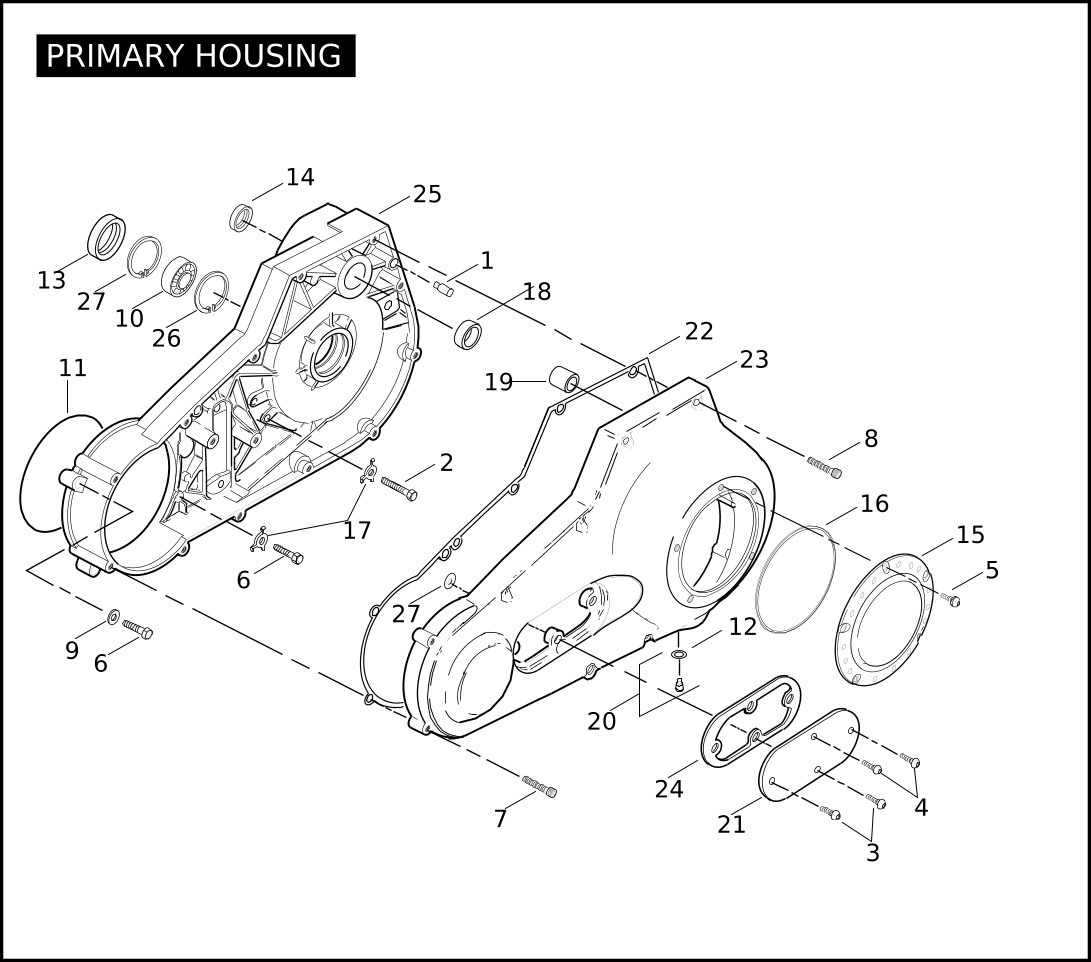

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 375 | PIN | FLSTFSE |
| 2 | 858A | BOLT (4) | FLSTFSE |
| 3 | 941 | SCREW (2) | FLSTFSE |
| 4 | 945 | SCREW (2) | FLSTFSE |
| 5 | 961 | SCREW (5) | FLSTFSE |
| 6 | 2887WA | SCREW (4) | FLSTFSE |
| 7 | 4740A | SCREW, w/ washer (7) | FLSTFSE |
| 8 | 4820A | SCREW, w/ washer (5) | FLSTFSE |
| 9 | 6016 | WASHER (2) | FLSTFSE |
| 10 | 9135 | BEARING | FLSTFSE |
| 11 | 11147B | O-RING, housing cover | FLSTFSE |
| 12 | 11324 | O-RING | FLSTFSE |
| 13 | 12052A | OIL SEAL | FLSTFSE |
| 14 | 12066A | OIL SEAL | FLSTFSE |
| 15 | 25504-04 | COVER KIT, clutch | FLSTFSE |
| 16 | 25416-99C | SEAL, clutch cover | FLSTFSE |
| 17 | 33318-85 | LOCKING TAB (6) | FLSTFSE |
| 18 | 33445-94A | BUSHING | FLSTFSE |
| 19 | 33446-94A | BUSHING | FLSTFSE |
| 20 | 60391-04 | PLUG ASSEMBLY, magnetic drain w/ 11324 | FLSTFSE |
| 21 | 60572-86 | COVER, primary chain inspection (chrome) | FLSTFSE |
| 22 | 60539-94B | GASKET, primary cover | FLSTFSE |
| 23 | 60543-99B | COVER ASSEMBLY, primary (chrome) | FLSTFSE |
| 24 | 60567-90C | GASKET, inspection cover | FLSTFSE |
| 25 | 60586-99A | PRIMARY HOUSING ASSEMBLY (silver painted) | FLSTFSE |
| 26 | 60678-85 | RETAINING RING (2) | FLSTFSE |
| 27 | 63859-95B | GASKET (2) | FLSTFSE |

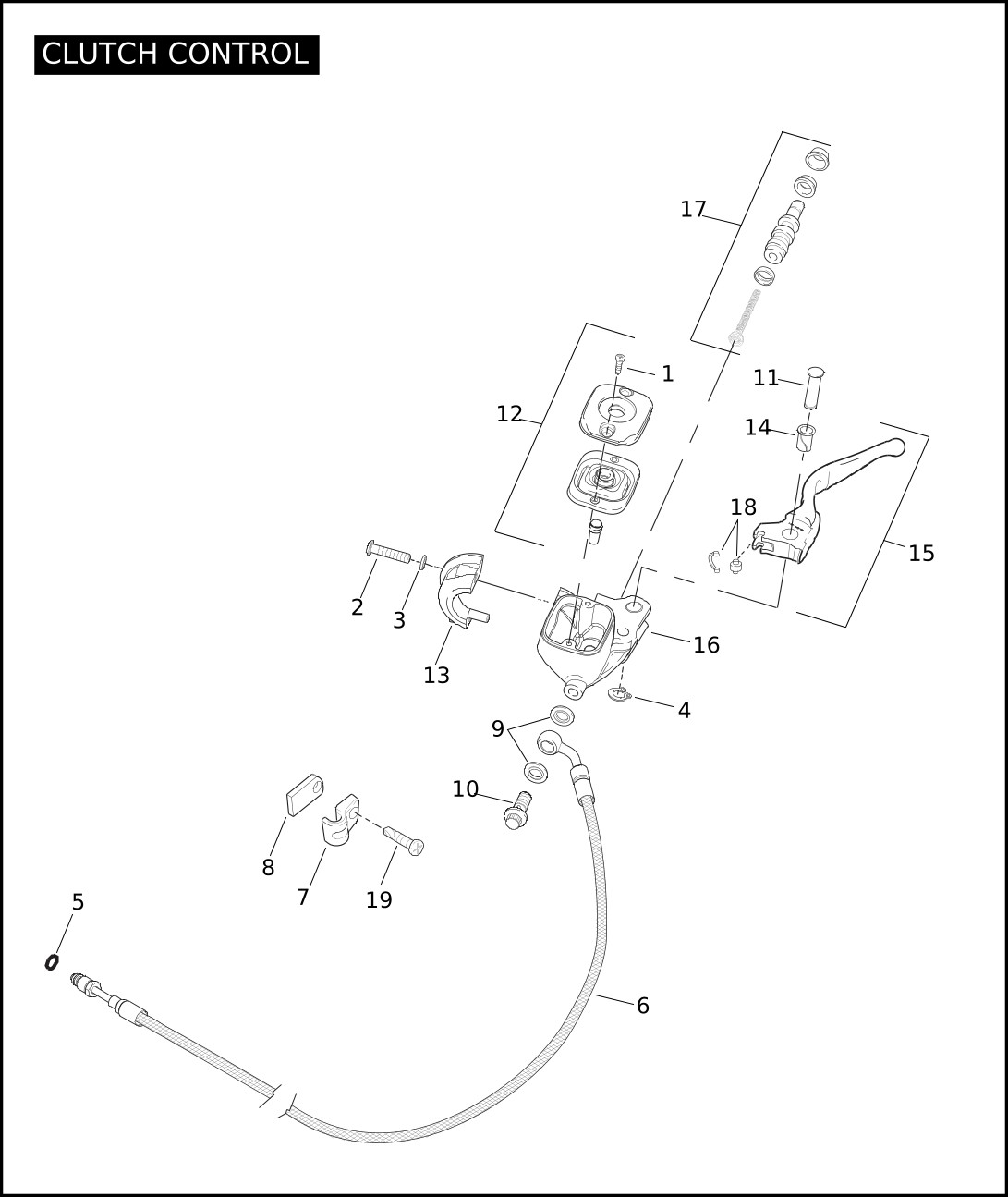

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2573 | SCREW (polished stainless steel) (2) | FLSTFSE |
| 2 | 4293 | SCREW (2) | FLSTFSE |
| 3 | 6099 | WASHER (2) | FLSTFSE |
| 4 | 11143 | RETAINING RING | FLSTFSE |
| 5 | 11348 | O-RING | FLSTFSE |
| 6 | 38696-04 | LINE ASSEMBLY, hydraulic clutch w/ 11348 | FLSTFSE |
| 7 | 38718-04 | CLAMP | FLSTFSE |
| 8 | 38758-05 | BACKPLATE, clutch line clamp | FLSTFSE |
| 9 | 41731-01 | GASKET, banjo-bolt (2) | FLSTFSE |
| 10 | 41747-82A | BOLT, banjo | FLSTFSE |
| 11 | 45032-82 | PIN, pivot | FLSTFSE |
| 12 | 45078-96D | KIT-COVER, reservoir (chrome) | FLSTFSE |
| 13 | 45282-99A | CLAMP, master-cylinder (chrome) | FLSTFSE |
| 14 | 45423-92 | BUSHING, hand-lever | FLSTFSE |
| 15 | 46115-02A | LEVER ASSEMBLY, hand w/ 45423-92 & 46246-01 (chrome) | FLSTFSE |
| 16 | 46113-02A | RESERVOIR, master cylinder w/ 46244-01 (chrome) | FLSTFSE |
| 17 | 46244-01 | REPAIR KIT, master cylinder w/ 11143 & 41731-01 | FLSTFSE |
| 18 | 46246-01 | BUSHING & ROLLER KIT | FLSTFSE |
| 19 | 68120-00 | SCREW, self-tapping | FLSTFSE |

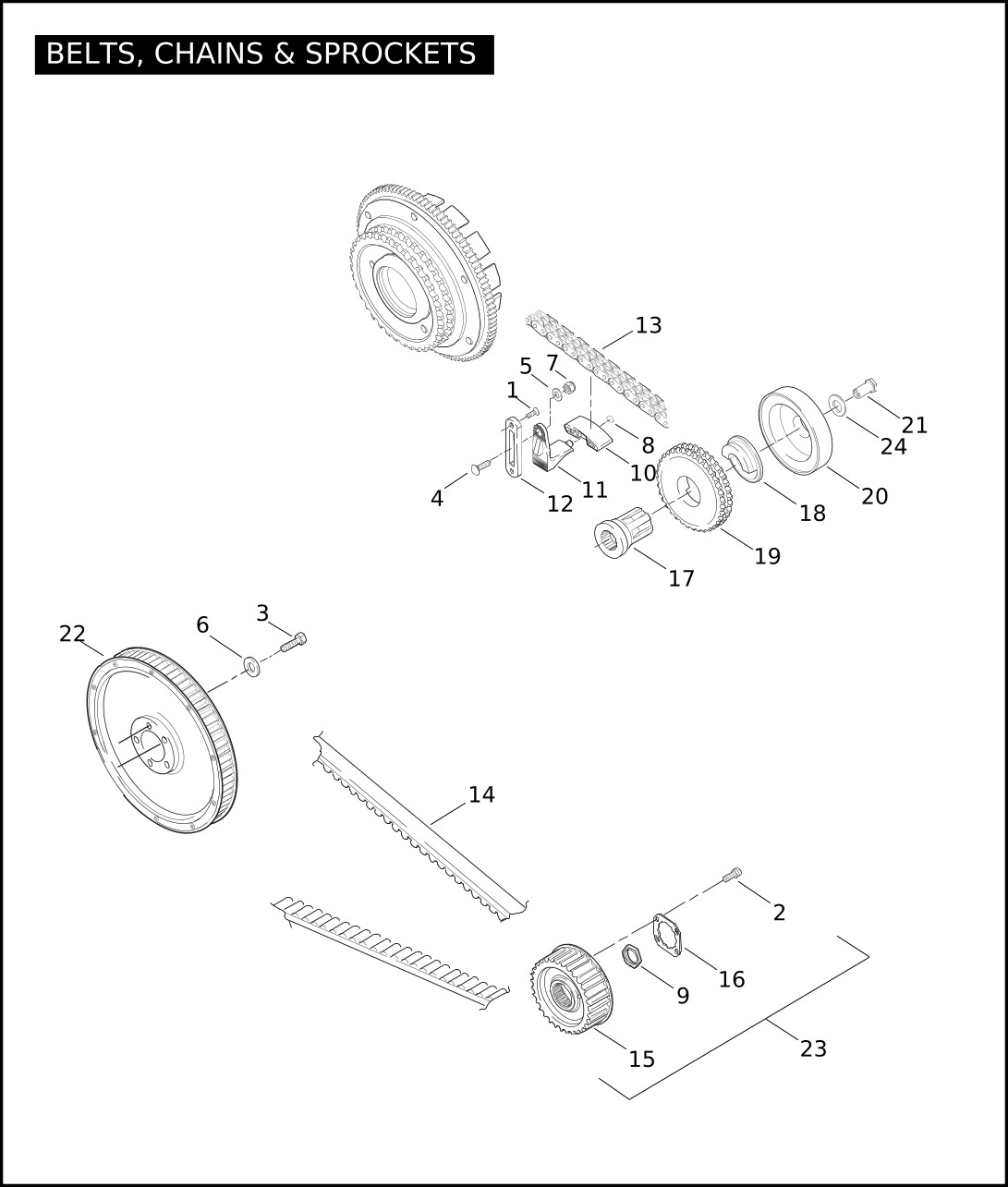

BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1783C | SCREW (2) | FLSTFSE |
| 2 | 3594 | SCREW (2) | FLSTFSE |
| 3 | 3737A | SCREW (5) | FLSTFSE |
| 4 | 5416 | BOLT | FLSTFSE |
| 5 | 6400HB | WASHER | FLSTFSE |
| 6 | 6516HW | WASHER (5) | FLSTFSE |
| 7 | 7778 | LOCKNUT | FLSTFSE |
| 8 | 11085 | RETAINING RING | FLSTFSE |
| 9 | 35211-91B | NUT, sprocket | FLSTFSE |
| 10 | 39976-01 | PAD, chain tensioner | FLSTFSE |
| 11 | 39990-01 | CHAIN TENSIONER | FLSTFSE |
| 12 | 39998-65A | ANCHOR PLATE, chain tensioner | FLSTFSE |
| 13 | 40007-36B | PRIMARY CHAIN | FLSTFSE |
| 14 | 40307-00 | REAR BELT, 135 T | FLSTFSE |
| 15 | 40250-94C | SPROCKET, transmission, 32 T | FLSTFSE |
| 16 | 40251-92A | LOCKPLATE | FLSTFSE |
| 17 | 40266-85 | SHAFT EXTENSION | FLSTFSE |
| 18 | 40299-83A | SLIDING CAM | FLSTFSE |
| 19 | 40308-94 | COMPENSATING SPROCKET, 25 T | FLSTFSE |
| 20 | 40384-91 | COVER ASSEMBLY, w/ springs | FLSTFSE |
| 21 | 40392-91 | NUT | FLSTFSE |
| 22 | 46624-03 | SPROCKET ASSEMBLY, rear, 70 T | FLSTFSE |
| 23 | 40210-85D | SPROCKET KIT, belt drive, 32 T w/ 3594, 35211-91B, 40250-94C & 40251-92A | FLSTFSE |
| 24 | 29923-01A | SPACER | FLSTFSE |

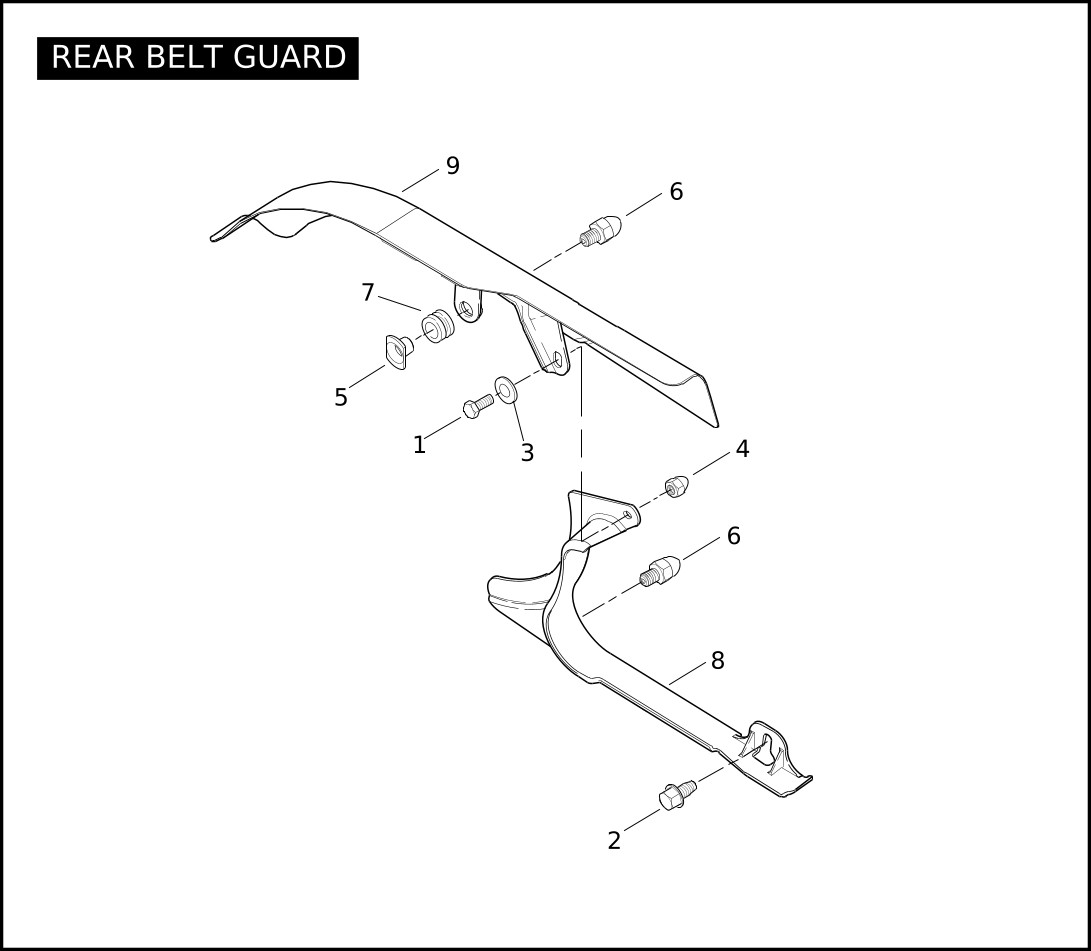

REAR BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT | FLSTFSE |
| 2 | 4407 | SCREW | FLSTFSE |
| 3 | 6702 | WASHER | FLSTFSE |
| 4 | 7507 | ACORN NUT | FLSTFSE |
| 5 | 7669 | NUT | FLSTFSE |
| 6 | 7899A | BOLT, acorn (2) | FLSTFSE |
| 7 | 11413 | GROMMET | FLSTFSE |
| 8 | 60393-03 | DEBRIS DEFLECTOR (chrome) | FLSTFSE |
| 9 | 60533-00A | BELT GUARD (chrome) | FLSTFSE |

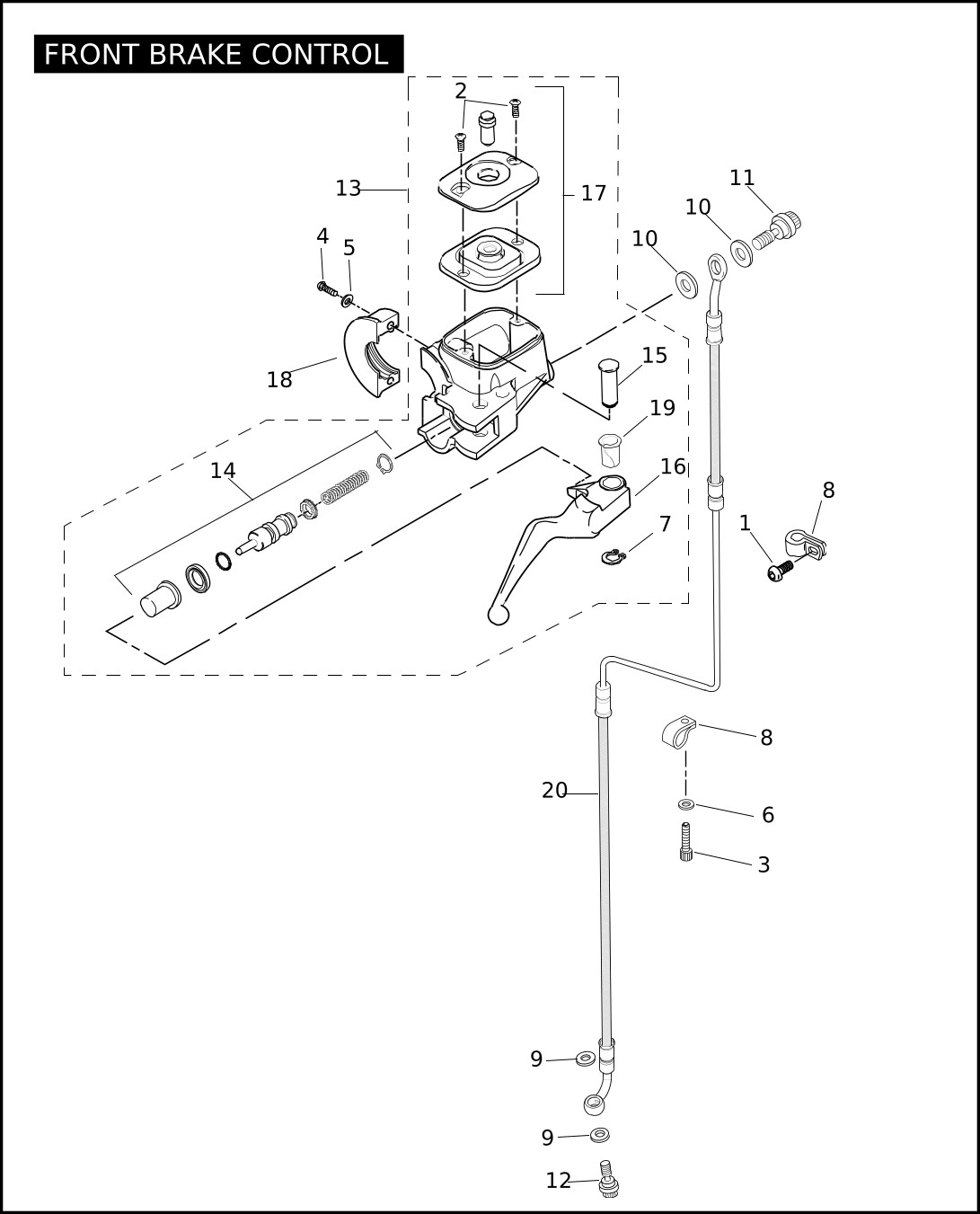

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (2) | FLSTFSE |
| 2 | 2573 | SCREW (2) | FLSTFSE |
| 3 | 3594 | SCREW | FLSTFSE |
| 4 | 4293 | SCREW (2) | FLSTFSE |
| 5 | 6099 | WASHER (2) | FLSTFSE |
| 6 | 6703 | WASHER | FLSTFSE |
| 7 | 11143 | RETAINING RING | FLSTFSE |
| 8 | 41713-86 | CLAMP (3) | FLSTFSE |
| 9 | 41731-01 | GASKET (2) | FLSTFSE |
| 10 | 41733-88 | GASKET, master cylinder (2) | FLSTFSE |
| 11 | 41739-84A | BANJO BOLT | FLSTFSE |
| 12 | 41747-82A | BOLT, banjo | FLSTFSE |
| 13 | 44728-05A | MASTER CYLINDER, front, w/ hand lever (9/16 inch bore) | FLSTFSE |
| 14 | 45006-96C | REPAIR KIT, master cylinder (9/16 inch bore) | FLSTFSE |
| 15 | 45032-82 | PIN, pivot | FLSTFSE |
| 16 | 45076-96 | HAND LEVER, front brake control w/ 45423-96 | FLSTFSE |
| 17 | 45078-96D | KIT-COVER, reservoir | FLSTFSE |
| 18 | 45282-99A | CLAMP, handlebar control | FLSTFSE |
| 19 | 45423-96 | BUSHING, lever pivot | FLSTFSE |
| 20 | 46378-05 | BRAKE LINE, front, braided | FLSTFSE |
FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | SCREW, bleeder | FLSTFSE |
| 2 | 44082-00D | PAD KIT, brake | FLSTFSE |
| 3 | 44147-87A | CAP, bleeder screw | FLSTFSE |
| 4 | 44160-00 | BOLT, caliper mounting, lower | FLSTFSE |
| 5 | 44163-00 | BOLT, caliper mounting, upper | FLSTFSE |
| 6 | 44177-00 | BOLT, bridge (2) | FLSTFSE |
| 7 | 44313-01 | PISTON KIT, caliper brake | FLSTFSE |
| 8 | 44314-00 | PIN KIT, brake pad | FLSTFSE |
| 9 | 44315-00 | SEAL KIT, caliper brake | FLSTFSE |
| 10 | 44337-00B | SPRING KIT, anti-rattle | FLSTFSE |
| 11 | 44381-99C | CALIPER ASSEMBLY, left (silver) w/ 44048-83, 44082-00D, 44147-87A, 44177-00, 444313-01, 44314-00, 44315-00 & 44337-00B | FLSTFSE |
| 12 | 44477-99 | INSERT KIT, caliper (chrome) | FLSTFSE |

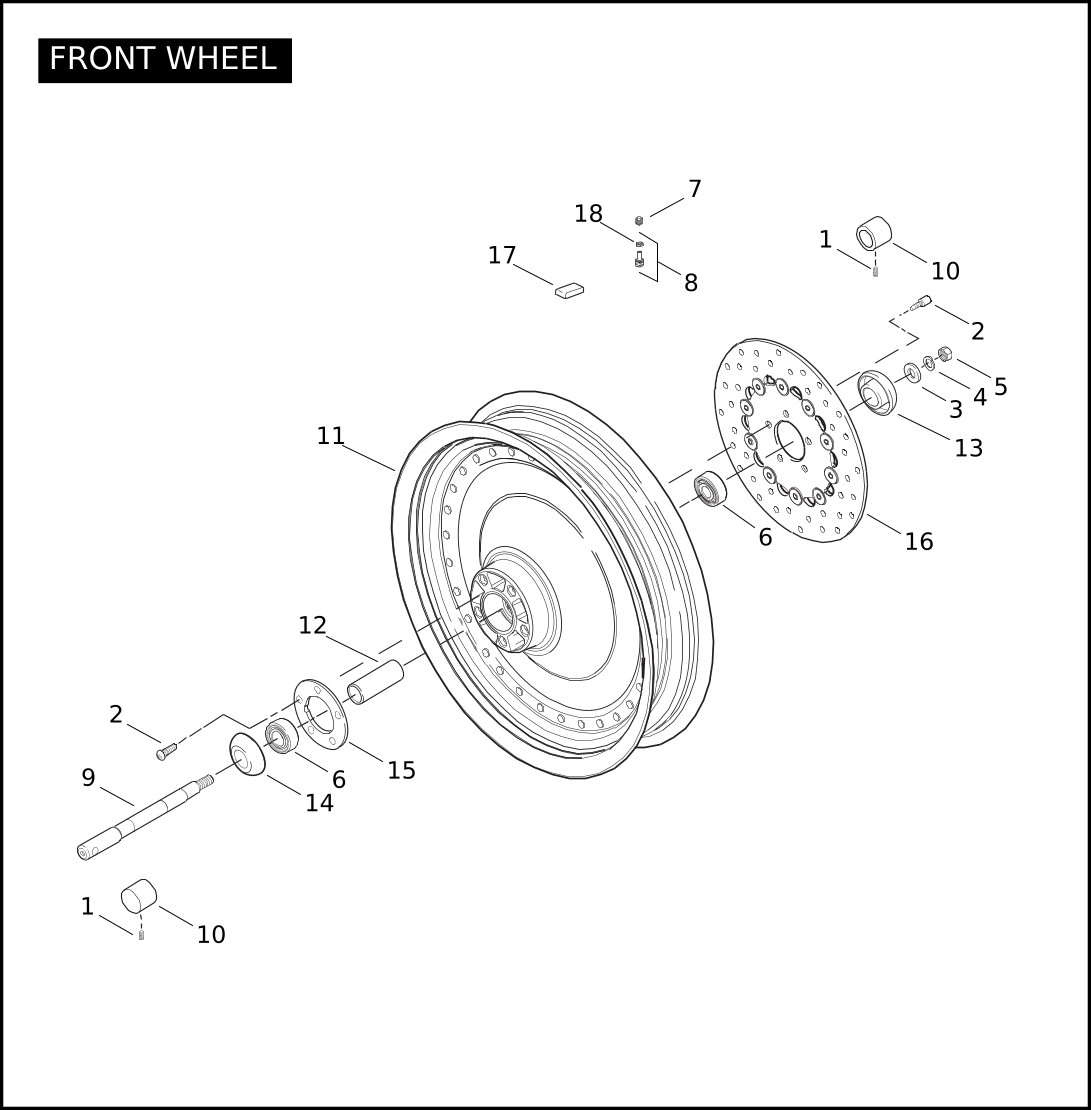

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3229 | SCREW (set of 2) | FLSTFSE |
| 2 | 3655A | SCREW (10) | FLSTFSE |
| 3 | 6590HW | WASHER | FLSTFSE |
| 4 | 7068 | LOCKWASHER | FLSTFSE |
| 5 | 7956 | NUT | FLSTFSE |
| 6 | 9267 | BEARING, sealed, ball (2) | FLSTFSE |
| 7 | 41148-98 | CAP, valve (chrome) (set of 2) | FLSTFSE |
| 8 | 43157-83A | VALVE STEM ASSEMBLY | FLSTFSE |
| 9 | 41584-86A | AXLE, front | FLSTFSE |
| 10 | 43899-86A | COVER KIT, axle nut left & right w/ 3229 (chrome) (2) | FLSTFSE |
| 11 | 41312-04 | WHEEL ASSEMBLY, front 16 inch w/ 43157-83A, 43608-00 &9267 (2) | FLSTFSE |
| 12 | 43608-00 | SLEEVE, bearing spacer | FLSTFSE |
| 13 | 44600-05 | SPACER, LH | FLSTFSE |
| 14 | 44602-05 | SPACER, RH | FLSTFSE |
| 15 | 44447-00 | PLATE, hub | FLSTFSE |
| 16 | 44821-00A | KIT, brake disc (5) | FLSTFSE |
| 17 | 95595-84A | WEIGHT, 1/4 oz., cast wheels (silver) | FLSTFSE |
| 18 | 54321-85 | NUT | FLSTFSE |

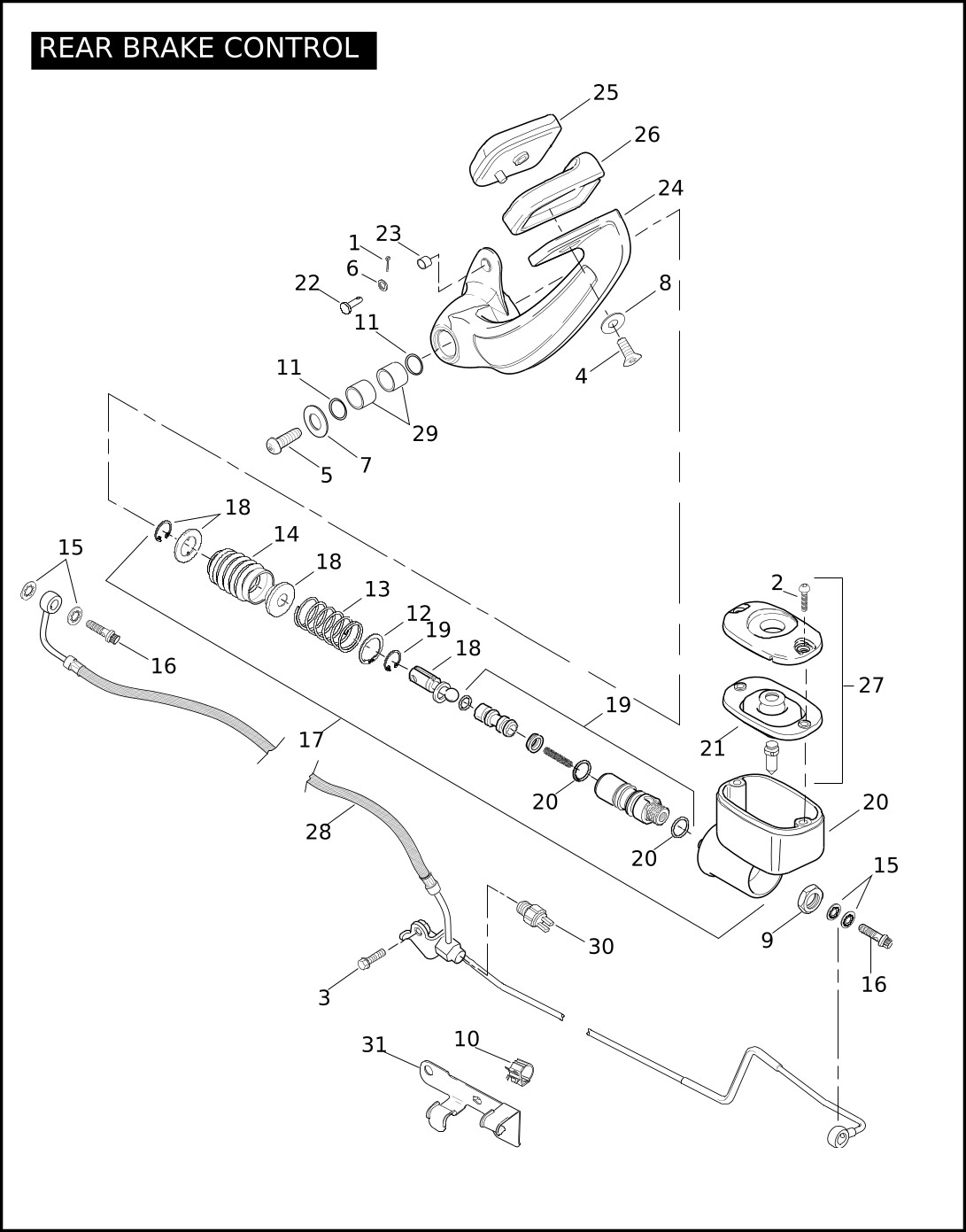

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLSTFSE |
| 2 | 2573 | SCREW (2) | FLSTFSE |
| 3 | 961 | SCREW | FLSTFSE |
| 4 | 3533 | SCREW | FLSTFSE |
| 5 | 3655A | SCREW | FLSTFSE |
| 6 | 6099 | WASHER | FLSTFSE |
| 7 | 6237 | WASHER | FLSTFSE |
| 8 | 6333 | WASHER | FLSTFSE |
| 9 | 7951 | JAM NUT | FLSTFSE |
| 10 | 70385-01 | CLIP, engine harness | FLSTFSE |
| 11 | 11364 | O-RING (2) | FLSTFSE |
| 12 | 40918-87 | RETAINING RING | FLSTFSE |
| 13 | 40920-87 | SPRING, brake return | FLSTFSE |
| 14 | 40922-87A | BOOT, push rod | FLSTFSE |
| 15 | 41731-01 | GASKET (4) | FLSTFSE |
| 16 | 41747-82A | BOLT, banjo (2) | FLSTFSE |
| 17 | 41754-00D | MASTER CYLINDER ASSEMBLY | FLSTFSE |
| 18 | 41957-97A | PUSH ROD KIT | FLSTFSE |
| 19 | 42382-87C | REBUILD KIT, master cylinder | FLSTFSE |
| 20 | 42454-99A | RESERVOIR, master cylinder w/ O-rings | FLSTFSE |
| 21 | 42455-99 | GASKET, master cylinder reservoir | FLSTFSE |
| 22 | 42460-80B | CLEVIS PIN | FLSTFSE |
| 23 | 42644-00 | BUSHING, brake lever | FLSTFSE |
| 24 | 42653-05 | LEVER, foot brake, w/ 57217-02 (2) & 42644-00 | FLSTFSE |
| 25 | 44841-05 | INSERT, brake lever | FLSTFSE |
| 26 | 44837-05A | COVER, brake lever | FLSTFSE |
| 27 | 45149-99C | COVER KIT, reservoir, w/ 2573, cover, gasket & sight glass | FLSTFSE |
| 28 | 45300-04 | BRAKE LINE, rear | FLSTFSE |
| 29 | 57217-02 | BUSHING, brake lever (2) | FLSTFSE |
| 30 | 72023-51D | STOPLAMP SWITCH, rear | FLSTFSE |
| 31 | 72476-05 | BRACKET KIT, engine harness/brake line, w/ 70385-01 | FLSTFSE |

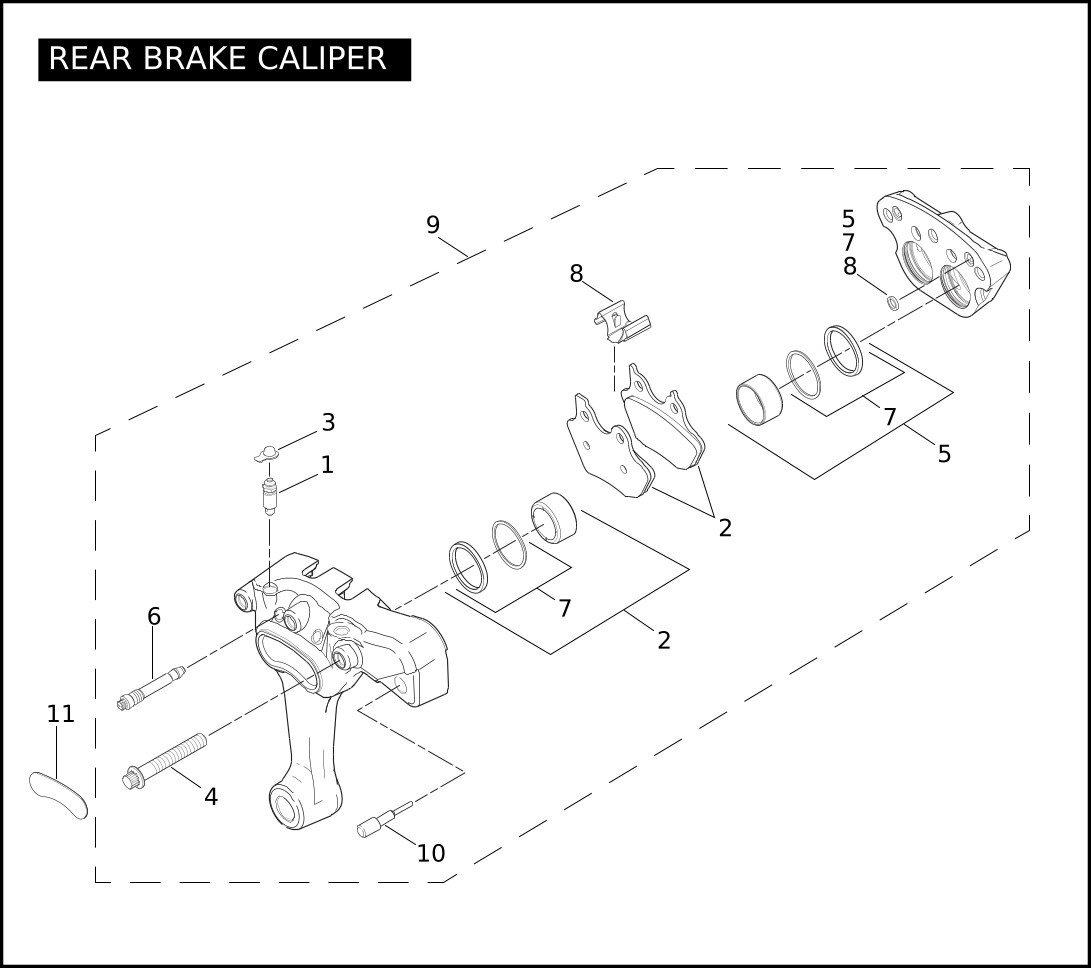

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | SCREW, bleeder | FLSTFSE |
| 2 | 44082-00D | PAD KIT, brake | FLSTFSE |
| 3 | 44147-87A | CAP, bleeder screw | FLSTFSE |
| 4 | 44177-00 | BOLT, bridge (3) | FLSTFSE |
| 5 | 44313-01 | PISTON KIT, caliper brake | FLSTFSE |
| 6 | 44314-00 | PIN KIT, brake pad | FLSTFSE |
| 7 | 44315-00 | SEAL KIT, caliper brake | FLSTFSE |
| 8 | 44337-00B | SPRING KIT, anti-rattle | FLSTFSE |
| 9 | 44380-99B | CALIPER ASSEMBLY, rear, complete (silver) | FLSTFSE |
| 10 | 44351-00 | BUMPER, rubber | FLSTFSE |
| 11 | 44477-99 | INSERT KIT, caliper (chrome) | FLSTFSE |
REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 508 | RETAINING PIN | FLSTFSE |
| 2 | 3007 | SCREW (4) | FLSTFSE |
| 3 | 3737A | SCREW (5) | FLSTFSE |
| 4 | 5756 | WASHER | FLSTFSE |
| 5 | 6150W | WASHER (4) | FLSTFSE |
| 6 | 6516HW | WASHER (5) | FLSTFSE |
| 7 | 7783 | NUT (2) | FLSTFSE |
| 8 | 7987 | NUT | FLSTFSE |
| 9 | 9267 | SEALED BALL BEARING (2) | FLSTFSE |
| 10 | 46624-03 | SPROCKET ASSEMBLY, rear, 70 T | FLSTFSE |
| 41110-79A | REAR AXLE KIT | FLSTFSE | |
| 11 | 41110-89 | AXLE ASSEMBLY | FLSTFSE |
| 12 | 41148-98 | KIT, valve stem caps (2) | FLSTFSE |
| 13 | 41613-03 | SPACER, wheel, right (chrome) | FLSTFSE |
| 14 | 41614-03 | SPACER, wheel, left (chrome) | FLSTFSE |
| 15 | 43157-83A | VALVE STEM ASSEMBLY | FLSTFSE |
| 16 | 43567-92 | SCREW (5) | FLSTFSE |
| 17 | 43608-00 | SLEEVE | FLSTFSE |
| 18 | 43991-04B | COVER, bolts (5) | FLSTFSE |
| 19 | 44500-03B | COVER, axle nut, right (chrome) | FLSTFSE |
| 20 | 44501-03 | COVER, axle nut, left (chrome) | FLSTFSE |
| 21 | 44509-03 | BRACKET, axle cover, right | FLSTFSE |
| 22 | 44510-03 | BRACKET, axle cover, left | FLSTFSE |
| 23 | 41313-04 | WHEEL KIT, w/ 9267 (2), 43157-83A, 43567-92 (5) & 43608-00 | FLSTFSE |
| 24 | 44822-00A | BRAKE DISC KIT, rear (5) | FLSTFSE |
| 25 | 47627-03 | ADJUSTER, axle (2) | FLSTFSE |
| 26 | 47633-03 | SPACER, axle (2) | FLSTFSE |
| 27 | 95595-84A | WEIGHT, wheel 1/4 oz. | FLSTFSE |
| 28 | 54321-85 | NUT | FLSTFSE |
FRONT FORK (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (4) | FLSTFSE |
| 2 | 3538 | SCREW (4) | FLSTFSE |
| 3 | 3739 | SCREW (4) | FLSTFSE |
| 4 | 3953W | BOLT (2) | FLSTFSE |
| 5 | 4350A | SCREW | FLSTFSE |
| 6 | 4453 | BOLT | FLSTFSE |
| 7 | 4729 | BOLT (2) | FLSTFSE |
| 8 | 6655 | WASHER | FLSTFSE |
| 9 | 6702 | WASHER (2) | FLSTFSE |
| 10 | 7039 | LOCKWASHER (4) | FLSTFSE |
| 11 | 7041 | LOCKWASHER (2) | FLSTFSE |
| 12 | 7686 | LOCKNUT | FLSTFSE |
| 13 | 7748W | NUT (2) | FLSTFSE |
| 14 | 8108 | SPEEDNUT (2) | FLSTFSE |
| 15 | 41713-86 | CLAMP (2) | FLSTFSE |
| 16 | 44503-03 | FORK NUT CAP (chrome) (2) | FLSTFSE |
| 17 | 44504-03 | SPACER (2) | FLSTFSE |
| 18 | 45303-98 | AXLE CAP, right slider (chrome) | FLSTFSE |
| 19 | 45405-75A | SCREW, w/ washer (2) | FLSTFSE |
| 20 | 45419-80 | CAP, slider tube (2) | FLSTFSE |
| 21 | 45456-86B | BRACKET, upper | FLSTFSE |
| 22 | 45605-00A | STEM & BRACKET ASSEMBLY, includes lower bearing cone | FLSTFSE |
| 23 | 45611-86 | RETAINING RING, fork stem | FLSTFSE |
| 24 | 45670-80A | CAP, fork stem | FLSTFSE |
| 25 | 45733-48 | OIL SEAL, fork tube plug (2) | FLSTFSE |
| 26 | 45803-97 | PIECE OIL LOCK (2) | FLSTFSE |
| 27 | 45838-77 | PLUG, fork tube (2) | FLSTFSE |
| 28 | 45842-77A | RETAINING RING, oil seal (2) | FLSTFSE |
| 29 | 45845-77 | O-RING, slider tube plug (2) | FLSTFSE |
| 30 | 45858-77 | DRAIN SCREW, w/ washer & slider (2) | FLSTFSE |
| 31 | 45859-77A | RING, damper tube (2) | FLSTFSE |
FRONT FORK (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 32 | 45865-84 | WASHER, slider (2) | FLSTFSE |
| 33 | 45866-84 | BUSHING, slider tube (2) | FLSTFSE |
| 34 | 45875-84A | OIL SEAL (2) | FLSTFSE |
| 35 | 45930-00 | SLIDER TUBE, w/ 45866-84 (2) | FLSTFSE |
| 36 | 45931-00 | SPRING (2) | FLSTFSE |
| 37 | 45932-00 | DAMPER TUBE, w/ 45859-77A (2) | FLSTFSE |
| 38 | 45933-86 | SPRING, damper tube (2) | FLSTFSE |
| 39 | 45940-84 | BUSHING, slider (2) | FLSTFSE |
| 40 | 45998-73 | STUD (2) | FLSTFSE |
| 41 | 46205-00 | COVER, slider (2) | FLSTFSE |
| 42 | 46310-05 | FORK SLIDER & TUBE ASSEMBLY, right | FLSTFSE |
| 43 | 46312-05 | FORK SLIDER & TUBE ASSEMBLY, left | FLSTFSE |
| 44 | 46483-00 | SLIDER, left (chrome) | FLSTFSE |
| 45 | 46484-00 | SLIDER, right (chrome) | FLSTFSE |
| 46 | 48300-60 | ROLLER BEARING, w/ cup (2) | FLSTFSE |
| 47 | 48315-60 | BEARING CUP (2) | FLSTFSE |
| 48 | 48361-80 | DUST SHIELD, bearing, upper | FLSTFSE |
| 49 | 48365-48A | DUST SHIELD, bearing, lower | FLSTFSE |
| 50 | 50991-86 | BRACKET, front panel (2) | FLSTFSE |
| 51 | 59481-00 | REFLECTOR, amber, right | FLSTFSE |
| 52 | 59482-00 | REFLECTOR, amber, left | FLSTFSE |
| 53 | 67821-87 | BACK PANEL, left, rear w/ switch hole | FLSTFSE |
| 54 | 67887-91A | BACK PANEL, right, rear (chrome) | FLSTFSE |
| 55 | 67888-91A | BACK PANEL, left, rear, w/ 67821-87 & 90357-89 (chrome) | FLSTFSE |
| 56 | 67889-91A | FRONT PANEL (chrome) | FLSTFSE |
| 57 | 67891-99 | KIT, TRIM STRIP, front panel (chrome) | FLSTFSE |
| 58 | 90357-89 | PLUG | FLSTFSE |
FRAME, REAR FORK & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 939 | SCREW (2) | FLSTFSE |
| 2 | 940 | SCREW (6) | FLSTFSE |
| 3 | 2882W | SCREW | FLSTFSE |
| 4 | 2941 | SCREW (2) | FLSTFSE |
| 5 | 3233 | SCREW | FLSTFSE |
| 6 | 4266A | SCREW (3) | FLSTFSE |
| 7 | 4311 | SCREW | FLSTFSE |
| 8 | 4740A | SCREW (2) | FLSTFSE |
| 9 | 5228 | U-BOLT (2) | FLSTFSE |
| 10 | 6400HB | WASHER | FLSTFSE |
| 11 | 6702 | WASHER | FLSTFSE |
| 12 | 6703 | WASHER (6) | FLSTFSE |
| 13 | 7041 | LOCKWASHER (4) | FLSTFSE |
| 14 | 7686 | LOCKNUT (4) | FLSTFSE |
| 15 | 10006 | CABLE STRAP (3) | FLSTFSE |
| 10065 | CABLE STRAP, keys | FLSTFSE | |
| 16 | 10193 | WIRE CLAMP | FLSTFSE |
| 17 | 31741-00 | PLUG, seat post | FLSTFSE |
| 18 | 33670-03A | MOUNT ASSEMBLY, jiffy stand, shift lever & footrest (chrome) | FLSTFSE |
| 19 | 33708-94 | BEARING, sleeve (2) | FLSTFSE |
| 20 | 45680-90 | FORKLOCK (specify key code) | FLSTFSE |
| 21 | 46288-04A | PROTECTOR, steering head (2) | FLSTFSE |
| 22 | 47173-05BGO | FRAME, w/ 48315-60 (leafy aluminum) (2) | FLSTFSE |
| 47173-05BKO | FRAME, w/ 48315-60 (candy cobalt) (2) | FLSTFSE | |
| 47173-05BSL | FRAME, w/ 48315-60 (electric cherry) (2) | FLSTFSE | |
| 23 | 48315-60 | BEARING CUP (2) | FLSTFSE |
| 24 | 48895-04BKO | POST ASSEMBLY, seat (candy cobalt) | FLSTFSE |
| 25 | 50005-85A | SPRING, jiffy stand leg | FLSTFSE |
| 26 | 50015-74A | LEG STOP | FLSTFSE |
| 27 | 50087-89B | LEG, jiffy stand (chrome) | FLSTFSE |
| 28 | 50972-75 | FITTING, lubrication | FLSTFSE |
| 29 | 57041-01A | KIT-SPOILER MOUNTING, w/ 4740A, 5228, 7686, 57043-01, 58445-00 & fairing bracket | FLSTFSE |
| 30 | 57043-01 | BRACKET, regulator mount | FLSTFSE |
| 31 | 57101-01 | FAIRING, chin (chrome) | FLSTFSE |
| 32 | 58445-00 | BLOCK, mounting (2) | FLSTFSE |
| 33 | 61081-92 | COVER, key head set (2) | FLSTFSE |
| 34 | 62123-66 | BUMPER | FLSTFSE |
| 35 | 68446-00 | PLUG (5) | FLSTFSE |
| 36 | 71031-04 | KEY KIT, deco | FLSTFSE |
| 37 | 71450-04 | LOCKSET | FLSTFSE |
| 38 | 71452-91A | KEY (specify key code) (2) | FLSTFSE |
| 39 | 90469-94 | PLUG, frame (2) | FLSTFSE |
| 91625-04 | COVER KIT, motorcycle (not illustrated) | FLSTFSE |

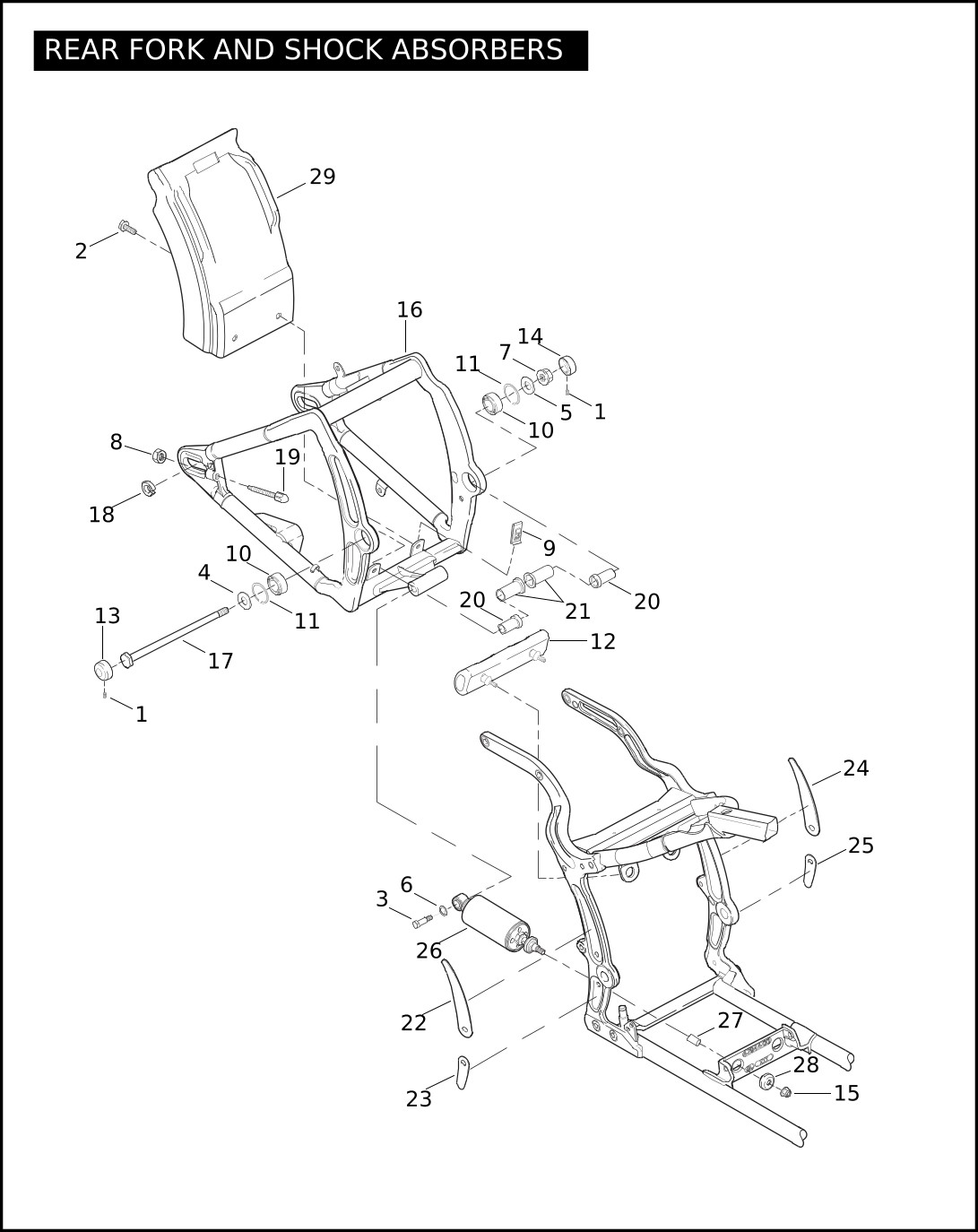

REAR FORK AND SHOCK ABSORBERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3231B | SCREW (2) | FLSTFSE |
| 2 | 3574 | SCREW (2) | FLSTFSE |
| 3 | 4074A | BOLT (2) | FLSTFSE |
| 4 | 6534 | WASHER, hardened, right side | FLSTFSE |
| 5 | 6535 | WASHER, hardened, left side | FLSTFSE |
| 6 | 6724 | WASHER (2) | FLSTFSE |
| 7 | 7479 | NUT | FLSTFSE |
| 8 | 7783 | NUT, rear axle adjuster (2) | FLSTFSE |
| 9 | 8108 | SPEEDNUT (2) | FLSTFSE |
| 10 | 9270A | BEARING, rear fork pivot (2) | FLSTFSE |
| 11 | 11282 | RETAINING RING, fork bearing (2) | FLSTFSE |
| 12 | 11514 | BUMPER, rear fork | FLSTFSE |
| 13 | 44502-03 | COVER, pivot, right | FLSTFSE |
| 14 | 44511-03 | COVER, pivot, left | FLSTFSE |
| 15 | 45764-00 | LOCKNUT, flange (2) | FLSTFSE |
| 16 | 47574-05BGO | REAR FORK (leafy aluminum) | FLSTFSE |
| 47574-05BKO | REAR FORK (candy cobalt) | FLSTFSE | |
| 47574-05BSL | REAR FORK (electric cherry) | FLSTFSE | |
| 17 | 47610-00 | PIVOT SHAFT | FLSTFSE |
| 18 | 47633-03 | SPACER, rear axle adjuster (2) | FLSTFSE |
| 19 | 47627-03 | ADJUSTER, rear axle (2) | FLSTFSE |
| 20 | 48048-00A | BUSHING, rear fork (2) | FLSTFSE |
| 21 | 48049-00A | SPACER, rear fork (2) | FLSTFSE |
| 22 | 48069-05BGO | INSERT R.H./TOP FRAME (leafy aluminum) | FLSTFSE |
| 48069-04BKO | INSERT R.H./TOP FRAME (candy cobalt) | FLSTFSE | |
| 48069-05BSL | INSERT R.H./TOP FRAME (electric cherry) | FLSTFSE | |
| 23 | 48070-05BGO | INSERT R.H./BOTTOM FRAME (leafy aluminum) | FLSTFSE |
| 48070-04BKO | INSERT R.H./BOTTOM FRAME (candy cobalt) | FLSTFSE | |
| 48070-05BSL | INSERT R.H./BOTTOM FRAME (electric cherry) | FLSTFSE | |
| 24 | 48071-05BGO | INSERT L.H./TOP FRAME (leafy aluminum) | FLSTFSE |
| 48071-04BKO | INSERT L.H./TOP FRAME (candy cobalt) | FLSTFSE | |
| 48071-05BSL | INSERT L.H./TOP FRAME (electric cherry) | FLSTFSE | |
| 25 | 48072-05BGO | INSERT L.H./BOTTOM FRAME (leafy aluminum) | FLSTFSE |
| 48072-04BKO | INSERT L.H./BOTTOM FRAME (candy cobalt) | FLSTFSE | |
| 48072-05BSL | INSERT L.H./BOTTOM FRAME (electric cherry) | FLSTFSE | |
| 26 | 54549-04 | SHOCK ABSORBER, complete, w/ 15, 27 & 28 (2) | FLSTFSE |
| 27 | 56182-00 | BUSHING (2) | FLSTFSE |
| 28 | 56183-00 | WASHER, w/ grommet (4) | FLSTFSE |
| 29 | 60363-00B | SPLASH GUARD | FLSTFSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6441 | WASHER | FLSTFSE |
| 2 | 1327 | SCREW | FLSTFSE |
| 3 | 3588 | SCREW (2) | FLSTFSE |
| 4 | 66211-01 | PAD, wear (2) | FLSTFSE |
| 5 | 59587-05 | TAPE, protective | FLSTFSE |
| 6 | 51827-05 | TAILPIECE KIT | FLSTFSE |
| 7 | 52943-05 | CANOPY, rider seat pad | FLSTFSE |
| 8 | 52854-05 | TRIM, left, seat | FLSTFSE |
| 9 | 3407 | SCREW (9) | FLSTFSE |
| 10 | 6703 | WASHER (2) | FLSTFSE |
| 11 | 3574 | SCREW (6) | FLSTFSE |
| 12 | 52855-05 | TRIM, right, seat | FLSTFSE |
| 13 | 52853-05 | TRIM, rear, seat | FLSTFSE |
| 14 | 52279-05 | SEAT KIT | FLSTFSE |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4266A | SCREW (6) | FLSTFSE |
| 2 | 7716 | LOCKNUT (4) | FLSTFSE |
| 3 | 11278 | RING SNAP | FLSTFSE |
| 4 | 33670-03A | MOUNT ASSEMBLY, left footboard (chrome) | FLSTFSE |
| 5 | 33688-03A | MOUNT ASSEMBLY, right footboard (chrome) | FLSTFSE |
| 6 | 33708-94 | BEARING SLEEVE (2) | FLSTFSE |
| 7 | 50362-05 | EMBLEM, footboard insert (2) | FLSTFSE |
| 8 | 50617-05 | BOTTOM, right footboard | FLSTFSE |
| 9 | 50624-05 | BOTTOM, left footboard | FLSTFSE |
| 10 | 50674-05 | BOLT, shoulder (4) | FLSTFSE |
| 11 | 50733-05 | PAD, left footboard | FLSTFSE |
| 12 | 50736-05 | PAD, left outer footboard | FLSTFSE |
| 13 | 54155-09 | FOOTBOARD ASSEMBLY, right | FLSTFSE |
| 14 | 54156-09 | FOOTBOARD ASSEMBLY, left | FLSTFSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FLSTFSE |
| 2 | 3471 | BOLT (2) | FLSTFSE |
| 3 | 7068 | LOCKWASHER, lock (2) | FLSTFSE |
| 4 | 7129 | LOCKWASHER, lock, internal tooth | FLSTFSE |
| 5 | 11403A | GROMMET (2) | FLSTFSE |
| 6 | 53156-86 | BUSHING (rubber) (4) | FLSTFSE |
| 7 | 56153-73 | SPACER (2) | FLSTFSE |
| 8 | 56159-73 | WASHER, cup (4) | FLSTFSE |
| 9 | 56787-05 | HANDLEBAR, w/ 11403A (chrome) (2) | FLSTFSE |
| 10 | 56772-05 | CLAMP, lower left | FLSTFSE |
| 11 | 56773-05 | CLAMP, lower right | FLSTFSE |
| 12 | 56774-05 | BRACKET, tachometer mount | FLSTFSE |
| 13 | 70197-86 | CABLE, ground | FLSTFSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLSTFSE |
| 10065 | CABLE STRAP | FLSTFSE | |
| 10073 | CABLE STRAP, w/ rosebud mount (not illustrated) | FLSTFSE | |
| 2 | 11155 | RETAINING RING | FLSTFSE |
| 3 | 11271 | RETAINING RING, idle control | FLSTFSE |
| 4 | 11272 | RETAINING RING, throttle control | FLSTFSE |
| 5 | 38653-01 | BOOT, cable (2) | FLSTFSE |
| 6 | 56020-98A | GRIP, left | FLSTFSE |
| 7 | 56023-98A | GRIP & SLEEVE, throttle, right | FLSTFSE |
| 8 | 56193-98 | END CAP (2) | FLSTFSE |
| 9 | 56509-05 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | FLSTFSE |
| 10 | 56516-05 | IDLE CONTROL ASSEMBLY, w/ 11271 & 38653-01 | FLSTFSE |
| 11 | 56394-74 | SPRING, adjusting screw | FLSTFSE |
| 12 | 56396-74A | FRICTION SPRING, throttle | FLSTFSE |
| 13 | 56397-74C | ADJUSTING SCREW KIT | FLSTFSE |
| 14 | 56402-83A | ADJUSTING SCREW | FLSTFSE |
| 15 | 56499-05 | CABLE ASSEMBLY, throttle/idle | FLSTFSE |
| 16 | 56508-76 | FERRULE, control wire (2) | FLSTFSE |
| 17 | 70514-01 | CLIP, dual conduit | FLSTFSE |
FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3485A | SCREW (4) | FLSTFSE |
| 2 | 7531 | LOCKNUT (4) | FLSTFSE |
| 3 | 45323-01 | WASHER (4) | FLSTFSE |
| 4 | 59595-05BRX | FENDER, front (platinum mist and slate) | FLSTFSE |
| 59595-05BRY | FENDER, front (electric cherry w/ vivid black) | FLSTFSE | |
| 59595-05BSA | FENDER, front (candy cobalt w/ starlight black) | FLSTFSE |
REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 59287-92 | REFLECTOR, right | FLSTFSE |
| 59288-92 | REFLECTOR, left | FLSTFSE | |
| 2 | 59768-97 | FENDER SEAT NUT KIT | FLSTFSE |
| 3 | 59631-05BRX | FENDER, rear (platinum mist/slate) | FLSTFSE |
| 59631-05BRY | FENDER, rear (electric cherry/vivid black) | FLSTFSE | |
| 59631-05BSA | FENDER, rear (candy cobalt/starlight black) | FLSTFSE | |
| 4 | 59050-03 | BRACKET, fender mounting, front (2) | FLSTFSE |
| 5 | 59555-05A | BRACKET, fender mounting, rear (2) | FLSTFSE |
| 6 | 45550-03 | PLATE, wire retainer, rear (2) | FLSTFSE |
| 7 | 4267 | SCREW (4) | FLSTFSE |
| 8 | 4180 | SCREW (2) | FLSTFSE |
| 9 | 4266A | SCREW (4) | FLSTFSE |
| 10 | 60117-05 | SUPPORT, right | FLSTFSE |
| 60118-05 | SUPPORT, left | FLSTFSE | |
| 11 | 6379W | WASHER (2) | FLSTFSE |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 2773 | SCREW (3) | FLSTFSE |
| 2 | 5403B | BOLT | FLSTFSE |
| 3 | 6703 | WASHER | FLSTFSE |
| 4 | 7792 | NUT (4) | FLSTFSE |
| 5 | 59345-03 | PAD, license plate bracket | FLSTFSE |
| 6 | 59982-89A | BRACKET, support, license plate | FLSTFSE |
| 7 | 59983-75T | BRACKET ASSEMBLY, license plate | FLSTFSE |
| 8 | 59988-72A | REFLECTOR | FLSTFSE |
| 9 | 59997-89A | BRACKET, license plate | FLSTFSE |
| 10 | 60003-89 | CLAMP | FLSTFSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3017 | SCREW | FLSTFSE |
| 2 | 4197 | BOLT | FLSTFSE |
| 3 | 4763 | SCREW | FLSTFSE |
| 4 | 5818A | BUSHING, front tank mount (2) | FLSTFSE |
| 5 | 6400HB | WASHER (2) | FLSTFSE |
| 6 | 6702 | WASHER | FLSTFSE |
| 7 | 6716 | WASHER | FLSTFSE |
| 8 | 7862 | ACORN NUT | FLSTFSE |
| 9 | 7965 | TEE NUT | FLSTFSE |
| 10 | 10038A | CLAMP, fuel crossover hose (2) | FLSTFSE |
| 10102 | CLIP (not illustrated) | FLSTFSE | |
| 11 | 10222 | CLAMP | FLSTFSE |
| 12 | 10226 | PUSH-IN FASTENER | FLSTFSE |
| 13 | 11323 | O-RING | FLSTFSE |
| 14 | 11529 | RUBBER TRIM, fuel tank | FLSTFSE |
| 15 | 11533 | RETAINING RING (2) | FLSTFSE |
| 16 | 14697-05 | INSERT, trim w/ CVO logo | FLSTFSE |
| 17 | 27016-00 | HOSE REDUCER | FLSTFSE |
| 18 | 27072-00 | HOSE, valve to atmosphere | FLSTFSE |
| 19 | 27249-96 | CONNECTOR, straight | FLSTFSE |
| 20 | 28828-00 | TUBE, tank to valve | FLSTFSE |
| 21 | 28838-00 | VENT LINE ASSEMBLY, fuel tank to vapor valve | FLSTFSE |
| 22 | 61109-85D | GASKET | FLSTFSE |
| 23 | 61171-05 | TRIM, fuel tank, leather | FLSTFSE |
| 24 | 61272-92C | CAP, fuel filler, right | FLSTFSE |
| 25 | 62150-85 | VAPOR VALVE | FLSTFSE |
| 26 | 62189-01A | CHECK VALVE, out w/ 11323 | FLSTFSE |
| 27 | 62208-05BRX | FUEL TANK (platinum mist and slate) | FLSTFSE |
| 62208-05BRY | FUEL TANK (electric cherry w/ vivid black) | FLSTFSE | |
| 62208-05BSA | FUEL TANK (candy cobalt w/ starlight black) | FLSTFSE | |
| 28 | 62880-00 | GROMMET, fuel tank, upper rear | FLSTFSE |
| 29 | 62881-00 | GROMMET, fuel tank, lower rear and front (3) | FLSTFSE |
| 30 | 62900-01D | FUEL LINE, from tank to intake | FLSTFSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 31 | 62555-95 | INSULATOR, 5/8 inch I.D. (nylon) (8 feet long) | FLSTFSE |
| 32 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet long) | FLSTFSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW (10) | FLSTFSE |
| 2 | 1314 | SCREW | FLSTFSE |
| 3 | 10006 | CABLE STRAP (2) | FLSTFSE |
| 4 | 10222 | CLAMP (2) | FLSTFSE |
| 5 | 11351 | O-RING | FLSTFSE |
| 6 | 11380 | O-RING | FLSTFSE |
| 7 | 27408-01 | REGULATOR | FLSTFSE |
| 8 | 61001-01 | FUEL FILTER KIT, w/ 10222, 11351 & 62357-00 | FLSTFSE |
| 9 | 61192-96A | GASKET, fuel gauge | FLSTFSE |
| 10 | 61209-01A | BAIL | FLSTFSE |
| 11 | 61231-01 | BAIL BRACKET | FLSTFSE |
| 12 | 61381-02 | GASKET, top plate | FLSTFSE |
| 13 | 61583-02 | SPRING | FLSTFSE |
| 14 | 61960-04 | RUBBER CUSHION | FLSTFSE |
| 15 | 61961-00 | RUBBER SLEEVE | FLSTFSE |
| 16 | 62163-04 | HOUSING FUEL PUMP | FLSTFSE |
| 17 | 62165-01 | ENDCAP, housing fuel pump | FLSTFSE |
| 18 | 62188-04 | SPACER, rubber | FLSTFSE |
| 19 | 62357-00 | HOSE, fuel pump to filter | FLSTFSE |
| 20 | 62373-01 | REGULATOR HOUSING | FLSTFSE |
| 21 | 62897-01B | PUMP ASSEMBLY, fuel w/ 3, 14, 15, 16, 17 & 18 | FLSTFSE |
| 22 | 72904-01BK | PIN HOUSING, 4-way | FLSTFSE |
| 23 | 72990-01 | PIN TERMINAL (3) | FLSTFSE |
| 24 | 75053-01B | FUEL GAUGE, w/ 72990-01 | FLSTFSE |
| 75132-01D | MODULE ASSEMBLY, fuel pump complete w/ 2, 4, 5, 6, 7, 10, 11, 13,19, 20, 21, 22, 23 & 28 | FLSTFSE | |
| 25 | 75300-05 | FUEL LEVEL SENDER KIT, w/ harness | FLSTFSE |
OIL TANK & LINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4206 | SCREW | FLSTFSE |
| 2 | 4216 | SCREW (2) | FLSTFSE |
| 3 | 4217 | SCREW (2) | FLSTFSE |
| 4 | 5775 | WASHER (3) | FLSTFSE |
| 5 | 8102 | SPEEDNUT (2) | FLSTFSE |
| 6 | 10080 | CLAMP, drain hose (3) | FLSTFSE |
| 7 | 10208 | CLAMP (3) | FLSTFSE |
| 8 | 10216 | CLIP, oil lines | FLSTFSE |
| 9 | 11105 | O-RING | FLSTFSE |
| 10 | 11326 | O-RING (3) | FLSTFSE |
| 11 | 11447 | GROMMET (3) | FLSTFSE |
| 12 | 33525-00 | OIL LINE, feed | FLSTFSE |
| 13 | 33531-00 | OIL LINE, return | FLSTFSE |
| 14 | 45468-00 | CONNECTOR ASSEMBLY, vent | FLSTFSE |
| 15 | 45806-00 | OIL LINE, vent | FLSTFSE |
| 16 | 60348-65B | DRAIN PLUG KIT, w/ O-ring | FLSTFSE |
| 17 | 62498-00A | OIL TANK, w/ 8102 (chrome) | FLSTFSE |
| 18 | 62769-00 | BRACKET, oil tank top | FLSTFSE |
| 19 | 62845-00A | FILLER CAP, w/ dipstick | FLSTFSE |
| 20 | 63553-00B | HOSE, oil tank drain | FLSTFSE |
| 21 | 63601-00 | CONNECTOR ASSEMBLY, oil line (2) | FLSTFSE |
| 22 | 63611-00 | HOSE, oil feed | FLSTFSE |
| 23 | 63628-00 | ELBOW, oil drain | FLSTFSE |
| 24 | 63632-00 | OIL LINE RETAINER ASSEMBLY (2) | FLSTFSE |
| 25 | 63783-00 | OIL LINE RETAINER ASSEMBLY (3) | FLSTFSE |
FUEL TANK CONSOLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (6) | FLSTFSE |
| 2 | 2523 | SCREW (3) | FLSTFSE |
| 3 | 5419 | BOLT, carriage | FLSTFSE |
| 4 | 6771A | WASHER | FLSTFSE |
| 5 | 7549A | ACORN NUT, locking | FLSTFSE |
| 6 | 9856 | TERMINAL RING (3) | FLSTFSE |
| 7 | 10065 | CABLE STRAP | FLSTFSE |
| 8 | 52425-98 | BULB, replacement | FLSTFSE |
| 9 | 67201-04A | TACHOMETER ASSEMBLY (metal face) | FLSTFSE |
| 10 | 67223-00A | SEAL, speedometer | FLSTFSE |
| 11 | 67313-05A | SPEEDOMETER (mph) | FLSTFSE |
| 67315-05 | SPEEDOMETER (kph) | FLSTFSE | |
| 12 | 67880-94 | BOOT, reset switch | FLSTFSE |
| 13 | 67925-04 | HOUSING, tachometer | FLSTFSE |
| 14 | 67952-96 | GASKET, isolation | FLSTFSE |
| 15 | 67956-96 | SCREW | FLSTFSE |
| 16 | 68112-99A | BEZEL, indicator light | FLSTFSE |
| 17 | 68113-99B | HOUSING ASSEMBLY, idicator light | FLSTFSE |
| 18 | 68170-05 | BRACKET, indicator light mounting | FLSTFSE |
| 19 | 69074-04A | TACHOMETER (aluminum face) | FLSTFSE |
| 20 | 71006-05 | BEZEL, speedometer (chrome) | FLSTFSE |
| 21 | 71259-05 | INSTRUMENT PANEL (chrome) | FLSTFSE |
| 22 | 71261-05 | TRIM, instrument panel | FLSTFSE |
| 23 | 71262-05 | PLATE, ignition switch | FLSTFSE |
| 24 | 71313-96A | IGNITION SWITCH (specify key code) | FLSTFSE |
| 25 | 71450-04 | LOCKSET, complete w/ keys, ignition switch and fork lock | FLSTFSE |
| 26 | 71757-05 | WIRE HARNESS, tachometer w/ 6, 7, 27, 28, 29, 30 & 35 | FLSTFSE |
| 27 | 73104-96BK | HOUSING PIN, 4-way (black) | FLSTFSE |
| 28 | 73154-96BK | HOUSING SOCKET, 4-way (black) | FLSTFSE |
| 29 | 73190-96 | TERMINAL, pin #16-20 AWG (4) | FLSTFSE |
| 30 | 73191-96 | TERMINAL, socket #16-20 AWG (4) | FLSTFSE |
| 31 | 74118-98BK | SOCKET HOUSING, 8-way (black) | FLSTFSE |
| 32 | 74158-98 | SECONDARY LOCK, 8-way socket | FLSTFSE |
| 33 | 74193-98 | SOCKET TERMINAL (12) | FLSTFSE |
| 34 | 74195-98 | SEAL PIN (2) | FLSTFSE |
| 35 | 74196-04 | TERMINAL, socket | FLSTFSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3391 | SCREW (6) | FLSTFSE |
| 2 | 3987 | BOLT (2) | FLSTFSE |
| 3 | 4190 | SCREW (2) | FLSTFSE |
| 4 | 4719W | BOLT | FLSTFSE |
| 5 | 5416 | BOLT | FLSTFSE |
| 6 | 6701 | WASHER | FLSTFSE |
| 7 | 6702 | WASHER (2) | FLSTFSE |
| 8 | 7593 | NUT (4) | FLSTFSE |
| 9 | 7601 | LOCKNUT | FLSTFSE |
| 10 | 9955 | CLAMP (7) | FLSTFSE |
| 11 | 10074 | CLAMP, muffler shield (4) | FLSTFSE |
| 12 | 65148-00A | SHIELD, front exhaust | FLSTFSE |
| 13 | 65093-05BGO | SUPPORT, muffler (leafy aluminum) | FLSTFSE |
| 65093-04BKO | SUPPORT, muffler (candy cobalt) | FLSTFSE | |
| 65093-05BSL | SUPPORT, muffler (electric cherry) | FLSTFSE | |
| 14 | 65184-02 | FLANGE (2) | FLSTFSE |
| 15 | 65296-95A | CLAMP, muffler (2) | FLSTFSE |
| 16 | 65324-83B | GASKET, exhaust port (2) | FLSTFSE |
| 17 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLSTFSE |
| 18 | 65445-00 | HEAT SHIELD, exhaust pipe | FLSTFSE |
| 19 | 65464-00 | HEAT SHIELD, rear exhaust pipe | FLSTFSE |
| 20 | 65476-05 | HEAT SHIELD, muffler (2) | FLSTFSE |
| 65463-00 | HEAT SHIELD, muffler (HDI) (2) | FLSTFSE | |
| 21 | 65499-00A | EXHAUST PIPE, front | FLSTFSE |
| 22 | 65503-00A | EXHAUST PIPE, rear | FLSTFSE |
| 23 | 65652-97A | BRACKET, exhaust | FLSTFSE |
| 24 | 65654-97 | CLAMP, exhaust pipe | FLSTFSE |
| 25 | 65734-95 | BRACKET, muffler | FLSTFSE |
| 26 | 65830-03 | SEAL, exhaust interconnect | FLSTFSE |
| 27 | 65926-00 | MUFFLER BRACKET, rear | FLSTFSE |
| 28 | 65954-05 | MUFFLER, front | FLSTFSE |
| 65964-05 | MUFFLER, front, catalytic (California) | FLSTFSE | |
| 65939-04 | MUFFLER, front, catalytic (HDI) | FLSTFSE | |
| 29 | 65956-05 | MUFFLER, rear | FLSTFSE |
| 65969-05 | MUFFLER, rear (California) | FLSTFSE | |
| 65950-04 | MUFFLER, rear (HDI) | FLSTFSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FLSTFSE |
| 2 | 15368-01A | WARNING LABEL | FLSTFSE |
| 3 | 65989-97C | BATTERY, sealed, includes terminal bolts | FLSTFSE |
| 4 | 66210-00 | CUSHION, rubber | FLSTFSE |
| 5 | 70060-92B | CABLE ASSEMBLY, battery negative | FLSTFSE |
| 6 | 70078-00B | CABLE ASSEMBLY, battery positive w/ 70584-94 | FLSTFSE |
| 7 | 70584-94 | BOOT | FLSTFSE |
HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3615 | SCREW | FLSTFSE |
| 2 | 4411 | BOLT | FLSTFSE |
| 3 | 4722 | BOLT | FLSTFSE |
| 4 | 6400HB | WASHER (2) | FLSTFSE |
| 5 | 7038 | LOCKWASHER | FLSTFSE |
| 6 | 7130W | LOCKWASHER | FLSTFSE |
| 7 | 7800W | NUT | FLSTFSE |
| 8 | 9847 | WIRE TERMINAL, female spade, R.H. | FLSTFSE |
| 9848 | WIRE TERMINAL, female spade, L.H. (2) | FLSTFSE | |
| 9 | 67768-97 | MOUNTING BLOCK | FLSTFSE |
| 10 | 68050-93A | RETAINING RING | FLSTFSE |
| 11 | 68051-93A | TRIM RING (chrome) | FLSTFSE |
| 12 | 68052-93 | SCREW (3) | FLSTFSE |
| 13 | 68329-03 | BULB | FLSTFSE |
| 14 | 68342-05 | LENS ASSEMBLY, w/ 68390-05, 68329-03 (Domestic) | FLSTFSE |
| 15 | 68390-05 | BOOT (Domestic) | FLSTFSE |
| 16 | 69748-05B | HEADLAMP SHELL ASSEMBLY, w/ 9847, 9848, 72056-92, 72249-94, 73154-96BK, 73191-96, 73190-96 & 73102-96BK (Domestic) | FLSTFSE |
| 17 | 72056-92 | INSULATOR, spade terminal (3-way) | FLSTFSE |
| 18 | 72249-94 | SHRINK TUBE | FLSTFSE |
| 19 | 73102-96BK | PIN HOUSING, 2-place (Domestic) | FLSTFSE |
| 20 | 73154-96BK | HOUSING SOCKET, 4-way (black) | FLSTFSE |
| 21 | 73190-96 | TERMINAL, pin #16-20 AWG (Domestic) (2) | FLSTFSE |
| 22 | 73191-96 | TERMINAL, socket #16-20 AWG (4) | FLSTFSE |
| INTERNATIONAL MODELS ONLY | |||
| 23 | 9841 | TERMINAL (HDI) (2) | FLSTFSE |
| 24 | 53436-97 | BULB (HDI) | FLSTFSE |
| 25 | 68344-05 | LIGHT ASSEMBLY, L.H. dip w/ 68380-05, 68329-03, 68653-05 & 53436-97 (HDI) | FLSTFSE |
| 68345-05 | LIGHT ASSEMBLY, R. H. dip w/ 68380-05, 68329-03, 68653-05 & 53436-97 (HDI) | FLSTFSE | |
| 26 | 68380-05 | BOOT (HDI) | FLSTFSE |
| 27 | 68653-05 | CONNECTOR (HDI) | FLSTFSE |
| 28 | 69750-05B | HEADLAMP SHELL ASSEMBLY, w/ 9847, 9848, 72056-92, 73154-96BK & 73191-96 | FLSTFSE |
FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7127 | LOCKWASHER (2) | FLSTFSE |
| 2 | 7720 | ACORN NUT (2) | FLSTFSE |
| 3 | 7744 | JAM NUT (2) | FLSTFSE |
| 4 | 67015-02 | SET SCREW (2) | FLSTFSE |
| 5 | 67316-03A | BRACKET MOUNTING, right turn signal | FLSTFSE |
| 6 | 67355-04 | BRACKET MOUNTING, left turn signal | FLSTFSE |
| 7 | 67822-88 | BALL STUD (2) | FLSTFSE |
| 8 | 68614-03 | TURN SIGNAL, front, w/ 68904-00, 69331-02 & 69325-02 (Domestic) (2) | FLSTFSE |
| 9 | 68904-00 | SOCKET ASSEMBLY (Domestic) (2) | FLSTFSE |
| 10 | 69325-02 | LENS (Domestic) (2) | FLSTFSE |
| 11 | 69331-02 | BULB, front turn signals, (Domestic) (2) | FLSTFSE |
| 12 | 73156-96BK | SOCKET HOUSING, 6-place | FLSTFSE |
| 13 | 73191-96 | TERMINAL, socket #16-20 AWG (6) | FLSTFSE |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 68163-84 | BULB, front turn signals, (HDI) (2) | FLSTFSE |
| 15 | 68975-00 | TURN SIGNAL, front, w/ bulb & lens (HDI) | FLSTFSE |
| 16 | 68973-00 | LENS (HDI) (2) | FLSTFSE |
TAIL LAMP & REAR TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FLSTFSE |
| 2 | 4232 | SCREW, turn signal (2) | FLSTFSE |
| 3 | 6702 | WASHER (2) | FLSTFSE |
| 4 | 7964 | J-NUT | FLSTFSE |
| 5 | 10115 | CABLE STRAP | FLSTFSE |
| 6 | 10183 | CLIP, t-stud (2) | FLSTFSE |
| 7 | 68026-99 | SCREW, tail lamp (2) | FLSTFSE |
| 8 | 68066-99A | TAIL LAMP BASE ASSEMBLY | FLSTFSE |
| 9 | 68140-04 | LIGHT ASSEMBLY, tail lamp w/ 68369-03 & 68370-03A | FLSTFSE |
| 10 | 68167-04 | BULB, tail lamp, wedge mount | FLSTFSE |
| 11 | 68296-99A | TAIL LIGHT BASE (chrome) | FLSTFSE |
| 12 | 68369-03 | LENS, tail lamp w/ 68026-99 | FLSTFSE |
| 13 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp w/ 68167-04, 73154-96BK & 73191-96 | FLSTFSE |
| 14 | 68480-02 | SUPPORT, rear lamp mounting (2) | FLSTFSE |
| 15 | 68818-03A | HARNESS, rear lamps w/ 10115, 73156-96BK, 73158-96BK & 73191-96 | FLSTFSE |
| 16 | 68830-99A | CIRCUIT BOARD & COVER | FLSTFSE |
| 17 | 68905-00 | SOCKET ASSEMBLY (2) | FLSTFSE |
| 18 | 69196-03 | TURN SIGNAL, rear w/ 69325-02, 69330-02 & 68905-00 (2) | FLSTFSE |
| 19 | 69325-02 | LENS, rear turn signal (2) | FLSTFSE |
| 20 | 69330-02 | BULB, rear turn signal (2) | FLSTFSE |
| 21 | 73152-96BK | SOCKET HOUSING, 2-place (2) | FLSTFSE |
| 22 | 73154-96BK | HOUSING SOCKET, 4-way (black) | FLSTFSE |
| 23 | 73156-96BK | SOCKET HOUSING, 6-place | FLSTFSE |
| 24 | 73158-96BK | SOCKET HOUSING, 8-place | FLSTFSE |
| 25 | 73191-96 | TERMINAL, socket #16-20 AWG (19) | FLSTFSE |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 68141-04 | LIGHT ASSEMBLY, tail lamp w/ 68372-03 & 69187-03A (HDI) | FLSTFSE |
| 27 | 68163-84 | BULB (HDI) (2) | FLSTFSE |
| 28 | 68372-03 | LENS, tail lamp w/ 68026-99 (HDI) | FLSTFSE |
| 29 | 68978-00 | TURN SIGNAL, rear, w/ bulb & lens (HDI) (2) | FLSTFSE |
| 30 | 68973-00 | LENS (HDI) (2) | FLSTFSE |
| 31 | 69187-03A | SOCKET ASSEMBLY (HDI) | FLSTFSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLSTFSE |
| 2 | 6109 | WASHER | FLSTFSE |
| 3 | 7481 | ACORN NUT | FLSTFSE |
| 4 | 7495 | NUT | FLSTFSE |
| 5 | 8108 | SPEEDNUT, speed (2) | FLSTFSE |
| 6 | 69012-93A | COVER ASSEMBLY, horn (chrome) | FLSTFSE |
| 7 | 69060-90F | HORN ASSEMBLY | FLSTFSE |
| 8 | 69062-91A | CLAMP | FLSTFSE |
| 9 | 69120-91 | BRACKET, horn | FLSTFSE |
| 10 | 69123-92A | MOUNT, horn (rubber) | FLSTFSE |
MAIN WIRING HARNESS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70431-04A | MAIN WIRING HARNESS | FLSTFSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9840 | TERMINAL, ring type | FLSTFSE |
| 2 | 9937 | TERMINAL, female, #14-16 wire (4) | FLSTFSE |
| 10006 | CABLE STRAP (not illustrated) (2) | FLSTFSE | |
| 3 | 10065 | CABLE STRAP (17) | FLSTFSE |
| 4 | 27667-04 | FUSE BLOCK COVER | FLSTFSE |
| 5 | 31511-01B | RELAY, black | FLSTFSE |
| 6 | 31522-00C | RELAY | FLSTFSE |
| 7 | 67488-04 | SWITCH, reset | FLSTFSE |
| 8 | 70598-99 | BOOT, engine temperature sensor | FLSTFSE |
| 9 | 70974-00B | SHIELD, loom | FLSTFSE |
| 10 | 72033-93 | TERMINAL, socket (18) | FLSTFSE |
| 11 | 72076-00 | SOCKET TERMINAL, #18 wire (25) | FLSTFSE |
| 12 | 72077-00 | SEAL PIN (11) | FLSTFSE |
| 13 | 72100-04 | TERMINAL | FLSTFSE |
| 14 | 72106-94BK | RECEPTACLE, 6-way pin (black) | FLSTFSE |
| 15 | 72113-94BK | SOCKET HOUSING, 3-way (black) | FLSTFSE |
| 16 | 72124-94GY | PIN HOUSING, 4-way (gray) | FLSTFSE |
| 17 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLSTFSE |
| 18 | 72139-94GY | SOCKET HOUSING, 12-way (gray) | FLSTFSE |
| 19 | 72144-94 | SECONDARY LOCK, 4-way | FLSTFSE |
| 20 | 72146-94 | SECONDARY LOCK, 6-way (2) | FLSTFSE |
| 21 | 72153-94 | SECONDARY LOCK, 3-way | FLSTFSE |
| 22 | 72159-94 | SECONDARY LOCK, 12-way | FLSTFSE |
| 23 | 72164-94A | PLUG, 4-way connector | FLSTFSE |
| 24 | 72189-04 | SEAL PIN (3) | FLSTFSE |
| 25 | 72190-94 | TERMINAL, pin (15) | FLSTFSE |
| 26 | 72191-94 | TERMINAL, socket (14) | FLSTFSE |
| 27 | 72195-94 | SEAL PIN | FLSTFSE |
| 28 | 72199-94 | ANCHOR, connector | FLSTFSE |
| 29 | 72213-94 | TERMINAL, socket (3) | FLSTFSE |
| 30 | 72214-94 | CABLE SEAL, #14-16 wire (3) | FLSTFSE |
| 31 | 72230-98 | SOCKET HOUSING, 3-way | FLSTFSE |
| 32 | 72231-98 | SECONDARY LOCK, 3-way | FLSTFSE |
| 33 | 72244-95 | SOCKET HOUSING, 2-way (2) | FLSTFSE |
| 34 | 72245-95 | SOCKET TERMINAL, #16-18 wire (4) | FLSTFSE |
| 35 | 72247-95 | SOCKET HOUSING, 2-way | FLSTFSE |
| 36 | 72254-94 | TERMINAL, 1/4 ring (3) | FLSTFSE |
| 37 | 72263-95 | SOCKET HOUSING, 4-way (2) | FLSTFSE |
| 38 | 72273-95 | SOCKET HOUSING, 2-way | FLSTFSE |
| 39 | 72280-95 | SOCKET HOUSING (black) (2) | FLSTFSE |
| 40 | 72289-04 | TERMINAL, female | FLSTFSE |
| 41 | 72290-94 | TERMINAL, female (2) | FLSTFSE |
| 42 | 72291-94 | TERMINAL, female spade, #14-16 gauge (3) | FLSTFSE |
MAIN WIRING HARNESS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70431-04A | MAIN WIRING HARNESS (Continued) | FLSTFSE | |
| NOTE: Includes the following parts. | |||
| 43 | 72292-94 | TERMINAL, female, 12 gauge | FLSTFSE |
| 44 | 72327-03A | HOUSING, female, 3-way | FLSTFSE |
| 45 | 72295-94 | HOUSING, starter connection, female | FLSTFSE |
| 46 | 72330-95 | FUSE, 15 amp (9) | FLSTFSE |
| 47 | 72366-95 | SHRINK TUBE (yellow) | FLSTFSE |
| 72369-00 | BRACKET, fuse block mounting (not illustrated) | FLSTFSE | |
| 48 | 72428-00 | TERMINAL, female (4) | FLSTFSE |
| 49 | 72430-00 | FUSE BLOCK, type 0 | FLSTFSE |
| 50 | 72432-00 | FUSE BLOCK, type 2 | FLSTFSE |
| 51 | 72434-00 | TERMINAL (19) | FLSTFSE |
| 52 | 72914-01BK | SOCKET HOUSING, 4-way (black) | FLSTFSE |
| 53 | 72990-01 | PIN TERMINAL, #14-16 wire (3) | FLSTFSE |
| 54 | 73104-96BK | HOUSING PIN, 4-way (black) | FLSTFSE |
| 55 | 73106-96BK | PIN HOUSING, 6-way (black) | FLSTFSE |
| 56 | 73108-96BK | PIN HOUSING, 8-way (black) | FLSTFSE |
| 57 | 73190-96 | TERMINAL, pin #16-20 AWG (18) | FLSTFSE |
| 58 | 73196-96 | ANCHOR T-STUD | FLSTFSE |
| 59 | 73202-04 | CONNECTOR ANCHOR (4) | FLSTFSE |
| 60 | 74108-98BK | PIN HOUSING, 8-way (black) | FLSTFSE |
| 61 | 74112-98BK | HOUSING SOCKET, 2-way (black) | FLSTFSE |
| 62 | 74113-98BK | HOUSING SOCKET, 3-way (black) | FLSTFSE |
| 63 | 74148-98 | SECONDARY LOCK, pin, 8-way | FLSTFSE |
| 64 | 74152-98 | SECONDARY LOCK, socket, 2-way | FLSTFSE |
| 65 | 74153-98 | SECONDARY LOCK, socket, 3-way | FLSTFSE |
| 66 | 74190-98 | TERMINAL, pin (7) | FLSTFSE |
| 67 | 74191-98 | TERMINAL, socket (5) | FLSTFSE |
| 68 | 74195-98 | SEAL PIN, plug | FLSTFSE |
| 69 | 74196-04 | TERMINAL, socket (9) | FLSTFSE |
| 70 | 74197-04 | SECONDARY LOCK | FLSTFSE |
HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | FLSTFSE |
| 2 | 4292 | SCREW (4) | FLSTFSE |
| 3 | 10181 | CABLE STRAP (as required) | FLSTFSE |
| 4 | 11402 | GROMMET (2) | FLSTFSE |
| 5 | 71614-96 | HOUSING, upper, right (chrome) | FLSTFSE |
| 6 | 71615-96 | HOUSING, upper, left (chrome) | FLSTFSE |
| 7 | 71621-08 | STOPLAMP SWITCH, front w/ 10181 & 72266-94 | FLSTFSE |
| 8 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn w/ 10181 & 72266-94 | FLSTFSE |
| 9 | 71683-06A | SWITCH ASSEMBLY, right turn signal w/ 10181 & 72266-94 | FLSTFSE |
| 10 | 71684-06A | SWITCH ASSEMBLY, engine stop/start w/ 10181 & 72266-94 | FLSTFSE |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal w/ 10181 & 72266-94 | FLSTFSE |
| 12 | 71719-03 | HOUSING, lower, right (chrome) | FLSTFSE |
| 13 | 71720-03A | HOUSING, lower - left (chrome) | FLSTFSE |
| 14 | 72116-94BK | SOCKET HOUSING, 6-way socket, right (black) (2) | FLSTFSE |
| 15 | 72156-94 | SOCKET LOCK, secondary, 6-way (2) | FLSTFSE |
| 16 | 72176-94 | FRONT SEAL, 6-way plug (2) | FLSTFSE |
| 17 | 72191-94 | TERMINAL, socket (12) | FLSTFSE |
| 18 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 inch (as required) | FLSTFSE |
SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FLSTFSE |
| 2 | 3892 | SCREW (2) | FLSTFSE |
| 3 | 3574 | SCREW (2) | FLSTFSE |
| 4 | 7629 | NUT (2) | FLSTFSE |
| 5 | 8483A | RIVET (2) | FLSTFSE |
| 6 | 9842 | TERMINAL | FLSTFSE |
| 7 | 9843 | TERMINAL | FLSTFSE |
| 8 | 10065 | CABLE STRAP | FLSTFSE |
| 9 | 10108 | CLIP (5) | FLSTFSE |
| 10 | 10149 | CLIP, T-stud (2) | FLSTFSE |
| 11 | 10224 | CLIP, T-stud | FLSTFSE |
| 12 | 10226 | FASTENER, nylon | FLSTFSE |
| 13 | 11290 | O-RING, neutral indicator switch | FLSTFSE |
| 14 | 31522-00C | RELAY | FLSTFSE |
| 15 | 33904-00A | SWITCH, neutral indicator w/ 11290 | FLSTFSE |
| 16 | 61081-92 | COVER, key head set (2) | FLSTFSE |
| 17 | 68921-01D | MODULE, turn signal canceller | FLSTFSE |
| 68923-00D | MODULE, security system | FLSTFSE | |
| 18 | 68926-00 | REMOTE CONTROL FOB | FLSTFSE |
| 19 | 70048-03 | WIRE ASSEMBLY, circuit breaker to starter | FLSTFSE |
| 20 | 70354-03 | BRACKET, electrical | FLSTFSE |
| 21 | 71313-96A | IGNITION SWITCH (specify key code) w/ 10065 | FLSTFSE |
| 22 | 71450-04 | LOCKSET, complete, w/ keys, ignition switch & fork lock | FLSTFSE |
| 23 | 71452-91A | KEY (specify key code) (2) | FLSTFSE |
| 24 | 72249-94 | SHRINK TUBE | FLSTFSE |
| 25 | 72330-95 | FUSE, 15 amp (6) | FLSTFSE |
| 26 | 74599-77B | CIRCUIT BREAKER, 30 amp - battery | FLSTFSE |
| 27 | 72369-00 | BRACKET, fuse block | FLSTFSE |
| 28 | 72374-00 | WIRE TROUGH | FLSTFSE |
| 29 | 72380-04 | BRACKET, electrical connectors (located behind steering head) | FLSTFSE |
| 30 | 72456-01 | ELECTRICAL BOX, EFI | FLSTFSE |
| 31 | 72023-51D | STOPLAMP SWITCH, rear | FLSTFSE |
| INTERNATIONAL MODELS ONLY | |||
| 32 | 69309-10 | BATTERY REPLACEMENT KIT, siren | FLSTFSE |
| 33 | 68921-01D | MODULE, turn signal canceller | FLSTFSE |
| 68925-00D | MODULE, security system & turn signal canceller (HDI) | FLSTFSE | |
| 34 | 68927-00 | REMOTE CONTROL FOB (HDI) | FLSTFSE |
| 35 | 68958-07C | SIREN (for siren vehicles) (HDI) | FLSTFSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FLSTFSE |
| 2 | 7127 | LOCKWASHER (2) | FLSTFSE |
| 3 | 7720 | ACORN NUT (2) | FLSTFSE |
| 4 | 91987-05 | MIRROR ASSEMBLY, right (chrome) (Domestic, California, Canada) | FLSTFSE |
| 91949-05 | MIRROR ASSEMBLY, left (chrome) (Domestic, California, Canada) | FLSTFSE | |
| INTERNATIONAL MODELS ONLY | |||
| 5 | 91840-03B | MIRROR ASSEMBLY, right (HDI) | FLSTFSE |
| 91845-03B | MIRROR ASSEMBLY, left (HDI) | FLSTFSE | |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 4195 | SCREW, canister to transmission housing (not illustrated) (2) | FLSTFSE | |
| 6139 | WASHER, canister to transmission housing (not illustrated) (2) | FLSTFSE | |
| 11321 | CABLE STRAP, canister to mounting bracket (not illustrated) (2) | FLSTFSE | |
| 1 | 27042-84A | CANISTER ASSEMBLY | FLSTFSE |
| 28839-00 | VENT LINE ASSEMBLY, fuel tank to vapor valve & carburetor to canister (not illustrated) | FLSTFSE | |
| 27293-00 | CANISTER MOUNTING BRACKET (not illustrated) | FLSTFSE | |
| 27328-00 | HOSE, rollover valve to canister (not illustrated) | FLSTFSE | |
| 29312-95 | CONNECTOR, evaporative (not illustrated) (carbureted only) | FLSTFSE | |
| 56076-97 | RETAINER, vent line (not illustrated) | FLSTFSE | |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 27138-90 | HOSE, 3/16 inch I.D. x 11/32 inch O.D. (rubber) (10 feet) (not illustrated) | FLSTFSE | |
| Part No. | Description |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1311D | SCREW No. 8-32 X 1/2 Phillips truss head, self-sealing |
| 1314 | SCREW K50-2.24 X 17.25MM TORX truss head |
| 1327 | SCREW 1/4-20 X 1-1/4 socket button head |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2523 | SCREW No. 8-32 X 1/2 hex head, self-tapping |
| 2573 | SCREW No. 8-32 X 5/8 pan head |
| 2720 | SCREW 10-24 X 1.0 TORX head, with lockpatch |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2882W | SCREW 5/16-18 X 5/8 hex head (Grade 5) |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 29327-94 | SCREW 5/16-18 X 1-1/4 lock patch |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3007 | SCREW No. 10-32 X 3/8 socket head |
| 3017 | SCREW No. 10-24 X 0.44 TORX pan head, self-tapping |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3231B | SCREW 1/4-20 X 1/4 socket head, with lockpatch |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3407 | SCREW No. 6-32 X 1/4 hex head (Grade 2) |
| 3471 | BOLT 1/2-13 X 2-3/4 hex head (Grade 5) |
| 3480A | SCREW 1/4-20 X 1-3/4 knurled head (Grade 8) |
| 3485A | SCREW 5/16-18 X 1-3/4 knurled head (Grade 8) |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 35211-91B | NUT 1-1/2-24 X .350 X 1-7/8 hex head |
| 3533 | SCREW 5/16-24 X 3/8 socket button head |
| 3538 | SCREW 5/16-24 X 1/2 socket button head |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3601 | SCREW 1/4-20 X 1-1/4 knurled head (Grade 8) |
| 3602A | SCREW No. 10-32 X 1/2 self-tapping |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3624 | BOLT M5 X 0.8 X 130 |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3737A | SCREW 7/16-14 X 2-1/4 hex head, with lockpatch (Grade 5) |
| 3739 | SCREW 1/4 X 5/8 hex head, with lockpatch, self-tapping |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 37496-90 | NUT |
| 3784 | SET SCREW 1/2-20 X 1/2 socket head, with lockpatch |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3909 | SCREW 1/4-20 X 1-1/4 SEMS hex head (Grade 5) |
| 3953W | BOLT 5/16-24 X 1/2 hex head (Grade 5) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4074A | BOLT 1/2-13 X 2 hex head, shoulder |
| 4168 | SCREW 3/8-16 X 1 self-tapping |
| 4180 | SCREW 3/8-16 X 1-1/2 TORX button head |
| 4190 | SCREW 3/8-16 X 3/4 TORX button head |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4195 | SCREW 3/8-18 X 3 socket head |
| 4197 | BOLT 3/8-16 X 3-3/4 hex head (Grade 5) |
| 4206 | SCREW 3/16-18 X 1 hex head |
| 4216 | SCREW 5/16-18 X 7/8 hex flange head (Grade 5) |
| 4217 | SCREW 5/16-18 X 1.0 hex flange head (Grade 5) |
| 4232 | SCREW 5/16-18 X 2-3/4 TORX button head (Grade 5) |
| 4266A | SCREW 3/8-16 X 7/8 button head (Grade 5) |
| 4267 | SCREW 3/8-16 X 1-1/4 button head (Grade 5) |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4311 | SCREW 3/8-16 X 1-5/8 socket head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4358A | SCREW No. 10-32 X 5.250 hex head (zinc plate) |
| 4387 | SCREW 5/16-24 X 7/8 socket head |
| 4407 | SCREW 5/16-18 X 5/8 hex head, with washer |
| 4411 | BOLT 3/8-24 X 1-3/4 hex head (Grade 5) |
| 4453 | BOLT 1/4-20 X 7/8 hex head SPECIAL WITH TAPPED HOLE |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4719W | BOLT 3/8-16 X 2-1/2 hex head (Grade 5) |
| 4722 | BOLT 3/8-16 X 2-1/4 hex head (Grade 5) |
| 4729 | BOLT 7/16-20 X 1-1/4 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4763 | SCREW 5/16-18 X 1-1/4 TORX button head (Grade 5) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5419 | BOLT 5/16-18 X 1-3/4 carriage |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5756 | WASHER 21/32 X 1-5/16 X 5/8 |
| 5775 | WASHER 11/32 X 1/2 X 31/64 |
| 6003 | WASHER 1-3/16 X 1-3/8 X 11/16 |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6379W | WASHER 3/8 X 5/8 X 3/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6530 | WASHER 1/2 X 1 X 3/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6534 | WASHER 3/8 X 1-3/4 X 3/32 hardened |
| 6535 | WASHER 5/16 X 1-1/4 X 3/32 hardened |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6724 | WASHER 21/32 X 1-1/16 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67956-96 | SCREW 1/4-20 X 3/4 socket flat head |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6852 | WASHER 41/64 X 1-1/8 X 5/64 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7129 | LOCKWASHER 1/2 internal tooth |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7479 | NUT 5/8-11 flange (Grade 6) |
| 7481 | ACORN NUT 5/16-18 X 5/8 X 1/2 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7507 | ACORN NUT 5/16-18 X 11/16 X 1/2 (Grade 2) (chrome) |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7669 | NUT 5/16-18 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7720 | ACORN NUT 5/16-24 (chrome) |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 7879 | NUT 1/2-13 X 1/2 X 3/4 flange (Grade 6) |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7956 | NUT 1/2-20 X 1/2 X 3/4 |
| 7974 | JAMNUT 5/8-18 X 3/8 X 1 |
| 7987 | NUT 5/8-18 X 15/16 slotted (Grade 8) |
| 8102 | SPEEDNUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 858A | BOLT 5/16-18 X 3 hex head (Grade 5) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 928 | BOLT M5 X 0.8 X 35.2 hex head |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 939 | SCREW 1/4-20 X 1 self-tapping, with washer (Grade 2) |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| 956 | SCREW 5/16-18 X 3-1/4 button head, with lockpatch (Grade 8) |
| 961 | SCREW 1/4-20 X 1/2 TORX pan head, with washer (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19296-05B | ENGINE ASSEMBLY, complete, 103 cubic-inch (Domestic, Canada, HDI) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 17052-99C | GASKET KIT, top end w/ 11256 & 16787-99A | FLSTFSE |
| 17053-99C | GASKET KIT, engine overhaul w/ 11256 & 16787-99A | FLSTFSE | |
| 15 | 18048-98A | SEAT, exhaust valve (2) | FLSTFSE |
| 16 | 18049-98A | SEAT, intake valve (2) | FLSTFSE |
| 18 | 18270-00A | COLLAR, lower, valve spring (4) | FLSTFSE |
| 21 | 18154-05 | GUIDE, intake-valve, 0.001 O.S. (2) | FLSTFSE |
| 18156-05 | GUIDE, intake-valve, 0.002 O.S. (2) | FLSTFSE | |
| 18158-05 | GUIDE, intake-valve, 0.003 O.S. (2) | FLSTFSE | |
| 22 | 18153-05 | GUIDE, exhaust-valve, 0.001 O.S. (2) | FLSTFSE |
| 18155-05 | GUIDE, exhaust-valve, 0.002 O.S. (2) | FLSTFSE | |
| 18157-05 | GUIDE, exhaust-valve, 0.003 O.S. (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 11132A | O-RING, push rod cover (4) | FLSTFSE |
| 9 | 11145A | O-RING, push rod cover (4) | FLSTFSE |
| 12 | 16719-99B | GASKET, rocker housing (2) | FLSTFSE |
| 13 | 17045-99D | GASKET KIT, cam service | FLSTFSE |
| 17 | 17386-99A | GASKET, rocker cover (2) | FLSTFSE |
| 18 | 17429-91 | BUSHING, rocker arm (8) | FLSTFSE |
| 20 | 17573-99A | ROCKER HOUSING (chrome) (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 23727-07A | FLYWHEEL ASSEMBLY, w/ 11177A, thrust washer, plugs, inner race, connecting rods, flywheels, bearings, crankpin & ring | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 24605-07 | BEARING, main, right side of crankshaft (2) | FLSTFSE |
| 19 | 63798-99A | OIL FILTER (chrome) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 16583-00A | DOWEL (4) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 17045-99D | GASKET KIT, cam service | FLSTFSE |
| 20 | 25369-01B | CAM COVER, chrome | FLSTFSE |
| 24 | 25716-99 | SPROCKET, cam drive, 34-tooth | FLSTFSE |
| 30 | 26400-82B | RELIEF VALVE, oil pump | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 27609-01B | INJECTOR, fuel (2) | FLSTFSE |
| 11 | 27628-01A | IDLE KIT, air control w/ 2 screws, O-ring & idle control | FLSTFSE |
| 12 | 27629-01A | THROTTLE KIT, position sensor w/ 2 screws & sensor throttle | FLSTFSE |
| 15 | 32416-10 | SENSOR, manifold w/ 11291 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 29127-95B | WARNING LABEL (Domestic, California) | FLSTFSE |
| 6 | 29442-99E | ELEMENT, filter | FLSTFSE |
| 9 | 29478-05A | BACKPLATE, air cleaner | FLSTFSE |
| 12 | 29583-01A | GASKET, backplate | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 29121-01 | COVER, air cleaner | FLSTFSE |
| 11 | 29582-01B | BACKPLATE ASSEMBLY, air cleaner | FLSTFSE |
| 12 | 29583-01A | GASKET, induction module to backplate | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2720 | SCREW (4) | FLSTFSE |
| 7 | 30017-01B | STATOR | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 32534-05C | ELECTRONIC CONTROL MODULE, base level (Note: Requires digital tech programming.) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 32707-01C | SENSOR, crankshaft position, w/ O-ring, terminal pins & pin housing | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 10957 | O-RING | FLSTFSE |
| 17 | 31516-94A | CLUTCH ASSEMBLY, starter w/ 8879, 10957, 31600-90, 31664-94 & 31692-90 | FLSTFSE |
| 18 | 31518-90 | BRUSH HOLDER ASSEMBLY | FLSTFSE |
| 23 | 31604-91A | REPAIR KIT, starter solenoid | FLSTFSE |
| 24 | 31612-09 | JACKSHAFT KIT, starter | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 34979-00 | SHIFT LEVER SLEEVE (not illustrated) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 3699D | SCREW (4) | FLSTFSE |
| 20 | 11132A | O-RING, filler plug | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 32 | 35087-99A | RETAINING RING, bearing (2) | FLSTFSE |
| 45 | 60328-98B | DRAIN PLUG, w/ O-ring | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 35051-89A | BEARING, needle (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 36731-91 | PLATE, release w/ 8885 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 11147B | O-RING, housing cover | FLSTFSE |
| 14 | 12066A | OIL SEAL | FLSTFSE |
| 15 | 25504-04 | COVER KIT, clutch | FLSTFSE |
| 23 | 60543-99B | COVER ASSEMBLY, primary (chrome) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 45078-96D | KIT-COVER, reservoir (chrome) | FLSTFSE |
| 13 | 45282-99A | CLAMP, master-cylinder (chrome) | FLSTFSE |
| 15 | 46115-02A | LEVER ASSEMBLY, hand w/ 45423-92 & 46246-01 (chrome) | FLSTFSE |
| 16 | 46113-02A | RESERVOIR, master cylinder w/ 46244-01 (chrome) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 44728-05A | MASTER CYLINDER, front, w/ hand lever (9/16 inch bore) | FLSTFSE |
| 17 | 45078-96D | KIT-COVER, reservoir | FLSTFSE |
| 18 | 45282-99A | CLAMP, handlebar control | FLSTFSE |
| 20 | 46378-05 | BRAKE LINE, front, braided | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 44082-00D | PAD KIT, brake | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 44821-00A | KIT, brake disc (5) | FLSTFSE |
| 17 | 95595-84A | WEIGHT, 1/4 oz., cast wheels (silver) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 40922-87A | BOOT, push rod | FLSTFSE |
| 17 | 41754-00D | MASTER CYLINDER ASSEMBLY | FLSTFSE |
| 21 | 42455-99 | GASKET, master cylinder reservoir | FLSTFSE |
| 26 | 44837-05A | COVER, brake lever | FLSTFSE |
| 27 | 45149-99C | COVER KIT, reservoir, w/ 2573, cover, gasket & sight glass | FLSTFSE |
| 30 | 72023-51D | STOPLAMP SWITCH, rear | FLSTFSE |
| 31 | 72476-05 | BRACKET KIT, engine harness/brake line, w/ 70385-01 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 44082-00D | PAD KIT, brake | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 41614-03 | SPACER, wheel, left (chrome) | FLSTFSE |
| 19 | 44500-03B | COVER, axle nut, right (chrome) | FLSTFSE |
| 24 | 44822-00A | BRAKE DISC KIT, rear (5) | FLSTFSE |
| 27 | 95595-84A | WEIGHT, wheel 1/4 oz. | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 44503-03 | FORK NUT CAP (chrome) (2) | FLSTFSE |
| 21 | 45456-86B | BRACKET, upper | FLSTFSE |
| 22 | 45605-00A | STEM & BRACKET ASSEMBLY, includes lower bearing cone | FLSTFSE |
| 24 | 45670-80A | CAP, fork stem | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 41 | 46205-00 | COVER, slider (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 21 | 46288-04A | PROTECTOR, steering head (2) | FLSTFSE |
| 31 | 57101-01 | FAIRING, chin (chrome) | FLSTFSE |
| 37 | 71450-04 | LOCKSET | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 4074A | BOLT (2) | FLSTFSE |
| 20 | 48048-00A | BUSHING, rear fork (2) | FLSTFSE |
| 21 | 48049-00A | SPACER, rear fork (2) | FLSTFSE |
| 27 | 56182-00 | BUSHING (2) | FLSTFSE |
| 29 | 60363-00B | SPLASH GUARD | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 54155-09 | FOOTBOARD ASSEMBLY, right | FLSTFSE |
| 14 | 54156-09 | FOOTBOARD ASSEMBLY, left | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 45323-01 | WASHER (4) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 59555-05A | BRACKET, fender mounting, rear (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 59982-89A | BRACKET, support, license plate | FLSTFSE |
| 7 | 59983-75T | BRACKET ASSEMBLY, license plate | FLSTFSE |
| 8 | 59988-72A | REFLECTOR | FLSTFSE |
| 9 | 59997-89A | BRACKET, license plate | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 5818A | BUSHING, front tank mount (2) | FLSTFSE |
| 24 | 61272-92C | CAP, fuel filler, right | FLSTFSE |
| 30 | 62900-01D | FUEL LINE, from tank to intake | FLSTFSE |
| 32 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet long) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 61192-96A | GASKET, fuel gauge | FLSTFSE |
| 25 | 75300-05 | FUEL LEVEL SENDER KIT, w/ harness | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 60348-65B | DRAIN PLUG KIT, w/ O-ring | FLSTFSE |
| 20 | 63553-00B | HOSE, oil tank drain | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 52425-98 | BULB, replacement | FLSTFSE |
| 9 | 67201-04A | TACHOMETER ASSEMBLY (metal face) | FLSTFSE |
| 10 | 67223-00A | SEAL, speedometer | FLSTFSE |
| 11 | 67313-05A | SPEEDOMETER (mph) | FLSTFSE |
| 16 | 68112-99A | BEZEL, indicator light | FLSTFSE |
| 17 | 68113-99B | HOUSING ASSEMBLY, idicator light | FLSTFSE |
| 25 | 71450-04 | LOCKSET, complete w/ keys, ignition switch and fork lock | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 65148-00A | SHIELD, front exhaust | FLSTFSE |
| 15 | 65296-95A | CLAMP, muffler (2) | FLSTFSE |
| 16 | 65324-83B | GASKET, exhaust port (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FLSTFSE |
| 2 | 15368-01A | WARNING LABEL | FLSTFSE |
| 3 | 65989-97C | BATTERY, sealed, includes terminal bolts | FLSTFSE |
| 6 | 70078-00B | CABLE ASSEMBLY, battery positive w/ 70584-94 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 68050-93A | RETAINING RING | FLSTFSE |
| 11 | 68051-93A | TRIM RING (chrome) | FLSTFSE |
| 16 | 69748-05B | HEADLAMP SHELL ASSEMBLY, w/ 9847, 9848, 72056-92, 72249-94, 73154-96BK, 73191-96, 73190-96 & 73102-96BK (Domestic) | FLSTFSE |
| 25 | 68344-05 | LIGHT ASSEMBLY, L.H. dip w/ 68380-05, 68329-03, 68653-05 & 53436-97 (HDI) | FLSTFSE |
| 68345-05 | LIGHT ASSEMBLY, R. H. dip w/ 68380-05, 68329-03, 68653-05 & 53436-97 (HDI) | FLSTFSE | |
| 28 | 69750-05B | HEADLAMP SHELL ASSEMBLY, w/ 9847, 9848, 72056-92, 73154-96BK & 73191-96 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 7720 | ACORN NUT (2) | FLSTFSE |
| 16 | 68973-00 | LENS (HDI) (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 68818-03A | HARNESS, rear lamps w/ 10115, 73156-96BK, 73158-96BK & 73191-96 | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 69060-90F | HORN ASSEMBLY | FLSTFSE |
| 10 | 69123-92A | MOUNT, horn (rubber) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 31511-01B | RELAY, black | FLSTFSE |
| 6 | 31522-00C | RELAY | FLSTFSE |
| 9 | 70974-00B | SHIELD, loom | FLSTFSE |
| 14 | 72106-94BK | RECEPTACLE, 6-way pin (black) | FLSTFSE |
| 23 | 72164-94A | PLUG, 4-way connector | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 44 | 72327-03A | HOUSING, female, 3-way | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 71621-08 | STOPLAMP SWITCH, front w/ 10181 & 72266-94 | FLSTFSE |
| 8 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn w/ 10181 & 72266-94 | FLSTFSE |
| 9 | 71683-06A | SWITCH ASSEMBLY, right turn signal w/ 10181 & 72266-94 | FLSTFSE |
| 10 | 71684-06A | SWITCH ASSEMBLY, engine stop/start w/ 10181 & 72266-94 | FLSTFSE |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal w/ 10181 & 72266-94 | FLSTFSE |
| 13 | 71720-03A | HOUSING, lower - left (chrome) | FLSTFSE |
| 14 | 72116-94BK | SOCKET HOUSING, 6-way socket, right (black) (2) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 31522-00C | RELAY | FLSTFSE |
| 17 | 68921-01D | MODULE, turn signal canceller | FLSTFSE |
| 68923-00D | MODULE, security system | FLSTFSE | |
| 31 | 72023-51D | STOPLAMP SWITCH, rear | FLSTFSE |
| 32 | 69309-10 | BATTERY REPLACEMENT KIT, siren | FLSTFSE |
| 33 | 68921-01D | MODULE, turn signal canceller | FLSTFSE |
| 68925-00D | MODULE, security system & turn signal canceller (HDI) | FLSTFSE | |
| 35 | 68958-07C | SIREN (for siren vehicles) (HDI) | FLSTFSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 7720 | ACORN NUT (2) | FLSTFSE |
| 5 | 91840-03B | MIRROR ASSEMBLY, right (HDI) | FLSTFSE |
| 91845-03B | MIRROR ASSEMBLY, left (HDI) | FLSTFSE |
| Part No. | Description |
| 10006 | |
| 10031 | |
| 10038A | |
| 10065 | |
| 10073 | |
| 10074 | |
| 10080 | |
| 10102 | |
| 10108 | |
| 10115 | |
| 10149 | |
| 10177 | |
| 10181 | |
| 10183 | |
| 10193 | |
| 10208 | |
| 10216 | |
| 10222 | |
| 10224 | |
| 10226 | |
| 1039 | |
| 10957 | |
| 11031 | |
| 11067 | |
| 11085 | |
| 11105 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11147B | |
| 11150 | |
| 11155 | |
| 11157 | |
| 11161 | |
| 11165 | |
| 11177A | |
| 11182 | |
| 11191 | |
| 11248 | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11278 | |
| 11282 | |
| 11286 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11292 | |
| 11293 | |
| 11298 | |
| 11301 | |
| 11319A | |
| 11321 | |
| 11323 | |
| 11324 | |
| 11326 | |
| 11342 | |
| 11348 | |
| 11351 | |
| 11364 | |
| 11380 | |
| 11402 | |
| 11403A | |
| 11413 | |
| 11447 | |
| 11494 | |
| 11514 | |
| 11529 | |
| 11533 | |
| 12035B | |
| 12045 | |
| 12052A | |
| 12066A | |
| 12067B | |
| 12068 | |
| 1311D | |
| 1314 | |
| 1327 | |
| 13885-04 | |
| 14697-05 | |
| 14716-00 | |
| 14717-00 | |
| 14728-00 | |
| 14761-00 | |
| 14762-00 | |
| 14764-00 | |
| 14780-00 | |
| 14781-00 | |
| 14782-00 | |
| 14783-00 | |
| 14784-00 | |
| 14785-00 | |
| 14786-00 | |
| 14787-00 | |
| 14788-00 | |
| 14822-05 | |
| 14823-05 | |
| 15368-01A | |
| 16247-00 | |
| 16478-85A | |
| 16480-92A | |
| 16548-99 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16715-83 | |
| 16719-99B | |
| 16787-99A | |
| 16834-99A | |
| 16961-03A | |
| 16967-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17162-03 | |
| 17360-83A | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 17650-02 | |
| 1783C | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18044-98 | |
| 18045-98 | |
| 18046-98 | |
| 18048-98A | |
| 18049-98A | |
| 18153-05 | |
| 18154-05 | |
| 18155-05 | |
| 18156-05 | |
| 18157-05 | |
| 18158-05 | |
| 18269-00 | |
| 18270-00A | |
| 18271-00 | |
| 18272-00 | |
| 18535-99 | |
| 18538-99B | |
| 18635-99B | |
| 19296-05B | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 22097-99 | |
| 22131-05 | |
| 22307-99 | |
| 22505-05 | |
| 22506-05 | |
| 22507-05 | |
| 23727-07A | |
| 24039-03 | |
| 24603-00 | |
| 24605-07 | |
| 24619-00A | |
| 24983-00 | |
| 2501A | |
| 2523 | |
| 25244-99A | |
| 25267-99B | |
| 25344-99 | |
| 25369-01B | |
| 25376-03 | |
| 25416-99C | |
| 25504-04 | |
| 25533-99A | |
| 25607-99 | |
| 25609-99 | |
| 25610-99 | |
| 25716-99 | |
| 25717-00 | |
| 25719-00 | |
| 25721-00 | |
| 25722-00 | |
| 25723-00 | |
| 25725-00 | |
| 2573 | |
| 25938-00 | |
| 26035-99B | |
| 26210-99 | |
| 26248-00 | |
| 26255-00 | |
| 26352-95A | |
| 26400-82B | |
| 26432-76A | |
| 26464-99 | |
| 26561-99 | |
| 26858-99 | |
| 26995-86B | |
| 27009-86A | |
| 27010-86A | |
| 27016-00 | |
| 27042-84A | |
| 27072-00 | |
| 27138-90 | |
| 2720 | |
| 27249-96 | |
| 27270-95 | |
| 27293-00 | |
| 27328-00 | |
| 27408-01 | |
| 27600-01A | |
| 27603-01 | |
| 27604-01A | |
| 27608-01A | |
| 27609-01B | |
| 27612-01 | |
| 27628-01A | |
| 27629-01A | |
| 27630-01 | |
| 27635-01A | |
| 27667-04 | |
| 2773 | |
| 28828-00 | |
| 2882W | |
| 28838-00 | |
| 28839-00 | |
| 2887WA | |
| 29121-01 | |
| 29127-95B | |
| 29140-05 | |
| 29157-05 | |
| 29269-83A | |
| 29312-95 | |
| 29313-95 | |
| 29327-94 | |
| 2941 | |
| 29442-99E | |
| 29447-99A | |
| 29461-99 | |
| 29465-99 | |
| 29474-99A | |
| 29476-99 | |
| 29478-05A | |
| 29479-05 | |
| 2955 | |
| 29557-05 | |
| 29582-01B | |
| 29583-01A | |
| 29584-01 | |
| 29614-03 | |
| 2980 | |
| 29923-01A | |
| 29981-95 | |
| 30017-01B | |
| 3007 | |
| 3017 | |
| 3022A | |
| 31335-03A | |
| 31342-94 | |
| 31430-94 | |
| 31511-01B | |
| 31516-94A | |
| 31518-90 | |
| 31522-00C | |
| 31525-90 | |
| 31530-90 | |
| 31548-90 | |
| 31600-90 | |
| 31604-91A | |
| 31612-09 | |
| 31660-90 | |
| 31662-90 | |
| 31664-94 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31741-00 | |
| 31742-00 | |
| 31743-01 | |
| 31772-01 | |
| 31783-00 | |
| 31981-99C | |
| 31983-00C | |
| 3210A | |
| 3229 | |
| 32317-86A | |
| 3231B | |
| 3233 | |
| 32416-10 | |
| 32446-99 | |
| 3249 | |
| 32534-05C | |
| 32574-03 | |
| 32707-01C | |
| 3275 | |
| 3290 | |
| 3300 | |
| 33054-05 | |
| 33126-94 | |
| 33127-94 | |
| 33301-00A | |
| 33304-00 | |
| 33318-85 | |
| 33344-94 | |
| 33364-00A | |
| 33374-00 | |
| 33375-00A | |
| 33376-00 | |
| 33383-02 | |
| 33445-94A | |
| 33446-94A | |
| 33449-94 | |
| 33525-00 | |
| 33531-00 | |
| 33660-90B | |
| 33670-03A | |
| 33688-03A | |
| 337 | |
| 33708-94 | |
| 33742-05 | |
| 33807-05 | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33904-00A | |
| 3391 | |
| 3403 | |
| 34064-00C | |
| 3407 | |
| 34088-87A | |
| 34091-85A | |
| 34191-79E | |
| 34193-79E | |
| 34195-79E | |
| 34541-00 | |
| 34601-02 | |
| 3471 | |
| 34774-00A | |
| 3480A | |
| 3485A | |
| 34904-86D | |
| 34972-02B | |
| 34977-02A | |
| 34978-00A | |
| 34979-00 | |
| 35025-79B | |
| 35026-94 | |
| 35027-94 | |
| 35028-94 | |
| 35029-94 | |
| 35042-91 | |
| 35051-89A | |
| 35060-00 | |
| 35064-79 | |
| 35076-79 | |
| 35078-79 | |
| 35087-99A | |
| 35114-02 | |
| 35211-91B | |
| 35251-93C | |
| 3533 | |
| 3538 | |
| 35622-79C | |
| 35625-94 | |
| 35626-94 | |
| 35629-79 | |
| 3563 | |
| 35632-79 | |
| 35653-98A | |
| 3574 | |
| 3588 | |
| 3594 | |
| 3601 | |
| 3602A | |
| 3615 | |
| 3624 | |
| 3655A | |
| 36731-91 | |
| 36801-87C | |
| 36818-03 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37075-87 | |
| 37121-03A | |
| 3736A | |
| 3737A | |
| 3739 | |
| 3746A | |
| 37496-90 | |
| 375 | |
| 37550-98 | |
| 37707-98A | |
| 37806-03 | |
| 37807-03 | |
| 3784 | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 37963-02 | |
| 38653-01 | |
| 38696-04 | |
| 38718-04 | |
| 38758-05 | |
| 3892 | |
| 3909 | |
| 3953W | |
| 3987 | |
| 39954-99A | |
| 39964-99A | |
| 39965-99 | |
| 39976-01 | |
| 39990-01 | |
| 39998-65A | |
| 40007-36B | |
| 40210-85D | |
| 40250-94C | |
| 40251-92A | |
| 40266-85 | |
| 40299-83A | |
| 40307-00 | |
| 40308-94 | |
| 40323-00 | |
| 40384-91 | |
| 40392-91 | |
| 4074A | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 41110-79A | |
| 41110-89 | |
| 41148-98 | |
| 41312-04 | |
| 41313-04 | |
| 41584-86A | |
| 41613-03 | |
| 41614-03 | |
| 4168 | |
| 41713-86 | |
| 41731-01 | |
| 41733-88 | |
| 41739-84A | |
| 41747-82A | |
| 41754-00D | |
| 4180 | |
| 4190 | |
| 4192 | |
| 4195 | |
| 41957-97A | |
| 4197 | |
| 4206 | |
| 4216 | |
| 4217 | |
| 4232 | |
| 42382-87C | |
| 42454-99A | |
| 42455-99 | |
| 42460-80B | |
| 42533-91A | |
| 42534-82 | |
| 42644-00 | |
| 42653-05 | |
| 4266A | |
| 4267 | |
| 4292 | |
| 4293 | |
| 4311 | |
| 4312C | |
| 4313 | |
| 43157-83A | |
| 4326A | |
| 4350A | |
| 43567-92 | |
| 4358A | |
| 43608-00 | |
| 43817-02 | |
| 43823-01 | |
| 4387 | |
| 43899-86A | |
| 43991-04B | |
| 44048-83 | |
| 4407 | |
| 44082-00D | |
| 4411 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44313-01 | |
| 44314-00 | |
| 44315-00 | |
| 44337-00B | |
| 44351-00 | |
| 44380-99B | |
| 44381-99C | |
| 44447-00 | |
| 44477-99 | |
| 44500-03B | |
| 44501-03 | |
| 44502-03 | |
| 44503-03 | |
| 44504-03 | |
| 44509-03 | |
| 44510-03 | |
| 44511-03 | |
| 4453 | |
| 44600-05 | |
| 44602-05 | |
| 44613-02 | |
| 44728-05A | |
| 44821-00A | |
| 44822-00A | |
| 44837-05A | |
| 44841-05 | |
| 45006-96C | |
| 45032-82 | |
| 45076-96 | |
| 45078-96D | |
| 45149-99C | |
| 45282-99A | |
| 45300-04 | |
| 45303-98 | |
| 45323-01 | |
| 45359-00 | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45423-96 | |
| 45456-86B | |
| 45468-00 | |
| 45550-03 | |
| 45605-00A | |
| 45611-86 | |
| 45670-80A | |
| 45680-90 | |
| 45733-48 | |
| 45764-00 | |
| 45803-97 | |
| 45806-00 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45930-00 | |
| 45931-00 | |
| 45932-00 | |
| 45933-86 | |
| 45940-84 | |
| 45998-73 | |
| 46113-02A | |
| 46115-02A | |
| 46205-00 | |
| 46244-01 | |
| 46246-01 | |
| 46288-04A | |
| 46310-05 | |
| 46312-05 | |
| 46378-05 | |
| 46483-00 | |
| 46484-00 | |
| 46624-03 | |
| 47173-05BGO | |
| 47173-05BKO | |
| 47173-05BSL | |
| 4717A | |
| 4719W | |
| 4722 | |
| 4729 | |
| 4740A | |
| 4741A | |
| 47574-05BGO | |
| 47574-05BKO | |
| 47574-05BSL | |
| 47610-00 | |
| 47627-03 | |
| 4763 | |
| 47633-03 | |
| 4775 | |
| 48048-00A | |
| 48049-00A | |
| 48052-00A | |
| 48054-00 | |
| 48069-04BKO | |
| 48069-05BGO | |
| 48069-05BSL | |
| 48070-04BKO | |
| 48070-05BGO | |
| 48070-05BSL | |
| 48071-04BKO | |
| 48071-05BGO | |
| 48071-05BSL | |
| 48072-04BKO | |
| 48072-05BGO | |
| 48072-05BSL | |
| 48093-00 | |
| 48094-00 | |
| 4814A | |
| 4820A | |
| 48300-60 | |
| 48315-60 | |
| 48361-80 | |
| 48365-48A | |
| 48895-04BKO | |
| 49318-03 | |
| 49319-03 | |
| 50005-85A | |
| 50015-74A | |
| 50087-89B | |
| 50362-05 | |
| 50617-05 | |
| 50624-05 | |
| 50674-05 | |
| 50733-05 | |
| 50736-05 | |
| 508 | |
| 50972-75 | |
| 50991-86 | |
| 515 | |
| 51827-05 | |
| 52279-05 | |
| 5228 | |
| 52425-98 | |
| 52853-05 | |
| 52854-05 | |
| 52855-05 | |
| 52943-05 | |
| 53156-86 | |
| 53436-97 | |
| 5403B | |
| 54155-09 | |
| 54156-09 | |
| 5416 | |
| 5419 | |
| 54321-85 | |
| 54549-04 | |
| 56020-98A | |
| 56023-98A | |
| 56076-97 | |
| 56153-73 | |
| 56159-73 | |
| 56182-00 | |
| 56183-00 | |
| 56193-98 | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56499-05 | |
| 56508-76 | |
| 56509-05 | |
| 56516-05 | |
| 56772-05 | |
| 56773-05 | |
| 56774-05 | |
| 56787-05 | |
| 57041-01A | |
| 57043-01 | |
| 57101-01 | |
| 57217-02 | |
| 5756 | |
| 5775 | |
| 5818A | |
| 5826 | |
| 58445-00 | |
| 59050-03 | |
| 59287-92 | |
| 59288-92 | |
| 59345-03 | |
| 59481-00 | |
| 59482-00 | |
| 59555-05A | |
| 59587-05 | |
| 59595-05BRX | |
| 59595-05BRY | |
| 59595-05BSA | |
| 59631-05BRX | |
| 59631-05BRY | |
| 59631-05BSA | |
| 59768-97 | |
| 5977 | |
| 59982-89A | |
| 59983-75T | |
| 59988-72A | |
| 59997-89A | |
| 60003-89 | |
| 6003 | |
| 601 | |
| 60117-05 | |
| 60118-05 | |
| 6016 | |
| 6019 | |
| 60328-98B | |
| 60348-65B | |
| 60363-00B | |
| 60391-04 | |
| 60393-03 | |
| 60533-00A | |
| 60539-94B | |
| 60543-99B | |
| 60567-90C | |
| 60572-86 | |
| 60586-99A | |
| 60647-94 | |
| 60678-85 | |
| 609 | |
| 6099 | |
| 61001-01 | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61171-05 | |
| 61192-96A | |
| 61209-01A | |
| 61231-01 | |
| 61272-92C | |
| 61381-02 | |
| 6139 | |
| 6150W | |
| 61583-02 | |
| 61960-04 | |
| 61961-00 | |
| 62123-66 | |
| 62150-85 | |
| 62163-04 | |
| 62165-01 | |
| 62188-04 | |
| 62189-01A | |
| 62208-05BRX | |
| 62208-05BRY | |
| 62208-05BSA | |
| 62357-00 | |
| 6237 | |
| 62373-01 | |
| 62375-57A | |
| 62498-00A | |
| 62555-95 | |
| 62769-00 | |
| 62845-00A | |
| 62880-00 | |
| 62881-00 | |
| 62897-01B | |
| 62900-01D | |
| 6294 | |
| 6333 | |
| 634 | |
| 63521-95A | |
| 63553-00B | |
| 63601-00 | |
| 63611-00 | |
| 63628-00 | |
| 63632-00 | |
| 63783-00 | |
| 63798-99A | |
| 6379W | |
| 63815-99 | |
| 63859-95B | |
| 6400HB | |
| 6441 | |
| 6497HW | |
| 65093-04BKO | |
| 65093-05BGO | |
| 65093-05BSL | |
| 65148-00A | |
| 6516HW | |
| 65184-02 | |
| 65296-95A | |
| 6530 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 6534 | |
| 6535 | |
| 65445-00 | |
| 65463-00 | |
| 65464-00 | |
| 65476-05 | |
| 65499-00A | |
| 65503-00A | |
| 65652-97A | |
| 65654-97 | |
| 65734-95 | |
| 65830-03 | |
| 6590HW | |
| 65926-00 | |
| 65939-04 | |
| 65950-04 | |
| 65954-05 | |
| 65956-05 | |
| 65964-05 | |
| 65969-05 | |
| 65989-97C | |
| 66210-00 | |
| 66211-01 | |
| 6655 | |
| 6701 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 6716 | |
| 67201-04A | |
| 67223-00A | |
| 6724 | |
| 67313-05A | |
| 67315-05 | |
| 67316-03A | |
| 67355-04 | |
| 67488-04 | |
| 6762B | |
| 6771A | |
| 67768-97 | |
| 67821-87 | |
| 67822-88 | |
| 67880-94 | |
| 67887-91A | |
| 67888-91A | |
| 67889-91A | |
| 67891-99 | |
| 67925-04 | |
| 67952-96 | |
| 67956-96 | |
| 68026-99 | |
| 68042-99 | |
| 68050-93A | |
| 68051-93A | |
| 68052-93 | |
| 68066-99A | |
| 68112-99A | |
| 68113-99B | |
| 68120-00 | |
| 68140-04 | |
| 68141-04 | |
| 68163-84 | |
| 68167-04 | |
| 68170-05 | |
| 68296-99A | |
| 68329-03 | |
| 68342-05 | |
| 68344-05 | |
| 68345-05 | |
| 68369-03 | |
| 68370-03A | |
| 68372-03 | |
| 68380-05 | |
| 68390-05 | |
| 68446-00 | |
| 68480-02 | |
| 6852 | |
| 68614-03 | |
| 68653-05 | |
| 68818-03A | |
| 68830-99A | |
| 68904-00 | |
| 68905-00 | |
| 68921-01D | |
| 68923-00D | |
| 68925-00D | |
| 68926-00 | |
| 68927-00 | |
| 68958-07C | |
| 68973-00 | |
| 68975-00 | |
| 68978-00 | |
| 69012-93A | |
| 69046-01 | |
| 69060-90F | |
| 69062-91A | |
| 69074-04A | |
| 69120-91 | |
| 69123-92A | |
| 69187-03A | |
| 69196-03 | |
| 69309-10 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69748-05B | |
| 69750-05B | |
| 70048-03 | |
| 70060-92B | |
| 70078-00B | |
| 70197-86 | |
| 70354-03 | |
| 7038 | |
| 70385-01 | |
| 7039 | |
| 7041 | |
| 70431-04A | |
| 70514-01 | |
| 70584-94 | |
| 70598-99 | |
| 7068 | |
| 70974-00B | |
| 71006-05 | |
| 71031-04 | |
| 71259-05 | |
| 71261-05 | |
| 71262-05 | |
| 7127 | |
| 7129 | |
| 7130W | |
| 71313-96A | |
| 71450-04 | |
| 71452-91A | |
| 71614-96 | |
| 71615-96 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71719-03 | |
| 71720-03A | |
| 71757-05 | |
| 72023-51D | |
| 72033-93 | |
| 72056-92 | |
| 72076-00 | |
| 72077-00 | |
| 72100-04 | |
| 72106-94BK | |
| 72113-94BK | |
| 72116-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72139-94GY | |
| 72143-94 | |
| 72144-94 | |
| 72146-94 | |
| 72153-94 | |
| 72156-94 | |
| 72159-94 | |
| 72163-94BK | |
| 72164-94A | |
| 72176-94 | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72242-94 | |
| 72244-95 | |
| 72245-95 | |
| 72247-95 | |
| 72249-94 | |
| 72254-94 | |
| 72263-95 | |
| 72266-94 | |
| 72273-95 | |
| 72280-95 | |
| 72289-04 | |
| 72290-94 | |
| 72291-94 | |
| 72292-94 | |
| 72295-94 | |
| 72327-03A | |
| 72330-95 | |
| 72366-95 | |
| 72369-00 | |
| 72374-00 | |
| 72380-04 | |
| 72428-00 | |
| 72430-00 | |
| 72432-00 | |
| 72434-00 | |
| 72456-01 | |
| 72476-05 | |
| 72604-01BK | |
| 72614-01BK | |
| 72644-01 | |
| 72654-01 | |
| 72690-01 | |
| 72691-01 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 73102-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 73202-04 | |
| 74108-98BK | |
| 74112-98BK | |
| 74113-98BK | |
| 74118-98BK | |
| 74148-98 | |
| 74152-98 | |
| 74153-98 | |
| 74158-98 | |
| 74190-98 | |
| 74191-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 74430-00D | |
| 74599-77B | |
| 74610-01 | |
| 7479 | |
| 7481 | |
| 7495 | |
| 75053-01B | |
| 7507 | |
| 75132-01D | |
| 75300-05 | |
| 7531 | |
| 7549A | |
| 7593 | |
| 7601 | |
| 7629 | |
| 765 | |
| 7669 | |
| 7686 | |
| 7716 | |
| 7720 | |
| 7744 | |
| 7748W | |
| 7778 | |
| 7783 | |
| 7792 | |
| 7800W | |
| 7862 | |
| 7879 | |
| 7899A | |
| 7904 | |
| 7951 | |
| 7956 | |
| 7964 | |
| 7965 | |
| 7974 | |
| 7987 | |
| 8102 | |
| 8108 | |
| 8483A | |
| 856A | |
| 858A | |
| 8871 | |
| 8876A | |
| 8879 | |
| 8883 | |
| 8885 | |
| 895 | |
| 8960 | |
| 8961 | |
| 8962 | |
| 8972 | |
| 8977 | |
| 8983 | |
| 8986 | |
| 8989 | |
| 8990A | |
| 8992A | |
| 8996A | |
| 90357-89 | |
| 90383-98 | |
| 90469-94 | |
| 9077 | |
| 9135 | |
| 91625-04 | |
| 91840-03B | |
| 91845-03B | |
| 91949-05 | |
| 9198 | |
| 91987-05 | |
| 9267 | |
| 9270A | |
| 928 | |
| 929A | |
| 939 | |
| 940 | |
| 941 | |
| 945 | |
| 946 | |
| 95595-84A | |
| 956 | |
| 961 | |
| 9837 | |
| 9840 | |
| 9841 | |
| 9842 | |
| 9843 | |
| 9847 | |
| 9848 | |
| 9856 | |
| 9937 | |
| 9955 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7956 | Unknown |
| 33889-99 | 1999 |
| 7951 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7778 | Unknown |
| 37496-90 | 1990 |
| 7862 | Unknown |
| 7479 | 2000 |
| 7904 | 1998 |
| 7748W | Unknown |
| 3403 | Unknown |
| 35078-79 | 1979 |
| 7987 | Unknown |
| 7495 | 1994 |
| 7879 | 2000 |
| 7964 | Unknown |
| 7965 | Unknown |
| 7974 | Unknown |
| 7481 | Unknown |
| 43899-86A | 1986 |
| 8108 | Unknown |
| 40392-91 | 1991 |
| 7744 | 1943 |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 45764-00 | 2000 |
| 102A1 - Generic Screws | |
| 3533 | Unknown |
| 4266A | Unknown |
| 4206 | Unknown |
| 4763 | Unknown |
| 3017 | 2000 |
| 68052-93 | 1993 |
| 4180 | Unknown |
| 3987 | Unknown |
| 2573 | Unknown |
| 44613-02 | 2002 |
| 4217 | 1999 |
| 68026-99 | 1999 |
| 1314 | Unknown |
| 4216 | 1999 |
| 4741A | 1994 |
| 3655A | Unknown |
| 5419 | 2000 |
| 3692A | Unknown |
| 5416 | Unknown |
| 3249 | Unknown |
| 2955 | 1996 |
| 3953W | 2009 |
| 3485A | Unknown |
| 1327 | 2005 |
| 3022A | Unknown |
| 4311 | Unknown |
| 44177-00 | 2000 |
| 43567-92 | 1992 |
| 43991-04B | 2004 |
| 4313 | Unknown |
| 941 | Unknown |
| 2941 | Unknown |
| 4350A | Unknown |
| 4232 | Unknown |
| 940 | Unknown |
| 2980 | Unknown |
| 3275 | 2002 |
| 1311D | 2001 |
| 3693A | Unknown |
| 3615 | Unknown |
| 895 | Unknown |
| 4326A | 1990 |
| 2773 | Unknown |
| 4740A | 1994 |
| 45405-75A | 1975 |
| 956 | Unknown |
| 43817-02 | 2002 |
| 939 | 1991 |
| 3601 | Unknown |
| 3407 | Unknown |
| 4729 | Unknown |
| 68120-00 | 2000 |
| 4407 | Unknown |
| 2887WA | Unknown |
| 4722 | 2009 |
| 3594 | 1992 |
| 45838-77 | 1977 |
| 928 | Unknown |
| 4292 | Unknown |
| 4293 | Unknown |
| 68042-99 | 1999 |
| 3746A | 2004 |
| 1039 | Unknown |
| 3699D | 2006 |
| 33376-00 | 2000 |
| 4719W | 2009 |
| 3229 | Unknown |
| 3300 | Unknown |
| 4411 | 2009 |
| 2720 | 2012 |
| 4267 | Unknown |
| 42534-82 | 1982 |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 4387 | 2018 |
| 3563 | 1999 |
| 2882W | 2009 |
| 929A | Unknown |
| 3909 | Unknown |
| 2501A | Unknown |
| 29269-83A | 1983 |
| 3210A | Unknown |
| 3233 | Unknown |
| 3602A | Unknown |
| 4820A | Unknown |
| 3231B | Unknown |
| 56402-83A | 1983 |
| 3391 | Unknown |
| 4358A | Unknown |
| 3480A | Unknown |
| 3739 | Unknown |
| 4717A | Unknown |
| 3574 | Unknown |
| 945 | Unknown |
| 946 | Unknown |
| 3784 | Unknown |
| 4312C | Unknown |
| 961 | Unknown |
| 3007 | Unknown |
| 48093-00 | 2000 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 29327-94 | 1994 |
| 3624 | 1999 |
| 3737A | Unknown |
| 56397-74C | 1974 |
| 67956-96 | 1996 |
| 4168 | 2000 |
| 5403B | Unknown |
| 3736A | 2005 |
| 4195 | Unknown |
| 4197 | Unknown |
| 4453 | 1986 |
| 3892 | Unknown |
| 4190 | Unknown |
| 4192 | 1998 |
| 4775 | 2000 |
| 43823-01 | 2001 |
| 858A | Unknown |
| 16480-92A | 1992 |
| 4814A | Unknown |
| 3538 | Unknown |
| 3471 | 2009 |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6441 | Unknown |
| 6016 | 2013 |
| 56159-73 | 1973 |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6771A | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6379W | Unknown |
| 8986 | Unknown |
| 6333 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6139 | Unknown |
| 7129 | Unknown |
| 5977 | Unknown |
| 31689-90 | 1990 |
| 6852 | 1999 |
| 6534 | 2000 |
| 6535 | 2000 |
| 6590HW | Unknown |
| 45323-01 | 2001 |
| 6516HW | Unknown |
| 6530 | Unknown |
| 6532 | 2000 |
| 44504-03 | 2003 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6724 | 1984 |
| 8960 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 56183-00 | 2000 |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 105A1 - Custom Screws | |
| 5228 | Unknown |
| 7899A | Unknown |
| 29447-99A | 1999 |
| 2523 | 2004 |
| 4074A | 2006 |
| 48054-00 | 2000 |
| 106A1 - Custom Washers | |
| 6003 | 2010 |
| 108A1 - Hose Clamps | |
| 10038A | 1994 |
| 10031 | 2010 |
| 56774-05 | 2005 |
| 56772-05 | 2005 |
| 10208 | Unknown |
| 10222 | 2000 |
| 9955 | Unknown |
| 10080 | Unknown |
| 10074 | Unknown |
| 108B1 - P Clamps | |
| 56773-05 | 2005 |
| 508 | Unknown |
| 109A1 - Studs | |
| 16715-83 | 1983 |
| 45998-73 | 1973 |
| 16834-99A | 1999 |
| 10224 | Unknown |
| 110B1 - Plain Bushings | |
| 31430-94 | 1994 |
| 34979-00 | 2000 |
| 5818A | Unknown |
| 9198 | Unknown |
| 8962 | Unknown |
| 62881-00 | 2000 |
| 42644-00 | 2000 |
| 8996A | 1996 |
| 17429-91 | 1991 |
| 46246-01 | 2001 |
| 33446-94A | 1994 |
| 8989 | 1998 |
| 56182-00 | 2000 |
| 25344-99 | 1999 |
| 9270A | Unknown |
| 8992A | Unknown |
| 53156-86 | 1986 |
| 9837 | Unknown |
| 8876A | Unknown |
| 33445-94A | 1994 |
| 33708-94 | 1994 |
| 48048-00A | 2000 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 8883 | Unknown |
| 8885 | Unknown |
| 8879 | Unknown |
| 9267 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 45359-00 | 2000 |
| 12066A | Unknown |
| 12068 | Unknown |
| 12045 | Unknown |
| 12035B | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 12067B | 2002 |
| 110D1 - Rolling Element Bearings | |
| 8961 | Unknown |
| 8977 | Unknown |
| 9135 | Unknown |
| 8983 | Unknown |
| 8990A | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 111A1 - Adhesive | |
| 72194-94 | 1994 |
| 72690-01 | 2001 |
| 72990-01 | 2001 |
| 72691-01 | 2001 |
| 9841 | Unknown |
| 74196-04 | 2004 |
| 111D1 - Isolating Tape | |
| 61960-04 | 2004 |
| 111F1 - Protective Tape | |
| 66211-01 | 2001 |
| 59587-05 | 2005 |
| 116A1 - Banjo Bolts | |
| 41739-84A | 1984 |
| 50674-05 | 2005 |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11165 | Unknown |
| 11270 | Unknown |
| 11273 | Unknown |
| 11323 | 2004 |
| 11324 | Unknown |
| 11326 | Unknown |
| 26432-76A | 1976 |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11348 | 2002 |
| 11351 | 2001 |
| 11157 | 1983 |
| 11140 | 1982 |
| 11147B | 2006 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11132A | 2007 |
| 11298 | Unknown |
| 11191 | 1989 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11380 | Unknown |
| 11301 | Unknown |
| 11286 | Unknown |
| 31695-90 | 1990 |
| 11364 | 2002 |
| 11256 | 1996 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 609 | Unknown |
| 634 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 337 | Unknown |
| 515 | Unknown |
| 375 | 2013 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11447 | 1984 |
| 62880-00 | 2000 |
| 11403A | Unknown |
| 11402 | 2005 |
| 11413 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 68446-00 | 2000 |
| 765 | 1997 |
| 90383-98 | 1998 |
| 3290 | 2013 |
| 72164-94A | 1994 |
| 122A1 - Retaining Rings | |
| 8102 | Unknown |
| 11278 | Unknown |
| 11271 | Unknown |
| 11272 | Unknown |
| 41713-86 | 1986 |
| 17945-36B | 1936 |
| 11319A | Unknown |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 11031 | Unknown |
| 11150 | 1984 |
| 10108 | Unknown |
| 10193 | Unknown |
| 11342 | Unknown |
| 11155 | Unknown |
| 11533 | 2014 |
| 31530-90 | 1990 |
| 11143 | Unknown |
| 11494 | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 70385-01 | 2001 |
| 11282 | Unknown |
| 11067 | Unknown |
| 11182 | Unknown |
| 10226 | 2000 |
| 11085 | Unknown |
| 10216 | 2013 |
| 60678-85 | 1985 |
| 10149 | Unknown |
| 11248 | Unknown |
| 70514-01 | 2001 |
| 11161 | 1984 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 124A1 - Spacers | |
| 14782-00 | 2000 |
| 14787-00 | 2000 |
| 14781-00 | 2000 |
| 62188-04 | 2004 |
| 24603-00 | 2000 |
| 48049-00A | 2000 |
| 33344-94 | 1994 |
| 5775 | 1984 |
| 29923-01A | 2001 |
| 5826 | Unknown |
| 14788-00 | 2000 |
| 5756 | Unknown |
| 14786-00 | 2000 |
| 14784-00 | 2000 |
| 14783-00 | 2000 |
| 35629-79 | 1979 |
| 14785-00 | 2000 |
| 48094-00 | 2000 |
| 44602-05 | 2005 |
| 47633-03 | 2003 |
| 14780-00 | 2000 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 11321 | 2000 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 10115 | 2003 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 31692-90 | 1990 |
| 73202-04 | 2004 |
| 29557-05 | 2005 |
| 11514 | 1998 |
| 44337-00B | 2000 |
| 61583-02 | 2002 |
| 33126-94 | 1994 |
| 11529 | Unknown |
| 33318-85 | 1985 |
| 33375-00A | 2001 |
| 33449-94 | 1994 |
| 56394-74 | 1974 |
| 33374-00 | 2000 |
| 90357-89 | 1989 |
| 60647-94 | 1994 |
| 126B1 - Rivets Fasteners | |
| 8483A | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 33670-03A | 2003 |
| 57043-01 | 2001 |
| 59983-75T | 1975 |
| 62769-00 | 2000 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 141A1 - Medallion | |
| 71262-05 | 2005 |
| 14697-05 | 2005 |
| 161A1 - Powertrain Assembly | |
| 19296-05B | 2005 |
| 164A1 - Engine Mount Bracket | |
| 72476-05 | 2005 |
| 16247-00 | 2000 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7720 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7669 | Unknown |
| 69046-01 | 2001 |
| 7686 | Unknown |
| 7507 | Unknown |
| 7800W | Unknown |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 16967-03A | 2000 |
| 16961-03A | 2005 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 16548-99 | 1999 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99B | 1999 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 36818-03 | 2003 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 181B1 - Valve Seals | |
| 18158-05 | 2005 |
| 18153-05 | 2005 |
| 18154-05 | 2005 |
| 18044-98 | 1998 |
| 18157-05 | 2005 |
| 18046-98 | 1998 |
| 18271-00 | 2000 |
| 18156-05 | 2005 |
| 18049-98A | 2001 |
| 18045-98 | 1998 |
| 18155-05 | 2005 |
| 18048-98A | 1998 |
| 181C1 - Valve Collars | |
| 18270-00A | 2000 |
| 18272-00 | 2000 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18269-00 | 2000 |
| 220A1 - Piston Ring | |
| 22505-05 | 2005 |
| 22507-05 | 2005 |
| 22506-05 | 2005 |
| 221A1 - Piston Pin | |
| 22131-05 | 2005 |
| 22097-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 35060-00 | 2000 |
| 241A1 - Flywheel | |
| 23727-07A | 2007 |
| 244A1 - Crankcase | |
| 24619-00A | 2000 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24039-03 | 2003 |
| 245A1 - PT Cases Miscellaneous Component | |
| 24983-00 | 2000 |
| 254A1 - Camdrive Gear | |
| 25533-99A | 2001 |
| 254B1 - Camshaft | |
| 25938-00 | 2000 |
| 25376-03 | 2003 |
| 254C1 - Camshaft Sprocket | |
| 40299-83A | 1983 |
| 25609-99 | 1999 |
| 25716-99 | 1999 |
| 254D1 - Camshaft Support | |
| 25267-99B | 2001 |
| 255A1 - Camdrive Chain | |
| 25607-99 | 1999 |
| 25610-99 | 1999 |
| 255B1 - Camdrive Chain Guide | |
| 39965-99 | 1999 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 39976-01 | 2001 |
| 14764-00 | 2000 |
| 256A1 - Timer Cover | |
| 13885-04 | 2004 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 25504-04 | 2004 |
| 257D1 - Clutch Inspection Cover | |
| 60572-86 | 1986 |
| 257E1 - Cover Gaskets | |
| 33890-99A | 1999 |
| 35653-98A | 1998 |
| 65324-83B | 2009 |
| 41731-01 | 2001 |
| 34904-86D | 1986 |
| 17053-99C | 2011 |
| 67223-00A | 2000 |
| 29583-01A | 2001 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 61381-02 | 2002 |
| 25416-99C | 1999 |
| 41733-88 | 1988 |
| 25244-99A | 1999 |
| 29313-95 | 1995 |
| 17162-03 | 2003 |
| 63859-95B | 1995 |
| 45733-48 | 1948 |
| 60567-90C | 1990 |
| 18635-99B | 1999 |
| 60539-94B | 1994 |
| 36801-87C | 1987 |
| 17052-99C | 2011 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257G1 - Ignition Cover | |
| 32574-03 | 2003 |
| 257L1 - Primary Cover | |
| 60543-99B | 1999 |
| 60586-99A | 1999 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34541-00 | 2000 |
| 62373-01 | 2001 |
| 265A1 - Vent / Breather Line | |
| 17650-02 | 2002 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 21945-99 | 1999 |
| 21919-99 | 1999 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27600-01A | 2001 |
| 27603-01 | 2001 |
| 273A1 - Intake Manifold | |
| 27630-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27604-01A | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27408-01 | 2001 |
| 27608-01A | 2001 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 27635-01A | 2002 |
| 290A1 - Airbox Baseplate | |
| 29582-01B | 2001 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29461-99 | 1999 |
| 294B1 - Breather Bolt | |
| 29465-99 | 1999 |
| 294C1 - Breather Hose | |
| 29476-99 | 1999 |
| 294F1 - Engine Breather Valve | |
| 26858-99 | 1999 |
| 28828-00 | 2000 |
| 294G1 - Air Cleaner | |
| 29479-05 | 2005 |
| 29478-05A | 2005 |
| 29442-99E | 2010 |
| 27010-86A | 1986 |
| 29614-03 | 2003 |
| 27009-86A | 1986 |
| 299C1 - Charging Rotor | |
| 29981-95 | 1995 |
| 299F1 - Stator Assembly | |
| 30017-01B | 2006 |
| 314E1 - Starter Friction Clutch | |
| 31516-94A | 2010 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31518-90 | 1990 |
| 31335-03A | 2003 |
| 31612-09 | 2009 |
| 314G1 - Starter Motor sub-component | |
| 31660-90 | 1990 |
| 31741-00 | 2000 |
| 31548-90 | 1990 |
| 31664-94 | 1994 |
| 31600-90 | 1990 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 31604-91A | 1991 |
| 314K1 - Starter Solenoid Boot | |
| 31783-00 | 2000 |
| 316A1 - Ignition Coil | |
| 31743-01 | 2001 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31983-00C | 2000 |
| 316C1 - Spark Plug | |
| 32317-86A | 1986 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 74430-00D | 2000 |
| 327D1 - Proximity Sensor | |
| 32707-01C | 2007 |
| 327E1 - Temperature Sensor | |
| 27270-95 | 1995 |
| 32446-99 | 1999 |
| 327F1 - Throttle Position Sensor | |
| 27629-01A | 2001 |
| 327G1 - Police Radar | |
| 38696-04 | 2004 |
| 38758-05 | 2005 |
| 38718-04 | 2004 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33807-05 | 2005 |
| 33888-99 | 1999 |
| 336D1 - Shift Pedal | |
| 49319-03 | 2003 |
| 49318-03 | 2003 |
| 33849-97 | 1997 |
| 339A1 - Shift Lever | |
| 33742-05 | 2005 |
| 339D1 - Shifter Fork | |
| 34195-79E | 1979 |
| 34088-87A | 1987 |
| 34193-79E | 1979 |
| 34191-79E | 1979 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 33301-00A | 2000 |
| 33304-00 | 2000 |
| 33383-02 | 2002 |
| 34091-85A | 1985 |
| 34601-02 | 2002 |
| 33364-00A | 2000 |
| 33660-90B | 1990 |
| 33127-94 | 1994 |
| 339K1 - Shifter Pawl | |
| 34972-02B | 2002 |
| 347A1 - Transmission Assembly | |
| 35076-79 | 1979 |
| 33054-05 | 2005 |
| 35064-79 | 1979 |
| 37121-03A | 2003 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34774-00A | 2000 |
| 350A1 - Transmission Output Sprocket | |
| 40210-85D | 1985 |
| 40250-94C | 1994 |
| 350E1 - Transmission Gear | |
| 31525-90 | 1990 |
| 31342-94 | 1994 |
| 350F1 - Transmission Mainshaft | |
| 35029-94 | 1994 |
| 35027-94 | 1994 |
| 35025-79B | 1981 |
| 35028-94 | 1994 |
| 35042-91 | 1991 |
| 350G1 - Transmission Shim / Spacer | |
| 25721-00 | 2000 |
| 25723-00 | 2000 |
| 25722-00 | 2000 |
| 25717-00 | 2000 |
| 25719-00 | 2000 |
| 25725-00 | 2000 |
| 352A1 - Engine Balancer | |
| 14822-05 | 2005 |
| 14823-05 | 2005 |
| 352B1 - Engine Balancer sub-component | |
| 14728-00 | 2000 |
| 14717-00 | 2000 |
| 14762-00 | 2000 |
| 14761-00 | 2000 |
| 14716-00 | 2000 |
| 356A1 - Transmission Countershaft | |
| 35026-94 | 1994 |
| 35626-94 | 1994 |
| 35632-79 | 1979 |
| 35625-94 | 1994 |
| 35622-79C | 1979 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 42533-91A | 1991 |
| 35251-93C | 1993 |
| 35051-89A | 1989 |
| 35211-91B | 1991 |
| 34978-00A | 2000 |
| 34977-02A | 2002 |
| 40266-85 | 1985 |
| 365A1 - Primary Chain | |
| 40007-36B | 1936 |
| 365B1 - Primary Chain Tensioner | |
| 39990-01 | 2001 |
| 39998-65A | 1970 |
| 39954-99A | 1999 |
| 39964-99A | 1999 |
| 365C1 - Primary Drive Assembly | |
| 40308-94 | 1994 |
| 40384-91 | 1991 |
| 40251-92A | 1992 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 46115-02A | 2007 |
| 367H1 - Clutch Lever sub-component | |
| 37807-03 | 2003 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 37806-03 | 2003 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37550-98 | 1998 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 370G1 - Clutch Shell | |
| 37707-98A | 1998 |
| 372G1 - Clutch Hose | |
| 46113-02A | 2003 |
| 400A1 - Drive-Belt | |
| 40307-00 | 2000 |
| 409A1 - Rear Wheel | |
| 41313-04 | 2004 |
| 410D1 - Electronic Control Module (ECM) | |
| 68921-01D | 2001 |
| 32534-05C | 2008 |
| 72456-01 | 2001 |
| 410G1 - Security System Control Module | |
| 68923-00D | 2000 |
| 68925-00D | 2000 |
| 413A1 - Brake Caliper | |
| 44380-99B | 1999 |
| 44381-99C | 1999 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 44477-99 | 1999 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44315-00 | 2000 |
| 44147-87A | 1987 |
| 48361-80 | 1980 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 44822-00A | 2011 |
| 40920-87 | 1987 |
| 72023-51D | 2004 |
| 44821-00A | 2011 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45149-99C | 1999 |
| 45078-96D | 1996 |
| 41754-00D | 2000 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 37963-02 | 2002 |
| 44728-05A | 2005 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45006-96C | 1996 |
| 42455-99 | 1999 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417G1 - Front Brake Lever | |
| 45076-96 | 1996 |
| 44837-05A | 2005 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45282-99A | 1999 |
| 418B1 - Brake Line | |
| 46378-05 | 2005 |
| 45300-04 | 2004 |
| 420A1 - Wheel Rim | |
| 41312-04 | 2004 |
| 422B1 - Wheel Sprocket | |
| 46624-03 | 2003 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 425A1 - Wheel sub-component | |
| 44500-03B | 2003 |
| 44501-03 | 2003 |
| 430B1 - Rear Axle Carrier / Adjuster | |
| 47627-03 | 2003 |
| 430C1 - Axle Nut | |
| 44510-03 | 2003 |
| 430D1 - Front Axle | |
| 41584-86A | 1986 |
| 430E1 - Rear Axle | |
| 41110-89 | 1989 |
| 41110-79A | 1979 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43608-00 | 2000 |
| 41613-03 | 2003 |
| 44600-05 | 2005 |
| 56153-73 | 1973 |
| 41614-03 | 2003 |
| 433C1 - Front Wheel Hub | |
| 44447-00 | 2000 |
| 454A1 - Front Telescopic Fork | |
| 46483-00 | 2000 |
| 46484-00 | 2000 |
| 46310-05 | 2005 |
| 46312-05 | 2005 |
| 455A1 - Front Telescopic Fork Slider | |
| 46205-00 | 2000 |
| 455B1 - Front Telescopic Fork Spring | |
| 45931-00 | 2000 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 44503-03 | 2003 |
| 45930-00 | 2000 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45933-86 | 1986 |
| 45303-98 | 1998 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 45680-90 | 1990 |
| 457D1 - Steering Stem | |
| 45605-00A | 2000 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46288-04A | 2004 |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 67889-91A | 1993 |
| 45670-80A | 1980 |
| 459A1 - Upper Triple Clamp | |
| 45456-86B | 1986 |
| 67887-91A | 1991 |
| 67888-91A | 1991 |
| 459B1 - Lower Triple Clamp | |
| 67821-87 | 1987 |
| 50991-86 | 1986 |
| 459C1 - Triple Clamp Kit | |
| 67891-99 | 1999 |
| 470A1 - Frame | |
| 47173-05BKO | 2005 |
| 47173-05BGO | 2005 |
| 47173-05BSL | 2005 |
| 472A1 - Frame sub-component | |
| 48071-05BSL | 2005 |
| 48071-05BGO | 2005 |
| 48072-05BSL | 2005 |
| 48069-05BGO | 2005 |
| 48070-05BSL | 2005 |
| 48069-05BSL | 2005 |
| 48070-05BGO | 2005 |
| 48072-05BGO | 2005 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 44509-03 | 2003 |
| 48052-00A | 2000 |
| 474C1 - Swingarm | |
| 47574-05BKO | 2005 |
| 47574-05BGO | 2005 |
| 47574-05BSL | 2005 |
| 474E1 - Swingarm Assembly sub-component | |
| 48072-04BKO | 2004 |
| 48071-04BKO | 2004 |
| 48069-04BKO | 2004 |
| 48070-04BKO | 2004 |
| 475B1 - Swingarm Pivot Shaft | |
| 47610-00 | 2000 |
| 44511-03 | 2003 |
| 44502-03 | 2003 |
| 500A1 - Sidestand Assembly | |
| 50087-89B | 1989 |
| 500E1 - Sidestand Leg sub-component | |
| 62123-66 | 1966 |
| 50015-74A | 1974 |
| 50005-85A | 1985 |
| 505A1 - Footboard | |
| 50736-05 | 2005 |
| 54156-09 | 2009 |
| 50733-05 | 2005 |
| 54155-09 | 2009 |
| 50624-05 | 2005 |
| 50362-05 | 2005 |
| 505B1 - Footpeg Mount Bracket | |
| 33688-03A | 2004 |
| 505D1 - Passenger Footpeg | |
| 50617-05 | 2005 |
| 506A1 - Brake Pedal | |
| 44841-05 | 2005 |
| 41957-97A | 1997 |
| 42653-05 | 2005 |
| 520A1 - Rider Seat or Full Seat | |
| 52855-05 | 2005 |
| 52853-05 | 2005 |
| 52943-05 | 2005 |
| 52279-05 | 2005 |
| 52854-05 | 2005 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 48895-04BKO | 2004 |
| 521C1 - Seat Suspension Damper | |
| 45932-00 | 2000 |
| 524B1 - Passenger Seat | |
| 51827-05 | 2005 |
| 530B1 - Tour Pak sub-component | |
| 52425-98 | 1998 |
| 540B1 - Rear Shock | |
| 54549-04 | 2004 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 56787-05 | 2005 |
| 560A1 - Mirror | |
| 91987-05 | 2005 |
| 91840-03B | 2003 |
| 91949-05 | 2005 |
| 91845-03B | 2003 |
| 561A1 - Throttle Cable | |
| 56499-05 | 2005 |
| 56516-05 | 2005 |
| 56509-05 | 2005 |
| 561B1 - Left Hand Grip | |
| 56023-98A | 2000 |
| 56193-98 | 1998 |
| 56020-98A | 1998 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 571D1 - Debris Deflector | |
| 60393-03 | 2003 |
| 572A1 - Chin Spoiler | |
| 58445-00 | 2000 |
| 57101-01 | 2001 |
| 57041-01A | 2001 |
| 573B1 - Bodywork Mounting Bracket | |
| 59555-05A | 2005 |
| 589A1 - Front Fender | |
| 60117-05 | 2005 |
| 59595-05BSA | 2005 |
| 59595-05BRX | 2005 |
| 59595-05BRY | 2005 |
| 60118-05 | 2005 |
| 59050-03 | 2003 |
| 595D1 - Rear Fender | |
| 59631-05BSA | 2005 |
| 59631-05BRX | 2005 |
| 59631-05BRY | 2005 |
| 59768-97 | 1997 |
| 596A1 - Tire Mud Flap | |
| 60363-00B | 2000 |
| 603B1 - Belt / Chain Guard | |
| 60533-00A | 2000 |
| 608A1 - Carbon Canister | |
| 27293-00 | 2000 |
| 27042-84A | 1995 |
| 608B1 - Carbon Canister Hose | |
| 28839-00 | 2000 |
| 27016-00 | 2000 |
| 27328-00 | 2000 |
| 609A1 - Fuel Miscellaneous Component | |
| 61231-01 | 2001 |
| 27612-01 | 2001 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 29474-99A | 1999 |
| 610A1 - Fuel Tank | |
| 62208-05BRX | 2005 |
| 62208-05BRY | 2005 |
| 62208-05BSA | 2005 |
| 611B1 - Fuel Cap | |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27072-00 | 2000 |
| 27138-90 | 1990 |
| 62357-00 | 2000 |
| 62555-95 | 1995 |
| 28838-00 | 2000 |
| 612A1 - Fuel Filter | |
| 61001-01 | 2001 |
| 612B1 - Fuel Level Sensor | |
| 75300-05 | 2005 |
| 612B2 - Fuel Valve | |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 62900-01D | 2009 |
| 63521-95A | 1995 |
| 612F1 - Fuel Pump | |
| 62897-01B | 2001 |
| 75132-01D | 2001 |
| 62165-01 | 2001 |
| 62163-04 | 2004 |
| 612K1 - Fuel Pump sub-component | |
| 61209-01A | 2001 |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 29140-05 | 2005 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61961-00 | 2000 |
| 61171-05 | 2005 |
| 613K1 - Airbox Cover | |
| 29121-01 | 2001 |
| 614C1 - Trim | |
| 29157-05 | 2005 |
| 624A1 - Oil Pump Assembly | |
| 26035-99B | 1999 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26248-00 | 2000 |
| 26464-99 | 1999 |
| 26255-00 | 2000 |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 625B1 - Oil Tank | |
| 62498-00A | 2004 |
| 627B1 - Oil Drain Plug | |
| 60391-04 | 2004 |
| 60348-65B | 1965 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37075-87 | 1987 |
| 62845-00A | 2000 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 33531-00 | 2000 |
| 63601-00 | 2000 |
| 33525-00 | 2000 |
| 63783-00 | 2000 |
| 63628-00 | 2000 |
| 45806-00 | 2000 |
| 63611-00 | 2000 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 45468-00 | 2000 |
| 63632-00 | 2000 |
| 62375-57A | 1957 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62189-01A | 2001 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63553-00B | 2010 |
| 649A1 - Muffler | |
| 65969-05 | 2005 |
| 65734-95 | 1995 |
| 65093-04BKO | 2004 |
| 65964-05 | 2005 |
| 649C1 - Muffler Tailpipe / Outlet | |
| 65926-00 | 2000 |
| 654A1 - Exhaust Shield | |
| 65463-00 | 2000 |
| 65476-05 | 2005 |
| 65464-00 | 2000 |
| 65445-00 | 2000 |
| 65148-00A | 2007 |
| 655A1 - Muffler Mount | |
| 65093-05BSL | 2005 |
| 65093-05BGO | 2005 |
| 655C1 - Exhaust Mounting Bracket | |
| 65652-97A | 1997 |
| 656E1 - Header Pipe | |
| 65503-00A | 2000 |
| 65499-00A | 2000 |
| 658A1 - Exhaust Catalyst | |
| 65956-05 | 2005 |
| 65939-04 | 2004 |
| 65954-05 | 2005 |
| 65950-04 | 2004 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65654-97 | 2017 |
| 659B1 - Exhaust Flange | |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65830-03 | 2003 |
| 660A1 - Battery | |
| 65989-97C | 1997 |
| 660E1 - Ground Strap | |
| 70060-92B | 1992 |
| 660G1 - Positive Battery Cable | |
| 70078-00B | 2000 |
| 660H1 - Positive Battery Cable Boot | |
| 31662-90 | 1990 |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 67925-04 | 2004 |
| 67952-96 | 1996 |
| 67201-04A | 2004 |
| 69074-04A | 2004 |
| 677A1 - Headlight | |
| 69748-05B | 2005 |
| 69331-02 | 2002 |
| 69750-05B | 2005 |
| 67316-03A | 2004 |
| 69330-02 | 2002 |
| 68051-93A | 1993 |
| 69325-02 | 2002 |
| 68050-93A | 1993 |
| 67768-97 | 1997 |
| 677B1 - Headlight sub-component | |
| 68380-05 | 2005 |
| 68390-05 | 2005 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 68830-99A | 1999 |
| 68372-03 | 2003 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68141-04 | 2004 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68975-00 | 2000 |
| 68480-02 | 2002 |
| 69196-03 | 2003 |
| 68614-03 | 2003 |
| 68978-00 | 2000 |
| 67015-02 | 2002 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 679B1 - Reflector | |
| 68345-05 | 2005 |
| 59287-92 | 1992 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 68342-05 | 2005 |
| 59288-92 | 1992 |
| 59988-72A | 1972 |
| 68344-05 | 2005 |
| 679D1 - License Plate Bracket | |
| 59982-89A | 1989 |
| 60003-89 | 1989 |
| 59997-89A | 1989 |
| 59345-03 | 2003 |
| 680C1 - Incandescent Bulb | |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 68167-04 | 2004 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 692C1 - Electrical Miscellaneous Component | |
| 68112-99A | 1999 |
| 72374-00 | 2000 |
| 70354-03 | 2003 |
| 90469-94 | 1994 |
| 68113-99B | 1999 |
| 72189-04 | 2004 |
| 72176-94 | 1994 |
| 692C2 - Electrical Mounting Bracket | |
| 68170-05 | 2005 |
| 69123-92A | 1992 |
| 66210-00 | 2000 |
| 31772-01 | 2001 |
| 69120-91 | 1991 |
| 69060-90F | 2010 |
| 67355-04 | 2004 |
| 31742-00 | 2000 |
| 45550-03 | 2003 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 74599-77B | 1977 |
| 70048-03 | 2003 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72369-00 | 2000 |
| 72432-00 | 2000 |
| 72430-00 | 2000 |
| 692E2 - Fuse / Relay Block Cover | |
| 27667-04 | 2004 |
| 692F1 - Wire Harness | |
| 68818-03A | 2003 |
| 70197-86 | 1986 |
| 71757-05 | 2005 |
| 70431-04A | 2004 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72366-95 | 1995 |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 27249-96 | 1996 |
| 72159-94 | 1994 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72100-04 | 2004 |
| 72280-95 | 1995 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72113-94BK | 1994 |
| 29312-95 | 1995 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72247-95 | 1995 |
| 72273-95 | 1995 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72153-94 | 1994 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72289-04 | 2004 |
| 72292-94 | 1994 |
| 72213-94 | 1994 |
| 72428-00 | 2000 |
| 72290-94 | 1994 |
| 72254-94 | 1994 |
| 72242-94 | 1994 |
| 72291-94 | 1994 |
| 9840 | Unknown |
| 9843 | Unknown |
| 9842 | Unknown |
| 9937 | Unknown |
| 9856 | Unknown |
| 72434-00 | 2000 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 74193-98 | 1998 |
| 72604-01BK | 2001 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 68653-05 | 2005 |
| 72614-01BK | 2001 |
| 72654-01 | 2001 |
| 72644-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 74148-98 | 1998 |
| 72263-95 | 1995 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72231-98 | 1998 |
| 72214-94 | 1994 |
| 73190-96 | 1996 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 74108-98BK | 1998 |
| 74113-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 72380-04 | 2004 |
| 70598-99 | 1999 |
| 72230-98 | 1998 |
| 74153-98 | 1998 |
| 74195-98 | 1998 |
| 73158-96BK | 1996 |
| 72143-94 | 1994 |
| 72244-95 | 1995 |
| 72327-03A | 2003 |
| 72033-93 | 1993 |
| 72106-94BK | 1994 |
| 56076-97 | 1997 |
| 72163-94BK | 1994 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 73104-96BK | 1996 |
| 73196-96 | 1996 |
| 73102-96BK | 1996 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 74118-98BK | 1998 |
| 73154-96BK | 1996 |
| 70974-00B | 2000 |
| 73108-96BK | 1996 |
| 72914-01BK | 2001 |
| 709B1 - Instrument Cluster or Speedometer | |
| 71006-05 | 2005 |
| 67313-05A | 2005 |
| 71261-05 | 2005 |
| 67315-05 | 2005 |
| 71259-05 | 2005 |
| 709B2 - Fuel Gauge | |
| 75053-01B | 2001 |
| 714A1 - Ignition Switch | |
| 71313-96A | 1996 |
| 714B1 - Mechanical Switch | |
| 33904-00A | 2000 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 67488-04 | 2004 |
| 714D1 - Relay | |
| 31522-00C | 2004 |
| 31511-01B | 2001 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 71614-96 | 1996 |
| 71615-96 | 1996 |
| 71683-06A | 2006 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71719-03 | 2003 |
| 71621-08 | 2008 |
| 71720-03A | 2003 |
| 747A1 - Voltage Regulator | |
| 74610-01 | 2001 |
| 903A1 - Lockset | |
| 71450-04 | 2004 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-00 | 2000 |
| 68927-00 | 2000 |
| 940A1 - Owner's Kit | |
| 91625-04 | 2004 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | FUEL TANK CONSOLE: |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | FUEL TANK: |
| 10080 | CLAMP | OIL TANK & LINE: |
| 10102 | CLIP | FUEL TANK: |
| 10222 | CLAMP | FUEL TANK: FUEL PUMP: |
| 11105 | O-RING | TRANSMISSION HOUSING (1 OF 2): OIL TANK & LINE: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS: TRANSMISSION HOUSING (1 OF 2): |
| 11143 | RETAINING RING | CLUTCH: CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 11147B | O-RING | PRIMARY HOUSING: |
| 11150 | RETAINING RING | GEAR SHIFTER: |
| 11157 | O-RING | CAMSHAFTS & CAM COVER - 1690: |
| 11165 | QUAD SEAL | TRANSMISSION HOUSING (1 OF 2): |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 11292 | O-RING | AIR CLEANER - Domestic, California & Canada: AIR CLEANER - HDI: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 11301 | O-RING | CAMSHAFTS & CAM COVER - 1690: |
| 11324 | O-RING | PRIMARY HOUSING: |
| 11447 | GROMMET | OIL TANK & LINE: |
| 12035B | SEAL | TRANSMISSION GEARS: |
| 12045 | SEAL | GEAR SHIFTER: |
| 12052A | OIL SEAL | PRIMARY HOUSING: |
| 12066A | OIL SEAL | PRIMARY HOUSING: |
| 12067B | OIL SEAL | TRANSMISSION HOUSING (1 OF 2): |
| 1311D | SCREW | FUEL PUMP: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS: CAMSHAFTS & CAM COVER - 1690: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS: |
| 25244-99A | GASKET | CAMSHAFTS & CAM COVER - 1690: |
| 25416-99C | SEAL | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE: |
| 2720 | SCREW | ALTERNATOR & REGULATOR: |
| 31430-94 | WASHER | STARTER MOTOR: |
| 3275 | SCREW | INDUCTION MODULE: GEAR SHIFTER: |
| 33126-94 | LOCKPLATE | STARTER MOTOR: |
| 33318-85 | LOCKING TAB | PRIMARY HOUSING: |
| 3655A | SCREW | FRONT WHEEL: REAR BRAKE CONTROL: |
| 36801-87C | GASKET | TRANSMISSION HOUSING (2 OF 2): |
| 41731-01 | GASKET | CLUTCH CONTROL: FRONT BRAKE CONTROL: REAR BRAKE CONTROL: |
| 41733-88 | GASKET | FRONT BRAKE CONTROL: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45405-75A | SCREW | FRONT FORK (1 OF 2): |
| 45733-48 | OIL SEAL | FRONT FORK (1 OF 2): |
| 45845-77 | O-RING | FRONT FORK (1 OF 2): |
| 45858-77 | DRAIN SCREW | FRONT FORK (1 OF 2): |
| 4740A | SCREW | CAMSHAFTS & CAM COVER - 1690: ALTERNATOR & REGULATOR: TRANSMISSION HOUSING (1 OF 2): PRIMARY HOUSING: FRAME, REAR FORK & JIFFY STAND: |
| 48300-60 | ROLLER BEARING | FRONT FORK (2 OF 2): |
| 53156-86 | BUSHING | HANDLEBAR: |
| 59768-97 | FENDER SEAT NUT KIT | REAR FENDER: |
| 60539-94B | GASKET | PRIMARY HOUSING: |
| 60567-90C | GASKET | PRIMARY HOUSING: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 61381-02 | GASKET | FUEL PUMP: |
| 63859-95B | GASKET | PRIMARY HOUSING: |
| 6516HW | WASHER | ENGINE MOUNTS: BELTS, CHAINS & SPROCKETS: REAR WHEEL: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | REAR BELT GUARD: FRONT FORK (1 OF 2): FRAME, REAR FORK & JIFFY STAND: FUEL TANK: EXHAUST SYSTEM: TAIL LAMP & REAR TURN SIGNALS: |
| 7041 | LOCKWASHER | STARTER MOTOR: GEAR SHIFTER: FRONT FORK (1 OF 2): FRAME, REAR FORK & JIFFY STAND: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | FOOTBOARDS: |
| 856A | SCREW | GEAR SHIFTER: |
| 9267 | BEARING | FRONT WHEEL: REAR WHEEL: |
| 961 | SCREW | AIR CLEANER - Domestic, California & Canada: PRIMARY HOUSING: REAR BRAKE CONTROL: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | FRONT BRAKE CALIPER: REAR BRAKE CALIPER: |
| 45875-84A | OIL SEAL | FRONT FORK (2 OF 2): |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING | FRAME, REAR FORK & JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 71621-08 | STOPLAMP SWITCH | HANDLEBAR SWITCHES: |
| 72330-95 | FUSE | MAIN WIRING HARNESS (2 OF 2): SWITCHES & CIRCUIT BREAKERS: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 37909-90 | RING | CLUTCH: |
| 37913-98 | PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29476-99 | TUBE | AIR CLEANER - HDI: |
| 61001-01 | FUEL FILTER KIT | FUEL PUMP: |
| 65296-95A | CLAMP | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68329-03 | BULB | HEADLAMP: |
| 68973-00 | LENS | FRONT TURN SIGNALS: TAIL LAMP & REAR TURN SIGNALS: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63798-99A | OIL FILTER | CRANKCASE & ENGINE OIL FILTER: |
| 65989-97C | BATTERY | BATTERY: |
| 95595-84A | WEIGHT | FRONT WHEEL: REAR WHEEL: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | VALVE STEM ASSEMBLY | FRONT WHEEL: REAR WHEEL: |
