2005 HARLEY-DAVIDSON® PARTS CATALOG: VRSCSE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99458-05A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2005 VRSCSE MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Originally built for sale within the United States 5=Originally built for sale outside the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight 901cc and larger |
4 | Model | PM=VRSCSE |
5 | Engine type | G=1250cc |
6 | Introduction date | 1=Regular 2=Mid-year 3=California 4=Special Edition 5=Special Edition Cal. Only |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 5=2005 |
9 | Assembly plant | K=Kansas City, MO |
10 | Sequential number | varies |
NOTES
ENGINE ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 19541-05K | ENGINE ASSEMBLY | VRSCSE |
CYLINDER HEAD, CAMSHAFTS & VALVES (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 769M | PLUG, expansion (4) | VRSCSE |
| 2 | 966M | SCREW (4) | VRSCSE |
| 3 | 984M | BOLT (8) | VRSCSE |
| 4 | 1014M | SCREW (16) | VRSCSE |
| 5 | 1017M | SCREW (4) | VRSCSE |
| 6 | 1031M | SCREW (8) | VRSCSE |
| 7 | 1043M | SCREW | VRSCSE |
| 8 | 4496M | SCREW (4) | VRSCSE |
| 9 | 6215M | WASHER | VRSCSE |
| 10 | 11391K | O-RING | VRSCSE |
| 11 | 16448-01KA | STUD (4) | VRSCSE |
| 12 | 16987-05K | CYLINDER HEAD ASSEMBLY, front | VRSCSE |
| 17127-05K | CYLINDER HEAD ASSEMBLY, rear (not illustrated) | VRSCSE | |
| 13 | 17431-05K | CAMSHAFT ASSEMBLY, intake (2) | VRSCSE |
| 14 | 17421-01KA | CAMSHAFT ASSEMBLY, exhaust (2) | VRSCSE |
| 15 | 17423-01K | SPROCKET, camshaft (4) | VRSCSE |
| 16 | 17691-05K | GASKET, cylinder head, front | VRSCSE |
| 17692-05K | GASKET, cylinder head, rear (not illustrated) | VRSCSE | |
| 17 | 18052-01K | VALVE SPRING, inner valve (8) | VRSCSE |
| 18 | 18055-01K | VALVE SPRING, outer valve (8) | VRSCSE |
| 19 | 18057-01K | COLLET, valve (8) | VRSCSE |
| 20 | 18181-01K | TAPPET (8) | VRSCSE |
| 21 | 18661-01K | COLLAR, valve spring, lower (8) | VRSCSE |
| 22 | 18662-01K | COLLAR, valve spring, upper (8) | VRSCSE |
| 23 | 18663-01K | EXHAUST VALVE (4) | VRSCSE |
| 24 | 18664-01K | INTAKE VALVE (4) | VRSCSE |
| 25 | 18665-01K | VALVE GUIDE (8) | VRSCSE |
| 26 | 18687-01K | SEAL, valve (8) | VRSCSE |
| 27 | 29530-05K | BADGE, Screamin' Eagle (use 61787-05K) | VRSCSE |
| 61787-05K | BADGE SCRIPT, Screamin' Eagle, w/ badge & 69280-05K | VRSCSE | |
| 28 | 29544-05K | BADGE, 1250 VRSCSE (front shown) | VRSCSE |
| 29 | 29601-05K | TUBE ASSEMBLY, front breather, w/ 11391K | VRSCSE |
| 30 | 69280-05K | BRACKET (2) | VRSCSE |
| 31 | 18696-01K | SHIM, 1.825 mm | VRSCSE |
| 18697-01K | SHIM, 1.850 mm | VRSCSE | |
| 18698-01K | SHIM, 1.875 mm | VRSCSE | |
| 18699-01K | SHIM, 1.900 mm | VRSCSE | |
| 18700-01K | SHIM, 1.925 mm | VRSCSE | |
| 18701-01K | SHIM, 1.950 mm | VRSCSE | |
| 18702-01K | SHIM, 1.975 mm | VRSCSE | |
| 18666-01K | SHIM, 2.000 mm | VRSCSE | |
| 18624-01K | SHIM, 2.025 mm | VRSCSE | |
| 18667-01K | SHIM, 2.050 mm | VRSCSE | |
| 18625-01K | SHIM, 2.075 mm | VRSCSE | |
| 18668-01K | SHIM, 2.100 mm | VRSCSE | |
| 18626-01K | SHIM, 2.125 mm | VRSCSE | |
| 18669-01K | SHIM, 2.150 mm | VRSCSE | |
| SHIMS 1.825 mm - 3.0 mm Listed BelowSHIMS Continued | |||
CYLINDER HEAD, CAMSHAFTS & VALVES (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 31 | 18627-01K | SHIM, 2.175 mm | VRSCSE |
| 18670-01K | SHIM, 2.200 mm | VRSCSE | |
| 18628-01K | SHIM, 2.225 mm | VRSCSE | |
| 18671-01K | SHIM, 2.250 mm | VRSCSE | |
| 18629-01K | SHIM, 2.275 mm | VRSCSE | |
| 18672-01K | SHIM, 2.300 mm | VRSCSE | |
| 18630-01K | SHIM, 2.325 mm | VRSCSE | |
| 18673-01K | SHIM, 2.350 mm | VRSCSE | |
| 18631-01K | SHIM, 2.375 mm | VRSCSE | |
| 18674-01K | SHIM, 2.400 mm | VRSCSE | |
| 18632-01K | SHIM, 2.425 mm | VRSCSE | |
| 18675-01K | SHIM, 2.450 mm | VRSCSE | |
| 18638-01K | SHIM, 2.475 mm | VRSCSE | |
| 18676-01K | SHIM, 2.500 mm | VRSCSE | |
| 18639-01K | SHIM, 2.525 mm | VRSCSE | |
| 18677-01K | SHIM, 2.550 mm | VRSCSE | |
| 18655-01K | SHIM, 2.575 mm | VRSCSE | |
| 18678-01K | SHIM, 2.600 mm | VRSCSE | |
| 18656-01K | SHIM, 2.625 mm | VRSCSE | |
| 18679-01K | SHIM, 2.650 mm | VRSCSE | |
| 18657-01K | SHIM, 2.675 mm | VRSCSE | |
| 18680-01K | SHIM, 2.700 mm | VRSCSE | |
| 18658-01K | SHIM, 2.725 mm | VRSCSE | |
| 18681-01K | SHIM, 2.750 mm | VRSCSE | |
| 18659-01K | SHIM, 2.775 mm | VRSCSE | |
| 18682-01K | SHIM, 2.800 mm | VRSCSE | |
| 18692-01K | SHIM, 2.825 mm | VRSCSE | |
| 18683-01K | SHIM, 2.850 mm | VRSCSE | |
| 18693-01K | SHIM, 2.875 mm | VRSCSE | |
| 18684-01K | SHIM, 2.900 mm | VRSCSE | |
| 18694-01K | SHIM, 2.925 mm | VRSCSE | |
| 18685-01K | SHIM, 2.950 mm | VRSCSE | |
| 18695-01K | SHIM, 2.975 mm | VRSCSE | |
| 18686-01K | SHIM, 3.000 mm | VRSCSE | |
| SHIMS 1.825 mm - 3.0 mm Listed Below (Continued) | |||
CAM DRIVE SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | VRSCSE |
| 2 | 485K | PIN | VRSCSE |
| 3 | 966M | SCREW (2) | VRSCSE |
| 4 | 1007M | SCREW | VRSCSE |
| 5 | 17406-01KA | CHAIN, primary cam drive | VRSCSE |
| 6 | 17407-01KA | CHAIN, secondary cam drive (2) | VRSCSE |
| 7 | 17629-01K | TENSIONER ASSEMBLY, primary, w/ guide, shaft, clips & dowel | VRSCSE |
| 8 | 17632-01K | TENSIONER ASSEMBLY, secondary (2) | VRSCSE |
| 9 | 17637-01K | GUIDE TENSIONER, primary, front | VRSCSE |
| 10 | 17638-01K | GUIDE TENSIONER, secondary, front | VRSCSE |
| 11 | 17639-01K | GUIDE TENSIONER, secondary, rear | VRSCSE |
| 12 | 17640-01K | GUIDE TENSIONER, secondary (2) | VRSCSE |
| 13 | 25800-01K | SPROCKET, triple | VRSCSE |
| 14 | 40095-01K | SHIM, tensioner | VRSCSE |
WATER PUMP & THERMOSTAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (7) | VRSCSE |
| 2 | 1030M | SCREW (2) | VRSCSE |
| 3 | 1023M | SCREW | VRSCSE |
| 4 | 11312K | O-RING (4) | VRSCSE |
| 5 | 11366K | O-RING (2) | VRSCSE |
| 6 | 25911-01K | WASHER | VRSCSE |
| 7 | 26582-01K | SHAFT, intermediate | VRSCSE |
| 8 | 26737-01K | TUBE, thermostat (2) | VRSCSE |
| 9 | 26740-01K | THERMOSTAT ASSEMBLY, w/ 26745-01K & housing | VRSCSE |
| 10 | 26748-01K | COVER, water pump | VRSCSE |
| 11 | 26749-01K | GASKET OUTER, water pump | VRSCSE |
| 12 | 26750-01K | HOUSING, water pump assembly, w/ 11366K | VRSCSE |
| 13 | 26752-01K | GASKET, water pump | VRSCSE |
| 14 | 26765-01K | GASKET, thermostat | VRSCSE |
| 15 | 32315-01 | SENSOR, engine coolant temperature | VRSCSE |
CAM COVERS - FRONT SHOWN
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (6) | VRSCSE |
| 2 | 1004M | SCREW (16) | VRSCSE |
| 3 | 3716M | SCREW (4) | VRSCSE |
| 4 | 17010-01K | GASKET KIT, cam cover | VRSCSE |
| 5 | 17416-01KA | CAM COVER GASKET, outer (2) | VRSCSE |
| 6 | 17418-01K | CAM COVER GASKET, inner (2) | VRSCSE |
| 7 | 17641-01K | SECONDARY TOP GUIDE (2) | VRSCSE |
| 8 | 17661-01K | CAM COVER, lower front (chrome) | VRSCSE |
| 9 | 17664-01K | CAM COVER, upper (chrome) (2) | VRSCSE |
| 10 | 17666-01K | CAM COVER GASKET, upper (2) | VRSCSE |
PISTONS AND CRANKSHAFT
| Index No. | Part No. | Description | Model(s) |
| 1 | 983M | BOLT (6) | VRSCSE |
| 2 | 11314K | O-RING, cylinder liner (4) | VRSCSE |
| 3 | 11329K | KEY | VRSCSE |
| 4 | 22919-05K | PISTON RINGS | VRSCSE |
| 5 | 22126-05K | PISTON PIN (2) | VRSCSE |
| 6 | 22121-01K | RETAINING RING (4) | VRSCSE |
| 7 | 22928-05KA | PISTON/LINER ASSEMBLY, w/ 2, 5 & 6 (2) | VRSCSE |
| 8 | 22918-05K | PISTON ASSEMBLY, w/ rings, pins & circlips (2) | VRSCSE |
| 9 | 23712-01K | PRIMARY CRANK GEAR | VRSCSE |
| 10 | 23725-01K | CRANK ASSEMBLY, w/ 11329K | VRSCSE |
| 11 | 24307-01K | CONNECTING ROD ASSEMBLY, w/ 24311-01 (2) | VRSCSE |
| 12 | 24311-01K | BOLT, connecting rod (4) | VRSCSE |
| 13 | 24312-01K | BEARING, thrust (2) | VRSCSE |
| 14 | 24409-01K | MAIN BEARING SHELL (red) (2) | VRSCSE |
| 24410-01K | MAIN BEARING SHELL (green) (2) | VRSCSE | |
| 24411-01K | MAIN BEARING SHELL (blue) (2) | VRSCSE | |
| 15 | 24412-01K | ROD BEARING SHELL (red) (2) | VRSCSE |
| 24413-01K | ROD BEARING SHELL (blue) (2) | VRSCSE |
CRANKCASE - UPPER & LOWER
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | VRSCSE |
| 2 | 482K | DOWEL (4) | VRSCSE |
| 3 | 485K | PIN | VRSCSE |
| 4 | 486K | PIN | VRSCSE |
| 5 | 487K | PIN (4) | VRSCSE |
| 6 | 488K | DOWEL RING | VRSCSE |
| 7 | 965M | SCREW | VRSCSE |
| 8 | 968M | SCREW (4) | VRSCSE |
| 9 | 970M | SCREW (7) | VRSCSE |
| 10 | 972M | SCREW | VRSCSE |
| 11 | 973M | SCREW (3) | VRSCSE |
| 12 | 1025M | SCREW (4) | VRSCSE |
| 13 | 1034M | PLUG | VRSCSE |
| 35420-01K | BUSHING (not illustrated) | VRSCSE | |
| 35442-01K | BUSHING (not illustrated) | VRSCSE | |
| 14 | 6137K | WASHER | VRSCSE |
| 15 | 6298M | WASHER | VRSCSE |
| 16 | 24459-05K | CRANK CASE ASSEMBLY KIT | VRSCSE |
ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1033M | BOLT | VRSCSE |
| 2 | 11335K | E-CLIP (3) | VRSCSE |
| 3 | 14794-01K | BEARING, left | VRSCSE |
| 4 | 14795-01K | BEARING, right | VRSCSE |
| 5 | 14791-01K | BALANCE SHAFT | VRSCSE |
| 6 | 14758-01K | GEAR, balance shaft | VRSCSE |
OIL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (3) | VRSCSE |
| 2 | 1010M | SCREW (6) | VRSCSE |
| 3 | 11312K | O-RING | VRSCSE |
| 4 | 11331K | O-RING | VRSCSE |
| 5 | 26534-01K | SPRING, oil pump | VRSCSE |
| 6 | 26022-02K | ROTOR ASSEMBLY, inner/outer, oil pump | VRSCSE |
| 7 | 26575-01KB | OIL PUMP ASSEMBLY | VRSCSE |
| 8 | 26578-01K | COVER, oil pump | VRSCSE |
| 9 | 26738-01K | VALVE PISTON | VRSCSE |
| 10 | 26739-01K | PLUG, screw | VRSCSE |
ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3701M | SCREW (6) | VRSCSE |
| 2 | 3703M | SCREW | VRSCSE |
| 3 | 3704M | STUD, dual-threaded (2) | VRSCSE |
| 4 | 3966M | SCREW, set | VRSCSE |
| 5 | 3919M | SCREW (2) | VRSCSE |
| 6 | 3920M | SCREW | VRSCSE |
| 7 | 6839M | WASHER (8) | VRSCSE |
| 8 | 7427M | NUT, locking (4) | VRSCSE |
| 9 | 16298-05A | ENGINE MOUNT, rear (2) | VRSCSE |
| 10 | 47014-05CFZ | BRACKET, pivot block (orange) | VRSCSE |
| 47014-05BPH | BRACKET, pivot block (blue) | VRSCSE | |
| 47014-05BPJ | BRACKET, pivot block (cherry) | VRSCSE | |
| 11 | 16306-04A | STABLILIZER LINK | VRSCSE |
| 12 | 16307-05 | ENGINE MOUNT, front | VRSCSE |
| 13 | 16308-01 | BRACKET, front engine mount | VRSCSE |
| 14 | 16311-05 | BRACKET, front mount, frame | VRSCSE |
| 15 | 16312-04 | SPACER | VRSCSE |
| 16 | 94756-01 | WASHER | VRSCSE |
THROTTLE BODY
| Index No. | Part No. | Description | Model(s) |
| 1 | 964 | STUD | VRSCSE |
| 2 | 1114M | SCREW (6) | VRSCSE |
| 3 | 10232K | HOSE CLAMP (2) | VRSCSE |
| 4 | 27225-01 | SCREW (3) | VRSCSE |
| 5 | 27408-01 | FUEL PRESSURE REGULATOR | VRSCSE |
| 6 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ O-ring, screw & motor | VRSCSE |
| 7 | 27657-01 | THROTTLE BODY ASSEMBLY, w/ 6, 11, 12, 13 & 15 | VRSCSE |
| 8 | 27662-01B | METER ASSEMBLY, fuel, w/ 5, 9 & 14 | VRSCSE |
| 9 | 27665-01A | INJECTOR, w/ O-rings | VRSCSE |
| 10 | 27669-01K | RUBBER BOOT (2) | VRSCSE |
| 11 | 27975-01 | THROTTLE POSITION SENSOR KIT, w/ screws for sensor, plate t.p.s. & sensor - throttle position | VRSCSE |
| 12 | 27977-01 | CAM LEVER KIT, w/ bushing,clip, spring cam,shim roller, cam roller assembly & cam lever | VRSCSE |
| 13 | 27982-01 | LINKAGE ROD KIT, w/ bushing, clip, linkage rod assembly, nut & rod end | VRSCSE |
| 14 | 27993-01 | CHECK VALVE BODY ASSEMBLY, w/ washers | VRSCSE |
| 15 | 27995-01 | HARDWARE KIT, throttle body, w/ shim, cable bracket, washer shaft purge tube cap, clip, spring, screws, O-ring | VRSCSE |
| 16 | 28002-01 | FUEL RAIL HARDWARE KIT, w/ O-rings, washer & pressure regulator plate | VRSCSE |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW (6) | VRSCSE |
| 2 | 9998 | CLAMP | VRSCSE |
| 3 | 11361 | O-RING | VRSCSE |
| 4 | 24927-01 | PLUG | VRSCSE |
| 5 | 27388-01 | SENSOR, intake air temperature, w/ 11361 | VRSCSE |
| 6 | 28862-01 | O-RING (2) | VRSCSE |
| 7 | 28863-01 | CAP, filter element | VRSCSE |
| 8 | 29434-03A | COVER, air cleaner | VRSCSE |
| 9 | 29435-05 | BOTTOM, air cleaner, w/ 29504-05 & 29505-05 | VRSCSE |
| 10 | 29436-01 | GASKET | VRSCSE |
| 11 | 29437-01 | FILTER ELEMENT | VRSCSE |
| 12 | 29438-01 | VELOCITY STACK, front, 115 H.P. | VRSCSE |
| 13 | 29439-01 | GASKET, throttle body | VRSCSE |
| 14 | 29519-01 | CLIP (7) | VRSCSE |
| 15 | 29521-01 | VELOCITY STACK, rear, 115 H.P. | VRSCSE |
| 16 | 29522-01 | WING NUT | VRSCSE |
| 17 | 29504-05A | BREATHER TUBE, front | VRSCSE |
| 18 | 29505-05 | BREATHER TUBE, rear | VRSCSE |
| 19 | 29647-01 | CLIP | VRSCSE |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRSCSE |
| 2 | 978M | SCREW (14) | VRSCSE |
| 3 | 1035M | SCREW | VRSCSE |
| 4 | 1027M | SCREW | VRSCSE |
| 5 | 3701M | SCREW | VRSCSE |
| 6 | 3729M | SCREW (2) | VRSCSE |
| 7 | 6176MA | WASHER | VRSCSE |
| 8 | 6839M | WASHER | VRSCSE |
| 9 | 8002K | NEEDLE ROLLER AND CAGE ASSEMBLY | VRSCSE |
| 10 | 10006 | CABLE STRAP | VRSCSE |
| 11 | 10108 | CLIP | VRSCSE |
| 12 | 10141 | CLIP | VRSCSE |
| 13 | 11328M | RETAINING CLIP | VRSCSE |
| 14 | 25881-01KA | COVER KIT/STATOR, w/ 1, 2, 15, 19, 24 & 27 (chrome) | VRSCSE |
| 15 | 25895-04K | ALTERNATOR COVER (chrome) | VRSCSE |
| 16 | 25918-04K | STATOR CONNECTOR KIT, w/ 22, 24, 27 & 31 | VRSCSE |
| 17 | 25919-04K | REGULATOR CONNECTOR KIT, w/ 22, 23, 25 & 26 | VRSCSE |
| 18 | 30731-01K | ROTOR ASSEMBLY, w/ ball catch assembly | VRSCSE |
| 19 | 30734-04K | STATOR ASSEMBLY, w/ plug assembly stator | VRSCSE |
| 20 | 31301-01K | GEAR, ball clutch | VRSCSE |
| 21 | 31303-01K | LIMITER ASSEMBLY | VRSCSE |
| 22 | 72087-04 | SEAL CABLE (3) | VRSCSE |
| 23 | 72088-04 | TERMINAL, pin (3) | VRSCSE |
| 24 | 72089-04 | SOCKET HOUSING, 3-way female (black) | VRSCSE |
| 25 | 72090-04 | PIN HOUSING, 3-way male (black) | VRSCSE |
| 26 | 72091-04 | LOCK, secondary 3-way | VRSCSE |
| 27 | 72092-04 | LOCK, secondary 3-way | VRSCSE |
| 28 | 72171-01 | SOCKET TERMINAL, 8-10 AWG | VRSCSE |
| 29 | 72183-01 | SOCKET HOUSING, 1-way (black) | VRSCSE |
| 30 | 72249-94 | SHRINK TUBE (black) | VRSCSE |
| 31 | 72308-97 | TERMINAL, female (3) | VRSCSE |
| 32 | 74440-01 | VOLTAGE REGULATOR, w/ 12, 22, 23, 25, 26, 28, 29 & 30 | VRSCSE |
ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | VRSCSE |
| 2 | 1024M | SCREW (2) | VRSCSE |
| 3 | 3707M | SCREW (2) | VRSCSE |
| 4 | 3708M | SCREW (2) | VRSCSE |
| 5 | 27671-01K | SPARK PLUG ASSEMBLY (2) | VRSCSE |
| 6 | 31651-01 | COIL BOOT (2) | VRSCSE |
| 7 | 32477-01A | COIL ASSEMBLY, w/ 31651-01 (2) | VRSCSE |
| 8 | 32534-05C | ELECTRONIC CONTROL MODULE (Note: Requires digital tech programming.) | VRSCSE |
| 9 | 32616-01C | BRACKET, E.C.M. | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 10 | 32534-05C | ELECTRONIC CONTROL MODULE (HDI) (Note: Requires digital tech programming.) | VRSCSE |
ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRSCSE |
| 2 | 1009M | SCREW (2) | VRSCSE |
| 3 | 6298M | WASHER, throttle plug assembly | VRSCSE |
| 4 | 11290 | O-RING | VRSCSE |
| 5 | 11291 | SEAL | VRSCSE |
| 6 | 11362K | O-RING | VRSCSE |
| 7 | 24986-01K | THROTTLE PLUG ASSEMBLY, w/ 11362K | VRSCSE |
| 8 | 26561-99 | SWITCH, oil pressure | VRSCSE |
| 9 | 27667-01K | BRACKET, map sensor | VRSCSE |
| 10 | 32313-01A | SENSOR, crankshaft position | VRSCSE |
| 11 | 32416-10 | MAP SENSOR, w/ 11291 (replaces 32316-99) | VRSCSE |
| 12 | 33902-98A | SWITCH, neutral gear, w/ 11290 | VRSCSE |
| 13 | 74194-98 | TERMINAL (2) | VRSCSE |
| 14 | 74402-05A | SPEED SENSOR | VRSCSE |
STARTER & SOLENOID
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | VRSCSE |
| 2 | 7495 | NUT (5) | VRSCSE |
| 3 | 11346K | O-RING | VRSCSE |
| 4 | 31717-01K | STARTER MOTOR ASSEMBLY, w/ 11346K | VRSCSE |
| 5 | 70442-04 | CABLE ASSEMBLY, solenoid to starter, w/ 70578-89 & 70590-04 | VRSCSE |
| 6 | 70578-89 | BOOT, starter | VRSCSE |
| 7 | 70590-04 | BOOT, solenoid | VRSCSE |
| 8 | 71023-04 | COVER, starter solenoid | VRSCSE |
| 9 | 71474-04 | SOLENOID, w/ 73152-96BK & 73191-96 | VRSCSE |
| 10 | 73152-96BK | HOUSING SOCKET, 2-way | VRSCSE |
| 11 | 73191-96 | SOCKET CONTACT (2) | VRSCSE |
GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | VRSCSE |
| 2 | 4761 | SCREW (2) | VRSCSE |
| 3 | 6314W | WASHER | VRSCSE |
| 4 | 11355K | SNAP RING, black | VRSCSE |
| 5 | 11356K | SNAP RING, silver | VRSCSE |
| 6 | 12071K | SHAFT SEAL | VRSCSE |
| 7 | 33795-02 | COVER, shift rod lever | VRSCSE |
| 8 | 33796-02 | SHIFTER LINKAGE ASSEMBLY, slotted w/ 4261 & 33795-02 | VRSCSE |
| 9 | 34555-01A | SHIFTER LEVER ASSEMBLY, w/ 21 , 22 & 23 | VRSCSE |
| 10 | 34567-01 | LEVER, shift rod | VRSCSE |
| 11 | 35017-01K | SHIFT ACTUATOR ASSEMBLY, w/ drum shifter &actuator | VRSCSE |
| 12 | 35428-01K | SHIFTER FORK, 1st & 3rd gears | VRSCSE |
| 13 | 35429-01K | SHIFTER FORK, 2nd gear | VRSCSE |
| 14 | 35430-01KA | SHIFTER FORK, 4th & 5th gears | VRSCSE |
| 15 | 35432-01K | SHIFT SHAFT, 1 inch | VRSCSE |
| 16 | 35434-01K | SHIFTER FORK | VRSCSE |
| 17 | 35441-01K | SHIFT DRUM AXIS | VRSCSE |
| 18 | 35443-01K | SPRING | VRSCSE |
| 19 | 35445-01K | SPRING | VRSCSE |
| 20 | 42569-03 | BUSHING | VRSCSE |
| 21 | 50241-01 | PAD, shifter lever | VRSCSE |
| 22 | 50243-01 | PAD TRIM, shifter lever | VRSCSE |
| 23 | 94337-91T | SCREW | VRSCSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1021M | SCREW (8) | VRSCSE |
| 2 | 7910M | NUT COLLAR | VRSCSE |
| 3 | 8027K | BEARING | VRSCSE |
| 4 | 8028K | BEARING | VRSCSE |
| 5 | 8029K | BEARING (2) | VRSCSE |
| 6 | 11200K | RING (2) | VRSCSE |
| 7 | 11353K | O-RING | VRSCSE |
| 8 | 11354K | O-RING | VRSCSE |
| 9 | 12072K | SEAL | VRSCSE |
| 10 | 34007-01K | CAP, thread | VRSCSE |
| 11 | 35001-01K | BEARING RETAINER, upper, outer | VRSCSE |
| 12 | 35002-01K | BEARING RETAINER, upper, inner | VRSCSE |
| 13 | 35003-01K | BEARING RETAINER, lower, outer | VRSCSE |
| 14 | 35004-01K | BEARING RETAINER, lower, inner | VRSCSE |
| 15 | 35423-04K | FLANGE OUTPUT | VRSCSE |
| 16 | 35433-01K | SEAL CARRIER ASSEMBLY, w/ 11353K & 12072K | VRSCSE |
| 17 | 35451-01K | LOCKING PLATE | VRSCSE |
| 18 | 35454-01KA | INPUT SHAFT ASSEMBLY | VRSCSE |
| 19 | 35455-01KA | OUTPUT SHAFT ASSEMBLY KIT | VRSCSE |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (3) | VRSCSE |
| 2 | 8008M | NUT | VRSCSE |
| 3 | 8885 | BEARING | VRSCSE |
| 4 | 11347K | O-RING | VRSCSE |
| 5 | 11363K | RETAINING RING | VRSCSE |
| 6 | 36723-05K | CLUTCH SHELL | VRSCSE |
| 7 | 36724-05K | CLUTCH HUB | VRSCSE |
| 8 | 36702-01K | CLUTCH PLATE (8) | VRSCSE |
| 9 | 36704-01K | CLUTCH PRESSURE PLATE | VRSCSE |
| 10 | 36825-05K | SPRING, pressure plate (5) | VRSCSE |
| 11 | 36706-01K | BOLT (5) | VRSCSE |
| 12 | 36707-01K | COLLAR, distance | VRSCSE |
| 13 | 36709-01K | THRUST WASHER | VRSCSE |
| 14 | 36710-01K | LIFTER PLATE | VRSCSE |
| 15 | 36711-01K | SEAT, spring | VRSCSE |
| 16 | 36712-01K | SPRING | VRSCSE |
| 17 | 36713-01K | FRICTION PLATE (9) | VRSCSE |
| 18 | 36714-01K | RETAINING CLIP | VRSCSE |
| 19 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | VRSCSE |
| 20 | 36757-05K | BLEEDER SCREW, with O-ring | VRSCSE |
| 21 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRSCSE |
| 22 | 36780-01K | CONTACT BUTTON | VRSCSE |
| 23 | 37909-90 | RETAINING RING | VRSCSE |
COVERS, OIL PAN/FILTER/PICKUP
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (48) | VRSCSE |
| 2 | 1009M | SCREW (5) | VRSCSE |
| 3 | 3729M | SCREW (3) | VRSCSE |
| 4 | 7124 | LOCKWASHER | VRSCSE |
| 5 | 10994K | O-RING (2) | VRSCSE |
| 6 | 11130K | O-RING | VRSCSE |
| 7 | 11140 | O-RING (2) | VRSCSE |
| 8 | 11312K | O-RING (2) | VRSCSE |
| 9 | 11341K | O-RING | VRSCSE |
| 10 | 11347K | O-RING | VRSCSE |
| 11 | 11384K | RETAINER WIRE CLIP (2) | VRSCSE |
| 12 | 17011-01KB | ENGINE GASKET KIT | VRSCSE |
| 13 | 25080-01K | GASKET, cover alternator | VRSCSE |
| 14 | 25302-01K | COVER, derby (chrome) | VRSCSE |
| 15 | 25732-01K | COVER, clutch (chrome) | VRSCSE |
| 16 | 25895-04K | COVER, alternator (chrome) | VRSCSE |
| 17 | 25881-01KA | COVER KIT/STATOR (chrome) (Note: For parts, see Alternator & Regulator.) | VRSCSE |
| 18 | 25891-01K | GASKET, clutch cover | VRSCSE |
| 19 | 26034-01K | GASKET, baffle plate | VRSCSE |
| 20 | 26103-01K | OIL PAN | VRSCSE |
| 21 | 26393-01K | OIL PICKUP ASSEMBLY, w/ 11312K & oil pickup | VRSCSE |
| 22 | 26399-01K | OIL FILTER ADAPTER | VRSCSE |
| 23 | 26539-01K | OIL FILTER MOUNT | VRSCSE |
| 24 | 62957-03 | OIL FILL PLUG ASSEMBLY KIT, w/ 11341K & dipstick | VRSCSE |
| 25 | 26542-01K | PLUG, oil drain with magnet | VRSCSE |
| 26 | 34783-05A | COVER, secondary clutch actuator (chrome) | VRSCSE |
| 27 | 34996-05 | MEDALLION, CVO/clutch rel | VRSCSE |
| 28 | 36757-01K | SCREW, bleeder with O-ring | VRSCSE |
| 29 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRSCSE |
| 30 | 63650-04K | FITTING ASSEMBLY, oil feed, w/ 10994K, 11140 &11384K | VRSCSE |
| 31 | 63793-01K | ENGINE OIL FILTER | VRSCSE |
| 32 | 70441-01A | CABLE, engine ground to chassis, w/ 70578-89 | VRSCSE |
| 33 | 70578-89 | BOOT, cable assembly | VRSCSE |
BELT & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3858M | SCREW (3) | VRSCSE |
| 2 | 6859M | WASHER (3) | VRSCSE |
| 3 | 7910M | NUT | VRSCSE |
| 4 | 11354K | SPACER, rubber seal | VRSCSE |
| 5 | 11542 | BUSHING (6) | VRSCSE |
| 6 | 26791-01 | SPACER (3) | VRSCSE |
| 7 | 34007-01K | CAP, plastic | VRSCSE |
| 8 | 35019-05 | COVER ASSEMBLY, sprocket (chrome) | VRSCSE |
| 9 | 35423-04K | FLANGE, output | VRSCSE |
| 10 | 35451-01K | LOCKING PLATE | VRSCSE |
| 40014-04K | CONVERSION KIT, 28T w/ 3, 4, 7, 9, 10, 11, 12 & 13 | VRSCSE | |
| 11 | 40118-05 | REAR BELT, 149T (Domestic, California, Canada) | VRSCSE |
| 12 | 40345-04 | SPROCKET, transmission 28T (Domestic, California, Canada) | VRSCSE |
| 13 | 40399-01M | SCREW (3) | VRSCSE |
| 14 | 40229-04 | SPROCKET KIT, 72T w/ sprocket & 40433-01 | VRSCSE |
| 15 | 40433-01 | BEARING | VRSCSE |
| 16 | 44493-02 | INSERT KIT, sprocket cover | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 17 | 40119-05 | REAR BELT, 150T (HDI) | VRSCSE |
| 40008-04K | CONVERSION KIT, 30T, w/ 3, 4, 7, 9, 10, 13, 17 & 18 (HDI) | VRSCSE | |
| 18 | 40341-04 | SPROCKET, transmission, 30T (HDI) | VRSCSE |
RADIATOR / OIL COOLER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3725M | NUT (2) | VRSCSE |
| 2 | 5235 | PLUG | VRSCSE |
| 3 | 5236M | SCREW (2) | VRSCSE |
| 4 | 5237M | SCREW (8) | VRSCSE |
| 5 | 5238M | LOCKNUT (4) | VRSCSE |
| 6 | 6838M | WASHER, front (2) | VRSCSE |
| 7 | 10065 | CABLE STRAP (3) | VRSCSE |
| 8 | 11101 | O-RING (2) | VRSCSE |
| 9 | 11568 | BUSHING (2) | VRSCSE |
| 10 | 26722-04 | RADIATOR | VRSCSE |
| 11 | 26723-04 | OIL COOLER ASSEMBLY | VRSCSE |
| 12 | 26724-04 | FAN ASSEMBLY | VRSCSE |
| 13 | 26757-01 | GROMMET (4) | VRSCSE |
| 14 | 26758-01 | SPACER (2) | VRSCSE |
| 15 | 26772-04 | BRACKET | VRSCSE |
| 16 | 62909-04 | CAP | VRSCSE |
| 17 | 62940-04A | OIL LINE, oil cooler, inlet | VRSCSE |
| 18 | 62941-04A | OIL LINE, oil cooler, outlet | VRSCSE |
| 19 | 62953-01 | HOSE DRAIN | VRSCSE |
| 20 | 73152-96BK | SOCKET HOUSING, 2-place (2) | VRSCSE |
| 21 | 73191-96 | CONTACT SOCKET (4) | VRSCSE |
COOLANT HOSES / BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRSCSE |
| 2 | 5234 | PLUG, with seal | VRSCSE |
| 3 | 7036 | WASHER | VRSCSE |
| 4 | 9830 | CLAMP | VRSCSE |
| 5 | 26730-01 | CLAMP, bright (4) | VRSCSE |
| 6 | 26731-01 | COOLANT BOTTLE, w/ CAP & HOSE ASSEMBLY (use 26731-01A) | VRSCSE |
| 26731-01A | COOLANT BOTTLE KIT & CAP, w/ 26780-05A & 62942-01A (replaces 26731-01) | VRSCSE | |
| 7 | 26733-01 | CAP, pressure | VRSCSE |
| 8 | 26753-01 | HOSE COOLANT, engine | VRSCSE |
| 9 | 26754-01 | HOSE COOLANT | VRSCSE |
| 10 | 26755-01 | HOSE COOLANT, engine in, front | VRSCSE |
| 11 | 26756-01 | HOSE COOLANT, engine in, rear | VRSCSE |
| 12 | 26767-01 | PIPE COOLANT, engine out | VRSCSE |
| 13 | 26768-01A | PIPE COOLANT, engine in | VRSCSE |
| 14 | 26770-01 | CLAMP, shrink (4) | VRSCSE |
| 15 | 26777-01 | CLAMP | VRSCSE |
| 16 | 26780-05A | CAP, coolant bottle (used with 26731-01A) | VRSCSE |
| 17 | 26790-01 | CLAMP, black (2) | VRSCSE |
| 18 | 29770-01 | COVER HOSE KIT, w/ 19, 20, 23 & 24 | VRSCSE |
| 19 | 29776-05 | BRACKET, front coolant | VRSCSE |
| 20 | 29827-05 | BRACKET, rear coolant | VRSCSE |
| 21 | 62942-01A | HOSE DRAIN KIT | VRSCSE |
| 22 | 62943-01 | CLAMP, drain hose (2) | VRSCSE |
| 23 | 94427-02 | SCREW (2) | VRSCSE |
| 24 | 94429-02 | SCREW (4) | VRSCSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2573 | SCREW (2) | VRSCSE |
| 2 | 4293 | SCREW (2) | VRSCSE |
| 3 | 5774 | SPACER | VRSCSE |
| 4 | 6099 | WASHER (2) | VRSCSE |
| 5 | 7127 | LOCKWASHER (2) | VRSCSE |
| 6 | 10006 | CABLE STRAP | VRSCSE |
| 7 | 10110 | CLIP (3) | VRSCSE |
| 8 | 11143 | RETAINING RING | VRSCSE |
| 9 | 11348 | O-RING | VRSCSE |
| 10 | 14448-94 | LOGO, mirror | VRSCSE |
| 11 | 38669-03 | LINE ASSEMBLY, clutch, w/ 11348 | VRSCSE |
| 12 | 41731-01 | GASKET, brake line (2) | VRSCSE |
| 13 | 41747-82A | BOLT, banjo | VRSCSE |
| 14 | 44420-02 | EMBLEM | VRSCSE |
| 15 | 45032-82 | PIVOT PIN | VRSCSE |
| 16 | 45078-96D | COVER MASTER CYLINDER KIT, w/ 2573, cover & gasket | VRSCSE |
| 17 | 45197-05 | MASTER CYLINDER ASSEMBLY, clutch (chrome) (45197-05 no longer used all parts must be purchased individually) | VRSCSE |
| 17 | 45282-99A | CLAMP, master cylinder clutch (chrome) | VRSCSE |
| 19 | 45423-96 | BUSHING, lever pivot | VRSCSE |
| 20 | 45658-02 | HAND LEVER ASSEMBLY, w/ 45423-96 & 46246-01 (chrome) | VRSCSE |
| 21 | 56073-83 | RETAINER | VRSCSE |
| 22 | 46113-02A | RESERVOIR, master cylinder, w/ 46244-01 (chrome) | VRSCSE |
| 23 | 46244-01 | REPAIR KIT, master cylinder, w/ 11143 & 41731-01 | VRSCSE |
| 24 | 46246-01 | BUSHING & ROLLER KIT | VRSCSE |
| 25 | 91901-02 | MIRROR, left, w/ 14448-94 | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 91845-03B | MIRROR KIT, left, w/ 7127 & 7720 (HDI) | VRSCSE |
FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2573 | SCREW (2) | VRSCSE |
| 2 | 4293 | SCREW (2) | VRSCSE |
| 3 | 4741A | SCREW | VRSCSE |
| 4 | 5774 | SPACER | VRSCSE |
| 5 | 6099 | WASHER (2) | VRSCSE |
| 6 | 7127 | LOCKWASHER | VRSCSE |
| 7 | 11143 | RETAINING RING | VRSCSE |
| 8 | 14448-94 | LOGO, mirror | VRSCSE |
| 9 | 41731-01 | GASKET (6) | VRSCSE |
| 10 | 41747-82A | BOLT, banjo (3) | VRSCSE |
| 11 | 44418-02 | EMBLEM | VRSCSE |
| 12 | 44543-05 | BRAKE LINE | VRSCSE |
| 13 | 45032-82 | PIVOT PIN | VRSCSE |
| 14 | 45072-96C | REPAIR KIT, master cylinder (11/16 inch diameter) | VRSCSE |
| 15 | 45078-96D | COVER MASTER CYLINDER KIT, w/ 2573, cover & gasket | VRSCSE |
| 16 | 45200-05 | MASTER CYLINDER ASSEMBLY, front, w/ 1, 7, 13, 14, 15, 16, 18 & 19 (use 45298-99) (chrome) | VRSCSE |
| 45298-99 | MASTER CYLINDER ASSEMBLY, front, w/ 45072-96C & body (replaces 45200-05) (chrome) | VRSCSE | |
| 17 | 45282-99A | CLAMP, master cylinder front brake (chrome) | VRSCSE |
| 18 | 45391-02 | HAND LEVER, front brake control, w/ 45423-96 | VRSCSE |
| 19 | 45423-96 | BUSHING, lever pivot | VRSCSE |
| 20 | 91900-02 | MIRROR, right, w/ 14448-94 | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 91840-03B | MIRROR KIT, right, w/ 7127 & 7720 (HDI) | VRSCSE |
REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | VRSCSE |
| 2 | 3588 | SCREW | VRSCSE |
| 3 | 4240 | SCREW (4) | VRSCSE |
| 4 | 6366 | WASHER | VRSCSE |
| 5 | 7671 | LOCKNUT | VRSCSE |
| 6 | 7744 | JAM NUT | VRSCSE |
| 7 | 7951 | JAM NUT | VRSCSE |
| 8 | 10038A | CLAMP (2) | VRSCSE |
| 9 | 10184 | CLIP | VRSCSE |
| 10 | 10231 | CLIP (4) | VRSCSE |
| 11 | 40903-87 | RETAINING RING | VRSCSE |
| 12 | 40918-87 | RETAINING RING | VRSCSE |
| 13 | 40920-87 | SPRING, brake return | VRSCSE |
| 14 | 40922-87A | DUST BOOT | VRSCSE |
| 15 | 46379-05 | BRAKE LINE, rear | VRSCSE |
| 16 | 41731-01 | GASKET (4) | VRSCSE |
| 17 | 41747-82A | BOLT (2) | VRSCSE |
| 18 | 42375-87 | SCREW (2) | VRSCSE |
| 19 | 42382-87C | REBUILT KIT, master cylinder | VRSCSE |
| 20 | 42397-01 | HOSE, master cylinder rear | VRSCSE |
| 21 | 42409-01 | CONDUIT | VRSCSE |
| 22 | 42448-87 | PUSH ROD | VRSCSE |
| 23 | 42460-80B | CLEVIS PIN | VRSCSE |
| 24 | 42471-01A | HOUSING, cartridge | VRSCSE |
| 25 | 42569-03 | BUSHING, brake pedal | VRSCSE |
| 26 | 42585-05 | MASTER CYLINDER ASSEMBLY, w/ 4, 8, 11, 12, 13, 14, 19, 20, 22, 24 & 33 (use 42585-01) | VRSCSE |
| 42585-01 | MASTER CYLINDER ASSEMBLY, w/ 4, 8, 11, 12, 13, 14, 19, 20, 22, 24 & 33 (replaces 42585-05) | VRSCSE | |
| 27 | 42586-01 | RESERVOIR ASSEMBLY, master cylinder, w/ 18, 30, 31 & 32 | VRSCSE |
| 28 | 42682-01 | ROD END | VRSCSE |
| 29 | 42964-01A | BREAK PEDAL ASSEMBLY, w/ 1, 5 & 34 | VRSCSE |
| 30 | 43914-01 | RESERVOIR, body | VRSCSE |
| 31 | 43915-01 | COVER, reservoir | VRSCSE |
| 32 | 43917-01 | GASKET, master cylinder reservoir | VRSCSE |
| 33 | 44126-87 | RETAINER, brake return spring | VRSCSE |
| 34 | 50240-01 | BREAK PEDAL PAD | VRSCSE |
| 35 | 72023-51D | STOPLIGHT SWITCH, rear, w/ 9907 | VRSCSE |
FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | BLEEDER FITTING (2) | VRSCSE |
| 2 | 44082-00D | PAD KIT | VRSCSE |
| 3 | 44147-87A | CAP BLEEDER (2) | VRSCSE |
| 4 | 44160-00 | BOLT, caliper mounting, lower (2) | VRSCSE |
| 5 | 44163-00 | BOLT, caliper mounting, upper (2) | VRSCSE |
| 6 | 44177-00 | BOLT, bridge (4) | VRSCSE |
| 7 | 44313-01 | PISTON KIT | VRSCSE |
| 8 | 44314-00 | PAD PIN KIT | VRSCSE |
| 9 | 44315-00 | SEAL KIT | VRSCSE |
| 10 | 44337-00B | SPRING KIT, anti-rattle | VRSCSE |
| 11 | 44381-99C | CALIPER ASSEMBLY, left (silver) | VRSCSE |
| 44382-99C | CALIPER ASSEMBLY, right (silver) | VRSCSE | |
| 12 | 44477-99 | INSERT CALIPER KIT (2) | VRSCSE |
REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | SCREW, bleeder | VRSCSE |
| 2 | 44082-00D | PAD KIT | VRSCSE |
| 3 | 44147-87A | CAP, bleeder screw | VRSCSE |
| 4 | 44177-00 | BOLT, bridge (3) | VRSCSE |
| 5 | 44313-01 | PISTON KIT | VRSCSE |
| 6 | 44314-00 | PAD PIN KIT | VRSCSE |
| 7 | 44315-00 | SEAL KIT | VRSCSE |
| 8 | 44337-00B | SPRING KIT, anti-rattle | VRSCSE |
| 9 | 44351-00 | BUMPER | VRSCSE |
| 10 | 44423-02C | CALIPER ASSEMBLY (silver) | VRSCSE |
| 11 | 44477-99 | INSERT CALIPER KIT | VRSCSE |
FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3347 | SET SCREW (used with 43317-01) (2) | VRSCSE |
| 2 | 3762M | BOLT (10) | VRSCSE |
| 3 | 6655 | WASHER | VRSCSE |
| 4 | 6966M | WASHER (10) | VRSCSE |
| 5 | 7813A | NUT | VRSCSE |
| 6 | 9247 | BEARING (2) | VRSCSE |
| 7 | 41148-98 | VALVE CAP | VRSCSE |
| 8 | 41540-04 | AXLE, front | VRSCSE |
| 9 | 41615-02 | FRONT SPACER KIT | VRSCSE |
| 10 | 43157-83A | VALVE STEM, w/ 54321-85 | VRSCSE |
| 11 | 43219-04 | WHEEL KIT, 19 inch, w/ 3762M & 44561-05 (use 43219-08) | VRSCSE |
| 43219-08 | WHEEL KIT (replaces 43219-04) | VRSCSE | |
| 12 | 43317-01 | AXLE COVER KIT (use 44117-07A) | VRSCSE |
| 44117-07A | AXLE COVER KIT (replaces 43317-01) | VRSCSE | |
| 13 | 43641-01 | SLEEVE | VRSCSE |
| 14 | 44343-01 | BRAKE DISC (2) | VRSCSE |
| 15 | 95595-84A | WEIGHT, 1/4 oz. (silver) (4) | VRSCSE |
REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 7039 | LOCKWASHER (5) | VRSCSE |
| 2 | 8020 | NUT | VRSCSE |
| 3 | 9247 | BEARING (2) | VRSCSE |
| 4 | 40229-04 | SPROCKET KIT, 72T, w/ sprocket & 40433-01 | VRSCSE |
| 5 | 40433-01 | BEARING | VRSCSE |
| 6 | 40434-01 | CUSHION, compensator | VRSCSE |
| 7 | 40436-01A | SPACER | VRSCSE |
| 8 | 40439-01 | SCREW (5) | VRSCSE |
| 9 | 40541-05 | COMPENSATOR BOWL | VRSCSE |
| 10 | 41139-02 | E-CLIP | VRSCSE |
| 11 | 41148-98 | VALVE CAP | VRSCSE |
| 12 | 41189-04 | SPACER KIT | VRSCSE |
| 13 | 41666-01 | DISC, brake | VRSCSE |
| 14 | 41541-05 | AXLE ASSEMBLY, rear | VRSCSE |
| 15 | 41714-05 | REAR AXLE ADJUSTER | VRSCSE |
| 16 | 43157-83A | VALVE STEM ASSEMBLY, w/ 54321-85 | VRSCSE |
| 17 | 43567-92 | SCREW (5) | VRSCSE |
| 18 | 43704-01 | SLEEVE BEARING | VRSCSE |
| 19 | 43215-08 | WHEEL KIT | VRSCSE |
| 20 | 95595-84A | WEIGHT, 1/4 oz. (silver) (4) | VRSCSE |
FRONT FORK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3321 | SET SCREW | VRSCSE |
| 2 | 3347 | SET SCREW (2) | VRSCSE |
| 3 | 3703M | SCREW (4) | VRSCSE |
| 4 | 4042 | SCREW, right (2) | VRSCSE |
| 5 | 7062 | LOCKWASHER (2) | VRSCSE |
| 6 | 45069-01 | HOLDER AXLE, right | VRSCSE |
| 7 | 45611-86 | RETAINING RING | VRSCSE |
| 8 | 45670-80A | CAP, fork stem | VRSCSE |
| 9 | 45717-63 | LOCKWASHER, fork stem nut | VRSCSE |
| 10 | 45718-60 | NUT, fork stem | VRSCSE |
| 11 | 46213-02 | COVER KIT, fork stem | VRSCSE |
| 12 | 46319-04 | DUST COVER KIT, w/ 3321 | VRSCSE |
| 13 | 46504-01 | SLIDER TUBE (2) | VRSCSE |
| 14 | 46505-01 | SLIDER, right | VRSCSE |
| 15 | 46506-01A | SLIDER, left | VRSCSE |
| 16 | 46507-01 | CAP, slider tube (2) | VRSCSE |
| 17 | 46508-01 | O-RING (2) | VRSCSE |
| 18 | 46509-01 | WASHER | VRSCSE |
| 19 | 46510-01 | COLLAR, spring (2) | VRSCSE |
| 20 | 46511-01 | SPRING (2) | VRSCSE |
| 21 | 46512-01A | DUST COVER (2) | VRSCSE |
| 22 | 46513-01 | RING, stopper (2) | VRSCSE |
| 23 | 46514-01A | OIL SEAL (2) | VRSCSE |
| 24 | 46515-01 | SPACER, seal (2) | VRSCSE |
| 25 | 46516-01 | BUSHING GUIDE (2) | VRSCSE |
| 26 | 46518-01 | SEAT PIPE (2) | VRSCSE |
| 27 | 46519-01 | STOP OIL LOCK PIECE (2) | VRSCSE |
| 28 | 45405-75A | SCREW (2) | VRSCSE |
| 29 | 46527-02 | SLIDER, left, w/ 46506-01 (chrome) | VRSCSE |
| 30 | 46529-02 | SLIDER, right, w/ 46505-01 (chrome) | VRSCSE |
| 31 | 46531-02 | AXLE CAP, right, w/ 45069-01 | VRSCSE |
| 32 | 46771-02 | TRIPLE CLAMP ASSEMBLY, w/ stem fork, lower triple clamp, 45611-86 & 48184-01 | VRSCSE |
| 33 | 46773-02 | BRACKET UPPER | VRSCSE |
| 34 | 46784-05A | FORK ASSEMBLY, right | VRSCSE |
| 35 | 46785-05A | FORK ASSEMBLY, left | VRSCSE |
| 36 | 48184-01 | SEAL (2) | VRSCSE |
| 37 | 48300-60 | ROLLER BEARING, with cup | VRSCSE |
| 38 | 48315-60 | BEARING CUP (2) | VRSCSE |
| 39 | 48324-00 | SEAT UPPER HEAD CONE | VRSCSE |
| 40 | 59481-00 | REFLECTOR, amber, R.H. | VRSCSE |
| 41 | 59482-00 | REFLECTOR, amber, L.H. | VRSCSE |
SHOCK ABSORBERS - HYDRAULIC
| Index No. | Part No. | Description | Model(s) |
| 1 | 3705M | SCREW | VRSCSE |
| 2 | 3713M | SCREW (2) | VRSCSE |
| 3 | 4480M | SCREW | VRSCSE |
| 4 | 6012 | WASHER (2) | VRSCSE |
| 5 | 7433M | LOCKNUT (2) | VRSCSE |
| 6 | 52558-05 | SHOCK ASSEMBLY, rear, w/ 54715-96 (2) | VRSCSE |
| 54013-04 | REAR SUSPENSION HARDWARE KIT | VRSCSE | |
| 7 | 54016-04 | SPACER, shock upper, R.H. | VRSCSE |
| 8 | 54017-04 | SPACER, shock upper, L.H. | VRSCSE |
| 9 | 54715-96 | BUSHING, damper (2) | VRSCSE |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | VRSCSE |
| 2 | 3701M | SCREW (8) | VRSCSE |
| 3 | 3755M | SCREW (2) | VRSCSE |
| 4 | 3718M | ANCHOR | VRSCSE |
| 5 | 6702 | WASHER (2) | VRSCSE |
| 6 | 8235 | RIVET (2) | VRSCSE |
| 7 | 10065 | CABLE STRAP | VRSCSE |
| 8 | 45804-01 | FORK LOCK, w/ 10065, 71452-91A & 71578-01 | VRSCSE |
| 9 | 48086-01 | CROSS MEMBER, front | VRSCSE |
| 10 | 48115-05CFZ | FRAME ASSEMBLY UPPER (electric orange) | VRSCSE |
| 48115-05BPH | FRAME ASSEMBLY UPPER (candy blue) | VRSCSE | |
| 48115-05BPJ | FRAME ASSEMBLY UPPER (candy cherry) | VRSCSE | |
| 11 | 48116-06CFZ | FRAME LOWER, left (electric orange) | VRSCSE |
| 48116-05BPH | FRAME LOWER, left (candy blue) | VRSCSE | |
| 48116-05BPJ | FRAME LOWER, left (candy cherry) | VRSCSE | |
| 12 | 48117-06CFZ | FRAME LOWER, right (electric orange) | VRSCSE |
| 48117-05BPH | FRAME LOWER, right (candy blue) | VRSCSE | |
| 48117-05BPJ | FRAME LOWER, right (candy cherry) | VRSCSE | |
| 13 | 48315-60 | BEARING CUP, steering head (2) | VRSCSE |
| 14 | 49742-01A | JIFFY STAND KIT (chrome) | VRSCSE |
| 15 | 49930-01 | PIN, clevis (chrome) | VRSCSE |
| 16 | 50005-85A | SPRING | VRSCSE |
| 17 | 62107-01 | BUMPER | VRSCSE |
| 18 | 53158-98 | BUSHING (2) | VRSCSE |
| 19 | 66712-01 | S-SPRING | VRSCSE |
| 20 | 71452-91A | KEY (specify key code) | VRSCSE |
| 61081-92 | COVER, key head set (not illustrated) (2) | VRSCSE | |
| 71031-04 | KEY, deco cvo mark | VRSCSE | |
| 21 | 71578-01A | PLUNGER FORK LOCK | VRSCSE |
REAR FORK, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW | VRSCSE |
| 2 | 3755M | SCREW (3) | VRSCSE |
| 3 | 6703 | WASHER | VRSCSE |
| 4 | 6838M | WASHER (3) | VRSCSE |
| 5 | 6863 | PLUG, large | VRSCSE |
| 6 | 6864A | PLUG, small (2) | VRSCSE |
| 7 | 7460M | LOCKNUT | VRSCSE |
| 8 | 9208 | BEARING | VRSCSE |
| 9 | 45621-02 | SWINGARM AXLE COVER KIT | VRSCSE |
| 10 | 48422-05 | SWINGARM ASSEMBLY KIT, w/ 48389-01 | VRSCSE |
| 11 | 48386-05A | SPACER, left | VRSCSE |
| 12 | 48389-01 | BUSHING, pivot, right | VRSCSE |
| 13 | 48392-05 | PIVOT SHAFT ASSEMBLY | VRSCSE |
| 48893-01 | SWINGARM PIVOT BOLT COVER KIT (not illustrated) | VRSCSE | |
| 14 | 60484-01B | DEBRIS DEFLECTOR KIT, w/ 6368 & 67633-01 | VRSCSE |
| 15 | 60469-01A | BELT GUARD KIT, w/ 7433M | VRSCSE |
| 16 | 67621-94 | BUSHING (2) | VRSCSE |
| 17 | 67633-01 | GROMMET | VRSCSE |
SEATS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3706M | SCREW (2) | VRSCSE |
| 2 | 3755M | SCREW | VRSCSE |
| 3 | 6837M | WASHER (2) | VRSCSE |
| 4 | 6838M | WASHER | VRSCSE |
| 5 | 52041-82 | SLEEVE | VRSCSE |
| 6 | 51594-05 | SEAT KIT, passenger | VRSCSE |
| 7 | 51595-05 | SEAT KIT, rider | VRSCSE |
| 8 | 52402-01 | LANYARD, seat | VRSCSE |
| 9 | 69142-05 | STRAP, seat | VRSCSE |
FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (4) | VRSCSE |
| 2 | 3729M | SCREW (2) | VRSCSE |
| 3 | 4016 | SCREW (2) | VRSCSE |
| 4 | 11304 | RING, retaining (4) | VRSCSE |
| 5 | 42670-02A | CLEVIS, footrest (2) | VRSCSE |
| 6 | 43280-01 | FOOTPEG KIT | VRSCSE |
| 7 | 43281-01 | FOOTPEG ASSEMBLY, right (2) | VRSCSE |
| 43282-01 | FOOTPEG ASSEMBLY, left (2) | VRSCSE | |
| 8 | 43285-01 | PAD, right (2) | VRSCSE |
| 43286-01 | PAD, left (2) | VRSCSE | |
| 9 | 42671-02 | PIN, clevis (4) | VRSCSE |
| 10 | 50912-72 | SPRING WASHER (4) | VRSCSE |
| 11 | 51001-02 | FOOTREST SUPPORT, passenger, right | VRSCSE |
| 12 | 51002-02 | FOOTREST SUPPORT, passenger, left | VRSCSE |
| 13 | 94381-92T | SCREW (4) | VRSCSE |
HANDLEBAR & THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3726M | SCREW (2) | VRSCSE |
| 2 | 4486M | SCREW (4) | VRSCSE |
| 3 | 4491M | SCREW (2) | VRSCSE |
| 4 | 11155 | SNAP RING | VRSCSE |
| 5 | 11271 | RETAINING RING, idle control | VRSCSE |
| 6 | 11272 | RETAINING RING, throttle control | VRSCSE |
| 7 | 11403A | GROMMET (2) | VRSCSE |
| 8 | 56227-05 | HANDLEBAR | VRSCSE |
| 9 | 56394-74 | SPRING, adjusting screw | VRSCSE |
| 10 | 56396-74A | FRICTION SPRING, throttle | VRSCSE |
| 11 | 56402-83A | ADJUSTING SCREW | VRSCSE |
| 12 | 56460-01A | GRIP, left, w/ 56480-01 | VRSCSE |
| 13 | 56461-01A | GRIP & SLEEVE, throttle, right, w/ 56480-01 | VRSCSE |
| 14 | 56480-01 | END CAP, grip (2) | VRSCSE |
| 15 | 56505-05 | BRACKET, speedometer/tachometer | VRSCSE |
| 16 | 56508-76 | FERRULE, control wire (2) | VRSCSE |
| 17 | 56595-03A | THROTTLE/IDLE KIT | VRSCSE |
| 18 | 56742-05 | COVER, riser | VRSCSE |
| 19 | 56745-05 | RISER, handlebar | VRSCSE |
| 70488-02 | CLIP, throttle, idle, brakes (not illustrated) | VRSCSE | |
| 20 | 70504-81 | CLIP, throttle cables | VRSCSE |
HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | VRSCSE |
| 2 | 4292 | SCREW (4) | VRSCSE |
| 3 | 10181 | CABLE STRAP (as required) | VRSCSE |
| 11402 | GROMMET (not illustrated) (2) | VRSCSE | |
| 4 | 70010-03 | CONDUIT, 3/8 inch I.D. (25 feet long) (silver) | VRSCSE |
| 5 | 70345-84 | RETAINER (2) | VRSCSE |
| 6 | 71587-04 | CLIP | VRSCSE |
| 7 | 71683-06A | SWITCH ASSEMBLY, right turn signal, w/ 3 & 21 | VRSCSE |
| 8 | 71684-06A | SWITCH ASSEMBLY, engine stop/start, w/ 3 & 21 | VRSCSE |
| 9 | 71621-08 | STOPLAMP SWITCH, w/ 3 & 20 | VRSCSE |
| 10 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn, w/ 3 & 21 | VRSCSE |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal, w/ 3 & 21 | VRSCSE |
| 12 | 71614-96 | HOUSING, upper, right (chrome) | VRSCSE |
| 13 | 71615-96 | HOUSING, upper, left (chrome) | VRSCSE |
| 14 | 71719-03 | HOUSING, lower, right (chrome) | VRSCSE |
| 15 | 71720-03A | HOUSING, lower, left (chrome) | VRSCSE |
| 16 | 72116-94BK | PLUG, 6-way socket, right (black) (2) | VRSCSE |
| 17 | 72156-94 | SOCKET LOCK, secondary, 6-way (2) | VRSCSE |
| 18 | 72176-94 | FRONT SEAL, 6-way plug (2) | VRSCSE |
| 19 | 72191-94 | TERMINAL, socket (12) | VRSCSE |
| 20 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 inch (as required) | VRSCSE |
HEADLIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 966M | SCREW (2) | VRSCSE |
| 2 | 3709M | SCREW (2) | VRSCSE |
| 3 | 3753M | SCREW (2) | VRSCSE |
| 4 | 3832M | SCREW (2) | VRSCSE |
| 5 | 3853M | SCREW (6) | VRSCSE |
| 6 | 67717-01 | BULB, high beam | VRSCSE |
| 7 | 68254-01 | REFLECTOR ASSEMBLY, headlamp, w/ 3853M & 68807-01 | VRSCSE |
| 8 | 68625-05 | HEADLIGHT ASSEMBLY (Domestic, California, Canada), w/ 3, 6, 7, 10 & 11 | VRSCSE |
| 9 | 68807-01 | BRACKET, reflector mounting (2) | VRSCSE |
| 10 | 68881-01 | BULB, low beam | VRSCSE |
| 11 | 69246-05 | CLIP, bracket headlight | VRSCSE |
| 12 | 68778-04 | HEADLIGHT BUCKET, chrome | VRSCSE |
| 13 | 69772-04 | BRACKET KIT, headlight mounting, w/ 966M & 69246-05 (chrome) | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 14 | 53436-97 | BULB, position lamp # W5W (HDI) | VRSCSE |
| 15 | 68255-01 | REFLECTOR ASSEMBLY, headlamp, right dip, w/ 3853M & 68807-01 (HDI) | VRSCSE |
| 16 | 68778-04 | HEADLIGHT BUCKET KIT (HDI) | VRSCSE |
| 17 | 69770-05 | HEADLIGHT ASSEMBLY, right dip, w/ 3, 6, 10, 15 & 18 (HDI) | VRSCSE |
| 18 | 70004-01 | SOCKET HARNESS, position lamp, w/ 14, 19, 20 & 21 (HDI) | VRSCSE |
| 19 | 74112-98BK | SOCKET HOUSING, 2-way (black) (HDI) | VRSCSE |
| 20 | 74152-98 | SOCKET LOCK, 2-way (HDI) | VRSCSE |
| 21 | 74191-98 | TERMINAL SOCKET (HDI) (2) | VRSCSE |
FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (4) | VRSCSE |
| 2 | 3731M | SCREW (4) | VRSCSE |
| 3 | 7495 | NUT (4) | VRSCSE |
| 4 | 59020-01A | BRACKET FENDER, front (chrome) | VRSCSE |
| 5 | 59115-05CFZ | FENDER, front (electric orange) | VRSCSE |
| 59115-05BPH | FENDER, front (candy blue) | VRSCSE | |
| 59115-05BPJ | FENDER, front (candy cherry) | VRSCSE |
REAR FENDER & SUPPORTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3706M | SCREW (2) | VRSCSE |
| 2 | 3711M | SCREW (2) | VRSCSE |
| 3 | 3714M | SCREW (2) | VRSCSE |
| 4 | 3755M | SCREW (2) | VRSCSE |
| 5 | 6837M | WASHER (4) | VRSCSE |
| 6 | 6838M | WASHER (2) | VRSCSE |
| 7 | 7432M | NUT (4) | VRSCSE |
| 8 | 7495 | NUT (2) | VRSCSE |
| 9 | 48483-01A | FENDER SUPPORT, R.H. | VRSCSE |
| 10 | 48485-01A | FENDER SUPPORT, L.H. | VRSCSE |
| 11 | 48486-01 | NUT, shock mount | VRSCSE |
| 12 | 58948-05 | TAPE, protective | VRSCSE |
| 13 | 59033-01A | FENDER REAR, inner | VRSCSE |
| 14 | 59040-01 | STUD PLATE, mud flap | VRSCSE |
| 15 | 59275-01 | FASTENER (2) | VRSCSE |
| 16 | 59361-05BPK | FENDER REAR, outer (candy blue) | VRSCSE |
| 59361-05BPL | FENDER REAR, outer (electric orange) | VRSCSE | |
| 59361-05BPM | FENDER REAR, outer (candy cherry) | VRSCSE | |
| 17 | 59709-01 | MUDFLAP, w/ 59275-01 & 59040-01 | VRSCSE |
FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7744 | JAM NUT (2) | VRSCSE |
| 2 | 67015-02 | LOCK SCREW, turn signal ball stud (2) | VRSCSE |
| 3 | 67316-03A | BRACKET, turn signal mounting, RH | VRSCSE |
| 4 | 67355-04 | BRACKET, turn signal mounting, LH | VRSCSE |
| 5 | 67822-88 | BALL STUD (2) | VRSCSE |
| 6 | 68614-03 | TURN SIGNAL (2) | VRSCSE |
| 7 | 68904-00 | SOCKET ASSEMBLY (2) | VRSCSE |
| 8 | 69325-02 | LENS (2) | VRSCSE |
| 9 | 69331-02 | BULB, front turn signals (2) | VRSCSE |
| 10 | 73191-96 | SOCKET CONTACT, 16-20 gauge (6) | VRSCSE |
| 11 | 73156-96BK | SOCKET HOUSING, 6-place | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 12 | 68163-84 | BULB, P21W (HDI) (2) | VRSCSE |
| 13 | 68975-00 | TURN SIGNAL, w/ socket assembly (HDI) (2) | VRSCSE |
| 14 | 68973-00 | LENS (HDI) (2) | VRSCSE |
TAIL LAMP, REAR TURN SIGNALS & LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 2887WA | SCREW (2) | VRSCSE |
| 2 | 3711M | SCREW (4) | VRSCSE |
| 3 | 7495 | NUT (4) | VRSCSE |
| 4 | 53436-97 | BULB, license plate illumination (2) | VRSCSE |
| 5 | 59407-01 | REFLECTOR, side, left/right (2) | VRSCSE |
| 6 | 59988-72A | REFLECTOR | VRSCSE |
| 7 | 68168-89A | BULB, tail lamp | VRSCSE |
| 8 | 68205-02 | LAMP ASSEMBLY, license plate illumination, w/ 4, 22 & 23 | VRSCSE |
| 9 | 68324-01 | BULB SOCKET ASSEMBLY | VRSCSE |
| 10 | 68326-01A | ENVELOPE ASSEMBLY, tail lamp | VRSCSE |
| 11 | 68340-01 | BRACKET, reflector rear, w/ 59988-72A | VRSCSE |
| 12 | 68829-05 | SUPPORT, rear turn signal (2) | VRSCSE |
| 13 | 68876-01A | TAIL LAMP ASSEMBLY, w/ 7, 9 & 10 | VRSCSE |
| 14 | 68905-00 | SOCKET ASSEMBLY, turn signal (2) | VRSCSE |
| 15 | 69273-05 | TURN SIGNAL ASSEMBLY KIT, w/ 1, 14, 18, 19 & 23 (2) | VRSCSE |
| 16 | 69051-01A | LICENSE PLATE BRACKET, rear lighting | VRSCSE |
| 17 | 69148-01 | SUPPORT PLATE (2) | VRSCSE |
| 18 | 69325-02 | LENS, turn signal (2) | VRSCSE |
| 19 | 69330-02 | BULB, turn signal (2) | VRSCSE |
| 20 | 73152-96BK | HOUSING SOCKET, 2-way (black) | VRSCSE |
| 21 | 73152-96WE | HOUSING SOCKET, 2-way (white) | VRSCSE |
| 22 | 73153-96BK | HOUSING SOCKET, 3-way (black) | VRSCSE |
| 23 | 73191-96 | TERMINAL (12) | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 24 | 3706M | SCREW (HDI) (4) | VRSCSE |
| 25 | 53436-97 | BULB, license plate illumination (HDI) (2) | VRSCSE |
| 26 | 59259-90 | REFLECTOR (HDI) | VRSCSE |
| 27 | 59407-01 | REFLECTOR, side, right/left (HDI) (2) | VRSCSE |
| 28 | 60119-03 | BRACKET, reflector (HDI) | VRSCSE |
| 29 | 68163-84 | BULB, turn signal (HDI) (2) | VRSCSE |
| 30 | 68169-90A | BULB, tail lamp (HDI) | VRSCSE |
| 31 | 68205-02 | LAMP ASSEMBLY, license plate illumination, w/ 22, 23 & 25 (HDI) | VRSCSE |
| 32 | 68325-01 | BULB SOCKET ASSEMBLY (HDI) | VRSCSE |
| 33 | 68327-01A | ENVELOPE ASSEMBLY, tail lamp (HDI) | VRSCSE |
| 34 | 68879-01A | TAIL LAMP ASSEMBLY, w/ 30, 32 & 33 (HDI) | VRSCSE |
| 35 | 68985-01 | TURN SIGNAL ASSEMBLY KIT, w/ 23, 29, 37 & 38 (HDI) (2) | VRSCSE |
| 36 | 69051-01A | LICENSE PLATE BRACKET, rear lighting (HDI) | VRSCSE |
| 37 | 69068-01A | SOCKET ASSEMBLY, turn signal (HDI) (2) | VRSCSE |
| 38 | 69110-01 | LENS, turn signal (HDI) (2) | VRSCSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3700MA | SCREW (2) | VRSCSE |
| 2 | 6856M | WASHER (2) | VRSCSE |
| 10039 | CABLE STRAP, fuel pump connector to frame (not illustrated) | VRSCSE | |
| 3 | 10108 | CLIP | VRSCSE |
| 4 | 10238 | CLAMP (2) | VRSCSE |
| 5 | 10239 | CLAMP (2) | VRSCSE |
| 6 | 11380 | O-RING | VRSCSE |
| 7 | 27378-01 | TUBE ASSEMBLY, tank to vapor valve | VRSCSE |
| 8 | 60966-01 | BRACKET, fuel tank | VRSCSE |
| 9 | 61109-85D | GASKET, filler cap | VRSCSE |
| 10 | 61274-92 | FILLER CAP, w/ 61109-85D | VRSCSE |
| 11 | 61329-01 | LOCK RING, fuel module | VRSCSE |
| 12 | 61498-01 | SEAL, fuel module | VRSCSE |
| 13 | 61516-07 | FUEL LINE KIT | VRSCSE |
| 14 | 61828-01 | BOOT, fuel filler | VRSCSE |
| 15 | 62109-01A | FUEL PUMP, w/ 5, 19 & 25 | VRSCSE |
| 16 | 62150-85 | VAPOR VALVE | VRSCSE |
| 17 | 62921-01 | FUEL TANK ASSEMBLY | VRSCSE |
| 18 | 62926-01 | HOSE, filter to fuel outlet | VRSCSE |
| 19 | 62927-01 | HOSE, pump to filter | VRSCSE |
| 20 | 72439-00B | CONNECTOR ASSEMBLY KIT | VRSCSE |
| 72458-00 | O-RING & CLIP KIT, w/ 11380 | VRSCSE | |
| 21 | 74191-98 | TERMINAL (3) | VRSCSE |
| 22 | 75122-01 | SENDING UNIT, fuel gauge | VRSCSE |
| 23 | 75123-01B | FUEL MODULE ASSEMBLY (order components) | VRSCSE |
| 24 | 75169-01 | FILTER, pressure side | VRSCSE |
| 25 | 75170-04A | FILTER, suction side (use 62109-01A) | VRSCSE |
| 26 | 75171-01 | CARRIER FUEL PUMP/FILTER | VRSCSE |
| 27 | 75172-01A | ELECTRICAL HARNESS | VRSCSE |
| 28 | 75173-01A | FLANGE, fuel module | VRSCSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 29 | 27138-90 | HOSE, 3/16 inch I.D. (rubber) (10 feet long) (cut 13.75 - 14.00) | VRSCSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (4) | VRSCSE |
| 2 | 3756MA | SCREW (4) | VRSCSE |
| 3 | 3934M | SCREW (2) | VRSCSE |
| 4 | 6702 | WASHER (2) | VRSCSE |
| 5 | 7076 | WASHER (2) | VRSCSE |
| 6 | 7432M | NUT (7) | VRSCSE |
| 7 | 7444M | NUT (4) | VRSCSE |
| 8 | 9955 | CLAMP (6) | VRSCSE |
| 9 | 64930-01 | PIN | VRSCSE |
| 10 | 65000-04 | ENDCAP EXHAUST KIT, w/ 65040-04 | VRSCSE |
| 11 | 65040-04 | RIVET (6) | VRSCSE |
| 12 | 65043-01A | CLAMP, exhaust | VRSCSE |
| 13 | 65045-01 | RETAINING RING (2) | VRSCSE |
| 14 | 65046-01 | SHIELD, lower exhaust (chrome) | VRSCSE |
| 15 | 65101-01 | EXHAUST PIPE, front (chrome) | VRSCSE |
| 16 | 65102-01 | FLANGE, exhaust (2) | VRSCSE |
| 17 | 65104-01 | EXHAUST PIPE, rear (chrome) | VRSCSE |
| 18 | 65106-01 | SUPPORT BAR | VRSCSE |
| 19 | 65107-01 | ISOLATOR MOUNT | VRSCSE |
| 20 | 65109-01 | SEAL, exhaust (2) | VRSCSE |
| 21 | 65110-01 | SHIELD EXHAUST ASSEMBLY, front (chrome) | VRSCSE |
| 22 | 65111-01A | SHIELD EXHAUST ASSEMBLY, rear (chrome) | VRSCSE |
| 23 | 65112-01B | SHIELD, upper exhaust (chrome) | VRSCSE |
| 24 | 65113-01A | EXHAUST SUPPORT | VRSCSE |
| 25 | 65151-01B | AUXILIARY VOLUME (Domestic, California, Canada) | VRSCSE |
| 26 | 65152-01A | MUFFLER, rear (Domestic, California, Canada, HDI, Australia, England) | VRSCSE |
| 27 | 65153-01A | MUFFLER, front (Domestic, California, Canada, HDI, Australia, England) | VRSCSE |
| 28 | 65165-01 | BRACKET, exhaust support | VRSCSE |
| 29 | 65200-01 | RUBBER ISOLATOR (2) | VRSCSE |
| 30 | 65271-03 | CLAMP EXHAUST KIT, w/ 3934M, 7076 & 65272-03 | VRSCSE |
| 31 | 65272-03 | CLAMP (2) | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 32 | 64929-01B | AUXILIARY VOLUME (HDI) | VRSCSE |

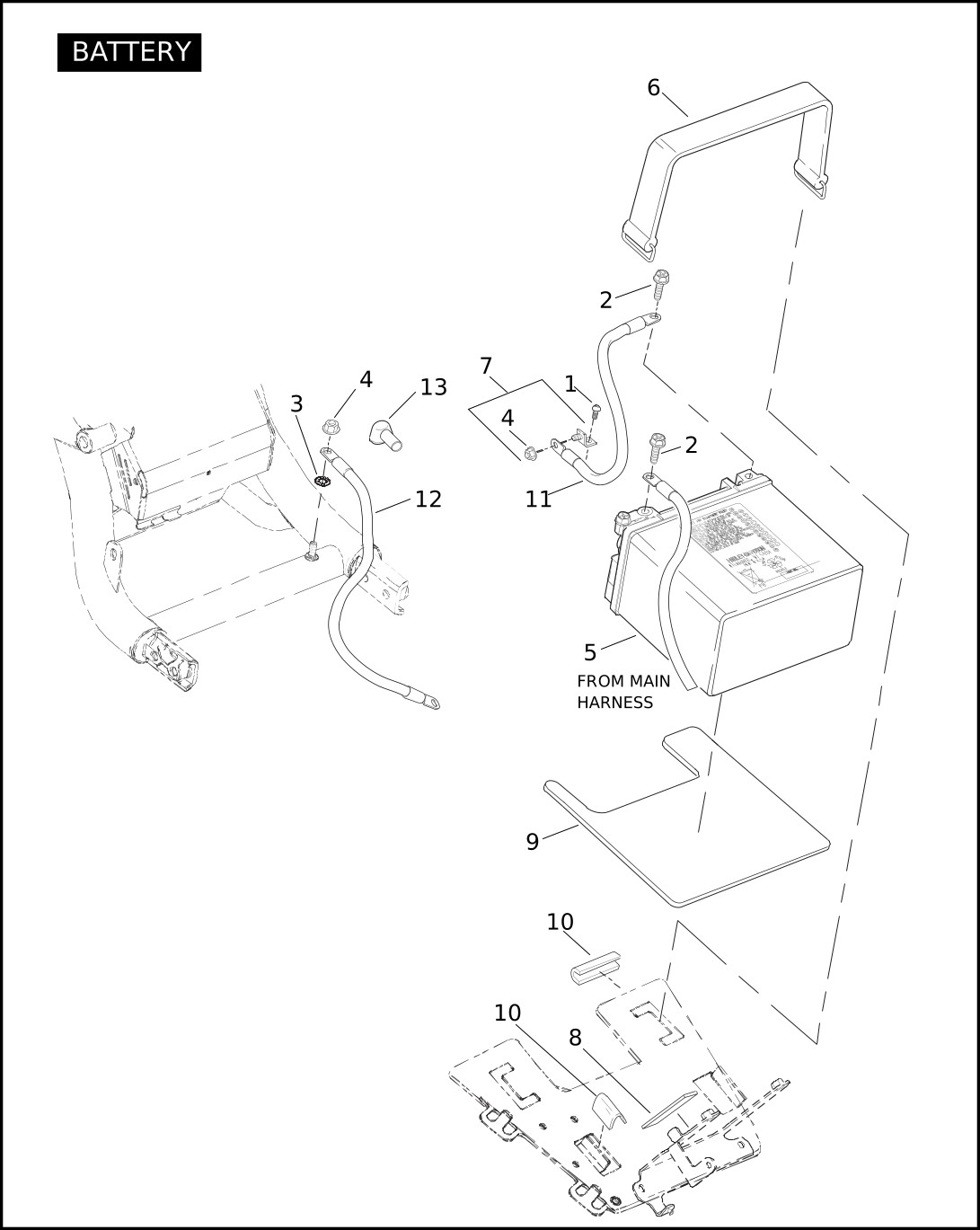

BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRSCSE |
| 2 | 4312C | SCREW (2) | VRSCSE |
| 3 | 7229W | LOCKWASHER | VRSCSE |
| 4 | 7495 | NUT | VRSCSE |
| 5 | 65948-00A | BATTERY | VRSCSE |
| 6 | 66017-01 | BATTERY STRAP | VRSCSE |
| 7 | 66056-00 | ADAPTER KIT, w/ 7495 | VRSCSE |
| 8 | 66494-01 | PAD, battery (2) | VRSCSE |
| 9 | 66495-01 | PAD, battery bottom | VRSCSE |
| 10 | 66496-01 | TRIM, battery (2) | VRSCSE |
| 11 | 70439-01 | CABLE ASSEMBLY, battery, negative to engine | VRSCSE |
| 12 | 70441-01A | CABLE ASSEMBLY, engine, engine to chassis ground, w/ 70578-89 | VRSCSE |
| 13 | 70578-89 | BOOT | VRSCSE |
INSTRUMENTS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2548 | SCREW (2) | VRSCSE |
| 2 | 4404M | SCREW (2) | VRSCSE |
| 3 | 4488M | SCREW (2) | VRSCSE |
| 4 | 4489M | SCREW (2) | VRSCSE |
| 5 | 9856 | TERMINAL (3) | VRSCSE |
| 6 | 11571 | GROMMET | VRSCSE |
| 7 | 52425-98 | BULB, tachometer, replacement | VRSCSE |
| 8 | 56505-05 | BRACKET, speedometer/tachometer | VRSCSE |
| 9 | 61412-05 | GASKET, console | VRSCSE |
| 10 | 62256-05 | MEDALLION | VRSCSE |
| 11 | 66171-05 | GASKET | VRSCSE |
| 12 | 67121-95A | CUSHION, speedometer | VRSCSE |
| 13 | 67488-04 | SWITCH, reset | VRSCSE |
| 14 | 67880-94 | BOOT, reset switch | VRSCSE |
| 15 | 67925-04 | CAN HOUSING, tachometer | VRSCSE |
| 16 | 67952-96 | GASKET, tachometer | VRSCSE |
| 17 | 67956-96 | SCREW (2) | VRSCSE |
| 18 | 69238-05A | CONSOLE ASSEMBLY, w/ 69239-05, 69275-05 | VRSCSE |
| 19 | 69239-05A | CONSOLE DISPLAY LED, w/ 61412-05 | VRSCSE |
| 20 | 69242-05 | BRACKET, front | VRSCSE |
| 21 | 69243-05 | BRACKET, rear | VRSCSE |
| 22 | 10103 | CLIP | VRSCSE |
| 23 | 69245-05 | TACHOMETER | VRSCSE |
| 24 | 69266-05 | BRACKET, middle | VRSCSE |
| 25 | 69275-05 | LENS | VRSCSE |
| 26 | 71321-05 | CONSOLE, airbox | VRSCSE |
| 27 | 71771-05 | WIRE HARNESS, speedometer | VRSCSE |
| 28 | 71776-05 | WIRE HARNESS, tachometer | VRSCSE |
| 29 | 72130-04 | HOUSING SOCKET, 12-way (black) | VRSCSE |
| 30 | 72189-04 | SEAL PIN (3) | VRSCSE |
| 31 | 74113-98BK | HOUSING SOCKET (black) | VRSCSE |
| 32 | 74153-98 | SECONDARY LOCK, 3-way | VRSCSE |
| 33 | 74158-98 | SECONDARY LOCK, 8-way | VRSCSE |
| 34 | 74118-98BK | HOUSING SOCKET, 8-way (black) | VRSCSE |
| 35 | 74191-98 | TERMINAL, socket (10) | VRSCSE |
| 36 | 74195-98 | SEAL PIN | VRSCSE |
| 37 | 74196-04 | TERMINAL, socket (9) | VRSCSE |
| 38 | 74197-04 | SECONDARY LOCK, 12-way | VRSCSE |
| 39 | 74480-05 | SPEEDOMETER (California, 49 state) | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 40 | 67424-05 | SPEEDOMETER (Canada, HDI) | VRSCSE |
| 67580-05 | SPEEDOMETER (United Kingdom, HDI, dual-range) | VRSCSE | |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3701M | SCREW | VRSCSE |
| 2 | 3711M | SCREW (2) | VRSCSE |
| 3 | 3724M | ACORN NUT | VRSCSE |
| 4 | 6838M | WASHER | VRSCSE |
| 5 | 6839M | WASHER | VRSCSE |
| 6 | 7435M | LOCKNUT | VRSCSE |
| 7 | 7495 | NUT | VRSCSE |
| 8 | 7999M | NUT (2) | VRSCSE |
| 9 | 69040-01A | HORN COVER | VRSCSE |
| 10 | 69060-90F | HORN | VRSCSE |
| 11 | 69143-01 | MOUNT (rubber) | VRSCSE |
| 12 | 69152-01A | BRACKET, horn mount | VRSCSE |
| 13 | 69253-05 | BRACKET, reset switch | VRSCSE |
| 14 | 70068-96 | WIRE, ground | VRSCSE |
WIRING HARNESS, MAIN (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70130-05 | MAIN WIRING HARNESS | VRSCSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9833 | RING, #4 AWG | VRSCSE |
| 2 | 9834 | RING, #6 AWG | VRSCSE |
| 3 | 9937 | TERMINAL, female, #18-14 AWG (3) | VRSCSE |
| 4 | 10065 | CABLE STRAP (3) | VRSCSE |
| 5 | 10073 | CABLE STRAP | VRSCSE |
| 6 | 10136 | ANCHOR (2) | VRSCSE |
| 7 | 31511-01B | RELAY, black with diode | VRSCSE |
| 8 | 31522-00C | RELAY, with diode (2) | VRSCSE |
| 9 | 67488-04 | SWITCH, reset, clock | VRSCSE |
| 10 | 67880-94 | BOOT, switch | VRSCSE |
| 11 | 70003-04 | COVER, battery terminal | VRSCSE |
| 70374-04 | CADDY, electrical components (not illustrated) | VRSCSE | |
| 12 | 72033-93 | TERMINAL, socket #6-20 AWG (19) | VRSCSE |
| 13 | 72076-00 | SOCKET TERMINAL, #18 AWG (30) | VRSCSE |
| 14 | 72077-00 | SEAL PIN (7) | VRSCSE |
| 15 | 72106-94BK | PIN HOUSING, 6-way (black) (2) | VRSCSE |
| 16 | 72124-94GY | PIN HOUSING, 4-way (gray) | VRSCSE |
| 17 | 72139-94GY | SOCKET HOUSING, 12-way, w/ 72179-94 (gray) | VRSCSE |
| 18 | 72144-94 | SECONDARY LOCK, 4-way | VRSCSE |
| 19 | 72146-94 | SECONDARY LOCK, 6-way (2) | VRSCSE |
| 20 | 72159-94 | SECONDARY LOCK, 12-way | VRSCSE |
| 21 | 72164-94A | PLUG, pin 4-way | VRSCSE |
| 22 | 72170-01 | TERMINAL, pin #8-10 AWG | VRSCSE |
| 23 | 72182-01 | HOUSING, pin (black) | VRSCSE |
| 24 | 72190-94 | TERMINAL, pin (16) | VRSCSE |
| 25 | 72191-94 | TERMINAL, socket (11) | VRSCSE |
| 26 | 72195-94 | SEAL PIN (2) | VRSCSE |
| 27 | 72199-94 | CONNECTOR ANCHOR | VRSCSE |
| 28 | 72213-94 | SOCKET TERMINAL, female #16-20 AWG (2) | VRSCSE |
| 29 | 72214-94 | CABLE SEAL, #14-16 AWG (2) | VRSCSE |
| 30 | 72218-94 | TERMINAL AUTO FUSE, #14-16 AWG (2) | VRSCSE |
| 31 | 72252-01 | TERMINAL, #10 AWG (2) | VRSCSE |
| 32 | 72263-95 | SOCKET HOUSING, 4-way | VRSCSE |
| 33 | 72312-04 | SOCKET HOUSING, 3-way (5) | VRSCSE |
| 34 | 72326-95 | TERMINAL, ecm (8) | VRSCSE |
| 35 | 72330-95 | FUSE, 15 AMP (8) | VRSCSE |
| 36 | 72416-01 | HOUSING, female 3-way | VRSCSE |
| 37 | 72427-00 | TERMINAL, #22-16 AWG (4) | VRSCSE |
| 38 | 72428-00 | TERMINAL, female #18-14 AWG (2) | VRSCSE |
| 39 | 72429-00 | TERMINAL, #16-12 AWG (3) | VRSCSE |
WIRING HARNESS, MAIN (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70130-05 | MAIN WIRING HARNESS (Continued) | VRSCSE | |
| NOTE: Includes the following parts. | |||
| 40 | 72431-00 | MOUNTING BLOCK, 6 fuses, relay | VRSCSE |
| 41 | 72432-00 | FUSE BLOCK, type 2, relay, 3 fuses | VRSCSE |
| 42 | 72434-00 | TERMINAL, #16-14 AWG (8) | VRSCSE |
| 43 | 72449-01 | HOUSING SOCKET, 2-way (black) | VRSCSE |
| 44 | 72450-01 | HOUSING, 2-way (gray) | VRSCSE |
| 45 | 72516-01 | DUST CAP, siren connector | VRSCSE |
| 46 | 72518-01 | HOUSING SOCKET, 2-way (red) | VRSCSE |
| 47 | 72520-01 | SECONDARY LOCK, socket, 2-way | VRSCSE |
| 48 | 72521-01 | FUSE HOLDER MAXIFUSE, 1-way | VRSCSE |
| 49 | 72522-01 | TERMINAL FEMALE MAXIFUSE, #10 AWG | VRSCSE |
| 50 | 72523-01 | TERMINAL FEMALE MAXIFUSE, 2, #10 AWG | VRSCSE |
| 51 | 72524-01 | SECONDARY LOCK MAXIFUSE, terminal | VRSCSE |
| 52 | 72525-01 | TERMINAL, ring, #12 AWG (2) | VRSCSE |
| 53 | 72526-01 | HOUSING SOCKET, 2-way (gray) | VRSCSE |
| 54 | 72527-01 | TERMINAL SOCKET, #18-20 AWG (2) | VRSCSE |
| 55 | 72529-01 | PLUG, resistor terminating purge | VRSCSE |
| 56 | 72532-02 | TERMINAL, ring 3/8 inch stud | VRSCSE |
| 57 | 72535-04 | FUSE BLOCK COVER | VRSCSE |
| 58 | 72633-02 | SEAL WIRE, #14-16 AWG (6) | VRSCSE |
| 59 | 73101-96BK | PIN HOUSING, 2-way, w/ panel mount (black) (2) | VRSCSE |
| 60 | 73102-96BK | PIN HOUSING, 2-way (black) (2) | VRSCSE |
| 61 | 73102-96WE | PIN HOUSING, 2-way (white) | VRSCSE |
| 62 | 73103-96BK | PIN HOUSING, 3-way (black) | VRSCSE |
| 63 | 73104-96BK | PIN HOUSING, 4-way (black) | VRSCSE |
| 64 | 73106-96BK | PIN HOUSING, 6-way (black) | VRSCSE |
| 65 | 73169-01 | FUSE MOUNT | VRSCSE |
| 66 | 73190-96 | TERMINAL, #20-16 AWG (30) | VRSCSE |
| 67 | 74102-98BK | HOUSING, 2-way (black) | VRSCSE |
| 68 | 74103-98BK | HOUSING, 3-way (black) | VRSCSE |
| 69 | 74108-98BK | PIN HOUSING, 8-way (black) (2) | VRSCSE |
| 70 | 74109-98BK | HOUSING SOCKET, 12-way (black) | VRSCSE |
| 71 | 74112-98BK | HOUSING SOCKET, 2-way (black) (2) | VRSCSE |
| 72 | 74113-98BK | HOUSING SOCKET, 3-way (black) | VRSCSE |
| 73 | 74142-98 | SECONDARY LOCK, pin, 2-way | VRSCSE |
| 74 | 74143-98 | SECONDARY LOCK, pin, 3-way (2) | VRSCSE |
| 75 | 74148-98 | SECONDARY LOCK, pin, 8-way (2) | VRSCSE |
| 76 | 74149-98 | SECONDARY LOCK, pin,12-way | VRSCSE |
| 77 | 74152-98 | SECONDARY LOCK, socket, 2-way | VRSCSE |
| 78 | 74153-98 | SECONDARY LOCK, socket, 3-way | VRSCSE |
| 79 | 74190-98 | TERMINAL, pin (30) | VRSCSE |
| 80 | 74191-98 | TERMINAL, socket (12) | VRSCSE |
| 81 | 74195-98 | SEAL PIN, plug (5) | VRSCSE |
WIRING HARNESS, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 70155-03 | WIRING HARNESS, ENGINE | VRSCSE | |
| NOTE: Includes the following parts. | |||
| 1 | 72033-93 | TERMINAL, socket (2) | VRSCSE |
| 2 | 72213-94 | TERMINAL, female, 18-21 gauge (3) | VRSCSE |
| 3 | 72214-94 | CABLE SEAL (3) | VRSCSE |
| 4 | 72230-98 | SOCKET HOUSING, 3-way | VRSCSE |
| 5 | 72231-98 | SOCKET LOCK, secondary 3-way | VRSCSE |
| 6 | 72244-95 | SOCKET HOUSING, 2-way (2) | VRSCSE |
| 7 | 72245-95 | TERMINAL, socket (4) | VRSCSE |
| 8 | 72273-95 | SOCKET HOUSING, 2-way | VRSCSE |
| 9 | 72405-98GN | TERMINAL, push-on #18 AWG | VRSCSE |
| 10 | 74118-98BK | SOCKET HOUSING, 8-way (black) | VRSCSE |
| 11 | 74158-98 | SOCKET LOCK, secondary 8-way | VRSCSE |
| 12 | 74191-98 | TERMINAL, socket (8) | VRSCSE |
TURN SIGNAL MODULE & IGNITION SWITCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | VRSCSE |
| 2 | 3711M | SCREW (2) | VRSCSE |
| 3 | 6837M | WASHER (3) | VRSCSE |
| 4 | 7629 | NUT (2) | VRSCSE |
| 5 | 10065 | CABLE STRAP | VRSCSE |
| 6 | 11548 | GROMMET | VRSCSE |
| 7 | 45804-01 | LOCK, w/ 10065, 71452-91A, 71578-01 | VRSCSE |
| 8 | 48493-01 | TAPE, protective | VRSCSE |
| 9 | 48096-00 | BRACKET, module | VRSCSE |
| 10 | 52385-01 | LOCK ASSEMBLY | VRSCSE |
| 11 | 59283-01 | ADHESIVE STRIP (2) | VRSCSE |
| 12 | 66494-01 | PAD | VRSCSE |
| 13 | 68920-01D | MODULE, turn signal canceller (Domestic, HDI) | VRSCSE |
| 68922-00D | MODULE, security system | VRSCSE | |
| 14 | 68926-00 | REMOTE CONTROL FOB (2) | VRSCSE |
| 15 | 71403-01 | IGNITION SWITCH (specify key code), w/ 5, 10, 16 & 18 | VRSCSE |
| 16 | 71452-91A | KEY (specify key code) (2) | VRSCSE |
| 61081-92 | COVER, key head set (not illustrated) (2) | VRSCSE | |
| 71031-04 | KEY, deco CVO mark | VRSCSE | |
| 17 | 71578-01A | PLUNGER | VRSCSE |
| 18 | 71702-01 | ADAPTER | VRSCSE |
| INTERNATIONAL MODELS ONLY | |||
| 19 | 59274-01 | STRAP, siren (HDI, Australia, England) | VRSCSE |
| 20 | 59275-01 | FASTENER (HDI) (2) | VRSCSE |
| 21 | 68924-00D | MODULE, security system (HDI, Australia, England) | VRSCSE |
| 22 | 68927-00 | REMOTE CONTROL FOB (HDI, Australia, England) (2) | VRSCSE |
| 23 | 68958-07C | SIREN (Domestic, HDI, Australia, England) | VRSCSE |
| 24 | 69309-10 | BATTERY, siren (HDI) | VRSCSE |
COSMETIC COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (4) | VRSCSE |
| 2 | 3707M | SCREW (2) | VRSCSE |
| 3 | 3716M | SCREW (4) | VRSCSE |
| 4 | 3731M | SCREW (2) | VRSCSE |
| 5 | 6837M | WASHER (4) | VRSCSE |
| 6 | 6872M | WASHER (2) | VRSCSE |
| 7 | 8130 | SPEED NUT (6) | VRSCSE |
| 8 | 8235 | RIVET (2) | VRSCSE |
| 9 | 11519 | BUSHING (2) | VRSCSE |
| 10 | 11523 | WASHER | VRSCSE |
| 11 | 11524A | RUBBER MOUNT (4) | VRSCSE |
| 12 | 11558 | BUMPER, air box (2) | VRSCSE |
| 13 | 26788-01A | COVER, radiator | VRSCSE |
| 48403-03 | PROTECTIVE TAPE (not illustrated) | VRSCSE | |
| 14 | 62255-05 | MEDALLION (2) | VRSCSE |
| 15 | 66097-05BPK | COVER ASSEMBLY AIRBOX (candy blue) | VRSCSE |
| 66097-05BPL | COVER ASSEMBLY AIRBOX (orange pearl) | VRSCSE | |
| 66097-05BPM | COVER ASSEMBLY AIRBOX (candy cherry) | VRSCSE | |
| 16 | 66115-01 | BEZEL INLET, radiator, right | VRSCSE |
| 66116-01 | BEZEL INLET, radiator, left | VRSCSE | |
| 17 | 66172-05CFZ | RADIATOR, trim cover, left (electric orange) | VRSCSE |
| 66172-05BPH | RADIATOR, trim cover, left (candy blue) | VRSCSE | |
| 66172-05BPJ | RADIATOR, trim cover, left (candy cherry) | VRSCSE | |
| 66173-05CFZ | RADIATOR, trim cover, right (electric orange) | VRSCSE | |
| 66173-05BPH | RADIATOR, trim cover, right (candy blue) | VRSCSE | |
| 66173-05BPJ | RADIATOR, trim cover, right (candy cherry) | VRSCSE | |
| 18 | 66337-05 | SIDECOVER, front , right | VRSCSE |
| 19 | 66338-05 | SIDECOVER, front , left | VRSCSE |
| 20 | 66339-05 | SIDE COVER FUEL CELL, right | VRSCSE |
| 66342-05 | SIDE COVER FUEL CELL, left | VRSCSE | |
| 21 | 66712-01 | S-SPRING | VRSCSE |
| 22 | 66713-01 | STUD BAIL HEAD | VRSCSE |
| 23 | 91691-05 | COVER, motorcycle | VRSCSE |
EVAPORATIVE EMISSIONS KIT
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 3707M | SCREW | VRSCSE |
| 2 | 10006 | CABLE STRAP, throttle body hose (2) | VRSCSE |
| 3 | 10108 | CLIP | VRSCSE |
| 4 | 27042-84A | CARBON CANISTER ASSEMBLY | VRSCSE |
| 27047-84B | BRACKET, canister (not illustrated) | VRSCSE | |
| 5 | 27378-01 | TUBE ASSEMBLY, tank to vapor valve | VRSCSE |
| 6 | 27382-01 | TUBE ASSEMBLY, canister to solenoid | VRSCSE |
| 7 | 27391-01 | TUBE ASSEMBLY, solenoid to throttle body | VRSCSE |
| 8 | 27660-01 | VALVE SOLENOID, purge | VRSCSE |
| 9 | 62150-85 | VAPOR VALVE | VRSCSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 10 | 27138-90 | HOSE, 3/16 inch I.D. (rubber) (10 feet long) (cut 13.75 - 14.00) HOSE VAPOR VALVE TO ATM/CANISTER | VRSCSE |
| Part No. | Description |
| 1004M | SCREW M6 X 1.0 X 27 socket head |
| 1007M | SCREW M6 X 1.0 X 12 socket head |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 1010M | SCREW M6 X 1.0 X 20 hex flange head |
| 1014M | SCREW M6 X 1.0 X 40 hex flange head |
| 1017M | SCREW M6 X 1.0 X 95 socket head |
| 1021M | SCREW M8 X 29 TORX head |
| 1023M | SCREW M8 X 1.25 X 55 hex flange head |
| 1024M | SCREW M6 X 1.0 X 60 socket head |
| 1025M | SCREW M8 X 1.25 X 90 hex flange head |
| 1027M | SCREW M10 X 1.5 X 60 hex flange head |
| 1030M | SCREW M6 X 1.0 X 50 socket head |
| 1031M | SCREW M8 X 1.0 X 18 hex head |
| 1035M | SCREW M14 X 1.5 X 70 hex flange head |
| 1043M | SCREW M5 X 1.0 X 10 socket head |
| 1114M | SCREW M6 X 1 X 20 socket head |
| 24311-01K | BOLT M10 X 1.0 X 55 |
| 2548 | SCREW No.8-32 X 3/4 socket head, with lockpatch |
| 2573 | SCREW No. 8-32 X 5/8 pan head |
| 25911-01K | WASHER 8.2 X 28 X 5.0 |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3700MA | SCREW M10 X 1.5 X 30 socket button head |
| 3701M | SCREW M10 X 1.5 X 25 socket head |
| 3703M | SCREW M10 X 1.5 X 30 socket head |
| 3705M | SCREW M12 X 1.75 X 80 socket button head |
| 3706M | SCREW M6 X 1.0 X 20 hex head |
| 3707M | SCREW M6 X 1.0 X 10 socket head |
| 3708M | SCREW M6 X 1.0 X30 hex head |
| 3709M | SCREW M8 X 1.25 X 20 socket head |
| 3711M | SCREW M6 X 1.0 X 16 hex head |
| 3713M | SCREW M12 X 1.75 X 80 socket button head |
| 3714M | SCREW M10 X 1.5 X 14 hex head |
| 3716M | SCREW M6 X 1.0 X 12 button socket head |
| 3724M | ACORN NUT M8 X 1.25 |
| 3725M | NUT M8 X 1.25 hex flange head, with lockpatch |
| 3726M | SCREW M10 X 1.5 X 50 hex flange head |
| 3729M | SCREW M6 X 1.0 X 16 socket head |
| 3731M | SCREW M6 X 1.0 X 12 socket button head, with lockpatch |
| 3753M | SCREW M3 X 1.06 cross recesss pan head |
| 3755M | SCREW M8 X 1.25 X 16 hex head |
| 3756MA | SCREW 6 X 1.0 X 6 TORX button head, with powerlock threads |
| 3762M | BOLT M8 X 1.25 X 23 - 12.5 TORX head, shoulder |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3853M | SCREW M5 X 1.59 X1.30 hex flat head, self-tapping |
| 3858M | SCREW M6 X 1.0 X 30 socket head |
| 3919M | SCREW M10 X 1.5 X 40 socket head |
| 3920M | SCREW M10 X 1.5 X 60 flat socket head |
| 3966M | SCREW M10 X 1.5 X 65 socket head |
| 4016 | SCREW 5/16-18 X 1.0 socket button head |
| 40399-01M | SCREW M12 X 1.75 X 25 hex flange head, with lockpatch |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 40439-01 | SCREW 7/16-14 X 2.0 - 12 point flange head, with lockpatch |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4292 | SCREW No. 10-24 X 1/2 TORX button head |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4404M | SCREW M5 X 0.8 X 8 button socket head |
| 4480M | SCREW M12 X 1.75 X 65 button head |
| 4486M | SCREW M8 X 1.25 X 30 socket head |
| 4488M | SCREW M5 X 0.8 X 10 hex button head |
| 4489M | SCREW M5 X 0.8 X 6 hex button head |
| 4491M | SCREW M5 X 0.8 X 12 hex button head |
| 4496M | SCREW M3 X 0.5 X 8 countersunk hex hed |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45717-63 | LOCKWASHER 1 X 2 X 0.035 keyed special |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4761 | SCREW 1/4-20 X 2 socket button head |
| 5236M | SCREW M6 X 1.0 X 20 hex flange head |
| 5237M | SCREW M6, X 1.0 X 16 hex flange head |
| 5238M | LOCKNUT M6 flange |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6137K | WASHER 6.35 X 9.80 X 1.0 |
| 6176MA | WASHER 37 X 47 X 2.5 |
| 6215M | WASHER 7.3 X 5.35 X 1.0 |
| 6298M | WASHER 12.45 X 15.3 X 1.5 |
| 6314W | WASHER 21/64 X 9/16 X 1/8 (zinc) |
| 6366 | WASHER 1/2 X 1-1/4 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 67956-96 | SCREW 1/4-20 X 3/4 socket flat head |
| 6837M | WASHER M6 regular |
| 6838M | WASHER M8 regular |
| 6839M | WASHER M10 narrow |
| 6856M | WASHER M10 |
| 6859M | WASHER M6 special |
| 6872M | WASHER M6 special |
| 6966M | WASHER 12.6 X 19.0 X 0.63 spring |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7039 | LOCKWASHER 7/16 |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7229W | LOCKWASHER 1/4 internal/external tooth |
| 7427M | NUT M10 X 1.5 flange |
| 7432M | NUT M8 X 1.25 flange |
| 7433M | LOCKNUT M12 X 1.75 flexlock height |
| 7435M | LOCKNUT M8 X 1.25 flange |
| 7444M | NUT M6 X 1 square |
| 7460M | LOCKNUT M20 X 2.5 flange |
| 7495 | NUT M6 X 1.0 flange lock |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7671 | LOCKNUT 1/4-20 nylon |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7999M | NUT M6 X 1.0 |
| 8020 | NUT M24 X 2.0 X 15 |
| 94337-91T | SCREW 5/16-18 X 1-3/4 4772 socket head |
| 965M | SCREW M6 X 1.0 X 12 socket head |
| 966M | SCREW M6 X 1.0 X 35 socket head |
| 968M | SCREW M10 X 1.5 X 150 hex flange head |
| 970M | SCREW M8 X 1.25 X 40 hex head |
| 972M | SCREW M8 X 1.25 X 150 hex flange head |
| 973M | SCREW M8 X 1.25 X 120 hex flange head |
| 978M | SCREW M6 X 1.0 X 40 socket head |
| 983M | BOLT M10 X 1.0 X 33 - 12 point flange head |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19541-05K | ENGINE ASSEMBLY | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 16987-05K | CYLINDER HEAD ASSEMBLY, front | VRSCSE |
| 17127-05K | CYLINDER HEAD ASSEMBLY, rear (not illustrated) | VRSCSE | |
| 13 | 17431-05K | CAMSHAFT ASSEMBLY, intake (2) | VRSCSE |
| 16 | 17691-05K | GASKET, cylinder head, front | VRSCSE |
| 17692-05K | GASKET, cylinder head, rear (not illustrated) | VRSCSE | |
| 27 | 29530-05K | BADGE, Screamin' Eagle (use 61787-05K) | VRSCSE |
| 61787-05K | BADGE SCRIPT, Screamin' Eagle, w/ badge & 69280-05K | VRSCSE | |
| 28 | 29544-05K | BADGE, 1250 VRSCSE (front shown) | VRSCSE |
| 29 | 29601-05K | TUBE ASSEMBLY, front breather, w/ 11391K | VRSCSE |
| 30 | 69280-05K | BRACKET (2) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 22919-05K | PISTON RINGS | VRSCSE |
| 5 | 22126-05K | PISTON PIN (2) | VRSCSE |
| 7 | 22928-05KA | PISTON/LINER ASSEMBLY, w/ 2, 5 & 6 (2) | VRSCSE |
| 8 | 22918-05K | PISTON ASSEMBLY, w/ rings, pins & circlips (2) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 24459-05K | CRANK CASE ASSEMBLY KIT | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 26575-01KB | OIL PUMP ASSEMBLY | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 16298-05A | ENGINE MOUNT, rear (2) | VRSCSE |
| 10 | 47014-05CFZ | BRACKET, pivot block (orange) | VRSCSE |
| 47014-05BPH | BRACKET, pivot block (blue) | VRSCSE | |
| 47014-05BPJ | BRACKET, pivot block (cherry) | VRSCSE | |
| 11 | 16306-04A | STABLILIZER LINK | VRSCSE |
| 12 | 16307-05 | ENGINE MOUNT, front | VRSCSE |
| 14 | 16311-05 | BRACKET, front mount, frame | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ O-ring, screw & motor | VRSCSE |
| 8 | 27662-01B | METER ASSEMBLY, fuel, w/ 5, 9 & 14 | VRSCSE |
| 9 | 27665-01A | INJECTOR, w/ O-rings | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 29434-03A | COVER, air cleaner | VRSCSE |
| 9 | 29435-05 | BOTTOM, air cleaner, w/ 29504-05 & 29505-05 | VRSCSE |
| 17 | 29504-05A | BREATHER TUBE, front | VRSCSE |
| 18 | 29505-05 | BREATHER TUBE, rear | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 32477-01A | COIL ASSEMBLY, w/ 31651-01 (2) | VRSCSE |
| 8 | 32534-05C | ELECTRONIC CONTROL MODULE (Note: Requires digital tech programming.) | VRSCSE |
| 9 | 32616-01C | BRACKET, E.C.M. | VRSCSE |
| 10 | 32534-05C | ELECTRONIC CONTROL MODULE (HDI) (Note: Requires digital tech programming.) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 32416-10 | MAP SENSOR, w/ 11291 (replaces 32316-99) | VRSCSE |
| 13 | 74194-98 | TERMINAL (2) | VRSCSE |
| 14 | 74402-05A | SPEED SENSOR | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 34555-01A | SHIFTER LEVER ASSEMBLY, w/ 21 , 22 & 23 | VRSCSE |
| 14 | 35430-01KA | SHIFTER FORK, 4th & 5th gears | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 35423-04K | FLANGE OUTPUT | VRSCSE |
| 18 | 35454-01KA | INPUT SHAFT ASSEMBLY | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 36723-05K | CLUTCH SHELL | VRSCSE |
| 7 | 36724-05K | CLUTCH HUB | VRSCSE |
| 10 | 36825-05K | SPRING, pressure plate (5) | VRSCSE |
| 20 | 36757-05K | BLEEDER SCREW, with O-ring | VRSCSE |
| 21 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 17011-01KB | ENGINE GASKET KIT | VRSCSE |
| 26 | 34783-05A | COVER, secondary clutch actuator (chrome) | VRSCSE |
| 27 | 34996-05 | MEDALLION, CVO/clutch rel | VRSCSE |
| 29 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRSCSE |
| 32 | 70441-01A | CABLE, engine ground to chassis, w/ 70578-89 | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 35019-05 | COVER ASSEMBLY, sprocket (chrome) | VRSCSE |
| 11 | 40118-05 | REAR BELT, 149T (Domestic, California, Canada) | VRSCSE |
| 14 | 40229-04 | SPROCKET KIT, 72T w/ sprocket & 40433-01 | VRSCSE |
| 17 | 40119-05 | REAR BELT, 150T (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 62940-04A | OIL LINE, oil cooler, inlet | VRSCSE |
| 18 | 62941-04A | OIL LINE, oil cooler, outlet | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 26768-01A | PIPE COOLANT, engine in | VRSCSE |
| 16 | 26780-05A | CAP, coolant bottle (used with 26731-01A) | VRSCSE |
| 19 | 29776-05 | BRACKET, front coolant | VRSCSE |
| 20 | 29827-05 | BRACKET, rear coolant | VRSCSE |
| 21 | 62942-01A | HOSE DRAIN KIT | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 44420-02 | EMBLEM | VRSCSE |
| 16 | 45078-96D | COVER MASTER CYLINDER KIT, w/ 2573, cover & gasket | VRSCSE |
| 17 | 45197-05 | MASTER CYLINDER ASSEMBLY, clutch (chrome) (45197-05 no longer used all parts must be purchased individually) | VRSCSE |
| 17 | 45282-99A | CLAMP, master cylinder clutch (chrome) | VRSCSE |
| 19 | 45423-96 | BUSHING, lever pivot | VRSCSE |
| 22 | 46113-02A | RESERVOIR, master cylinder, w/ 46244-01 (chrome) | VRSCSE |
| 26 | 91845-03B | MIRROR KIT, left, w/ 7127 & 7720 (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 44418-02 | EMBLEM | VRSCSE |
| 12 | 44543-05 | BRAKE LINE | VRSCSE |
| 15 | 45078-96D | COVER MASTER CYLINDER KIT, w/ 2573, cover & gasket | VRSCSE |
| 16 | 45200-05 | MASTER CYLINDER ASSEMBLY, front, w/ 1, 7, 13, 14, 15, 16, 18 & 19 (use 45298-99) (chrome) | VRSCSE |
| 45298-99 | MASTER CYLINDER ASSEMBLY, front, w/ 45072-96C & body (replaces 45200-05) (chrome) | VRSCSE | |
| 17 | 45282-99A | CLAMP, master cylinder front brake (chrome) | VRSCSE |
| 21 | 91840-03B | MIRROR KIT, right, w/ 7127 & 7720 (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 40922-87A | DUST BOOT | VRSCSE |
| 15 | 46379-05 | BRAKE LINE, rear | VRSCSE |
| 26 | 42585-05 | MASTER CYLINDER ASSEMBLY, w/ 4, 8, 11, 12, 13, 14, 19, 20, 22, 24 & 33 (use 42585-01) | VRSCSE |
| 42585-01 | MASTER CYLINDER ASSEMBLY, w/ 4, 8, 11, 12, 13, 14, 19, 20, 22, 24 & 33 (replaces 42585-05) | VRSCSE | |
| 35 | 72023-51D | STOPLIGHT SWITCH, rear, w/ 9907 | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 44082-00D | PAD KIT | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 44082-00D | PAD KIT | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 7813A | NUT | VRSCSE |
| 15 | 95595-84A | WEIGHT, 1/4 oz. (silver) (4) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 40229-04 | SPROCKET KIT, 72T, w/ sprocket & 40433-01 | VRSCSE |
| 9 | 40541-05 | COMPENSATOR BOWL | VRSCSE |
| 14 | 41541-05 | AXLE ASSEMBLY, rear | VRSCSE |
| 15 | 41714-05 | REAR AXLE ADJUSTER | VRSCSE |
| 19 | 43215-08 | WHEEL KIT | VRSCSE |
| 20 | 95595-84A | WEIGHT, 1/4 oz. (silver) (4) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 4042 | SCREW, right (2) | VRSCSE |
| 8 | 45670-80A | CAP, fork stem | VRSCSE |
| 15 | 46506-01A | SLIDER, left | VRSCSE |
| 21 | 46512-01A | DUST COVER (2) | VRSCSE |
| 23 | 46514-01A | OIL SEAL (2) | VRSCSE |
| 28 | 45405-75A | SCREW (2) | VRSCSE |
| 34 | 46784-05A | FORK ASSEMBLY, right | VRSCSE |
| 35 | 46785-05A | FORK ASSEMBLY, left | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 52558-05 | SHOCK ASSEMBLY, rear, w/ 54715-96 (2) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 48115-05CFZ | FRAME ASSEMBLY UPPER (electric orange) | VRSCSE |
| 48115-05BPH | FRAME ASSEMBLY UPPER (candy blue) | VRSCSE | |
| 48115-05BPJ | FRAME ASSEMBLY UPPER (candy cherry) | VRSCSE | |
| 11 | 48116-06CFZ | FRAME LOWER, left (electric orange) | VRSCSE |
| 48116-05BPH | FRAME LOWER, left (candy blue) | VRSCSE | |
| 48116-05BPJ | FRAME LOWER, left (candy cherry) | VRSCSE | |
| 12 | 48117-06CFZ | FRAME LOWER, right (electric orange) | VRSCSE |
| 48117-05BPH | FRAME LOWER, right (candy blue) | VRSCSE | |
| 48117-05BPJ | FRAME LOWER, right (candy cherry) | VRSCSE | |
| 14 | 49742-01A | JIFFY STAND KIT (chrome) | VRSCSE |
| 21 | 71578-01A | PLUNGER FORK LOCK | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 6864A | PLUG, small (2) | VRSCSE |
| 10 | 48422-05 | SWINGARM ASSEMBLY KIT, w/ 48389-01 | VRSCSE |
| 11 | 48386-05A | SPACER, left | VRSCSE |
| 13 | 48392-05 | PIVOT SHAFT ASSEMBLY | VRSCSE |
| 48893-01 | SWINGARM PIVOT BOLT COVER KIT (not illustrated) | VRSCSE | |
| 14 | 60484-01B | DEBRIS DEFLECTOR KIT, w/ 6368 & 67633-01 | VRSCSE |
| 15 | 60469-01A | BELT GUARD KIT, w/ 7433M | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 51594-05 | SEAT KIT, passenger | VRSCSE |
| 7 | 51595-05 | SEAT KIT, rider | VRSCSE |
| 9 | 69142-05 | STRAP, seat | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 56227-05 | HANDLEBAR | VRSCSE |
| 15 | 56505-05 | BRACKET, speedometer/tachometer | VRSCSE |
| 17 | 56595-03A | THROTTLE/IDLE KIT | VRSCSE |
| 18 | 56742-05 | COVER, riser | VRSCSE |
| 19 | 56745-05 | RISER, handlebar | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 71587-04 | CLIP | VRSCSE |
| 7 | 71683-06A | SWITCH ASSEMBLY, right turn signal, w/ 3 & 21 | VRSCSE |
| 8 | 71684-06A | SWITCH ASSEMBLY, engine stop/start, w/ 3 & 21 | VRSCSE |
| 9 | 71621-08 | STOPLAMP SWITCH, w/ 3 & 20 | VRSCSE |
| 10 | 71682-06A | SWITCH ASSEMBLY, dimmer & horn, w/ 3 & 21 | VRSCSE |
| 11 | 71685-06A | SWITCH ASSEMBLY, left turn signal, w/ 3 & 21 | VRSCSE |
| 15 | 71720-03A | HOUSING, lower, left (chrome) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 68625-05 | HEADLIGHT ASSEMBLY (Domestic, California, Canada), w/ 3, 6, 7, 10 & 11 | VRSCSE |
| 11 | 69246-05 | CLIP, bracket headlight | VRSCSE |
| 12 | 68778-04 | HEADLIGHT BUCKET, chrome | VRSCSE |
| 17 | 69770-05 | HEADLIGHT ASSEMBLY, right dip, w/ 3, 6, 10, 15 & 18 (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 59020-01A | BRACKET FENDER, front (chrome) | VRSCSE |
| 5 | 59115-05CFZ | FENDER, front (electric orange) | VRSCSE |
| 59115-05BPH | FENDER, front (candy blue) | VRSCSE | |
| 59115-05BPJ | FENDER, front (candy cherry) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 48483-01A | FENDER SUPPORT, R.H. | VRSCSE |
| 10 | 48485-01A | FENDER SUPPORT, L.H. | VRSCSE |
| 12 | 58948-05 | TAPE, protective | VRSCSE |
| 13 | 59033-01A | FENDER REAR, inner | VRSCSE |
| 16 | 59361-05BPK | FENDER REAR, outer (candy blue) | VRSCSE |
| 59361-05BPL | FENDER REAR, outer (electric orange) | VRSCSE | |
| 59361-05BPM | FENDER REAR, outer (candy cherry) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 68973-00 | LENS (HDI) (2) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 68168-89A | BULB, tail lamp | VRSCSE |
| 10 | 68326-01A | ENVELOPE ASSEMBLY, tail lamp | VRSCSE |
| 12 | 68829-05 | SUPPORT, rear turn signal (2) | VRSCSE |
| 13 | 68876-01A | TAIL LAMP ASSEMBLY, w/ 7, 9 & 10 | VRSCSE |
| 15 | 69273-05 | TURN SIGNAL ASSEMBLY KIT, w/ 1, 14, 18, 19 & 23 (2) | VRSCSE |
| 33 | 68327-01A | ENVELOPE ASSEMBLY, tail lamp (HDI) | VRSCSE |
| 34 | 68879-01A | TAIL LAMP ASSEMBLY, w/ 30, 32 & 33 (HDI) | VRSCSE |
| 37 | 69068-01A | SOCKET ASSEMBLY, turn signal (HDI) (2) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3700MA | SCREW (2) | VRSCSE |
| 20 | 72439-00B | CONNECTOR ASSEMBLY KIT | VRSCSE |
| 25 | 75170-04A | FILTER, suction side (use 62109-01A) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 65111-01A | SHIELD EXHAUST ASSEMBLY, rear (chrome) | VRSCSE |
| 23 | 65112-01B | SHIELD, upper exhaust (chrome) | VRSCSE |
| 24 | 65113-01A | EXHAUST SUPPORT | VRSCSE |
| 25 | 65151-01B | AUXILIARY VOLUME (Domestic, California, Canada) | VRSCSE |
| 32 | 64929-01B | AUXILIARY VOLUME (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 4312C | SCREW (2) | VRSCSE |
| 5 | 65948-00A | BATTERY | VRSCSE |
| 12 | 70441-01A | CABLE ASSEMBLY, engine, engine to chassis ground, w/ 70578-89 | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 52425-98 | BULB, tachometer, replacement | VRSCSE |
| 8 | 56505-05 | BRACKET, speedometer/tachometer | VRSCSE |
| 9 | 61412-05 | GASKET, console | VRSCSE |
| 10 | 62256-05 | MEDALLION | VRSCSE |
| 11 | 66171-05 | GASKET | VRSCSE |
| 12 | 67121-95A | CUSHION, speedometer | VRSCSE |
| 18 | 69238-05A | CONSOLE ASSEMBLY, w/ 69239-05, 69275-05 | VRSCSE |
| 19 | 69239-05A | CONSOLE DISPLAY LED, w/ 61412-05 | VRSCSE |
| 20 | 69242-05 | BRACKET, front | VRSCSE |
| 21 | 69243-05 | BRACKET, rear | VRSCSE |
| 23 | 69245-05 | TACHOMETER | VRSCSE |
| 24 | 69266-05 | BRACKET, middle | VRSCSE |
| 25 | 69275-05 | LENS | VRSCSE |
| 26 | 71321-05 | CONSOLE, airbox | VRSCSE |
| 27 | 71771-05 | WIRE HARNESS, speedometer | VRSCSE |
| 28 | 71776-05 | WIRE HARNESS, tachometer | VRSCSE |
| 39 | 74480-05 | SPEEDOMETER (California, 49 state) | VRSCSE |
| 40 | 67424-05 | SPEEDOMETER (Canada, HDI) | VRSCSE |
| 67580-05 | SPEEDOMETER (United Kingdom, HDI, dual-range) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 69040-01A | HORN COVER | VRSCSE |
| 10 | 69060-90F | HORN | VRSCSE |
| 12 | 69152-01A | BRACKET, horn mount | VRSCSE |
| 13 | 69253-05 | BRACKET, reset switch | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 70130-05 | MAIN WIRING HARNESS | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 70130-05 | MAIN WIRING HARNESS (Continued) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 68920-01D | MODULE, turn signal canceller (Domestic, HDI) | VRSCSE |
| 68922-00D | MODULE, security system | VRSCSE | |
| 17 | 71578-01A | PLUNGER | VRSCSE |
| 21 | 68924-00D | MODULE, security system (HDI, Australia, England) | VRSCSE |
| 23 | 68958-07C | SIREN (Domestic, HDI, Australia, England) | VRSCSE |
| 24 | 69309-10 | BATTERY, siren (HDI) | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 11524A | RUBBER MOUNT (4) | VRSCSE |
| 13 | 26788-01A | COVER, radiator | VRSCSE |
| 14 | 62255-05 | MEDALLION (2) | VRSCSE |
| 15 | 66097-05BPK | COVER ASSEMBLY AIRBOX (candy blue) | VRSCSE |
| 66097-05BPL | COVER ASSEMBLY AIRBOX (orange pearl) | VRSCSE | |
| 66097-05BPM | COVER ASSEMBLY AIRBOX (candy cherry) | VRSCSE | |
| 17 | 66172-05CFZ | RADIATOR, trim cover, left (electric orange) | VRSCSE |
| 66172-05BPH | RADIATOR, trim cover, left (candy blue) | VRSCSE | |
| 66172-05BPJ | RADIATOR, trim cover, left (candy cherry) | VRSCSE | |
| 66173-05CFZ | RADIATOR, trim cover, right (electric orange) | VRSCSE | |
| 66173-05BPH | RADIATOR, trim cover, right (candy blue) | VRSCSE | |
| 66173-05BPJ | RADIATOR, trim cover, right (candy cherry) | VRSCSE | |
| 18 | 66337-05 | SIDECOVER, front , right | VRSCSE |
| 19 | 66338-05 | SIDECOVER, front , left | VRSCSE |
| 20 | 66339-05 | SIDE COVER FUEL CELL, right | VRSCSE |
| 66342-05 | SIDE COVER FUEL CELL, left | VRSCSE | |
| 23 | 91691-05 | COVER, motorcycle | VRSCSE |
| Index No. | Part No. | Description | Model(s) |
| 27047-84B | BRACKET, canister (not illustrated) | VRSCSE |
| Part No. | Description |
| 10006 | |
| 10038A | |
| 10039 | |
| 1004M | |
| 10065 | |
| 10073 | |
| 1007M | |
| 1009M | |
| 10103 | |
| 10108 | |
| 1010M | |
| 10110 | |
| 10136 | |
| 10141 | |
| 1014M | |
| 1017M | |
| 10181 | |
| 10184 | |
| 1021M | |
| 10231 | |
| 10232K | |
| 10238 | |
| 10239 | |
| 1023M | |
| 1024M | |
| 1025M | |
| 1027M | |
| 1030M | |
| 1031M | |
| 1033M | |
| 1034M | |
| 1035M | |
| 1043M | |
| 10994K | |
| 11101 | |
| 11130K | |
| 11140 | |
| 11143 | |
| 1114M | |
| 11155 | |
| 11200K | |
| 11271 | |
| 11272 | |
| 11290 | |
| 11291 | |
| 11304 | |
| 11312K | |
| 11314K | |
| 11328M | |
| 11329K | |
| 11331K | |
| 11335K | |
| 11341K | |
| 11346K | |
| 11347K | |
| 11348 | |
| 11353K | |
| 11354K | |
| 11355K | |
| 11356K | |
| 11361 | |
| 11362K | |
| 11363K | |
| 11366K | |
| 11380 | |
| 11384K | |
| 11391K | |
| 11402 | |
| 11403A | |
| 11519 | |
| 11523 | |
| 11524A | |
| 11542 | |
| 11548 | |
| 11558 | |
| 11568 | |
| 11571 | |
| 12071K | |
| 12072K | |
| 14448-94 | |
| 14758-01K | |
| 14791-01K | |
| 14794-01K | |
| 14795-01K | |
| 16298-05A | |
| 16306-04A | |
| 16307-05 | |
| 16308-01 | |
| 16311-05 | |
| 16312-04 | |
| 16448-01KA | |
| 16987-05K | |
| 17010-01K | |
| 17011-01KB | |
| 17127-05K | |
| 17406-01KA | |
| 17407-01KA | |
| 17416-01KA | |
| 17418-01K | |
| 17421-01KA | |
| 17423-01K | |
| 17431-05K | |
| 17629-01K | |
| 17632-01K | |
| 17637-01K | |
| 17638-01K | |
| 17639-01K | |
| 17640-01K | |
| 17641-01K | |
| 17661-01K | |
| 17664-01K | |
| 17666-01K | |
| 17691-05K | |
| 17692-05K | |
| 18052-01K | |
| 18055-01K | |
| 18057-01K | |
| 18181-01K | |
| 18624-01K | |
| 18625-01K | |
| 18626-01K | |
| 18627-01K | |
| 18628-01K | |
| 18629-01K | |
| 18630-01K | |
| 18631-01K | |
| 18632-01K | |
| 18638-01K | |
| 18639-01K | |
| 18655-01K | |
| 18656-01K | |
| 18657-01K | |
| 18658-01K | |
| 18659-01K | |
| 18661-01K | |
| 18662-01K | |
| 18663-01K | |
| 18664-01K | |
| 18665-01K | |
| 18666-01K | |
| 18667-01K | |
| 18668-01K | |
| 18669-01K | |
| 18670-01K | |
| 18671-01K | |
| 18672-01K | |
| 18673-01K | |
| 18674-01K | |
| 18675-01K | |
| 18676-01K | |
| 18677-01K | |
| 18678-01K | |
| 18679-01K | |
| 18680-01K | |
| 18681-01K | |
| 18682-01K | |
| 18683-01K | |
| 18684-01K | |
| 18685-01K | |
| 18686-01K | |
| 18687-01K | |
| 18692-01K | |
| 18693-01K | |
| 18694-01K | |
| 18695-01K | |
| 18696-01K | |
| 18697-01K | |
| 18698-01K | |
| 18699-01K | |
| 18700-01K | |
| 18701-01K | |
| 18702-01K | |
| 19541-05K | |
| 22121-01K | |
| 22126-05K | |
| 22918-05K | |
| 22919-05K | |
| 22928-05KA | |
| 23712-01K | |
| 23725-01K | |
| 24307-01K | |
| 24311-01K | |
| 24312-01K | |
| 24409-01K | |
| 24410-01K | |
| 24411-01K | |
| 24412-01K | |
| 24413-01K | |
| 24459-05K | |
| 24927-01 | |
| 24986-01K | |
| 25080-01K | |
| 25302-01K | |
| 2548 | |
| 2573 | |
| 25732-01K | |
| 25800-01K | |
| 25881-01KA | |
| 25891-01K | |
| 25895-04K | |
| 25911-01K | |
| 25918-04K | |
| 25919-04K | |
| 26022-02K | |
| 26034-01K | |
| 26103-01K | |
| 26393-01K | |
| 26399-01K | |
| 26534-01K | |
| 26539-01K | |
| 26542-01K | |
| 26561-99 | |
| 26575-01KB | |
| 26578-01K | |
| 26582-01K | |
| 26722-04 | |
| 26723-04 | |
| 26724-04 | |
| 26730-01 | |
| 26731-01 | |
| 26731-01A | |
| 26733-01 | |
| 26737-01K | |
| 26738-01K | |
| 26739-01K | |
| 26740-01K | |
| 26748-01K | |
| 26749-01K | |
| 26750-01K | |
| 26752-01K | |
| 26753-01 | |
| 26754-01 | |
| 26755-01 | |
| 26756-01 | |
| 26757-01 | |
| 26758-01 | |
| 26765-01K | |
| 26767-01 | |
| 26768-01A | |
| 26770-01 | |
| 26772-04 | |
| 26777-01 | |
| 26780-05A | |
| 26788-01A | |
| 26790-01 | |
| 26791-01 | |
| 27042-84A | |
| 27047-84B | |
| 27138-90 | |
| 27225-01 | |
| 27378-01 | |
| 27382-01 | |
| 27388-01 | |
| 27391-01 | |
| 27408-01 | |
| 27628-01A | |
| 27657-01 | |
| 27660-01 | |
| 27662-01B | |
| 27665-01A | |
| 27667-01K | |
| 27669-01K | |
| 27671-01K | |
| 27975-01 | |
| 27977-01 | |
| 27982-01 | |
| 27993-01 | |
| 27995-01 | |
| 28002-01 | |
| 28862-01 | |
| 28863-01 | |
| 2887WA | |
| 29434-03A | |
| 29435-05 | |
| 29436-01 | |
| 29437-01 | |
| 29438-01 | |
| 29439-01 | |
| 29504-05A | |
| 29505-05 | |
| 29519-01 | |
| 29521-01 | |
| 29522-01 | |
| 29530-05K | |
| 29544-05K | |
| 2955 | |
| 29601-05K | |
| 29647-01 | |
| 29770-01 | |
| 29776-05 | |
| 29827-05 | |
| 30731-01K | |
| 30734-04K | |
| 31301-01K | |
| 31303-01K | |
| 31511-01B | |
| 31522-00C | |
| 31651-01 | |
| 31717-01K | |
| 32313-01A | |
| 32315-01 | |
| 32416-10 | |
| 32477-01A | |
| 32534-05C | |
| 32616-01C | |
| 3321 | |
| 3347 | |
| 33795-02 | |
| 33796-02 | |
| 33902-98A | |
| 34007-01K | |
| 34555-01A | |
| 34567-01 | |
| 34783-05A | |
| 34996-05 | |
| 35001-01K | |
| 35002-01K | |
| 35003-01K | |
| 35004-01K | |
| 35017-01K | |
| 35019-05 | |
| 35420-01K | |
| 35423-04K | |
| 35428-01K | |
| 35429-01K | |
| 35430-01KA | |
| 35432-01K | |
| 35433-01K | |
| 35434-01K | |
| 35441-01K | |
| 35442-01K | |
| 35443-01K | |
| 35445-01K | |
| 35451-01K | |
| 35454-01KA | |
| 35455-01KA | |
| 3588 | |
| 3612 | |
| 36702-01K | |
| 36704-01K | |
| 36706-01K | |
| 36707-01K | |
| 36709-01K | |
| 36710-01K | |
| 36711-01K | |
| 36712-01K | |
| 36713-01K | |
| 36714-01K | |
| 36723-05K | |
| 36724-05K | |
| 36731-91 | |
| 36757-01K | |
| 36757-05K | |
| 36779-05K | |
| 36780-01K | |
| 36825-05K | |
| 3700MA | |
| 3701M | |
| 3703M | |
| 3704M | |
| 3705M | |
| 3706M | |
| 3707M | |
| 3708M | |
| 3709M | |
| 3711M | |
| 3713M | |
| 3714M | |
| 3716M | |
| 3718M | |
| 3724M | |
| 3725M | |
| 3726M | |
| 3729M | |
| 3731M | |
| 3753M | |
| 3755M | |
| 3756MA | |
| 3762M | |
| 37909-90 | |
| 3832M | |
| 3853M | |
| 3858M | |
| 38669-03 | |
| 3919M | |
| 3920M | |
| 3934M | |
| 3966M | |
| 40008-04K | |
| 40014-04K | |
| 40095-01K | |
| 40118-05 | |
| 40119-05 | |
| 4016 | |
| 40229-04 | |
| 40341-04 | |
| 40345-04 | |
| 40399-01M | |
| 4042 | |
| 40433-01 | |
| 40434-01 | |
| 40436-01A | |
| 40439-01 | |
| 40541-05 | |
| 40903-87 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 409K | |
| 41139-02 | |
| 41148-98 | |
| 41189-04 | |
| 41540-04 | |
| 41541-05 | |
| 41615-02 | |
| 41666-01 | |
| 41714-05 | |
| 41731-01 | |
| 41747-82A | |
| 42375-87 | |
| 42382-87C | |
| 42397-01 | |
| 4240 | |
| 42409-01 | |
| 42448-87 | |
| 42460-80B | |
| 42471-01A | |
| 42569-03 | |
| 42585-01 | |
| 42585-05 | |
| 42586-01 | |
| 42670-02A | |
| 42671-02 | |
| 42682-01 | |
| 4292 | |
| 4293 | |
| 42964-01A | |
| 4312C | |
| 43157-83A | |
| 43215-08 | |
| 43219-04 | |
| 43219-08 | |
| 43280-01 | |
| 43281-01 | |
| 43282-01 | |
| 43285-01 | |
| 43286-01 | |
| 43317-01 | |
| 43567-92 | |
| 43641-01 | |
| 43704-01 | |
| 43914-01 | |
| 43915-01 | |
| 43917-01 | |
| 44048-83 | |
| 4404M | |
| 44082-00D | |
| 44117-07A | |
| 44126-87 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44313-01 | |
| 44314-00 | |
| 44315-00 | |
| 44337-00B | |
| 44343-01 | |
| 44351-00 | |
| 44381-99C | |
| 44382-99C | |
| 44418-02 | |
| 44420-02 | |
| 44423-02C | |
| 44477-99 | |
| 44493-02 | |
| 44543-05 | |
| 4480M | |
| 4486M | |
| 4488M | |
| 4489M | |
| 4491M | |
| 4496M | |
| 45032-82 | |
| 45069-01 | |
| 45072-96C | |
| 45078-96D | |
| 45197-05 | |
| 45200-05 | |
| 45282-99A | |
| 45298-99 | |
| 45391-02 | |
| 45405-75A | |
| 45423-96 | |
| 45611-86 | |
| 45621-02 | |
| 45658-02 | |
| 45670-80A | |
| 45717-63 | |
| 45718-60 | |
| 45804-01 | |
| 46113-02A | |
| 46213-02 | |
| 46244-01 | |
| 46246-01 | |
| 46319-04 | |
| 46379-05 | |
| 46504-01 | |
| 46505-01 | |
| 46506-01A | |
| 46507-01 | |
| 46508-01 | |
| 46509-01 | |
| 46510-01 | |
| 46511-01 | |
| 46512-01A | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46518-01 | |
| 46519-01 | |
| 46527-02 | |
| 46529-02 | |
| 46531-02 | |
| 46771-02 | |
| 46773-02 | |
| 46784-05A | |
| 46785-05A | |
| 47014-05BPH | |
| 47014-05BPJ | |
| 47014-05CFZ | |
| 4741A | |
| 4761 | |
| 48086-01 | |
| 48096-00 | |
| 48115-05BPH | |
| 48115-05BPJ | |
| 48115-05CFZ | |
| 48116-05BPH | |
| 48116-05BPJ | |
| 48116-06CFZ | |
| 48117-05BPH | |
| 48117-05BPJ | |
| 48117-06CFZ | |
| 48184-01 | |
| 482K | |
| 48300-60 | |
| 48315-60 | |
| 48324-00 | |
| 48386-05A | |
| 48389-01 | |
| 48392-05 | |
| 48403-03 | |
| 48422-05 | |
| 48483-01A | |
| 48485-01A | |
| 48486-01 | |
| 48493-01 | |
| 485K | |
| 486K | |
| 487K | |
| 48893-01 | |
| 488K | |
| 49742-01A | |
| 49930-01 | |
| 50005-85A | |
| 50240-01 | |
| 50241-01 | |
| 50243-01 | |
| 50912-72 | |
| 51001-02 | |
| 51002-02 | |
| 515 | |
| 51594-05 | |
| 51595-05 | |
| 52041-82 | |
| 5234 | |
| 5235 | |
| 5236M | |
| 5237M | |
| 52385-01 | |
| 5238M | |
| 52402-01 | |
| 52425-98 | |
| 52558-05 | |
| 53158-98 | |
| 53436-97 | |
| 54013-04 | |
| 54016-04 | |
| 54017-04 | |
| 54715-96 | |
| 554A | |
| 56073-83 | |
| 56227-05 | |
| 56394-74 | |
| 56396-74A | |
| 56402-83A | |
| 56460-01A | |
| 56461-01A | |
| 56480-01 | |
| 56505-05 | |
| 56508-76 | |
| 56595-03A | |
| 56742-05 | |
| 56745-05 | |
| 5774 | |
| 58948-05 | |
| 59020-01A | |
| 59033-01A | |
| 59040-01 | |
| 59115-05BPH | |
| 59115-05BPJ | |
| 59115-05CFZ | |
| 59259-90 | |
| 59274-01 | |
| 59275-01 | |
| 59283-01 | |
| 59361-05BPK | |
| 59361-05BPL | |
| 59361-05BPM | |
| 59407-01 | |
| 59481-00 | |
| 59482-00 | |
| 59709-01 | |
| 59988-72A | |
| 60119-03 | |
| 6012 | |
| 60469-01A | |
| 60484-01B | |
| 60966-01 | |
| 6099 | |
| 61081-92 | |
| 61109-85D | |
| 61274-92 | |
| 61329-01 | |
| 6137K | |
| 61412-05 | |
| 61498-01 | |
| 61516-07 | |
| 6176MA | |
| 61787-05K | |
| 61828-01 | |
| 62107-01 | |
| 62109-01A | |
| 62150-85 | |
| 6215M | |
| 62255-05 | |
| 62256-05 | |
| 62909-04 | |
| 62921-01 | |
| 62926-01 | |
| 62927-01 | |
| 62940-04A | |
| 62941-04A | |
| 62942-01A | |
| 62943-01 | |
| 62953-01 | |
| 62957-03 | |
| 6298M | |
| 6314W | |
| 63650-04K | |
| 6366 | |
| 63793-01K | |
| 64929-01B | |
| 64930-01 | |
| 65000-04 | |
| 65040-04 | |
| 65043-01A | |
| 65045-01 | |
| 65046-01 | |
| 65101-01 | |
| 65102-01 | |
| 65104-01 | |
| 65106-01 | |
| 65107-01 | |
| 65109-01 | |
| 65110-01 | |
| 65111-01A | |
| 65112-01B | |
| 65113-01A | |
| 65151-01B | |
| 65152-01A | |
| 65153-01A | |
| 65165-01 | |
| 65200-01 | |
| 65271-03 | |
| 65272-03 | |
| 65948-00A | |
| 66017-01 | |
| 66056-00 | |
| 66097-05BPK | |
| 66097-05BPL | |
| 66097-05BPM | |
| 66115-01 | |
| 66116-01 | |
| 66171-05 | |
| 66172-05BPH | |
| 66172-05BPJ | |
| 66172-05CFZ | |
| 66173-05BPH | |
| 66173-05BPJ | |
| 66173-05CFZ | |
| 66337-05 | |
| 66338-05 | |
| 66339-05 | |
| 66342-05 | |
| 66494-01 | |
| 66495-01 | |
| 66496-01 | |
| 6655 | |
| 66712-01 | |
| 66713-01 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 67121-95A | |
| 67316-03A | |
| 67355-04 | |
| 67424-05 | |
| 67488-04 | |
| 67580-05 | |
| 67621-94 | |
| 67633-01 | |
| 67717-01 | |
| 67822-88 | |
| 67880-94 | |
| 67925-04 | |
| 67952-96 | |
| 67956-96 | |
| 68163-84 | |
| 68168-89A | |
| 68169-90A | |
| 68205-02 | |
| 68254-01 | |
| 68255-01 | |
| 68324-01 | |
| 68325-01 | |
| 68326-01A | |
| 68327-01A | |
| 68340-01 | |
| 6837M | |
| 6838M | |
| 6839M | |
| 6856M | |
| 6859M | |
| 68614-03 | |
| 68625-05 | |
| 6863 | |
| 6864A | |
| 6872M | |
| 68778-04 | |
| 68807-01 | |
| 68829-05 | |
| 68876-01A | |
| 68879-01A | |
| 68881-01 | |
| 68904-00 | |
| 68905-00 | |
| 68920-01D | |
| 68922-00D | |
| 68924-00D | |
| 68926-00 | |
| 68927-00 | |
| 68958-07C | |
| 68973-00 | |
| 68975-00 | |
| 68985-01 | |
| 69040-01A | |
| 69051-01A | |
| 69060-90F | |
| 69068-01A | |
| 69110-01 | |
| 69142-05 | |
| 69143-01 | |
| 69148-01 | |
| 69152-01A | |
| 69238-05A | |
| 69239-05A | |
| 69242-05 | |
| 69243-05 | |
| 69245-05 | |
| 69246-05 | |
| 69253-05 | |
| 69266-05 | |
| 69273-05 | |
| 69275-05 | |
| 69280-05K | |
| 69309-10 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 6966M | |
| 69770-05 | |
| 69772-04 | |
| 70003-04 | |
| 70004-01 | |
| 70010-03 | |
| 70068-96 | |
| 70130-05 | |
| 70155-03 | |
| 70345-84 | |
| 7036 | |
| 70374-04 | |
| 7039 | |
| 70439-01 | |
| 70441-01A | |
| 70442-04 | |
| 70488-02 | |
| 70504-81 | |
| 70578-89 | |
| 70590-04 | |
| 7062 | |
| 7076 | |
| 71023-04 | |
| 71031-04 | |
| 7124 | |
| 7127 | |
| 71321-05 | |
| 71403-01 | |
| 71452-91A | |
| 71474-04 | |
| 71578-01A | |
| 71587-04 | |
| 71614-96 | |
| 71615-96 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71702-01 | |
| 71719-03 | |
| 71720-03A | |
| 71771-05 | |
| 71776-05 | |
| 72023-51D | |
| 72033-93 | |
| 72076-00 | |
| 72077-00 | |
| 72087-04 | |
| 72088-04 | |
| 72089-04 | |
| 72090-04 | |
| 72091-04 | |
| 72092-04 | |
| 72106-94BK | |
| 72116-94BK | |
| 72124-94GY | |
| 72130-04 | |
| 72139-94GY | |
| 72144-94 | |
| 72146-94 | |
| 72156-94 | |
| 72159-94 | |
| 72164-94A | |
| 72170-01 | |
| 72171-01 | |
| 72176-94 | |
| 72182-01 | |
| 72183-01 | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72213-94 | |
| 72214-94 | |
| 72218-94 | |
| 72230-98 | |
| 72231-98 | |
| 72244-95 | |
| 72245-95 | |
| 72249-94 | |
| 72252-01 | |
| 72263-95 | |
| 72266-94 | |
| 72273-95 | |
| 7229W | |
| 72308-97 | |
| 72312-04 | |
| 72326-95 | |
| 72330-95 | |
| 72405-98GN | |
| 72416-01 | |
| 72427-00 | |
| 72428-00 | |
| 72429-00 | |
| 72431-00 | |
| 72432-00 | |
| 72434-00 | |
| 72439-00B | |
| 72449-01 | |
| 72450-01 | |
| 72458-00 | |
| 72516-01 | |
| 72518-01 | |
| 72520-01 | |
| 72521-01 | |
| 72522-01 | |
| 72523-01 | |
| 72524-01 | |
| 72525-01 | |
| 72526-01 | |
| 72527-01 | |
| 72529-01 | |
| 72532-02 | |
| 72535-04 | |
| 72633-02 | |
| 73101-96BK | |
| 73102-96BK | |
| 73102-96WE | |
| 73103-96BK | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73156-96BK | |
| 73169-01 | |
| 73190-96 | |
| 73191-96 | |
| 74102-98BK | |
| 74103-98BK | |
| 74108-98BK | |
| 74109-98BK | |
| 74112-98BK | |
| 74113-98BK | |
| 74118-98BK | |
| 74142-98 | |
| 74143-98 | |
| 74148-98 | |
| 74149-98 | |
| 74152-98 | |
| 74153-98 | |
| 74158-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 7427M | |
| 7432M | |
| 7433M | |
| 7435M | |
| 74402-05A | |
| 74440-01 | |
| 7444M | |
| 74480-05 | |
| 7460M | |
| 7495 | |
| 75122-01 | |
| 75123-01B | |
| 75169-01 | |
| 75170-04A | |
| 75171-01 | |
| 75172-01A | |
| 75173-01A | |
| 7629 | |
| 7671 | |
| 769M | |
| 7744 | |
| 7813A | |
| 7910M | |
| 7951 | |
| 7999M | |
| 8002K | |
| 8008M | |
| 8020 | |
| 8027K | |
| 8028K | |
| 8029K | |
| 8130 | |
| 8235 | |
| 8885 | |
| 91691-05 | |
| 91840-03B | |
| 91845-03B | |
| 91900-02 | |
| 91901-02 | |
| 9208 | |
| 9247 | |
| 94337-91T | |
| 94381-92T | |
| 94427-02 | |
| 94429-02 | |
| 94756-01 | |
| 95595-84A | |
| 964 | |
| 965M | |
| 966M | |
| 968M | |
| 970M | |
| 972M | |
| 973M | |
| 978M | |
| 9830 | |
| 9833 | |
| 9834 | |
| 983M | |
| 984M | |
| 9856 | |
| 9937 | |
| 9955 | |
| 9998 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7433M | Unknown |
| 7951 | Unknown |
| 3724M | Unknown |
| 7427M | Unknown |
| 7629 | 1990 |
| 7813A | 2007 |
| 8130 | Unknown |
| 7999M | 2002 |
| 7910M | Unknown |
| 7495 | 1994 |
| 29522-01 | 2001 |
| 7435M | Unknown |
| 8020 | 2002 |
| 48486-01 | 2001 |
| 7444M | Unknown |
| 7744 | 1943 |
| 7432M | Unknown |
| 3725M | Unknown |
| 102A1 - Generic Screws | |
| 1023M | Unknown |
| 40399-01M | 2001 |
| 3858M | Unknown |
| 1014M | Unknown |
| 1043M | 2000 |
| 94337-91T | 1991 |
| 42375-87 | 1987 |
| 2573 | Unknown |
| 1004M | Unknown |
| 3347 | 2003 |
| 4496M | Unknown |
| 4761 | Unknown |
| 978M | Unknown |
| 4741A | 1994 |
| 1025M | Unknown |
| 3731M | Unknown |
| 2955 | 1996 |
| 1027M | Unknown |
| 44177-00 | 2000 |
| 1035M | Unknown |
| 43567-92 | 1992 |
| 1024M | Unknown |
| 1017M | Unknown |
| 4042 | Unknown |
| 3321 | 2006 |
| 3612 | 2012 |
| 2548 | Unknown |
| 3753M | Unknown |
| 1114M | Unknown |
| 968M | Unknown |
| 45405-75A | 1975 |
| 3853M | 2001 |
| 4240 | Unknown |
| 4404M | Unknown |
| 3934M | Unknown |
| 2887WA | Unknown |
| 3755M | Unknown |
| 3762M | 2000 |
| 3703M | Unknown |
| 3919M | Unknown |
| 3708M | 2011 |
| 4480M | Unknown |
| 4292 | Unknown |
| 4293 | Unknown |
| 3700MA | Unknown |
| 3707M | Unknown |
| 984M | Unknown |
| 970M | Unknown |
| 1033M | Unknown |
| 3588 | 1990 |
| 3729M | Unknown |
| 3711M | Unknown |
| 3704M | Unknown |
| 3706M | Unknown |
| 4016 | Unknown |
| 94427-02 | 2002 |
| 94381-92T | 1992 |
| 983M | Unknown |
| 27225-01 | 2001 |
| 972M | Unknown |
| 973M | Unknown |
| 3705M | Unknown |
| 56402-83A | 1983 |
| 3701M | Unknown |
| 1031M | Unknown |
| 3713M | 2006 |
| 3714M | 2009 |
| 4489M | Unknown |
| 1009M | Unknown |
| 1021M | Unknown |
| 4312C | Unknown |
| 3756MA | Unknown |
| 5236M | 2004 |
| 40439-01 | 2001 |
| 1030M | Unknown |
| 3920M | Unknown |
| 4488M | Unknown |
| 3966M | Unknown |
| 4491M | Unknown |
| 966M | Unknown |
| 3716M | Unknown |
| 67956-96 | 1996 |
| 3726M | Unknown |
| 1007M | Unknown |
| 1010M | Unknown |
| 3709M | Unknown |
| 4486M | Unknown |
| 965M | Unknown |
| 3832M | 2022 |
| 94429-02 | 2002 |
| 103A1 - Generic Washers | |
| 6314W | 1964 |
| 7229W | Unknown |
| 6012 | Unknown |
| 6872M | Unknown |
| 6837M | Unknown |
| 46509-01 | 2001 |
| 6366 | 1987 |
| 6859M | Unknown |
| 6838M | Unknown |
| 6137K | Unknown |
| 45717-63 | 1963 |
| 6099 | 2011 |
| 11523 | Unknown |
| 6839M | Unknown |
| 7039 | Unknown |
| 6966M | Unknown |
| 7076 | Unknown |
| 94756-01 | 2001 |
| 6856M | Unknown |
| 6655 | 1979 |
| 6703 | 1970 |
| 6215M | Unknown |
| 6702 | Unknown |
| 104A1 - Custom Nuts | |
| 5238M | 2004 |
| 7671 | Unknown |
| 8008M | Unknown |
| 105A1 - Custom Screws | |
| 5237M | 2004 |
| 106A1 - Custom Washers | |
| 25911-01K | 2001 |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 10231 | Unknown |
| 10239 | Unknown |
| 26770-01 | 2001 |
| 10238 | 2003 |
| 9830 | Unknown |
| 62943-01 | 2001 |
| 10038A | 1994 |
| 9998 | Unknown |
| 10232K | Unknown |
| 26730-01 | 2001 |
| 29776-05 | 2005 |
| 29827-05 | 2005 |
| 26777-01 | 2001 |
| 9955 | Unknown |
| 26790-01 | 2001 |
| 108B1 - P Clamps | |
| 65271-03 | 2003 |
| 10141 | Unknown |
| 10110 | Unknown |
| 109A1 - Studs | |
| 16448-01KA | 2001 |
| 10184 | Unknown |
| 10136 | Unknown |
| 964 | Unknown |
| 66713-01 | 2001 |
| 110B1 - Plain Bushings | |
| 8029K | Unknown |
| 11568 | 2004 |
| 8028K | Unknown |
| 11519 | Unknown |
| 40433-01 | 2001 |
| 35420-01K | 2001 |
| 46246-01 | 2001 |
| 42569-03 | 2003 |
| 8027K | Unknown |
| 48389-01 | 2001 |
| 11542 | Unknown |
| 8885 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 12072K | Unknown |
| 12071K | Unknown |
| 6298M | Unknown |
| 11291 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 14794-01K | 2001 |
| 14795-01K | 2001 |
| 9247 | Unknown |
| 6176MA | Unknown |
| 111A1 - Adhesive | |
| 72525-01 | 2001 |
| 72524-01 | 2001 |
| 72523-01 | 2001 |
| 72527-01 | 2001 |
| 72522-01 | 2001 |
| 72171-01 | 2001 |
| 72170-01 | 2001 |
| 74196-04 | 2004 |
| 72088-04 | 2004 |
| 72252-01 | 2001 |
| 111F1 - Protective Tape | |
| 48403-03 | 2003 |
| 58948-05 | 2005 |
| 59283-01 | 2001 |
| 116A1 - Banjo Bolts | |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11347K | Unknown |
| 72458-00 | 2000 |
| 28862-01 | 2001 |
| 11341K | Unknown |
| 11130K | Unknown |
| 27669-01K | 2001 |
| 11353K | Unknown |
| 11362K | Unknown |
| 11101 | 1949 |
| 11391K | Unknown |
| 11348 | 2002 |
| 11140 | 1982 |
| 11354K | Unknown |
| 11366K | Unknown |
| 46508-01 | 2001 |
| 11290 | 1998 |
| 11380 | Unknown |
| 11331K | Unknown |
| 11312K | 2011 |
| 10994K | Unknown |
| 11361 | Unknown |
| 11314K | Unknown |
| 11346K | Unknown |
| 36757-01K | 2001 |
| 120A1 - Pins | |
| 482K | Unknown |
| 409K | Unknown |
| 488K | Unknown |
| 49930-01 | 2001 |
| 42460-80B | 1980 |
| 485K | Unknown |
| 487K | Unknown |
| 515 | Unknown |
| 486K | Unknown |
| 64930-01 | 2001 |
| 121A1 - Grommets | |
| 11571 | Unknown |
| 26757-01 | 2001 |
| 11403A | Unknown |
| 11402 | 2005 |
| 26758-01 | 2001 |
| 11548 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 5234 | Unknown |
| 6863 | Unknown |
| 72164-94A | 1994 |
| 6864A | 2010 |
| 121C1 - Threaded Plugs | |
| 1034M | Unknown |
| 769M | 2001 |
| 122A1 - Retaining Rings | |
| 11271 | Unknown |
| 11272 | Unknown |
| 65045-01 | 2001 |
| 11363K | Unknown |
| 45611-86 | 1986 |
| 10103 | Unknown |
| 10108 | Unknown |
| 11155 | Unknown |
| 22121-01K | 2001 |
| 11355K | Unknown |
| 41139-02 | 2002 |
| 11143 | Unknown |
| 11356K | Unknown |
| 11328M | Unknown |
| 11335K | Unknown |
| 11304 | Unknown |
| 11200K | Unknown |
| 70488-02 | 2002 |
| 11384K | Unknown |
| 29519-01 | 2001 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 7062 | Unknown |
| 124A1 - Spacers | |
| 54017-04 | 2004 |
| 26791-01 | 2001 |
| 46515-01 | 2001 |
| 5774 | Unknown |
| 54016-04 | 2004 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 66712-01 | 2001 |
| 48324-00 | 2000 |
| 11524A | Unknown |
| 59275-01 | 2001 |
| 44126-87 | 1987 |
| 9834 | Unknown |
| 44337-00B | 2000 |
| 9833 | Unknown |
| 40434-01 | 2001 |
| 59274-01 | 2001 |
| 69148-01 | 2001 |
| 11329K | Unknown |
| 11558 | Unknown |
| 27995-01 | 2001 |
| 56394-74 | 1974 |
| 61828-01 | 2001 |
| 46510-01 | 2001 |
| 126B1 - Rivets Fasteners | |
| 8235 | Unknown |
| 126C1 - Bolt Covers | |
| 48893-01 | 2001 |
| 43317-01 | 2001 |
| 127B1 - Generic Mounting Bracket | |
| 69280-05K | 2005 |
| 141A1 - Medallion | |
| 62256-05 | 2005 |
| 34996-05 | 2005 |
| 62255-05 | 2005 |
| 14448-94 | 1994 |
| 162D1 - Engine Assembly | |
| 19541-05K | 2005 |
| 163B1 - Engine Isolator Mount | |
| 16307-05 | 2005 |
| 65107-01 | 2001 |
| 16311-05 | 2005 |
| 16298-05A | 2005 |
| 16308-01 | 2001 |
| 164A1 - Engine Mount Bracket | |
| 47014-05CFZ | 2005 |
| 47014-05BPH | 2005 |
| 47014-05BPJ | 2005 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7460M | Unknown |
| 27667-01K | 2001 |
| 16312-04 | 2004 |
| 164C1 - Tiebar | |
| 16306-04A | 2004 |
| 165A1 - Cylinder Head | |
| 16987-05K | 2005 |
| 17127-05K | 2005 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17691-05K | 2005 |
| 17692-05K | 2005 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168B1 - Cylinder Liner | |
| 22928-05KA | 2005 |
| 179A1 - Lifters | |
| 18181-01K | 2001 |
| 180A1 - Valves | |
| 18057-01K | 2001 |
| 18665-01K | 2001 |
| 18664-01K | 2001 |
| 181B1 - Valve Seals | |
| 17638-01K | 2001 |
| 17640-01K | 2001 |
| 17637-01K | 2001 |
| 18687-01K | 2001 |
| 17639-01K | 2001 |
| 181C1 - Valve Collars | |
| 35004-01K | 2001 |
| 35002-01K | 2001 |
| 35003-01K | 2001 |
| 35001-01K | 2001 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18055-01K | 2001 |
| 18661-01K | 2001 |
| 18662-01K | 2001 |
| 17641-01K | 2001 |
| 18052-01K | 2001 |
| 220A1 - Piston Ring | |
| 22919-05K | 2005 |
| 221A1 - Piston Pin | |
| 22126-05K | 2005 |
| 237A1 - Connecting Rod | |
| 24307-01K | 2001 |
| 237B1 - Connecting Rod sub-component | |
| 27982-01 | 2001 |
| 24311-01K | 2001 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 25800-01K | 2001 |
| 35445-01K | 2001 |
| 8002K | Unknown |
| 26582-01K | 2001 |
| 35443-01K | 2001 |
| 35441-01K | 2001 |
| 35423-04K | 2004 |
| 35433-01K | 2001 |
| 241A1 - Flywheel | |
| 23712-01K | 2001 |
| 23725-01K | 2001 |
| 24312-01K | 2001 |
| 244A1 - Crankcase | |
| 24459-05K | 2005 |
| 244D1 - Crankcase sub-component | |
| 24411-01K | 2001 |
| 24412-01K | 2001 |
| 24409-01K | 2001 |
| 24410-01K | 2001 |
| 24413-01K | 2001 |
| 32313-01A | 2001 |
| 254B1 - Camshaft | |
| 17431-05K | 2005 |
| 17421-01KA | 2001 |
| 254C1 - Camshaft Sprocket | |
| 17423-01K | 2001 |
| 254D1 - Camshaft Support | |
| 41714-05 | 2005 |
| 255A1 - Camdrive Chain | |
| 17407-01KA | 2001 |
| 17406-01KA | 2001 |
| 255C1 - Camdrive Chain Tensioner | |
| 17632-01K | 2001 |
| 17629-01K | 2001 |
| 257A1 - Cam Cover | |
| 17664-01K | 2001 |
| 17661-01K | 2001 |
| 257B1 - Clutch Cover | |
| 25732-01K | 2001 |
| 257D1 - Clutch Inspection Cover | |
| 25302-01K | 2001 |
| 257E1 - Cover Gaskets | |
| 67121-95A | 1995 |
| 17418-01K | 2001 |
| 17416-01KA | 2001 |
| 17010-01K | 2001 |
| 41731-01 | 2001 |
| 72087-04 | 2004 |
| 61109-85D | 1985 |
| 17011-01KB | 2001 |
| 17666-01K | 2001 |
| 25891-01K | 2001 |
| 25080-01K | 2001 |
| 61412-05 | 2005 |
| 66171-05 | 2005 |
| 265A1 - Vent / Breather Line | |
| 29505-05 | 2005 |
| 266E1 - Water Pump Housing | |
| 26748-01K | 2001 |
| 26750-01K | 2001 |
| 266F1 - Water Pump Housing Gasket | |
| 26749-01K | 2001 |
| 26752-01K | 2001 |
| 267A1 - Thermostat Housing Gasket | |
| 26765-01K | 2001 |
| 268C1 - Radiator | |
| 26722-04 | 2004 |
| 268D1 - Radiator Bleeder Valve | |
| 5235 | 2004 |
| 268F1 - Radiator Pressure Cap | |
| 62909-04 | 2004 |
| 26733-01 | 2001 |
| 268H1 - Radiator System Cover | |
| 66172-05CFZ | 2005 |
| 66115-01 | 2001 |
| 66172-05BPJ | 2005 |
| 66172-05BPH | 2005 |
| 66116-01 | 2001 |
| 26788-01A | 2001 |
| 66173-05BPJ | 2005 |
| 66173-05BPH | 2005 |
| 66173-05CFZ | 2005 |
| 269B1 - Radiator Hose | |
| 26767-01 | 2001 |
| 26754-01 | 2001 |
| 26768-01A | 2001 |
| 62953-01 | 2001 |
| 26753-01 | 2001 |
| 26756-01 | 2001 |
| 26755-01 | 2001 |
| 26737-01K | 2001 |
| 62942-01A | 2001 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26731-01 | 2001 |
| 270A1 - Carburetor | |
| 27378-01 | 2001 |
| 27391-01 | 2001 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27657-01 | 2001 |
| 272D1 - Throttle Body to Airbox Baseplate Seal | |
| 27977-01 | 2001 |
| 272E1 - Velocity Stack | |
| 29521-01 | 2001 |
| 29438-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 24986-01K | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27662-01B | 2001 |
| 27408-01 | 2001 |
| 28002-01 | 2001 |
| 274C1 - Fuel Injector | |
| 27665-01A | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 61787-05K | 2005 |
| 29544-05K | 2005 |
| 29530-05K | 2005 |
| 290C1 - Airbox Baseplate sub-component | |
| 29435-05 | 2005 |
| 290D1 - Airbox Seal | |
| 29439-01 | 2001 |
| 29436-01 | 2001 |
| 290E1 - Airbox Helmholtz Chamber | |
| 29647-01 | 2001 |
| 294A1 - Air Filter Element | |
| 29437-01 | 2001 |
| 294C1 - Breather Hose | |
| 29601-05K | 2005 |
| 29504-05A | 2005 |
| 295A1 - Intake Miscellaneous Component | |
| 26724-04 | 2004 |
| 28863-01 | 2001 |
| 299A1 - Alternator | |
| 25881-01KA | 2001 |
| 25895-04K | 2004 |
| 299C1 - Charging Rotor | |
| 26022-02K | 2002 |
| 30731-01K | 2001 |
| 299F1 - Stator Assembly | |
| 30734-04K | 2004 |
| 314F1 - Starter Motor | |
| 31717-01K | 2001 |
| 314G1 - Starter Motor sub-component | |
| 71023-04 | 2004 |
| 314H1 - Starter Solenoid | |
| 27660-01 | 2001 |
| 71474-04 | 2004 |
| 315A1 - Quick Shift Actuator | |
| 35017-01K | 2001 |
| 315B1 - Exhaust Valve Actuator | |
| 18663-01K | 2001 |
| 316A1 - Ignition Coil | |
| 31651-01 | 2001 |
| 32477-01A | 2011 |
| 316B1 - Spark Plug Cable | |
| 27671-01K | 2001 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 327D1 - Proximity Sensor | |
| 74402-05A | 2005 |
| 327E1 - Temperature Sensor | |
| 32315-01 | 2001 |
| 27388-01 | 2001 |
| 327F1 - Throttle Position Sensor | |
| 27975-01 | 2001 |
| 327G1 - Police Radar | |
| 38669-03 | 2003 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33796-02 | 2002 |
| 33795-02 | 2002 |
| 336C1 - Shift Linkage Rod End | |
| 35434-01K | 2001 |
| 42682-01 | 2001 |
| 336D1 - Shift Pedal | |
| 50243-01 | 2001 |
| 50241-01 | 2001 |
| 339A1 - Shift Lever | |
| 34555-01A | 2001 |
| 339D1 - Shifter Fork | |
| 35429-01K | 2001 |
| 35430-01KA | 2001 |
| 35428-01K | 2001 |
| 339E1 - Shifter Fork Shaft | |
| 35432-01K | 2001 |
| 339F1 - Shifter Index Lever | |
| 34567-01 | 2001 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 35442-01K | 2001 |
| 34007-01K | 2001 |
| 35451-01K | 2001 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34783-05A | 2007 |
| 35019-05 | 2005 |
| 350A1 - Transmission Output Sprocket | |
| 40341-04 | 2004 |
| 40345-04 | 2004 |
| 350F1 - Transmission Mainshaft | |
| 35454-01KA | 2001 |
| 350G1 - Transmission Shim / Spacer | |
| 18628-01K | 2001 |
| 18678-01K | 2001 |
| 18629-01K | 2001 |
| 40095-01K | 2001 |
| 18698-01K | 2001 |
| 18632-01K | 2001 |
| 18630-01K | 2001 |
| 18656-01K | 2001 |
| 18667-01K | 2001 |
| 18673-01K | 2001 |
| 18683-01K | 2001 |
| 18700-01K | 2001 |
| 18676-01K | 2001 |
| 18666-01K | 2001 |
| 18655-01K | 2001 |
| 18686-01K | 2001 |
| 18627-01K | 2001 |
| 18693-01K | 2001 |
| 18680-01K | 2001 |
| 18695-01K | 2001 |
| 18696-01K | 2001 |
| 18659-01K | 2001 |
| 18699-01K | 2001 |
| 18701-01K | 2001 |
| 18679-01K | 2001 |
| 18669-01K | 2001 |
| 18675-01K | 2001 |
| 18624-01K | 2001 |
| 18685-01K | 2001 |
| 18684-01K | 2001 |
| 18626-01K | 2001 |
| 18697-01K | 2001 |
| 18670-01K | 2001 |
| 18639-01K | 2001 |
| 18674-01K | 2001 |
| 18702-01K | 2001 |
| 18672-01K | 2001 |
| 18671-01K | 2001 |
| 18682-01K | 2001 |
| 18658-01K | 2001 |
| 18681-01K | 2001 |
| 18677-01K | 2001 |
| 18668-01K | 2001 |
| 18692-01K | 2001 |
| 18657-01K | 2001 |
| 18631-01K | 2001 |
| 18625-01K | 2001 |
| 18694-01K | 2001 |
| 18638-01K | 2001 |
| 352A1 - Engine Balancer | |
| 14791-01K | 2001 |
| 352B1 - Engine Balancer sub-component | |
| 14758-01K | 2001 |
| 356A1 - Transmission Countershaft | |
| 35455-01KA | 2001 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 26103-01K | 2001 |
| 367A1 - Clutch Lever | |
| 45658-02 | 2002 |
| 367B1 - Clutch Lever Master Cylinder | |
| 45197-05 | 2005 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 36757-05K | 2005 |
| 367H1 - Clutch Lever sub-component | |
| 36709-01K | 2001 |
| 36714-01K | 2001 |
| 36825-05K | 2005 |
| 36712-01K | 2001 |
| 37909-90 | 1990 |
| 31301-01K | 2001 |
| 370B1 - Clutch Friction Plate | |
| 36713-01K | 2001 |
| 36707-01K | 2001 |
| 370C1 - Clutch Hub | |
| 36724-05K | 2005 |
| 370E1 - Clutch Metal Plate | |
| 36780-01K | 2001 |
| 370F1 - Clutch Pressure Plate | |
| 36710-01K | 2001 |
| 36704-01K | 2001 |
| 370F3 - Clutch Diaphragm Spring | |
| 36711-01K | 2001 |
| 370G1 - Clutch Shell | |
| 36723-05K | 2005 |
| 370H1 - Clutch Sprocket | |
| 36779-05K | 2005 |
| 372D1 - Clutch Cable | |
| 56595-03A | 2006 |
| 372F1 - Clutch Diaphragm Plate | |
| 36702-01K | 2001 |
| 31303-01K | 2001 |
| 372G1 - Clutch Hose | |
| 46113-02A | 2003 |
| 400A1 - Drive-Belt | |
| 40119-05 | 2005 |
| 40118-05 | 2005 |
| 409A1 - Rear Wheel | |
| 43215-08 | 2008 |
| 410D1 - Electronic Control Module (ECM) | |
| 68920-01D | 2001 |
| 32534-05C | 2008 |
| 410G1 - Security System Control Module | |
| 68924-00D | 2000 |
| 68922-00D | 2000 |
| 413A1 - Brake Caliper | |
| 44423-02C | 2004 |
| 44381-99C | 1999 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 44382-99C | 1999 |
| 44477-99 | 1999 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44315-00 | 2000 |
| 44147-87A | 1987 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 415B1 - Brake Rotor | |
| 44343-01 | 2001 |
| 41666-01 | 2001 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 40903-87 | 1987 |
| 40920-87 | 1987 |
| 72023-51D | 2004 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45078-96D | 1996 |
| 45298-99 | 1999 |
| 42585-01 | 2001 |
| 42585-05 | 2005 |
| 417B1 - Brake Master Cylinder | |
| 46244-01 | 2001 |
| 45200-05 | 2005 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 45072-96C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42471-01A | 2001 |
| 43915-01 | 1979 |
| 42448-87 | 1987 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-96 | 1996 |
| 43914-01 | 2001 |
| 74143-98 | 1998 |
| 43917-01 | 2001 |
| 44351-00 | 2000 |
| 417E1 - Brake Master Cylinder Hose | |
| 42397-01 | 2001 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42586-01 | 2001 |
| 417G1 - Front Brake Lever | |
| 44418-02 | 2002 |
| 44420-02 | 2002 |
| 50240-01 | 2001 |
| 45391-02 | 2002 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45282-99A | 1999 |
| 418B1 - Brake Line | |
| 44543-05 | 2005 |
| 46379-05 | 2005 |
| 422B1 - Wheel Sprocket | |
| 40541-05 | 2005 |
| 40008-04K | 2004 |
| 40229-04 | 2004 |
| 40014-04K | 2004 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44493-02 | 2002 |
| 45621-02 | 2002 |
| 430D1 - Front Axle | |
| 41540-04 | 2004 |
| 44117-07A | 2007 |
| 430E1 - Rear Axle | |
| 41541-05 | 2005 |
| 45069-01 | 2001 |
| 433A1 - Front Wheel | |
| 43219-04 | 2004 |
| 43219-08 | 2008 |
| 433B1 - Front Wheel Bearing Spacer | |
| 40436-01A | 2001 |
| 41189-04 | 2004 |
| 43704-01 | 2001 |
| 43641-01 | 2001 |
| 41615-02 | 2002 |
| 454A1 - Front Telescopic Fork | |
| 46785-05A | 2005 |
| 46784-05A | 2005 |
| 455A1 - Front Telescopic Fork Slider | |
| 46505-01 | 2001 |
| 46527-02 | 2002 |
| 46506-01A | 2001 |
| 46529-02 | 2002 |
| 455B1 - Front Telescopic Fork Spring | |
| 46511-01 | 2001 |
| 455C1 - Front Telescopic Fork sub-component | |
| 46512-01A | 2010 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 46519-01 | 2001 |
| 46504-01 | 2001 |
| 46531-02 | 2002 |
| 46513-01 | 2001 |
| 456A1 - Fork Protector | |
| 46319-04 | 2004 |
| 456C1 - Fork Lock | |
| 46213-02 | 2002 |
| 457D1 - Steering Stem | |
| 46507-01 | 2001 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45670-80A | 1980 |
| 48184-01 | 2001 |
| 459A1 - Upper Triple Clamp | |
| 46773-02 | 2002 |
| 459C1 - Triple Clamp Kit | |
| 46771-02 | 2002 |
| 470A1 - Frame | |
| 48117-05BPH | 2005 |
| 48117-05BPJ | 2005 |
| 48116-06CFZ | 2006 |
| 48116-05BPH | 2005 |
| 48115-05BPH | 2005 |
| 48116-05BPJ | 2005 |
| 48117-06CFZ | 2006 |
| 48115-05BPJ | 2005 |
| 48115-05CFZ | 2005 |
| 472A1 - Frame sub-component | |
| 48086-01 | 2001 |
| 7036 | Unknown |
| 472B1 - Structural Tailsection | |
| 48485-01A | 2001 |
| 48483-01A | 2001 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 69242-05 | 2005 |
| 69243-05 | 2005 |
| 68807-01 | 2001 |
| 474C1 - Swingarm | |
| 48422-05 | 2005 |
| 474F1 - Swingarm Bearing Spacer | |
| 48386-05A | 2005 |
| 475B1 - Swingarm Pivot Shaft | |
| 48392-05 | 2005 |
| 500A1 - Sidestand Assembly | |
| 49742-01A | 2001 |
| 500E1 - Sidestand Leg sub-component | |
| 53158-98 | 1998 |
| 50005-85A | 1985 |
| 3718M | Unknown |
| 62107-01 | 2001 |
| 500F1 - Sidestand Pivot Pin | |
| 554A | 2002 |
| 505B1 - Footpeg Mount Bracket | |
| 51002-02 | 2002 |
| 51001-02 | 2002 |
| 505D1 - Passenger Footpeg | |
| 42670-02A | 2002 |
| 42671-02 | 2002 |
| 505G1 - Rider or Common Footpeg | |
| 43280-01 | 2001 |
| 43281-01 | 2001 |
| 43282-01 | 2001 |
| 505H1 - Footpeg Insert | |
| 43286-01 | 2001 |
| 43285-01 | 2001 |
| 506A1 - Brake Pedal | |
| 42964-01A | 2001 |
| 50912-72 | 1972 |
| 520A1 - Rider Seat or Full Seat | |
| 51595-05 | 2005 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52402-01 | 2001 |
| 52041-82 | 1982 |
| 521A1 - Seat Support Structure | |
| 46518-01 | 2001 |
| 521C1 - Seat Suspension Damper | |
| 54715-96 | 1996 |
| 524A1 - Passenger Grab Handle | |
| 69142-05 | 2005 |
| 524B1 - Passenger Seat | |
| 51594-05 | 2005 |
| 530B1 - Tour Pak sub-component | |
| 52425-98 | 1998 |
| 540B1 - Rear Shock | |
| 52558-05 | 2005 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 56227-05 | 2005 |
| 41148-98 | 1998 |
| 559C1 - Handlebar Mount Isolator | |
| 56742-05 | 2005 |
| 559D1 - Lower Handlebar Clamp | |
| 56745-05 | 2005 |
| 560A1 - Mirror | |
| 91840-03B | 2003 |
| 91900-02 | 2002 |
| 91845-03B | 2003 |
| 91901-02 | 2002 |
| 561B1 - Left Hand Grip | |
| 56460-01A | 2001 |
| 56461-01A | 2001 |
| 56480-01 | 2001 |
| 571D1 - Debris Deflector | |
| 60484-01B | 2001 |
| 572E1 - Side Cover | |
| 66339-05 | 2005 |
| 66338-05 | 2005 |
| 66337-05 | 2005 |
| 66342-05 | 2005 |
| 574B1 - Windscreen / Windshield | |
| 67621-94 | 1994 |
| 589A1 - Front Fender | |
| 59115-05CFZ | 2005 |
| 59115-05BPJ | 2005 |
| 59115-05BPH | 2005 |
| 59020-01A | 2001 |
| 595D1 - Rear Fender | |
| 59361-05BPM | 2005 |
| 59361-05BPL | 2005 |
| 59361-05BPK | 2005 |
| 59033-01A | 2001 |
| 596A1 - Tire Mud Flap | |
| 59040-01 | 2001 |
| 59709-01 | 2001 |
| 603B1 - Belt / Chain Guard | |
| 60469-01A | 2001 |
| 608A1 - Carbon Canister | |
| 27042-84A | 1995 |
| 608B1 - Carbon Canister Hose | |
| 27382-01 | 2001 |
| 609A1 - Fuel Miscellaneous Component | |
| 62927-01 | 2001 |
| 72439-00B | 2000 |
| 61329-01 | 2001 |
| 61498-01 | 2001 |
| 75173-01A | 2001 |
| 27047-84B | 1984 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 69266-05 | 2005 |
| 60966-01 | 2001 |
| 610A1 - Fuel Tank | |
| 62921-01 | 2001 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27138-90 | 1990 |
| 612A1 - Fuel Filter | |
| 75169-01 | 2001 |
| 75170-04A | 2004 |
| 75171-01 | 2001 |
| 612B1 - Fuel Level Sensor | |
| 75122-01 | 2001 |
| 612B2 - Fuel Valve | |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 61516-07 | 2007 |
| 612F1 - Fuel Pump | |
| 75123-01B | 2001 |
| 62109-01A | 2001 |
| 612K1 - Fuel Pump sub-component | |
| 62926-01 | 2001 |
| 613B1 - Horn Cover | |
| 69040-01A | 2001 |
| 613K1 - Airbox Cover | |
| 66097-05BPM | 2005 |
| 66097-05BPL | 2005 |
| 66097-05BPK | 2005 |
| 29434-03A | 2003 |
| 614C1 - Trim | |
| 29770-01 | 2001 |
| 62957-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26575-01KB | 2001 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26578-01K | 2001 |
| 27993-01 | 2001 |
| 26738-01K | 2001 |
| 26539-01K | 2001 |
| 26534-01K | 2001 |
| 26739-01K | 2001 |
| 627A1 - Oil Cooler | |
| 26723-04 | 2004 |
| 627B1 - Oil Drain Plug | |
| 26542-01K | 2001 |
| 627F1 - Oil Filter | |
| 63793-01K | 2001 |
| 627H1 - Oil Line | |
| 62940-04A | 2004 |
| 62941-04A | 2004 |
| 26772-04 | 2004 |
| 627K1 - Oil Line Fitting | |
| 26399-01K | 2001 |
| 63650-04K | 2004 |
| 627L1 - Oil Overflow Catch Bottle | |
| 26731-01A | 2001 |
| 627N1 - Oil System Baffle | |
| 26034-01K | 2001 |
| 627P1 - Oil Thermostat | |
| 26740-01K | 2001 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 26393-01K | 2001 |
| 648K1 - Exhaust Miscellaneous Component | |
| 65200-01 | 2001 |
| 649A1 - Muffler | |
| 65152-01A | 2004 |
| 65153-01A | 2004 |
| 65040-04 | 2004 |
| 65151-01B | 2001 |
| 64929-01B | 2001 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65000-04 | 2004 |
| 654A1 - Exhaust Shield | |
| 65110-01 | 2001 |
| 65046-01 | 2001 |
| 65111-01A | 2001 |
| 65112-01B | 2001 |
| 655C1 - Exhaust Mounting Bracket | |
| 65165-01 | 2001 |
| 65113-01A | 2001 |
| 65106-01 | 2001 |
| 656E1 - Header Pipe | |
| 65104-01 | 2001 |
| 65101-01 | 2001 |
| 659A1 - Exhaust Clamp | |
| 65043-01A | 2001 |
| 65272-03 | 2003 |
| 659B1 - Exhaust Flange | |
| 65102-01 | 2001 |
| 659C1 - Exhaust Gasket | |
| 65109-01 | 2001 |
| 660A1 - Battery | |
| 65948-00A | 2000 |
| 660B1 - Battery Pad | |
| 66495-01 | 2001 |
| 66494-01 | 2001 |
| 660D1 - Battery Strap | |
| 66017-01 | 2001 |
| 660E1 - Ground Strap | |
| 70441-01A | 2001 |
| 70442-04 | 2004 |
| 660F1 - Negative Battery Cable | |
| 70439-01 | 2001 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-04 | 2004 |
| 660J1 - Battery Charger | |
| 66056-00 | 2000 |
| 670A1 - Tachometer | |
| 67925-04 | 2004 |
| 67952-96 | 1996 |
| 69245-05 | 2005 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 67316-03A | 2004 |
| 69330-02 | 2002 |
| 69325-02 | 2002 |
| 69770-05 | 2005 |
| 68625-05 | 2005 |
| 69246-05 | 2005 |
| 677B1 - Headlight sub-component | |
| 68255-01 | 2001 |
| 67717-01 | 2001 |
| 68778-04 | 2004 |
| 67880-94 | 1994 |
| 68254-01 | 2001 |
| 677C1 - Headlight Support Bracket | |
| 69772-04 | 2004 |
| 678A1 - Taillight | |
| 68326-01A | 2002 |
| 68879-01A | 2002 |
| 68327-01A | 2002 |
| 68876-01A | 2002 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68975-00 | 2000 |
| 68985-01 | 2001 |
| 68614-03 | 2003 |
| 69068-01A | 2002 |
| 68829-05 | 2005 |
| 67015-02 | 2002 |
| 69273-05 | 2005 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 69110-01 | 2001 |
| 69275-05 | 2005 |
| 679B1 - Reflector | |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 68340-01 | 2001 |
| 59481-00 | 2000 |
| 60119-03 | 2003 |
| 59407-01 | 2001 |
| 59988-72A | 1972 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 69051-01A | 2002 |
| 679E1 - License Plate Light | |
| 68205-02 | 2002 |
| 680B1 - Emergency Light | |
| 67633-01 | 2001 |
| 680C1 - Incandescent Bulb | |
| 68169-90A | 1990 |
| 68881-01 | 2001 |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68163-84 | 1984 |
| 68324-01 | 2001 |
| 68325-01 | 2001 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 692C1 - Electrical Miscellaneous Component | |
| 32616-01C | 2001 |
| 69239-05A | 2005 |
| 70590-04 | 2004 |
| 72532-02 | 2002 |
| 72189-04 | 2004 |
| 72529-01 | 2001 |
| 72176-94 | 1994 |
| 692C2 - Electrical Mounting Bracket | |
| 69143-01 | 2001 |
| 69152-01A | 2001 |
| 48096-00 | 2000 |
| 56505-05 | 2005 |
| 66496-01 | 2001 |
| 71702-01 | 2001 |
| 69060-90F | 2010 |
| 67355-04 | 2004 |
| 69253-05 | 2005 |
| 70374-04 | 2004 |
| 692D1 - Fuse | |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72521-01 | 2001 |
| 72432-00 | 2000 |
| 72431-00 | 2000 |
| 73169-01 | 2001 |
| 692E2 - Fuse / Relay Block Cover | |
| 72535-04 | 2004 |
| 692F1 - Wire Harness | |
| 70130-05 | 2005 |
| 71771-05 | 2005 |
| 70155-03 | 2003 |
| 71776-05 | 2005 |
| 75172-01A | 2001 |
| 70004-01 | 2001 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 42409-01 | 2001 |
| 72249-94 | 1994 |
| 70010-03 | 2003 |
| 72266-94 | 1994 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 74149-98 | 1998 |
| 72159-94 | 1994 |
| 25919-04K | 2004 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72312-04 | 2004 |
| 74142-98 | 1998 |
| 72526-01 | 2001 |
| 72124-94GY | 1994 |
| 72416-01 | 2001 |
| 72090-04 | 2004 |
| 72183-01 | 2001 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72273-95 | 1995 |
| 72182-01 | 2001 |
| 72518-01 | 2001 |
| 72516-01 | 2001 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 72092-04 | 2004 |
| 25918-04K | 2004 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72213-94 | 1994 |
| 72429-00 | 2000 |
| 72428-00 | 2000 |
| 72308-97 | 1997 |
| 72427-00 | 2000 |
| 72218-94 | 1994 |
| 9937 | Unknown |
| 72326-95 | 1995 |
| 9856 | Unknown |
| 72434-00 | 2000 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 72449-01 | 2001 |
| 72091-04 | 2004 |
| 72520-01 | 2001 |
| 74197-04 | 2004 |
| 68905-00 | 2000 |
| 72450-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 74148-98 | 1998 |
| 70345-84 | 1984 |
| 72263-95 | 1995 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72231-98 | 1998 |
| 72633-02 | 2002 |
| 72214-94 | 1994 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 73103-96BK | 1996 |
| 73101-96BK | 1996 |
| 73156-96BK | 1996 |
| 74103-98BK | 1998 |
| 74108-98BK | 1998 |
| 74113-98BK | 1998 |
| 72089-04 | 2004 |
| 73106-96BK | 1996 |
| 73152-96WE | 1996 |
| 72230-98 | 1998 |
| 74153-98 | 1998 |
| 74109-98BK | 1998 |
| 74195-98 | 1998 |
| 74102-98BK | 1998 |
| 73153-96BK | 1996 |
| 70068-96 | 1996 |
| 73102-96WE | 1996 |
| 72244-95 | 1995 |
| 72033-93 | 1993 |
| 72106-94BK | 1994 |
| 73191-96 | 1996 |
| 24927-01 | 2001 |
| 72146-94 | 1994 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 73104-96BK | 1996 |
| 72405-98GN | 1998 |
| 73102-96BK | 1996 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 74118-98BK | 1998 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67580-05 | 2005 |
| 74480-05 | 2005 |
| 67424-05 | 2005 |
| 709E1 - Tank Console | |
| 69238-05A | 2005 |
| 71321-05 | 2005 |
| 714A1 - Ignition Switch | |
| 71578-01A | 2001 |
| 45804-01 | 1994 |
| 714B1 - Mechanical Switch | |
| 33902-98A | 1998 |
| 52385-01 | 2001 |
| 714C1 - Pressure Switch | |
| 71403-01 | 2001 |
| 26561-99 | 1999 |
| 67488-04 | 2004 |
| 714D1 - Relay | |
| 31522-00C | 2004 |
| 31511-01B | 2001 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 71614-96 | 1996 |
| 71615-96 | 1996 |
| 71587-04 | 2004 |
| 71683-06A | 2006 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71719-03 | 2003 |
| 71621-08 | 2008 |
| 71720-03A | 2003 |
| 747A1 - Voltage Regulator | |
| 74440-01 | 2001 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 71031-04 | 2004 |
| 903C1 - Key Transponder | |
| 68926-00 | 2000 |
| 68927-00 | 2000 |
| 918B1 - Hardware Kit | |
| 54013-04 | 2004 |
| 940A1 - Owner's Kit | |
| 91691-05 | 2005 |
| 960ZA - UNASSIGNED | |
| 22918-05K | 2005 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS & COVERS: WIRING HARNESS, MAIN (1 OF 2): |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | REAR BRAKE CONTROL: |
| 11143 | RETAINING RING | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 11304 | RING | FOOTRESTS: |
| 41731-01 | GASKET | CLUTCH CONTROL: FRONT BRAKE CONTROL: REAR BRAKE CONTROL: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45405-75A | SCREW | FRONT FORK: |
| 48300-60 | ROLLER BEARING | FRONT FORK: |
| 6702 | WASHER | FRAME & JIFFY STAND: EXHAUST SYSTEM: |
| 9247 | BEARING | FRONT WHEEL: REAR WHEEL: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | FRONT BRAKE CALIPER: REAR BRAKE CALIPER: |
| 46514-01A | OIL SEAL | FRONT FORK: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING | FRAME & JIFFY STAND: |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FILLER CAP | FUEL TANK: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR SWITCHES: |
| 71621-08 | STOPLAMP SWITCH | HANDLEBAR SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (1 OF 2): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 37909-90 | RETAINING RING | CLUTCH: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP, REAR TURN SIGNALS & LICENSE PLATE BRACKET: |
| 68973-00 | LENS | FRONT TURN SIGNALS: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63793-01K | ENGINE OIL FILTER | COVERS, OIL PAN/FILTER/PICKUP: |
| 95595-84A | WEIGHT | FRONT WHEEL: REAR WHEEL: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | VALVE STEM | FRONT WHEEL: REAR WHEEL: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | REAR FORK, DEBRIS DEFLECTOR & BELT GUARD: |
