2003 HARLEY-DAVIDSON® PARTS CATALOG: DYNA POLICE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99544-03A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2003 DYNA POLICE MODELS
VIN Model Codes

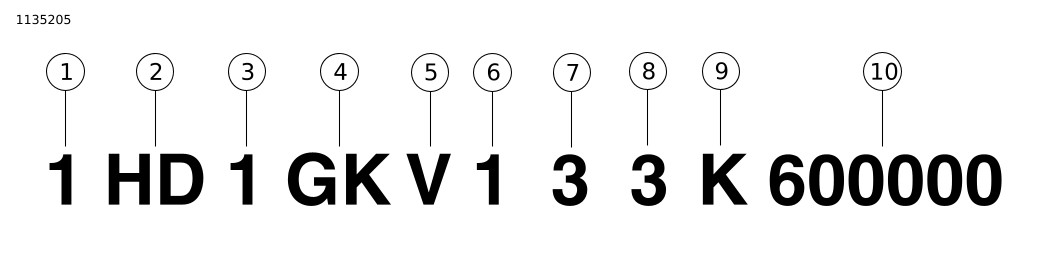

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Manufactured for sale within the United States 5=Manufactured for sale outside the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) |
4 | Model | GK=FXDP |
5 | Engine type | V=Twin Cam 88™ Carbureted |
6 | Introduction date | 1=Regular 2=Mid-year |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 3=2003 |
9 | Assembly plant | K=Kansas City, MO |
10 | Sequential number | varies |
NOTES

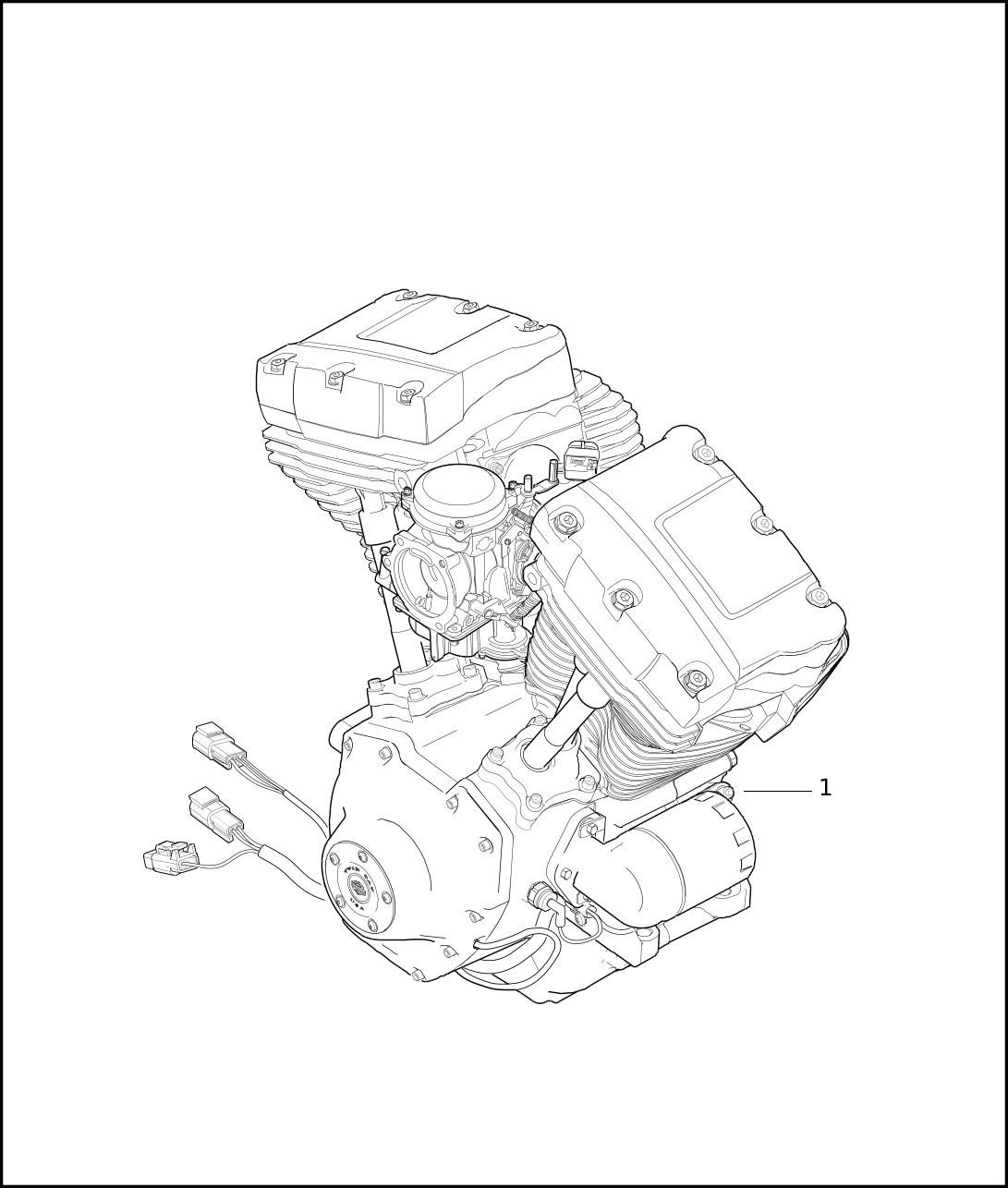

ENGINE ASSEMBLY - COMPLETE - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 16138-03 | ENGINE ASSEMBLY, complete (black) | FXDP |

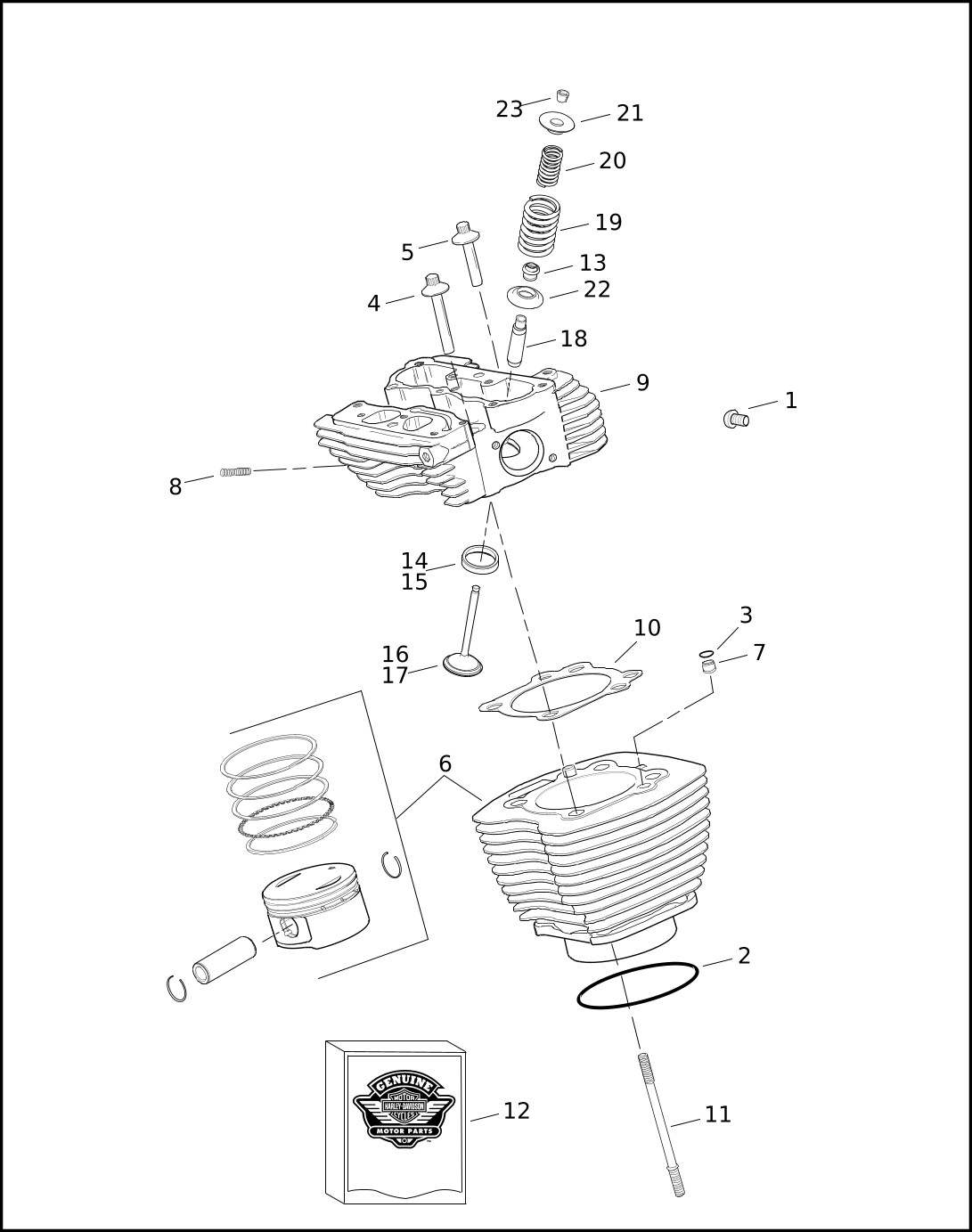

CYLINDERS, HEADS & VALVES - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 4175 | SCREW (plugs temperature sensor hole in cylinder head) | FXDP |
| 2 | 11256 | O-RING, cylinder base (2) | FXDP |
| 3 | 11273 | O-RING (2) | FXDP |
| 4 | 16478-85A | SCREW, internal thread 3-3/16 inch long (4) | FXDP |
| 5 | 16480-92A | SCREW, internal thread 1-7/8 inch long (4) | FXDP |
| 6 | 16525-99 | CYLINDER ASSEMBLY, w/ piston, rings, piston pin & retaining rings (silver) (2) | FXDP |
| 7 | 16595-99A | DOWEL (4) | FXDP |
| 8 | 16715-83 | STUD, exhaust port (4) | FXDP |
| 9 | 16722-99 | CYLINDER HEAD, front, w/ guides & seats (black) | FXDP |
| 16724-99 | CYLINDER HEAD, rear, w/ guides & seats (black) | FXDP | |
| 10 | 16775-99B | GASKET, cylinder head (2) | FXDP |
| 11 | 16834-99A | STUD, cylinder (8) | FXDP |
| 12 | 17052-99C | GASKET KIT, top end | FXDP |
| 17053-99C | GASKET KIT, engine overhaul | FXDP | |
| 13 | 18001-83B | SEAL, valve (4) | FXDP |
| 14 | 18011-86 | INSERT, exhaust valve seat (2) | FXDP |
| 18124-83 | INSERT, exhaust valve seat - 0.005 O.S. (2) | FXDP | |
| 15 | 18020-83 | INSERT, intake valve seat (2) | FXDP |
| 18134-83 | INSERT, intake valve seat - 0.005 O.S. (2) | FXDP | |
| 16 | 18074-83B | INTAKE VALVE (2) | FXDP |
| 18076-83 | INTAKE VALVE, 0.03 short (2) | FXDP | |
| 17 | 18082-83A | EXHAUST VALVE (2) | FXDP |
| 18 | 18101-83D | VALVE GUIDE, intake & exhaust (4) | FXDP |
| 18130-83D | VALVE GUIDE, intake & exhaust - 0.001 O.S. (4) | FXDP | |
| 18131-83D | VALVE GUIDE, intake & exhaust - 0.003 O.S. (4) | FXDP | |
| 18133-83B | VALVE GUIDE, intake & exhaust - 0.002 O.S. (4) | FXDP | |
| 19 | 18201-83 | VALVE SPRING, outer (4) | FXDP |
| 20 | 18202-83 | VALVE SPRING, inner (4) | FXDP |
| 21 | 18219-83A | COLLAR, valve spring - upper (4) | FXDP |
| 22 | 18222-83A | COLLAR, valve spring - lower (4) | FXDP |
| 23 | 18229-83A | RETAINER, valve collar (8) | FXDP |

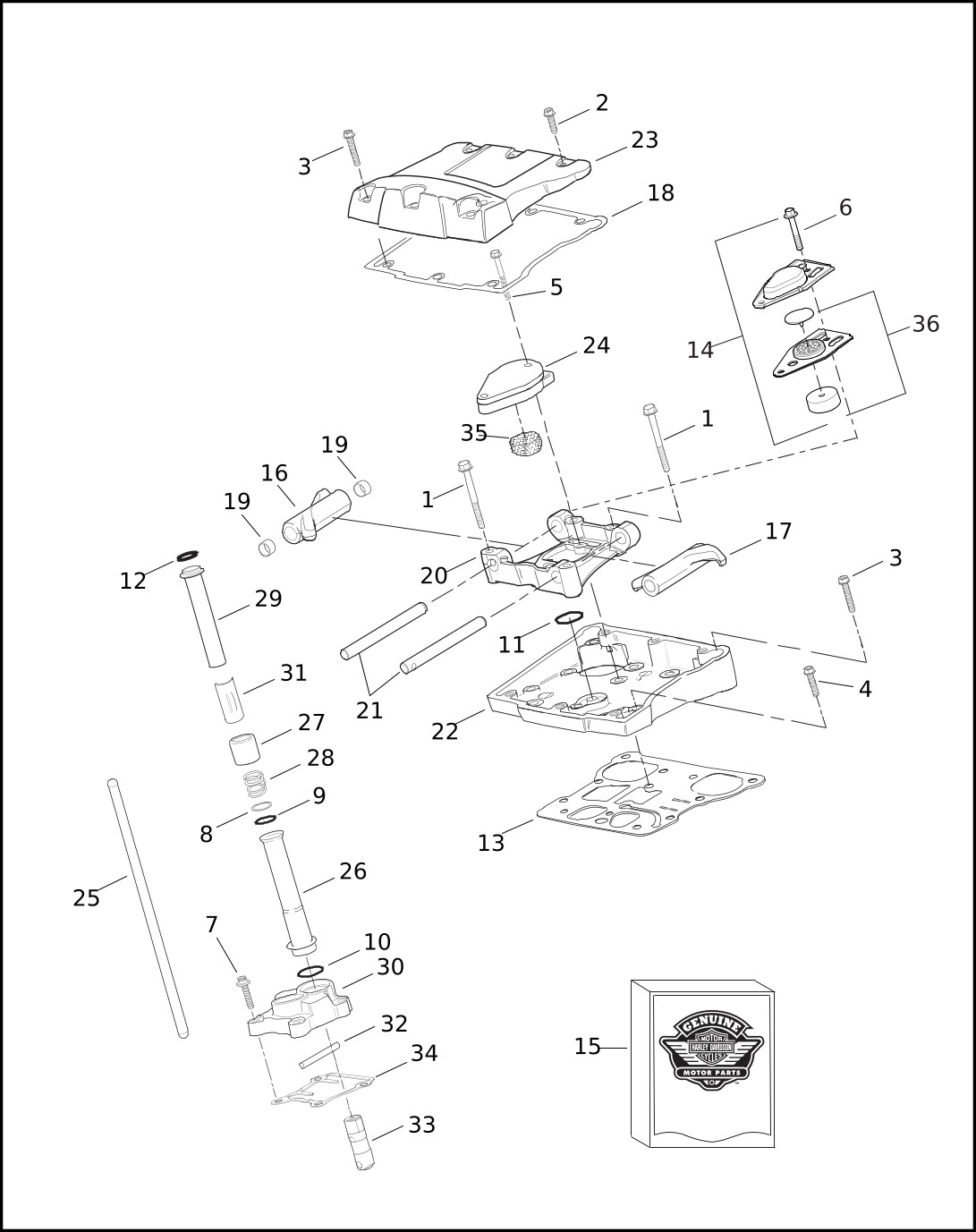

ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FXDP |
| 2 | 3692A | SCREW (6) | FXDP |
| 3 | 3693A | SCREW (10) | FXDP |
| 4 | 3736A | SCREW (8) | FXDP |
| 5 | 3746A | SCREW (used w/ 17907-01) (4) | FXDP |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | FXDP |
| 7 | 4741A | SCREW (8) | FXDP |
| 8 | 6762B | WASHER (4) | FXDP |
| 9 | 11132A | O-RING, push rod cover (4) | FXDP |
| 10 | 11145A | O-RING, push rod cover (4) | FXDP |
| 11 | 11270 | O-RING (2) | FXDP |
| 12 | 11293 | O-RING (4) | FXDP |
| 13 | 16719-99B | GASKET, rocker housing (2) | FXDP |
| 14 | 17025-03A | BREATHER ASSEMBLY KIT, w/ 4400 & 26500002 (replaces 17907-01) (2) | FXDP |
| 15 | 17045-99D | GASKET KIT, cam service | FXDP |
| 16 | 17360-83A | ROCKER ARM, front intake, rear exhaust - includes bearings (2) | FXDP |
| 17 | 17375-83A | ROCKER ARM, rear intake, front exhaust - includes bearings (2) | FXDP |
| 18 | 17386-99A | GASKET, rocker cover (2) | FXDP |
| 19 | 17429-91 | BEARING, rocker arm (8) | FXDP |
| 20 | 17594-99 | SUPPORT, rocker arm (2) | FXDP |
| 21 | 17611-83 | SHAFT, rocker arm (4) | FXDP |
| 22 | 17618-99A | ROCKER HOUSING (black) (2) | FXDP |
| 23 | 17620-99 | ROCKER COVER (black) (2) | FXDP |
| 24 | 17907-01 | BREATHER ASSEMBLY, engine (use 17025-03A) (2) | FXDP |
| 25 | 17922-99 | PUSHROD, exhaust - 10.536 inch (black oxide finish) (2) | FXDP |
| 17923-99 | PUSHROD, intake - 10.418 inch (plain finish) (2) | FXDP | |
| 26 | 17939-99 | COVER, push rod - lower (4) | FXDP |
| 27 | 17945-36B | CAP, cover spring (4) | FXDP |
| 28 | 17947-36 | SPRING, push rod cover (4) | FXDP |
| 29 | 17948-99 | COVER, push rod - upper (4) | FXDP |
| 30 | 17964-99 | LIFTER COVER, front (chrome) | FXDP |
| 17966-99 | LIFTER COVER, rear (chrome) | FXDP | |
| 31 | 17968-99 | RETAINER, spring cap (4) | FXDP |
| 32 | 18535-99 | PIN, anti-rotation (2) | FXDP |
| 33 | 18538-99C | HYDRAULIC LIFTER (4) | FXDP |
| 34 | 18635-99B | GASKET, lifter cover (2) | FXDP |
| 35 | 63815-99 | FILTER ELEMENT, breather (2) | FXDP |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) (2) | FXDP |

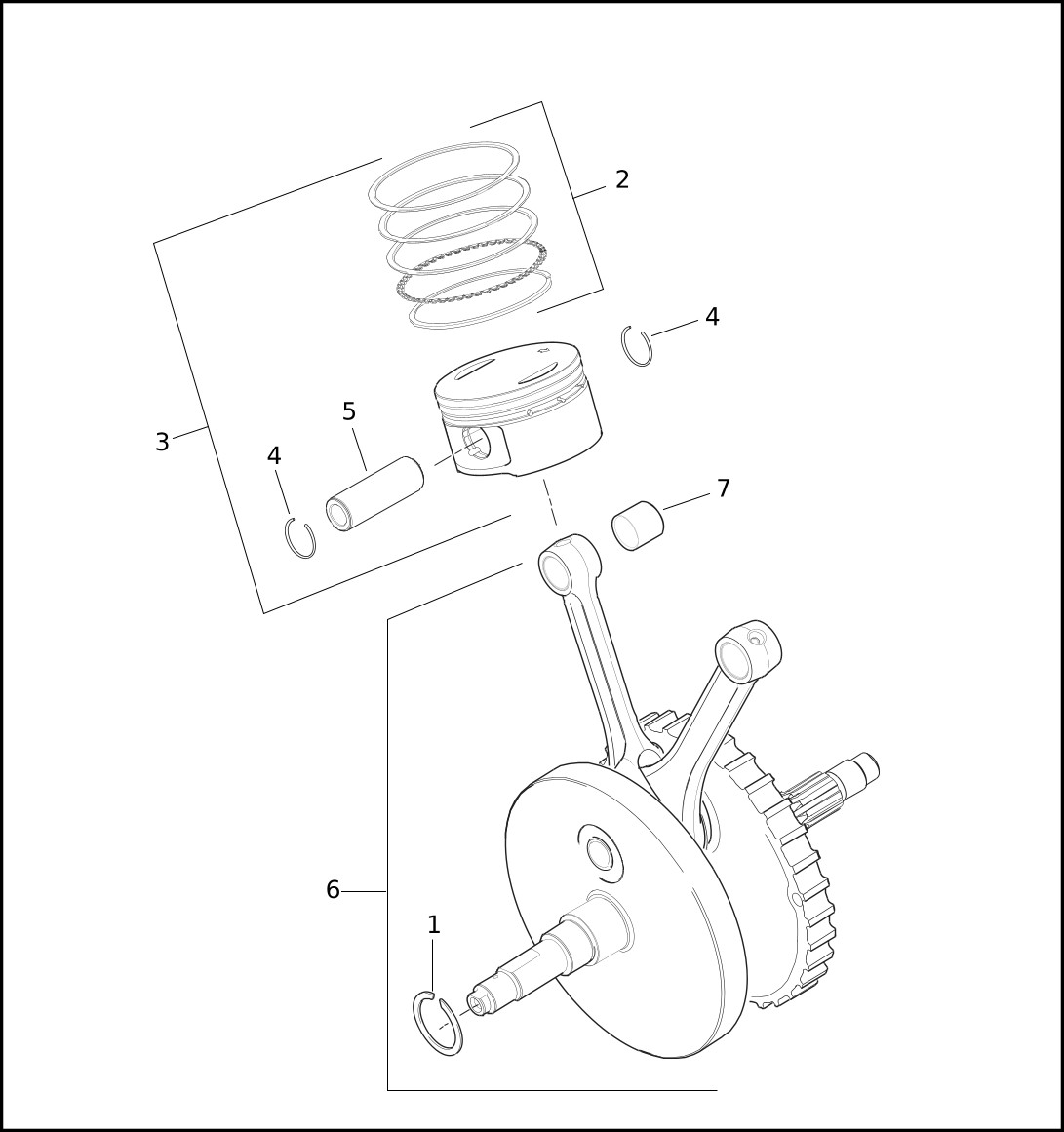

PISTONS AND FLYWHEEL ASSEMBLY - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FXDP |
| 2 | 21936-99 | PISTON RING SET, standard (2) | FXDP |
| 21937-99 | PISTON RING SET, 0.005 inch O.S. (2) | FXDP | |
| 21938-99 | PISTON RING SET, 0.010 inch O.S. (2) | FXDP | |
| 3 | 21930-99 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - standard (2) | FXDP |
| 21931-99 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - 0.005 inch O.S. (2) | FXDP | |
| 21933-99 | PISTON AND RINGS ASSEMBLY, w/ piston pin & lock rings - 0.010 inch O.S. (2) | FXDP | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FXDP |
| 5 | 22132-99 | PISTON PIN (2) | FXDP |
| 6 | 23904-03B | FLYWHEEL ASSEMBLY, w/ 11177A, inner race, connecting rods, flywheels, bearings, crankpin, plugs, thrust washer & ring | FXDP |
| 7 | 24316-99 | BUSHING, piston pin - 0.002 inch O.S. (2) | FXDP |

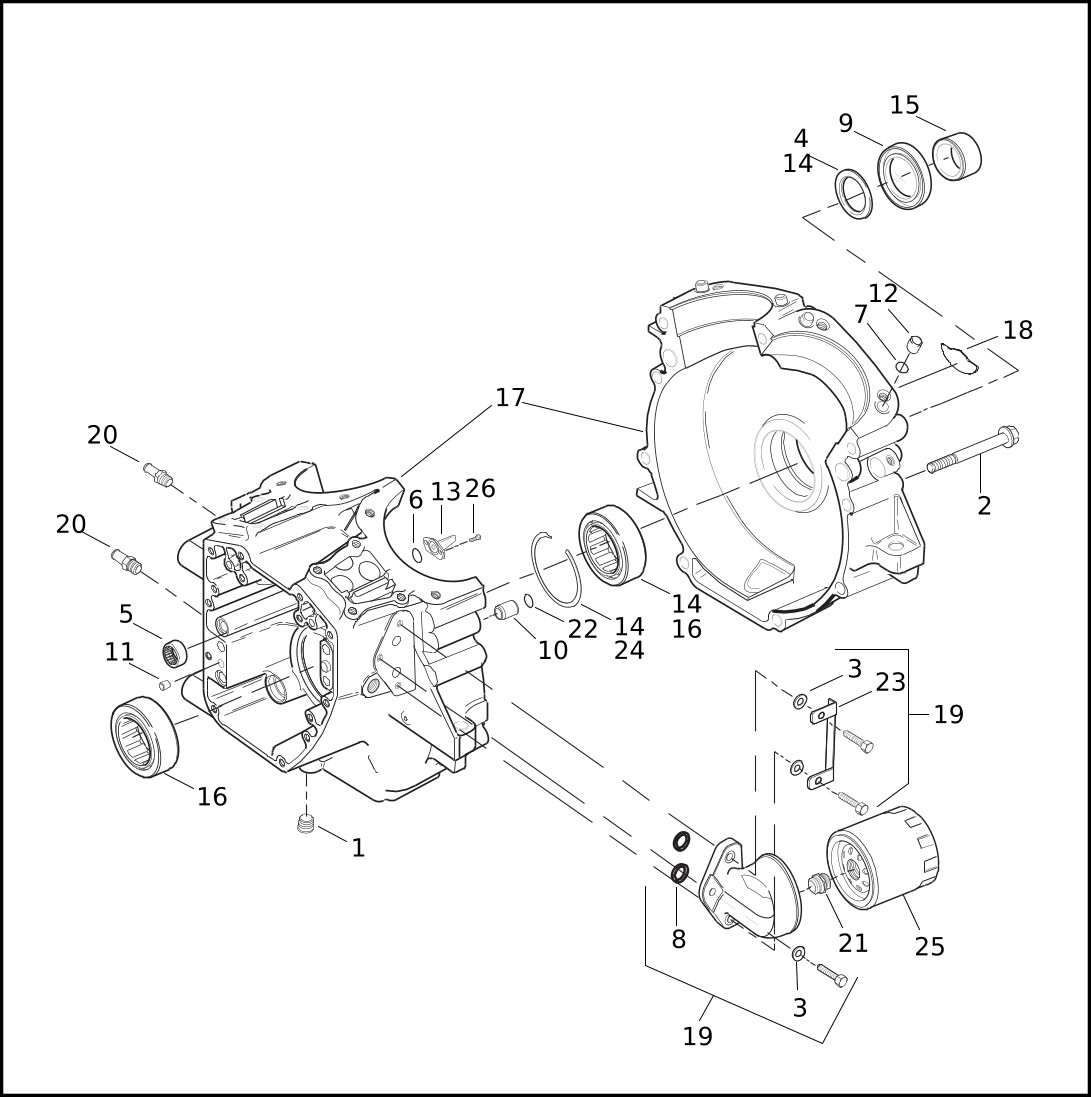

CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FXDP |
| 2 | 895 | SCREW (9) | FXDP |
| 3 | 6099 | WASHER (3) | FXDP |
| 4 | 8972 | WASHER, thrust | FXDP |
| 5 | 9198 | NEEDLE BEARING, left side of camshafts (2) | FXDP |
| 6 | 11140 | O-RING (2) | FXDP |
| 7 | 11273 | O-RING (2) | FXDP |
| 8 | 11293 | O-RING (2) | FXDP |
| 9 | 12068 | OIL SEAL | FXDP |
| 10 | 16574-99A | DOWEL RING (2) | FXDP |
| 11 | 16589-99A | DOWEL RING (2) | FXDP |
| 12 | 16595-99A | DOWEL RING (4) | FXDP |
| 13 | 22307-99 | PISTON COOLING JET, w/ 11140 (2) | FXDP |
| 14 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | FXDP |
| 15 | 24038-03 | SPACER, sprocket shaft | FXDP |
| 16 | 24605-07 | BEARING (2) | FXDP |
| 17 | 24676-03 | SET OF CRANKCASES, w/ 895, 9198, 22307-99, 24605-07, 35114-02 & 68042-99 (silver) **RESTRICTED SALES PART** | FXDP |
| 24677-03 | SET OF CRANKCASES, w/ 895, 9198, 22307-99, 24605-07, 35114-02 & 68042-99 (black) **RESTRICTED SALES PART** | FXDP | |
| 18 | 24709-03 | MEDALLION KIT, crankcase **RESTRICTED SALES PART** | FXDP |
| 19 | 26274-99 | OIL FILTER MOUNT KIT, w/ lockplate kit, adaptor & O-rings (silver) | FXDP |
| 20 | 26314-99 | FITTING, straight (3) | FXDP |
| 21 | 26352-95A | ADAPTOR, oil filter | FXDP |
| 22 | 26432-76A | O-RING (2) | FXDP |
| 23 | 35071-99A | LOCKPLATE KIT, w/ screws, O-rings and washers | FXDP |
| 24 | 35114-02 | RETAINING RING | FXDP |
| 25 | 63731-99A | OIL FILTER (black) | FXDP |
| 26 | 68042-99 | SCREW (4) | FXDP |

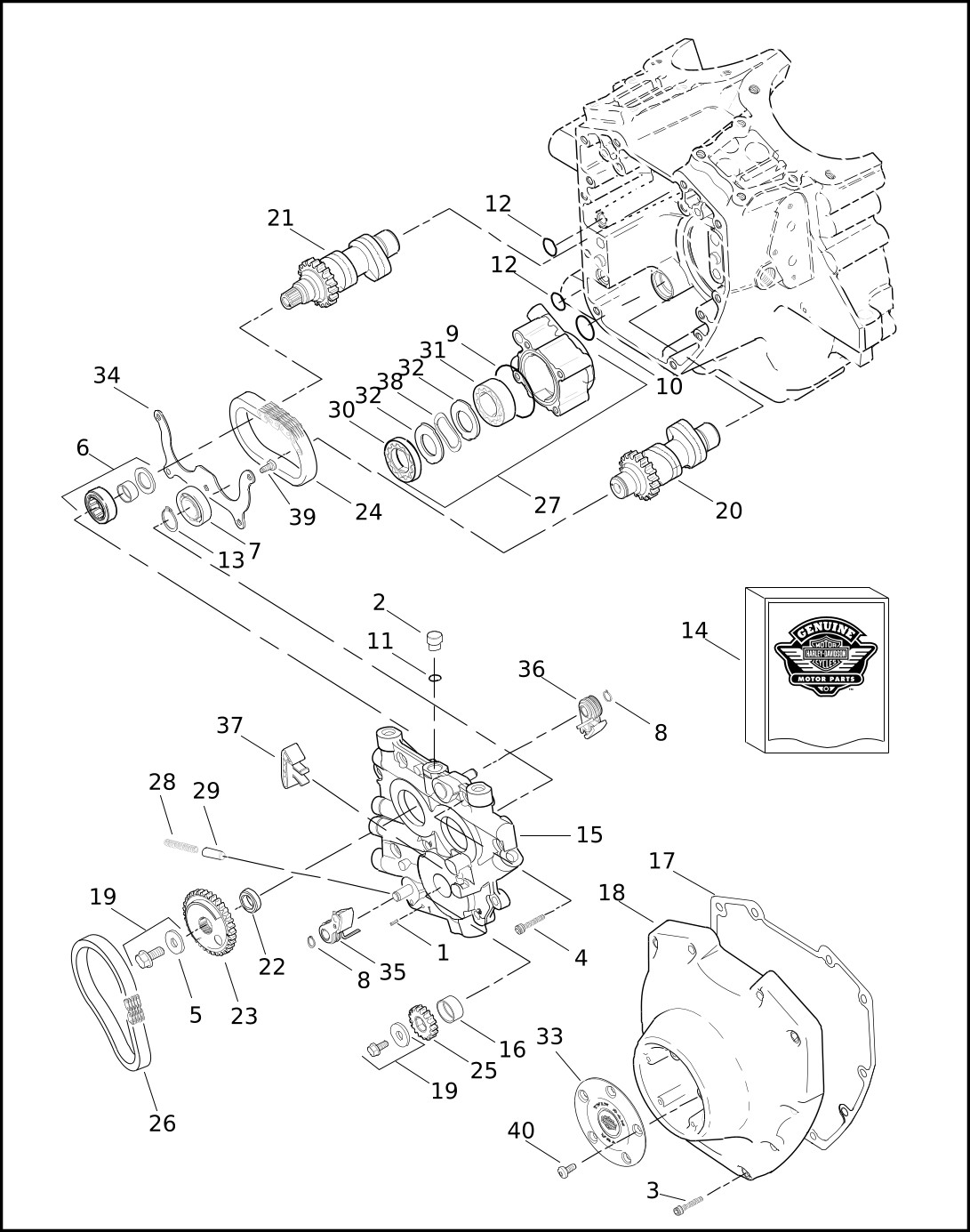

CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FXDP |
| 2 | 3290 | PLUG, cam support plate | FXDP |
| 3 | 4740A | SCREW (10) | FXDP |
| 4 | 4741A | SCREW (10) | FXDP |
| 5 | 6294 | WASHER | FXDP |
| 6 | 8983 | BEARING ASSEMBLY, w/ bearing assembly, inner race, washer bearing & O-ring | FXDP |
| 7 | 8990A | BALL BEARING | FXDP |
| 8 | 11031 | RETAINING RING (2) | FXDP |
| 9 | 11286 | O-RING | FXDP |
| 10 | 11157 | O-RING | FXDP |
| 11 | 11298 | O-RING, viton | FXDP |
| 12 | 11301 | O-RING (2) | FXDP |
| 13 | 11494 | RETAINING RING | FXDP |
| 14 | 17045-99D | GASKET KIT, cam service | FXDP |
| 15 | 25267-99B | CAM SUPPORT ASSEMBLY, w/ bearings, retaining plate, tensioners & bypass valve | FXDP |
| 16 | 25344-99 | BUSHING, crankshaft | FXDP |
| 17 | 25244-99A | GASKET, cam cover | FXDP |
| 18 | 25364-01B | CAM COVER (black) | FXDP |
| 19 | 25533-99A | CAM DRIVE SPROCKET RETENTION KIT, includes 2 screws & 6294 | FXDP |
| 20 | 25534-99 | CAMSHAFT, front (stamped A) | FXDP |
| 21 | 25544-00 | CAMSHAFT, rear (stamped A) | FXDP |
| 22 | 25938-00 | SPACER KIT | FXDP |
| 25717-00 | SPACER, cam drive sprocket alignment 0.327 inch thick (use as required) | FXDP | |
| 25719-00 | SPACER, cam drive sprocket alignment 0.317 inch thick (use as required) | FXDP | |
| 25721-00 | SPACER, cam drive sprocket alignment 0.307 inch thick (use as required) | FXDP | |
| 25722-00 | SPACER, cam drive sprocket alignment 0.287 inch thick (use as required) | FXDP | |
| 25723-00 | SPACER, cam drive sprocket alignment 0.297 inch thick (use as required) | FXDP | |
| 25725-00 | SPACER, cam drive sprocket alignment 0.337 inch thick (use as required) | FXDP | |
| 23 | 25716-99 | SPROCKET, cam drive, 34-tooth | FXDP |
| 24 | 25607-99 | CHAIN, secondary cam drive | FXDP |
| 25 | 25609-99 | SPROCKET, cam drive on crankshaft, 17-tooth | FXDP |
| 26 | 25610-99 | CHAIN, primary cam drive | FXDP |
| 27 | 26035-99B | OIL PUMP ASSEMBLY, w/ body, both gerotor assembly and separator plate | FXDP |
| 28 | 26210-99 | SPRING, relief valve | FXDP |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FXDP |
| 30 | 26464-99 | GEROTOR ASSEMBLY, pressure | FXDP |
| 31 | 26255-00 | GEROTOR ASSEMBLY, scavenge | FXDP |
| 32 | 26248-00 | SEPARATOR PLATE, gerotor (2) | FXDP |
| 33 | 32558-99 | TIMER COVER | FXDP |
| 34 | 35060-00 | PLATE, bearing retaining | FXDP |
| 35 | 39954-99A | CHAIN TENSIONER, primary cam drive chain | FXDP |
| 36 | 39964-99A | CHAIN TENSIONER, secondary cam drive chain | FXDP |
| 37 | 39965-99 | CHAIN GUIDE | FXDP |
| 38 | 40323-00 | SPRING SEPARATOR | FXDP |
| 39 | 68042-99 | SCREW (4) | FXDP |
| 40 | 68120-00 | SCREW (5) | FXDP |

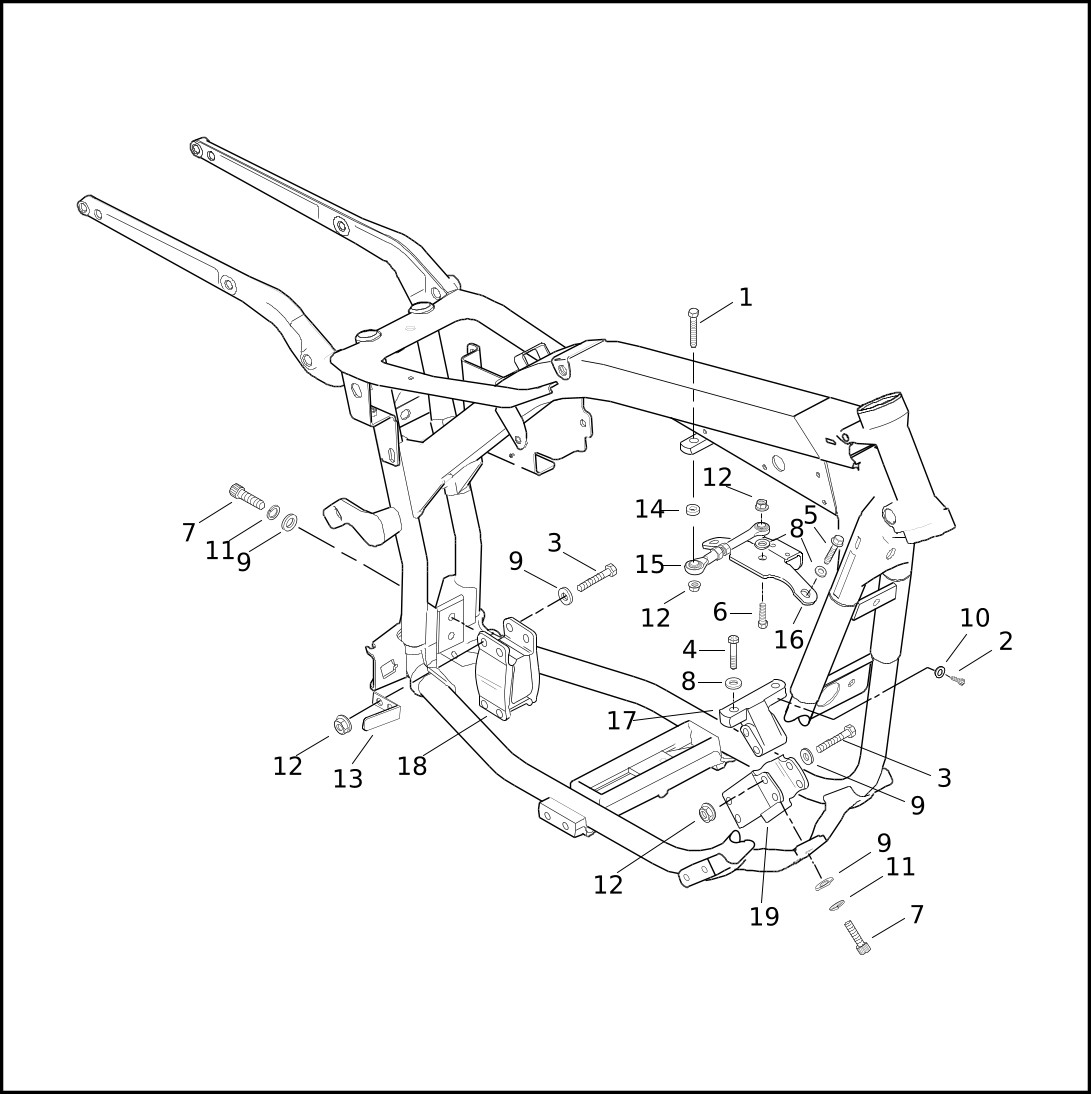

ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 855B | SCREW | FXDP |
| 2 | 2647B | SCREW | FXDP |
| 3 | 3509 | BOLT (4) | FXDP |
| 4 | 3554 | BOLT (2) | FXDP |
| 5 | 4716W | SCREW (2) | FXDP |
| 6 | 4721 | BOLT | FXDP |
| 7 | 4748 | SCREW (4) | FXDP |
| 8 | 6019 | WASHER (5) | FXDP |
| 9 | 6701 | WASHER (8) | FXDP |
| 10 | 6716 | WASHER | FXDP |
| 11 | 7038 | LOCKWASHER (4) | FXDP |
| 12 | 7601 | LOCKNUT (6) | FXDP |
| 13 | 10223 | RETAINER, engine harness | FXDP |
| 14 | 16241-90 | SPACER | FXDP |
| 15 | 16258-95C | STABILIZER LINK, top | FXDP |
| 16 | 16315-99 | BRACKET, engine mount | FXDP |
| 17 | 47226-99A | BRACKET, front engine mount | FXDP |
| 18 | 47564-99 | ISOLATOR, rear | FXDP |
| 19 | 47583-90B | ISOLATOR, front | FXDP |

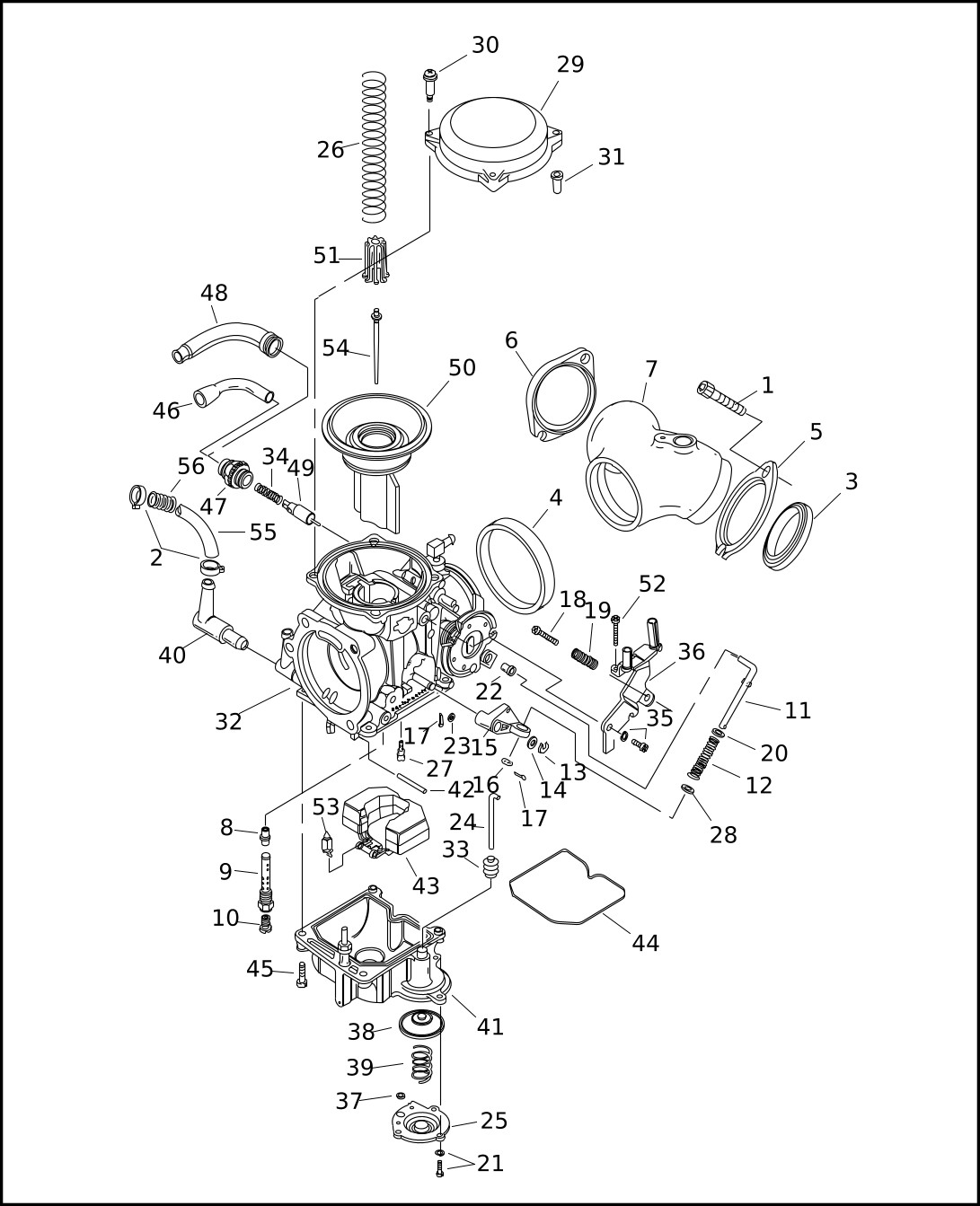

CARBURETOR (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FXDP |
| 2 | 10014 | CLAMP (2) | FXDP |
| 3 | 26995-86B | SEAL INTAKE MANIFOLD | FXDP |
| 4 | 27002-89 | SEAL RING | FXDP |
| 5 | 27009-86A | FLANGE, mounting, front | FXDP |
| 6 | 27010-86A | FLANGE, mounting, rear | FXDP |
| 7 | 27613-99 | MANIFOLD | FXDP |
| 8 | 27100-88 | NEEDLE JET | FXDP |
| 9 | 27101-88 | NEEDLE JET HOLDER | FXDP |
| 10 | 27243-95 | MAIN JET | FXDP |
| 11 | 27122-89 | ROD | FXDP |
| 12 | 27123-89A | SPRING | FXDP |
| 13 | 27124-89 | E-CLIP | FXDP |
| 14 | 27125-89 | WASHER | FXDP |
| 15 | 27126-89 | LEVER | FXDP |
| 16 | 27127-89 | WASHER | FXDP |
| 17 | 27128-89 | PIN (2) | FXDP |
| 18 | 27130-90 | IDLE SCREW | FXDP |
| 19 | 27136-90A | SPRING | FXDP |
| 20 | 27137-81 | WASHER | FXDP |
| 21 | 27146-89 | SCREW, w/ washer (3) | FXDP |
| 22 | 27147-89 | COLLAR | FXDP |
| 23 | 27148-89 | WASHER | FXDP |
| 24 | 27156-89 | ROD | FXDP |
| 25 | 27260-00 | PUMP HOUSING | FXDP |
| 26 | 27162-89 | SPRING | FXDP |
| 27 | 27170-89 | SLOW JET | FXDP |
| 28 | 27231-98 | COLLAR | FXDP |
| 29 | 27261-96 | TOP, carburetor | FXDP |
| 30 | 27262-96 | SCREW, top (3) | FXDP |
| 31 | 27263-96 | COLLAR, carb top | FXDP |
| 32 | 27421-99C | CARBURETOR | FXDP |
CARBURETOR (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 33 | 27311-76 | BOOT, accelerator pump | FXDP |
| 34 | 27315-88A | SPRING | FXDP |
| 35 | 27317-88 | SCREW | FXDP |
| 36 | 27339-90 | BRACKET, throttle cables | FXDP |
| 37 | 27360-76 | O-RING | FXDP |
| 38 | 27361-76A | DIAPHRAGM, accelerator pump | FXDP |
| 39 | 27362-76 | SPRING, diaphragm | FXDP |
| 40 | 27371-76A | FITTING | FXDP |
| 41 | 27405-00 | CHAMBER ASSEMBLY, carburetor float | FXDP |
| 42 | 27575-88A | PIN | FXDP |
| 43 | 27576-92 | FLOAT | FXDP |
| 44 | 27577-92 | O-RING, float chamber | FXDP |
| 45 | 27579-88A | SCREW (4) | FXDP |
| 46 | 27580-88 | CABLE GUIDE | FXDP |
| 47 | 27581-88 | STARTER CAP | FXDP |
| 48 | 27582-88 | CABLE SEALING CAP | FXDP |
| 49 | 27583-88 | STARTER VALVE | FXDP |
| 50 | 27585-88 | VACUUM PISTON | FXDP |
| 51 | 27586-88 | SPRING SEAT | FXDP |
| 52 | 27587-88 | SCREW | FXDP |
| 53 | 27886-78A | VALVE, w/ clip | FXDP |
| 54 | 28025-03 | JET NEEDLE (49 state, California) | FXDP |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 55 | 63501-68B | HOSE, 1/4 inch I.D. (25 feet) (black) | FXDP |
| 56 | 63505-84 | INSULATOR, 1/2 inch I.D. (nylon) (8 feet) | FXDP |

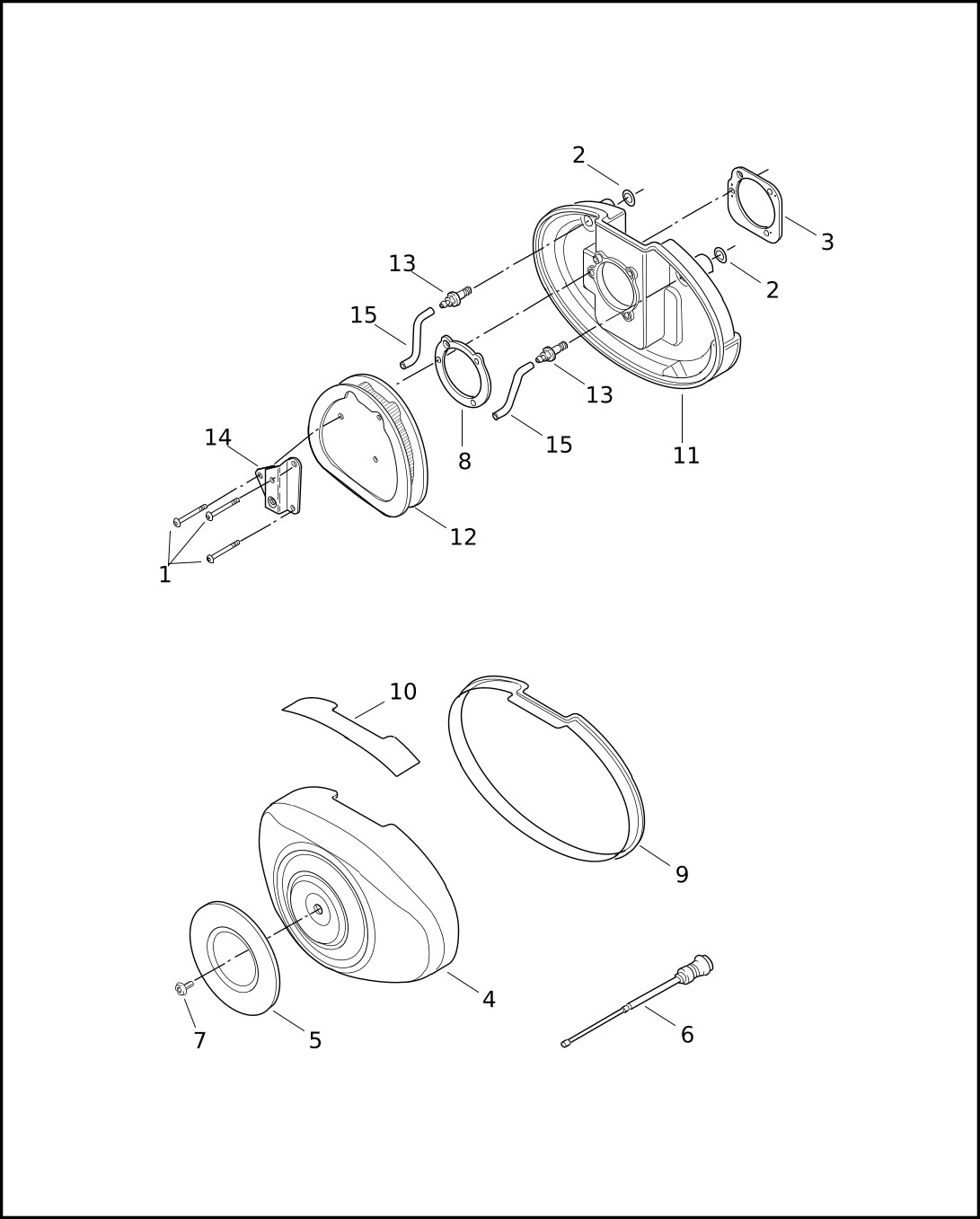

AIR CLEANER & ENRICHENER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | FXDP |
| 2 | 11292 | O-RING, breather bolt (2) | FXDP |
| 3 | 29062-95B | GASKET CARBURETOR | FXDP |
| 4 | 29089-99 | COVER, air cleaner | FXDP |
| 5 | 29158-99 | TRIM, "POLICE" | FXDP |
| 6 | 29229-88D | CABLE, enrichment | FXDP |
| 7 | 29269-83A | SCREW, button head | FXDP |
| 8 | 29313-95 | GASKET, filter element | FXDP |
| 9 | 29338-99 | SEAL, air cleaner cover | FXDP |
| 10 | 29449-98B | SAFETY LABEL | FXDP |
| 11 | 29454-99 | BACKPLATE ASSEMBLY | FXDP |
| 12 | 29461-99 | FILTER ELEMENT, w/ 29313-95 | FXDP |
| 13 | 29465-99 | BOLT, BREATHER (2) | FXDP |
| 14 | 29474-99A | BRACKET, a/c cover | FXDP |
| 15 | 29476-99 | TUBE, breather (2) | FXDP |

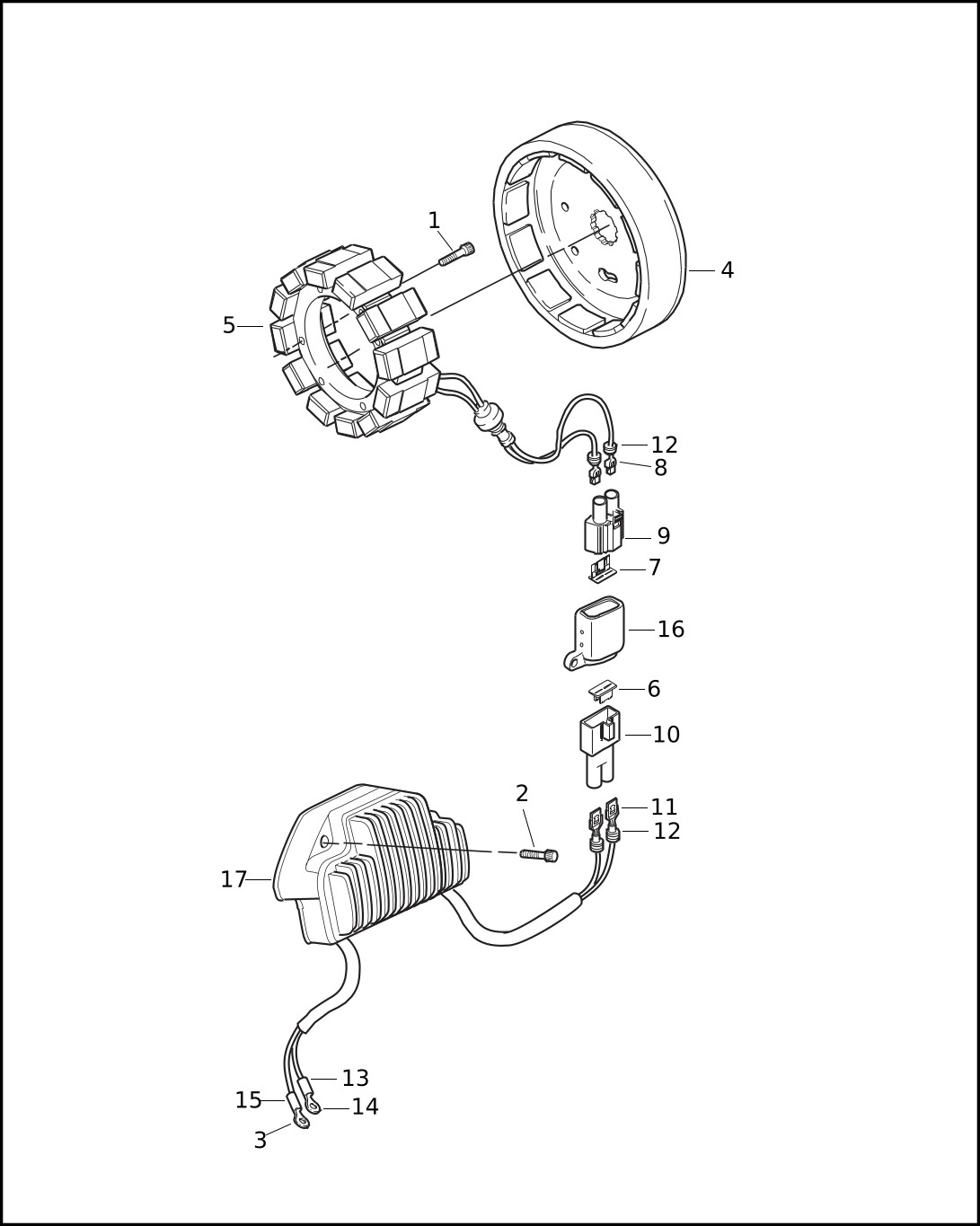

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2918 | SCREW (4) | FXDP |
| 2 | 4740A | SCREW (2) | FXDP |
| 3 | 9843 | TERMINAL, #10 ring 12-14 gauge | FXDP |
| 4 | 29999-97B | ROTOR ASSEMBLY KIT | FXDP |
| 5 | 30020-01A | STATOR, 38 amp | FXDP |
| 6 | 70201-97 | LOCK, pin terminal | FXDP |
| 7 | 70202-97 | LOCK, socket terminal | FXDP |
| 8 | 72031-97 | TERMINAL SOCKET (2) | FXDP |
| 9 | 72030-97 | HOUSING SOCKET, 2-way | FXDP |
| 10 | 72042-97 | HOUSING PIN, 2-way | FXDP |
| 11 | 72058-97 | TERMINAL PIN (2) | FXDP |
| 12 | 72069-97 | SEAL CABLE (4) | FXDP |
| 13 | 72249-94 | HEAT SHRINK TUBING, dual wall - .7 x 2 inch | FXDP |
| 14 | 72365-96 | TERMINAL, 5/16 inch ring - internal star | FXDP |
| 15 | 72366-95 | HEAT SHRINK TUBE | FXDP |
| 16 | 74514-99 | COVER, regulator plug | FXDP |
| 17 | 74594-02 | VOLTAGE REGULATOR, w/ 3, 10, 11, 12, 13 & 15 | FXDP |

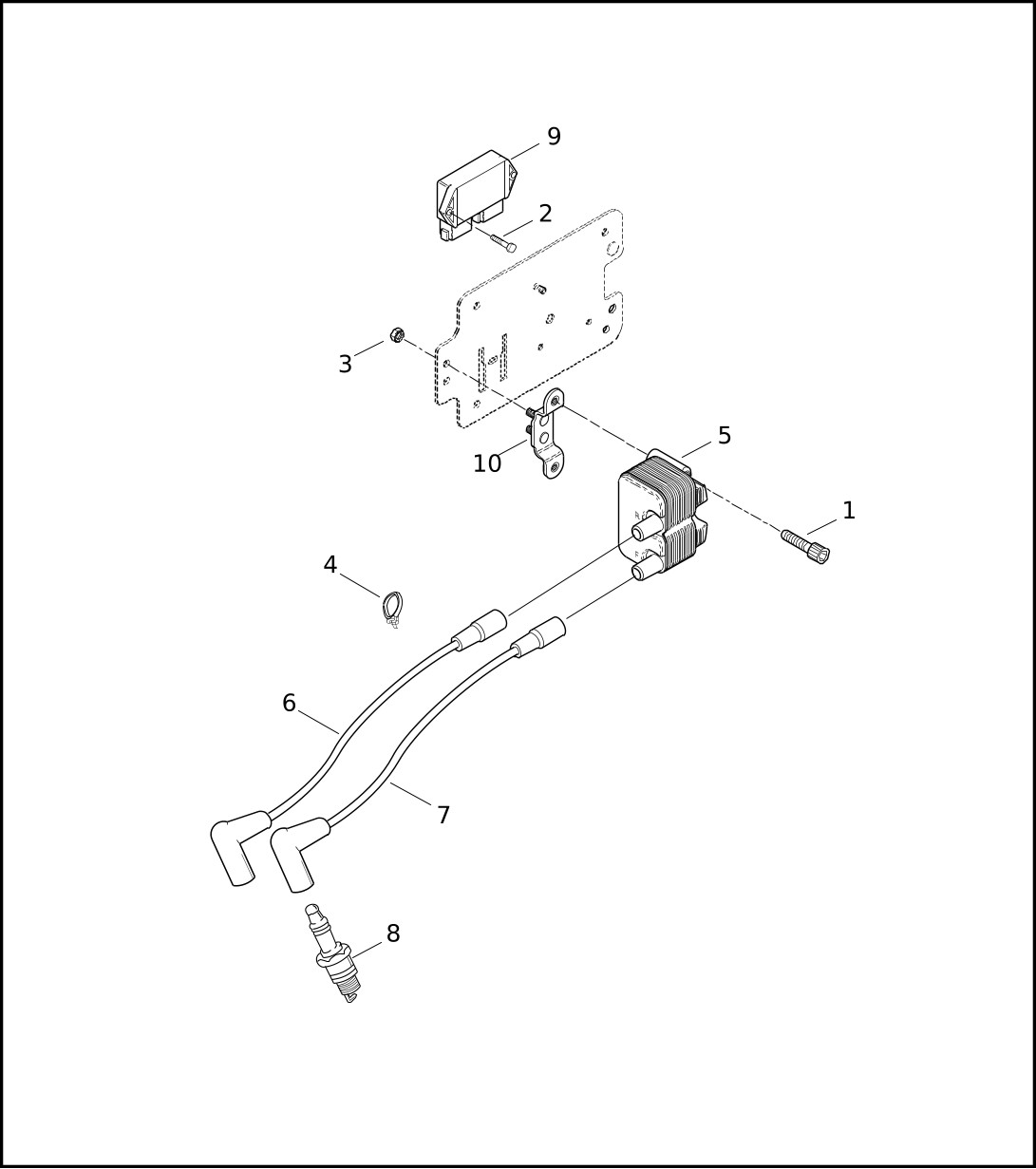

IGNITION MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 960 | SCREW, hex socket head cap (2) | FXDP |
| 2 | 2362 | SCREW, self-tapping (2) | FXDP |
| 3 | 7792 | NUT, hex. .250-20 (2) | FXDP |
| 4 | 10177 | CABLE STRAP, spark plug wires (2) | FXDP |
| 5 | 31655-99 | IGNITION COIL, dual | FXDP |
| 6 | 31960-99A | SPARK PLUG CABLE, rear cylinder | FXDP |
| 7 | 31981-99C | SPARK PLUG CABLE, front cylinder | FXDP |
| 8 | 32362-04 | SPARK PLUG (2) | FXDP |
| 9 | 32478-99C | IGNITION MODULE | FXDP |
| 10 | 48132-99 | BRACKET, ignition coil | FXDP |

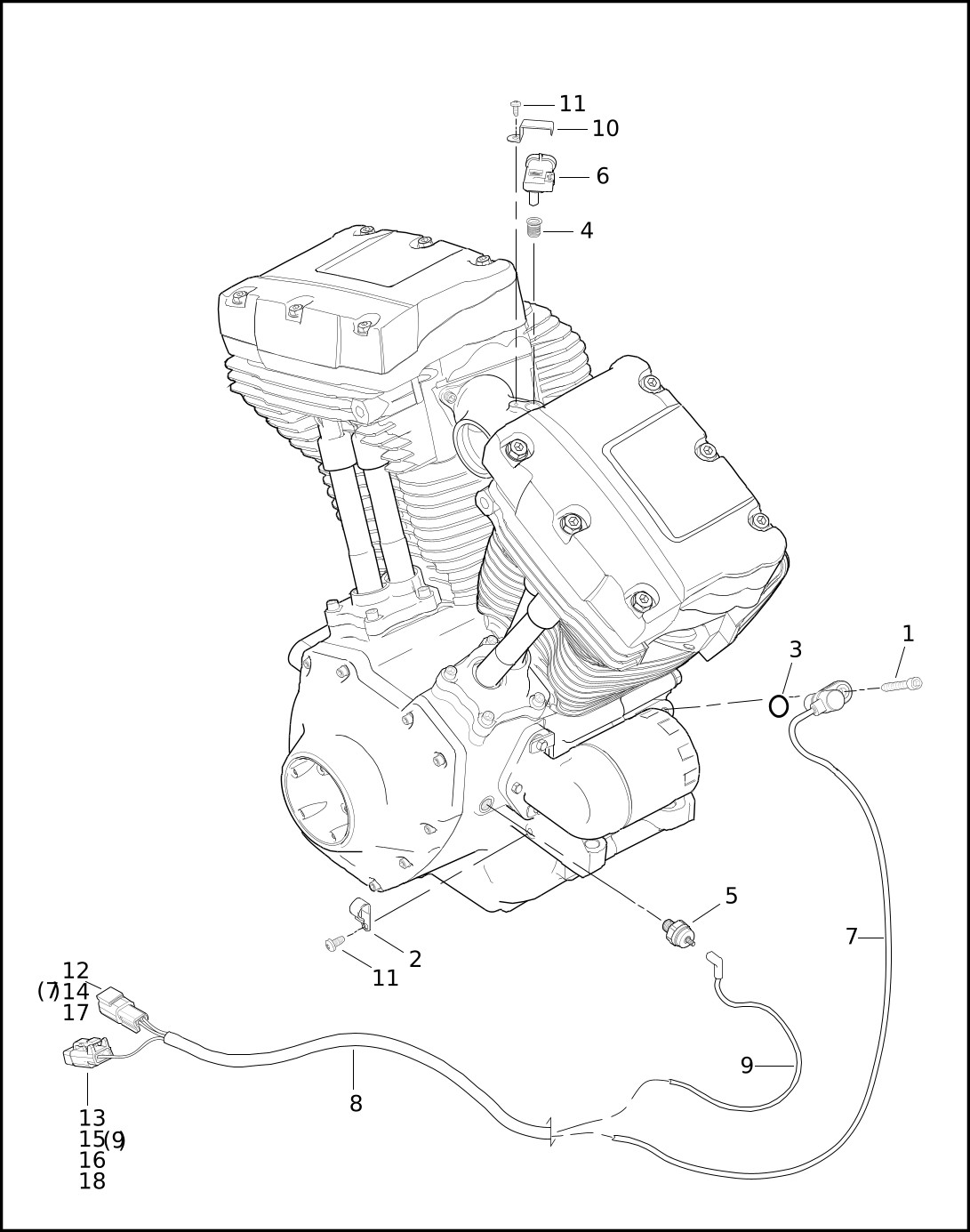

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | FXDP |
| 2 | 10231 | CLAMP | FXDP |
| 3 | 11289A | O-RING, crankshaft position sensor | FXDP |
| 4 | 11291 | SEAL, mounting map sensor | FXDP |
| 5 | 26561-99 | SWITCH, oil pressure | FXDP |
| 6 | 32417-10 | SENSOR, manifold air pressure, w/ 11291 | FXDP |
| 7 | 32798-00 | SENSOR, crankshaft position, w/ 11289A & 74192-98 (use 32798-00B) | FXDP |
| 32798-00B | SENSOR, crankshaft position, w/ 11289A & 74194-98 (replaces 32798-00) | FXDP | |
| 8 | 32800-00 | WIRE HARNESS, oil pressure switch | FXDP |
| 9 | 32807-00 | JUMPER, oil pressure switch | FXDP |
| 10 | 38723-99 | CLIP, map sensor | FXDP |
| 11 | 68042-99 | SCREW, self-tapping (2) | FXDP |
| 12 | 74102-98BK | HOUSING RECEPTACLE, pin 2-way (black) | FXDP |
| 13 | 74112-98BK | HOUSING PLUG, socket 2-way (black) | FXDP |
| 14 | 74142-98 | SECONDARY LOCK, receptacle 2-way | FXDP |
| 15 | 74152-98 | SECONDARY LOCK, plug 2-way | FXDP |
| 16 | 74192-98 | TERMINAL PIN (used w/ 32798-00) (2) | FXDP |
| 74194-98 | TERMINAL PIN (used w/ 32798-00B) (2) | FXDP | |
| 17 | 74193-98 | TERMINAL SOCKET | FXDP |
| 18 | 74195-98 | SEAL PIN | FXDP |

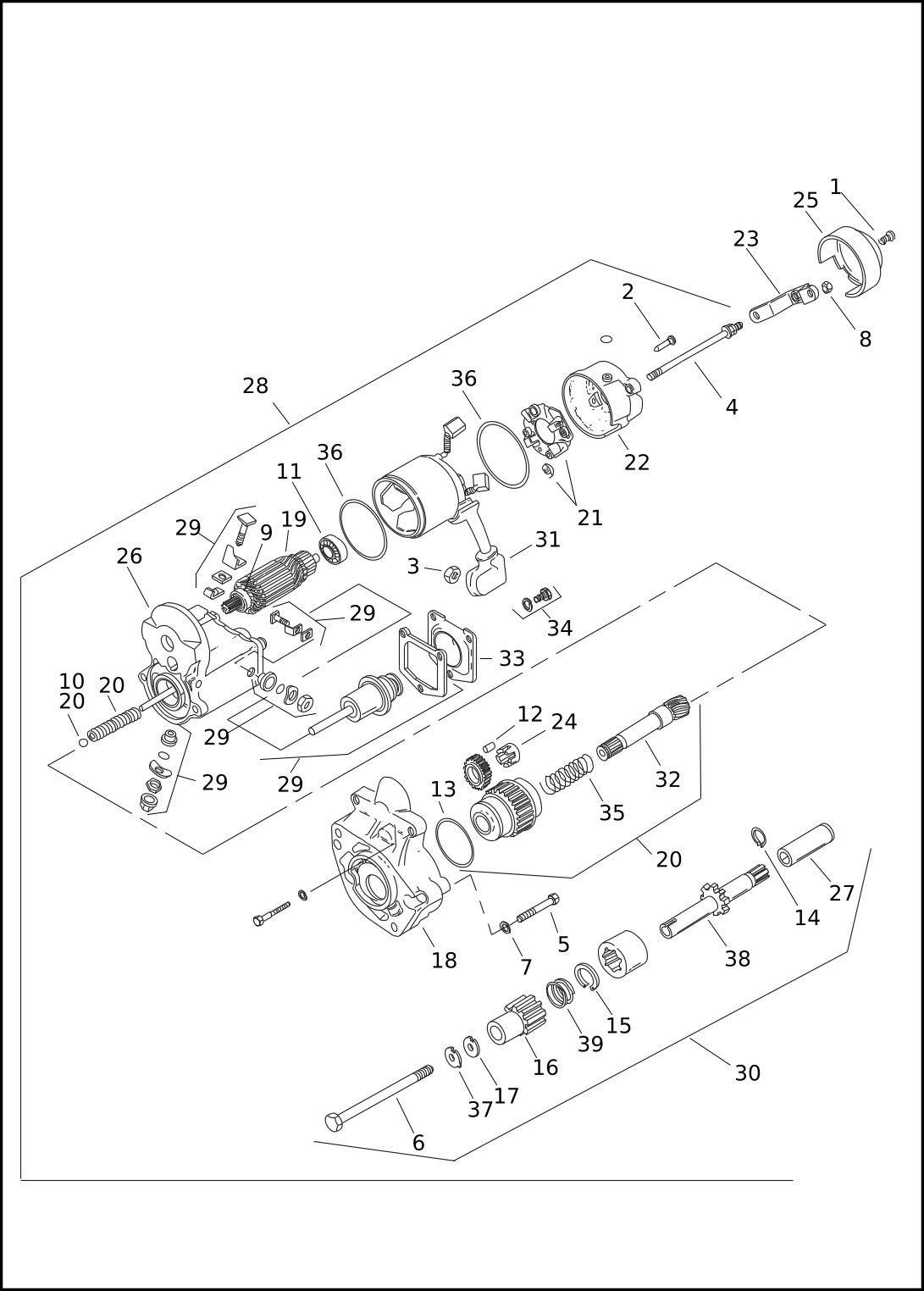

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW, cover | FXDP |
| 2 | 929A | SCREW (2) | FXDP |
| 3 | 3403 | LOCKNUT, flange | FXDP |
| 4 | 3559 | BOLT, starter (2) | FXDP |
| 5 | 4326A | SCREW (2) | FXDP |
| 6 | 4358A | SCREW | FXDP |
| 7 | 7041 | LOCKWASHER (2) | FXDP |
| 8 | 7838 | NUT, w/ washer (2) | FXDP |
| 9 | 8871 | BALL BEARING | FXDP |
| 10 | 8879 | BALL | FXDP |
| 11 | 8883 | BALL BEARING | FXDP |
| 12 | 9077 | CLUTCH ROLLER (5) | FXDP |
| 13 | 10957 | O-RING | FXDP |
| 14 | 11182 | RETAINING RING | FXDP |
| 15 | 11248 | RETAINING RING | FXDP |
| 16 | 31342-94 | PINION GEAR | FXDP |
| 17 | 31430-94 | WASHER, thrust | FXDP |
| 18 | 31510-90 | HOUSING, starter | FXDP |
| 19 | 31515-90 | ARMATURE ASSEMBLY, w/ 8871 & 8883 | FXDP |
| 20 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31664-94, 31692-90 & return spring | FXDP |
| 21 | 31518-90 | BRUSH HOLDER ASSEMBLY | FXDP |
| 22 | 31519-90 | FRAME, starter end | FXDP |
| 23 | 31527-90 | BRACKET, cover | FXDP |
| 24 | 31530-90 | RETAINER, idler gear | FXDP |
| 25 | 31535-91 | COVER (chrome) | FXDP |
| 26 | 31538-98 | SWITCH ASSEMBLY, magnetic | FXDP |
| 27 | 31548-90 | COUPLING | FXDP |
| 28 | 31553-94B | STARTER, complete | FXDP |
| 29 | 31604-91A | STARTER SOLENOID REPAIR KIT | FXDP |
| 30 | 31612-09 | JACKSHAFT KIT, starter | FXDP |
| 31 | 31662-90 | BOOT, insulating | FXDP |
| 32 | 31664-94 | SHAFT, output | FXDP |
| 33 | 31688-90 | COVER, solenoid | FXDP |
| 34 | 31689-90 | BOLT, w/ washer (3) | FXDP |
| 35 | 31692-90 | SPRING | FXDP |
| 36 | 31695-90 | O-RING (2) | FXDP |
| 37 | 33126-94 | LOCKPLATE | FXDP |
| 38 | 33127-94 | SHAFT, extension | FXDP |
| 39 | 33449-94 | SPRING, pinion gear | FXDP |

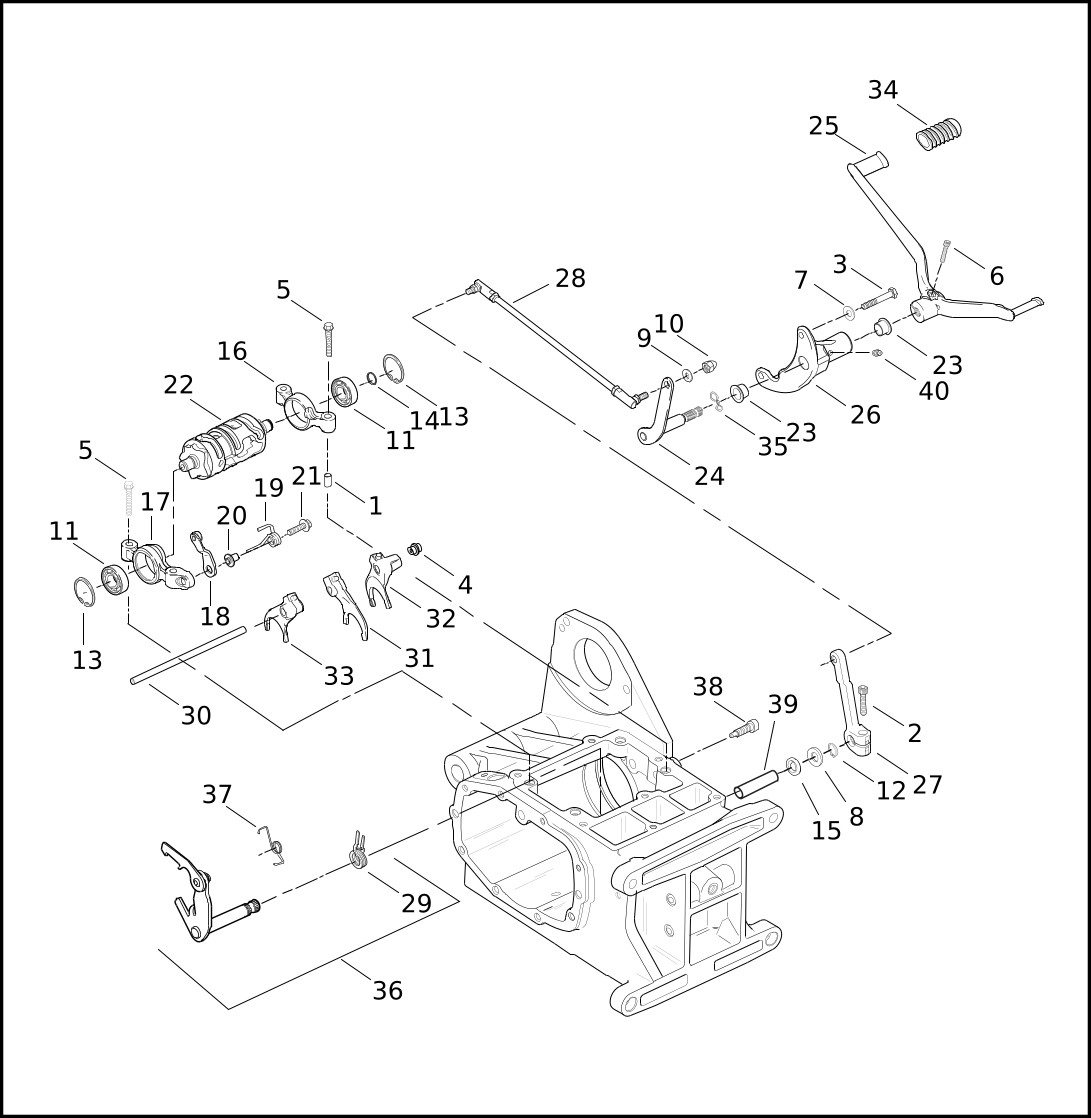

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 609 | PIN (4) | FXDP |
| 2 | 856A | SCREW | FXDP |
| 3 | 3023 | SCREW (2) | FXDP |
| 4 | 3784 | SET SCREW, shifter fork shaft, left | FXDP |
| 5 | 3909 | SCREW (4) | FXDP |
| 6 | 4740A | SCREW | FXDP |
| 7 | 6016 | WASHER (2) | FXDP |
| 8 | 6497HW | WASHER | FXDP |
| 9 | 6702 | WASHER | FXDP |
| 10 | 7736 | ACORN NUT | FXDP |
| 11 | 9837 | BALL, bearing (2) | FXDP |
| 12 | 11150 | RETAINING RING | FXDP |
| 13 | 11319A | RETAINING RING (2) | FXDP |
| 14 | 11342 | RETAINING RING | FXDP |
| 15 | 12045 | SEAL | FXDP |
| 16 | 33301-00A | SUPPORT ASSEMBLY, shifter cam, left, w/ bearing & retaining ring | FXDP |
| 17 | 33304-00 | SUPPORT ASSEMBLY, shifter cam, right, w/ bearing & retaining ring | FXDP |
| 18 | 33364-00A | DETENT FOLLOWER ASSEMBLY | FXDP |
| 19 | 33374-00 | SPRING, detent arm | FXDP |
| 20 | 33375-00A | SLEEVE, detent arm spring | FXDP |
| 21 | 33376-00 | PIVOT SCREW, detent arm | FXDP |
| 22 | 33383-02 | SHIFTER CAM | FXDP |
| 23 | 33703-01 | BUSHING, flange (2) | FXDP |
| 24 | 33704-01A | SHIFT LEVER | FXDP |
| 25 | 33706-01 | SHIFTER LEVER | FXDP |
| 26 | 33700-01 | SHIFTER PLATE ASSEMBLY | FXDP |
| 27 | 33849-97 | LEVER, shifter rod | FXDP |
| 28 | 33719-79B | SHIFTER ROD | FXDP |
| 29 | 34064-00C | SPRING, shift lever centering | FXDP |
| 30 | 34088-87A | SHAFT, shifter fork | FXDP |
| 31 | 34191-79E | SHIFTER FORK | FXDP |
| 32 | 34193-79E | SHIFTER FORK | FXDP |
| 33 | 34195-79E | SHIFTER FORK | FXDP |
| 34 | 34619-85 | COVER, shifter lever (2) | FXDP |
| 35 | 34641-01 | WAVE WASHER | FXDP |
| 36 | 34972-02B | LEVER ASSEMBLY, shifter pawl | FXDP |
| 37 | 34977-02A | SPRING, shifter shaft lever | FXDP |
| 38 | 34978-00A | CENTERING PIN | FXDP |
| 39 | 34979-00 | SHIFTER SHAFT SLEEVE, bushing | FXDP |
| 40 | 50972-75 | FITTING | FXDP |

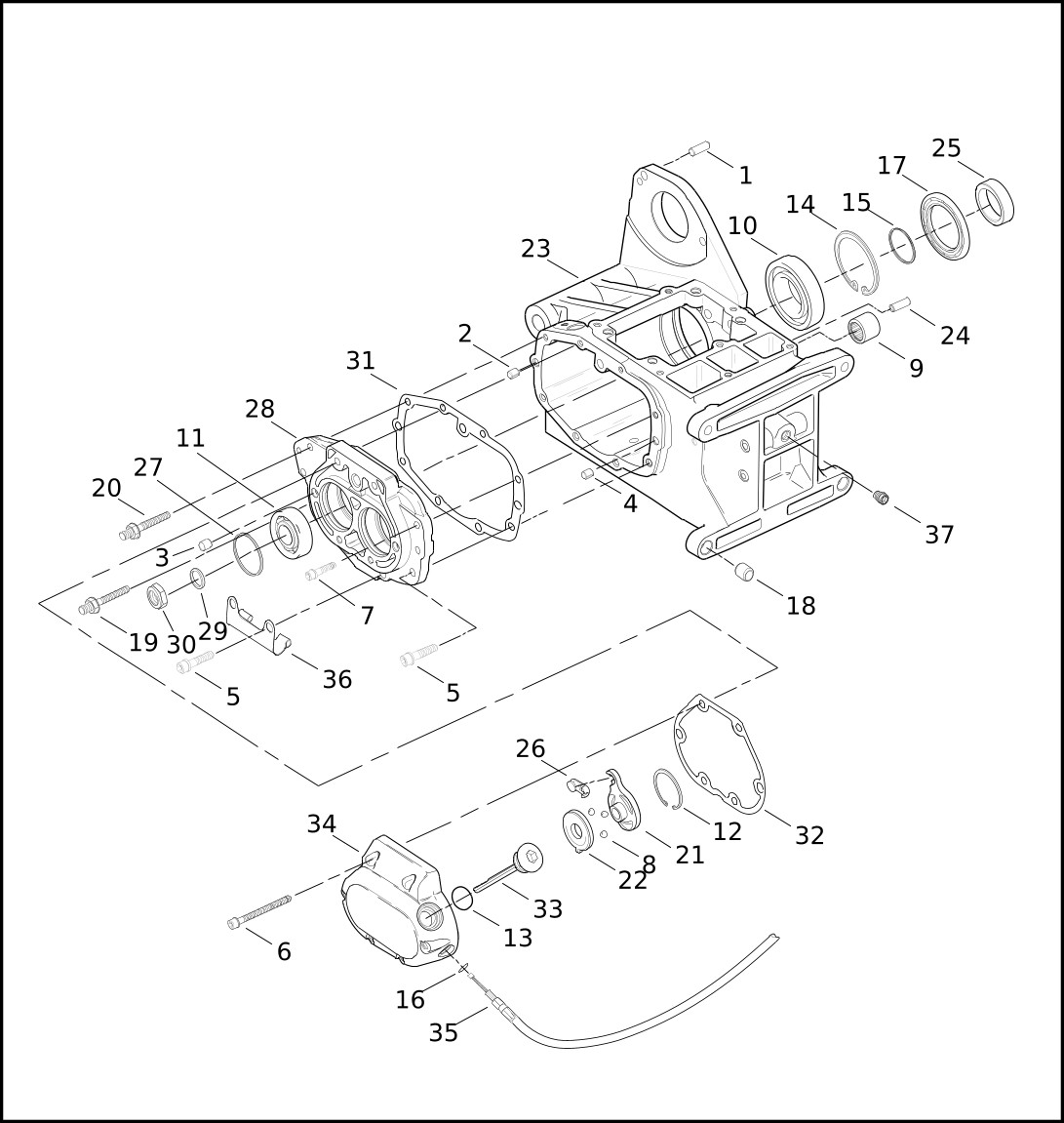

TRANSMISSION BEARINGS & SIDE COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 337 | DOWEL PIN | FXDP |
| 2 | 375 | DOWEL PIN | FXDP |
| 3 | 609 | PIN (6) | FXDP |
| 4 | 634 | PIN | FXDP |
| 5 | 3249 | SCREW (3) | FXDP |
| 6 | 4717A | SCREW, w/ washer (6) | FXDP |
| 7 | 4814A | SCREW | FXDP |
| 8 | 8873 | BALL (3) | FXDP |
| 9 | 8977 | BEARING | FXDP |
| 10 | 8996A | BEARING, mainshaft, left side | FXDP |
| 11 | 8992A | BALL BEARING (2) | FXDP |
| 12 | 10998 | RETAINING RING | FXDP |
| 13 | 11132A | O-RING, filler plug | FXDP |
| 14 | 11161 | RETAINING RING | FXDP |
| 15 | 11165 | QUAD SEAL, ball bearing | FXDP |
| 16 | 11179 | O-RING, clutch cable | FXDP |
| 17 | 12067B | OIL SEAL | FXDP |
| 18 | 16574-99A | DOWEL RING (2) | FXDP |
| 19 | 16708-95A | STUD | FXDP |
| 20 | 16709-95 | STUD | FXDP |
| 21 | 25604-00A | INNER RAMP | FXDP |
| 22 | 25605-00A | OUTER RAMP | FXDP |
| 23 | 33073-03 | TRANSMISSION (black) | FXDP |
| 24 | 33114-79 | SPACER | FXDP |
| 25 | 33344-94 | SPACER, sprocket | FXDP |
| 26 | 34920-86A | COUPLING | FXDP |
| 27 | 35087-99A | RETAINING RING, bearing (2) | FXDP |
| 28 | 35260-90C | BEARING HOUSING ASSEMBLY, w/ 609, 8992A & 35087-99A (black) | FXDP |
| 29 | 35076-79 | SPACER (2) | FXDP |
| 30 | 35078-79 | NUT, mainshaft & countershaft (2) | FXDP |
| 31 | 35653-98A | GASKET, bearing housing | FXDP |
| 32 | 36801-87C | GASKET, right side cover | FXDP |
| 33 | 37075-87 | FILLER PLUG (chrome) | FXDP |
| 34 | 37189-99 | CLUTCH RELEASE COVER (black wrinkle) | FXDP |
| 35 | 38661-00 | CLUTCH CABLE, w/ 11179, anchor pin & boot | FXDP |
| 36 | 38709-99 | RETAINING CLIP, harness | FXDP |
| 37 | 45893-99 | PLUG, pipe hex socket | FXDP |

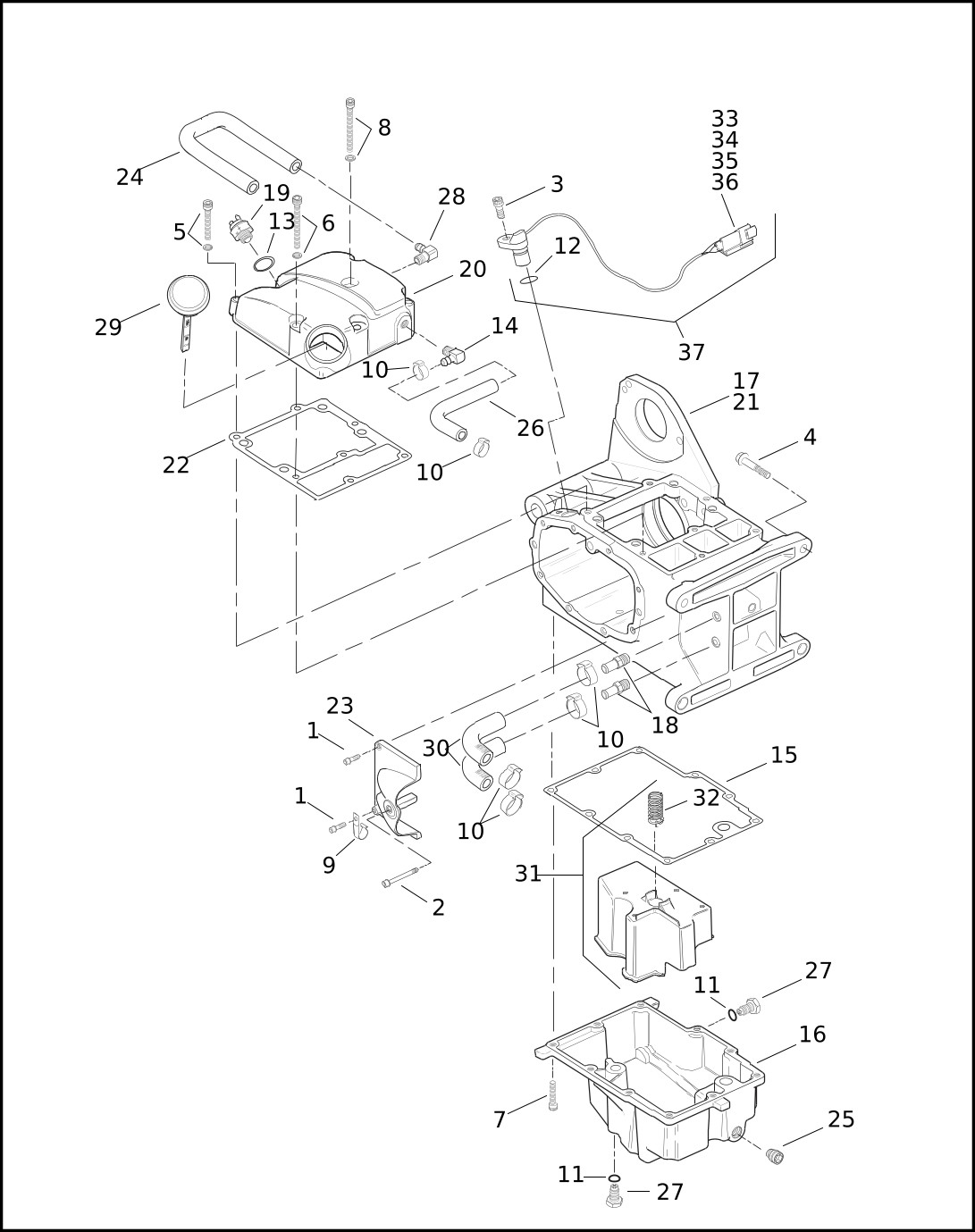

TRANSMISSION HOUSING & OIL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 2941 | SCREW (2) | FXDP |
| 2 | 3480A | SCREW | FXDP |
| 3 | 3594 | SCREW | FXDP |
| 4 | 3699D | SCREW, hex flange (4) | FXDP |
| 5 | 4717A | SCREW (2) | FXDP |
| 6 | 4740A | SCREW (4) | FXDP |
| 7 | 4741A | SCREW (10) | FXDP |
| 8 | 4822A | SCREW | FXDP |
| 9 | 10217 | CLAMP | FXDP |
| 10 | 10249 | CLAMP, hose (6) | FXDP |
| 11 | 11105 | O-RING (2) | FXDP |
| 12 | 11289A | O-RING | FXDP |
| 13 | 11290 | O-RING | FXDP |
| 14 | 16334-02 | ELBOW | FXDP |
| 15 | 26072-99A | GASKET, oil pan | FXDP |
| 16 | 26087-99A | OIL PAN (black) | FXDP |
| 17 | 33073-03 | TRANSMISSION (black) | FXDP |
| 18 | 26314-99 | FITTING (2) | FXDP |
| 19 | 33904-00A | SWITCH, neutral indicator | FXDP |
| 20 | 34469-99B | COVER, upper (chrome) (replaces black cover) | FXDP |
| 21 | 34747-01B | HOUSING (black) | FXDP |
| 22 | 34917-99B | GASKET, transmission cover | FXDP |
| 23 | 37178-99 | COVER, oil hose (black) | FXDP |
| 24 | 42533-91A | VENT HOSE | FXDP |
| 25 | 45893-99 | PIPE PLUG | FXDP |
| 26 | 45795-02 | HOSE, crankcase to tank vent | FXDP |
| 27 | 60328-98B | PLUG ASSEMBLY DRAIN (2) | FXDP |
| 28 | 62375-57A | FITTING, elbow | FXDP |
| 29 | 62851-99 | DIPSTICK ASSEMBLY, w/ black cap | FXDP |
| 30 | 62726-99 | HOSE, oil (2) | FXDP |
| 31 | 62826-02 | BAFFLE ASSEMBLY, serpentine, w/ 62828-99 | FXDP |
| 32 | 62828-99 | SPRING, baffle | FXDP |
| 33 | 72143-94 | SECONDARY LOCK, 3-way receptacle | FXDP |
| 34 | 72163-94BK | RECEPTACLE, 3-way pin | FXDP |
| 35 | 72190-94 | TERMINAL, pin (3) | FXDP |
| 36 | 72199-94 | ATTACHMENT CLIP | FXDP |
| 37 | 74420-94C | SPEED SENSOR | FXDP |

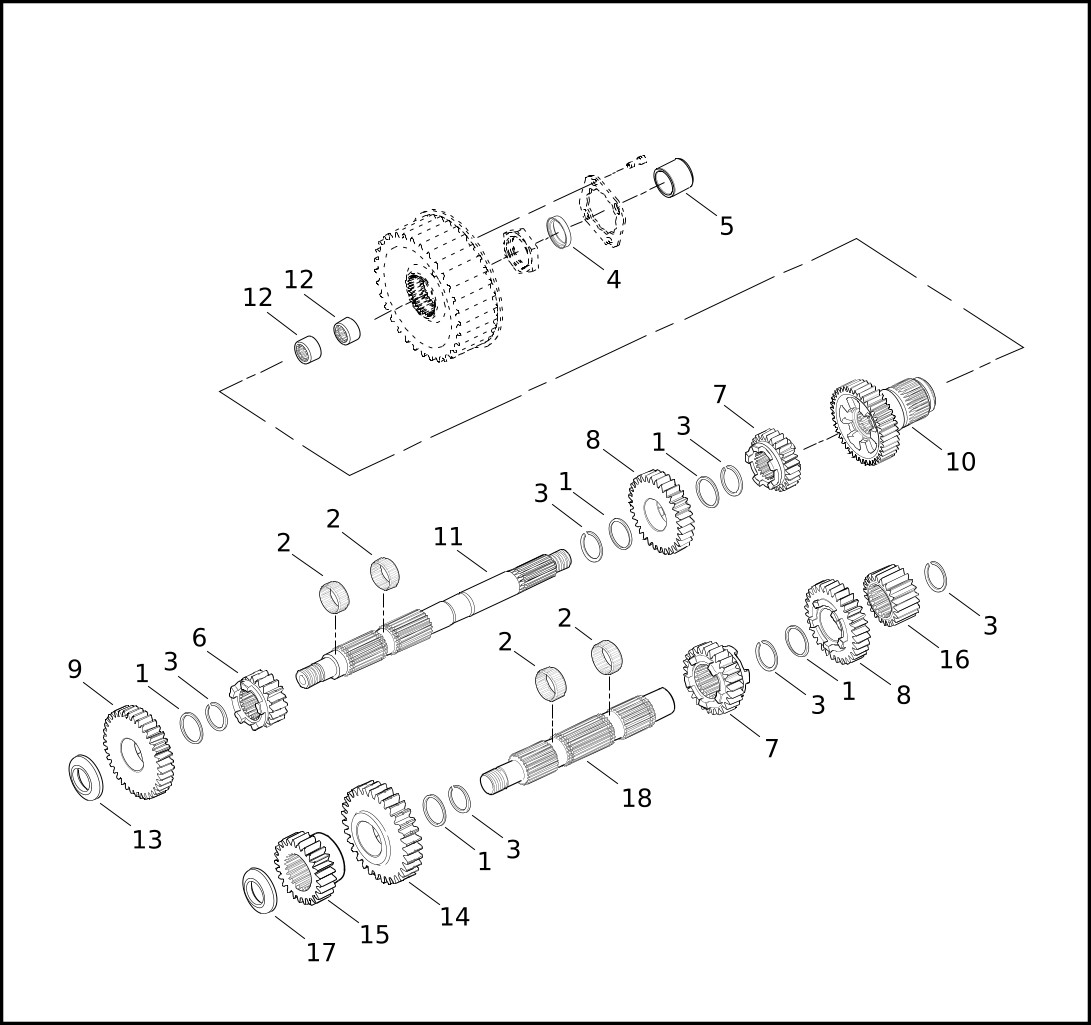

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6003 | WASHER (5) | FXDP |
| 2 | 8876A | BEARING (4) | FXDP |
| 3 | 11067 | RETAINING RING (6) | FXDP |
| 4 | 12035B | OIL SEAL, mainshaft fifth gear | FXDP |
| 5 | 34091-85A | BEARING, inner race | FXDP |
| 6 | 35025-79B | FIRST GEAR, mainshaft | FXDP |
| 7 | 35026-94 | GEAR, mainshaft 2nd & countershaft 3rd (2) | FXDP |
| 8 | 35027-94 | GEAR, mainshaft 3rd & countershaft 2nd (2) | FXDP |
| 9 | 35028-94 | FOURTH GEAR, mainshaft | FXDP |
| 10 | 35029-94 | FIFTH GEAR, mainshaft | FXDP |
| 11 | 35042-91 | MAINSHAFT | FXDP |
| 12 | 35051-89A | NEEDLE BEARING (2) | FXDP |
| 13 | 35064-79 | SPACER, mainshaft | FXDP |
| 14 | 35622-79C | FIRST GEAR, countershaft | FXDP |
| 15 | 35625-94 | FOURTH GEAR, countershaft | FXDP |
| 16 | 35626-94 | FIFTH GEAR, countershaft | FXDP |
| 17 | 35629-79 | SPACER | FXDP |
| 18 | 35632-79 | COUNTERSHAFT | FXDP |

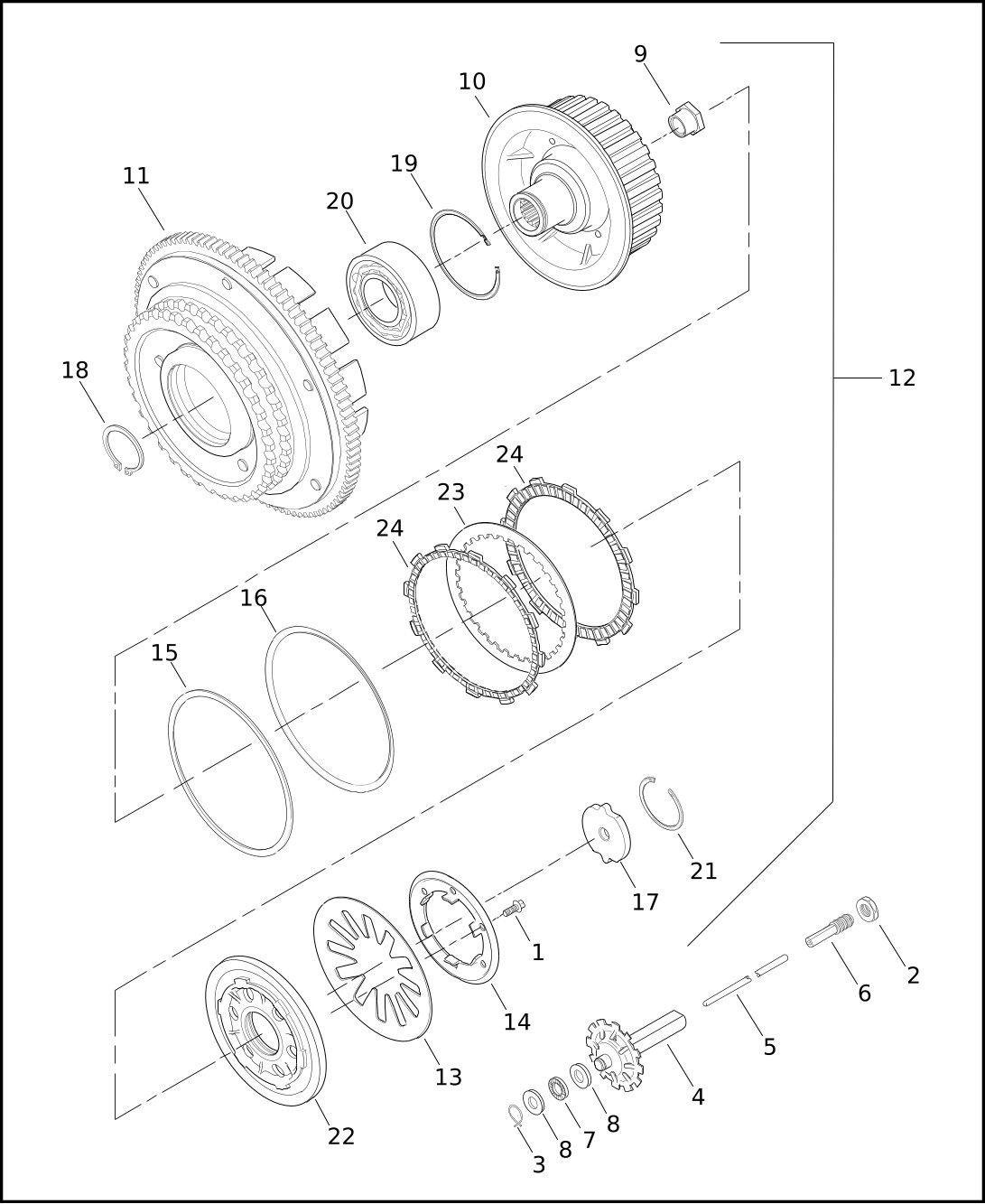

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FXDP |
| 2 | 7848W | JAM NUT | FXDP |
| 3 | 11096 | RETAINING RING | FXDP |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | FXDP |
| 5 | 37088-90 | PUSH ROD, clutch release | FXDP |
| 6 | 37090-98A | END, clutch push rod, left side | FXDP |
| 7 | 37312-75 | BEARING, push rod | FXDP |
| 8 | 37313-80 | THRUST WASHER (2) | FXDP |
| 9 | 37496-90 | NUT, mainshaft | FXDP |
| 10 | 37550-98 | CLUTCH HUB, w/ hub, thrust washer, spring washer & retaining ring | FXDP |
| 11 | 37707-98A | CLUTCH SHELL & SPROCKET, w/ ring gear, 37905-00 & 37906-90 | FXDP |
| 12 | 37802-98B | CLUTCH ASSEMBLY, w/ 1, 9, 10, 11, 13, 14, 15, 16, 17, 18, 21, 22, 23 & 24 | FXDP |
| 13 | 37871-98A | SPRING, diaphragm (white) | FXDP |
| 14 | 37872-00 | SPRING SEAT | FXDP |
| 15 | 37883-98 | SEAT, damper spring | FXDP |
| 16 | 37884-98 | DAMPER SPRING | FXDP |
| 17 | 37903-90 | RELEASE PLATE | FXDP |
| 18 | 37904-90 | RETAINING RING, internal | FXDP |
| 19 | 37905-00 | RETAINING RING, internal | FXDP |
| 20 | 37906-90 | BEARING, ball, double row | FXDP |
| 21 | 37909-90 | RETAINING RING, internal | FXDP |
| 22 | 37912-00 | PRESSURE PLATE, clutch | FXDP |
| 23 | 37913-98 | CLUTCH PLATE (8) | FXDP |
| 24 | 37932-98 | FRICTION PLATE KIT, includes all 9 friction plates | FXDP |

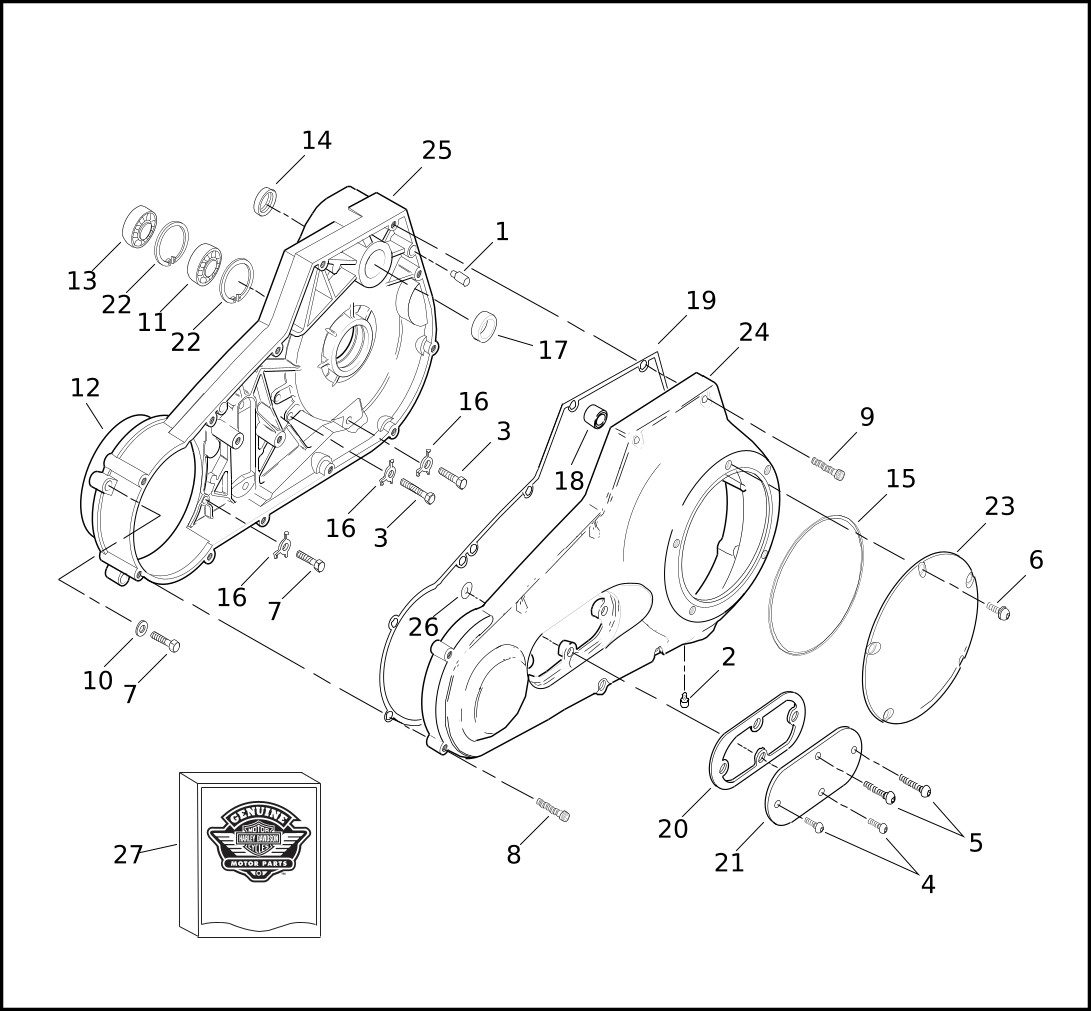

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 375 | PIN (2) | FXDP |
| 2 | 739A | PLUG, magnetic | FXDP |
| 3 | 858A | BOLT (3) | FXDP |
| 4 | 941 | SCREW (2) | FXDP |
| 5 | 945 | SCREW (2) | FXDP |
| 6 | 961 | SCREW (5) | FXDP |
| 7 | 2887WA | SCREW (4) | FXDP |
| 8 | 4740A | SCREW, w/ washer (7) | FXDP |
| 9 | 4820A | SCREW, w/ washer (5) | FXDP |
| 10 | 6016 | WASHER (2) | FXDP |
| 11 | 9135 | BEARING | FXDP |
| 12 | 11147B | O-RING, housing cover | FXDP |
| 13 | 12052A | OIL SEAL | FXDP |
| 14 | 12066A | OIL SEAL | FXDP |
| 15 | 25416-99C | O-RING, clutch cover | FXDP |
| 16 | 33318-85 | LOCKING TAB (5) | FXDP |
| 17 | 33445-94A | BUSHING | FXDP |
| 18 | 33446-94A | BUSHING | FXDP |
| 19 | 60539-94B | GASKET, primary cover | FXDP |
| 20 | 60567-90C | GASKET, inspection cover | FXDP |
| 21 | 60572-86 | COVER, inspection (chrome) (replaces black cover) | FXDP |
| 22 | 60678-85 | RETAINING RING (2) | FXDP |
| 23 | 60713-99 | COVER, clutch (black) | FXDP |
| 24 | 60715-99B | COVER ASSEMBLY, primary (black) | FXDP |
| 25 | 60718-02 | PRIMARY HOUSING ASSEMBLY (black) | FXDP |
| 26 | 63859-95B | GASKET (2) | FXDP |
| 27 | 25700225 | GASKET KIT, inner primary | FXDP |

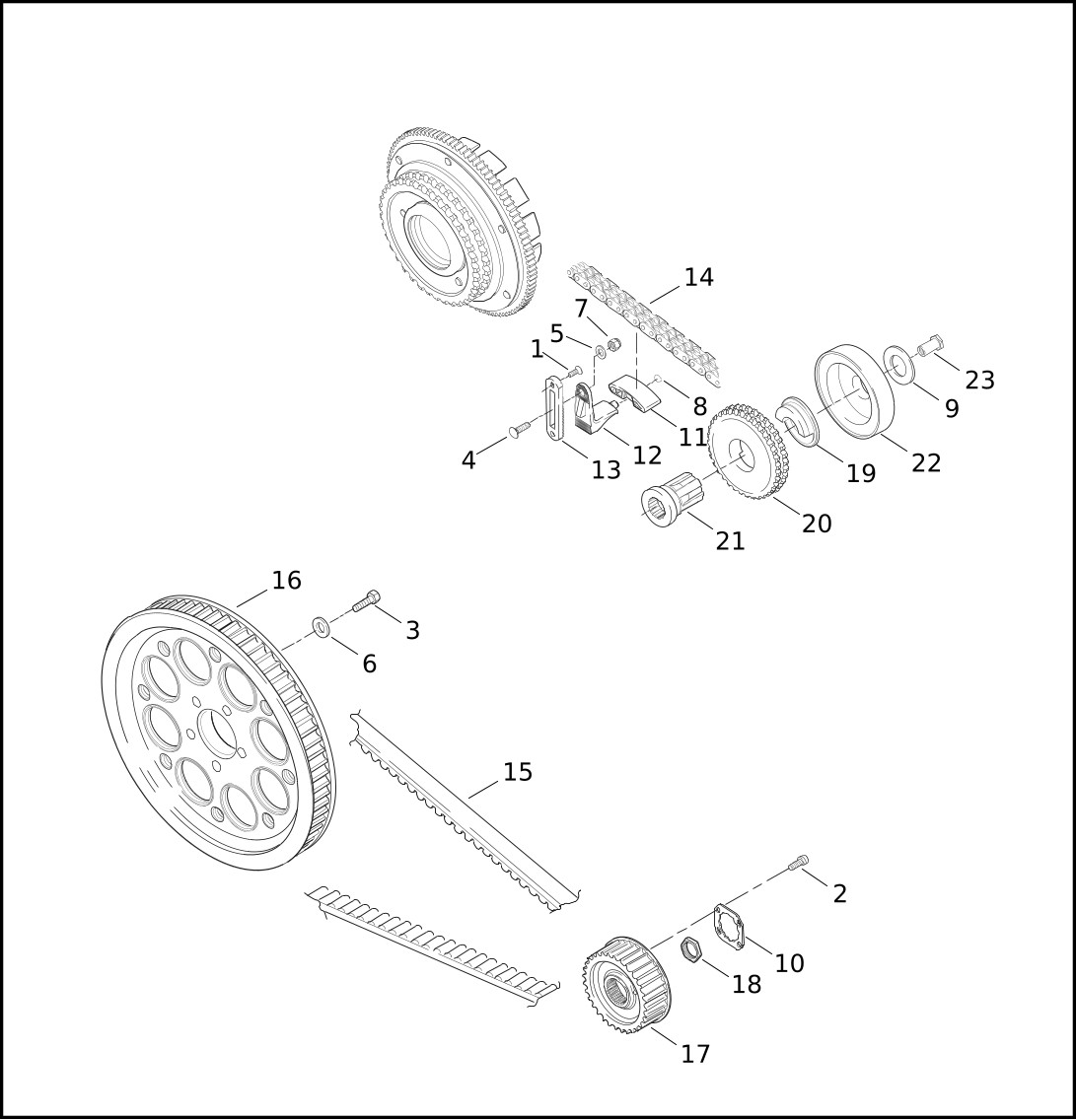

BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1783C | SCREW (2) | FXDP |
| 2 | 3594 | SCREW (2) | FXDP |
| 3 | 3737A | SCREW (5) | FXDP |
| 4 | 5416 | BOLT | FXDP |
| 5 | 6400HB | WASHER | FXDP |
| 6 | 6516HW | WASHER (5) | FXDP |
| 7 | 7778 | LOCKNUT | FXDP |
| 8 | 11085 | RETAINING RING | FXDP |
| 9 | 29960-91A | SPACER | FXDP |
| 10 | 35211-91B | NUT, sprocket | FXDP |
| 11 | 39976-01 | PAD, chain tensioner | FXDP |
| 12 | 39990-01 | CHAIN TENSIONER | FXDP |
| 13 | 39998-65A | ANCHOR PLATE, chain tensioner | FXDP |
| 14 | 40007-36B | PRIMARY CHAIN | FXDP |
| 15 | 40015-00B | REAR BELT, 133 T | FXDP |
| 16 | 40114-00 | SPROCKET, rear, 70 T (black) | FXDP |
| 17 | 40250-94C | SPROCKET, transmission, 32 T | FXDP |
| 18 | 40251-92A | LOCKPLATE | FXDP |
| 19 | 40299-83A | SLIDING CAM | FXDP |
| 20 | 40308-94 | COMPENSATING SPROCKET, 25 T | FXDP |
| 21 | 40373-02 | SHAFT EXTENSION | FXDP |
| 22 | 40384-91 | COVER ASSEMBLY, w/ springs | FXDP |
| 23 | 40392-91 | NUT | FXDP |

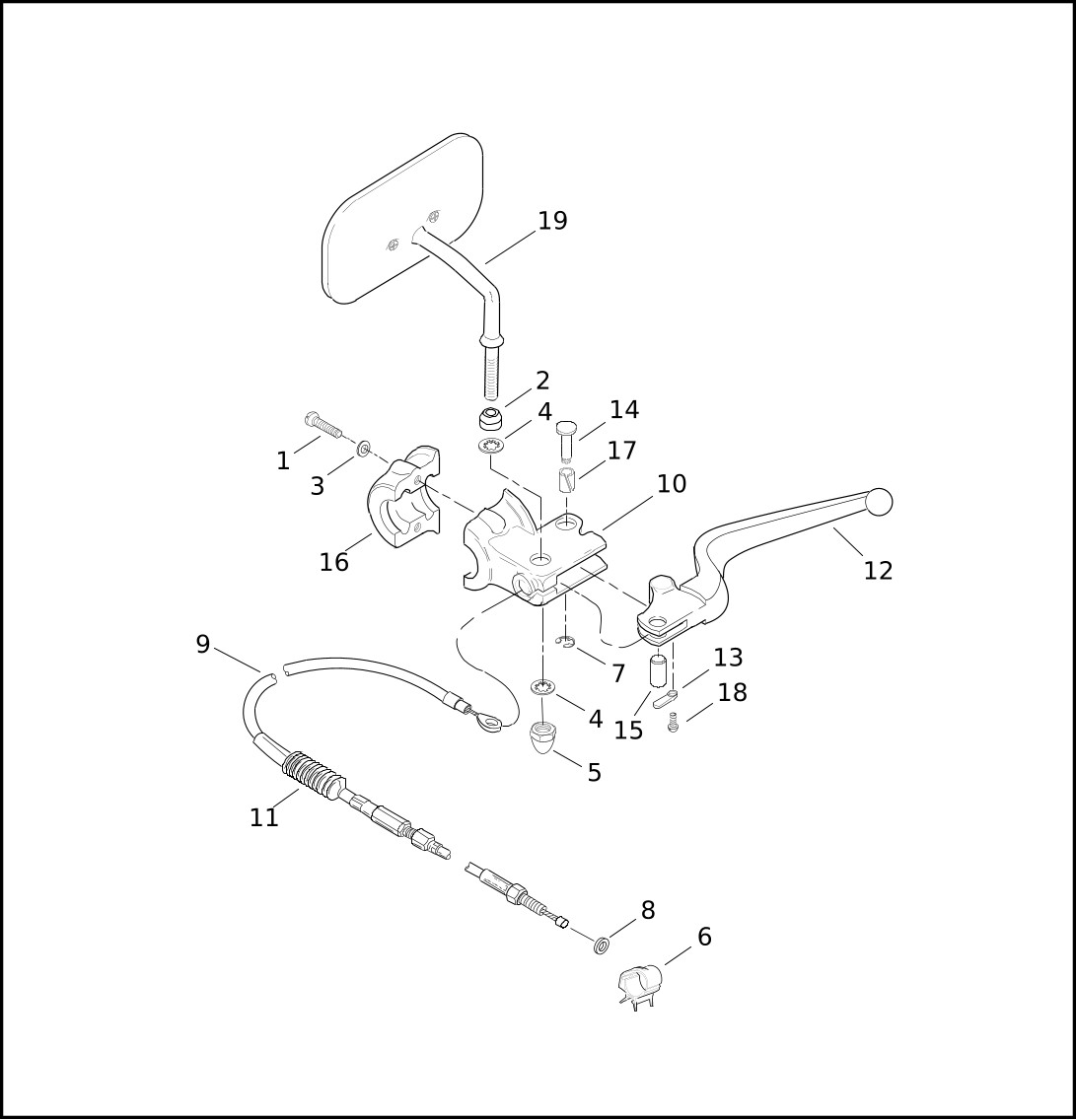

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FXDP |
| 2 | 5774 | SPACER | FXDP |
| 3 | 6101 | WASHER (2) | FXDP |
| 4 | 7127 | LOCKWASHER (2) | FXDP |
| 5 | 7736 | ACORN NUT | FXDP |
| 6 | 10108 | CLIP (3) | FXDP |
| 7 | 11143 | RETAINING RING | FXDP |
| 8 | 11179 | O-RING | FXDP |
| 9 | 38661-00 | CABLE, clutch control | FXDP |
| 10 | 38608-96 | BRACKET, hand lever | FXDP |
| 11 | 38630-88 | BOOT, clutch cable | FXDP |
| 12 | 45015-96 | HAND LEVER, w/ 45021-86, 45423-92 & 90770-79 | FXDP |
| 13 | 45021-86 | SPRING, anti-rattle | FXDP |
| 14 | 45032-82 | PIN, hand lever pivot | FXDP |
| 15 | 45036-88 | ANCHOR PIN | FXDP |
| 16 | 45044-96A | CLAMP, lever bracket | FXDP |
| 17 | 45423-92 | BUSHING | FXDP |
| 18 | 90770-79 | SCREW | FXDP |
| 19 | 91892-82A | MIRROR KIT, short, left, flat | FXDP |

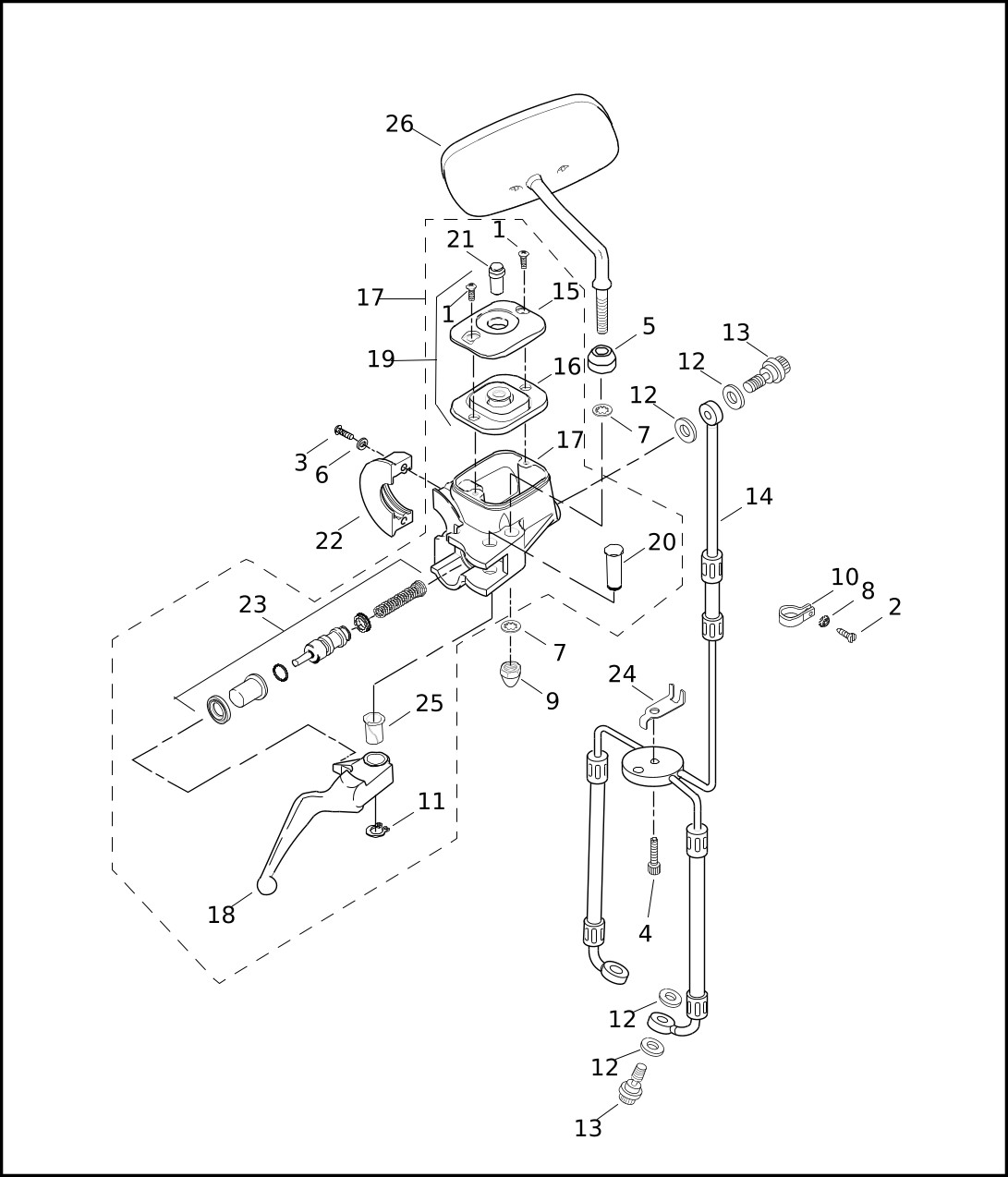

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2579A | SCREW (2) | FXDP |
| 2 | 4240 | SCREW | FXDP |
| 3 | 4132 | SCREW (2) | FXDP |
| 4 | 4741A | SCREW | FXDP |
| 5 | 5774 | SPACER | FXDP |
| 6 | 6101 | WASHER (2) | FXDP |
| 7 | 7127 | LOCKWASHER, right (2) | FXDP |
| 8 | 7220 | LOCKWASHER, external tooth | FXDP |
| 9 | 7736 | ACORN NUT | FXDP |
| 10 | 10031 | CLAMP, brake line | FXDP |
| 11 | 11143 | RETAINING RING | FXDP |
| 12 | 41731-88A | GASKET (6) | FXDP |
| 13 | 41747-82A | FITTING (3) | FXDP |
| 14 | 45083-01 | BRAKE LINE, dual caliper | FXDP |
| 15 | 45004-96A | COVER, reservoir (used w/ 45013-96B) | FXDP |
| 16 | 45005-96 | GASKET, reservoir cover (use 45030-03C) (used w/ 45013-96B) | FXDP |
| 17 | 45013-96B | MASTER CYLINDER, w/ hand lever (11/16 inch bore) (use 45013-96D) | FXDP |
| 45013-96D | MASTER CYLINDER, w/ hand lever (11/16 inch bore) (replaces 45013-96B) | FXDP | |
| 18 | 45016-96 | HAND LEVER, right | FXDP |
| 19 | 45030-03C | COVER KIT, reservoir, w/ 2579A & gasket (used w/ 45013-96D) | FXDP |
| 20 | 45032-82 | PIVOT PIN | FXDP |
| 21 | 45042-96 | SIGHT GLASS (used w/ 45013-96B) | FXDP |
| 22 | 45044-96A | CLAMP, handlebar control | FXDP |
| 23 | 45072-96C | REPAIR KIT, master cylinder (11/16 inch bore) | FXDP |
| 24 | 45074-95 | GUIDE, brake line | FXDP |
| 25 | 45423-96 | BUSHING, lever pivot | FXDP |
| 26 | 91875-82A | MIRROR KIT, short, right, flat | FXDP |

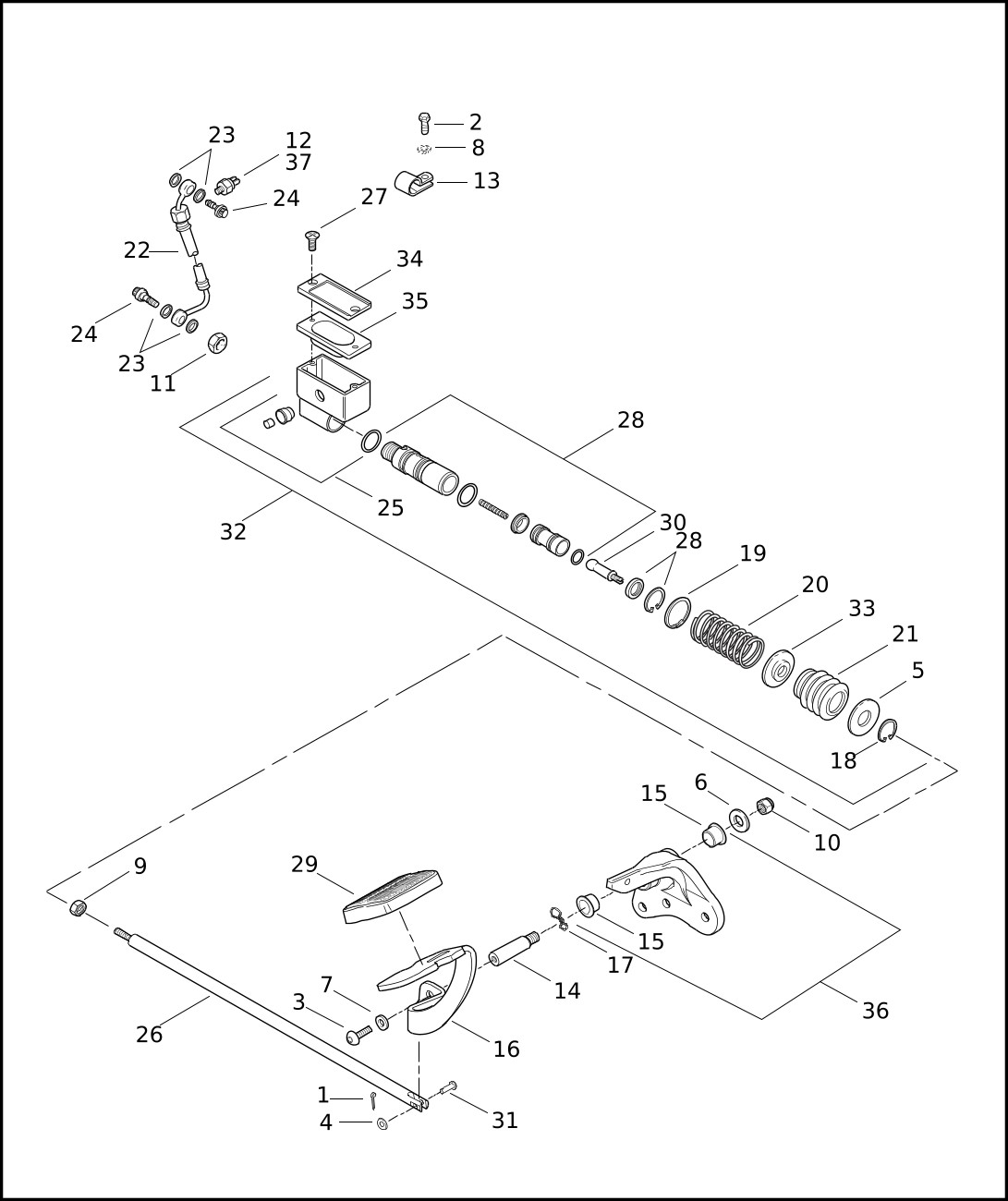

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FXDP |
| 2 | 3537 | SCREW | FXDP |
| 3 | 4059 | SCREW | FXDP |
| 4 | 6099 | WASHER | FXDP |
| 5 | 6366 | WASHER | FXDP |
| 6 | 6516HW | WASHER | FXDP |
| 7 | 6701 | WASHER | FXDP |
| 8 | 7229W | LOCKWASHER | FXDP |
| 9 | 7744 | JAM NUT | FXDP |
| 10 | 7827W | LOCKNUT | FXDP |
| 11 | 7951 | JAM NUT | FXDP |
| 12 | 9898 | FLAG TERMINAL (used w/ 72023-51C) (2) | FXDP |
| 9907 | TERMINAL, wire (used w/ 72023-51E) (2) | FXDP | |
| 13 | 10053 | CLAMP | FXDP |
| 14 | 33689-02 | SHAFT, pivot | FXDP |
| 15 | 33703-01 | BUSHING, flanged (2) | FXDP |
| 16 | 33711-02 | PEDAL, brake | FXDP |
| 17 | 34641-01 | WASHER, spring wave | FXDP |
| 18 | 40903-87 | RETAINING RING | FXDP |
| 19 | 40918-87 | RETAINING RING | FXDP |
| 20 | 40920-87 | SPRING | FXDP |
| 21 | 40922-87A | BOOT | FXDP |
| 22 | 40956-00B | BRAKE LINE | FXDP |
| 23 | 41731-88A | GASKET (4) | FXDP |
| 24 | 41747-82A | BOLT (2) | FXDP |
| 25 | 41803-90 | RESERVOIR ASSEMBLY | FXDP |
| 26 | 41954-01 | PUSH ROD | FXDP |
| 27 | 42375-87 | SCREW (2) | FXDP |
| 28 | 42382-87C | REPAIR KIT, master cylinder | FXDP |
| 29 | 42416-83 | PAD, brake pedal | FXDP |
| 30 | 42448-87 | PUSH ROD | FXDP |
| 31 | 42460-80B | CLEVIS PIN | FXDP |
| 32 | 42474-90B | MASTER CYLINDER, w/ 5, 18, 19, 20, 21, 25, 27, 28, 30, 33, 34 & 35 | FXDP |
| 33 | 44126-87 | SPRING RETAINER | FXDP |
| 34 | 45004-85 | COVER, master cylinder | FXDP |
| 35 | 45005-85 | GASKET, cover | FXDP |
| 36 | 50521-01 | SUPPORT ASSEMBLY, R.H., w/ 33703-01 | FXDP |
| 37 | 72023-51C | SWITCH, brake light, w/ 9898 (use 72023-51E) | FXDP |
| 72023-51E | SWITCH, brake light, w/ 9907 (replaces 72023-51C) | FXDP |

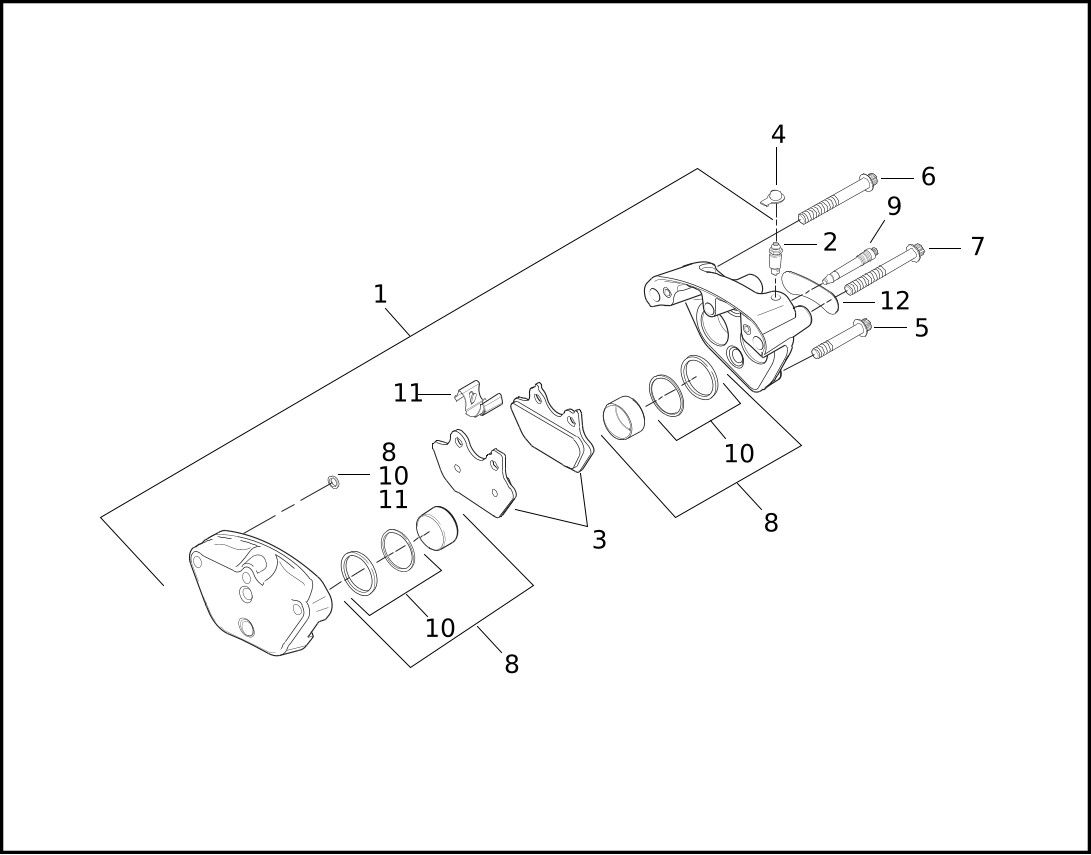

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44023-00C | CALIPER ASSEMBLY, right | FXDP |
| 44046-00D | CALIPER ASSEMBLY, left | FXDP | |
| 2 | 44048-83 | SCREW, bleeder (2) | FXDP |
| 3 | 44082-00D | PAD KIT (2) | FXDP |
| 4 | 44147-87A | CAP, bleeder screw (2) | FXDP |
| 5 | 44160-00 | BOLT, caliper mounting, lower (2) | FXDP |
| 6 | 44163-00 | BOLT, caliper mounting, upper (2) | FXDP |
| 7 | 44177-00 | BOLT, bridge (4) | FXDP |
| 8 | 44313-01 | PISTON KIT (2) | FXDP |
| 9 | 44314-00 | PAD PIN KIT (2) | FXDP |
| 10 | 44315-00 | SEAL KIT (2) | FXDP |
| 11 | 44337-00B | SPRING KIT, anti-rattle (2) | FXDP |
| 12 | 44338-00 | DECAL (2) | FXDP |

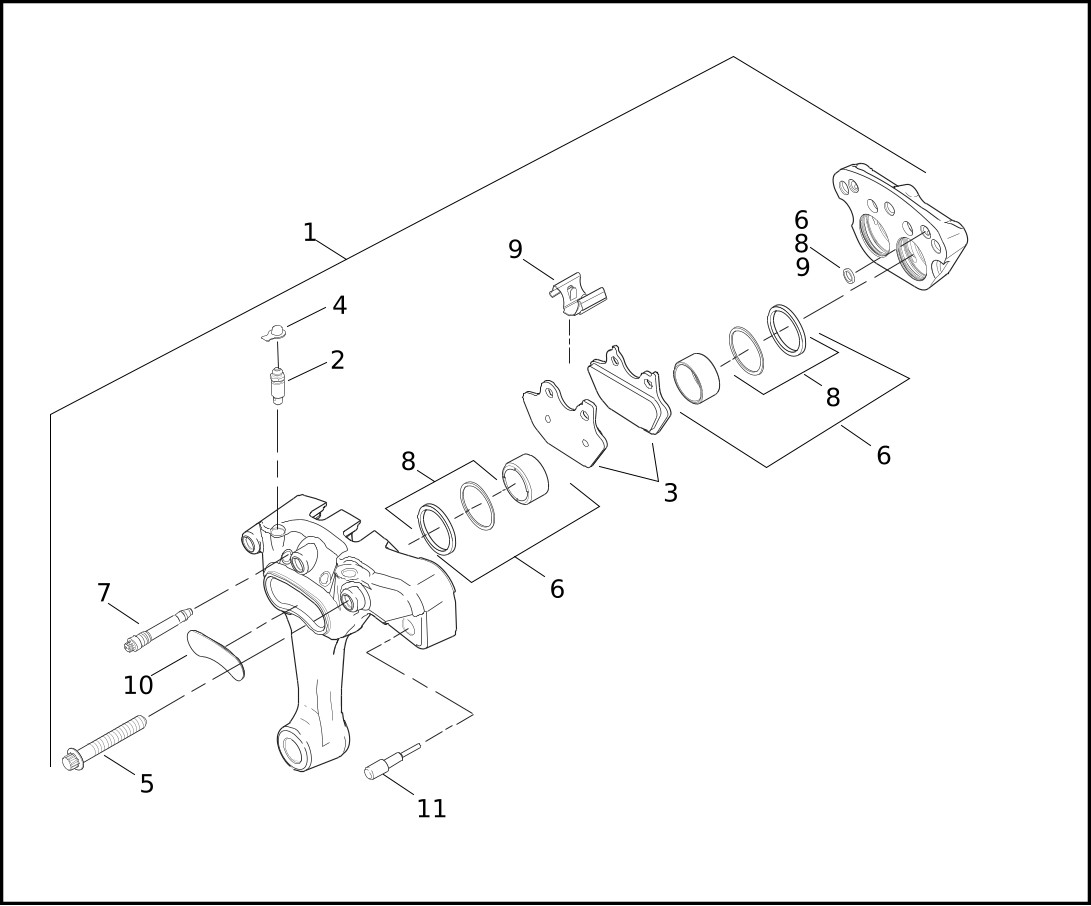

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44017-00D | CALIPER ASSEMBLY | FXDP |
| 2 | 44048-83 | SCREW, bleeder | FXDP |
| 3 | 44082-00D | PAD KIT | FXDP |
| 4 | 44147-87A | CAP, bleeder screw | FXDP |
| 5 | 44177-00 | BOLT, bridge (3) | FXDP |
| 6 | 44313-01 | PISTON KIT | FXDP |
| 7 | 44314-00 | PAD PIN KIT | FXDP |
| 8 | 44315-00 | SEAL KIT | FXDP |
| 9 | 44337-00B | SPRING KIT, anti-rattle | FXDP |
| 10 | 44338-00 | DECAL | FXDP |
| 11 | 44351-00 | BUMPER | FXDP |

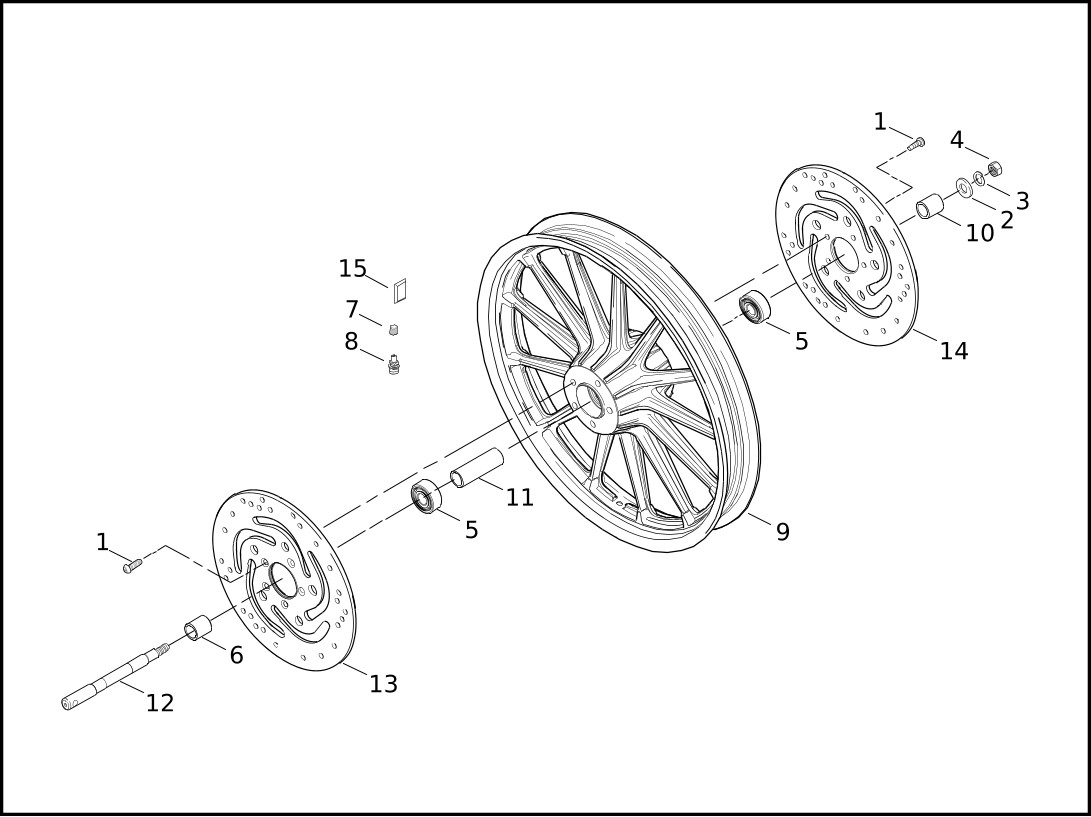

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | FXDP |
| 2 | 6590HW | WASHER | FXDP |
| 3 | 7068 | LOCKWASHER | FXDP |
| 4 | 7956 | NUT | FXDP |
| 5 | 9267 | BEARING (2) | FXDP |
| 6 | 43358-00 | SPACER, bearing (right) | FXDP |
| 7 | 41123-79 | VALVE CAP | FXDP |
| 8 | 43157-83A | VALVE STEM | FXDP |
| 9 | 43499-00A | WHEEL, 19 inch, 13-spoke, w/o bearings & sleeve (black) | FXDP |
| 10 | 43617-00A | SPACER, bearing (left) | FXDP |
| 11 | 43613-00 | SLEEVE | FXDP |
| 12 | 43895-00 | AXLE | FXDP |
| 13 | 44136-00 | BRAKE DISC (RH) | FXDP |
| 14 | 44156-00 | BRAKE DISC (LH) | FXDP |
| 15 | 95594-84A | WEIGHT, 5 grams for cast wheel (black) | FXDP |

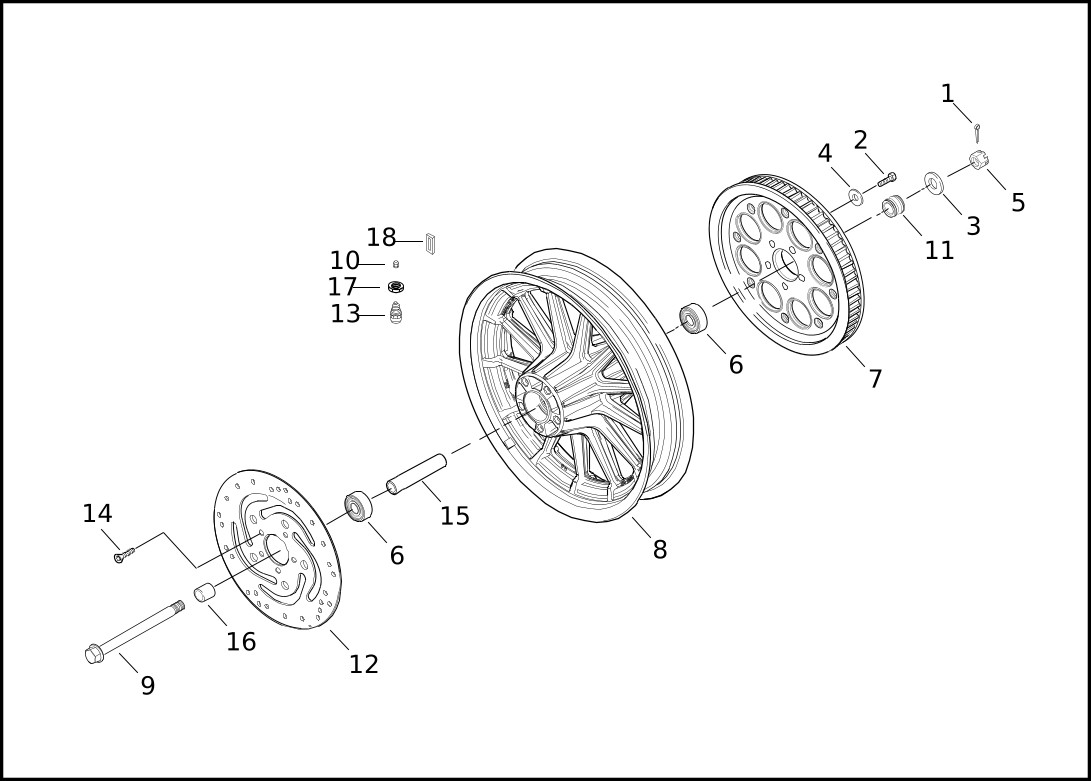

REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 510 | SPRING CLIP | FXDP |
| 2 | 3737A | SCREW (5) | FXDP |
| 3 | 5756 | WASHER | FXDP |
| 4 | 6516HW | WASHER (5) | FXDP |
| 5 | 7987 | NUT | FXDP |
| 6 | 9267 | ROLLER BEARING (2) | FXDP |
| 7 | 40114-00 | SPROCKET, 70T (black) | FXDP |
| 8 | 41012-00A | WHEEL, 16 inch cast, 13-spoke, w/o bearings & sleeve (black) | FXDP |
| 9 | 41114-90 | AXLE | FXDP |
| 10 | 41123-79 | VALVE CAP | FXDP |
| 11 | 41591-00A | SPACER, sprocket side | FXDP |
| 12 | 41797-00 | DISC, brake | FXDP |
| 13 | 43157-83A | VALVE STEM ASSEMBLY | FXDP |
| 14 | 43567-92 | SCREW (5) | FXDP |
| 15 | 43608-00 | SPACER | FXDP |
| 16 | 43654-00A | SPACER, disc side | FXDP |
| 17 | 54321-85 | NUT, valve stem | FXDP |
| 18 | 95594-84A | WEIGHT, 5 grams (black) | FXDP |

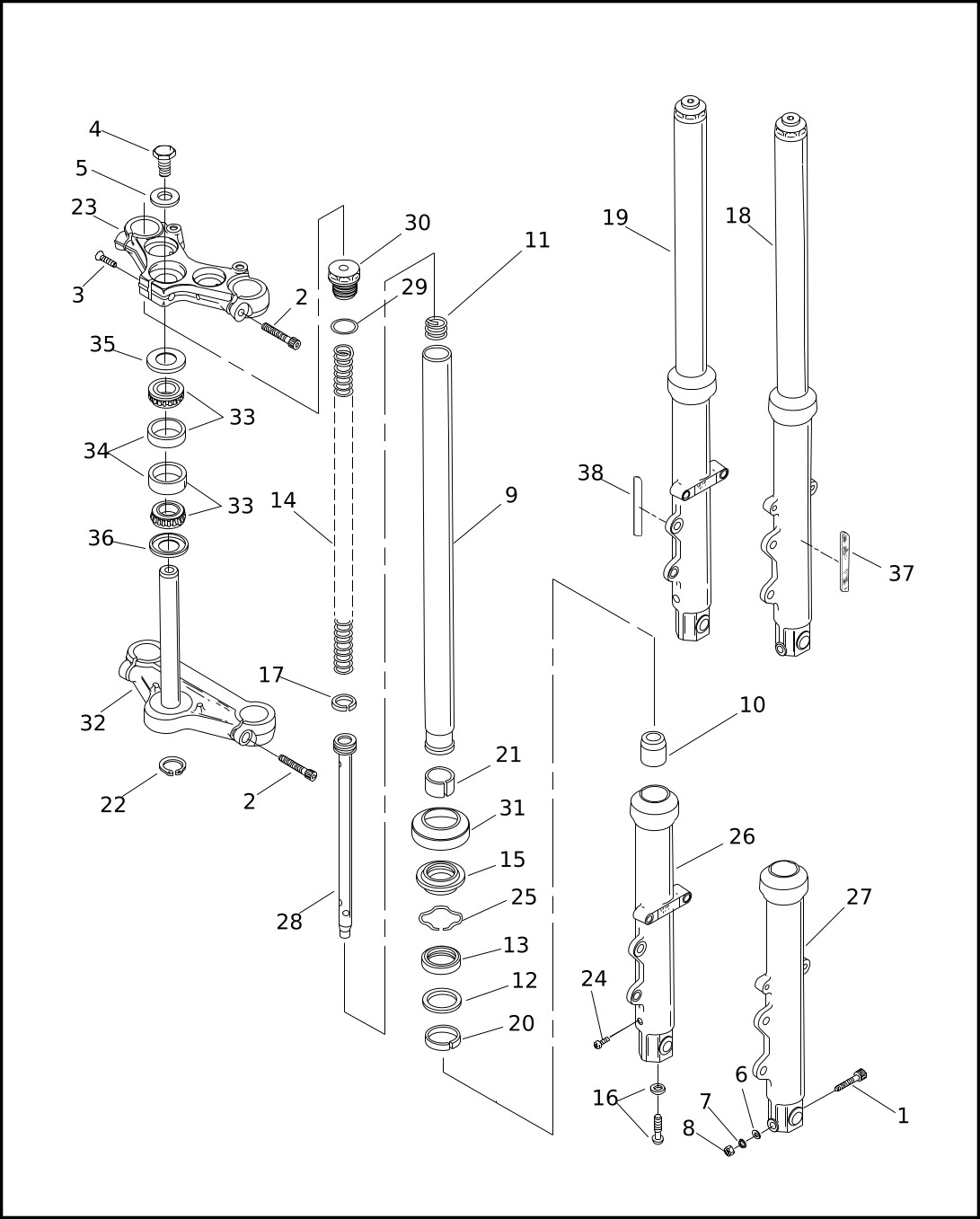

FRONT FORK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4029A | SCREW | FXDP |
| 2 | 4351 | SCREW, bracket, upper (2) | FXDP |
| 4047 | SCREW, fork stem, lower (2) | FXDP | |
| 3 | 4352 | SCREW | FXDP |
| 4 | 4460 | BOLT | FXDP |
| 5 | 6655 | WASHER | FXDP |
| 6 | 6701 | WASHER | FXDP |
| 7 | 7038 | LOCKWASHER | FXDP |
| 8 | 7783 | NUT | FXDP |
| 9 | 45365-94 | SLIDER TUBE (2) | FXDP |
| 10 | 45361-90 | LOWER STOP (2) | FXDP |
| 11 | 45374-87 | SPRING, slider (2) | FXDP |
| 12 | 45377-87 | SPACER, oil seal (2) | FXDP |
| 13 | 45378-87 | OIL SEAL (2) | FXDP |
| 14 | 45384-02 | SPRING (2) | FXDP |
| 15 | 45401-87 | SEAL, dust (2) | FXDP |
| 16 | 45405-75A | SCREW, w/ washer (2) | FXDP |
| 17 | 45460-90 | RING, damper tube (2) | FXDP |
| 18 | 45347-02 | FORK SLIDER & TUBE ASSEMBLY, right | FXDP |
| 19 | 45348-02 | FORK SLIDER & TUBE ASSEMBLY, left | FXDP |
| 20 | 45461-87 | BUSHING, upper (2) | FXDP |
| 21 | 45465-87 | BUSHING, slider tube (2) | FXDP |
| 22 | 45611-86 | RETAINING RING | FXDP |
| 23 | 45739-87 | BRACKET, upper | FXDP |
| 24 | 45790-80 | DRAIN SCREW, w/ washer (2) | FXDP |
| 25 | 45905-87 | RETAINING RING, oil seal (2) | FXDP |
| 26 | 45921-00 | SLIDER ASSEMBLY, left | FXDP |
| 27 | 45922-00 | SLIDER ASSEMBLY, right | FXDP |
| 28 | 45926-90 | DAMPER TUBE (2) | FXDP |
| 29 | 45984-87 | O-RING (2) | FXDP |
| 30 | 45996-87 | CAP, slider tube (2) | FXDP |
| 31 | 46002-87 | COVER, slider (2) | FXDP |
| 32 | 47668-90B | FORK STEM, bearing assembly, w/ tripleclamp assembly lower, bearing cone & dustshield | FXDP |
| 33 | 48300-60 | ROLLER BEARING, w/ cup (2) | FXDP |
| 34 | 48315-60 | BEARING CUP (2) | FXDP |
| 35 | 48361-80 | DUST SHIELD, upper | FXDP |
| 36 | 48365-48A | DUST SHIELD, lower | FXDP |
| 37 | 59481-00 | REFLECTOR, amber R.H. | FXDP |
| 38 | 59482-00 | REFLECTOR, amber L.H. | FXDP |
SHOCK ABSORBERS - HYDRAULIC
| Index No. | Part No. | Description | Model(s) |
| 1 | 4242 | SCREW (2) | FXDP |
| 2 | 6219 | SPACER (2) | FXDP |
| 3 | 6113 | WASHER (2) | FXDP |
| 4 | 6718 | WASHER (2) | FXDP |
| 5 | 7068 | LOCKWASHER (2) | FXDP |
| 6 | 7824 | LOCKNUT (4) | FXDP |
| 7 | 7845 | NUT (2) | FXDP |
| 8 | 54473-79 | SPRING SEAT (2) | FXDP |
| 9 | 54474-79 | ADJUSTER, spring (2) | FXDP |
| 10 | 54475-79 | GUIDE, spring (2) | FXDP |
| 11 | 54725-01 | SHOCK ABSORBER, complete (2) | FXDP |
| 12 | 54556-84 | BUSHING (4) | FXDP |
| 13 | 54557-90A | BOLT, shock mount (2) | FXDP |

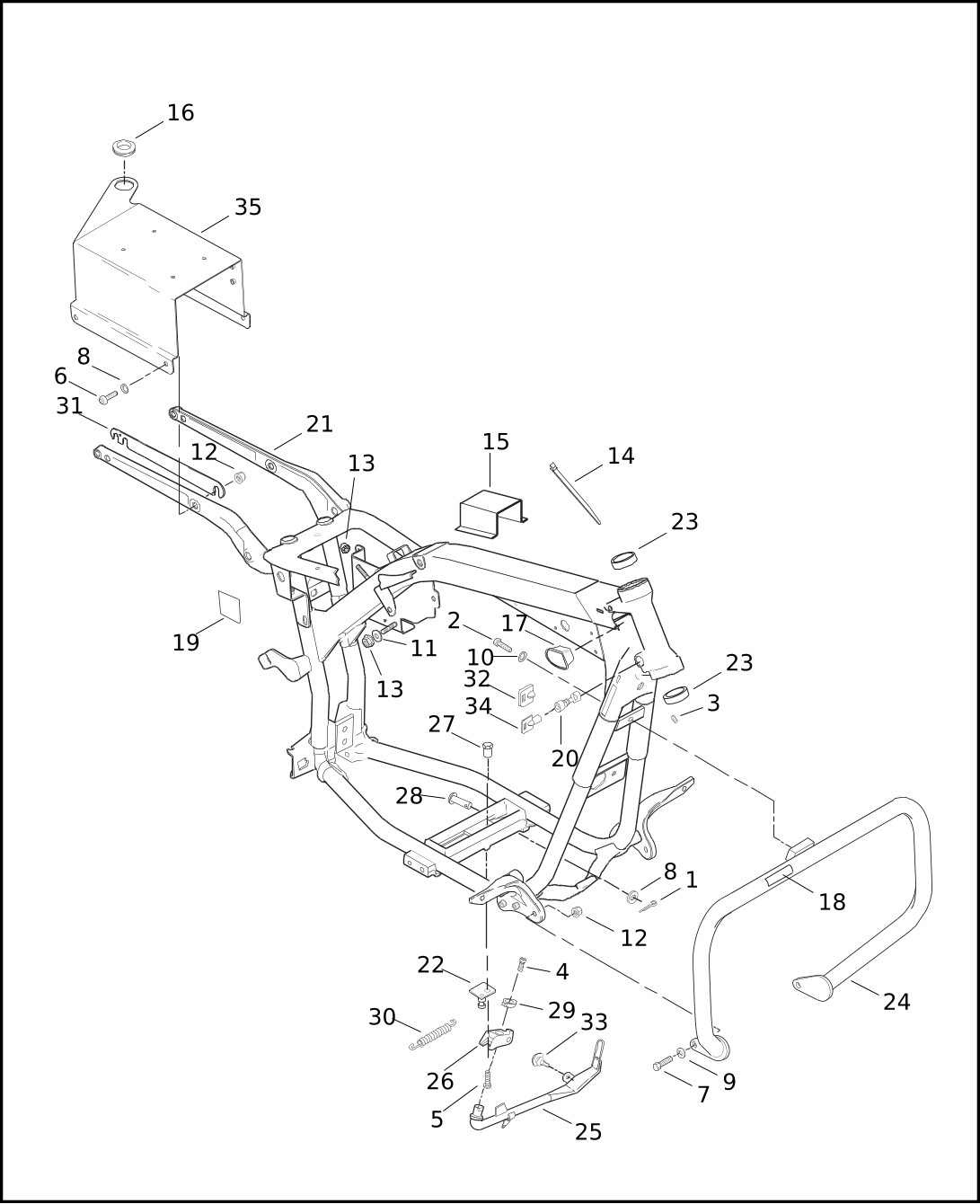

FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | FXDP |
| 2 | 2851 | BOLT | FXDP |
| 3 | 3233 | SCREW | FXDP |
| 4 | 3487 | BOLT | FXDP |
| 5 | 3655A | SCREW | FXDP |
| 6 | 4103 | BOLT (4) | FXDP |
| 7 | 4716W | SCREW (2) | FXDP |
| 8 | 6379W | WASHER (5) | FXDP |
| 9 | 6701 | WASHER (2) | FXDP |
| 10 | 7038 | LOCKWASHER | FXDP |
| 11 | 7127 | LOCKWASHER | FXDP |
| 12 | 7601 | LOCKNUT, flange (6) | FXDP |
| 13 | 7796 | NUT, w/ washer (2) | FXDP |
| 14 | 10006 | CABLE STRAP | FXDP |
| 10039 | CABLE STRAP | FXDP | |
| 10073 | CABLE STRAP | FXDP | |
| 15 | 10186 | CLIP, wire saddle | FXDP |
| 16 | 11503 | GROMMET | FXDP |
| 17 | 11457 | PLUG, steering head | FXDP |
| 18 | 14148-86 | LABEL | FXDP |
| 19 | 14273-96 | IGNITION LABEL, hole cover | FXDP |
| 20 | 45680-90 | LOCK FORK (specify key code) | FXDP |
| 21 | 47456-02 | FRAME, 28 degree rake | FXDP |
| 22 | 47318-98 | ANCHOR | FXDP |
| 23 | 48315-60 | BEARING CUP, steering head (2) | FXDP |
| 24 | 49009-03 | GUARD ENGINE ASSEMBLY | FXDP |
| 25 | 49710-94B | LEG, jiffy stand - long | FXDP |
| 26 | 49720-90 | PIVOT BLOCK | FXDP |
| 27 | 49723-98 | THREADED SPACER | FXDP |
| 28 | 50003-89B | PIN | FXDP |
| 29 | 50053-90 | CATCH | FXDP |
| 30 | 50057-02 | SPRING | FXDP |
| 31 | 52372-02 | SPACER, side plate (2) | FXDP |
| 32 | 61081-92 | COVER, key head set (2) | FXDP |
| 33 | 62123-66 | BUMPER | FXDP |
| 34 | 71452-91A | KEY (specify key code) | FXDP |
| 35 | 76162-02 | BRACKET, mounting radio | FXDP |

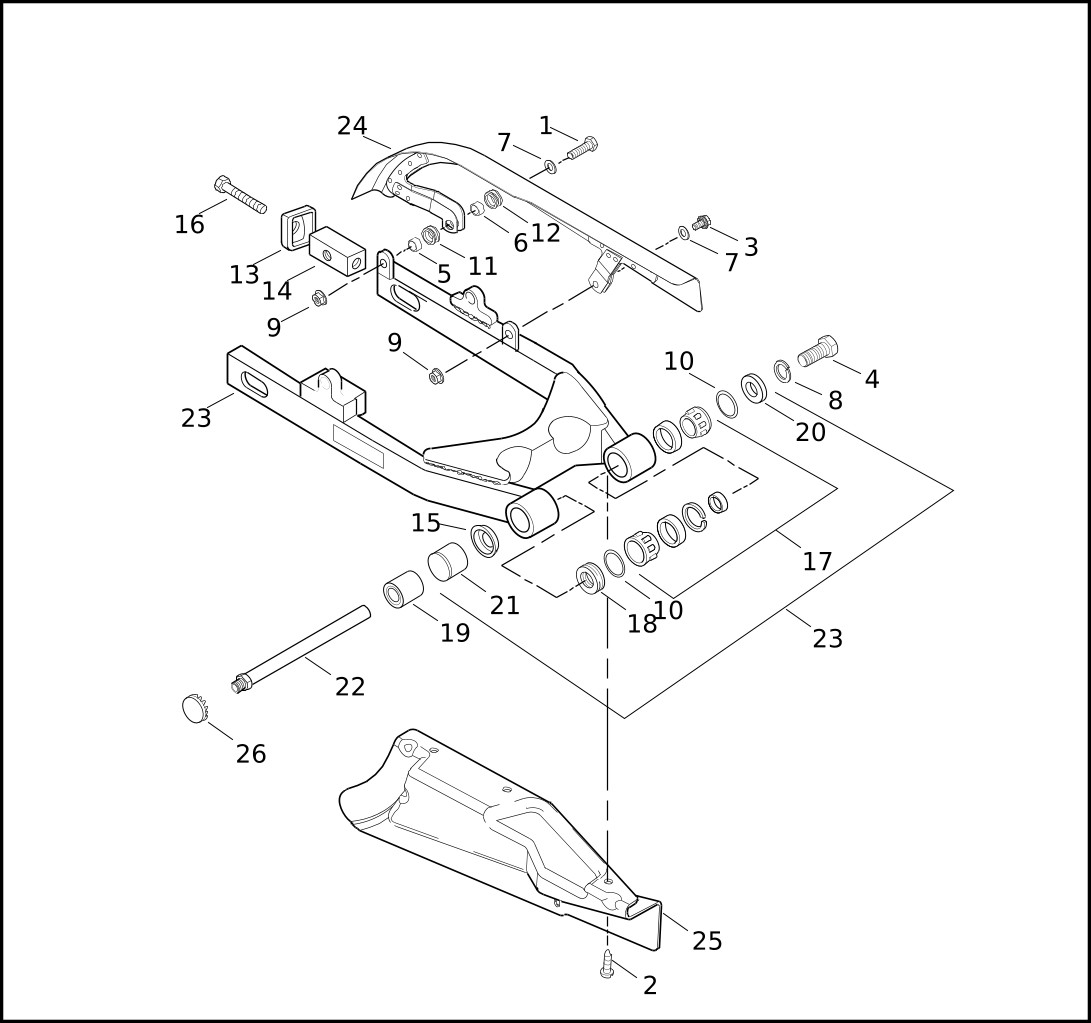

REAR FORK, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FXDP |
| 2 | 3579A | SCREW (3) | FXDP |
| 3 | 3926 | BOLT | FXDP |
| 4 | 4770 | SCREW | FXDP |
| 5 | 5883 | SPACER | FXDP |
| 6 | 5978W | SPACER | FXDP |
| 7 | 6702 | WASHER (2) | FXDP |
| 8 | 7039 | LOCKWASHER | FXDP |
| 9 | 7531 | LOCKNUT (2) | FXDP |
| 10 | 11139 | O-RING (2) | FXDP |
| 11 | 11458 | GROMMET | FXDP |
| 12 | 11556 | GROMMET | FXDP |
| 13 | 41113-90 | PLATE (2) | FXDP |
| 14 | 41571-92 | BLOCK (2) | FXDP |
| 15 | 41585-90B | DUST SHIELD | FXDP |
| 16 | 45991-92 | SCREW (2) | FXDP |
| 17 | 47082-81 | BEARING ASSEMBLY, w/ snap ring | FXDP |
| 18 | 47496-90 | SPACER, left | FXDP |
| 19 | 47499-90 | SPACER, right | FXDP |
| 20 | 47565-00 | WASHER | FXDP |
| 21 | 47624-90A | BUSHING | FXDP |
| 22 | 47817-00 | PIVOT SHAFT ASSEMBLY | FXDP |
| 23 | 47820-00A | REAR FORK, , w/ bearings | FXDP |
| 24 | 60339-00 | BELT GUARD (black wrinkle) | FXDP |
| 25 | 60356-00 | DEBRIS DEFLECTOR | FXDP |
| 26 | 67859-90 | PLUG (chrome) | FXDP |

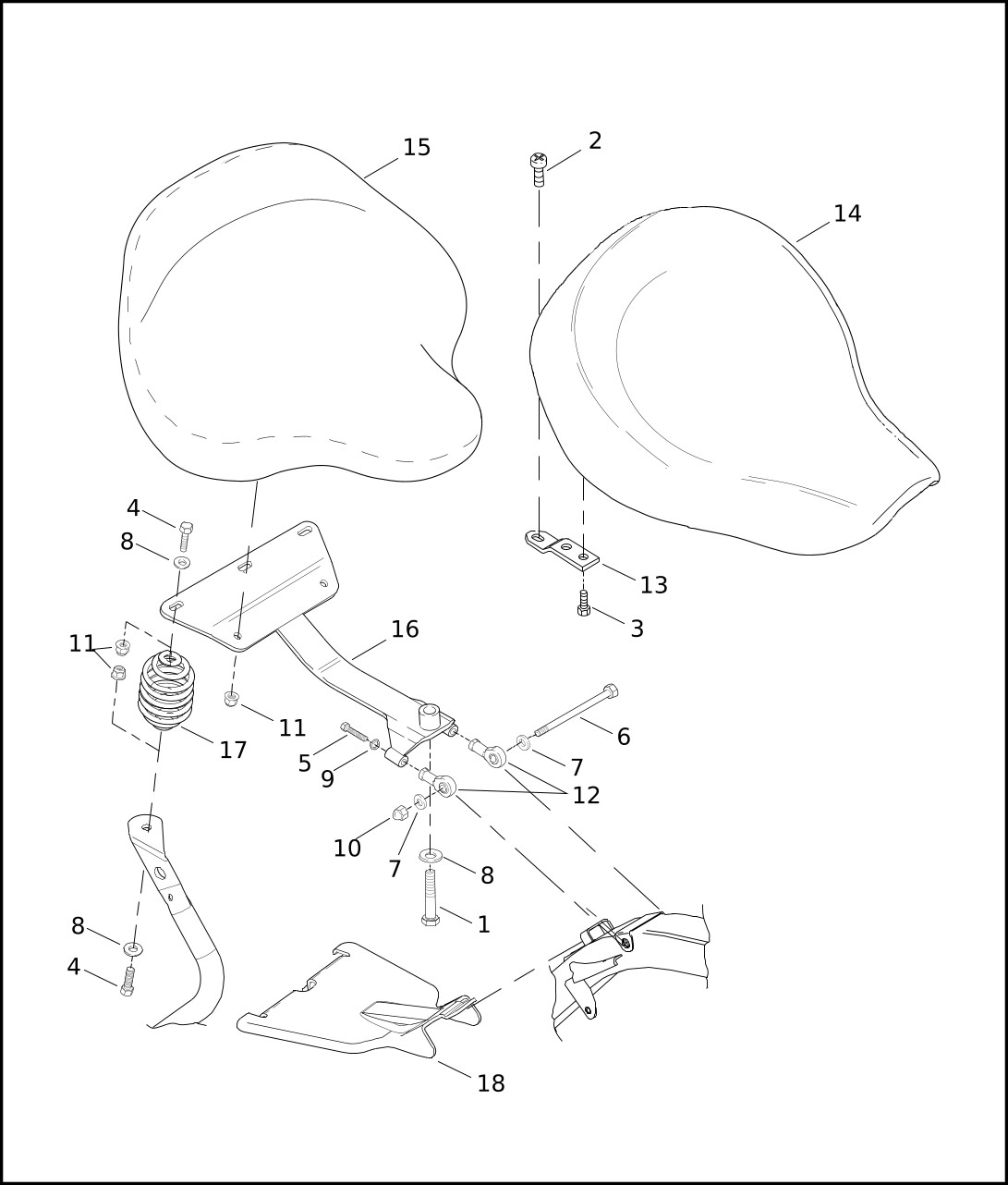

SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2887WA | SCREW | FXDP |
| 2 | 2952A | SCREW, frame mount | FXDP |
| 3 | 3574 | SCREW, frame mount (2) | FXDP |
| 4 | 4017 | BOLT (4) | FXDP |
| 5 | 4343 | SCREW (2) | FXDP |
| 6 | 3427 | BOLT, frame mount | FXDP |
| 4067 | BOLT, spring mount | FXDP | |
| 7 | 6139 | WASHER (2) | FXDP |
| 8 | 6702 | WASHER (5) | FXDP |
| 9 | 7041 | LOCKWASHER (2) | FXDP |
| 10 | 7549A | ACORN NUT | FXDP |
| 11 | 7531 | LOCKNUT (6) | FXDP |
| 12 | 33871-85B | ROD END (2) | FXDP |
| 13 | 51652-97A | BRACKET, seat, frame mount | FXDP |
| 14 | 52219-01 | SEAT, frame mount | FXDP |
| 15 | 52242-83E | SEAT, solo | FXDP |
| 16 | 52413-01A | BRACKET, seat support | FXDP |
| 17 | 52561-93 | SPRING (2) | FXDP |
| 18 | 52575-01 | COVER SEAT, plastic, spring mount | FXDP |

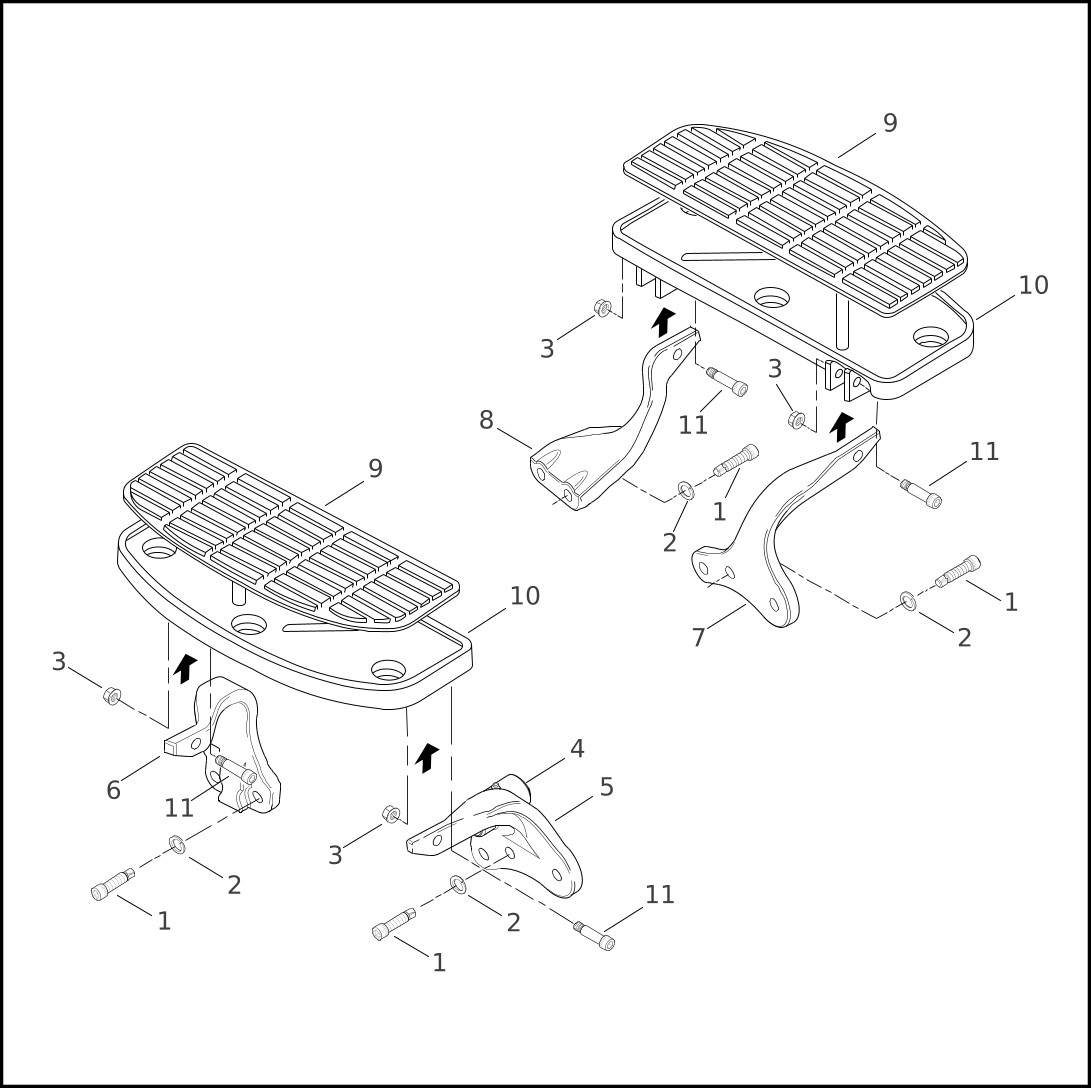

FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3214 | SCREW (8) | FXDP |
| 2 | 7045 | LOCKWASHER (8) | FXDP |
| 3 | 7716 | LOCKNUT (8) | FXDP |
| 4 | 33703-01 | BUSHING (2) | FXDP |
| 5 | 50521-01 | SUPPORT ASSEMBLY R.H., front footboard, w/ 33703-01 | FXDP |
| 6 | 50526-01 | SUPPORT R.H., rear footboard | FXDP |
| 7 | 50529-01 | SUPPORT L.H., front footboard | FXDP |
| 8 | 50530-01 | SUPPORT L.H., rear footboard | FXDP |
| 9 | 50614-91A | PAD, footboard (2) | FXDP |
| 10 | 50632-85 | FOOTBOARD ASSEMBLY (2) | FXDP |
| 11 | 50635-82A | BOLT (4) | FXDP |

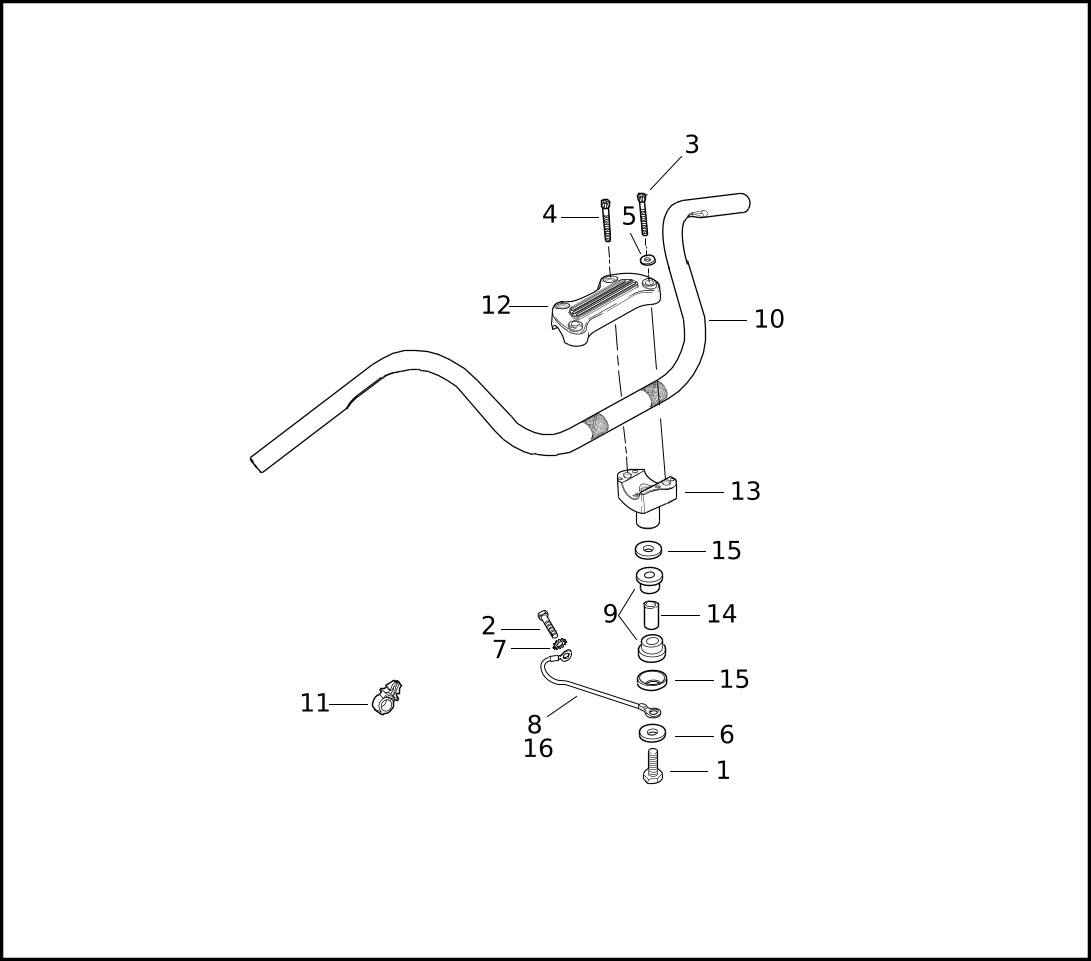

HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3471 | BOLT (2) | FXDP |
| 2 | 4240 | SCREW | FXDP |
| 3 | 4326A | SCREW (2) | FXDP |
| 4 | 4816A | SCREW (2) | FXDP |
| 5 | 6330 | WASHER (2) | FXDP |
| 6 | 7068 | LOCKWASHER (2) | FXDP |
| 7 | 7220 | LOCKWASHER | FXDP |
| 8 | 9857 | TERMINAL RING | FXDP |
| 9 | 53156-86 | BUSHING (rubber) (4) | FXDP |
| 10 | 55921-85A | HANDLEBAR | FXDP |
| 11 | 70345-84 | RETAINER (4) | FXDP |
| 12 | 56115-95 | CLAMP, upper | FXDP |
| 13 | 56116-82A | CLAMP, lower (left) (black) | FXDP |
| 56117-82A | CLAMP, lower (right) (black) | FXDP | |
| 14 | 56153-73 | SPACER (2) | FXDP |
| 15 | 56159-73 | CUP WASHER (4) | FXDP |
| 16 | 70191-73A | CABLE, ground, w/ 9857, right side | FXDP |

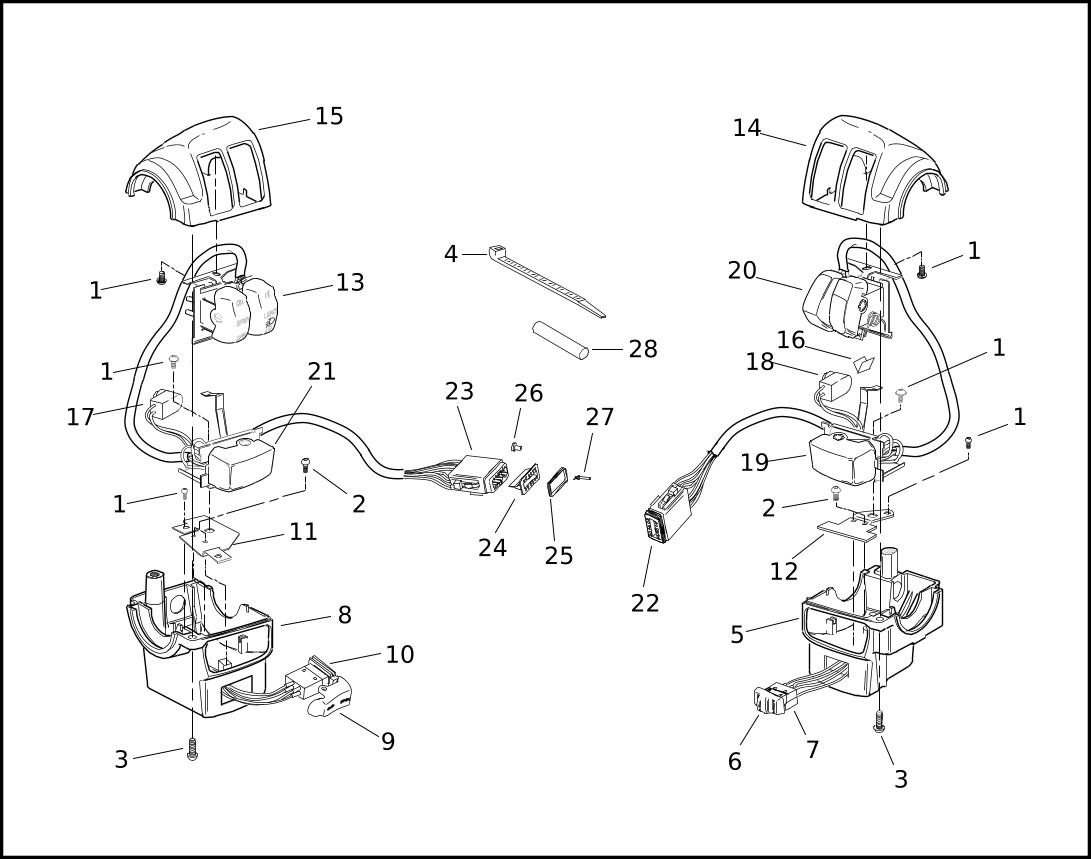

HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (6) | FXDP |
| 2 | 3619 | SCREW (4) | FXDP |
| 3 | 3658 | SCREW (4) | FXDP |
| 4 | 10181 | CABLE STRAP | FXDP |
| 5 | 70355-96 | HOUSING, lower, right | FXDP |
| 6 | 70356-96A | KNOB, pursuit | FXDP |
| 7 | 70357-96 | SWITCH ASSEMBLY, pursuit | FXDP |
| 8 | 70358-96 | HOUSING, lower, left | FXDP |
| 9 | 70359-96A | KNOB, horn/siren | FXDP |
| 10 | 70361-96 | SWITCH ASSEMBLY, horn/siren | FXDP |
| 11 | 70388-96 | BRACKET, switch, left | FXDP |
| 12 | 70389-96 | BRACKET, switch, right | FXDP |
| 13 | 71515-08 | SWITCH KIT, siren/dimmer | FXDP |
| 14 | 71564-96 | HOUSING, upper, right | FXDP |
| 15 | 71567-96 | HOUSING, upper, left | FXDP |
| 16 | 71587-04 | V-CLIP | FXDP |
| 17 | 71620-08 | SWITCH KIT, clutch | FXDP |
| 18 | 71621-08 | SWITCH KIT, stoplamp | FXDP |
| 19 | 71683-06A | SWITCH KIT, right turn signal | FXDP |
| 20 | 71684-06A | SWITCH KIT, engine stop & start | FXDP |
| 21 | 71685-06A | SWITCH KIT, left turn signal | FXDP |
| 22 | 72119-94BK | PLUG, 12-way socket, right | FXDP |
| 23 | 72139-94GY | PLUG, 12-way socket, left | FXDP |
| 24 | 72159-94 | SOCKET LOCK, secondary, 12-way (2) | FXDP |
| 25 | 72179-94 | FRONT SEAL, 12-way plug (2) | FXDP |
| 26 | 72191-94 | TERMINAL, socket (as required) | FXDP |
| 27 | 72195-94 | SEAL PIN (as required) | FXDP |
| 28 | 72266-94 | SHRINK TUBE, dual wall, .3 x 2 inch | FXDP |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10073 | CABLE STRAP, throttle cables (2) | FXDP |
| 2 | 11155 | RETAINING RING | FXDP |
| 3 | 11271 | RETAINING RING, idle control | FXDP |
| 4 | 11272 | RETAINING RING, throttle control | FXDP |
| 5 | 38653-01 | BOOT, throttle cable (2) | FXDP |
| 6 | 56206-96 | GRIP, left | FXDP |
| 7 | 56220-94A | GRIP & SLEEVE, throttle, right | FXDP |
| 8 | 56355-96A | IDLE CONTROL ASSEMBLY, w/ 11271 & 38653-01 | FXDP |
| 9 | 56356-96A | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | FXDP |
| 10 | 56394-74 | SPRING, adjusting screw | FXDP |
| 11 | 56396-74A | FRICTION SPRING, throttle, w/11155, 56394-74 & 56402-83A | FXDP |
| 12 | 56397-74C | ADJUSTING SCREW KIT, w/ 2, 9 & 12 | FXDP |
| 13 | 56402-83A | ADJUSTING SCREW | FXDP |
| 14 | 56508-76 | FERRULE, control wire (2) | FXDP |
| 15 | 70504-81 | CLIP, throttle cables | FXDP |
WINDSHIELD
| Index No. | Part No. | Description | Model(s) |
| 1 | 1005A | BOLT, shoulder (7) | FXDP |
| 2 | 2152A | SCREW, shoulder (2) | FXDP |
| 3 | 4363 | SCREW (4) | FXDP |
| 4 | 4364 | SCREW (4) | FXDP |
| 5 | 14227-88 | DECAL, "Harley-Davidson" | FXDP |
| 6 | 58109-88B | WINDSHIELD CLAMP (4) | FXDP |
| 7 | 58419-88 | BRACE, right (chrome) | FXDP |
| 58420-88 | BRACE, left (chrome) | FXDP | |
| 8 | 58421-88 | BRACE, outer (chrome) | FXDP |
| 9 | 58422-88 | BRACE, inner | FXDP |
| 10 | 58423-88 | ACORN NUT (9) | FXDP |
| 11 | 58424-88 | MOUNTING BRACKET, right | FXDP |
| 58425-88 | MOUNTING BRACKET, left | FXDP | |
| 12 | 58426-88 | CUSHION TAPE (cut to length) | FXDP |
| 13 | 58446-96 | CUSHION TAPE, inner horizontal | FXDP |
| 14 | 58447-96 | CUSHION TAPE, right vertical | FXDP |
| 58448-96 | CUSHION TAPE, left vertical | FXDP | |
| 15 | 91849-85C | WINDSHIELD, complete | FXDP |
HEADLAMP, FRONT TURN SIGNAL & PURSUIT LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FXDP |
| 2 | 3514 | SCREW (3) | FXDP |
| 3 | 4047 | SCREW (2) | FXDP |
| 4 | 6330 | WASHER (2) | FXDP |
| 5 | 7068 | LOCKWASHER | FXDP |
| 6 | 7127 | LOCKWASHER | FXDP |
| 7 | 7601 | LOCKNUT (2) | FXDP |
| 8 | 7606 | LOCKNUT (3) | FXDP |
| 9 | 7744 | JAM NUT (2) | FXDP |
| 10 | 7880 | NUT | FXDP |
| 11 | 10065 | CABLE STRAP (2) | FXDP |
| 12 | 67672-96B | HEADLAMP ASSEMBLY, 5-3/4 inch, w/ 2, 8, 14, 17 & 23 (order components) | FXDP |
| 13 | 67685-92 | CLIP, bulb | FXDP |
| 14 | 67698-81D | LENS ASSEMBLY, w/ bulb, boot & clip - 5-3/4 inch | FXDP |
| 15 | 67705-92 | BOOT, connector | FXDP |
| 16 | 67757-92 | LENS, w/ 67685-92 (use 67698-81D) | FXDP |
| 17 | 67790-93A | TRIM RING (chrome) | FXDP |
| 18 | 67815-59A | WASHER | FXDP |
| 19 | 67822-88 | BALL STUD (2) | FXDP |
| 20 | 67827-88A | CLAMP, ball stud, left | FXDP |
| 21 | 67828-88A | RETAINER, right | FXDP |
| 22 | 67829-88 | BALL RECEPTACLE, left | FXDP |
| 23 | 67877-02 | MOUNTING RING | FXDP |
| 24 | 67972-98 | TRIM, headlamp bracket (black) | FXDP |
| 25 | 68168-89A | BULB, front turn signals (2) | FXDP |
| 26 | 68300-03A | AUXILIARY/PURSUIT LAMP, left side (red) | FXDP |
| 68301-03A | AUXILIARY/PURSUIT LAMP, right side (blue) | FXDP | |
| 27 | 68329-03 | BULB, halogen-H4/HB2 | FXDP |
| 28 | 68331-02 | RING, pursuit lamp (2) | FXDP |
| 29 | 68355-05 | JUMPER WIRE HARNESS, pursuit lamp (used w/ 68727-64D & 68728-64C) (2) | FXDP |
| 30 | 68453-05 | BULB, halogen (used w/ 68727-64D & 68728-64C) (2) | FXDP |
| 31 | 68579-03 | MOUNT, pursuit lamp (2) | FXDP |
| 32 | 68725-62A | RING BEZEL, pursuit lamp (2) | FXDP |
| 33 | 68727-64A | LAMP, sealunit 12v (red) (use 68727-64D) | FXDP |
| 68728-64 | LAMP, sealunit 12v (blue) (use 68728-64C) | FXDP | |
| 34 | 68727-64D | PURSUIT LAMP, halogen, w/ 68355-05 & 68453-05 (red) (replaces 68727-64A) | FXDP |
| 68728-64C | PURSUIT LAMP, halogen, w/ 68355-05 & 68453-05 (blue) (replaces 68728-64) | FXDP | |
| 35 | 68904-00 | SOCKET ASSEMBLY (2) | FXDP |
| 36 | 68972-00 | TURN SIGNAL, front (2) | FXDP |
| 37 | 68973-00 | LENS (2) | FXDP |
| 38 | 69553-99 | BRACKET, headlamp (black) | FXDP |
| 39 | 69554-99 | PLUG, headlamp bracket (black) | FXDP |
| 40 | 73191-96 | SOCKET CONTACT, 16-20 gauge (as required) | FXDP |
| 41 | 73154-96BK | SOCKET HOUSING, 4-place (2) | FXDP |
| 42 | 73156-96BK | SOCKET HOUSING, 6-place | FXDP |
FRONT & REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG (black) | FXDP |
| 2 | 3210A | SCREW (4) | FXDP |
| 3 | 3445 | BOLT | FXDP |
| 4 | 6016 | WASHER | FXDP |
| 5 | 7531 | LOCKNUT (4) | FXDP |
| 6 | 8102 | SPEEDNUT | FXDP |
| 7 | 10191A | CLIP, wire holding | FXDP |
| 8 | 10228 | PLUG | FXDP |
| 9 | 58998-83E | FENDER (prime) (front) | FXDP |
| 10 | 59150-90 | PLUG, fender | FXDP |
| 11 | 59485-02 | FENDER, w/ 59576-02 (prime) (rear) | FXDP |
| 12 | 59546-02 | TAPE, fender protector | FXDP |
| 13 | 59576-02 | BRACKET, tail light | FXDP |
| 14 | 67055-92 | GROMMET, left side only | FXDP |
| 15 | 68762-99 | HARNESS, rear lighting, w/ 73156-96BK, 73158-96BK, 73191-96 & cable strap | FXDP |
| 16 | 68770-02B | HARNESS ASSEMBLY, rear lighting, w/ 68762-99 | FXDP |
| 17 | 70540-02 | CONDUIT, kit | FXDP |
| 18 | 73156-96BK | SOCKET HOUSING, 6-place | FXDP |
| 19 | 73158-96BK | SOCKET HOUSING, 8-place | FXDP |
| 20 | 73191-96 | CONTACT SOCKET, 16-20 gauge (as required) | FXDP |
TAIL LAMP & REAR TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW | FXDP |
| 2 | 6204 | WASHER, rubber (2) | FXDP |
| 3 | 6701 | WASHER | FXDP |
| 4 | 6718 | WASHER (2) | FXDP |
| 5 | 7068 | LOCKWASHER (2) | FXDP |
| 6 | 7845 | NUT (2) | FXDP |
| 7 | 7964 | J-NUT | FXDP |
| 8 | 68026-99 | SCREW, tail lamp (2) | FXDP |
| 9 | 68066-99A | BASE ASSEMBLY, chrome, w/ 68296-99A & 68830-99A | FXDP |
| 10 | 68168-89A | BULB, tail lamp (Early Model Year) | FXDP |
| 68167-88 | BULB, tail lamp - wedge mount (Late Model Year) | FXDP | |
| 11 | 68296-99A | BASE TAIL LIGHT, chrome | FXDP |
| 12 | 68310-01 | TURN SIGNAL ASSEMBLY (2) | FXDP |
| 13 | 68330-01 | LENS, turn signal - rear (2) | FXDP |
| 14 | 68368-03 | LIGHT ASSEMBLY, tail lamp w/ 68369-03 & 68370-03A (Late Model Year) (use 68140-04) | FXDP |
| 68140-99 | LIGHT ASSEMBLY, tail lamp w/ 68026-99, 68168-89A & 68832-99 (Early Model Year) (use 68140-04) | FXDP | |
| 68140-04 | LIGHT ASSEMBLY, tail lamp w/ 68369-03 & 68370-03A (replaces 68140-99 & 68368-03) | FXDP | |
| 15 | 68369-03 | LENS, tail lamp w/ 68026-99 (Late Model Year) | FXDP |
| 16 | 68370-03A | BULB SOCKET ASSEMBLY (Late Model Year) | FXDP |
| 17 | 68572-64B | BULB, rear turn signal (2) | FXDP |
| 18 | 68830-99A | CIRCUIT BOARD/COVER ASSEMBLY | FXDP |
| 19 | 68832-99 | BULB SOCKET ASSEMBLY (Early Model Year) (use 68140-04) | FXDP |
| 20 | 73152-96BK | SOCKET HOUSING, 2-place (2) | FXDP |
| 21 | 73154-96BK | SOCKET HOUSING, 4-place | FXDP |
| 22 | 73191-96 | CONTACT SOCKET, 16-20 gauge (as required) | FXDP |
LICENSE PLATE BRACKET & REAR MARKER LIGHTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2773 | SCREW (3) | FXDP |
| 2 | 3022A | SCREW (2) | FXDP |
| 3 | 5403B | BOLT | FXDP |
| 4 | 6703 | WASHER (3) | FXDP |
| 5 | 7792 | NUT (6) | FXDP |
| 6 | 8211 | RIVET (4) | FXDP |
| 7 | 59762-01 | WIRE HARNESS, license plate | FXDP |
| 8 | 59980-84 | BRACKET ASSEMBLY, marker lights | FXDP |
| 9 | 59984-73 | BRACKET | FXDP |
| 10 | 59986-75 | SUPPORT | FXDP |
| 11 | 59988-72A | REFLECTOR (red) | FXDP |
| 12 | 59989-84 | MARKER LIGHT (blue) (2) | FXDP |
| 13 | 60001-55 | CLAMP | FXDP |
| 14 | 73153-96BK | SOCKET HOUSING, 2-way (black) | FXDP |
| 15 | 73191-96 | CONTACT SOCKET, 16-20 gauge (2) | FXDP |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2458 | SCREW (3) | FXDP |
| 2 | 3427 | BOLT | FXDP |
| 3 | 3530 | SCREW | FXDP |
| 4 | 3656 | SCREW (4) | FXDP |
| 5 | 3987 | BOLT | FXDP |
| 6 | 6016 | WASHER | FXDP |
| 7 | 6139 | WASHER (4) | FXDP |
| 8 | 7549A | ACORN NUT (2) | FXDP |
| 9 | 8102 | SPEEDNUT | FXDP |
| 10 | 8483A | RIVET | FXDP |
| 11 | 10014 | CLAMP (4) | FXDP |
| 12 | 10073 | CABLE STRAP | FXDP |
| 13 | 10108 | CLIP, vapor valve | FXDP |
| 14 | 26567-99 | HOSE, vacuum carb. | FXDP |
| 15 | 27250-96B | CONNECTOR, 90 degree elbow (2) | FXDP |
| 16 | 27296-96 | TUBE, valve to atmosphere, w/ 27250-96 | FXDP |
| 17 | 27386-97A | CLIP FLASHER | FXDP |
| 18 | 61039-96 | FUEL TANK (prime) | FXDP |
| 19 | 61081-92 | COVER, key head set (2) | FXDP |
| 20 | 61131-92 | CONNECTOR, vent line | FXDP |
| 21 | 61142-01 | CONSOLE ASSEMBLY | FXDP |
| 22 | 61168-81A | DECAL (2) | FXDP |
| 23 | 61182-01 | CONSOLE OUTER ASSEMBLY | FXDP |
| 24 | 61192-96A | GASKET, filler cap | FXDP |
| 25 | 61200-97 | DIAPHRAGM, fuel valve | FXDP |
| 26 | 61272-92C | FILLER CAP, vacuum vent | FXDP |
| 27 | 61338-02 | VALVE, body | FXDP |
| 28 | 62150-85 | VAPOR VALVE | FXDP |
| 29 | 62161-02 | NUT | FXDP |
| 30 | 62170-02 | FILTER | FXDP |
| 31 | 62172-02 | GASKET, fuel filter | FXDP |
| 32 | 71301-01 | GASKET, outer console (2) | FXDP |
| 33 | 71305-01 | NAMEPLATE, ignition switch | FXDP |
| 34 | 71313-96A | IGNITION SWITCH (specify key code) | FXDP |
| 35 | 71452-91A | KEY (specify key code) (2) | FXDP |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 36 | 63505-84 | INSULATOR, 1/2 inch I.D. (nylon) (8 feet) | FXDP |
| 37 | 63501-68B | HOSE, 1/4 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FXDP |
FUEL SENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW (5) | FXDP |
| 2 | 61192-96A | GASKET, cap gauge | FXDP |
| 3 | 61324-01 | GASKET FUEL SENDER | FXDP |
| 4 | 72902-01BK | PIN HOUSING, 2-way | FXDP |
| 5 | 72990-01 | PIN TERMINAL (2) | FXDP |
| 6 | 73165-01 | TERMINAL, socket (2) | FXDP |
| 7 | 73166-01 | TERMINAL, pin (2) | FXDP |
| 8 | 73167-01 | TERMINAL, boot, male (2) | FXDP |
| 9 | 73168-01 | TERMINAL, boot, female (2) | FXDP |
| 10 | 75049-01A | FUEL GAUGE | FXDP |
| 11 | 75062-01 | SENDING UNIT, fuel gauge | FXDP |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 942 | SCREW (3) | FXDP |
| 2 | 4017 | BOLT | FXDP |
| 3 | 5414 | BOLT, carriage (2) | FXDP |
| 4 | 5445W | BOLT, carriage (4) | FXDP |
| 5 | 6702 | WASHER | FXDP |
| 6 | 7531 | LOCKNUT, flange (6) | FXDP |
| 7 | 7593 | NUT, flange lock (4) | FXDP |
| 8 | 7601 | LOCKNUT | FXDP |
| 9 | 7862 | ACORN NUT | FXDP |
| 10 | 9955 | CLAMP (6) | FXDP |
| 11 | 10119 | CLAMP (4) | FXDP |
| 12 | 65184-02 | FLANGE, exhaust manifold (2) | FXDP |
| 13 | 65376-95A | SHIELD, crossover, rear (black) | FXDP |
| 14 | 65379-95 | SHIELD, crossover, front (black) | FXDP |
| 15 | 65296-95A | CLAMP, muffler, w/ hardware (2) | FXDP |
| 16 | 65302-82A | CLAMP, exhaust pipe (2) | FXDP |
| 17 | 65324-83B | GASKET, exhaust port (2) | FXDP |
| 18 | 65325-83A | RETAINING RING, exhaust gasket (2) | FXDP |
| 19 | 65975-99 | EXHAUST BRACKET, front | FXDP |
| 20 | 65674-95 | SUPPORT, muffler | FXDP |
| 21 | 65668-98 | EXHAUST PIPE, rear | FXDP |
| 22 | 65669-98 | EXHAUST PIPE, front | FXDP |
| 23 | 65695-95 | BRACKET, rear exhaust | FXDP |
| 24 | 65701-95 | SHIELD, rear exhaust | FXDP |
| 25 | 65746-99 | SHIELD, front exhaust | FXDP |
| 26 | 64941-01 | MUFFLER ASSEMBLY (chrome) (2) | FXDP |
| 27 | 65830-03 | GASKET, interconnect | FXDP |
BATTERY TRAY & BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FXDP |
| 2 | 4342 | SCREW | FXDP |
| 3 | 4383 | SCREW | FXDP |
| 4 | 47132-97B | TRAY, battery (black) | FXDP |
| 5 | 65989-97C | BATTERY, sealed, w/ 4312C | FXDP |
| 6 | 66033-96 | CUSHION, battery | FXDP |
| 7 | 66060-96 | LABEL, warning, battery | FXDP |
| 8 | 66190-00 | PAD, battery | FXDP |
| 9 | 66234-99 | TOP COVER, battery (black wrinkle) | FXDP |
| 10 | 70102-96A | CABLE ASSEMBLY, battery positive, w/ boot | FXDP |
| 11 | 70103-96 | CABLE ASSEMBLY, battery negative | FXDP |
| 12 | 70276-96 | CABLE ASSEMBLY, starter to ground | FXDP |
| 13 | 70584-94 | BOOT, battery positive | FXDP |
| 14 | 72503-90 | GROMMET, battery positive | FXDP |
| 15 | 90977-97 | BUSHING, front battery mount | FXDP |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2325 | SCREW (2) | FXDP |
| 2 | 2361 | SCREW (4) | FXDP |
| 3 | 4326A | SCREW (2) | FXDP |
| 4 | 6330 | WASHER (2) | FXDP |
| 5 | 10065 | CABLE STRAP | FXDP |
| 6 | 67025-99A | SPEEDOMETER, mph | FXDP |
| 7 | 67042-99 | TACHOMETER | FXDP |
| 8 | 67085-95 | COVER, speedometer back (chrome rim) | FXDP |
| 9 | 67103-95 | COVER, tachometer back (chrome rim) | FXDP |
| 10 | 67184-94 | SOCKET, indicator lamps (5) | FXDP |
| 11 | 67344-97 | CUSHION, rear (2) | FXDP |
| 12 | 67338-97 | BRACKET, speedometer & tachometer | FXDP |
| 13 | 67345-97 | CUSHION, front (2) | FXDP |
| 14 | 67419-99 | HARNESS ASSEMBLY KIT, tachometer, w/ 70585-93 | FXDP |
| 15 | 67854-98 | SWITCH, reset, w/ 70585-93 | FXDP |
| 16 | 67880-94 | BOOT, reset switch | FXDP |
| 17 | 68024-94 | BULB, indicator lamps (5) | FXDP |
| 18 | 68820-98 | HARNESS ASSEMBLY, speedometer | FXDP |
| 19 | 68841-98 | HARNESS ASSEMBLY, speedometer | FXDP |
| 20 | 68513-95A | BEZEL, indicator lamps | FXDP |
| 21 | 68516-95 | HOUSING, indicator lamps | FXDP |
| 22 | 70585-93 | CONNECTOR, switch, reset (2) | FXDP |
| 23 | 72153-94 | SOCKET LOCK, secondary, 3-way | FXDP |
| 24 | 72266-94 | SHRINK TUBE | FXDP |
| 25 | 74112-98BK | SOCKET HOUSING, 2-way (black) | FXDP |
| 26 | 74119-98BK | SOCKET HOUSING, 12-way (black) | FXDP |
| 27 | 74152-98 | SOCKET LOCK, 2-way | FXDP |
| 28 | 74159-98 | SOCKET LOCK, secondary, 12-way | FXDP |
| 29 | 74193-98 | TERMINAL, socket (13) | FXDP |
| 30 | 74195-98 | SEAL PIN | FXDP |
| INTERNATIONAL MODELS ONLY | |||
| 31 | 67177-99A | SPEEDOMETER, kph (Canada) | FXDP |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FXDP |
| 2 | 6109 | WASHER | FXDP |
| 3 | 7481 | ACORN NUT | FXDP |
| 4 | 7495 | NUT | FXDP |
| 5 | 8108 | SPEEDNUT, push (2) | FXDP |
| 6 | 69039-09 | COVER ASSEMBLY (black wrinkle) | FXDP |
| 7 | 69060-90F | HORN KIT | FXDP |
| 8 | 69062-91A | CLAMP | FXDP |
| 9 | 69120-91 | BRACKET, horn | FXDP |
| 10 | 69123-92A | MOUNT, horn (rubber) | FXDP |
WIRING HARNESS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69601-03 | MAIN WIRING HARNESS | FXDP | |
| NOTE: Includes the following parts. | |||
| 1 | 7602 | ACORN NUT, locking #10-32 | FXDP |
| 2 | 7629 | NUT, w/ washer (2) | FXDP |
| 3 | 9840 | TERMINAL, ring type | FXDP |
| 4 | 9842 | TERMINAL, ring type | FXDP |
| 5 | 9843 | TERMINAL, ring type, #10 10-12 gauge | FXDP |
| 6 | 9898 | TERMINAL, female flag, #14-16 wire | FXDP |
| 7 | 9937 | TERMINAL, female #14-18 gauge (7) | FXDP |
| 8 | 10065 | CABLE STRAP (5) | FXDP |
| 9 | 31522-00C | RELAY, w/ diode (starter) (2) | FXDP |
| 10 | 68563-04A | FLASHER | FXDP |
| 11 | 72032-93 | SEAL PIN (8) | FXDP |
| 12 | 72033-93 | TERMINAL SOCKET (3) | FXDP |
| 13 | 72046-79 | TERMINAL HOUSING, female - relay/flasher | FXDP |
| 14 | 72059-08 | TERMINAL SOCKET, #16-18 AWG (10) | FXDP |
| 15 | 72104-94BK | SOCKET HOUSING, 4-way (black) | FXDP |
| 16 | 72109-94BK | SOCKET HOUSING, 12-way (black) | FXDP |
| 17 | 72112-94BK | SOCKET HOUSING, 2-way (black) (2) | FXDP |
| 18 | 72119-94BK | SOCKET HOUSING, 12-way (black) | FXDP |
| 19 | 72124-94GY | SOCKET HOUSING, 4-way (gray) | FXDP |
| 20 | 72129-94GY | SOCKET HOUSING, 12-way (gray) | FXDP |
| 21 | 72139-94GY | SOCKET HOUSING, 12-way (gray) (2) | FXDP |
| 22 | 72144-94 | PIN LOCK, 4-way (2) | FXDP |
| 23 | 72149-94 | SECONDARY LOCK, 12-way (2) | FXDP |
| 24 | 72152-94 | SECONDARY LOCK, 2-way (2) | FXDP |
| 25 | 72159-94 | SOCKET LOCK, 12-way (3) | FXDP |
| 26 | 72164-94A | PLUG, weather (2) | FXDP |
| 27 | 72190-94 | TERMINAL, pin (28) | FXDP |
| 28 | 72191-94 | TERMINAL, socket (29) | FXDP |
| 29 | 72195-94 | SEAL PIN (15) | FXDP |
| 30 | 72199-94 | CONNECTOR ANCHOR (5) | FXDP |
| 31 | 72213-94 | TERMINAL, female, 18-21 gauge (3) | FXDP |
| 32 | 72214-94 | CABLE SEAL (3) | FXDP |
| 33 | 72230-98 | SOCKET HOUSING, 3-way | FXDP |
| 34 | 72231-98 | SOCKET LOCK, secondary 3-way | FXDP |
| 35 | 72250-94 | HEAT SHRINK TUBING, .37 X 1.0 inch | FXDP |
| 36 | 72280-95 | SOCKET HOUSING, 3-way | FXDP |
WIRING HARNESS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69601-03 | MAIN WIRING HARNESS (Continued) | FXDP | |
| NOTE: Includes the following parts. | |||
| 37 | 72281-93 | SOCKET HOUSING, 18-way | FXDP |
| 38 | 72290-94 | TERMINAL, female, 18-20 gauge (2) | FXDP |
| 39 | 72291-94 | TERMINAL, female, 14-16 gauge | FXDP |
| 40 | 72292-94 | TERMINAL, female, #12 gauge (3) | FXDP |
| 41 | 72295-94 | HOUSING, starter connection | FXDP |
| 42 | 72327-03A | HOUSING, female 3-way | FXDP |
| 43 | 72330-95 | FUSE, 15 amp (8) | FXDP |
| 44 | 72365-96 | TERMINAL, ring type - 5/16 inch star (2) | FXDP |
| 45 | 72366-95 | HEAT SHRINK TUBE, yellow | FXDP |
| 46 | 72428-00 | TERMINAL, #14-18 AWG (4) | FXDP |
| 47 | 72430-00 | FUSE BLOCK | FXDP |
| 48 | 72432-00 | FUSE BLOCK | FXDP |
| 49 | 72434-00 | TERMINAL, #14-16 AWG (20) | FXDP |
| 50 | 72462-00 | FUSE, 10 amp (3) | FXDP |
| 51 | 72912-01BK | HOUSING, socket 2-way (black) | FXDP |
| 52 | 72991-01 | TERMINAL, socket (2) | FXDP |
| 53 | 73104-96BK | HOUSING, 4-way pin (black) (2) | FXDP |
| 54 | 73106-96BK | HOUSING, 6-way pin (black) | FXDP |
| 55 | 73108-96BK | PIN HOUSING, 8-place (black) | FXDP |
| 56 | 73190-96 | TERMINAL, pin 20-16 gauge (22) | FXDP |
| 57 | 73198-96 | ANCHOR, connector | FXDP |
| 58 | 74102-98BK | HOUSING, 2-way pin (black) (2) | FXDP |
| 59 | 74109-98BK | HOUSING, 12-way | FXDP |
| 60 | 74112-98BK | HOUSING, 2-way socket (black) | FXDP |
| 61 | 74142-98 | SECONDARY LOCK, 2-way pin (2) | FXDP |
| 62 | 74149-98 | PIN LOCK, 12-way | FXDP |
| 63 | 74152-98 | SECONDARY LOCK, 2-way socket | FXDP |
| 64 | 74190-98 | TERMINAL, pin (14) | FXDP |
| 65 | 74191-98 | TERMINAL, socket #16-20 AWG (2) | FXDP |
| 66 | 74195-98 | SEAL, pin (2) | FXDP |
| 67 | 74413-93 | BOOT CONNECTOR | FXDP |
| 68 | 74600-94 | CIRCUIT BREAKER, 50 amp | FXDP |
| 69 | 76233-85 | MICROPHONE JACK | FXDP |
SWITCHES AND CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (4) | FXDP |
| 2 | 3892 | SCREW, self-tapping | FXDP |
| 3 | 6099 | WASHER (4) | FXDP |
| 4 | 7629 | NUT, bracket module (2) | FXDP |
| 5 | 7716 | LOCKNUT (4) | FXDP |
| 6 | 7742 | LOCKNUT (4) | FXDP |
| 7 | 7796 | NUT, w/ washer | FXDP |
| 8 | 8483A | RIVET | FXDP |
| 9 | 9989A | CLIP, circuit breaker | FXDP |
| 10 | 10065 | CABLE STRAP | FXDP |
| 11 | 11491A | GROMMET (4) | FXDP |
| 12 | 13889-00 | LABEL, electrical panel cover | FXDP |
| 13 | 31522-00C | RELAY, w/ diode (starter) | FXDP |
| 14 | 48090-01 | BRACKET, module | FXDP |
| 15 | 66236-99 | COVER, electrical panel (black wrinkle) | FXDP |
| 16 | 68920-01D | MODULE, turn signal | FXDP |
| 17 | 70911-01 | TOP PLATE ASSEMBLY, electrical panel | FXDP |
| 18 | 70986-01 | ELECTRICAL PANEL ASSEMBLY | FXDP |
| 19 | 72330-95 | FUSE, 15 amp (8) | FXDP |
| 20 | 72342-90A | STAND OFF (4) | FXDP |
| 21 | 74600-94 | CIRCUIT BREAKER, 50 amp | FXDP |
| 22 | 76132-00 | PIN, cover mounting (4) | FXDP |
| NOTE: For additional fuse, relay and circuit breaker part number information, see Wiring Harness information. | |||
SADDLEBAGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4017 | BOLT (6) | FXDP |
| 2 | 6109 | WASHER (4) | FXDP |
| 3 | 6702 | WASHER (12) | FXDP |
| 4 | 6717 | WASHER (32) | FXDP |
| 5 | 7507 | ACORN NUT (6) | FXDP |
| 6 | 8692 | RIVET, blind (32) | FXDP |
| 7 | 13581-01 | DECAL (Police) | FXDP |
| 13582-01 | DECAL (Sheriff) | FXDP | |
| 8 | 59259-90 | REFLECTOR (red) (2) | FXDP |
| 9 | 90257-03 | SADDLEBAG ASSEMBLY, L.H., w/ 4, 6, 10, 11, 16, 17, 18 and spacer | FXDP |
| 90992-03 | SADDLEBAG ASSEMBLY, R.H., w/ 4, 6, 10, 11, 16, 17, 18 and spacer | FXDP | |
| 10 | 90278-01 | HINGE (2) | FXDP |
| 11 | 90279-01 | LATCH, w/ 12, 13, 14 & 15 (2) | FXDP |
| 12 | 90298-01 | KEY | FXDP |
| 13 | 90398-01 | NUT (2) | FXDP |
| 14 | 90399-01 | LOCKWASHER, internal (2) | FXDP |
| 15 | 90403-01 | TAB PULL, latch (2) | FXDP |
| 16 | 90423-01 | CATCH SADDLEBAG LATCH (2) | FXDP |
| 17 | 90483-85 | GROMMET (6) | FXDP |
| 18 | 90672-01 | GASKET (2) | FXDP |
SADDLEBAG GUARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3214 | SCREW | FXDP |
| 2 | 3445 | BOLT (2) | FXDP |
| 3 | 4081 | BOLT, right side | FXDP |
| 4 | 4350A | SCREW, left side | FXDP |
| 5 | 6016 | WASHER (2) | FXDP |
| 6 | 6113 | WASHER (3) | FXDP |
| 7 | 6701 | WASHER, left side | FXDP |
| 8 | 7038 | LOCKWASHER | FXDP |
| 9 | 7601 | LOCKNUT, left side | FXDP |
| 10 | 7824 | LOCKNUT (3) | FXDP |
| 11 | 7845 | NUT, right side | FXDP |
| 12 | 10006 | CABLE STRAP (4) | FXDP |
| 13 | 52740-02 | UPRIGHT BACKET, left | FXDP |
| 14 | 54557-90A | STUD, shock mount (2) | FXDP |
| 15 | 58732-02 | SPACER | FXDP |
| 16 | 90923-02 | SADDLEBAG GUARD, right side (black wrinkle) | FXDP |
| 17 | 90924-02 | SADDLEBAG GUARD, left side (black wrinkle) | FXDP |
AMPLIFIER, SIREN AND STROBE LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 2659 | SCREW (2) | FXDP |
| 2 | 3787 | BOLT (2) | FXDP |
| 3 | 6036 | WASHER (4) | FXDP |
| 4 | 6237 | WASHER | FXDP |
| 5 | 6716 | WASHER (2) | FXDP |
| 6 | 7531 | LOCKNUT (4) | FXDP |
| 7 | 7624 | LOCKNUT (2) | FXDP |
| 8 | 7716 | LOCKNUT (2) | FXDP |
| 9 | 9863 | TERMINAL, ring type - 1/4 inch diameter hole | FXDP |
| 10 | 14020-83 | LABEL, caution signal | FXDP |
| 11 | 67623-88A | STROBE LAMP, w/ connectors (blue) | FXDP |
| 67624-88A | STROBE LAMP, w/ connectors (red) | FXDP | |
| 12 | 67599-88 | LENS (red) | FXDP |
| 67688-88 | LENS (blue) | FXDP | |
| 13 | 67598-88 | FLASH TUBE ASSEMBLY (self-contained) | FXDP |
| 14 | 72035-71 | HOUSING, double pin (2) | FXDP |
| 15 | 72039-71A | PIN, single socket (4) | FXDP |
| 16 | 72043-71A | HOUSING CAP, SINGLE POS | FXDP |
| 17 | 72102-94BK | RECEPTACLE, 2-way pin (2) | FXDP |
| 18 | 72142-94 | PIN LOCK, secondary, 2-way (2) | FXDP |
| 19 | 72190-94 | TERMINAL, pin (4) | FXDP |
| 20 | 72516-01 | CAP, dust (To be used on siren connection on main harness, when siren is not used.) | FXDP |
| 21 | 76185-93 | MICROPHONE | FXDP |
| 22 | 76201-80A | HANGER, microphone | FXDP |
| 23 | 91127-85 | BRACKET, speaker mounting | FXDP |
| 24 | 91154-87 | SPEAKER MOUNTING KIT | FXDP |
| 25 | 91156-93 | AMPLIFIER SIREN | FXDP |
| 26 | 76006-03 | AMPLIFIER MOUNTING KIT | FXDP |
| 27 | 91157-88A | SPEAKER, w/ terminals | FXDP |
| 28 | 91159-82 | U-BOLT, speaker mounting (2) | FXDP |
| Part No. | Description |
| 1005A | BOLT 1/4 X 20 X 3/4 Phillips truss head |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1311D | SCREW No. 8-32 X 1/2 Phillips truss head, self-sealing |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2152A | SCREW 1/4-20 X 29/32 Phillips truss head (Grade 5) |
| 2325 | SCREW No. 6 X 3/4 cross recess pan head, self-tapping |
| 2361 | SCREW No. 8-32 X 3/8 socket countersink head, with lockpatch |
| 2362 | SCREW No. 10 X 3/4 hex head, self-tapping |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2659 | SCREW No. 10-24 X 7/8 pan head |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2851 | BOLT 3/8-16 X 7/8 hex head (Grade 5) |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 2918 | SCREW No. 10-24 X 1-1/4 TORX head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3214 | SCREW 3/8-16 X 1-1/4 socket head, thread-cutting |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3427 | BOLT 5/16-18 X 3-1/2 hex head (Grade 5) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 3471 | BOLT 1/2-13 X 2-3/4 hex head (Grade 5) |
| 3480A | SCREW 1/4-20 X 1-3/4 knurled head (Grade 8) |
| 3487 | BOLT 5/16-24 X 5/8 hex head, with lockpatch |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 3509 | BOLT 3/8-16 X 2-3/4 hex head (Grade 8) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35211-91B | NUT 1-1/2-24 X .350 X 1-7/8 hex head |
| 3530 | SCREW 5/16-18 X 3-3/4 hex head (Grade 5) |
| 3537 | SCREW 1/4-28 X 1/2 flange head, with lockpatch |
| 3554 | BOLT 3/8-16 X 1-3/4 hex head |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3579A | SCREW 1/4-28 X 1/4 SEMS hex head, self-tapping (Grade 2) |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3619 | SCREW No. 2-56 X 3/4 TORX pan head, with washer |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3737A | SCREW 7/16-14 X 2-1/4 hex head, with lockpatch (Grade 5) |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 37496-90 | NUT |
| 3784 | SET SCREW 1/2-20 X 1/2 socket head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3909 | SCREW 1/4-20 X 1-1/4 SEMS hex head (Grade 5) |
| 3926 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4029A | SCREW 3/8-16 X 2-1/4 socket head (black) |
| 4047 | SCREW 3/8 X 2 TORX button head, self-tapping |
| 4059 | SCREW 3/8-16 X 1 TORX head, with lockpatch, self-tapping (Grade 8) |
| 4067 | BOLT 5/16-18 X 4-1/2 hex head (Grade 5) |
| 4081 | BOLT 1/2-20 X 1-3/4 hex head (Grade 5) |
| 4103 | BOLT 3/8-16 X 1-3/8 hex button head (Grade 8) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4175 | SCREW 1/2-20 X 5/8 socket button head, with lockpatch |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4242 | SCREW 1/2-20 X 2-9/16 socket button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 4342 | SCREW No. 16-18 X 1 1/4 hex washer head |
| 4343 | SCREW 5/16-24 X 1-3/4 socket button head, with adhesive |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 4351 | SCREW 3/8-16 X 1-1/2 TORX head, self-tapping (Grade 8) |
| 4352 | SCREW 3/8-16 X 1-1/2 TORX, self-tapping (Grade 8) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4358A | SCREW No. 10-32 X 5.250 hex head (zinc plate) |
| 4363 | SCREW 1/4-20 X 1/2 socket button head |
| 4364 | SCREW 1/4-20 X 1/2 socket button head |
| 4383 | SCREW 5/16-18 X 5/8 hex head, with washer (Grade 2) |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 4460 | BOLT 5/8-18 X 1 hex head (Grade 5) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4716W | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4748 | SCREW 3/8-16 X 1-1/8 socket head (Grade 8) |
| 4770 | SCREW 7/16-20 X 1.0 hex head, with lockpatch (Grade 8) |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 4816A | SCREW 5/16-18 X 1-1/2 socket head |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 5403B | BOLT 1/4-20 X 3/8 carriage |
| 5414 | BOLT 3/8-16 X 7/8 carriage (Grade 5) |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 5445W | BOLT 5/16 X 1-1/4 carriage (Grade 5) |
| 5756 | WASHER 21/32 X 1-5/16 X 5/8 |
| 6003 | WASHER 1-3/16 X 1-3/8 X 11/16 |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6330 | WASHER 5/16 X 11/16 X 3/32 |
| 6366 | WASHER 1/2 X 1-1/4 X 3/32 |
| 6379W | WASHER 3/8 X 5/8 X 3/64 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6717 | WASHER No. 6 X 3/8 X 3/64 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7045 | LOCKWASHER 3/8 high collar |
| 7068 | LOCKWASHER 1/2 |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7220 | LOCKWASHER No. 10 external tooth |
| 7229W | LOCKWASHER 1/4 internal/external tooth |
| 7481 | ACORN NUT 5/16-18 X 5/8 X 1/2 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7507 | ACORN NUT 5/16-18 X 11/16 X 1/2 (Grade 2) (chrome) |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7602 | ACORN NUT No. 10-32 nylon |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7742 | LOCKNUT 1/4-20 X 7/32 X 7/16 |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7796 | NUT 5/16-18 X 1/4 external-tooth washer (Grade 2) |
| 7824 | LOCKNUT 1/2-20 X 1/4 (Grade 2) |
| 7827W | LOCKNUT 7/16-14 |
| 7838 | NUT No. 10-24 keps |
| 7845 | NUT 1/2-20 X 7/16 X 3/4 (Grade 2) |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7956 | NUT 1/2-20 X 1/2 X 3/4 |
| 7987 | NUT 5/8-18 X 15/16 slotted (Grade 8) |
| 8102 | SPEEDNUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 855B | SCREW 3/8-16 X 2 knurled head |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 858A | BOLT 5/16-18 X 3 hex head (Grade 5) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| 960 | SCREW 1/4-20 X 1-3/4 socket head (Grade 8) |
| 961 | SCREW 1/4-20 X 1/2 TORX pan head, with washer (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16138-03 | ENGINE ASSEMBLY, complete (black) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 5 | 16480-92A | SCREW, internal thread 1-7/8 inch long (4) | FXDP |
| 10 | 16775-99B | GASKET, cylinder head (2) | FXDP |
| 12 | 17052-99C | GASKET KIT, top end | FXDP |
| 17053-99C | GASKET KIT, engine overhaul | FXDP | |
| 18124-83 | INSERT, exhaust valve seat - 0.005 O.S. (2) | FXDP | |
| 18134-83 | INSERT, intake valve seat - 0.005 O.S. (2) | FXDP | |
| 16 | 18074-83B | INTAKE VALVE (2) | FXDP |
| 17 | 18082-83A | EXHAUST VALVE (2) | FXDP |
| 18 | 18101-83D | VALVE GUIDE, intake & exhaust (4) | FXDP |
| 23 | 18229-83A | RETAINER, valve collar (8) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | FXDP |
| 9 | 11132A | O-RING, push rod cover (4) | FXDP |
| 10 | 11145A | O-RING, push rod cover (4) | FXDP |
| 13 | 16719-99B | GASKET, rocker housing (2) | FXDP |
| 14 | 17025-03A | BREATHER ASSEMBLY KIT, w/ 4400 & 26500002 (replaces 17907-01) (2) | FXDP |
| 15 | 17045-99D | GASKET KIT, cam service | FXDP |
| 18 | 17386-99A | GASKET, rocker cover (2) | FXDP |
| 19 | 17429-91 | BEARING, rocker arm (8) | FXDP |
| 22 | 17618-99A | ROCKER HOUSING (black) (2) | FXDP |
| 33 | 18538-99C | HYDRAULIC LIFTER (4) | FXDP |
| 34 | 18635-99B | GASKET, lifter cover (2) | FXDP |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) (2) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 23904-03B | FLYWHEEL ASSEMBLY, w/ 11177A, inner race, connecting rods, flywheels, bearings, crankpin, plugs, thrust washer & ring | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 4 | 8972 | WASHER, thrust | FXDP |
| 11 | 16589-99A | DOWEL RING (2) | FXDP |
| 14 | 24004-03B | BEARING KIT, w/ 8972, 24605-07, 35114-02 & inner race | FXDP |
| 15 | 24038-03 | SPACER, sprocket shaft | FXDP |
| 16 | 24605-07 | BEARING (2) | FXDP |
| 17 | 24676-03 | SET OF CRANKCASES, w/ 895, 9198, 22307-99, 24605-07, 35114-02 & 68042-99 (silver) **RESTRICTED SALES PART** | FXDP |
| 24677-03 | SET OF CRANKCASES, w/ 895, 9198, 22307-99, 24605-07, 35114-02 & 68042-99 (black) **RESTRICTED SALES PART** | FXDP | |
| 18 | 24709-03 | MEDALLION KIT, crankcase **RESTRICTED SALES PART** | FXDP |
| 23 | 35071-99A | LOCKPLATE KIT, w/ screws, O-rings and washers | FXDP |
| 25 | 63731-99A | OIL FILTER (black) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 5 | 6294 | WASHER | FXDP |
| 14 | 17045-99D | GASKET KIT, cam service | FXDP |
| 17 | 25244-99A | GASKET, cam cover | FXDP |
| 18 | 25364-01B | CAM COVER (black) | FXDP |
| 29 | 26400-82B | RELIEF VALVE, oil pump | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 15 | 16258-95C | STABILIZER LINK, top | FXDP |
| 17 | 47226-99A | BRACKET, front engine mount | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 12 | 27123-89A | SPRING | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 54 | 28025-03 | JET NEEDLE (49 state, California) | FXDP |
| 55 | 63501-68B | HOSE, 1/4 inch I.D. (25 feet) (black) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 4 | 29089-99 | COVER, air cleaner | FXDP |
| 6 | 29229-88D | CABLE, enrichment | FXDP |
| 10 | 29449-98B | SAFETY LABEL | FXDP |
| 14 | 29474-99A | BRACKET, a/c cover | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 31960-99A | SPARK PLUG CABLE, rear cylinder | FXDP |
| 7 | 31981-99C | SPARK PLUG CABLE, front cylinder | FXDP |
| 8 | 32362-04 | SPARK PLUG (2) | FXDP |
| 9 | 32478-99C | IGNITION MODULE | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 32417-10 | SENSOR, manifold air pressure, w/ 11291 | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 2 | 929A | SCREW (2) | FXDP |
| 13 | 10957 | O-RING | FXDP |
| 20 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31664-94, 31692-90 & return spring | FXDP |
| 28 | 31553-94B | STARTER, complete | FXDP |
| 29 | 31604-91A | STARTER SOLENOID REPAIR KIT | FXDP |
| 30 | 31612-09 | JACKSHAFT KIT, starter | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 28 | 33719-79B | SHIFTER ROD | FXDP |
| 29 | 34064-00C | SPRING, shift lever centering | FXDP |
| 39 | 34979-00 | SHIFTER SHAFT SLEEVE, bushing | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 13 | 11132A | O-RING, filler plug | FXDP |
| 17 | 12067B | OIL SEAL | FXDP |
| 19 | 16708-95A | STUD | FXDP |
| 21 | 25604-00A | INNER RAMP | FXDP |
| 22 | 25605-00A | OUTER RAMP | FXDP |
| 23 | 33073-03 | TRANSMISSION (black) | FXDP |
| 27 | 35087-99A | RETAINING RING, bearing (2) | FXDP |
| 31 | 35653-98A | GASKET, bearing housing | FXDP |
| 32 | 36801-87C | GASKET, right side cover | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 4 | 3699D | SCREW, hex flange (4) | FXDP |
| 15 | 26072-99A | GASKET, oil pan | FXDP |
| 17 | 33073-03 | TRANSMISSION (black) | FXDP |
| 19 | 33904-00A | SWITCH, neutral indicator | FXDP |
| 20 | 34469-99B | COVER, upper (chrome) (replaces black cover) | FXDP |
| 21 | 34747-01B | HOUSING (black) | FXDP |
| 22 | 34917-99B | GASKET, transmission cover | FXDP |
| 27 | 60328-98B | PLUG ASSEMBLY DRAIN (2) | FXDP |
| 37 | 74420-94C | SPEED SENSOR | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 5 | 34091-85A | BEARING, inner race | FXDP |
| 12 | 35051-89A | NEEDLE BEARING (2) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | FXDP |
| 14 | 37872-00 | SPRING SEAT | FXDP |
| 19 | 37905-00 | RETAINING RING, internal | FXDP |
| 22 | 37912-00 | PRESSURE PLATE, clutch | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 12 | 11147B | O-RING, housing cover | FXDP |
| 13 | 12052A | OIL SEAL | FXDP |
| 14 | 12066A | OIL SEAL | FXDP |
| 15 | 25416-99C | O-RING, clutch cover | FXDP |
| 19 | 60539-94B | GASKET, primary cover | FXDP |
| 20 | 60567-90C | GASKET, inspection cover | FXDP |
| 21 | 60572-86 | COVER, inspection (chrome) (replaces black cover) | FXDP |
| 24 | 60715-99B | COVER ASSEMBLY, primary (black) | FXDP |
| 26 | 63859-95B | GASKET (2) | FXDP |
| 27 | 25700225 | GASKET KIT, inner primary | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 10 | 35211-91B | NUT, sprocket | FXDP |
| 15 | 40015-00B | REAR BELT, 133 T | FXDP |
| 17 | 40250-94C | SPROCKET, transmission, 32 T | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 16 | 45044-96A | CLAMP, lever bracket | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 45013-96D | MASTER CYLINDER, w/ hand lever (11/16 inch bore) (replaces 45013-96B) | FXDP | |
| 19 | 45030-03C | COVER KIT, reservoir, w/ 2579A & gasket (used w/ 45013-96D) | FXDP |
| 22 | 45044-96A | CLAMP, handlebar control | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 9907 | TERMINAL, wire (used w/ 72023-51E) (2) | FXDP | |
| 21 | 40922-87A | BOOT | FXDP |
| 22 | 40956-00B | BRAKE LINE | FXDP |
| 32 | 42474-90B | MASTER CYLINDER, w/ 5, 18, 19, 20, 21, 25, 27, 28, 30, 33, 34 & 35 | FXDP |
| 72023-51E | SWITCH, brake light, w/ 9907 (replaces 72023-51C) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 1 | 44023-00C | CALIPER ASSEMBLY, right | FXDP |
| 44046-00D | CALIPER ASSEMBLY, left | FXDP | |
| 3 | 44082-00D | PAD KIT (2) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 1 | 44017-00D | CALIPER ASSEMBLY | FXDP |
| 3 | 44082-00D | PAD KIT | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 9 | 43499-00A | WHEEL, 19 inch, 13-spoke, w/o bearings & sleeve (black) | FXDP |
| 15 | 95594-84A | WEIGHT, 5 grams for cast wheel (black) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 8 | 41012-00A | WHEEL, 16 inch cast, 13-spoke, w/o bearings & sleeve (black) | FXDP |
| 18 | 95594-84A | WEIGHT, 5 grams (black) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 32 | 47668-90B | FORK STEM, bearing assembly, w/ tripleclamp assembly lower, bearing cone & dustshield | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 1 | 554A | COTTER PIN | FXDP |
| 24 | 49009-03 | GUARD ENGINE ASSEMBLY | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 5978W | SPACER | FXDP |
| 12 | 11556 | GROMMET | FXDP |
| 15 | 41585-90B | DUST SHIELD | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 12 | 33871-85B | ROD END (2) | FXDP |
| 13 | 51652-97A | BRACKET, seat, frame mount | FXDP |
| 15 | 52242-83E | SEAT, solo | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 70356-96A | KNOB, pursuit | FXDP |
| 13 | 71515-08 | SWITCH KIT, siren/dimmer | FXDP |
| 16 | 71587-04 | V-CLIP | FXDP |
| 17 | 71620-08 | SWITCH KIT, clutch | FXDP |
| 19 | 71683-06A | SWITCH KIT, right turn signal | FXDP |
| 21 | 71685-06A | SWITCH KIT, left turn signal | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 5 | 38653-01 | BOOT, throttle cable (2) | FXDP |
| 8 | 56355-96A | IDLE CONTROL ASSEMBLY, w/ 11271 & 38653-01 | FXDP |
| 9 | 56356-96A | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 17 | 67790-93A | TRIM RING (chrome) | FXDP |
| 25 | 68168-89A | BULB, front turn signals (2) | FXDP |
| 26 | 68300-03A | AUXILIARY/PURSUIT LAMP, left side (red) | FXDP |
| 68301-03A | AUXILIARY/PURSUIT LAMP, right side (blue) | FXDP | |
| 27 | 68329-03 | BULB, halogen-H4/HB2 | FXDP |
| 29 | 68355-05 | JUMPER WIRE HARNESS, pursuit lamp (used w/ 68727-64D & 68728-64C) (2) | FXDP |
| 30 | 68453-05 | BULB, halogen (used w/ 68727-64D & 68728-64C) (2) | FXDP |
| 31 | 68579-03 | MOUNT, pursuit lamp (2) | FXDP |
| 34 | 68727-64D | PURSUIT LAMP, halogen, w/ 68355-05 & 68453-05 (red) (replaces 68727-64A) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 7 | 10191A | CLIP, wire holding | FXDP |
| 9 | 58998-83E | FENDER (prime) (front) | FXDP |
| 16 | 68770-02B | HARNESS ASSEMBLY, rear lighting, w/ 68762-99 | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 68140-99 | LIGHT ASSEMBLY, tail lamp w/ 68026-99, 68168-89A & 68832-99 (Early Model Year) (use 68140-04) | FXDP | |
| 68140-04 | LIGHT ASSEMBLY, tail lamp w/ 68369-03 & 68370-03A (replaces 68140-99 & 68368-03) | FXDP | |
| 15 | 68369-03 | LENS, tail lamp w/ 68026-99 (Late Model Year) | FXDP |
| 16 | 68370-03A | BULB SOCKET ASSEMBLY (Late Model Year) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 15 | 27250-96B | CONNECTOR, 90 degree elbow (2) | FXDP |
| 24 | 61192-96A | GASKET, filler cap | FXDP |
| 26 | 61272-92C | FILLER CAP, vacuum vent | FXDP |
| 37 | 63501-68B | HOSE, 1/4 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 2 | 61192-96A | GASKET, cap gauge | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 13 | 65376-95A | SHIELD, crossover, rear (black) | FXDP |
| 17 | 65324-83B | GASKET, exhaust port (2) | FXDP |
| 27 | 65830-03 | GASKET, interconnect | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FXDP |
| 4 | 47132-97B | TRAY, battery (black) | FXDP |
| 5 | 65989-97C | BATTERY, sealed, w/ 4312C | FXDP |
| 10 | 70102-96A | CABLE ASSEMBLY, battery positive, w/ boot | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 14 | 67419-99 | HARNESS ASSEMBLY KIT, tachometer, w/ 70585-93 | FXDP |
| 20 | 68513-95A | BEZEL, indicator lamps | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 6 | 69039-09 | COVER ASSEMBLY (black wrinkle) | FXDP |
| 7 | 69060-90F | HORN KIT | FXDP |
| 10 | 69123-92A | MOUNT, horn (rubber) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 69601-03 | MAIN WIRING HARNESS | FXDP | |
| 9 | 31522-00C | RELAY, w/ diode (starter) (2) | FXDP |
| 10 | 68563-04A | FLASHER | FXDP |
| 14 | 72059-08 | TERMINAL SOCKET, #16-18 AWG (10) | FXDP |
| 26 | 72164-94A | PLUG, weather (2) | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 69601-03 | MAIN WIRING HARNESS (Continued) | FXDP | |
| 42 | 72327-03A | HOUSING, female 3-way | FXDP |
| 68 | 74600-94 | CIRCUIT BREAKER, 50 amp | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 11 | 11491A | GROMMET (4) | FXDP |
| 13 | 31522-00C | RELAY, w/ diode (starter) | FXDP |
| 16 | 68920-01D | MODULE, turn signal | FXDP |
| 21 | 74600-94 | CIRCUIT BREAKER, 50 amp | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 9 | 90257-03 | SADDLEBAG ASSEMBLY, L.H., w/ 4, 6, 10, 11, 16, 17, 18 and spacer | FXDP |
| 90992-03 | SADDLEBAG ASSEMBLY, R.H., w/ 4, 6, 10, 11, 16, 17, 18 and spacer | FXDP |
| Index No. | Part No. | Description | Model(s) |
| 26 | 76006-03 | AMPLIFIER MOUNTING KIT | FXDP |
| Part No. | Description |
| 10006 | |
| 10014 | |
| 10031 | |
| 10039 | |
| 10053 | |
| 1005A | |
| 10065 | |
| 10073 | |
| 10108 | |
| 10119 | |
| 10177 | |
| 10181 | |
| 10186 | |
| 10191A | |
| 10217 | |
| 10223 | |
| 10228 | |
| 10231 | |
| 10249 | |
| 1039 | |
| 10957 | |
| 10998 | |
| 11031 | |
| 11067 | |
| 11085 | |
| 11096 | |
| 11105 | |
| 11132A | |
| 11139 | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11147B | |
| 11150 | |
| 11155 | |
| 11157 | |
| 11161 | |
| 11165 | |
| 11177A | |
| 11179 | |
| 11182 | |
| 11248 | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11286 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11292 | |
| 11293 | |
| 11298 | |
| 11301 | |
| 11319A | |
| 11342 | |
| 11457 | |
| 11458 | |
| 11491A | |
| 11494 | |
| 11503 | |
| 11556 | |
| 12035B | |
| 12045 | |
| 12052A | |
| 12066A | |
| 12067B | |
| 12068 | |
| 1311D | |
| 13581-01 | |
| 13582-01 | |
| 13889-00 | |
| 14020-83 | |
| 14148-86 | |
| 14227-88 | |
| 14273-96 | |
| 16138-03 | |
| 16241-90 | |
| 16258-95C | |
| 16315-99 | |
| 16334-02 | |
| 16478-85A | |
| 16480-92A | |
| 16525-99 | |
| 16574-99A | |
| 16589-99A | |
| 16595-99A | |
| 16708-95A | |
| 16709-95 | |
| 16715-83 | |
| 16719-99B | |
| 16722-99 | |
| 16724-99 | |
| 16775-99B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17360-83A | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17594-99 | |
| 17611-83 | |
| 17618-99A | |
| 17620-99 | |
| 1783C | |
| 17907-01 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18001-83B | |
| 18011-86 | |
| 18020-83 | |
| 18074-83B | |
| 18076-83 | |
| 18082-83A | |
| 18101-83D | |
| 18124-83 | |
| 18130-83D | |
| 18131-83D | |
| 18133-83B | |
| 18134-83 | |
| 18201-83 | |
| 18202-83 | |
| 18219-83A | |
| 18222-83A | |
| 18229-83A | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 2152A | |
| 21930-99 | |
| 21931-99 | |
| 21933-99 | |
| 21936-99 | |
| 21937-99 | |
| 21938-99 | |
| 22097-99 | |
| 22132-99 | |
| 22307-99 | |
| 2325 | |
| 2361 | |
| 2362 | |
| 23904-03B | |
| 24004-03B | |
| 24038-03 | |
| 24316-99 | |
| 2458 | |
| 24605-07 | |
| 24676-03 | |
| 24677-03 | |
| 24709-03 | |
| 25244-99A | |
| 25267-99B | |
| 25344-99 | |
| 25364-01B | |
| 25416-99C | |
| 25533-99A | |
| 25534-99 | |
| 25544-00 | |
| 25604-00A | |
| 25605-00A | |
| 25607-99 | |
| 25609-99 | |
| 25610-99 | |
| 25700225 | |
| 25716-99 | |
| 25717-00 | |
| 25719-00 | |
| 25721-00 | |
| 25722-00 | |
| 25723-00 | |
| 25725-00 | |
| 2579A | |
| 25938-00 | |
| 26035-99B | |
| 26072-99A | |
| 26087-99A | |
| 26210-99 | |
| 26248-00 | |
| 26255-00 | |
| 26274-99 | |
| 26314-99 | |
| 26352-95A | |
| 26400-82B | |
| 26432-76A | |
| 26464-99 | |
| 2647B | |
| 26500002 | |
| 26561-99 | |
| 26567-99 | |
| 2659 | |
| 26995-86B | |
| 27002-89 | |
| 27009-86A | |
| 27010-86A | |
| 2708A | |
| 27100-88 | |
| 27101-88 | |
| 27122-89 | |
| 27123-89A | |
| 27124-89 | |
| 27125-89 | |
| 27126-89 | |
| 27127-89 | |
| 27128-89 | |
| 27130-90 | |
| 27136-90A | |
| 27137-81 | |
| 27146-89 | |
| 27147-89 | |
| 27148-89 | |
| 27156-89 | |
| 27162-89 | |
| 27170-89 | |
| 27231-98 | |
| 27243-95 | |
| 27250-96B | |
| 27260-00 | |
| 27261-96 | |
| 27262-96 | |
| 27263-96 | |
| 27296-96 | |
| 27311-76 | |
| 27315-88A | |
| 27317-88 | |
| 27339-90 | |
| 27360-76 | |
| 27361-76A | |
| 27362-76 | |
| 27371-76A | |
| 27386-97A | |
| 27405-00 | |
| 27421-99C | |
| 27575-88A | |
| 27576-92 | |
| 27577-92 | |
| 27579-88A | |
| 27580-88 | |
| 27581-88 | |
| 27582-88 | |
| 27583-88 | |
| 27585-88 | |
| 27586-88 | |
| 27587-88 | |
| 27613-99 | |
| 2773 | |
| 27886-78A | |
| 28025-03 | |
| 2851 | |
| 2887WA | |
| 29062-95B | |
| 29089-99 | |
| 29158-99 | |
| 2918 | |
| 29229-88D | |
| 29269-83A | |
| 29313-95 | |
| 29338-99 | |
| 2941 | |
| 29449-98B | |
| 29454-99 | |
| 29461-99 | |
| 29465-99 | |
| 29474-99A | |
| 29476-99 | |
| 2952A | |
| 2955 | |
| 2980 | |
| 29960-91A | |
| 2998 | |
| 29999-97B | |
| 30020-01A | |
| 3022A | |
| 3023 | |
| 31342-94 | |
| 31430-94 | |
| 31510-90 | |
| 31515-90 | |
| 31516-94A | |
| 31518-90 | |
| 31519-90 | |
| 31522-00C | |
| 31527-90 | |
| 31530-90 | |
| 31535-91 | |
| 31538-98 | |
| 31548-90 | |
| 31553-94B | |
| 31604-91A | |
| 31612-09 | |
| 31655-99 | |
| 31662-90 | |
| 31664-94 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31960-99A | |
| 31981-99C | |
| 3210A | |
| 3214 | |
| 3233 | |
| 32362-04 | |
| 32417-10 | |
| 32478-99C | |
| 3249 | |
| 32558-99 | |
| 3275 | |
| 32798-00 | |
| 32798-00B | |
| 32800-00 | |
| 32807-00 | |
| 3290 | |
| 33073-03 | |
| 33114-79 | |
| 33126-94 | |
| 33127-94 | |
| 33301-00A | |
| 33304-00 | |
| 33318-85 | |
| 33344-94 | |
| 33364-00A | |
| 33374-00 | |
| 33375-00A | |
| 33376-00 | |
| 33383-02 | |
| 33445-94A | |
| 33446-94A | |
| 33449-94 | |
| 33689-02 | |
| 337 | |
| 33700-01 | |
| 33703-01 | |
| 33704-01A | |
| 33706-01 | |
| 33711-02 | |
| 33719-79B | |
| 33849-97 | |
| 33871-85B | |
| 33904-00A | |
| 3403 | |
| 34064-00C | |
| 34088-87A | |
| 34091-85A | |
| 34191-79E | |
| 34193-79E | |
| 34195-79E | |
| 3427 | |
| 3445 | |
| 34469-99B | |
| 34619-85 | |
| 34641-01 | |
| 3471 | |
| 34747-01B | |
| 3480A | |
| 3487 | |
| 34917-99B | |
| 34920-86A | |
| 34972-02B | |
| 34977-02A | |
| 34978-00A | |
| 34979-00 | |
| 35025-79B | |
| 35026-94 | |
| 35027-94 | |
| 35028-94 | |
| 35029-94 | |
| 35042-91 | |
| 35051-89A | |
| 35060-00 | |
| 35064-79 | |
| 35071-99A | |
| 35076-79 | |
| 35078-79 | |
| 35087-99A | |
| 3509 | |
| 35114-02 | |
| 3514 | |
| 35211-91B | |
| 35260-90C | |
| 3530 | |
| 3537 | |
| 3554 | |
| 3559 | |
| 35622-79C | |
| 35625-94 | |
| 35626-94 | |
| 35629-79 | |
| 3563 | |
| 35632-79 | |
| 35653-98A | |
| 3574 | |
| 3579A | |
| 3594 | |
| 3619 | |
| 3655A | |
| 3656 | |
| 3658 | |
| 36801-87C | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37069-90A | |
| 37075-87 | |
| 37088-90 | |
| 37090-98A | |
| 37178-99 | |
| 37189-99 | |
| 37312-75 | |
| 37313-80 | |
| 3736A | |
| 3737A | |
| 3746A | |
| 37496-90 | |
| 375 | |
| 37550-98 | |
| 37707-98A | |
| 37802-98B | |
| 3784 | |
| 3787 | |
| 37871-98A | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38608-96 | |
| 38630-88 | |
| 38653-01 | |
| 38661-00 | |
| 38709-99 | |
| 38723-99 | |
| 3892 | |
| 3909 | |
| 3926 | |
| 3987 | |
| 39954-99A | |
| 39964-99A | |
| 39965-99 | |
| 39976-01 | |
| 39990-01 | |
| 39998-65A | |
| 40007-36B | |
| 40015-00B | |
| 40114-00 | |
| 4017 | |
| 40250-94C | |
| 40251-92A | |
| 40299-83A | |
| 4029A | |
| 40308-94 | |
| 40323-00 | |
| 40373-02 | |
| 40384-91 | |
| 40392-91 | |
| 4047 | |
| 4059 | |
| 4067 | |
| 4081 | |
| 40903-87 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 40956-00B | |
| 41012-00A | |
| 4103 | |
| 41113-90 | |
| 41114-90 | |
| 41123-79 | |
| 4132 | |
| 41571-92 | |
| 41585-90B | |
| 41591-00A | |
| 41731-88A | |
| 41747-82A | |
| 4175 | |
| 41797-00 | |
| 41803-90 | |
| 41954-01 | |
| 42375-87 | |
| 42382-87C | |
| 4240 | |
| 42416-83 | |
| 4242 | |
| 42448-87 | |
| 42460-80B | |
| 42474-90B | |
| 42533-91A | |
| 4312C | |
| 43157-83A | |
| 4326A | |
| 43358-00 | |
| 4342 | |
| 4343 | |
| 43499-00A | |
| 4350A | |
| 4351 | |
| 4352 | |
| 43567-92 | |
| 4358A | |
| 43608-00 | |
| 43613-00 | |
| 43617-00A | |
| 4363 | |
| 4364 | |
| 43654-00A | |
| 4383 | |
| 43895-00 | |
| 4400 | |
| 44017-00D | |
| 44023-00C | |
| 44046-00D | |
| 44048-83 | |
| 44082-00D | |
| 44126-87 | |
| 44136-00 | |
| 44147-87A | |
| 44156-00 | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44313-01 | |
| 44314-00 | |
| 44315-00 | |
| 44337-00B | |
| 44338-00 | |
| 44351-00 | |
| 4460 | |
| 45004-85 | |
| 45004-96A | |
| 45005-85 | |
| 45005-96 | |
| 45013-96B | |
| 45013-96D | |
| 45015-96 | |
| 45016-96 | |
| 45021-86 | |
| 45030-03C | |
| 45032-82 | |
| 45036-88 | |
| 45042-96 | |
| 45044-96A | |
| 45072-96C | |
| 45074-95 | |
| 45083-01 | |
| 45347-02 | |
| 45348-02 | |
| 45361-90 | |
| 45365-94 | |
| 45374-87 | |
| 45377-87 | |
| 45378-87 | |
| 45384-02 | |
| 45401-87 | |
| 45405-75A | |
| 45423-92 | |
| 45423-96 | |
| 45460-90 | |
| 45461-87 | |
| 45465-87 | |
| 45611-86 | |
| 45680-90 | |
| 45739-87 | |
| 45790-80 | |
| 45795-02 | |
| 45893-99 | |
| 45905-87 | |
| 45921-00 | |
| 45922-00 | |
| 45926-90 | |
| 45984-87 | |
| 45991-92 | |
| 45996-87 | |
| 46002-87 | |
| 47082-81 | |
| 47132-97B | |
| 4716W | |
| 4717A | |
| 4721 | |
| 47226-99A | |
| 47318-98 | |
| 4740A | |
| 4741A | |
| 47456-02 | |
| 4748 | |
| 47496-90 | |
| 47499-90 | |
| 47564-99 | |
| 47565-00 | |
| 47583-90B | |
| 47624-90A | |
| 47668-90B | |
| 4770 | |
| 47817-00 | |
| 47820-00A | |
| 48090-01 | |
| 48132-99 | |
| 4814A | |
| 4816A | |
| 4820A | |
| 4822A | |
| 48300-60 | |
| 48315-60 | |
| 48361-80 | |
| 48365-48A | |
| 49009-03 | |
| 49710-94B | |
| 49720-90 | |
| 49723-98 | |
| 50003-89B | |
| 50053-90 | |
| 50057-02 | |
| 50521-01 | |
| 50526-01 | |
| 50529-01 | |
| 50530-01 | |
| 50614-91A | |
| 50632-85 | |
| 50635-82A | |
| 50972-75 | |
| 510 | |
| 515 | |
| 51652-97A | |
| 52219-01 | |
| 52242-83E | |
| 52372-02 | |
| 52413-01A | |
| 52561-93 | |
| 52575-01 | |
| 52740-02 | |
| 53156-86 | |
| 5403B | |
| 5414 | |
| 5416 | |
| 54321-85 | |
| 5445W | |
| 54473-79 | |
| 54474-79 | |
| 54475-79 | |
| 54556-84 | |
| 54557-90A | |
| 54725-01 | |
| 554A | |
| 55921-85A | |
| 56115-95 | |
| 56116-82A | |
| 56117-82A | |
| 56153-73 | |
| 56159-73 | |
| 56206-96 | |
| 56220-94A | |
| 56355-96A | |
| 56356-96A | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56508-76 | |
| 5756 | |
| 5774 | |
| 58109-88B | |
| 58419-88 | |
| 58420-88 | |
| 58421-88 | |
| 58422-88 | |
| 58423-88 | |
| 58424-88 | |
| 58425-88 | |
| 58426-88 | |
| 58446-96 | |
| 58447-96 | |
| 58448-96 | |
| 58732-02 | |
| 5883 | |
| 58998-83E | |
| 59150-90 | |
| 59259-90 | |
| 59481-00 | |
| 59482-00 | |
| 59485-02 | |
| 59546-02 | |
| 59576-02 | |
| 59762-01 | |
| 5978W | |
| 59980-84 | |
| 59984-73 | |
| 59986-75 | |
| 59988-72A | |
| 59989-84 | |
| 60001-55 | |
| 6003 | |
| 601 | |
| 6016 | |
| 6019 | |
| 60328-98B | |
| 60339-00 | |
| 60356-00 | |
| 6036 | |
| 60539-94B | |
| 60567-90C | |
| 60572-86 | |
| 60678-85 | |
| 60713-99 | |
| 60715-99B | |
| 60718-02 | |
| 609 | |
| 6099 | |
| 6101 | |
| 61039-96 | |
| 61081-92 | |
| 6109 | |
| 6113 | |
| 61131-92 | |
| 61142-01 | |
| 61168-81A | |
| 61182-01 | |
| 61192-96A | |
| 61200-97 | |
| 61272-92C | |
| 61324-01 | |
| 61338-02 | |
| 6139 | |
| 6204 | |
| 62123-66 | |
| 62150-85 | |
| 62161-02 | |
| 62170-02 | |
| 62172-02 | |
| 6219 | |
| 6237 | |
| 62375-57A | |
| 62726-99 | |
| 62826-02 | |
| 62828-99 | |
| 62851-99 | |
| 6294 | |
| 6330 | |
| 634 | |
| 63501-68B | |
| 63505-84 | |
| 6366 | |
| 63731-99A | |
| 6379W | |
| 63815-99 | |
| 63859-95B | |
| 6400HB | |
| 64941-01 | |
| 6497HW | |
| 6516HW | |
| 65184-02 | |
| 65296-95A | |
| 65302-82A | |
| 65324-83B | |
| 65325-83A | |
| 65376-95A | |
| 65379-95 | |
| 65668-98 | |
| 65669-98 | |
| 65674-95 | |
| 65695-95 | |
| 65701-95 | |
| 65746-99 | |
| 65830-03 | |
| 6590HW | |
| 65975-99 | |
| 65989-97C | |
| 66033-96 | |
| 66060-96 | |
| 66190-00 | |
| 66234-99 | |
| 66236-99 | |
| 6655 | |
| 6701 | |
| 6702 | |
| 67025-99A | |
| 6703 | |
| 67042-99 | |
| 67055-92 | |
| 67085-95 | |
| 67103-95 | |
| 6716 | |
| 6717 | |
| 67177-99A | |
| 6718 | |
| 67184-94 | |
| 67338-97 | |
| 67344-97 | |
| 67345-97 | |
| 67419-99 | |
| 67598-88 | |
| 67599-88 | |
| 67623-88A | |
| 67624-88A | |
| 6762B | |
| 67672-96B | |
| 67685-92 | |
| 67688-88 | |
| 67698-81D | |
| 67705-92 | |
| 67757-92 | |
| 67790-93A | |
| 67815-59A | |
| 67822-88 | |
| 67827-88A | |
| 67828-88A | |
| 67829-88 | |
| 67854-98 | |
| 67859-90 | |
| 67877-02 | |
| 67880-94 | |
| 67972-98 | |
| 68024-94 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68140-99 | |
| 68167-88 | |
| 68168-89A | |
| 68296-99A | |
| 68300-03A | |
| 68301-03A | |
| 68310-01 | |
| 68329-03 | |
| 68330-01 | |
| 68331-02 | |
| 68355-05 | |
| 68368-03 | |
| 68369-03 | |
| 68370-03A | |
| 68453-05 | |
| 68513-95A | |
| 68516-95 | |
| 68563-04A | |
| 68572-64B | |
| 68579-03 | |
| 68725-62A | |
| 68727-64A | |
| 68727-64D | |
| 68728-64 | |
| 68728-64C | |
| 68762-99 | |
| 68770-02B | |
| 68820-98 | |
| 68830-99A | |
| 68832-99 | |
| 68841-98 | |
| 68904-00 | |
| 68920-01D | |
| 68972-00 | |
| 68973-00 | |
| 69039-09 | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69553-99 | |
| 69554-99 | |
| 69601-03 | |
| 70102-96A | |
| 70103-96 | |
| 70191-73A | |
| 70201-97 | |
| 70202-97 | |
| 70276-96 | |
| 70345-84 | |
| 70355-96 | |
| 70356-96A | |
| 70357-96 | |
| 70358-96 | |
| 70359-96A | |
| 70361-96 | |
| 7038 | |
| 70388-96 | |
| 70389-96 | |
| 7039 | |
| 7041 | |
| 7045 | |
| 70504-81 | |
| 70540-02 | |
| 70584-94 | |
| 70585-93 | |
| 7068 | |
| 70911-01 | |
| 70986-01 | |
| 7127 | |
| 71301-01 | |
| 71305-01 | |
| 71313-96A | |
| 71452-91A | |
| 71515-08 | |
| 71564-96 | |
| 71567-96 | |
| 71587-04 | |
| 71620-08 | |
| 71621-08 | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 72023-51C | |
| 72023-51E | |
| 72030-97 | |
| 72031-97 | |
| 72032-93 | |
| 72033-93 | |
| 72035-71 | |
| 72039-71A | |
| 72042-97 | |
| 72043-71A | |
| 72046-79 | |
| 72058-97 | |
| 72059-08 | |
| 72069-97 | |
| 72102-94BK | |
| 72104-94BK | |
| 72109-94BK | |
| 72112-94BK | |
| 72119-94BK | |
| 72124-94GY | |
| 72129-94GY | |
| 72139-94GY | |
| 72142-94 | |
| 72143-94 | |
| 72144-94 | |
| 72149-94 | |
| 72152-94 | |
| 72153-94 | |
| 72159-94 | |
| 72163-94BK | |
| 72164-94A | |
| 72179-94 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 7220 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72249-94 | |
| 72250-94 | |
| 72266-94 | |
| 72280-95 | |
| 72281-93 | |
| 72290-94 | |
| 72291-94 | |
| 72292-94 | |
| 72295-94 | |
| 7229W | |
| 72327-03A | |
| 72330-95 | |
| 72342-90A | |
| 72365-96 | |
| 72366-95 | |
| 72428-00 | |
| 72430-00 | |
| 72432-00 | |
| 72434-00 | |
| 72462-00 | |
| 72503-90 | |
| 72516-01 | |
| 72902-01BK | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73104-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73165-01 | |
| 73166-01 | |
| 73167-01 | |
| 73168-01 | |
| 73190-96 | |
| 73191-96 | |
| 73198-96 | |
| 739A | |
| 74102-98BK | |
| 74109-98BK | |
| 74112-98BK | |
| 74119-98BK | |
| 74142-98 | |
| 74149-98 | |
| 74152-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74192-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 74413-93 | |
| 74420-94C | |
| 74514-99 | |
| 74594-02 | |
| 74600-94 | |
| 7481 | |
| 7495 | |
| 75049-01A | |
| 75062-01 | |
| 7507 | |
| 7531 | |
| 7549A | |
| 7593 | |
| 76006-03 | |
| 7601 | |
| 7602 | |
| 7606 | |
| 761 | |
| 76132-00 | |
| 76162-02 | |
| 76185-93 | |
| 76201-80A | |
| 76233-85 | |
| 7624 | |
| 7629 | |
| 765 | |
| 7716 | |
| 7736 | |
| 7742 | |
| 7744 | |
| 7778 | |
| 7783 | |
| 7792 | |
| 7796 | |
| 7824 | |
| 7827W | |
| 7838 | |
| 7845 | |
| 7848W | |
| 7862 | |
| 7880 | |
| 7951 | |
| 7956 | |
| 7964 | |
| 7987 | |
| 8102 | |
| 8108 | |
| 8211 | |
| 8483A | |
| 855B | |
| 856A | |
| 858A | |
| 8692 | |
| 8871 | |
| 8873 | |
| 8876A | |
| 8879 | |
| 8883 | |
| 895 | |
| 8972 | |
| 8977 | |
| 8983 | |
| 8990A | |
| 8992A | |
| 8996A | |
| 90257-03 | |
| 90278-01 | |
| 90279-01 | |
| 90298-01 | |
| 90398-01 | |
| 90399-01 | |
| 90403-01 | |
| 90423-01 | |
| 90483-85 | |
| 90672-01 | |
| 9077 | |
| 90770-79 | |
| 90923-02 | |
| 90924-02 | |
| 90977-97 | |
| 90992-03 | |
| 91127-85 | |
| 91154-87 | |
| 91156-93 | |
| 91157-88A | |
| 91159-82 | |
| 9135 | |
| 91849-85C | |
| 91875-82A | |
| 91892-82A | |
| 9198 | |
| 925 | |
| 9267 | |
| 929A | |
| 941 | |
| 942 | |
| 945 | |
| 946 | |
| 95594-84A | |
| 960 | |
| 961 | |
| 9837 | |
| 9840 | |
| 9842 | |
| 9843 | |
| 9857 | |
| 9863 | |
| 9898 | |
| 9907 | |
| 9937 | |
| 9955 | |
| 9989A |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7956 | Unknown |
| 7736 | 1949 |
| 7845 | Unknown |
| 7951 | Unknown |
| 58423-88 | 1988 |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7796 | Unknown |
| 90398-01 | 2001 |
| 7778 | Unknown |
| 37496-90 | 1990 |
| 7862 | Unknown |
| 7827W | 1976 |
| 7824 | Unknown |
| 3403 | Unknown |
| 35078-79 | 1979 |
| 7987 | Unknown |
| 7495 | 1994 |
| 7880 | Unknown |
| 7964 | Unknown |
| 7481 | Unknown |
| 8108 | Unknown |
| 40392-91 | 1991 |
| 7744 | 1943 |
| 7593 | 1991 |
| 7742 | Unknown |
| 7549A | Unknown |
| 7601 | 1990 |
| 7602 | Unknown |
| 102A1 - Generic Screws | |
| 2918 | Unknown |
| 3579A | Unknown |
| 3023 | 2000 |
| 3987 | Unknown |
| 4460 | 2020 |
| 42375-87 | 1987 |
| 4770 | Unknown |
| 4175 | 1998 |
| 1005A | 1993 |
| 68026-99 | 1999 |
| 2579A | Unknown |
| 4741A | 1994 |
| 3655A | Unknown |
| 3692A | Unknown |
| 5416 | Unknown |
| 3249 | Unknown |
| 2955 | 1996 |
| 5414 | Unknown |
| 3022A | Unknown |
| 44177-00 | 2000 |
| 43567-92 | 1992 |
| 3514 | Unknown |
| 941 | Unknown |
| 2941 | Unknown |
| 3619 | Unknown |
| 4350A | Unknown |
| 942 | 1992 |
| 4047 | Unknown |
| 4748 | 2009 |
| 2980 | Unknown |
| 3275 | 2002 |
| 1311D | 2001 |
| 3693A | Unknown |
| 895 | Unknown |
| 4326A | 1990 |
| 960 | 2000 |
| 2325 | Unknown |
| 2773 | Unknown |
| 2659 | Unknown |
| 3530 | Unknown |
| 4132 | Unknown |
| 4740A | 1994 |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 3656 | Unknown |
| 4240 | Unknown |
| 4242 | Unknown |
| 2952A | 2003 |
| 2647B | Unknown |
| 4822A | 1994 |
| 68120-00 | 2000 |
| 90770-79 | 1979 |
| 2887WA | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 45996-87 | 1987 |
| 3594 | 1992 |
| 5445W | Unknown |
| 2708A | Unknown |
| 925 | Unknown |
| 2998 | Unknown |
| 4816A | Unknown |
| 68042-99 | 1999 |
| 3746A | 2004 |
| 1039 | Unknown |
| 4029A | 1990 |
| 3699D | 2006 |
| 33376-00 | 2000 |
| 3926 | 2003 |
| 4081 | 2009 |
| 3563 | 1999 |
| 4017 | 2009 |
| 4383 | Unknown |
| 929A | Unknown |
| 3909 | Unknown |
| 45991-92 | 2011 |
| 29269-83A | 1983 |
| 3509 | Unknown |
| 4351 | Unknown |
| 2851 | 2009 |
| 3210A | Unknown |
| 3233 | Unknown |
| 4820A | Unknown |
| 50635-82A | 1982 |
| 3554 | Unknown |
| 3559 | Unknown |
| 4352 | Unknown |
| 3427 | 2009 |
| 56402-83A | 1983 |
| 27317-88 | 1988 |
| 2361 | Unknown |
| 4059 | Unknown |
| 2362 | Unknown |
| 27146-89 | 1989 |
| 4358A | Unknown |
| 3480A | Unknown |
| 4717A | Unknown |
| 3574 | Unknown |
| 945 | Unknown |
| 3214 | Unknown |
| 946 | Unknown |
| 4364 | 1993 |
| 855B | 2014 |
| 4363 | 2013 |
| 3784 | Unknown |
| 4312C | Unknown |
| 961 | Unknown |
| 4067 | 2009 |
| 3787 | Unknown |
| 4716W | 2009 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 4103 | Unknown |
| 3737A | Unknown |
| 3445 | Unknown |
| 56397-74C | 1974 |
| 2458 | 2005 |
| 3487 | Unknown |
| 2152A | 1997 |
| 5403B | Unknown |
| 3736A | 2005 |
| 3892 | Unknown |
| 45790-80 | 1980 |
| 4342 | Unknown |
| 858A | Unknown |
| 16480-92A | 1992 |
| 4343 | Unknown |
| 4814A | Unknown |
| 3471 | 2009 |
| 3537 | Unknown |
| 103A1 - Generic Washers | |
| 6717 | Unknown |
| 6019 | Unknown |
| 47565-00 | 2000 |
| 6718 | Unknown |
| 6204 | 2001 |
| 7229W | Unknown |
| 6016 | 2013 |
| 56159-73 | 1973 |
| 27125-89 | 1989 |
| 6497HW | 2010 |
| 90399-01 | 2001 |
| 27148-89 | 1989 |
| 6294 | 2010 |
| 8972 | Unknown |
| 6366 | 1987 |
| 6379W | Unknown |
| 6113 | Unknown |
| 6330 | Unknown |
| 6099 | 2011 |
| 27127-89 | 1989 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6139 | Unknown |
| 67815-59A | 1959 |
| 31689-90 | 1990 |
| 6590HW | Unknown |
| 6516HW | Unknown |
| 34641-01 | 2001 |
| 6036 | Unknown |
| 7220 | Unknown |
| 27137-81 | 1981 |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 6655 | 1979 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 7045 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 91159-82 | 1982 |
| 27130-90 | 1990 |
| 37090-98A | 1998 |
| 27262-96 | 1996 |
| 106A1 - Custom Washers | |
| 6003 | 2010 |
| 108A1 - Hose Clamps | |
| 10231 | Unknown |
| 10053 | 2010 |
| 10031 | 2010 |
| 10014 | Unknown |
| 10217 | 1996 |
| 9955 | Unknown |
| 10119 | Unknown |
| 10249 | Unknown |
| 45044-96A | 1996 |
| 108B1 - P Clamps | |
| 510 | Unknown |
| 109A1 - Studs | |
| 16715-83 | 1983 |
| 16708-95A | 1995 |
| 16709-95 | 1995 |
| 54557-90A | 1990 |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 31430-94 | 1994 |
| 34979-00 | 2000 |
| 9198 | Unknown |
| 8996A | 1996 |
| 17429-91 | 1991 |
| 33446-94A | 1994 |
| 54556-84 | 1984 |
| 25344-99 | 1999 |
| 8992A | Unknown |
| 53156-86 | 1986 |
| 9837 | Unknown |
| 45465-87 | 1987 |
| 8876A | Unknown |
| 33445-94A | 1994 |
| 8883 | Unknown |
| 67055-92 | 1992 |
| 8879 | Unknown |
| 9267 | Unknown |
| 47082-81 | 1981 |
| 33703-01 | 2001 |
| 110C1 - Radial Shaft Seals | |
| 12066A | Unknown |
| 12068 | Unknown |
| 12045 | Unknown |
| 12035B | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 12067B | 2002 |
| 110D1 - Rolling Element Bearings | |
| 8977 | Unknown |
| 9135 | Unknown |
| 8983 | Unknown |
| 8990A | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 111A1 - Adhesive | |
| 73165-01 | 2001 |
| 9907 | Unknown |
| 73166-01 | 2001 |
| 72990-01 | 2001 |
| 73167-01 | 2001 |
| 73168-01 | 2001 |
| 111B1 - Tape | |
| 14273-96 | 1996 |
| 111F1 - Protective Tape | |
| 58446-96 | 1996 |
| 59546-02 | 2002 |
| 58448-96 | 1996 |
| 58447-96 | 1996 |
| 116A1 - Banjo Bolts | |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 54473-79 | 1979 |
| 27123-89A | 1989 |
| 27162-89 | 1989 |
| 119A1 - O-Rings | |
| 11165 | Unknown |
| 11270 | Unknown |
| 11273 | Unknown |
| 26432-76A | 1976 |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11157 | 1983 |
| 27577-92 | 1992 |
| 11140 | 1982 |
| 11147B | 2006 |
| 11289A | Unknown |
| 11139 | 1979 |
| 11132A | 2007 |
| 11298 | Unknown |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11301 | Unknown |
| 11286 | Unknown |
| 45984-87 | 1987 |
| 31695-90 | 1990 |
| 11256 | 1996 |
| 11179 | 1986 |
| 120A1 - Pins | |
| 601 | Unknown |
| 609 | Unknown |
| 634 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 50003-89B | 1989 |
| 337 | Unknown |
| 515 | Unknown |
| 375 | 2013 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11491A | 2012 |
| 11458 | 1991 |
| 90483-85 | 1985 |
| 11503 | Unknown |
| 11556 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 11457 | Unknown |
| 739A | Unknown |
| 765 | 1997 |
| 10228 | 2000 |
| 761 | 1996 |
| 3290 | 2013 |
| 72164-94A | 1994 |
| 122A1 - Retaining Rings | |
| 10998 | 1985 |
| 8102 | Unknown |
| 11271 | Unknown |
| 11272 | Unknown |
| 17945-36B | 1936 |
| 11319A | Unknown |
| 45021-86 | 1986 |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 11031 | Unknown |
| 10186 | 2003 |
| 11150 | 1984 |
| 10108 | Unknown |
| 11342 | Unknown |
| 11155 | Unknown |
| 38723-99 | 1999 |
| 31530-90 | 1990 |
| 9989A | Unknown |
| 11143 | Unknown |
| 11494 | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 11096 | 2010 |
| 11067 | Unknown |
| 11182 | Unknown |
| 10223 | 1996 |
| 11085 | Unknown |
| 27124-89 | 1989 |
| 60678-85 | 1985 |
| 11248 | Unknown |
| 11161 | 1984 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 124A1 - Spacers | |
| 52372-02 | 2002 |
| 6219 | Unknown |
| 5978W | Unknown |
| 33344-94 | 1994 |
| 5756 | Unknown |
| 33114-79 | 1979 |
| 58732-02 | 2002 |
| 5883 | Unknown |
| 5774 | Unknown |
| 45377-87 | 1987 |
| 35629-79 | 1979 |
| 47496-90 | 1990 |
| 47499-90 | 1990 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 70191-73A | 1975 |
| 59762-01 | 2001 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 31692-90 | 1990 |
| 68331-02 | 2002 |
| 44126-87 | 1987 |
| 27136-90A | 1990 |
| 44337-00B | 2000 |
| 59150-90 | 1990 |
| 33126-94 | 1994 |
| 33318-85 | 1985 |
| 58422-88 | 1988 |
| 67877-02 | 2002 |
| 33375-00A | 2001 |
| 38709-99 | 2004 |
| 33449-94 | 1994 |
| 56394-74 | 1974 |
| 33374-00 | 2000 |
| 8873 | 1984 |
| 54474-79 | 1979 |
| 126B1 - Rivets Fasteners | |
| 8692 | Unknown |
| 8211 | 1984 |
| 8483A | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 51652-97A | 1997 |
| 140A1 - Battery Warning Label | |
| 66060-96 | 1996 |
| 140A2 - General Warning Label | |
| 14148-86 | 1986 |
| 29449-98B | 1998 |
| 14020-83 | 1983 |
| 140G1 - EMC Label | |
| 13889-00 | 2000 |
| 141A1 - Medallion | |
| 13582-01 | 2001 |
| 24709-03 | 2003 |
| 14227-88 | 1988 |
| 61168-81A | 1981 |
| 71305-01 | 2001 |
| 44338-00 | 2000 |
| 13581-01 | 2001 |
| 162D1 - Engine Assembly | |
| 16138-03 | 2003 |
| 163B1 - Engine Isolator Mount | |
| 47564-99 | 1999 |
| 47583-90B | 1990 |
| 164A1 - Engine Mount Bracket | |
| 47226-99A | 2011 |
| 38608-96 | 1996 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 16315-99 | 1999 |
| 7783 | Unknown |
| 7531 | 1980 |
| 7507 | Unknown |
| 7848W | Unknown |
| 16241-90 | 1990 |
| 164C1 - Tiebar | |
| 16258-95C | 1995 |
| 165A1 - Cylinder Head | |
| 18011-86 | 1986 |
| 16724-99 | 1999 |
| 16722-99 | 1999 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16775-99B | 1999 |
| 49009-03 | 2003 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18076-83 | 1983 |
| 18101-83D | 1999 |
| 18074-83B | 2007 |
| 18082-83A | 1983 |
| 181B1 - Valve Seals | |
| 18133-83B | 1983 |
| 18130-83D | 1983 |
| 18219-83A | 1983 |
| 18020-83 | 1983 |
| 18134-83 | 1983 |
| 18131-83D | 1983 |
| 18124-83 | 1983 |
| 18001-83B | 1983 |
| 181C1 - Valve Collars | |
| 18202-83 | 1983 |
| 18201-83 | 1983 |
| 18222-83A | 1983 |
| 18229-83A | 1984 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 219A1 - Piston | |
| 21933-99 | 1999 |
| 16525-99 | 1999 |
| 21930-99 | 1999 |
| 21931-99 | 1999 |
| 220A1 - Piston Ring | |
| 21937-99 | 1999 |
| 21938-99 | 1999 |
| 21936-99 | 1999 |
| 221A1 - Piston Pin | |
| 22132-99 | 1999 |
| 22097-99 | 1999 |
| 237B1 - Connecting Rod sub-component | |
| 24316-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 35060-00 | 2000 |
| 241A1 - Flywheel | |
| 23904-03B | 2007 |
| 24004-03B | 2012 |
| 244A1 - Crankcase | |
| 24677-03 | 2003 |
| 24676-03 | 2003 |
| 244D1 - Crankcase sub-component | |
| 24038-03 | 2003 |
| 22307-99 | 1999 |
| 244F1 - Oil Pan | |
| 26087-99A | 1999 |
| 254A1 - Camdrive Gear | |
| 25533-99A | 2001 |
| 254B1 - Camshaft | |
| 25544-00 | 2000 |
| 25938-00 | 2000 |
| 25534-99 | 1999 |
| 254C1 - Camshaft Sprocket | |
| 40299-83A | 1983 |
| 25609-99 | 1999 |
| 25716-99 | 1999 |
| 254D1 - Camshaft Support | |
| 25267-99B | 2001 |
| 255A1 - Camdrive Chain | |
| 25607-99 | 1999 |
| 25610-99 | 1999 |
| 255B1 - Camdrive Chain Guide | |
| 39965-99 | 1999 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 39976-01 | 2001 |
| 256A1 - Timer Cover | |
| 32558-99 | 1999 |
| 257A1 - Cam Cover | |
| 25364-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60713-99 | 1999 |
| 257D1 - Clutch Inspection Cover | |
| 60572-86 | 1986 |
| 257E1 - Cover Gaskets | |
| 35653-98A | 1998 |
| 65324-83B | 2009 |
| 26072-99A | 1999 |
| 17053-99C | 2011 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 61324-01 | 2001 |
| 25416-99C | 1999 |
| 25244-99A | 1999 |
| 29313-95 | 1995 |
| 63859-95B | 1995 |
| 45005-96 | 1996 |
| 71301-01 | 2001 |
| 90672-01 | 2001 |
| 29062-95B | 1995 |
| 45005-85 | 1985 |
| 34917-99B | 1999 |
| 60567-90C | 1990 |
| 25700225 | 2012 |
| 18635-99B | 1999 |
| 45378-87 | 1987 |
| 60539-94B | 1994 |
| 36801-87C | 1987 |
| 41731-88A | 1988 |
| 17052-99C | 2011 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257L1 - Primary Cover | |
| 60715-99B | 1999 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17620-99 | 1999 |
| 17618-99A | 1999 |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17360-83A | 1983 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 265A1 - Vent / Breather Line | |
| 17907-01 | 2001 |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 27361-76A | 1976 |
| 27339-90 | 1990 |
| 27360-76 | 1976 |
| 27362-76 | 1976 |
| 27260-00 | 2000 |
| 27147-89 | 1989 |
| 27583-88 | 1988 |
| 27156-89 | 1989 |
| 27405-00 | 2000 |
| 27261-96 | 1996 |
| 27243-95 | 1995 |
| 27371-76A | 1976 |
| 27582-88 | 1988 |
| 27587-88 | 1988 |
| 27311-76 | 1976 |
| 27231-98 | 1998 |
| 27101-88 | 1988 |
| 28025-03 | 2003 |
| 27122-89 | 1989 |
| 27421-99C | 1999 |
| 27585-88 | 1988 |
| 27586-88 | 1988 |
| 27575-88A | 1988 |
| 27100-88 | 1988 |
| 27128-89 | 1989 |
| 27126-89 | 1989 |
| 27315-88A | 1988 |
| 27263-96 | 1996 |
| 27576-92 | 1992 |
| 273A1 - Intake Manifold | |
| 27613-99 | 1999 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29454-99 | 1999 |
| 290C1 - Airbox Baseplate sub-component | |
| 29158-99 | 1999 |
| 29089-99 | 1999 |
| 290D1 - Airbox Seal | |
| 29338-99 | 1999 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29461-99 | 1999 |
| 294B1 - Breather Bolt | |
| 29465-99 | 1999 |
| 294C1 - Breather Hose | |
| 29476-99 | 1999 |
| 294G1 - Air Cleaner | |
| 27010-86A | 1986 |
| 27009-86A | 1986 |
| 295A1 - Intake Miscellaneous Component | |
| 27579-88A | 1988 |
| 27002-89 | 1989 |
| 27886-78A | 1978 |
| 29229-88D | 1988 |
| 27170-89 | 1989 |
| 299A1 - Alternator | |
| 29999-97B | 1997 |
| 299F1 - Stator Assembly | |
| 30020-01A | 2001 |
| 314E1 - Starter Friction Clutch | |
| 31516-94A | 2010 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31518-90 | 1990 |
| 31510-90 | 1990 |
| 31515-90 | 1990 |
| 31553-94B | 1994 |
| 31612-09 | 2009 |
| 314G1 - Starter Motor sub-component | |
| 31535-91 | 1991 |
| 31538-98 | 1965 |
| 27581-88 | 1988 |
| 31548-90 | 1990 |
| 31527-90 | 1990 |
| 31664-94 | 1994 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 31604-91A | 1991 |
| 316A1 - Ignition Coil | |
| 32478-99C | 2015 |
| 31655-99 | 1999 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31960-99A | 1999 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327B1 - Chemical / Gas Sensor | |
| 32417-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 32807-00 | 2000 |
| 327D1 - Proximity Sensor | |
| 32798-00B | 2007 |
| 74420-94C | 1994 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33700-01 | 2001 |
| 33704-01A | 2004 |
| 336C1 - Shift Linkage Rod End | |
| 33871-85B | 1985 |
| 33719-79B | 1979 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 339A1 - Shift Lever | |
| 34619-85 | 1985 |
| 33706-01 | 2001 |
| 339D1 - Shifter Fork | |
| 34195-79E | 1979 |
| 34088-87A | 1987 |
| 34193-79E | 1979 |
| 34191-79E | 1979 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 33301-00A | 2000 |
| 33304-00 | 2000 |
| 33383-02 | 2002 |
| 34091-85A | 1985 |
| 33364-00A | 2000 |
| 33689-02 | 2002 |
| 33127-94 | 1994 |
| 339K1 - Shifter Pawl | |
| 34972-02B | 2002 |
| 347A1 - Transmission Assembly | |
| 34469-99B | 1999 |
| 35076-79 | 1979 |
| 37189-99 | 1999 |
| 33073-03 | 2003 |
| 35064-79 | 1979 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34747-01B | 2001 |
| 350A1 - Transmission Output Sprocket | |
| 40250-94C | 1994 |
| 350E1 - Transmission Gear | |
| 31342-94 | 1994 |
| 350F1 - Transmission Mainshaft | |
| 35029-94 | 1994 |
| 35027-94 | 1994 |
| 35025-79B | 1981 |
| 35028-94 | 1994 |
| 35042-91 | 1991 |
| 350G1 - Transmission Shim / Spacer | |
| 25721-00 | 2000 |
| 25723-00 | 2000 |
| 25722-00 | 2000 |
| 25717-00 | 2000 |
| 25719-00 | 2000 |
| 25725-00 | 2000 |
| 29960-91A | 1991 |
| 356A1 - Transmission Countershaft | |
| 35026-94 | 1994 |
| 35626-94 | 1994 |
| 35632-79 | 1979 |
| 35625-94 | 1994 |
| 35622-79C | 1979 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35071-99A | 1999 |
| 42533-91A | 1991 |
| 35260-90C | 1990 |
| 35051-89A | 1989 |
| 35211-91B | 1991 |
| 40373-02 | 2002 |
| 34978-00A | 2000 |
| 34977-02A | 2002 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40007-36B | 1936 |
| 365B1 - Primary Chain Tensioner | |
| 39990-01 | 2001 |
| 39998-65A | 1970 |
| 39954-99A | 1999 |
| 39964-99A | 1999 |
| 365C1 - Primary Drive Assembly | |
| 40308-94 | 1994 |
| 40384-91 | 1991 |
| 40251-92A | 1992 |
| 40323-00 | 2000 |
| 365E1 - Inner Primary Housing | |
| 60718-02 | 2002 |
| 367A1 - Clutch Lever | |
| 45015-96 | 1996 |
| 367H1 - Clutch Lever sub-component | |
| 37312-75 | 1975 |
| 37871-98A | 1998 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 45036-88 | 1988 |
| 37802-98B | 1998 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37550-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37903-90 | 1990 |
| 37088-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 370G1 - Clutch Shell | |
| 37707-98A | 1998 |
| 372D1 - Clutch Cable | |
| 38661-00 | 2000 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 372N1 - Clutch Vacuum Hose | |
| 26567-99 | 1999 |
| 400A1 - Drive-Belt | |
| 40015-00B | 2011 |
| 410D1 - Electronic Control Module (ECM) | |
| 68920-01D | 2001 |
| 413A1 - Brake Caliper | |
| 44046-00D | 2000 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 44023-00C | 2000 |
| 44017-00D | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44315-00 | 2000 |
| 44147-87A | 1987 |
| 45401-87 | 1987 |
| 48361-80 | 1980 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 415B1 - Brake Rotor | |
| 44136-00 | 2000 |
| 44156-00 | 2000 |
| 41797-00 | 2000 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 40903-87 | 1987 |
| 40920-87 | 1987 |
| 72023-51C | 1951 |
| 72023-51E | 2012 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45030-03C | 2003 |
| 42474-90B | 1990 |
| 417B1 - Brake Master Cylinder | |
| 45013-96D | 1996 |
| 45013-96B | 1996 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 45072-96C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45004-96A | 1996 |
| 45004-85 | 1985 |
| 42448-87 | 1987 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41803-90 | 1990 |
| 417G1 - Front Brake Lever | |
| 45016-96 | 1996 |
| 418B1 - Brake Line | |
| 40956-00B | 2002 |
| 45074-95 | 1995 |
| 45083-01 | 2001 |
| 422B1 - Wheel Sprocket | |
| 40114-00 | 2000 |
| 423G1 - Valve Stem | |
| 43157-83A | 1983 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95594-84A | 2010 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 41012-00A | 2000 |
| 43499-00A | 2000 |
| 430B1 - Rear Axle Carrier / Adjuster | |
| 41571-92 | 1992 |
| 430D1 - Front Axle | |
| 43895-00 | 2000 |
| 430E1 - Rear Axle | |
| 41114-90 | 1990 |
| 433B1 - Front Wheel Bearing Spacer | |
| 41591-00A | 2000 |
| 43608-00 | 2000 |
| 43654-00A | 2000 |
| 43358-00 | 2000 |
| 43617-00A | 2000 |
| 43613-00 | 2000 |
| 56153-73 | 1973 |
| 454A1 - Front Telescopic Fork | |
| 45347-02 | 2002 |
| 45348-02 | 2002 |
| 455A1 - Front Telescopic Fork Slider | |
| 45365-94 | 1994 |
| 45922-00 | 2000 |
| 45921-00 | 2000 |
| 455B1 - Front Telescopic Fork Spring | |
| 45384-02 | 2002 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45374-87 | 1987 |
| 45926-90 | 1990 |
| 45461-87 | 1987 |
| 45739-87 | 1987 |
| 45361-90 | 1990 |
| 45460-90 | 1990 |
| 46002-87 | 1987 |
| 45905-87 | 1987 |
| 456C1 - Fork Lock | |
| 45680-90 | 1990 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 47668-90B | 1990 |
| 470A1 - Frame | |
| 47318-98 | 1998 |
| 90923-02 | 2002 |
| 31519-90 | 1990 |
| 90924-02 | 2002 |
| 47456-02 | 2002 |
| 472A1 - Frame sub-component | |
| 41113-90 | 1990 |
| 474C1 - Swingarm | |
| 47820-00A | 2000 |
| 474E1 - Swingarm Assembly sub-component | |
| 41585-90B | 1990 |
| 67859-90 | 1990 |
| 475B1 - Swingarm Pivot Shaft | |
| 47817-00 | 2000 |
| 500D1 - Sidestand Leg | |
| 49710-94B | 1994 |
| 500E1 - Sidestand Leg sub-component | |
| 62123-66 | 1966 |
| 50053-90 | 1990 |
| 50057-02 | 2002 |
| 500F1 - Sidestand Pivot Pin | |
| 49723-98 | 1998 |
| 554A | 2002 |
| 47624-90A | 1991 |
| 505A1 - Footboard | |
| 50632-85 | 1985 |
| 50521-01 | 2001 |
| 505B1 - Footpeg Mount Bracket | |
| 49720-90 | 1990 |
| 50526-01 | 2001 |
| 50529-01 | 2001 |
| 50530-01 | 2001 |
| 505H1 - Footpeg Insert | |
| 50614-91A | 1991 |
| 506A1 - Brake Pedal | |
| 42416-83 | 1983 |
| 41954-01 | 2001 |
| 33711-02 | 2007 |
| 507B1 - Rider Interface Mounting Bracket | |
| 52740-02 | 2002 |
| 520A1 - Rider Seat or Full Seat | |
| 52219-01 | 2001 |
| 52242-83E | 1983 |
| 521A1 - Seat Support Structure | |
| 52575-01 | 2001 |
| 52413-01A | 2001 |
| 521D1 - Seat Suspension Spring | |
| 52561-93 | 1993 |
| 530C2 - Case Latch | |
| 90279-01 | 2001 |
| 90298-01 | 2001 |
| 540B1 - Rear Shock | |
| 54725-01 | 2001 |
| 540E1 - Rear Shock sub-component | |
| 54475-79 | 1979 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 55921-85A | 1986 |
| 559D1 - Lower Handlebar Clamp | |
| 56117-82A | 1982 |
| 56116-82A | 1982 |
| 559E1 - Upper Handlebar Clamp | |
| 56115-95 | 1995 |
| 560A1 - Mirror | |
| 91875-82A | 1983 |
| 91892-82A | 1983 |
| 561A1 - Throttle Cable | |
| 56356-96A | 1996 |
| 56355-96A | 1996 |
| 561B1 - Left Hand Grip | |
| 56206-96 | 1996 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 572E1 - Side Cover | |
| 32798-00 | 2000 |
| 573A1 - Bodywork Miscellaneous Component | |
| 58426-88 | 1988 |
| 574B1 - Windscreen / Windshield | |
| 91849-85C | 1985 |
| 58424-88 | 1988 |
| 58109-88B | 1988 |
| 589A1 - Front Fender | |
| 58998-83E | 2008 |
| 595D1 - Rear Fender | |
| 59485-02 | 2002 |
| 603B1 - Belt / Chain Guard | |
| 60356-00 | 2000 |
| 60339-00 | 2000 |
| 608B1 - Carbon Canister Hose | |
| 27296-96 | 1996 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 29474-99A | 1999 |
| 610A1 - Fuel Tank | |
| 61039-96 | 1996 |
| 611B1 - Fuel Cap | |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 63501-68B | 1968 |
| 63505-84 | 1984 |
| 612B2 - Fuel Valve | |
| 62161-02 | 2002 |
| 62170-02 | 2002 |
| 61338-02 | 2002 |
| 62172-02 | 2002 |
| 61200-97 | 1997 |
| 62150-85 | 1985 |
| 613B1 - Horn Cover | |
| 69039-09 | 2009 |
| 613B2 - Battery Cover | |
| 66234-99 | 1999 |
| 624A1 - Oil Pump Assembly | |
| 26035-99B | 1999 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26248-00 | 2000 |
| 26464-99 | 1999 |
| 26255-00 | 2000 |
| 26210-99 | 1999 |
| 26274-99 | 1999 |
| 26400-82B | 1982 |
| 627B1 - Oil Drain Plug | |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62851-99 | 1999 |
| 37075-87 | 1987 |
| 627E2 - Sight Glass | |
| 45042-96 | 1996 |
| 627F1 - Oil Filter | |
| 63731-99A | 1999 |
| 627H1 - Oil Line | |
| 45795-02 | 2002 |
| 37178-99 | 1999 |
| 62726-99 | 1999 |
| 627K1 - Oil Line Fitting | |
| 26314-99 | 1999 |
| 26352-95A | 1995 |
| 62375-57A | 1957 |
| 16334-02 | 2002 |
| 627N1 - Oil System Baffle | |
| 62828-99 | 1999 |
| 62826-02 | 2002 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 61131-92 | 1992 |
| 649A1 - Muffler | |
| 64941-01 | 2001 |
| 649C1 - Muffler Tailpipe / Outlet | |
| 65669-98 | 1998 |
| 65668-98 | 1998 |
| 654A1 - Exhaust Shield | |
| 65746-99 | 1999 |
| 65376-95A | 2010 |
| 65701-95 | 1995 |
| 65379-95 | 1995 |
| 655A1 - Muffler Mount | |
| 65674-95 | 1995 |
| 655C1 - Exhaust Mounting Bracket | |
| 65975-99 | 1999 |
| 65695-95 | 1995 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65302-82A | 1982 |
| 659B1 - Exhaust Flange | |
| 65184-02 | 2002 |
| 659C1 - Exhaust Gasket | |
| 65830-03 | 2003 |
| 660A1 - Battery | |
| 65989-97C | 1997 |
| 660E1 - Ground Strap | |
| 70276-96 | 1996 |
| 660F1 - Negative Battery Cable | |
| 70103-96 | 1996 |
| 660G1 - Positive Battery Cable | |
| 70102-96A | 1996 |
| 660H1 - Positive Battery Cable Boot | |
| 31662-90 | 1990 |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 67042-99 | 1999 |
| 677A1 - Headlight | |
| 67757-92 | 1992 |
| 68832-99 | 1999 |
| 67672-96B | 1996 |
| 67790-93A | 1993 |
| 67705-92 | 1992 |
| 67972-98 | 1998 |
| 68725-62A | 1962 |
| 67698-81D | 2001 |
| 67685-92 | 1992 |
| 677B1 - Headlight sub-component | |
| 67880-94 | 1994 |
| 677C1 - Headlight Support Bracket | |
| 69553-99 | 1999 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 68369-03 | 2003 |
| 68830-99A | 1999 |
| 68368-03 | 2003 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68140-99 | 1999 |
| 678B1 - Taillight Housing | |
| 68513-95A | 2010 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 68310-01 | 2001 |
| 67828-88A | 1988 |
| 67827-88A | 1988 |
| 68972-00 | 2000 |
| 67829-88 | 1988 |
| 68516-95 | 1995 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 68330-01 | 2001 |
| 679B1 - Reflector | |
| 59259-90 | 1990 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59988-72A | 1972 |
| 679D1 - License Plate Bracket | |
| 60001-55 | 1955 |
| 59986-75 | 1975 |
| 59984-73 | 1973 |
| 680A1 - Decorative Light | |
| 68728-64 | 1964 |
| 68727-64A | 1964 |
| 59989-84 | 1984 |
| 68355-05 | 2005 |
| 680B1 - Emergency Light | |
| 67599-88 | 1988 |
| 67624-88A | 2009 |
| 67623-88A | 2009 |
| 68727-64D | 2010 |
| 68301-03A | 2003 |
| 68300-03A | 2003 |
| 68728-64C | 2010 |
| 67688-88 | 1988 |
| 68579-03 | 2003 |
| 680C1 - Incandescent Bulb | |
| 68572-64B | 1964 |
| 68168-89A | 1989 |
| 68453-05 | 2005 |
| 68024-94 | 1994 |
| 68167-88 | 1988 |
| 68329-03 | 2003 |
| 67598-88 | 1988 |
| 690B1 - Emergency Siren sub-component | |
| 59980-84 | 1984 |
| 692C1 - Electrical Miscellaneous Component | |
| 66236-99 | 1999 |
| 72342-90A | 1999 |
| 76233-85 | 1985 |
| 76132-00 | 2000 |
| 76201-80A | 1980 |
| 76185-93 | 1993 |
| 692C2 - Electrical Mounting Bracket | |
| 66190-00 | 2000 |
| 70911-01 | 2001 |
| 48090-01 | 2001 |
| 69123-92A | 1992 |
| 59576-02 | 2002 |
| 67085-95 | 1995 |
| 47132-97B | 1997 |
| 66033-96 | 1996 |
| 69120-91 | 1991 |
| 67103-95 | 1995 |
| 70986-01 | 2001 |
| 48132-99 | 1999 |
| 69060-90F | 2010 |
| 91154-87 | 1987 |
| 67338-97 | 1997 |
| 90977-97 | 1997 |
| 76162-02 | 2002 |
| 69062-91A | 1991 |
| 91127-85 | 1985 |
| 692D1 - Fuse | |
| 74600-94 | 2019 |
| 72462-00 | 2000 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72432-00 | 2000 |
| 72430-00 | 2000 |
| 692F1 - Wire Harness | |
| 32800-00 | 2000 |
| 68770-02B | 2010 |
| 75062-01 | 2001 |
| 67419-99 | 1999 |
| 69601-03 | 2003 |
| 68820-98 | 1998 |
| 72152-94 | 1994 |
| 68841-98 | 1998 |
| 68762-99 | 1999 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72366-95 | 1995 |
| 72249-94 | 1994 |
| 72250-94 | 1994 |
| 72266-94 | 1994 |
| 70540-02 | 2002 |
| 692G2 - Wire Guide | |
| 27580-88 | 1988 |
| 72069-97 | 1997 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 74149-98 | 1998 |
| 72119-94BK | 1994 |
| 72109-94BK | 1994 |
| 72159-94 | 1994 |
| 72129-94GY | 1994 |
| 72144-94 | 1994 |
| 72280-95 | 1995 |
| 74142-98 | 1998 |
| 72179-94 | 1994 |
| 27250-96B | 1996 |
| 72124-94GY | 1994 |
| 67184-94 | 1994 |
| 72102-94BK | 1994 |
| 72139-94GY | 1994 |
| 74514-99 | 1999 |
| 73198-96 | 1996 |
| 72035-71 | 1971 |
| 72516-01 | 2001 |
| 72199-94 | 1994 |
| 69554-99 | 1999 |
| 72153-94 | 1994 |
| 692H2 - Terminal | |
| 72058-97 | 1997 |
| 72292-94 | 1994 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72428-00 | 2000 |
| 72365-96 | 1996 |
| 72290-94 | 1994 |
| 72059-08 | 2008 |
| 74192-98 | 1998 |
| 72291-94 | 1994 |
| 9840 | Unknown |
| 9843 | Unknown |
| 9842 | Unknown |
| 9937 | Unknown |
| 9863 | Unknown |
| 9857 | Unknown |
| 72434-00 | 2000 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72281-93 | 1993 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 74193-98 | 1998 |
| 72142-94 | 1994 |
| 72912-01BK | 2001 |
| 72112-94BK | 1994 |
| 72039-71A | 1971 |
| 72104-94BK | 1994 |
| 72149-94 | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72503-90 | 1990 |
| 70345-84 | 1984 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72231-98 | 1998 |
| 70201-97 | 1997 |
| 72042-97 | 1997 |
| 72902-01BK | 2001 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 73156-96BK | 1996 |
| 73106-96BK | 1996 |
| 72230-98 | 1998 |
| 72030-97 | 1997 |
| 70202-97 | 1997 |
| 74109-98BK | 1998 |
| 74195-98 | 1998 |
| 74102-98BK | 1998 |
| 27386-97A | 1997 |
| 73153-96BK | 1996 |
| 73158-96BK | 1996 |
| 72032-93 | 1993 |
| 72043-71A | 1971 |
| 72143-94 | 1994 |
| 72327-03A | 2003 |
| 72033-93 | 1993 |
| 72163-94BK | 1994 |
| 74413-93 | 1993 |
| 73191-96 | 1996 |
| 74159-98 | 1998 |
| 72190-94 | 1994 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 72031-97 | 1997 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 72046-79 | 1979 |
| 73154-96BK | 1996 |
| 10191A | Unknown |
| 73108-96BK | 1996 |
| 709B1 - Instrument Cluster or Speedometer | |
| 67345-97 | 1997 |
| 61142-01 | 2001 |
| 67177-99A | 2003 |
| 67025-99A | 2004 |
| 67344-97 | 1997 |
| 709B2 - Fuel Gauge | |
| 75049-01A | 2001 |
| 709E1 - Tank Console | |
| 61182-01 | 2001 |
| 714A1 - Ignition Switch | |
| 71313-96A | 1996 |
| 714B1 - Mechanical Switch | |
| 33904-00A | 2000 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 714D1 - Relay | |
| 31522-00C | 2004 |
| 68563-04A | 2004 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 70357-96 | 1996 |
| 70356-96A | 1996 |
| 71587-04 | 2004 |
| 70361-96 | 1996 |
| 70389-96 | 1996 |
| 70358-96 | 1996 |
| 70388-96 | 1996 |
| 70359-96A | 1996 |
| 70355-96 | 1996 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71685-06A | 2006 |
| 71515-08 | 2008 |
| 71620-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74594-02 | 2002 |
| 760B1 - Antenna | |
| 76006-03 | 2003 |
| 760C1 - Audio System Amplifier | |
| 91156-93 | 1993 |
| 760C2 - Audio System Speaker | |
| 91157-88A | 1988 |
| 902A1 - Saddlebag | |
| 90257-03 | 2003 |
| 90992-03 | 2003 |
| 902E1 - Saddlebag Bottom | |
| 90403-01 | 2001 |
| 90278-01 | 2001 |
| 90423-01 | 2001 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS: |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | CARBURETOR (1 OF 2): FUEL TANK: |
| 10249 | CLAMP | TRANSMISSION HOUSING & OIL TANK: |
| 11105 | O-RING | TRANSMISSION HOUSING & OIL TANK: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: TRANSMISSION BEARINGS & SIDE COVERS: |
| 11143 | RETAINING RING | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 11147B | O-RING | PRIMARY HOUSING: |
| 11150 | RETAINING RING | GEAR SHIFTER: |
| 11157 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™: |
| 11165 | QUAD SEAL | TRANSMISSION BEARINGS & SIDE COVERS: |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 11292 | O-RING | AIR CLEANER & ENRICHENER: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 88™: |
| 11301 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™: |
| 11491A | GROMMET | SWITCHES AND CIRCUIT BREAKERS: |
| 12035B | OIL SEAL | TRANSMISSION GEARS: |
| 12045 | SEAL | GEAR SHIFTER: |
| 12052A | OIL SEAL | PRIMARY HOUSING: |
| 12066A | OIL SEAL | PRIMARY HOUSING: |
| 12067B | OIL SEAL | TRANSMISSION BEARINGS & SIDE COVERS: |
| 1311D | SCREW | FUEL SENDER: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - TWIN CAM 88™: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 25244-99A | GASKET | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™: |
| 25416-99C | O-RING | PRIMARY HOUSING: |
| 25700225 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL INTAKE MANIFOLD | CARBURETOR (1 OF 2): |
| 2918 | SCREW | ALTERNATOR & REGULATOR: |
| 2952A | SCREW | SEAT: |
| 31430-94 | WASHER | STARTER MOTOR: |
| 3275 | SCREW | CARBURETOR (1 OF 2): |
| 33126-94 | LOCKPLATE | STARTER MOTOR: |
| 33318-85 | LOCKING TAB | PRIMARY HOUSING: |
| 3655A | SCREW | FRONT WHEEL: FRAME & JIFFY STAND: |
| 3656 | SCREW | FUEL TANK: |
| 3658 | SCREW | HANDLEBAR SWITCHES: |
| 36801-87C | GASKET | TRANSMISSION BEARINGS & SIDE COVERS: |
| 4132 | SCREW | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 41731-88A | GASKET | FRONT BRAKE CONTROL: REAR BRAKE CONTROL: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45378-87 | OIL SEAL | FRONT FORK: |
| 45405-75A | SCREW | FRONT FORK: |
| 4740A | SCREW | CAMSHAFTS AND CAMSHAFT COVER - TWIN CAM 88™: ALTERNATOR & REGULATOR: GEAR SHIFTER: TRANSMISSION HOUSING & OIL TANK: PRIMARY HOUSING: |
| 48300-60 | ROLLER BEARING | FRONT FORK: |
| 53156-86 | BUSHING | HANDLEBAR: |
| 60539-94B | GASKET | PRIMARY HOUSING: |
| 60567-90C | GASKET | PRIMARY HOUSING: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 63859-95B | GASKET | PRIMARY HOUSING: |
| 6516HW | WASHER | BELTS, CHAINS & SPROCKETS: REAR BRAKE CONTROL: REAR WHEEL: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | GEAR SHIFTER: REAR FORK, DEBRIS DEFLECTOR & BELT GUARD: SEAT: EXHAUST SYSTEM: SADDLEBAGS: |
| 7041 | LOCKWASHER | STARTER MOTOR: SEAT: |
| 739A | PLUG | PRIMARY HOUSING: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | FOOTRESTS: SWITCHES AND CIRCUIT BREAKERS: AMPLIFIER, SIREN AND STROBE LAMP: |
| 856A | SCREW | GEAR SHIFTER: |
| 8692 | RIVET | SADDLEBAGS: |
| 9267 | BEARING | FRONT WHEEL: REAR WHEEL: |
| 961 | SCREW | PRIMARY HOUSING: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | FRONT BRAKE CALIPER: REAR BRAKE CALIPER: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR: |
| 71621-08 | SWITCH KIT | HANDLEBAR SWITCHES: |
| 72023-51E | SWITCH | REAR BRAKE CONTROL: |
| 72330-95 | FUSE | WIRING HARNESS (2 OF 2): SWITCHES AND CIRCUIT BREAKERS: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY KIT | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™: |
| 37909-90 | RETAINING RING | CLUTCH: |
| 37913-98 | CLUTCH PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 27002-89 | SEAL RING | CARBURETOR (1 OF 2): |
| 27361-76A | DIAPHRAGM | CARBURETOR (2 OF 2): |
| 29229-88D | CABLE | AIR CLEANER & ENRICHENER: |
| 29476-99 | TUBE | AIR CLEANER & ENRICHENER: |
| 65296-95A | CLAMP | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | HEADLAMP, FRONT TURN SIGNAL & PURSUIT LAMP: TAIL LAMP & REAR TURN SIGNALS: |
| 68329-03 | BULB | HEADLAMP, FRONT TURN SIGNAL & PURSUIT LAMP: |
| 68572-64B | BULB | TAIL LAMP & REAR TURN SIGNALS: |
| 68973-00 | LENS | HEADLAMP, FRONT TURN SIGNAL & PURSUIT LAMP: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | IGNITION MODULE & COIL: |
| 63731-99A | OIL FILTER | CRANKCASE AND ENGINE OIL FILTER - TWIN CAM 88™: |
| 65989-97C | BATTERY | BATTERY TRAY & BATTERY: |
| 95594-84A | WEIGHT | FRONT WHEEL: REAR WHEEL: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 43157-83A | VALVE STEM | FRONT WHEEL: REAR WHEEL: |
