GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2003 FXSTDSE MODELS
VIN Model Codes
Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Domestic 5=International |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc and larger) 4=Middleweight motorcycle (351-900 cc) |
4 | Model | PF=FXSTDSE |
5 | Engine type | D=1550 cc fuel injected |
6 | Introduction date | 1=Regular 2=Mid-year 3=California 4=Special Edition 5=Special Edition Cal. Only |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 3=2003 |
9 | Assembly plant | Y=York, PA |
10 | Sequential number | varies |
NOTES
COMPLETE ENGINE - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 19107-03 | ENGINE ASSEMBLY, complete | FXSTDSE |
CYLINDERS, HEADS & VALVES - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | FXSTDSE |
| 2 | 3231B | SCREW (4) | FXSTDSE |
| 3 | 16478-85A | SCREW, internal thread, 3-3/16 inch long (4) | FXSTDSE |
| 4 | 16480-92A | SCREW, internal thread, 1-7/8 inch long (4) | FXSTDSE |
| 5 | 16548-99 | CYLINDER ASSEMBLY, w/ 16595-99A (silver) (2) | FXSTDSE |
| 6 | 16595-99A | DOWEL, cylinder to head (4) | FXSTDSE |
| 7 | 16715-83 | STUD, exhaust port (4) | FXSTDSE |
| 8 | 16716-99 | CYLINDER HEAD, front, w/ 18011-86, 18020-83 & 18101-83D (silver) | FXSTDSE |
| 16717-99 | CYLINDER HEAD, rear, w/ 18011-86, 18020-83 & 18101-83D (silver) | FXSTDSE | |
| 9 | 16787-99A | GASKET, cylinder head - 1550 engine (2) | FXSTDSE |
| 10 | 16834-99A | STUD, cylinder (8) | FXSTDSE |
| 11 | 17052-99C | GASKET KIT, top end | FXSTDSE |
| 17053-99C | GASKET KIT, engine overhaul | FXSTDSE | |
| 12 | 18001-83B | SEAL, valve (4) | FXSTDSE |
| 13 | 18011-86 | INSERT, exhaust valve seat (2) | FXSTDSE |
| 18124-83 | INSERT, exhaust valve seat, 0.005 O.S. (2) | FXSTDSE | |
| 14 | 18020-83 | INSERT, intake valve seat (2) | FXSTDSE |
| 18134-83 | INSERT, intake valve seat, 0.005 O.S. (2) | FXSTDSE | |
| 15 | 18074-83B | INTAKE VALVE (2) | FXSTDSE |
| 18076-83 | INTAKE VALVE, 0.03 short (2) | FXSTDSE | |
| 16 | 18082-83A | EXHAUST VALVE (2) | FXSTDSE |
| 17 | 18101-83D | VALVE GUIDE, intake & exhaust (4) | FXSTDSE |
| 18130-83D | VALVE GUIDE, intake & exhaust, 0.001 O.S. (4) | FXSTDSE | |
| 18131-83D | VALVE GUIDE, intake & exhaust, 0.003 O.S. (4) | FXSTDSE | |
| 18133-83B | VALVE GUIDE, intake & exhaust, 0.002 O.S. (4) | FXSTDSE | |
| 18 | 18201-83 | VALVE SPRING, outer (4) | FXSTDSE |
| 19 | 18202-83 | VALVE SPRING, inner (4) | FXSTDSE |
| 20 | 18219-83A | COLLAR, valve spring, upper (4) | FXSTDSE |
| 21 | 18222-83A | COLLAR, valve spring, lower (4) | FXSTDSE |
| 22 | 18229-83A | RETAINER, valve collar (8) | FXSTDSE |
| 23 | 43823-01 | HEADBOLT COVER (4) | FXSTDSE |
ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | FXSTDSE |
| 2 | 3692A | SCREW (6) | FXSTDSE |
| 3 | 3693A | SCREW (10) | FXSTDSE |
| 4 | 3736A | SCREW (8) | FXSTDSE |
| 5 | 3746A | SCREW (used w/ 17907-01) (4) | FXSTDSE |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | FXSTDSE |
| 7 | 4741A | SCREW (8) | FXSTDSE |
| 8 | 6762B | WASHER (4) | FXSTDSE |
| 9 | 11132A | O-RING, push rod cover (4) | FXSTDSE |
| 10 | 11145A | O-RING, push rod cover (4) | FXSTDSE |
| 11 | 11270 | O-RING (2) | FXSTDSE |
| 12 | 11293 | O-RING (4) | FXSTDSE |
| 13 | 16719-99B | GASKET, rocker housing (2) | FXSTDSE |
| 14 | 17025-03A | BREATHER ASSEMBLY, engine (replaces 17907-01) (2) | FXSTDSE |
| 15 | 17045-99D | GASKET KIT, cam service | FXSTDSE |
| 16 | 17360-83A | ROCKER ARM, front intake, rear exhaust, w/ 17429-91 (2) | FXSTDSE |
| 17 | 17375-83A | ROCKER ARM, rear intake, front exhaust, w/ 17429-91 (2) | FXSTDSE |
| 18 | 17386-99A | GASKET, rocker cover (2) | FXSTDSE |
| 19 | 17429-91 | BEARING, rocker arm (8) | FXSTDSE |
| 20 | 17572-99 | ROCKER COVER (chrome) (2) | FXSTDSE |
| 21 | 17573-99A | ROCKER HOUSING (chrome) (2) | FXSTDSE |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | FXSTDSE |
| 23 | 17611-83 | SHAFT, rocker arm (4) | FXSTDSE |
| 24 | 17907-01 | BREATHER ASSEMBLY, engine (use 17025-03A) (2) | FXSTDSE |
| 25 | 17922-99 | PUSHROD, exhaust, 10.536 inch long (black oxide finish) (2) | FXSTDSE |
| 17923-99 | PUSHROD, intake, 10.418 inch long (plain finish) (2) | FXSTDSE | |
| 26 | 17939-99 | COVER, push rod, lower (4) | FXSTDSE |
| 27 | 17945-36B | CAP, cover spring (4) | FXSTDSE |
| 28 | 17947-36 | SPRING, push rod cover (4) | FXSTDSE |
| 29 | 17948-99 | COVER, push rod, upper (4) | FXSTDSE |
| 30 | 17964-99 | LIFTER COVER, front (chrome) | FXSTDSE |
| 17966-99 | LIFTER COVER, rear (chrome) | FXSTDSE | |
| 31 | 17968-99 | RETAINER, spring cap (4) | FXSTDSE |
| 32 | 18535-99 | PIN, anti-rotation (2) | FXSTDSE |
| 33 | 18538-99C | HYDRAULIC LIFTER (4) | FXSTDSE |
| 34 | 18635-99B | GASKET, lifter cover (2) | FXSTDSE |
| 35 | 63815-99 | FILTER ELEMENT, breather (used w/ 17907-01) (2) | FXSTDSE |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) | FXSTDSE |
PISTONS AND FLYWHEEL ASSEMBLY - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FXSTDSE |
| 2 | 21918-99 | PISTON RING SET, 1550, standard (2) | FXSTDSE |
| 21919-99 | PISTON RING SET, 1550, 0.005 inch O.S. (2) | FXSTDSE | |
| 21945-99 | PISTON RING SET, 1550, 0.010 inch O.S. (2) | FXSTDSE | |
| 21946-99 | PISTON RING SET, 1550, 0.020 inch O.S. (2) | FXSTDSE | |
| 21947-99 | PISTON RING SET, 1550, 0.030 inch O.S. (2) | FXSTDSE | |
| 3 | 22400-99 | PISTON AND RINGS ASSEMBLY, 1550 flat top, standard (2) | FXSTDSE |
| 22401-99 | PISTON AND RINGS ASSEMBLY, 1550 flat top, 0.005 inch O.S. (2) | FXSTDSE | |
| 22402-99 | PISTON AND RINGS ASSEMBLY, 1550 flat top, 0.010 inch O.S. (2) | FXSTDSE | |
| 22403-99 | PISTON AND RINGS ASSEMBLY, 1550 flat top, 0.020 inch O.S. (2) | FXSTDSE | |
| 22404-99 | PISTON AND RINGS ASSEMBLY, 1550 flat top, 0.030 inch O.S. (2) | FXSTDSE | |
| 4 | 22097-99 | LOCK RING, piston pin (4) | FXSTDSE |
| 5 | 22132-99 | PISTON PIN (2) | FXSTDSE |
| 6 | 24316-99 | BUSHING, piston pin, 0.002 inch O.S. (2) | FXSTDSE |
| 7 | 23971-03B | FLYWHEEL ASSEMBLY, w/ 11177A, thrust washer, inner race, connecting rods, flywheels, plugs, bearings, crankpin & ring | FXSTDSE |
CRANKCASE AND ENGINE OIL FILTER - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | FXSTDSE |
| 2 | 895 | SCREW (12) | FXSTDSE |
| 3 | 8972 | WASHER, thrust | FXSTDSE |
| 4 | 9198 | NEEDLE BEARING, left side of camshafts (2) | FXSTDSE |
| 5 | 11140 | O-RING (2) | FXSTDSE |
| 6 | 11273 | O-RING (2) | FXSTDSE |
| 7 | 12068 | OIL SEAL | FXSTDSE |
| 8 | 16574-99A | DOWEL RING (2) | FXSTDSE |
| 9 | 16589-99A | DOWEL RING (2) | FXSTDSE |
| 10 | 16595-99A | DOWEL RING (4) | FXSTDSE |
| 11 | 22307-99 | PISTON COOLING JET, w/ 11140 (2) | FXSTDSE |
| 12 | 24039-03 | SPACER, sprocket shaft | FXSTDSE |
| 13 | 24603-00 | SPACER (4) | FXSTDSE |
| 14 | 24605-07 | BEARING, main, right side of crankshaft (2) | FXSTDSE |
| 15 | 24679-03 | SET OF CRANKCASES, w/ 100th medallion (silver) **RESTRICTED SALES PART** | FXSTDSE |
| 16 | 24709-03 | MEDALLION KIT, crankcase **RESTRICTED SALES PART** | FXSTDSE |
| 17 | 26352-95A | ADAPTOR, oil filter | FXSTDSE |
| 18 | 26432-76A | O-RING (2) | FXSTDSE |
| 19 | 35114-02 | RETAINING RING | FXSTDSE |
| 20 | 63798-99A | OIL FILTER (chrome) | FXSTDSE |
| 21 | 68042-99 | SCREW (4) | FXSTDSE |
ENGINE BALANCER - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 956 | SCREW (6) | FXSTDSE |
| 2 | 6852 | WASHER (2) | FXSTDSE |
| 3 | 7974 | JAM NUT (2) | FXSTDSE |
| 4 | 8991 | BEARING (2) | FXSTDSE |
| 5 | 8989 | BEARING (2) | FXSTDSE |
| 6 | 14716-00 | SUPPORT, front balance shaft | FXSTDSE |
| 7 | 14717-00 | SUPPORT, rear balance shaft | FXSTDSE |
| 8 | 14728-00 | SUPPORT ASSEMBLY, chain guide, w/ tensioner pistons | FXSTDSE |
| 9 | 14761-00 | GUIDE KIT, chain tensioner, w/ lower, front & rear guides | FXSTDSE |
| 10 | 14762-00 | CHAIN DRIVE KIT, w/ chain, front & rear sprockets | FXSTDSE |
| 11 | 14764-00 | PISTON ASSEMBLY KIT, chain tensioner (2) | FXSTDSE |
| 12 | 14780-00 | SPACER, 0.130 inch thick | FXSTDSE |
| 14781-00 | SPACER, 0.140 inch thick | FXSTDSE | |
| 14782-00 | SPACER, 0.150 inch thick | FXSTDSE | |
| 14783-00 | SPACER, 0.160 inch thick | FXSTDSE | |
| 14784-00 | SPACER, 0.170 inch thick | FXSTDSE | |
| 14785-00 | SPACER, 0.180 inch thick | FXSTDSE | |
| 14786-00 | SPACER, 0.190 inch thick | FXSTDSE | |
| 14787-00 | SPACER, 0.200 inch thick | FXSTDSE | |
| 14788-00 | SPACER, 0.210 inch thick | FXSTDSE | |
| 13 | 14789-00 | BALANCE SHAFT KIT, front, w/ balance shaft & sprocket | FXSTDSE |
| 14 | 14790-00 | BALANCE SHAFT KIT, rear, w/ balance shaft & sprocket | FXSTDSE |
| 15 | 16583-00A | DOWEL (4) | FXSTDSE |
| 16 | 45359-00 | SEAL, oil interconnect | FXSTDSE |
CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FXSTDSE |
| 2 | 3290 | PLUG, cam support plate | FXSTDSE |
| 3 | 4740A | SCREW (10) | FXSTDSE |
| 4 | 4741A | SCREW (10) | FXSTDSE |
| 5 | 6294 | WASHER | FXSTDSE |
| 6 | 8983 | ROLLER BEARING ASSEMBLY, rear camshaft | FXSTDSE |
| 7 | 8990A | BALL BEARING, front camshaft | FXSTDSE |
| 8 | 11031 | RETAINING RING (2) | FXSTDSE |
| 9 | 11157 | O-RING | FXSTDSE |
| 10 | 11286 | O-RING | FXSTDSE |
| 11 | 11298 | O-RING, viton | FXSTDSE |
| 12 | 11301 | O-RING (2) | FXSTDSE |
| 13 | 11494 | RETAINING RING | FXSTDSE |
| 14 | 13885-04 | LOGO, bar & shield | FXSTDSE |
| 15 | 17045-99D | GASKET KIT, cam service | FXSTDSE |
| 16 | 24983-00 | SCREEN, oil | FXSTDSE |
| 17 | 25244-99A | GASKET, cam cover | FXSTDSE |
| 18 | 25267-99B | CAM SUPPORT ASSEMBLY, w/ bearings, retaining plate, tensioners & bypass valve | FXSTDSE |
| 19 | 25344-99 | BUSHING, crankshaft | FXSTDSE |
| 20 | 25369-01B | CAM COVER, chrome | FXSTDSE |
| 21 | 25533-99A | CAM DRIVE SPROCKET RETENTION KIT, w/ screws & washers | FXSTDSE |
| 22 | 25607-99 | CHAIN, secondary cam drive | FXSTDSE |
| 23 | 25609-99 | SPROCKET, cam drive on crankshaft, 17T | FXSTDSE |
| 24 | 25610-99 | CHAIN, primary cam drive | FXSTDSE |
| 25 | 25716-99 | SPROCKET, cam drive, 34T | FXSTDSE |
| 26 | 25717-00 | SPACER, cam drive sprocket alignment, 0.327 inch thick (use as required) | FXSTDSE |
| 25719-00 | SPACER, cam drive sprocket alignment, 0.317 inch thick (use as required) | FXSTDSE | |
| 25721-00 | SPACER, cam drive sprocket alignment, 0.307 inch thick (use as required) | FXSTDSE | |
| 25722-00 | SPACER, cam drive sprocket alignment, 0.287 inch thick (use as required) | FXSTDSE | |
| 25723-00 | SPACER, cam drive sprocket alignment, 0.297 inch thick (use as required) | FXSTDSE | |
| 25725-00 | SPACER, cam drive sprocket alignment, 0.337 inch thick (use as required) | FXSTDSE | |
| 25938-00 | SPACER KIT | FXSTDSE | |
| 27 | 25937-99B | CAMSHAFT KIT, SE203, w/ front camshaft, rear camshaft & required gaskets | FXSTDSE |
| 28 | 26035-99B | OIL PUMP ASSEMBLY, w/ 11286, 26248-00, 26255-00, 26464-99 & 40323-00 | FXSTDSE |
| 29 | 26210-99 | SPRING, relief valve | FXSTDSE |
| 30 | 26248-00 | SEPARATOR PLATE, gerotor (2) | FXSTDSE |
| 31 | 26255-00 | GEROTOR ASSEMBLY, scavenge | FXSTDSE |
| 32 | 26400-82B | RELIEF VALVE, oil pump | FXSTDSE |
| 33 | 26464-99 | GEROTOR ASSEMBLY, pressure | FXSTDSE |
| 34 | 32574-03 | TIMER COVER (chrome) | FXSTDSE |
| 35 | 35060-00 | PLATE, bearing retaining | FXSTDSE |
| 36 | 39954-99A | CHAIN TENSIONER, primary cam drive chain | FXSTDSE |
| 37 | 39964-99A | CHAIN TENSIONER, secondary cam drive chain | FXSTDSE |
| 38 | 39965-99 | CHAIN GUIDE | FXSTDSE |
| 39 | 40323-00 | SPRING SEPARATOR | FXSTDSE |
| 40 | 68042-99 | SCREW (4) | FXSTDSE |
| 41 | 68120-00 | SCREW (5) | FXSTDSE |
ENGINE MOUNTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4716W | SCREW (2) | FXSTDSE |
| 2 | 4726 | BOLT | FXSTDSE |
| 3 | 6019 | WASHER (2) | FXSTDSE |
| 4 | 6516HW | WASHER | FXSTDSE |
| 5 | 6530 | WASHER (4) | FXSTDSE |
| 6 | 7601 | LOCKNUT (3) | FXSTDSE |
| 7 | 7879 | NUT (2) | FXSTDSE |
| 8 | 16247-00 | BRACKET, top engine mount | FXSTDSE |
| 9 | 24603-00 | SPACER (4) | FXSTDSE |
| 10 | 48054-00 | BOLT | FXSTDSE |
| 11 | 48093-00 | BOLT | FXSTDSE |
| 12 | 48094-00 | SPACER, engine mount (3) | FXSTDSE |
| 13 | 69046-01 | BRACKET, top engine mount, horn | FXSTDSE |
INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FXSTDSE |
| 2 | 11291 | SEAL, manifold air pressure sensor | FXSTDSE |
| 3 | 26995-86B | SEAL, intake manifold (2) | FXSTDSE |
| 4 | 27009-86A | FLANGE, mounting, front | FXSTDSE |
| 27010-86A | FLANGE, mounting, rear | FXSTDSE | |
| 5 | 27270-95 | INTAKE AIR TEMPERATURE KIT | FXSTDSE |
| 6 | 27600-01A | INDUCTION MODULE ASSEMBLY, complete | FXSTDSE |
| 7 | 27603-01 | THROTTLE BODY ASSEMBLY | FXSTDSE |
| 8 | 27604-01A | THROTTLE HOUSING, stop | FXSTDSE |
| 9 | 27608-01A | FUEL RAIL | FXSTDSE |
| 10 | 27609-01B | INJECTOR, fuel (2) | FXSTDSE |
| 11 | 27612-01 | TUBE, fuel supply | FXSTDSE |
| 12 | 27628-01A | IDLE KIT, air control | FXSTDSE |
| 13 | 27629-01A | THROTTLE KIT, position sensor | FXSTDSE |
| 14 | 27630-01 | MANIFOLD INTAKE | FXSTDSE |
| 15 | 27635-01A | KIT HARDWARE INDUCTION MODULE | FXSTDSE |
| 16 | 32416-10 | SENSOR, manifold air pressure, w/ 11291 | FXSTDSE |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1060 | SCREW (3) | FXSTDSE |
| 2 | 11292 | O-RING (2) | FXSTDSE |
| 3 | 29127-95B | SAFETY LABEL | FXSTDSE |
| 4 | 29215-03 | INSERT TRIM A/C, "Screamin Eagle 1550" | FXSTDSE |
| 5 | 29339-03 | SCREW | FXSTDSE |
| 6 | 29442-99E | FILTER ELEMENT | FXSTDSE |
| 7 | 29465-99 | SCREW, breather (2) | FXSTDSE |
| 8 | 29485-03 | BREATHER TUBE (2) | FXSTDSE |
| 9 | 29486-03 | BRACKET, air cleaner cover | FXSTDSE |
| 10 | 29583-01A | GASKET, backplate | FXSTDSE |
| 11 | 29612-03 | BACKPLATE | FXSTDSE |
| 12 | 29614-03 | COVER, air cleaner | FXSTDSE |
| 13 | 29615-03 | SEAL, air cleaner cover | FXSTDSE |
ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2918 | SCREW (4) | FXSTDSE |
| 2 | 4740A | SCREW (2) | FXSTDSE |
| 3 | 7686 | LOCKNUT (2) | FXSTDSE |
| 4 | 9843 | TERMINAL, #10 ring, 10-12 AWG | FXSTDSE |
| 5 | 10006 | CABLE STRAP (6) | FXSTDSE |
| 6 | 29923-01A | SPACER | FXSTDSE |
| 7 | 29981-95 | ROTOR ASSEMBLY | FXSTDSE |
| 8 | 30017-01B | STATOR | FXSTDSE |
| 9 | 57047-03 | BRACKET, regulator mounting | FXSTDSE |
| 10 | 72195-94 | SEAL PIN | FXSTDSE |
| 11 | 72199-94 | ANCHOR, connector | FXSTDSE |
| 12 | 72242-94 | TERMINAL, 1/4 inch ring, 10-12 AWG | FXSTDSE |
| 13 | 72249-94 | SHRINK TUBE (black) | FXSTDSE |
| 14 | 72366-95 | SHRINK TUBE (yellow) | FXSTDSE |
| 15 | 72604-01BK | PIN HOUSING, 4-way (black) | FXSTDSE |
| 16 | 72614-01BK | SOCKET HOUSING, 4-way (black) | FXSTDSE |
| 17 | 72644-01 | SECONDARY LOCK, pin housing | FXSTDSE |
| 18 | 72654-01 | SECONDARY LOCK, socket housing | FXSTDSE |
| 19 | 72690-01 | TERMINAL, pin housing (3) | FXSTDSE |
| 20 | 72691-01 | TERMINAL, socket housing (3) | FXSTDSE |
| 21 | 74610-01 | VOLTAGE REGULATOR, kit | FXSTDSE |
ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3602A | SCREW, w/ washer | FXSTDSE |
| 2 | 4717A | SCREW (2) | FXSTDSE |
| 3 | 6716 | WASHER (4) | FXSTDSE |
| 4 | 7629 | NUT (4) | FXSTDSE |
| 5 | 10177 | CABLE STRAP, w/ plug-in retainer (2) | FXSTDSE |
| 6 | 30202-01 | COIL COVER ASSEMBLY, w/ 31742-00 (chrome) | FXSTDSE |
| 7 | 31742-00 | PAD, coil cover | FXSTDSE |
| 8 | 31743-01 | IGNITION COIL, dual | FXSTDSE |
| 9 | 31981-99C | SPARK PLUG CABLE, front cylinder | FXSTDSE |
| 10 | 31983-00C | SPARK PLUG CABLE, rear cylinder | FXSTDSE |
| 11 | 32362-04 | SPARK PLUG, 6R12 (2) | FXSTDSE |
| 12 | 32534-11 | ELECTRONIC CONTROL MODULE, blank | FXSTDSE |
ENGINE SENSORS AND SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | FXSTDSE |
| 2 | 11289A | O-RING | FXSTDSE |
| 3 | 26561-99 | OIL PRESSURE SWITCH | FXSTDSE |
| 4 | 32446-99 | SENSOR, engine temperature | FXSTDSE |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A & 72199-94 | FXSTDSE |
| 6 | 38712-68 | CLAMP | FXSTDSE |
| 7 | 68042-99 | SCREW | FXSTDSE |
| 8 | 72199-94 | CONNECTOR ANCHOR | FXSTDSE |
| 9 | 74102-98BK | PIN HOUSING, 2-place | FXSTDSE |
| 10 | 74142-98 | SECONDARY LOCK, 2-place pin housing | FXSTDSE |
| 11 | 74192-98 | TERMINAL PIN, solid gold plated (2) | FXSTDSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW, cover | FXSTDSE |
| 2 | 929A | SCREW (2) | FXSTDSE |
| 3 | 3403 | LOCKNUT, flange | FXSTDSE |
| 4 | 3559 | BOLT, starter (2) | FXSTDSE |
| 5 | 4358A | SCREW | FXSTDSE |
| 6 | 4326A | SCREW (2) | FXSTDSE |
| 7 | 7041 | LOCKWASHER (2) | FXSTDSE |
| 8 | 7838 | NUT, w/ washer (2) | FXSTDSE |
| 9 | 8871 | BALL BEARING | FXSTDSE |
| 10 | 8879 | BALL | FXSTDSE |
| 11 | 8883 | BALL BEARING | FXSTDSE |
| 12 | 9077 | CLUTCH ROLLER (5) | FXSTDSE |
| 13 | 10957 | O-RING | FXSTDSE |
| 14 | 11182 | RETAINING RING | FXSTDSE |
| 15 | 11248 | RETAINING RING | FXSTDSE |
| 16 | 31342-94 | PINION GEAR | FXSTDSE |
| 17 | 31430-94 | WASHER, thrust | FXSTDSE |
| 18 | 31510-90 | HOUSING, starter | FXSTDSE |
| 19 | 31515-90 | ARMATURE ASSEMBLY | FXSTDSE |
| 20 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31664-94, 31692-90 & return spring | FXSTDSE |
| 21 | 31518-90 | BRUSH HOLDER ASSEMBLY | FXSTDSE |
| 22 | 31519-90 | FRAME, starter end | FXSTDSE |
| 23 | 31527-90 | BRACKET, starter cover | FXSTDSE |
| 24 | 31530-90 | RETAINER, idler gear | FXSTDSE |
| 25 | 31535-91 | COVER, chrome | FXSTDSE |
| 26 | 31538-98 | SWITCH ASSEMBLY, magnetic | FXSTDSE |
| 27 | 31548-90 | COUPLING | FXSTDSE |
| 31553-94B | STARTER, complete (black texture) | FXSTDSE | |
| 28 | 31604-91A | STARTER SOLENOID REPAIR KIT | FXSTDSE |
| 29 | 31612-09 | JACKSHAFT KIT, starter | FXSTDSE |
| 30 | 31662-90 | BOOT, insulating | FXSTDSE |
| 31 | 31664-94 | SHAFT, output | FXSTDSE |
| 32 | 31688-90 | COVER, solenoid | FXSTDSE |
| 33 | 31689-90 | BOLT, w/ washer (3) | FXSTDSE |
| 34 | 31692-90 | SPRING | FXSTDSE |
| 35 | 31695-90 | O-RING (2) | FXSTDSE |
| 36 | 33126-94 | LOCKPLATE | FXSTDSE |
| 37 | 33127-94 | SHAFT, extension | FXSTDSE |
| 38 | 33449-94 | SPRING, pinion gear | FXSTDSE |
GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 609 | PIN (4) | FXSTDSE |
| 2 | 856A | SCREW | FXSTDSE |
| 3 | 3784 | SET SCREW, shifter fork shaft, left | FXSTDSE |
| 4 | 3909 | SCREW (4) | FXSTDSE |
| 5 | 4016 | SCREW | FXSTDSE |
| 6 | 4192 | SCREW (2) | FXSTDSE |
| 7 | 4387 | SCREW | FXSTDSE |
| 8 | 5826 | SPACER, shifter cover | FXSTDSE |
| 9 | 6057 | WASHER, nylon | FXSTDSE |
| 10 | 6497HW | WASHER | FXSTDSE |
| 11 | 7041 | LOCKWASHER (2) | FXSTDSE |
| 12 | 7904 | ACORN NUT, stainless | FXSTDSE |
| 13 | 9837 | BALL BEARING (2) | FXSTDSE |
| 14 | 11150 | RETAINING RING | FXSTDSE |
| 15 | 11191 | O-RING (2) | FXSTDSE |
| 16 | 11319A | RETAINING RING (2) | FXSTDSE |
| 17 | 11342 | RETAINING RING | FXSTDSE |
| 18 | 12045 | SEAL | FXSTDSE |
| 19 | 33301-00A | SUPPORT ASSEMBLY, shifter cam, left, w/ 9837 & 11319A | FXSTDSE |
| 20 | 33304-00 | SUPPORT ASSEMBLY, shifter cam, right, w/ 9837 & 11319A | FXSTDSE |
| 21 | 33364-00A | DETENT FOLLOWER ASSEMBLY | FXSTDSE |
| 22 | 33374-00 | SPRING, detent arm | FXSTDSE |
| 23 | 33375-00A | SLEEVE, detent arm spring | FXSTDSE |
| 24 | 33376-00 | PIVOT SCREW, detent arm | FXSTDSE |
| 25 | 33383-02 | SHIFTER CAM | FXSTDSE |
| 26 | 33660-90B | LEVER ASSEMBLY | FXSTDSE |
| 27 | 33708-94 | BEARING, sleeve (2) | FXSTDSE |
| 28 | 33849-97 | LEVER, shifter rod | FXSTDSE |
| 29 | 33888-99 | ROD END, shifter rod (2) | FXSTDSE |
| 30 | 33889-99 | NUT, rod end (2) | FXSTDSE |
| 31 | 33890-99A | COVER, shifter rod | FXSTDSE |
| 32 | 34088-87A | SHAFT, shifter fork | FXSTDSE |
| 33 | 34064-00C | SPRING, shift lever centering | FXSTDSE |
| 34 | 34191-79E | SHIFTER FORK | FXSTDSE |
| 35 | 34193-79E | SHIFTER FORK | FXSTDSE |
| 36 | 34195-79E | SHIFTER FORK | FXSTDSE |
| 37 | 34601-02 | SHIFTER PEG KIT, w/ 4387, 7041, 42534-82, 49318-03 & 49319-03 | FXSTDSE |
| 38 | 34604-02 | SHIFTER LINKAGE KIT, w/ 4192, 5826, 7904, 33890-99A, 33888-99 & 33889-99 | FXSTDSE |
| 39 | 34616-02 | SHIFTER LEVER KIT, w/ 4016 & 7041 | FXSTDSE |
| 40 | 34972-02B | LEVER ASSEMBLY, shifter pawl | FXSTDSE |
| 41 | 34977-02A | SPRING, shifter shaft lever | FXSTDSE |
| 42 | 34978-00A | CENTERING PIN | FXSTDSE |
| 43 | 34979-00 | SLEEVE, shift lever pivot | FXSTDSE |
| 44 | 42534-82 | SCREW | FXSTDSE |
| 45 | 49318-03 | PEG, shift lever | FXSTDSE |
| 46 | 49319-03 | INSERT, shifter peg | FXSTDSE |
TRANSMISSION HOUSING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 337 | DOWEL PIN | FXSTDSE |
| 2 | 375 | DOWEL PIN | FXSTDSE |
| 3 | 609 | PIN (6) | FXSTDSE |
| 4 | 634 | PIN | FXSTDSE |
| 5 | 3249 | SCREW (2) | FXSTDSE |
| 6 | 3300 | SCREW (2) | FXSTDSE |
| 7 | 3594 | SCREW | FXSTDSE |
| 8 | 3699D | SCREW (4) | FXSTDSE |
| 9 | 4168 | SCREW (2) | FXSTDSE |
| 10 | 4313 | SCREW (2) | FXSTDSE |
| 11 | 4717A | SCREW (5) | FXSTDSE |
| 12 | 4740A | SCREW (4) | FXSTDSE |
| 13 | 4814A | SCREW (4) | FXSTDSE |
| 14 | 6532 | WASHER (4) | FXSTDSE |
| 15 | 8873 | BALL (3) | FXSTDSE |
| 16 | 8977 | NEEDLE BEARING | FXSTDSE |
| 17 | 8992A | BALL BEARING (2) | FXSTDSE |
| 18 | 8996A | BALL BEARING, mainshaft, left side | FXSTDSE |
| 19 | 10998 | RETAINING RING | FXSTDSE |
| 20 | 11105 | O-RING, drain plug | FXSTDSE |
| 21 | 11132A | O-RING, filler plug | FXSTDSE |
| 22 | 11161 | RETAINING RING, ball bearing | FXSTDSE |
| 23 | 11165 | QUAD SEAL, ball bearing | FXSTDSE |
| 24 | 11179 | O-RING, clutch cable | FXSTDSE |
| 25 | 11289A | O-RING | FXSTDSE |
| 26 | 11290 | O-RING | FXSTDSE |
| 27 | 12067B | OIL SEAL, mainshaft, left side | FXSTDSE |
| 28 | 16574-99A | DOWEL (2) | FXSTDSE |
| 29 | 25604-00A | INNER RAMP | FXSTDSE |
| 30 | 25605-00A | OUTER RAMP | FXSTDSE |
| 31 | 33054-03 | TRANSMISSION ASSEMBLY | FXSTDSE |
| 32 | 33344-94 | SPACER, sprocket | FXSTDSE |
| 33 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | FXSTDSE |
| 34 | 34541-00 | COVER, upper | FXSTDSE |
| 35 | 34774-00A | TRANSMISSION HOUSING ASSEMBLY (silver painted) | FXSTDSE |
| 36 | 34904-86D | GASKET, upper cover | FXSTDSE |
| 37 | 34920-86A | COUPLING | FXSTDSE |
| 38 | 35076-79 | SPACER (2) | FXSTDSE |
| 39 | 35078-79 | NUT, mainshaft & countershaft (2) | FXSTDSE |
TRANSMISSION HOUSING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 40 | 35087-99A | RETAINING RING, bearing (2) | FXSTDSE |
| 41 | 35251-93C | BEARING HOUSING ASSEMBLY, w/ 609, 8992A & 35087-99A (black) | FXSTDSE |
| 42 | 35653-98A | GASKET, bearing housing | FXSTDSE |
| 43 | 36801-87C | GASKET, right side cover | FXSTDSE |
| 44 | 37075-87 | FILLER PLUG (chrome) | FXSTDSE |
| 45 | 37105-99 | CLUTCH RELEASE COVER (chrome) | FXSTDSE |
| 46 | 48052-00A | BRACKET, transmission mounting, right | FXSTDSE |
| 48053-00 | BRACKET, transmission mounting, left | FXSTDSE | |
| 47 | 42533-91A | VENT HOSE | FXSTDSE |
| 48 | 60328-98B | DRAIN PLUG, w/ 11105 | FXSTDSE |
| 49 | 62375-57A | FITTING, upper cover | FXSTDSE |
| 50 | 72143-94 | SECONDARY LOCK, 3-way receptacle | FXSTDSE |
| 51 | 72163-94BK | RECEPTACLE, 3-way pin | FXSTDSE |
| 52 | 72190-94 | TERMINAL, pin (used w/ 74430-00B) (3) | FXSTDSE |
| 72194-94 | TERMINAL, pin (used w/ 74430-00D) (3) | FXSTDSE | |
| 53 | 74430-00B | SENSOR, speedometer, w/ 11289A, 72143-94, 72163-94BK & 72190-94 (use 74430-00D) | FXSTDSE |
| 74430-00D | SENSOR, speedometer, w/ 11289A, 72143-94, 72163-94BK & 72194-94 (replaces 74430-00B) | FXSTDSE |

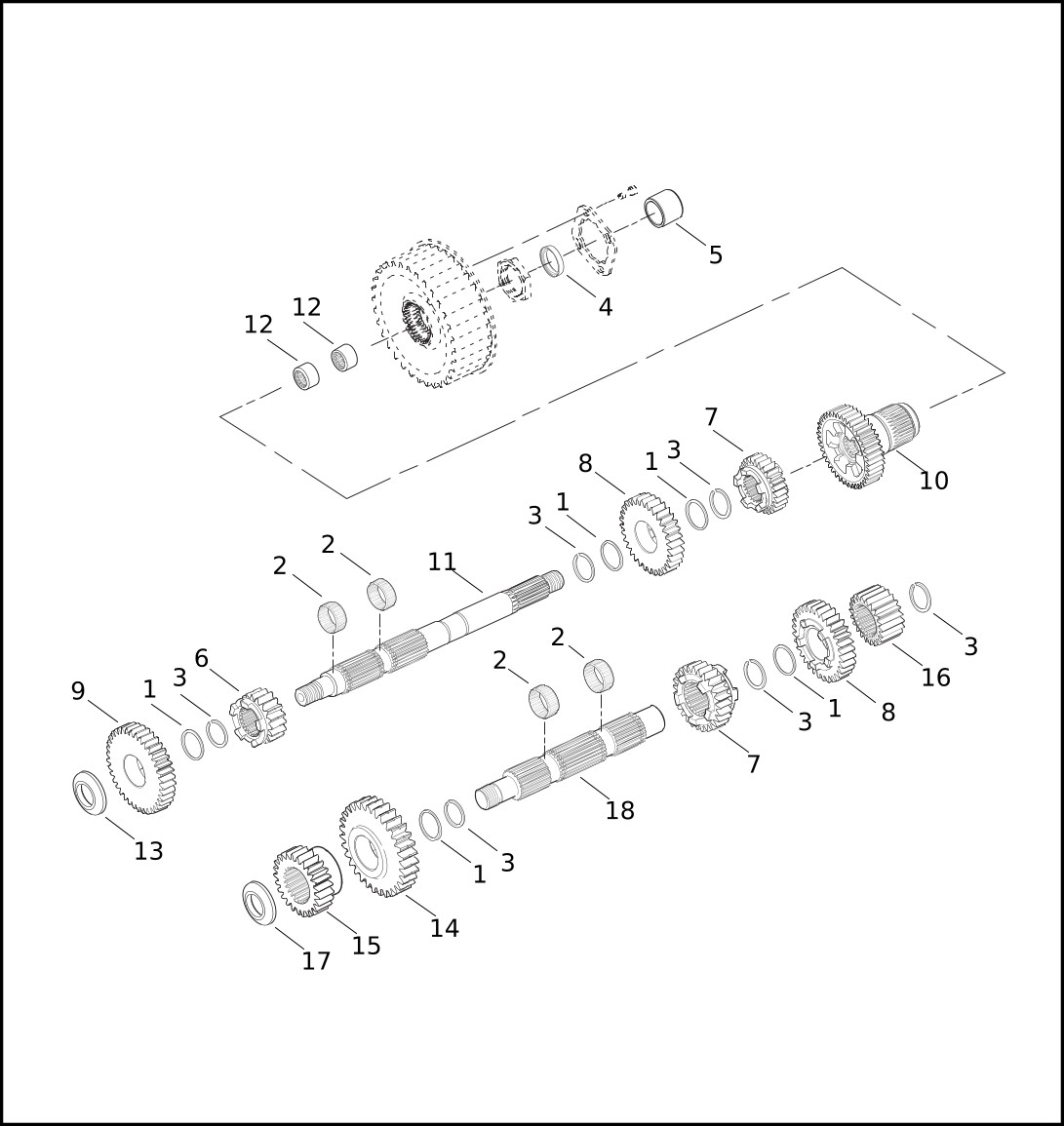

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6003 | WASHER (5) | FXSTDSE |
| 2 | 8876A | BEARING (4) | FXSTDSE |
| 3 | 11067 | RETAINING RING (6) | FXSTDSE |
| 4 | 12035B | OIL SEAL, mainshaft fifth gear | FXSTDSE |
| 5 | 34091-85A | BEARING, inner race | FXSTDSE |
| 6 | 35025-79B | FIRST GEAR, mainshaft | FXSTDSE |
| 7 | 35026-94 | GEAR, mainshaft second & countershaft third (2) | FXSTDSE |
| 8 | 35027-94 | GEAR, mainshaft third & countershaft second (2) | FXSTDSE |
| 9 | 35028-94 | FOURTH GEAR, mainshaft | FXSTDSE |
| 10 | 35029-94 | FIFTH GEAR, mainshaft | FXSTDSE |
| 11 | 35042-91 | MAINSHAFT | FXSTDSE |
| 12 | 35051-89A | NEEDLE BEARING (2) | FXSTDSE |
| 13 | 35064-79 | SPACER, mainshaft | FXSTDSE |
| 14 | 35622-79C | FIRST GEAR, countershaft | FXSTDSE |
| 15 | 35625-94 | FOURTH GEAR, countershaft | FXSTDSE |
| 16 | 35626-94 | FIFTH GEAR, countershaft | FXSTDSE |
| 17 | 35629-79 | SPACER | FXSTDSE |
| 18 | 35632-79 | COUNTERSHAFT | FXSTDSE |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | FXSTDSE |
| 2 | 7848W | JAM NUT | FXSTDSE |
| 3 | 11096 | RETAINING RING | FXSTDSE |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | FXSTDSE |
| 5 | 37088-90 | PUSH ROD, clutch release | FXSTDSE |
| 6 | 37090-98A | END, push rod, left | FXSTDSE |
| 7 | 37312-75 | BEARING, push rod | FXSTDSE |
| 8 | 37313-80 | THRUST WASHER (2) | FXSTDSE |
| 9 | 37496-90 | NUT, mainshaft | FXSTDSE |
| 10 | 37550-98 | CLUTCH HUB | FXSTDSE |
| 11 | 37707-98A | CLUTCH SHELL & SPROCKET, w/ 37905-00 & 37906-90 | FXSTDSE |
| 12 | 37802-98B | CLUTCH ASSEMBLY, w/ 1, 9, 10, 11, 13, 14, 15, 16, 17, 18, 21, 22, 23 & 24 | FXSTDSE |
| 13 | 37871-98A | SPRING, diaphragm | FXSTDSE |
| 14 | 37872-00 | SEAT, clutch spring | FXSTDSE |
| 15 | 37883-98 | SEAT, damper spring | FXSTDSE |
| 16 | 37884-98 | DAMPER SPRING | FXSTDSE |
| 17 | 37903-90 | RELEASE PLATE | FXSTDSE |
| 18 | 37904-90 | RETAINING RING, internal | FXSTDSE |
| 19 | 37905-00 | RETAINING RING, internal | FXSTDSE |
| 20 | 37906-90 | BALL BEARING, double row | FXSTDSE |
| 21 | 37909-90 | RETAINING RING, internal | FXSTDSE |
| 22 | 37912-00 | PRESSURE PLATE | FXSTDSE |
| 23 | 37913-98 | CLUTCH PLATE (8) | FXSTDSE |
| 24 | 37932-98 | FRICTION PLATE KIT, includes all nine friction plates | FXSTDSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 375 | PIN | FXSTDSE |
| 2 | 739A | PLUG, magnetic (used w/ 60543-99) | FXSTDSE |
| 3 | 858A | BOLT (4) | FXSTDSE |
| 4 | 941 | SCREW (2) | FXSTDSE |
| 5 | 945 | SCREW (2) | FXSTDSE |
| 6 | 961 | SCREW (5) | FXSTDSE |
| 7 | 2887WA | SCREW (4) | FXSTDSE |
| 8 | 4740A | SCREW, w/ washer (7) | FXSTDSE |
| 9 | 4820A | SCREW, w/ washer (5) | FXSTDSE |
| 10 | 6016 | WASHER (2) | FXSTDSE |
| 11 | 9135 | BEARING | FXSTDSE |
| 12 | 11147B | O-RING, housing cover | FXSTDSE |
| 13 | 11324 | O-RING, magnetic drain plug (used w/ 60391-04) | FXSTDSE |
| 14 | 12052A | OIL SEAL | FXSTDSE |
| 15 | 12066A | OIL SEAL | FXSTDSE |
| 16 | 25000-03 | INSERT, cover "Screamin Eagle 1550" | FXSTDSE |
| 17 | 25416-99C | SEAL, clutch cover | FXSTDSE |
| 18 | 33318-85 | LOCKING TAB (6) | FXSTDSE |
| 19 | 33445-94A | BUSHING | FXSTDSE |
| 20 | 33446-94A | BUSHING | FXSTDSE |
| 21 | 60391-04 | PLUG ASSEMBLY, magnetic drain, w/ 11324 (used w/ 60543-99B) | FXSTDSE |
| 22 | 60539-94B | GASKET, primary cover | FXSTDSE |
| 23 | 60543-99 | COVER ASSEMBLY, primary, w/ 739A & 333446-94A (use 60543-99B) (chrome) | FXSTDSE |
| 60543-99B | COVER ASSEMBLY, primary, w/ 33446-94A & 60391-04 (replaces 60543-99) (chrome) | FXSTDSE | |
| 24 | 60567-90C | GASKET, inspection cover | FXSTDSE |
| 25 | 60572-86 | COVER, primary chain inspection (chrome) | FXSTDSE |
| 26 | 60586-99A | PRIMARY HOUSING ASSEMBLY (silver painted) | FXSTDSE |
| 27 | 60678-85 | RETAINING RING (2) | FXSTDSE |
| 28 | 60693-03 | COVER, clutch | FXSTDSE |
| 29 | 63859-95B | GASKET (2) | FXSTDSE |
| 30 | 25700225 | GASKET KIT, inner primary | FXSTDSE |
BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1783C | SCREW (2) | FXSTDSE |
| 2 | 3594 | SCREW (2) | FXSTDSE |
| 3 | 3737A | SCREW (5) | FXSTDSE |
| 4 | 5416 | BOLT | FXSTDSE |
| 5 | 6400HB | WASHER | FXSTDSE |
| 6 | 6516HW | WASHER (5) | FXSTDSE |
| 7 | 7778 | LOCKNUT | FXSTDSE |
| 8 | 11085 | RETAINING RING | FXSTDSE |
| 9 | 29923-01A | SPACER | FXSTDSE |
| 10 | 35211-91B | NUT, sprocket | FXSTDSE |
| 11 | 39976-01 | PAD, chain tensioner | FXSTDSE |
| 12 | 39990-01 | CHAIN TENSIONER | FXSTDSE |
| 13 | 39998-65A | ANCHOR PLATE, chain tensioner | FXSTDSE |
| 14 | 40007-36B | PRIMARY CHAIN | FXSTDSE |
| 15 | 40307-00B | REAR BELT, 135T | FXSTDSE |
| 16 | 40250-94C | SPROCKET, transmission, 32T | FXSTDSE |
| 17 | 40251-92A | LOCKPLATE | FXSTDSE |
| 18 | 40266-85 | SHAFT EXTENSION | FXSTDSE |
| 19 | 40299-83A | SLIDING CAM | FXSTDSE |
| 20 | 40308-94 | COMPENSATING SPROCKET, 25T | FXSTDSE |
| 21 | 40384-91 | COVER ASSEMBLY, w/ springs | FXSTDSE |
| 22 | 40392-91 | NUT | FXSTDSE |
| 23 | 40447-01 | SPROCKET KIT, rear, 70T, stellar | FXSTDSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FXSTDSE |
| 2 | 6101 | WASHER (2) | FXSTDSE |
| 3 | 11143 | RETAINING RING | FXSTDSE |
| 4 | 11179 | O-RING | FXSTDSE |
| 5 | 38403-99 | BRACKET, hand lever | FXSTDSE |
| 6 | 38630-88 | BOOT, clutch cable | FXSTDSE |
| 7 | 38688-03 | CABLE, clutch control, w/ 11179, 38630-88 & 45036-88 | FXSTDSE |
| 8 | 38712-68 | CLAMP | FXSTDSE |
| 9 | 45021-86 | SPRING, anti-rattle | FXSTDSE |
| 10 | 45032-82 | PIN, hand lever pivot | FXSTDSE |
| 11 | 45036-88 | ANCHOR PIN | FXSTDSE |
| 12 | 45282-99A | CLAMP, lever bracket | FXSTDSE |
| 13 | 45423-92 | BUSHING | FXSTDSE |
| 14 | 46215-07 | HAND LEVER, clutch, w/ 45021-86, 45423-92 & 90770-79 | FXSTDSE |
| 15 | 68042-99 | SCREW, self-tapping | FXSTDSE |
| 16 | 90770-79 | SCREW | FXSTDSE |
REAR BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT | FXSTDSE |
| 2 | 4383 | SCREW | FXSTDSE |
| 3 | 6702 | WASHER | FXSTDSE |
| 4 | 7507 | ACORN NUT | FXSTDSE |
| 5 | 7669 | NUT | FXSTDSE |
| 6 | 7899A | BOLT, acorn (2) | FXSTDSE |
| 7 | 11413 | GROMMET | FXSTDSE |
| 8 | 60393-03 | DEBRIS DEFLECTOR (chrome) | FXSTDSE |
| 9 | 60533-00A | BELT GUARD (chrome) | FXSTDSE |
FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2573 | SCREW (2) | FXSTDSE |
| 2 | 4091 | SCREW | FXSTDSE |
| 3 | 4132 | SCREW (2) | FXSTDSE |
| 4 | 4741A | SCREW | FXSTDSE |
| 5 | 6101 | WASHER (2) | FXSTDSE |
| 6 | 7220 | LOCKWASHER, external tooth | FXSTDSE |
| 7 | 10031 | CLAMP | FXSTDSE |
| 8 | 11143 | RETAINING RING | FXSTDSE |
| 9 | 41731-01 | GASKET (6) | FXSTDSE |
| 10 | 41747-82A | FITTING, banjo bolt (3) | FXSTDSE |
| 11 | 45032-82 | PIVOT PIN | FXSTDSE |
| 12 | 45072-96C | PISTON KIT, master cylinder, | FXSTDSE |
| 13 | 45078-96D | COVER KIT, reservoir, w/ 2573 | FXSTDSE |
| 14 | 45282-99A | CLAMP, handlebar control | FXSTDSE |
| 15 | 45298-99 | MASTER CYLINDER, front, 11/16 inch bore, w/ 45072-96C | FXSTDSE |
| 16 | 45423-96 | BUSHING, lever pivot | FXSTDSE |
| 17 | 45445-03B | MASTER CYLINDER ASSEMBLY, w/ 8, 11, 12, 13, 15 & 18 | FXSTDSE |
| 18 | 46217-03 | HAND LEVER, front brake control | FXSTDSE |
| 19 | 46223-03A | BRAKE LINE, front | FXSTDSE |
REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FXSTDSE |
| 2 | 2573 | SCREW (2) | FXSTDSE |
| 3 | 3588 | SCREW | FXSTDSE |
| 4 | 3655A | SCREW | FXSTDSE |
| 5 | 4208 | SCREW | FXSTDSE |
| 6 | 6099 | WASHER | FXSTDSE |
| 7 | 6206 | WASHER | FXSTDSE |
| 8 | 7951 | JAM NUT | FXSTDSE |
| 9 | 10108 | CLIP, engine harness | FXSTDSE |
| 10 | 11688 | RETAINING RING | FXSTDSE |
| 11 | 40918-87 | RETAINING RING | FXSTDSE |
| 12 | 40920-87 | SPRING, brake return | FXSTDSE |
| 13 | 40922-87A | BOOT, push rod | FXSTDSE |
| 14 | 41731-01 | GASKET (4) | FXSTDSE |
| 15 | 41747-82A | BOLT, banjo (2) | FXSTDSE |
| 16 | 41754-00D | MASTER CYLINDER ASSEMBLY, w/ 11, 12, 13, 17, 18, 19 & 27 | FXSTDSE |
| 17 | 41957-97A | PUSH ROD KIT | FXSTDSE |
| 18 | 42382-87C | REBUILD KIT, master cylinder, rear | FXSTDSE |
| 19 | 42454-99A | RESERVOIR, master cylinder, w/o o-rings | FXSTDSE |
| 20 | 42455-99 | GASKET, master cylinder reservoir (use 45149-99C) | FXSTDSE |
| 42568-05A | GASKET, master cylinder reservoir (used w/ 45149-99C) | FXSTDSE | |
| 21 | 42460-80B | CLEVIS PIN | FXSTDSE |
| 22 | 42642-00A | BUSHING, brake lever (2) | FXSTDSE |
| 23 | 42644-00 | BUSHING, brake lever | FXSTDSE |
| 24 | 42683-02 | BRAKE LEVER & PAD KIT, w/ 1, 4, 5, 7, 22, 23, 25 & 26 | FXSTDSE |
| 25 | 44299-03 | INSERT, brake lever | FXSTDSE |
| 26 | 44302-03 | COVER, brake lever | FXSTDSE |
| 27 | 45149-99C | COVER KIT, reservoir, w/ 2573 & 42568-05A | FXSTDSE |
| 28 | 45300-03 | BRAKE LINE, rear | FXSTDSE |
| 29 | 72023-51D | STOP LAMP SWITCH, rear | FXSTDSE |
| 30 | 72463-00A | BRACKET, brake line | FXSTDSE |
FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44381-99C | CALIPER ASSEMBLY, left | FXSTDSE |
| 44382-99C | CALIPER ASSEMBLY, right | FXSTDSE | |
| 2 | 44048-83 | BLEEDER FITTING (2) | FXSTDSE |
| 3 | 44082-00D | PAD KIT (2) | FXSTDSE |
| 4 | 44147-87A | CAP, bleeder (2) | FXSTDSE |
| 5 | 44160-00 | BOLT, caliper mounting, lower (2) | FXSTDSE |
| 6 | 44163-00 | BOLT, caliper mounting, upper (2) | FXSTDSE |
| 7 | 44177-00 | BOLT, bridge (4) | FXSTDSE |
| 8 | 44313-01 | PISTON KIT (2) | FXSTDSE |
| 9 | 44314-00 | PAD PIN KIT (2) | FXSTDSE |
| 10 | 44315-00 | SEAL KIT (2) | FXSTDSE |
| 11 | 44337-00B | SPRING KIT, anti-rattle (2) | FXSTDSE |
| 12 | 44477-99 | INSERT (2) | FXSTDSE |
REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44460-03 | CALIPER ASSEMBLY, rear brake (use 44441-00D) (silver) | FXSTDSE |
| 44441-00D | CALIPER ASSEMBLY, rear brake (replaces 44460-03) (black) | FXSTDSE | |
| 2 | 44048-83 | SCREW, bleeder | FXSTDSE |
| 3 | 44082-00D | PAD KIT | FXSTDSE |
| 4 | 44147-87A | CAP, bleeder screw | FXSTDSE |
| 5 | 44177-00 | BOLT, bridge (3) | FXSTDSE |
| 6 | 44313-01 | PISTON KIT | FXSTDSE |
| 7 | 44314-00 | PAD PIN KIT | FXSTDSE |
| 8 | 44315-00 | SEAL KIT | FXSTDSE |
| 9 | 44337-00B | SPRING KIT, anti-rattle | FXSTDSE |
| 10 | 44477-99 | INSERT | FXSTDSE |
| 11 | 44351-00 | BUMPER | FXSTDSE |
FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3318 | SET SCREW (2) | FXSTDSE |
| 2 | 3655A | SCREW (10) | FXSTDSE |
| 3 | 6590HW | WASHER | FXSTDSE |
| 4 | 6638 | WASHER | FXSTDSE |
| 5 | 7068 | LOCKWASHER | FXSTDSE |
| 6 | 7989 | NUT, grooved (2) | FXSTDSE |
| 7 | 9267 | SEALED BALL BEARING (2) | FXSTDSE |
| 8 | 41148-98 | KIT, valve stem cap (set of 2) | FXSTDSE |
| 9 | 43206-01 | VALVE STEM ASSEMBLY | FXSTDSE |
| 10 | 43354-00 | AXLE, front | FXSTDSE |
| 11 | 43608-00 | SLEEVE | FXSTDSE |
| 12 | 44122-03 | COVER KIT, front axle nut, w/ 3318, 6638 & 7989 | FXSTDSE |
| 13 | 44051-03 | SPACER, bearing, right | FXSTDSE |
| 14 | 44091-03 | SPACER, bearing, left | FXSTDSE |
| 15 | 44523-03 | WHEEL, front, 21 inch, cast, 6-spoke, dual, w/o bearings & sleeve (chrome) | FXSTDSE |
| 16 | 44844-00 | BRAKE DISC ASSEMBLY, front (2) | FXSTDSE |
| 17 | 95595-84A | WEIGHT, 5 grams (silver) | FXSTDSE |
REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 508 | RETAINING PIN | FXSTDSE |
| 2 | 3007 | SCREW (4) | FXSTDSE |
| 3 | 3737A | SCREW (5) | FXSTDSE |
| 4 | 5756 | WASHER | FXSTDSE |
| 5 | 6150W | WASHER (4) | FXSTDSE |
| 6 | 6516HW | WASHER (5) | FXSTDSE |
| 7 | 7783 | NUT | FXSTDSE |
| 8 | 7987 | NUT | FXSTDSE |
| 9 | 9267 | SEALED BALL BEARING (2) | FXSTDSE |
| 10 | 40447-01 | SPROCKET KIT, rear, 70T | FXSTDSE |
| 11 | 41110-89 | AXLE ASSEMBLY | FXSTDSE |
| 12 | 41148-98 | KIT, valve stem cap (set of 2) | FXSTDSE |
| 13 | 41613-03 | SPACER, wheel, right (chrome) | FXSTDSE |
| 14 | 41614-03 | SPACER, wheel, left (chrome) | FXSTDSE |
| 15 | 43206-01 | VALVE STEM ASSEMBLY | FXSTDSE |
| 16 | 43567-92 | SCREW (5) | FXSTDSE |
| 17 | 43608-00 | SLEEVE | FXSTDSE |
| 18 | 43934-02 | WHEEL ASSEMBLY, rear, 17 inch, 6-spoke, w/ 9267, 43206-01, 43567-92 & 43608-00 (chrome) | FXSTDSE |
| 19 | 44500-03B | COVER, axle nut, right (chrome) | FXSTDSE |
| 20 | 44501-03 | COVER, axle nut, left (chrome) | FXSTDSE |
| 21 | 44509-03 | BRACKET, axle cover, right | FXSTDSE |
| 22 | 44510-03 | BRACKET, axle cover, left | FXSTDSE |
| 23 | 44845-00 | BRAKE DISC, rear | FXSTDSE |
| 24 | 47627-03 | ADJUSTER, axle (2) | FXSTDSE |
| 25 | 47633-03 | SPACER, axle (2) | FXSTDSE |
| 26 | 95595-84A | WEIGHT, 5 grams (silver) | FXSTDSE |
FRONT FORK
| Index No. | Part No. | Description | Model(s) |
| 1 | 992 | SCREW (2) | FXSTDSE |
| 2 | 4213 | SCREW (2) | FXSTDSE |
| 3 | 5710 | WASHER (2) | FXSTDSE |
| 4 | 7039 | LOCKWASHER (2) | FXSTDSE |
| 5 | 7062 | LOCKWASHER (2) | FXSTDSE |
| 6 | 44503-03 | CAP, fork nut (2) | FXSTDSE |
| 7 | 44504-03 | COLLAR, fork nut (2) | FXSTDSE |
| 8 | 45405-75A | SCREW, w/ washer (2) | FXSTDSE |
| 9 | 45419-80 | BOLT, slider tube (2) | FXSTDSE |
| 10 | 45475-00A | STEM & BRACKET, w/ 48365-48A | FXSTDSE |
| 11 | 45481-03 | SLIDER TUBE (2) | FXSTDSE |
| 12 | 45482-03 | CAP FORK, slider (2) | FXSTDSE |
| 13 | 45568-03 | COVER, lower triple tree | FXSTDSE |
| 14 | 45611-86 | RETAINING RING | FXSTDSE |
| 15 | 45670-80A | CAP, fork stem | FXSTDSE |
| 16 | 45717-63 | LOCKWASHER, fork stem nut | FXSTDSE |
| 17 | 45718-60 | NUT, fork stem | FXSTDSE |
| 18 | 45733-48 | OIL SEAL, fork tube plug (2) | FXSTDSE |
| 19 | 45769-00 | BRACKET, upper | FXSTDSE |
| 20 | 45790-80 | SCREW (2) | FXSTDSE |
| 21 | 45803-97 | LOWER STOP (2) | FXSTDSE |
| 22 | 45838-77 | PLUG, fork tube (2) | FXSTDSE |
| 23 | 45842-77A | RETAINING RING, oil seal (2) | FXSTDSE |
| 24 | 45845-77 | O-RING, slider tube plug (2) | FXSTDSE |
| 25 | 45859-77A | RING, damper tube (2) | FXSTDSE |
| 26 | 45865-84 | WASHER, slider (2) | FXSTDSE |
| 27 | 45866-84 | BUSHING, slider tube (2) | FXSTDSE |
| 28 | 45875-84A | OIL SEAL, slider (2) | FXSTDSE |
| 29 | 45933-86 | SPRING, damper tube (2) | FXSTDSE |
| 30 | 45940-84 | BUSHING, slider (2) | FXSTDSE |
| 31 | 46067-00 | SLIDER, left, w/ 45790-80 | FXSTDSE |
| 46221-03 | SLIDER, right, w/ 45790-80 | FXSTDSE | |
| 32 | 46175-00 | DUST SHIELD (2) | FXSTDSE |
| 33 | 46176-00 | DAMPER TUBE, complete tube, w/ 45859-77A (2) | FXSTDSE |
| 34 | 46219-03 | FORK ASSEMBLY, right | FXSTDSE |
| 35 | 46220-03 | SPRING (2) | FXSTDSE |
| 36 | 46222-03 | AXLE HOLDER, right | FXSTDSE |
| 37 | 46263-03 | FORK ASSEMBLY, left | FXSTDSE |
| 38 | 48300-60 | ROLLER BEARING, w/ 48315-60 (2) | FXSTDSE |
| 39 | 48315-60 | BEARING CUP (2) | FXSTDSE |
| 40 | 48324-00 | SEAT, upper head cone | FXSTDSE |
| 41 | 48361-80 | DUST SHIELD, bearing, upper | FXSTDSE |
| 42 | 48365-48A | DUST SHIELD, bearing, lower | FXSTDSE |
| 43 | 59481-00 | REFLECTOR, amber, right | FXSTDSE |
| 44 | 59482-00 | REFLECTOR, amber, left | FXSTDSE |
FRAME & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 924 | SCREW (4) | FXSTDSE |
| 2 | 939 | SCREW (2) | FXSTDSE |
| 3 | 2882W | SCREW | FXSTDSE |
| 4 | 2941 | SCREW (2) | FXSTDSE |
| 5 | 3233 | SCREW | FXSTDSE |
| 6 | 4163 | SCREW (3) | FXSTDSE |
| 7 | 4311 | SCREW | FXSTDSE |
| 8 | 5228 | U-BOLT (2) | FXSTDSE |
| 9 | 6400HB | WASHER | FXSTDSE |
| 10 | 6425 | WASHER (3) | FXSTDSE |
| 11 | 6702 | WASHER | FXSTDSE |
| 12 | 6703 | WASHER (8) | FXSTDSE |
| 13 | 7686 | LOCKNUT (2) | FXSTDSE |
| 14 | 6812 | WASHER (3) | FXSTDSE |
| 15 | 7041 | LOCKWASHER (4) | FXSTDSE |
| 16 | 10006 | CABLE STRAP (3) | FXSTDSE |
| 10065 | CABLE STRAP, keys | FXSTDSE | |
| 17 | 10040 | PLUG (4) | FXSTDSE |
| 18 | 10193 | WIRE CLAMP | FXSTDSE |
| 19 | 31741-00 | PLUG, seat post | FXSTDSE |
| 20 | 33708-94 | BEARING, sleeve (2) | FXSTDSE |
| 21 | 33921-00 | BRACKET, jiffy stand, shift lever & footrest | FXSTDSE |
| 22 | 45680-90 | FORK LOCK (specify key code) | FXSTDSE |
| 23 | 46803-04 | FRAME (centennial gold) | FXSTDSE |
| 24 | 48315-60 | BEARING CUP (2) | FXSTDSE |
| 25 | 48895-03BFA | POST ASSEMBLY, seat (centennial gold) | FXSTDSE |
| 26 | 49901-03BFA | FAIRING, frame rail, left (centennial gold) | FXSTDSE |
| 27 | 49902-03BFA | FAIRING, frame rail, right (centennial gold) | FXSTDSE |
| 28 | 49903-03A | HANGER, frame rail, right (2) | FXSTDSE |
| 29 | 49929-03A | HANGER, frame rail, left | FXSTDSE |
| 30 | 50005-85A | SPRING, jiffy stand leg | FXSTDSE |
| 31 | 50015-74A | LEG STOP | FXSTDSE |
| 32 | 50285-03 | LEG, jiffy stand (chrome) | FXSTDSE |
| 33 | 50972-75 | FITTING, lubrication | FXSTDSE |
| 34 | 57045-03BFA | FAIRING, chin (centennial gold) | FXSTDSE |
| 35 | 57049-03 | BRACKET, chin fairing mount | FXSTDSE |
| 36 | 57047-03 | BRACKET, regulator mount | FXSTDSE |
| 37 | 58445-00 | BLOCK, u-bolts, fairing mount (2) | FXSTDSE |
| 38 | 61081-92 | COVER, key head set (2) | FXSTDSE |
| 39 | 62123-66 | BUMPER | FXSTDSE |
| 40 | 71450-04 | LOCKSET, w/ 10065, 45680-90, 61081-92, 71452-91A & ignition switch | FXSTDSE |
| 41 | 71452-91A | KEY (specify key code) (2) | FXSTDSE |
| 42 | 91285-03 | STUD, 1/4 turn (3) | FXSTDSE |
REAR FORK AND SHOCK ABSORBERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3231B | SCREW (2) | FXSTDSE |
| 2 | 3574 | SCREW (2) | FXSTDSE |
| 3 | 4074A | BOLT (2) | FXSTDSE |
| 4 | 6534 | WASHER, hardened, right | FXSTDSE |
| 5 | 6535 | WASHER, hardened, left | FXSTDSE |
| 6 | 6724 | WASHER (2) | FXSTDSE |
| 7 | 7479 | NUT | FXSTDSE |
| 8 | 7783 | NUT, rear axle adjuster (2) | FXSTDSE |
| 9 | 8108 | SPEEDNUT (2) | FXSTDSE |
| 10 | 9270A | BEARING, rear fork pivot (2) | FXSTDSE |
| 11 | 11282 | RETAINING RING, fork bearing (2) | FXSTDSE |
| 12 | 11514 | BUMPER, rear fork | FXSTDSE |
| 13 | 44502-03 | COVER, pivot, right | FXSTDSE |
| 14 | 44511-03 | COVER, pivot, left | FXSTDSE |
| 15 | 45764-00 | LOCKNUT, flange (2) | FXSTDSE |
| 16 | 47580-03BFA | REAR FORK (centennial gold) | FXSTDSE |
| 17 | 47610-00 | PIVOT SHAFT | FXSTDSE |
| 18 | 47633-03 | SPACER, rear axle adjuster (2) | FXSTDSE |
| 19 | 47627-03 | ADJUSTING SCREW, rear axle (2) | FXSTDSE |
| 20 | 48048-00A | BUSHING, rear fork (2) | FXSTDSE |
| 21 | 48049-00A | SPACER, rear fork (2) | FXSTDSE |
| 22 | 54549-03 | SHOCK ABSORBER, complete, w/ 45764-00, 56182-00A & 56183-00 (2) | FXSTDSE |
| 23 | 56182-00A | BUSHING (2) | FXSTDSE |
| 24 | 56183-00 | WASHER, w/ grommet (4) | FXSTDSE |
| 25 | 60363-00B | SPLASH GUARD | FXSTDSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3574 | SCREW (2) | FXSTDSE |
| 2 | 3767B | BOLT | FXSTDSE |
| 3 | 6036 | WASHER | FXSTDSE |
| 4 | 11378 | CABLE STRAP (4) | FXSTDSE |
| 5 | 44085-03 | SEAT INSERT KIT, passenger, w/ 11378 | FXSTDSE |
| 6 | 44352-03 | SEAT INSERT KIT, rider, w/ 11378 | FXSTDSE |
| 7 | 52097-00 | SEAT BRACKET KIT, w/ 3574 | FXSTDSE |
| 8 | 52917-98 | PASSENGER STRAP | FXSTDSE |
| 9 | 59768-97 | SEAT NUT KIT (2) | FXSTDSE |
| 10 | 91809-03A | SEAT ASSEMBLY, complete | FXSTDSE |
FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FXSTDSE |
| 2 | 4163 | SCREW (6) | FXSTDSE |
| 3 | 4315 | SCREW, right rear footpeg | FXSTDSE |
| 4 | 4355B | SCREW | FXSTDSE |
| 5 | 4721 | BOLT (4) | FXSTDSE |
| 6 | 6812 | WASHER (6) | FXSTDSE |
| 7 | 7041 | LOCKWASHER (4) | FXSTDSE |
| 8 | 7778 | LOCKNUT (4) | FXSTDSE |
| 9 | 33708-94 | BEARING, sleeve (2) | FXSTDSE |
| 10 | 33921-00 | BRACKET, jiffy stand, shift lever & footrest | FXSTDSE |
| 11 | 42646-00 | BRACKET, brake lever & footrest | FXSTDSE |
| 12 | 50256-03 | FOOTPEG, right (2) | FXSTDSE |
| 13 | 50257-03 | FOOTPEG, left (2) | FXSTDSE |
| 14 | 50258-03 | MOUNT, footpeg support (chrome) (4) | FXSTDSE |
| 15 | 50259-03 | INSERT, footpeg right (2) | FXSTDSE |
| 16 | 50260-03 | INSERT, footpeg left (2) | FXSTDSE |
| 17 | 50912-72 | SPRING WASHER (4) | FXSTDSE |
| 18 | 50942-00 | SUPPORT, passenger footrest (2) | FXSTDSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3471 | BOLT (2) | FXSTDSE |
| 2 | 3494A | BOLT (4) | FXSTDSE |
| 3 | 6590HW | WASHER (2) | FXSTDSE |
| 4 | 7068 | LOCKWASHER (2) | FXSTDSE |
| 5 | 11398 | GROMMET, handlebar (2) | FXSTDSE |
| 6 | 11403A | GROMMET, handlebar (2) | FXSTDSE |
| 7 | 56422-02C | HANDLEBAR ASSEMBLY, w/ 11398, 11403A & 72165-02 | FXSTDSE |
| 8 | 56504-03 | BRACKET, tachometer mount | FXSTDSE |
| 9 | 56506-03 | HANDLEBAR RISER, lower (chrome) (2) | FXSTDSE |
| 10 | 68018-03 | RISER, trim | FXSTDSE |
| 11 | 68037-03 | FILLER, riser trim | FXSTDSE |
| 12 | 72165-02 | SHRINK TUBE | FXSTDSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | FXSTDSE |
| 2 | 11155 | RETAINING RING | FXSTDSE |
| 3 | 11271 | RETAINING RING, idle control | FXSTDSE |
| 4 | 11272 | RETAINING RING, throttle control | FXSTDSE |
| 5 | 38653-01 | BOOT, cable (2) | FXSTDSE |
| 6 | 56231-03 | GRIP, left | FXSTDSE |
| 7 | 56233-03 | GRIP & SLEEVE, throttle, right | FXSTDSE |
| 8 | 56215-03A | IDLE CONTROL ASSEMBLY, w/ 11271 | FXSTDSE |
| 9 | 56208-03 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | FXSTDSE |
| 10 | 56394-74 | SPRING, adjusting screw | FXSTDSE |
| 11 | 56396-74A | FRICTION SPRING, throttle | FXSTDSE |
| 12 | 56397-74C | ADJUSTING SCREW KIT | FXSTDSE |
| 13 | 56402-83A | ADJUSTING SCREW | FXSTDSE |
| 14 | 56508-76 | FERRULE, control wire (2) | FXSTDSE |
| 15 | 70514-01 | CLIP, dual conduit | FXSTDSE |
HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3509 | BOLT | FXSTDSE |
| 2 | 3514 | SCREW | FXSTDSE |
| 3 | 3538 | SCREW (2) | FXSTDSE |
| 4 | 3775 | SCREW | FXSTDSE |
| 5 | 4226 | SCREW (2) | FXSTDSE |
| 6 | 6474 | WASHER (2) | FXSTDSE |
| 7 | 6702 | WASHER (2) | FXSTDSE |
| 8 | 7130W | LOCKWASHER | FXSTDSE |
| 9 | 7862 | ACORN NUT | FXSTDSE |
| 10 | 9847 | WIRE TERMINAL, female spade, right | FXSTDSE |
| 11 | 9848 | WIRE TERMINAL, female spade, left (2) | FXSTDSE |
| 12 | 10065 | CABLE STRAP | FXSTDSE |
| 13 | 50678-03 | WASHER (2) | FXSTDSE |
| 14 | 67601-94A | GASKET, headlamp | FXSTDSE |
| 15 | 67603-94A | ADAPTER RING | FXSTDSE |
| 16 | 67685-92 | CLIP, bulb | FXSTDSE |
| 17 | 67698-81D | LENS ASSEMBLY, 5-3/4 inch, w/ 67685-92, 67705-92 & 68329-03 | FXSTDSE |
| 18 | 67705-92 | BOOT, connector | FXSTDSE |
| 19 | 67894-93A | TRIM RING (chrome) | FXSTDSE |
| 20 | 68329-03 | BULB, HB2/H4 | FXSTDSE |
| 21 | 68705-93A | CONNECTOR ASSEMBLY, headlamp, w/ 9847, 9848, 70586-93 & 72056-92 | FXSTDSE |
| 22 | 69163-00 | MOUNTING BLOCK | FXSTDSE |
| 23 | 69335-03A | HEADLAMP TRIM KIT | FXSTDSE |
| 24 | 69715-05A | HEADLAMP SHELL ASSEMBLY | FXSTDSE |
| 25 | 70586-93 | CONNECTOR, butt splice, 16-22 gauge (4) | FXSTDSE |
| 26 | 72056-92 | INSULATOR, spade terminal, 3-way | FXSTDSE |
| 27 | 73154-96BK | SOCKET HOUSING, 4-place | FXSTDSE |
| 28 | 73191-96 | CONTACT SOCKET, 16-20 gauge (4) | FXSTDSE |
FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 994 | SCREW (4) | FXSTDSE |
| 2 | 6702 | WASHER (4) | FXSTDSE |
| 3 | 45323-01 | WASHER (2) | FXSTDSE |
| 4 | 59876-00A | FENDER (primed) | FXSTDSE |
| 59876-03BFB | FENDER (centennial gold & vivid black with gold leaf) | FXSTDSE |
REAR FENDER, SUPPORTS & LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 2646 | SCREW (2) | FXSTDSE |
| 2 | 2917 | SCREW (4) | FXSTDSE |
| 3 | 3987 | BOLT (6) | FXSTDSE |
| 4 | 6296 | SPACER (2) | FXSTDSE |
| 5 | 6702 | WASHER (8) | FXSTDSE |
| 6 | 6716 | WASHER (2) | FXSTDSE |
| 7 | 7601 | LOCKNUT (4) | FXSTDSE |
| 8 | 7629 | NUT (2) | FXSTDSE |
| 9 | 7792 | NUT (2) | FXSTDSE |
| 10 | 10228 | PLUG (3) | FXSTDSE |
| 11 | 53436-97 | BULB, wedge, #W5W | FXSTDSE |
| 12 | 56627-00 | FENDER REINFORCEMENT, right | FXSTDSE |
| 56628-00 | FENDER REINFORCEMENT, left | FXSTDSE | |
| 13 | 59053-00 | BRACKET, fender mounting (2) | FXSTDSE |
| 14 | 59287-92 | REFLECTOR, right (red) | FXSTDSE |
| 59288-92 | REFLECTOR, left (red) | FXSTDSE | |
| 15 | 59438-00 | BRACKET ASSEMBLY, ECM mounting | FXSTDSE |
| 16 | 59543-01 | BRACKET ASSEMBLY, electronic control module | FXSTDSE |
| 17 | 59503-03 | PROTECTIVE TAPE | FXSTDSE |
| 18 | 59759-00 | FENDER | FXSTDSE |
| 59794-03BFB | FENDER ASSEMBLY, w/ 59503-03 (centennial gold & vivid black with gold leaf) | FXSTDSE | |
| 19 | 59768-97 | FENDER SEAT NUT KIT (2) | FXSTDSE |
| 20 | 59988-72A | REFLECTOR, red | FXSTDSE |
| 21 | 60019-93A | REFLECTOR BRACKET | FXSTDSE |
| 22 | 60028-00 | FENDER SUPPORT, right (chrome) | FXSTDSE |
| 60035-00 | FENDER SUPPORT, left (chrome) | FXSTDSE | |
| 23 | 60120-00A | LICENSE PLATE BRACKET ASSEMBLY, w/ 68889-00, 68890-00A & 68891-00 | FXSTDSE |
| 24 | 68889-00 | ILLUMINATOR ASSEMBLY, license plate, w/ 2646 | FXSTDSE |
| 25 | 68890-00A | BRACKET, license plate | FXSTDSE |
| 26 | 68891-00 | HARNESS ASSEMBLY, license plate illuminator, w/ 53436-97, 73154-96WE & 73191-96 | FXSTDSE |
| 27 | 73154-96WE | SOCKET HOUSING, 4-way (white) (2) | FXSTDSE |
| 28 | 73191-96 | SOCKET CONTACT, 20-16 gauge (4) | FXSTDSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 758 | PLUG, drain | FXSTDSE |
| 2 | 4197 | BOLT | FXSTDSE |
| 3 | 4763 | SCREW | FXSTDSE |
| 4 | 5818A | BUSHING, front tank mount (2) | FXSTDSE |
| 5 | 6400HB | WASHER (2) | FXSTDSE |
| 6 | 6702 | WASHER (2) | FXSTDSE |
| 7 | 7748W | NUT | FXSTDSE |
| 8 | 7862 | ACORN NUT | FXSTDSE |
| 9 | 7965 | TEE NUT | FXSTDSE |
| 10 | 10038A | CLAMP, fuel crossover hose (2) | FXSTDSE |
| 11 | 10222 | CLAMP | FXSTDSE |
| 12 | 11323 | O-RING (2) | FXSTDSE |
| 13 | 27016-00 | HOSE REDUCER | FXSTDSE |
| 14 | 27072-00 | HOSE, valve to atmosphere | FXSTDSE |
| 15 | 27249-96 | CONNECTOR, straight | FXSTDSE |
| 16 | 28828-00 | TUBE, tank to valve | FXSTDSE |
| 17 | 28838-00 | VENT LINE ASSEMBLY, fuel tank to vapor valve, w/ 27249-96 & 28828-00 | FXSTDSE |
| 18 | 61109-85D | GASKET | FXSTDSE |
| 19 | 61272-92C | CAP, fuel filler, right | FXSTDSE |
| 61450-95 | FUEL FILLER RESTRICTOR KIT (not illustrated) (required with catalytic mufflers) | FXSTDSE | |
| 20 | 61721-00A | BRACKET ASSEMBLY, rear | FXSTDSE |
| 21 | 62082-00D | FUEL TANK (primed) | FXSTDSE |
| 62082-03BFB | FUEL TANK (centennial gold & vivid black with gold leaf) | FXSTDSE | |
| 22 | 62146-00 | FRONT TANK MOUNT (2) | FXSTDSE |
| 23 | 62150-85 | VAPOR VALVE | FXSTDSE |
| 24 | 62189-01A | CHECK VALVE, out, w/ 11323 | FXSTDSE |
| 25 | 62190-01D | FUEL LINE, from tank to intake | FXSTDSE |
| 26 | 62843-00 | PLUG, fuel tank | FXSTDSE |
| 27 | 62919-00 | SPACER, rubber | FXSTDSE |
| 28 | 62881-00 | GROMMET, fuel tank, lower rear & front (3) | FXSTDSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 29 | 62555-95 | INSULATOR, 5/8 inch I.D. (nylon), 8 feet | FXSTDSE |
| 30 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FXSTDSE |
FUEL PUMP - FUEL INJECTED
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW (10) | FXSTDSE |
| 2 | 1314 | SCREW | FXSTDSE |
| 3 | 10006 | CABLE STRAP (2) | FXSTDSE |
| 4 | 10222 | CLAMP (2) | FXSTDSE |
| 5 | 11117A | O-RING | FXSTDSE |
| 11351 | O-RING (not illustrated) | FXSTDSE | |
| 6 | 11380 | O-RING | FXSTDSE |
| 7 | 27408-01 | REGULATOR | FXSTDSE |
| 8 | 61001-01 | FUEL FILTER KIT | FXSTDSE |
| 9 | 61192-96A | GASKET, fuel gauge | FXSTDSE |
| 10 | 61209-01A | BAIL | FXSTDSE |
| 11 | 61231-01 | BAIL BRACKET | FXSTDSE |
| 12 | 61315-02 | GASKET, top plate | FXSTDSE |
| 13 | 61583-02 | SPRING | FXSTDSE |
| 14 | 61960-00 | RUBBER CUSHION (used w/ 62897-01A) | FXSTDSE |
| 61960-04 | RUBBER CUSHION (used w/ 62897-01B) | FXSTDSE | |
| 15 | 61961-00 | RUBBER SLEEVE | FXSTDSE |
| 16 | 62163-01A | HOUSING FUEL PUMP (used w/ 62897-01A) | FXSTDSE |
| 62163-04 | HOUSING FUEL PUMP (used w/ 62897-01B) | FXSTDSE | |
| 17 | 62165-01 | ENDCAP, housing fuel pump | FXSTDSE |
| 18 | 62188-01 | SPACER, rubber (used w/ 62897-01A) | FXSTDSE |
| 62188-04 | SPACER, rubber (used w/ 62897-01B) | FXSTDSE | |
| 19 | 62357-00 | HOSE, fuel pump to filter | FXSTDSE |
| 20 | 62373-01 | REGULATOR HOUSING | FXSTDSE |
| 21 | 62897-01A | PUMP ASSEMBLY, fuel, w/ 3, 14, 15, 16, 17 & 18 (use 62897-01B) | FXSTDSE |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 14, 15, 16, 17 & 18 (replaces 62897-01A) | FXSTDSE | |
| 22 | 72439-00B | CONNECTOR ASSEMBLY KIT, 3-way, w/ 72458-00 | FXSTDSE |
| 23 | 72458-00 | CONNECTOR KIT, w/ 11380 | FXSTDSE |
| 24 | 72904-01BK | PIN HOUSING, 4-way | FXSTDSE |
| 25 | 72990-01 | PIN TERMINAL (3) | FXSTDSE |
| 26 | 74191-98 | SOCKET TERMINAL (2) | FXSTDSE |
| 27 | 75099-01A | FUEL GAUGE, w/ 72990-01 | FXSTDSE |
| 75130-01B | MODULE ASSEMBLY, fuel pump, complete, w/ 2, 4, 6, 7, 10, 11, 13, 19, 20, 21, 28 & 11351 (use 75130-01D) | FXSTDSE | |
| 75130-01D | MODULE ASSEMBLY, fuel pump, complete, w/ 2, 4, 6, 7, 10, 11, 13, 19, 20, 21, 28 & 11351 (replaces 75130-01B) | FXSTDSE | |
| 28 | 75142-02 | FUEL LEVEL SENDER (used w/ 75130-01B) | FXSTDSE |
| 75298-05 | FUEL LEVEL SENDER KIT (used w/ 75130-01D) | FXSTDSE |
OIL TANK & LINES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4206 | SCREW | FXSTDSE |
| 2 | 4216 | SCREW (2) | FXSTDSE |
| 3 | 4217 | SCREW (2) | FXSTDSE |
| 4 | 5775 | WASHER (3) | FXSTDSE |
| 5 | 8144 | LOCKNUT (2) | FXSTDSE |
| 6 | 10080 | CLAMP, drain hose (3) | FXSTDSE |
| 7 | 10208 | CLAMP (3) | FXSTDSE |
| 8 | 10216 | CLIP, oil lines | FXSTDSE |
| 9 | 11105 | O-RING | FXSTDSE |
| 10 | 11326 | O-RING (3) | FXSTDSE |
| 11 | 11345 | O-RING, dipstick | FXSTDSE |
| 12 | 11447 | GROMMET (3) | FXSTDSE |
| 13 | 33525-00 | OIL LINE, feed | FXSTDSE |
| 14 | 33531-00 | OIL LINE, return | FXSTDSE |
| 15 | 45468-00 | CONNECTOR ASSEMBLY, vent | FXSTDSE |
| 16 | 45806-00 | OIL LINE, vent | FXSTDSE |
| 17 | 60328-98B | DRAIN PLUG, w/ 11105 | FXSTDSE |
| 18 | 62498-01A | OIL TANK (also order 8144) (chrome) | FXSTDSE |
| 19 | 62769-00 | BRACKET, oil tank top | FXSTDSE |
| 20 | 62845-00A | FILLER CAP, w/ dipstick | FXSTDSE |
| 21 | 63553-00B | HOSE, oil tank drain | FXSTDSE |
| 22 | 63601-00 | CONNECTOR ASSEMBLY, oil line (2) | FXSTDSE |
| 23 | 63611-00 | HOSE, oil feed | FXSTDSE |
| 24 | 63628-00 | ELBOW, oil drain | FXSTDSE |
| 25 | 63632-00 | OIL LINE RETAINER ASSEMBLY (2) | FXSTDSE |
| 26 | 63783-00 | OIL LINE RETAINER ASSEMBLY (3) | FXSTDSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3728 | SCREW (6) | FXSTDSE |
| 2 | 3987 | BOLT (2) | FXSTDSE |
| 3 | 4190 | SCREW (2) | FXSTDSE |
| 4 | 5416 | BOLT | FXSTDSE |
| 5 | 6702 | WASHER (2) | FXSTDSE |
| 6 | 6703 | WASHER (6) | FXSTDSE |
| 7 | 7593 | NUT (4) | FXSTDSE |
| 8 | 7601 | LOCKNUT | FXSTDSE |
| 9 | 9955 | CLAMP (7) | FXSTDSE |
| 10 | 10074 | CLAMP, muffler shield (4) | FXSTDSE |
| 11 | 65085-00A | SHIELD, front exhaust | FXSTDSE |
| 12 | 65093-03BFA | SUPPORT, muffler (centennial gold) | FXSTDSE |
| 13 | 65097-03 | MUFFLER, front | FXSTDSE |
| 65915-03A | MUFFLER, front, catalytic (California) | FXSTDSE | |
| 14 | 65296-95A | CLAMP, muffler (2) | FXSTDSE |
| 15 | 65324-83B | GASKET, exhaust port (2) | FXSTDSE |
| 16 | 65325-83A | RETAINING RING, exhaust gasket (2) | FXSTDSE |
| 17 | 65328-83A | FLANGE (2) | FXSTDSE |
| 18 | 65445-00 | HEAT SHIELD, exhaust pipe | FXSTDSE |
| 19 | 65464-00 | HEAT SHIELD, rear exhaust pipe | FXSTDSE |
| 20 | 65474-03 | HEAT SHIELD, muffler (2) | FXSTDSE |
| 21 | 65499-00A | EXHAUST PIPE, front | FXSTDSE |
| 22 | 65503-00A | EXHAUST PIPE, rear | FXSTDSE |
| 23 | 65652-97A | BRACKET, exhaust | FXSTDSE |
| 24 | 65654-97 | CLAMP, exhaust pipe | FXSTDSE |
| 25 | 65734-95 | BRACKET, muffler | FXSTDSE |
| 26 | 65830-03 | SEAL, exhaust interconnect | FXSTDSE |
| 27 | 65916-03A | MUFFLER, rear, catalytic (California) | FXSTDSE |
| 65924-03 | MUFFLER, rear | FXSTDSE | |
| 28 | 65926-00 | MUFFLER BRACKET, rear | FXSTDSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FXSTDSE |
| 2 | 15368-01A | WARNING LABEL | FXSTDSE |
| 3 | 65989-97C | BATTERY, sealed, w/ 4312C | FXSTDSE |
| 4 | 66210-00 | CUSHION, rubber | FXSTDSE |
| 5 | 70060-92B | CABLE ASSEMBLY, battery negative | FXSTDSE |
| 6 | 70078-00B | CABLE ASSEMBLY, battery positive, w/ 70584-94 | FXSTDSE |
| 7 | 70584-94 | BOOT | FXSTDSE |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FXSTDSE |
| 2 | 3008 | SCREW | FXSTDSE |
| 3 | 3658 | SCREW (2) | FXSTDSE |
| 4 | 4194 | SCREW (2) | FXSTDSE |
| 5 | 6716 | WASHER (2) | FXSTDSE |
| 6 | 9856 | TERMINAL RING | FXSTDSE |
| 7 | 10102 | CLIP (2) | FXSTDSE |
| 10103 | CLIP | FXSTDSE | |
| 8 | 52425-98 | BULB, tachometer | FXSTDSE |
| 61081-92 | COVER, key head set (not illustrated) (2) | FXSTDSE | |
| 9 | 67223-00A | SEAL, speedometer | FXSTDSE |
| 10 | 67269-03 | SPEEDOMETER, mph | FXSTDSE |
| 67309-03 | SPEEDOMETER, kph (Canada) | FXSTDSE | |
| 11 | 67423-00 | BRACKET, instrument panel mounting | FXSTDSE |
| 12 | 67854-98 | RESET, switch speedometer | FXSTDSE |
| 13 | 67880-94 | BOOT, reset switch | FXSTDSE |
| 14 | 67952-96 | GASKET, isolation | FXSTDSE |
| 15 | 67953-96 | HOUSING, tachometer | FXSTDSE |
| 16 | 67956-96 | SCREW | FXSTDSE |
| 17 | 68892-00A | HOUSING ASSEMBLY, indicator lights, w/ 74118-98BK, 74158-98, 74193-98 & 74195-98 | FXSTDSE |
| 18 | 68893-00A | BEZEL, indicator lights | FXSTDSE |
| 19 | 68894-00 | BACK CLAMP | FXSTDSE |
| 20 | 69074-02 | TACHOMETER, w/ 52425-98 (silver) | FXSTDSE |
| 21 | 71313-96A | IGNITION SWITCH (specify key code) | FXSTDSE |
| 22 | 71439-00 | INSTRUMENT PANEL | FXSTDSE |
| 23 | 71450-04 | LOCKSET, complete, w/ keys, key cover, cable strap, fork lock & ignition switch | FXSTDSE |
| 71452-91A | KEY (specify key code) (not illustrated) (2) | FXSTDSE | |
| 24 | 71464-00 | TRIM, instrument panel | FXSTDSE |
| 25 | 71470-03 | TRIM **RESTRICTED SALES PART** | FXSTDSE |
| 26 | 71721-03 | WIRE HARNESS, tachometer | FXSTDSE |
| 27 | 72044-71A | HOUSING PLUG, socket | FXSTDSE |
| 28 | 72038-71A | TERMINAL, socket | FXSTDSE |
| 29 | 73104-96BK | HOUSING PIN, 4-place | FXSTDSE |
| 30 | 73154-96BK | HOUSING SOCKET, 4-place | FXSTDSE |
| 31 | 73190-96 | TERMINAL, pin, 20-16 gauge (4) | FXSTDSE |
| 32 | 73191-96 | CONTACT, socket, 20-16 gauge (4) | FXSTDSE |
| 33 | 74118-98BK | SOCKET HOUSING, 8-way (black) | FXSTDSE |
| 34 | 74158-98 | SECONDARY LOCK, 8-way socket | FXSTDSE |
| 35 | 74193-98 | SOCKET TERMINAL (7) | FXSTDSE |
| 36 | 74195-98 | SEAL PIN (2) | FXSTDSE |
FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7744 | JAM NUT (2) | FXSTDSE |
| 2 | 10006 | CABLE STRAP (2) | FXSTDSE |
| 10065 | CABLE STRAP | FXSTDSE | |
| 3 | 67015-02 | LOCK SCREW, turn signal ball stud (2) | FXSTDSE |
| 4 | 67316-03B | BRACKET, turn signal mounting, right | FXSTDSE |
| 5 | 67332-03 | BRACKET, turn signal mounting, left | FXSTDSE |
| 6 | 67822-88 | BALL STUD (2) | FXSTDSE |
| 7 | 68614-03 | TURN SIGNAL, front (2) | FXSTDSE |
| 8 | 68904-00 | SOCKET ASSEMBLY (2) | FXSTDSE |
| 9 | 69325-02 | LENS (2) | FXSTDSE |
| 10 | 69331-02 | BULB, front turn signal (2) | FXSTDSE |
| 11 | 73191-96 | SOCKET CONTACT, 16-20 gauge (6) | FXSTDSE |
| 12 | 73156-96BK | SOCKET HOUSING, 6-place (2) | FXSTDSE |
REAR TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2871W | BOLT (2) | FXSTDSE |
| 2 | 6702 | WASHER (2) | FXSTDSE |
| 3 | 69330-02 | BULB, rear turn signal (2) | FXSTDSE |
| 4 | 68821-00 | SUPPORT, rear lamp mounting (2) | FXSTDSE |
| 5 | 68905-00 | SOCKET ASSEMBLY (2) | FXSTDSE |
| 6 | 69196-03 | TURN SIGNAL (2) | FXSTDSE |
| 7 | 69325-02 | LENS (2) | FXSTDSE |
| 8 | 73152-96BK | SOCKET HOUSING, 2-place, right (black) | FXSTDSE |
| 73152-96WE | SOCKET HOUSING, 2-place, left (white) | FXSTDSE | |
| 9 | 73191-96 | CONTACT SOCKET, 16-20 gauge (4) | FXSTDSE |
TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP | FXSTDSE |
| 2 | 68168-89A | BULB, tail lamp | FXSTDSE |
| 3 | 68353-00 | HARNESS, rear lamp, w/ 72412-97, 73154-96BK & 73191-96 | FXSTDSE |
| 4 | 68354-00A | TAIL LAMP LENS ASSEMBLY, w/ clips & gasket | FXSTDSE |
| 5 | 68817-00 | HARNESS, rear lighting | FXSTDSE |
| 6 | 68931-00A | TAIL LAMP ASSEMBLY, w/ 68168-89A, 68353-00 & 68354-00A | FXSTDSE |
| 7 | 72266-94 | SHRINK TUBE | FXSTDSE |
| 8 | 72412-97 | SEAL, cable, #12-14 AWG (3) | FXSTDSE |
| 9 | 73102-96BK | PIN HOUSING, 2-way (black) | FXSTDSE |
| 10 | 73102-96WE | PIN HOUSING, 2-way (white) | FXSTDSE |
| 11 | 73104-96BK | PIN HOUSING, 4-way (black) | FXSTDSE |
| 12 | 73104-96WE | PIN HOUSING, 4-way (white) | FXSTDSE |
| 13 | 73154-96BK | SOCKET HOUSING, 4-place | FXSTDSE |
| 14 | 73158-96BK | SOCKET HOUSING, 8-place | FXSTDSE |
| 15 | 73190-96 | TERMINAL, pin (12) | FXSTDSE |
| 16 | 73191-96 | CONTACT SOCKET, 16-20 gauge (11) | FXSTDSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FXSTDSE |
| 2 | 6109 | WASHER | FXSTDSE |
| 3 | 7481 | ACORN NUT | FXSTDSE |
| 4 | 7495 | NUT | FXSTDSE |
| 5 | 8108 | SPEEDNUT (2) | FXSTDSE |
| 6 | 69012-93A | COVER ASSEMBLY, horn (chrome) | FXSTDSE |
| 7 | 69060-90F | HORN ASSEMBLY | FXSTDSE |
| 8 | 69062-91A | CLAMP | FXSTDSE |
| 9 | 69120-91 | BRACKET, horn | FXSTDSE |
| 10 | 69123-92A | MOUNT, horn (rubber) | FXSTDSE |
WIRING HARNESS, MAIN - FUEL INJECTED (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70431-03 | MAIN WIRING HARNESS | FXSTDSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9840 | TERMINAL, ring type | FXSTDSE |
| 2 | 9937 | TERMINAL, female, #14-16 wire (4) | FXSTDSE |
| 10006 | CABLE STRAP (not illustrated) (4) | FXSTDSE | |
| 3 | 10065 | CABLE STRAP (15) | FXSTDSE |
| 4 | 27667-00A | FUSE BLOCK COVER | FXSTDSE |
| 5 | 31511-01B | RELAY, black | FXSTDSE |
| 6 | 31522-00C | RELAY | FXSTDSE |
| 7 | 70598-99 | BOOT, engine temperature sensor | FXSTDSE |
| 8 | 70974-00B | SHIELD, loom | FXSTDSE |
| 9 | 72033-93 | TERMINAL, socket (18) | FXSTDSE |
| 10 | 72039-71A | TERMINAL, pin | FXSTDSE |
| 11 | 72043-71A | PIN HOUSING, 1-way | FXSTDSE |
| 12 | 72076-00 | SOCKET TERMINAL, #18 wire (27) | FXSTDSE |
| 13 | 72077-00 | SEAL PIN (9) | FXSTDSE |
| 14 | 72078-00 | CONNECTOR KIT, 36-way | FXSTDSE |
| 15 | 72106-94BK | PIN HOUSING, 6-way pin (black) | FXSTDSE |
| 16 | 72106-94BK | PIN HOUSING, 6-way pin (replaces gray connector) (black) | FXSTDSE |
| 17 | 72113-94BK | SOCKET HOUSING, 3-way (black) | FXSTDSE |
| 18 | 72124-94GY | PIN HOUSING, 4-way (gray) | FXSTDSE |
| 19 | 72139-94GY | SOCKET HOUSING, 12-way (gray) | FXSTDSE |
| 20 | 72144-94 | SECONDARY LOCK, 4-way | FXSTDSE |
| 21 | 72146-94 | SECONDARY LOCK, 6-way (2) | FXSTDSE |
| 22 | 72153-94 | SECONDARY LOCK, 3-way | FXSTDSE |
| 23 | 72159-94 | SECONDARY LOCK, 12-way | FXSTDSE |
| 24 | 72164-94A | PLUG, 4-way connector | FXSTDSE |
| 25 | 72190-94 | TERMINAL, pin (15) | FXSTDSE |
| 26 | 72191-94 | TERMINAL, socket (14) | FXSTDSE |
| 27 | 72199-94 | ANCHOR T-STUD (3) | FXSTDSE |
| 28 | 72213-94 | TERMINAL, socket (3) | FXSTDSE |
| 29 | 72214-94 | CABLE SEAL, #14-16 wire (3) | FXSTDSE |
| 30 | 72230-98 | SOCKET HOUSING, 3-way | FXSTDSE |
| 31 | 72231-98 | SECONDARY LOCK, 3-way | FXSTDSE |
| 32 | 72242-94 | TERMINAL, ring (3) | FXSTDSE |
| 33 | 72244-95 | SOCKET HOUSING, 2-way (2) | FXSTDSE |
| 34 | 72245-95 | SOCKET TERMINAL, #16-18 wire (4) | FXSTDSE |
| 35 | 72247-95 | SOCKET HOUSING, 2-way | FXSTDSE |
| 36 | 72263-95 | SOCKET HOUSING, 4-way (2) | FXSTDSE |
| 37 | 72273-95 | SOCKET HOUSING, 2-way | FXSTDSE |
| 38 | 72280-95 | SOCKET HOUSING (black) (2) | FXSTDSE |
| 39 | 72290-94 | TERMINAL, female (2) | FXSTDSE |
| 40 | 72291-94 | TERMINAL, female spade, 14-16 gauge (3) | FXSTDSE |
WIRING HARNESS, MAIN - FUEL INJECTED (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70431-03 | MAIN WIRING HARNESS (Continued) | FXSTDSE | |
| NOTE: Includes the following parts. | |||
| 41 | 72292-94 | TERMINAL, female, 12 gauge | FXSTDSE |
| 42 | 72295-94 | HOUSING, starter connection, female | FXSTDSE |
| 43 | 72327-03A | HOUSING, female, 3-way | FXSTDSE |
| 44 | 72330-95 | FUSE, 15 amp (8) | FXSTDSE |
| 45 | 72366-95 | HEAT SHRINK TUBE (yellow) | FXSTDSE |
| 72369-00 | BRACKET, fuse block mounting (not illustrated) | FXSTDSE | |
| 46 | 72405-98BK | TERMINAL, push on (black) (2) | FXSTDSE |
| 47 | 72428-00 | TERMINAL, female (4) | FXSTDSE |
| 48 | 72430-00 | FUSE BLOCK, type 0 | FXSTDSE |
| 49 | 72432-00 | FUSE BLOCK, type 2 | FXSTDSE |
| 50 | 72434-00 | TERMINAL (16) | FXSTDSE |
| 51 | 72516-01 | DUST CAP | FXSTDSE |
| 52 | 72914-01BK | SOCKET HOUSING, 4-way (black) | FXSTDSE |
| 53 | 72991-01 | SOCKET TERMINAL, #14-16 wire (3) | FXSTDSE |
| 54 | 73104-96BK | PIN HOUSING, 4-way (black) | FXSTDSE |
| 55 | 73106-96BK | PIN HOUSING, 6-way (black) | FXSTDSE |
| 56 | 73108-96BK | PIN HOUSING, 8-way (black) | FXSTDSE |
| 57 | 73190-96 | TERMINAL, pin, 20-16 gauge (18) | FXSTDSE |
| 58 | 73196-96 | ANCHOR, T-stud (3) | FXSTDSE |
| 59 | 74108-98BK | PIN HOUSING, 8-way (black) | FXSTDSE |
| 60 | 74112-98BK | HOUSING SOCKET, 2-way (black) | FXSTDSE |
| 61 | 74113-98BK | HOUSING SOCKET, 3-way (black) | FXSTDSE |
| 62 | 74119-98BK | HOUSING SOCKET, 12-way (black) | FXSTDSE |
| 63 | 74148-98 | SECONDARY LOCK, pin, 8-way | FXSTDSE |
| 64 | 74152-98 | SECONDARY LOCK, socket, 2-way | FXSTDSE |
| 65 | 74153-98 | SECONDARY LOCK, socket, 3-way | FXSTDSE |
| 66 | 74159-98 | SECONDARY LOCK, socket, 12-way | FXSTDSE |
| 67 | 74190-98 | TERMINAL, pin (7) | FXSTDSE |
| 68 | 74191-98 | TERMINAL, socket (15) | FXSTDSE |
| 69 | 74195-98 | SEAL PIN, plug (3) | FXSTDSE |
HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | FXSTDSE |
| 2 | 3658 | SCREW (4) | FXSTDSE |
| 3 | 10181 | CABLE STRAP (as required) | FXSTDSE |
| 4 | 70345-84 | RETAINER, wiring (2) | FXSTDSE |
| 5 | 71587-04 | CLIP | FXSTDSE |
| 6 | 71614-96 | HOUSING, upper, right (chrome) | FXSTDSE |
| 7 | 71615-96 | HOUSING, upper, left (chrome) | FXSTDSE |
| 8 | 71621-08 | STOP LAMP SWITCH, front, w/ 10181 & 72266-94 | FXSTDSE |
| 9 | 71682-06A | SWITCH KIT, dimmer & horn, w/ 10181 & 72266-94 | FXSTDSE |
| 10 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | FXSTDSE |
| 11 | 71684-06A | SWITCH KIT, engine stop/start, w/ 10181 & 72266-94 | FXSTDSE |
| 12 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 & 72266-94 | FXSTDSE |
| 13 | 71719-03 | HOUSING, lower, right (chrome) | FXSTDSE |
| 14 | 71720-03A | HOUSING, lower, left (chrome) | FXSTDSE |
| 15 | 72116-94BK | PLUG, 6-way socket (2) | FXSTDSE |
| 16 | 72156-94 | SOCKET LOCK, secondary, 6-way (2) | FXSTDSE |
| 17 | 72176-94 | FRONT SEAL, 6-way plug (2) | FXSTDSE |
| 18 | 72191-94 | TERMINAL, socket (6) | FXSTDSE |
| 19 | 72266-94 | HEAT SHRINK TUBE, dual wall, 0.3 x 2 inch (as required) | FXSTDSE |
SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2501A | SCREW (4) | FXSTDSE |
| 2 | 3574 | SCREW (2) | FXSTDSE |
| 3 | 3892 | SCREW (2) | FXSTDSE |
| 4 | 7629 | NUT (2) | FXSTDSE |
| 5 | 8483A | RIVET (2) | FXSTDSE |
| 6 | 9842 | TERMINAL | FXSTDSE |
| 7 | 9843 | TERMINAL | FXSTDSE |
| 8 | 10039 | CABLE STRAP | FXSTDSE |
| 10065 | CABLE STRAP | FXSTDSE | |
| 9 | 10108 | CLIP (5) | FXSTDSE |
| 10 | 10149 | CLIP, T-stud (2) | FXSTDSE |
| 11 | 10224 | CLIP, T-stud | FXSTDSE |
| 12 | 11290 | O-RING, neutral indicator switch | FXSTDSE |
| 13 | 31522-00C | STARTER RELAY | FXSTDSE |
| 14 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | FXSTDSE |
| 15 | 61081-92 | COVER, key head set (2) | FXSTDSE |
| 16 | 66373-06 | BATTERY, 3V CR2032 | FXSTDSE |
| 17 | 68923-00D | MODULE, security system | FXSTDSE |
| 18 | 68926-00 | REMOTE CONTROL FOB, w/ 66373-06 (2) | FXSTDSE |
| 19 | 68958-07C | SIREN | FXSTDSE |
| 20 | 69309-10 | BATTERY, siren | FXSTDSE |
| 21 | 70048-03 | WIRE ASSEMBLY, circuit breaker to starter | FXSTDSE |
| 22 | 70354-03 | BRACKET, electrical | FXSTDSE |
| 23 | 71313-96A | IGNITION SWITCH (specify key code) | FXSTDSE |
| 24 | 71450-04 | LOCKSET, complete, w/ 10065, 61081-92, 71452-91A, fork lock & ignition switch | FXSTDSE |
| 25 | 71452-91A | KEY (specify key code) (2) | FXSTDSE |
| 26 | 72023-51D | STOP LAMP SWITCH, rear | FXSTDSE |
| 27 | 72249-94 | SHRINK TUBE | FXSTDSE |
| 28 | 72330-95 | FUSE, 15 amp. (6) | FXSTDSE |
| 29 | 72369-00 | BRACKET, fuse block | FXSTDSE |
| 30 | 72374-00 | WIRE TROUGH | FXSTDSE |
| 31 | 72380-00 | BRACKET, electrical connectors (located behind steering head) | FXSTDSE |
| 32 | 74599-77B | CIRCUIT BREAKER, battery, 30 amp. | FXSTDSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (2) | FXSTDSE |
| 2 | 7127 | LOCKWASHER (2) | FXSTDSE |
| 3 | 7736 | ACORN NUT (2) | FXSTDSE |
| 4 | 91927-03 | MIRROR ASSEMBLY, right (chrome) | FXSTDSE |
| 91928-03 | MIRROR ASSEMBLY, left (chrome) | FXSTDSE |
CALIFORNIA EVAPORATIVE EMISSIONS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 4195 | SCREW, canister to transmission housing (not illustrated) (2) | FXSTDSE | |
| 6139 | WASHER, canister to transmission housing (not illustrated) (2) | FXSTDSE | |
| 11321 | CABLE STRAP, canister to mounting bracket (not illustrated) (2) | FXSTDSE | |
| 1 | 27042-84A | CANISTER ASSEMBLY | FXSTDSE |
| 28839-00 | VENT LINE ASSEMBLY, fuel tank to vapor valve & carb to canister (not illustrated) | FXSTDSE | |
| 27293-00 | CANISTER MOUNTING BRACKET (not illustrated) | FXSTDSE | |
| 27328-00 | HOSE, rollover valve to canister (not illustrated) | FXSTDSE | |
| 29312-95 | CONNECTOR, evaporative (not illustrated) (carbureted only) | FXSTDSE | |
| 56076-97 | RETAINER, vent line (not illustrated) | FXSTDSE | |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 27138-90 | HOSE, 3/16 inch I.D. x 11/32 inch O.D. (rubber) (10 feet) (not illustrated) | FXSTDSE | |
| Part No. | Description |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1311D | SCREW No. 8-32 X 1/2 Phillips truss head, self-sealing |
| 1314 | SCREW K50-2.24 X 17.25MM TORX truss head |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2573 | SCREW No. 8-32 X 5/8 pan head |
| 2646 | SCREW No. 8-32 X 3/4 Pozidriv pan head (Grade 2) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2871W | BOLT 5/16-18 X 1-1/4 hex head (Grade 5) |
| 2882W | SCREW 5/16-18 X 5/8 hex head (Grade 5) |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 2918 | SCREW No. 10-24 X 1-1/4 TORX head |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3007 | SCREW No. 10-32 X 3/8 socket head |
| 3008 | SCREW No. 10-24 X 1-1/4 TORX head, with adhesive |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3231B | SCREW 1/4-20 X 1/4 socket head, with lockpatch |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3300 | SCREW 5/16-18 X 1-1/2 socket head, with lockpatch (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3471 | BOLT 1/2-13 X 2-3/4 hex head (Grade 5) |
| 3494A | BOLT 5/16-18 X 7/8 hex head |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 3509 | BOLT 3/8-16 X 2-3/4 hex head (Grade 8) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35211-91B | NUT 1-1/2-24 X .350 X 1-7/8 hex head |
| 3538 | SCREW 5/16-24 X 1/2 socket button head |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3602A | SCREW No. 10-32 X 1/2 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3728 | SCREW 1/4-20 X 1/2 hex head |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3737A | SCREW 7/16-14 X 2-1/4 hex head, with lockpatch (Grade 5) |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 37496-90 | NUT |
| 3767B | BOLT 1/4-20 X 5/8 hex head (Grade 5) |
| 3775 | SCREW 3/8-16 X 2 hex head (Grade 5) |
| 3784 | SET SCREW 1/2-20 X 1/2 socket head, with lockpatch |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3909 | SCREW 1/4-20 X 1-1/4 SEMS hex head (Grade 5) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4016 | SCREW 5/16-18 X 1.0 socket button head |
| 4074A | BOLT 1/2-13 X 2 hex head, shoulder |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4163 | SCREW 3/4-16 X 7/8 TORX button head (Grade 8) |
| 4168 | SCREW 3/8-16 X 1 self-tapping |
| 4190 | SCREW 3/8-16 X 3/4 TORX button head |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4195 | SCREW 3/8-18 X 3 socket head |
| 4197 | BOLT 3/8-16 X 3-3/4 hex head (Grade 5) |
| 4206 | SCREW 3/16-18 X 1 hex head |
| 4213 | SCREW M8 X 1.25 X 30 button head |
| 4216 | SCREW 5/16-18 X 7/8 hex flange head (Grade 5) |
| 4217 | SCREW 5/16-18 X 1.0 hex flange head (Grade 5) |
| 4226 | SCREW #10-32 X 1-1/2 button head (stainless) |
| 4311 | SCREW 3/8-16 X 1-5/8 socket head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4313 | SCREW 3/8-16 X 1-1/4 socket head |
| 4315 | SCREW 3/8-16 X 3-1/2 TORX head (Grade 8) |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 4355B | SCREW 3/8-16 X 1-3/4 TORX head (Grade 8) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4358A | SCREW No. 10-32 X 5.250 hex head (zinc plate) |
| 4383 | SCREW 5/16-18 X 5/8 hex head, with washer (Grade 2) |
| 4387 | SCREW 5/16-24 X 7/8 socket head |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45717-63 | LOCKWASHER 1 X 2 X 0.035 keyed special |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 4716W | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4726 | BOLT 7/16-20 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4763 | SCREW 5/16-18 X 1-1/4 TORX button head (Grade 5) |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 5710 | WASHER 63/64 X 1-1/2 X 5/64 |
| 5756 | WASHER 21/32 X 1-5/16 X 5/8 |
| 5775 | WASHER 11/32 X 1/2 X 31/64 |
| 6003 | WASHER 1-3/16 X 1-3/8 X 11/16 |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6057 | WASHER 1/2 X 7/8 X 3/16, nylon |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6474 | WASHER 3/8 X 5/16 X 3/16 hardened |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6530 | WASHER 1/2 X 1 X 3/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6534 | WASHER 3/8 X 1-3/4 X 3/32 hardened |
| 6535 | WASHER 5/16 X 1-1/4 X 3/32 hardened |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6724 | WASHER 21/32 X 1-1/16 X 1/16 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67956-96 | SCREW 1/4-20 X 3/4 socket flat head |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 6812 | WASHER 13/32 X 11/16 X 1/16 |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 6852 | WASHER 41/64 X 1-1/8 X 5/64 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7062 | LOCKWASHER M8.4 X 13 X 1.2 |
| 7068 | LOCKWASHER 1/2 |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7220 | LOCKWASHER No. 10 external tooth |
| 7479 | NUT 5/8-11 flange (Grade 6) |
| 7481 | ACORN NUT 5/16-18 X 5/8 X 1/2 |
| 7495 | NUT M6 X 1.0 flange lock |
| 7507 | ACORN NUT 5/16-18 X 11/16 X 1/2 (Grade 2) (chrome) |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7669 | NUT 5/16-18 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 7838 | NUT No. 10-24 keps |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 7862 | ACORN NUT 3/8-16 (chrome) |
| 7879 | NUT 1/2-13 X 1/2 X 3/4 flange (Grade 6) |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7974 | JAMNUT 5/8-18 X 3/8 X 1 |
| 7987 | NUT 5/8-18 X 15/16 slotted (Grade 8) |
| 8108 | SPEEDNUT 1/4-20 |
| 8144 | NUT CLIP 5/16-18 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 858A | BOLT 5/16-18 X 3 hex head (Grade 5) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 924 | SCREW 1/4-20 X 33/64 socket pan head |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 939 | SCREW 1/4-20 X 1 self-tapping, with washer (Grade 2) |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| 956 | SCREW 5/16-18 X 3-1/4 button head, with lockpatch (Grade 8) |
| 961 | SCREW 1/4-20 X 1/2 TORX pan head, with washer (Grade 8) |
| 992 | SCREW 7/16-20 X 1-1/2 TORX button head |
| 994 | SCREW 5/16-18 X 7/8 TORX button head (Grade 5) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 19107-03 | ENGINE ASSEMBLY, complete | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 16480-92A | SCREW, internal thread, 1-7/8 inch long (4) | FXSTDSE |
| 9 | 16787-99A | GASKET, cylinder head - 1550 engine (2) | FXSTDSE |
| 11 | 17052-99C | GASKET KIT, top end | FXSTDSE |
| 17053-99C | GASKET KIT, engine overhaul | FXSTDSE | |
| 18124-83 | INSERT, exhaust valve seat, 0.005 O.S. (2) | FXSTDSE | |
| 18134-83 | INSERT, intake valve seat, 0.005 O.S. (2) | FXSTDSE | |
| 15 | 18074-83B | INTAKE VALVE (2) | FXSTDSE |
| 16 | 18082-83A | EXHAUST VALVE (2) | FXSTDSE |
| 17 | 18101-83D | VALVE GUIDE, intake & exhaust (4) | FXSTDSE |
| 22 | 18229-83A | RETAINER, valve collar (8) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | FXSTDSE |
| 9 | 11132A | O-RING, push rod cover (4) | FXSTDSE |
| 10 | 11145A | O-RING, push rod cover (4) | FXSTDSE |
| 13 | 16719-99B | GASKET, rocker housing (2) | FXSTDSE |
| 14 | 17025-03A | BREATHER ASSEMBLY, engine (replaces 17907-01) (2) | FXSTDSE |
| 15 | 17045-99D | GASKET KIT, cam service | FXSTDSE |
| 18 | 17386-99A | GASKET, rocker cover (2) | FXSTDSE |
| 19 | 17429-91 | BEARING, rocker arm (8) | FXSTDSE |
| 21 | 17573-99A | ROCKER HOUSING (chrome) (2) | FXSTDSE |
| 33 | 18538-99C | HYDRAULIC LIFTER (4) | FXSTDSE |
| 34 | 18635-99B | GASKET, lifter cover (2) | FXSTDSE |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 23971-03B | FLYWHEEL ASSEMBLY, w/ 11177A, thrust washer, inner race, connecting rods, flywheels, plugs, bearings, crankpin & ring | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 8972 | WASHER, thrust | FXSTDSE |
| 12 | 24039-03 | SPACER, sprocket shaft | FXSTDSE |
| 14 | 24605-07 | BEARING, main, right side of crankshaft (2) | FXSTDSE |
| 15 | 24679-03 | SET OF CRANKCASES, w/ 100th medallion (silver) **RESTRICTED SALES PART** | FXSTDSE |
| 16 | 24709-03 | MEDALLION KIT, crankcase **RESTRICTED SALES PART** | FXSTDSE |
| 20 | 63798-99A | OIL FILTER (chrome) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 16583-00A | DOWEL (4) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 13885-04 | LOGO, bar & shield | FXSTDSE |
| 15 | 17045-99D | GASKET KIT, cam service | FXSTDSE |
| 17 | 25244-99A | GASKET, cam cover | FXSTDSE |
| 20 | 25369-01B | CAM COVER, chrome | FXSTDSE |
| 32 | 26400-82B | RELIEF VALVE, oil pump | FXSTDSE |
| 34 | 32574-03 | TIMER COVER (chrome) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 27608-01A | FUEL RAIL | FXSTDSE |
| 10 | 27609-01B | INJECTOR, fuel (2) | FXSTDSE |
| 12 | 27628-01A | IDLE KIT, air control | FXSTDSE |
| 13 | 27629-01A | THROTTLE KIT, position sensor | FXSTDSE |
| 15 | 27635-01A | KIT HARDWARE INDUCTION MODULE | FXSTDSE |
| 16 | 32416-10 | SENSOR, manifold air pressure, w/ 11291 | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 29127-95B | SAFETY LABEL | FXSTDSE |
| 4 | 29215-03 | INSERT TRIM A/C, "Screamin Eagle 1550" | FXSTDSE |
| 5 | 29339-03 | SCREW | FXSTDSE |
| 6 | 29442-99E | FILTER ELEMENT | FXSTDSE |
| 8 | 29485-03 | BREATHER TUBE (2) | FXSTDSE |
| 9 | 29486-03 | BRACKET, air cleaner cover | FXSTDSE |
| 10 | 29583-01A | GASKET, backplate | FXSTDSE |
| 11 | 29612-03 | BACKPLATE | FXSTDSE |
| 12 | 29614-03 | COVER, air cleaner | FXSTDSE |
| 13 | 29615-03 | SEAL, air cleaner cover | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 30017-01B | STATOR | FXSTDSE |
| 9 | 57047-03 | BRACKET, regulator mounting | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 31981-99C | SPARK PLUG CABLE, front cylinder | FXSTDSE |
| 10 | 31983-00C | SPARK PLUG CABLE, rear cylinder | FXSTDSE |
| 11 | 32362-04 | SPARK PLUG, 6R12 (2) | FXSTDSE |
| 12 | 32534-11 | ELECTRONIC CONTROL MODULE, blank | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 32707-01C | SENSOR, crankshaft position, w/ 11289A & 72199-94 | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 10957 | O-RING | FXSTDSE |
| 20 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31664-94, 31692-90 & return spring | FXSTDSE |
| 31553-94B | STARTER, complete (black texture) | FXSTDSE | |
| 28 | 31604-91A | STARTER SOLENOID REPAIR KIT | FXSTDSE |
| 29 | 31612-09 | JACKSHAFT KIT, starter | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 33 | 34064-00C | SPRING, shift lever centering | FXSTDSE |
| 43 | 34979-00 | SLEEVE, shift lever pivot | FXSTDSE |
| 45 | 49318-03 | PEG, shift lever | FXSTDSE |
| 46 | 49319-03 | INSERT, shifter peg | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 3699D | SCREW (4) | FXSTDSE |
| 21 | 11132A | O-RING, filler plug | FXSTDSE |
| 27 | 12067B | OIL SEAL, mainshaft, left side | FXSTDSE |
| 29 | 25604-00A | INNER RAMP | FXSTDSE |
| 30 | 25605-00A | OUTER RAMP | FXSTDSE |
| 31 | 33054-03 | TRANSMISSION ASSEMBLY | FXSTDSE |
| 33 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | FXSTDSE |
| 35 | 34774-00A | TRANSMISSION HOUSING ASSEMBLY (silver painted) | FXSTDSE |
| 36 | 34904-86D | GASKET, upper cover | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 40 | 35087-99A | RETAINING RING, bearing (2) | FXSTDSE |
| 42 | 35653-98A | GASKET, bearing housing | FXSTDSE |
| 43 | 36801-87C | GASKET, right side cover | FXSTDSE |
| 46 | 48052-00A | BRACKET, transmission mounting, right | FXSTDSE |
| 48 | 60328-98B | DRAIN PLUG, w/ 11105 | FXSTDSE |
| 72194-94 | TERMINAL, pin (used w/ 74430-00D) (3) | FXSTDSE | |
| 74430-00D | SENSOR, speedometer, w/ 11289A, 72143-94, 72163-94BK & 72194-94 (replaces 74430-00B) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 34091-85A | BEARING, inner race | FXSTDSE |
| 12 | 35051-89A | NEEDLE BEARING (2) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | FXSTDSE |
| 14 | 37872-00 | SEAT, clutch spring | FXSTDSE |
| 22 | 37912-00 | PRESSURE PLATE | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 11147B | O-RING, housing cover | FXSTDSE |
| 13 | 11324 | O-RING, magnetic drain plug (used w/ 60391-04) | FXSTDSE |
| 14 | 12052A | OIL SEAL | FXSTDSE |
| 15 | 12066A | OIL SEAL | FXSTDSE |
| 16 | 25000-03 | INSERT, cover "Screamin Eagle 1550" | FXSTDSE |
| 17 | 25416-99C | SEAL, clutch cover | FXSTDSE |
| 21 | 60391-04 | PLUG ASSEMBLY, magnetic drain, w/ 11324 (used w/ 60543-99B) | FXSTDSE |
| 22 | 60539-94B | GASKET, primary cover | FXSTDSE |
| 60543-99B | COVER ASSEMBLY, primary, w/ 33446-94A & 60391-04 (replaces 60543-99) (chrome) | FXSTDSE | |
| 24 | 60567-90C | GASKET, inspection cover | FXSTDSE |
| 28 | 60693-03 | COVER, clutch | FXSTDSE |
| 29 | 63859-95B | GASKET (2) | FXSTDSE |
| 30 | 25700225 | GASKET KIT, inner primary | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 35211-91B | NUT, sprocket | FXSTDSE |
| 15 | 40307-00B | REAR BELT, 135T | FXSTDSE |
| 16 | 40250-94C | SPROCKET, transmission, 32T | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 38688-03 | CABLE, clutch control, w/ 11179, 38630-88 & 45036-88 | FXSTDSE |
| 12 | 45282-99A | CLAMP, lever bracket | FXSTDSE |
| 14 | 46215-07 | HAND LEVER, clutch, w/ 45021-86, 45423-92 & 90770-79 | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 60393-03 | DEBRIS DEFLECTOR (chrome) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 45078-96D | COVER KIT, reservoir, w/ 2573 | FXSTDSE |
| 14 | 45282-99A | CLAMP, handlebar control | FXSTDSE |
| 15 | 45298-99 | MASTER CYLINDER, front, 11/16 inch bore, w/ 45072-96C | FXSTDSE |
| 17 | 45445-03B | MASTER CYLINDER ASSEMBLY, w/ 8, 11, 12, 13, 15 & 18 | FXSTDSE |
| 18 | 46217-03 | HAND LEVER, front brake control | FXSTDSE |
| 19 | 46223-03A | BRAKE LINE, front | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 11688 | RETAINING RING | FXSTDSE |
| 13 | 40922-87A | BOOT, push rod | FXSTDSE |
| 16 | 41754-00D | MASTER CYLINDER ASSEMBLY, w/ 11, 12, 13, 17, 18, 19 & 27 | FXSTDSE |
| 19 | 42454-99A | RESERVOIR, master cylinder, w/o o-rings | FXSTDSE |
| 42568-05A | GASKET, master cylinder reservoir (used w/ 45149-99C) | FXSTDSE | |
| 22 | 42642-00A | BUSHING, brake lever (2) | FXSTDSE |
| 24 | 42683-02 | BRAKE LEVER & PAD KIT, w/ 1, 4, 5, 7, 22, 23, 25 & 26 | FXSTDSE |
| 25 | 44299-03 | INSERT, brake lever | FXSTDSE |
| 26 | 44302-03 | COVER, brake lever | FXSTDSE |
| 27 | 45149-99C | COVER KIT, reservoir, w/ 2573 & 42568-05A | FXSTDSE |
| 28 | 45300-03 | BRAKE LINE, rear | FXSTDSE |
| 29 | 72023-51D | STOP LAMP SWITCH, rear | FXSTDSE |
| 30 | 72463-00A | BRACKET, brake line | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 44381-99C | CALIPER ASSEMBLY, left | FXSTDSE |
| 44382-99C | CALIPER ASSEMBLY, right | FXSTDSE | |
| 3 | 44082-00D | PAD KIT (2) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 44460-03 | CALIPER ASSEMBLY, rear brake (use 44441-00D) (silver) | FXSTDSE |
| 44441-00D | CALIPER ASSEMBLY, rear brake (replaces 44460-03) (black) | FXSTDSE | |
| 3 | 44082-00D | PAD KIT | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 44122-03 | COVER KIT, front axle nut, w/ 3318, 6638 & 7989 | FXSTDSE |
| 13 | 44051-03 | SPACER, bearing, right | FXSTDSE |
| 14 | 44091-03 | SPACER, bearing, left | FXSTDSE |
| 15 | 44523-03 | WHEEL, front, 21 inch, cast, 6-spoke, dual, w/o bearings & sleeve (chrome) | FXSTDSE |
| 17 | 95595-84A | WEIGHT, 5 grams (silver) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 41613-03 | SPACER, wheel, right (chrome) | FXSTDSE |
| 14 | 41614-03 | SPACER, wheel, left (chrome) | FXSTDSE |
| 19 | 44500-03B | COVER, axle nut, right (chrome) | FXSTDSE |
| 20 | 44501-03 | COVER, axle nut, left (chrome) | FXSTDSE |
| 21 | 44509-03 | BRACKET, axle cover, right | FXSTDSE |
| 22 | 44510-03 | BRACKET, axle cover, left | FXSTDSE |
| 24 | 47627-03 | ADJUSTER, axle (2) | FXSTDSE |
| 25 | 47633-03 | SPACER, axle (2) | FXSTDSE |
| 26 | 95595-84A | WEIGHT, 5 grams (silver) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 44503-03 | CAP, fork nut (2) | FXSTDSE |
| 7 | 44504-03 | COLLAR, fork nut (2) | FXSTDSE |
| 10 | 45475-00A | STEM & BRACKET, w/ 48365-48A | FXSTDSE |
| 11 | 45481-03 | SLIDER TUBE (2) | FXSTDSE |
| 12 | 45482-03 | CAP FORK, slider (2) | FXSTDSE |
| 13 | 45568-03 | COVER, lower triple tree | FXSTDSE |
| 15 | 45670-80A | CAP, fork stem | FXSTDSE |
| 46221-03 | SLIDER, right, w/ 45790-80 | FXSTDSE | |
| 34 | 46219-03 | FORK ASSEMBLY, right | FXSTDSE |
| 35 | 46220-03 | SPRING (2) | FXSTDSE |
| 36 | 46222-03 | AXLE HOLDER, right | FXSTDSE |
| 37 | 46263-03 | FORK ASSEMBLY, left | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 46803-04 | FRAME (centennial gold) | FXSTDSE |
| 25 | 48895-03BFA | POST ASSEMBLY, seat (centennial gold) | FXSTDSE |
| 26 | 49901-03BFA | FAIRING, frame rail, left (centennial gold) | FXSTDSE |
| 27 | 49902-03BFA | FAIRING, frame rail, right (centennial gold) | FXSTDSE |
| 28 | 49903-03A | HANGER, frame rail, right (2) | FXSTDSE |
| 29 | 49929-03A | HANGER, frame rail, left | FXSTDSE |
| 32 | 50285-03 | LEG, jiffy stand (chrome) | FXSTDSE |
| 34 | 57045-03BFA | FAIRING, chin (centennial gold) | FXSTDSE |
| 35 | 57049-03 | BRACKET, chin fairing mount | FXSTDSE |
| 36 | 57047-03 | BRACKET, regulator mount | FXSTDSE |
| 40 | 71450-04 | LOCKSET, w/ 10065, 45680-90, 61081-92, 71452-91A & ignition switch | FXSTDSE |
| 42 | 91285-03 | STUD, 1/4 turn (3) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 4074A | BOLT (2) | FXSTDSE |
| 10 | 9270A | BEARING, rear fork pivot (2) | FXSTDSE |
| 13 | 44502-03 | COVER, pivot, right | FXSTDSE |
| 14 | 44511-03 | COVER, pivot, left | FXSTDSE |
| 16 | 47580-03BFA | REAR FORK (centennial gold) | FXSTDSE |
| 18 | 47633-03 | SPACER, rear axle adjuster (2) | FXSTDSE |
| 19 | 47627-03 | ADJUSTING SCREW, rear axle (2) | FXSTDSE |
| 20 | 48048-00A | BUSHING, rear fork (2) | FXSTDSE |
| 21 | 48049-00A | SPACER, rear fork (2) | FXSTDSE |
| 22 | 54549-03 | SHOCK ABSORBER, complete, w/ 45764-00, 56182-00A & 56183-00 (2) | FXSTDSE |
| 25 | 60363-00B | SPLASH GUARD | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 44085-03 | SEAT INSERT KIT, passenger, w/ 11378 | FXSTDSE |
| 6 | 44352-03 | SEAT INSERT KIT, rider, w/ 11378 | FXSTDSE |
| 10 | 91809-03A | SEAT ASSEMBLY, complete | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 42646-00 | BRACKET, brake lever & footrest | FXSTDSE |
| 12 | 50256-03 | FOOTPEG, right (2) | FXSTDSE |
| 13 | 50257-03 | FOOTPEG, left (2) | FXSTDSE |
| 14 | 50258-03 | MOUNT, footpeg support (chrome) (4) | FXSTDSE |
| 15 | 50259-03 | INSERT, footpeg right (2) | FXSTDSE |
| 16 | 50260-03 | INSERT, footpeg left (2) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 11398 | GROMMET, handlebar (2) | FXSTDSE |
| 7 | 56422-02C | HANDLEBAR ASSEMBLY, w/ 11398, 11403A & 72165-02 | FXSTDSE |
| 8 | 56504-03 | BRACKET, tachometer mount | FXSTDSE |
| 9 | 56506-03 | HANDLEBAR RISER, lower (chrome) (2) | FXSTDSE |
| 10 | 68018-03 | RISER, trim | FXSTDSE |
| 11 | 68037-03 | FILLER, riser trim | FXSTDSE |
| 12 | 72165-02 | SHRINK TUBE | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 56231-03 | GRIP, left | FXSTDSE |
| 7 | 56233-03 | GRIP & SLEEVE, throttle, right | FXSTDSE |
| 8 | 56215-03A | IDLE CONTROL ASSEMBLY, w/ 11271 | FXSTDSE |
| 9 | 56208-03 | THROTTLE CONTROL ASSEMBLY, w/ 11272 & 38653-01 | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3538 | SCREW (2) | FXSTDSE |
| 5 | 4226 | SCREW (2) | FXSTDSE |
| 7 | 6702 | WASHER (2) | FXSTDSE |
| 13 | 50678-03 | WASHER (2) | FXSTDSE |
| 14 | 67601-94A | GASKET, headlamp | FXSTDSE |
| 15 | 67603-94A | ADAPTER RING | FXSTDSE |
| 19 | 67894-93A | TRIM RING (chrome) | FXSTDSE |
| 20 | 68329-03 | BULB, HB2/H4 | FXSTDSE |
| 23 | 69335-03A | HEADLAMP TRIM KIT | FXSTDSE |
| 24 | 69715-05A | HEADLAMP SHELL ASSEMBLY | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 59876-00A | FENDER (primed) | FXSTDSE |
| 59876-03BFB | FENDER (centennial gold & vivid black with gold leaf) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 59503-03 | PROTECTIVE TAPE | FXSTDSE |
| 59794-03BFB | FENDER ASSEMBLY, w/ 59503-03 (centennial gold & vivid black with gold leaf) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 5818A | BUSHING, front tank mount (2) | FXSTDSE |
| 19 | 61272-92C | CAP, fuel filler, right | FXSTDSE |
| 21 | 62082-00D | FUEL TANK (primed) | FXSTDSE |
| 62082-03BFB | FUEL TANK (centennial gold & vivid black with gold leaf) | FXSTDSE | |
| 25 | 62190-01D | FUEL LINE, from tank to intake | FXSTDSE |
| 30 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 11117A | O-RING | FXSTDSE |
| 11351 | O-RING (not illustrated) | FXSTDSE | |
| 9 | 61192-96A | GASKET, fuel gauge | FXSTDSE |
| 61960-04 | RUBBER CUSHION (used w/ 62897-01B) | FXSTDSE | |
| 62163-04 | HOUSING FUEL PUMP (used w/ 62897-01B) | FXSTDSE | |
| 62188-04 | SPACER, rubber (used w/ 62897-01B) | FXSTDSE | |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 14, 15, 16, 17 & 18 (replaces 62897-01A) | FXSTDSE | |
| 22 | 72439-00B | CONNECTOR ASSEMBLY KIT, 3-way, w/ 72458-00 | FXSTDSE |
| 23 | 72458-00 | CONNECTOR KIT, w/ 11380 | FXSTDSE |
| 75130-01D | MODULE ASSEMBLY, fuel pump, complete, w/ 2, 4, 6, 7, 10, 11, 13, 19, 20, 21, 28 & 11351 (replaces 75130-01B) | FXSTDSE | |
| 75298-05 | FUEL LEVEL SENDER KIT (used w/ 75130-01D) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 8144 | LOCKNUT (2) | FXSTDSE |
| 17 | 60328-98B | DRAIN PLUG, w/ 11105 | FXSTDSE |
| 18 | 62498-01A | OIL TANK (also order 8144) (chrome) | FXSTDSE |
| 20 | 62845-00A | FILLER CAP, w/ dipstick | FXSTDSE |
| 21 | 63553-00B | HOSE, oil tank drain | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 65085-00A | SHIELD, front exhaust | FXSTDSE |
| 12 | 65093-03BFA | SUPPORT, muffler (centennial gold) | FXSTDSE |
| 13 | 65097-03 | MUFFLER, front | FXSTDSE |
| 65915-03A | MUFFLER, front, catalytic (California) | FXSTDSE | |
| 14 | 65296-95A | CLAMP, muffler (2) | FXSTDSE |
| 15 | 65324-83B | GASKET, exhaust port (2) | FXSTDSE |
| 17 | 65328-83A | FLANGE (2) | FXSTDSE |
| 20 | 65474-03 | HEAT SHIELD, muffler (2) | FXSTDSE |
| 21 | 65499-00A | EXHAUST PIPE, front | FXSTDSE |
| 22 | 65503-00A | EXHAUST PIPE, rear | FXSTDSE |
| 26 | 65830-03 | SEAL, exhaust interconnect | FXSTDSE |
| 27 | 65916-03A | MUFFLER, rear, catalytic (California) | FXSTDSE |
| 65924-03 | MUFFLER, rear | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4312C | SCREW (2) | FXSTDSE |
| 2 | 15368-01A | WARNING LABEL | FXSTDSE |
| 3 | 65989-97C | BATTERY, sealed, w/ 4312C | FXSTDSE |
| 5 | 70060-92B | CABLE ASSEMBLY, battery negative | FXSTDSE |
| 6 | 70078-00B | CABLE ASSEMBLY, battery positive, w/ 70584-94 | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 67223-00A | SEAL, speedometer | FXSTDSE |
| 10 | 67269-03 | SPEEDOMETER, mph | FXSTDSE |
| 67309-03 | SPEEDOMETER, kph (Canada) | FXSTDSE | |
| 17 | 68892-00A | HOUSING ASSEMBLY, indicator lights, w/ 74118-98BK, 74158-98, 74193-98 & 74195-98 | FXSTDSE |
| 18 | 68893-00A | BEZEL, indicator lights | FXSTDSE |
| 23 | 71450-04 | LOCKSET, complete, w/ keys, key cover, cable strap, fork lock & ignition switch | FXSTDSE |
| 25 | 71470-03 | TRIM **RESTRICTED SALES PART** | FXSTDSE |
| 26 | 71721-03 | WIRE HARNESS, tachometer | FXSTDSE |
| 35 | 74193-98 | SOCKET TERMINAL (7) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 67316-03B | BRACKET, turn signal mounting, right | FXSTDSE |
| 5 | 67332-03 | BRACKET, turn signal mounting, left | FXSTDSE |
| 7 | 68614-03 | TURN SIGNAL, front (2) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 69196-03 | TURN SIGNAL (2) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 69060-90F | HORN ASSEMBLY | FXSTDSE |
| 10 | 69123-92A | MOUNT, horn (rubber) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 70431-03 | MAIN WIRING HARNESS | FXSTDSE | |
| 5 | 31511-01B | RELAY, black | FXSTDSE |
| 6 | 31522-00C | RELAY | FXSTDSE |
| 8 | 70974-00B | SHIELD, loom | FXSTDSE |
| 24 | 72164-94A | PLUG, 4-way connector | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 70431-03 | MAIN WIRING HARNESS (Continued) | FXSTDSE | |
| 43 | 72327-03A | HOUSING, female, 3-way | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 71587-04 | CLIP | FXSTDSE |
| 8 | 71621-08 | STOP LAMP SWITCH, front, w/ 10181 & 72266-94 | FXSTDSE |
| 9 | 71682-06A | SWITCH KIT, dimmer & horn, w/ 10181 & 72266-94 | FXSTDSE |
| 10 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | FXSTDSE |
| 11 | 71684-06A | SWITCH KIT, engine stop/start, w/ 10181 & 72266-94 | FXSTDSE |
| 12 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 & 72266-94 | FXSTDSE |
| 13 | 71719-03 | HOUSING, lower, right (chrome) | FXSTDSE |
| 14 | 71720-03A | HOUSING, lower, left (chrome) | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 31522-00C | STARTER RELAY | FXSTDSE |
| 14 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | FXSTDSE |
| 17 | 68923-00D | MODULE, security system | FXSTDSE |
| 19 | 68958-07C | SIREN | FXSTDSE |
| 20 | 69309-10 | BATTERY, siren | FXSTDSE |
| 21 | 70048-03 | WIRE ASSEMBLY, circuit breaker to starter | FXSTDSE |
| 22 | 70354-03 | BRACKET, electrical | FXSTDSE |
| 24 | 71450-04 | LOCKSET, complete, w/ 10065, 61081-92, 71452-91A, fork lock & ignition switch | FXSTDSE |
| 26 | 72023-51D | STOP LAMP SWITCH, rear | FXSTDSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 91927-03 | MIRROR ASSEMBLY, right (chrome) | FXSTDSE |
| 91928-03 | MIRROR ASSEMBLY, left (chrome) | FXSTDSE |
| Part No. | Description |
| 10006 | |
| 10031 | |
| 10038A | |
| 10039 | |
| 10040 | |
| 10065 | |
| 10074 | |
| 10080 | |
| 10102 | |
| 10103 | |
| 10108 | |
| 10149 | |
| 10177 | |
| 10181 | |
| 10193 | |
| 10208 | |
| 10216 | |
| 10222 | |
| 10224 | |
| 10228 | |
| 1039 | |
| 1060 | |
| 10957 | |
| 10998 | |
| 11031 | |
| 11067 | |
| 11085 | |
| 11096 | |
| 11105 | |
| 11117A | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11147B | |
| 11150 | |
| 11155 | |
| 11157 | |
| 11161 | |
| 11165 | |
| 11177A | |
| 11179 | |
| 11182 | |
| 11191 | |
| 11248 | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11282 | |
| 11286 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11292 | |
| 11293 | |
| 11298 | |
| 11301 | |
| 11319A | |
| 11321 | |
| 11323 | |
| 11324 | |
| 11326 | |
| 11342 | |
| 11345 | |
| 11351 | |
| 11378 | |
| 11380 | |
| 11398 | |
| 11403A | |
| 11413 | |
| 11447 | |
| 11494 | |
| 11514 | |
| 11688 | |
| 12035B | |
| 12045 | |
| 12052A | |
| 12066A | |
| 12067B | |
| 12068 | |
| 1311D | |
| 1314 | |
| 13885-04 | |
| 14716-00 | |
| 14717-00 | |
| 14728-00 | |
| 14761-00 | |
| 14762-00 | |
| 14764-00 | |
| 14780-00 | |
| 14781-00 | |
| 14782-00 | |
| 14783-00 | |
| 14784-00 | |
| 14785-00 | |
| 14786-00 | |
| 14787-00 | |
| 14788-00 | |
| 14789-00 | |
| 14790-00 | |
| 15368-01A | |
| 16247-00 | |
| 16478-85A | |
| 16480-92A | |
| 16548-99 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16595-99A | |
| 16715-83 | |
| 16716-99 | |
| 16717-99 | |
| 16719-99B | |
| 16787-99A | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17360-83A | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 1783C | |
| 17907-01 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18001-83B | |
| 18011-86 | |
| 18020-83 | |
| 18074-83B | |
| 18076-83 | |
| 18082-83A | |
| 18101-83D | |
| 18124-83 | |
| 18130-83D | |
| 18131-83D | |
| 18133-83B | |
| 18134-83 | |
| 18201-83 | |
| 18202-83 | |
| 18219-83A | |
| 18222-83A | |
| 18229-83A | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 19107-03 | |
| 21918-99 | |
| 21919-99 | |
| 21945-99 | |
| 21946-99 | |
| 21947-99 | |
| 22097-99 | |
| 22132-99 | |
| 22307-99 | |
| 22400-99 | |
| 22401-99 | |
| 22402-99 | |
| 22403-99 | |
| 22404-99 | |
| 23971-03B | |
| 24039-03 | |
| 24316-99 | |
| 24603-00 | |
| 24605-07 | |
| 24679-03 | |
| 24709-03 | |
| 24983-00 | |
| 25000-03 | |
| 2501A | |
| 25244-99A | |
| 25267-99B | |
| 25344-99 | |
| 25369-01B | |
| 25416-99C | |
| 25533-99A | |
| 25604-00A | |
| 25605-00A | |
| 25607-99 | |
| 25609-99 | |
| 25610-99 | |
| 25700225 | |
| 25716-99 | |
| 25717-00 | |
| 25719-00 | |
| 25721-00 | |
| 25722-00 | |
| 25723-00 | |
| 25725-00 | |
| 2573 | |
| 25937-99B | |
| 25938-00 | |
| 26035-99B | |
| 26210-99 | |
| 26248-00 | |
| 26255-00 | |
| 26352-95A | |
| 26400-82B | |
| 26432-76A | |
| 2646 | |
| 26464-99 | |
| 26500002 | |
| 26561-99 | |
| 26995-86B | |
| 27009-86A | |
| 27010-86A | |
| 27016-00 | |
| 27042-84A | |
| 27072-00 | |
| 2708A | |
| 27138-90 | |
| 27249-96 | |
| 27270-95 | |
| 27293-00 | |
| 27328-00 | |
| 27408-01 | |
| 27600-01A | |
| 27603-01 | |
| 27604-01A | |
| 27608-01A | |
| 27609-01B | |
| 27612-01 | |
| 27628-01A | |
| 27629-01A | |
| 27630-01 | |
| 27635-01A | |
| 27667-00A | |
| 2871W | |
| 28828-00 | |
| 2882W | |
| 28838-00 | |
| 28839-00 | |
| 2887WA | |
| 29127-95B | |
| 2917 | |
| 2918 | |
| 29215-03 | |
| 29312-95 | |
| 29339-03 | |
| 2941 | |
| 29442-99E | |
| 29465-99 | |
| 29485-03 | |
| 29486-03 | |
| 2955 | |
| 29583-01A | |
| 29612-03 | |
| 29614-03 | |
| 29615-03 | |
| 2980 | |
| 29923-01A | |
| 29981-95 | |
| 30017-01B | |
| 3007 | |
| 3008 | |
| 30202-01 | |
| 31342-94 | |
| 31430-94 | |
| 31510-90 | |
| 31511-01B | |
| 31515-90 | |
| 31516-94A | |
| 31518-90 | |
| 31519-90 | |
| 31522-00C | |
| 31527-90 | |
| 31530-90 | |
| 31535-91 | |
| 31538-98 | |
| 31548-90 | |
| 31553-94B | |
| 31604-91A | |
| 31612-09 | |
| 31662-90 | |
| 31664-94 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31741-00 | |
| 31742-00 | |
| 31743-01 | |
| 31981-99C | |
| 31983-00C | |
| 3231B | |
| 3233 | |
| 32362-04 | |
| 32416-10 | |
| 32446-99 | |
| 3249 | |
| 32534-11 | |
| 32574-03 | |
| 32707-01C | |
| 3275 | |
| 3290 | |
| 3300 | |
| 33054-03 | |
| 33126-94 | |
| 33127-94 | |
| 3318 | |
| 33301-00A | |
| 33304-00 | |
| 33318-85 | |
| 33344-94 | |
| 33364-00A | |
| 33374-00 | |
| 33375-00A | |
| 33376-00 | |
| 33383-02 | |
| 33445-94A | |
| 33446-94A | |
| 33449-94 | |
| 33525-00 | |
| 33531-00 | |
| 33660-90B | |
| 337 | |
| 33708-94 | |
| 33849-97 | |
| 33888-99 | |
| 33889-99 | |
| 33890-99A | |
| 33904-00A | |
| 33921-00 | |
| 3403 | |
| 34064-00C | |
| 34088-87A | |
| 34091-85A | |
| 34191-79E | |
| 34193-79E | |
| 34195-79E | |
| 34541-00 | |
| 34601-02 | |
| 34604-02 | |
| 34616-02 | |
| 3471 | |
| 34774-00A | |
| 34904-86D | |
| 34920-86A | |
| 3494A | |
| 34972-02B | |
| 34977-02A | |
| 34978-00A | |
| 34979-00 | |
| 35025-79B | |
| 35026-94 | |
| 35027-94 | |
| 35028-94 | |
| 35029-94 | |
| 35042-91 | |
| 35051-89A | |
| 35060-00 | |
| 35064-79 | |
| 35076-79 | |
| 35078-79 | |
| 35087-99A | |
| 3509 | |
| 35114-02 | |
| 3514 | |
| 35211-91B | |
| 35251-93C | |
| 3538 | |
| 3559 | |
| 35622-79C | |
| 35625-94 | |
| 35626-94 | |
| 35629-79 | |
| 3563 | |
| 35632-79 | |
| 35653-98A | |
| 3574 | |
| 3588 | |
| 3594 | |
| 3602A | |
| 3655A | |
| 3658 | |
| 36801-87C | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37069-90A | |
| 37075-87 | |
| 37088-90 | |
| 37090-98A | |
| 37105-99 | |
| 3728 | |
| 37312-75 | |
| 37313-80 | |
| 3736A | |
| 3737A | |
| 3746A | |
| 37496-90 | |
| 375 | |
| 37550-98 | |
| 3767B | |
| 37707-98A | |
| 3775 | |
| 37802-98B | |
| 3784 | |
| 37871-98A | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38403-99 | |
| 38630-88 | |
| 38653-01 | |
| 38688-03 | |
| 38712-68 | |
| 3892 | |
| 3909 | |
| 3987 | |
| 39954-99A | |
| 39964-99A | |
| 39965-99 | |
| 39976-01 | |
| 39990-01 | |
| 39998-65A | |
| 40007-36B | |
| 4016 | |
| 40250-94C | |
| 40251-92A | |
| 40266-85 | |
| 40299-83A | |
| 40307-00B | |
| 40308-94 | |
| 40323-00 | |
| 40384-91 | |
| 40392-91 | |
| 40447-01 | |
| 4074A | |
| 4091 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 41110-89 | |
| 41148-98 | |
| 4132 | |
| 41613-03 | |
| 41614-03 | |
| 4163 | |
| 4168 | |
| 41731-01 | |
| 41747-82A | |
| 41754-00D | |
| 4190 | |
| 4192 | |
| 4194 | |
| 4195 | |
| 41957-97A | |
| 4197 | |
| 4206 | |
| 4208 | |
| 4213 | |
| 4216 | |
| 4217 | |
| 4226 | |
| 42382-87C | |
| 42454-99A | |
| 42455-99 | |
| 42460-80B | |
| 42533-91A | |
| 42534-82 | |
| 42568-05A | |
| 42642-00A | |
| 42644-00 | |
| 42646-00 | |
| 42683-02 | |
| 4311 | |
| 4312C | |
| 4313 | |
| 4315 | |
| 43206-01 | |
| 4326A | |
| 43354-00 | |
| 4355B | |
| 43567-92 | |
| 4358A | |
| 43608-00 | |
| 43823-01 | |
| 4383 | |
| 4387 | |
| 43934-02 | |
| 4400 | |
| 44048-83 | |
| 44051-03 | |
| 44082-00D | |
| 44085-03 | |
| 44091-03 | |
| 44122-03 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44299-03 | |
| 44302-03 | |
| 44313-01 | |
| 44314-00 | |
| 44315-00 | |
| 44337-00B | |
| 44351-00 | |
| 44352-03 | |
| 44381-99C | |
| 44382-99C | |
| 44441-00D | |
| 44460-03 | |
| 44477-99 | |
| 44500-03B | |
| 44501-03 | |
| 44502-03 | |
| 44503-03 | |
| 44504-03 | |
| 44509-03 | |
| 44510-03 | |
| 44511-03 | |
| 44523-03 | |
| 44844-00 | |
| 44845-00 | |
| 45021-86 | |
| 45032-82 | |
| 45036-88 | |
| 45072-96C | |
| 45078-96D | |
| 45149-99C | |
| 45282-99A | |
| 45298-99 | |
| 45300-03 | |
| 45323-01 | |
| 45359-00 | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45423-96 | |
| 45445-03B | |
| 45468-00 | |
| 45475-00A | |
| 45481-03 | |
| 45482-03 | |
| 45568-03 | |
| 45611-86 | |
| 45670-80A | |
| 45680-90 | |
| 45717-63 | |
| 45718-60 | |
| 45733-48 | |
| 45764-00 | |
| 45769-00 | |
| 45790-80 | |
| 45803-97 | |
| 45806-00 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45933-86 | |
| 45940-84 | |
| 46067-00 | |
| 46175-00 | |
| 46176-00 | |
| 46215-07 | |
| 46217-03 | |
| 46219-03 | |
| 46220-03 | |
| 46221-03 | |
| 46222-03 | |
| 46223-03A | |
| 46263-03 | |
| 46803-04 | |
| 4716W | |
| 4717A | |
| 4721 | |
| 4726 | |
| 4740A | |
| 4741A | |
| 47580-03BFA | |
| 47610-00 | |
| 47627-03 | |
| 4763 | |
| 47633-03 | |
| 48048-00A | |
| 48049-00A | |
| 48052-00A | |
| 48053-00 | |
| 48054-00 | |
| 48093-00 | |
| 48094-00 | |
| 4814A | |
| 4820A | |
| 48300-60 | |
| 48315-60 | |
| 48324-00 | |
| 48361-80 | |
| 48365-48A | |
| 48895-03BFA | |
| 49318-03 | |
| 49319-03 | |
| 49901-03BFA | |
| 49902-03BFA | |
| 49903-03A | |
| 49929-03A | |
| 50005-85A | |
| 50015-74A | |
| 50256-03 | |
| 50257-03 | |
| 50258-03 | |
| 50259-03 | |
| 50260-03 | |
| 50285-03 | |
| 50678-03 | |
| 508 | |
| 50912-72 | |
| 50942-00 | |
| 50972-75 | |
| 515 | |
| 52097-00 | |
| 5228 | |
| 52425-98 | |
| 52917-98 | |
| 53436-97 | |
| 5416 | |
| 54549-03 | |
| 56076-97 | |
| 56182-00A | |
| 56183-00 | |
| 56208-03 | |
| 56215-03A | |
| 56231-03 | |
| 56233-03 | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56422-02C | |
| 56504-03 | |
| 56506-03 | |
| 56508-76 | |
| 56627-00 | |
| 56628-00 | |
| 57045-03BFA | |
| 57047-03 | |
| 57049-03 | |
| 5710 | |
| 5756 | |
| 5775 | |
| 5818A | |
| 5826 | |
| 58445-00 | |
| 59053-00 | |
| 59287-92 | |
| 59288-92 | |
| 59438-00 | |
| 59481-00 | |
| 59482-00 | |
| 59503-03 | |
| 59543-01 | |
| 59759-00 | |
| 59768-97 | |
| 59794-03BFB | |
| 59876-00A | |
| 59876-03BFB | |
| 59988-72A | |
| 60019-93A | |
| 60028-00 | |
| 6003 | |
| 60035-00 | |
| 601 | |
| 60120-00A | |
| 6016 | |
| 6019 | |
| 60328-98B | |
| 6036 | |
| 60363-00B | |
| 60391-04 | |
| 60393-03 | |
| 60533-00A | |
| 60539-94B | |
| 60543-99 | |
| 60543-99B | |
| 60567-90C | |
| 6057 | |
| 60572-86 | |
| 60586-99A | |
| 60678-85 | |
| 60693-03 | |
| 609 | |
| 6099 | |
| 61001-01 | |
| 6101 | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61192-96A | |
| 61209-01A | |
| 61231-01 | |
| 61272-92C | |
| 61315-02 | |
| 6139 | |
| 61450-95 | |
| 6150W | |
| 61583-02 | |
| 61721-00A | |
| 61960-00 | |
| 61960-04 | |
| 61961-00 | |
| 6206 | |
| 62082-00D | |
| 62082-03BFB | |
| 62123-66 | |
| 62146-00 | |
| 62150-85 | |
| 62163-01A | |
| 62163-04 | |
| 62165-01 | |
| 62188-01 | |
| 62188-04 | |
| 62189-01A | |
| 62190-01D | |
| 62357-00 | |
| 62373-01 | |
| 62375-57A | |
| 62498-01A | |
| 62555-95 | |
| 62769-00 | |
| 62843-00 | |
| 62845-00A | |
| 62881-00 | |
| 62897-01A | |
| 62897-01B | |
| 62919-00 | |
| 6294 | |
| 6296 | |
| 634 | |
| 63521-95A | |
| 63553-00B | |
| 63601-00 | |
| 63611-00 | |
| 63628-00 | |
| 63632-00 | |
| 63783-00 | |
| 63798-99A | |
| 63815-99 | |
| 63859-95B | |
| 6400HB | |
| 6425 | |
| 6474 | |
| 6497HW | |
| 65085-00A | |
| 65093-03BFA | |
| 65097-03 | |
| 6516HW | |
| 65296-95A | |
| 6530 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 6534 | |
| 6535 | |
| 65445-00 | |
| 65464-00 | |
| 65474-03 | |
| 65499-00A | |
| 65503-00A | |
| 65652-97A | |
| 65654-97 | |
| 65734-95 | |
| 65830-03 | |
| 6590HW | |
| 65915-03A | |
| 65916-03A | |
| 65924-03 | |
| 65926-00 | |
| 65989-97C | |
| 66210-00 | |
| 66373-06 | |
| 6638 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 6716 | |
| 67223-00A | |
| 6724 | |
| 67269-03 | |
| 67309-03 | |
| 67316-03B | |
| 67332-03 | |
| 67423-00 | |
| 67601-94A | |
| 67603-94A | |
| 6762B | |
| 67685-92 | |
| 67698-81D | |
| 67705-92 | |
| 6771A | |
| 67822-88 | |
| 67854-98 | |
| 67880-94 | |
| 67894-93A | |
| 67952-96 | |
| 67953-96 | |
| 67956-96 | |
| 68018-03 | |
| 68037-03 | |
| 68042-99 | |
| 6812 | |
| 68120-00 | |
| 68168-89A | |
| 68329-03 | |
| 68353-00 | |
| 68354-00A | |
| 6852 | |
| 68614-03 | |
| 68705-93A | |
| 68817-00 | |
| 68821-00 | |
| 68889-00 | |
| 68890-00A | |
| 68891-00 | |
| 68892-00A | |
| 68893-00A | |
| 68894-00 | |
| 68904-00 | |
| 68905-00 | |
| 68923-00D | |
| 68926-00 | |
| 68931-00A | |
| 68958-07C | |
| 69012-93A | |
| 69046-01 | |
| 69060-90F | |
| 69062-91A | |
| 69074-02 | |
| 69120-91 | |
| 69123-92A | |
| 69163-00 | |
| 69196-03 | |
| 69309-10 | |
| 69325-02 | |
| 69330-02 | |
| 69331-02 | |
| 69335-03A | |
| 69715-05A | |
| 70048-03 | |
| 70060-92B | |
| 70078-00B | |
| 70345-84 | |
| 70354-03 | |
| 7039 | |
| 7041 | |
| 70431-03 | |
| 70514-01 | |
| 70584-94 | |
| 70586-93 | |
| 70598-99 | |
| 7062 | |
| 7068 | |
| 70974-00B | |
| 7127 | |
| 7130W | |
| 71313-96A | |
| 71439-00 | |
| 71450-04 | |
| 71452-91A | |
| 71464-00 | |
| 71470-03 | |
| 71587-04 | |
| 71614-96 | |
| 71615-96 | |
| 71621-08 | |
| 71682-06A | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 71719-03 | |
| 71720-03A | |
| 71721-03 | |
| 72023-51D | |
| 72033-93 | |
| 72038-71A | |
| 72039-71A | |
| 72043-71A | |
| 72044-71A | |
| 72056-92 | |
| 72076-00 | |
| 72077-00 | |
| 72078-00 | |
| 72106-94BK | |
| 72113-94BK | |
| 72116-94BK | |
| 72124-94GY | |
| 72139-94GY | |
| 72143-94 | |
| 72144-94 | |
| 72146-94 | |
| 72153-94 | |
| 72156-94 | |
| 72159-94 | |
| 72163-94BK | |
| 72164-94A | |
| 72165-02 | |
| 72176-94 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 7220 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72242-94 | |
| 72244-95 | |
| 72245-95 | |
| 72247-95 | |
| 72249-94 | |
| 72263-95 | |
| 72266-94 | |
| 72273-95 | |
| 72280-95 | |
| 72290-94 | |
| 72291-94 | |
| 72292-94 | |
| 72295-94 | |
| 72327-03A | |
| 72330-95 | |
| 72366-95 | |
| 72369-00 | |
| 72374-00 | |
| 72380-00 | |
| 72405-98BK | |
| 72412-97 | |
| 72428-00 | |
| 72430-00 | |
| 72432-00 | |
| 72434-00 | |
| 72439-00B | |
| 72458-00 | |
| 72463-00A | |
| 72516-01 | |
| 72604-01BK | |
| 72614-01BK | |
| 72644-01 | |
| 72654-01 | |
| 72690-01 | |
| 72691-01 | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73102-96WE | |
| 73104-96BK | |
| 73104-96WE | |
| 73106-96BK | |
| 73108-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73154-96BK | |
| 73154-96WE | |
| 73156-96BK | |
| 73158-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73196-96 | |
| 739A | |
| 74102-98BK | |
| 74108-98BK | |
| 74112-98BK | |
| 74113-98BK | |
| 74118-98BK | |
| 74119-98BK | |
| 74142-98 | |
| 74148-98 | |
| 74152-98 | |
| 74153-98 | |
| 74158-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74192-98 | |
| 74193-98 | |
| 74195-98 | |
| 74430-00B | |
| 74430-00D | |
| 74599-77B | |
| 74610-01 | |
| 7479 | |
| 7481 | |
| 7495 | |
| 7507 | |
| 75099-01A | |
| 75130-01B | |
| 75130-01D | |
| 75142-02 | |
| 75298-05 | |
| 758 | |
| 7593 | |
| 7601 | |
| 7629 | |
| 765 | |
| 7669 | |
| 7686 | |
| 7736 | |
| 7744 | |
| 7748W | |
| 7778 | |
| 7783 | |
| 7792 | |
| 7838 | |
| 7848W | |
| 7862 | |
| 7879 | |
| 7899A | |
| 7904 | |
| 7951 | |
| 7965 | |
| 7974 | |
| 7987 | |
| 7989 | |
| 8108 | |
| 8144 | |
| 8483A | |
| 856A | |
| 858A | |
| 8871 | |
| 8873 | |
| 8876A | |
| 8879 | |
| 8883 | |
| 895 | |
| 8972 | |
| 8977 | |
| 8983 | |
| 8989 | |
| 8990A | |
| 8991 | |
| 8992A | |
| 8996A | |
| 9077 | |
| 90770-79 | |
| 91285-03 | |
| 9135 | |
| 91809-03A | |
| 91927-03 | |
| 91928-03 | |
| 9198 | |
| 924 | |
| 925 | |
| 9267 | |
| 9270A | |
| 929A | |
| 939 | |
| 941 | |
| 945 | |
| 95595-84A | |
| 956 | |
| 961 | |
| 9837 | |
| 9840 | |
| 9842 | |
| 9843 | |
| 9847 | |
| 9848 | |
| 9856 | |
| 992 | |
| 9937 | |
| 994 | |
| 9955 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7736 | 1949 |
| 8144 | Unknown |
| 33889-99 | 1999 |
| 7951 | Unknown |
| 7838 | Unknown |
| 7629 | 1990 |
| 7792 | 2012 |
| 7778 | Unknown |
| 37496-90 | 1990 |
| 7862 | Unknown |
| 7479 | 2000 |
| 7904 | 1998 |
| 7748W | Unknown |
| 3403 | Unknown |
| 35078-79 | 1979 |
| 7987 | Unknown |
| 7495 | 1994 |
| 7879 | 2000 |
| 7965 | Unknown |
| 7974 | Unknown |
| 7481 | Unknown |
| 8108 | Unknown |
| 40392-91 | 1991 |
| 7744 | 1943 |
| 7593 | 1991 |
| 7601 | 1990 |
| 45764-00 | 2000 |
| 102A1 - Generic Screws | |
| 2918 | Unknown |
| 4208 | Unknown |
| 2917 | 2000 |
| 4206 | Unknown |
| 4763 | Unknown |
| 3987 | Unknown |
| 2573 | Unknown |
| 4217 | 1999 |
| 1314 | Unknown |
| 4213 | Unknown |
| 4216 | 1999 |
| 4741A | 1994 |
| 3655A | Unknown |
| 3692A | Unknown |
| 5416 | Unknown |
| 3249 | Unknown |
| 2646 | 2000 |
| 2955 | 1996 |
| 994 | 2000 |
| 4311 | Unknown |
| 992 | Unknown |
| 44177-00 | 2000 |
| 4226 | 2003 |
| 4315 | Unknown |
| 43567-92 | 1992 |
| 3514 | Unknown |
| 4313 | Unknown |
| 941 | Unknown |
| 2941 | Unknown |
| 3318 | 2002 |
| 29339-03 | 2003 |
| 4091 | Unknown |
| 2980 | Unknown |
| 3275 | 2002 |
| 1311D | 2001 |
| 3693A | Unknown |
| 895 | Unknown |
| 4326A | 1990 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 956 | Unknown |
| 2871W | 2017 |
| 939 | 1991 |
| 68120-00 | 2000 |
| 4355B | Unknown |
| 90770-79 | 1979 |
| 4726 | 2009 |
| 2887WA | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 3594 | 1992 |
| 45838-77 | 1977 |
| 2708A | Unknown |
| 925 | Unknown |
| 924 | Unknown |
| 68042-99 | 1999 |
| 3728 | 2014 |
| 3746A | 2004 |
| 1039 | Unknown |
| 3699D | 2006 |
| 33376-00 | 2000 |
| 3300 | Unknown |
| 3494A | Unknown |
| 42534-82 | 1982 |
| 3588 | 1990 |
| 4387 | 2018 |
| 3563 | 1999 |
| 2882W | 2009 |
| 4383 | Unknown |
| 929A | Unknown |
| 3909 | Unknown |
| 2501A | Unknown |
| 4016 | Unknown |
| 3509 | Unknown |
| 3233 | Unknown |
| 3602A | Unknown |
| 4820A | Unknown |
| 3559 | Unknown |
| 3775 | 2009 |
| 3231B | Unknown |
| 56402-83A | 1983 |
| 4358A | Unknown |
| 4717A | Unknown |
| 3767B | 2009 |
| 3574 | Unknown |
| 945 | Unknown |
| 3784 | Unknown |
| 4312C | Unknown |
| 961 | Unknown |
| 3007 | Unknown |
| 48093-00 | 2000 |
| 3008 | 2000 |
| 4716W | 2009 |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 1060 | 2003 |
| 3737A | Unknown |
| 56397-74C | 1974 |
| 4163 | Unknown |
| 67956-96 | 1996 |
| 4168 | 2000 |
| 3736A | 2005 |
| 4195 | Unknown |
| 4194 | Unknown |
| 4197 | Unknown |
| 3892 | Unknown |
| 4190 | Unknown |
| 4192 | 1998 |
| 45790-80 | 1980 |
| 43823-01 | 2001 |
| 858A | Unknown |
| 16480-92A | 1992 |
| 4814A | Unknown |
| 3538 | Unknown |
| 3471 | 2009 |
| 103A1 - Generic Washers | |
| 6206 | 1999 |
| 6019 | Unknown |
| 6016 | 2013 |
| 6474 | Unknown |
| 7130W | Unknown |
| 6497HW | 2010 |
| 6425 | Unknown |
| 6771A | Unknown |
| 6294 | 2010 |
| 8972 | Unknown |
| 6057 | 1991 |
| 6150W | Unknown |
| 45717-63 | 1963 |
| 6099 | 2011 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6139 | Unknown |
| 31689-90 | 1990 |
| 6852 | 1999 |
| 6534 | 2000 |
| 6535 | 2000 |
| 6590HW | Unknown |
| 45323-01 | 2001 |
| 6516HW | Unknown |
| 6530 | Unknown |
| 6532 | 2000 |
| 6036 | Unknown |
| 6812 | Unknown |
| 44504-03 | 2003 |
| 7220 | Unknown |
| 7068 | Unknown |
| 7039 | Unknown |
| 6724 | 1984 |
| 6762B | Unknown |
| 56183-00 | 2000 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 6400HB | Unknown |
| 6716 | Unknown |
| 105A1 - Custom Screws | |
| 5228 | Unknown |
| 7899A | Unknown |
| 37090-98A | 1998 |
| 4074A | 2006 |
| 48054-00 | 2000 |
| 106A1 - Custom Washers | |
| 6003 | 2010 |
| 108A1 - Hose Clamps | |
| 10038A | 1994 |
| 10031 | 2010 |
| 10208 | Unknown |
| 10222 | 2000 |
| 9955 | Unknown |
| 10080 | Unknown |
| 10074 | Unknown |
| 108B1 - P Clamps | |
| 508 | Unknown |
| 109A1 - Studs | |
| 16715-83 | 1983 |
| 16834-99A | 1999 |
| 10224 | Unknown |
| 91285-03 | 2003 |
| 110B1 - Plain Bushings | |
| 31430-94 | 1994 |
| 34979-00 | 2000 |
| 5818A | Unknown |
| 9198 | Unknown |
| 62881-00 | 2000 |
| 42644-00 | 2000 |
| 8996A | 1996 |
| 17429-91 | 1991 |
| 33446-94A | 1994 |
| 8989 | 1998 |
| 25344-99 | 1999 |
| 9270A | Unknown |
| 8992A | Unknown |
| 8991 | Unknown |
| 9837 | Unknown |
| 8876A | Unknown |
| 33445-94A | 1994 |
| 56182-00A | 2000 |
| 33708-94 | 1994 |
| 48048-00A | 2000 |
| 45866-84 | 1984 |
| 8883 | Unknown |
| 8879 | Unknown |
| 9267 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 45359-00 | 2000 |
| 12066A | Unknown |
| 12068 | Unknown |
| 12045 | Unknown |
| 12035B | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 12067B | 2002 |
| 110D1 - Rolling Element Bearings | |
| 8977 | Unknown |
| 9135 | Unknown |
| 8983 | Unknown |
| 8990A | Unknown |
| 24605-07 | 2007 |
| 8871 | Unknown |
| 111A1 - Adhesive | |
| 72194-94 | 1994 |
| 72690-01 | 2001 |
| 72990-01 | 2001 |
| 72691-01 | 2001 |
| 111D1 - Isolating Tape | |
| 61960-04 | 2004 |
| 111F1 - Protective Tape | |
| 59503-03 | 2003 |
| 116A1 - Banjo Bolts | |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11165 | Unknown |
| 72458-00 | 2000 |
| 11270 | Unknown |
| 11273 | Unknown |
| 11117A | Unknown |
| 11323 | 2004 |
| 11324 | Unknown |
| 11326 | Unknown |
| 26432-76A | 1976 |
| 11105 | Unknown |
| 11345 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11351 | 2001 |
| 11157 | 1983 |
| 11140 | 1982 |
| 11147B | 2006 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11132A | 2007 |
| 11298 | Unknown |
| 11191 | 1989 |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11380 | Unknown |
| 11301 | Unknown |
| 11286 | Unknown |
| 31695-90 | 1990 |
| 11256 | 1996 |
| 11179 | 1986 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 609 | Unknown |
| 634 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 337 | Unknown |
| 515 | Unknown |
| 375 | 2013 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11447 | 1984 |
| 11403A | Unknown |
| 11398 | Unknown |
| 11413 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 739A | Unknown |
| 765 | 1997 |
| 10228 | 2000 |
| 3290 | 2013 |
| 72164-94A | 1994 |
| 122A1 - Retaining Rings | |
| 10998 | 1985 |
| 11271 | Unknown |
| 11272 | Unknown |
| 17945-36B | 1936 |
| 11319A | Unknown |
| 45021-86 | 1986 |
| 10040 | 1982 |
| 35114-02 | 2002 |
| 11688 | Unknown |
| 65325-83A | 1983 |
| 45611-86 | 1986 |
| 35087-99A | 1999 |
| 10103 | Unknown |
| 11031 | Unknown |
| 11150 | 1984 |
| 10108 | Unknown |
| 10193 | Unknown |
| 11342 | Unknown |
| 11155 | Unknown |
| 31530-90 | 1990 |
| 11143 | Unknown |
| 11494 | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 11096 | 2010 |
| 11282 | Unknown |
| 11067 | Unknown |
| 11182 | Unknown |
| 11085 | Unknown |
| 10216 | 2013 |
| 60678-85 | 1985 |
| 10149 | Unknown |
| 11248 | Unknown |
| 70514-01 | 2001 |
| 11161 | 1984 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 7062 | Unknown |
| 124A1 - Spacers | |
| 14782-00 | 2000 |
| 14787-00 | 2000 |
| 14781-00 | 2000 |
| 62188-04 | 2004 |
| 24603-00 | 2000 |
| 48049-00A | 2000 |
| 6296 | Unknown |
| 33344-94 | 1994 |
| 5775 | 1984 |
| 29923-01A | 2001 |
| 5826 | Unknown |
| 14788-00 | 2000 |
| 5756 | Unknown |
| 14786-00 | 2000 |
| 14784-00 | 2000 |
| 14783-00 | 2000 |
| 44051-03 | 2003 |
| 35629-79 | 1979 |
| 14785-00 | 2000 |
| 5710 | Unknown |
| 48094-00 | 2000 |
| 47633-03 | 2003 |
| 14780-00 | 2000 |
| 44091-03 | 2003 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 11321 | 2000 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10181 | 1996 |
| 10006 | 1960 |
| 11378 | Unknown |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 48324-00 | 2000 |
| 31692-90 | 1990 |
| 11514 | 1998 |
| 44337-00B | 2000 |
| 61583-02 | 2002 |
| 61960-00 | 2000 |
| 33126-94 | 1994 |
| 33318-85 | 1985 |
| 33375-00A | 2001 |
| 33449-94 | 1994 |
| 56394-74 | 1974 |
| 33374-00 | 2000 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 8483A | Unknown |
| 126C1 - Bolt Covers | |
| 6638 | Unknown |
| 7989 | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 38403-99 | 1999 |
| 52097-00 | 2000 |
| 57047-03 | 2003 |
| 67332-03 | 2003 |
| 62769-00 | 2000 |
| 48053-00 | 2000 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 141A1 - Medallion | |
| 24709-03 | 2003 |
| 161A1 - Powertrain Assembly | |
| 19107-03 | 2003 |
| 164A1 - Engine Mount Bracket | |
| 16247-00 | 2000 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7783 | Unknown |
| 7669 | Unknown |
| 69046-01 | 2001 |
| 7686 | Unknown |
| 7507 | Unknown |
| 7848W | Unknown |
| 165A1 - Cylinder Head | |
| 16787-99A | 1999 |
| 18011-86 | 1986 |
| 16716-99 | 1999 |
| 16717-99 | 1999 |
| 168A1 - Cylinder | |
| 16548-99 | 1999 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18076-83 | 1983 |
| 18101-83D | 1999 |
| 18074-83B | 2007 |
| 18082-83A | 1983 |
| 181B1 - Valve Seals | |
| 18133-83B | 1983 |
| 18130-83D | 1983 |
| 18219-83A | 1983 |
| 18020-83 | 1983 |
| 18134-83 | 1983 |
| 18131-83D | 1983 |
| 18124-83 | 1983 |
| 18001-83B | 1983 |
| 181C1 - Valve Collars | |
| 18202-83 | 1983 |
| 18201-83 | 1983 |
| 18222-83A | 1983 |
| 18229-83A | 1984 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 220A1 - Piston Ring | |
| 21946-99 | 1999 |
| 21947-99 | 1999 |
| 221A1 - Piston Pin | |
| 22132-99 | 1999 |
| 22097-99 | 1999 |
| 237B1 - Connecting Rod sub-component | |
| 24316-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 35060-00 | 2000 |
| 241A1 - Flywheel | |
| 23971-03B | 2007 |
| 244A1 - Crankcase | |
| 24679-03 | 2003 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24039-03 | 2003 |
| 245A1 - PT Cases Miscellaneous Component | |
| 24983-00 | 2000 |
| 254A1 - Camdrive Gear | |
| 25533-99A | 2001 |
| 254B1 - Camshaft | |
| 25938-00 | 2000 |
| 25937-99B | 1999 |
| 254C1 - Camshaft Sprocket | |
| 40299-83A | 1983 |
| 25609-99 | 1999 |
| 25716-99 | 1999 |
| 254D1 - Camshaft Support | |
| 25267-99B | 2001 |
| 255A1 - Camdrive Chain | |
| 25607-99 | 1999 |
| 25610-99 | 1999 |
| 255B1 - Camdrive Chain Guide | |
| 39965-99 | 1999 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 39976-01 | 2001 |
| 14764-00 | 2000 |
| 256A1 - Timer Cover | |
| 13885-04 | 2004 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60693-03 | 2003 |
| 257D1 - Clutch Inspection Cover | |
| 60572-86 | 1986 |
| 257E1 - Cover Gaskets | |
| 33890-99A | 1999 |
| 35653-98A | 1998 |
| 65324-83B | 2009 |
| 61315-02 | 2002 |
| 41731-01 | 2001 |
| 34904-86D | 1986 |
| 17053-99C | 2011 |
| 67223-00A | 2000 |
| 29583-01A | 2001 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 17045-99D | 2011 |
| 25416-99C | 1999 |
| 67601-94A | 1994 |
| 25244-99A | 1999 |
| 63859-95B | 1995 |
| 45733-48 | 1948 |
| 60567-90C | 1990 |
| 25700225 | 2012 |
| 18635-99B | 1999 |
| 60539-94B | 1994 |
| 36801-87C | 1987 |
| 17052-99C | 2011 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 257G1 - Ignition Cover | |
| 32574-03 | 2003 |
| 257L1 - Primary Cover | |
| 60543-99 | 1999 |
| 60543-99B | 1999 |
| 60586-99A | 1999 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34541-00 | 2000 |
| 37105-99 | 1999 |
| 25000-03 | 2003 |
| 62373-01 | 2001 |
| 265A1 - Vent / Breather Line | |
| 17907-01 | 2001 |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 21918-99 | 1999 |
| 22404-99 | 1999 |
| 22401-99 | 1999 |
| 22400-99 | 1999 |
| 21945-99 | 1999 |
| 22402-99 | 1999 |
| 21919-99 | 1999 |
| 22403-99 | 1999 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27600-01A | 2001 |
| 27603-01 | 2001 |
| 273A1 - Intake Manifold | |
| 27630-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27604-01A | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27408-01 | 2001 |
| 27608-01A | 2001 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 27635-01A | 2002 |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29612-03 | 2003 |
| 290C1 - Airbox Baseplate sub-component | |
| 29615-03 | 2003 |
| 29486-03 | 2003 |
| 29215-03 | 2003 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 294B1 - Breather Bolt | |
| 29465-99 | 1999 |
| 294F1 - Engine Breather Valve | |
| 28828-00 | 2000 |
| 294G1 - Air Cleaner | |
| 29442-99E | 2010 |
| 27010-86A | 1986 |
| 29614-03 | 2003 |
| 27009-86A | 1986 |
| 295A1 - Intake Miscellaneous Component | |
| 29485-03 | 2003 |
| 299C1 - Charging Rotor | |
| 29981-95 | 1995 |
| 299F1 - Stator Assembly | |
| 30017-01B | 2006 |
| 314E1 - Starter Friction Clutch | |
| 31516-94A | 2010 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31518-90 | 1990 |
| 31510-90 | 1990 |
| 31515-90 | 1990 |
| 31553-94B | 1994 |
| 31612-09 | 2009 |
| 314G1 - Starter Motor sub-component | |
| 31741-00 | 2000 |
| 31535-91 | 1991 |
| 31538-98 | 1965 |
| 31548-90 | 1990 |
| 31527-90 | 1990 |
| 31664-94 | 1994 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 31604-91A | 1991 |
| 316A1 - Ignition Coil | |
| 31743-01 | 2001 |
| 316B1 - Spark Plug Cable | |
| 31981-99C | 1999 |
| 31983-00C | 2000 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 74430-00D | 2000 |
| 327D1 - Proximity Sensor | |
| 32707-01C | 2007 |
| 74430-00B | 2000 |
| 327E1 - Temperature Sensor | |
| 27270-95 | 1995 |
| 32446-99 | 1999 |
| 327F1 - Throttle Position Sensor | |
| 27629-01A | 2001 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33888-99 | 1999 |
| 336D1 - Shift Pedal | |
| 49319-03 | 2003 |
| 49318-03 | 2003 |
| 33849-97 | 1997 |
| 339A1 - Shift Lever | |
| 34604-02 | 2002 |
| 339D1 - Shifter Fork | |
| 34195-79E | 1979 |
| 34088-87A | 1987 |
| 34193-79E | 1979 |
| 34191-79E | 1979 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 34064-00C | 2000 |
| 33301-00A | 2000 |
| 33304-00 | 2000 |
| 33383-02 | 2002 |
| 34091-85A | 1985 |
| 34616-02 | 2002 |
| 34601-02 | 2002 |
| 33364-00A | 2000 |
| 33660-90B | 1990 |
| 33921-00 | 2000 |
| 33127-94 | 1994 |
| 339K1 - Shifter Pawl | |
| 34972-02B | 2002 |
| 347A1 - Transmission Assembly | |
| 35076-79 | 1979 |
| 33054-03 | 2003 |
| 35064-79 | 1979 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34774-00A | 2000 |
| 350A1 - Transmission Output Sprocket | |
| 40250-94C | 1994 |
| 350E1 - Transmission Gear | |
| 31342-94 | 1994 |
| 350F1 - Transmission Mainshaft | |
| 35029-94 | 1994 |
| 35027-94 | 1994 |
| 35025-79B | 1981 |
| 35028-94 | 1994 |
| 35042-91 | 1991 |
| 350G1 - Transmission Shim / Spacer | |
| 25721-00 | 2000 |
| 25723-00 | 2000 |
| 25722-00 | 2000 |
| 25717-00 | 2000 |
| 25719-00 | 2000 |
| 25725-00 | 2000 |
| 352A1 - Engine Balancer | |
| 14789-00 | 2000 |
| 14790-00 | 2000 |
| 352B1 - Engine Balancer sub-component | |
| 14728-00 | 2000 |
| 14717-00 | 2000 |
| 14762-00 | 2000 |
| 14761-00 | 2000 |
| 14716-00 | 2000 |
| 356A1 - Transmission Countershaft | |
| 35026-94 | 1994 |
| 35626-94 | 1994 |
| 35632-79 | 1979 |
| 35625-94 | 1994 |
| 35622-79C | 1979 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 42533-91A | 1991 |
| 35251-93C | 1993 |
| 35051-89A | 1989 |
| 35211-91B | 1991 |
| 34978-00A | 2000 |
| 34977-02A | 2002 |
| 40266-85 | 1985 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40007-36B | 1936 |
| 365B1 - Primary Chain Tensioner | |
| 39990-01 | 2001 |
| 39998-65A | 1970 |
| 39954-99A | 1999 |
| 39964-99A | 1999 |
| 365C1 - Primary Drive Assembly | |
| 40308-94 | 1994 |
| 40384-91 | 1991 |
| 40251-92A | 1992 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 46215-07 | 2007 |
| 46217-03 | 2003 |
| 367H1 - Clutch Lever sub-component | |
| 37312-75 | 1975 |
| 37871-98A | 1998 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 45036-88 | 1988 |
| 37802-98B | 1998 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37550-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37903-90 | 1990 |
| 37088-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 370G1 - Clutch Shell | |
| 37707-98A | 1998 |
| 372D1 - Clutch Cable | |
| 38688-03 | 2003 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40307-00B | 2011 |
| 409A1 - Rear Wheel | |
| 43934-02 | 2002 |
| 410D1 - Electronic Control Module (ECM) | |
| 32534-11 | 2011 |
| 59543-01 | 2001 |
| 410G1 - Security System Control Module | |
| 68923-00D | 2000 |
| 413A1 - Brake Caliper | |
| 44441-00D | 2000 |
| 44381-99C | 1999 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 44382-99C | 1999 |
| 44477-99 | 1999 |
| 44460-03 | 2003 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 46175-00 | 2000 |
| 44315-00 | 2000 |
| 44147-87A | 1987 |
| 48361-80 | 1980 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 415B1 - Brake Rotor | |
| 44845-00 | 2000 |
| 44844-00 | 2000 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 42642-00A | 2011 |
| 40920-87 | 1987 |
| 72023-51D | 2004 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45149-99C | 1999 |
| 45078-96D | 1996 |
| 45298-99 | 1999 |
| 41754-00D | 2000 |
| 417B1 - Brake Master Cylinder | |
| 45445-03B | 2003 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 45072-96C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42568-05A | 2011 |
| 42455-99 | 1999 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417G1 - Front Brake Lever | |
| 44302-03 | 2003 |
| 42683-02 | 2002 |
| 44299-03 | 2003 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45282-99A | 1999 |
| 418B1 - Brake Line | |
| 46223-03A | 2004 |
| 45300-03 | 2003 |
| 422B1 - Wheel Sprocket | |
| 40447-01 | 2001 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 425A1 - Wheel sub-component | |
| 44500-03B | 2003 |
| 44501-03 | 2003 |
| 430B1 - Rear Axle Carrier / Adjuster | |
| 46222-03 | 2003 |
| 47627-03 | 2003 |
| 430C1 - Axle Nut | |
| 44510-03 | 2003 |
| 430D1 - Front Axle | |
| 43354-00 | 2000 |
| 430E1 - Rear Axle | |
| 41110-89 | 1989 |
| 431A1 - Front Tire | |
| 43206-01 | 2001 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43608-00 | 2000 |
| 41613-03 | 2003 |
| 41614-03 | 2003 |
| 454A1 - Front Telescopic Fork | |
| 46263-03 | 2003 |
| 46219-03 | 2003 |
| 455A1 - Front Telescopic Fork Slider | |
| 46067-00 | 2000 |
| 46221-03 | 2003 |
| 455B1 - Front Telescopic Fork Spring | |
| 46220-03 | 2003 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 44503-03 | 2003 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45482-03 | 2003 |
| 45933-86 | 1986 |
| 45481-03 | 2003 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 45680-90 | 1990 |
| 457D1 - Steering Stem | |
| 45475-00A | 2000 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45568-03 | 2003 |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45670-80A | 1980 |
| 459A1 - Upper Triple Clamp | |
| 69335-03A | 2004 |
| 45769-00 | 2000 |
| 470A1 - Frame | |
| 46803-04 | 2004 |
| 31519-90 | 1990 |
| 472A1 - Frame sub-component | |
| 50678-03 | 2003 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 61721-00A | 2000 |
| 57049-03 | 2003 |
| 44509-03 | 2003 |
| 60035-00 | 2000 |
| 60028-00 | 2000 |
| 48052-00A | 2000 |
| 474C1 - Swingarm | |
| 47580-03BFA | 2003 |
| 475B1 - Swingarm Pivot Shaft | |
| 47610-00 | 2000 |
| 44511-03 | 2003 |
| 44502-03 | 2003 |
| 500A1 - Sidestand Assembly | |
| 50285-03 | 2003 |
| 500E1 - Sidestand Leg sub-component | |
| 62123-66 | 1966 |
| 50015-74A | 1974 |
| 50005-85A | 1985 |
| 505B1 - Footpeg Mount Bracket | |
| 50258-03 | 2003 |
| 50942-00 | 2000 |
| 505G1 - Rider or Common Footpeg | |
| 50257-03 | 2003 |
| 50260-03 | 2003 |
| 50256-03 | 2003 |
| 506A1 - Brake Pedal | |
| 41957-97A | 1997 |
| 50912-72 | 1972 |
| 42646-00 | 2000 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 50259-03 | 2003 |
| 520A1 - Rider Seat or Full Seat | |
| 91809-03A | 2004 |
| 44352-03 | 2003 |
| 44085-03 | 2003 |
| 521A1 - Seat Support Structure | |
| 48895-03BFA | 2003 |
| 521C1 - Seat Suspension Damper | |
| 46176-00 | 2000 |
| 524A1 - Passenger Grab Handle | |
| 52917-98 | 1998 |
| 530B1 - Tour Pak sub-component | |
| 52425-98 | 1998 |
| 540B1 - Rear Shock | |
| 54549-03 | 2003 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 41148-98 | 1998 |
| 56422-02C | 2002 |
| 559D1 - Lower Handlebar Clamp | |
| 68018-03 | 2003 |
| 68037-03 | 2003 |
| 56506-03 | 2003 |
| 560A1 - Mirror | |
| 91927-03 | 2003 |
| 91928-03 | 2003 |
| 561A1 - Throttle Cable | |
| 56215-03A | 2004 |
| 56208-03 | 2003 |
| 561B1 - Left Hand Grip | |
| 56233-03 | 2003 |
| 56231-03 | 2003 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 570A1 - Front Fairing | |
| 49902-03BFA | 2003 |
| 49901-03BFA | 2003 |
| 571D1 - Debris Deflector | |
| 60393-03 | 2003 |
| 572A1 - Chin Spoiler | |
| 49929-03A | 2003 |
| 57045-03BFA | 2003 |
| 58445-00 | 2000 |
| 49903-03A | 2003 |
| 573B1 - Bodywork Mounting Bracket | |
| 59053-00 | 2000 |
| 56628-00 | 2000 |
| 56627-00 | 2000 |
| 589A1 - Front Fender | |
| 59876-00A | 2010 |
| 59876-03BFB | 2003 |
| 59438-00 | 2000 |
| 595D1 - Rear Fender | |
| 59794-03BFB | 2003 |
| 59759-00 | 2000 |
| 59768-97 | 1997 |
| 596A1 - Tire Mud Flap | |
| 60363-00B | 2000 |
| 603B1 - Belt / Chain Guard | |
| 60533-00A | 2000 |
| 608A1 - Carbon Canister | |
| 27293-00 | 2000 |
| 27042-84A | 1995 |
| 608B1 - Carbon Canister Hose | |
| 28839-00 | 2000 |
| 27016-00 | 2000 |
| 27328-00 | 2000 |
| 609A1 - Fuel Miscellaneous Component | |
| 62919-00 | 2000 |
| 72439-00B | 2000 |
| 61231-01 | 2001 |
| 62188-01 | 2001 |
| 27612-01 | 2001 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 62146-00 | 2000 |
| 610A1 - Fuel Tank | |
| 61450-95 | 1995 |
| 62082-00D | 2000 |
| 62082-03BFB | 2003 |
| 611B1 - Fuel Cap | |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27072-00 | 2000 |
| 27138-90 | 1990 |
| 62357-00 | 2000 |
| 62555-95 | 1995 |
| 28838-00 | 2000 |
| 612A1 - Fuel Filter | |
| 61001-01 | 2001 |
| 612B1 - Fuel Level Sensor | |
| 75142-02 | 2002 |
| 75298-05 | 2005 |
| 612B2 - Fuel Valve | |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 63521-95A | 1995 |
| 62190-01D | 2009 |
| 612F1 - Fuel Pump | |
| 62897-01B | 2001 |
| 62897-01A | 2001 |
| 62165-01 | 2001 |
| 62163-01A | 2001 |
| 62163-04 | 2004 |
| 75130-01D | 2001 |
| 75130-01B | 2001 |
| 612K1 - Fuel Pump sub-component | |
| 62843-00 | 2000 |
| 61209-01A | 2001 |
| 758 | Unknown |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61961-00 | 2000 |
| 614C1 - Trim | |
| 71464-00 | 2000 |
| 71470-03 | 2003 |
| 44122-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26035-99B | 1999 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26248-00 | 2000 |
| 26464-99 | 1999 |
| 26255-00 | 2000 |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 625B1 - Oil Tank | |
| 62498-01A | 2007 |
| 627B1 - Oil Drain Plug | |
| 60391-04 | 2004 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37075-87 | 1987 |
| 62845-00A | 2000 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 33531-00 | 2000 |
| 63601-00 | 2000 |
| 33525-00 | 2000 |
| 63783-00 | 2000 |
| 63628-00 | 2000 |
| 45806-00 | 2000 |
| 63611-00 | 2000 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 45468-00 | 2000 |
| 63632-00 | 2000 |
| 62375-57A | 1957 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62189-01A | 2001 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 63553-00B | 2010 |
| 649A1 - Muffler | |
| 65734-95 | 1995 |
| 65924-03 | 2003 |
| 65097-03 | 2003 |
| 649C1 - Muffler Tailpipe / Outlet | |
| 65926-00 | 2000 |
| 654A1 - Exhaust Shield | |
| 65474-03 | 2003 |
| 65464-00 | 2000 |
| 65085-00A | 2007 |
| 65445-00 | 2000 |
| 655C1 - Exhaust Mounting Bracket | |
| 65093-03BFA | 2002 |
| 65652-97A | 1997 |
| 656E1 - Header Pipe | |
| 65503-00A | 2000 |
| 65499-00A | 2000 |
| 658A1 - Exhaust Catalyst | |
| 65915-03A | 2004 |
| 65916-03A | 2003 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65654-97 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 65830-03 | 2003 |
| 660A1 - Battery | |
| 66373-06 | 2006 |
| 65989-97C | 1997 |
| 660E1 - Ground Strap | |
| 70060-92B | 1992 |
| 660G1 - Positive Battery Cable | |
| 70078-00B | 2000 |
| 660H1 - Positive Battery Cable Boot | |
| 31662-90 | 1990 |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 56504-03 | 2003 |
| 67953-96 | 1996 |
| 67952-96 | 1996 |
| 69074-02 | 2002 |
| 677A1 - Headlight | |
| 69331-02 | 2002 |
| 68705-93A | 1993 |
| 67603-94A | 1994 |
| 67894-93A | 1993 |
| 69330-02 | 2002 |
| 69163-00 | 2000 |
| 67705-92 | 1992 |
| 69715-05A | 2005 |
| 69325-02 | 2002 |
| 67698-81D | 2001 |
| 67685-92 | 1992 |
| 677B1 - Headlight sub-component | |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68354-00A | 2000 |
| 68931-00A | 2000 |
| 678D1 - Turnsignal | |
| 67822-88 | 1988 |
| 69196-03 | 2003 |
| 67316-03B | 2011 |
| 68614-03 | 2003 |
| 67015-02 | 2002 |
| 68821-00 | 2000 |
| 679B1 - Reflector | |
| 59287-92 | 1992 |
| 60019-93A | 1993 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 59288-92 | 1992 |
| 59988-72A | 1972 |
| 679D1 - License Plate Bracket | |
| 60120-00A | 2000 |
| 68890-00A | 2000 |
| 680C1 - Incandescent Bulb | |
| 68168-89A | 1989 |
| 53436-97 | 1997 |
| 68329-03 | 2003 |
| 68353-00 | 2000 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 692C1 - Electrical Miscellaneous Component | |
| 68894-00 | 2000 |
| 72374-00 | 2000 |
| 70354-03 | 2003 |
| 68892-00A | 2000 |
| 72176-94 | 1994 |
| 692C2 - Electrical Mounting Bracket | |
| 30202-01 | 2001 |
| 72463-00A | 2000 |
| 69123-92A | 1992 |
| 66210-00 | 2000 |
| 69120-91 | 1991 |
| 67423-00 | 2000 |
| 69060-90F | 2010 |
| 31742-00 | 2000 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 74599-77B | 1977 |
| 70048-03 | 2003 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72369-00 | 2000 |
| 72432-00 | 2000 |
| 72430-00 | 2000 |
| 692E2 - Fuse / Relay Block Cover | |
| 27667-00A | 2000 |
| 692F1 - Wire Harness | |
| 68817-00 | 2000 |
| 68891-00 | 2000 |
| 71721-03 | 2003 |
| 70431-03 | 2003 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72366-95 | 1995 |
| 72249-94 | 1994 |
| 72165-02 | 2002 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 70586-93 | 1993 |
| 27249-96 | 1996 |
| 72159-94 | 1994 |
| 72380-00 | 2000 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72280-95 | 1995 |
| 74142-98 | 1998 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72113-94BK | 1994 |
| 29312-95 | 1995 |
| 72156-94 | 1994 |
| 72139-94GY | 1994 |
| 72247-95 | 1995 |
| 72273-95 | 1995 |
| 72078-00 | 2000 |
| 72516-01 | 2001 |
| 72199-94 | 1994 |
| 72153-94 | 1994 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72292-94 | 1994 |
| 72213-94 | 1994 |
| 72428-00 | 2000 |
| 72290-94 | 1994 |
| 72242-94 | 1994 |
| 74192-98 | 1998 |
| 72291-94 | 1994 |
| 9840 | Unknown |
| 9843 | Unknown |
| 9842 | Unknown |
| 9937 | Unknown |
| 9856 | Unknown |
| 72434-00 | 2000 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 74193-98 | 1998 |
| 72604-01BK | 2001 |
| 72039-71A | 1971 |
| 73154-96WE | 1996 |
| 68905-00 | 2000 |
| 72614-01BK | 2001 |
| 72654-01 | 2001 |
| 72644-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 74148-98 | 1998 |
| 70345-84 | 1984 |
| 72263-95 | 1995 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72231-98 | 1998 |
| 72214-94 | 1994 |
| 73190-96 | 1996 |
| 73104-96WE | 1996 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 74108-98BK | 1998 |
| 74113-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 72044-71A | 1971 |
| 70598-99 | 1999 |
| 73152-96WE | 1996 |
| 72230-98 | 1998 |
| 74153-98 | 1998 |
| 74195-98 | 1998 |
| 74102-98BK | 1998 |
| 73158-96BK | 1996 |
| 72038-71A | 1971 |
| 72043-71A | 1971 |
| 72143-94 | 1994 |
| 73102-96WE | 1996 |
| 72244-95 | 1995 |
| 72327-03A | 2003 |
| 72033-93 | 1993 |
| 72106-94BK | 1994 |
| 56076-97 | 1997 |
| 72405-98BK | 1998 |
| 72163-94BK | 1994 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 74159-98 | 1998 |
| 38712-68 | 1968 |
| 72190-94 | 1994 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 73196-96 | 1996 |
| 73102-96BK | 1996 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 74118-98BK | 1998 |
| 73154-96BK | 1996 |
| 70974-00B | 2000 |
| 73108-96BK | 1996 |
| 72914-01BK | 2001 |
| 709B1 - Instrument Cluster or Speedometer | |
| 68893-00A | 2000 |
| 68889-00 | 2000 |
| 67269-03 | 2003 |
| 67309-03 | 2004 |
| 709B2 - Fuel Gauge | |
| 75099-01A | 2001 |
| 709E1 - Tank Console | |
| 71439-00 | 2000 |
| 714A1 - Ignition Switch | |
| 71313-96A | 1996 |
| 714B1 - Mechanical Switch | |
| 33904-00A | 2000 |
| 714C1 - Pressure Switch | |
| 26561-99 | 1999 |
| 714D1 - Relay | |
| 31522-00C | 2004 |
| 31511-01B | 2001 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 71614-96 | 1996 |
| 71615-96 | 1996 |
| 71587-04 | 2004 |
| 71683-06A | 2006 |
| 71685-06A | 2006 |
| 71682-06A | 2006 |
| 71719-03 | 2003 |
| 71621-08 | 2008 |
| 71720-03A | 2003 |
| 747A1 - Voltage Regulator | |
| 74610-01 | 2001 |
| 903A1 - Lockset | |
| 71450-04 | 2004 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-00 | 2000 |
| 936B1 - Cleaner | |
| 44523-03 | 2003 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT | INSTRUMENTS: |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | FUEL TANK: |
| 10080 | CLAMP | OIL TANK & LINES: |
| 10102 | CLIP | INSTRUMENTS: |
| 10222 | CLAMP | FUEL TANK: FUEL PUMP - FUEL INJECTED: |
| 11105 | O-RING | TRANSMISSION HOUSING (1 OF 2): OIL TANK & LINES: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: TRANSMISSION HOUSING (1 OF 2): |
| 11143 | RETAINING RING | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 11147B | O-RING | PRIMARY HOUSING: |
| 11150 | RETAINING RING | GEAR SHIFTER: |
| 11157 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B: |
| 11165 | QUAD SEAL | TRANSMISSION HOUSING (1 OF 2): |
| 11270 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 11292 | O-RING | AIR CLEANER: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 11301 | O-RING | CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B: |
| 11324 | O-RING | PRIMARY HOUSING: |
| 11447 | GROMMET | OIL TANK & LINES: |
| 12035B | OIL SEAL | TRANSMISSION GEARS: |
| 12045 | SEAL | GEAR SHIFTER: |
| 12052A | OIL SEAL | PRIMARY HOUSING: |
| 12066A | OIL SEAL | PRIMARY HOUSING: |
| 12067B | OIL SEAL | TRANSMISSION HOUSING (1 OF 2): |
| 1311D | SCREW | FUEL PUMP - FUEL INJECTED: |
| 16715-83 | STUD | CYLINDERS, HEADS & VALVES - 1550 TWIN CAM 95B: |
| 16719-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 17045-99D | GASKET KIT | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B: |
| 17386-99A | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 18635-99B | GASKET | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 25244-99A | GASKET | CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B: |
| 25416-99C | SEAL | PRIMARY HOUSING: |
| 25700225 | GASKET KIT | PRIMARY HOUSING: |
| 26995-86B | SEAL | INDUCTION MODULE: |
| 2918 | SCREW | ALTERNATOR & REGULATOR: |
| 31430-94 | WASHER | STARTER MOTOR: |
| 3275 | SCREW | INDUCTION MODULE: |
| 33126-94 | LOCKPLATE | STARTER MOTOR: |
| 33318-85 | LOCKING TAB | PRIMARY HOUSING: |
| 3655A | SCREW | REAR BRAKE CONTROL: FRONT WHEEL: |
| 3658 | SCREW | INSTRUMENTS: HANDLEBAR SWITCHES: |
| 36801-87C | GASKET | TRANSMISSION HOUSING (2 OF 2): |
| 4132 | SCREW | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 41731-01 | GASKET | FRONT BRAKE CONTROL: REAR BRAKE CONTROL: |
| 43567-92 | SCREW | REAR WHEEL: |
| 45405-75A | SCREW | FRONT FORK: |
| 45733-48 | OIL SEAL | FRONT FORK: |
| 45845-77 | O-RING | FRONT FORK: |
| 4740A | SCREW | CAMSHAFTS AND CAMSHAFT COVER - 1550 TWIN CAM 95B: ALTERNATOR & REGULATOR: TRANSMISSION HOUSING (1 OF 2): PRIMARY HOUSING: |
| 48300-60 | ROLLER BEARING | FRONT FORK: |
| 59768-97 | SEAT NUT KIT | SEAT: REAR FENDER, SUPPORTS & LICENSE PLATE BRACKET: |
| 60539-94B | GASKET | PRIMARY HOUSING: |
| 60567-90C | GASKET | PRIMARY HOUSING: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 63859-95B | GASKET | PRIMARY HOUSING: |
| 6516HW | WASHER | ENGINE MOUNTS: BELTS, CHAINS & SPROCKETS: REAR WHEEL: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | REAR BELT GUARD: FRAME & JIFFY STAND: HEADLAMP: FRONT FENDER: REAR FENDER, SUPPORTS & LICENSE PLATE BRACKET: FUEL TANK: EXHAUST SYSTEM: REAR TURN SIGNALS: |
| 7041 | LOCKWASHER | STARTER MOTOR: GEAR SHIFTER: FRAME & JIFFY STAND: FOOTRESTS: |
| 739A | PLUG | PRIMARY HOUSING: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 856A | SCREW | GEAR SHIFTER: |
| 9267 | SEALED BALL BEARING | FRONT WHEEL: REAR WHEEL: |
| 961 | SCREW | PRIMARY HOUSING: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | FRONT BRAKE CALIPER: REAR BRAKE CALIPER: |
| 45875-84A | OIL SEAL | FRONT FORK: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 50005-85A | SPRING | FRAME & JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR SWITCHES: |
| 71621-08 | STOP LAMP SWITCH | HANDLEBAR SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - FUEL INJECTED (2 OF 2): SWITCHES & CIRCUIT BREAKERS: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY & PUSH RODS - 1550 TWIN CAM 95B: |
| 37909-90 | RETAINING RING | CLUTCH: |
| 37913-98 | CLUTCH PLATE | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61001-01 | FUEL FILTER KIT | FUEL PUMP - FUEL INJECTED: |
| 65296-95A | CLAMP | EXHAUST SYSTEM: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP: |
| 68329-03 | BULB | HEADLAMP: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | ELECTRONIC CONTROL MODULE & COIL: |
| 63798-99A | OIL FILTER | CRANKCASE AND ENGINE OIL FILTER - 1550 TWIN CAM 95B: |
| 65989-97C | BATTERY | BATTERY: |
| 66373-06 | BATTERY | SWITCHES & CIRCUIT BREAKERS: |
| 95595-84A | WEIGHT | FRONT WHEEL: REAR WHEEL: |
