1995-1996 HARLEY-DAVIDSON® PARTS CATALOG: RLE SIDECAR FOR FXR
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99450-96A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
1995 RLE SIDECAR FOR FXR MODELS
VIN Model Codes

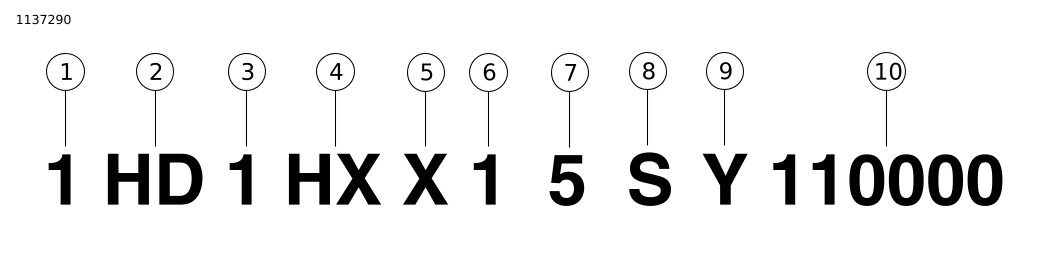

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Originally manufactured for sale within the United States 5=Originally manufactured for sale outside of the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 8=Sidecar |
4 | Model | HX=RLE |
5 | Engine type | X=Not applicable for sidecar |
6 | Introduction date | 1=Regular 2=Mid-year 3=California 4=Special Edition |
7 | VIN check digit | Can be 0-9 or X |
8 | Model year | S=1995 |
9 | Assembly plant | Y=York, PA |
10 | Sequential number | Varies |
NOTES
SIDECAR BODY
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 933 | SCREW (7) | SIDECAR FOR FXRP |
| 2 | 2216W | SCREW (2) | SIDECAR FOR FXRP |
| 3 | 2420 | SCREW (10) | SIDECAR FOR FXRP |
| 4 | 2773 | SCREW (2) | SIDECAR FOR FXRP |
| 5 | 2920 | SCREW (6) | SIDECAR FOR FXRP |
| 6 | 5207 | WELL NUT (7) | SIDECAR FOR FXRP |
| 7 | 6054 | WASHER (7) | SIDECAR FOR FXRP |
| 8 | 6238 | WASHER (4) | SIDECAR FOR FXRP |
| 9 | 6335 | WASHER (16) | SIDECAR FOR FXRP |
| 10 | 6410 | WASHER (2) | SIDECAR FOR FXRP |
| 11 | 7041 | LOCKWASHER (4) | SIDECAR FOR FXRP |
| 12 | 7128 | LOCKWASHER | SIDECAR FOR FXRP |
| 13 | 7586 | JAMNUT | SIDECAR FOR FXRP |
| 14 | 7686 | LOCKNUT (2) | SIDECAR FOR FXRP |
| 15 | 7688 | NUT (4) | SIDECAR FOR FXRP |
| 16 | 8700 | POP RIVET (80) | SIDECAR FOR FXRP |
| 17 | 47076-72 | SNAP BASE | SIDECAR FOR FXRP |
| 18 | 53583-92 | CAM HOOK | SIDECAR FOR FXRP |
| 19 | 53848-00 | LOCK, w/ 12 & 13 | SIDECAR FOR FXRP |
| 20 | 53617-85 | GUIDE, lock | SIDECAR FOR FXRP |
| 21 | 58717-79 | FOAM STRIP | SIDECAR FOR FXRP |
| 22 | 71452-91A | KEY (specify key code) | SIDECAR FOR FXRP |
| 23 | 84850-92 | NUT | SIDECAR FOR FXRP |
| 24 | 88425-67 | TRIM STRIP, body top (black) | SIDECAR FOR FXRP |
| 25 | 88426-91 | HINGE ASSEMBLY, seat, right | SIDECAR FOR FXRP |
| 88427-91 | HINGE ASSEMBLY, seat, left | SIDECAR FOR FXRP | |
| 26 | 88428-91 | LOCKPLATE | SIDECAR FOR FXRP |
| 27 | 88481-91 | BACK CUSHION | SIDECAR FOR FXRP |
| 28 | 88487-91 | SEAT CUSHION | SIDECAR FOR FXRP |
| 29 | 88503-91A | ARM REST CUSHION, left | SIDECAR FOR FXRP |
| 88504-91A | ARM REST CUSHION, right | SIDECAR FOR FXRP | |
| 30 | 88526-91 | CARPET, top front | SIDECAR FOR FXRP |
| 31 | 88527-91 | CARPET, top rear | SIDECAR FOR FXRP |
| 32 | 88528-91 | COVER, sidecar body | SIDECAR FOR FXRP |
| 33 | 88531-91 | CARPET, nose | SIDECAR FOR FXRP |
| 34 | 88536-91 | CARPET, front lower | SIDECAR FOR FXRP |
| 35 | 88537-91 | CARPET, left side | SIDECAR FOR FXRP |
| 88538-91 | CARPET, right side | SIDECAR FOR FXRP | |
| 36 | 88539-91 | CARPET, rear lower | SIDECAR FOR FXRP |
| 37 | 88695-67 | RETAINER CLIP, sidecar trim strip | SIDECAR FOR FXRP |
| 38 | 88696-67 | TRIM CHANNEL KIT (5 piece) | SIDECAR FOR FXRP |
| 39 | 88698-67 | CHANNEL INSERT, trim strip (black vinyl) | SIDECAR FOR FXRP |
| 40 | 88862-91 | WINDSHIELD | SIDECAR FOR FXRP |
| 41 | 53593-92 | LOCK ASSEMBLY, w/ 12, 13, 19, 22 & 23 | SIDECAR FOR FXRP |
SIDECAR CHASSIS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2887WA | SCREW (6) | SIDECAR FOR FXRP |
| 2 | 3233 | SCREW (2) | SIDECAR FOR FXRP |
| 3 | 3764 | BOLT (late model year) (8) | SIDECAR FOR FXRP |
| 3 | 3764 | BOLT (early model year) (4) | SIDECAR FOR FXRP |
| 4 | 3946 | BOLT (early model year) (4) | SIDECAR FOR FXRP |
| 5 | 4401W | BOLT (2) | SIDECAR FOR FXRP |
| 6 | 6238 | WASHER (10) | SIDECAR FOR FXRP |
| 7 | 6343 | WASHER (8) | SIDECAR FOR FXRP |
| 8 | 6416 | WASHER (4) | SIDECAR FOR FXRP |
| 9 | 7039 | LOCKWASHER (4) | SIDECAR FOR FXRP |
| 10 | 7041 | LOCKWASHER (4) | SIDECAR FOR FXRP |
| 11 | 7043 | LOCKWASHER (4) | SIDECAR FOR FXRP |
| 12 | 7736 | ACORN NUT (4) | SIDECAR FOR FXRP |
| 13 | 7748W | NUT (6) | SIDECAR FOR FXRP |
| 14 | 7775 | LOCKNUT (4) | SIDECAR FOR FXRP |
| 15 | 7780 | LOCKNUT (2) | SIDECAR FOR FXRP |
| 16 | 7827W | LOCKNUT (8) | SIDECAR FOR FXRP |
| 17 | 7855W | JAMNUT (3) | SIDECAR FOR FXRP |
| 18 | 87006-85 | FRAME ASSEMBLY, sidecar | SIDECAR FOR FXRP |
| 19 | 87014-85 | REAR MOUNTING ASSEMBLY | SIDECAR FOR FXRP |
| 20 | 87030-85 | BRACE, sidecar frame | SIDECAR FOR FXRP |
| 21 | 88314-37 | BUSHING, shackle plate (2) | SIDECAR FOR FXRP |
| 22 | 87117-36A | LOWER CLAMP (2) | SIDECAR FOR FXRP |
| 23 | 87120-79 | SPACER, turn signal & spring shackle (2) | SIDECAR FOR FXRP |
| 24 | 87159-83 | ROD END, sidecar mounting (3) | SIDECAR FOR FXRP |
| 25 | 87435-83 | AXLE | SIDECAR FOR FXRP |
| 26 | 87444-33 | AXLE NUT, inside sidecar frame | SIDECAR FOR FXRP |
| 27 | 87701-79 | U-BOLT, rear mounting bracket | SIDECAR FOR FXRP |
| 28 | 88100-94A | SIDECAR SPRING, single leaf (2) | SIDECAR FOR FXRP |
| 29 | 88174-94 | SPRING BUSHING (4) | SIDECAR FOR FXRP |
| 30 | 88175-94 | SPRING PLATE (2) | SIDECAR FOR FXRP |
| 31 | 88261-36 | SUPPORT ROD, front | SIDECAR FOR FXRP |
| 32 | 88264-36 | SUPPORT ROD, rear | SIDECAR FOR FXRP |
| 33 | 88301-79 | SHACKLE PLATE, w/ bushing & spring (2) | SIDECAR FOR FXRP |
| 34 | 88302-79 | SHACKLE PLATE, spring, outer (2) | SIDECAR FOR FXRP |

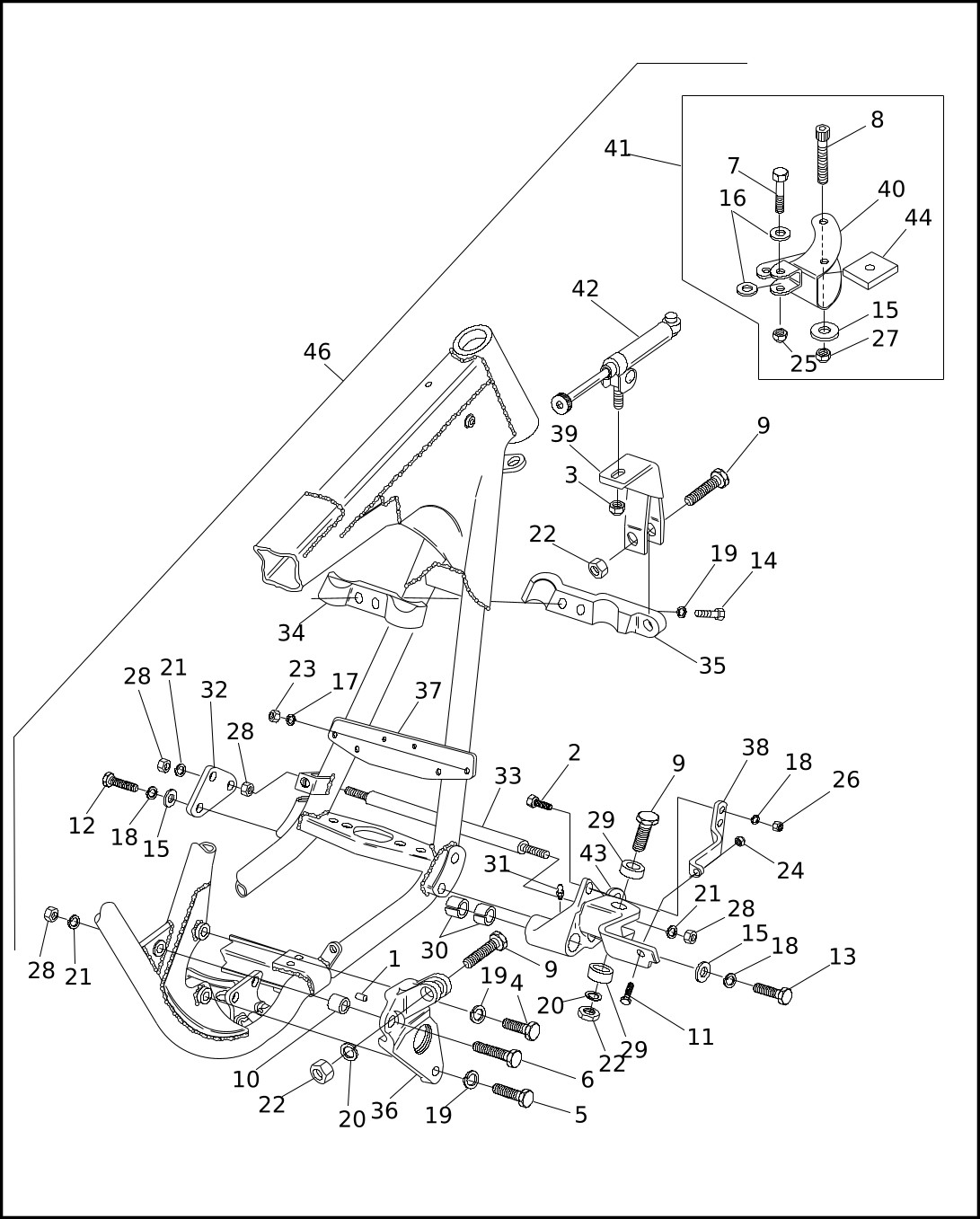

SIDECAR CONNECTION KIT
| Index No. | Part No. | Description | Model(s) |
| 1 | 604 | ROLL PIN | SIDECAR FOR FXRP |
| 2 | 2879W | BOLT | SIDECAR FOR FXRP |
| 3 | 3403 | LOCKNUT | SIDECAR FOR FXRP |
| 4 | 3764 | BOLT | SIDECAR FOR FXRP |
| 5 | 3769 | BOLT | SIDECAR FOR FXRP |
| 6 | 3958 | BOLT | SIDECAR FOR FXRP |
| 7 | 4041W | SCREW | SIDECAR FOR FXRP |
| 8 | 4030 | SCREW | SIDECAR FOR FXRP |
| 9 | 4045 | SCREW (3) | SIDECAR FOR FXRP |
| 10 | 90480-85 | SPACER, rear mount | SIDECAR FOR FXRP |
| 11 | 4701 | BOLT | SIDECAR FOR FXRP |
| 12 | 4716W | SCREW (2) | SIDECAR FOR FXRP |
| 13 | 4721 | BOLT (2) | SIDECAR FOR FXRP |
| 14 | 4726 | BOLT (2) | SIDECAR FOR FXRP |
| 15 | 6701 | WASHER (5) | SIDECAR FOR FXRP |
| 16 | 6702 | WASHER (2) | SIDECAR FOR FXRP |
| 17 | 7036 | WASHER (4) | SIDECAR FOR FXRP |
| 18 | 7038 | LOCKWASHER (5) | SIDECAR FOR FXRP |
| 19 | 7039 | LOCKWASHER (4) | SIDECAR FOR FXRP |
| 20 | 7043 | LOCKWASHER (3) | SIDECAR FOR FXRP |
| 21 | 7068 | LOCKWASHER (3) | SIDECAR FOR FXRP |
| 22 | 7598 | NUT (3) | SIDECAR FOR FXRP |
| 23 | 7688 | NUT (4) | SIDECAR FOR FXRP |
| 24 | 7725 | LOCKNUT | SIDECAR FOR FXRP |
| 25 | 7727 | LOCKNUT | SIDECAR FOR FXRP |
| 26 | 7778 | LOCKNUT | SIDECAR FOR FXRP |
| 27 | 7783 | NUT | SIDECAR FOR FXRP |
| 28 | 7845 | NUT (4) | SIDECAR FOR FXRP |
| 29 | 90481-91 | SPACER (2) | SIDECAR FOR FXRP |
| 30 | 47247-83 | BUSHING (2) | SIDECAR FOR FXRP |
| 31 | 50972-75 | FITTING, lubrication | SIDECAR FOR FXRP |
| 32 | 87007-85 | ADJUSTER PLATE, left front | SIDECAR FOR FXRP |
| 33 | 87010-85 | STABILIZER, front | SIDECAR FOR FXRP |
| 34 | 87011-85 | UPPER CONNECTION, rear | SIDECAR FOR FXRP |
| 35 | 87013-85 | UPPER CONNECTION, front | SIDECAR FOR FXRP |
| 36 | 87015-85 | BRACKET ASSEMBLY, rear, w/ 1 | SIDECAR FOR FXRP |
| 37 | 87018-85 | BRACKET, brake reservoir | SIDECAR FOR FXRP |
| 38 | 87019-85 | BRACKET, brake stop | SIDECAR FOR FXRP |
| 39 | 87020-85 | BRACKET, steering damper (use 87023-88) | SIDECAR FOR FXRP |
| 40 | 87022-88 | MOUNTING BRACKET | SIDECAR FOR FXRP |
| 41 | 87023-88 | DAMPER MOUNTING KIT | SIDECAR FOR FXRP |
| 42 | 87024-85 | STEERING DAMPER | SIDECAR FOR FXRP |
| 43 | 87025-85A | BRACKET, lower front, w/ 29, 30 & 31 | SIDECAR FOR FXRP |
| 44 | 87048-88 | SPACER | SIDECAR FOR FXRP |
| 45 | 45452-87 | FORK BRACE (chrome) (not illustrated) | SIDECAR FOR FXRP |
| 46 | 87008-88 | SIDECAR CONNECTION KIT | SIDECAR FOR FXRP |

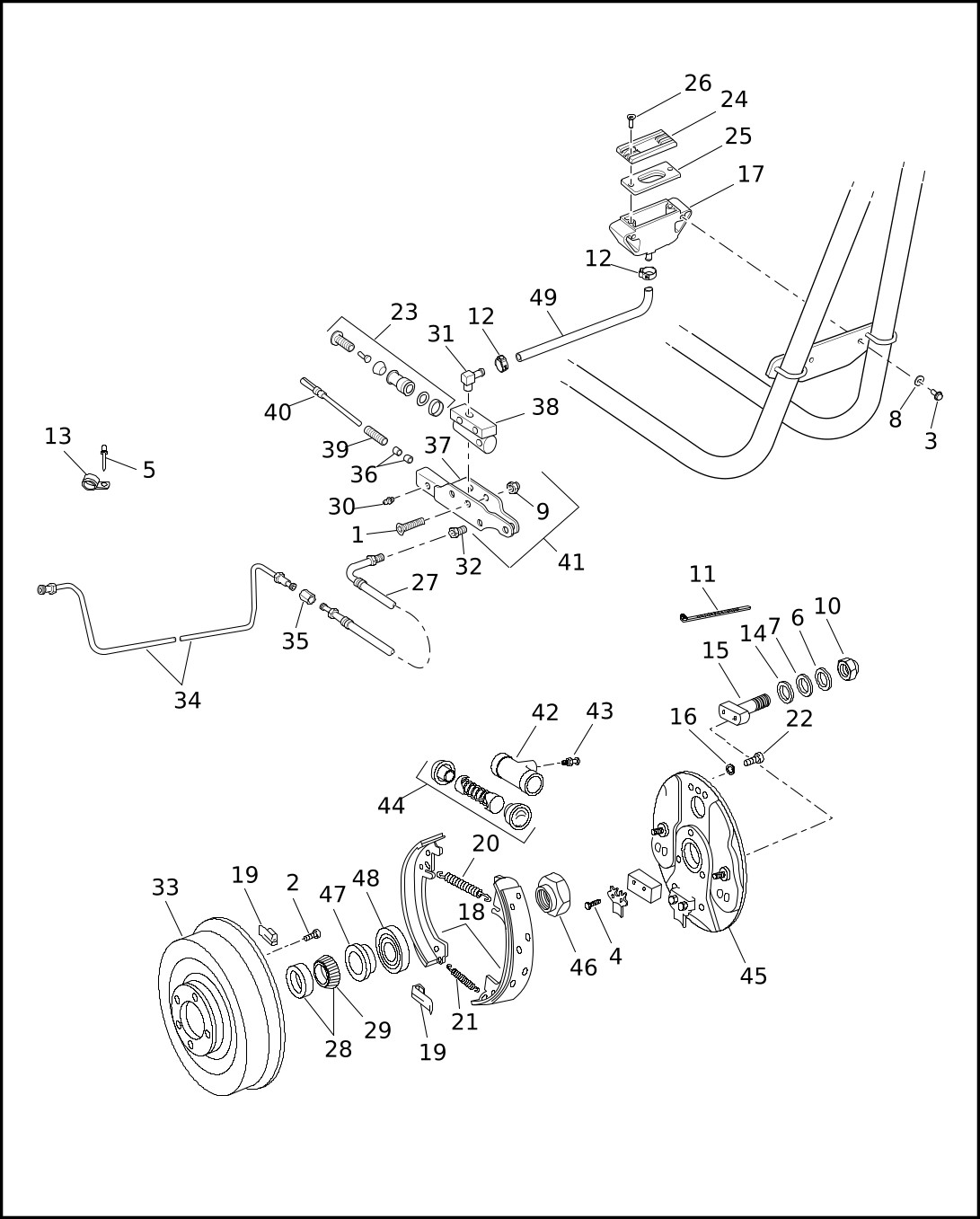

SIDECAR BRAKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 1610 | SCREW (2) | SIDECAR FOR FXRP |
| 2 | 1643 | SCREW (5) | SIDECAR FOR FXRP |
| 3 | 3473 | BOLT (2) | SIDECAR FOR FXRP |
| 4 | 4020W | BOLT (2) | SIDECAR FOR FXRP |
| 5 | 4091 | SCREW (3) | SIDECAR FOR FXRP |
| 6 | 6700B | WASHER (as required) | SIDECAR FOR FXRP |
| 7 | 6712B | WASHER (as required) | SIDECAR FOR FXRP |
| 8 | 6716 | WASHER (2) | SIDECAR FOR FXRP |
| 9 | 7729 | LOCKNUT (2) | SIDECAR FOR FXRP |
| 10 | 7993 | LOCKNUT | SIDECAR FOR FXRP |
| 11 | 10006 | CABLE STRAP (5) | SIDECAR FOR FXRP |
| 12 | 10038A | CLAMP (2) | SIDECAR FOR FXRP |
| 13 | 10059A | CLAMP (3) | SIDECAR FOR FXRP |
| 14 | 18268-48 | WASHER (as required) | SIDECAR FOR FXRP |
| 15 | 41720-58 | ANCHOR STUD | SIDECAR FOR FXRP |
| 16 | 7036 | WASHER (2) | SIDECAR FOR FXRP |
| 17 | 41804-84A | RESERVOIR, master cylinder | SIDECAR FOR FXRP |
| 18 | 41802-58A | SET OF BRAKE SHOES AND LININGS | SIDECAR FOR FXRP |
| 19 | 41835-58 | HOLD DOWN, spring (2) | SIDECAR FOR FXRP |
| 20 | 41836-58 | BRAKE SHOE SPRING, upper | SIDECAR FOR FXRP |
| 21 | 41837-58 | BRAKE SHOE SPRING, lower | SIDECAR FOR FXRP |
| 22 | 3728 | SCREW (2) | SIDECAR FOR FXRP |
| 23 | 42374-77B | REPAIR KIT, master cylinder | SIDECAR FOR FXRP |
| 24 | 45057-82 | COVER, reservoir | SIDECAR FOR FXRP |
| 25 | 42455-80 | GASKET, reservoir | SIDECAR FOR FXRP |
| 26 | 42534-90 | SCREW (2) | SIDECAR FOR FXRP |
| 27 | 45114-77 | HOSE, brake line | SIDECAR FOR FXRP |
| 28 | 48302-85 | BEARING, brake drum | SIDECAR FOR FXRP |
| 29 | 48315-60 | BEARING CUP, brake drum | SIDECAR FOR FXRP |
| 30 | 50972-75 | FITTING, lubrication | SIDECAR FOR FXRP |
| 31 | 63551-82 | FITTING, reservoir hose | SIDECAR FOR FXRP |
| 32 | 63609-72 | FITTING, brake hose | SIDECAR FOR FXRP |
| 33 | 87002-83 | BRAKE DRUM ASSEMBLY | SIDECAR FOR FXRP |
| 34 | 87029-85 | BRAKE LINE | SIDECAR FOR FXRP |
| 35 | 87032-85 | FITTING, brake line | SIDECAR FOR FXRP |
| 36 | 87038-85 | BUSHING, housing (2) | SIDECAR FOR FXRP |
| 37 | 87039-85 | HOUSING, master cylinder | SIDECAR FOR FXRP |
| 38 | 87040-85 | MASTER CYLINDER | SIDECAR FOR FXRP |
| 39 | 87041-85 | SPRING, brake rod | SIDECAR FOR FXRP |
| 40 | 87042-85 | ROD, brake | SIDECAR FOR FXRP |
| 41 | 87043-85 | MASTER CYLINDER AND HOUSING ASSEMBLY | SIDECAR FOR FXRP |
| 42 | 87071-89 | BRAKE CYLINDER, wheel (5/8 inch) | SIDECAR FOR FXRP |
| 43 | 87073-79 | BLEEDER FITTING, brake cylinder | SIDECAR FOR FXRP |
| 44 | 87752-89 | REPAIR KIT, brake cylinder (5/8 inch) | SIDECAR FOR FXRP |
| 45 | 87672-76 | SIDE PLATE | SIDECAR FOR FXRP |
| 46 | 87706-83 | LOCKNUT, axle shaft | SIDECAR FOR FXRP |
| 47 | 87713-83 | SPACER | SIDECAR FOR FXRP |
| 48 | 87714-83 | OIL SEAL | SIDECAR FOR FXRP |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 49 | 63521-95A | HOSE, 5/16 I.D. (rubber) (25 ft. long) | SIDECAR FOR FXRP |

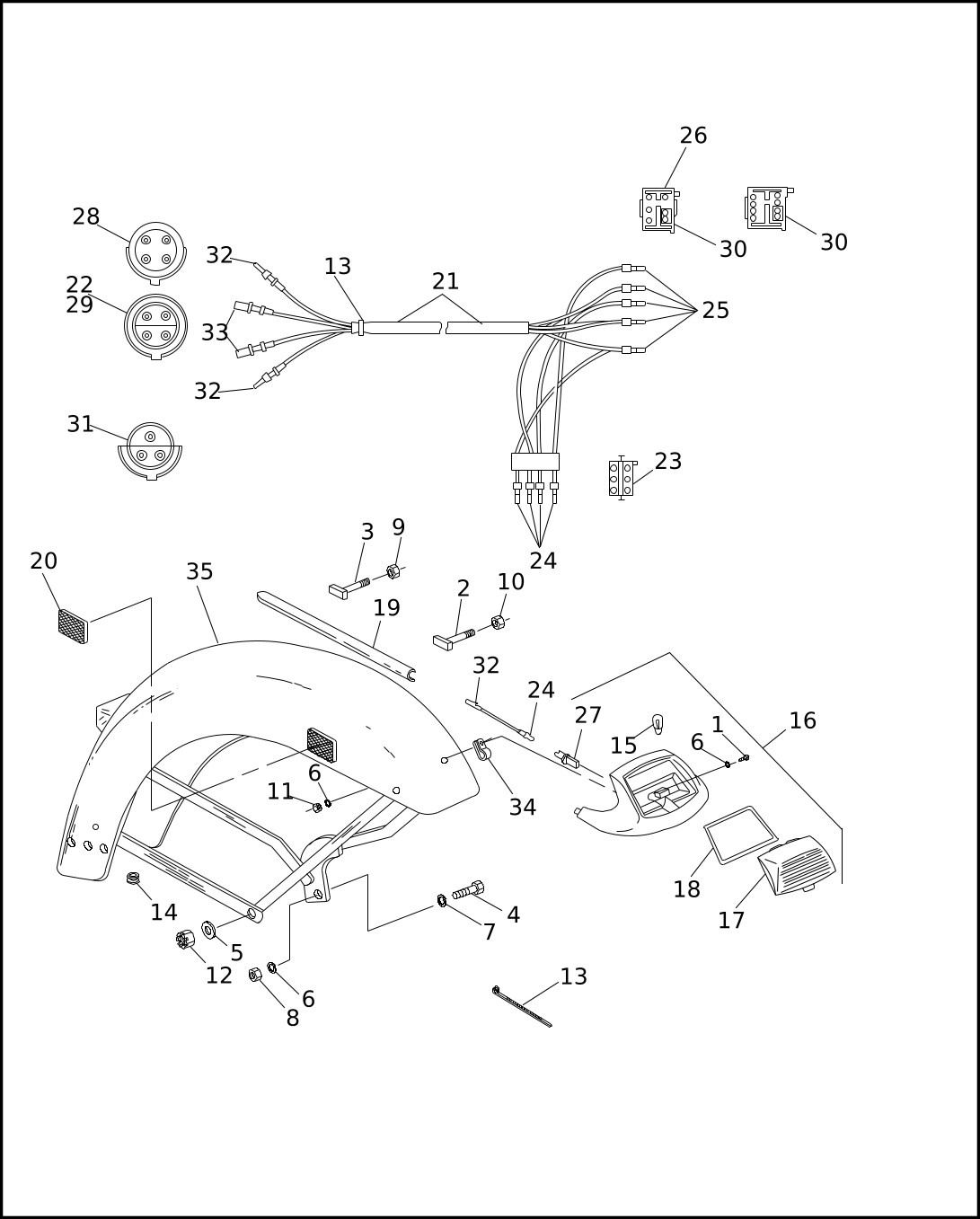

SIDECAR FENDER
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2604 | SCREW (2) | SIDECAR FOR FXRP |
| 2 | 3560WA | BOLT (2) | SIDECAR FOR FXRP |
| 3 | 3561WC | BOLT (2) | SIDECAR FOR FXRP |
| 4 | 4721 | BOLT | SIDECAR FOR FXRP |
| 5 | 6653A | WASHER | SIDECAR FOR FXRP |
| 6 | 7118 | LOCKWASHER (2) | SIDECAR FOR FXRP |
| 7 | 7130W | LOCKWASHER | SIDECAR FOR FXRP |
| 8 | 7601 | LOCKNUT | SIDECAR FOR FXRP |
| 9 | 7624 | LOCKNUT (4) | SIDECAR FOR FXRP |
| 10 | 7629 | NUT (2) | SIDECAR FOR FXRP |
| 11 | 7638 | NUT | SIDECAR FOR FXRP |
| 12 | 7823 | NUT | SIDECAR FOR FXRP |
| 13 | 10006 | CABLE STRAP (as required) | SIDECAR FOR FXRP |
| 10065 | CABLE STRAP | SIDECAR FOR FXRP | |
| 14 | 11410 | GROMMET, tail lamp wiring | SIDECAR FOR FXRP |
| 15 | 53439-79 | BULB, fender tip lamp | SIDECAR FOR FXRP |
| 16 | 59082-79 | LAMP ASSEMBLY, fender tip | SIDECAR FOR FXRP |
| 17 | 59180-80 | LENS, fender tip lamp | SIDECAR FOR FXRP |
| 18 | 59181-80 | GASKET, fender tip lamp lens | SIDECAR FOR FXRP |
| 19 | 59211-74A | SIDE TRIM STRIP (2) | SIDECAR FOR FXRP |
| 20 | 59255-91 | REFLECTOR (red) | SIDECAR FOR FXRP |
| 21 | 87027-85 | WIRING HARNESS, w/ 22-33 | SIDECAR FOR FXRP |
| 22 | 72029-84 | PLUG, four terminal | SIDECAR FOR FXRP |
| 23 | 72037-71 | CONNECTOR, six socket | SIDECAR FOR FXRP |
| 24 | 72038-71A | SOCKET, single pin (as required) | SIDECAR FOR FXRP |
| 25 | 72039-71A | PIN, single socket (5) | SIDECAR FOR FXRP |
| 26 | 72041-71 | CONNECTOR, six pin | SIDECAR FOR FXRP |
| 27 | 72044-71A | CONNECTOR, single socket | SIDECAR FOR FXRP |
| 28 | 72054-84 | PLUG RECEPTACLE | SIDECAR FOR FXRP |
| 29 | 72057-84 | PROTECTIVE PLUG (w/ sidecar removed) | SIDECAR FOR FXRP |
| 30 | 72275-74 | CONNECTOR TAB, two terminal | SIDECAR FOR FXRP |
| 31 | 74521-77A | PLUG RECEPTACLE | SIDECAR FOR FXRP |
| 32 | 74536-77A | PIN, single socket (3) | SIDECAR FOR FXRP |
| 33 | 74539-77A | SOCKET, single pin (2) | SIDECAR FOR FXRP |
| 34 | 71795-63A | CLAMP | SIDECAR FOR FXRP |
| 35 | 87901-83A | FENDER, sidecar (prime) | SIDECAR FOR FXRP |

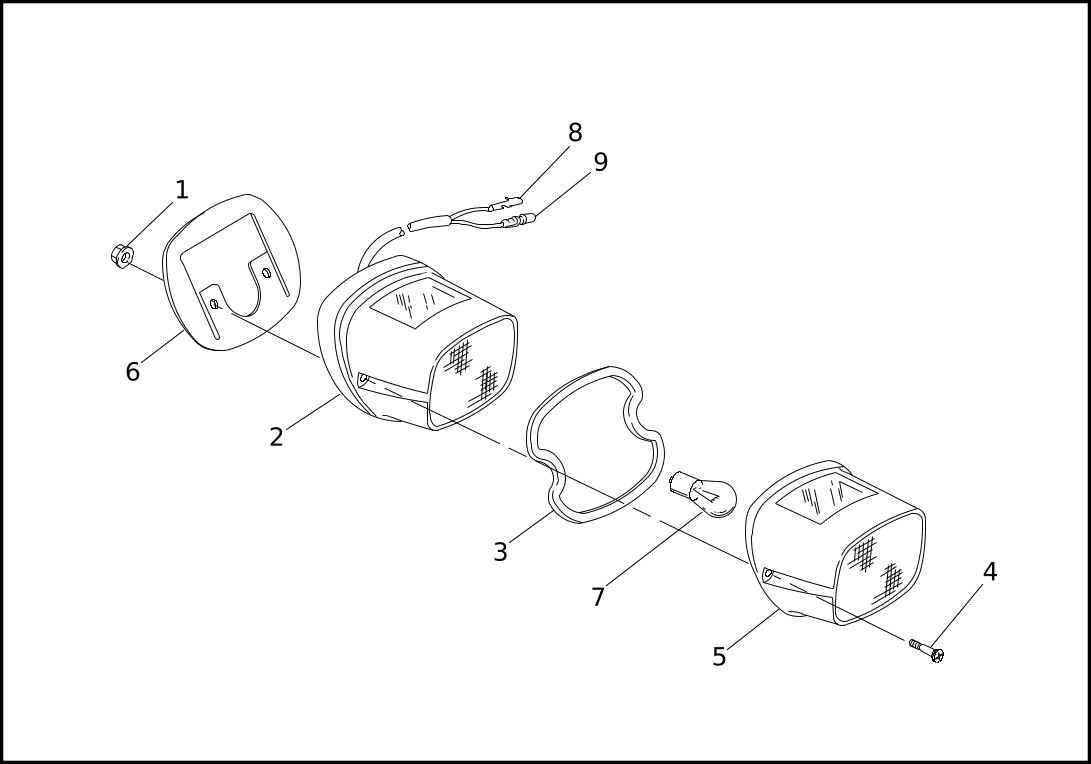

SIDECAR TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 7501 | SPEED NUT (2) | SIDECAR FOR FXRP |
| 2 | 68008-73B | TAIL LAMP ASSEMBLY | SIDECAR FOR FXRP |
| 3 | 68027-90 | GASKET, tail lamp lens | SIDECAR FOR FXRP |
| 4 | 68026-73 | SCREW, tail lamp lens | SIDECAR FOR FXRP |
| 5 | 68033-90 | LENS, tail lamp (red) | SIDECAR FOR FXRP |
| 6 | 68123-73 | GASKET, tail lamp housing | SIDECAR FOR FXRP |
| 7 | 68168-89A | BULB, tail lamp, 12v | SIDECAR FOR FXRP |
| 8 | 74536-77A | PIN, single socket (2) | SIDECAR FOR FXRP |
| 9 | 74539-77A | SOCKET, single pin | SIDECAR FOR FXRP |
SIDECAR TURN SIGNAL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2664 | SCREW (2) | SIDECAR FOR FXRP |
| 2 | 4401W | BOLT | SIDECAR FOR FXRP |
| 3 | 6416 | WASHER (2) | SIDECAR FOR FXRP |
| 4 | 7069 | LOCKWASHER (2) | SIDECAR FOR FXRP |
| 5 | 7780 | LOCKNUT | SIDECAR FOR FXRP |
| 6 | 68402-86 | LAMP, w/ wire, turn signal (amber) | SIDECAR FOR FXRP |
| 7 | 68440-86 | LENS, turn signal | SIDECAR FOR FXRP |
| 8 | 68452-86 | SCREW (2) | SIDECAR FOR FXRP |
| 9 | 68572-64B | BULB, turn signal | SIDECAR FOR FXRP |
| 10 | 70581-73 | CONNECTOR (not illustrated) | SIDECAR FOR FXRP |
| 11 | 74539-77A | SOCKET, single pin (not illustrated) | SIDECAR FOR FXRP |
| 12 | 87120-79 | SPACER, turn signal & spring shackle | SIDECAR FOR FXRP |
| 13 | 87121-79 | BRACKET, turn signal | SIDECAR FOR FXRP |
| 14 | 88301-79 | SHACKLE PLATE, w/ bushing, turn signal & spring | SIDECAR FOR FXRP |
| 15 | 88302-79 | SHACKLE PLATE, turn signal & spring | SIDECAR FOR FXRP |
| 16 | 88314-37 | BUSHING, shackle plate | SIDECAR FOR FXRP |

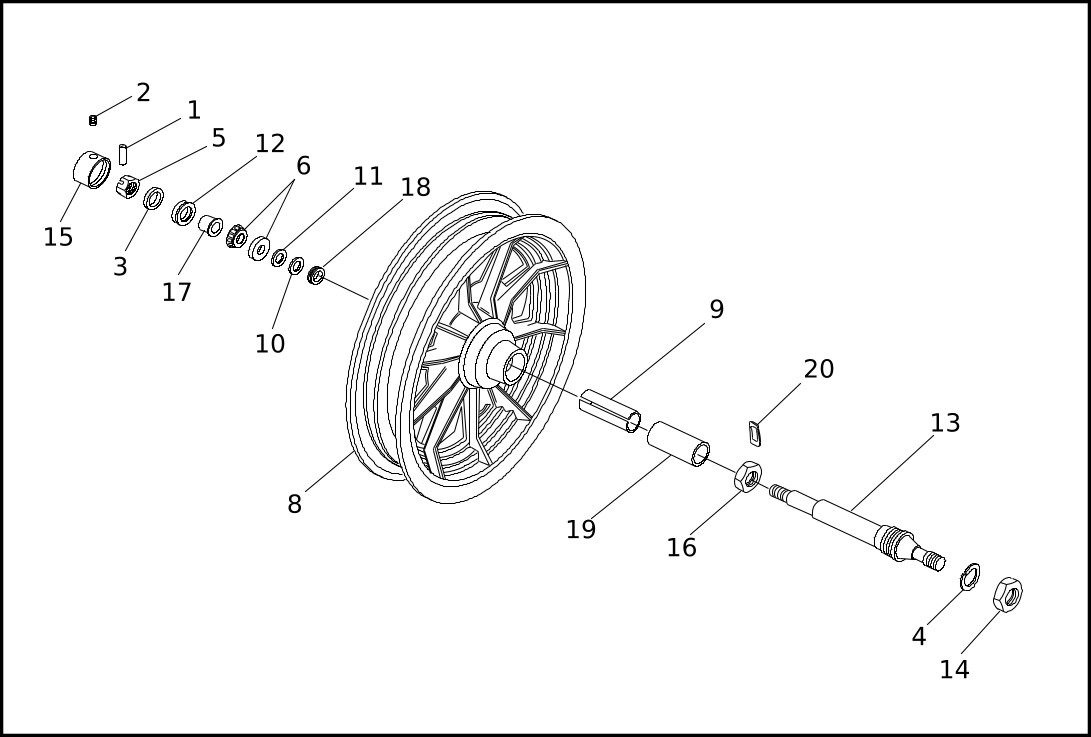

SIDECAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | SIDECAR FOR FXRP |
| 2 | 3234W | SCREW | SIDECAR FOR FXRP |
| 3 | 6653A | WASHER | SIDECAR FOR FXRP |
| 4 | 7043 | LOCKWASHER | SIDECAR FOR FXRP |
| 5 | 7823 | NUT | SIDECAR FOR FXRP |
| 6 | 9052 | ROLLER BEARING, w/ cup | SIDECAR FOR FXRP |
| 7 | 40999-87 | VALVE STEM (not shown) | SIDECAR FOR FXRP |
| 8 | 43405-87 | WHEEL ASSEMBLY, 16 inch, 10 spoke (black) | SIDECAR FOR FXRP |
| 9 | 43288-82 | SLEEVE | SIDECAR FOR FXRP |
| 10 | 43290-82 | SPACER, 0.032 inch | SIDECAR FOR FXRP |
| 43291-82 | SPACER, 0.016 inch | SIDECAR FOR FXRP | |
| 43292-82 | SPACER, 0.008 inch | SIDECAR FOR FXRP | |
| 43293-82 | SPACER, 0.004 inch | SIDECAR FOR FXRP | |
| 43294-82 | SPACER, 0.002 inch | SIDECAR FOR FXRP | |
| 11 | 43650-82 | SPACER WASHER | SIDECAR FOR FXRP |
| 12 | 47519-83A | OIL SEAL | SIDECAR FOR FXRP |
| 13 | 87435-83 | AXLE | SIDECAR FOR FXRP |
| 14 | 87444-33 | AXLE NUT | SIDECAR FOR FXRP |
| 15 | 87705-79 | AXLE CAP | SIDECAR FOR FXRP |
| 16 | 87706-83 | NUT | SIDECAR FOR FXRP |
| 17 | 87710-83 | SPACER | SIDECAR FOR FXRP |
| 18 | 87711-83 | SPACER | SIDECAR FOR FXRP |
| 19 | 87712-83 | SLEEVE | SIDECAR FOR FXRP |
| 20 | 95594-84A | WHEEL WEIGHT, 5 grams (black) | SIDECAR FOR FXRP |
| 95595-84A | WHEEL WEIGHT, 5 grams (plain) | SIDECAR FOR FXRP |
| Part No. | Description |
| 1610 | SCREW 5/16-24 X 1-1/2 Pozidriv flat countersink head (Grade 2) |
| 1643 | SCREW 7/16-14 X 1-1/4 socket flat countersink head, with lockpatch |
| 2216W | SCREW No. 4-24 X 1/2 Phillips oval countersink head, self-tapping |
| 2420 | SCREW 1/4-20 X 3/4 truss head (Grade 2) |
| 2604 | SCREW No. 10-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2664 | SCREW No. 10-24 X 7/16 Pozidriv pan head (Grade 2) |
| 2773 | SCREW 1/4-20 X 1/2 Pozidriv pan head (Grade 2) |
| 2879W | BOLT 3/8-16 X 1 hex head (Grade 5) |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 2920 | SCREW 1/4-20 X 3/4 pan head |
| 3233 | SCREW 1/4-28 X 1/4 socket head |
| 3234W | SCREW 1/4-20 X 5/16 slotted head |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3473 | BOLT No. 10-32 X 1/2 hex head (Grade 2) |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3728 | SCREW 1/4-20 X 1/2 hex head |
| 3764 | BOLT 7/16-14 X 2 hex head (Grade 5) |
| 3769 | BOLT 7/16-14 X 1-1/2 hex head (Grade 5) |
| 3946 | BOLT 7/16-20 X 2 hex head (Grade 5) |
| 3958 | BOLT 1/2-20 X 2-1/4 hex head (Grade 5) |
| 4020W | BOLT 5/16-24 X 1-3/8 hex head (Grade 5) |
| 4030 | SCREW 3/8-16 X 2-7/16 socket pan head |
| 4041W | SCREW 5/16-24 X 1-5/8 hex head |
| 4045 | SCREW 3/4-10 X 2-3/4 hex head (Grade 8) |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 4401W | BOLT 3/8-24 X 2-3/4 hex head (Grade 5) |
| 4701 | BOLT 5/16-24 X 1-1/2 hex head (Grade 5) |
| 4716W | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4726 | BOLT 7/16-20 X 1-1/2 hex head (Grade 5) |
| 6054 | WASHER 3/16 X 9/16 X 1/16 nylon (black) |
| 6238 | WASHER 11/32 X 1-1/8 X 5/64 |
| 6335 | WASHER No. 4 X 5/16 X 1/32 |
| 6343 | WASHER 15/32 X 59/64 X 5/64 |
| 6410 | WASHER 1/4 X 9/16 X 1/16 nylon |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6653A | WASHER 1/2 X 1-1/8 X 3/32 |
| 6700B | WASHER 5/8 X 13/16 X 1/32 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6712B | WASHER 5/8 X 15/16 X 3/32 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7043 | LOCKWASHER 3/4 |
| 7068 | LOCKWASHER 1/2 |
| 7069 | LOCKWASHER No. 10 |
| 7118 | LOCKWASHER 3/16 internal tooth |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7598 | NUT 3/4-10 |
| 7601 | LOCKNUT 3/8-16 flange |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7638 | NUT No. 10-32 X 1/8 X 3/8 (Grade 2) |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7725 | LOCKNUT 5/16-24 X 11/32 X 1/2 |
| 7727 | LOCKNUT 5/16-24 X 1/4 X 1/2 |
| 7729 | LOCKNUT 5/16-24 X 1/4 X 1/2 |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7775 | LOCKNUT 3/8-24 X 7/16 X 9/16 |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7780 | LOCKNUT 3/8-24 X 13/32 X 11/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7823 | NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) |
| 7827W | LOCKNUT 7/16-14 |
| 7845 | NUT 1/2-20 X 7/16 X 3/4 (Grade 2) |
| 7855W | JAMNUT 3/4-16 X 7/16 X 1-1/8 (Grade 2) |
| 7993 | LOCKNUT 5/8-18 X 15/16 |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 933 | SCREW No. 10-32 X 15/16 Pozidriv truss head (Grade 2) |
| Part No. | Description |
| 10006 | |
| 10038A | |
| 10059A | |
| 10065 | |
| 11410 | |
| 1610 | |
| 1643 | |
| 18268-48 | |
| 2216W | |
| 2420 | |
| 2604 | |
| 2664 | |
| 2773 | |
| 2879W | |
| 2887WA | |
| 2920 | |
| 3233 | |
| 3234W | |
| 3403 | |
| 3473 | |
| 3560WA | |
| 3561WC | |
| 3728 | |
| 3764 | |
| 3769 | |
| 3946 | |
| 3958 | |
| 4020W | |
| 4030 | |
| 4041W | |
| 4045 | |
| 4091 | |
| 40999-87 | |
| 41720-58 | |
| 41802-58A | |
| 41804-84A | |
| 41835-58 | |
| 41836-58 | |
| 41837-58 | |
| 42374-77B | |
| 42455-80 | |
| 42534-90 | |
| 43288-82 | |
| 43290-82 | |
| 43291-82 | |
| 43292-82 | |
| 43293-82 | |
| 43294-82 | |
| 43405-87 | |
| 43650-82 | |
| 4401W | |
| 45057-82 | |
| 45114-77 | |
| 45452-87 | |
| 4701 | |
| 47076-72 | |
| 4716W | |
| 4721 | |
| 47247-83 | |
| 4726 | |
| 47519-83A | |
| 48302-85 | |
| 48315-60 | |
| 50972-75 | |
| 5207 | |
| 53439-79 | |
| 53583-92 | |
| 53593-92 | |
| 53617-85 | |
| 53848-00 | |
| 58717-79 | |
| 59082-79 | |
| 59180-80 | |
| 59181-80 | |
| 59211-74A | |
| 59255-91 | |
| 601 | |
| 604 | |
| 6054 | |
| 6238 | |
| 6335 | |
| 6343 | |
| 63521-95A | |
| 63551-82 | |
| 63609-72 | |
| 6410 | |
| 6416 | |
| 6653A | |
| 6700B | |
| 6701 | |
| 6702 | |
| 6712B | |
| 6716 | |
| 68008-73B | |
| 68026-73 | |
| 68027-90 | |
| 68033-90 | |
| 68123-73 | |
| 68168-89A | |
| 68402-86 | |
| 68440-86 | |
| 68452-86 | |
| 68572-64B | |
| 7036 | |
| 7038 | |
| 7039 | |
| 7041 | |
| 7043 | |
| 70581-73 | |
| 7068 | |
| 7069 | |
| 7118 | |
| 7128 | |
| 7130W | |
| 71452-91A | |
| 71795-63A | |
| 72029-84 | |
| 72037-71 | |
| 72038-71A | |
| 72039-71A | |
| 72041-71 | |
| 72044-71A | |
| 72054-84 | |
| 72057-84 | |
| 72275-74 | |
| 74521-77A | |
| 74536-77A | |
| 74539-77A | |
| 7501 | |
| 7586 | |
| 7598 | |
| 7601 | |
| 7624 | |
| 7629 | |
| 7638 | |
| 7686 | |
| 7688 | |
| 7725 | |
| 7727 | |
| 7729 | |
| 7736 | |
| 7748W | |
| 7775 | |
| 7778 | |
| 7780 | |
| 7783 | |
| 7823 | |
| 7827W | |
| 7845 | |
| 7855W | |
| 7993 | |
| 84850-92 | |
| 8700 | |
| 87002-83 | |
| 87006-85 | |
| 87007-85 | |
| 87008-88 | |
| 87010-85 | |
| 87011-85 | |
| 87013-85 | |
| 87014-85 | |
| 87015-85 | |
| 87018-85 | |
| 87019-85 | |
| 87020-85 | |
| 87022-88 | |
| 87023-88 | |
| 87024-85 | |
| 87025-85A | |
| 87027-85 | |
| 87029-85 | |
| 87030-85 | |
| 87032-85 | |
| 87038-85 | |
| 87039-85 | |
| 87040-85 | |
| 87041-85 | |
| 87042-85 | |
| 87043-85 | |
| 87048-88 | |
| 87071-89 | |
| 87073-79 | |
| 87117-36A | |
| 87120-79 | |
| 87121-79 | |
| 87159-83 | |
| 87435-83 | |
| 87444-33 | |
| 87672-76 | |
| 87701-79 | |
| 87705-79 | |
| 87706-83 | |
| 87710-83 | |
| 87711-83 | |
| 87712-83 | |
| 87713-83 | |
| 87714-83 | |
| 87752-89 | |
| 87901-83A | |
| 88100-94A | |
| 88174-94 | |
| 88175-94 | |
| 88261-36 | |
| 88264-36 | |
| 88301-79 | |
| 88302-79 | |
| 88314-37 | |
| 88425-67 | |
| 88426-91 | |
| 88427-91 | |
| 88428-91 | |
| 88481-91 | |
| 88487-91 | |
| 88503-91A | |
| 88504-91A | |
| 88526-91 | |
| 88527-91 | |
| 88528-91 | |
| 88531-91 | |
| 88536-91 | |
| 88537-91 | |
| 88538-91 | |
| 88539-91 | |
| 88695-67 | |
| 88696-67 | |
| 88698-67 | |
| 88862-91 | |
| 90480-85 | |
| 90481-91 | |
| 9052 | |
| 933 | |
| 95594-84A | |
| 95595-84A |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7736 | 1949 |
| 7586 | Unknown |
| 7845 | Unknown |
| 7725 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 7780 | 1973 |
| 7778 | Unknown |
| 7775 | Unknown |
| 7638 | Unknown |
| 7501 | 2010 |
| 7827W | 1976 |
| 7748W | Unknown |
| 7823 | Unknown |
| 3403 | Unknown |
| 84850-92 | 1992 |
| 7993 | 1952 |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3958 | 1993 |
| 2664 | 1971 |
| 1610 | Unknown |
| 1643 | 2008 |
| 4401W | 1967 |
| 3561WC | Unknown |
| 2920 | 1993 |
| 4045 | 1992 |
| 4091 | Unknown |
| 2773 | Unknown |
| 68452-86 | 1986 |
| 4041W | Unknown |
| 4701 | Unknown |
| 4030 | Unknown |
| 4020W | Unknown |
| 933 | Unknown |
| 3560WA | Unknown |
| 4726 | 2009 |
| 2887WA | Unknown |
| 4721 | 2009 |
| 42534-90 | 1990 |
| 3728 | 2014 |
| 2604 | Unknown |
| 3233 | Unknown |
| 3946 | Unknown |
| 2216W | 1963 |
| 2420 | Unknown |
| 4716W | 2009 |
| 2879W | 2009 |
| 3764 | 1989 |
| 3769 | 1978 |
| 3234W | 1956 |
| 3473 | Unknown |
| 103A1 - Generic Washers | |
| 6712B | Unknown |
| 7130W | Unknown |
| 43650-82 | 1982 |
| 6343 | 1991 |
| 7118 | Unknown |
| 6335 | Unknown |
| 6054 | Unknown |
| 7128 | Unknown |
| 18268-48 | 1948 |
| 6653A | Unknown |
| 6416 | Unknown |
| 7068 | Unknown |
| 6700B | 1958 |
| 7038 | 1998 |
| 7039 | Unknown |
| 6410 | Unknown |
| 6238 | 1991 |
| 7041 | 1958 |
| 6701 | Unknown |
| 6702 | Unknown |
| 7043 | Unknown |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 7598 | 1991 |
| 105A1 - Custom Screws | |
| 87701-79 | 1979 |
| 108A1 - Hose Clamps | |
| 10038A | 1994 |
| 10059A | 2010 |
| 108B1 - P Clamps | |
| 71795-63A | 1965 |
| 109A1 - Studs | |
| 47076-72 | 1972 |
| 41720-58 | 1958 |
| 110B1 - Plain Bushings | |
| 88314-37 | 1937 |
| 48302-85 | 1985 |
| 47247-83 | 2013 |
| 88174-94 | 1994 |
| 87038-85 | 1985 |
| 110D1 - Rolling Element Bearings | |
| 9052 | Unknown |
| 111A1 - Adhesive | |
| 74521-77A | 1977 |
| 111B1 - Tape | |
| 58717-79 | 1979 |
| 111F1 - Protective Tape | |
| 72057-84 | 1984 |
| 120A1 - Pins | |
| 601 | Unknown |
| 604 | Unknown |
| 121A1 - Grommets | |
| 11410 | Unknown |
| 123B1 - Spring Washers | |
| 7069 | Unknown |
| 124A1 - Spacers | |
| 43290-82 | 1982 |
| 87713-83 | 1983 |
| 90480-85 | 1985 |
| 43294-82 | 1982 |
| 90481-91 | 1991 |
| 87712-83 | 1983 |
| 43293-82 | 1982 |
| 87710-83 | 1983 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10006 | 1960 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 87007-85 | 1985 |
| 41836-58 | 1958 |
| 63609-72 | 1972 |
| 41835-58 | 1958 |
| 41837-58 | 1958 |
| 126B1 - Rivets Fasteners | |
| 8700 | 2003 |
| 127B1 - Generic Mounting Bracket | |
| 88175-94 | 1994 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7729 | Unknown |
| 7727 | Unknown |
| 7783 | Unknown |
| 7688 | 2000 |
| 7686 | Unknown |
| 5207 | 1980 |
| 7855W | Unknown |
| 254B1 - Camshaft | |
| 53593-92 | 1992 |
| 257E1 - Cover Gaskets | |
| 42455-80 | 1980 |
| 87714-83 | 1983 |
| 47519-83A | 1983 |
| 413B1 - Brake Bleeder Screw | |
| 87073-79 | Unknown |
| 413C1 - Brake Caliper sub-component | |
| 87018-85 | 1985 |
| 416A1 - Brakes Miscellaneous Component | |
| 87002-83 | 1983 |
| 41802-58A | 1958 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45057-82 | 1982 |
| 87043-85 | 1985 |
| 417B1 - Brake Master Cylinder | |
| 42374-77B | 1977 |
| 87040-85 | 1985 |
| 87071-89 | 1989 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 87042-85 | 1985 |
| 87039-85 | 1985 |
| 87041-85 | 1985 |
| 417E1 - Brake Master Cylinder Hose | |
| 45114-77 | 1977 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41804-84A | 1984 |
| 418B1 - Brake Line | |
| 87029-85 | 1985 |
| 87032-85 | 1985 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84A | 2010 |
| 430E1 - Rear Axle | |
| 87444-33 | 1933 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43291-82 | 1982 |
| 43292-82 | 1982 |
| 435A1 - Sidecar Wheel | |
| 43405-87 | 1987 |
| 456B1 - Fork Brace | |
| 45452-87 | 1987 |
| 457B1 - Steering Damper | |
| 87024-85 | 1985 |
| 457C1 - Steering Damper Mount | |
| 87023-88 | 1988 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 458B1 - Front Suspension and Steering Mounting Bracket | |
| 87020-85 | 1985 |
| 470A1 - Frame | |
| 87006-85 | 1985 |
| 472A1 - Frame sub-component | |
| 7036 | Unknown |
| 521C1 - Seat Suspension Damper | |
| 87048-88 | 1988 |
| 87022-88 | 1988 |
| 523C1 - Back Rest Support Structure | |
| 87672-76 | 1976 |
| 530B1 - Tour Pak sub-component | |
| 53617-85 | 1985 |
| 530C2 - Case Latch | |
| 53848-00 | 2000 |
| 53583-92 | 1992 |
| 612C1 - Fuel Line | |
| 63521-95A | 1995 |
| 614C1 - Trim | |
| 88425-67 | 1967 |
| 59211-74A | 1974 |
| 88696-67 | 1967 |
| 627K1 - Oil Line Fitting | |
| 63551-82 | 1982 |
| 678A1 - Taillight | |
| 68033-90 | 1990 |
| 68123-73 | 1973 |
| 68026-73 | 1973 |
| 68008-73B | 1975 |
| 68027-90 | 1990 |
| 68440-86 | 1986 |
| 678D1 - Turnsignal | |
| 68402-86 | 1986 |
| 679B1 - Reflector | |
| 59255-91 | 1991 |
| 680A1 - Decorative Light | |
| 59181-80 | 1980 |
| 59082-79 | 1979 |
| 59180-80 | 1980 |
| 680C1 - Incandescent Bulb | |
| 68572-64B | 1964 |
| 68168-89A | 1989 |
| 53439-79 | 1979 |
| 692C1 - Electrical Miscellaneous Component | |
| 72054-84 | 1984 |
| 692F1 - Wire Harness | |
| 72041-71 | 1971 |
| 87027-85 | 1985 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 43288-82 | 1982 |
| 692H1 - Connector | |
| 70581-73 | 1973 |
| 74536-77A | 1977 |
| 72275-74 | 1974 |
| 692K1 - Connector / Terminal Seal | |
| 72039-71A | 1971 |
| 692L1 - Wire Harness sub-component | |
| 72037-71 | 1971 |
| 74539-77A | 1979 |
| 72029-84 | 1984 |
| 72044-71A | 1971 |
| 72038-71A | 1971 |
| 830D1 - Drive Axle | |
| 87435-83 | 1983 |
| 868B1 - Sidecar Frame | |
| 87159-83 | 1983 |
| 87117-36A | 1995 |
| 868B2 - Sidecar Body | |
| 88302-79 | 1979 |
| 88695-67 | 1967 |
| 88504-91A | 1993 |
| 88698-67 | 1967 |
| 88100-94A | 2007 |
| 87013-85 | 1985 |
| 87010-85 | 1985 |
| 88301-79 | 1979 |
| 87015-85 | 1985 |
| 87011-85 | 1985 |
| 88487-91 | 1991 |
| 88503-91A | 1993 |
| 87025-85A | 1985 |
| 87706-83 | 1983 |
| 88481-91 | 1991 |
| 87014-85 | 1985 |
| 868C1 - Sidecar Leafspring | |
| 88264-36 | 1936 |
| 88261-36 | 1936 |
| 87705-79 | 1979 |
| 868D2 - Sidecar Fender | |
| 87901-83A | 1983 |
| 868E1 - Sidecar Interior | |
| 87121-79 | 1979 |
| 88531-91 | 1991 |
| 88527-91 | 1991 |
| 88536-91 | 1991 |
| 88528-91 | 1991 |
| 88526-91 | 1991 |
| 88537-91 | 1991 |
| 88862-91 | 1991 |
| 88538-91 | 1991 |
| 88427-91 | 1991 |
| 88426-91 | 1991 |
| 87120-79 | 1979 |
| 88428-91 | 1991 |
| 88539-91 | 1991 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 917B1 - Service Program Kit | |
| 87752-89 | 1989 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | SIDECAR BRAKE: |
| 47519-83A | OIL SEAL | SIDECAR WHEEL: |
| 5207 | WELL NUT | SIDECAR BODY: |
| 6054 | WASHER | SIDECAR BODY: |
| 6702 | WASHER | SIDECAR CONNECTION KIT: |
| 7041 | LOCKWASHER | SIDECAR BODY: SIDECAR CHASSIS: |
| 7586 | JAMNUT | SIDECAR BODY: |
| 9052 | ROLLER BEARING | SIDECAR WHEEL: |
| 933 | SCREW | SIDECAR BODY: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | SIDECAR TAIL LAMP: |
| 68572-64B | BULB | SIDECAR TURN SIGNAL: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 95594-84A | WHEEL WEIGHT | SIDECAR WHEEL: |
| 95595-84A | WHEEL WEIGHT | SIDECAR WHEEL: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | SIDECAR WHEEL: |
