2006 HARLEY-DAVIDSON® PARTS CATALOG: VRXSE MODEL
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99452-06A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2006 VRXSE MODELS
VIN Model Codes

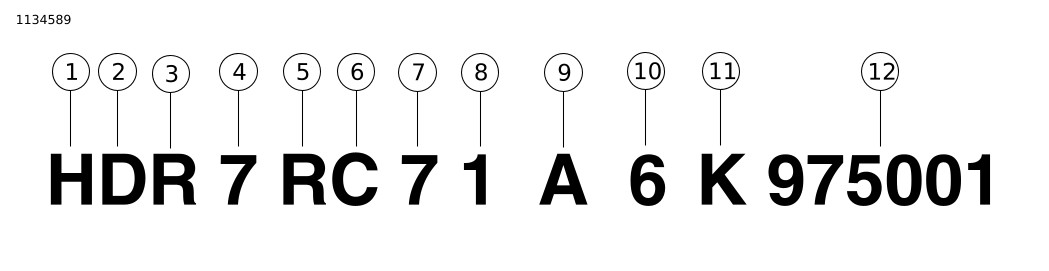

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1, 2, 3 | World manufacturer code | HDR |
4 | Off Road Vehicle | 7=Racing |
5 | Motorcycle type | R=Racing |
6 | Model | C=VRXSE |
7 | Engine type and BHP | 7=1300 cc, 165 BHP |
8 | Introduction date | 1=Regular |
9 | V.I.N. check digit | Per VIN Calculation Guide |
10 | Model year | 6=2006 |
11 | Assembly plant | K=Kansas City, MO USA |
12 | Sequential number (last 6 digits) | 975000 - 999999 |
NOTES

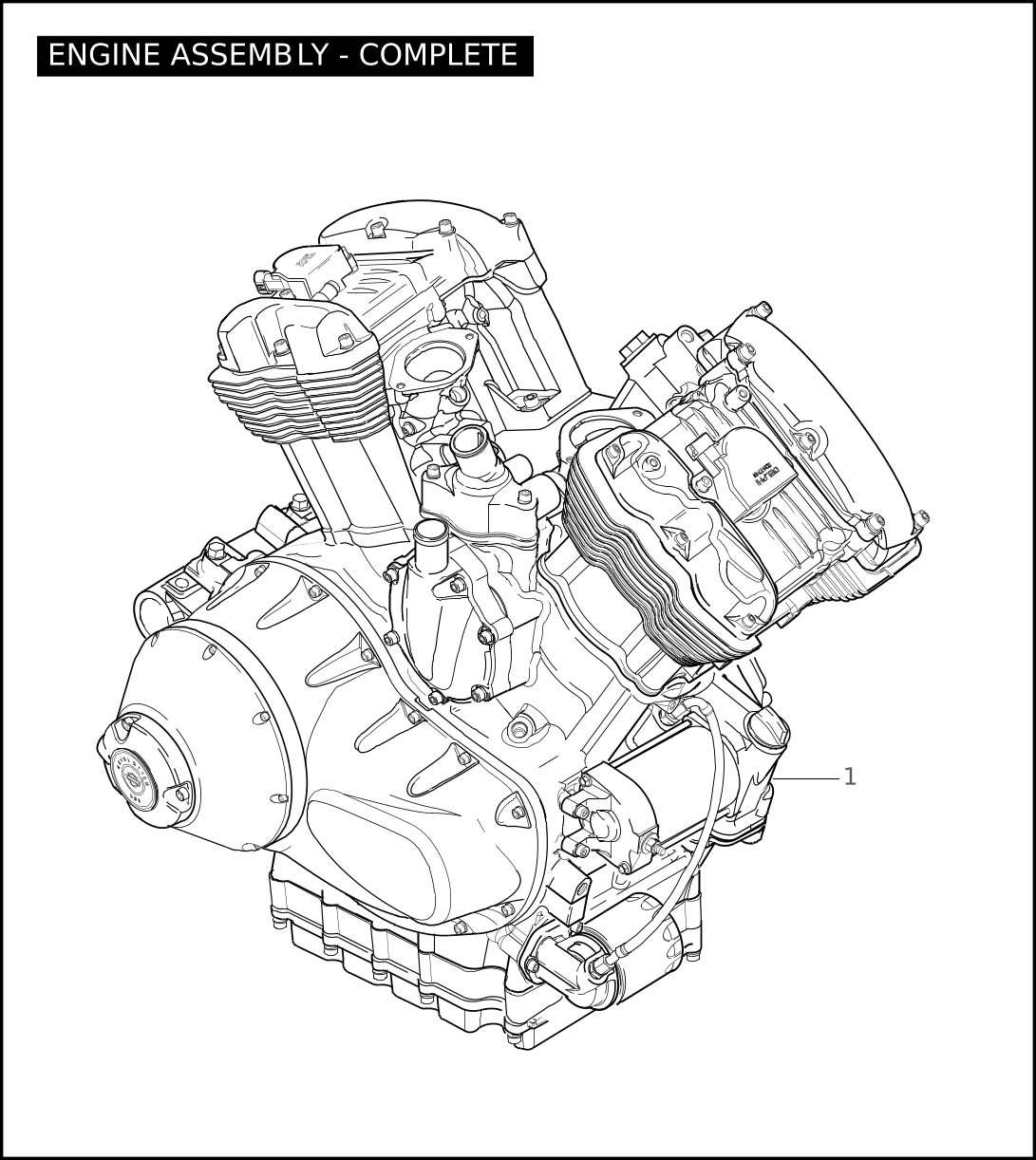

ENGINE ASSEMBLY - COMPLETE
| Index No. | Part No. | Description | Model(s) |
| 1 | 19627-06K | ENGINE ASSEMBLY | VRXSE |

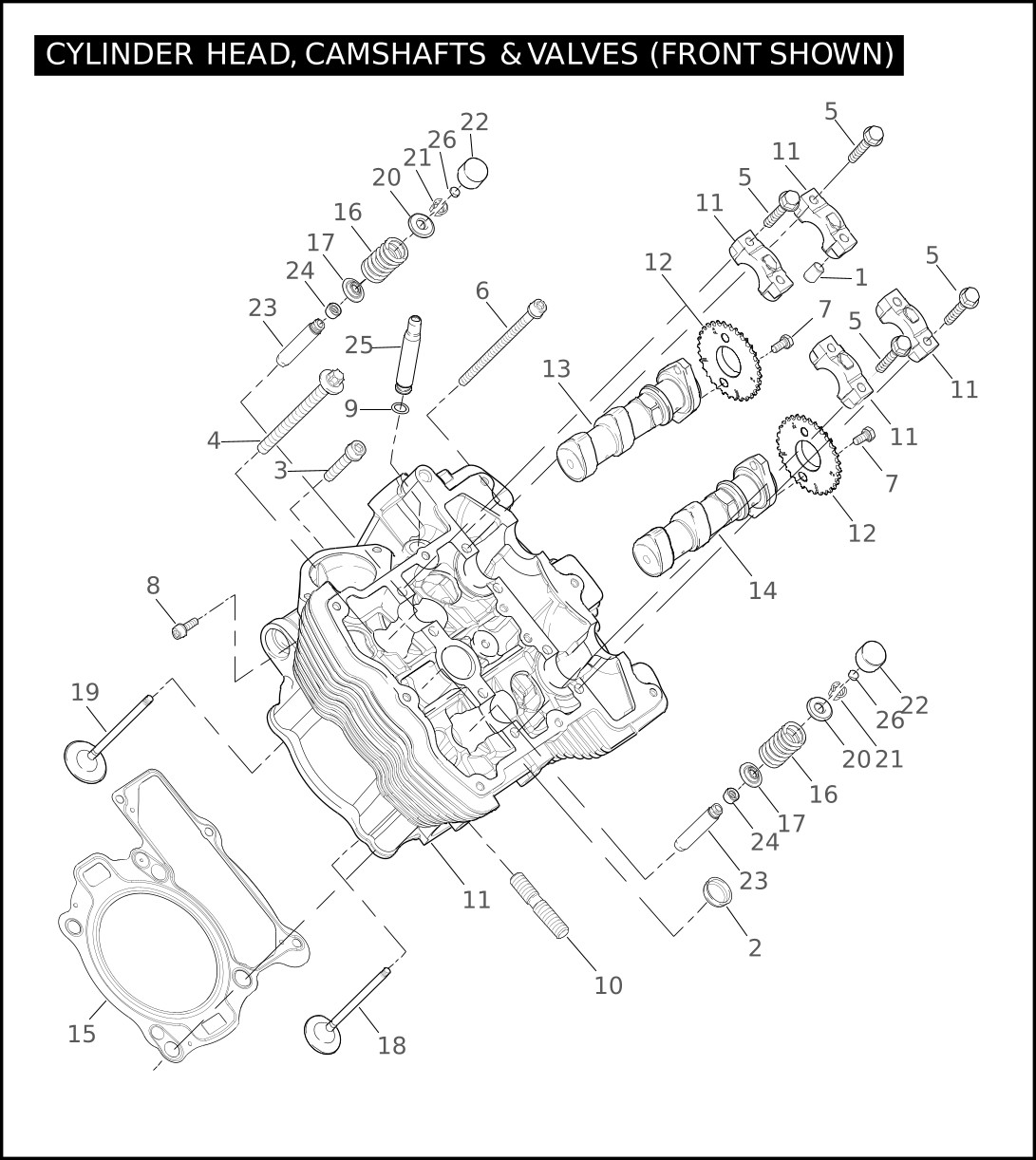

CYLINDER HEAD, CAMSHAFTS & VALVES (FRONT SHOWN) (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 489K | DOWEL (16) | VRXSE |
| 2 | 769M | PLUG, expansion (4) | VRXSE |
| 3 | 966M | SCREW (2) | VRXSE |
| 4 | 984M | BOLT (8) | VRXSE |
| 5 | 1014M | SCREW (16) | VRXSE |
| 6 | 1017M | SCREW (4) | VRXSE |
| 7 | 1031M | SCREW (8) | VRXSE |
| 8 | 1043M | SCREW | VRXSE |
| 9 | 11391K | O-RING | VRXSE |
| 10 | 16448-01KA | STUD (4) | VRXSE |
| 11 | 17233-06K | CYLINDER HEAD ASSEMBLY, front | VRXSE |
| 17235-06K | CYLINDER HEAD ASSEMBLY, rear (not shown) | VRXSE | |
| 12 | 17423-01K | SPROCKET, camshaft (4) | VRXSE |
| 13 | 17445-06K | CAMSHAFT ASSEMBLY, intake (2) | VRXSE |
| 14 | 17447-06K | CAMSHAFT ASSEMBLY, exhaust (2) | VRXSE |
| 15 | 17691-05K | GASKET, cylinder head, front | VRXSE |
| 17692-05K | GASKET, cylinder head (not shown) | VRXSE | |
| 16 | 18115-06K | VALVE SPRING, front & rear (8) | VRXSE |
| 17 | 18116-06K | COLLAR, valve spring, lower (8) | VRXSE |
| 18 | 18117-06K | EXHAUST VALVE (4) | VRXSE |
| 19 | 18118-06K | INTAKE VALVE (4) | VRXSE |
| 20 | 18119-06K | COLLAR, valve spring, upper (8) | VRXSE |
| 21 | 18120-06K | COLLET, valve (16) | VRXSE |
| 22 | 18181-01K | TAPPET (8) | VRXSE |
| 23 | 18665-01K | VALVE GUIDE (8) | VRXSE |
| 24 | 18687-01K | SEAL, valve (8) | VRXSE |
| 25 | 29601-05K | TUBE ASSEMBLY, front breather, w/ 11391K | VRXSE |
CYLINDER HEAD, CAMSHAFTS & VALVES (FRONT SHOWN) (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 18696-01K | SHIM, 1.825 mm | VRXSE |
| 18697-01K | SHIM, 1.850 mm | VRXSE | |
| 18698-01K | SHIM, 1.875 mm | VRXSE | |
| 18699-01K | SHIM, 1.900 mm | VRXSE | |
| 18700-01K | SHIM, 1.925 mm | VRXSE | |
| 18701-01K | SHIM, 1.950 mm | VRXSE | |
| 18702-01K | SHIM, 1.975 mm | VRXSE | |
| 18666-01K | SHIM, 2.000 mm | VRXSE | |
| 18624-01K | SHIM, 2.025 mm | VRXSE | |
| 18667-01K | SHIM, 2.050 mm | VRXSE | |
| 18625-01K | SHIM, 2.075 mm | VRXSE | |
| 18668-01K | SHIM, 2.100 mm | VRXSE | |
| 18626-01K | SHIM, 2.125 mm | VRXSE | |
| 18669-01K | SHIM, 2.150 mm | VRXSE | |
| 18627-01K | SHIM, 2.175 mm | VRXSE | |
| 18670-01K | SHIM, 2.200 mm | VRXSE | |
| 18628-01K | SHIM, 2.225 mm | VRXSE | |
| 18671-01K | SHIM, 2.250 mm | VRXSE | |
| 18629-01K | SHIM, 2.275 mm | VRXSE | |
| 18672-01K | SHIM, 2.300 mm | VRXSE | |
| 18630-01K | SHIM, 2.325 mm | VRXSE | |
| 18673-01K | SHIM, 2.350 mm | VRXSE | |
| 18631-01K | SHIM, 2.375 mm | VRXSE | |
| 18674-01K | SHIM, 2.400 mm | VRXSE | |
| 18632-01K | SHIM, 2.425 mm | VRXSE | |
| 18675-01K | SHIM, 2.450 mm | VRXSE | |
| 18638-01K | SHIM, 2.475 mm | VRXSE | |
| 18676-01K | SHIM, 2.500 mm | VRXSE | |
| 18639-01K | SHIM, 2.525 mm | VRXSE | |
| 18677-01K | SHIM, 2.550 mm | VRXSE | |
| 18655-01K | SHIM, 2.575 mm | VRXSE | |
| 18678-01K | SHIM, 2.600 mm | VRXSE | |
| 18656-01K | SHIM, 2.625 mm | VRXSE | |
| 18679-01K | SHIM, 2.650 mm | VRXSE | |
| 18657-01K | SHIM, 2.675 mm | VRXSE | |
| 18680-01K | SHIM, 2.700 mm | VRXSE | |
| 18658-01K | SHIM, 2.725 mm | VRXSE | |
| 18681-01K | SHIM, 2.750 mm | VRXSE | |
| 18659-01K | SHIM, 2.775 mm | VRXSE | |
| 18682-01K | SHIM, 2.800 mm | VRXSE | |
| 18692-01K | SHIM, 2.825 mm | VRXSE | |
| 18683-01K | SHIM, 2.850 mm | VRXSE | |
| 18693-01K | SHIM, 2.875 mm | VRXSE | |
| 18684-01K | SHIM, 2.900 mm | VRXSE | |
| 18694-01K | SHIM, 2.925 mm | VRXSE | |
| 18685-01K | SHIM, 2.950 mm | VRXSE | |
| 18695-01K | SHIM, 2.975 mm | VRXSE | |
| 18686-01K | SHIM, 3.000 mm | VRXSE |

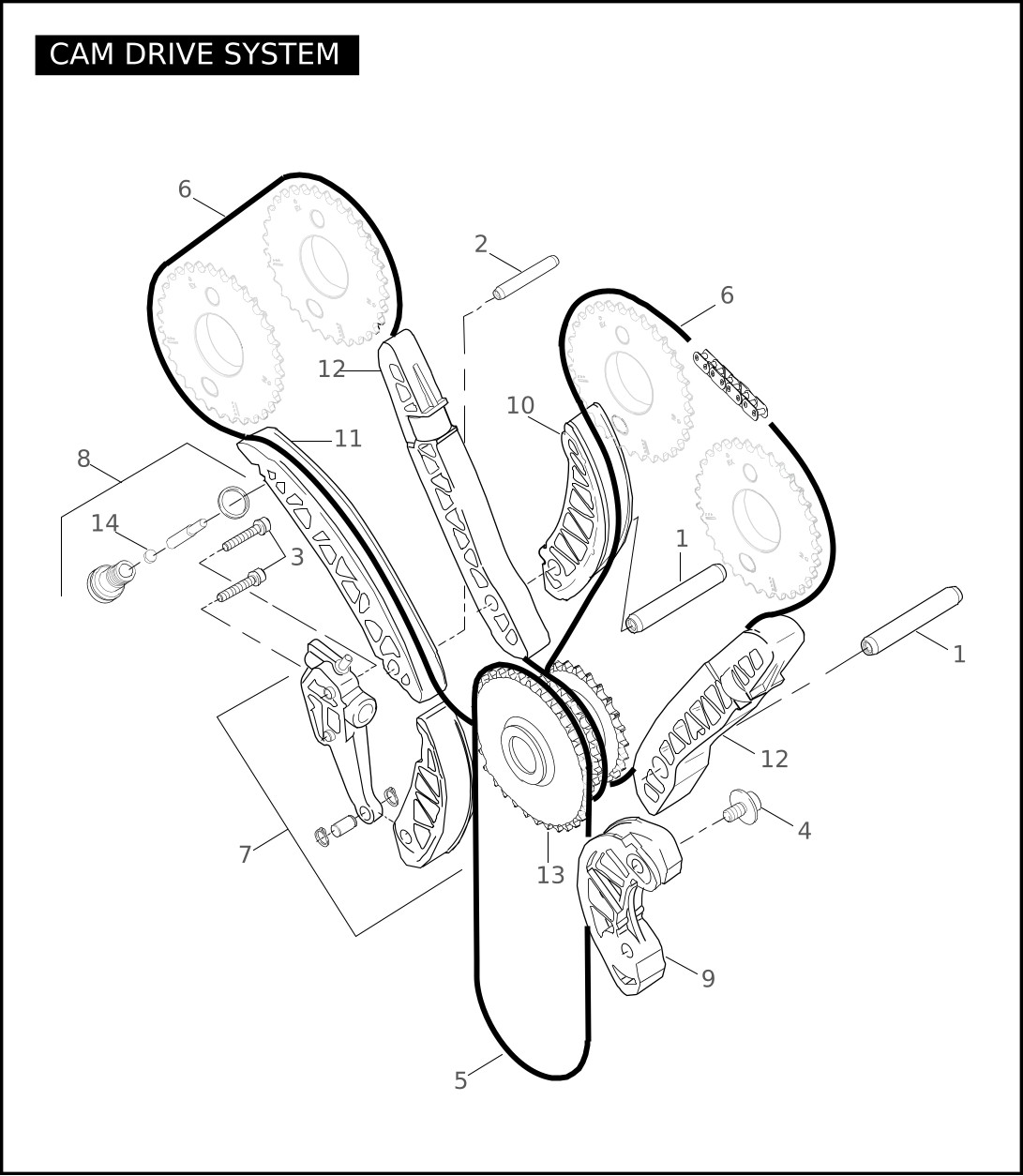

CAM DRIVE SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | VRXSE |
| 2 | 485K | PIN | VRXSE |
| 3 | 966M | SCREW (2) | VRXSE |
| 4 | 1007M | SCREW | VRXSE |
| 5 | 17406-01KA | CHAIN, primary cam drive | VRXSE |
| 6 | 17407-01KA | CHAIN, secondary cam drive (2) | VRXSE |
| 7 | 17629-01K | TENSIONER ASSEMBLY, primary, w/ guide, shaft, clips & dowel | VRXSE |
| 8 | 17632-01K | TENSIONER ASSEMBLY, secondary (2) | VRXSE |
| 9 | 17637-01K | GUIDE TENSIONER, primary, front | VRXSE |
| 10 | 17638-01K | GUIDE TENSIONER, secondary, front | VRXSE |
| 11 | 17639-01K | GUIDE TENSIONER, secondary, rear | VRXSE |
| 12 | 17640-01K | GUIDE TENSIONER, secondary (2) | VRXSE |
| 13 | 25800-01K | SPROCKET, triple | VRXSE |
| 14 | 40095-01K | SHIM, tensioner | VRXSE |

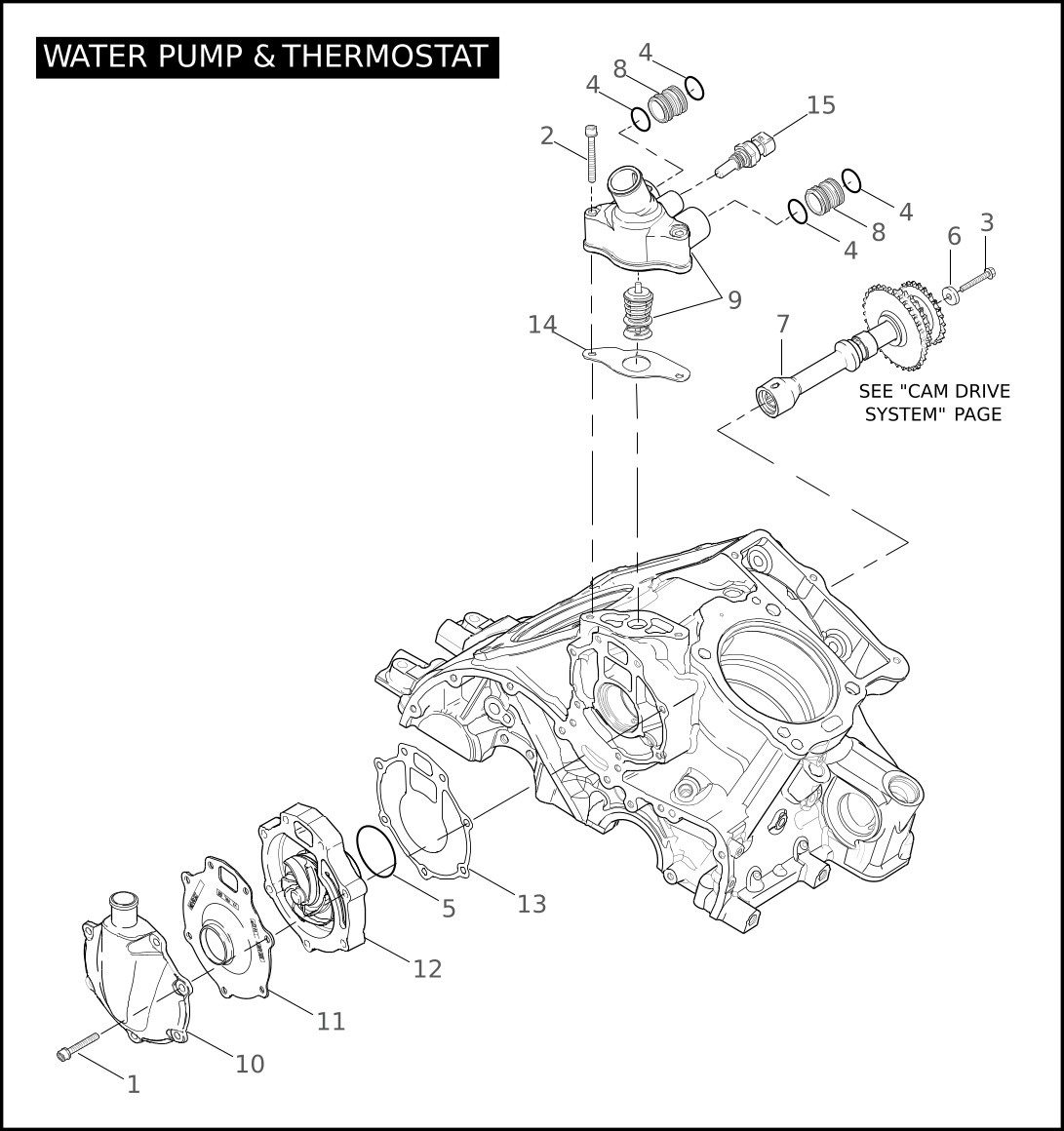

WATER PUMP & THERMOSTAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (7) | VRXSE |
| 2 | 1030M | SCREW (2) | VRXSE |
| 3 | 1023M | SCREW | VRXSE |
| 4 | 11312K | O-RING (4) | VRXSE |
| 5 | 11366K | O-RING (2) | VRXSE |
| 6 | 25911-01K | WASHER | VRXSE |
| 7 | 26582-01KA | SHAFT, intermediate | VRXSE |
| 8 | 26737-01K | TUBE, thermostat (2) | VRXSE |
| 9 | 26740-01K | THERMOSTAT ASSEMBLY | VRXSE |
| 10 | 25295-04K | COVER, water pump (polished) | VRXSE |
| 11 | 26749-01K | GASKET OUTER, water pump | VRXSE |
| 12 | 26750-01KA | HOUSING, water pump assembly, w/ 11366K | VRXSE |
| 13 | 26752-01K | GASKET, water pump | VRXSE |
| 14 | 26765-01K | GASKET, thermostat | VRXSE |
| 15 | 32315-01 | SENSOR, engine coolant temperature | VRXSE |

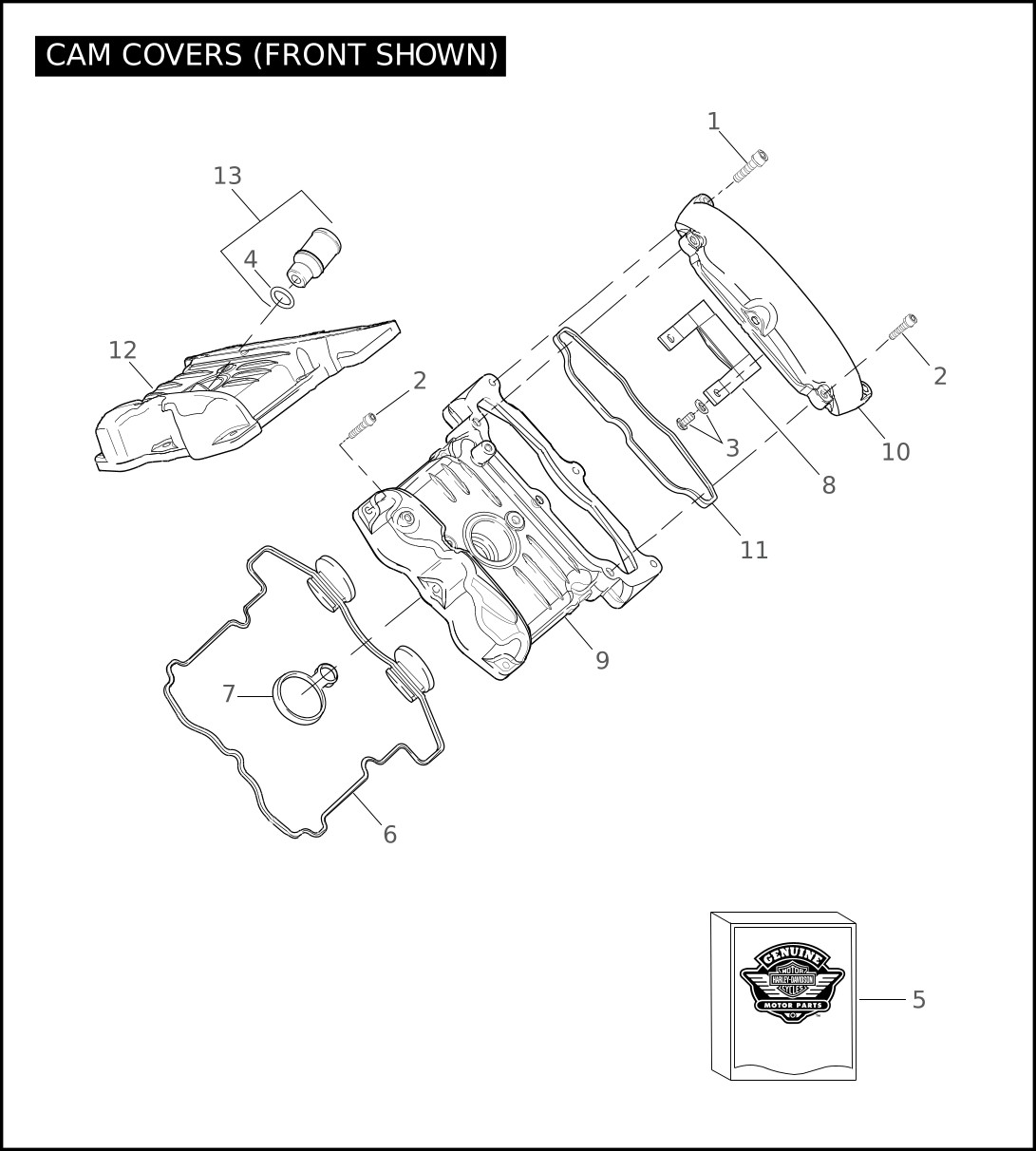

CAM COVERS (FRONT SHOWN)
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (6) | VRXSE |
| 2 | 1004M | SCREW (16) | VRXSE |
| 3 | 3716M | SCREW (4) | VRXSE |
| 4 | 11392K | O-RING | VRXSE |
| 5 | 17010-01K | GASKET KIT, cam cover | VRXSE |
| 6 | 17416-01KA | CAM COVER GASKET, outer (2) | VRXSE |
| 7 | 17418-01K | CAM COVER GASKET, inner (2) | VRXSE |
| 8 | 17641-01K | SECONDARY TOP GUIDE (2) | VRXSE |
| 9 | 17679-04K | CAM COVER, lower front (polished) | VRXSE |
| 10 | 17680-04K | CAM COVER, upper (polished) (2) | VRXSE |
| 11 | 17666-01K | CAM COVER GASKET, upper (2) | VRXSE |
| 12 | 17689-04K | COVER ASSEMBLY KIT, lower rear cam, w/ 11392K (polished) | VRXSE |
| 13 | 63654-04K | FITTING ASSEMBLY, breather, w/ 11392K | VRXSE |
PISTONS & CRANKSHAFTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 983M | BOLT (6) | VRXSE |
| 2 | 11314K | O-RING, cylinder liner (4) | VRXSE |
| 3 | 11329K | KEY (2) | VRXSE |
| 4 | 22121-01K | RETAINING RING (4) | VRXSE |
| 5 | 22126-05K | PISTON PIN (2) | VRXSE |
| 6 | 22919-05K | PISTON RING SET | VRXSE |
| 7 | 22927-06K | PISTON/LINER ASSEMBLY, w/ 2, 4 & 5 (2) | VRXSE |
| 8 | 22935-06K | PISTON ASSEMBLY, w/ pistons, rings & pins (use 22927-06K) | VRXSE |
| 9 | 23712-01K | PRIMARY CRANK GEAR | VRXSE |
| 10 | 24731-06K | CRANK ASSEMBLY, w/ 11329K | VRXSE |
| 11 | 24307-01K | CONNECTING ROD ASSEMBLY, w/ 24311-01 (2) | VRXSE |
| 12 | 24311-01K | BOLT, connecting rod (4) | VRXSE |
| 13 | 24312-01K | BEARING, thrust (2) | VRXSE |
| 14 | 24409-01K | MAIN BEARING SHELL, red (2) | VRXSE |
| 24410-01K | MAIN BEARING SHELL, green (2) | VRXSE | |
| 24411-01K | MAIN BEARING SHELL, blue (2) | VRXSE | |
| 15 | 24412-01K | ROD BEARING SHELL, red (2) | VRXSE |
| 24413-01K | ROD BEARING SHELL, blue (2) | VRXSE |
CRANKCASE - UPPER & LOWER
| Index No. | Part No. | Description | Model(s) |
| 1 | 409K | PIN (2) | VRXSE |
| 2 | 482K | DOWEL (4) | VRXSE |
| 3 | 485K | PIN | VRXSE |
| 4 | 486K | PIN | VRXSE |
| 5 | 487K | PIN (4) | VRXSE |
| 6 | 488K | DOWEL RING (2) | VRXSE |
| 7 | 965M | SCREW | VRXSE |
| 8 | 968M | SCREW (4) | VRXSE |
| 9 | 970M | SCREW (7) | VRXSE |
| 10 | 972M | SCREW | VRXSE |
| 11 | 973M | SCREW (3) | VRXSE |
| 12 | 1025M | SCREW (4) | VRXSE |
| 13 | 1034M | PLUG | VRXSE |
| 14 | 6137K | WASHER | VRXSE |
| 15 | 6298M | WASHER | VRXSE |
| 16 | 24733-06K | CRANKCASE SET, upper & lower | VRXSE |
| 17 | 35420-01K | BUSHING, not illustrated | VRXSE |
| 35442-01K | BUSHING, not illustrated | VRXSE |
ENGINE BALANCER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1033M | BOLT | VRXSE |
| 2 | 11335K | E-CLIP (3) | VRXSE |
| 3 | 14794-01K | BEARING, left | VRXSE |
| 4 | 14795-01K | BEARING, right | VRXSE |
| 5 | 14791-01KA | BALANCE SHAFT | VRXSE |
| 6 | 14758-01K | GEAR, balance shaft | VRXSE |

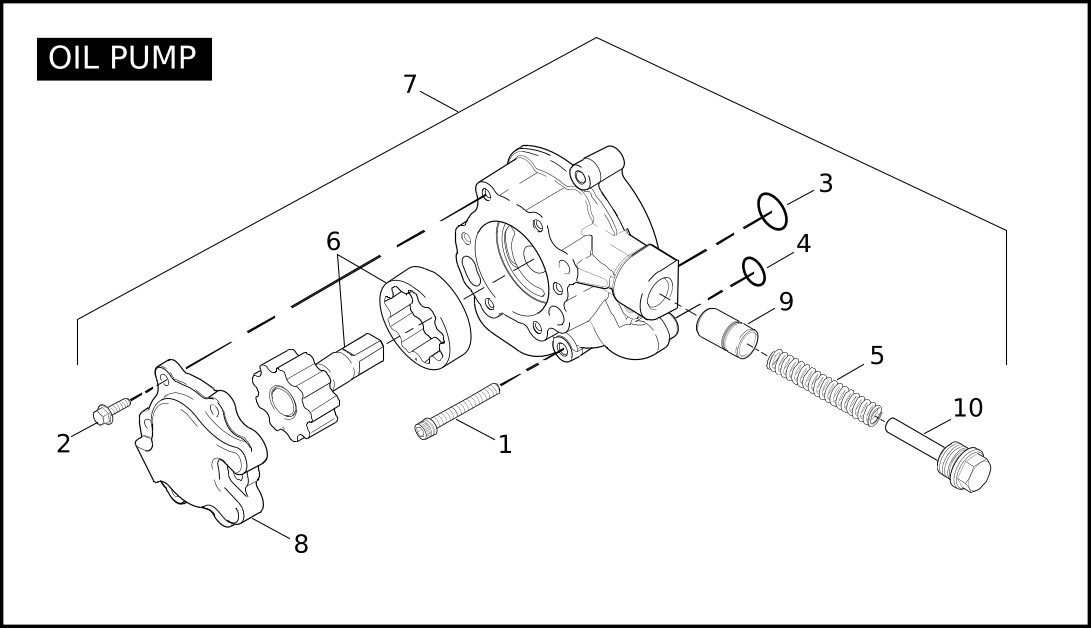

OIL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 978M | SCREW (3) | VRXSE |
| 2 | 1010M | SCREW (6) | VRXSE |
| 3 | 11312K | O-RING | VRXSE |
| 4 | 11331K | O-RING | VRXSE |
| 5 | 26534-01K | SPRING, oil pump | VRXSE |
| 6 | 26022-02K | ROTOR ASSEMBLY INNER/OUTER, oil pump | VRXSE |
| 7 | 26575-01KB | OIL PUMP ASSEMBLY, w/ 11312K | VRXSE |
| 8 | 26578-01K | COVER, oil pump | VRXSE |
| 9 | 26738-01K | VALVE PISTON | VRXSE |
| 10 | 26739-01K | PLUG, screw | VRXSE |
ENGINE MOUNTS & STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3701M | SCREW (6) | VRXSE |
| 2 | 3703M | SCREW | VRXSE |
| 3 | 3704M | STUD, dual threaded (2) | VRXSE |
| 4 | 3966M | SCREW, set | VRXSE |
| 5 | 3919M | SCREW (2) | VRXSE |
| 6 | 3920M | SCREW | VRXSE |
| 7 | 6839M | WASHER (8) | VRXSE |
| 8 | 7427M | NUT, locking (4) | VRXSE |
| 9 | 16298-05A | ENGINE MOUNT, rear (2) | VRXSE |
| 10 | 16306-04A | STABILIZER LINK | VRXSE |
| 11 | 16307-05 | ENGINE MOUNT, front | VRXSE |
| 12 | 16308-01 | BRACKET, front engine mount | VRXSE |
| 13 | 16311-05 | BRACKET, front mount, frame | VRXSE |
| 14 | 16312-04A | SPACER | VRXSE |
| 15 | 47014-05CFZ | BRACKET, engine mount rear (orange) | VRXSE |
| 16 | 94756-01 | WASHER | VRXSE |

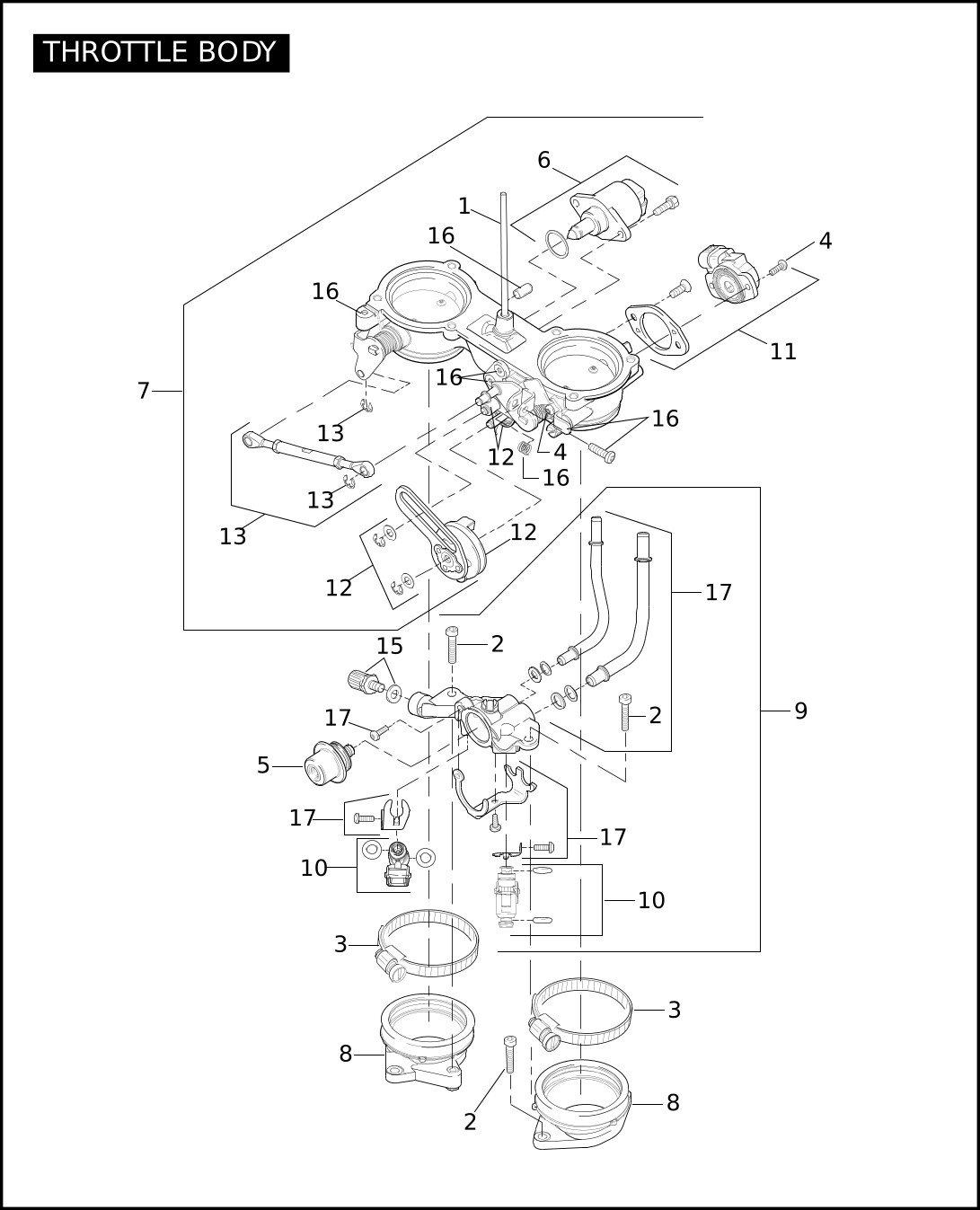

THROTTLE BODY
| Index No. | Part No. | Description | Model(s) |
| 1 | 964 | STUD | VRXSE |
| 2 | 1114M | SCREW (6) | VRXSE |
| 3 | 10232K | HOSE CLAMP (2) | VRXSE |
| 4 | 27225-01 | SCREW (3) | VRXSE |
| 5 | 27408-01 | FUEL PRESSURE REGULATOR | VRXSE |
| 6 | 27628-01A | IDLE AIR CONTROL MOTOR KIT, w/ O-ring, screw & motor | VRXSE |
| 7 | 27670-05 | THROTTLE BODY ASSEMBLY KIT, w/ 27676-06K (2) | VRXSE |
| 8 | 27676-06K | RUBBER BOOT, intake throttle body w/ 27669-01K (2) | VRXSE |
| 9 | 27720-06 | FUEL RAIL ASSEMBLY, w/ 27408-01, 27772-06 & 27993-01 | VRXSE |
| 10 | 27791-05 | FUEL INJECTOR KIT, w/ O-rings | VRXSE |
| 11 | 27975-01 | THROTTLE POSITION SENSOR KIT, w/ screws for sensor, plate t.p.s. & throttle position sensor | VRXSE |
| 12 | 27977-01 | CAM LEVER KIT, w/ bushing, clip, spring cam, shim roller, cam roller assembly & cam lever | VRXSE |
| 13 | 27982-01 | LINKAGE ROD KIT, w/ bushing, clip, linkage rod assembly, nut & rod end | VRXSE |
| 14 | 27990-01 | FUEL TUBE KIT, not illustrated | VRXSE |
| 15 | 27993-01 | CHECK VALVE BODY ASSEMBLY, w/ washers | VRXSE |
| 16 | 27995-01 | HARDWARE KIT, throttle body, w/ shim, cable bracket, washer shaft purge tube cap, clip, spring, screws & O-ring | VRXSE |
| 17 | 28002-01 | FUEL RAIL HARDWARE KIT, w/ O-rings, washer & pressure regulator plate | VRXSE |

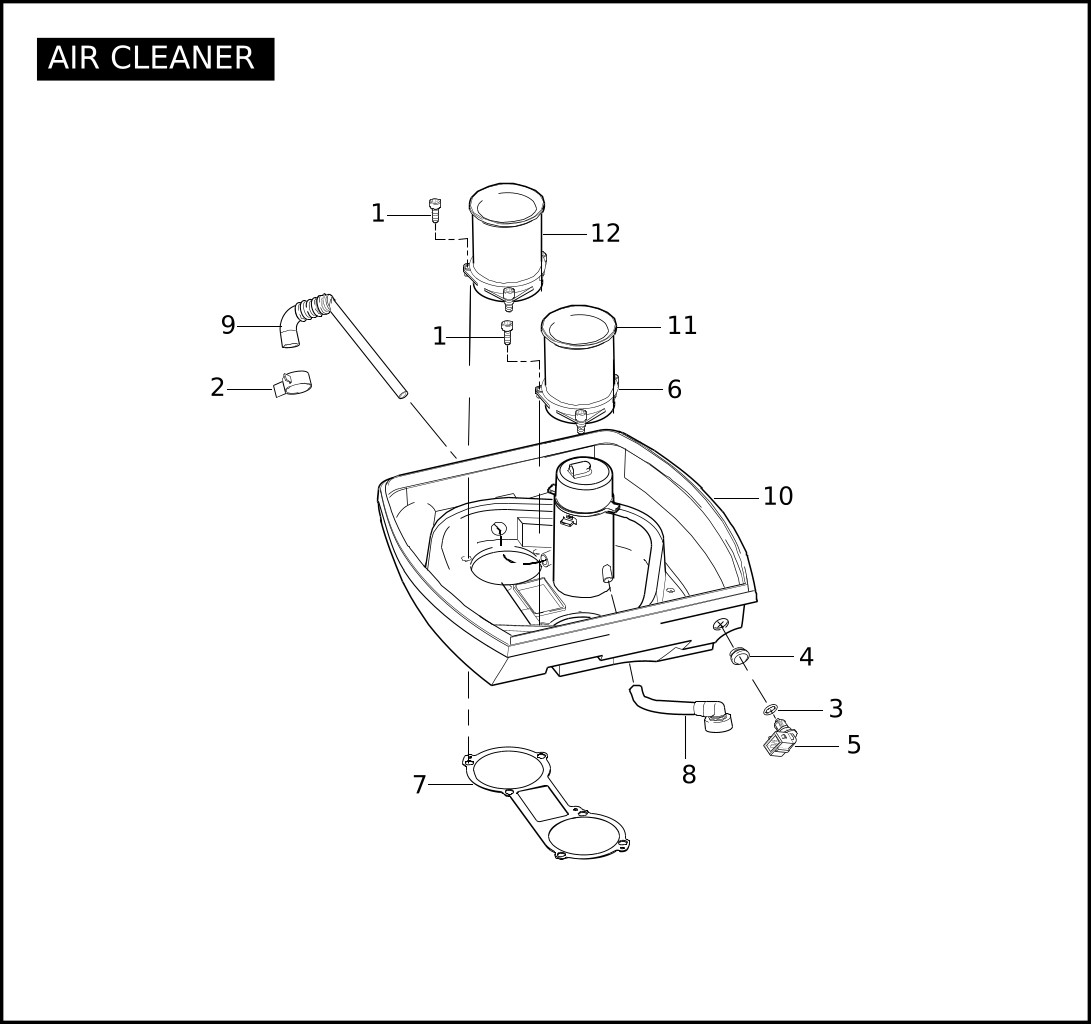

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3729M | SCREW (6) | VRXSE |
| 2 | 9998 | CLAMP | VRXSE |
| 3 | 11361 | O-RING | VRXSE |
| 4 | 11519 | GROMMET | VRXSE |
| 5 | 27388-01 | SENSOR, intake air temperature, w/ 11361 | VRXSE |
| 6 | 28862-01 | O-RING (2) | VRXSE |
| 7 | 29439-01 | GASKET, throttle body | VRXSE |
| 8 | 29504-05A | BREATHER TUBE, front | VRXSE |
| 9 | 29505-05 | BREATHER TUBE, rear | VRXSE |
| 10 | 29435-05 | BOTTOM, air cleaner, w/ 29504-05 & 29505-05 | VRXSE |
| 11 | 29595-06 | VELOCITY STACK, front | VRXSE |
| 12 | 29596-06 | VELOCITY STACK, rear | VRXSE |
| Modify by drilling hole in front left hand corner for air sensor | |||

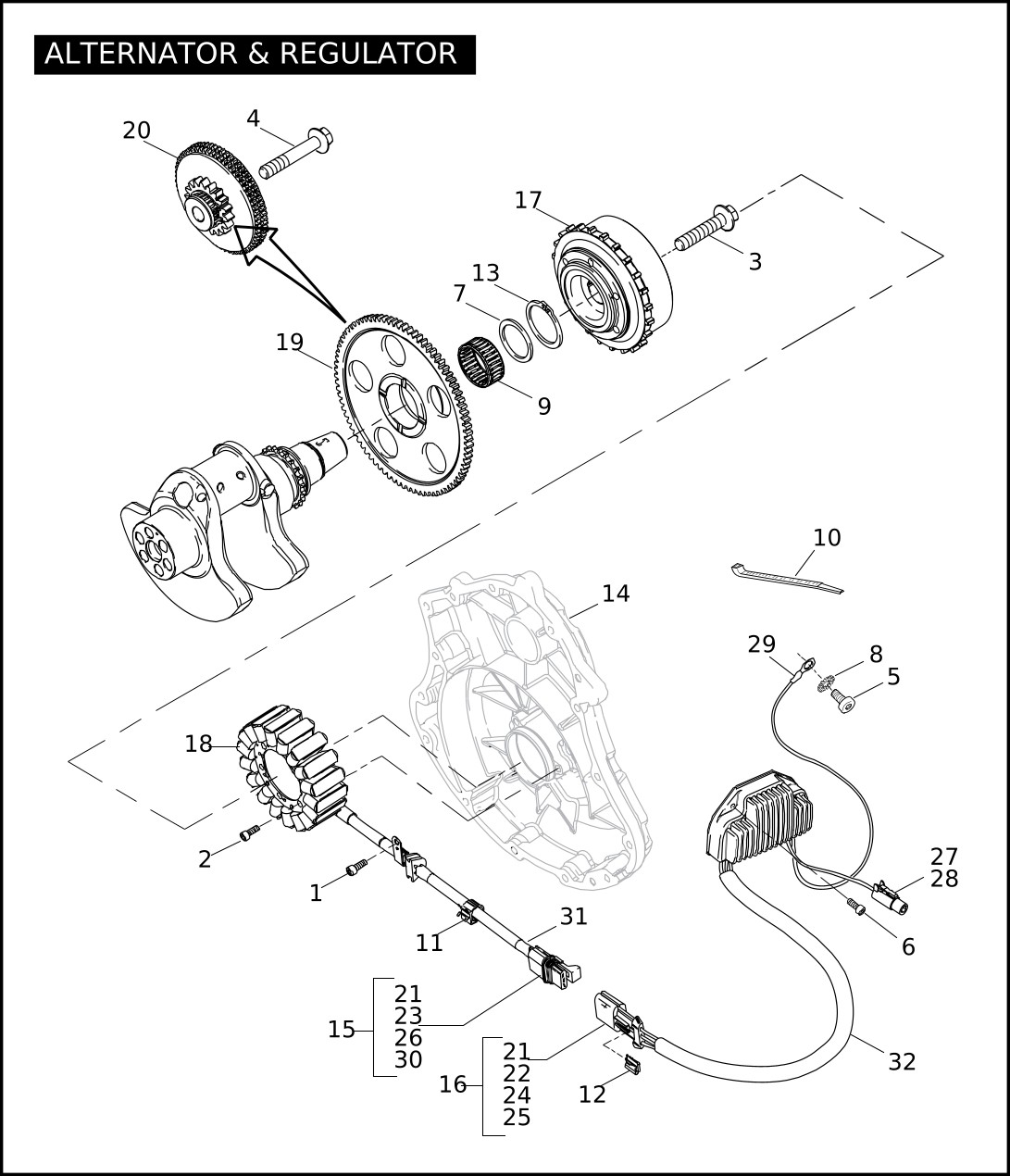

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRXSE |
| 2 | 978M | SCREW (3) | VRXSE |
| 3 | 1035M | SCREW | VRXSE |
| 4 | 1027M | SCREW | VRXSE |
| 5 | 3701M | SCREW | VRXSE |
| 6 | 3729M | SCREW (2) | VRXSE |
| 7 | 6176MA | WASHER | VRXSE |
| 8 | 6839M | WASHER | VRXSE |
| 9 | 8002K | NEEDLE ROLLER & CAGE ASSEMBLY | VRXSE |
| 10 | 10006 | CABLE STRAP | VRXSE |
| 11 | 10108 | CLIP | VRXSE |
| 12 | 10141 | CLIP | VRXSE |
| 13 | 11328M | RETAINING CLIP | VRXSE |
| 14 | 25311-04K | ALTERNATOR COVER, polished | VRXSE |
| 15 | 25918-04K | STATOR CONNECTOR KIT, w/ 21, 23, 26 & 30 | VRXSE |
| 16 | 25919-04K | REGULATOR CONNECTOR KIT, w/ 21, 22, 24 & 25 | VRXSE |
| 17 | 30731-01K | ROTOR ASSEMBLY, w/ ball catch assembly | VRXSE |
| 18 | 30734-04K | STATOR ASSEMBLY, w/ plug assembly stator | VRXSE |
| 19 | 31301-01K | GEAR, ball clutch | VRXSE |
| 20 | 31303-01K | LIMITER ASSEMBLY | VRXSE |
| 21 | 72087-04 | SEAL CABLE (3) | VRXSE |
| 22 | 72088-04 | TERMINAL, pin (3) | VRXSE |
| 23 | 72089-04 | SOCKET HOUSING, 3-way female (black) | VRXSE |
| 24 | 72090-04 | PIN HOUSING, 3-way male (black) | VRXSE |
| 25 | 72091-04 | LOCK, secondary 3-way | VRXSE |
| 26 | 72092-04 | LOCK, secondary 3-way | VRXSE |
| 27 | 72171-01 | SOCKET TERMINAL, #8-10 AWG | VRXSE |
| 28 | 72183-01 | SOCKET HOUSING, 1-way (black) | VRXSE |
| 29 | 72249-94 | SHRINK TUBE, black | VRXSE |
| 30 | 72308-97 | TERMINAL, female (3) | VRXSE |
| 31 | 72412-97 | SEAL CABLE (3) | VRXSE |
| 32 | 74440-01 | VOLTAGE REGULATOR, w/ 12, 21, 22, 24, 25, 27, 28 & 29 | VRXSE |

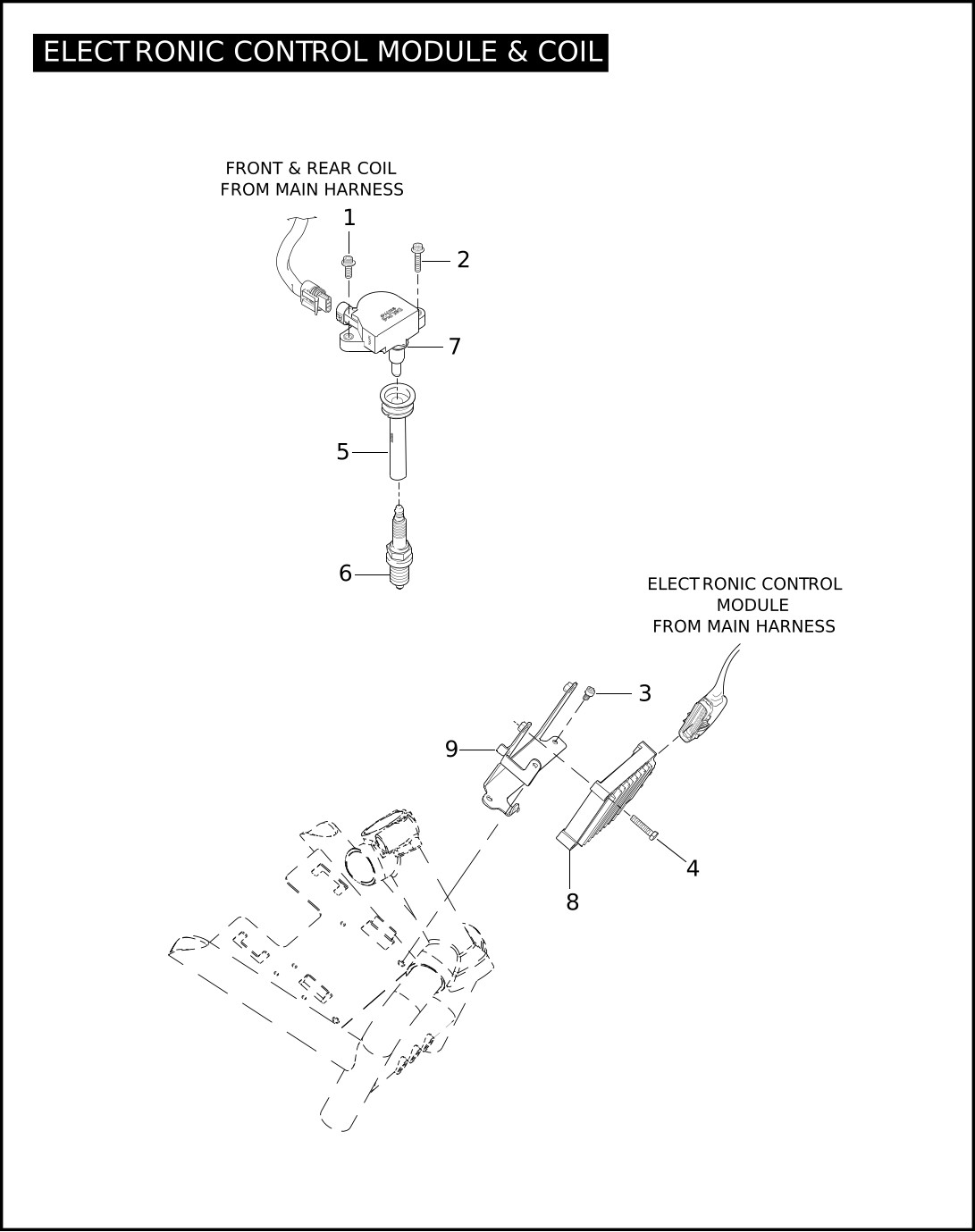

ELECTRONIC CONTROL MODULE & COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | VRXSE |
| 2 | 1024M | SCREW (2) | VRXSE |
| 3 | 3707M | SCREW (2) | VRXSE |
| 4 | 3708M | SCREW (2) | VRXSE |
| 5 | 31651-01 | COIL BOOT (used w/ 32477-01A) (2) | VRXSE |
| 6 | 32302-06K | SPARK PLUG, surface gap (2) | VRXSE |
| 7 | 32477-01A | COIL ASSEMBLY, w/ 31651-01 (2) | VRXSE |
| 8 | 33225-06 | ELECTRONIC CONTROL MODULE, special race | VRXSE |
| 9 | 32616-01C | BRACKET, ECM | VRXSE |
| 10 | 33232-06 | CD, for Destroyer Race Tuner (not shown) | VRXSE |
ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRXSE |
| 2 | 1009M | SCREW (2) | VRXSE |
| 3 | 6298M | WASHER, throttle plug assembly | VRXSE |
| 4 | 11289A | O-RING (2) | VRXSE |
| 5 | 11290 | O-RING | VRXSE |
| 6 | 11291 | SEAL | VRXSE |
| 7 | 11362K | O-RING | VRXSE |
| 8 | 24986-01K | THROTTLE PLUG ASSEMBLY, w/ 11362K | VRXSE |
| 9 | 26561-99 | SWITCH, oil pressure | VRXSE |
| 10 | 27667-01K | BRACKET, map sensor | VRXSE |
| 11 | 32313-01A | SENSOR, crankshaft position, w/ 11289A & 74194-98 | VRXSE |
| 12 | 32416-10 | MAP SENSOR, w/ 11291 | VRXSE |
| 13 | 33902-98A | SWITCH, neutral gear, w/ 11290 | VRXSE |
| 14 | 74194-98 | TERMINAL (2) | VRXSE |
| 15 | 74402-05B | SPEED SENSOR, w/ 11289A | VRXSE |

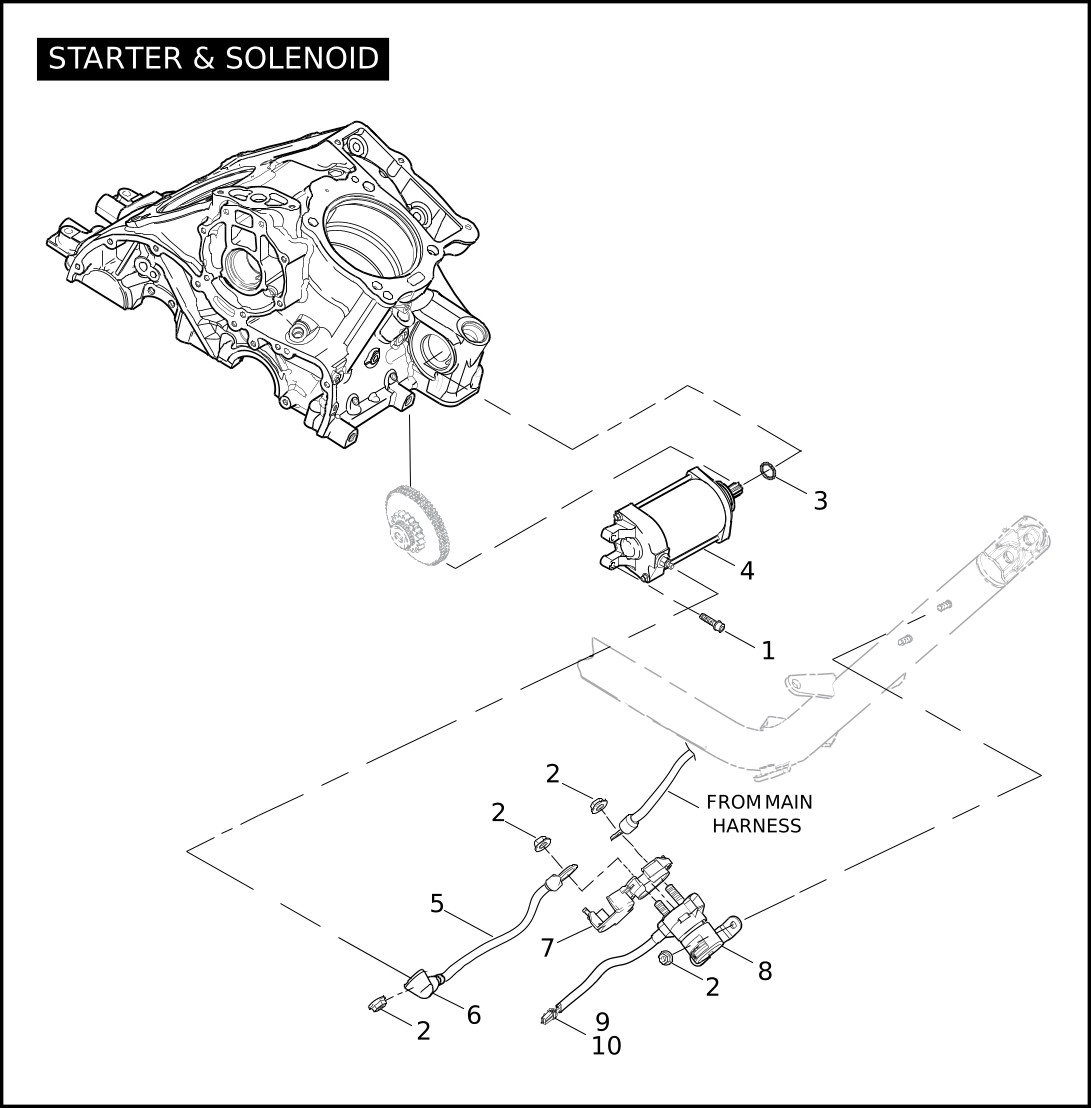

STARTER & SOLENOID
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | VRXSE |
| 2 | 7495 | NUT (5) | VRXSE |
| 3 | 11346K | O-RING | VRXSE |
| 4 | 31717-01K | STARTER MOTOR ASSEMBLY, w/ 11346K | VRXSE |
| 5 | 70441-01A | CABLE ASSEMBLY, solenoid to starter, w/ 70578-89 | VRXSE |
| 6 | 70578-89 | BOOT, starter | VRXSE |
| 7 | 71023-04 | COVER, starter solenoid | VRXSE |
| 8 | 71474-04 | SOLENOID, w/ 73152-96BK & 73191-96 | VRXSE |
| 9 | 73152-96BK | HOUSING SOCKET, 2-way | VRXSE |
| 10 | 73191-96 | SOCKET CONTACT (2) | VRXSE |

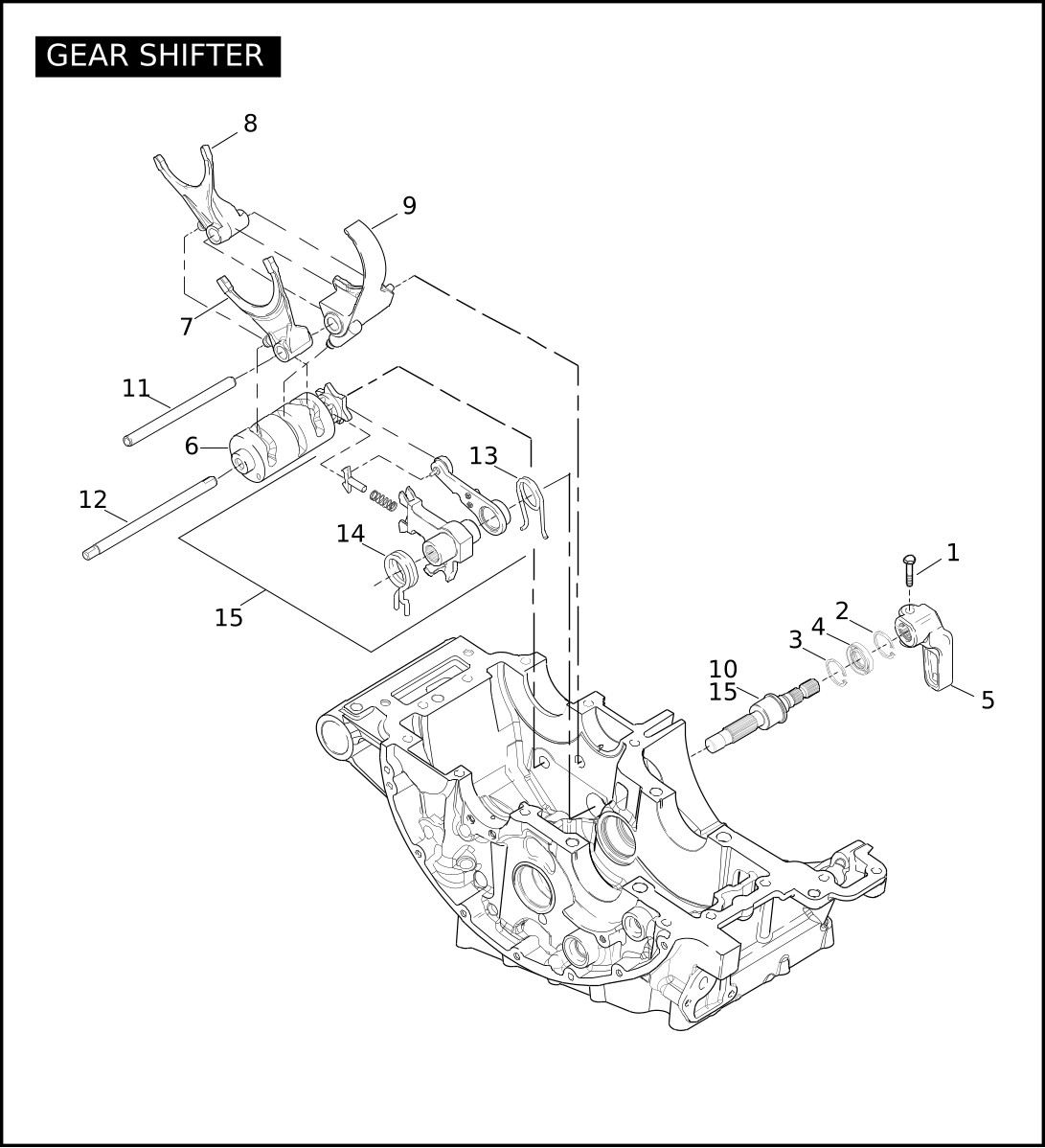

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | VRXSE |
| 2 | 11356K | SNAP RING (silver) | VRXSE |
| 3 | 11355K | SNAP RING (black) | VRXSE |
| 4 | 12071K | SHAFT SEAL | VRXSE |
| 5 | 33784-06 | SHIFT LEVER | VRXSE |
| 6 | 35017-01K | DRUM SHIFTER ASSEMBLY | VRXSE |
| 7 | 35428-01KA | SHIFTER FORK, 1st & 3rd gears | VRXSE |
| 8 | 35429-01KA | SHIFTER FORK, 2nd gear | VRXSE |
| 9 | 35430-01KA | SHIFTER FORK, 4th & 5th gears | VRXSE |
| 10 | 35432-01K | SHIFT SHAFT | VRXSE |
| 11 | 35434-01K | SHIFT RAIL | VRXSE |
| 12 | 35441-01K | SHIFT DRUM AXIS | VRXSE |
| 13 | 35443-01K | SPRING | VRXSE |
| 14 | 35445-01K | SPRING | VRXSE |
| 15 | 35494-06K | SHIFT ACTUATOR ASSEMBLY | VRXSE |

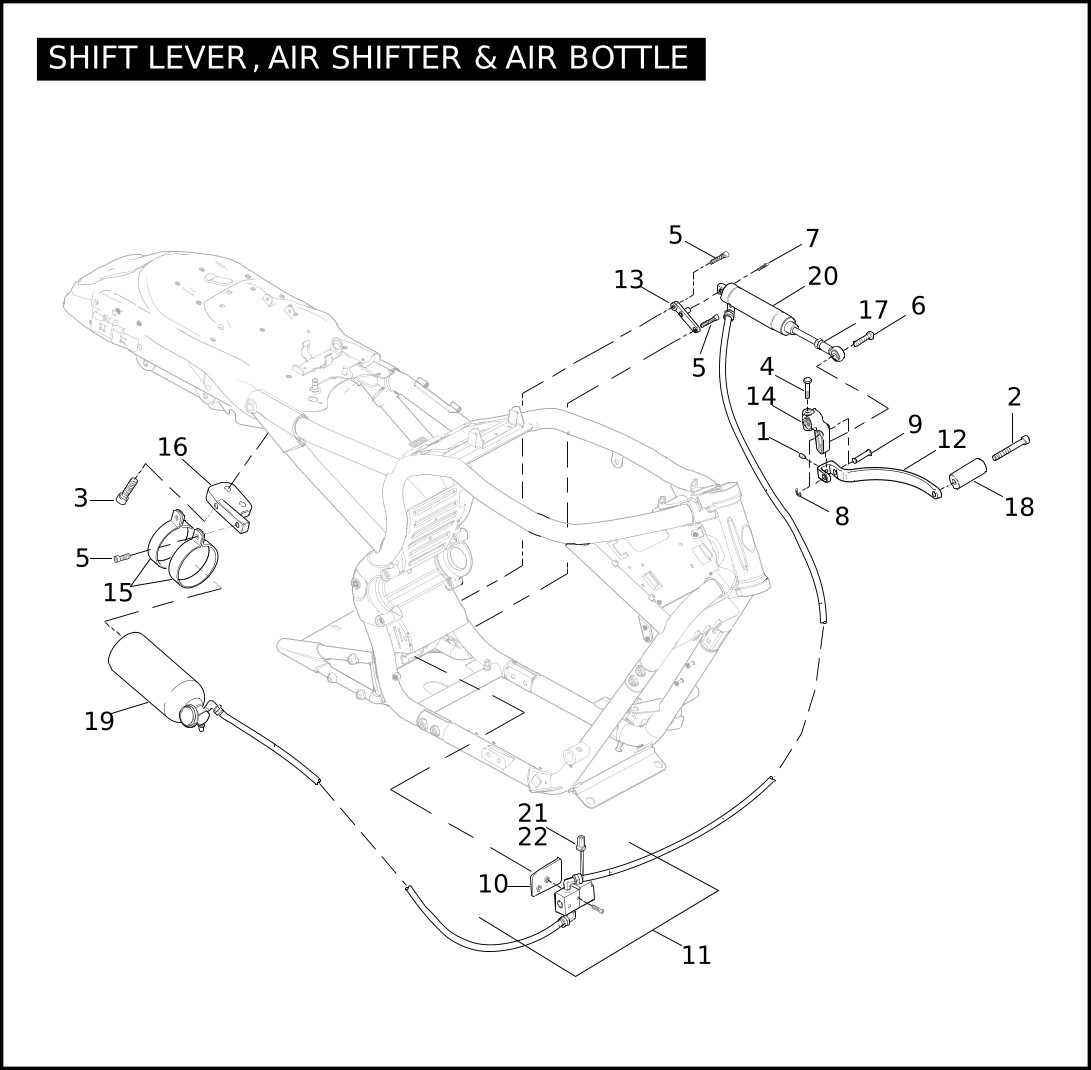

SHIFT LEVER, AIR SHIFTER & AIR BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3229 | SCREW, set | VRXSE |
| 2 | 3396 | SCREW | VRXSE |
| 3 | 3703M | SCREW (2) | VRXSE |
| 4 | 3708M | SCREW | VRXSE |
| 5 | 3709M | SCREW (4) | VRXSE |
| 6 | 4793M | SCREW | VRXSE |
| 7 | 4797 | SCREW | VRXSE |
| 8 | 11000 | RETAINING RING | VRXSE |
| 9 | 11516 | PIN | VRXSE |
| 10 | 29018-06 | BRACKET, solenoid | VRXSE |
| 11 | 29021-06 | AIR SHIFTER SOLENOID ASSEMBLY | VRXSE |
| 12 | 33782-06 | SHIFTER LEVER | VRXSE |
| 13 | 33783-06 | BRACKET, shift cylinder | VRXSE |
| 14 | 33784-06 | LEVER, shift shaft | VRXSE |
| 15 | 33786-06 | STRAP, air bottle | VRXSE |
| 16 | 33804-06 | BRACKET, air bottle | VRXSE |
| 17 | 33808-06 | HIEM JOINT, rod end | VRXSE |
| 18 | 50795-06 | PEG, shift lever | VRXSE |
| 19 | 52298-06 | AIR BOTTLE ASSEMBLY | VRXSE |
| 20 | 54655-06 | AIR SHIFTER CYLINDER, w/ 33808-06 | VRXSE |
| 21 | 73152-96BK | TERMINAL SOCKET (2) | VRXSE |
| 22 | 73191-96 | HOUSING SOCKET, 2-way | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

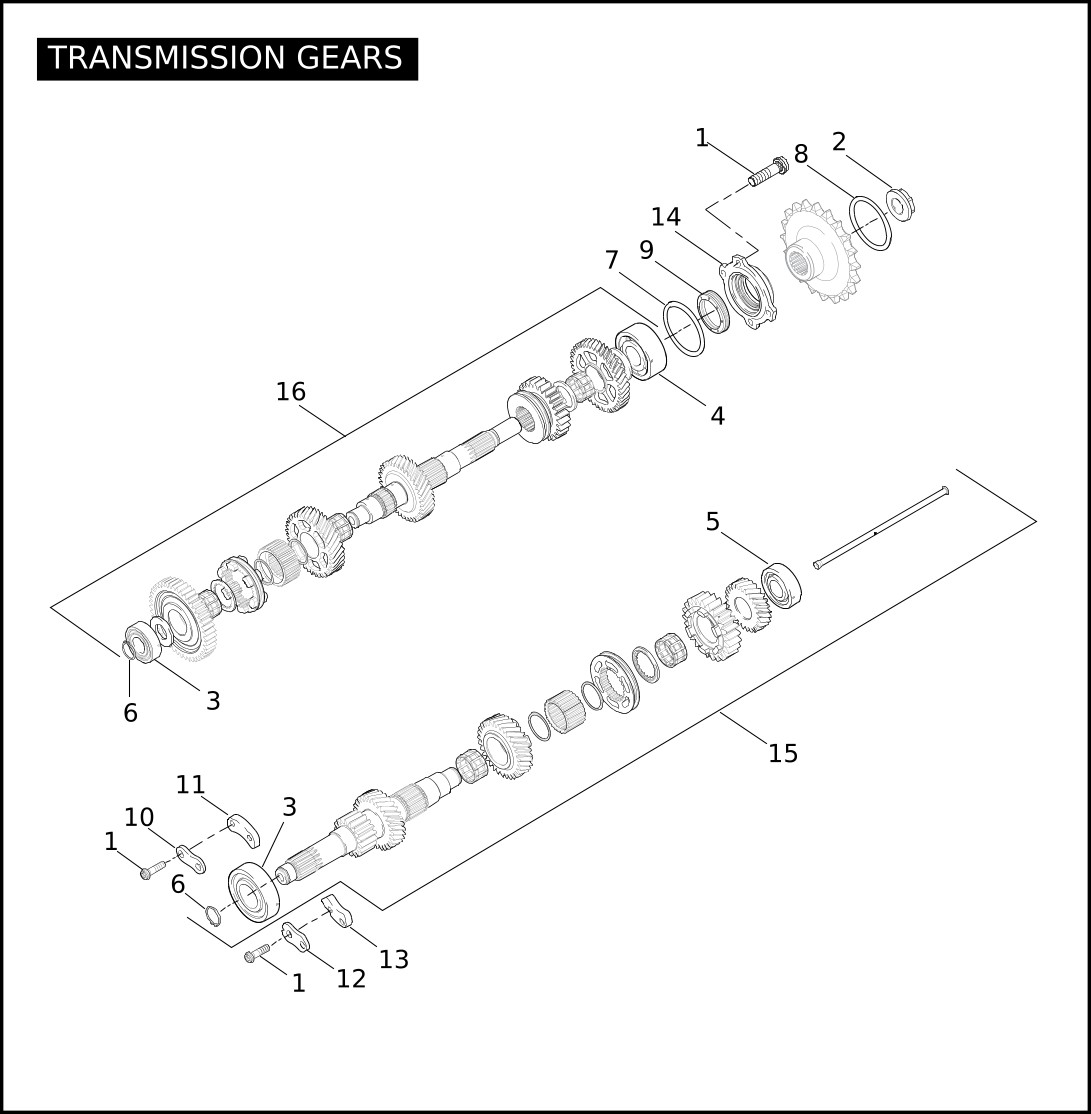

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1021M | SCREW (8) | VRXSE |
| 2 | 7910M | NUT COLLAR | VRXSE |
| 3 | 8027K | BEARING (2) | VRXSE |
| 4 | 8028K | BEARING | VRXSE |
| 5 | 8029K | BEARING | VRXSE |
| 6 | 11200K | RING (2) | VRXSE |
| 7 | 11353K | O-RING | VRXSE |
| 8 | 11354K | SEAL, output shaft | VRXSE |
| 9 | 12072K | SEAL | VRXSE |
| 10 | 35001-01K | BEARING RETAINER, upper, outer | VRXSE |
| 11 | 35002-01K | BEARING RETAINER, upper, inner | VRXSE |
| 12 | 35003-01K | BEARING RETAINER, lower, outer | VRXSE |
| 13 | 35004-01K | BEARING RETAINER, lower, inner | VRXSE |
| 14 | 35433-01K | SEAL CARRIER ASSEMBLY, w/ 11353K & 12072K | VRXSE |
| 15 | 35482-06KA | INPUT SHAFT ASSEMBLY | VRXSE |
| 16 | 35481-06KA | OUTPUT SHAFT ASSEMBLY KIT | VRXSE |

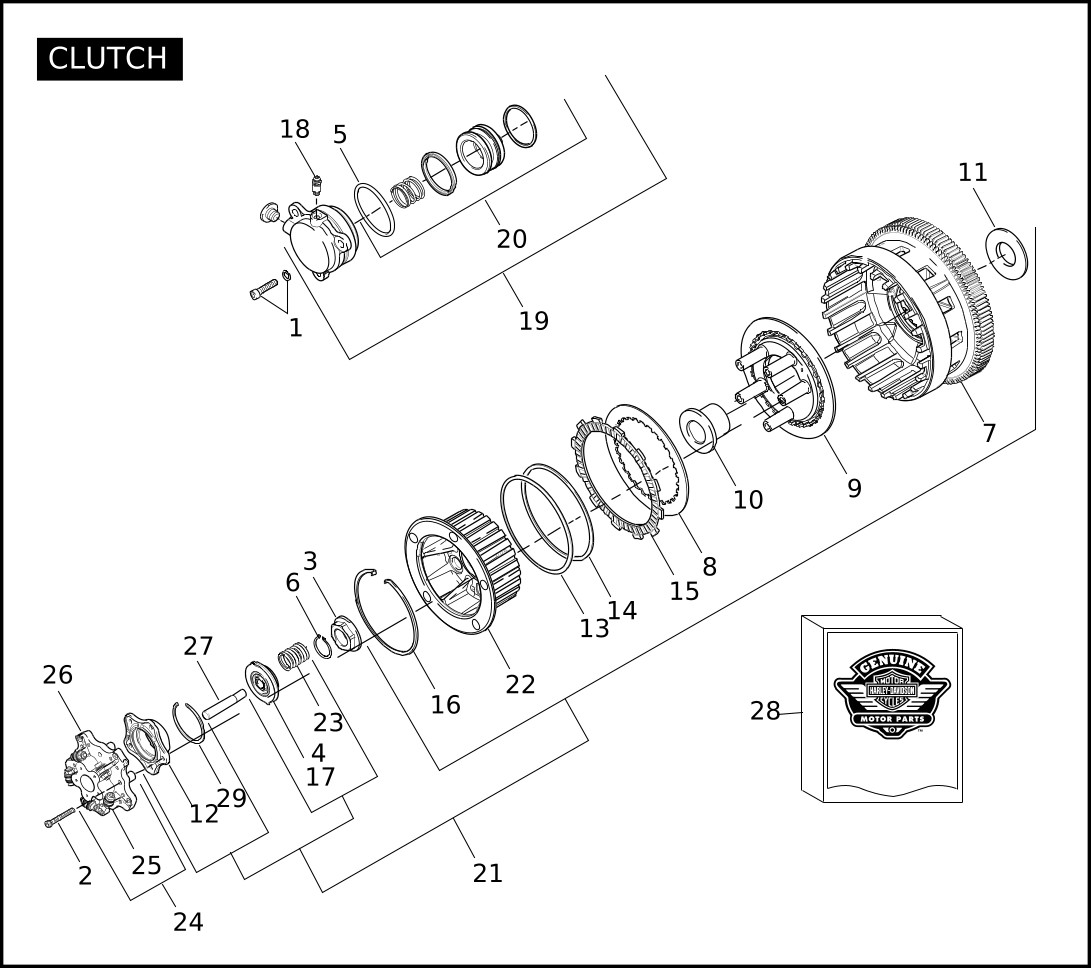

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (3) | VRXSE |
| 2 | 1087M | BOLT (5) | VRXSE |
| 3 | 8008M | NUT | VRXSE |
| 4 | 8885 | BEARING | VRXSE |
| 5 | 11347K | O-RING | VRXSE |
| 6 | 11363K | RETAINING RING | VRXSE |
| 7 | 36723-05K | CLUTCH SHELL | VRXSE |
| 8 | 36702-01K | CLUTCH PLATE (8) | VRXSE |
| 9 | 36704-01K | CLUTCH PRESSURE PLATE | VRXSE |
| 10 | 36707-01K | COLLAR, distance | VRXSE |
| 11 | 36709-01K | THRUST WASHER | VRXSE |
| 12 | 36710-01K | LIFTER PLATE | VRXSE |
| 13 | 36711-01K | SEAT, spring | VRXSE |
| 14 | 36712-01K | SPRING | VRXSE |
| 15 | 36713-01K | FRICTION PLATE (9) | VRXSE |
| 16 | 36714-01K | RETAINING CLIP | VRXSE |
| 17 | 36731-91 | RELEASE PLATE ASSEMBLY, w/ 8885 | VRXSE |
| 18 | 36757-05K | BLEEDER SCREW, w/ O-ring | VRXSE |
| 19 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRXSE |
| 20 | 36781-01K | SECONDARY CLUTCH ACTUATOR, repair kit (chrome) | VRXSE |
| 36782-04K | SECONDARY CLUTCH ACTUATOR, repair kit (polished) | VRXSE | |
| 21 | 36826-06K | CLUTCH ASSEMBLY | VRXSE |
| 22 | 36827-06K | CENTER CLUTCH, w/ 36724-05K | VRXSE |
| 23 | 36828-06K | SPRING, pressure plate (5) | VRXSE |
| 24 | 36829-06K | FLIPPER CLUTCH | VRXSE |
| 25 | 36831-06K | WASHER (30) | VRXSE |
| 26 | 36836-06K | BASE, clutch flipper | VRXSE |
| 27 | 36842-06K | CONTACT BUTTON | VRXSE |
| 28 | 36843-06K | CLUTCH TUNER KIT | VRXSE |
| 29 | 37909-90 | RETAINING RING | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480 | |||

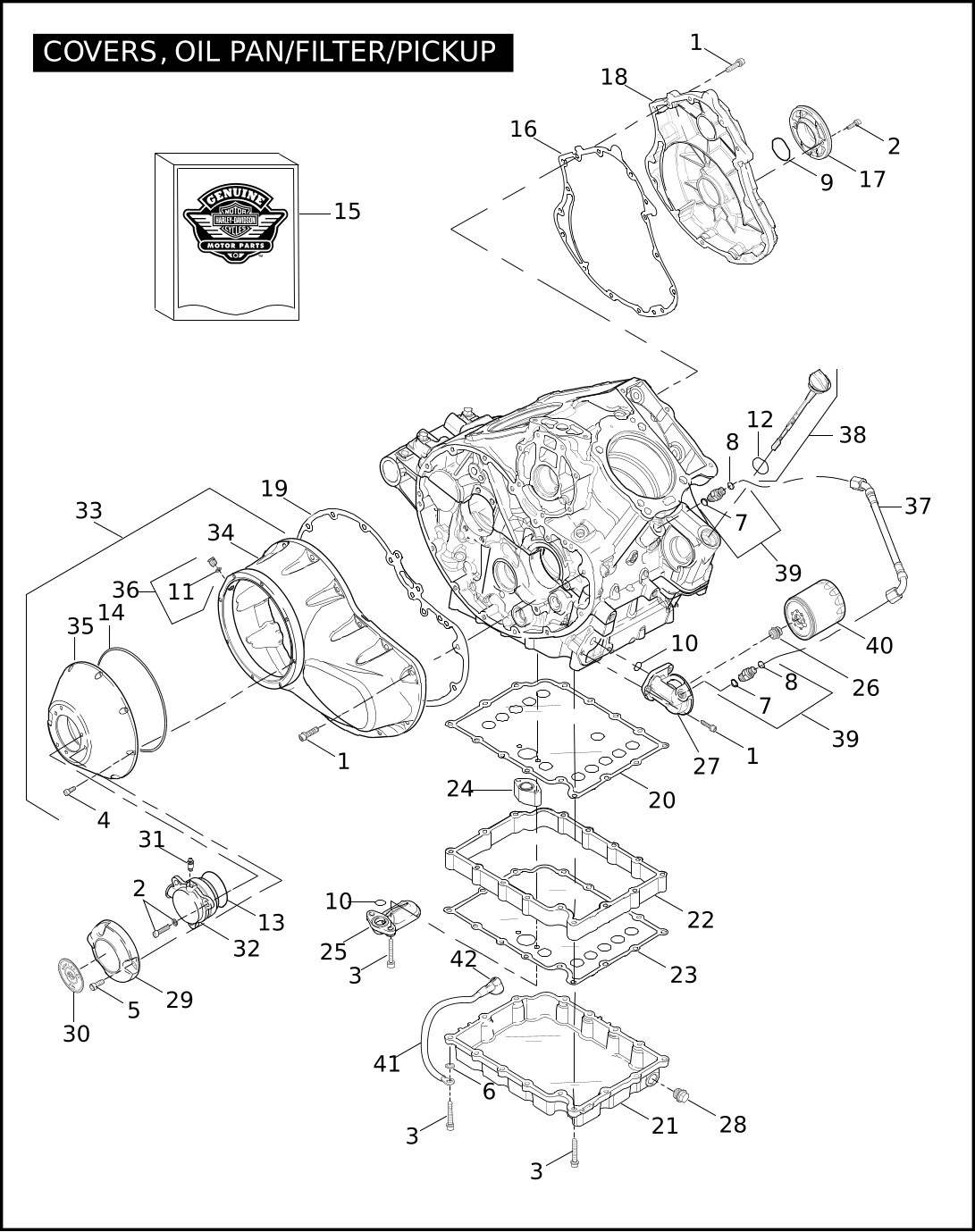

COVERS, OIL PAN/FILTER/PICKUP
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (31) | VRXSE |
| 2 | 1009M | SCREW (5) | VRXSE |
| 3 | 1087M | SCREW (17) | VRXSE |
| 4 | 3070K | SCREW (8) | VRXSE |
| 5 | 3729M | SCREW (3) | VRXSE |
| 6 | 7124 | LOCKWASHER | VRXSE |
| 7 | 10994K | O-RING (2) | VRXSE |
| 8 | 10995K | O-RING (2) | VRXSE |
| 9 | 11130K | O-RING | VRXSE |
| 10 | 11312K | O-RING (2) | VRXSE |
| 11 | 11324 | O-RING | VRXSE |
| 12 | 11341K | O-RING | VRXSE |
| 13 | 11347K | O-RING | VRXSE |
| 14 | 11614K | O-RING | VRXSE |
| 15 | 17011-01KB | ENGINE GASKET KIT | VRXSE |
| 16 | 25080-01K | GASKET, cover alternator | VRXSE |
| 17 | 25291-04K | COVER, derby (polished) | VRXSE |
| 18 | 25311-04K | COVER, alternator (polished) | VRXSE |
| 19 | 25891-01K | GASKET, clutch cover | VRXSE |
| 20 | 26034-01K | BAFFLE PLATE | VRXSE |
| 21 | 26103-01K | OIL PAN | VRXSE |
| 22 | 26146-06 | SPACER, oil pan | VRXSE |
| 23 | 26147-06K | GASKET BAFFLE | VRXSE |
| 24 | 26148-06K | SPACER, oil pick-up | VRXSE |
| 25 | 26393-01K | OIL PICKUP ASSEMBLY, w/ 11312K & oil pickup | VRXSE |
| 26 | 26399-01K | OIL FILTER ADAPTER | VRXSE |
| 27 | 26539-01K | OIL FILTER MOUNT | VRXSE |
| 28 | 26542-01K | PLUG, oil drain, w/ magnet | VRXSE |
| 29 | 34927-05A | COVER, secondary clutch actuator (polished) | VRXSE |
| 30 | 34996-05 | MEDALLION, cover secondary clutch actuator | VRXSE |
| 31 | 36757-05K | SCREW, bleeder, w/ O-ring | VRXSE |
| 32 | 36779-05K | SECONDARY CLUTCH ACTUATOR | VRXSE |
| 33 | 36830-06K | COVER, clutch (polished) w/ 11614K, 36837-06K & 36840-06K | VRXSE |
| 34 | 36837-06K | COVER, clutch | VRXSE |
| 35 | 36840-06K | COVER, secondary clutch | VRXSE |
| 36 | 36841-06K | PLUG KIT, w/ 11324 | VRXSE |
| 37 | 62961-06K | JUMPER HOSE ASSEMBLY | VRXSE |
| 38 | 63037-06 | OIL FILL PLUG ASSEMBLY, w/ 11341K | VRXSE |
| 39 | 63655-06K | CONNECTOR ASSEMBLY, w/ 10994K & 10995K (2) | VRXSE |
| 40 | 63793-01K | ENGINE OIL FILTER | VRXSE |
| 41 | 70441-01A | CABLE, engine ground to chassis, w/ 70578-89 | VRXSE |
| 42 | 70578-89 | BOOT, cable assembly | VRXSE |
| Must also order head gaskets 17691-05K and 17692-05KPart number not sold through Harley-Davidson; Supplier reference only contact: MTC @ 321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @321-636-9480Part number not sold through Harley-Davidson; Supplier reference only contact: MTC @321-636-9480 | |||

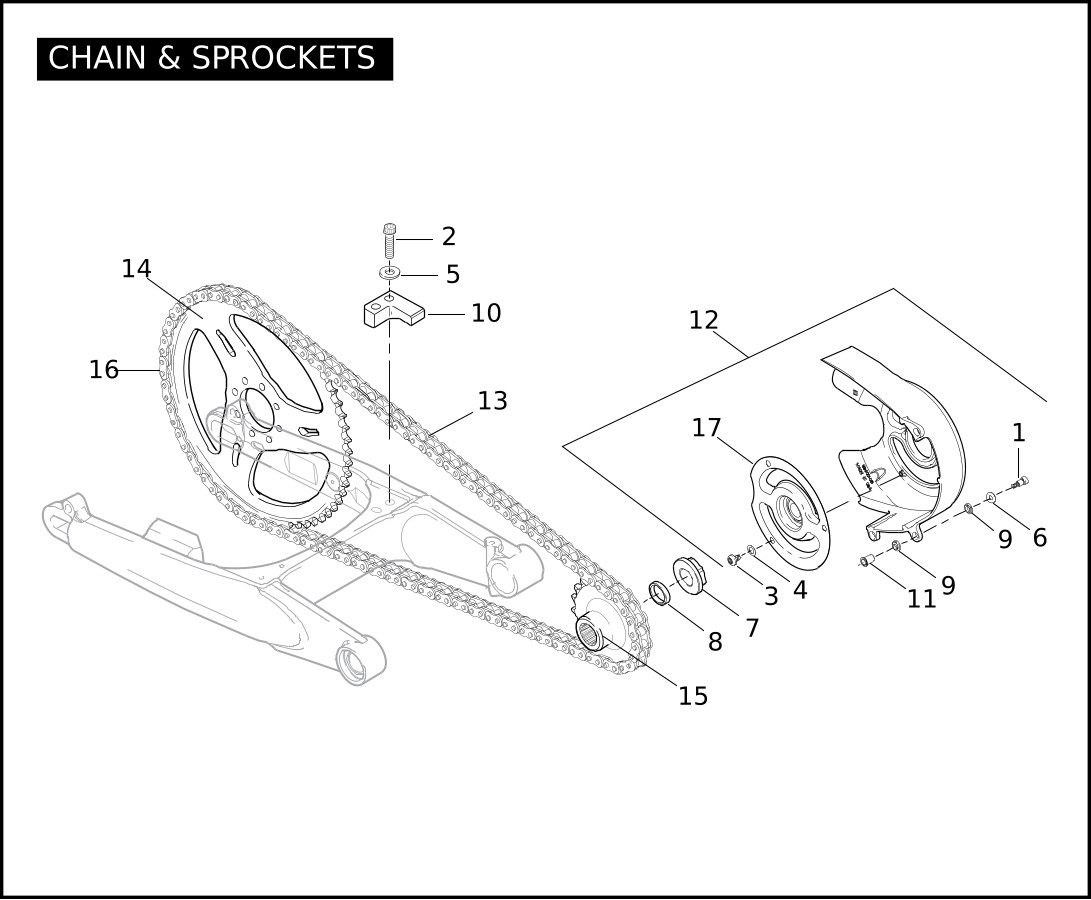

CHAIN & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 966M | SCREW (3) | VRXSE |
| 2 | 3709M | SCREW (2) | VRXSE |
| 3 | 4279 | SCREW (3) | VRXSE |
| 4 | 6192 | WASHER (3) | VRXSE |
| 5 | 6702 | WASHER (2) | VRXSE |
| 6 | 6859M | WASHER (3) | VRXSE |
| 7 | 7910M | NUT | VRXSE |
| 8 | 11354K | SPACER, rubber seal | VRXSE |
| 9 | 11542 | BUSHING (6) | VRXSE |
| 10 | 17696-06 | CHAIN DEFLECTOR, pad | VRXSE |
| 11 | 26798-06 | SPACER (3) | VRXSE |
| 12 | 37124-06 | COVER ASSEMBLY, sprocket, w/ 4279, 6192, 73231-06 & cover (polished) | VRXSE |
| 13 | 40043-06 | LINK MASTER | VRXSE |
| 14 | 40715-06 | SPROCKET ASSEMBLY, 59T (For additional sprocket sizes 57T, 58T, 60T & 61T contact RC Components) | VRXSE |
| 15 | 40716-06 | SPROCKET, transmission-20T (For additional sprocket sizes 19T & 21T contact Precision) | VRXSE |
| 16 | 40717-06 | REAR CHAIN | VRXSE |
| 17 | 76231-06 | INSERT, cover | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: RC Components @ 888-721-6495Part number not sold through Harley-Davidson; Supplier reference only contact: Precision Metal Fab Racing @ 952-496-0053Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||
RADIATOR / OIL COOLER
| Index No. | Part No. | Description | Model(s) |
| 1 | 1004M | SCREW (2) | VRXSE |
| 2 | 3725M | NUT (2) | VRXSE |
| 3 | 5235 | PLUG | VRXSE |
| 4 | 5237M | SCREW (7) | VRXSE |
| 5 | 5238M | LOCKNUT (4) | VRXSE |
| 6 | 6838M | WASHER, front (2) | VRXSE |
| 7 | 6859M | WASHER (2) | VRXSE |
| 8 | 11548 | GROMMET | VRXSE |
| 9 | 11568 | BUSHING (2) | VRXSE |
| 10 | 26800042 | RADIATOR | VRXSE |
| 11 | 26731-06 | BOX LOWER RADIATOR | VRXSE |
| 12 | 26729-06 | FAN ASSEMBLY | VRXSE |
| 13 | 26757-01 | GROMMET (4) | VRXSE |
| 14 | 26758-01 | SPACER (2) | VRXSE |
| 15 | 33228-06 | LAUNCH BOX | VRXSE |
| 16 | 33229-06 | KNOB (2) | VRXSE |
| 17 | 33230-06 | DECAL | VRXSE |
| 18 | 70345-04 | CLIP (2) | VRXSE |
| 19 | 73152-96BK | SOCKET HOUSING, 2-way (2) | VRXSE |
| 20 | 73191-96 | CONTACT SOCKET (4) | VRXSE |
| 21 | 74119-98BK | HOUSING SOCKET, 12-way | VRXSE |
| 22 | 74159-98 | SECONDARY LOCK, 12-way | VRXSE |

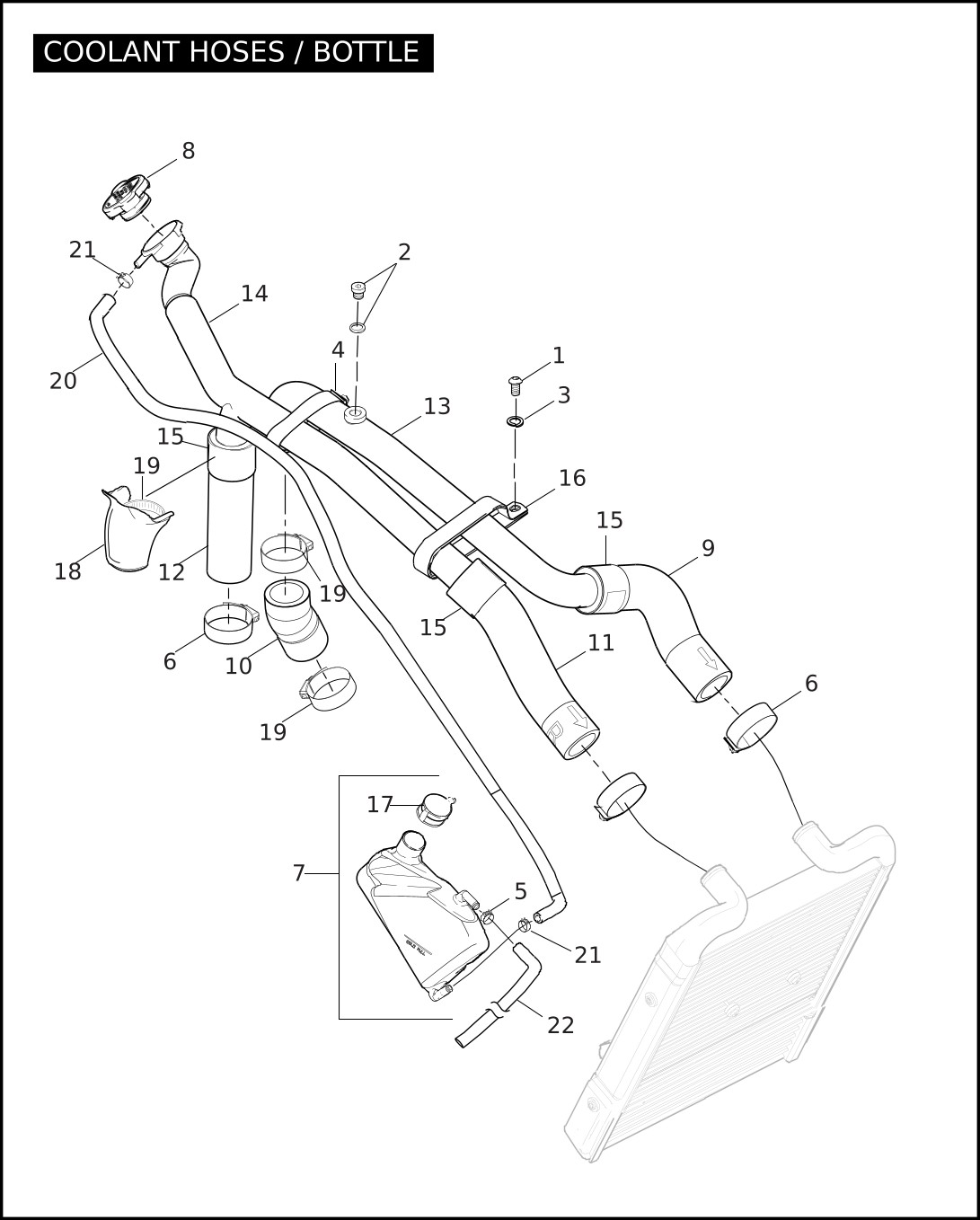

COOLANT HOSES / BOTTLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRXSE |
| 2 | 5234 | PLUG, w/ seal | VRXSE |
| 3 | 7036 | WASHER | VRXSE |
| 4 | 9830 | CLAMP | VRXSE |
| 5 | 10014 | CLAMP | VRXSE |
| 6 | 26730-01 | CLAMP, bright (3) | VRXSE |
| 7 | 26731-05 | COOLANT BOTTLE & CAP ASSEMBLY, w/ 26780-05 & bottle | VRXSE |
| 8 | 26733-01 | CAP, pressure | VRXSE |
| 9 | 26753-01 | HOSE COOLANT, engine | VRXSE |
| 10 | 26754-01 | HOSE COOLANT | VRXSE |
| 11 | 26755-01 | HOSE COOLANT, engine in, front | VRXSE |
| 12 | 26756-01 | HOSE COOLANT, engine in, rear | VRXSE |
| 13 | 26767-01 | PIPE COOLANT, engine out | VRXSE |
| 14 | 26768-01A | PIPE COOLANT, engine in | VRXSE |
| 15 | 26770-01 | CLAMP, shrink (4) | VRXSE |
| 16 | 26777-01 | CLAMP | VRXSE |
| 17 | 26780-05A | CAP | VRXSE |
| 18 | 26810-06A | COVER, hose (black) | VRXSE |
| 19 | 26790-01 | CLAMP (black) (3) | VRXSE |
| 20 | 62942-01A | HOSE, drain-coolant pipe to coolant bottle | VRXSE |
| 21 | 62943-01 | CLAMP, drain hose (2) | VRXSE |
| 22 | 62953-01 | HOSE, drain, coolant bottle to ground | VRXSE |

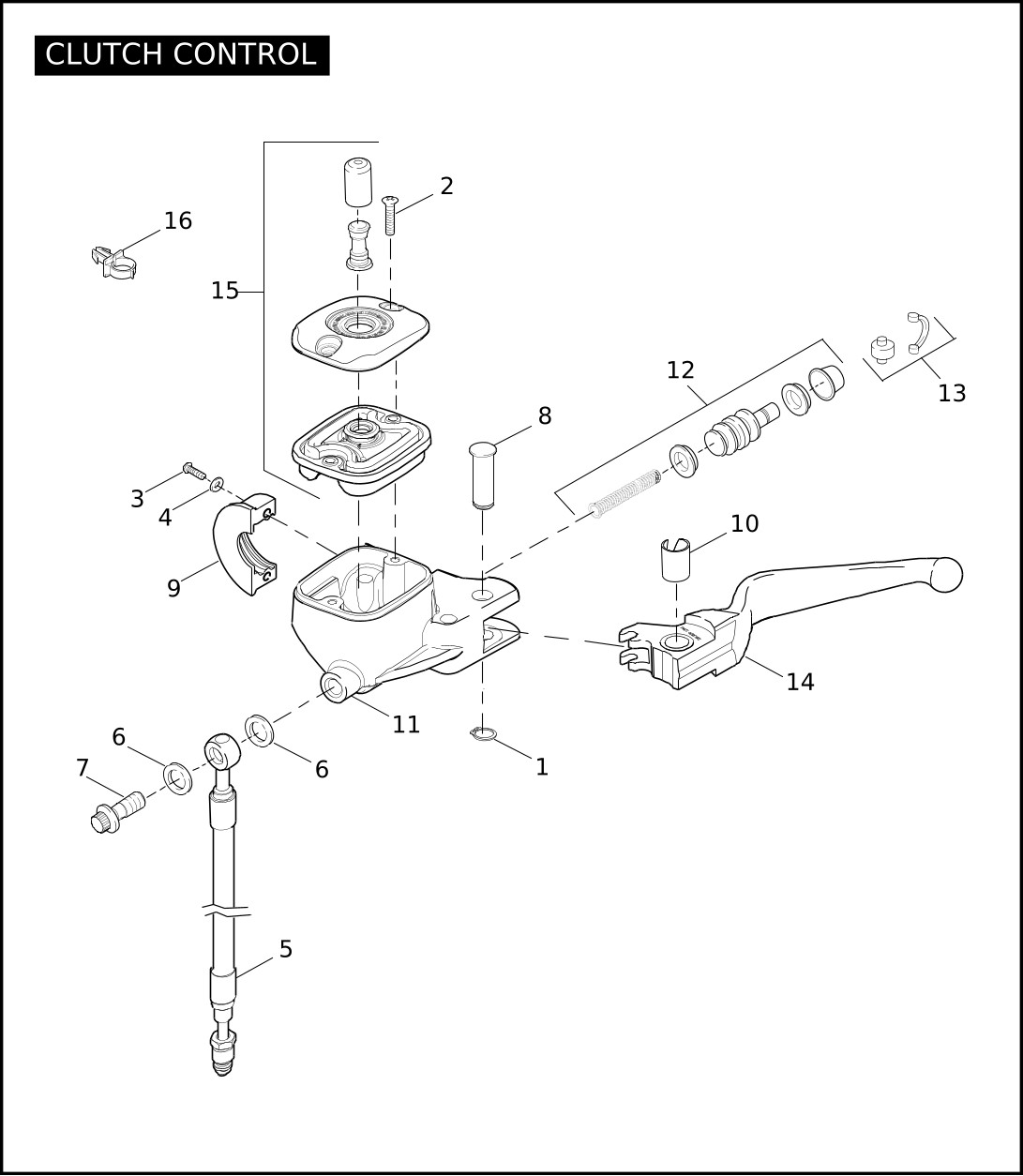

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 11143 | RING, retaining | VRXSE |
| 2 | 2579A | SCREW (2) | VRXSE |
| 3 | 4132 | SCREW (2) | VRXSE |
| 4 | 6101 | WASHER (2) | VRXSE |
| 5 | 38676-06 | LINE ASSEMBLY, clutch | VRXSE |
| 6 | 41731-01 | GASKET, brake line (2) | VRXSE |
| 7 | 41747-82A | BOLT, banjo | VRXSE |
| 8 | 45032-82 | PIVOT PIN | VRXSE |
| 9 | 45044-96A | CLAMP, master cylinder clutch (black) | VRXSE |
| 10 | 45423-92 | BUSHING, pivot pin | VRXSE |
| 11 | 45505-06 | MASTER CYLINDER ASSEMBLY, w/ 1, 8, 10, 13, 14 & 15 | VRXSE |
| 12 | 46244-01 | REPAIR KIT, master cylinder w/ 11143 & 41731-01 | VRXSE |
| 13 | 46246-01 | BUSHING AND ROLLER KIT | VRXSE |
| 14 | 46309-06 | CLUTCH LEVER ASSEMBLY, w/ 45432-92 & 46246-01 | VRXSE |
| 15 | 46423-05B | COVER KIT, reservoir, w/ 2579A | VRXSE |
| 16 | 56073-83 | RETAINER | VRXSE |

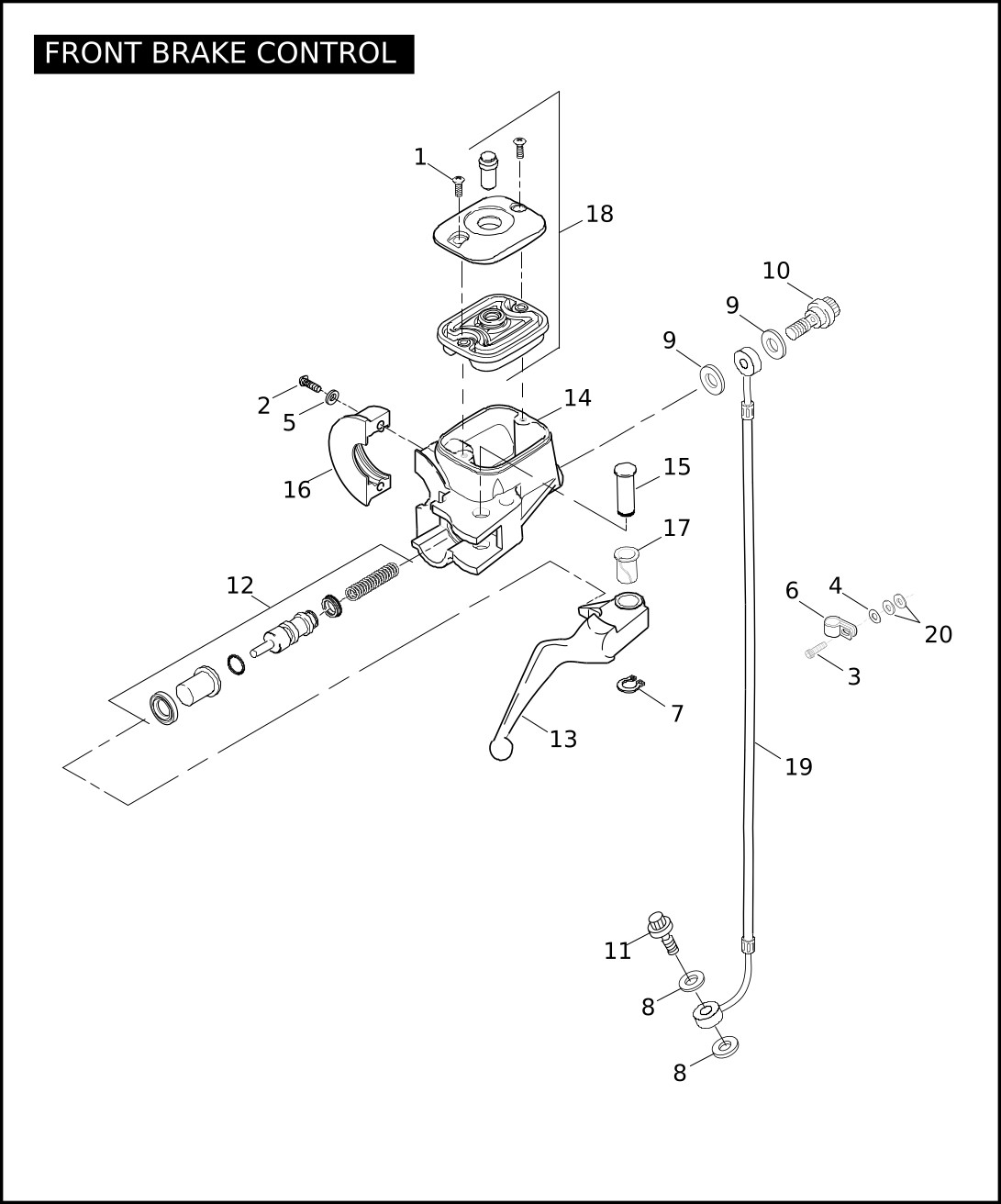

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2579A | SCREW (2) | VRXSE |
| 2 | 4132 | SCREW (2) | VRXSE |
| 3 | 4741A | SCREW | VRXSE |
| 4 | 6036 | WASHER | VRXSE |
| 5 | 6101 | WASHER (2) | VRXSE |
| 6 | 10059A | CLAMP | VRXSE |
| 7 | 11143 | RETAINING RING | VRXSE |
| 8 | 41731-01 | GASKET (2) | VRXSE |
| 9 | 41733-88 | GASKET (2) | VRXSE |
| 10 | 41739-84A | BANJO BOLT | VRXSE |
| 11 | 41747-82A | BANJO BOLT | VRXSE |
| 12 | 45006-96C | REPAIR KIT, master cylinder (9/16 inches bore) | VRXSE |
| 13 | 45016-96 | HAND LEVER, front brake control, w/ 45423-96 | VRXSE |
| 14 | 45029-11B | MASTER CYLINDER, front w/ hand lever (9/16 inches bore), w/ 1, 7, 12, 13, 15 & 19 | VRXSE |
| 15 | 45032-82 | PIVOT PIN | VRXSE |
| 16 | 45044-96A | CLAMP, handlebar control | VRXSE |
| 17 | 45423-96 | BUSHING, lever pivot | VRXSE |
| 18 | 46423-05B | COVER KIT, reservoir w/ 2579A | VRXSE |
| 19 | 46866-06 | BRAKE LINE, front | VRXSE |
| 20 | 54752-06 | WASHER (2) | VRXSE |

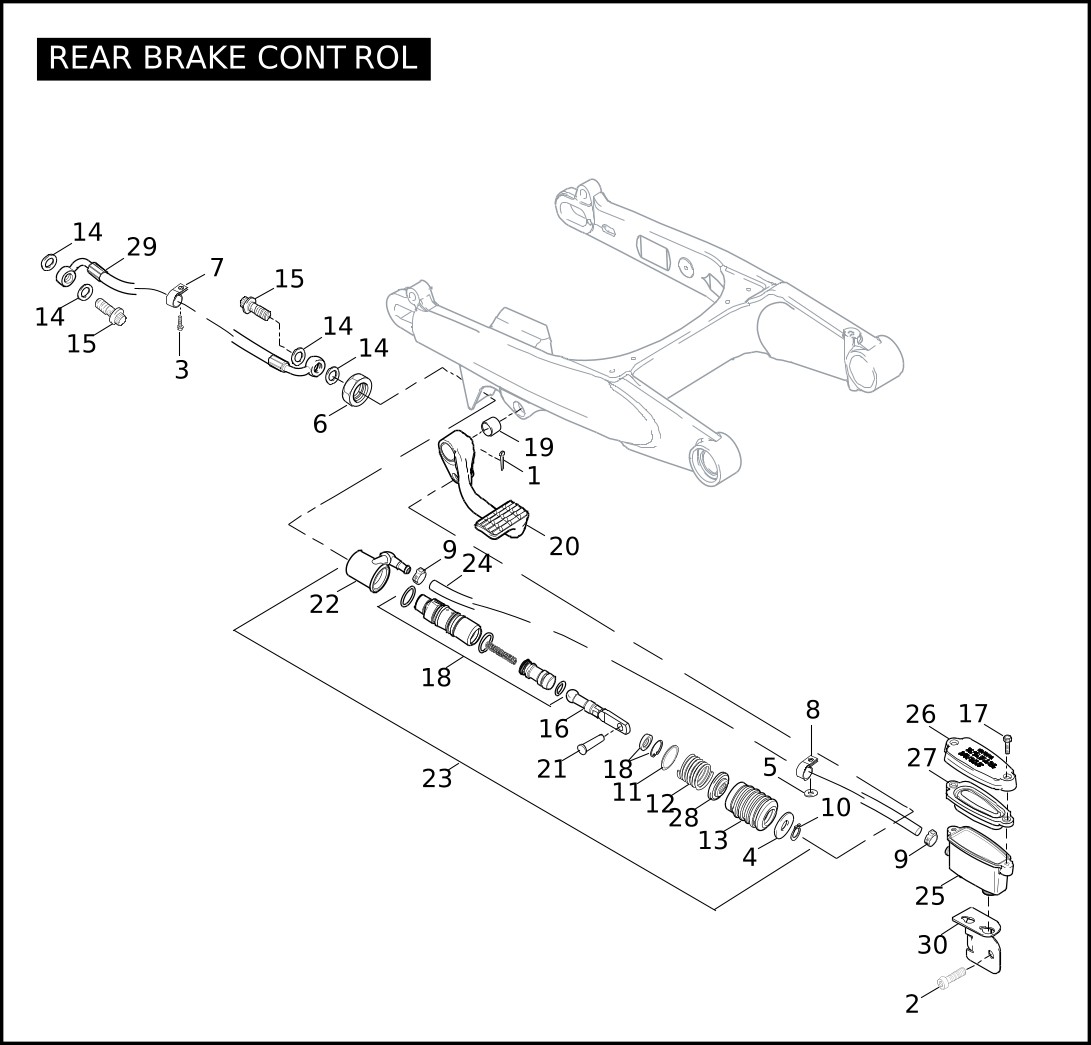

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | VRXSE |
| 2 | 3700MA | SCREW | VRXSE |
| 3 | 4240 | SCREW | VRXSE |
| 4 | 6366 | WASHER | VRXSE |
| 5 | 6839M | WASHER | VRXSE |
| 6 | 7951 | JAMNUT | VRXSE |
| 7 | 10031 | CLAMP | VRXSE |
| 8 | 10036 | CLAMP | VRXSE |
| 9 | 10038A | CLAMP (2) | VRXSE |
| 10 | 40903-87 | RETAINING RING | VRXSE |
| 11 | 40918-87 | RETAINING RING | VRXSE |
| 12 | 40920-87 | COMPRESSION SPRING | VRXSE |
| 13 | 40922-87A | BOOT | VRXSE |
| 14 | 41731-01 | GASKET (4) | VRXSE |
| 15 | 41747-82A | BANJO BOLT (2) | VRXSE |
| 16 | 42730-06A | PUSHROD | VRXSE |
| 17 | 42375-87 | SCREW (2) | VRXSE |
| 18 | 42382-87C | MASTER CYLINDER REPAIR KIT | VRXSE |
| 19 | 42443-80A | BUSHING | VRXSE |
| 20 | 42447-96 | PEDAL, w/ 42443-80A & 42460-80B | VRXSE |
| 21 | 42460-80B | CLEVIS PIN | VRXSE |
| 22 | 42471-01A | HOUSING, cartridge | VRXSE |
| 23 | 42730-06A | MASTER CYLINDER ASSEMBLY, w/ 4, 9, 10, 11, 12, 13, 16, 18, 22, 24 & 28 | VRXSE |
| 24 | 42731-06 | HOSE | VRXSE |
| 25 | 43914-01 | RESERVOIR | VRXSE |
| 26 | 43915-06 | COVER | VRXSE |
| 27 | 43917-01 | GASKET, reservoir | VRXSE |
| 28 | 44126-87 | SPRING RETAINER | VRXSE |
| 29 | 46867-06 | BRAKE LINE | VRXSE |
| 30 | 46868-06 | BRACKET, reservoir | VRXSE |

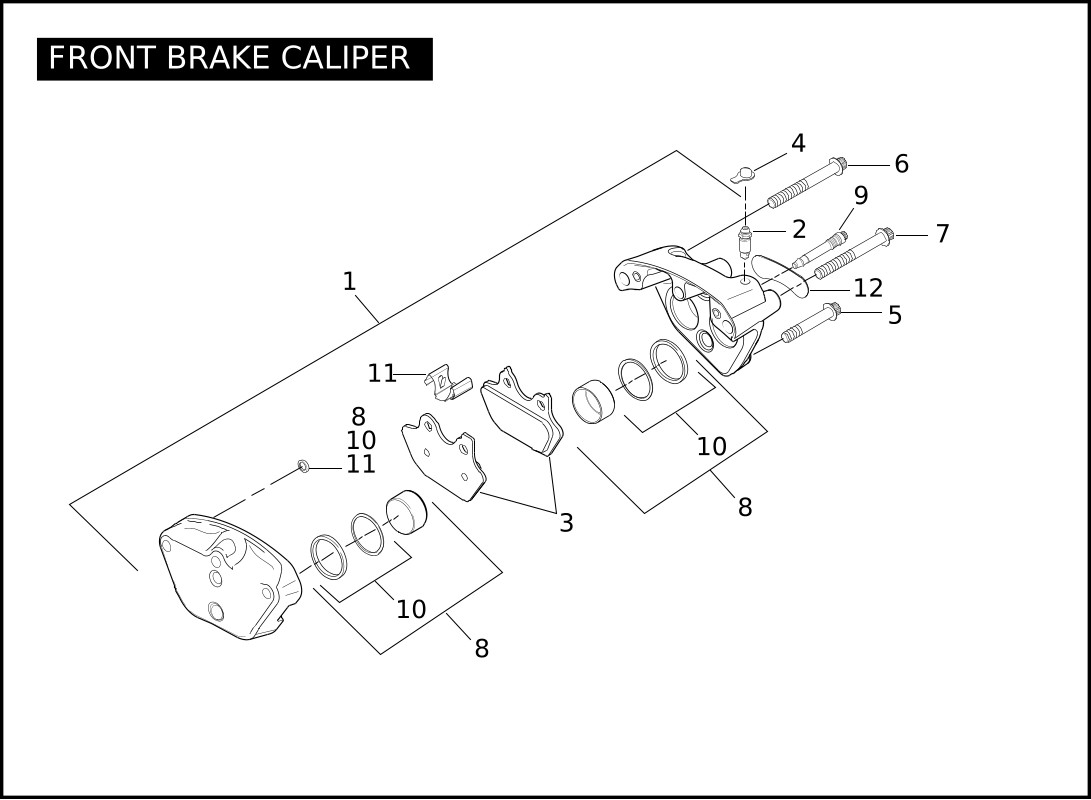

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44046-00D | CALIPER ASSEMBLY, left (black) | VRXSE |
| 2 | 44048-83 | SCREW, bleeder (2) | VRXSE |
| 3 | 44082-00D | PAD KIT (2) | VRXSE |
| 4 | 44147-87A | CAP BLEEDER (2) | VRXSE |
| 5 | 44160-00 | BOLT, caliper mounting, lower (2) | VRXSE |
| 6 | 44163-00 | BOLT, caliper mounting, upper (2) | VRXSE |
| 7 | 44177-00 | BOLT, bridge (2) | VRXSE |
| 8 | 44313-01A | PISTON KIT (2) | VRXSE |
| 9 | 44314-00 | PAD PIN KIT (2) | VRXSE |
| 10 | 44315-00A | SEAL KIT (2) | VRXSE |
| 11 | 44337-00B | SPRING KIT, anti-rattle (2) | VRXSE |
| 12 | 44338-00 | DECAL (2) | VRXSE |

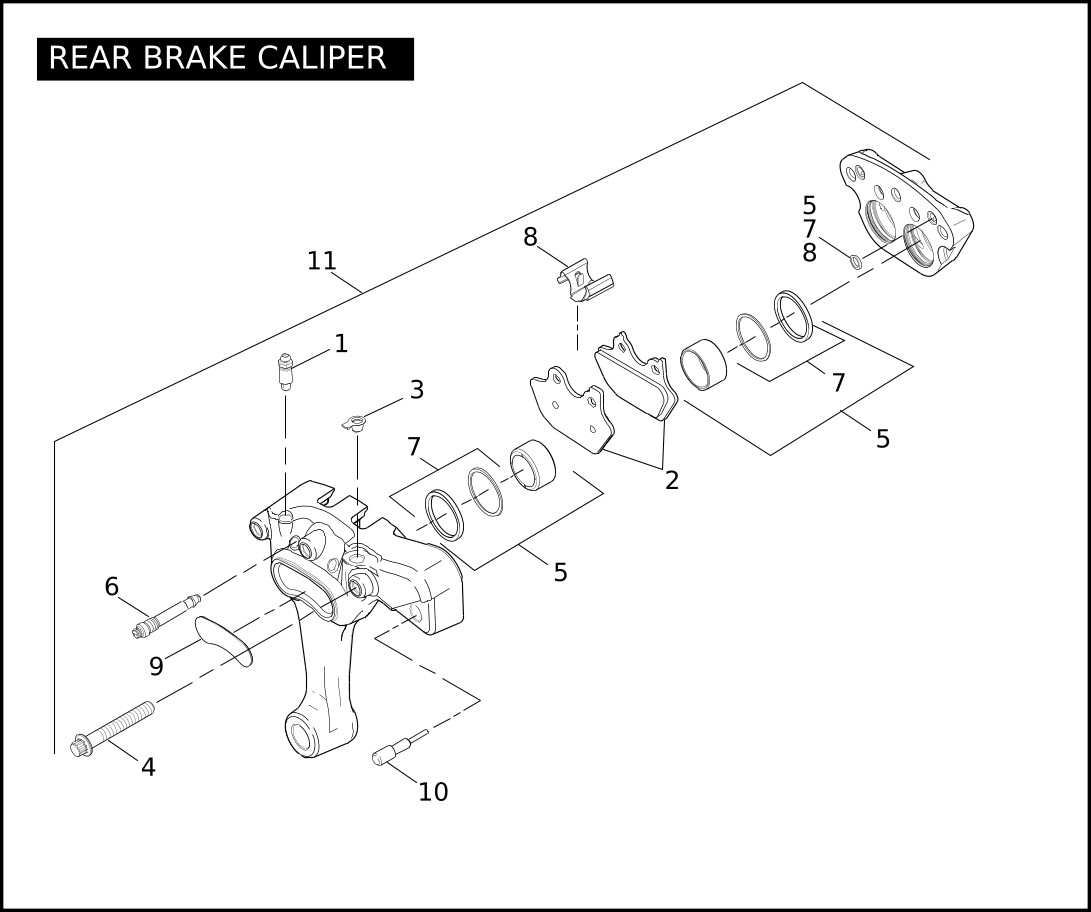

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | SCREW, bleeder | VRXSE |
| 2 | 44082-00D | PAD KIT | VRXSE |
| 3 | 44147-87A | CAP, bleeder screw | VRXSE |
| 4 | 44177-00 | BOLT, bridge (3) | VRXSE |
| 5 | 44313-01A | PISTON KIT | VRXSE |
| 6 | 44314-00 | PAD PIN KIT | VRXSE |
| 7 | 44315-00A | SEAL KIT | VRXSE |
| 8 | 44337-00B | SPRING KIT, anti rattle | VRXSE |
| 9 | 44338-00 | DECAL | VRXSE |
| 10 | 44351-00 | BUMPER | VRXSE |
| 11 | 44680-05 | CALIPER ASSEMBLY, black | VRXSE |

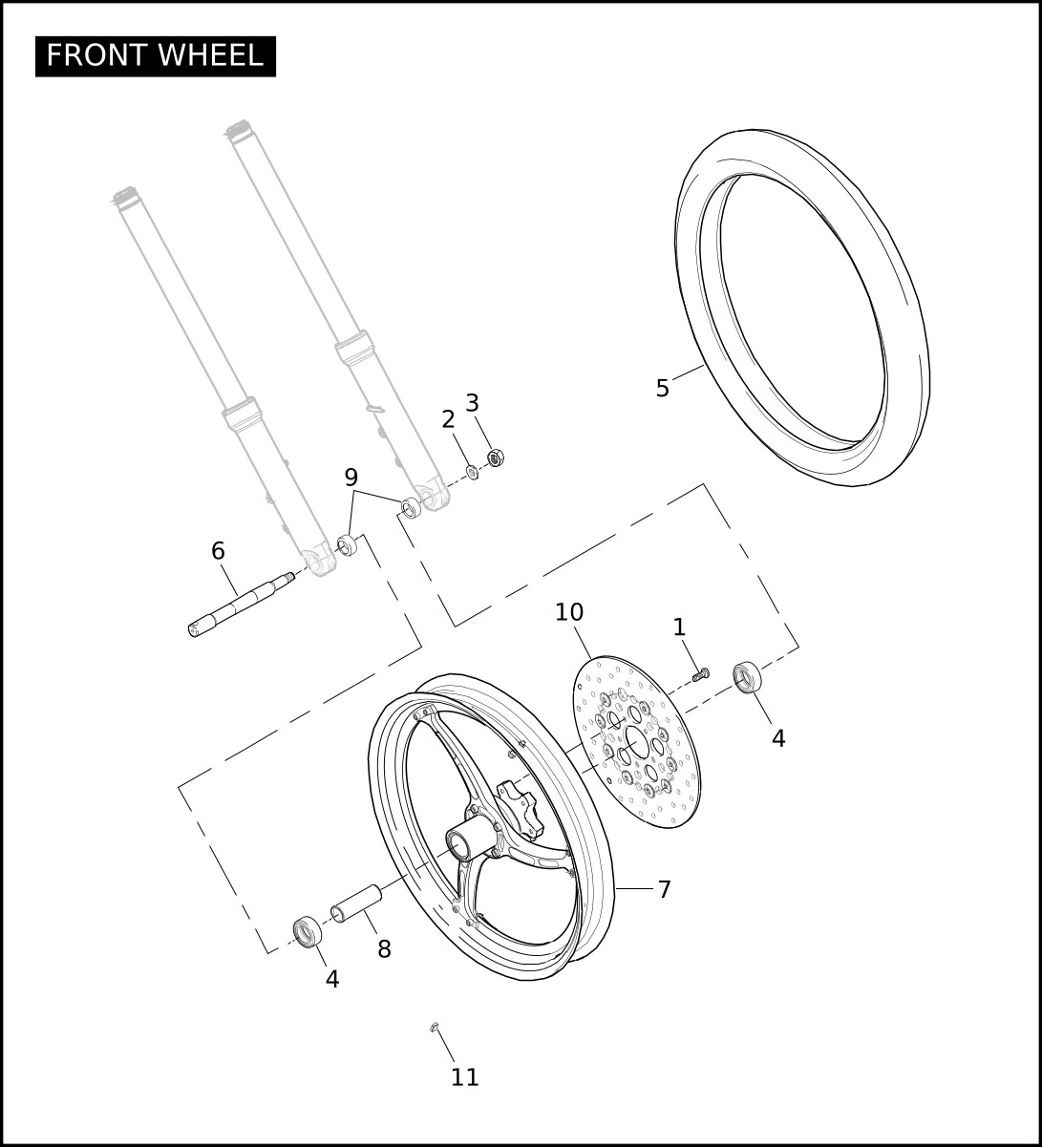

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (5) | VRXSE |
| 2 | 6655 | WASHER | VRXSE |
| 3 | 7813A | NUT | VRXSE |
| 4 | 9247 | BEARING (2) | VRXSE |
| 5 | 41539-06R | TIRE | VRXSE |
| 6 | 41540-04 | AXLE, front | VRXSE |
| 7 | 41687-06 | WHEEL ASSEMBLY, w/ bearings | VRXSE |
| 8 | 43641-01 | SLEEVE | VRXSE |
| 9 | 43642-01A | SPACER (2) | VRXSE |
| 10 | 44358-00A | BRAKE DISC, w/ 3655A (5) | VRXSE |
| 11 | 95595-84A | WEIGHT, 5 grams (silver) (4) | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: RC Components @ 888-721-6495 | |||

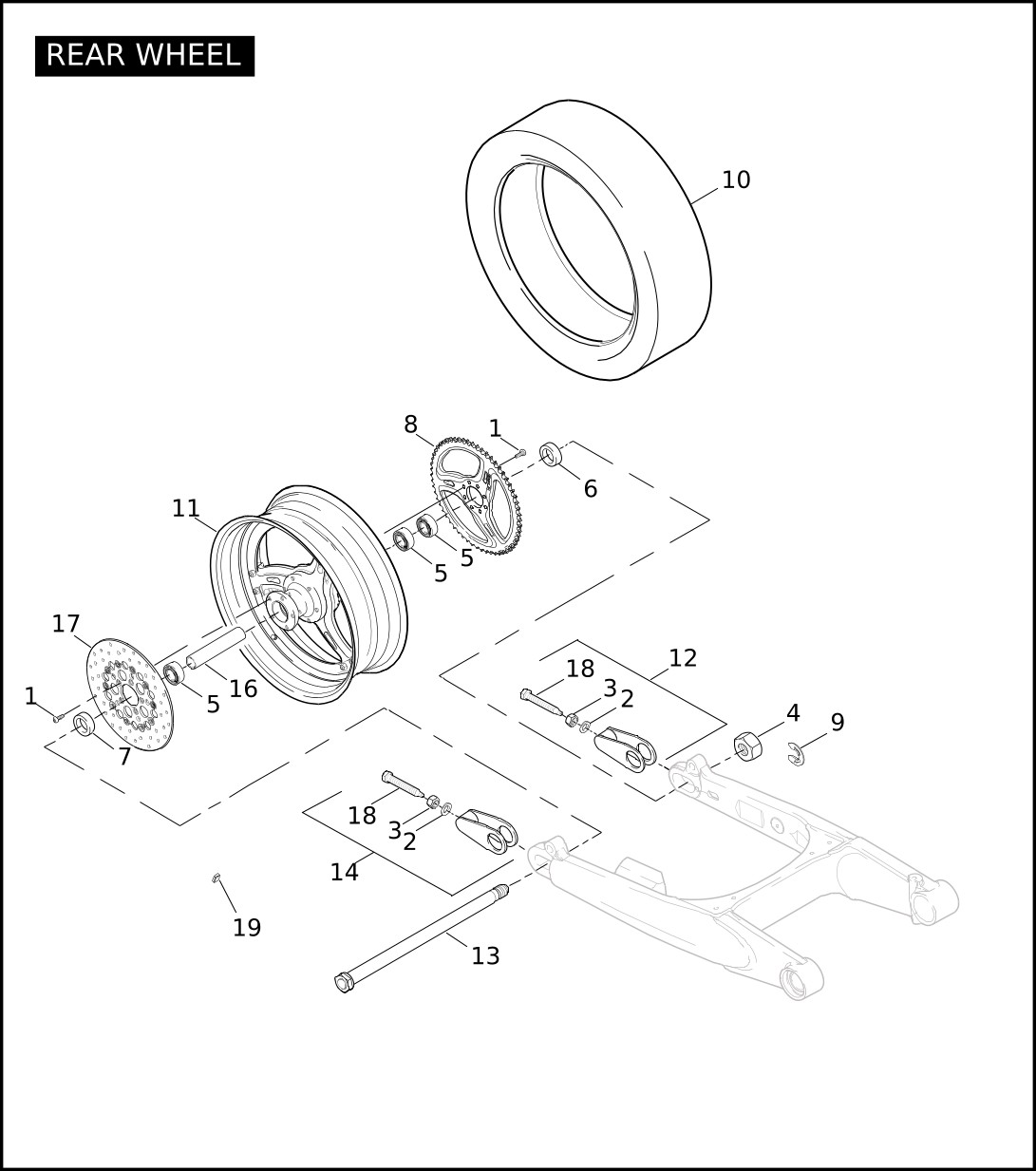

REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (13) | VRXSE |
| 2 | 6874 | WASHER | VRXSE |
| 3 | 7783 | NUT | VRXSE |
| 4 | 8020 | NUT | VRXSE |
| 5 | 9247 | BEARING (3) | VRXSE |
| 6 | 11807 | SPACER, LH | VRXSE |
| 7 | 11808 | SPACER, RH | VRXSE |
| 8 | 40715-06 | SPROCKET | VRXSE |
| 9 | 41139-02 | E-CLIP | VRXSE |
| 10 | 41531-06R | TIRE | VRXSE |
| 11 | 41692-06 | WHEEL ASSEMBLY, w/ bearings | VRXSE |
| 12 | 41715-06 | AXLE ADJUSTER, LH, w/ 47579-00, 6874 & 7783 | VRXSE |
| 13 | 41717-06 | AXLE ASSEMBLY, rear | VRXSE |
| 14 | 41718-06 | AXLE ADJUSTER, RH, w/ 47579-00, 6874 & 7783 | VRXSE |
| 15 | 43173-01 | TIRE | VRXSE |
| 16 | 43704-01 | SLEEVE BEARING | VRXSE |
| 17 | 44358-00A | BRAKE DISC, w/ 3655A (5) | VRXSE |
| 18 | 47579-00 | SCREW (2) | VRXSE |
| 19 | 95595-84A | WEIGHT, 5 grams (silver) (4) | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: RC Components @ 888-721-6495Part number not sold through Harley-Davidson; Supplier reference only contact: RC Components @ 888-721-6495 | |||

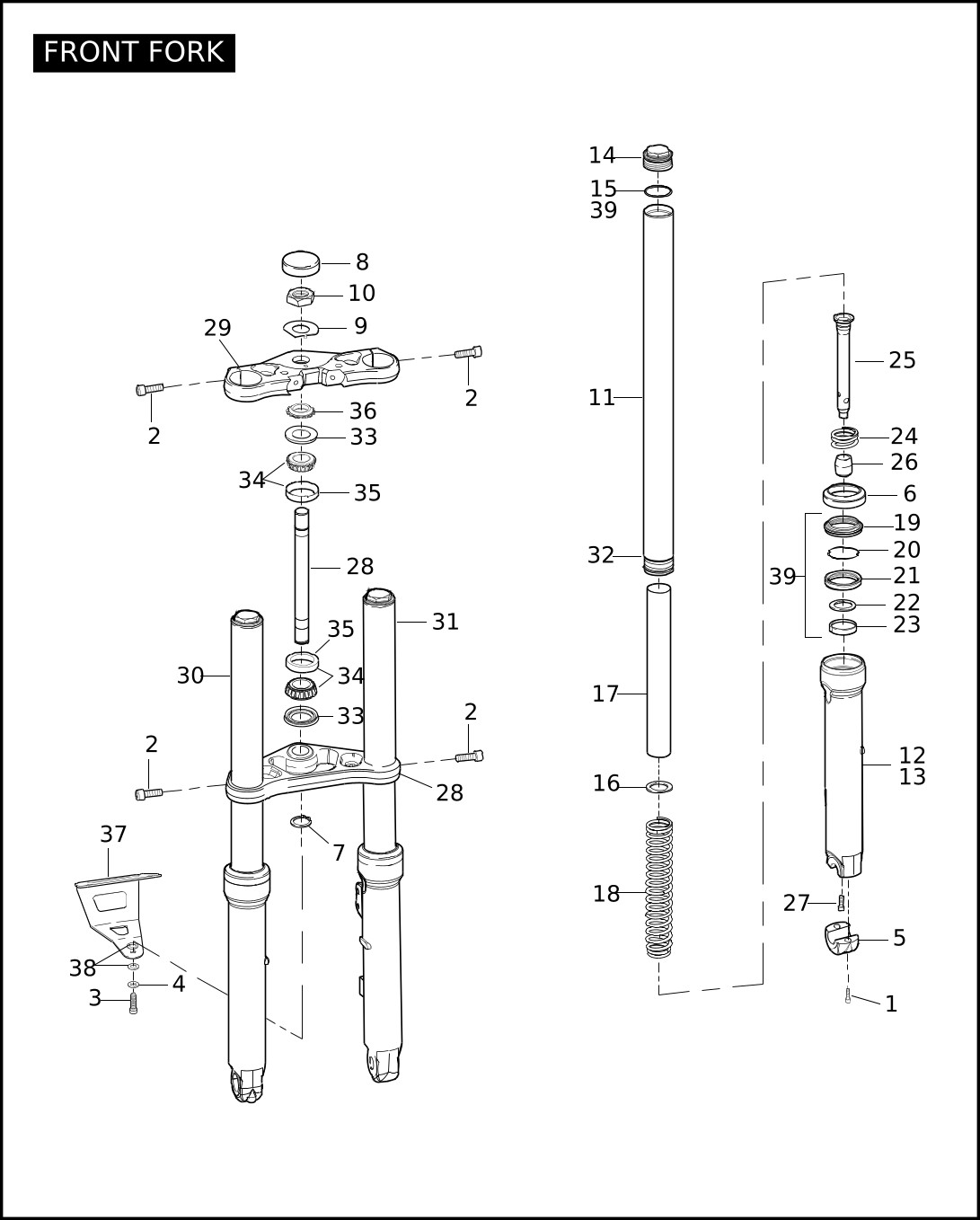

FRONT FORK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4042 | SCREW, right (2) | VRXSE |
| 2 | 4534M | SCREW (4) | VRXSE |
| 3 | 4741A | SCREW | VRXSE |
| 4 | 6036 | WASHER | VRXSE |
| 5 | 45069-01 | HOLDER AXLE, right | VRXSE |
| 6 | 45070-01 | COVER, slider (2) | VRXSE |
| 7 | 45611-86 | RETAINING RING | VRXSE |
| 8 | 45670-80A | CAP, fork stem | VRXSE |
| 9 | 45717-63 | LOCKWASHER, fork stem nut | VRXSE |
| 10 | 45718-60 | NUT, fork stem | VRXSE |
| 11 | 46504-01 | SLIDER TUBE, w/ 46080-01 (2) | VRXSE |
| 12 | 46505-01 | SLIDER, right | VRXSE |
| 13 | 46506-01A | SLIDER, left | VRXSE |
| 14 | 46507-01 | CAP, slider tube (2) | VRXSE |
| 15 | 46508-01 | O-RING (2) | VRXSE |
| 16 | 46509-01 | WASHER, left | VRXSE |
| 17 | 46510-01 | COLLAR, spring (2) | VRXSE |
| 18 | 46511-01 | SPRING (2) | VRXSE |
| 19 | 46512-01A | DUST COVER (2) | VRXSE |
| 20 | 46513-01 | RING, stopper (2) | VRXSE |
| 21 | 46514-01A | OIL SEAL (2) | VRXSE |
| 22 | 46515-01 | SPACER, seal (2) | VRXSE |
| 23 | 46516-01 | BUSHING GUIDE (2) | VRXSE |
| 24 | 46517-01 | SPRING (2) | VRXSE |
| 25 | 46518-01 | SEAT PIPE (2) | VRXSE |
| 26 | 46519-01 | STOP OIL LOCK PIECE (2) | VRXSE |
| 27 | 45405-75A | SCREW (2) | VRXSE |
| 28 | 46752-01A | STEM & BRACKET, w/ 45611-86 & 48184-01 | VRXSE |
| 29 | 46755-01 | BRACKET UPPER | VRXSE |
| 30 | 46756-01 | FORK ASSEMBLY, right | VRXSE |
| 31 | 46757-01 | FORK ASSEMBLY, left | VRXSE |
| 32 | 46080-01 | BUSHING, slider | VRXSE |
| 33 | 48184-01 | SEAL (2) | VRXSE |
| 34 | 48300-60 | ROLLER BEARING, w/ cup | VRXSE |
| 35 | 48315-60 | BEARING CUP (2) | VRXSE |
| 36 | 48324-00 | SEAT UPPER HEAD CONE | VRXSE |
| 37 | 54751-06 | BRACKET, steering stabilizer | VRXSE |
| 38 | 54752-06 | FRICTION PAD (2) | VRXSE |
| 39 | 49379-09 | FORK REBUILD KIT | VRXSE |

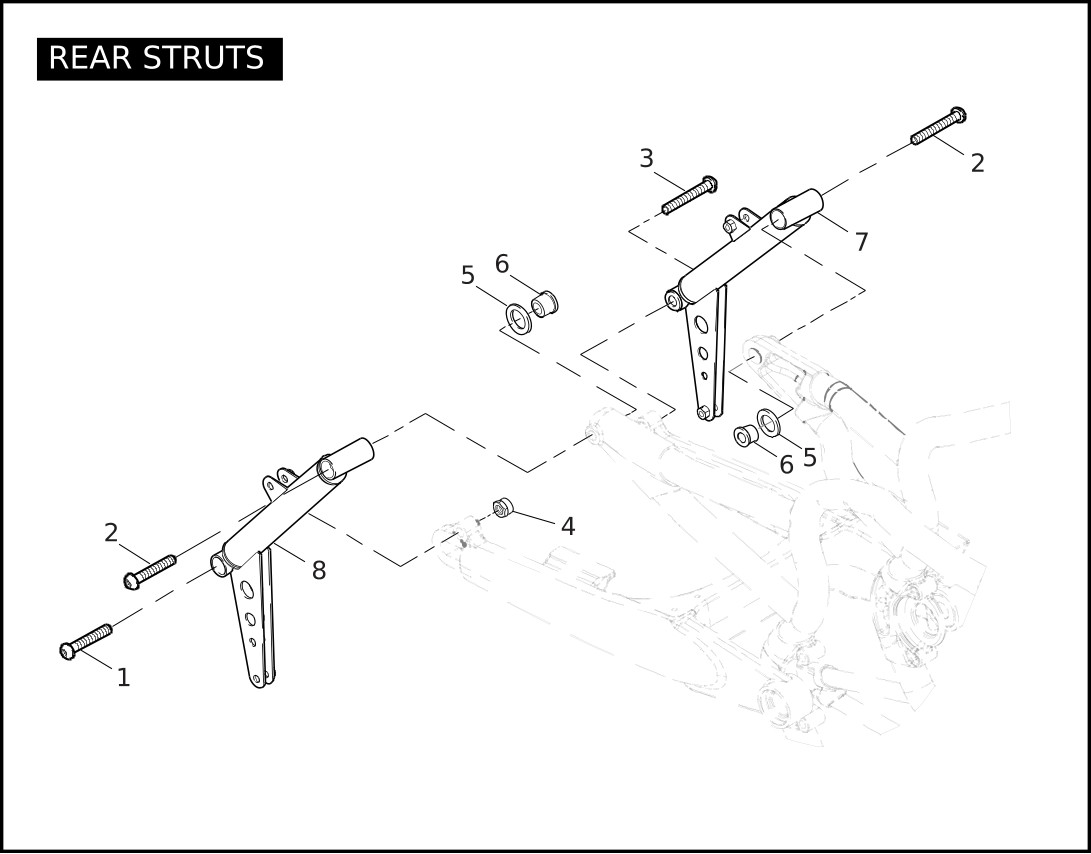

REAR STRUTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3705M | SCREW | VRXSE |
| 2 | 4555M | SCREW (2) | VRXSE |
| 3 | 4578M | SCREW | VRXSE |
| 4 | 7433M | LOCKNUT | VRXSE |
| 5 | 40582-05 | WASHER (2) | VRXSE |
| 6 | 48486-01 | NUT (2) | VRXSE |
| 7 | 54657-06 | STRUT ASSEMBLY-LH | VRXSE |
| 8 | 54658-06 | STRUT ASSEMBLY-RH | VRXSE |
| part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

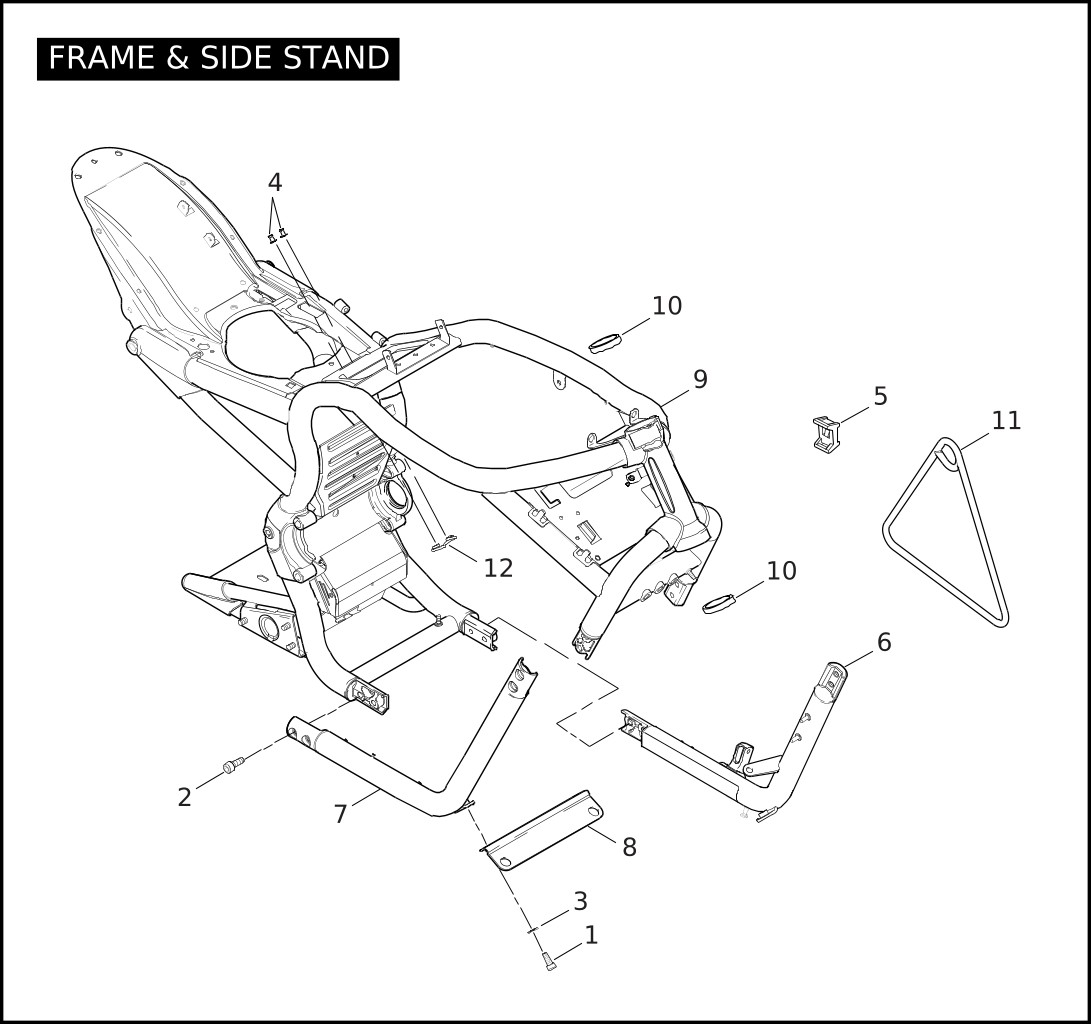

FRAME & SIDE STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 3755M | SCREW (2) | VRXSE |
| 2 | 4530M | SCREW (8) | VRXSE |
| 3 | 6702 | WASHER (2) | VRXSE |
| 4 | 8235 | RIVET (2) | VRXSE |
| 5 | 10132 | ANCHOR CLIP | VRXSE |
| 6 | 47984-06CFZ | FRAME LOWER, left (orange) | VRXSE |
| 7 | 47986-06CFZ | FRAME LOWER, right (orange) | VRXSE |
| 8 | 48086-01 | CROSSMEMBER, front | VRXSE |
| 9 | 48122-06CFZ | FRAME ASSEMBLY UPPER, orange | VRXSE |
| 10 | 48315-60 | BEARING CUP, steering head (2) | VRXSE |
| 11 | 50127-06 | SIDE STAND | VRXSE |
| 12 | 66712-01 | S-SPRING | VRXSE |
| part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

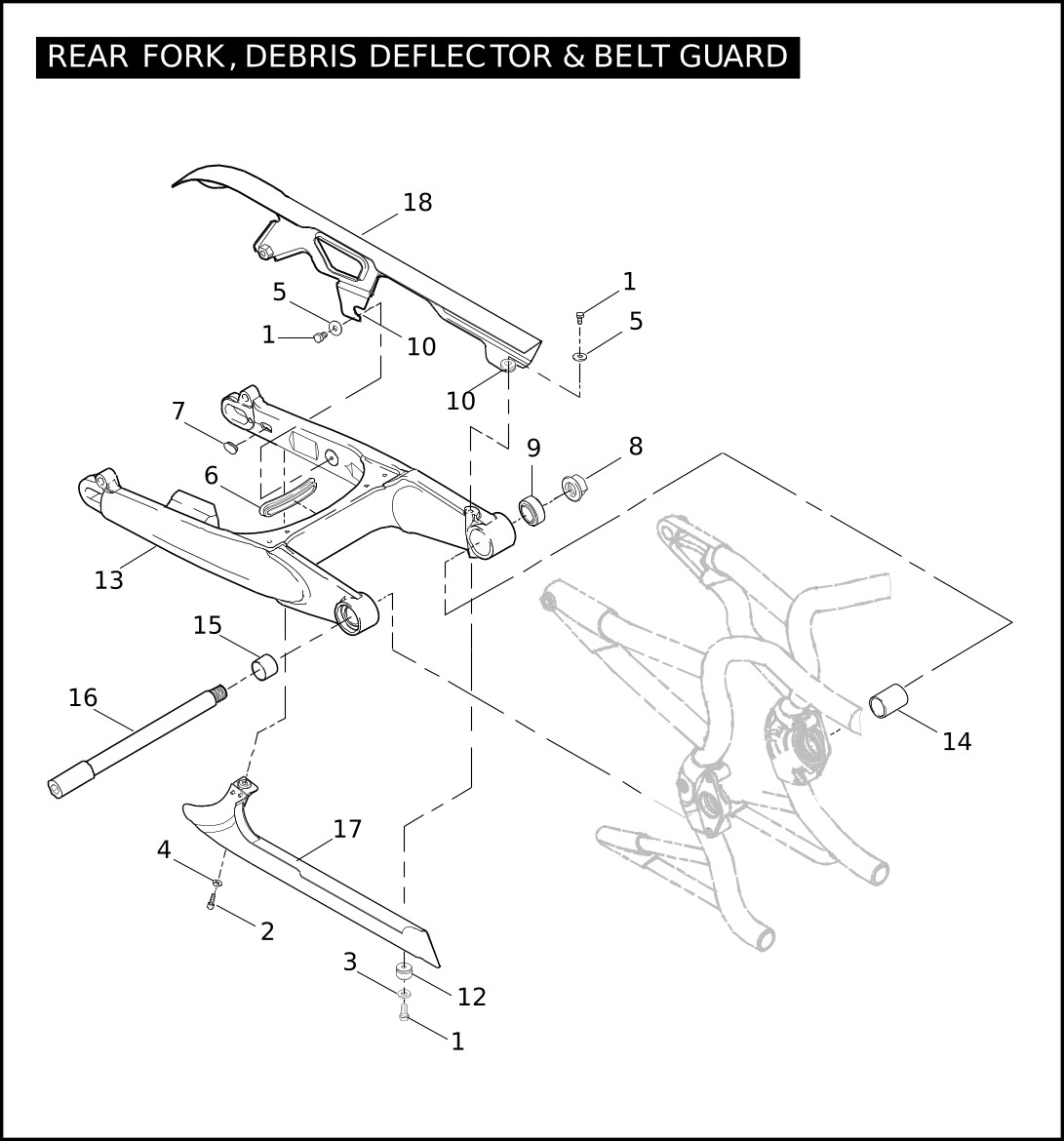

REAR FORK, DEBRIS DEFLECTOR & BELT GUARD
| Index No. | Part No. | Description | Model(s) |
| 1 | 3108M | SCREW (3) | VRXSE |
| 2 | 3729M | SCREW | VRXSE |
| 3 | 6702 | WASHER | VRXSE |
| 4 | 6703 | WASHER | VRXSE |
| 5 | 6838M | WASHER (2) | VRXSE |
| 6 | 6863 | PLUG, large | VRXSE |
| 7 | 6864A | PLUG, small | VRXSE |
| 8 | 7460M | LOCKNUT | VRXSE |
| 9 | 9208 | BEARING | VRXSE |
| 10 | 11611 | BUSHING (2) | VRXSE |
| 11 | 13500-06 | DECAL, swingarm (not illustrated) (2) | VRXSE |
| 12 | 17706-06 | BUMPER, chain deflector | VRXSE |
| 13 | 48443-06 | REAR FORK ASSEMBLY, w/ 9208, 48389-01 & pin axle adjuster | VRXSE |
| 14 | 48386-05A | SPACER, left | VRXSE |
| 15 | 48389-01 | BUSHING, pivot, right | VRXSE |
| 16 | 48444-06 | SOLID PIVOT MOUNT KIT | VRXSE |
| 17 | 60524-06 | DEBRIS DEFLECTOR | VRXSE |
| 18 | 60527-06 | CHAIN GUARD | VRXSE |

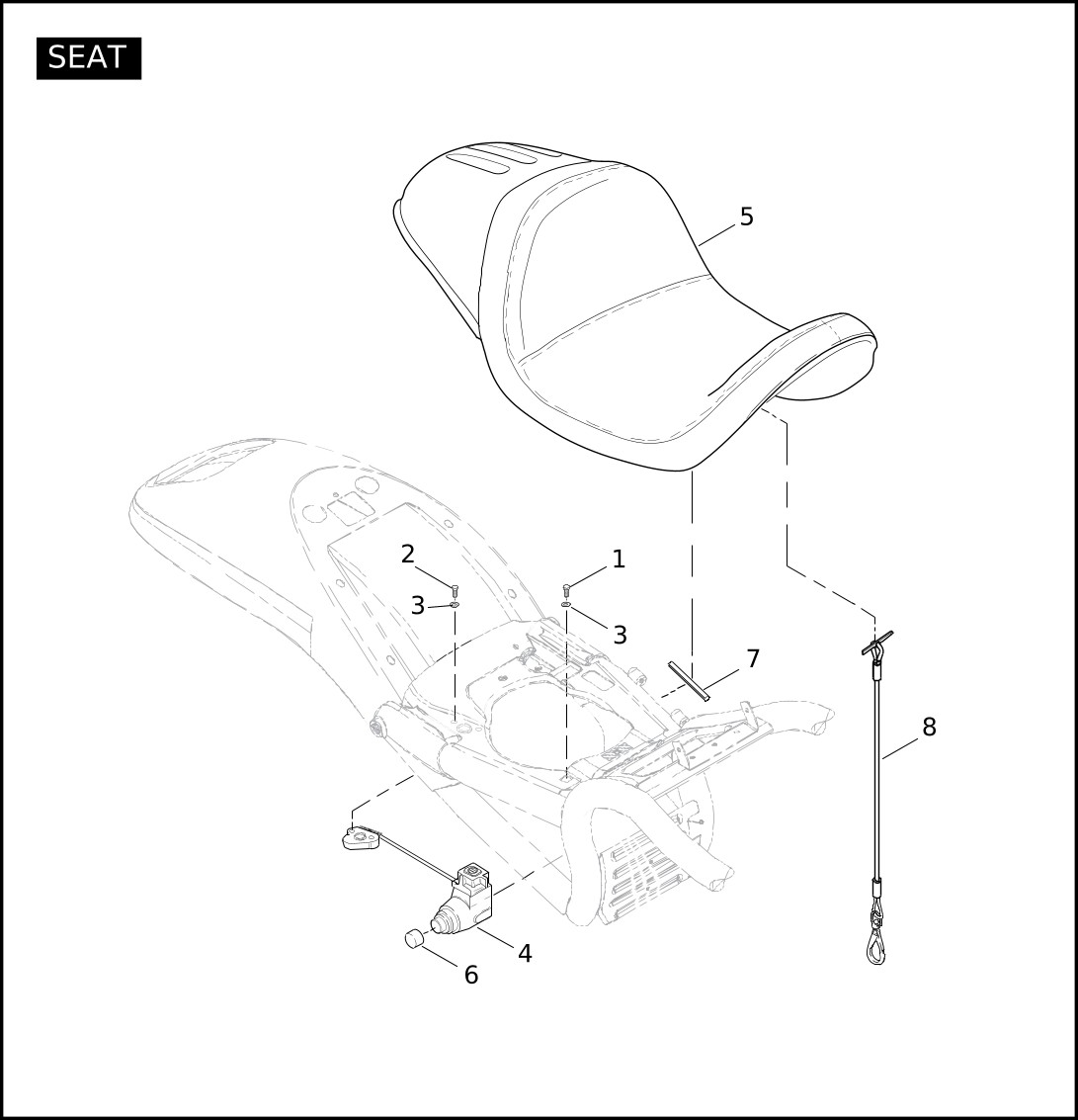

SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3708M | SCREW | VRXSE |
| 2 | 3711M | SCREW (2) | VRXSE |
| 3 | 6837M | WASHER (3) | VRXSE |
| 4 | 46560-06 | SEAT LATCH ASSEMBLY | VRXSE |
| 5 | 51709-06 | SEAT | VRXSE |
| 6 | 51716-06 | BUTTON, seat release | VRXSE |
| 7 | 52041-82 | SLEEVE | VRXSE |
| 8 | 52402-01 | LANYARD, seat | VRXSE |

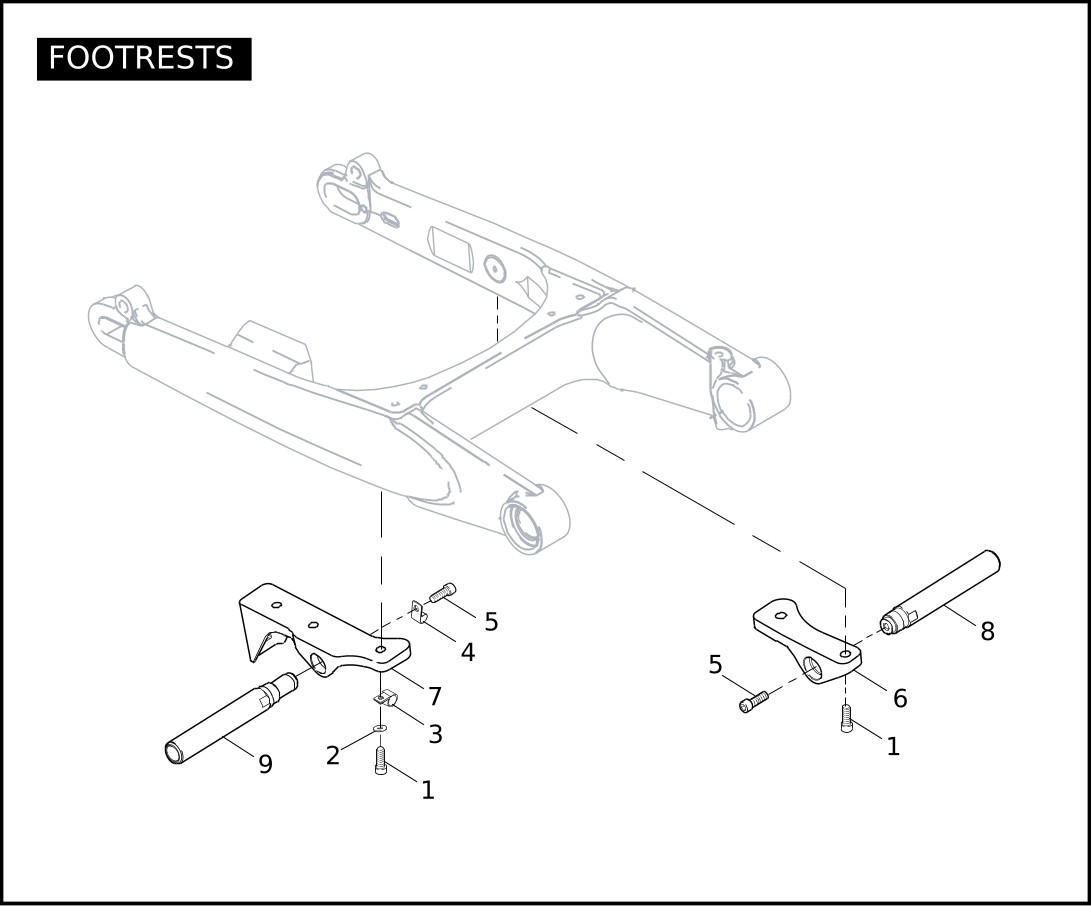

FOOTRESTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3703M | SCREW (5) | VRXSE |
| 2 | 6839M | WASHER | VRXSE |
| 3 | 10036 | CLAMP | VRXSE |
| 4 | 10076 | CLAMP | VRXSE |
| 5 | 3709M | SCREW (2) | VRXSE |
| 6 | 50781-06 | SUPPORT LH, footpeg | VRXSE |
| 7 | 50785-06A | SUPPORT RH, footpeg | VRXSE |
| 8 | 50787-06 | FOOTPEG, LH | VRXSE |
| 9 | 50790-06 | FOOTPEG, RH | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

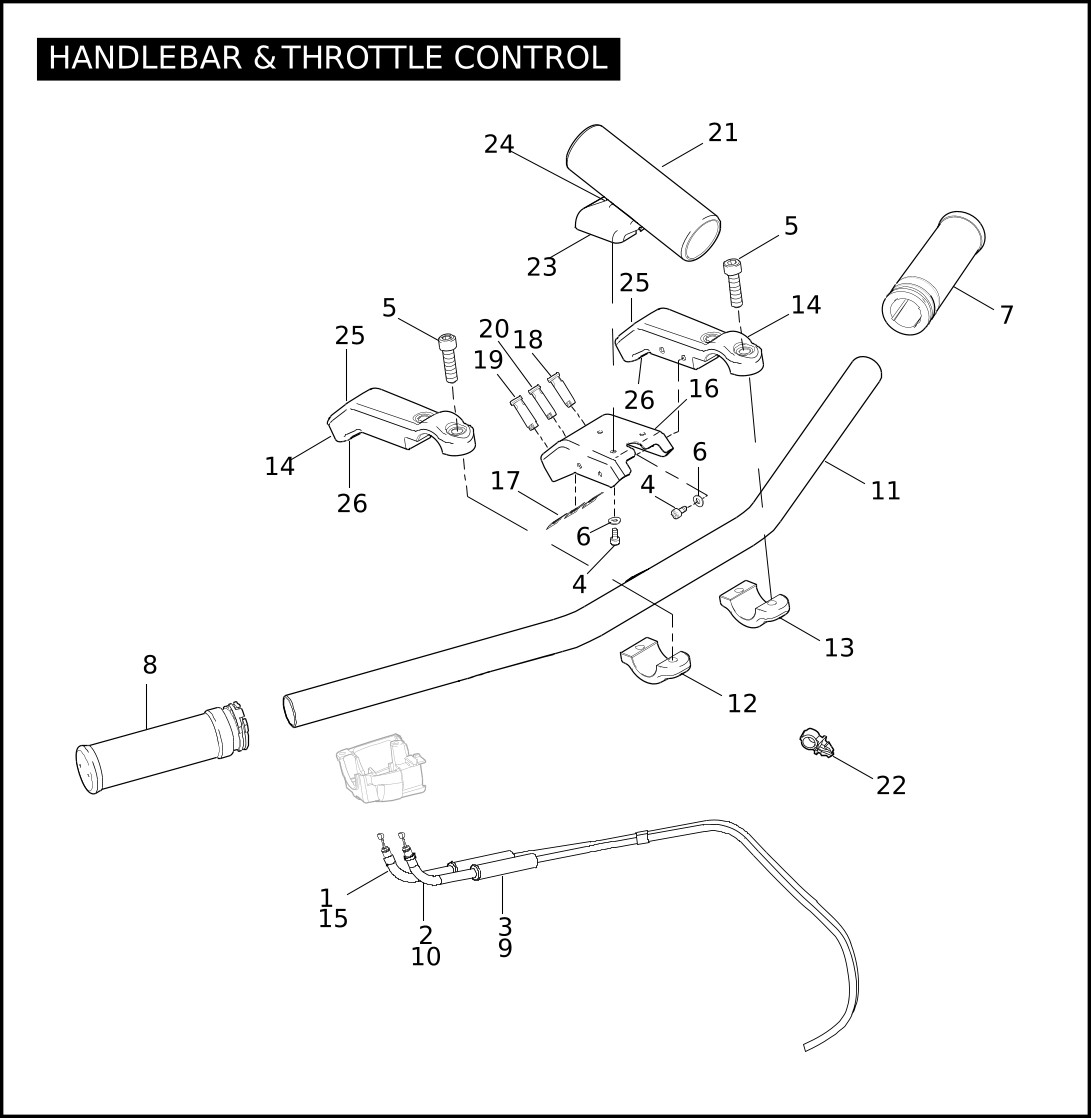

HANDLEBAR & THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 11271 | RETAINING RING, idle control | VRXSE |
| 2 | 11272 | RETAINING RING, throttle control | VRXSE |
| 3 | 38653-01 | BOOT, throttle cable | VRXSE |
| 4 | 4283M | SCREW (7) | VRXSE |
| 5 | 4486M | SCREW (4) | VRXSE |
| 6 | 6101 | WASHER (7) | VRXSE |
| 7 | 56206-96 | GRIP, left | VRXSE |
| 8 | 56220-94A | GRIP & SLEEVE, throttle, right | VRXSE |
| 9 | 56508-76 | FERRULE, control wire (2) | VRXSE |
| 10 | 56872-06 | THROTTLE CONTROL, w/ 11272 | VRXSE |
| 11 | 56919-06 | HANDLEBAR | VRXSE |
| 12 | 56920-06 | RISER, handlebar, right | VRXSE |
| 13 | 56921-06 | RISER, handlebar, left | VRXSE |
| 14 | 56922-06 | CLAMP, handlebar (2) | VRXSE |
| 15 | 56932-06 | IDLE CONTROL, w/ 11272 | VRXSE |
| 16 | 67413-06 | BRACKET, instrument light | VRXSE |
| 17 | 68608-83 | PUSHNUT (3) | VRXSE |
| 18 | 68714-06 | LIGHT, oil warning | VRXSE |
| 19 | 68716-06 | LIGHT, turn | VRXSE |
| 20 | 68717-06 | LIGHT, neutral | VRXSE |
| 21 | 69429-06 | SHIFT LIGHT & BRACKET ASSEMBLY | VRXSE |
| 22 | 70345-84 | RETAINER | VRXSE |
| 23 | 67414-06 | BRACKET, shift light | VRXSE |
| 24 | 8679 | SCREW, button head (not shown) | VRXSE |
| 25 | 3934M | SCREW (not shown) (2) | VRXSE |
| 26 | 7427M | NUT, hex flange lock (not shown) (2) | VRXSE |

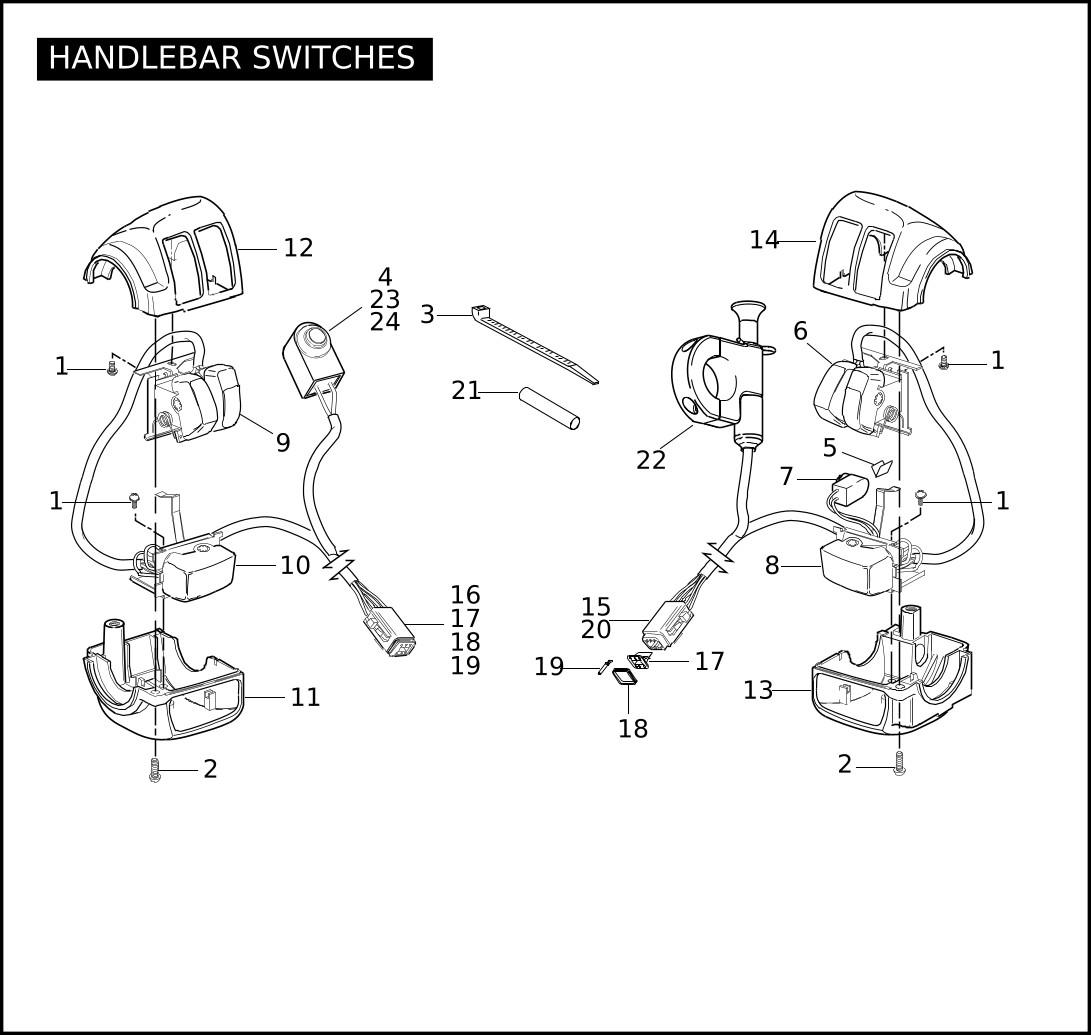

HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (4) | VRXSE |
| 2 | 3658 | SCREW (4) | VRXSE |
| 3 | 10006 | CABLE STRAP, as required | VRXSE |
| 4 | 71620-08 | SWITCH, clutch | VRXSE |
| 5 | 71587-04 | CLIP | VRXSE |
| 6 | 71684-06A | SWITCH KIT, engine run/stop/start, w/ 3 & 21 | VRXSE |
| 7 | 71621-08 | STOPLAMP SWITCH KIT, w/ 3 & 21 | VRXSE |
| 8 | 71770-06 | SWITCH ASSEMBLY, tach mode, w/ 3 & 21 | VRXSE |
| 9 | 71610-06 | SWITCH ASSEMBLY, AF & Data ACQ, w/ 3 & 21 | VRXSE |
| 10 | 71609-06 | SWITCH ASSEMBLY, shift, w/ 3 & 21 | VRXSE |
| 11 | 71568-96A | HOUSING, lower, left (black) | VRXSE |
| 12 | 71567-96 | HOUSING, upper, left (black) | VRXSE |
| 13 | 71563-96 | HOUSING, lower, right (black) | VRXSE |
| 14 | 71564-96 | HOUSING, upper, right (black) | VRXSE |
| 15 | 72116-94BK | PLUG, 6-way socket, right (black) | VRXSE |
| 16 | 72116-94BK | PLUG, 6-way socket, left (black) (replaces gray connector) | VRXSE |
| 17 | 72156-94 | SOCKET LOCK, secondary, 6-way (2) | VRXSE |
| 18 | 72176-94 | FRONT SEAL, 6-way plug (2) | VRXSE |
| 19 | 72191-94 | TERMINAL, socket (12) | VRXSE |
| 20 | 72195-94 | PIN, seal | VRXSE |
| 21 | 72266-94 | HEAT SHRINK TUBE, dual wall, .3 x 2 inch (as required) | VRXSE |
| 22 | 75080-06 | SWITCH, shutdown | VRXSE |
| 23 | 46865-06 | CLUTCH SWITCH SPRING CLIP (not illustrated) | VRXSE |
| 24 | 2594A | SCREW (not illustrated) | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

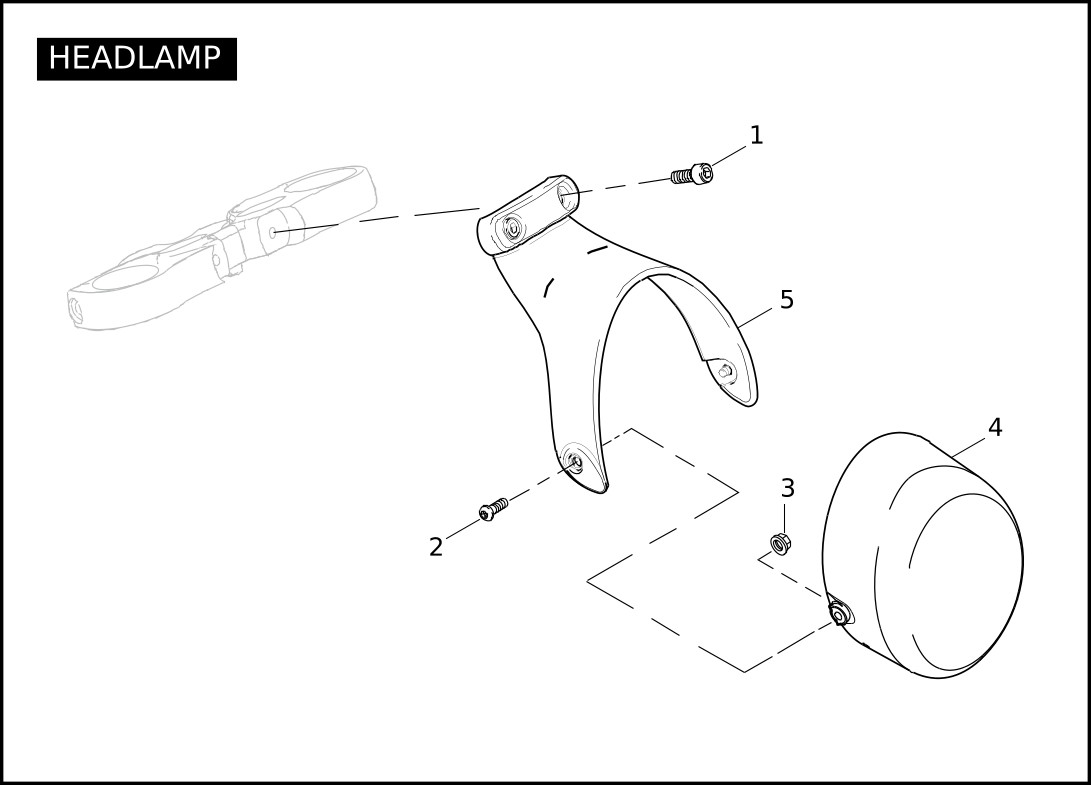

HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (2) | VRXSE |
| 2 | 3832M | SCREW (2) | VRXSE |
| 3 | 7495 | NUT (2) | VRXSE |
| 4 | 68298-06 | HEADLAMP ASSEMBLY | VRXSE |
| 5 | 68895-06DH | BRACKET, headlamp mounting | VRXSE |

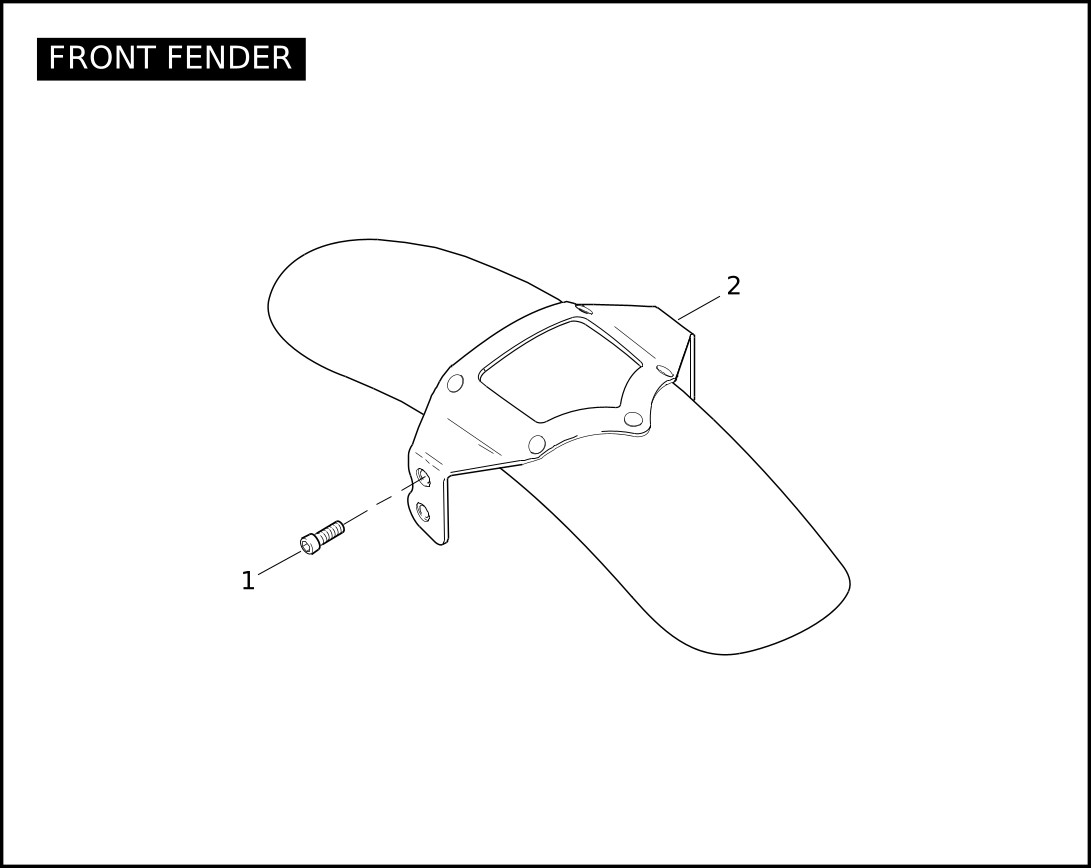

FRONT FENDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3709M | SCREW (4) | VRXSE |
| 2 | 60189-06DH | FENDER ASSEMBLY, front (vivid black) | VRXSE |

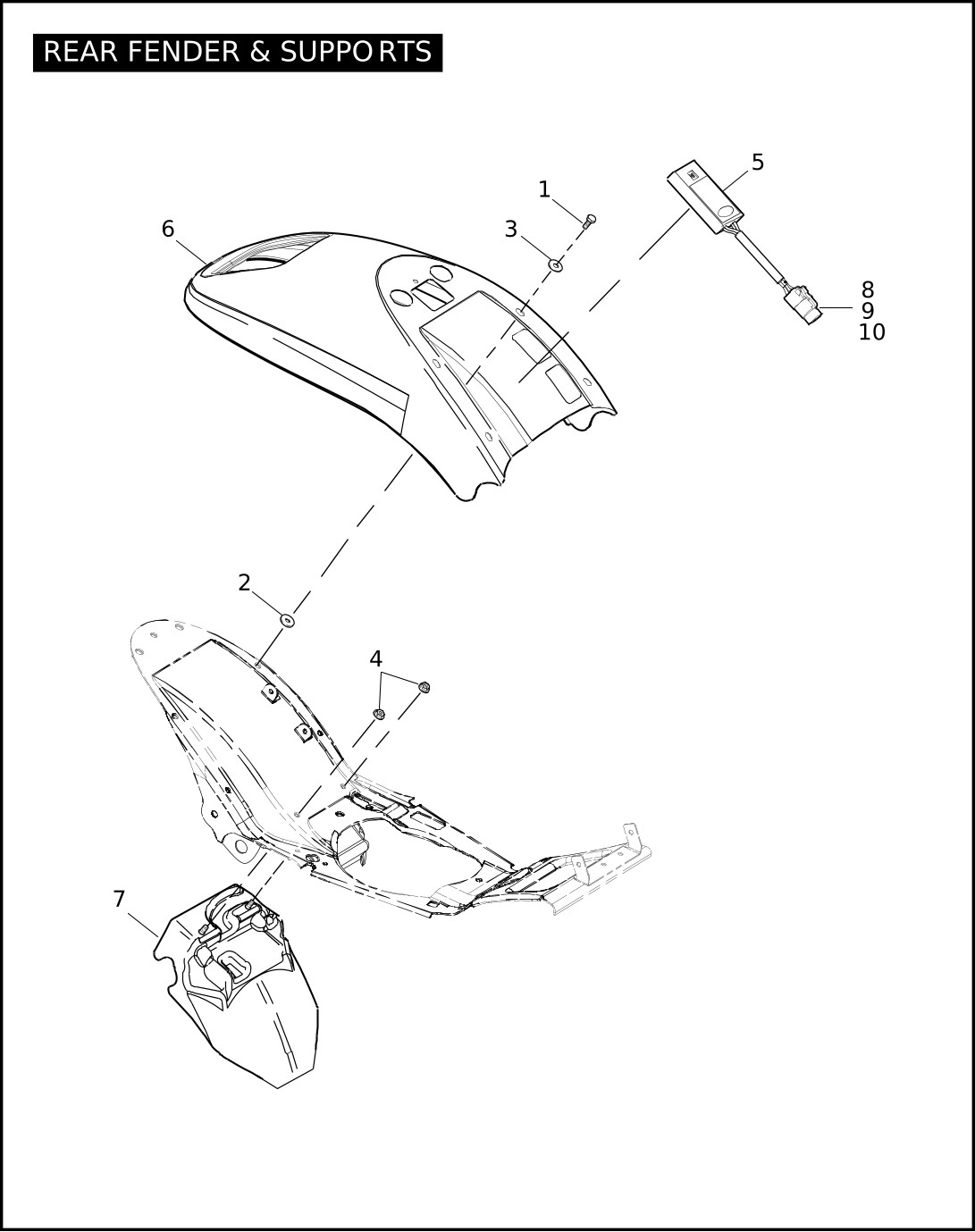

REAR FENDER & SUPPORTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3711M | SCREW (4) | VRXSE |
| 2 | 5696 | WASHER (4) | VRXSE |
| 3 | 6837M | WASHER (4) | VRXSE |
| 4 | 7495 | NUT (2) | VRXSE |
| 5 | 33227-06 | MODULE ASSEMBLY, electric kill w/ 8, 9 & 10 | VRXSE |
| 6 | 59605-06CCW | FENDER REAR, orange/black/silver | VRXSE |
| 7 | 59764-06 | MUDFLAP | VRXSE |
| 8 | 74114-98BK | SOCKET HOUSING, 4-way | VRXSE |
| 9 | 74154-98 | SECONDARY LOCK, 4-way | VRXSE |
| 10 | 74191-98 | SOCKET TERMINAL (4) | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||

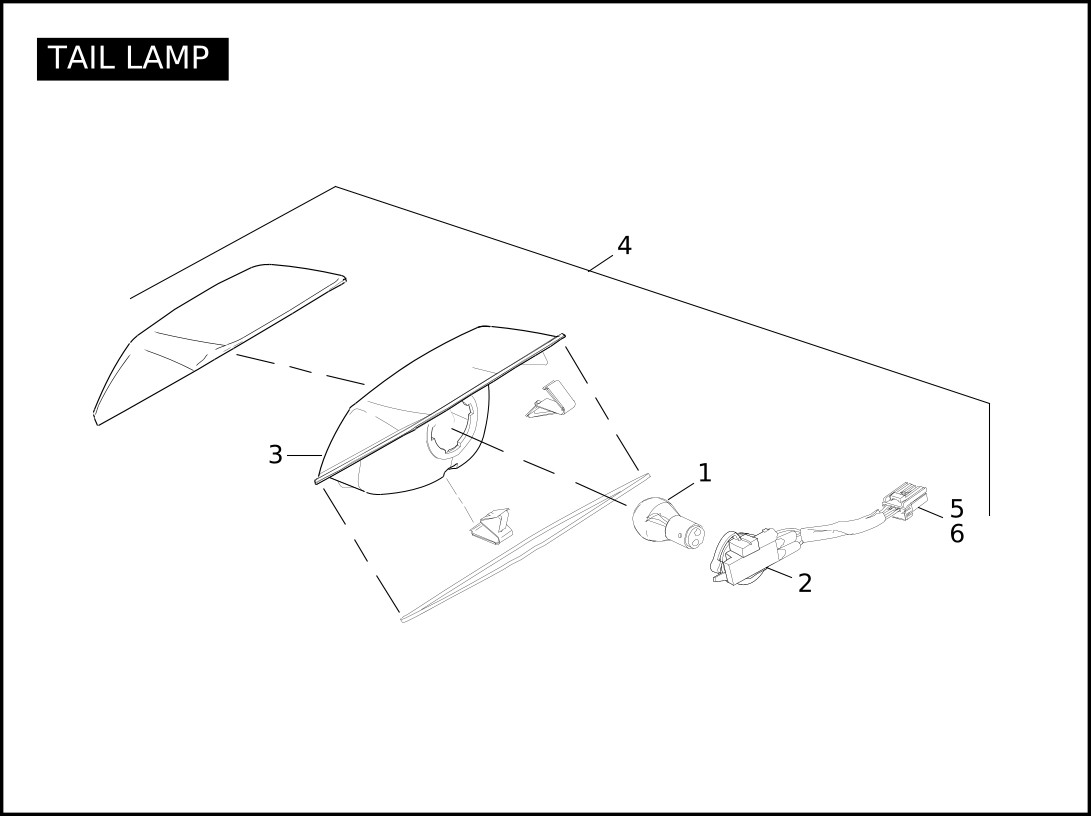

TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 68168-89A | BULB, tail lamp | VRXSE |
| 2 | 68324-01 | BULB SOCKET ASSEMBLY | VRXSE |
| 3 | 68326-01A | ENVELOPE ASSEMBLY, tail lamp | VRXSE |
| 4 | 68876-01A | TAIL LAMP ASSEMBLY, w/ 68168-89, 68324-01 & 68326-01A | VRXSE |
| 5 | 73153-96BK | HOUSING SOCKET, 3-way (black) | VRXSE |
| 6 | 73191-96 | TERMINAL (12) | VRXSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3700MA | SCREW (2) | VRXSE |
| 2 | 6856M | WASHER | VRXSE |
| 3 | 10039 | CABLE STRAP, fuel pump connector to frame (not illustrated) | VRXSE |
| 4 | 10108 | CLIP | VRXSE |
| 5 | 10238 | CLAMP (2) | VRXSE |
| 6 | 10239 | CLAMP (2) | VRXSE |
| 7 | 11380 | O-RING | VRXSE |
| 8 | 27378-01 | TUBE ASSEMBLY, tank to vapor valve | VRXSE |
| 9 | 60966-01 | BRACKET, fuel tank | VRXSE |
| 10 | 61109-85D | GASKET, filler cap | VRXSE |
| 11 | 61274-92 | FILLER CAP, w/ 61109-85D | VRXSE |
| 12 | 61329-01 | LOCK RING, fuel module | VRXSE |
| 13 | 61498-01 | SEAL, fuel module | VRXSE |
| 14 | 61504-01A | FUEL LINE, pressure (use 61516-07) | VRXSE |
| 15 | 61505-01A | FUEL LINE, return (use 61516-07) | VRXSE |
| 16 | 61828-01 | BOOT, fuel filler | VRXSE |
| 17 | 62109-01A | FUEL PUMP, w/ 10239 & 62927-01 | VRXSE |
| 18 | 62150-85 | VAPOR VALVE | VRXSE |
| 19 | 62921-01 | FUEL TANK ASSEMBLY | VRXSE |
| 20 | 62926-01 | HOSE, filter to fuel outlet | VRXSE |
| 21 | 62927-01 | HOSE, pump to filter | VRXSE |
| 22 | 72458-00 | CLIP & O-RING KIT, w/ 11380 | VRXSE |
| 23 | 72439-00B | CONNECTOR ASSEMBLY KIT, w/ 72458-00 | VRXSE |
| 24 | 74191-98 | TERMINAL (3) | VRXSE |
| 25 | 75122-01 | SENDING UNIT, fuel gauge | VRXSE |
| 26 | 75123-01B | FUEL MODULE ASSEMBLY, w/ 4, 16, 19, 24, 26, 28, 29 & 30 (order components separately) | VRXSE |
| 27 | 75169-01 | FILTER, pressure side | VRXSE |
| 28 | 75170-04A | FILTER, suction side (use 62109-01A) | VRXSE |
| 29 | 75171-01 | CARRIER FUEL PUMP/FILTER | VRXSE |
| 30 | 75172-01A | ELECTRICAL HARNESS, w/ 11380 | VRXSE |
| 31 | 75173-01A | FLANGE, fuel module | VRXSE |
| 32 | 61516-07 | FUEL LINE KIT, w/ 10065 & 61513-07 | VRXSE |
| 33 | 10065 | CABLE STRAP (not illustrated) | VRXSE |
| 34 | 61513-07 | CLIP (not illustrated) | VRXSE |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 35 | 27138-90 | HOSE, 3/16 inch I.D. (rubber) (10 feet length) (cut 13.75-14.00) | VRXSE |

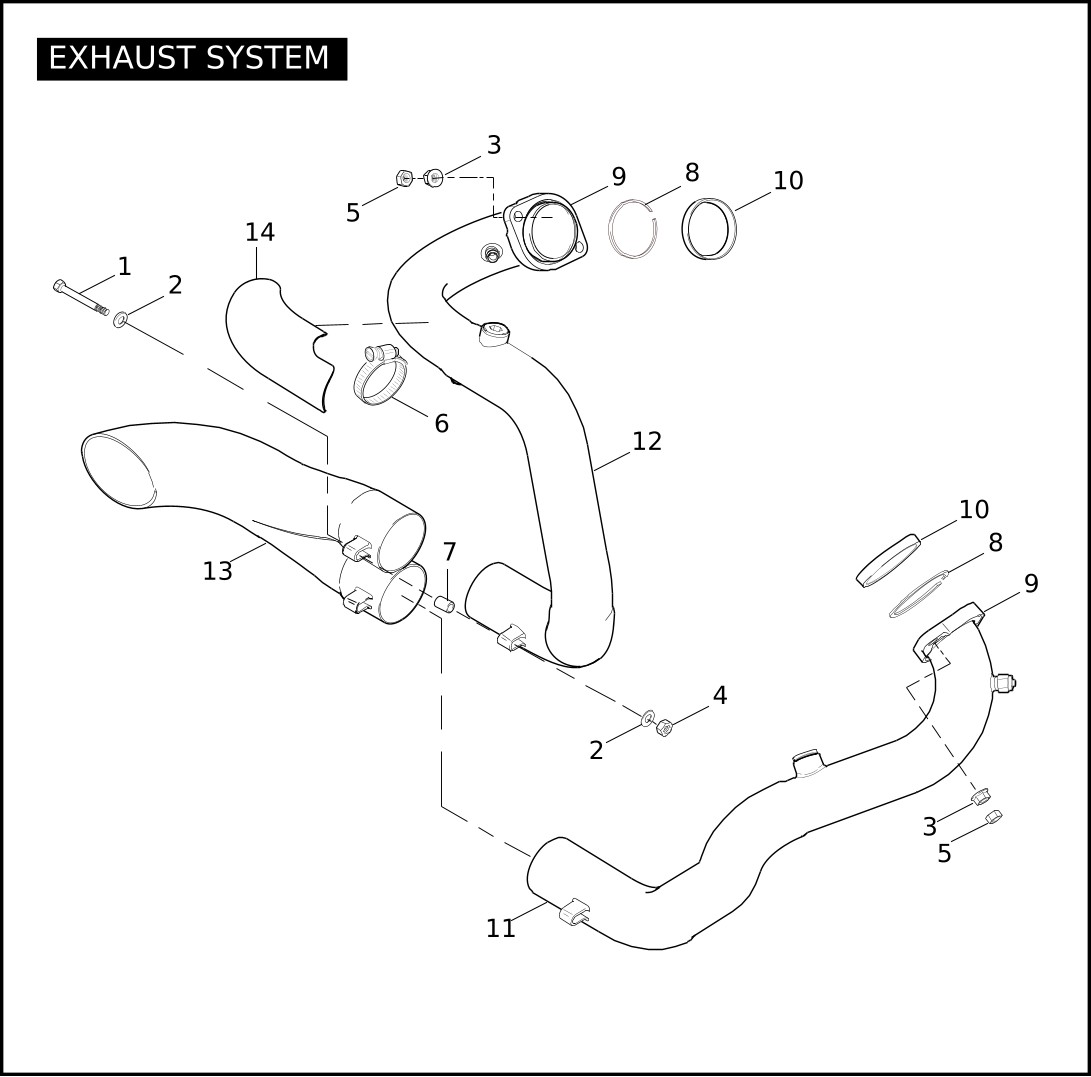

EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3376 | SCREW (2) | VRXSE |
| 2 | 6239 | WASHER (4) | VRXSE |
| 3 | 7432M | NUT (4) | VRXSE |
| 4 | 7742 | LOCKNUT (2) | VRXSE |
| 5 | 8054M | NUT (4) | VRXSE |
| 6 | 9955 | CLAMP (2) | VRXSE |
| 7 | 11809 | SPACER, exhaust | VRXSE |
| 8 | 65045-01 | RING, retaining (2) | VRXSE |
| 9 | 65102-01 | FLANGE, exhaust (2) | VRXSE |
| 10 | 65109-01 | SEAL, exhaust (2) | VRXSE |
| 11 | 66802-06 | EXHAUST PIPE, front | VRXSE |
| 12 | 66803-06 | EXHAUST PIPE, rear | VRXSE |
| 13 | 66804-06 | EXHAUST PIPE, collector | VRXSE |
| 14 | 66806-06 | SHIELD, rear exhaust | VRXSE |

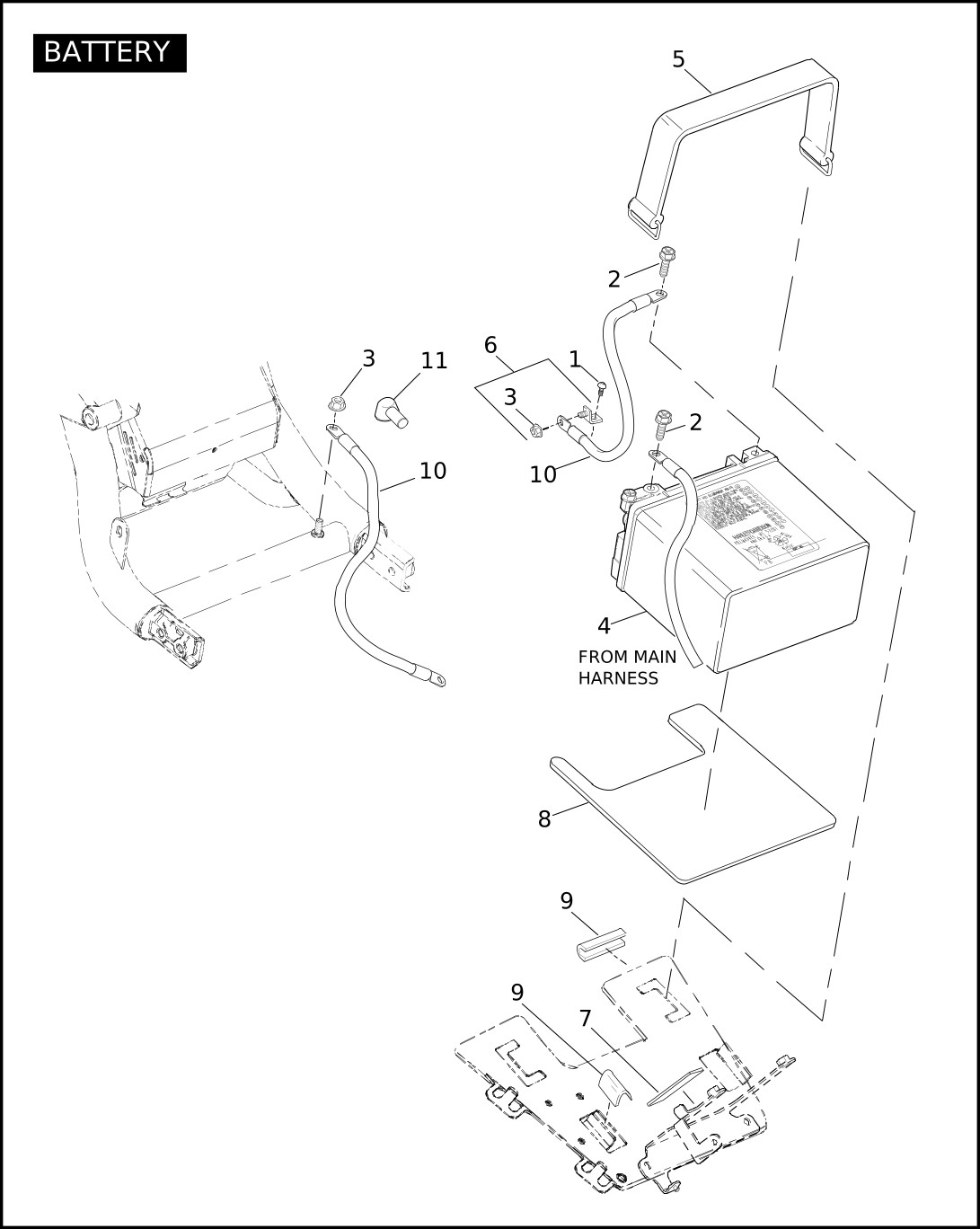

BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW | VRXSE |
| 2 | 4312C | SCREW (2) | VRXSE |
| 3 | 7495 | NUT | VRXSE |
| 4 | 65948-00A | BATTERY, w/ 4312C | VRXSE |
| 5 | 66017-01 | BATTERY STRAP | VRXSE |
| 6 | 66056-00 | ADAPTER KIT, w/ 7495 | VRXSE |
| 7 | 66494-01 | PAD, battery (2) | VRXSE |
| 8 | 66495-01 | PAD, battery bottom | VRXSE |
| 9 | 66496-01 | TRIM, battery (2) | VRXSE |
| 10 | 70439-01 | CABLE ASSEMBLY, battery | VRXSE |
| 11 | 70578-89 | BOOT | VRXSE |

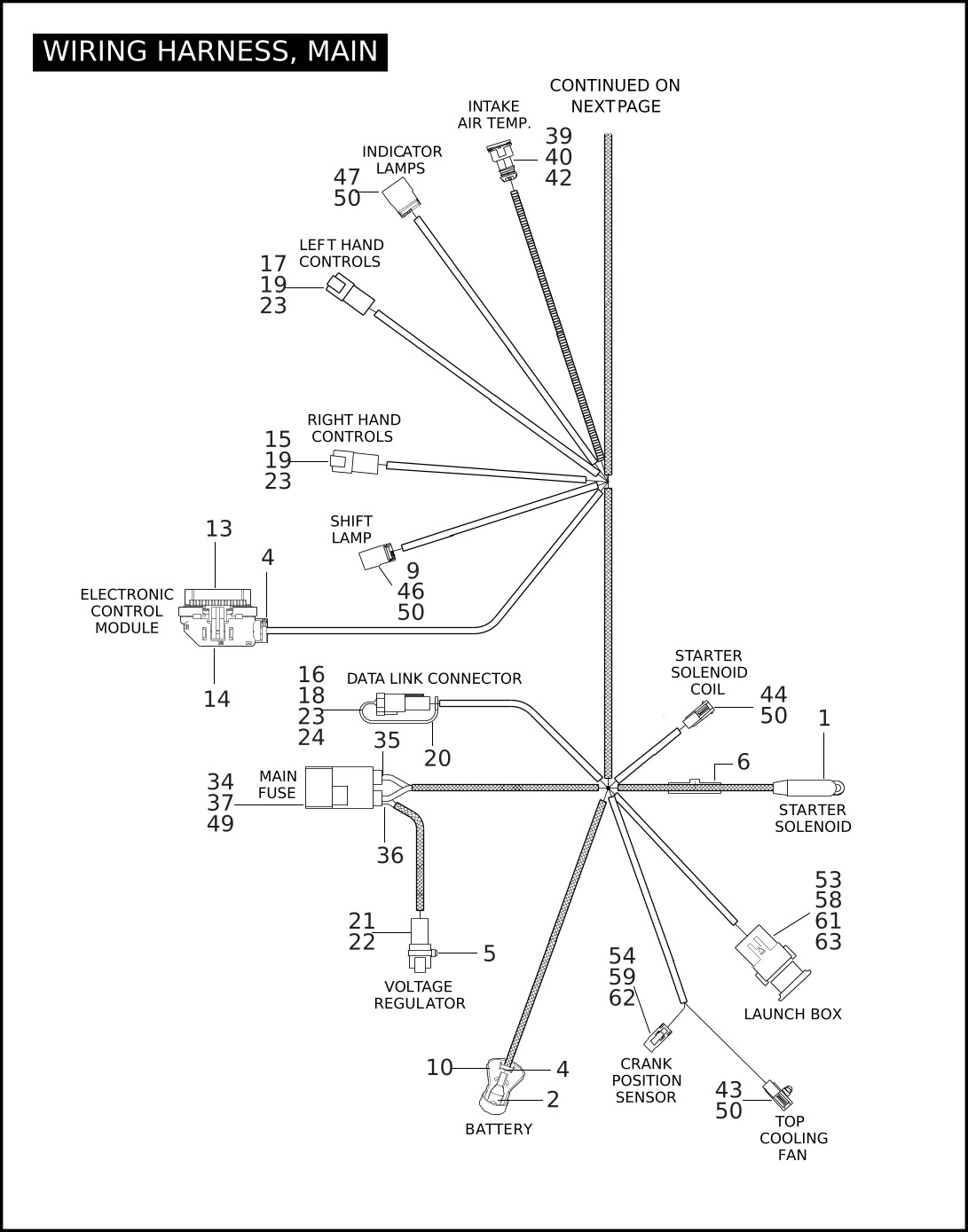

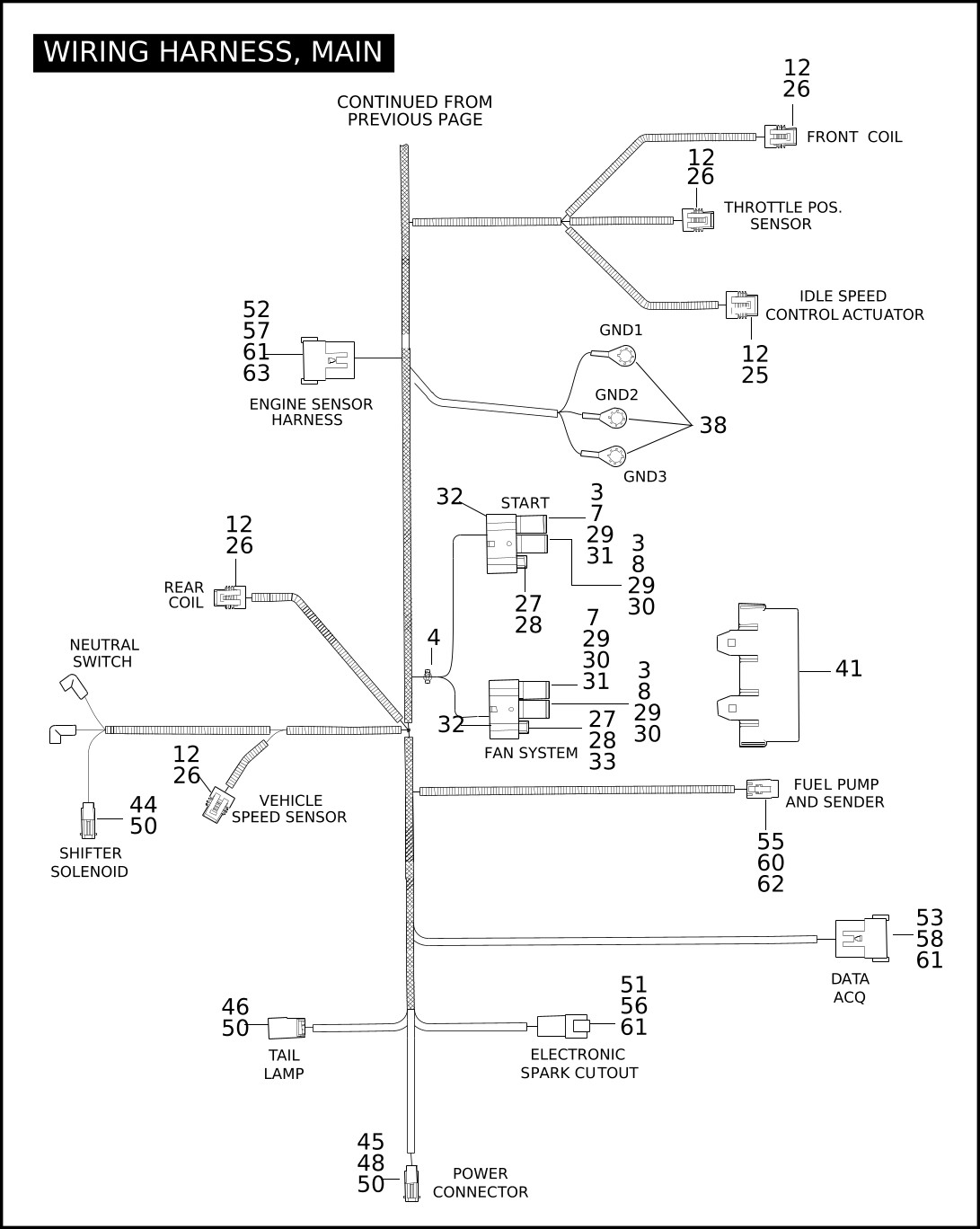

WIRING HARNESS, MAIN (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70126-06 | MAIN WIRING HARNESS | VRXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9833 | RING, #4 AWG, 1/4 inch stud | VRXSE |
| 2 | 9834 | RING, #6 AWG, 1/4 inch stud | VRXSE |
| 3 | 9937 | TERMINAL, 1/4 inch female, #14-18 AWG (3) | VRXSE |
| 4 | 10065 | CABLE STRAP (3) | VRXSE |
| 5 | 10073 | CABLE STRAP | VRXSE |
| 6 | 10136 | MOUNTING CLIP | VRXSE |
| 7 | 31511-01B | RELAY, black | VRXSE |
| 8 | 31522-00C | RELAY, gray (2) | VRXSE |
| 9 | 48454-05 | CLIP ADAPTER | VRXSE |
| 10 | 70003-04 | COVER, battery terminal (red) | VRXSE |
| 11 | 70374-04 | CADDY, electrical components (not illustrated) | VRXSE |
| 12 | 72033-93 | TERMINAL, socket, #16-20 AWG (19) | VRXSE |
| 13 | 72076-00 | TERMINAL, socket, #18 AWG (29) | VRXSE |
| 14 | 72077-00 | SEAL PIN (7) | VRXSE |
| 15 | 72106-94BK | HOUSING, 6-way pin (black) | VRXSE |
| 16 | 72124-94GY | HOUSING, 4-way pin (gray) | VRXSE |
| 17 | 72106-94BK | HOUSING, 6-way pin (black) (replaces gray connector) | VRXSE |
| 18 | 72144-94 | SECONDARY LOCK, 4-way pin | VRXSE |
| 19 | 72146-94 | SECONDARY LOCK, 6-way pin (2) | VRXSE |
| 20 | 72164-94A | WEATHER PLUG, 4-way pin | VRXSE |
| 21 | 72170-01 | TERMINAL, pin, #8-10 AWG | VRXSE |
| 22 | 72182-01 | HOUSING, 1-way pin | VRXSE |
| 23 | 72190-94 | TERMINAL, pin, #16-18 AWG (16) | VRXSE |
| 24 | 72199-94 | ANCHOR | VRXSE |
| 25 | 72263-95 | HOUSING, 4-way socket | VRXSE |
| 26 | 72312-04 | HOUSING, 3-way socket (5) | VRXSE |
| 27 | 72326-95 | TERMINAL, #16-20 AWG (8) | VRXSE |
| 28 | 72330-95 | FUSE, mini, 15 AMP (8) | VRXSE |
| 29 | 72427-00 | TERMINAL, .187 female, #16-20 AWG (4) | VRXSE |
| 30 | 72428-00 | TERMINAL, .187 female, #14-18 AWG (2) | VRXSE |
| 31 | 72429-00 | TERMINAL, 1/4 inch female, #12-16 AWG (3) | VRXSE |
WIRING HARNESS, MAIN (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70126-06 | MAIN WIRING HARNESS | VRXSE | |
| NOTE: Includes the following parts. | |||
| 32 | 72432-00 | MOUNTING BLOCK, 3 fuses/2 relays | VRXSE |
| 33 | 72434-00 | TERMINAL, #14-16 AWG (8) | VRXSE |
| 34 | 72521-01 | FUSE HOLDER, 1-way MAXIFUSE | VRXSE |
| 35 | 72522-01 | TERMINAL, female, #10 AWG MAXIFUSE | VRXSE |
| 36 | 72523-01 | TERMINAL, female, #10 AWG MAXIFUSE | VRXSE |
| 37 | 72524-01 | SECONDARY LOCK, 2-way female | VRXSE |
| 38 | 72525-01 | TERMINAL, 3/8 inch stud, #12-14 AWG (2) | VRXSE |
| 39 | 72526-01 | HOUSING, 2-way socket | VRXSE |
| 40 | 72527-01 | TERMINAL, socket, #16-20 AWG (2) | VRXSE |
| 41 | 72555-06 | FUSE BLOCK COVER | VRXSE |
| 42 | 72633-02 | CABLE SEAL, #18-20 AWG (white) (2) | VRXSE |
| 43 | 73101-96BK | HOUSING, 2-way pin (black) (2) | VRXSE |
| 44 | 73102-96BK | HOUSING, 2-way pin (black) (2) | VRXSE |
| 45 | 73102-96WE | HOUSING, 2-way pin (white) | VRXSE |
| 46 | 73104-96BK | HOUSING, 4-way pin (black) (2) | VRXSE |
| 47 | 73106-96BK | HOUSING, 6-way pin (black) | VRXSE |
| 48 | 73152-96WE | HOUSING, 2-way pin (white) | VRXSE |
| 49 | 73169-01 | FUSE MOUNT | VRXSE |
| 50 | 73190-96 | TERMINAL, pin, #16-20 AWG (24) | VRXSE |
| 51 | 74104-98BK | HOUSING, 8-way pin (black) | VRXSE |
| 52 | 74108-98BK | HOUSING, 8-way pin (black) | VRXSE |
| 53 | 74109-98BK | HOUSING, 12-way pin (black) | VRXSE |
| 54 | 74112-98BK | HOUSING, 2-way socket (black) | VRXSE |
| 55 | 74113-98BK | HOUSING, 3-way socket (black) | VRXSE |
| 56 | 74144-98 | SECONDARY LOCK, 4-way pin | VRXSE |
| 57 | 74148-98 | SECONDARY LOCK, 8-way pin | VRXSE |
| 58 | 74149-98 | SECONDARY LOCK, 12-way socket | VRXSE |
| 59 | 74152-98 | SECONDARY LOCK, 2-way socket | VRXSE |
| 60 | 74153-98 | SECONDARY LOCK, 3-way socket | VRXSE |
| 61 | 74190-98 | TERMINAL, pin, #16-20 AWG (8) | VRXSE |
| 62 | 74191-98 | TERMINAL, socket, #16-20 AWG (16) | VRXSE |
| 63 | 74195-98 | SEAL PIN, plug | VRXSE |
WIRING HARNESS, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 70155-03 | WIRING HARNESS, ENGINE | VRXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 72033-93 | TERMINAL, socket (2) | VRXSE |
| 2 | 72213-94 | TERMINAL, female, 18-21 gauge (3) | VRXSE |
| 3 | 72214-94 | CABLE SEAL (3) | VRXSE |
| 4 | 72230-98 | SOCKET HOUSING, 3-way | VRXSE |
| 5 | 72231-98 | SOCKET LOCK, secondary 3-way | VRXSE |
| 6 | 72244-95 | SOCKET HOUSING, 2-way (2) | VRXSE |
| 7 | 72245-95 | TERMINAL, socket (4) | VRXSE |
| 8 | 72273-95 | SOCKET HOUSING, 2-way | VRXSE |
| 9 | 72405-98GN | TERMINAL, push on #18 AWG | VRXSE |
| 10 | 74118-98BK | SOCKET HOUSING, 8-way (black) | VRXSE |
| 11 | 74158-98 | SOCKET LOCK, secondary 8-way | VRXSE |
| 12 | 74191-98 | TERMINAL, socket (8) | VRXSE |
COSMETIC COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2916 | SCREW (2) | VRXSE |
| 2 | 3612 | SCREW (4) | VRXSE |
| 3 | 3707M | SCREW (2) | VRXSE |
| 4 | 3716M | SCREW (4) | VRXSE |
| 5 | 3731M | SCREW (2) | VRXSE |
| 6 | 6837M | WASHER (4) | VRXSE |
| 7 | 6872M | WASHER (2) | VRXSE |
| 8 | 8130 | SPEED NUT (6) | VRXSE |
| 9 | 8235 | RIVET (2) | VRXSE |
| 10 | 10092 | J-CLAMP, not illustrated | VRXSE |
| 11 | 11519 | BUSHING (2) | VRXSE |
| 12 | 11523 | WASHER | VRXSE |
| 13 | 11524A | RUBBER MOUNT (4) | VRXSE |
| 14 | 11558 | BUMPER, air box (2) | VRXSE |
| 15 | 15348-01 | WARNING LABEL | VRXSE |
| 16 | 26735-01A | COVER ASSEMBLY, w/ 3612, 8130, 26788-01A, 66115-01 & 66116-01 | VRXSE |
| 17 | 26788-01A | COVER, radiator | VRXSE |
| 18 | 29678-06 | BRACKET ASSEMBLY KIT, air box mounting, w/2916 | VRXSE |
| 19 | 48403-03 | PROTECTIVE TAPE, not illustrated | VRXSE |
| 20 | 66108-06CCW | COVER, air box, w/ 11558 & 48403-03 | VRXSE |
| 21 | 66115-01 | BEZEL INLET, radiator, right | VRXSE |
| 66116-01 | BEZEL INLET, radiator, left | VRXSE | |
| 22 | 66291-06CFZ | RADIATOR, trim cover, left | VRXSE |
| 66292-06CFZ | RADIATOR, trim cover, right | VRXSE | |
| 23 | 66320-03 | SIDECOVER KIT, w/ left & right sidecovers & 11524 (4) | VRXSE |
| 24 | 66712-01 | S-SPRING | VRXSE |
| 25 | 66713-01 | STUD BAIL HEAD | VRXSE |
| 26 | 91691-05 | INDOOR STORAGE COVER (not illustrated) | VRXSE |
WHEELIE BAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 16303-06 | WHEELIE BAR ASSEMBLY | VRXSE |
| 2 | 16310-06 | SIDE PANEL ASSEMBLY | VRXSE |
| Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999Part number not sold through Harley-Davidson; Supplier reference only contact: Pingel Enterprises @ 608-339-7999 | |||
| Part No. | Description |
| 1004M | SCREW M6 X 1.0 X 27 socket head |
| 1007M | SCREW M6 X 1.0 X 12 socket head |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 1010M | SCREW M6 X 1.0 X 20 hex flange head |
| 1014M | SCREW M6 X 1.0 X 40 hex flange head |
| 1017M | SCREW M6 X 1.0 X 95 socket head |
| 1021M | SCREW M8 X 29 TORX head |
| 1023M | SCREW M8 X 1.25 X 55 hex flange head |
| 1024M | SCREW M6 X 1.0 X 60 socket head |
| 1025M | SCREW M8 X 1.25 X 90 hex flange head |
| 1027M | SCREW M10 X 1.5 X 60 hex flange head |
| 1030M | SCREW M6 X 1.0 X 50 socket head |
| 1031M | SCREW M8 X 1.0 X 18 hex head |
| 1035M | SCREW M14 X 1.5 X 70 hex flange head |
| 1043M | SCREW M5 X 1.0 X 10 socket head |
| 1114M | SCREW M6 X 1 X 20 socket head |
| 24311-01K | BOLT M10 X 1.0 X 55 |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 25911-01K | WASHER 8.2 X 28 X 5.0 |
| 2594A | SCREW No. 8-32 X 1/4 Pozidriv pan head, with lockwasher (Grade 2) |
| 2916 | SCREW 3/8-16 X 5/8 socket button head (Grade 8) |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 3108M | SCREW M8 X 1.25 X 20 hex head |
| 3376 | SCREW 1/4-20 X 2-1/2 hex head |
| 3396 | SCREW 5/16-24 X 2-1/4 hex head |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3700MA | SCREW M10 X 1.5 X 30 socket button head |
| 3701M | SCREW M10 X 1.5 X 25 socket head |
| 3703M | SCREW M10 X 1.5 X 30 socket head |
| 3705M | SCREW M12 X 1.75 X 80 socket button head |
| 3707M | SCREW M6 X 1.0 X 10 socket head |
| 3708M | SCREW M6 X 1.0 X30 hex head |
| 3709M | SCREW M8 X 1.25 X 20 socket head |
| 3711M | SCREW M6 X 1.0 X 16 hex head |
| 3716M | SCREW M6 X 1.0 X 12 button socket head |
| 3725M | NUT M8 X 1.25 hex flange head, with lockpatch |
| 3729M | SCREW M6 X 1.0 X 16 socket head |
| 3731M | SCREW M6 X 1.0 X 12 socket button head, with lockpatch |
| 3755M | SCREW M8 X 1.25 X 16 hex head |
| 3832M | SCREW M6 X 1.0 X 20 hex button head |
| 3919M | SCREW M10 X 1.5 X 40 socket head |
| 3920M | SCREW M10 X 1.5 X 60 flat socket head |
| 3966M | SCREW M10 X 1.5 X 65 socket head |
| 4042 | SCREW M8 X 1.25 X 35 hex button head |
| 40582-05 | WASHER 0.815 X 1.67 X 0.125 |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4279 | SCREW No. 8-32 X 1/4 TORX head (Grade 8) |
| 4283M | SCREW M4 X 0.7 X 8 socket head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4486M | SCREW M8 X 1.25 X 30 socket head |
| 4534M | SCREW M10 X 1.5 x 30 socket head |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 4555M | SCREW M12 X 1.75 X 90 TORX button head |
| 45717-63 | LOCKWASHER 1 X 2 X 0.035 keyed special |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 4578M | SCREW M12 X 1.75 X 70 button head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4793M | SCREW M8 X 1.25 X 25 hex button head |
| 5237M | SCREW M6, X 1.0 X 16 hex flange head |
| 5238M | LOCKNUT M6 flange |
| 5696 | WASHER M6 6.75 X 18.5 X 3 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6137K | WASHER 6.35 X 9.80 X 1.0 |
| 6176MA | WASHER 37 X 47 X 2.5 |
| 6192 | WASHER No. 8 X 7/16 X 3/64 |
| 6239 | WASHER 1/4 X 1/2 X 3/32 |
| 6298M | WASHER 12.45 X 15.3 X 1.5 |
| 6366 | WASHER 1/2 X 1-1/4 X 3/32 |
| 6655 | WASHER 5/8 X 1-1/2 X 7/64 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6837M | WASHER M6 regular |
| 6838M | WASHER M8 regular |
| 6839M | WASHER M10 narrow |
| 6856M | WASHER M10 |
| 6859M | WASHER M6 special |
| 6872M | WASHER M6 special |
| 6874 | WASHER 25/64 X 5/8 X 1/16 |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7427M | NUT M10 X 1.5 flange |
| 7432M | NUT M8 X 1.25 flange |
| 7433M | LOCKNUT M12 X 1.75 flexlock height |
| 7460M | LOCKNUT M20 X 2.5 flange |
| 7495 | NUT M6 X 1.0 flange lock |
| 7742 | LOCKNUT 1/4-20 X 7/32 X 7/16 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8679 | SCREW No. 8-32 X 7/16, TORX button head |
| 965M | SCREW M6 X 1.0 X 12 socket head |
| 966M | SCREW M6 X 1.0 X 35 socket head |
| 968M | SCREW M10 X 1.5 X 150 hex flange head |
| 970M | SCREW M8 X 1.25 X 40 hex head |
| 972M | SCREW M8 X 1.25 X 150 hex flange head |
| 973M | SCREW M8 X 1.25 X 120 hex flange head |
| 978M | SCREW M6 X 1.0 X 40 socket head |
| 983M | BOLT M10 X 1.0 X 33 - 12 point flange head |
| Part No. | Description |
| 10006 | |
| 10014 | |
| 10031 | |
| 10036 | |
| 10038A | |
| 10039 | |
| 1004M | |
| 10059A | |
| 10065 | |
| 10073 | |
| 10076 | |
| 1007M | |
| 10092 | |
| 1009M | |
| 10108 | |
| 1010M | |
| 10132 | |
| 10136 | |
| 10141 | |
| 1014M | |
| 1017M | |
| 1021M | |
| 10232K | |
| 10238 | |
| 10239 | |
| 1023M | |
| 1024M | |
| 1025M | |
| 1027M | |
| 1030M | |
| 1031M | |
| 1033M | |
| 1034M | |
| 1035M | |
| 1043M | |
| 1087M | |
| 10994K | |
| 10995K | |
| 11000 | |
| 11130K | |
| 11143 | |
| 1114M | |
| 11200K | |
| 11271 | |
| 11272 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11312K | |
| 11314K | |
| 11324 | |
| 11328M | |
| 11329K | |
| 11331K | |
| 11335K | |
| 11341K | |
| 11346K | |
| 11347K | |
| 11353K | |
| 11354K | |
| 11355K | |
| 11356K | |
| 11361 | |
| 11362K | |
| 11363K | |
| 11366K | |
| 11380 | |
| 11391K | |
| 11392K | |
| 11516 | |
| 11519 | |
| 11523 | |
| 11524A | |
| 11542 | |
| 11548 | |
| 11558 | |
| 11568 | |
| 11611 | |
| 11614K | |
| 11807 | |
| 11808 | |
| 11809 | |
| 12071K | |
| 12072K | |
| 13500-06 | |
| 14758-01K | |
| 14791-01KA | |
| 14794-01K | |
| 14795-01K | |
| 15348-01 | |
| 16298-05A | |
| 16303-06 | |
| 16306-04A | |
| 16307-05 | |
| 16308-01 | |
| 16310-06 | |
| 16311-05 | |
| 16312-04A | |
| 16448-01KA | |
| 17010-01K | |
| 17011-01KB | |
| 17233-06K | |
| 17235-06K | |
| 17406-01KA | |
| 17407-01KA | |
| 17416-01KA | |
| 17418-01K | |
| 17423-01K | |
| 17445-06K | |
| 17447-06K | |
| 17629-01K | |
| 17632-01K | |
| 17637-01K | |
| 17638-01K | |
| 17639-01K | |
| 17640-01K | |
| 17641-01K | |
| 17666-01K | |
| 17679-04K | |
| 17680-04K | |
| 17689-04K | |
| 17691-05K | |
| 17692-05K | |
| 17696-06 | |
| 17706-06 | |
| 18115-06K | |
| 18116-06K | |
| 18117-06K | |
| 18118-06K | |
| 18119-06K | |
| 18120-06K | |
| 18181-01K | |
| 18624-01K | |
| 18625-01K | |
| 18626-01K | |
| 18627-01K | |
| 18628-01K | |
| 18629-01K | |
| 18630-01K | |
| 18631-01K | |
| 18632-01K | |
| 18638-01K | |
| 18639-01K | |
| 18655-01K | |
| 18656-01K | |
| 18657-01K | |
| 18658-01K | |
| 18659-01K | |
| 18665-01K | |
| 18666-01K | |
| 18667-01K | |
| 18668-01K | |
| 18669-01K | |
| 18670-01K | |
| 18671-01K | |
| 18672-01K | |
| 18673-01K | |
| 18674-01K | |
| 18675-01K | |
| 18676-01K | |
| 18677-01K | |
| 18678-01K | |
| 18679-01K | |
| 18680-01K | |
| 18681-01K | |
| 18682-01K | |
| 18683-01K | |
| 18684-01K | |
| 18685-01K | |
| 18686-01K | |
| 18687-01K | |
| 18692-01K | |
| 18693-01K | |
| 18694-01K | |
| 18695-01K | |
| 18696-01K | |
| 18697-01K | |
| 18698-01K | |
| 18699-01K | |
| 18700-01K | |
| 18701-01K | |
| 18702-01K | |
| 19627-06K | |
| 22121-01K | |
| 22126-05K | |
| 22919-05K | |
| 22927-06K | |
| 22935-06K | |
| 23712-01K | |
| 24307-01K | |
| 24311-01K | |
| 24312-01K | |
| 24409-01K | |
| 24410-01K | |
| 24411-01K | |
| 24412-01K | |
| 24413-01K | |
| 24731-06K | |
| 24733-06K | |
| 24986-01K | |
| 25080-01K | |
| 25291-04K | |
| 25295-04K | |
| 25311-04K | |
| 2579A | |
| 25800-01K | |
| 25891-01K | |
| 25911-01K | |
| 25918-04K | |
| 25919-04K | |
| 2594A | |
| 26022-02K | |
| 26034-01K | |
| 26103-01K | |
| 26146-06 | |
| 26147-06K | |
| 26148-06K | |
| 26393-01K | |
| 26399-01K | |
| 26534-01K | |
| 26539-01K | |
| 26542-01K | |
| 26561-99 | |
| 26575-01KB | |
| 26578-01K | |
| 26582-01KA | |
| 26729-06 | |
| 26730-01 | |
| 26731-05 | |
| 26731-06 | |
| 26733-01 | |
| 26735-01A | |
| 26737-01K | |
| 26738-01K | |
| 26739-01K | |
| 26740-01K | |
| 26749-01K | |
| 26750-01KA | |
| 26752-01K | |
| 26753-01 | |
| 26754-01 | |
| 26755-01 | |
| 26756-01 | |
| 26757-01 | |
| 26758-01 | |
| 26765-01K | |
| 26767-01 | |
| 26768-01A | |
| 26770-01 | |
| 26777-01 | |
| 26780-05A | |
| 26788-01A | |
| 26790-01 | |
| 26798-06 | |
| 26800042 | |
| 26810-06A | |
| 27138-90 | |
| 27225-01 | |
| 27378-01 | |
| 27388-01 | |
| 27408-01 | |
| 27628-01A | |
| 27667-01K | |
| 27670-05 | |
| 27676-06K | |
| 27720-06 | |
| 27791-05 | |
| 27975-01 | |
| 27977-01 | |
| 27982-01 | |
| 27990-01 | |
| 27993-01 | |
| 27995-01 | |
| 28002-01 | |
| 28862-01 | |
| 29018-06 | |
| 29021-06 | |
| 2916 | |
| 29435-05 | |
| 29439-01 | |
| 29504-05A | |
| 29505-05 | |
| 2955 | |
| 29595-06 | |
| 29596-06 | |
| 29601-05K | |
| 29678-06 | |
| 3070K | |
| 30731-01K | |
| 30734-04K | |
| 3108M | |
| 31301-01K | |
| 31303-01K | |
| 31511-01B | |
| 31522-00C | |
| 31651-01 | |
| 31717-01K | |
| 3229 | |
| 32302-06K | |
| 32313-01A | |
| 32315-01 | |
| 32416-10 | |
| 32477-01A | |
| 32616-01C | |
| 33225-06 | |
| 33227-06 | |
| 33228-06 | |
| 33229-06 | |
| 33230-06 | |
| 33232-06 | |
| 3376 | |
| 33782-06 | |
| 33783-06 | |
| 33784-06 | |
| 33786-06 | |
| 33804-06 | |
| 33808-06 | |
| 33902-98A | |
| 3396 | |
| 34927-05A | |
| 34996-05 | |
| 35001-01K | |
| 35002-01K | |
| 35003-01K | |
| 35004-01K | |
| 35017-01K | |
| 35420-01K | |
| 35428-01KA | |
| 35429-01KA | |
| 35430-01KA | |
| 35432-01K | |
| 35433-01K | |
| 35434-01K | |
| 35441-01K | |
| 35442-01K | |
| 35443-01K | |
| 35445-01K | |
| 35481-06KA | |
| 35482-06KA | |
| 35494-06K | |
| 3612 | |
| 3655A | |
| 3658 | |
| 36702-01K | |
| 36704-01K | |
| 36707-01K | |
| 36709-01K | |
| 36710-01K | |
| 36711-01K | |
| 36712-01K | |
| 36713-01K | |
| 36714-01K | |
| 36723-05K | |
| 36731-91 | |
| 36757-05K | |
| 36779-05K | |
| 36781-01K | |
| 36782-04K | |
| 36826-06K | |
| 36827-06K | |
| 36828-06K | |
| 36829-06K | |
| 36830-06K | |
| 36831-06K | |
| 36836-06K | |
| 36837-06K | |
| 36840-06K | |
| 36841-06K | |
| 36842-06K | |
| 36843-06K | |
| 3700MA | |
| 3701M | |
| 3703M | |
| 3704M | |
| 3705M | |
| 3707M | |
| 3708M | |
| 3709M | |
| 3711M | |
| 37124-06 | |
| 3716M | |
| 3725M | |
| 3729M | |
| 3731M | |
| 3755M | |
| 37909-90 | |
| 3832M | |
| 38653-01 | |
| 38676-06 | |
| 3919M | |
| 3920M | |
| 3934M | |
| 3966M | |
| 40043-06 | |
| 40095-01K | |
| 4042 | |
| 40582-05 | |
| 40715-06 | |
| 40716-06 | |
| 40717-06 | |
| 40903-87 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87A | |
| 409K | |
| 41139-02 | |
| 4132 | |
| 41531-06R | |
| 41539-06R | |
| 41540-04 | |
| 41687-06 | |
| 41692-06 | |
| 41715-06 | |
| 41717-06 | |
| 41718-06 | |
| 41731-01 | |
| 41733-88 | |
| 41739-84A | |
| 41747-82A | |
| 42375-87 | |
| 42382-87C | |
| 4240 | |
| 42443-80A | |
| 42447-96 | |
| 42460-80B | |
| 42471-01A | |
| 42730-06A | |
| 42731-06 | |
| 4279 | |
| 4283M | |
| 4312C | |
| 43173-01 | |
| 43641-01 | |
| 43642-01A | |
| 43704-01 | |
| 43914-01 | |
| 43915-06 | |
| 43917-01 | |
| 44046-00D | |
| 44048-83 | |
| 44082-00D | |
| 44126-87 | |
| 44147-87A | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44313-01A | |
| 44314-00 | |
| 44315-00A | |
| 44337-00B | |
| 44338-00 | |
| 44351-00 | |
| 44358-00A | |
| 44680-05 | |
| 4486M | |
| 45006-96C | |
| 45016-96 | |
| 45029-11B | |
| 45032-82 | |
| 45044-96A | |
| 45069-01 | |
| 45070-01 | |
| 4530M | |
| 4534M | |
| 45405-75A | |
| 45423-92 | |
| 45423-96 | |
| 45505-06 | |
| 4555M | |
| 45611-86 | |
| 45670-80A | |
| 45717-63 | |
| 45718-60 | |
| 4578M | |
| 46080-01 | |
| 46244-01 | |
| 46246-01 | |
| 46309-06 | |
| 46423-05B | |
| 46504-01 | |
| 46505-01 | |
| 46506-01A | |
| 46507-01 | |
| 46508-01 | |
| 46509-01 | |
| 46510-01 | |
| 46511-01 | |
| 46512-01A | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46516-01 | |
| 46517-01 | |
| 46518-01 | |
| 46519-01 | |
| 46560-06 | |
| 46752-01A | |
| 46755-01 | |
| 46756-01 | |
| 46757-01 | |
| 46865-06 | |
| 46866-06 | |
| 46867-06 | |
| 46868-06 | |
| 47014-05CFZ | |
| 4741A | |
| 47579-00 | |
| 4793M | |
| 4797 | |
| 47984-06CFZ | |
| 47986-06CFZ | |
| 48086-01 | |
| 48122-06CFZ | |
| 48184-01 | |
| 482K | |
| 48300-60 | |
| 48315-60 | |
| 48324-00 | |
| 48386-05A | |
| 48389-01 | |
| 48403-03 | |
| 48443-06 | |
| 48444-06 | |
| 48454-05 | |
| 48486-01 | |
| 485K | |
| 486K | |
| 487K | |
| 488K | |
| 489K | |
| 49379-09 | |
| 50127-06 | |
| 50781-06 | |
| 50785-06A | |
| 50787-06 | |
| 50790-06 | |
| 50795-06 | |
| 515 | |
| 51709-06 | |
| 51716-06 | |
| 52041-82 | |
| 52298-06 | |
| 5234 | |
| 5235 | |
| 5237M | |
| 5238M | |
| 52402-01 | |
| 54655-06 | |
| 54657-06 | |
| 54658-06 | |
| 54751-06 | |
| 54752-06 | |
| 56073-83 | |
| 56206-96 | |
| 56220-94A | |
| 56508-76 | |
| 56872-06 | |
| 56919-06 | |
| 56920-06 | |
| 56921-06 | |
| 56922-06 | |
| 56932-06 | |
| 5696 | |
| 59605-06CCW | |
| 59764-06 | |
| 60189-06DH | |
| 6036 | |
| 60524-06 | |
| 60527-06 | |
| 60966-01 | |
| 6101 | |
| 61109-85D | |
| 61274-92 | |
| 61329-01 | |
| 6137K | |
| 61498-01 | |
| 61504-01A | |
| 61505-01A | |
| 61513-07 | |
| 61516-07 | |
| 6176MA | |
| 61828-01 | |
| 6192 | |
| 62109-01A | |
| 62150-85 | |
| 6239 | |
| 62921-01 | |
| 62926-01 | |
| 62927-01 | |
| 62942-01A | |
| 62943-01 | |
| 62953-01 | |
| 62961-06K | |
| 6298M | |
| 63037-06 | |
| 63654-04K | |
| 63655-06K | |
| 6366 | |
| 63793-01K | |
| 65045-01 | |
| 65102-01 | |
| 65109-01 | |
| 65948-00A | |
| 66017-01 | |
| 66056-00 | |
| 66108-06CCW | |
| 66115-01 | |
| 66116-01 | |
| 66291-06CFZ | |
| 66292-06CFZ | |
| 66320-03 | |
| 66494-01 | |
| 66495-01 | |
| 66496-01 | |
| 6655 | |
| 66712-01 | |
| 66713-01 | |
| 66802-06 | |
| 66803-06 | |
| 66804-06 | |
| 66806-06 | |
| 6702 | |
| 6703 | |
| 67413-06 | |
| 67414-06 | |
| 68168-89A | |
| 68298-06 | |
| 68324-01 | |
| 68326-01A | |
| 6837M | |
| 6838M | |
| 6839M | |
| 6856M | |
| 6859M | |
| 68608-83 | |
| 6863 | |
| 6864A | |
| 68714-06 | |
| 68716-06 | |
| 68717-06 | |
| 6872M | |
| 6874 | |
| 68876-01A | |
| 68895-06DH | |
| 69429-06 | |
| 70003-04 | |
| 70126-06 | |
| 70155-03 | |
| 70345-04 | |
| 70345-84 | |
| 7036 | |
| 70374-04 | |
| 70439-01 | |
| 70441-01A | |
| 70578-89 | |
| 71023-04 | |
| 7124 | |
| 71474-04 | |
| 71563-96 | |
| 71564-96 | |
| 71567-96 | |
| 71568-96A | |
| 71587-04 | |
| 71609-06 | |
| 71610-06 | |
| 71620-08 | |
| 71621-08 | |
| 71684-06A | |
| 71770-06 | |
| 72033-93 | |
| 72076-00 | |
| 72077-00 | |
| 72087-04 | |
| 72088-04 | |
| 72089-04 | |
| 72090-04 | |
| 72091-04 | |
| 72092-04 | |
| 72106-94BK | |
| 72116-94BK | |
| 72124-94GY | |
| 72144-94 | |
| 72146-94 | |
| 72156-94 | |
| 72164-94A | |
| 72170-01 | |
| 72171-01 | |
| 72176-94 | |
| 72182-01 | |
| 72183-01 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72244-95 | |
| 72245-95 | |
| 72249-94 | |
| 72263-95 | |
| 72266-94 | |
| 72273-95 | |
| 72308-97 | |
| 72312-04 | |
| 72326-95 | |
| 72330-95 | |
| 72405-98GN | |
| 72412-97 | |
| 72427-00 | |
| 72428-00 | |
| 72429-00 | |
| 72432-00 | |
| 72434-00 | |
| 72439-00B | |
| 72458-00 | |
| 72521-01 | |
| 72522-01 | |
| 72523-01 | |
| 72524-01 | |
| 72525-01 | |
| 72526-01 | |
| 72527-01 | |
| 72555-06 | |
| 72633-02 | |
| 73101-96BK | |
| 73102-96BK | |
| 73102-96WE | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73169-01 | |
| 73190-96 | |
| 73191-96 | |
| 74104-98BK | |
| 74108-98BK | |
| 74109-98BK | |
| 74112-98BK | |
| 74113-98BK | |
| 74114-98BK | |
| 74118-98BK | |
| 74119-98BK | |
| 74144-98 | |
| 74148-98 | |
| 74149-98 | |
| 74152-98 | |
| 74153-98 | |
| 74154-98 | |
| 74158-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 7427M | |
| 7432M | |
| 7433M | |
| 74402-05B | |
| 74440-01 | |
| 7460M | |
| 7495 | |
| 75080-06 | |
| 75122-01 | |
| 75123-01B | |
| 75169-01 | |
| 75170-04A | |
| 75171-01 | |
| 75172-01A | |
| 75173-01A | |
| 76231-06 | |
| 769M | |
| 7742 | |
| 7783 | |
| 7813A | |
| 7910M | |
| 7951 | |
| 8002K | |
| 8008M | |
| 8020 | |
| 8027K | |
| 8028K | |
| 8029K | |
| 8054M | |
| 8130 | |
| 8235 | |
| 8679 | |
| 8885 | |
| 91691-05 | |
| 9208 | |
| 9247 | |
| 94756-01 | |
| 95595-84A | |
| 964 | |
| 965M | |
| 966M | |
| 968M | |
| 970M | |
| 972M | |
| 973M | |
| 978M | |
| 9830 | |
| 9833 | |
| 9834 | |
| 983M | |
| 984M | |
| 9937 | |
| 9955 | |
| 9998 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7433M | Unknown |
| 68608-83 | 1983 |
| 7951 | Unknown |
| 7427M | Unknown |
| 7813A | 2007 |
| 8130 | Unknown |
| 7910M | Unknown |
| 7495 | 1994 |
| 8054M | Unknown |
| 8020 | 2002 |
| 48486-01 | 2001 |
| 7432M | Unknown |
| 7742 | Unknown |
| 3725M | Unknown |
| 102A1 - Generic Screws | |
| 1023M | Unknown |
| 2916 | Unknown |
| 4555M | Unknown |
| 1014M | Unknown |
| 1043M | 2000 |
| 42375-87 | 1987 |
| 1004M | Unknown |
| 2579A | Unknown |
| 978M | Unknown |
| 4741A | 1994 |
| 1025M | Unknown |
| 3655A | Unknown |
| 4530M | Unknown |
| 3731M | Unknown |
| 2955 | 1996 |
| 8679 | Unknown |
| 1027M | Unknown |
| 44177-00 | 2000 |
| 1035M | Unknown |
| 1024M | Unknown |
| 1017M | Unknown |
| 3070K | Unknown |
| 4042 | Unknown |
| 3612 | 2012 |
| 4132 | Unknown |
| 4283M | Unknown |
| 1114M | Unknown |
| 968M | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 4240 | Unknown |
| 3934M | Unknown |
| 3755M | Unknown |
| 3703M | Unknown |
| 3919M | Unknown |
| 3708M | 2011 |
| 4578M | Unknown |
| 3700MA | Unknown |
| 2594A | 1996 |
| 3707M | Unknown |
| 3229 | Unknown |
| 984M | Unknown |
| 970M | Unknown |
| 1033M | Unknown |
| 3108M | Unknown |
| 3729M | Unknown |
| 3711M | Unknown |
| 3704M | Unknown |
| 983M | Unknown |
| 27225-01 | 2001 |
| 972M | Unknown |
| 973M | Unknown |
| 3705M | Unknown |
| 3396 | Unknown |
| 3701M | Unknown |
| 1031M | Unknown |
| 47579-00 | 2000 |
| 4279 | Unknown |
| 4793M | Unknown |
| 1009M | Unknown |
| 1021M | Unknown |
| 4312C | Unknown |
| 4797 | Unknown |
| 1030M | Unknown |
| 3920M | Unknown |
| 3966M | Unknown |
| 966M | Unknown |
| 4534M | 2010 |
| 3716M | Unknown |
| 3376 | 1998 |
| 1087M | Unknown |
| 1007M | Unknown |
| 1010M | Unknown |
| 3709M | Unknown |
| 4486M | Unknown |
| 965M | Unknown |
| 3832M | 2022 |
| 103A1 - Generic Washers | |
| 40582-05 | 2005 |
| 11809 | Unknown |
| 11808 | 2006 |
| 11807 | Unknown |
| 6872M | Unknown |
| 6837M | Unknown |
| 46509-01 | 2001 |
| 6366 | 1987 |
| 6859M | Unknown |
| 6838M | Unknown |
| 6137K | Unknown |
| 45717-63 | 1963 |
| 6101 | 2011 |
| 11523 | Unknown |
| 6839M | Unknown |
| 6036 | Unknown |
| 5696 | Unknown |
| 94756-01 | 2001 |
| 6856M | Unknown |
| 6192 | Unknown |
| 6655 | 1979 |
| 6703 | 1970 |
| 6702 | Unknown |
| 104A1 - Custom Nuts | |
| 5238M | 2004 |
| 8008M | Unknown |
| 105A1 - Custom Screws | |
| 5237M | 2004 |
| 106A1 - Custom Washers | |
| 25911-01K | 2001 |
| 6874 | Unknown |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 56922-06 | 2006 |
| 10239 | Unknown |
| 26770-01 | 2001 |
| 10238 | 2003 |
| 9830 | Unknown |
| 62943-01 | 2001 |
| 10038A | 1994 |
| 9998 | Unknown |
| 10031 | 2010 |
| 10232K | Unknown |
| 10014 | Unknown |
| 26730-01 | 2001 |
| 10059A | 2010 |
| 26777-01 | 2001 |
| 9955 | Unknown |
| 45044-96A | 1996 |
| 26790-01 | 2001 |
| 108B1 - P Clamps | |
| 10036 | 2010 |
| 10092 | 2010 |
| 10141 | Unknown |
| 10076 | 2010 |
| 109A1 - Studs | |
| 16448-01KA | 2001 |
| 10136 | Unknown |
| 964 | Unknown |
| 66713-01 | 2001 |
| 110B1 - Plain Bushings | |
| 8029K | Unknown |
| 11568 | 2004 |
| 8028K | Unknown |
| 11519 | Unknown |
| 35420-01K | 2001 |
| 46246-01 | 2001 |
| 8027K | Unknown |
| 48389-01 | 2001 |
| 11542 | Unknown |
| 8885 | Unknown |
| 42443-80A | 1980 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 12072K | Unknown |
| 12071K | Unknown |
| 6298M | Unknown |
| 11291 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 14794-01K | 2001 |
| 14795-01K | 2001 |
| 9247 | Unknown |
| 6176MA | Unknown |
| 111A1 - Adhesive | |
| 72525-01 | 2001 |
| 72524-01 | 2001 |
| 72523-01 | 2001 |
| 72527-01 | 2001 |
| 72522-01 | 2001 |
| 72171-01 | 2001 |
| 72170-01 | 2001 |
| 72088-04 | 2004 |
| 111B1 - Tape | |
| 17706-06 | 2006 |
| 17696-06 | 2006 |
| 111F1 - Protective Tape | |
| 48403-03 | 2003 |
| 116A1 - Banjo Bolts | |
| 41739-84A | 1984 |
| 41747-82A | 1982 |
| 119A1 - O-Rings | |
| 11347K | Unknown |
| 11614K | Unknown |
| 72458-00 | 2000 |
| 28862-01 | 2001 |
| 11341K | Unknown |
| 11130K | Unknown |
| 11324 | Unknown |
| 11353K | Unknown |
| 11362K | Unknown |
| 11391K | Unknown |
| 11392K | Unknown |
| 11289A | Unknown |
| 11354K | Unknown |
| 11366K | Unknown |
| 46508-01 | 2001 |
| 11290 | 1998 |
| 11380 | Unknown |
| 10995K | Unknown |
| 11331K | Unknown |
| 11312K | 2011 |
| 10994K | Unknown |
| 11361 | Unknown |
| 11314K | Unknown |
| 11346K | Unknown |
| 120A1 - Pins | |
| 482K | Unknown |
| 11516 | Unknown |
| 409K | Unknown |
| 488K | Unknown |
| 42460-80B | 1980 |
| 485K | Unknown |
| 487K | Unknown |
| 515 | Unknown |
| 486K | Unknown |
| 121A1 - Grommets | |
| 26757-01 | 2001 |
| 26758-01 | 2001 |
| 11548 | Unknown |
| 121B1 - Press-Fit Plugs | |
| 5234 | Unknown |
| 6863 | Unknown |
| 72164-94A | 1994 |
| 6864A | 2010 |
| 121C1 - Threaded Plugs | |
| 1034M | Unknown |
| 769M | 2001 |
| 122A1 - Retaining Rings | |
| 11271 | Unknown |
| 11272 | Unknown |
| 65045-01 | 2001 |
| 11363K | Unknown |
| 11000 | Unknown |
| 489K | Unknown |
| 45611-86 | 1986 |
| 10108 | Unknown |
| 22121-01K | 2001 |
| 11355K | Unknown |
| 41139-02 | 2002 |
| 11143 | Unknown |
| 11356K | Unknown |
| 11328M | Unknown |
| 11335K | Unknown |
| 61513-07 | 2007 |
| 10132 | Unknown |
| 11200K | Unknown |
| 46865-06 | 2006 |
| 124A1 - Spacers | |
| 16312-04A | 2004 |
| 26798-06 | 2006 |
| 46515-01 | 2001 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 66712-01 | 2001 |
| 48324-00 | 2000 |
| 11524A | Unknown |
| 63655-06K | 2006 |
| 44126-87 | 1987 |
| 9834 | Unknown |
| 44337-00B | 2000 |
| 9833 | Unknown |
| 11329K | Unknown |
| 11558 | Unknown |
| 44315-00A | 2013 |
| 27995-01 | 2001 |
| 61828-01 | 2001 |
| 46510-01 | 2001 |
| 126B1 - Rivets Fasteners | |
| 11611 | Unknown |
| 8235 | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 46868-06 | 2006 |
| 68895-06DH | 2006 |
| 54751-06 | 2006 |
| 50781-06 | 2006 |
| 50785-06A | 2006 |
| 140A3 - Other Special Warning Label | |
| 15348-01 | 2001 |
| 141A1 - Medallion | |
| 34996-05 | 2005 |
| 33230-06 | 2006 |
| 44338-00 | 2000 |
| 13500-06 | 2006 |
| 162D1 - Engine Assembly | |
| 19627-06K | 2006 |
| 163B1 - Engine Isolator Mount | |
| 16307-05 | 2005 |
| 16311-05 | 2005 |
| 16298-05A | 2005 |
| 16308-01 | 2001 |
| 164A1 - Engine Mount Bracket | |
| 47014-05CFZ | 2005 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7783 | Unknown |
| 7460M | Unknown |
| 27667-01K | 2001 |
| 164C1 - Tiebar | |
| 16306-04A | 2004 |
| 165A1 - Cylinder Head | |
| 17235-06K | 2006 |
| 17233-06K | 2005 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17691-05K | 2005 |
| 17692-05K | 2005 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 33229-06 | 2006 |
| 179A1 - Lifters | |
| 18181-01K | 2001 |
| 180A1 - Valves | |
| 18118-06K | 2006 |
| 18665-01K | 2001 |
| 181B1 - Valve Seals | |
| 17638-01K | 2001 |
| 17640-01K | 2001 |
| 18120-06K | 2006 |
| 17637-01K | 2001 |
| 18687-01K | 2001 |
| 17639-01K | 2001 |
| 181C1 - Valve Collars | |
| 35004-01K | 2001 |
| 35002-01K | 2001 |
| 35003-01K | 2001 |
| 35001-01K | 2001 |
| 18115-06K | 2006 |
| 18116-06K | 2006 |
| 18119-06K | 2006 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 17641-01K | 2001 |
| 220A1 - Piston Ring | |
| 22927-06K | 2006 |
| 22919-05K | 2005 |
| 22935-06K | 2006 |
| 221A1 - Piston Pin | |
| 22126-05K | 2005 |
| 237A1 - Connecting Rod | |
| 24307-01K | 2001 |
| 237B1 - Connecting Rod sub-component | |
| 27982-01 | 2001 |
| 24311-01K | 2001 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 25800-01K | 2001 |
| 35445-01K | 2001 |
| 8002K | Unknown |
| 14791-01KA | 2001 |
| 35443-01K | 2001 |
| 35441-01K | 2001 |
| 35433-01K | 2001 |
| 241A1 - Flywheel | |
| 23712-01K | 2001 |
| 24312-01K | 2001 |
| 24731-06K | 2006 |
| 244A1 - Crankcase | |
| 24733-06K | 2006 |
| 244D1 - Crankcase sub-component | |
| 24411-01K | 2001 |
| 62961-06K | 2006 |
| 24412-01K | 2001 |
| 24409-01K | 2001 |
| 24410-01K | 2001 |
| 24413-01K | 2001 |
| 32313-01A | 2001 |
| 254B1 - Camshaft | |
| 17447-06K | 2006 |
| 17445-06K | 2006 |
| 254C1 - Camshaft Sprocket | |
| 17423-01K | 2001 |
| 255A1 - Camdrive Chain | |
| 17407-01KA | 2001 |
| 17406-01KA | 2001 |
| 255C1 - Camdrive Chain Tensioner | |
| 17632-01K | 2001 |
| 17629-01K | 2001 |
| 257A1 - Cam Cover | |
| 17680-04K | 2004 |
| 17689-04K | 2004 |
| 17679-04K | 2004 |
| 257B1 - Clutch Cover | |
| 25291-04K | 2004 |
| 257E1 - Cover Gaskets | |
| 17418-01K | 2001 |
| 17416-01KA | 2001 |
| 17010-01K | 2001 |
| 41731-01 | 2001 |
| 72087-04 | 2004 |
| 61109-85D | 1985 |
| 17011-01KB | 2001 |
| 41733-88 | 1988 |
| 17666-01K | 2001 |
| 25891-01K | 2001 |
| 25080-01K | 2001 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34927-05A | 2005 |
| 76231-06 | 2006 |
| 265A1 - Vent / Breather Line | |
| 29505-05 | 2005 |
| 266E1 - Water Pump Housing | |
| 26750-01KA | 2012 |
| 25295-04K | 2004 |
| 266F1 - Water Pump Housing Gasket | |
| 26749-01K | 2001 |
| 26752-01K | 2001 |
| 267A1 - Thermostat Housing Gasket | |
| 26765-01K | 2001 |
| 268D1 - Radiator Bleeder Valve | |
| 5235 | 2004 |
| 268F1 - Radiator Pressure Cap | |
| 26733-01 | 2001 |
| 268H1 - Radiator System Cover | |
| 66115-01 | 2001 |
| 66116-01 | 2001 |
| 26788-01A | 2001 |
| 268J1 - Cooling System Module | |
| 26731-06 | 2006 |
| 26729-06 | 2006 |
| 26800042 | 2013 |
| 269B1 - Radiator Hose | |
| 26767-01 | 2001 |
| 26754-01 | 2001 |
| 26768-01A | 2001 |
| 62953-01 | 2001 |
| 26753-01 | 2001 |
| 26756-01 | 2001 |
| 26755-01 | 2001 |
| 26737-01K | 2001 |
| 62942-01A | 2001 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26731-05 | 2005 |
| 270A1 - Carburetor | |
| 27378-01 | 2001 |
| 27990-01 | 2001 |
| 272D1 - Throttle Body to Airbox Baseplate Seal | |
| 27977-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 24986-01K | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273G1 - Throttle Body | |
| 27670-05 | 2005 |
| 27676-06K | 2006 |
| 27791-05 | 2005 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27408-01 | 2001 |
| 28002-01 | 2001 |
| 290C1 - Airbox Baseplate sub-component | |
| 29435-05 | 2005 |
| 290D1 - Airbox Seal | |
| 29439-01 | 2001 |
| 294C1 - Breather Hose | |
| 29601-05K | 2005 |
| 29504-05A | 2005 |
| 295A1 - Intake Miscellaneous Component | |
| 29596-06 | 2006 |
| 29595-06 | 2006 |
| 299A1 - Alternator | |
| 25311-04K | 2004 |
| 299C1 - Charging Rotor | |
| 26022-02K | 2002 |
| 30731-01K | 2001 |
| 299F1 - Stator Assembly | |
| 30734-04K | 2004 |
| 314F1 - Starter Motor | |
| 31717-01K | 2001 |
| 314G1 - Starter Motor sub-component | |
| 71023-04 | 2004 |
| 314H1 - Starter Solenoid | |
| 71474-04 | 2004 |
| 315A1 - Quick Shift Actuator | |
| 35017-01K | 2001 |
| 315B1 - Exhaust Valve Actuator | |
| 18117-06K | 2006 |
| 316A1 - Ignition Coil | |
| 31651-01 | 2001 |
| 32477-01A | 2011 |
| 316C1 - Spark Plug | |
| 32302-06K | 2006 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 327D1 - Proximity Sensor | |
| 74402-05B | 2012 |
| 327E1 - Temperature Sensor | |
| 32315-01 | 2001 |
| 27388-01 | 2001 |
| 327F1 - Throttle Position Sensor | |
| 27975-01 | 2001 |
| 336C1 - Shift Linkage Rod End | |
| 35434-01K | 2001 |
| 339A1 - Shift Lever | |
| 33784-06 | 2006 |
| 339D1 - Shifter Fork | |
| 35428-01KA | 2001 |
| 35430-01KA | 2001 |
| 35429-01KA | 2001 |
| 339E1 - Shifter Fork Shaft | |
| 26582-01KA | 2001 |
| 35432-01K | 2001 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33783-06 | 2006 |
| 35442-01K | 2001 |
| 33804-06 | 2006 |
| 69429-06 | 2006 |
| 35494-06K | 2006 |
| 33782-06 | 2006 |
| 350F1 - Transmission Mainshaft | |
| 35482-06KA | 2007 |
| 350G1 - Transmission Shim / Spacer | |
| 26146-06 | 2006 |
| 18628-01K | 2001 |
| 18678-01K | 2001 |
| 18629-01K | 2001 |
| 40095-01K | 2001 |
| 26148-06K | 2006 |
| 18698-01K | 2001 |
| 18632-01K | 2001 |
| 18630-01K | 2001 |
| 18656-01K | 2001 |
| 18667-01K | 2001 |
| 18673-01K | 2001 |
| 18683-01K | 2001 |
| 18700-01K | 2001 |
| 18676-01K | 2001 |
| 18666-01K | 2001 |
| 18655-01K | 2001 |
| 18686-01K | 2001 |
| 18627-01K | 2001 |
| 18693-01K | 2001 |
| 18680-01K | 2001 |
| 18695-01K | 2001 |
| 18696-01K | 2001 |
| 18659-01K | 2001 |
| 18699-01K | 2001 |
| 18701-01K | 2001 |
| 18679-01K | 2001 |
| 18669-01K | 2001 |
| 18675-01K | 2001 |
| 18624-01K | 2001 |
| 18685-01K | 2001 |
| 18684-01K | 2001 |
| 18626-01K | 2001 |
| 18697-01K | 2001 |
| 18670-01K | 2001 |
| 18639-01K | 2001 |
| 18674-01K | 2001 |
| 18702-01K | 2001 |
| 18672-01K | 2001 |
| 18671-01K | 2001 |
| 18682-01K | 2001 |
| 18658-01K | 2001 |
| 18681-01K | 2001 |
| 18677-01K | 2001 |
| 18668-01K | 2001 |
| 18692-01K | 2001 |
| 18657-01K | 2001 |
| 18631-01K | 2001 |
| 18625-01K | 2001 |
| 18694-01K | 2001 |
| 18638-01K | 2001 |
| 352B1 - Engine Balancer sub-component | |
| 14758-01K | 2001 |
| 356A1 - Transmission Countershaft | |
| 35481-06KA | 2008 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 26103-01K | 2001 |
| 367A1 - Clutch Lever | |
| 46309-06 | 2006 |
| 367B1 - Clutch Lever Master Cylinder | |
| 45505-06 | 2006 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36757-05K | 2005 |
| 367H1 - Clutch Lever sub-component | |
| 36709-01K | 2001 |
| 36714-01K | 2001 |
| 36712-01K | 2001 |
| 37909-90 | 1990 |
| 31301-01K | 2001 |
| 370B1 - Clutch Friction Plate | |
| 36713-01K | 2001 |
| 36707-01K | 2001 |
| 370F1 - Clutch Pressure Plate | |
| 36710-01K | 2001 |
| 36704-01K | 2001 |
| 370F3 - Clutch Diaphragm Spring | |
| 36711-01K | 2001 |
| 370G1 - Clutch Shell | |
| 36723-05K | 2005 |
| 370H1 - Clutch Sprocket | |
| 36781-01K | 2001 |
| 36782-04K | 2004 |
| 36779-05K | 2005 |
| 372D1 - Clutch Cable | |
| 38676-06 | 2006 |
| 372F1 - Clutch Diaphragm Plate | |
| 36702-01K | 2001 |
| 31303-01K | 2001 |
| 399E1 - Drive-Chain Master Link | |
| 40043-06 | 2006 |
| 410C1 - Calibration Tool | |
| 33232-06 | 2006 |
| 410D1 - Electronic Control Module (ECM) | |
| 33225-06 | 2006 |
| 413A1 - Brake Caliper | |
| 44046-00D | 2000 |
| 44680-05 | 2005 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44147-87A | 1987 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01A | 2013 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 44358-00A | 2011 |
| 40903-87 | 1987 |
| 40920-87 | 1987 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45029-11B | 2011 |
| 46423-05B | 2005 |
| 417B1 - Brake Master Cylinder | |
| 42730-06A | 2006 |
| 46244-01 | 2001 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45006-96C | 1996 |
| 42471-01A | 2001 |
| 43915-06 | 2006 |
| 48444-06 | 2006 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 43914-01 | 2001 |
| 43917-01 | 2001 |
| 44351-00 | 2000 |
| 417E1 - Brake Master Cylinder Hose | |
| 42731-06 | 2006 |
| 417G1 - Front Brake Lever | |
| 45016-96 | 1996 |
| 418B1 - Brake Line | |
| 46867-06 | 2006 |
| 46866-06 | 2006 |
| 422A1 - Wheel Sprocket Cover | |
| 37124-06 | 2006 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 430C1 - Axle Nut | |
| 41718-06 | 2006 |
| 41715-06 | 2006 |
| 41717-06 | 2006 |
| 430D1 - Front Axle | |
| 41540-04 | 2004 |
| 430E1 - Rear Axle | |
| 45069-01 | 2001 |
| 431A1 - Front Tire | |
| 41539-06R | 2006 |
| 432A1 - Rear Tire | |
| 43173-01 | 2001 |
| 41531-06R | 2008 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43704-01 | 2001 |
| 43641-01 | 2001 |
| 43642-01A | 2001 |
| 454A1 - Front Telescopic Fork | |
| 46757-01 | 2001 |
| 49379-09 | 2009 |
| 46756-01 | 2001 |
| 455A1 - Front Telescopic Fork Slider | |
| 46505-01 | 2001 |
| 46506-01A | 2001 |
| 455B1 - Front Telescopic Fork Spring | |
| 46517-01 | 2001 |
| 46511-01 | 2001 |
| 455C1 - Front Telescopic Fork sub-component | |
| 46080-01 | 2001 |
| 46512-01A | 2010 |
| 46514-01A | 2010 |
| 46516-01 | 2001 |
| 45070-01 | 2001 |
| 46519-01 | 2001 |
| 46504-01 | 2001 |
| 46513-01 | 2001 |
| 457D1 - Steering Stem | |
| 46507-01 | 2001 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 54752-06 | 2006 |
| 45670-80A | 1980 |
| 48184-01 | 2001 |
| 459A1 - Upper Triple Clamp | |
| 46755-01 | 2001 |
| 459B1 - Lower Triple Clamp | |
| 46752-01A | 2001 |
| 470A1 - Frame | |
| 47986-06CFZ | 2006 |
| 47984-06CFZ | 2006 |
| 48122-06CFZ | 2006 |
| 472A1 - Frame sub-component | |
| 48086-01 | 2001 |
| 7036 | Unknown |
| 472D2 - Chassis Structure Mounting Bracket | |
| 67413-06 | 2006 |
| 29678-06 | 2006 |
| 474C1 - Swingarm | |
| 48443-06 | 2006 |
| 474F1 - Swingarm Bearing Spacer | |
| 48386-05A | 2005 |
| 506A1 - Brake Pedal | |
| 42447-96 | 1996 |
| 520A1 - Rider Seat or Full Seat | |
| 51709-06 | 2006 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52402-01 | 2001 |
| 52041-82 | 1982 |
| 51716-06 | 2006 |
| 521A1 - Seat Support Structure | |
| 46518-01 | 2001 |
| 530C2 - Case Latch | |
| 46560-06 | 2006 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 56919-06 | 2006 |
| 559D1 - Lower Handlebar Clamp | |
| 56920-06 | 2006 |
| 56921-06 | 2006 |
| 561A1 - Throttle Cable | |
| 56872-06 | 2006 |
| 561B1 - Left Hand Grip | |
| 56206-96 | 1996 |
| 561D1 - Throttle Assembly sub-component | |
| 38653-01 | 2001 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 572E1 - Side Cover | |
| 66320-03 | 2003 |
| 589A1 - Front Fender | |
| 60189-06DH | 2006 |
| 595D1 - Rear Fender | |
| 59605-06CCW | 2006 |
| 596A1 - Tire Mud Flap | |
| 59764-06 | 2006 |
| 603B1 - Belt / Chain Guard | |
| 60524-06 | 2006 |
| 60527-06 | 2006 |
| 609A1 - Fuel Miscellaneous Component | |
| 62927-01 | 2001 |
| 72439-00B | 2000 |
| 61329-01 | 2001 |
| 61498-01 | 2001 |
| 75173-01A | 2001 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 60966-01 | 2001 |
| 610A1 - Fuel Tank | |
| 62921-01 | 2001 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27138-90 | 1990 |
| 612A1 - Fuel Filter | |
| 75169-01 | 2001 |
| 75170-04A | 2004 |
| 75171-01 | 2001 |
| 612B1 - Fuel Level Sensor | |
| 75122-01 | 2001 |
| 612B2 - Fuel Valve | |
| 27720-06 | 2006 |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 61516-07 | 2007 |
| 61505-01A | 2001 |
| 61504-01A | 2001 |
| 612F1 - Fuel Pump | |
| 75123-01B | 2001 |
| 62109-01A | 2001 |
| 612K1 - Fuel Pump sub-component | |
| 62926-01 | 2001 |
| 613K1 - Airbox Cover | |
| 66108-06CCW | 2006 |
| 614C1 - Trim | |
| 66291-06CFZ | 2006 |
| 66292-06CFZ | 2006 |
| 624A1 - Oil Pump Assembly | |
| 26575-01KB | 2001 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26578-01K | 2001 |
| 27993-01 | 2001 |
| 26738-01K | 2001 |
| 26539-01K | 2001 |
| 26534-01K | 2001 |
| 26739-01K | 2001 |
| 6239 | Unknown |
| 624F1 - Oil Pump Seal | |
| 26147-06K | 2006 |
| 627B1 - Oil Drain Plug | |
| 26542-01K | 2001 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 63037-06 | 2006 |
| 627F1 - Oil Filter | |
| 63793-01K | 2001 |
| 627K1 - Oil Line Fitting | |
| 63654-04K | 2004 |
| 26399-01K | 2001 |
| 627K2 - Oil Line Fitting Cover | |
| 26810-06A | 2006 |
| 627N1 - Oil System Baffle | |
| 26034-01K | 2001 |
| 627P1 - Oil Thermostat | |
| 26740-01K | 2001 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 26393-01K | 2001 |
| 654A1 - Exhaust Shield | |
| 66806-06 | 2006 |
| 656E1 - Header Pipe | |
| 66802-06 | 2006 |
| 66803-06 | 2006 |
| 66804-06 | 2006 |
| 659B1 - Exhaust Flange | |
| 65102-01 | 2001 |
| 659C1 - Exhaust Gasket | |
| 65109-01 | 2001 |
| 660A1 - Battery | |
| 65948-00A | 2000 |
| 660B1 - Battery Pad | |
| 66495-01 | 2001 |
| 66494-01 | 2001 |
| 660D1 - Battery Strap | |
| 66017-01 | 2001 |
| 660E1 - Ground Strap | |
| 70441-01A | 2001 |
| 660F1 - Negative Battery Cable | |
| 70439-01 | 2001 |
| 660H1 - Positive Battery Cable Boot | |
| 70003-04 | 2004 |
| 660J1 - Battery Charger | |
| 66056-00 | 2000 |
| 677A1 - Headlight | |
| 68298-06 | 2006 |
| 677B1 - Headlight sub-component | |
| 67414-06 | 2006 |
| 678A1 - Taillight | |
| 68326-01A | 2002 |
| 68876-01A | 2002 |
| 680C1 - Incandescent Bulb | |
| 68168-89A | 1989 |
| 68324-01 | 2001 |
| 692C1 - Electrical Miscellaneous Component | |
| 68714-06 | 2006 |
| 32616-01C | 2001 |
| 72176-94 | 1994 |
| 33228-06 | 2006 |
| 692C2 - Electrical Mounting Bracket | |
| 66496-01 | 2001 |
| 70374-04 | 2004 |
| 692D1 - Fuse | |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72521-01 | 2001 |
| 72432-00 | 2000 |
| 73169-01 | 2001 |
| 692F1 - Wire Harness | |
| 70155-03 | 2003 |
| 75172-01A | 2001 |
| 70126-06 | 2006 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 56932-06 | 2006 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 74149-98 | 1998 |
| 74104-98BK | 1998 |
| 25919-04K | 2004 |
| 72116-94BK | 1994 |
| 72144-94 | 1994 |
| 72312-04 | 2004 |
| 72526-01 | 2001 |
| 72124-94GY | 1994 |
| 72090-04 | 2004 |
| 72183-01 | 2001 |
| 72156-94 | 1994 |
| 72273-95 | 1995 |
| 72182-01 | 2001 |
| 48454-05 | 2005 |
| 72199-94 | 1994 |
| 72092-04 | 2004 |
| 25918-04K | 2004 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72213-94 | 1994 |
| 72429-00 | 2000 |
| 72428-00 | 2000 |
| 72308-97 | 1997 |
| 72427-00 | 2000 |
| 9937 | Unknown |
| 72326-95 | 1995 |
| 72434-00 | 2000 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 692K1 - Connector / Terminal Seal | |
| 74144-98 | 1998 |
| 72091-04 | 2004 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 74148-98 | 1998 |
| 70345-84 | 1984 |
| 72263-95 | 1995 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72231-98 | 1998 |
| 72633-02 | 2002 |
| 72214-94 | 1994 |
| 73190-96 | 1996 |
| 73101-96BK | 1996 |
| 74108-98BK | 1998 |
| 74113-98BK | 1998 |
| 72089-04 | 2004 |
| 73106-96BK | 1996 |
| 73152-96WE | 1996 |
| 72230-98 | 1998 |
| 74153-98 | 1998 |
| 74109-98BK | 1998 |
| 74195-98 | 1998 |
| 73153-96BK | 1996 |
| 73102-96WE | 1996 |
| 72244-95 | 1995 |
| 72033-93 | 1993 |
| 72106-94BK | 1994 |
| 73191-96 | 1996 |
| 72146-94 | 1994 |
| 74159-98 | 1998 |
| 72190-94 | 1994 |
| 56073-83 | 1983 |
| 74119-98BK | 1998 |
| 73104-96BK | 1996 |
| 74154-98 | 1998 |
| 72405-98GN | 1998 |
| 73102-96BK | 1996 |
| 70578-89 | 1989 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 74118-98BK | 1998 |
| 692M1 - Electrical Component / Wire Cover | |
| 72555-06 | 2006 |
| 709B1 - Instrument Cluster or Speedometer | |
| 68716-06 | 2006 |
| 68717-06 | 2006 |
| 714B1 - Mechanical Switch | |
| 33902-98A | 1998 |
| 714C1 - Pressure Switch | |
| 71770-06 | 2006 |
| 71610-06 | 2006 |
| 71609-06 | 2006 |
| 26561-99 | 1999 |
| 714D1 - Relay | |
| 31522-00C | 2004 |
| 31511-01B | 2001 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 71587-04 | 2004 |
| 71564-96 | 1996 |
| 71563-96 | 1996 |
| 71568-96A | 1996 |
| 71620-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 74440-01 | 2001 |
| 940A1 - Owner's Kit | |
| 91691-05 | 2005 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10014 | CLAMP | COOLANT HOSES / BOTTLE: |
| 10038A | CLAMP | REAR BRAKE CONTROL: |
| 11143 | RING | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 11324 | O-RING | COVERS, OIL PAN/FILTER/PICKUP: |
| 3655A | SCREW | FRONT WHEEL: REAR WHEEL: |
| 3658 | SCREW | HANDLEBAR SWITCHES: |
| 4132 | SCREW | CLUTCH CONTROL: FRONT BRAKE CONTROL: |
| 41731-01 | GASKET | CLUTCH CONTROL: FRONT BRAKE CONTROL: REAR BRAKE CONTROL: |
| 41733-88 | GASKET | FRONT BRAKE CONTROL: |
| 45405-75A | SCREW | FRONT FORK: |
| 48300-60 | ROLLER BEARING | FRONT FORK: |
| 6702 | WASHER | CHAIN & SPROCKETS: FRAME & SIDE STAND: REAR FORK, DEBRIS DEFLECTOR & BELT GUARD: |
| 9247 | BEARING | FRONT WHEEL: REAR WHEEL: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | FRONT BRAKE CALIPER: REAR BRAKE CALIPER: |
| 46514-01A | OIL SEAL | FRONT FORK: |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FILLER CAP | FUEL TANK: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | HANDLEBAR & THROTTLE CONTROL: |
| 71621-08 | STOPLAMP SWITCH KIT | HANDLEBAR SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (1 OF 2): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 37909-90 | RETAINING RING | CLUTCH: |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 63793-01K | ENGINE OIL FILTER | COVERS, OIL PAN/FILTER/PICKUP: |
| 95595-84A | WEIGHT | FRONT WHEEL: REAR WHEEL: |
