2002 HARLEY-DAVIDSON® PARTS CATALOG: POLICE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 99545-02A | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2018 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2002 FLT POLICE MODELS
VIN Model Codes

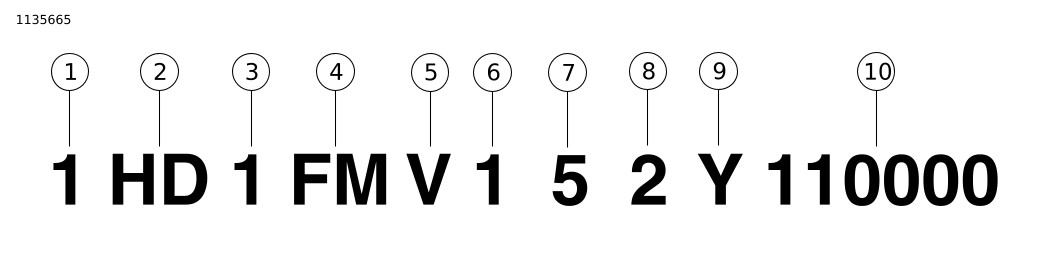

Figure 3. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES |
|---|---|---|
1 | Market designation | 1=Manufactured for sale within the United States 5=Manufactured for sale outside the United States |
2 | Manufacturer | HD=Harley-Davidson |
3 | Motorcycle type | 1=Heavyweight motorcycle (901 cc or larger) |
4 | Model | See model table |
5 | Engine type | V=Twin Cam 88™ Carbureted W=Twin Cam 88™ Fuel Injected |
6 | Introduction date | 1=Regular 2=Mid-year 3=California 4=Special Edition |
7 | V.I.N. check digit | Can be 0-9 or X |
8 | Model year | 2=2002 |
9 | Assembly plant | Y=York, PA |
10 | Sequential number | varies |
Table 3. VIN Model Codes
CODE | MODEL |
|---|---|
FM | FLHTPI |
FH | FLHPI |
FT | FLHPEI |
NOTES

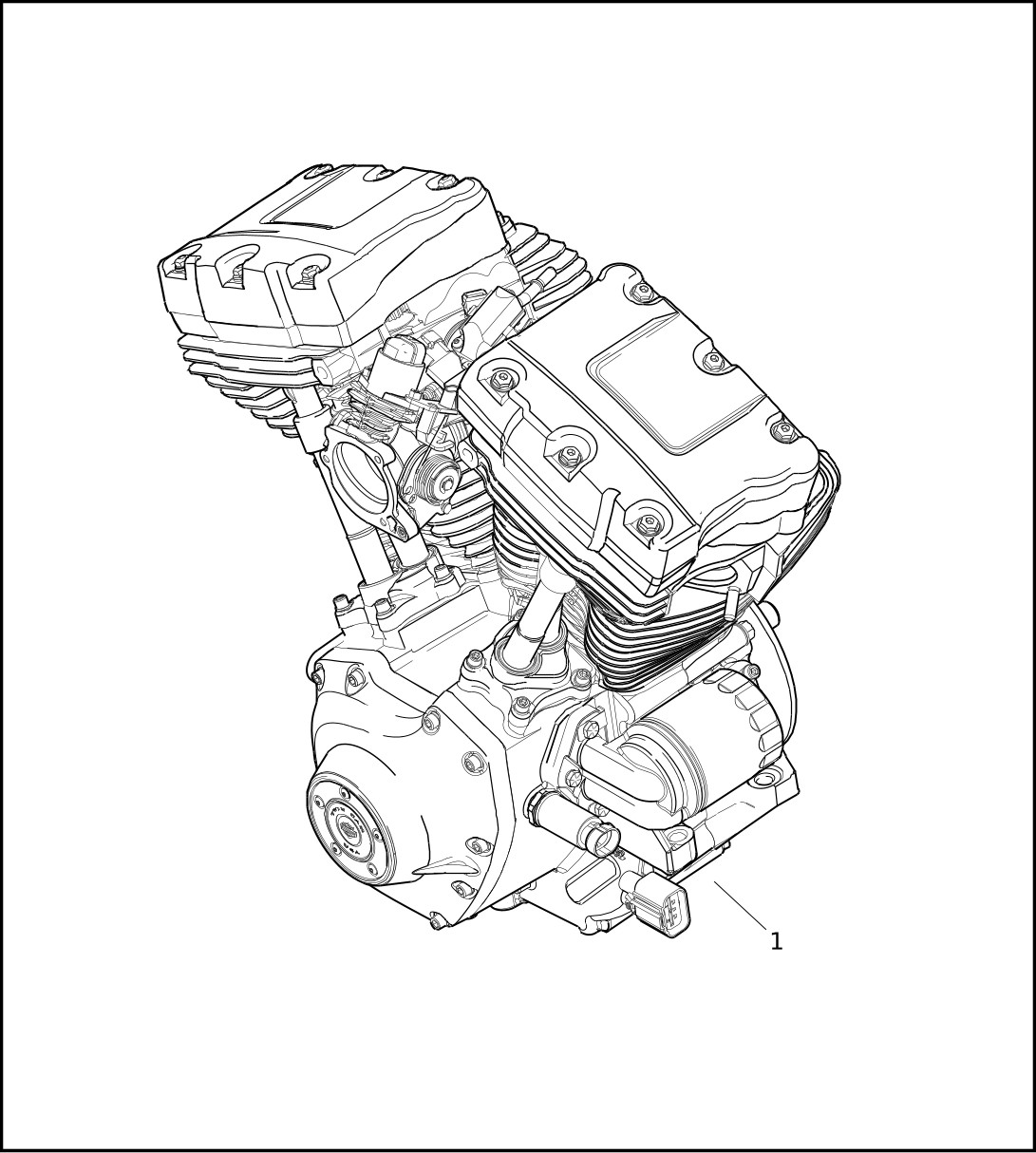

COMPLETE ENGINE - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 16144-02 | ENGINE ASSEMBLY, complete | ALL |

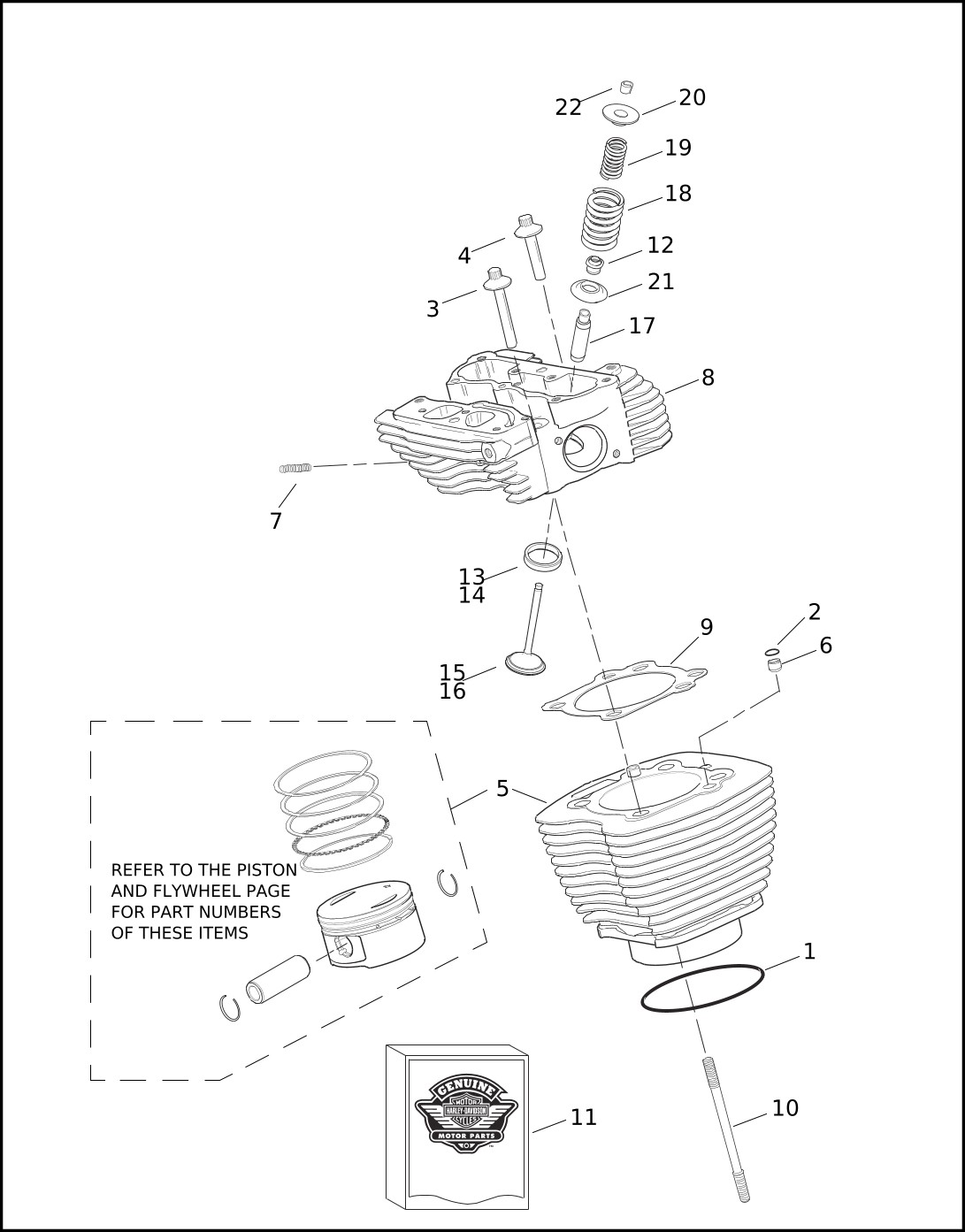

CYLINDERS, HEADS & VALVES - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11256 | O-RING, cylinder base (2) | ALL |
| 2 | 11273 | O-RING (4) | ALL |
| 3 | 16478-85A | SCREW, internal thread 3-3/16 inch long (4) | ALL |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 inch long (4) | ALL |
| 5 | 16526-99 | CYLINDER, w/ piston, rings, piston pin & retaining rings (black) U.S.A. & Japan (2) | ALL |
| 6 | 16595-99A | DOWEL, cylinder to head (4) | ALL |
| 7 | 16715-83 | STUD, exhaust port (4) | ALL |
| 8 | 16722-99 | HEAD, front cylinder w/ guides & seats (black) U.S.A. & Japan | ALL |
| 16724-99 | HEAD, rear cylinder w/ guides & seats (black) U.S.A. & Japan | ALL | |
| 9 | 16775-99B | GASKET, cylinder head (2) | ALL |
| 10 | 16834-99A | STUD, cylinder (8) | ALL |
| 11 | 17052-99C | GASKET KIT, top end | ALL |
| 17053-99C | GASKET KIT, engine overhaul | ALL | |
| 12 | 18001-83B | SEAL, valve (4) | ALL |
| 13 | 18011-86 | INSERT, exhaust valve seat (2) | ALL |
| 18124-83 | INSERT, exhaust valve seat, 0.005 O.S. (2) | ALL | |
| 14 | 18020-83 | INSERT, intake valve seat (2) | ALL |
| 18134-83 | INSERT, intake valve seat, 0.005 O.S. (2) | ALL | |
| 15 | 18074-83B | VALVE, intake (2) | ALL |
| 18076-83 | VALVE, intake, 0.03 short (2) | ALL | |
| 16 | 18082-83A | VALVE, exhaust (2) | ALL |
| 17 | 18101-83D | GUIDE, valve, intake & exhaust (4) | ALL |
| 18130-83D | GUIDE, valve, intake & exhaust, 0.001 O.S. (4) | ALL | |
| 18131-83D | GUIDE, valve, intake & exhaust, 0.003 O.S. (4) | ALL | |
| 18133-83B | GUIDE, valve, intake & exhaust, 0.002 O.S. (4) | ALL | |
| 18 | 18201-83 | SPRING, valve, outer (4) | ALL |
| 19 | 18202-83 | SPRING, valve, inner (4) | ALL |
| 20 | 18219-83A | COLLAR, valve spring, upper (4) | ALL |
| 21 | 18222-83A | COLLAR, valve spring, lower (4) | ALL |
| 22 | 18229-83A | RETAINER, valve collar (8) | ALL |

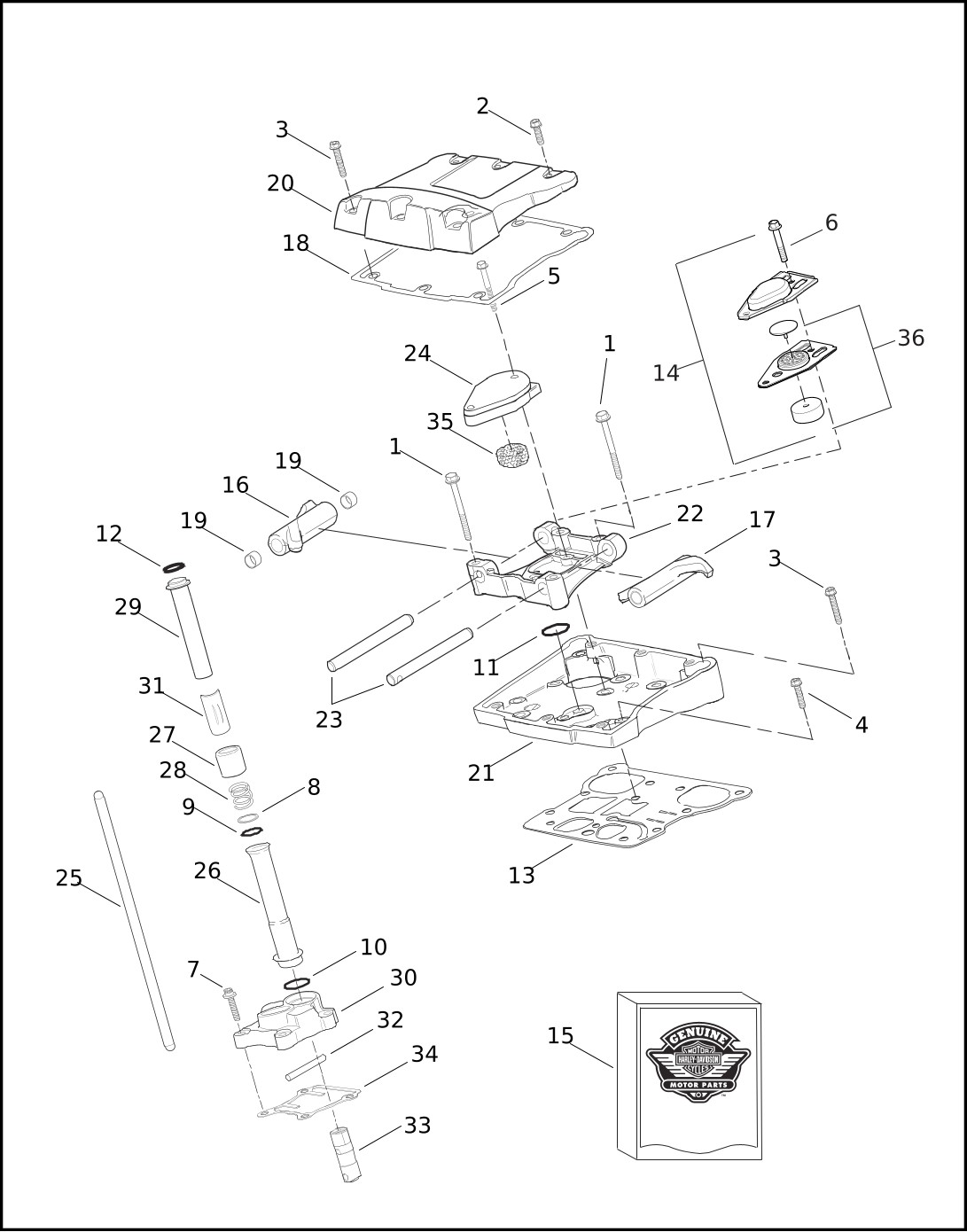

ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 1039 | SCREW (8) | ALL |
| 2 | 3692A | SCREW (6) | ALL |
| 3 | 3693A | SCREW (10) | ALL |
| 4 | 3736A | SCREW (8) | ALL |
| 5 | 3746A | SCREW (used w/ 17907-01) (4) | ALL |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | ALL |
| 7 | 4741A | SCREW (8) | ALL |
| 8 | 6762B | WASHER (4) | ALL |
| 9 | 11132A | O-RING (4) | ALL |
| 10 | 11145A | O-RING (4) | ALL |
| 11 | 11270 | O-RING (2) | ALL |
| 12 | 11293 | O-RING (4) | ALL |
| 13 | 16719-99B | GASKET, rocker housing (2) | ALL |
| 14 | 17025-03A | BREATHER ASSEMBLY KIT, w/ 4400 & 26500002 (replaces 17907-01) (2) | ALL |
| 15 | 17045-99D | GASKET KIT, cam service, w/ 9, 10, 11, 12, 14, 18 & 34 | ALL |
| 16 | 17360-83A | ROCKER ARM, front intake & rear exhaust, w/ 17429-91 (2) | ALL |
| 17 | 17375-83A | ROCKER ARM, rear intake & front exhaust, w/ 17429-91 (2) | ALL |
| 18 | 17386-99A | GASKET, rocker cover (2) | ALL |
| 19 | 17429-91 | BEARING, rocker arm (8) | ALL |
| 20 | 17572-99 | COVER, rocker arm (chrome) (2) | ALL |
| 21 | 17573-99A | HOUSING, rocker arm (chrome) (2) | ALL |
| 22 | 17594-99 | SUPPORT, rocker arm (2) | ALL |
| 23 | 17611-83 | SHAFT, rocker arm (4) | ALL |
| 24 | 17907-01 | BREATHER ASSEMBLY, engine (use 17025-03A) (2) | ALL |
| 25 | 17922-99 | PUSH ROD, exhaust, 10.536 inch long (black oxide finish) (2) | ALL |
| 17923-99 | PUSH ROD, intake, 10.418 inch long (plain finish) (2) | ALL | |
| 26 | 17939-99 | COVER, lower, push rod (4) | ALL |
| 27 | 17945-36B | CAP, cover spring (4) | ALL |
| 28 | 17947-36 | SPRING, push rod cover (4) | ALL |
| 29 | 17948-99 | COVER, upper, push rod (4) | ALL |
| 30 | 17964-99 | COVER, lifter, front (chrome) | ALL |
| 17966-99 | COVER, lifter, rear (chrome) | ALL | |
| 31 | 17968-99 | RETAINER, spring cap (4) | ALL |
| 32 | 18535-99 | PIN, anti-rotation (2) | ALL |
| 33 | 18538-99C | LIFTER, hydraulic (4) | ALL |
| 34 | 18635-99B | GASKET, lifter cover (2) | ALL |
| 35 | 63815-99 | FILTER, element, breather (2) | ALL |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) (2) | ALL |

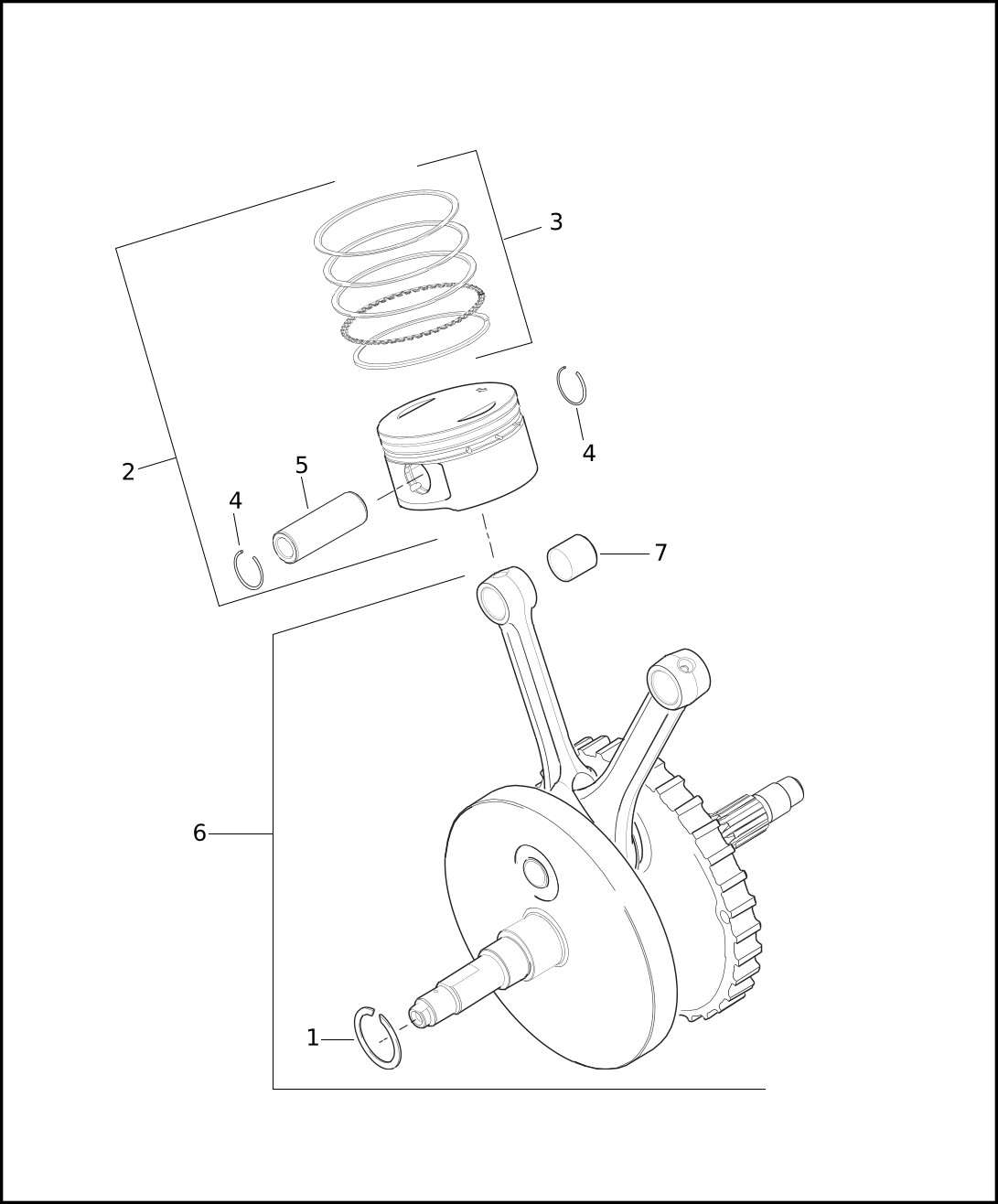

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RING, retaining | ALL |
| 2 | 21930-99 | PISTON AND RINGS ASSEMBLY, standard, w/ 21936-99, 22097-99 & 22132-99 (2) | ALL |
| 21931-99 | PISTON AND RINGS ASSEMBLY, 0.005 inch O.S., w/ 21938-99, 22097-99 & 22132-99 (2) | ALL | |
| 21933-99 | PISTON AND RINGS ASSEMBLY, 0.010 inch O.S., w/ 21938-99, 22097-99 & 22132-99 (2) | ALL | |
| 3 | 21936-99 | PISTON RING SET, standard (2) | ALL |
| 21937-99 | PISTON RING SET, 0.005 inch O.S. (2) | ALL | |
| 21938-99 | PISTON RING SET, 0.010 inch O.S. (2) | ALL | |
| 4 | 22097-99 | RING, lock, piston pin (4) | ALL |
| 5 | 22132-99 | PIN, piston (2) | ALL |
| 6 | 23957-99E | FLYWHEEL ASSEMBLY, complete, w/ 11177A | ALL |
| 7 | 24316-99 | BUSHING, piston pin, 0.002 inch O.S. (2) | ALL |

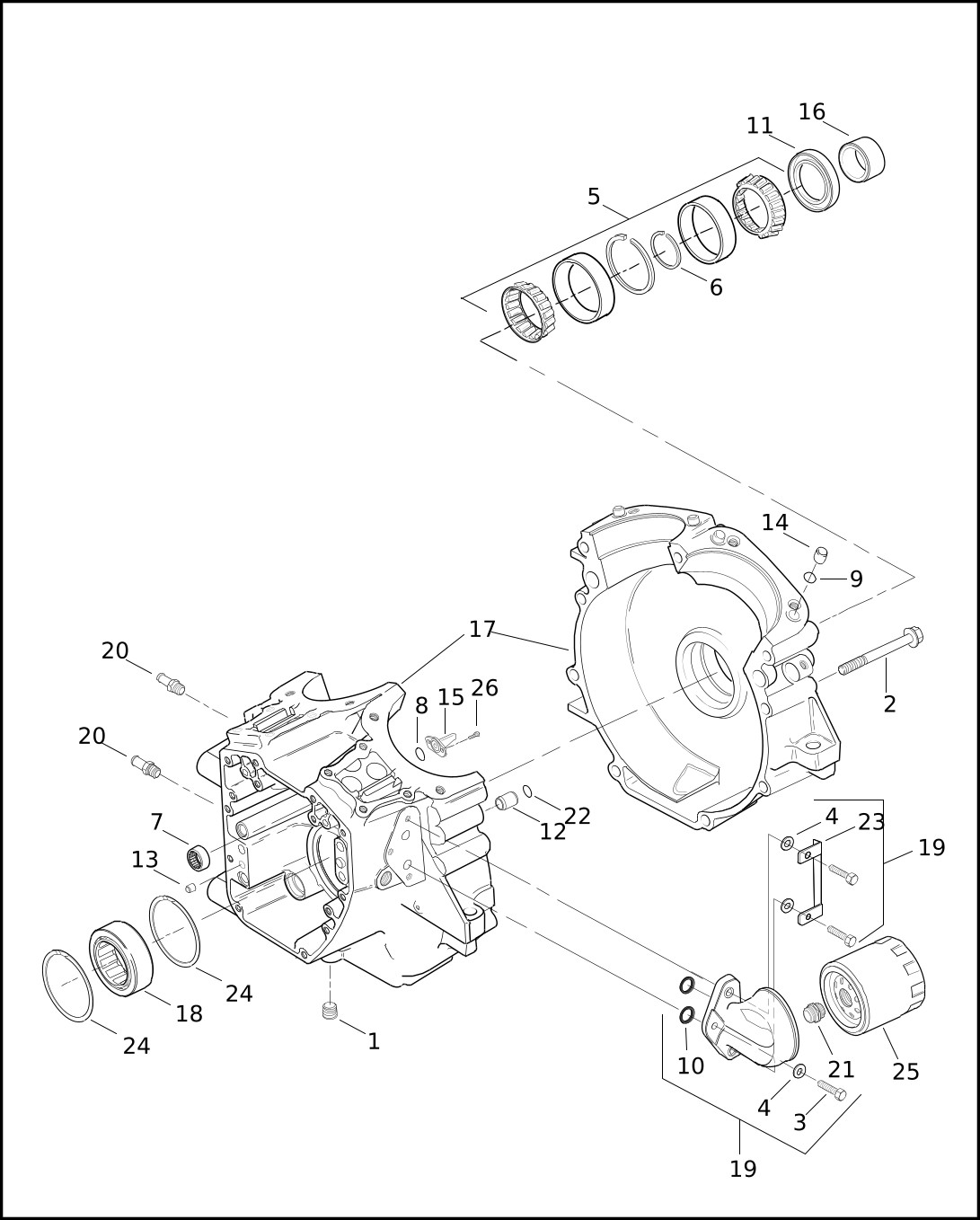

CRANKCASE & ENGINE OIL FILTER - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 765 | PLUG | ALL |
| 2 | 895 | SCREW (9) | ALL |
| 3 | 4271 | SCREW (3) | ALL |
| 4 | 6099 | WASHER (3) | ALL |
| 5 | 9028 | BEARING ASSEMBLY, main, left side of crankshaft | ALL |
| 6 | 9110 | SHIM, bearing assembly 0.0905 - .0895 inch | ALL |
| 9120 | SHIM, bearing assembly 0.0925 - .0915 inch | ALL | |
| 9121 | SHIM, bearing assembly 0.0945 - .0935 inch | ALL | |
| 9122 | SHIM, bearing assembly 0.0965 - .0955 inch | ALL | |
| 9123 | SHIM, bearing assembly 0.0985 - .0975 inch | ALL | |
| 9124 | SHIM, bearing assembly 0.1005 - .0995 inch | ALL | |
| 9125 | SHIM, bearing assembly 0.1025 - .1015 inch | ALL | |
| 9126 | SHIM, bearing assembly 0.1045 - .1035 inch | ALL | |
| 9127 | SHIM, bearing assembly 0.1065 - .1055 inch | ALL | |
| 9128 | SHIM, bearing assembly 0.1085 - .1075 inch | ALL | |
| 9129 | SHIM, bearing assembly 0.1105 - .1095 inch | ALL | |
| 9130 | SHIM, bearing assembly 0.1125 - .1115 inch | ALL | |
| 9131 | SHIM, bearing assembly 0.1145 - .1135 inch | ALL | |
| 9132 | SHIM, bearing assembly 0.1165 - .1155 inch | ALL | |
| 9133 | SHIM, bearing assembly 0.1185 - .1175 inch | ALL | |
| 9134 | SHIM, bearing assembly 0.1205 - .1195 inch | ALL | |
| 7 | 9198 | BEARING, needle, left side of camshafts (2) | ALL |
| 8 | 11140 | O-RING (2) | ALL |
| 9 | 11273 | O-RING (2) | ALL |
| 10 | 11293 | O-RING (2) | ALL |
| 11 | 12068 | SEAL, oil | ALL |
| 12 | 16574-99A | RING, dowel (2) | ALL |
| 13 | 16589-99A | RING, dowel (2) | ALL |
| 14 | 16595-99A | RING, dowel (4) | ALL |
| 15 | 22307-99 | JET, piston cooling, w/ 1140 (2) | ALL |
| 16 | 24008-99A | SPACER, sprocket shaft | ALL |
| 17 | 24597-99C | CRANKCASES, set, w/ 1, 2, 6, 7, 11, 12, 13, 14 & 25 (black) | ALL |
| 18 | 24623-99B | BEARING, main, right side of crankshaft | ALL |
| 19 | 26261-99 | MOUNT KIT, oil filter, w/ lockplate kit, adaptor & O-rings (black) | ALL |
| 20 | 26314-99 | FITTING, straight (2) | ALL |
| 21 | 26352-95A | ADAPTOR, oil filter | ALL |
| 22 | 26432-76A | O-RING (2) | ALL |
| 23 | 35071-99A | LOCKPLATE KIT, oil filter mount, w/ 4271, 6099 & 11293 | ALL |
| 24 | 35115-99 | RING, retaining, spiral (2) | ALL |
| 25 | 63798-99A | FILTER, oil (chrome) | ALL |
| 26 | 68042-99 | SCREW (4) | ALL |

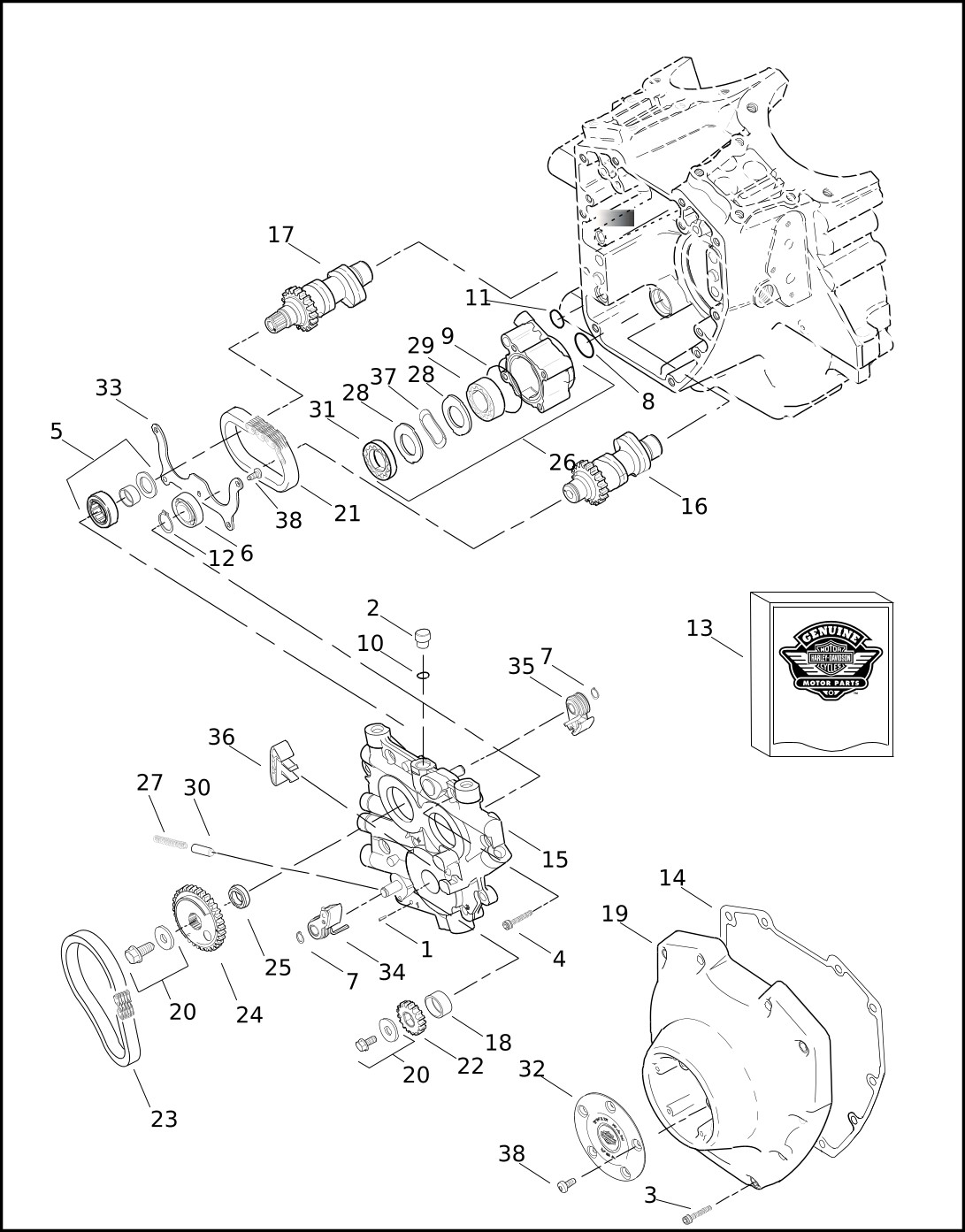

CAMSHAFTS & CAM COVER - TWIN CAM 88™
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | PIN, roll | ALL |
| 2 | 3290 | PLUG, cam support plate | ALL |
| 3 | 4740A | SCREW (10) | ALL |
| 4 | 4741A | SCREW (10) | ALL |
| 5 | 8983 | BEARING ASSEMBLY, w/ bearing, race, thrustwasher & O-ring | ALL |
| 6 | 8990A | BEARING, ball | ALL |
| 7 | 11031 | RING, retaining (2) | ALL |
| 8 | 11157 | O-RING | ALL |
| 9 | 11286 | O-RING | ALL |
| 10 | 11298 | O-RING, viton | ALL |
| 11 | 11301 | O-RING | ALL |
| 12 | 11494 | RING, retaining | ALL |
| 13 | 17045-99D | GASKET KIT, cam service | ALL |
| 14 | 25244-99A | GASKET, cam cover | ALL |
| 15 | 25267-99B | CAM SUPPORT ASSEMBLY, w/ bearings, retaining plate, tensioners & bypass valve | ALL |
| 16 | 25296-99 | CAMSHAFT, front (stamped B) | ALL |
| 17 | 25297-99B | CAM KIT, w/ 25297-00, 25533-99A, 25716-99 & 25938-00 | ALL |
| 25297-00 | CAMSHAFT, rear (stamped B) | ALL | |
| 18 | 25344-99 | BUSHING, crankshaft | ALL |
| 19 | 25369-01B | COVER, cam (chrome) | ALL |
| 20 | 25533-99A | RETENTION KIT, cam drive sprocket, includes 2 screws & washers | ALL |
| 21 | 25607-99 | CHAIN, secondary cam drive | ALL |
| 22 | 25609-99 | SPROCKET, cam drive on crankshaft, 17-tooth | ALL |
| 23 | 25610-99 | CHAIN, primary cam drive | ALL |
| 24 | 25716-99 | SPROCKET, cam drive, 34-tooth | ALL |
| 25 | 25938-00 | SPACER KIT | ALL |
| 25717-00 | SPACER, cam drive sprocket alignment 0.327 inch thick (use as required) | ALL | |
| 25719-00 | SPACER, cam drive sprocket alignment 0.317 inch thick (use as required) | ALL | |
| 25721-00 | SPACER, cam drive sprocket alignment 0.307 inch thick (use as required) | ALL | |
| 25722-00 | SPACER, cam drive sprocket alignment 0.287 inch thick (use as required) | ALL | |
| 25723-00 | SPACER, cam drive sprocket alignment 0.297 inch thick (use as required) | ALL | |
| 26 | 26035-99B | PUMP ASSEMBLY, oil, w/ body, both gerotor assemblies and separator plate | ALL |
| 27 | 26210-99 | SPRING, relief valve | ALL |
| 28 | 26248-00 | PLATE, separator, gerotor (2) | ALL |
| 29 | 26255-00 | GEROTOR ASSEMBLY, scavenge | ALL |
| 30 | 26400-82B | VALVE, relief, oil pump | ALL |
| 31 | 26464-99 | GEROTOR ASSEMBLY, pressure | ALL |
| 32 | 32543-99 | COVER, cam position sensor | ALL |
| 33 | 35060-00 | PLATE, bearing retaining | ALL |
| 34 | 39954-99A | TENSIONER, chain, primary cam drive | ALL |
| 35 | 39964-99A | TENSIONER, chain, secondary cam drive | ALL |
| 36 | 39965-99 | GUIDE, chain | ALL |
| 37 | 40323-00 | SEPARATOR, spring | ALL |
| 38 | 68042-99 | SCREW (9) | ALL |

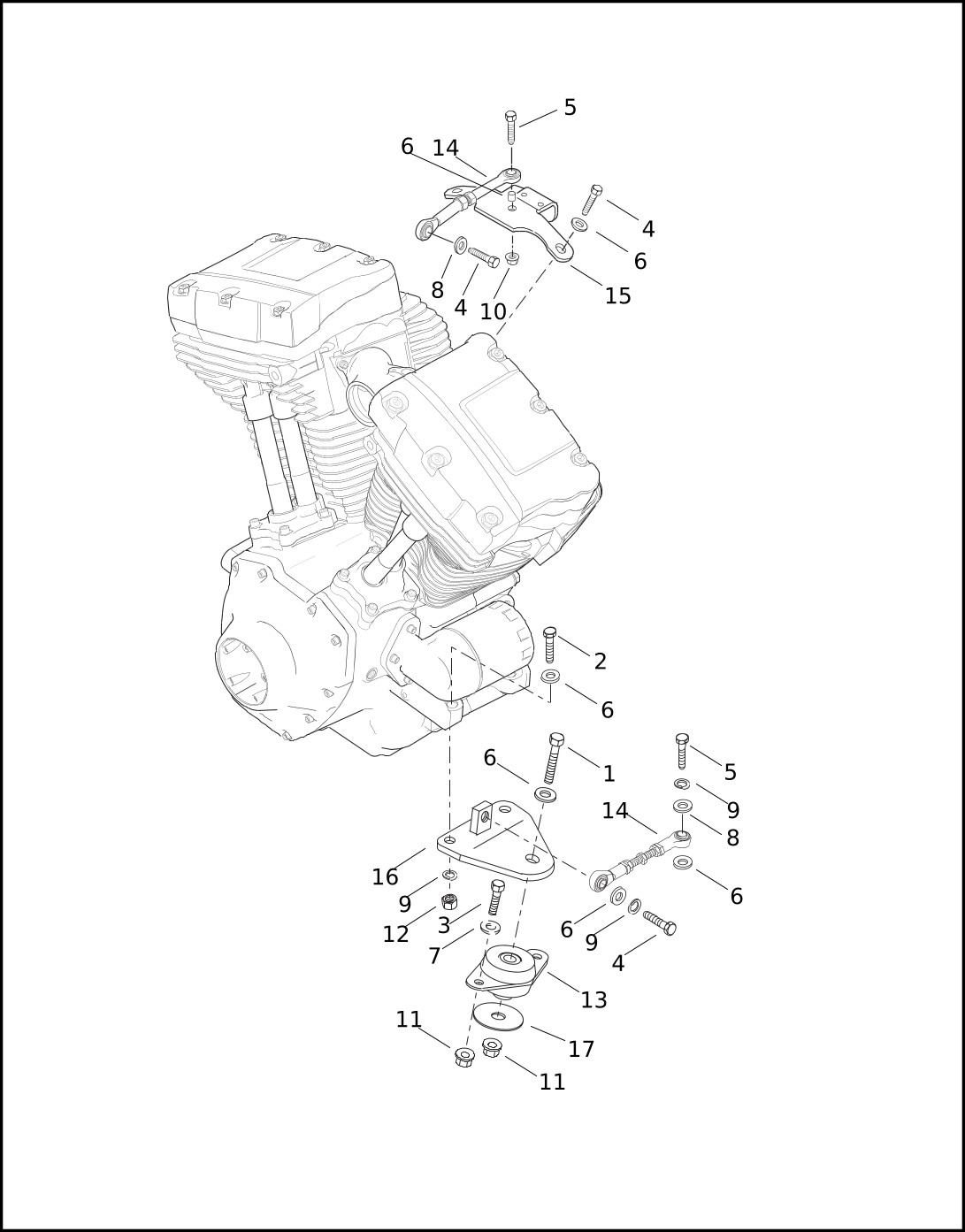

ENGINE MOUNTS & STABILIIZER LINKS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3512 | BOLT | ALL |
| 2 | 3554 | BOLT (2) | ALL |
| 3 | 4319 | BOLT (2) | ALL |
| 4 | 4716W | SCREW (4) | ALL |
| 5 | 4721 | BOLT (2) | ALL |
| 6 | 6019 | WASHER (7) | ALL |
| 7 | 6400HB | WASHER (2) | ALL |
| 8 | 6701 | WASHER (3) | ALL |
| 9 | 7038 | LOCKWASHER (4) | ALL |
| 10 | 7601 | LOCKNUT, flange | ALL |
| 11 | 7780 | LOCKNUT (3) | ALL |
| 12 | 7783 | NUT (2) | ALL |
| 13 | 16207-79D | MOUNT, engine, front | ALL |
| 14 | 16219-79C | LINK, stabilizer (2) | ALL |
| 15 | 16316-99 | BRACKET, engine mounting, upper | ALL |
| 16 | 47159-79A | BRACKET, front engine mount | ALL |
| 17 | 96210-80A | WASHER | ALL |

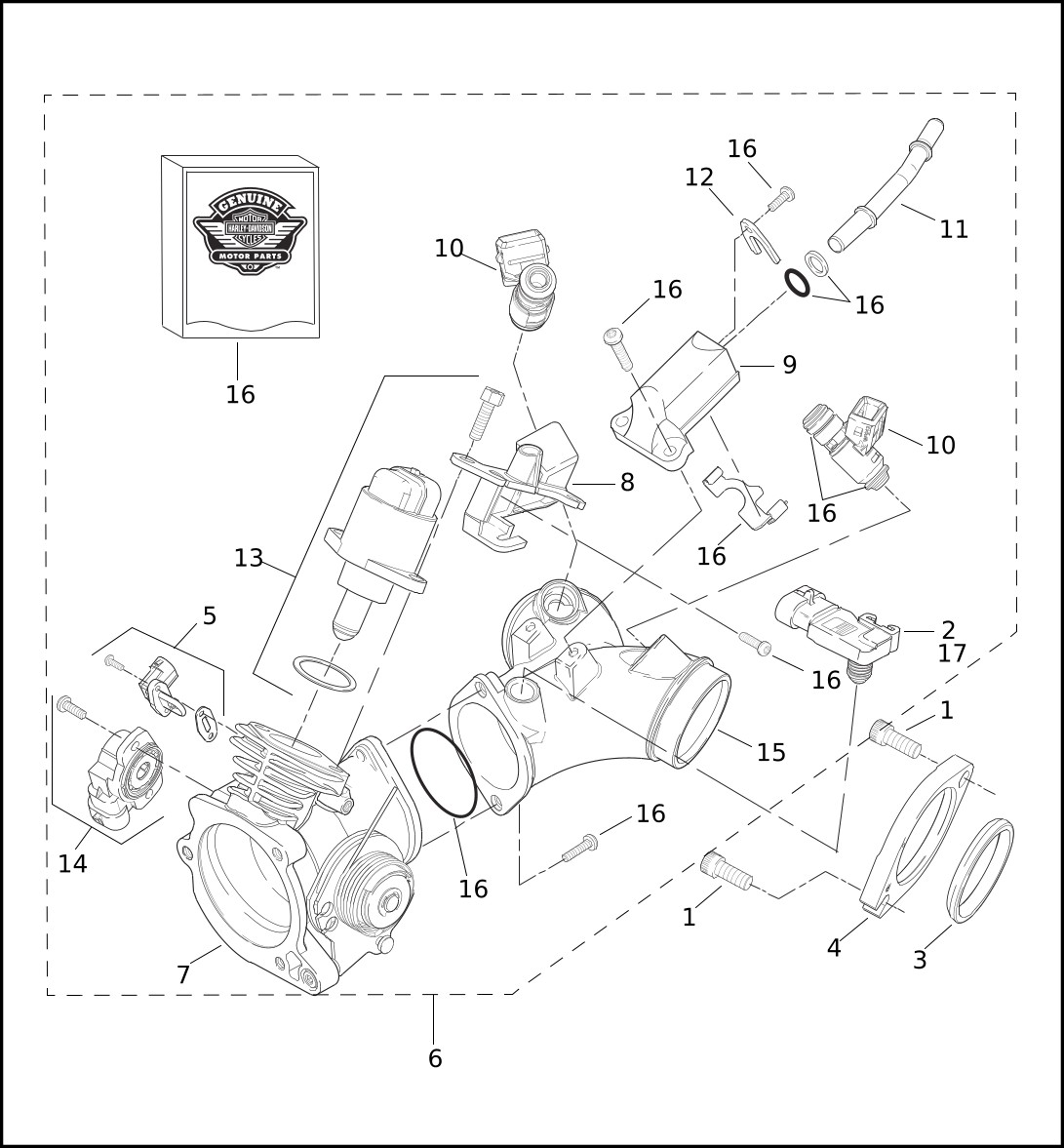

INDUCTION MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 11291 | SEAL, sensor, air pressure sensor | ALL |
| 3 | 26995-86B | SEAL, intake manifold (2) | ALL |
| 4 | 27009-86A | FLANGE, mounting, front | ALL |
| 27010-86A | FLANGE, mounting, rear | ALL | |
| 5 | 27270-95 | SENSOR KIT, intake air, temperature, w/ 2 screws & gasket | ALL |
| 6 | 27600-01A | INDUCTION MODULE ASSEMBLY, complete | ALL |
| 7 | 27603-01 | THROTTLE BODY ASSEMBLY, w/ idle adjustment screw | ALL |
| 8 | 27604-01A | HOUSING, throttle stop | ALL |
| 9 | 27608-01A | RAIL, fuel | ALL |
| 10 | 27609-01B | INJECTOR, fuel (2) | ALL |
| 11 | 27612-01 | TUBE, fuel supply | ALL |
| 12 | 27627-01 | CLIP, fuel tube retaining | ALL |
| 13 | 27628-01A | CONTROL KIT, idle air, w/ idle air control motor, O-ring & 2 screws | ALL |
| 14 | 27629-01A | SENSOR KIT, throttle position, w/ 2 screws | ALL |
| 15 | 27630-01 | MANIFOLD, intake | ALL |
| 16 | 27635-01A | HARDWARE KIT, induction module (includes O-rings for fuel injectors) | ALL |
| 17 | 32416-10 | SENSOR ASSEMBLY, air pressure, manifold (MAP), w/ 11291 | ALL |

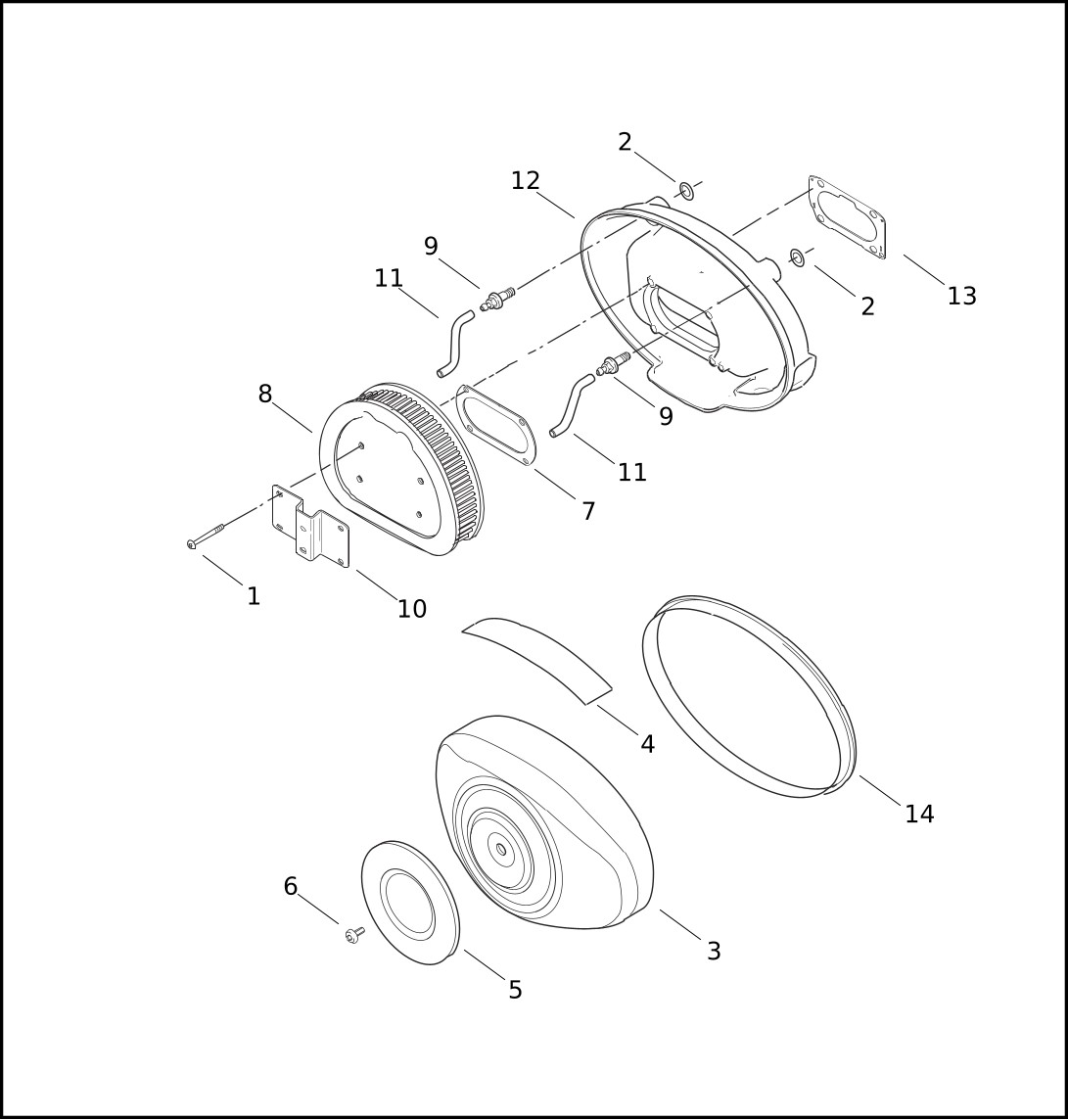

AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (4) | ALL |
| 2 | 11292 | O-RING (2) | ALL |
| 3 | 29121-01 | COVER, air cleaner, w/ 29127-95B | ALL |
| 4 | 29127-95B | LABEL, safety | ALL |
| 5 | 29158-99 | INSERT | ALL |
| 6 | 29269-83A | SCREW | ALL |
| 7 | 29313-95 | GASKET, filter element | ALL |
| 8 | 29461-99 | ELEMENT, filter, w/ 29313-95 | ALL |
| 9 | 29465-99 | SCREW, breather (2) | ALL |
| 10 | 29474-99A | BRACKET, air cleaner cover | ALL |
| 11 | 29476-99 | TUBE, breather (2) | ALL |
| 12 | 29581-01B | BACKPLATE ASSEMBLY | ALL |
| 13 | 29583-01A | GASKET, air filter element | ALL |
| 14 | 29584-01 | SEAL, air cleaner cover | ALL |

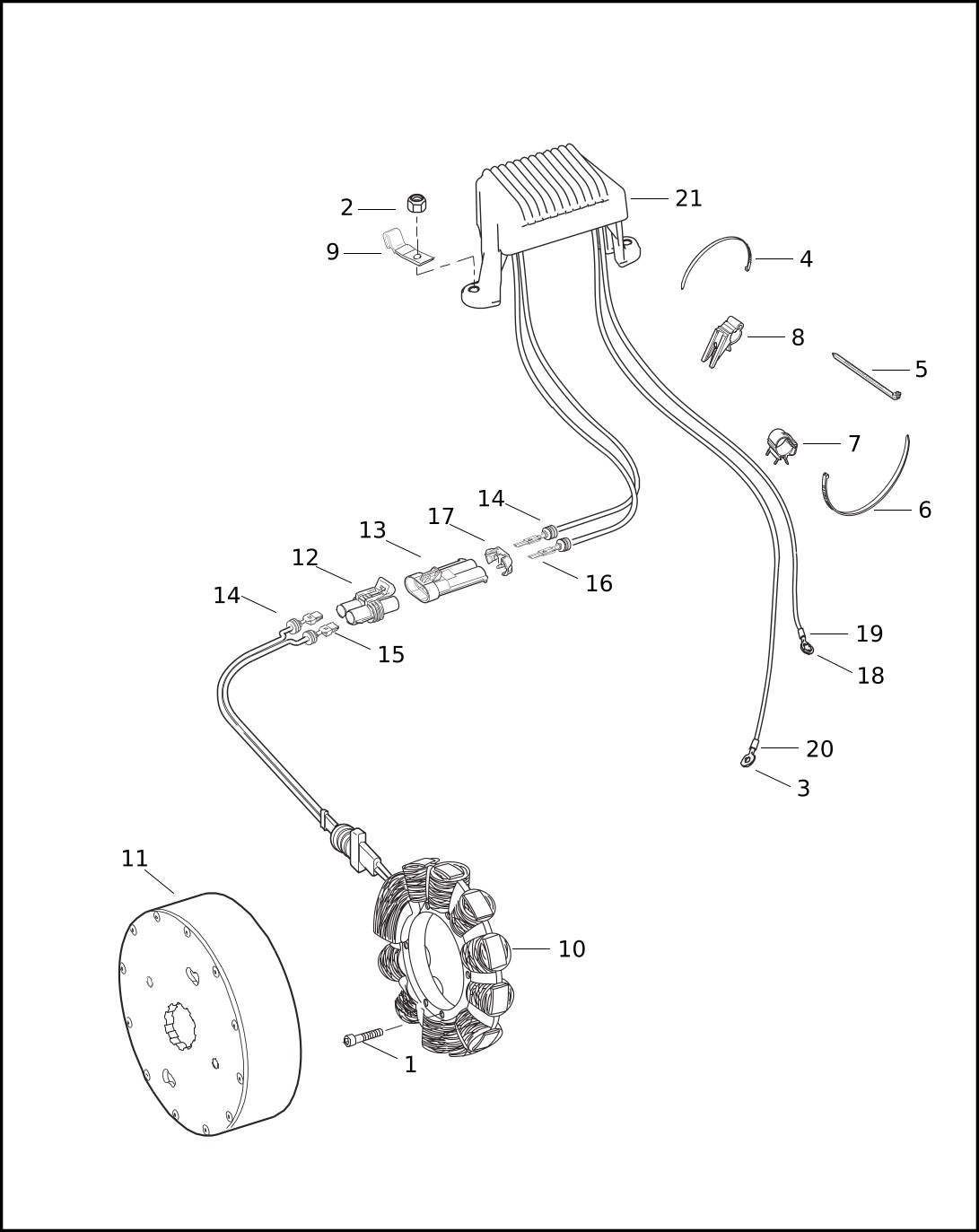

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2918 | SCREW (4) | ALL |
| 2 | 7716 | LOCKNUT (2) | ALL |
| 3 | 9843 | TERMINAL, ring, #10 | ALL |
| 4 | 10039 | WRAP, tie | ALL |
| 5 | 10065 | STRAP, cable | ALL |
| 6 | 10073 | WRAP, tie | ALL |
| 7 | 10108 | CLIP, t-stud (2) | ALL |
| 8 | 10116 | CLIP, t-stud | ALL |
| 9 | 10148 | CLAMP, "J" | ALL |
| 10 | 29987-02A | STATOR ASSEMBLY, 45 amp, w/ 72085-02 & 2 of 72084-02 | ALL |
| 11 | 29999-97B | ROTOR KIT, 45 amp, w/ spacers, seal & primary cover gasket | ALL |
| 12 | 72082-02 | HOUSING, socket, 2-way (gray) | ALL |
| 13 | 72083-02 | HOUSING, pin, 2-way (black) | ALL |
| 14 | 72084-02 | SEAL, wire, 10 AWG (4) | ALL |
| 15 | 72085-02 | TERMINAL, socket, 10 AWG (2) | ALL |
| 16 | 72086-02 | TERMINAL, pin, 10 AWG (2) | ALL |
| 17 | 72237-02 | LOCK, secondary, pin housing, 2-way | ALL |
| 18 | 72242-94 | TERMINAL, 1/4 internal star, 10-12 AWG | ALL |
| 19 | 72249-94 | TUBING, heat shrink, 1 inch (black) | ALL |
| 20 | 72366-95 | TUBING, heat shrink 1 inch (yellow) | ALL |
| 21 | 74505-02 | REGULATOR ASSEMBLY, voltage, w/ 3, 5, 13, 14, 16, 17, 18, 19 & 20 | ALL |

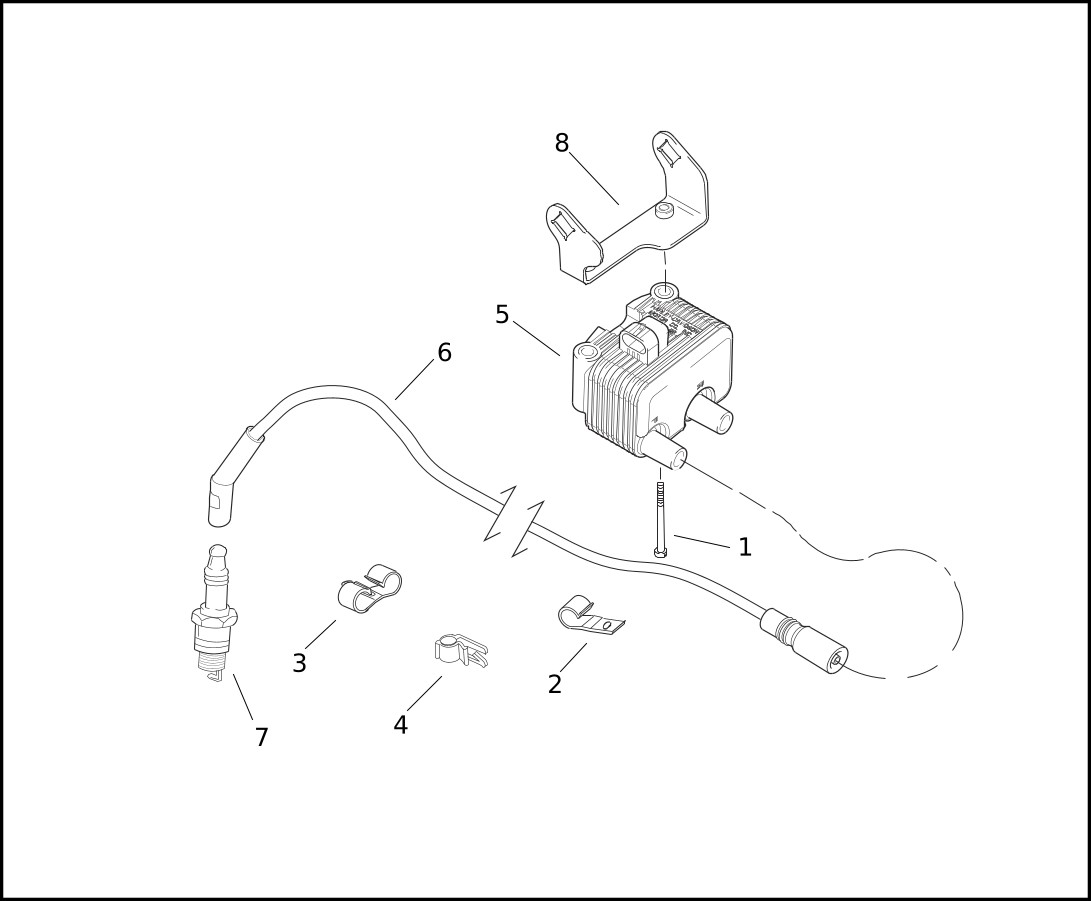

IGNITION COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3993 | BOLT (2) | ALL |
| 2 | 10110 | CLIP | ALL |
| 3 | 10113 | CLIP, double | ALL |
| 4 | 10183 | CLIP, single | ALL |
| 5 | 31743-01 | IGNITION COIL | ALL |
| 6 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | ALL |
| 7 | 32362-04 | SPARK PLUG, 6R12 (2) | ALL |
| 8 | 47420-02 | COIL BRACKET | ALL |

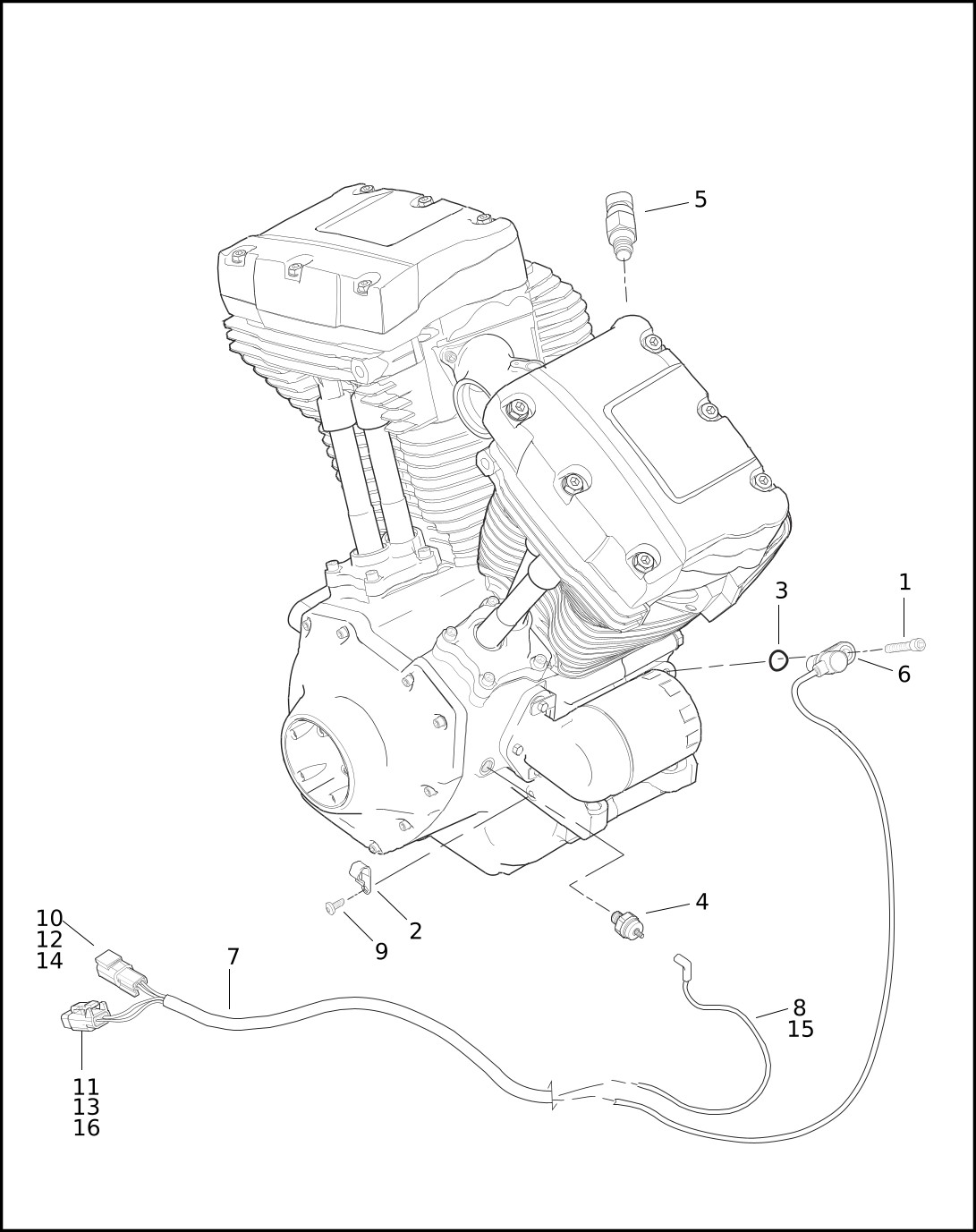

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 4741A | SCREW | ALL |
| 2 | 10231 | CLAMP (2) | ALL |
| 3 | 11289A | O-RING | ALL |
| 4 | 26561-99 | SWITCH, oil pressure | ALL |
| 5 | 32446-99 | SENSOR, engine temperature | ALL |
| 6 | 32798-00 | SENSOR, crankshaft position (use 32798-00B) | ALL |
| 32798-00B | SENSOR, crankshaft position, w/ 11289A & 74194-98 (replaces 32798-00) | ALL | |
| 7 | 32800-00 | HARNESS, wire, oil pressure switch, w/ 2, 6, 8, 10, 11, 12, 13, 14, 15 & 16 | ALL |
| 8 | 32807-00 | JUMPER, oil pressure switch, w/ 74193-98 | ALL |
| 9 | 68042-99 | SCREW | ALL |
| 10 | 74102-98BK | HOUSING, pin, 2-way (black) | ALL |
| 11 | 74112-98BK | HOUSING, socket, 2-way (black) | ALL |
| 12 | 74142-98 | LOCK, secondary, pin housing, 2-way | ALL |
| 13 | 74152-98 | LOCK, secondary, socket housing, 2-way | ALL |
| 14 | 74192-98 | TERMINAL, pin (used w/ 32798-00) (gold plated) (2) | ALL |
| 74194-98 | TERMINAL, pin, solid (used w/ 32798-00B) | ALL | |
| 15 | 74193-98 | TERMINAL, socket | ALL |
| 16 | 74195-98 | PLUG, seal | ALL |

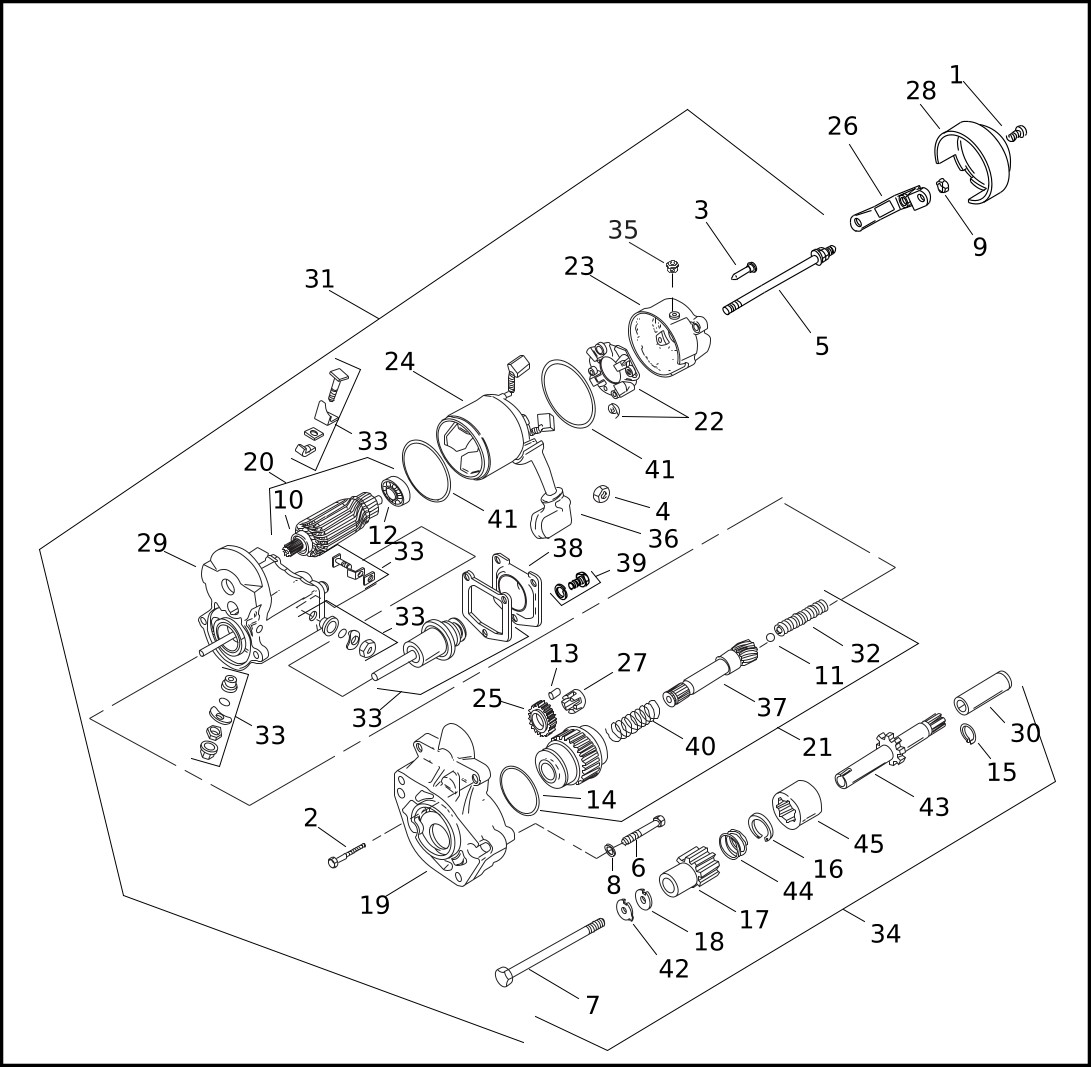

STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 925 | SCREW, cover | ALL |
| 2 | 928 | BOLT, starter (use 31553-94B) (2) | ALL |
| 3 | 929A | SCREW (2) | ALL |
| 4 | 3403 | LOCKNUT, flange | ALL |
| 5 | 3559 | BOLT, starter (2) | ALL |
| 6 | 4326A | SCREW (2) | ALL |
| 7 | 4358A | SCREW | ALL |
| 8 | 7041 | LOCKWASHER (2) | ALL |
| 9 | 7838 | NUT (2) | ALL |
| 10 | 8871 | BEARING, ball | ALL |
| 11 | 8879 | BALL | ALL |
| 12 | 8883 | BEARING, ball | ALL |
| 13 | 9077 | ROLLER, clutch (5) | ALL |
| 14 | 10957 | O-RING (use 31516-94A) | ALL |
| 15 | 11182 | RING, retaining | ALL |
| 16 | 11248 | RING, retaining | ALL |
| 17 | 31342-94 | GEAR, pinion | ALL |
| 18 | 31430-94 | WASHER, thrust | ALL |
| 19 | 31510-90 | HOUSING, starter | ALL |
| 20 | 31515-90 | ARMATURE ASSEMBLY, w/ 8871 & 8883 | ALL |
| 21 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31600-90, 31664-94 & 31692-90 | ALL |
| 22 | 31518-90 | BRUSH HOLDER ASSEMBLY, w/ spring (use 31553-94B) | ALL |
| 23 | 31519-90 | FRAME, starter end | ALL |
| 24 | 31521-98 | YOKE ASSEMBLY, starter (use 31553-94B) | ALL |
| 25 | 31525-90 | GEAR, idler (use 31553-94B) | ALL |
| 26 | 31527-90 | BRACKET, cover | ALL |
| 27 | 31530-90 | RETAINER, idler gear | ALL |
| 28 | 31535-91 | COVER (chrome) | ALL |
| 29 | 31538-98 | SWITCH ASSEMBLY, magnetic, w/ housing | ALL |
| 30 | 31548-90 | COUPLING | ALL |
| 31 | 31553-94B | STARTER, complete | ALL |
| 32 | 31600-90 | SPRING, return (use 31516-94A) | ALL |
| 33 | 31604-91A | REPAIR KIT, solenoid | ALL |
| 34 | 31612-09 | JACKSHAFT KIT, w/ 7, 15, 16, 17, 18, 30, 42, 43, 44 & 45 | ALL |
| 35 | 31660-90 | VENT, drain (use 31553-94B) | ALL |
| 36 | 31662-90 | BOOT, insulating | ALL |
| 37 | 31664-94 | SHAFT, output (use 31516-94A) | ALL |
| 38 | 31688-90 | COVER, solenoid | ALL |
| 39 | 31689-90 | BOLT, w/ washer (3) | ALL |
| 40 | 31692-90 | SPRING | ALL |
| 41 | 31695-90 | O-RING (2) | ALL |
| 42 | 33126-94 | LOCKPLATE | ALL |
| 43 | 33127-94 | SHAFT, extension | ALL |
| 44 | 33449-94 | SPRING, pinion gear | ALL |
| 45 | 60647-94 | COUPLING (use 31516-94A) | ALL |

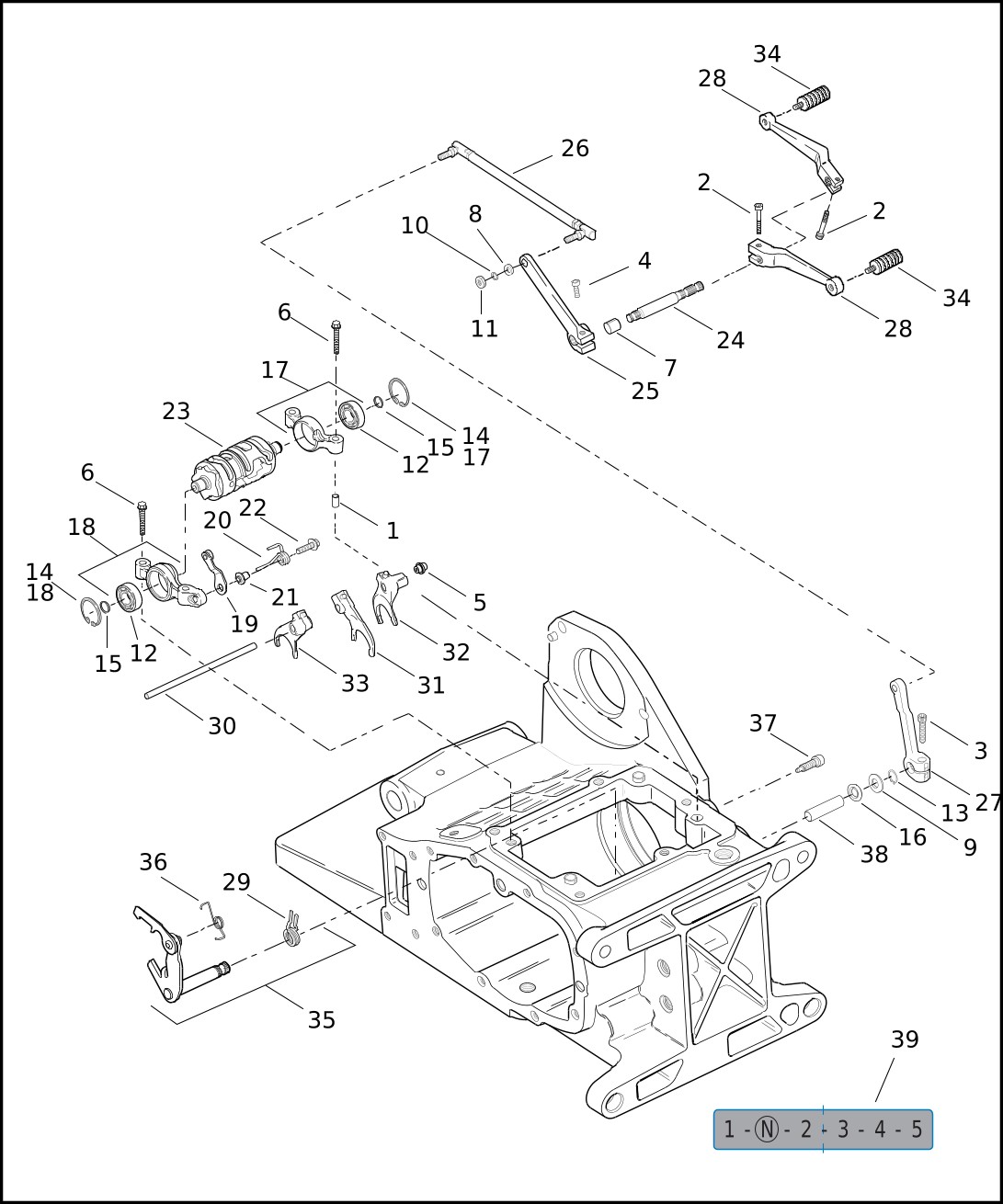

GEAR SHIFTER
| Index No. | Part No. | Description | Model(s) |
| 1 | 609 | PIN (4) | ALL |
| 2 | 780 | SCREW (2) | ALL |
| 3 | 856A | SCREW | ALL |
| 4 | 3275 | SCREW | ALL |
| 5 | 3784 | SET SCREW, shifter, fork shaft, left | ALL |
| 6 | 3909 | SCREW (4) | ALL |
| 7 | 5817 | SPACER | ALL |
| 8 | 6016 | WASHER | ALL |
| 9 | 6497HW | WASHER | ALL |
| 10 | 7041 | LOCKWASHER | ALL |
| 11 | 7744 | JAM NUT | ALL |
| 12 | 9837 | BEARING, ball (2) | ALL |
| 13 | 11150 | RING, retaining | ALL |
| 14 | 11319A | RING, retaining (2) | ALL |
| 15 | 11342 | RING, retaining | ALL |
| 16 | 12045 | SEAL | ALL |
| 17 | 33301-00A | SUPPORT ASSEMBLY, shifter cam, L.H., w/ 9837 & 11319A | ALL |
| 18 | 33304-00 | SUPPORT ASSEMBLY, shifter cam, R.H., w/ 9837 & 11319A | ALL |
| 19 | 33364-00A | FOLLOWER ASSEMBLY, detent | ALL |
| 20 | 33374-00 | SPRING, detent arm | ALL |
| 21 | 33375-00A | SLEEVE, detent arm spring | ALL |
| 22 | 33376-00 | SCREW, pivot, detent arm | ALL |
| 23 | 33383-02 | CAM, shifter | ALL |
| 24 | 33709-82A | SHAFT | ALL |
| 25 | 33718-82B | LEVER | ALL |
| 26 | 33759-99B | ROD, shifter | ALL |
| 27 | 33849-97 | LEVER, shifter rod | ALL |
| 28 | 33895-82D | LEVER, shifter (2) | ALL |
| 29 | 34064-00C | SPRING, shift lever centering | ALL |
| 30 | 34088-87A | SHAFT, shifter fork | ALL |
| 31 | 34191-79E | FORK, shifter | ALL |
| 32 | 34193-79E | FORK, shifter | ALL |
| 33 | 34195-79E | FORK, shifter | ALL |
| 34 | 34611-65A | PEG, shift lever (2) | ALL |
| 35 | 34972-02B | LEVER ASSEMBLY, shifter pawl, w/ 34064-00C & 34977-02A | ALL |
| 36 | 34977-02A | SPRING, shifter shaft lever | ALL |
| 37 | 34978-00A | PIN, centering | ALL |
| 38 | 34979-00 | SLEEVE, shifter shaft, bushing | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 39 | 14270-92 | DECAL, shift pattern (Japan) | ALL |

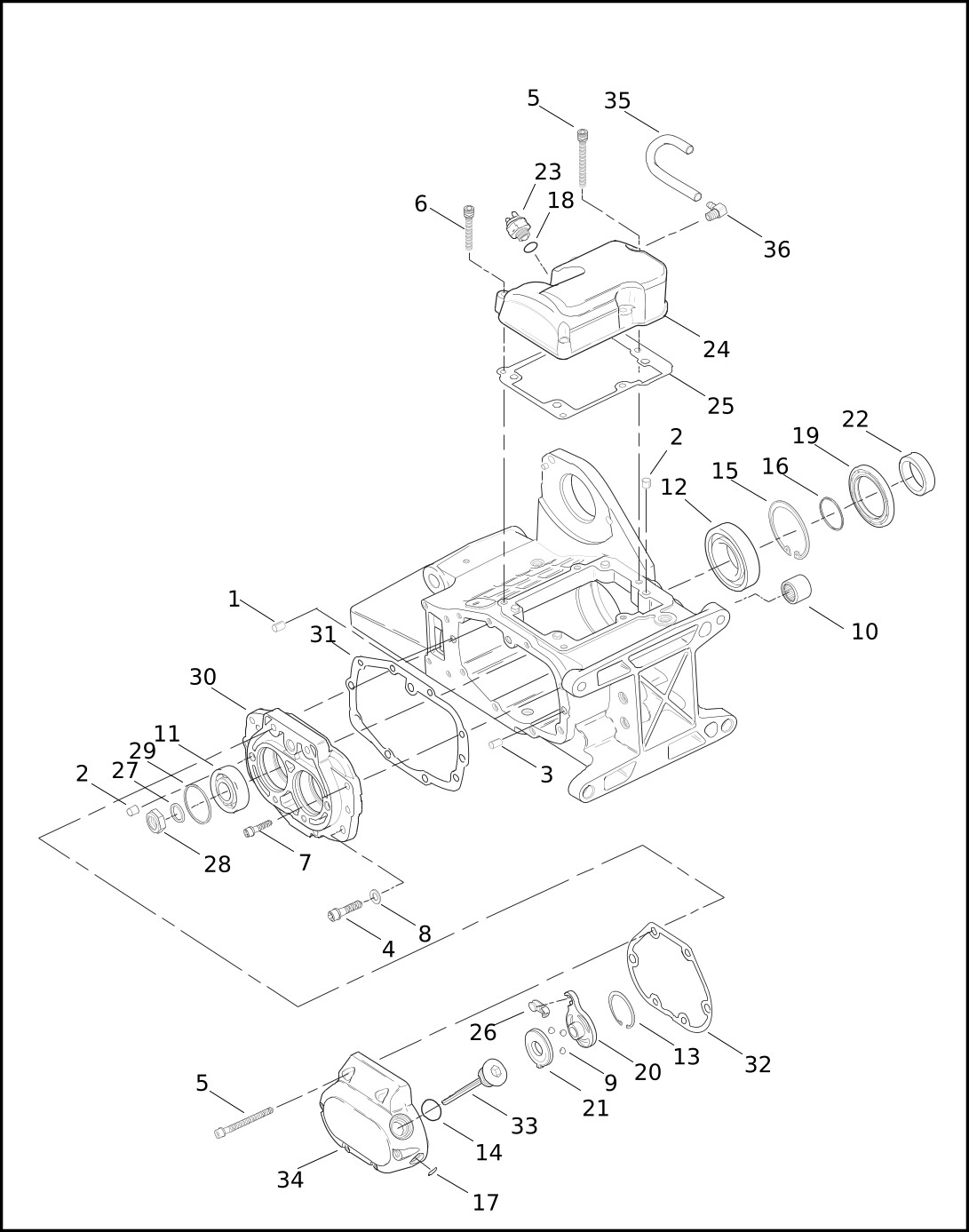

TRANSMISSION BEARINGS & COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 375 | PIN | ALL |
| 2 | 609 | PIN (6) | ALL |
| 3 | 634 | PIN | ALL |
| 4 | 3249 | SCREW (4) | ALL |
| 5 | 4717A | SCREW (6) | ALL |
| 6 | 4740A | SCREW (4) | ALL |
| 7 | 4814A | SCREW (2) | ALL |
| 8 | 6016 | WASHER (4) | ALL |
| 9 | 8873 | BALL (3) | ALL |
| 10 | 8977 | BEARING | ALL |
| 11 | 8992A | BEARING, ball (2) | ALL |
| 12 | 8996A | BEARING | ALL |
| 13 | 10998 | RING, retaining | ALL |
| 14 | 11132A | O-RING, filler plug | ALL |
| 15 | 11161 | RING, retaining | ALL |
| 16 | 11165 | SEAL, quad, ball bearing | ALL |
| 17 | 11179 | O-RING, clutch cable | ALL |
| 18 | 11290 | O-RING, neutral indicator switch | ALL |
| 19 | 12067B | SEAL, oil | ALL |
| 20 | 25604-00A | RAMP, inner | ALL |
| 21 | 25605-00A | RAMP, outer | ALL |
| 22 | 33344-94 | SPACER, sprocket | ALL |
| 23 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | ALL |
| 24 | 34541-00 | COVER, transmission, upper (chrome) | ALL |
| 25 | 34904-86D | GASKET, upper cover | ALL |
| 26 | 34920-86A | COUPLING | ALL |
| 27 | 35076-79 | SPACER (2) | ALL |
| 28 | 35078-79 | NUT, mainshaft & countershaft | ALL |
| 29 | 35087-99A | RING, retaining, bearing (2) | ALL |
| 30 | 35252-93B | HOUSING ASSEMBLY, bearing, w/ 609, 8992A & 35087-99A (black) | ALL |
| 31 | 35653-98A | GASKET, bearing housing | ALL |
| 32 | 36801-87C | GASKET, right side cover | ALL |
| 33 | 37075-87 | PLUG, filler, transmission (chrome) | ALL |
| 34 | 37105-99 | COVER, clutch release (chrome) | ALL |
| 35 | 42533-91A | HOSE, vent | ALL |
| 36 | 62375-57A | FITTING, upper cover | ALL |

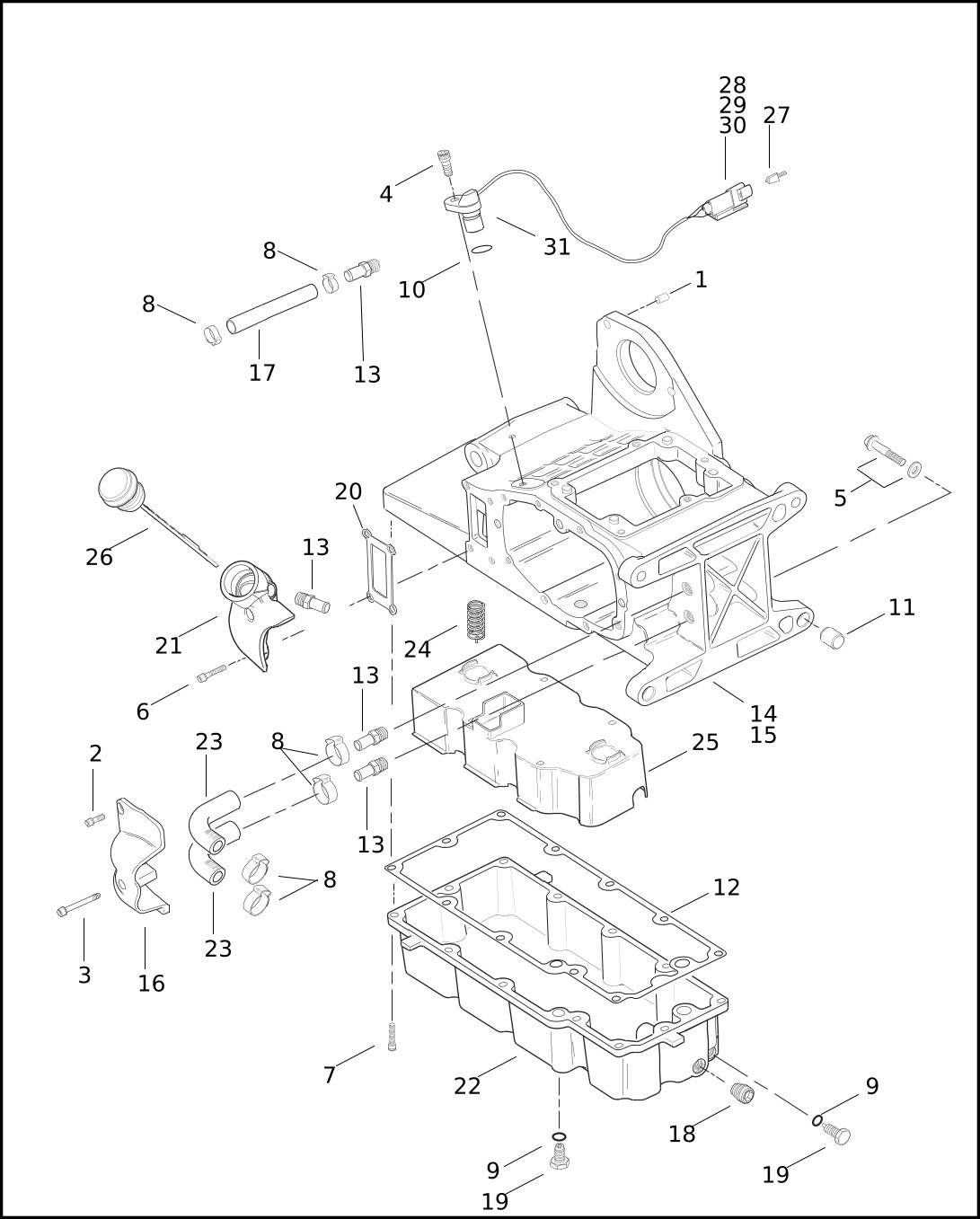

TRANSMISSION HOUSING & OIL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 337 | PIN, dowel | ALL |
| 2 | 2941 | SCREW | ALL |
| 3 | 3480A | SCREW | ALL |
| 4 | 3594 | SCREW | ALL |
| 5 | 3699D | SCREW, w/ washer (4) | ALL |
| 6 | 4740A | SCREW (4) | ALL |
| 7 | 4741A | SCREW (12) | ALL |
| 8 | 10249 | CLAMP (6) | ALL |
| 9 | 11105 | O-RING (2) | ALL |
| 10 | 11289A | O-RING | ALL |
| 11 | 16574-99A | RING, dowel (2) | ALL |
| 12 | 26072-99A | GASKET, oil pan | ALL |
| 13 | 26314-99 | FITTING, straight (4) | ALL |
| 14 | 33035-02 | TRANSMISSION ASSEMBLY, complete (chrome & black) | ALL |
| 15 | 34740-02A | HOUSING, transmission (black) | ALL |
| 16 | 37174-99 | COVER, oil lines | ALL |
| 17 | 45808-02 | HOSE, crankcase to tank vent | ALL |
| 18 | 45893-99 | PLUG, pipe (2) | ALL |
| 19 | 60328-98B | PLUG, magnetic, w/ 11105 (2) | ALL |
| 20 | 62432-93B | GASKET, oil spout | ALL |
| 21 | 62455-02 | SPOUT, oil filler | ALL |
| 22 | 62489-99A | PAN, oil, w/ 11105, 45893-99 & 60328-98B (black) | ALL |
| 23 | 62726-99 | HOSE, oil (2) | ALL |
| 24 | 62828-99 | SPRING, baffle (2) | ALL |
| 25 | 62830-99 | BAFFLE, serpentine | ALL |
| 26 | 62846-99 | CAP, filler, engine oil (black) | ALL |
| 27 | 72113-94RD | RECEPTACLE, 3-way pin (black) | ALL |
| 28 | 72143-94 | LOCK, secondary, 3-way receptacle | ALL |
| 29 | 72190-94 | TERMINAL, pin (3) | ALL |
| 30 | 73198-96 | CLIP, attachment | ALL |
| 31 | 74429-97C | SENSOR, speed, w/ 11289A, 72143-94, 72163-94BK, 72194-94 & 73198-96 | ALL |

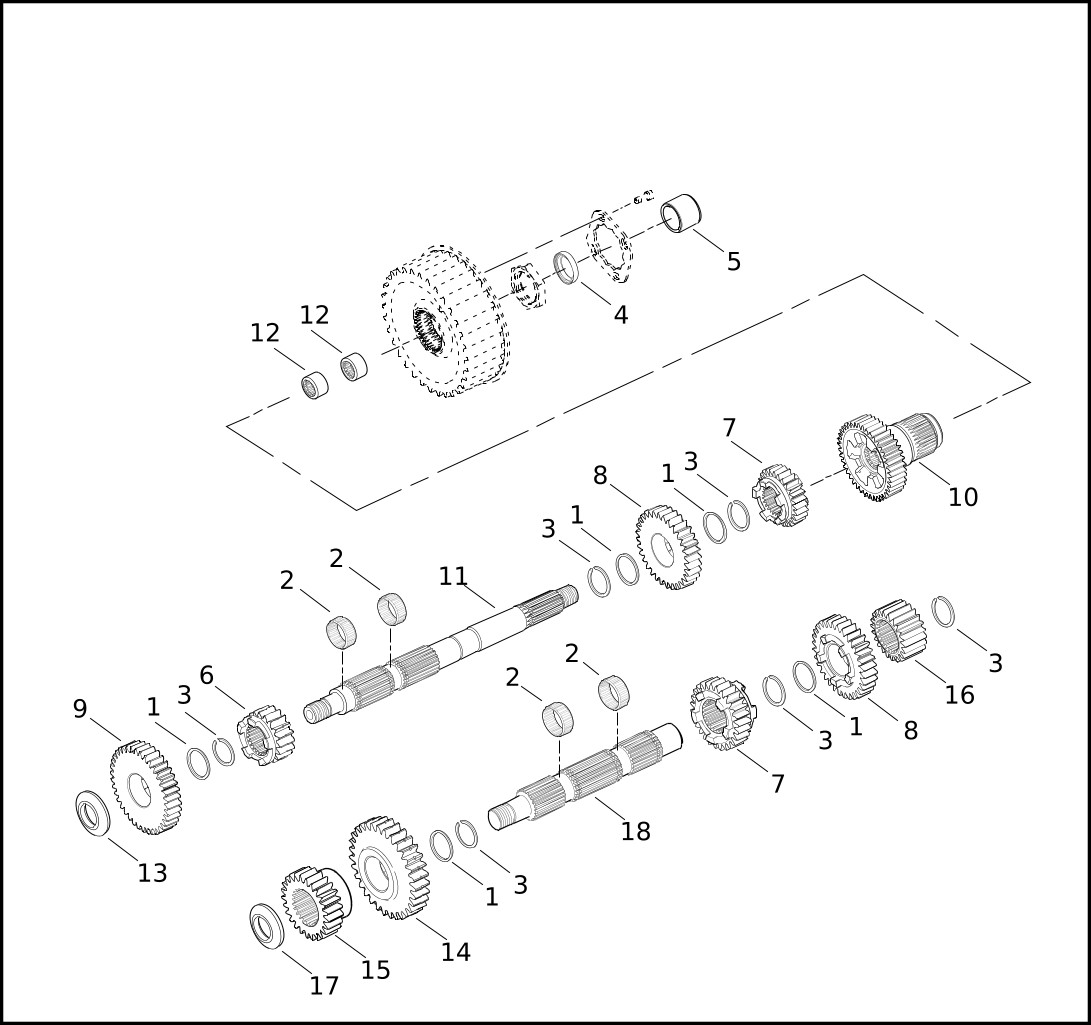

TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6003 | WASHER (5) | ALL |
| 2 | 8876A | BEARING (4) | ALL |
| 3 | 11067 | RING, retaining (6) | ALL |
| 4 | 12035B | SEAL, oil, mainshaft fifth gear | ALL |
| 5 | 34091-85A | BEARING, inner race | ALL |
| 6 | 35025-79B | GEAR, first, mainshaft | ALL |
| 7 | 35026-94 | GEAR, mainshaft 2nd & countershaft 3rd (2) | ALL |
| 8 | 35027-94 | GEAR, mainshaft 3rd & countershaft 2nd (2) | ALL |
| 9 | 35028-94 | GEAR, fourth, mainshaft | ALL |
| 10 | 35029-94 | GEAR, fifth, mainshaft | ALL |
| 11 | 35042-91 | MAINSHAFT | ALL |
| 12 | 35051-89A | BEARING, needle (2) | ALL |
| 13 | 35064-79 | SPACER, mainshaft | ALL |
| 14 | 35622-79C | GEAR, first, countershaft | ALL |
| 15 | 35625-94 | GEAR, fourth, countershaft | ALL |
| 16 | 35626-94 | GEAR, fifth, countershaft | ALL |
| 17 | 35629-79 | SPACER | ALL |
| 18 | 35632-79 | COUNTERSHAFT | ALL |

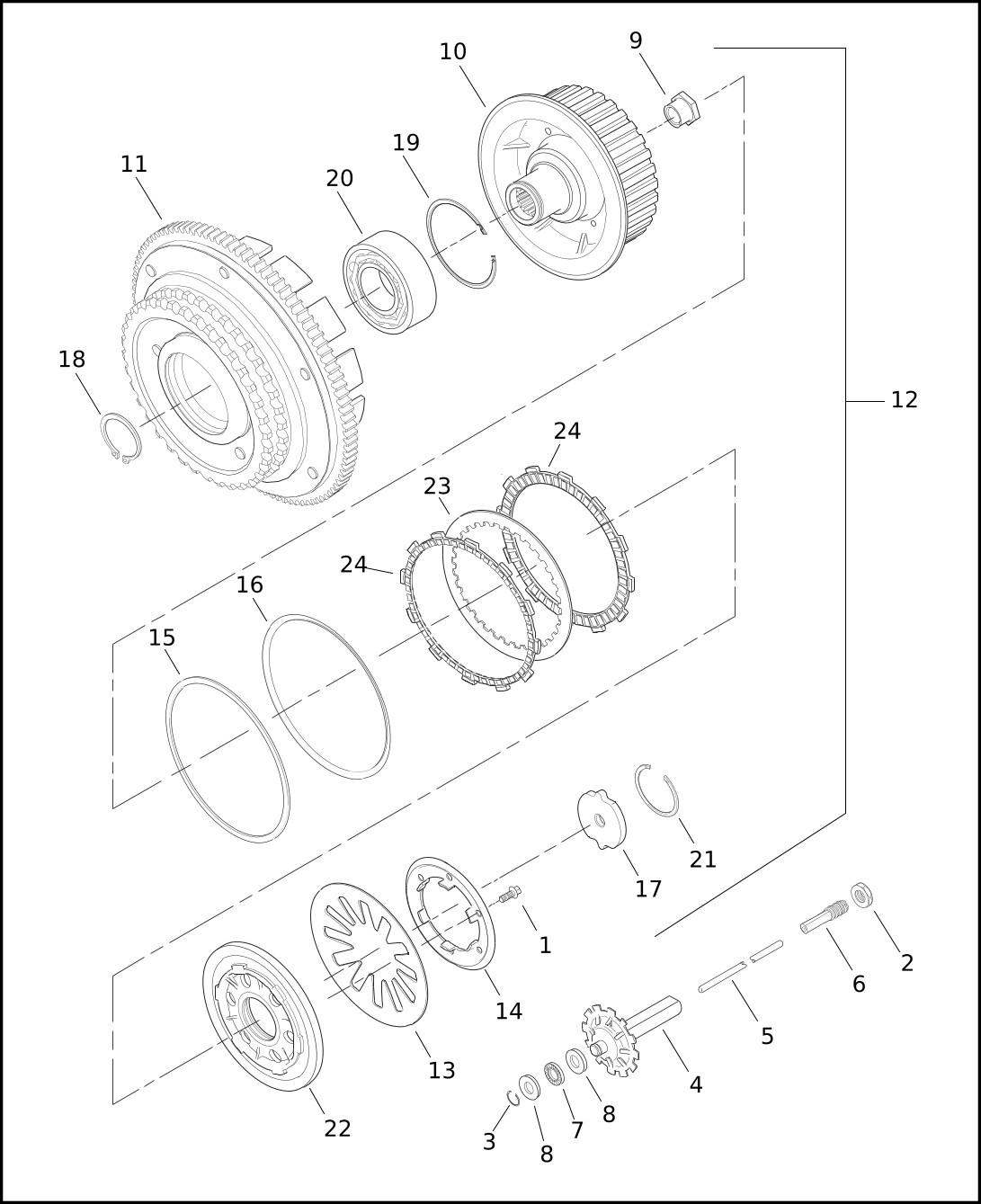

CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 2980 | SCREW (6) | ALL |
| 2 | 7848W | JAM NUT | ALL |
| 3 | 11096 | RING, retaining | ALL |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | ALL |
| 5 | 37088-90 | ROD, release, clutch | ALL |
| 6 | 37090-98A | SCREW, rod end adjuster | ALL |
| 7 | 37312-75 | BEARING, push rod | ALL |
| 8 | 37313-80 | WASHER, thrust (2) | ALL |
| 9 | 37496-90A | NUT, mainshaft | ALL |
| 10 | 37550-98 | HUB, clutch, complete | ALL |
| 11 | 37707-98A | SHELL & SPROCKET, clutch, 36-tooth, w/ ring gear, bearing & retaining ring | ALL |
| 12 | 37802-98B | CLUTCH ASSEMBLY | ALL |
| 13 | 37871-98A | SPRING, diaphragm (white) | ALL |
| 14 | 37872-00 | SEAT, clutch spring | ALL |
| 15 | 37883-98 | SEAT, damper spring | ALL |
| 16 | 37884-98 | SPRING, damper | ALL |
| 17 | 37903-90 | PLATE, release | ALL |
| 18 | 37904-90 | RING, retaining, internal | ALL |
| 19 | 37905-00 | RING, retaining, internal | ALL |
| 20 | 37906-90 | BEARING, ball, double row | ALL |
| 21 | 37909-90 | RING, retaining, internal | ALL |
| 22 | 37912-00 | PLATE, pressure, clutch | ALL |
| 23 | 37913-98 | PLATE, steel (8) | ALL |
| 24 | 37932-98 | PLATE KIT, friction, includes all 9 friction plates | ALL |

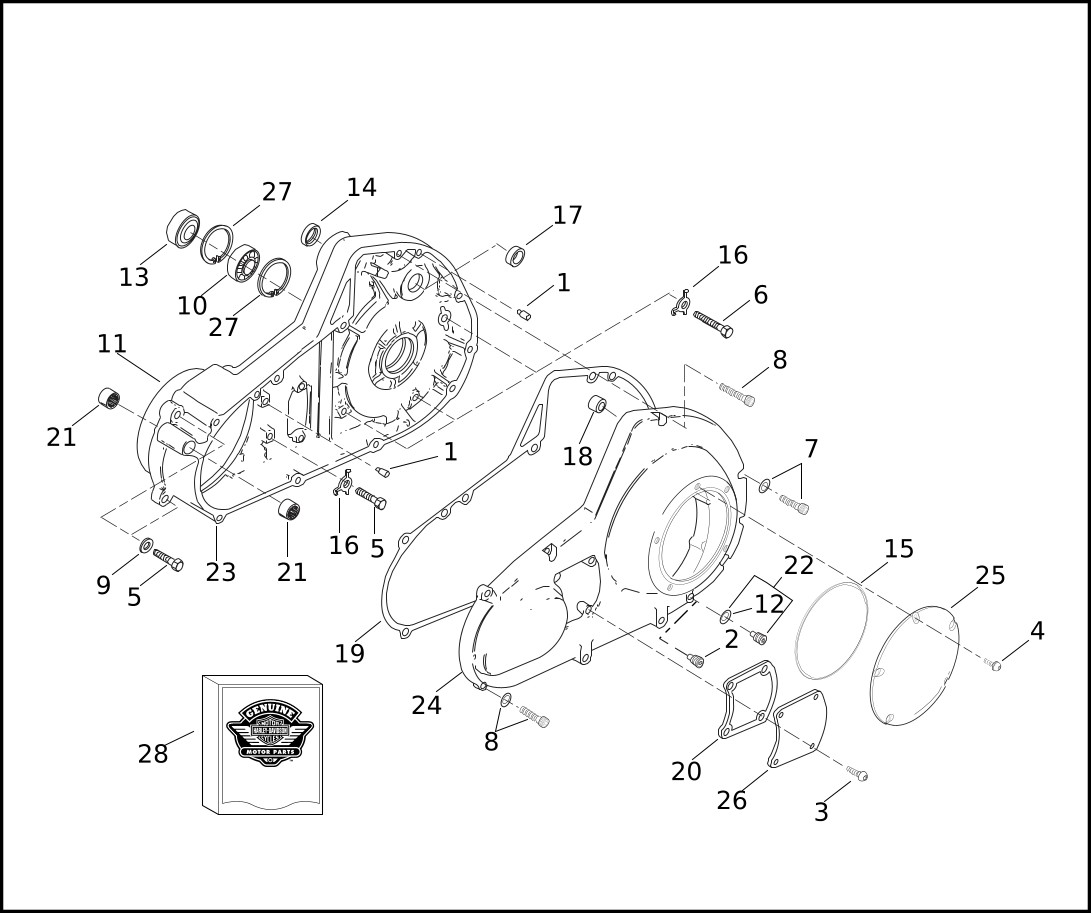

PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 739A | PLUG (used w/ 60665-99) | ALL |
| 3 | 940 | SCREW (4) | ALL |
| 4 | 961 | SCREW (5) | ALL |
| 5 | 2887WA | SCREW (4) | ALL |
| 6 | 4086A | BOLT (3) | ALL |
| 7 | 4718A | SCREW, w/ washer (5) | ALL |
| 8 | 4740A | SCREW, w/ washer (5) | ALL |
| 9 | 6016 | WASHER (2) | ALL |
| 10 | 9135 | BEARING | ALL |
| 11 | 11147B | O-RING, housing cover | ALL |
| 12 | 11324 | O-RING, magnetic drain plug (used w/ 60665-99B) | ALL |
| 13 | 12052A | SEAL, oil | ALL |
| 14 | 12066A | SEAL, oil | ALL |
| 15 | 25416-99C | SEAL, clutch cover | ALL |
| 16 | 33318-85 | TAB, locking (5) | ALL |
| 17 | 33445-94A | BUSHING | ALL |
| 18 | 33446-94A | BUSHING | ALL |
| 19 | 34901-94C | GASKET, primary cover | ALL |
| 20 | 34906-85D | GASKET, inspection cover | ALL |
| 21 | 42642-00A | BUSHING (2) | ALL |
| 22 | 60391-04 | PLUG ASSEMBLY, w/ 11324 (used w/ 60665-99B) | ALL |
| 23 | 60432-01 | HOUSING ASSEMBLY, primary, w/ 1, 10, 13, 14, 17, 21 & 27 (black) | ALL |
| 24 | 60665-99 | COVER ASSEMBLY, primary (use 60665-99B) (chrome) | ALL |
| 60665-99B | COVER ASSEMBLY, primary, w/ 33446-94A & 60391-04 (replaces 60665-99) (chrome) | ALL | |
| 25 | 60668-99 | COVER, clutch (chrome) | ALL |
| 26 | 60670-85A | COVER, inspection (chrome) | ALL |
| 27 | 60678-85 | RING, retaining (2) | ALL |
| 28 | 25700225 | GASKET KIT, inner primary | ALL |

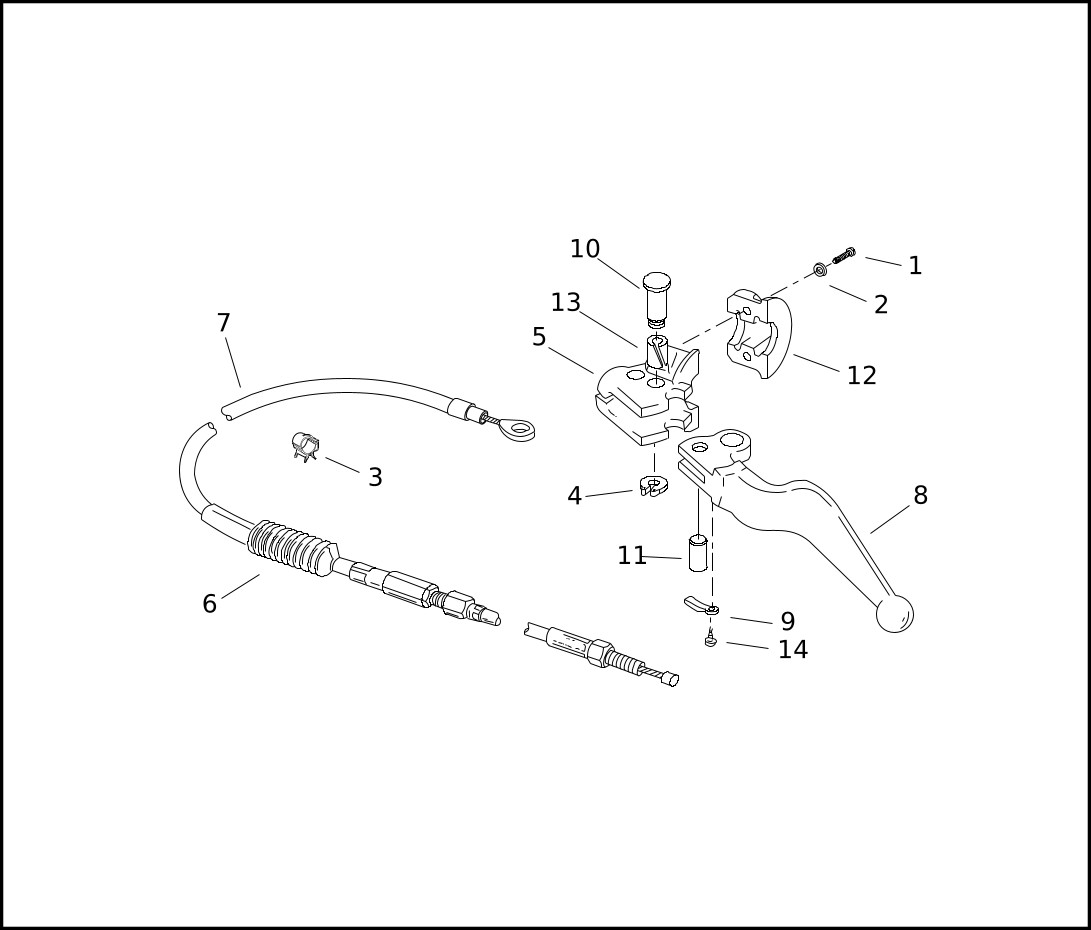

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 9990W | CLAMP | ALL |
| 4 | 11143 | RING, retaining | ALL |
| 5 | 38608-96 | BRACKET, hand lever | ALL |
| 6 | 38630-88 | BOOT, clutch cable | ALL |
| 7 | 38667-00 | CABLE, clutch control | ALL |
| 8 | 45015-96 | LEVER, hand | ALL |
| 9 | 45021-86 | SPRING, anti-rattle | ALL |
| 10 | 45032-82 | PIN, hand lever pivot | ALL |
| 11 | 45036-88 | PIN, anchor | ALL |
| 12 | 45044-96A | CLAMP, lever bracket | ALL |
| 13 | 45423-92 | BUSHING | ALL |
| 14 | 90770-79 | SCREW | ALL |

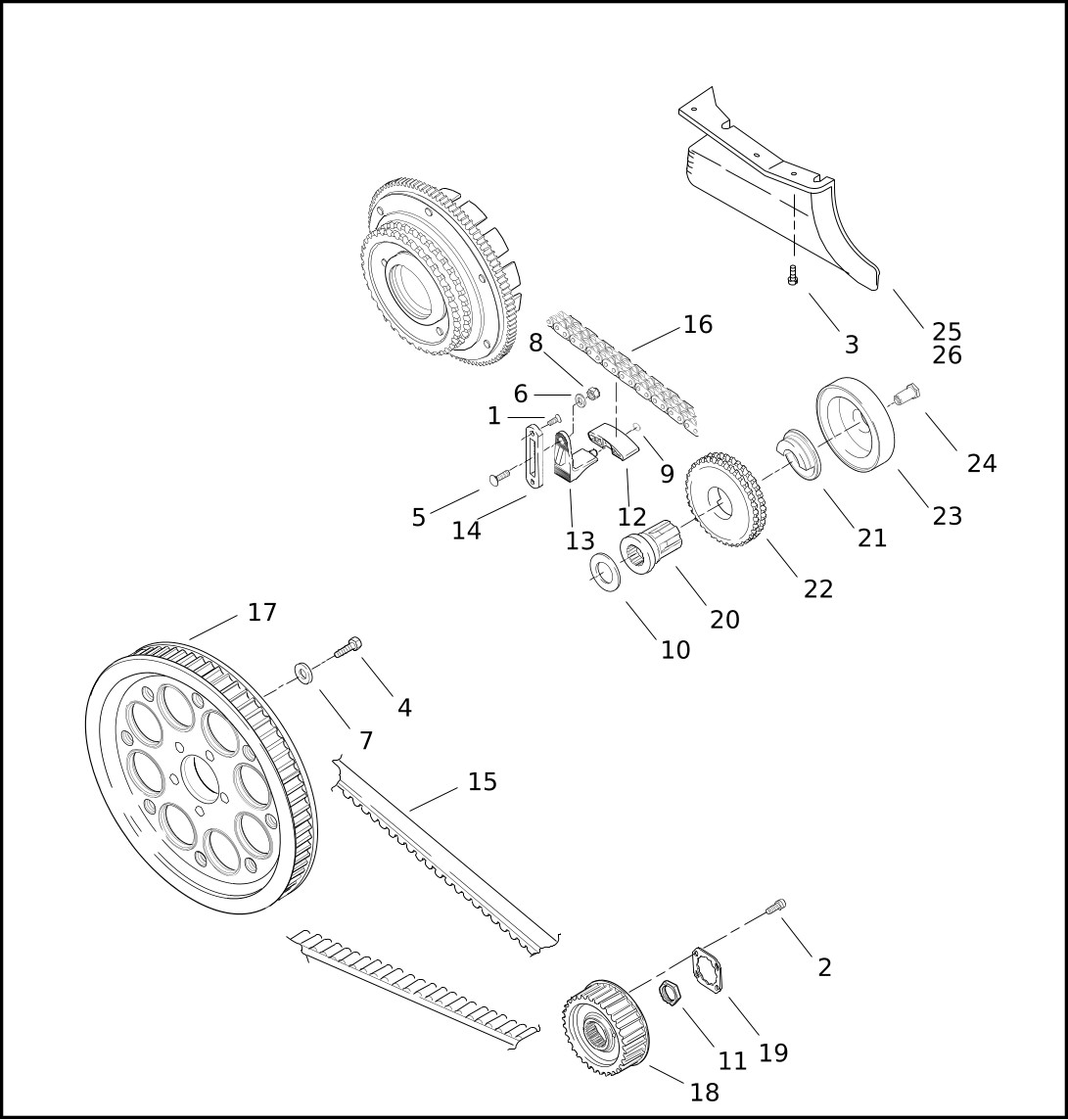

BELTS, CHAINS & SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1783C | SCREW (2) | ALL |
| 2 | 3594 | SCREW (2) | ALL |
| 3 | 3892 | SCREW (3) | ALL |
| 4 | 3899 | SCREW (5) | ALL |
| 5 | 5416 | BOLT | ALL |
| 6 | 6400HB | WASHER | ALL |
| 7 | 6516HW | WASHER (5) | ALL |
| 8 | 7778 | LOCKNUT | ALL |
| 9 | 11085 | RING, retaining | ALL |
| 10 | 24032-70 | SPACER, sprocket shaft - 0.06 thick (as required) | ALL |
| 24033-70 | SPACER, sprocket shaft - 0.09 thick (as required) | ALL | |
| 24034-70 | SPACER, sprocket shaft - 0.12 thick (as required) | ALL | |
| 24035-70 | SPACER, sprocket shaft - 0.15 thick (as required) | ALL | |
| 24036-70 | SPACER, sprocket shaft - 0.18 thick (as required) | ALL | |
| 24037-70 | SPACER, sprocket shaft - 0.21 thick (as required) | ALL | |
| 35850-84 | SPACER, sprocket shaft - 0.01 thick (as required) | ALL | |
| 35851-84 | SPACER, sprocket shaft - 0.02 thick (as required) | ALL | |
| 11 | 35211-91B | NUT, sprocket | ALL |
| 12 | 39976-01 | PAD, chain tensioner | ALL |
| 13 | 39990-01 | TENSIONER, chain | ALL |
| 14 | 39998-65A | PLATE, anchor, chain tensioner | ALL |
| 15 | 40024-97 | BELT, rear, 139 T | ALL |
| 16 | 40037-79A | CHAIN, primary | ALL |
| 17 | 40217-00 | SPROCKET, rear, 70 T (black) | ALL |
| 18 | 40250-94C | SPROCKET, rear, transmission, 32 T (black) | ALL |
| 19 | 40251-92A | LOCKPLATE | ALL |
| 20 | 40266-85 | EXTENSION, shaft | ALL |
| 21 | 40299-83A | CAM, sliding | ALL |
| 22 | 40308-94 | SPROCKET, compensating, 25 T | ALL |
| 23 | 40384-91 | COVER ASSEMBLY, w/ springs | ALL |
| 24 | 40392-91 | NUT | ALL |
| 25 | 60386-02 | DEFLECTOR, debris (Domestic, California, Canada) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 60395-02 | DEFLECTOR, debris (HDI) | ALL |

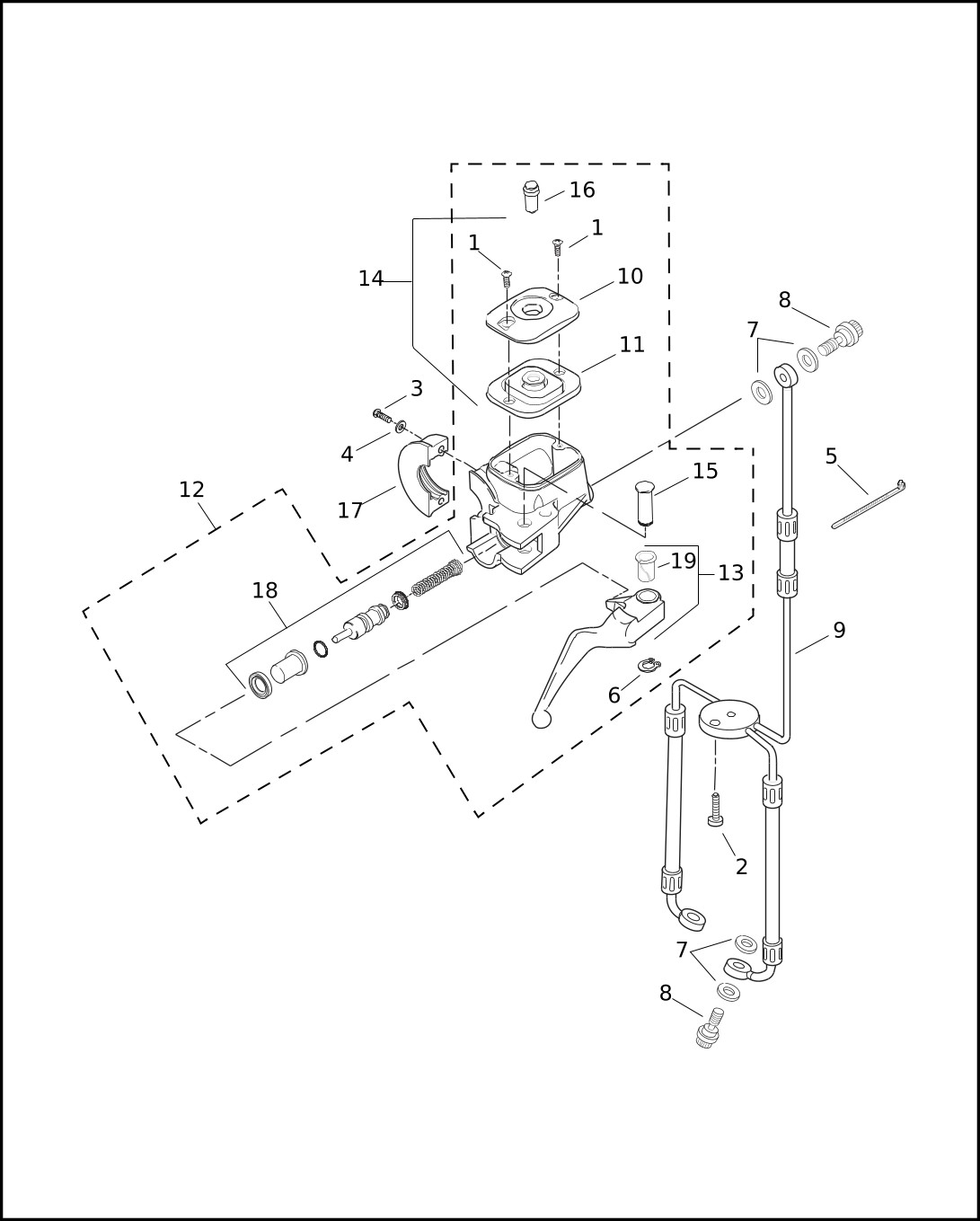

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 2579A | SCREW (2) | ALL |
| 2 | 3684 | SCREW | ALL |
| 3 | 4132 | SCREW (2) | ALL |
| 4 | 6101 | WASHER (2) | ALL |
| 5 | 10065 | STRAP, cable | ALL |
| 6 | 11143 | RING, retaining | ALL |
| 7 | 41731-01 | GASKET (6) | ALL |
| 8 | 41747-82A | FITTING (3) | ALL |
| 9 | 43349-96B | BRAKE LINE KIT, w/ 10065 & 41731-01 | FLHTPI |
| 43350-96C | BRAKE LINE KIT, w/ 10065 & 41731-01 | FLHPEI, FLHPI | |
| 10 | 45004-96A | COVER, reservoir | ALL |
| 11 | 45005-96 | GASKET, reservoir cover (use 45030-03C) | ALL |
| 12 | 45013-96D | CYLINDER, master, 11/16-inch bore, w/ 1, 6, 13, 14, 15 & 18 | ALL |
| 13 | 45016-96 | LEVER, hand, w/ 45423-96 | ALL |
| 14 | 45030-03C | COVER KIT, reservoir, w/ 2579A & cover gasket | ALL |
| 15 | 45032-82 | PIN, pivot | ALL |
| 16 | 45042-96 | SIGHT GLASS | ALL |
| 17 | 45044-96A | CLAMP, handlebar control | ALL |
| 18 | 45072-96C | REPAIR KIT, master cylinder, 11/16-inch bore | ALL |
| 19 | 45423-96 | BUSHING, lever, pivot | ALL |

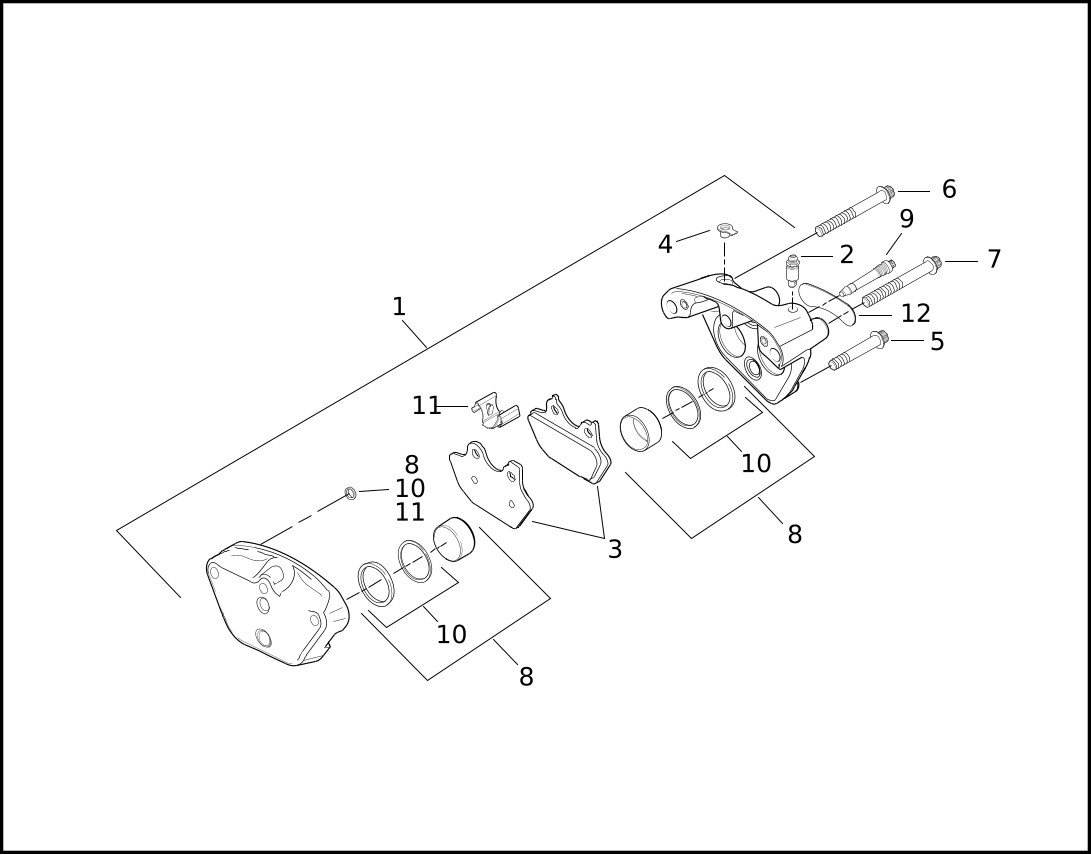

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44023-00C | CALIPER ASSEMBLY, front, R.H., complete (includes all parts illustrated except 44160-00 & 44163-00) (black) | ALL |
| 44046-00D | CALIPER ASSEMBLY, front, L.H., complete (includes all parts illustrated except 44160-00 & 44163-00) (black) | ALL | |
| 2 | 44048-83 | SCREW, bleeder (2) | ALL |
| 3 | 44082-00D | PAD KIT | ALL |
| 4 | 44147-87A | CAP, bleeder (2) | ALL |
| 5 | 44160-00 | BOLT, caliper mounting, lower (2) | ALL |
| 6 | 44163-00 | BOLT, caliper mounting, upper (2) | ALL |
| 7 | 44177-00 | BOLT, bridge (2) | ALL |
| 8 | 44313-01 | PISTON KIT | ALL |
| 9 | 44314-00 | PAD PIN KIT | ALL |
| 10 | 44315-00 | SEAL KIT | ALL |
| 11 | 44337-00B | SPRING KIT, anti-rattle | ALL |
| 12 | 44338-00 | DECAL (2) | ALL |

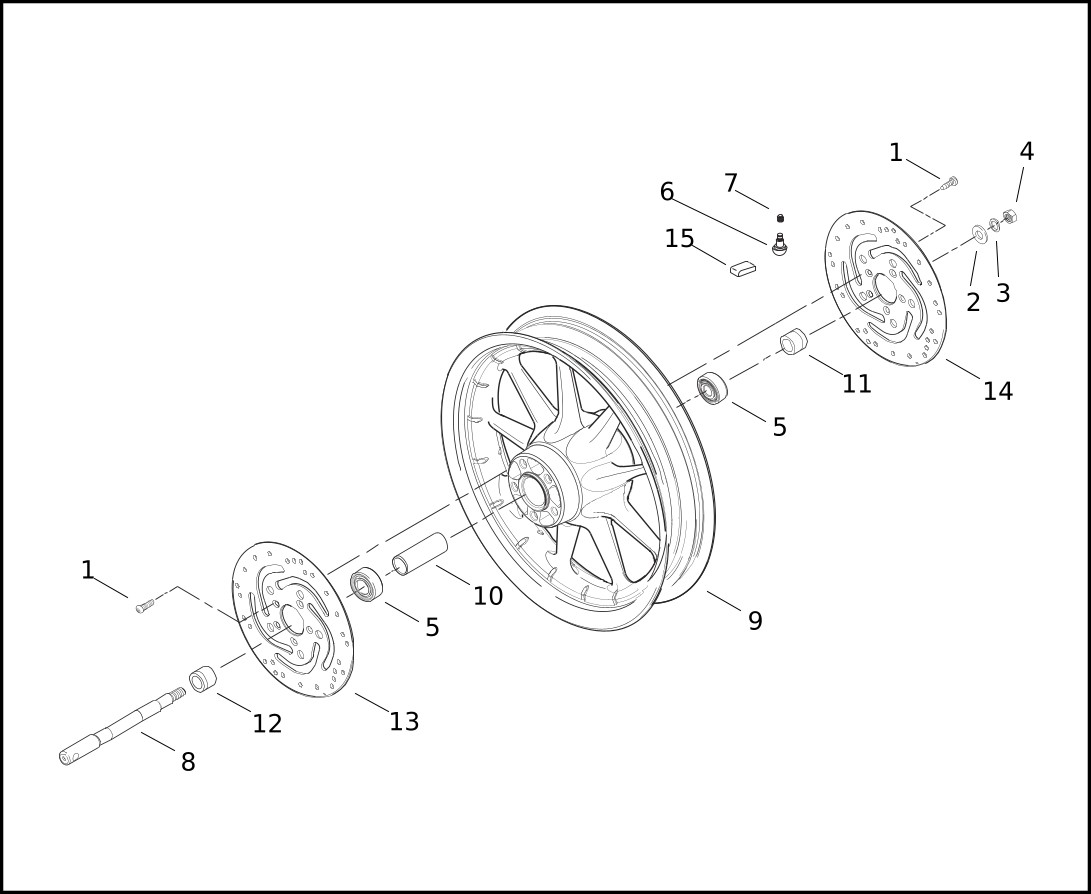

FRONT WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | ALL |
| 2 | 6590HW | WASHER | ALL |
| 3 | 7068 | LOCKWASHER | ALL |
| 4 | 7956 | NUT | ALL |
| 5 | 9247 | BEARING, ball, sealed (2) | ALL |
| 6 | 40999-87 | STEM, valve | ALL |
| 7 | 41123-79 | CAP, valve | ALL |
| 8 | 43364-00 | AXLE | ALL |
| 9 | 43493-00 | WHEEL, front, w/o bearings & sleeve (cast) | ALL |
| 10 | 43517-00 | SLEEVE, bearing spacer | ALL |
| 11 | 43520-00A | SPACER | ALL |
| 12 | 43521-00A | SPACER | ALL |
| 13 | 44136-00 | DISC, brake, front, R.H. | ALL |
| 14 | 44156-00 | DISC, brake, front, L.H. | ALL |
| 15 | 95595-84A | WEIGHT, zinc, 5 grams (silver) (4) | ALL |

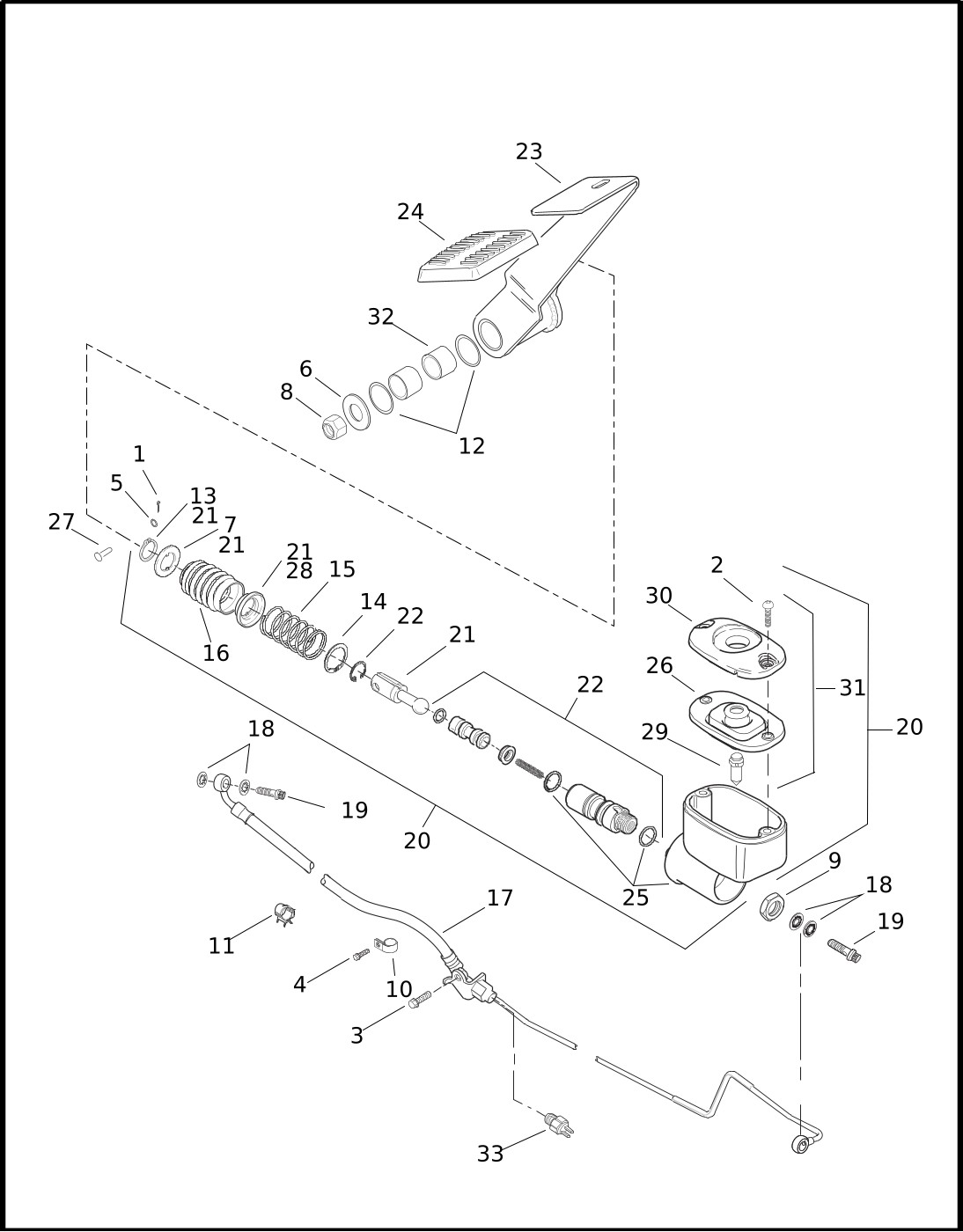

REAR BRAKE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | PIN, cotter | ALL |
| 2 | 2579A | SCREW (2) | ALL |
| 3 | 3588 | SCREW | ALL |
| 4 | 4240 | SCREW | ALL |
| 5 | 6220W | WASHER | ALL |
| 6 | 6334 | WASHER | ALL |
| 7 | 6366 | WASHER | ALL |
| 8 | 7825 | LOCKNUT | ALL |
| 9 | 7951 | JAM NUT | ALL |
| 10 | 10031 | CLAMP | ALL |
| 11 | 10108 | CLIP, brake hose (2) | ALL |
| 12 | 11364 | O-RING (2) | ALL |
| 13 | 11688 | RING, retaining | ALL |
| 14 | 40918-87 | RING, retaining | ALL |
| 15 | 40920-87 | SPRING, brake rod return | ALL |
| 16 | 40922-87 | BOOT, master cylinder (used w/ 41755-99A) (use 40922-87A) | ALL |
| 40922-87A | BOOT, master cylinder (used w/ 41755-99D) (replaces 40922-87) | ALL | |
| 17 | 40971-00B | BRAKE LINE KIT, rear | ALL |
| 18 | 41731-01 | GASKET (4) | ALL |
| 19 | 41747-82A | BOLT, banjo (2) | ALL |
| 20 | 41755-99A | MASTER CYLINDER ASSEMBLY, w/ 2, 14, 15, 16, 21, 22, 25, 29 & 30 (use 41755-99D) | ALL |
| 41755-99D | MASTER CYLINDER ASSEMBLY, w/ 2, 14, 15, 16, 21, 22, 25, 26 & 31 (replaces 41755-99A) | ALL | |
| 21 | 41957-97A | PUSH ROD KIT, w/ 11688 | ALL |
| 22 | 42382-87C | REBUILD KIT, master cylinder | ALL |
| 23 | 42407-02 | LEVER ASSEMBLY, footbrake, w/ bushings | ALL |
| 24 | 42416-83 | PAD, brake pedal | ALL |
| 25 | 42454-99 | RESERVOIR, master cylinder (used w/ 41755-99A) (use 42454-99A) | ALL |
| 42454-99A | RESERVOIR, master cylinder, w/ O-rings (used w/ 41755-99D) (replaces 42454-99) | ALL | |
| 26 | 42455-99 | GASKET, master cylinder reservoir (use 46458-05) | ALL |
| 42568-05A | GASKET, master cylinder reservoir (used w/ 46458-05) | ALL | |
| 27 | 42460-80B | PIN, clevis | ALL |
| 28 | 44126-87 | RETAINER, brake return spring | ALL |
| 29 | 45042-96 | SIGHT GLASS (used w/ 41755-99A) (use 46458-05) | ALL |
| 30 | 45057-99 | COVER, reservoir (used w/ 41755-99A) (use 46458-05) | ALL |
| 31 | 46458-05 | COVER KIT, w/ gasket, sight glass & warning label DOT5 (used w/ 41755-99D) (black) | ALL |
| 32 | 57217-02 | BUSHING, brake lever (2) | ALL |
| 33 | 72023-51E | SWITCH, stop lamp | ALL |

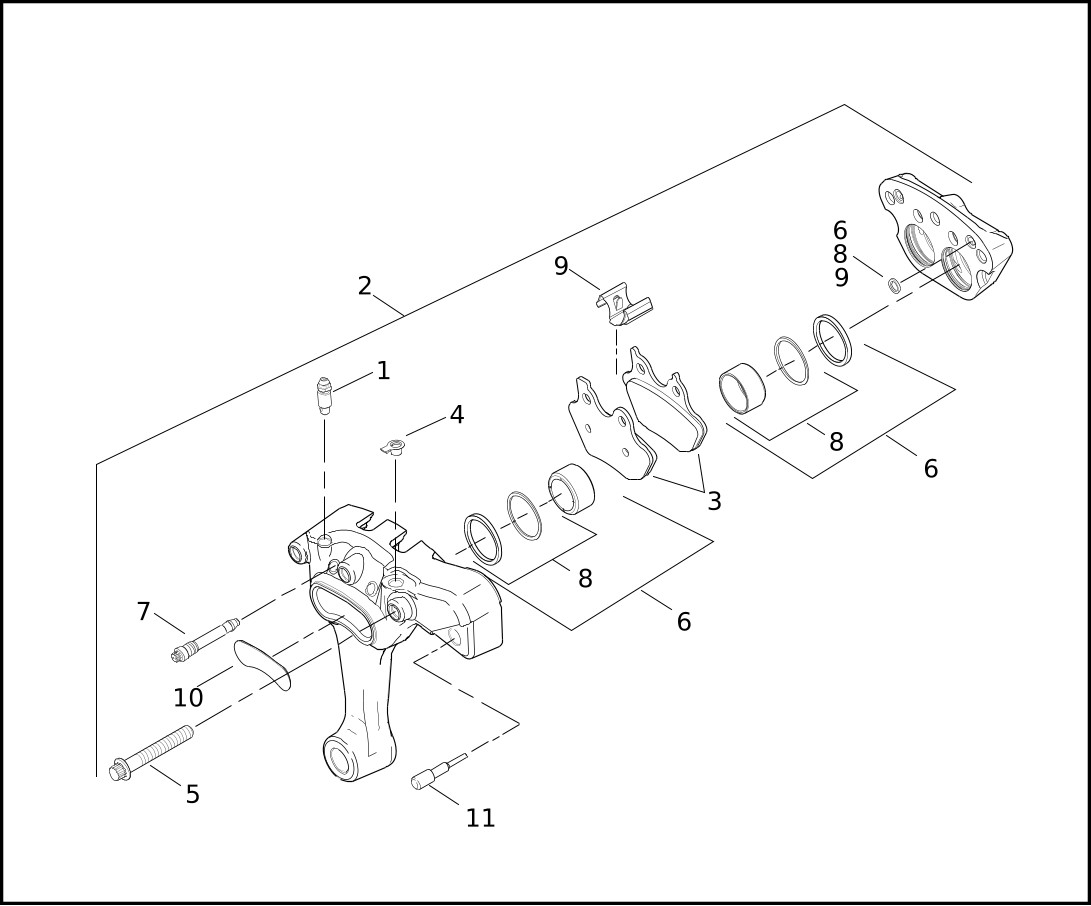

REAR BRAKE CALIPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 44048-83 | SCREW, bleeder | ALL |
| 2 | 44080-02C | CALIPER ASSEMBLY (includes all parts illustrated except 44338-00) | ALL |
| 3 | 44082-00D | PAD KIT | ALL |
| 4 | 44147-87A | CAP, bleeder screw | ALL |
| 5 | 44177-00 | BOLT, bridge (3) | ALL |
| 6 | 44313-01 | PISTON KIT | ALL |
| 7 | 44314-00 | PAD PIN KIT | ALL |
| 8 | 44315-00 | SEAL KIT | ALL |
| 9 | 44337-00B | SPRING KIT, anti-rattle | ALL |
| 10 | 44338-00 | DECAL | ALL |
| 11 | 44351-00 | BUMPER | ALL |

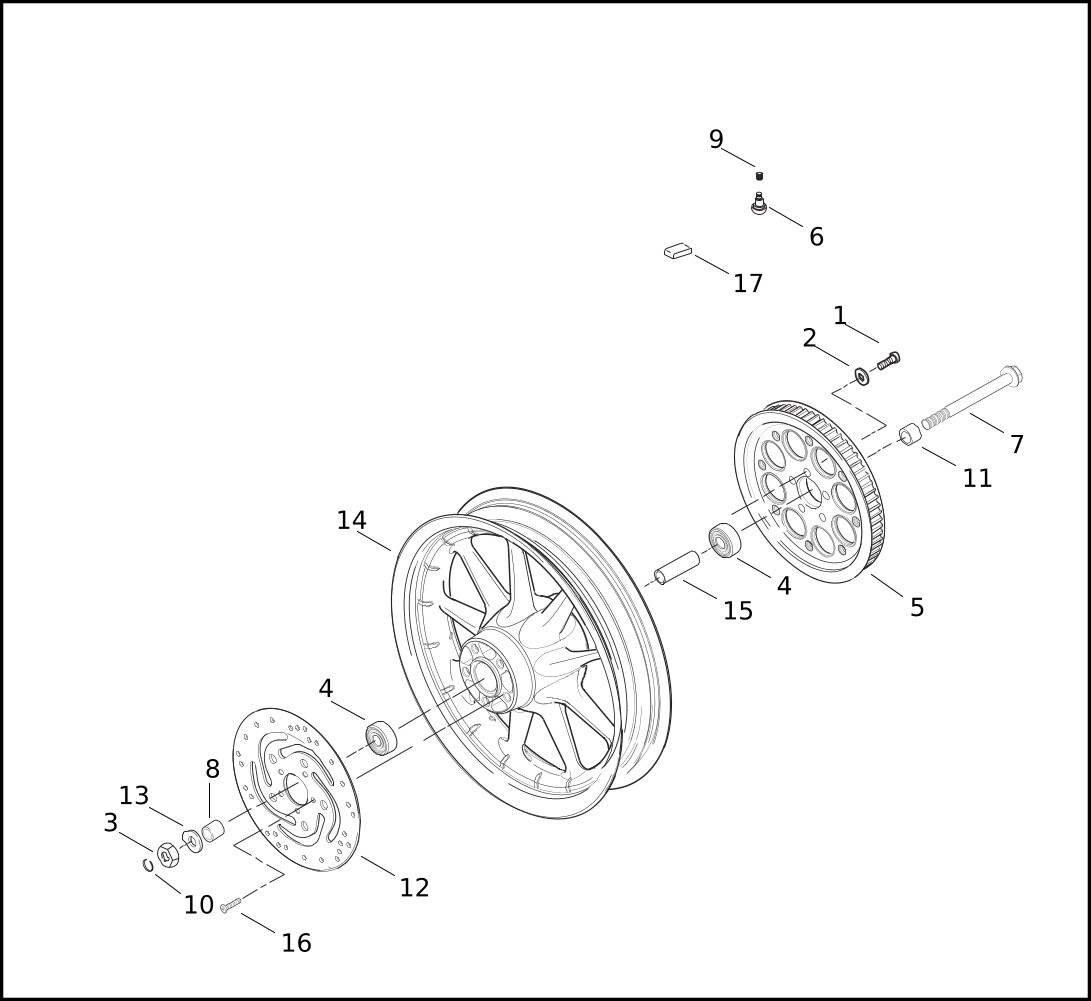

REAR WHEEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3899 | SCREW (5) | ALL |
| 2 | 6516HW | WASHER (5) | ALL |
| 3 | 8020 | NUT | ALL |
| 4 | 9247 | BEARING, ball, sealed (2) | ALL |
| 5 | 40217-00 | SPROCKET, 70-tooth | ALL |
| 6 | 40999-87 | STEM, valve | ALL |
| 7 | 41056-02 | AXLE, rear | ALL |
| 8 | 41084-02A | SPACER, wheel bearing | ALL |
| 9 | 41123-79 | CAP, valve | ALL |
| 10 | 41139-02 | CLIP, spring | ALL |
| 11 | 41240-02 | SPACER | ALL |
| 12 | 41797-00 | BRAKE DISC, rear | ALL |
| 13 | 41819-02 | CAM, axle | ALL |
| 14 | 43402-00B | WHEEL, rear, w/o bearings & sleeve (cast) | ALL |
| 15 | 43517-00 | SPACER, sleeve | ALL |
| 16 | 43567-92 | SCREW (5) | ALL |
| 17 | 95594-84A | WEIGHT, 5 grams | ALL |

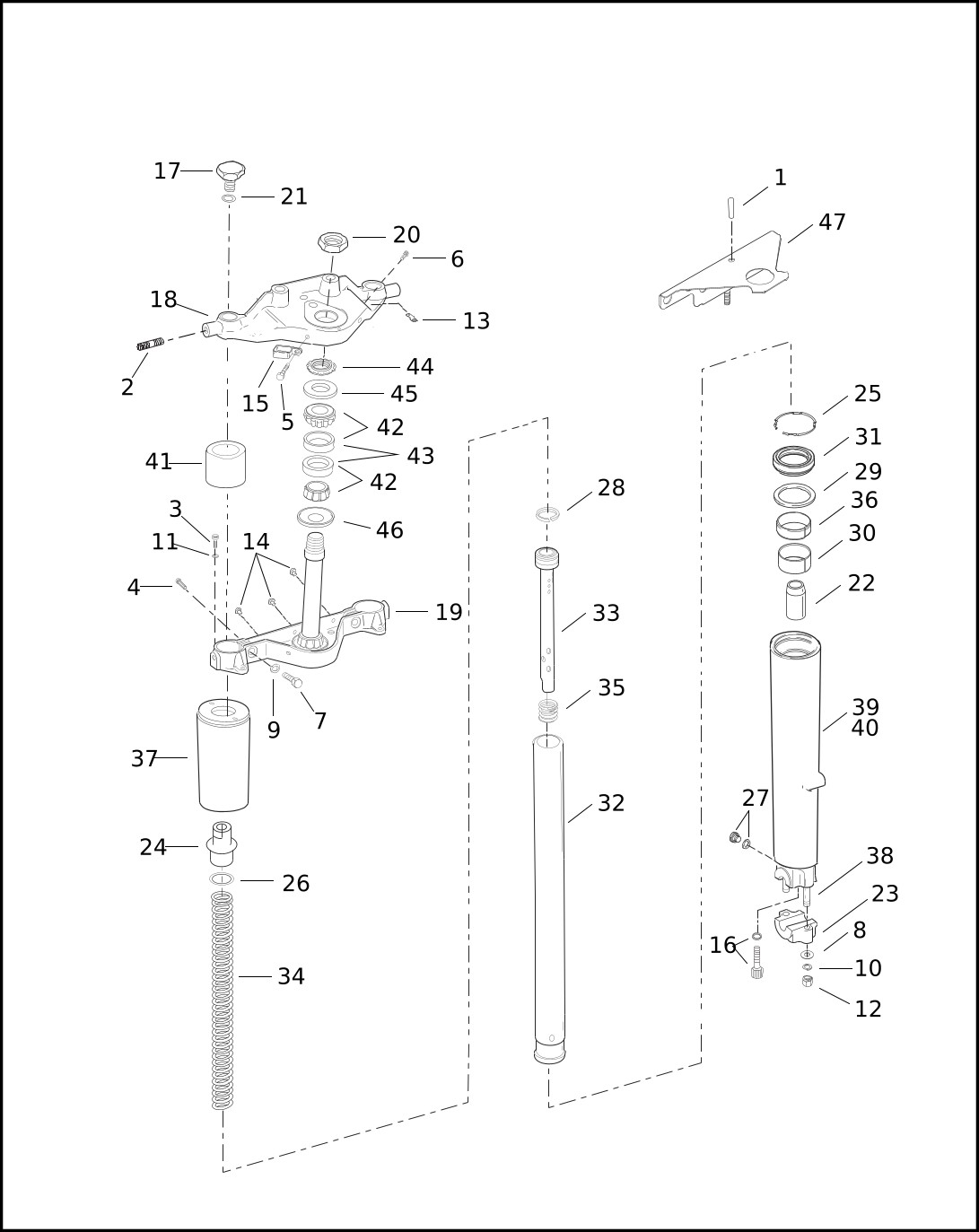

FRONT FORK - RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 608 | PIN, roll | ALL |
| 2 | 3265A | STUD, double end (2) | ALL |
| 3 | 3739 | SCREW (4) | ALL |
| 4 | 3892 | SCREW (2) | ALL |
| 5 | 4124 | SCREW (2) | ALL |
| 6 | 4240 | SCREW, handlebar ground | ALL |
| 7 | 4752 | BOLT (2) | ALL |
| 8 | 6702 | WASHER (2) | ALL |
| 9 | 7039 | LOCKWASHER (2) | ALL |
| 10 | 7041 | LOCKWASHER (2) | ALL |
| 11 | 7124 | LOCKWASHER (4) | ALL |
| 12 | 7748W | NUT (2) | ALL |
| 13 | 10138 | TAB, electrical ground | ALL |
| 14 | 10225 | PLUG, upper fork bracket (3) | ALL |
| 15 | 27070-02 | CLAMP | ALL |
| 16 | 45405-75A | SCREW, damper tube, w/ washer | ALL |
| 17 | 45419-80 | BOLT, fork (2) | ALL |
| 18 | 45435-95 | BRACKET, upper fork | ALL |
| 19 | 45446-87A | BRACKET KIT, fork stem, w/ 3265A, 3892, 4752, 48365-48A & bearing cone | ALL |
| 20 | 45718-60 | NUT, fork stem | ALL |
| 21 | 45733-48 | WASHER (rubber) (2) | ALL |
| 22 | 45803-97 | STOP, lower | ALL |
| 23 | 45835-00 | HOLDER, axle, right slider | ALL |
| 24 | 45838-77 | BOLT, front fork | ALL |
| 25 | 45842-77A | RING, retaining, oil seal | ALL |
| 26 | 45845-77 | O-RING, slider tube plug | ALL |
| 27 | 45858-77 | SCREW, drain, damper tube, w/ washer (2) | ALL |
| 28 | 45859-77A | RING, damper tube | ALL |
| 29 | 45865-84 | SPACER, slider | ALL |
| 30 | 45866-84 | BUSHING, slider | ALL |
| 31 | 45875-84A | SEAL, oil | ALL |
| 32 | 45890-97 | TUBE, slider, w/ 45866-84 | ALL |
| 33 | 45891-97 | TUBE, damper, w/ 45859-77A | ALL |
| 34 | 45892-02 | SPRING | ALL |
| 35 | 45933-86 | SPRING, rebound | ALL |
| 36 | 45940-84 | BUSHING, slider | ALL |
| 37 | 45964-86 | COVER, slider (stainless steel) (2) | ALL |
| 38 | 45998-73 | STUD (2) | ALL |
| 39 | 46497-02A | FORK ASSEMBLY, w/ 8, 10, 12, 16, 17, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36 & 40 | ALL |
| 40 | 46498-00A | SLIDER, fork, right, w/ 45998-73 | ALL |
| 41 | 47530-79B | STOP, fork (rubber) (2) | ALL |
| 42 | 48300-60 | BEARING, roller, w/ cup (2) | ALL |
| 43 | 48315-60 | CUP, bearing | ALL |
| 44 | 48333-80 | ADJUSTER, bearing | ALL |
| 45 | 48361-80 | SHIELD, dust, bearing, upper | ALL |
| 46 | 48365-48A | SHIELD, dust, bearing, lower | ALL |
| 47 | 72332-02A | BRACKET, mounting | ALL |

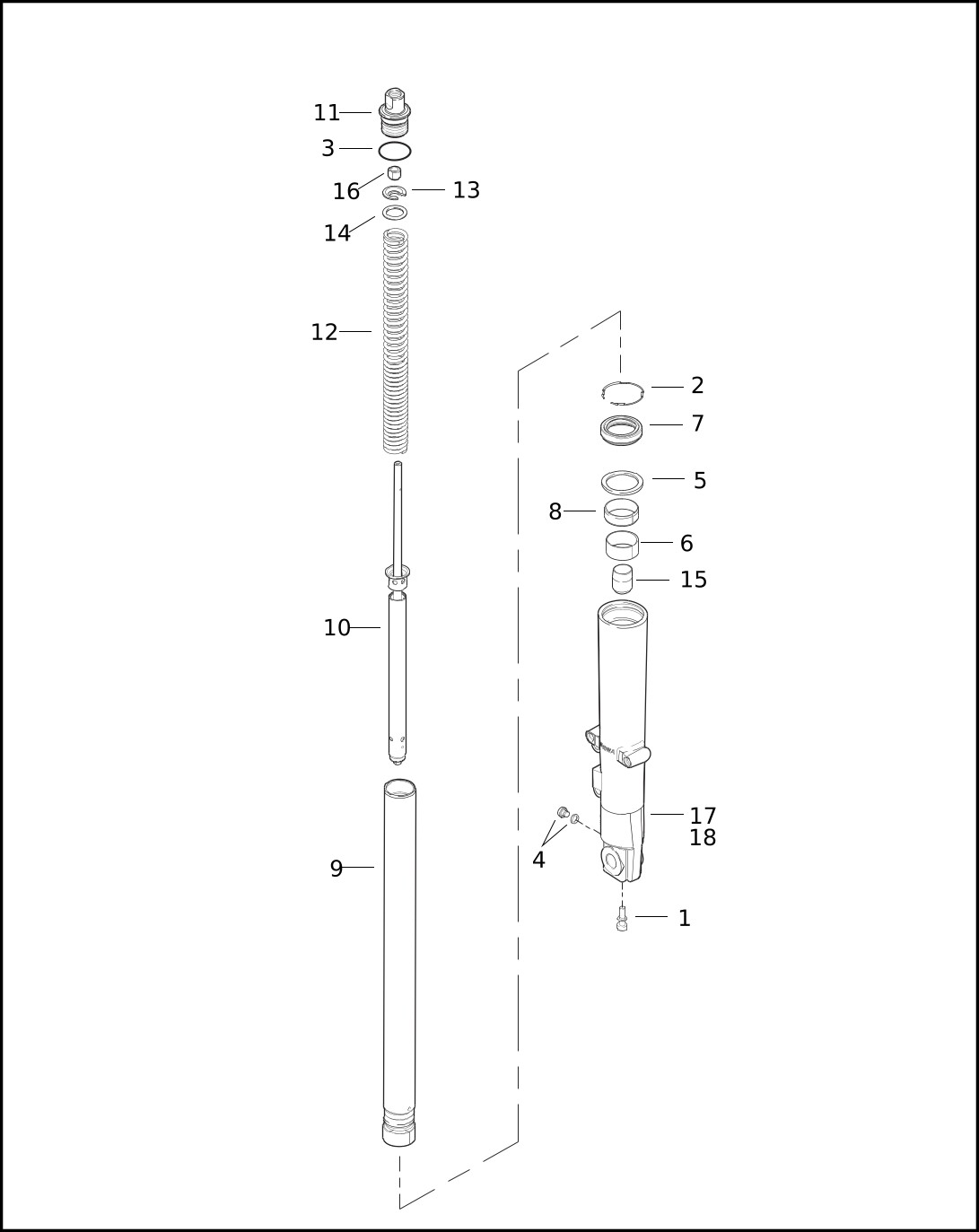

FRONT FORK - LEFT (FAIRING MODEL)
| Index No. | Part No. | Description | Model(s) |
| 1 | 45405-75A | SCREW | FLHTPI |
| 2 | 45842-77A | RING, retaining, oil seal | FLHTPI |
| 3 | 45845-77 | O-RING, slider tube plug | FLHTPI |
| 4 | 45858-77 | SCREW, drain, w/ washer | FLHTPI |
| 5 | 45865-84 | SPACER, slider | FLHTPI |
| 6 | 45866-84 | BUSHING, slider | FLHTPI |
| 7 | 45875-84A | SEAL, oil | FLHTPI |
| 8 | 45940-84 | BUSHING, fork leg | FLHTPI |
| 9 | 45972-02 | TUBE ASSEMBLY | FLHTPI |
| 10 | 46209-02 | DAMPER, fork, left | FLHTPI |
| 11 | 46229-02 | CAP, fork, left | FLHTPI |
| 12 | 46235-02 | SPRING, fork, left | FLHTPI |
| 13 | 46236-02 | SEAT, fork spring, left | FLHTPI |
| 14 | 46237-02 | WASHER, spring, left | FLHTPI |
| 15 | 46238-02 | LOCK, oil, left | FLHTPI |
| 16 | 46262-02 | NUT, lock, damper, left | FLHTPI |
| 17 | 46495-02A | FORK ASSEMBLY, left (includes all parts illustrated) | FLHTPI |
| 18 | 46496-00A | SLIDER, fork | FLHTPI |

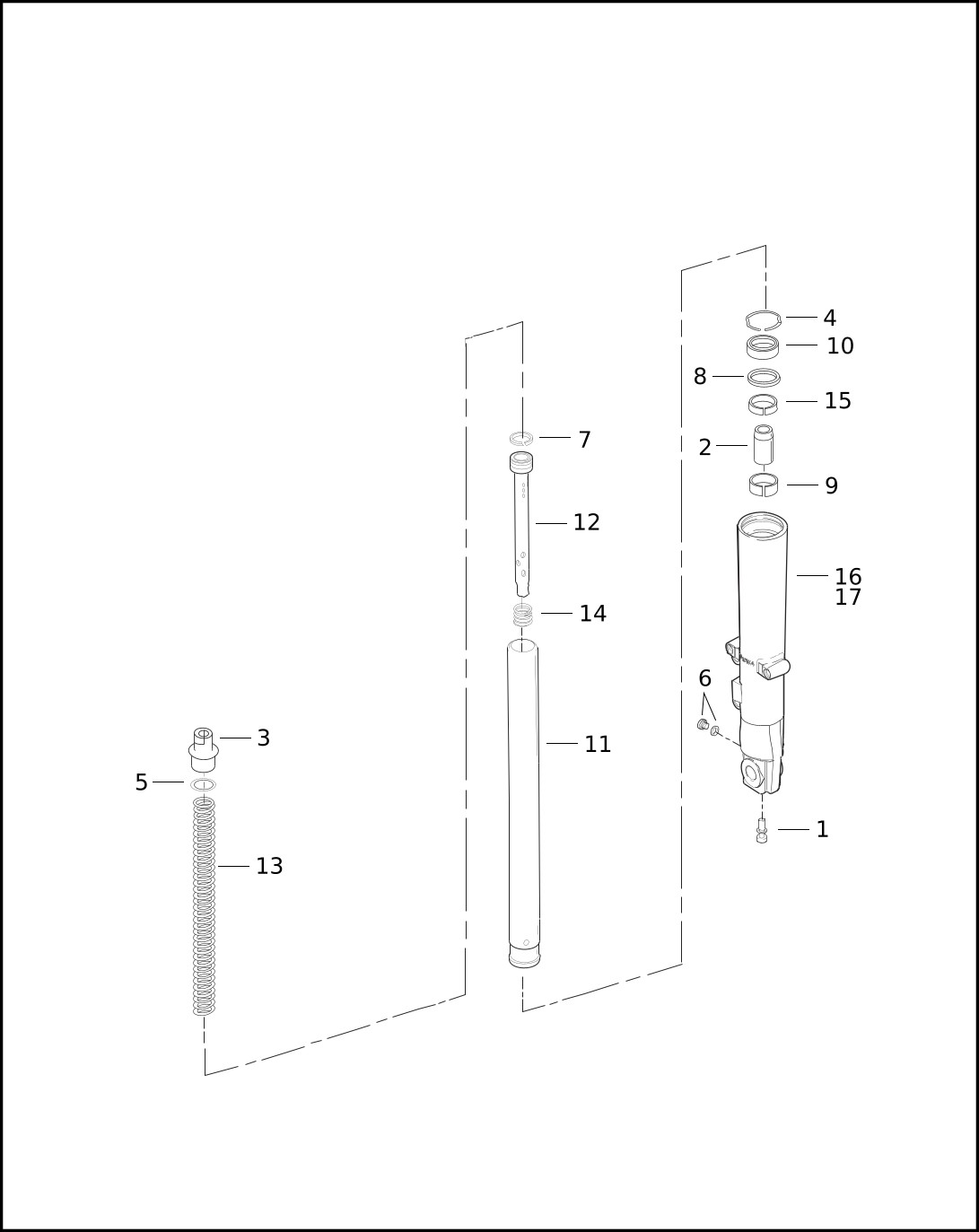

FRONT FORK - LEFT (NONFAIRING MODEL)
| Index No. | Part No. | Description | Model(s) |
| 1 | 45405-75A | SCREW | FLHPEI, FLHPI |
| 2 | 45803-97 | STOP, oil lock | FLHPEI, FLHPI |
| 3 | 45838-77 | BOLT, front fork | FLHPEI, FLHPI |
| 4 | 45842-77A | RING, retaining, oil seal | FLHPEI, FLHPI |
| 5 | 45845-77 | O-RING | FLHPEI, FLHPI |
| 6 | 45858-77 | SCREW, w/ washer | FLHPEI, FLHPI |
| 7 | 45859-77A | RING, piston damper tube | FLHPEI, FLHPI |
| 8 | 45865-84 | SPACER, seal | FLHPEI, FLHPI |
| 9 | 45866-84 | BUSHING, slide | FLHPEI, FLHPI |
| 10 | 45875-84A | SEAL, oil | FLHPEI, FLHPI |
| 11 | 45890-97 | TUBE ASSEMBLY | FLHPEI, FLHPI |
| 12 | 45891-97 | DAMPER, tube assembly | FLHPEI, FLHPI |
| 13 | 45892-02 | SPRING, fork | FLHPEI, FLHPI |
| 14 | 45933-86 | SPRING, rebound | FLHPEI, FLHPI |
| 15 | 45940-84 | BUSHING, fork leg | FLHPEI, FLHPI |
| 16 | 46496-00A | SLIDER, fork | FLHPEI, FLHPI |
| 17 | 46537-02A | FORK ASSEMBLY, left, (includes all parts illustrated) | FLHPEI, FLHPI |

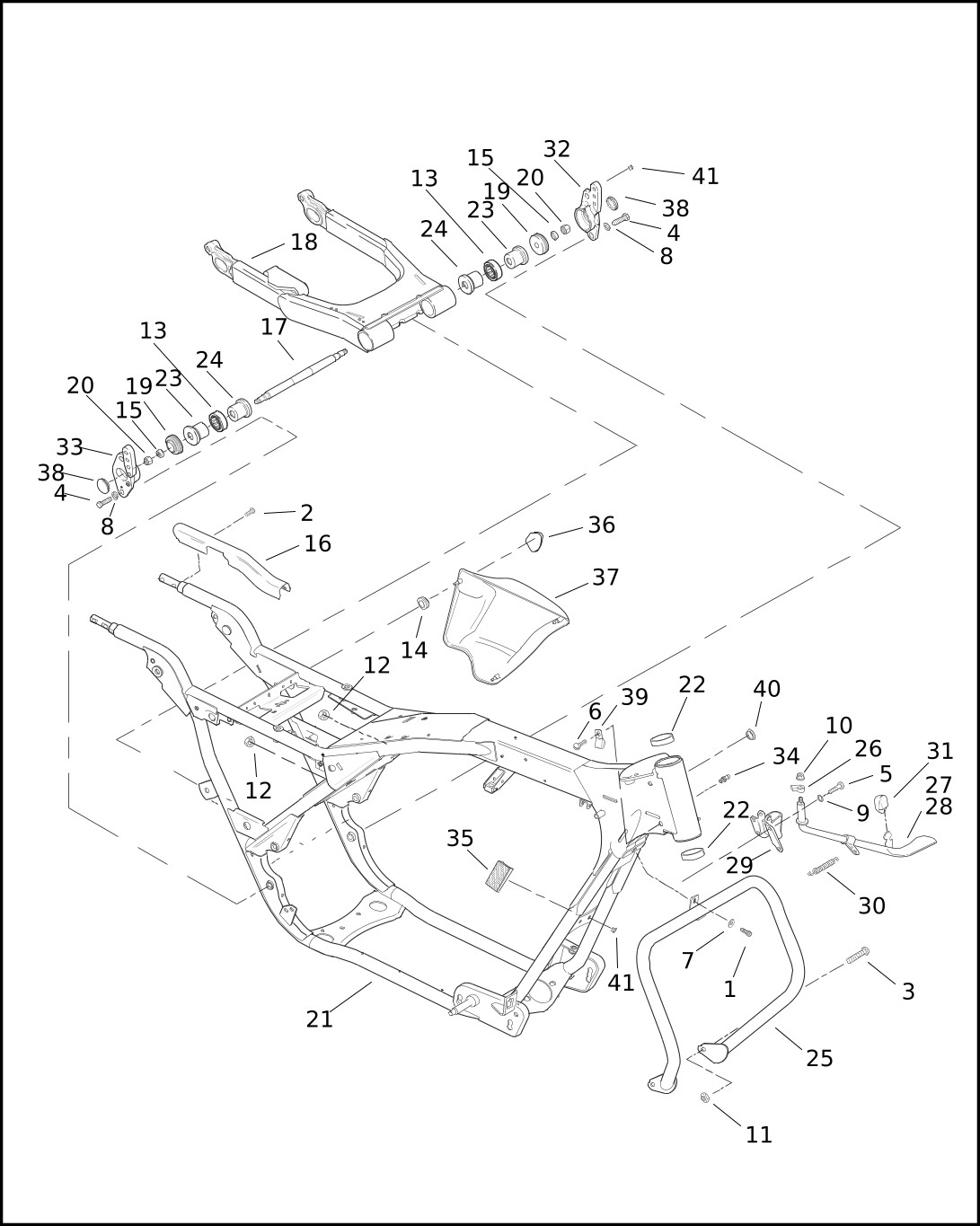

FRAME, REAR FORK & JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2708A | SCREW | ALL |
| 2 | 2782 | SCREW (2) | ALL |
| 3 | 3678 | SCREW (2) | ALL |
| 4 | 4752 | BOLT (4) | ALL |
| 5 | 3987 | BOLT (2) | ALL |
| 6 | 4124 | SCREW | ALL |
| 7 | 6702 | WASHER | ALL |
| 8 | 7039 | LOCKWASHER (4) | ALL |
| 9 | 7041 | LOCKWASHER (2) | ALL |
| 10 | 7596 | LOCKNUT | ALL |
| 11 | 7601 | LOCKNUT (2) | ALL |
| 12 | 7717 | NUT (2) | ALL |
| 13 | 9208 | BEARING (2) | ALL |
| 14 | 11491A | GROMMET, side cover (6) | ALL |
| 15 | 47491-02A | WASHER (2) | ALL |
| 16 | 47502-97 | COVER, left | ALL |
| 47504-97 | COVER, right | ALL | |
| 17 | 47505-02 | SHAFT, rear fork | ALL |
| 18 | 47549-02A | FORK, rear | ALL |
| 19 | 47564-86B | SPACER, large (2) | ALL |
| 20 | 47606-02 | NUT (2) | ALL |
| 21 | 47900-02A | FRAME | ALL |
| 22 | 48315-60 | CUP, bearing (2) | ALL |
| 23 | 48487-02 | SPACER, outer (2) | ALL |
| 24 | 48489-02 | SPACER, inner (2) | ALL |
| 25 | 49184-97 | GUARD, engine | ALL |
| 26 | 50015-74A | STOP, leg | ALL |
| 27 | 50075-83B | JIFFY STAND KIT, w/ 50075-91A, 50112-99 & 50245-99A | ALL |
| 28 | 50075-91A | LEG, jiffy stand | ALL |
| 29 | 50078-81B | BRACKET, jiffy stand leg | ALL |
| 30 | 50112-99 | SPRING, jiffy stand | ALL |
| 31 | 50245-99A | BUMPER, jiffy stand leg | ALL |
| 32 | 50588-93 | BRACKET, rear fork (left) | ALL |
| 33 | 50589-93 | BRACKET, rear fork (right) | ALL |
| 34 | 50972-75 | FITTING, lubrication | ALL |
| 35 | 59258-91 | REFLECTOR (amber) (2) | ALL |
| 36 | 66055-93 | WEAR PAD, wear (2) | ALL |
| 37 | 66619-97A | COVER, side, left (primed) | ALL |
| 66670-97A | COVER, side, right (primed) | ALL | |
| 38 | 67865-89 | CAP (2) | ALL |
| 39 | 68750-93 | CLAMP | ALL |
| 40 | 90469-94 | PLUG (4) | ALL |
| 41 | 90493-83 | PLUG, hole (4) | ALL |

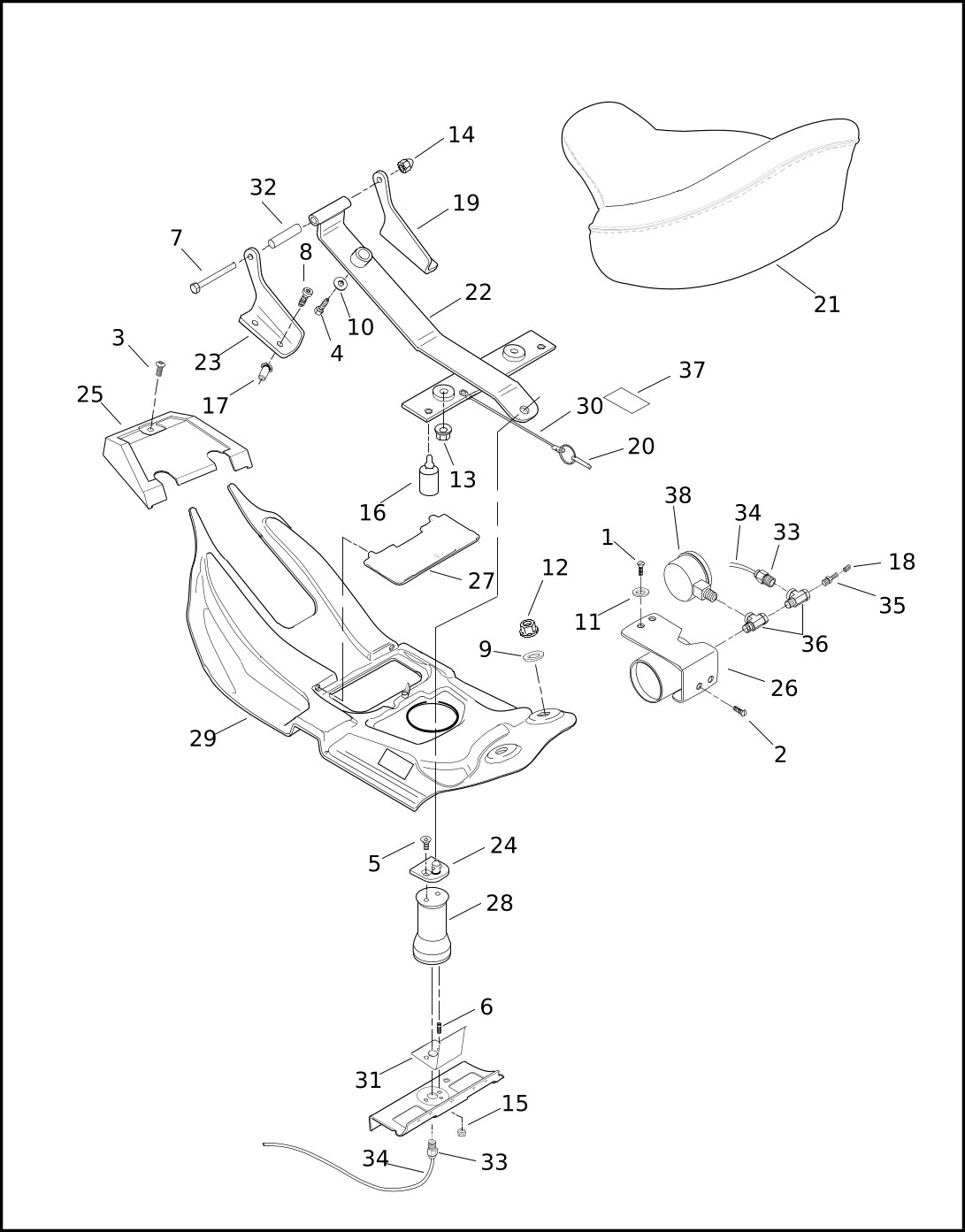

SEATS & REAR FRAME RAILS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2443 | SCREW (2) | ALL |
| 2 | 2592 | SCREW (2) | ALL |
| 3 | 2774 | SCREW | ALL |
| 4 | 2887WA | SCREW | ALL |
| 5 | 2927 | SCREW (2) | ALL |
| 6 | 3278 | SCREW, set (2) | ALL |
| 7 | 3530 | SCREW | ALL |
| 8 | 3684 | SCREW, pan (4) | ALL |
| 9 | 6333 | WASHER (2) | ALL |
| 10 | 6702 | WASHER | ALL |
| 11 | 7234 | LOCKWASHER, lock (2) | ALL |
| 12 | 7499 | NUT, flange (2) | ALL |
| 13 | 7531 | LOCKNUT (2) | ALL |
| 14 | 7549A | ACORN NUT, locking | ALL |
| 15 | 7716 | LOCKNUT (2) | ALL |
| 16 | 11495 | BUMPER (rubber) (2) | ALL |
| 17 | 11602 | RIVNUT, flathead (4) | ALL |
| 18 | 41123-79 | CAP, valve | ALL |
| 19 | 52220-97 | BRACKET, mount seat, R.H. | ALL |
| 20 | 52241-97 | PIN, quick release | ALL |
| 21 | 52242-83E | SEAT | ALL |
| 22 | 52249-97 | BRACKET, seat support | ALL |
| 23 | 52256-97 | BRACKET, mount seat, L.H. | ALL |
| 24 | 52261-97 | PLATE, top | ALL |
| 25 | 52262-97 | SEAT FAIRING ASSEMBLY | FLHTPI |
| 26 | 52266-94A | RESERVOIR, air, w/ bracket | ALL |
| 27 | 52273-97 | TRIM PANEL, battery (used w/ 52301-97B) | ALL |
| 28 | 52282-94C | AIR SPRING ASSEMBLY, w/ 3278, 54300-94 & spring | ALL |
| 29 | 52301-97B | TRIM PANEL ASSEMBLY, w/ 52273-97 (use 52301-97C) | ALL |
| 52301-97C | TRIM PANEL ASSEMBLY (replaces 52301-97B) | ALL | |
| 30 | 52307-97 | TETHER | ALL |
| 31 | 52972-98 | GUARD, air spring | ALL |
| 32 | 53458-97 | BUSHING | ALL |
| 33 | 54300-94 | FITTING, quick release (2) | ALL |
| 34 | 54301-94A | HOSE, air spring | ALL |
| 35 | 54316-83A | AIR VALVE ASSEMBLY, w/ 41123-79 | ALL |
| 36 | 54326-94 | FITTING, tee (2) | ALL |
| 37 | 61067-94 | DECAL, air pressure | ALL |
| 38 | 75059-94 | GAUGE, air pressure | ALL |

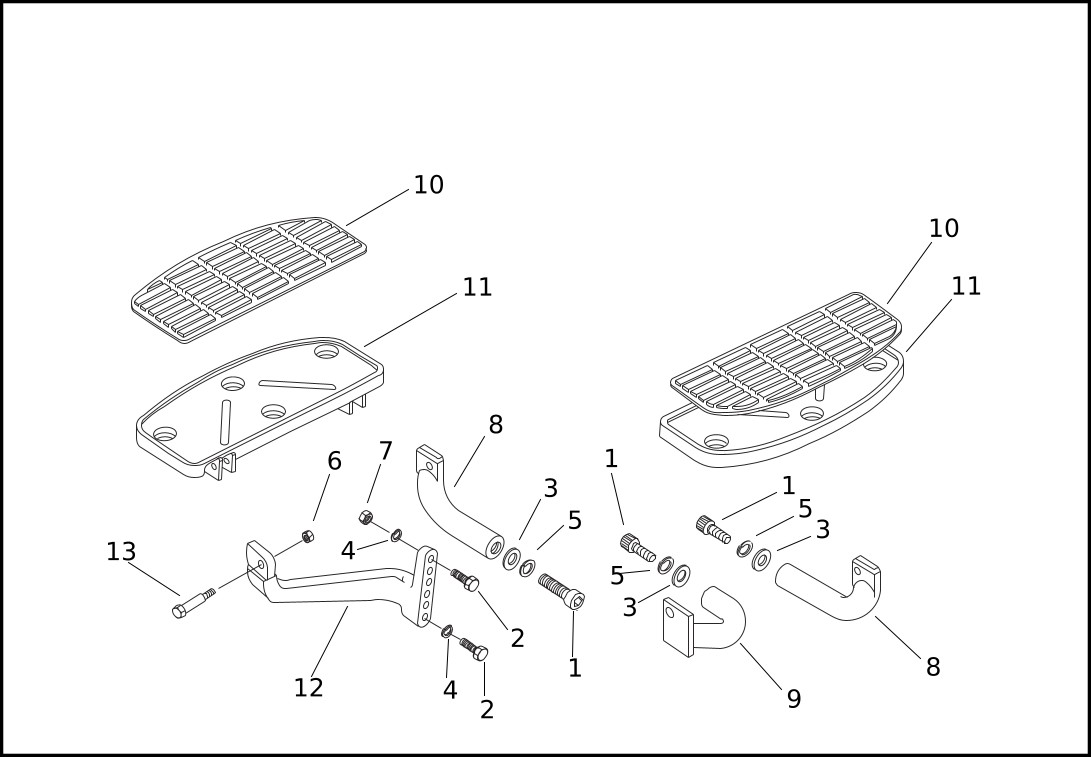

FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3599 | SCREW (3) | ALL |
| 2 | 4017 | BOLT (2) | ALL |
| 3 | 6738 | WASHER (3) | ALL |
| 4 | 7041 | LOCKWASHER (2) | ALL |
| 5 | 7068 | LOCKWASHER (3) | ALL |
| 6 | 7716 | LOCKNUT (4) | ALL |
| 7 | 7748W | NUT | ALL |
| 8 | 47365-83C | BRACKET KIT, front (2) | ALL |
| 9 | 50518-92A | BRACKET KIT, right rear | ALL |
| 10 | 50614-91A | PAD, footboard (2) | ALL |
| 11 | 50621-79A | FOOTBOARD, w/ 50614-91A (2) | ALL |
| 12 | 50622-83C | BRACKET KIT, left rear, w/ 4017 | ALL |
| 13 | 50635-82A | BOLT, footboard hinge (4) | ALL |

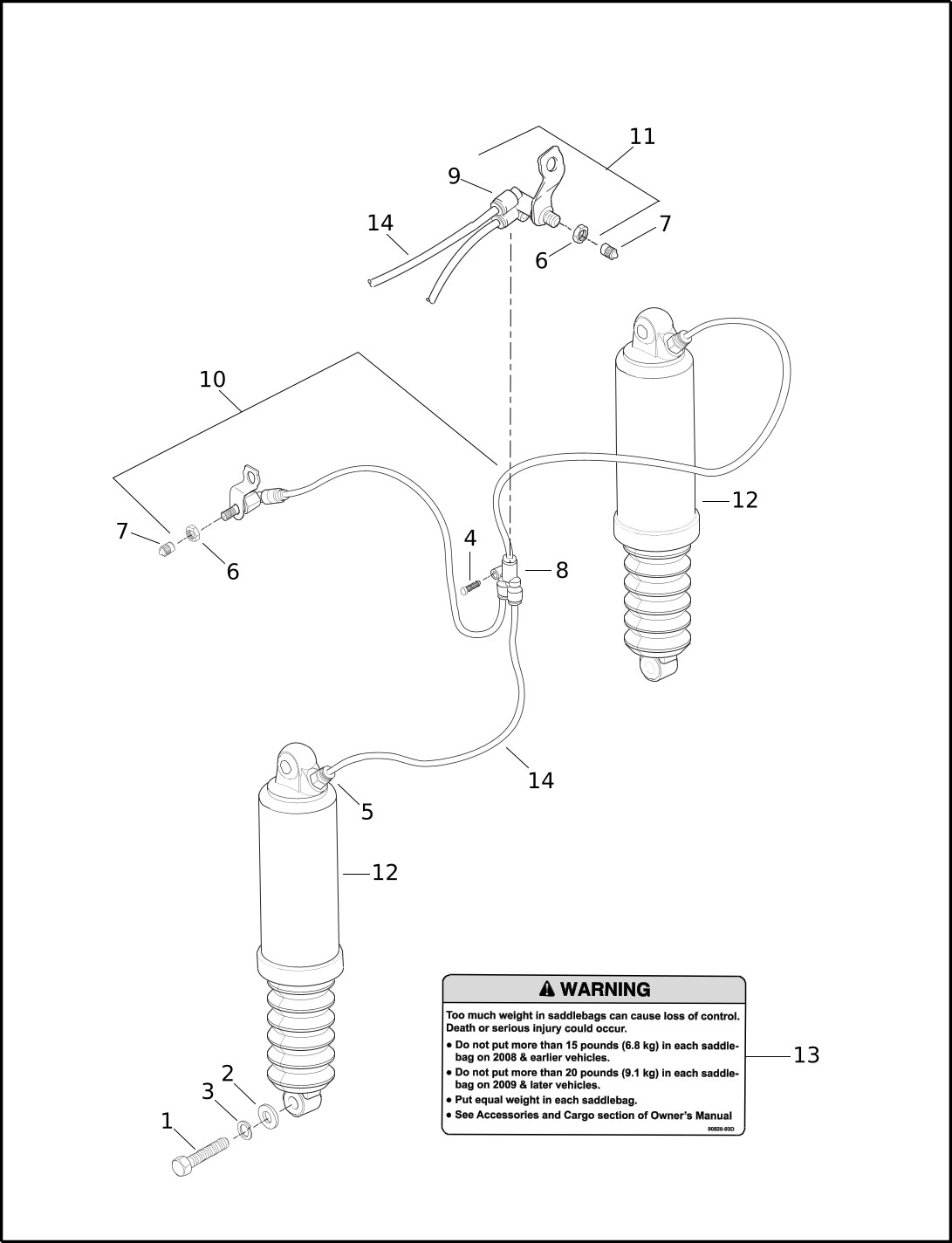

REAR SHOCK ABSORBERS & AIR SUSPENSION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | ALL |
| 2 | 6012 | WASHER (4) | ALL |
| 3 | 7068 | LOCKWASHER (4) | ALL |
| 4 | 27269-97 | CLIP, air union to fender | ALL |
| 5 | 54320-97 | FITTING, 5/32 push-in (2) | ALL |
| 6 | 54321-85 | NUT | ALL |
| 7 | 54323-85A | CAP, valve | ALL |
| 8 | 54328-97 | FITTING, union, 5/32 push-in (used w/ 54536-02) | ALL |
| 9 | 54357-03 | FITTING, union, 5/32 push-in (used w/ 54536-02A) | ALL |
| 10 | 54536-02 | VALVE ASSEMBLY, w/ 54321-85, 54328-97 & 54354-94A (use 54536-02A) | ALL |
| 11 | 54536-02A | VALVE ASSEMBLY, w/ 54321-85, 54357-03 & 54354-94A (replaces 54536-02) | ALL |
| 12 | 54565-97C | SHOCK ABSORBER, rear, w/ 54320-97 (2) | ALL |
| 13 | 90820-93D | DECAL, air suspension (inside right saddlebag) | ALL |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 14 | 54354-94A | HOSE, 5/32 inch O.D. (black) (25 feet) | ALL |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | ALL |
| 2 | 3605 | BOLT (2) | ALL |
| 3 | 6083 | WASHER, right only | ALL |
| 4 | 6113 | WASHER | ALL |
| 5 | 55918-08 | CLAMP, handlebar, upper (2) | ALL |
| 6 | 55924-97 | HANDLEBAR | FLHTPI |
| 7 | 56149-88B | CLAMP, handlebar, lower, right | ALL |
| 56151-88B | CLAMP, handlebar, lower, left | ALL | |
| 8 | 56159-73 | WASHER, cup (4) | ALL |
| 9 | 56161-83A | BUSHING (rubber) (4) | ALL |
| 10 | 56163-93 | SPACER (2) | ALL |
| 11 | 56569-86 | HANDLEBAR | FLHPEI, FLHPI |
| 12 | 70142-94 | CABLE, ground | ALL |
| 13 | 70345-84 | RETAINER (4) | FLHPEI, FLHPI |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 933 | SCREW | ALL |
| 2 | 5207 | WELLNUT | ALL |
| 3 | 6047 | WASHER | ALL |
| 4 | 8483A | RIVET | ALL |
| 5 | 10003 | CLAMP | ALL |
| 6 | 10039 | STRAP, cable | ALL |
| 7 | 10076 | CLAMP | ALL |
| 8 | 10102 | CLIP (2) | ALL |
| 9 | 11155 | RING, retaining | ALL |
| 10 | 11271 | RING, retaining, idle control | ALL |
| 11 | 11272 | RING, retaining, throttle control | ALL |
| 12 | 56206-96 | GRIP, left | ALL |
| 13 | 56220-94A | GRIP & SLEEVE, throttle, right | ALL |
| 14 | 56357-02 | CONTROL ASSEMBLY, throttle | ALL |
| 15 | 56358-02 | CONTROL ASSEMBLY, idle | ALL |
| 16 | 56394-74 | SPRING, adjusting screw | ALL |
| 17 | 56396-74A | SPRING, friction, throttle | ALL |
| 18 | 56397-74C | SCREW KIT, adjusting | ALL |
| 19 | 56402-83A | SCREW, adjusting | ALL |
| 20 | 56508-76 | FERRULE, control wire (2) | ALL |
| 21 | 70345-84 | RETAINER, throttle cables | ALL |
| 22 | 70504-81 | CLIP, throttle cables | ALL |
WINDSHIELD, FAIRING & HEADLAMP - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (3) | FLHTPI |
| 2 | 2446 | SCREW (2) | FLHTPI |
| 3 | 3639 | SCREW (4) | FLHTPI |
| 4 | 16585-96 | INSERT, repair kit, threaded (4) | FLHTPI |
| 5 | 58187-96 | WINDSHIELD | FLHTPI |
| 6 | 58208-96A | SKIRT, outer fairing | FLHTPI |
| 7 | 58236-96 | FAIRING, outer (primed) | FLHTPI |
| 8 | 58247-96 | TAPE, cushion, windshield mounting | FLHTPI |
| 9 | 58949-96 | NUT, extension (2) | FLHTPI |
| 10 | 62786-96 | STRIP, trim, skirt | FLHTPI |
| 11 | 62787-96 | SEAL, fairing skirt | FLHTPI |
| 12 | 67001-08 | RING KIT, retaining, headlight, w/ 67721-48, 67726-08 & 67732-08 (replaces 67726-71 & 67732-71A) | FLHTPI |
| 13 | 67702-81A | HEADLAMP ASSEMBLY, complete (use 67702-81C) | FLHTPI |
| 67702-81C | HEADLAMP ASSEMBLY, complete, w/ 14, 16, 17, 19, 20, 21, 23 & 27 (replaces 67702-81A) | FLHTPI | |
| 14 | 67712-83A | DOOR (chrome) | FLHTPI |
| 15 | 67716-60B | GASKET, headlamp door (used w/ 67702-81A) | FLHTPI |
| 16 | 67718-60A | SCREW, headlamp door | FLHTPI |
| 17 | 67721-48 | SCREW (used w/ 67001-08) | FLHTPI |
| 18 | 67724-71 | SCREW, adjusting, headlamp (2) | FLHTPI |
| 19 | 67726-71 | RING, retaining, headlamp (use 67001-08) | FLHTPI |
| 67726-08 | RING ASSEMBLY, headlamp (used w/ 67001-08) | FLHTPI | |
| 20 | 67728-02A | BUCKET ASSEMBLY, headlamp, w/ 67724-71 & 67782-60A (used w/ 67702-81C) | FLHTPI |
| 21 | 67732-71A | RING, mounting, headlamp (use 67001-08) | FLHTPI |
| 67732-08 | RING, mounting, headlamp (used w/ 67001-08) | FLHTPI | |
| 22 | 67755-81A | LENS, less bulb, w/ boot | FLHTPI |
| 23 | 67778-60A | SPRING, top, headlamp door | FLHTPI |
| 24 | 67780-60A | SPRING, bottom, headlamp door (used w/ 67702-81A) (2) | FLHTPI |
| 25 | 67782-60A | BRACKET, headlamp door | FLHTPI |
| 26 | 68329-03 | BULB, headlamp, halogen | FLHTPI |
| 27 | 68342-05 | REFLECTOR ASSEMBLY, w/ 68329-03 & 68390-05 | FLHTPI |
| 28 | 68390-05 | BOOT (used w/ 68342-05) | FLHTPI |
INNER FAIRING - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 756 | PLUG, air deflector hole (6) | FLHTPI |
| 2 | 2445 | SCREW (2) | FLHTPI |
| 3 | 2446 | SCREW (2) | FLHTPI |
| 4 | 2941 | SCREW, w/ washer (9) | FLHTPI |
| 5 | 3612 | SCREW (4) | FLHTPI |
| 6 | 3639 | SCREW, front speaker mounting (4) | FLHTPI |
| 7 | 7688 | NUT (2) | FLHTPI |
| 8 | 7900 | LOCKNUT (4) | FLHTPI |
| 9 | 11445 | GROMMET, throttle & clutch cables (2) | FLHTPI |
| 10 | 11488 | GROMMET, handlebar, right | FLHTPI |
| 11492 | GROMMET, handlebar, left | FLHTPI | |
| 11 | 16585-96 | INSERT, threaded (5) | FLHTPI |
| 12 | 58311-96 | SEAL, trim, inner fairing (29 inches) (2) | FLHTPI |
| 13 | 58478-96B | BRACKET, fairing support, left | FLHTPI |
| 14 | 58479-96B | BRACKET, fairing support, right | FLHTPI |
| 15 | 58497-96B | FAIRING ASSEMBLY, inner, w/ 7688 & 58311-96 | FLHTPI |
| 16 | 58510-96 | CAP, inner fairing | FLHTPI |
| 17 | 58938-96C | SUPPORT, inner fairing, left | FLHTPI |
| 18 | 58939-96C | SUPPORT, inner fairing, right | FLHTPI |
| 19 | 68642-96 | INDICATOR, lamp, pursuit, right | FLHTPI |
| 20 | 71431-96A | PLUG, switch hole (4) | FLHTPI |
| 21 | 71434-96A | BRACKET, switch (2) | FLHTPI |
| 22 | 75105-96A | PLUG, microphone jack | FLHTPI |
| 23 | 75119-96A | PLUG, pursuit lamp, w/ hole | FLHTPI |
| 24 | 76233-85 | JACK, microphone, left | FLHTPI |
| 25 | 76286-96 | GLOVE BOX, w/ 7900 | FLHTPI |
| 26 | 77046-96A | COVER, speaker opening (2) | FLHTPI |
| 27 | 91808-89 | ELEMENT, cigarette lighter | FLHTPI |
| 28 | 91812-89A | SOCKET, cigarette lighter | FLHTPI |
NACELLE & HEADLAMP - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 922 | SCREW (7) | FLHPEI |
| 2 | 2647B | SCREW (2) | FLHPEI |
| 3 | 2806 | SCREW | FLHPEI |
| 4 | 2933 | SCREW (2) | FLHPEI |
| 5 | 5210 | WELLNUT (7) | FLHPEI |
| 6 | 6150W | WASHER (2) | FLHPEI |
| 7 | 6789 | WASHER | FLHPEI |
| 8 | 7888A | NUT, speed | FLHPEI |
| 9 | 7889 | NUT, w/ washer | FLHPEI |
| 10 | 11489 | TRIM (2) | FLHPEI |
| 11 | 14019-83A | LABEL, on - off | FLHPEI |
| 12 | 67001-08 | RING KIT, retaining, headlight, w/ 67721-48, 67726-08 & 67732-08 (replaces 67726-71 & 67732-71A) | FLHPEI |
| 13 | 67702-81A | HEADLAMP ASSEMBLY, complete (use 67702-81C) | FLHPEI |
| 67702-81C | HEADLAMP ASSEMBLY, complete, w/ 14, 16, 17, 19, 20, 21, 23 & 27 (replaces 67702-81A) | FLHPEI | |
| 14 | 67712-83A | DOOR (chrome) | FLHPEI |
| 15 | 67716-60B | GASKET, headlamp door (used w/ 67702-81A) | FLHPEI |
| 16 | 67718-60A | SCREW, headlamp door | FLHPEI |
| 17 | 67721-48 | SCREW (used w/ 67001-08) | FLHPEI |
| 18 | 67724-71 | SCREW, adjusting, headlamp (2) | FLHPEI |
| 19 | 67726-71 | RING, retaining, headlamp (use 67001-08) | FLHPEI |
| 67726-08 | RING ASSEMBLY, headlamp (used w/ 67001-08) | FLHPEI, FLHPI | |
| 20 | 67728-02A | BUCKET ASSEMBLY, headlamp, w/ 67724-71 & 67782-60A (used w/ 67702-81C) | FLHPEI |
| 21 | 67732-71A | RING, mounting, headlamp (use 67001-08) | FLHPEI |
| 67732-08 | RING, mounting, headlamp (used w/ 67001-08) | FLHPEI | |
| 22 | 67755-81A | LENS, less bulb, w/ boot | FLHPEI |
| 23 | 67778-60A | SPRING, top, headlamp door | FLHPEI |
| 24 | 67780-60A | SPRING, bottom, headlamp door (used w/ 67702-81A) (2) | FLHPEI |
| 25 | 67782-60A | BRACKET, headlamp door | FLHPEI |
| 26 | 67866-03 | COVER, handlebar | FLHPEI |
| 27 | 67868-03 | TRIM, nacelle | FLHPEI |
| 28 | 67924-06 | NACELLE KIT, w/ 67674-03B, 67682-03B, 67866-03 & 67868-03 | FLHPEI |
| 67674-03B | NACELLE, R.H. | FLHPEI | |
| 67682-03B | NACELLE, L.H. | FLHPEI | |
| 29 | 68329-03 | BULB, headlamp, halogen | FLHPEI |
| 30 | 68342-05 | REFLECTOR ASSEMBLY, w/ 68329-03 & 68390-05 | FLHPEI |
| 31 | 68390-05 | BOOT (used w/ 68342-05) | FLHPEI |
| 32 | 71310-94 | TRIM ASSEMBLY, fork lock | FLHPEI |
| 33 | 71452-91A | KEYSET (specify key code) | FLHPEI |
| 34 | 71522-96 | SWITCH, spotlamp & accessory (2) | FLHPEI |
| 35 | 71540-94A | LOCK, fork | FLHPEI |
| 36 | 74408-89A | BOOT (2) | FLHPEI |
| INTERNATIONAL MODELS ONLY | |||
| 37 | 2934 | SCREW (HDI) (2) | FLHPEI |
| 38 | 2935A | SCREW (HDI) (2) | FLHPEI |
| 39 | 53438-92 | BULB, position lamp (HDI) | FLHPEI |
| 40 | 67793-92A | LENS ASSEMBLY, w/ 67798-92 & 68329-03, R.H. dip (HDI) | FLHPEI |
| 67801-92A | LENS ASSEMBLY, w/ 67798-92 & 68329-03, L.H. dip (HDI) | FLHPEI | |
| 41 | 67798-92 | BOOT, bulb (HDI) | FLHPEI |
| 42 | 68654-92 | SOCKET, position lamp (HDI) | FLHPEI |
WINDSHIELD - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 2444 | SCREW (2) | FLHPEI, FLHPI |
| 2 | 2921 | SCREW (11) | FLHPEI, FLHPI |
| 3 | 3265A | STUD (4) | FLHPEI, FLHPI |
| 4 | 6119 | WASHER (4) | FLHPEI, FLHPI |
| 5 | 7073 | LOCKWASHER (13) | FLHPEI, FLHPI |
| 6 | 7651A | ACORN NUT (13) | FLHPEI, FLHPI |
| 7 | 7886 | ACORN NUT (4) | FLHPEI, FLHPI |
| 8 | 38722-94 | LATCH, spring (2) | FLHPEI, FLHPI |
| 9 | 57995-96 | WINDSHIELD ASSEMBLY, complete | FLHPEI, FLHPI |
| 10 | 58084-94 | BRACKET, adjusting, right | FLHPEI, FLHPI |
| 58088-94 | BRACKET, adjusting, left | FLHPEI, FLHPI | |
| 11 | 58406-75A | BRACE, right | FLHPEI, FLHPI |
| 58408-75A | BRACE, left | FLHPEI, FLHPI | |
| 12 | 58416-77A | TAPE (2) | FLHPEI, FLHPI |
| 13 | 58417-77 | TAPE (2) | FLHPEI, FLHPI |
| 14 | 58428-94 | BRACE, outer | FLHPEI, FLHPI |
| 15 | 58431-94 | BRACE, inner | FLHPEI, FLHPI |
| 16 | 58433-96 | REPLACEMENT KIT, window | FLHPEI, FLHPI |
| 17 | 67621-94 | BUSHING (4) | FLHPEI, FLHPI |
| INTERNATIONAL MODELS ONLY | |||
| 18 | 58325-97 | WINDSHIELD ASSEMBLY, complete (HDI) | FLHPEI, FLHPI |
PASSING LAMPS & FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (4) | ALL |
| 2 | 3514 | SCREW (2) | ALL |
| 3 | 3684 | SCREW (4) | FLHTPI |
| 4 | 6072 | WASHER, belleville (2) | ALL |
| 5 | 7601 | LOCKNUT (2) | ALL |
| 6 | 7606 | LOCKNUT | ALL |
| 7 | 10006 | STRAP, cable | ALL |
| 8 | 68168-89A | BULB, turn signal (2) | ALL |
| 9 | 68331-02 | RING, passing lamps (2) | ALL |
| 10 | 68440-86 | LENS, turn signal (amber) (2) | ALL |
| 11 | 68452-86 | SCREW (4) | ALL |
| 12 | 68453-05 | BULB, halogen (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 13 | 68519-68A | BRACKET, mounting (2) | ALL |
| 14 | 68663-64D | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A & 68727-64D (use 68663-64G) (red) | ALL |
| 68665-84C | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A & 68728-64B (use 68665-84F) (blue) | ALL | |
| 15 | 68663-64G | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A, 68727-09A & 72160-06 (replaces 68663-64D) (red) | ALL |
| 68665-84F | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A, 68728-09A & 72160-06 (replaces 68665-84C) (blue) | ALL | |
| 16 | 68712-94A | BRACKET, pursuit lamps | ALL |
| 17 | 68720-62 | BLOCK, clamp, pursuit lamps (2) | ALL |
| 18 | 68721-62 | BLOCK, swivel, pursuit lamps (2) | ALL |
| 19 | 68725-62A | MOLDING, pursuit lamps (2) | ALL |
| 20 | 68727-64D | LAMP, pursuit, sealed unit (used w/ 68663-64D) (red) | ALL |
| 68728-64C | LAMP, pursuit, sealed unit (used w/ 68665-84C) (blue) | ALL | |
| 21 | 68727-09A | LAMP, pursuit, halogen, w/ 68453-05 (used w/ 68663-64G) (red) | ALL |
| 68728-09A | LAMP, pursuit, halogen, w/ 68453-05 (used w/ 68665-84F) (blue) | ALL | |
| 22 | 68766-94 | TURN SIGNAL ASSEMBLY, w/ 68168-89A, 68440-86 & 68452-86 (2) | ALL |
| 23 | 72160-06 | HOUSING, auxiliary lamp, w/ 72161-06, 72298-95 & 72356-95 (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 24 | 72161-06 | HOUSING, socket, 2-way (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 25 | 72298-95 | SEAL, cable (used w/ 68663-64G & 68665-84F) (green) (4) | ALL |
| 26 | 72356-95 | TERMINAL, socket, 18-20 gauge (used w/ 68663-64G & 68665-84F) (4) | ALL |
| 27 | 73152-96WE | HOUSING, socket, 2-way (white) | ALL |
| 28 | 73156-96BK | HOUSING, socket, 6-way (black) | ALL |
| 29 | 73191-96 | CONTACT, socket (8) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 30 | 68163-84 | BULB, turn signal (Japan) (2) | ALL |
| 31 | 68505-90 | LENS, turn signal (amber) (Japan) (2) | ALL |
| 32 | 68767-94 | TURN SIGNAL ASSEMBLY, w/ 68440-86, 72160-06 & 72298-95 (Japan) (2) | ALL |
FRONT FENDER, BUMPER ASSEMBLY
| Index No. | Part No. | Description | Model(s) |
| 1 | 2531 | SCREW (6) | ALL |
| 2 | 2604 | SCREW (2) | ALL |
| 3 | 3462 | BOLT (4) | ALL |
| 4 | 3560WA | BOLT (2) | ALL |
| 5 | 3561WC | BOLT (2) | ALL |
| 6 | 4091 | SCREW (2) | ALL |
| 7 | 6703 | WASHER (3) | ALL |
| 8 | 6716 | WASHER (2) | ALL |
| 9 | 7220 | LOCKWASHER (4) | ALL |
| 10 | 7600 | NUT (6) | ALL |
| 11 | 7624 | LOCKNUT (4) | ALL |
| 12 | 7629 | NUT (2) | ALL |
| 13 | 7682 | LOCKNUT (2) | ALL |
| 14 | 7683 | LOCKNUT | ALL |
| 15 | 8126A | NUT, speed, reflector (2) | ALL |
| 16 | 10102 | CLIP (3) | ALL |
| 17 | 11437 | GROMMET, wiring harness | ALL |
| 18 | 45279-00 | WASHER (4) | ALL |
| 19 | 59093-00B | FENDER (prime) | ALL |
| 20 | 59166-80 | LOCKPLATE (2) | ALL |
| 21 | 59180-80 | LENS, fender lamp (amber) | ALL |
| 22 | 59211-74A | TRIM, side (2) | ALL |
| 23 | 59231-86 | SKIRT, trim, lower | ALL |
| 24 | 59261-91 | REFLECTOR (amber) (2) | ALL |
| 25 | 68193-95 | BULB, fender tip lamp | ALL |
| 26 | 68706-00 | LIGHT ASSEMBLY, fender | ALL |
| 27 | 70196-00 | WIRE ASSEMBLY | ALL |
| 28 | 73102-96BK | PIN, housing, 2-place | ALL |
| 29 | 73190-96 | PIN, terminal (2) | ALL |
| 30 | 73191-96 | PIN, single socket (2) | ALL |
| 31 | 73152-96BK | HOUSING, socket, 2-place | ALL |
| 32 | 91085-83D | BUMPER ASSEMBLY, w/ 3, 6, 7, 8, 13, 14, 15, 20, 24, 33 & 34 | ALL |
| 33 | 91090-77A | BRACKET, bumper | ALL |
| 34 | 91107-77C | CUSHION, bumper | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 35 | 755 | HOLE PLUG, hole (Japan) | FLHPEI |
| 36 | 59116-96 | FENDER TIP ASSEMBLY (Japan) | FLHPEI |
| 37 | 59201-96 | LENS, fender tip (chrome) (Japan) | FLHPEI |
REAR FENDER
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 761 | PLUG | ALL |
| 2 | 3658 | SCREW (2) | ALL |
| 3 | 3676 | SCREW (5) | ALL |
| 4 | 3684 | SCREW (2) | ALL |
| 5 | 6036 | WASHER | ALL |
| 6 | 7434 | WASHER (2) | ALL |
| 7 | 7531 | LOCKNUT (2) | ALL |
| 8 | 7683 | LOCKNUT | ALL |
| 9 | 7878 | NUT (2) | ALL |
| 10 | 7880 | NUT, outer (4) | ALL |
| 11 | 8135B | NUT, speed (2) | ALL |
| 12 | 8144 | LOCKNUT | ALL |
| 13 | 59174-99 | PLATE, stud | ALL |
| 14 | 59579-01B | FENDER, rear (primed) | ALL |
| 15 | 59672-99 | LAMP ASSEMBLY, fender tip | ALL |
| 16 | 59786-01 | BOSS, fender mounting, inner (4) | ALL |
| 17 | 59788-01 | WASHER, fender mounting (4) | ALL |
| 18 | 73153-96BK | HOUSING, socket, 3-place | ALL |
| 19 | 73191-96 | PIN, single socket (2) | ALL |
| 20 | 67266-94 | GROMMET, turn signal (2) | ALL |
| 21 | 68046-79 | LENS, rear fender lamp | ALL |
| 22 | 68193-95 | BULB, fender tip lamp | ALL |
| 23 | 91013-79A | BUMPER ASSEMBLY, rear, w/ 8135B, 91023-79A & 91123-77 | ALL |
| 24 | 91023-79A | RAIL, rear bumper | ALL |
| 25 | 91123-77 | CUSHION, bumper, rear | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 26 | 2420 | SCREW (Japan) (3) | ALL |
| 27 | 2731W | SCREW (Japan) (3) | ALL |
| 28 | 3574 | SCREW (Japan) (2) | ALL |
| 29 | 7499 | NUT (Japan) (2) | ALL |
| 30 | 53436-97 | BULB, wedge (Japan) | ALL |
| 31 | 59259-90 | REFLECTOR (red) (Japan) (2) | ALL |
| 32 | 59292-94 | NUT, plastic (Japan) (4) | ALL |
| 33 | 60026-97 | PLATE, license back (Japan) | ALL |
| 34 | 60039-97 | BRACKET, license plate mounting (Japan) | ALL |
| 35 | 68180-99 | LAMP ASSEMBLY, license plate illumination (Japan) | ALL |
FUEL TANK - FUEL INJECTED FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 758 | PLUG | FLHTPI |
| 2 | 3684 | SCREW (3) | FLHTPI |
| 3 | 6702 | WASHER (3) | FLHTPI |
| 4 | 10038A | CLAMP (2) | FLHTPI |
| 5 | 11299 | O-RING (2) | FLHTPI |
| 6 | 27201-97A | TUBE, tank to valve | FLHTPI |
| 7 | 27291-97A | TUBE, valve to atmosphere | FLHTPI |
| 8 | 48469-00 | FITTING | FLHTPI |
| 9 | 56076-97 | CLIP, vapor valve | FLHTPI |
| 10 | 61356-00 | TANK, fuel (primed) | FLHTPI |
| 11 | 61408-00A | VALVE, check, fitting assembly, w/ 11299 & flex tubing | FLHTPI |
| 12 | 62150-85 | VALVE, vapor | FLHTPI |
| 13 | 62349-04F | FUEL LINE ASSEMBLY | FLHTPI |
| 14 | 62958-02 | PLUG | FLHTPI |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 15 | 62555-95 | INSULATOR, 5/8 inch I.D. (nylon) (8 feet) | FLHTPI |
| 16 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FLHTPI |
FUEL PUMP, FUEL INJECTED - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW, sealing (10) | FLHTPI |
| 2 | 1314 | SCREW | FLHTPI |
| 3 | 10006 | STRAP, cable, pump (2) | FLHTPI |
| 4 | 10222 | CLAMP, 8mm (2) | FLHTPI |
| 5 | 11351 | O-RING | FLHTPI |
| 6 | 11380 | O-RING | FLHTPI |
| 7 | 27408-01 | REGULATOR | FLHTPI |
| 8 | 61343-00 | FILTER KIT, fuel, w/ 61959-00, 62357-00, clamp, O-ring & tube | FLHTPI |
| 61959-00 | FILTER, fuel | FLHTPI | |
| 9 | 61209-01A | BAIL | FLHTPI |
| 10 | 61231-01 | BRACKET, bail | FLHTPI |
| 11 | 61402-02 | GASKET, sending unit | FLHTPI |
| 12 | 61583-02 | SPRING | FLHTPI |
| 13 | 61960-04 | CUSHION (rubber) | FLHTPI |
| 14 | 61961-00 | SLEEVE (rubber) | FLHTPI |
| 15 | 62163-01 | HOUSING, fuel pump (use 62163-01A) | FLHTPI |
| 62163-01A | HOUSING, fuel pump (replaces 62163-01) | FLHTPI | |
| 16 | 62165-01 | ENDCAP, housing fuel pump | FLHTPI |
| 17 | 62188-01 | SPACER (used w/ 62897-01) (rubber) | FLHTPI |
| 62188-04 | SPACER (used w/ 62897-01B) (rubber) | FLHTPI | |
| 18 | 62357-00 | HOSE, pump to filter (2) | FLHTPI |
| 19 | 62373-01 | HOUSING, regulator | FLHTPI |
| 20 | 62897-01 | PUMP ASSEMBLY, fuel (use 62897-01B) | FLHTPI |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 13, 14, 15, 16 & 17 (replaces 75126-02) (used w/ 75126-02C) | FLHTPI | |
| 21 | 72435-00 | CONNECTOR KIT, fuel tank, 3-way (use 72439-00B) | FLHTPI |
| 72439-00B | CONNECTOR KIT, fuel tank, 3-way, w/ 72442-05 & 72443-05 (replaces 72435-00) | FLHTPI | |
| 22 | 72442-05 | HEADER, 3-way | FLHTPI |
| 23 | 72443-05 | CONNECTOR, 3-way | FLHTPI |
| 24 | 72458-00 | O-RING & CLIP KIT, w/ 11380 & connector clip | FLHTPI |
| 25 | 75069-02 | PLATE, top | FLHTPI |
| 26 | 75071-02 | SENDING UNIT, fuel gauge | FLHTPI |
| 27 | 75126-02 | FUEL PUMP, SENDER & FILTER MODULE, filter (use 75126-02C) | FLHTPI |
| 75126-02C | FUEL PUMP, SENDER & FILTER MODULE, w/ 2, 4, 5, 6, 7, 8, 9, 10, 12, 18, 19, 20, 21, 25 & 26 (replaces 75126-02C) | FLHTPI |
FUEL TANK CONSOLE - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 3529 | SCREW (2) | FLHTPI |
| 2 | 3652 | SCREW | FLHTPI |
| 3 | 4033 | SCREW (2) | FLHTPI |
| 4 | 7900 | LOCKNUT (2) | FLHTPI |
| 5 | 7964 | NUT, staked, j-type | FLHTPI |
| 6 | 10105 | CLIP | FLHTPI |
| 7 | 60957-89A | INSERT, console (black) | FLHTPI |
| 8 | 61029-92A | LOCK, door (specify key code) | FLHTPI |
| 9 | 61081-92 | COVER, key, head set (2) | FLHTPI |
| 10 | 61109-85D | GASKET, filler cap | FLHTPI |
| 11 | 61112-82A | BOOT | FLHTPI |
| 12 | 61270-98A | CONSOLE, w/ 61279-88 | FLHTPI |
| 13 | 61274-92 | CAP, filler, vacuum vent | FLHTPI |
| 14 | 61278-92 | DOOR, console | FLHTPI |
| 15 | 61279-88 | PIN, hinge | FLHTPI |
| 16 | 61313-88 | BUMPER, cover (2) | FLHTPI |
| 17 | 61450-95 | RESTRICTOR KIT, fuel (required w/ catalytic mufflers) | FLHTPI |
| 18 | 71294-89C | MOLDING (rubber) (bulk) | FLHTPI |
| 19 | 71452-91A | KEY SET (specify key code) (2) | FLHTPI |
| 20 | 84850-92 | NUT, lock | FLHTPI |
FUEL TANK, FUEL INJECTED - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 758 | PLUG | FLHPEI, FLHPI |
| 2 | 3684 | SCREW (3) | FLHPEI, FLHPI |
| 3 | 6702 | WASHER (3) | FLHPEI, FLHPI |
| 4 | 10038A | CLAMP (2) | FLHPEI, FLHPI |
| 5 | 11299 | O-RING (2) | FLHPEI, FLHPI |
| 6 | 27191-97A | TUBE, tank to valve | FLHPEI, FLHPI |
| 7 | 27291-97A | TUBE, valve to atmosphere | FLHPEI, FLHPI |
| 8 | 56076-97 | CLIP, vapor valve | FLHPEI, FLHPI |
| 9 | 61109-85D | GASKET, filler cap | FLHPEI, FLHPI |
| 10 | 61168-81A | DECAL, fuel tank (2) | FLHPEI, FLHPI |
| 11 | 61268-00 | TANK, fuel (prime) | FLHPEI, FLHPI |
| 12 | 61272-92C | CAP, filler, vacuum vent | FLHPEI, FLHPI |
| 13 | 61408-00A | VALVE, check, fitting assembly, w/ 11299 & flex tubing | FLHPEI, FLHPI |
| 14 | 61450-95 | RESTRICTOR KIT, fuel | FLHPEI, FLHPI |
| 15 | 62150-85 | VALVE, vapor | FLHPEI, FLHPI |
| 16 | 62349-04F | FUEL LINE ASSEMBLY, tank to intake | FLHPEI, FLHPI |
| 17 | 62958-02 | PLUG | FLHPEI, FLHPI |
| 18 | 70999-94 | TRIM, fuel tank (2) | FLHPEI, FLHPI |
| NOTE: Hose or insulator is sold in bulk length under the following part numbers. Cut to length. | |||
| 19 | 62555-95 | INSULATOR, 5/8 inch I.D. (nylon) (8 feet) | FLHPEI, FLHPI |
| 20 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FLHPEI, FLHPI |
FUEL PUMP, FUEL INJECTED - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 1311D | SCREW, sealing (10) | FLHPEI, FLHPI |
| 2 | 1314 | SCREW | FLHPEI, FLHPI |
| 3 | 10006 | STRAP, cable, pump (2) | FLHPEI, FLHPI |
| 4 | 10222 | CLAMP, 8mm (2) | FLHPEI, FLHPI |
| 5 | 11351 | O-RING | FLHPEI, FLHPI |
| 6 | 11380 | O-RING | FLHPEI, FLHPI |
| 7 | 27408-01 | REGULATOR | FLHPEI, FLHPI |
| 8 | 61209-01A | BAIL | FLHPEI, FLHPI |
| 9 | 61231-01 | BRACKET, bail | FLHPEI, FLHPI |
| 10 | 61343-00 | FILTER KIT, fuel, w/ 61959-00, 62357-00, clamp, O-ring & tube | FLHPEI, FLHPI |
| 61959-00 | FILTER, fuel | FLHPEI, FLHPI | |
| 11 | 61402-02 | GASKET, sending unit | FLHPEI, FLHPI |
| 12 | 61583-02 | SPRING | FLHPEI, FLHPI |
| 13 | 61960-04 | CUSHION (rubber) | FLHPEI, FLHPI |
| 14 | 61961-00 | SLEEVE (rubber) | FLHPEI, FLHPI |
| 15 | 62163-01 | HOUSING, fuel pump (use 62163-01A) | FLHPEI, FLHPI |
| 62163-01A | HOUSING, fuel pump (replaces 62163-01) | FLHPEI, FLHPI | |
| 16 | 62165-01 | ENDCAP, housing fuel pump | FLHPEI, FLHPI |
| 17 | 62188-01 | SPACER (rubber) | FLHPEI, FLHPI |
| 18 | 62357-00 | HOSE, pump to filter (2) | FLHPEI, FLHPI |
| 19 | 62373-01 | HOUSING, regulator | FLHPEI, FLHPI |
| 20 | 62897-01 | PUMP ASSEMBLY, fuel (use 62897-01B) | FLHPEI, FLHPI |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 14, 15, 16, 17 & 18 (replaces 62897-01) | FLHPEI, FLHPI | |
| 21 | 72435-00 | CONNECTOR KIT, fuel tank, 3-way (use 72439-00B) | FLHPEI, FLHPI |
| 72439-00B | CONNECTOR KIT, fuel, 3-way, w/ 72442-05 & 72443-05 (replaces 72435-00) | FLHPEI, FLHPI | |
| 22 | 72442-05 | HEADER, 3-way | FLHPEI, FLHPI |
| 23 | 72443-00 | CONNECTOR, 3-way | FLHPEI, FLHPI |
| 24 | 72458-00 | O-RING & CLIP KIT, w/ 11380 & connector clip | FLHPEI, FLHPI |
| 25 | 75076-02 | PLATE, top | FLHPEI, FLHPI |
| 26 | 75127-02 | FUEL PUMP, SENDER & FILTER MODULE (use 65127-02C) | FLHPEI, FLHPI |
| 75127-02C | FUEL PUMP, SENDER & FILTER MODULE, w/ 2, 4, 5, 6, 7, 8, 9, 10, 12, 18, 19, 20, 21, 25 & 27 (replaces 65127-02) | FLHPEI, FLHPI | |
| 27 | 75205-02 | SENDING UNIT, fuel gauge | FLHPEI, FLHPI |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3993 | BOLT | ALL |
| 2 | 3210A | SCREW (4) | ALL |
| 3 | 3929 | SCREW (4) | ALL |
| 4 | 6016 | WASHER (4) | ALL |
| 5 | 6703 | WASHER | ALL |
| 6 | 7041 | LOCKWASHER (4) | ALL |
| 7 | 7593 | NUT (4) | ALL |
| 8 | 7742 | LOCKNUT | ALL |
| 9 | 7796 | NUT, w/ washer | ALL |
| 10 | 9955 | CLAMP, shield (13) | ALL |
| 11 | 65296-95A | CLAMP, muffler (3) | ALL |
| 12 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 13 | 65325-83A | RING, retaining, exhaust gasket (2) | ALL |
| 14 | 65328-83A | CLAMP, exhaust manifold (2) | ALL |
| 15 | 65519-52C | CLAMP, pipe to bracket | ALL |
| 16 | 65538-95B | MUFFLER, left | ALL |
| 65554-95B | MUFFLER, left (catalytic) (California) | FLHPEI, FLHPI | |
| 17 | 65539-95A | MUFFLER, right | ALL |
| 65846-95B | MUFFLER, right (catalytic) (California) | ALL | |
| 18 | 65619-98 | TAB, bracket, exhaust mount at starter | ALL |
| 19 | 65620-98A | CLAMP AND BRACKET, exhaust mount at starter | ALL |
| 20 | 65621-99B | PIPE, exhaust, right, front | ALL |
| 21 | 65626-98C | PIPE, exhaust, right, rear | ALL |
| 22 | 65627-99A | PIPE, exhaust, left | ALL |
| 23 | 65630-83C | SHIELD, front exhaust pipe | ALL |
| 24 | 65634-98A | SHIELD, right exhaust pipe, front | ALL |
| 25 | 65636-99 | SHIELD, left exhaust pipe, rear | ALL |
| 26 | 65647-98 | SHIELD, left exhaust pipe, front | ALL |
| 27 | 65678-85D | BRACKET, rear exhaust pipe | ALL |
| 28 | 65723-85 | BRACKET, mounting (2) | ALL |
| 29 | 65724-85 | MOUNT (rubber) (2) | ALL |
| 30 | 65951-98A | SHIELD, heat, rear exhaust pipe | ALL |
| 31 | 65952-98A | SHIELD, heat, exhaust pipe, right rear lower | ALL |
| 32 | 65988-98 | BRACKET, support, exhaust mount at starter | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 33 | 65552-95C | MUFFLER, left (Japan) | FLHPEI |
| 34 | 65863-95E | MUFFLER, right (catalytic) (Japan) | FLHPEI |
BATTERY, TRAY & CABLES
| Index No. | Part No. | Description | Model(s) |
| 1 | 3676 | SCREW (3) | ALL |
| 2 | 3684 | SCREW | ALL |
| 3 | 4312C | SCREW | ALL |
| 4 | 7232 | LOCKWASHER (2) | ALL |
| 5 | 9834 | TERMINAL, ring | ALL |
| 6 | 15368-01A | LABEL, warning | ALL |
| 7 | 66004-93 | PAD, battery clamp | ALL |
| 8 | 66010-97C | BATTERY | ALL |
| 9 | 66185-97 | CLAMP, battery | ALL |
| 10 | 66281-02A | TRAY ASSEMBLY, battery | ALL |
| 11 | 70042-97 | CABLE ASSEMBLY, battery negative to ground | ALL |
| 12 | 70377-97A | CABLE ASSEMBLY, battery positive to starter w/ 9834 & 70584-94 | ALL |
| 13 | 70267-97 | CABLE ASSEMBLY, starter to ground | ALL |
| 14 | 70584-94 | BOOT, battery positive | ALL |
| 15 | 89577-95 | CAP, thread protector | ALL |
INSTRUMENTS - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW | FLHTPI |
| 2 | 3691 | SCREW (4) | FLHTPI |
| 3 | 67043-96 | NUT (8) | FLHTPI |
| 4 | 67184-94 | SOCKET, indicator lamps (5) | FLHTPI |
| 5 | 67348-00 | TACHOMETER | FLHTPI |
| 6 | 67349-00 | SPEEDOMETER, mph | FLHTPI |
| 7 | 67352-96A | CLAMP, 2 inch gauge (4) | FLHTPI |
| 8 | 67356-00 | GASKET, speedometer/tachometer (2) | FLHTPI |
| 9 | 67689-00 | CLAMP, back (2) | FLHTPI |
| 10 | 68024-94 | BULB, indicator lamps (5) | FLHTPI |
| 11 | 68382-96 | BEZEL ASSEMBLY, indicator lamp | FLHTPI |
| 12 | 68620-96 | MODULE, low fuel warning | FLHTPI |
| 13 | 68789-96 | LAMP ASSEMBLY, indicator (use 68789-96B) | FLHTPI |
| 14 | 68789-96B | LAMP ASSEMBLY, indicator, w/ 73160-96BK (replaces 68789-96) | FLHTPI |
| 15 | 73160-96BK | HOUSING, socket, 10-place | FLHTPI |
| 16 | 73191-96 | CONTACT, socket, 16-20 AWG (10) | FLHTPI |
| 17 | 74419-96 | SENSOR, air temperature | FLHTPI |
| 18 | 74526-96C | VOLTMETER | FLHTPI |
| 75032-99B | GAUGE, oil pressure | FLHTPI | |
| 75109-96C | GAUGE, air temperature | FLHTPI | |
| 75111-96C | GAUGE, fuel | FLHTPI | |
| 19 | 75044-96 | SOCKET (4) | FLHTPI |
| 20 | 67445-00 | BULB, w/ rubber boot (4) | FLHTPI |
| INTERNATIONAL MODELS ONLY | |||
| 21 | 67350-00 | SPEEDOMETER, kph | FLHTPI |
| 75112-00 | SPEEDOMETER, mph/kph | FLHTPI | |
TACHOMETER AND BRACKET - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 2361 | SCREW (2) | FLHPEI, FLHPI |
| 2 | 14630-96 | DECAL | FLHPEI, FLHPI |
| 3 | 67042-99 | TACHOMETER | FLHPEI, FLHPI |
| 4 | 67053-95 | BRACKET | FLHPEI, FLHPI |
| 5 | 67104-95 | CUSHION, rear | FLHPEI, FLHPI |
| 6 | 67121-95A | CUSHION, front | FLHPEI, FLHPI |
| 7 | 67319-95 | COVER, tachometer back | FLHPEI, FLHPI |
| 8 | 67419-99 | WIRE HARNESS KIT, w/ 70585-93 (replaces 68806-99) | FLHPEI, FLHPI |
| 9 | 68806-99 | CONNECTOR (use 67419-99) | FLHPEI, FLHPI |
| 70585-93 | CONNECTOR (used w/ 67419-99) | FLHPEI, FLHPI | |
| 10 | 68912-99 | HARNESS ASSEMBLY TACHOMETER | FLHPEI, FLHPI |
| 11 | 72133-94GY | HOUSING, socket, sealed | FLHPEI, FLHPI |
| 12 | 72153-94 | LOCK, socket, secondary, 3-way | FLHPEI, FLHPI |
| 13 | 72191-94 | TERMINAL, socket (3) | FLHPEI, FLHPI |
FUEL TANK INSTRUMENTS - FLHPI & FLHPEI
| Index No. | Part No. | Description | Model(s) |
| 1 | 1000 | SCREW | FLHPEI, FLHPI |
| 2 | 2501A | SCREW (4) | FLHPEI, FLHPI |
| 3 | 3317 | STUD | FLHPEI, FLHPI |
| 4 | 6279A | WASHER, chrome | FLHPEI, FLHPI |
| 5 | 7549A | ACORN NUT | FLHPEI, FLHPI |
| 6 | 7964 | STAKED NUT, staked, j-type | FLHPEI, FLHPI |
| 7 | 10103 | CLIP | FLHPEI, FLHPI |
| 8 | 10120 | CLIP | FLHPEI, FLHPI |
| 9 | 60960-99 | PANEL, instrument | FLHPEI, FLHPI |
| 10 | 61192-96A | GASKET, fuel gauge | FLHPEI, FLHPI |
| 11 | 67033-99A | SPEEDOMETER ASSEMBLY, mph | FLHPEI, FLHPI |
| 12 | 67190-89 | SEAL, speedometer | FLHPEI, FLHPI |
| 13 | 67271-99 | CLAMP, back | FLHPEI, FLHPI |
| 14 | 67854-98 | SWITCH, odometer reset | FLHPEI, FLHPI |
| 15 | 67880-94 | BOOT, odometer reset switch | FLHPEI, FLHPI |
| 16 | 68112-99A | BEZEL, indicator | FLHPEI, FLHPI |
| 17 | 68113-99B | HOUSING ASSEMBLY, w/ 74118-98BK, 74158-98, 741193-98 & 74195-98 | FLHPEI, FLHPI |
| 18 | 71001-94 | TRIM | FLHPEI, FLHPI |
| 19 | 71307-94A | NAMEPLATE, ignition switch | FLHPEI, FLHPI |
| 20 | 71313-96A | SWITCH, ignition, w/ key (specify key code) | FLHPEI, FLHPI |
| 21 | 71452-91A | KEYSET (specify key code) | FLHPEI, FLHPI |
| 22 | 72904-01BK | HOUSING, pin, 4-way | FLHPEI, FLHPI |
| 23 | 72990-01 | TERMINAL, pin (3) | FLHPEI, FLHPI |
| 24 | 74118-98BK | HOUSING, socket, 8-way, black | FLHPEI, FLHPI |
| 25 | 74158-98 | LOCK, secondary, 8-way socket housing | FLHPEI, FLHPI |
| 26 | 74193-98 | TERMINAL, socket (7) | FLHPEI, FLHPI |
| 27 | 74195-98 | PIN, seal | FLHPEI, FLHPI |
| 28 | 75099-01A | GAUGE, fuel | FLHPEI, FLHPI |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 67197-99A | SPEEDOMETER, kph (Canada) | FLHPEI, FLHPI |
STROBE LAMPS - REAR, LICENSE PLATE HOLDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2872W | BOLT (5) | ALL |
| 2 | 3987 | BOLT (2) | ALL |
| 3 | 4017 | BOLT (4) | ALL |
| 4 | 6703 | WASHER (5) | ALL |
| 5 | 7887 | LOCKNUT (2) | ALL |
| 6 | 10006 | STRAP, cable (as required) | ALL |
| 7 | 11503 | GROMMET | ALL |
| 8 | 14020-83 | LABEL, caution signal | ALL |
| 9 | 53375-97A | HOLDER, license plate | ALL |
| 10 | 53419-97A | PLATE, mounting | ALL |
| 11 | 53422-97 | TUBE, support, bottom | ALL |
| 12 | 53799-99 | SPACER, luggage rack, license plate (5) | ALL |
| 13 | 53801-98 | TUBE, support, top | ALL |
| 14 | 61135-57 | SPACER (2) | ALL |
| 15 | 67598-88 | FLASH TUBE ASSEMBLY (self contained) | ALL |
| 16 | 67599-88 | LENS (red) | ALL |
| 67688-88 | LENS (blue) | ALL | |
| 17 | 67623-88A | STROBE LAMP, w/ connectors (blue) | ALL |
| 67624-88A | STROBE LAMP, w/ connectors (red) | ALL | |
| 18 | 72043-71A | CAP, housing | ALL |
| 19 | 72102-94BK | RECEPTACLE, 2-way pin | ALL |
| 20 | 72142-94 | LOCK, pin, secondary, 2-way | ALL |
| 21 | 72190-94 | TERMINAL, pin (2) | ALL |
| 22 | 91137-97 | BRACKET, lower | ALL |
SIREN & AMPLIFIER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2871W | BOLT | ALL |
| 2 | 2979 | SCREW | ALL |
| 3 | 3787 | BOLT (2) | ALL |
| 4 | 6035A | WASHER (rubber) (4) | ALL |
| 5 | 6036 | WASHER (4) | ALL |
| 6 | 6237 | WASHER | ALL |
| 7 | 7531 | LOCKNUT (4) | ALL |
| 8 | 7716 | LOCKNUT (2) | ALL |
| 9 | 10006 | STRAP, cable | ALL |
| 10 | 10065 | STRAP, cable (2) | FLHTPI |
| 11 | 28867-88 | CLAMP | ALL |
| 12 | 70177-97 | HARNESS, wiring, siren amplifier | FLHTPI |
| 13 | 72032-93 | PLUG, connector (8) | FLHTPI |
| 14 | 72059-08 | TERMINAL, socket, 16-18 AWG (10) | FLHTPI |
| 15 | 72112-94BK | PLUG, 2-way socket (black) (2) | FLHTPI |
| 16 | 72119-94BK | HOUSING, 12-way (black) | FLHTPI |
| 17 | 72152-94 | LOCK, socket, secondary, 2-way (2) | FLHTPI |
| 18 | 72159-94 | LOCK, socket, 12-way | FLHTPI |
| 19 | 72191-94 | TERMINAL, socket (11) | FLHTPI |
| 20 | 72195-94 | PIN, seal (5) | FLHTPI |
| 21 | 72281-93 | CONNECTOR, 18-pin | FLHTPI |
| 22 | 74413-93 | BOOT, connector | FLHTPI |
| 23 | 72035-71 | HOUSING, double pin | ALL |
| 24 | 72039-71A | PIN, single socket (2) | ALL |
| 25 | 72102-94BK | RECEPTACLE, 2-way pin (black) | ALL |
| 26 | 72142-94 | LOCK, pin, secondary, 2-way | ALL |
| 27 | 72190-94 | TERMINAL, pin (2) | ALL |
| 28 | 72516-01 | CAP, dust (To be used on siren connection on main harness, when siren is not used.) | ALL |
| 29 | 76233-85 | JACK, microphone | FLHTPI |
| 30 | 91127-85 | BRACKET, speaker mounting | ALL |
| 31 | 91154-87 | MOUNTING KIT, speaker, w/ 3787, 6035A, 6036, 7531, 7716, 91127-85 & 91159-82 | ALL |
| 32 | 91156-93 | AMPLIFIER, siren | ALL |
| 33 | 91157-88A | SPEAKER, w/ terminals | ALL |
| 34 | 91159-82 | U-BOLT, speaker mounting (2) | ALL |
| 35 | 91260-93A | MOUNTING KIT, amplifier, w/ 2871W, 2979, 6237, 28867-88, spacer & bracket | ALL |
TAIL LAMP & REAR TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2692WB | SCREW (4) | ALL |
| 2 | 3022A | SCREW | ALL |
| 3 | 3576 | SCREW (2) | ALL |
| 4 | 7230 | LOCKWASHER | ALL |
| 5 | 7964 | J-NUT | ALL |
| 6 | 10183 | CLIP, t-stud (4) | ALL |
| 7 | 10184 | CLIP, t-stud | ALL |
| 8 | 68026-99 | SCREW, tail lamp (2) | ALL |
| 9 | 68066-99A | BASE ASSEMBLY, tail lamp, w/ 68296-99A & 68830-99A | ALL |
| 10 | 68140-99 | LIGHT ASSEMBLY, tail lamp (use 68140-04) | ALL |
| 68140-04 | LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A (replaces 68140-99) | ALL | |
| 11 | 68168-89A | BULB, tail lamp | ALL |
| 12 | 68296-99A | BASE, tail lamp (chrome) | ALL |
| 13 | 68369-03 | ENVELOPE, tail lamp, w/ 68026-99 (used w/ 68140-04) | ALL |
| 14 | 68370-03A | SOCKET & BULB ASSEMBLY, tail lamp, w/ 68168-89A, 68832-99 & 73154-96BK (used w/ 68140-04) | ALL |
| 15 | 68440-86 | LENS, turn signal (2) | ALL |
| 16 | 68452-86 | SCREW (4) | ALL |
| 17 | 68510-74C | BRACKET, rear turn signal | ALL |
| 18 | 68572-64B | BULB, rear turn signal (2) | ALL |
| 19 | 68713-94A | LAMP ASSEMBLY, rear, w/ wire, lens, bulb & lens screws (amber) (2) | ALL |
| 20 | 68772-99 | HARNESS, rear lamps, w/ 73156-96BK, 73158-96BK & 73191-96 | ALL |
| 21 | 68830-99A | COVER, circuit board | ALL |
| 22 | 68832-99 | SOCKET ASSEMBLY, tail lamp (use 68140-04) | ALL |
| 23 | 73152-96BK | HOUSING, socket, 2-place (2) | ALL |
| 24 | 73154-96BK | HOUSING, socket, 4-place | ALL |
| 25 | 73156-96BK | HOUSING, socket, 6-place | ALL |
| 26 | 73158-96BK | HOUSING, socket, 8-place | ALL |
| 27 | 73191-96 | SOCKET, contact, 16-20 AWG (20) | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 28 | 68142-99 | LIGHT ASSEMBLY, tail lamp (use 68142-04) (HDI) | ALL |
| 68142-04 | LIGHT ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (replaces 68142-99) (HDI) | ALL | |
| 29 | 68163-84 | BULB, rear turn signal (used w/68765-94A) (HDI) | ALL |
| 68562-84 | BULB, rear turn signal (HDI) | ALL | |
| 30 | 68169-90A | BULB, tail lamp (HDI) | ALL |
| 31 | 68506-92 | LENS, turn signal (amber) (HDI) (2) | ALL |
| 32 | 68558-03 | ENVELOPE, tail lamp, w/ 68026-99 (used w/ 68142-04) (amber) (HDI) (2) | ALL |
| 33 | 68765-94A | LAMP ASSEMBLY, rear, w/ 68163-84, 68452-86 & 68506-92 (amber) (HDI) (2) | ALL |
| 34 | 68833-99 | SOCKET & BULB ASSEMBLY, tail lamp, w/ 68163-84, 68452-86 & 68506-92 (use 68142-04) (HDI) | ALL |
| 35 | 69187-03A | SOCKET & BULB ASSEMBLY, tail lamp, w/ 68167-04 (used w/ 68142-04) (HDI) | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | ALL |
| 2 | 6109 | WASHER | ALL |
| 3 | 7495 | NUT | ALL |
| 4 | 7507 | ACORN NUT | ALL |
| 5 | 8108 | SPEEDNUT (2) | ALL |
| 6 | 69012-93A | COVER, horn (chrome) | ALL |
| 7 | 69060-90F | HORN KIT | ALL |
| 8 | 69062-91A | CLAMP | ALL |
| 9 | 69120-91 | BRACKET, horn | ALL |
| 10 | 69123-92A | MOUNT, horn (rubber) | ALL |
| 11 | 89579-91 | CAP, protective | ALL |
WIRING HARNESS, MAIN - FLHPI & FLHPEI (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70260-02 | WIRING HARNESS, MAIN | FLHPEI, FLHPI | |
| NOTE: Includes the following parts. | |||
| 1 | 7629 | NUT, 10-32 | FLHPEI, FLHPI |
| 2 | 9840 | TERMINAL, 10 ring | FLHPEI, FLHPI |
| 3 | 9847 | WIRE TERMINAL, female spade, R.H. | FLHPEI, FLHPI |
| 4 | 9848 | WIRE TERMINAL, female spade, L.H. | FLHPEI, FLHPI |
| 5 | 9898 | TERMINAL, female flag, 14-16 wire | FLHPEI, FLHPI |
| 6 | 9937 | TERMINAL, 1/4 inch female spade, 14-16 AWG (5) | FLHPEI, FLHPI |
| 7 | 10065 | STRAP, cable (6) | FLHPEI, FLHPI |
| 8 | 10136 | ANCHOR, T-stud | FLHPEI, FLHPI |
| 9 | 10227 | CLIP | FLHPEI, FLHPI |
| 10 | 31504-91B | RELAY, w/ diode | FLHPEI, FLHPI |
| 11 | 31522-00C | RELAY, w/ diode (2) | FLHPEI, FLHPI |
| 12 | 68750-93 | CLAMP | FLHPEI, FLHPI |
| 13 | 70291-89 | HOUSING, 4 pin | FLHPEI, FLHPI |
| 14 | 72032-93 | PIN, seal (8) | FLHPEI, FLHPI |
| 15 | 72033-93 | TERMINAL, socket (13) | FLHPEI, FLHPI |
| 16 | 72039-71A | PIN, single socket (2) | FLHPEI, FLHPI |
| 17 | 72046-79 | CONNECTOR, spade terminals (2) | FLHPEI, FLHPI |
| 18 | 72056-92 | HOUSING, female 3-place | FLHPEI, FLHPI |
| 19 | 72103-94BK | HOUSING, 3-way (black) | FLHPEI, FLHPI |
| 20 | 72104-94BK | RECEPTACLE, 4-way pin (black) | FLHPEI, FLHPI |
| 21 | 72109-94BK | RECEPTACLE, 12-way pin (black) | FLHPEI, FLHPI |
| 22 | 72112-94BK | PLUG, 2-way socket (black) (2) | FLHPEI, FLHPI |
| 23 | 72113-94BK | PLUG, 3-way socket (black) | FLHPEI, FLHPI |
| 24 | 72129-94GY | PLUG, 12-way pin (gray) | FLHPEI, FLHPI |
| 25 | 72139-94GY | PLUG, 8-way socket (gray) | FLHPEI, FLHPI |
| 26 | 72143-94 | LOCK, pin, secondary, 3-way | FLHPEI, FLHPI |
| 27 | 72144-94 | LOCK, pin, secondary, 4-way | FLHPEI, FLHPI |
| 28 | 72149-94 | LOCK, pin, secondary, 12-way (3) | FLHPEI, FLHPI |
| 29 | 72152-94 | LOCK, socket, 2-way (2) | FLHPEI, FLHPI |
| 30 | 72153-94 | LOCK, socket, secondary, 3-way | FLHPEI, FLHPI |
| 31 | 72159-94 | LOCK, socket | FLHPEI, FLHPI |
| 32 | 72164-94A | PLUG, weather, 4-way pin | FLHPEI, FLHPI |
| 33 | 72190-94 | TERMINAL, pin (34) | FLHPEI, FLHPI |
| 34 | 72191-94 | TERMINAL, socket (19) | FLHPEI, FLHPI |
| 35 | 72195-94 | PIN, seal (7) | FLHPEI, FLHPI |
| 36 | 72199-94 | CLIP, attachment (4) | FLHPEI, FLHPI |
| 37 | 72242-94 | TERMINAL, 1/4 inch ring w/ internal star, 10-12 AWG (3) | FLHPEI, FLHPI |
WIRING HARNESS, MAIN - FLHPI & FLHPEI (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 70260-02 | WIRING HARNESS, MAIN | FLHPEI, FLHPI | |
| NOTE: Includes the following parts. | |||
| 38 | 72280-95 | HOUSING, 3-way socket | FLHPEI, FLHPI |
| 39 | 72281-93 | HOUSING, 18-way socket | FLHPEI, FLHPI |
| 40 | 72290-94 | TERMINAL, 1/4 inch female (2) | FLHPEI, FLHPI |
| 41 | 72291-94 | TERMINAL, female spade, 14-16 AWG (2) | FLHPEI, FLHPI |
| 42 | 72292-94 | TERMINAL, female, 12 AWG (2) | FLHPEI, FLHPI |
| 43 | 72295-94 | CONNECTOR, starter | FLHPEI, FLHPI |
| 44 | 72325-97 | RELAY, holder | FLHPEI, FLHPI |
| 45 | 72327-03A | HOUSING, female, 3-way | FLHPEI, FLHPI |
| 46 | 72330-95 | FUSE, 15 amp (8) | FLHPEI, FLHPI |
| 47 | 72366-95 | TUBE, heat shrink | FLHPEI, FLHPI |
| 48 | 72405-98BK | WIRE ASSEMBLY, terminal, w/ connector & wire | FLHPEI, FLHPI |
| 49 | 72428-00 | TERMINAL, 14-18 AWG (4) | FLHPEI, FLHPI |
| 50 | 72429-00 | TERMINAL, 12-14 AWG (4) | FLHPEI, FLHPI |
| 51 | 72430-00 | BLOCK, mounting, type 0 | FLHPEI, FLHPI |
| 52 | 72432-00 | BLOCK, mounting, type 2 | FLHPEI, FLHPI |
| 53 | 72434-00 | TERMINAL, 14-16 AWG (22) | FLHPEI, FLHPI |
| 54 | 72462-00 | FUSE, 10 amp (3) | FLHPEI, FLHPI |
| 55 | 72516-01 | CAP, dust | FLHPEI, FLHPI |
| 56 | 72531-02A | COVER, fuse block | FLHPEI, FLHPI |
| 57 | 72914-01BK | HOUSING, socket, 4-way | FLHPEI, FLHPI |
| 58 | 72991-01 | TERMINAL, socket, 14-20 AWG (3) | FLHPEI, FLHPI |
| 59 | 73102-96BK | HOUSING, pin, 2-place (black) | FLHPEI, FLHPI |
| 60 | 73102-96WE | HOUSING, pin, 2-place (white) | FLHPEI, FLHPI |
| 61 | 73106-96BK | HOUSING, pin, 6-place (black) | FLHPEI, FLHPI |
| 62 | 73108-96BK | HOUSING, pin, 8-place (black) | FLHPEI, FLHPI |
| 63 | 73190-96 | TERMINAL, pin (18) | FLHPEI, FLHPI |
| 64 | 73198-96 | ANCHOR, connector (3) | FLHPEI, FLHPI |
| 65 | 74108-98BK | HOUSING, pin, 8-place (black) | FLHPEI, FLHPI |
| 66 | 74113-98BK | SOCKET, housing 3-way (black) | FLHPEI, FLHPI |
| 67 | 74119-98BK | SOCKET, housing 12-way (black) | FLHPEI, FLHPI |
| 68 | 74148-98 | LOCK, socket, secondary, 8-way | FLHPEI, FLHPI |
| 69 | 74153-98 | LOCK, socket, secondary, 3-way socket | FLHPEI, FLHPI |
| 70 | 74159-98 | LOCK, socket, 12-way | FLHPEI, FLHPI |
| 71 | 74190-98 | TERMINAL, pin (7) | FLHPEI, FLHPI |
| 72 | 74191-98 | TERMINAL, socket (12) | FLHPEI, FLHPI |
| 73 | 74195-98 | PIN, seal (2) | FLHPEI, FLHPI |
| 74 | 74413-93 | BOOT, siren amplifier connector | FLHPEI, FLHPI |
| 75 | 74600-94 | BREAKER, circuit, 50 amp | FLHPEI, FLHPI |
| 76 | 76233-85 | MICROPHONE JACK | FLHPEI, FLHPI |
WIRING HARNESS, MAIN - FLHTPI (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 70985-02 | MAIN WIRING HARNESS | FLHTPI |
| NOTE: Includes the following parts. | |||
| 2 | 7629 | NUT | FLHTPI |
| 3 | 9840 | TERMINAL, ring type, 10 hole | FLHTPI |
| 4 | 9898 | TERMINAL, female flag, 14-16 gauge | FLHTPI |
| 5 | 9937 | TERMINAL, female spade, 1/4 inch slot (4) | FLHTPI |
| 6 | 10065 | STRAP, cable (11) | FLHTPI |
| 7 | 10136 | ANCHOR, T-stud | FLHTPI |
| 8 | 10147 | CLIP, connector | FLHTPI |
| 9 | 10227 | CLIP, retainer | FLHTPI |
| 10 | 31504-91B | RELAY, w/ diode (2) | FLHTPI |
| 11 | 31522-00C | RELAY, micro spdt | FLHTPI |
| 12 | 67854-98 | SWITCH, momentary | FLHTPI |
| 13 | 72033-93 | TERMINAL, socket, 16-20 AWG (3) | FLHTPI |
| 14 | 72046-79 | INSULATOR, spade terminals (2) | FLHTPI |
| 15 | 72104-94BK | RECEPTACLE, 4-way pin | FLHTPI |
| 16 | 72113-94RD | HOUSING, 3-way socket | FLHTPI |
| 17 | 72119-94BK | PLUG, 12-way socket | FLHTPI |
| 18 | 72124-94GY | HOUSING, 4-way | FLHTPI |
| 19 | 72129-94GY | RECEPTACLE, 12-way pin | FLHTPI |
| 20 | 72139-94GY | HOUSING, socket, sealed (2) | FLHTPI |
| 21 | 72144-94 | LOCK, pin, secondary, 4-way (2) | FLHTPI |
| 22 | 72149-94 | LOCK, pin, secondary, 12-way | FLHTPI |
| 23 | 72153-94 | LOCK, socket, secondary, 3-way | FLHTPI |
| 24 | 72159-94 | LOCK, socket, secondary, 12-way (3) | FLHTPI |
| 25 | 72164-94A | CONNECTOR, plug | FLHTPI |
| 26 | 72190-94 | TERMINAL, pin (18) | FLHTPI |
| 27 | 72191-94 | TERMINAL, socket (38) | FLHTPI |
| 28 | 72195-94 | PIN, seal (3) | FLHTPI |
| 29 | 72199-94 | ANCHOR, connector | FLHTPI |
| 30 | 72205-94 | CONNECTOR, plug, 4-way | FLHTPI |
| 31 | 72206-94 | CONNECTOR, receptacle, 4-way | FLHTPI |
| 32 | 72207-94 | TERMINAL, female, 14 AWG (3) | FLHTPI |
| 33 | 72208-94 | TERMINAL, male, 12 AWG (2) | FLHTPI |
| 34 | 72210-94 | TERMINAL, male, 14-16 AWG | FLHTPI |
| 35 | 72211-94 | CONNECTOR, 10-way | FLHTPI |
| 36 | 72212-94 | LOCK, socket, secondary | FLHTPI |
| 37 | 72213-94 | TERMINAL, female, 18-20 AWG (10) | FLHTPI |
| 38 | 72214-94 | SEAL, cable (10) | FLHTPI |
| 39 | 72242-94 | TERMINAL, 1/4 inch ring w/ internal star, 10-12 AWG | FLHTPI |
WIRING HARNESS, MAIN - FLHTPI (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 70985-02 | MAIN WIRING HARNESS (continued) | FLHTPI |
| NOTE: Includes the following parts. | |||
| 40 | 72254-94 | TERMINAL, 1/4 inch ring (3) | FLHTPI |
| 41 | 72280-95 | HOUSING, socket, 3-way | FLHTPI |
| 42 | 72290-94 | TERMINAL, 1/4 inch female (2) | FLHTPI |
| 43 | 72291-94 | TERMINAL, female spade, 14-16 gauge | FLHTPI |
| 44 | 72294-94BK | TERMINAL, female (2) | FLHTPI |
| 45 | 72295-94 | HOUSING, starter connection | FLHTPI |
| 46 | 72325-97 | HOLDER, relay | FLHTPI |
| 47 | 72330-95 | FUSE, 15 amp, blue (9) | FLHTPI |
| 48 | 72355-97 | TERMINAL, female 1 | FLHTPI |
| 49 | 72366-95 | TUBE, heat shrink (yellow) | FLHTPI |
| 50 | 72428-00 | WIRE ASSEMBLY, push-on (2) | FLHTPI |
| 51 | 72429-00 | TERMINAL, .25 (7) | FLHTPI |
| 52 | 72430-00 | BLOCK, fuse mounting | FLHTPI |
| 53 | 72432-00 | BLOCK, fuse mounting | FLHTPI |
| 54 | 72434-00 | TERMINAL, power (22) | FLHTPI |
| 55 | 72451-00 | CONNECTOR, 6-way | FLHTPI |
| 56 | 72452-00 | TERMINAL, 18-22 AWG (5) | FLHTPI |
| 57 | 72453-00 | CONNECTOR, outer shell, speedometer | FLHTPI |
| 58 | 72454-00 | CONNECTOR, outer shell, speedometer | FLHTPI |
| 59 | 72455-00 | SOCKET, terminal (10) | FLHTPI |
| 60 | 72462-00 | FUSE, mini-type, 10 amp (3) | FLHTPI |
| 61 | 72516-01 | CAP, dust | FLHTPI |
| 62 | 72531-02A | COVER, fuse block | FLHTPI |
| 63 | 73103-96BK | HOUSING, pin, 3-place | FLHTPI |
| 64 | 73108-96BK | HOUSING, pin, 8-place | FLHTPI |
| 65 | 73153-96BK | HOUSING, socket, 3-place | FLHTPI |
| 66 | 73190-96 | TERMINAL, pin 16-20 AWG (11) | FLHTPI |
| 67 | 73191-96 | SOCKET, contact, 16-20 AWG (3) | FLHTPI |
| 68 | 73198-96 | ANCHOR, connector (2) | FLHTPI |
| 69 | 74600-94 | BREAKER, circuit, 50 amp | FLHTPI |
| 70 | 76248-86 | CABLE, antenna | FLHTPI |
WIRING HARNESS, INTERCONNECT - FLHTPI
| Index No. | Part No. | Description | Model(s) |
| 69552-00 | WIRING HARNESS, INTERCONNECT | FLHTPI | |
| NOTE: Includes the following parts. | |||
| 1 | 9839 | TERMINAL, positive lock (4) | FLHTPI |
| 2 | 9847 | TERMINAL, female spade | FLHTPI |
| 3 | 9848 | TERMINAL, female spade (2) | FLHTPI |
| 4 | 9937 | TERMINAL, female spade, 1/4 inch slot (8) | FLHTPI |
| 5 | 10065 | STRAP, cable (9) | FLHTPI |
| 6 | 10073 | STRAP, cable (3) | FLHTPI |
| 7 | 68563-04A | FLASHER | FLHTPI |
| 8 | 72046-79 | INSULATOR, spade terminals | FLHTPI |
| 9 | 72056-92 | CONNECTOR, spade terminal (3-way) | FLHTPI |
| 10 | 72109-94BK | HOUSING, pin, 12-way (black) (3) | FLHTPI |
| 11 | 72129-94GY | HOUSING, pin, 12-way (gray) (2) | FLHTPI |
| 12 | 72149-94 | LOCK, pin, secondary, 12-way (5) | FLHTPI |
| 13 | 72190-94 | LOCK, socket, secondary, 2-way (47) | FLHTPI |
| 14 | 72195-94 | PIN, seal (15) | FLHTPI |
| 15 | 72199-94 | CLIP, attachment (5) | FLHTPI |
| 16 | 72200-94A | CONNECTOR, 3-way (2) | FLHTPI |
| 17 | 72203-96 | CONNECTOR, 2-way (2) | FLHTPI |
| 18 | 72205-94 | CONNECTOR, plug, 4-way | FLHTPI |
| 19 | 72208-94 | TERMINAL, male, 12 gauge | FLHTPI |
| 20 | 72210-94 | TERMINAL, male, 14-16 gauge (3) | FLHTPI |
| 21 | 72266-94 | TUBE, heat shrink, dual wall 0.3 inch x 2 inch (8) | FLHTPI |
| 22 | 72290-94 | TERMINAL, 1/4 inch female (2) | FLHTPI |
| 23 | 72411-97 | TUBE, shrink, dual wall 0.22 inch X 1.97 inch (13) | FLHTPI |
| 24 | 73102-96BK | PIN, HOUSING, 2-way (black) (2) | FLHTPI |
| 25 | 73102-96WE | HOUSING, pin, 2-way (white) | FLHTPI |
| 26 | 73106-96BK | HOUSING, pin, 6-place (black) | FLHTPI |
| 27 | 73110-96BK | HOUSING, pin, 10-place (black) | FLHTPI |
| 28 | 73156-96BK | HOUSING, socket, 6-place (black) | FLHTPI |
| 29 | 73190-96 | PIN, terminal, 20-16 AWG (22) | FLHTPI |
| 30 | 73191-96 | CONTACT, socket, 16-20 AWG (4) | FLHTPI |
HANDLEBAR SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2955 | SCREW (6) | ALL |
| 2 | 3619 | SCREW (4) | ALL |
| 3 | 3658 | SCREW (4) | ALL |
| 4 | 10181 | STRAP, cable | ALL |
| 5 | 70355-96 | HOUSING, lower, right | ALL |
| 6 | 70358-96 | HOUSING, lower, left | ALL |
| 7 | 70356-96A | KNOB, pursuit | ALL |
| 8 | 70357-96 | SWITCH ASSEMBLY, pursuit | ALL |
| 9 | 70359-96A | KNOB, horn/siren | ALL |
| 10 | 70361-96 | SWITCH ASSEMBLY, horn/siren | ALL |
| 11 | 70388-96 | BRACKET, switch, left | ALL |
| 12 | 70389-96 | BRACKET, switch, right | ALL |
| 13 | 71515-08 | SWITCH KIT, siren/dimmer, w/ 10181 & 72266-94 | ALL |
| 14 | 71564-96 | HOUSING, upper, right | ALL |
| 15 | 71567-96 | HOUSING, upper, left | ALL |
| 16 | 71587-04 | V-CLIP | ALL |
| 17 | 71620-08 | SWITCH KIT, clutch, w/ 10181 & 72266-94 | ALL |
| 18 | 71621-08 | SWITCH KIT, stoplamp, w/ 10181 & 72266-94 | ALL |
| 19 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | ALL |
| 20 | 71684-06A | SWITCH KIT, engine stop & start, w/ 10181 & 72266-94 | ALL |
| 21 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 & 72266-94 | ALL |
| 22 | 72119-94BK | PLUG, 12-way socket, right | ALL |
| 23 | 72139-94GY | PLUG, 12-way socket, left | ALL |
| 24 | 72159-94 | LOCK, socket, secondary, 12-way (2) | ALL |
| 25 | 72179-94 | SEAL, front, 12-way plug (2) | ALL |
| 26 | 72195-94 | PIN, seal (as required) | ALL |
| 27 | 72191-94 | TERMINAL, socket (as required) | ALL |
| 28 | 72266-94 | TUBE, shrink, dual wall (as required) | ALL |
MICROPHONE & RADIO MOUNTING BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2659 | SCREW (2) | ALL |
| 2 | 6716 | WASHER (2) | ALL |
| 3 | 7624 | LOCKNUT (2) | ALL |
| 4 | 67895-96 | BRACKET, instrument mounting | FLHPEI, FLHPI |
| 5 | 76185-93 | MICROPHONE | ALL |
| 6 | 76201-80A | HANGER, microphone | ALL |
SWITCHES & CIRCUIT BREAKERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | ALL |
| 2 | 6150W | WASHER (2) | ALL |
| 3 | 7629 | NUT, w/ washer (2) | ALL |
| 4 | 8483A | RIVET | ALL |
| 5 | 9907 | TERMINAL, 14-16 AWG | ALL |
| 6 | 9989A | CLIP, circuit breaker | ALL |
| 7 | 11290 | O-RING, neutral indicator switch | ALL |
| 8 | 31504-91B | RELAY (2) | FLHPEI, FLHPI |
| 8 | 31504-91B | RELAY (4) | FLHTPI |
| 9 | 33902-98A | SWITCH, neutral indicator | ALL |
| 10 | 66373-06 | BATTERY, remote control FOB | ALL |
| 11 | 68920-01D | MODULE, turn signal canceller | ALL |
| 12 | 68922-00D | MODULE, security system | ALL |
| 13 | 68926-00 | FOB, remote control (2) | ALL |
| 14 | 70045-94A | WIRE ASSEMBLY, circuit breaker to starter | ALL |
| 15 | 70447-01 | CLIP | ALL |
| 16 | 71427-96 | PLATE, ignition switch | FLHTPI |
| 17 | 71452-91A | KEY (specify key code) | ALL |
| 18 | 71526-93B | HOUSING ASSEMBLY, ignition switch, w/ 71543-93, 71544-93, 71545-93, 71640-99, terminal & connectors | FLHTPI |
| 19 | 71536-93 | KNOB, ignition switch (specify key code) | FLHTPI |
| 20 | 71543-93 | NUT, ignition switch | FLHTPI |
| 21 | 71544-93 | COLLAR, ignition switch | FLHTPI |
| 22 | 71545-93 | SPACER, ignition switch, w/ 72206-94 & 72395-97 | FLHTPI |
| 23 | 71640-99 | SWITCH, ignition, w/ terminal & connector | FLHTPI |
| 24 | 72023-51E | SWITCH KIT, stop lamp, rear, w/ 9907 | ALL |
| 25 | 72206-94 | CONNECTOR, receptacle, 4-way | ALL |
| 26 | 72207-94 | TERMINAL, female, 14 AWG, ignition switch (4) | ALL |
| 27 | 72325-97 | HOLDER, relay | FLHPEI, FLHPI |
| 27 | 72325-97 | HOLDER, relay (2) | FLHTPI |
| 28 | 74600-94 | BREAKER, circuit, 50 amp | ALL |
| INTERNATIONAL MODELS ONLY | |||
| 29 | 930 | SCREW (HDI) (4) | ALL |
| 30 | 2934 | SCREW (HDI) (2) | ALL |
| 31 | 68920-01D | MODULE, turn signal canceller (HDI) | ALL |
| 32 | 68924-00D | MODULE, security system & turn signal canceller (HDI) | ALL |
| 33 | 68927-00 | FOB, remote control, w/ 66373-06 (HDI) (2) | ALL |
| 34 | 71422-96 | PLATE, ignition switch (HDI) | FLHTPI |
| 35 | 71530-95B | HOUSING, ignition switch, w/ 71537-96, 72206-94 & 72395-97 (HDI) | FLHTPI |
| 36 | 71532-95 | HOUSING, lock (HDI) | FLHTPI |
| 37 | 71537-96 | DECAL, ignition switch knob (HDI) | FLHTPI |
| 38 | 71643-00 | KNOB, ignition switch, w/ 930, 71422-96, 71532-95, 71537-96 & 90468-95 | ALL |
| 39 | 72395-97 | TERMINAL, female, 10-12 AWG, ignition switch (HDI) (4) | ALL |
| 40 | 90468-95 | PLUG, lock knob (HDI) (4) | FLHTPI |
| Note: For additional fuse, relay and circuit breaker part number information, see Wiring Harness information. | |||
CONTROL MODULE - FUEL INJECTED
| Index No. | Part No. | Description | Model(s) |
| 1 | 4718A | SCREW (2) | ALL |
| 2 | 7716 | LOCKNUT (2) | ALL |
| 3 | 32534-11 | MODULE, electronic control | ALL |
| 4 | 70348-02 | CADDY, electrical | ALL |
WIRING HARNESS, E.F.I. - FUEL INJECTED
| Index No. | Part No. | Description | Model(s) |
| 1 | 70233-02 | WIRING HARNESS, EFI | ALL |
| NOTE: Includes the following parts. | |||
| 2 | 9937 | TERMINAL, 1/4 female spade, 14-16 AWG (2) | ALL |
| 3 | 10065 | STRAP, cable, 5.5 inch long (3) | ALL |
| 4 | 31511-01B | RELAY (black) | ALL |
| 5 | 70598-99 | BOOT, temperature sensor | ALL |
| 6 | 72033-93 | TERMINAL, socket (15) | ALL |
| 7 | 72076-00 | TERMINAL, socket (27) | ALL |
| 8 | 72077-00 | PIN, seal (9) | ALL |
| 9 | 72124-94GY | HOUSING, pin, 4-way | ALL |
| 10 | 72139-94GY | HOUSING, socket, 12-way (gray) | ALL |
| 11 | 72144-94 | LOCK, pin, 4-way | ALL |
| 12 | 72159-94 | LOCK, secondary, 12-way | ALL |
| 13 | 72190-94 | TERMINAL, pin (4) | ALL |
| 14 | 72191-94 | TERMINAL, socket (9) | ALL |
| 15 | 72195-94 | PIN, seal (3) | ALL |
| 16 | 72199-94 | CONNECTOR, anchor, t-stud | ALL |
| 17 | 72213-94 | TERMINAL, 18-20 AWG, female (3) | ALL |
| 18 | 72214-94 | SEAL, cable, 14-18 AWG (3) | ALL |
| 19 | 72230-98 | HOUSING, socket, 3-way, sealed (2) | ALL |
| 20 | 72231-98 | LOCK, secondary, 3-way | ALL |
| 21 | 72244-95 | CONNECTOR, injector, 2-way (2) | ALL |
| 22 | 72245-95 | TERMINAL, injector (4) | ALL |
| 23 | 72247-95 | CONNECTOR, air temperature, 2-way | ALL |
| 24 | 72263-95 | CONNECTOR, 4-way (2) | ALL |
| 25 | 72273-95 | CONNECTOR, engine temperature, 2-way | ALL |
| 26 | 72280-95 | CONNECTOR, 3-way | ALL |
| 27 | 72330-95 | FUSE, 15 amp (2) | ALL |
| 28 | 72428-00 | TERMINAL, female (2) | ALL |
| 29 | 72431-00 | BLOCK, mounting, fuse, type 1 | ALL |
| 30 | 72434-00 | TERMINAL (6) | ALL |
| 31 | 74102-98BK | HOUSING, pin, 2-way | ALL |
| 32 | 74112-98BK | HOUSING, socket, 2-way | ALL |
| 33 | 74142-98 | LOCK, pin, 2-way | ALL |
| 34 | 74152-98 | LOCK, socket, 2-way | ALL |
| 35 | 74190-98 | TERMINAL, pin (2) | ALL |
| 36 | 74191-98 | TERMINAL, socket (2) | ALL |
SADDLEBAGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2664 | SCREW (4) | ALL |
| 2 | 3595 | SCREW (4) | ALL |
| 3 | 6229W | WASHER (4) | ALL |
| 4 | 6368 | WASHER (4) | ALL |
| 5 | 6970 | WASHER (4) | ALL |
| 6 | 7128 | LOCKWASHER (2) | ALL |
| 7 | 7586 | JAM NUT (2) | ALL |
| 8 | 7838 | NUT (4) | ALL |
| 9 | 8483A | RIVET (4) | ALL |
| 10 | 8502 | RIVET (4) | ALL |
| 11 | 8551 | RIVET (12) | ALL |
| 12 | 11464 | GROMMET, isolator (4) | ALL |
| 13 | 14274-93A | DECAL, right (police) | ALL |
| 14275-93A | DECAL, left (police) | ALL | |
| 59223-93A | DECAL, right (sheriff) | ALL | |
| 59224-93A | DECAL, left (sheriff) | ALL | |
| 14 | 53427-80 | HINGE (4) | ALL |
| 15 | 53478-80 | PLATE, backing (4) | ALL |
| 16 | 53563-82 | BRACKET, cable brace mounting (4) | ALL |
| 17 | 53616-85 | CATCH (2) | ALL |
| 18 | 53617-85 | GUIDE, latch (2) | ALL |
| 19 | 53848-00 | LOCK SET, t-pak, (Specify 4-digit code) (2) | ALL |
| 53562-93A | LOCK SET, complete w/ keys, key covers, cam lock, ignition switch, fork lock, cam lock & 10065 | FLHTPI | |
| 53568-03A | LOCK SET, complete w/ keys, key covers, cam lock, ignition switch, fork lock, cam lock & 10065 | FLHPEI, FLHPI | |
| 20 | 53861-93 | BRACE, cable, cover (2) | ALL |
| 21 | 59221-93 | COVER, decal, left | ALL |
| 59222-93 | COVER, decal, right | ALL | |
| 22 | 59287-92 | REFLECTOR, right (red) | ALL |
| 59288-92 | REFLECTOR, left (red) | ALL | |
| 23 | 71452-91A | KEY (specify 4-digit key code) (2) | ALL |
| 24 | 61081-92 | COVER, key head set (2) | ALL |
| 25 | 79048-98 | SEAL, latch | ALL |
| 26 | 84850-92 | NUT (2) | ALL |
| 27 | 90634-93 | BOTTOM, saddlebag, right (primed) | ALL |
| 90796-93 | BOTTOM, saddlebag, left (primed) | ALL | |
| 28 | 90675-93A | GASKET, saddlebag cover (2) | ALL |
| 29 | 90686-92 | HOOK, cam (2) | ALL |
| 30 | 90687-85 | PLATE, reinforcing (2) | ALL |
| 31 | 90754-93 | COVER, saddlebag, right (primed) | ALL |
| 90776-93 | COVER, saddlebag, left (primed) | ALL | |
| 32 | 90764-93 | CUSHION, saddlebag support (4) | ALL |
| 33 | 90798-99 | GASKET (2) | ALL |
| 34 | 90820-93D | LABEL, load limits (2) | ALL |
| 35 | 90902-93 | HINGE, plate (4) | ALL |
| 36 | 90926-84 | BRACKET, spring latch (2) | ALL |
| 37 | 90929-84 | LATCH, spring, w/ knob (2) | ALL |
| 38 | 90964-63 | PLATE, backing (12) | ALL |
| 39 | 90965-63 | RIVET (40) | ALL |
| 40 | 90834-95B | STUD, bail head (4) | ALL |
SADDLEBAG GUARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1750 | SCREW (4) | ALL |
| 2 | 3584 | SCREW (4) | ALL |
| 3 | 3601 | SCREW (2) | ALL |
| 4 | 3676 | SCREW (4) | ALL |
| 5 | 3678 | SCREW (4) | ALL |
| 6 | 3684 | SCREW (4) | ALL |
| 7 | 3787 | BOLT (4) | ALL |
| 8 | 6703 | WASHER (4) | ALL |
| 9 | 7490 | NUT, clip (2) | ALL |
| 10 | 7531 | LOCKNUT (4) | ALL |
| 11 | 7667 | NUT (2) | ALL |
| 12 | 7686 | LOCKNUT (2) | ALL |
| 13 | 47449-97 | BRACKET, front (2) | ALL |
| 14 | 49193-93 | GUARD, saddlebags (4) | ALL |
| 15 | 49194-85 | SUPPORT, saddlebag, L.H. | ALL |
| 90781-93 | SUPPORT, saddlebag, R.H. | ALL | |
| 16 | 49188-97 | GUARD, R.H. | ALL |
| 49172-97 | GUARD, L.H. | ALL | |
| 17 | 70909-95 | RECEPTACLE (4) | ALL |
| 18 | 90594-85A | CUSHION (2) | ALL |
| 19 | 90718-79C | BRACKET, support, L.H. | ALL |
| 90720-79C | BRACKET, support, R.H. | ALL | |
| 20 | 90801-95 | BRACKET, mounting, saddlebag (2) | ALL |
| 21 | 90934-93A | CLAMP, rear L.H., outer | ALL |
| 90946-93A | CLAMP, rear R.H., outer | ALL | |
| 22 | 90935-93A | CLAMP, rear R.H., inner | ALL |
| 90936-93A | CLAMP, rear L.H., inner | ALL | |
| 23 | 90943-93A | MOUNT, guard (4) | ALL |
| 24 | 90945-93A | MOUNT, guard (4) | ALL |
| 25 | 91054-07 | PAD (2) | ALL |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7127 | LOCKWASHER (2) | ALL |
| 2 | 7736 | ACORN NUT (2) | ALL |
| 3 | 91902-86A | MIRROR KIT, long, left | ALL |
| 91904-86A | MIRROR KIT, long, right | ALL |
CALIFORNIA EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| NOTE: These parts are required for motorcycles sold in the state of California. | |||
| 1 | 27042-84A | CANISTER ASSEMBLY | ALL |
| 2 | 27045-97 | CLIP, canister retaining | ALL |
| 3 | 27297-97A | TUBE, fuel vapor vent, from vapor valve | ALL |
| 4 | 27298-97 | TUBE, purge to carburetor, canister end | ALL |
| 5 | 27461-02 | TUBE, carburetor to valve, carburetor end | ALL |
| 6 | 29312-95 | ELBOW, connector | ALL |
| Part No. | Description |
| 1000 | SCREW 1/4-20 X 5/8 pan head |
| 1039 | SCREW 5/16-18 X 2-1/2 hex flange head (Grade 8) |
| 1311D | SCREW No. 8-32 X 1/2 Phillips truss head, self-sealing |
| 1314 | SCREW K50-2.24 X 17.25MM TORX truss head |
| 1750 | SCREW No. 10-24 X 1/2 TORX flat head |
| 1783C | SCREW 5/16-18 X 7/8 Pozidriv flat countersink head (Grade 2) |
| 2361 | SCREW No. 8-32 X 3/8 socket countersink head, with lockpatch |
| 2420 | SCREW 1/4-20 X 3/4 truss head (Grade 2) |
| 2443 | SCREW No. 10-24 X 3/8 oval head |
| 2444 | SCREW No. 12-24 X 7/8 TORX head, with lockpatch |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2501A | SCREW No. 8-32 X 3/8 hex head, self-tapping |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2579A | SCREW No. 8-32 X 5/16 Pozidriv oval head |
| 2592 | SCREW No. 10-24 X 1/2 Pozidriv pan head (Grade 2) |
| 2604 | SCREW No. 10-32 X 1/2 Pozidriv pan head (Grade 2) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2659 | SCREW No. 10-24 X 7/8 pan head |
| 2664 | SCREW No. 10-24 X 7/16 Pozidriv pan head (Grade 2) |
| 2692WB | SCREW No. 10-24 X 1/2 socket fillister head (Grade 8) |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2731W | SCREW No. 10 X 3/8 Phillips truss head, self-tapping |
| 2774 | SCREW 1/4-20 X 5/8 Pozidriv pan head (Grade 2) |
| 2782 | SCREW 5/16-18 X 1/2 truss head (Grade 2) |
| 2806 | SCREW No. 6-32 X 3/4 Pozidriv pan head (Grade 2) |
| 2871W | BOLT 5/16-18 X 1-1/4 hex head (Grade 5) |
| 2872W | BOLT 1/4-20 X 1-1/2 hex head (Grade 5) |
| 2887WA | SCREW 5/16-18 X 1-3/4 hex head (Grade 5) |
| 2918 | SCREW No. 10-24 X 1-1/4 TORX head |
| 2921 | SCREW No. 12 X 5/8 TORX pan head |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2927 | SCREW 1/4-20 X 1/2 socket flat head |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 2941 | SCREW 1/4-20 X 35/64 socket head, self-tapping (Grade 5) |
| 2955 | SCREW No. 6-32 X 1/4 Phillips pan head, with lockwasher |
| 2979 | SCREW 5/16-18 X 3/4 wing. |
| 2980 | SCREW M6 X 1 X 16mm hex flange head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 31689-90 | BOLT M4 X 0.7 X 12 hex head |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3403 | LOCKNUT M8-1.25 X 12mm flange (zinc) |
| 3462 | BOLT 5/16-18 X 1-1/4 hex head (Grade 8) |
| 3480A | SCREW 1/4-20 X 1-3/4 knurled head (Grade 8) |
| 35078-79 | NUT 3/4-16 X .391 X 1 |
| 3512 | BOLT 3/8-24 X 3-1/4 hex head (chrome) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35211-91B | NUT 1-1/2-24 X .350 X 1-7/8 hex head |
| 3529 | SCREW No. 10-32 X 1/4 hex slotted washer head, self-tapping |
| 3530 | SCREW 5/16-18 X 3-3/4 hex head (Grade 5) |
| 3554 | BOLT 3/8-16 X 1-3/4 hex head |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3584 | SCREW 5/16-18 X 2-1/2 socket button head (Grade 8) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3595 | SCREW No. 6-32 X 1/4 TORX head, with lockpatch |
| 3599 | SCREW 1/2-13 X 1-1/8 knurled head (Grade 8) |
| 3601 | SCREW 1/4-20 X 1-1/4 knurled head (Grade 8) |
| 3605 | BOLT 1/2-13 X 2-1/2 hex head (Grade 5) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3619 | SCREW No. 2-56 X 3/4 TORX pan head, with washer |
| 3639 | SCREW 10-12 X 1-1/8 TORX pan head, self-tapping |
| 3652 | SCREW 1/4-20 X 3/8 button head (Grade 8) |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3658 | SCREW No. 10-24 X 1/2 TORX head (Grade 5) |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3678 | SCREW 3/8-16 X 7/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3691 | SCREW No. 8-32 X 5/8 socket button head |
| 3692A | SCREW 5/16-18 X 1.0 hex head, with lockpatch |
| 3693A | SCREW 5/16-18 X 1-3/4 hex head, with lockpatch |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3736A | SCREW 5/16-18 X 1-1/4 hex flange head, with lockpatch |
| 3739 | SCREW 1/4 X 5/8 hex head, with lockpatch, self-tapping |
| 3746A | SCREW 1/4-20 X 2-1/4 hex flange head (Grade 8) |
| 3784 | SET SCREW 1/2-20 X 1/2 socket head, with lockpatch |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3899 | SCREW 7/16-14 X 1-3/4 hex head, with lockpatch |
| 3909 | SCREW 1/4-20 X 1-1/4 SEMS hex head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 3993 | BOLT 1/4-20 X 1-1/4 hex head (Grade 5) |
| 4017 | BOLT 5/16-18 X 1 hex head (Grade 5) |
| 4033 | SCREW 1/4-20 X 1-5/8 socket button head |
| 4086A | BOLT 5/16-18 X 3 hex head (Grade 5) |
| 4091 | SCREW No. 10-24 X 1/2 hex head, with washer, self-tapping (zinc) |
| 4124 | SCREW No. 10 X 5/8 self-tapping |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4319 | BOLT 3/8-24 X 1 hex head (Grade 5) |
| 4326A | SCREW 5/16-18 X 2 socket head |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4358A | SCREW No. 10-32 X 5.250 hex head (zinc plate) |
| 4400 | BOLT 1/4-20 X 1-11/16 hex head with Scotch grip (Grade 8) |
| 45279-00 | WASHER 11/32 X 5/8 X 1/32 Aluminum |
| 45405-75A | SCREW M8 X 1.25 x 27 hex socket head |
| 45718-60 | NUT 1-24 X 1.5 X 0.47 |
| 4716W | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4717A | SCREW 1/4-20 X 2-1/4 knurled head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4721 | BOLT 3/8-16 X 1-1/2 hex head (Grade 5) |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4752 | BOLT 7/16-14 X 1-1/4 hex head (Grade 8) |
| 4814A | SCREW 1/4-20 X 1-1/8 knurled head, with lockpatch |
| 5416 | BOLT 3/8-16 X 1/8 carriage (Grade 5) |
| 54321-85 | NUT No. 8-32 X 1/2 X 1/8 (brass) |
| 6003 | WASHER 1-3/16 X 1-3/8 X 11/16 |
| 6012 | WASHER 1/2 X 1-3/16 X 1/16 |
| 6016 | WASHER 11/32 X 11/16 X 1/16 |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6035A | WASHER 1/4 X 1-1/4 X 1/8 neoprene |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6047 | WASHER 5/8 X 13/64 X 3/64 |
| 6072 | WASHER 3/8 X 1 1/4 X 5/64 |
| 6083 | WASHER 1/2 X 11/16 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6229W | WASHER 5/16 X 1-1/16 X 3/64 |
| 6237 | WASHER 5/16 X 1-1/8 X 5/64 |
| 6279A | WASHER 1/4 X 1-1/2 X 1/16 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6366 | WASHER 1/2 X 1-1/4 X 3/32 |
| 6368 | WASHER 1/8 X 3/8 X 1/16 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6516HW | WASHER 7/16 X 1-1/8 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6716 | WASHER No. 10 X 1/2 X 3/64 |
| 6738 | WASHER 17/32 X 7/8 X 7/64 |
| 6762B | WASHER 11/16 X 29/32 X 1/32 |
| 67718-60A | SCREW 8-14 x 1/2 phillips head self-tapping |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 6789 | WASHER No. 6 X 7/8 X .05 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 6970 | WASHER 1/4 X 1/2 X 1/16 spring |
| 7038 | LOCKWASHER 3/8 |
| 7039 | LOCKWASHER 7/16 |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7073 | LOCKWASHER 1/4 external tooth |
| 7124 | LOCKWASHER 1/4 internal tooth |
| 7127 | LOCKWASHER 5/16 internal tooth |
| 7128 | LOCKWASHER 9/32 internal tooth |
| 7220 | LOCKWASHER No. 10 external tooth |
| 7230 | LOCKWASHER 1/4 external tooth |
| 7232 | LOCKWASHER 5/16 internal tooth |
| 7234 | LOCKWASHER No. 10 external tooth |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7507 | ACORN NUT 5/16-18 X 11/16 X 1/2 (Grade 2) (chrome) |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7596 | LOCKNUT 7/16-20 |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7651A | ACORN NUT No. 12-24 (Grade 2) (chrome) |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7682 | LOCKNUT 1/4-28 X 3/16 X 7/16 |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7688 | NUT 1/4-20 X 7/32 X 7/16 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7717 | NUT 1/4-20 flange |
| 7736 | ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) |
| 7742 | LOCKNUT 1/4-20 X 7/32 X 7/16 |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7748W | NUT 5/16-18 X 1/4 X 1/2 (Grade 2) |
| 7778 | LOCKNUT 3/8-16 X 7/16 X 9/16 |
| 7780 | LOCKNUT 3/8-24 X 13/32 X 11/16 flange |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7796 | NUT 5/16-18 X 1/4 external-tooth washer (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 7838 | NUT No. 10-24 keps |
| 7848W | JAMNUT 7/16-20 X 1/4 X 11/16 (Grade 2) |
| 7878 | NUT No. 10-24 X 7/32 X 3/8 flange |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7886 | ACORN NUT 5/16 X 11/16 X1/2 |
| 7887 | LOCKNUT 1/4-20 nylon |
| 7888A | NUT No. 6-32 flange head |
| 7889 | NUT No. 6-32 keps |
| 7900 | CLIP NUT 1/4-20 |
| 7951 | JAMNUT 3/4-16 X 17/64 X 1-7/64 (Grade 2) |
| 7956 | NUT 1/2-20 X 1/2 X 3/4 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 8144 | NUT CLIP 5/16-18 |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 895 | SCREW 5/16-18 X 3.0 hex flange head (Grade 5) |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 922 | SCREW No. 6-32 X 3/4 Phillips head (black) |
| 925 | SCREW 1/4-28 X 5/8 socket button head (Grade 8) |
| 928 | BOLT M5 X 0.8 X 35.2 hex head |
| 929A | SCREW M4 X 0.7 X 11.8 flange head |
| 930 | SCREW 10-24 X 1-1/4 fillister head |
| 933 | SCREW No. 10-32 X 15/16 Pozidriv truss head (Grade 2) |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| 961 | SCREW 1/4-20 X 1/2 TORX pan head, with washer (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16144-02 | ENGINE ASSEMBLY, complete | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 16480-92A | SCREW, internal thread 1-7/8 inch long (4) | ALL |
| 9 | 16775-99B | GASKET, cylinder head (2) | ALL |
| 10 | 16834-99A | STUD, cylinder (8) | ALL |
| 11 | 17052-99C | GASKET KIT, top end | ALL |
| 17053-99C | GASKET KIT, engine overhaul | ALL | |
| 18124-83 | INSERT, exhaust valve seat, 0.005 O.S. (2) | ALL | |
| 18134-83 | INSERT, intake valve seat, 0.005 O.S. (2) | ALL | |
| 15 | 18074-83B | VALVE, intake (2) | ALL |
| 16 | 18082-83A | VALVE, exhaust (2) | ALL |
| 17 | 18101-83D | GUIDE, valve, intake & exhaust (4) | ALL |
| 22 | 18229-83A | RETAINER, valve collar (8) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 3746A | SCREW (used w/ 17907-01) (4) | ALL |
| 6 | 4400 | BOLT (used w/ 17025-03A) (4) | ALL |
| 9 | 11132A | O-RING (4) | ALL |
| 10 | 11145A | O-RING (4) | ALL |
| 13 | 16719-99B | GASKET, rocker housing (2) | ALL |
| 14 | 17025-03A | BREATHER ASSEMBLY KIT, w/ 4400 & 26500002 (replaces 17907-01) (2) | ALL |
| 15 | 17045-99D | GASKET KIT, cam service, w/ 9, 10, 11, 12, 14, 18 & 34 | ALL |
| 18 | 17386-99A | GASKET, rocker cover (2) | ALL |
| 19 | 17429-91 | BEARING, rocker arm (8) | ALL |
| 21 | 17573-99A | HOUSING, rocker arm (chrome) (2) | ALL |
| 36 | 26500002 | BAFFLE ASSEMBLY, breather, w/ breather valve & filter (used w/ 17025-03A) (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 23957-99E | FLYWHEEL ASSEMBLY, complete, w/ 11177A | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 4271 | SCREW (3) | ALL |
| 12 | 16574-99A | RING, dowel (2) | ALL |
| 13 | 16589-99A | RING, dowel (2) | ALL |
| 14 | 16595-99A | RING, dowel (4) | ALL |
| 17 | 24597-99C | CRANKCASES, set, w/ 1, 2, 6, 7, 11, 12, 13, 14 & 25 (black) | ALL |
| 23 | 35071-99A | LOCKPLATE KIT, oil filter mount, w/ 4271, 6099 & 11293 | ALL |
| 24 | 35115-99 | RING, retaining, spiral (2) | ALL |
| 25 | 63798-99A | FILTER, oil (chrome) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 17045-99D | GASKET KIT, cam service | ALL |
| 14 | 25244-99A | GASKET, cam cover | ALL |
| 19 | 25369-01B | COVER, cam (chrome) | ALL |
| 30 | 26400-82B | VALVE, relief, oil pump | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 16207-79D | MOUNT, engine, front | ALL |
| 17 | 96210-80A | WASHER | ALL |
| Index No. | Part No. | Description | Model(s) |
| 9 | 27608-01A | RAIL, fuel | ALL |
| 10 | 27609-01B | INJECTOR, fuel (2) | ALL |
| 12 | 27627-01 | CLIP, fuel tube retaining | ALL |
| 13 | 27628-01A | CONTROL KIT, idle air, w/ idle air control motor, O-ring & 2 screws | ALL |
| 14 | 27629-01A | SENSOR KIT, throttle position, w/ 2 screws | ALL |
| 16 | 27635-01A | HARDWARE KIT, induction module (includes O-rings for fuel injectors) | ALL |
| 17 | 32416-10 | SENSOR ASSEMBLY, air pressure, manifold (MAP), w/ 11291 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 29121-01 | COVER, air cleaner, w/ 29127-95B | ALL |
| 4 | 29127-95B | LABEL, safety | ALL |
| 10 | 29474-99A | BRACKET, air cleaner cover | ALL |
| 12 | 29581-01B | BACKPLATE ASSEMBLY | ALL |
| 13 | 29583-01A | GASKET, air filter element | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10065 | STRAP, cable | ALL |
| 10 | 29987-02A | STATOR ASSEMBLY, 45 amp, w/ 72085-02 & 2 of 72084-02 | ALL |
| 12 | 72082-02 | HOUSING, socket, 2-way (gray) | ALL |
| 13 | 72083-02 | HOUSING, pin, 2-way (black) | ALL |
| 14 | 72084-02 | SEAL, wire, 10 AWG (4) | ALL |
| 15 | 72085-02 | TERMINAL, socket, 10 AWG (2) | ALL |
| 16 | 72086-02 | TERMINAL, pin, 10 AWG (2) | ALL |
| 17 | 72237-02 | LOCK, secondary, pin housing, 2-way | ALL |
| 21 | 74505-02 | REGULATOR ASSEMBLY, voltage, w/ 3, 5, 13, 14, 16, 17, 18, 19 & 20 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 31992-99B | SPARK PLUG CABLE, front & rear cylinder (2) | ALL |
| 7 | 32362-04 | SPARK PLUG, 6R12 (2) | ALL |
| 8 | 47420-02 | COIL BRACKET | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 11289A | O-RING | ALL |
| 32798-00B | SENSOR, crankshaft position, w/ 11289A & 74194-98 (replaces 32798-00) | ALL | |
| 74194-98 | TERMINAL, pin, solid (used w/ 32798-00B) | ALL | |
| 15 | 74193-98 | TERMINAL, socket | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 10957 | O-RING (use 31516-94A) | ALL |
| 21 | 31516-94A | CLUTCH ASSEMBLY, starter, w/ 8879, 10957, 31600-90, 31664-94 & 31692-90 | ALL |
| 31 | 31553-94B | STARTER, complete | ALL |
| 33 | 31604-91A | REPAIR KIT, solenoid | ALL |
| 34 | 31612-09 | JACKSHAFT KIT, w/ 7, 15, 16, 17, 18, 30, 42, 43, 44 & 45 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 3275 | SCREW | ALL |
| 23 | 33383-02 | CAM, shifter | ALL |
| 24 | 33709-82A | SHAFT | ALL |
| 25 | 33718-82B | LEVER | ALL |
| 26 | 33759-99B | ROD, shifter | ALL |
| 28 | 33895-82D | LEVER, shifter (2) | ALL |
| 29 | 34064-00C | SPRING, shift lever centering | ALL |
| 34 | 34611-65A | PEG, shift lever (2) | ALL |
| 35 | 34972-02B | LEVER ASSEMBLY, shifter pawl, w/ 34064-00C & 34977-02A | ALL |
| 36 | 34977-02A | SPRING, shifter shaft lever | ALL |
| 38 | 34979-00 | SLEEVE, shifter shaft, bushing | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 11132A | O-RING, filler plug | ALL |
| 19 | 12067B | SEAL, oil | ALL |
| 20 | 25604-00A | RAMP, inner | ALL |
| 21 | 25605-00A | RAMP, outer | ALL |
| 23 | 33904-00A | SWITCH, neutral indicator, w/ 11290 | ALL |
| 25 | 34904-86D | GASKET, upper cover | ALL |
| 29 | 35087-99A | RING, retaining, bearing (2) | ALL |
| 31 | 35653-98A | GASKET, bearing housing | ALL |
| 32 | 36801-87C | GASKET, right side cover | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 3699D | SCREW, w/ washer (4) | ALL |
| 10 | 11289A | O-RING | ALL |
| 12 | 26072-99A | GASKET, oil pan | ALL |
| 15 | 34740-02A | HOUSING, transmission (black) | ALL |
| 19 | 60328-98B | PLUG, magnetic, w/ 11105 (2) | ALL |
| 20 | 62432-93B | GASKET, oil spout | ALL |
| 21 | 62455-02 | SPOUT, oil filler | ALL |
| 22 | 62489-99A | PAN, oil, w/ 11105, 45893-99 & 60328-98B (black) | ALL |
| 31 | 74429-97C | SENSOR, speed, w/ 11289A, 72143-94, 72163-94BK, 72194-94 & 73198-96 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 34091-85A | BEARING, inner race | ALL |
| 12 | 35051-89A | BEARING, needle (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 37069-90A | OIL SLINGER ASSEMBLY | ALL |
| 9 | 37496-90A | NUT, mainshaft | ALL |
| 14 | 37872-00 | SEAT, clutch spring | ALL |
| 22 | 37912-00 | PLATE, pressure, clutch | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 11147B | O-RING, housing cover | ALL |
| 12 | 11324 | O-RING, magnetic drain plug (used w/ 60665-99B) | ALL |
| 13 | 12052A | SEAL, oil | ALL |
| 14 | 12066A | SEAL, oil | ALL |
| 15 | 25416-99C | SEAL, clutch cover | ALL |
| 19 | 34901-94C | GASKET, primary cover | ALL |
| 20 | 34906-85D | GASKET, inspection cover | ALL |
| 21 | 42642-00A | BUSHING (2) | ALL |
| 22 | 60391-04 | PLUG ASSEMBLY, w/ 11324 (used w/ 60665-99B) | ALL |
| 60665-99B | COVER ASSEMBLY, primary, w/ 33446-94A & 60391-04 (replaces 60665-99) (chrome) | ALL | |
| 28 | 25700225 | GASKET KIT, inner primary | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 45044-96A | CLAMP, lever bracket | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 35211-91B | NUT, sprocket | ALL |
| 22 | 40308-94 | SPROCKET, compensating, 25 T | ALL |
| 25 | 60386-02 | DEFLECTOR, debris (Domestic, California, Canada) | ALL |
| 26 | 60395-02 | DEFLECTOR, debris (HDI) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10065 | STRAP, cable | ALL |
| 9 | 43349-96B | BRAKE LINE KIT, w/ 10065 & 41731-01 | FLHTPI |
| 43350-96C | BRAKE LINE KIT, w/ 10065 & 41731-01 | FLHPEI, FLHPI | |
| 10 | 45004-96A | COVER, reservoir | ALL |
| 12 | 45013-96D | CYLINDER, master, 11/16-inch bore, w/ 1, 6, 13, 14, 15 & 18 | ALL |
| 14 | 45030-03C | COVER KIT, reservoir, w/ 2579A & cover gasket | ALL |
| 17 | 45044-96A | CLAMP, handlebar control | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 44023-00C | CALIPER ASSEMBLY, front, R.H., complete (includes all parts illustrated except 44160-00 & 44163-00) (black) | ALL |
| 44046-00D | CALIPER ASSEMBLY, front, L.H., complete (includes all parts illustrated except 44160-00 & 44163-00) (black) | ALL | |
| 3 | 44082-00D | PAD KIT | ALL |
| 11 | 44337-00B | SPRING KIT, anti-rattle | ALL |
| Index No. | Part No. | Description | Model(s) |
| 9 | 43493-00 | WHEEL, front, w/o bearings & sleeve (cast) | ALL |
| 15 | 95595-84A | WEIGHT, zinc, 5 grams (silver) (4) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 11688 | RING, retaining | ALL |
| 40922-87A | BOOT, master cylinder (used w/ 41755-99D) (replaces 40922-87) | ALL | |
| 17 | 40971-00B | BRAKE LINE KIT, rear | ALL |
| 41755-99D | MASTER CYLINDER ASSEMBLY, w/ 2, 14, 15, 16, 21, 22, 25, 26 & 31 (replaces 41755-99A) | ALL | |
| 21 | 41957-97A | PUSH ROD KIT, w/ 11688 | ALL |
| 23 | 42407-02 | LEVER ASSEMBLY, footbrake, w/ bushings | ALL |
| 42454-99A | RESERVOIR, master cylinder, w/ O-rings (used w/ 41755-99D) (replaces 42454-99) | ALL | |
| 42568-05A | GASKET, master cylinder reservoir (used w/ 46458-05) | ALL | |
| 31 | 46458-05 | COVER KIT, w/ gasket, sight glass & warning label DOT5 (used w/ 41755-99D) (black) | ALL |
| 32 | 57217-02 | BUSHING, brake lever (2) | ALL |
| 33 | 72023-51E | SWITCH, stop lamp | ALL |
| Index No. | Part No. | Description | Model(s) |
| 2 | 44080-02C | CALIPER ASSEMBLY (includes all parts illustrated except 44338-00) | ALL |
| 3 | 44082-00D | PAD KIT | ALL |
| 6 | 44313-01 | PISTON KIT | ALL |
| 9 | 44337-00B | SPRING KIT, anti-rattle | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 41056-02 | AXLE, rear | ALL |
| 8 | 41084-02A | SPACER, wheel bearing | ALL |
| 10 | 41139-02 | CLIP, spring | ALL |
| 11 | 41240-02 | SPACER | ALL |
| 13 | 41819-02 | CAM, axle | ALL |
| 14 | 43402-00B | WHEEL, rear, w/o bearings & sleeve (cast) | ALL |
| 17 | 95594-84A | WEIGHT, 5 grams | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 3892 | SCREW (2) | ALL |
| 15 | 27070-02 | CLAMP | ALL |
| 34 | 45892-02 | SPRING | ALL |
| 39 | 46497-02A | FORK ASSEMBLY, w/ 8, 10, 12, 16, 17, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36 & 40 | ALL |
| 40 | 46498-00A | SLIDER, fork, right, w/ 45998-73 | ALL |
| 47 | 72332-02A | BRACKET, mounting | ALL |
| Index No. | Part No. | Description | Model(s) |
| 9 | 45972-02 | TUBE ASSEMBLY | FLHTPI |
| 10 | 46209-02 | DAMPER, fork, left | FLHTPI |
| 11 | 46229-02 | CAP, fork, left | FLHTPI |
| 12 | 46235-02 | SPRING, fork, left | FLHTPI |
| 13 | 46236-02 | SEAT, fork spring, left | FLHTPI |
| 14 | 46237-02 | WASHER, spring, left | FLHTPI |
| 15 | 46238-02 | LOCK, oil, left | FLHTPI |
| 16 | 46262-02 | NUT, lock, damper, left | FLHTPI |
| 17 | 46495-02A | FORK ASSEMBLY, left (includes all parts illustrated) | FLHTPI |
| 18 | 46496-00A | SLIDER, fork | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 13 | 45892-02 | SPRING, fork | FLHPEI, FLHPI |
| 16 | 46496-00A | SLIDER, fork | FLHPEI, FLHPI |
| 17 | 46537-02A | FORK ASSEMBLY, left, (includes all parts illustrated) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 14 | 11491A | GROMMET, side cover (6) | ALL |
| 15 | 47491-02A | WASHER (2) | ALL |
| 17 | 47505-02 | SHAFT, rear fork | ALL |
| 18 | 47549-02A | FORK, rear | ALL |
| 19 | 47564-86B | SPACER, large (2) | ALL |
| 20 | 47606-02 | NUT (2) | ALL |
| 21 | 47900-02A | FRAME | ALL |
| 23 | 48487-02 | SPACER, outer (2) | ALL |
| 24 | 48489-02 | SPACER, inner (2) | ALL |
| 29 | 50078-81B | BRACKET, jiffy stand leg | ALL |
| 31 | 50245-99A | BUMPER, jiffy stand leg | ALL |
| 37 | 66619-97A | COVER, side, left (primed) | ALL |
| 66670-97A | COVER, side, right (primed) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 21 | 52242-83E | SEAT | ALL |
| 28 | 52282-94C | AIR SPRING ASSEMBLY, w/ 3278, 54300-94 & spring | ALL |
| 52301-97C | TRIM PANEL ASSEMBLY (replaces 52301-97B) | ALL | |
| 34 | 54301-94A | HOSE, air spring | ALL |
| Index No. | Part No. | Description | Model(s) |
| 8 | 47365-83C | BRACKET KIT, front (2) | ALL |
| 12 | 50622-83C | BRACKET KIT, left rear, w/ 4017 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 54320-97 | FITTING, 5/32 push-in (2) | ALL |
| 8 | 54328-97 | FITTING, union, 5/32 push-in (used w/ 54536-02) | ALL |
| 11 | 54536-02A | VALVE ASSEMBLY, w/ 54321-85, 54357-03 & 54354-94A (replaces 54536-02) | ALL |
| 12 | 54565-97C | SHOCK ABSORBER, rear, w/ 54320-97 (2) | ALL |
| 13 | 90820-93D | DECAL, air suspension (inside right saddlebag) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 55918-08 | CLAMP, handlebar, upper (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 56357-02 | CONTROL ASSEMBLY, throttle | ALL |
| 15 | 56358-02 | CONTROL ASSEMBLY, idle | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 58208-96A | SKIRT, outer fairing | FLHTPI |
| 12 | 67001-08 | RING KIT, retaining, headlight, w/ 67721-48, 67726-08 & 67732-08 (replaces 67726-71 & 67732-71A) | FLHTPI |
| 14 | 67712-83A | DOOR (chrome) | FLHTPI |
| 15 | 67716-60B | GASKET, headlamp door (used w/ 67702-81A) | FLHTPI |
| 17 | 67721-48 | SCREW (used w/ 67001-08) | FLHTPI |
| 67726-08 | RING ASSEMBLY, headlamp (used w/ 67001-08) | FLHTPI | |
| 20 | 67728-02A | BUCKET ASSEMBLY, headlamp, w/ 67724-71 & 67782-60A (used w/ 67702-81C) | FLHTPI |
| 67732-08 | RING, mounting, headlamp (used w/ 67001-08) | FLHTPI | |
| 23 | 67778-60A | SPRING, top, headlamp door | FLHTPI |
| 24 | 67780-60A | SPRING, bottom, headlamp door (used w/ 67702-81A) (2) | FLHTPI |
| 26 | 68329-03 | BULB, headlamp, halogen | FLHTPI |
| 27 | 68342-05 | REFLECTOR ASSEMBLY, w/ 68329-03 & 68390-05 | FLHTPI |
| 28 | 68390-05 | BOOT (used w/ 68342-05) | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 13 | 58478-96B | BRACKET, fairing support, left | FLHTPI |
| 14 | 58479-96B | BRACKET, fairing support, right | FLHTPI |
| 15 | 58497-96B | FAIRING ASSEMBLY, inner, w/ 7688 & 58311-96 | FLHTPI |
| 17 | 58938-96C | SUPPORT, inner fairing, left | FLHTPI |
| 18 | 58939-96C | SUPPORT, inner fairing, right | FLHTPI |
| 20 | 71431-96A | PLUG, switch hole (4) | FLHTPI |
| 22 | 75105-96A | PLUG, microphone jack | FLHTPI |
| 23 | 75119-96A | PLUG, pursuit lamp, w/ hole | FLHTPI |
| 28 | 91812-89A | SOCKET, cigarette lighter | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 8 | 7888A | NUT, speed | FLHPEI |
| 11 | 14019-83A | LABEL, on - off | FLHPEI |
| 12 | 67001-08 | RING KIT, retaining, headlight, w/ 67721-48, 67726-08 & 67732-08 (replaces 67726-71 & 67732-71A) | FLHPEI |
| 67702-81C | HEADLAMP ASSEMBLY, complete, w/ 14, 16, 17, 19, 20, 21, 23 & 27 (replaces 67702-81A) | FLHPEI | |
| 14 | 67712-83A | DOOR (chrome) | FLHPEI |
| 15 | 67716-60B | GASKET, headlamp door (used w/ 67702-81A) | FLHPEI |
| 17 | 67721-48 | SCREW (used w/ 67001-08) | FLHPEI |
| 67726-08 | RING ASSEMBLY, headlamp (used w/ 67001-08) | FLHPEI, FLHPI | |
| 20 | 67728-02A | BUCKET ASSEMBLY, headlamp, w/ 67724-71 & 67782-60A (used w/ 67702-81C) | FLHPEI |
| 67732-08 | RING, mounting, headlamp (used w/ 67001-08) | FLHPEI | |
| 23 | 67778-60A | SPRING, top, headlamp door | FLHPEI |
| 24 | 67780-60A | SPRING, bottom, headlamp door (used w/ 67702-81A) (2) | FLHPEI |
| 26 | 67866-03 | COVER, handlebar | FLHPEI |
| 27 | 67868-03 | TRIM, nacelle | FLHPEI |
| 28 | 67924-06 | NACELLE KIT, w/ 67674-03B, 67682-03B, 67866-03 & 67868-03 | FLHPEI |
| 67674-03B | NACELLE, R.H. | FLHPEI | |
| 67682-03B | NACELLE, L.H. | FLHPEI | |
| 29 | 68329-03 | BULB, headlamp, halogen | FLHPEI |
| 30 | 68342-05 | REFLECTOR ASSEMBLY, w/ 68329-03 & 68390-05 | FLHPEI |
| 31 | 68390-05 | BOOT (used w/ 68342-05) | FLHPEI |
| 35 | 71540-94A | LOCK, fork | FLHPEI |
| 36 | 74408-89A | BOOT (2) | FLHPEI |
| 40 | 67793-92A | LENS ASSEMBLY, w/ 67798-92 & 68329-03, R.H. dip (HDI) | FLHPEI |
| 67801-92A | LENS ASSEMBLY, w/ 67798-92 & 68329-03, L.H. dip (HDI) | FLHPEI |
| Index No. | Part No. | Description | Model(s) |
| 6 | 7651A | ACORN NUT (13) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 12 | 68453-05 | BULB, halogen (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 15 | 68663-64G | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A, 68727-09A & 72160-06 (replaces 68663-64D) (red) | ALL |
| 68665-84F | LAMP, pursuit, w/ 3514, 7606, 68331-02, 68725-62A, 68728-09A & 72160-06 (replaces 68665-84C) (blue) | ALL | |
| 20 | 68727-64D | LAMP, pursuit, sealed unit (used w/ 68663-64D) (red) | ALL |
| 68728-64C | LAMP, pursuit, sealed unit (used w/ 68665-84C) (blue) | ALL | |
| 21 | 68727-09A | LAMP, pursuit, halogen, w/ 68453-05 (used w/ 68663-64G) (red) | ALL |
| 68728-09A | LAMP, pursuit, halogen, w/ 68453-05 (used w/ 68665-84F) (blue) | ALL | |
| 23 | 72160-06 | HOUSING, auxiliary lamp, w/ 72161-06, 72298-95 & 72356-95 (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 24 | 72161-06 | HOUSING, socket, 2-way (used w/ 68663-64G & 68665-84F) (2) | ALL |
| 25 | 72298-95 | SEAL, cable (used w/ 68663-64G & 68665-84F) (green) (4) | ALL |
| 26 | 72356-95 | TERMINAL, socket, 18-20 gauge (used w/ 68663-64G & 68665-84F) (4) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 19 | 59093-00B | FENDER (prime) | ALL |
| 22 | 59211-74A | TRIM, side (2) | ALL |
| 32 | 91085-83D | BUMPER ASSEMBLY, w/ 3, 6, 7, 8, 13, 14, 15, 20, 24, 33 & 34 | ALL |
| 34 | 91107-77C | CUSHION, bumper | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 59579-01B | FENDER, rear (primed) | ALL |
| 23 | 91013-79A | BUMPER ASSEMBLY, rear, w/ 8135B, 91023-79A & 91123-77 | ALL |
| 24 | 91023-79A | RAIL, rear bumper | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 62349-04F | FUEL LINE ASSEMBLY | FLHTPI |
| 14 | 62958-02 | PLUG | FLHTPI |
| 16 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 6 | 11380 | O-RING | FLHTPI |
| 11 | 61402-02 | GASKET, sending unit | FLHTPI |
| 12 | 61583-02 | SPRING | FLHTPI |
| 13 | 61960-04 | CUSHION (rubber) | FLHTPI |
| 62163-01A | HOUSING, fuel pump (replaces 62163-01) | FLHTPI | |
| 62188-04 | SPACER (used w/ 62897-01B) (rubber) | FLHTPI | |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 13, 14, 15, 16 & 17 (replaces 75126-02) (used w/ 75126-02C) | FLHTPI | |
| 72439-00B | CONNECTOR KIT, fuel tank, 3-way, w/ 72442-05 & 72443-05 (replaces 72435-00) | FLHTPI | |
| 22 | 72442-05 | HEADER, 3-way | FLHTPI |
| 23 | 72443-05 | CONNECTOR, 3-way | FLHTPI |
| 24 | 72458-00 | O-RING & CLIP KIT, w/ 11380 & connector clip | FLHTPI |
| 25 | 75069-02 | PLATE, top | FLHTPI |
| 75126-02C | FUEL PUMP, SENDER & FILTER MODULE, w/ 2, 4, 5, 6, 7, 8, 9, 10, 12, 18, 19, 20, 21, 25 & 26 (replaces 75126-02C) | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 12 | 61270-98A | CONSOLE, w/ 61279-88 | FLHTPI |
| 18 | 71294-89C | MOLDING (rubber) (bulk) | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 12 | 61272-92C | CAP, filler, vacuum vent | FLHPEI, FLHPI |
| 16 | 62349-04F | FUEL LINE ASSEMBLY, tank to intake | FLHPEI, FLHPI |
| 17 | 62958-02 | PLUG | FLHPEI, FLHPI |
| 20 | 63521-95A | HOSE, 5/16 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 6 | 11380 | O-RING | FLHPEI, FLHPI |
| 11 | 61402-02 | GASKET, sending unit | FLHPEI, FLHPI |
| 12 | 61583-02 | SPRING | FLHPEI, FLHPI |
| 13 | 61960-04 | CUSHION (rubber) | FLHPEI, FLHPI |
| 62163-01A | HOUSING, fuel pump (replaces 62163-01) | FLHPEI, FLHPI | |
| 62897-01B | PUMP ASSEMBLY, fuel, w/ 3, 14, 15, 16, 17 & 18 (replaces 62897-01) | FLHPEI, FLHPI | |
| 72439-00B | CONNECTOR KIT, fuel, 3-way, w/ 72442-05 & 72443-05 (replaces 72435-00) | FLHPEI, FLHPI | |
| 22 | 72442-05 | HEADER, 3-way | FLHPEI, FLHPI |
| 24 | 72458-00 | O-RING & CLIP KIT, w/ 11380 & connector clip | FLHPEI, FLHPI |
| 25 | 75076-02 | PLATE, top | FLHPEI, FLHPI |
| 75127-02C | FUEL PUMP, SENDER & FILTER MODULE, w/ 2, 4, 5, 6, 7, 8, 9, 10, 12, 18, 19, 20, 21, 25 & 27 (replaces 65127-02) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 11 | 65296-95A | CLAMP, muffler (3) | ALL |
| 12 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 14 | 65328-83A | CLAMP, exhaust manifold (2) | ALL |
| 16 | 65538-95B | MUFFLER, left | ALL |
| 65554-95B | MUFFLER, left (catalytic) (California) | FLHPEI, FLHPI | |
| 65846-95B | MUFFLER, right (catalytic) (California) | ALL | |
| 19 | 65620-98A | CLAMP AND BRACKET, exhaust mount at starter | ALL |
| 20 | 65621-99B | PIPE, exhaust, right, front | ALL |
| 21 | 65626-98C | PIPE, exhaust, right, rear | ALL |
| 22 | 65627-99A | PIPE, exhaust, left | ALL |
| 23 | 65630-83C | SHIELD, front exhaust pipe | ALL |
| 24 | 65634-98A | SHIELD, right exhaust pipe, front | ALL |
| 27 | 65678-85D | BRACKET, rear exhaust pipe | ALL |
| 30 | 65951-98A | SHIELD, heat, rear exhaust pipe | ALL |
| 31 | 65952-98A | SHIELD, heat, exhaust pipe, right rear lower | ALL |
| 34 | 65863-95E | MUFFLER, right (catalytic) (Japan) | FLHPEI |
| Index No. | Part No. | Description | Model(s) |
| 6 | 15368-01A | LABEL, warning | ALL |
| 8 | 66010-97C | BATTERY | ALL |
| 10 | 66281-02A | TRAY ASSEMBLY, battery | ALL |
| 12 | 70377-97A | CABLE ASSEMBLY, battery positive to starter w/ 9834 & 70584-94 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 67352-96A | CLAMP, 2 inch gauge (4) | FLHTPI |
| 14 | 68789-96B | LAMP ASSEMBLY, indicator, w/ 73160-96BK (replaces 68789-96) | FLHTPI |
| 18 | 74526-96C | VOLTMETER | FLHTPI |
| 75032-99B | GAUGE, oil pressure | FLHTPI | |
| 75109-96C | GAUGE, air temperature | FLHTPI | |
| 75111-96C | GAUGE, fuel | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 6 | 67121-95A | CUSHION, front | FLHPEI, FLHPI |
| 8 | 67419-99 | WIRE HARNESS KIT, w/ 70585-93 (replaces 68806-99) | FLHPEI, FLHPI |
| 70585-93 | CONNECTOR (used w/ 67419-99) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 10 | 61192-96A | GASKET, fuel gauge | FLHPEI, FLHPI |
| 16 | 68112-99A | BEZEL, indicator | FLHPEI, FLHPI |
| 17 | 68113-99B | HOUSING ASSEMBLY, w/ 74118-98BK, 74158-98, 741193-98 & 74195-98 | FLHPEI, FLHPI |
| 20 | 71313-96A | SWITCH, ignition, w/ key (specify key code) | FLHPEI, FLHPI |
| 26 | 74193-98 | TERMINAL, socket (7) | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 9 | 68066-99A | BASE ASSEMBLY, tail lamp, w/ 68296-99A & 68830-99A | ALL |
| 68140-04 | LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A (replaces 68140-99) | ALL | |
| 12 | 68296-99A | BASE, tail lamp (chrome) | ALL |
| 13 | 68369-03 | ENVELOPE, tail lamp, w/ 68026-99 (used w/ 68140-04) | ALL |
| 14 | 68370-03A | SOCKET & BULB ASSEMBLY, tail lamp, w/ 68168-89A, 68832-99 & 73154-96BK (used w/ 68140-04) | ALL |
| 21 | 68830-99A | COVER, circuit board | ALL |
| 68142-04 | LIGHT ASSEMBLY, tail lamp, w/ 68558-03 & 69187-03A (replaces 68142-99) (HDI) | ALL | |
| 29 | 68163-84 | BULB, rear turn signal (used w/68765-94A) (HDI) | ALL |
| 32 | 68558-03 | ENVELOPE, tail lamp, w/ 68026-99 (used w/ 68142-04) (amber) (HDI) (2) | ALL |
| 35 | 69187-03A | SOCKET & BULB ASSEMBLY, tail lamp, w/ 68167-04 (used w/ 68142-04) (HDI) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 69060-90F | HORN KIT | ALL |
| 10 | 69123-92A | MOUNT, horn (rubber) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 70260-02 | WIRING HARNESS, MAIN | FLHPEI, FLHPI | |
| 10 | 31504-91B | RELAY, w/ diode | FLHPEI, FLHPI |
| 11 | 31522-00C | RELAY, w/ diode (2) | FLHPEI, FLHPI |
| 19 | 72103-94BK | HOUSING, 3-way (black) | FLHPEI, FLHPI |
| 32 | 72164-94A | PLUG, weather, 4-way pin | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 70260-02 | WIRING HARNESS, MAIN | FLHPEI, FLHPI | |
| 45 | 72327-03A | HOUSING, female, 3-way | FLHPEI, FLHPI |
| 56 | 72531-02A | COVER, fuse block | FLHPEI, FLHPI |
| 75 | 74600-94 | BREAKER, circuit, 50 amp | FLHPEI, FLHPI |
| Index No. | Part No. | Description | Model(s) |
| 1 | 70985-02 | MAIN WIRING HARNESS | FLHTPI |
| 10 | 31504-91B | RELAY, w/ diode (2) | FLHTPI |
| 11 | 31522-00C | RELAY, micro spdt | FLHTPI |
| 12 | 67854-98 | SWITCH, momentary | FLHTPI |
| 25 | 72164-94A | CONNECTOR, plug | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 1 | 70985-02 | MAIN WIRING HARNESS (continued) | FLHTPI |
| 62 | 72531-02A | COVER, fuse block | FLHTPI |
| 69 | 74600-94 | BREAKER, circuit, 50 amp | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 7 | 68563-04A | FLASHER | FLHTPI |
| 16 | 72200-94A | CONNECTOR, 3-way (2) | FLHTPI |
| Index No. | Part No. | Description | Model(s) |
| 7 | 70356-96A | KNOB, pursuit | ALL |
| 9 | 70359-96A | KNOB, horn/siren | ALL |
| 13 | 71515-08 | SWITCH KIT, siren/dimmer, w/ 10181 & 72266-94 | ALL |
| 16 | 71587-04 | V-CLIP | ALL |
| 17 | 71620-08 | SWITCH KIT, clutch, w/ 10181 & 72266-94 | ALL |
| 18 | 71621-08 | SWITCH KIT, stoplamp, w/ 10181 & 72266-94 | ALL |
| 19 | 71683-06A | SWITCH KIT, right turn signal, w/ 10181 & 72266-94 | ALL |
| 20 | 71684-06A | SWITCH KIT, engine stop & start, w/ 10181 & 72266-94 | ALL |
| 21 | 71685-06A | SWITCH KIT, left turn signal, w/ 10181 & 72266-94 | ALL |
| 28 | 72266-94 | TUBE, shrink, dual wall (as required) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 8483A | RIVET | ALL |
| 5 | 9907 | TERMINAL, 14-16 AWG | ALL |
| 6 | 9989A | CLIP, circuit breaker | ALL |
| 8 | 31504-91B | RELAY (2) | FLHPEI, FLHPI |
| 8 | 31504-91B | RELAY (4) | FLHTPI |
| 9 | 33902-98A | SWITCH, neutral indicator | ALL |
| 10 | 66373-06 | BATTERY, remote control FOB | ALL |
| 11 | 68920-01D | MODULE, turn signal canceller | ALL |
| 12 | 68922-00D | MODULE, security system | ALL |
| 23 | 71640-99 | SWITCH, ignition, w/ terminal & connector | FLHTPI |
| 24 | 72023-51E | SWITCH KIT, stop lamp, rear, w/ 9907 | ALL |
| 28 | 74600-94 | BREAKER, circuit, 50 amp | ALL |
| 31 | 68920-01D | MODULE, turn signal canceller (HDI) | ALL |
| 32 | 68924-00D | MODULE, security system & turn signal canceller (HDI) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 32534-11 | MODULE, electronic control | ALL |
| 4 | 70348-02 | CADDY, electrical | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 70233-02 | WIRING HARNESS, EFI | ALL |
| 4 | 31511-01B | RELAY (black) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 14274-93A | DECAL, right (police) | ALL |
| 14275-93A | DECAL, left (police) | ALL | |
| 59223-93A | DECAL, right (sheriff) | ALL | |
| 59224-93A | DECAL, left (sheriff) | ALL | |
| 19 | 53848-00 | LOCK SET, t-pak, (Specify 4-digit code) (2) | ALL |
| 53568-03A | LOCK SET, complete w/ keys, key covers, cam lock, ignition switch, fork lock, cam lock & 10065 | FLHPEI, FLHPI | |
| 28 | 90675-93A | GASKET, saddlebag cover (2) | ALL |
| 34 | 90820-93D | LABEL, load limits (2) | ALL |
| 40 | 90834-95B | STUD, bail head (4) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 18 | 90594-85A | CUSHION (2) | ALL |
| 19 | 90718-79C | BRACKET, support, L.H. | ALL |
| 90720-79C | BRACKET, support, R.H. | ALL | |
| 21 | 90934-93A | CLAMP, rear L.H., outer | ALL |
| 90946-93A | CLAMP, rear R.H., outer | ALL | |
| 22 | 90935-93A | CLAMP, rear R.H., inner | ALL |
| 90936-93A | CLAMP, rear L.H., inner | ALL | |
| 23 | 90943-93A | MOUNT, guard (4) | ALL |
| 24 | 90945-93A | MOUNT, guard (4) | ALL |
| 25 | 91054-07 | PAD (2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 27461-02 | TUBE, carburetor to valve, carburetor end | ALL |
| Part No. | Description |
| 1000 | |
| 10003 | |
| 10006 | |
| 10031 | |
| 10038A | |
| 10039 | |
| 10065 | |
| 10073 | |
| 10076 | |
| 10102 | |
| 10103 | |
| 10105 | |
| 10108 | |
| 10110 | |
| 10113 | |
| 10116 | |
| 10120 | |
| 10136 | |
| 10138 | |
| 10147 | |
| 10148 | |
| 10181 | |
| 10183 | |
| 10184 | |
| 10222 | |
| 10225 | |
| 10227 | |
| 10231 | |
| 10249 | |
| 1039 | |
| 10957 | |
| 10998 | |
| 11031 | |
| 11067 | |
| 11085 | |
| 11096 | |
| 11105 | |
| 11132A | |
| 11140 | |
| 11143 | |
| 11145A | |
| 11147B | |
| 11150 | |
| 11155 | |
| 11157 | |
| 11161 | |
| 11165 | |
| 11177A | |
| 11179 | |
| 11182 | |
| 11248 | |
| 11256 | |
| 11270 | |
| 11271 | |
| 11272 | |
| 11273 | |
| 11286 | |
| 11289A | |
| 11290 | |
| 11291 | |
| 11292 | |
| 11293 | |
| 11298 | |
| 11299 | |
| 11301 | |
| 11319A | |
| 11324 | |
| 11342 | |
| 11351 | |
| 11364 | |
| 11380 | |
| 11437 | |
| 11445 | |
| 11464 | |
| 11488 | |
| 11489 | |
| 11491A | |
| 11492 | |
| 11494 | |
| 11495 | |
| 11503 | |
| 11602 | |
| 11688 | |
| 12035B | |
| 12045 | |
| 12052A | |
| 12066A | |
| 12067B | |
| 12068 | |
| 1311D | |
| 1314 | |
| 14019-83A | |
| 14020-83 | |
| 14270-92 | |
| 14274-93A | |
| 14275-93A | |
| 14630-96 | |
| 15368-01A | |
| 16144-02 | |
| 16207-79D | |
| 16219-79C | |
| 16316-99 | |
| 16478-85A | |
| 16480-92A | |
| 16526-99 | |
| 16574-99A | |
| 16585-96 | |
| 16589-99A | |
| 16595-99A | |
| 16715-83 | |
| 16719-99B | |
| 16722-99 | |
| 16724-99 | |
| 16775-99B | |
| 16834-99A | |
| 17025-03A | |
| 17045-99D | |
| 17052-99C | |
| 17053-99C | |
| 17360-83A | |
| 17375-83A | |
| 17386-99A | |
| 17429-91 | |
| 1750 | |
| 17572-99 | |
| 17573-99A | |
| 17594-99 | |
| 17611-83 | |
| 1783C | |
| 17907-01 | |
| 17922-99 | |
| 17923-99 | |
| 17939-99 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99 | |
| 17964-99 | |
| 17966-99 | |
| 17968-99 | |
| 18001-83B | |
| 18011-86 | |
| 18020-83 | |
| 18074-83B | |
| 18076-83 | |
| 18082-83A | |
| 18101-83D | |
| 18124-83 | |
| 18130-83D | |
| 18131-83D | |
| 18133-83B | |
| 18134-83 | |
| 18201-83 | |
| 18202-83 | |
| 18219-83A | |
| 18222-83A | |
| 18229-83A | |
| 18535-99 | |
| 18538-99C | |
| 18635-99B | |
| 21930-99 | |
| 21931-99 | |
| 21933-99 | |
| 21936-99 | |
| 21937-99 | |
| 21938-99 | |
| 22097-99 | |
| 221 | |
| 22132-99 | |
| 22307-99 | |
| 2361 | |
| 23957-99E | |
| 24008-99A | |
| 24032-70 | |
| 24033-70 | |
| 24034-70 | |
| 24035-70 | |
| 24036-70 | |
| 24037-70 | |
| 2420 | |
| 24316-99 | |
| 2443 | |
| 2444 | |
| 2445 | |
| 2446 | |
| 24597-99C | |
| 24623-99B | |
| 2501A | |
| 25244-99A | |
| 25267-99B | |
| 25296-99 | |
| 25297-00 | |
| 25297-99B | |
| 2531 | |
| 25344-99 | |
| 25369-01B | |
| 25416-99C | |
| 25533-99A | |
| 25604-00A | |
| 25605-00A | |
| 25607-99 | |
| 25609-99 | |
| 25610-99 | |
| 2563 | |
| 25700225 | |
| 25716-99 | |
| 25717-00 | |
| 25719-00 | |
| 25721-00 | |
| 25722-00 | |
| 25723-00 | |
| 2579A | |
| 2592 | |
| 25938-00 | |
| 26035-99B | |
| 2604 | |
| 26072-99A | |
| 26210-99 | |
| 26248-00 | |
| 26255-00 | |
| 26261-99 | |
| 26314-99 | |
| 26352-95A | |
| 26400-82B | |
| 26432-76A | |
| 26464-99 | |
| 2647B | |
| 26500002 | |
| 26561-99 | |
| 2659 | |
| 2664 | |
| 2692WB | |
| 26995-86B | |
| 27009-86A | |
| 27010-86A | |
| 27042-84A | |
| 27045-97 | |
| 27070-02 | |
| 2708A | |
| 27191-97A | |
| 27201-97A | |
| 27269-97 | |
| 27270-95 | |
| 27291-97A | |
| 27297-97A | |
| 27298-97 | |
| 2731W | |
| 27408-01 | |
| 27461-02 | |
| 27600-01A | |
| 27603-01 | |
| 27604-01A | |
| 27608-01A | |
| 27609-01B | |
| 27612-01 | |
| 27627-01 | |
| 27628-01A | |
| 27629-01A | |
| 27630-01 | |
| 27635-01A | |
| 2774 | |
| 2782 | |
| 2806 | |
| 2871W | |
| 2872W | |
| 28867-88 | |
| 2887WA | |
| 29121-01 | |
| 29127-95B | |
| 29158-99 | |
| 2918 | |
| 2921 | |
| 29269-83A | |
| 2927 | |
| 29312-95 | |
| 29313-95 | |
| 2933 | |
| 2934 | |
| 2935A | |
| 2941 | |
| 29461-99 | |
| 29465-99 | |
| 29474-99A | |
| 29476-99 | |
| 2955 | |
| 29581-01B | |
| 29583-01A | |
| 29584-01 | |
| 2979 | |
| 2980 | |
| 29987-02A | |
| 29999-97B | |
| 3022A | |
| 31342-94 | |
| 31430-94 | |
| 31504-91B | |
| 31510-90 | |
| 31511-01B | |
| 31515-90 | |
| 31516-94A | |
| 31518-90 | |
| 31519-90 | |
| 31521-98 | |
| 31522-00C | |
| 31525-90 | |
| 31527-90 | |
| 31530-90 | |
| 31535-91 | |
| 31538-98 | |
| 31548-90 | |
| 31553-94B | |
| 31600-90 | |
| 31604-91A | |
| 31612-09 | |
| 31660-90 | |
| 31662-90 | |
| 31664-94 | |
| 31688-90 | |
| 31689-90 | |
| 31692-90 | |
| 31695-90 | |
| 31743-01 | |
| 31992-99B | |
| 3210A | |
| 32362-04 | |
| 32416-10 | |
| 32446-99 | |
| 3249 | |
| 32534-11 | |
| 32543-99 | |
| 3265A | |
| 3275 | |
| 3278 | |
| 32798-00 | |
| 32798-00B | |
| 32800-00 | |
| 32807-00 | |
| 3290 | |
| 33035-02 | |
| 33126-94 | |
| 33127-94 | |
| 3317 | |
| 33301-00A | |
| 33304-00 | |
| 33318-85 | |
| 33344-94 | |
| 33364-00A | |
| 33374-00 | |
| 33375-00A | |
| 33376-00 | |
| 33383-02 | |
| 33445-94A | |
| 33446-94A | |
| 33449-94 | |
| 337 | |
| 33709-82A | |
| 33718-82B | |
| 33759-99B | |
| 33849-97 | |
| 33895-82D | |
| 33902-98A | |
| 33904-00A | |
| 3403 | |
| 34064-00C | |
| 34088-87A | |
| 34091-85A | |
| 34191-79E | |
| 34193-79E | |
| 34195-79E | |
| 34541-00 | |
| 34611-65A | |
| 3462 | |
| 34740-02A | |
| 3480A | |
| 34901-94C | |
| 34904-86D | |
| 34906-85D | |
| 34920-86A | |
| 34972-02B | |
| 34977-02A | |
| 34978-00A | |
| 34979-00 | |
| 35025-79B | |
| 35026-94 | |
| 35027-94 | |
| 35028-94 | |
| 35029-94 | |
| 35042-91 | |
| 35051-89A | |
| 35060-00 | |
| 35064-79 | |
| 35071-99A | |
| 35076-79 | |
| 35078-79 | |
| 35087-99A | |
| 35115-99 | |
| 3512 | |
| 3514 | |
| 35211-91B | |
| 35252-93B | |
| 3529 | |
| 3530 | |
| 3554 | |
| 3559 | |
| 3560WA | |
| 3561WC | |
| 35622-79C | |
| 35625-94 | |
| 35626-94 | |
| 35629-79 | |
| 3563 | |
| 35632-79 | |
| 35653-98A | |
| 3574 | |
| 3576 | |
| 3584 | |
| 35850-84 | |
| 35851-84 | |
| 3588 | |
| 3594 | |
| 3595 | |
| 3599 | |
| 3601 | |
| 3605 | |
| 3607 | |
| 3612 | |
| 3619 | |
| 3639 | |
| 3652 | |
| 3655A | |
| 3658 | |
| 3676 | |
| 3678 | |
| 36801-87C | |
| 3684 | |
| 3691 | |
| 3692A | |
| 3693A | |
| 3699D | |
| 37069-90A | |
| 37075-87 | |
| 37088-90 | |
| 37090-98A | |
| 37105-99 | |
| 37174-99 | |
| 37312-75 | |
| 37313-80 | |
| 3736A | |
| 3739 | |
| 3746A | |
| 37496-90A | |
| 375 | |
| 37550-98 | |
| 37707-98A | |
| 37802-98B | |
| 3784 | |
| 3787 | |
| 37871-98A | |
| 37872-00 | |
| 37883-98 | |
| 37884-98 | |
| 37903-90 | |
| 37904-90 | |
| 37905-00 | |
| 37906-90 | |
| 37909-90 | |
| 37912-00 | |
| 37913-98 | |
| 37932-98 | |
| 38608-96 | |
| 38630-88 | |
| 38667-00 | |
| 38722-94 | |
| 3892 | |
| 3899 | |
| 3909 | |
| 3929 | |
| 3987 | |
| 3993 | |
| 39954-99A | |
| 39964-99A | |
| 39965-99 | |
| 39976-01 | |
| 39990-01 | |
| 39998-65A | |
| 40024-97 | |
| 40037-79A | |
| 4017 | |
| 40217-00 | |
| 40250-94C | |
| 40251-92A | |
| 40266-85 | |
| 40299-83A | |
| 40308-94 | |
| 40323-00 | |
| 4033 | |
| 40384-91 | |
| 40392-91 | |
| 4086A | |
| 4091 | |
| 40918-87 | |
| 40920-87 | |
| 40922-87 | |
| 40922-87A | |
| 40971-00B | |
| 40999-87 | |
| 41056-02 | |
| 41084-02A | |
| 41123-79 | |
| 41139-02 | |
| 4124 | |
| 41240-02 | |
| 4132 | |
| 41731-01 | |
| 41747-82A | |
| 41755-99A | |
| 41755-99D | |
| 41797-00 | |
| 41819-02 | |
| 41957-97A | |
| 42382-87C | |
| 4240 | |
| 42407-02 | |
| 42416-83 | |
| 42454-99 | |
| 42454-99A | |
| 42455-99 | |
| 42460-80B | |
| 42533-91A | |
| 42568-05A | |
| 42642-00A | |
| 4271 | |
| 4312C | |
| 4319 | |
| 4326A | |
| 43349-96B | |
| 43350-96C | |
| 43364-00 | |
| 43402-00B | |
| 43493-00 | |
| 43517-00 | |
| 43520-00A | |
| 43521-00A | |
| 43567-92 | |
| 4358A | |
| 4400 | |
| 44023-00C | |
| 44046-00D | |
| 44048-83 | |
| 44080-02C | |
| 44082-00D | |
| 44126-87 | |
| 44136-00 | |
| 44147-87A | |
| 44156-00 | |
| 44160-00 | |
| 44163-00 | |
| 44177-00 | |
| 44313-01 | |
| 44314-00 | |
| 44315-00 | |
| 44337-00B | |
| 44338-00 | |
| 44351-00 | |
| 45004-96A | |
| 45005-96 | |
| 45013-96D | |
| 45015-96 | |
| 45016-96 | |
| 45021-86 | |
| 45030-03C | |
| 45032-82 | |
| 45036-88 | |
| 45042-96 | |
| 45044-96A | |
| 45057-99 | |
| 45072-96C | |
| 45279-00 | |
| 45405-75A | |
| 45419-80 | |
| 45423-92 | |
| 45423-96 | |
| 45435-95 | |
| 45446-87A | |
| 45718-60 | |
| 45733-48 | |
| 45803-97 | |
| 45808-02 | |
| 45835-00 | |
| 45838-77 | |
| 45842-77A | |
| 45845-77 | |
| 45858-77 | |
| 45859-77A | |
| 45865-84 | |
| 45866-84 | |
| 45875-84A | |
| 45890-97 | |
| 45891-97 | |
| 45892-02 | |
| 45893-99 | |
| 45933-86 | |
| 45940-84 | |
| 45964-86 | |
| 45972-02 | |
| 45998-73 | |
| 46209-02 | |
| 46229-02 | |
| 46235-02 | |
| 46236-02 | |
| 46237-02 | |
| 46238-02 | |
| 46262-02 | |
| 46458-05 | |
| 46495-02A | |
| 46496-00A | |
| 46497-02A | |
| 46498-00A | |
| 46537-02A | |
| 47159-79A | |
| 4716W | |
| 4717A | |
| 4718A | |
| 4721 | |
| 47365-83C | |
| 4740A | |
| 4741A | |
| 47420-02 | |
| 47449-97 | |
| 47491-02A | |
| 47502-97 | |
| 47504-97 | |
| 47505-02 | |
| 4752 | |
| 47530-79B | |
| 47549-02A | |
| 47564-86B | |
| 47606-02 | |
| 47900-02A | |
| 4814A | |
| 48300-60 | |
| 48315-60 | |
| 48333-80 | |
| 48361-80 | |
| 48365-48A | |
| 48469-00 | |
| 48487-02 | |
| 48489-02 | |
| 49172-97 | |
| 49184-97 | |
| 49188-97 | |
| 49193-93 | |
| 49194-85 | |
| 50015-74A | |
| 50075-83B | |
| 50075-91A | |
| 50078-81B | |
| 50112-99 | |
| 50245-99A | |
| 50518-92A | |
| 50588-93 | |
| 50589-93 | |
| 50614-91A | |
| 50621-79A | |
| 50622-83C | |
| 50635-82A | |
| 50972-75 | |
| 515 | |
| 5207 | |
| 5210 | |
| 52220-97 | |
| 52241-97 | |
| 52242-83E | |
| 52249-97 | |
| 52256-97 | |
| 52261-97 | |
| 52262-97 | |
| 52266-94A | |
| 52273-97 | |
| 52282-94C | |
| 52301-97B | |
| 52301-97C | |
| 52307-97 | |
| 52972-98 | |
| 53375-97A | |
| 53419-97A | |
| 53422-97 | |
| 53427-80 | |
| 53436-97 | |
| 53438-92 | |
| 53458-97 | |
| 53478-80 | |
| 53562-93A | |
| 53563-82 | |
| 53568-03A | |
| 53616-85 | |
| 53617-85 | |
| 53799-99 | |
| 53801-98 | |
| 53848-00 | |
| 53861-93 | |
| 5416 | |
| 54300-94 | |
| 54301-94A | |
| 54316-83A | |
| 54320-97 | |
| 54321-85 | |
| 54323-85A | |
| 54326-94 | |
| 54328-97 | |
| 54354-94A | |
| 54357-03 | |
| 54536-02 | |
| 54536-02A | |
| 54565-97C | |
| 55918-08 | |
| 55924-97 | |
| 56076-97 | |
| 56149-88B | |
| 56151-88B | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56206-96 | |
| 56220-94A | |
| 56357-02 | |
| 56358-02 | |
| 56394-74 | |
| 56396-74A | |
| 56397-74C | |
| 56402-83A | |
| 56508-76 | |
| 56569-86 | |
| 57217-02 | |
| 57995-96 | |
| 58084-94 | |
| 58088-94 | |
| 5817 | |
| 58187-96 | |
| 58208-96A | |
| 58236-96 | |
| 58247-96 | |
| 58311-96 | |
| 58325-97 | |
| 58406-75A | |
| 58408-75A | |
| 58416-77A | |
| 58417-77 | |
| 58428-94 | |
| 58431-94 | |
| 58433-96 | |
| 58478-96B | |
| 58479-96B | |
| 58497-96B | |
| 58510-96 | |
| 58938-96C | |
| 58939-96C | |
| 58949-96 | |
| 59093-00B | |
| 59116-96 | |
| 59166-80 | |
| 59174-99 | |
| 59180-80 | |
| 59201-96 | |
| 59211-74A | |
| 59221-93 | |
| 59222-93 | |
| 59223-93A | |
| 59224-93A | |
| 59231-86 | |
| 59258-91 | |
| 59259-90 | |
| 59261-91 | |
| 59287-92 | |
| 59288-92 | |
| 59292-94 | |
| 59579-01B | |
| 59672-99 | |
| 59786-01 | |
| 59788-01 | |
| 60026-97 | |
| 6003 | |
| 60039-97 | |
| 601 | |
| 6012 | |
| 6016 | |
| 6019 | |
| 60328-98B | |
| 6035A | |
| 6036 | |
| 60386-02 | |
| 60391-04 | |
| 60395-02 | |
| 60432-01 | |
| 6047 | |
| 60647-94 | |
| 60665-99 | |
| 60665-99B | |
| 60668-99 | |
| 60670-85A | |
| 60678-85 | |
| 6072 | |
| 608 | |
| 6083 | |
| 609 | |
| 60957-89A | |
| 60960-99 | |
| 6099 | |
| 6101 | |
| 61029-92A | |
| 61067-94 | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-82A | |
| 6113 | |
| 61135-57 | |
| 61168-81A | |
| 6119 | |
| 61192-96A | |
| 61209-01A | |
| 61231-01 | |
| 61268-00 | |
| 61270-98A | |
| 61272-92C | |
| 61274-92 | |
| 61278-92 | |
| 61279-88 | |
| 61313-88 | |
| 61343-00 | |
| 61356-00 | |
| 61402-02 | |
| 61408-00A | |
| 61450-95 | |
| 6150W | |
| 61583-02 | |
| 61959-00 | |
| 61960-04 | |
| 61961-00 | |
| 62150-85 | |
| 62163-01 | |
| 62163-01A | |
| 62165-01 | |
| 62188-01 | |
| 62188-04 | |
| 6220W | |
| 6229W | |
| 62349-04F | |
| 62357-00 | |
| 6237 | |
| 62373-01 | |
| 62375-57A | |
| 62432-93B | |
| 62455-02 | |
| 62489-99A | |
| 62555-95 | |
| 62726-99 | |
| 62786-96 | |
| 62787-96 | |
| 6279A | |
| 62828-99 | |
| 62830-99 | |
| 62846-99 | |
| 62897-01 | |
| 62897-01B | |
| 62958-02 | |
| 6333 | |
| 6334 | |
| 634 | |
| 63521-95A | |
| 6366 | |
| 6368 | |
| 63798-99A | |
| 63815-99 | |
| 6400HB | |
| 6497HW | |
| 6516HW | |
| 65296-95A | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65519-52C | |
| 65538-95B | |
| 65539-95A | |
| 65552-95C | |
| 65554-95B | |
| 65619-98 | |
| 65620-98A | |
| 65621-99B | |
| 65626-98C | |
| 65627-99A | |
| 65630-83C | |
| 65634-98A | |
| 65636-99 | |
| 65647-98 | |
| 65678-85D | |
| 65723-85 | |
| 65724-85 | |
| 65846-95B | |
| 65863-95E | |
| 6590HW | |
| 65951-98A | |
| 65952-98A | |
| 65988-98 | |
| 66004-93 | |
| 66010-97C | |
| 66055-93 | |
| 66185-97 | |
| 66281-02A | |
| 66373-06 | |
| 66619-97A | |
| 66670-97A | |
| 67001-08 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 67033-99A | |
| 67042-99 | |
| 67043-96 | |
| 67053-95 | |
| 67104-95 | |
| 67121-95A | |
| 6716 | |
| 67184-94 | |
| 67190-89 | |
| 67197-99A | |
| 67266-94 | |
| 67271-99 | |
| 67319-95 | |
| 67348-00 | |
| 67349-00 | |
| 67350-00 | |
| 67352-96A | |
| 67356-00 | |
| 6738 | |
| 67419-99 | |
| 67445-00 | |
| 67598-88 | |
| 67599-88 | |
| 67621-94 | |
| 67623-88A | |
| 67624-88A | |
| 6762B | |
| 67674-03B | |
| 67682-03B | |
| 67688-88 | |
| 67689-00 | |
| 67702-81A | |
| 67702-81C | |
| 67712-83A | |
| 67716-60B | |
| 67718-60A | |
| 67721-48 | |
| 67724-71 | |
| 67726-08 | |
| 67726-71 | |
| 67728-02A | |
| 67732-08 | |
| 67732-71A | |
| 67755-81A | |
| 67778-60A | |
| 67780-60A | |
| 67782-60A | |
| 67793-92A | |
| 67798-92 | |
| 67801-92A | |
| 67854-98 | |
| 67865-89 | |
| 67866-03 | |
| 67868-03 | |
| 67880-94 | |
| 6789 | |
| 67895-96 | |
| 67924-06 | |
| 68024-94 | |
| 68026-99 | |
| 68042-99 | |
| 68046-79 | |
| 68066-99A | |
| 68112-99A | |
| 68113-99B | |
| 68140-04 | |
| 68140-99 | |
| 68142-04 | |
| 68142-99 | |
| 68163-84 | |
| 68168-89A | |
| 68169-90A | |
| 68180-99 | |
| 68193-95 | |
| 68296-99A | |
| 68329-03 | |
| 68331-02 | |
| 68342-05 | |
| 68369-03 | |
| 68370-03A | |
| 68382-96 | |
| 68390-05 | |
| 68440-86 | |
| 68452-86 | |
| 68453-05 | |
| 68505-90 | |
| 68506-92 | |
| 68510-74C | |
| 68519-68A | |
| 68558-03 | |
| 68562-84 | |
| 68563-04A | |
| 68572-64B | |
| 68620-96 | |
| 68642-96 | |
| 68654-92 | |
| 68663-64D | |
| 68663-64G | |
| 68665-84C | |
| 68665-84F | |
| 68706-00 | |
| 68712-94A | |
| 68713-94A | |
| 68720-62 | |
| 68721-62 | |
| 68725-62A | |
| 68727-09A | |
| 68727-64D | |
| 68728-09A | |
| 68728-64C | |
| 68750-93 | |
| 68765-94A | |
| 68766-94 | |
| 68767-94 | |
| 68772-99 | |
| 68789-96 | |
| 68789-96B | |
| 68806-99 | |
| 68830-99A | |
| 68832-99 | |
| 68833-99 | |
| 68912-99 | |
| 68920-01D | |
| 68922-00D | |
| 68924-00D | |
| 68926-00 | |
| 68927-00 | |
| 69012-93A | |
| 69060-90F | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69187-03A | |
| 69552-00 | |
| 6970 | |
| 70042-97 | |
| 70045-94A | |
| 70142-94 | |
| 70177-97 | |
| 70196-00 | |
| 70233-02 | |
| 70260-02 | |
| 70267-97 | |
| 70291-89 | |
| 70345-84 | |
| 70348-02 | |
| 70355-96 | |
| 70356-96A | |
| 70357-96 | |
| 70358-96 | |
| 70359-96A | |
| 70361-96 | |
| 70377-97A | |
| 7038 | |
| 70388-96 | |
| 70389-96 | |
| 7039 | |
| 7041 | |
| 70447-01 | |
| 70504-81 | |
| 70584-94 | |
| 70585-93 | |
| 70598-99 | |
| 7068 | |
| 7073 | |
| 70909-95 | |
| 70985-02 | |
| 70999-94 | |
| 71001-94 | |
| 7124 | |
| 7127 | |
| 7128 | |
| 71294-89C | |
| 71307-94A | |
| 71310-94 | |
| 71313-96A | |
| 71422-96 | |
| 71427-96 | |
| 71431-96A | |
| 71434-96A | |
| 71452-91A | |
| 71515-08 | |
| 71522-96 | |
| 71526-93B | |
| 71530-95B | |
| 71532-95 | |
| 71536-93 | |
| 71537-96 | |
| 71540-94A | |
| 71543-93 | |
| 71544-93 | |
| 71545-93 | |
| 71564-96 | |
| 71567-96 | |
| 71587-04 | |
| 71620-08 | |
| 71621-08 | |
| 71640-99 | |
| 71643-00 | |
| 71683-06A | |
| 71684-06A | |
| 71685-06A | |
| 72023-51E | |
| 72032-93 | |
| 72033-93 | |
| 72035-71 | |
| 72039-71A | |
| 72043-71A | |
| 72046-79 | |
| 72056-92 | |
| 72059-08 | |
| 72076-00 | |
| 72077-00 | |
| 72082-02 | |
| 72083-02 | |
| 72084-02 | |
| 72085-02 | |
| 72086-02 | |
| 72102-94BK | |
| 72103-94BK | |
| 72104-94BK | |
| 72109-94BK | |
| 72112-94BK | |
| 72113-94BK | |
| 72113-94RD | |
| 72119-94BK | |
| 72124-94GY | |
| 72129-94GY | |
| 72133-94GY | |
| 72139-94GY | |
| 72142-94 | |
| 72143-94 | |
| 72144-94 | |
| 72149-94 | |
| 72152-94 | |
| 72153-94 | |
| 72159-94 | |
| 72160-06 | |
| 72161-06 | |
| 72164-94A | |
| 72179-94 | |
| 72190-94 | |
| 72191-94 | |
| 72195-94 | |
| 72199-94 | |
| 7220 | |
| 72200-94A | |
| 72203-96 | |
| 72205-94 | |
| 72206-94 | |
| 72207-94 | |
| 72208-94 | |
| 72210-94 | |
| 72211-94 | |
| 72212-94 | |
| 72213-94 | |
| 72214-94 | |
| 72230-98 | |
| 72231-98 | |
| 72237-02 | |
| 72242-94 | |
| 72244-95 | |
| 72245-95 | |
| 72247-95 | |
| 72249-94 | |
| 72254-94 | |
| 72263-95 | |
| 72266-94 | |
| 72273-95 | |
| 72280-95 | |
| 72281-93 | |
| 72290-94 | |
| 72291-94 | |
| 72292-94 | |
| 72294-94BK | |
| 72295-94 | |
| 72298-95 | |
| 7230 | |
| 7232 | |
| 72325-97 | |
| 72327-03A | |
| 72330-95 | |
| 72332-02A | |
| 7234 | |
| 72355-97 | |
| 72356-95 | |
| 72366-95 | |
| 72395-97 | |
| 72405-98BK | |
| 72411-97 | |
| 72428-00 | |
| 72429-00 | |
| 72430-00 | |
| 72431-00 | |
| 72432-00 | |
| 72434-00 | |
| 72435-00 | |
| 72439-00B | |
| 72442-05 | |
| 72443-00 | |
| 72443-05 | |
| 72451-00 | |
| 72452-00 | |
| 72453-00 | |
| 72454-00 | |
| 72455-00 | |
| 72458-00 | |
| 72462-00 | |
| 72516-01 | |
| 72531-02A | |
| 72904-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73102-96WE | |
| 73103-96BK | |
| 73106-96BK | |
| 73108-96BK | |
| 73110-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73158-96BK | |
| 73160-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73198-96 | |
| 739A | |
| 74102-98BK | |
| 74108-98BK | |
| 74112-98BK | |
| 74113-98BK | |
| 74118-98BK | |
| 74119-98BK | |
| 74142-98 | |
| 74148-98 | |
| 74152-98 | |
| 74153-98 | |
| 74158-98 | |
| 74159-98 | |
| 74190-98 | |
| 74191-98 | |
| 74192-98 | |
| 74193-98 | |
| 74194-98 | |
| 74195-98 | |
| 7434 | |
| 74408-89A | |
| 74413-93 | |
| 74419-96 | |
| 74429-97C | |
| 74505-02 | |
| 74526-96C | |
| 74600-94 | |
| 7490 | |
| 7495 | |
| 7499 | |
| 75032-99B | |
| 75044-96 | |
| 75059-94 | |
| 75069-02 | |
| 7507 | |
| 75071-02 | |
| 75076-02 | |
| 75099-01A | |
| 75105-96A | |
| 75109-96C | |
| 75111-96C | |
| 75112-00 | |
| 75119-96A | |
| 75126-02 | |
| 75126-02C | |
| 75127-02 | |
| 75127-02C | |
| 75205-02 | |
| 7531 | |
| 7549A | |
| 755 | |
| 756 | |
| 758 | |
| 7586 | |
| 7593 | |
| 7596 | |
| 7600 | |
| 7601 | |
| 7606 | |
| 761 | |
| 76185-93 | |
| 76201-80A | |
| 76233-85 | |
| 7624 | |
| 76248-86 | |
| 76286-96 | |
| 7629 | |
| 765 | |
| 7651A | |
| 7667 | |
| 7682 | |
| 7683 | |
| 7686 | |
| 7688 | |
| 77046-96A | |
| 7716 | |
| 7717 | |
| 7736 | |
| 7742 | |
| 7744 | |
| 7748W | |
| 7778 | |
| 7780 | |
| 7783 | |
| 7796 | |
| 780 | |
| 7825 | |
| 7838 | |
| 7848W | |
| 7878 | |
| 7880 | |
| 7886 | |
| 7887 | |
| 7888A | |
| 7889 | |
| 7900 | |
| 79048-98 | |
| 7951 | |
| 7956 | |
| 7964 | |
| 8020 | |
| 8108 | |
| 8126A | |
| 8135B | |
| 8144 | |
| 8483A | |
| 84850-92 | |
| 8502 | |
| 8551 | |
| 856A | |
| 8871 | |
| 8873 | |
| 8876A | |
| 8879 | |
| 8883 | |
| 895 | |
| 89577-95 | |
| 89579-91 | |
| 8977 | |
| 8983 | |
| 8990A | |
| 8992A | |
| 8996A | |
| 9028 | |
| 90468-95 | |
| 90469-94 | |
| 90493-83 | |
| 90594-85A | |
| 90634-93 | |
| 90675-93A | |
| 90686-92 | |
| 90687-85 | |
| 90718-79C | |
| 90720-79C | |
| 90754-93 | |
| 90764-93 | |
| 9077 | |
| 90770-79 | |
| 90776-93 | |
| 90781-93 | |
| 90796-93 | |
| 90798-99 | |
| 90801-95 | |
| 90820-93D | |
| 90834-95B | |
| 90902-93 | |
| 90926-84 | |
| 90929-84 | |
| 90934-93A | |
| 90935-93A | |
| 90936-93A | |
| 90943-93A | |
| 90945-93A | |
| 90946-93A | |
| 90964-63 | |
| 90965-63 | |
| 91013-79A | |
| 91023-79A | |
| 91054-07 | |
| 91085-83D | |
| 91090-77A | |
| 9110 | |
| 91107-77C | |
| 91123-77 | |
| 91127-85 | |
| 91137-97 | |
| 91154-87 | |
| 91156-93 | |
| 91157-88A | |
| 91159-82 | |
| 9120 | |
| 9121 | |
| 9122 | |
| 9123 | |
| 9124 | |
| 9125 | |
| 9126 | |
| 91260-93A | |
| 9127 | |
| 9128 | |
| 9129 | |
| 9130 | |
| 9131 | |
| 9132 | |
| 9133 | |
| 9134 | |
| 9135 | |
| 91808-89 | |
| 91812-89A | |
| 91902-86A | |
| 91904-86A | |
| 9198 | |
| 9208 | |
| 922 | |
| 9247 | |
| 925 | |
| 928 | |
| 929A | |
| 930 | |
| 933 | |
| 940 | |
| 946 | |
| 95594-84A | |
| 95595-84A | |
| 961 | |
| 96210-80A | |
| 9834 | |
| 9837 | |
| 9839 | |
| 9840 | |
| 9843 | |
| 9847 | |
| 9848 | |
| 9898 | |
| 9907 | |
| 9937 | |
| 9955 | |
| 9989A | |
| 9990W |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7956 | Unknown |
| 7736 | 1949 |
| 7586 | Unknown |
| 8144 | Unknown |
| 7951 | Unknown |
| 7838 | Unknown |
| 7624 | Unknown |
| 7629 | 1990 |
| 8135B | Unknown |
| 7796 | Unknown |
| 7780 | 1973 |
| 8126A | 2017 |
| 7778 | Unknown |
| 7888A | Unknown |
| 7900 | Unknown |
| 67043-96 | 1996 |
| 7748W | Unknown |
| 7825 | Unknown |
| 3403 | Unknown |
| 7683 | Unknown |
| 7682 | Unknown |
| 5210 | 1991 |
| 84850-92 | 1992 |
| 35078-79 | 1979 |
| 7889 | Unknown |
| 7495 | 1994 |
| 7887 | 1993 |
| 7499 | Unknown |
| 7878 | 1993 |
| 7886 | Unknown |
| 7880 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 40392-91 | 1991 |
| 7744 | 1943 |
| 58949-96 | 1996 |
| 7593 | 1991 |
| 7742 | Unknown |
| 7596 | Unknown |
| 7549A | Unknown |
| 47606-02 | 2002 |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 2918 | Unknown |
| 2446 | Unknown |
| 3899 | 1999 |
| 2664 | 1971 |
| 2872W | 2009 |
| 3987 | Unknown |
| 68026-99 | 1999 |
| 1314 | Unknown |
| 2563 | 2009 |
| 4752 | Unknown |
| 2579A | Unknown |
| 3639 | 1998 |
| 4741A | 1994 |
| 2692WB | Unknown |
| 3655A | Unknown |
| 67718-60A | 2009 |
| 3692A | Unknown |
| 5416 | Unknown |
| 1000 | Unknown |
| 3249 | Unknown |
| 2934 | 1995 |
| 4718A | 1994 |
| 2955 | 1996 |
| 2933 | Unknown |
| 3512 | Unknown |
| 3022A | Unknown |
| 44177-00 | 2000 |
| 43567-92 | 1992 |
| 3514 | Unknown |
| 2927 | Unknown |
| 2941 | Unknown |
| 3619 | Unknown |
| 4319 | 2009 |
| 940 | Unknown |
| 3561WC | Unknown |
| 2921 | Unknown |
| 4091 | Unknown |
| 3612 | 2012 |
| 2980 | Unknown |
| 3275 | 2002 |
| 1311D | 2001 |
| 3693A | Unknown |
| 895 | Unknown |
| 4326A | 1990 |
| 2659 | Unknown |
| 3530 | Unknown |
| 2979 | Unknown |
| 68452-86 | 1986 |
| 2774 | Unknown |
| 4132 | Unknown |
| 4740A | 1994 |
| 2782 | Unknown |
| 3658 | Unknown |
| 45405-75A | 1975 |
| 930 | Unknown |
| 3529 | Unknown |
| 4240 | Unknown |
| 933 | Unknown |
| 2871W | 2017 |
| 4033 | Unknown |
| 3584 | Unknown |
| 3607 | 2009 |
| 3652 | Unknown |
| 3605 | 2009 |
| 2731W | Unknown |
| 3560WA | Unknown |
| 3601 | Unknown |
| 2647B | Unknown |
| 90770-79 | 1979 |
| 2887WA | Unknown |
| 4721 | 2009 |
| 4400 | 2011 |
| 3576 | 2013 |
| 3594 | 1992 |
| 2806 | Unknown |
| 45838-77 | 1977 |
| 928 | Unknown |
| 2708A | Unknown |
| 925 | Unknown |
| 3595 | 1993 |
| 3599 | Unknown |
| 68042-99 | 1999 |
| 922 | Unknown |
| 3746A | 2004 |
| 3993 | Unknown |
| 1039 | Unknown |
| 2604 | Unknown |
| 3699D | 2006 |
| 33376-00 | 2000 |
| 3929 | 2009 |
| 45858-77 | 1977 |
| 3588 | 1990 |
| 3563 | 1999 |
| 4017 | 2009 |
| 929A | Unknown |
| 3909 | Unknown |
| 2501A | Unknown |
| 780 | Unknown |
| 29269-83A | 1983 |
| 67721-48 | 1948 |
| 2531 | Unknown |
| 4271 | Unknown |
| 3210A | Unknown |
| 50635-82A | 1982 |
| 3554 | Unknown |
| 3559 | Unknown |
| 56402-83A | 1983 |
| 2361 | Unknown |
| 3278 | Unknown |
| 4358A | Unknown |
| 3480A | Unknown |
| 3739 | Unknown |
| 67724-71 | 1971 |
| 4717A | Unknown |
| 4086A | Unknown |
| 3574 | Unknown |
| 946 | Unknown |
| 2420 | Unknown |
| 3784 | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 961 | Unknown |
| 3787 | Unknown |
| 1750 | 1993 |
| 4716W | 2009 |
| 3676 | Unknown |
| 16478-85A | 1985 |
| 856A | 1990 |
| 1783C | Unknown |
| 3678 | Unknown |
| 56397-74C | 1974 |
| 3691 | Unknown |
| 3462 | Unknown |
| 2935A | 1998 |
| 3736A | 2005 |
| 2592 | 1973 |
| 4124 | Unknown |
| 3892 | Unknown |
| 2443 | 2008 |
| 16480-92A | 1992 |
| 2444 | Unknown |
| 4814A | Unknown |
| 2445 | Unknown |
| 103A1 - Generic Washers | |
| 6019 | Unknown |
| 6016 | 2013 |
| 46237-02 | 2002 |
| 6012 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6035A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 6366 | 1987 |
| 6368 | Unknown |
| 6789 | Unknown |
| 59788-01 | 2001 |
| 6113 | Unknown |
| 6333 | Unknown |
| 6334 | Unknown |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6083 | Unknown |
| 6047 | Unknown |
| 7128 | Unknown |
| 31689-90 | 1990 |
| 6072 | Unknown |
| 6590HW | Unknown |
| 7234 | 1991 |
| 7230 | Unknown |
| 7232 | 1954 |
| 6516HW | Unknown |
| 6036 | Unknown |
| 7220 | Unknown |
| 7068 | Unknown |
| 7038 | 1998 |
| 7039 | Unknown |
| 6279A | Unknown |
| 7073 | Unknown |
| 6738 | Unknown |
| 6762B | Unknown |
| 6237 | 2014 |
| 96210-80A | 1980 |
| 6229W | Unknown |
| 7041 | 1958 |
| 6703 | 1970 |
| 6701 | Unknown |
| 6702 | Unknown |
| 6970 | Unknown |
| 6400HB | Unknown |
| 45279-00 | 2000 |
| 6716 | Unknown |
| 104A1 - Custom Nuts | |
| 54321-85 | 1985 |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 91159-82 | 1982 |
| 37090-98A | 1998 |
| 106A1 - Custom Washers | |
| 6003 | 2010 |
| 7124 | Unknown |
| 108A1 - Hose Clamps | |
| 10231 | Unknown |
| 10038A | 1994 |
| 10031 | 2010 |
| 90946-93A | 1993 |
| 90936-93A | 1993 |
| 9990W | 2010 |
| 68750-93 | 1993 |
| 55918-08 | 2008 |
| 90935-93A | 1993 |
| 10222 | 2000 |
| 9955 | Unknown |
| 90934-93A | 1993 |
| 10249 | Unknown |
| 10113 | Unknown |
| 45044-96A | 1996 |
| 108B1 - P Clamps | |
| 27070-02 | 2002 |
| 10105 | 1992 |
| 10003 | 2010 |
| 28867-88 | 1988 |
| 7490 | Unknown |
| 10148 | 2003 |
| 10076 | 2010 |
| 10110 | Unknown |
| 109A1 - Studs | |
| 10116 | Unknown |
| 3265A | Unknown |
| 16715-83 | 1983 |
| 3317 | 2009 |
| 10184 | Unknown |
| 90834-95B | 1995 |
| 45998-73 | 1973 |
| 70909-95 | 1995 |
| 10136 | Unknown |
| 16834-99A | 1999 |
| 110B1 - Plain Bushings | |
| 31430-94 | 1994 |
| 34979-00 | 2000 |
| 9198 | Unknown |
| 8996A | 1996 |
| 17429-91 | 1991 |
| 33446-94A | 1994 |
| 25344-99 | 1999 |
| 8992A | Unknown |
| 9837 | Unknown |
| 8876A | Unknown |
| 33445-94A | 1994 |
| 67266-94 | 1994 |
| 45866-84 | 1984 |
| 57217-02 | 2002 |
| 8883 | Unknown |
| 8879 | Unknown |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 12066A | Unknown |
| 12068 | Unknown |
| 12045 | Unknown |
| 12035B | Unknown |
| 11291 | Unknown |
| 12052A | 2003 |
| 67104-95 | 1995 |
| 12067B | 2002 |
| 110D1 - Rolling Element Bearings | |
| 9247 | Unknown |
| 8977 | Unknown |
| 9135 | Unknown |
| 8983 | Unknown |
| 8990A | Unknown |
| 24623-99B | 1999 |
| 8871 | Unknown |
| 9028 | 2009 |
| 111A1 - Adhesive | |
| 58247-96 | 1996 |
| 58417-77 | 1977 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 111D1 - Isolating Tape | |
| 61960-04 | 2004 |
| 111F1 - Protective Tape | |
| 91054-07 | 2007 |
| 66055-93 | 1993 |
| 116A1 - Banjo Bolts | |
| 41747-82A | 1982 |
| 117A1 - Coil Springs | |
| 56396-74A | 1974 |
| 119A1 - O-Rings | |
| 11165 | Unknown |
| 72458-00 | 2000 |
| 11270 | Unknown |
| 11273 | Unknown |
| 11324 | Unknown |
| 26432-76A | 1976 |
| 11105 | Unknown |
| 10957 | 2006 |
| 11145A | 2007 |
| 11351 | 2001 |
| 11157 | 1983 |
| 11140 | 1982 |
| 11147B | 2006 |
| 11289A | Unknown |
| 45845-77 | 1977 |
| 11132A | 2007 |
| 11298 | Unknown |
| 11299 | Unknown |
| 11293 | 1996 |
| 11290 | 1998 |
| 11292 | Unknown |
| 11380 | Unknown |
| 11301 | Unknown |
| 11286 | Unknown |
| 31695-90 | 1990 |
| 11364 | 2002 |
| 11256 | 1996 |
| 11179 | 1986 |
| 120A1 - Pins | |
| 601 | Unknown |
| 609 | Unknown |
| 608 | Unknown |
| 634 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 337 | Unknown |
| 515 | Unknown |
| 375 | 2013 |
| 16595-99A | 1999 |
| 121A1 - Grommets | |
| 11445 | Unknown |
| 11491A | 2012 |
| 11503 | Unknown |
| 11437 | Unknown |
| 11488 | 1996 |
| 11492 | 1996 |
| 121B1 - Press-Fit Plugs | |
| 90468-95 | 1995 |
| 67865-89 | 1989 |
| 739A | Unknown |
| 62958-02 | 2002 |
| 765 | 1997 |
| 761 | 1996 |
| 3290 | 2013 |
| 72164-94A | 1994 |
| 755 | 2018 |
| 756 | 2010 |
| 122A1 - Retaining Rings | |
| 10998 | 1985 |
| 11271 | Unknown |
| 11272 | Unknown |
| 10120 | 1992 |
| 17945-36B | 1936 |
| 27627-01 | 2001 |
| 11319A | Unknown |
| 45021-86 | 1986 |
| 11688 | Unknown |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10183 | 1996 |
| 10103 | Unknown |
| 11031 | Unknown |
| 11150 | 1984 |
| 10108 | Unknown |
| 27269-97 | 1997 |
| 11342 | Unknown |
| 11155 | Unknown |
| 41139-02 | 2002 |
| 68562-84 | 1984 |
| 31530-90 | 1990 |
| 27045-97 | 1997 |
| 9989A | Unknown |
| 11143 | Unknown |
| 35115-99 | 1999 |
| 11494 | Unknown |
| 37905-00 | 2000 |
| 11177A | 1996 |
| 11096 | 2010 |
| 11067 | Unknown |
| 10227 | 2003 |
| 11182 | Unknown |
| 11085 | Unknown |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 11248 | Unknown |
| 11161 | 1984 |
| 123B1 - Spring Washers | |
| 7127 | Unknown |
| 124A1 - Spacers | |
| 62188-04 | 2004 |
| 24033-70 | 1970 |
| 24008-99A | 1999 |
| 33344-94 | 1994 |
| 53799-99 | 1999 |
| 61135-57 | 1957 |
| 35850-84 | 1984 |
| 35851-84 | 1984 |
| 24037-70 | 1970 |
| 35629-79 | 1979 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 10181 | 1996 |
| 10006 | 1960 |
| 10073 | 1985 |
| 126A1 - Miscellaneous Hardware | |
| 50972-75 | 1975 |
| 31692-90 | 1990 |
| 54536-02 | 2002 |
| 68331-02 | 2002 |
| 45892-02 | 2002 |
| 54326-94 | 1994 |
| 44126-87 | 1987 |
| 59292-94 | 1994 |
| 9834 | Unknown |
| 44337-00B | 2000 |
| 54328-97 | 1997 |
| 90902-93 | 1993 |
| 61279-88 | 1988 |
| 90493-83 | 1983 |
| 61583-02 | 2002 |
| 54320-97 | 1997 |
| 33126-94 | 1994 |
| 11495 | Unknown |
| 56161-83A | 1983 |
| 33318-85 | 1985 |
| 53458-97 | 1997 |
| 54300-94 | 1994 |
| 16585-96 | 1996 |
| 33375-00A | 2001 |
| 46236-02 | 2002 |
| 53427-80 | 1980 |
| 42454-99 | 1999 |
| 33449-94 | 1994 |
| 56394-74 | 1974 |
| 33374-00 | 2000 |
| 8873 | 1984 |
| 60647-94 | 1994 |
| 11464 | 2011 |
| 126B1 - Rivets Fasteners | |
| 70291-89 | 1989 |
| 11602 | Unknown |
| 8551 | Unknown |
| 10225 | Unknown |
| 8483A | Unknown |
| 127B1 - Generic Mounting Bracket | |
| 53422-97 | 1997 |
| 90687-85 | 1985 |
| 50622-83C | 1983 |
| 90945-93A | 1993 |
| 53801-98 | 1998 |
| 47365-83C | 1983 |
| 58311-96 | 1996 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14020-83 | 1983 |
| 140A3 - Other Special Warning Label | |
| 14019-83A | 1983 |
| 90820-93D | 1993 |
| 140G2 - EPA Label | |
| 29127-95B | 1995 |
| 141A1 - Medallion | |
| 14275-93A | 1993 |
| 59224-93A | 2008 |
| 14274-93A | 1993 |
| 14630-96 | 1996 |
| 14270-92 | 1992 |
| 59223-93A | 2008 |
| 59221-93 | 1993 |
| 61067-94 | 1994 |
| 59222-93 | 1993 |
| 71537-96 | 1996 |
| 61168-81A | 1981 |
| 71307-94A | 1994 |
| 44338-00 | 2000 |
| 162D1 - Engine Assembly | |
| 16144-02 | 2002 |
| 163B1 - Engine Isolator Mount | |
| 16207-79D | 1979 |
| 16316-99 | 1999 |
| 164A1 - Engine Mount Bracket | |
| 47159-79A | 1979 |
| 38608-96 | 1996 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7600 | Unknown |
| 7716 | 1990 |
| 7717 | 2000 |
| 7783 | Unknown |
| 7531 | 1980 |
| 46262-02 | 2002 |
| 7667 | Unknown |
| 7688 | 2000 |
| 7686 | Unknown |
| 5207 | 1980 |
| 7507 | Unknown |
| 16219-79C | 1979 |
| 7848W | Unknown |
| 165A1 - Cylinder Head | |
| 18011-86 | 1986 |
| 16724-99 | 1999 |
| 16722-99 | 1999 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16775-99B | 1999 |
| 173B1 - Rocker Arm Shaft | |
| 17594-99 | 1999 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17922-99 | 1999 |
| 17923-99 | 1999 |
| 179C1 - Lifter Anti-Rotation Device | |
| 18535-99 | 1999 |
| 180A1 - Valves | |
| 18076-83 | 1983 |
| 18101-83D | 1999 |
| 18074-83B | 2007 |
| 18082-83A | 1983 |
| 181B1 - Valve Seals | |
| 18133-83B | 1983 |
| 18130-83D | 1983 |
| 18219-83A | 1983 |
| 18020-83 | 1983 |
| 18134-83 | 1983 |
| 18131-83D | 1983 |
| 18124-83 | 1983 |
| 18001-83B | 1983 |
| 181C1 - Valve Collars | |
| 18202-83 | 1983 |
| 18201-83 | 1983 |
| 18222-83A | 1983 |
| 18229-83A | 1984 |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 219A1 - Piston | |
| 16526-99 | 1999 |
| 21933-99 | 1999 |
| 21930-99 | 1999 |
| 21931-99 | 1999 |
| 220A1 - Piston Ring | |
| 21937-99 | 1999 |
| 21938-99 | 1999 |
| 21936-99 | 1999 |
| 221A1 - Piston Pin | |
| 22132-99 | 1999 |
| 22097-99 | 1999 |
| 237B1 - Connecting Rod sub-component | |
| 24316-99 | 1999 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 48365-48A | 1981 |
| 35060-00 | 2000 |
| 241A1 - Flywheel | |
| 23957-99E | 2007 |
| 244A1 - Crankcase | |
| 24597-99C | 1999 |
| 244D1 - Crankcase sub-component | |
| 22307-99 | 1999 |
| 24032-70 | 1970 |
| 24034-70 | 1970 |
| 24035-70 | 1970 |
| 50588-93 | 1993 |
| 244F1 - Oil Pan | |
| 62489-99A | 1999 |
| 245A1 - PT Cases Miscellaneous Component | |
| 24036-70 | 1970 |
| 254A1 - Camdrive Gear | |
| 25533-99A | 2001 |
| 254B1 - Camshaft | |
| 25938-00 | 2000 |
| 25296-99 | 1999 |
| 25297-00 | 2000 |
| 25297-99B | 2001 |
| 254C1 - Camshaft Sprocket | |
| 40299-83A | 1983 |
| 25609-99 | 1999 |
| 25716-99 | 1999 |
| 254D1 - Camshaft Support | |
| 25267-99B | 2001 |
| 41819-02 | 2002 |
| 255A1 - Camdrive Chain | |
| 25607-99 | 1999 |
| 25610-99 | 1999 |
| 255B1 - Camdrive Chain Guide | |
| 39965-99 | 1999 |
| 255D1 - Camdrive Chain Tensioner sub-component | |
| 39976-01 | 2001 |
| 256A1 - Timer Cover | |
| 32543-99 | 1999 |
| 257A1 - Cam Cover | |
| 25369-01B | 2001 |
| 257B1 - Clutch Cover | |
| 60668-99 | 1999 |
| 257D1 - Clutch Inspection Cover | |
| 60670-85A | 1985 |
| 257E1 - Cover Gaskets | |
| 61402-02 | 2002 |
| 67121-95A | 1995 |
| 35653-98A | 1998 |
| 65324-83B | 2009 |
| 90675-93A | 2000 |
| 26072-99A | 1999 |
| 62432-93B | 1993 |
| 41731-01 | 2001 |
| 34904-86D | 1986 |
| 90798-99 | 1999 |
| 17053-99C | 2011 |
| 29583-01A | 2001 |
| 61109-85D | 1985 |
| 16719-99B | 1999 |
| 34906-85D | 1985 |
| 17045-99D | 2011 |
| 25416-99C | 1999 |
| 25244-99A | 1999 |
| 29313-95 | 1995 |
| 45005-96 | 1996 |
| 34901-94C | 1994 |
| 71294-89C | 2010 |
| 45733-48 | 1948 |
| 25700225 | 2012 |
| 18635-99B | 1999 |
| 36801-87C | 1987 |
| 17052-99C | 2011 |
| 61192-96A | 1996 |
| 17386-99A | 1999 |
| 79048-98 | 1998 |
| 257G1 - Ignition Cover | |
| 71530-95B | 1995 |
| 257L1 - Primary Cover | |
| 60665-99B | 1999 |
| 60665-99 | 1999 |
| 60432-01 | 2001 |
| 257M1 - Push Rod Cover | |
| 17948-99 | 1999 |
| 17939-99 | 1999 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 17375-83A | 1983 |
| 17611-83 | 1983 |
| 17573-99A | 1999 |
| 17360-83A | 1983 |
| 17572-99 | 1999 |
| 257P1 - Tappet Cover | |
| 17964-99 | 1999 |
| 17966-99 | 1999 |
| 258A1 - PT Covers Miscellaneous Component | |
| 34541-00 | 2000 |
| 37105-99 | 1999 |
| 62373-01 | 2001 |
| 265A1 - Vent / Breather Line | |
| 17907-01 | 2001 |
| 17025-03A | 2011 |
| 26500002 | 2011 |
| 270A1 - Carburetor | |
| 27461-02 | 2002 |
| 271D1 - Intercooler Hose | |
| 54301-94A | 2009 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27600-01A | 2001 |
| 27603-01 | 2001 |
| 273A1 - Intake Manifold | |
| 27630-01 | 2001 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27604-01A | 2001 |
| 273E1 - Idle Air Control Actuator | |
| 27628-01A | 2001 |
| 273K1 - Throttle Body to Manifold Seal | |
| 26995-86B | 1986 |
| 273N1 - Throttle Cable Retention Bracket | |
| 56508-76 | 1976 |
| 274B1 - Fuel Rail | |
| 27408-01 | 2001 |
| 27608-01A | 2001 |
| 274C1 - Fuel Injector | |
| 27609-01B | 2001 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 27635-01A | 2002 |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29581-01B | 2001 |
| 290C1 - Airbox Baseplate sub-component | |
| 29584-01 | 2001 |
| 29158-99 | 1999 |
| 294A1 - Air Filter Element | |
| 63815-99 | 1999 |
| 29461-99 | 1999 |
| 294B1 - Breather Bolt | |
| 29465-99 | 1999 |
| 294C1 - Breather Hose | |
| 29476-99 | 1999 |
| 294G1 - Air Cleaner | |
| 27010-86A | 1986 |
| 27009-86A | 1986 |
| 299A1 - Alternator | |
| 29999-97B | 1997 |
| 299F1 - Stator Assembly | |
| 29987-02A | 2002 |
| 314E1 - Starter Friction Clutch | |
| 31516-94A | 2010 |
| 9077 | Unknown |
| 314F1 - Starter Motor | |
| 31518-90 | 1990 |
| 31521-98 | 1998 |
| 31510-90 | 1990 |
| 31515-90 | 1990 |
| 31553-94B | 1994 |
| 31612-09 | 2009 |
| 314G1 - Starter Motor sub-component | |
| 31660-90 | 1990 |
| 31535-91 | 1991 |
| 31538-98 | 1965 |
| 31548-90 | 1990 |
| 31527-90 | 1990 |
| 31664-94 | 1994 |
| 31600-90 | 1990 |
| 31688-90 | 1990 |
| 314H1 - Starter Solenoid | |
| 31604-91A | 1991 |
| 316A1 - Ignition Coil | |
| 31743-01 | 2001 |
| 316B1 - Spark Plug Cable | |
| 31992-99B | 1999 |
| 316C1 - Spark Plug | |
| 32362-04 | 2004 |
| 327C1 - Pressure Sensor | |
| 32416-10 | 2010 |
| 32807-00 | 2000 |
| 74429-97C | 1997 |
| 327D1 - Proximity Sensor | |
| 32798-00B | 2007 |
| 327E1 - Temperature Sensor | |
| 74419-96 | 1996 |
| 27270-95 | 1995 |
| 32446-99 | 1999 |
| 327F1 - Throttle Position Sensor | |
| 27629-01A | 2001 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33895-82D | 2010 |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33849-97 | 1997 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33718-82B | 1982 |
| 339D1 - Shifter Fork | |
| 34195-79E | 1979 |
| 34088-87A | 1987 |
| 34193-79E | 1979 |
| 34191-79E | 1979 |
| 339E1 - Shifter Fork Shaft | |
| 33709-82A | 1982 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33759-99B | 1999 |
| 34064-00C | 2000 |
| 33301-00A | 2000 |
| 33304-00 | 2000 |
| 33383-02 | 2002 |
| 34091-85A | 1985 |
| 33364-00A | 2000 |
| 33127-94 | 1994 |
| 339K1 - Shifter Pawl | |
| 34972-02B | 2002 |
| 347A1 - Transmission Assembly | |
| 35076-79 | 1979 |
| 33035-02 | 2002 |
| 35064-79 | 1979 |
| 348A1 - Transmission Output Sprocket Cover | |
| 34740-02A | 2002 |
| 350A1 - Transmission Output Sprocket | |
| 40250-94C | 1994 |
| 350E1 - Transmission Gear | |
| 31525-90 | 1990 |
| 31342-94 | 1994 |
| 350F1 - Transmission Mainshaft | |
| 35029-94 | 1994 |
| 35027-94 | 1994 |
| 35025-79B | 1981 |
| 35028-94 | 1994 |
| 35042-91 | 1991 |
| 350G1 - Transmission Shim / Spacer | |
| 25721-00 | 2000 |
| 9110 | 2013 |
| 9123 | 2013 |
| 9122 | 2013 |
| 9125 | 2013 |
| 9124 | 2013 |
| 9127 | 2013 |
| 9126 | 2013 |
| 9129 | Unknown |
| 25723-00 | 2000 |
| 9128 | 2013 |
| 9121 | 2013 |
| 9120 | 2013 |
| 9134 | 2013 |
| 9133 | 2013 |
| 9132 | 2013 |
| 9131 | Unknown |
| 9130 | Unknown |
| 25722-00 | 2000 |
| 25717-00 | 2000 |
| 25719-00 | 2000 |
| 356A1 - Transmission Countershaft | |
| 35026-94 | 1994 |
| 35626-94 | 1994 |
| 35632-79 | 1979 |
| 35625-94 | 1994 |
| 35622-79C | 1979 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35071-99A | 1999 |
| 42533-91A | 1991 |
| 35252-93B | 1993 |
| 62830-99 | 1999 |
| 35051-89A | 1989 |
| 35211-91B | 1991 |
| 34978-00A | 2000 |
| 34977-02A | 2002 |
| 40266-85 | 1985 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40037-79A | 1979 |
| 365B1 - Primary Chain Tensioner | |
| 39990-01 | 2001 |
| 39998-65A | 1970 |
| 39954-99A | 1999 |
| 39964-99A | 1999 |
| 365C1 - Primary Drive Assembly | |
| 40308-94 | 1994 |
| 40384-91 | 1991 |
| 40251-92A | 1992 |
| 40323-00 | 2000 |
| 367A1 - Clutch Lever | |
| 45015-96 | 1996 |
| 367H1 - Clutch Lever sub-component | |
| 37312-75 | 1975 |
| 37871-98A | 1998 |
| 34920-86A | 1986 |
| 37904-90 | 1990 |
| 37906-90 | 1990 |
| 38630-88 | 1988 |
| 37909-90 | 1990 |
| 37872-00 | 2000 |
| 370A1 - Clutch Assembly | |
| 45036-88 | 1988 |
| 37802-98B | 1998 |
| 37496-90A | 1990 |
| 370B1 - Clutch Friction Plate | |
| 37932-98 | 1998 |
| 37913-98 | 1998 |
| 370C1 - Clutch Hub | |
| 37550-98 | 1998 |
| 370E1 - Clutch Metal Plate | |
| 37903-90 | 1990 |
| 37088-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37912-00 | 2000 |
| 370F3 - Clutch Diaphragm Spring | |
| 37883-98 | 1998 |
| 37884-98 | 1998 |
| 370G1 - Clutch Shell | |
| 37707-98A | 1998 |
| 372D1 - Clutch Cable | |
| 38667-00 | 2000 |
| 372K2 - Clutch Ramp | |
| 25604-00A | 2000 |
| 25605-00A | 2000 |
| 400A1 - Drive-Belt | |
| 40024-97 | 1997 |
| 409A1 - Rear Wheel | |
| 43402-00B | 2000 |
| 410D1 - Electronic Control Module (ECM) | |
| 68920-01D | 2001 |
| 32534-11 | 2011 |
| 410G1 - Security System Control Module | |
| 68924-00D | 2000 |
| 68922-00D | 2000 |
| 413A1 - Brake Caliper | |
| 44046-00D | 2000 |
| 44160-00 | 2000 |
| 44163-00 | 2000 |
| 44023-00C | 2000 |
| 44080-02C | 2002 |
| 413B1 - Brake Bleeder Screw | |
| 44048-83 | 1983 |
| 413C1 - Brake Caliper sub-component | |
| 44315-00 | 2000 |
| 44147-87A | 1987 |
| 48361-80 | 1980 |
| 413E1 - Brake Pad Pin | |
| 44314-00 | 2000 |
| 413G1 - Brake Caliper Piston Set | |
| 44313-01 | 2001 |
| 415B1 - Brake Rotor | |
| 44136-00 | 2000 |
| 44156-00 | 2000 |
| 41797-00 | 2000 |
| 416A1 - Brakes Miscellaneous Component | |
| 40918-87 | 1987 |
| 42642-00A | 2011 |
| 40920-87 | 1987 |
| 72023-51E | 2012 |
| 417A1 - Brake Master Cylinder Assembly | |
| 45030-03C | 2003 |
| 41755-99A | 1999 |
| 41755-99D | 1999 |
| 417B1 - Brake Master Cylinder | |
| 45013-96D | 1996 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 42382-87C | 2000 |
| 45072-96C | 2000 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 45004-96A | 1996 |
| 42568-05A | 2011 |
| 42455-99 | 1999 |
| 40922-87A | 1987 |
| 45032-82 | 1982 |
| 45423-92 | 1992 |
| 45423-96 | 1996 |
| 40922-87 | 2011 |
| 45057-99 | 1999 |
| 46458-05 | 2005 |
| 44351-00 | 2000 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 42454-99A | 1999 |
| 417G1 - Front Brake Lever | |
| 45016-96 | 1996 |
| 418B1 - Brake Line | |
| 40971-00B | 2010 |
| 43350-96C | 1996 |
| 43349-96B | 1996 |
| 422B1 - Wheel Sprocket | |
| 40217-00 | 2000 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 54323-85A | 1985 |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 95595-84A | 2019 |
| 95594-84A | 2010 |
| 430D1 - Front Axle | |
| 43364-00 | 2000 |
| 430E1 - Rear Axle | |
| 41056-02 | 2002 |
| 433A1 - Front Wheel | |
| 43493-00 | 2000 |
| 433B1 - Front Wheel Bearing Spacer | |
| 43517-00 | 2000 |
| 41240-02 | 2002 |
| 56163-93 | 1993 |
| 48489-02 | 2002 |
| 43520-00A | 2003 |
| 43521-00A | 2003 |
| 41084-02A | 2003 |
| 454A1 - Front Telescopic Fork | |
| 46495-02A | 2002 |
| 47549-02A | 2002 |
| 46497-02A | 2002 |
| 46537-02A | 2002 |
| 455A1 - Front Telescopic Fork Slider | |
| 45964-86 | 1986 |
| 46496-00A | 2000 |
| 46498-00A | 2000 |
| 455B1 - Front Telescopic Fork Spring | |
| 46235-02 | 2002 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45803-97 | 1997 |
| 46238-02 | 2002 |
| 71310-94 | 1994 |
| 45865-84 | 1984 |
| 45940-84 | 1984 |
| 45419-80 | 1980 |
| 45890-97 | 1997 |
| 45933-86 | 1986 |
| 45972-02 | 2002 |
| 46229-02 | 2002 |
| 45835-00 | 2000 |
| 456A1 - Fork Protector | |
| 45859-77A | 1977 |
| 456C1 - Fork Lock | |
| 71540-94A | 1994 |
| 457A1 - Steering Stop Block | |
| 47530-79B | 1979 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 48315-60 | 1960 |
| 48300-60 | 1960 |
| 457F1 - Steering Stem Nut | |
| 45718-60 | 1960 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45875-84A | 1984 |
| 45842-77A | 1977 |
| 45446-87A | 1987 |
| 48333-80 | 1980 |
| 459A1 - Upper Triple Clamp | |
| 45435-95 | 1995 |
| 470A1 - Frame | |
| 47900-02A | 2002 |
| 31519-90 | 1990 |
| 472A1 - Frame sub-component | |
| 47504-97 | 1997 |
| 47502-97 | 1997 |
| 472C1 - Front Fairing Support Bracket | |
| 62787-96 | 1996 |
| 472C2 - Fairing Lower Support Bracket | |
| 58939-96C | 2010 |
| 58938-96C | 2010 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 65619-98 | 1998 |
| 68712-94A | 1994 |
| 53563-82 | 1982 |
| 474E1 - Swingarm Assembly sub-component | |
| 47491-02A | 2002 |
| 47564-86B | 1986 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49184-97 | 1997 |
| 49172-97 | 1997 |
| 500A1 - Sidestand Assembly | |
| 50075-83B | 1983 |
| 500B1 - Sidestand Bracket | |
| 50078-81B | 1981 |
| 500D1 - Sidestand Leg | |
| 50075-91A | 1991 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50112-99 | 1999 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-92A | 1992 |
| 50589-93 | 1993 |
| 505D1 - Passenger Footpeg | |
| 50621-79A | 1979 |
| 505H1 - Footpeg Insert | |
| 50614-91A | 1991 |
| 506A1 - Brake Pedal | |
| 42416-83 | 1983 |
| 41957-97A | 1997 |
| 42407-02 | 2002 |
| 520A1 - Rider Seat or Full Seat | |
| 52242-83E | 1983 |
| 52262-97 | 1997 |
| 52220-97 | 1997 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52241-97 | 1997 |
| 521A1 - Seat Support Structure | |
| 52273-97 | 1997 |
| 52249-97 | 1997 |
| 52256-97 | 1997 |
| 52972-98 | 1998 |
| 52301-97C | 1997 |
| 52301-97B | 1997 |
| 521C1 - Seat Suspension Damper | |
| 46209-02 | 2002 |
| 45891-97 | 1997 |
| 521D1 - Seat Suspension Spring | |
| 52282-94C | 2009 |
| 530B1 - Tour Pak sub-component | |
| 53616-85 | 1985 |
| 52307-97 | 1997 |
| 53861-93 | 1993 |
| 53478-80 | 1980 |
| 90964-63 | 1963 |
| 53617-85 | 1985 |
| 530C2 - Case Latch | |
| 53848-00 | 2000 |
| 90686-92 | 1992 |
| 8502 | 1993 |
| 540B1 - Rear Shock | |
| 54565-97C | 1997 |
| 540C1 - Rear Shock Body with Reservoir | |
| 52266-94A | 1994 |
| 53419-97A | 1997 |
| 540E1 - Rear Shock sub-component | |
| 54357-03 | 2003 |
| 54536-02A | 2002 |
| 54316-83A | 1983 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 44082-00D | 2000 |
| 558A1 - Handlebar | |
| 56569-86 | 1986 |
| 55924-97 | 1997 |
| 558B1 - Handlebar Tube | |
| 67866-03 | 2003 |
| 559D1 - Lower Handlebar Clamp | |
| 56151-88B | 1988 |
| 56149-88B | 1988 |
| 560A1 - Mirror | |
| 91904-86A | 1986 |
| 91902-86A | 1986 |
| 561A1 - Throttle Cable | |
| 56357-02 | 2002 |
| 56358-02 | 2002 |
| 561B1 - Left Hand Grip | |
| 56206-96 | 1996 |
| 561E1 - Throttle Grip | |
| 56220-94A | 1994 |
| 570A1 - Front Fairing | |
| 58478-96B | 1996 |
| 58479-96B | 1996 |
| 58236-96 | 1996 |
| 571A1 - Fairing Lower | |
| 76286-96 | 1996 |
| 571B1 - Fairing Lower sub-component | |
| 58208-96A | 1996 |
| 58510-96 | 1996 |
| 58497-96B | 1996 |
| 572E1 - Side Cover | |
| 66619-97A | 1997 |
| 66670-97A | 1997 |
| 32798-00 | 2000 |
| 573A1 - Bodywork Miscellaneous Component | |
| 60386-02 | 2002 |
| 38722-94 | 1994 |
| 7651A | Unknown |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 58088-94 | 1994 |
| 58428-94 | 1994 |
| 58084-94 | 1994 |
| 57995-96 | 1996 |
| 58325-97 | 1997 |
| 58431-94 | 1994 |
| 58187-96 | 1996 |
| 58416-77A | 1977 |
| 58406-75A | 1975 |
| 67621-94 | 1994 |
| 58433-96 | 1996 |
| 58408-75A | 1975 |
| 589A1 - Front Fender | |
| 91107-77C | 2009 |
| 59093-00B | 2012 |
| 595D1 - Rear Fender | |
| 91123-77 | 1977 |
| 59579-01B | 2001 |
| 59174-99 | 1999 |
| 596B1 - Fender Tip | |
| 91023-79A | 1979 |
| 91085-83D | 1983 |
| 91013-79A | 1979 |
| 68046-79 | 1979 |
| 59116-96 | 1996 |
| 50245-99A | 1999 |
| 91090-77A | 1977 |
| 603B1 - Belt / Chain Guard | |
| 60395-02 | 2002 |
| 608A1 - Carbon Canister | |
| 27042-84A | 1995 |
| 608B1 - Carbon Canister Hose | |
| 27191-97A | 1997 |
| 27298-97 | 1997 |
| 27291-97A | 1998 |
| 27201-97A | 1997 |
| 27297-97A | 1998 |
| 609A1 - Fuel Miscellaneous Component | |
| 61112-82A | 1982 |
| 72439-00B | 2000 |
| 61231-01 | 2001 |
| 62188-01 | 2001 |
| 68620-96 | 1996 |
| 6119 | 2016 |
| 89579-91 | 1991 |
| 27612-01 | 2001 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 29474-99A | 1999 |
| 610A1 - Fuel Tank | |
| 61450-95 | 1995 |
| 61356-00 | 2000 |
| 61268-00 | 2000 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 61272-92C | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 62357-00 | 2000 |
| 62555-95 | 1995 |
| 612A1 - Fuel Filter | |
| 61343-00 | 2000 |
| 61959-00 | 2000 |
| 612B1 - Fuel Level Sensor | |
| 75071-02 | 2002 |
| 75205-02 | 2002 |
| 612B2 - Fuel Valve | |
| 62150-85 | 1985 |
| 612C1 - Fuel Line | |
| 63521-95A | 1995 |
| 62349-04F | 2004 |
| 612D1 - Fuel Line Fitting | |
| 48469-00 | 2000 |
| 612F1 - Fuel Pump | |
| 62897-01B | 2001 |
| 75126-02 | 2002 |
| 62165-01 | 2001 |
| 75127-02C | 2002 |
| 62897-01 | 2001 |
| 62163-01A | 2001 |
| 75127-02 | 2002 |
| 62163-01 | 2001 |
| 75126-02C | 2002 |
| 612K1 - Fuel Pump sub-component | |
| 52261-97 | 1997 |
| 75069-02 | 2002 |
| 75076-02 | 2002 |
| 61209-01A | 2001 |
| 758 | Unknown |
| 613B1 - Horn Cover | |
| 69012-93A | 1993 |
| 613C1 - Intake / Fuel Tank Cover | |
| 61278-92 | 1992 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 61961-00 | 2000 |
| 60957-89A | 1989 |
| 613K1 - Airbox Cover | |
| 29121-01 | 2001 |
| 613M1 - Headlight Cover | |
| 67674-03B | 2010 |
| 67682-03B | 2010 |
| 614A1 - Headlight Bezel | |
| 67001-08 | 2008 |
| 614C1 - Trim | |
| 59231-86 | 1986 |
| 70999-94 | 1994 |
| 71001-94 | 1994 |
| 59211-74A | 1974 |
| 62786-96 | 1996 |
| 67868-03 | 2003 |
| 624A1 - Oil Pump Assembly | |
| 26035-99B | 1999 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26248-00 | 2000 |
| 26464-99 | 1999 |
| 26261-99 | 1999 |
| 26255-00 | 2000 |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 627B1 - Oil Drain Plug | |
| 60391-04 | 2004 |
| 45893-99 | 1999 |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62846-99 | 1999 |
| 37075-87 | 1987 |
| 627E2 - Sight Glass | |
| 45042-96 | 1996 |
| 627F1 - Oil Filter | |
| 63798-99A | 1999 |
| 627H1 - Oil Line | |
| 62726-99 | 1999 |
| 45808-02 | 2002 |
| 627K1 - Oil Line Fitting | |
| 26314-99 | 1999 |
| 26352-95A | 1995 |
| 62375-57A | 1957 |
| 627K2 - Oil Line Fitting Cover | |
| 37174-99 | 1999 |
| 627M1 - Oil Pressure Regulator Valve | |
| 61408-00A | 2000 |
| 627N1 - Oil System Baffle | |
| 62828-99 | 1999 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62455-02 | 2002 |
| 649A1 - Muffler | |
| 65554-95B | 2002 |
| 65538-95B | 1995 |
| 65539-95A | 1995 |
| 65552-95C | 1995 |
| 654A1 - Exhaust Shield | |
| 65951-98A | 1998 |
| 65952-98A | 1998 |
| 65630-83C | 1983 |
| 65636-99 | 1999 |
| 65634-98A | 1998 |
| 65647-98 | 1998 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85 | 1985 |
| 655C1 - Exhaust Mounting Bracket | |
| 65678-85D | 1985 |
| 656C1 - Header | |
| 65627-99A | 1999 |
| 72442-05 | 2005 |
| 72435-00 | 2000 |
| 65626-98C | 1998 |
| 656E1 - Header Pipe | |
| 65988-98 | 1998 |
| 65621-99B | 1999 |
| 658A1 - Exhaust Catalyst | |
| 65863-95E | 2001 |
| 65846-95B | 1995 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65620-98A | 1998 |
| 65519-52C | 1952 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 660A1 - Battery | |
| 66010-97C | 1997 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66281-02A | 2002 |
| 660F1 - Negative Battery Cable | |
| 70042-97 | 1997 |
| 660G1 - Positive Battery Cable | |
| 70267-97 | 1997 |
| 70377-97A | 1997 |
| 660H1 - Positive Battery Cable Boot | |
| 31662-90 | 1990 |
| 70584-94 | 1994 |
| 670A1 - Tachometer | |
| 67042-99 | 1999 |
| 68806-99 | 1999 |
| 67356-00 | 2000 |
| 67348-00 | 2000 |
| 677A1 - Headlight | |
| 67755-81A | 1981 |
| 68832-99 | 1999 |
| 67732-71A | 1971 |
| 67778-60A | 1960 |
| 67782-60A | 1960 |
| 67732-08 | 2008 |
| 67702-81C | 1981 |
| 67702-81A | 1981 |
| 11489 | 1995 |
| 67726-71 | 1971 |
| 67728-02A | 2002 |
| 67716-60B | 1960 |
| 68725-62A | 1962 |
| 67780-60A | 1960 |
| 67924-06 | 2006 |
| 67712-83A | 1983 |
| 67793-92A | 2001 |
| 67801-92A | 1993 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67798-92 | 1992 |
| 68390-05 | 2005 |
| 67880-94 | 1994 |
| 678A1 - Taillight | |
| 68558-03 | 2003 |
| 68066-99A | 2004 |
| 69187-03A | 2003 |
| 68369-03 | 2003 |
| 68142-99 | 1999 |
| 68142-04 | 2004 |
| 68830-99A | 1999 |
| 68296-99A | 2004 |
| 68140-04 | 2004 |
| 68370-03A | 2003 |
| 68140-99 | 1999 |
| 68440-86 | 1986 |
| 678B1 - Taillight Housing | |
| 72160-06 | 2006 |
| 678D1 - Turnsignal | |
| 68510-74C | 1974 |
| 68767-94 | 1994 |
| 68766-94 | 1994 |
| 68765-94A | 1994 |
| 68713-94A | 1994 |
| 59201-96 | 1996 |
| 678E1 - Turnsignal Lens | |
| 68506-92 | 1992 |
| 68505-90 | 1990 |
| 679A1 - License Plate Tray / Holder | |
| 53375-97A | 1997 |
| 679B1 - Reflector | |
| 59258-91 | 1991 |
| 59287-92 | 1992 |
| 59259-90 | 1990 |
| 68342-05 | 2005 |
| 59288-92 | 1992 |
| 59261-91 | 1991 |
| 679D1 - License Plate Bracket | |
| 59166-80 | 1980 |
| 60026-97 | 1997 |
| 60039-97 | 1997 |
| 679E1 - License Plate Light | |
| 68180-99 | 1999 |
| 680A1 - Decorative Light | |
| 59672-99 | 1999 |
| 68706-00 | 2000 |
| 68721-62 | 1962 |
| 59180-80 | 1980 |
| 68720-62 | 1962 |
| 680B1 - Emergency Light | |
| 68665-84F | 2010 |
| 68728-09A | 2010 |
| 67599-88 | 1988 |
| 67624-88A | 2009 |
| 67623-88A | 2009 |
| 68727-64D | 2010 |
| 68663-64D | 1964 |
| 68663-64G | 2010 |
| 68728-64C | 2010 |
| 67688-88 | 1988 |
| 68727-09A | 2010 |
| 68665-84C | 1984 |
| 680C1 - Incandescent Bulb | |
| 68833-99 | 1999 |
| 68193-95 | 1995 |
| 68572-64B | 1964 |
| 68169-90A | 1990 |
| 67445-00 | 2000 |
| 68168-89A | 1989 |
| 68453-05 | 2005 |
| 53436-97 | 1997 |
| 68024-94 | 1994 |
| 68163-84 | 1984 |
| 68329-03 | 2003 |
| 67598-88 | 1988 |
| 53438-92 | 1992 |
| 692C1 - Electrical Miscellaneous Component | |
| 68382-96 | 1996 |
| 91808-89 | 1989 |
| 68112-99A | 1999 |
| 70348-02 | 2002 |
| 68642-96 | 1996 |
| 90469-94 | 1994 |
| 76233-85 | 1985 |
| 68113-99B | 1999 |
| 68789-96B | 2012 |
| 72332-02A | 2002 |
| 91812-89A | 1989 |
| 76201-80A | 1980 |
| 68789-96 | 1996 |
| 76185-93 | 1993 |
| 692C2 - Electrical Mounting Bracket | |
| 67271-99 | 1999 |
| 70447-01 | 2001 |
| 89577-95 | 1995 |
| 66185-97 | 1997 |
| 71431-96A | 1996 |
| 69123-92A | 1992 |
| 91137-97 | 1997 |
| 67053-95 | 1995 |
| 69120-91 | 1991 |
| 67689-00 | 2000 |
| 67895-96 | 1996 |
| 68519-68A | 1968 |
| 69060-90F | 2010 |
| 66004-93 | 1993 |
| 91154-87 | 1987 |
| 67319-95 | 1995 |
| 91260-93A | 1993 |
| 67352-96A | 1996 |
| 69062-91A | 1991 |
| 47420-02 | 2002 |
| 91127-85 | 1985 |
| 692D1 - Fuse | |
| 74600-94 | 2019 |
| 72462-00 | 2000 |
| 72330-95 | 1995 |
| 692E1 - Fuse / Relay Block | |
| 72432-00 | 2000 |
| 72431-00 | 2000 |
| 72430-00 | 2000 |
| 72325-97 | 1997 |
| 692E2 - Fuse / Relay Block Cover | |
| 72531-02A | 2002 |
| 692F1 - Wire Harness | |
| 70142-94 | 1994 |
| 68772-99 | 1999 |
| 70233-02 | 2002 |
| 70260-02 | 2002 |
| 32800-00 | 2000 |
| 76248-86 | 1986 |
| 68912-99 | 1999 |
| 67419-99 | 1999 |
| 70177-97 | 1997 |
| 72152-94 | 1994 |
| 70985-02 | 2002 |
| 70196-00 | 2000 |
| 69552-00 | 2000 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 72411-97 | 1997 |
| 54354-94A | 1994 |
| 72366-95 | 1995 |
| 72249-94 | 1994 |
| 72266-94 | 1994 |
| 692G2 - Wire Guide | |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 73152-96BK | 1996 |
| 72119-94BK | 1994 |
| 75044-96 | 1996 |
| 72109-94BK | 1994 |
| 72206-94 | 1994 |
| 72159-94 | 1994 |
| 72454-00 | 2000 |
| 72129-94GY | 1994 |
| 72144-94 | 1994 |
| 72082-02 | 2002 |
| 72451-00 | 2010 |
| 72280-95 | 1995 |
| 72113-94RD | 1994 |
| 72161-06 | 2006 |
| 74142-98 | 1998 |
| 72179-94 | 1994 |
| 72124-94GY | 1994 |
| 9848 | Unknown |
| 9847 | Unknown |
| 72113-94BK | 1994 |
| 67184-94 | 1994 |
| 75119-96A | 2003 |
| 72102-94BK | 1994 |
| 29312-95 | 1995 |
| 72139-94GY | 1994 |
| 72247-95 | 1995 |
| 75105-96A | 1996 |
| 72273-95 | 1995 |
| 68654-92 | 1992 |
| 72453-00 | 2000 |
| 72205-94 | 1994 |
| 73198-96 | 1996 |
| 72035-71 | 1971 |
| 72516-01 | 2001 |
| 72199-94 | 1994 |
| 72153-94 | 1994 |
| 72211-94 | 1994 |
| 692H2 - Terminal | |
| 72245-95 | 1995 |
| 72076-00 | 2000 |
| 72356-95 | 1995 |
| 72292-94 | 1994 |
| 72452-00 | 2000 |
| 72213-94 | 1994 |
| 9898 | Unknown |
| 72429-00 | 2000 |
| 72428-00 | 2000 |
| 72210-94 | 1994 |
| 72290-94 | 1994 |
| 72059-08 | 2008 |
| 72254-94 | 1994 |
| 72242-94 | 1994 |
| 72294-94BK | 1994 |
| 72355-97 | 1997 |
| 74192-98 | 1998 |
| 72208-94 | 1994 |
| 72291-94 | 1994 |
| 9839 | 1996 |
| 9840 | Unknown |
| 9843 | Unknown |
| 9937 | Unknown |
| 72443-05 | 2005 |
| 72434-00 | 2000 |
| 72207-94 | 1994 |
| 72395-97 | 1997 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 72455-00 | 2000 |
| 74194-98 | 1998 |
| 72281-93 | 1993 |
| 692K1 - Connector / Terminal Seal | |
| 72084-02 | 2002 |
| 72085-02 | 2002 |
| 74193-98 | 1998 |
| 72142-94 | 1994 |
| 72212-94 | 1994 |
| 72112-94BK | 1994 |
| 72086-02 | 2002 |
| 72039-71A | 1971 |
| 72237-02 | 2002 |
| 72083-02 | 2002 |
| 72104-94BK | 1994 |
| 72149-94 | 1994 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 74148-98 | 1998 |
| 70345-84 | 1984 |
| 72263-95 | 1995 |
| 72077-00 | 2000 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 74158-98 | 1998 |
| 72231-98 | 1998 |
| 72214-94 | 1994 |
| 70585-93 | 1993 |
| 70504-81 | 1981 |
| 73190-96 | 1996 |
| 72200-94A | 1994 |
| 10102 | Unknown |
| 73103-96BK | 1996 |
| 73156-96BK | 1996 |
| 74108-98BK | 1998 |
| 74113-98BK | 1998 |
| 73106-96BK | 1996 |
| 72904-01BK | 2001 |
| 70598-99 | 1999 |
| 73152-96WE | 1996 |
| 72230-98 | 1998 |
| 74153-98 | 1998 |
| 74195-98 | 1998 |
| 74102-98BK | 1998 |
| 73153-96BK | 1996 |
| 73158-96BK | 1996 |
| 72032-93 | 1993 |
| 72043-71A | 1971 |
| 72143-94 | 1994 |
| 73102-96WE | 1996 |
| 72244-95 | 1995 |
| 72327-03A | 2003 |
| 72033-93 | 1993 |
| 72203-96 | 1996 |
| 56076-97 | 1997 |
| 73110-96BK | 1996 |
| 73160-96BK | 1996 |
| 72405-98BK | 1998 |
| 72103-94BK | 1994 |
| 74413-93 | 1993 |
| 73191-96 | 1996 |
| 74159-98 | 1998 |
| 72190-94 | 1994 |
| 10138 | Unknown |
| 74119-98BK | 1998 |
| 73102-96BK | 1996 |
| 72056-92 | 1992 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 74112-98BK | 1998 |
| 72046-79 | 1979 |
| 74118-98BK | 1998 |
| 70045-94A | 1994 |
| 73154-96BK | 1996 |
| 72133-94GY | 1994 |
| 73108-96BK | 1996 |
| 72914-01BK | 2001 |
| 709B1 - Instrument Cluster or Speedometer | |
| 75032-99B | 1999 |
| 67033-99A | 2012 |
| 67190-89 | 1989 |
| 75059-94 | 1994 |
| 67350-00 | 2000 |
| 75109-96C | 1996 |
| 60960-99 | 1999 |
| 67349-00 | 2011 |
| 67197-99A | 2003 |
| 75112-00 | 2008 |
| 709B2 - Fuel Gauge | |
| 74526-96C | 2000 |
| 75099-01A | 2001 |
| 75111-96C | 1996 |
| 709E1 - Tank Console | |
| 61270-98A | 1998 |
| 714A1 - Ignition Switch | |
| 71643-00 | 2000 |
| 71313-96A | 1996 |
| 71427-96 | 1996 |
| 71543-93 | 1993 |
| 71536-93 | 1993 |
| 71526-93B | 1993 |
| 71532-95 | 1995 |
| 71640-99 | 1999 |
| 53562-93A | 1993 |
| 714B1 - Mechanical Switch | |
| 33904-00A | 2000 |
| 71522-96 | 1996 |
| 33902-98A | 1998 |
| 74408-89A | 1989 |
| 714C1 - Pressure Switch | |
| 71545-93 | 1993 |
| 71544-93 | 1993 |
| 26561-99 | 1999 |
| 714D1 - Relay | |
| 31504-91B | 2000 |
| 31522-00C | 2004 |
| 31511-01B | 2001 |
| 68563-04A | 2004 |
| 715A1 - Hand Control | |
| 71684-06A | 2006 |
| 67854-98 | 1998 |
| 70357-96 | 1996 |
| 70356-96A | 1996 |
| 71587-04 | 2004 |
| 70361-96 | 1996 |
| 70389-96 | 1996 |
| 70358-96 | 1996 |
| 70388-96 | 1996 |
| 70359-96A | 1996 |
| 70355-96 | 1996 |
| 71434-96A | 1996 |
| 71683-06A | 2006 |
| 71564-96 | 1996 |
| 71685-06A | 2006 |
| 71515-08 | 2008 |
| 71620-08 | 2008 |
| 71567-96 | 1996 |
| 71621-08 | 2008 |
| 71422-96 | 1996 |
| 747A1 - Voltage Regulator | |
| 74505-02 | 2002 |
| 760C1 - Audio System Amplifier | |
| 91156-93 | 1993 |
| 760C2 - Audio System Speaker | |
| 77046-96A | 1996 |
| 91157-88A | 1988 |
| 902A1 - Saddlebag | |
| 90720-79C | 1985 |
| 902B1 - Saddlebag Cover | |
| 90776-93 | 1993 |
| 90754-93 | 1993 |
| 902E1 - Saddlebag Bottom | |
| 90718-79C | 1985 |
| 90634-93 | 1993 |
| 90943-93A | 1993 |
| 90594-85A | 1985 |
| 49194-85 | 1985 |
| 47449-97 | 1997 |
| 90801-95 | 1995 |
| 90926-84 | 1984 |
| 90965-63 | 1963 |
| 49193-93 | 1993 |
| 90781-93 | 1993 |
| 90764-93 | 1993 |
| 90929-84 | 1984 |
| 90796-93 | 1993 |
| 902F1 - Saddlebag Guard | |
| 49188-97 | 1997 |
| 903A1 - Lockset | |
| 61029-92A | 1992 |
| 53568-03A | 2003 |
| 903B1 - Key or Key-set | |
| 71452-91A | 1991 |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 68926-00 | 2000 |
| 68927-00 | 2000 |
AUDIO & INSTRUMENTATION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67880-94 | BOOT |
BAGS, LUGGAGE & TRAVEL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90764-93 | CUSHION |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10038A | CLAMP | FUEL TANK - FUEL INJECTED FLHTPI: |
| 10102 | CLIP | |
| 10222 | CLAMP | FUEL PUMP, FUEL INJECTED - FLHTPI: |
| 10249 | CLAMP | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11143 | RING | |
| 11145A | O-RING | |
| 11147B | O-RING | |
| 11150 | RING | |
| 11157 | O-RING | |
| 11165 | SEAL | |
| 11270 | O-RING | |
| 11292 | O-RING | |
| 11293 | O-RING | |
| 11301 | O-RING | |
| 11324 | O-RING | |
| 11491A | GROMMET | |
| 12035B | SEAL | |
| 12045 | SEAL | |
| 12052A | SEAL | |
| 12066A | SEAL | |
| 12067B | SEAL | |
| 1311D | SCREW | FUEL PUMP, FUEL INJECTED - FLHTPI: |
| 16585-96 | INSERT | WINDSHIELD, FAIRING & HEADLAMP - FLHTPI: INNER FAIRING - FLHTPI: |
| 16715-83 | STUD | |
| 16719-99B | GASKET | |
| 17045-99D | GASKET KIT | |
| 17386-99A | GASKET | |
| 18635-99B | GASKET | |
| 2445 | SCREW | WINDSHIELD, FAIRING & HEADLAMP - FLHTPI: INNER FAIRING - FLHTPI: |
| 2446 | SCREW | WINDSHIELD, FAIRING & HEADLAMP - FLHTPI: INNER FAIRING - FLHTPI: |
| 25244-99A | GASKET | |
| 2531 | SCREW | |
| 25416-99C | SEAL | |
| 2563 | SCREW | INSTRUMENTS - FLHTPI: |
| 25700225 | GASKET KIT | |
| 26995-86B | SEAL | |
| 2918 | SCREW | |
| 31430-94 | WASHER | |
| 3275 | SCREW | |
| 33126-94 | LOCKPLATE | |
| 33318-85 | TAB | |
| 34901-94C | GASKET | |
| 34906-85D | GASKET | |
| 3595 | SCREW | |
| 3655A | SCREW | |
| 3658 | SCREW | |
| 36801-87C | GASKET | |
| 4132 | SCREW | |
| 41731-01 | GASKET | |
| 43567-92 | SCREW | |
| 45279-00 | WASHER | |
| 45405-75A | SCREW | FRONT FORK - LEFT (FAIRING MODEL): |
| 45733-48 | WASHER | |
| 45845-77 | O-RING | FRONT FORK - LEFT (FAIRING MODEL): |
| 45858-77 | SCREW | FRONT FORK - LEFT (FAIRING MODEL): |
| 4740A | SCREW | |
| 48300-60 | BEARING | |
| 5207 | WELLNUT | |
| 5210 | WELLNUT | NACELLE & HEADLAMP - FLHPI & FLHPEI: |
| 58311-96 | SEAL | INNER FAIRING - FLHTPI: |
| 60678-85 | RING | |
| 61402-02 | GASKET | FUEL PUMP, FUEL INJECTED - FLHTPI: |
| 6229W | WASHER | |
| 6516HW | WASHER | |
| 65324-83B | GASKET | |
| 65325-83A | RING | |
| 6702 | WASHER | FUEL TANK - FUEL INJECTED FLHTPI: |
| 7041 | LOCKWASHER | |
| 70909-95 | RECEPTACLE | |
| 739A | PLUG | |
| 7586 | JAM NUT | |
| 7593 | NUT | |
| 7600 | NUT | |
| 7716 | LOCKNUT | |
| 856A | SCREW | |
| 90834-95B | STUD | |
| 9247 | BEARING | |
| 933 | SCREW | |
| 961 | SCREW | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 44082-00D | PAD KIT | |
| 45875-84A | SEAL | FRONT FORK - LEFT (FAIRING MODEL): |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 16207-79D | MOUNT | |
| 50112-99 | SPRING | |
| 58938-96C | SUPPORT | INNER FAIRING - FLHTPI: |
| 58939-96C | SUPPORT | INNER FAIRING - FLHTPI: |
| 59166-80 | LOCKPLATE |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | CAP | FUEL TANK CONSOLE - FLHTPI: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 70345-84 | RETAINER | |
| 71621-08 | SWITCH KIT | |
| 72023-51E | SWITCH | |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - FLHTPI (2 OF 2): |
| 91808-89 | ELEMENT | INNER FAIRING - FLHTPI: |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 17025-03A | BREATHER ASSEMBLY KIT | |
| 18538-99C | LIFTER | |
| 33709-82A | SHAFT | |
| 37909-90 | RING | |
| 37913-98 | PLATE |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33895-82D | LEVER | |
| 34611-65A | PEG |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 29476-99 | TUBE | |
| 65296-95A | CLAMP | |
| 65724-85 | MOUNT |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67445-00 | BULB | INSTRUMENTS - FLHTPI: |
| 68168-89A | BULB | |
| 68193-95 | BULB | |
| 68329-03 | BULB | WINDSHIELD, FAIRING & HEADLAMP - FLHTPI: NACELLE & HEADLAMP - FLHPI & FLHPEI: |
| 68572-64B | BULB |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 32362-04 | SPARK PLUG | |
| 63798-99A | FILTER | |
| 66010-97C | BATTERY | |
| 66373-06 | BATTERY | |
| 95594-84A | WEIGHT | |
| 95595-84A | WEIGHT |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | STEM |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING |
