2020 HARLEY-DAVIDSON® PARTS CATALOG: FLHXSE MODEL
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 94000725 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2019 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 4. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
The full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2020 FLHXSE MODELS
VIN Model Codes
Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | PX=CVO™ Street Glide® (FLHXSE) | |
4 | Engine type | L=Air-Cooled Milwaukee-Eight™ 117 Engine, 1917 cm3 | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=HDI 5=Japan (JPN) 6=Australia (AUS) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=India (IND) 0=ASEAN (AZN) A=China (CHN) | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | L=2020 | |
8 | Assembly plant | B=York, PA USA D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
NOTES
ENGINE ASSEMBLY - Milwaukee-Eight® 117 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200663 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (black) | FLHXSE |
| 1 | 16200668 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (satin chrome) | FLHXSE |
| 1 | 16200669 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (black with smoked satin chrome) | FLHXSE |
| 2 | 16200395 | ENGINE ASSEMBLY, shortblock, with 91800075, crankcase, flywheel assembly, camshaft support plate assembly, oil pump, engine balancer and cylinder studs | FLHXSE |
| 3 | 91800075 | KIT, shortblock installation, with 25700983 top end gasket kit, 25700830 inner primary gasket kit, camshaft sprockets, camshaft drive chains and camshaft tensioners | FLHXSE |
| Note: Cylinders, cylinder heads, rocker arms, pushrods, pushrod covers, camshafts, piston assemblies, tappets, oil filter and cosmetic covers are not included with the short block assembly. These parts must be removed from the original engine and installed onto the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99A | DOWEL PIN (4) | FLHXSE |
| 2 | 68120-00 | SCREW (4) | FLHXSE |
| 3 | 10200303 | FLANGE NUT (dull silver) (8) | FLHXSE |
| 4 | 10900015A | STUD, exhaust port (4) | FLHXSE |
| 5 | 14101169 | MEDALLION (2) | FLHXSE |
| 6 | 16500599 | GASKET, cylinder head (2) | FLHXSE |
| 7 | 16500332 | GASKET, cylinder base (2) | FLHXSE |
| 8 | 16500405 | CYLINDER HEAD, rear, with 4, 5, 11, 12, 13, 14, 15, 16, 17 and 65324-83B (black granite) | FLHXSE |
| 8 | 16500400 | CYLINDER HEAD, front, with 4, 5, 11, 12, 13, 14, 15, 16, 17 and 65324-83B (black granite) | FLHXSE |
| 9 | 16800063 | STUD, cylinder (8) | FLHXSE |
| 10 | 16800121 | CYLINDER ASSEMBLY, front, with 16589-99A (black granite) | FLHXSE |
| 10 | 16800123 | CYLINDER ASSEMBLY, rear, with 16589-99A (black granite) | FLHXSE |
| 11 | 18000016 | INTAKE VALVE (4) | FLHXSE |
| 12 | 18000034 | EXHAUST VALVE (4) | FLHXSE |
| 13 | 18100043 | VALVE SPRING (8) | FLHXSE |
| 14 | 18100044 | SEAL, valve (8) | FLHXSE |
| 15 | 18100045 | COLLAR, valve spring (8) | FLHXSE |
| 16 | 18100060 | KEEPER, valve (16) | FLHXSE |
| 17 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLHXSE |
| 18 | 25700983 | GASKET KIT, top end | FLHXSE |
| 25700984 | GASKET KIT, engine overhaul | FLHXSE |
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | FLHXSE |
| 2 | 4741A | SCREW (8) | FLHXSE |
| 3 | 11132A | O-RING, pushrod cover (4) | FLHXSE |
| 4 | 11145A | O-RING, pushrod cover (4) | FLHXSE |
| 5 | 11293 | O-RING (4) | FLHXSE |
| 6 | 17945-36B | CAP, cover spring (chrome) (used on motorcycles with Black Stardust, Stormcloud, Smoky Gray paint) (4) | FLHXSE |
| 6 | 12200116 | CAP, cover spring (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| 7 | 17947-36 | SPRING, pushrod cover (4) | FLHXSE |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | FLHXSE |
| 9 | 17968-99 | RETAINER, spring cap (chrome) (used on motorcycles with Smoky Gray or Black Fade paint) (4) | FLHXSE |
| 9 | 18100069 | RETAINER, spring cap (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| 10 | 18538-99C | HYDRAULIC LIFTER (4) | FLHXSE |
| 11 | 10200258 | SCREW (2) | FLHXSE |
| 12 | 10200308 | SCREW (20) | FLHXSE |
| 13 | 10200446 | SCREW (8) | FLHXSE |
| 14 | 10200503 | SCREW (8) | FLHXSE |
| 15 | 10500069 | SPACER, rocker cover (2) | FLHXSE |
| 16 | 11900116 | O-RING (2) | FLHXSE |
| 17 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | FLHXSE |
| 18 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | FLHXSE |
| 19 | 17300059A | SHAFT, rocker arm (4) | FLHXSE |
| 20 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | FLHXSE |
| 21 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | FLHXSE |
| 22 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | FLHXSE |
| 17900035 | ANTI-ROTATION DEVICE, front cylinder | FLHXSE | |
| 23 | 25700362 | GASKET, lifter cover (2) | FLHXSE |
| 24 | 25700372B | GASKET, rocker arm cover (2) | FLHXSE |
| 25 | 25700520 | ROCKER COVER (black) (2) | FLHXSE |
| 26 | 25700410 | LIFTER COVER, front (chrome) (used on motorcycles with Smoky Gray or Black Fade paint) | FLHXSE |
| 26 | 25701095 | LIFTER COVER, front (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 26 | 25700411 | LIFTER COVER, rear (chrome) (used on motorcycles with Smoky Gray or Black Fade paint) | FLHXSE |
| 26 | 25701096 | LIFTER COVER, rear (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 27 | 25700425 | GASKET, rocker housing, lower (2) | FLHXSE |
| 28 | 25700488A | COVER, pushrod (lower) (chrome) (used on motorcycles with Smoky Gray or Black Fade paint) (4) | FLHXSE |
| 28 | 25701142 | COVER, pushrod (lower) (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| 29 | 25701055 | ROCKER COVER, lower, with 25700425 (red) (2) | FLHXSE |
| 30 | 25700731 | GASKET KIT, camshaft service | FLHXSE |
| 31 | 29400183 | BREATHER ASSEMBLY, rear, with 11900116 | FLHXSE |
| 29400210 | BREATHER ASSEMBLY, front, with 11900116 | FLHXSE |
COOLING SYSTEM, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLHXSE |
| 2 | 10200446 | SCREW (4) | FLHXSE |
| 3 | 10800052 | CLAMP (3) | FLHXSE |
| 4 | 11900090 | O-RING, coolant manifold (4) | FLHXSE |
| 5 | 11900092 | O-RING, transmission oil return | FLHXSE |
| 6 | 26900117 | BRACKET, coolant tube (2) | FLHXSE |
| 7 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 | FLHXSE |
| 8 | 62800028 | COOLANT LINE ASSEMBLY, oil, with 10800052, 11900090 and 26900117 | FLHXSE |
| 9 | 26900144 | HOSE, inlet | FLHXSE |
| 10 | 62700161 | HOSE, drain | FLHXSE |
| 11 | 10800109 | CLAMP | FLHXSE |
| 12 | 10800111 | CLAMP | FLHXSE |
COOLANT DISTRIBUTION
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHXSE |
| 2 | 10080 | CLAMP (black) (2) | FLHXSE |
| 3 | 69201286A | COVER, electrical connector, with 12600016 | FLHXSE |
| 4 | 10344 | CLAMP (black) (2) | FLHXSE |
| 5 | 11692 | GROMMET (2) | FLHXSE |
| 6 | 70681-09 | CLIP, wire retention | FLHXSE |
| 7 | 10200414 | SCREW (2) | FLHXSE |
| 8 | 10200422 | SCREW (2) | FLHXSE |
| 9 | 10800052 | CLAMP | FLHXSE |
| 10 | 12600016 | CLIP, push-in (2) | FLHXSE |
| 11 | 12700090 | BRACKET, voltage regulator | FLHXSE |
| 12 | 57200249ELY | COVER, oil cooler (Stormcloud) with 1110254, 11100255 and 101000138 (Stormcloud for use on Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 57200249EML | COVER, oil cooler (Smoky Gray and Black Hole with graphics) with 1110254, 11100255 and 101000138 **RESTRICTED SALES PART** | FLHXSE |
| 12 | 57200249ELV | COVER, oil cooler (Sand Dune) with 1110254, 11100255 and 101000138 **RESTRICTED SALES PART** | FLHXSE |
| 13 | 62700196 | OIL COOLER | FLHXSE |
| 14 | 62700143 | HOSE, inlet, oil cooler | FLHXSE |
| 15 | 62700144 | HOSE, outlet, oil cooler | FLHXSE |
| 16 | 10100138 | NUT, starlock (4) | FLHXSE |
| 17 | 11100254 | PAD, foam, adhesive | FLHXSE |
| 18 | 11100255 | PAD, foam, adhesive | FLHXSE |
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-Eight® 117 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHXSE |
| 2 | 22097-99 | LOCK RING, piston pin (4) | FLHXSE |
| 3 | 21900082 | PISTON AND RINGS ASSEMBLY (2) | FLHXSE |
| 4 | 22000079 | PISTON RING SET, 4.075 (2) | FLHXSE |
| 5 | 22100006 | PISTON PIN (2) | FLHXSE |
| 6 | 24100045A | FLYWHEEL ASSEMBLY KIT, with 11177A | FLHXSE |
| 7 | 35200057 | BALANCER ASSEMBLY | FLHXSE |
CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHXSE |
| 2 | 765 | PLUG (5) | FLHXSE |
| 3 | 8972 | WASHER | FLHXSE |
| 4 | 9215 | NEEDLE BEARING, left side, camshaft | FLHXSE |
| 5 | 16574-99A | DOWEL PIN (2) | FLHXSE |
| 6 | 16589-99A | DOWEL PIN (4) | FLHXSE |
| 7 | 24605-07 | BEARING, main (2) | FLHXSE |
| 8 | 26352-95A | ADAPTER | FLHXSE |
| 9 | 35114-02 | RING, retaining, internal | FLHXSE |
| 10 | 62700296 | OIL FILTER (black) | FLHXSE |
| 11 | 68042-99 | SCREW (4) | FLHXSE |
| 12 | 10200343 | SCREW (12) | FLHXSE |
| 13 | 11000134 | SEAL, oil | FLHXSE |
| 14 | 12400099 | SPACER, front mount (2) | FLHXSE |
| 15 | 24100080 | BEARING KIT, with 8972, 24605-07, 35114-02 and inner race | FLHXSE |
| 16 | 24400187 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 14, 17, 19, 20, 21 and 1090015A (black granite) | FLHXSE |
| 17 | 25700433 | GASKET, piston jet (2) | FLHXSE |
| 18 | 29900041 | SPACER, sprocket shaft | FLHXSE |
| 19 | 35200021 | BEARING, balancer (2) | FLHXSE |
| 20 | 62700089 | PISTON JET ASSEMBLY, front, with 25700433 | FLHXSE |
| 21 | 62700117 | PISTON JET ASSEMBLY, rear, with 25700433 | FLHXSE |
| 22 | 62700141 | CHECK VALVE, oil pressure, with 11900010 | FLHXSE |
| 23 | 11900010 | O-RING | FLHXSE |
CAMSHAFT AND CAMSHAFT COVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHXSE |
| 2 | 942 | SCREW (2) | FLHXSE |
| 3 | 4740A | SCREW (15) | FLHXSE |
| 4 | 4822A | SCREW (4) | FLHXSE |
| 5 | 8873 | BALL (7) | FLHXSE |
| 6 | 9215 | NEEDLE BEARING, camshaft | FLHXSE |
| 7 | 11293 | O-RING | FLHXSE |
| 8 | 16589-99A | DOWEL PIN | FLHXSE |
| 9 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with 6294, 6278A | FLHXSE |
| 10 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLHXSE |
| 11 | 25675-06 | CHAIN, primary camshaft drive | FLHXSE |
| 12 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLHXSE |
| 12 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLHXSE |
| 12 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLHXSE |
| 12 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLHXSE |
| 12 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLHXSE |
| 12 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLHXSE |
| 13 | 26210-99 | SPRING, relief valve | FLHXSE |
| 14 | 68120-00 | SCREW (2) | FLHXSE |
| 15 | 11900103 | O-RING | FLHXSE |
| 16 | 25400103 | SPROCKET, camshaft drive, 34 teeth | FLHXSE |
| 17 | 25400133 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99A | FLHXSE |
| 18 | 25400273 | CAMSHAFT | FLHXSE |
| 19 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25400103 | FLHXSE |
| 20 | 25500013 | CHAIN TENSIONER, camshaft drive chain | FLHXSE |
| 21 | 25600111 | COVER, timer cover (black) | FLHXSE |
| 22 | 25700467 | CAMSHAFT COVER (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 22 | 25700699 | CAMSHAFT COVER (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 23 | 25700370 | GASKET, camshaft cover | FLHXSE |
| 24 | 25700731 | GASKET KIT, camshaft service | FLHXSE |
| 25 | 62400233 | GEROTOR ASSEMBLY | FLHXSE |
| 26 | 62400126 | GEROTOR ASSEMBLY, feed (Air-Cooled) | FLHXSE |
| 27 | 62400238 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 62400233, 62400237 and body (Air-Cooled) Also order 62400126 | FLHXSE |
| 28 | 62400245 | COVER, oil pump assembly | FLHXSE |
| 29 | 26400-82B | RELIEF VALVE, oil pump bypass | FLHXSE |
| 30 | 62400205 | GASKET | FLHXSE |
| 31 | 62400247 | KIT-OIL PUMP, with 62400126, 62400238, 62400245 (Air-Cooled) | FLHXSE |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | FLHXSE |
| 2 | 6127 | WASHER | FLHXSE |
| 3 | 16219-09 | STABLIZER LINK | FLHXSE |
| 4 | 10100062 | LOCKNUT | FLHXSE |
| 5 | 10200393 | SCREW | FLHXSE |
| 6 | 10200408A | SCREW (2) | FLHXSE |
| 7 | 10200463 | SCREW (2) | FLHXSE |
| 8 | 16300005 | ENGINE MOUNT, front (2) | FLHXSE |
| 9 | 16400041 | BRACKET, tie link | FLHXSE |
| 10 | 16400042 | END CAP, front mount | FLHXSE |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHXSE |
| 2 | 10200373 | SCREW (3) | FLHXSE |
| 3 | 12100069 | PLUG, purge tube cap | FLHXSE |
| 4 | 27200025 | MANIFOLD THROTTLE BODY INTAKE KIT, with 27300122, 27400019 and 91800058 | FLHXSE |
| 5 | 27300082 | GASKET, throttle body to manifold | FLHXSE |
| 6 | 27300086 | FLANGE, intake (2) | FLHXSE |
| 7 | 27300087 | SEAL, intake (2) | FLHXSE |
| 8 | 27300121 | INTAKE MANIFOLD ASSEMBLY, with 27300082 | FLHXSE |
| 9 | 27300122 | THROTTLE BODY ASSEMBLY, with 12100069 | FLHXSE |
| 10 | 27400015 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLHXSE |
| 11 | 27400019 | FUEL RAIL KIT | FLHXSE |
| 12 | 32700065 | SENSOR, temperature manifold absolute pressure, with O-ring | FLHXSE |
| 13 | 61200022 | FUEL LINE | FLHXSE |
| 14 | 91800058 | HARDWARE KIT, induction module | FLHXSE |
AIR CLEANER - CANADA AND DOMESTIC WITH BLACK STARDUST FADE PAINT
| Index No. | Part No. | Description | Model(s) |
| 1 | 869 | SCREW (3) | FLHXSE |
| 2 | 923 | SCREW (2) | FLHXSE |
| 3 | 3048 | SCREW (2) | FLHXSE |
| 4 | 29465-08B | BOLT, breather (2) | FLHXSE |
| 5 | 14101119 | INSERT, air cleaner cover | FLHXSE |
| 6 | 29000148 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHXSE |
| 7 | 29000149 | GASKET | FLHXSE |
| 8 | 29400267 | ELEMENT, air filter | FLHXSE |
| 9 | 29400336 | HOSE, front | FLHXSE |
| 10 | 29400337 | HOSE, rear | FLHXSE |
| 11 | 61300721 | RAINSOCK | FLHXSE |
| 12 | 61301130 | COVER, with label (satin chrome) | FLHXSE |
AIR CLEANER, HEAVY BREATHER STYLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500129 | SCREW (black) (3) | FLHXSE |
| 2 | 68042-99 | SCREW (3) | FLHXSE |
| 3 | 14101165 | MEDALLION **RESTRICTED SALES PART** | FLHXSE |
| 4 | 61300955 | COVER (black) | FLHXSE |
| 5 | 29400384 | FILTER, air | FLHXSE |
| 6 | 10200736 | SCREW | FLHXSE |
| 7 | 29000239 | TUBE, intake (black) | FLHXSE |
| 8 | 10200737 | SCREW (black) (2) | FLHXSE |
| 9 | 29400252 | SCREW (2) | FLHXSE |
| 10 | 29000149 | SEAL (2) | FLHXSE |
| 11 | 11900040 | O-RING (2) | FLHXSE |
| 12 | 29000314 | BASEPLATE, with label (black) (all except China) | FLHXSE |
| 12 | 29000293 | BASEPLATE, with label (black) (China only) | FLHXSE |
| 13 | 11900042 | O-RING (2) | FLHXSE |
| 14 | 869 | SCREW (3) | FLHXSE |
| 15 | 61300616 | COVER, throttle body | FLHXSE |
| 16 | 29000227 | SEAL, airbox tube | FLHXSE |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | FLHXSE |
| 2 | 10039 | CABLE STRAP (3) | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored | FLHXSE |
| 4 | 10200422 | SCREW (4) | FLHXSE |
| 5 | 29900038 | ROTOR ASSEMBLY | FLHXSE |
| 6 | 29900041 | SPACER, sprocket shaft | FLHXSE |
| 7 | 29900042A | STATOR ASSEMBLY, 3-phase, 48 A | FLHXSE |
| 8 | 69201423 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | FLHXSE |
| 9 | 74700025 | VOLTAGE REGULATOR ASSEMBLY, with 74700038, 74700039 | FLHXSE |
| 10 | 74700038 | LATCH, volt regulator, AC | FLHXSE |
| 11 | 74700039 | LATCH, volt regulator, DC | FLHXSE |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLHXSE |
| 2 | 4813A | SCREW (2) | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored (6) | FLHXSE |
| 4 | 70681-09 | RETAINER, wire harness | FLHXSE |
| 5 | 31600012 | SPARK PLUG, M10 (4) | FLHXSE |
| 6 | 31600017 | IGNITION COIL | FLHXSE |
| 7 | 31600018B | SPARK PLUG CABLE, right front cylinder, with 10177 | FLHXSE |
| 8 | 31600023A | SPARK PLUG CABLE, right rear cylinder, with 10177 | FLHXSE |
| 9 | 31600078A | SPARK PLUG CABLE, left front cylinder, with 10177, 12200170 | FLHXSE |
| 10 | 31600079 | SPARK PLUG CABLE, left rear cylinder, with 10177 | FLHXSE |
| 11 | 41000668 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHXSE |
| 12 | 69200174 | CADDY, electronic control module (ECM) | FLHXSE |
| 13 | 12200170 | CABLE STRAP | FLHXSE |
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (2) | FLHXSE |
| 2 | 942 | SCREW | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored | FLHXSE |
| 4 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLHXSE |
| 5 | 11289A | O-RING, crankshaft position sensor | FLHXSE |
| 6 | 32700048 | SENSOR, crankshaft position, with 74194-98, 11289A and 69201302 | FLHXSE |
| 7 | 32700054 | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLHXSE |
| 8 | 32700065 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHXSE |
| 9 | 62700141 | CHECK VALVE, oil pressure, with 11900010 | FLHXSE |
| 10 | 69200840 | SENSOR, knock (2) | FLHXSE |
| 11 | 69201299 | HOUSING, socket, two-way, key B | FLHXSE |
| 12 | 69201300 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 13 | 69201301 | WIRE SEAL, 22 AWG (green) (2) | FLHXSE |
| 14 | 69201302 | CONNECTOR ANCHOR | FLHXSE |
| 15 | 71400112 | OIL PRESSURE SWITCH | FLHXSE |
| 16 | 11900010 | O-RING | FLHXSE |
| 17 | 11900172 | O-RING | FLHXSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLHXSE |
| 2 | 27444-00Y | O-RING, starter-to-case | FLHXSE |
| 3 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | FLHXSE |
SHIFTER, GEAR (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHXSE |
| 2 | 856A | SCREW | FLHXSE |
| 3 | 3275 | SCREW (2) | FLHXSE |
| 4 | 4192 | SCREW (chrome) (2) | FLHXSE |
| 5 | 10500108 | SCREW (zinc) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 5 | 10500107 | SCREW (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 6 | 5817 | SPACER | FLHXSE |
| 7 | 6497HW | WASHER | FLHXSE |
| 8 | 7904 | ACORN NUT | FLHXSE |
| 9 | 11150 | RETAINING RING | FLHXSE |
| 10 | 11389 | RING, shift camshaft retaining | FLHXSE |
| 11 | 11575 | RING, shift camshaft retaining | FLHXSE |
| 12 | 33389-07 | SPRING, detent | FLHXSE |
| 13 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLHXSE |
| 14 | 33600102 | SHIFTER LINKAGE ROD ASSEMBLY, with 7326, 33899-08 (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 15 | 33888-99 | ROD END, self-aligning (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 15 | 33899-08 | ROD END, self-aligning (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 16 | 33889-99 | NUT, rod end (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 16 | 7326 | NUT, rod end (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 17 | 34064-00C | SPRING, shift lever centering | FLHXSE |
| 18 | 34987-06 | SPRING, ratchet lever | FLHXSE |
| 19 | 35081-06 | SHIFT MECHANISM, with 34064-00C, 34987-06 | FLHXSE |
SHIFTER, GEAR (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 20 | 35082-07 | CENTERING SCREW, shift lever | FLHXSE |
| 21 | 35186-06 | SLEEVE | FLHXSE |
| 22 | 35187-06 | FORK, shift 1 - 2 | FLHXSE |
| 23 | 35210-06 | FORK, shift 3 - 4 | FLHXSE |
| 24 | 35217-06 | FORK, shift 5 - 6 | FLHXSE |
| 25 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHXSE |
| 26 | 35223-06 | SHAFT, 1 - 2 and 3 - 4 shift fork | FLHXSE |
| 27 | 35243-06 | SLEEVE | FLHXSE |
| 28 | 35244-06 | SCREW | FLHXSE |
| 29 | 35249-06A | LOCK PLATE, shift camshaft | FLHXSE |
| 30 | 35259-06 | SCREW (2) | FLHXSE |
| 31 | 11000101 | OIL SEAL | FLHXSE |
| 32 | 33900180 | LEVER, shifter rod | FLHXSE |
| 33 | 33600244 | SHIFTER PEG (black) (used on motorcycles with Sand Dune paint) (2) | FLHXSE |
| 33 | 33600275 | SHIFTER PEG (satin black) (used on motorcycles with Smoky Gray paint) (2) | FLHXSE |
| 33 | 33600276 | SHIFTER PEG (satin chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 34 | 33600060A | LEVER, toe shifter (short) (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 34 | 33600225 | LEVER, toe shifter (short) (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 35 | 33600061A | LEVER, heel shifter (long) (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 35 | 33600227 | LEVER, heel shifter (long) (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 36 | 33600088 | LEVER, gear shifter (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 36 | 33600188 | LEVER, gear shifter (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 37 | 33600091 | SHAFT | FLHXSE |
| 38 | 33900172 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHXSE |
| 39 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 10, 11, 12, 13, 22, 23, 24, 25, 26, 27, 28, 29, 30, 38, 7340, 35260-06B, input shaft, countershaft and gears (black granite) | FLHXSE |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHXSE |
| 2 | 3249 | SCREW (8) | FLHXSE |
| 3 | 4705 | SCREW (6) | FLHXSE |
| 4 | 4718A | SCREW (4) | FLHXSE |
| 5 | 4741A | SCREW (2) | FLHXSE |
| 6 | 4890 | BLEEDER SCREW | FLHXSE |
| 7 | 7340 | NUT, mainshaft and countershaft (2) | FLHXSE |
| 8 | 8963 | BEARING, needle | FLHXSE |
| 9 | 8967A | BEARING | FLHXSE |
| 10 | 8970A | BEARING | FLHXSE |
| 11 | 9701A | BUSHING | FLHXSE |
| 12 | 11132A | O-RING, dipstick | FLHXSE |
| 13 | 11161 | RETAINING RING | FLHXSE |
| 14 | 12074 | SEAL | FLHXSE |
| 15 | 16583-00A | BUSHING, dowel (2) | FLHXSE |
| 16 | 35082-07 | CENTERING SCREW, shift lever | FLHXSE |
| 17 | 35087-99A | RETAINING RING (2) | FLHXSE |
| 18 | 35186-06 | SLEEVE | FLHXSE |
| 19 | 35000105A | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00A, 35087-99A and 11000010 (black granite) | FLHXSE |
| 20 | 35654-06 | GASKET, bearing housing | FLHXSE |
| 21 | 36805-06 | GASKET, cover | FLHXSE |
| 22 | 37065-06A | DIPSTICK (chrome) | FLHXSE |
| 23 | 11000010 | BEARING | FLHXSE |
| 24 | 11000101 | OIL SEAL | FLHXSE |
| 25 | 11900092 | O-RING | FLHXSE |
| 26 | 24400215 | GASKET | FLHXSE |
| 27 | 25700178 | INNER SIDE COVER, transmission | FLHXSE |
| 28 | 25800127 | SIDE COVER, transmission, with 25800109 and 25800110 (chrome) | FLHXSE |
| 25800055 | SIDE COVER, transmission (black) | FLHXSE | |
| 29 | 25800109 | TRIM, rubber | FLHXSE |
| 30 | 25800110 | TAPE, foam | FLHXSE |
| 31 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | FLHXSE |
| 32 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 | FLHXSE |
| 33 | 25800123 | MEDALLION | FLHXSE |
| 34 | 25800128 | COVER (satin chrome) with 25800127, 25800123 | FLHXSE |
| 34 | 25800125 | COVER (black) with 25800055, 25800123 | FLHXSE |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHXSE |
| 2 | 3983 | SCREW (2) | FLHXSE |
| 3 | 4705 | SCREW | FLHXSE |
| 4 | 4741A | SCREW (18) | FLHXSE |
| 5 | 7792 | NUT | FLHXSE |
| 6 | 11105 | O-RING (2) | FLHXSE |
| 7 | 11120 | O-RING | FLHXSE |
| 8 | 11289A | O-RING | FLHXSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHXSE |
| 10 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHXSE |
| 11 | 60328-98B | PLUG, magnetic, with 11105 (2) | FLHXSE |
| 12 | 62372-09 | VENT HOSE, transmission | FLHXSE |
| 13 | 66290-06 | STUD, ground | FLHXSE |
| 14 | 74402-05B | SPEED SENSOR, with 11289A | FLHXSE |
| 15 | 24400180 | OIL PAN ASSEMBLY, with 60328-98B (black) | FLHXSE |
| 16 | 25700452 | GASKET, oil pan | FLHXSE |
| 17 | 25700453 | GASKET, upper cover | FLHXSE |
| 18 | 34700092 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967A, 9701A, 11161, 16574-99A, 35082-07, 35122-06A, 35186-06, 35241-06, 35242-06, 66290-06, 11000101 and 35000152 (black granite) | FLHXSE |
| 19 | 34800031 | TRANSMISSION COVER, top, with 62372-09 (gloss black) | FLHXSE |
| 19 | 34800025 | TRANSMISSION COVER, top, with 62372-09 (chrome) used on Black Fade | FLHXSE |
| 20 | 62700198 | DIPSTICK ASSEMBLY, with 11120 (chrome cap) | FLHXSE |
| 20 | 62700219 | DIPSTICK ASSEMBLY, with 11120 (gloss black cap) | FLHXSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHXSE |
| 2 | 7340 | NUT (2) | FLHXSE |
| 3 | 8026K | BEARING, needle (4) | FLHXSE |
| 4 | 8041 | BEARING, needle | FLHXSE |
| 5 | 8042A | BEARING, needle (2) | FLHXSE |
| 6 | 10991A | RETAINING RING (2) | FLHXSE |
| 7 | 12200144 | RETAINING RING | FLHXSE |
| 8 | 11081A | RING, lock (3) | FLHXSE |
| 9 | 11082A | SECURING SEGMENT (6) | FLHXSE |
| 10 | 11201 | O-RING | FLHXSE |
| 11 | 11207A | WASHER, internal spline | FLHXSE |
| 12 | 11599A | SPACER, bearing | FLHXSE |
| 13 | 12077 | OIL SEAL | FLHXSE |
| 14 | 34091-08 | BEARING, inner race | FLHXSE |
| 15 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042A, 10991A, 11201, 11599A and 12077 | FLHXSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHXSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHXSE |
| 18 | 35000178 | GUIDE HUB, dog ring | FLHXSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHXSE |
| 20 | 35204-06 | DOG RING, pocketed | FLHXSE |
| 21 | 35467-06C | INPUT SHAFT KIT, with 12200144, 34091-08 and 35000178 | FLHXSE |
| 22 | 35600094 | COUNTERSHAFT ASSEMBLY | FLHXSE |
| 23 | 35000179 | GEAR, fifth input | FLHXSE |
| 24 | 35807-06 | GEAR, countershaft-second | FLHXSE |
| 25 | 35811-06 | GEAR, countershaft-third | FLHXSE |
| 26 | 35814-06 | GEAR, countershaft-fourth | FLHXSE |
| 27 | 35600103 | GEAR ASSEMBLY, countershaft-first | FLHXSE |
| 28 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 8, 9, 11, 16, 17, 19, 20, 23, 24, 25, 26, 27, input shaft, countershaft and gears (black granite) | FLHXSE |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLHXSE |
| 2 | 11143 | RETAINING RING, external | FLHXSE |
| 3 | 36706-01K | BOLT (3) | FLHXSE |
| 4 | 36731-91 | PLATE, release, with 8885 | FLHXSE |
| 5 | 37496-90A | NUT, mainshaft | FLHXSE |
| 6 | 37904-90 | RETAINING RING, external | FLHXSE |
| 7 | 37909-90 | RING, retaining, internal | FLHXSE |
| 8 | 37000032A | PRESSURE PLATE, clutch | FLHXSE |
| 9 | 37000033 | STOPPER PLATE | FLHXSE |
| 10 | 37000034 | SPRING, damper | FLHXSE |
| 11 | 37000295 | SEAT, damper-spring | FLHXSE |
| 12 | 37000083 | HUB ASSEMBLY | FLHXSE |
| 13 | 37000258 | CLUTCH DISKS KIT | FLHXSE |
| 14 | 37000168 | BEARING, ball, double-row | FLHXSE |
| 15 | 37000169 | RETAINING RING, internal | FLHXSE |
| 16 | 37000217 | RELEASE ROD, clutch | FLHXSE |
| 17 | 37000218 | PUSHROD, clutch release | FLHXSE |
| 18 | 37000219 | SEAT (3) | FLHXSE |
| 19 | 37000254A | CLUTCH ASSEMBLY, complete, with 3, 6, 8, 9, 10, 11, 12, 13, 14, 15, 18 and 20 | FLHXSE |
| 20 | 37000270A | COIL SPRING (3) | FLHXSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHXSE |
| 2 | 791A | SCREW (2) | FLHXSE |
| 3 | 1062 | SCREW (5) | FLHXSE |
| 4 | 1775 | SCREW (4) | FLHXSE |
| 5 | 4813A | SCREW (9) | FLHXSE |
| 6 | 4820A | SCREW | FLHXSE |
| 7 | 9231 | BEARING | FLHXSE |
| 8 | 11105 | O-RING | FLHXSE |
| 9 | 12052A | SEAL | FLHXSE |
| 10 | 16583-00A | BUSHING, dowel (2) | FLHXSE |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | FLHXSE |
| 12 | 24754-75A | DOWEL BUSHING (4) | FLHXSE |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | FLHXSE |
| 14 | 60678-85 | RETAINING RING | FLHXSE |
| 15 | 11000139 | BUSHING | FLHXSE |
| 16 | 25700830 | GASKET KIT, inner primary with 11105, 12052A, 25700378, 25700679, 37909-90, 786A and clutch cover gasket | FLHXSE |
| 17 | 25700378 | GASKET, primary cover | FLHXSE |
| 18 | 25700957 | COVER, clutch (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 18 | 25701157 | COVER, clutch (chrome) (used on motorcycles with Black Stardust Fade paint) | FLHXSE |
| 19 | 25701084 | COVER, primary (satin chrome) (used on motorcycles with Black Stardust Fade paint) | FLHXSE |
| 19 | 25700491 | COVER, primary (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 20 | 25700679 | GASKET, primary housing to case | FLHXSE |
| 21 | 25700650 | SLEEVE, damper | FLHXSE |
| 22 | 36500092A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black granite) | FLHXSE |
| 23 | 36500075 | CHAIN TENSIONER ASSEMBLY | FLHXSE |
| 24 | 26500026 | HOSE, vent | FLHXSE |
| 25 | 26500027 | KIT, VENT, primary with 11105, 25700378, 26500026 and clutch cover seal | FLHXSE |
BELT, CHAIN and SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLHXSE |
| 2 | 3892 | SCREW (3) | FLHXSE |
| 3 | 9276B | BALL BEARING (2) | FLHXSE |
| 4 | 11843 | SPACER, compensator | FLHXSE |
| 5 | 35241-06 | NUT | FLHXSE |
| 6 | 35242-06 | LOCKPLATE | FLHXSE |
| 7 | 40024-09A | REAR BELT, 140 teeth, 24 mm | FLHXSE |
| 8 | 40037-07 | PRIMARY CHAIN | FLHXSE |
| 9 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLHXSE |
| 10 | 40278-09 | ISOLATOR, rubber | FLHXSE |
| 11 | 60386-09 | DEBRIS DEFLECTOR | FLHXSE |
| 12 | 10500031 | SCREW, compensator | FLHXSE |
| 13 | 35000152 | SPROCKET, transmission, 32 teeth | FLHXSE |
| 14 | 40100041 | RETAINER, sprocket | FLHXSE |
| 15 | 40100064 | THRUST WASHER | FLHXSE |
| 16 | 83936-09A | SPRING PACK | FLHXSE |
| 17 | 40100076 | ENGINE SPROCKET KIT, compensator assembly | FLHXSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLHXSE |
| 4293 | SCREW (zinc) (2) | FLHXSE | |
| 2 | 6099 | WASHER (zinc) (2) | FLHXSE |
| 6101 | WASHER (black) (2) | FLHXSE | |
| 3 | 10039 | CABLE STRAP (3) | FLHXSE |
| 4 | 10264 | CLIP, clutch line | FLHXSE |
| 5 | 41750-06B | BOLT, BANJO (black) | FLHXSE |
| 42010-06B | BOLT, BANJO (chrome) | FLHXSE | |
| 6 | 41751-06A | GASKET, banjo-bolt (2) | FLHXSE |
| 7 | 42856-06 | DECAL, reservoir cover | FLHXSE |
| 8 | 42858-06A | SCREW KIT (set of 2) (black) | FLHXSE |
| 8 | 42882-06 | SCREW, master cylinder (polished stainless steel) (2) | FLHXSE |
| 9 | 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHXSE |
| 9 | 45138-08A | CLAMP, master cylinder and clutch (black) | FLHXSE |
| 10 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | FLHXSE |
| 11 | 36700169A | MASTER CYLINDER ASSEMBLY, clutch, with 36700130, 36700132, 36700171A and 41700367 (black) | FLHXSE |
| 11 | 36700170A | MASTER CYLINDER ASSEMBLY, clutch, with 36700132, 36700172A, 41700367, 41700439 (chrome) | FLHXSE |
| 12 | 36700130 | MASTER CYLINDER COVER KIT, with 42856-06, 42858-06A and 36700131C (black) | FLHXSE |
| 12 | 41700439 | MASTER CYLINDER COVER KIT, with 42856-06, 42882-06 and 36700131C (chrome) | FLHXSE |
| 13 | 36700131 | GASKET, cover, master cylinder | FLHXSE |
| 14 | 36700171A | LEVER ASSEMBLY, hand, with 42860-06B and bushing (black) | FLHXSE |
| 14 | 36700172A | LEVER ASSEMBLY, hand, with 42105-06A and bushing (chrome) | FLHXSE |
| 15 | 37200179 | LINE ASSEMBLY, hydraulic clutch (black) | FLHXSE |
| 15 | 37200180 | LINE ASSEMBLY, hydraulic clutch (chrome) | FLHXSE |
| 16 | 36700132 | REBUILD KIT, master cylinder | FLHXSE |
| 17 | 41600031 | BRACKET, brake line | FLHXSE |
| 18 | 41700367 | BUTTON, anti-bubble | FLHXSE |
| 19 | 42860-06B | PIVOT PIN, with retaining ring (black) | FLHXSE |
| 19 | 42105-06A | PIVOT PIN, with retaining ring (chrome) | FLHXSE |
| 20 | 37200343C | CLUTCH SERVICE KIT, with 5, 6, 10, 11, 15 (black) | FLHXSE |
| 20 | 37200344C | CLUTCH SERVICE KIT, with 5, 6, 10, 11, 15 (chrome) | FLHXSE |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLHXSE |
| 1 | 4293 | SCREW (zinc) (2) | FLHXSE |
| 2 | 6101 | WASHER (black) (2) | FLHXSE |
| 2 | 6099 | WASHER (zinc) (2) | FLHXSE |
| 3 | 41751-06A | GASKET (2) | FLHXSE |
| 4 | 41750-06B | BOLT, BANJO, brakeline (black) | FLHXSE |
| 4 | 42010-06B | BOLT, BANJO, brakeline (chrome) | FLHXSE |
| 5 | 44985-10D | MASTER CYLINDER ASSEMBLY, with 9, 10, 11, 14, 15, 18 and brake lever (black) | FLHXSE |
| 5 | 42102-08D | MASTER CYLINDER ASSEMBLY, with 11, 12, 13, 14, 15, 17, 18 (chrome) | FLHXSE |
| 6 | 42105-06A | PIVOT PIN, with retaining ring (chrome) | FLHXSE |
| 6 | 42860-06B | PIVOT PIN, with retaining ring (black) | FLHXSE |
| 7 | 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHXSE |
| 7 | 45138-08A | CLAMP, master cylinder and clutch (black) | FLHXSE |
| 8 | 42123-08 | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42882-06 (chrome) | FLHXSE |
| 9 | 42855-06D | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42858-06A (black) | FLHXSE |
| 10 | 42276-06A | BRAKE LEVER, front, with 42105-06A (black) | FLHXSE |
| 42271-06A | BRAKE LEVER, front, with 42105-06A (chrome) | FLHXSE | |
| 11 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHXSE |
| 12 | 42856-06 | DECAL, reservoir cover | FLHXSE |
| 13 | 42857-06B | GASKET, reservoir cover | FLHXSE |
| 14 | 42861-06B | PUSHROD, master cylinder | FLHXSE |
| 15 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHXSE |
| 16 | 42858-06A | SCREW KIT, cover (black) | FLHXSE |
| 17 | 42882-06 | SCREW, cover (chrome) (2) | FLHXSE |
| 18 | 41700367 | BUTTON, anti-bubble | FLHXSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (chrome) (China) (2) | FLHXSE |
| 1 | 12404 | WASHER (black) (China) (2) | FLHXSE |
| 2 | 7155 | LOCKWASHER (China) (2) | FLHXSE |
| 3 | 7331 | ACORN NUT (chrome) (China) (2) | FLHXSE |
| 3 | 7352 | ACORN NUT (black) (China) (2) | FLHXSE |
| 4 | 91840-03B | MIRROR, with 7155 and 7331 (right) (chrome) (China) | FLHXSE |
| 4 | 92614-10 | MIRROR, with 7155 and 7352 (right) (black) (China) | FLHXSE |
| 5 | 91845-03B | MIRROR, with 7155 and 7331 (left) (chrome) (China) | FLHXSE |
| 5 | 92615-10 | MIRROR, with 7155 and 7352 (left) (black) (China) | FLHXSE |
| 6 | 56000182 | MIRROR (right) (all except China) | FLHXSE |
| 6 | 56000183 | MIRROR (left) (not shown) (all except China) | FLHXSE |
| 7 | 56000105B | MIRROR BASE (right) (all except China) | FLHXSE |
| 7 | 56000113B | MIRROR BASE (left) (all except China) (not shown) | FLHXSE |
| 8 | 56000122 | GASKET (all except China) | FLHXSE |
| 9 | 56000015 | BACKING PLATE (left) (all except China) | FLHXSE |
| 9 | 56000016 | BACKING PLATE (right) (all except China) | FLHXSE |
| 10 | 7687 | NUT (all except China) (2) | FLHXSE |
BRAKE LINES, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHXSE |
| 2 | 41750-06B | BOLT, BANJO (black) | FLHXSE |
| 42010-06B | BOLT, BANJO (chrome) | FLHXSE | |
| 3 | 41751-06A | GASKET (10) | FLHXSE |
| 4 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLHXSE |
| 5 | 42853-06 | CAP (2) | FLHXSE |
| 6 | 10200223 | SCREW (2) | FLHXSE |
| 7 | 10600007 | GASKET (2) | FLHXSE |
| 8 | 11600001 | BOLT, BANJO (2) | FLHXSE |
| 9 | 11600009 | BOLT, BANJO | FLHXSE |
| 10 | 41600029A | BRACKET, brake line | FLHXSE |
| 11 | 41600031 | BRACKET, brake line | FLHXSE |
| 12 | 41600032 | BRACKET, brake line | FLHXSE |
| 13 | 41800577 | BRAKE LINE, Anti-lock braking system (ABS) (right) (black) | FLHXSE |
| 13 | 41800573 | BRAKE LINE, ABS (right) (chrome) | FLHXSE |
| 14 | 41800575 | BRAKE LINE, ABS (left) (black) | FLHXSE |
| 14 | 41800572 | BRAKE LINE, ABS (left) (chrome) | FLHXSE |
| 15 | 41800352 | BRAKE LINE, ABS (upper) (black) | FLHXSE |
| 15 | 41800207 | BRAKE LINE, ABS (upper) (chrome) | FLHXSE |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHXSE |
| 2 | 2479 | SCREW (2) | FLHXSE |
| 3 | 3340 | SCREW | FLHXSE |
| 4 | 3563 | SCREW | FLHXSE |
| 5 | 6220W | WASHER | FLHXSE |
| 6 | 6421 | WASHER | FLHXSE |
| 7 | 6416 | WASHER | FLHXSE |
| 8 | 7825 | LOCKNUT | FLHXSE |
| 9 | 9907 | WIRE TERMINAL | FLHXSE |
| 10 | 10065 | CABLE STRAP | FLHXSE |
| 11 | 10076 | CLAMP | FLHXSE |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLHXSE |
| 13 | 12102 | DUST BOOT | FLHXSE |
| 14 | 41750-06B | BOLT, BANJO (black) | FLHXSE |
| 14 | 42010-06B | BOLT, BANJO (chrome) | FLHXSE |
| 15 | 41751-06A | GASKET (2) | FLHXSE |
| 16 | 42460-80B | CLEVIS PIN | FLHXSE |
| 17 | 42854-06 | KIT, SIGHT GLASS | FLHXSE |
| 18 | 42856-06 | DECAL, reservoir cover | FLHXSE |
| 19 | 42882-06 | SCREW (2) | FLHXSE |
| 19 | 42858-06A | SCREW KIT | FLHXSE |
| 20 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHXSE |
| 21 | 42932-08A | REBUILD KIT, master cylinder | FLHXSE |
| 22 | 42934-08 | SPRING, pedal return | FLHXSE |
| 23 | 46463-08 | MASTER CYLINDER COVER KIT, with 11902, 42856-06 and 42882-06 (chrome) | FLHXSE |
| 23 | 42937-08C | MASTER CYLINDER COVER KIT, with 11902, 42858-06A (black) | FLHXSE |
| 24 | 72023-51E | KIT SWITCH, stop lamp, with 9907 | FLHXSE |
| 25 | 10600007 | GASKET, ABS (2) | FLHXSE |
| 26 | 10800028 | TUBE CLIP (lower) | FLHXSE |
| 27 | 11000050 | BUSHING, brake lever (2) | FLHXSE |
| 28 | 11600009 | BOLT, BANJO | FLHXSE |
| 29 | 11900021 | O-RING (2) | FLHXSE |
| 30 | 41600091 | TUBE CLIP (upper) | FLHXSE |
| 31 | 41700072 | MASTER CYLINDER ASSEMBLY, with 12, 13, 17, 18, 19, 20, 21, 22, 23 and 32 (chrome) | FLHXSE |
| 31 | 41700028A | MASTER CYLINDER ASSEMBLY, with 12, 13, 17, 19, 20, 21, 22, 23 and 32 (black) | FLHXSE |
| 32 | 41700195 | PUSHROD KIT, master cylinder | FLHXSE |
| 33 | 41800012 | BRAKE LINE, master cylinder to ABS UNIT, ABS, with 10, 11, 26 and 30 | FLHXSE |
| 34 | 50600341 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (gloss black) | FLHXSE |
| 34 | 50600419 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (satin chrome) | FLHXSE |
| 34 | 50600420 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (satin black) | FLHXSE |
| 35 | 50600067 | LEVER ASSEMBLY, foot-brake, with 11000050 (chrome) | FLHXSE |
| 35 | 50600244 | LEVER ASSEMBLY, foot-brake, with 11000050 (black) | FLHXSE |
BRAKE LINES, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 1062 | SCREW | FLHXSE |
| 2 | 3563 | SCREW | FLHXSE |
| 3 | 10065 | CABLE STRAP | FLHXSE |
| 4 | 10076 | CLAMP | FLHXSE |
| 5 | 10340B | CLIP, brake hose (2) | FLHXSE |
| 6 | 41750-06B | BOLT, BANJO (black) (2) | FLHXSE |
| 6 | 42010-06B | BOLT, BANJO (chrome) (2) | FLHXSE |
| 7 | 41751-06A | GASKET (6) | FLHXSE |
| 8 | 70631-08 | CLIP, conduit | FLHXSE |
| 9 | 10600007 | GASKET (2) | FLHXSE |
| 10 | 10800028 | TUBE CLIP (lower) | FLHXSE |
| 11 | 11600001 | BOLT, BANJO | FLHXSE |
| 12 | 11600009 | BOLT, BANJO | FLHXSE |
| 13 | 12100007 | GROMMET, ABS mounting | FLHXSE |
| 14 | 41100104A | ABS MODULE (EHCU) | FLHXSE |
| 15 | 41600078 | BRACKET, ABS brake line alignment | FLHXSE |
| 16 | 41600091 | TUBE CLIP (upper) | FLHXSE |
| 17 | 41800012 | BRAKE LINE, ABS module to master cylinder, with 3, 4, 10 and 16 | FLHXSE |
| 18 | 41800541 | BRAKE LINE, ABS module to caliper | FLHXSE |
| 19 | 69201924 | CADDY, ABS module | FLHXSE |
| 20 | 1009M | SCREW (2) | FLHXSE |
| 21 | 32700101 | SENSOR, IMU (Inertia Measurement Unit) | FLHXSE |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD AND PIN KIT, with 42849-08 (2) | FLHXSE |
| 2 | 41300119 | COVER, caliper (used with 41300209 and 41300210) (black) (2) | FLHXSE |
| 2 | 42054-05 | COVER, caliper (used with 42938-08 and 42939-08) (chrome) (2) | FLHXSE |
| 3 | 42849-08 | PAD PIN KIT (2) | FLHXSE |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHXSE |
| 5 | 44160-00 | BOLT, caliper mounting (lower) (4) | FLHXSE |
| 6 | 44935-06 | MEDALLION, brake caliper (2) **RESTRICTED SALES PART** | FLHXSE |
| 7 | 42938-08 | CALIPER ASSEMBLY (left) (silver) (used with chrome cover) | FLHXSE |
| 7 | 42939-08 | CALIPER ASSEMBLY (right) (silver) (used with chrome cover) | FLHXSE |
| 7 | 41300209 | CALIPER ASSEMBLY (left) (black) (used with black cover) | FLHXSE |
| 7 | 41300210 | CALIPER ASSEMBLY (right) (black) (used with black cover) | FLHXSE |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLHXSE |
| 2 | 4890 | SCREW, bleeder | FLHXSE |
| 3 | 41852-08B | PAD AND PIN KIT | FLHXSE |
| 4 | 42853-06 | CAP | FLHXSE |
| 5 | 42863-06 | BUMPER | FLHXSE |
| 6 | 42865-06B | PAD PIN KIT | FLHXSE |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHXSE |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, with 4890, 41852-08B, 42853-06, 42865-06B and 42867-06A (black) | FLHXSE |
| 9 | 44089-08 | BRACKET, reaction, rear brake, with 42863-06 | FLHXSE |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3267 | SET SCREW (used with 43475-08) (2) | FLHXSE |
| 1 | 4636 | SET SCREW (used with 43583-09) (2) | FLHXSE |
| 2 | 3655A | SCREW (10) | FLHXSE |
| 3 | 6594 | WASHER | FLHXSE |
| 4 | 7813A | NUT | FLHXSE |
| 5 | 9252A | BALL BEARING, with encoder, ABS | FLHXSE |
| 6 | 9276B | BALL BEARING | FLHXSE |
| 7 | 40786-08 | COVER, wheel speed sensor (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 7 | 40984-10 | COVER, wheel speed sensor (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 8 | 42300093 | CAP, tire valve acorn, with bar and shield (set of 2) (black) | FLHXSE |
| 9 | 41547-07A | AXLE | FLHXSE |
| 10 | 41900-08 | SLEEVE, bearing spacer | FLHXSE |
| 11 | 43475-08 | COVER, with 3267 (chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 11 | 43583-09 | COVER, (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 12 | 44160-00 | BOLT (2) | FLHXSE |
| 13 | 44583-08 | SPACER (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 13 | 42400019 | SPACER (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 14 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHXSE |
| 15 | 70674-08 | BRACKET, wheel speed sensor, ABS (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 15 | 70493-08 | BRACKET, wheel speed sensor, ABS (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 16 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 17 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 18 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 19 | 10201001 | SCREW | FLHXSE |
| 20 | 11900155 | O-RING | FLHXSE |
| 21 | 14101128 | MEDALLION (2) | FLHXSE |
| 22 | 32700015 | SENSOR, wheel speed, ABS, with 72607-08, 72608-08 and 72639-10 | FLHXSE |
| 23 | 42300114 | MONITOR, TIRE PRESSURE (all except Japan) | FLHXSE |
| 23 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHXSE |
| 24 | 42300112 | VALVE STEM, right angle (black) | FLHXSE |
| 25 | 41500150 | BRAKE DISC (gloss black) (2) | FLHXSE |
| 26 | 42300001 | WEIGHT, 1/2 oz., cast wheels (black) | FLHXSE |
| 27 | 43100045 | TIRE | FLHXSE |
| 28 | 43300794 | WHEEL, 7 spoke, without bearings and sleeve, with 14101128 (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 28 | 43300799 | WHEEL, 7 spoke, without bearings and sleeve, with 14101128 (used on motorcycles with Black Fade paint) | FLHXSE |
| 29 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (all except Japan) | FLHXSE |
| 29 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHXSE |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHXSE |
| 2 | 9252A | BALL BEARING, with encoder, ABS | FLHXSE |
| 3 | 9276B | BALL BEARING (3) | FLHXSE |
| 4 | 10147 | CLIP, connector | FLHXSE |
| 5 | 11843 | SPACER, compensator | FLHXSE |
| 6 | 11848 | SPACER | FLHXSE |
| 7 | 40615-08 | SENSOR, wheel speed, ABS, with 10147, 72607-08, 72608-08, 72639-10 | FLHXSE |
| 8 | 42300093 | CAP, tire valve acorn (gloss black) | FLHXSE |
| 9 | 41229-08 | SPRING CLIP | FLHXSE |
| 10 | 41349-07 | SLEEVE, bearing spacer | FLHXSE |
| 11 | 41810-08B | BRAKE DISC | FLHXSE |
| 12 | 43000203 | AXLE CAM | FLHXSE |
| 13 | 43567-92 | SCREW (5) | FLHXSE |
| 14 | 43200045 | TIRE | FLHXSE |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 18 | 11900155 | O-RING | FLHXSE |
| 19 | 10201001 | SCREW | FLHXSE |
| 20 | 14101125 | MEDALLION (2) | FLHXSE |
| 21 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (all except Japan) | FLHXSE |
| 21 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan only) | FLHXSE |
| 22 | 42300112 | VALVE STEM, right angle | FLHXSE |
| 23 | 40900789 | WHEEL, 7 spoke, with 14101125 (used on motorcycles with Black Fade paint) | FLHXSE |
| 23 | 40900785 | WHEEL, 7 spoke, with 14101125 (gloss black) (used on motorcycles with Smoky Gray, Sand Dune paint) | FLHXSE |
| 24 | 42300001 | WEIGHT, 1/2 oz. cast wheels (black) | FLHXSE |
| 25 | 43000207 | AXLE, rear | FLHXSE |
| 26 | 42300114 | MONITOR, TIRE PRESSURE (All except Japan) | FLHXSE |
| 26 | 42300115 | MONITOR, TIRE PRESSURE (Japan only) | FLHXSE |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHXSE |
| 2 | 10200042 | SCREW (4) | FLHXSE |
| 3 | 10200223 | SCREW (2) | FLHXSE |
| 4 | 10500022 | SCREW (6) | FLHXSE |
| 5 | 10500036 | SCREW | FLHXSE |
| 6 | 41600029A | BRACKET, brakeline | FLHXSE |
| 7 | 45600070 | COVER ASSEMBLY, fork tube (left) (satin chrome) | FLHXSE |
| 7 | 45600103 | COVER ASSEMBLY, fork tube (left) (black onyx) | FLHXSE |
| 7 | 45600038DH | COVER ASSEMBLY, fork tube (left) (vivid black) | FLHXSE |
| 8 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHXSE |
| 9 | 45700020 | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | FLHXSE |
| 10 | 45600071 | COVER ASSEMBLY, fork tube (right) (satin chrome) | FLHXSE |
| 10 | 45600102 | COVER ASSEMBLY, fork tube (right) (black onyx) | FLHXSE |
| 10 | 45600039DH | COVER ASSEMBLY, fork tube (right) (vivid black) | FLHXSE |
| 11 | 45900024 | BRACKET, upper fork stem | FLHXSE |
| 12 | 45900091A | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHXSE |
| 13 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHXSE |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 45500424 | BUSHING, slider (2) | FLHXSE |
| 2 | 46508-01 | O-RING (2) | FLHXSE |
| 3 | 46509-01 | WASHER (2) | FLHXSE |
| 4 | 46513-01 | RING, stopper (2) | FLHXSE |
| 5 | 46514-01A | OIL SEAL (2) | FLHXSE |
| 6 | 46515-01 | SPACER, seal (2) | FLHXSE |
| 7 | 45500421 | BUSHING GUIDE (2) | FLHXSE |
| 8 | 45500396 | SPRING, rebound (2) | FLHXSE |
| 9 | 46615-06 | PACKING SEAL (2) | FLHXSE |
| 10 | 45500398 | COLLAR, spring (2) | FLHXSE |
| 11 | 69861-07 | REFLECTOR (right) (with black base) (amber) | FLHXSE |
| 11 | 59481-00 | REFLECTOR (right) (amber) | FLHXSE |
| 12 | 69862-07 | REFLECTOR (left) (with black base) (amber) | FLHXSE |
| 12 | 59482-00 | REFLECTOR (left) (amber) | FLHXSE |
| 13 | 22000031 | PISTON RING (2) | FLHXSE |
| 14 | 45400249 | FORK ASSEMBLY, complete (right) (satin chrome) | FLHXSE |
| 14 | 45400196 | FORK ASSEMBLY, complete (right) (black) | FLHXSE |
| 14 | 45400203 | FORK ASSEMBLY, complete (right) (smoked satin chrome) | FLHXSE |
| 15 | 45400251 | FORK ASSEMBLY, complete (left) (satin chrome) | FLHXSE |
| 15 | 45400195 | FORK ASSEMBLY, complete (left) (black) | FLHXSE |
| 15 | 45400204 | FORK ASSEMBLY, complete (left) (smoked satin chrome) | FLHXSE |
| 16 | 45500572 | SLIDER, fork (left) (satin chrome) | FLHXSE |
| 16 | 45500176B | SLIDER, fork (left) (black) | FLHXSE |
| 16 | 45500509 | SLIDER, fork (left) (smoked satin chrome) | FLHXSE |
| 17 | 45500339 | DAMPER TUBE, with 22000031 (2) | FLHXSE |
| 18 | 45500337 | SPRING, fork (2) | FLHXSE |
| 19 | 45500117 | BOLT, fork (2) | FLHXSE |
| 20 | 45500118 | SCREW (2) | FLHXSE |
| 21 | 45500132 | SCREW (right) | FLHXSE |
| 22 | 45500341 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLHXSE |
| 23 | 45500570 | SLIDER, fork (right) (satin chrome) | FLHXSE |
| 23 | 45500175B | SLIDER, fork (right) (black) | FLHXSE |
| 23 | 45500508 | SLIDER, fork (right) (smoked satin chrome) | FLHXSE |
| 24 | 45500397 | OIL LOCK PIECE (2) | FLHXSE |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 2, 4, 5, 6, 7, 9, 13 and 20 (2) | FLHXSE |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHXSE |
| 2 | 6590HW | WASHER (4) | FLHXSE |
| 3 | 54000141 | KNOB SERVICE KIT | FLHXSE |
| 4 | 54000096 | REAR SHOCK ABSORBER, with 54500141 (left) | FLHXSE |
| 5 | 54000114 | REAR SHOCK ABSORBER (right) | FLHXSE |

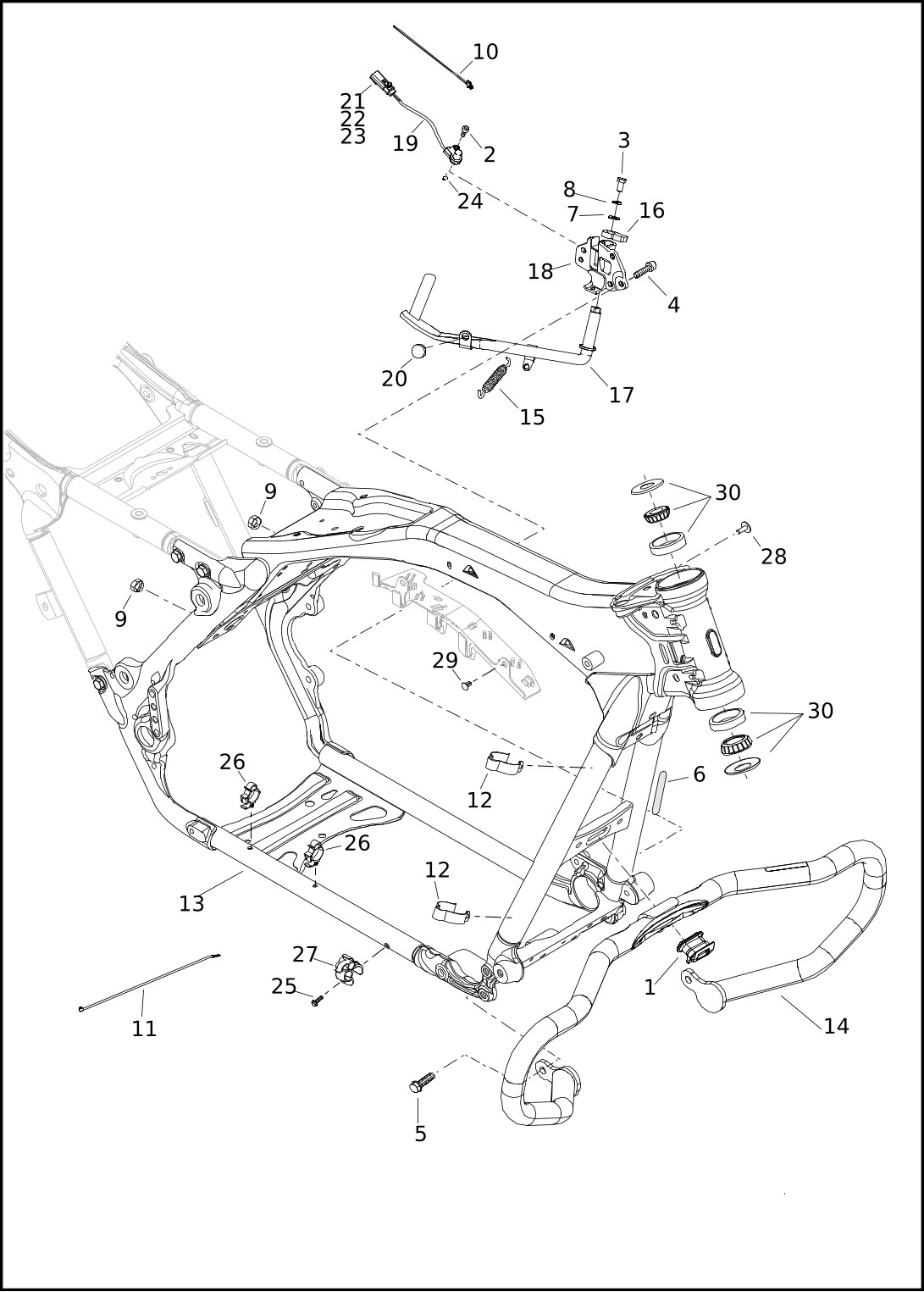

FRAME AND JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 12100162 | GROMMET | FLHXSE |
| 2 | 3594 | SCREW (Brazil, England, HDI, HD2, HD3) | FLHXSE |
| 3 | 3987 | BOLT | FLHXSE |
| 4 | 4688 | SCREW (2) | FLHXSE |
| 5 | 4924 | SCREW (2) | FLHXSE |
| 6 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHXSE |
| 7 | 6702 | WASHER | FLHXSE |
| 8 | 7041 | LOCKWASHER | FLHXSE |
| 9 | 7495 | NUT (2) | FLHXSE |
| 10 | 10177 | CABLE STRAP, anchored, jiffy stand | FLHXSE |
| 11 | 10039 | CABLE STRAP (6) | FLHXSE |
| 12 | 10264 | CLIP, clutch line (2) | FLHXSE |
| 13 | 47000088BHP | FRAME, main, with bearing cups (Also order 45700009) | FLHXSE |
| 14 | 49000195 | ENGINE GUARD, with label (satin chrome) | FLHXSE |
| 14 | 49000114A | ENGINE GUARD, with label (black) | FLHXSE |
| 15 | 49725-07A | SPRING, jiffy stand | FLHXSE |
| 16 | 50015-74A | LEG STOP | FLHXSE |
| 17 | 50075-07A | LEG, jiffy stand (chrome) | FLHXSE |
| 17 | 50000149 | LEG, jiffy stand (black) | FLHXSE |
| 18 | 50000097 | BRACKET, jiffy stand (chrome) | FLHXSE |
| 18 | 50000143 | BRACKET, jiffy stand (black) | FLHXSE |
| 19 | 50126-08B | SENSOR, jiffy stand, with 72169-07, 72511-07BK and 73213-07 (Brazil, England, HDI, HD2, HD3) | FLHXSE |
| 20 | 50245-07 | BUMPER, jiffy stand | FLHXSE |
| 21 | 72169-07 | TERMINAL, pin, 16-20 AWG (Brazil, England, HDI, HD2, HD3) (3) | FLHXSE |
| 22 | 72511-07BK | HOUSING, three-way pin (black) (Brazil, England, HDI, HD2, HD3) | FLHXSE |
| 23 | 73213-07 | RETAINER, anchored (Brazil, England, HDI, HD2, HD3) | FLHXSE |
| 24 | 90520-07 | HOLE PLUG, jiffy stand (except Brazil, England, HDI, HD2, HD3) | FLHXSE |
| 25 | 10200546 | SCREW | FLHXSE |
| 26 | 10800025A | CLIP, conduit, rosebud (2) | FLHXSE |
| 27 | 12200147A | CLIP, retaining | FLHXSE |
| 28 | 12600067 | FASTENER, plastic (2) | FLHXSE |
| 29 | 12600197 | FASTENER, plastic (2) | FLHXSE |
| 30 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHXSE |
COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3787 | BOLT (4) | FLHXSE |
| 2 | 6036 | WASHER (4) | FLHXSE |
| 3 | 10300222 | WASHER (4) | FLHXSE |
| 4 | 8194 | NUT, special (2) | FLHXSE |
| 5 | 11650 | GROMMET, side cover (6) | FLHXSE |
| 6 | 48419-04 | WEAR PAD, side cover (right) (clear) | FLHXSE |
| 6 | 48420-04 | WEAR PAD, side cover (left) (clear) | FLHXSE |
| 7 | 57200243 | DEFLECTOR, air (right) | FLHXSE |
| 7 | 57200256 | DEFLECTOR, air (left) | FLHXSE |
| 8 | 66250-09 | SIDE COVER (left) (prime) | FLHXSE |
| 8 | 57200093EMI | SIDE COVER, with 48420-04 (left) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200093EMK | SIDE COVER, with 48420-04 (left) (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200181ELV | SIDE COVER, with 48420-04 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 66048-09A | SIDE COVER (right) (prime) | FLHXSE |
| 8 | 57200094EMI | SIDE COVER, with 48419-04 (right) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200094EMK | SIDE COVER, with 48419-04 (right) (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200182ELV | SIDE COVER, with 48419-04 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 9 | 69200202A | TRAY, wire trough (main harness) | FLHXSE |
| 10 | 69200203A | COVER, wire trough (main harness) | FLHXSE |
| 11 | 69201459 | BRACKET | FLHXSE |
FRAME AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (4) | FLHXSE |
| 2 | 3536 | BOLT (6) | FLHXSE |
| 3 | 6532 | WASHER (6) | FLHXSE |
| 4 | 6982 | WASHER, hex cup (2) | FLHXSE |
| 5 | 9208 | BEARING (2) | FLHXSE |
| 6 | 11779 | FASTENER, push-in (black) | FLHXSE |
| 7 | 47540-11 | SHAFT, rear fork | FLHXSE |
| 8 | 47549-09A | REAR FORK, with 9208, 11779 and 48489-02 | FLHXSE |
| 9 | 47584-09 | RUBBER MOUNT (2) | FLHXSE |
| 10 | 48079-09BHP | FRAME, rear | FLHXSE |
| 11 | 48487-02 | SPACER, outer (2) | FLHXSE |
| 12 | 48489-02 | SPACER, inner (2) | FLHXSE |
| 13 | 67875-11 | CAP (2) | FLHXSE |
| 14 | 16400005 | BRACKET, rear fork (left) | FLHXSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 941 | SCREW (2) | FLHXSE |
| 2 | 6441 | WASHER | FLHXSE |
| 3 | 51740-10 | BRACKET | FLHXSE |
| 4 | 10400033 | NUT (2) | FLHXSE |
| 5 | 10500092 | SCREW, seat | FLHXSE |
| 6 | 12600174 | NUT CAP | FLHXSE |
| 7 | 14100881 | MEDALLION, seat | FLHXSE |
| 8 | 52000443 | SEAT | FLHXSE |
| 9 | 52400035 | SEAT STRAP | FLHXSE |
| 10 | 52400235 | SEAT PILLION, passenger, with 12600174, 51740-10, 941 | FLHXSE |
FOOTBOARDS, RIDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200429 | SCREW (2) | FLHXSE |
| 2 | 4688 | SCREW (2) | FLHXSE |
| 3 | 7038 | LOCKWASHER (2) | FLHXSE |
| 4 | 7716 | LOCKNUT (4) | FLHXSE |
| 5 | 33130-07A | WEAR PEG (2) | FLHXSE |
| 6 | 50674-05 | BOLT, footboard hinge (4) | FLHXSE |
| 7 | 50622-09A | BRACKET SUPPORT, footboard, rear (left) (black) | FLHXSE |
| 8 | 50518-09 | BRACKET SUPPORT, footboard, rear (right) (black) | FLHXSE |
| 9 | 47200302A | MOUNTING BRACKET, front footboard (black) (2) | FLHXSE |
| 10 | 50501216 | INSERT ASSEMBLY, rider (right) (black) | FLHXSE |
| 10 | 50501516 | INSERT ASSEMBLY, rider (right) (satin black) | FLHXSE |
| 10 | 50501518 | INSERT ASSEMBLY, rider (right) (satin chrome) | FLHXSE |
| 11 | 50501217 | INSERT ASSEMBLY, rider (left) (black) | FLHXSE |
| 11 | 50501517 | INSERT ASSEMBLY, rider (left) (satin black) | FLHXSE |
| 11 | 50501519 | INSERT ASSEMBLY, rider (left) (satin chrome) | FLHXSE |
| 12 | 50501220 | BOTTOM ASSEMBLY, with hinge (right) | FLHXSE |
| 13 | 50501221 | BOTTOM ASSEMBLY, with hinge (left) | FLHXSE |
FOOTPEGS, PASSENGER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | FLHXSE |
| 2 | 4916 | SCREW (2) | FLHXSE |
| 3 | 7038 | LOCKWASHER (2) | FLHXSE |
| 4 | 11304 | RING, retaining (2) | FLHXSE |
| 5 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHXSE |
| 5 | 50500501 | CLEVIS PIN, passenger footpeg support (black) (2) | FLHXSE |
| 6 | 50351-03 | MOUNT, footpeg support (chrome) (2) | FLHXSE |
| 6 | 51428-09 | MOUNT, footpeg support (black) (2) | FLHXSE |
| 7 | 50912-72 | WASHER, spring (2) | FLHXSE |
| 8 | 2708A | SCREW (2) | FLHXSE |
| 8 | 10500125 | SCREW (black) (2) | FLHXSE |
| 9 | 50501184 | FOOTPEG INSERT, rubber (right) | FLHXSE |
| 9 | 50501181 | FOOTPEG INSERT, rubber (left) | FLHXSE |
| 10 | 50501524 | FOOTPEG BODY (right) (satin chrome) | FLHXSE |
| 10 | 50501522 | FOOTPEG BODY (left) (satin chrome) | FLHXSE |
| 10 | 50501192 | FOOTPEG BODY (right) (black) | FLHXSE |
| 10 | 50501190 | FOOTPEG BODY (left) (black) | FLHXSE |
| 10 | 50501523 | FOOTPEG BODY (right) (satin black) | FLHXSE |
| 10 | 50501525 | FOOTPEG BODY (left) (satin black) | FLHXSE |
| 11 | 50500462A | BRACKET, passenger footpeg (right) (chrome) | FLHXSE |
| 11 | 50500460A | BRACKET, passenger footpeg (left) (chrome) (not shown) | FLHXSE |
| 11 | 50500332A | BRACKET, passenger footpeg (right) (black) | FLHXSE |
| 11 | 50500334A | BRACKET, passenger footpeg (left) (black) (not shown) | FLHXSE |
| 12 | 50501194 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (right) (black) | FLHXSE |
| 12 | 50501186 | FOOTPEG ASSEMBLY, passenger with 6, 8, 9, 10 (left) (black) | FLHXSE |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500015 | SCREW (4) | FLHXSE |
| 2 | 58900009 | FENDER, front (prime) | FLHXSE |
| 58900116ELY | FENDER, front (Stormcloud) (Stormcloud for use on Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EML | FENDER, front (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116ELV | FENDER, front (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (4) | FLHXSE |
| 2 | 6703 | WASHER (2) | FLHXSE |
| 3 | 7434 | WASHER (2) | FLHXSE |
| 4 | 7499 | NUT (6) | FLHXSE |
| 5 | 7531 | LOCKNUT (2) | FLHXSE |
| 6 | 7686 | LOCKNUT | FLHXSE |
| 7 | 7880 | NUT (4) | FLHXSE |
| 8 | 10102 | CLIP (2) | FLHXSE |
| 9 | 11891 | SPACER (3) | FLHXSE |
| 10 | 59174-99 | STUD PLATE | FLHXSE |
| 11 | 59768-97 | FENDER SEAT NUT KIT | FLHXSE |
| 12 | 59786-01 | BOSS, fender mounting, inner (4) | FLHXSE |
| 13 | 59788-01 | WASHER (4) | FLHXSE |
| 14 | 59818-09 | STUD PLATE (2) | FLHXSE |
| 15 | 60463-09A | FENDER, rear (prime) (all except Canada) | FLHXSE |
| 15 | 59500274ELZ | FENDER, rear with 11100024 (Black Stardust) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500655ELX | FENDER, rear with 11100157 (Smoky Gray) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500655ELV | FENDER, rear with 11100157 (Sand Dune) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 60472-09A | FENDER, rear (prime) (Canada only) | FLHXSE |
| 15 | 59500273ELZ | FENDER, rear with 11100024 (Black Stardust) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500656ELX | FENDER, rear with 11100157 (Smoky Gray) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500656ELV | FENDER, rear with 11100157 (Sand Dune) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 16 | 91140-09 | BRACKET, fender to saddlebag support | FLHXSE |
| 17 | 11100024 | PAD (chrome) (2) | FLHXSE |
| 17 | 11100157 | PAD (black) (2) | FLHXSE |
| 18 | 59500107 | FASCIA, rear fender (prime) | FLHXSE |
| 18 | 59500269ELZ | FASCIA, rear fender (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 59500269ELX | FASCIA, rear fender (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 59500269ELV | FASCIA, rear fender (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 19 | 67900185 | BRACKET, fascia support (2) | FLHXSE |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (4) | FLHXSE |
| 2 | 6119 | WASHER (2) | FLHXSE |
| 3 | 7499 | NUT | FLHXSE |
| 4 | 59840-09 | STUD PLATE | FLHXSE |
| 5 | 60916-09 | COVER | FLHXSE |
| 6 | 60920-09 | LAMP ASSEMBLY, with 74191-98 | FLHXSE |
| 7 | 67900260 | COVER, license plate lamp (prime) | FLHXSE |
| 67900261ELV | COVER, license plate lamp (Sand Dune) **RESTRICTED SALES PART** | FLHXSE | |
| 67900261ELX | COVER, license plate lamp (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 67900261ELZ | COVER, license plate lamp (Black Stardust) **RESTRICTED SALES PART** | FLHXSE | |
| 8 | 69490-07 | REFLECTOR | FLHXSE |
| 9 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 10 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHXSE |
| 11 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 12 | 67900232 | GASKET | FLHXSE |
| 13 | 67900233 | BRACKET, license plate | FLHXSE |
| 14 | 67900243 | BRACKET | FLHXSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHXSE |
| 2 | 10039 | CABLE STRAP (2) | FLHXSE |
| 3 | 10396 | RETAINER, fuel line 3/8 (natural) | FLHXSE |
| 4 | 11323A | O-RING, check valve to tank | FLHXSE |
| 5 | 27291-09A | LINE, evaporative (EVAP), tank | FLHXSE |
| 6 | 27440-09A | LINE, evaporative (EVAP) (Australia, Canada, Domestic) | FLHXSE |
| 7 | 61109-85D | GASKET (Asia-Pacific) | FLHXSE |
| 7 | 61100065 | GASKET (China) | FLHXSE |
| 8 | 61200022 | FUEL LINE, tank to intake | FLHXSE |
| 9 | 62228-08C | CHECK VALVE, assembly with 10396 | FLHXSE |
| 10 | 75015-08 | TRIM RING (black) | FLHXSE |
| 11 | 70901-09 | BOOT, tank bracket (left) | FLHXSE |
| 12 | 70999-09 | BOOT, tank bracket (right) | FLHXSE |
| 13 | 11900004 | O-RING, filler cap | FLHXSE |
| 14 | 14101121 | MEDALLION (left) (gloss black) **RESTRICTED SALES PART** | FLHXSE |
| 14 | 14101122 | MEDALLION (right) (gloss black) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 61000524EMI | FUEL TANK, with 14101121 and 14101122 (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 61000168EML | FUEL TANK, with 14101121 and 14101122 (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 61000524ELV | FUEL TANK, with 14101121 and 14101122 (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 16 | 63136-10C | FUEL CAP ASSEMBLY, flush mount, with 11900004 (all except China) (black) | FLHXSE |
| 17 | 61100120A | FUEL CAP ASSEMBLY, locking, with 61109-85D and 90300093 (Asia-Pacific) | FLHXSE |
| 17 | 61100123A | FUEL CAP ASSEMBLY, locking, with 61100065 and 90300093 (China) | FLHXSE |
| 18 | 90300093 | KEY, locking fuel cap (set of 2) (specify key number) (Asia-Pacific, China) | FLHXSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLHXSE |
| 2 | 4194 | SCREW (2) | FLHXSE |
| 3 | 4856 | SCREW | FLHXSE |
| 4 | 8142 | NUT, speed | FLHXSE |
| 5 | 10102 | CLIP (3) | FLHXSE |
| 6 | 62775-08 | TRIM COVER | FLHXSE |
| 7 | 67493-08 | BRACKET | FLHXSE |
| 8 | 61400659 | TRIM, rubber | FLHXSE |
| 9 | 72168-07 | TERMINAL, socket, 18-20 AWG (12) | FLHXSE |
| 10 | 72485-07 | HOUSING, four-way socket (black) | FLHXSE |
| 11 | 72494-07 | WIRE SEAL, 16-18 AWG (yellow) (4) | FLHXSE |
| 12 | 72546-09GY | HOUSING, six-way socket (gray) | FLHXSE |
| 13 | 72557-07 | SECONDARY LOCK, four-way socket (gray) | FLHXSE |
| 14 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 15 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 16 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 17 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHXSE |
| 18 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 19 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 20 | 72493-07 | TERMINAL, socket, 16-18 AWG (4) | FLHXSE |
| 21 | 70900935 | CONSOLE INSERT (Black Onyx) | FLHXSE |
| 21 | 70900934ELZ | CONSOLE INSERT (Black Stardust) | FLHXSE |
| 21 | 70900934EHS | CONSOLE INSERT (Black Hole) | FLHXSE |
| 22 | 70900932 | CONSOLE ASSEMBLY (Black Onyx) | FLHXSE |
| 22 | 70900931ELZ | CONSOLE ASSEMBLY (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 22 | 70900931EHS | CONSOLE ASSEMBLY (Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 23 | 70900459 | LENS, insert | FLHXSE |
| 24 | 68000034 | LAMP, with 74102-98BK, 74142-98 and 74190-98 | FLHXSE |
| 25 | 69200919 | WIRE HARNESS, console jumper | FLHXSE |
| 26 | 10201023 | SCREW (2) | FLHXSE |
| 27 | 70900953 | GASKET | FLHXSE |
| 28 | 70900930 | TANK INSERT (black) | FLHXSE |
| 29 | 10200938 | SCREW (4) | FLHXSE |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHXSE |
| 2 | 10200147 | SCREW (3) | FLHXSE |
| 3 | 12100020 | GROMMET, instrument module mount (3) | FLHXSE |
| 4 | 12400034 | INSERT, instrument module mount (3) | FLHXSE |
| 5 | 12600067 | FASTENER, plastic (2) | FLHXSE |
| 6 | 61400670 | GAUGE TRIM BEZEL ASSEMBLY, large (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 7 | 61400671 | GAUGE TRIM BEZEL ASSEMBLY, small (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 8 | 69201731A | WIRING HARNESS, fairing | FLHXSE |
| 9 | 69200257 | BACK CLAMP, gauge (right) | FLHXSE |
| 10 | 69200258 | BACK CLAMP, gauge (left) | FLHXSE |
| 11 | 70900773B | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (Domestic only) | FLHXSE |
| 11 | 70900777B | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (all except Domestic, England) | FLHXSE |
| 11 | 70900778B | INSTRUMENT MODULE, dual - mph/km/h, with 12100020 and 12400034 (England only) | FLHXSE |
| 12 | 70900774 | FUEL GAUGE | FLHXSE |
| 13 | 70900775 | VOLTMETER | FLHXSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHXSE |
| 2 | 11686 | O-RING | FLHXSE |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLHXSE |
| 4 | 61012-04A | CLIP, filter retainer | FLHXSE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings and screen | FLHXSE |
| 6 | 61213-04A | CLIP, regulator retainer | FLHXSE |
| 7 | 61402-08 | GASKET, top plate | FLHXSE |
| 8 | 62229-08B | FILTER SHELL | FLHXSE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLHXSE |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, with 2, 3, 4, 5, 6, 8, 16 and 17 | FLHXSE |
| 11 | 75089-08 | RING, fuel tank | FLHXSE |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLHXSE |
| 13 | 75229-08 | HARNESS, fuel pump module | FLHXSE |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLHXSE |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump with 10396 | FLHXSE |
| 16 | 75291-08A | TOP PLATE | FLHXSE |
| 17 | 75322-09 | GROUND HARNESS | FLHXSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHXSE |
| 2 | 27291-09A | LINE, evaporative (EVAP), tank to canister | FLHXSE |
| 3 | 27297-09A | LINE, evaporative (EVAP), tank to canister | FLHXSE |
| 4 | 27298-09A | LINE, evaporative (EVAP), solenoid to canister | FLHXSE |
| 5 | 27715-07 | SOLENOID, purge valve | FLHXSE |
| 6 | 70681-09 | RETAINER (2) | FLHXSE |
| 7 | 60800006 | CARBON CANISTER | FLHXSE |
| 8 | 60800026 | LINE, evaporative (EVAP), solenoid to induction module | FLHXSE |
| NOTE: These parts are required for motorcycles sold in Asia-Pacific, Brazil, California, China, England, HDI and Japan markets. | |||
TURN SIGNAL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3987 | BOLT (2) | FLHXSE |
| 2 | 5118 | SEAL PIN (Australia, Brazil, Canada, Domestic, England, HDI, Japan) (4) | FLHXSE |
| 2 | 5118 | SEAL PIN (Asia-Pacific, China) (8) | FLHXSE |
| 3 | 7992 | ACORN NUT (4) | FLHXSE |
| 4 | 68737-00 | HOUSING, turn signal (chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 4 | 68460-07 | HOUSING, turn signal (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 5 | 72908-11 | HOUSING, four-way socket (black) (4) | FLHXSE |
| 6 | 72910-11 | TERMINAL, socket, 20-22 AWG (Australia, Brazil, Canada, Domestic, England, HDI, Japan) (12) | FLHXSE |
| 6 | 72910-11 | TERMINAL, socket, 20-22 AWG (Asia-Pacific, China only) (8) | FLHXSE |
| 7 | 67800251 | LENS (smoked) (2) | FLHXSE |
| 8 | 67800257 | PUCK ASSEMBLY (amber) (2) | FLHXSE |
| 9 | 67800259 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (three-wire) (Australia, Brazil, Canada, Domestic, England, HDI, Japan) (2) | FLHXSE |
| 9 | 69200601 | HARNESS, turn signal, with 5118, 72910-11 and 72908-11 (two-wire) (Asia-Pacific, China only) (2) | FLHXSE |
| 10 | 68000036 | BAR, right upright (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 68000037 | BAR, left upright (chrome) (not shown) (used on motorcycles with Black Fade paint) | FLHXSE | |
| 10 | 67800708 | BAR, right upright (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 67800709 | BAR, left upright (black) (not shown) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE | |
| 11 | 67800917 | TURNSIGNAL ASSEMBLY, with 68460-07, 72910-11, 67800259 (gloss black) (Australia, Brazil, Canada, Domestic, England, HDI, Japan) | FLHXSE |
| 11 | 67800918 | TURNSIGNAL ASSEMBLY, with 68460-07, 72910-11, 69200601 (gloss black) (Asia-Pacific, China only) | FLHXSE |
WINDSHIELD, FAIRING AND HEADLAMP (1 of 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3088 | SCREW (3) | FLHXSE |
| 2 | 4790 | SCREW (4) | FLHXSE |
| 3 | 4976 | SCREW (with Black Fade paint) (2) | FLHXSE |
| 3 | 10200679 | SCREW (black) (with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 4 | 6383 | WASHER (with Black Fade paint) (3) | FLHXSE |
| 4 | 10300156 | WASHER (black) (Smoky Gray or Sand Dune paint) (3) | FLHXSE |
| 5 | 6549 | PAD (2) | FLHXSE |
| 6 | 7900 | CLIP NUT (4) | FLHXSE |
| 7 | 67712-83B | TRIM RING, headlamp (chrome) | FLHXSE |
| 7 | 46555-03B | TRIM RING, headlamp (black) | FLHXSE |
| 8 | 67716-60C | GASKET, headlamp door | FLHXSE |
| 9 | 67721-48 | SCREW (3) | FLHXSE |
| 10 | 67726-08 | RETAINING RING, headlamp (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 10 | 67700068 | RETAINING RING, headlamp (black) (Smoky Gray or Sand Dune paint) | FLHXSE |
| 11 | 67778-60A | SPRING, trim ring, headlamp, top | FLHXSE |
| 12 | 67780-60A | SPRING, trim ring, headlamp, bottom (2) | FLHXSE |
| 13 | 10200059 | SCREW (2) | FLHXSE |
| 14 | 10200060 | SCREW (2) | FLHXSE |
| 15 | 10200156 | SCREW | FLHXSE |
| 16 | 10300036 | PAD (3) | FLHXSE |
| 17 | 10500034 | SCREW (with Black Fade paint) | FLHXSE |
| 17 | 10200678 | SCREW (black) (with Smoky Gray or Sand Dune paint) | FLHXSE |
| 18 | 57000628EMI | FAIRING, outer, with 7900 and 61300504ELZ (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 57000628EMK | FAIRING, outer, with 7900 and 61300504EMK (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 57000628ELV | FAIRING, outer, with 7900 and 61300504ELV (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 19 | 57400253 | WINDSHIELD (smoked) (Black Fade or Smoky Gray paint) | FLHXSE |
| 19 | 57400373 | WINDSHIELD (dark smoked) (Sand Dune paint) | FLHXSE |
WINDSHIELD, FAIRING AND HEADLAMP (2 of 2)
| Index No. | Part No. | Description | Model(s) |
| 20 | 61300504ELZ | BEZEL, air duct, outer fairing (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 61300504EMK | BEZEL, air duct, outer fairing (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 61300504ELV | BEZEL, air duct, outer fairing (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 21 | 57400377ELZ | TRIM ASSEMBLY, with 6549, 10300036 (Black Stardust) | FLHXSE |
| 21 | 57400379 | TRIM ASSEMBLY, with 6549 and 10300036 (black) (Smoky Gray or Sand Dune paint) | FLHXSE |
| 22 | 67700569A | HEADLAMP, LED, with 10200032, 67700459A (chrome) (used on motorcycles with Black fade paint) | FLHXSE |
| 22 | 67700568A | HEADLAMP, LED, with 10200032, 67700459A (black) (Smoky Gray or Sand Dune paint) | FLHXSE |
| 23 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, with 3088 and 67700205 | FLHXSE |
| 24 | 67700205 | MOUNTING RING, headlamp | FLHXSE |
| 25 | 67700459A | REAR HEADLIGHT COVER | FLHXSE |
| 26 | 10200032 | SCREW (4) | FLHXSE |
FAIRING, INNER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHXSE |
| 2 | 2478 | SCREW (5) | FLHXSE |
| 3 | 2563 | SCREW (7) | FLHXSE |
| 4 | 2647B | SCREW (2) | FLHXSE |
| 5 | 10200141 | SCREW (4) | FLHXSE |
| 6 | 10500053 | SCREW (2) | FLHXSE |
| 7 | 10900005 | STUD, double sided (4) | FLHXSE |
| 8 | 11100038 | FOAM TAPE | FLHXSE |
| 9 | 11100050 | FOAM TAPE | FLHXSE |
| 10 | 11100051 | FOAM TAPE | FLHXSE |
| 11 | 11100057 | FOAM TAPE | FLHXSE |
| 12 | 11100105 | PAD | FLHXSE |
| 13 | 12100034 | PLUG (6) | FLHXSE |
| 14 | 12200064 | CLIP, panel (10) | FLHXSE |
| 15 | 29200088A | AIR DUCT, inner fairing, with 11100038, 29200087A | FLHXSE |
| 16 | 76000234 | GASKET, media storage | FLHXSE |
| 17 | 76000774 | BRACKET, wireless interface module | FLHXSE |
| 18 | 29200087A | BEZEL, air duct, inner fairing, with 12200064 | FLHXSE |
| 19 | 57000186A | BRACKET, support, inner fairing | FLHXSE |
| 20 | 57000982ELZ | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (Black Stardust) (all except China) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001144DH | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (used on motorcycles with Smoky Gray, Sand Dune paint) (All except China) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001015ELZ | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (Black Stardust) (China only) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001224DH | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (used on motorcycles with Smoky Gray, Sand Dune paint) (China only) **RESTRICTED SALES PART** | FLHXSE |
| 21 | 57000299 | FOAM INSERT, media compartment | FLHXSE |
| 22 | 61400063 | TRIM, inner fairing (left) | FLHXSE |
| 23 | 61400064 | TRIM, inner fairing (right) | FLHXSE |
| 24 | 61400614 | TRIM (black) | FLHXSE |
| 24 | 61400622 | TRIM (chrome and black) | FLHXSE |
| 25 | 69200031A | WIRE HARNESS, USB jumper | FLHXSE |
| 26 | 69200170 | POWER OUTLET, fairing, with 69200171 | FLHXSE |
| 27 | 69200171 | CAP, power outlet | FLHXSE |
| 28 | 76000107A | MEDIA COMPARTMENT ASSEMBLY, with 57000299, 69200031A and 76000127 | FLHXSE |
| 29 | 76000561ELZ | DOOR, media compartment, outer (Black Stardust) | FLHXSE |
| 29 | 76000409DH | DOOR, media compartment, outer (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 30 | 76000127 | LATCH (2) | FLHXSE |
FAIRING, INNER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200134 | SCREW (6) | FLHXSE |
| 2 | 10200141 | SCREW (6) | FLHXSE |
| 3 | 10200142 | SCREW (6) | FLHXSE |
| 4 | 10200205 | SCREW (12) | FLHXSE |
| 5 | 10900005 | STUD, double sided (4) | FLHXSE |
| 6 | 14101072 | MEDALLION | FLHXSE |
| 7 | 57000257 | SKIRT, outer fairing (prime) | FLHXSE |
| 7 | 57000328ELY | SKIRT, outer fairing (Stormcloud) **RESTRICTED SALES PART** | FLHXSE |
| 7 | 57000328DH | SKIRT, outer fairing (used on motorcycles with Smoky Gray or Sand Dune paint) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57000169A | BRACKET, fairing support (left) | FLHXSE |
| 9 | 57000170 | BRACKET, fairing support (right) | FLHXSE |
| 10 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY (left) | FLHXSE |
| 11 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY (right) | FLHXSE |
| 12 | 69201863 | RETAINER (4) | FLHXSE |
| 13 | 70900138 | HOLE PLUG | FLHXSE |
| 14 | 70900392ELZ | DASH PANEL, fairing (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 14 | 70900392DH | DASH PANEL, fairing (used on motorcycles with Smoky Gray or Sand Dune paint) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 71400031 | SWITCH BUTTON, blank (2) | FLHXSE |
| 16 | 71400033 | SWITCH ASSEMBLY, lock/unlock, with 71400031, 71400035, 71400036 and 71400037 | FLHXSE |
| 17 | 71400035 | SWITCH BUTTON, lock | FLHXSE |
| 18 | 71400036 | SWITCH BUTTON, unlock | FLHXSE |
| 19 | 71400037 | SWITCH, base (2) | FLHXSE |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 72906-11 | HOUSING, two-way socket (black) | FLHXSE |
| 3 | 72908-11 | HOUSING, four-way socket (black) (2) | FLHXSE |
| 4 | 69200305 | HOUSING, two-way socket (white) | FLHXSE |
| 5 | 69200306 | HOUSING, four-way socket (white) (2) | FLHXSE |
| 6 | 69200307 | TERMINAL, socket, 22 AWG (9) | FLHXSE |
| 7 | 69200308 | TERMINAL, socket, 22 AWG (9) | FLHXSE |
| 8 | 69200630 | WIRE HARNESS, jumper (left) | FLHXSE |
| 9 | 69200631 | WIRE HARNESS, jumper (right) | FLHXSE |
| 10 | 71500338 | COVER (left) (black) (used on motorcycles with Smoky Gray, Sand Dune or Black Hole paint) | FLHXSE |
| 10 | 71500339 | COVER (left) (chrome) (used on motorcycles with Black Stardust or Stormcloud paint) | FLHXSE |
| 11 | 71500340 | COVER (right) (black) (used on motorcycles with Smoky Gray, Sand Dune or Black Hole paint) | FLHXSE |
| 11 | 71500341 | COVER (right) (chrome) (used on motorcycles with Black Stardust or Stormcloud paint) | FLHXSE |
| 12 | 71500485 | SWITCHPACK ASSEMBLY, with 20, 21, 22, 24, 26 (right) | FLHXSE |
| 13 | 71500529 | SWITCHPACK ASSEMBLY, with 17, 18, 19, 23, 25 (left) | FLHXSE |
| 14 | 71500094 | SWITCH CAP, trigger finger | FLHXSE |
| 15 | 71500342 | COVER ASSEMBLY, with screws (left) (black) (used on motorcycles with Smoky Gray, Sand Dune or Black Hole paint) | FLHXSE |
| 15 | 71500344 | COVER ASSEMBLY, with screws (left) (chrome) (used on motorcycles with Black Stardust or Stormcloud paint) | FLHXSE |
| 16 | 71500348 | COVER ASSEMBLY, with screws (right) (black) (used on motorcycles with Smoky Gray, Sand Dune or Black Hole paint) | FLHXSE |
| 16 | 71500350 | COVER ASSEMBLY, with screws (right) (chrome) (used on motorcycles with Black Stardust or Stormcloud paint) | FLHXSE |
| 17 | 71500533 | SWITCH CAP, traction, horn | FLHXSE |
| 18 | 71500166 | SWITCH CAP, headlamp, high/low | FLHXSE |
| 19 | 71500167 | SWITCH CAP, left turn signal | FLHXSE |
| 20 | 71500168 | SWITCH CAP, start/hazard | FLHXSE |
| 21 | 71500169 | SWITCH CAP, run/stop | FLHXSE |
| 22 | 71500484 | SWITCH CAP, right turn signal | FLHXSE |
| 23 | 71500224 | SWITCH CAP, cruise | FLHXSE |
| 24 | 71500225 | SWITCH CAP, push-to-talk (ptt) | FLHXSE |
| 25 | 71500226 | SWITCH CAP, audio | FLHXSE |
| 26 | 71500227 | SWITCH CAP, audio select | FLHXSE |
| 27 | 71500494 | KIT, SWITCH CAP, push-to-talk (ptt)/cruise (gray) (if equipped) | FLHXSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FLHXSE |
| 2 | 4240 | SCREW (2) | FLHXSE |
| 3 | 9853 | TAB, fastening | FLHXSE |
| 4 | 10006 | CABLE STRAP (7) | FLHXSE |
| 5 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200536 | FLHXSE |
| 6 | 56159-73 | CUP WASHER (4) | FLHXSE |
| 7 | 56161-83A | BUSHING, rubber (4) | FLHXSE |
| 8 | 56163-93 | SPACER (2) | FLHXSE |
| 9 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHXSE |
| 10 | 72053-92 | HOUSING, one-way pin (black) | FLHXSE |
| 11 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHXSE |
| 12 | 55918-08 | CLAMP (upper) | FLHXSE |
| 13 | 57450-14 | RISER (lower) (left) | FLHXSE |
| 14 | 57451-14 | RISER (lower) (right) | FLHXSE |
| 15 | 12600032 | SCREW (2) | FLHXSE |
| 16 | 55800214 | HANDLEBAR (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 16 | 55800308 | HANDLEBAR (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHXSE |
| 2 | 72902-01BK | HOUSING, two-way pin (black) (2) | FLHXSE |
| 3 | 72912-01BK | HOUSING, two-way socket (black) | FLHXSE |
| 4 | 72990-01 | TERMINAL, pin, 18-22 AWG (2) | FLHXSE |
| 5 | 72991-01 | TERMINAL, socket, 18-22 AWG (2) | FLHXSE |
| 6 | 32700050A | SENSOR, twist grip, with 1, 2, 4, 10 and 11 | FLHXSE |
| 7 | 56100337 | ENDCAP (gloss black) (used on motorcycles with Sand Dune paint) (2) | FLHXSE |
| 7 | 56100384 | ENDCAP (satin chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 7 | 56100385 | ENDCAP (satin black) (used on motorcycles with Smoky Gray paint) (2) | FLHXSE |
| 8 | 56100339 | HANDGRIP, (right) (gloss black) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 8 | 56100380 | HANDGRIP, (right) (satin black) (used on motorcycles with Smoky Gray or paint) | FLHXSE |
| 8 | 56100381 | HANDGRIP, (right) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 9 | 56100338 | HANDGRIP (left) (gloss black) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 9 | 56100382 | HANDGRIP (left) (satin black) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 9 | 56100383 | HANDGRIP (left) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 10 | 69200307 | TERMINAL, socket, 22 AWG (6) | FLHXSE |
| 11 | 69201162 | HOUSING, six-way socket (black) | FLHXSE |
TAIL LAMP (EXCEPT CANADA) AND TURN SIGNAL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3152 | SCREW (6) | FLHXSE |
| 2 | 10006 | CABLE STRAP | FLHXSE |
| 3 | 10065 | CABLE STRAP (5) | FLHXSE |
| 4 | 69201559 | HARNESS, rear lighting | FLHXSE |
| 5 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHXSE |
| 6 | 72154-94 | SECONDARY LOCK, four-way socket (orange) (2) | FLHXSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLHXSE |
| 8 | 72169-07 | TERMINAL, pin, 16-20 AWG (19) | FLHXSE |
| 9 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHXSE |
| 10 | 72199-94 | ANCHOR, T-stud | FLHXSE |
| 11 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 12 | 72177-07BK | HOUSING, four-way socket (black) | FLHXSE |
| 13 | 69201577 | HOUSING, six-way socket (black) | FLHXSE |
| 14 | 69201382 | COVER, 90-degree, wire dress | FLHXSE |
| 15 | 72473-07 | SEAL PIN (2) | FLHXSE |
| 16 | 73213-07 | RETAINER, anchored | FLHXSE |
| 17 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 18 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 20 | 12400072 | SPACER (2) | FLHXSE |
| 21 | 67800201 | ENVELOPE TAIL LAMP/TURN SIGNAL ASSEMBLY, with 12400072 (Domestic and Canada only) (2) | FLHXSE |
| 21 | 67800204 | ENVELOPE TURN SIGNAL ASSEMBLY (left) (amber) (all except Domestic and Canada) | FLHXSE |
| 21 | 67800203 | ENVELOPE TURN SIGNAL ASSEMBLY (right) (amber) (all except Domestic and Canada) | FLHXSE |
| 22 | 69200018 | CONDUIT, self-adhesive, 50 ft | FLHXSE |
| 23 | 69200984 | HOUSING, 20-way pin (black) | FLHXSE |
| 24 | 69201374 | COVER, 90 degree, 16-way (2) | FLHXSE |
| 25 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 26 | 69201379 | SEAL PIN | FLHXSE |
| 27 | 69201591 | TERMINAL, socket, 16 AWG (4) | FLHXSE |
| 28 | 69201385 | TERMINAL, socket, 18-20 AWG (19) | FLHXSE |
| 29 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (19) | FLHXSE |
| 30 | 69201575 | HOUSING, 18-way socket | FLHXSE |
TAIL LAMP (CANADA ONLY)
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 3022A | SCREW | FLHXSE |
| 3 | 7964 | J-NUT | FLHXSE |
| 4 | 10006 | CABLE STRAP | FLHXSE |
| 5 | 10065 | CABLE STRAP (5) | FLHXSE |
| 6 | 68026-99 | SCREW, tail lamp (2) | FLHXSE |
| 7 | 68066-99A | TAIL LAMP BASE ASSEMBLY, with 68296-99A and 68830-99A (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 7 | 67800847 | TAIL LAMP BASE ASSEMBLY, with 68830-99A and base (black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 8 | 68296-99A | TAIL LAMP BASE (chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 9 | 68830-99A | CIRCUIT BOARD AND COVER | FLHXSE |
| 10 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHXSE |
| 11 | 72154-94 | SECONDARY LOCK, four-way socket (orange) (2) | FLHXSE |
| 12 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHXSE |
| 13 | 72169-07 | TERMINAL, pin, 16-20 AWG (19) | FLHXSE |
| 14 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHXSE |
| 15 | 72199-94 | ANCHOR, T-stud | FLHXSE |
| 16 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FLHXSE |
| 17 | 72230-98 | HOUSING, three-way socket (black) | FLHXSE |
| 18 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 19 | 72473-07 | SEAL PIN | FLHXSE |
| 20 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (3) | FLHXSE |
| 21 | 72604-01BK | HOUSING, four-way socket (black) | FLHXSE |
| 22 | 72644-01 | SECONDARY LOCK, four-way pin | FLHXSE |
| 23 | 72690-01 | TERMINAL, four-way pin (4) | FLHXSE |
| 24 | 73213-07 | RETAINER, anchored | FLHXSE |
| 25 | 73154-96BK | HOUSING, four-way socket (black) (2) | FLHXSE |
| 26 | 73156-96BK | HOUSING, six-way socket (black) | FLHXSE |
| 27 | 73191-96 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 28 | 74102-98BK | HOUSING, two-way pin (black) | FLHXSE |
| 29 | 74142-98 | SECONDARY LOCK, two-way pin (orange) | FLHXSE |
| 30 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 31 | 67800317 | LAMP ASSEMBLY, with 68026-99, 67800424, 69200599 | FLHXSE |
| 32 | 67800424 | LENS | FLHXSE |
| 33 | 67800428 | GASKET | FLHXSE |
| 34 | 69200018 | CONDUIT, self-adhesive, 50 ft | FLHXSE |
| 35 | 69200599 | JUMPER, harness | FLHXSE |
| 36 | 69200984 | HOUSING, 20-way pin (black) | FLHXSE |
| 37 | 69201374 | COVER, 90 degree, 16-way (2) | FLHXSE |
| 38 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (4) | FLHXSE |
| 39 | 69201379 | SEAL PIN (6) | FLHXSE |
| 40 | 69201591 | TERMINAL, socket, 16 AWG (8) | FLHXSE |
| 41 | 69201385 | TERMINAL, socket, 18-20 AWG (22) | FLHXSE |
| 42 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (26) | FLHXSE |
| 43 | 69201753 | HARNESS, rear lighting | FLHXSE |
| 44 | 69201575 | HOUSING, 18-way socket (2) | FLHXSE |
EXHAUST SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200384 | SCREW (6) | FLHXSE |
| 2 | 10200569 | SCREW | FLHXSE |
| 3 | 3929 | SCREW (4) | FLHXSE |
| 4 | 4705 | SCREW (2) | FLHXSE |
| 5 | 7041 | LOCKWASHER (4) | FLHXSE |
| 6 | 7593 | NUT (5) | FLHXSE |
| 7 | 8146 | NUT CLIP (6) | FLHXSE |
| 8 | 9955 | CLAMP, worm drive #24 (6) | FLHXSE |
| 9 | 10039 | CABLE STRAP (2) | FLHXSE |
| 10 | 9956 | CLAMP, worm drive #40 (2) | FLHXSE |
| 11 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHXSE |
| 12 | 27809-10 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLHXSE |
| 13 | 65324-83B | GASKET, exhaust port (2) | FLHXSE |
| 14 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHXSE |
| 15 | 65328-83A | CLAMP, exhaust manifold (2) | FLHXSE |
| 16 | 65723-85 | MOUNTING BRACKET (2) | FLHXSE |
| 17 | 65724-85A | MOUNT, rubber (2) | FLHXSE |
| 18 | 66047-05 | CLAMP, worm (6) | FLHXSE |
| 19 | 66078-06 | RING, retention (2) | FLHXSE |
| 20 | 66861-09B | CLAMP, exhaust pipe, hinged | FLHXSE |
| 21 | 66881-09 | BRACKET, exhaust pipe hanger | FLHXSE |
| 22 | 72177-07BK | HOUSING, four-way socket (black) | FLHXSE |
| 23 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLHXSE |
| 24 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHXSE |
| 25 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHXSE |
| 26 | 10900015A | STUD, exhaust | FLHXSE |
| 27 | 32700046 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | FLHXSE |
| 28 | 64900254A | MUFFLER (left) (chrome) (Asia-Pacific, Australia, Brazil, England, HDI, Japan) (used on all paint colors) | FLHXSE |
| 28 | 64900731 | MUFFLER ASSEMBLY (left) (chrome) (California, Canada, Domestic) (used on all paint colors) | FLHXSE |
| 28 | 64900794 | MUFFLER ASSEMBLY (left) (chrome) (China) (used on all paint colors) | FLHXSE |
| 29 | 64900255A | MUFFLER (right) (chrome) (Asia-Pacific, Australia, Brazil, England, HDI, Japan) (used on all paint colors) | FLHXSE |
| 29 | 64900732 | MUFFLER ASSEMBLY (right) (chrome) (California, Canada, Domestic) (used on all paint colors) | FLHXSE |
| 29 | 64900795 | MUFFLER ASSEMBLY (right) (chrome) (China) (used on all paint colors) | FLHXSE |
| 30 | 65100170 | END CAP ASSEMBLY (chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 30 | 65100171 | END CAP ASSEMBLY (black) (all destinations) (used on motorcycles with Sand Dune paint) (2) | FLHXSE |
| 30 | 65100186 | END CAP ASSEMBLY (Black Onyx) (all destinations) (all destinations with Smoky Gray paint) (2) | FLHXSE |
EXHAUST SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 31 | 65400539 | SHIELD, exhaust pipe, front (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 31 | 65400617 | SHIELD, exhaust pipe, front (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 31 | 65400435A | SHIELD, exhaust pipe, front (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 32 | 65400540 | EXHAUST SHIELD ASSEMBLY, rear header pipe (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 32 | 65400618 | EXHAUST SHIELD ASSEMBLY, rear header pipe (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 32 | 65400436 | EXHAUST SHIELD ASSEMBLY, rear header pipe (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 33 | 65400541 | EXHAUST SHIELD ASSEMBLY, catalytic converter (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 33 | 65400619 | EXHAUST SHIELD ASSEMBLY, catalytic converter (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 33 | 65400437 | EXHAUST SHIELD ASSEMBLY, catalytic converter (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 34 | 65400542 | SHIELD, left exhaust pipe, rear (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 34 | 65400620 | SHIELD, left exhaust pipe, rear (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 34 | 65400438 | SHIELD, left exhaust pipe, rear (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 35 | 65400543 | HEAT SHIELD, muffler (right) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 35 | 65400616 | HEAT SHIELD, muffler (right) (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 35 | 65400440 | HEAT SHIELD, muffler (right) (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 35 | 65400544 | HEAT SHIELD, muffler (left) (satin chrome) (not shown) (used on motorcycles with Black Fade paint) | FLHXSE |
| 35 | 65400615 | HEAT SHIELD, muffler (left) (smoked satin chrome) (not shown) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 35 | 65400439 | HEAT SHIELD, muffler (left) (black onyx) (not shown) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 36 | 65500042 | BRACKET, muffler strap, male | FLHXSE |
| 37 | 65500043 | BRACKET, muffler strap, female | FLHXSE |
| 38 | 65600176 | HEADER ASSEMBLY, catalytic (Domestic, Canada, California) (chrome) | FLHXSE |
| 38 | 65600177 | HEADER ASSEMBLY, catalytic (Asia-Pacific, Australia, Brazil, China, England, HDI, Japan) (chrome) | FLHXSE |
| 39 | 65600178 | CROSSOVER PIPE ASSEMBLY (chrome) | FLHXSE |
| 40 | 65900012 | CLAMP, muffler (2) | FLHXSE |
| 41 | 65900015 | CLAMP, muffler | FLHXSE |
| 42 | 10177 | CABLE STRAP, anchored | FLHXSE |
WIRING HARNESS, MAIN (1 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (4) | FLHXSE |
| 2 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLHXSE |
| 3 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHXSE |
| 4 | 72364-06 | TERMINAL, insulated | FLHXSE |
| 5 | 72414-07BK | HOUSING, six-way socket (black) | FLHXSE |
| 6 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHXSE |
| 7 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 8 | 69200201 | HOUSING, two-way socket (black) | FLHXSE |
| 9 | 69200202A | WIRE TROUGH | FLHXSE |
| 10 | 69200203A | COVER, wire trough, with bracket | FLHXSE |
| 11 | 69200214 | CADDY, left steer head | FLHXSE |
| 12 | 72473-07 | SEAL PIN (5) | FLHXSE |
WIRING HARNESS, MAIN (2 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (3) | FLHXSE |
| 2 | 10065 | CABLE STRAP (5) | FLHXSE |
| 3 | 10177 | CABLE STRAP, anchored (2) | FLHXSE |
| 4 | 72066-06A | HOUSING, four-way socket (black) | FLHXSE |
| 5 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHXSE |
| 6 | 72166-07BK | HOUSING, 16-way socket (black) | FLHXSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (39) | FLHXSE |
| 8 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHXSE |
| 9 | 72175-07BK | HOUSING, four-way pin | FLHXSE |
| 10 | 72209-11 | COVER, wire dress | FLHXSE |
| 11 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 12 | 72222-11 | TERMINAL, socket, 18-20 AWG (26) | FLHXSE |
| 13 | 72226-11 | TERMINAL, socket, 14-16 AWG (8) | FLHXSE |
| 14 | 72256-11 | SEAL PIN (14) | FLHXSE |
| 15 | 72272-07 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 16 | 72414-07BK | HOUSING, six-way socket (black) (2) | FLHXSE |
| 17 | 72473-07 | SEAL PIN (2) | FLHXSE |
| 18 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLHXSE |
| 19 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLHXSE |
| 20 | 72488-07BK | HOUSING, 12-way pin (black) | FLHXSE |
| 21 | 72491-07GY | HOUSING, 16-way socket (gray) | FLHXSE |
| 22 | 72512-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 23 | 72545-08 | RESISTOR ASSEMBLY, fuel sender | FLHXSE |
| 24 | 72606-08 | HOUSING, two-way socket (black) | FLHXSE |
| 25 | 72609-08 | SECONDARY LOCK, two-way socket | FLHXSE |
| 26 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 27 | 73213-07 | RETAINER, anchored (2) | FLHXSE |
| 28 | 69200193 | HOUSING, 48-way socket (black) | FLHXSE |
| 29 | 69200205 | WEATHER PLUG, 12-way pin (2) | FLHXSE |
| 30 | 69200215 | CADDY, right steer head | FLHXSE |
| 31 | 69201163 | HOUSING, six-way pin (black) | FLHXSE |
| 32 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHXSE |
| 33 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHXSE |
| 34 | 69202412 | DUST CAP (used on models without TCU) (see note) | FLHXSE |

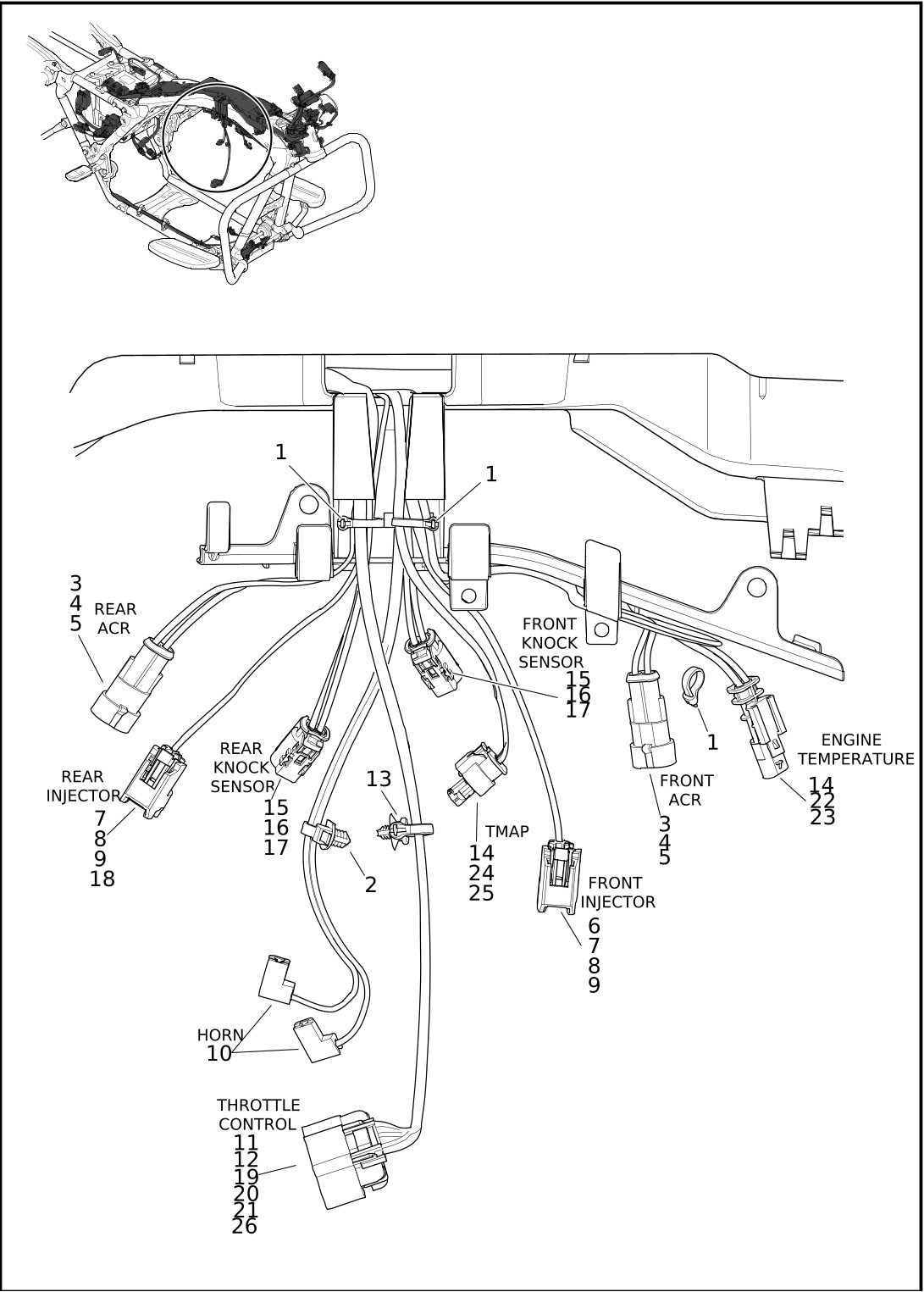

WIRING HARNESS, MAIN (3 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHXSE |
| 2 | 10177 | CABLE STRAP, anchored | FLHXSE |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLHXSE |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLHXSE |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHXSE |
| 6 | 72098-06 | HOUSING, two-way socket (gray) | FLHXSE |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (4) | FLHXSE |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG (4) | FLHXSE |
| 9 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLHXSE |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHXSE |
| 11 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (6) | FLHXSE |
| 12 | 72569-08 | TERMINAL, socket, 20-22 AWG (2) | FLHXSE |
| 13 | 12500015 | CABLE STRAP | FLHXSE |
| 14 | 69201301 | WIRE SEAL, 20-22 AWG (green) (6) | FLHXSE |
| 15 | 69201390 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 16 | 69201391 | TERMINAL, socket, 20 AWG (4) | FLHXSE |
| 17 | 69201392 | WIRE SEAL, 20 AWG (yellow) (4) | FLHXSE |
| 18 | 69201393 | HOUSING, two-way socket (black) | FLHXSE |
| 19 | 69201394 | HOUSING, six-way socket (black) | FLHXSE |
| 20 | 69201395 | SECONDARY LOCK, six-way socket | FLHXSE |
| 21 | 69201396 | TERMINAL, socket, 20 AWG (4) | FLHXSE |
| 22 | 69201397 | HOUSING, two-way pin (gray) | FLHXSE |
| 23 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHXSE |
| 24 | 69201441 | HOUSING, four-way socket | FLHXSE |
| 25 | 69201442 | TERMINAL, socket, 18 AWG (4) | FLHXSE |
| 26 | 69201416 | CPA, 6-way socket | FLHXSE |
WIRING HARNESS, MAIN (4 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHXSE |
| 2 | 10147 | CLIP, connector | FLHXSE |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 4 | 72518-01 | HOUSING, two-way socket (red) | FLHXSE |
| 5 | 72533-06 | DUST CAP, two-way connector | FLHXSE |
| 6 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 7 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 8 | 72664-12A | HOUSING, 18-way socket (black) | FLHXSE |
| 9 | 72666-12 | TERMINAL, socket, 18-20 AWG (43) | FLHXSE |
| 10 | 72720-07 | HOUSING, two-way socket (black) | FLHXSE |
| 11 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 12 | 69201168 | TERMINAL, socket, 22 AWG (2) | FLHXSE |
| 13 | 69201415 | HOUSING, 18-way socket (brown) | FLHXSE |
| 14 | 69201440 | HOUSING, 18-way socket (gray) | FLHXSE |
WIRING HARNESS, MAIN (5 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in ring, 12 AWG (2) | FLHXSE |
| 2 | 10065 | CABLE STRAP (2) | FLHXSE |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (10) | FLHXSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (10) | FLHXSE |
| 5 | 69202219 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHXSE |
| 6 | 72272-07 | TERMINAL, socket, 14-16 AWG (5) | FLHXSE |
| 7 | 72473-07 | SEAL PIN (5) | FLHXSE |
| 8 | 72500-07ABK | HOUSING, 20-way socket (black) | FLHXSE |
| 9 | 72554-09GY | HOUSING, six-way pin (gray) | FLHXSE |
| 10 | 72175-07BK | HOUSING, four-way pin (black) | FLHXSE |
| 11 | 69201765 | WHIM USB (wireless headset interface module) | FLHXSE |
| 12 | 69201596 | TERMINAL, ring, 8-10 AWG | FLHXSE |
| 13 | 10177 | CABLE STRAP, anchored | FLHXSE |
| 14 | 73213-07 | RETAINER, anchored | FLHXSE |
WIRING HARNESS, MAIN (6 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 3018A | SCREW (2) | FLHXSE |
| 2 | 6150W | WASHER (2) | FLHXSE |
| 3 | 10006 | CABLE STRAP (3) | FLHXSE |
| 4 | 10065 | CABLE STRAP (5) | FLHXSE |
| 5 | 11779 | FASTENER, push-in (black) (2) | FLHXSE |
| 6 | 72295-94 | CONNECTOR, starter housing | FLHXSE |
| 7 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLHXSE |
| 8 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 9 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 10 | 72543-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 11 | 72544-07 | SECONDARY LOCK, three-way socket (black) | FLHXSE |
| 12 | 12600116 | FASTENER (2) | FLHXSE |
| 13 | 69200175 | CADDY, fuse block, electrical panel | FLHXSE |
| 14 | 69200600 | RELAY CONNECTOR (3) | FLHXSE |
| 15 | 69200611 | RELAY BRACKET | FLHXSE |
| 16 | 71400100 | RELAY (2) | FLHXSE |
| 17 | 3634 | SCREW (not included on harness ) (2) | FLHXSE |
WIRING HARNESS, MAIN (7 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 69200183 | HOUSING, 26-way socket | FLHXSE |
| 2 | 69200184 | COVER, 26-way socket | FLHXSE |
| 3 | 69200185 | TERMINAL, socket, 20 AWG (6) | FLHXSE |
| 4 | 69200186 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 5 | 69200187 | TERMINAL, socket, 12 AWG (2) | FLHXSE |
| 6 | 69200188 | WIRE SEAL, 20 AWG (gray) (6) | FLHXSE |
| 7 | 69200189 | WIRE SEAL, 14-16 AWG (brown) (2) | FLHXSE |
| 8 | 69200190 | WIRE SEAL, 12 AWG (blue) (2) | FLHXSE |
| 9 | 69200191 | SEAL PIN (16) | FLHXSE |
| 10 | 10065 | CABLE STRAP (2) | FLHXSE |
| 11 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHXSE |
| 12 | 72343-10 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 13 | 72415-07GY | HOUSING, four-way pin (gray) | FLHXSE |
| 14 | 73213-07 | RETAINER, anchored (3) | FLHXSE |
| 15 | 72175-07BK | HOUSING, four-way pin (black) | FLHXSE |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 17 | 72473-07 | SEAL PIN, natural | FLHXSE |
| 18 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 19 | 72519-09BK | DUST CAP, three-way socket (black) | FLHXSE |
| 20 | 9937 | TERMINAL, socket, 14-18 AWG (4) | FLHXSE |
| 21 | 72427-00 | TERMINAL, socket, 16-22 AWG (6) | FLHXSE |
| 22 | 69200600 | FUSE BLOCK, five-way socket relay (2) | FLHXSE |
| 23 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 24 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 25 | 72544-07 | SECONDARY LOCK, three-way socket | FLHXSE |
| 26 | 72589-09 | HOUSING, three-way socket (black) | FLHXSE |
| 27 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 28 | 72609-08 | SECONDARY LOCK, two-way socket | FLHXSE |
| 29 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 30 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 31 | 72533-06 | PLUG, weather, two-way pin | FLHXSE |
| 32 | 10147 | CLIP (2) | FLHXSE |
| 33 | 10177 | CABLE STRAP, anchored (3) | FLHXSE |
| 34 | 69201814 | TERMINAL, socket (4) | FLHXSE |
| 35 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHXSE |
| 36 | 69201779 | HOUSING, four-way (black) | FLHXSE |
WIRING HARNESS, MAIN (8 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 72519-09BK | DUST CAP, three-way socket (black) | FLHXSE |
| 2 | 73213-07 | RETAINER, anchored (2) | FLHXSE |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (5) | FLHXSE |
| 4 | 72512-07BK | HOUSING, three-way socket (black) | FLHXSE |
| 5 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 6 | 74152-98 | SECONDARY LOCK, two-way socket | FLHXSE |
| 7 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHXSE |
| 8 | 12500018 | CABLE STRAP | FLHXSE |
| 9 | 69201423 | DC LEAD ASSEMBLY | FLHXSE |
| 10 | 10147 | CLIP (2) | FLHXSE |
| 11 | 72607-08 | HOUSING, two-way pin (black) | FLHXSE |
| 12 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 13 | 72609-08 | SECONDARY LOCK, two-way socket | FLHXSE |
| 14 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 15 | 10177 | CABLE STRAP, anchored (3) | FLHXSE |
| 16 | 12500014 | CABLE STRAP | FLHXSE |
| 17 | 72065-06A | HOUSING, three-way socket (black) | FLHXSE |
| 18 | 72127-06 | SECONDARY LOCK, three-way socket | FLHXSE |
| 19 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 20 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 21 | 10065 | CABLE STRAP (3) | FLHXSE |
| 22 | 69200238 | TERMINAL, insulated (2) | FLHXSE |
WIRING HARNESS, MAIN (9 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHXSE |
| 2 | 10065 | CABLE STRAP | FLHXSE |
| 3 | 72081-11 | HOUSING, 48-way socket (black) | FLHXSE |
| 4 | 72209-11 | COVER, wire dress | FLHXSE |
| 5 | 72222-11 | TERMINAL, socket, 18-20 AWG (23) | FLHXSE |
| 6 | 72226-11 | TERMINAL, socket, 14-16 AWG | FLHXSE |
| 7 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHXSE |
| 8 | 72256-11 | SEAL PIN (7) | FLHXSE |
| 9 | 31586-07 | RELAY (2) | FLHXSE |
| 10 | 72296-95 | TERMINAL, socket, 14-16 AWG (3) | FLHXSE |
| 11 | 72298-95 | PLUG, cavity (3) | FLHXSE |
| 12 | 54305-98 | FUSE, 2 A (2) | FLHXSE |
| 13 | 72308-97 | TERMINAL, socket, 12-14 AWG (7) | FLHXSE |
| 14 | 72331-95 | FUSE, 5 A (tan) (2) | FLHXSE |
| 15 | 72345-02 | FUSE, 20 A (yellow) (2) | FLHXSE |
| 16 | 72356-95 | TERMINAL, socket, 18-20 AWG (14) | FLHXSE |
| 17 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) (7) | FLHXSE |
| 18 | 72330-95 | FUSE, 15 A (blue) | FLHXSE |
| 19 | 72539-06 | FUSE, 30 A (green) (3) | FLHXSE |
| 20 | 69200194 | HOUSING, 24-way socket | FLHXSE |
| 21 | 69201766 | COVER, fuse block | FLHXSE |
| 22 | 69200199 | WIRE SEAL, 18-20 AWG (12) | FLHXSE |
| 23 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHXSE |
| 24 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLHXSE |
| 25 | 73301-04 | HOUSING, two-way pin (black) | FLHXSE |
| 26 | 73303-04 | SECONDARY LOCK, two-way socket (black) | FLHXSE |
| 27 | 73304-04 | TERMINAL, socket, 10 AWG (2) | FLHXSE |
| 28 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHXSE |
| 29 | 69200336 | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness. | FLHXSE |
WIRING HARNESS, MAIN (10 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 73213-07 | RETAINER, anchored | FLHXSE |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FLHXSE |
| 3 | 72188-07BK | HOUSING, six-way pin (black) | FLHXSE |
| 4 | 10065 | CABLE STRAP (2) | FLHXSE |
| 5 | 69201400 | HOUSING, two-way socket (black) | FLHXSE |
| 6 | 69201401 | SECONDARY LOCK, two-way socket | FLHXSE |
| 7 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 8 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLHXSE |
| 9 | 69201405 | RESISTOR PACK | FLHXSE |
| 10 | 69201404 | CONNECTOR, anchored | FLHXSE |
| 11 | 72350-11 | HOUSING, one-way socket (black) | FLHXSE |
| 12 | 72575-11 | SECONDARY LOCK, one-way socket (black) | FLHXSE |
| 13 | 73304-04 | TERMINAL, socket, 10 AWG (2) | FLHXSE |
| 14 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHXSE |
| 15 | 72064-06 | HOUSING, three-way socket (black) | FLHXSE |
| 16 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHXSE |
| 17 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHXSE |
| 18 | 72106-94BK | HOUSING, six-way pin (black) (replaces gray connector) | FLHXSE |
| 19 | 72146-94 | SECONDARY LOCK, six-way pin (green) | FLHXSE |
| 20 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHXSE |
| 21 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLHXSE |
| 22 | 72195-94 | SEAL PIN | FLHXSE |
| 23 | 6990 | WEATHER PLUG, six-way pin | FLHXSE |
| 24 | 72632-10 | PLUG, weather, four-way pin | FLHXSE |
| 25 | 72175-07BK | HOUSING, four-way pin (gray) | FLHXSE |
| 26 | 72473-07 | SEAL PIN, natural (2) | FLHXSE |
| 27 | 69200212 | HARNESS, battery tender | FLHXSE |
WIRING HARNESS, ON BOARD DIAGNOSTICS (OBD) JUMPER (CHINA ONLY)
| Index No. | Part No. | Description | Model(s) |
| 1 | 72116-94BK | HOUSING, six-way, socket, sealed (black) (replaces gray housing) (China only) | FLHXSE |
| 2 | 72156-94 | SOCKET, six-way, socket (China only) | FLHXSE |
| 3 | 72195-94 | SEAL PIN (China only) (2) | FLHXSE |
| 4 | 69202097 | WIRING HARNESS, on board diagnostics (OBD) jumper (China only) | FLHXSE |
| 5 | 69202102 | TERMINAL, socket, 22AWG (China only) (4) | FLHXSE |
| 6 | 69202108 | CAP, connector (China only) (2) | FLHXSE |
WIRING HARNESS, FRONT FAIRING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69201731A | WIRING HARNESS, fairing | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHXSE |
| 2 | 10065 | CABLE STRAP (10) | FLHXSE |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHXSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (22) | FLHXSE |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 6 | 72225-09 | TERMINAL, pin, 14 AWG (2) | FLHXSE |
| 7 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHXSE |
| 8 | 72382-98BK | HOUSING, 23-way socket (black) | FLHXSE |
| 9 | 72397-98 | SEAL PIN (4) | FLHXSE |
| 10 | 72473-07 | SEAL PIN (8) | FLHXSE |
| 11 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHXSE |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 13 | 72905-11 | HOUSING, two-way pin (black) | FLHXSE |
| 14 | 72907-11 | HOUSING, four-way pin (4) | FLHXSE |
| 15 | 72909-11 | TERMINAL, pin, 20-22 AWG (17) | FLHXSE |
| 16 | 72912-01BK | HOUSING, two-way socket (black) | FLHXSE |
| 17 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHXSE |
| 18 | 69200109 | CADDY, fairing harness | FLHXSE |
| 19 | 69200254 | HOUSING, four-way socket | FLHXSE |
| 20 | 69200256 | SECONDARY LOCK, four-way | FLHXSE |
| 21 | 69200271 | HOUSING, two-way socket (black) | FLHXSE |
| 22 | 69200272 | HOUSING, two-way pin (black) (2) | FLHXSE |
WIRING HARNESS, FRONT FAIRING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69201731A | WIRING HARNESS, fairing | FLHXSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHXSE |
| 2 | 10177 | CABLE STRAP, anchored (4) | FLHXSE |
| 3 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHXSE |
| 4 | 72097-06 | SEAL PIN, A (2) | FLHXSE |
| 5 | 72130-04 | HOUSING, 12-way socket (black) | FLHXSE |
| 6 | 72135-06 | SECONDARY LOCK, four-way socket (gray) (2) | FLHXSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHXSE |
| 8 | 72189-04 | SEAL PIN (6) | FLHXSE |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 10 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHXSE |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHXSE |
| 12 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHXSE |
| 13 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 14 | 72609-08 | SECONDARY LOCK, two-way socket (black) (3) | FLHXSE |
| 15 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 16 | 73102-96BK | HOUSING, two-way pin (black) | FLHXSE |
| 17 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 18 | 74196-04 | TERMINAL, socket, 20 AWG (8) | FLHXSE |
| 19 | 74197-04 | SECONDARY LOCK, 12-way socket (blue) | FLHXSE |
| 20 | 12500002 | CABLE STRAP (2) | FLHXSE |
| 21 | 69200271 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 22 | 69200337 | HOUSING, two-way socket (gray) | FLHXSE |
| 23 | 73152-96BK | HOUSING, two-way socket (black) | FLHXSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHXSE |
| 2 | 4312C | SCREW (2) | FLHXSE |
| 3 | 4705 | SCREW (2) | FLHXSE |
| 4 | 7792 | NUT | FLHXSE |
| 5 | 15368-01A | LABEL BATTERY WARNING | FLHXSE |
| 6 | 66010-97D | BATTERY, (except Brazil), with 4312C | FLHXSE |
| 66000066 | BATTERY, (Brazil), with 4312C | FLHXSE | |
| 7 | 66051-08 | STRAP, battery removal | FLHXSE |
| 8 | 9819 | TERMINAL, ring, 10-12 AWG | FLHXSE |
| 9 | 73304-04 | TERMINAL, socket, 10 AWG | FLHXSE |
| 10 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHXSE |
| 11 | 66000010A | BATTERY TRAY | FLHXSE |
| 12 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | FLHXSE |
| 13 | 69201130 | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201307 | FLHXSE |
| 14 | 69201178 | BRACKET, battery hold down | FLHXSE |
| 15 | 69201307 | BOOT, battery positive | FLHXSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHXSE |
| 2 | 4775 | SCREW (2) | FLHXSE |
| 3 | 6019 | WASHER (2) | FLHXSE |
| 4 | 6109 | WASHER | FLHXSE |
| 5 | 7495 | NUT | FLHXSE |
| 6 | 7549A | ACORN NUT | FLHXSE |
| 7 | 8108 | SPEEDNUT (2) | FLHXSE |
| 8 | 69060-90H | HORN ASSEMBLY | FLHXSE |
| 9 | 69062-91A | CLAMP | FLHXSE |
| 10 | 69120-91 | BRACKET, horn | FLHXSE |
| 11 | 69123-92A | MOUNT, horn, rubber | FLHXSE |
| 12 | 14101120 | INSERT, horn | FLHXSE |
| 13 | 61301144 | COVER, horn (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 13 | 61300626A | COVER, horn (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 14 | 69000083 | BRACKET ASSEMBLY, horn mount | FLHXSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHXSE |
| 2 | 6150W | WASHER (2) | FLHXSE |
| 3 | 9907 | WIRE TERMINAL (2) | FLHXSE |
| 4 | 10065 | CABLE STRAP | FLHXSE |
| 5 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHXSE |
| 6 | 66373-06 | BATTERY, 3V, CR2032 | FLHXSE |
| 7 | 68956-07 | ANTENNA MODULE, security system | FLHXSE |
| 8 | 68958-07C | SIREN (Domestic) | FLHXSE |
| 9 | 69309-10 | BATTERY REPLACE KIT, siren alarm | FLHXSE |
| 10 | 72023-51E | KIT, SWITCH, rear stop lamp, with 9907 | FLHXSE |
| 11 | 32700010 | SENSOR, ambient temperature | FLHXSE |
| 12 | 41000341F | BODY CONTROL MODULE (BCM) (except Japan) | FLHXSE |
| 12 | 41000342F | BODY CONTROL MODULE (BCM) (Japan) | FLHXSE |
| 13 | 71400090B | FORK LOCK (specify key number) | FLHXSE |
| 13 | 45600057 | FORK LOCK (specify key number) (gloss black) | FLHXSE |
| 14 | 90300106 | KEY AND FOB ASSEMBLY (specify key number) (2) | FLHXSE |
| 14 | 90300107 | KEY AND FOB ASSEMBLY (specify key number) (Japan) (2) | FLHXSE |
| 15 | 90300122 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Black Fade paint) | FLHXSE |
| 15 | 90300123 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Black Fade paint) (Japan only) | FLHXSE |
| 15 | 90300135 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 15 | 90300136 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Smoky Gray or Sand Dune paint) (Japan only) | FLHXSE |
SOUND SYSTEM (1 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHXSE |
| 2 | 76000822 | SPEAKER ASSEMBLY (2) | FLHXSE |
| 3 | 10065 | CABLE STRAP (2) | FLHXSE |
| 4 | 76000916 | GASKET (left) | FLHXSE |
| 4 | 76000915 | GASKET (right) | FLHXSE |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (2) | FLHXSE |
| 6 | 76000869 | SPEAKER ASSEMBLY, tweeter, with 4, 12, 13, 14, 15, 16 (right) | FLHXSE |
| 7 | 76000868 | SPEAKER ASSEMBLY, tweeter, with 4, 12, 13, 14, 15, 16 (left) | FLHXSE |
| 8 | 76000771 | MODULE, wireless headset interface (WHIM) | FLHXSE |
| 9 | 72290-94 | TERMINAL, insulated (4) | FLHXSE |
| 10 | 72294-94 | TERMINAL, insulated (2) | FLHXSE |
| 11 | 76000838 | HEADSET ASSEMBLY | FLHXSE |
| 12 | 72607-08 | HOUSING, two-way pin (black) (2) | FLHXSE |
| 13 | 72608-08 | TERMINAL, pin, 16-20 AWG (4) | FLHXSE |
| 14 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 15 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHXSE |
| 16 | 73213-07 | RETAINER, anchored (2) | FLHXSE |
| 17 | 10200205 | SCREW (8) | FLHXSE |
| 18 | 69200272 | HOUSING, two-way pin (black) (2) | FLHXSE |
| 19 | 69200247 | WIRE HARNESS, speaker jumper, with 3, 5, 9, 10, 16 and 18 (2) | FLHXSE |
| Dealer: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||

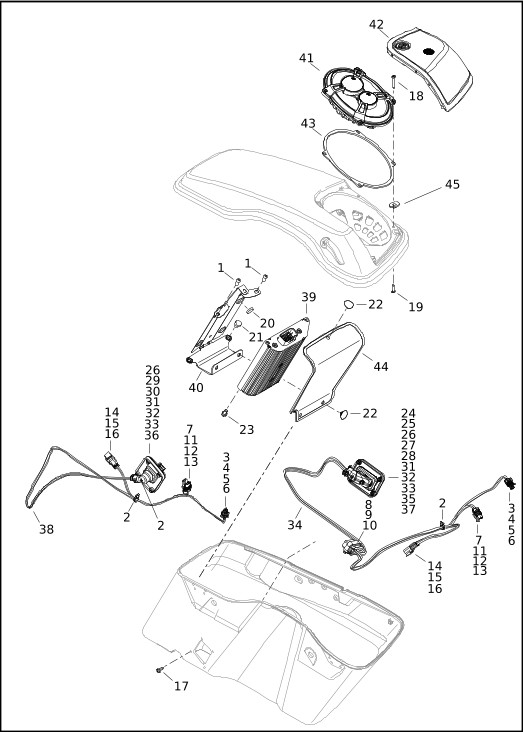

SOUND SYSTEM (2 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (2) | FLHXSE |
| 2 | 10065 | CABLE STRAP (4) | FLHXSE |
| 3 | 72063-06 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 4 | 72094-06 | TERMINAL, socket, 18 AWG (4) | FLHXSE |
| 5 | 72096-06 | WIRE SEAL, 18 AWG (yellow) (4) | FLHXSE |
| 6 | 72111-06 | SECONDARY LOCK, two-way socket (gray) (2) | FLHXSE |
| 7 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHXSE |
| 8 | 72381-98 | TERMINAL, socket, 16-20 AWG (20) | FLHXSE |
| 9 | 72382-98BK | HOUSING, 23-way socket (black) | FLHXSE |
| 10 | 72397-98 | SEAL PIN (3) | FLHXSE |
| 11 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHXSE |
| 12 | 72609-08 | SECONDARY LOCK, two-way socket (black) (2) | FLHXSE |
| 13 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHXSE |
| 14 | 74102-98BK | HOUSING, two-way pin (black) (2) | FLHXSE |
| 15 | 74142-98 | SECONDARY LOCK, two-way pin (2) | FLHXSE |
| 16 | 74190-98 | TERMINAL, pin, 16-20 AWG (4) | FLHXSE |
| 17 | 10200065 | SCREW (8) | FLHXSE |
| 18 | 10200095 | SCREW (8) | FLHXSE |
| 19 | 10200351 | SCREW (8) | FLHXSE |
| 20 | 11100071 | PAD (4) | FLHXSE |
| 21 | 12100052 | GROMMET (2) | FLHXSE |
| 22 | 12600068 | CLIP, retainer (3) | FLHXSE |
| 23 | 12600087 | STUD (2) | FLHXSE |
| 24 | 69201373 | FLANGE LOCK, 16-way | FLHXSE |
| 25 | 69201374 | COVER, 90 degree (2) | FLHXSE |
| 26 | 69201375 | TERMINAL, pin, 18-22 AWG (19) | FLHXSE |
| 27 | 69201377 | WIRE SEAL, 20-22 AWG (gray) (2) | FLHXSE |
| 28 | 69201379 | SEAL PIN | FLHXSE |
| 29 | 69201381 | FLANGE LOCK, four-way | FLHXSE |
| 30 | 69201382 | COVER, 90 degree, four-way | FLHXSE |
| 31 | 69201412 | WIRE SEAL, 16-18 AWG (yellow) (21) | FLHXSE |
| 32 | 69201418 | CONNECTOR, panel mount gasket (2) | FLHXSE |
| 33 | 69201419 | MOUNTING PLATE, connector (left) | FLHXSE |
| 33 | 69201740 | MOUNTING PLATE, connector (right) | FLHXSE |
| 34 | 69201561 | WIRE HARNESS, rear speaker (left) | FLHXSE |
| 35 | 69201574 | HOUSING, 18-way pin (black) | FLHXSE |
| 36 | 69201576 | HOUSING, six-way pin (black) | FLHXSE |
| 37 | 69201592 | TERMINAL, pin, 16 AWG (4) | FLHXSE |
| 38 | 69201734 | WIRE HARNESS, rear speaker (right) | FLHXSE |
| 39 | 76000277B | AMPLIFIER | FLHXSE |
| 40 | 76000282A | BRACKET, with 11100071 and 12100052 | FLHXSE |
| 41 | 76000820 | SPEAKER ASSEMBLY, with 76000914 (2) | FLHXSE |
| 42 | 76000873 | GRILLE ASSEMBLY (left) | FLHXSE |
| 42 | 76000874 | GRILLE ASSEMBLY (right) | FLHXSE |
| 43 | 76000914 | GASKET (2) | FLHXSE |
| 44 | 76000502A | COVER | FLHXSE |
| 45 | 10300066 | WASHER (rubber) (8) | FLHXSE |
| DEALER: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
SOUND SYSTEM (3 OF 3)
| Index No. | Part No. | Description | Model(s) |
| 1 | 926 | BOLT (2) | FLHXSE |
| 2 | 2478 | SCREW (4) | FLHXSE |
| 3 | 7686 | LOCKNUT (2) | FLHXSE |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG (2) | FLHXSE |
| 5 | 11100071 | PAD (4) | FLHXSE |
| 6 | 12100052 | GROMMET (2) | FLHXSE |
| 7 | 12600070 | BOLT (4) | FLHXSE |
| 8 | 12600071 | RETAINER, bolt (4) | FLHXSE |
| 9 | 12600073 | SCREW, accessory module | FLHXSE |
| 10 | 12600087 | STUD (2) | FLHXSE |
| 11 | 69200271 | HOUSING, two-way socket (black) | FLHXSE |
| 12 | 76000789 | ANTENNA, GPS | FLHXSE |
| 13 | 76000783A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000818 (Canada, Domestic) (See NOTE 1) | FLHXSE |
| 13 | 76000784A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, HD2, England) (See NOTE 2) | FLHXSE |
| 13 | 76000785A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Asia-Pacific, Australia, Brazil, China, HDI [rest of world]) (See NOTE 3) | FLHXSE |
| 14 | 91700034 | KIT, RADIO TOUCH SCREEN PROTECTOR | FLHXSE |
| 15 | 76000252 | PLATE, accessory module | FLHXSE |
| 16 | 76000277B | AMPLIFIER | FLHXSE |
| 17 | 76000330 | BRACKET, angle, amplifier | FLHXSE |
| 18 | 76000923 | BRACKET, with 11100071 | FLHXSE |
| 19 | 76000554 | ANTENNA (left) | FLHXSE |
| 20 | 76000945 | BRACKET, amp, (right side) | FLHXSE |
| 21 | 11100071 | PAD (4) | FLHXSE |
| 22 | 10500053 | SCREW (see note) (4) | FLHXSE |
| 23 | 41000645 | MODULE, TCU, , with 73213-07 (Domestic) (see note) | FLHXSE |
| 23 | 41000721 | MODULE, TCU, , with 73213-07 (HDI) (see note) | FLHXSE |
| 24 | 10200798 | SCREW (2) | FLHXSE |
| NOTE 1: 76000783A radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Cayman Islands, Mexico, Puerto Rico and United States.NOTE 2: 76000784A radio with the European mapset is used in these countries/regions: Albania, Andorra, Austria, Belarus, Belgium, Bosnia Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, Ukraine (Crimea), United Kingdom (Great Britain) and Vatican City.NOTE 3: 76000785A radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Azerbaijan, Bahrain, Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, India, Indonesia, Jordan, Kazakhstan, Kenya, Kuwait, Lebanon, Lesotho, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Paraguay, Peru, Qatar, Reunion, Russia, Saudi Arabia, Singapore, South Africa, Swaziland, Thailand, United Arab Emirates, Uruguay, Venezuela, Vietnam and the Rest Of the World.NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.DEALER: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3656 | SCREW (4) | FLHXSE |
| 2 | 7624 | LOCKNUT (2) | FLHXSE |
| 3 | 10102 | CLIP (6) | FLHXSE |
| 4 | 10103 | CLIP, left saddlebag only | FLHXSE |
| 5 | 74112-98BK | HOUSING, two-way socket (black) | FLHXSE |
| 6 | 74152-98 | SECONDARY LOCK, two-way socket | FLHXSE |
| 7 | 91885-97A | LINER, pull out, with handles (set of 2) | FLHXSE |
| 8 | 10200062 | SCREW (6) | FLHXSE |
| 9 | 10200063 | SCREW (10) | FLHXSE |
| 10 | 10200065 | SCREW (16) | FLHXSE |
| 11 | 10200103 | SCREW (16) | FLHXSE |
| 12 | 10200219 | SCREW (6) | FLHXSE |
| 13 | 10200220 | SCREW (6) | FLHXSE |
| 14 | 10200344 | SCREW (2) | FLHXSE |
| 15 | 10200533 | SCREW, single sided lever (4) | FLHXSE |
| 16 | 10300049 | WASHER, retention (2) | FLHXSE |
| 17 | 10400034 | NUT, clip (4) | FLHXSE |
| 18 | 12100038 | GROMMET (2) | FLHXSE |
| 19 | 93100031 | COVER, indoor storage | FLHXSE |
| 20 | 67900065 | REFLECTOR (left) (red) (Canada, Domestic only) | FLHXSE |
| 67900066 | REFLECTOR (left) (amber) (all except Canada, Domestic) | FLHXSE | |
| 67900067 | REFLECTOR (right) (red) (Canada, Domestic only) | FLHXSE | |
| 67900068 | REFLECTOR (right) (amber) (all except Canada, Domestic) | FLHXSE | |
| 21 | 69201578 | ACTUATOR ASSEMBLY, with 5, 6, 13 and 18 (right) | FLHXSE |
| 21 | 69201579 | ACTUATOR ASSEMBLY, with 5, 6, 13 and 18 (left) | FLHXSE |
| 22 | 90201143ELV | SADDLEBAG COVER, with 90200415 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 90201143ELX | SADDLEBAG COVER, with 90200415 (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 90201143ELZ | SADDLEBAG COVER, with 90200415 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELV | SADDLEBAG COVER, with 90200415 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELX | SADDLEBAG COVER, with 90200415 (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELZ | SADDLEBAG COVER, with 90200415 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE | |
| 23 | 90200415 | GASKET, cover (2) | FLHXSE |
| 24 | 90200467 | CUSHION, saddlebag support (4) | FLHXSE |
| 25 | 90200519 | STRIKE, saddlebag (4) | FLHXSE |
| 26 | 90200896A | LATCH ASSEMBLY, with 90200899 and 90200901 (right) | FLHXSE |
| 26 | 90200897A | LATCH ASSEMBLY, with 90200900 and 90200901 (left) | FLHXSE |
| 27 | 90200893 | TETHER, saddlebag (2) | FLHXSE |
| 28 | 90200611 | ISOLATOR, saddlebag (4) | FLHXSE |
| 29 | 90201540 | KIT, SADDLEBAG MOUNT, with 10200533 and 10400034 (set of 4) | FLHXSE |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 30 | 90201680EMJ | SADDLEBAG BOTTOM, with 90200964 and label (right) (Black Stardust Fade with graphics) **RESTRICTED SALES PART** | FLHXSE |
| 90201680EML | SADDLEBAG BOTTOM, with 90200964 and label (right) (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201680EMM | SADDLEBAG BOTTOM, with 90200964 and label (right) (Sand Dune with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EMJ | SADDLEBAG BOTTOM, with 90200963 and label (left) (Black Stardust Fade with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EML | SADDLEBAG BOTTOM, with 90200963 and label (left) (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EMM | SADDLEBAG BOTTOM, with 90200963 and label (left) (Sand Dune with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 31 | 90200899 | HINGE ASSEMBLY (right) | FLHXSE |
| 90200900 | HINGE ASSEMBLY (left) | FLHXSE | |
| 32 | 90200901 | SEAL (2) | FLHXSE |
| 33 | 90200979 | HANDLE KIT, saddlebag, with grommet (right) (chrome) | FLHXSE |
| 90200980 | HANDLE KIT, saddlebag, with grommet (left) (chrome) | FLHXSE | |
| 90201728 | HANDLE KIT, saddlebag, with grommet (left) (gloss black) | FLHXSE | |
| 90201744 | HANDLE KIT, saddlebag, with grommet (right) (gloss black) | FLHXSE | |
| 34 | 90200963 | WEAR STRIP (left) | FLHXSE |
| 90200964 | WEAR STRIP (right) | FLHXSE | |
| 35 | 90200983ELV | FACEPLATE (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200983ELX | FACEPLATE (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200983ELZ | FACEPLATE (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELV | FACEPLATE (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELX | FACEPLATE (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELZ | FACEPLATE (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 36 | 90300092 | LOCK (specify key number) (2) | FLHXSE |
| 37 | 90300122 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Black Fade paint) | FLHXSE |
| 37 | 90300123 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Black Fade paint) (Japan only) | FLHXSE |
| 37 | 90300135 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 37 | 90300136 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (used on motorcycles with Smoky Gray or Sand Dune paint) (Japan only) | FLHXSE |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (6) | FLHXSE |
| 2 | 3901 | SCREW (2) | FLHXSE |
| 3 | 4924 | SCREW (2) | FLHXSE |
| 4 | 6703 | WASHER (2) | FLHXSE |
| 5 | 7531 | LOCKNUT (2) | FLHXSE |
| 6 | 7601 | LOCKNUT (4) | FLHXSE |
| 7 | 10200217 | SCREW (2) | FLHXSE |
| 8 | 10400034 | NUT, clip (4) | FLHXSE |
| 9 | 11100068 | CUSHION (2) | FLHXSE |
| 10 | 90201129ELZ | SUPPORT, saddlebag, with 11100068 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201129ELX | SUPPORT, saddlebag, with 11100068 (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201129ELV | SUPPORT, saddlebag, with 11100068 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELZ | SUPPORT, saddlebag, with 11100068 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELX | SUPPORT, saddlebag, with 11100068 (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELV | SUPPORT, saddlebag, with 11100068 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 11 | 90200543 | SCREW (2) | FLHXSE |
| 12 | 90201754ELZ | INSERT ASSEMBLY, saddlebag support (Black Stardust) (2) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 90201754ELX | INSERT ASSEMBLY, saddlebag support (Smoky Gray) (2) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 90201754ELV | INSERT ASSEMBLY, saddlebag support (Sand Dune) (2) **RESTRICTED SALES PART** | FLHXSE |
| 13 | 90200549 | SUPPORT (left) (black) | FLHXSE |
| 13 | 90200550 | SUPPORT (right) (black) | FLHXSE |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14001903 | YEAR OF MANUFACTURING LABEL, 2020 (Brazil) | FLHXSE |
| 2 | 14001593 | YEAR OF MANUFACTURING LABEL, 2019 (Brazil) | FLHXSE |
| 3 | 14148-86 | ENGINE GUARD LABEL (chrome engine guard) | FLHXSE |
| 3 | 14151-02 | ENGINE GUARD LABEL (black engine guard) | FLHXSE |
| 3 | 14001735 | ENGINE GUARD LABEL (Brazil only) (not shown) | FLHXSE |
| 4 | 15342-06A | MIRROR WARNING LABEL (all but Brazil) | FLHXSE |
| 4 | 15385-08 | MIRROR WARNING LABEL (not shown) (Brazil only) | FLHXSE |
| 5 | 15368-01A | BATTERY WARNING LABEL | FLHXSE |
| 5 | 14001739 | BATTERY WARNING LABEL (Brazil only) (not shown) | FLHXSE |
| 6 | 14000069 | SADDLEBAG WARNING LABEL | FLHXSE |
| 6 | 14001738 | SADDLEBAG WARNING LABEL (Brazil only) (not shown) | FLHXSE |
| 7 | 14001624 | AIR CLEANER WARNING LABEL (black) | FLHXSE |
| 7 | 28012-09 | AIR CLEANER WARNING LABEL (chrome) | FLHXSE |
| 7 | 14001734 | AIR CLEANER WARNING LABEL (Brazil only) (not shown) | FLHXSE |
| 8 | 14001773 | LABEL, fuel warning (England, HDI) | FLHXSE |
| 9 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHXSE |
| 9 | 14001859 | LABEL, general warning (China) | FLHXSE |
| 9 | 14001800 | LABEL, helmet warning (Asia-Pacific) | FLHXSE |
| 9 | 14001736 | LABEL, Primary Cover (Brazil only) | FLHXSE |
| 9 | 14001799 | LABEL, air cleaner cover (China only) | FLHXSE |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 61300721 | RAINSOCK, air cleaner (Canada, Domestic) (Black Fade paint only) | FLHXSE |
| 1 | 94000326 | MOTORCYCLE LITERATURE PACK - 2 WHEEL (Domestic) | FLHXSE |
| 1 | 91885-97A | LINER, pull out, with handles, set of 2 | FLHXSE |
| 1 | 99461-89 | COVER, owners manual (Domestic, Canada, Australia, Brazil, China and England) | FLHXSE |
| 1 | 94000751 | OWNERS MANUAL | FLHXSE |
| 1 | 94000634 | BOOM!™ BOX GTS , quick start guide (English) | FLHXSE |
| 1 | 94000601 | BOOM!™ BOX GTS , owners manual (See NOTE 2) | FLHXSE |
| 1 | 57200093EMI | SIDE COVER, with 48420-04 (left) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200093EMK | SIDE COVER, with 48420-04 (left) (Smoky Gray/Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200181ELV | SIDE COVER, with 48420-04 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200245 | AIR DEFLECTOR KIT, MID-FRAME (See NOTE 1) | FLHXSE |
| 1 | 57400373 | WINDSHIELD (dark smoked) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 1 | 57400253 | WINDSPLITTER, medium (smoke) (used on motorcycles with Black Stardust Fade or Smoky Gray paint) | FLHXSE |
| 1 | 69200336 | MAIN FUSE, 50 A (red) | FLHXSE |
| 1 | 76000838 | HEADSET, KIT | FLHXSE |
| 1 | 90300106 | KEY AND FOB ASSEMBLY (specify key number) (Except Japan) | FLHXSE |
| 1 | 90300107 | KEY AND FOB ASSEMBLY (specify key number) (Japan) | FLHXSE |
| 1 | 93100031 | COVER, indoor storage | FLHXSE |
| NOTE 1: Order 57200245 only if missing complete kit. Otherwise order individual components as needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE 2: The BOOM!™ GTS OWNERS MANUAL (94000601) is not included in the loose parts. Only available online or for separate order. | |||
| Part No. | Description |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10100138 | NUT push on, 1/4" ID starlock, stainless steel |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200095 | SCREW No. 8-18 X 1-1/4 TORX button head |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200219 | SCREW No. 8-16 X 1 TORX pan head T-20 (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200344 | SCREW No. 3/16-24 X 2 socket head (stainless) |
| 10200351 | SCREW No. 8-18 X 3/4 TORX button head |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200384 | SCREW 1/4-20 X 1/2 hex socket head (stainless) |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200414 | SCREW 5/16-18 X 5/8 button head SEMS TORX T-40, with lockpatch (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10200678 | SCREW |
| 10200679 | SCREW 1/4-20 X 3/4 TORX button hd, T-27 (Grade 5) (black) |
| 10200736 | SCREW 10-24 X 1-3/4, SHCS with lockpatch (Grade 8) (zinc) |
| 10200737 | SCREW 10-24 X 3/4, SHCS with lockpatch (Grade 8) (black) |
| 10200798 | SCREW M5 X 8 X 10 T-25 torx button head with adhesive |
| 10200938 | SCREW 1/4-20 X 1/2 TORX button head with lockpatch, T-27 (Grade 5) (black) |
| 10201023 | SCREW 10-24 X 1/4 TORX button head, T-25 (Grade 8) (zinc) |
| 10300156 | WASHER 0.26 ID X 1/2 OD x 0.24 (steel) |
| 10300222 | WASHER 0.26 ID X 3/4 OD X 1/8 (zinc) |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500034 | SCREW 1/4-20 X 2-1/8 TORX button head (polish) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 10500053 | SCREW 1/4-20 X 3/8 TORX button head, with lockpatch (zinc) |
| 10500107 | SCREW 5/16-24 X 2.33 hex socket head, with lock |
| 10500108 | SCREW 5/16-24 X 2.33, hex socket head, with lock (Grade 8) (zinc) |
| 10500125 | SCREW 5/16-18 X 1.0 HEX socket head with lockpatch (Grade 8) (zinc) |
| 10500129 | SCREW 1/4-20 X 51/64, hex socket head SEMS (grade 8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12404 | WASHER 21/64 X 33/64 X 1/16 |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch(Grade 5) |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 3018A | SCREW 10-24 X 3/8 TORX head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3152 | SCREW #10 X 1/2 TORX pan head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 3987 | BOLT 5/16-18 X 3/4 hex head (Grade 5) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4976 | SCREW 1/4-20 X 3/4 TORX socket button head, stainless steel |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6383 | WASHER 17/64 X 1/2 X 1/16 stainless steel |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7331 | ACORN NUT 5/16-24 |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7687 | NUT 3/8-16 X 25/64 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 869 | SCREW 1/4-20 X 1-1/4 socket button head (Grade 8) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90200543 | SCREW 3/8-16 X 2-1/2 TORX button head (zinc) |
| 923 | SCREW 1/4-20 X 3/4 socket pan head |
| 926 | BOLT 1/4-20 X 5/8 button head |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 941 | SCREW 1/4-20 X 5/8 socket button head (Grade 8) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200663 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (black) | FLHXSE |
| 1 | 16200668 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (satin chrome) | FLHXSE |
| 1 | 16200669 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 117 engine) (black with smoked satin chrome) | FLHXSE |
| 3 | 91800075 | KIT, shortblock installation, with 25700983 top end gasket kit, 25700830 inner primary gasket kit, camshaft sprockets, camshaft drive chains and camshaft tensioners | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 12200116 | CAP, cover spring (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| 9 | 18100069 | RETAINER, spring cap (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| 26 | 25701095 | LIFTER COVER, front (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 26 | 25701096 | LIFTER COVER, rear (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 28 | 25700488A | COVER, pushrod (lower) (chrome) (used on motorcycles with Smoky Gray or Black Fade paint) (4) | FLHXSE |
| 28 | 25701142 | COVER, pushrod (lower) (smoked satin chrome) (used on motorcycles with Sand Dune paint) (4) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 57200249ELY | COVER, oil cooler (Stormcloud) with 1110254, 11100255 and 101000138 (Stormcloud for use on Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 57200249EML | COVER, oil cooler (Smoky Gray and Black Hole with graphics) with 1110254, 11100255 and 101000138 **RESTRICTED SALES PART** | FLHXSE |
| 12 | 57200249ELV | COVER, oil cooler (Sand Dune) with 1110254, 11100255 and 101000138 **RESTRICTED SALES PART** | FLHXSE |
| 13 | 62700196 | OIL COOLER | FLHXSE |
| 16 | 10100138 | NUT, starlock (4) | FLHXSE |
| 17 | 11100254 | PAD, foam, adhesive | FLHXSE |
| 18 | 11100255 | PAD, foam, adhesive | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 25700699 | CAMSHAFT COVER (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 25 | 62400233 | GEROTOR ASSEMBLY | FLHXSE |
| 27 | 62400238 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 62400233, 62400237 and body (Air-Cooled) Also order 62400126 | FLHXSE |
| 28 | 62400245 | COVER, oil pump assembly | FLHXSE |
| 31 | 62400247 | KIT-OIL PUMP, with 62400126, 62400238, 62400245 (Air-Cooled) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 61301130 | COVER, with label (satin chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500129 | SCREW (black) (3) | FLHXSE |
| 2 | 68042-99 | SCREW (3) | FLHXSE |
| 3 | 14101165 | MEDALLION **RESTRICTED SALES PART** | FLHXSE |
| 4 | 61300955 | COVER (black) | FLHXSE |
| 5 | 29400384 | FILTER, air | FLHXSE |
| 6 | 10200736 | SCREW | FLHXSE |
| 7 | 29000239 | TUBE, intake (black) | FLHXSE |
| 8 | 10200737 | SCREW (black) (2) | FLHXSE |
| 9 | 29400252 | SCREW (2) | FLHXSE |
| 11 | 11900040 | O-RING (2) | FLHXSE |
| 12 | 29000314 | BASEPLATE, with label (black) (all except China) | FLHXSE |
| 12 | 29000293 | BASEPLATE, with label (black) (China only) | FLHXSE |
| 13 | 11900042 | O-RING (2) | FLHXSE |
| 15 | 61300616 | COVER, throttle body | FLHXSE |
| 16 | 29000227 | SEAL, airbox tube | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 33 | 33600275 | SHIFTER PEG (satin black) (used on motorcycles with Smoky Gray paint) (2) | FLHXSE |
| 33 | 33600276 | SHIFTER PEG (satin chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 25800127 | SIDE COVER, transmission, with 25800109 and 25800110 (chrome) | FLHXSE |
| 31 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | FLHXSE |
| 34 | 25800128 | COVER (satin chrome) with 25800127, 25800123 | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 25701157 | COVER, clutch (chrome) (used on motorcycles with Black Stardust Fade paint) | FLHXSE |
| 19 | 25701084 | COVER, primary (satin chrome) (used on motorcycles with Black Stardust Fade paint) | FLHXSE |
| 22 | 36500092A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black granite) | FLHXSE |
| 24 | 26500026 | HOSE, vent | FLHXSE |
| 25 | 26500027 | KIT, VENT, primary with 11105, 25700378, 26500026 and clutch cover seal | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | FLHXSE |
| 20 | 37200343C | CLUTCH SERVICE KIT, with 5, 6, 10, 11, 15 (black) | FLHXSE |
| 20 | 37200344C | CLUTCH SERVICE KIT, with 5, 6, 10, 11, 15 (chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 6771A | WASHER (chrome) (China) (2) | FLHXSE |
| 1 | 12404 | WASHER (black) (China) (2) | FLHXSE |
| 2 | 7155 | LOCKWASHER (China) (2) | FLHXSE |
| 3 | 7331 | ACORN NUT (chrome) (China) (2) | FLHXSE |
| 3 | 7352 | ACORN NUT (black) (China) (2) | FLHXSE |
| 4 | 91840-03B | MIRROR, with 7155 and 7331 (right) (chrome) (China) | FLHXSE |
| 4 | 92614-10 | MIRROR, with 7155 and 7352 (right) (black) (China) | FLHXSE |
| 5 | 91845-03B | MIRROR, with 7155 and 7331 (left) (chrome) (China) | FLHXSE |
| 5 | 92615-10 | MIRROR, with 7155 and 7352 (left) (black) (China) | FLHXSE |
| 6 | 56000182 | MIRROR (right) (all except China) | FLHXSE |
| 6 | 56000183 | MIRROR (left) (not shown) (all except China) | FLHXSE |
| 7 | 56000105B | MIRROR BASE (right) (all except China) | FLHXSE |
| 7 | 56000113B | MIRROR BASE (left) (all except China) (not shown) | FLHXSE |
| 8 | 56000122 | GASKET (all except China) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 23 | 46463-08 | MASTER CYLINDER COVER KIT, with 11902, 42856-06 and 42882-06 (chrome) | FLHXSE |
| 34 | 50600341 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (gloss black) | FLHXSE |
| 34 | 50600419 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (satin chrome) | FLHXSE |
| 34 | 50600420 | ASSEMBLY, BRAKE PEDAL PAD, with 3340 and 6421 (satin black) | FLHXSE |
| 35 | 50600067 | LEVER ASSEMBLY, foot-brake, with 11000050 (chrome) | FLHXSE |
| 35 | 50600244 | LEVER ASSEMBLY, foot-brake, with 11000050 (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 41100104A | ABS MODULE (EHCU) | FLHXSE |
| 19 | 69201924 | CADDY, ABS module | FLHXSE |
| 20 | 1009M | SCREW (2) | FLHXSE |
| 21 | 32700101 | SENSOR, IMU (Inertia Measurement Unit) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 42054-05 | COVER, caliper (used with 42938-08 and 42939-08) (chrome) (2) | FLHXSE |
| 7 | 42938-08 | CALIPER ASSEMBLY (left) (silver) (used with chrome cover) | FLHXSE |
| 7 | 42939-08 | CALIPER ASSEMBLY (right) (silver) (used with chrome cover) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 10201001 | SCREW | FLHXSE |
| 20 | 11900155 | O-RING | FLHXSE |
| 23 | 42300114 | MONITOR, TIRE PRESSURE (all except Japan) | FLHXSE |
| 23 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHXSE |
| 27 | 43100045 | TIRE | FLHXSE |
| 28 | 43300794 | WHEEL, 7 spoke, without bearings and sleeve, with 14101128 (gloss black) (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| 28 | 43300799 | WHEEL, 7 spoke, without bearings and sleeve, with 14101128 (used on motorcycles with Black Fade paint) | FLHXSE |
| 29 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (all except Japan) | FLHXSE |
| 29 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 43000203 | AXLE CAM | FLHXSE |
| 14 | 43200045 | TIRE | FLHXSE |
| 18 | 11900155 | O-RING | FLHXSE |
| 19 | 10201001 | SCREW | FLHXSE |
| 21 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (all except Japan) | FLHXSE |
| 21 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan only) | FLHXSE |
| 22 | 42300112 | VALVE STEM, right angle | FLHXSE |
| 23 | 40900789 | WHEEL, 7 spoke, with 14101125 (used on motorcycles with Black Fade paint) | FLHXSE |
| 23 | 40900785 | WHEEL, 7 spoke, with 14101125 (gloss black) (used on motorcycles with Smoky Gray, Sand Dune paint) | FLHXSE |
| 25 | 43000207 | AXLE, rear | FLHXSE |
| 26 | 42300114 | MONITOR, TIRE PRESSURE (All except Japan) | FLHXSE |
| 26 | 42300115 | MONITOR, TIRE PRESSURE (Japan only) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 45600070 | COVER ASSEMBLY, fork tube (left) (satin chrome) | FLHXSE |
| 7 | 45600103 | COVER ASSEMBLY, fork tube (left) (black onyx) | FLHXSE |
| 9 | 45700020 | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | FLHXSE |
| 10 | 45600071 | COVER ASSEMBLY, fork tube (right) (satin chrome) | FLHXSE |
| 10 | 45600102 | COVER ASSEMBLY, fork tube (right) (black onyx) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 45400249 | FORK ASSEMBLY, complete (right) (satin chrome) | FLHXSE |
| 15 | 45400251 | FORK ASSEMBLY, complete (left) (satin chrome) | FLHXSE |
| 16 | 45500572 | SLIDER, fork (left) (satin chrome) | FLHXSE |
| 23 | 45500570 | SLIDER, fork (right) (satin chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 12100162 | GROMMET | FLHXSE |
| 14 | 49000195 | ENGINE GUARD, with label (satin chrome) | FLHXSE |
| 14 | 49000114A | ENGINE GUARD, with label (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 10300222 | WASHER (4) | FLHXSE |
| 7 | 57200243 | DEFLECTOR, air (right) | FLHXSE |
| 7 | 57200256 | DEFLECTOR, air (left) | FLHXSE |
| 8 | 57200093EMI | SIDE COVER, with 48420-04 (left) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200093EMK | SIDE COVER, with 48420-04 (left) (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200181ELV | SIDE COVER, with 48420-04 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200094EMI | SIDE COVER, with 48419-04 (right) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200094EMK | SIDE COVER, with 48419-04 (right) (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 8 | 57200182ELV | SIDE COVER, with 48419-04 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 52000443 | SEAT | FLHXSE |
| 10 | 52400235 | SEAT PILLION, passenger, with 12600174, 51740-10, 941 | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 50622-09A | BRACKET SUPPORT, footboard, rear (left) (black) | FLHXSE |
| 8 | 50518-09 | BRACKET SUPPORT, footboard, rear (right) (black) | FLHXSE |
| 9 | 47200302A | MOUNTING BRACKET, front footboard (black) (2) | FLHXSE |
| 10 | 50501516 | INSERT ASSEMBLY, rider (right) (satin black) | FLHXSE |
| 10 | 50501518 | INSERT ASSEMBLY, rider (right) (satin chrome) | FLHXSE |
| 11 | 50501517 | INSERT ASSEMBLY, rider (left) (satin black) | FLHXSE |
| 11 | 50501519 | INSERT ASSEMBLY, rider (left) (satin chrome) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 50501524 | FOOTPEG BODY (right) (satin chrome) | FLHXSE |
| 10 | 50501522 | FOOTPEG BODY (left) (satin chrome) | FLHXSE |
| 10 | 50501523 | FOOTPEG BODY (right) (satin black) | FLHXSE |
| 10 | 50501525 | FOOTPEG BODY (left) (satin black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 58900116ELY | FENDER, front (Stormcloud) (Stormcloud for use on Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116EML | FENDER, front (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE | |
| 58900116ELV | FENDER, front (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 59500274ELZ | FENDER, rear with 11100024 (Black Stardust) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500655ELX | FENDER, rear with 11100157 (Smoky Gray) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500655ELV | FENDER, rear with 11100157 (Sand Dune) (all except Canada) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500273ELZ | FENDER, rear with 11100024 (Black Stardust) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500656ELX | FENDER, rear with 11100157 (Smoky Gray) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 59500656ELV | FENDER, rear with 11100157 (Sand Dune) (Canada only) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 59500269ELZ | FASCIA, rear fender (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 59500269ELX | FASCIA, rear fender (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 59500269ELV | FASCIA, rear fender (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 67900261ELV | COVER, license plate lamp (Sand Dune) **RESTRICTED SALES PART** | FLHXSE | |
| 67900261ELX | COVER, license plate lamp (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 67900261ELZ | COVER, license plate lamp (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 61100065 | GASKET (China) | FLHXSE |
| 15 | 61000524EMI | FUEL TANK, with 14101121 and 14101122 (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 61000168EML | FUEL TANK, with 14101121 and 14101122 (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE |
| 15 | 61000524ELV | FUEL TANK, with 14101121 and 14101122 (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 16 | 63136-10C | FUEL CAP ASSEMBLY, flush mount, with 11900004 (all except China) (black) | FLHXSE |
| 17 | 61100120A | FUEL CAP ASSEMBLY, locking, with 61109-85D and 90300093 (Asia-Pacific) | FLHXSE |
| 17 | 61100123A | FUEL CAP ASSEMBLY, locking, with 61100065 and 90300093 (China) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 61400659 | TRIM, rubber | FLHXSE |
| 21 | 70900935 | CONSOLE INSERT (Black Onyx) | FLHXSE |
| 21 | 70900934ELZ | CONSOLE INSERT (Black Stardust) | FLHXSE |
| 21 | 70900934EHS | CONSOLE INSERT (Black Hole) | FLHXSE |
| 22 | 70900932 | CONSOLE ASSEMBLY (Black Onyx) | FLHXSE |
| 22 | 70900931ELZ | CONSOLE ASSEMBLY (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 22 | 70900931EHS | CONSOLE ASSEMBLY (Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 26 | 10201023 | SCREW (2) | FLHXSE |
| 27 | 70900953 | GASKET | FLHXSE |
| 28 | 70900930 | TANK INSERT (black) | FLHXSE |
| 29 | 10200938 | SCREW (4) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 61400670 | GAUGE TRIM BEZEL ASSEMBLY, large (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 7 | 61400671 | GAUGE TRIM BEZEL ASSEMBLY, small (black) (used on motorcycles with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 8 | 69201731A | WIRING HARNESS, fairing | FLHXSE |
| 11 | 70900773B | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (Domestic only) | FLHXSE |
| 11 | 70900777B | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (all except Domestic, England) | FLHXSE |
| 11 | 70900778B | INSTRUMENT MODULE, dual - mph/km/h, with 12100020 and 12400034 (England only) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 10200679 | SCREW (black) (with Smoky Gray or Sand Dune paint) (2) | FLHXSE |
| 4 | 10300156 | WASHER (black) (Smoky Gray or Sand Dune paint) (3) | FLHXSE |
| 17 | 10200678 | SCREW (black) (with Smoky Gray or Sand Dune paint) | FLHXSE |
| 18 | 57000628EMI | FAIRING, outer, with 7900 and 61300504ELZ (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 57000628EMK | FAIRING, outer, with 7900 and 61300504EMK (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 18 | 57000628ELV | FAIRING, outer, with 7900 and 61300504ELV (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 61300504ELZ | BEZEL, air duct, outer fairing (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 61300504EMK | BEZEL, air duct, outer fairing (Smoky Gray and Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 61300504ELV | BEZEL, air duct, outer fairing (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 21 | 57400377ELZ | TRIM ASSEMBLY, with 6549, 10300036 (Black Stardust) | FLHXSE |
| 22 | 67700569A | HEADLAMP, LED, with 10200032, 67700459A (chrome) (used on motorcycles with Black fade paint) | FLHXSE |
| 22 | 67700568A | HEADLAMP, LED, with 10200032, 67700459A (black) (Smoky Gray or Sand Dune paint) | FLHXSE |
| 25 | 67700459A | REAR HEADLIGHT COVER | FLHXSE |
| 26 | 10200032 | SCREW (4) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 29200088A | AIR DUCT, inner fairing, with 11100038, 29200087A | FLHXSE |
| 18 | 29200087A | BEZEL, air duct, inner fairing, with 12200064 | FLHXSE |
| 19 | 57000186A | BRACKET, support, inner fairing | FLHXSE |
| 20 | 57000982ELZ | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (Black Stardust) (all except China) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001144DH | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (used on motorcycles with Smoky Gray, Sand Dune paint) (All except China) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001015ELZ | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (Black Stardust) (China only) **RESTRICTED SALES PART** | FLHXSE |
| 20 | 57001224DH | INNER FAIRING ASSEMBLY, with 9, 10, 11, 12, 17, 22, 23, 24 (used on motorcycles with Smoky Gray, Sand Dune paint) (China only) **RESTRICTED SALES PART** | FLHXSE |
| 29 | 76000561ELZ | DOOR, media compartment, outer (Black Stardust) | FLHXSE |
| 29 | 76000409DH | DOOR, media compartment, outer (used on motorcycles with Smoky Gray or Sand Dune paint) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 57000328ELY | SKIRT, outer fairing (Stormcloud) **RESTRICTED SALES PART** | FLHXSE |
| 7 | 57000328DH | SKIRT, outer fairing (used on motorcycles with Smoky Gray or Sand Dune paint) **RESTRICTED SALES PART** | FLHXSE |
| 14 | 70900392ELZ | DASH PANEL, fairing (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 14 | 70900392DH | DASH PANEL, fairing (used on motorcycles with Smoky Gray or Sand Dune paint) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 71500529 | SWITCHPACK ASSEMBLY, with 17, 18, 19, 23, 25 (left) | FLHXSE |
| 17 | 71500533 | SWITCH CAP, traction, horn | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 32700050A | SENSOR, twist grip, with 1, 2, 4, 10 and 11 | FLHXSE |
| 7 | 56100384 | ENDCAP (satin chrome) (used on motorcycles with Black Fade paint) (2) | FLHXSE |
| 7 | 56100385 | ENDCAP (satin black) (used on motorcycles with Smoky Gray paint) (2) | FLHXSE |
| 8 | 56100380 | HANDGRIP, (right) (satin black) (used on motorcycles with Smoky Gray or paint) | FLHXSE |
| 8 | 56100381 | HANDGRIP, (right) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 9 | 56100382 | HANDGRIP (left) (satin black) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 9 | 56100383 | HANDGRIP (left) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 69201559 | HARNESS, rear lighting | FLHXSE |
| 12 | 72177-07BK | HOUSING, four-way socket (black) | FLHXSE |
| 13 | 69201577 | HOUSING, six-way socket (black) | FLHXSE |
| 14 | 69201382 | COVER, 90-degree, wire dress | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 66861-09B | CLAMP, exhaust pipe, hinged | FLHXSE |
| 30 | 65100186 | END CAP ASSEMBLY (Black Onyx) (all destinations) (all destinations with Smoky Gray paint) (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 31 | 65400539 | SHIELD, exhaust pipe, front (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 31 | 65400617 | SHIELD, exhaust pipe, front (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 31 | 65400435A | SHIELD, exhaust pipe, front (black onyx) (used on motorcycles with Smoky Gray paint) | FLHXSE |
| 32 | 65400540 | EXHAUST SHIELD ASSEMBLY, rear header pipe (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 32 | 65400618 | EXHAUST SHIELD ASSEMBLY, rear header pipe (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 33 | 65400541 | EXHAUST SHIELD ASSEMBLY, catalytic converter (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 33 | 65400619 | EXHAUST SHIELD ASSEMBLY, catalytic converter (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 34 | 65400542 | SHIELD, left exhaust pipe, rear (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 34 | 65400620 | SHIELD, left exhaust pipe, rear (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 35 | 65400543 | HEAT SHIELD, muffler (right) (satin chrome) (used on motorcycles with Black Fade paint) | FLHXSE |
| 35 | 65400616 | HEAT SHIELD, muffler (right) (smoked satin chrome) (used on motorcycles with Sand Dune paint) | FLHXSE |
| 35 | 65400544 | HEAT SHIELD, muffler (left) (satin chrome) (not shown) (used on motorcycles with Black Fade paint) | FLHXSE |
| 35 | 65400615 | HEAT SHIELD, muffler (left) (smoked satin chrome) (not shown) (used on motorcycles with Sand Dune paint) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| 25 | 72609-08 | SECONDARY LOCK, two-way socket | FLHXSE |
| 33 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHXSE |
| 34 | 69202412 | DUST CAP (used on models without TCU) (see note) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| 5 | 69202219 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHXSE |
| 10 | 72175-07BK | HOUSING, four-way pin (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| 34 | 69201814 | TERMINAL, socket (4) | FLHXSE |
| 35 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHXSE |
| 36 | 69201779 | HOUSING, four-way (black) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201984 | MAIN WIRING HARNESS | FLHXSE | |
| 5 | 69201400 | HOUSING, two-way socket (black) | FLHXSE |
| 6 | 69201401 | SECONDARY LOCK, two-way socket | FLHXSE |
| 7 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLHXSE |
| 8 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLHXSE |
| 9 | 69201405 | RESISTOR PACK | FLHXSE |
| 10 | 69201404 | CONNECTOR, anchored | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201731A | WIRING HARNESS, fairing | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 69201731A | WIRING HARNESS, fairing | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 41000341F | BODY CONTROL MODULE (BCM) (except Japan) | FLHXSE |
| 12 | 41000342F | BODY CONTROL MODULE (BCM) (Japan) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 76000822 | SPEAKER ASSEMBLY (2) | FLHXSE |
| 4 | 76000916 | GASKET (left) | FLHXSE |
| 4 | 76000915 | GASKET (right) | FLHXSE |
| 6 | 76000869 | SPEAKER ASSEMBLY, tweeter, with 4, 12, 13, 14, 15, 16 (right) | FLHXSE |
| 7 | 76000868 | SPEAKER ASSEMBLY, tweeter, with 4, 12, 13, 14, 15, 16 (left) | FLHXSE |
| 11 | 76000838 | HEADSET ASSEMBLY | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 33 | 69201740 | MOUNTING PLATE, connector (right) | FLHXSE |
| 41 | 76000820 | SPEAKER ASSEMBLY, with 76000914 (2) | FLHXSE |
| 42 | 76000873 | GRILLE ASSEMBLY (left) | FLHXSE |
| 42 | 76000874 | GRILLE ASSEMBLY (right) | FLHXSE |
| 43 | 76000914 | GASKET (2) | FLHXSE |
| 45 | 10300066 | WASHER (rubber) (8) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 76000783A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000818 (Canada, Domestic) (See NOTE 1) | FLHXSE |
| 13 | 76000784A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, HD2, England) (See NOTE 2) | FLHXSE |
| 13 | 76000785A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Asia-Pacific, Australia, Brazil, China, HDI [rest of world]) (See NOTE 3) | FLHXSE |
| 18 | 76000923 | BRACKET, with 11100071 | FLHXSE |
| 20 | 76000945 | BRACKET, amp, (right side) | FLHXSE |
| 21 | 11100071 | PAD (4) | FLHXSE |
| 22 | 10500053 | SCREW (see note) (4) | FLHXSE |
| 23 | 41000645 | MODULE, TCU, , with 73213-07 (Domestic) (see note) | FLHXSE |
| 23 | 41000721 | MODULE, TCU, , with 73213-07 (HDI) (see note) | FLHXSE |
| 24 | 10200798 | SCREW (2) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 22 | 90201143ELV | SADDLEBAG COVER, with 90200415 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 90201143ELX | SADDLEBAG COVER, with 90200415 (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 90201143ELZ | SADDLEBAG COVER, with 90200415 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELV | SADDLEBAG COVER, with 90200415 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELX | SADDLEBAG COVER, with 90200415 (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE | |
| 90201142ELZ | SADDLEBAG COVER, with 90200415 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 30 | 90201680EMJ | SADDLEBAG BOTTOM, with 90200964 and label (right) (Black Stardust Fade with graphics) **RESTRICTED SALES PART** | FLHXSE |
| 90201680EML | SADDLEBAG BOTTOM, with 90200964 and label (right) (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201680EMM | SADDLEBAG BOTTOM, with 90200964 and label (right) (Sand Dune with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EMJ | SADDLEBAG BOTTOM, with 90200963 and label (left) (Black Stardust Fade with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EML | SADDLEBAG BOTTOM, with 90200963 and label (left) (Smoky Gray and Black Hole with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 90201378EMM | SADDLEBAG BOTTOM, with 90200963 and label (left) (Sand Dune with graphics) **RESTRICTED SALES PART** | FLHXSE | |
| 35 | 90200983ELV | FACEPLATE (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200983ELX | FACEPLATE (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200983ELZ | FACEPLATE (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELV | FACEPLATE (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELX | FACEPLATE (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 35 | 90200984ELZ | FACEPLATE (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 90201129ELZ | SUPPORT, saddlebag, with 11100068 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201129ELX | SUPPORT, saddlebag, with 11100068 (right) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201129ELV | SUPPORT, saddlebag, with 11100068 (right) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELZ | SUPPORT, saddlebag, with 11100068 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELX | SUPPORT, saddlebag, with 11100068 (left) (Smoky Gray) **RESTRICTED SALES PART** | FLHXSE |
| 10 | 90201127ELV | SUPPORT, saddlebag, with 11100068 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 90201754ELZ | INSERT ASSEMBLY, saddlebag support (Black Stardust) (2) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 90201754ELX | INSERT ASSEMBLY, saddlebag support (Smoky Gray) (2) **RESTRICTED SALES PART** | FLHXSE |
| 12 | 90201754ELV | INSERT ASSEMBLY, saddlebag support (Sand Dune) (2) **RESTRICTED SALES PART** | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 14001903 | YEAR OF MANUFACTURING LABEL, 2020 (Brazil) | FLHXSE |
| 7 | 14001624 | AIR CLEANER WARNING LABEL (black) | FLHXSE |
| 9 | 14001799 | LABEL, air cleaner cover (China only) | FLHXSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 57200093EMI | SIDE COVER, with 48420-04 (left) (Black Stardust Fade) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200093EMK | SIDE COVER, with 48420-04 (left) (Smoky Gray/Black Hole) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200181ELV | SIDE COVER, with 48420-04 (left) (Sand Dune) **RESTRICTED SALES PART** | FLHXSE |
| 1 | 57200245 | AIR DEFLECTOR KIT, MID-FRAME (See NOTE 1) | FLHXSE |
| 1 | 76000838 | HEADSET, KIT | FLHXSE |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10076 | |
| 10080 | |
| 1009M | |
| 10100062 | |
| 10100138 | |
| 10102 | |
| 10103 | |
| 10147 | |
| 10177 | |
| 10200032 | |
| 10200042 | |
| 10200059 | |
| 10200060 | |
| 10200062 | |
| 10200063 | |
| 10200065 | |
| 10200095 | |
| 10200103 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200156 | |
| 10200205 | |
| 10200217 | |
| 10200219 | |
| 10200220 | |
| 10200223 | |
| 10200258 | |
| 10200303 | |
| 10200308 | |
| 10200343 | |
| 10200344 | |
| 10200351 | |
| 10200373 | |
| 10200384 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200533 | |
| 10200546 | |
| 10200569 | |
| 10200678 | |
| 10200679 | |
| 10200736 | |
| 10200737 | |
| 10200798 | |
| 10200938 | |
| 10201001 | |
| 10201023 | |
| 10264 | |
| 10300036 | |
| 10300049 | |
| 10300066 | |
| 10300156 | |
| 10300222 | |
| 10340B | |
| 10344 | |
| 10395 | |
| 10396 | |
| 10400033 | |
| 10400034 | |
| 10500015 | |
| 10500022 | |
| 10500031 | |
| 10500034 | |
| 10500036 | |
| 10500053 | |
| 10500069 | |
| 10500092 | |
| 10500107 | |
| 10500108 | |
| 10500125 | |
| 10500129 | |
| 10600007 | |
| 1062 | |
| 10800025A | |
| 10800028 | |
| 10800052 | |
| 10800109 | |
| 10800111 | |
| 10900005 | |
| 10900015A | |
| 10991A | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11081A | |
| 11082A | |
| 11100024 | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100057 | |
| 11100068 | |
| 11100071 | |
| 11100105 | |
| 11100157 | |
| 11100254 | |
| 11100255 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11289A | |
| 11293 | |
| 11304 | |
| 11323A | |
| 11389 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11650 | |
| 11686 | |
| 11692 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900004 | |
| 11900010 | |
| 11900021 | |
| 11900040 | |
| 11900042 | |
| 11900090 | |
| 11900092 | |
| 11900103 | |
| 11900116 | |
| 11900155 | |
| 11900172 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074 | |
| 12077 | |
| 12100007 | |
| 12100020 | |
| 12100034 | |
| 12100038 | |
| 12100052 | |
| 12100069 | |
| 12100162 | |
| 12102 | |
| 12200064 | |
| 12200116 | |
| 12200144 | |
| 12200147A | |
| 12200170 | |
| 12400034 | |
| 12400072 | |
| 12400099 | |
| 12404 | |
| 12500002 | |
| 12500014 | |
| 12500015 | |
| 12500018 | |
| 12600016 | |
| 12600032 | |
| 12600067 | |
| 12600068 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600087 | |
| 12600116 | |
| 12600174 | |
| 12600197 | |
| 12700090 | |
| 14000069 | |
| 14000827 | |
| 14001593 | |
| 14001624 | |
| 14001734 | |
| 14001735 | |
| 14001736 | |
| 14001738 | |
| 14001739 | |
| 14001773 | |
| 14001799 | |
| 14001800 | |
| 14001859 | |
| 14001903 | |
| 14100881 | |
| 14101072 | |
| 14101119 | |
| 14101120 | |
| 14101121 | |
| 14101122 | |
| 14101125 | |
| 14101128 | |
| 14101165 | |
| 14101169 | |
| 14148-86 | |
| 14151-02 | |
| 15342-06A | |
| 15368-01A | |
| 15385-08 | |
| 16200395 | |
| 16200663 | |
| 16200668 | |
| 16200669 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400041 | |
| 16400042 | |
| 16500332 | |
| 16500400 | |
| 16500405 | |
| 16500599 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16800063 | |
| 16800121 | |
| 16800123 | |
| 17300053 | |
| 17300055 | |
| 17300059A | |
| 17369-06 | |
| 1775 | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99A | |
| 17968-99 | |
| 18000016 | |
| 18000034 | |
| 18100043 | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18100069 | |
| 18400073B | |
| 18538-99C | |
| 21900082 | |
| 22000031 | |
| 22000079 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100045A | |
| 24100080 | |
| 24400180 | |
| 24400187 | |
| 24400215 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 25400103 | |
| 25400133 | |
| 25400257 | |
| 25400273 | |
| 25500013 | |
| 25566-06 | |
| 25600111 | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25700178 | |
| 25700362 | |
| 25700370 | |
| 25700372B | |
| 25700378 | |
| 25700410 | |
| 25700411 | |
| 25700425 | |
| 25700433 | |
| 25700452 | |
| 25700453 | |
| 25700467 | |
| 25700488A | |
| 25700491 | |
| 25700520 | |
| 25700650 | |
| 25700679 | |
| 25700699 | |
| 25700731 | |
| 25700830 | |
| 25700957 | |
| 25700983 | |
| 25700984 | |
| 25701055 | |
| 25701084 | |
| 25701095 | |
| 25701096 | |
| 25701142 | |
| 25701157 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800055 | |
| 25800109 | |
| 25800110 | |
| 25800123 | |
| 25800125 | |
| 25800127 | |
| 25800128 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500026 | |
| 26500027 | |
| 26900117 | |
| 26900144 | |
| 2708A | |
| 27200025 | |
| 27291-09A | |
| 27297-09A | |
| 27298-09A | |
| 27300082 | |
| 27300086 | |
| 27300087 | |
| 27300121 | |
| 27300122 | |
| 27400015 | |
| 27400019 | |
| 27440-09A | |
| 27444-00Y | |
| 27715-07 | |
| 27809-10 | |
| 28012-09 | |
| 29000148 | |
| 29000149 | |
| 29000227 | |
| 29000239 | |
| 29000293 | |
| 29000314 | |
| 29200087A | |
| 29200088A | |
| 29400183 | |
| 29400210 | |
| 29400252 | |
| 29400267 | |
| 29400336 | |
| 29400337 | |
| 29400384 | |
| 29465-08B | |
| 29900038 | |
| 29900041 | |
| 29900042A | |
| 3018A | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 31400053 | |
| 3143 | |
| 3152 | |
| 31586-07 | |
| 31600012 | |
| 31600017 | |
| 31600018B | |
| 31600023A | |
| 31600078A | |
| 31600079 | |
| 32306-08 | |
| 3249 | |
| 3267 | |
| 32700010 | |
| 32700015 | |
| 32700046 | |
| 32700048 | |
| 32700050A | |
| 32700054 | |
| 32700065 | |
| 32700101 | |
| 3275 | |
| 33130-07A | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33600060A | |
| 33600061A | |
| 33600088 | |
| 33600091 | |
| 33600102 | |
| 33600188 | |
| 33600225 | |
| 33600227 | |
| 33600244 | |
| 33600275 | |
| 33600276 | |
| 33888-99 | |
| 33889-99 | |
| 33899-08 | |
| 33900172 | |
| 33900180 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 34700092 | |
| 34800025 | |
| 34800031 | |
| 34987-06 | |
| 35000105A | |
| 35000152 | |
| 35000178 | |
| 35000179 | |
| 35000199A | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 35186-06 | |
| 35187-06 | |
| 35200021 | |
| 35200057 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 3536 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3563 | |
| 35654-06 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3607 | |
| 3634 | |
| 36500075 | |
| 36500092A | |
| 3655A | |
| 3656 | |
| 36700130 | |
| 36700131 | |
| 36700132 | |
| 36700169A | |
| 36700170A | |
| 36700171A | |
| 36700172A | |
| 36706-01K | |
| 36731-91 | |
| 36805-06 | |
| 3684 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000217 | |
| 37000218 | |
| 37000219 | |
| 37000254A | |
| 37000258 | |
| 37000270A | |
| 37000295 | |
| 37065-06A | |
| 37200131C | |
| 37200179 | |
| 37200180 | |
| 37200343C | |
| 37200344C | |
| 37496-90A | |
| 3787 | |
| 37904-90 | |
| 37909-90 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 3987 | |
| 40024-09A | |
| 40037-07 | |
| 40100041 | |
| 40100064 | |
| 40100076 | |
| 40217-09 | |
| 40278-09 | |
| 40615-08 | |
| 40786-08 | |
| 40900785 | |
| 40900789 | |
| 40984-10 | |
| 41000341F | |
| 41000342F | |
| 41000645 | |
| 41000668 | |
| 41000721 | |
| 41100104A | |
| 41229-08 | |
| 41300119 | |
| 41300209 | |
| 41300210 | |
| 4132 | |
| 41349-07 | |
| 41500150 | |
| 41547-07A | |
| 41600029A | |
| 41600031 | |
| 41600032 | |
| 41600078 | |
| 41600091 | |
| 41700028A | |
| 41700072 | |
| 41700195 | |
| 41700367 | |
| 41700439 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800012 | |
| 41800207 | |
| 41800352 | |
| 41800541 | |
| 41800572 | |
| 41800573 | |
| 41800575 | |
| 41800577 | |
| 41810-08B | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 4192 | |
| 4194 | |
| 42010-06B | |
| 42054-05 | |
| 42102-08D | |
| 42105-06A | |
| 42119-08 | |
| 42123-08 | |
| 42271-06A | |
| 42276-06A | |
| 42300001 | |
| 42300093 | |
| 42300112 | |
| 42300114 | |
| 42300115 | |
| 42300118 | |
| 42300119 | |
| 4240 | |
| 42400019 | |
| 42460-80B | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06D | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42882-06 | |
| 42889-06 | |
| 4293 | |
| 42932-08A | |
| 42934-08 | |
| 42937-08C | |
| 42938-08 | |
| 42939-08 | |
| 43000203 | |
| 43000207 | |
| 43100045 | |
| 4312C | |
| 43200045 | |
| 43300794 | |
| 43300799 | |
| 43475-08 | |
| 43567-92 | |
| 43583-09 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44583-08 | |
| 44935-06 | |
| 44985-10D | |
| 45041-01A | |
| 45138-08A | |
| 45400195 | |
| 45400196 | |
| 45400203 | |
| 45400204 | |
| 45400249 | |
| 45400251 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500175B | |
| 45500176B | |
| 45500337 | |
| 45500339 | |
| 45500341 | |
| 45500396 | |
| 45500397 | |
| 45500398 | |
| 45500421 | |
| 45500424 | |
| 45500508 | |
| 45500509 | |
| 45500570 | |
| 45500572 | |
| 45600038DH | |
| 45600039DH | |
| 45600057 | |
| 45600070 | |
| 45600071 | |
| 45600102 | |
| 45600103 | |
| 45700009 | |
| 45700020 | |
| 45900024 | |
| 45900091A | |
| 4597M | |
| 4612 | |
| 4636 | |
| 46463-08 | |
| 46508-01 | |
| 46509-01 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46555-03B | |
| 46615-06 | |
| 4688 | |
| 47000088BHP | |
| 4705 | |
| 4718A | |
| 47200302A | |
| 4740A | |
| 4741A | |
| 47540-11 | |
| 47549-09A | |
| 47584-09 | |
| 4775 | |
| 4790 | |
| 48079-09BHP | |
| 4813A | |
| 4820A | |
| 4822A | |
| 48419-04 | |
| 48420-04 | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4890 | |
| 49000114A | |
| 49000195 | |
| 4916 | |
| 4924 | |
| 49725-07A | |
| 4976 | |
| 50000097 | |
| 50000143 | |
| 50000149 | |
| 50015-74A | |
| 50075-07A | |
| 50126-08B | |
| 50245-07 | |
| 50351-03 | |
| 50500332A | |
| 50500334A | |
| 50500460A | |
| 50500462A | |
| 50500501 | |
| 50501181 | |
| 50501184 | |
| 50501186 | |
| 50501190 | |
| 50501192 | |
| 50501194 | |
| 50501216 | |
| 50501217 | |
| 50501220 | |
| 50501221 | |
| 50501516 | |
| 50501517 | |
| 50501518 | |
| 50501519 | |
| 50501522 | |
| 50501523 | |
| 50501524 | |
| 50501525 | |
| 50518-09 | |
| 50600067 | |
| 50600244 | |
| 50600341 | |
| 50600419 | |
| 50600420 | |
| 50622-09A | |
| 50674-05 | |
| 50912-72 | |
| 5118 | |
| 51428-09 | |
| 515 | |
| 51740-10 | |
| 52000443 | |
| 52400035 | |
| 52400235 | |
| 54000096 | |
| 54000114 | |
| 54000141 | |
| 54305-98 | |
| 55800214 | |
| 55800308 | |
| 55918-08 | |
| 56000015 | |
| 56000016 | |
| 56000105B | |
| 56000113B | |
| 56000122 | |
| 56000182 | |
| 56000183 | |
| 56100337 | |
| 56100338 | |
| 56100339 | |
| 56100380 | |
| 56100381 | |
| 56100382 | |
| 56100383 | |
| 56100384 | |
| 56100385 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000169A | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000186A | |
| 57000257 | |
| 57000299 | |
| 57000328DH | |
| 57000328ELY | |
| 57000628ELV | |
| 57000628EMI | |
| 57000628EMK | |
| 57000982ELZ | |
| 57001015ELZ | |
| 57001144DH | |
| 57001224DH | |
| 57200093EMI | |
| 57200093EMK | |
| 57200094EMI | |
| 57200094EMK | |
| 57200181ELV | |
| 57200182ELV | |
| 57200243 | |
| 57200245 | |
| 57200249ELV | |
| 57200249ELY | |
| 57200249EML | |
| 57200256 | |
| 57400253 | |
| 57400373 | |
| 57400377ELZ | |
| 57400379 | |
| 57450-14 | |
| 57451-14 | |
| 5817 | |
| 5837A | |
| 58900009 | |
| 58900116ELV | |
| 58900116ELY | |
| 58900116EML | |
| 59174-99 | |
| 59481-00 | |
| 59482-00 | |
| 59500107 | |
| 59500269ELV | |
| 59500269ELX | |
| 59500269ELZ | |
| 59500273ELZ | |
| 59500274ELZ | |
| 59500655ELV | |
| 59500655ELX | |
| 59500656ELV | |
| 59500656ELX | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 59818-09 | |
| 59840-09 | |
| 601 | |
| 6019 | |
| 60328-98B | |
| 6036 | |
| 60386-09 | |
| 60463-09A | |
| 60472-09A | |
| 60678-85 | |
| 60800006 | |
| 60800026 | |
| 60916-09 | |
| 60920-09 | |
| 6099 | |
| 61000168EML | |
| 61000524ELV | |
| 61000524EMI | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 6109 | |
| 61100065 | |
| 61100120A | |
| 61100123A | |
| 61109-85D | |
| 6119 | |
| 61200022 | |
| 61213-04A | |
| 6127 | |
| 61300504ELV | |
| 61300504ELZ | |
| 61300504EMK | |
| 61300616 | |
| 61300626A | |
| 61300721 | |
| 61300955 | |
| 61301130 | |
| 61301144 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400614 | |
| 61400622 | |
| 61400659 | |
| 61400670 | |
| 61400671 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08C | |
| 62229-08B | |
| 62372-09 | |
| 62400126 | |
| 62400205 | |
| 62400233 | |
| 62400238 | |
| 62400245 | |
| 62400247 | |
| 62700089 | |
| 62700117 | |
| 62700141 | |
| 62700143 | |
| 62700144 | |
| 62700146 | |
| 62700161 | |
| 62700196 | |
| 62700198 | |
| 62700219 | |
| 62700296 | |
| 62775-08 | |
| 62800028 | |
| 62908-08 | |
| 63136-10C | |
| 6383 | |
| 6416 | |
| 6421 | |
| 6441 | |
| 64900254A | |
| 64900255A | |
| 64900731 | |
| 64900732 | |
| 64900794 | |
| 64900795 | |
| 6497HW | |
| 65100170 | |
| 65100171 | |
| 65100186 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400435A | |
| 65400436 | |
| 65400437 | |
| 65400438 | |
| 65400439 | |
| 65400440 | |
| 65400539 | |
| 65400540 | |
| 65400541 | |
| 65400542 | |
| 65400543 | |
| 65400544 | |
| 65400615 | |
| 65400616 | |
| 65400617 | |
| 65400618 | |
| 65400619 | |
| 65400620 | |
| 6549 | |
| 65500042 | |
| 65500043 | |
| 65600176 | |
| 65600177 | |
| 65600178 | |
| 65723-85 | |
| 65724-85A | |
| 65900012 | |
| 65900015 | |
| 6590HW | |
| 6594 | |
| 66000010A | |
| 66000066 | |
| 66000116 | |
| 66010-97D | |
| 66047-05 | |
| 66048-09A | |
| 66051-08 | |
| 66078-06 | |
| 66250-09 | |
| 66290-06 | |
| 66373-06 | |
| 66861-09B | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67493-08 | |
| 67700068 | |
| 67700204 | |
| 67700205 | |
| 67700459A | |
| 67700568A | |
| 67700569A | |
| 67712-83B | |
| 67716-60C | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800201 | |
| 67800203 | |
| 67800204 | |
| 67800251 | |
| 67800257 | |
| 67800259 | |
| 67800317 | |
| 67800424 | |
| 67800428 | |
| 67800708 | |
| 67800709 | |
| 67800847 | |
| 67800917 | |
| 67800918 | |
| 67875-11 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 67900185 | |
| 67900232 | |
| 67900233 | |
| 67900243 | |
| 67900260 | |
| 67900261ELV | |
| 67900261ELX | |
| 67900261ELZ | |
| 68000034 | |
| 68000036 | |
| 68000037 | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68296-99A | |
| 68460-07 | |
| 68737-00 | |
| 68830-99A | |
| 68956-07 | |
| 68958-07C | |
| 69000083 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200018 | |
| 69200031A | |
| 69200109 | |
| 69200170 | |
| 69200171 | |
| 69200174 | |
| 69200175 | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200193 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200202A | |
| 69200203A | |
| 69200205 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200224 | |
| 69200238 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200271 | |
| 69200272 | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200312 | |
| 69200336 | |
| 69200337 | |
| 69200536 | |
| 69200599 | |
| 69200600 | |
| 69200601 | |
| 69200611 | |
| 69200630 | |
| 69200631 | |
| 69200840 | |
| 69200919 | |
| 69200984 | |
| 69201130 | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201168 | |
| 69201178 | |
| 69201240 | |
| 69201286A | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201373 | |
| 69201374 | |
| 69201375 | |
| 69201377 | |
| 69201379 | |
| 69201381 | |
| 69201382 | |
| 69201385 | |
| 69201390 | |
| 69201391 | |
| 69201392 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201400 | |
| 69201401 | |
| 69201404 | |
| 69201405 | |
| 69201412 | |
| 69201415 | |
| 69201416 | |
| 69201418 | |
| 69201419 | |
| 69201423 | |
| 69201440 | |
| 69201441 | |
| 69201442 | |
| 69201459 | |
| 69201559 | |
| 69201561 | |
| 69201574 | |
| 69201575 | |
| 69201576 | |
| 69201577 | |
| 69201578 | |
| 69201579 | |
| 69201591 | |
| 69201592 | |
| 69201596 | |
| 69201731A | |
| 69201734 | |
| 69201740 | |
| 69201753 | |
| 69201765 | |
| 69201766 | |
| 69201779 | |
| 69201814 | |
| 69201863 | |
| 69201924 | |
| 69201984 | |
| 69202097 | |
| 69202102 | |
| 69202108 | |
| 69202219 | |
| 69202412 | |
| 69309-10 | |
| 69490-07 | |
| 6982 | |
| 69861-07 | |
| 69862-07 | |
| 6990 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70493-08 | |
| 70494-08 | |
| 70631-08 | |
| 70674-08 | |
| 70681-09 | |
| 70900138 | |
| 70900392DH | |
| 70900392ELZ | |
| 70900459 | |
| 70900773B | |
| 70900774 | |
| 70900775 | |
| 70900777B | |
| 70900778B | |
| 70900930 | |
| 70900931EHS | |
| 70900931ELZ | |
| 70900932 | |
| 70900934EHS | |
| 70900934ELZ | |
| 70900935 | |
| 70900953 | |
| 70901-09 | |
| 70999-09 | |
| 71400031 | |
| 71400033 | |
| 71400035 | |
| 71400036 | |
| 71400037 | |
| 71400090B | |
| 71400100 | |
| 71400112 | |
| 71500094 | |
| 71500166 | |
| 71500167 | |
| 71500168 | |
| 71500169 | |
| 71500224 | |
| 71500225 | |
| 71500226 | |
| 71500227 | |
| 71500338 | |
| 71500339 | |
| 71500340 | |
| 71500341 | |
| 71500342 | |
| 71500344 | |
| 71500348 | |
| 71500350 | |
| 71500484 | |
| 71500485 | |
| 71500494 | |
| 71500529 | |
| 71500533 | |
| 7155 | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72081-11 | |
| 72094-06 | |
| 72096-06 | |
| 72097-06 | |
| 72098-06 | |
| 72099-06 | |
| 72106-94BK | |
| 72110-06 | |
| 72111-06 | |
| 72114-94BK | |
| 72116-94BK | |
| 72127-06 | |
| 72130-04 | |
| 72135-06 | |
| 72145-06 | |
| 72146-94 | |
| 72154-94 | |
| 72156-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72199-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72241-94A | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72308-97 | |
| 72330-95 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72397-98 | |
| 72405-98BK | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72427-00 | |
| 72444-07GY | |
| 72473-07 | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72491-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72499-07 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72539-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72545-08 | |
| 72546-09GY | |
| 72554-09GY | |
| 72557-07 | |
| 72569-08 | |
| 72575-11 | |
| 72589-09 | |
| 72604-01BK | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72644-01 | |
| 72664-12A | |
| 72666-12 | |
| 72690-01 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73152-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 7326 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 7352 | |
| 74102-98BK | |
| 74112-98BK | |
| 74142-98 | |
| 74152-98 | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74402-05B | |
| 74700025 | |
| 74700038 | |
| 74700039 | |
| 7495 | |
| 7499 | |
| 75015-08 | |
| 75076-08B | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7593 | |
| 76000107A | |
| 76000127 | |
| 76000234 | |
| 76000252 | |
| 76000277B | |
| 76000282A | |
| 76000330 | |
| 76000409DH | |
| 76000502A | |
| 76000554 | |
| 76000561ELZ | |
| 76000771 | |
| 76000774 | |
| 76000783A | |
| 76000784A | |
| 76000785A | |
| 76000789 | |
| 76000820 | |
| 76000822 | |
| 76000838 | |
| 76000868 | |
| 76000869 | |
| 76000873 | |
| 76000874 | |
| 76000914 | |
| 76000915 | |
| 76000916 | |
| 76000923 | |
| 76000945 | |
| 7601 | |
| 7624 | |
| 765 | |
| 7686 | |
| 7687 | |
| 7716 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 786A | |
| 7880 | |
| 7900 | |
| 7904 | |
| 791A | |
| 7964 | |
| 7992 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8194 | |
| 83936-09A | |
| 856A | |
| 869 | |
| 882 | |
| 8873 | |
| 8885 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8972 | |
| 90200415 | |
| 90200467 | |
| 90200519 | |
| 90200543 | |
| 90200549 | |
| 90200550 | |
| 90200611 | |
| 90200893 | |
| 90200896A | |
| 90200897A | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90200963 | |
| 90200964 | |
| 90200979 | |
| 90200980 | |
| 90200983ELV | |
| 90200983ELX | |
| 90200983ELZ | |
| 90200984ELV | |
| 90200984ELX | |
| 90200984ELZ | |
| 90201127ELV | |
| 90201127ELX | |
| 90201127ELZ | |
| 90201129ELV | |
| 90201129ELX | |
| 90201129ELZ | |
| 90201142ELV | |
| 90201142ELX | |
| 90201142ELZ | |
| 90201143ELV | |
| 90201143ELX | |
| 90201143ELZ | |
| 90201378EMJ | |
| 90201378EML | |
| 90201378EMM | |
| 90201540 | |
| 90201680EMJ | |
| 90201680EML | |
| 90201680EMM | |
| 90201728 | |
| 90201744 | |
| 90201754ELV | |
| 90201754ELX | |
| 90201754ELZ | |
| 90300092 | |
| 90300093 | |
| 90300106 | |
| 90300107 | |
| 90300122 | |
| 90300123 | |
| 90300135 | |
| 90300136 | |
| 90520-07 | |
| 91140-09 | |
| 91700025A | |
| 91700034 | |
| 91800058 | |
| 91800075 | |
| 91840-03B | |
| 91845-03B | |
| 91885-97A | |
| 9208 | |
| 9215 | |
| 923 | |
| 9231 | |
| 9252A | |
| 926 | |
| 92614-10 | |
| 92615-10 | |
| 9276B | |
| 93100031 | |
| 940 | |
| 94000326 | |
| 94000601 | |
| 94000634 | |
| 94000751 | |
| 941 | |
| 942 | |
| 9701A | |
| 9819 | |
| 9853 | |
| 9907 | |
| 9937 | |
| 99461-89 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 33889-99 | 1999 |
| 8142 | Unknown |
| 7624 | Unknown |
| 7792 | 2012 |
| 7813A | 2007 |
| 10100138 | 2020 |
| 7900 | Unknown |
| 7904 | 1998 |
| 7825 | Unknown |
| 7687 | 2009 |
| 7992 | 2010 |
| 7495 | 1994 |
| 10100062 | 2017 |
| 7499 | Unknown |
| 7340 | Unknown |
| 7326 | Unknown |
| 7880 | Unknown |
| 7331 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 7593 | 1991 |
| 7549A | Unknown |
| 7601 | 1990 |
| 102A1 - Generic Screws | |
| 3340 | Unknown |
| 3536 | Unknown |
| 10200429 | 2017 |
| 3983 | 2005 |
| 882 | 2000 |
| 3987 | Unknown |
| 42882-06 | 2006 |
| 3048 | 2016 |
| 68026-99 | 1999 |
| 10200414 | 2017 |
| 2563 | 2009 |
| 10200141 | 2014 |
| 10200308 | 2017 |
| 10200095 | 2012 |
| 3018A | 2010 |
| 10200142 | 2014 |
| 4741A | 1994 |
| 10200147 | 2014 |
| 3050 | Unknown |
| 4916 | Unknown |
| 786A | Unknown |
| 3655A | Unknown |
| 3976 | 2004 |
| 4976 | Unknown |
| 3634 | Unknown |
| 3057 | Unknown |
| 3249 | Unknown |
| 4688 | Unknown |
| 4718A | 1994 |
| 2479 | Unknown |
| 2478 | 2007 |
| 10200303 | 2017 |
| 35259-06 | 2006 |
| 10200373 | 2017 |
| 3022A | Unknown |
| 10200503 | 2017 |
| 43567-92 | 1992 |
| 10200156 | 2014 |
| 10201001 | 2020 |
| 4597M | Unknown |
| 941 | Unknown |
| 791A | 2007 |
| 942 | 1992 |
| 940 | Unknown |
| 3275 | 2002 |
| 4890 | Unknown |
| 10200408A | 2018 |
| 4705 | 2005 |
| 10200384 | 2015 |
| 4132 | Unknown |
| 4740A | 1994 |
| 3656 | Unknown |
| 3267 | 1999 |
| 4240 | Unknown |
| 3607 | 2009 |
| 10200393 | 2017 |
| 10200134 | 2014 |
| 2647B | Unknown |
| 4822A | 1994 |
| 68120-00 | 2000 |
| 10201023 | 2020 |
| 10200736 | 2019 |
| 10200737 | 2019 |
| 4924 | Unknown |
| 3594 | 1992 |
| 3088 | Unknown |
| 4856 | Unknown |
| 2708A | Unknown |
| 4293 | Unknown |
| 926 | Unknown |
| 923 | Unknown |
| 10200205 | 2014 |
| 68042-99 | 1999 |
| 3152 | Unknown |
| 4419 | Unknown |
| 4612 | Unknown |
| 869 | Unknown |
| 3699D | 2006 |
| 3929 | 2009 |
| 10200463 | 2017 |
| 3588 | 1990 |
| 35244-06 | 2014 |
| 3901 | Unknown |
| 3563 | 1999 |
| 10200103 | 2014 |
| 3143 | Unknown |
| 10200032 | 2012 |
| 10200798 | 2020 |
| 780 | Unknown |
| 67721-48 | 1948 |
| 1775 | Unknown |
| 4636 | Unknown |
| 4820A | Unknown |
| 10200546 | 2017 |
| 10200042 | 2014 |
| 10200223 | 2014 |
| 10200446 | 2017 |
| 1009M | Unknown |
| 3684 | Unknown |
| 4312C | Unknown |
| 3787 | Unknown |
| 10200533 | 2016 |
| 10200351 | 2015 |
| 10200344 | 2015 |
| 856A | 1990 |
| 1062 | Unknown |
| 10200220 | 2014 |
| 10200938 | 2020 |
| 10200219 | 2014 |
| 10200217 | 2014 |
| 10200060 | 2014 |
| 4813A | 1990 |
| 10200062 | 2014 |
| 10200063 | 2014 |
| 10200569 | 2017 |
| 703B | Unknown |
| 10200065 | 2014 |
| 10200343 | 2017 |
| 10200059 | 2014 |
| 4790 | Unknown |
| 4194 | Unknown |
| 42858-06A | 2006 |
| 3892 | Unknown |
| 4192 | 1998 |
| 4775 | 2000 |
| 10200678 | 2018 |
| 10200258 | 2014 |
| 10200422 | 2017 |
| 2445 | Unknown |
| 10200679 | 2018 |
| 103A1 - Generic Washers | |
| 10300049 | 2014 |
| 6019 | Unknown |
| 6549 | Unknown |
| 6441 | Unknown |
| 11891 | Unknown |
| 56159-73 | 1973 |
| 6497HW | 2010 |
| 6771A | Unknown |
| 7434 | 1999 |
| 6220W | Unknown |
| 46509-01 | 2001 |
| 8972 | Unknown |
| 59788-01 | 2001 |
| 6150W | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6101 | 2011 |
| 6594 | Unknown |
| 6383 | Unknown |
| 10300222 | 2020 |
| 6590HW | Unknown |
| 6127 | Unknown |
| 6532 | 2000 |
| 6036 | Unknown |
| 6421 | 1996 |
| 6416 | Unknown |
| 10300036 | 2014 |
| 7038 | 1998 |
| 10300066 | 2014 |
| 7041 | 1958 |
| 6703 | 1970 |
| 6702 | Unknown |
| 10300156 | 2018 |
| 104A1 - Custom Nuts | |
| 8146 | Unknown |
| 7352 | 2010 |
| 10400034 | 2016 |
| 10400033 | 2016 |
| 105A1 - Custom Screws | |
| 10500129 | 2019 |
| 10500022 | 2014 |
| 10500015 | 2014 |
| 10500108 | 2018 |
| 10500107 | 2018 |
| 10500125 | 2019 |
| 10500034 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 10500092 | 2016 |
| 10500069 | 2017 |
| 10500053 | 2015 |
| 108A1 - Hose Clamps | |
| 10800025A | 2017 |
| 10344 | Unknown |
| 55918-08 | 2008 |
| 42119-08 | 2008 |
| 66047-05 | 2005 |
| 10800111 | 2017 |
| 10340B | 2015 |
| 10800109 | 2017 |
| 10800052 | 2014 |
| 9956 | 1972 |
| 9955 | Unknown |
| 10080 | Unknown |
| 108B1 - P Clamps | |
| 10800028 | 2014 |
| 10076 | 2010 |
| 109A1 - Studs | |
| 59818-09 | 2009 |
| 66290-06 | 2006 |
| 10900005 | 2014 |
| 59840-09 | 2009 |
| 10900015A | 2018 |
| 110B1 - Plain Bushings | |
| 8967A | 2017 |
| 11000139 | 2017 |
| 11000050 | 2014 |
| 12077 | Unknown |
| 8885 | Unknown |
| 9701A | 2011 |
| 9208 | Unknown |
| 110C1 - Radial Shaft Seals | |
| 11000134 | 2017 |
| 11000101 | 2013 |
| 12074 | Unknown |
| 12052A | 2003 |
| 110D1 - Rolling Element Bearings | |
| 9215 | Unknown |
| 8963 | Unknown |
| 9252A | 2017 |
| 11000010 | 2011 |
| 9231 | Unknown |
| 24605-07 | 2007 |
| 8970A | 2012 |
| 8042A | 2018 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 73304-04 | 2004 |
| 72194-94 | 1994 |
| 9819 | Unknown |
| 72264-94 | 1994 |
| 72690-01 | 2001 |
| 9907 | Unknown |
| 72990-01 | 2001 |
| 72008-05 | 2005 |
| 74196-04 | 2004 |
| 72110-06 | 2006 |
| 111B1 - Tape | |
| 48419-04 | 2004 |
| 48420-04 | 2004 |
| 111B2 - Pad | |
| 11100255 | 2020 |
| 11100254 | 2020 |
| 111D1 - Isolating Tape | |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100057 | 2014 |
| 11100038 | 2014 |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 11100105 | 2014 |
| 11100024 | 2012 |
| 75015-08 | 2008 |
| 11100071 | 2014 |
| 111F2 - Protective Pad | |
| 11100157 | 2016 |
| 116A1 - Banjo Bolts | |
| 50674-05 | 2005 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06B | 2015 |
| 11600009 | 2014 |
| 11600001 | 2012 |
| 119A1 - O-Rings | |
| 11900010 | 2013 |
| 11900155 | 2020 |
| 11686 | Unknown |
| 11900092 | 2017 |
| 11105 | Unknown |
| 11900090 | 2017 |
| 11145A | 2007 |
| 11900103 | 2017 |
| 11900116 | 2017 |
| 11289A | Unknown |
| 11900172 | 2020 |
| 46508-01 | 2001 |
| 11201 | Unknown |
| 11323A | 2016 |
| 11900040 | 2014 |
| 11900042 | 2014 |
| 11120 | Unknown |
| 11132A | 2007 |
| 11293 | 1996 |
| 11900004 | 2011 |
| 27444-00Y | 2000 |
| 11900021 | 2014 |
| 120A1 - Pins | |
| 16583-00A | 2000 |
| 601 | Unknown |
| 221 | Unknown |
| 16574-99A | 1999 |
| 16589-99A | 1999 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 24754-75A | 1975 |
| 45041-01A | 2001 |
| 121A1 - Grommets | |
| 12100052 | 2014 |
| 12100162 | 2020 |
| 11692 | Unknown |
| 12100038 | 2014 |
| 12100020 | 2014 |
| 11650 | 2010 |
| 12100007 | 2014 |
| 121B1 - Press-Fit Plugs | |
| 12100034 | 2014 |
| 72097-06 | 2006 |
| 765 | 1997 |
| 90520-07 | 2007 |
| 12100069 | 2017 |
| 122A1 - Retaining Rings | |
| 17945-36B | 1936 |
| 10264 | Unknown |
| 35114-02 | 2002 |
| 65325-83A | 1983 |
| 35087-99A | 1999 |
| 10103 | Unknown |
| 61012-04A | 2004 |
| 11150 | 1984 |
| 66078-06 | 2006 |
| 11143 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 9853 | Unknown |
| 10991A | Unknown |
| 61213-04A | 2004 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11304 | Unknown |
| 11082A | 2016 |
| 12200116 | 2016 |
| 11081A | 2008 |
| 60678-85 | 1985 |
| 10147 | 2018 |
| 41229-08 | 2008 |
| 11575 | Unknown |
| 12200144 | 2018 |
| 12200064 | 2014 |
| 11161 | 1984 |
| 122A2 - Retaining Clips | |
| 12200170 | 2018 |
| 12200147A | 2017 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 42400019 | 2016 |
| 12400034 | 2014 |
| 41900-08 | 2008 |
| 12400072 | 2014 |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 12400099 | 2017 |
| 11599A | 2012 |
| 11848 | Unknown |
| 125A1 - Tie Straps | |
| 12500014 | 2017 |
| 10065 | 1985 |
| 12500018 | 2017 |
| 10039 | 1981 |
| 10177 | 1996 |
| 10006 | 1960 |
| 12500002 | 2012 |
| 12500015 | 2017 |
| 126A1 - Miscellaneous Hardware | |
| 8041 | Unknown |
| 12600073 | 2014 |
| 12600071 | 2014 |
| 12600070 | 2014 |
| 12600087 | 2014 |
| 12600068 | 2012 |
| 56161-83A | 1983 |
| 12600032 | 2014 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 12600116 | 2014 |
| 12600067 | 2014 |
| 11779 | 2008 |
| 12600016 | 2011 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 126C2 - Nut Covers | |
| 12600174 | 2016 |
| 127B1 - Generic Mounting Bracket | |
| 12700090 | 2017 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14001799 | 2019 |
| 14148-86 | 1986 |
| 14001773 | 2019 |
| 14001735 | 2019 |
| 14001734 | 2019 |
| 14001739 | 2019 |
| 14001738 | 2019 |
| 14001736 | 2019 |
| 14001624 | 2019 |
| 28012-09 | 2009 |
| 14151-02 | 2002 |
| 15385-08 | 2008 |
| 14001859 | 2019 |
| 140A3 - Other Special Warning Label | |
| 15342-06A | 2006 |
| 14001800 | 2019 |
| 140H1 - Label Set | |
| 14000069 | 2012 |
| 140P2 - General Label | |
| 14001903 | 2020 |
| 14000827 | 2013 |
| 14001593 | 2019 |
| 141A1 - Medallion | |
| 14100881 | 2016 |
| 14101125 | 2019 |
| 14101169 | 2019 |
| 14101072 | 2018 |
| 14101165 | 2019 |
| 14101128 | 2019 |
| 42856-06 | 2006 |
| 14101122 | 2019 |
| 14101120 | 2019 |
| 14101121 | 2019 |
| 14101119 | 2019 |
| 162D1 - Engine Assembly | |
| 16200663 | 2020 |
| 16200669 | 2020 |
| 16200668 | 2020 |
| 162D3 - Engine Assembly Short Block | |
| 16200395 | 2018 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 164B1 - Engine Mount Bracket sub-component | |
| 7716 | 1990 |
| 7531 | 1980 |
| 7686 | Unknown |
| 16219-09 | 2009 |
| 8194 | Unknown |
| 164D1 - Tiebar Mount | |
| 16400041 | 2017 |
| 165A1 - Cylinder Head | |
| 16500405 | 2017 |
| 16500400 | 2017 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 17369-06 | 2006 |
| 16500332 | 2017 |
| 16500599 | 2018 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 33899-08 | 2008 |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 16800121 | 2017 |
| 16800123 | 2017 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300055 | 2017 |
| 17300053 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059A | 2017 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17900031 | 2017 |
| 17900030 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900035 | 2017 |
| 17900034 | 2017 |
| 180A1 - Valves | |
| 18000034 | 2017 |
| 18000016 | 2017 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18100060 | 2017 |
| 18100069 | 2016 |
| 18100045 | 2017 |
| 18100043 | 2017 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900082 | 2018 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 220Z1 - Kit,Piston Ring | |
| 22000079 | 2018 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100045A | 2019 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400187 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215 | 2017 |
| 244F1 - Oil Pan | |
| 24400180 | 2017 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25675-06 | 2006 |
| 25673-06 | 2006 |
| 25400273 | 2018 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400133 | 2017 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 256A1 - Timer Cover | |
| 25600111 | 2019 |
| 257A1 - Cam Cover | |
| 25700467 | 2017 |
| 25700699 | 2018 |
| 257B1 - Clutch Cover | |
| 25701157 | 2020 |
| 25700957 | 2019 |
| 25700178 | 2013 |
| 257E1 - Cover Gaskets | |
| 36805-06 | 2006 |
| 61402-08 | 2008 |
| 25700453 | 2017 |
| 25700372B | 2018 |
| 25700452 | 2017 |
| 65324-83B | 2009 |
| 35654-06 | 2006 |
| 25700679 | 2017 |
| 25700425 | 2017 |
| 25700370 | 2017 |
| 25700362 | 2017 |
| 61109-85D | 1985 |
| 11936 | Unknown |
| 42857-06B | 2013 |
| 25700378 | 2017 |
| 25700433 | 2017 |
| 11902 | Unknown |
| 257L1 - Primary Cover | |
| 25701084 | 2020 |
| 25700650 | 2017 |
| 25700491 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 25700488A | 2018 |
| 25701142 | 2020 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700520 | 2017 |
| 25701055 | 2019 |
| 257P1 - Tappet Cover | |
| 25700411 | 2017 |
| 25700410 | 2017 |
| 25701096 | 2020 |
| 25701095 | 2020 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700983 | 2018 |
| 25700984 | 2018 |
| 25700731 | 2017 |
| 25700830 | 2017 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800055 | 2017 |
| 25800125 | 2019 |
| 25800123 | 2019 |
| 25800128 | 2020 |
| 25800127 | 2020 |
| 25800110 | 2017 |
| 25800109 | 2017 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 269A1 - Cooling Line Fitting | |
| 26900117 | 2017 |
| 269B1 - Radiator Hose | |
| 26900144 | 2017 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200025 | 2017 |
| 273A1 - Intake Manifold | |
| 27300121 | 2017 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300087 | 2017 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300086 | 2017 |
| 273G1 - Throttle Body | |
| 27300122 | 2017 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300082 | 2017 |
| 274B1 - Fuel Rail | |
| 27400019 | 2017 |
| 274C1 - Fuel Injector | |
| 27400015 | 2017 |
| 290A1 - Airbox Baseplate | |
| 29000148 | 2017 |
| 290C1 - Airbox Baseplate sub-component | |
| 29000239 | 2019 |
| 290D1 - Airbox Seal | |
| 29000149 | 2017 |
| 29000227 | 2019 |
| 290Z1 - Kit,Airbox | |
| 29000293 | 2019 |
| 29000314 | 2019 |
| 292A1 - Air Duct | |
| 29200088A | 2019 |
| 292B1 - Air Duct Bezel | |
| 29200087A | 2019 |
| 294A1 - Air Filter Element | |
| 29400384 | 2019 |
| 29400267 | 2017 |
| 294B1 - Breather Bolt | |
| 29400252 | 2016 |
| 29465-08B | 2017 |
| 294C1 - Breather Hose | |
| 29400337 | 2017 |
| 29400336 | 2017 |
| 294F1 - Engine Breather Valve | |
| 29400210 | 2017 |
| 29400183 | 2017 |
| 299B1 - Charging Rotor Assembly | |
| 29900038 | 2017 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900042A | 2017 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 27715-07 | 2007 |
| 316A1 - Ignition Coil | |
| 31600017 | 2017 |
| 316B1 - Spark Plug Cable | |
| 31600018B | 2018 |
| 31600079 | 2017 |
| 31600078A | 2017 |
| 31600023A | 2017 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 50126-08B | 2018 |
| 32700050A | 2018 |
| 32700101 | 2019 |
| 327B1 - Chemical / Gas Sensor | |
| 32700046 | 2017 |
| 27809-10 | 2010 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700015 | 2014 |
| 32700048 | 2017 |
| 74402-05B | 2012 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32700065 | 2017 |
| 32700054 | 2017 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600102 | 2016 |
| 5817 | 2000 |
| 33600188 | 2017 |
| 33600088 | 2017 |
| 33888-99 | 1999 |
| 33600091 | 2017 |
| 336D1 - Shift Pedal | |
| 33600227 | 2018 |
| 33600061A | 2018 |
| 33600060A | 2018 |
| 33600225 | 2018 |
| 336F1 - Toepeg | |
| 33600276 | 2020 |
| 33600275 | 2020 |
| 33600244 | 2019 |
| 339A1 - Shift Lever | |
| 33900180 | 2017 |
| 339D1 - Shifter Fork | |
| 35222-06 | 2014 |
| 35217-06 | 2006 |
| 35223-06 | 2014 |
| 35210-06 | 2006 |
| 35187-06 | 2006 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33900172 | 2017 |
| 34064-00C | 2000 |
| 35243-06 | 2014 |
| 33389-07 | 2014 |
| 34091-08 | 2008 |
| 35249-06A | 2006 |
| 34987-06 | 2006 |
| 35186-06 | 2006 |
| 35081-06 | 2006 |
| 33409-06B | 2006 |
| 35082-07 | 2007 |
| 347B1 - Transmission Case | |
| 34700092 | 2017 |
| 348C1 - Transmission Top Cover | |
| 34800025 | 2017 |
| 34800031 | 2017 |
| 350A1 - Transmission Output Sprocket | |
| 35000152 | 2017 |
| 350E1 - Transmission Gear | |
| 35122-06A | 2018 |
| 35000179 | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 25736-06 | 2006 |
| 25731-06 | 2006 |
| 25729-06 | 2006 |
| 11207A | 2009 |
| 25738-06 | 2006 |
| 25737-06 | 2006 |
| 25734-06 | 2006 |
| 350S2 - Sub-Assembly,Transmission Mainshaft | |
| 35000199A | 2018 |
| 352A1 - Engine Balancer | |
| 35200057 | 2018 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35807-06 | 2006 |
| 35600094 | 2018 |
| 35814-06 | 2006 |
| 35811-06 | 2006 |
| 35600103 | 2017 |
| 356B1 - Transmission Dog Ring | |
| 35204-06 | 2006 |
| 35126-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35202-06 | 2006 |
| 35124-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35000105A | 2016 |
| 35242-06 | 2006 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075 | 2017 |
| 365E1 - Inner Primary Housing | |
| 36500092A | 2020 |
| 367A1 - Clutch Lever | |
| 36700172A | 2018 |
| 36700171A | 2018 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700170A | 2018 |
| 36700169A | 2018 |
| 367D1 - Clutch Lever Master Cylinder Reservoir | |
| 36700132 | 2017 |
| 36700130 | 2017 |
| 36700131 | 2017 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37496-90A | 1990 |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000254A | 2019 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000258 | 2017 |
| 37000295 | 2019 |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000219 | 2017 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 372G1 - Clutch Hose | |
| 37200179 | 2017 |
| 37200180 | 2017 |
| 372P1 - Secondary Clutch Actuator | |
| 37200131C | 2019 |
| 372Z1 - Kit,Clutch Actuation | |
| 37200343C | 2019 |
| 37200344C | 2019 |
| 400A1 - Drive-Belt | |
| 40024-09A | 2015 |
| 401A1 - Engine Sprocket | |
| 83936-09A | 2013 |
| 40100064 | 2017 |
| 40100041 | 2014 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076 | 2017 |
| 409A2 - Rear Wheel Assembly | |
| 40900785 | 2020 |
| 40900789 | 2020 |
| 410A1 - Body Control Module (BCM) | |
| 41000342F | 2020 |
| 41000341F | 2020 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000668 | 2018 |
| 410K1 - Telematics Control Module (TCM) | |
| 41000721 | 2020 |
| 41000645 | 2020 |
| 411A1 - ABS Control Unit | |
| 40786-08 | 2008 |
| 41100104A | 2020 |
| 413A1 - Brake Caliper | |
| 41300209 | 2018 |
| 41300210 | 2018 |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 42938-08 | 2008 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 41300119 | 2014 |
| 42054-05 | 2005 |
| 12102 | Unknown |
| 413D1 - Brake Pad | |
| 42867-06A | 2006 |
| 41854-08 | 2008 |
| 41852-08B | 2012 |
| 413E1 - Brake Pad Pin | |
| 42865-06B | 2006 |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41500150 | 2018 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42860-06B | 2006 |
| 44935-06 | 2006 |
| 42852-06A | 2006 |
| 42934-08 | 2008 |
| 42863-06 | 2006 |
| 72023-51E | 2012 |
| 44089-08 | 2008 |
| 416B1 - Brake Mounting Bracket | |
| 41600091 | 2014 |
| 41600078 | 2014 |
| 41600029A | 2015 |
| 41600032 | 2014 |
| 41600031 | 2014 |
| 417A1 - Brake Master Cylinder Assembly | |
| 42123-08 | 2008 |
| 42102-08D | 2015 |
| 46463-08 | 2008 |
| 44985-10D | 2018 |
| 41700028A | 2018 |
| 41700439 | 2017 |
| 417B1 - Brake Master Cylinder | |
| 41700072 | 2014 |
| 42889-06 | 2006 |
| 42855-06D | 2018 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 42862-06B | 2010 |
| 41700367 | 2015 |
| 42937-08C | 2018 |
| 417G1 - Front Brake Lever | |
| 42276-06A | 2006 |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 418B1 - Brake Line | |
| 41800352 | 2016 |
| 41800012 | 2014 |
| 41800573 | 2017 |
| 41800572 | 2017 |
| 41800577 | 2017 |
| 41800575 | 2017 |
| 41800541 | 2017 |
| 41800207 | 2016 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423F1 - Tire Pressure Monitor | |
| 42300114 | 2020 |
| 42300119 | 2020 |
| 42300118 | 2020 |
| 42300115 | 2020 |
| 423G1 - Valve Stem | |
| 42300112 | 2020 |
| 423H1 - Valve Stem Cap | |
| 42300093 | 2018 |
| 423K1 - Wheel Weights | |
| 42300001 | 2011 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 44080-08C | 2012 |
| 40984-10 | 2010 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 43000207 | 2020 |
| 43000203 | 2020 |
| 431A1 - Front Tire | |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200045 | 2020 |
| 433A2 - Front Wheel Assembly | |
| 43300794 | 2020 |
| 43300799 | 2020 |
| 433B1 - Front Wheel Bearing Spacer | |
| 56163-93 | 1993 |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 454A1 - Front Telescopic Fork | |
| 45400204 | 2018 |
| 45400203 | 2018 |
| 45400251 | 2020 |
| 45400249 | 2020 |
| 45400196 | 2018 |
| 45400195 | 2018 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500509 | 2018 |
| 45500508 | 2018 |
| 45500175B | 2015 |
| 45500570 | 2020 |
| 45500572 | 2020 |
| 45500176B | 2015 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500396 | 2017 |
| 45500337 | 2017 |
| 455C1 - Front Telescopic Fork sub-component | |
| 46514-01A | 2010 |
| 45500397 | 2017 |
| 45500424 | 2017 |
| 45500398 | 2017 |
| 45500421 | 2001 |
| 46513-01 | 2001 |
| 45500132 | 2014 |
| 45500339 | 2017 |
| 45500118 | 2014 |
| 45500117 | 2014 |
| 45500341 | 2017 |
| 456A1 - Fork Protector | |
| 45600102 | 2020 |
| 45600103 | 2020 |
| 45600070 | 2020 |
| 45600071 | 2020 |
| 45600038DH | 2018 |
| 45600039DH | 2018 |
| 456C1 - Fork Lock | |
| 45600057 | 2018 |
| 457D1 - Steering Stem | |
| 45700020 | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46615-06 | 2006 |
| 459B1 - Lower Triple Clamp | |
| 45900024 | 2014 |
| 45900091A | 2014 |
| 470A1 - Frame | |
| 48079-09BHP | 2009 |
| 47000088BHP | 2017 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 12404 | 2010 |
| 10600007 | 2014 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 70674-08 | 2008 |
| 47200302A | 2017 |
| 91140-09 | 2009 |
| 474C1 - Swingarm | |
| 47549-09A | 2017 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49000114A | 2018 |
| 49000195 | 2020 |
| 500B1 - Sidestand Bracket | |
| 50000097 | 2017 |
| 50000143 | 2018 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50075-07A | 2011 |
| 50000149 | 2018 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50501184 | 2019 |
| 50501181 | 2019 |
| 50501220 | 2019 |
| 50501221 | 2019 |
| 50501217 | 2019 |
| 50501216 | 2019 |
| 50501516 | 2020 |
| 50501518 | 2020 |
| 50501517 | 2020 |
| 50501519 | 2020 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 50500332A | 2016 |
| 51428-09 | 2009 |
| 50500462A | 2016 |
| 50500334A | 2016 |
| 50351-03 | 2009 |
| 50500460A | 2016 |
| 50622-09A | 2015 |
| 505D1 - Passenger Footpeg | |
| 50501525 | 2020 |
| 50501524 | 2020 |
| 50501523 | 2020 |
| 50501522 | 2020 |
| 50501194 | 2019 |
| 50501190 | 2019 |
| 50501192 | 2019 |
| 50501186 | 2019 |
| 505H1 - Footpeg Insert | |
| 50500501 | 2016 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 506A1 - Brake Pedal | |
| 50912-72 | 1972 |
| 50600067 | 2014 |
| 50600244 | 2017 |
| 506Z1 - Kit,Brake Pedal | |
| 50600419 | 2020 |
| 50600420 | 2020 |
| 50600341 | 2019 |
| 520A1 - Rider Seat or Full Seat | |
| 52000443 | 2020 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 51740-10 | 2010 |
| 524A1 - Passenger Grab Handle | |
| 52400035 | 2012 |
| 524B1 - Passenger Seat | |
| 52400235 | 2020 |
| 540B1 - Rear Shock | |
| 54000114 | 2017 |
| 54000096 | 2017 |
| 540E1 - Rear Shock sub-component | |
| 54000141 | 2017 |
| 558A1 - Handlebar | |
| 55800308 | 2015 |
| 55800214 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 56000113B | 2016 |
| 56000182 | 2020 |
| 56000183 | 2020 |
| 91840-03B | 2003 |
| 56000015 | 2014 |
| 56000016 | 2014 |
| 92615-10 | 2010 |
| 56000105B | 2016 |
| 56000122 | 2016 |
| 92614-10 | 2010 |
| 91845-03B | 2003 |
| 561B1 - Left Hand Grip | |
| 56100338 | 2019 |
| 56100383 | 2020 |
| 56100382 | 2020 |
| 561C1 - Throttle Assembly w/Grip | |
| 56100339 | 2019 |
| 56100381 | 2020 |
| 56100380 | 2020 |
| 561D1 - Throttle Assembly sub-component | |
| 56100337 | 2019 |
| 56100385 | 2020 |
| 56100384 | 2020 |
| 570A1 - Front Fairing | |
| 57000257 | 2014 |
| 57000328ELY | 2020 |
| 57000328DH | 2014 |
| 570C1 - Inner Fairing | |
| 57000299 | 2014 |
| 57000982ELZ | 2020 |
| 57000175 | 2014 |
| 57001015ELZ | 2020 |
| 57000186A | 2020 |
| 57000169A | 2018 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 57001224DH | 2020 |
| 570Z1 - Kit,Fairing | |
| 57000628EMI | 2020 |
| 57000628EMK | 2020 |
| 57000628ELV | 2020 |
| 57001144DH | 2020 |
| 572A1 - Chin Spoiler | |
| 57200249ELY | 2020 |
| 57200249ELV | 2020 |
| 57200249EML | 2020 |
| 572D1 - Engine Shroud | |
| 57200243 | 2020 |
| 57200256 | 2020 |
| 572E1 - Side Cover | |
| 57200094EMI | 2020 |
| 57200093EMI | 2020 |
| 32306-08 | 2008 |
| 57200093EMK | 2020 |
| 57200094EMK | 2020 |
| 66048-09A | 2012 |
| 66250-09 | 2009 |
| 572S4 - Sub-Assembly,Side Cover | |
| 57200181ELV | 2020 |
| 57200182ELV | 2020 |
| 572Z1 - Kit,Shroud | |
| 57200245 | 2020 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 574B1 - Windscreen / Windshield | |
| 57400377ELZ | 2020 |
| 57400373 | 2018 |
| 57400379 | 2018 |
| 57400253 | 2015 |
| 589A1 - Front Fender | |
| 58900009 | 2014 |
| 58900116ELY | 2020 |
| 58900116EML | 2020 |
| 58900116ELV | 2020 |
| 595A1 - Tailsection | |
| 59500107 | 2014 |
| 59500269ELZ | 2020 |
| 59500269ELX | 2020 |
| 59500269ELV | 2020 |
| 595D1 - Rear Fender | |
| 59500656ELX | 2020 |
| 59500655ELV | 2020 |
| 59500656ELV | 2020 |
| 59500273ELZ | 2020 |
| 59500274ELZ | 2020 |
| 59500655ELX | 2020 |
| 60463-09A | 2009 |
| 59768-97 | 1997 |
| 59174-99 | 1999 |
| 60472-09A | 2009 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27298-09A | 2014 |
| 27291-09A | 2014 |
| 60800026 | 2017 |
| 27297-09A | 2014 |
| 609A1 - Fuel Miscellaneous Component | |
| 70999-09 | 2009 |
| 6119 | 2016 |
| 62229-08B | 2011 |
| 75076-08B | 2011 |
| 75291-08A | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000524EMI | 2020 |
| 61000524ELV | 2020 |
| 61000168EML | 2020 |
| 611B1 - Fuel Cap | |
| 61100065 | 2016 |
| 61100120A | 2020 |
| 61100123A | 2020 |
| 63136-10C | 2020 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08C | 2016 |
| 612C1 - Fuel Line | |
| 61200022 | 2017 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 61300504ELZ | 2020 |
| 61300504ELV | 2020 |
| 61300504EMK | 2020 |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 61301144 | 2020 |
| 61300626A | 2017 |
| 613J1 - Throttle Body Cover | |
| 61300616 | 2017 |
| 613K1 - Airbox Cover | |
| 61300721 | 2017 |
| 61301130 | 2020 |
| 61300955 | 2019 |
| 614C1 - Trim | |
| 43583-09 | 2009 |
| 61400081 | 2014 |
| 61400080 | 2014 |
| 43475-08 | 2008 |
| 61400659 | 2020 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 61400671 | 2020 |
| 61400670 | 2020 |
| 61400622 | 2019 |
| 61400614 | 2019 |
| 624A1 - Oil Pump Assembly | |
| 62400238 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 62400126 | 2017 |
| 26400-82B | 1982 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 624Z1 - Kit,Oil Pump | |
| 62400247 | 2020 |
| 627A1 - Oil Cooler | |
| 62700196 | 2017 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62700219 | 2018 |
| 62700198 | 2017 |
| 37065-06A | 2017 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296 | 2020 |
| 627G1 - Oil Jet | |
| 62700117 | 2017 |
| 62700089 | 2017 |
| 627H1 - Oil Line | |
| 62700161 | 2017 |
| 62372-09 | 2009 |
| 62700143 | 2017 |
| 62700144 | 2017 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 62700146 | 2017 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62700141 | 2017 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800028 | 2017 |
| 649A1 - Muffler | |
| 64900731 | 2018 |
| 64900732 | 2018 |
| 64900794 | 2019 |
| 64900795 | 2019 |
| 64900254A | 2018 |
| 64900255A | 2018 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65100170 | 2019 |
| 65100171 | 2019 |
| 65100186 | 2020 |
| 654A1 - Exhaust Shield | |
| 65400435A | 2020 |
| 65400436 | 2018 |
| 65400437 | 2018 |
| 65400438 | 2018 |
| 65400439 | 2018 |
| 65400440 | 2018 |
| 65400544 | 2020 |
| 65400539 | 2020 |
| 65400540 | 2020 |
| 65400541 | 2020 |
| 65400542 | 2020 |
| 65400543 | 2020 |
| 65400615 | 2020 |
| 65400616 | 2020 |
| 65400617 | 2020 |
| 65400618 | 2020 |
| 65400619 | 2020 |
| 65400620 | 2020 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 66861-09B | 2019 |
| 65724-85A | 2016 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65500042 | 2017 |
| 65500043 | 2017 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600176 | 2017 |
| 65600177 | 2017 |
| 65600178 | 2017 |
| 659A1 - Exhaust Clamp | |
| 65900015 | 2017 |
| 65900012 | 2014 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 660A1 - Battery | |
| 66000066 | 2013 |
| 66010-97D | 2016 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000010A | 2018 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 677A1 - Headlight | |
| 67778-60A | 1960 |
| 67716-60C | 2014 |
| 67780-60A | 1960 |
| 67726-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 46555-03B | 2014 |
| 67700459A | 2019 |
| 67712-83B | 2014 |
| 69200109 | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700068 | 2011 |
| 67700205 | 2014 |
| 67700204 | 2014 |
| 677Z1 - Kit,Headlight | |
| 67700569A | 2020 |
| 67700568A | 2020 |
| 678A1 - Taillight | |
| 68066-99A | 2004 |
| 67800847 | 2017 |
| 68830-99A | 1999 |
| 67800317 | 2014 |
| 68296-99A | 2004 |
| 678C1 - Taillight Lens | |
| 67800428 | 2014 |
| 67800424 | 2014 |
| 678D1 - Turnsignal | |
| 67800203 | 2014 |
| 67800204 | 2014 |
| 67800201 | 2014 |
| 68737-00 | 2000 |
| 68460-07 | 2007 |
| 67800918 | 2018 |
| 67800917 | 2018 |
| 67800257 | 2014 |
| 67800708 | 2016 |
| 67800709 | 2016 |
| 678E1 - Turnsignal Lens | |
| 67800251 | 2014 |
| 679A1 - License Plate Tray / Holder | |
| 67900260 | 2015 |
| 67900232 | 2015 |
| 679B1 - Reflector | |
| 69490-07 | 2007 |
| 59482-00 | 2000 |
| 59481-00 | 2000 |
| 69862-07 | 2007 |
| 69861-07 | 2007 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 67900065 | 2014 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900243 | 2015 |
| 679D1 - License Plate Bracket | |
| 67900233 | 2015 |
| 67900185 | 2014 |
| 60916-09 | 2009 |
| 679E1 - License Plate Light | |
| 60920-09 | 2009 |
| 67900261ELZ | 2020 |
| 67900261ELX | 2020 |
| 67900261ELV | 2020 |
| 680A1 - Decorative Light | |
| 68000034 | 2012 |
| 680D1 - Fog Light | |
| 68000037 | 2014 |
| 68000036 | 2014 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000083 | 2017 |
| 692B1 - Auxiliary Power Outlet | |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 69201863 | 2018 |
| 69200611 | 2014 |
| 69200840 | 2017 |
| 69201578 | 2017 |
| 69201579 | 2017 |
| 72189-04 | 2004 |
| 69200174 | 2014 |
| 69200175 | 2014 |
| 6990 | 2011 |
| 692C2 - Electrical Mounting Bracket | |
| 69201178 | 2017 |
| 69201924 | 2020 |
| 70493-08 | 2008 |
| 69123-92A | 1992 |
| 69200202A | 2017 |
| 69201459 | 2016 |
| 69200203A | 2016 |
| 69120-91 | 1991 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69062-91A | 1991 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 54305-98 | 1998 |
| 72330-95 | 1995 |
| 72345-02 | 2002 |
| 69200336 | 2014 |
| 72331-95 | 1995 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200600 | 2014 |
| 69200312 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69201766 | 2018 |
| 692F1 - Wire Harness | |
| 69201753 | 2018 |
| 69201765 | 2018 |
| 69200601 | 2016 |
| 69200919 | 2015 |
| 69202097 | 2019 |
| 69201559 | 2017 |
| 69201561 | 2017 |
| 69201734 | 2018 |
| 69201731A | 2020 |
| 69200031A | 2019 |
| 69201984 | 2020 |
| 69200599 | 2014 |
| 69200247 | 2014 |
| 67800259 | 2016 |
| 69200224 | 2014 |
| 69201130 | 2017 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 69200018 | 2010 |
| 692G2 - Wire Guide | |
| 72412-97 | 1997 |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 692H1 - Connector | |
| 72906-11 | 2011 |
| 73152-96BK | 1996 |
| 72632-10 | 2010 |
| 69201418 | 2016 |
| 69201415 | 2017 |
| 72519-09BK | 2009 |
| 72114-94BK | 1994 |
| 69202108 | 2019 |
| 69201373 | 2016 |
| 72554-09GY | 2009 |
| 69201419 | 2016 |
| 69201779 | 2019 |
| 69201400 | 2017 |
| 69201401 | 2017 |
| 69200271 | 2014 |
| 72116-94BK | 1994 |
| 69200272 | 2014 |
| 69201405 | 2017 |
| 72908-11 | 2011 |
| 72081-11 | 2011 |
| 69200193 | 2014 |
| 72905-11 | 2011 |
| 72063-06 | 2006 |
| 69200212 | 2014 |
| 69201397 | 2017 |
| 74142-98 | 1998 |
| 72111-06 | 2006 |
| 69201441 | 2017 |
| 69201440 | 2017 |
| 72127-06 | 2006 |
| 72664-12A | 2013 |
| 72098-06 | 2006 |
| 69201574 | 2017 |
| 72444-07GY | 2007 |
| 69201575 | 2017 |
| 69201576 | 2017 |
| 69201381 | 2016 |
| 69201577 | 2017 |
| 72546-09GY | 2009 |
| 69200256 | 2014 |
| 72009-05 | 2005 |
| 69201302 | 2017 |
| 69200984 | 2015 |
| 72156-94 | 1994 |
| 69201740 | 2016 |
| 69200254 | 2014 |
| 69201395 | 2017 |
| 69201394 | 2017 |
| 69201393 | 2017 |
| 69202412 | 2020 |
| 69201390 | 2017 |
| 69200306 | 2014 |
| 69201299 | 2017 |
| 69200184 | 2014 |
| 72064-06 | 2006 |
| 69200183 | 2014 |
| 69200305 | 2014 |
| 73301-04 | 2004 |
| 72518-01 | 2001 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72130-04 | 2004 |
| 72199-94 | 1994 |
| 69200337 | 2014 |
| 72639-10 | 2010 |
| 72907-11 | 2011 |
| 692H2 - Terminal | |
| 72296-95 | 1995 |
| 72343-10 | 2010 |
| 69201240 | 2014 |
| 72256-11 | 2011 |
| 72910-11 | 2011 |
| 72364-06 | 2006 |
| 72227-11 | 2011 |
| 69200187 | 2014 |
| 69200186 | 2014 |
| 72272-07 | 2007 |
| 72356-95 | 1995 |
| 69200536 | 2014 |
| 72909-11 | 2011 |
| 5118 | 2011 |
| 72608-08 | 2008 |
| 69201168 | 2016 |
| 72213-94 | 1994 |
| 72484-08 | 2008 |
| 72493-07 | 2007 |
| 72226-11 | 2011 |
| 72308-97 | 1997 |
| 72344-10 | 2010 |
| 72721-07 | 2007 |
| 72290-94 | 1994 |
| 72427-00 | 2000 |
| 69201814 | 2019 |
| 72381-98 | 1998 |
| 72222-11 | 2011 |
| 72169-07 | 2007 |
| 72168-07 | 2007 |
| 69202102 | 2020 |
| 69201300 | 2017 |
| 69201591 | 2017 |
| 73307-10 | 2010 |
| 69201592 | 2017 |
| 69201596 | 2017 |
| 9937 | Unknown |
| 69201375 | 2016 |
| 72294-94 | 1994 |
| 72094-06 | 2006 |
| 72241-94A | 1994 |
| 69200307 | 2014 |
| 69200185 | 2014 |
| 69200238 | 2011 |
| 69200308 | 2014 |
| 69201385 | 2016 |
| 72666-12 | 2012 |
| 72991-01 | 2001 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 72283-09 | 2009 |
| 72569-08 | 2008 |
| 692K1 - Connector / Terminal Seal | |
| 69201412 | 2017 |
| 69201416 | 2017 |
| 69201404 | 2017 |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 73303-04 | 2004 |
| 72912-01BK | 2001 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 72604-01BK | 2001 |
| 69201442 | 2017 |
| 69201301 | 2017 |
| 69201379 | 2016 |
| 72154-94 | 1994 |
| 69201377 | 2016 |
| 74197-04 | 2004 |
| 69201392 | 2017 |
| 69201391 | 2017 |
| 72225-09 | 2009 |
| 72644-01 | 2001 |
| 692L1 - Wire Harness sub-component | |
| 74191-98 | 1998 |
| 72606-08 | 2008 |
| 73213-07 | 2007 |
| 72512-07BK | 2007 |
| 72488-07BK | 2007 |
| 75229-08 | 2008 |
| 74152-98 | 1998 |
| 72195-94 | 1994 |
| 72415-07GY | 2007 |
| 72099-06 | 2006 |
| 69200189 | 2014 |
| 69200188 | 2014 |
| 72175-07BK | 2007 |
| 72902-01BK | 2001 |
| 72473-07 | 2007 |
| 72491-07GY | 2007 |
| 73190-96 | 1996 |
| 72511-07BK | 2007 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 72177-07BK | 2007 |
| 10102 | Unknown |
| 73156-96BK | 1996 |
| 72499-07 | 2007 |
| 69200214 | 2014 |
| 72230-98 | 1998 |
| 72145-06 | 2006 |
| 69200205 | 2014 |
| 72557-07 | 2007 |
| 72486-08 | 2008 |
| 69200201 | 2014 |
| 72397-98 | 1998 |
| 74102-98BK | 1998 |
| 72167-07BK | 2007 |
| 72166-07BK | 2007 |
| 72720-07 | 2007 |
| 70494-08 | 2008 |
| 69200631 | 2014 |
| 69200630 | 2014 |
| 72589-09 | 2009 |
| 69201307 | 2017 |
| 70681-09 | 2009 |
| 72106-94BK | 1994 |
| 72053-92 | 1992 |
| 72405-98BK | 1998 |
| 72066-06A | 2006 |
| 72500-07ABK | 2007 |
| 73191-96 | 1996 |
| 72065-06A | 2006 |
| 72146-94 | 1994 |
| 72489-07GY | 2007 |
| 72190-94 | 1994 |
| 72010-05 | 2005 |
| 72096-06 | 2006 |
| 72609-08 | 2008 |
| 72188-07BK | 2007 |
| 72543-07BK | 2007 |
| 73305-04 | 2004 |
| 72607-08 | 2008 |
| 72544-07 | 2007 |
| 72209-11 | 2011 |
| 73102-96BK | 1996 |
| 72485-07 | 2007 |
| 72545-08 | 2008 |
| 72295-94 | 1994 |
| 72191-94 | 1994 |
| 70631-08 | 2008 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 74112-98BK | 1998 |
| 69201423 | 2017 |
| 73154-96BK | 1996 |
| 72414-07BK | 2007 |
| 72135-06 | 2006 |
| 72610-08 | 2008 |
| 72382-98BK | 1998 |
| 692M1 - Electrical Component / Wire Cover | |
| 69201286A | 2018 |
| 69201382 | 2016 |
| 69201374 | 2016 |
| 709A1 - Dash Panel | |
| 70900138 | 2014 |
| 70900392DH | 2014 |
| 70900392ELZ | 2020 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900773B | 2020 |
| 70900778B | 2020 |
| 70900777B | 2020 |
| 709B2 - Fuel Gauge | |
| 70900774 | 2018 |
| 709B5 - Volt Gauge | |
| 70900775 | 2018 |
| 709E1 - Tank Console | |
| 70900935 | 2020 |
| 70900932 | 2020 |
| 70900930 | 2020 |
| 70900953 | 2020 |
| 70900459 | 2015 |
| 70900934EHS | 2020 |
| 70900934ELZ | 2020 |
| 70900931EHS | 2020 |
| 70900931ELZ | 2020 |
| 714A1 - Ignition Switch | |
| 71400090B | 2017 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 71400033 | 2014 |
| 71400031 | 2014 |
| 71400037 | 2014 |
| 71400035 | 2014 |
| 71400036 | 2014 |
| 714C1 - Pressure Switch | |
| 71400112 | 2017 |
| 714D1 - Relay | |
| 71400100 | 2014 |
| 715A1 - Hand Control | |
| 71500227 | 2014 |
| 71500225 | 2014 |
| 71500226 | 2014 |
| 71500224 | 2014 |
| 71500342 | 2016 |
| 71500340 | 2016 |
| 71500341 | 2016 |
| 71500348 | 2016 |
| 71500344 | 2016 |
| 71500168 | 2014 |
| 71500169 | 2014 |
| 71500166 | 2014 |
| 71500167 | 2014 |
| 71500094 | 2014 |
| 71500529 | 2020 |
| 67493-08 | 2008 |
| 71500350 | 2016 |
| 71500533 | 2020 |
| 71500484 | 2019 |
| 71500485 | 2019 |
| 71500338 | 2016 |
| 71500339 | 2016 |
| 715Z1 - Kit,Hand Control | |
| 71500494 | 2018 |
| 747A1 - Voltage Regulator | |
| 74700025 | 2017 |
| 72350-11 | 2011 |
| 74700038 | 2017 |
| 74700039 | 2017 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76000789 | 2019 |
| 76000554 | 2015 |
| 760C1 - Audio System Amplifier | |
| 76000502A | 2018 |
| 76000277B | 2018 |
| 760C2 - Audio System Speaker | |
| 76000822 | 2020 |
| 76000820 | 2020 |
| 76000874 | 2020 |
| 76000873 | 2020 |
| 76000868 | 2020 |
| 76000869 | 2020 |
| 760C3 - Radio Receiver | |
| 76000783A | 2020 |
| 76000784A | 2020 |
| 76000785A | 2020 |
| 760C4 - Rider-Passenger Communication System | |
| 76000771 | 2018 |
| 760C6 - Media Storage Compartment | |
| 76000234 | 2014 |
| 76000409DH | 2014 |
| 76000107A | 2019 |
| 76000127 | 2014 |
| 76000561ELZ | 2020 |
| 760C8 - Satellite Radio | |
| 76000252 | 2014 |
| 760D1 - Infotainment Mount | |
| 76000282A | 2015 |
| 76000330 | 2014 |
| 76000923 | 2020 |
| 76000774 | 2018 |
| 760D2 - Infotainment Mount sub-component | |
| 76000945 | 2020 |
| 76000915 | 2020 |
| 76000916 | 2020 |
| 76000914 | 2020 |
| 760Z1 - Kit,Infotainment | |
| 76000838 | 2019 |
| 902A1 - Saddlebag | |
| 90201728 | 2018 |
| 90201744 | 2018 |
| 902E1 - Saddlebag Bottom | |
| 90200415 | 2014 |
| 90200519 | 2014 |
| 90200979 | 2014 |
| 90200980 | 2014 |
| 90200550 | 2014 |
| 90200549 | 2014 |
| 90200543 | 2014 |
| 90200467 | 2014 |
| 90200964 | 2014 |
| 90200963 | 2014 |
| 90200611 | 2014 |
| 90201378EMJ | 2020 |
| 90201378EMM | 2020 |
| 90201378EML | 2020 |
| 90201680EML | 2020 |
| 90201680EMM | 2020 |
| 90200893 | 2014 |
| 90201680EMJ | 2020 |
| 90200899 | 2014 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 75089-08 | 2008 |
| 902H3 - Saddlebag Support | |
| 90201754ELX | 2020 |
| 90201129ELV | 2020 |
| 90201754ELV | 2020 |
| 90201127ELV | 2020 |
| 90201129ELZ | 2020 |
| 90201127ELZ | 2020 |
| 90201754ELZ | 2020 |
| 90201129ELX | 2020 |
| 90201127ELX | 2020 |
| 902J1 - Saddlebag Latch | |
| 90200984ELX | 2020 |
| 90200983ELX | 2020 |
| 90200984ELV | 2020 |
| 90200983ELV | 2020 |
| 90200983ELZ | 2020 |
| 90200984ELZ | 2020 |
| 90200897A | 2018 |
| 90200896A | 2018 |
| 902Z1 - Kit,Saddlebag | |
| 90201142ELZ | 2020 |
| 90201143ELV | 2020 |
| 90201142ELX | 2020 |
| 90201143ELZ | 2020 |
| 90201142ELV | 2020 |
| 90201143ELX | 2020 |
| 90201540 | 2017 |
| 903A1 - Lockset | |
| 90300123 | 2017 |
| 90300122 | 2017 |
| 90300092 | 2014 |
| 90300135 | 2018 |
| 90300136 | 2018 |
| 903B1 - Key or Key-set | |
| 90300093 | 2014 |
| 903C1 - Key Transponder | |
| 90300107 | 2016 |
| 90300106 | 2016 |
| 917B1 - Service Program Kit | |
| 91700034 | 2014 |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800075 | 2019 |
| 91800058 | 2017 |
| 931A1 - Protective / Storage Cover | |
| 93100031 | 2013 |
| 933A1 - Soft Storage | |
| 91885-97A | 1997 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 940A2 - Owner's Manual | |
| 94000751 | 2020 |
| 94000634 | 2019 |
| 94000601 | 2019 |
| 99461-89 | 1989 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10080 | CLAMP | COOLANT DISTRIBUTION: |
| 10102 | CLIP | FENDER, REAR: CONSOLE, FUEL TANK: SADDLEBAGS (1 OF 2): |
| 1062 | SCREW | PRIMARY HOUSING: BRAKE LINES, REAR: |
| 11000101 | OIL SEAL | SHIFTER, GEAR (2 OF 2): TRANSMISSION BEARINGS AND COVERS: |
| 11105 | O-RING | TRANSMISSION HOUSING, COVER AND OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: TRANSMISSION BEARINGS AND COVERS: |
| 11143 | RETAINING RING | CLUTCH: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11150 | RETAINING RING | SHIFTER, GEAR (1 OF 2): |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER: |
| 11304 | RING | FOOTPEGS, PASSENGER: |
| 11900103 | O-RING | CAMSHAFT AND CAMSHAFT COVER: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS AND COVERS: |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 2445 | SCREW | FAIRING, INNER (1 OF 2): |
| 2563 | SCREW | INSTRUMENTS: FAIRING, INNER (1 OF 2): |
| 25700362 | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 25700370 | GASKET | CAMSHAFT AND CAMSHAFT COVER: |
| 25700378 | GASKET | PRIMARY HOUSING: |
| 25700425 | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 25700453 | GASKET | TRANSMISSION HOUSING, COVER AND OIL PAN: |
| 25700731 | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER: |
| 25700830 | GASKET KIT | PRIMARY HOUSING: |
| 27300087 | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 3050 | SCREW | ALTERNATOR AND REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SENSORS AND SWITCHES, ENGINE: SHIFTER, GEAR (1 OF 2): |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 3655A | SCREW | WHEEL, FRONT: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 36805-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 4132 | SCREW | CLUTCH CONTROL: BRAKE CONTROL, FRONT: |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE LINES, FRONT: BRAKE CONTROL, REAR: BRAKE LINES, REAR: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 4740A | SCREW | CAMSHAFT AND CAMSHAFT COVER: |
| 59768-97 | FENDER SEAT NUT KIT | FENDER, REAR: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 65324-83B | GASKET | EXHAUST SYSTEM (1 OF 2): |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM (1 OF 2): |
| 6702 | WASHER | FRAME AND JIFFY STAND: |
| 7041 | LOCKWASHER | FRAME AND JIFFY STAND: EXHAUST SYSTEM (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM (1 OF 2): |
| 7716 | LOCKNUT | FOOTBOARDS, RIDER: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR (1 OF 2): |
| 9955 | CLAMP | EXHAUST SYSTEM (1 OF 2): |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD AND PIN KIT | BRAKE CALIPER, REAR: |
| 41854-08 | PAD AND PIN KIT | BRAKE CALIPER, FRONT: |
| 46514-01A | OIL SEAL | FORK, FRONT: |
| 46615-06 | PACKING SEAL | FORK, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME AND JIFFY STAND: |
| 50245-07 | BUMPER | FRAME AND JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (9 OF 10): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400183 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400210 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 33600091 | SHAFT | SHIFTER, GEAR (2 OF 2): |
| 37000258 | CLUTCH DISKS KIT | CLUTCH: |
| 37909-90 | RING | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP: |
| 65900012 | CLAMP | EXHAUST SYSTEM (2 OF 2): |
| 65900015 | CLAMP | EXHAUST SYSTEM (2 OF 2): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 66373-06 | BATTERY | SWITCHES: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90300106 | KEY AND FOB ASSEMBLY | SWITCHES: LOOSE PARTS: |
