AIR CLEANER COVER MEDALLION KIT
J007122008-12-15
GENERAL
Kit Number
29748-00, 29749-00A, 29753-00, 29795-02, 29833-06,
29888-06, 29898-06, 29929-07, 29902-09
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Table 1. Models
Kits | Models |
|---|---|
29748-00 | 95 cubic inch cover medallion |
29749-00A | TC88 cover medallion |
29753-00 | Evolution cover medallion |
29795-02 | 103 cubic inch cover medallion |
29833-06 | Skull cover medallion |
29888-06 | 103 cubic inch cover medallion |
29898-06 | 110 cubic inch cover medallion |
29929-07 | 96 cubic inch cover medallion |
29902-09 | Dark Custom logo cover medallion |
INSTALLATION
NOTE
All kits except number 29795-02, 29833-06, 29888-06, 29898-06, and 29929-07 will need to install the medallion onto the insert. For Kits 29795-02, 29833-06, 29888-06 and 29902-09, skip to Step 4.
- See Figure 1. Clean mounting area on insert (2) thoroughly with rubbing alcohol and allow to dry.
- Remove backing from medallion (3).
- Carefully place medallion (3) in center of mounting area pressing firmly to activate adhesive.
- See Figure 1. Carefully press the insert (2) (with medallion installed) and O-ring (1) into the air cleaner cover as shown.
NOTE
The medallion will be secure upon contact. Adhesive cures completely in 24 hours.
SERVICE PARTS

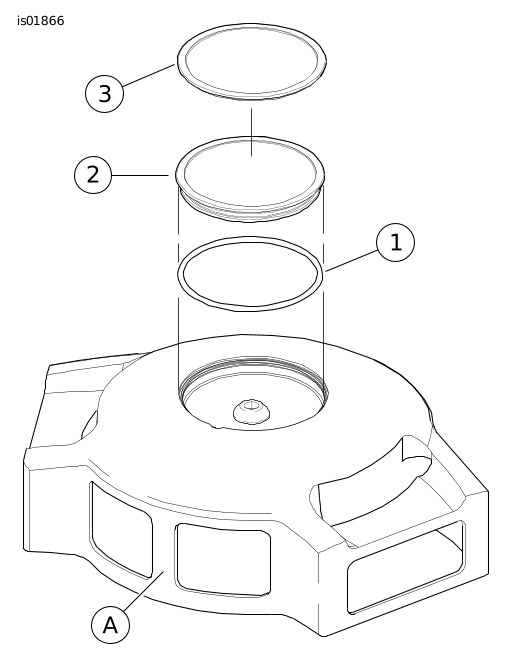

Figure 1. Service Parts: Air Cleaner Cover Medallion Kit
Table 2. Service Parts: Air Cleaner Cover Medallion Kit
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | O-ring | 27226-00 |
2 | Insert | Not Sold Separately |
3 | Medallion (all kits except 29795-02, 29833-06, 29888-06, 29898-06, 29929-07) | Not Sold Separately |
Items mentioned in text, but not included in kit. | ||
A | Part of Forged Billet Air Cleaner Cover Kit, sold separately | |
NOTE
For illustration purposes, a generic-styled insert and medallion are shown.
