SOFTAIL CUSTOM SEAT KITS
J000992007-02-06
GENERAL
Models
The kits in Table 1 fit 2000-2006 FLSTF models and 2000-2005 Softail models (except FXSTD, FLSTS, FLSTSC, and FLSTN).
The kits in Table 2 fit 2006 and later FLST, FLSTC, and FLSTSC models.
Kit Contents
Table 1. Kit Numbers and Grab Stap Usage
Kit Number | Grabstrap | Kit Number | Grabstrap | |
|---|---|---|---|---|
51080-02 | 51944-01 | 52458-02 | 51951-01 | |
51081-02 | 51944-01 | 52497-03 | 51944-01 | |
51082-02 | 51944-01 | 52642-04 | 51944-01 | |
51083-02 | 51944-01 | 52664-04 | 51944-01 | |
51285-02 | 51944-01 | 52665-04 | 51944-01 | |
51286-02 | 51944-01 | 52666-04 | 51944-01 | |
51287-02 | 51944-01 | 52671-04 | 51944-01 | |
51288-02 | 51944-01 | 52674-04 | 51944-01 | |
51662-05 | 51944-01 | 53367-02 | 51951-01 | |
51682-05 | 51944-01 | 53368-02 | 51944-01 | |
51683-05 | 51944-01 | 53403-02 | 51944-01 | |
52065-06 | 51944-01 | 54027-04 | 51944-01 | |
52068-06 | 51944-01 | 54028-04 | 51944-01 | |
52094-06 | 51944-01 | 54029-04 | 51944-01 | |
52119-06 | 51944-01 | 54030-04 | 51944-01 | |
52169-06 | 51944-01 | 54031-04 | 51944-01 | |
52173-06 | 51944-01 | 54032-04 | 51944-01 | |
52312-02 | 51951-01 | 54058-05 | 51944-01 | |
52440-03 | 51944-01 | 54059-05 | 51944-01 | |
52423-02 | 51951-01 | 54060-05 | 51944-01 | |
52436-02 | 51951-01 | 54061-05 | 51944-01 | |
52457-02 | 51951-01 |
Table 2. Kit Numbers and Grab Strap Usage
Kit Number | Grabstrap | Kit Number | Grabstrap | |
|---|---|---|---|---|
51396-07 | 51944-01 | 51695-06 | 51951-01 | |
51693-06 | 51944-01 | 51696-06 | 51944-01 | |
51694-06 | 51944-01 |
INSTALLATION
NOTE
When performing the following installation procedures, avoid scratching painted surfaces (fender, tank, etc.) with tools or metal seat tabs.
2000-2005 FL Softail Models
| 1. | Remove existing seat, grab strap, and pillion (if applicable) following the instructions in the Owner's Manual. | |
| 2. | See Figure 1. Install flange nuts (1) onto seat mounting studs on rear fender. | |
| 3. | Install grab strap (2) using washers (3), screws (4), and stock locknuts (A). Tighten to 25 ft-lbs (33.9 Nm). | |
| 4. | Slide rear of new seat (5) through grab strap. | |
| 5. | Fully engage front seat mounting tab on new seat into hole in frame. | |
| 6. | Fasten new seat (5) to rear fender using knurled knob (6) and neoprene washer (7). | |
 WARNINGAfter installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b) | ||
| 7. | Remove adhesive backing from emblem (8) and apply to center recess on knurled knob. Apply even pressure to emblem for one minute. |
2006-Later FX Softails (Except FXSTD) and 2007-Later FLSTF Models
| 1. | Remove existing seat, grab strap, and pillion (if applicable) following the instructions in the Owner's Manual. | |
| 2. | Install grab strap (9) using stock washers (B), screws (4), and stock locknuts (A). | |
| 3. | Slide rear of new seat (5) through grab strap. | |
| 4. | Hook front tab of seat into frame and secure seat bracket to fender with knurled knob (6) and neoprene washer (7) | |
| WARNING After installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b) | ||
| 5. | Remove adhesive backing from emblem (8) and apply to center recess on knurled knob. Apply even pressure to emblem for one minute. |
SERVICE PARTS

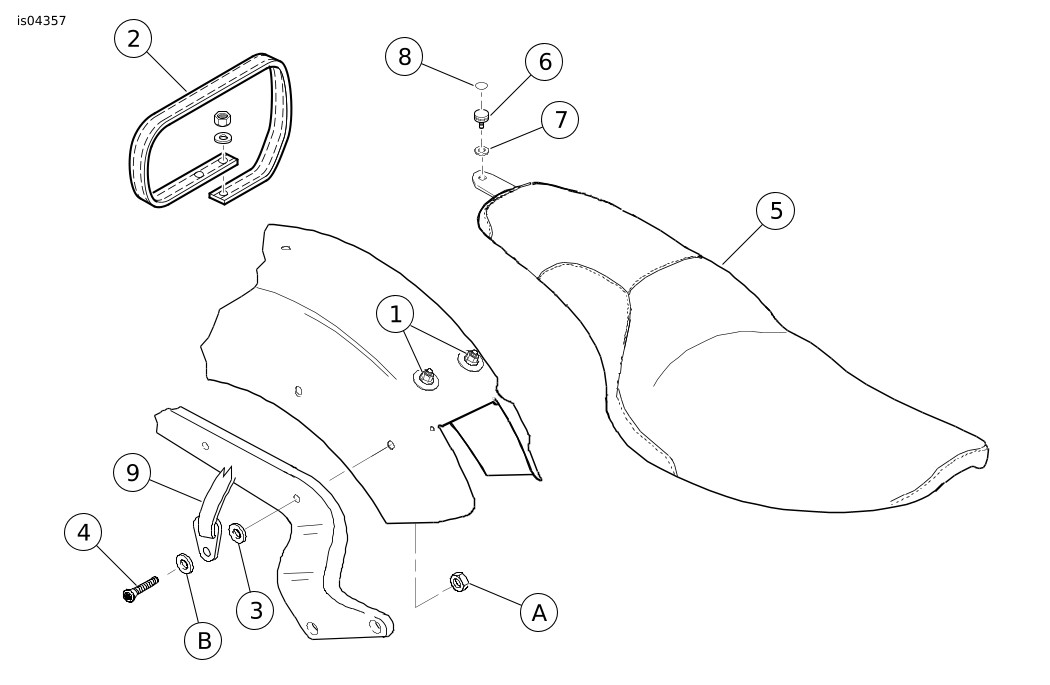

Figure 1. Service Parts: Softail Custom Seat Kits
Table 3. Service Parts Table
Item | Description (Quantity) | Part Number | Item | Description (Quantity) | Part Number | |
|---|---|---|---|---|---|---|
1 | Nut, flange (2) | 7499 | 8 | Emblem | 14628-96 | |
2 | Grab strap, FL models | See Tables 1 and 2 | 9 | Grab strap, FX models | See Tables 1 and 2 | |
3 | Washer, thick (2) | 6019 | 10 | Leather dressing (not shown) | Not Sold Separately | |
4 | Screw (2) | 4180 | Stock items mentioned in text, but not included in kit. | |||
5 | Seat (generic style seat shown) | Not Sold Separately | A | Locknut | ||
6 | Knurled knob | 3649 | B | Washer | ||
7 | Washer, neoprene | 6205 | ||||
