CHROME DYNA TRIPLE TREE
J025112007-10-26
GENERAL
Kit Number
45023-02
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
INSTALLATION
NOTE
The components in this kit install exactly as the OE (Original Equipment).
- Refer to the applicable Service Manual for steering head removal procedures.
- Refer to the applicable Service Manual for steering head installation procedures.
SERVICE PARTS

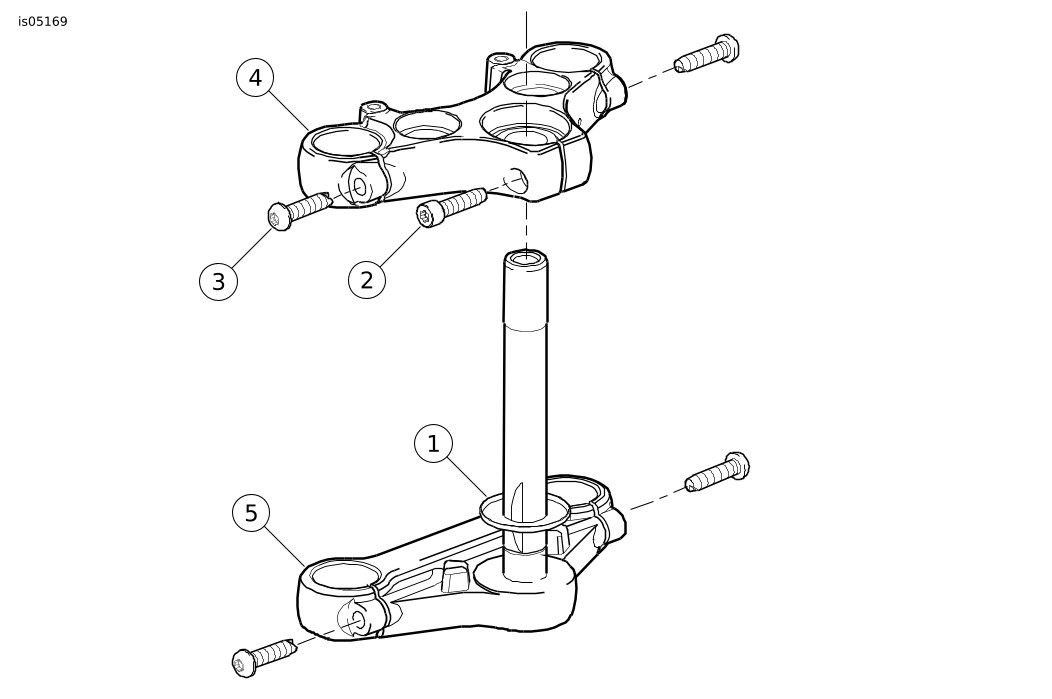

Figure 1. Service Parts: Dyna Chrome Steering Head
Table 1. Service Parts Table
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Steering head bearing dirt guard | 48365-48A |
2 | Socket head cap screw 0.38-16 x 1.5 in. | 4307 |
3 | Socket button head cap screw 0.38-16 x 1.5 in. | 4306 |
4 | Bracket, upper fork, chrome | 46183-99 |
5 | Lower triple clamp assembly, chrome | 45503-02 |
6 | Retaining ring (not shown) | 45611-86 |
