XL CHROME FORWARD CONTROL KIT
J028182011-12-12
GENERAL
Kit Number
33395-04, 33398-04
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
INSTALLATION
Remove Stock Shift Lever and Footrest Assembly

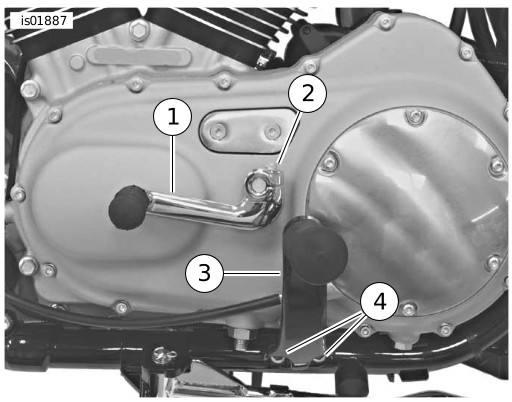

- See Figure 1. Loosen the shift lever retaining screw (2) securing the shift lever (1) to the shifter shaft. Slide the shift lever off the splined shaft. Remove shifter peg from lever and save for installation. Discard shift lever.
- Remove the two socket head screws (4) securing the footrest bracket (3) to the frame and remove footrest. Discard screws.
- See Figure 5. Obtain two hole plugs (1) from kit and firmly press plugs into frame screw holes remaining from footrest removal.
- See Figure 2. Remove the retaining ring (1) from the clevis to free the footrest clevis pin (4). Remove the clevis pin and footrest (3) from the footrest support. Save footrest for installation. Discard retaining ring, clevis pin, spring washer and footrest bracket.
| 1 | Shift lever |
| 2 | Retaining screw |
| 3 | Footrest bracket |
| 4 | Socket head screw |
Figure 1. Remove Shift Lever and Footrest
| 1 | Retaining ring |
| 2 | Spring washer |
| 3 | Footrest |
| 4 | Clevis pin |
| 5 | Footrest bracket |
Figure 2. Remove Left Footrest from Support
Remove Stock Brake Pedal and Footrest Assembly

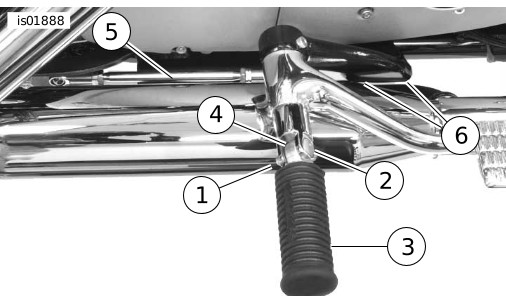

- See Figure 3. At the right footrest, remove the retaining ring (1) clevis pin (2), footrest (3) and spring washer (4). Discard all hardware but save footrest for installation.
- Remove brake rod (5) from brake pedal and master cylinder bell crank. Discard brake rod.
- Remove the two screws (6) and right footrest/brake pedal support bracket with attached brake assembly from frame. Discard footrest support bracket and entire brake pedal assembly.
| 1 | Retaining ring |
| 2 | Clevis pin |
| 3 | Footrest |
| 4 | Spring washer |
| 5 | Brake rod |
| 6 | Screw (2) |
Figure 3. Remove Footrest Support and Brake Pedal
Install Forward Control Brake Pedal and Footrest Assemblies
NOTE
It is easier to install the following components if the exhaust system is removed. Refer to the applicable Service Manual for removal/installation procedures.
| 1. | See Figure 6. At the lower front of the right frame downtube, remove the two screws securing the J-clip (B) to the frame. Discard the screws but save J-clip for installation. | |
| 2. | Obtain the new footrest/brake pedal support bracket (9), new brake pedal assembly (8), footrest mount clevis (11), screw (6) and footrest mount clevis retaining ring (18) from kit. NOTE Assemble the brake pedal and footpeg clevis onto the footrest support bracket (as described in the next step) prior to mounting the support bracket to the frame. This will allow easier installation of the footrest mount clevis retaining ring (installed to grooved end of footrest mount clevis). | |
| 3. | Slide the brake pedal (8) onto footrest mount clevis (11) then slide clevis into footrest/brake pedal support bracket (9). Align hole in the clevis with hole in the support bracket and install screw (7). Tighten the screw to 24.4–29.9 N·m (18–22 ft-lbs). | |
| 4. | Install the footrest mount clevis retaining ring (18) to the groove at the end of the footpeg clevis. | |
| 5. | Obtain the two new footrest/brake pedal support screws (3) from kit. | |
| 6. | Position the J-clip (from Step 1) against the frame aligning the mounting holes. Mount the footrest/brake pedal support bracket (9) and J-clip to frame using the new screws (3). Tighten the bracket to 61.1–67.9 N·m (45–50 ft-lbs). | |
| 7. | Obtain the brake rod (15) from kit and thread one end into the master cylinder bell crank. Tighten to 13.6–20.3 N·m (120–180 in-lbs). | |
| 8. | Thread the other end of the brake rod into the brake pedal assembly (8). Tighten to 9.5–16.3 N·m (84–144 in-lbs). | |
| 9. | See Figure 5 and Figure 6. Obtain the saved footpeg and obtain new spring washer (2), footpeg clevis pin (7) and footpeg clevis retaining ring (17) from kit. | |
| 10. | Install footpeg on clevis with spring washer (2). Make sure spring washer is positioned inside clevis (11) with the square edge toward the inside. Align holes and push clevis pin (7) from top down through hole in clevis. Secure clevis pin using the new retaining ring (17). |
Install Forward Control Shift Lever Assembly
| 1. | See Figure 5. Obtain shift link arm (13) and screw (6) from kit. Orient shift link arm pointing straight down and slide onto shift shaft (exiting engine sidecover). Install screw (6) and tighten to 11–18 N·m (8–13 ft-lbs). | |
| 2. | Mount footrest/shift pedal support bracket (10) to frame using screws (3). Tighten to 61.1–67.9 N·m (45–50 ft-lbs). | |
| 3. | Slide shift pedal (14) onto clevis (12). Mount clevis on footrest/shift pedal support bracket (10). Align hole in clevis with hole in support bracket and secure using screw (6). Tighten screw to 24.4–29.9 N·m (18–22 ft-lbs). | |
| 4. | Install retaining ring (18) to the relief at the end of the clevis (12) to further secure it in place. | |
| 5. | Thread screw (4) in far end of the shift rod (16) and into shifter arm (13). Tighten to 13.6–20.3 N·m (120–180 in-lbs). | |
| 6. | Thread screw (5) in opposite end of shift rod (16) into shift pedal (14). Tighten to 13.6–20.3 N·m (120–180 in-lbs). | |
| 7. | Install shifter peg into new shift lever. Tighten securely. | |
| 8. | Install footpeg on clevis (12) with spring washer (2). Make sure spring washer is positioned inside clevis with the square edge toward the inside. Align holes and push clevis pin (7) from top down through hole in clevis. Secure clevis pin using the new retaining ring (17). |
Adjusting Shift Pedal
If the gears do not engage fully or the toe shifter travel is incorrect, the shift linkage must be adjusted. See Figure 4. Adjust the shift rod until the shift pedal is at 45 degrees as described.
| 1. | Remove screw (1) securing the ball joint (2) to shift pedal (5). | |
| 2. | Turn ball joint or shift rod (4) to adjust rod length. Temporarily attach ball joint to shift pedal and check pedal angle. Make sure an equal number of threads are visible on both ends of shift rod. | |
| 3. | When pedal angle is at 45 degrees, install screw (1). Tighten to 13.6–20.3 N·m (120–180 in-lbs). | |
| 4. | Holding shift rod (4) so that it does not turn, tighten locknuts (3) on each end securely. |
| 1 | Screw (2) |
| 2 | Ball joint (2) |
| 3 | Locknut (2) |
| 4 | Shift rod |
| 5 | Shift pedal |
Figure 4. Adjusting Shift Pedal
SERVICE PARTS
Figure 5. Service Parts: Forward Control Left (Shift) Side
Figure 6. Service Parts: Forward Control Right (Brake) Side
Table 1. Service Parts Table
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Plug, hole (4) | 740 |
2 | Washer, footpeg spring (2) | 50912-72 |
3 | Screw, 3/8-16 x 1-1/4 inch (4) | 4748 |
4 | Screw, 5/16-18 x 7/8 inch | 4359 |
5 | Screw, hex button (lock) 5/16-18 x 1 inch | 4016 |
6 | Screw, hex socket 5/16-18 x 1-1/4 inch (3) | 3210A |
7 | Pin, footpeg clevis (2) | 45041-01A |
8 | Assembly, brake pedal, chrome | 42702-04 |
Assembly, brake pedal, polished | 42685-04 | |
9 | Bracket, right rider footpeg support, chrome | 42707-04 |
Bracket, right rider footpeg support, polished | 42652-04 | |
10 | Bracket, left rider footpeg support, chrome | 42706-04 |
Bracket, left rider footpeg support, polished | 42651-04 | |
11 | Clevis footpeg, right | 42566-04 |
12 | Clevis footpeg, left | 42541-04 |
13 | Lever, shift shaft arm | 34670-04 |
14 | Assembly, shift lever, chrome | 34650-04 |
Assembly, shift lever, polished | 34572-04 | |
15 | Assembly, brake rod | 34581-04 |
16 | Assembly, shift rod link | 34573-04 |
17 | Ring, footpeg clevis pin retaining (2) | 11304 |
18 | Ring, footrest mount clevis retaining (2) | 11390 |
Items mentioned in text, but not included in kit: | ||
A | Stock footrest | |
B | Stock J-clip | |
