"FLAMES" PRIMARY CHAIN INSPECTION COVER
J008942006-04-11
GENERAL
Kit Number
60584-98
Models
This kit fits 1980-1986 FXWG, 1993-2005 FXDWG and 1984-2006 Softail model motorcycles.
Additional Parts Required
NOTE
This kit requires a new inspection cover gasket. See the appropriate Parts Catalog or a Harley-Davidson dealer for information for your model motorcycle.
INSTALLATION
| 1. | Remove original equipment screws and primary chain inspection cover. NOTE When installing cover, use the two 2-1/2 inch long cover screws (3) in the top and rear holes on 1995 and later models only. For 1994 and earlier models, use the four 3/4 inch long cover screws (4). | |
| 2. | See Figure 1. Install new gasket, inspection cover (2), nylon washers (1), and screws (3,4) as shown. Tighten screws to 6–9 N·m (50–80 in-lbs). |
SERVICE PARTS

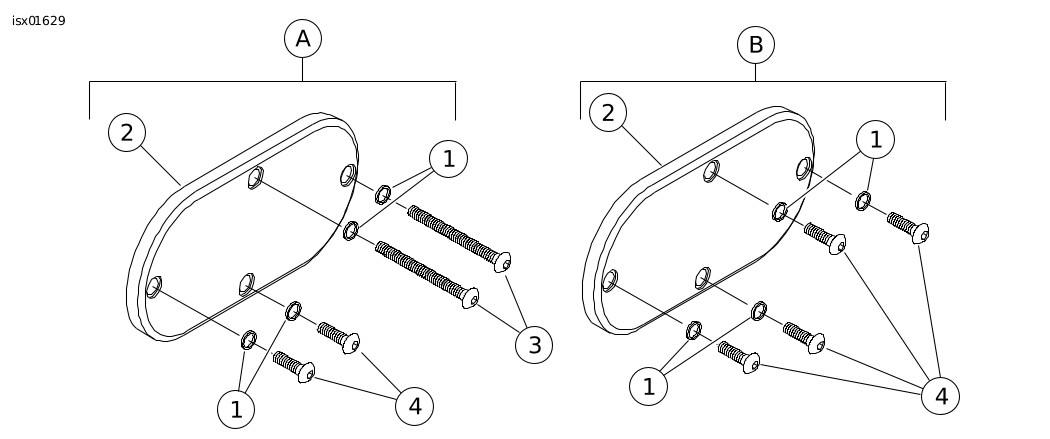

Figure 1. Service Parts: Primary Chain Inspection Cover
Table 1. Service Parts: Primary Chain Inspection Cover
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Nylon washer (4) | Not Sold Separately |
2 | Primary chain inspection cover | Not Sold Separately |
3 | Inspection cover screw, 1/4-20 x 2-1/2 inch (2) | 94456-94T (used on 1995 and later models) |
4 | Inspection cover screw, 1/4-20 x 3/4 inch (4) | 94386-92T |
Reference Only: | ||
A | Parts to be used on 1995 and later models. | |
B | Parts to be used on 1980 to 1994 models. | |
