PROFILE LOW REAR SUSPENSION KIT

J002772009-05-15

GENERAL

Kit Number

54588-94

Models

For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).

Additional Parts Required

WARNING

Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)

Snap-on Tool Co. adapter, part number SRES 24, is required to access shock absorber bolts. Whenever an adapter or extension is added to a torque wrench, bolt torque must be computed. A Torque Computer (part number SS-306G) is available from Snap-on Tool Co. The computer works with both dial or click-type torque wrenches.

LOCTITE^® 243 Threadlocker and Sealant - Blue is required for proper installation of this kit. LOCTITE can be purchased from any Harley-Davidson Dealer.

Anti-Seize Lubricant is required for proper installation of this kit. Anti-Seize Lubricant can be purchased from any Harley-Davidson Dealer.

Kit Contents

Table 1. Kit Contents

Quantity	Description	Part Number
2	Shock absorber	54591-94
1	Shock absorber adjustment wrench	94448-82B

NOTE

Rear shock absorbers on Softail models are not repairable. If a shock absorber becomes damaged, it must be replaced.

WARNING

Installation of any accessory suspension components can affect cornering clearance. This could distract the rider, causing loss of control and death or serious injury. (00431b)

REMOVAL

See Figure 1. Remove bolts and washers from each end of a shock absorber.
Keep all attachment hardware for installation of new shock absorber.

INSTALLATION

1.	See Figure 1. Place washer (6) on bolt (4 or 5) and coat bolt threads with LOCTITE 243 (blue). Coat shoulder of bolt with Anti-Seize.
2.	Insert bolt (4 or 5) through shock absorber (3 or 7) end. Pivot shock absorber to align front bolt (4) with tapped hole in frame bracket or rear bolt (5) with swing arm (2). Tighten bolt only enough to support the shock absorber and still allow shock to pivot when installing the second bolt.
3.	Tighten both bolts (4 and 5) to 156–176 N·m (115–130 ft-lbs).
4.	Repeat Steps 1 through 3 for the other shock absorber.
5.	Adjust both shock absorber springs equally (see Adjustment section).

ADJUSTMENT

NOTE

The initial shock absorber spring compression setting is at the minimum pre-load position.

Adjust shock absorber spring compression to the weight the motorcycle will usually carry.

1.	Make a mark on the adjuster plate of each shock with a grease pencil.
2.	Loosen the locknuts.
3.	Use the spanner wrench from the kit to rotate shock absorber adjuster plates to extend or compress shock absorber springs. Turning the adjuster plate OUT toward the locknut, increases spring pre-load and allows a heavier load. Turning the adjuster plate IN away from the locknut, decrease spring pre-load and allows a lighter load.
	WARNING Adjust both shock absorbers equally. Improper adjustment can adversely affect stability and handling, which could result in death or serious injury. (00036b)
4.	Both adjuster plates must be turned to the same position as determined by the marks.
5.	Tighten locknuts against the adjuster plates.

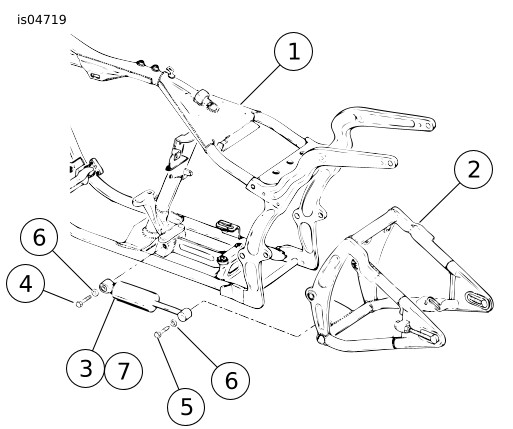

1	Frame
2	Swing arm
3	Shock absorber, left
4	Front bolt
5	Rear bolt
6	Washer
7	Shock absorber, right

Figure 1. Shock Absorber Installation
