Handlebar Cushion Grips
J002832013-11-01
GENERAL
Kit Numbers
56006-88C and 56512-88B
Models
For model fitment information, see the P&A retail catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
INSTALLATION
WARNINGDo not lubricate left handlebar grip before installation. Lubricating grip can cause it to come off while riding, which could result in loss of control and death or serious injury. (00315a)
| 1. | Remove existing left handlebar grip by carefully cutting it away from the handlebar using a sharp blade or knife. Remove end cap from left handgrip, if applicable. | |
| 2. | See the service manual.Remove right grip/throttle sleeve assembly. After removal, make sure that left and right handlebar ends are clean and smooth. NOTE Make sure surfaces to be glued are clean, dry and free from oil or new application may not adhere as desired. |  Figure 1. Aligning Left Grip With Air Valve Ends (56218-88B Only) |
| WARNING Read and follow warnings and directions on all products. Failure to follow warnings and directions can result in death or serious injury. (00470b) | ||
| 3. | 1988 and later models air valve on left handlebar. See Figure 1. On models with handlebar mounted air valve on left handlebar, hold grip next to handlebar to make sure edge of grip will line up with edge of air valve. Move switch housing if necessary. This will verify proper fitting of grip end cap. | |
| 4. | All Models: Liberally apply a coat of Harley-Davidson Adhesive, Part No. 99839-95, to the inside of left handlebar grip using the cotton swab. Make sure adhesive fully covers all inside surface area of the grip. Also, apply a coat of adhesive to the handlebar end and immediately push the new grip completely onto handlebar end. NOTE Do not hesitate when installing left grip or adhesive will dry before installation is complete. Allow 6-8 hours at 21.1 °C (70 °F) to achieve full cure of the adhesive. | |
| 5. | 1988 and later models air valve on left handlebar. Thread grip end cap onto valve. | |
| 6. | See the service manual. Assemble new throttle sleeve to handlebar. |
WARNINGBefore starting engine, be sure throttle control will snap back to idle position when released. A throttle control that prevents engine from automatically returning to idle can lead to loss of control, which could result in death or serious injury. (00390a)

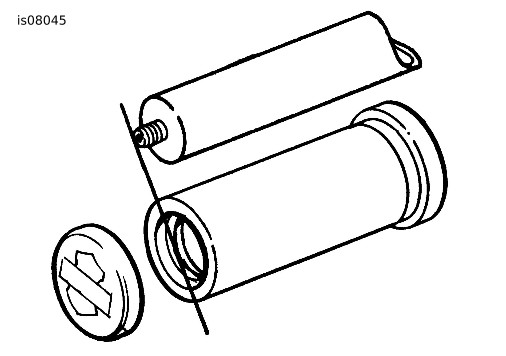

Figure 2. Service Parts
Table 1. Service Parts
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Grip, left Grip, left | 56008-88A 56006-88C 56214-88 56218-88B |
2 | Grip, end cap | 56212-88 |
3 | Grip assembly, right (throttle) Grip, right (throttle) | 56240-92B 56006-88C 56240-92A 56218-88B |
Not Shown | ||
Adhesive, 10 gram | 99839-95 | |
Swab, cotton, 6" long | 56009-95 | |
