REPLACEMENT INDUCTION MODULE
J035462009-01-29
GENERAL
Kit Number
27202-95A
Models
This kit is a direct replacement for the original equipment (OE) induction module on 1995-1997 FLT models with EFI (electronic fuel injection).
Service Manual Required
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet refers to service manual information. A service manual for this year/model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
Kit Contents
There are no service parts available with this kit.
INSTALLATION
Refer to the service manual for induction module removal and replacement procedures with the following exception:
- The cam assembly must be removed from the induction module currently on the vehicle and installed on the throttle shaft of the new induction module. See Figure 1 for the components to be retained.
| 1 | Induction module (reference) |
| 2 | Throttle shaft (reference) |
| 3 | Nut (reference) |
| 4 | Lock plate (reference) |
| 5 | Spacer |
| 6 | Idle speed lever |
| 7 | Spacer |
| 8 | Spring pin (reference) |
| 9 | Shaft lever |
| 10 | Cold idle set screw |
| 11 | Return spring |
| 12 | Lever retaining spring |
| 13 | Cam lever assembly |
| 14 | Spacer |

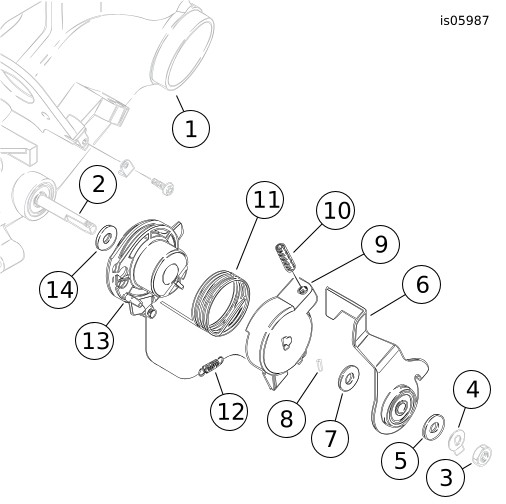

Figure 1. Cam Assembly Components
