QUICK-RELEASE SADDLEBAG BUCKLE SERVICE KIT
J032402005-12-06
GENERAL
Kit Number
90454-04
Models
This kit fits Saddlebag Kit 79300-04, 79300-06, and 88224-06
Kit Contents
Table 1. Kit Contents
Description (Quantity) | Part Number |
|---|---|
Buckle receptacle (1) | Not Sold Separately |
Backing plate (1) | Not Sold Separately |
There are no Service Parts available with this kit.
NOTE
Do not "test" assemble the two pieces of the kit before installing on the saddlebag. Disassembly will destroy the functionality of the parts.
INSTALLATION
Removing the Broken Buckle Receptacle
NOTE
The saddlebag should remain mounted on the motorcycle for this installation.
DO NOT attempt to pry off the existing receptacle from the outside of the saddlebag. Damage to the leather surface will occur.
- See Figure 1. From the inside of the saddlebag only, use a large, flat-bladed screwdriver at the top (location 1) to carefully pry the two upper ratchet pegs (5) on the existing backing plate (4) away from the buckle receptacle (3).
- Once the upper part of the backing plate has been pulled away from the saddlebag, insert the screwdriver under the side of the backing plate (location 2), and continue to pry the lower ratchet pegs out from the buckle receptacle. Remove and discard the old receptacle and backing plate.
NOTE
Ratchet pegs will break off or ratchet teeth will strip during the above step.
Installing the New Buckle Receptacle
- From the inside of the saddlebag, insert the four ratchet pegs on the new backing plate through the three holes in the saddlebag.
- From the outside of the saddlebag, line up the "D"- shaped holes on the back of the new buckle receptacle with the ratchet pegs protruding through the side of the saddlebag.
- Press the buckle receptacle and backing plate together. There will be a number of audible "clicks" as the ratchet teeth on each peg lock in to the receptacle. Continue pressing the two pieces together until the receptacle is solidly attached to the saddlebag.

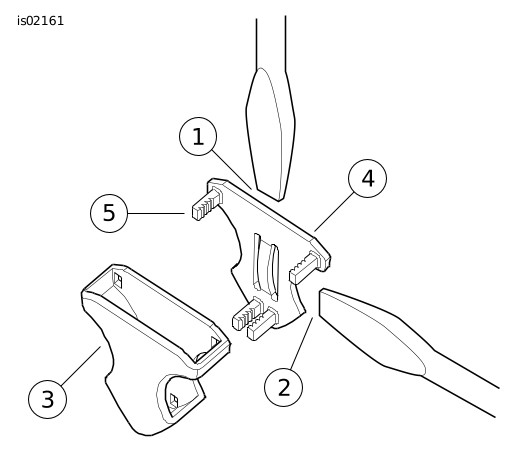

| 1 | Pry old buckle from this location first |
| 2 | After top is pulled apart, pry from here |
| 3 | Buckle receptacle |
| 4 | Backing plate |
| 5 | Ratchet pegs (4) |
Figure 1. Saddlebag Buckle Receptacle
