INTERNATIONAL MINI-BULLET STYLE LED TURN SIGNAL KITS
J038112007-11-02
GENERAL
Kit Number
69474-07, 69475-07, 69476-07, 68863-08
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
NOTE
These Mini-Bullet Style LED Turn Signals are intended for use on HDI model motorcycles only. They are not DOT approved for use on domestic Harley-Davidson model motorcycles.
Additional Parts Required
Proper installation of this kit also requires the installation of a Mounting Kit for International Mini-Bullet Style LED Turn Signals.
INSTALLATION
Refer to the Turn Signal Mounting Kit Instruction Sheet for your model motorcycle for instructions on how to install this kit.
SERVICE PARTS

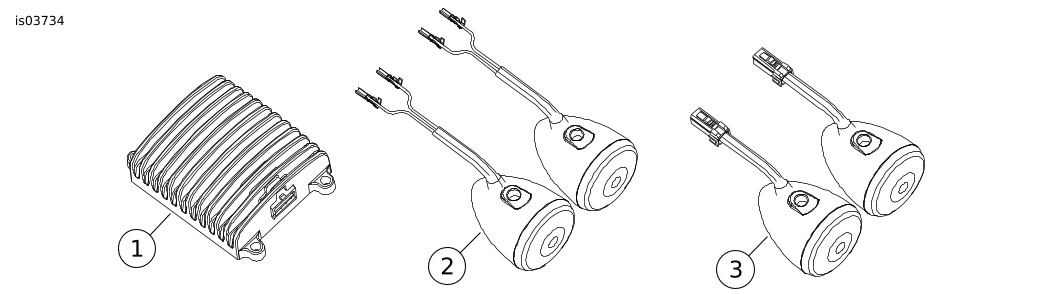

Figure 1. Service Parts for International Mini-Bullet Style LED Turn Signals
Table 1. Service Parts Table
Kit | Item | Description (Quantity) | Part Number |
|---|---|---|---|
Kit 69476-07 Kit, Chrome Body, LED Turn Signal, Clear Lens | 1 | Control module, LED turn signal | 69480-07 |
2 | LED turn signal, clear lens, rear (2) | 69507-07 | |
3 | LED turn signal, clear lens, front (2) | 69503-07 | |
Kit 69475-07 Kit, Chrome Body, LED Turn Signal, Smoked Lens | 1 | Control module, LED turn signal | 69480-07 |
2 | LED turn signal, smoked lens, rear (2) | 69505-07 | |
3 | LED turn signal, smoked lens, front (2) | 69502-07 | |
Kit 69474-07 Kit, Chrome Body, LED Turn Signal, Amber Lens | 1 | Control module, LED turn signal | 69480-07 |
2 | LED turn signal, amber lens, rear (2) | 69504-07 | |
3 | LED turn signal, amber lens, front (2) | 69499-07 | |
Kit 68863-08 Kit, Black Body, LED Turn Signal, Smoked Lens | 1 | Control module, LED turn signal | 69480-07 |
2 | LED turn signal, smoked lens, rear (2) | 68993-08 | |
3 | LED turn signal, smoked lens, front (2) | 68934-08 |
