Sportster Voltage Regulator Cover
J029322006-04-08
GENERAL
Kit Number
74609-04
Models
This kit fits 2004 to 2006 XL models.
INSTALLATION
  1. Remove regulator mounting screws and discard screws.
  2. See Figure 1. Reinstall regulator in original location with cover (1) using lockwasher (2), spacers (3) and screws (4). Tighten mounting screws to 10-12 in-lbs (1.1-1.4 Nm).
SERVICE PARTS

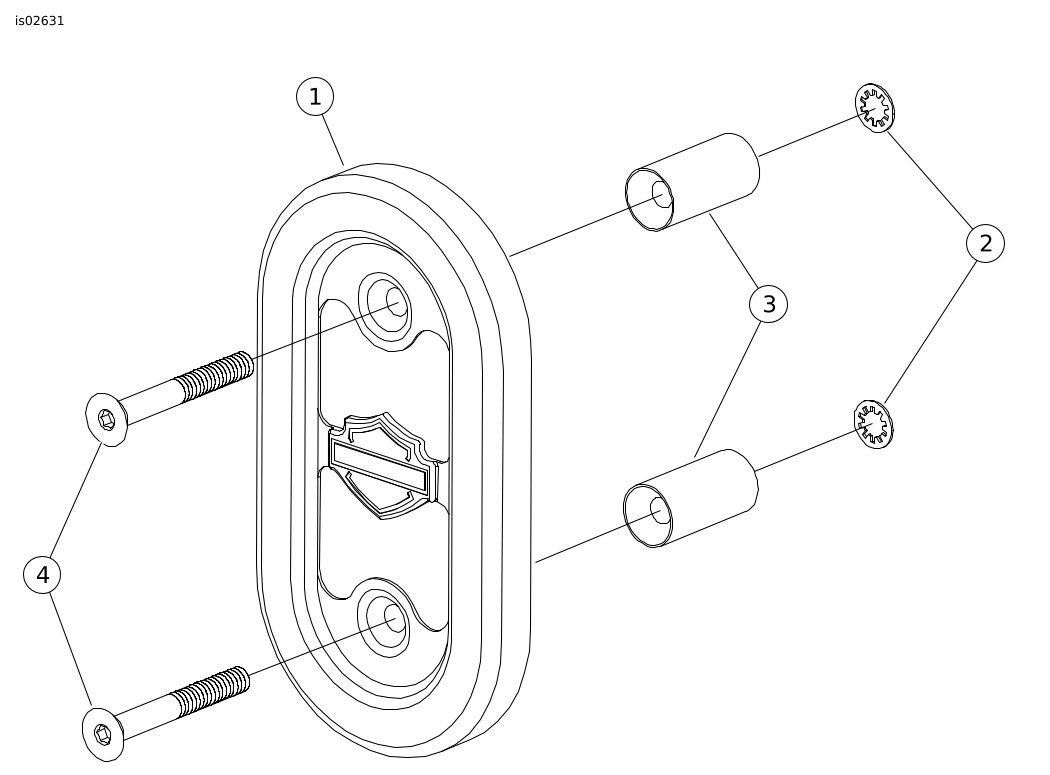

Figure 1. Service Parts: Sportster Voltage Regulator Cover
