MIRROR KIT
J006212003-03-19
GENERAL
Kit Number
91875-82A, 91875-88A, 91879-82A, 91892-82A, 91892-88A, 91894-82A, 91902-86A, 91902-88A, 91904-86A, 91904-88A, 91909-90A, 91910-90A
Models
These kits may be used on all model Harley- Davidson motorcycles.
Table 1. Mirror Kit Description
Kit
Stem Length
Mirror Surface
Mirror Finish
Right/Left Side
91875-82A
Short
Flat
Chrome
Right
91892-82A
Short
Flat
Chrome
Left
91875-88A
Short
Convex
Chrome
Right
91892-88A
Short
Convex
Chrome
Left
91904-86A
Long
Flat
Chrome
Right
91902-86A
Long
Flat
Chrome
Left
91904-88A
Long
Convex
Chrome
Right
91902-88A
Long
Convex
Chrome
Left
91909-90A
Long
Convex
Satin Black
Right
91910-90A
Long
Convex
Satin Black
Left
91879-82
Extra Long
Flat
Chrome
Right
91894-82
Extra Long
Flat
Chrome
Left
Kit Contents
See Figure 1 and Table 2.
NOTE
Three spacers (items 2, 3, and 4) are included with each kit; only one is necessary for mirror assembly. Choose the spacer that is best suited for each motorcycle application.
INSTALLATION
1. Remove the existing mirror, if present. Discard any lockwashers and acorn nuts used to mount the original mirror.
2. Install one spacer (Item 2, 3, or 4) onto the stem of the new mirror.
3. Insert the mirror stem into the existing hole in the handlebar control lever. Secure the mirror stem with the flat washer (5), lockwasher (6), and acorn nut (7).
NOTE
If the acorn nut does not fasten the mirror stem firmly, use the hex nut (8) as a jam nut.
4. Adjust the mirror for proper field of vision and tighten the acorn nut to 16 N·m (12 ft-lbs).
5. Stretch the mirror trim (9) around the outer perimeter of the mirror (1).
SERVICE PARTS

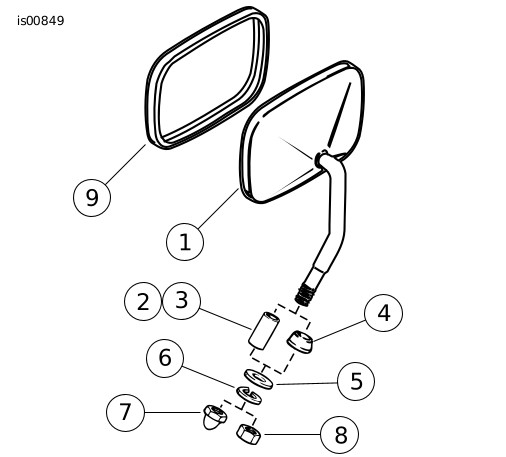

Figure 1. Mirror Assembly
Table 2. Service Parts: Mirror Assembly
Item
Description (Quantity)
Part Number
1
Mirror
Not Sold Separately
2
Spacer, 0.45 in. (Black)
47311-77
3
Spacer, 0.34 in. (Silver)
5978W
4
Spacer, beveled
5714
5
Flat washer, 11/16 in. O.D
6702
6
Lockwasher, 5/16 in.
7041
7
Acorn nut, 5/16-24
7736
8
Hex nut, 5/16-24
7744
9
Mirror trim
Not Sold Separately
