BOMBAY HANDLEBAR KIT
J032922006-07-28
GENERAL
Kit Number
55835-05A
Models
Ask a Harley-Davidson dealer or refer to the latest Harley-Davidson Genuine Motor Accessories and Genuine Motor Parts catalog to determine if this handlebar can be installed on your motorcycle.
This kit does not fit models equipped with Heated Hand Grips, Softail Nacelle Kit (Part Number 67907-96), Hydraulic Clutch Kits, handlebar mounted gauges or the Road Tech® Radio.
Additional Parts or Accessories Required
The integrated gauge housing accepts most 2-5/8 in. (66.7 mm) diameter Mini-Tach gauges, sold separately.
Separate purchase of additional parts or accessories may be required for proper installation of this handlebar kit on your model motorcycle. Refer to the latest Harley-Davidson Genuine Motor Accessories and Genuine Motor Parts catalog for a list of required parts or accessories for your model.
Loctite® 271 (Red) Threadlocker and Sealant (H-D Part Number 99671-97) is required for the proper installation of this kit.
Fresh, uncontaminated brake fluid will also be needed. Refer to your Owner's Manual or the Service Manual for this year and model motorcycle to determine the correct brake fluid for this vehicle.
WARNING
Replace brake line gaskets. Re-using original gaskets can cause brake failure and loss of vehicle control, which could result in death or serious injury. (00318a)
For models that re-use the original brake line, the two brake-line gaskets found at each banjo fitting must be replaced. Refer to the appropriate Parts Catalog or see a Harley-Davidson dealer for the correct part numbers.
Motorcycles equipped with a glued left-side hand grip will also require a new grip, sold separately. Refer to the Parts Catalog for replacement stock hand grips.
Ask a Harley-Davidson dealer about the selection of Genuine Motor Accessory hand grips that are available.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
See Figure 4 and Table 1.
INSTALLATION
Preparation
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, disconnect battery cables (negative (-) cable first) before proceeding. (00307a)
WARNING
Disconnect negative (-) battery cable first. If positive (+) cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion, which could result in death or serious injury. (00049a)
1. Refer to the Service Manual and follow the instructions to remove the seat and disconnect the battery cables, negative cable first. Retain all seat mounting hardware.
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
2. Loosen the fuel tank. Refer to FUEL TANK REMOVAL in the appropriate section (Carbureted or EFI Engine) of the Service Manual.
CAUTION
Direct contact of DOT 5 brake fluid with eyes can cause eye irritation, swelling, and redness. Avoid eye contact. In case of eye contact flush with large amounts of water and get medical attention. Swallowing large amounts of DOT 5 brake fluid can cause digestive discomfort. If swallowed, obtain medical attention. Use in well ventilated area. KEEP OUT OF REACH OF CHILDREN. (00144b)
WARNING
Contact with DOT 4 brake fluid can have serious health effects. Failure to wear proper skin and eye protection could result in death or serious injury.
  • If inhaled: Keep calm, remove to fresh air, seek medical attention.
  • If on skin: Remove contaminated clothing. Rinse skin immediately with plenty of water for 15-20 minutes. If irritation develops, seek medical attention.
  • If in eyes: Wash affected eyes for at least 15 minutes under running water with eye lids held open. If irritation develops, seek medical attention.
  • If swallowed: Rinse mouth and then drink plenty of water. Do not induce vomiting. Contact Poison Control. Immediate medical attention required.
  • See Safety Data Sheet (SDS) for more details available at sds.harley-davidson.com
(00240e)
NOTICE
DOT 4 brake fluid will damage painted and body panel surfaces it comes in contact with. Always use caution and protect surfaces from spills whenever brake work is performed. Failure to comply can result in cosmetic damage. (00239c)
  • If D.O.T. 4 brake fluid contacts painted surfaces, flush IMMEDIATELY with clear water.
1Caliper bleeder valve
Figure 1. Draining Brake Fluid
  1. Bleed the brake fluid from the front brake. See Figure 1. Open the bleeder nipple cap on the front brake caliper. Obtain a length of plastic tubing. Install one end of the tubing over the caliper bleeder valve. Place the free end of the tubing into a suitable container.
  2. Open the bleeder valve about one-half turn and pump the front-brake hand lever to drain the fluid out of the front brake system. Do not re-use brake fluid.
Original Handlebar Removal
NOTE
Cover the front fender and the front of the fuel tank with clean shop towels to prevent scratching. Damage to the finish could result.
NOTICE
Remove brake line components carefully. Damage to seating surfaces can cause leakage. (00320a)
1. Carefully make note of the front brake line routing and the orientation of the banjo fittings. Disconnect the brake line from the front brake caliper and the front brake master cylinder assembly. Save the banjo bolts, but discard the two brake-line gaskets found at each banjo fitting. See FRONT BRAKE MASTER CYLINDER in the Service Manual.
2. Remove the old brake line from the motorcycle.
NOTE
For models with handlebar-mounted turn signals, remove the plastic wiring retainer clips that secure the turn signal harnesses to the handlebar.
3. Using a T27 TORX® drive head, remove the front-brake master cylinder and clutch-lever assemblies from the handlebar.
4. Refer to CLUTCH HAND CONTROL: REMOVAL in the Service Manual, and follow the instructions to disconnect the clutch cable from the clutch lever. If the clutch cable is being replaced, disconnect the clutch cable from the side cover, and remove the cable from the vehicle.
NOTE
Molex connectors are used for the handlebar control wiring on 2007 and later models. 2006 and earlier vehicles use Deutsch connectors. Refer to the MOLEX ELECTRICAL CONNECTORS or DEUTSCH ELECTRICAL CONNECTORS section of the Service Manual for disconnection and re-connection procedures.
Before disconnecting the handlebar control wiring, note the wire routing.
5. Disconnect the handlebar control wiring from the gray and black 6-way main harness connectors under the fuel tank.
NOTE
Before disconnecting the turn signal wiring, note turn signal wire routing.
6. For vehicles with handlebar-mounted turn signals, separate the 6-way turn signal connector halves.
7. For vehicles with handlebar-mounted turn signals, install new front turn signal mounting brackets (sold separately) per the instructions in that kit.
8. Refer to HANDLEBAR SWITCHES: RIGHT HANDLEBAR CONTROLS section of the Service Manual for removal of the right-side switch housing assembly and harness. This is necessary to access the throttle cables.
9. Refer to the THROTTLE CONTROL section of the Service Manual to disconnect the throttle cables from the existing right grip/ throttle sleeve assembly.
10. Refer to the LEFT HANDLEBAR CONTROLS section of the Service Manual for removal of the left-side switch housing assembly and wire harness.
11. See Figure 2. Remove and discard the screws (1) that fasten the handlebar upper clamp or clamps (2) to the risers (3). Discard the clamps. Remove the handlebar (4) from the motorcycle.
12. If the left-side hand grip is not glued to the handlebar: Remove the hand grip and set it aside for installation to the new handlebar.
NOTE
Make note of the installed sequence of the riser attaching hardware to ensure correct re-assembly.
1Clamp screw (4)
2Clamp (2 on FXSTD, 1 on others)
3Handlebar riser (2)
4Handlebar
5Riser attaching screw (2)
Figure 2. Handlebar Clamps and Risers
13. Remove and discard the stock handlebar risers. Save the remaining hardware for later installation.
NOTE
2007 and later models use Molex connectors. 2006 and earlier vehicles use Deutsch connectors. Refer to MOLEX or DEUTSCH ELECTRICAL CONNECTORS in the Service Manual for terminal removal and re-installation procedures.
DO NOT remove the wires from the Molex or Deutsch handlebar switch connector pin housings under the fuel tank.
Models with handlebar-mounted turn signals: DO NOT remove the wires from the Multilock connector pin housing under the fuel tank.
14. Note the wire colors and positions in each cavity of the socket housings leading from the switches. Refer to the wiring diagram and the ELECTRICAL CONNECTORS section in the Service Manual. Remove the wires from the socket housings. Models with handlebar-mounted turn signals: Note the wire colors and positions in each cavity of the Multilock socket housing leading from the turn signals. Refer to the wiring diagram and the AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual. Remove the wires from the socket housing.
15. Use tape to wrap the wire terminal ends from each source to make separate leaders. Wrap each leader tight enough to enter the grommet hole and pass easily through the new handlebar.
New Handlebar Wiring
1. Remove the plastic wiring retainer clips that secured both switch harnesses to the original handlebar.
2. See Figure 4. Slide one large grommet (2) onto each of the switch-wire bundles, positioning the grommet close to the switch end.
3. For models WITHOUT handlebar-mounted turn signals, proceed to Step 8. For 2006 and later FXDB and FXDWG models, proceed to Step 4. For models WITH handlebar-mounted turn signals, EXCEPT 2006 and later FXDB and FXDWG models, slide one small grommet (3) onto each of the turn-signal wire bundles, positioning the grommet close to the turn signal end.
4. Apply a light coat of liquid soap, window cleaner, or all-purpose lubricant such as WD-40®, to the right-side turn signal wire bundle.
5. For 2006 and later FXDB and FXDWG models: Gently feed the right-side turn-signal wire leader into the small round grommet on the underside of the right-side lower switch housing. Repeat Steps 4 and 5 for the left-side turn signal wires, then proceed to Step 8. For all other models: Gently feed the right-side turn-signal wire leader into the small round grommet hole near the right-side end of the new handlebar and toward the center of the bar.
WARNING
Carefully pull the wires through hole in handlebar to prevent stripping the wires. Stripped wires can cause short circuits and damage vehicle electrical components, which could cause loss of vehicle control resulting in death or serious injury. (00418b)
6. Pull the taped end of the wire bundle through the wire-exit hole in the riser.
7. Repeat Steps 4 through 6 for the left-side turn signal wires, pulling the taped end of the wire bundle through the lower wire-exit hole in the riser.
8. Apply a light coat of liquid soap, window cleaner, or all-purpose lubricant to the right-side switch wire bundle.
1Upper switch housing screw
2Lower switch housing screw
3Pinch points
Figure 3. Switch-Housing Wire Routing (Right-Side Housing Shown)
WARNING
Wiring in the switch housings must be routed exactly as shown. Pinch points in the switch housings can short-circuit or sever wires, which could cause loss of control resulting in death or serious injury. (00415b)
9. See Figure 3. For 2006 and later FXDB and FXDWG models: Route the switch wire and turn signal wire bundles through the switch housing as shown. Gently feed the wire bundles into the oblong switch wire hole near the right-side end of the handlebar, and toward the center of the bar. For all other models: Route the switch wire bundle through the switch housing as shown. Gently feed the wire bundle into the oblong switch wire hole near the right-side end of the handlebar, and toward the center of the bar.
10. Pull the taped end of the wire bundle through the wire-exit hole at the center of the handlebar.
11. Repeat Steps 8 through 10 for the left-side handlebar switch wires, pulling the taped end of the wire bundle through the lower wire-exit hole in the riser.
WARNING
Grommets in each of the wiring holes in the handlebar must remain in position after routing the wiring through the handlebar. Operation without the grommets in place can damage wires, causing a short circuit which could result in death or serious injury. (00416d)
12. See Figure 4. Insert the switch-wire grommets (2) into place in the switch-wire holes in the handlebar.
NOTE
The round turn-signal wiring grommets are an extremely tight fit. Use a twisting motion to avoid damaging the grommets.
13. For models WITH handlebar-mounted turn signals, EXCEPT 2006 and later FXDB and FXDWG models,: Insert the turn-signal grommets (3) into place in the turn-signal wire holes in the handlebar.
14. Loosely fasten the brake-lever and clutch-lever clamps to the new handlebar.
15. Loosely fasten the handlebar-switch housings to the new handlebar.
16. Obtain the two larger pieces of heat shrink tubing (5) from the kit. Slide one piece of the tubing over the end of the wire bundle or bundles exiting each handlebar riser.
17. Remove the tape from the ends of the wire bundles.
18. Check for electrical continuity between the handlebar and each wire in the wire bundles. Continuity would indicate a short circuit, which would require examination of the wires and routing in the switch housing.
NOTE
The heat-shrink tubing on the wire bundles exiting the handlebar risers must be installed to protect the wires from damage and short circuits at the wire-exit holes in the risers.
WARNING
Wires exiting the bottom center of the handlebar must be protected from wear with heat-shrink tubing at the wire-exit hole on the handlebar. Failure to protect wires with shrink tubing can cause short-circuits or severed wires, which could cause loss of vehicle control resulting in death or serious injury. (00432c)
19. Position the heat-shrink tubing (installed on the wire bundles in Step 16) in the area of the wire-exit holes in the handlebar risers.
WARNING
Be sure to follow manufacturer's instructions when using the UltraTorch UT-100 or any other radiant heating device. Failure to follow manufacturer's instructions can cause a fire, which could result in death or serious injury. (00335a)
  • Avoid directing heat toward any fuel system component. Extreme heat can cause fuel ignition/ explosion resulting in death or serious injury.
  • Avoid directing heat toward any electrical system component other than the connectors on which heat shrink work is being performed.
  • Always keep hands away from tool tip area and heat shrink attachment.
  1. Use a heat gun or suitable radiant-heating device to shrink the heat-shrink tubing to the wire bundles.
New Handlebar Installation
1. Apply two drops of Loctite® 271 (Red) Threadlocker and Sealant to the threads of each riser bolt (saved earlier). Install the new handlebar onto the upper fork bracket using the saved hardware in the same sequence as removed. Tighten the riser bolts to 34–41 N·m (25–30 ft-lbs).
2. Route the switch wire bundles down through the large oval opening in the upper fork bracket.
3. Follow the routing noted in the disassembly steps (left switch wire bundle to left side of frame; right switch wire bundle to right side of frame) until the wires reach the switch-wire pin housings. Install any clips or wire guides saved in disassembly.
NOTE
Molex connectors are used for the handlebar control wiring on 2007 and later models. 2006 and earlier vehicles use Deutsch connectors. Refer to the MOLEX ELECTRICAL CONNECTORS or DEUTSCH ELECTRICAL CONNECTORS section of the Service Manual for re-connection procedures.
4. Refer to the notes made during the removal steps, and the wiring diagram and correct ELECTRICAL CONNECTORS section in the Service Manual. Insert each socket terminal from the left-side wire bundle into the correct cavity of the gray socket housing removed earlier.
5. Insert each socket terminal from the right-side wire bundle into the correct cavity of the black socket housing removed earlier.
6. Connect the gray socket housing to the gray 6-way pin housing under the left side of the fuel tank. Connect the black socket housing to the black 6-way pin housing under the right side of the tank.
7. For models with handlebar-mounted turn signals:
a. Route both turn signal wires down through the large oval opening in the center of the upper fork bracket.
b. Follow the routing noted earlier to the 6-way turn signal pin housing under the right side of the fuel tank.
c. Refer to the notes made during the removal steps, and the wiring diagram and AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual. Insert each socket terminal leading from the turn signals into the correct cavity of the Multilock socket housing removed earlier.
d. Install the clips and/ or wire guides saved earlier.
8. Connect the 6-way AMP socket housing to the main harness pin housing under the fuel tank.
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
9. Re-install the fuel tank. Refer to FUEL TANK-INSTALLATION in the appropriate section (Carbureted or EFI Engine) of the Service Manual.
NOTE
For FXDWG models only: Route the throttle cables between the upper fork tubes to the right of the headlight.
10. Refer to RIGHT HANDLEBAR SWITCH: INSTALLATION in the Service Manual, and follow the instructions given to install the throttle control cables and a new (purchased separately) or original right grip/ throttle sleeve assembly.
11. Adjust the position of the switch housing and the brake lever assembly on the handlebar for rider comfort and posture. The brake master cylinder must be horizontally level.
NOTE
Tighten the top brake lever clamp screw before tightening the bottom screw.
12. Use a T27 TORX drive head to tighten first the top, then the bottom brake-lever clamp screws to 8–9 N·m (71–80 in-lbs).
NOTE
Tighten the lower switch housing screw before tightening the upper screw. This will leave any gap in the switch housing at the front for best appearance.
13. Use a T25 TORX drive head to tighten first the lower, then the upper switch housing screws to 4–5.1 N·m (35–45 in-lbs).
14. Verify that the right grip/ throttle sleeve rotates and returns freely and does not bind on the handlebar or switch housing.
NOTE
If the handlebar grips are patterned, align the pattern on the left grip with the pattern on the right grip while the throttle is in the fully closed position.
15. Install a new (purchased separately) or original handlebar grip on the left end of the new handlebar according to the handlebar grip instruction sheet or the LEFT HAND GRIP, INSTALLATION instructions in the Service Manual.
16. Refer to LEFT HANDLEBAR SWITCH: INSTALLATION in the Service Manual. Adjust the positions of the switch housing and the clutch lever assembly on the handlebar for rider comfort and posture.
17. Use a T27 TORX drive head to tighten first the top, then the bottom clutch-lever clamp screws to 8–9 N·m (71–80 in-lbs).
18. Use a T25 TORX drive head to tighten first the lower, then the upper switch housing screws to 4–5.1 N·m (35–45 in-lbs).
19. See Figure 4. Attach the tachometer mounting bracket (7) to the handlebar tie bracket (A) with the chrome socket-head screws (11) from this kit.
20. Obtain a 2-5/8 in. Mini Tach Kit (sold separately). Insert the rubber isolator from the tach kit onto the tachometer mounting bracket.
21. Mount the tachometer to the tachometer mounting bracket.
22. Mount the tachometer to the tach cover (6) using the standoff (9) and chrome flat head screw (10) from this kit.
23. Mount the gasket (8) to the tach cover.
NOTE
Refer to the Warning in the New Handlebar Wiring section of these instructions. Use a heat gun or suitable radiant-heating device to shrink the heat-shrink tubing to the Mini Tach wiring in the area of the wire-exit hole in the handlebar riser.
24. Use the small diameter heat shrink tube (4) from this kit to protect the Mini Tach wiring, and follow the instructions provided in the Mini Tach Kit to make the electrical connections to the vehicle.
Final Assembly
WARNING
Replace brake line gaskets. Re-using original gaskets can cause brake failure and loss of vehicle control, which could result in death or serious injury. (00318a)
NOTICE
Avoid leakage. Be sure gaskets, banjo bolt(s), brake line and caliper bore are clean and undamaged before assembly. (00321a)
  1. Obtain a new Brake Line Kit (sold separately). Carefully inspect the new brake line for damage or defects, and replace the brake line if damaged. Install the brake line per the Service Manual instructions or the instructions included with the Brake Line Kit.
  2. Bleed the brakes. See BLEEDING HYDRAULIC BRAKES in the Service Manual.
    3. NOTE
    For FXDB and FXDWG only, install a clutch cable guide kit (sold separately) along with the clutch cable.
  3. Re-install the clutch cable to the clutch lever or install a new clutch cable (sold separately) per the CLUTCH HAND CONTROL instructions in the Service Manual.
SAFETY CHECK
WARNING
Be sure that steering is smooth and free without interference. Interference with steering could result in loss of vehicle control and death or serious injury. (00371a)
  • Be sure wires, clutch cables, throttle/ idle cables and brake lines do not pull tight when handlebars are turned fully to left or right fork stops.
WARNING
Connect positive (+) battery cable first. If positive (+) cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion, which could result in death or serious injury. (00068a)
1. Verify that the Ignition/ Light Key Switch is turned to the OFF position. Apply a light coat of petroleum jelly or corrosion retardant material to the battery terminals. Refer to the Service Manual and follow the instructions given to re-attach the battery cables (positive cable first).
WARNING
Be sure that all lights and switches operate properly before operating motorcycle. Low visibility of rider can result in death or serious injury. (00316a)
2. Turn the Ignition/ Light Key Switch to IGNITION, but do not start the motorcycle. Test each handlebar switch for proper operation.
3. For 2005 and earlier FXDWG models:
WARNING
Be sure plug in lower forward section of rear fender is installed. Operation without plug installed could allow tire contact with wiring harness. Tire contact with wiring harness can cause wire damage, which could result in death or serious injury. (00456b)
  • Inspect the lower forward section of the fender inside the rear wheel well. A three-inch (76 mm) square hole in the fender should be covered with a rubber plug.
  • If the plug is damaged, loose or missing, it MUST be replaced (Part Number 59150-90, available from a Harley-Davidson dealer). Without this plug in place, the wire harness could come out of the opening and contact the rear tire, causing rear lighting failure or other serious electrical problems.
  1. For ALL models: Turn the handlebar to the left and right steering stops, testing the handlebar control functions at each stop.
  2. Apply the front brake hand lever to test operation of the brake lamp.
  3. Refer to the Service Manual, and follow instructions to install the seat.
WARNING
After installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b)
WARNING
Before starting engine, be sure throttle control will snap back to idle position when released. A throttle control that prevents engine from automatically returning to idle can lead to loss of control, which could result in death or serious injury. (00390a)
WARNING
After repairing the brake system, test brakes at low speed. If brakes are not operating properly, testing at high speeds can cause loss of control, which could result in death or serious injury. (00289a)
SERVICE PARTS

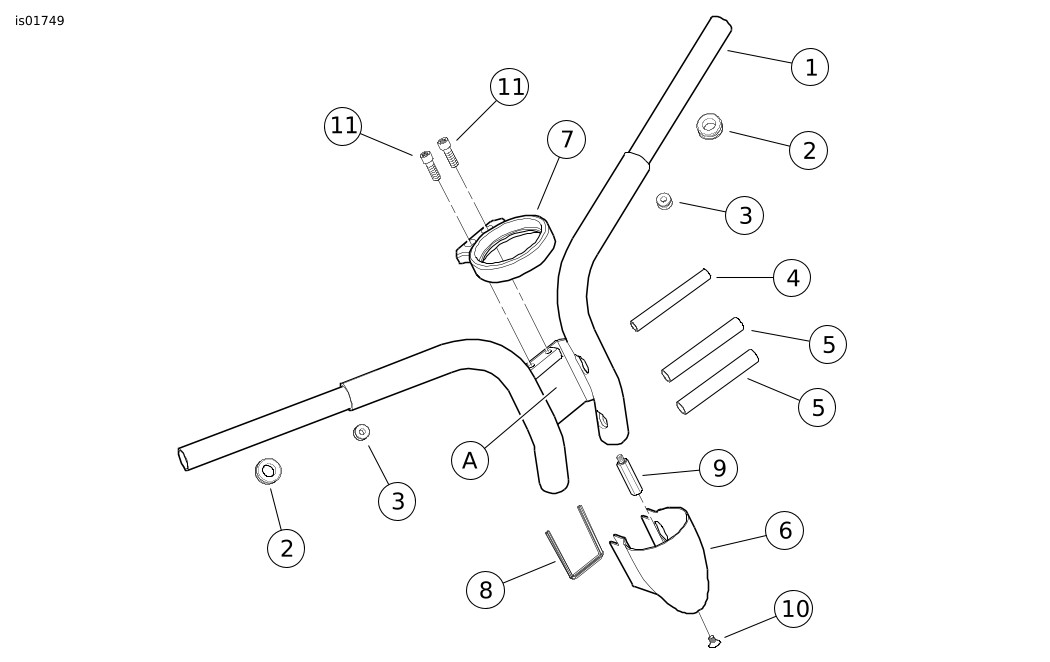

Figure 4. Service Parts
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
1
Handlebar, Bombay (with integrated gauge mount)
Not sold separately
2
Handlebar grommet, large (2)
11386
3
Handlebar grommet, small (2)
11398
4
Tubing, heat shrink, 0.38 in. (9.5 mm) ID
72165-02
5
Tubing, heat shrink, 0.50 in. (12.7 mm) ID (2)
72162-02
6
Cover, integrated handlebar gauge
Not sold separately
7
Bracket, gauge mounting
Not sold separately
8
Gasket, gauge cover
Not sold separately
9
Standoff, threaded
Not sold separately
10
Screw, hex socket, flat head, chrome
67956-96
11
Screw, T45 TORX head, chrome (2)
94581-98
Item mentioned in text:
A
Handlebar tie bracket
