BILLET CLUTCH CABLE CLIP KIT
J027252011-10-28
GENERAL
Kit Number
91360-03, 10800037
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
Loctite® 243 Threadlocker and Sealant - Blue (99642-97) is available from a Harley-Davidson dealer.
Kit Contents
See Figure 2 and Table 1.
INSTALLATION
NOTE
The clutch cable clamp base plate, (item #3) should only be installed with the vehicle is equipped with an engine guard as in Figure 2.
Procedure for Models without Engine Guard installed:
The items from the kit replace the original equipment clutch cable clamp and capscrew located on the left frame downtube.
  1. Remove and discard the existing self tapping capscrew and clutch cable clamp that is clamping the clutch cable to the left frame downtube.
  2. See Figure 2. Apply one drop of Loctite 243 (Blue) to the threads of the new capscrew (2). Install the clutch hose clip (1) and capscrew (2), securing the clutch cable to the frame downtube horizontal mounting bracket.
  3. Tighten screw to 12-24 in-lbs (2.3-2.5 Nm).
Procedure for Models with Engine Guard installed:
If installing Clutch Cable Adjuster Dust Cover (64108-03) with the base plate clip, follow this procedure.
  1. See Figure 2. Apply one drop of Loctite 243 (Blue) to the threads of the new capscrew (2). Install the clutch hose clip (1), clutch cable clamp base plate (3) and capscrew (2), securing the clutch cable to the frame downtube horizontal mounting bracket, rotating the clamp 180 degrees to allow for clearance from the engine guard..
  2. Tighten screw to 12-24 in-lbs (2.3-2.5 Nm).
1Clutch hose cable clamp (only)
2Button head screw
Figure 1. Installation of Clutch Cable Clip

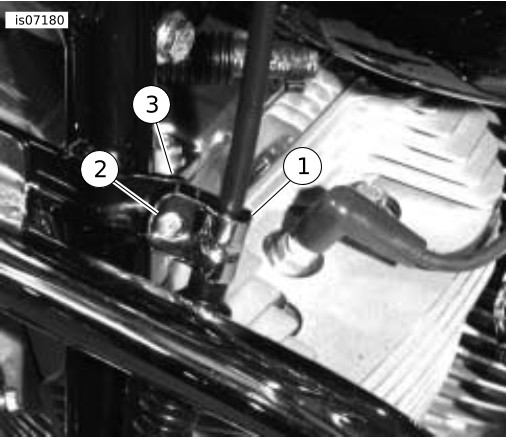

1Clutch hose cable clip assembly (Rotated 180 degrees)
2Button head screw
3Base plate
Figure 2. Installation of Clutch Cable Clip Assembly with Engine Guard
Table 1. Service Parts Table
Kit
Item
Description (Quantity)
Part Number
91360-03
1
Clamp, clutch cable
38718-04
2
Capscrew, hex socket button head
94378-92T
3
Base plate, clutch cable
Not Sold Separately
10800037
1
Clamp, clutch cable
Not Sold Separately
2
Capscrew, hex socket button head
94378-92T
3
Base plate, clutch cable
Not Sold Separately
