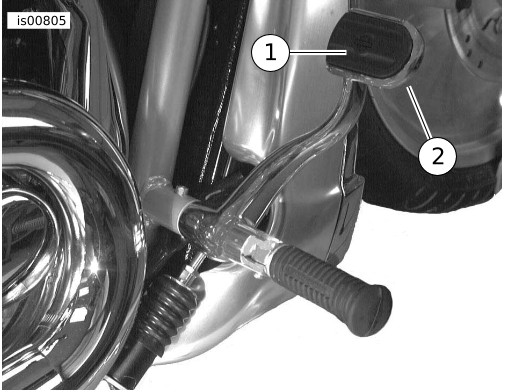

1. | See Figure 1. Remove nut securing brake pedal pad (1) to brake lever (2). Retain nut for future use. |
Figure 1. Brake Lever Pad Removal | ||||||

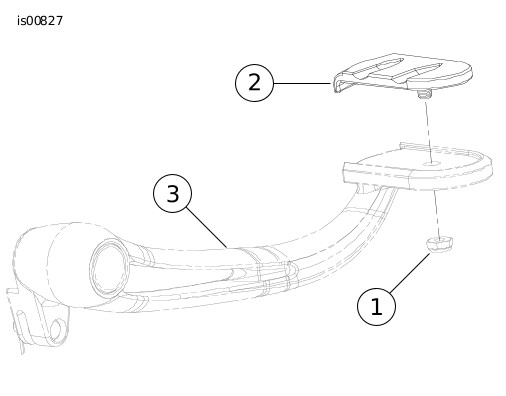

2. | See Figure 2. From the kit, install the new brake lever pad (2) onto brake lever (3) and install nut (1) saved from step 1. Tighten nut securely. |
Figure 2. Brake Pedal Tread |
