1. | Refer to your Owner's Manual and follow the instructions given to do the following: a. Disarm the security system. b. Remove the left-side cover. c. Disconnect the Maxi-Fuse. d. Disconnect the battery cables (negative cable first). e. Remove the battery from the vehicle. | |||||||||
2. | See Figure 1. Locate the siren connector (2) on the main harness, behind the harness shield forward of the battery location. It is covered by a dust cap. Pull the dust cap from the connector, and feed the connector downward and out from behind the shield. |
Figure 1. Connect the Siren Harness to the Vehicle Harness | ||||||||
3. | Obtain the correct siren harness (3) for your model year vehicle from the kit. Route the three-pin connector (1) of the siren harness from the bottom of the motorcycle, between the primary cover and frame tube. Plug the connector into the siren harness connector (2) on the vehicle main harness. | |||||||||
4. | Secure the connectors to the diagnostic harness using a cable strap from the kit. NOTE Route the siren harness away from moving parts, sharp edges, hot areas and out of sight as much as possible. |
Figure 2. Assemble the Siren and Bracket | ||||||||

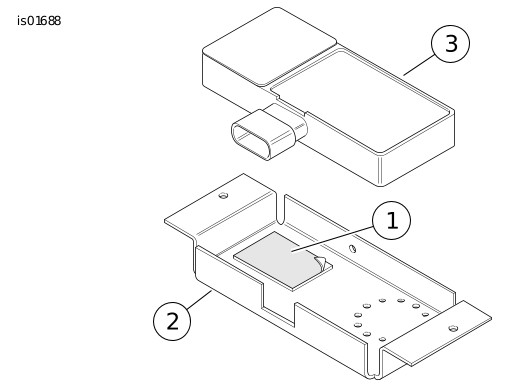

5. | See Figure 2. Apply the double-sided foam tape (1) to the siren bracket (2) in the area shown. | |||||||||
6. | Remove the paper backing from the tape, and install the siren (3) with the sounder disc aligning with the holes in the bracket. Press the siren into the bracket until the siren is fully seated. | |||||||||

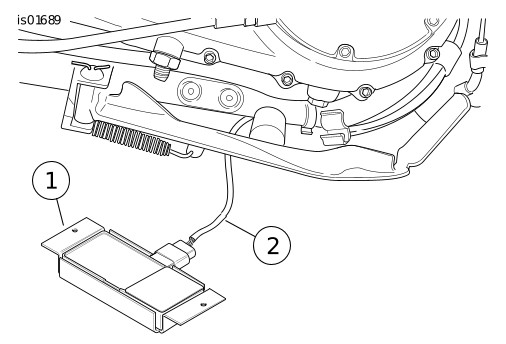

7. | See Figure 3. Connect the long lead of the siren harness (2) to the siren (1). |
Figure 3. Connect the Siren to the Harness | ||||||||

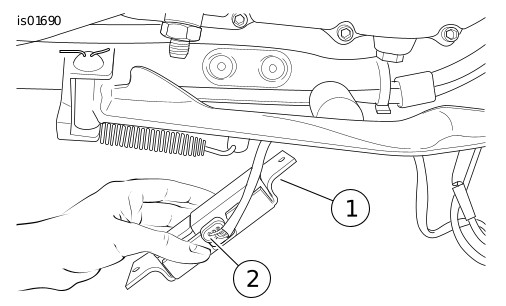

8. | See Figure 4. Position the siren and bracket assembly (1) so that the connector (2) is facing toward the left side of the motorcycle. Insert the rear of the assembly over the rear frame crossmember, and slide the assembly to the rear until the front of the bracket clears the front crossmember. Swing the front of the bracket up so that the bracket flange is above the front crossmember. Slide the bracket forward and allow the bracket flanges to rest on the crossmembers. NOTE Keep the siren harness away from moving parts, sharp edges, and hot areas, and out of sight as much as possible. | |||||||||
9. | Push the harness into the opening, and secure the harness to the frame using cable straps from the kit. |
Figure 4. Install the Siren and Bracket Assembly
Figure 5. Secure the Siren and Bracket to the Frame | ||||||||

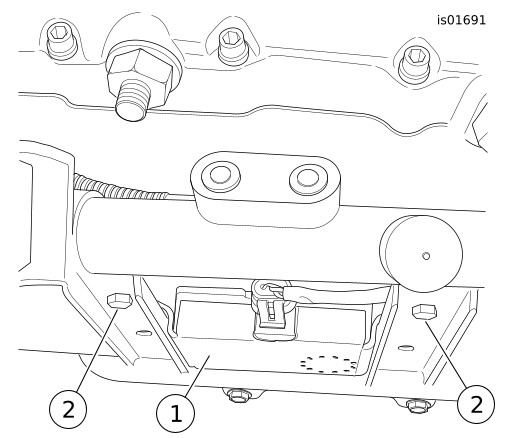

10. | See Figure 5. Align the siren bracket mounting holes with the rightmost set of holes in the frame crossmembers. Secure the bracket using the two hex head cap screws and lock nuts from the kit. | |||||||||
![]() Connect positive (+) battery cable first. If positive (+) cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion, which could result in death or serious injury. (00068a) NOTICE Do not over-tighten bolts on battery terminals. Use recommended torque values. Over-tightening battery terminal bolts could result in damage to battery terminals. (00216a) | ||||||||||
11. | Refer to your Owner's Manual and follow the instructions given to do the following: a. Re-install the battery into the vehicle. b. Connect the battery cables (positive cable first). c. Re-connect the Maxi-Fuse. d. Re-install the left-side cover. |

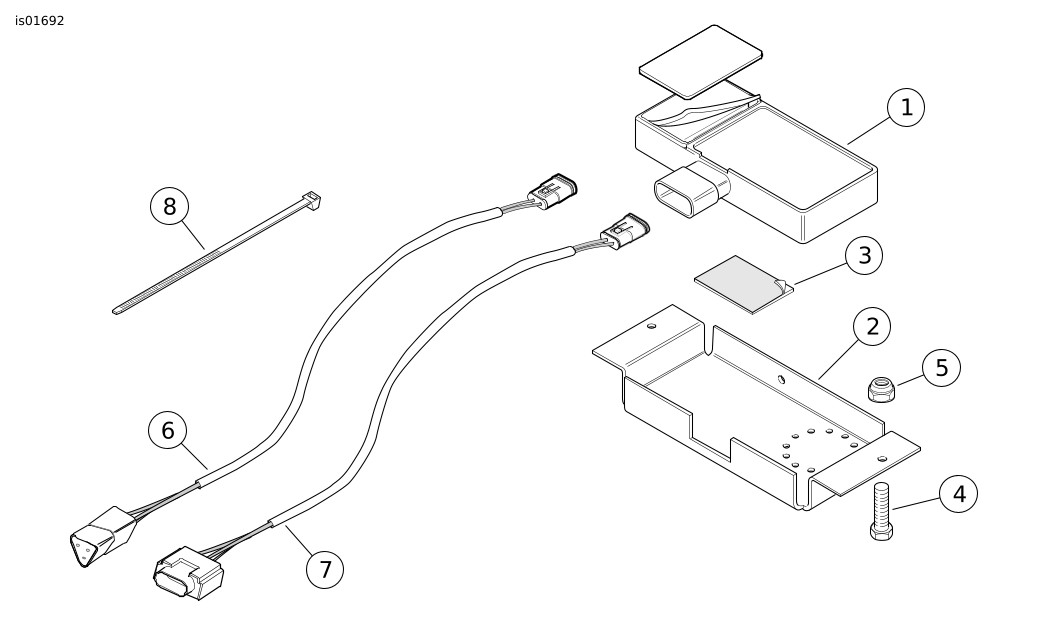

Item | Description (Quantity) | Part Number |
---|---|---|
1 | Smart Siren, security system | 68958-00 |
2 | Siren bracket | 70474-04 |
3 | Foam tape | 66013-01 |
4 | Cap screw, hex head, 5/16-18 x 3/4 in (2) | 3987 |
5 | Lock nut, hex, 5/16-18, with Nylon insert (2) | 94028-92T |
6 | Harness, siren (2004 and 2005 models) | 91702-04 |
7 | Harness, siren (2006 and later models) | 91734-06 |
8 | Cable tie (7) | 10140 |
