Chrome Front Wheel Hub Plate
J038952005-08-18
GENERAL
Kit Number
41513-05, 41514-05, 41517-05
Models
See the enclosed table for fitment information.
Table 1. Models
Kits
Models
Kit 41513-05
Fits 2000-2005 FXD, FXDL, FXDC, and 2000 and later XL883, XL883L models with original equipment front wheel.
Kit 41514-05
Fits 2000 and later FLSTF/I and 2006 FXDCI, FXDLI, FXDI35, FXDBI models with original equipment front wheel. This kit also fits models equipped with accessory front wheel kit part numbers 41322-05, 41271-03, 41022-00, 41031-00, and 41043-00.
Kit 41517-05
Fits the following Accessory Wheel Kits:
Chrome Thunderstar, Part Numbers
43978-00A, 43977-00, 43975-00, 44323-04
Black Thunderstar, Part Numbers
43771-00A, 43772-00, 43773-00, 44322-04
Chrome Lightningstar, Part Numbers
43732-00, 43733-00, 43805-00, 43734-00, 43765-04, 43940-04
Chrome Slotted Six-Spoke
43918-02, 43922-02, 43924-02, 43926-02, 44055-04, 44058-04
Black Slotted Six-Spoke, Part Numbers
43919-02, 43923-02, 43925-02, 43927-02, 44056-04, 44057-04
Chrome Nine-Spoke, Part Number
43496-04
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
See Figure 1 and Table 2.
INSTALLATION
  1. Remove front wheel according to applicable Service Manual instructions.
    2. NOTE
    See Service Parts illustration. The hub cap gasket (3) is pre-installed to the hub cap. Shown separately for service clarity.
  2. See Service Parts illustration. Install hub cap plate (1), and pan head torx screws (2) from kit. Tighten screws to 16-24 ft-lbs (22-33 Nm).
  3. Reinstall front wheel according to applicable Service Manual instructions.
SERVICE PARTS
See Figure 1 and Table 2.

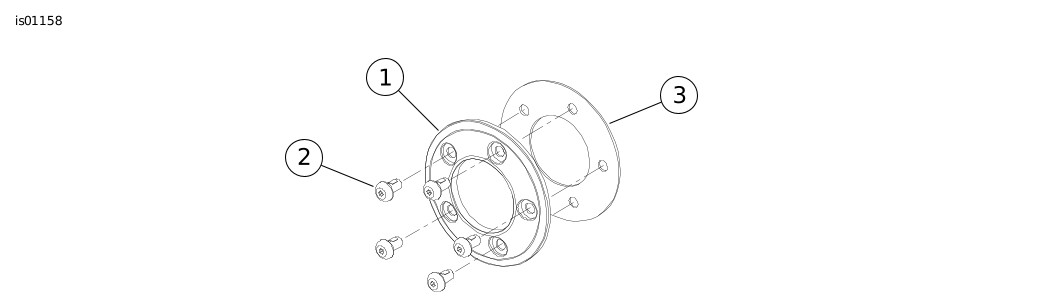

Figure 1. Service Parts: Front Wheel Hub Plate Kits
Table 2. Service Parts Table
Kit
Item
Description (Quantity)
Part Number
Kit 41517-05
1
Hub plate, front, wheel
Not sold separately
2
Screw, pan head, Torx (5)
4571
3
Gasket, hub cap
Not sold separately
Kit 41514-05
1
Hub plate, front, wheel
Not sold separately
2
Screw, pan head, Torx (5)
4571
Kit 41513-05
1
Hub plate, front, wheel
Not sold separately
2
Screw, pan head, Torx (5)
4571
