CHROME FLAMES TURN SIGNAL KIT
J039962007-01-25
GENERAL
Kit Number
69844-08, 69845-08, 69945-08, 69960-08
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
The housings for these turn signals are designed for side mounting only. If the front turn signals on your vehicle mount from the top, they will require relocation to accommodate this installation.
Several different kits are available for side mounting of the front turn signals. Please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only) for the Relocation Kit or kits that fit your year and model motorcycle.
Separate purchase of additional parts or accessories may also be required for proper installation of this Turn Signal Kit on your model motorcycle. Please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only) for a list of required parts or accessories for your model.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
See Figure 1 and Table 1.
INSTALLATION
Preparation
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
NOTE
For EFI models, see FUEL TANK REMOVAL in the Service Manual. Follow the steps to purge the fuel line of high pressure gasoline, and disconnect the fuel line.
Models WITH maxi-fuse:
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse before proceeding. (00251b)
  1. Refer to the Service Manual and follow the instructions given to remove the maxi-fuse.
Models WITHOUT maxi-fuse:
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, disconnect negative (-) battery cable before proceeding. (00048a)
1. Refer to the Service Manual and follow the instructions given to remove the seat and disconnect the negative (black) battery cable from the negative (-) battery terminal. Retain all seat mounting hardware.
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
2. ALL models except VRSC: Loosen the fuel tank. Refer to FUEL TANK REMOVAL in the appropriate section (Carbureted or EFI Engine) of the Service Manual.
Original Front Turn Signal Lamp Removal
NOTE
Cover the front fender with clean shop towels to prevent scratching. Damage to the finish could result.
Some earlier Front Turn Signal Relocation Kits called for butt-splicing of the turn signal wires. This should not be necessary for this kit. Follow the steps below to connect the new turn signal wires into the turn signal connectors.
  1. Models with handlebar-mounted turn signals: Refer to the instructions that come with the Front Turn Signal Relocation Kit to: Models with fork-mounted turn signals:
    1. separate the turn signal connector halves under the fuel tank.
    2. Make note of the wire colors and positions in each cavity of the Multilock socket housing leading from the turn signals. Refer to the wiring diagram and the AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual. Remove the terminals from only the socket housing. DO NOT remove the terminals from the pin housing leading from the vehicle harness.
    3. Remove and discard the original equipment front turn signals from the vehicle handlebars.
    1. Separate the turn signal connector halves under the fuel tank.
    2. Make note of the wire colors and positions in each cavity of the Multilock socket housing leading from the turn signals. Refer to the wiring diagram and the AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual. Remove the terminals from only the socket housing. DO NOT remove the terminals from the pin housing leading from the vehicle harness.
    3. Make note of the turn signal wire routing, and the location of cable straps that must be replaced. Remove the front turn signals from the turn signal clamps or stalks. Retain the clamps or stalks and all mounting hardware. The lamps may be discarded.
New Front Turn Signal Lamp Installation
3. ALL models: See Figure 1. Obtain the new left- and right-front turn signal lamps (Items 3 and 4) from the kit. The front lamps can be identified by the "D"-shaped mounting boss (D) on the housing. Identify left and right lamps by the visor and raised flames at the top.
4. Models that HAD handlebar-mounted turn signals installed: Refer to the instructions that come with the Front Turn Signal Relocation Kit. to install the new right- and left-front turn signal lamps. Models that HAD fork-mounted turn signals installed: install the new right- and left-front turn signal lamps to the front forks using the clamps or stalks and mounting hardware removed earlier. ALL models: Align the lamp housings so that the lenses will be aimed straight ahead for proper visibility. While holding each turn signal in position, tighten per the instructions in the Front Turn Signal Relocation Kit
5. Route the turn signal wiring to the area under the fuel tank per the notes made earlier or the instructions in the Relocation Kit.
6. Obtain four socket terminals (1) from this kit. Refer to the AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual, and follow the instructions under TERMINAL CRIMPS to crimp the socket terminals to the turn signal wire leads. Install each terminal into the correct cavity of the socket housing per the notes made earlier. Note that the right-side lamp violet wire gets installed into the cavity that originally contained a brown wire.
7. Connect the socket housing to the main harness pin housing under the fuel tank. Install cable straps (2) from the kit as needed to retain the turn signal wiring.
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
8. Re-install the fuel tank. Refer to FUEL TANK INSTALLATION in the appropriate section (Carbureted or EFI Engine) of the Service Manual. Proceed to Rear Turn Signal Lamp Removal for your model motorcycle.
Rear Turn Signal Lamp Removal and Installation (VRSC Models)
  1. Refer to the instructions that come with the Rear Turn Signal Mounting Kit. to remove and discard the original equipment rear turn signal lamps and supports from the license plate bracket.
  2. Obtain the components from the the Rear Turn Signal Mounting Kit, and the new left- and right-rear turn signal lamps (Items 5 and 6) and four socket terminals (1) from this kit. The rear lamps can be identified by the round mounting boss in a teardrop-shaped depression (E) in the housing. Identify left and right lamps by the visor and raised flames at the top.
  3. Refer to the instructions in the Rear Turn Signal Mounting Kit. to install the new rear turn signal lamps and supports to the license plate bracket. Align the lamp housings so that the lenses will be aimed straight rearward for proper visibility. While holding each turn signal in position, tighten the fasteners securely.
  4. Proceed to Final Assembly.
Original Rear Turn Signal Lamp Removal (All Models except VRSC)
  1. See TURN SIGNALS in the Service Manual for rear turn signal LAMP HOUSING REPLACEMENT instructions for.your model motorcycle. Remove the two screws securing the tail/stop lamp lens assembly, and remove the lens and bulb assembly. Depress the latches on the left-side and right-side two-place turn signal socket housings, and disconnect the socket housings from the circuit board.
  2. Remove the turn signal wires from the retention clips under the fender.
  3. Make note of the wire colors and positions in each cavity of the turn signal socket housings. Refer to the wiring diagram and the AMP MULTILOCK ELECTRICAL CONNECTORS section in the Service Manual. Remove the terminals from the socket housings.
  4. Remove the fasteners retaining the turn signal lamps and supports from the underside of the fender.
  5. Pull the old turn signal lamp wires and terminals through the hole in the fender to free the original lamps from the motorcycle. Separate the lamps from the supports, and set the supports and mounting hardware aside for reassembly. The lamps may be discarded.
New Rear Turn Signal Lamp Installation (All Models except VRSC)
9. See Figure 1. Obtain the new left- and right-rear turn signal lamps (Items 5 and 6) from the kit. The rear lamps can be identified by the round mounting boss in a teardrop-shaped depression (E) in the housing. Identify left and right lamps by the visor and raised flames at the top.
10. See TURN SIGNALS in the Service Manual for rear turn signal LAMP HOUSING REPLACEMENT instructions for.your model motorcycle. Feed the turn signal wires through the lamp supports removed earlier, and into the holes in the fender. Attach the turn signal lamps and supports to the vehicle with the fasteners removed earlier. Align the lamp housings so that the lenses will be aimed straight rearward for proper visibility. While holding each turn signal in position, tighten the fasteners to 10.8–13.6 N·m (96–120 in-lbs)
11. Route the turn signal wires to the tail/stop lamp, and feed the four turn signal wires out through the opening in the lower left of the tail/stop lamp base. At the wire ends, verify which wires come from the left or right turn signal.
12. Cut any excess length from the turn signal wires, leaving enough wire to easily affix the new terminals and insert the turn signal connectors into the tail lamp circuit board.
13. Obtain the four socket terminals (1) from the kit. Refer to AMP MULTILOCK ELECTRICAL CONNECTORS: CRIMPING INSTRUCTIONS in the Service Manual to attach a terminal to the end of each wire.
NOTE
Be sure to keep the wire pair from each turn signal properly identified through the following steps.
On XL models, the white connector is used for the left-side turn signal.
If necessary, carefully strip a short length of the shrink conduit from the ends of the wire pairs for ease of assembly to the connectors. Take care not to cut the wire insulation.
14. For each turn signal, insert the violet wire into cavity 1 of the two-place turn signal connector. Insert the black wire into cavity 2 of the connector.
15. Insert the left-side and right-side two-place turn signal connectors into the correct cavities in the tail lamp circuit board.
16. Position the turn-signal wires so they will not be pinched during tail/ stop lamp installation. Install the tail/ stop lamp lens to the lamp base with the two screws removed earlier. Tighten to 2.3–2.7 N·m (20–24 in-lbs)
17. Insert the turn signal wires into the retention clips under the fender.
18. Proceed to Final Assembly.
Final Assembly
1. Verify that the Ignition/Light Key Switch is turned to the OFF position. Models WITH maxi-fuse: Refer to the Service Manual and follow the instructions given to re-install the maxi-fuse. Models WITHOUT maxi-fuse: Re-connect the negative (-) battery cable per the instructions in the Service Manual. Apply a light coat of petroleum jelly or corrosion retardant material to the battery terminal.
NOTE
Check for proper lamp operation before riding the motorcycle. Weak, intermittent, or non-operational lamps indicate a poor connection or a short in the wires.
If the rear turn signals operate opposite of switch function, remove the tail lamp lens assembly and disconnect and reverse the turn signal electrical connectors in the tail lamp assembly. Test the rear turn signals again for proper function.
WARNING
Be sure that all lights and switches operate properly before operating motorcycle. Low visibility of rider can result in death or serious injury. (00316a)
2. Turn the Ignition/ Light Key Switch to ON to power the lamps, but do not start the motorcycle. Make sure that both turn signals, the tail/stop lamp assembly and the license plate lamp function properly.
SERVICE PARTS
Table 1. Service Parts Table
Kit
Item
Description (Quantity)
Part Number
Common items
for ALL kits
1
Socket terminal (10)
73191-96
2
Cable strap (6)
10181
Kit 69844-08
Chrome Flames,
Amber lens,
Domestic
additional contents
3
Turn signal assembly, front (left)
69891-08
4
Turn signal assembly, front (right)
69890-08
5
Turn signal assembly, rear (left)
69893-08
6
Turn signal assembly, rear (right)
69892-08
Kit 69845-08
Chrome Flames,
Amber lens, HDI
additional contents
3
Turn signal assembly, front (left)
69887-08
4
Turn signal assembly, front (right)
69886-08
5
Turn signal assembly, rear (left)
69889-08
6
Turn signal assembly, rear (right)
69888-08
Kit 69945-08
Chrome Flames,
Smoked lens,
Domestic
additional contents
3
Turn signal assembly, front (left)
69957-08
4
Turn signal assembly, front (right)
69956-08
5
Turn signal assembly, rear (left)
69959-08
6
Turn signal assembly, rear (right)
69958-08
Kit 69960-08
Chrome Flames,
Smoked lens, HDI
additional contents
3
Turn signal assembly, front (left)
69947-08
4
Turn signal assembly, front (right)
69946-08
5
Turn signal assembly, rear (left)
69949-08
6
Turn signal assembly, rear (right)
69948-08
Additional service parts available:
A
Bulb (clear), S-8, dual contact (domestic)
Bulb (clear), S-8 (E-approved), single contact (HDI)
Bulb (amber), S-8, dual contact (domestic)
Bulb (amber), S-8 (E-approved), single contact (HDI)
68168-89A
68163-84
69331-02
69348-03
B
Lens (amber)
Lens (smoked)
69022-03
69206-03
C
Bulb (clear), S-8, single contact (domestic)
Bulb (clear), S-8 (E-approved), single contact (HDI)
Bulb (amber), S-8, single contact (domestic)
Bulb (amber), S-8 (E-approved), single contact (HDI)
68572-64B
68163-84
69330-02
69348-03
Items mentioned in text, but not included in kit:
D
"D"-shaped mounting boss on front lamp housing (left side shown)
E
Round mounting boss in teardrop-shaped depression in rear lamp housing (left side shown)

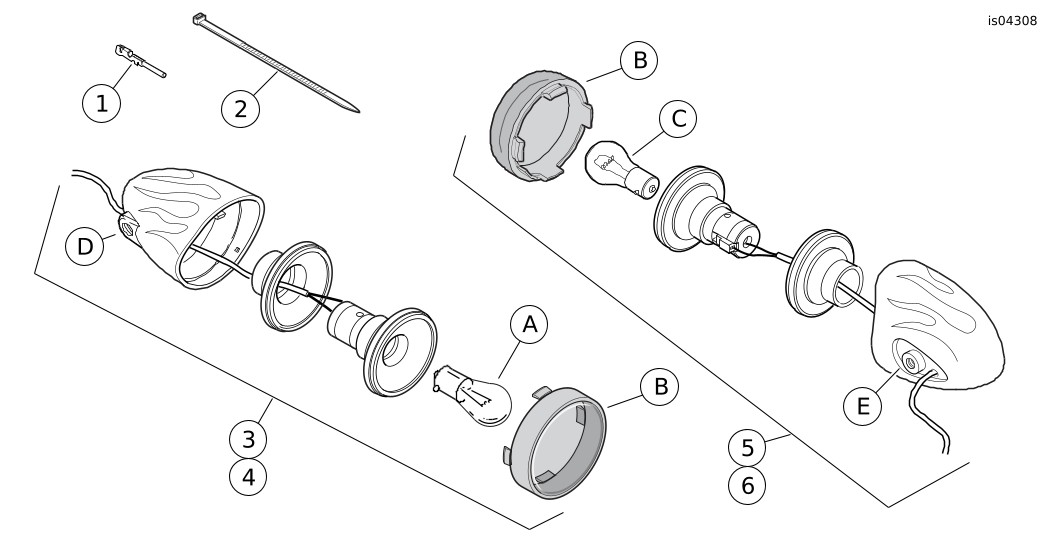

Figure 1. Service Parts, Turn Signal Kit
