SCREAMIN' EAGLE PRO TC 113 (1856 CC) CONVERSION KIT
J044072007-06-29
GENERAL
Kit Number
27526-08 (Silver) and 27525-08 (Black)
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
NOTE
This kit cannot be installed on 110ci CVO models or any Twin Cam models previously upgraded to a 110ci motor.
This kit does not fit 2008 Dyna models.
Additional Parts Required
This kit requires the separate purchase of the Cam Drive Retention Kit (25566-06). The kit also requires an ACR Overlay Wire Harness Kit (70623-06) except for 2008 Touring models which require ACR overlay harness kit 70623-08. These kits are available from a Harley-Davidson dealer.
The separate purchase of Crankcase Boring Tool Kit (94419-06) is recommended for installing this high performance engine conversion kit.
NOTE
Crankcase Boring Tool Kit (94419-06) includes a modified top center screw (1093) to ensure the crankcase boring tool does not get damaged when installing the conversion kit. This screw can also be purchased separately from a Harley-Davidson dealer for those who wish to use their own boring fixture.
Please see appropriate sections in Service Manual for the special tools required to install this kit.
Proper installation of this kit also requires ECM recalibration using EFI Race Tuner Kit. Refer to Screamin' Eagle Pro Catalog or contact a Harley-Davidson dealer.
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
Kit Contents
NOTE
This conversion kit is intended for High Performance or Racing applications only and is not legal for sale or use on pollution controlled motor vehicles. This kit may may reduce or void the limited vehicle warranty. Engine related performance parts are intended for the experienced rider only.
REMOVAL
Prepare for Service
| 1. | Position motorcycle on a suitable lift. NOTE If vehicle is equipped with Harley-Davidson Smart Security System, see Owner's Manual for instructions to disarm the system. | |
| 2. | Remove seat according to the instructions in the Service Manual. | |
| WARNING When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a) | ||
| 3. | Remove fuel tank according to the instructions in the Service Manual. | |
| 4. | Remove Maxi® fuse. Refer to Service Manual for your motorcycle. |
Remove Engine Components
- Remove existing air cleaner assembly. Refer to AIR CLEANER REMOVAL in Service Manual.
- Remove existing exhaust system. Refer to EXHAUST SYSTEM REMOVAL in Service Manual.
- Remove engine from chassis following the instructions in the Service Manual.
- Disassemble engine top end and bottom end. Refer to appropriate ENGINE sections in Service Manual.
- Remove existing clutch diaphragm spring. Refer to CLUTCH REMOVAL in Service Manual.
MACHINE CRANKCASE
NOTICE
The procedures in this instruction sheet should be performed by one experienced in precision measuring techniques. Failure to meet tolerances called for in this instruction sheet can result in engine damage. (00511b)
Crankcase Boring Preparation
NOTE
During final reassembly of the engine, Harley-Davidson recommends replacing the Original Equipment cylinder studs with Screamin' Eagle High Tensile Studs (16505-01).
- Remove cylinder studs from the engine crankcase.
- Mask off all bearings and oil holes to prevent debris and contaminants from entering those areas.
- Inspect and clean engine case mating surfaces.
- Refer to Instruction Sheet -J02635 for crankcase boring and modifications to install Bigger Bore (4.060 inch) Cylinder Kit.
NOTE
To prevent damage to crankcase boring tool, it is important to replace the top center screw with a modified top center screw (1093). This screw is included in the Crankcase Boring Tool Kit (94419-06) and can be purchased separately from a Harley-Davidson dealer.
INSTALLATION
Install Engine and Clutch Components
- See Figure 3. Inspect camshaft needle bearings (7) and replace if necessary.
- Install engine in chassis following the instructions in the Service Manual.
- Install clutch diaphragm spring from kit. Refer to CLUTCH INSTALLATION in Service Manual.
- Install exhaust system. Refer to EXHAUST SYSTEM INSTALLATION in Service Manual.
- Install air cleaner assembly. Refer to AIR CLEANER INSTALLATION in Service Manual.
Install ACR Overlay Wire Harness
Refer to Instruction Sheet in ACR Overlay Wire Harness Kit.
Final Assembly
| 1. | Install Maxi® fuse. Refer to Service Manual for your motorcycle. | |
| 2. | Install fuel tank according to the instructions in the Service Manual. | |
| 3. | Install seat according to the instructions in the Service Manual. | |
| WARNING After installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b) NOTICE You must recalibrate the ECM when installing this kit. Failure to properly recalibrate the ECM can result in severe engine damage. (00399b) | ||
| 4. | Download the new ECM calibration using EFI Race Tuner Kit. Refer to Screamin' Eagle Pro Catalog or contact a Harley-Davidson dealer. | |
| 5. | Start and run engine. Repeat several times to ensure proper operation. |
Operation
Refer to BREAK-IN RIDING RULES in the Owner's Manual for instructions to break-in the motorcycle.
SERVICE PARTS

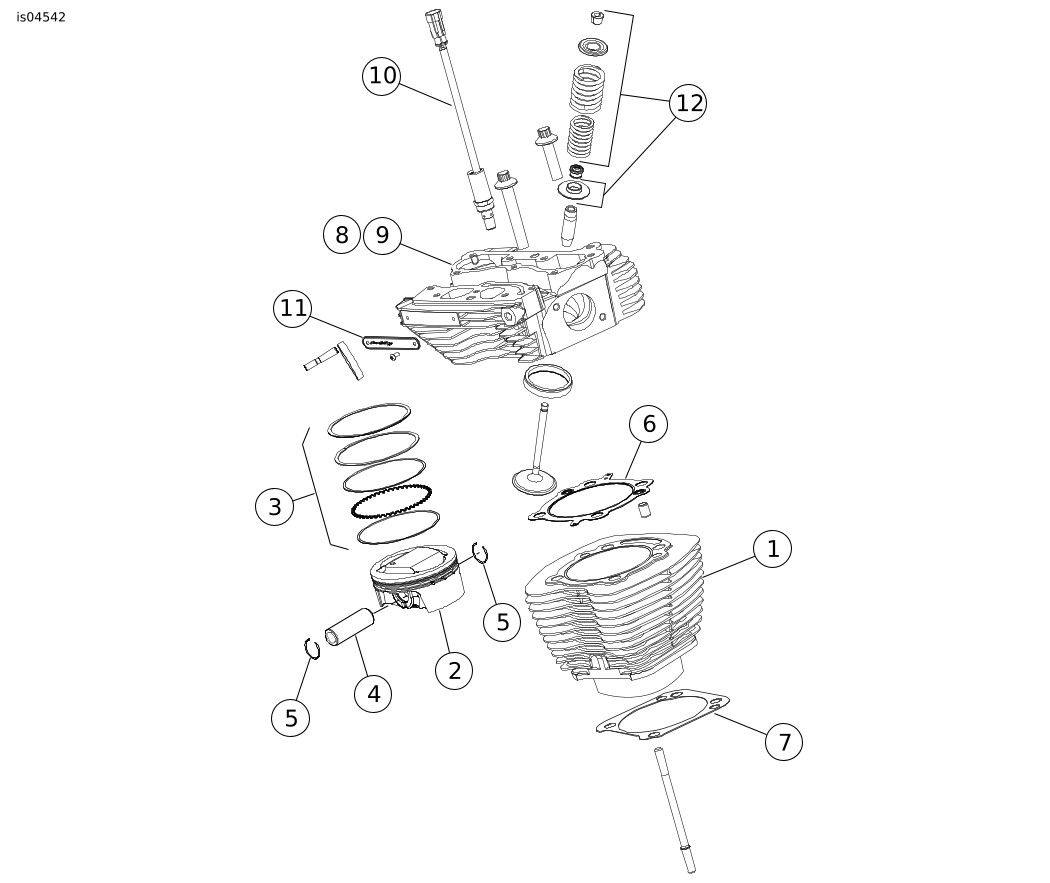

Figure 1. Service Parts: Screamin' Eagle Pro TC 113 (1856 cc) Conversion Kit
Table 1. Service Parts Table: Screamin' Eagle PRO TC 113 cubic inch (1856 cc) Conversion Kit
Item | Description (Quantity) | Part Number | Item | Description (Quantity) | Part Number | |
|---|---|---|---|---|---|---|
1 | 4.060 cylinder assembly (Black) (2) (used in Kit 16550-04) | 16562-04 (front) | 7 | Gasket, cylinder base (2) | 16736-04 | |
16563-04 (rear) | 8 | Cylinder head Assembly, front (black) | Not Sold Separately | |||
4.060 cylinder assembly (Silver) (2) (used in Kit 16551-04) | 16564-04 (front) | Cylinder head Assembly, front (silver) | Not Sold Separately | |||
16580-04 (rear) | 9 | Cylinder head Assembly, rear (black) | Not Sold Separately | |||
2 | Piston (2) | Not Sold Separately | Cylinder head Assembly, rear (silver) | Not Sold Separately | ||
3 | Piston ring set (2) | 22526-04 | 10 | Automatic compression release (ACR) | 28861-07 | |
4 | Piston pin (2) | 22455-03 | 11 | Medallion, cylinder head (2) | 16897-07 | |
5 | Piston pin circlip (4) | 22456-03 | 12 | Race valve spring kit | 18281-02 | |
6 | Gasket, cylinder head (2) | 16104-04 | ||||
Notes: Cylinder kits (16550-04 and 16551-04) include items 1, 6 and 7. Piston Kit (22571-07) includes items 2 through 5. Item 5 is also included in Engine Overhaul Gasket Kit (17053-99B). For cylinder head assembly (8, 9) components, refer to 2008 FLHTCUSE3 (99428-08), 2008 FXDSE2 (99430-08) and 2008 FXSTSSE2 (99458-08) Parts Catalog for service part numbers (machined with seats and guides). | ||||||
Figure 2. Service Parts: Screamin' Eagle Pro TC 113 (1856 cc) Conversion Kit
Table 2. Service Parts: Screamin' Eagle Pro TC 113 (1856 cc) Conversion Kit
Item | Description (Quantity) | Part Number | Item | Description (Quantity) | Part Number | |
|---|---|---|---|---|---|---|
1 | Gasket, rocker cover base (2) | 16719-99A | 9 | Gasket, breather (2) | Not Sold Separately | |
2 | Gasket, rocker cover top (2) | 17386-99A | 10 | Umbrella valve (2) | 26858-99 | |
3 | Gasket, tappet cover (2) | 18635-99B | 11 | Filter element, breather (2) | 63815-99 | |
4 | O-ring, middle push rod cover (4) | 11132A | 12 | Seal, EFI intake (2) (Not Shown) | 29995-86B | |
5 | O-ring, lower push rod cover (4) | 11145A | 13 | Seal, map sensor (Not Shown) | 11291 | |
6 | O-ring, upper push rod cover (4) | 11293 | 14 | Spring, clutch diaphragm (Not Shown) | 37951-98 | |
7 | O-ring, rocker arm support (2) | 11270 | Notes: Breather Gasket Kit (17162-03) includes 8 through 11. Items 1 through 13 are included in Engine Overhaul Kit (17053-99B). | |||
8 | Gasket, breather (2) | Not Sold Separately | ||||
Figure 3. Service Parts: Screamin' Eagle Pro TC 113 (1856 cc) Conversion Kit
Table 3. Service Parts Table: Screamin' Eagle Pro TC 113 (1856 cc) Conversion Kit
Item | Description (Quantity) | Part Number | Item | Description (Quantity) | Part Number | |
|---|---|---|---|---|---|---|
1 | Gasket, cam cover | 25244-99A | 10 | O-ring, crankcase ring dowel (2) | 26432-76A | |
2 | Washer | Not Sold Separately | 11 | O-ring, piston cooling (2) | 11140 | |
3 | Cap screw, flanged | Not Sold Separately | 12 | Retaining ring, internal | 35114-02 | |
4 | Retaining ring | 11461 | 13 | O-ring, crankcase dowel (2) | 11273 | |
5 | Camshaft, front | Not Sold Separately | 14 | Seal, main bearing oil | 12068 | |
6 | Camshaft, rear | Not Sold Separately | 15 | Screw, top center crankcase, long | 1085 | |
7 | Bearing, needle (2) (must be purchased separately, if needed) | 9215 | 16 | Screw, modified, crankcase boring (Not Shown) (purchased separately) | 1093 | |
8 | O-ring, oil pump to cam plate | 11293 | 17 | Flywheel bearing, sprocket shaft (not shown) | 24004-03A | |
9 | O-ring, cam plate to crankcase (2) | 11301 | ||||
Notes: Cylinder kits (16550-04 and 16551-04) include items 15 and 17. Cam Drive Retention Kit (25566-06) includes 2 and 3. Items 8 through 14 are included in Engine Overhaul Gasket Kit (17053-99B). Cylinder Kit includes items 15 and 17. Items 5 and 6 available in Cam Kit (25476-06). | ||||||
