HARD SADDLEBAG INSTALLATION KIT
J046442007-12-13
GENERAL
Kit Numbers
90925-08, 90948-00
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Table 1. Kit Descriptions
Kit Number
Kit Information
90925-08
Basic Kit
  • Included in all kits with saddlebags.
  • For motorcycle models equipped with hard saddlebags.
  • Used to replace hardware that should not be re-used.
90948-00
Complete Kit
  • Must be purchased separately for motorcycle models equipped with leather or soft saddlebags.
  • Used to replace all hardware, faceplates, latches and mounting brackets.
  • Does not include liners, rub bars, tool kit, locks or keys.
Additional Parts Required
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
See Figure 1 and Table 3.
REMOVAL
  1. Remove saddlebag following the instructions in the appropriate Service Manual.
  2. See Figure 1 and Table 2. The following stock items can be discarded:
Table 2. Remove Parts:
Item
Description (Quantity)
1
Rubber grommet (4)
2
Latch screws (4)
3
Screw, button head (8)
4
Screw, pan head (10)
5
Screw, TORX® (4)
6
Nut, hex (2)
9
Wear plate, saddlebag cover (4)
INSTALLATION
  1. Install the saddlebag following the instructions in the appropriate Service Manual using the hardware supplied in this kit.
SERVICE PARTS

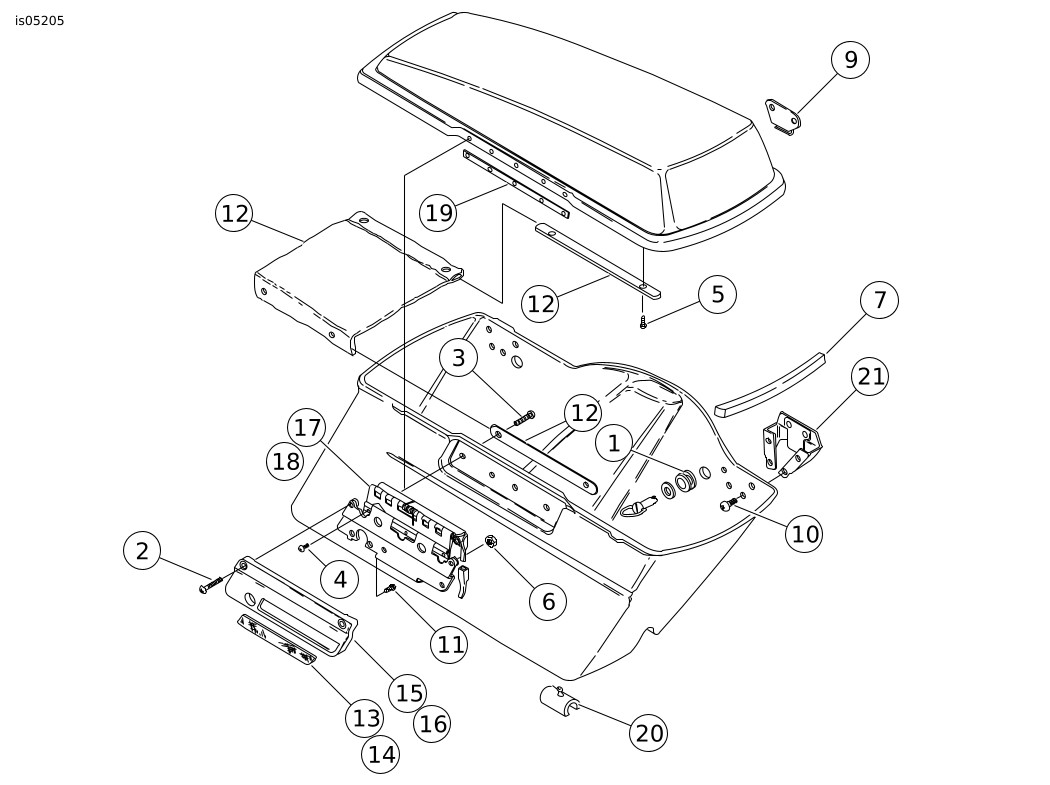

Figure 1. Service Parts: Hard Saddlebag Installation Kit
Table 3. Service Parts Table
Item
Description (Quantity)
Part Number
Kit Number 90925-08 (includes items 1-9)
Kit Number 90948-00 (includes items 1-21)
1
Rubber grommet (4)
11464
2
Latch screw with lock patch (4)
2524B
3
Screw, button head TORX with lock patch (8)
3592A
4
Screw, pan head with lock patch (10)
3595
5
Screw with lock patch (4)
5233
6
Nut, hex (2)
7608
7
Gasket, saddlebag cover (2)
90675-93A
8
Label, saddlebag (not shown) (2)
90820-93C
9
Wear plate, saddlebag cover (4)
90962-93
10
Screw (16)
3593
11
Screw pan head TORX (4)
3656
12
Tether, saddlebag cover (2)
53567-93
13
Reflector, red, right side
59287-92
14
Reflector, red, left side
59288-92
15
Faceplate, chrome saddlebag, right side
90601-93A
16
Faceplate, chrome saddlebag, left side
90603-93A
17
Latch, saddlebag right side
90665-93
18
Latch, saddlebag left side
90664-93
19
Backing plate, saddlebag (2)
90700-93
20
Cushion, saddlebag support (4)
90764-93
21
Bracket, saddlebag cover (4)
90958-93
