Chrome Rear Fender Support Hardware Kit
J042502006-11-29
GENERAL
Kit Number
94560-07
Models
For model fitment information, please see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
This kit also requires the separate purchase of Loctite® 243 (blue) (Harley-Davidson Part Number 99642-97) which can be purchased from any Harley-Davidson Dealer.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references Service Manual information. A Service Manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
See Figure 1 and Table 1.
INSTALLATION
NOTE
When performing this installation, be careful not to scratch nearby painted or chrome surfaces.
NOTE
Remove and replace one screw before removing the next.
WARNING
Be sure fasteners do not extend inward beyond fender mounting bracket. Fastener contact with tire can lead to premature tire failure, which could result in death or serious injury. (00389a)
  1. Remove and discard one rear fender attaching screw from the bottom front of the rear fender support.
  2. See Figure 1. Obtain one of the 1-1/4 inch (32 mm) long chrome button head TORX® screws (1) and chrome washers (2) from the kit.
  3. Apply Loctite 243 (blue) (Harley-Davidson Part Number 99642-97) to the threads of the screw. Insert the screw threads through the counterbore side of the chrome washer and the hole in the fender support, and into the hole in the motorcycle frame. Tighten the screw to 21-27 ft-lbs (28.5-36.6 Nm).
  4. Repeat Steps 1, 2 and 3 for the second and third screws at the bottom and center of the fender support.
  5. Repeat Steps 1 through 4 for the opposite side of the motorcycle.
SERVICE PARTS

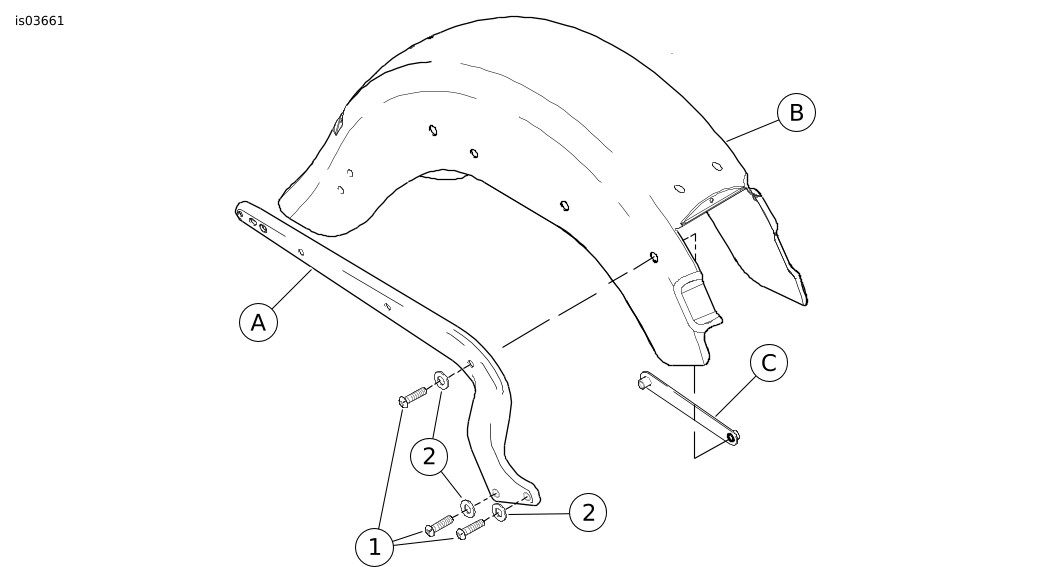

Figure 1. Service Parts: Chrome Rear Fender Support Hardware Kit
Table 1. Service Parts Table: Chrome Rear Fender Support Hardware Kit
Item
Description (Quantity)
Part Number
1
Screw, button head, TORX®, chrome, 3/8-16 x 1-1/4 inch (32 mm) (6)
94606-98
2
Washer, chrome (6)
6450
Items mentioned in text, but not included in kit:
A
Support (right side shown)
B
Fender, rear
C
Bracket, fender mounting, front
