Screamin' Eagle Race Clutch
J045612010-08-20
GENERAL
Kit Number
37976-08A
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
This kit can be installed using either original equipment or Screamin' Eagle® clutch pads.
Additional Parts Required
This kit can be installed using either original equipment or Screamin' Eagle® clutch friction packs.
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
INSTALLATION
NOTE
Refer to applicable Harley-Davidson service manual for installation of clutch, but note the following exceptions:
Locknuts must be replaced with new locknuts each time they are removed.
| 1. | See Figure 1. After installing the Screamin' Eagle clutch hub into the original clutch shell, install the bearing retaining clip into slot "A" for model years '11 and later. Use the retaining ring in slot "B" for model years '06-'10 for Dyna and '07-'10 for Softails and Touring. | |||||||||
| 2. | See Figure 3 and Table 2. The clutch assembly replaces the original equipment single diaphragm spring with six coil springs. The coil springs allow for easy adjustment of clutch force. The total clutch force is adjustable from 0 to 570 pounds (0 to 258.5 kilograms). The force is increased or decreased by turning the locknuts (2) which retain the coil springs to the pressure plate. | |||||||||
| 3. | Based on the engine's torque output at the rear wheel, determine the total spring force and spring height required (See Spring Force Calculations Table.). | |||||||||
| 4. | See Figure 2. Tighten locknuts (1) in a cross-wise pattern until each spring bottoms out. NOTE After final adjustment, all springs must be at the same height. | |||||||||
| 5. | Refer to Table 1. Determine how many turns the locknuts must be backed off for your application, then loosen locknuts the indicated number of turns in a cross-wise pattern. |

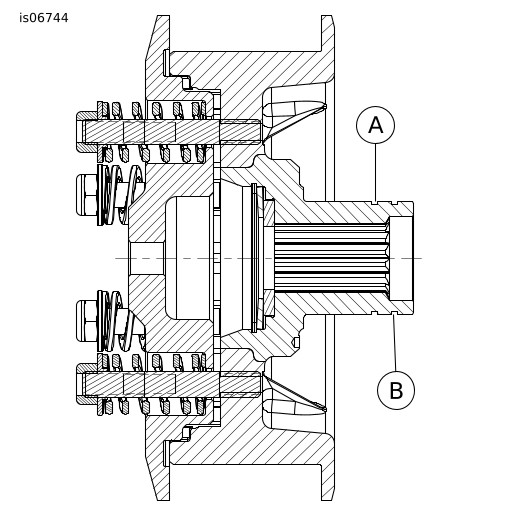

Figure 1. Retaining Ring Locations

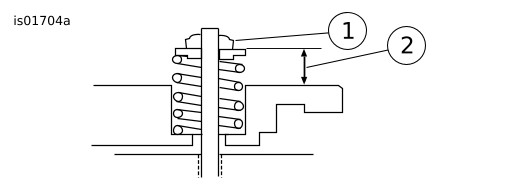

Figure 2. Measuring Spring Height | ||||||||
| 6. | The clutch spring height (4) and cable free play must be checked and adjusted periodically to compensate for friction plate wear. These adjustments are especially important during the friction plates break-in period. Also, look for signs of clutch slippage and increase the total spring force accordingly. |
Table 1. Clutch Spring Adjustment
Rear Wheel Torque | Spring Force | Number of Turns Back From Bottom |
|---|---|---|
52 ft-lbs (70.5 Nm) | 190 lbs (86.1 kg) | 9.25 |
63 ft-lbs (85.4 Nm) | 214 lbs (97.0 kg) | 9.00 |
73 ft-lbs (98.9 Nm) | 237 lbs (107.5 kg) | 8.75 |
84 ft-lbs (113.8 Nm) | 261 lbs (118.3 kg) | 8.50 |
94 ft-lbs (127.4 Nm) | 285 lbs (129.2 kg) | 8.25 |
105 ft-lbs (142.3 Nm) | 309 lbs (140.1 kg) | 8.00 |
115 ft-lbs (155.9 Nm) | 332 lbs (150.5 kg) | 7.75 |
126 ft-lbs (170.8 Nm) | 356 lbs (161.4 kg) | 7.50 |
136 ft-lbs (184.3 Nm) | 380 lbs (172.3 kg) | 7.25 |
147 ft-lbs (199.3 Nm) | 404 lbs (183.2 kg) | 7.00 |
157 ft-lbs (212.8 Nm) | 427 lbs (193.6 kg) | 6.75 |
168 ft-lbs (227.7 Nm) | 451 lbs (204.1 kg) | 6.50 |
178 ft-lbs (241.3 Nm) | 475 lbs (215.4 kg) | 6.25 |
189 ft-lbs (256.2 Nm) | 499 lbs (226.3 kg) | 6.00 |
199 ft-lbs (269.8 Nm) | 522 lbs (236.7 kg) | 5.75 |
210 ft-lbs (284.7 Nm) | 546 lbs (247.6 kg) | 5.50 |
220 ft-lbs (298.2 Nm) | 570 lbs (258.5 kg) | 5.25 |
SERVICE PARTS
Figure 3. Service Parts: Screamin' Eagle Race Clutch
Table 2. Service Parts
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Clutch center assembly | 37978-08 |
2 | Lock nut, nylon insert (6) | 7727 |
3 | Spring cap (6) | 37987-08 |
4 | Clutch spring (6) | 37988-08 |
5 | Pressure plate | 37979-08 |
