RAZOR-PAK SPACER INSTALLATION ON TRIKE MODELS
J050792010-01-25
GENERAL
Kit Number
83294-10
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Additional Parts Required
Loctite 243 threadlocker and sealant (blue) (P/N 99642-97).
A Razor-Pak is required. See a Harley-Davidson dealer.
A Trike Tour-Pak rack may be required if not already equipped.
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
INSTALLATION
| 1. | If equipped, remove the existing Tour-Pak luggage from the installed rack according to service manual instructions. If not equipped with a Tour-Pak, install a Tour-Pak rack for your Trike model. Discard the screws provided with the rack and use the longer mounting screws provided with this kit. | |
| 2. | If not previously performed, drill out the mounting holes in the Razor-Pak luggage using instructions provided with the Razor-Pak kit. Two positions are available but only one set of four holes is required to be drilled. | |
| 3. | See Figure 1. Place the spacers (1) on top of the Tour-Pak rack (A) aligning the mount holes in an orientation that places the spacer parallel to the rack sides. Spacers are symmetric so flipping a spacer over may provide the alignment. If movement of the spacers make aligning the Razor-Pak holes difficult, the spacers can also be adhered to the Tour-Pak rack with either tape or adhesive, neither provided in this kit. | |
| 4. | Align and install the Razor-Pak to the Tour-Pak with spacers in place. | |
| 5. | Apply Loctite 243 (blue) to the fastener threads of each screw (2). | |
| 6. | Install screws (2) and washers (3) in the four fastener locations as shown. Torque the screws to 6.77–9.49 N·m (60–84 in-lbs). |
SERVICE PARTS

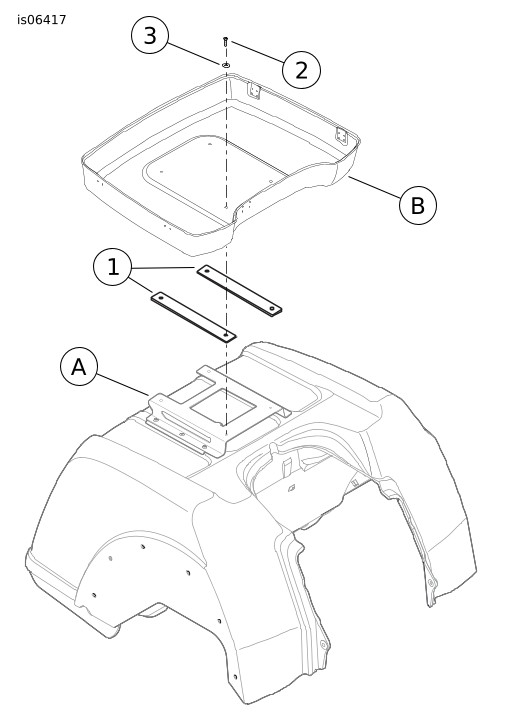

Figure 1. Service Parts: Trike Razor-Pak Spacer Installation
Table 1. Service Parts Table: Trike Razor-Pak Spacer Installation
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Spacer, Razor-Pak | Not Sold Separately |
2 | Screw, 1/4-20 x 7/8 in. | 4015 |
3 | Washer, wide 1/4 in. Nom | 6253W |
Items mentioned in text, but not included in kit: | ||
A | Tour-Pak rack | 54144-10 |
B | Razor-Pak Tour-Pak | 79175-XX |
