SOFTAIL CARBURETED FUEL TANK TOP PLATE KIT
J054762011-05-02
GENERAL
Kit Number
61000051
Models
2000 and later FLSTC, FLSTF, FXST, FXSTB and FXSTS models with carburetors.
Additional Parts Required
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
INSTALLATION
| 1. | See the service manual and remove the fuel tank. NOTE Do not apply any type of sealant to the gasket. | |
| 2. | See Figure 2. Install the top plate (1) with the attached gasket (2) onto the top of the fuel tank. | |
| 3. | See Figure 1. Secure the top plate to the fuel tank with ten sealing screws (3). Tighten to 2–2.7 N·m (18–24 in-lbs) following the torque sequence shown. | |
| 4. | See the service manual and install the new fuel tank. With the exception of the installation of the top plate assembly, this fuel tank and all other removed components will install in the same manner as the original equipment (OE) fuel tank. |

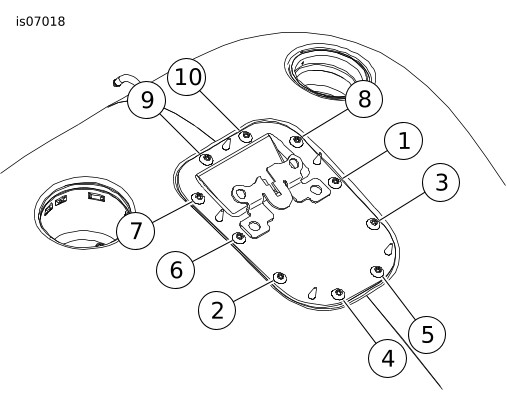

Figure 1. Sealing Screw Torque Sequence
SERVICE PARTS

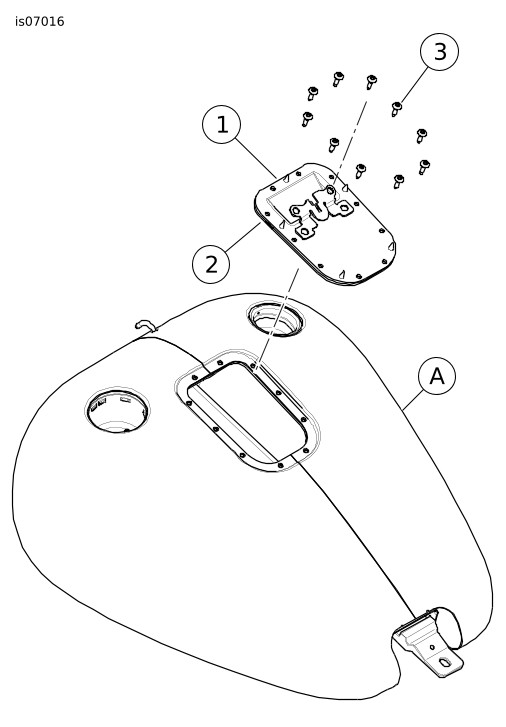

Figure 2. Service Parts: Top Plate Assembly Kit
Table 1. Service Parts
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Top plate assembly | Not Sold Separately |
2 |
| 61381-02 |
3 | Sealing screw, #8-32 (10) | 1311D |
Items mentioned in text, but not included in kit. | ||
A | Fuel tank | |
