VENTED QUICK RELEASE DETACHABLE WINDSHIELD KIT
J054892011-07-05
GENERAL
Kit Number
57400028
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
Kit Contents
See Figure 6 and Table 1.
INSTALLATION
Prepare Motorcycle - All Models Except FXSTB
NOTE
Cover the front fender and the front of the fuel tank with clean shop towels to prevent scratching. Damage to the finish could result.
1. Relocate clutch cable to the inside of the handlebars as follows:
2. See Figure 1. Slide rubber boot off cable adjuster. Adjuster is located approximately halfway along clutch cable by the front frame downtube.
3. Holding cable adjuster with 1/2 inch wrench, loosen jam nut using a 9/16 inch wrench. Back jam nut away from cable adjuster. Move adjuster toward jam nut to introduce a large amount of free play at the hand lever.
4. Remove small snap ring from pivot pin groove at bottom of clutch lever bracket. Remove pivot pin and clutch hand lever from bracket. Remove anchor pin and clutch cable eyelet from clutch hand lever.
5. See Figure 2. Reroute clutch cable to the inside of the handlebars and reconnect clutch cable to clutch lever.
6. See Figure 3. Turn cable adjuster away from jam nut until slack is eliminated at hand lever. Pull clutch cable ferrule away from clutch lever bracket to check free play. Turn cable adjuster as necessary to obtain 1/16 to 1/8 inch (1.6-3.2 mm) free play between end of cable ferrule and clutch lever bracket.
7. Hold adjuster with 1/2 inch wrench. Using 9/16 inch wrench, tighten jam nut against cable adjuster. Cover cable adjuster mechanism with rubber boot.
1Rubber boot
2Cable adjuster
3Jam nut
4Cable end
Figure 1. Clutch Cable Adjuster
1Clutch cable
Figure 2. New Clutch Cable Routing
Figure 3. 1/16 - 1/8 inch (1.6 - 3.2 mm) Clutch Cable Free Play
WARNING
After relocating clutch cable, check that clutch hand lever opens and closes smoothly when handlebars are turned fully left or right. Slow clutch lever response could result in loss of control and death or serious injury (00424d)
WARNING
Be sure that steering is smooth and free without interference. Interference with steering could result in loss of vehicle control and death or serious injury. (00371a)
8. If necessary, reposition the clutch cable mount ties attached to the frame downtube to best allow the clutch cable to move naturally when the handlebars turn fully from left to right fork locks. Cycle the hand lever several times to confirm.
Install the Windshield - All Models
1. See Figure 4. Remove the windshield sub-assembly from the packaging and place face down on a clean, soft surface with the mount brackets facing upward.
2. See Figure 6 and Table 1. Remove both the clamp and hardware kits from the packaging, and separate similar parts in preparation for assembly. Note that the lower clamps are exactly alike, and the left and right upper clamps can be identified by extensions that point upwards.
3. See Figure 5. Assemble the clamp assemblies and hardware stacks.
WARNING
The cupped side of the Belleville (cone) washers must face each other and sandwich the windshield mount brackets at each mount point. Failure to orient washers correctly can reduce windshield's ability to break away in a collision, which could result in death or serious injury. (00422b)
4. One clamp at a time, with the clamp facing upward and inboard of the windshield bracket (2), tighten the shoulder bolts (1) enough to hold the clamp orientation to the windshield during mounting of the windshield to the motorcycle. The bolts will be fully tightened later.
NOTE
Keep front wheel straight to prevent brackets from scratching fuel tank.
5. Make sure all four clamps are in the open position, then bring the windshield (with the clamp side away from you) to the front of the motorcycle.
NOTE
The polycarbonate windshield is fairly flexible and can be bent to spread the clamps away from the headlamp to ease installation to the motorcycle. Take care not to scratch the headlamp housing with the clamps while positioning the windshield to the fork sliders.
1Windshield mounting brackets
Figure 4. Windshield Mounting Brackets
1Shoulder bolt
2Windshield mounting brackets
3Cup washer spacer
4Belleville washers (cupped sides facing each other)
Figure 5. Windshield Mounting Clamp
6. Straddle the front fender. Center the windshield around the headlamp and seat the clamps onto the fork sliders.
7. Starting at the bottom (either side) and with the shoulder bolts just a little more than finger tight, close each clamp, taking note that the clamps self-align to the fork sliders and to each other.
NOTICE
Do not exceed recommended torque when installing mounting screws. Damage to windshield can result. (00385a)
8. With the windshield clamps now clamped to the fork sliders, make sure that the shoulder portion of the shoulder bolts are fully seated in each windshield bracket location. Torque each shoulder bolt to 6.7 N·m (60 in-lbs).
9. Turn the handlebars fully to the left and right fork stops to confirm that the throttle cables move freely.
Removing the Windshield - All Models
  1. To remove the windshield, open the four clamps in any sequence. Take care to not scratch the headlamp housing or fuel tank as noted during installation.
  2. When storing the windshield, place in a location where the windshield clamps will receive the greatest protection. Keep from locations where the windshield may be impacted or dropped. Do not stack anything on top of the assembly.
  3. Prior to re-installation after any storage period, inspect the clamps and hardware for fastener preload and cleanliness. Each clamp should have a pair of rubber gaskets in the clamp saddle that mates to the fork slider, and should cycle open and closed freely.
Care and Cleaning
NOTICE
Polycarbonate windshields/wind deflectors require proper attention and care to maintain. Failure to maintain polycarbonate properly can result in damage to the windshield/wind deflector. (00483e)
  • Do not use benzene, paint thinner, gasoline or any other type of harsh cleaner on the windscreen/windshield. Doing so will damage the surface.
  • Do not clean polycarbonate in hot sun or high temperature.
  • Powdered, abrasive or alkaline cleanser will damage the windscreen/windshield..
  • Sunlight reflections off of the inside curvature of a windscreen/windshield can, at certain times of the day, cause extreme heat build-up on motorcycle instruments. Exercise care in parking. Park facing the sun, place an opaque object over the instruments, or adjust the windscreen/windshield to avoid reflections.
  • Do not use benzene, paint thinner, gasoline or any other cleaning agents on the rubber bushings. Doing so will damage the bushing surfaces.
NOTE
Covering the windshield with a clean, wet cloth for about 15 minutes before washing will make dried bug removal easier.
SERVICE PARTS

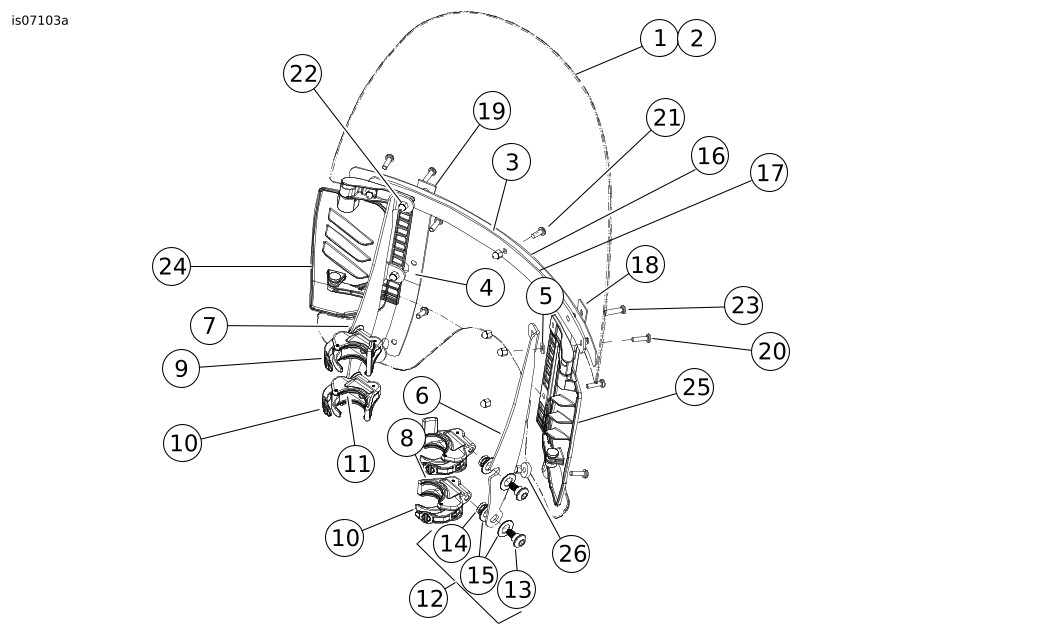

Figure 6. Service Parts: Vented Detachable Windshield
Table 1. Service Parts: Windshield Kits
Item
Description (Quantity)
Part Number
Item
Description (Quantity)
Part Number
1
Windshield, service kit (includes items 2-4)
57400119
14
Spacer, cup washer
Not Sold Separately
2
Windshield
Not Sold Separately
15
Belleville washer (2)
Not Sold Separately
3
Tape, horizontal (2)
58052-78
16
Brace, horizontal, outer
57400046
4
Tape, vertical (2)
59804-05
17
Brace, horizontal, inner
58050-78A
5
Washer (2)
6119
18
Brace, vertical, right
59809-05
6
Bracket, windshield mount, right
59855-05
19
Brace, vertical, left
59808-05
7
Bracket, windshield mount, left
59844-05
20
Screw, button head TORX®, lock patch, 12-24 x 13/16 inch (6)
2452
8
Clamp assembly, right upper (includes two of item 11)
59868-05
21
Screw, button head TORX, lock patch, 12-24 x 5/8 inch (1)
2921
9
Clamp assembly, left upper (includes two of item 11)
59859-05
22
Acorn nut, #12-24 (chrome) (9)
7651A
10
Clamp assembly (2) (includes two of item 11)
58740-05
23
Screw (2)
Not Sold Separately
11
Gasket (8) (two per clamp)
58791-04
24
Vent assembly, left
57400030
12
Hardware kit, windshield mount (4) (includes items 13 through 15)
58790-04
25
Vent assembly, right
57400029
13
Shoulder screw, button head
Not Sold Separately
26
Spacer (2)
Not Sold Separately
NOTE: Appearance of actual components may vary from illustration.
